Rechargeable Wireless Optical Mouse
MWP33-LW USER’S MANUAL
Important Ergonomic Information
Some experts believe that using any mouse or trackball may cause serious injury
to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in
these areas, see a qualified health professional.
TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS:
Take frequent breaks, get up and walk around several times every hour.
Vary your tasks throughout the day.
Keep your shoulders relaxed with your elbows at your side. Position your
keyboard and mouse so you do not have to reach.
Adjust your chair and keyboard so your upper arms and wrists are straight.
Avoid resting your wrists on sharp edges.
System Requirement
Mouse compatible with standard Microsoft OS
3rd button and wheel function require Win98/ ME/ 2000/ XP
4th & 5th button require Win2000/XP, or required to install additional driver
If your computer’s operating system is Windows 98/ 98SE, please prepare
the Windows98 or 98SE compact disk for system’s request during the
installation of mouse.
Rechargeable Wireless Optical Mouse Page 2 of 12 2nd Edition
Getting Started
Congratulations on your purchase of an 800dpi Rechargeable Wireless
Optical Presenter Mouse. By using the advanced RF technology a 360°
operation is possible and no line-of-sight is required between the receiver and
the mouse. The 800dpi high resolution will bring users the best operation
accuracy and efficiency, especially when the pixel of display over 1024*768 pixel.
It operates at twice the speed and only requires 1/4 of the space in comparison
to a 400 dpi mouse. Battery and power consumer is always the key issue for a
wireless product. By the way, the MWP33-LW is designed as a rechargeable
product.
Package Contains
Your MWP33-LW Wireless Mouse package includes the following:
1. The wireless mouse
2. USB plate charger with building receiver
3. User’s manual
4. 2 AAA rechargeable batteries
Note：If any part is missing, please contact your dealer for a replacement
immediately.
Precaution
The optical mouse can not work on a glass or mirror surface. Avoid operating
this mouse on a glossy surface; otherwise, this mouse may not operate normally.
For consideration of saving battery power, it is strongly recommended to operate
an optical mouse on a bright surface with fine texture to obtain lower power
consumption of the high illumination LED. A very dark surface will cause higher
power consumption.
For optimal performance, place the receiver at least 8 inches or 20 centimeters
away from other electrical devices, such as the computer, the computer monitor,
speakers or other external storage drives.
For a better transmission distance, avoid using this device on a metal plate or
desktop because a large surface of iron, aluminum, copper and other metal will act
as a shield or ground to the RF antenna of the mouse and receiver. Operating on a
metal surface may shorten the transmission distance.
If your notebook computer has a metal (contains Al or Mg) case, the metal
housing of the LCD panel will isolate partial radiation of the RF signal from the mouse.
This could possibly result in reducing the distance of transmission when you operate
the mouse right in front of the notebook and when the receiver is connected on the
back of the notebook. However, the RF mouse should work properly while you are
operating the mouse just beside your desktop computer.
Hardware Installation Guide (Mouse)
Insert the battery

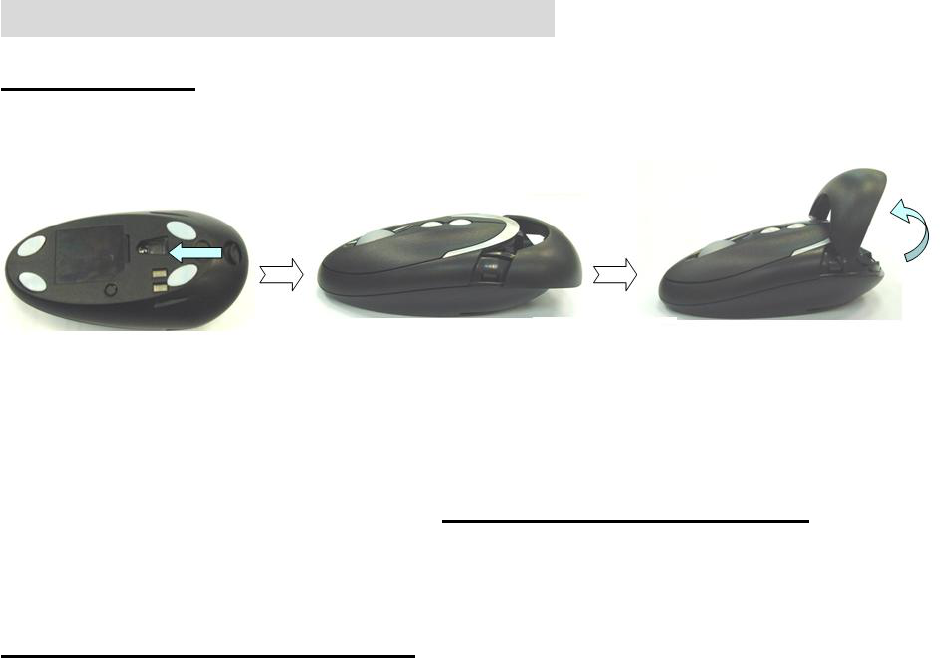

1. Open the battery cover
2. Insert 2 AAA rechargeable batteries in correct direction
3. Close the battery cover.
Note. It’s a rechargeable product. Please using rechargeable battery only, or will
damage this product, even your computer.
Connect the receiver with computer.
1. Turn off your computer
2. Disconnect the current mouse
3. Plug the adapter into the receiver
4. Plug the USB connector (receiver) into USB port (computer).
5. Turn the computer on
Rechargeable Wireless Optical Mouse Page 3 of 12 2nd Edition
a. USB is a PnP device; you can plug the device no matter the computer is on
or off. Of course, you can remove USB device in the same way.
b. If the device is HD or pen drive or any device which can store files, stop the
device than remove is the best way to protect.
Synchronize the RF Mouse (Pairing)
If the mouse is in sleep mode click the mouse button once to wake it up.
1. Bring the mouse within 1 ft range from the receiver.
2. Switch on the mouse.

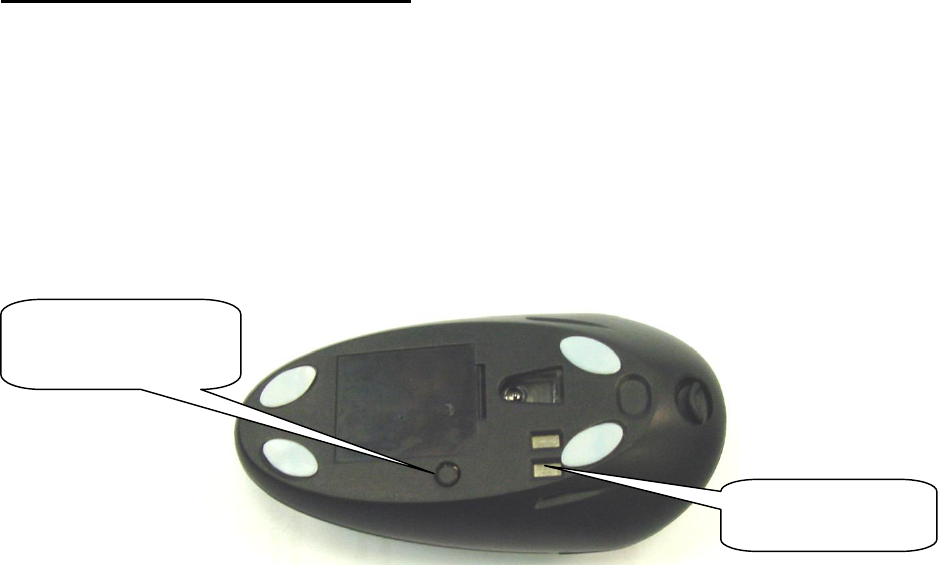

3. Hold the mouse upside-down and use a pointed object, such as a pen tip, to
click the “CONNECT” button (ID button) once.
Note. *Poke the Mouse Connect button first, and then click the receiver’s button.
CONNECT button
(ID button)
Charging pings
4. Click the receiver’s connect button once (located on the back of the receiver)
within 5 seconds after clicking the connect button on the mouse. The LED will
start blinking, when the connection is established.
5. Move the mouse around to test if it was successful.
6. If the synchronization is not successful for some reason please
a. Remove the batteries and unplug the receivers
b. Wait for 20 sec then to try the step 1 to 4 again.
Note: * During normal use, please make sure that the mouse is no more than 3 ft
away from the receiver in order to have reliable connection.
** The LED on the receiver will light up while the mouse is being used.
Rechargeable Wireless Optical Mouse Page 4 of 12 2nd Edition
Rechargeable Wireless Optical Mouse Page 5 of 12 2nd Edition
Operation Guide
Battery low indication
When the voltage level of the battery goes down under the preset level, the scrolling
wheel will flash at least three times on moving or clicking the mouse. Although the
mouse can still work for a while, the user, at this time, should have a new set of
batteries ready for replacement. Or, if the user has a companion charger base, and
Two re-chargeable batteries are inside the mouse, charge the mouse as soon as
possible.
Power off the mouse
1. Be sure the mouse is NOT in sleep mode. If it is, press any key to wake it up.
2. Press and hold the Connect button on the bottom of the mouse for more than 2
seconds. (The red light will go off while the Connect button is depressed.)
3. Wait until the red light flash once. Release the Connect button.
4. Now, the mouse is in power off mode. No operation can be done.
Power on the mouse
To activate the mouse again, press the Connect button on the bottom of the mouse
once. (DO NOT depress the Connect button for more than 1.5 seconds when
resuming the mouse from power off mode.) The red light will turn on, and the
mouse is ready for normal operation.
Note: Be sure to press the connect button firmly in procedure, if the connect
button is not depressed steadily the red light will be on before 2 seconds
expire. This will result in a change of channel and ID. Don’t panic, just
re-connect the mouse to the receiver, and follow step 4 again.
Operations on power saving mode
In order to conserve battery power, the mouse is designed to reduce power
consumption gradually from standby mode to sleep mode, if it is not being used.
Standby mode – Around 2 seconds after the mouse stops moving, it enter into
standby mode.
Sleep mode – If the mouse is left intact for around 8 minutes, it goes to sleep mode
and shuts down the optical sensor to maintain minimum power consumption. No
moving operation is possible in this mode.
Wake up the mouse
This mouse can work promptly under Standby mode so users might not be able to
tell the existence of this mode. But, in sleep mode, users have to press any button to
wake up the mouse for normal operation.
Installing the Software
To install the software, please follow the steps below to finish:

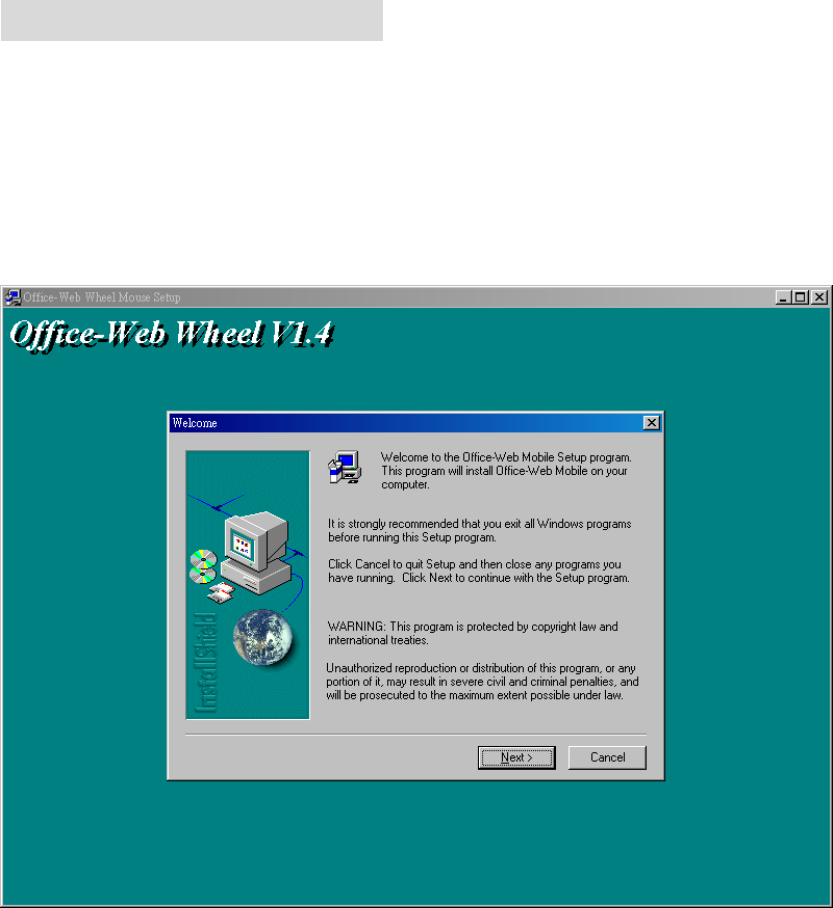

1. Insert the Auto-Run CD-ROM onto CD-ROM driver, the installation menu
will be executed automatically. (If the auto-run does not function itself, double-click
the “setup” icon in the CD files.)
2. The setup program will guide you to finish the installation step by step

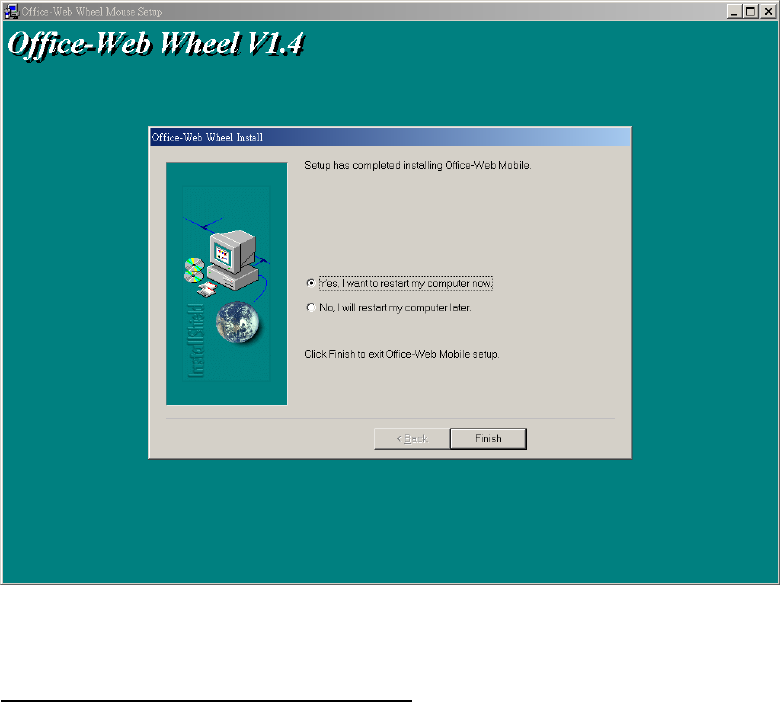

After you finish the installation, select "Restart" to reboot your system and
activate multimedia hot keys and wheel scrolling functions.
Rechargeable Wireless Optical Mouse Page 6 of 12 2nd Edition
Programmable Office-Web Hot Keys
When you install the included software driver the mouse hot keys will be enable with
driver default. Default setting for these hot keys is programmable as shown on the
application by running the “Office-Web Wheel Center” as following:

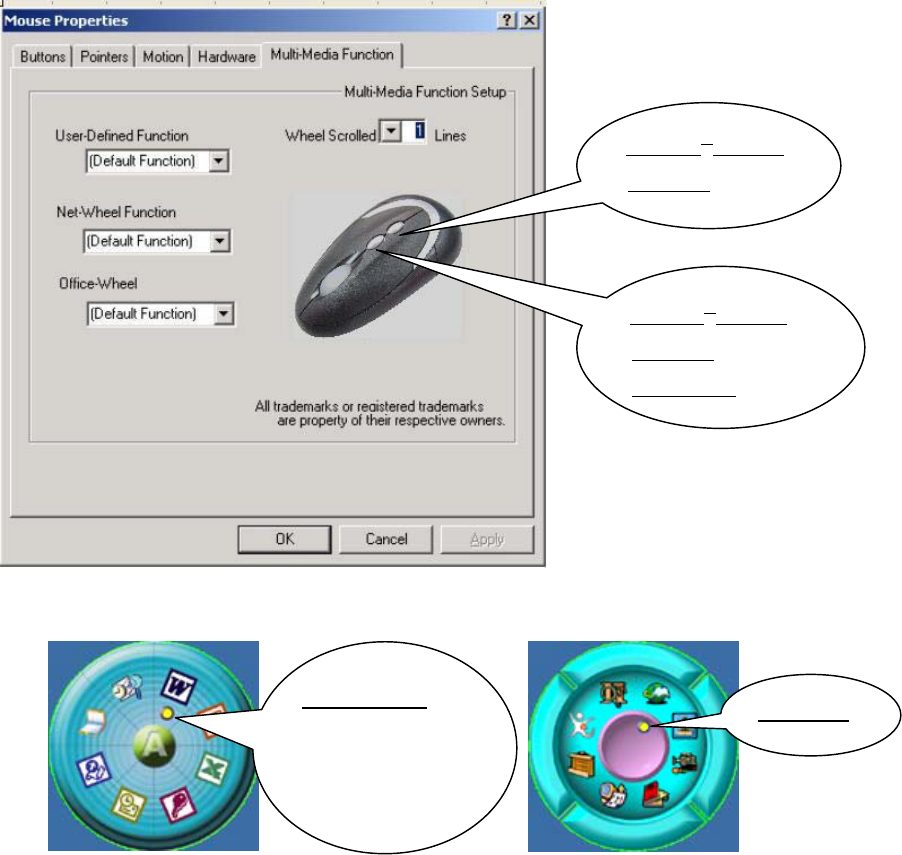

The Office-Web Function is attached on the mouse software as following. Users
can change the default function of wheel and extra hot-keys.
The wheel can be set as a standard scrolling up-down function or others, such
as Office or Web short cut as following graphs. When you scroll the wheel, there
is a yellow icon rotated to choose function.
To get rid of the wheel on the screen, click on the right button of the mouse.
Rechargeable Wireless Optical Mouse Page 7 of 12 2nd Edition
Press 5th key to
activate
Press 4th key to
activate
Net-Wheel
Office-Wheel
(Scroll to choose
and press to
function
)
Net-Wheel
Rechargeable Wireless Optical Mouse Page 8 of 12 2nd Edition
Rechargeable Wireless Optical Mouse Page 9 of 12 2nd Edition
GENERAL SPECIFICATIONS
5 Buttons Wireless optical mouse.
800dpi hardware resolution.
Low power indicator.
Rechargeable.
Charger with build-in receiver.
27.045MHz Digital Radio Frequency.
2 AAA batteries to operate the mouse.
Troubleshooting
1. Mouse does not function
If mouse is not functional, please turn off the computer first.
Check the receiver and make sure it is firmly attached to the USB port of the
computer.
Check the placement of batteries and see if they are properly connecting.
The "+" and "-" on the batteries must match the "+" and "-" on the slots. If the
batteries aren't inserted correctly, the device won't work.
Restart the computer again. If the LED inside the receiver does not light up
when moving the mouse, please re-connect the mouse to the receiver.
Q: The mouse cursor can only move left & right during operation (it could
be caused by low battery or the optical sensor’s data error).
A: Please take out one of batteries and put it back for a power reset and
then redo the connect procedure.
Q: The mouse does not work after waking up from power off mode by
pressing the connect button once.
A: This might be caused by imprecisely depressing the connect button to
wake up the mouse. Users can gain back normal operation by pressing
connect button on the mouse first, and then pressing the one on the receiver.
As soon as the LED inside the receiver starts flashing, the mouse is ready to
operate.
Rechargeable Wireless Optical Mouse Page 10 of 12 2nd Edition
Optical Sensor Mouse functions best on surfaces with details for tracking. It
may not function on reflective, reflective pattern or non-visible detail surfaces!
2. Reducing Interference with Other Wireless Devices
Reducing Interference with Other Wireless Devices:
All 27MHz radio-based devices are subject to interference from other 27MHz
radio-based devices, such as wireless telephones, wireless baby monitors, and
wireless toys. It may help to move the receiver unit and the base unit of other
wireless devices (such as wireless telephone cradle) as far apart as possible. You
may need to try several times for a location that is best in your operating
environment.
Move the receiver and the mouse closer to each other so that the receiver is
relatively shorter in distance to the mouse than to other 27MHz transmitters.
You may need to re-establish the “connection”.
Note: Avoid using this device on a metal surface because a large surface of iron,
aluminum, copper, or other metal may act like a shielding to the RF antenna of the
mouse and the receiver.
3. Interference with other RF wireless mouse
If the interference comes from other same model of RF wireless mice, please
“Setting up connection between mouse and receiver” of the installation guide to
switch to a new RF channel. A new identification code is also generated upon the
completion of channel switching.
Normally, the effective transmission distance is about 3 feet, depending on the
environment. If the effective distance between the mouse and the receiver is bad,
try to change the location of the receiver.
4. If you have difficulty connecting the wireless mouse:
Increase the distance between the set of wireless mouse and other radio device
units.
Turn off the other wireless devices, or their base units that are in close proximity
to the receiver of this wireless mouse.
Try connecting the wireless mouse and its receiver again.
To verify that your device is connected and working properly, open a document
and try the device.
Tested to comply with FCC standards
For home or office use
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CE - Type acceptance: EN300 220 Short Range Device
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
Rechargeable Wireless Optical Mouse Page 11 of 12 2nd Edition
This equipment complies with FCC RF radiation exposure limits set forth for an
Rechargeable Wireless Optical Mouse Page 12 of 12 2nd Edition
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
