Introduction
The ‘AGE Scanner’ developed by Diagnoptics is an optical instrument based on
measurements of fluorescence of advanced glycation endproducts (AGE’s) in
the human skin, to provide the amount of AGEs in skin tissue. The ‘AGE
Scanner’ uses a light source in a specific ultraviolet-blue wavelength range and
photodiodes with optical filters sensitive in the concomitant fluorescent
wavelength ranges.
AGEs play a pivotal role in healthy living. Beginning at birth our bodies have
the unique ability to grow and heal quickly, our cells, muscle tissue, bones,
skin, hair, and vital organs all continue to resist aging. When we stop growing
and reach our prime bodies strength, youth and stamina are unmatched by any
other time in our life. However, after this our physiological body begins to
decline. Many medical doctors and research scientists from around the world
have come to agreement that in the decline of the body and ultimately aging
an unfamiliar compound called AGE’s (Advanced Glycation End products) plays
a very important role.
Advanced Glycation End-products or A.G.E.s are harmful compounds that form
when sugar and protein molecules bind together. AGEs are created when we
cook our food. They are also formed inside of the body. While our bodies need
sugars and proteins to fuel normal body functions, too much of either nutrient
in the blood can result in higher than normal levels of AGEs. Eventually, these
high levels lead to a build-up of AGEs in the tissues.
Higher than normal levels of AGEs accelerate aging from the inside out. But
what’s far more important than wrinkles is the aging of internal organs. As the
organs age, they do not function as efficiently. High levels of AGEs attack the
organs. When the body is no longer able to fight off AGEs, the accumulation
accelerates the aging process.
1 Getting started
1.1 What’s in the box

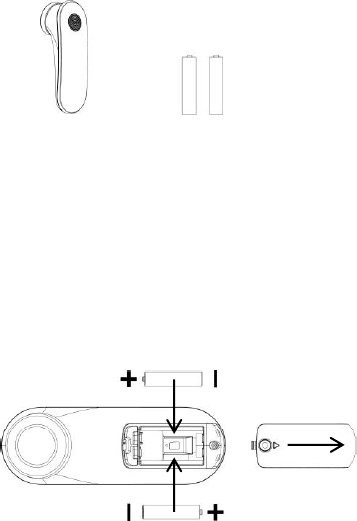

The following items are included in the package:
AGE Scanner AAA Batteries (2x)
1.2 (Re)Place batteries
Before the AGE Scanner can be used, the batteries have to be installed. To
access the battery compartment, slide the battery cover located at the bottom
of the device of with a gentle pressure on the embossed ring. Pay attention to
the polarity of the batteries.
Recommended battery AAA types are alkaline batteries or rechargeable NiMh
batteries.
1.3 Starting and connecting your device
The AGE Scanner app is compatible with mobile devices running iOS and
Android (version 4.3 or higher) operating systems and support Bluetooth 4.1 or
higher (BLE). To get started:
1. Install the AGE Scanner app from one of these locations:
The Apple® App Store® for iOS devices such as an iPhone® or iPad®.
The Google Play™ Store for Android devices.
The Diagnoptics website, www.diagnoptics.com.
2. Turn on the Bluetooth function of your device. If you use an Android
device, open the Bluetooth settings menu on your device. Enable the
setting that makes your device visible to other Bluetooth devices.
Start the AGE Scanner by pressing the button on the top
of the device. During start-up, the ring around the button
lights up blinking blue as it searches for a Bluetooth®

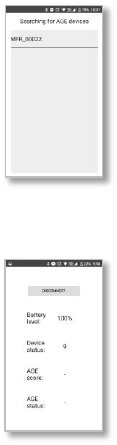

device to pair with and the App will display the available
devices. Select the serial number of the AGE Scanner you
want to connect to.
During the initialization the device’s internal light sources
are tested, you may notice that some light will be
emitted from the measurement window for a short
period during this phase. This is completely harmless.
When a Bluetooth® connection is established, the ring
around the button lights up continuously green and the
App will display the device status and a button to
disconnect.
When no Bluetooth® connection can be established, the
AGE Scanner will turn itself of in 1 minute.
1.4 Switching the AGE Scanner off
The AGE Scanner will turn itself of after 5 minutes of inactivity.
2 Performing measurements
2.1 Preparations for the measurement
The accuracy of the measurement result can be influenced if situations
mentioned below are present.
AGE measurements should be performed directly on intact healthy skin.
The skin at the measuring area should be healthy, homogeneous and free
of birthmarks, tattoos or excessive hair growth and without recent
exposure to skin creams or any substance that may have fluorescent
properties. Self-tanning agents should not be used for at least 10 days
before measurement. Sun-blockers and other skin care products should
be removed before measurement.
Correct positioning of the arm over the window is essential. The AGE
Scanner should be kept in a steady position during the measurement
process.
The measurement window should always be kept clean (see chapter 4.1).
2.2 Performing the measurement
1. Establish a Bluetooth® connection, see chapter 1.3.
2. The AGE Scanner should be placed on the subject’s dominant forearm
with a gentle pressure to avoid light from the surroundings entering the
device.
3. Start the measurement by pressing the button on top.
4. During the measurement, the ring around the button lights up yellow.
Avoid arm movements during the measurement.
5. When the measurement is successfully completed,
the ring around the button lights up blinking green
for four seconds and the measurement result will
be displayed in the App.
2.3 Problems during the measurement
When the AGE Scanner is unable to successfully perform a measurement it will
abort the measurement and the app will display an error indication. There are
three error indications:
• Measurement setup error
• Low signal error
• Internal error
2.3.1 Measurement setup error
If the device is not placed properly on the subjects arm, ambient light can ‘leak’
into the window, causing interference measurement fault. The AGE Scanner is
capable of detecting light leakage to a certain extent. If this occurs, the device
will abort the measurement and the display ‘Measurement setup error’.
2.3.2 Low signal error
If the measured signal from the arm is too low, the device is unable to perform
a reliable measurement. It will abort the measurement and display ‘Low signal
error’. In general, a ‘low-signal error’ is the result of a patient’s skin having too
much pigment. This can be caused by e.g. birth marks, freckles or strongly
pigmented skin.
2.3.3 External error
The External error is displayed when any of the measurement parameters has
an out-of-bounds value that cannot be directly related to the use of the AGE
Scanner. If the ‘External error’ indication persists please contact Diagnoptics
for support.
3 Update your device
The AGE Scanner can receive new firmware by means of two methods, Over
The Air (OTA) through the Bluetooth® connection or by inserting a Micro-SD
card containing the firmware update.
3.1 Over The Air (OTA)
An update can be delivered by the app running on the connected device.
Follow the instructions on the screen to update your device.
3.2 Micro-SD card
An update can be delivered on a Micro-SD card, follow the procedure below to
update your device:
1. Remove the batteries, see chapter 1.2.
2. Insert the Micro-SD card containing the new firmware in the slot at the
bottom of the battery compartment and slide it forwards.
3. Replace the batteries and the battery cover.
4. Turn on the device, the update starts automatically. During the update,
the ring around the button lights up blinking orange.
5. When the update is finished, the ring around the button lights up
continuously blue.
6. The Micro-SD card should now be removed.
4 Cleaning & maintenance
4.1 Cleaning instructions
4.1.1 Measurement window:

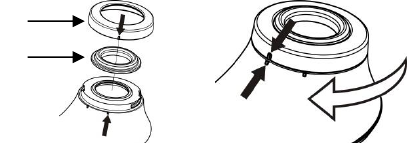

The measurement window must be kept clean. To clean the window, carefully
remove chrome bayonet ring (1) by rotating it counterclockwise and remove
the skin interface (2) to access the measurement window. Clean the window
with a slightly damp soft non-fluorescent cleaning wipe (for example, a soft
reusable cleaning wipe used for spectacles), using a standard 70% alcohol
solution. Avoid scratching the window and ensure that no fibers remain on the
window. Residual fibers may influence the measurement result! To replace the
bayonet ring, align the nudge on the bayonet ring with the outer nudge on the
housing and rotate it counterclockwise till it aligns with the center nudge.
4.1.2 Skin Interface:
The skin interface can be cleaned with standard mild cleaning agents.
If desired, the armrest can be disinfected with alcohol or chlorohexidine.
4.1.3 Enclosure:
The enclosure can be cleaned with the microfiber cloth or with a slightly
moistened cloth with standard mild cleaning agents. Make sure no fluids enter
the enclosure!
4.2 Maintenance instructions
No changes should be made to the system by the user!
This system does not contain parts that can be serviced by the user.
Replacement parts are available for the skin interface and bayonet ring
To order a replacement part, please contact Diagnoptics.
1
2
5 Troubleshooting
6 Product specifications
6.1 Technical specifications
• Operation Continuous operation
• Power 3 VDC from exchangeable AAA battery
• Output UV-A light λp = 375nm E = 7,81E-01 W/m2 @ 0,2m
Blue light λp = 460nm E = 1,83E-01 W/m2 @ 0,2m
Green light λp = 525nm E = 6,26E-02 W/m2 @ 0,2m
• Dimensions Width: 60mm, Depth: 170 mm, Height: 55 mm
• Weight: 0,15kg
• Operating Conditions:
o temperature range: Lower limit 0°C - Upper limit + 40°C
o Relative humidity: 20% to 75% non-condensing
Storage & Transport Conditions:
o temperature range: Lower limit - 40ºC - Upper limit + 70°C
o Relative humidity: 10% to 100% non-condensing
Wireless communication by Bluetooth.
o BLE is implemented
o ISM frequency band of operation: 2402 – 2480MHz
o Rated power: 6 mW
6.2 Classifications
Protection against elec.shock: Class III equipment
Standard(s):
o Electrical Safety: EN 60950-1:2006 (up to: A12:2011)
o EMC: EN 301 489-1 & EN 301 489-17 V2.2.1
o Telecom: EN 300 328 v 1.9.1
o FCC: 47 CFR part 15, Subpart 15C & 15.247
o EM Exposure Safety: EN 62479:2010
o Japanese Radio Law:
o Safety of lamps: IEC 62471:2008
o Hazardous Substances: 2011/65/EU (ROHS II)
o Waste: 2012/19/EU (WEEE)
7 Regulatory & Safety Notices
7.1 Safety statement
This equipment has been tested to comply with safety certification in
accordance with the specifications of EN Standard: EN60950-1:2006 up to:
A12: 2011.
7.2 USA: Federal Communications Commission (FCC) statement
This device complies with FCC part 15 FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference
that may cause undesired operation.
FCC Warning
Changes or modifications not approved by Diagnoptics Technologies B.V.,
could void the user’s authority to operate the equipment.
This device meets the FCC requirements for RF exposure in public or
uncontrolled environments.
FCC ID: 2AKA5-MFR
7.3 European Union (EU)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC R&TTE.
Diagnoptics Technologies B.V. is authorized to apply the CE Mark on, device
type MFR00101, thereby declaring conformity to the essential requirements
and other relevant provisions of Directive EN 300 328 V1.8.1 and other
applicable Directives.
7.4 Japan
7.5 China
产品中有害物质的名称和内容
Names and Contents of the Hazardous Substances in Product
有毒有害物质或元素
Hazardous Substance
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr+6)
多溴联苯
(PBBB)
多溴二苯醚
(PBDE)
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
此表是按照SJ / T11364的规定编制
This table is prepared in accordance with the provisions of SJ/T11364
O 表明所述包含在该部件所有均质材料中的有害物质低于GB/ T26572的限量要求。
Indicates that said hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement of GB/T 26572.
X 表示所述包含在用于该部分的均质材料中的至少一种有害物质是上述GB / T26572
的限制要求。
Indicates that said hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement of GB/T 26572.
在一个X显示所有的情况下，AGE Scanner 使用允许的豁免。
In all cases where an X is shown, AGE Scanner uses an allowable exemption.
8 Important safety instructions
8.1 Caution:
• This product is not a medical device, and is not intended to diagnose,
treat, cure, or prevent any disease.
• This device emits UV-A radiation.
• Prolonged contact may contribute to skin irritation or allergies in some
users. If you notice any signs of skin redness, swelling, itchiness, or other
skin irritation, please discontinue the use of the product.
• The device contains electrical equipment that could cause injury if not
handled properly.
• This product is not a toy. Do not allow children or pets to play with your
AGE Scanner product.
• The measurement window must be kept clean.
• Clean your AGE Scanner product regularly, particularly the parts that
come in to contact with the skin. Use a clean, damp cloth. Do not wash
the product under a faucet, do not let fluids ingress.
• Maintenance and repairs should only be carried out by Diagnoptics or
authorized representatives, ship in original package.
• Do not use your AGE Scanner if there is visible damage and/or when the
device has sharp edges..
• Substances in this product and its batteries may harm the environment or
cause injury if handled and disposed of improperly.
• Do not place your AGE Scanner product in a dishwasher, washing
machine, or dryer.
• Do not expose your AGE Scanner product to direct sunlight for an
extended period of time or extremely high or low temperatures.
• Do not dispose of your AGE Scanner product in a fire. The batteries could
explode.
• Do not use abrasive cleaners to clean your AGE Scanner product.
• Remove your AGE Scanner product if it feels warm or hot.
8.2 Disposal and recycling information
The symbol on the product or its packaging signifies that this product must be
disposed of separately from ordinary household wastes at its end of life. Please
kindly be aware that it is your responsibility to dispose of electronic equipment
at recycling centers to help conserve natural resources.
Each country in the European Union should have its collection centers for
electrical and electronic equipment recycling. For information about your
recycling drop off point, please contact your local related electrical and
electronic equipment waste management authority or the retailer where you
bought the product.
• Do not dispose of your AGE Scanner product with household waste
• Disposal of the packaging and your AGE Scanner product should be done
in accordance with local regulations.
• Batteries are not to be disposed of in the municipal waste stream and
require separate collection.
Footnote
“The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by ‘Diagnoptics Technologies
B.V.’ is under license. Other trademarks and trade names are those of their
respective owners.
9 Liability and warranty
9.1 Liability
Diagnoptics Technologies B.V. and its respective directors, officers, employees
and agents and their respective successors, heirs and assignees, are not liable
for any damages, losses, obligations, costs and expenses, including attorney’s
fees that may be incurred by third parties in connection with a claim for
damage to or loss of tangible personal property, breach of warranty, or for
bodily injury, sickness and/or death sustained by any customer (collectively
“Damage”) if or where the damage is caused by or arises from any instance
regarded as(a) improper use of the AGE Scanner, (b) unauthorized modification
of the AGE Scanner, (c) fault or negligence by the user, (d) breach of any
warranty or other obligation by the user or (e) invalid or incorrect conclusions,
and any consequences thereof, drawn by third parties from the measurement
results provided by the AGE Scanner.
9.2 Warranty
The warranty supplied with this AGE Scanner System is provided separately.
9.3 Declaration of Conformity
The Declaration of Conformity can be provided on your request. Please e-mail
support@diagnoptics.com to request a copy of the Declaration of Conformity.
Manufactured by:
Diagnoptics Technologies B.V.
Aarhusweg 4-9
9723 JJ Groningen
The Netherlands
E-mail: mail@diagnoptics.com
WWW: www.diagnoptics.com
Doc. no.: DI-F-01-008.0

Navigation menu
