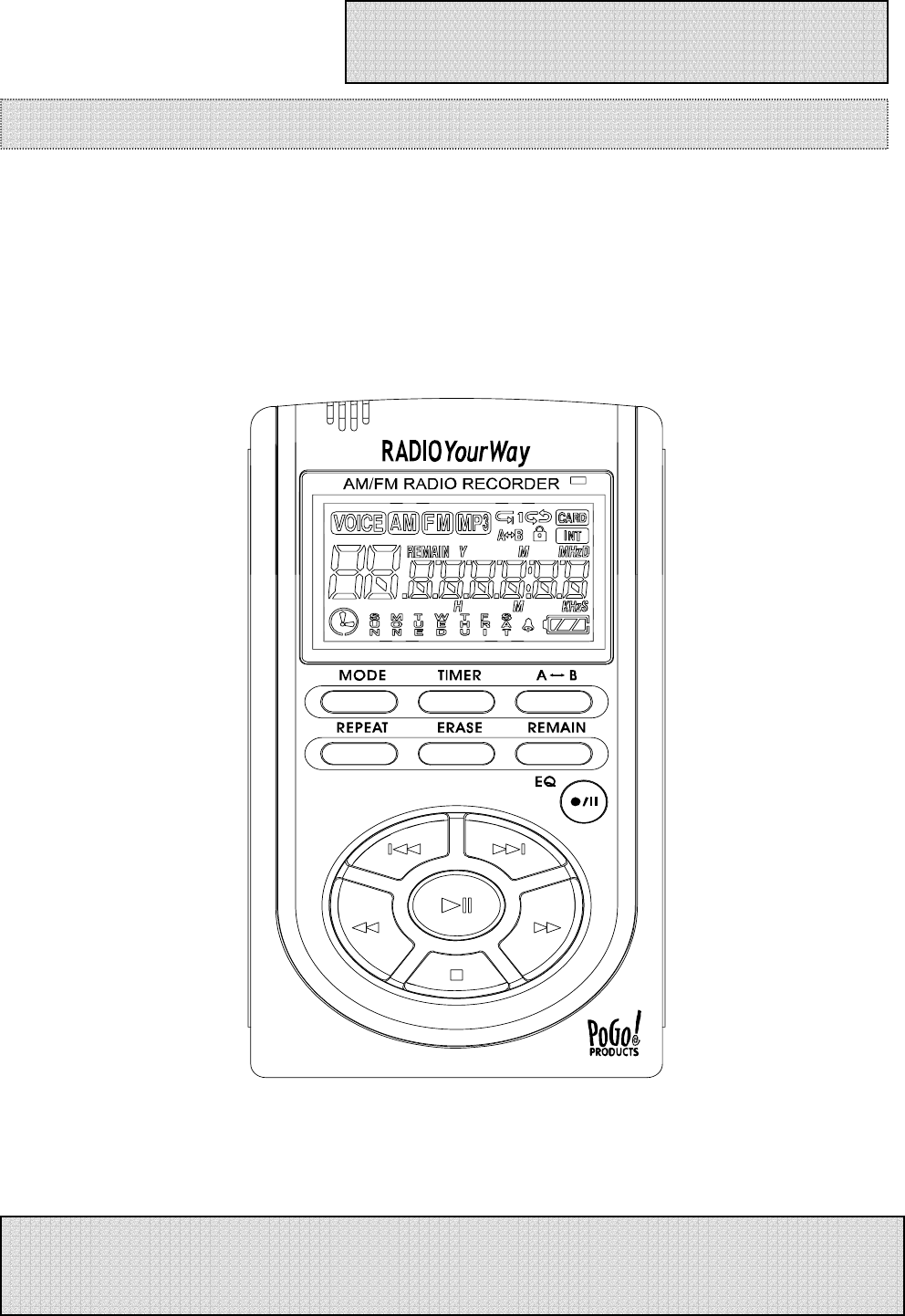

User’s Manual
AM/FM Radio Recorder/Voice Recorder/MP3
Player
MODEL: DDR-4000R (32MB / 64M / 128M)
Thank you for purchasing DDR-4000R. Please read all the information in this User manual carefully
prior to using DDR-4000R and keep this guide handy for future reference.
● All rights regarding the information in this manual are reserved for Diasonic Technology Co., Ltd.
No part of this manual may be copied or distributed or commercially used without the prior written
permission from Diasonic Technology Co., Ltd., and any violation of that may result in severe legal
penalties.
● MP3 File(s) is/are intended only to be used personally and not for any commercial use/ service and
any violation of this clause is against domestic copyright laws.
● Except for personal use, unauthorized copying or distributing of recorded music is prohibited by law.
Copyright
1. DDR-4000R Series
1). Precautions
2). Player Functions
3). Components and LCD Display
4). Battery Use and Description of Components
5). Basic Functions
6). VOICE/AM/FM/MP3 Buttons
7). Timer and Recording
8). External Memory
9). Play Modes
10). Erasing Files
11). Reserved Recording
12). Line In
13). AM/FM Radio
2. RVR(Radio Voice Recorder)-Explorer
1). What is the RVR-Explorer?
2). Quick Software & Drivers Installation Guide
3). RVR-Explorer User Interface
4). Transmitting MP3 Files
5). Transmitting DMF Files to the PC
6). Deleting MP3 & RVF Files
7). Initiating the Flash Memory
3. General Specification
4. Warranty
Table of Contents
1). DDR-4000R Series
1). Precautions
● Do not drop DDR-4000R, it may cause a malfunction.
● Do not leave DDR-4000R in the following areas:
- Place of high temperature (above 60℃)
- Exposed to direct sunlight or near heating appliances.
- Inside a car; especially in the summer
- High humidity area like a bathroom
● Avoid any impact to the LCD Display
● Do not place credit cards, phone cards, bank books or subway tickets near DDR-4000R. The
magnetism of the player may damage the data stored in the magnetic strip.
● We are not responsible for any damage or claims from a third party resulting from the use of
DDR-4000R.
● We are not responsible for any loss of files caused by any reason.
● Do not repair, disassemble or make modifications to DDR-4000R.
● Do not use DDR-4000R in any area designated No Electronic Devices like airports or medical
facilities.
● Do not operate while driving.
● If DDR-4000R is misused by the user, subjected to static electricity or electrical shock even if
just changing the battery, the files stored in the memory may be lost or corrupted.
Backup all important data!

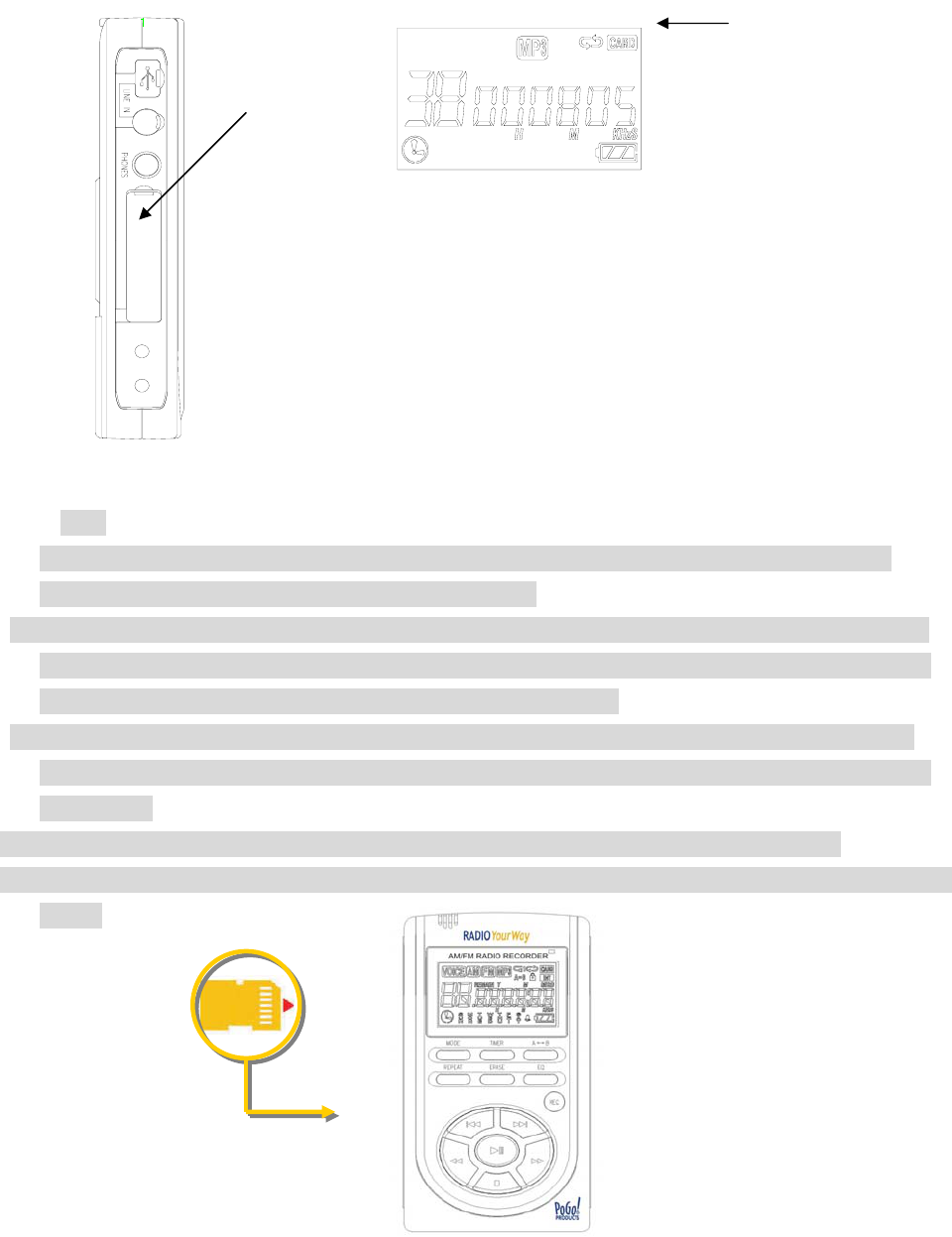

● Only insert a memory card when the unit is off or a malfunction may occur
2). Player Functions
DDR-4000R is manufactured under strict quality control procedures to ensure the best
performance and customer experience.
.
● Elegant Design and Exterior Finishing
DDR-4000R is designed with the customer in mind. Using a wide LCD Screen and half miller
window to eliminate the closeness of a small display and show off a high class image to enhance
the user’s experience.
● AM/FM/Voice Recording and MP3 PLAYER
DDR-4000R can record AM/FM/Voice and play MP3 files.
● External memory
DDR-4000R has the ability to expand the memory capacity using SD or MMC memory cards.
● Record AM/FM RADIO
With DDR-4000R you can record live or future AM/FM broadcasts.
● RYW-EXPLORER
With DDR-4000R you can transmit data between the device and your PC and even send those
files to a friend using E-mail.
● Recording Timer
DDR-4000R can be programmed to record voice or radio at a later time with its built in
timer.
● USB Interface
● Displays file/frequency/current time on the wide LCD Screen
● Built-in calendar up to the year 2099
● Elegant Design and Exterior Finishing
● Built-in microphone
● Separate and record files up to a high tone quality of 99
● Lock (HOLD) function to prevent unnecessary battery consumption caused by an
accidental key press.
● TIMER recording function to allow voice or radio recording at a later time/date.
● REPEAT PLAY allows a message to be played repeatedly
● Section Repeat Play (A↔B REPEAT PLAY)
● Automatic power OFF after 3 minutes of no use.(SLEEP MODE)
● MONITOR Function allows the user to listen to what is being recorded using an earphone
(MONITOR)
● H/D Function may be used as a portable hard disk (32MB)
● Volume adjustable 30 levels
● EQ equalizer modes (NORMAL,ROCK,JAZZ,CLASSIC,POP)
● Repeat (NORMAL/SECTION REPEAT/1 TRACK/ALL TRACK)
● Download and playback of MP3 Files
● Real time or reserved FM RADIO RECORDING function
● Real time or reserved AM RADIO RECORDING function
● AM/FM PRESET CH function
● Setting up to 10 reserved recordings is possible
● S-FORWARD and S-REWIND Searching function (10 times/100 times searching)
● External memory slot (SD-CARD/MMC)
● Built-in high-power speaker
● Easy recording from external audio devices
● Recover time and settings after replacing the battery (BACK-UP Function)

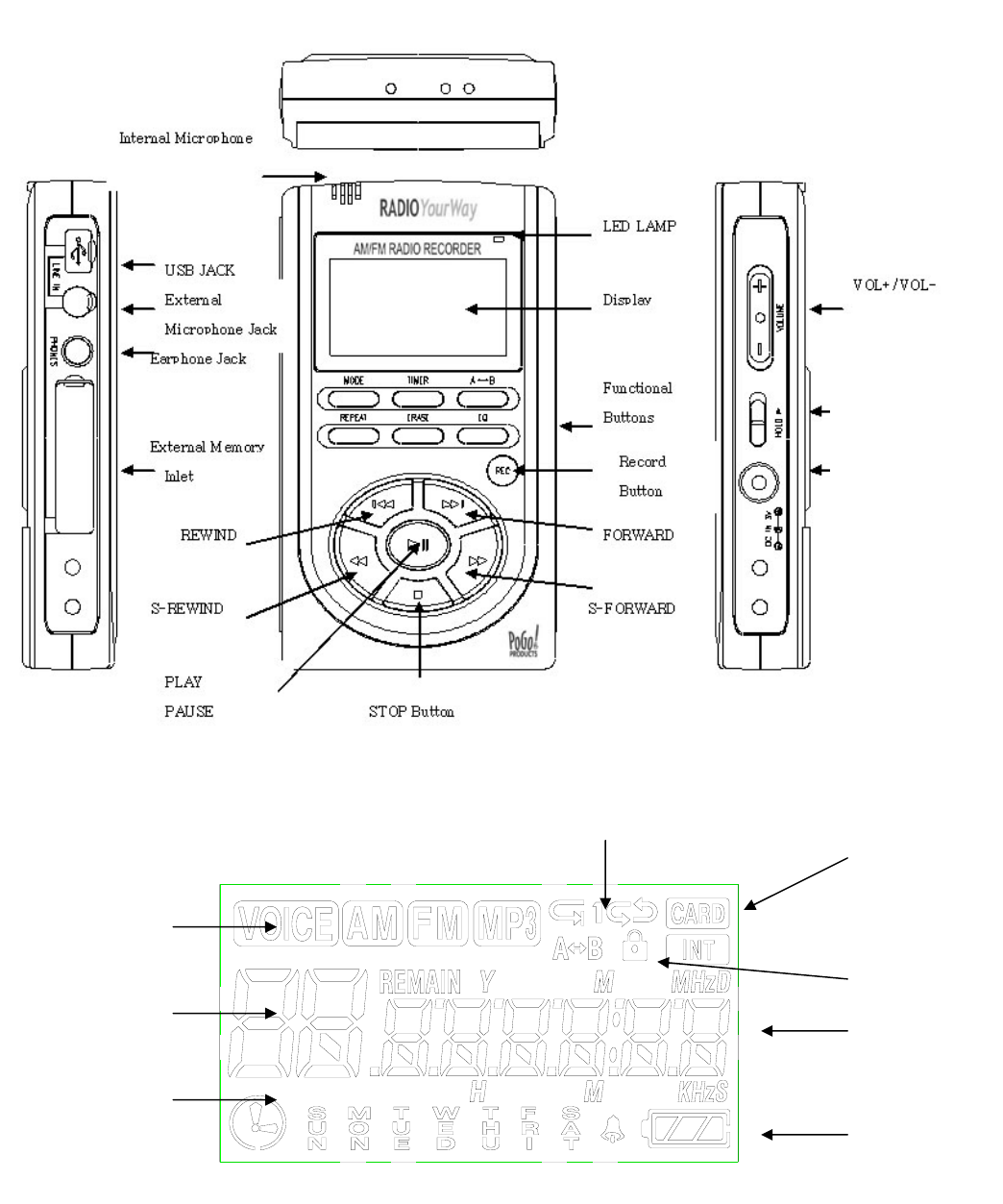

3). Components and LCD Display

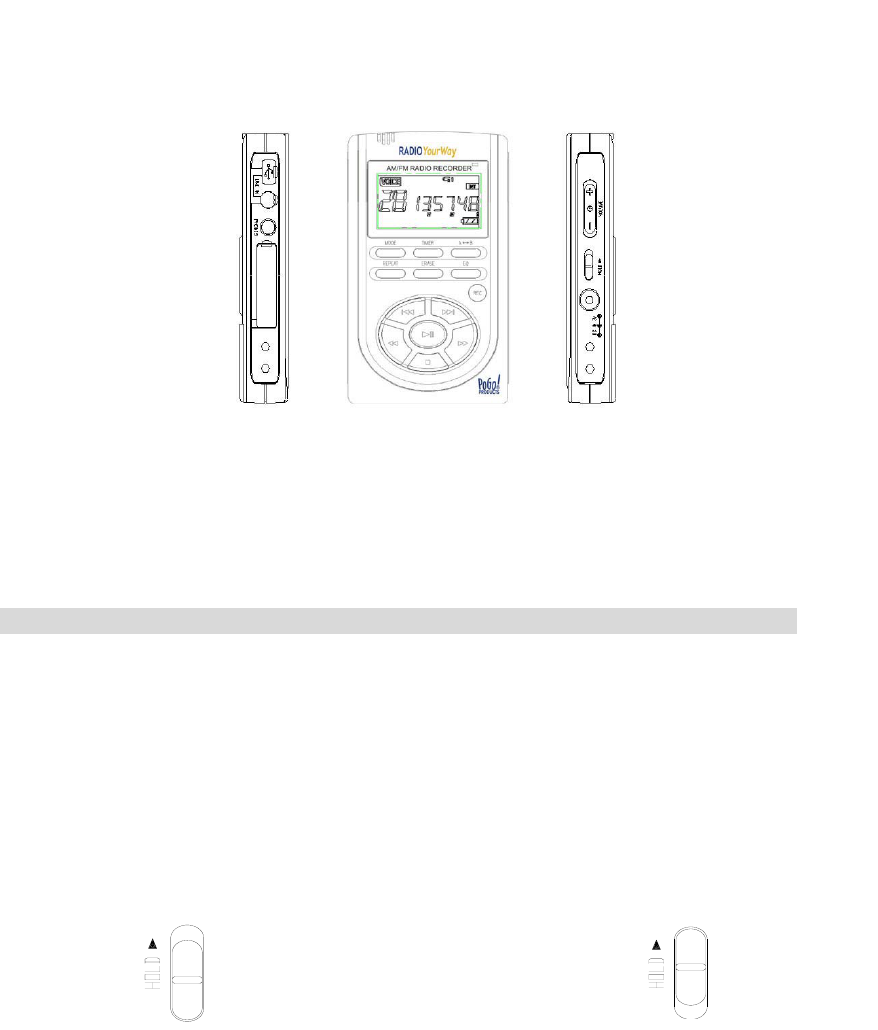

Repeat
D.C JACK
HOLD ON/OFF
Mode
Selection
Memory
Selection
Lock
File Info/
Frequency
Order of File
Reserved
Record
Battery
Strength
4). Battery Use and Description of Components

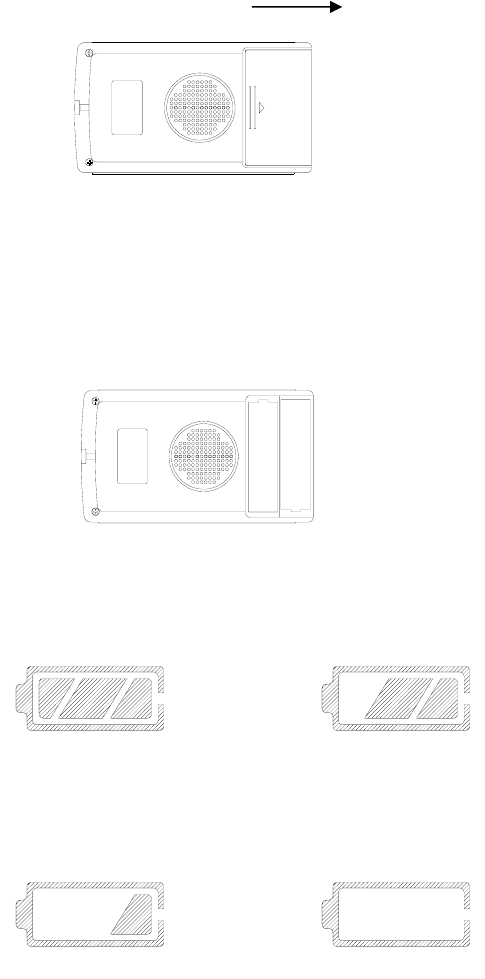

① Open the Battery Cover.
② Close the cover after inserting two AAA batteries corresponding to the correct (+) (-)
polarities.
Battery: (SIZE "AAA" or UM-4)
③ Check the battery strength by pressing the PLAY/STOP or record mode button.
Battery strength is strong. Battery is partially run down.
Battery is almost run down. Replace the battery.
※ Caution
Check the polarities of the batteries if the LCD Display doesn’t turn ON after inserting new
batteries.
※ Note
If you do not use DDR-4000R for a long time, the batteries may be run down naturally.
Take out the batteries if you do not plan on using DDR-4000R for a long time.
Open
④ Battery Life
Battery Type Recording
Playback via
Speaker
(Volume: Middle)
Playback via Ear phone
Alkaline “AAA” LR-03 Approx 11hr Approx 9hr Approx 15hr
⑤ Caution when Using the Battery
● Do not use different types of batteries together.
● If you do not use this recorder & player for a long time, take the batteries out of the body.
● When using rechargeable batteries, carefully read the manual of the battery and charger
before using them.
⑥ Components
STEREO EARPHONE, INSTALL CD
LINE/IN CABLE, USB CABLE, TWO AAA BATTERIES, NECK STRAP
5). Basic Functions
● Turning the Power ON/OFF
To turn the player on, hold the PLAY button for 1-3 seconds.
If no key is pressed for more than 3 minutes, the power is automatically shut OFF.
To turn the player off, hold the STOP button for 1-3 seconds
If you put in the provided batteries after purchasing DDR-4000R, the Power should turn ON and the
initial display screen appears
When the power is OFF, you may turn the power ON by pressing the PLAY Button.
● How to Use the HOLD function

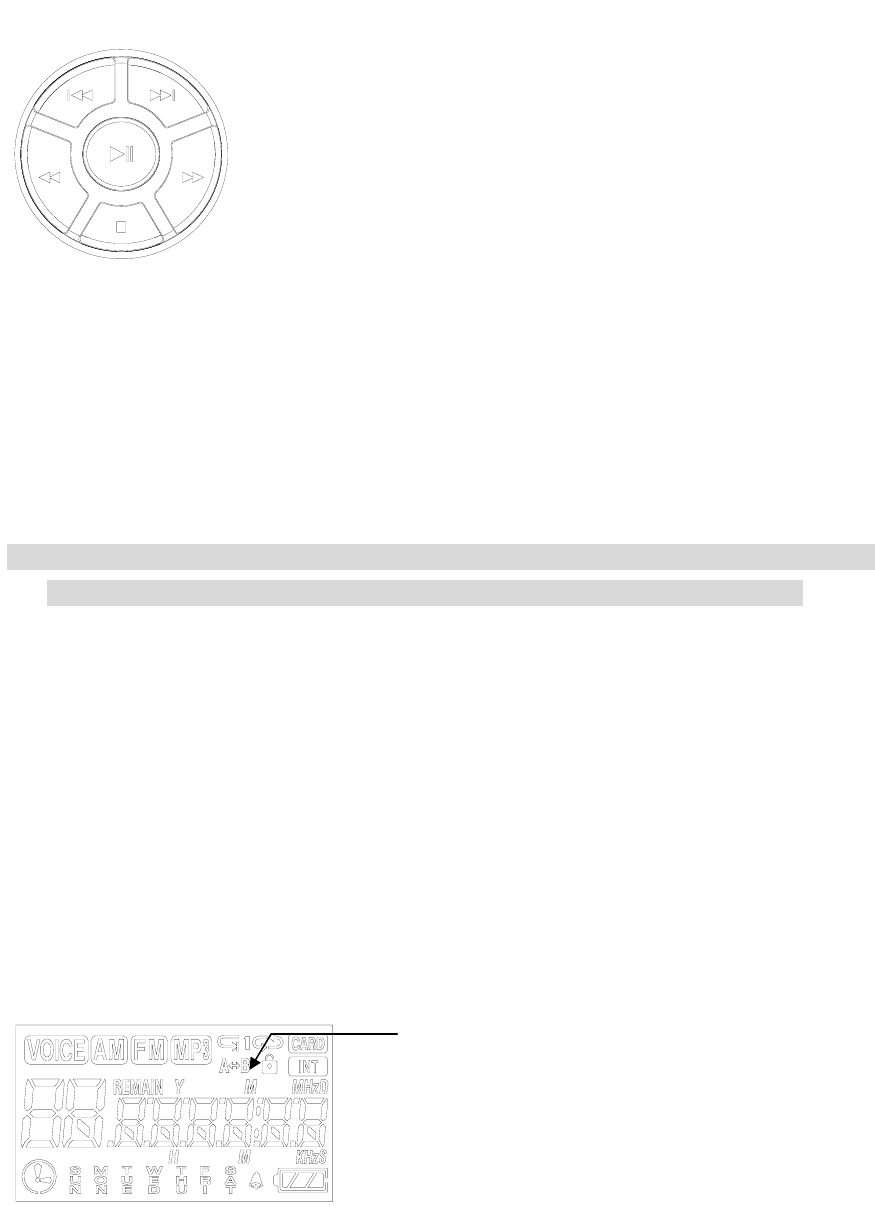

When the lock button is in the upper position, the player is in HOLD and will not operate.
Use this recorder & player only after checking the lock switch is released from the HOLD
position.
HOLD OFF HOLD ON
Released Player not operable
6). VOICE/AM/FM/MP3 Buttons
● VOICE FILE Domain (VOICE)
Upon operating the keys, ㅡ means a short press and – - means pressing and holding (longer than 1
sec).
Buttons
Key
Operations
Stopped Upon Recording Playing
ㅡ Plays the beginning of a file X Pauses a file
ㅡ Moves to the next file X Begins to play the next file
ㅡ
ㅡㅡ Moves to the previous file X
Plays the previous file
If key held down more than 5 seconds, goes to
the beginning of the file
ㅡ,ㅡㅡ S-FORWARD current file X S-FORWARD current file faster
ㅡ,ㅡㅡ S-REWIND current file X S-REWIND the current file faster
ㅡ Stop status Stop recording Stops playing
ㅡㅡ
Power OFF
Power OFF after
recording
Power OFF
MODE ㅡ VOICE/AM/FM/MP3 X VOICE/AM/FM/MP3
ㅡ Checks the TIME and sets the
timer for a future recording
X X
TIMER
ㅡㅡ Modifies the TIME Setting X X
A-B
ㅡ Selects from the
external/internal memories
X Repeats the playing section between A-B
REC
ㅡ
Recording
Stop recording for a
while
X
REPEAT ㅡ Change the repeat setting X Change the repeat setting
ㅡ Deletes the current file
(push erase to confirm when
blinking)
X X
ERASE
ㅡㅡ Deletes all files
(push erase to confirm when
blinking)
X X
ㅡ Checking Remain Time Check Remain X
EQ
ㅡㅡ Changing Bit-rate(32/16Kbps) X
REMAIN
ㅡ
Shows remaining record time in
Voice mode
Shows remaining
record time in Voice
mode
X
VOL VOLUME(+)(-) VOLUME(+)(-) VOLUME(+)(-)
HOLD ON/OFF ON/OFF ON/OFF
● AM/FM Radio Domain (RADIO/KEY Operation)
Buttons
Key
Operations
Receiving Upon Recording
ㅡ PRESET the station X
ㅡ Changes to the next preset X
ㅡ Changes to the previous preset X
ㅡ,ㅡㅡ SEEK TUNNING/AUTO TUNNING X
ㅡ,ㅡㅡ SEEK TUNNING/AUTO TUNNING X
ㅡ X Stops recording
ㅡㅡ Power OFF Power OFF
MODE ㅡ VOICE/AM/FM/MP3 X
ㅡ Checks TIME and reserved settings X
TIMER
ㅡㅡ Sets and modifies TIME X
VOL+ VOLUME+ VOLUME+
VOL- VOLUME- VOLUME-
HOLD ON/OFF ON/OFF
Note) The earphone plays the role of the antenna in the FM Radio.
If the earphone wire is longer, receiving sensitivity is improved.
● MP3 FILE Domain (MP3)
Buttons
Key
Operations
Upon Stopping Upon Playing
ㅡ Play the current file Pauses the file
ㅡ Move to the next file Begins to play the next file
ㅡ
ㅡㅡ Moves to the previous file
Plays the previous file
If key held down more than 5 seconds, goes to
the beginning of the file
ㅡ,ㅡㅡ S-FORWARD current file S-FORWARD current file faster
ㅡ,ㅡㅡ S-REWIND current file S-REWIND current file faster
ㅡ Stop Stops playing file
ㅡㅡ Power OFF Power OFF
MODE ㅡ VOICE/AM/FM/MP3 VOICE/AM/FM/MP3
ㅡ Checks TIME X
TIMER
ㅡㅡ Modifies TIME Setting X
A-B ㅡ Selects from the external/internal memory Repeats playing section between A-B
REPEAT ㅡ Changes repeat setting Changes repeat setting
ㅡ Deletes the current file X
ERASE
ㅡㅡ Deletes all files X
EQ ㅡ ROCK/CLASSIC/NORMAL/POP/LIVE ROCK/CLASSIC/NORMAL/POP/LIVE
VOL+ VOLUME+ VOLUME+
VOL- VOLUME- VOLUME-
HOLD ON/OFF ON/OFF
7). Timer and recording
You need to set the current date and time prior to initiating a recording.
① Press and hold the TIMER Button while the player is stopped.
② When you hold the TIMER Button, the day will be flickering and then if you press or
you can change the day. Push the PLAY Button to set and now the window
displaying the time will also be flickering. If you press or you can change the
hour, press PLAY again to set and do the same thing to change the minute
and press PLAY again to set.
③ When the time setting is completed, you may return to the initial screen by pressing the
STOP button.
④ To check the time, press the TIMER button, the current time (hour/minute/second) will
display, and if you want to change the time, you may change the day/hour/minute by
pressing and holding the TIMER Button.
● How to Record
When you are in VOICE/AM/FM Mode, you may record using the RECORD Button.
① Select the mode by pressing the MODE Button.
(When you are in the AM/FM Mode, the frequency currently received is recorded).
② Press and hold the RECORD (REC/STOP) Button for about 1 second with the internal
microphone toward the sound source.
The recording is initiated and a red light indicating recording turns ON.
③ To stop recording, press the STOP button.
※ Once recording is initiated, you may not stop recording for the first Five (5) seconds.
※ The recording is automatically recorded in the next available slot.
※ When recording for a long time, replace the battery with a new one.
※ Check the capacity of the battery prior to recording.
※ Note
Perform a test recording to avoid any errors while recording.
If the battery is completely run down during a recording, the message “low battery (BAT)”
will display on the screen and the power will be automatically shut OFF.
Replace the battery with new one.
.
.
● Monitoring a Recording
You may listen to what is being recorded by connecting an earphone.
※ Note
-. Do not take the battery out during a recording because it may cause the recording to be lost or
a malfunction
Take out the battery only when the player is stopped.
-. If the corresponding file exceeds the recording capacity or there is not enough room for a
recording, the recording will not be available.
When the memory is FULL, a message "FULL" will display.
-. Recording to MP3 or H/D domains is not available (Only playback is available in MP3).
8)External Memory
① If you press the A-B Button in the stop status after inserting an
external memory card, the display screen of INT/CARD will be converted
and the internal and external memory domains will be separated.
② You may record, play, save from the PC and transfer files with the
external memory.
③ Inserting and taking out an external memory card must be performed
only when the player is stopped.
※ Note
Only insert a memory card when the unit is off or a malfunction may occur. The external
memory is compatible with an SD/MMC-CARD only.
- If you take out the battery or external memory during a recording or playback, it may cause a
lost file or malfunction. Take out the battery only when the player is stopped and take out or
insert the external memory only after turning-off the power.
- If the corresponding file exceeds the recording capacity or there is not enough room for the
recording, the recording will not be available. When the memory is FULL, a message "FULL"
will display.
- Recording to MP3 or H/D domains is not available (Only playback is available in MP3).
- When you insert the external memory card, be careful the insert direction of external card as
below.
9) Playback mode
Inlet
A-B Mode Conversion
Display
● Playing a VOICE file
① Select the message you want to listen to.
(Select the file you want 01-99 using Button.)
② You may play by pressing the PLAY () Button.
③ Adjust the volume with the DIGITAL VOLUME button.
Listen to music in quiet areas using the micro speaker.
Use the earphones to avoid interference or in noisy areas.
④ To stop, press the STOP () Button.
If you want to PAUSE (), press the PLAY Button during playback. PAUSE
can be released by pressing the PLAY/STOP Button.
⑤ For the S-FORWARD and S-REWIND function, press the button.
You may stop this function by pressing the PLAY ()/STOP () Button.
⑥ You may select and play the next or previous file during playback using the Button.
※ If the battery is completely run down while playing, a message “BAT” will flicker and
automatically disappear after the warning. Replace the battery with a new one.
● Playing MP3 files
① Using the MODE Button, select the MP3 Domain.
② If there is no music downloaded, the message “NO.IF” displays on the LCD.
③ If you download a music file (MP3) via the USB, the file will be saved in the MP3 Domain and
you may play it using the PLAY Button.
● S-FORWARD and S-REWIND
Selectively play the next file or previous file during playback using Button.
If you press Button shortly during playback, S-REWIND/S-FORWARD is initiated.
● Repeat playing in the VOICE Domain
● Repeat playing in the MP3 Domain
You may set the repeat functions by pressing
the REPEAT Button during playback.
NOR: Plays and stops all music
NOR (1): Plays and stops only one music file
(1) ALL: Repeats playing music
ALL: Keeps playing all music in order
● Repeat a Section A↔B
If you want to repeat playing a specific section, press the A-B button to select the beginning of
that section and then press A-B again to select the end of that section. The selected section will
continue repeating until you push A-B or PLAY.
※This only works with one file at a time.
※The section repeat is done the same way for ALL files
● Equalizer Functions
① In Voice File Domain, you may check the remain by pressing EQ key under stop & you may
change the recording sampling bit-rate(16Kbps/32Kbps).
② When playing MP3 files, you may play according to genre using the equalizer functions
NORMAL, ROCK, LIVE, CLASSIC and POP. You may set the equalizer functions when the
player is stopped using the EQ Button. At this time, the message “NOR, ROCK, LIVE, CLA
and POP” displays on the LCD.
10). Erasing files
※ Deleting is only available when the player is stopped.
● Deleting a Message One by One
① Select the file to delete using the Button.
② If you press ERASE, “ERASE” will be flickering on the LCD and the message to be deleted is
displayed for confirmation.
While the message “ERASE” is flickering, press the ERASE Button again to delete the message.
If the message is deleted, the number displayed on the LCD will be forwarded to the next file.
※ While the message “ERASE” is flickering, if you press any button, the erase function is
cancelled.
※ Note: Once a message is deleted, it is not recoverable.
● Deleting all Files
① Select the files to delete using the MODE Button.
② If you press and hold the ERASE Button for longer than 5 seconds, the “AL.ERASE” will be
flickering.
If you press the ERASE Button again at this time, all files will be deleted.
③ You may delete the information in the MP3 Domain the same way.
Deleting HD files is only available using the PC-APPLICATION after connecting your PC with
the USB connection.
※ Note: If you use up (full) the memory by using the hard disk function, No recording capabilities
will be available. Do not turn off the power or take out an external memory card while deleting files. It
may cause a malfunction.
11). Reserved Recording
※ To set a reserved (future) recording, the TIME Setting must be set.
If you press the TIMER Button, the time (Hour/Minute/Day) displays.
If the time setting is done, the correct Day/Hour/Minute/Second will appear on the
display screen.
To change it:
① Press and hold the TIMER Button while the player is stopped.
② When you hold the TIMER Button, the day will be flickering and If you press or you
can change it. Push the PLAY Button to set and the window displaying the time will also be
flickering. If you press or you can change the hour, press PLAY to set and do the same
to change the minute and press PLAY to set.

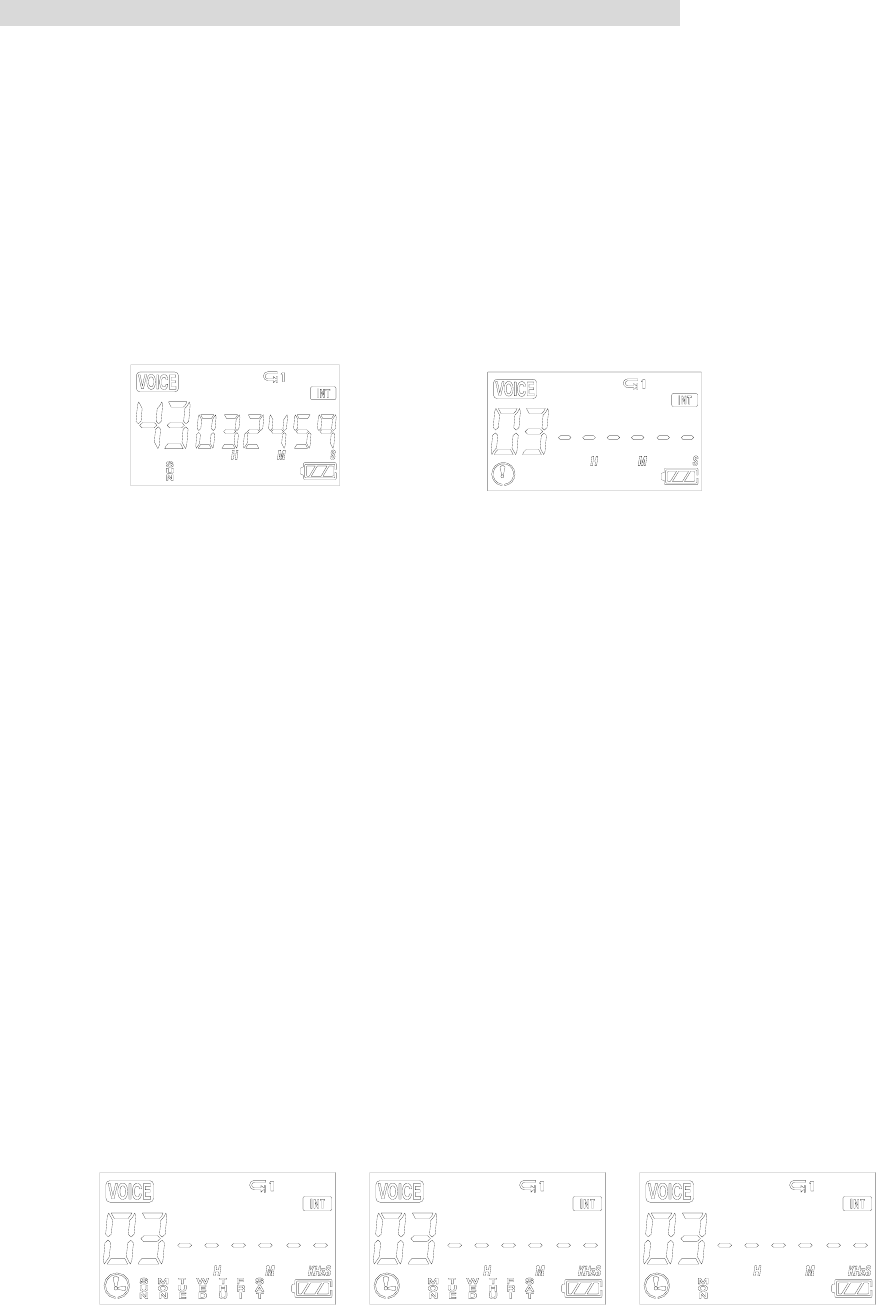

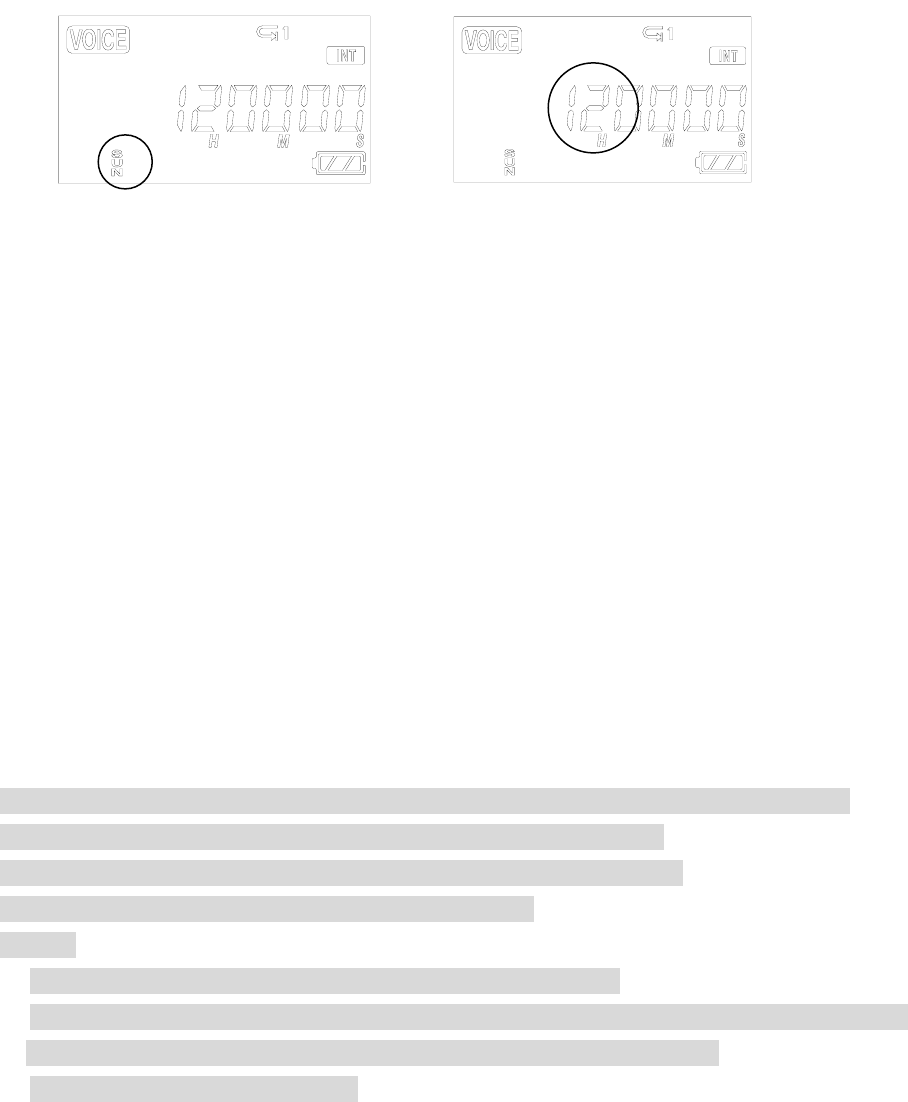

Example of Displaying the Time Example of Displaying the Reserved Recording
② After the time setting is done, if you press the TIMER Button once, the time displays and
if you press the TIMER Button twice, the reserved recording screen appears.
(AM/FM/VOICE mode only)
The minute needle clock indicator and setting channel should be flickering.
Press to select the file number and then push PLAY.
Now the days of the week will flicker. Use to select the desired day and press PLAY.
③ After selecting the day set the hour by using and pushing PLAY (same as before) to
select the desired hour (do the same for minutes). After the minutes are set, the start time
will flicker but you will be setting the ending time now. Set the hour by using and
pushing PLAY (same as before) to select the desired hour (do the same for minutes). When
you finish, you will see the main screen and your unit is ready to record on the selected
day(s) & time(s).
(It will seem like you are changing the start time when setting the ending time but trust us
you are setting the ending time)
A start and ending time setting requires 4 PLAY presses.
<Example- 1 start hour + 1 start minute + 1 ending hour + 1 ending minute = 4>
④1) The reserved recording is initiated at every Nth time of every day
2) The reserved recording is initiated at every Nth time on Monday - Saturday
3) The reserved recording is initiated on a certain day of every week
You select using and confirming is done using .
⑤ After setting the day, set the hour and minute
. ⑥ And then, set the hour and minute ending time.
Once END Setting is done, the TIMER icon displays
and the recording is automatically initiated at the
designated time.
* You may set up to 10 reserved recordings for all the sections in AM/FM/VOICE. It is set
the same way described on the last page. A reserved recording is automatically initiated
even when the power is OFF. (Timer function)
* The reserved recording may be canceled by pressing “ERASE Key” and modified by
resetting on the reserved channel.
* The cancellation during set-up is done by “STOP Key”.
12). Line in
● Connecting an External Microphone
- Plug a pre-amplified microphone in the line in terminal of the body.
※. When an external microphone is connected to the line in, the built-in microphone is not
operational.
● Connecting to External Devices
You may record from almost any device using the line in and audio cable.
● Connecting to a stereo
When recording from the line in of the voice recorder, connect the audio cable to the line in of
the recorder and to the headphone jack of the output device.

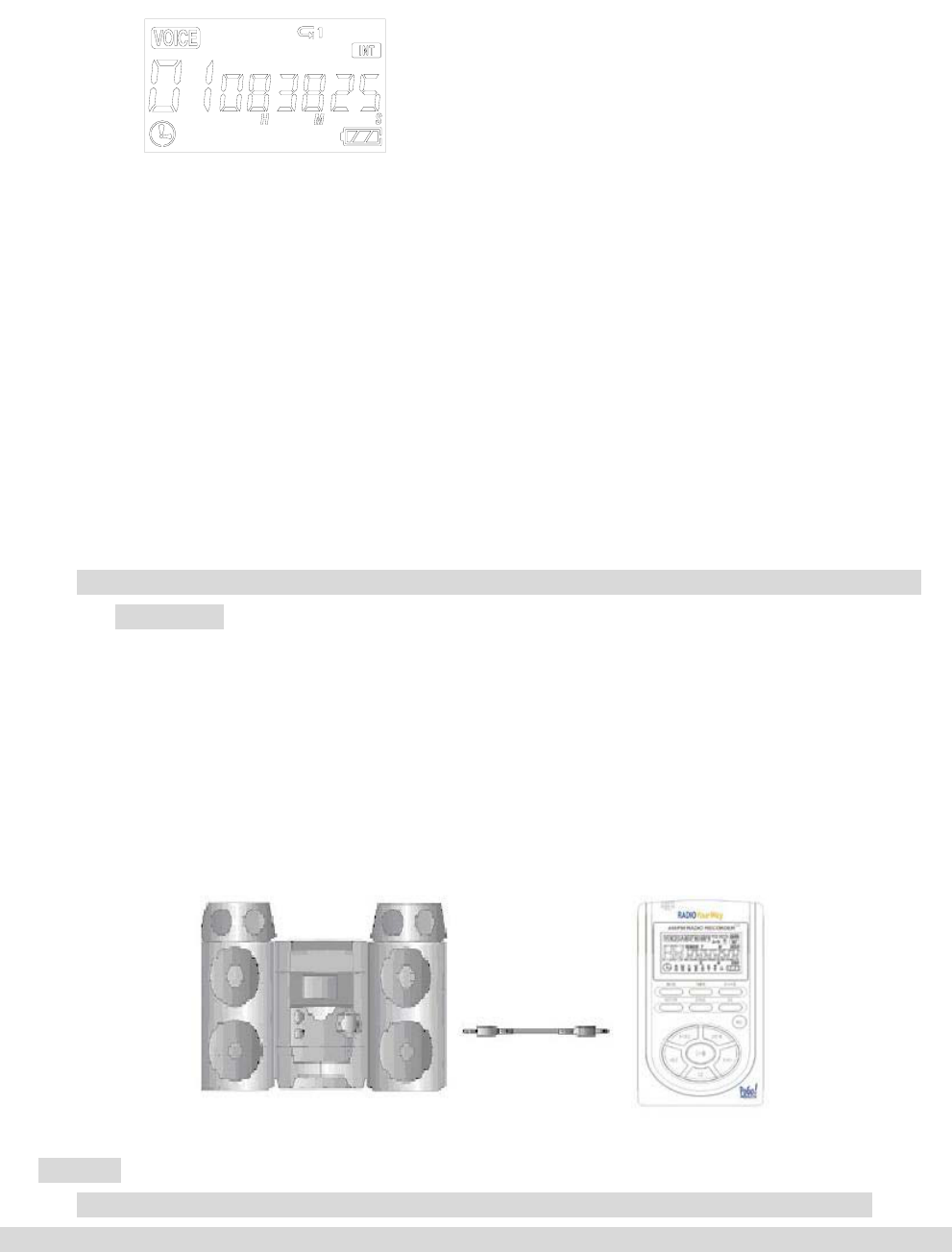

How to Connect to a stereo
※ Note
★ When connecting to an external device, make the connections with the power OFF.
★ Before connecting to any external device, carefully read the manual of the external device
●When recording from an external device, record after connecting the audio cable to this device
and decreasing the volume of the external device.
●To record in the external device, play this device and initiate the recording in the external device
Line-in/out cable
at the same time.
(Refer to your devices user manual)
(This timing may be different depending on each device, so make a test recording prior to
performing an actual recording).
13) AM/FM Radio
When listening to the FM Radio, use earphones. They act as the antenna. You can also plug an
antenna in the headphone jack of the player and use the speaker.
* It is very convenient for you to listen to a broadcast using the AUTO SEEK Function.
After selecting the radio mode, if you press and hold for about 1 second, it will stop at an
audible broadcast channel. This saves time in unfamiliar areas.
After finding a station, AUTO SEEK will stop.
When using AUTO SEEK to find a station, a precise TUNNING may not be available, please perform a
fine adjustment using the REW or FF KEY.
● How to Save a Channel

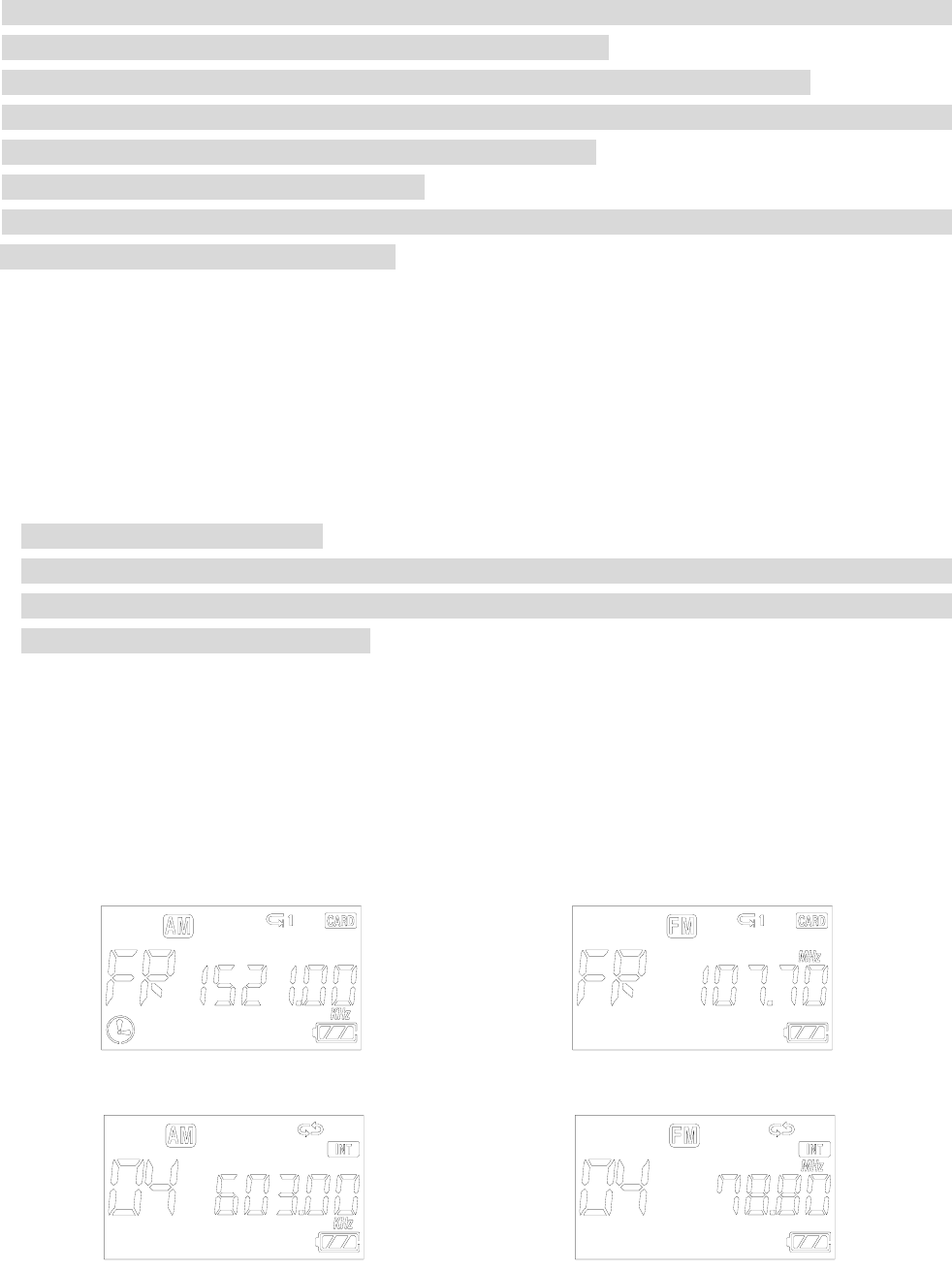

① Convert to AM/FM mode by pressing the MODE Button.
② The frequency will display on the LCD. Select the frequency using .
③ Press the PLAY Button, a file number (01-10) will be flickering on the display screen. Select
a channel (01-10) using the Button and PRESS PLAY to select that channel. The selected
channel will be saved. (01-10)
④ You may save up to ten channels the same way.
* Confirming the saved channel
If you press the Button, the saved channel and frequency is displayed. You may select a
channel using the Key. In this mode, if you press the Button, you will go back to the
frequency (FR) selection mode.
● How to Record a Radio Broadcast
① Select the broadcast channel you want to record (same as Radio Channel Setting)
② Record by pressing the RECORD Button. The recording will be saved in the voice folder and
in the empty portion just after the last recorded message.
You may check the file in the voice folder after you have finished the recording.
* Please, refer to 11). Reserved Recording for more info.

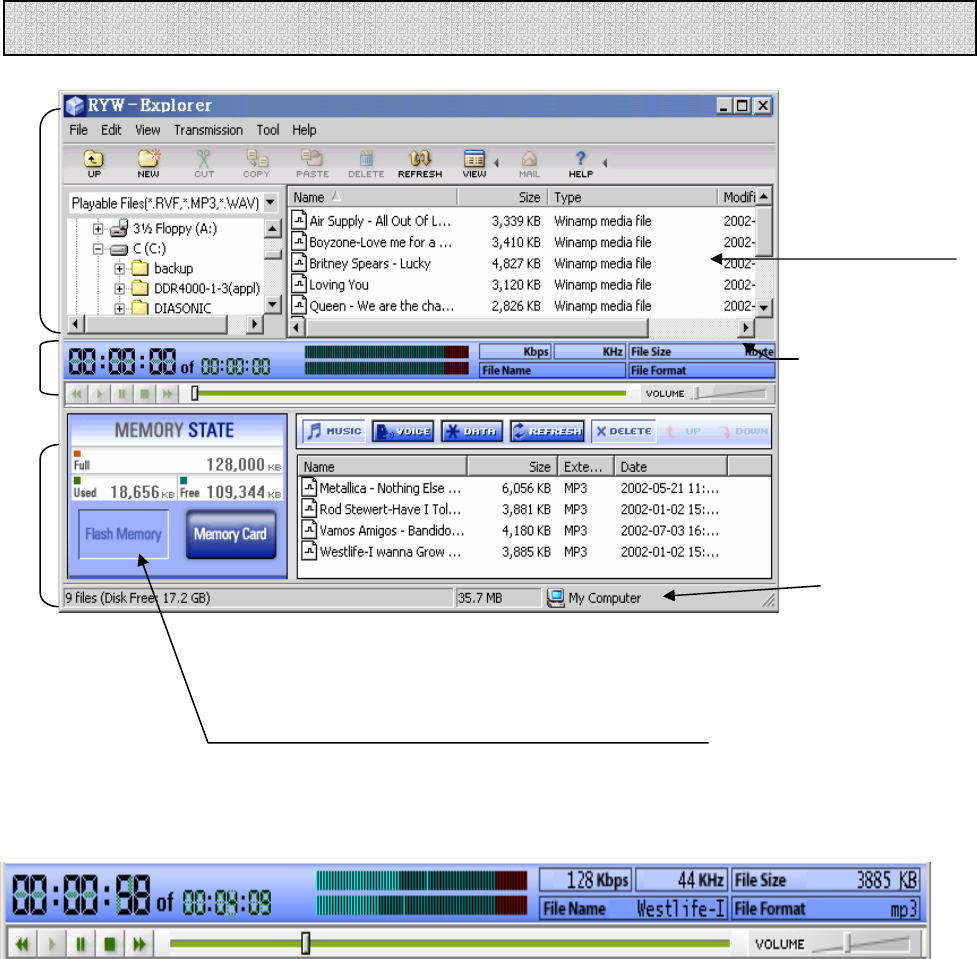

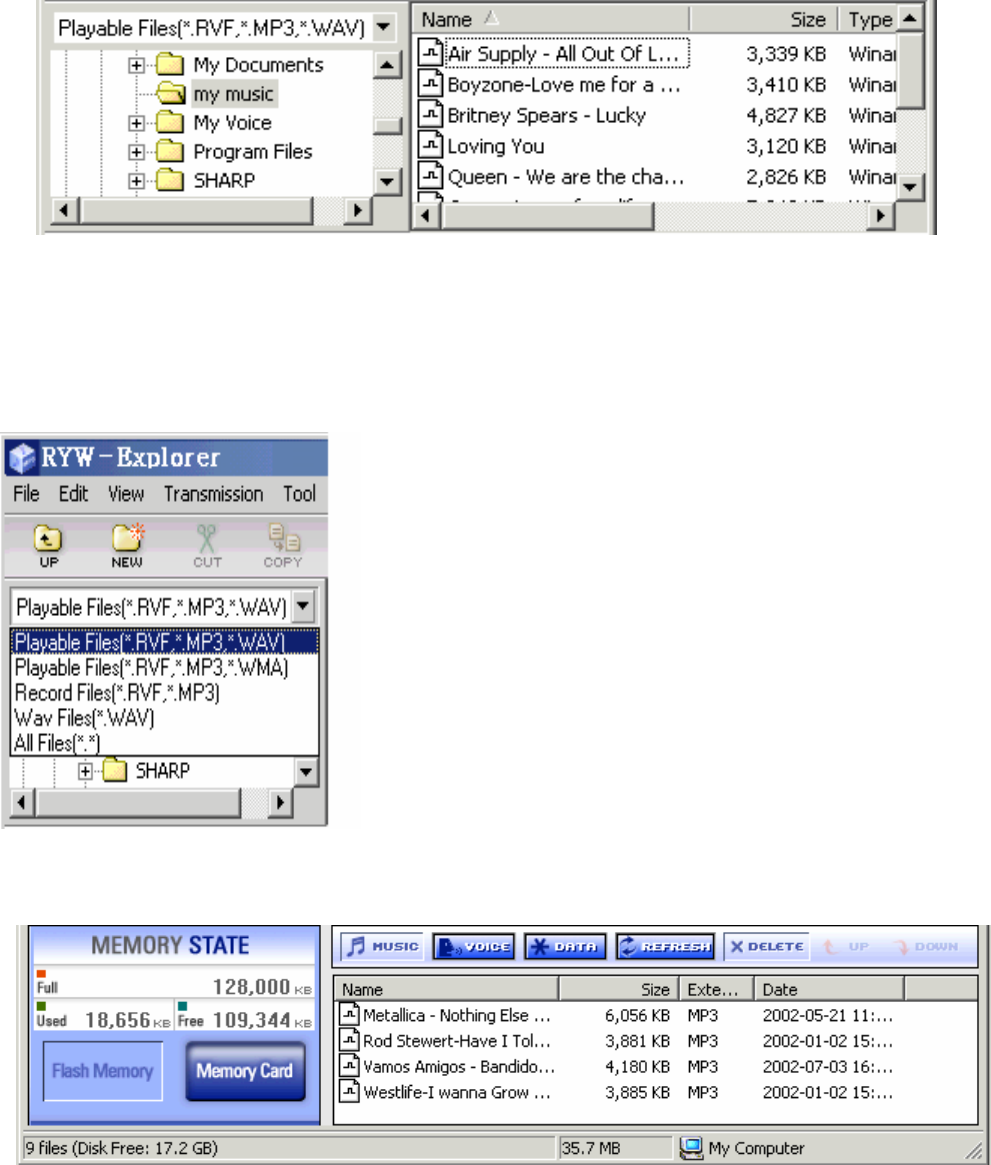

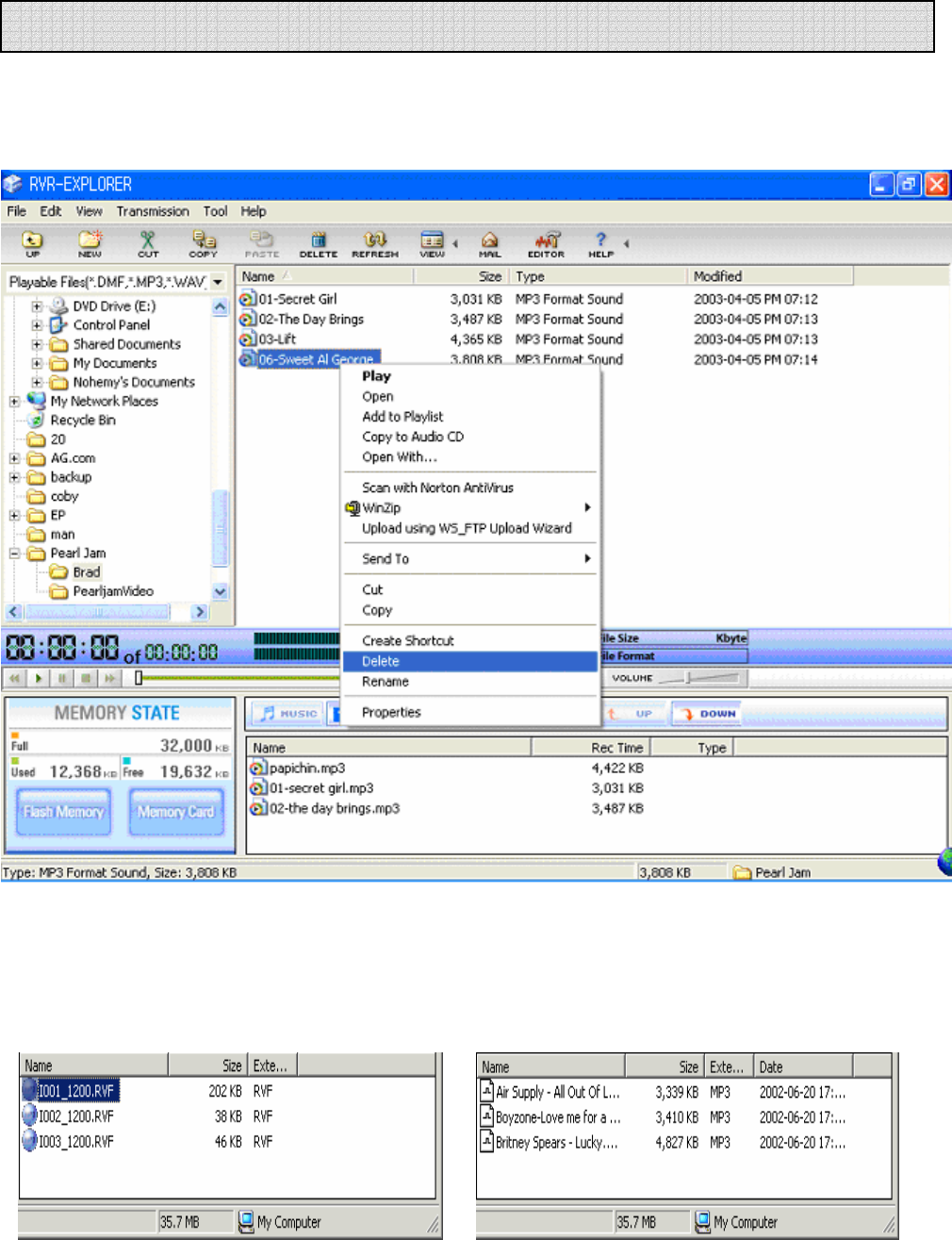

2). RVR-Explorer

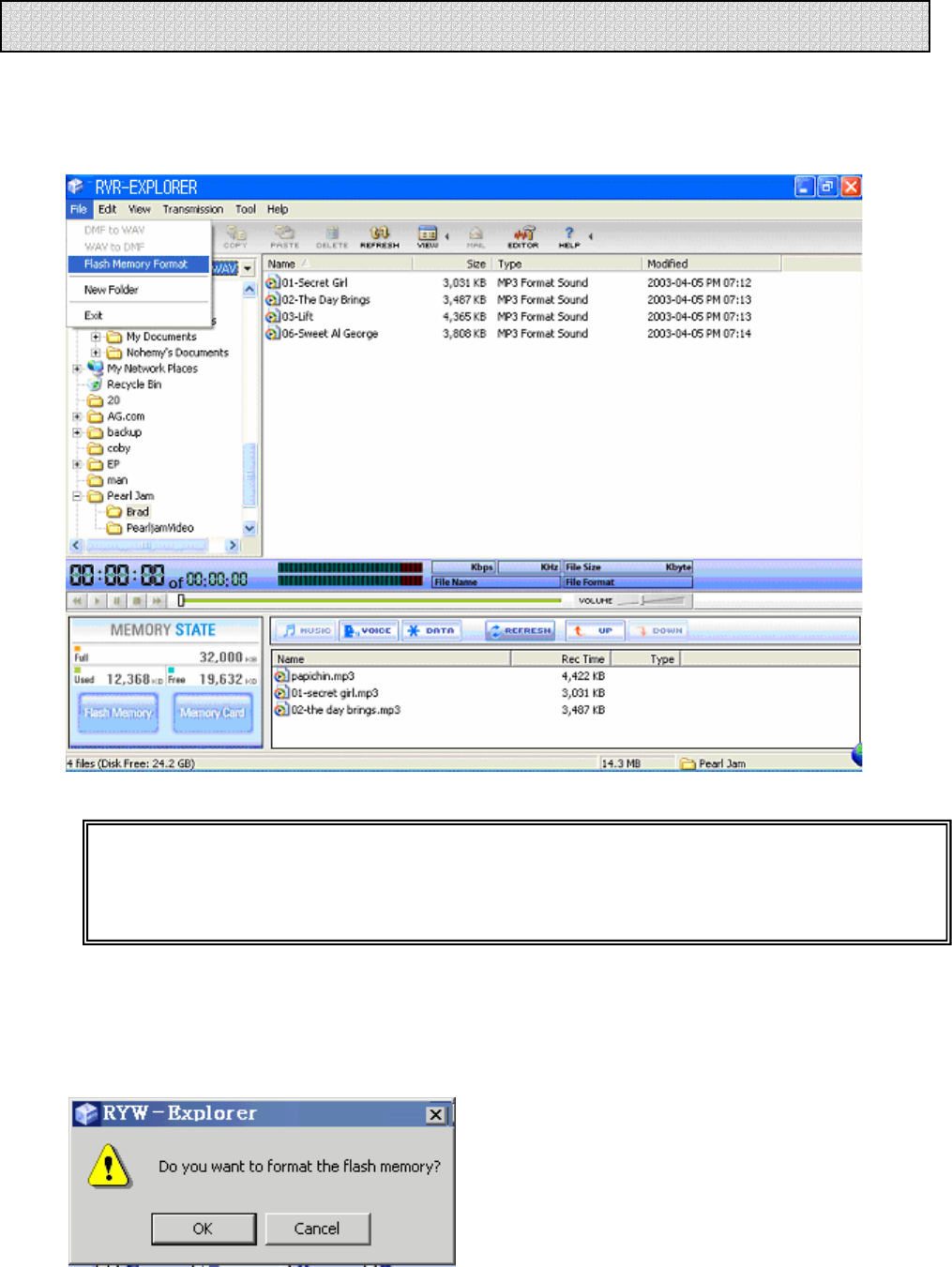

RVR-Explorer
is a management program for uploading and downloading files to DDR-4000R.

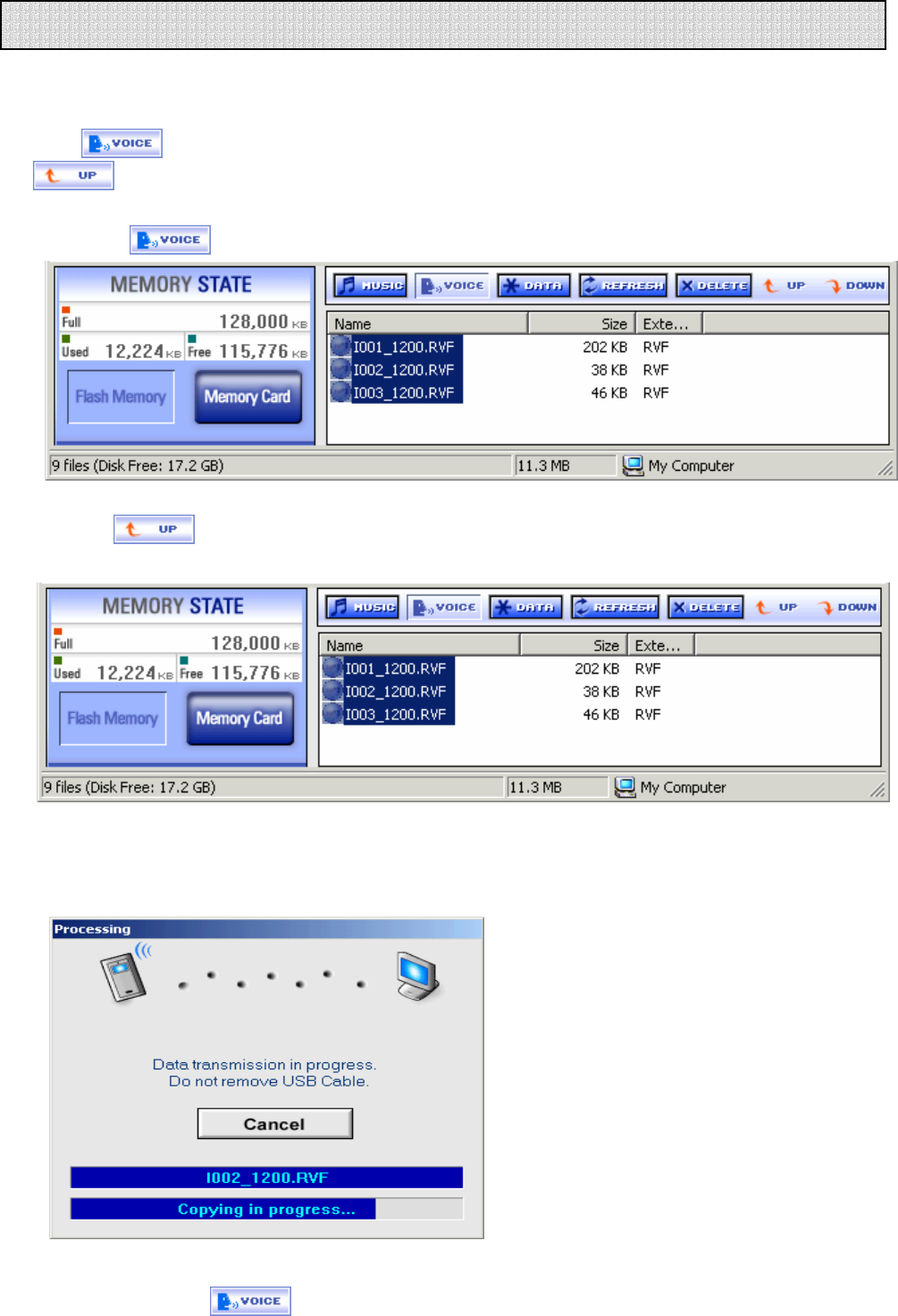

● You can (Download/Upload) MP3, DMF and other data files
● The Function of controlling files is the same as in window Explorer
● Plays MP3, WAV, DVF files and playing lists
● Inter-conversion function between RVF/WAV
● Convenient file transmission
● User-friendly interface
System Requirements for RVR-Explorer
● Pentium 200MHz or faster
● 64MB RAM
● 20MB free hard driver space
● SVGA graphics adapter 256 colors or better
● Microsoft® Windows® 98/ME/2000/XP( NT not supported)
● USB port
● CD-ROM Drive
● Sound card, Speaker or Headphone
1). RVR-Explorer
Follow these instructions to load the software and drivers for DDR-4000R

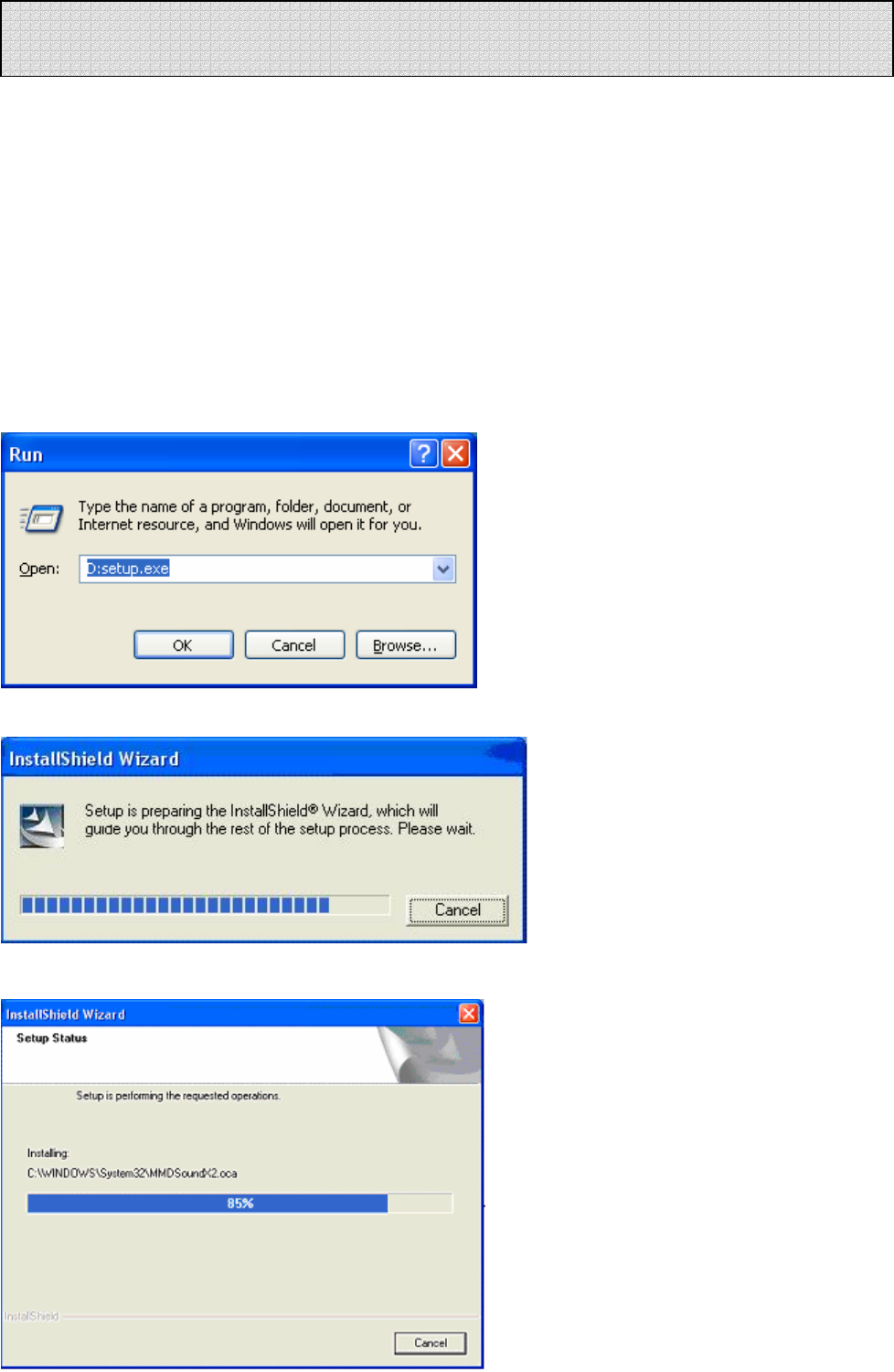

1. Place the software CD label side up into your computer’s CD-ROM drive. After a few seconds you
should see the software selection screen.
Note: If the Installation Software screen does not load automatically, please click the START button
in the bottom left corner of your computer screen and click RUN.
Type D:setup.exe and click ok
(If your PC uses a letter other than “D” substitute that letter)

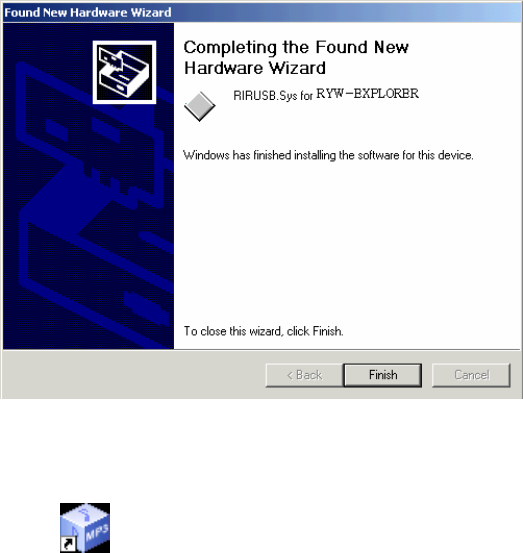

You should now see the screen below (follow the wizard through)

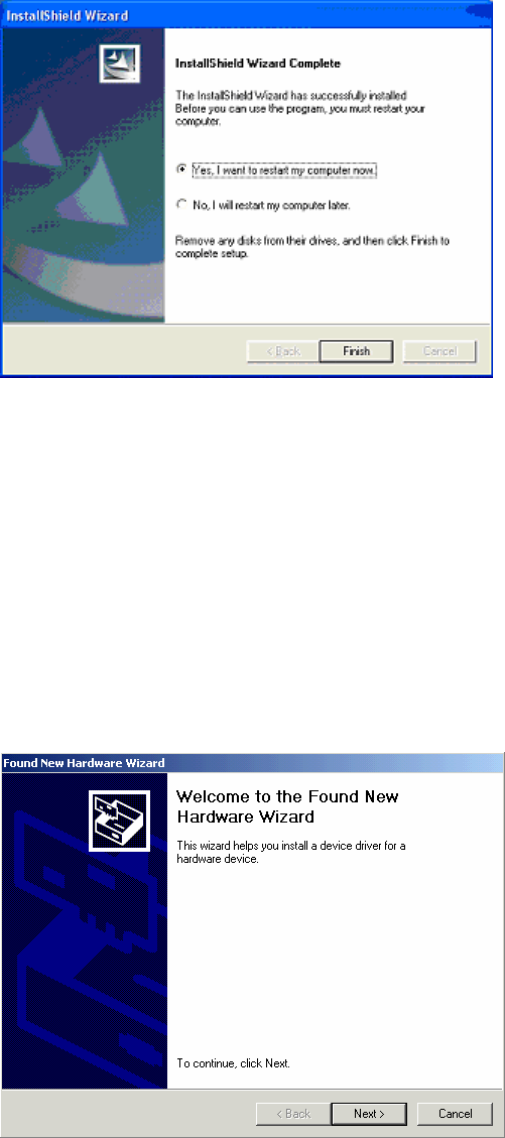

Once the screen below disappears, you have finished installing the software.
2). Quick Software & Drivers Installation Guide
Click finish and restart your computer.
2. Plug in DDR-4000R into your computer’s USB port and power it on.
Tip> To power on your unit hold play for 2-3 seconds

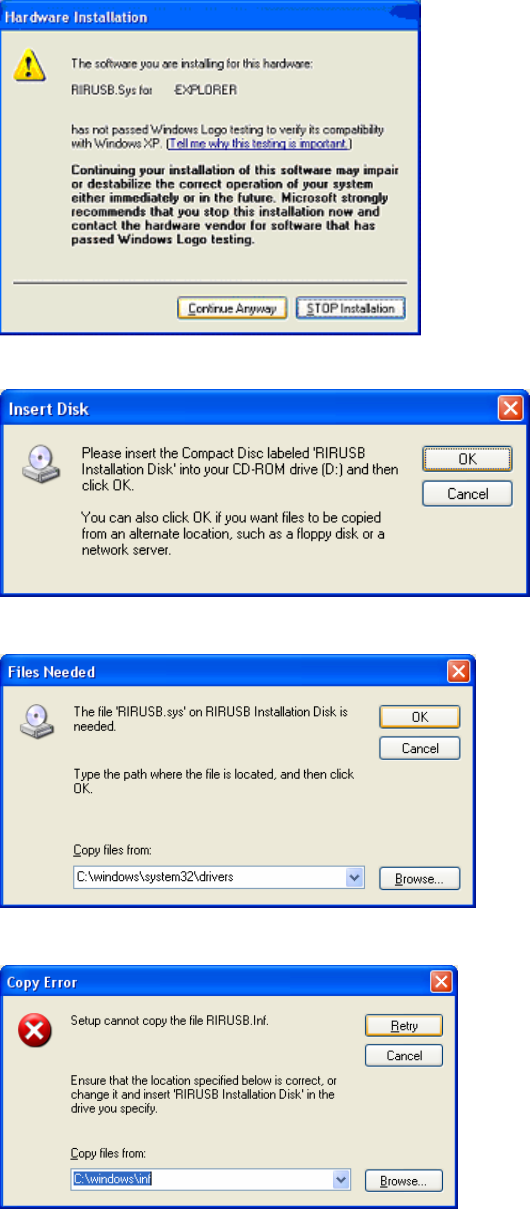

Your computer now should display “Found new hardware” and DDR-4000R should display USB on its
LCD.
You should see the Found New Hardware screen below, just click next
Click continue anyways (Do not worry this will not HARM your PC we have tested this software to be
compatible with your OS)
If you see the screen below click ok.
When you see the screen below, type or browse to C:₩windows₩system32₩drivers
When you see the screen below, type or browse to C:₩windows₩inf and select retry
When you see the screen below click finish.
Click the Mp3 manager icon on your desktop (with the player plugged in)
Radio Yourway.lnk
Congratulations your unit is installed and ready to use.
Man-
aging
Files
Play
Man-
ager
Mem
ory
Man-
aging
(1). MP3, WAV and RVF Playing
After selecting an MP3, WAV or RVF File to play in the File Managing Window, if you double
click the PLAY Button, playing will begin. At this time, you may check some information of the
selected file like bit rate, sampling frequency, file size, file name, version of file and total running
times of files.
You may adjust the playing volume by moving the position bar of the ‘VOLUME’.
You may move the playing position of the song clicking the white position bar with your mouse.
File
Managing
Window
Folder
Managing
Window
Memory
Status
Window
Memory
Managing
Window
3). RVR-Explorer User Interface
(2). Managing MP3 and RVF Files
The file managing part of RVR-Explorer looks very similar to the one of Windows Explorer.
The hard disk, CD-ROM Driver and folder installed are in the system display on the window on
the left and numbers of files in the folder displayed are on the window on the right.
All files will display in the window and you may allow
numbers of files (including MP3 Files) to be displayed
on the window. You may use managing functions such as
moving and copying just like you would with Windows
Explorer.
You may separately manage these DMF files after putting
them in a folder using the file managing feature.
(3). Memory Management
The lower part of RVR-Explorer is used to manage the flash memory and memory card inserted
in DDR-4000R. If DDR-4000R is properly connected; the window will show the status of the
memory and files stored.
MP3 files transmitted will appear on the lower right of the window and the size of the file and
unused space will display as well.

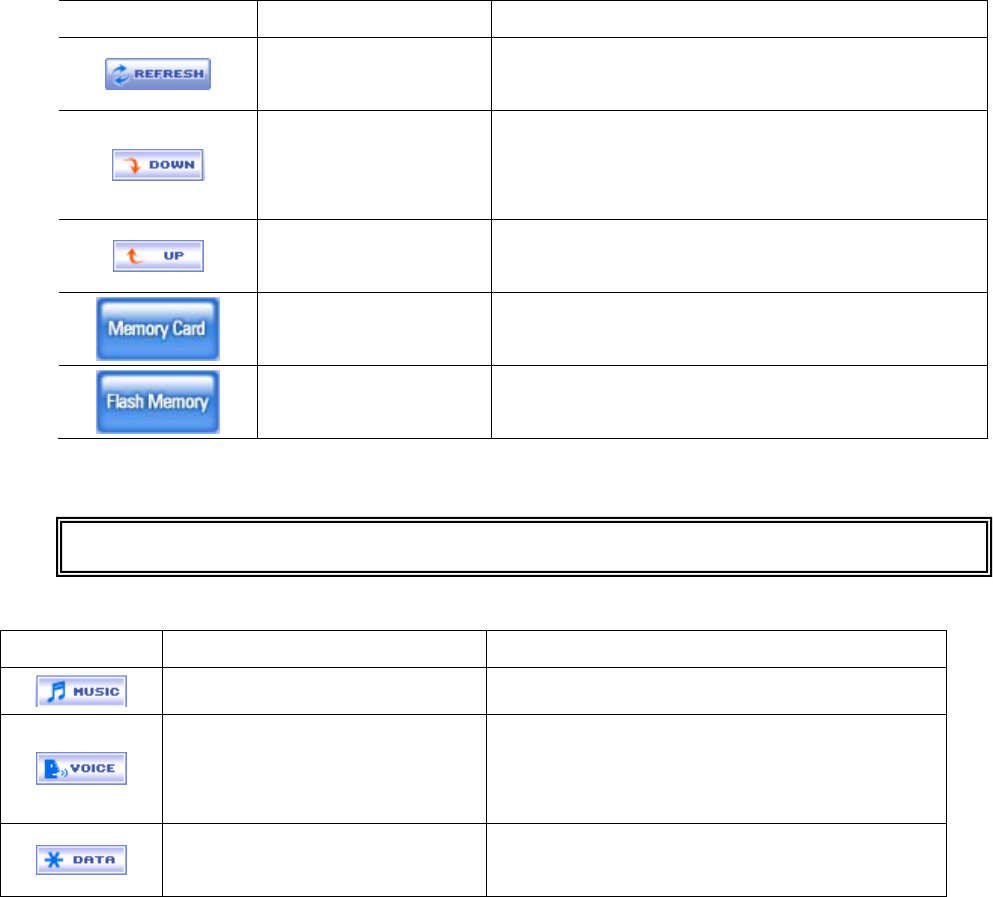

(4). Descriptions of Buttons
Buttons Functions Details
Refresh Reads and displays the new memory info on the
screen.
Transmit to Radio
YourWay™
(Download)
After selecting the files to transmit, if you press
this button, the selected file will be transmitted
(Download) to the memory.
Transmit to the
Computer (Upload)
Used to transmit (Upload) a file in the memory to
the hard disk in the PC.
Memory Card Means a memory Card is used in the External
Memory of DDR-4000R.
Flash Memory The flash memory of DDR-4000R.
You may divide and use the memories in 3 folders and play each folder in DDR-4000R.
Buttons Functions Details
Selects MP3 Used in MP3 Mode
Selects the RECORD Folder
Used in Voice Record Mode
Only a RVF recorded file, may be
saved/produced
Selects the HD Folder Used in HD Mode
(Removable Hard Drive)
※ Copyrighted MP3 Files can not be uploaded.
Way of transmitting MP3 files to DDR-4000R is very simple. As previously stated, select the file
and Click and then click to start downloading
① Select the MP3 files to transmit in the file managing window.
Click button and then click to start downloading.
③ The selected MP3 File is being transmitted.
Transfer to
Memory
4). Transmitting MP3 Files
Way of transmitting RVF files from DDR-4000R to the PC is very simple. As previously stated,
click in the folder managing window and then select the RVF files to transmit and click
① Click and then select RVF files to upload.
② Click to start uploading.
③ The selected DMF File is then transmitted to the PC.
● When transmitting RVF files from the PC to DDR-4000R, the process after selecting the RVF
file is the same as the one for transmitting MP3 Files.
5). Transmitting DMF Files to the PC

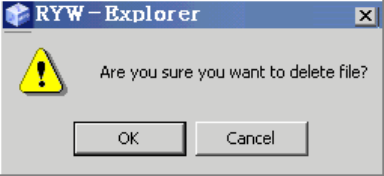

Deleting MP3 and RVF Files in DDR-4000R is the same as deleting files in Windows Explorer. You
may delete the files by selecting ‘DELETE’ after right clicking your mouse.
You may delete MP3 and RVF Files stored in the memory the following way:
① Select files to delete and then right click your mouse and select ‘DELETE’
RVF files MP3 files
6). Deleting MP3 & RVF Files
Click OK to delete the file.
After few seconds, the file will be deleted from the memory.

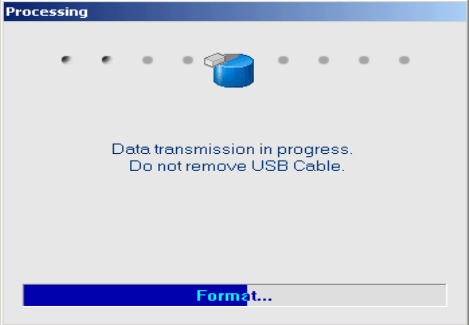

Just like formatting a hard disk, you may initiate (format) the memory used in DDR-4000R. If
you format the flash memory, all data stored in the memory will be lost.
① Select File -> Flash Memory Format in the menu of DDR-4000R.
② When a pop-up window prompting you to format appears, click the OK button and the
formatting will be initiated.
※ If you right click the mouse on any empty space in the flash memory managing
window, you will see this Flash Memory Format command. This command also can be used
to format the internal flash memory.
7). Initiating the Flash Memory
3. General Specification
Model PRY900M2
Record Time 32Mbyte : 135Min/270Min
Mode ADPCM 32Kbps/16Kbps
File VOICE : 99 / MP3
FM Record FM band, Stereo (76MHz-108MHz) (USA 87.5-108)
AM Record 530kHz – 1710kHz
Timer Record Date / Daily / Weekly
Mic Built-in Mic / Line (external Mic)
Record Device Built-in Flash Memory(32MB)/EXT(MMC/SD CARD 256MB)
S/N 45db (62db input 1kHz , speaker output 50mW )
Distortion 3%±0.2 (62db input 1kHz , speaker output 50mW : HQ mode )
Freq,Response 400Hz-3.2kHz(-6db)
Output Power Max 5mW(stereo earphone 16ohm)
VOICE
RECORD/
PLAY
Repeat Play One messages repeat/Cont. messages repeat / A-B repeat
S/N 45db at 1mv 98.1MHz
Distortion 0.8%(max) at 1mv 98.1MHz ∆f=22.5kHz
Freq,Response 350Hz±30Hz,3kHz±0.25kHz(150Hz-2.5kHz,60dbuV)
Sensitivity 5uV at S/N=26db
Frequency
Cover Range
76MHz - 108MHz
FM
RADIO
(Stereo)
Preset Mode 10 Radio station
S/N 35db
Distortion 3%
Freq,Response 150Hz – 1.5kHz at 0db
Sensitivity 68dbuV at 1000kHz
Frequency
Cover Range
530kHz – 1710kHz
AM
RADIO
Preset Mode 10 Radio station
Bit/Rate 32Kbps-320Kbps(MPEG 1/2 LAYER 3)
S/N 85db up(1kHz input 0db)
Distortion 0.3%±0.05 (1kHz input 0db)
Freq,Response 20Hz-20kHz
Earphone Max 5mW(16ohm)
EQ EQ : NORMAL, ROCK, POP, CLASSIC, LIVE
MP3
Repeat Play ALL1/ALL/1/1ALL/A-B
Communication USB 1.1
System CPU200MHz more than, RAM 64MB more than, 20MB of free space
OS Windows 98, 2000, ME, XP
Sound Card Sound Blaster 16 compatible
PC
Interface
Display 640X480 more than
Ext Line in ∮3.5 plug-in power microphone(mini plug/stereo) IMP less than 3KΩ
Earphone ∮3.5 earphone(mini plug/stereo) IMP less than 16Ω
DC JACK HOLE : ∮2.75, Dia : ∮0.65
IN/OUT
JACK
USB Mini jack (PC : A TYPE)
Diameter 28(IMP 8Ω)
SPEAKER
Max output 80mw(volume max)
Volume Digital volume (30 step)
Memory Flash memory (32MB)
LED Recording display LED(RED)
Mode VOICE/AM/FM/MP3
Messages 01-99(INDEX)
EQ NOR ,ROC ,POP ,CLA, LIV
Repeat ALL1/ALL/1/1ALL/A-B
LCD
(TN)
Clock CLOCK,SUN,MON,TUE,WED,THU,FRI,SAT,
Adaptor DC3V/200mA(CE,CUL,T,FCC)
Key Function
FF/PLAY/STOP/REW/F.SEARCH/R.SEARCH/REC/REPEAT/MODE/ERASE/EQ/A-
B/TIMER/VOL+/VOL-
Power Requirement 3V , LR03 , tow alkaline battery(‘AAA” size or UM-4 )/NiMH 1.2V x 2
MP3 PLAY Approx. 14hour during the mp3 play(earphone output: volume middle position)
VOICE PLAY Approx. 13hour during the voice play(earphone output: volume middle position)
RADIO PLAY Approx. 11hour during the radio play(earphone output: volume middle position)
Battery
Life
RADIO/VOICE
REC
Approx. 9hour during the radio play(earphone output: volume middle position)
Accessory
Connecting cable for external equipment(1) / application CD(1) /
Neck strap(1) / stereo earphone(angle type)(1) / EXT ANT(1) / battery(2) /
USB cable (1) / manual (1)
Size 98.5*18*55
4. Warranty
● If any defect or error occurs, stop using the product and contact the shop you purchased or
Diasonic Technology Co., Ltd. General Directory Number: (031) 474-0852
● Warranty (Warranty Regulation)
Diasonic Technology! Products guarantees a free repair or service for a period of one year
from the original date of purchase only.
If any defect or error occurs during the warranty period, please contact us.
A dated order/receipt is REQUIRED for all warranty claims.
Ensure the above information is provided and if it not, consult with the shop you purchased
to obtain it.
(Free Repair or Service)
A. This product is manufactured under a strict quality control and inspection process.
B. If any defect or error occurs under normal operation, in accordance with the caution or
notes in this manual during the warranty period, you are entitled to a free repair or
exchange from our company.
C. The free repair/service does NOT include shipping charges.
3. Even during the warranty period, you will be charged for the following defect/damage or
error:
1) Without a dated purchase order/receipt.
2) If the original date of purchase is passed the warranty period or the dated purchase
order/receipt is modified in any way.
3) For any defect or damage resulting from misuse, abnormal use, abnormal condition,
improper storage and/or exposure to direct sunlight or moisture.
4) For any defect or damage resulting from any unauthorized modification or repair.
5) For any defect or damage resulting from disasters such as fire, air pollution, earthquake
or war.
6) For any defect or damage resulting from a leak of the battery.
7) Consumable such as battery.
4. The warranty is valid only for service in the USA.
(Caution Upon Shipping or Transporting)
Upon shipping or transporting the product, please be careful about the following:
1. Enclose the original dated purchase order/receipt with the product during the warranty
period.
2. Avoid damage to the product during shipping/transportation using proper packing materials.
The customer shall bear the cost of shipping/transportation.
3. Use registered and/or insured mail to prevent a loss.
● If any defect occurs during the use of this product, contact the shop you purchased or Diasonic
Technology Co., Ltd.
● Replacement, repairs (charge/free) or refunds must be in accordance with our policy and can be
found at:
http://www.diasonic.com
● If you have any further questions about this product, please contact Diasonic Technology Co., Ltd.
