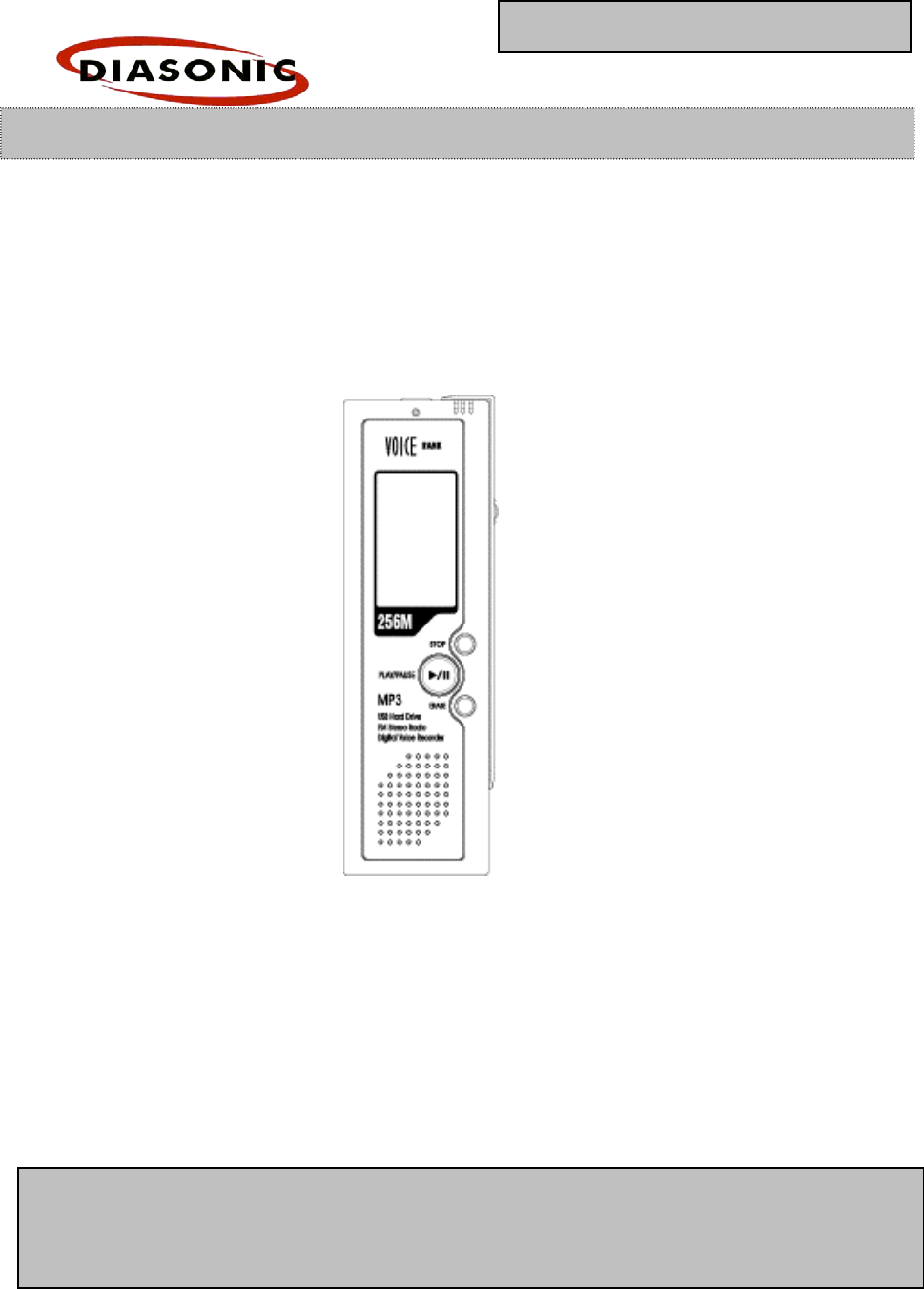

Diasonic Technology Co DDR5100 DIGITAL VOICE RECORDER User Manual DDR 5100 manual
Diasonic Technology Co Ltd DIGITAL VOICE RECORDER DDR 5100 manual
USERS MANUAL
1
Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC TECHNOLOGY Co.
Please carefully read the Instruction manual for safe use of the product. We recommend that you to
keep this instruction manual for future reference.
User Guide manual
DIGITAL VOICE RECORDER
MODEL : DDR-5100
2
Thank you for purchasing Diasonic MP3 Player.
Please read this instruction manual carefully before use.
If you find any defect during the use of this unit, please contact A/S Center [Tel 031-474-0852; Head
Office].
Precautions:
● Do not repair, disassemble or modify the unit at your own discretion.
● The memory content may be changed or lost due to misuse, static electricity or electric shock during
the repair or battery change. Be sure to make a note of important content.
● Diasonic assumes no responsibility for any damage caused by change or loss of memory content.
● Do not drop the unit in the water or keep it in any damp environment.
● This instruction manual is subject to change without notice for the purpose of product improvement.
Copyright
● The MP3 files created for MP3 conversion shall not be used for any commercial or public purposes.
Any violation of the prohibition may be a breach of copyright laws.
● Any unauthorized reproduction of recorded files for any other purposes than personal use is strictly
prohibited by the relevant laws and regulations.
Note
This instruction manual is required for the effective use of Diasonic MP3 Player. Pay special
attention not to lose the manual as it is not provided separately from the unit.
Preface
INFORMATION TO THE USER
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority operate the equipment.
This device complies with Part 15 of the FCC Results. Operation is subject to the following
two conditions:
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
3
Warning
● Keep the batteries out of reach of the children. If a child swallowed a battery, please consult a docto
r
immediately.
● Do not have the battery shorted, disassembled, heated or put in fire. This may cause leakage, heat,
explosion or fire.
● If the battery leakage gets in your eyes, wash it off with clean water, and seek immediate medical
treatment. If not, you may lose your sight.
● If the LCD is damaged, do not touch the liquid. If the liquid contacts your eyes or skin, wash it off with
clean water, and seek immediate medical treatment.
● If you use the rechargeable batteries, read the user’s manuals for batteries and chargers carefully
before use.
● Read this instruction manual carefully before use.
Using earphones
Road safety
● Do not use earphones while driving, cycling or operating any motorized vehicle. It may cause a traffic
hazard and is illegal in some areas. It can also be dangerous to play your earphones at high volume
while walking, especially at pedestrian crossings.
Preventing hearing damage
● Avoid using earphones at high volume.
Hearing experts advise against continuous, loud and extended play.
● If you experience a ringing in your ears, reduce the volume or discontinue use.
Safety Precautions
4
Precautions
1. Functions and Features
2. Parts and Components
3. Basic Operation Guide
4. Button
5. Receiving FM Radio
6. Mode Menu
7. Main Menu
8. Recording in Recording Mode

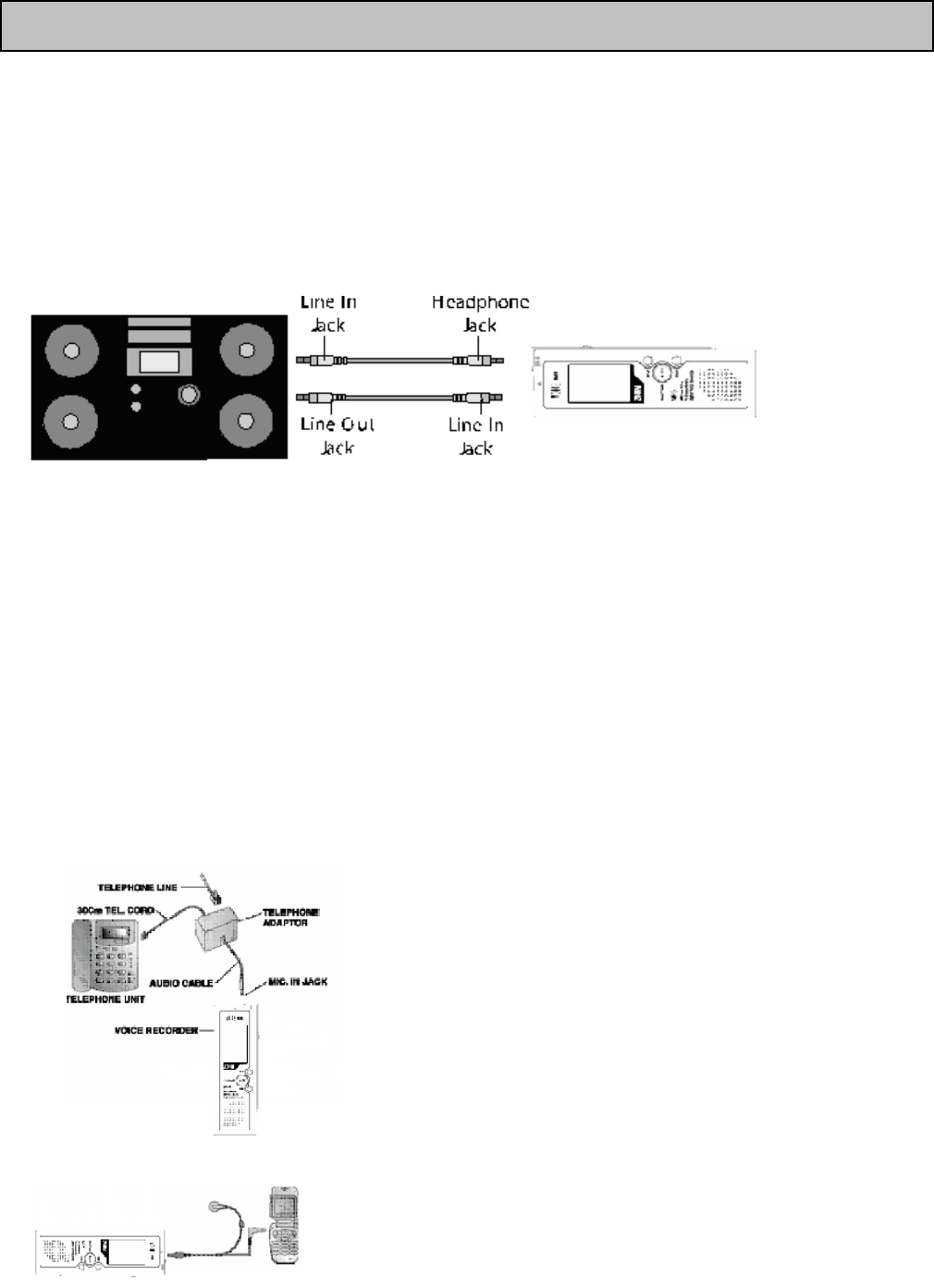

9. Connecting to external audio device

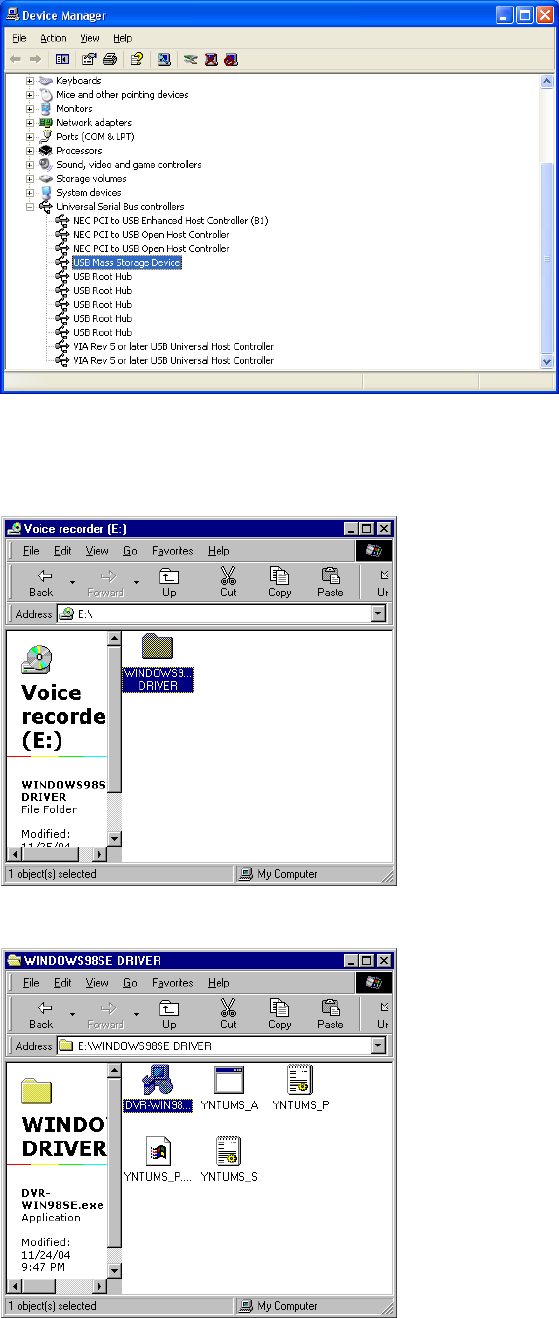

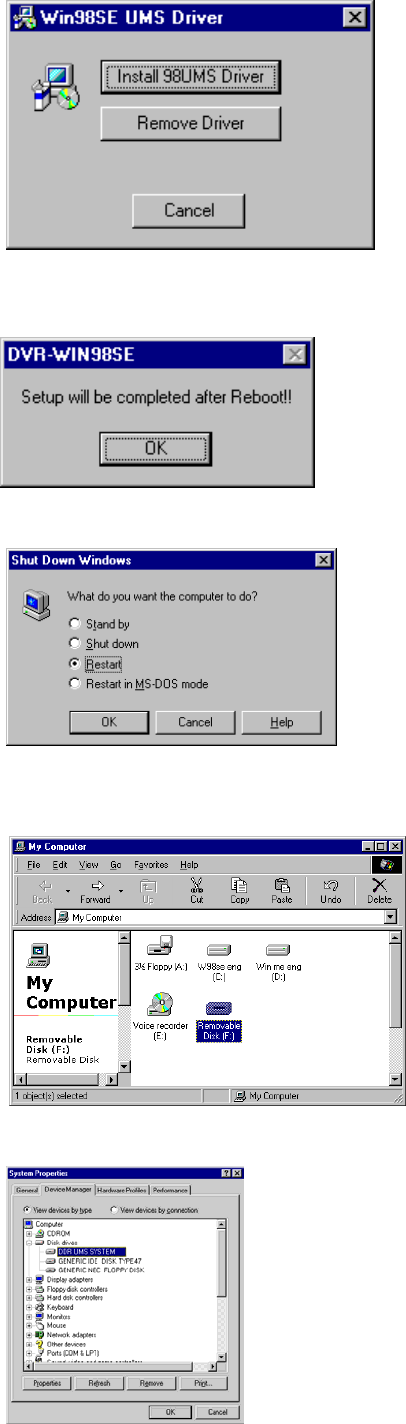

10. Installation of Win98SE driver

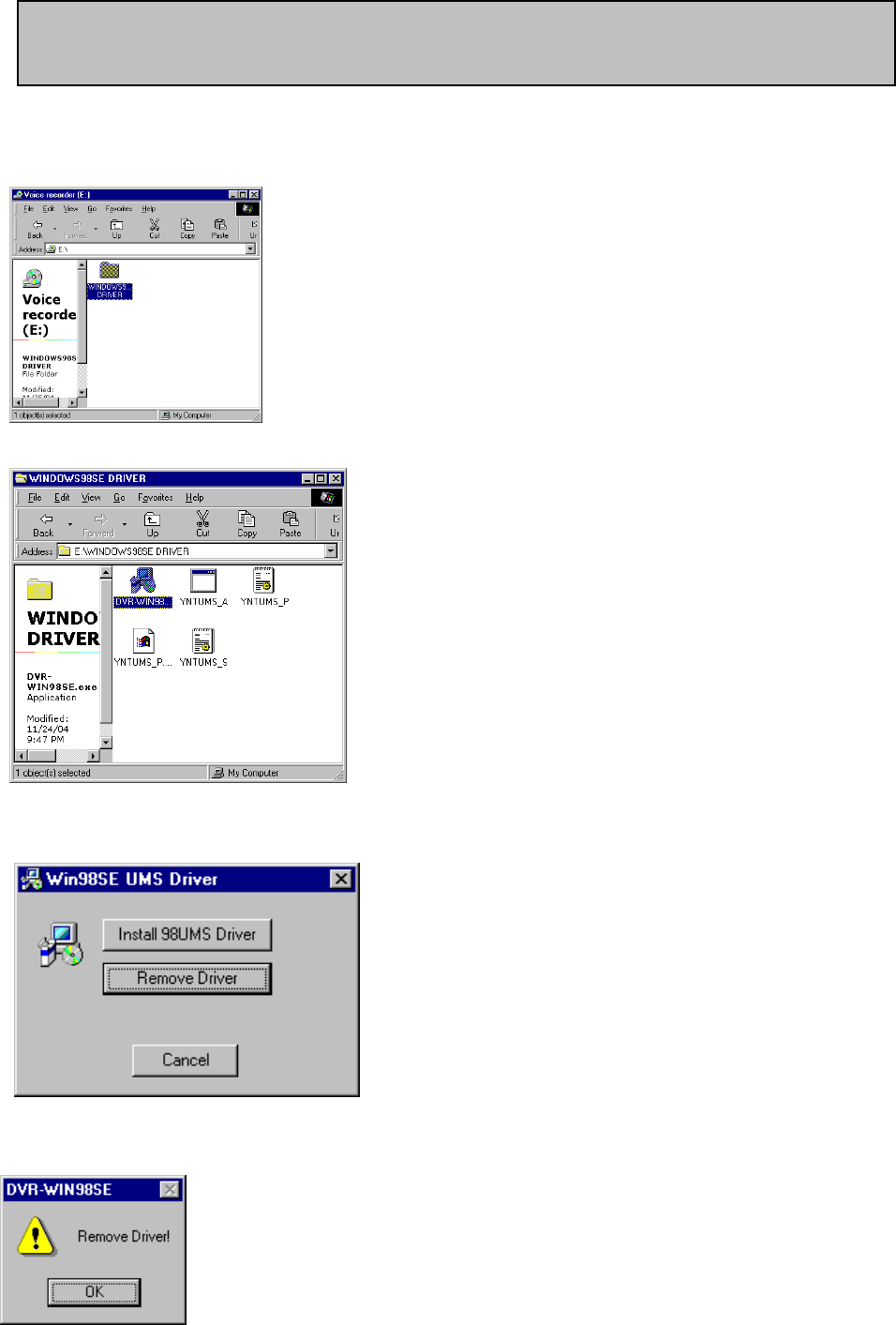

11. Uninstallation of Win98SE Driver

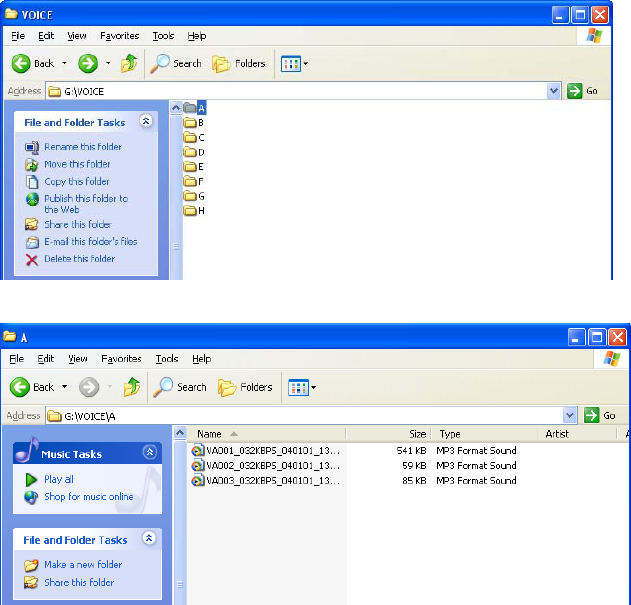

12. Management of folder and file

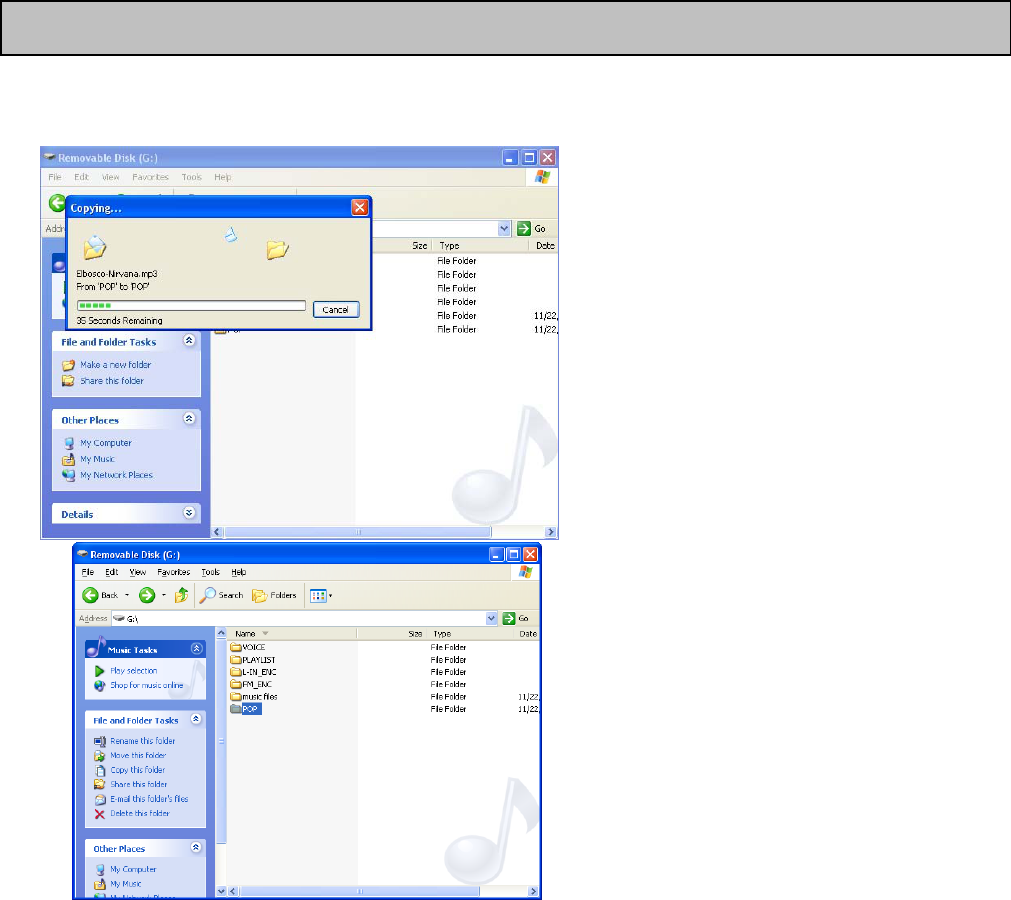

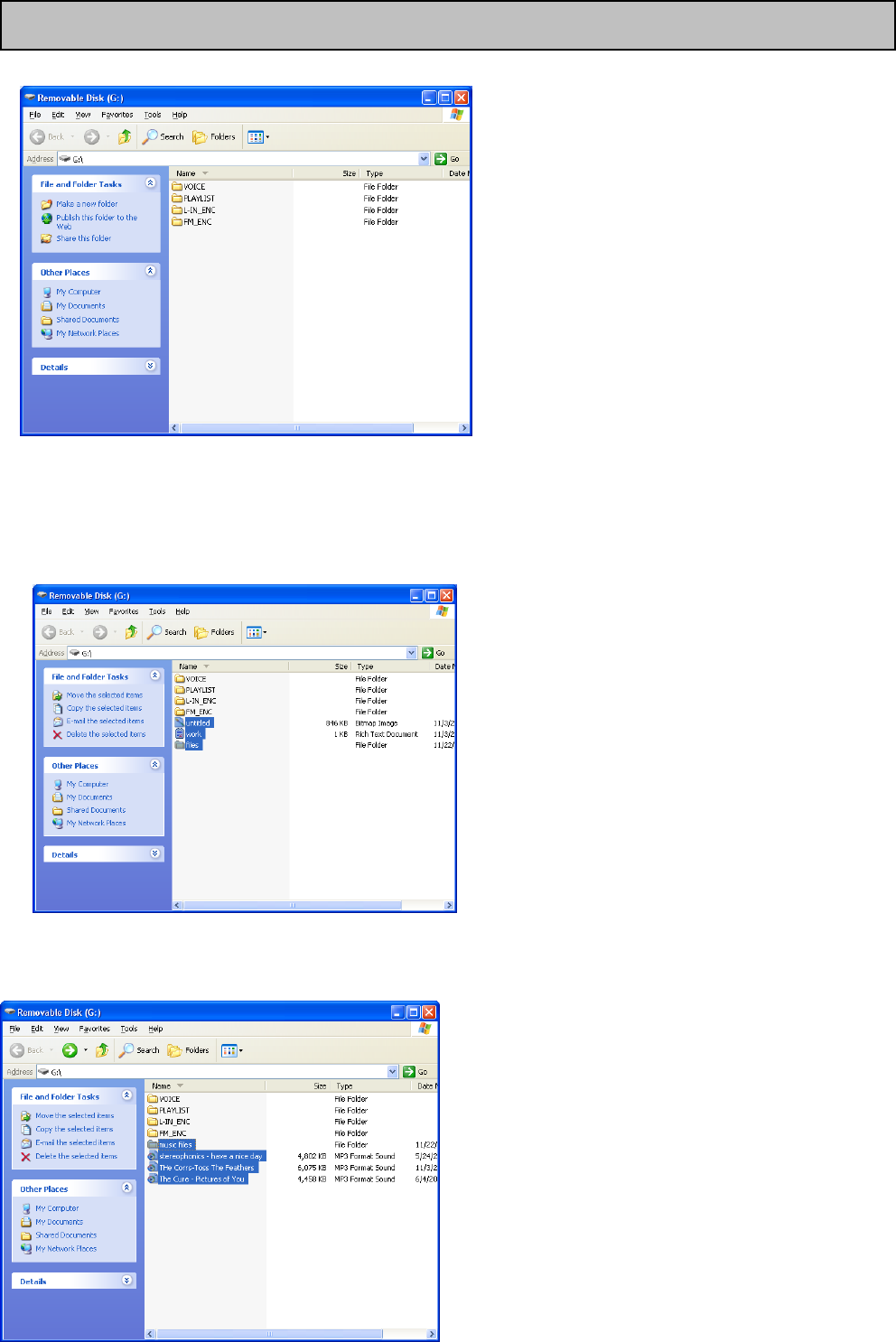

13. Downloading the file

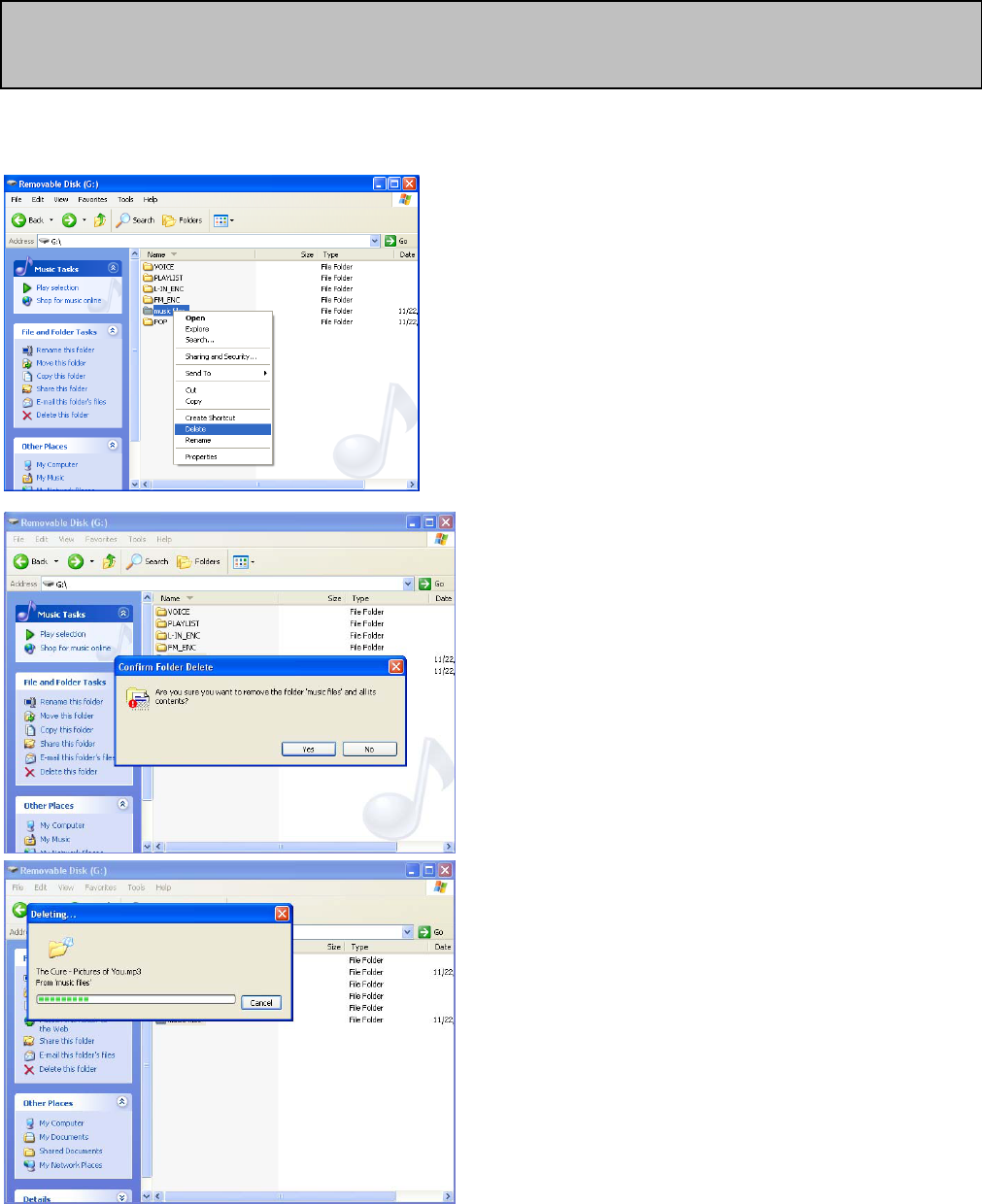

14. DELETING file

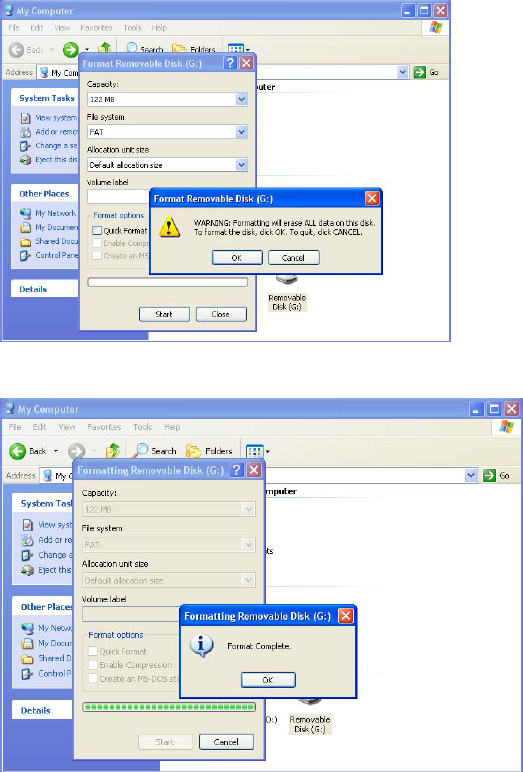

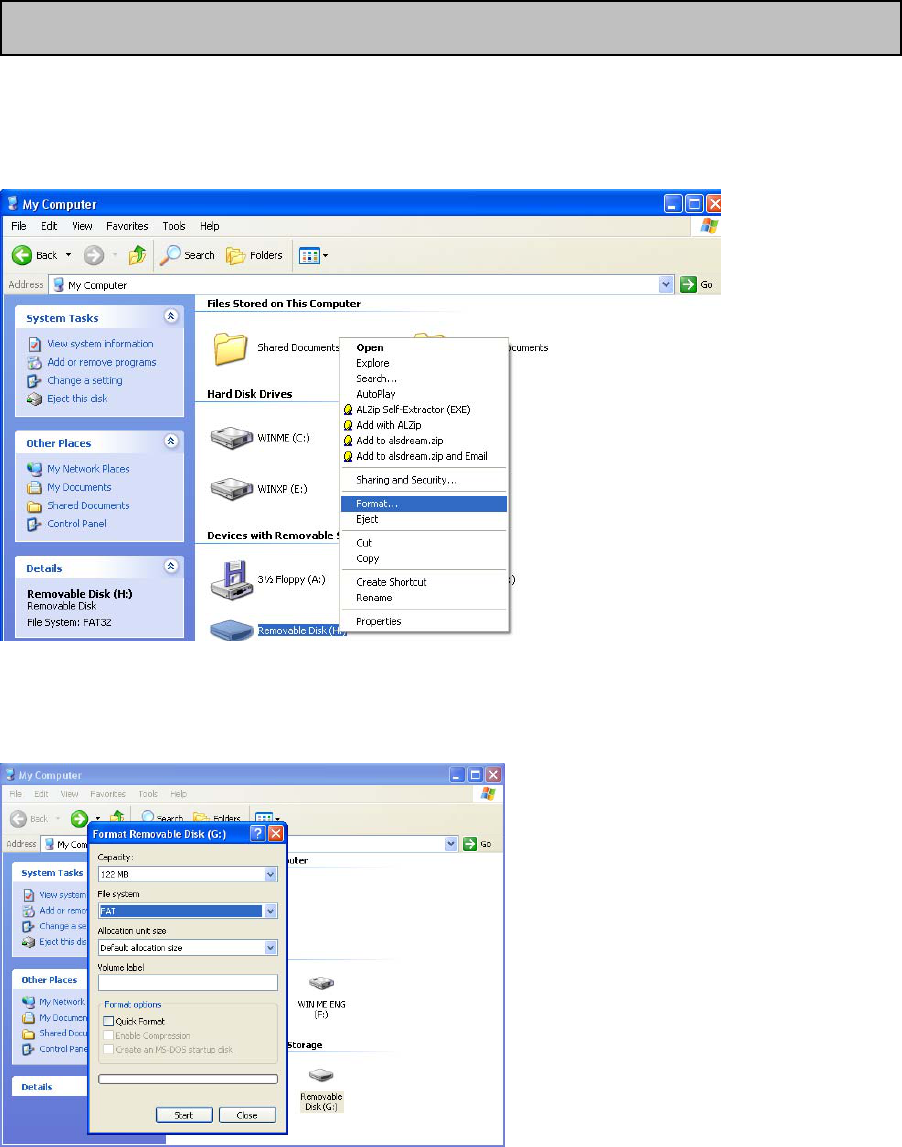

15. Format file
16. Upgrading Firmware

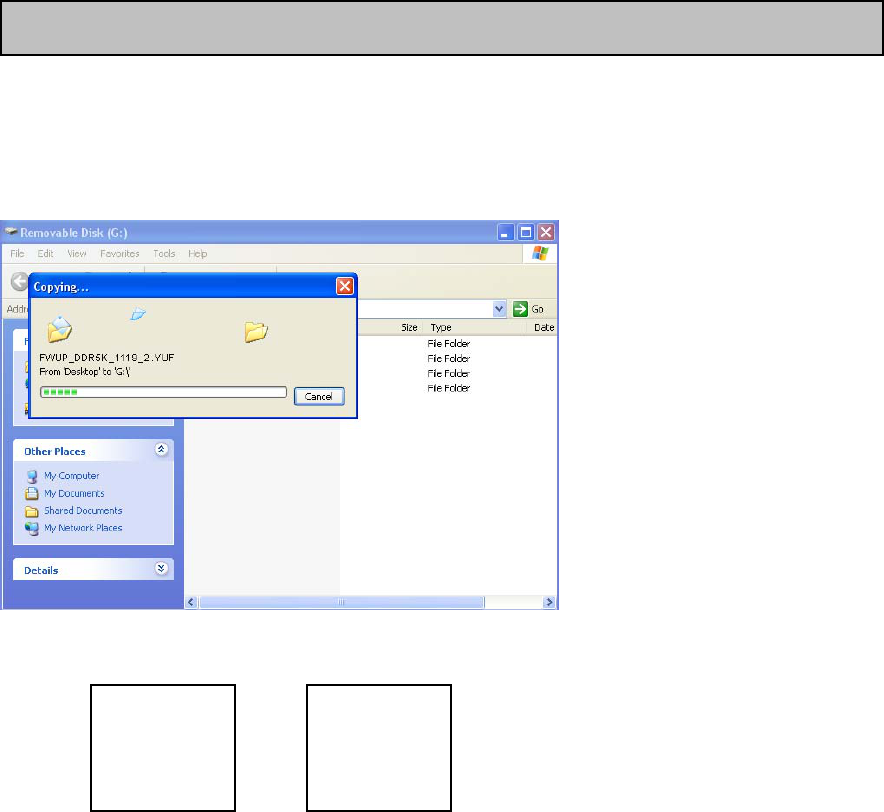

17. Specification
Warranty
Contents
5
▣ DIGITAL VOICE RECORDER
- UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB)
- 8FOLDERS TO ORGANIZE FILES
- STORE UP TO 128 FILES FOR EACH FOLDER
- CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT FOLDER IF
INFEX IS FULL.
- VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND USER MODE IN
MPEG1 LAYER3)
- MIC SESITIVITY ADJUSTABLE IN RECORDING.
- PLAY BACK OPTION IN SLOW/STANDARD/FAST WITHOUT SOUND
DISTORTION.(SPEED CONTROL IS NOT AVAILABLE FOR WMA, VBR FORMAT
FILE.)
- RECORDING INDICATOR WITH RED LED
- TIMER RECORDER UP TO 3 DAILY, WEEKLY AND SPECIFIC DATE
- 2 MODES OF ARS(AUTOMATIC RECORDING SYSTEM)
MODE A: ALL MESSAGES ARE RECORDED INTO 1 INDEX FILE.
MODE B: EACH MESSAGE HAS ITS OWN INDEX FILE IN SEQUENCE AFTER 3
SECONDS WITH NO SOUND BETWEEN PREVIOUS AND NEXT FILE.
- PAUSE AND RESUME
- MONITERING: MONITERING THE RECORDING BY EARPHONE ON RECORDING.
▣ MASS STORAGE
- SIMPLY CONNECT IT TO PC. NO REQUIRED OPERATING PROGRAM & DRIVER
CD(EXCEPTING WIN98SE)
- PC AND MAC COMPATIBLE
- EASY DRAG AND DROP FILE TRANSFERENCE
▣ FM RADIO
- ENCODING FM BROADCASTING
- 10 FREQUENCY PRESET
▣ MP3/WMA PLAYER & ENCODER
- ID3 TAG SUPPORT(ARTIST/TITLE)
- SCROLL SPEED CONTROLLING
- MULTI LANGUAGE SUPPORT
- 5EQ (NORMAL/CLASSIC/LIVE/POP/ROCK)
- SYNC FUNCTION: AUTOMATICALLY RECOGNIZE THE END AND BEGANNING OF
THE MUSIC FROM EXTERNAL AUDIO DEVICE IN RECODING THRU CONNECTING
AUDIO CABLE AND RECORD.
USER EASILY UPGRADES NEW FIRMWARE PROVIDED BY MAKER
EASY-TO-USE BUTTON FOR QUICK NAVIGATION THROUGH FOLDERS AND OPTIONS
Functions and Features
6
SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO MEETING, BIRTHDAY
AND MORE.
EASY-TO-READ ALL STATUS ON THE LARGE BACKLIGHT LCD DISPLAY WITH DOT
MATRIX
VARIABLE FLASH MEMORY UP TO 1G(64MB/128MB/256MB/512MB/1GB)
23HOURS PLAY BACK WITH 2 AAA BATTERIES
7

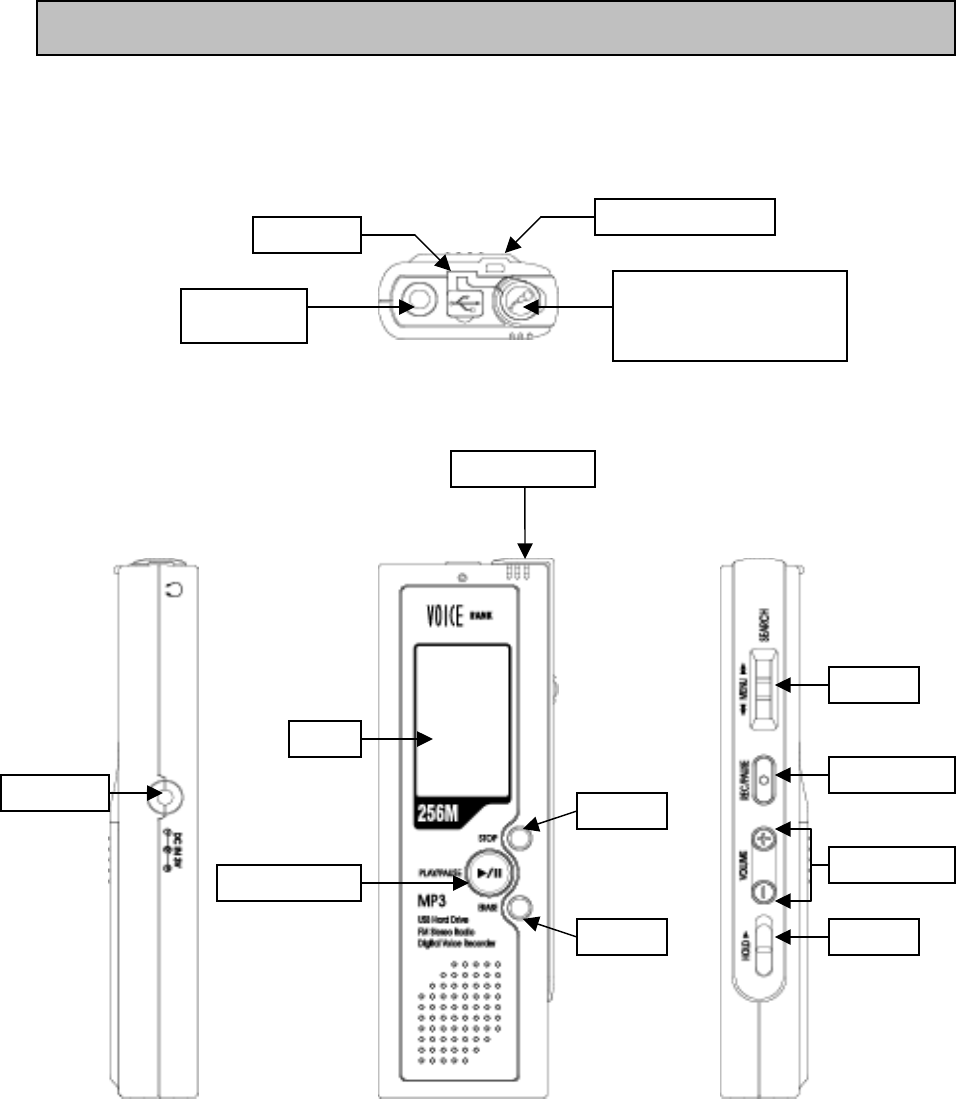

(1) Main set
Parts and Components
EXTERNAL C-MIC /
LINE-IN JACK
EARPHONE
JACK
USB JACK
HAND STRAP HOLE
INTERNAL MIC
DC JACK
STOP
LCD
MENU
REC/PAUSE
VOLUME+/-
HOLD
PLAY/ PAUSE
ERASE
8

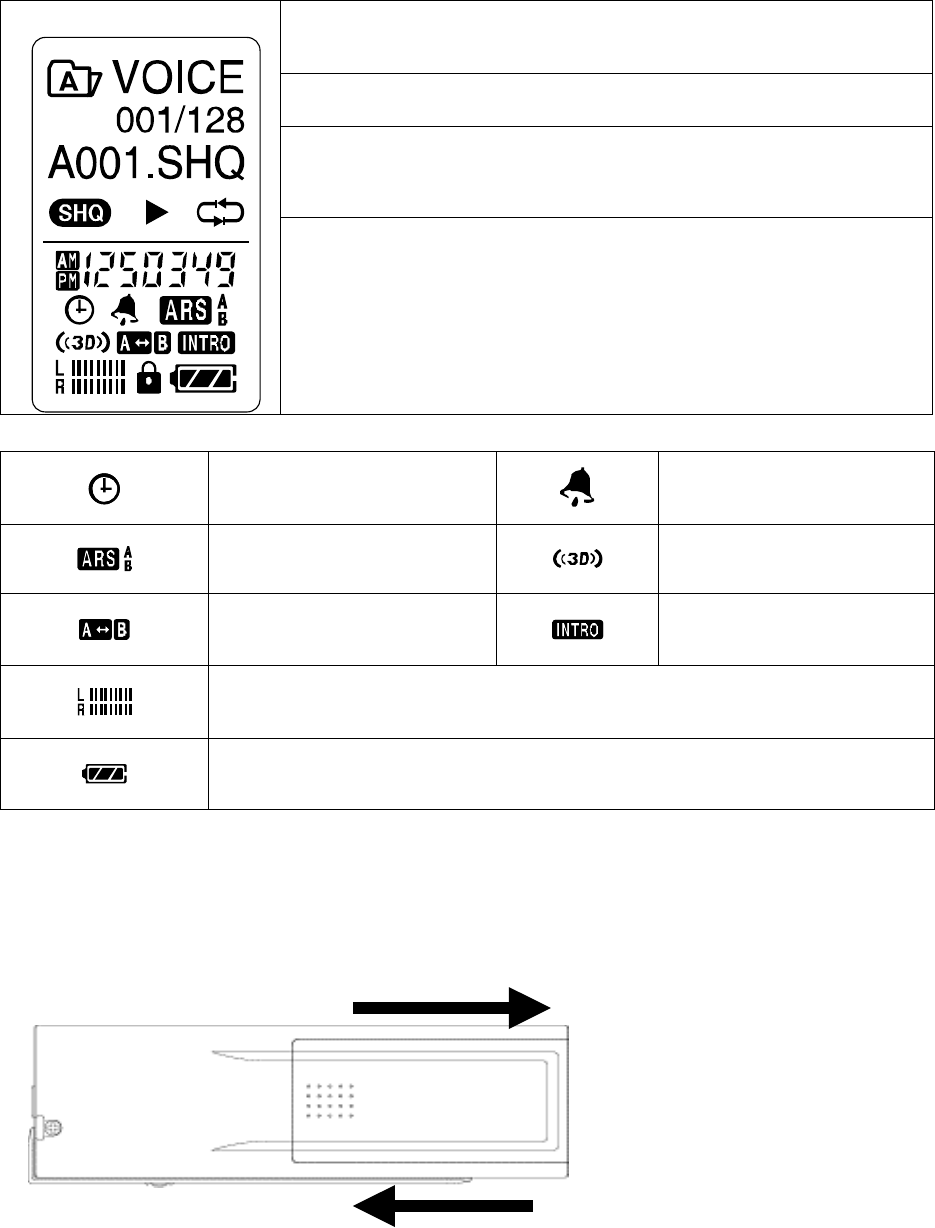

(2) LCD
TIMER ON/OFF ALARM ON/OFF
ARS ON/OFF 3D SOUND ON/OFF
REPEAT INTRUDUCTION PLAY BACK
L/R SPECTRUM
BATTERY STATUS
(3) BATTERY
1) PUT BATTERIES (LR03 TYPE)
OPEN
CLOSE
MODE
INDEX INFORMATION
FILE INFORMATION
SYNC/BIT RATE/EQ/SPEED KEY/REPEAT
TIME
ALRAM ON/OFF ARS
IN TRO PLAY REP EAT 3D S OU ND EF FE CT
VOLUME LEFT/RIGHT HOLD BATTERY STATUS
9

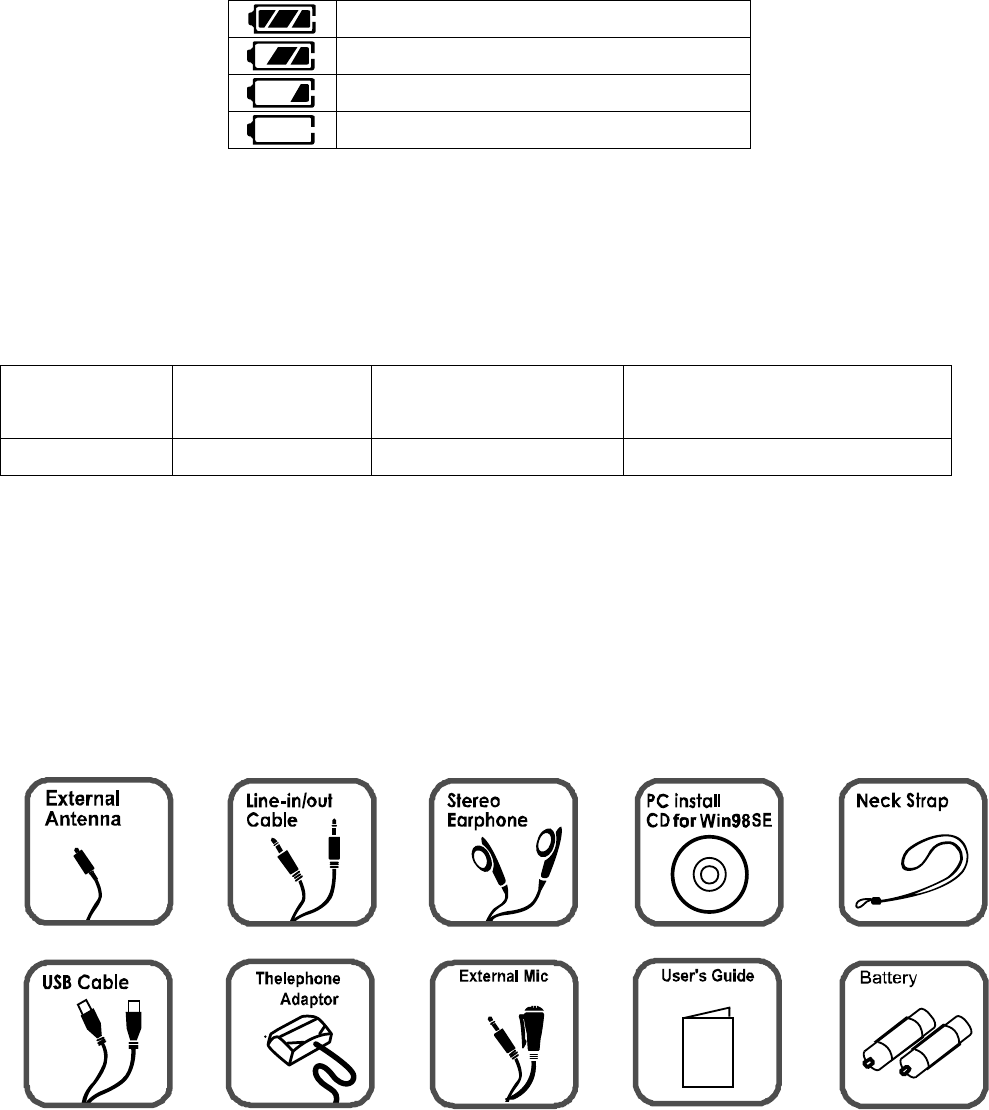

2) BATTERY POWER STATUS INDICATOR
FULL CHARGED
SOME POWER CUSTOMED
THINKING OF CHANGING BATTERY
CHANGE BATTERY
☞ CHECK THE POLARITIES OF THE BATTERIES IF LCD DISPLAY DOESN’T TURN ON AFTER
INSERTING NEW BATTERIES.
3) TYPICAL BATTERY LIFE TIME
BATTERY TYPE RECORDING
(VOLUME:MEDIUM)
PLAYBACK VIA SPEAKER
(VOLUME:MEDIUM)
PLAYBACK VIA EARPHONE
(VOLUME:MEDIUM)
2 AAA LR03 APPROX. 13HRS APPROX. 13HRS APPROX.23HRS
☞ BATTERY LIFE MAY BE DIFFERENT FROM ABOVE MENTIONED TIME ACCORDING TO
BATTERY BRAND & CONDITION.
☞ DO NOT USE DIFFERENT TYPE AND BRAND BATTERY TOGATHER.
☞ WHEN THE DEVICE IS LEFT UNUSED FOR A LONG TIME, REMOVE BATTERIES.
(4) ACCESSARY
10
(1) TURN ON/OFF
TO TURN ON, HOLD T HE OR REC/ STOP K EY FOR 2-3 SECON DS.
TO TURN OFF, HOLD THE STOP KEY AGAIN WITH LONG KEY.
☞ IF USB CABLE IS CONNECTED, AUTOMATICALLY POWER IS ON.
☞ IF YOU PUT THE BATTERY TO SET, “A” FOLDER IN THE VOICE
MODE WILL DISPLAY. BEFORE USING IT, WE RECOMMAND TO SET

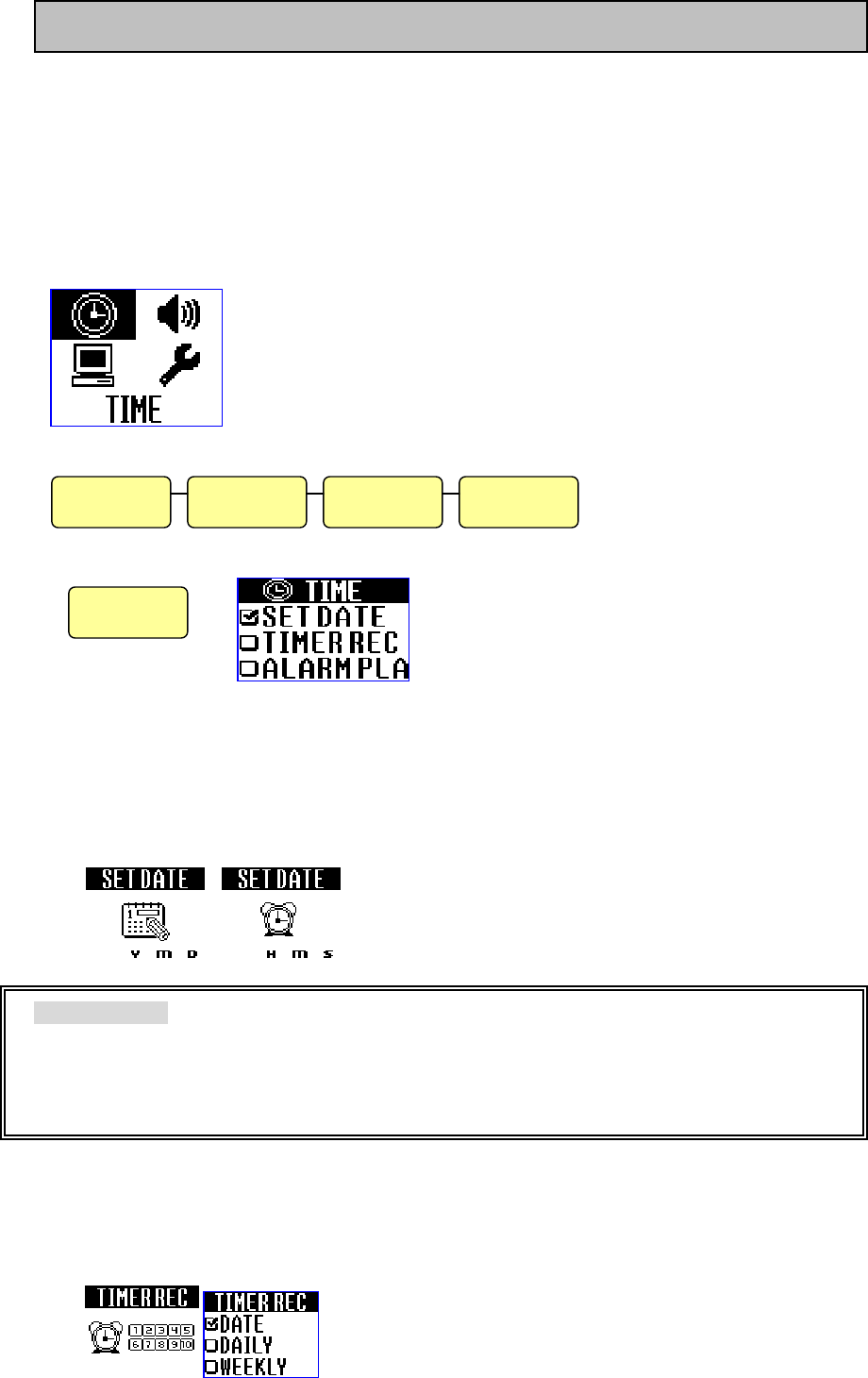

UP THE TIME AND DATE FOR ALRAM & RESERVED RECORDING
FUNCTIONS.

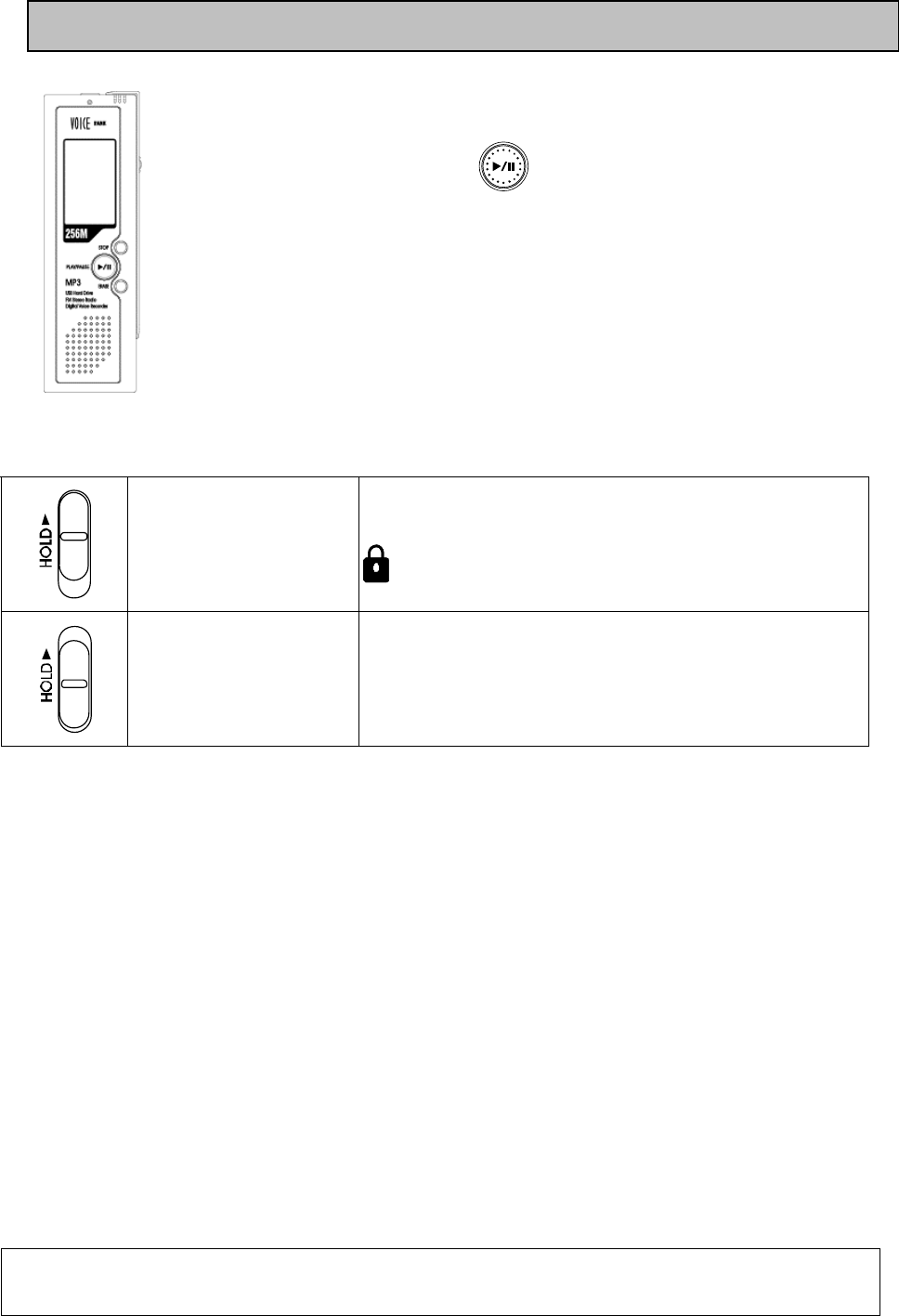

(2) HOLD KEY
HOLD ON
ALL KEYS WON’T WORK.
WILL D ISPLAY ON THE LCD.
HOLD OFF ALL KEYS WORK PROPERLY.
(3) VOLUME
VOLUME UP BY PRESSING “+” KEY.
VOLUME DOWN BY PRESSING “-“ KEY.
☞ VOLUME CAN BE ADJUSTABLE WITHIN 30 LEVEL(0-30).
☞ IF TURN ON, DEFAULT VOLUME(20) IS SET UP AUTOMATICALLY.

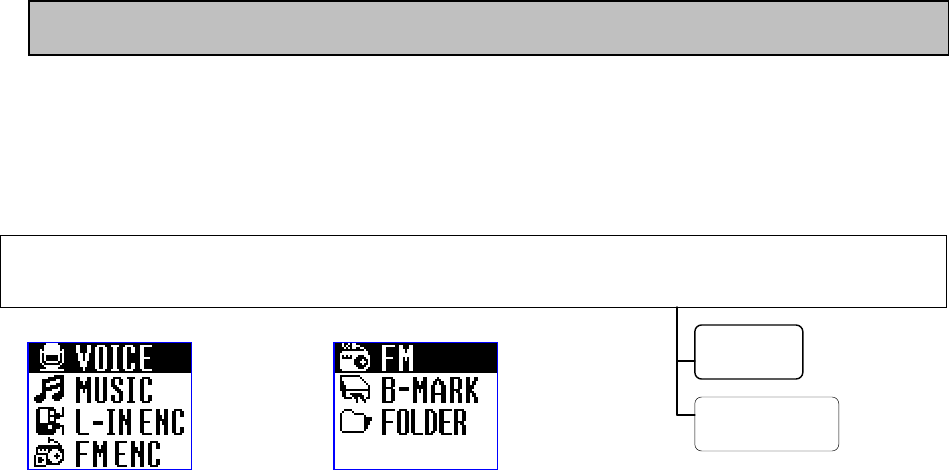

(4) CHANGING MODE
MENU BY PRESSING MENU BUTTON FOR 1-2 SECONDS, MODE MENU WILL DISPLAY.
FOR MOVING TO THE MODE WANTED, PRESS “REW/FF“ BUTTON.
SELECT THE MODE BY PRESSING “MENU” OR “PLAY/PAUSE” BUTTON.
VOICE MUSIC L-IN ENC FM ENC FM B-MARK FOLDER
BASIC FUNCTION
11

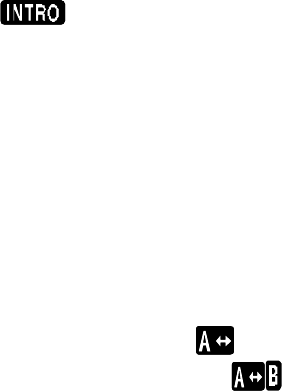

(5) INTRO PLAY
THIS IS FOR PLAYING THE FIRST FEW SECONDS OF EVERY TRACK FOR QUICK REVIEW OF
VOICE FILES O R MUSIC. PRESS “ PLAY AND PAUSE ” BUTTON DURING PLAY ING BACK . THE
ICON APPEARS ON THE LCD AND THE FIRST 5, 10 OR 15SECONDS OF EVERY
TRACK PLAY, DEPENDING ON THE SELECTED TIME.

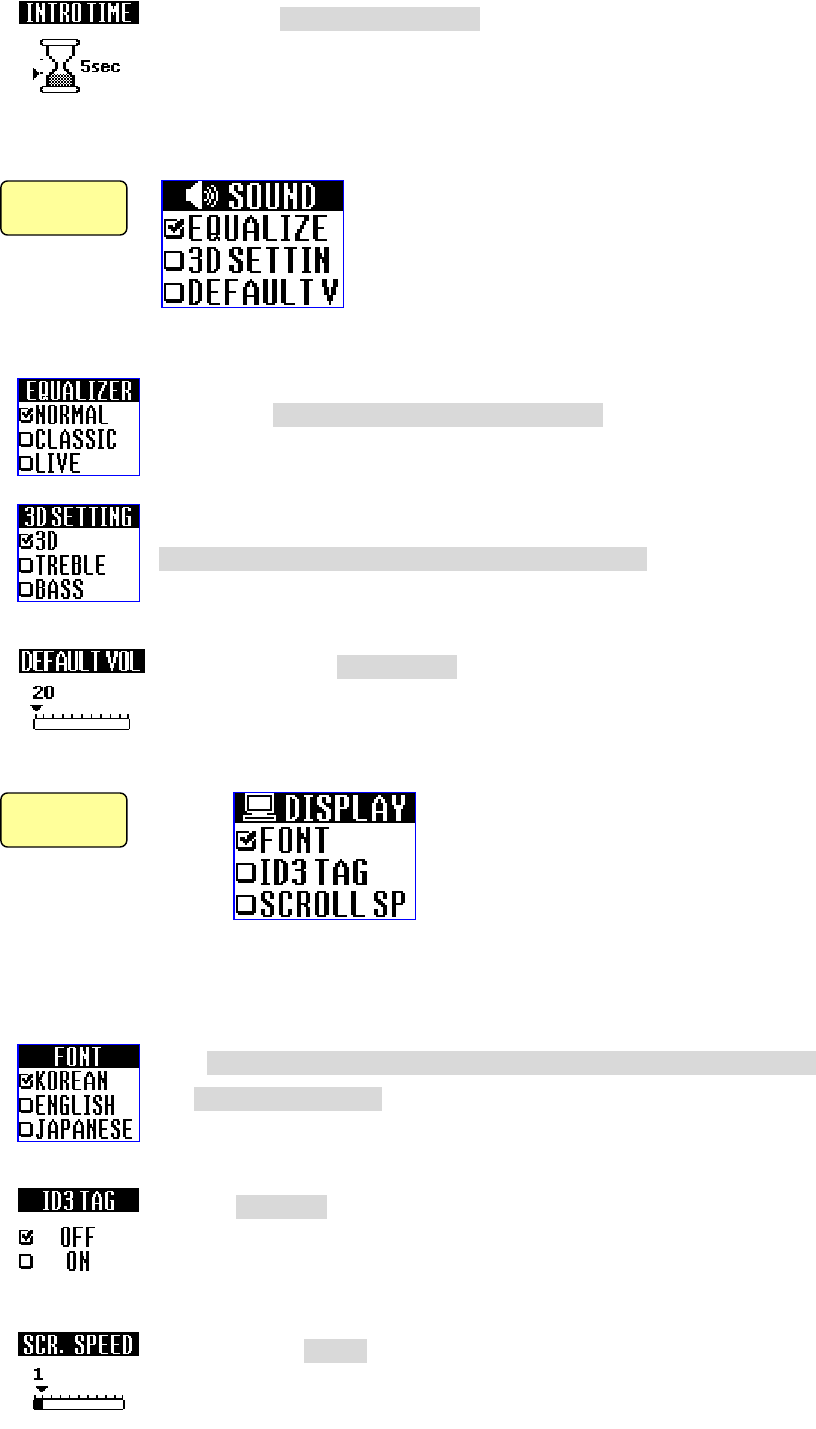

MENE BUTTON WITH LONG KEY -> TIME -> INTRO TIME(5, 10 OR 15 SECONDS)
(6) A<->B REPEAT PLAY
TO DESIGNATE A SPECIFIC SECTION TO PLAY REPEATEDLY, PRESS THE “REC/PAUSE”
BUTTON AT THE BEGINNING OF THE DESIRED SECTION FOR 1SECOND DURING PAYING
BACK. IF SO,THE IS DISPLAYED AND PRESS “REC/PAUSE” BUTTON AGAIN AT THE
ENDING POINT. THE ICON APPEARS AND THE SELECTED SECTION REPEATEDLY PLAYS.
TO END THE “A<->B PLAY”, PRESS “REC/PAUSE” BUTTON AGAIN.
(7) PLAYBACK SPEED CONTROL
A CURRENT SPEED DISPLAYS ON THE LCD BY PRESSING “REC/PAUSE” BUTTON FOR 2-
3SECONDS DURING PLAYBACK. TO SELECT DESIRED SPEED (STANDARD(100%),
FAST(120%) OR SLOW(80%)) BY PRESSING “REC/PAUSE” BUTTON FOR 2-3 SECONDS. IF
STOP, SPEED IS BACK TO STANDARD.
☞ (SPEED CONTROL IS NOT AVAILABLE TO WMA, VBR FILE FORMAT.)
(8) REPEAT
WHEN FILE PLAYS BACK, REPEAT MODE CHANGES BY PRESSING “ERASE” BUTTON FOR 2-
3SECONDS.
(9) BOOKMARK SETTING
TO BOOKMARK A SELECTED MP3, WMA FILE, PRESS “STOP” BUTTON IN STOP FOR
1SECOND. FOR RELEASE THIS FUNCTION, PRESS “STOP” BUTTON ONCE AGAIN.
“BOOKMARK” IS AVAILABLE IN THE MUSIC, LINE-IN ENC, FM ENC MODE.

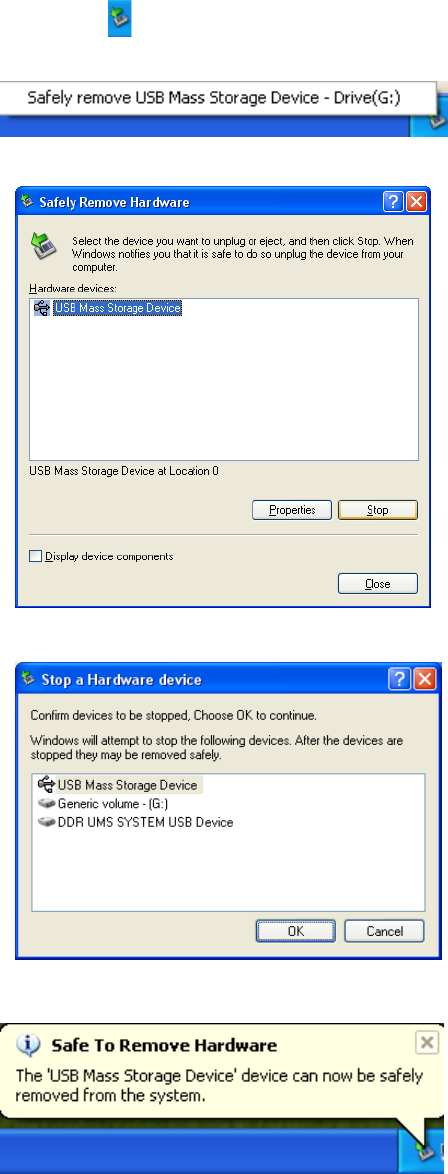

(10) PC CONNECTION
WHEN THE UNIT IS CONNECTED TO A PC VIA USB CABLE, USB ICON APPEARS ON THE LCD.
IN THIS CASE, PLAYBACK IS NOT AVAILABLE.
12
(11) EQUALIZER
ON PLAYING MP3 FILE BACK, USER CAN SELECT NORMAL/CLASSIC/LIVE/POP/ROCK BY
PRESSING “ERASE” BUTTON. NORMAL/CLASSIC/LIVE/POP/ROCK IS CHANGED BY PRESSING
“ERASE”.
13
(1) VOICE MODE
THE STATUS OF SET
BUTTON OPERATION
STOP PLAYBACK RECORDING
SHORT PLAYBACK PAUSE REMAINING TIME PLAY/
PAUSE LONG - INTRO PLAY -
SHORT GO TO NEXT FILE GO TO NEXT FILE AND PLAY
INCREASE INDEX(AFTER
5SECONDS)
FF
LONG GO TO NEXT FILE
SEQUENTLY
S-FORWARD CURRENT FILE -
SHORT GO TO PREVIOUS FILE
GO TO BEGANNING OF THE FILE, IF
PLAY CURRENT FILE OVER
5SECONDS.
PLAY PREVIOUS FILE, IF PLAY FILE
UNDER 5 SECONDSD
-
REW
LONG GO TO PREVIOUS FILE S-BACKWARD CURRENT FILE -
SHORT ENTERING MODE ENTERING MODE - MENU/MODE
LONG ENTERING MENU ENTERING MENU -
SHORT VOLUME UP VOLUME UP VOLUME UP VOLUME+
LONG AUTO VOLUME UP AUTO VOLUME UP AUTO VOLUME UP
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN VOLUME-
LONG AUTO VOLUME DOWN AUTO VOLUME DOWN AUTO VOLUME DOWN
SHORT RECORDING A-B REPEAT PAUSE
REC
LONG RECORDING PLAYBACK SPEED CONTROL -
SHORT ERASE 1 FILE - - ERASE
LONG
ERASE ALL FILES
(HOLD 2SECOND)
ERASE ALL FOLDER
(HOLD 2SEC.+2SEC.)
CHANGING REPEAT -
SHORT - STOP CURRENT FILE STOP RECORDING FILE STOP
LONG POWER OFF POWER OFF -
HOLD HOLD HOLD HOLD
BUTTONS
14

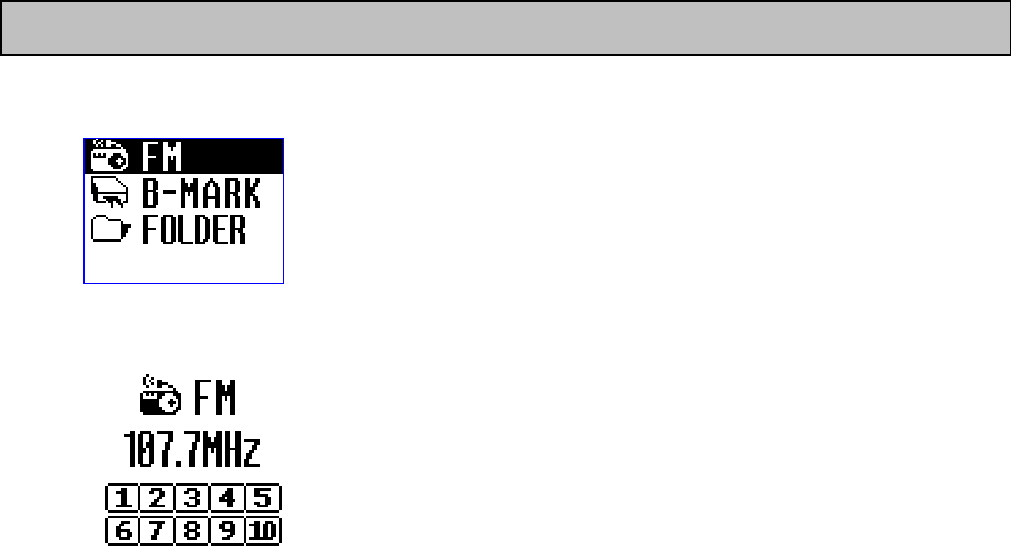

(2) FM RADIO MODE
☞ IF THERE IS NO KEY OPERATION WITHIN 5SECS, THIS FUNCTION WILL BE RELEASED.
☞ EARPHONE WORK AS AN EXTERNAL ANTENNA FOR INCREASING RECEPTION. STRETCH
IT OUT.
(3) MP3/ L-IN/EM ENC MODE
MODE
BUTTON OPERATION
FREQUENCY MODE PRESET MODE
SET UP THE
STATION
SHORT
ENTERING SETTING
STATION
- SETTING STATION
PLAY/PAUSE
LONG PRESET MODE FREQ. MODE
SHORT
TUNE FM FREQ.
SLIGHTLY
FORWARD NEXT PRESET
CH.
CHANNEL UP
FF
LONG AUTO SEEK + - -
SHORT
TUNE FM FREQ.
SLIGHTLY
FORWARD PREVIOUS
PRESET CH.
CHANNEL DOWN
REW
LONG AUTO SEEK - - -
SHORT VOLUME UP VOLUME UP VOLUME UP
VOLUME+
LONG
VOLUME UP
AUTOMATICALLY
VOLUME UP
AUTOMATICALLY
VOLUME UP
AUTOMATICALLY
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN
VOLUME-
LONG
VOLUME DOWN
AUTOMATICALLY
VOLUME DOWN
AUTOMATICALLY
VOLUME DOWN
AUTOMATICALLY
REC RECORDING RECORDING -
ERASE - - -
SHORT STOP THE SEEK
STOP
LONG POWER OFF POWER OFF POWER OFF
HOLD HOLD HOLD HOLD
15
THE STATUS OF SET
BUTTON OPERATION
STOP PLAY RECORDING
SHORT PLAY PAUSE REMAIN TIME
PLAY/PAUSE
LONG TURN OFF INTRO PLAY -
SHORT GO TO NEXT FILE GO TO NEXT FILE AND
PLAY
INDEX UP AFTER 5 SECS.
FF
LONG GO TO NEXT FILE
SEQUENCE
S-FORWARD CURRENT
FILE
-
SHORT
GO TO PREVIOUS
FILE
GO TO BEGANNING OF THE
FILE, IF PLAY CURRENT
FILE OVER 5SECONDS.
PLAY PREVIOUS FILE, IF
PLAY FILE UNDER 5
SECONDSD
-
REW
LONG GO TO PREVIOUS FILE
SEQUENTLY
S-BACKWARD CURRENT
FILE
-
SHORT MODE MODE -
MENU/MODE
LONG MENU MENU -
SHORT VOLUME UP VOLUME UP VOLUME UP VOLUME+
LONG AUTO VOLUME UP AUTO VOLUME UP AUTO VOLUME UP
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN VOLUME-
LONG AUTO VOLUME DOWN AUTO VOLUME DOWN AUTO VOLUME DOWN
SHORT REC A-B REPEAT PAUSE
REC/PAUSE
LONG REC PLAY SPEED CONTROL -
SHORT ERASE 1 FILE EQUALIZER -
ERASE
LONG
ERASE ALL FILES
(HOLD 2SECOND)
ERASE ALL FOLDER
(HOLD 2SEC.+2SEC.)
CHANGING REPEAT -
SHORT BOOKMARK STOP STOP RECORDING
STOP
LONG POWER OFF POWER OFF -
HOLD HOLD HOLD HOLD
16
(1) TURN ON FM
TURN ON THE SET AND SELECT FM IN THE MENU.
(2) AUTOMATIC TUNEING
FOR The AUTOMATIC TUNEING. PRESS AND HOLD FORWARD
OR REWIND BUTTON FOR 2SECONDS. THE TUNNER
AUTOMATICALLY SCAN AND STOP ON THE NEXT STATION
WITH A STRONG SIGNAL. IN AREA WITH WEAK RECEPTION,
PRESS THE FAST FORWARD OR REWIND BUTTON TO FIND A
CLEAR STATION.
(3) PRESET STATION
AFTER SELECTING THE WANTED FREQUENCY BY “REW/FF”, PRESS “PLAY/PAUSE”. IF SO,
THE CHANNEL 1 IS BLIKING. AT THIS TIME, MOVE TO THE CHANNEL TO SAVE BY
PRESSING REW/FF AND SAVE IT BY PRESSING “PLAY/PAUSE”.
CHANNEL CAN BE CHECKED BY PRESSING “PLAY/PAUSE” AT THE FREQUENCY MODE.
(4) RECORDING FM
IF YOU WOULD LIKE TO RECORD THE PRESENT STATION, PRESS “REC” BUTTON.
THE RECORDED FILE IS STORED TO FM ENC FOLDER WITH FM001-
48KBPS_20040101_010101.MP3 AND THE FILE NAME IS SEQUENTLY ADDED ACCORDING TO
RECORDED ORDER.
☞ NOISE MAY OCCUR WHEN RECORDING FM IN WEAK COVERAGE OR INSIDE OF THE
BUILDING. IF SO, MOVE TO STRONG COVERAGE TO RECEIVE BETTER FM QUALITY.
THE EARPHONE CAN BE USED AS AN ANTENNA, SO EXTEND AS LONG AS IT CAN.
FOR BETTER QUALITY IN LISTING TO FM, USE EARPHONE AND IN LISTING TO FM THRU
EXTERNAL SPEAKER, PULG PROVIDED EXTERNAL ANETNNA.
FM Radio
17
YOU CAN GO TO “MODE MENU” BY PRESSING “MENU” BUTTON FOR 1 SECOND.
MODE MENU IS CONSIST OF BELOW MODE. TO MOVE TO ANOTHER MODE, USE
“REW/FF“ BUTTON.
VOICE MUSIC L-IN ENC FM ENC FM
B-MARK
FOLDER
(1) VOICE
PLAY BACK VOICE FILE RECORDED IN VA001-008KBPS_20040101_010101.MP3
TYPE. FILE NAME IS STAMPED IN SEQUENCE.
VOICE MODE HAS 8 SUBORDINATE FOLDERS AND WITHOUT APPOINTING THE
SPECIFIC FOLDER, FILE RECORDS FROM A FOLDER. EACH FOLDER CAN HAVE
128FILES.
(2) MUSIC
MP3 AND WMA PLAY IN THE SET, BUT IN VOICE, L-IN ENC AND EM ENC FOLDER IS
NOT PLAYED.
BOOKMARK ON PLAYING FILE IS AVAILABLE.
999 FILES CAN BE RECORDER AS MUCH AS MEMORY IS AVAILABLE.

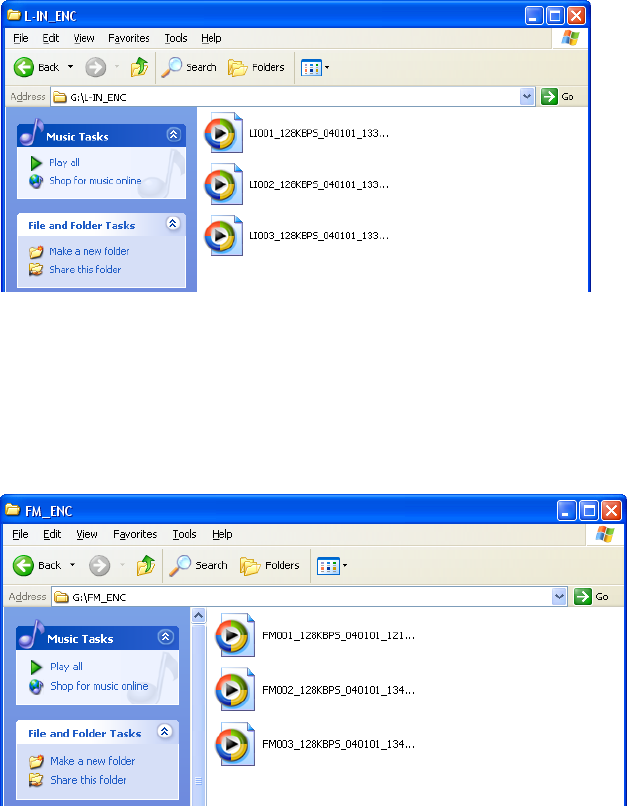

(3) L-IN ENC
PLAY THE FILE IN L-IN ENC FOLDER.
FILE IS STAMPED IN LI001-128KBPS_20040101_010101.MP3. IN SEQUENCE.
256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE.
(4) FM ENC
PLAY THE FILE IN FM ENC FOLDER.
FILE IS STAMPED IN FM001-128KBPS_20040101_010101.MP3. IN SEQUENCE.
256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE.
(5) FM
RECEVING RADIO STATION.
MODE MENU
M3U
B-MARK
18
(6) B-MARK
* B-MARK
STORE FAVOITE SONGS.(2OFILES ARE AVAILABLE.)
BOOKMARK IS SET BY PRESSING STOP BUTTON ON THE MUSIC, L-IN ENC, FM_ENC
MODE.
BOOKMARK IS DISPLAYED ON THE FILE INFORMATION.
* M3U(WIN AMP)
INITIALY PLAYLIST FOLDER EXSITS AND M3U FORMAT FILE CAN BE SAVED AND
PLAYED.
32 FILES CAN BE STORAGED.
☞ THE FONT IN THE SET MUST BE SAME AS THE FONT SELECTED IN M3U FILE.
(7) FOLDER
IF SET THIS MENU, ALL FOLDERS ARE DISPLAYED EXCEPTING VOICE, FM_ENC,
LINE_ENC, PLAYLIST FOLDER.
IN SETING THE FOLDER, YOU CAN SEE FILE INFORMATION AND ONLY PLAY
MP3/WMA FILE IN THE APPOINTED FOLDER.
☞ FOLDER SUPPORT SPEC.
- ROOT:256ENTRY(FOLDER+FILE)
- SUB DIRECTORY DEPT: 10DEPT INCLUDING ROOT
- LIMITATION OF SUB DIRECTORY: 512( EXCLUDING ROOT AND RECORD
FOLDER)
19
TO ENTER INTO “MAIN MENU”, PRESS “MENU”BUTTON FOR 2-3SECONDS.
“REW/FF” BUTTON WORKS AS A MOVING BUTTON TO ANOTHER FUNCTION AND PRESS
“MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION OF THE FUNCTION YOU WANT. BY
PRESSING “REC/PAUSE” BUTTON AGAIN, YOU CAN GO OUT OF SUBORDINATE MENU. IF
YOU DO NOT OPERATE ANY BUTTON AFTER ENTERING INTO MENU FOR 30 SECONDS,
AUTOMATICALLY MENU FUNCTION WILL BE RELEASED.
1.
USER CAN SET UP THE TIME RELATED TO PLAYER’S SYSTEM ON THIS MENU.
THIS MENU CONSISTS OF SET DATE, TIMER REC, ALARM PLAY, POWER OFF TIME, SLEEP TIME, INTRO TIME.
① SET DATE :
USER SETS UP DATE AND TIME.
② TIMER REC : RESERVATION RECORDING .
( UP TO 10 AVAILABLE )
☞ USER MUST SET UP “SET DATE” FIRST.
TIME SYSTEM
DISPLAY
SOUND
MAIN MENU
TIME
※ SET UP DATE
- ENTER INTO TIME MENU AND SELECT “SET DATE”.
- SET UP THE YEAR, MONTH, DAY WHEN YOU WANT BY PRESSING “REW/FF” BUTTON FOR
MOVEMENT AND “MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION.
20
- ON THE SETTING DISPLAY, NO. 1 CHANNEL WILL BE BLINKING.
- MOVE TO THE SPECIFIC NO. YOU WANT TO SET UP BY PRESSING “REW/FF” BUTTON AND PRESS
“MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION.
※ SETTING UP TIMER REC
- THE FUNCTION HAS DATE/DAILY/WEEKLY, 3 MODES.
1. DATE (1 TIME)
a. ENTER INTO DATE.
SET UP YEAR, MONTH, DAY BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION.
b. IF IT IS COMPLETED, AUTOMATICALLY DISPLAY TRANFERS TO TIME SETTING DISPLAY.
TIME SETTING IS SAME AS THE PROCEDURE OF DATE.
2. DAILY (PLAYBACK AT THE SAME TIME EVERYDAY)
a. ENTER INTO DAILY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION.
3. WEEKLY (PLAYBACK AT THE SAME TIME PER WEEK)
a. ENTER INTO WEEKLY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION AND THEN SET UP AS SAME AS PROCEDURE OF DAILY.
- AFTER COMPLETING, “TIME” MARK WILL DISPLAY AND THEN IT WILL BE TRANSFERED TO INITIAL
DISPLAY AND BLINKING NO.2 OR THE CHANNEL WHICH DOES NOT SET.
YOU CAN SET UP TO SAME FILE UP TO 10.
IF YOU WANT DELETE THE CHANNEL SET, PRESS “ERASE” BUTTON ON THE CHANNEL SETTING
DISPLAY.
※ CAUTION
- RESEVATION MODE IS OPERATED IN VOICE AND FM MODES.
FOR RESEVATION RECORDING THRU LINE-IN, PLUG LINE-IN CABLE AND THEN SELECT THE
LINE-IN ON THE SYSTEM/INPUT SELECTOR MENU.
- IF DO NOT SETTING UP “SET DATE”, THIS MENU IS NOT DISPALYED.
- THE PASSED TIME CAN NOT BE SET UP.
- CHECK THE TIME AVAILABLE FOR RECORDING BEFORE DOEN THIS.
- IF THE SELECTED FOLDER IS FULL OR MEMORY FULL, IT WON’T WORK.
(VOICE MODE: 128PCS EACH FOLDER / FM ENC: 256PCS)
- RESERVATION RECORDING IS FIRST THAN OTHER FUNCTIONS EXCEPTING RECORDING.
21

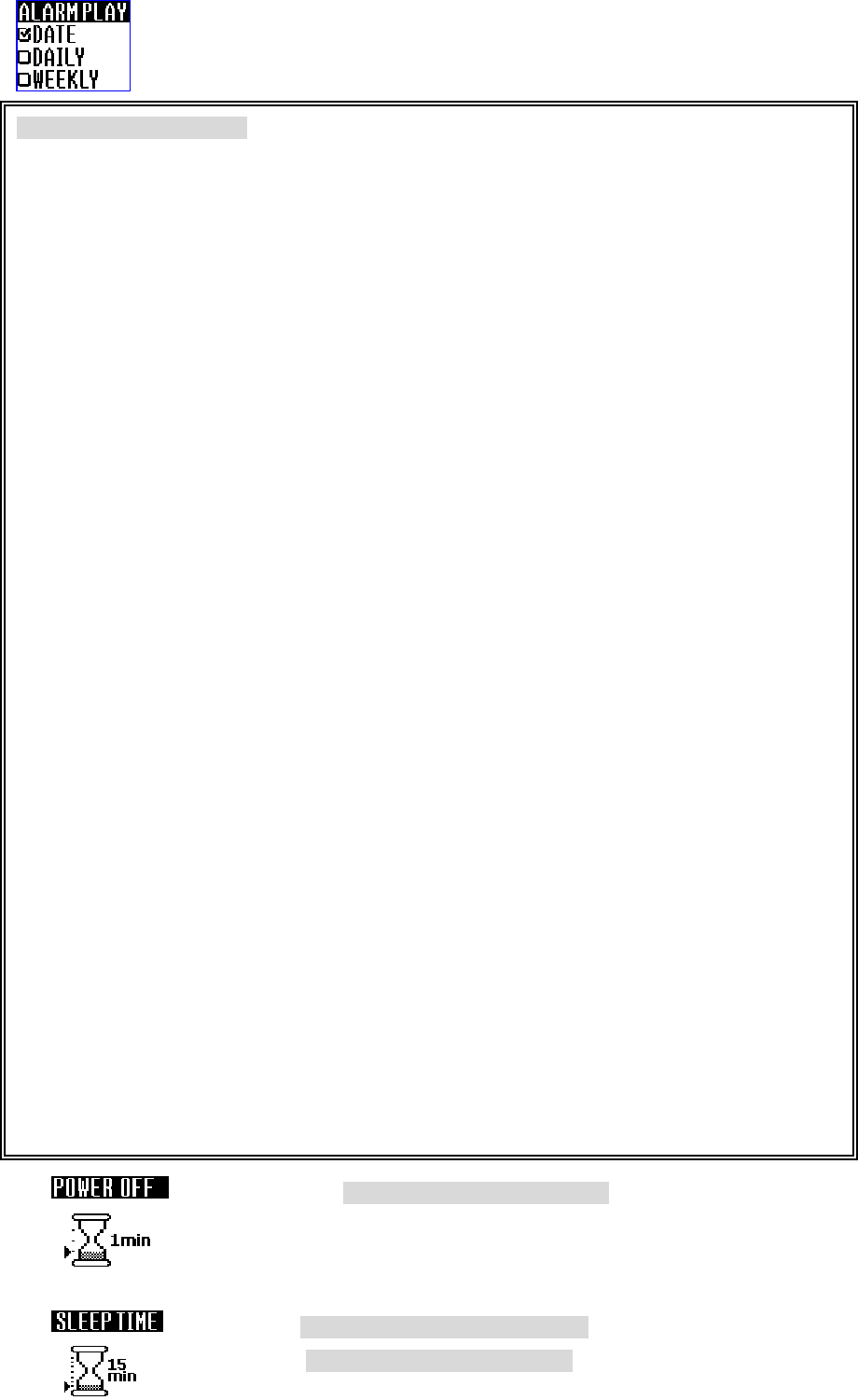

③ ALARM PLAY : THE FILE SELECTED PLAYS BACK ON TIME WHEN IS SET UP IN ADVANCE.
(10PCS AVAILABLE)
(이하 설정은 TIMER REC와 동일합니다.)
④ POWER OFF TIME : 1MIN, 3MIN, 5MIN, ALWAYS ON
AUTOMATIC POWER OFF TIME
⑤ SLEEP TIME : OFF, 15MIN, 30MIN, 45MIN, 60MIN,
75MIN, 90MIN, 105MIN, 120MIN
AUTOMATICALLY TURN OFF AFTER THE TIME YOU SET UP.
※ SET UP THE ALARM PLAY
- THIS FUNCTION HAS DATE/DAILY/WEEKLY MODE.
1. DATE (1 TIME)
a. ENTER INTO DATE.
SET UP YEAR, MONTH, DAY BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION.
b. IF IT IS COMPLETED, AUTOMATICALLY DISPLAY TRANFERS TO TIME SETTING DISPLAY.
TIME SETTING IS SAME AS THE PROCEDURE OF DATE.
2. DAILY (PLAYBACK AT THE SAME TIME EVERYDAY)
a. ENTER INTO DAILY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION.
3. WEEKLY (PLAYBACK AT THE SAME TIME PER WEEK)
a. ENTER INTO WEEKLY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR MOVING AND “MENU” OR
“PLAY/PAUSE” FOR SELECTION AND THEN SET UP AS SAME AS PROCEDURE OF DAILY.
- AFTER COMPLETING, “ALARM” MARK WILL DISPLAY AND THEN IT WILL BE TRANSFERED TO
INITIAL DISPLAY AND BLINKING NO.2 OR THE CHANNEL WHICH DOES NOT SET.
YOU CAN SET UP TO SAME FILE UP TO 10.
IF YOU WANT DELETE THE CHANNEL SET, PRESS “ERASE” BUTTON ON THE CHANNEL SETTING
DISPLAY.
※ CAUTION
- IN ALARM PLAY, ONLY THE FILE WHICH IS SET PLAYS AND THEN STOPS.
IN CASE OF FM MODE, THE STATION WHICH IS SET IS ON AIR WITH BLINKING ALARM MARK.
- SETTING UP THE ALARM PLAY CAN BE DONE UNDER ALL MODES IS STOPPED EXCEPTING
“B-MARK” MODE.
- IF DO NOT SET UP “SET DATE”, IT WON’T WORK.
- IF YOU WANT TO SET UP THE PASSED TIME, IT WON’T WORK.
- IF IT IS TIME FOR RESERVATION RECORDING IN ALARM PLAY, ALARM PLAY WILL BE STOPPED.
- ALARM PLAY IN OPERATING IS OPERATED FIRST THAN OTHER FUNCTIONS EXCEPTING
RECORDING.
22
⑥ INTRO TIME : 5SEC, 10SEC, 15SEC
PLAYING FILE BACK FOR THE TIME YOU SET UP.
2.
THIS MENU HAS EQUALIZER, 3D SETTING, DEFAULT VOLUME.
① EQUALIZER : NORMAL, CLASSIC, LIVE, POP, ROCK
YOU CAN SELECT THE EQUALIZER YOU WANT.
② 3D SETTING :
BASS/TREBLE AT 1,3,5,7,9,11,13,15 STEP PER EACH
ADJUST THE 3D-SOUND EFFECT LEVEL.
③ DEFAULT VOLUME : 20~29, OFF
IF SET UP THIS FUNCTION, THE DEFAULT VOLUME IS ON AT THE
LEVEL AFTER TURN ON.
3.
THIS MENU IS FOR SETTING UP DISPLAY AND CONSISTS OF FONT, ID3 TAG, SCROLL SPEED, BACKLIGHT
TIME, LCD CONTRAST.
① FONT: KOREAN, ENGLISH, JAPANESE, CHINESE(SIMPLIFY＋TRADITIONAL),
EUROPE, RUSSIAN
YOU CAN SELECT THE LANGUAGE YOU WANT FOR ID3 TAG ON.
② ID3 TAG : ON, OFF
DISPLAY FILE INFORMATION
1. ON : DISPLAY Title, Artist
③ SCROLL SPEED : 0~10
SPEED CONTROL FOR FLOWING FILE INFORMATION ON THE LCD UP TO
10LEVEL.
SOUND
DISPLAY
23

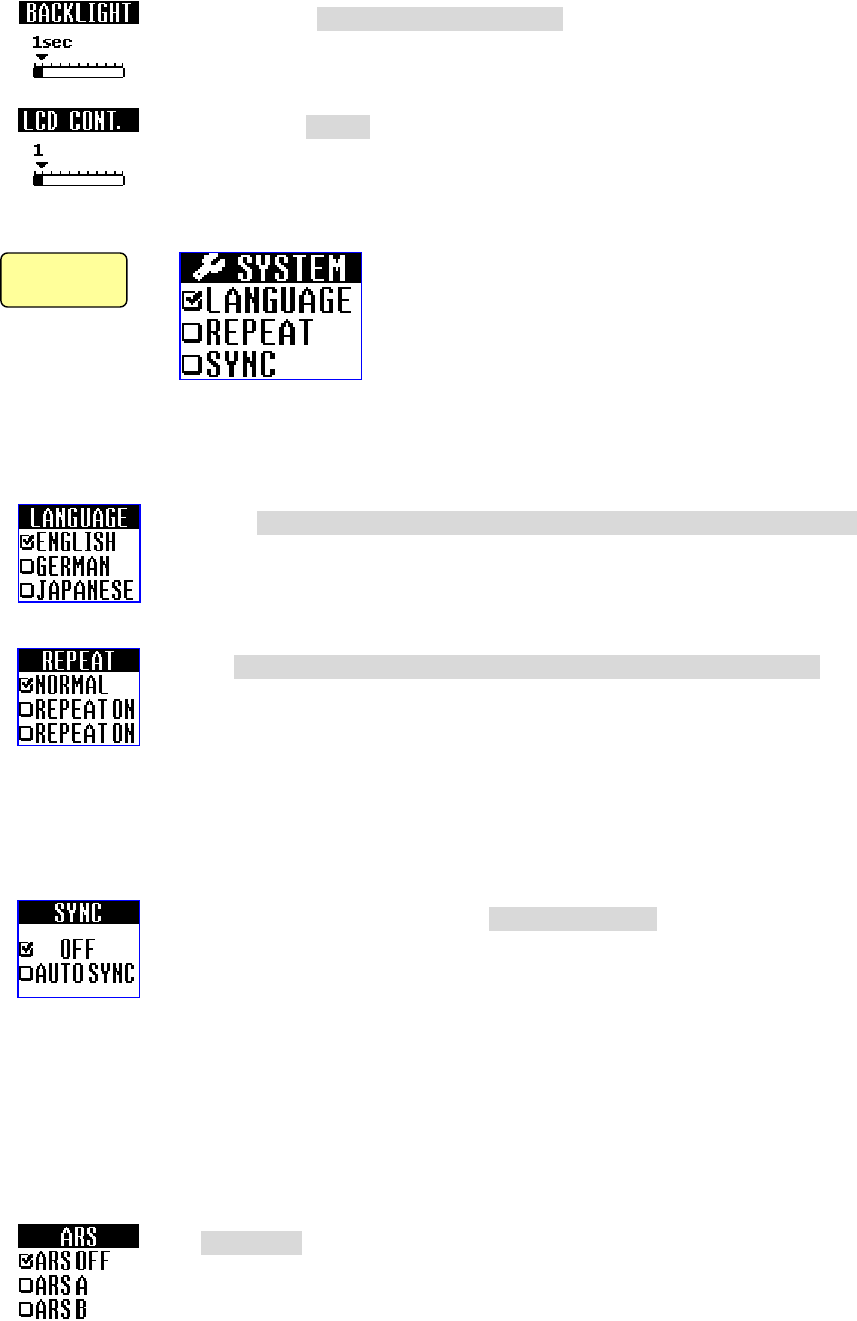

④ BACKLIGHT TIME : OFF,1~9 SEC,ALWAYS ON
TIME FOR BACKLIGHT ON AND OFF(OFF-9SEC)
⑤ LCD CONTRAST : 1~10
LEVEL FOR BRIGHTNESS OF LCD(1-10LEVEL)
4.
THIS IS FOR PLAYER’S SYSTEM CONTROL.
THIS CONSISTS OF LANGUAGE, REPEAT, SYNC, ARS, INPUT SELECTOR, MIC SENSITIVITY, RESUME,

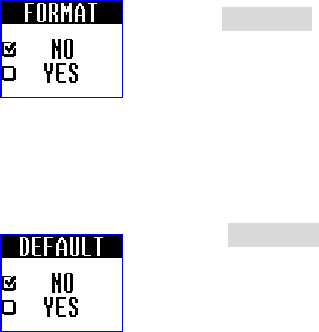

BITRATE, FM BAND, CONTINUE FOLDER, FORMAT, DEFAULT.
① LANGUAGE: ENGLISH, GERMAN, JAPANESE, CHINESE(SIMPLIFY＋TRADITIONAL)
YOU CAN SELECT THE LANGUAGE YOU WANT FOR MODE/MENU.
② REPEAT : NORMAL, REPEAT ONE, REPEAT ONE ALL, REPEAT ALL, SHUFFLE
NORMAL: ALL FILES PLAY BACK IN SEQUENCE.
REPEAT ONE: ONLY CURRENT FILE PLAYS BACK ONE TIME.
REPEAT ONE ALL: ONLY CURRENT FILE PLAYS BACK REPEATEDLY
REPEAT ALL: ALL FILES PAY BACK REPEATEDLY
SHUFFLE: PLAY BACK RANDOMLY
③ SYNC (ONLY IN LINE-IN RECORDING) : AUTO SYNC, OFF
- AUTO SYNC : IN RECORDING THE SOUND FROM EXTERNAL DEVICE THRU LINE-IN,
CREATING NEW FILE WITH STAMPING FILE NAME BY RECOGNIZING
AUTOMATICALLY THE END AND BEGINNING OF THE SONG.
- OFF : IN RECORDING THE SOUND FROM EXTERNAL DEVICE THRU LINE-IN, ALL SOUNDS
OR SONGS ARE RECORDED INTO ONE FILE, IF YOU SEPARATE.
④ ARS : A, B, OFF
IN RECORDING, IF THERE IS SOUND AT A WEAK SOUND FOR A CERTAIN TIME,
RECORDING PAUSES AUTOMATICALLY FOR SAVING MEMORY, BUT IF THERE IS
SOUND AT SPECIFIC LEVEL AGAIN, START RECORDING AGAIN.
(AUTOMATIC RECORDING SYSTEM)
- A : ALL SOUNDS ARE RECORDED INTO ONE FILE.
- B : THE SOUND AFTER PAUSING FOR 3 SECONDS, AUTOMATICALLY IT HAS ITS OWN INDEX.
SYSTEM
24

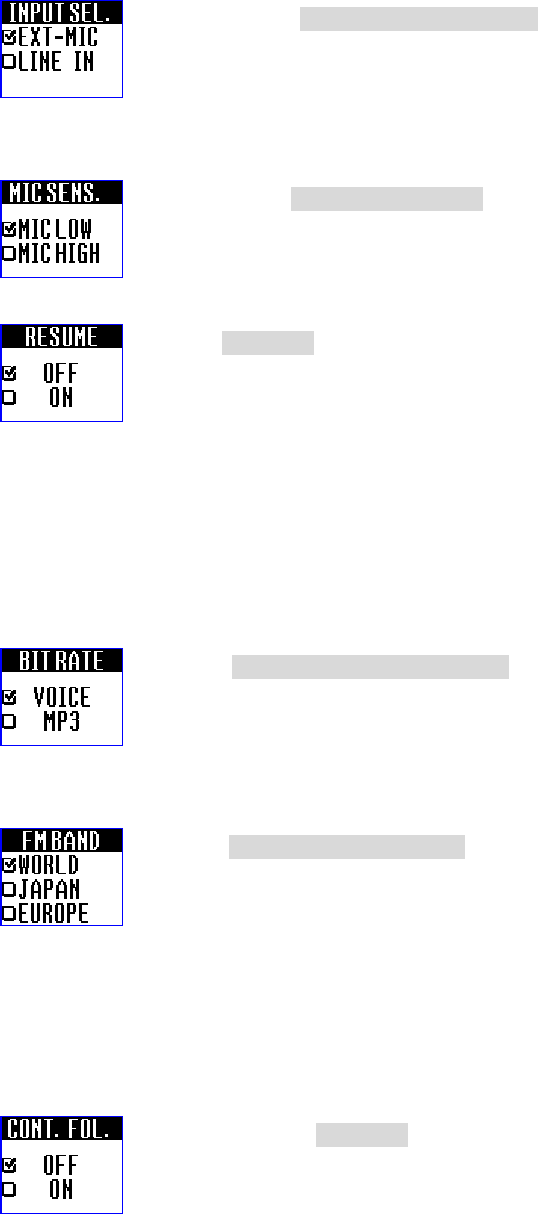

⑤ INPUT SELECTOR : LINE-IN / EXTERNAL-MIC
IN RECORDING, SELECT THE RECORDING METHOD.
⑥ MIC SENSITIVITY : MIC LOW, MIC HIGH
SET UP THE SENSITIVENESS OF MICROPHONE.
⑥ RESUME : ON, OFF
WHEN TURNNING ON AGAIN, THE SET RETURNS TO ITS CONDITION BEFORE
TURNNING OFF.
FOR SETTING, PRESS “PAUSE” BUTTON IN PLAYING BACK AND THEN PRESS
“PLAY/PAUSE” FOR 2-3SECONDS.
- ON : PLAYING BACK FROM THE COUNTER WHERE IT STOPPED AT THE LAST.
- OFF : PLAYING BACK FROM THE INDEX WHERE IT STOPPED AT THE LAST.
⑦ BIT RATE : VOICE BITRATE, MP3 BITRATE
SET UP THE BIT RATE IN VOICE RECORDING, LINE IN AND FM RECORDING.
- VOICE RECORDING : SHQ(32Kbps), HQ(16Kbps), SP(8Kbps)
- MP3 ENCODE : 48Kbps, 64Kbps, 96Kbps, 128Kbps, 192Kbps, 256Kbps
⑧ FM BAND : WORLD, JAPAN, EUROPE
YOU CAN SELECT FM BAND YOU WANT.
1. WORLD: 87.50MHz ~ 108.00MHz, 100KHz STEP
2. JAPAN: 76.00MHz ~ 108.00MHz, 100KHz STEP
3. EUROPE: 87.50MHz ~ 108.00MHz, 50KHz STEP
(DEFAULT: 87.50MHz)
⑨ CONTINUE FOLDER : ON, OFF
IT WORKS IN VOICE MODE RECORDING.
- ON : IF INDEX RECORDED(128PCS) IS FULL FOR A FOLDER,
AUTOMATICALLY MOVE TO NEXT FOLDER AND RECORDING
CONTINUOUSLY.
- OFF : IF INDEX RECORDED(128PCS) IS FULL FOR A FOLDER, STOP
RECORDING AND DISPLAY “INDEX FULL” ON THE LCD.
25
⑩ FORMAT : YES, NO
FORMAT ALL DATA RECORDED ON MEMORY.
☞ IT WON’T WORK IN PLAY/PAUSE & FM MODE.
DO IT WITH ENOUGH BATTERY POWER.
DO NOT TAKE THE BATTERY OUT IN FORMATING.
⑪ DEFAULT : YES, NO
INITIALIZE ALL SETTING AND RETURN TO DEFAULT.
26
(1) RECORDING METHOD
THE SET HAS 4 WAYS TO RECORD AS BELOW.
1) RECORDING THRU INTERNAL MIC: JUST PRESS “REC” BUTTON.
2) RECORDING THRU EXTERNAL MIC: PLUG EXTERNAL MIC INTO LINE IN JACK.
SELEC T EXTE RNAL MIC ON SY STEM/IN PUT SEL ECTOR.
PRESS “ REC”
3) RECORDING THRU LINE IN FROM EXTERNAL DEVICE: PLUG LINE-IN CABLE INTO LINE IN
JACK.
SELEC T LINE -IN ON SYS TEM/INP UT SELECTOR . PRESS “ REC”
REFER TO “CONNECTING EXTERNAL DEVICE”
4) RECORDING FM RADIO: REFER TO “FM RECORDING”.
(2) MAIN FEATURES
1) MONITORING RECORDING STATUS
IN RECORDING, YOU CAN CHECK WHAT IS RECORDING THRU EARPHONE.
2) CHECK REMAINNING TIME TO BE ABLE TO RECORD
YOU CAN CHECK THE REMAINNING TIME BY PRESSING “PLAY/PAUSE” BUTTON IN
RECORDING.
3) SEPARATING FILE IN RECORDING
YOU CAN SEPARATE FROM THE CURRENT RECORDING FILE RECORDED OVER 5 SECONDS
BY PRESSING “FF” BUTTON IN RECORDING AND CREATING NEW INDEX.
IF THERE IS NO ENOUGH SPACE FOR RECORDING, THE FUNCTION WON’T WORK.
IF RECORDING TIME IS FULL, “MEMORY FULL” IS DISPLAYED.
UP TO 256PCS AVAIABLE FOR RECORDING.
IN RECORDING, BACKLIGHT WON’T WORK.
Recording in RECORD Mode
27
(1) RECORDING FROM EXTERNAL DEVICE OR SET
1) RECORDING EXTERNAL DEVICE TO DDR-5100
CONNECT THE PROVIDED AUDIO CABLE TO LINE IN JACK ON THE SET.
2) RECORDING DDR-5100 TO EXTERNAL DEVICE
CONNECT THE PROVIDED AUDIO CABLE TO EARPHONE JACK ON THE SET AND
MICROPHONE OR LINE IN ON THE EXTERNAL DEVICE.
WHEN CONNECTING EXTERNAL DEVICE, TURN OFF THE DEVICE AND SET.
READ AN EXTERNAL DEVICE’S MANUAL YOU WOULD LIKE TO CONNECT WITH ENOUGH
TIME AND CAREFUL.
WHEN RECORDING FROM EXTERNAL DEVICE TO SET, VOLUME DOWN THE EXTERNAL
DEVICE.
WHEN RECORDING FROM SET TO EXTERNAL DEVICE, SET THE VOLUME OF THE SET AT
THE MIDDLE.
(2) RECORDING FROM TELEPHONE AND MOBILE PHONE
CONNECT LINE-IN CABLE TO THE MICROPHONE JACK ON THE
VOICE RECORDER AND TELEPHONE ADAPTOR. CONNECT
TELEPHONE CABLE TO TELEPHONE ADAPTOR.
PRESS “REC” BUTTON FOR RECORDING. IF YOU SET UP THE
“ARS”, AUTOMATICALLY START RECORDING AND PAUSING
ACCORDING TO THE SOUND LEVEL.
CONNECT “CELLULAR EAR MICROPHONE” ONTO EXTERNAL
MICROPHONE ON THE SET AND EARPHONE JACK ON THE MOBILE
PHONE.
☞ CELLULAR EAR MICROPHONE IS OPTIONAL ITEM AND YOU MAY ASK RETAILER THAT YOU CAN
PURCHASE.
CONNECTING EXTERNAL DEVICE
28
IF YOU CELLULAR IS NOKIA BRAND, YOU MUST CHECK “CELLULAR EAR MICROPHONE” IS COMPATIBLE
OR NOT.
It supports USB Mass Storage and it can be used as hard drive. It can be connected to PC
directly without any application by Plug & play method on Window Me, 2000, XP except for
Windows 98SE.
☜ How to install Drive
(1) In case of WIDOWS ME, 2000, XP
When connecting device to PC by USB port, “new hardware detected” is shown and installation
begins automatically.

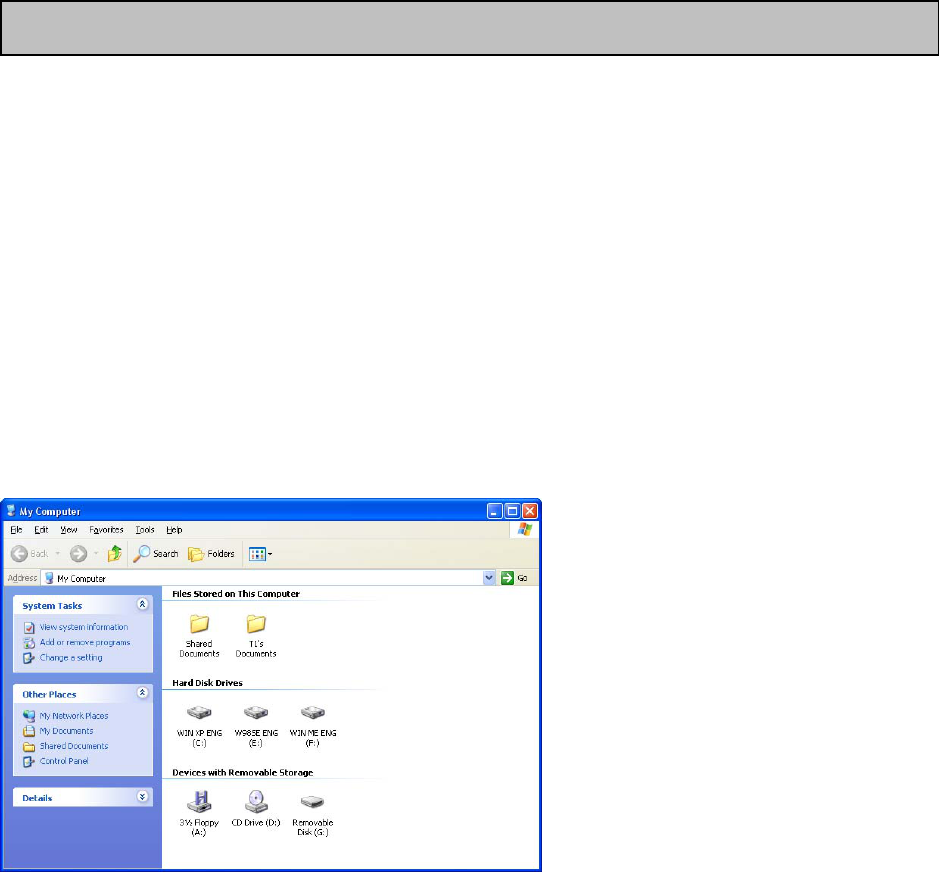

* If you click [My Computer], the set is recognized as a portable disk (F:) on [My Computer]
window. (*WINDOWS XP).
* WHEN THE USB DRIVER IS INSTALLED NORMALLY, IT IS RECOGNIZED AS A USB MASS STORAGE
DEVICE AT DEVICE MANAGER IN MY COMPUTER.
INSTALLATION OF WIN98SE DRIVER
29
(2) In case of WINDOW 98 SE
1 INSERT THE PROVIDED CD & IT WILL INDICATE HOW TO INSTALL.
2 Check “DVR-WIN98SE.EXE”
3 CLICK “INSTALL 98UMS DRIVER” AND AUTOMATICALLY INSTALL.
30
4 WHEN IT IS COMPLETED, BELOW POP-UP WILL APPEAR. CLICK “YES”
CLICK FOR REBOOTING THE COMPUTER.
AFTER REBOOTING, CONNECT THE SET & PC THRU USB CABLE. BELOW WINDOW WILL
APPEAR.
7 EVERYTHING IS SUCCEED, ITCAN BE APPEARED AT SYSTEM PROPERTIES.
* REMOVING USB MASS STORAGE SAFELY.
31
(1) WIN ME, 2000, XP
WHEN THE SET REMOVE FROM CONNECTION, IT SHOULD DO IT THRU PROPER PROCEDURE
AS BELOW. IF NOT, IT MIGHT CAUSE SERIOUS PROBLEM IN DATA.
1 CLOSE THE FILE TO OPEN.
CLICK “ “ BELOW THE WINDOW OF PC. IF SO, TOOL BAR AS BELWO WILL APPEAR AND
CLICK THE TOOL BAR.
BELOW WINDOW WILL APPEAR, SO FOLLOW UP THE DIRECTION.
CLICK “DDR UMS SYSTEM USB DEVICE.
WHEN BELOW TOOL BAR APPEAR, REMOVE THE SET FROM PC.
(2) WIN 98SE
REMOVE IT FROM PC WITHOUT ANY PROCEDURE. AS WIN ME, 2000, XP.
32
THE PROVIDED CD CONTAINS UNINSTALLING PROGRAM AUTOMATICALLY.
1 INSERT THE PROVIDED CD.
2 BOUBLE CLICK “DVR-WIN98SE.EXE”
3 CLICK “REMOVE DRIVER”
4 WHEN IT COMPLETE, BELOW WILL APPEAR AND CLICK “OK”.
USB Driver Auto Removing
Program
33
(1) Default folders
◈ When you connect the unit to PC, you can find that the VOICE, L-IN_ENC, FM_ENC & PLAYLIST folders are
created as a default.
(2) ALL FILE FORMATS CAN BE STORED AND REMOVED.
(3) AUDIO MODE IS NOT DEFAULTED LIKE VOICE, L-IN_ENC, FM_ENC. CREAT IT ON THE PC AND
CAN CHECK IT AT FOLDER PLAY & MUSIC MODE.
Managing Folders and Files
34
☞ THE CREATED FOLDER BY USER CAN BE CHECKED AT FOLDER ON THE MODE MENU AND ONLY
MUSIC FILE IS DISPLAIED ON MUSIC MODE. FOLDER DOES NOT APPEAR.
(4) LINE IN MODE
☞ LINE IN MODE contains the recorded files from external devices through the line-in cable.
☞ When recording data, up to 256 files can be created in sequence. If the number of files exceeds 256, the
“INDEX FULL” message is displayed.
(4) FM_ENC MODE
☞ FM_ENC MODE contains the files recorded IN LISTENING TO radio.
☞ When recording data, up to 256 files can be created in sequence. If the number of files exceeds 256, the
“INDEX FULL” message is displayed.
35
(5) VOICE MODE
☞ VOICE MODE contains the voice recording files.
☞ When recording data, up to 1024 files can be created in sequence. If the number of files exceeds1024,
the “INDEX FULL” message is displayed.
36
THIS WORK IS SAME AS DONE IN PC.
DELETING THE FILE
37
(1) Copy music files or data from PC folder and download them to device.
Downloading Files
38
(1) FORMAT on PC
○1 Go to [My Computer], choose portable disk(F:) and click right button of mouse. Following toolbar appears.
At the time, click format.
○2 Click ‘start’ when following window appears.
☞ THIS SET DOSE NOT SUPPORT “FAT32”. FORMAT MUST DO IN SETTING “FAT”.
○3 Click ‘OK’.
FORMATTING File
39
○4 Format is completed.
☞ DO NOT TAKE THE SET AWAY DURING FORMATTING. IT MAKE SERIOUS PROBLEM TO SET.
- IF FORMATTING IN FAT32, DO IT BY FAT AT THE PC AGAIN.
- AFTER REMOVING THE SET FROM PC IN FORMATTING WITH FAT32, “SYSTEM ERROR PLEASE
FORMAT” WILL BE NOTICED ON THE SET. IF SO, PRESS “MENU” WITH LONG KEY AND THEN
GO INTO SYSTEM/FORMAT IN THE MENU AND TRY TO FORMAT AGAIN.
40
This device has the feature which is to improve function and correct error by upgrading firmware.
You can download upgrade file by connecting to website.
1) COPY THE FIRMWARE AT THE ROOT DIRECTORY IN THE SET.
2) REMOVE THE SET & TURN OFF.
3) WHEN TURN ON, IT WILL UPGRADING AUTOMATICALLY AS BELOW.
After completed upgrading, set turn off AND TURN ON automatically
☞ BEFORE UPGRADING, BATTERY STATUS MUST BE CHECK. IF THE STATUS IS LOW, CHANGE IT.
IT MIGHT CASUE SERIOUS PROBLEM TO THE SET.
FIRMWARE UPGRADE
Firmware
Upgrading
00%
Upgrade
Completed
41
MODEL
DDR-5100R
(064)
DDR-5100R
(128)
DDR-5100R
(256)
DDR-5100R
(512)
RECORDING TIME
SHQ:260min,
HQ:520min,
SP:1040min
SHQ:530min,
HQ:1060min
SP :2120min
SHQ:1060min,
HQ:2120min
SP :4240min
SHQ:2120min,
HQ:4240min
SP :8480min
RECORDING MODE MP3 FORMAT : SHQ(32Kbps) / HQ(16Kbps) / SP(8Kbps)
FOLDER A/B/C/D/E/F/G/H (8 FOLDER)
Total 1024 Messages with 8 Separate Folder
(128 Messages in Each Folder)
ARS Automatic Recording System (A-TYPE: ONE INDEX, B-TYPE: +INDEX)
FM RECORDING World Wide FM band / Japen FM band / Europe FM band
EX-MIC Pin Mic
MEMORY TYPE Built-in Flash Memory (64MB/128MB/256MB/512MB/1GB)
S/N 60dB (62dB input 1Khz, speaker output 50mW: SHQ mode)
DISTORTION 1.5%±0.2 (62dB input 1KHz , speaker output 50mW : SHQ mode )
REQUENCY RESPONSE 300Hz ~ 4.0KHz (-6dB)
OUTPUT Max 80mW(speaker 8ohm)
REPEAT MODE Normal/ One/One repeat/All/Shuffle/A↔B repeat
RECODING MDOE One messages / all messages in file
INTRO PLAY 5/10/15 sec in each messages
SEARCHING Easy file search & messages search
ALRAM PLAY 10 program (Date / weekly(sun/mon/tue/wed/thu/fri/sat) / daily)
VOICE
RECORD
TIMER RECORDING 10 program (Date / weekly(sun/mon/tue/wed/thu/fri/sat) / daily)
S/N 60dB at 1mv 98.1MHz
DISTORTION 0.8%(max) at 1mv 98.1MHz ∆f=22.5KHz
FREQUENCY RESPONSE 350Hz±30Hz, 3KHz±0.25KHz(100Hz~10KHz, 60dBuV)
OUTPUT Max 80mW (speaker 8ohm)
FM RADIO
FREQUENCY RANGE World Standards : 87.5 ~ 108MHz(100Hz step)
Europe Standards : 87.5 ~ 108MHz(50Hz step)
Japan Standards : 76 ~ 108MHz(100Hz step)
BIT RATE MP3 FORMAT : (256/192/128/96/64/48Kbps)
S/N 70dB up (1KHz input 0dB)
DISTORTION 0.3%±0.1 (1KHz input 0dB)
FREQUENCY RESPONSE 20Hz~20KHz
OUTPUT EARPHONE Max 5mW (16ohm)
EQ EQ : Normal / Classic / Live / Pop / Rock
MP3
INTRO PLAY 5/10/15 sec in each track
General Specification
42
SEARCHING Easy track search & track search MP3
REPEAT Normal/ One/ One All/ All/ Shuffle/ A↔B
INTERFACE Mass Storage USB 1.1
SYSTEM CPU 200MHz more than , RAM 64MB more than, 20MB of free space
OS windows98SE , windows2000 , windows ME , windows XP, OVER Mac OS9.2, OS10
SOUND CARD Sound blaster 16 compatible
PC
interface
DISPLAY 640×480 more than
EXT. MIC ∮3.5 plug-in power microphone(mini plug/stereo) IMP less than 3KΩ
EARPHONE ∮3.5 earphone(mini plug/stereo) IMP less than 16Ω
DC JACK HOLE : ∮2.75, Dia : ∮0.65
INPUT/OUTPUT
DEVICE
USB Mini jack (PC : A TYPE)
DIAMETER ∮23 (IMP 8Ω) SPEAKER
MAX. OUTPUT 80mW (volume max)
VOLUM LEVEL. Digital volume (30 step)
BACK LIGHT COLOR (BLUE)
MEMORY NAND Flash Memory (64MB/128MB/256MB/512MB/1GB)
LED Recording indicator display LED (RED)
DOT 80X64
ICON DISPLAY COUNTER,TIMER,ALARM,ARS,3DS,NTRO,L R SPECTRUM,HOLD,BATTARY
LCD
DOT DISPLAY MODE, MENU, INDEX, FILE NAME, EQ, REPEAT, PLAY SPEED
PALYBACK SPEED Slow (80%) , Fast (120%)
ADAPTER DC3V / 300mA (CE,CUL,T,FCC)
OPERATING KEY FF / PLAY(PAUSE) / REW , MENU / REC(PAUSE) / STOP / ERASE / VOL+ / VOL- , HOLD
POWER 3V , LR03 , two alkaline battery(‘AAA’ size or UM-4)
VOICE PLAY Approx. 23hour during the voice play(earphone output: volume middle position)
VOICE
RECORDING
Approx. 13hour during the voice REC(earphone output: volume middle position)
RADIO
RECEPTION
Approx. 23hour during the radio play(earphone output: volume middle position)
BATTERY LIFE
MP3 PLAY Approx. 18hour during the MP3 play(earphone output: volume middle position)
ACCESSORY STEREO EARPHONE, LINE-IN CABLE, USB CABLE, TELEPHONE ADAPTOR, HAND STRAP,
MANUAL, CD FOR WIN98SE DRIVER, EXTERNAL MIC, EXTERNAL ANTENNA, BATTERY
OPTIONAL ITEM REMOTE CONTROLLER(MODE/ FF/ PLAY(STOP)/ REW/ REC(PAUSE)/ VOL+/-)
DC ADAPTOR
SIZE H 100 × W 31 × D 14
--- Additional User information ---
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
▪ Reorient or relocate the receiving antenna.
▪ Increase the separation between the equipment and receiver
▪ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
