Diasonic Technology Co DDR7000R DIGITAL VOICE RECORDER User Manual DDR 7000R MANUAL
Diasonic Technology Co Ltd DIGITAL VOICE RECORDER DDR 7000R MANUAL
Users Manual
- 1 -
DDR
DDRDDR
DDR-
--
-7000
70007000
7000R
RR
R
User Manual
User ManualUser Manual
User Manual
- 2 -

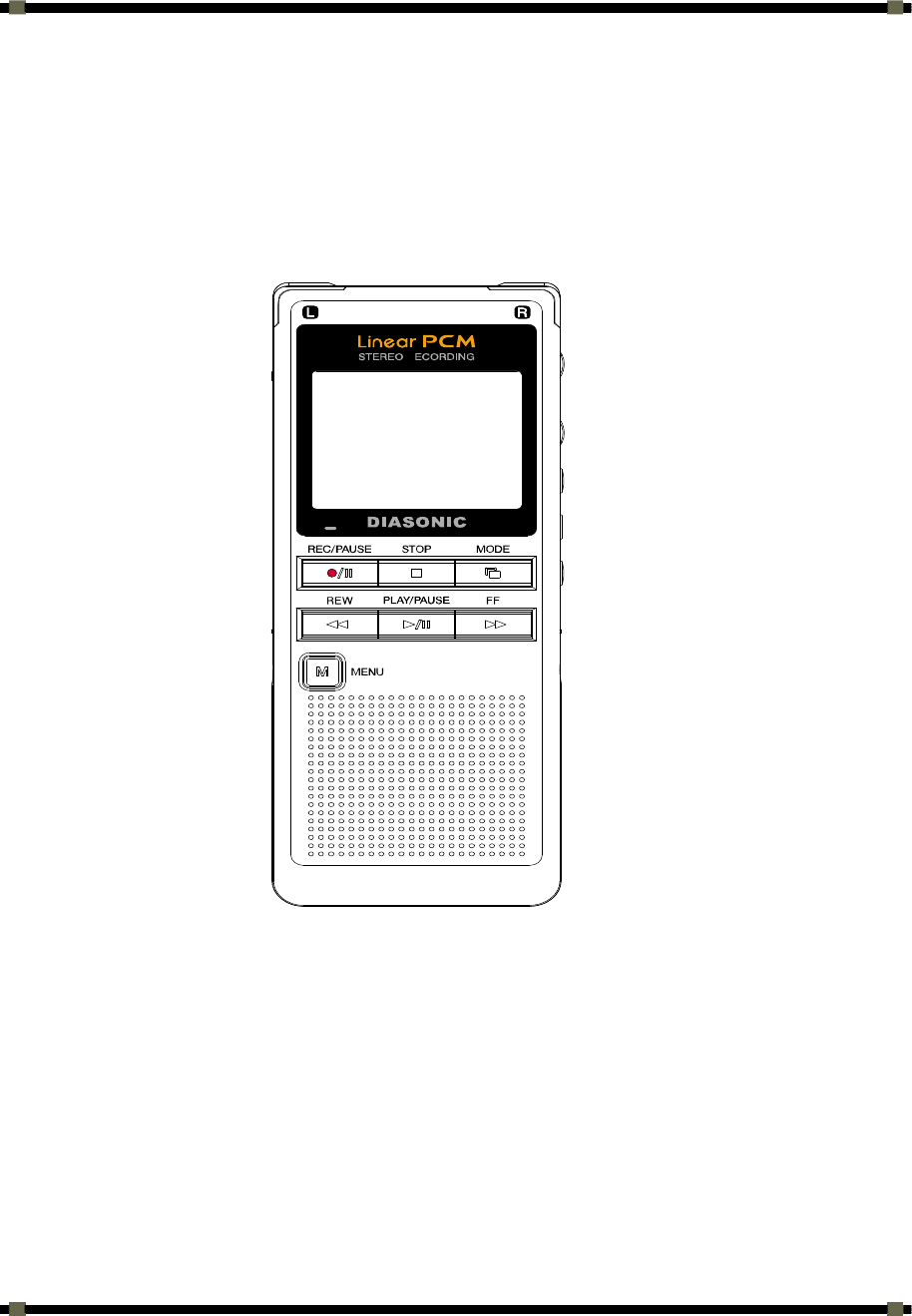

Name of each part
Name of each partName of each part
Name of each part
1.PLAY/PAUSE : Play, Pause
2.FF : Move to a next file, Fast Forward
3.REW : Move to a previous file, Fast backward
4.STOP : Stop, move to a previous folder
5.REC/PAUSE : Record, Pause
6.MODE : Changing a mode
7.MENU : Menu
8.VOL + : Volume up
9.VOL - : Volume down
10.EQ/SPEED : Set up Equalize and Speed
11.REPEAT/A-B : File repeat, Section repeat
12.ERASE : File erase
13.HOLD : key operation hold
14.ARS : Set up ARS
15.MIC SENS : Set up microphone sensitivity
16.REC MODE : Set up Recording quality
17.SPEAKER : Set up Built-in Speaker volume
- 3 -
Battery
BatteryBattery
Battery
Chaning Battery
Chaning BatteryChaning Battery
Chaning Battery
1. Press the battery cover release button, and then the battery
cover open while lightly pressing down on it in the direction.
2. Insert 2pcs of AA batteries with the correct “+” and “-
“ polartities.
Battery status Indicator
Battery status IndicatorBattery status Indicator
Battery status Indicator
The battery indicator on the display shows the current
battery status.
When the “Low battery” status is displayed, battery
should be replaced or charged.
Charging
ChargingCharging
Charging
If rechargeable batteries are used, plugging AC/DC adaptor starts
charging just by connecting.
Power On
Power OnPower On
Power On
Power on by holding the “►/∥” key for over 2seconds.
Power off
Power offPower off
Power off
Power off by holding “►/∥” button for over 2secodns.
Key Hold
Key HoldKey Hold
Key Hold
To slide the Hold key upward disables all buttons.
Volume Control
Volume ControlVolume Control
Volume Control
Volume control button is placed on the right side of the recorder.
Volume may be adjustable from 0 to 30.
If an initial volume is set up in advance, volume level may be set
up from 10 to 25 when powering on.
- 4 -
Menu display and button operation
Menu display and button operationMenu display and button operation
Menu display and button operation
All modes and setups may be accessible
throughout the display of main menu.
Mode Switching
Mode Switching Mode Switching
Mode Switching
Whenever pressing mode button, each mode is switched from Voice,
Encode, FM and Music.
Playback
PlaybackPlayback
Playback
1. Select a folder by “M” button
It has 3types of folders
for efficiently managing files.
- A,B,C,D: Voice File
- Encord: encoding file
- Music: Music file
2.Select file to play back by “<◄ , ►>”
Start playing back a selected file by “►/∥”
3. Stop playing back by ■.
Listening to FM Radio
Listening to FM RadioListening to FM Radio
Listening to FM Radio
1. Select FM Mode by “M”button.
2. Move to a desired FM Radio station
by “<◄, ►>”.
Recording
RecordingRecording
Recording
1. Select a folder desired to store
a recorded file.
2.Start recoding by “●/∥”
3. Stop recoding by ■.
- 5 -
Model: DDR-7000R
ANSI C63.4: 2003
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
Notice: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate the equipment.
