Digi Connect® Family
Digi Connect Family:
Digi Connect SP, Digi Connect Wi-SP, Digi Connect ME, Connect ME4,
Digi Connect Wi-ME, Digi Connect EM, Digi Connect Wi-EM,
Digi Connect ES Family (Digi Connect ES 4/8/16 devices)
ConnectPort• TS Products:
ConnectPort TS 8, ConnectPort TS 8 MEI
Digi Cellular Family:
Digi Connect WAN, Digi Connect WAN VPN,
Digi Connect WAN Sync, Digi Connect WAN IA, ConnectPortTM WAN VPN
Connect WAN Family:
Digi Connect• WAN, Digi Connect WAN VPN,
Digi Connect WAN IA, Digi Connect WAN Sync
ConnectPort• Family:
ConnectPort WAN VPN
ConnectPort• X Family:
ConnectPort X8
ConnectPort Display
Command Reference
www.digi.com 90000566_H
© Digi International Inc.2007. All Rights Reserved.
Digi, Digi International, the Digi logo, Digi Connect Family, Digi Connect SP,
Digi Connect Wi-SP, Digi Connect ME, Digi Connect ME4, Digi Connect Wi-ME,
Digi Connect EM, Digi Connect Wi-EM, Digi Connect ES, ConnectPort TS 8,
ConnectPort TS 8 MEI, Digi Connect WAN, Digi Connect WAN VPN, ConnectPort WAN
VPN, Digi Connect WAN IA, Digi Connect WAN Sync, ConnectPort Display, RealPort,
and Digi SureLink are trademarks or registered trademarks of Digi International, Inc. in
the United States and other countries worldwide.
All other trademarks are the property of their respective owners.
Information in this document is subject to change without notice and does not represent
a commitment on the part of Digi International.
Digi provides this document “as is,” without warranty of any kind, either expressed or
implied, including, but not limited to, the implied warranties of fitness or merchantability
for a particular purpose. Digi may make improvements and/or changes in this manual or
in the product(s) and/or the program(s) described in this manual at any time.
This product could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes may be incorporated in new
editions of the publication.
![](asset-3.png)
Contents 3
Chapter 1 Introduction
Digi Connect Products and Families to Which This Book Applies.........7
Quick Reference for Configuring Features............................................8
Access the Command Line..................................................................11
Configure an IP Address .....................................................................11
Basic Command Information ...............................................................12
User Models and User Permissions in Digi Connect Products............14
Chapter 2 Command Descriptions
Verifying Device Support for Commands ............................................17
backup.................................................................................................18
boot......................................................................................................19
close ....................................................................................................21
connect................................................................................................22
dhcpserver...........................................................................................23
display .................................................................................................27
display buffers .....................................................................................37
exit.......................................................................................................39
help and ?............................................................................................40
info.......................................................................................................41
kill ........................................................................................................49
mode....................................................................................................50
newpass ..............................................................................................51
ping......................................................................................................52
provision ..............................................................................................53
python..................................................................................................58
quit.......................................................................................................59
reconnect.............................................................................................60
revert ...................................................................................................61
rlogin....................................................................................................66
send.....................................................................................................67
set accesscontrol.................................................................................68
set alarm..............................................................................................70
set autoconnect ...................................................................................81
set bsc .................................................................................................85
set buffer..............................................................................................90
set ddns...............................................................................................92
set dhcpserver.....................................................................................96
set ekahau.........................................................................................104
Contents
![](asset-4.png)
4 Contents
set ethernet........................................................................................107
set forwarding....................................................................................109
set gpio..............................................................................................113
set group............................................................................................115
set host..............................................................................................118
set ia..................................................................................................119
set login .............................................................................................131
set menu............................................................................................132
set mgmtconnection ..........................................................................137
set mgmtglobal ..................................................................................140
set mgmtnetwork ...............................................................................143
set nat................................................................................................146
set network ........................................................................................149
set passthrough.................................................................................153
set permissions..................................................................................157
set pmodem.......................................................................................164
set pppoutbound................................................................................166
set profile...........................................................................................172
set putty.............................................................................................175
set python..........................................................................................183
set rciserial ........................................................................................184
set realport.........................................................................................185
set rtstoggle.......................................................................................187
set serial ............................................................................................189
set service .........................................................................................191
set snmp............................................................................................198
set socket_tunnel...............................................................................200
set surelink ........................................................................................202
set switches.......................................................................................208
set system .........................................................................................211
set tcpserial .......................................................................................212
set term..............................................................................................215
set udpserial ......................................................................................216
set user..............................................................................................220
set video ............................................................................................225
set vncclient.......................................................................................226
set vpn...............................................................................................228
set wlan .............................................................................................241
show ..................................................................................................249
status.................................................................................................254
telnet..................................................................................................255
vpn.....................................................................................................256
![](asset-5.png)
Contents 5
who....................................................................................................258
Chapter 3 Modem Emulation Commands
What Is Modem Emulation? ..............................................................259
Modem Emulation Cable Signals ......................................................259
Modes of Operation...........................................................................259
Common User Scenarios for Modem Emulation ...............................260

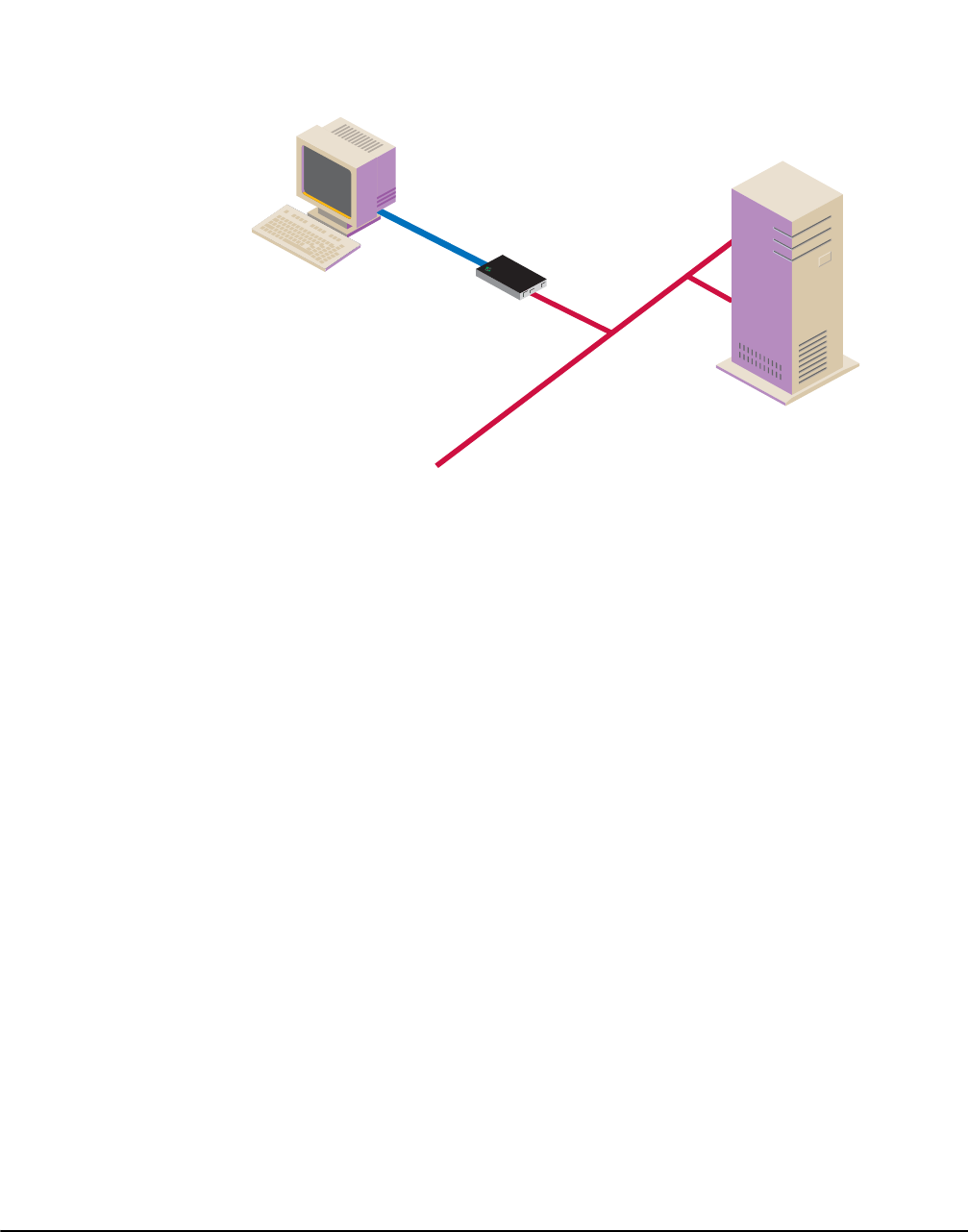

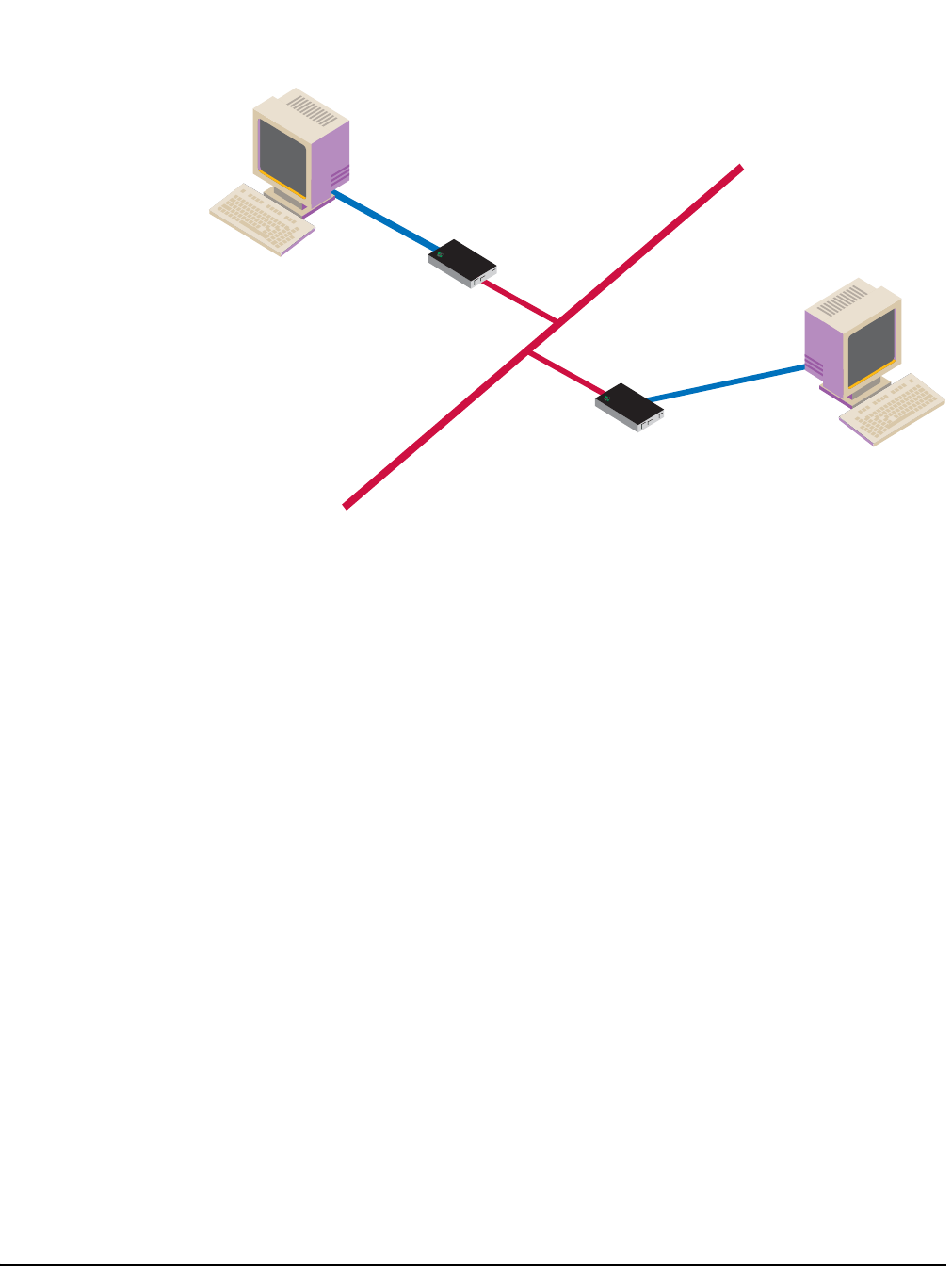

Connection Scenarios for Modem Emulation ....................................262
About the Commands in this Chapter................................................263
Accepted But Ignored AT Commands...............................................263
Modem Emulation AT Command Set................................................264
S-Register Definitions........................................................................267
Result Codes.....................................................................................269
Index.......................................................................................................271
![](asset-6.png)
6 Contents
![](asset-7.png)
Digi Connect Products and Families to Which This Book Applies
Chapter 1 Introduction 7
This book describes the commands in the command-line interface for
several Digi product families, listed below. This chapter provides the
following:
• A quick reference showing the commands used to configure features or
perform configuration tasks from the command line.
• Basic information that applies to all commands, including navigation
and editing keys, displaying online help, abbreviating commands,
syntax conventions, and entering special characters in string values.
• How to access the command line.
• How to configure an IP address for a Digi device from the command
line, if an address has not already been assigned.
• Information about user models and user permissions in Digi Connect
products, and how they affect the commands you can issue.
Digi Connect Products and Families to Which This Book Applies
This manual documents the command-line interface for the following Digi
products:
• The Digi Connect Family, which includes these products:
• Digi Connect SP
• Digi Connect Wi-SP
• Digi Connect ME
• Digi Connect Wi-ME
• Digi Connect EM
• Digi Connect Wi-EM
• Digi Connect ES Family (Digi Connect ES 4/8/16 devices)
• Connectport TS 8
• ConnectPort TS 8 MEI
• The Digi Cellular Family, which includes these products:
• Digi Connect WAN
• Digi Connect WAN VPN
• ConnectPort WAN VPN
• Digi Connect WAN IA
• Digi Connect WAN Sync
• The ConnectPort X Family, which includes these products:
• ConnectPort X8
• ConnectPort Display
Chapter 1 Introduction
![](asset-8.png)
Quick Reference for Configuring Features
8Chapter 1 Introduction
Quick Reference for Configuring Features
The following table shows common features that can be configured from
the command line, and the commands used to configure each feature. If
you are viewing the PDF file of this document, click the commands in the
“Commands” column to go to the command descriptions.
Feature/Task Commands
Alarms "set alarm" on page 70.
Autoconnection (automatically connect a user to
a server or network device) "set autoconnect" on page 81.
"set serial" on page 189.
"set tcpserial" on page 212.
Bisynchronous communications "set bsc" on page 85
Configuration management/administration Backup/restore a configuration from a TFTP server on the
network: "backup" on page 18.
Update firmware: "boot" on page 19.
Reset configuration to factory defaults: "revert" on page
61; or boot action=factory (see "boot" on page 19).
Reboot the device: "boot" on page 19.
Connectware Manager/Remote Management:
Connectware Device Protocol configuration
settings
"set mgmtconnection" on page 137.
"set mgmtglobal" on page 140.
"set mgmtnetwork" on page 143.
Custom menus "set menu" on page 132.
DHCP (Dynamic Host Configuration Protocol) To configure a DHCP server: "set dhcpserver" on page 96.
To manage and show status of a DHCP server:
"dhcpserver" on page 23.
Display current configuration settings in a device "show" on page 249.
Dynamic DNS (DDNS) "set ddns" on page 92.
Ekahau Client™ device-location software "set ekahau" on page 104
Ethernet settings for wired devices "set ethernet" on page 107.
General Purpose Input/Output (GPIO) pins "set gpio" on page 113.
"set alarm" on page 70.
Help on device commands "help and ?" on page 40.
Host name for a device (Specify a name for the
device) "set host" on page 118.
Industrial Automation (IA) • “set profile profile=ia” See "set profile" on page 172.
• "set ia" on page 119.
• For additional information on configuring Industrial
Automation, see this web site:
http://www.digi.com/support/ia
IP address settings "set network" on page 149.
![](asset-9.png)
Quick Reference for Configuring Features
Chapter 1 Introduction 9
IP Forwarding and Network Address Translation
(NAT) "set forwarding" on page 109.
"set nat" on page 146.
IP pass-through "set passthrough" on page 153
Mobile (Cellular) features:
• Provisioning CDMA cellular modules To display existing provisioning parameters:
“display provisioning” -- see "display" on page 27
To provision the CDMA module: "provision" on page 53
• Mobile service provider and connection
settings The only mobile connection setting that can be set from
the command line is the inactivity timeout,
(“set pppoutbound (rx_idle_timeout=timeout.)
The Inactivity timeout specifies the time, in seconds, after
which if no data has received over the link, the mobile
connection will be disconnected and re-established.
"set pppoutbound" on page 166.
• SureLink™ Settings "set surelink" on page 202.
Multiple Electrical Interface (MEI) "set switches" on page 208
Point to Point Protocol (PPP) "set pppoutbound" on page 166.
Port buffering "display buffers" on page 37.
"set buffer" on page 90.
Port profiles: sets of preconfigured serial-port
settings for a particular use "set profile" on page 172.
Python® program storage and execution on Digi
devices
To learn about the Python programming language and
writing programs: see the Digi Python Programming
Guide.
To configure Python programs to execute when the Digi
device boots: "set python" on page 183.
To manually execute a Python program from the command
line: "python" on page 58.
RCI over Serial "set rciserial" on page 184.
RealPort (COM port redirection) configuration "set realport" on page 185.
See also the RealPort Installation Guide.
Remote access through VNC (Virtual Network
Computing) protocol "set vncclient" on page 226.
Remote login (rlogin) "rlogin" on page 66.
Reverting configuration settings "revert" on page 61.
RTS Toggle "set rtstoggle" on page 187.
Feature/Task Commands
![](asset-a.png)
Quick Reference for Configuring Features
10 Chapter 1 Introduction
Serial port configuration Serial port communication options: "set serial" on page
189.
Port profiles: "set profile" on page 172.
RCI serial mode: "set rciserial" on page 184.
RTS Toggle: "set rtstoggle" on page 187.
TCP serial connections: "set tcpserial" on page 212.
UDP serial characteristics: "set udpserial" on page 216.
Security, users, user access permissions, and
user groups See "User Models and User Permissions in Digi Connect
Products" on page 14 for a discussion of how users and
access permissions are implemented in Digi Connect
products.To create users and change user names: "set
user" on page 220.
To control access to inbound ports:"set service" on page
191.
Enable/disable command-line access: "set term" on page
215.
To issue new password to user: "newpass" on page 51.
To set permissions associated with various services and
commands: "set permissions" on page 157.
To add or remove user groups, change group configuration
attributes, or display group configuration attributes: "set
group" on page 115.
To suppress user login: "set login" on page 131.
Simple Network Management Protocol (SNMP) To configure SNMP: "set snmp" on page 198.
To enable/disable SNMP service: "set service" on page
191.
To enable/disable SNMP alarm traps: "send" on page 67.
Set system information: assign system-
identifying information to a device "set system" on page 211.
Socket tunnel settings "set socket_tunnel" on page 200.
Statistics for your Digi device "info" on page 41.
Status of your Digi device "display" on page 27.
"status" on page 254.
"who" on page 258.
Digi SureLink™ "set surelink" on page 202.
Telnet to network devices "telnet" on page 255.
"mode" on page 50.
"send" on page 67.
Terminal Emulation for ConnectPort Display "set putty" on page 175.
Video settings for ConnectPort Display "set video" on page 225.
VPN (Virtual Private Network) To configure VPN: Using the Web user interface is
recommended. See "set vpn" on page 228.
To manage VPN: "vpn" on page 256.
Feature/Task Commands
![](asset-b.png)
Access the Command Line
Chapter 1 Introduction 11
Access the Command Line
To configure devices using commands, you must first access the command
line, and then log on as needed.
This procedure assumes that you have already configured the Digi device
with an IP address.
1. To access the Command-Line Interface for the Digi device, enter the
following command from a command prompt on another networked
device, such as a server:
#> telnet ip address
where ip address is the Digi device’s IP address. For example:
#> telnet 192.3.23.5
2. If user authentication has been set up for the device, (that is, a user-
name and password have been set up for the device), a login prompt is
displayed. If you do not know the user name and password for the
device, contact the system administrator who configured the device.
The default username is “root” and the default password is “dbps.”
Configure an IP Address
If the device to which you will be issuing commands has not already been
assigned an IP address, or if the IP address needs to be modified from its
initial configuration, see the Digi product’s User’s Guide for details on
configuring an IP address.
Wireless devices "set wlan" on page 241.
"set ekahau" on page 104.
Feature/Task Commands
![](asset-c.png)
Basic Command Information
12 Chapter 1 Introduction
Basic Command Information
Navigation and Editing Keys
Use the keys listed in the table to navigate the command line and edit
commands:
Displaying Online Help
Help is available for all commands. The table describes how to access it.
Abbreviating Commands
All commands can be abbreviated. Simply supply enough letters to
uniquely identify the command.
Syntax Conventions
Presentation of command syntax in this manual follows these conventions:
• Brackets [ ] surround optional material.
• Braces { } surround entries that require you to chose one of several
options, which are separated by the vertical bar, |.
• Non-italicized text indicates literal values, that is, options or values that
must be typed exactly as they appear. Yes and no options are examples
of literals.
• Italicized text indicates that a type of information is required in that
option. For example, filename means that the name of a file is required
in the option.
Action Keys
Move the cursor back one space. Ctrl+b
Move the cursor forward one space. Ctrl+f
Delete the character to the left of the cursor. Back space or Ctrl+h
Delete the character under the cursor. Delete
Scroll back through commands. Ctrl+p
Scroll forward through commands. Ctrl+n
Execute the command. Enter
For information on... Type
All commands ? (with no additional options)
A specific command help [command]
OR
[command] ?
Example: help info
Example: info ?
Example: set alarm ?
![](asset-d.png)
Basic Command Information
Chapter 1 Introduction 13
Entering Special Characters in String Values
Several commands have options that are string values, for example the
“set alarm” command’s “match” option and the “set autoconnect”
command’s “connect_on_string” option.
Escape Sequences for Special Characters
Special characters can be entered in strings using the following escape
sequences:
Length Limitations on String Values
String values for certain command options have specific limitations on the
maximum total string value including special characters, and the maximum
parsed value (that is, the character-string length when any escape
sequences in the string are processed). The option descriptions note these
maximum lengths.
Escape
Sequence Processed as:
\* Match any character. This escape sequence is only available on the
“set alarm match=string” option.
\a Alert character.
\b Backspace character.
\f Form-feed character.
\n New-line character.
\r Carriage-return character.
\s Acts as a separator between characters. This sequence allows you to
enter a string such as “\xB8\s4” where you want the B8 translated as
a hexadecimal character separate from the numeric character 4.
\t Horizontal tab character.
\v Vertical tab character.
\\ Backslash character ( \ ).
\xNA hexadecimal number, where N is up to 20 hexadecimal digits. For
example: \x10\x2
\NAn octal byte, where N is up to 3 octal digits. For example: \2 or
\208
![](asset-e.png)
User Models and User Permissions in Digi Connect Products
14 Chapter 1 Introduction
User Models and User Permissions in Digi Connect Products
The user model in a Digi Connect product influences the commands that
users can issue. There are three user models implemented in the various
Digi Connect and ConnectPort devices: one-user model, two-user model,
and more than two-user model.
Identifying the User Model for Your Digi Connect Product
To determine which user model is implemented in your Digi Connect
product, issue a “show user” or “set user” command (see "show" on page
249 and "set user" on page 220). In the command output, note how many
user IDs are defined: one, two, or more than two. You can also issue a
“set user ?” command and note the range for the “id=” option. If the “id=”
option is not listed, there is one user. Otherwise, the range for user IDs is
displayed.
One-user Model
In the one-user model, by default there is no login prompt, and the default
name for user 1 is “root.”
To enable the login prompt, you must issue a “newpass” command with a
password length of one or more characters (see "newpass" on page 51).
Once a password is enabled, issuing a “newpass” command with a zero-
length password will disable it.
• User 1 has a default name of “root.”
• User 1 has permissions that enables it to do all commands.
Permissions cannot be altered.
Two-user Model
• User 1 has a default name of “root.” This user is also known as the
administrative user.
• User 1 has default permissions that enables it to issue all commands.
• Permissions for User 1 can be changed to be less than the default root
permissions.
• User 2 is undefined. That is, it does not exist by default, but it can be
defined.
• When defined, User 2 has a limited set of permissions, defined by the
“set permissions” command (see "set permissions" on page 157).
• Permissions for User 2 can be changed to be either greater than or less
than its default.
More than Two-user model
User definitions are exactly the same as the two-user model, with the
addition of user groups and more users. The “set group” command defines
user groups (see "set group" on page 115).
![](asset-f.png)
User Models and User Permissions in Digi Connect Products
Chapter 1 Introduction 15
Login Suppression Feature
The login prompt can be disabled by issuing the “set login” command. See
"set login" on page 131.
Increasing Security for Digi Device Users
As needed, you can enforce additional security for device users. For
example, you can use the autoconnect feature, where a user is
automatically connected to another system without accessing the Digi
device’s command line. See "set autoconnect" on page 81.
![](asset-10.png)
User Models and User Permissions in Digi Connect Products
16 Chapter 1 Introduction
![](asset-11.png)
Verifying Device Support for Commands
Chapter 2 Command Descriptions 17
This chapter provides a description of each command in the Digi Connect
Family Command-Line Interface.
Verifying Device Support for Commands
To verify whether a Digi Connect device supports a particular command or
command options, and to get the allowed ranges and limits for command
options, you can enter several commands. For example:
• “help” displays all supported commands for a device.
• “?” displays all supported commands for a device.
• “set ?” displays the syntax and options for the “set” command. You can
use this to determine whether the device includes a particular “set”
command variant.
• “help set” displays syntax and options for the “set” command.
• “set serial ?” displays the syntax and options for the “set serial”
command.
• “help set serial” displays the syntax and options for the “set serial”
command.
Some options may become available in new firmware revisions or before
new documentation is released.
Some commands relate only to particular features unique to specific Digi
products. For example, the “set wlan” command applies only to wireless
products. Other commands may have options that are specific to features
that are not available on all devices. For example, the “display” command’s
“mobile” option applies only to Digi Cellular Family products.
Chapter 2 Command Descriptions
![](asset-12.png)
backup
18 Chapter 2 Command Descriptions
backup
Devices
supported This command is supported in all Digi Connect products.
Purpose Save the device configuration to a TFTP server located on the network, or
restores the configuration from a saved copy on the TFTP server.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions backup=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax backup [to=serveripaddress[:filename]|
from=serveripaddress[:filename]|print]
Options to=serveripaddress[:filename]
The IP address of the TFTP server to which the configuration will be
saved, and the filename that the configuration will be saved as. If a
filename is not specified, the default filename of config.rci is used.
from=serveripaddress[:filename]
The IP address of the TFTP server and the filename from which the
configuration will be restored. If a filename is not specified, the default
filename of config.rci is assumed.
print
Prints out the current device configuration.
Example #> backup from=10.0.0.1:config.rci
See also "set rciserial" on page 184. The “set rciserial” command allows a
configuration file to be loaded over a serial port when the DSR input signal
is high.
![](asset-13.png)
boot
Chapter 2 Command Descriptions 19
boot
Devices
supported This command is supported in all Digi Connect products.
Purpose Reboots the device server, restores the device configuration to factory
default settings, or loads new firmware files (both EOS and POST images)
from a TFTP server.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions boot=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax Reboot the device server
boot action=reset
Restore configuration defaults
boot action=factory
Load new firmware or POST file into flash ROM from a TFTP host
boot load=host ip address:load file
Options action
The action to be performed.
factory
Resets the entire configuration to factory defaults, then reboots the
device.
reset
Reboots the device.
load
The firmware to be loaded.
host ip address
The IP address of a host with new firmware or POST file, which is then
burned into flash ROM. The host must be running a TFTP server.
load file
The name of a firmware file or POST file. The software automatically
detects the type of file and performs the appropriate load operation.
![](asset-14.png)
boot
20 Chapter 2 Command Descriptions
Examples Restore configuration defaults
This example reloads the firmware stored in flash ROM and resets the
configuration to factory defaults then reboots the device.
#> boot action=factory
Reboot using the current firmware and configuration
This example reboots the device and uses the current firmware and
configuration stored in flash ROM.
#> boot action=reset
Reboot using firmware from a boot host
This example loads the firmware stored on the TFTP host into flash ROM.
A reboot is required to use the new firmware.
#> boot load=10.0.0.1:firmware.bin
See also "revert" on page 61.
![](asset-15.png)
close
Chapter 2 Command Descriptions 21
close
Devices
supported This command is supported in all Digi Connect products.
Purpose Closes active connect, Rlogin, and Telnet sessions; that is, sessions
opened by “connect,” “rlogin,” or “telnet” commands.
The “close” command is associated with the sessions displayed by the
“status” command.
A “close” command issued without any options closes the current
connection.
To issue the “close” command, you must escape the active session. Do this
by pressing the escape key defined for your session type. The following
table lists default escape keys.
Syntax close [{*|connection number}]
Options * Closes all active sessions.
connection number
Identifies the session to close by its session number.
Examples Close a session identified by number
#> close 1
Close the current session
#> close
Close all active sessions
#> close *
See also • "kill" on page 49. The kill command has a broader effect than close, and
lets you kill connections from the global list. That is, it is not limited to
sessions associated with the current connection.
• "status" on page 254 for information on displaying status information on
active sessions.
• "connect" on page 22
• "rlogin" on page 66
• "telnet" on page 255
Session Type Default Escape Keys
Connect Ctrl+[+Enter
Rlogin ~+Enter
Telnet Ctrl+]+Enter
![](asset-16.png)
connect
22 Chapter 2 Command Descriptions
connect
Devices
supported This command is supported in all Digi Connect products.
Purpose Used to make a connection, or establish a session, with a serial port.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions connect=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax There are several ways to create and manage connections:
Create a single connection
connect serial port
Create multiple connections
Issue multiple “connect” commands.
Temporarily suspend a connection
Escape the active session by pressing Ctrl [.
Temporarily suspend a connection and return to the command line
Press the escape character and then the Enter key.
Switch between active sessions (without first escaping to the command
line)
Press the escape character and then the number of the session you wish
to enter, for example, Esc+1.
Pressing the connect escape character twice causes the next session to
appear, enabling you to easily page through sessions.
Options serial port
The number of the port on which to establish a connection.
Example Create a connection to port 1
#> connect 1
See also • "close" on page 21 for information on ending a session.
• "reconnect" on page 60 for information on reestablishing a port
connection.
![](asset-17.png)
dhcpserver
Chapter 2 Command Descriptions 23
dhcpserver
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Used for managing and showing the status of a DHCP server, including
managing the leases for IP addresses, restarting, running, and shutting
down the DHCP server, and displaying DHCP server status information.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions connect=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax dhcpserver [deletelease={ip address|all}]
restart
run
shutdown
status
Options deletelease={ip address|all}
Specifies how to handle IP address leases. You may remove leases from
the DHCP Server while it is running.
ip address
Removes a specific lease from the DHCP server.
allRemoves all IP address leases from the DHCP server.
Removing a lease will cause the associated IP address to be returned
immediately to the available address pool. Any IP address in this
available address pool may be served in a new lease to a DHCP client.
If you stop or restart the DHCP server, or if you reboot the Digi Connect
product, all knowledge of the IP address leases will be lost. All leased
addresses, except for reservations, will be returned to the available
address pool and may be served in a new lease to a DHCP client.
Static lease reservations will always be displayed in the lease list. These
reservation leases may be removed, but a new lease will be created
immediately. To disable or permanently remove a reservation, use the
“set dhcpserver” command. See the examples for "set dhcpserver" on
page 96.
restart
Restarts the DHCP server.
run
Runs (starts) the DHCP server if it not already started.
shutdown
Shuts down the DHCP server.
status
Displays DHCP server status information.
![](asset-18.png)
dhcpserver
24 Chapter 2 Command Descriptions
Example Display DHCP server status
#> dhcpserver status
Device Networking Status:
IP address : 10.30.1.188
Subnet mask : 255.255.255.0
Default gateway : 10.6.6.6
Static IP configured : yes
Uptime : 0 days + 21:00:44
DHCP server status: running
Uptime : 0 days + 21:00:36
Scopes configured in server:
Scope 1:
Name : eth0
IP address : 10.30.1.188
Subnet mask : 255.255.255.0
Starting IP address : 10.30.1.190
Ending IP address : 10.30.1.198
Routers : 10.30.1.188
DNS servers : 209.183.48.10 209.183.48.11
Lease duration : 3600 (seconds)
Offer delay : 500 (milliseconds)
Addr conflict detect : disabled
Address reservations:
Reservation 1:
IP address : 10.30.1.135
Client ID : 00:40:9D:24:73:F8
Lease duration : 3600 (seconds)
Reservation 2:
IP address : 10.30.1.192
Client ID : 02:40:9D:24:73:F8
Lease duration : using scope lease duration
Reservation 3:
IP address : 10.30.1.195
Client ID : 00:09:26:19:51:05
Lease duration : using scope lease duration
Reservation 4:
IP address : 10.30.1.196
Client ID : 00:09:26:19:51:06
Lease duration : using scope lease duration
Reservation 5:
![](asset-19.png)
dhcpserver
Chapter 2 Command Descriptions 25
IP address : 10.30.1.197
Client ID : 00:09:26:19:51:07
Lease duration : using scope lease duration
Address exclusions:
none configured
Lease Records:
Client ID Lease Time in Seconds
IP Address (MAC Address) Duration Remaining Lease Record Status
--------------- ----------------- ---------- ---------- ------------------
10.30.1.135 00:40:9D:24:73:F8 3600 1834 Reserved (active)
10.30.1.192 02:40:9D:24:73:F8 3600 N/A Reserved (inactive)
10.30.1.195 00:09:26:19:51:05 3600 N/A Reserved (inactive)
10.30.1.196 00:09:26:19:51:06 3600 N/A Reserved (inactive)
10.30.1.197 00:09:26:19:51:07 3600 N/A Reserved (inactive)
Delete a lease
dhcpserver deletelease=10.30.1.135
Delete all leases
dhcpserver deletelease=all
Lease status values
Following are descriptions of the lease status values. The amount of time
that a lease table entry will remain in each state also is stated. Note that
after a lease is deleted, the associated IP address is returned to the
available address pool.
Assigned (active)
A lease is currently assigned and active for the given client. The client
may renew the lease, in which case the lease remains in this state.
Assigned (expired)
A lease has expired and is no longer active for the given client. A lease
in this state will remain for 4 hours, after which it is deleted. If the same
client requests an IP address before the lease is deleted, it will be given
the same IP address previously served to it.
Reserved (active)
A lease for an address reservation is currently active for the given client.
A reservation lease will remain indefinitely, although the status may
alternate between active and inactive.
Reserved (inactive)
A lease for an address reservation is currently inactive for the given
client. A reservation lease will remain indefinitely, although the status
may alternate between active and inactive.
Reserved (unavail)
A lease for an address reservation was offered to a client, but that client
actively declined to use the IP address. Typically this is because the
client determined that another host on the same subnetwork is already
using that IP address. Upon receiving the client's decline message, the
![](asset-1a.png)
dhcpserver
26 Chapter 2 Command Descriptions
DHCP server will mark the address as unavailable. The lease will remain
in this state for 4 hours, after which it is reverts to the Reserved (inactive)
status.
Offered (pre-lease)
A lease has been offered to the given client, but that client has not yet
requested that the lease be acknowledged. It may be that the client also
received an offer from another DHCP server, in which case this offer will
expire in approximately 2 minutes. If the client requests this lease before
that 2 minute interval elapses, this lease will change status to Assigned.
Released
A lease was previously assigned to the given client, but that client has
proactively released it. A lease in this state will remain for 1 hour, after
which it is deleted. If the same client requests an IP address before the
lease is deleted, it will be given the same IP address previously served to
it.
Unavailable Address
A lease was offered to a client, but that client actively declined to use the
IP address. Typically this is because the client determined that another
host on the same subnetwork is already using that IP address. Upon
receiving the client's decline message, the DHCP server will mark the
address as unavailable. The lease will remain in this state for 4 hours,
after which it is deleted.
This status may also occur if the DHCP Server determines that the IP
address is in use before it offers the address to a client. See the
"set dhcpserver" command option "conflictdetect" option.
See also • "set dhcpserver" on page 96.
• The Web user interface’s help text for Network Settings, which includes
information on configuring DHCP server settings and managing DHCP
servers.
![](asset-1b.png)
display
Chapter 2 Command Descriptions 27
display
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays status information for a Digi Connect device. The “display”
command’s focus is on real-time information. In contrast, the “info”
command displays statistical information about a device over time, while
the “status” command displays the status of outgoing connections
(connections made by “connect,” “rlogin,” or “telnet” commands).
Status information that can be displayed includes:
• General product information, including the product name, MAC
address, boot, post, and firmware versions, memory usage, CPU
utilization, and uptime, or the amount of time since the device was last
booted.
• Access control status information.
• ARP table information.
• Contents of a port buffer (see also "display buffers" on page 37).
• Dynamic DNS (DDNS) service status information.
• GPIO signals.
• Memory usage information only.
• Mobile (cellular modem) status information.
• Network Address Table (NAT) status information.
• Active network device interfaces and their status.
• IP pass through status.
• Point-to-Point Protocol (PPP) status information, including SureLink
statistics.
• Provisioning parameters in a Digi Cellular Family device’s CDMA
cellular module.
• Route Table entries.
• Security Association (SA) database entries (can also be displayed with
other Virtual Private Network (VPN) information).
• Security Policy Database (SPD) entries (can also be displayed with
other Virtual Private Network (VPN) information)
• Serial modem signals (DTR, RTS, CTS, DSR, DCD).
• Socket status information.
• Multiple Electrical Interface (MEI) switch settings currently defined for
ports, on devices supporting MEI.
• Current TCP and UDP session and listener information.
• Uptime information only.
• Version information for Boot, POST and EOS firmware, and Digi part
numbers for those items.
![](asset-1c.png)
display
28 Chapter 2 Command Descriptions
• Virtual Private Network (VPN) information, including Security
Association (SA) database entries and Security Policy Database (SPD)
entries.
• Typical wireless LAN (WLAN) parameters for wireless devices.
100% CPU Utilization may indicate encryption key generation is in-progress
There may be instances when a “display device” command returns a CPU
utilization of 100%. A CPU usage this high may indicate that encryption key
generation is in-progress. On initial boot, the Digi device generates some
encryption key material: an RSA key for SSL/TLS operations, and a DSA
key for SSH operations. This key-generation process can take as long as
40 minutes to complete. Until the corresponding key is generated, the Digi
device will be unable to initiate or accept that type of encrypted connection.
It will also report itself as 100% busy but, since key generation takes place
at a low priority, the device will still function normally. On subsequent
reboots, the Digi device will use its existing keys and will not need to
generate another unless a reset to factory defaults is done, which will
cause a new key to be generated on the next reboot.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions display=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax display {accesscontrol|arp|buffers|ddns|device|gpio|memory|mobile|
nat|netdevice|passthrough|pppstats|provisioning|route|sadb|
serial|sockets|spd|switches|tcp|udp|uptime|version|vpn|wlan}
Options accesscontrol
Displays access control status information.
arp
Displays ARP table entries.
buffers
Displays the contents of a port buffer. This option is covered in more
detail in "display buffers" on page 37.
![](asset-1d.png)
display
Chapter 2 Command Descriptions 29
device
Displays general product information including product name, MAC
address, boot, post, and firmware versions, memory usage, CPU
utilization, and uptime. The information displayed by this option is the
same as that displayed by the “info device” command (see "info" on page
41).
ddns
Displays status information for the Dynamic DNS (DDNS) service. See
"set ddns" on page 92 for information on the DDNS service.
gpio
Displays GPIO signals.
memory
Displays general memory, network memory, and streams memory
usage.
mobile
Displays mobile (cellular modem) status information. Applies to Digi
Cellular Family products only. To display statistics associated with the
SureLink feature, use the “pppstats” option.
nat
Displays Network Address Table (NAT) status information.
netdevice
Displays the active interfaces on the system, for example, PPP and
Ethernet interfaces, and their status, such as “Closed” or “Connected.”
passthrough
Displays status of the IP pass-through mode, enabled by the “set
passthrough” command. See "set passthrough" on page 153.
pppstats
Displays status and activity information for a Point-to-Point Protocol
(PPP) link, including SureLink statistics. See "Information returned by
“display pppstats”" on page 32 for descriptions.
provisioning
Displays the current provisioning information in the Digi device’s CDMA
cellular module.
Before using the “provision” command to provision the CDMA module, It
is recommended that you use this option to determine which parameters
are already set in the module. See "provision" on page 53.
Important Use of the “provision” and “display provisioning” commands
requires that any existing PPP sessions be closed.
route
Displays Route Table entries.
sadb
Displays the contents of the Security Association (SA) database. The SA
database lists the connections to VPN servers. Each entry identifies the
subnets traffic is being routed between, and the security protocols
chosen for the VPN tunnel. Applies to Digi Cellular Family products only.
![](asset-1e.png)
display
30 Chapter 2 Command Descriptions
serial
Displays serial modem signals (DTR, RTS, CTS, DSR, DCD).
sockets
Displays information about how socket resources are being used by the
system.
spd
Displays Security Policy Database (SPD) entries defined for Virtual
Private Network (VPN) tunnels.
switches
Displays Multiple Electrical Interface (MEI) switch settings currently
currently defined for ports, on devices supporting MEI. (See
"set switches" on page 208.)
tcp
Displays active TCP sessions and active TCP listeners. To display more
TCP-related statistics, such as number of input and output bytes
transmitted, issue an “info tcp” command (see "info" on page 41).
udp
Displays current UDP listeners.
To display more UDP-related statistics, such as number of input and
output bytes transmitted, issue an “info udp” command (see "info" on
page 41).
uptime
Displays amount of time since the device was booted.
version
Displays boot, POST and EOS firmware version information and Digi part
numbers for those items.
vpn
Displays all VPN-related status information, including Security
Association (SA) database entries and Security Policy Database (SPD)
entries. Applies to Digi Cellular Family products only.
wlan
Displays typical wireless LAN (WLAN) parameters for Digi Connect
wireless devices.
![](asset-1f.png)
display
Chapter 2 Command Descriptions 31
Example Display device information
#> display device
Device Information:
Product : Digi Connect ME
MAC Address : 00:40:9D:24:8B:B3
Firmware Version : 1.9.0 (Version 82000856_F5 09/16/2005)
Boot Version : 0.0.0.1 (release_82000866_C)
Post Version : 0.0.0.1 (release_82000867_B)
CPU Utilization : 14 %
Uptime : 4 hours, 51 minutes, 38 seconds
Total Memory : 8388608
Free Memory : 2798316
Used Memory : 5590364
Display Virtual Private Network (VPN) status information
#> display vpn
SADB Table:
Source IP AddresDestination IP AProtect Mode SPI Hash Enc TTL-sec T
TL-kb
SPD Table:
Idx, Selector(local ip:port,remote ip:port, protocol),LEAST PREFERRED SPD
ENTRY
FIRST Protect Mode Hash Enc Protect Mode Hash
![](asset-20.png)
display
32 Chapter 2 Command Descriptions
Output This section describe and interprets selected information and statistics
output by the “display” command.
Information returned by “display pppstats”
The “display pppstats” displays status and activity information for a PPP
link, and SureLink statistics.
This information is specific to Digi Cellular Family products.
PPP status and activity information
In these status and activity values, a “session” is a PPP session. The
session statistics are reset to zero at the start of a new PPP link. The “total”
statistics are the accumulated totals for all sessions since the device
booted.
state
The current state of the PPP link. “Active” indicates that a PPP link is up.
“Inactive” means the PPP link is down. Inactive is indicated when the link
is coming up, or going down.
ip address
The PPP WAN IP address of the Digi device. This is the IP address used
to communicate over the cellular network. This IP address is assigned by
the carrier most of the time, but can also be given to the network by the
Digi device.
primary dns addr
secondary dns addr
These are addresses for the DNS nameservers, used for performing
name lookups. These DNS addresses are assigned by the carrier most
of the time, but can also be assigned by users.
tx bytes
rx bytes
The total number of bytes transmitted (tx) or received (rx) over the PPP
link since the last reboot.
session tx bytes
session rx bytes
The number of bytes transmitted (tx) or received (rx) over the PPP link in
the current PPP session.
![](asset-21.png)
display
Chapter 2 Command Descriptions 33
reset status
These PPP status values describe why a PPP link was terminated.
idle resets
The number of resets because the idle timeout was reached/exceeded
for transmitted and received data. These idle timeouts are set by the
“set pppoutbound” command. Most of the time, no idle timeout is used
on transmitted data.
no carrier resets
The number resets because the carrier was dropped for any reason.
no service resets
The number of resets because the data network was not available.
Note: For Digi Cellular Family products, “no carrier” and “no service” resets indicate
problems with your cellular service. “No service” resets could be cased by low
signal strength. Review the signal strength and reposition the antenna or Digi
device as needed. An external high-gain or directional antenna may be
needed. These resets can also be due to roaming issue. To check the signal
strength and current carrier settings, issue a “display mobile” command.
admin resets
The number of resets done for administrative purposes, such as
issuing “kill” commands, or disconnecting a PPP session in the Web
user interface’s Connections page by clicking the Disconnect button.
non-admin resets
The number of LCP termination requests made from the network; that
is, the network notifies the Digi device that the PPP link is being
brought down.
surelink resets
The number of resets caused by SureLink bringing down the PPP link
and reestablishing it. SureLink performs three tests to monitor the
integrity of the PPP link: ping, DNS, and TCP connection testing. The
“set surelink” command has options for setting how these tests are
performed. (see "set surelink" on page 202). If SureLink is unable to
complete these tests, it concludes that the link is broken, and
reestablishes the connection.
lcp keepalive resets
The number of resets caused by the LCP keepalive tests. LCP
keepalive tests are similar to the SureLink link integrity monitoring
tests, and perform the equivalent of a ping test for the PPP link. If the
cellular network does not ping back after the number of replies
specified by the number of consecutive missed replaces on the
“set pppoutbound” command option “lcp_ka_max_missed_replies,”
the LCP keepalive feature drops the link.
![](asset-22.png)
display
34 Chapter 2 Command Descriptions
last reset reason
The reason for the most recent reset of the PPP link.
idle
An idle reset brought down the link last.
lcp keepalive
An LCP keepalive reset brought down the link last.
surelink
Surelink tests failed and brought down the link.
no service
The modem received a “no service” indication on the monitoring
channel, and brought down the link.
no carrier
The modem dropped the link (hard), and was responsible for the
termination of the last link.
administrative
Someone issued a “kill” command, or disconnected the PPP link in
the Web user interface’s Connections page.
non-administrative
The network initiated closure of the last link.
unknown
The link was brought down for unknown reasons. This status is also
displayed if the PPP connection has not been brought down since
the Digi device was last rebooted. Since it is not possible for "last
reset reason" information to persist across resets, this unknown
state indicates that it is not clear which event may have been
responsible for a reset that occurred in a prior life of the device.
tx timer
The time, in seconds, after which if no data is transmitted, the PPP link is
disconnected. Typically, this value is 0 (disabled).
rx timer
The time, in seconds, after which if no data is received, the PPP link is
disconnected. An idle reset ends the PPP session and reestablishes it, to
prevent the carrier network from dropping an inactive call. The default is
1440 seconds (24 minutes). This value is also known as the “Inactivity
timeout” in the Web user interface’s “Mobile Settings.”
session time
The duration of the current PPP session. To display total system uptime,
issue a “display uptime” command.
rx idle time
tx idle time
The amount of time since data was last received (rx)/or transmitted (tx)
by the Digi device.
![](asset-23.png)
display
Chapter 2 Command Descriptions 35
lcp echo requests
The number of Link Control Protocol (LCP) echo requests that have been
sent after a “quiet” interval, in order to test the PPP link and/or keep it
alive. For Digi Cellular products, LCP echo requests are typically not
used.
SureLink Statistics
Digi SureLink™ provides an “always-on” mobile network connection to
ensure that a Digi Cellular Family device is in a state where it can connect
to the network.
The statistics displayed for Digi SureLink pertain to the periodic tests,
known as Link Integrity Monitoring tests, that are run over the established
PPP connection to ensure that end-to-end communication is possible.
There are three Link Integrity Monitoring tests available: There are three
tests available: Ping Test, TCP Connection Test, and DNS Lookup Test.
For descriptions of these tests, see "set surelink" on page 202.
In these SureLink statistics, a “session” is a PPP session. The session
statistics are reset to zero at the start of a new PPP connection. The “total”
statistics are the accumulated totals for all sessions since the device
booted. The “tests” are the SureLink Link Integrity Monitoring tests that
have been configured to be run when the mobile network connection is
established.
session successes
The number of times a configured test was attempted and succeeded in
a PPP session.
session failures
The number of times a configured test was attempted but failed in a PPP
session.
session consecutive failures
The number of consecutive failures for a test, with no success. When a
test is successful, the consecutive failures counter is reset to zero. The
consecutive failures counter indicates a device's “progress” toward the
configured maximum number of consecutive failures, after which the
PPP link is taken down (and restarted).
session bypasses
If a configuration parameter is bad, a test is bypassed rather than
considered to have succeeded or failed. This means the test was not run.
If the PPP connection goes down while a test is in progress, that test may
be classified as bypassed, since it could not be run. (Note that the PPP
link may come down for many reasons, independent of SureLink testing.)
total successes
The total number of times a configured test was attempted and
succeeded since the Digi device was booted.
total failures
The total number of times a configured test was attempted but failed
since the Digi device was booted.
![](asset-24.png)
display
36 Chapter 2 Command Descriptions
total link down requests
The number of times the SureLink feature has failed consecutively the
configured number of failures and, as a result, requested that PPP shut
down and restart its connection. This statistic counts such occurrences
during the current device boot. SureLink itself does do the PPP stop/start;
it sends a message to PPP asking it to do so, owing to a Surelink test
failure.
total bypasses
The total test bypasses (see “session bypasses”) since the Digi device
was rebooted.
See also • "info" on page 41.
• "show" on page 249 and "set wlan" on page 241. The "show wlan"
command displays additional wireless LAN information, including
wireless LAN settings configured by "set wlan" and evaluations of the
settings.
• "status" on page 254.
• "set vpn" on page 228 for information on the settings related to the
“sadb,” “spd,” and “vpn” options.
![](asset-25.png)
display buffers
Chapter 2 Command Descriptions 37
display buffers
Devices
supported This command is supported in all Digi Connect products except
Digi Connect WAN and ConnectPort Display.
Purpose Displays the contents of a port buffer, or transfers the contents of a port
buffer to a server running Trivial File Transfer Protocol (TFTP). Port
buffering is enabled by the “set buffer” command (see "set buffer" on page
90). Contents are displayed in log form.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to one of the following:
• For a user to display the contents of a port buffer for the line on which
they are logged in: “set permissions buffers=r-self” or higher.
• For a user to display the contents of a port buffer for any line:
“set permissions buffers=read” or higher.
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax display buffers [port=range] {[screen] [lines=number]
[tail=number] | tftp=server:filename}
Options port=range
The port or ports to which the command applies. Optional on a single-port
device.
screen
Displays the port buffer contents on the screen when screen is specified.
lines=number
The number of lines of data to display at a time when the “screen” option
is specified. Use 0 to indicate continuous flow.
tail=number
The total number of lines in the buffer to be displayed. The number is
calculated from the end of the buffer counting back.
tftp=server:filename
server
The IP address or DNS name of a server running TFTP to which buffer
information should be transferred.
filename
The name to use for the file that will be transferred to the TFTP server.
If the “port” option specifies more than one port, one file will be
transferred for each port. The filename for each port will be
filename_n, where n is the port number.
![](asset-26.png)
display buffers
38 Chapter 2 Command Descriptions
Examples Display port buffering information on the screen
#> display buffers port=2 screen lines=32 tail=30
Output buffering information to a TFTP server
#> display buffers port=2 tftp=192.168.1.1:port_ouput
Output multi-port buffering information to a TFTP server
#> display buffers port=2-3 tftp=192.168.1.1:port_ouput
Note that port 2 buffering information goes to file port_output_2 and port 3
buffering information goes to file port_output_3.
See also • "set buffer" on page 90.
![](asset-28.png)
help and ?
40 Chapter 2 Command Descriptions
help and ?
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays help about a specific command.
Syntax help [command]
OR
[command]?
Examples #> help boot
#> boot?
#> help set serial
#> set serial?
See also "Displaying Online Help" on page 12.
![](asset-29.png)
info
Chapter 2 Command Descriptions 41
info
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays statistical information about a device.
The “info” command displays statistical information about a device over
time. In contrast, the “display” command’s focus is on real-time information,
while the “status” command displays the status of outgoing connections
(connections made by “connect,” “rlogin,” or “telnet” commands).
Command options allow display of the following categories of statistics:
• Device statistics
• Ethernet statistics
• ICMP statistics
• IP statistics
• Mesh network statistics
• Serial statistics
• TCP statistics
• UDP statistics
• WLAN statistics (for wireless devices only)
The statistics in these tables are those gathered since the tables were last
cleared. The statistics tables are cleared by rebooting the Digi device.
Status and statistics for mobile communications
To display information and statistics for mobile/cellular communications,
issue a “display mobile” command. To display SureLink statistics, issue a
“display pppstats” command. See "display" on page 27.
Syntax info {device|ethernet|icmp|ip|mesh|serial|tcp|udp|wlan}
Options For a description of the statistics displayed by all these options, see
“Results” on the following page.
device
Displays statistics from the device table. This information includes
device-model information, MAC address, current Boot and POST code,
firmware, memory usage, utilization, and uptime. The information
displayed by this option is the same as that displayed by the
“display device” command (see "display" on page 27).
ethernet
Displays statistics from the Ethernet table.
icmp
Displays statistics from the ICMP table.
ip Displays statistics from the IP table.
![](asset-2a.png)
info
42 Chapter 2 Command Descriptions
serial
Displays statistics from the serial table. For descriptions of these
statistics, see "Output" on page 42.
tcp
Displays statistics from the TCP table.
udp
Displays statistics from the UDP table.
wlan
Displays statistics from the wireless Ethernet (wlan) table.
Output Following are descriptions of the statistics displayed for each “info”
command option.
The statistics displayed include data, event, and error counts. These
statistics are useful in understanding how the device is operating and can
be helpful in finding problems. In particular if an error counter is found to be
increasing you may have a problem with the device.
To reset the statistics, reboot the device.
Device statistics
Device
Information Description
Product The model of the Digi Connect device.
MAC Address A unique network identifier. All network devices are required
to have their own unique MAC address. The MAC address is
on a sticker on your Digi Connect device. The number is
displayed as 12 hexadecimal digits, usually starting with
00:40:9D.
Firmware Version The current firmware version. This information may be used
to help locate and download new firmware. Firmware updates
may be downloaded from the Digi Support website.
Boot Version The current boot version.
Post Version The current POST version.
CPU Utilization The amount of CPU resources being used by the Digi
Connect device.
Uptime The amount of time the Digi Connect device has been running
since it was last powered on or rebooted.
Total Memory The total amount of memory (RAM) available.
Free Memory The amount of memory (RAM) currently not being used.
Used Memory The amount of memory (RAM) currently in use.
![](asset-2b.png)
info
Chapter 2 Command Descriptions 43
Ethernet statistics
ICMP statistics
Statistic Description
InBytes Number of bytes received.
OutBytes Number of bytes sent.
InUcastPkts Number of Unicast packets received.
OutUcastPkts Number of Unicast packets sent.
InNonUcastPkts Number of non-Unicast packets received.
OutNonUcastPkts Number of non-Unicast packets sent.
InDiscards Number of incoming packets that were discarded.
OutDiscards Number of outgoing packets that were discarded.
InErrors Number of incoming packets that contained errors.
OutErrors Number of outgoing packets that contained errors.
RxOveruns Number of Rx overruns. Rx overruns are generally caused by
the inability of the device to get sufficient bus bandwidth to
offload the data.
TxResets Number of times the transmitter has been reset.
InUnknownProtos Number of incoming packets where the protocol was
unknown.
Statistic Description
InMessages Number of incoming messages.
OutMessages Number of outgoing messages.
InDestUnreachables Number of incoming destination-unreachable messages
received. A destination-unreachable message is sent to the
originator when a datagram fails to reach its intended
destination.
OutDestUnreachables Number of destination-unreachable messages sent. A
destination-unreachable message is sent to the originator
when a datagram fails to reach its intended destination.
InErrors Number of incoming received messages with errors.
![](asset-2c.png)
info
44 Chapter 2 Command Descriptions
IP statistics
Statistic Description
InReceives Number of datagrams received.
OutRequests Number of datagrams given to IP to transmit.
InAddressErrors Number of received datagrams discarded because they
were for another host and could not be forwarded.
DatagramsForwarded Number of received datagrams forwarded to another host.
InHeaderErrors Number of received datagrams discarded because of
invalid header information.
OutNoRoutes Number of received datagrams discarded because no route
to the destination IP address could be found.
InUnknownProtos Number of received datagrams discarded because the
specified protocol is not available.
OutDiscards Number of outgoing datagrams that were discarded for
miscellaneous reasons. This statistic is not used and is
always zero.
InDiscards Number of received datagrams discarded for
miscellaneous reasons.
FragCreates Number of outgoing datagram fragments created.
ReassembleOks Number of received datagrams that were successfully
reassembled from fragments.
FragOks Number of outgoing datagrams that were fragmented.
FragFails Number of outgoing datagram fragmentation attempts that
failed. This statistic is not used and is always zero.
AclExamines Number of received datagrams examined for access
control filtering.
AclAccepts Number of received datagrams accepted after being
examined by access control filtering.
AclDiscards Number of received datagrams discarded after being
examined by access control filtering.
NatPrivateToPublic Number of datagrams received from the private network,
successfully translated by NAT, and returned to IP to be
forwarded to the public network.
NatPublicToPrivate Number of datagrams received from the public network,
successfully translated by NAT, and returned to IP to be
forwarded to the private network.
![](asset-2d.png)
info
Chapter 2 Command Descriptions 45
Serial statistics
Statistic Description
rbytes Total data in: the number of bytes received.
tbytes Total data out: the number of bytes transmitted.
overrun errors The number of times FIFO has overrun. The next data
character arrived before the hardware could move the
previous character.
overflow errors The number of times the Received buffer has overrun. The
receive buffer was full when additional data was received.
frame errors The number of framing errors detected. The received data did
not have a valid stop bit.
parity errors The number of parity errors detected. The received data did
not have the correct parity setting
breaks The number of break signals detected.
signal change For each signal (CTS, DSR, RI, DCD, RTS, DTR), the number
of times the signal has changed states.
![](asset-2e.png)
info
46 Chapter 2 Command Descriptions
TCP statistics
UDP statistics
Statistic Description
InSegments Number of segments received.
OutSegments Number of segments sent.
InErrors Number of segments received with errors.
RetransmitSegments Number of segments retransmitted. Segments are
retransmitted when the server doesn't respond to a packet
sent by the client. This is to handle packets that might get
lost or discarded somewhere in the network.
EstabResets Number of established connections that have been reset.
OutResets Number of outgoing connections that have been reset.
PassiveOpens Number of passive opens. In a passive open, the Digi device
server is listening for a connection request from a client.
ActiveOpens Number of active opens. In an active open, the Digi device
server is initiating a connection request with a server.
Established Number of established connections.
Attempt Fails Number of failed connection attempts.
Statistic Description
InDatagrams Number of datagrams received.
OutDatagrams Number of datagrams sent.
InErrors Number of bad datagrams that were received. This number
does not include the value contained by "No Ports"
NoPorts Number of received datagrams that were discarded because
the specified port was invalid.
![](asset-2f.png)
info
Chapter 2 Command Descriptions 47
Wireless (WLAN) statistics
The WLAN statistics may aid in troubleshooting network communication
problems with your wireless network.
For additional wireless settings and an evaluation of the wireless settings,
issue a "show wlan" command. See "show" on page 249.
Statistic Description
TxFrames Number of frames transmitted.
TxBroadcastFrames Number of broadcast frames transmitted.
TxRtsFrames Number of Request-to-Send (RTS) frames
transmitted.
TxRetries Number of times an outgoing frame is
retransmitted because the acknowledgement
for the frame was not received.
TxDroppedRetries Number of outgoing frames that were dropped
because the maximum number of retries were
exceeded for the frame.
TxDroppedBroadcasts Number of broadcast frames dropped because
the acknowledgement for the frame was not
received.
TxDroppedAssoc Number of outgoing packets dropped because
the device had not yet associated with a
wireless network
RxFrames Number of received frames.
RxBroadcastFrames Number of received broadcast frames.
RxRtsFrames Number of RTS frames received.
RxRetries Number of incoming frames that have the retry
bit set in their frame header. The retry bit
indicates that the other side has attempted to
transmit a given frame more than once.
RxDroppedNoBuffers Number of received frames dropped due to no
buffer.
RxDropInvalid Number of incoming frames dropped because
the frame appeared incorrect.
RxDropDuplicate Number of incoming frames dropped because a
given frame had already been received.
RxDropAge Number of fragmented frames dropped
because the fragment timed out before the rest
of the frame sequence was received.
RxDropDecrypt Number of frames dropped because they were
not properly encrypted.
RxDropSize Number of frames dropped because their frame
size was too big
![](asset-30.png)
info
48 Chapter 2 Command Descriptions
Examples Display ICMP statistics
#> info icmp
ICMP statistics:
InMessages : 14 OutMessages : 0
InDestUnreachables : 5 OutDestUnreachables : 0
InErrors : 0
See also • "display" on page 27.
• "show" on page 249. The "show wlan" command displays settings and
evaluation information that may be useful to view in addition to the
wireless statistics displayed by this command.
• "status" on page 254
![](asset-31.png)
kill
Chapter 2 Command Descriptions 49
kill
Devices
supported This command is supported in all Digi Connect products.
Purpose Use the kill command to kill connections. The kill command is associated
with the connections displayed by the “who” command.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions kill=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax kill [range] [connection id]
Options range
A range of connection IDs.
connection id
An ID for the connection.
Examples Killing a session on a specific port
#> kill 1
Killing a session on a range of ports
#> kill 1-3
See also • "close" on page 21, to close sessions created from the current
connection.
• "status" on page 254, to display the list of current sessions.
• "who" on page 258, for information on determining active connections.
![](asset-32.png)
mode
50 Chapter 2 Command Descriptions
mode
Devices
supported This command is supported in Digi Connect Family products only and not
in Digi Cellular Family products or ConnectPort Display.
Purpose Changes or displays the operating options for a current Telnet session.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions telnet=execute” to display or set Telnet operating
options. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax Change Telnet options
mode [options]
Display Telnet options
mode
Options options
The operating options for a current Telnet session, which are as follows:
binary={on|off}
Enables or disables Telnet binary mode is enabled or disabled.
“binary=on” turns on binary mode, which means that all transmitted
and received characters are converted to binary during this Telnet
session. “binary=off” turns off binary mode off for this Telnet session.
The default is off.
crmod={on|off}
Specifies whether line feeds are added to received carriage returns.
“crmod=on” specifies that line feeds are added to received carriage
returns. “crmod=off” specifies that line feeds are not added to received
carriage returns. The default is off.
Examples Turn on binary mode
#> mode binary=on
Add line feed characters
#> mode crmod=on
Display operating options
#> mode
See also "telnet" on page 255.
![](asset-33.png)
newpass
Chapter 2 Command Descriptions 51
newpass
Devices
supported This command is supported in all Digi Connect products.
Purpose Creates or changes user passwords for the device.
In Digi devices with a single-user model, changing the “root” user password
also changes the password for Advanced Digi Discovery Protocol (ADDP).
In Digi devices with the multi-user model, changing the “root” password has
no effect on ADDP. To change the ADDP password, you would specify
“name=addp.”
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions newpass=rw-self” for a user to set their own password,
and “set permissions newpass=rw” to set another user’s password. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax newpass [id=number|name=string]
Options id=number
Specifies the ID of the user to be acted on.
name=string
Specifies the name of the user to be acted on.
Example The “newpass” command initiates a dialog that changes the user’s
password.
User changing their own password
#> newpass
Changing another user’s password
#> newpass name=jdoe
See also • "User Models and User Permissions in Digi Connect Products" on page
14.
• "set user" on page 220 for information on configuring users.
![](asset-34.png)
ping
52 Chapter 2 Command Descriptions
ping
Devices
supported This command is supported in Connect Family products only and not in
Digi Cellular Family products or ConnectPort Display.
Purpose Tests whether a host or other device is active and reachable.
To interrupt the “ping” command, use Ctrl-C.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions ping=execute” for a user to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax ping ipaddress [options]
Options ipaddress
Identifies the target of the “ping” command by its IP address.
options
The options associated with the “ping” command, which are:
count=0|n
The number of “ping” commands to be issued. 0 means ping until
interrupted. The default is 0.
interval=milliseconds
The ping time in milliseconds. The default is 1000 milliseconds.
size=bytes
The number of bytes to send in each ping packet. The default is 56
bytes.
Examples Specify a simple ping
The following command determines whether the specified host can be
reached:
#> ping 199.150.150.10
![](asset-35.png)
provision
Chapter 2 Command Descriptions 53
provision
Devices
supported This command is supported in Digi Cellular Family products that have a
CDMA (Code-Division Multiple Access) module.
Purpose Provisions the CDMA module in a Digi Cellular Family device. Provisioning
establishes configuration settings in the CDMA module for use in a mobile
network. Examples of CDMA-based mobile service providers include
Sprint, Verizon, Alltel, and Midwest. The CDMA module must be
provisioned before you will be able to create a data connection to the
mobile network.
Provisioning needs to be performed once only. It is not necessary for Digi
Cellular Family devices that use GSM (Global System for Mobile
Communication).
Provisioning is done either from the command line, using this command, or
from the Web user interface, by launching the Mobile Device Provisioning
Wizard from the Mobile Configuration page.
Provisioning types
There are several types of provisioning, each with different sets of
parameters. Your mobile service provider can tell you which type is
appropriate for your CDMA module.
• Simple IP only (SIPONLY).
• Mobile IP (MIP), which is a super set of SIPONLY.
• IP-Based Over-the-Air (IOTA).
• OTASP: Over-the-Air Service Provisioning (OTASP).
Check with your mobile service provider for provisioning parameters
The information that you need to specify during provisioning depends on
your CDMA module and the settings that your mobile service provider has
given you or already set up in your CDMA module.
Contact your mobile service provider for the most appropriate provisioning
type and the required provisioning parameters. Have the ESN (Electronic
Serial Number) for your Digi Cellular device ready to give to the provider.
This number is located on the label on the bottom of the device.
Use “display provisioning” to get current provisioning parameters
You can query for the currently configured provisioning parameters in the
CDMA cellular module by entering a “display provisioning” command.
![](asset-36.png)
provision
54 Chapter 2 Command Descriptions
Important: Close PPP sessions before issuing provisioning commands
The “provision” and “display provisioning” commands cannot be used while
Point-to-Point Protocol (PPP) sessions are active.
To close any existing PPP sessions:
1. Disable the PPP interface by entering a “set pppoutbound” command
with these options:
#> set pppoutbound port=interface port number state=disabled
2. Next, identify the ID of the connection, by issuing a “who” command.
3. Once the session is identified, issue a “kill” command to end the PPP
session.
4. After provisioning, you can enable the PPP interface again by entering
another “set pppoutbound” command:
#> set ppp port=interface port number state=enabled.
Syntax Parameters may be required, optional, or preset and not to be changed
depending on your mobile service provider and the information they have
given you.
Some mobile services providers do not accept dashes in phone numbers.
Enter phone numbers as numbers only with no dashes.
Display current provisioning parameters
display provisioning
Manually provision the module for a SIP-only network
provision type=siponly
spc=service programming code (also known as master subsidy lock
or MSL)
mdn=mobile directory number
min=mobile ID number
Manually provision the module for a MIP network
provision type=mip
spc=service programming code (also known as master subsidy lock
or MSL)
mdn=mobile directory number
min=mobile ID number
nai=network access id
aaass=AAA shared secret
aaasstype={ascii|hex} default=ascii
ha=home address
priha=primary host agent IP address
secha=secondary host agent IP address
hass=host agent shared secret
hasstype={ascii|hex} default=ascii
haspi=index
aaaspi=index
rtun={0|1}
profile=MIP profile number
![](asset-37.png)
provision
Chapter 2 Command Descriptions 55
Use IOTA to provision the module
provision type=iota
spc=service programming code (MSL)(also known as master subsidy
lock or MSL)
mdn=mobile directory number
min=mobile ID number
Use OTASP to provision the module
provision type=otasp
otaspnumber=OTASP number - for example, *228 or *22899
Options SIP-only provisioning parameters
type=siponly
Specifies that the CDMA module is being provisioned using the
SIPONLY method.
spc=service programming code (MSL)
A six-digit number required to program CDMA module parameters.
This code is also known as a master subsidy lock or MSL.
mdn=mobile directory number
The phone number of the CDMA module.
min=mobile ID number
How the CDMA module is identified in the cellular network. Depending
on the cellular provider, this number may be the same as the mobile
directory number.
MIP provisioning parameters
type=mip
Specifies that the CDMA module is being provisioned using the MIP
method.
nai=network access id
Internet Authentication, Authorization and Accounting (AAA) protocols
such as RADIUS or DIAMETER identify users with the Network
Access Identifier (NAI). When used with Mobile IP and AAA, the NAI
is composed of a username and a realm, separated with “@”. The
username portion identifies the subscriber within the realm. The AAA
nodes use the realm portion of the NAI to route AAA requests to the
correct AAA server.
aaass=AAA shared secret
The shared secret used in authentication by Internet AAA protocols
such as RADIUS or DIAMETER.
The format of the shared secret differs depending on whether it is
entered in ASCII or hexadecimal, as specified by the “aaasstype”
option.
If “aaasstype=ascii,” enter the shared secret as a string in quotation
marks.
If “aaasstype=hex,” enter the shared secret as a hexadecimal number
with no leading “0x” or trailing “h.”
![](asset-38.png)
provision
56 Chapter 2 Command Descriptions
aaasstype={ascii|hex} default=ascii
Specifies whether the AAA shared secret is specified in ASCII or
hexadecimal form. This option affects how the shared-secret values
are specified on the “aaass” option.
ha=home address
The home address for the CDMA module, specified as an IP address
priha=primary host agent IP address
The IP address of the primary host agent that provides mobile service
for the CDMA module.
secha=secondary host agent IP address
The IP address of the secondary host agent that provides mobile
service for the CDMA module.
hass=host agent shared secret
The shared secret used for authentication for the host agent.
The format of the shared secret differs depending on whether it is
entered in ASCII or hexadecimal, as specified by the “hasstype”
option.
If “hasstype=ascii,” enter the shared secret as a string in quotation
marks.
If “hasstype=hex,” enter the shared secret as a hexadecimal number
with no leading “0x” or trailing “h.”
hasstype={ascii|hex} default=ascii
Specifies whether the host agent shared secret is specified in ASCII or
hexadecimal form. This option affects how the shared-secret values
are specified on the “hass” option.
haspi=index
aaaspi=index
A Security Parameter Index (SPI) is an index identifying a security
context between a pair of routers among the contexts available in the
mobility security association. These are index options that set the
security context between the host agent and AAA server.
rtun= {0|1}
Enables or disables use of reverse tunnelling.
profile=MIP profile number
Specifies which of several profiles, or configuration scenarios, that the
cellular module will use when communicating with the cellular network.
This is a numeric value; the values available depend on your cellular
provider.
![](asset-39.png)
provision
Chapter 2 Command Descriptions 57
IOTA provisioning parameters
type=iota
Specifies that the CDMA module is being provisioned using the IOTA
method.
spc=service programming code (MSL)
A six-digit number required to program CDMA module parameters.
mdn=mobile directory number
The phone number of the CDMA module.
min=mobile ID number
How the CDMA module is identified in the cellular network. Depending
on the cellular provider, this number may be the same as the mobile
directory number.
OTASP provisioning parameters
type=otasp
Specifies that the CDMA module is being provisioned using the
OTASP method.
otaspnumber=OTASP number for example, *228
A phone number for initiating an OTASP provisioning session. This
number typically begins with *228, for example *22899.
See also • "display" on page 27. The “display provisioning” command displays the
currently configured parameters in the CDMA cellular module.
• The Digi Cellular Family User’s Guide’s section on Mobile Device
Provisioning. That discussion describes provisioning through a Wizard
and the Web user interface, but the same concepts apply to command-
line based provisioning.
• "set pppoutbound" on page 166
• "who" on page 258
• "kill" on page 49
![](asset-3a.png)
python
58 Chapter 2 Command Descriptions
python
Devices
supported This command is supported in Connectport X Family products only.
Purpose Manually executes a Python program from the command line.
The “python” command is similar to a command executed on a PC.
However, other than a program name and arguments for the program, the
command takes no arguments itself, and is currently unable to spawn an
interactive session.
Syntax python [(TFTP server ip):]filename [program args...]
Options [(TFTP server ip):]filename
The main file to be executed. This file can be either a file on the file
system accessed through the Web UI, or a file accessible through a
TFTP server on the network. This TFTP functionality reduces the number
of times that you may need to place a program on the file system while
developing and refining functionality. However, the TFTP behavior only
works for the main program. Modules and packages must still be present
on the file system to be used.
program args...
Arguments to be supplied to the program.
See also • The Digi Python Programming Guide to learn more about the Python
programming language as implemented in Digi products, and writing
Python programs.
• "set python" on page 183 to manually execute a Python program.
![](asset-3c.png)
reconnect
60 Chapter 2 Command Descriptions
reconnect
Devices
supported This command is supported in all Digi Connect products.
Purpose Reestablishes a previously established connection; that is, a connection
opened by a “connect,” “rlogin,” or “telnet” command. The default operation
of this command is to reconnect to the last active session.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions reconnect=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax reconnect [{serial port|p=serial port|s=session}]
Options serial port
The serial port to which this command applies. Use this option to
reconnect to a session opened by a connect command.
p=serial port | s=session
The serial port number or session number (displayed by the “status”
command) to reconnect to.
Example Reconnect to the last port used
#> reconnect
Reconnect to port 1
#> reconnect p=1
Reconnect to session 1
#> reconnect s=1
See also • "connect" on page 22 for information on establishing a connection on a
selected port.
• "close" on page 21 for information on ending a connection.
• "status" on page 254 for information on gathering status on current
connections.
• "rlogin" on page 66.
• "telnet" on page 255.
![](asset-3d.png)
revert
Chapter 2 Command Descriptions 61
revert
Devices
supported This command is supported in all Digi Connect products.
Purpose Sets a particular group of a devices’ settings to its default values.
The “revert” command keywords are used one at a time to revert one group
of settings. You cannot enter several keywords on a single command to
revert multiple settings.
If you enter “revert user,” “revert group,” or “revert permissions,” a message
is displayed indicating that those settings cannot be reverted individually,
and instead must be reverted all together at the same time via the “revert
auth” command. The “revert auth” command (revert authentication and
authorization) reverts all users, all groups, and all permissions at the same
time.
Required
permissions No “set permissions” option is required for all “revert” command variants
except “revert all.” The permissions used by the various “set” commands
apply to the various “revert” command variants. “revert all” uses a different
mechanism that bypasses the individual “set” commands, and therefore
has its own permissions. To execute the “revert all” command, a user must
have permissions set to “set permissions revert-all=execute”. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax revert [all|
accesscontrol|
alarm|
auth|
autoconnect [port=range]|
bsc|
buffer [port=range]|
ddns|
dhcpserver|
ekahau
forwarding|
gpio|
host|
ia|
idle|
login|
menu|
mesh|
mgmtconnection|
mgmtglobal|
mgmtnetwork|
nat|
network|
passthrough|
pmodem [port=range]|
pppoutbound [port=range]|
profile [port=range]|
![](asset-3e.png)
revert
62 Chapter 2 Command Descriptions
putty|
python|
rciserial|
realport|
rtstoggle|
serial [port=range]|
service|
snmp|
socket_tunnel|
surelink|
switches|
system|
tcpserial [port=range]|
term [port=range]|
udpserial [port=range]|
user|
video|
vncclient|
vpn {all|global|tunnel|phase1|phase2}|
wireless]
Options allReverts all settings except these:
• Network settings
• Security settings (passwords and suppress login)
• Host key settings.
accesscontrol
Reverts the access control settings configured by the “set accesscontrol”
command.
alarm
Reverts the alarm settings configured by the “set alarm” command.
auth
Reverts the permission settings configured by the “set permissions”
command, the user settings configured by the “set user” command, and
group settings, configured by the “set group” command.
autoconnect [port=range]
Reverts the Autoconnect settings configured by the “set autoconnect”
command.
bsc
Reverts the settings configured by the “set bsc” command.
buffer [port=range]
Reverts the port-buffering settings configured by the “set buffer”
command.
ddns
Reverts the Dynamic DNS (DDNS) settings configured by the “set ddns”
command.
dhcpserver
Reverts the DHCP server settings configured by the “set dhcpserver”
![](asset-3f.png)
revert
Chapter 2 Command Descriptions 63
command.
ekahau
Reverts the Ekahau client settings configured by the “set ekahau”
command. See "set ekahau" on page 104.
forwarding
Reverts the port-forwarding settings configured by the “set forwarding”
command.
gpio
Reverts the GPIO settings configured by the “set gpio” command.
host
Reverts the host name set by the “set host” command.
ia Reverts the Industrial Automation (IA) settings configured by the “set ia”
command.
idle
Reverts the settings configured by the “set idle” command.
menu
Reverts the custom menu settings configured by the “set menu”
command.
mesh
Reverts the Mesh network settings configured by the “set mesh”
command.
login
Reverts the login settings configured by the “set login” command
mgmtconnection
Reverts the Connectware Manager connection settings configured by the
“set mgmtconnection” command.
mgmtglobal
Reverts the Connectware Manager global settings configured by the
“set mgmtglobal” command.
mgmtnetwork
Reverts the Connectware Manager network settings configured by the
“set mgmtnetwork” command.
nat
Reverts the Network Address Translation (NAT) and port/protocol
forwarding settings configured by the “set nat” command.
network
Reverts the network settings, configured by the “set network” command,
and the wireless configuration settings, configured by the “set wlan”
command.
passthrough
Reverts the IP pass-through settings configured by the “set passthrough”
command.
![](asset-40.png)
revert
64 Chapter 2 Command Descriptions
pmodem [port=range]
Reverts the modem emulation settings, configured by the “set pmodem”
command.
pppoutbound [port=range]
Reverts the Point-to-Point Protocol (PPP) outbound connection settings,
configured by the “set pppoutbound” command.
profile [port=range]
Reverts the profile settings configured by the “set profile” command.
putty
Reverts the terminal emulation settings configured by the “set putty”
command.
python
Reverts the Python program settings configured by the "set_python"
command.
rciserial
Reverts the RCI serial settings configured by the “set rciserial” command.
realport
Reverts the Realport settings configured by the “set realport” command.
rtstoggle
Reverts the RTS toggle settings configured by the “set rtstoggle”
command.
serial [port=range]
Reverts the serial settings configured by the “set serial” command.
service
Reverts the service settings configured by the “set service” command.
snmp
Reverts the SNMP settings configured by the “set snmp” command.
socket_tunnel
Reverts the socket tunnel settings configured by the “set socket_tunnel”
command.
surelink
Reverts the Digi SureLink™ settings configured by the “set surelink”
command.
switches
Reverts the Multiple Electrical Interface (MEI) switch settings configured
by the "set switches" command.
system
Reverts the system settings configured by the “set system” command.
tcpserial [port=range]
Reverts the TCP serial settings configured by the “set tcpserial”
command.
term [port=range]
Reverts the terminal connection settings configured by the “set term”
![](asset-41.png)
revert
Chapter 2 Command Descriptions 65
command.
udpserial [port=range]
Reverts the UDP serial settings configured by the “set udpserial”
command.
user
Reverts the user settings configured by the “set user” command.
video
Reverts the video settings configured by the “set video” command.
vncclient [port=range]
Reverts the settings configured by the “set vncclient” command.
vpn {all|global|tunnel|phase1|phase2}
Reverts the Virtual Private Network (VPN) settings configured by the
“set vpn” command. Keyword options allow for reverting all or selected
VPN settings. See "set vpn" on page 228 for descriptions of the settings.
allReverts all VPN settings.
global
Reverts global VPN options.
tunnel
Reverts VPN tunnel settings.
phase1
Reverts Internet Key Exchange (IKE)/Internet Security Association
and Key Management Protocol (ISAKMP) Security Association (SA)
Phase 1 options.
phase2
Reverts IKE/ISAKMP SA Phase 2 options.
wireless
Reverts the wireless settings configured by the “set wlan” command.
Example Reset a device’s serial setting
The device serial setting is reset to the default serial configuration.
#> revert serial
Reset a serial port to default settings
#> revert serial port=2
See also • "boot" on page 19.
• The various “set” commands referenced in this description.
• "show" on page 249.
![](asset-42.png)
rlogin
66 Chapter 2 Command Descriptions
rlogin
Devices
supported This command is supported in Digi Connect Family and Digi Cellular
Family products only. Not supported in ConnectPort Display.
Purpose Performs a login to a remote system, also referred to as an rlogin.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions rlogin=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax rlogin [esc=(char)] [{user=user name|-l user name}]
[ip address]
Options esc
A different escape character than the ~ (tilde) character, which will be
used for the current Rlogin session. This character is used for
suspending a session from the remote host to return to the device server
command line.
user=user name | -l user name
The user name to use on the remote system. If you do not specify a
name, your device server user name will be used. The “-l user-name”
option is for compatibility with the UNIX “rlogin” command.
ip address
The IP address of the system to which you are performing the remote
login.
Examples #> rlogin 10.0.0.1
See also • "telnet" on page 255.
• "connect" on page 22.
• "status" on page 254.
• "close" on page 21.
![](asset-43.png)
send
Chapter 2 Command Descriptions 67
send
Devices
supported This command is supported in Digi Connect Family and Digi Cellular
Family products only. Not supported in ConnectPort Display.
Purpose Sends a Telnet control command, or special-character sequences, when
connected using the Telnet client.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions telnet=execute” to display or set Telnet operating
options. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax send {ao|ayt|brk|ec|el|escape|ga|ip|nop|synch}
Options aoSends the “abort output” signal to discard output buffered on the peer.
ayt
Sends the “are you there” signal to test whether a host is still active.
brk
Sends the “break” signal to interrupt the executing application.
ecSends the “erase character” to delete the previous character.
el Sends the “erase line” signal to delete the entire current line.
escape
Sends the “escape” character.”
gaSends the “go ahead” signal.
ip Sends the “interrupt process” signal to terminate the program running on
the peer.
nop
Sends the “no operation” signal to the peer.
synch
Sends the “synchronize process” signal to the peer.
Examples Send an “interrupt process” signal
#> send ip
Send an “are you there” signal
#> send ayt
See also See "telnet" on page 255 for information on establishing Telnet sessions.
![](asset-44.png)
set accesscontrol
68 Chapter 2 Command Descriptions
set accesscontrol
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Used to specify information that limits network access to this device, or
display current access-control settings. For the Digi Connect WAN, the
access-control settings also limit routing of packets through the device.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the access control settings:
“set permissions s-accesscontrol=read”
• For a user to display and set access control settings:
“set permissions s-accesscontrol=rw”
Syntax Configure access control settings
set accesscontrol [enabled={on|off}] [autoaddsubnets={on|off}]
[addrip[1-64]=ipaddress] [subnip[1-32]=ipaddress]
[subnmask[1-32]=mask]
Display current access-control settings
set accesscontrol
Options enabled={on|off}
Used to enable access control. Care must be used with this command
because improper settings can render this device inaccessible from the
network. Specifically, setting this option to “on” with no “addrip” option
values specified will disable all access.
onEnables access control.
offDisables access control.
autoaddsubnets={on|off}
Used to enable the automatic adding of subnets and subnet masks to this
table. The IP subnets for the device server's network interfaces (Ethernet
and PPP), may be automatically added to the table. This permits access
by all IP sources on the device server's networks, without having to
explicitly identify either the subnet IP addresses (and netmasks) or
individual IP addresses.
onEnables automatic adding of subnets and subnet masks.
offDisables automatic adding of subnets and subnet masks.
addrip[1-64]=ipaddress
Used to specify up to 64 individual IP addresses that are allowed to
access this device.
![](asset-45.png)
set accesscontrol
Chapter 2 Command Descriptions 69
subnip[1-32]=ipaddress
Used to specify up to 32 subnet IP addresses. Any IP address in these
subnets will be allowed to access this device server.
subnmask[1-32]=mask
Used to specify a subnet mask associated with one of the 32 subnet IP
addresses.
Examples Set access control settings
#> set accesscontrol enabled=on addrip1=143.191.1.228
Set access control for a specific subnet
This command will allow any IP address in the 143.191.2.0 subnet
(netmask 255.255.255.0) to access this device server:
#> set accesscontrol enabled=on subnip1=143.191.2.0 subnmask1=255.255.255.0
Display access control settings
#> set accesscontrol
See also • "revert" on page 61.
• "show" on page 249.
![](asset-46.png)
set alarm
70 Chapter 2 Command Descriptions
set alarm
Devices
supported This command is supported in the following products:
• Connect Family: Digi Connect EM, Digi Connect Wi-EM, Digi Connect
ME, Digi Connect Wi-ME. Setting alarms in GPIO mode is not
supported in the Digi Connect SP device.
• All Digi Cellular Family products. Setting alarms in GPIO mode is not
supported.
• Not supported in ConnectPort Display.
Purpose Configures device alarms and display current alarm settings. Device
alarms are used to send emails or SNMP traps when certain device events
occur. These events include changes in GPIO pin states; data patterns
detected in the serial stream; and, for Digi Cellular Family products, the
average signal strength falling below a specified level for a specified
amount of time, and the amount of cellular traffic for a specified period of
time, mobile temperature exceeding certain thresholds, and configuration
changes to settings associated with the mobile device.
For Digi devices managed by Connectware Manager, the “cwm” option
sends all alarms to a Connectware Manager server.
Up to 32 alarms can be configured in Digi Connect products.
To avoid false errors, configure alarms while alarms are disabled, by
entering a “set alarm state=off” command, then enable alarms after they
are fully configured by entering “set alarm state=on”.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-alarm=read” to display current alarm settings, and to
“set permissions s-alarm=rw” to display alarm settings and configure
alarms. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax Configure alarms with general options (applies to all alarms)
set alarm [state={on|off}]
[mailserverip=ipaddress]
[from=string]
[cwm={on|off}]
Configure alarms for a range (set multiple alarms)
set alarm range={1-32}
[active={on|off}|to=string|cc=string|subject=string|
priority={normal|high}|
mode={match|gpio|rssi_gsm|cell_data|mobile_temp|
rssi_1xrtt| rssi_1xevdo|ecio_1xrtt|ecio_1xevdo|
1xevdo_unavail|mobile_unavail}|
type={email|snmptrap|all}]
![](asset-47.png)
set alarm
Chapter 2 Command Descriptions 71
Configure alarms based on GPIO pin states, where n is the GPO pin number
set alarm range={1-32} mode=gpio
[pins=list of pins|highpins=list_of highpins|
lowpins=list of lowpins|pin{n}={high|low|ignore}|
trigger_interval=seconds|reminder={on|off}|
reminder_interval=seconds]
Configure alarms based on data pattern matching
set alarm mode=match
match=string
Configure alarms based on mobile signal strength (GSM)
set alarm mode=rssi_gsm
sig_strength_threshold=threshold
time=time
optimal_alarms_enabled={yes|no}
Configure alarms based on signal strength (CDMA)
set alarm mode={rssi_1xrtt|rssi_1xevdo|ecio_1xrtt|ecio_1xevdo}
sig_strength_threshold=threshold
time=time
optimal_alarms_enabled={yes|no}
Configure alarms based on mobile temperature
set alarm mode=mobile_temp
temperature=temperature
optimal_alarms_enabled={yes|no}
Configure alarms based on mobile service unavailable
set alarm mode={1xevdo_unavail|mobile_unavail}
time=time
optimal_alarms_enabled={yes|no}
Configure alarms based on mobile configuration changes
set alarm mode=config_change
Set alarms based on cellular data traffic
set alarm mode=cell_data
cell_data=byte count threshold
cell_data_type={receive|transmit|total}
time=max time
Display current alarm settings
set alarm [range={1-32}]
![](asset-48.png)
set alarm
72 Chapter 2 Command Descriptions
Options General alarm options
state= {on|off}
Enables or disables all alarms.
onEnables all alarms.
offDisables all alarms. To avoid false errors, it is recommended that you
configure alarms while alarms are disabled, and enable alarms after
they are fully configured.
The default is “off.”
mailserverip=ipaddress
Used to configure IP address of the mail server to which alarm-triggered
emails are sent.
from=string
The text to be included in the “from” field of an alarm-triggered email.
cwm={on|off}
Enables or disables sending of alarm notifications to the Connectware
Manager server.
onSend all alarm notifications to the Connectware Manager server. Turn
this option on if your Digi Connect device is managed by Connectware
Manager. Enabling this option is useful because it allows all alarms to
be monitored from one location, the Connectware Manager. Enabling
this option also allows Digi Connect devices to send alarms to clients
that would otherwise be unreachable from the Digi Connect device,
either because the Digi Connect device is behind a firewall or not on
the same network as the alarm destination.
offDisables sending of alarm notifications to the Connectware Manager
server. Leave this option off if you do not manage your devices with
Connectware Manager or if you wish to have alarms sent from the
device, for example, because an SNMP trap destination is local to the
device, not the Connectware Manager server.
For more information on Connectware Manager, see the Connectware
Manager Operator’s Guide, and the Connectware Manager online help.
![](asset-49.png)
set alarm
Chapter 2 Command Descriptions 73
Options for setting multiple alarms with the “range” option
range= {1-32}
Specifies the alarm or range of alarms for which alarm options are set.
active={on|off}
Enables or disables an alarm.
onEnables an alarm.
offEnables an alarm.
The default is “off.”
cc=string
The text to be included in the “cc” field of an alarm triggered email.
mode={match|gpio|rssi_gsm|cell_data|rssi_1xrtt|rssi_1xevdo|
ecio_1xrtt|ecio_1xevdo|mobile_temp|1xevdo_unavail|
mobile_unavail|config_change}
e alarm mode, which determines what type of event will trigger an alarm.
The default mode is “gpio,” unless the Digi product does not support
GPIO pins, in which case, the default is “match.”
match
An alarm will be triggered when a pattern is found in the stream of
serial data.
gpio
Transitions for GPIO pins will trigger alarms. See "GPIO pin state-
based alarm options" on page 75 for more information.
rssi_gsm
Alarms are triggered when the average signal strength on a GSM
device falls below a specified threshold for a specified amount of time.
Optionally, a subsequent alarm is triggered when signal strength
returns to the optimal state above the threshold.
cell_data
Alarms are triggered based on cellular data exchanged in an amount
of time
rssi_1xrtt
Alarms are triggered when the average RSSI 1xRTT signal strength
on a CDMA device falls below a specified threshold for a specified
amount of time. Optionally, a subsequent alarm is triggered when
signal strength returns to the optimal state above the threshold.
rssi_1xevdo
Alarms are triggered when the average RSSI 1xEVDO signal strength
on a CDMA device falls below a specified threshold for a specified
amount of time. Optionally, a subsequent alarm is triggered when
signal strength returns to the optimal state above the threshold.
![](asset-4a.png)
set alarm
74 Chapter 2 Command Descriptions
ecio_1xrtt
Alarms are triggered when the average Ec/Io 1xRTT signal strength on
a CDMA device falls below a specified threshold for a specified
amount of time. Optionally, a subsequent alarm is triggered when
signal strength returns to the optimal state above the threshold.
ecio_1xevdo
Alarms are triggered when the average Ec/Io 1xEVDO signal strength
on a CDMA device falls below a specified threshold for a specified
amount of time. Optionally, a subsequent alarm is triggered when
signal strength returns to the optimal state above the threshold.
mobile_temp
Alarms are triggered when the mobile temperature goes above a
specified threshold. Optionally, a subsequent alarm is triggered when
signal strength returns to a temperature below the threshold.
1xevdo_unavail
Alarms are triggered when 1xEVDO service is unavailable for a
specified amount of time. Optionally, a subsequent alarm is triggered
when service becomes available again.
mobile_unavail
Alarms are triggered when mobile service is unavailable (not
registered on the home network) for a specified amount of time.
Optionally, a subsequent alarm is triggered when service becomes
available again.
config_change
Alarms are triggered when mobile configuration is changed.
priority={normal|high}
The priority of the triggered email.
normal
The email is sent with normal priority.
high
The email is sent with high priority.
The default is “normal.”
subject=string
If “type=email,” this option specifies the text to be included in the “subject”
field of an alarm-triggered email. If “type=snmptrap,” this option specifies
the text to be included in the “Serial Alarm Subject” field of an alarm-
triggered SNMP trap.
to=string
The text to be included in the “to” field of an alarm-triggered email.
![](asset-4b.png)
set alarm
Chapter 2 Command Descriptions 75
type={email|snmptrap|all}
Used to determine what kind of an alarm is sent: an e-mail alarm, an
SNMP trap or both.
For SNMP traps to be sent, the IP address of the system to which traps
are sent must be configured, by issuing a “set snmp” command with the
“trapdestip” option. See "set snmp" on page 198.
email
An email alarm is sent.
snmptrap
An SNMP trap is sent. If snmptrap is specified, the “subject” text is sent
with the alarm. The MIBs for these traps are
DIGI-SERIAL-ALARM-TRAPS.mib, and DIGI-MOBILETRAPS.mib.
allBoth an email alarm and SNMP trap are sent.
The default is “email.”
GPIO pin state-based alarm options
In GPIO mode, alarms are triggered when there are transitions between
states for GPIO pins. These options allow you set which GPIO pins’
transitions trigger alarms.
pins=list of pins
A list of GPIO pins that trigger alarms.
highpins=list of highpins
A list of GPIO pins that trigger alarms when a pin’s signal is high.
lowpins=list of lowpins
A list of GPIO pins that trigger alarms when a pin’s signal is low.
pin{n}={high|low|ignore}
An alternative way to specify the action of a given GPIO pin, where n is
the pin number.
high
The pin will trigger an alarm when the pin’s signal is high.
low
The pin will trigger an alarm when the pin’s signal is low.
ignore
The pin will not trigger an alarm.
The default is “ignore.”
![](asset-4c.png)
set alarm
76 Chapter 2 Command Descriptions
reminder={on|off}
The type of reminder sent.
onAn email or SNMP trap is sent periodically while the alarm-triggering
event is active. The interval is based on the value of the
“reminder_interval” option.
offAn email or SNMP trap is sent only when an alarm is triggered.
reminder_interval=seconds
The minimum reminder interval in seconds. Indicates how often an email
or SNMP trap is sent when the “reminder” option is set to “on” and an
alarm-triggering event is active.
trigger_interval=seconds
The minimum trigger interval in seconds. If the “reminder” option is set to
“off,” this option indicates the minimum amount of time that is allowed
between alarm-triggered emails or SNMP traps.
Data pattern matching-based alarm options
In data pattern match mode, an alarm will be triggered when a pattern is
found in the stream of serial data. These options are used for setting
alarms in data pattern match mode:
mode=match
Sets the alarm to match mode.
match=string
A string that triggers an alarm if the data pattern is found in the incoming
serial stream. The maximum length of this string is 40 characters,
including escape sequences for special characters. For more details on
the escape sequences, see "Entering Special Characters in String
Values" on page 13. The maximum parsed length of this string is 10
characters. That is, this string must reduce down to a 10-character string
when the escape sequences are processed.
Signal-strength-based alarm options
Options for setting alarms based on signal strength are supported in Digi
Cellular Family products only. Note that not all signal-strength options are
available with all radios. To determine which signals can be monitored, use
the “display mobile” command. If a signal is displayed, it can be monitored.
mode=rssi_gsm
Sets the alarm to signal-strength mode for a GSM radio.
mode=rssi_1xrtt
Sets the alarm to 1xRTT RSSI signal-strength mode for a CDMA radio.
mode=rssi_1xevdo
Sets the alarm to 1xEV-DO RSSI signal-strength mode for a CDMA radio.
mode=ecio_1xrtt
Sets the alarm to 1xRTT Ec/Io signal-strength mode for a CDMA radio.
![](asset-4d.png)
set alarm
Chapter 2 Command Descriptions 77
mode=ecio_1xevdo
Sets the alarm to 1xEV-DO Ec/Io signal-strength mode for a CDMA radio.
signal_strength_threshold=threshold
The threshold average signal strength., This is measured in dBm for
rssi_gsm, rssi_1xrtt, and rssi_1xevdo (typically -120 dBm to -40 dBm)
and dB for ecio_1xrtt and ecio_1xevdo (typically -24 dB to -2 dB).
Note that “0 dB” reported by a “display mobile” command when there is
no signal strength should properly be interpreted as the minimum value,
which is -120 dBm or -24 dB.
time=time
The time in minutes that the average signal strength stays below the
threshold specified on the “signal_strength_threshold” option.
optimal_alarms_enabled={yes|no}
If optimal alarms are enabled, an optimal alarm will also be sent when the
signal strength returns to a value that is above the specified threshold.
Default is no.
Cellular data traffic-based alarm options
These options for setting alarms based on cellular data traffic are
supported in Digi Cellular Family products only.
mode=cell_data
Sets the alarm to cellular-data mode.
cell_data=byte count threshold
The number of bytes of cellular data to be counted before triggering an
alarm.
cell_data_type={receive|transmit|total}
The type of cellular data to be counted.
receive
Data received by the Digi Cellular device.
transmit
Data transmitted by the Digi Cellular device.
total
The total data received and transmitted the Digi Cellular device.
time=max time
The time, in minutes, during which bytes of cellular data are counted.
![](asset-4e.png)
set alarm
78 Chapter 2 Command Descriptions
Mobile temperature-based alarm options
These options for setting alarms based on the radio’s reported temperature
are supported in Digi Cellular Family products only. Note that temperature-
based options are not available with all radios. To determine if your radio
supports these alarms, use the “display mobile” command. If the
temperature is displayed, it can be monitored.
mode=mobile_temp
Sets the alarm to mobile temperature mode.
optimal_alarms_enabled={yes|no}
If optimal alarms are enabled, an optimal alarm will also be sent when the
temperature returns to a value that is below the specified threshold
Mobile service-based alarm options
These options for setting alarms based on the service state of the radio are
supported in Digi Cellular Family products only. Note that some service-
based options are not available with all radios. To determine if your radio
supports these alarms, use the “display mobile” command. If the service is
displayed, it can be monitored.
mode=1xevdo_unavail
Sets the alarm to monitor 1xEV-DO service.
mode=mobile_unavail
Sets the alarm to monitor registration status. Any registration status other
than “Registered (Home Network)” is considered to be a mobile
unavailable status.
time=time
The time in minutes that the specified service has been unavailable.
optimal_alarms_enabled={yes|no}
If optimal alarms are enabled, an optimal alarm will also be sent when the
service being monitored is reestablished. Default is no.
Mobile-oriented configuration change alarm options
This option for setting alarms based on a change to any of the mobile-
oriented configurations is supported in the Digi Cellular Family products
only. The following configuration items are monitored: PPP settings (set
pppoutbound) associated with the mobile radio; PPP Bridge settings (set
passthrough); Mobile settings (set surelink); or mobile provisioning, manual
or IOTA.
mode=config_change
Sets the alarm to monitor mobile configuration changes.
![](asset-4f.png)
set alarm
Chapter 2 Command Descriptions 79
Examples Set a GPIO alarm and send an email message or SNMP trap
This example shows how to set up a GPIO alarm to trigger when two GPIO
pins go high, and sending an email message when they do. It also shows
how to change from sending an email message when the alarm condition
occurs to issuing an SNMP trap.
Turn off alarms and set global email properties (this is done to avoid false
error conditions triggering alarms):
#> set alarm state=off mailserverip=10.0.0.1 from=myemail@digi.com
Set alarm #1 mode to GPIO mode:
#> set alarm range=1 mode=gpio
Set alarm #1 to designate which pins trigger alarm:
#> set alarm range=1 pin2=high pin3=high
#> set alarm range=1 highpins=2,3
Set alarm # 1 to send an email message when the alarm condition is met,
and enable alarm #1:
#> set alarm range=1 active=on type=email to=destination@digi.com
subject=”Alarm 1 triggered”
Change alarm #1 to send an snmp trap:
#> set alarm range=1 highpins=2,3 type=snmptrap
Enable alarms:
#> set alarm state=on
Set up signal-strength and cellular-traffic alarms and send them to
Connectware Manager
This example shows how to set up two alarm and have them be s to be
sent to the Connectware Manager server. It configures two alarms: Alarm
#6 for is based on a threshold signal strength value (rssi), and alarm #7 is
based on cellular data traffic (cell_data).
Disable alarms during configuration:
#> set alarm state=off
Set alarm #6 to trigger when average GSM rssi drops below -80 dB for at
least 20 minutes. Turn alarm #6 on.
#> set alarm range=6 active=on mode=rssi_gsm sig_strength_threshold=-80
time=20
Set alarm #7 to trigger when more than 10000 bytes are sent in a period of
5 minutes. Turn alarm #7 on.
#> set alarm range=7 active=on mode=cell_data cell_data=10000
cell_data_type=transmit time=5
Set alarm #8 to trigger when mobile radio temperature exceeds the default
thresholds. Turn alarm #8 on.
#> set alarm range=8 active=on mode=mobile_temp
Set alarm #9 to trigger when 1xEV-DO service is unavailable for a period of
3 minutes and also trigger when service becomes available again. Turn
alarm #9 on.
#> set alarm range=9 active=on mode=1xevdo_unavail time=3
optimal_alarms_enabled=yes
Set alarm #10 to trigger when the mobile configuration has been changed.
![](asset-50.png)
set alarm
80 Chapter 2 Command Descriptions
Turn alarm #10 on.
#> set alarm range=10 active=on mode=config_change
Set all alarms to be sent to Connectware Manager, and turn on alarms:
#> set alarm state=on cwm=on
See also • "set gpio" on page 113. This command determines whether pins act as
GPIO input, GPIO output, or standard serial.
• "set snmp" on page 198.
• "revert" on page 61
• "show" on page 249.
![](asset-51.png)
set autoconnect
Chapter 2 Command Descriptions 81
set autoconnect
Devices
supported This command is supported in Digi Connect Family and Digi Cellular
Family products only. Not supported in ConnectPort Display.
Purpose Used to establish an automatic connection (autoconnection) between the
serial port and a remote network destination, and to display current
autoconnect settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display autoconnect settings for the line on which they are
logged in: “set permissions s-autoconnect=r-self”
• For a user to display autoconnect settings for any line:
“set permissions s-autoconnect=read”
• For a user to display and set the autoconnect settings for the line on
which they are logged in: “set permissions s-autoconnect=rw-self”
• For a user to display autoconnect settings for any line, and set the
autoconnect settings for the line on which the user is logged in:
“set permissions s-autoconnect=w-self-r”
• For a user to display and set the autoconnect settings on any line:
“set permissions s-autoconnect=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure autoconnect
set autoconnect [port=range]
[state={on|off}]
[trigger={always|data|dcd|dsr}]
[service={raw|rlogin|ssl|telnet}]
[description={string}]
[ipaddress=ipaddress]
[ipport=ipport]
[connect_on_string=string]
[flush_string={on|off}]
[keepalive={on|off}]
[nodelay=on|off]
Display autoconnect settings
set autoconnect [port=range]
![](asset-52.png)
set autoconnect
82 Chapter 2 Command Descriptions
Options port=range
Used to specify the serial port. Optional on a single-port device.
state={on|off}
Enables or disables the autoconnect feature.
onEnables the autoconnect feature.
offDisables the autoconnect feature.
The default is off.
If you are using the serial port for another purpose, it is recommended
this value be set to “off.”
trigger={always|data|dcd|dsr|string}
Indicates which events from the serial port will trigger a network
connection to occur.
always
The serial port will continually attempt to keep a connection to a
remote network destination active.
data
The serial port will attempt a network connection whenever data
arrives on the serial port.
dcd
The serial port will attempt a network connection whenever the serial
port’s DCD signal goes high.
dsr
The serial port will attempt a network connection whenever the serial
port’s DSR signal goes high.
string
A connection will be made upon detecting a particular sting, specified
by the “connect_on_string” option, in the data from the serial port.
The default is “always.”
service={raw|rlogin|ssl|telnet}
The type of network connection that will be established.
raw
A connection without any special processing will occur.
rlogin
A remote login (rlogin) connection will occur.
ssl
A secure connection conforming to SSL (Secure Sockets Layer) Version
3 and Transport Layer Security (TLS) Version 1 will occur.
telnet
A connection with Telnet processing will occur.
The default is “raw.”
![](asset-53.png)
set autoconnect
Chapter 2 Command Descriptions 83
description=string
A name for descriptive purposes only.
ipaddress=ipaddress
The IP address of the network destination to which a connection will be
made.
ipport=ipport
The TCP port of the network destination to which a connection will be
made.
connect_on_string=string
When the value of the “trigger” option is string, this option specifies the
string that must be found in the serial data in order for a connection to
occur. The maximum length of this string is 32 characters, including
escape sequences for special characters. For more details on the escape
sequences, see "Entering Special Characters in String Values" on page
13. The maximum parsed length of this string is 32 characters. That is,
this string must reduce down to a 32-character string when the escape
sequences are processed.
flush_string={on|off}
Indicates whether the connect string, specified by the
“connect_on_string” option, is flushed or sent over the newly established
connection.
onThe connect string is flushed.
offThe connect string is sent over the newly established connection.
The default is on.
keepalive={on|off}
Indicates whether or not TCP keepalives will be sent for the specified
range of clients. If set to on, keepalives will be sent, if it is off, keepalives
will not be sent.
Configurable TCP keepalive parameters, for example, how many
keepalives to send and when to send them are configured globally via the
“set network” command (see "set network" on page 149).
nodelay={on|off}
Used to allow unacknowledged or smaller than maximum segment sized
data to be sent.
Note: The “nodelay” option disables Nagle’s algorithm, which is on by
default, for some TCP services. The purpose of Nagle's algorithm is to
reduce the number of small packets sent. Briefly Nagle's algorithm says
to hold on to outgoing data when there is either unacknowledged sent
data or there is less than maximum segment size (typically around 1500
bytes for Ethernet) worth of data to be sent. It does a good job at keeping
transmission efficient, but there are times where it is desirable to disable
it.
![](asset-54.png)
set autoconnect
84 Chapter 2 Command Descriptions
Examples Set autoconnect on with trigger
This example shows setting autoconnect to connect to the TCP port (2101)
of the network IP destination when data arrives on the serial port.
#> set autoconnect state=on trigger=data ipaddress=10.0.0.1 ipport=2101
Allow outgoing data that is either unacknowledged or less than maximum
segment size
#> set autoconnect port=1 nodelay=on
See also • "revert" on page 61.
• "set network" on page 149.
• "set serial" on page 189.
• "set tcpserial" on page 212.
• "show" on page 249.
![](asset-55.png)
set bsc
Chapter 2 Command Descriptions 85
set bsc
Devices
supported This command supported in Digi Connect WAN Sync only.
Purpose Configures the binary synchronous feature (also known as bisync or BSC)
that provides bisync to IP protocol configuration. This feature allows you to
attach a bisync terminal to the Digi device server’s serial port. The Digi
device server emulates the host by polling the terminal. The bisync data is
forwarded to the host over the TCP/IP network.
The Digi device can be configured in either client or server mode for bisync
communications.
Configuring the bisync feature involves:
• Enabling/disabling bisync communications and configuring serial
settings.
• Configuring polling settings.
• Configuring the network service settings for bisync communications.
Setting any of the bisync options will apply those options immediately, with
the current network connection. If the Digi device server is up and running,
has a network connection to the host, and you change the polling address,
the Digi unit will apply that to the next poll command it sends. However, if
you change anything on the network options, the current network
connection will be terminated, and a new connection will be established
using the new configuration.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display bisync settings: “set permissions s-bsc=read”
• For a user to display and set bisync settings: “set permissions
s-bsc=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
![](asset-56.png)
set bsc
86 Chapter 2 Command Descriptions
Syntax Enable/disable bisync communications and configure serial settings
set bsc [state={disabled|enabled}]
[serial_mode={bisync3270|bisync3275}]
[baudrate={baud rate)|external_clock}]
Configure polling settings
set bsc [code_set={ascii|ebcdic}]
[text_conversion={on|off}]
[polling_address=0x followed by 2 hex digits]
[selection_address=0x followed by 2 hex digits]
[device_id=0x followed by 2 hex digits]
[poll_interval=milliseconds]
[rx_timeout=milliseconds]
[tx_retries=0-255]
Configure bisync network services
set bsc [mode={client|server}]
[server_hostname={name|ip address}] (used in client mode only)
[server_port=tcp port] (used in client and server mode)
[use_ssl={on|off}]
[tpdu_header={on|off}]
[power_on_message=(0x followed by up to 64 hex digits)]
[no_response_message=(0x followed by up to 64 hex digits)]
Display current BSC settings
set bsc
Options Options for enabling/disabling bisync communications and serial settings
state={disabled|enabled}
Enables or disables bisync processing for the Digi device server.
Important: Do not set “state=enabled” until all other bisync parameters
are set. Enabling bisync processing causes the Digi device server to try
to initiate the network connection as soon as it gets enabled.
serial_mode={bisync3270|bisync3275}
Sets the bisync protocol used by the bisync terminal connected to the
serial port. The protocol specified on this option should match that of the
attached bisync terminal. The two protocols are similar with their main
difference being use of characters.
baudrate={baud rate)|external_clock}
The baud rate for the Digi device server. You can set the baud rate to a
specific value or have the Digi device server get the baud rate from an
external clock.
baud rate
Set the baud rate to match that of the bisync terminal connected to the
serial port. The Digi device server supplies an external clock signal at
the selected baud rate which can be used by the bisync terminal.
external_clock
If the bisync terminal supplies an external clock signal, use this setting
to have the Digi device server determine the data rate.
![](asset-57.png)
set bsc
Chapter 2 Command Descriptions 87
Options for polling settings
code_set={ascii|ebcdic}
Specifies whether the bisync terminal uses the ASCII or EBCDIC code
set. This option determines the control characters used for serial
communication and the format of text data if the “text_conversion” option
is “on.”
This option must match the setting used by the connected device. The
default value is “ebcdic.”
text_conversion={on|off}
Specifies if data sent to and received from the bisync terminal should be
converted to the opposite code set as selected by the “code_set” option.
If “text_conversion=on” and “code_set=ascii,” text data sent to the
connected device is converted from EDCDIC to ASCII, and data received
from the connected device is converted from ASCII to EBCDIC.
If “text_conversion=on” and “code_set=ebcdic,” text data sent to the
connected device is converted from ASCII to EDCDIC, and data received
from the connected device is converted from EBCDIC to ASCII.
If “text_conversion=off,” text data is not changed.
The default value is “on.”
polling_address=0x followed by 2 hex digits
Specifies the 8-bit control unit address used to poll the bisync terminal.
Polling is used to receive data from the connected device. This address
determines which device responds to polling when multiple devices are
connected to the serial line.
This option must match the value expected on the serial line by the
connected device. It should be in the code set specified by the “code_set”
option. The default value is “0xC1,” which is used to poll control unit 1 in
the EBCDIC code set.
selection_address=0x followed by 2 hex digits
Specifies the 8-bit control unit address used to select the bisync terminal.
Selection is used to send data to the connected device. This address
determines which device responds to selection when multiple devices
are connected to the serial line.
This option must match the value expected on the serial line by the
connected device. It should be in the code set specified by the “code_set”
option. The default value is “0x61,” which is used to select control unit 1
in the EBCDIC code set.
device_id=0x followed by 2 hex digits
Specifies the 8-bit device address used to poll and select the bisync
terminal. This address determines which sub device responds when
multiple sub devices are controlled by a single control unit.
This option must match the value expected on the serial line by the bisync
terminal. It should be in the code set selected by the “code_set” option.
The default value is “0x40,” which is indicates device 0 in the EBCDIC
code set.
![](asset-58.png)
set bsc
88 Chapter 2 Command Descriptions
poll_interval=milliseconds
Specifies the time interval between successive attempts to poll the bisync
terminal. The default value is “1000,” or 1 second.
rx_timeout=milliseconds
Specifies the maximum time interval between sending data and receiving
a response from the bisync terminal. If the expected response is not
received within this interval, the data being sent is normally repeated to
accommodate serial line transmission errors. The default value is “3000,”
or 3 seconds.
tx_retries=0-255
Specifies the maximum number of additional attempts to send data when
a response is not received from the bisync terminal. If the expected
response is not received after all attempts, the data being sent is lost. The
default value is “3”.
Options for configuring bisync network services
mode={client|server}
Specifies whether the Digi device server is in bisync server or client
mode. This is the mode that will be used to establish a connection with
the host.
client
In bisync client mode, the Digi device server will initiate a connection to
the server hostname, which is either specified as a name or an IP
address on the “server_hostname” option and using the TCP port
specified by the “server_port” option.
server
In bisync server mode, the Digi device server will listen for a connection
from the network, using the TCP port specified by the “server_port”
option. Note that configuring server mode involves specifying the
“server_port” option but not the “server_hostname” option.
server_hostname={name|ip address} (used in bisync client mode)
The server hostname to which the Digi device server connects in bisync
client mode. This option can be specified as a name or an IP address.
server_port=tcp port (used in both bisync client and server mode)
For bisync client mode, this value is the TCP port that Digi device server
uses to make a connection to the server.
For bisync server mode, this value is the TCP port on which the Digi
device server listens for a connection from the network.
use_ssl={on|off}
Enables or disables encrypting the network connection using the Secure
Sockets Layer (SSL) protocol. When enabled, the bisync data sent over
the TCP/IP network is encrypted using SSL.
tpdu_header={on|off}
Enables or disables a Transport Protocol Data Unit (TPDU) header that
is added to IP packets transmitted between the host and the Digi device
server.
![](asset-59.png)
set bsc
Chapter 2 Command Descriptions 89
power_on_message=(0x followed by up to 64 hex digits)
The status message that is sent to the host the first time a connection is
established after the Digi device server has been powered on or
rebooted.
no_response_message=(0x followed by up to 64 hex digits)
The status message that is sent to the host when there has been no
response from the bisync serial device. The message is sent after the
receive has timed out for the number of retries specified on the
“tx_retries” option.
Example #> set bsc serial_mode=bisync3275 baudrate=2400
#> set bsc code_set=ascii text_con=on polling_addr=0xc1 selection_addr=0x61
device_id=0x40
#> set bsc poll_interval=1000 rx_timeout=3000 tx_retries=3
#> set bsc mode=client server_hostname=test.example.com server_port=8501
use_ssl=on
#> set bsc tpdu_header=on power_on_message=0x506F776572204F6e
#> set bsc no_response_message=0x4E6F2052657370
#>
#> set bsc state=enabled
See also • "revert" on page 61.
• "show" on page 249.
• The online help for the Web user interface’s Bisync (BSC) Settings
page.
• The Cellular Family User’s Guide’s section on configuring Bisync (BSC)
settings.
![](asset-5a.png)
set buffer
90 Chapter 2 Command Descriptions
set buffer
Devices
supported This command is supported in Digi Connect Family and Digi Cellular
Family products only. Not supported in ConnectPort Display.
Purpose Configures buffering settings on a port, or displays the port buffer
configuration settings on all ports. The port buffering feature allows you to
monitor incoming ASCII serial data in log form.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the port buffering settings for the line on which
they are logged in: “set permissions buffers=r-self”
• For a user to display the port buffering settings for any line:
“set permissions buffers=read”
• For a user to display and set the port buffering settings for the line on
which they are logged in: “set permissions buffers=rw-self”
• For a user to display the port buffering settings for any line, and set port
buffering settings for the line on which the user is logged in:
“set permissions buffers=w-self-r”
• For a user to display and set the port buffering settings on any line:
“set permissions buffers=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure port buffering
set buffer [clear] [port=number] [size=number]
[state={on|off|pause}]
Display port buffering settings
set buffer [port=port]
Options clear
Clears the contents of the specified buffer.
port
The port or ports to which the command applies.
size
The size in kilobytes to configure the buffer. Settings are configurable in
2-kilobyte increments. The maximum size is 64 kilobytes. The default is
32 kilobytes.
![](asset-5b.png)
set buffer
Chapter 2 Command Descriptions 91
state
The buffering state, which can be any of the following:
onThe data will be buffered.
offThe data will not be buffered and all data will be cleared from the
buffer.
pause
The data will not be buffered, but data in the buffer will not be cleared.
Examples Display port buffer configuration for all ports
#> set buffer
Configure buffers
In this example, the set buffer command sets the buffer state for port 1 to
on mode and the buffer size to 64 kilobytes.
#> set buffer port=1 state=on size=64
See also • "revert" on page 61.
• "show" on page 249.
![](asset-5c.png)
set ddns
92 Chapter 2 Command Descriptions
set ddns
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures a Dynamic DNS (DDNS) service. DDNS allows a user whose
IP address is dynamically assigned to be located by a host or domain
name.
A DDNS service provider typically supports the registration of only public IP
addresses. When using such a service provider, if your Digi Cellular Family
device has a private IP address (such as 192.168.x.x or 10.x.x.x), your
update requests will be rejected.
Your Digi Cellular Family device monitors the IP address it is assigned. It
will typically update the DDNS service or server automatically, but only
when its IP address has changed from the IP address is previously
registered with that service.
Important:
• Before using this command, you must contact your DDNS service
provider and create an account with them. Currently, the only supported
DDNS service provider is Dynamic DNS (DynDNS.com). The provider
will give you account information such as username and password that
you will enter on this command to register the IP address of your Digi
Cellular Family product with their service, and update it as it changes.
• The DDNS service supports only public IP addresses. If you have a
private IP address (such as 192.168.x.x or 10.x.x.x), your update
requests will be rejected.
• DDNS service providers may consider frequent updates to be an abuse
of their service. In such a circumstance, the service provider may act by
blocking updates from the abusive host for some period of time, or until
the customer contacts the provider. Please observe the requirements of
the DDNS service provider to ensure compliance with possible abuse
guidelines.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display Dynamic DNS settings: “set permissions
s-ddnsupdater=read”
• For a user to display and set Dynamic DNS settings: “set permissions
s-ddnsupdater=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set basic DDNS settings
set ddns [service={disabled|dyndnsorg}]
[action={updatenow|clearstatus}]
![](asset-5d.png)
set ddns
Chapter 2 Command Descriptions 93
Set service settings for Dynamic DNS (service=dyndnsorg):
set ddns [ddconntype={standardhttp|alternatehttp|securehttp}]
[ddsystem={dyndns|statdns|custom}]
[ddusername=user name]
[ddpassword=password for DynDNS.org account]
[ddhostname=full host name]
[ddwildcard={off|on|nochg}]
Display current DDNS settings
set ddns
Options Basic DDNS settings
service={disabled|dyndnsorg}
Specifies the DDNS service used for handling dynamic DNS updates, or
disables use of the DDNS service.
disabled
Turns off the Dynamic DDNS service. This the default setting for the
Dynamic DNS feature. Use this option if you have configured the
Dynamic DNS feature and you want to temporarily turn off use of the
service for some reason.
dyndnsorg
Update the DDNS service at DynDNS.com. Currently, this is the only
Dynamic DNS service supported. When you select a specific DDNS
service provider, you must also provide the related account
information for that service provider.
action={updatenow|clearstatus}
The action to be performed on the DDNS service. If “action” is specified,
other command options are not used.
updatenow
Force a DDNS service update now.
clearstatus
Clears the last information returned from the Dynamic DNS service
from your Digi Cellular device.
![](asset-5e.png)
set ddns
94 Chapter 2 Command Descriptions
DynDNS.com service settings
These settings are specific to your account information with
DynamuiDynDNS.org; please consult their website for more information on
account terms and settings.
ddconntype={standardhttp|alternatehttp|securehttp}
The method to use to connect to the DynDNS.org server:
standardhttp
Connect to the Standard HTTP port (80).
alternatehttp
Connect to the Alternate HTTP port (8245).
securehttp
Connect to the Secure HTTPS port (443).
ddsystem={dyndns|statdns|custom}
The DynDNS.org system to use for the update.
dyndns
Update a Dynamic DNS host name.
statdns
Update a Static DNS host name.
custom
Update a Custom DNS host name.
ddusername=user name
The user name for the DynDNS.org account.
ddpassword=password
The password for DynDNS.org account.
ddhostname=full host name
The full host name to update for DynDNS.org account, for example,
myhost.dyndns.net.
ddwildcard={off|on|nochg}
Enables/disables wildcards for this host.
According to wildcard documentation at DynDNS.org: “The wildcard
aliases *.yourhost.ourdomain.tld to the same address as
yourhost.ourdomain.tld.”
Using this option in the settings for your Digi Cellular Family device has
the same effect as selecting the wildcard option on the DynDNS.org web
site. To leave the wildcard option unchanged from the current selection
on their web site, use the “no change” option (the “nochg” keyword) in the
device settings. Note that DynDNS.org support for this option may vary
according to the DynDNS system you are registered to use.
The available choices for this option are:
offDisables wildcards.
onEnables wildcards.
![](asset-5f.png)
set ddns
Chapter 2 Command Descriptions 95
nochg
Specifies that there should be no change to service setting from the
current selection for wildcards in the DDNS settings at the
DynDNS.org Web site.
Examples This example shows “set ddns” being used to display the current status of
the Dynamic DNS service:
#> set ddns
DDNS Service Update Configuration :
service : dyndnsorg
ddconntype : securehttp
ddsystem : statdns
ddusername : "test"
ddpassword : (Not shown for security reasons)
ddhostname : "test-static.dnsalias.com,test-static.dnsalias.org"
ddwildcard : nochg
Current IP address: 166.213.228.220 (ppp1)
Most recent DDNS service update status:
Service : DynDNS.org
IP address reported : 166.213.228.220
Update status : successful
Result information : [good] The update was successful.
Raw result data :
good 166.213.228.220
good 166.213.228.220
Most recent DDNS service update log message:
IP address for "ppp1" is now 166.213.228.220, but no DDNS update is needed
last reported IP address is unchanged).
See also • "display" on page 27.
• "revert" on page 61.
• "show" on page 249.
• Dynamic DNS resources available from your service provider, such as
glossary definitions, FAQs, knowledge base articles, and tips for
managing your account.
![](asset-60.png)
set dhcpserver
96 Chapter 2 Command Descriptions
set dhcpserver
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures the DHCP server settings for the Digi Connect product. A
DHCP server allows other devices or hosts on the same local network as
the Digi Connect product to be assigned dynamic IP addresses. This
DHCP server supports a single subnetwork scope.
The only DHCP server scope currently supported in Digi Connect firmware
is for the “eth0” interface. That, the firmware serves IP addresses to DHCP
clients on the Ethernet side of the Digi Connect product only, and not the
cellular side, which is handled through Point-to-Point Protocol (PPP)
instead.
The DHCP server operates only if the Digi Connect product is configured to
use static IP address configuration. For information on how to configure
static IP settings, see "set network" on page 149 and the help for the Web
user interface’s Network Configuration settings.
Once configured, the DHCP server is managed through the “dhcpserver”
command. See "dhcpserver" on page 23.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display DHCP server settings: “set permissions
s-dhcpserver=read”
• For a user to display and set DHCP server settings: “set permissions
s-dhcpserver=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure the DHCP server: basic settings
The “item” option must be specified on every instance of a “set dhcpserver”
command. The “item” option specifies the configuration settings to which
the command will be applied. To enable a scope, or a reservation or
exclusion entry within a scope, all of its parameters must be specified and
valid. A scope or entry can be enabled only if it is completely valid.
set dhcpserver item={scope|reservation|exclusion}
[action={set|revert}]
![](asset-61.png)
set dhcpserver
Chapter 2 Command Descriptions 97
Configure the DHCP server scope (“item=scope”)
set dhcpserver item=scope
[action={set|revert}]
[enabled={on|off}]
[startip=ip address]
[endip=ip address]
[leasetime={time|infinite}] (in seconds, 0=default (86400)}
[offerdelay=0-5000] (time in milliseconds, default 500}
[conflictdetect={on|off}]
Configure the scope's address reservations (“item=reservation”)
In this type of configuration, the DHCP server assigns a particular IP
address to a Digi device, rather than a random address from a pool.
set dhcpserver item=reservation
[action={set|revert}]
[range={1-16|all}]
[enabled={on|off}]
[ip=ip address]
[clientid=client MAC address] {e.g., 00:40:9D:12:34:56}
[leasetime={time|infinite}] {in seconds, 0=default (use scope's
time)}
Configure the scope's address exclusions (“item=exclusion”)
set dhcpserver item=exclusion
[action={set|revert}]
[range={1-4|all}]
[enabled={on|off}]
[startip=ip address]
[endip=ip address]
Display current DHCP server settings
set dhcpserver
Options Options for configuring the DHCP server scope (“item=scope”)
item=scope
Specifies that the DHCP server configuration settings apply to the scope
of IP addresses for a network. A scope is the full consecutive range of
possible IP addresses for a network. A scope typically defines a single
physical subnet on your network, to which DHCP services are offered. A
scope is the primary way for the DHCP server to manage distribution and
assignment of IP addresses and related configuration parameters to its
clients on the network.
action={set|revert}
Specifies the action to be performed by the “set dhcpserver” command.
set
Sets the DHCP configuration settings to the specified values. This is
the default setting that is used if this option is not specified.
revert
Resets the configuration settings for the specified item to default
values.
![](asset-62.png)
set dhcpserver
98 Chapter 2 Command Descriptions
enabled={on|off}
Enables the DHCP server feature on this Digi Connect product. Note that
for the DHCP server to operate, the Digi Connect product must be
configured to use a static IP address.
startip=ip address
The first IP address in the pool.
endip=ip address
The last address in the pool. The addresses in the range specified by
“startip” and “endip” must be in the same subnet as the Digi Connect
product.
leasetime={time|infinite}
The length, in seconds, of the leases for the scope being served by this
DHCP server. Specifying a time of 0 means that the default of 86400
seconds (24 hours) will be used. A DHCP client may request a lease
duration other than this setting, and the DHCP server will grant that
request, if possible.
offerdelay=0-5000
The interval of time, in milliseconds, to delay before offering a lease to a
new client. The range for this delay is 0 to 5000 milliseconds, and the
default delay is 500 milliseconds. Use of this delay permits the Digi
Connect product to reside on a network with other DHCP servers, yet not
offer leases to new clients unless the other DHCP servers do not make
such an offer. This provides a measure of protection against
inadvertently connecting a Digi Connect product to a network that is
running its own DHCP server, and thereby offering leases to clients in a
manner inconsistent with that network.
conflictdetect={on|off}
When a DHCP client requests a new IP address lease, before offering an
IP address to that client, use "ping" to test whether that IP address is
already in use by another host on the network but is unknown to the
DHCP Server. If an IP address is determined to be in use, it is marked as
"Unavailable" for a period of time, and it will not be offered to any client
while in this state.
Enabling this test adds approximately one second of delay before the IP
address is offered to the client, since the "ping" test must not receive a
valid reply for that test to successfully determine that the IP address is not
already in use.
This option is off (disabled) by default. This option does not apply to Static
Lease Reservations, since the "ping" test is not used for them.
![](asset-63.png)
set dhcpserver
Chapter 2 Command Descriptions 99
Options for configuring the scope's address reservations
(“item=reservation”)
item=reservation
Specifies that the DHCP server configuration settings apply to the
scope’s address reservations. You may use a reservation to create a
permanent address lease assignment by the DHCP server. Reservations
assure that a specified hardware device on the subnet can always use
the same IP address. Address lease reservations associate a specific IP
address with a specific client’s Ethernet MAC address.
action={set|revert}
Specifies the action to be performed by the “set dhcpserver” command.
set
Sets the DHCP configuration settings to the specified values. This is
the default setting that is used if this option is not specified.
revert
Resets the configuration settings for the specified item to default
values. This effectively removes the entry specified by the “range”
option.
range={1-16|all}
Selects the specific entry to which the action is to be applied.
enabled={on|off}
Enables the DHCP server feature on this Digi Connect product. Note that
for the DHCP server to operate, the Digi Connect product must be
configured to use a static IP address.
ip=ip address
The IP address reserved for the client. This value must not be the same
as the IP address of the DHCP Server itself.
clientid=client MAC address
The MAC address for the client, for example, 00:40:9D:12:34:56.
leasetime={time|infinite}
The length, in seconds, of the leases for the scope being served by this
DHCP server. Specifying a time of 0 means that the default of using the
scope’s lease time will be used. A DHCP client may request a lease
duration other than this setting, and the DHCP server will grant that
request, if possible. Leaving this option blank causes the default value
specified in the scope to be used. That default will change whenever the
scope changes.
![](asset-64.png)
set dhcpserver
100 Chapter 2 Command Descriptions
Options for configuring the scope's address exclusions (“item=exclusion”)
item=exclusion
Specifies that the DHCP server configuration settings apply to the
scope’s address exclusions. An exclusion range is a limited sequence of
IP addresses within a scope, excluded from DHCP service offerings.
Exclusion ranges assure that any addresses in these ranges are not
offered by the server to DHCP clients on the network. Note that the IP
address of the DHCP server itself will not be given out to any DHCP
clients, even if it is within the range specified on this command.
action={set|revert}
Specifies the action to be performed by the “set dhcpserver” command.
set
Sets the DHCP configuration settings to the specified values. This is
the default setting that is used if this option is not specified.
revert
Resets the configuration settings for the specified item to default
values. This effectively removes the entry specified by the “range”
option.
range={1-4|all}
Selects the specific entry to which the action is to be applied.
enabled={on|off}
Enables the DHCP server feature on this Digi Connect product. Note that
for the DHCP server to operate, the Digi Connect product must be
configured to use a static IP address.
startip=ip address
The first address in the exclusion block.
endip=ip address
The last address in the exclusion block. An IP address exclusion range
must specify valid IP addresses in the subnetwork of the DHCP server.
The DHCP server will ignore an exclusion that does not meet this
requirement.
![](asset-65.png)
set dhcpserver
Chapter 2 Command Descriptions 101
Examples Configure the IP address range for the DHCP server scope and enable it
set dhcpserver item=scope action=set enabled=on
startip=10.30.1.150 endip=10.30.1.199
Since the “leasetime” and “offerdelay” options are not specified, the default
values for them are used, unless they were previously changed to another
value by use of a “set dhcpserver item=scope” command (or using the web
UI).
Add an IP address reservation for a client:
set dhcpserver item=reservation action=set range=1 enabled=on ip=10.30.1.195
clientid=00:09:26:19:51:05
Since the leasetime option is not specified, the DHCP server's scope lease
time is used, unless a lease time was previously changed to a value by use
of a “set dhcpserver item=reservation action=set range=1” command (or
using the web UI).
Disable all reservations that were previously added:
set dhcpserver item=reservation action=set range=all enabled=off
Permanently remove a reservation that was previously added:
set dhcpserver item=reservation action=revert range=1
Any client that has the lease for the reserved IP address that is removed in
this manner, will still keep its lease. However, without the reservation,
future address leases to that client are not guaranteed to be for this same
IP address, which is the purpose of a reservation.
Add an IP address exclusion range for the scope:
set dhcpserver item=exclusion action=set range=1 enabled=on
startip=10.30.1.170 endip=10.30.1.179
This exclusion instructs the DHCP server to not issue leases for the IP
addresses from 10.30.1.170 to 10.30.1.179 inclusive. Note that reservation
leases may be configured for any address in that range, and the DHCP
server will permit a lease of such an address to the correct client only. That
is, reservations override exclusions.
![](asset-66.png)
set dhcpserver
102 Chapter 2 Command Descriptions
Display current DHCP Server settings
#> set dhcpserver
DHCP Server Settings:
server enabled : on
scope name : eth0
starting ip address : 10.30.1.190
ending ip address : 10.30.1.198
lease time : 3600 (seconds)
offer delay : 500 (milliseconds)
addr conflict detect : off
Reservation Settings:
idx enabled ip address client id lease time
--- ------- --------------- ----------------- ----------
1 on 10.30.1.135 00:40:9D:24:73:F8 3600
2 on 10.30.1.195 00:09:26:19:51:05 0
3 on 10.30.1.196 00:09:26:19:51:06 0
4 on 10.30.1.197 00:09:26:19:51:07 0
5 on 0.0.0.0 00:00:00:00:00:00 0
6 on 0.0.0.0 00:00:00:00:00:00 0
7 off 0.0.0.0 00:00:00:00:00:00 0
8 off 0.0.0.0 00:00:00:00:00:00 0
9 off 0.0.0.0 00:00:00:00:00:00 0
10 off 0.0.0.0 00:00:00:00:00:00 0
11 off 0.0.0.0 00:00:00:00:00:00 0
12 off 0.0.0.0 00:00:00:00:00:00 0
13 off 0.0.0.0 00:00:00:00:00:00 0
14 off 0.0.0.0 00:00:00:00:00:00 0
15 off 0.0.0.0 00:00:00:00:00:00 0
16 off 0.0.0.0 00:00:00:00:00:00 0
A reservation lease time of 0 means to use the scope's lease time.
Exclusion Settings:
idx enabled start address end address
--- ------- --------------- ---------------
1 off 0.0.0.0 0.0.0.0
2 off 0.0.0.0 0.0.0.0
3 off 0.0.0.0 0.0.0.0
4 off 0.0.0.0 0.0.0.0
![](asset-67.png)
set dhcpserver
Chapter 2 Command Descriptions 103
See also • "dhcpserver" on page 23.
• "revert" on page 61.
• "show" on page 249.
• In the Web user interface, the online help for Network Settings.
“Configuring DHCP Sever Settings” provides more information on
DHCP terminology and managing DHCP server operation.
![](asset-68.png)
set ekahau
104 Chapter 2 Command Descriptions
set ekahau
Devices
supported This command is supported in Digi Connect Wi-SP, Digi Connect Wi-ME,
and Digi Connect Wi-EM only.
Purpose Configures Ekahau Client™ device-location software in a Digi Connect
wireless device.
The Ekahau Client feature provides integrated support for Ekahau's Wi-Fi
device-location solution on the Digi Connect Wi-ME, Digi Connect Wi-EM,
and Digi Connect Wi-SP products. Ekahau offers a complete access point
vendor-independent real-time location system for wireless LAN devices
that is capable of pinpointing wireless LAN devices such as the Digi
Connect products, laptops, PDAs, or other intelligent Wi-Fi enabled
devices. The solution provides floor-, room- and door-level accuracy of up
to 3.5 feet (1 m). The patented Ekahau positioning technology is based on
simple signal-strength calibration maps, and enables customers to fully
leverage an existing wireless LAN infrastructure without any need for
proprietary hardware components.
Please visit www.ekahau.com for additional information, including free
evaluation licenses for the Ekahau Positioning Engine and Ekahau Site
Survey software products.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display Ekahau client settings: “set permissions
s-ekahau=read”
• For a user to display and set Ekahau client settings: “set permissions
s-ekahau=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure Ekahau settings
set ekahau [state={on|off}]
[id=device id]
[poll_rate=seconds]
[protocol={tcp|udp}]
[port=port]
[server={hostname|ip address}]
[password=string]
[name=string]
Display current Ekahau settings
set ekahau
![](asset-69.png)
set ekahau
Chapter 2 Command Descriptions 105
Options state={on|off}
Enables or disables the Ekahau Client feature.
The “id,” “name,” and “server” values must be set before you can set
“state” to “on.”
id=device id
A numeric identifier for the Digi Connect device, used internally by the
Ekahau Positioning Engine for device tracking over time. This identifier
should be unique for each Digi device being located on the network. It
must be configured before the device will allow the “state” option to be set
to “on.”
poll_rate=seconds
The time in seconds between each scan or wireless access points and
communication with the server.
Once the Ekahau Client is enabled (“state=on”), every time the Digi
Connect device scans the network, it is essentially disassociated with the
access point (AP) providing its network connectivity. In addition, during
the time, or scanning interval, set by the “poll_rate” option, it will not be
receiving or transmitting wireless packets. This could lead to packet loss.
Set the “poll_rate” as slow as acceptable in the application where the Digi
Connect product is being used.
The default is five seconds.
protocol={tcp|udp}
Specifies whether to use TCP or UDP as the network transport. The
default is “tcp.”
port=port
The network port to communicate on. In the default Ekahau
configuration, port 8548 is used for TCP, and port 8549 for UDP. This
setting must be configured before the device will allow “state” to be set to
“on.”
server={hostname|ip address}
The hostname or IP address of the Ekahau Positioning Engine. The
maximum length of this option is 50 characters. The default is 8548.
password=password
A password to authenticate with the server. The maximum length of this
option is 50 characters. The default for Digi and the Ekahau Positioning
Engine is 'Llama'.
name=device name
A descriptive name to identify the Digi Connect device to users. The
maximum length of this option is 50 characters. This name must be
configured before the device will allow “state” to be set to “on.”
![](asset-6a.png)
set ekahau
106 Chapter 2 Command Descriptions
Examples Set identifiers
#> set ekahau id=1 server=myepe.domain.com name=”Tracked Device 1"
Enable Ekahau Client
#> set ekahau state=on
See also • "revert" on page 61.
• "show" on page 249.
• For additional information, including free evaluation licenses for the
Ekahau Positioning Engine and Ekahau Site Survey software products,
see the Ekahau Web site at www.ekahau.com.
![](asset-6b.png)
set ethernet
Chapter 2 Command Descriptions 107
set ethernet
Devices
supported This command is supported in the following products:
• Connect Family: Digi Connect SP, Digi Connect EM, Connect ME.
• Digi Cellular Family: All Connect WAN products, but not
ConnectPort WAN VPN.
• ConnectPort Display.
Purpose Configures, adjusts, and displays Ethernet communications options.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-ethernet=read” to display Ethernet communications
options, and “set permissions s-ethernet=rw” to display and configure
Ethernet communications options. See "set permissions" on page 157 for
details on setting user permissions for commands.
Syntax Configure Ethernet communications options
set ethernet [duplex={half|full|auto}] [speed={10|100|auto}]
Display Ethernet communications options
set ethernet
Options duplex
Determines the mode the Digi device uses to communicate on the
Ethernet network. Specify one of the following:
half
The device communicates in half-duplex mode.
full
The device communicates in full-duplex mode.
auto
The device senses the mode used on the network and adjusts
automatically.
The default is “half.” If one side of the Ethernet connection is using auto,
the other side can set the duplex value to whatever is desired. If one
side uses a fixed value (for example, half-duplex), the other side has to
use the same.
![](asset-6c.png)
set ethernet
108 Chapter 2 Command Descriptions
speed
Configures the Ethernet speed the Digi device will use on the Ethernet
network. Specify an appropriate setting for your Ethernet network, which
can be one of the following:
10
The device operates at 10 megabits per second (Mbps) only.
100
The device operates at 100 Mbps only.
auto
The device senses the Ethernet speed of the network and adjusts
automatically.
The default is “auto.” If one side of the Ethernet connection is using auto
(negotiating), the other side can set the Ethernet speed to whatever
value is desired. Or, if the other side is set for 100 Mbps, this side must
use 100 Mbps.
Examples Configure 100 Mbps Ethernet speed
#> set ethernet speed=100
See also • "set network" on page 149 to configure network communications
options.
• "revert" on page 61.
• "show" on page 249.
![](asset-6d.png)
set forwarding
Chapter 2 Command Descriptions 109
set forwarding
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures IP routing, or forwarding of IP datagrams, between network
interfaces. IP routing must be enabled to allow the Network Address Table
(NAT) and port forwarding features to work properly.
The “set forwarding” command enables addition of static route entries to
the IP routing table. Static routes instruct the device to route packets for a
known destination host or network, to (through) a router or gateway
different from the default gateway. They explicitly define the next “hop” from
a router for a particular destination. This is sometimes necessary to
communicate with hosts on a different subnet than the Digi device, or to
provide a more direct or efficient route to such hosts than may be provided
by using the default gateway or other routes.
Required
privileges For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the forwarding settings:
“set permissions s-router=read”
• For a user to display and set forwarding settings:
“set permissions s-router=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set IP forwarding settings
The first option, “ipforwarding,” enables or disables IP forwarding. The
remaining options pertain to static routes.
set forwarding [ipforwarding={on|off}]
[staticrouteindex={1-8}]
[action={add|change|delete}]
[enabled={on|off}]
[net=destination ip address]
[mask=subnet mask]
[gateway=ip address]
[metric={1-16}]
[interface=interface name]
The “staticrouteindex” and “action” options are required for all static route
management commands. To add a new static route entry, all eight of the
above static route options are required.
Note that this command cannot be used to add, change or delete a default
gateway entry: the default gateway is managed internally by the device.
![](asset-6e.png)
set forwarding
110 Chapter 2 Command Descriptions
Change an existing static route table entry
To change an existing static route table entry, these options are required:
staticrouteindex={1-8}
action=change
[one or more additional options]
Delete a static route table entry
To delete a static route entry, these options are required:
staticrouteindex={1-8}
action=delete
Enable a static route table entry
To enable a static route entry, all of its options must be specified (on this or
a previous command) and valid. That is, an entry can be enabled only if it is
completely valid.
When a new entry is added or a change is made to a static route entry and
that entry is enabled, the change is applied immediately to the IP routing
table. If a static route entry is disabled or deleted, it is removed immediately
from the IP routing table.
Display IP forwarding settings
show route
Display the current active IP routing table
display route
Options ipforwarding={on|off}
Enables or disables IP forwarding.
onEnables IP forwarding.
offDisables IP forwarding.
staticrouteindex={1-8}
Specifies which of the 8 static route table entries is to be acted upon.
action={add|change|delete}
Specifies the action to be performed on the selected static route table
entry.
add
Add a new entry.
change
Change one or more options of an existing entry.
delete
Delete an entry, resetting all its options to defaults (empty).
![](asset-6f.png)
set forwarding
Chapter 2 Command Descriptions 111
enabled={on|off}
Enables or disables a static route table entry.
onEnables an entry. All its options must be specified and valid to enable
an entry. The enabled entry is immediately added to the device's IP
routing table.
offDisables an entry. If the entry was previously enabled and added to
the device's IP routing table, that entry is immediately removed from
the IP routing table.
net=destination ip address
Specifies the IP address of destination network or host to which the static
route applies. This static route table entry defines how packets will be
routed by the device when they are sent to the destination network or
host.
mask=subnet mask
The subnetwork mask to be used for the static route, which is used in
conjunction with the destination IP address. A subnetwork mask of
255.255.255.255 indicates that the destination IP address is a specific
host rather than a network.
gateway=ip address
The IP address of the gateway for this static route. When the device
routes packets that are destined for the specified destination IP address
(host or network), those packets are sent to this gateway as their first
“hop.”
metric={1-16}
Specifies the metric, or the “cost” to reach the destination. This is the
“distance” in terms of number of “hops” for the routed packets to get to
the destination.
interface=interface name
Specifies the name of the local network interface through which routed
packets are sent for this static route. Examples are “eth0” and “ppp1.” For
devices that support PPP interfaces, the actual PPP interface name may
vary: ppp1, ppp2, ppp4. The valid network interface names can be
displayed using “display netdevice.”
Examples Enable IP forwarding
#> set forwarding ipforwarding=on
Add a static route entry
This command adds a static route for packets destined to hosts on the
10.10.0.0 network. These packets are sent through the eth0 interface to a
local router 10.30.1.1. In this example, the device on which this static route
is added has an IP address of 10.30.1.188, and the router 10.30.1.1 is on
its local subnetwork.
set forwarding staticrouteindex=1 action=add enabled=on net=10.10.0.0
mask=255.255.0.0 gateway=10.30.1.1 metric=2 interface=eth0
![](asset-70.png)
set forwarding
112 Chapter 2 Command Descriptions
See also • "display" on page 27. The “display route” command displays current
routing information.
• "set nat" on page 146.
• "revert" on page 61
• "show" on page 249.
• In the online help for the Web user interface, the topic “IP Forwarding
Settings” under Network Configuration.
![](asset-71.png)
set gpio
Chapter 2 Command Descriptions 113
set gpio
Devices
supported This command is supported in the following products:
• Connect Family: Digi Connect EM, Digi Connect Wi-EM, Digi Connect
ME, Digi Connect Wi-ME.
• Digi Cellular Family: Digi Connect WAN, and Digi Connect RG devices.
Not supported in ConnectPort Display.
Purpose Used to:
• Configure General Purpose I/O (GPIO) pins. In normal operation, the
GPIO pins are used for the serial CTS, DCD, DSR, DTR, and RTS pins.
The set gpio command allows these GPIO pins to be used for different
purposes.
• Display current GPIO pin settings.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-gpio=read” to display GPIO pin settings, and “set
permissions s-ethernet=rw” to display and configure GPIO pins. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax Configure GPIO pins
set gpio range={1-n} mode={serial|input|output}
Display current GPIO pin settings
set gpio [range={1-n}]
Options range={1-n}
Used to specify the index of the GPIO pin to manipulate, where n is the
maximum number of GPIO pins on the device.
mode={serial|input|output}
The mode of operation of the GPIO serial pin.
serial
Indicates normal serial operation.
input
Allows input of GPIO signals. This is used in conjunction with alarms
to trigger emails or SNMP traps indicating a particular signal change.
output
Allows output of GPIO signals. Currently, output of GPIO signals is not
supported in the command-line interface. The web user interface can
be used to toggle the output of GPIO signals between high and low.
The default is “serial” for all pins.
![](asset-72.png)
set gpio
114 Chapter 2 Command Descriptions
Default serial signal settings for GPIO pins
The default serial signal settings for the GPIO pins on a Digi Connect
device are as follows. Depending on the device, there are five or nine
GPIO pins.
Examples Changing the operation of the GPIO signal pins
The following command changes GPIO pins 1-5 to allow input of GPIO
signals.
#> set gpio range=1-5 mode=input
See also • "revert" on page 61.
• "send" on page 67, for details on setting up alarms that issue email
messages or SNMP traps when GPIO pins change.
• "show" on page 249.
Pin Number Default Serial Signal Signal Direction
GPIO 1 DCD Input
GPIO 2 CTS Input
GPIO 3 DSR Input
GPIO 4 RTS Output
GPIO 5 DTR Output
GPIO 6 TXD Output
GPIO 7 RXD Input
GPIO 8 TXD for port 2 Output
GPIO 9 RXD for port 2 Input
![](asset-73.png)
set group
Chapter 2 Command Descriptions 115
set group
Devices
supported This command is supported in Digi Cellular Family products Digi Connect
WAN and Digi Connect RG only.
Purpose Used to create and manage user groups. You can use “set group” to do the
following:
• Add a group. A maximum of 32 groups can be defined.
• Remove groups.
• Change group configuration attributes.
• Display group configuration attributes.
In order to apply a common set of user settings to more than one user, it
may be desirable to create a group with the required settings and then
associate that group with multiple users. If a user is a member of one or
more groups, the user's effective permissions are the maximum of the
permissions of the user and all of the groups to which the user belongs.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-group=read” to display group configuration attributes,
and “set permissions s-group=rw” to display and set group configuration
attributes. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax Add a group
set group add id=number newname=string
Remove a group
set group remove {id=range|name=string}
Change group configuration attributes
set group {id=range|name=string} [newname=string]
[commandline={on|off}] [menu={none|index|name}]
[defaultaccess={none|commandline|menu}]
Display group configuration attributes
set group {id=range|name=string}
Display group configuration attributes for all groups
set group
Options add
Add a group. New groups are created with no permissions. A maximum
of 32 groups can be defined.
remove
Remove groups.
id=range
Specifies the ID or range of IDs of the groups to be acted on.
![](asset-74.png)
set group
116 Chapter 2 Command Descriptions
name= string
Specifies the name of the group to be acted on.
newname=string
Specifies a new group name.
commandline={on|off}
Specifies whether the users in the group are allowed to access the
command line of the device.
onUsers can access the command line interface.
offUsers can not access the command line interface.
The default is “on.”
menu={none|index|name}
Specifies whether the users in the group are allowed to access the
custom menu interface of the device and defines the custom menu that
the users will have displayed.
none
Users are not allowed to access the custom menu interface.
index
Users are allowed to access the custom menu interface and will be
displayed the custom menu at the specified index
name
Users are allowed to access the custom menu interface and will be
displayed the custom menu using the specified name.
The default is “none.”
defaultaccess={none|commandline|menu}
Specifies the default access method and interface that users in the group
will be given upon logging into the device. Note that the specified
interface must be enabled for the group and have a valid menu if
specified.
none
The group has no default access to the device and the users are not
allowed to access either the command line interface or the custom
menu interface without explicitly specifying the access method.
commandline
The users will be displayed and given access to the command line
interface assuming the group has command line access rights
enabled.
menu
The users will be displayed and given access to the custom menu
interface and be displayed the custom menu as specified by the
“menu” option.
The default is “commandline.”
![](asset-75.png)
set group
Chapter 2 Command Descriptions 117
Default
permissions When a new group is created, it has no permissions.
Examples Add a new group
#> set group add newname=gurus id=4
Remove group 7
#> set group remove id=7
Set a new group name
#> set group id=4 newname=gurus
Set a group with command line access rights
#> set group id=4 commandline=on defaultaccess=commandline
Set a group with custom menu access rights to access the “my_menu”
custom menu
#> set group name=gurus menu=my_menu defaultaccess=menu
See also • "User Models and User Permissions in Digi Connect Products" on page
14.
• "newpass" on page 51
• "revert" on page 61.
• "set menu" on page 132.
• "set permissions" on page 157.
• "set user" on page 220.
• "show" on page 249.
![](asset-76.png)
set host
118 Chapter 2 Command Descriptions
set host
Device support This command is supported in all products.
Purpose Configures a name for the device, also known as a host name, or displays
the current host name for the device.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-host=read” to display the current host name, and
“set permissions s-host=rw” to display and set the host name. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax Configure a host name for the device
set host name=name
Display the current host name
set host
Options name=name
The name for the device. The name can be up to 32 characters long, and
can contain any alphanumeric characters, and can also include the
underscore ( _ ) and hyphen ( -) characters.
See also • "show" on page 249.
![](asset-77.png)
set ia
Chapter 2 Command Descriptions 119
set ia
Device support This command is supported in Digi Connect WAN IA, Digi Connect SP,
Digi Connect Wi-SP, Digi Connect ME4, Digi Connect Wi-ME,
Digi Connect EM, Digi Connect Wi-EM.
Purpose Configures selected Digi devices to support special parsing and bridging of
Industrial Automation (IA) protocols. For example, it enables the Digi
device to function as a Modbus/TCP to serial Modbus Bridge. Command
options allow for configuring:
• Protocol details of serial-port connected devices
• Protocol details of network-based masters
• Destination tables and route entries within the tables that define how
protocol requests are forwarded to one of many slaves for a response.
Supported IA protocols include Modbus/RTU and Modbus/ASCII on the
serial port or encapsulated within TCP/IP or UDP/IP, and Modbus/TCP
transported by either TCP/IP or UDP/IP.
For more information on Industrial Automation, see the IA application help
available at this URL:
http://www.digi.com/support/ia
Displaying current IA settings is best done by using the “show” command,
as shown in the Syntax section below.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-ia=read” to display the current IA settings, and
“set permissions s-ia=rw” to display and configure IA settings. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax There are several variants of syntax for the “set ia” command, depending
on whether the command is being used to configure serial port-connected
devices, network-based masters, or destination tables and route entries
within destination tables. These syntax descriptions and their option
descriptions are presented separately.
Factory defaults for Industrial Automation settings
The factory defaults for Industrial Automation settings are for a Modbus
bridge with Modbus/RTU serial slaves attached. This configuration is also
automatically created if you change the serial port profile to IA from another
profile and there is no existing IA configuration. The default configuration
is:
• The IP address is assigned by DHCP client (there is no fixed IP
address).
• Internal DHCP server is disabled (off).
• serial “term” login is disabled (off) (you cannot log into the serial port).
• “set ia serial=1” assumes Modbus/RTU slaves are attached at
9600:8,N,1. The protocol selected on the serial port is matched by an
![](asset-78.png)
set ia
120 Chapter 2 Command Descriptions
implied network master encapsulated on TCP and UDP port 2101. So
by default, incoming Modbus/RTU in TCP or UDP port 2101 is enabled.
• “set ia master=1” enables incoming Modbus/TCP masters.
• “set ia master=2” enables incoming Modbus/UDP masters (this is
Modbus/TCP format by UDP port 502).
• “set ia table” assumes slaves 1 to 32 are on the serial port. Slave
address (or Unit ID or Bridge Index) zero will be treated as 1. Slave
addresses 33 to 254 are assumed to be Modbus/TCP slaves on the
local Ethernet subnet, with the slave address used as the last octet of
the IP. For example, if the Digi device has the IP address 10.45.203.1,
then slave 75 is assumed to be a Modbus/TCP server at 10.45.203.75
on the local Ethernet.
Configure serial-port connected devices (set ia serial)
set ia serial=range [serial options] [modbus options]
[serial options]:
type={master|slave}
table=1..8
protocol={modbusrtu|modbusascii}
messagetimeout=100-99999 ms
slavetimeout=10-99999 ms
chartimeout=3-99999 ms
idletimeout={0=disabled|1-99999 seconds}
priority={high|medium|low}
[modbus options]:
errorresponse={on|off}
broadcast={on|off|replace}
fixedaddress={auto|1-255}
To set the baud rates for the port, see "set serial" on page 189.
To enable IA protocols, set the serial port profile to “ia.” see "set profile" on
page 172.
Configure network-based masters (set ia master)
set ia master=range
state={on|off}
active={on|off}
type={tcp|udp}
ipport=ip port
table=1..8
protocol={modbusrtu|modbusascii|modbustcp}
messagetimeout=100-99999 ms
chartimeout=3-99999 ms
idletimeout={0=disabled|1-99999 seconds}
priority={high|medium|low}
![](asset-79.png)
set ia
Chapter 2 Command Descriptions 121
Configure destination tables and route entries (set ia table)
set ia table=range [table options]
[route=range [route options]]
[table options]:
state={on|off}
name=string
addroute=route index
removeroute=route index
moveroute=from_route_index,to_route_index
[route options]:
active={on|off}
connect={active|passive}
protaddr=protocol address range
type={discard|ip|mapto|nopath|serial}
protocol={modbusrtu|modbusascii|modbustcp}
port=serial port
transport={tcp|udp}
ipaddress=ip address
ipport=ip port
replaceip={on|add|sub|off}
mapto=protocol address
slavetimeout=10-99999 ms
chartimeout=3-99999 ms
idletimeout={0=disabled, 1-99999 seconds}
reconnecttimeout=0-99999 ms
Display current IA settings
To display current IA settings, the “show” command is recommended
instead of a “set ia” command with no options:
show ia all
Options Options for configuring serial-port connected devices (set ia serial)
serial=range
Specifies that the serial settings apply to the specified serial port or range
of serial ports. The default is port 1, and on a single-port device, entering
serial is the same as serial=1.
[serial options]
The serial settings, which include:
state={on|off}
Enables the IA serial settings. Setting to off risks the configuration
being deleted.
active={on|off}
To temporarily stop processing the serial port, set “active” to “off.” The
configuration will remain valid and saved.
type={master|slave}
Defines whether the serial device attached is acting as a master or a
slave.
![](asset-7a.png)
set ia
122 Chapter 2 Command Descriptions
table=1..8 (applies to master only)
Defines which table is used to route messages to their destination.
This option applies only to master-attached devices.
protocol={modbusrtu|modbusascii}
The protocol being used by the serial device. The serial protocol also
affects the implied incoming network master on TCP and UDP ports
2101.
modbusrtu
Modbus/RTU – 8-bit binary per www.modbus-ida.org specification.
modbusasscii
Modbus/ASCII – 7-bit ASCII per www.modbus-ida.org
specification.
messagetimeout=100-99999 ms (applies to master only)
When messages are received from remote clients, this option defines
the time to allow the message to be answered. This includes both the
queuing and slave response delays, and this should be set to slightly
less than the timeout of the remote client. After this time, the Digi
device assumes the remote client no longer wants a response. The
range is 100 to 99999 milliseconds. The default is 2500 milliseconds.
slavetimeout=10-99999 ms (applies to slave only)
After all bytes of the message have been sent to the slave device, this
is the time to wait for the first byte of a response. Note that the serial
shift times are not included within this timeout. The range is 10 to
99999 milliseconds. The default is 1000 milliseconds.
chartimeout=3-99999 ms (applies to master or slave)
After a first byte is received, this is the time to wait for additional bytes
to either consider the message complete or to be aborted. The default
is protocol-specific, but usually 50 milliseconds.
idletimeout={0=disabled|1-99000 seconds}
The device aborts a connection on the implied incoming master
sockets after the remote client has been idle for this time. The time is
saved in seconds, and the best use for this timeout is to speed up fault
recovery. For example, many wide-area networks can suffer
shutdowns without the Digi device detecting it. Using the idle timeout
speeds up detection of lost TCP connections. The range is 1 to 99999
seconds. The default is 5 minutes.
![](asset-7b.png)
set ia
Chapter 2 Command Descriptions 123
priority={high|medium|low}
Normally messages are processed in a fair round-robin scheme. This
becomes unfair when one master acts as many – for example opening
16 TCP sockets to talk to 16 slaves contrasted to a second master
using a single TCP socket to talk to 16 slaves. In this situation, the
device assumes it has 17 masters and in effect the first master will
have 16 requests answered for every one the second master
succeeds in getting answered. This option can be used to adjust the
handling of serial master requests. For example, set the serial master
to High and the network masters to medium. The effectiveness of this
option depends on the protocol behavior – so while some Modbus
systems will find it useful, it has no effect on most Rockwell protocols.
high
A high-priority master can get up to 50 percent of the bandwidth –
of course you cannot have too many high-priority masters. All high-
priority masters with queued messages get one message serviced
before any low or medium priority masters get any service.
medium
If a high-priority master has queued messages, then one medium-
priority master gets one message serviced before all the high-
priority masters are offered service again. If only medium-priority
masters exist (which is the default setting), then all masters are
serviced in a round-robin manner.
low
Low-priority masters only get service when no High- or Medium-
priority master has messages to service.
The default is “medium.”
![](asset-7c.png)
set ia
124 Chapter 2 Command Descriptions
[modbus options]
The configuration options specific to the Modbus protocol, which include:
errorresponse={on|off}
Controls behavior for common run-time errors such as no response
from the slave device. By default, “errorresponse=off” for serial
Modbus protocols, since most masters assume no response when
errors occur. Having this option off also actively filters out returning
Modbus exception codes 0x0A and 0x0B from remote Modbus/TCP
slaves.
broadcast={on|off|replace}
Specifies how to handle incoming requests with a slave address set to
the broadcast value. For Modbus, this is 0. The default is to replace 0
with 1, which was selected to overcome the fact that many Modbus/
TCP clients always send requests to unit ID zero (0) and do not want
this treated as a broadcast.
on
Tells the Digi device to send requests as broadcast to the
destination device(s) and not expect any response message.
offTells the Digi device to throw away the broadcast request.
replace
Changes a broadcast request to a normal request by replacing the
unit ID 0 with a value of 1.
fixedaddress={auto|1-255}
Used to override the Modbus protocol address (unit ID) with a fixed
address.
auto
When set to “auto,” the protocol address will not be overwritten.
1-255
Setting it to a fixed number from 1-255 forces this value to be used
for all Modbus requests.
The default setting is “auto.”
![](asset-7d.png)
set ia
Chapter 2 Command Descriptions 125
Options for configuring network-based masters (set ia master)
master=range
Specifies the index of the network master to which the master options
apply.
state={on|off}
Enables the IA network master settings.
active={on|off}
Enables or disables the network listener that accepts network
connections.
type={tcp|udp}
Defines whether the incoming connection is TCP (connected) or UDP
(unconnected). The default is “tcp.”
For cellular connections, using UDP/IP can cut 40% to 60% from your
monthly bill.
ipport=ip port
Defines the UDP or TCP port on which to listen for protocol messages.
Modbus/TCP defaults to TCP port 502.
table=1..8
Defines which table is used to route messages to their destination. This
option applies only to master-attached devices.
protocol={modbusrtu|modbusascii|modbustcp}
The protocol used for the connection.
modbusrtu
Modbus/RTU – 8-bit binary per www.modbus-ida.org specification.
modbusascii
Modbus/ASCII – 7-bit ASCII per www.modbus-ida.org specification.
modbustcp
Modbus/TCP – or “Open Modbus” per www.modbus-ida.org
specification. Can be enabled with UDP/IP as well as TCP/IP.
messagetimeout=100-99000 ms
When messages are received from remote clients, this is the time to allow
the message to wait to be answered. This includes both the queuing and
slave response delays, and this should be set to slightly less than the
timeout of the remote client. After this time, the Digi device assumes the
remote client no longer wants a response. The range is 100 to 99000
milliseconds. The default is 2500 milliseconds.
chartimeout=3-99000 ms
After a first byte is received, this is the time to wait for additional bytes to
either consider the message complete or to be aborted. The default is
protocol-specific, but usually 50 milliseconds.
![](asset-7e.png)
set ia
126 Chapter 2 Command Descriptions
idletimeout={0=disabled|1-99000 seconds}
The device aborts a connection after the remote client has been idle for
this time. The time is saved in seconds, and the best use for this timeout
is to speed up fault recovery. For example, many wide-area networks can
suffer shutdowns without the Digi device detecting it. Using the idle
timeout will speed up detection of lost TCP connections. The range is 1
to 99999 seconds. The default is 5 minutes.
priority={high|medium|low}
Normally messages are processed in a fair round-robin scheme. This
becomes unfair when one master acts as many – for example opening
16 TCP sockets to talk to 16 slaves contrasted to a second master
using a single TCP socket to talk to 16 slaves. In this situation, the
device assumes it has 17 masters and in effect the first master will
have 16 requests answered for every one the second master
succeeds in getting answered. This option can be used to adjust the
handling of serial master requests. For example, set the serial master
to High and the network masters to medium. The effectiveness of this
option depends on the protocol behavior – so while some Modbus
systems will find it useful, it has no effect on most Rockwell protocols.
high
A high-priority master can get up to 50 percent of the bandwidth –
of course you cannot have too many high-priority masters. All high-
priority masters with queued messages get one message serviced
before any low or medium priority masters get any service.
medium
If a high-priority master has queued messages, then one medium-
priority master gets one message serviced before all the high-
priority masters are offered service again. If only medium-priority
masters exist (which is the default setting), then all masters are
serviced in a round-robin manner.
low
Low-priority masters only get service when no High- or Medium-
priority master has messages to service.
The default is “medium.”
![](asset-7f.png)
set ia
Chapter 2 Command Descriptions 127
Options for configuring destination tables and route entries (set ia table)
The destination table and routes are used by the incoming master
connections to select which one of many potential slaves a request is to be
answered by.
table=range
Selects one of eight possible tables in which to look up forwarding
information.
[table options]
The configuration options specific to the destination table, which include:
state={on|off}
Enables the IA destination table settings.
name=string
A useful name for the destination table. Default names are “table1,”
“table2,” etc. This option gives you the option to rename the table for
convenience. Note that tables are still handled internally by number.
addroute=route index
Inserts a new route at this index of the table. If an existing route
occupies this index, it is pushed up to a higher index.
removeroute=route index
Destroys the route at this index in the table.
moveroute=from_route_index,to_route_index
Moves the destination route from one route index to another.
route=range
Specifies the index of the route in this table to which the settings apply.
[route options]
The configuration options specific to the route table entries in the
destination table, which include:
active={on|off}
Enables or disables the route in the table.
connect={active|passive}
Defines whether the Digi device attempts immediately to connect to a
remote device (“active”), or waits and only connects on demand
(“passive”). The default is “passive.”
protaddr=protocol address range
Defines the range of protocol address(es) that will be forwarded to this
destination entry in the table. You can specify a single address or an
inclusive range. The permitted values are defined by the protocol. The
table is scanned from the first route index to the last, stopping at the
first route with the appropriate protocol address. So duplicates or
overlapping ranges can exist, but the route with the lowest index will
be used.
![](asset-80.png)
set ia
128 Chapter 2 Command Descriptions
type={discard|ip|mapto|nopath|serial}
Defines the type of destination for this route.
discard
Messages destined for this route entry are discarded without error.
ip Messages destined for this route entry are forwarded to the entered
IP address. If you enter the IP address as 0.0.0.0, the Digi device’s
IP address is used to fill in the IP address, and the “replaceip”
function is applied. For example, if the IP is 0.0.0.0, the Digi device’s
IP address is 143.191.23.199, and the protocol address of the
message is 45, then the remote IP address used will be
143.191.23.45.
mapto
Messages destined for this route entry are reevaluated as-if having
the protocol address configured within this entry.
nopath
Messages destined for this route entry are returned to sender with
a protocol-defined error message.
serial
Messages destined for this route entry are forwarded to a serial
port.
protocol={modbusrtu|modbusascii|modbustcp}
The protocol used for the connection.
modbusrtu
Modbus/RTU – 8-bit binary per www.modbus-ida.org specification.
modbusascii
Modbus/ASCII – 7-bit ASCII per www.modbus-ida.org
specification.
modbustcp
Modbus/TCP – or “Open Modbus” per www.modbus-ida.org
specification.
Can be enabled with UDP/IP as well as TCP/IP.
port=serial port
Defines the serial port for the route table entry. This option applies only
if the route “type=serial.”
transport={tcp|udp}
Defines whether the outgoing connection is TCP (connected) or UDP
(unconnected). The default is “tcp.” This option applies only if the route
“type=ip.”
ipaddress=ip address
The destination IP address of the entry. This option applies only if the
route “type=ip.”
![](asset-81.png)
set ia
Chapter 2 Command Descriptions 129
ipport=ip port
The UDP or TCP port on which to listen for protocol messages.
Modbus/ TCP defaults to TCP port 502. This option applies only if the
route “type=ip.”
replaceip={on|add|sub|off}
Specifies whether and how the last octet of the IP address is replaced.
This option applies only if the route “type=ip.”
on
The protocol address is used to replace the last octet of the IP
address. For example, if the table IP is 192.168.1.75 and the
protocol address of this message is 23, the message will be
forwarded to the remote IP 192.168.1.23.
add
sub
If the “add” or “sub” value is set, the protocol address is added or
subtracted from the final octet of the IP address. In the above
example, the result would be 192.168.1.98 or 192.168.1.52,
respectively.
offThe last octet of the IP address is not replaced.
The default is “off.”
mapto=protocol address
Used for destination entries of type “mapto.” This option defines the
protocol address for which to reevaluate this message.
slavetimeout=10-99999 ms
After all bytes of the message have been sent to the slave device, this
is the time to wait for the first byte of a response. The range is 10 to
99999 milliseconds. The default is 1000 milliseconds.
chartimeout=3-99999 ms
After a first byte is received, this is the time to wait for additional bytes
to either consider the message complete or to be aborted. The default
is protocol-specific, but usually 50 milliseconds. In TCP/IP network
context, this can be thought of as the re-fragment time between
packets.
idletimeout={0=disabled, 1-99999 seconds}
The connection is closed after no new messages have been forwarded
to the remote slave (server) for this idle time. The time is saved in
seconds. The range is 0 to 99999 seconds, where 0 means never
close this connection. The default is 5 minutes.
reconnecttimeout=0-99999 ms
If the connection to the remote node fails and “connect=active,” this
time is used to delay attempts to reconnect. The default is 2500
milliseconds.
![](asset-82.png)
set ia
130 Chapter 2 Command Descriptions
Examples Serial port configuration settings
The following “set ia” commands show the default serial-port configuration
settings for the Digi Connect WAN IA:
set ia serial=1 active=on type=slave protocol=modbusrtu table=1
set ia serial=1 messagetimeout=2500 slavetimeout=1000 chartimeout=20
set ia serial=1 priority=medium idletimeout=0
set ia serial=1 errorresponse=off broadcast=replace fixedaddress=0
set ia table=1 route=1 active=on type=serial protaddr=0-32 port=1
Note that future Digi Connect WAN IA firmware releases will expose these
configuration settings in the Web user interface.
Enable a Modbus/RTU serial master
To enable a Modbus/RTU serial master instead, change the configuration
settings by entering the following “set ia” commands via Telnet. These
“set ia” commands change the serial device type from slave to master. In
addition, to handle cellular latency, a timeout value of 31 seconds or longer
is needed. In addition, the first route, which forwards requests to the serial
port, can be turned off.
set ia serial=1 type=master messagetimeout=31000
set ia table=1 route=1 active=off
Additional examples
For more examples of the “set ia” command, see the application note
“Remote Cellular TCP/IP Access to Modbus Ethernet and Serial Devices”
(Part Number 90000773) available at available from digi.com Support
page: http://www.digi.com/support/ia
See also • "revert" on page 61. The “revert ia” command options revert any
existing IA configuration settings.
• "set profile" on page 172. The “ia” port profile configures a serial port for
controlling and monitoring various IA devices and PLCs.
• "set serial" on page 189.
• "show" on page 249 for displaying the current IA configuration settings.
• For more information on Industrial Automation, see the IA application
help available at this URL: http://www.digi.com/support/ia
![](asset-83.png)
set login
Chapter 2 Command Descriptions 131
set login
Device support This command is currently supported in all Digi Connect Family devices
except Digi Connect ES, Cellular Family products, and
ConnectPort Display.
Purpose Suppresses the user login for a Digi Connect device.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the login settings: “set permissions s-login=read”
• For a user to display and set login settings: “set permissions s-login=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax set login [suppress={on|off}]
Options suppress={on|off}
Specifies whether the user login is suppressed for the Digi Connect
device.
onSuppress login. The Digi Connect device uses the one-user model, as
described in "User Models and User Permissions in Digi Connect
Products" on page 14.
offDo not suppress login. The Digi Connect device uses the two-user
model, as described in "User Models and User Permissions in Digi
Connect Products" on page 14.
See also • "revert" on page 61.
• "show" on page 249.
• "User Models and User Permissions in Digi Connect Products" on page
14.
![](asset-84.png)
set menu
132 Chapter 2 Command Descriptions
set menu
Devices
supported This command is currently not supported in any Digi Connect Family
devices.
Purpose The “set menu” command is used to create and modify custom menus. For
example, you can use custom menus to present a set of actions to users,
or display a limited set of commands to users for security purposes.
There are several modes of using the “set menu” command:
• To update global settings for custom menus.
• To add or update custom menus.
• To add or update individual items in a custom menu.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-menu=read” to display custom menu settings, and
“set permissions s-menu=rw” to display and set custom menu settings. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax Updating Global Settings
set menu [quit_key=key] [quit_label=string] [previous_key=key]
[previous_label=string] [presskey_label=string]
Adding/Updating Custom Menus
set menu range=1-32|name=string [newname=string]
[title=string] [subtitle=string] [sortby={none|key|label}]
[columns=1-5] [direction={horizontal|vertical}]
Adding/Updating Custom Menu Items
set menu range={1-32)|name=string} [item=1-32] [key=key]
[label=string] [{command=string|submenu=string}]
Options Options for Updating Global Settings
quit_key=key
The key and text displayed on the custom menu next to the “quit_label”
that allows a user to quit the custom menu and close the associated
connection. The menu is closed when this key is pressed by the user.
The key is either 0-9, a-z, or A-Z. The default is “Q.” The key is case
insensitive; therefore, the keys “A” and “a“ will act the same.
![](asset-85.png)
set menu
Chapter 2 Command Descriptions 133
quit_label=string
The text displayed on the custom menu next to the “quit_key” that allows
a user to quit and close the custom menu. The string is a short
description. If the string contains spaces, enclose it in double quotes. The
default is “Quit.”
previous_key=key
The key and text displayed on the custom menu next to the
“previous_label” that allows a user to return to the previous menu when
they have previously selected a submenu. This option is only shown and
only valid when the displayed menu is an active submenu such that
pressing this key will return the user to the original menu. The default is
“R.“ The key is case insensitive; therefore, the keys “A” and “a“ will act
the same.
previous_label=string
The text displayed on the custom menu next to the “previous_key” that
allows a user to return to the previous menu when the current menu is a
submenu that was displayed when issuing a submenu command on
another menu. If the string contains spaces, enclose it in double quotes.
The default is “Return to Previous Menu.”
presskey_label=string
The text displayed after a user has finished an issued command. After the
user selects an option that executes a command, the command output
will be displayed until the command completes. At this time, processing
will be stopped and this text will be shown to inform the user to press any
key in order to continue. After a key is pressed, the custom menu will
once again be shown. If the string contains spaces, enclose it in double
quotes. The default is “Press any key to continue...”
Options for Adding/Updating Custom Menus
range=1-32
The index of the custom menu to create or update. A maximum of 32
menus can be created, and these menus are assigned index values 1 to
32. The index is solely used as a way to identify a custom menu by direct
index without having to type in a complete name. When creating a new
menu, both the “range” and the “newname” options must be specified.
When updating a custom menu, only the “range” or the “name” option
must be specified, but not both.
name=string
A short descriptive string used to identify a menu. The string is used only
to identify a menu when linking a user or other custom menu to this menu.
This option can be used rather than the “range” option when updating a
custom menu. If the string contains spaces, enclose it in double quotes.
![](asset-86.png)
set menu
134 Chapter 2 Command Descriptions
newname=string
A short descriptive string used to identify a menu. This option is used to
create a new menu or to change the name of an existing menu. When a
new menu is being created, this option must be specified along with the
“range” option.
When an existing menu name is being changed, this option must be
specified along with either “range” or “name,” where “name” is the current
name of the menu.
If the string contains spaces, enclose it in double quotes.
title=string
subtitle=string
The title and optional subtitle for a particular menu. The title is displayed
above the custom menu and the subtitle, if specified, is displayed
immediately below it. These strings are shown to the user accessing the
custom menu as a means to identify, explain, or describe a custom menu.
Note that when creating a new custom menu, the “title” option is required.
If the string contains spaces, enclose it in double quotes.
sortby={none|key|label}
The method by which menu items for the custom menu are ordered and
displayed to the user.
none
Organizes the menu items and display them in the order in which they
are defined.
key
Sorts the menu items by the keys assigned to the menu items. The sort
is case-insensitive.
label
Sorts the menu items based on an alpha-numeric sort of the labels
assigned to the menu label.
columns=1-5
The number of columns to display the menu items in to the user. This
option is used in order to help avoid scrolling by the user. For instance, a
custom menu with many entries may want to display the menu items over
3 columns whereas a custom menu with only a few menu items will
appear better using single column. Note that when using multiple
columns an attempt should be made to avoid long menu item labels to
help avoid possible horizontal scrolling. The default is 1.
![](asset-87.png)
set menu
Chapter 2 Command Descriptions 135
direction={horizontal|vertical}
The direction in which to display and arrange menu items. This option
only applies when the value of the “columns” option is more than 1 since
a single column has no sense of direction other than vertical.
horizontal
The items will be displayed in order left-to-right first, then vertical.
vertical
The items will be displayed top-to-bottom first, then left-to-right.
In other words, the following graphic on the left is done using horizontal
direction while the one on the right uses vertical.
ABC ADG
DEF BEH
GHI CF I
The default is “horizontal.”
Options for Adding/Updating Custom Menu Items
range=1-32
The index of the custom menu to add menu items to. Either the “range”
or “name” option can be specified to add or update menu items for a
particular menu.
name=string
The name of the custom menu to add or update menu items for. This
option can be used rather than “range.” If the string contains spaces,
enclose it in double quotes.
item=1-32
The index of the menu item to add or update. There are a maximum of
32 menu items for a particular custom menu and are indexed 1 to 32.
key=key
The key to assign to the menu item. This key is displayed on the custom
menu next to the “label” value, and is used to select the particular menu
item. The user presses this key to select the corresponding menu item.
The key must be unique to the custom menu, so that no two menu items
for the same custom menu share the same key. The keys assigned to the
global settings for “quit_key” and “previous_key” are reserved, and may
not be assigned to a menu item.
label=string
The text displayed on the custom menu next to the “key” value that
describes the action that the menu item will take. When using multiple
columns with a custom menu (specified by the “columns” option), it is in
the best interest to keep these strings short in length to avoid scrolling. If
the string contains spaces, enclose it in double quotes.
![](asset-88.png)
set menu
136 Chapter 2 Command Descriptions
command=string
The command that is executed when this menu item is selected. This
may be any valid command on the CLI (command line interface). The
user accessing the custom menu must have the necessary permissions
for the supplied command in order to properly execute the command.
Note that this option may not be combined with the “submenu” option. If
the string contains spaces, enclose it in double quotes.
submenu=string
The menu displayed to the user upon selecting the menu item.
Submenus allow multi-level menus to exist, and grouping of information
so that a user may access one or more submenus each with their own
distinct menu items. The string is the menu name identifying the custom
menu to link to. The menu must have already been created. Note that this
option may not be combined with the “command” option. If the string
contains spaces, enclose it in double quotes.
Examples Updating Global Settings
#> set menu quit_key=Q quit_label=”Quit” previous_key=R previous_label=”Return
to Previous Menu” presskey_label=”Press any key to continue...”
Adding/Updating Custom Menus
Adding a new custom menu (implies that index 2 is not yet created):
#> set menu range=2 newname=my_menu title=”My Menu” sortby=key columns=2
direction=horizontal
Updating an existing menu with a new menu name:
#> set menu name=my_menu newname=admin_menu
Updating an existing menu with new settings:
#> set menu name=admin_menu title=”Administration Menu” subtitle=”Select an
Option”
Adding/Updating Custom Menu Items
Adding a menu item for a custom menus (implies that index 1 is not yet
created):
#> set menu name=admin_menu item=1 key=1 label=”Connect Port 1”
command=”connect 1”
Updating a menu item to display another submenu:
#> set menu name=my_menu item=2 key=A label=”Go to Admin Menu”
submenu=”admin_menu”
See also • "set user" on page 220.
• "revert" on page 61.
• "show" on page 249.
![](asset-89.png)
set mgmtconnection
Chapter 2 Command Descriptions 137
set mgmtconnection
Devices
supported This command is supported in all products except Digi Connect ES and
ConnectPort Display.
Purpose Configures or displays Connectware Manager server connection settings.
The Connectware Manager server allows devices to be configured and
managed from remote locations. These connection settings set up the
connection to the Connectware Manager server so the Digi device knows
how to connect to the server.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the Connectware Device Protocol connection
settings: “set permissions s-mgmtconnection=read”
• For a user to display and set Connectware Device Protocol connection
settings: “set permissions s-mgmtconnection=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure Connectware Manager server connection settings
set mgmtconnection [svraddr[1-8]=string]
[conntype={client|timed|serverinitiated}]
[connenabled={on|off}]
[timedperiod=period]
[timedoffset={immediate|oneperiod|randomtime}]
[lkaupdateenabled={on|off}]
[clntreconntimeout={none|timeout]
Display Connectware Manager server connection settings
set mgmtconnection
Options svraddr[1-8]=string
Used to specify one of eight possible Connectware Manager server
addresses. When the device server attempts to connect to a
Connectware Manager, it tries the server addresses in this list in the
order 1-8.
conntype={client|timed|serverinitiated}
Used to specify the connection type.
client
This is a client connection.
timed
This is a timed connection.
serverinitiated
This is a server-initiated connection.
connenabled={on|off}
Used to specify whether or not this instance is enabled for use.
![](asset-8a.png)
set mgmtconnection
138 Chapter 2 Command Descriptions
onEnables this instance for use.
offDisables this instance for use.
timedperiod=period
For a timed connection, this option is used to specify the time interval in
minutes between the device server's attempts to connect to the
Connectware Manager server. If a device server is already in a
connection to a Connectware Manager when the time interval expires, it
will not start a new connection at that time. Rather, the device server will
start a new timed period timer, and it will again check whether it needs to
connect to the Connectware Manager when that new timer expires.
timedoffset={immediate|oneperiod|randomtime}
For a timed connection, this option is used to specify when the first timed
connection (to a Connectware Manager) should be attempted after the
device server boots.
immediate
Attempt to connect immediately.
oneperiod
Wait one full timed period, then attempt to connect.
randomtime
Wait some random interval of time, between 0 and the full timed
period, then attempt to connect.immediate
lkaupdateenabled={on|off}
In conjunction with a server-initiated connection, this option enables or
disables a connection to a Connectware Manager server to inform that
server of the IP address of the device server. This permits the
Connectware Manager to connect back to the device server, or to
dynamically update a DNS with the IP address of the device.
onEnables "last known address" connections to the Connectware
Manager.
offDisables "last known address" connections to the Connectware
Manager.
![](asset-8b.png)
set mgmtconnection
Chapter 2 Command Descriptions 139
clntreconntimeout={none|timeout}
Specifies the retry timeout interval, in seconds, for a last-known-address
(LKA) update, if the LKA update fails.If and LKA update fails, the interval
configured by this option is used as the amount of time to wait before
attempting another LKA update. This option is used for both client-
initiated and server-initiated connections. The keyword “none” turns off
the retry timeout interval feature.
Examples Set values for the client connection
#> set mgmtconnection connenabled=on conntype=client clntreconnecttimeout=50
Display current connection settings
#> set mgmtconnection
See also • "revert" on page 61.
• "show" on page 249.
• For more information on Connectware Manager, see the Connectware
Manager Operator’s Guide, and the Connectware Manager online help.
![](asset-8c.png)
set mgmtglobal
140 Chapter 2 Command Descriptions
set mgmtglobal
Devices
supported This command is supported in all products except Digi Connect ES and
ConnectPort Display.
Purpose The Connectware Manager server allows devices to be configured and
managed from remote locations. This command is used to set or display
the Connectware Manager global settings, or revert the device ID to factory
settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the Connectware Device Protocol global settings:
“set permissions s-mgmtglobal=read”
• For a user to display and set Connectware Device Protocol global
settings: “set permissions s-mgmtglobal=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure Connectware Manager global settings
set mgmtglobal [deviceid={hex string}]
[rcicompressionenabled={on|off}]
[tcpnodelayenabled={on|off}]
[tcpkeepalivesenabled={on|off}]
[connidletimeout={none|timeout value}]
Display Connectware Manager global settings
set mgmtglobal
Revert the Device ID to factory settings
set mgmtglobal revertdeviceid
Options deviceid={hex string}
Used to specify the device ID. The device ID is 32 hexadecimal digits,
preceded by the characters “0x.”
![](asset-8d.png)
set mgmtglobal
Chapter 2 Command Descriptions 141
rcicompressionenabled={on|off}
Configures whether RCI command and response text is compressed,
when both are passed between the Digi device and the Connectware
Manager server. This compression primarily affects the size of the data
passed when settings or state information are formatted as RCI and
conveyed between device and server. Using compression on this RCI
text can reduce the size of passed data, and, for cellular products, reduce
the cost of reading and writing device settings.
When RCI compression is enabled, LIBZ compression is used on RCI
command and response text when it is sent between device and server.
The Connectware Device Protocol itself internally negotiates whether
compression is applied. RCI compression is enabled, or “on” by default
to reduce byte count and cost of sending data. As an example of savings,
typical cellular router settings will compress to about 8% of its original
size, which means that data can be sent in far fewer packets and less
time, than when the uncompressed version of the same data is sent.
The default is “on.” The ability to turn off RCI compression off is provided
for technical support/troubleshooting purposes; for example, if you want
to eliminate the possibility that this compression is causing some sort of
problem.
tcpnodelayenabled={on|off}
Configures whether use of the TCP NODELAY option is disabled by
default for the Connectware Manager connection between device and
server, when configuring the device's TCP socket endpoint for that
connection.
The default is “off.” This default reduces the number of packets sent when
the Connectware Manager connection is established between device
and server. While there is a very slight penalty in terms of added latency,
that penalty is very small compared to the relative high latencies for
cellular network communications. Reducing the packet count reduces the
number of bytes exchanged over the cellular connection, which saves
money. The typical start-up data count is reduced from about 7KB to 4KB
just by disabling TCP NODELAY.
The ability to turn on the TCP NODELAY option is provided for technical
support/troubleshooting purposes.
tcpkeepalivesenabled={on|off}
Enables or disables sending of TCP keep-alive packets over the client-
initiated connection to the Connectware Manager server, and whether
the device waits before dropping the connection. The default is “on.”
TCP keep-alives are performed at the TCP protocol level. The application
(Connectware Manager in this case) that is using that connection does
not know anything about when the TCP keep-alives are sent or received.
The TCP keep-alives simply serve to keep each end of the TCP
connection aware that the connection is still viable, and intermediate
network equipment (NATs in particular) is also made aware that the
connection is still good.
![](asset-8e.png)
set mgmtglobal
142 Chapter 2 Command Descriptions
connidletimeout={none|timeout value}
Enables or disables the idle timeout for the Connectware Manager
connection between device and server. Specifying “none” disables the
idle timeout. Specifying a timeout value enables the idle timeout, which
means the connection will be dropped, or ended, after the amount of time
specified. The default is “on.” The minimum value is 300 and the
maximum 43200.
In contrast to TCP keep-alives, the timeout managed by the
"connidletimeout" option is at the Connectware Manager application
level. The "connidletimeout" option provides a way for the connection to
the Connectware Manager server to be closed if no Connectware
Manager protocol data is sent or received for some period of time. This
capability is particularly useful for server-initiated connections. When a
user at the server side requests that a connection be established to a
device, that user needs to explicitly terminate the connection when they
are done with the device. This timeout permits a way to configure the
device such that a "forgetful user" does not inadvertently leave the
connection in place, which could cost money on a cellular connection if
Connectware or TCP keepalives are enabled and transferred needlessly
between device and server.
revertdeviceid
Reverts the device ID to factory settings. If the device’s MAC address is
GG:HH:JJ:KK:LL:MM, then the device ID is set to
0x0000000000000000GGHHJJffffKKLLMM.
Examples Set the device id
#> set mgmtglobal deviceid=0x0123456789abcdef0123456789abcdef
See also • "revert" on page 61.
• "show" on page 249.
• For more information on Connectware Manager, see the Connectware
Manager Operator’s Guide, and the Connectware Manager online help.
![](asset-8f.png)
set mgmtnetwork
Chapter 2 Command Descriptions 143
set mgmtnetwork
Devices
supported This command is supported in all products except Digi Connect ES and
ConnectPort Display.
Purpose The Connectware Manager server allows devices to be configured and
managed from remote locations. The “set mgmtnetwork” command
configures the network settings for the Digi device’s connection to the
Connectware Manager server so the device knows how to connect to the
server.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the Connectware Device Protocol network
settings: “set permissions s-mgmtnetwork =read”
• For a user to display and set Connectware Device Protocol network
settings: “set permissions s-mgmtnetwork =rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure Connectware Manager network settings
set mgmtnetwork
[networktype={modemppp|ethernet|802.11}]
[connectionmethod={auto|none|mt|mdh|proxy}]
[proxyaddress=string]
[proxyport=port]
[proxylogin=string]
[proxypassword=string]
[proxypersistentconnection={on|off}]
[mtrxkeepalive=time]
[mttxkeepalive=time]
[mtwaitcount=count]
[mdhrxkeepalive=time]
[mdhtxkeepalive=time]
[mdhwaitcount=count]
Display Connectware Manager network settings
set mgmtnetwork
Options [networktype={modemppp|ethernet|802.11}
The type of network to which this command applies.
modemppp
A modem PPP network.
ethernet
An Ethernet network.
802.11
An 802.11 network.
![](asset-90.png)
set mgmtnetwork
144 Chapter 2 Command Descriptions
connectionmethod={auto|none|mt|mdh|proxy}
The Connectware Device Protocol firewall traversal method.
auto
Automatically detect the connection method.
none
No firewall; connect using TCP.
mtConnect using TCP.
mdh
Connect using HTTP.
proxy
Connect using HTTP over proxy.
proxyaddress=string
The proxy host address when the connection method is “proxy.”
proxyport=port
The proxy host port when the connection method is “proxy.”
proxylogin=string
The login string when the connection method is “proxy.”
proxypassword=string
The proxy password when the connection method is “proxy.”
proxypersistentconnection={on|off}
Whether the device server should attempt to use HTTP persistent
connections when the connection method is “proxy.” Not all HTTP
proxies correctly handle HTTP persistent connections. The use of
persistent connections can improve performance of the exchange of
messages between the device server and Connectware Manager, when
that connection is HTTP/proxy. The reason for this is that the same HTTP
connection can be reused for multiple consecutive HTTP requests and
replies, eliminating the overhead of establishing a new TCP connection
for each individual HTTP request/reply, then closing that connection
when the request is complete.
onThe device server should attempt to use HTTP persistent connections.
offThe device server should not attempt to use HTTP persistent
connections.
mtrxkeepalive=time
The transmit keep alive time when connection method is “mt,” where time
is the number of seconds to wait between sending keep-alive messages.
mttxkeepalive=time
The receive keep alive time when connection method is “mt,” where time
is the number of seconds to wait for a keep-alive message from the
Connectware Manager server before assuming the connection is lost.
![](asset-91.png)
set mgmtnetwork
Chapter 2 Command Descriptions 145
mtwaitcount=count
Used to specify the wait count when the connection method is “mt,”
where count is how many timeouts occur before the Digi device assumes
the connection to the Connectware Manager server is lost and drops the
connection.
mdhrxkeepalive=time
Used to specify the transmit keep alive time when the connection method
is “mdh,” where time is the number of seconds to wait between sending
keep-alive messages.
mdhtxkeepalive=time
Used to specify the receive keep alive time when the connection method
is “mdh,” where time is the number of seconds to wait for a keep-alive
message from the Connectware Manager server before assuming the
connection is lost.
mdhwaitcount=count
Used to specify the wait count when the connection method is “mdh,”
where count is how many timeouts occur before the Digi device assumes
the connection to the Connectware Manager server is lost and drops the
connection.
Examples Set instance 1 for proxy connection
#> set mgmtnetwork connectiontype=modemppp connectionmethod=proxy
proxyaddress=”What goes here?” proxyport=40002 proxylogin=”johnsmith”
proxypassword=”testpass” proxypersistentconnection=off
Set instance 2 for mdh connection
#> set mgmtnetwork connectiontype=ethernet connectionmethod=mdh
mdhrxkeepalive=100 mdhtxkeepalive=110 mdkwaitcount=15
Display current Connectware Device Protocol network settings
#> set mgmtnetwork
See also • "revert" on page 61.
• "show" on page 249.
• For more information on Connectware Manager, see the Connectware
Manager Operator’s Guide, and the Connectware Manager online help.
![](asset-92.png)
set nat
146 Chapter 2 Command Descriptions
set nat
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Used to set or display Network Address Translation (NAT) and port/
protocol forwarding settings.
Note that at this time, the only IP protocols for which protocol forwarding is
supported are:
• Generic Routing Encapsulation (GRE, IP protocol 47)
• Encapsulating Security Payload (ESP, IP protocol 50, tunnel mode
only).
Port forwarding is supported for the TCP and UDP protocols.
You can forward a single port or a range of ports. To forward a range of
ports, specify the number of ports in the range using “pocount” option in the
port forwarding entry.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the NAT and port/protocol forwarding settings:
“set permissions s-router=read”
• For a user to display and set the NAT and port/protocol forwarding
settings: “set permissions s-router=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set NAT and port/protocol forwarding settings
set nat [enabled={on|off}]
[maxentries=64-1024]]
[prenabled[1-4]={on|off}]
[prnumber[1-4]={gre|esp}]
[prtype[1-4]=type]
[prip[1-4]=ipaddress]
[poenabled[1-64]={on|off}]
[poproto[1-64]={tcp|udp}]
[pocount=[1-64]=number of ports in range, minimum 1]
[poexternal[1-64]=number of ports in range, minimum 1]
[pointernal[1-64]=number of ports in range, minimum 1]
[poip[1-64]=ipaddress]
Display NAT and port/protocol forwarding settings
set nat
![](asset-93.png)
set nat
Chapter 2 Command Descriptions 147
Options enabled={on|off}
Enables or disables NAT. Note that IP forwarding must be enabled by the
“set forwarding” command for NAT to work.
onEnable NAT.
offDisable NAT.
maxentries=64-1024
The maximum number of concurrent NAT table entries that the device will
support. This setting effectively limits the number of concurrent NAT rules
and sessions that are permitted before disallowing them for resource
constraint purposes. The maximum entries can range from 64 through
1024. The default is 256.
prenabled[1-4]={on|off}
Enables one of the four protocol-forwarding entries.
onEnable this protocol-forwarding entry.
offDisable this protocol-forwarding entry.
prnumber[1-4]={gre|esp}
The IP protocol whose packets will be forwarded for this entry.
gre
Indicates that the Generic Routing Encapsulation (GRE) protocol will
be forwarded.
esp
Indicates that the Encapsulating Security Payload (ESP) protocol will
be forwarded.
At this time, GRE and ESP (tunnel mode only) are the only protocols
supported by the protocol-forwarding feature.
prtype[1-4]=type
This option is deprecated and unused by the device.
prip[1-4]=ipaddress
The IP address to which GRE packets will be forwarded.
poenabled[1-64]={on|off}
Used to enable or disable one of the 64 port forwarding entries.
onEnable this port forwarding entry.
offDisable this port forwarding entry.
![](asset-94.png)
set nat
148 Chapter 2 Command Descriptions
poproto[1-64]={tcp|udp}
The IP protocol associated with this port forwarding entry.
tcp
A TCP port is forwarded.
udp
A UDP port is forwarded.
pocount=[1-64]=number of ports in range, minimum 1
The number of consecutive ports in a port-forwarding range. This option
allows you to forward more than one port in a single port-forwarding
entry. When a range is configured, the first port in the range is specified,
and the full range is indicated in the displayed entry information. The
default is 1.
poexternal[1-64]=number of ports in range, minimum 1
The external (or public) port that will be forwarded for this entry.
pointernal[1-64]=number of ports in range, minimum 1
The internal (or private) port to which packets will be forwarded for this
entry. This value is a port number on the host whose IP address is
specified by the “poip” option value for this entry.
poip[1-64]=ipaddress
The IP address of the host to which packets will be forwarded for this
entry.
Examples Enable NAT and specify settings for port forwarding entry 1
This example command will enable the forwarding of TCP packets
received at port 4009 of the public (PPP) interface of the device server, to
TCP port 7008 of the host whose IP address is 143.191.1.228 on the
Ethernet side of the device server.
#> set nat enabled=on poenabled1=on poproto1=tcp poexternal=4009
pointernal=7008 poip=143.191.1.228
Display NAT and port/protocol forwarding settings
#> set nat
See also • "set forwarding" on page 109.
• "revert" on page 61.
• "show" on page 249.
![](asset-95.png)
set network
Chapter 2 Command Descriptions 149
set network
Devices
supported This command is supported in all Digi Connect products.
Purpose Used to set general network configuration options and display current
network configuration options, including options for IP address settings,
TCP keep-alives, retransmissions of TCP packets, and ARP settings.
The “garp” and “rto_min.” options can be used for optimizing for latency at
the network level.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-network=read” to display network configuration
attributes, and “set permissions s-network=rw” to display and set network
configuration attributes. See "set permissions" on page 157 for details on
setting user permissions for commands.
Syntax Set network configuration options
syntax: set network [ip address options]
[TCP keepalive options]
[TCP retransmit options]
[ARP options]
Where:
[ip address options]:
[ip=device ip address]
[submask=subnet mask]
[gateway=gateway ip address]
[static={on|off}]
[dhcp={on|off}]
[autoip=(on|off)
[dns1=primary dns server ip address]
[dns2=secondary dns server ip address]
[TCP keepalive options]:
[idle=10-86400] (seconds)
[probe_count=5-30]
[probe_interval=10-75] (seconds)
[TCP retransmit options]:
[rto_min=30-1000] (milliseconds)
[rto_max=1-240] (seconds)
[ARP options]:
[arp_ttl=1-20] (minutes)
[garp=30-3600] (seconds)
Display current network configuration options
set network
![](asset-96.png)
set network
150 Chapter 2 Command Descriptions
Options [ip address options]
Set IP address-related options for the Digi device, including:
ip=device ip address
Sets the device IP address when DHCP is off. This option is only
applicable if the “static” option is set to “on.”
gateway=gateway ip
Sets the network gateway IP address.
submask=device submask
Sets the device submask address when DHCP is off. This option is
only applicable if the “static” option is set to “on.”
The following three IP address options have a precedence. That is, if all
three options are turned on, the order of precedence is: “static,” “dhcp,”
“autoip.”
static={on|off}
When enabled, the device uses the specified IP address, gateway
address, and submask. The default is off.
dhcp={on|off}
When enabled, the device attempts to use the DHCP protocol to find
an IP address, gateway address, and submask. The default is “on.”
The "dhcp" option is enabled by default in almost all Digi Connect
devices, except "static" is enabled by default for these: All Digi
Connect WAN products except Digi Connect WAN IA (which is DHCP
default) and ConnectPort WAN VPN.
autoip={on|off}
When enabled, the device attempts to use the Auto IP protocol to find
an IP address, gateway address, and submask. The default is “on.”
dns1=primary dns server ip address
dns2=secondary dns server ip address
For DNS, these options specify the DNS nameservers to use. Name
lookups will be performed using the nameserver specified on “dns1”
first, and if that fails, the nameserver specified on “dns2” will be used.
![](asset-97.png)
set network
Chapter 2 Command Descriptions 151
[TCP keepalive options]
Are options that configure how TCP keep-alive probes are sent.
The keep-alive options (“idle,” “probe_count,” “probe_interval”) should be
configured for various services that are configured by “set service
keepalive={on|off},” or clients such as autoconnect
(“set autoconnect keepalive={on|off}”).
idle=10-86400
The amount of time, in seconds, to wait while not receiving TCP
packets before sending out a keep-alive probe.
probe_count=5-30
The number of TCP keep-alive probes (specially formatted TCP
frames) to send out before closing the TCP connection.
probe_interval=10-75
The amount of time, in seconds, to wait between sending TCP keep-
alive probes.
[TCP retransmit options]
Options that control retransmission of TCP packets, including:
rto_min=30-1000 (milliseconds)
The lower bound or threshold for the TCP retransmission timeout
(RTO), in milliseconds. The default is 1000 milliseconds.
TCP uses progressively larger retransmit values, starting at a
minimum value that is calculated from a sliding window of ACK
response round-trip times that is bounded at the bottom by “rto_min.”
So, essentially, “rto_min” is not necessarily the timeout that will be
used as the starting retransmit timeout, but it is the smallest such value
that could be used.
This affects latency, because lowering “rto_min” ensures that
retransmits take place in less time if they occur. By occurring sooner,
the network is able to recover the lost data in less time at the expense
of possibly retransmitting data that is still in-flight or successfully
received by the other side, but unacknowledged due to a “delayed
ACK” mechanism or something similar. Choosing a value lower than
the default of 1000 milliseconds may help achieve improved latency
performance when retransmissions occur.
rto_max=1-240 (seconds)
The upper bound or threshold for the TCP retransmission timeout
(RTO), in seconds. When one side of a TCP connection sends a
packet and does not receive an acknowledgment from the other side
within the timeout period, the sending station retransmits the packet
and sets an exponential backoff timeout. This is done for each
successive retransmit until the maximum retransmission timeout is
reached. Then, the TCP connection resets.
![](asset-98.png)
set network
152 Chapter 2 Command Descriptions
[ARP options]
Are options that control Address Resolution Protocol (ARP) requests.
arp_ttl=1-20 (minutes)
The initial value of the ARP time-to-live variable, which is the amount
of time that an ARP entry remains in the network ARP cache. When
an ARP cache entry first populated, the ARP time-to-live variable is set
to this value. When the entry has existed in the table for this long
without being updated, another ARP cache request is performed to
make sure that there is not a new a new device at that IP.
garp=30-3600 (seconds)
The frequency of Gratuitous ARP (GARP) announcements. A
Gratuitous ARP is a broadcast announcement to the network of a
device’s MAC address and the IP address being used for it. This
allows the network to update its ARP cache tables without performing
an ARP request on the network.
Gratuitous ARP announcements can affect latency in a limited way,
because some systems stall or dispose of data that is transmitted
during an ARP cache refresh. If this happens, setting the
Gratuitous ARP frequency to be more often than the problem system’s
time-to-live variable can cause it to refresh the cache without needing
to perform a request.
Examples Manually set the device IP address
#> set network ip=10.0.0.1 gateway=255.255.255.0 submask=255.255.255.0
dhcp=off static=on autoip=off
Use DHCP to find an IP address, gateway address, and submask
#> set network static=off dhcp=on
Use DHCP or the Auto IP protocol to automatically configure network
settings
#> set network static=off dhcp=on autoip=on
See also • "revert" on page 61.
• "set autoconnect" on page 81.
• "set dhcpserver" on page 96.
• "set service" on page 191.
• "set wlan" on page 241.
• "show" on page 249.
![](asset-99.png)
set passthrough
Chapter 2 Command Descriptions 153
set passthrough
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures the IP pass-through feature. IP pass-through allows a Digi
Cellular Family device to provide bridging functionality similar to a cable or
DSL modem, where the Digi Cellular Family device becomes “transparent”
to the router or connected device. In this case, the router’s WAN interface
believes it is connected directly to the mobile network, and has no
knowledge that the Digi Cellular Family device is the mechanism providing
that connectivity.
A Digi Cellular Family device configured for IP pass-through, such as a
ConnectPort WAN or Digi Connect WAN, passes its mobile IP address
directly through and to the Ethernet device (router or PC) to which it is
connected through the Ethernet port. From the perspective of the
connected device, the Digi Cellular Family device essentially becomes
transparent (similar to the behavior of a cable or DSL modem) to provide a
bridge from the mobile network directly to the end device attached to the
Digi Cellular Family device.
Since the mobile network address is effectively “passed-through” to the
local device connected to the Ethernet port of the Digi Cellular Family
device, all network access to it is bypassed, with some specific exceptions.
Services disabled when IP pass-through is enabled
When IP pass-through is enabled, the Digi Cellular Family device
effectively disables all router and IP service functionality. Services that are
disabled are:
•NAT
• Port Forwarding
•VPN
• DDNS updates
• Socket Tunnel
• Network Services configuration
Services available when IP pass-through is enabled
The Digi Cellular Family device is effectively transparent to all IP activity
and network access by other devices, with these exceptions:
• It can be accessed via the serial port for configuration using the
command line interface.
• It accepts TCP/IP connections for purposes of configuration by means
of a “pinhole” on the mobile interface.
• It can be accessed by other devices on the local Ethernet segment via
the default IP address of 192.168.1.1.
• Clients such as SureLink, and client/server services such as
Connectware Manager are operational and enabled by default.
![](asset-9a.png)
set passthrough
154 Chapter 2 Command Descriptions
Using Pinholes to Manage the Digi Cellular Family Device
IP pass-through uses a concept called pinholes. You can configure the Digi
Cellular Family device to listen on specific TCP ports, and terminate those
connections at the Digi Cellular Family device for purposes of managing it.
Those ports are called pinholes, and they are not passed on to the device
connected to the Ethernet port of the Digi Cellular Family device. Each
pinhole command option specifies whether the network service and port
are passed on to the device connected to the Ethernet port of the Digi
Cellular Family device, or terminate at the Digi Cellular Family device.
Network services or applications and ports that can be configured as
pinholes include:
• Telnet network service: for accessing the device through a Telnet login
and the command-line.
• SSH network service: for accessing to the device through a Secure
Shell (SSH) login and the command-line.
• HTTP network service: for accessing the device through HTTP and the
Web user interface.
• HTTPS network service: for accessing to the device through HTTPS
and the Web user interface
• SNMP network service: for monitoring and managing the device
through SNMP.
• Connectware Manager application (client-initiated connection)
• Digi SureLink application
For more information on the network services, see "set service" on page
191.
Connectware Manager and Digi SureLink applications are automatically
set up as pinholes so that they continue to work with the Digi Cellular
Family device.
In addition, the Digi Cellular Family device uses a private address on the
Ethernet interface strictly for use in configuration or local access. This
allows a user on the local network to gain access to the Web user interface
or a Telnet session to make configuration changes.
Remote Device Management and IP Pass-through
The Digi Cellular Family device allows you to enable pinholes for specific
ports to allow remote users to manage the Digi Cellular Family device from
the mobile network or open Internet. The Digi Cellular Family device
retains its remote management capabilities using Connectware Manager.
The necessary pinholes are automatically defined when the Digi Cellular
Family device is configured for IP Pass-through.This provides
administrators with the same remote-management capabilities that exist in
Digi remote devices.
![](asset-9b.png)
set passthrough
Chapter 2 Command Descriptions 155
Using the “set service” command with IP Pass-through
You can use the “set service” command to have a network service
terminate both at a port on the Digi Cellular Family device and a different
port on the connected device. For example, you could have the Digi
Cellular Family device terminate the SSH service on port 2222, and the
connected device terminate SSH at port 22. To do so, you would issue a
“set service” command to move the SSH server from listening on port 22 to
listening on port 222. With such a configuration, both the Digi Cellular
Family device an the connected box could respond to SSH.
Syntax Configure IP pass-through mode
set passthrough [state={enabled|disabled}]
[http={pass|terminate}]
[https={pass|terminate}]
[telnet={pass|terminate}]
[ssh={pass|terminate}]
[snmp={pass|terminate}]
[connectware={pass|terminate}]
[surelink={pass|terminate}]
[ping={pass|terminate}]
Display current IP pass-through mode settings
set passthrough
Options state={enabled|disabled}
Enables or disables IP Pass-through.
http={pass|terminate}
Specifies whether the HTTP network service is configured to pass to the
connected device or terminate at the Digi Cellular Family device for
purposes of managing it, known as a pinhole.
https={pass|terminate}
Specifies whether the HTTPS network service is configured to pass to the
connected device (“pass”) or terminate at the Digi Cellular Family device
for purposes of managing it, known as a pinhole (“terminate”).
telnet={pass|terminate}
Specifies whether the Telnet network service is configured to pass to the
connected device (“pass”) or terminate at the Digi Cellular Family device
for purposes of managing it, known as a pinhole (“terminate”).
ssh={pass|terminate}
Specifies whether the SSH network service is configured to pass to the
connected device (“pass”) or terminate at the Digi Cellular Family device
for purposes of managing it, known as a pinhole (“terminate”).
snmp={pass|terminate}
Specifies whether the SNMP network service is configured to pass to the
connected device (“pass”) or terminate at the Digi Cellular Family device
for purposes of managing it, known as a pinhole (“terminate”).
![](asset-9c.png)
set passthrough
156 Chapter 2 Command Descriptions
connectware={pass|terminate}
Specifies whether the Connectware Manager application is configured to
pass to the connected device (“pass”) or terminate at the Digi Cellular
Family device for purposes of managing it, known as a pinhole
(“terminate”). The default is "terminate."
surelink={pass|terminate}
Specifies whether the SureLink application is configured to pass to the
connected device (“pass”) or terminate at the Digi Cellular Family device
for purposes of managing it, known as a pinhole (“terminate”). The default
is "terminate."
ping={pass|terminate}
Specifies whether ICMP echo (ping) requests pass to the connected
device (“pass”) or terminate at the Digi Cellular Family device
(“terminate”). The default is “pass.”
See also • "revert" on page 61.
• "show" on page 249.
• The Digi Cellular Family User’s Guide’s section on IP Pass-through
settings.
• For descriptions of network services and their default network port
numbers, see "set service" on page 191.
• For descriptions of the Connectware Manager application and related
settings, see "set mgmtconnection" on page 137, "set mgmtglobal" on
page 140, and "set mgmtnetwork" on page 143.
![](asset-9d.png)
set permissions
Chapter 2 Command Descriptions 157
set permissions
Devices
supported This command is supported in all Digi Connect Family devices. However,
the extent of its use varies according to the user model implemented in the
Digi Connect product. For Digi Connect products with one or two users, this
command does not apply. It does apply to Digi products with two or more
users. See "User Models and User Permissions in Digi Connect Products"
on page 14 for more information.
Use of command options also depends on the features implemented in Digi
devices. For example, “s-ethernet” is only supported in the wired devices.
Purpose Used to set user permissions associated with various services and
command-line interface (CLI) commands, or display current permission
settings.
Commands without permissions
There are no permissions associated with the following commands:
•close
• exit
• help
•info
• quit
Permissions for the “revert” command
For the “revert” command, the permissions associated with the various
“set” commands are used, except for the “revert all” command variant,
which uses a different mechanism that bypasses the individual “set”
commands.
Permission descriptions
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-permissions=read” to display permissions, and
“set permissions s-permissions=rw” to display and change permissions.
When permissions are set to “set permissions s-permissions=rw,” a user
cannot set another user’s permission level higher than their own level, nor
can they raise their own permission level.
![](asset-9e.png)
set permissions
158 Chapter 2 Command Descriptions
Syntax Set permissions
set permissions [type={user|group}]
{id=range|name=string}
[backup={none|execute}]
[boot={none|execute}]
[connect={none|execute}]
[display={none|execute}]
[dhcpserver={none|execute}]
[buffers={none|r-self|read|rw-self|w-self-r|rw}]
[filesys={none|read|rw}]
[kill={none|execute}]
[newpass={none|rw-self|rw}]
[ping={none|execute}]
[provision={none|execute}]
[reconnect={none|execute}]
[revert-all={none|execute}]
[rlogin={none|execute}]
[s-accesscontrol={none|read|rw}]
[s-alarm={none|read|rw}]
[s-autoconnect={none|r-self|read|rw-self|w-self-r|rw}]
[s-bsc={none|read|rw}]
[s-ddnsupdater=={none|read|rw}]
[s-dhcpserver={none|read|rw}]
[s-ekahau={none|read|rw}]
[s-ethernet={none|read|rw}]
[s-gpio={none|read|rw}]
[s-group={none|read|rw}]
[s-host={none|read|rw}]
[s-ia={none|read|rw}]
[s-login={none|read|rw}]
[s-menu={none|read|rw}]
[s-mgmtconnection={none|read|rw}]
[s-mgmtglobal={none|read|rw}]
[s-mgmtnetwork={none|read|rw}]
[s-network={none|read|rw}]
[s-permissions={none|read|rw}]
[s-pmodem={none|r-self|read|rw-self|w-self-r|rw}]
[s-ppp={none|read|rw}]
[s-profile={none|r-self|read|rw-self|w-self-r|rw}]
[s-rciserial={none|r-self|read|rw-self|w-self-r|rw}]
[s-router={none|read|rw}]
[s-rtstoggle={none|r-self|read|rw-self|w-self-r|rw}]
[s-serial={none|r-self|read|rw-self|w-self-r|rw}]
[s-service={none|read|rw}]
[s-snmp={none|read|rw}]
[s-socket-tunnel={none|read|rw}]
[s-system={none|read|rw}]
[s-tcpserial={none|r-self|read|rw-self|w-self-r|rw}]
[s-term={none|read|rw}]
[s-udpserial={none|r-self|read|rw-self|w-self-r|rw}]
[s-user={none|read|rw}]
[s-vpn={none|read|rw}]
[s-wlan={none|read|rw}]
[status={none|read|rw}]
[telnet={none|execute}]
[vpn={none|execute}]
![](asset-9f.png)
set permissions
Chapter 2 Command Descriptions 159
[who={none|execute}]
[webui={none|execute}
Display current permission settings
set permissions
Options Permission descriptions
Here are the user permissions and their effects on commands.
none
The command cannot be executed.
execute
The command can be executed.
r-self
The user can execute the "display" portions for both commands if the
user is logged in on the specified line.
read
The user can execute the "display" portions for both commands for
any line.
rw-self
The user can execute the "display" and "set" portions for both
commands if the user is logged in on the specified line.
w-self-r
The user can execute the "display" portions for both commands for
any line and the "set" portions for both commands if the user is logged
in on the specified line.
rwThe user can execute the "display" and "set" portions for both
commands for any line.
type={user|group}
Specifies whether the command applies to users or groups. This option
defaults to “user.”
id=range
Specifies the ID or the range of IDs of the users or groups to be acted on.
If omitted, the “name” option must be specified.
name=string
Specifies the name of the user or group to be acted on. If omitted, the “id”
option must be specified.
backup={none|execute}
Permissions for the “backup” command. (See "backup" on page 18.)
boot={none|execute}
Permissions for the “boot” command. (See "boot" on page 19.)
buffers={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “display buffers” and “set buffer” commands. (See
"display buffers" on page 37 and "set buffer" on page 90.)
![](asset-a0.png)
set permissions
160 Chapter 2 Command Descriptions
connect={none|execute}
Permissions for the “connect” command. (See "connect" on page 22.)
dhcpserver={none|execute}
Permissions for the "dhcpserver" command. (See "dhcpserver" on
page 23.)
display={none|execute}
Permissions for the “display” command. (See "display" on page 27.)
filesys={none|read|rw}
Permissions for user access to the Digi Connect product’s file system.
none
The user cannot access the file system.
read
The user can read the file system.
rwThe user can read and write the file system.
kill={none|execute}
Permissions for the “kill” command. (See "kill" on page 49.)
newpass={none|rw-self|rw}
Permissions for the “newpass” command. (See "newpass" on page 51.)
none
The command cannot be executed.
rw-self
The user can set their own password.
rwThe user can set any user’s password.
ping={none|execute}
Permissions for the “ping” command. (See "ping" on page 52.)
provision={none|execute}
Permissions for the "provision" command. (See "provision" on page 53.)
reconnect={none|execute}
Permissions for the “reconnect” command. (See "reconnect" on page
60.)
revert-all={none|execute}
Permissions for the “revert all” command. (See "revert" on page 61.)
Individual “revert” commands are governed by the permissions for that
particular command, but “revert all” uses a different mechanism that
bypasses the individual commands.
rlogin={none|execute}
Permissions for the “rlogin” command. (See "rlogin" on page 66.)
s-accesscontrol={none|read|rw}
Permissions for the “set accesscontrol” command. (See "set
accesscontrol" on page 68.)
![](asset-a1.png)
set permissions
Chapter 2 Command Descriptions 161
s-alarm={none|read|rw}
Permissions for the “set alarm” command. (See "set alarm" on page 70.)
s-autoconnect={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set autoconnect” command. (See "set autoconnect"
on page 81.)
s-bsc={none|read|rw}
Permissions for the "set bsc" command. (See "set bsc" on page 85.)
s-ddnsupdater={none|read|rw}
Permissions for the "set ddns" command. (See "set ddns" on page 92.)
s-dhcpserver={none|read|rw}
Permissions for the "set dhcpserver" command. (See "set dhcpserver" on
page 96.)
s-ekahau={none|read|rw}
Permissions for the “set ekahau” command. (See "set ekahau" on page
104.)
s-ethernet={none|read|rw}
Permissions for the “set ethernet” command. (See "set ethernet" on page
107.)
s-gpio={none|read|rw}
Permissions for the “set gpio” command. (See "set gpio" on page 113.)
s-group={none|read|rw}
Permissions for the “set group” command. (See "set group" on page
115.)
s-host={none|read|rw}
Permissions for the “set host” command. (See "set host" on page 118.)
s-ia={none|read|rw}
Permissions for the "set ia" command. (See "set ia" on page 119.)
s-login={none|read|rw}
Permissions for the "set login" command. (See "set login" on page 131.)
s-menu={none|read|rw}
Permissions for the “set menu” command. (See "set menu" on page 132.)
s-mgmtconnection={none|read|rw}
Permissions for the “set mgmtconnection” command. (See "set
mgmtconnection" on page 137.)
s-mgmtglobal={none|read|rw}
Permissions for the “set mgmtglobal” command. (See "set mgmtglobal"
on page 140.)
s-mgmtnetwork={none|read|rw}
Permissions for the “set mgmtnetwork” command. (See "set
mgmtnetwork" on page 143.)
s-network={none|read|rw}
Permissions for the “set network” command. (See "set network" on page
149.)
![](asset-a2.png)
set permissions
162 Chapter 2 Command Descriptions
s-permissions={none|read|rw}
Permissions for the “set permissions” command itself.
s-pmodem={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set pmodem” command. (See "set pmodem" on
page 164.)
s-ppp={none|read|rw}
Permissions for the “set pppoutbound” command. (See "set
pppoutbound" on page 166.)
s-profile={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set profile” command. (See "set profile" on page
172.)
s-rciserial={none|read|rw}
Permissions for the “set rciserial” command. (See "set rciserial" on page
184.)
s-router={none|read|rw}
Permissions for the “set forwarding” and “set nat” commands. (See "set
forwarding" on page 109 and "set nat" on page 146.)
s-rtstoggle={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set rtstoggle” command. (See "set rtstoggle" on
page 187.)
s-serial={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set serial” and "set switches" commands. (See "set
serial" on page 189 and "set switches" on page 208.)
s-service={none|read|rw}
Permissions for the “set service” command. (See "set service" on page
191.)
s-snmp={none|read|rw}
Permissions for the “set snmp” command. (See "set snmp" on page 198.)
s-socket-tunnel={none|read|rw}
Permissions for the "set socket_tunnel" command. (See "set
socket_tunnel" on page 200.)
s-system={none|read|rw}
Permissions for the “set system” command. (See "set system" on page
211.)
s-tcpserial={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set tcpserial” command. (See "set tcpserial" on page
212.)
s-term=s-term={none|read|rw}
Permissions for the “set term” command. (See "set term" on page 215.)
s-udpserial={none|r-self|read|rw-self|w-self-r|rw}
Permissions for the “set udpserial” command. (See "set udpserial" on
page 216.)
![](asset-a3.png)
set permissions
Chapter 2 Command Descriptions 163
s-user={none|read|rw}
Permissions for the “set user” command. (See "set user" on page 220.)
s-vpn={none|read|rw}
Permissions for the “set vpn” command. (See "set vpn" on page 228.)
s-wlan={none|read|rw}
Permissions for the “set wlan” command. (See "set wlan" on page 241.)
status={none|read|rw}
Permissions for the “status” command. (See "status" on page 254.)
telnet={none|execute}
Permissions for the “telnet,” “mode,” and “send” commands. (See "telnet"
on page 255, "mode" on page 50, and "send" on page 67.)
vpn={none|execute}
Permissions for the "vpn" command. (See "vpn" on page 256.)
who={none|execute}
Permissions for the “who” command. (See "who" on page 258.)
webui={none|execute}
Permissions for access to the Web user interface for a Digi Connect
device.
none
The user cannot use the Web user interface.
execute
The user can access the Web user interface.
Examples Set group permissions
#> set permissions type=group name=gurus newpass=rw-self s-user=read
Set user permissions
#> set permissions id=1 newpass=rw s-user=rw s-group=rw
See also • "User Models and User Permissions in Digi Connect Products" on page
14.
• "set user" on page 220.
• "set group" on page 115.
• "show" on page 249.
![](asset-a4.png)
set pmodem
164 Chapter 2 Command Descriptions
set pmodem
Devices
supported This command is supported in the following products:
• Connect Family: all products
• Digi Cellular Family: All products except Digi Connect WAN.
Not supported in ConnectPort Display.
Purpose Used to configure various options for modem emulation over TCP/IP, and
display current modem-emulation settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the modem emulation settings for the line on which
they are logged in: “set permissions s-pmodem=r-self”
• For a user to display the modem emulation settings for any line:
“set permissions s-pmodem=read”
• For a user to display and set the modem emulation settings for the line
on which they are logged in: “set permissions s-pmodem=rw-self”
• For a user to display the modem emulation settings for any line, and set
modem emulation settings for the line on which the user is logged in:
“set permissions s-pmodem=w-self-r”
• For a user to display and set the modem emulation settings on any line:
“set permissions s-pmodem=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure modem emulation
The connection-type option, "telnet," applies to both incoming and outgoing
calls via the pmodem feature.
set pmodem port=range
[state={on|off}]
[telnet={on|off}]
Display modem-emulation settings
set pmodem [port=range]
Options port=range
Used to specify the serial port. Optional on a single-port device.
state={on|off}
Used to enable or disable modem emulation on a given serial port.
onEnables modem emulation.
offDisables modem emulation.
The default is “off.”
![](asset-a5.png)
set pmodem
Chapter 2 Command Descriptions 165
telnet
Enables or disables Telnet processing on incoming and outgoing
modem-emulation connections.
onEnables Telnet processing.
offDisables Telnet processing.
The default is “off.”
Example #> set pmodem port=1 state=on
See also • "revert" on page 61.
• "show" on page 249.
• Chapter 3, "Modem Emulation Commands" for descriptions of Digi-
specific commands for modem-emulation configurations.
![](asset-a6.png)
set pppoutbound
166 Chapter 2 Command Descriptions
set pppoutbound
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures Point-to-Point Protocol (PPP) outbound connections, or
displays current PPP outbound settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the pppoutbound settings:
“set permissions s-ppp=read”
• For a user to display and set pppoutbound settings:
“set permissions s-ppp=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure PPP outbound connections
set pppoutbound port=range
[state={enabled|disabled}]
[auth_method={none|PAP|CHAP|both}]
[passive={on|off}]
[remote_address={negotiated|ip address}]
[local_address={negotiated|ip address}]
[address_mask=ip address mask]
[default_gateway={yes|no}]
[protocol_compression={on|off}]
[address_compression={on|off}]
[header_compression={on|off}]
[lcp_keepalive={on|off}]
[lcp_ka_quiet_time=(10-86400 seconds)]
[lcp_ka_max_missed_replies={(2-255|0=ignore missed replies)}]
[asyncmap=hex string]
[chap_id=chap id]
[chap_key=chap key]
[pap_id=pap_id]
[pap_password=pap password]
[mru=256-1500]
[mtu=256-1500]
[n{1-4}=phone_number]
[redial_attempts=attempts]
[redial_delay=delay]
[rx_idle_timeout=timeout]
[tx_idle_timeout=timeout]
[init_script=chat script]
[dial_script=chat script]
[login_script=chat script]
[ipcp_dns_enabled={on|off}]
Display PPP outbound settings
set pppoutbound
![](asset-a7.png)
set pppoutbound
Chapter 2 Command Descriptions 167
Options port=range
The physical interface to which the PPP outbound configuration applies.
Required.
state={enabled|disabled}
The state of the interface. The default is “disabled.”
auth_method={none|PAP|CHAP|both}
Determines whether authentication is required for outbound PPP
connections and, if so, what kind.
none
The remote user does not require PPP authentication.
pap
Password Authentication Protocol (PAP) authentication is required.
chap
Challenge Handshake Authentication Protocol (CHAP) authentication
is required.
both
Both CHAP and PAP authentication are required.
The default is “none.” CHAP authentication works between two Digi
Connect products. CHAP will be negotiated to PAP for all other connec-
tions.
passive={on|off}
Specifies whether the device server waits for the remote system to begin
PPP negotiations, or can initiate PPP negotiations on its own.
on
The device server waits for the remote system to begin PPP
negotiations.
off
The device server may initiate PPP negotiations.
The default is “off.”
Do not set both sides of a PPP connection to “passive=on.”
remote_address={negotiated|ip address}
The address of the peer at the other end of the outbound PPP
connection. Either a specific address or the keyword “negotiated” can be
specified; “negotiated” means that the address will be accepted from the
peer. An IP address of all zeroes is equivalent to specifying the keyword
“negotiated.”
local_address={negotiated|ip address}
The IP address of the local end of the PPP outbound connection. Either
a specific address or the keyword “negotiated” can be specified;
“negotiated” means that the address will be accepted from the peer. An
IP address of all zeroes is equivalent to specifying the keyword
“negotiated.”
![](asset-a8.png)
set pppoutbound
168 Chapter 2 Command Descriptions
address_mask=ip address mask
The IP mask to apply to the address specified on the “remote address”
and “local address” options. When you specify a specific IP address on
the “remote address” and “local address” options, this option modifies the
meaning of the IP address for routing purposes. The default is
255.255.255.255.
default_gateway={yes|no}
Selects whether to use the PPP interface as the default route. The default
is “no.”
protocol_compression={on|off}
Specifies whether the device server attempts to negotiate protocol
compression on PPP connections.
on
The device server attempts to negotiate protocol compression on PPP
connections.
off
The device server will not negotiate protocol compression.
The default is “on.”
address_compression={on|off}
Specifies whether the device server attempts to negotiate address
compression on PPP connections.
on
The device server attempts to negotiate address compression.
off
The device server does not attempt to negotiate address
compression.
The default is “on.”
header_compression={on|off}
Specifies whether the device server attempts to negotiate IP protocol
header compression on PPP connections. This is commonly referred to
as Van Jacobsen (VJ) header compression.
on
The device server attempts to negotiate IP protocol header
compression.
off
The device server does not attempt to negotiate IP protocol header
compression.
The default is “on.”
![](asset-a9.png)
set pppoutbound
Chapter 2 Command Descriptions 169
lcp_keepalive={on|off}
Specifies whether the device server sends Link Control Protocol (LCP)
echo requests after a “quiet” interval, in order to test the PPP link and/or
keep it alive. “Quiet” means not having received any bytes over the PPP
link for a specified time interval, which is set by the “lcp_ka_quiet_time”
option. In PPP networks that support LCP echoes, an LCP echo reply is
returned by the remote end of the PPP connection.
Even if LCP keepalives are disabled in this device (by
“lcp_keepalive=off”), the device will still reply to LCP echo request
messages it may receive from the remote side of the PPP connection by
sending an LCP echo reply message. But the device itself will not
originate any LCP echo request messages.
The options are:
onThe device server sends LCP echo requests after a configurable
“quiet” interval, set by the “lcp_ka_quiet_time” option.
offThe device server does not send LCP echo requests.
lcp_ka_quiet_time=10-86400 seconds
Specifies the “quiet” interval, in seconds, after which the device server
sends an LCP echo request. “Quiet” means not having received any
bytes over the PPP link for the interval specified by this option.
lcp_ka_max_missed_replies={2-255|0=ignore missed replies}
Specifies how many consecutive echo replies may be missed before the
device server disconnects the PPP link. A value of 0 (zero) specifies that
the device server should not act on missed LCP echo replies by
disconnecting the PPP link. Note that if bytes of any kind, LCP echo reply
or otherwise, are received, the PPP link is deemed to be active, and the
“missed LCP echo replies” count is reset to zero.
asyncmap=hex string
A mask for PPP connections that defines which of the 32 asynchronous
control characters to transpose. These characters, in the range 0x00 to
0x1f, are used by some devices to implement software flow control.
These devices may misinterpret PPP transmission of control characters
and close the link. This mask tells PPP which characters to transpose.
The default is FFFF, which means transpose all 32 control characters.
Any combination is valid. The following are the masks most likely used:
FFFFFFFF
Transpose all control characters.
00000000
Transpose none.
000A0000
Transpose Ctrl-Q and Ctrl-S.
![](asset-aa.png)
set pppoutbound
170 Chapter 2 Command Descriptions
chap_id=chap id
A character string that identifies the outbound PPP user using CHAP
authentication. This is equivalent to a user or login name. The string must
be 32 or fewer characters and must be recognized by the peer.
chap_key=chap key
A character string that authenticates the outbound PPP user using CHAP
authentication. This is equivalent to a password. The string must be 16
or fewer characters and must be recognized by the peer.
pap_id=pap id
A character string that identifies the outbound PPP user using PAP
authentication. This is equivalent to a user (or login) name. The string
must be 32 or fewer characters and must be recognized by the peer.
pap_password=pap password
A character string that authenticates the outbound PPP user using PAP
authentication. This is equivalent to a password. The string must be 16
or fewer characters and must be recognized by the peer.
mru=256-1500
The maximum received unit (MRU), or frame size, in bytes, to be
received from the other end of the PPP connection. This is a negotiated
value. The default is 1500 bytes.
mtu=256-1500
The maximum transmission unit (MTU), or frame size, in bytes, to use for
this PPP outbound connection. For PPP connections, the MTU is
negotiated, so enter 1500, the largest size device server will permit the
remote host to send. For PPP users, the range is 128 to 1500 bytes, and
the default is 1500 bytes.
n{1-4}=phone_number
Up to four phone numbers to dial to request a PPP outbound connection.
The phone numbers are dialed sequentially.
redial_attempts=attempts
The number of times the firmware will attempt to redial before giving up.
redial_delay=delay
The time to wait after an unsuccessful dial attempt.
rx_idle_timeout=timeout
The time, in seconds, after which if no data has been received over the
link, the PPP connection is disconnected.
tx_idle_timeout=timeout
The time, in seconds, after which if no data has been transmitted over the
link, the PPP connection is disconnected.
init_script=chat script
An initialization script, run once at interface startup. For example:
init_script="'' ATZ OK \c"
![](asset-ab.png)
set pppoutbound
Chapter 2 Command Descriptions 171
dial_script=chat script
A dialing script, used any time a number is dialed for the interface. For
example:
dial_script="'' ATDT\T CONNECT \c"
login_script=chat script
A login script, used to log in to the remote system on the other end of the
outbound PPP connection. For example:
login_script=”ogin: <username> assword: <password>”
ipcp_dns_enabled={on|off}
Enables or disables the IPCP (PPP Internet Protocol Control Protocol)
acquisition of DNS IP addresses. This option is enabled by default to
preserve prior behavior.
See also • The “display pppstats” command displays the current status of PPP
connections. See "Information returned by “display pppstats”" on page
32 for descriptions of the status information.
• "revert" on page 61
• "show" on page 249.
![](asset-ac.png)
set profile
172 Chapter 2 Command Descriptions
set profile
Devices
supported This command is supported in all Digi Connect products. However, some
port profiles are not supported in particular devices, as noted in the “profile”
option’s description.
Purpose Associates a particular port with one of several port configuration profiles,
or displays the current port-profile settings.
Port profiles are a defined set of port configuration settings for a particular
use. A port profile reconfigures serial-port settings to the necessary default
values in order for the profile to operate correctly.
Port-profile configuration is most often performed through the Web user
interface for a device. It is not often specified from the command line, but is
available if needed.
Digi Connect devices support several port profiles. Following is the
complete set of port profiles. The profiles supported on your Digi Connect
product may vary.
• Console Management profile: Allows you to access a device’s console
port over a network connection.
• Local Configuration profile allows you to connect standard terminals or
terminal emulation programs to the serial port in order to use the serial
port as a console to access the command line interface.”
• Modem Emulation profile: Allows you to configure the serial port to act
as a modem. (Not supported in Digi Connect WAN.)
• RealPort profile: Allows you to map a COM or TTY port to the serial
port. (Not supported in Digi Connect WAN)
• TCP Sockets profile: Allows a serial device to communicate over a TCP
network.
• Tunneling profile, also known as the Serial Bridge profile: Configures
one side of a serial bridge. A bridge connects two serial devices over
the network, as if they were connected with a serial cable.
• UDP Sockets profile: Allows a serial device to communicate using UDP.
(Not supported in Digi Connect WAN)
• Custom profile: An advanced option to allow full configuration of the
serial port. This profile allows you to view all settings associated with
the serial port.
• IA profile: Configures the serial port for use in Industrial Automation (ia).
![](asset-ad.png)
set profile
Chapter 2 Command Descriptions 173
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the profile settings for the line on which they are
logged in: “set permissions s-profile=r-self”
• For a user to display the profile settings for any line: “set permissions s-
profile=read”
• For a user to display and set the profile settings for the line on which
they are logged in: “set permissions s-profile=rw-self”
• For a user to display the profile settings for any line, and set modem
emulation settings for the line on which the user is logged in:
“set permissions s-profile=w-self-r”
• For a user to display and set the profile settings on any line:
“set permissions s-profile=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure port profile settings
set profile port=port profile=profile
Display current port profile settings for all available serial ports
set profile
Display current port profile settings for a particular serial port
set profile port=port
Options port=port
The serial port number or range of serial ports associated with the port
profile. Required when configuring port profiles.
profile=profile
The port profile to use for the serial port. Required when configuring port
profiles. Choosing a particular port profile causes the serial port’s
configuration to be reset to defaults, and then for the default settings for
that port profile to take effect.
Depending on the port-profile choices available for the device, the value
of “profile” can be one of the following:
console_management
Associates the Console Management port profile with the port. Not
supported in Digi Connect WAN.
local_config
Associates the Local Configuration port profile with the port.
modem_emulation
Associates the Modem Emulation port profile with the port. Not
supported in Digi Connect WAN.
realport
Associates the RealPort port profile with the port.
![](asset-ae.png)
set profile
174 Chapter 2 Command Descriptions
tcp_sockets
Associates the TCP Sockets port profile with the port.
tunneling
Associates the Serial Bridge port profile with the port.
udp_sockets
Associates the UDP Sockets port profile with the port. Not supported
in Digi Connect WAN.
custom
Associates the Custom port profile with the port.
ia Associates the ia (Industrial Automation) port profile with the port.
The default configuration settings assume Modbus/RTU slaves with
addresses 1 to 32 are attached to the serial port. Default port
characteristics are 9600:8,N,1. Unit ID zero (0) is auto-mapped to
Modbus/RTU slave address 1. The electrical interface is set as EIA-
232, 422, or 485 by the four DIP switches on the bottom of the unit.
Example #> set profile port=1 profile=realport
See also • "revert" on page 61.
• "show" on page 249.
• "set ia" on page 119 for a description of the default settings for Industrial
Automation.
• For more information on port profiles, see the topic “About Port Profiles"
in the Digi Connect Family User’s Guide.
![](asset-af.png)
set putty
Chapter 2 Command Descriptions 175
set putty
Devices
supported This command is supported in ConnectPort Display devices only.
Purpose Configures terminal-emulation settings for ConnectPort Display, and
displays current terminal-emulation settings.
ConnectPort Display can emulate a terminal connected to a host/server
over a serial line or the network. When connected over the network
RealPort must be installed on the server. RealPort ports appear to
applications on the server as serial ports, but the data is redirected over the
network to the terminal. For more information on RealPort, see the
RealPort Installation Guide.
A ConnectPort Display device can emulate a terminal connected to a host/
server. Data sent from the host application is processed and displayed on
the terminal screen. A keyboard can also be used. If a keyboard is
connected to the terminal, the terminal data is sent to the host application
for it to process.
A reboot is required for the terminal-emulation settings to take effect.
Syntax Set general terminal emulator options
set putty [state={on|off}]
[width={80|132}]
[height=10-60]
[hostport={/com/0|/com/1|/vcom/0]
[keyboardport={/com/0|/com/1}]
[cursortype={none|block|underline|vertical}]
[blinkcursor={on|off}]
[blinktext={on|off}]
[backspaceisdelete={on|off}]
[lfimpliescr={on|off}]
[characterset=host charset]
Set key mappings - range required
set putty
[deletekeymaprange=1-32]
[keymaprange=1-32]
[inseq=00-FF]
[outseq=00-FF]
Display terminal emulation settings
set putty
![](asset-b0.png)
set putty
176 Chapter 2 Command Descriptions
Options General terminal emulation options
state={on|off}
Enables or disables the terminal emulator.
width={80|132}
The default width of the terminal, specified as the number of columns of
text to display on the terminal emulator. The default width is 80.
height=10-60
The default height of the terminal, specified as the number of rows of text
to display on the terminal emulator. The default height is 24.
hostport={/com/0|/com/1|/vcom/0}
Specifies how the terminal emulator connects to a host application, and
how it reads input from the host. The terminal emulator reads input from
a host application and displays it on the screen. Input can be read over
one of the serial ports on the ConnectPort Display, or over the network.
Network connections are achieved using Realport.
Valid values are “/com/0” and “/com/1” (serial ports 1 and 2) and “/vcom/
0” (network via RealPort). The default is “/com/0.”
When using a network connection, you must install the RealPort driver on
the host. This will create a virtual COM port for each serial port on your
ConnectPort Display (these are the traditional RealPort COM ports) as
well as one additional virtual COM port that can be used for the terminal
emulator connection. The host application must be configured to use this
additional virtual COM port.
keyboardport={/com/0|/com/1|No Keyboard}
Specifies how a keyboard, if used, is connected to the terminal emulator.
Connecting a keyboard is optional. The terminal emulator can read
keyboard input from one of the serial ports. Keyboard data is then passed
back up to the host application over the host connection.
Valid values are “/com/0” and “/com/1” (serial ports 1 and 2) and No
Keyboard. The default is “/com/1.”
In some environments, the keyboard data should not be passed back up
to the host application over the host connection. In this case, you can still
connect a keyboard to a serial port, and simply treat it like any other
serially connected device. To do so, you would configure the terminal
emulator to use “No Keyboard” for the Keyboard Connection, and then
configure the serial port for the keyboard to use the RealPort port profile.
Keyboard data would then be sent to the host system over the standard
RealPort COM port. In this case, the host application reads keyboard
data from one COM port and writes host data to a different COM port.
![](asset-b1.png)
set putty
Chapter 2 Command Descriptions 177
cursortype={none|block|underline|vertical}
Specifies how the cursor appears on the terminal emulator display: as a
block, an underline, a vertical line, or no cursor.
none
The cursor has no visible display characteristics.
block
The cursor is displayed as a block.
underline
The cursor is displayed as an underline (underscore) character.
vertical
The cursor is displayed as a vertical bar.
The default is “underline.”
blinkcursor={on|off}
Enables or disables blinking of the cursor. The default is “on.”
blinktext={on|off}
Enables or disables the use of blinking text.The terminal emulator can
display text that blinks on and off. This setting allows you to turn off
blinking text. When blinking text is disabled and the terminal emulator
attempts to make some text blink, the text will instead be displayed with
a bold background color. The default is “on.”
backspaceisdelete={on|off}
This option allows you to choose which code, ASCII code 8 or 127, is
generated and sent to the host when the Backspace key is pressed. On
some terminals, pressing the Backspace key sends the same code as
Ctrl-H (ASCII code 8). On other terminals, pressing the Backspace key
sends ASCII code 127 (usually known as Ctrl-? or Delete), so that the
action can be distinguished from Ctrl-H. The default is “on.”
lfimpliescr={on|off}
Specifies whether an LF (Line Feed) character includes an implicit CR
(Carriage Return) character.
Most servers send two control characters, CR and LF, to start a new line
of the screen. The CR character makes the cursor return to the beginning
of the current line of text. The LF character makes the cursor move one
line down. Some servers only send LF, and expect the terminal to move
the cursor over to the left automatically. If your server does this, you will
see a stepped effect on the screen. If this happens, try enabling this
setting.The default is “off.”
![](asset-b2.png)
set putty
178 Chapter 2 Command Descriptions
characterset=host charset
The character set for data received from the host. During a session, the
terminal emulator receives a stream of 8-bit bytes from the server, and in
order to display them on the screen it needs to know the character set in
which to interpret these streams of bytes.
There are several character sets from which to choose. A few notable
character sets are:
• The ISO-8859 series are all standard character sets that include
various accented characters appropriate for different sets of
languages.
• The Win125x series are defined by Microsoft for similar purposes.
Win1252 is almost equivalent to ISO-8859-1, but contains a few
extra characters such as matched quotes and the Euro symbol.
• CP437 contains the old IBM PC character set with block graphics
and line-drawing characters. This is also used on MS-DOS systems.
• UTF-8 contains unicode data interpreted as being in the UTF-8
encoding. Not all server applications will support UTF-8.
The default is ISO-8859-1.
![](asset-b3.png)
set putty
Chapter 2 Command Descriptions 179
The complete list of allowed character sets is:
Character Set name Description
ISO-8859-1 ISO-8859-1:1998 (Latin-1, West Europe)
ISO-8859-2 ISO-8859-2:1999 (Latin-2, East Europe)
ISO-8859-3 ISO-8859-3:1999 (Latin-3, South Europe)
ISO-8859-4 ISO-8859-4:1998 (Latin-4, North Europe)
ISO-8859-5 ISO-8859-5:1999 (Latin/Cyrillic)
ISO-8859-6 ISO-8859-6:1999 (Latin/Arabic)
ISO-8859-7 ISO-8859-7:1987 (Latin/Greek)
ISO-8859-8 ISO-8859-8:1999 (Latin/Hebrew)
ISO-8859-9 ISO-8859-9:1999 (Latin-5, Turkish)
ISO-8859-10 ISO-8859-10:1998 (Latin-6, Nordic)
ISO-8859-11 ISO-8859-11:2001 (Latin/Thai)
ISO-8859-13 ISO-8859-13:1998 (Latin-7, Baltic)
ISO-8859-14 ISO-8859-14:1998 (Latin-8, Celtic)
ISO-8859-15 ISO-8859-15:1999 (Latin-9, “euro”)
ISO-8859-16 ISO-8859-16:2001 (Latin-10, Balkan)
CP437 CP437 (IBM-437/MS-DOS Latin, United States)
CP850 CP850 (IBM-850/MS-DOS Latin 1, West Europe)
CP1250 Win1250 (Central European)
CP1251 Win1251 (Cyrillic)
CP1252 Win1252 (Western)
CP1253 Win1253 (Greek)
CP1254 Win1254 (Turkish)
CP1255 Win1255 (Hebrew)
CP1256 Win1256 (Arabic)
CP1257 Win1257 (Baltic)
CP1258 Win1258 (Vietnamese)
KOI8-R
KOI8-U
Mac Roman
Mac Turkish
Mac Croatian
![](asset-b4.png)
set putty
180 Chapter 2 Command Descriptions
Key mapping terminal emulation options
Character codes received from a keyboard can be converted to different
character codes before being sent to the host. This conversion, known as
key mapping, can be useful when you have different types of keyboards
that need to be mapped to the same set of character codes.
A key mapping consists of an input sequence of character codes and the
output sequence of codes to which they will be converted. Generally, you
would specify both the input and output sequences as single character
codes, although you can define up to 5 character codes for each. A
character code is entered as two hexadecimal digits. For example:
• To convert the ASCII character A to B, you would define the input and
output sequences as '41' and '42' respectively, which are the
hexadecimal representations of the ASCII characters.
• To convert a code of decimal 10 to 0, you would define the input and
output sequences as '0A' and '00', respectively.
Note that character codes are always two hexadecimal digits, which means
that leading zeroes must be provided.
A key mapping entry requires a range, specified by “keymaprange,” and at
least an input sequence, specified by “inseq.” The output sequence
(“outseq”) is optional. When removing a key mapping entry, only
“deletekeymaprange” is required.
Mac Iceland
Mac Romanian
Mac Greek
Mac Cyrillic
Mac Thai
Mac Centeuro
Mac Symbol
Mac Dingbats
Mac Ukraine
Mac VT100
VISCII
HP ROMAN8
DEC MCS
UTF-8
Character Set name Description
![](asset-b5.png)
set putty
Chapter 2 Command Descriptions 181
The keymap entries are held in a table, as are other device settings such
as UDP, serial destinations, alarms, etc. When adding a new entry (an
“inseq”/”outseq” pair), you specify at what index in the table to add it using
“keymaprange.” To delete an entry (or range of multiple entries) you specify
the index/range with “deletekeymaprange.”
Note that the Terminal Emulation settings in the Web user interface
manages the indexes for you. If you do not want to deal with the key
mappings at an index level, you can configure the key mapping through
that interface.
Options specified for key mapping include:
deletekeymaprange=1-32
Removes the key mapping entry at the specified index or range of
indexes.
keymaprange=1-32
The index/range used when adding new key mapping entries or replacing
existing ones.
inseq=00-FF
The input key sequence, specified as two hexadecimal digits.
outseq=00-FF
The output sequence, specified as two hexadecimal digits.
Example Display current terminal emulation settings
#> show putty
Terminal Configuration :
state = on
width = 80
height = 24
hostport = /com/0
keyboardport = /com/1
cursortype = underline
blinkcursor = on
blinktext = on
backspaceisdelete = on
lfimpliescr = off
characterset = ISO-8859-1
Key Map: range inseq outseq
1 A1 F1
2 A2 F2
3 A3 F3
![](asset-b6.png)
set putty
182 Chapter 2 Command Descriptions
Configure general terminal emulation settings
Given the above settings, to adjust the screen height and cursor type, you
would enter:
# set putty height=30 cursortype=vertical
Add, replace, and delete entries in the key mapping table
To add/replace the first 3 entries in the table you would use the following
commands:
#> set putty keymaprange=1 indeq=A1 outseq=F1
#> set putty keymaprange=2 indeq=A2 outseq=F2
#> set putty keymaprange=3 indeq=A3 outseq=F3
Now, to delete the first 2 entries:
#> set putty deletekeymaprange=1-2
You are left with one keymap entry, and it is at index 3, so to delete this last
one enter:
#> set putty deletekeymaprange=3
See also • "revert" on page 61.
• "set serial" on page 189.
• "set video" on page 225.
• "show" on page 249.
• The ConnectPort Display User’s Guide’s section on configuring terminal
emulation settings.
![](asset-b7.png)
set python
Chapter 2 Command Descriptions 183
set python
Devices
supported This command is supported in ConnectPort X products only.
Purpose Configures Python programs to execute when the Digi device boots.
Syntax set python [range=1–4]
state={on|off}
command=filename
Options range=1 – 4
The index or indices to view or modify with the command.
state={on|off}
When the state is set to on, the command specified will be run when the
device boots.
command=filename
The program filename to execute, including any arguments to pass with
the program, similar to the arguments for the "python" command. While
this option allows for programs to be run from a TFTP server, this use is
not recommended. If there are spaces to provide arguments, make sure
to wrap the entire command in quotation marks.
See also • "python" on page 58
• The Digi Python Programming Guide.
![](asset-b8.png)
set rciserial
184 Chapter 2 Command Descriptions
set rciserial
Devices
supported This command is supported in Connect Family and Digi Cellular Family
products. Not supported in ConnectPort Display.
Purpose Used to:
• Turn on/off RCI serial mode on the first serial port. The RCI serial mode
is a mode that allows a configuration file to be loaded over a serial port
when the DSR input signal is high.
• Display current RCI serial-mode settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the RCI serial settings for any line:
“set permissions s-rciserial=read”
• For a user to display and set the RCI serial settings on any line:
“set permissions s-rciserial=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Turn on off RCI serial mode
set rciserial [state={on|off}]
Display current RCI serial-mode settings
set rciserial
Options state
Enables (on) or disables (off) RCI serial mode on the port. The default is
“off.”
Example set rciserial state=on
See also • "backup" on page 18.
• "revert" on page 61.
• "show" on page 249.
![](asset-b9.png)
set realport
Chapter 2 Command Descriptions 185
set realport
Devices
supported This command is supported in all Digi Connect products.
Purpose Configures and displays RealPort-related settings.
Required
permissions For Digi Connect products with root and non-root (normal) users, the root
user can configure RealPort settings. The normal user can display
RealPort settings.
Syntax Configure RealPort settings
set realport [keepalive={on|off}]
[exclusive={on|off}]
Display current RealPort settings
set realport
Options keepalive={on|off}
Enables or disables sending of RealPort keepalives. RealPort keepalives
are messages inside the RealPort protocol, sent approximately every 10
seconds, to tell whoever is connected that the connection is still alive.
RealPort keepalives are different from TCP keepalives, which are done
at the TCP layer, and configurable. The default is “on.”
As RealPort keepalives generate additional traffic--several bytes every
10 seconds--this option allows you to turn them off. RealPort keepalives
may cause issues in environments that are metered for traffic, or that do
not require this type of mechanism. In situations such as cellular/mobile
wireless communications, when you are paying by the byte, such
additional traffic is undesirable when a TCP keepalive can do the same
job, and only when the connection is idle.
If you want to have the RealPort keepalive set to “off;” consider using a
TCP keepalive instead. This is because if the link is not closed properly,
you could end up with your port being “locked up” with a dead TCP
session, which is why RealPort keepalives were implemented in the first
place.
exclusive={on|off}
Enables or disables exclusive mode for RealPort connections. Exclusive
mode allows the Digi Connect device to close an existing RealPort
connection and establish a new one immediately upon a new connection
request from the same IP address. This mode is useful when using
RealPort over wide area networks, which can be unstable and where you
are charged by the byte (such as cellular or satellite), and you do not wish
to incur costs for keep-alive traffic. Exclusive mode allows your
application to retain continuity when temporary, unexpected interruptions
in network connectivity occur.
Example #> set realport keepalive=on
![](asset-ba.png)
set realport
186 Chapter 2 Command Descriptions
See also • "set network" on page 149. The “set network” keepalive options (“idle,”
“probe_count,” “probe_interval,” “garbage_byte,” and “override_dhcp”)
should be configured for various services that are configured by
“set service keepalive={on|off},” or clients such as autoconnect
(“set autoconnect keepalive={on|off}”).
• "set service" on page 191.
• "set autoconnect" on page 81.
![](asset-bb.png)
set rtstoggle
Chapter 2 Command Descriptions 187
set rtstoggle
Devices
supported This command is supported in the following products:
• Connect Family: All products.
• Digi Cellular Family: All products except Digi Connect WAN.
Not supported in ConnectPort Display.
Purpose Used to:
• Enable or disable RTS toggle on a given serial port. RTS toggle is used
to raise RTS when sending data.
• Display current RTS toggle settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the RTS toggle settings for the line on which they
are logged in: “set permissions s-rtstoggle=r-self”
• For a user to display the RTS toggle settings for any line:
“set permissions s-rtstoggle=read”
• For a user to display and set the RTS toggle settings for the line on
which they are logged in: “set permissions s-rtstoggle=rw-self”
• For a user to display the RTS toggle settings for any line, and set RCI
serial settings for the line on which the user is logged in:
“set permissions s-rtstoggle=w-self-r”
• For a user to display and set the RTS toggle settings on any line:
“set permissions s-rtstoggle=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Enable or disable RTS toggle
set rtstoggle port=range [state={on|off}]
[predelay=delay] [postdelay=delay]
Display current RTS toggle settings
set rtstoggle [port=range]
Options port=range
Used to specify the serial port. Optional on a single-port device.
state={on|off}
Used to enable or disable the RTS toggle feature.
onEnables the RTS toggle feature.
offDisables the RTS toggle feature.
The default is “off.”
![](asset-bc.png)
set rtstoggle
188 Chapter 2 Command Descriptions
predelay=delay
Specifies the time in milliseconds to wait after the RTS signal is turned on
before sending data. The range is 0 to 5000 milliseconds. The default is
0.
postdelay=delay
Specifies the time in milliseconds to wait after sending data before turning
off the RTS signal. The range is 0 to 5000 milliseconds. The default is 0.
Examples #> set rtstoggle state=on predelay=10
See also • "revert" on page 61.
• "show" on page 249.
![](asset-bd.png)
set serial
Chapter 2 Command Descriptions 189
set serial
Devices
supported This command is supported in all Digi Connect products.
Purpose Sets and displays general serial configuration options, such as baud rate,
character size, parity, stop bits, and flow control.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the serial settings for the line on which they are
logged in: “set permissions s-serial=r-self”
• For a user to display the serial settings for any line:
“set permissions s-serial=read”
• For a user to display and set the serial settings for the line on which
they are logged in: “set permissions s-serial=rw-self”
• For a user to display the serial settings for any line, and set serial
settings for the line on which the user is logged in:
“set permissions s-serial=w-self-r”
• For a user to display and set the serial settings on any line:
“set permissions s-serial=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands. Permissions for "set serial" also apply to the "set switches"
command. See "set switches" on page 208.
Syntax Set general serial options
set serial port=range
[altpin={on|off}]
[baudrate=bps]
[csize={5|6|7|8}]
[parity={none|even|odd|mark|space}]
[stopb={1|2}]
[flowcontrol={hardware|software|none}]
Display current serial options
set serial [port=range]
Options port=range
Used to specify the serial port. Optional on a single-port device.
altpin={on|off}
Determines whether the altpin option, which swaps DCD with DSR so
that eight-wire RJ-45 cables can be used with modems, is used:
on
The altpin option is used.
off
The altpin option is not used.
The default is “off.”
![](asset-be.png)
set serial
190 Chapter 2 Command Descriptions
baudrate=bps
The baud rate in bits per second. The default is 9600.
csize={5|6|7|8}
The character size, which can be 5, 6, 7, or 8 bits. The default is 8.
flowcontrol={hardware|software|none}
Specifies which kind of flow control is used on the line.
hardware
Hardware flow control (RTS/CTS).
software
Software flow control (Xon/Xoff).
none
No flow control.
The default is “software.”
parity={none|even|odd|mark|space}
The parity used for the line.
none
No parity.
even
Even parity.
odd
Odd parity.
mark
Mark parity.
space
Space parity.
The default is “none.”
stopb={1|2}
The number of stop bits per character to use on this line. The value used
here must match the setting on the device connected to this port. Use 1
or 2 stop bits.
The default is 1 stop bit.
Example #> set serial baudrate=9600 flowcontrol=hardware
See also • "revert" on page 61.
• "show" on page 249.
![](asset-bf.png)
set service
Chapter 2 Command Descriptions 191
set service
Devices
supported This command is supported in all Digi Connect products.
Purpose Used to:
• Enable and disable network services.
• Change the network port on which a given service listens.
• Display the entire service table, or an entry in the service table.
Caution on enabling and disabling services
Exercise caution in enabling and disabling network services, particularly
disabling them. Changing certain settings can render your Digi Connect
product inaccessible. For example, if you disable Advanced Digi Discovery
Protocol (ADDP), the device will not be discovered on a network, even if it
is actually connected. If you disable HTTP and HTTPS, the Web interface
can be disabled. Disabling basic services such as Telnet, Rlogin, etc. can
make the Command-Line interface inaccessible.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-service=read” to display network service settings,
and “set permissions s-services=rw” to display and change network service
settings. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax Enable/disable network services or change network port for service
set service [range=range]
[state={on|off}]
[ipport=network_port]
[keepalive={on|off}]
[nodelay={on|off}]
[delayed_ack=0-1000]
Display service table or entries in the table
set service [range=range]
Options range=range
Used to specify the index of the network service to which the rest of the
command’s options apply. For more information on using this option, see
"Index numbers and changing default port numbers" on page 196.
state={on|off}
Used to enable or disable a given network service.
ipport=network port
Used to change the network port on which a given network service
listens. See "Supported network services and their default network port
numbers" on page 193 for more information on the network services
available.
![](asset-c0.png)
set service
192 Chapter 2 Command Descriptions
keepalive={on|off}
Indicates whether or not TCP keepalives will be sent for specified range
of network services. If set to on, keepalives will be sent, if it is off,
keepalives will not be sent.
Configurable TCP keepalive parameters, for example, how many
keepalives to send and when to send them are configured globally via the
“set network” command (see "set network" on page 149).
nodelay={on|off}
Used to allow unacknowledged or smaller-than-maximum-segment-
sized data to be sent for the specified range of network services.
The “nodelay” option disables Nagle’s algorithm, which is on by default,
for some TCP services. The purpose of Nagle's algorithm is to reduce the
number of small packets sent. The algorithm establishes not sending
outgoing data when there is either unacknowledged sent data, or there is
less-than-maximum segment size (typically around 1500 bytes for
Ethernet) worth of data to be sent. While this algorithm allows for efficient
data transmission, there are times when it is desirable to disable it.
delayed_ack=0-1000
The time, in milliseconds, to delay sending ACK packets in response to
received data for the specified range of network services. The default is
200 milliseconds.
Setting this option to 0 (zero) sends an ACK packet back acknowledge
the received data immediately. Setting it to any other value means that
the ACK packet will be sent after the specified time. If the network
services generate new data during that time, the ACK packet will be sent
along with the data packet.
You can use this setting to avoid congestion and reduce network traffic,
However, do not change this option from its default setting unless you
have a solid understanding of network services and data transmission, or
have been instructed to make the change.
![](asset-c1.png)
set service
Chapter 2 Command Descriptions 193
Supported network services and their default network port numbers
The following table shows the network services controlled by the
“set services” command, the services provided, and the default network
port number for each service.
In Digi Connect products that have multiple serial ports, the network port
number defaults for various services are set based on the following
formula:
base network port number + serial port number
For example, the Telnet Passthrough service is set to network port 2001 for
serial port 1, 2002 for serial port 2, 2003 for serial port 3, etc.
If you change a network port for a particular service, that is the only
network port number that changes. That change does not carry over to the
other network ports. For example, if you change the network port number
Telnet Passthrough from 2001 to 3001, that does not mean that the other
network ports will change to 3002, 3003, etc.
There are two types of network services available:
• Basic services, which are accessed by connecting to a particular well-
known network port.
• Passthrough services, in which a particular serial port is set up for a
particular type of service. To use the service, users must both use the
correct protocol and specify the correct network port. For example,
assuming default service ports and using a Linux host, here is how a
user would access the SSH and Telnet passthrough services:
#> ssh -l fred digi16 -p 2501
#> telnet digi16 2101
![](asset-c2.png)
set service
194 Chapter 2 Command Descriptions
Service Services Provided Default
Network
Port Number
Advanced Digi Discovery Protocol
(ADDP), also known as
Device Discovery
Discovery of Digi Connect products on a network. 2362
Encrypted (Secure) RealPort Secure Ethernet connections between COM or TTY
ports and device servers or terminal servers. 1027
Hypertext Transfer Protocol
(HTTP), also known as
Web Server
Access to web pages for configuration that can be
secured by requiring a user login. 80
Hypertext Transfer Protocol over
Secure Socket Layer (HTTPS),
also known as Secure Web Server
Access to web pages for configuration that can be
secured by requiring a user login, with encryption for
greater security.
443
Line Printer Daemon (LPD) Allows network printing over a serial port. 515
Modem Emulation Pool (pmodem) Allows the Digi Connect product to emulate a modem.
Modem emulation sends and receives modem
responses to the serial device over the Ethernet
instead of Public Switched Telephone Network
(PSTN). Telnet processing can be enabled or
disabled on the incoming and outgoing modem-
emulation connections. The pmodem service is for
connecting to whatever serial port will answer.
5000
Modem Emulation Passthrough Allows the Digi Connect product to emulate a modem.
This service is for dialing in to a particular serial port
that has been set up for modem emulation.
5001
RealPort A virtual connection to serial devices, no matter
where they reside on the network. 771
Remote login (Rlogin) Allows users to log in to the Digi Connect device and
access the command-line interface via Rlogin. 513
Remote shell (Rsh) Allows users to log in to the Digi Connect device and
access the command-line interface via Rsh. 514
Secure Shell (SSH) Allows users secure access to log in to the Digi
Connect device and access the command-line
interface.
22
Secure Shell (SSH) Passthrough Accessing a specific serial port set up for SSH. 2501
Secure Socket Service Authentication and encryption for Digi Connect
devices. 2601
Simple Network Management
Protocol (SNMP) Managing and monitoring the Digi Connect device.
If you want to run SNMP, but in a more secure
manner, note that SNMP allows for “sets” to be
disabled.This securing is done in SNMP itself, not
through this command.
161
Transmission Control Protocol
(TCP) Echo Used for testing the ability to send and receive over a
TCP connection, similar to a ping. 7
Telnet Allows users an interactive Telnet session to the Digi
Connect product’s command-line interface. 23
![](asset-c3.png)
set service
Chapter 2 Command Descriptions 195
Telnet Passthrough Allows a Telnet connection directly to the serial port,
often referred to as reverse Telnet. 2001
Transmission Control Protocol
(TCP) Passthrough Allows a raw socket connection directly to the serial
port, often referred to as reverse sockets. 2101
User Datagram Protocol (UDP)
Passthrough Used for testing the ability to send and receive over a
UDP connection, similar to a ping. 7
User Datagram Protocol (UDP)
Passthrough Allows raw data to be passed between the serial port
and UDP datagrams on the network. 2101
VNC Client Listen Daemon Remote access to a computer on the network or
internet using the VNC (Virtual Network Computing)
protocol. VNC server software must be installed on
the remote computer.
5500
VNC Server Allows users to remotely view what is currently
displayed on the screen using a standard VNC client
(viewer).
5900
Service Services Provided Default
Network
Port Number
![](asset-c4.png)
set service
196 Chapter 2 Command Descriptions
Index numbers and changing default port numbers
An index number is assigned to each of these services. The index numbers
assigned can vary over time. If you want to change the network port
number for a service, enter a “set service” or “show service” command to
display the current index number assigned to all services. Locate the
service for which you want to change the network port number, and note
the index number for the service. Enter a “set service” command, specify
that index number for the “range” option, and the new network port number
for the “ipport” option.
For example, to change the network port number for the Telnet basic
service from its default port number, 23, you would enter the following “set
service” command:
#> set service
which displays the services defined in and their current network port
number assignments:
Service Configuration :
index state ipport keepalive nodelay service
1 on 23 off off Telnet Service
12 on 80 na na HTTP Service
13 on 161 na na SNMP Service
2 on 443 na na HTTPS Service
15 on 513 off off Rlogin Service
16 on 514 off off Rsh Service
9 on 515 off off Line Printer Daemon
8 on 771 off na RealPort Service
3 on 1027 off na Encrypted RealPort Service
4 on 2001 off off Telnet Server (Port 1)
5 on 2101 off off TCP Server (Port 1)
6 off 2101 na na Serial/UDP Server (Port 1)
14 on 2362 na na ADDP Service
7 on 2601 off off Secure Socket Service (Port 1)
10 on 50000 na na Modem Emulation (Pool)
11 on 50001 off off Modem Emulation (Port 1)
Note that the index number assigned to the Telnet basic service is 1. You
would then specify that index number for the “range” option, and the new
network port number for the “ipport” option:
#> set service range=1 ipport=100
![](asset-c5.png)
set service
Chapter 2 Command Descriptions 197
Examples Disable service
#> set service range=1 state=off
Change the network port (ipport) of a service
#> set service range=1 ipport=500
Displaying the service table
In this example, the “set service” command displays the entire service
table.
#> set service
Displaying an entry in the service table
In this example, the “set service” command displays a range of entries in
the service table.
#> set service range=2-4
Allow outgoing data that is unacknowledged or less than maximum
segment size
#> set service ra=5 nodelay=on
See also • "revert" on page 61.
• "set network" on page 149.
• "set passthrough" on page 153 for information on network services and
applications that are enabled and disabled by default when a Digi
device is configured for IP passthrough.
• "show" on page 249.
• For descriptions of the Connectware Manager application and related
settings, see "set mgmtconnection" on page 137, "set mgmtglobal" on
page 140, and "set mgmtnetwork" on page 143.
• For more information on SureLink Link Integrity Monitoring tests, see
"set surelink" on page 202.
![](asset-c6.png)
set snmp
198 Chapter 2 Command Descriptions
set snmp
Devices
supported This command is supported in all Connect Family and Digi Cellular Family
products. Not supported in ConnectPort Display.
Purpose Configures the Simple Network Management Protocol (SNMP) agent, or
displays current SNMP settings.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-snmp=read” to display network service settings, and
“set permissions s-snmp=rw” to display and change network service
settings. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax Set SNMP settings
set snmp [trapdestip=ipaddress]
[publiccommunity=string]
[privatecommunity=string]
[setsenabled={on|off}]
[authfailtrap={on|off}]
[coldstarttrap={on|off}]
[linkuptrap={on|off}]
[logintrap={on|off}]
Display SNMP settings
set snmp
Options trapdestip=ipaddress
Used to configure the IP address of the system to which the agent should
send traps. To enable any of the traps, a non-zero value for trapdestip
must be specified.
The ”trapdestip” option is required in order for alarms to be sent in the
form of SNMP traps. See "send" on page 67.
publiccommunity=string
The password required to “get” SNMP-managed objects. The default is
“public”.
privatecommunity=string
The password required to “set” SNMP-managed objects. The default is
“private”.
setsenabled={on|off}
Enables or disables “sets” of SNMP-managed objects.
onEnables “sets” if the provided private community matches the current
private community.
offDisables “sets” even if the provided private community matches the
current private community.
The default is “off.”
![](asset-c7.png)
set snmp
Chapter 2 Command Descriptions 199
authfailtrap={on|off}
Enables or disables the sending of authentication failure traps.
onEnables the sending of authentication failure traps.
offDisables the sending of authentication failure traps.
The default is “off.”
coldstarttrap={on|off}
Enables or disables the sending of cold start traps.
onEnables the sending of cold start traps.
offDisables the sending of cold start traps.
The default is “off.”
linkuptrap={on|off}
Enables or disables the sending of link up traps.
onEnables the sending of link up traps.
offDisables the sending of link up traps.
The default is “off.”
logintrap={on|off}
Enables or disables the sending of login traps.
onEnables the sending of login traps.
offDisables the sending of login traps.
The default is “off.”
Examples Enable authentication failure traps
#> set snmp trapdestip=10.0.0.1 authfailtrap=on
Specify a new private community string
#> set snmp privatecommunity=”StLucia72!”
See also • "revert" on page 61.
• To disable and enable SNMP, use the “set service” command. See "set
service" on page 191.
• To disable and enable SNMP alarm traps, see "set alarm" on page 70.
![](asset-c8.png)
set socket_tunnel
200 Chapter 2 Command Descriptions
set socket_tunnel
Devices
supported This command is supported in all Digi Connect Family and Digi Cellular
Family products. It is not supported in ConnectPort Display products.
Purpose Configures a socket tunnel. A socket tunnel can be used to connect two
network devices: one on the Digi device server's local network and the
other on the remote network. This is especially useful for providing SSL
data protection when the local devices do not support the SSL protocol.
One of the endpoint devices is configured to initiate the socket tunnel. The
tunnel is initiated when that device opens a TCP socket to the Digi device
server on the configured port number. The Digi device server then opens a
separate connection to the specified destination host. Once the tunnel is
established, the Digi device server acts as a proxy for the data between the
remote network socket and the local network socket, regardless of which
end initiated the tunnel.
The socket tunnel feature is most useful for devices with two interfaces. It
could also be used as a connection proxy on a single-interface device,
such as the Digi Connect ME. One way the socket tunnel feature would be
very useful in a single interface device is when the device has the
capability to use specified keys, and other devices connected to it do not
have that capability. Using the socket tunnel feature, the device with the
key capability basically becomes a security gatekeeper for simple devices
that cannot use PKI certificates.
Required
Permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-socket-tunnel=read” to display socket tunnel settings,
and “set permissions s-socket-tunnel=rw” to display and change socket
tunnel settings, settings. See "set permissions" on page 157 for details on
setting user permissions for commands.
Syntax Configure a socket tunnel
set socket_tunnel [state={disabled|enabled}]
[timeout={0|seconds}] {0 is no timeout}
[from_hostname={name|ip address}
[from_port=port number]
[from_protocol={tcp|ssl}]
[to_hostname={name|ip address}]
[to_port=port number]
[to_protocol={tcp|ssl}]
Display current socket tunnel settings
set socket_tunnel
![](asset-c9.png)
set socket_tunnel
Chapter 2 Command Descriptions 201
Options state={disabled|enabled
Enables or disables the configured socket tunnel.
timeout={0|seconds}] {0 is no timeout}
The timeout (specified in seconds) controls how long the tunnel will
remain connected when there is no tunnel traffic. If the timeout value is
zero, then no timeout is in effect and the socket tunnel will stay up until
some other event causes it to close.
from_hostname={name|ip address}
The initiating host: the hostname or IP address of the network device that
initiates the socket tunnel.
from_port=port number
The initiating port: the port number that the Digi device uses to listen for
the initial socket tunnel connection.
from_protocol={tcp|ssl}
The initiating protocol: the protocol used between the device that initiates
the socket tunnel and the Digi device. Currently, TCP and SSL are the
two supported protocols.
to_hostname={name|ip address}
The destination host: The hostname or IP address of the destination
network device.
to_port=port number
The destination port: the port number that the Digi device uses to make
a connection to the destination device.
to_protocol={tcp|ssl}
The destination protocol: the protocol used between Digi device and the
destination device. Currently, TCP and SSL are the two supported
protocols. This protocol does not need to be the same for both
connections.
See also • "revert" on page 61.
• "show" on page 249.
• The section on socket tunnel settings in your Digi product’s User’s
Guide.
![](asset-ca.png)
set surelink
202 Chapter 2 Command Descriptions
set surelink
Devices
supported This command is supported in Digi Cellular Family products only.
Purpose Configures Digi SureLink™ settings for a Digi Cellular Family device. Digi
SureLink™ provides an “always-on” mobile network connection to ensure
that a Digi Cellular Family device is in a state where it can connect to the
network. It does this through hardware reset thresholds and periodic tests
of the connection.
There are several groups of command options for “set surelink:”
• Hardware reset thresholds: these settings can be configured to clear
any error states that were resident in the device's cellular module, so
the device can once again connect to the network, if the connection is
lost. SureLink does this by first resetting the cellular module after a
default or specified number of consecutive failed connection attempts,
and then resetting the Digi Cellular device after a default or specified
number of failed consecutive connection attempts. Each of these
connection-failure settings can be disabled as well.
• Link Integrity Monitoring Tests: Digi SureLink can be configured to run
tests, known as Link Integrity Monitoring tests, that are run over the
established PPP connection to ensure that end-to-end communication
is possible. There are command options that apply to all link testing,
and options for the three available Link Integrity Monitoring tests:
• Ping Test
• TCP Connection Test
• DNS Lookup Test
Syntax Set Hardware reset thresholds
set surelink [module_reset_connect_failures={1-255|0=off}]
[system_reset_connect_failures={1-255|0=off}]
Configure Link Integrity Monitoring Tests:
Set general link test options
set surelink [state={on|off}]
[test={ping|tcp|dns}]
[trigger={interval|idle}]
[max_consecutive_failures={1-255|0=off}] (probe failures before
link reset)
[interval=10-65535]
Set ICMP ping link test options
set surelink [pingaddr1={ipv4 address|fqdn}]
[pingaddr2={ipv4 address|fqdn}]
Set DNS lookup link test parameters:
set surelink [dnsfqdn1=dns fqdn]
[dnsfqdn2=dns fqdn]
![](asset-cb.png)
set surelink
Chapter 2 Command Descriptions 203
Set TCP connection link test parameters:
set surelink [ipaddr1={ipv4 address|fqdn}]
[ipaddr2={ipv4 address|fqdn}]
[ipport=1-65535]
Display current SureLink settings
set surelink
Options Options for Hardware reset thresholds
module_reset_connect_failures={1-255|0=off}
The number of failed connection attempts that occur before the cellular
modem module is reset. This value can be a number between 1 and 255,
or 0, which turns off the cellular modem module-reset feature. The default
is 3.
system_reset_connect_failures={1-255|0=off}
The number of failed connection attempts that occur before the Digi
Cellular Family device is reset. This value can be a number between 1
and 255, or 0, which turns off the system-reset feature. The default is 0,
or off.
Options for Link Integrity Monitoring Tests
General link test options:
state={on|off}
Enables or disables link integrity monitoring tests. If “on,” the other Link
Integrity Monitoring settings may be configured and are used to verify the
functional integrity of the mobile connection. The default is “off.”
![](asset-cc.png)
set surelink
204 Chapter 2 Command Descriptions
test={ping|tcp|dns}
The Link Integrity Monitoring test to be run.
Each test can be used to demonstrate that two-way communication is
working over the mobile connection. This variety of tests is provided
because different mobile networks or firewalls may allow or block Internet
packets for various services. The appropriate test may be selected
according to mobile network constraints and user preference.
The link integrity tests are performed only while the mobile connection is
established. If the mobile connection is disconnected, the link integrity
tests are suspended until the connection is established again.
For the link integrity tests to provide meaningful results, the remote or
target hosts must be accessible over the mobile connection and not
through the LAN interface of the device (if it has one). That is, the settings
should be configured to guarantee that the mobile connection is actually
being tested.
The link integrity test settings may be modified at any time. The changes
are used at the start of the next test interval.
ping
Ping test. This test uses “ping” (ICMP) as a test to verify the integrity
of the mobile connection. The test is successful if a valid ping reply is
received in response to the ping request sent. The ping test actually
sends up to three ping requests, at three second intervals, to test the
link. When a valid reply is received, the test completes successfully
and immediately. If a reply is received for the first request sent, there
is no need to send the other two requests.
Two destination hosts may be configured for this test. If the first host
fails to reply to all three ping requests, the same test is attempted to
the second host. If neither host replies to any of the ping requests sent,
the test fails. The primary and secondary addresses may be either IP
addresses or fully qualified domain names.
tcp
TCP Connection Test. This test creates a new TCP connection as a
test to verify the integrity of the mobile connection. The test is
successful if a TCP connection is established to a specified remote
host and port number. If the remote host actively refuses the
connection request, the test is also considered to be successful, since
that demonstrates successful two-way communication over the mobile
connection. The TCP connection test waits up to 30 seconds for the
connection to be established or refused. When the TCP connection is
established, the test completes successfully, and the TCP connection
is closed immediately.
Two destination hosts may be configured for this test. If the first host
fails to establish (or refuse) the TCP connection, the same test is
attempted to the second host. If neither host successfully establishes
(or refuses) the TCP connection, the test fails. The primary and
secondary addresses may be either IP addresses or fully qualified
domain names.
![](asset-cd.png)
set surelink
Chapter 2 Command Descriptions 205
dns
DNS Lookup Test. This test uses a Domain Name Server (DNS)
lookup as a test to verify the integrity of the mobile connection. The test
is successful if a valid reply is received from a DNS server. Typically,
this means the hostname is successfully “resolved” to an IP address
by a DNS server. But even a reply such as “not found” or “name does
not exist” is acceptable as a successful test result, since that
demonstrates successful two-way communication over the mobile
connection. When a valid reply is received, the test completes
successfully and immediately.
The DNS servers used in this test for the hostname lookup, are the
primary and secondary DNS servers obtained from the mobile network
when the mobile PPP connection is first established. These addresses
may be viewed in your web browser on the Administration | System
Information | Mobile page.
Note that this DNS test is independent of the normal DNS client
configuration and lookup cache, which is used for other hostname
lookups. This test has been specifically designed to require
communication over the mobile connection for each lookup, and to
avoid being “short-circuited” by previously cached information. Also,
this test does not interfere in any way with the normal DNS client
configuration of this device.
Two hostnames may be configured for this test. If the first hostname
fails to get a reply, the same test is attempted for the second
hostname. If no reply is received for either hostname, the test fails.
The primary and secondary DNS names should be fully qualified
domain names. Note that the reverse lookup of an IP address is
possible, but that is usually unlikely to succeed in returning a name.
Still, such a reverse lookup can be used to demonstrate the integrity
of the mobile connection.
trigger={interval|idle}
The conditions under which link integrity monitoring tests are performed.
interval
Link integrity monitoring tests are repeated at the interval specified by
the “interval” option.
idle
Link integrity monitoring tests are performed only when idle; that is, if
no data is received for the period of time specified by the “interval”
option.
This value changes the behavior of the test, in that the test interval
varies according to the presence of other data received from the
mobile connection.
Although using "trigger=idle" may result in less data being exchanged
over the mobile connection, it also prevents the link integrity tests from
running as often to verify the true bi-directional state of that
connection.
![](asset-ce.png)
set surelink
206 Chapter 2 Command Descriptions
max_consecutive_failures={1-255, 0=off} (probe failures before link
reset)]
The maximum number of consecutive Link Integrity Monitoring tests.
After this number is reached, the mobile connection should be
disconnected and reestablished.
This value must be between 1 and 255. The default is 3. A value of 0 turns
off this feature. When the mobile connection is reestablished, the
“consecutive failures” counter is reset to zero.
Note: if the mobile connection is disconnected for any reason (including
not as a result of a link integrity test failure), the consecutive failures
count is reset to zero when the mobile connection is reestablished.
interval=10-65535
Specifies the interval, in seconds, at which the selected Link Integrity
Monitoring test is initiated or repeated. A new test will be started every
specified number of seconds while the mobile connection is
established. This value must be between 10 and 65535. The default is
240.
If the configured interval is less time than it takes a test to complete,
the next test will not be initiated until the previous (current) test has
completed.
ICMP ping link test options
pingaddr1={ipv4 address|fqdn}
The first host to test.
pingaddr2={ipv4 address|fqdn}
The second host to test, if the first host fails.
TCP connection link test parameters:
ipaddr1={ipv4 address|fqdn}
The first host to test.
ipaddr2={ipv4 address|fqdn}
The second host to test, if the first host fails.
ipport=1-65535
The TCP port number to connect to on the remote host. The default is 80.
DNS lookup link test parameters
dnsfqdn1=dns fqdn
The first hostname to look up.
dnsfqdn2=dns fqdn
The second hostname to look up, if the first hostname fails.
Example set surelink system_reset_connect_failures=30
![](asset-cf.png)
set surelink
Chapter 2 Command Descriptions 207
See also • "revert" on page 61.
• "show" on page 249.
• The "display pppstats" command displays connection and activity
information for PPP links, including SureLink statistics. See "SureLink
Statistics" on page 35 for descriptions of these statistics.
• Digi SureLink™ “Always-On” Connection White Paper, available from
the Documentation page for Digi Cellular Family products at digi.com.
![](asset-d0.png)
set switches
208 Chapter 2 Command Descriptions
set switches
Device support This command is supported in ConnectPort TS MEI products only.
Purpose Configures Multiple Electrical Interface (MEI) settings on a per-port basis,
and displays current MEI settings. MEI settings include the type of
electrical interface (EIA-232 or EIA-485), the number of differential wires
used for communication, and whether termination and biasing resistors are
used.
Required
permissions The serial permissions associated with the "set serial" command also apply
to this command. For Digi Connect products with two or more users, to use
this command, permissions must be set to one of the following.
• For a user to display the serial settings for the line on which they are
logged in: “set permissions s-serial=r-self”
• For a user to display the serial settings for any line:
“set permissions s-serial=read”
• For a user to display and set the serial settings for the line on which
they are logged in: “set permissions s-serial=rw-self”
• For a user to display the serial settings for any line, and set serial
settings for the line on which the user is logged in:
“set permissions s-serial=w-self-r”
• For a user to display and set the serial settings on any line:
“set permissions s-serial=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Configure MEI settings
set switches [port=range]
[mode={232|485}]
[wires={two|four}]
[termination={on|off}]
Display current MEI settings
set switches
![](asset-d1.png)
set switches
Chapter 2 Command Descriptions 209
Options range=range
The port or range of ports to which this command applies.
mode={232|485}
Selects the electrical interface of the serial port. The selected value
determines whether the "wires" and "termination" options are meaningful.
232
The serial port uses electrical interface EIA-232. This interface uses
independent wires to transmit and receive data, which allows data to
be sent and received between devices simultaneously.
485
The serial port uses electrical interface EIA-485. This mode can also
be used for EIA-422 connections. This interface uses two wires to both
transmit and receive data. This interface also allows for multiple
transmitters and receivers to be easily connected together.
The "wires" and "termination" command options specifically apply to
serial ports in EIA-485 mode.
The default is "232."
wires={two|four}
Applies when the serial port is running in EIA-485 mode only. Selects the
number of differential wires used for communication and implicitly
determines the duplex of the connection.
two
The serial port operates in two-wire mode. This mode is a half-duplex
connection with shared transmit and receive wires.
four
The serial port operates in four-wire mode. This mode is a full-duplex
connection with independent transmit and receive pairs.
The default is "four."
termination={on|off}
Applies when the serial port is running in EIA-485 mode only. Determines
whether termination and biasing resistors are used across the lines.
onTermination and biasing resistors are enabled across the lines.
Termination should be set to "on" if this node is an endpoint of the 485
network. Biasing should be used in at least one unit in a two-wire
environment.
offTermination and biasing resistors are disabled across the lines.
The default is "off."
![](asset-d2.png)
set switches
210 Chapter 2 Command Descriptions
Examples Configure standard EIA-232 communication
#> set switches port=1 mode=232
Configure a half-duplex EIA-485 endpoint
#> set switches port=1 mode=485 wires=two termination=on
Configure a full-duplex 422 interior node
#> set switches port=1 mode=485 wires=four termination=off
See also • "display" on page 27. The “display switches” command displays the
current switch settings.
• "revert" on page 61. The “revert switches” command reverts the
“set switches” configuration.
![](asset-d3.png)
set system
Chapter 2 Command Descriptions 211
set system
Devices
supported This command is supported in all Digi Connect products.
Purpose Configures and displays system-identifying information, such as a
description of the device, its location, and a contact person.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-service=read” to display network service settings, and
“set permissions s-services=rw” to display and change network service
settings.
Syntax Change system-identifying information
set system [description=string|location=string|contact=string]
Display system-identifying information
set system
Options description=string
A description of this device. The maximum length is 64 characters. The
default is “”.
location=string
The location of this device. The maximum length is 64 characters. The
default is “”.
contact=string
The contact for this device. The maximum length is 64 characters. The
default is “”.
Examples Set description, contact, and location
#> set system description=”Engineering printer” location=”Room 1347”
contact=”John Doe at x-3749”
See also • "revert" on page 61.
• "show" on page 249.
![](asset-d4.png)
set tcpserial
212 Chapter 2 Command Descriptions
set tcpserial
Devices
supported This command is supported in all Digi Connect products.
Purpose Used to set behaviors of TCP serial connections, or display current TCP
serial settings.
This command affects the following TCP serial connections:
• Connections made using the autoconnect feature.
• Incoming network connections made to the following:
• The TCP server (raw socket, IP port 2101)
• The Telnet server (telnet socket, IP port 2001)
• Secure Sockets Layer (ssl socket, IP port 2601)
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the TCP serial settings for the line on which they
are logged in: “set permissions s-tcpserial=r-self”
• For a user to display the TCP serial settings for any line:
“set permissions s-tcpserial=read”
• For a user to display and set the TCP serial settings for the line on
which they are logged in: “set permissions s-tcpserial=rw-self”
• For a user to display the TCP serial settings for any line, and set TCP
serial settings for the line on which the user is logged in:
“set permissions s-tcpserial=w-self-r”
• For a user to display and set the TCP serial settings on any line:
“set permissions s-tcpserial=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set behaviors of TCP serial connections
set tcpserial port=range
[hangupdcd={on|off}]
[hangupdsr={on|off}]
[idletime={0|n}]
[sid={on|off}]
[sidstring=socketid string]
[buffered={on|off}]
[sendcount=1-65535 bytes]
[sendtime={0|1-65535ms}]
[endpattern=string]
[strippattern={on|off}
Display TCP serial settings
set tcpserial [port=range]
![](asset-d5.png)
set tcpserial
Chapter 2 Command Descriptions 213
Options port=range
Used to specify the serial port. Optional on a single-port device.
hangupdcd={on|off}
Indicates whether an established network connection should be
terminated when the serial port’s DCD signal drops. The default is “off.”
hangupdsr={on|off|}
Indicates whether an established network connection should be
terminated when the serial port’s DSR signal drops. The default is “off.”
idletime=idletime={0|n}
Indicates that established network connection should be terminated if the
serial port is idle for the specified amount of time in seconds. A value of
0 (zero) disables this option. The default is 0.
sid={on|off}
Determines how the socket ID (SID) string in the “sidstring” option is
handled.
on
The value for the “sidstring” option is sent to the network destination
right before the first data bytes are sent to the network.
offThe value for the “sidstring” option is not sent to the network
destination.
The default is “off.”
sidstring=socketid string
When the “sid” option is set to on, this string is sent to the network
destination right before the first data bytes are sent to the network. The
maximum length of this string is 256 characters, including escape
sequences for special characters. The maximum parsed length of this
string is 256 characters. That is, this string must reduce down to a 256-
character string when the escape sequences are processed. For more
details on the escape sequences, see "Entering Special Characters in
String Values" on page 13.
buffered={on|off}
Turning on this feature on allows controlling how serial data is sent out to
the network. The “sendcount,” “sendtime,” “endpattern,” and
“strippattern” options are used to control how data is sent out once the
“buffered” option is set to “on.” The default is “off.”
sendcount=1 - 65535 bytes
Indicates that data from the serial port should be sent out to the network
after buffering the given number of bytes. This option only is valid when
the “buffered” option is “on.” The default is 1024 bytes.
![](asset-d6.png)
set tcpserial
214 Chapter 2 Command Descriptions
sendtime={0|1-65535ms}
Indicates that data from the serial port should be sent out to the network
after the given amount of time has past where no new data has arrived
from the serial port. This option only is valid when the “buffered” option is
“on.” A value of 0 (zero) disables this option. The default is 0.
endpattern=string
Indicates that data from the serial port should be sent out to the network
after the given endpattern string has been found in the data from the
serial port. This option only is valid when the “buffered” option is “on.” An
empty string disables this option.
The maximum length of this string is 16 characters, including escape
sequences for special characters. For more details on the escape
sequences, see "Entering Special Characters in String Values" on page
13. The maximum parsed length of this string is 4 characters. That is, this
string must reduce down to a 4-character string when the escape
sequences are processed.
strippattern={on|off}
This option corresponds with the “endpattern” option. When a valid
“endpattern” string is found, this option indicates whether the matching
string is stripped or kept in the data stream. The default is “off.”
Examples #> set tcpserial hangupdcd=off idletime=20
#> set tcpserial port=1 sid=on sidstring=”abc”
#> set tcpserial port=1 buffered=on sendtime=50 sendcount=512
#> set tcpserial
See also • "revert" on page 61.
• "show" on page 249.
![](asset-d7.png)
set term
Chapter 2 Command Descriptions 215
set term
Devices
supported This command is supported in all Digi Connect products except
ConnectPort Display.
Purpose Allows for connecting a terminal to a device’s serial port and accessing the
command line of the device.
In the cases where the default access to the terminal and the command
line is “on,” this command is important if users want to use the serial port
for purposes other than having a command line. That is, they must change
the state of the serial port access from “on” to “off” in order to use the serial
port for another purpose.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-term=read” to display terminal settings, and
“set permissions s-term=rw” to display and change terminal settings.
Syntax Configure terminal settings
set term [state={on|off}]
Display current terminal settings
set term
Options state={on|off}
Specifies whether terminal access is enabled for the serial port. The
default is “on” for Digi Connect WAN and Digi Connect RG devices.
Examples #> set term
Serial Terminal Configuration :
port# state
1 on
2 on
See also • "revert" on page 61.
• "show" on page 249.
![](asset-d8.png)
set udpserial
216 Chapter 2 Command Descriptions
set udpserial
Devices
supported This command is supported in all Digi Connect products except Digi
Connect WAN and ConnectPort Display.
Purpose Use this command to set up the UDP serial feature, or display current UDP
serial settings.
The UDP serial feature allows data to be sent between the serial port and
one or more remote network destinations using the UDP protocol. When
this feature is enabled for a given serial port, data sent to the serial port will
be sent out to the configured destinations. Also any time data is sent to the
UDP serial service (IP port 2101) and the serial port is not being used by
another service, the data will be sent to the serial port.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display the UDP serial settings for the line on which they
are logged in: “set permissions s-udpserial=r-self”
• For a user to display the UDP serial settings for any line:
“set permissions s-udpserial=read”
• For a user to display and set the UDP serial settings for the line on
which they are logged in: “set permissions s-udpserial=rw-self”
• For a user to display the UDP serial settings for any line, and set UDP
serial settings for the line on which the user is logged in:
“set permissions s-udpserial=w-self-r”
• For a user to display and set the UDP serial settings on any line:
“set permissions s-udpserial=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set general UDP serial forwarding characteristics for a serial port
set udpserial port=range [state={on|off}]
[sendcount=bytes] [sendtime={0|time}]
[endpattern=string] [strippattern={on|off}]
[sid={on|off}] [sidstring=string}
[closetime=time]
Set UDP destinations for a given serial port
set udpserial port=range range=1-64 [description=string]
[active={on|off} [ipaddress=ip address}
[ipport=ip port]
Display current UDP serial settings
set udpserial [port=range [range=range]]
![](asset-d9.png)
set udpserial
Chapter 2 Command Descriptions 217
Options Options for setting general UDP serial forwarding characteristics
port=range
Used to specify the serial port. Optional on a single-port device.
state={on|off}
Used to enable or disable sending data from the serial port to remote
network destinations. The default is “off.”
sendcount=bytes
The number of bytes received from the serial port that will cause the data
to be sent on to the network destinations. This trigger cannot be disabled.
The default is 1024 bytes.
sendtime={0|time}
The amount of idle time, in milliseconds, allowed before sending data to
the network. If no data is received on the serial port for the time specified
by this option, any buffered data will be sent on to the network
destinations. A value of 0 (zero) disables this trigger.
endpattern=string
If this string is set, any pattern match of data received from the serial port
will cause the data to be sent on to the network destinations. The
maximum length of this string is 16 characters, including escape
sequences for special characters. For more details on the escape
sequences, see "Entering Special Characters in String Values" on page
13. The maximum parsed length of this string is 4 characters. That is, this
string must reduce down to a 4-character string when the escape
sequences are processed.
strippattern={on|off}
Determines how the data specified by the “endpattern” option is handled.
onThe endpattern that is found is stripped from the stream before any
data is to be sent on to the network destinations.
offThe endpattern is not stripped from the stream before data is sent on
to network destinations.
The default is “off.”
![](asset-da.png)
set udpserial
218 Chapter 2 Command Descriptions
sid={on|off}
Determines how the socket ID (SID) string in the “sidstring” option is
handled; that is, whether the string specified by the “sidstring” option is
sent at the beginning of each UDP packet.
onThe value of “sidstring” is sent at the beginning of each UDP packet.
offThe value of “sidstring” is not sent at the beginning of each UDP
packet.
The default is “off.”
sidstring=string
The string sent at the beginning of each UDP packet if the “sid” option is
set to on. The maximum length of this string is 256 characters, including
escape sequences for special characters. For more details on the escape
sequences, see "Entering Special Characters in String Values" on page
13. The maximum parsed length of this string is 256 characters. That is,
this string must reduce down to a 256-character string when the escape
sequences are processed.
clostime=time
The amount of idle time before closing the serial port, in milliseconds. If
no data is sent or received on the serial port for the specified amount of
time, the serial port is closed. This allows the serial port to be used by
other things such as TCP socket or RealPort. If a value of 0 milliseconds
is set, the “closetime” option will internally be recalculated to be 1
millisecond or twice the send time, whichever is greater. The default is 0
milliseconds.
Options for setting UDP destinations for a given serial port
The following options require a specific range to be specified by the “range”
option.
port=range
Specifies the serial port. Optional on a single-port device.
range={1-64}
Specifies the UDP destination to be configured.
description=string
A string for descriptive purposes only.
active={on|off}
Specifies whether data from the serial port is sent to this destination.
on
Data from the serial port is sent to this destination.
off
This destination is not sent any data.
The default is “off.”
ipaddress=ip address
The IP address of the network destination to which data is sent.
![](asset-db.png)
set udpserial
Chapter 2 Command Descriptions 219
ipport=ip port
The UDP port of the destination to which data is sent.
Options for displaying current UDP serial settings
port=range
Used to specify the serial port. Optional on a single-port device.
range=range
Identifies the range of UDP destinations to be displayed.
Examples Set general UDP serial forwarding based on bytes received
In this example, the amount of bytes received from the serial port will cause
the data to be sent on to the network destination.
#> set udpserial port=1 state=on sendcount=2
Set UDP destinations for a given serial port
In this example, data will be sent to the destination identified.
#> set udpserial port=1 range=1 ipaddress=10.0.0.1 ipport=2101 active=on
Display current UDP serial settings
The following are all valid ways of using set udpserial to display current
UDP serial settings:
#> set udpserial
#> set udpserial port=1
#> set udpserial port=1 range=1-12
See also • "revert" on page 61.
• "show" on page 249.
![](asset-dc.png)
set user
220 Chapter 2 Command Descriptions
set user
Devices
supported This command is supported in all Digi Connect products.
Purpose Used to:
• Add users for access to a Digi Connect device. The number of users
that can be defined varies by Digi Connect device. To determine the
number of users allowed for your Digi Connect device, enter “set user”
or “show user”.
• Associate a user with a group. A user can be associated with up to two
groups.
• Disassociate a user from a group.
• Remove users.
• Change user configuration attributes.
• Display user configuration attributes.
• Load an SSH public key, and, for single-user model products, unload a
public key.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display user configuration attributes:
“set permissions s-user=read”
• For a user to display and set user configuration attributes:
“set permissions s-user=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Default permissions for a new user
When a new user is created, it is given a set of default permissions. Once a
user is created, an administrator can adjust permissions up or down as
needed. Default permissions for a new user are as follows. For more
information on user permissions, see "set permissions" on page 157.
• none: for backup, boot, connect, display, buffers, kill, s-alarm, s-gpio,
s-permissions, s-pmodem, s-rciserial, s-snmp, status, webui, filesys,
s-idle, s-panic, revert-all, s-trace, s-wlan, s-menu, s-profile
• execute: For reconnect, rlogin, telnet, who, ping.
• read: access, s-ethernet, s-group, s-network, s-serial, s-service,
s-system, s-trane, s-user
• r-self: autoconnect, rtstoggle, tcpserial, udpserial
• rw-self: newpass
![](asset-dd.png)
set user
Chapter 2 Command Descriptions 221
Syntax Add a user
set user add id=number newname=string
Remove a user
set user remove {id=range|name=string}
Associate a user with a group
set user associate {id=number|name=string}
{gid=number|gname=string}
Disassociate a user from a group
set user disassociate {id=number|name=string}
{gid=number|gname=string}
Change user configuration attributes
set user [id=range|name=string]
[newname=string]
[commandline={on|off}]
[groupaccess={on|off}]
[menu={none|index|name}]
[defaultaccess={none|commandline|group|menu}]
[defaultgroup={none|gid|gname}]
Display user configuration attributes
set user {id=range|name=string}
Display user configuration attributes for all users
set user
Load an SSH public key
set user public_key=tftphost:filename
Remove an SSH public key
set user public_key=clear
Options add
Add a user. New users are created with the default permissions (see
“Default permissions for a new user” earlier in this description). A
maximum of 32 users can be defined.
remove
Remove users.
associate
Associate a user with a group. A user can be associated with a maximum
of two groups.
disassociate
Disassociate a user from a group.
id=range
Specifies the ID or range of IDs of the users to be acted on.
![](asset-de.png)
set user
222 Chapter 2 Command Descriptions
name= string
Specifies the name of the user to be acted on.
newname=string
Specifies a new user name.
gid=number
Specifies the identifier for the group being associated with a user. If
omitted, the “gname” option must be specified.
gname=string
Specifies the name of the group being associated with a user. If omitted,
the “gid” option must be specified.
commandline={on|off}
Specifies whether the user is allowed to access the command line of the
device.
onUser can access the command line interface.
offUser can not access the command line interface.
The default is “on.”
groupaccess={on|off}
Specifies whether the user is allowed to use the access rights for any
associated groups. This allows a group to define the access rights for
users. For instance, if the user has “commandline=off” and an associated
group has “commandline=on,” then the user will have command line
access if “groupaccess=on.”
onThe user can use group access rights.
offThe user cannot use group access rights.
The default is “off.”
menu={none|index|name}
Specifies whether the user is allowed to access the custom menu
interface of the device and defines the custom menu that the user will
have displayed.
none
The user is not allowed to access the custom menu interface.
index
The user is allowed to access the custom menu interface and will be
displayed the custom menu at the specified index.
name
User is allowed to access the custom menu interface and will be
displayed the custom menu using the specified name.
The default is “none.”
![](asset-df.png)
set user
Chapter 2 Command Descriptions 223
defaultaccess={none|commandline|menu|group}
Specifies the default access method and interface that a user will be
given upon logging into the device. Note that the specified interface must
be enabled for the user and have a valid menu and/or group if specified.
none
The user has no default access to the device and must explicitly
specify the access type. If the user and/or associated group has no
access rights then the user is not allowed to access either the
command line interface or the custom menu interface.
commandline
The user will be displayed and given access to the command line
interface assuming the user and/or associated groups have command
line access rights enabled.
menu
The user will be displayed and given access to the custom menu
interface and be displayed the custom menu as specified by the
“menu” option.
group
The user will be displayed the default access interface as specified by
the “defaultgroup” option, assuming the specified group is valid and
associated to this user. This allows the default access for a user to be
controlled by the associated group.
The default is “commandline.”
defaultgroup={none|gid|gname}
Specifies the default group to use when checking the default access
rights when the “defaultaccess” option is set to group. The specified
group must be valid and associated to the user.
none
The user will not be given any default access.
gid
The user will be given the default access method according to the
default access of the group with the specified gid.
gname
The user will be given the default access method according to the
default access of the group with the specified name.
The default is “none.”
![](asset-e0.png)
set user
224 Chapter 2 Command Descriptions
public_key={tftphost:filename|clear}
Loads or clears an SSH public key used for authentication of this user.
The key must be an RSA public key, in either OpenSSH or the IETF draft
format.
tftphost:filename
Loads an SSH2 public key for use with this user, where:
tftphost
The IP address or DNS name of a host from which the SSH public
key will be downloaded to the Digi Connect device using TFTP.
filename
The name of a file on the host that contains the SSH public key. If
your host’s implementation requires a complete path to this file,
specify the path here as well.
clear
Unloads an SSH public key.
Examples Add a new user
#> set user add newname=jsmith id=4
Remove user 7
#> set user remove id=7
Associate user “johndoe” with the root group
#> set user associate name=johndoe gname=root
Disassociate user 15 from group 2
#> set user disassociate id=15 gid=2
Set a new user name to be entered at login
#> set user id=4 newname=jdoe
Set a user to have default command line interface access
#> set user id=4 commandline=on defaultaccess=commandline
Set a user to use group access rights
#> set user name=johndoe groupaccess=on defaultaccess=group defaultgroup=root
See also • "User Models and User Permissions in Digi Connect Products" on page
14.
• "newpass" on page 51.
• "revert" on page 61
• "set group" on page 115.
• "set menu" on page 132.
• "set permissions" on page 157.
• "show" on page 249.
![](asset-e1.png)
set video
Chapter 2 Command Descriptions 225
set video
Devices
supported This command is supported in ConnectPort Display only.
Purpose Configures or displays video settings for ConnectPort Display.
Syntax Configure video settings
set video mode={640x480@60-16|800x600@56-16|800x600@60-16|
1024x768@70-8}
splash_time=0-30 seconds
Display current video settings
set video
Options mode={640x480@60-16|800x600@56-16|800x600@60-16|
1024x768@70-8}
The resolution, refresh rate, and color depth of the display screen.
splash_time=0-30 seconds
The amount of time, in seconds, to show the splash screen. Valid values
are 0 through 30. A value of 0 disables the splash screen.
Example #> set video mode=800x600@60-16 splash_time=5
See also • "revert" on page 61.
• "set putty" on page 175.
• "set vncclient" on page 226.
• "show" on page 249.
![](asset-e2.png)
set vncclient
226 Chapter 2 Command Descriptions
set vncclient
Devices
supported This command is supported in ConnectPort Display only.
Purpose Configures or displays remote-access settings. Your ConnectPort Display
can provide remote access to a computer on the network or Internet using
the VNC (Virtual Network Computing) protocol.
VNC server software must be installed on the remote computer. A VNC
server is provided on your ConnectPort Display Software and
Documentation CD.
You can interact with the remote computer using a keyboard and mouse
connected to the USB ports on your ConnectPort Display.
Syntax Configure remote-access settings
set vncclient [state={on|off}]
[server=vnc server ipaddr|dns name]
[port=vnc server network port]
[password=vnc server password]
[reconnect=0-2000000 seconds]
[shared={on|off}]
[localcursor={on|off}]
[keepalive={on|off}]
Display current remote-access settings
set vncclient
Options state={on|off}
Enables or disables the connection to a remote computer’s VNC server.
server={vnc server ipaddr|dns name}
The VNC server’s IP address or DNS name.
port=vnc server network port
The network port number to connect to on the VNC server. The default
port number for VNC servers is 5900.
password=vnc server password
The password for logging on to the VNC server.
reconnect=0-2000000 seconds
The maximum amount of time to wait before attempting to reconnect to
the VNC server if the connection cannot be established or lost.
shared={on|off}
Specifies whether the VNC server desktop can be shared with other
clients. If “shared=on,” Other VNC clients can connect to the VNC server
while your ConnectPort Display is connected.
localcursor={on|off}
Enables or disables local mouse cursor handling. Tracking the mouse
cursor locally can improve mouse performance, especially with a slow
VNC server or slow network.
![](asset-e3.png)
set vncclient
Chapter 2 Command Descriptions 227
keepalive={on|off}
Indicates whether or not TCP keep-alives will be sent while connected to
the VNC server. Keep-alives help to detect when a connection has been
lost. TCP keep-alive parameters (such as how often to send them) are
configured globally.
Example #> set vncclient state=on server=10.20.1.107 port=5900 password=dnf10
reconnect=10 shared=on localcursor=on
See also • "revert" on page 61.
• "set service" on page 191. The VNC Client Listen Daemon and VNC
Server services are enabled and disabled by the “set service”
command.
• "set video" on page 225.
• "show" on page 249.
• The ConnectPort Display User’s Guide’s section titled “Configure
Remote Access (VNC Client) Settings.”
![](asset-e4.png)
set vpn
228 Chapter 2 Command Descriptions
set vpn
Devices
supported This command is supported in Digi Cellular Family products only, except
Digi Connect WAN.
Purpose Configures Virtual Private Network (VPN) settings. Virtual Private Networks
(VPN) are used to securely connect two private networks together so that
devices may connect from one network to the other network using secure
channels. VPN uses IP Security (IPSec) technology to protect the
transferring of data over the Internet Protocol (IP).
The Digi Cellular Family device is responsible for handling the routing
between networks. Devices within the private network of the Digi Cellular
Family device can connect directly to devices on the other private network
to which the VPN tunnel is established to. The VPN tunnels are configured
using various security settings and methods to ensure the networks are
secured.
Connect WAN products support up to two VPN tunnels. ConnectPort WAN
products support up to five VPN tunnels.
It is generally easier to configure VPN tunnel settings through the Web user
interface. VPN settings are configured on the
Network >Virtual Private Network (VPN) configuration pages named
VPN Settings and VPN Tunnel Settings.
There are several uses of the “set vpn” command:
• Configure global VPN options, including:
• The connection mode method used to negotiate Internet Key
Exchange (IKE) Phase One using Internet Security Association and
Key Management Protocol (ISAKMP).
• How the VPN client is identified to the remote VPN endpoint.
• The Diffie-Hellman group used within IKE to establish the session
keys used to create a secure channel. The method and security fac-
tor used to control the key exchange is specified by the Diffie-Hell-
man group.
• Use of Perfect Forward Secrecy (PFS).
• Use of antireplay.
• Configure and modify VPN tunnel options: VPN Tunnels define the
actual tunnels that exist between two private networks. The tunnels
specify the information required to establish the secure channel, the
routing between the networks, and the security policies used to encrypt
and authorize the data. A maximum of two tunnels may be created.
Configuring a VPN tunnel requires the remote VPN endpoint and the
method by which to establish the VPN tunnel. These settings are
typically specified by the remote VPN server and should correspond
accordingly. Both manually keyed and ISAKMP tunnels can be
configured.
![](asset-e5.png)
set vpn
Chapter 2 Command Descriptions 229
• Configure IKE/ISAKMP SA Phase 1 and Phase 2 options, which create
an authenticated secure channel and specify how IKE negotiates
security associations (SAs).
• Display current VPN settings.
Required
permissions For Digi Connect products with two or more users, to use this command,
permissions must be set to one of the following:
• For a user to display VPN settings: “set permissions s-vpn=read”
• For a user to display and set VPN settings: “set permissions s-vpn=rw”
See "set permissions" on page 157 for details on setting user permissions
for commands.
Syntax Set global VPN options
set vpn global
[mode={main|aggressive}]
[identity={fqdn|user fqdn|ip address}]
[dh_group={1|2|5}]
[pfs={on|off}]
[antireplay={on|off}]
Set VPN tunnel options
syntax: set vpn tunnel [tunnel options]
[manually-keyed options]
[isakmp options]
Where:
[tunnel options]:
[index={1-2 (for Connect WAN products)|1-5 (for ConnectPort
products)}]
[name=tunnel name]
[newname=tunnel name]
[mode={disabled|manually-keyed|isakmp}]
[remote_vpn_endpoint=(fqdn|ip address}]
[remote_tunnel_addr=ip address]
[remote_tunnel_mask=subnet mask]
[remote_tunnel_range=ip address-ip address]
[local_tunnel_addr=ip address]
[local_tunnel_mask=subnet mask]
[local_tunnel_range=ip address-ip address]
[manually-keyed options]:
mode=manually-keyed
[inbound_spi=256 - 2^32) (Please see option details below)
[inbound_authentication={none|md5|sha1}]
[inbound_auth_key={ascii key|hex key}]
[inbound_encryption={none|des|3des|aes}]
[inbound_enc_key={ascii key|hex key}]
[outbound_spi=256-2^32] (Please see option details below)
[outbound_authentication={none|md5|sha1}]
[outbound_auth_key={ascii key|hex key}]
[outbound_encryption={none|des|3des|aes}]
[outbound_enc_key={ascii key|hex key}]
![](asset-e6.png)
set vpn
230 Chapter 2 Command Descriptions
[isakmp options]:
mode=isakmp
[shared_key={ascii key|hex key}]
To specify proposals: see syntax and options for “Set IKE/ISAKMP SA
Phase 2 Options.”
Set IKE/ISAKMP SA Phase 1 Options
syntax: set vpn phase1
[index=1-2]
[state={enabled|disabled}]
[auth_method={shared_key|dss|rsa}]
[authentication={md5|sha1}]
[encryption={des|3des|aes}]
[encryption_size={0|128|192|256}]
[sa_lifetime=10-2^32] (Please see option details below)
[sa_lifetime_data=0-2^32] (Please see option details below)
Set IKE/ISAKMP SA Phase 2 Options
set vpn phase2
[tunnel=1-2]
[name=tunnel name]
[proposal=(1-8)]
[state={enabled|disabled}]
[authentication={none|md5|sha1}]
[encryption={none|des|3des|aes}]
[sa_lifetime=60-2^32] (Please see option details below)
[sa_lifetime_data=0-2^32] (Please see option details below)
Display current VPN settings
set vpn global
set vpn tunnel
set vpn phase1
set vpn phase2
![](asset-e7.png)
set vpn
Chapter 2 Command Descriptions 231
Options Global VPN options
set vpn global
Specifies that the “set vpn” command is for setting global VPN options.
mode={main|aggressive}
The method used to negotiate Internet Key Exchange (IKE) Phase One
using Internet Security Association and Key Management Protocol
(ISAKMP). Negotiations establish security settings and a secure channel
for subsequent messages. For the negotiations to progress, both sides
must be configured identically.
main
Main mode processes Phase One negotiations using three two-way
exchanges between the VPN client and remote VPN endpoint. The
exchanges are meant to match IKE Security Associations (SA)
between peers to provide a protected pipe for subsequent protected
ISAKMP exchanges between the peers. The first exchange negotiates
and agrees upon algorithms and hashes/keys used to secure the IKE
communications. The second exchange uses a Diffie-Hellman
exchange, per the specified Diffie-Hellman group, to generate nonces
and shared secret keys to sign and prove identities. The third
exchange verifies the identity per the specified Identity.
aggressive
Aggressive mode processes Phase One negotiations using fewer
exchanges than Main Mode processing. In the first exchange, almost
everything is sent in the proposed IKE values, including the Diffie-
Hellman key, nonce to sign and verify, and the identity. The weakness
of using Aggressive Mode compared to Main Mode is that negotiations
exchange information before the secure channel is created. However,
because fewer exchanges are used, aggressive mode is faster than
main mode. Aggressive mode may be required when a peer gateway
IP address is dynamic.
The default is “main.”
identity={fqdn|user fqdn|ip address}
Specifies how the VPN client is identified to the remote VPN endpoint.
The identity must match the value provided by the remote VPN endpoint
to properly identify this client and its respective security settings. This
option assumes the use of pre-shared key and is used to identify the pre-
shared key. This option can be specified in three ways:
identity=fqdn
Identity is specified as a Fully Qualified Domain Name (FQDN),
usually the FQDN of the Digi Connect device in the form of an Internet
hostname, for example www.myhost.com or remote3.digi.com.
identity=user fqdn
Identity is specified as a User Fully Qualified Name (UFQN, or User
FQDN). A User FQDN is similar to standard FQDN, but with a user
name. The format is the same as an email address, for example,
user@myhost.com or remote3@digi.com. This is the default
representation used by Digi devices, because it can easily be added
to authentication systems.
![](asset-e8.png)
set vpn
232 Chapter 2 Command Descriptions
identity=ip-address
Identity is specified as the Digi device’s IP address. Using this method,
you can specify either of the following:
The Network Address (IPv4): A standard IP address (version 4). that
uses the standard IPv4 dotted format (four numeric values between 0
and 255 separated by periods). For example: 10.0.0.1
The Mobile IP address as the identity: This means that the IP
address of your mobile network interface will automatically be used as
the VPN identity.
The IP-address method is the easiest for system administrators to use,
because it is both familiar and should be unique. However, it is not
always the best choice. The IP address may be for the device, unless
special arrangements are made with the cellular carrier. This presents
a difficult configuration issue, unless a large subnet of addresses are
defined to use a single pre-shared key.
The default identify form is “macaddress@digi.com.”
dh_group={1|2|5}
The Diffie-Hellman (DH) prime modulus group. Diffie-Hellman is a public-
key cryptography protocol for establishing a shared secret over an
insecure communications channel. Diffie-Hellman is used with IKE to
establish the session keys that create a secure channel. This setting is
used if Perfect Forward Secrecy is also enabled (“pfs=on.”)
Digi Cellular Family products support the following Diffie-Hellman prime
modulus groups:
dh_group=1
Group 1 (768-bit).
dh_group=2
Group 2 (1024-bit).
dh_group=5
Group 5 (1536-bit).
The default is 2 (Group 2).
pfs={on|off}]
Specifies whether the Perfect Forward Secrecy (PFS) method is on or off.
PFS is a method of deriving session keys from known keying material.
PFS establishes greater resistance to cryptographic attacks by ensuring
that a given key of an IKE SA is not derived from any other secret, and
that no other key can be derived from this key.
For negotiations to succeed, both the local and remote sides of the
connection must have the “pfs” and “dh_group” options set to the same
values.
The default is “on.”
![](asset-e9.png)
set vpn
Chapter 2 Command Descriptions 233
antireplay={on|off}
Specifies whether the antireplay feature is on or off. Antireplay allows the
IPsec tunnel receiver to detect and reject packets that have been
replayed. It does this by adding information to the packets exchanged
between VPN endpoints, to ensure that a third party cannot replay the
same information to one of the VPN endpoints at a later time to recreate
the secure channel again.
Important: If using manually-keyed tunnels, disable this option.
For negotiations to succeed, both the local and remote sides of the
connection must be set to the same value. Set this field to match that at
the remote VPN gateway. The default is “on.”
VPN tunnel options
VPN tunnel options are specified in this format:
set vpn tunnel [tunnel options] [manually-keyed options]
[isakmp options]
Where:
set vpn tunnel
Specifies that the “set vpn” command is for configuring a VPN tunnel.
[tunnel options]
The VPN tunnel configuration options. The set of options specified
depends on whether the method of establishing the VPN tunnel is
manually-keyed or ISAKMP.
index={1-2}
The index number for an existing VPN tunnel.
name=tunnel name
A name that describes the VPN tunnel. This may be used to help
identify each tunnel with a descriptive and unique name.
newname=tunnel name
The new name for the VPN tunnel.
mode={disabled|manually-keyed|isakmp}
The method of establishing the VPN tunnel.
disabled
The VPN tunnel is enabled or disabled. Use this option when
creating several tunnels, where only one would be used initially. In
that case, you would add a disabled tunnel for future use and
enable it on a subsequent “set vpn” command.
manually-keyed
The VPN tunnel is established by manually keying in VPN tunnel
and security settings. These settings must match the settings of the
remote VPN endpoint. Manually-keyed VPNs do not use IKE/
ISAKMP. Manually-keyed VPN keys never expire.
isakmp
The VPN tunnel is established by specifying a list of security
policies to negotiate a set of security settings from the remote VPN
endpoint.
![](asset-ea.png)
set vpn
234 Chapter 2 Command Descriptions
remote_vpn_endpoint=(fqdn|ip address}
The IP address or hostname of the peer with which the VPN
connection is established.
remote_tunnel_addr=ip address
remote_tunnel_mask=subnet mask
remote_tunnel_range=ip address-ip address
These options specify the routes required to access clients on the
remote network. They also specify the remote peers that local clients
are allowed to connect to. The remote network specifies the private
network to which the remote VPN endpoint is connected.
local_tunnel_addr=ip address
local_tunnel_mask=subnet mask
local_tunnel_range=ip address-ip address
These options specify the routes required to access clients on the local
network. They also specify the clients that are allowed to access the
remote clients through the VPN tunnel. Typically, the local network
specifies the same network and subnet connected to the Digi Cellular
device's Ethernet port. Thus, any client on the same network will be
able to communicate over the VPN tunnel.
[manually-keyed options]
These options are for VPN manually-keyed VPN tunnels. To properly
configure a manual-keyed tunnel, the following settings are required to
be set as specified by the remote VPN server. This includes the local and
remote network settings that handle the routing between the local and
remote peers. It also includes the security settings for both incoming and
outgoing traffic, which may be different from each other, depending on
the implementation of the remote VPN server. Incoming or inbound traffic
is defined as any traffic sent from a remote peer on the remote network
of the remote VPN endpoint to a local peer on the local network. Outgoing
or outbound traffic is defined as any traffic sent from a local peer to a
remote peer.
mode=manually-keyed
Indicates that the settings are for a manually-keyed VPN tunnel.
Manually-keyed tunnels specify the tunnel and security settings
manually. These settings must match the settings of the remote VPN
endpoint.
inbound_spi=256 - 2^32
The Security Parameter Index (SPI) for inbound traffic.The SPI defines
the unique index for a tunnel used to identify the security settings for
IPSec. The SPI is a 32-bit unsigned value that must not be less than
256.
![](asset-eb.png)
set vpn
Chapter 2 Command Descriptions 235
inbound_authentication={none|md5|sha1}
The optional authentication algorithm, used with the associated
authentication key specified by the “inbound_auth_key” option, to
authorize access on the VPN tunnel for inbound traffic.
none
No authentication algorithm is used.
md5
MD5 authentication algorithm, which uses 128-bit keys.
sha1
SHA1 authentication algorithm, which uses 160-bit keys.
inbound_auth_key={ascii key|hex key}
The authentication key for inbound traffic, according to the
authentication algorithm specified by the “inbound_authentication”
option. The authentication key may be specified as an ASCII value
using alpha-numeric characters or may be specified as a hexadecimal
value prefixed by “0x”. The following table lists the associated lengths
of the authentication keys based on the authentication algorithm.
inbound_encryption={none|des|3des|aes}
The optional encryption algorithm used with the associated encryption
key specified by the “inbound_enc_key” option to encrypt data on the
VPN tunnel for inbound traffic.
none
No encryption algorithm is used.
des
DES encryption algorithm, which uses 64-bit keys.
3des
3DES encryption algorithm, which uses 192-bit keys.
aes
AES encryption algorithm, which uses 128-bit keys.
Algorithm Size Key Length
ASCII Hexadecimal
MD5 128-bit 16 32
SHA1 160-bit 20 40
![](asset-ec.png)
set vpn
236 Chapter 2 Command Descriptions
inbound_enc_key={ascii key|hex key}
The encryption key for inbound traffic, according to the authentication
algorithm specified by the “inbound_encryption” option. The
encryption key may be specified as an ASCII value using alpha-
numeric characters or may be specified as a hexadecimal value
prefixed by “0x”. The following table lists the associated lengths of the
encryption keys based on the encryption algorithm.
outbound_spi=256 - 2^32
The SPI for outbound traffic.The SPI defines the unique index for a
tunnel used to identify the security settings for IPSec. The SPI is a 32-
bit unsigned value that must not be less than 256.
outbound_authentication={none|md5|sha1}
The optional authentication algorithm used with the associated
authentication key specified by the “outbound_auth_key” option to
authorize access on the VPN tunnel for outbound traffic.
none
No authentication algorithm is used.
md5
MD5 authentication algorithm, which uses 128-bit keys.
sha1
SHA1 authentication algorithm, which uses 160-bit keys.
outbound_auth_key={ascii key|hex key}
The authentication key for outbound traffic, according to the
authentication algorithm specified by the “outbound_authentication”
option. The authentication key may be specified as an ASCII value
using alpha-numeric characters or may be specified as a hexadecimal
value prefixed by “0x”. For the allowed lengths for this key, see
“inbound_auth_key.”
outbound_encryption={none|des|3des|aes}
The optional encryption algorithm used with the associated encryption
key specified by the “outbound_enc_key” option to encrypt data on the
VPN tunnel for outbound traffic. For the allowed values, see
“inbound_encryption.”
outbound_enc_key={ascii key|hex key}
The encryption key for outbound traffic, according to the authentication
algorithm specified by the “outbound_encryption” option. For the
allowed values and key length, see “inbound_enc_key.”
Algorithm Size Key Length
ASCII Hexadecimal
DES 64-bit 8 16
3 DES 192-bit 24 48
AES 128-bit 16 32
![](asset-ed.png)
set vpn
Chapter 2 Command Descriptions 237
[isakmp options]
To configure an ISAKMP tunnel, you must configure the settings to match
those on the remote VPN server.
mode=isakmp
Indicates that the settings are for a VPN ISAKMP tunnel. ISAKMP
tunnels specify a list of proposals, or security policies, in order to
negotiate a set of security settings from the remote VPN endpoint.
shared_key={ascii key|hex key}
A key that secures the VPN tunnel. The key can be either an ASCII
value using alphanumeric characters or a hexadecimal value prefixed
by 0x.
To specify security proposals for VPN ISAKAMP tunnels, see "IKE/ISAKMP
SA Phase 2 options" on page 239.
IKE/ISAKMP SA Phase 1 and Phase 2 options
Internet Key Exchange (IKE) negotiates the IPSec security associations
(SA). This process requires that the IPSec systems first authenticate
themselves to each other and establish ISAKMP (IKE) shared keys. The
SAs are relationships between two or more entities or peers that describe
how the entities or peers will use security services to communicate
securely.
IKE negotiations are handled using two different phases.
• Phase 1 is responsible for creating an authenticated and secure
channel between the two peers. Typically, phase one is completed
using a Diffie-Hellman exchange using cryptography.
• Phase 2 is then responsible for negotiating the final SAs and generating
the required keys and key material for IPSec. This is completed by
negotiating one or more sets of security policies, or proposals, between
the two peers until a given set is agreed upon by both peers.
Default Security Policies
The security policies that are negotiated and used in securing the SAs
include the encryption algorithm, authentication algorithm, and the SA
lifetime in seconds. By default, the Digi Cellular Family device includes the
following set of defaults. If these settings do not match the VPN and IKE
SA configuration of the remote peers or if further policies are required,
select Use the following policies to negotiate Internet Key Exchange
(IKE) security settings and add one or more security policies.
Encryption Authentication SA Lifetime
3-DES (192-bit) SHA1 86400 seconds
![](asset-ee.png)
set vpn
238 Chapter 2 Command Descriptions
IKE/ISAKMP SA Phase 1 options
set vpn phase1
Specifies that the “set vpn” command is for configuring a VPN Phase 1
options.
index=1-2
The index number for an existing VPN tunnel.
state={enabled|disabled}
Whether the VPN tunnel is enabled or disabled. You can use this
option when creating several tunnels, where only one would be used
initially. In that case, you would add a disabled tunnel for future use
and enable it on a subsequent “set vpn” command.
auth_method={shared_key|dss|rsa}
The authentication method used by the VPN tunnel.
shared_key
Authentication is performed by using a key that secures the VPN
tunnel, where the key is either an ASCII alphanumeric value or a
hexadecimal value.
dss
Authentication is performed using Digital Signature Standard (DSS).
rsa
Authentication is performed using RSA, which uses a combination of
sender’s and receiver’s public and private keys.
authentication={md5|sha1}
The authentication algorithm used in IKE negotiations to authenticate
the IKE peers and Security Associations (SAs).
md5
MD5 authentication algorithm, which uses 128-bit keys.
sha1
SHA1 authentication algorithm, which uses 160-bit keys.
encryption={des|3des|aes}
The encryption algorithm used in IKE negotiations for encrypting data.
des
DES encryption algorithm, which uses 64-bit keys.
3des
3DES encryption algorithm, which uses 192-bit keys.
aes
AES encryption algorithm, which uses 128-bit keys.
encryption_size={0|128|192|256}
The encryption key length, in bits, used in IKE negotiations for
encrypting data. The key length is based on the encryption algorithm
and is used to calculate and create the shared key.
![](asset-ef.png)
set vpn
Chapter 2 Command Descriptions 239
sa_lifetime=10-2^32
Determines how long an Security Association (SA) policy is active, in
seconds. After the IKE SA has been negotiated, the SA lifetime
begins. Once the lifetime has completed, a new set of SA policies are
negotiated using IKE phase 2 negotiation.
sa_lifetime_data=0-2^32
The amount of data, in bytes or kilobytes, that is sent and received until
the SA is renegotiated. This value is analogous to the SA lifetime. Also
known as SA life size.
IKE/ISAKMP SA Phase 2 options
Security policies define the set of security settings for incoming and
outgoing traffic used to encrypt and authorize data. One or more sets of
settings may be specified. The actual set of negotiated settings depends
on the available policies specified by the remote VPN endpoint.
The VPN Phase 2 options are used to configure a set of security policies
for ISAKMP tunnels. The settings define the set of encryption and
authentication algorithms used for incoming and outgoing traffic over the
VPN tunnel.
A security policy can have multiple proposals. For example, a policy can
have two proposals so to allow older VPN devices to connect using less-
secure methods, while allowing the same policy to have a second (or more)
proposal to allow newer, more powerful end-points to use more secure
methods.
set vpn phase2
Specifies that the “set vpn” command is for configuring a VPN Phase
2options.
tunnel=1-2
The index number assigned to the VPN tunnel.
name=tunnel name
The name of the VPN tunnel.
proposal=(1- 8)
The index number assigned to the security proposal.
state={enabled|disabled}
Whether the VPN tunnel is enabled or disabled. You can use this
option when creating several tunnels where only one would be used
initially. In that case, you would add a disabled tunnel for future use
and enable it on a subsequent “set vpn” command.
![](asset-f0.png)
set vpn
240 Chapter 2 Command Descriptions
authentication={none|md5|sha1}
The authentication algorithm used in authenticating clients.
none
No authentication. No authentication can be used to save time and
CPU cycles. It is not as secure, but the peers were authenticated in
phase 1.
md5
MD5 authentication, which uses 128-bit keys.
sha1
SHA1 authentication, which uses 160-bit keys.
encryption={none|des|3des|aes}
The encryption algorithm used for encrypting data.
none
No encryption is used. One use of IPsec is to tie to private networks
together. If security is not a major concern, encryption can be
disabled to save on processing and overhead.
des
DES encryption, which uses 64-bit keys.
3des
3-DES encryption, which uses 192-bit keys.
aes
AES encryption, which uses either 128-bit, 192-bit, or 256-bit keys
depending on the negotiated security settings.
sa_lifetime=60-2^32
Determines how long a Security Association (SA) policy is active, in
seconds. After the SA has been negotiated, the SA lifetime begins.
Once the lifetime has completed, a new set of SA policies are
negotiated with the remote VPN endpoint.
sa_lifetime_data=(0 - 2^32) (kilobytes)
The amount of data, in bytes or kilobytes, that is sent and received until
the SA is renegotiated. This value is analogous to the SA lifetime. Also
known as SA life size.
See also • "display" on page 27. The “display sadb,” “display sp,” and “display vpn”
commands display VPN-related connection and status information.
• "revert" on page 61. The “revert vpn” options revert groups of VPN
settings, or all VPN settings.
• "show" on page 249.
• "vpn" on page 256. The “vpn” command is used to manage and display
the status of VPN tunnels.
• The VPN settings in the Web user interface (Network > Virtual Private
Network (VPN) Settings) and the online help for these settings.
• The Digi Cellular Family User’s Guide section titled “Virtual Private
Network (VPN) Settings.”
![](asset-f1.png)
set wlan
Chapter 2 Command Descriptions 241
set wlan
Devices
supported This command is supported in Digi Connect Wi-ME, Digi Connect Wi-EM,
and Digi Connect Wi-SP devices.
Purpose Configures wireless devices, or displays the status of wireless devices.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions s-wlan=read” to display wireless settings, and “set
permissions s-wlan=rw” to display and change wireless settings. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Configuring
wireless
settings
Following is information on how configuration choices for wireless devices,
such as the authentication method, affect other configuration choices, such
as encryption types and other “set wlan” command options.
Authentication methods and available encryption types
The following table shows the authentication methods available for
wireless devices, and the encryption types that apply to each method. The
Xs show the encryption types that can be used with each authentication
method. At least one encryption type must be selected if a particular
authentication method is selected.
Using "show wlan" to display authentication encryption methods
The "show wlan" command displays evaluation information about wireless
LAN settings, including ineffective settings and a list of valid combinations.
It displays whether encryption methods are specified and in use or not
used by authentication methods, and whether setup of certain options
appear to be complete. See the Examples section for "show" on page 249;
for the results of "show wlan."
Encryption
Type: Authentication Method:
Open Shared
Key WEP
authentication WPA-PSK
authentication WPA LEAP
Open XX
WEP XX X X X X
TKIP XX
CCMP XX
![](asset-f2.png)
set wlan
242 Chapter 2 Command Descriptions
Authentication methods and associated data fields
The following table shows the authentication methods available for
wireless devices, and the associated data fields, or command options, that
apply to each method. All data fields with that have an X in a particular
authentication method’s column are required, except for trusted
certificates, which is optional.
Data Fields: Authentication Method:
Open Shared
Key WEP
authentication WPA-
PSK WPA
authentication LEAP
WEP keys X
If WEP
encryption
is selected.
X
Passphrase X
Authentication
methods XX
Username,
password XXX
Client
certificate X
If TLS is
selected.
X
If TLS is
selected.
Trusted
certificates XX
![](asset-f3.png)
set wlan
Chapter 2 Command Descriptions 243
Inner and outer protocols
The following table shows relationships between outer protocols and inner
protocols specified on the “set wlan” command. Outer protocols are the
types of Extensible Authentication Protocols (EAP) that are allowed to
establish the initial connection with an authentication server or access
point. The outer protocols are specified by the “outer_eap” option. Inner
protocols are the types of protocols that are allowed to authenticate the
device. These protocols are used within the encrypted connection
established by PEAP or TTLs. The inner protocols are specified by the
“inner eap” option.
Syntax Configure wireless settings
set wlan
[protmode={bss|ibss_create|ibss_join|any}]
[channel={0|1-14}]
[ssid=string]
[authentication={[open],[sharedkey],[wep_auth],[wpa_psk],
[wpa_auth],[leap],[any]}
[encryption={[open],[wep],[tkip],[ccmp],[any]}]
[outer_eap={[peap],[tls],[ttls],[any]}]
[inner_eap={[gtc],[md5],[mschapv2],[otp],[chap],[mschap],
[ttls_mschapv2],[pap],[any]}]
[options={[diversity],[short_preamble],[verify_cert]}]
[username=string]
[password=string]
[psk=string]
[wepmode={64bit|128bit}]
[wepindex=1-4]
[wepkeyN=hex string]]
[country=string]
[maxtxrate={1|2|5.5|11}] (Mbps)
[txpower={6|8|10|12|14|16}] (dBm)
Inner
Protocols: Outer Protocols:
PEAP TLS TTLS
GTC X
MD5 X X
MSCHAPv2 X X
OTP X X
TLS X X
CHAP X
MSCHAP X
MSCHAPv2 X
PAP X
![](asset-f4.png)
set wlan
244 Chapter 2 Command Descriptions
Display wireless settings
set wlan
Or:
show wlan
Options Regarding command options “authentication encryption,” “outer_eap,”
“inner_eap,” and “options:” These options have multiple values. More than
one value may be specified for each option to indicate the set of allowed
values. The actual value used will be determined by the capabilities of the
wireless network.
protmode={bss|ibss_create|ibss_join|any}
Used to change the operation mode in which the device will work.
bss
Indicates that the device should join an access point.
ibss_create
Indicates the device will attempt to first join an Independent Basic
Service Set (IBSS), and create one if it is unable to find one.
ibss_join
Indicates the device should attempt to join an IBSS or self-contained
wireless network.
any
Enables all operation modes.
Typically, the operation mode is “bss.” The default is “bss.”
channel={0|1-14}
Sets the frequency channel that the wireless Ethernet radio will use. A
value of 0 indicates that the device will scan all frequencies until it finds
one with an available access point or wireless network it can join. The
default value is 10.
ssid=string
Used to specify the identifier of the wireless network that the device
should be joined to. The default is an empty string, which indicates that
the first wireless network that the device finds will be joined to.
![](asset-f5.png)
set wlan
Chapter 2 Command Descriptions 245
authentication=
{[open],[sharekey],[wep_auth],[wpa_psk],[wpa_auth],[leap],[any]}
The types of authentication that are allowed to establish a connection
with the access point.
open
IEEE 802.11 open system authentication is used to establish a
connection with the access point.
sharedkey
IEEE 802.11 shared key authentication is used to establish a
connection with the access point. At least one WEP key must be
specified to use shared key authentication.
wep_auth
IEEE 802.1x authentication (EAP) is used to establish a connection
with an authentication server or access point. Wired Equivalent
Privacy (WEP) keys are dynamically generated to encrypt data over
the wireless link.
wpa_psk
The Wi-Fi Protected Access (WPA) protocol is used with a pre-shared
key (PSK) that you specify to establish a connection with the access
point and encrypt the wireless link.
wpa_auth
The WPA protocol and IEEE 802.1x authentication (EAP) is used to
establish a connection with an authentication server or access point.
Encryption keys are dynamically generated to encrypt data over the
wireless link.
leap
Lightweight Extensible Authentication Protocol (LEAP) is used to
establish a connection with an authentication server or access point.
Wired Equivalent Privacy (WEP) keys are dynamically generated to
encrypt the wireless link. A username and password must be specified
to use leap.
any
Sets all authentication types.
![](asset-f6.png)
set wlan
246 Chapter 2 Command Descriptions
encryption={[open],[wep],[tkip],[ccmp],[any]}
The types of encryption that are allowed to encrypt data transferred over
the wireless link.
open
No encryption is used over the wireless link. Can be used with open
and sharedkey authentication.
wep
Wired Equivalent Privacy (WEP) encryption is used over the wireless
link. Can be used with open, sharedkey, wep_auth, wpa_psk,
wpa_auth, and leap authentication.
tkip
Temporal Key Integrity Protocol (TKIP) encryption is used over the
wireless link. Can be used with wpa_psk and wpa_auth authentication.
ccmp
CCMP (AES) encryption is used over the wireless link. Can be used
with wpa_psk and wpa_auth authentication.
any
Sets all encryption types.
outer_eap={[peap],[tls],[ttls],[any]}
The types of Extensible Authentication Protocols (EAP) that are allowed
to establish the initial connection with an authentication server or access
point. These are used with wep_auth and wpa_auth authentication.
peap
Protected Extensible Authentication Protocol (PEAP). A username
and password must be specified to use peap.
tlsTransport Layer Security (TLS). A client certificate and private key
must be installed on the device to use tls.
ttls
Tunneled Transport Layer Security (TTLS). A username and
password must be specified to use ttls.
any
Sets all outer and inner Extensible Authentication Protocols.
![](asset-f7.png)
set wlan
Chapter 2 Command Descriptions 247
inner_eap={[gtc],[md5],[mschapv2],[otp],[chap],[mschap],
[ttls_mschapv2],[pap,[any]]}
The types of protocols that are allowed to authenticate the device. These
are used within the encrypted connection established by PEAP or TTLS.
The following are Extensible Access Protocols (EAP) that can be used
with PEAP or TTLS:
gtc
Generic token card.
md5
Message Digest Algorithm (MD5).
mschapv2
Microsoft Challenge response Protocol version 2.
otp
One Time Password.
The following are non-EAP protocols that can be used with TTLS:
chap
Challenge response Protocol.
mschap
Microsoft Challenge response Protocol.
ttls_mschapv2
Microsoft Challenge response Protocol version 2.
pap
Password Authentication Protocol.
any
Sets all inner Extensible Authentication Protocols.
options={[diversity],[short_preamble],[verify_cert]}
diversity
Enable reception on multiple antennas on devices with this capability.
short_preamble
Enable transmission of wireless frames using short preambles, if
allowed by the access point.
verify_cert
Verify that certificates received from an authentication server or
access point are signed by a trusted certificate authority (CA).
Standard CAs are built in, and additional trusted certificates may be
added.
username=string
Used when the “security” option is set to “wpa_auth.” This option
specifies the user name to be used during authentication.
password=string
Used when the “security” option is set to “wpa_auth.” This option
specifies the password to be used during authentication.
![](asset-f8.png)
set wlan
248 Chapter 2 Command Descriptions
psk=string
Used when the “security” option is set to “wpa_psk.” This option specifies
a string that is converted into a pre-shared key (PSK) that is used for
encryption.
wepmode={64bit|128bit}
Specifies the key size used when WEP encryption is enabled. The default
is 64bit.
wepindex=1-4
Specifies which of the 4 possible keys will be used. The default is 1.
wepkeyN=hex string
A hexadecimal string that serves as the key if WEP encryption is enabled.
The key consists of 26, 10, or 0 (zero) hexadecimal digit characters. If
“wepmode=64bit”, the wepkey is 10 digits. If “wepmode=128bit”, the
wepkey is 26 digits. A wepkey value of 0 length clears the value.
country=string
The country in which the device will be used. By selecting a country, the
channel settings will be restricted to the legal set for that country.
maxtxrate={1|2|5.5|11} (Mbps)
The maximum transmission rate that the device will use, in megabits per
second.
txpower={6|8|10|12|14|16} (dBm)
The wireless transmit power, in decibels relative to one milliwatt (dBm).
Example #> set wlan wepkey1=ab12cd34ef567ab12cd34ef567 wepindex=1
#> set wlan wepmode=128bit
#> set wlan ssid="access point 1"
See also • "revert" on page 61. The “revert wireless” option reverts the settings
configured by this command.
• "show" on page 249. "show wlan" displays
![](asset-f9.png)
show
Chapter 2 Command Descriptions 249
show
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays the current settings in a device, including current configuration
settings, boot code loaded in the device, and the effects of commands
issued to the device.
Required
permissions For Digi Connect products with two or more users, for this command to
display current device settings, the various “set” commands must have be
set to either “read” or “r-self,” depending on the available permissions for
the commands. See "set permissions" on page 157 for details on setting
user permissions for commands.
Syntax show option [port=range] [range=range]
Options option
Specifies which settings in the device to show. The following options can
be specified. The use of the “port” and “range” options on the show
command depends on whether the command that was used to configure
the settings uses the “port” and “range” options as well. If you are viewing
the PDF file of this document, click the “set” commands in the “Displays
settings...” column to go to the command descriptions.
Option Displays settings
configured by Works w/
port option
Works w/
range
option
accesscontrol set accesscontrol No No
alarm set alarm No Yes
arp The arp table. This
option is not
associated with a “set”
command.
No No
autoconnect set autoconnect Yes No
bsc set bsc No No
buffer set buffer Yes No
ddns set ddns No No
dhcpserver set dhcpserver No Yes
ekahau set ekahau Yes No
ethernet set ethernet No No
forwarding set forwarding No No
gpio set gpio No Yes
![](asset-fa.png)
show
250 Chapter 2 Command Descriptions
group set group No No
host set host No No
ia master set ia command:
settings for an IA
master; see "Configure
network-based
masters (set ia
master)" on page 120.
No
ia serial set ia command:
settings for IA serial;
see "Configure serial-
port connected devices
(set ia serial)" on page
120.
Yes
ia table set ia command:
settings for IA
destination tables and
route entries; see
"Configure destination
tables and route
entries (set ia table)"
on page 121.
No
login set login No No
menu set menu No Yes
mesh set mesh
mgmtconnection set mgmtconnection No Yes
mgmtglobal set mgmtglobal No No
mgmtnetwork set mgmtnetwork No Yes
nat set nat No No
network set network No No
passthrough set passthrough No No
permissions set permissions No No
pmodem set pmodem Yes No
pppoutbound set pppoutbound Yes No
profile set profile Yes No
putty set putty No No
python set python
rciserial set rciserial No No
realport set realport No No
Option Displays settings
configured by Works w/
port option
Works w/
range
option
![](asset-fb.png)
show
Chapter 2 Command Descriptions 251
route The IP routing table.
This command is not
associated with a “set”
command.
No No
rtstoggle set rtstoggle Yes No
serial set serial Yes No
service set service No Yes
snmp set snmp No No
socket_tunnel set socket_tunnel No No
surelink set surelink
system set system No No
tcpserial set tcpserial Yes No
term set term
udpserial set udpserial Yes Yes
(when
specifying
UDP serial
destinations)
user set user No Yes
versions This command shows
firmware version
information. It is not
associated with a “set”
command.
No No
video set video No No
vncclient set vncclient No No
vpn set vpn No No
wlan set wlan
This option displays an
evaluation of saved
wireless settings,
including ineffective
settings and a list of
valid combinations. It
displays whether
encryption methods
are specified and in
use or not used by
authentication
methods, and whether
setup of certain options
appear to be complete
(see Examples).
No No
Option Displays settings
configured by Works w/
port option
Works w/
range
option
![](asset-fc.png)
show
252 Chapter 2 Command Descriptions
port=range
Identifies a particular serial port. Optional on a single-port device.
range=range
A configuration table entry or range of entries.
Examples Display network configuration settings
#> show network
Network configuration:
MAC Address : 00:40:9D:24:8B:B3
Currently in use by
the network stack Stored configuration
-------------------- -------------------
ipaddress : 10.8.16.8 192.168.4.25
submask : 255.255.0.0 255.255.0.0
gateway : 10.8.1.1 0.0.0.0
static : off off
dhcp : supplied IP address on
autoip : on on
keepalive idle : 7200 7200
probe count : 9 9
probe interval : 75 75
garbage byte : on on
override dhcp : off off
dns1 : 10.10.8.62 0.0.0.0
dns2 : 10.10.8.64 0.0.0.0
rto_min : 1000 1000
rto_max : 10 10
arp_ttl : 15 15
garp : 3600 3600
Display current alarm settings
#> show alarm
Display settings for a particular user
#> show user range=3
![](asset-fd.png)
show
Chapter 2 Command Descriptions 253
Display wireless settings
In addition to showing the current wireless settings, "show wlan" displays
evaluation notes and warning messages about the effect and interaction of
wireless settings. As the example shows, warning messages note
encryption methods that have been defined but not used by any
authentication methods, and notes identify whether configuration of certain
features appears to be complete.
#> show wlan
Wireless LAN Configuration:
Active settings
(Stored settings)
--------------------
country : United States
protocol mode : any
channel : scan
ssid :
maxtxrate(Mbps) : 11
authentication : open
encryption : open,wep,tkip,ccmp
eap outer : peap,tls,ttls
eap inner : gtc,md5,mschapv2,otp,chap,mschap,ttls_mschapv2,pap
options :
txpower(dBm) : 14dbm
wepmode : 64bit
wepindex : 1
username :
Evaluation of your saved wireless settings:
Warning: TKIP encryption specified but unused by any of the specified
Authentication methods
Warning: CCMP encryption specified but unused by any of the specified
Authentication methods
Note: Settings for Protocol Modes IBSS Create or IBSS Join appear
to be complete
Note: Settings for Open Authentication appear to be complete
See also • "revert" on page 61.
• The “set” commands (“set user,” “set network,” “set serial,” etc.).
Entering a set command without any options displays the same
information as that displayed by the “show” command.
• "set wlan" on page 241 for the encryption and authentication methods
and protocol modes referenced in the "show wlan" output.
![](asset-fe.png)
status
254 Chapter 2 Command Descriptions
status
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays the current list of sessions. The “status” command displays the
status of outgoing connections (connections made by “connect,” “rlogin,” or
“telnet” commands). In contrast, the “display” command displays real-time
information about a device, while the “info” command displays statistical
information about a device over time. Typically, the “status” command is
used to determine which sessions to close.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions status=read” or “set permissions status=rw” to use this
command. See "set permissions" on page 157 for details on setting user
permissions for commands.
Syntax status [range] [session number]
Options range
The range of sessions to view.
session number
An index number identifying the session number to view.
Examples #> status
Connection: 3 From: 10.8.109.8
Connection not associated with any sessions.
See also • "connect" on page 22
• "close" on page 21, for information on ending a connection.
• "display" on page 27
• "info" on page 41.
• "rlogin" on page 66
• "telnet" on page 255
• "who" on page 258
![](asset-ff.png)
telnet
Chapter 2 Command Descriptions 255
telnet
Devices
supported This command is supported in all Digi Connect Family devices.
Purpose Used to make an outgoing Telnet connection, also known as a session.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions telnet=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax telnet [options] ip addr [tcp port]
Options options
The Telnet options for the command, which may be as follows:
binary={on|off}
Turns on or off Telnet binary mode.
crmod={on|off}
Turns on or off the replacement of the carriage-return character
sequence (\r) with the new-line character sequence (\n) on incoming
network data.
ip addr
The IP address of the host to which you want make a Telnet connection.
tcp port
The TCP port assigned the Telnet application on the remote system. The
default is 23, the port typically used for Telnet.
Examples Establish a Telnet session using an IP Address
In this example, the telnet command establishes a Telnet session using an
IP address. The default TCP port (23) is used.
#> telnet 192.192.150.28
Establish a Telnet session to a device server port from the LAN
In this example, a user on the LAN initiates a Telnet connection to port 4 on
a device server.
#> telnet 192.192.150.28 2004
See also • "rlogin" on page 66
• "connect" on page 22
• "close" on page 21
• "status" on page 254
![](asset-100.png)
vpn
256 Chapter 2 Command Descriptions
vpn
Devices
supported This command is supported in Digi Cellular Family products only, except
Digi Connect WAN.
Purpose Manages and displays the status of a Virtual Private Network (VPN) tunnel.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions vpn=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax vpn [status|connect|disconnect]
[index=1-2)]
[name=tunnel name]
Options status|connect|disconnect
Specifies the action performed by the command. Note that a data
connection must be attempted before the VPN tunnel will actually be
brought up.
status
Display the status of the VPN tunnel.
connect
Enable the VPN tunnel.
disconnect
Disconnect the VPN tunnel.
index=1-2
Identifies the VPN tunnel.
name=tunnel name
The name of the tunnel.
Example Display VPN tunnel status
#> vpn status
VPN Tunnel #1 Status :
name : Tunnel 1
mode : isakmp
status : down
remote address: : 65.214.122.53
mobile address: : not connected
VPN Tunnel #2 Status :
name : Tunnel 2
mode : disabled
![](asset-101.png)
vpn
Chapter 2 Command Descriptions 257
Enable a VPN tunnel
This command enables the tunnel at index 1 to be used.
#> vpn connect index=1
See also • "display" on page 27. The “display sadb,” “display sp,” and “display vpn”
commands display VPN-related connection and status information.
• "revert" on page 61. The “revert vpn” options revert groups of VPN
settings, or all VPN settings.
• "set vpn" on page 228. The “set vpn” command configures VPN
settings.
• The VPN settings in the Web user interface (Network > Virtual Private
Network (VPN) Settings) and the online help for these settings.
• The Connections Management page in the Web user interface (from
the Home page, click the Connections link) is the Web equivalent of
this command.
• The Digi Cellular Family User’s Guide section titled “Virtual Private
Network (VPN) Settings.”
![](asset-102.png)
who
258 Chapter 2 Command Descriptions
who
Devices
supported This command is supported in all Digi Connect products.
Purpose Displays active connections to and from the device.
Required
permissions For Digi Connect products with two or more users, permissions must be set
to “set permissions who=execute” to use this command. See
"set permissions" on page 157 for details on setting user permissions for
commands.
Syntax who
Options None at this time.
Examples Display a list of all current connections
#> who
See also "kill" on page 49. The “kill” command is used to kill a connection.
![](asset-103.png)
What Is Modem Emulation?
Chapter 3 Modem Emulation Commands 259
This chapter describes the commands that can be issued when Digi
Connect products are configured in modem emulation mode.
What Is Modem Emulation?
Modem emulation enables a system administrator to configure a
networked Digi device to act as a modem. The Digi device emulates
modem responses to a serial device and seamlessly sends and receives
data over an Ethernet network instead of a PSTN (Public Switched
Telephone Network). The advantage for a user is the ability to retain legacy
software applications without modification and use a less expensive
Ethernet network in place of public telephone lines.
As an aid in configuring modem emulation, the Digi Device Setup Wizard
and the default web interface have a serial port profile for modem
emulation.
Modem Emulation Cable Signals
Use the following signal assignments to make a cable connecting the Digi
device to a serial device.
DSR and DTR on the serial device side are connected to the DSR signal of
the Digi device.
Modes of Operation
There are two modes of operation in modem emulation:
• Command mode: Issuing AT commands to a Digi device.
• Data mode: After a network connection is established, the device
switches to data mode.
Chapter 3 Modem Emulation Commands
![](asset-104.png)
Common User Scenarios for Modem Emulation
260 Chapter 3 Modem Emulation Commands
Common User Scenarios for Modem Emulation
The Digi device in modem emulation mode allows for the easy replacement
of modems in almost any environment where there is a LAN or WAN.
In Diagram A, the Digi Connect device replaces a modem connected to a
workstation running an application. The Digi Connect device allows for the
use of software applications without modification by responding to all the
AT commands configured in the workstation application. The Digi Connect
device connects to the IP Address of the server when an
ATDT ipaddress:port (ATDT 192.168.25.5:50001)
command is issued. Once the remote device establishes the TCP
connection, a CONNECT message is sent to the serial port and only then
does the Digi device switch from AT command mode to data mode. Using
the modem escape sequence or dropping DTR on either side terminates
the connection. A DISCONNECT message will be sent to the application if
the remote side closes the TCP connection.
Server
192.168.25.5
Workstation
Serial cable
Ethernet
Digi device
User Scenario - Diagram A
D
IGI
O
NE
![](asset-105.png)
Common User Scenarios for Modem Emulation
Chapter 3 Modem Emulation Commands 261
In Diagram B, two Digi devices will replace modems on both sides of the
connection. The initiation of the connection occurs with either of the Digi
devices. If both ends are Digi devices, the TCP listening port number is
50001 for port 1. An example of the connection command is ATDT
192.168.25.30:50001. Upon establishing a successful TCP
connection, a CONNECT message is sent to the serial port and only then
does the Digi device switch from AT command mode to data mode. After
the CONNECT is received, the transmission of data begins. Using the
modem escape sequence or dropping DTR on either side terminates the
connection.
Workstation
Serial cable
Digi device
User Scenario - Diagram B
Workstation
Serial cable
Ethernet
Digi device
D
IGI
O
NE
D
IGI
O
NE
![](asset-106.png)
Connection Scenarios for Modem Emulation
262 Chapter 3 Modem Emulation Commands
Connection Scenarios for Modem Emulation
Modem emulation can involve the following types of connection scenarios:
Outgoing Modem Emulation Connection
In an outgoing modem emulation connection, a serial device sends an
ATDx.x.x.x:y command, which triggers the Digi device to establish a
connection to destination IP=x.x.x.x, port=y.
Incoming Modem Emulation Connection
In an incoming modem emulation connection, a device on the network
connects to port 50001 (50000+1 = 1st serial port). This incoming
connection triggers the Digi device to generate a RING on the serial port.
The device attached to the serial port will answer the RING and the
connection is established.
Modem Emulation Pooling
Modem emulation pooling is a combination of Incoming Modem Emulation
Connection and a hunt group. A device on the network connects to port
50000. The Digi device checks if a serial port configured for modem
emulation is available. If so, it connects to the port, otherwise returns an
error.
Modem Emulation Bridge
A modem emulation bridge is combination of Outgoing and Incoming
Modem Emulation Connections, in which both serial devices require to talk
to a modem. The first serial device connects to the second device using
ATDx.x.x.x:y, the second device gets a RING and accepts the incoming
connection.
![](asset-107.png)
About the Commands in this Chapter
Chapter 3 Modem Emulation Commands 263
About the Commands in this Chapter
This chapter describes the Digi-specific modem emulation commands that
have been implemented for Digi Connect devices. It is divided into several
sections:
• The AT command set. These are commands to perform actions in a
modem-emulation connection.
• Modem S-Register definitions.
• A description of the result codes for the commands.
Accepted But Ignored AT Commands
Any other commands not described in this chapter but in the standard AT
command set are accepted but ignored and therefore have no effect. Such
commands are pertinent to actual modems, but not to modem emulation.
![](asset-108.png)
Modem Emulation AT Command Set
264 Chapter 3 Modem Emulation Commands
Modem Emulation AT Command Set
The following commands can be issued to perform actions in a modem-
emulation configuration scenario.
AT
Command Function Result
Code
n+++n
When in data mode, this command causes the modem to switch to
command mode. The value of n corresponds to the required delay before
and after the escape sequence is entered. The delay can be changed by
modifying S-register 12. The escape character can be changed by
modifying S-register 2.
A/ Repeats the last command string.
AT? Prints the value of the last-accessed S-register.
ATA Answer command: Answers an incoming TCP connection and switches to
data mode.
ATD
(ipaddress):
(ipport)
Used to connect to a remote network device. This command directs the Digi
device to go on-line, dial according to the IP address entered as follows,
and attempt to establish a TCP connection.
Dial Modifiers. The valid dial string parameters are described below.
Punctuation characters may be used for clarity with parentheses, hyphen,
and spaces being ignored.
• 0-9: DTMF digits 0 through 9.
• . (period): Dot notation used for IP addresses. IP addresses are written
as four numbers separated by periods, where the first number is
between 1 and 255, and the other three numbers are between 0 and
255. Enter the IP address in the format xxx.xxx.xxx.xxx
• : (colon): Colon notation used for the TCP port.
• L: Redial the last number. The modem will reconnect to the last IP
address accessed. The L must immediately follow the D, and any
following characters are ignored.
• P: This command is accepted but not acted on.
• T: This command is accepted but not acted on.
• R: This command is accepted but not acted on.
• , (comma): This command is accepted but not acted on.
ATEn
Command echo. The Digi device enables or disables the echo of characters
to the DTE according to the parameter supplied. The parameter value, if
valid, is written to S14 bit 1.
• E0: Disables command echo.
• E1: Enables command echo.
OK n=0 or 1
ERROR
Otherwise
ATH Disconnect (Hang up) command.
H0, H1: Hangs up the TCP connection if a connection is active.
OK n=0 or 1
ERROR
Otherwise
ATIn
Identification command.
• I0, I1: Reports product name.
• I3: Reports product name, firmware revision.
• I4: Reports product configuration.
• I6: Reports network connection information.
OK n=0 or 9
ERROR
Otherwise
![](asset-109.png)
Modem Emulation AT Command Set
Chapter 3 Modem Emulation Commands 265
ATO
Return to on-line data mode. If the modem is in the on-line command mode,
the modem enters the on-line data mode. If the modem is in the off-line
command mode (no connection), ERROR is reported.
• O0, O1: If there is an active connection, switches the modem to data
mode.
OKn = 0 or 1
and a
connection
exists.
ERROR
Otherwise or if
not connected.
ATQn
Quiet results codes control command. The command enables or disables
the sending of the result codes to the DTE according to the parameter
supplied. The parameter value, if valid, is written to S14 bit 2.
• Q0: Enables result code to the DTE (Default).
• Q1: Disables result code to the DTE.
• Q2: Disables “CONNECT” result codes.
• Q3: Disables “CONNECT” result codes on incoming connections.
OK n=0 or 1
ERROR
Otherwise
ATSn
Read/Write to the specified S-Register.
•n Establishes S-register n as the last register accessed.
•n=v Sets S-Register n to the value v.
•n? Reports the value of S-Register n.
See "S-Register Definitions" on page 267 for definitions of S-Registers.
OK n=0 or 1
ERROR
Otherwise
ATVn
The verbose setting for result codes. This command selects the sending of
short-form or long-form codes to the DTE. The parameter, if valid, is written
to S14 bit 3.
• V0: Result codes are issued in numeric or short form. Line feeds are not
issued before a short-form result.
• V1: Result codes are issued in text or long form. This is the default.
OK n=0 or 1
ERROR
Otherwise
ATZ Load configuration. Reloads the S-register configuration from flash memory.
See "S-Register Definitions" on page 267 for definitions of S registers.
OK n=0 or 1
ERROR
Otherwise
AT&Cn
DCD option. The Digi device controls the DCD output in accordance with
the parameter supplied. The parameter value, if valid is written to S21 bit 5.
• &C0: DCD remains ON at all times.
• &C1: DCD follows the state of the connection.
OK n=0 or 1
ERROR
Otherwise
AT&Dn
DTR option. This command interprets the ON to OFF transition of the DTR
signal from the DTE in accordance with the parameter supplied. The
parameter value, if valid, is written to S21 bits 3 and 4. Also see S25.
• &D0: DTR drop is ignored (assumed ON).
• &D1: DTR drop is interpreted by the modem as if the asynchronous
escape sequence had been entered. The modem returns to command
mode without disconnecting.
• &D2: DTR drop causes the modem to hang up. (Default.)
• &D3: DTR drop causes the modem to do a soft reset, as if the ATZ
command was executed.
OK n=0 to 3
ERROR
Otherwise
AT&F
Restore factory configuration. The device reloads the factory default S-
register configuration from flash memory. The factory defaults are identified
for each command and in the S-Register descriptions. A configuration
consists of a subset of S-Registers.
OK n=0 or 1
ERROR
Otherwise
AT
Command Function Result
Code
![](asset-10a.png)
Modem Emulation AT Command Set
266 Chapter 3 Modem Emulation Commands
AT&V
Displays current values and settings.
• AT&V0- AT&V5: Displays S-Register/command values for the current
and stored configuration.
• AT&V6: Displays current network settings.
OK n=0 to 5
ERROR
Otherwise
AT&WnStore configuration. Stores the specified S-registers in flash memory. OK n=0 or 1
ERROR
Otherwise
AT
Command Function Result
Code
![](asset-10b.png)
S-Register Definitions
Chapter 3 Modem Emulation Commands 267
S-Register Definitions
Following is a description of the S-registers that can be set.
Register Function Range Units Default
S0 Rings to Auto-Answer. Sets the number of rings required
before the Digi device automatically answers a call.
Setting this register to Zero disables auto-answer mode. 0-255 Rings 0
S1
Ring Counter. Specifies the current number of rings. S1
is incremented each time the modem detects a ring
signal on the telephone line. S1 is cleared when the
existing connection is established or dropped.
0-255 Rings 0
S2
Escape Character. S2 holds the value of the ASCII
character used as the escape character. The default
value corresponds to an ASCII '+'. A value over 127
disables the escape process. That is, no escape
character will be recognized.
0-255 ASCII 43
S3 Carriage Return Character. Sets the value of the
carriage return character used when displaying
commands or results. 0-127 ASCII 13
S4
Line Feed Character. Sets the character recognized as
a line feed when displaying commands or results. If
verbose result codes are used, the Line Feed control
character is output after the Carriage Return control
character.
0-127 ASCII 10
S5 Backspace Character. Sets the character recognized as
a backspace, used to erase the last character typed on
the command line. 0-32 ASCII 8
S12
Escape Prompt Delay. The amount of time required
before and after an escape sequence (+++) is entered in
order for the modem to transition from data mode to
command mode.
0-255 0.02
second, 20
ms
50
1 second
S14
General Options Status. Indicates the status of
command options.
• Default: 138 (8Ah) (10001010b)
• Bit 0: Ignored.
• Bit 1: Command echo (En):
0 = Disabled (E0).
1 = Enabled (E1). (Default.)
• Bits 2 and 4: Quiet mode (Qn):
0 = Display result codes (Q0). (Default.)
1 = Do not display result codes (Q1).
2 = Disables “CONNECT” result codes (Q2).
3 = Disables “CONNECT” result codes on incoming
connections (Q3).
• Bit 3: Result codes (Vn):
0 = Display numeric result codes (V0).
1 = Display verbose result codes (V1). (Default.)
• Bits 5-7: Ignored.
138 (8Ah)
![](asset-10c.png)
S-Register Definitions
268 Chapter 3 Modem Emulation Commands
S21
General Options Status. Indicates the status of
command options.
• Default: 52 (34h) (00110100b)
• Bits 0 - 2: Ignored.
• Bits 3-4: DTE’s DTR behavior (&Dn):
0 = DTR drop is ignored (&D0).
1 = DTR drop causes a transition from data to
command mode without hanging up an existing
connection (&D1).
2 = DTR drop hangs up the existing connection
(&D2) (Default.)
3 = DTR drop causes the modem to do a soft reset if
the ATZ command was executed (&D3).
• Bit 5: Modem’s DTR behavior:
0 = The modem’s DTR remains on at all times
(&C0).
1 = The modem’s DTR follows the state of the TCP
connection (&C1). (Default.)
• Bits 6-7: Ignored.
- - 52 (34h)
S25 Delay to DTR Off. The amount of time that the modem
will delay before taking the action specified by the
AT&Dn command. 0-255 s or 0.01 s 5
Register Function Range Units Default
![](asset-10d.png)
Result Codes
Chapter 3 Modem Emulation Commands 269
Result Codes
Following is a description of the return codes returned by modem
emulation commands.
Short Long Form Short Long Form Short Long Form
0OK 13 CONNECT
7200 84 CONNECT
33600
1CONNECT 14 CONNECT
12000 91 CONNECT
31200
2RING 15 CONNECT
14400 165 CONNECT
32000
3 NO CARRIER 16 CONNECT
19200 166 CONNECT
34000
4ERROR 17 CONNECT
38400 167 CONNECT
36000
5CONNECT
1200 18 CONNECT
57600 168 CONNECT
38000
6NO DIALTONE
19 CONNECT
115200 169 CONNECT
40000
7BUSY 20 CONNECT
230400 170 CONNECT
42000
8 NO ANSWER 59 CONNECT
16800 171 CONNECT
44000
9CONNECT
0600 61 CONNECT
21600 172 CONNECT
46000
10 CONNECT
2400 62 CONNECT
24000 173 CONNECT
48000
11 CONNECT
4800 63 CONNECT
26400 174 CONNECT
50000
12 CONNECT
9600 64 CONNECT
28800
![](asset-10e.png)
Result Codes
270 Chapter 3 Modem Emulation Commands
![](asset-10f.png)
Index 271
? command 40
100% CPU utilization 28
232 electrical interface 209
2-wire mode 209
485 electrical interface 209
4-wire mode 209
A
abbreviating commands 12
abort output signal 67
access control 68
newpass command 51
set user 220
status information 27
access permissions for commands 14
add line feed characters 50
Advanced Digi Discovery Protocol (ADDP
changing password for 51
Advanced Digi Discovery Protocol (ADDP)
caution on disabling 191
default port number 194
description 194
alarms 70
configuring 70
reverting to default settings 62
alert character 13
altpin option 189
are you there signal 67
ARP table
status information for 27
arp table 249
AT commands 263, 264
Authentication
Open 241
Shared Key 241
authentication 167
LEAP 241
newpass command 51
set user command 220
WEP 241
WPA 241
WPA-PSK 241
authentication failure traps 199
Auto IP protocol 150
autoconnect 81
configuring 81
for TCP serial connections 212
reverting to default settings 62
B
backslash character 13
backspace character 13
backup command
description 18
setting permissions for 159
baud rate 190
binary synchronous (bisync) feature
configuring 85
displaying current settings 249
reverting settings 62
boot command
description 19
setting permissions for 159
boot status 27
boot version 27, 42
break signal 67
breaks 45
BSC
See binary synchronous feature, set bsc
command
buffers 37, 90
C
carriage-return character 13
changing network port for a service 191
CHAP 243
CHAP authentication 167, 170
character size 190
close command
description 21
closing a connection 21
closing a session 21
cold start traps 199
command line, accessing 11
commands
abbreviations for 12
descriptions 18–258
navigation and editing keys 12
online help for 12
syntax conventions for 12
config.rci file 18
configure buffers 91
connect command
description 22
relationship to close command 21
setting permissions for 160
status of 254
connections
automatic 81
displaying active 258
establishing 22
killing 49
multiple 22
reconnecting previously established 60
reestablishing 60
TCP serial 212
Telnet 255
temporarily suspending 22
Connectware Device Protocol configuration
access control settings 68
connection settings 137
device security settings 96
global settings 140
network settings 143
set nat command 146
Connectware Manager
global settings 140
network settings 143
server connection settings 137
Console Management port profile 172
Index
272 Index
CPU utilization 28, 42
CTS
GPIO pin for 113
hardware flow control 190
Custom port profile 172
D
DCD
altpin field (swapping DCD with DSR) 189
GPIO pin for 113
hangupdcd field 213
DDNS (Dynamic DNS) service 92
default configuration file names 18
default values
filenames for device configurations 18
reverting to 61
device alarms 70
device configuration
restoring from a TFTP server 18
restoring to factory defaults 19
saving 18
device description 211
device IP address 150
device name (set host command) 118
device security 96
device server
loading new firmware into 19
rebooting 19
restoring configuration to factory defaults 19
reverting all configuration settings except
network 62
device statistics 41
device submask address 150
device table 41
DHCP 150
DHCP server
configuring settings 96
managing 23
status 23
dhcpserver command
description 23
setting permissions for 160
Diffie-Hellman
protocol description 232
Digi SureLink
configuring settings 202
displaying current settings 251
reverting settings 64
display buffers command
description 37
setting permissions for 159
display command
description 27
setting permissions for 160
display current settings in a device
See also the display variations of all set
commands
show command 249
display operating options 50
display statistics 41
displaying active connections to the device 258
DNS Lookup Test 35, 202
DSR
altpin field (swapping DCD with DSR) 189
GPIO pin for 113
hangupdsr field 213
DTR pin
GPIO pin for 113
Dynamic DNS (DDNS)
status information 27
E
EIA-232 209
EIA-485 209
Ekahau Client 104
Encapsulating Security Payload (ESP)
protocol 146
Encrypted RealPort 194
Encryption
CCMP 241
TKIP 241
WEP 241
encryption
key generation and 100% CPU utilization 28
Open 241
EOS 19
EOS firmware version 27
erase character 67
erase line signal 67
escape character 67
escape keys during an active session 21
escape sequences for special characters in
strings 13
ESP
See Encapsulating Security Payload protocol
Ethernet
configuration 96
speed 108
statistics 41, 43
table 41
even parity 190
execute user permission 159
exit command
description 39
F
factory defaults 19
file system access, permissions for 160
firmware
loading 19
status 27
version 42, 251
flow control 190
form-feed character 13
forwarding
set forwarding command 109
four-wire mode 209
FQDN
See Fully Qualified Domain Name
frame errors 45
free memory 42
full-duplex connection 209
Fully Qualified Domain Name (FQDN) 231
G
gateway IP address 150
General Purpose I/O (GPIO)
configuring alarms for signal changes 70
configuring pins 113
displaying settings 113
displaying signals 29
input mode 113
normal serial operation 113
output mode 113
reverting to default settings 63
set gpio command 113
Index 273
status of signals 27
Generic Routing Encapsulation (GRE)
protocol 146
go ahead signal 67
GPIO. See General Purpose I/O
GRE
See Generic Routing Encapsulation protocol
GTC 243
H
half-duplex connection 209
hardware flow control 190
help command
description 40
hexadecimal numbers in strings 13
horizontal tab character 13
Hypertext Transfer Protocol (HTTP) 194
Hypertext Transfer Protocol over Secure Socket
Layer (HTTPS) 194
I
IBSS
See Independent Basic Service Set (IBSS)
ICMP
statistics 41, 43
table 41
idle time 213
Independent Basic Service Set (IBSS) 244
Industrial Automation (IA)
configuring destination tables 121
configuring network-based masters 120
configuring route entries 121
configuring serial-port connected devices 120
default configuration for 119
displaying current settings 121
industrial automation (IA)
set ia command 119
info command
description 41
Internet Key Exchange (IKE) 65, 228, 231
Internet Security Association and Key Manage-
ment Protocol (ISAKMP) 65, 228, 231
interrupt process signal 67
IP address
configuring 11
IP pass-through 153
status information 27
IP routing table 251
IP statistics 41, 44
ipport 191
ISAKMP
See Internet Security Association and Key
Management Protocol
K
keys for navigation and editing 12
kill command
description 49
displaying active connections before issuing 258
setting permissions for 160
L
line configuration
See set serial command
Line Printer Daemon (LPD) 194
link up traps 199
loading new firmware from a TFTP server 19
Local Configuration port profile 172
log out of a device 59
login
and user models in Digi Connect products 14
suppressing 15, 131
to a remote system 66
user name for 220
login traps 199
M
MAC address 27, 41, 42
mark parity 190
match any character, escape sequence for 13
MD5 243
memory 42
memory usage 27
Mesh network
statistics 41
mobile (cellular modem)
status information 27
Modbus
Modbus Bridge 119
Modbus/ASCII 119
Modbus/RTU 119
Modbus/TCP 119
See also Industrial Automation (IA)
Modbus protocol
set ia command 119
mode command
description 50
setting permissions for 163
modem emulation
AT commands for 263, 264
commands 259
configuring 164
network service for (pmodem) 194
result codes for commands 269
reverting to default settings 64
scenarios for 262
set pmodem command 164
S-Register definitions 267
Modem Emulation Pool (pmodem) 194
Modem Emulation port profile 172
modem signal status 27
MSCHAP 243
MSCHAPv2 243
Multiple Electrical Interface (MEI) 9, 27, 30, 64, 208
configuring per-port settings 208
set switches command 208
N
naming a device 118
NAT
See Network Address Translation
navigation and editing keys 12
Network Address Table (NAT) 29
Network Address Translation (NAT) 146
configuring 146
status information 27
network configuration
options 149
reverting to default settings 63
network configuration options 149
network port 191
network services
available when IP-passthrough enabled
(pinholes) 154
descriptions and default port numbers 193
274 Index
enabling and disabling 191
new-line character 13
newpass command
description 51
enabling login prompt 14
setting permissions for 160
no option signal 67
none user permission 159
O
octal bytes in strings 13
odd parity 190
online help 12, 40
operating system updates 19
OTP 243
overflow errors 45
overrun errors 45
P
PAP 243
PAP authentication 167
parameter 28
parity 190
parity errors 45
password
creating 51
for devices 51
passwords
for Dynamic DNS (DDNS) service 92
PEAP 243
Perfect Forward Secrecy (PFS) 232
permissions
commands without permissions 157
See also user permissions
set permissions command 157
ping command
description 52
setting permissions for 160
Ping Test 35, 202
pinholes 154
pmodem
See modem emulation
Point to Point Protocol (PPP)
outbound connections 166
set pppoutbound 166
Point-to-Point Protocol (PPP)
status information for 27
port configuration using profiles 172
port forwarding 146
port profiles 172
ports
buffering 90
buffers 37
for network services 191
reconnecting to 60
POST
images 19
status 27
version 42
post version 27
PPP
negotiations 167
pre-shared key (PSK) 248
printing the current device configuration 18
private community string 198
product name 27
protocol forwarding 146
protocols
Encapsulating Security Payload (ESP) 146
for industrial automation devices 119
Generic Routing Encapsulation (GRE) 146
Internet Control Message Protocol (ICMP) 43
Modbus 119
Simple Network Management Protocol
(SNMP) 198
Transmission Control Protocol (TCP) 46, 212
Trivial File Transfer Protocol (TFTP) 18, 37
User Datagram Protocol (UDP) 46, 216
user-defined 119
provisioning
display provisioning command 29
displaying current parameters in CDMA cellular
module 27, 29
provision command 29
PSK
See pre-shared key
public community string 198
PuTTY software 175
Q
quit command
description 59
R
rbytes 45
RCI serial mode 184
read user permission 159
RealPort
network service 194
RealPort port profile 172
reboot the device server 19
reconnect command
description 60
setting permissions for 160
remote access
set vncclient 226
VNC Client Listen Daemon 195
VNC server 195
remote login (Rlogin)
closing sessions 21
command 66
network service for 194
performing 66
remote management
and IP Pass-through 154
remote shell (Rsh) 194
reset a device’s serial setting 65
reset a serial port to default settings 65
resistors 209
restoring configuration
using the backup command 18
using the boot command 19
revert command
"revert all" command variant 160
description 61
setting permissions for 160
reverting device ID to factory settings 140
reverting to defaults 61
rlogin command 66
description 66
relationship to close command 21
setting permissions for 160
status of 254
root password 51
root user 14
routing table 27, 29, 109, 251
Index 275
r-self user permission 159
RTS
GPIO pin for 113
in hardware flow control (RTS/CTS) 190
RTS toggle 187
rw user permission 159
rw-self user permission 159
S
Secure Shell (SSH) 194
Secure Socket Service 194
Secure Sockets Layer (SSL) 212
security
changing user passwords 51
Connectware Device Protocol device security
settings 96
password for ADDP 51
Security Association (SA) database 27, 29
security features
authentication 220
newpass command 51
passwords 51
set user command 220
Security Policy Database (SPD) 27, 30
send command
description 67
setting permissions for 163
separator between characters in escape
sequences 13
serial communication statistics 41
serial configuration
options 189
reverting to defaults 64
serial modem signals (DTR, RTS, CTS, DSR,
DCD) 27, 113
service configuration
reverting to defaults 64
service table 191
services, enabling and disabling 191
sessions
closing 21
exiting 39
killing 49
reconnecting to 60
status of 254
Telnet 255
set accesscontrol command
description 68
displaying current settings 68, 249
reverting settings 62
setting permissions for 160
set alarm command
description 70
displaying current settings 71, 249
reverting settings 62
setting permissions for 161
set autoconnect command
description 81
displaying current settings 81, 249
reverting settings 62
setting permissions for 161
set bsc command
description 85
displaying current settings 249
reverting settings 62
setting permissions for 161
set buffer command
description 90
displaying current settings 90, 249
reverting settings 62
setting permissions for 159
set ddns command
description 92
displaying current settings 249
reverting settings 62
setting permissions for 161
set devicesecurity command
description 96
setting permissions for 161
set dhcpserver
displaying current settings 97, 249
reverting settings 62
set dhcpserver command
description 96
setting permissions for 161
set ekahau command
displaying current settings 249
reverting settings 63
setting permissions for 161
set ethernet command
description 96
displaying current settings 107, 249
setting permissions for 161
set forwarding command
description 109
displaying current settings 110, 249
setting permissions for 162
set gpio command
description 113
displaying current settings 113, 249
reverting settings 63
setting permissions for 161
set group command
description 115
displaying current settings 115, 250
reverting settings 62
setting permissions for 161
set host command
description 118
displaying current settings 118, 250
setting permissions for 161
set ia command
description 119
displaying current settings 121, 250
reverting settings 63
setting permissions for 161
set idle command
reverting settings 63
set login command
description 131
displaying current settings 250
reverting settings 63
setting permissions for 161
using 15
set menu command
displaying current settings 250
reverting settings 63
setting permissions for 161
set mesh command
displaying current settings 250
reverting settings 63
set mgmtconnection command
description 137
displaying current settings 137, 250
reverting settings 63
setting permissions for 161
276 Index
set mgmtglobal command
description 140
displaying current settings 140, 250
reverting settings 63
setting permissions for 161
set mgmtnetwork command
description 143
displaying current settings 143, 250
reverting settings 63
setting permissions for 161
set nat command
description 146
displaying current settings 146, 250
reverting settings 63
setting permissions for 162
set network command
description 149
displaying current settings 149, 250
reverting settings 63
setting permissions for 161
set passthrough command
description 153
displaying current settings 155, 250
reverting settings 63
set permissions command
description 157
displaying current settings 159, 250
reverting settings 62
setting permissions for 162
set pmodem command
description 164
displaying current settings 164, 250
reverting settings 64
setting permissions for 162
set pppoutbound command
description 166
displaying current settings 166, 250
reverting settings 64
setting permissions for 162
set profile command
description 172
displaying current settings 173, 250
reverting settings 64
setting permissions for 162
set putty command
description 175
display current settings 250
reverting settings 64
set python command
displaying current settings 250
reverting settings 64
set rciserial command
description 184
displaying current settings 184, 250
reverting settings 64
setting permissions for 162
set realport command
description 185
displaying current settings 250
set rtstoggle command
description 187
displaying current settings 187, 251
setting permissions for 162
set serial command
description 189
displaying current settings 189, 251
reverting settings 64
setting permissions for 162
set service command
description 191
displaying current settings 191, 251
reverting settings 64
setting permissions for 162
using with IP Pass-through 155
set snmp command
description 198
displaying current settings 198, 251
reverting settings 64
setting permissions for 162
set socket_tunnel
displaying current settings 200, 251
set socket_tunnel command
description 200
reverting settings 64
setting permissions for 162
set surelink command
description 202
displaying current settings 251
reverting settings 64
set switches command
description 208
displaying current settings 30, 208
reverting settings 64
set system command
description 211
displaying current settings 211, 251
reverting settings 64
setting permissions for 162
set tcpserial command
description 212
displaying current settings 212, 251
reverting settings 64
setting permissions for 162
set term command
description 215
displaying current settings 215, 251
reverting settings 64
set udpserial command
description 216
displaying current settings 216, 251
reverting settings 65
setting permissions for 162
set user command
description 220
displaying current settings 221, 251
displaying number of users defined 14
reverting settings 62, 65
setting permissions for 163
set video command
displaying current settings 251
reverting settings 65
set vncclient command
description 226
displaying current settings 251
reverting settings 65
set vpn command
description 228
display current settings 230
displaying current settings 251
reverting settings 65
setting permissions for 163
set wlan
displaying current settings 253
set wlan command
description 241
displaying current settings 244, 251
Index 277
reverting settings 65
setting permissions for 163
show command
description 249
displaying Industrial Automation settings 121
displaying number of users defined 14
sigchange 45
Simple Network Management Protocol (SNMP)
"get" commands 198
"set" commands 198
configuring 198
enabling and disabling 191
enabling/disabling sending of traps 199
network service for 194
private community string 198
public community string 198
set snmp command 198
SNMP
See Simple Network Management Protocol
socket ID 213, 218
socket tunnel 200
software flow control 190
space parity 190
S-Register definitions 267
statistics 41
status command
description 254
relationship to close command 21
setting permissions for 163
stop bits 190
string field values 13
strings
entering special characters in 13
length limitations in 13
submask address 150
SureLink
See Digi SureLink
suspend a connection 22
synchronize process signal 67
syntax conventions 12
system identifiers 211
T
tbytes 45
TCP
keep-alives 227
network service for 195
serial connections 212
server 212
service ports 70
statistics 41, 46
table 42
TCP Connection Test 35, 202
TCP serial connections
configuring 212
reverting to defaults 64
set tcpserial command 212
TCP Sockets port profile 172
TCP/IP
modem emulation over 164
Telnet
changing options for a session 50
closing sessions 21
configuring connections/sessions 255
displaying options for a session 50
establishing a connection 255
for modem-emulation connections 165
network service for 194
operating options for (mode command) 50
server 212
telnet command
description 255
operating options for (mode command) 50
relationship to close command 21
setting permissions for 163
status of 254
to access the command line interface for a
device 11
temporarily suspend a connection 22
terminal emulation
Local Configuration profile 172
set putty command 175
TFTP server 18, 19
TLS 243
total memory 42
Transmission Control Protocol (TCP)
port forwarding 146
traps
authentication failure 199
cold start 199
destination IP address 198
link up 199
login 199
TTLS 243
Tunneling port profile 172
turn on binary mode 50
two-wire mode 209
U
UDP
network service for 195
statistics 41
table 42
UDP serial feature
configuring 216
port number for service 216
reverting to defaults 65
UDP Sockets port profile 172
uptime 27, 42
used memory 42
user configuration
reverting to defaults 65
set user command 220
User Datagram Protocol (UDP)
port forwarding 146
User FQDN 231
user name 220
user permissions
and user models 14
execute 159
for revert command 157
none 159
read 159
r-self (read self) 159
rw (read/write) 159
rw-self (read/write self) 159
set permissions command 157
w-self-r 159
users
configuring 220
groups 14
passwords for 51
root 14
utilization 27
278 Index
V
vertical tab character 13
video settings 225
VNC (Virtual Network Computing) protocol
set vncclient command 226
VNC client configuration 191
VNC Client Listen Daemon 195
VNC server configuration 191, 195
vpn command
description 256
setting permissions for 163
W
Web user interface access
setting permissions for 163
who command
description 258
relationship to kill command 49
setting permissions for 163
wired devices, configuring 96
wireless devices
configuring 241
displaying current settings for 253
Ekahau Client feature for 104
locating through Ekahau Client 104
set wlan command 243
statistics for 41, 47
status information for 28
wireless Ethernet (wlan) table 42
w-self-r user permission 159
X
Xon/Xoff 190
