XTend™ RF Module

Firmware versions supported in this

manual:

Standard firmware: 2x6x

For DigiMesh version refer to XTend

DigiMesh manual (90002166_A)

90000958_XT09B

2013.01.10

XTend™RFModule‐ProductManual

©2013DigiInternational,Inc.ii

Thecontentsofthismanualmaynotbetransmittedorreproducedinanyformor

byanymeanswithoutthewrittenpermissionofDigiInternational,Inc..

XTend™isatrademarkofDigiInternational,Inc.

AESEncryptionSourceCode

©2013Dr.BrianGladman,Worcester,UK.Allrightsreserved.

Conditions:

‐DistributionsofAESsourcecodeincludetheabovecopyrightnotice,thislistof

conditionsanddisclaimer.

‐Distributionsinbinaryformincludetheabovecopyrightnotice,thislistofcon‐

ditionsanddisclaimerinthedocumentationand/orotherassociatedmaterials.

‐Thecopyrightholderʹsnameisnotusedtoendorseproductsbuiltusingthis

softwarewithoutspecificwrittenpermission.

Alternatively,providedthatthisnoticeisretainedinfull,thisproductmaybedis‐

tributedunderthetermsoftheGNUGeneralPublicLicense(GPL),inwhichcase

theprovisionsoftheGPLapplyINSTEADOFthosegivenabove.

Disclaimer‐ThisAESsoftwareisprovidedʹasisʹwithnoexplicitorimpliedwar‐

rantiesinrespectofitsproperties,including,butnotlimitedto,correctnessand/or

fitnessforpurpose.

TechnicalSupport:Phone:(801)765‐9885

LiveChat:www.digi.com

E‐support:http://www.digi.com/support/eservice/eservicelogin.jsp

Contents

XTend™RFModule–ProductManual

©2013DigiInternational,Inc.iii

1. XTend RF Module 4

Key Features 4

Worldwide Acceptance 4

Specifications 5

Pin Signals 6

Electrical Characteristic 7

Timing Specifications 7

Mechanical Drawings 9

2. RF Module Operation 10

Serial Communications 10

UART Data Flow 10

Flow Control 11

Transparent Operation 12

API Operation 12

DigiMesh Operation 12

Modes of Operation 13

Idle Mode 13

Transmit Mode 13

Receive Mode 14

Shutdown Mode 15

Sleep Mode 15

Command Mode 17

3. RF Module Configuration 20

Programming Examples 20

AT Commands 20

Binary Commands 20

Command Reference Table 21

Command Descriptions 23

API Operation 41

API Frame Specifications 41

API Types 42

4. RF Communication Modes 44

Addressing 45

Address Recognition 45

Basic Communications 46

Streaming Mode (Default) 46

Multi-transmit Mode 47

Repeater Mode 48

Polling Mode (Basic) 51

Acknowledged Communications 52

Acknowledged Mode 52

Polling Mode (Acknowledged) 53

5. Appendix A: Agency Certifications 55

FCC (United States) Certification 55

Integrator Labeling Requirements 55

FCC Notices 55

Limited Modular Approval 56

FCC-approved Antennas 56

IC (Industry Canada) Certification 59

Labeling Requirements 59

Transmitters for Detachable Antennas 59

Detachable Antennas 60

C-TICK (Australia) Certification 60

Power Requirements 60

6. Appendix B: Development Guide 61

Development Kit Contents 61

Interfacing Hardware 61

XTIB-R RS-232/485 Interface Board 62

Automatic DIP Switch Configurations 63

Adapters 64

Interfacing Protocols 66

RS-232 Operation 66

RS-485 (2-wire) Operation 68

RS-485 (4-wire) & RS-422 Operation 69

X-CTU Software 71

Installation 71

Serial Communications Software 71

7. Appendix C: Additional Information 72

1-Year Warranty 72

Contact Digi 73

©2013DigiInternationalInc. 4

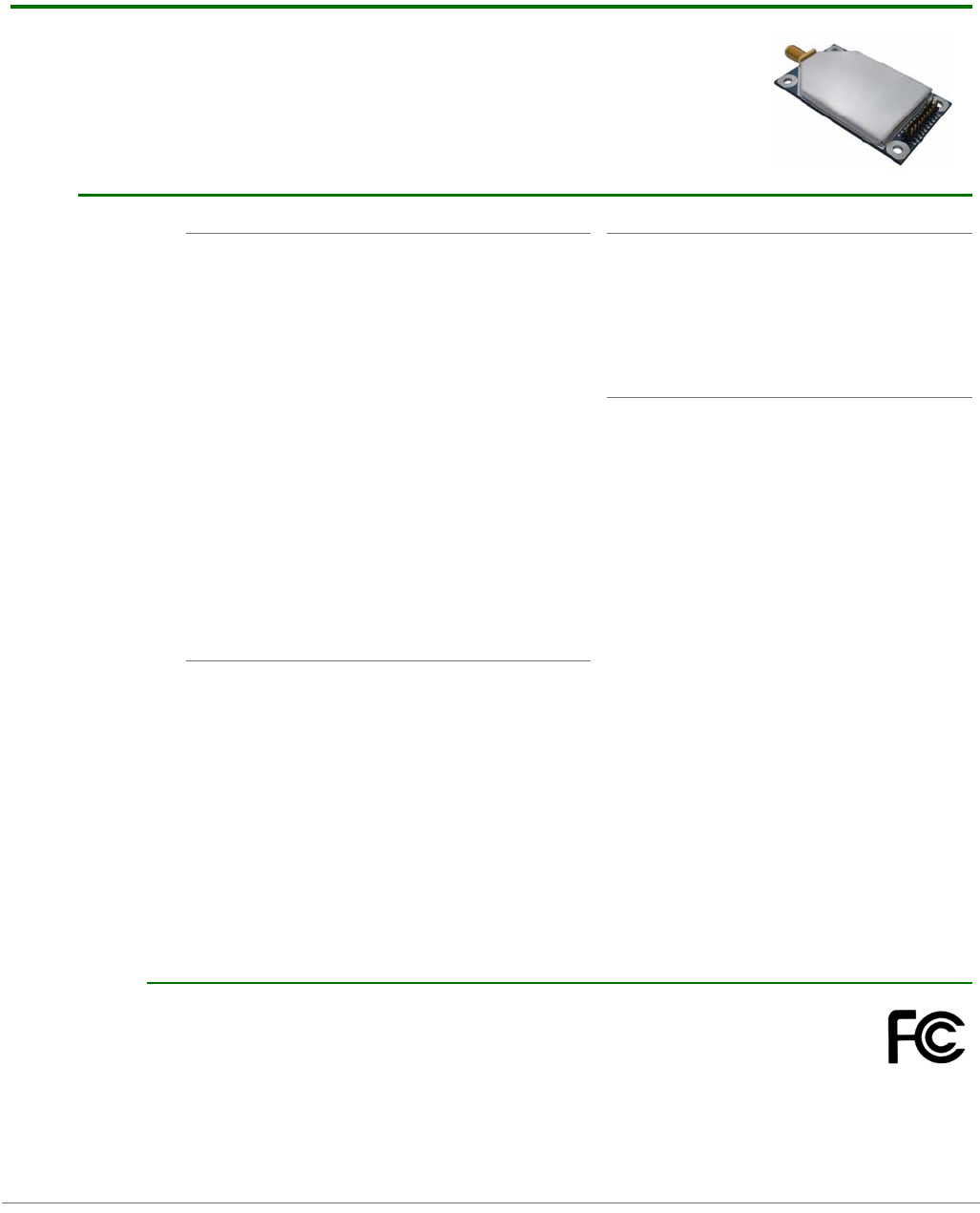

1.XTendRFModule

The XTend RF Module was engineered to provide customers with an

easy-to-use RF solution that provides reliable delivery of critical

data between remote devices. The module transfers a standard

asynchronous serial data stream, operates within the ISM 900 MHz

frequency band and sustains up to 115.2 Kbps data throughput.

Key Features

Worldwide Acceptance

FCC Approved (USA) Refer to Appendix A [p55] for FCC Requirements.

Systems that include XTend RF Modules inherit Digi’s Certifications.

ISM (Industrial, Scientific & Medical) license-free 902-928 MHz frequency band

Manufactured under ISO 9001:2000 registered standards

ESD (Electrostatic Discharge) immunity - ESD-hardened and IEC1000-4-2 (Level 4) tested

Long Range Data Integrity

1 Watt Power Output (variable 1mW - 1W)

Range (@9,600 bps throughput data rate):

• Indoor/Urban: up to 3000’ (900 m)

• Outdoor RF line-of-sight: 

up to 14 miles (22 km) w/dipole antenna

• Outdoor RF line-of-sight:

up to 40 miles (64 km) w/high-gain antenna

Range (@115,200 bps throughput data rate):

• Indoor/Urban: up to 1500’ (450 m)

• Outdoor RF line-of-sight:

up to 7 miles (11 km) w/dipole antenna

• Outdoor RF line-of-sight:

up to 20 miles (32 km) w/high-gain antenna

Continuous RF data stream up to 115,200 bps

Receiver Sensitivity: -110 dBm (@ 9600 baud),

–100 dBm (@ 115200 baud)

Advanced Networking & Security

True Peer-to-Peer (no Master device required),

Point-to-Point, Point-to-Multipoint & Multidrop

Retries and Acknowledgements

FHSS (Frequency Hopping Spread Spectrum)

10 hopping channels, each with over 65,000

unique network addresses available

256-bit AES Encryption 

- performed using a FIPS 197 certified

implementation on a Phillips LPC microcontroller

128-bit AES for international variant

Low Power

2.8 - 5.5 V Supply Voltage

Pin, Serial Port and Cyclic

software sleep modes supported

Shutdown pin enables hardware sleep mode

that draws only 5 µA (typical)

Easy-to-Use

No configuration necessary for out-of box

RF communications

Free X-CTU Software

(Testing and configuration software)

RF Modules easily configured using

standard AT & binary commands

Transparent Operation 

(Wireless links replace serial wires)

API Operation 

(Frame-based communications)

Portable 

(small form-factor easily designed into 

a wide range of data systems)

Software-selectable I/O interfacing rates

Multiple data formats supported

(parity, start and stop bits, etc.)

XII™ Interference Immunity

No Master/Slave setup dependencies

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 5

XTend RF Modules are optimized for use in the US, Canada, and Australia 

(contact Digi for complete list of agency approvals).

Specifications

Table1‐01. XTendRFModule

XTend 900 MHz RF Module Specifications

Performance @9600 bps Throughput Data Rate @115200 bps Throughput Data Rate

Transmit Power Output

(software selectable using PL command) 1mW - 1 Watt 1mW - 1 Watt

Indoor/Urban Range Up to 3000’ (900 m) Up to 1500’ (450 m)

Outdoor

RF line-of-sight Range

Up to 14 miles (22 km) w/ dipole antenna

Up to 40 miles (64 km) w/ high-gain antenna

Up to 7 miles (11 km) w/ dipole antenna

Up to 20 miles (32 km) w/ high-gain antenna

Interface Data Rate

(software selectable using BD command) 1200 – 230400 bps 1200 – 230400 bps

Throughput Data Rate

(software selectable using BR command) 9,600 bps 115,200 bps

RF Data Rate 10,000 bps 125,000 bps

Receiver Sensitivity -110 dBm -100 dBm

Power Requirements

Receive Current 80 mA

Shutdown Mode Power Down 5 µA typical

Pin Sleep Power Down 162 µA

Idle Currents

16 sec cyclic sleep (SM=8) 0.3 - 0.8 mA

8 sec cyclic sleep (SM=7) 0.4 - 1.4 mA

4 sec cyclic sleep (SM=6) 0.6 - 2.6 mA

2 sec cyclic sleep (SM=5) 0.9 - 4.8 mA

1 sec cyclic sleep (SM=4) 1.6 - 8.7 mA

Networking & Security

Frequency 902-928 MHz, 915-928 MHz International variant

Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)

Modulation FSK (Frequency Shift Keying)

Supported Network Topologies Peer-to-Peer (“Master/Slave” relationship not required), Point-to-Point, Point-to-Multipoint, Mesh

Channel Capacity 10 hop sequences share 50 frequencies

Encryption 256-bit or 128-bit AES Encryption – Refer to the KY Command [p29] to implement

Physical Properties

RF Module Board Size 1.44” x 2.38” x 0.20” (3.65 cm x 6.05 cm x 0.51 cm)

Weight 0.64 oz. (18 g)

Connector 20-pin

Operating Temperature -40 to 85º C (industrial)

Antenna

Connector Options RPSMA (Reverse-polarity SMA) or MMCX

Impedance 50 ohms unbalanced

Certifications (partial list)

FCC Part 15.247 MCQ-9XTENDB

Industry Canada (IC) 1846A-9XTENDB

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 6

*Ifthesupplyvoltageforagivenpowersettingislowerthantheminimumsupplyvoltagerequirement(asshowninTable1‐02),the

TXPowerOutputwilldecreasetothehighestpowerlevelsettinggiventhecurrentsupplyvoltage.

**1WPowerOutputisnotsupportedwhenusinga3.3supplyvoltage.

Pin Signals

Figure1‐01. XTendRFModulePinNumbers

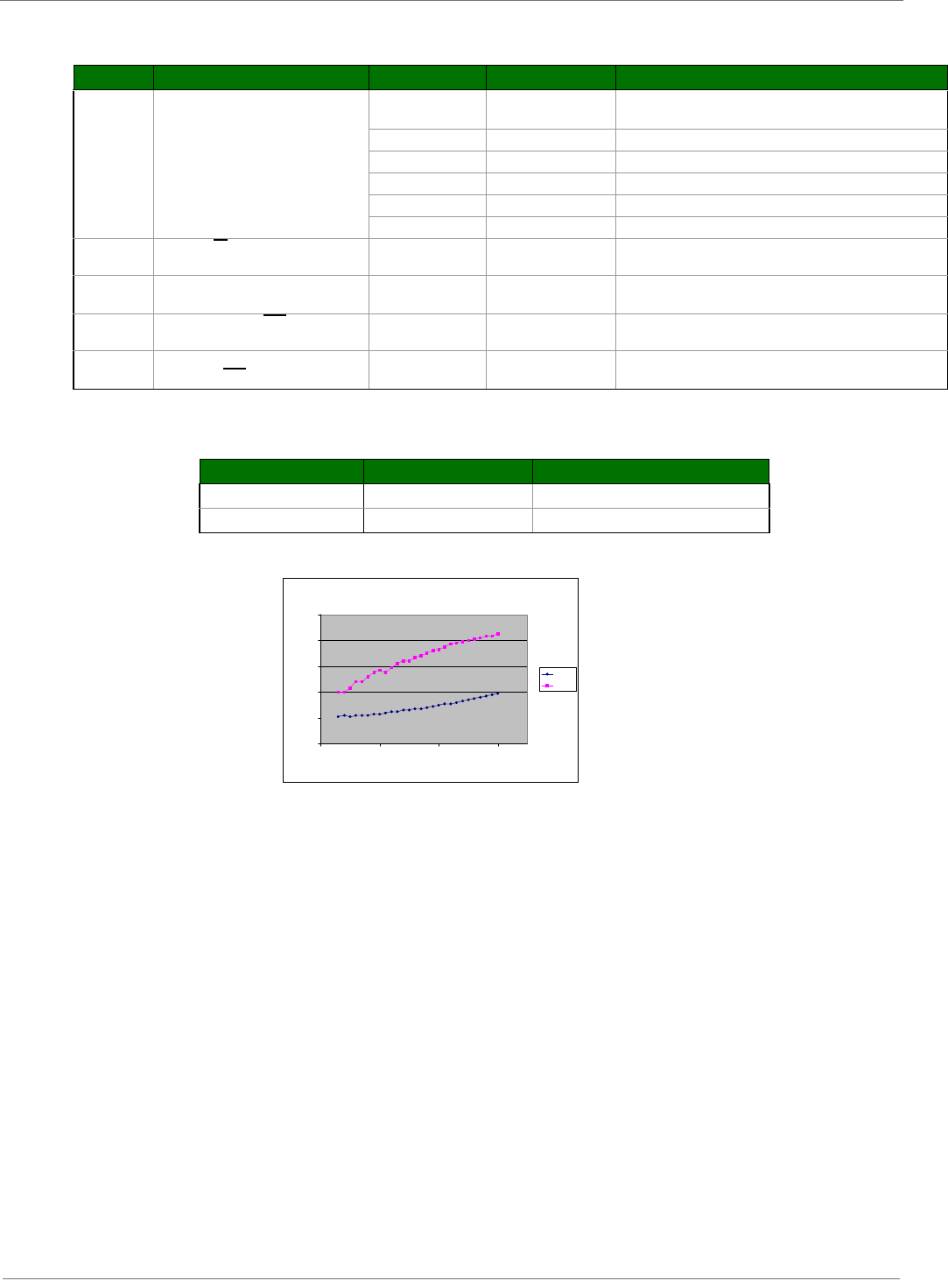

Table1‐02. XTendRFModuleSpecifications‐Relativetouser‐selectedTXPowerOutput

Power Requirements (Supply voltage and TX currents relative to each TX Power Output option)

Transmit Power Output 1 mW 10 mW 100 mW 500 mW * 1 W *

Supply Voltage 2.8 - 5.5 VDC 3.0 - 5.5 VDC 4.75 - 5.5 VDC

Transmit Current (5 V) typical 130 mA 160 mA 270 mA 500 mA 680 mA

Transmit Current (3.3 V) typical 125 mA 150 mA 260 mA 600 mA **

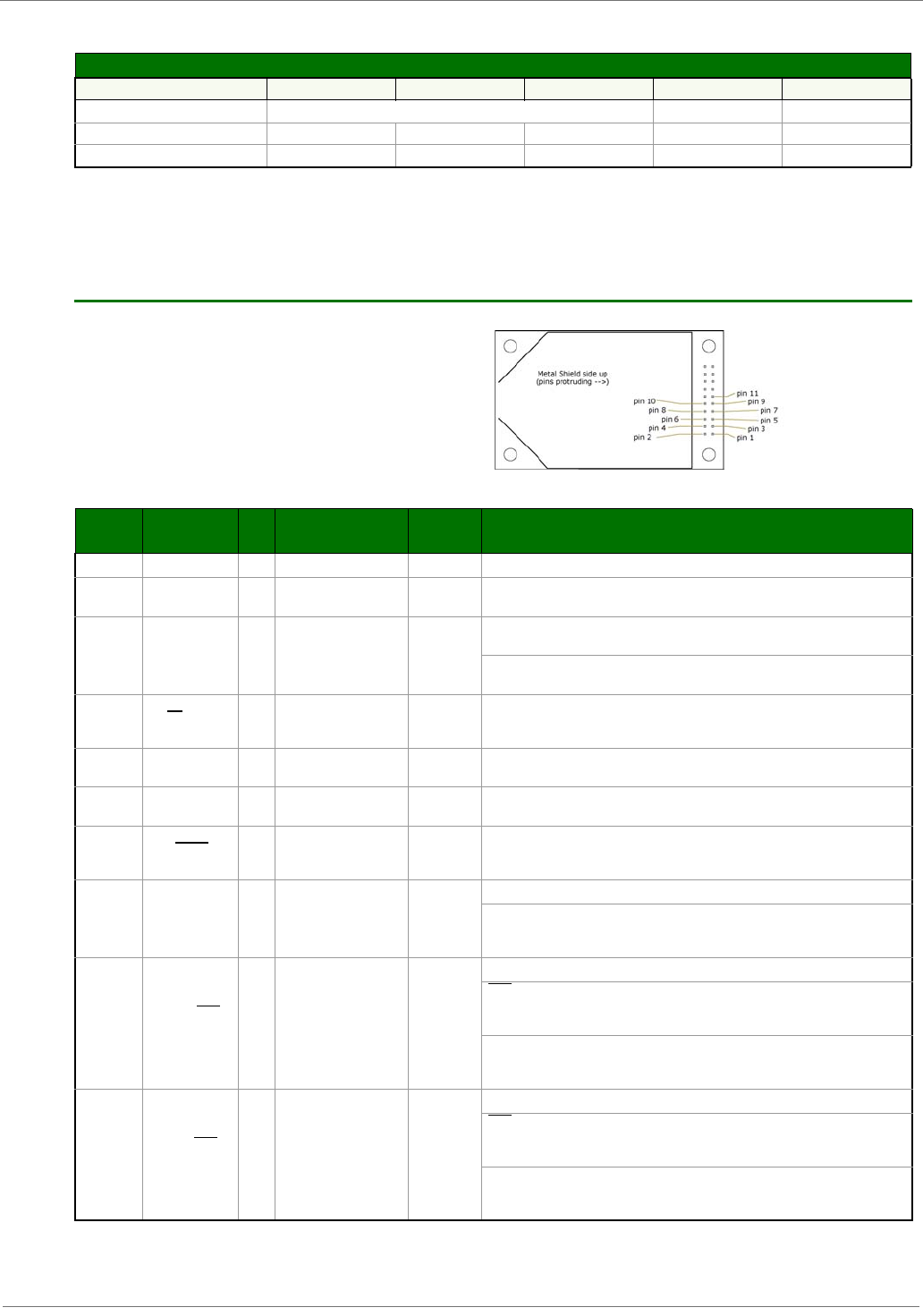

Table1‐03. PinSignalDescriptions

(Low‐assertedsignalsdistinguishedwithahorizontallineoversignalname.)

Number Mnemonic I/O High Impedance

during Shutdown Must

Connect Function

1GND- - yesGround

2VCCI - yes

Power: 2.8 - 5.5 VDC (Power supply ripple: +/- 250mV max @ 5V, 1A or +/-

125mV max @ 3.3V, 600mA.)

3GPO2 /

RX LED Oyes -

General Purpose Output 2: <Default (CD=2)> Pin is driven low. Refer to the CD

Command [p25] for other configuration options.

RX LED: Pin is driven high during RF data reception; otherwise, the pin is driven

low. Refer to the CD Command [p25] to enable.

4 TX

_PWR O yes - Transmit_Power: Pin pulses low during RF transmission; otherwise, the pin is

driven high to indicate power is on and the module is not in Sleep or Shutdown

Mode.

5DIIyes yes

Data In: Serial data entering the module (from the UART host). Refer to the Serial

Communications [p10] section for more information.

6DOOyes -

Data Out: Serial Data exiting the module (to the UART host). Refer to the Serial

Communications [p10] section for more information.

7 SHDN

Ino yes

Shutdown: Pin is driven high during operation and low during Shutdown.

Shutdown enables the lowest power mode (~5 µA) available to the module. Refer

to the Shutdown Mode [p15] section for more information.

8 GPI2 / SLEEP I yes -

General Purpose Input 2: reserved for future use

SLEEP: By default, SLEEP is not used. To configure this pin to enable Sleep

Modes, refer to the Sleep Mode [p15], SM Command [p37] & PW Command [p33]

sections.

9GPO1 / CTS /

RS-485 TX_EN Oyes -

General Purpose Output 1: reserved for future use

CTS (Clear-to-Send): <Default (CS=0)> When pin is driven low, the UART host

is permitted to send serial data to the module. Refer to the Serial Communications

[p10] & CS Command [p26] sections for more information.

RS-485 Transmit Enable: To configure this pin to enable RS-485 half and full-

duplex communications. Refer to the Serial Communications [p10] & CS

Command [p26] sections.

10 GPI1 / RTS /

CMD Iyes -

General Purpose Input 1: reserved for future use

RTS (Request-to-Send): By default, is not used. To configure this pin to

regulate the flow of serial data exiting the module, refer to the Serial

Communications [p10] & RT Command [p36] sections.

CMD (Command): By default, CMD is not used. To configure this pin to enable

binary command programming, refer to the Binary Commands [p18] & RT

Command [p36] sections.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 7

*RFmodulehas10Kinternalpull‐upresistor

Note: When integrating the module with a Host PC board, all lines not used should be left disconnected (floating).

Electrical Characteristic

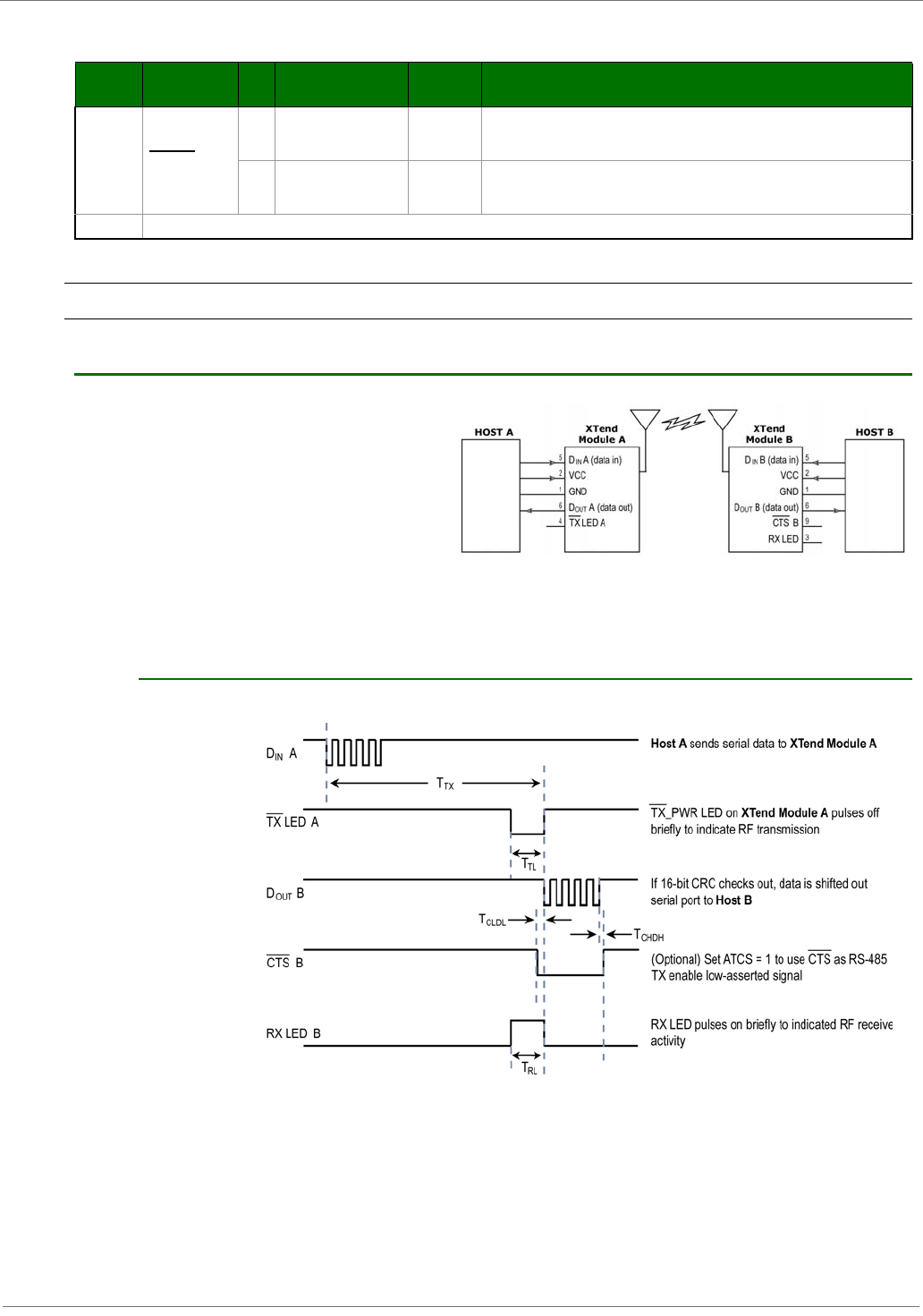

Figure1‐02. SystemBlockDiagram

BasicRFLinkbetweenHosts

The data flow sequence is initiated when the first byte of data is received in the DI Buffer of the

transmitting module (XTend RF Module A). As long as XTend RF Module A is not already receiving

RF data, data in the DI Buffer is packetized then transmitted over-the-air to XTend RF Module B.

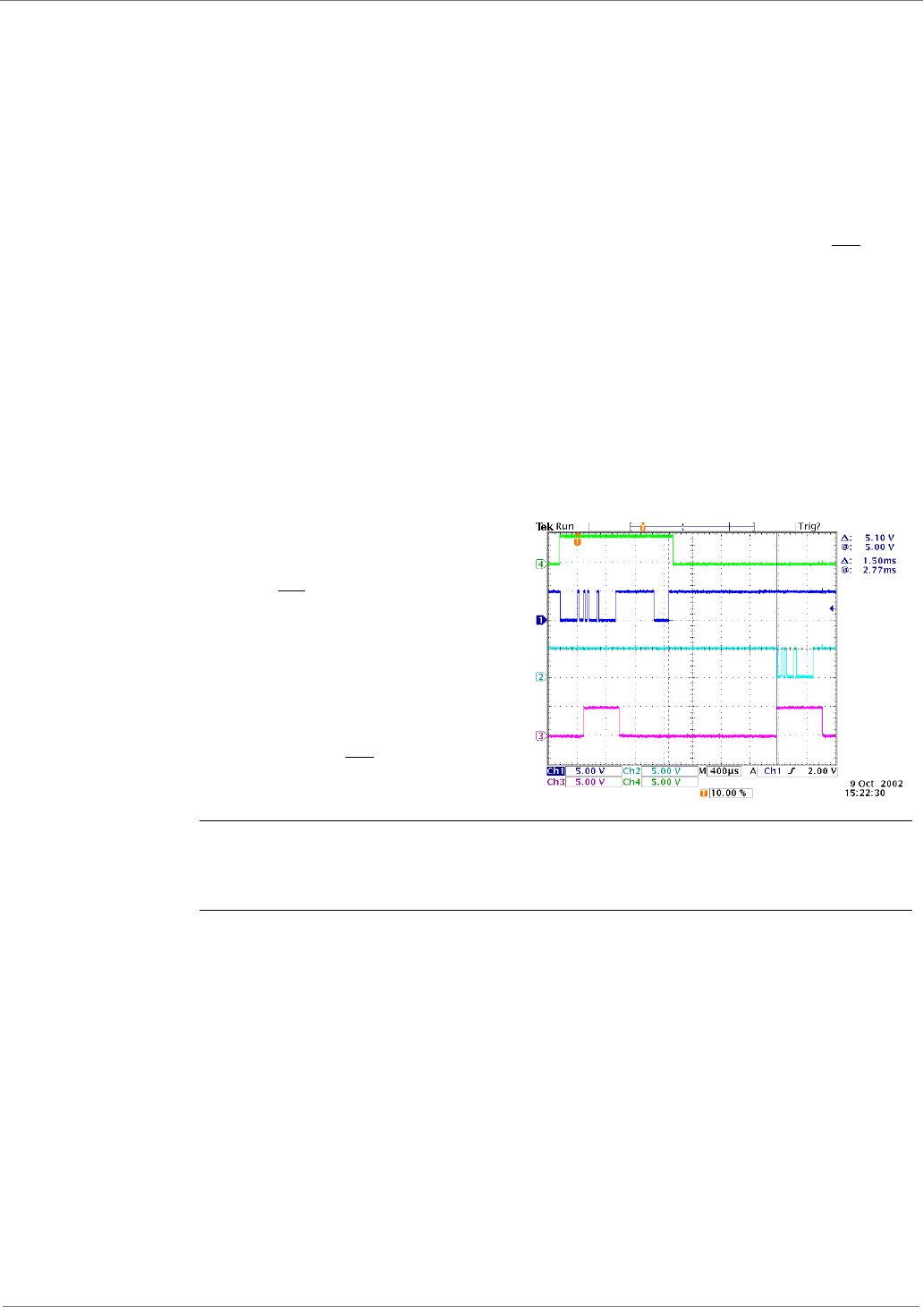

Timing Specifications

Figure1‐03. TimingSpecifications(‘A’and‘B’refertoFigure1‐02)

11 CONFIG / RSSI

I* no - Configuration: Pin can be used as a backup method for entering Command

Mode during power-up. Refer to the Command Mode [p17] section for more

information.

O* no - Receive Signal Strength Indicator: By default, pin is used as an RSSI PWM

output after at the conclusion of the power-up sequence. Refer to the RP

Command [p35] for more information. The PWM output is 2.8V-level.

12-20 reserved / do not connect

Table1‐03. PinSignalDescriptions

(Low‐assertedsignalsdistinguishedwithahorizontallineoversignalname.)

Number Mnemonic I/O High Impedance

during Shutdown Must

Connect Function

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 8

Figure1‐04. InputThresholdsvs.SupplyVolt age

Table1‐04. ACCharacteristics(SymbolscorrespondwithFigure1‐02andFigure1‐03,ATSYParameter=0)

Symbol Description Sleep Mode 115200 Baud Rate 9600 Baud Rate

TTX Latency from the time data is

transmitted until it is received.

SM = 0

(No sleep) 9.4 msec 94 msec

SM = 8 16 sec 16 sec

SM = 7 8 sec 8 sec

SM = 6 4 sec 4 sec

SM = 5 2 sec 2 sec

SM = 4 1 sec 1 sec

TTL Time that TX_PWR pin (pin 4) is driven

low -- 2.45 msec 29.6 msec

TRL Time that RX LED (pin 3)

is driven high -- 2.26 msec 27.2 msec

TCLDL Time starting when CTS goes low until

the first bit appears on DOUT -- 44 µsec 75 µsec

TCHDH Time after last bit of data until

CTS goes high -- 7 µsec 7 µsec

Table1‐05. DCCharacteristics(Vcc=2.8‐5.5VDC)

Symbol Parameter Condition

VOL Output Low Voltage VOL = 0.33V (IO = 6 mA)

VOH Output High Voltage VOH = VSUPPLY - 0.7V (-IO = 6 mA)

Input thresholds vs. supply voltage

0.5

1.5

2.5

2.5 3.5 4.5 5.5

Vcc

I/O Voltage

V(IL)

V(IH)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 9

Mechanical Drawings

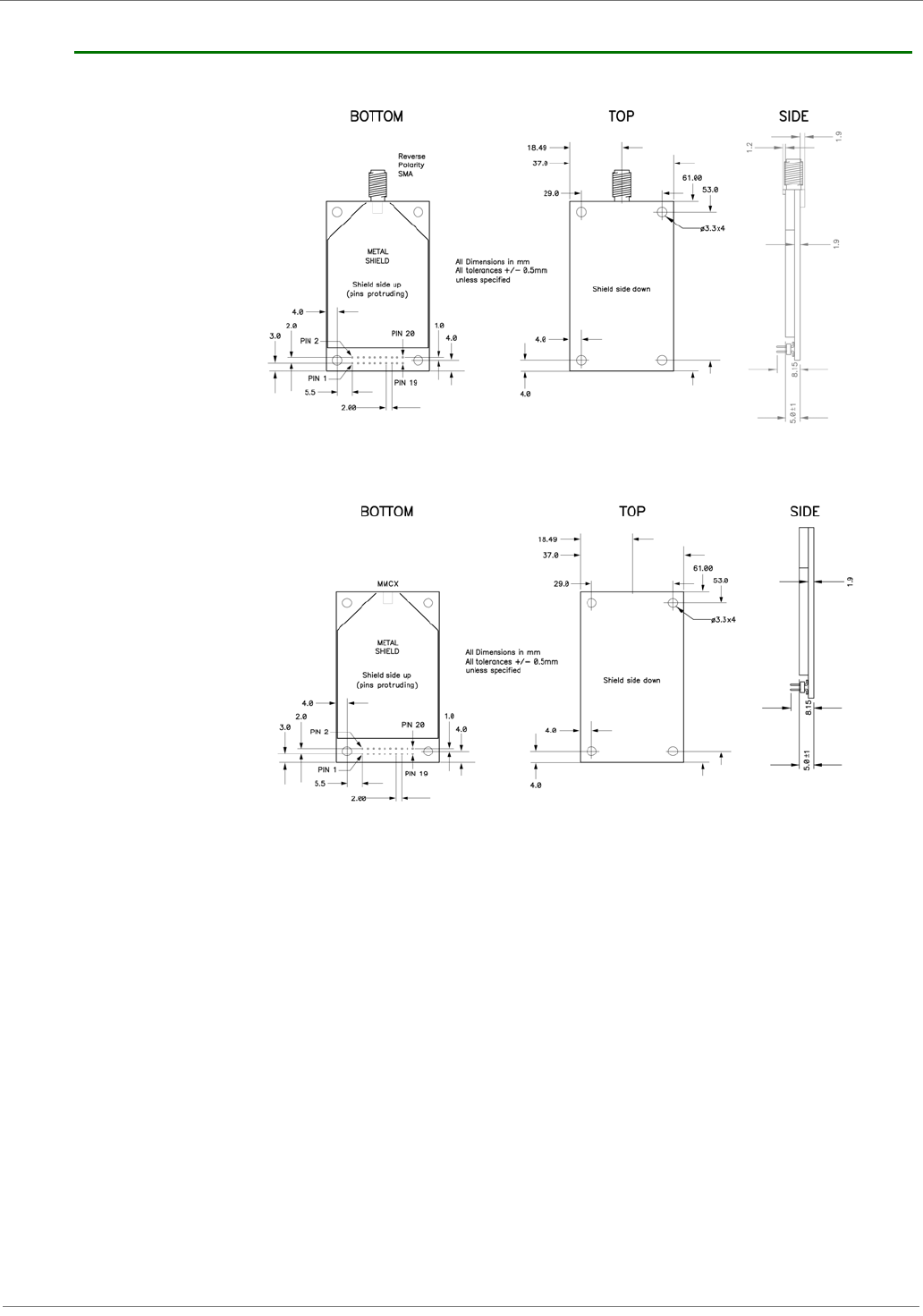

Figure1‐05. MechanicaldrawingsoftheXTendRFModule(w/RPSMAConnector)

Figure1‐06. MechanicaldrawingsoftheXTendRFModule(w/MMCXConnector)

©2013DigiInternationalInc. 10

2.RFModuleOperation

WARNING: When operating at 1 Watt power output, observe a minimum separation distance of 2' (0.6m) between

modules. Transmitting in close proximity of other modules can damage module front ends.

Serial Communications

The XTend RF Modules interface to a host device through a TTL-level asynchronous serial port.

Through its serial port, the module can communicate with any UART voltage compatible device or

through a level translator to any serial device (For example: RS-232/485/422 or USB interface

board).

UART Data Flow

Devices that have a UART interface can connect directly to the pins of the RF module as shown in

the figure below.

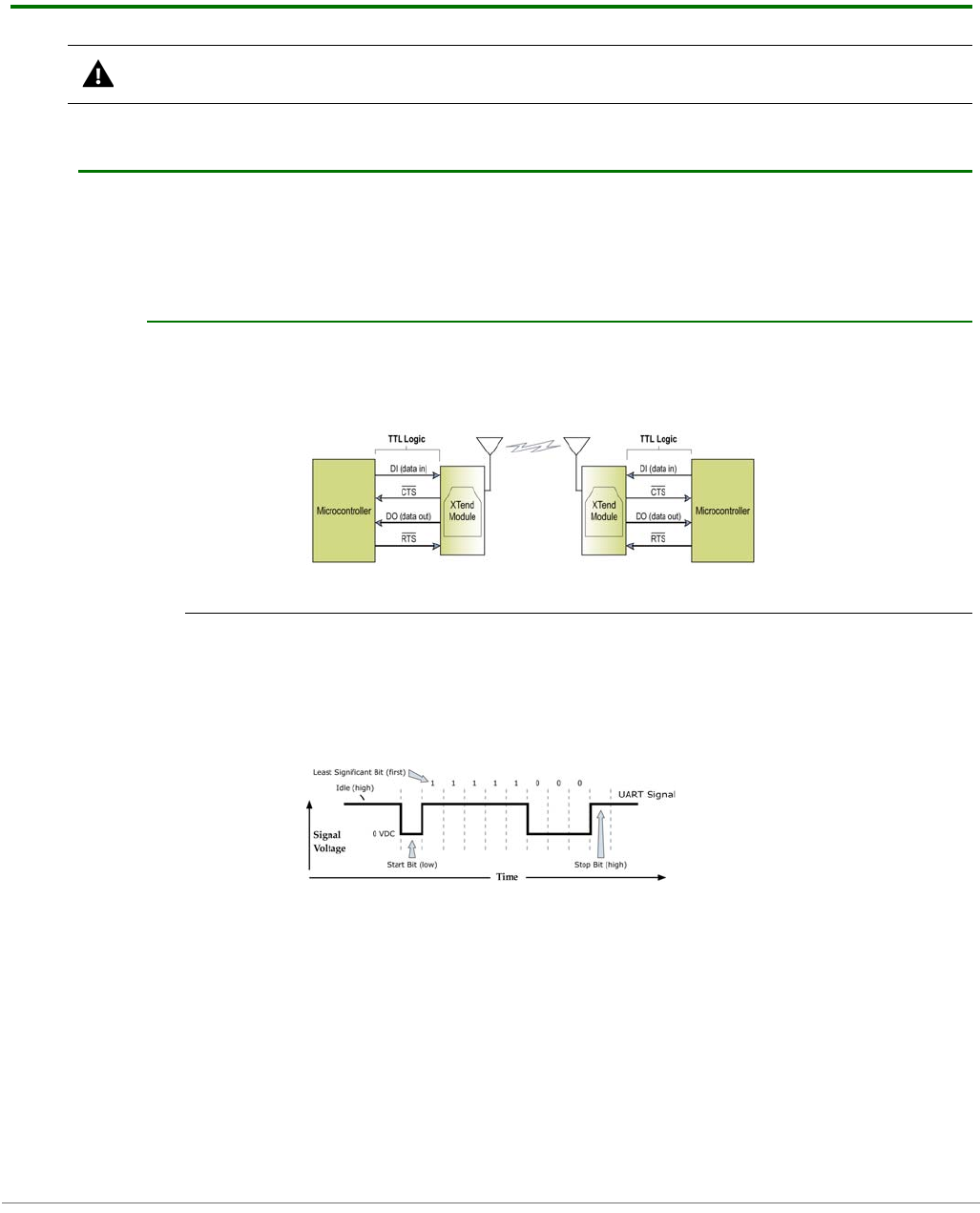

Figure2‐01. SystemDataFlowDiagraminaUART‐interfacedenvironment

(Low‐assertedsignalsdistinguishedwithhorizontallineoversignalname.)

Serial Data

Data enters the module UART through the pin 5 as an asynchronous serial signal. The signal

should idle high when no data is being transmitted.

Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a stop bit

(high). The following figure illustrates the serial bit pattern of data passing through the module.

Figure2‐02. UARTdatapacket0x1F(decimalnumberʺ31ʺ)astransmittedthroughtheRFmodule

ExampleDataFormatis8‐N‐1(bits‐parity‐#ofstopbits)

The module UART performs tasks, such as timing and parity checking, that are needed for data

communications. Serial communications depend on the two UARTs to be configured with

compatible settings (baud rate, parity, start bits, stop bits, data bits).

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 11

Flow Control

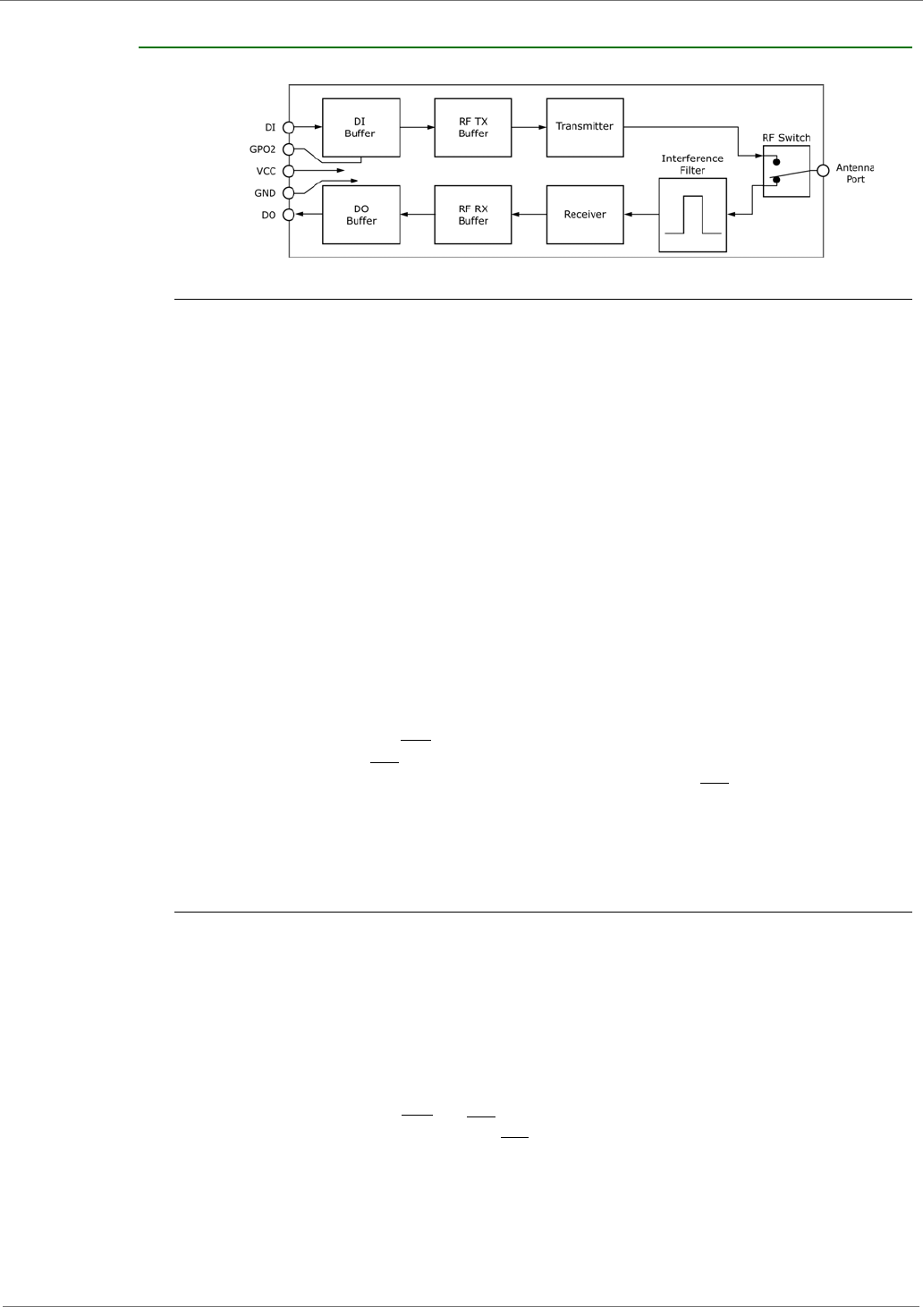

Figure2‐03. InternalDataFlowDiagram(Thefivemostcommonly‐usedpinsignalsshown)

DI (Data In) Buffer and Flow Control

When serial data enters the module through the DI pin (pin 5), the data is stored in the DI Buffer

until it can be processed.

When the RB and RO parameter thresholds are satisfied (refer to ‘Transmit Mode’ section for more

information), the module attempts to initialize an RF connection. If the module is already receiving

RF data, the serial data is stored in the module's DI Buffer. The DI buffer stores at least 2.1 KB. If

the DI buffer becomes full, hardware or software flow control must be implemented in order to

prevent overflow (loss of data between the host and RF module).

How to eliminate the need for flow control:

Two cases in which the DI Buffer may become full and possibly overflow:

Hardware Flow Control (CTS). When the DI buffer is 17 bytes away from being full; by default,

the module de-asserts CTS (high) to signal to the host device to stop sending data [refer to FT

(Flow Control Threshold) and CS (GPO1 Configuration) Commands]. CTS is re-asserted after the

DI Buffer has 34 bytes of memory available.

Software Flow Control (XON). XON/XOFF software flow control can be enabled using the FL

(Software Flow Control) Command. This option only works with ASCII data.

DO (Data Out) Buffer

When RF data is received, the data enters the DO buffer and is sent out the serial port to a host

device. Once the DO Buffer reaches capacity, any additional incoming RF data is lost. The DO

buffer stores at least 2.1 KB.

Two cases in which the DO Buffer may become full and possibly overflow:

Hardware Flow Control (RTS). If RTS is enabled for flow control (RT Parameter = 2), data will

not be sent out the DO Buffer as long as RTS (pin 10) is de-asserted.

Software Flow Control (XOFF). XON/XOFF software flow control can be enabled using the FL

(Software Flow Control) Command. This option only works with ASCII data.

1. Send messages that are smaller than the DI buffer size. The size of the DI buffer varies

according to the packet size (PK parameter) and the parity setting (NB parameter) used.

2. Interface at a lower baud rate (BD parameter) than the RF data rate (BR parameter).

1. If the serial interface data rate is set higher than the RF data rate of the module, the mod-

ule will receive data from the host faster than it can transmit the data over-the-air.

2. If the module is receiving a continuous stream of RF data or if the module is monitoring

data on a network, any serial data that arrives on the DI pin (pin 5) is placed in the DI Buf-

fer. The data in the DI buffer will be transmitted over-the-air when the module no longer

detects RF data in the network.

1. If the RF data rate is set higher than the interface data rate of the module, the module will

receive data from the transmitting module faster than it can send the data to the host.

2. If the host does not allow the module to transmit data out from the DO buffer because of

being held off by hardware or software flow control.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 12

Transparent Operation

By default, XTend RF Modules operate in Transparent Mode. The modules act as a serial line

replacement - all UART data received through the DI pin is queued up for RF transmission. When

RF data is received, the data is sent out the DO pin.

When the RO (Packetization Timeout) parameter threshold is satisfied, the module attempts to

initialize an RF transmission. If the module cannot immediately transmit (for instance, if it is

already receiving RF data), the serial data continues to be stored in the DI Buffer. Data is

packetized and sent at any RO timeout or when the maximum packet size is received.

The module operates as described above unless the Command Mode Sequence is detected. The

Command Mode Sequence consists of three copies of the command sequence character [CC

parameter] surrounded by the before and after guard times [BT & AT parameters].

If the DI buffer becomes full, hardware or software flow control must be implemented in order to

prevent overflow (loss of data between the host and module).

API Operation

API (Application Programming Interface) Operation is an alternative to the default Transparent

Operation. The API is frame-based and extends the level to which a host application can interact

with the networking capabilities of the module. When in API mode, all data entering and leaving

the RF module is contained in frames that define operations or events within the module.

Transmit Data Frames (received through the DI (Data In) pin) include:

• 16-bit address

Receive Data Frames (sent out the DO (Data Out) pin) include:

• Showing a received RF packet (16 bits only)

• Response to a TX (Transmit) packet

• Showing events such as hardware reset, watchdog reset, asynchronous events, etc.

The module will send data frames to the application containing status packets; as well as source,

RSSI and payload information from received data packets.

API operation option facilitates many operations such as the examples cited below:

To implement API operations, refer to ‘API Operation’ sections [p41].

DigiMesh Operation

XTend RF Modules containing firmware version 8020 (or above) now feature DigiMesh mesh

networking support. Mesh networking allows messages to be routed through several different

XTend nodes to a final destination node. This firmware load allows system integrators to bolster

their networks with the self-healing attributes of mesh networking. In the event that one RF

connection between nodes is lost (due to power-loss, environmental obstructions, etc.) critical

data can still reach its destination due to mesh networking capabilities embedded inside the

module. Transparent or API operations can be used in conjunction with the mesh networking

topology. A separate product manual exists for DigiMesh modules. This product manual can be

found on the Digi support site.

-> Change destination addresses without having to enter command mode

-> Receive success/failure status of each RF packet

-> Identify the source address of each received packet

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 13

Modes of Operation

XTend RF Modules operate in six modes.

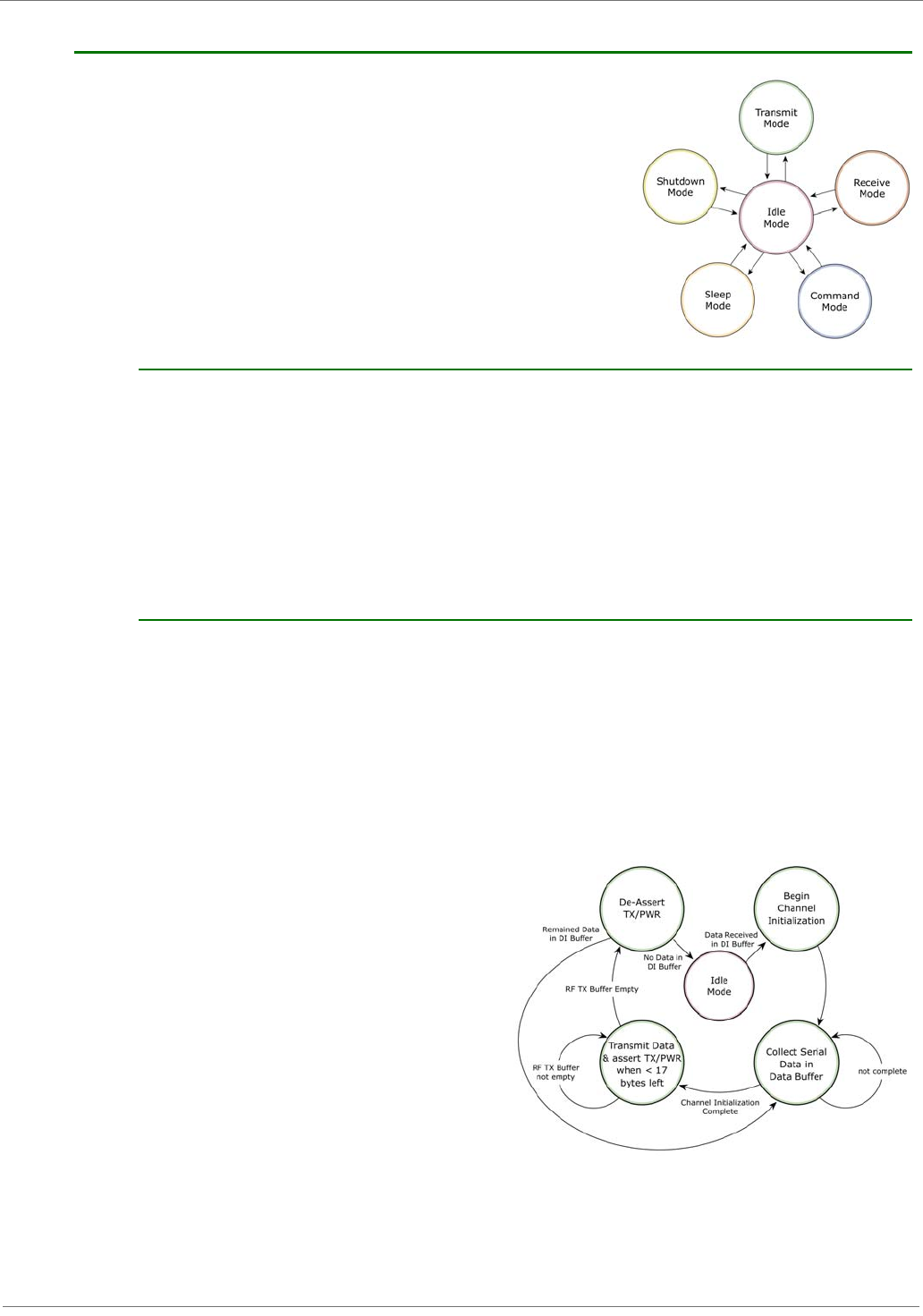

Figure2‐04. XTendRFModuleModesofOperation

(RFmodulescanonlybeinonemodeatatime)

Idle Mode

When not receiving or transmitting data, the RF module is in Idle Mode. The module shifts into the

other modes of operation under the following conditions:

• Transmit Mode: Serial data is received in the DI Buffer

• Receive Mode: Valid RF data is received through the antenna

• Shutdown Mode: Shutdown condition is met

• Sleep Mode: Sleep Mode condition is met

• Command Mode: Command Mode Sequence is issued

The module automatically transitions back to Idle Mode after responding to these conditions.

Transmit Mode

When the first byte of serial data is received from the UART in the DI buffer, the module attempts

to shift to Transmit Mode and initiate an RF connection with other modules. After transmission is

complete, the module returns to Idle Mode.

RF transmission begins after either of the following criteria is met:

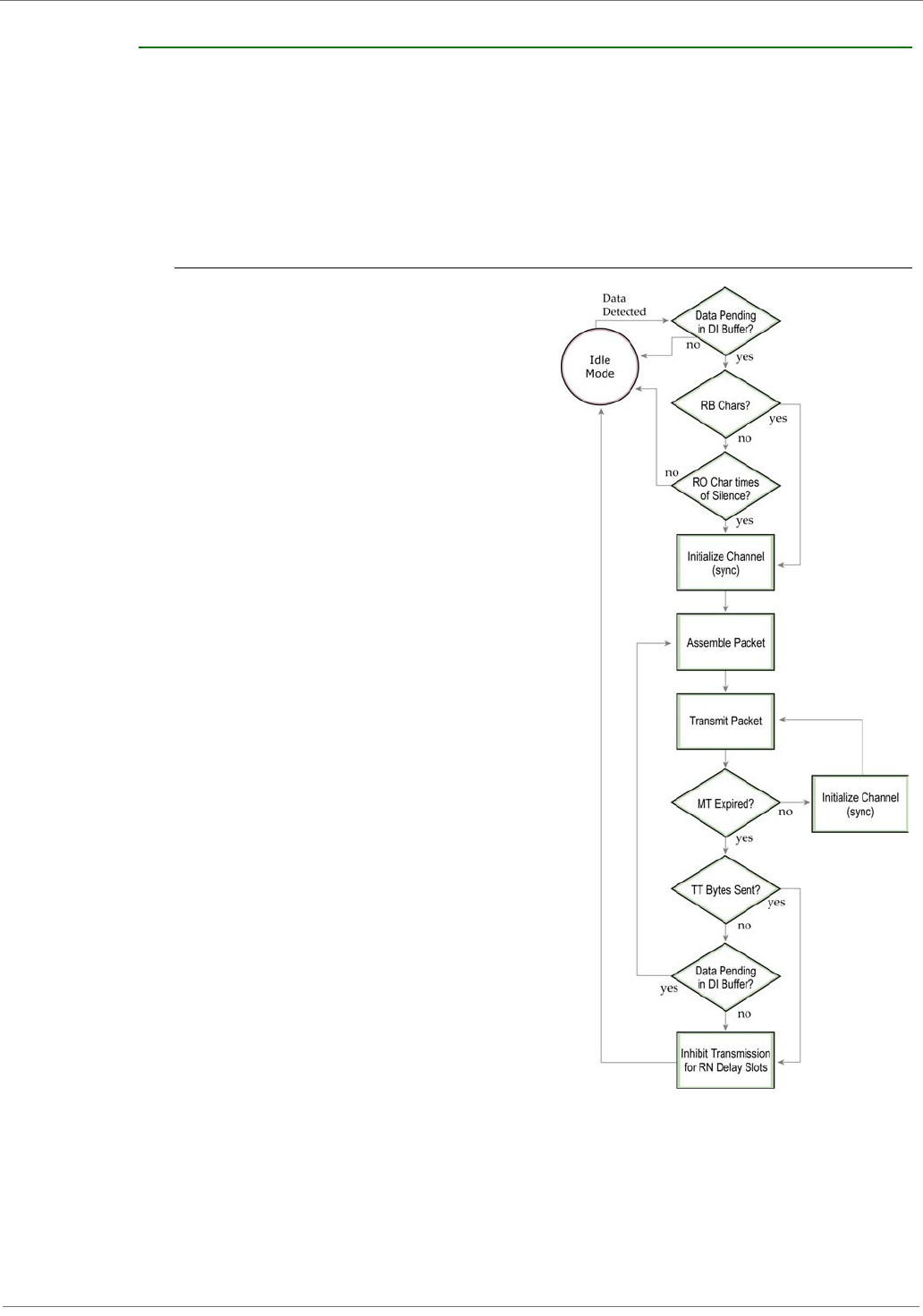

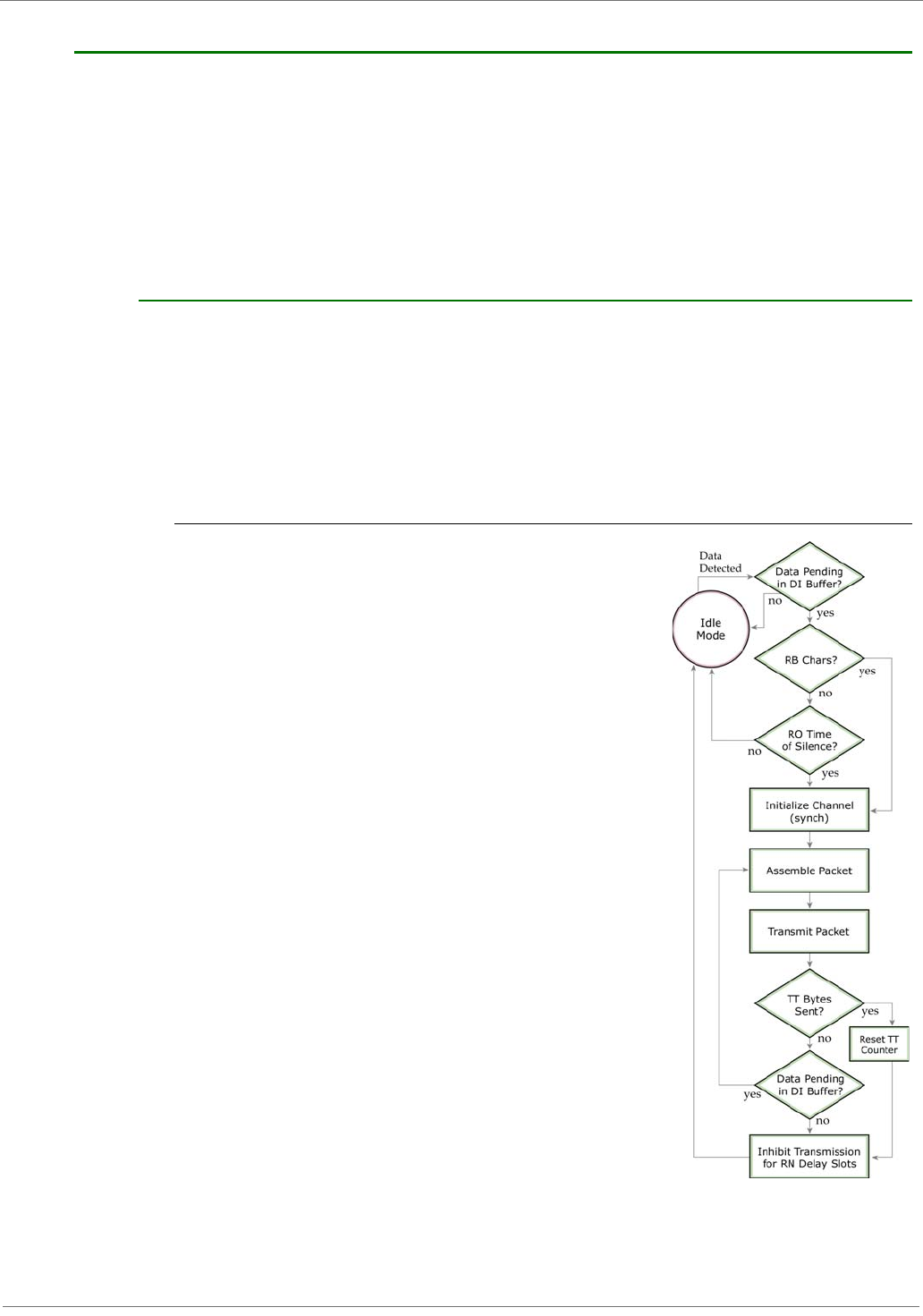

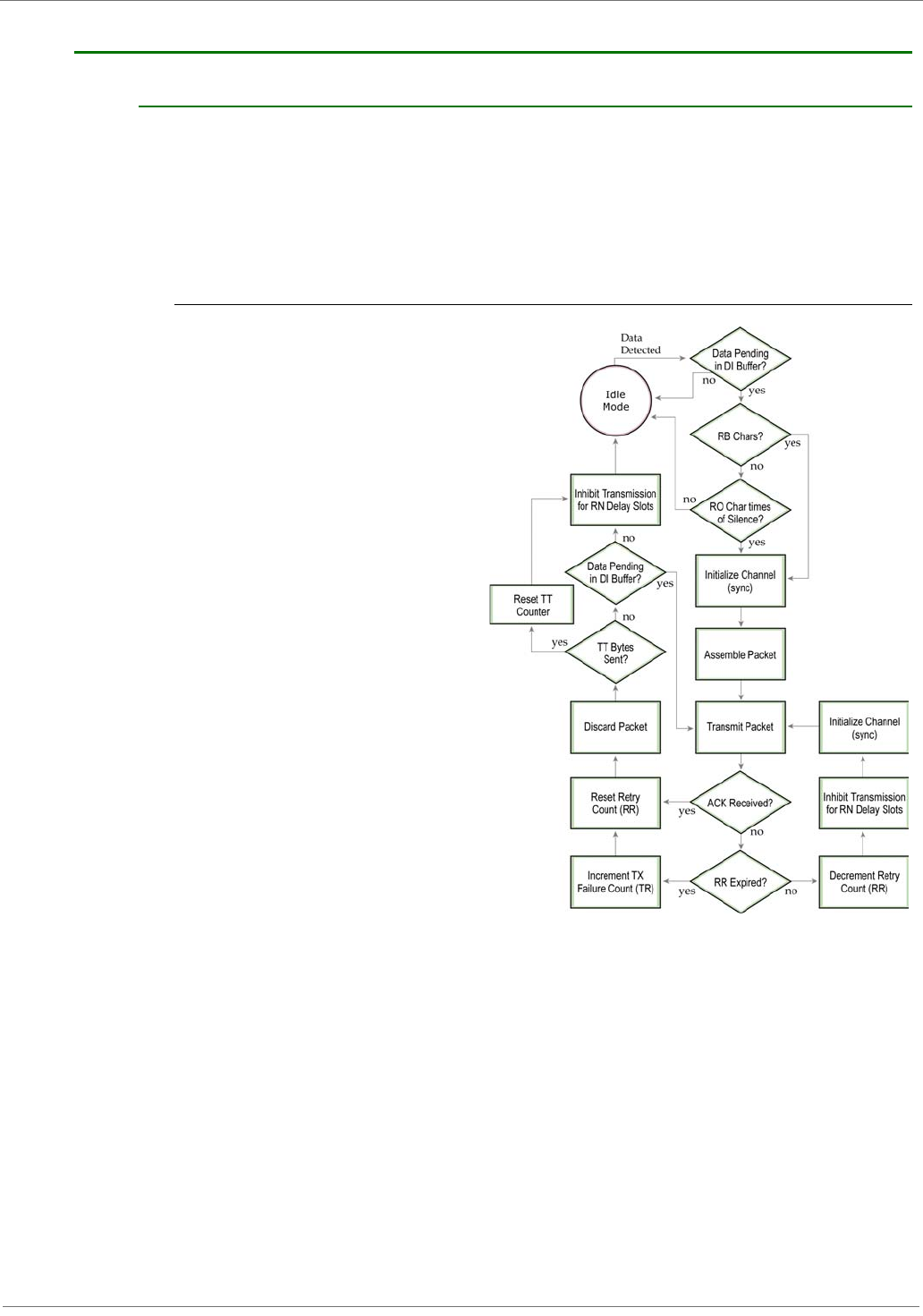

Figure2‐05. TransmitModeDataFlow

The character timeout trigger can be

disabled by setting RO to zero. In this

case, transmission will not begin until

RB bytes have been received and are

pending for RF transmission. The RB

parameter may be set to any value

between 1 and the RF packet size [refer

to PK (Max RF Packet Size) parameter],

inclusive. Note that transition to

Transmit Mode cannot take place during

RF reception; the RF reception must

complete before the radio can transition

into Transmit Mode.

If RB or RO conditions are met, the

module initializes a communications channel. Serial data in the DI buffer is grouped into RF

packets (up to 2048 bytes in each packet, refer to PK Command), converted to RF data and is

transmitted over-the-air until the DI buffer is empty.

1. RB bytes have been received by the UART and are pending for RF transmission.

[Refer to the RB (Packetization Threshold) Command]

2. At least one character has been received by the UART and is pending for RF transmission;

and RO character times of silence been observed on the UART.

[Refer to the RO (Packetization Timeout) Command]

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 14

Channel initialization is the process of sending an RF initializer that synchronizes receiving

modules with the transmitting module. During channel initialization, incoming serial data

accumulates in the DI buffer.

RF data, which includes the payload data, follows the RF initializer. The payload includes up to the

maximum packet size (PK Command) bytes. As the TX module nears the end of the transmission,

it inspects the DI buffer to see if more data exists to be transmitted. This could be the case if more

than PK bytes were originally pending in the DI buffer or if more bytes arrived from the UART after

the transmission began. If more data is pending, the transmitting module assembles a subsequent

packet for transmission.

Refer to the ‘RF Communication Modes’ section to view state diagrams that illustrate channel

initialization and the sequence of events that follow.

RF Packet

Figure2‐06. RFPacketComponents

* When streaming multiple RF packets, the RF Initializer is only sent in front of the first packet.

RF Initializer

An RF initializer is sent each time a new connection sequence begins. The RF initializer contains

channel information that notifies receiving modules of information such as the hopping pattern

used by the transmitting module. The first transmission always sends an RF initializer.

An RF initializer can be of various lengths depending on the amount of time determined to be

required to prepare a receiving module. For example, a wake-up initializer is a type of RF initializer

used to wake remote modules from Sleep Mode (Refer to the FH, LH, HT and SM Commands for

more information). The length of the wake-up initializer should be longer than the length of time

remote modules are in cyclic sleep.

Header

The header contains network addressing information that filters incoming RF data. The receiving

module checks for matching a Hopping Channel, VID and Destination Address. Data that does not

pass through all three network filter layers is discarded.

Refer to the ‘Addressing’ section of the “RF Communication Modes” chapter for more information.

CRC (Cyclic Redundancy Check)

To verify data integrity and provide built-in error checking, a 16-bit CRC (Cyclic Redundancy

Check) is computed for the transmitted data and attached to the end of each RF packet. On the

receiving end, the receiving module computes the CRC on all incoming RF data. Received data that

has an invalid CRC is discarded [refer to the ‘Receive Mode’ section].

Receive Mode

If a module detects RF data while operating in Idle Mode, the module transitions to Receive Mode

to start receiving RF packets. Once a packet is received, the module checks the CRC (cyclic

redundancy check) to ensure that the data was transmitted without error. If the CRC data bits on

the incoming packet are invalid, the packet is discarded. If the CRC is valid, the packet proceeds to

the DO Buffer.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 15

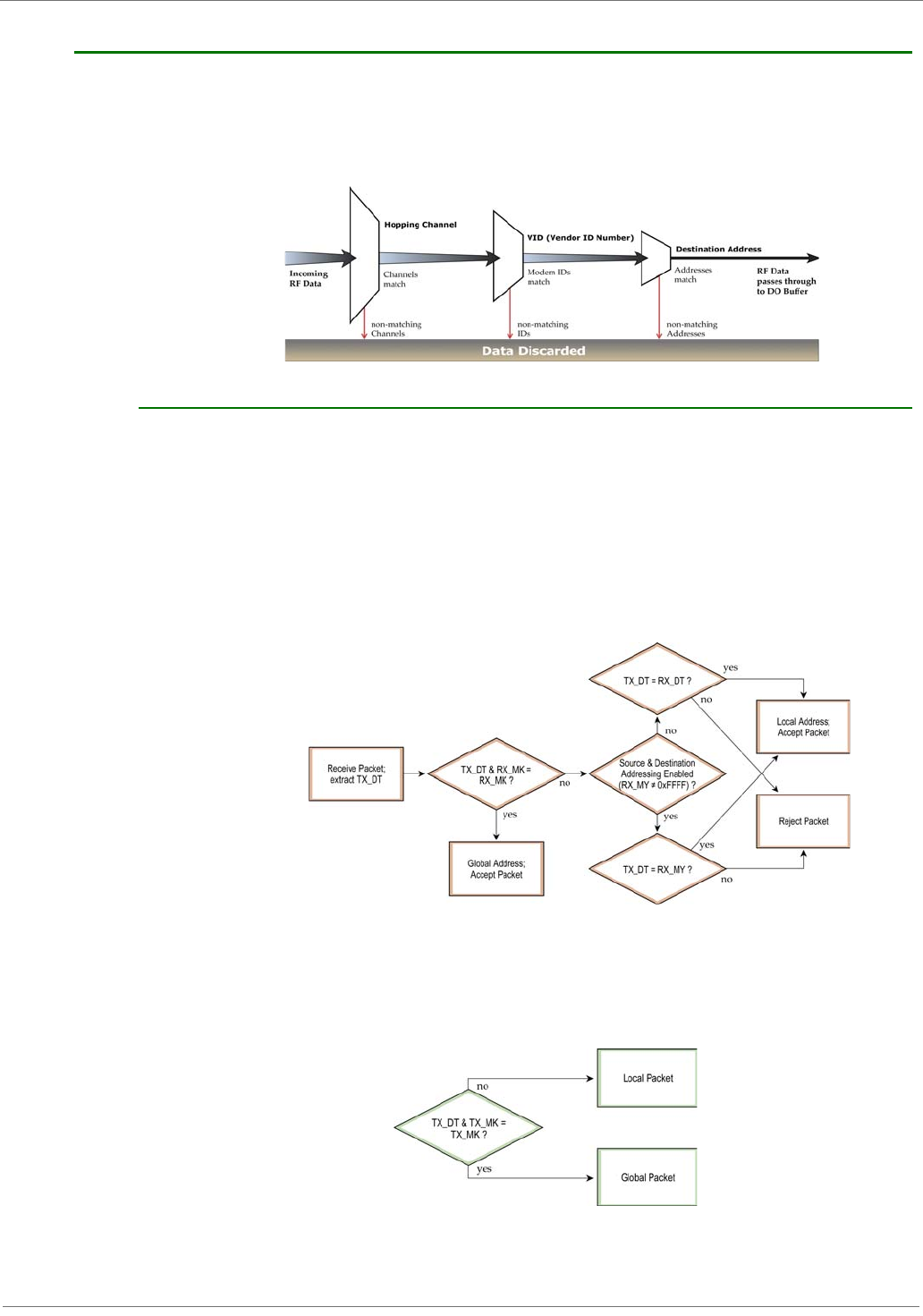

Figure2‐07. ReceiveModeDataFlow

*Refertothe‘A d d r e s s Recognition’sec‐

tionformoreinformationregarding

addressrecognition.

The module returns to Idle Mode

when valid RF data is no longer

detected or after an error is

detected in the received RF data. If

serial data is stored in the DI

buffer while the module is in

Receive Mode, the serial data will

be transmitted after the module is

finished receiving data and returns

to Idle Mode.

Shutdown Mode

Hardware Sleep

For applications where power consumption must be kept to a minimum during idle periods,

Shutdown Mode offers the lowest power mode available to the module.

When the SHDN pin (pin 7) is driven low, the module is forced into shutdown mode. Any

communication in progress (transmit or receive) will be halted and any buffered data will be lost.

For any other mode of operation, SHDN must be driven or pulled high. While in shutdown mode,

the module's VCC pin draws 5 µA (typical).

Immediately after the SHDN pin changes state from low to high, the module resets. After reset,

there is a delay that must be observed. Delay time is <100ms.

While SHDN pin is driven low, the following pins are set to high impedance by the module: DCD,

TX_PWR, RX LED, DO and CTS (See pin signal descriptions, p6). The SHDN line (also used for

RSSI indication) is driven low during shutdown.

The following input pins may continue to be driven by external circuitry when in shutdown mode:

PIN_PWR_DWN, RTS, DI and SHDN.

Note: Because the DO pin also goes high impedance, if the XTend RF Module is connected to a pro-

cessor, the UART receive pin could be floating. A weak pull-up should be placed between the module

and the microcontroller so that data is not interpreted as being transmitted to the microprocessor.

Sleep Mode

Software Sleep

Sleep Modes enable the module to enter states of low-power consumption when not in use. Three

software Sleep Modes are supported:

• Pin Sleep (Host Controlled)

• Serial Port Sleep (Wake on Serial Port activity)

• Cyclic Sleep (Wake on RF activity)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 16

In order to enter Sleep Mode, one of the following conditions must be met (in addition to the

module having a non-zero SM parameter value):

When in Sleep Mode, the module will not transmit or receive data until the module first transitions

to Idle Mode. All Sleep Modes are enabled and disabled using SM Command. Transitions into and

out of Sleep Modes are triggered by various mechanisms as shown in the table below.

The SM (Sleep Mode) command is central to setting all Sleep Mode configurations. By default,

Sleep Modes are disabled (SM = 0) and the module remains in Idle/Receive Mode. When in this

state, the module remains constantly ready to respond to serial or RF activity.

Refer to the ‘Hardware Sleep’ section of the ‘Shutdown Mode’ section [previous page] to enable the

module's lowest power-consuming state (5 µA typical power-down current).

Pin Sleep (SM = 1)

• Pin/Host-controlled

• Typical power-down current: < 162 A

This mode is voltage level activated. When the SLEEP pin is asserted, the module will finish any

transmitting or receiving activity; enter Idle Mode; then enter a state of sleep. When in Pin Sleep

Mode, the module will not respond to serial or RF activity.

After enabling Pin Sleep, the SLEEP pin controls whether the module is active or sleeping. When

SLEEP is de-asserted, the module is fully operational. When SLEEP is asserted, the module

transitions to Sleep Mode and remains in its lowest power-consuming state until the pin is de-

asserted. This pin is only active if the module is setup to operate in this mode; otherwise the pin is

ignored.

Once in Pin Sleep, CTS (GPO1) is de-asserted (high), indicating that data should not be sent to the

module. The PWR pin is also de-asserted (low) when the module is in Pin Sleep Mode.

Note: The module will complete a transmission or reception before activating Pin Sleep.

Serial Port Sleep (SM = 2)

• Wake on serial port activity

• Typical power-down current: < 10 mA

Serial Port Sleep is a Sleep Mode in which the module runs in a low power state until serial data is

detected on the DI pin.

1. The module is idle (no data transmission or reception) for the amount of time defined by

the ST (Time before Sleep) parameter. [NOTE: ST is only active when SM = 4-5.]

2. SLEEP (pin 8) is asserted (only for the ‘Pin Sleep’ option).

Table2‐01. SummaryofSleepModeConfigurations

Sleep Mode

(Setting) Transition into

Sleep Mode Transition out of Sleep

Mode (wake) Related

Commands Power

Consumption

Pin Sleep

(SM = 1)

Assert (high) SLEEP pin - A micro

controller can shut down and wake

modules via the SLEEP pin.

Note: The module will complete a

transmission or reception before

activating Pin Sleep.

De-assert (low) SLEEP pin (SM) < 162A

Serial Port Sleep

(SM = 2)

Automatic transition to Sleep Mode

occurs after a user-defined period of

inactivity (no transmitting or receiving of

data).

Period of inactivity is defined by the ST

(Time before Sleep) Command.

When a serial byte is received on

the DI pin (SM), ST < 10 mA

Cyclic Sleep

(SM = 4 - 8)

RF module transitions in and out of Sleep Mode in cycles (user-selectable

wake-up interval of time is set using the SM command). The cyclic sleep

interval of time must be shorter than the interval of time that is defined by the

LH (Wake-up Initializer TImer) command.

Note: The module can be forced into Idle Mode using the SLEEP pin if the PW

(Pin Wake-up) command is issued.

(SM), ST, HT,

LH, PW

< 1.6 mA

when sleeping

(SM=4, 1 sec.,

@120K baud)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 17

The period of time the module sleeps is determined by ST (Time before Sleep) Command. Once a

character is received through the DI pin, the module returns to Idle Mode and is fully operational.

Cyclic Sleep (SM = 4-8)

• Typical Power-down Current: < 1.6 mA (when asleep)

Cyclic Sleep Modes allow modules to periodically wake and check for RF data. The module wakes

according to the times designated by the Cyclic sleep settings. If the module detects a wake-up

initializer during the time it is awake, the module synchronizes with the transmitting module and

receives data after the wake-up initializer runs its duration. Otherwise, the module returns to

Sleep Mode and continues to cycle in and out of activity until a wake-up initializer is detected.

While the module is in Cyclic Sleep Mode, CTS (GPO1) is de-asserted (high) to indicate that data

should not be sent to the module. When the module awakens to listen for data, GPO1 is asserted

and any data received on the DI Pin is transmitted. The PWR pin is also de-asserted (low) when

the module is in Cyclic Sleep Mode.

The module remains in Sleep Mode for a user-defined period of time ranging from 0.5 seconds to

16 seconds (SM parameters 4 through 8). After this interval of time, the module returns to Idle

Mode and listens for a valid data packet. The listen time will depend on the [BR] (RF Data Rate)

parameter setting.The default [BR] setting of 1 will require at least a 35ms wake time, while the

[BR] setting of 0 will require a wake time of up to 225ms. If the module does not detect valid data

(on any frequency), the module returns to Sleep Mode. If valid data is detected, the module

transitions into Receive Mode and receives the incoming RF packets. The module then returns to

Sleep Mode after a period of inactivity determined by the ST "Time before Sleep" parameter.

The module can also be configured to wake from cyclic sleep when the SLEEP pin is de-asserted.

To configure a module to operate in this manner, PW (Pin Wake-up) Command must be issued.

Once the SLEEP pin is de-asserted, the module is forced into Idle Mode and can begin transmitting

or receiving data. It remains active until data is no longer detected for the period of time specified

by the ST Command, at which point it resumes its low-power cyclic state.

Cyclic Scanning. Each RF transmission consists of an RF Initializer and payload. The RF initializer

contains initialization information and all receiving modules must wake during the wake-up

initializer portion of data transmission in order to be synchronized with the transmitting module

and receive the data.

The cyclic interval time defined by the SM (Sleep Mode) command must be shorter than the interval

time defined by LH (Wake-up Initializer Timer) command.

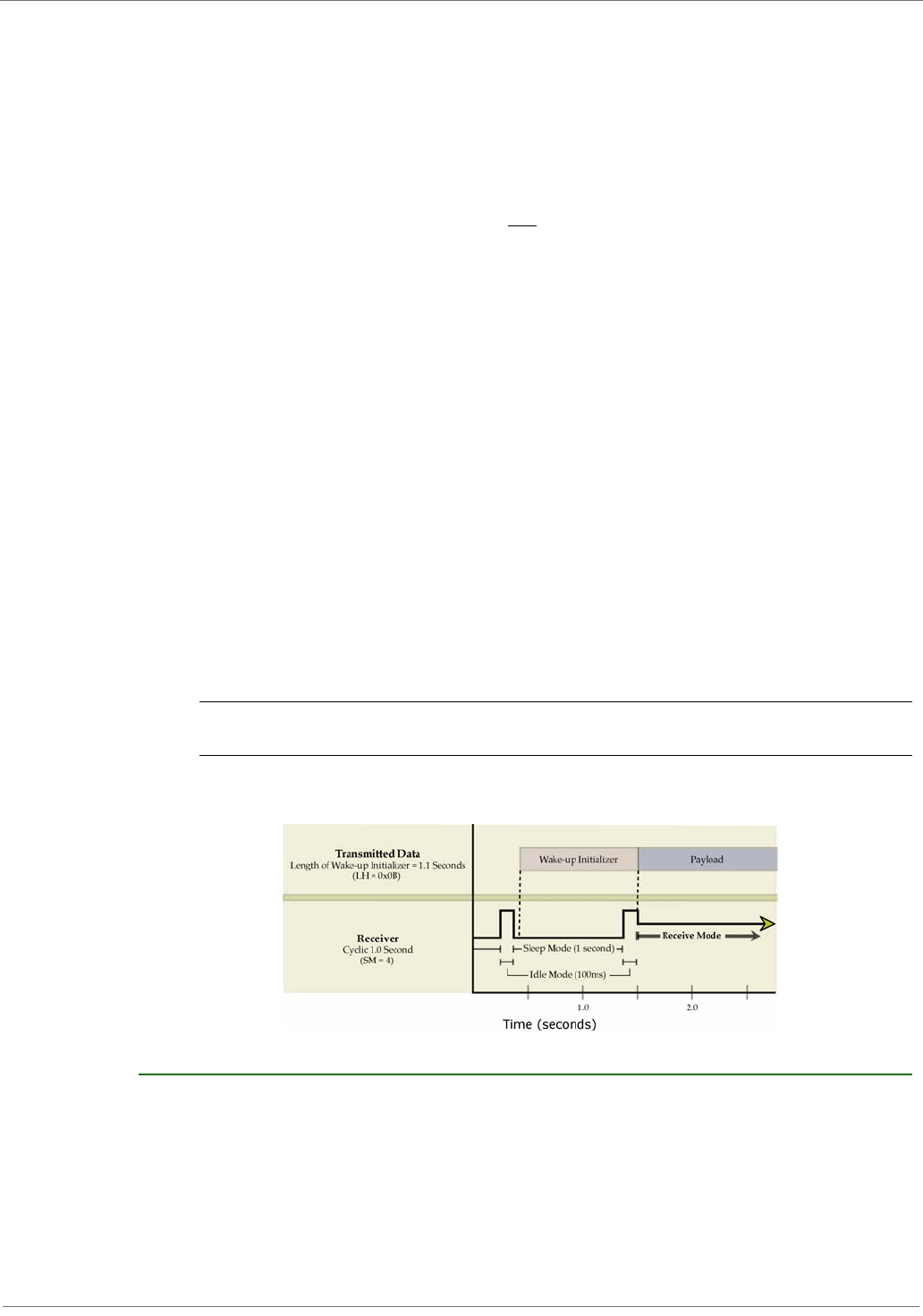

Figure2‐08. CorrectConfiguration(LH>SM):

Thelengthofthewake‐upinitializerexceedsthetimeintervalofCyclicSleep.Thereceiveris

guaranteedtodetectthewake‐upinitializerandreceivetheaccompanyingpayloaddata.

Command Mode

To modify or read module parameters, the module must first enter into Command Mode (state in

which incoming characters are interpreted as commands). Two command types are supported:

• AT Commands

• Binary Commands

For modified parameter values to persist in the module registry, changes must be saved to non-

volatile memory using the WR (Write) command. Otherwise, parameters are restored to previously

saved values when the module is powered off and then on again.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 18

AT Command Mode

To Enter AT Command Mode:

Default AT Command Mode Sequence (for transition to Command Mode):

• No characters sent for one second [refer to the BT (Guard Time Before) Command]

• Input three plus characters (“+++”) within one second

[refer to the CC (Command Sequence Character) Command.]

• No characters sent for one second [refer to the AT (Guard Time After) Command.]

All of the parameter values in the sequence can be modified to reflect user preferences.

To Send AT Commands:

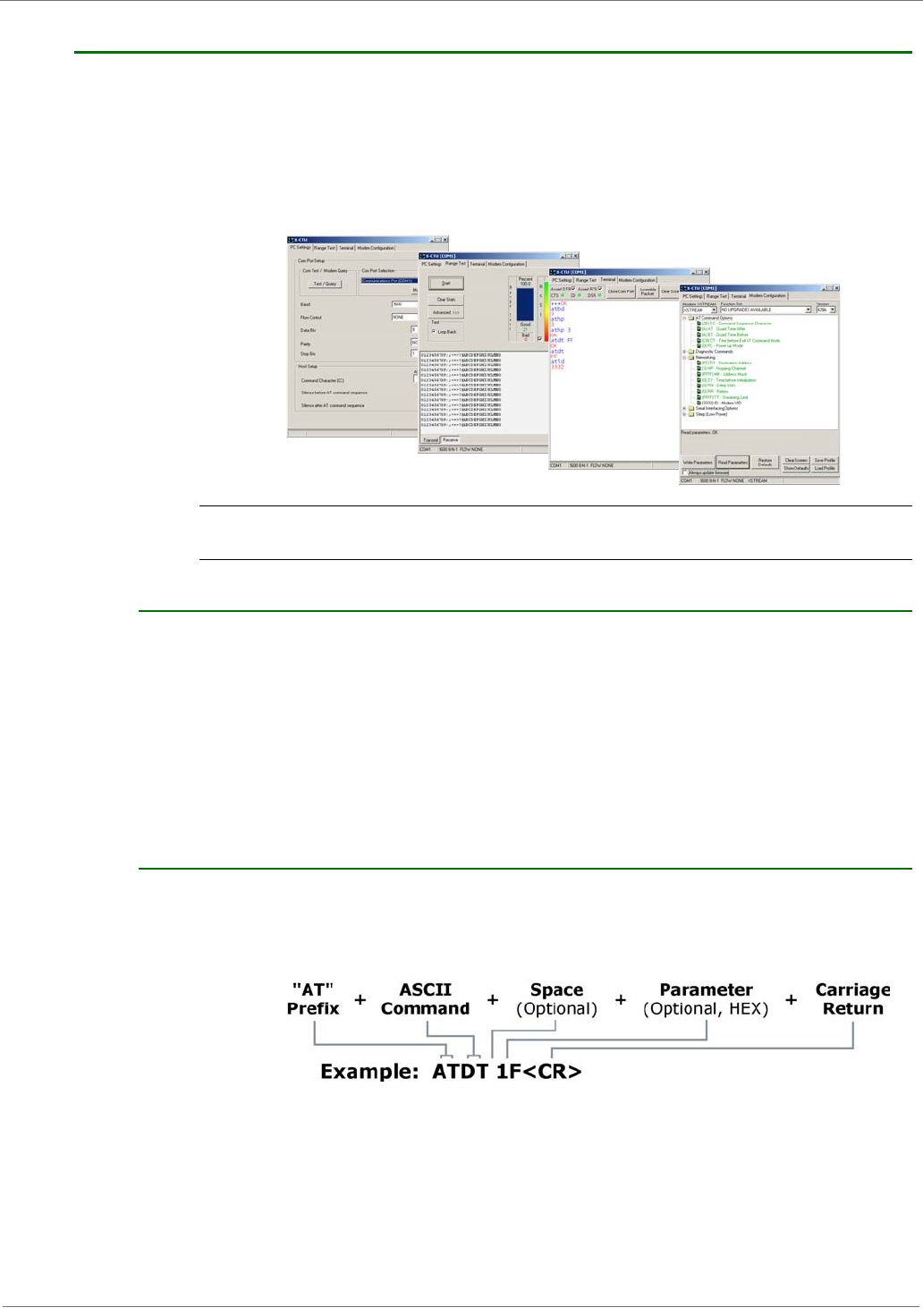

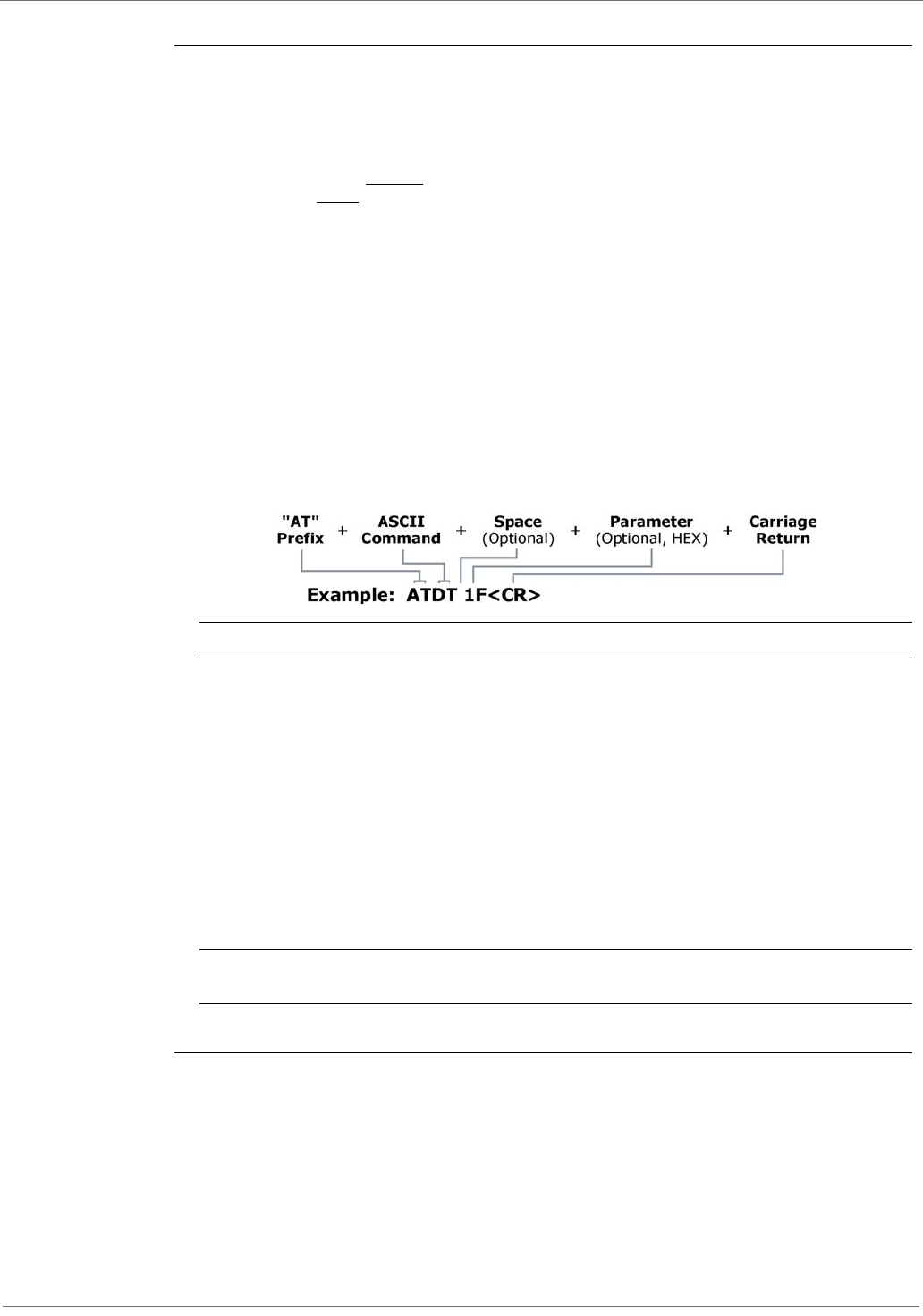

Figure2‐09.SyntaxforsendingATCommands

To read a parameter value stored in the module register, leave the parameter field blank.

The preceding example would change the module’s Destination Address to "0x1F". To store the

new value to non-volatile (long term) memory, the Write (ATWR) command must subsequently be

sent before powering off the module.

System Response. When a command is sent to the module, the module will parse and execute

the command. Upon successful execution of a command, the module returns an “OK” message. If

execution of a command results in an error, the module returns an “ERROR” message.

To Exit AT Command Mode:

For an example of programming the RF module using AT Commands and descriptions of each config-

urable parameter, refer to the "RF Module Configuration" chapter [p20].

Binary Command Mode

Sending and receiving parameter values using binary commands is the fastest way to change

operating parameters of the module. Binary commands are used most often to sample signal

strength [refer to DB (Received Signal Strength) parameter] and/or error counts; or to change

module addresses and channels for polling systems when a quick response is necessary. Since the

sending and receiving of parameter values takes place through the same serial data path as 'live'

data (received RF payload), interference between the two types of data can be a concern.

Common questions about using binary commands:

• What are the implications of asserting CMD while live data is being sent or received?

1. Send the 3-character command sequence "+++" and observe guard times before and after

the command characters. [refer to ‘Default AT Command Mode Sequence’ below.] The ‘Ter-

minal’ tab (or other serial communications software) of the X-CTU Software can be used to

enter the sequence.

[OR]

2. Assert (low) the CONFIG pin and turn the power going to the module off and back on (or

pulse the SHDN pin).

[If the module is mounted to a Digi RS-232/485 Interface Board, the result can be achieved

by pressing the configuration switch down for 2 seconds.]

Send AT commands and parameters using the syntax shown below.

1. If no valid AT Commands are received within the time specified by CT (Command Mode

Timeout) Command, the module automatically returns to Idle Mode.

[OR]

2. Send ATCN (Exit Command Mode) Command.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 19

• After sending serial data, is there a minimum time delay before CMD can be asserted?

• Is a time delay required after CMD is de-asserted before payload data can be sent?

• How does one discern between live data and data received in response to a command?

The CMD pin (pin 10) must be asserted in order to send binary commands to the module. The

CMD pin can be asserted to recognize binary commands anytime during the transmission or

reception of data. The status of the CMD signal is only checked at the end of the stop bit as the

byte is shifted into the serial port. The application does not allow control over when data is

received, except by waiting for dead time between bursts of communication.

If the command is sent in the middle of a stream of payload data to be transmitted, the command

will essentially be executed in the order it is received. If the module is continuously receiving data,

the radio will wait for a break in the received data before executing the command. The CTS signal

will frame the response coming from the binary command request [refer to figure below].

A minimum time delay of 100 µs (after the stop bit of the command byte has been sent) must be

observed before the CMD pin can be de-asserted. The command executes after all parameters

associated with the command have been sent. If all parameters are not received within 0.5

seconds, the module returns to Idle Mode.

Note: When parameters are sent, they are two bytes long with the least significant byte sent first.

Binary commands that return one parameter byte must be written with two parameter bytes.

Commands can be queried for their current value by sending the command logically ORed (bit-

wise) with the value 0x80 (hexadecimal) with CMD asserted. When the binary value is sent (with

no parameters), the current value of the command parameter is sent back through the DO pin.

Figure2‐010.BinaryCommandWritethenRead

Signal#4isCMD

Signal#1istheDIsignal

Signal#2istheDOsignalfromtheradio

Signal#3isCTS

In this graph, a value was written to a

While not in the middle of other received

data, note that the CTS signal outlines the

data response out of the module.

IMPORTANT: In order for the module to recognize a binary command, the RT (GPI1 Configuration)

parameter must be set to one. If binary programming is not enabled (RT parameter value is not equal

to ‘1’), the module will not recognize that the CMD pin is asserted and therefore will not recognize the

data as binary commands.

Refer to [p20] for a binary programming example (DT command example returns two bytes).

©2013DigiInternationalInc. 20

3.RFModuleConfiguration

Programming Examples

Refer to the ‘Command Mode’ section [p17] for information regarding entrance into Command

Mode, sending AT commands and exiting Command Mode. Refer to the ‘X-CTU’ section [p71] of

the ‘Development Guide’ for more information regarding Digi’s configuration software.

AT Commands

To Send AT Commands (Using the ‘Terminal’ tab of the X-CTU Software)

Note: When using X-CTU Software to program a module, PC com port settings must match the baud

(interface data rate), parity & stop bits parameter settings of the module. Use the 'Com Port Setup'

section of the “PC Settings” tab to configure PC com port settings to match those of the module.

Binary Commands

To Send Binary Commands:

Note: CTS (pin 9) is high when a command is being executed. Hardware flow control must be disabled

as CTS will hold off parameter bytes.

Example: Utilize the 'Terminal' tab of the X-CTU Software to change the module's DT (Destina-

tion Address) parameter and save the new address to non-volatile memory. This example

requires the installation of Digi’s X-CTU Software and a serial connection to a PC.

Select the ‘Terminal’ tab of the X-CTU Software and enter the following command lines:

Method 1 (One line per command)

Send AT Command

+++

ATDT <Enter>

ATDT1A0D <Enter>

ATWR <Enter>

ATCN <Enter>

System Response

OK <CR> (Enter into Command Mode)

{current value} <CR> (Read Destination Address)

OK <CR> (Modify Destination Address)

OK <CR> (Write to non-volatile memory)

OK <CR> (Exit Command Mode)

Method 2 (Multiple commands on one line)

Send AT Command

+++

ATDT <Enter>

ATDT1A0D,WR,CN <Enter>

System Response

OK <CR> (Enter into Command Mode)

{current value} <CR> (Read Destination Address)

OK <CR> (Execute commands)

Example: Use binary commands to change the RF module's destination address to 0x1A0D and

save the new address to non-volatile memory.

1. RT Command must be set to '1' in AT Command Mode to enable binary programming.

2. Assert CMD (Pin 10 is driven high). (Enter Binary Command Mode)

3. Send Bytes [parameter bytes must be 2 bytes long]:

00 (Send DT (Destination Address) Command)

0D (Least significant byte of parameter bytes)

1A (Most significant byte of parameter bytes)

08 (Send WR (Write) Command)

4. De-assert CMD (pin 10 is driven low). (Exit Binary Command Mode)

Note:Donotsendcom‐

mandstothemodule

duringflashprogram‐

ming(whenparameters

arebeingwrittentothe

moduleregistry).

WaitfortheʺOKʺsys‐

temresponsethatfol‐

lowstheATWR

commandbeforeenter‐

ingthenextcommand

oruseflowcontrol.

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 21

Command Reference Table

XTendCommands(TheRFmodulesexpectnumericalvaluesinhexadecimal.Hexadecimalvaluesare

designatedbya“0x”prefix.Decimalequivalentsaredesignatedbya“d”suffix.)

AT 

Command Binary 

Command AT Command Name Parameter Range Command 

Category # Bytes

Returned Factory

Default

%V 0x3B (59d) Board Voltage 0x2CCCA - 0x5BFFA [read-only] Diagnostics 4 --

AM 0x40 (64d) Auto-set MY -- Networking & Security -- --

AP v2.x20* -- API Enable 0 - 2 Serial Interfacing 1 0

AT 0x05 (5d) Guard Time After 2 - (ATST-3) [x 100 msec] Command Mode Options 2 0x0A (10d)

BD 0x15 (21d) Interface Data Rate 0 - 8 (standard rates)

0x39 - 0x1C9C38 (non-standard rates) Serial Interfacing 4 3

BR 0x39 (57d) RF Data Rate 0 - 1 RF Interfacing 1 1

BT 0x04 (4d) Guard Time Before 0 - 0xFFFF [x 100 msec] Command Mode Options 2 0x0A (10d)

CC 0x13 (19d) Command Sequence Character 0x20 - 0x7F Command Mode Options 1 0x2B ["+"] (43d)

CD 0x28 (40d) GPO2 Configuration 0 - 4 Serial Interfacing 1 2

CF -- Number Base 0 - 2 Command Mode Options 1 1

CN 0x09 (9d) Exit Command Mode -- Command Mode Options -- --

CS 0x1F (31d) GPO1 Configuration 0 - 4 Serial Interfacing 1 0

CT 0x06 (6d) Command Mode Timeout 2 - 0xFFFF [x 100 ms] Command Mode Options 2 0xC8 (200d)

DB 0x36 (54d) Received Signal Strength 0x6E - 0x28 [read-only] Diagnostics 2 --

DT 0x00 (0d) Destination Address 0 - 0xFFFF Networking & Security 2 0

E0 0x0A (10d) Echo Off -- Command Mode Options -- --

E1 0x0B (11d) Echo On -- Command Mode Options -- --

ER 0x0F (15d) Receive Error Count 0 - 0xFFFF Diagnostics 2 0

FH 0x0D (13d) Force Wake-up Initializer -- Sleep (Low Power) -- --

FL 0x07 (7d) Software Flow Control 0 - 1 Serial Interfacing 1 0

FS 0x3E (62d) Forced Sync Time 0 - 0xFFFF [x 10 msec] RF Interfacing 2 0

FT 0x24 (36d) Flow Control Threshold 0 - (DI buffer size - 0x11) [Bytes] Serial Interfacing 2 DI buffer size

minus 0x11

GD 0x10 (16d) Receive Good Count 0 - 0xFFFF Diagnostics 2 0

HP 0x11 (17d) Hopping Channel 0 - 9 Networking & Security 1 0

HT 0x03 (3d) Time before Wake-up Initializer 0 - 0xFFFF [x 100 msec] Sleep (Low Power) 2 0xFFFF

(65535d)

HV -- Hardware Version 0 - 0xFFFF [read-only] Diagnostics 2 --

ID 0x27 (39d) Modem VID 0x11 - 0x7FFF (user-settable)

0x8000 - 0xFFFF (factory-set, read-only) Networking & Security 2 0x3332

(13106d)

KY 0x3C (60d) AES Encryption Key 0 - (64 hex digits all set to 'F') Networking & Security 2 0 (disabled)

LH 0x0C (12d) Wake-up Initializer Timer 0 - 0xFF [x 100 msec] Sleep (Low Power) 1 1

MD v2.x20* 0x31 (49d) RF Mode 0 - 6 Networking & Security 1 0

MK 0x12 (18d) Address Mask 0 - 0xFFFF Networking & Security 2 0xFFFF

(65535d)

MT 0x3D (61d) Multi-Transmit 0 - 0xFF Networking & Security 1 0

MY 0x2A (42d) Source Address 0 - 0xFFFF Networking & Security 2 0xFFFF

(65535d)

NB 0x23 (35d) Parity 0 - 4 Serial Interfacing 1 0

PB v2.x20* 0x45 (69d) Polling Begin Address 0 - 0xFFFF Networking & Security 2 0

PD v2.x20* 0x47 (71d) Minimum Polling Delay 0 - 0xFFFF 

(Base: (x 1 ms), Remote: [x 10 ms]) Networking & Security 2 0

PE v2.x20* 0x46 (70d) Polling End Address 0 - 0xFFFF Networking & Security 2 0

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 22

*Firmwareversioninwhichcommandandparameteroptionswerefirstsupported

PK 0x29 (41d) Maximum RF Packet Size 1 - 0x800 [Bytes] RF Interfacing 2 varies

PL 0x3A (58d) TX Power Level 0 - 4 RF Interfacing 1 4 (1 Watt)

PW 0x1D (29d) Pin Wake-up 0 - 1 Sleep (Low Power) 1 0

RB 0x20 (32d) Packetization Threshold 1 - Current value of PK Serial Interfacing 2 0x800 (2048d)

RC -- Ambient Power - Single Channel 0 - 0x31 [dBm, read-only] Diagnostics 1 --

RE 0x0E (14d) Restore Defaults -- (Special) -- --

RM -- Ambient Power - All Channels No parameter - 0x7D0 Diagnostics 2 --

RN 0x19 (25d) Delay Slots 0 - 0xFF [slots] Networking & Security 1 0

RO 0x21 (33d) Packetization Timeout 0 - 0xFFFF [x UART character time] Serial Interfacing 2 3

RP 0x22 (34d) RSSI PWM Timer 0 - 0xFF [x 100 msec] Diagnostics 1 0x20 (32d)

RR 0x18 (24d) Retries 0 - 0xFF Networking & Security 1 0x0A (10d)

RT 0x16 (22d) GPI1 Configuration 0 - 2 Serial Interfacing 1 0

SB 0x37 (55d) Stop Bits 0 - 1 Serial Interfacing 1 0

SH 0x25 (37d) Serial Number High 0 - 0xFFFF [read-only] Diagnostics 2 varies

SL 0x26 (38d) Serial Number Low 0 - 0xFFFF [read-only] Diagnostics 2 varies

SM 0x01 (1d) Sleep Mode 0 - 8 (3 is reserved) Sleep (Low Power) 1 0

ST 0x02 (2d) Time before Sleep (ATAT+3) - 0x7FFF [x 100 msec] Sleep (Low Power) 2 0x64 (100d)

TP 0x38 (56d) Board Temperature 0 - 0x7F [read-only] Diagnostics 1 --

TR 0x1B (27d) Delivery Failure Count 0 - 0xFFFF [read-only] Diagnostics 2 0

TT 0x1A (26d) Streaming Limit 0 - 0xFFFF [0 = disabled] Networking & Security 2 0

TX 0x3F (63d) Transmit Only 0 - 1 RF Interfacing 1 0

VL -- Firmware Version - verbose Returns string Diagnostics -- --

VR 0x14 (20d) Firmware Version 0 - 0xFFFF [read-only] Diagnostics 2 --

WA -- Active Warning Numbers Returns string Diagnostics -- --

WN -- Warning Data Returns string Diagnostics -- --

WR 0x08 (8d) Write -- (Special) -- --

WS -- Sticky Warning Numbers Returns string Diagnostics -- --

XTendCommands(TheRFmodulesexpectnumericalvaluesinhexadecimal.Hexadecimalvaluesare

designatedbya“0x”prefix.Decimalequivalentsaredesignatedbya“d”suffix.)

AT 

Command Binary 

Command AT Command Name Parameter Range Command 

Category # Bytes

Returned Factory

Default

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 23

Command Descriptions

Commands in this section are listed alphabetically. Command categories are designated between

the "< >" symbols that follow each command title. By default, XTend RF Modules expect numerical

values in hexadecimal since the default value of the CF (Number Base) Parameter is '1'.

Hexadecimal values are designated by the "0x" prefix and decimal values by the "d" suffix.

%V (Board Voltage) Command

<Diagnostics> %V Command is used to read the

current voltage of the module circuit board.

Sample Output:

5.02 V (when ATCF = 0)

5051F (when ATCF = 1) *

5.02 (when ATCF = 2)

* When CF = 1 (default), a hex integer is shown

that is equal to (voltage * 65536d).

AM (Auto-set MY) Command

<Networking & Security> AM Command is used

to automatically set the MY (Source Address)

parameter from the factory-set serial number of

the module. The address is formed with bits 29,

28 and 13-0 of the serial number (in that order).

The resulting value is displayed as a result of this command.

AP (API Enable) Command

<Serial Interfacing> The AP command is used to

enable the module to operate using the frame-

based API operation.

AT (Guard Time After) Command

<Command Mode Options> AT Command is used

to set/read the time-of-silence that follows the

command sequence character (CC Command) of

the AT Command Mode Sequence (BT + CC +

AT). By default, 1 second must elapse before and

after the command sequence character.

The times-of-silence surrounding the command

sequence character are used to prevent

inadvertent entrance into AT Command Mode.

Refer to the ‘AT Command Mode’ section [p18] for

more information regarding the AT Command Mode Sequence.

AT Command: AT%V

Binary Command: 0x3B (59 decimal)

Parameter Range (read-only):

0x2CCCA - 0x5BFFA

(2.80 - 5.75 decimal)

Number of bytes returned: 4

AT Command: ATAM

Binary Command: 0x40 (64 decimal)

AT Command: ATAP

Parameter Range:0 - 2

Parameter Configuration

0API Disabled

(Transparent Operation)

API enabled

(w/out escaped

characters)

API enabled

(with escaped

characters)

Default Parameter Value:0

Number of Bytes Returned:1

Minimum Firmware Version Required: 2.x20

AT Command: ATAT

Binary Command: 0x05 (5 decimal)

Parameter Range:2 - (ATST-3), up to 0x7FFC

[x 100 milliseconds]

Default Parameter Value: 0x0A (10 decimal)

Number of bytes returned: 2

Related Commands: BT (Guard Time Before),

CC (Command Sequence Character)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 24

BD (Interface Data Rate) Command

<Serial Interfacing> The BD command is used to

set and read the serial interface data rate (baud

rate) used between the RF module and host. This

parameter determines the rate at which serial

data is sent to the module from the host. Modified

interface data rates do not take effect until the CN

(Exit AT Command Mode) command is issued and

the system returns the 'OK' response.

When parameters 0-8 are sent to the module, the

respective interface data rates are used (as

shown in the table on the right).

The RF data rate is not affected by the BD

parameter. If the interface data rate is set higher

than the RF data rate, a flow control configuration

may need to be implemented.

The range between standard and non-standard

baud rates (0x09 - 0x38) is invalid.

Non-standard Interface Data Rates: 

Any value above 0x38 will be interpreted as an

actual baud rate. When a value above 0x38 is

sent, the closest interface data rate represented

by the number is stored in the BD register. For example, a rate of 19200 bps can be set by sending

the following command line "ATBD4B00". NOTE: When using Digi’s X-CTU Software, non-standard

interface data rates can only be set and read using the X-CTU ‘Terminal’ tab. Non-standard rates

are not accessible through the ‘Modem Configuration’ tab.

When the BD command is sent with a non-standard interface data rate, the UART will adjust to

accommodate the requested interface rate. In most cases, the clock resolution will cause the

stored BD parameter to vary from the parameter that was sent (refer to the table below). Reading

the BD command (send "ATBD" command without an associated parameter value) will return the

value actually stored in the module’s BD register.

BR (RF Data Rate) Command

<RF Interfacing> The BR command is used to set

and read the RF data rate (rate that RF data is

transmitted over-the-air) of the module.

ParametersSentVersu sParametersStored

BD Parameter Sent (HEX) Interface Data Rate (bps) BD Parameter Stored (HEX)

0 1200 0

4 19,200 4

7 115,200 7

12C 300 12B

1C200 115,200 1B207

AT Command: ATBD

Binary Command: 0x15 (21 decimal)

Parameter Ranges: 0 - 8 (standard rates)

0x39 - 0x1C9C38 (non-standard rates)

Parameter Configuration (bps)

01200

12400

24800

39600

4 19200

5 38400

6 57600

7 115200

8 230400

Default Parameter Value: 3

Non-standard baud rates supported as of

firmware v2.x20

Number of bytes returned: 4

AT Command: ATBR

Binary Command: 0x39 (57 decimal)

Parameter Range:0 - 1

Parameter Baud (bps)

Configuration

09600

1 115200

Default Parameter Value:1

Number of bytes returned: 1

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 25

BT (Guard Time Before) Command

<AT Command Mode Options> BT Command is

used to set the DI pin silence time that must

precede the command sequence character (CC

command) of the AT Command Mode sequence.

Refer to the ‘AT Command Mode’ section [p18] for

more information regarding the AT Command

Mode Sequence.

CC (Command Sequence Character) Command

<AT Command Mode Options> The CC command

is used to set/read the ASCII character used

between guard times of the AT Command Mode

Sequence (BT + CC + AT). This sequence enters

the module into AT Command Mode so that data

entering the module (from the host) is recognized

as commands instead of payload.

Refer to the ‘AT Command Mode’ section [p18] for

more information regarding the AT Command

Mode Sequence.

CD (GPO2 Configuration) Command

<Serial Interfacing> CD Command is used to

select/read the behavior of the GPO2 line (pin 3).

CF (Number Base) Command

<Command Mode Options> CF command is used

to set/read the command formatting setting.

The following commands are always entered and

read in hex, no matter the CF setting:

VR (Firmware Version)

HV (Hardware Version)

KY (AES Encryption Key)

AT Command: ATBT

Binary Command: 0x04

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0x0A

Number of bytes returned: 2

AT Command: ATCC

Binary Command: 0x13 (19 decimal)

Parameter Range: 0x20 - 0x7F

Default Parameter Value: 0x2B (ASCII “+”)

Number of bytes returned: 1

Related Commands: AT (Guard Time After), BT

(Guard Time Before)

AT Command: ATCD

Binary Command: 0x28 (40 decimal)

Parameter Range: 0 - 8 (standard rates)

Parameter Configuration

0RX LED

1Default High

2Default Low

3(reserved)

4RX LED

(valid address only)

Default Parameter Value: 2

Number of bytes returned: 1

AT Command: ATCF

Parameter Range: 0 – 2

Parameter Configuration

Commands utilize default

number base; decimal

commands may output units

1All commands forced to

unsigned, unit-less hex

Commands utilize their

default number base; no

units are output

Default Parameter Value: 1

Number of bytes returned: 1

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 26

CN (Exit AT Command Mode) Command

<Command Mode Options> The CN command is

used to explicitly exit the module from AT

Command Mode.

CS (GPO1 Configuration) Command

<Serial Interfacing> CS Command is used to

select the behavior of the GP01 pin (pin 9). This

output can provide RS-232 flow control, control

the TX enable signal (for RS-485 or RS-422

operations).

By default, GP01 provides RS-232 CTS (Clear-to-

Send) flow control.

CT (Command Mode Timeout) Command

<Command Mode Options> The CT command is

used to set and read the amount of inactive time

that elapses before the module automatically

exits from AT Command Mode and returns to Idle

Mode.

Use the CN (Exit AT Command Mode) command

to exit AT Command Mode manually.

DB (Received Signal Strength) Command

<Diagnostics> DB Command is used to read the

receive signal strength (in decibels relative to

milliWatts) of the last received packet. This

parameter is useful in determining range

characteristics of the RF modules under various

conditions.

In default mode, this command shows the power level in signed decimal format with the units

(dBm). If CF = 1, the magnitude of the value is presented in unsigned hex. If CF = 2, the value is

presented in decimal, but without the units.

Sample Output:-88 dBm(when ATCF = 0)

58 (when ATCF = 1)

-88 (when ATCF = 2)

NOTE: If the DB register is read before the module has received an RF packet, the module will

return a value of 0x8000 (which means an RF packet has not yet been received).

AT Command: ATCN

Binary Command: 0x09 (9 decimal)

AT Command: ATCS

Binary Command: 0x1F (31 decimal)

Parameter Range: 0 - 4

Parameter Configuration

0 RS-232 CTS flow control

1 RS-485 TX enable low

2High

3 RS-485 TX enable high

4Low

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: RT (GPI1 Configuration),

TO (GP01 Timeout)

AT Command: ATCT

Binary Command: 0x06 (6 decimal)

Parameter Range:2 - 0xFFFF

[x 100 milliseconds]

Default Parameter Value: 0xC8 (200d)

Number of bytes returned: 2

Related Command: CN (Exit AT Command

Mode)

AT Command: ATDB

Binary Command: 0x36 (54 decimal)

Parameter Range (read-only): 0x6E - 0x28

(-110 to -40 Decimal)

Number of bytes returned: 2

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 27

DT (Destination Address) Command

<Networking & Security> DT Command is used to

set/read the networking address of an RF module.

The modules utilize three filtration layers: Vendor

ID Number (ATID), Channel (ATHP), and

Destination Address (ATDT). The DT command

assigns an address to a radio that enables it to

communicate with other radios in the network.

The simplest use of this command is that when

MY=0xFFFF and MK=0xFFFF on all radios in a

network, only radios with matching DT's will

communicate with each other.

If MY is not 0xFFFF, then DT acts as a transmit address and MY acts as a receive address. For

example, MY can be set to unique values 1, 2, 3, etc. on unique radios in the network. Then set DT

on the transmitting radio to match the MY of the receiving radio you intend to communicate with.

Setting DT=0xFFFF will broadcast to all radios in the network. Refer to the 'Addressing' section

[p45] for more information.

E0 (Echo Off) Command

<Command Mode Options> E0 Command turns

off character echo in AT Command Mode.

By default, echo is off.

E1 (Echo On) Command

<Command Mode Options> E1 Command enables

character echo in AT Command Mode. Each typed

character will be echoed back to the terminal

when ATE1 is active. E0 (Echo Off) is the default.

ER (Receive Error Count) Command

<Diagnostics> The ER command is used to set/

read the number of receive-errors. The error

count records the number of packets partially

received then aborted on a reception error. This

value returns to 0 after a reset and is not non-

volatile (Value does not persist in the module's

memory after a power-up sequence). Once the

Receive Error Count reaches its maximum value

(up to 0xFFFF), it remains at its maximum count

value until the maximum count value is explicitly changed or the module is reset.

The ER parameter is not reset by pin, serial port or cyclic sleep modes.

FH (Force Wake-up Initializer) Command

<Sleep (Low Power)> The FH command is used

to force a Wake-up Initializer to be sent on the

next transmission. Use only with cyclic sleep

modes active on remote modules. 

ATFH will not send a long header if ATHT = 0xFFFF. WR (Write) Command does not need to be

issued with FH Command.

AT Command: ATDT

Binary Command: 0x00

Parameter Range:0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: HP (Hopping Channel), ID

(Modem VID), MK (Address Mask), MY (Source

Address)

AT Command: ATE0

Binary Command: 0x0A (10 decimal)

AT Command: ATE1

Binary Command: 0x0B (11 decimal)

AT Command: ATER

Binary Command: 0x0F (15 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: GD (Receive Good Count)

AT Command: ATFH

Binary Command: 0x0D (13 decimal)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 28

FL (Software Flow Control) Command

<Serial Interfacing> The FL command is used to

configure software flow control. Hardware flow

control is implemented with the modual as the

GP01 pin (CTS pin of the RF module), which

regulates when serial data can be tranferred to

the module.

FL Command can also be used to allow software

flow control to be enabled. The XON character used is 0x11 (17 decimal). The XOFF character

used is 0x13 (19 decimal).

FS (Forced Synch Time) Command

<RF Interfacing> The FS command only applies

to streaming data. Normally, only the first packet

of a continuous stream contains the full RF

initializer. The RF modules then remain

synchronized for subsequent packets of the

stream. This parameter can be used to

periodically force an RF initializer during such

streaming. Any break in UART character reception

long enough to drain the DI Buffer (UART receive buffer) and cause a pause in RF data

transmission will also cause an RF initializer to be inserted on the next transmission.

FT (Flow Control Threshold) Command

<Serial Interfacing> The FT command is used to

set/read the flow control threshold. When FT

bytes have accumulated in the DI buffer (UART

Receive), CTS is de-asserted or the XOFF

software flow control character is transmitted.

GD (Receive Good Count) Command

<Diagnostics> The GD command is used to set/

read the count of good received RF packets. Its

parameter value is reset to 0 after every reset

and is not non-volatile (The parameter value does

not persist in the RF module's memory after a

power-up sequence). Once the "Receive Good

Count" reaches its maximum value (up to

0xFFFF), it remains at its maximum count value

until the maximum count value is manually

changed or the module is reset.

The GD parameter is not reset by pin, serial port or cyclic sleep modes.

HP (Hopping Channel) Command

<Networking & Security> The HP command is

used to set/read the RF module's hopping channel

number. A channel is one of three layers of

filtration available to the module.

In order for modules to communicate with each

other, the modules must have the same channel

number since each channel uses a different

AT Command: ATFL

Binary Command: 0x07 (7 decimal)

Parameter Range:0 - 1

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATFS

Binary Command: 0x3E (62 decimal)

Parameter Range:0 - 0xFFFF

[x 10 milliseconds]

Default Parameter Value: 0

Number of bytes returned: 2

AT Command: ATFT

Binary Command: 0x24 (36 decimal)

Parameter Range:

0 - (DI buffer size minus 0x11) [Bytes]

Default Parameter Value: DI Buffer size minus

0x11 (17 decimal)

Number of bytes returned: 2

AT Command: ATGD

Binary Command: 0x10 (16 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: ER (Receive Error Count)

AT Command: ATHP

Binary Command: 0x11 (17 decimal)

Parameter Range: 0 - 9

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: ID (Modem VID), DT

(Destination Address), MK (Address Mask)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 29

hopping sequence. Different channels can be used to prevent modules in one network from

listening to transmissions of another.

HT (Time before Wake-up Initializer) Command

<Sleep (Low Power)> The HT command is used

to set/read the time of inactivity (no serial or RF

data is sent or received) before a wake-up

initializer is sent by a TX (transmitting) RF

module. The HT parameter should be set shorter

than inactivity timeout [ST Command] time of

any RX (receiving) modules operating in Cyclic

Sleep (SM=4-8). The wake-up initializer sent by

the TX module instructs all RX modules to remain

awake to receive RF data.

From the RX module perspective: After HT time

elapses and the inactivity timeout [ST Command]

is met, the RX module goes into cyclic sleep. In cyclic sleep, the RX module wakes once per sleep

interval [SM Command] to check for a wake-up initializer. When a wake-up initializer is detected,

the module stays awake to receive data. The wake-up initializer must be longer than the cyclic

sleep interval to ensure that sleeping modules detect incoming data.

When HT time elapses, the TX module knows it needs to send a wake-up Initializer for all RX

modules to remain awake and receive the next transmission.

The main purpose of this command is to prevent the Long Header from being sent with every data

packet.

HV (Hardware Version) Command

<Diagnostics> The HV command is used to read

the hardware version of the RF module.

ID (Modem VID) Command

<Networking & Security> The ID command is

used to set/read the VID (Vendor Identification

Number) of the RF module. RF modules must

have matching VIDs in order to communicate.

KY (AES Encryption Key) Command

<Networking & Security> The KY command is

used to set the 256-bit AES (Advanced Encryption

Standard) key for encrypting/decrypting data.

Once set, the key cannot be read out of the

module by any means. The entire payload of the

packet is encrypted using the key and the CRC is

computed across the ciphertext. When encryption

is enabled, each packet carries an additional 16

bytes to convey the random CBC Initialization

Vector (IV) to the receiver(s). The KY value may

be “0” or any 256-bit value (= 64 hex digits = 32 bytes). Any other value, including entering ATKY

by itself with no parameters, causes an error.

A module with the wrong key (or no key) will receive encrypted data, but the data driven out the

serial port will be meaningless. Likewise, a module with a key will receive unencrypted data sent

AT Command: ATHT

Binary Command: 0x03 (3 decimal)

Parameter Range:0 - 0xFFFF

[x 100 milliseconds]

Default Parameter Value: 0xFFFF (wake-up

initializer will not be sent)

Number of bytes returned: 2

Related Commands: LH (Wake-up Initializer

Timer), SM (Sleep Mode), ST (Time before

Sleep)

AT Command: ATHV

Parameter Range:0 - 0xFFFF [Read-only]

Minimum Firmware Version Required: v1.x80

AT Command: ATID

Binary Command: 0x27 (39 decimal)

Parameter Range:

0x11 - 0x7FFF (user-settable)

0 - 0x10 & 0x8000 - 0xFFFF (factory-set)

Default Parameter Value: 0x3332 (13106d)

Number of bytes returned: 2

AT Command: ATKY

Binary Command: 0x3C (60 decimal)

Parameter Range:

0 - (64 hex digits all set to 'F')

Default Parameter Value: 0 (disabled)

Number of bytes returned: 2

Number Base: Always Hexadecimal

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 30

from a module without a key, but the output will be meaningless. Because CBC mode is utilized,

repetitive data appears differently in different transmissions due to the randomly-generated IV.

NOTE: For international (non-U.S.) variants of XTend modules, the encryption key is 128-bit AES.

The command operates the same except the key length is 16 bytes rather than 32 bytes. This

pertains to part numbers ending with -NA or -128 (the -NA and -128 suffix mean the same thing),

no matter what firmware version is loaded. This also pertains to the Australia version of firmware

22xx, no matter what part number XTend it is loaded onto.

LH (Wake-up Initializer Timer) Command

<Sleep (Low Power)> The LH Command is used

to set/read the duration of time during which the

wake-up initializer is sent. When receiving

modules are in Cyclic Sleep Mode, they power-

down after a period of inactivity (as specified by

the ST parameter) and will periodically wake and

listen for transmitted data. In order for the

receiving modules to remain awake, they must

detect ~35ms of the wake-up initializer.

LH Command must be used whenever a receiving

module is operating in Cyclic Sleep Mode. The

Wake-up Initializer Time must be longer than the cyclic sleep time that [as determined by SM

(Sleep Mode) parameter]. If the wake-up initializer time were less than the Cyclic Sleep interval,

the connection would be at risk of missing the wake-up initializer transmission.

Refer to figures loated under the SM command description to view diagrams of correct and

incorrect configurations. The images emphasize that the LH value must be greater than the SM

value.

MD (RF Mode) Command

<Networking & Security> The MD command is

used to select/read the settings that enable the

Polling and Repeater Modes on the module.

Polling Mode - A ‘Polling Base’ is responsible for

polling remotes. A ‘Polling Remote’ requires a poll

in order to transmit.

Repeater Mode - A ‘Repeater’ re-sends RF data

unless the transmission is addressed to it or if the

transmission has already been detected. A

‘Repeater End Node’ handles repeated messages,

but will not repeat the message over-the-air.

Refer to the Polling and Repeater Mode sections of

the ‘RF Communication Modes’ chapter for more

information.

AT Command: ATLH

Binary Command: 0x0C (12 decimal)

Parameter Range:0 - 0xFF

[x 100 milliseconds]

Default Parameter Value: 1

Number of bytes returned: 1

Related Commands: HT (Time before Wake-up

Initializer), SM (Sleep Mode), ST (Time before

Sleep)

AT Command: ATMD

Binary Command: 0x31 (49 decimal)

Parameter Range: 0 - 6

Parameter Configuration

0 Transparent Operation

(Repeater Base)

1 [reserved - not used]

2[reserved - not used]

3Polling Base

4 Polling Remote

5 Repeater

6 Repeater End Node

Default Parameter Value: 0

Number of bytes returned: 1

Minimum Firmware Version Required: 2.x20

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 31

MK (Address Mask) Command

<Networking & Security> The MK command is

used to set/read the Address Mask of a module.

All RF data packets contain the Destination

Address of the TX (transmitting) module. When a

packet is received, the TX module Destination

Address is logically "ANDed" (bitwise) with the

Address Mask of the RX (receiving) module. The

resulting value must match the Destination

Address or Address Mask of the RX module for the

packet to be received and sent out the RX

module's DO (Data Out) pin. If the "ANDed" value does not match the Destination Address or

Address Mask of the RX module, the packet is discarded.

Sniffer Mode (when MK = 0): ACK requests are ignored and every RX (receive) frame is sent to

the UART, without regard for repeated frames.

All “0” values are treated as irrelevant values and ignored.

Refer to the ‘Addressing’ section [p45] for more information.

MT (Multi-transmit) Command

<Networking & Security> The MT command is

used to enabled multiple transmissions of RF data

packets. When Multi-transmit Mode is enabled

(MT > 0), packets do not request an ACK

(acknowledgement) from the receiving RF

module(s). MT takes precedence over RR, so if

both MT and RR are non-zero, then MT+1 packets

will be sent (with no ACK requests).

When a receiving module receives a packet with

remaining forced retransmissions, it calculates

the length of the packet and inhibits transmission

for the amount of time required for all retransmissions. Thereafter, a random number of delay

slots are inserted between 0 and RN before transmission is allowed from the receiving module(s).

This prevents all listening modules from transmitting at once upon conclusion of a multiple

transmission event (when RN > 0).

NOTE: The actual number of forced transmissions is the parameter value plus one. For example, if

MT = 1, two transmissions of each packet will be sent.

Refer to the ‘Multi-transmit Mode’ section [p47] for more information.

MY (Source Address) Command

<Networking & Security> The MY command is

used to set/read the Source Address of the RF

module.

Refer to the DT command and the 'Addressing'

section [p45] for more information.

AT Command: ATMK

Binary Command: 0x12 (18 decimal)

Parameter Range:0 - 0xFFFF

Default Parameter Value: 0xFFFF (65535d)

Number of bytes returned: 2

Related Commands: DT (Destination Address),

HP (Hopping Channel), ID (Modem VID), MY

(Source Address)

AT Command: ATMT

Binary Command: 0x3D (61 decimal)

Parameter Range: 0 - 0xFF

Default Parameter Value:0 (no forced

retransmissions)

Number of bytes returned: 1

Related Commands: Networking (DT, MK, MY,

RN, TT), Serial Interfacing (BR, PK, RB, RO), RF

Interfacing (FS)

AT Command: ATMY

Binary Command: 0x2A (42 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0xFFFF (Disabled -

DT (Destination Address) parameter serves as

both source and destination address.)

Number of bytes returned: 2

Related Commands: DT (Destination Address),

HP (Hopping Channel), ID (Modem VID), MK

(Address Mask)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 32

NB (Parity) Command

<Serial Interfacing> The NB command is used to

select/read the parity settings of the RF module

for UART communications.

PB (Polling Begin Address) Command

<Networking & Security> PB command is used to

set/read the module’s Polling Begin Address - the

first address polled Polling Mode is enabled.

Polling Operations: The ‘Polling Base’ (MD = 3)

cycles through a sequential range of addresses,

polling each ‘Polling Remote’ (MD = 4). The base

then waits for a response & proceeds to the next

‘Polling Remote’. Each ‘Polling Remote’ responds

by sending the data from the Data In buffer

following the RB & RO parameters. When there is

no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will move to the

next address in the polling sequence after a short delay.

PD (Minimum Polling Delay) Command

<Networking & Security> The PD command is

used to set/read Polling Delay (Base, MD=3) or

Polling Timeout (Remote, MD=4).

Polling Delay (Base) is the time between polling

cycles. The Polling Base will start the polling cycle

after sending the first poll. After the polling cycle

has completed, the timer is restarted.

Polling Timeout (Remote) is the amount of time

the remote unit will hold data from the serial port

before discarding it. Data entered within the PD

time of the poll is transmitted and not discarded.

PE (Polling End Address) Command

<Networking & Security> PE command is used to

set/read the module’s Polling End Address - the

last address polled when Polling Mode is enabled.

Polling Operations: The ‘Polling Base’ (MD = 3)

cycles through a sequential range of addresses,

polling each ‘Polling Remote’ (MD = 4). The base

then waits for a response & proceeds to the next

‘Polling Remote’. Each ‘Polling Remote’ responds

by sending data from the DI buffer following the

RB & RO parameters. When there is no eligible

data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will move to the next address

in the polling sequence after a short delay.

AT Command: ATNB

Binary Command: 0x23 (35 decimal)

Parameter Range: 0 - 4

Parameter Configuration

08-bit (no parity or

7-bit (any parity)

18-bit even

28-bit odd

38-bit mark

48-bit space

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATPB

Binary Command: 0x45 (69 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PE (Polling

End Address), PD (Minimum Polling Delay)

AT Command: ATPD

Binary Command: 0x47 (71 decimal)

Parameter Range: 0 - 0xFFFF

(Base: [x 1ms], Remote: [x 10ms])

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PB (Polling

Begin Address), PE (Polling End Address)

AT Command: ATPE

Binary Command: 0x46 (70 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Minimum Firmware Version Required: 2.x20

Related Commands: MD (RF Mode), PB (Polling

Begin Address), PD (Minimum Polling Delay)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 33

PK (Maximum RF Packet Size) Command

<RF Interfacing> The PK command is used to set/

read the maximum size of RF packets transmitted

from an RF module. The maximum packet size

can be used along with the RB and RO parameters

to implicitly set the channel dwell time.

If PK is set above 256 and BR is subsequently

changed to 0, PK will automatically be lowered to

256 and a warning will be raised (refer to the BR

(RF Data Rate) and WN (Warning Data)

commands for details).

Changes to the PK parameter may have a

secondary effect on the RB (Packetization Threshold) parameter. RB must always be less than or

equal to PK. If PK is changed to a value that is less than the current value of RB, the RB value is

automatically lowered to be equal to PK.

* When BR = 0 (9600 baud), the maximum PK value is 0x100 (256d). When BR = 1 (115,200

baud), the maximum PK value is 0x800 (2048d).

PL (TX Power Level) Command

<RF Interfacing> The PL command is used to set/

read the power level at which the RF module

transmits data

PW (Pin Wake-up) Command

<Sleep (Low Power)> Under normal operation, an

RF module in Cyclic Sleep Mode cycles from an

active state to a low-power state at regular

intervals until data is ready to be received. If the

PW parameter is set to 1, the SLEEP pin (pin 8)

can be used to awaken the module from Cyclic

Sleep. When the SLEEP Pin is de-asserted (low),

the module will be fully operational and will not go

into Cyclic Sleep.

Once the SLEEP pin is asserted, the module will

remain active for the period of time specified by

the ST (Time before Sleep) parameter and will

return to Cyclic Sleep Mode (if no data is ready to

be transmitted). PW Command is only valid if Cyclic Sleep has been enabled.

AT Command: ATPK

Binary Command: 0x29 (41 decimal)

Parameter Range:1 - 0x800 [Bytes]

Default Parameter Value:0x100* or 0x800*

(256 or 2048 decimal)

Number of bytes returned: 2

Related Commands: BR (RF Data Rate) RB

(Packetization Threshold), RO (Packetization

Timeout), WN (Warning Data)

AT Command: ATPL

Binary Command: 0x3A (58 decimal)

Parameter Range: 0 - 4

Parameter Configuration

01 mW

110 mW

2 100 mW

3 500 mW

4 1000 mW (1 Watt)

Default Parameter Value: 4

Number of bytes returned: 1

AT Command: ATPW

Binary Command: 0x1D (29 decimal)

Parameter Range: 0 - 1

Parameter Configuration

0 Disabled

1Enabled

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands: SM (Sleep Mode), ST

(Time before Sleep)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 34

RB (Packetization Threshold) Command

<Serial Interfacing> The RB command is used to

set/read the character threshold value.

RF transmission begins after data is received in

the DI Buffer and either of the following criteria is

met:

• RB characters received by the UART

• RO character times of silence detected on the

UART receive lines (after receiving at least 1

Byte of data)

If PK (Max. RF Packet Size) is lowered below the

value of RB, RB is automatically lowered to match the PK value. If (RO = 0), RB bytes must be

received before beginning transmission.

Note: RB and RO criteria only apply to the first packet of a multi-packet transmission. If data

remains in the DI Buffer after the first packet, transmissions will continue in a streaming manner

until there is no data left in the DI Buffer (UART receive buffer).

RC (Ambient Power - Single Channel) Command

<Diagnostics> The RC command is used to

examine and report the power level on a given

channel.

Sample output:-78 dBm [when CF = 0] 

4e [when CF = 1] 

-78 [when CF = 2]

RE (Restore Defaults) Command

<Diagnostics> The RE command is used to

restore all configurable parameters to their

factory default settings.

The RE Command does not cause default values

to be stored to non-volatile (persistent) memory. For the restored default settings to persist in the

module’s non-volatile memory and be saved in the event of RF module reset or power-down, the

WR (Write) command must be issued prior to power-down or reset.

RM (Ambient Power - All Channels) Command

<Diagnostics> The RM command is used to

examine and report power levels on all channels.

If no parameter is given, the channels are

scanned one time. If a parameter is given, the

channels are repeatedly scanned for that number

of seconds. The maximum power level seen for

each channel is reported (i.e. peak hold).

A graphical spectrum analyzer can be implemented by repeatedly sending the RM command (with

no arguments) and reading the resultant 50 power levels (this is easiest to do when CF = 1 or 2).

Sample output [when CF = 0]: Ch 0: -100 dBm 

Ch 1: -103 dBm

...

Ch 49: -99 dBm

Sample output [when CF = 1]: 64

67 

... 

63

Sample output [when CF = 2]: 100

-103 

… 

-99

AT Command: ATRB

Binary Command: 0x20 (32 decimal)

Parameter Range:0 - PK parameter value

(up to 0x800 Bytes)

Default Parameter Value: 0x800 Bytes

Number of bytes returned: 2

Related Commands: BR (RF Data Rate), PK (RF

Packet Size), RO (Packetization Timeout)

AT Command: ATRC

Parameter Range (read-only): 0 - 0x31 [dBm]

Number of bytes returned: 1

Related Commands: RM (Ambient Power - All

Channels)

AT Command: ATRE

Binary Command: 0x0E (14 decimal)

AT Command: ATRM

Parameter Range: no parameter - 0x7D0)

Number of bytes returned: 2

Related Commands: RC (Ambient Power -

Single channel)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 35

RN (Delay Slots) Command

<Networking & Security> The RN command is

used to set/read the time delay that the

transmitting RF module inserts before attempting

to resend a packet. If the transmitting module

fails to receive an acknowledgement after sending

a packet, it inserts a random number of delay

slots (ranging from 0 to (RN minus 1)) before

attempting to resend the packet. Each delay slot

is 5 msec (when BR=1) and 54 msec (when

BR=0).

If two modules attempt to transmit at the same time, the random time delay after packet failure

allows only one module to transmit the packet successfully; while the other module waits until the

channel available for RF transmission.

RN Command is only applicable if retries have been enabled [RR (Retries) Command] or if forced

delays will be inserted into a transmission [TT (Streaming Limit) Command].

RO (Packetization Timeout) Command

<Serial Interfacing> The RO command is used to

set/read the Packetization Timeout setting. RF

transmission begins when data is in the DI buffer

and either of the following criteria are met:

• RO character times of silence on the UART

receive lines (after receiving at least 1 byte)

• RB characters have been received by the

UART

RB and RO criteria only apply to the first packet of

a multi-packet transmission. If data remains in

the DI Buffer (UART receive) after the first packet, transmissions will continue in a streaming

manner until there is no data left in the DI Buffer.

When RO is the transmission-beginning criteria: The actual time between the reception of

the last character from the UART and the beginning of RF transmission will be at least 800 µsec

longer than the actual RO time to allow for transmission setup. Additionally, it is subject to 100-

200 µsec of additional uncertainty, which could be significant for small values of RO at high UART

bit rates.

The correct UART character time (10, 11, or 12 bits) is calculated based on the following criteria:

•1 start bit

• 8 data bits

• 0 or 1 parity bit [as determined by the NB (Parity) Command)

• 1 or 2 stop bits [as determined by SB (Stop Bits) Command]

RP (RSSI PWM Timer) Command

<Diagnostics> RP Command is used to enable a

PWM ("Pulse Width Modulation") output on the

Config/RSSI pin (pin 11 of the RF Module). The

pin is calibrated to show the difference between

received signal strength and the sensitivity level

of the RF module. PWM pulses vary from zero to

95 percent. Zero percent means the received RF

signal is at or below the published sensitivity level

of the module.

AT Command: ATRN

Binary Command: 0x19 (25 decimal)

Parameter Range:0 - 0xFF [38 ms slots]

Default Parameter Value: 0

(no delay slots inserted)

Number of bytes returned: 1

Related Commands: RR (Retries), TT

(Streaming Limit)

AT Command: ATRO

Binary Command: 0x21 (33 decimal)

Parameter Range:0 - 0xFFFF

[ x UART character times ]

Default Parameter Value: 3

Number of bytes returned: 2

Related Commands: RB (Packetization

Threshold)

AT Command: ATRP

Binary Command: 0x22 (34 decimal)

Parameter Range:0 - 0xFF

[x 100 milliseconds]

Default Parameter Value: 0x20 (32d)

Number of bytes returned: 1

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 36

The following table shows dB levels above sensitivity and PWM values (The total time period of the

PWM output is 8.32 ms. PWM output consists of 40 steps and therefore the minimum step size is

0.208 ms.):

A non-zero value defines the time that PWM output is active with the RSSI value of the last

received RF packet. After the set time when no RF packets are received, PWM output is set low (0

percent PWM) until another RF packet is received. PWM output is also set low at power-up. A

parameter value of 0xFF permanently enables PWM output and always reflects the value of the last

received RF packet.

The Config/RSSI pin is shared between PWM output and Config input. When the module is

powered, the Config pin is an input. During the power-up sequence, if RP parameter is a non-zero

value, the Config pin is configured as an output and set low until the first RF packet is received.

With a non-zero RP parameter, the Config pin is an input for RP ms after power up.

RR (Retries) Command

<Networking & Security> The RR command is

used to set/read the maximum number of retries

sent for a given RF packet. When RR Command is

enabled (RR>0), RF packet retries and ACKs

(acknowledgements) are enabled.

Exceptions: If the MT command in enabled

(MT>0) or if a broadcast Destination Address is

used (DT = 0xFFFF); RF packet retries and ACKs are disabled.

After transmitting a packet, the transmitting RF module waits to receive an acknowledgement

from a receiving module. If the acknowledgement is not received in the period of time specified by

RN (Delay Slots) Command, the original packet is transmitted again. The RF packet is transmitted

repeatedly until an acknowledgement is received or until the packet is sent RR times.

RT (GPI1 Configuration) Command

<Serial Interfacing> The RT command is used to

set/read the behavior of the GPI1 ping (pin 10) of

the RF Module. The pin can be configured to

enable binary programming or RTS flow control.

SB (Stop Bits) Command

<Serial Interfacing> The SB Command is used to

set/read the number of stop bits in the data

packet.

Table3‐01. PWMVa lu es

dBm above sensitivity PWM percentage

(high period / total period)

10 20%

20 35%

30 50%

AT Command: ATRR

Binary Command: 0x18 (24 decimal)

Parameter Range:0 - 0xFF

Default Parameter Value: 0x0A (10 decimal)

Number of bytes returned: 1

AT Command: ATRT

Binary Command: 0x16 (22 decimal)

Parameter Range:0 - 2

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATSB

Binary Command: 0x37 (55 decimal)

Parameter Range: 0 - 1

Parameter Configuration

01 stop bit

12 stop bits

Default Parameter Value: 0

Number of bytes returned: 1

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 37

SH (Serial Number High) Command

<Diagnostics> SH Command is used to set/read

the serial number high word of the RF module.

SL (Serial Number Low) Command

<Diagnostics> SL Command is used to set/read

the serial number low word of the RF module.

SM (Sleep Mode) Command

<Sleep Mode (Low Power)> The SM Command is

used to set/read the RF module's Sleep Mode

settings that configure the module to run in states

that require minimal power consumption.

For more information regarding Sleep Modes,

refer to the Sleep Mode sections [p15]

AT Command: ATSH

Binary Command: 0x25 (37 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Default Parameter Value: varies

Number of bytes returned: 2

Related Commands: SL (Serial Number Low)

AT Command: ATSL

Binary Command: 0x26 (38 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Default Parameter Value: varies

Number of bytes returned: 2

Related Commands: SH (Serial Number High)

AT Command: ATSM

Binary Command: 0x01

Parameter Range: 0 - 8 (3 is reserved)

Parameter Configuration

0 Disabled

1Pin Sleep

2 Serial Port Sleep

3 [reserved]

Cyclic 1.0 second sleep

(RF module wakes every

1.0 seconds)

5 Cyclic 2.0 second sleep

6 Cyclic 4.0 second sleep

7 Cyclic 8.0 second sleep

8 Cyclic 16.0 second sleep

Default Parameter Value: 0

Number of bytes returned: 1

Related Commands:

Pin Sleep - PC (Power-up Mode), PW (Pin

Wake-up)

Serial Port Sleep - ST (Time before Sleep)

Cyclic Sleep - ST (Time before Sleep), LH

(Wake-up Initializer Timer), HT (Time Before

Wake-up Initializer), PW (Pin Wake-up)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 38

ST (Time before Sleep) Command

<Sleep Mode (Low Power)> The ST Command is

used to set/read the period of time (in

milliseconds) in which the RF module remains

inactive before entering Sleep Mode.

For example, if the ST Parameter is set to 0x64

(100 decimal), the module will enter into Sleep

mode after 10 seconds of inactivity (no

transmitting or receiving).

This command can only be used if Cyclic Sleep or

Serial Port Sleep Mode settings have been

selected using SM (Sleep Mode) Command.

TP (Board Temperature) Command

<Diagnostics> TP Command is used to read the

current temperature of the board.

Sample Output:26 C[when ATCF = 0]

1A [when ATCF = 1] 

26 [when ATCF = 2].

TR (Transmit Error Count) Command

<Diagnostics> The TR command is used to report

the number of retransmit failures. This number is

incremented each time a packet is not

acknowledged within the number of retransmits

specified by the RR (Retries) parameter. The

number of packets therefore are counted that

were not successfully received and subsequently

discarded.

The TR parameter is not non-volatile and is reset to zero when the RF module is reset.

TT (Streaming Limit) Command

<Networking & Security> The TT command is

used to set/read the limit on the number of bytes

that can be sent out before a random delay is

issued.

If an RF module is sending a continuous stream of

RF data, a delay is inserted which stops its

transmission and allows other modules time to

transmit (once it sends TT bytes of data).

Inserted random delay lasts between 1 & 'RN + 1' delay slots, where each delay slot lasts 38 ms.

The TT command can be used to simulate full-duplex behavior.

AT Command: ATST

Binary Command: 0x02 (2 decimal)

Parameter Range:(ATAT+3) - 0x7FFF

[x 100 milliseconds]

Default Parameter Value: 0x64 (100 decimal)

Number of bytes returned: 2

Related Commands: SM (Sleep Mode), LH

(Wake-up Initializer Timer), HT (Time before

Wake-up Initializer)

AT Command: ATTP

Binary Command: 0x38 (56 decimal)

Parameter Range (read-only): 0- 0x7F

Number of bytes returned: 1

Related Command: WN (Warning Data)

AT Command: ATTR

Binary Command: 0x1B (27 decimal)

Parameter Range: 0 - 0xFFFF

Default Parameter Value: 0

Number of bytes returned: 2

Related Commands: RR (Retries)

AT Command: ATTT

Binary Command: 0x1A (26 decimal)

Parameter Range:0 - 0xFFFF

Default Parameter Value: 0 (disabled)

Number of bytes returned: 2

Related Commands: RN (Delay Slots)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 39

TX (Transmit Only) Command

<RF Interfacing> The TX command is used to set/

read the transmit/receive behaviors of the RF

module. Setting a module to TX-only (TX = 1)

may reduce latency because the transmitting

module will never be confined to receiving data

from other modules.

VL (Firmware Version - Verbose)

<Diagnostics> The VL command is used to read

the verbose firmware version of the RF module.

VR (Firmware Version - Short) Command

<Diagnostics> The VR command is used to read

the firmware version of the RF module.

Note: Firmware versions contain four significant

digits - “A.B.C.D”. If B=2, the module is

programmed for operation in Australia only.

AT Command: ATTX

Binary Command: 0x3F (63 decimal)

Parameter Range: 0 - 1

Parameter Configuration

0TX & RX

1TX-only

Default Parameter Value: 0

Number of bytes returned: 1

AT Command: ATVL

Parameter Range: returns string

Default Parameter Value: 0

Number of bytes returned: 2

AT Command: ATVR

Binary Command: 0x14 (20 decimal)

Parameter Range (read-only): 0 - 0xFFFF

Number of bytes returned: 2

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 40

WA (Active Warning Numbers) Command

<Diagnostics> The WA command reports the

warning numbers of all active warnings - one

warning number per line. No further information

is shown and warning counts are not reset.

Sample Output (indicates warnings 1 and 3 are currently active):1

3

WN (Warning Data) Command

<Diagnostics> WN command is used to report the

following data for all active and sticky warnings:

• Warning number & description

• Number of occurrences since the last WN or WS command

• Whether the warning is currently active

Warnings, which are not currently active and have not been active since the last issuance of the

WN or WS commands, are not displayed. The WN command also resets all non-zero warning

counts; except for warnings that are presently active, which are set to 1.

Sample output:Warning 4: Over-temperature 

5 occurrences; presently inactive.

WR (Write) Command

<(Special)> The WR command is used to write

configurable parameters to non-volatile memory

(Values remain in the module's memory until

overwritten by another use of WR Command).

If changes are made without writing them to non-volatile memory, the module will revert back to

previously saved parameters the next time the module is powered-on.

If the non-volatile user configuration is not correct, WR will re-attempt (up to 3x). If all three

attempts fail, the command will return an ERROR alert.

WS (Sticky Warning Numbers) Command

<Diagnostics> The WS command reports warning

numbers of all warnings active since the last use

of the WS or WN command (including any

warnings which are currently active). This

command also resets all non-zero warning counts,

except for warnings that are presently active, which are set to 1.

Warning # Description

1Under-voltage. This is caused if the supply voltage falls below the minimum threshold for the lowest power level (2.8 V). If/when the voltage

rises above the threshold, the warning is deactivated. The module will not transmit below this voltage threshold.

2 Over-voltage. This is caused if the supply voltage exceeds 5.75 V. Transmission is not allowed while this warning is active.

3Under-temperature. This is caused if the temperature sensed by the module is less than -40 C. The module does not artificially limit operation

while this warning is active, but module functionality is not guaranteed.

4Over-temperature. This is caused if the temperature sensed by the module is greater than 105 C. The module does not allow transmission nor

reception while this warning is active. The warning is deactivated when the temperature falls to 100 C.

5Power reduced. This is caused if the transmit power has to be reduced from the level programmed by PL Command due to insufficient supply

voltage. The 1 W power level requires 4.75 V or higher; 500 mW requires 3.0 V or higher; 100 mW, 10 mW and 1 mW require 2.8 V or higher.

6Default calibration data in flash. This is caused if the module-specific power calibration data is either not present or is invalid, or if none of the

parameters have been modified from their default values. Power levels may be incorrect.

Default configuration parameters in flash. This is caused if user-modifiable parameters (i.e. those stored by a 'WR' command) in flash are all the

compiled-in default values. This is caused if the user configuration is found to be not present or invalid at power-up and there is no custom

configuration, or if no user-modifiable parameters have been modified from the compiled-in defaults. Modification of one or more parameters

without the subsequent WR to commit the changes to flash will not deactivate this warning, since it reflects the status of the parameters in flash.

Note that this warning does not reflect usage of the custom configuration defaults, only usage of the compiled-in defaults.

8Default factory configuration parameters in flash. This is caused if the factory parameters in flash are all the default values. This is caused if the

factory configuration is found to be not present or invalid at power-up, or if no factory parameters have been modified.

AT Command: ATWA

Parameter Range:Returns string - one

warning number per line.

AT Command: ATWN

Parameter Range: returns string

AT Command: ATWR

Binary Command: 0x08

AT Command: ATWS

Parameter Range (read-only): 1 - 8

Number of bytes returned: 1

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 41

API Operation

By default, XTend RF Modules act as a serial line replacement (Transparent Operation) - all UART

data received through the DI pin is queued up for RF transmission. When the module receives an

RF packet, the data is sent out the DO pin with no additional information.

Inherent to Transparent Operation are the following behaviors:

• If module parameter registers are to be set or queried, a special operation is required for

transitioning the module into Command Mode [refer to p17].

• In point-to-multipoint systems, the application must send extra information so that the

receiving module(s) can distinguish between data coming from different remotes.

As an alternative to the default Transparent Operation, API (Application Programming Interface)

Operations are available. API operation requires that communication with the module be done

through a structured interface (data is communicated in frames in a defined order). The API

specifies how commands, command responses and module status messages are sent and received

from the module using a UART data frame.

API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable) command. Use

the following AP parameter values to configure the module to operate in a particular mode:

• AP = 0 (default): Transparent Operation (UART Serial line replacement)

API modes are disabled.

•AP = 1: API Operation

•AP = 2: API Operation (with escaped characters)

Any data received prior to the start delimiter is silently discarded. If the frame is not received

correctly or if the checksum fails, the data is silently discarded.

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), the UART data frame structure is defined as follows:

Figure3‐01. UARTDataFrameStructure:

MSB=MostSignificantByte,LSB=LeastSignificantByte

API Operation - with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), the UART data frame structure is defined as follows:

Figure3‐02. UARTDataFrameStructure‐withescapecontrolcharacters:

MSB=MostSignificantByte,LSB=LeastSignificantByte

Escape characters. When sending or receiving a UART data frame, specific data values must be

escaped (flagged) so they do not interfere with the UART or UART data frame operation. To escape

an interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20.

Start Delimiter

(Byte 1) Length

(Bytes 2-3) Frame Data

(Bytes 4-n) Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Start Delimiter

(Byte 1) Length

(Bytes 2-3) Frame Data

(Bytes 4-n) Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Characters Escaped If Needed

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 42

Data bytes that need to be escaped:

• 0x7E – Frame Delimiter

•0x7D – Escape

• 0x11 – XON

• 0x13 – XOFF

Note: In the above example, the length of the raw data (excluding the checksum) is 0x0002 and

the checksum of the non-escaped data (excluding frame delimiter and length) is calculated as:

0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data.

To calculate: Not including frame delimiters and length, add all bytes keeping only the lowest 8

bits of the result and subtract from 0xFF.

To verify: Add all bytes (include checksum, but not the delimiter and length). If the checksum is

correct, the sum will equal 0xFF.

API Types

Frame data of the UART data frame forms an API-specific structure as follows:

Figure3‐03. UARTDataFrame&API‐specificStructure:

The cmdID frame (API-identifier) indicates which API messages will be contained in the cmdData

frame (Identifier-specific data). Refer to the sections that follow for more information regarding

the supported API types. Note that multi-byte values are sent big endian.

RF Module Status

API Identifier: 0x8A

RF module status messages are sent from the module in response to specific conditions.

Figure3‐04. RFModuleStatusFrames

Example - Raw UART Data Frame (before escaping interfering bytes): 

0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame: 

0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Length

(Bytes 2-3) Checksum

(Byte n + 1)

MSB LSB 1 Byte

Start Delimiter

(Byte 1)

0x7E

Frame Data

(Bytes 4-n)

API-specific Structure

Identifier-specific Data

cmdData

API Identifier

cmdID

cmdData0x8A

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Status (Byte 5)

0 = Hardware reset

1 = Watchdog timer reset

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 43

TX (Transmit) Request: 16-bit address

API Identifier Value: 0x01

A TX Request message will cause the module to send RF Data as an RF Packet.

Figure3‐5. TXPacket(16‐bitaddress)Frames

Figure3‐6. Example:TXPacketAPIFrames

TX (Transmit) Status

API Identifier Value: 0x89

When a TX Request is completed, the module sends a TX Status message. This message will

indicate if the packet was transmitted successfully or if there was a failure.

Figure3‐7. TXStatusFrames

NOTE: “STATUS = 1” occurs when all retries are expired and no ACK is received.

“STATUS = 3” occurs when a packet is purged due to a ‘Polled Remote’ not receiving a poll.

RX (Receive) Packet: 16-bit address

API Identifier Value: 0x81

When the module receives an RF packet, it is sent out the UART using this message type.

Figure3‐8. RXPacket(16‐bitaddress)Frames

cmdData0x01

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5)

Identifies the UART data frame for the host to

correlate with a subsequent ACK (acknowledgement).

Setting Frame ID to ‘0' will disable response frame.

Destination Address (Bytes 6-7)

MSB first, LSB last.

Broadcast = 0xFFFF

Options (Byte 8)

0 = Standard

1 = Disable ACK

RF Data (Byte(s) 9-n)

Up to 2048 Bytes per packet

*Length[Bytes]=APIIdentifier+FrameID+Option+RFData

**“R”valuewasarbitrarilyselected

Checksum

0x18

Byte 12

Destination Address

Bytes 6-7

0xFFFF

Option

0x00

Byte 8

Frame ID**

R (0x52)

Byte 5

Length*

Bytes 2-3

0x00 0x08

API Identifier

0x01

Byte 4

Start Delimiter

Byte 1

0x7E

RF Data

1 (0x31) 2 (0x32) 3 (0x33)

Bytes 9-11

cmdData0x89

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

Frame ID (Byte 5) Status (Byte 6)

0 = Success

1 = No ACK (Acknowledgement) received

Identifies UART data frame being reported.

Note: If Frame ID = 0 in the TX Request, no

AT Command Response will be given.

cmdData0x81

Length ChecksumStart Delimiter Frame Data

Identifier-specific DataAPI Identifier

MSB LSB0x7E 1 ByteAPI-specific Structure

bit 0 = ACK

bit 1 = Indicate broadcast

bits 2-7 [reserved]

Up to 2048 Bytes per

packet

Received Signal Strength Indicator -

Hexadecimal equivalent of (-dBm) value.

(For example: If RX signal strength = -40

dBm, “0x28” (40 decimal) is returned)

Source Address (Bytes 5-6) RSSI (Byte 7)

MSB (most significant byte) first,

LSB (least significant) last

Options (Byte 8) RF Data (Byte(s) 9-n)

©2013DigiInternationalInc. 44

4.RFCommunicationModes

The network configurations covered in this chapter are described in terms of the following:

• Network Topology (Point-to-Point, Point-to-Multipoint or Peer-to-Peer)

• RF Communication Type (Basic or Acknowledged)

• RF Mode (Streaming, Multi-Transmit, Repeater, Acknowledged or Polling)

Note: Please see the DigiMesh chapter for additional information on networking features.

The following table provides a summary of the network configurations supported.

*Assumedefaultvaluesforparametersnotlisted.Profilesdonotreflectaddressingimplementations.

**AM(Auto‐setMY)Commandmustbeissuedthroughaterminalprogramsuchastheoneincorporatedinthe

X‐CTUʹTerminalʹtab.

Table4‐01. SummaryofnetworktopologiessupportedbytheXTendRFModule

Point-to-Point

Definition An RF data link between two modules.

Sample Network Profile *

(Broadcast Communications) Use default values for all modules.

Sample Network Profile *

(Acknowledged Communications) All modules: ATAM [auto-set MY (Source Address) parameter] **

ATDT FFFF [set Destination Address to 0xFFFF]

Basic RF Modes Streaming, Multi-Transmit, Repeater

Acknowledged RF Mode Acknowledged Mode

Point-to-Multipoint

Definition RF data links between one base and multiple remotes.

Sample Network Profile *

(Basic Communications)

Base: ATMY 0 [set Source Address to 0x00]

ATDT FFFF [set Destination Address to 0xFFFF]

Remotes: ATAM [auto-set MY (Source Address) parameter] **

ATDT 0 [set Destination Address to 0x00]

Sample Network Profile *

(Acknowledged Communications)

Base:

ATMY 0 [set Source Address to 0x00]

ATDT FFFF [set Destination Address to 0xFFFF]

ATRR 3 [set number of Retries to 3]

Remotes:

ATAM [auto-set MY (Source Address) parameter] **

ATDT 0 [set Destination Address to 0x00]

ATRR 3 [set number of Retries to 3]

Basic RF Modes Streaming, Multi-Transmit, Repeater, Polling

Acknowledged RF Modes Acknowledged, Polling

Peer-to-Peer

Definition

RF modules remain synchronized without use of master/server

dependencies. Each module shares the roles of master and slave.

Digi's peer-to-peer architecture features fast synch times (35ms to

synchronize modules) and fast cold start times (50ms before

transmission).

Sample Network Profile *

(Basic Communications) Use default values for all modules.

Sample Network Profile *

(Acknowledged Communications) All modules:

ATAM [auto-set MY (Source Address) parameter] **

ATDT FFFF [set Destination Address to 0xFFFF]

ATRR 3 [set number of Retries to 3]

Basic RF Mode Streaming

Acknowledged RF Mode Acknowledged

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 45

Addressing

Each RF packet contains addressing information that is used to filter incoming RF data. Receiving

modules inspect the Hopping Channel (HP parameter), Vendor Identification Number (ID

parameter) and Destination Address (DT parameter) contained in each RF packet. Data that does

not pass through all three network security layers is discarded.

Figure4‐01. AddressinglayerscontainedintheRFpacketheader

Address Recognition

Transmissions can be addressed to a specific module or group of modules using the DT

(Destination Address) and MK (Address Mask) commands. A receiving module will only accept a

packet if it determines the packet is addressed to it, either as a global or local packet. The

receiving module makes this determination by inspecting the destination address of the packet

and comparing it to its own address and address mask [refer to the figure below].

Figure4‐02. AddressRecognition(@theReceivingRFModule)

TX_DT=DestinationAddressoftransmittingmodule

RX_DT=DestinationAddressofreceivingmodule

RX_MK=AddressMaskofreceivingmodule

RX_MY=SourceAddressofreceivingmodule

The transmitting module determines whether the packet is intended for a specific node (local

address) or multiple nodes (global address) by comparing the packet's destination address (DT)

and its own address mask (MK) [refer to the figure below]. It is assumed that the address masks

on the transmitting module and receiving module have been programmed to the same value for

proper operation in each RF Communication Mode.

Figure4‐03. AddressRecognition(@theTransmittingRFModule)

XTend™RFModule‐ProductManual

©2013DigiInternatonal,Inc. 46

Basic Communications

Basic Communications are accomplished through two sub-types:

• Broadcast - By default, XTend RF Modules communicate through Broadcast communications

and within a peer-to-peer network topology. When any module transmits, all other modules

within range will receive the data and passit directly to their host device.

• Addressed - If addressing parameters match are in order, received RF data is forwarded to the

DO (Data Out) buffer; otherwise, the RF data is discarded.

When using Basic Communications, any functions such as acknowledgements are handled at the

application layer by the integrator. The Broadcast Modes provide transparent communications,

meaning that the RF link simply replaces a wired link.

Streaming Mode (Default)

Characteristics:Highest data throughput

Lowest latency and jitter

Reduced immunity to interference

Transmissions never acknowledged (ACK) by receiving module(s)

Required Parameter Values (TX module): RR (Retries) = 0

Related Commands: Networking (DT, MK, MY), Serial Interfacing (PK, RB, RO, TT)

Recommended Use: Mode is most appropriate for data systems more sensitive to latency and/or

jitter than to occasional packet loss. For example: streaming audio or video.

Connection Sequence

Figure4‐04. StreamingModeStateDiagram(TXModule)

• Events & processes in this mode are common to all of

the other RF Modes.

• When streaming data, RB and RO parameters are only

observed on the first packet.

After transmission begins, the transmission event will

continue uninterrupted until the DI buffer is empty or the

streaming limit (TT parameter) is reached. As with the first

packet, the payload of each subsequent packet includes up

to the maximum packet size (PK parameter).

The TT parameter (streaming limit) is specified by the TX

(transmitting) module as the maximum number of bytes the

TX module can send in one transmission event. After the TT

parameter threshold is reached, the TX module will force a

random delay of 1 to RN delay slots (exactly 1 delay slot if

RN = 0).

Subsequent packets are sent without an RF initializer since

RX (receiving) modules remain synchronized with the TX

module for the duration of the transmission (from preceding

packet information). However, due to interference, some RX

modules may lose data (and synchronization to the TX

module), particularly during long transmission events.

Once the TX module has sent all pending data or has

reached the TT limit, the transmission event ends. The TX

module will not transmit again for exactly RN delay slots if

the local (i.e. TX module's) RN parameter is set to a non-

zero value. The RX module(s) will not transmit for a random

number of delay slots between 0 and (RN-1) if the local (i.e.

receiving module's) RN parameter is set to a non-zero

value. These delays are intended to lessen congestion

following long bursts of packets from a single TX module,

during which several RX modules may have become ready to transmit.

XTend™RFModule‐ProductManual

Multi-transmit Mode

Attributes:Reliable Delivery through forced transmission of every RF packet

Every RF packet is sent exactly (MT + 1) times with no delays between packets

Diminished throughput and increased latency

Required Parameter Values (TX module): MT (Multi-Transmit) >= 1

Other Related Commands: Networking (DT, MK, MY, RN, TT), Serial Interfacing (BR, PK, RB,

RO), RF Interfacing (FS)

Recommended Use: Use for applications that require Reliable Delivery without using retries and

acknowledgements.

Connection Sequence

Figure4‐05. Multi‐TransmitModeStateDiagram

(TXModule)

In Multi-Transmit Mode, each packet is

retransmitted MT times, for a total of (MT+1)

transmissions. There is no delay between

retransmissions, and the TX (transmitting)

module will never receive RF data between

retransmissions. Each retransmission includes

an RF initializer. A transmission event may

include follow-on packets, each of which will be

retransmitted MT times. The Forced Sync (FS)

parameter is ignored in Multi-Transmit Mode.

The RB and RO parameters are not applied to

follow-on packets, meaning that once

transmission has begun, it will continue

uninterrupted until the DI buffer is empty or

the streaming limit (TT parameter) has been

reached. As with the first packet, the payload

of each follow-on packet includes up to the

maximum packet size (PK parameter) bytes,

and the TX module checks for more pending

data near the end of each packet. Follow-on

packets are not sent until all retransmissions of

the previous packet are finished.

The streaming limit (TT) is specified at the TX

module as the maximum number of bytes that

the TX module can send in one transmission

event, which may consist of many packets. If

the TT parameter is reached, the TX module

will force a random delay of 1 to RN delay slots

(exactly 1 delay slot if RN is zero). In Multi-

Transmit Mode, each packet is counted only

once when tracking the streaming limit (TT),

no matter how many times it is retransmitted.

When an RX (receiving) module receives a

Multi-Transmit packet, it calculates the amount

of time remaining in the Multi-Transmit event,

and inhibits its own transmissions for the

duration of the Multi-Transmit event, plus a

random number of delay slots between 0 and (RN-1). If the local RN parameter is zero, the delay

is only for the calculated duration of the Multi-Transmit event. Thus, an RX module need only

receive one of the transmissions, and it will keep off the channel until the TX module is done. If

follow-on packets are coming, the RX modules will move to the new frequency and listen for the

follow-on packet for a specific period of time.

XTend™RFModule‐ProductManual

Repeater Mode

Attributes:Low power consumption

Minimized interference

Each RF packet is tagged with a unique Packet ID (PID).

Each repeater will repeat a packet only once (tracked by the PID).

Increased latency and decreased throughput 

(Latency and throughput is determined by number of hops, not by number of 

repeaters. Multiple repeaters within range of source node count as one hop.)

All RF packets propagate to every module in the network (filtering rules apply).

Packet destination addresses (DT) determine which packets are sent out serial 

port and/or retransmitted.

Broadcast communications - each packet comes out every node exactly once.

Addressed communications - all modules see every packet. Only the module 

with a matching address will forward it to the DO buffer (UART IN).

Constraints:Requires that each module have a unique MY (Source Address) parameter.

System must introduce just one packet at a time to the network for transmission 

(Maximum number of bytes is determined by the PK parameter).

Each hop (H) decreases network throughput by a factor of 1/(H+1). Additional 

repeaters add network redundancy without decreasing throughput.

Suggestions:Insert a variable delay before repeating packets to avoid collisions 

(based on RSSI).

Buffer any incoming serial data and delay response packet transmissions until 

previous packet has cleared out of network.

For best results, use the RO and RB commands to ensure that the RF packets 

align with the underlying protocol packets as the network can only accept one RF 

packet at a time.

Required Parameter Values (TX module): MD = 5 or 6, MY = unique value (can be accom-

plished by issuing the AM (Auto-set MY) and WR (Write) commands to all modules in the network)

Related Commands: Networking (MD, DT, MY, AM), Serial Interfacing (RN, PK, RO, RB)

Recommended Use: Use in networks where intermediary modules are needed to relay data to

modules beyond the transmission range of the base module.

Theory of Operation

Integrators can extend the effective range and reliability of their data radio system by forwarding

traffic through one or more repeaters. Instead of using routing tables and path discovery to

establish dynamic paths through a network, the repeater system uses a sophisticated algorithm to

propagate each RF packet through the entire network.

The network supports RF packets up to 2048 bytes (when the RF data rate is set at 9600 bps (BR

= 0)). The repeater network can operate using broadcast or addressed communications for multi-

drop networks and works well in many systems with no special configuration.

When in Repeater Mode, the network repeats each message among all available modules exactly

one time. This mechanism eliminates the need for configuring specific routes.

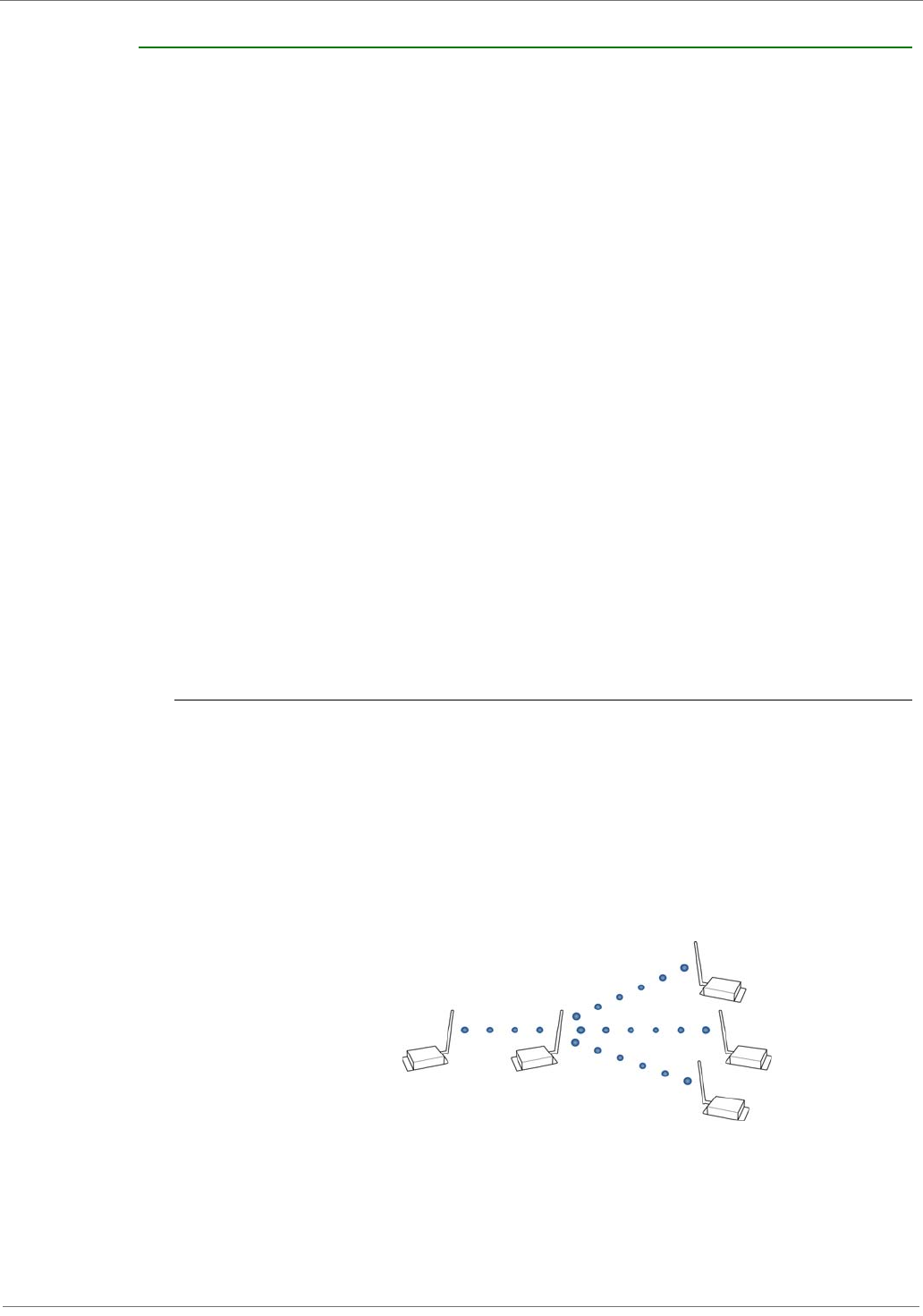

Figure4‐06. RepeaterNetworkTopology

XTend™RFModule‐ProductManual

Repeater Network Configuration

A network may consist of End Nodes (EN), End/Repeater Nodes (ERN) and a Base Node (BN). The

base node initiates all communications.

A repeater network can be configured to operate using Basic Broadcast or Basic Addressed

communications. The addressing capabilities of the module allow integrators to send a packet as a

global packet (DT = 0xFFFF) and shift out of every module in the network (Basic Broadcast).

Alternatively, the packet can be sent with a specific DT (Destination Address) parameter so that it

is only accepted by a specific remote node (Basic Addressed).

Configuration Instruction (Basic Broadcast Communications)

The configuration instructions above reflect configuration for a Basic Broadcast Repeater system.

To configure a Basic Addressed Repeater system, use the DT (Destination Address) parameter to

assign unique addresses to each module in the network.

Algorithm Details

• Packet ID (PID) is composed of TX (transmitting) module MY address and packet sequence

number.

• Incoming packets with a PID already found in the PID buffer will be ignored.

• Each module maintains a PID buffer 4 deep of previously received packets (managed as

FIFO).

Packets may be shifted out the serial port and/or repeated depending on the DT parameter

contained in the RF packet.

Repeat Delay Based on RSSI

A transmitted packet may be received by more that one repeater at the same time. In order to

reduce the probability that the repeaters will transmit at the same instant, resulting in a collision

and possible data loss; an algorithm has been developed that will allow a variable back-off prior to

retransmission of the packet by a repeater. The algorithm allows radios that receive the packet

with a stronger RF signal (RSSI) to have the first opportunity to retransmit the packet.

The RN (Delay Slots) parameter is used to configure this delay. Set RN=0 (no delays) for small

networks with few repeaters or repeaters that are not within range of each other. Set RN=1 for

systems with 2 to 5 repeaters that may be within range of each other.

The actual length of the delay is computed by the formula:

Delay (ms) = L * DS

DS = (-41-RSSI)/10*RN)+RandomInt(0,RN)

Where L is the length of the transmitted packet in milliseconds, DS is the number of delay slots to

wait, RSSI is the received signal strength in dBm, RN is the value of the RN register and

RandomInt(A,B) is a function that returns a random integer from A to B-0

Response Packet Delay

Assign each module a unique MY (source) address. (The AM (Auto-set MY) command will con-

figure a unique source address that is based on module serial number.)

Enable Basic Broadcast Communications (DT = 0xFFFF) or Addressed Broadcast Communica-

tions (DT specifies a specific destination)

Configure PK, RO and RB to ensure that RF packet aligns with protocol packet. (ex. PK=0x100,

RB=0x100, RO depends on baud rate).

Configure one or more repeaters in the system (MD = 5).

Configure remote nodes as destinations (MD = 6). This will ensure that the remote node waits

for the repeater traffic to subside before it transmits a response.

Table4‐02. DT(DestinationAddress)parametertruthtable

Address Match Send out serial port? Repeat?

Global Yes Yes

Local Yes No

None No Yes

XTend™RFModule‐ProductManual

As a packet propagates through the repeater network, if any node receives the data and generates

a quick response, the response needs to be delayed so as not to collide with subsequent

retransmissions of the original packet. To reduce collisions, both repeater and end node radios in a

repeater network will delay transmission of data shifted in the serial port to allow any repeaters

within range to complete their retransmissions.

The time for this delay is computed by the formula:

Maximum Delay (ms) = L * DS

DS = ((-41-(-100))/10)*RN)+RN+1

Where L is the length of the transmitted packet in milliseconds, DS is the number of delay slots to

wait, RSSI is the received signal strength in dBm, and RN is the value of the RN register.

Use Case - Broadcast Repeater Network

Consider modules R1 through R10 each communicating to a PLC using the ModBus protocol and

spaced evenly in a line. All ten modules are configured as 'destinations & repeaters' within the

scope of Basic Broadcast Communications (MD=5, AM, DT=0xFFFF, PK=0x100, RO=0x03,

RB=0x100, RN=1). The Base Host (BH) shifts payload that is destined for R10 to R1. R1 initializes

RF communication and transmits payload to nodes R2 through R5 which are all within range of R1.

The modules R2 through R5 receive the RF packet and retransmit the packet simultaneously. They

also send the data out the serial ports, to the PLCs.

Bandwidth Considerations

Using broadcast repeaters in a network reduces the overall network data throughput as each

repeater must buffer an entire packet before retransmitting it. For example: if the destination is

within range of the transmitter and the packet is 32-bytes long, the transmission will take 12ms on

an XTend module operating at 115,200 baud. If the same packet must propagate through two

repeaters, it will take 12ms to arrive at the first repeater, 12ms to get to the second and a final

12ms to reach the destination for a total of 36ms. Taking into account UART transfer times (~1ms/

byte at 9600 baud), a server to send a 32-byte query and receive a 32-byte response is about

200ms, allowing for 5 polls per second. With the two repeaters in the path, the same query/

response sequence would take about 500ms for 2 polls per second.

Generally, network throughput will decrease by a factor of 1/(R+1), with R representing the

number of repeaters between the source and destination.

Table4‐03. Commandsusedtoconfigurerepeaterfunctions

Command Binary

Command AT Command

Name Range # Bytes

Returned Factory

Default

AM 0x3A (58d) Auto-set MY - - -

DT 0x00 (0d) Destination Address 0 - 0xFFFF 2 0

MD 0x3C (60d) RF Mode 0 - 6 1 0

MY 0x2A (42d) Source Address 0 - 0xFFFF 2 0xFFFF

RN 0x19 (25d) Delay Slots 0 - 0xFF [slots] 1 0

WR 0x08 (8d) Write - - -

XTend™RFModule‐ProductManual

Polling Mode (Basic)

NOTE: Polling Mode (Basic) and Polling Mode (Acknowledged) [p51] operate in the same way. The

only difference between the two modes is in their means of achieving reliable delivery of data. In

Polling Mode (Basic), reliable delivery is achieved using multiple transmissions.

Attributes:Utilizes high percentage of available network bandwidth

Eliminates collisions

Works with reliable delivery (RR or MT parameters)

Supports binary data transfers

Base module requests packets from remote module by polling a sequential 

range of addresses

Base module is configured to specify the range of addresses being polled

Uses inter-character delay to create RF packet lengths aligned with protocol 

packet lengths up to 2048 bytes long.

Required Parameter Values (Base): MD (RF Mode) = 3, PB (Polling Begin Address), PE (Polling

End Address)

Required Parameter Value (Remote): MD (RF Mode) = 4

Related Commands: Networking (MT, PD, DT, MY, AM)

Constraints: The minimum time interval between polling cycles is configurable. However, if the

remote modules cannot all be processed within that time interval, the polling cycle is ineffective

(i.e. it will impose no additional delay). In order to ensure a pause between polling cycles, PD

must be set to a value which is large enough to accommodate the pause.

Recommended Use: Use for point-to-multipoint applications that require Reliable Delivery of

data. Use this mode when it is critical that a base module be able to discern data coming from

multiple modules.

Theory of Operation

A ‘Polling Base’ module will cycle through a sequential range of addresses. The ‘Polling Base’ will

poll each ‘Polling Remote’ module, wait for a response, then poll the next remote address in the

sequence. Each ‘Polling Remote’ will respond by sending the data from its DI (Data In) buffer

following the RB (Packetization Threshold) & RO (Packetization Timeout) parameters. When there

is no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will poll the next

address in the polling sequence after a short delay.

Polling Base Configuration:

Polling Remote Configuration:

Set the MD (RF Mode) parameter (MD = 3).

Set MY (Source Address) parameter (MY = 0).

Set the sequential range of Polling Addresses using the PB (Polling Begin Address) and PE

(Polling End Address) parameters.

(Optional) Enable Basic Reliable Delivery (MT >= 0). Note: Acknowledged Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Acknowledged’ section for more information.

(Optional) Use the PD (Minimum Polling Delay) command to configure a delay between polls to

slow down system (if needed).

(Optional) Enable API Mode to address remotes within polling range on a packet-by-packet

basis.

Set the MD (RF Mode) parameter (MD = 4).

Configure sequential source addresses for all remote modules using the MY (Source Address)

command.

Set the DT (Destination Address) parameter to point to ‘Polling Base’ (DT = 0x0000).

(Optional) Enable Basic Reliable Delivery (MT >= 0). Note: Acknowledged Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Acknowledged’ section for more information.

XTend™RFModule‐ProductManual

Acknowledged Communications

Acknowledged Mode

Attributes:Reliable delivery through positive acknowledgements for each packet

Throughput, latency and jitter vary depending on the quality of the channel and 

the strength of the signal.

Required Parameter Values (TX module): RR (Retries) >= 1

Related Commands: Networking (DT, MK, RR), Serial Interfacing (PK, RN, RO, RB, TT)

Recommended Use: Use for applications that require Reliable Delivery. If messages are smaller

than 256 bytes, use RB and RO commands to align RF packets to application packets.

Connection Sequence

Figure4‐07. AcknowledgedModeState

Diagram(TXmodule)

After sending a packet while in

Acknowledged Mode, the TX

(transmitting) module listens for an

ACK (acknowledgement). If it

receives the ACK, it will either move

on to sending a subsequent packet

(if more transmit data is pending) or

will wait for exactly RN random delay

slots before allowing another

transmission (if no more data is

pending to be transmitted).

If the TX module does not receive

the ACK within the allotted time, it

will retransmit the packet with a new

RF initializer following the ACK slot.

There is no delay between the first

ACK slot and the first retransmission.

Subsequent retransmissions incur a

delay of a random number of delay

slots, between 0 and RN. If RN is set

to 0 on the TX module, there are

never any back-off delays between

retransmissions. Note that during

back-off delays, the TX module will

go into Idle Mode and may receive

RF data. This can have the effect of

increasing the back-off delay, as the

module cannot return to Transmit (or

retransmit) Mode as long as it is receiving RF data.

After receiving and acknowledging a packet, the RX (receiving) module will move to the next

frequency and listen for either a retransmission or new data for a specific period of time. Even if

the TX module has indicated that it has no more pending transmit data, it may not have received

the previous ACK, and so may retransmit the packet, possibly with no delay after the ACK slot. In

this case, the RX module will always detect the immediate retransmission, which will hold off the

communications channel and thereby reduce collisions. RX modules acknowledge each

retransmission they receive, but they only pass the first copy of a packet they receive out the

UART.

RB and RO parameters are not applied to subsequent packets, meaning that once transmission

has begun, it will continue uninterrupted until the DI buffer is empty or the streaming limit (TT

parameter) has been reached. As with the first packet, the payload of each subsequent packet

includes up to the maximum packet size (PK parameter), and the TX module checks for more

pending data near the end of each packet.

XTend™RFModule‐ProductManual

The TT parameter (streaming limit) specifies the maximum number of bytes that the TX module

will send in one transmission event, which may consist of many packets and retries. If the TT

parameter is reached, the TX module will force a random delay of 1 to RN delay slots (exactly 1

delay slot if RN is zero). Each packet is counted only once toward TT, no matter how many times

the packet is retransmitted.

Subsequent packets in Acknowledged Mode are similar to those in Streaming Mode, with the

addition of an ACK between each packet, and the possibility of retransmissions. Subsequent

packets are sent without an RF initializer, as the RX modules are already synchronized to the TX

module from the preceding packet(s) and they remain synchronized for the duration of the

transmission event. Each retransmission of a packet includes an RF initializer.

Once the TX module has sent all pending data or has reached the TT limit, the acknowledged

transmission event is completed. The TX module will not transmit again for exactly RN delay slots,

if the local RN parameter is set to a non-zero value. The RX module will not transmit for a random

number of delay slots between 0 and (RN-1), if the local RN parameter is set to a non-zero value.

These delays are intended to lessen congestion following long bursts of packets from a single TX

module, during which several RX modules may have themselves become ready to transmit.

Polling Mode (Acknowledged)

NOTE: Polling Mode (Acknowledged) and Polling Mode (Basic) [p51] operate in the same way. The

difference between the two modes is in their means of achieving reliable delivery of data. In Poll-

ing Mode (Acknowledged), reliable delivery is achieved using retries and acknowledgements.

Attributes:Utilizes high percentage of available network bandwidth

Eliminates collisions

Works with reliable delivery (RR or MT parameters)

Supports binary data transfers

Base module requests packets from remote module by polling a sequential 

range of addresses

Base module is configured to specify the range of addresses being polled

Uses inter-character delay to create RF packet lengths aligned with protocol 

packet lengths up to 2048 bytes long.

Required Parameter Values (Base): MD (RF Mode) = 3, PB (Polling Begin Address), PE (Polling

End Address)

Required Parameter Values (Remote): MD (RF Mode) = 4

Related Commands: Networking (RR, PD, DT, MY, AM)

Constraints: The minimum time interval between polling cycles is configurable. However, if the

remote modules cannot all be processed within that time interval, the polling cycle is ineffective

(i.e. it will impose no additional delay). In order to ensure a pause between polling cycles, PD

must be set to a value which is large enough to accommodate the pause.

Recommended Use: Use for point-to-multipoint applications that require Reliable Delivery of

data. Use this mode when it is critical that a base module be able to discern data coming from

multiple modules.

Theory of Operation

A ‘Polling Base’ module will cycle through a sequential range of addresses. The ‘Polling Base’ will

poll each ‘Polling Remote’ module, wait for a response, then poll the next remote address in the

sequence. Each ‘Polling Remote’ will respond by sending the data from its DI (Data In) buffer

following the RB (Packetization Threshold) & RO (Packetization Timeout) parameters. When there

is no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will poll the next

address in the polling sequence after a short delay.

XTend™RFModule‐ProductManual

Polling Base Configuration:

Polling Remote Configuration:

Set the MD (RF Mode) parameter (MD = 3).

Set MY (Source Address) parameter (MY = 0).

Set the sequential range of Polling Addresses using the PB (Polling Begin Address) and PE

(Polling End Address) parameters.

(Optional) Enable Acknowledged Reliable Delivery (RR >= 0). Note: Basic Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Basic section for more information.

(Optional) Use the PD (Minimum Polling Delay) command to configure a delay between polls to

slow down system (if needed).

(Optional) Enable API Mode to address remotes within polling range on a packet-by-packet

basis.

Set the MD (RF Mode) parameter (MD = 4).

Configure sequential source addresses for all remote modules using the MY (Source Address)

command.

Set the DT (Destination Address) parameter to point to ‘Polling Base’ (DT = 0x0000).

(Optional) Enable Acknowledged Reliable Delivery (RR >= 0). Note: Basic Reliable Delivery is

also supported. Refer to the ‘Polling Mode - Basic section for more information.

AppendixA:AgencyCertifications

FCC (United States) Certification

The XTend RF Module complies with Part 15 of the FCC rules and regulations. Compliance with the

labeling requirements, FCC notices and antenna usage guidelines is required.

In order to operate under Digi’s FCC Certification, integrators must comply with the following

regulations:

Integrator Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling

requirements are met. This includes a clearly visible label on the outside of the final

product enclosure that displays the text shown in the figure below.

FigureA‐01. RequiredFCCLabelforOEMproductscontainingtheXTendRFModule

FCC Notices

IMPORTANT: The XTend RF Module has been certified by the FCC for use with other products

without any further certification (as per FCC section 2.1091). Modifications not expressly approved

by Digi could void the user’s authority to operate the equipment.

IMPORTANT: Integrators must test final product to comply with unintentional radiators (FCC

sections 15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC

rules.

IMPORTANT: The RF module has been certified for remote and base radio applications. If the

module will be used for portable applications, the device must undergo SAR testing.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures: Re-orient or relocate the receiving

antenna, Increase the separation between the equipment and receiver, Connect equipment and

receiver to outlets on different circuits, or Consult the dealer or an experienced radio/TV technician

for help.

1. The integrator must ensure that the text provided with this device [Figure A-01] is placed

on the outside of the final product and within the final product operation manual.

2. The XTend RF Module may only be used with antennas that have been tested and approved

for use with this module [refer to ‘FCC-approved Antennas’ section].

Contains FCC ID: MCQ-9XTENDB

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any inter-

ference received, including interference that may cause undesired operation.

XTend™RFModule‐ProductManual

Limited Modular Approval

Power output is conducted at the antenna terminal and can be adjusted from 1 milliwatt to 1 Watt

at the integrator level. This is an RF module approved for limited modular use operating as a

mobile transmitting device with respect to Section 2.1091 and is limited to integrator installation

for mobile and fixed applications only. During final installation, end users are prohibited from

access to any programming parameters. Professional installation adjustment is required for setting

module power and antenna gain to meet EIRP compliance for high gain antenna(s).

Final antenna installation and operating configurations of this transmitter including antenna gain

and cable loss must not exceed the EIRP of the configuration used for calculating MPE. Grantee

(Digi) must coordinate with integrators to ensure the end users and installers of products

operating with the module are provided with operating instructions to satisfy RF exposure

requirements.

The FCC grant is valid only when the device is sold to integrators. Integrators are instructed to

ensure the end user has no manual instructions to remove, adjust or install the device.

FCC-approved Antennas

WARNING: This device has been tested with Reverse Polarity SMA connectors with the antennas listed in the

tables of this section. When integrated into products, fixed antennas require installation preventing end users from

replacing them with non-approved antennas. Antennas not listed in the tables must be tested to comply with FCC

Section 15.203 (unique antenna connectors) and Section 15.247 (emissions).

Fixed Base Station and Mobile Applications

Digi RF Modules are pre-FCC approved for use in fixed base station and mobile applications. When

the antenna is mounted at least 20cm (8") from nearby persons, the application is considered a

mobile application.

Portable Applications and SAR Testing

When the antenna is mounted closer than 20cm to nearby persons, then the application is

considered "portable" and requires an additional test be performed on the final product. This test

is called Specific Absorption Rate (SAR) testing and measures the emissions from the module and

how they affect the person.

RF Exposure

This statement must be included as a CAUTION statement in integrator product manuals.

WARNING: This equipment is approved only for mobile and base station transmitting

devices. Antenna(s) used for this transmitter must be installed to provide a separation

distance of at least 30 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

NOTE: The separation distance indicated in the above is 30 cm, but any distance greater than or

equal to 23 cm can be used (per MPE evaluation).

XTend™RFModule‐ProductManual

Antenna Options (1-watt transmit power output or lower)

The antennas in the tables below have been approved for use with this module. Digi does not carry all of these antenna vari-

ants. Contact Digi Sales for available antennas.

Half‐waveantennas(approvedwhenoperatingat1‐wattpoweroutputorlower)

Part Number Type Connector Gain Application

A09-HSM-7 Straight half-wave RPSMA 3.0 dBi Fixed / Mobile

A09-HASM-675 Articulated half-wave RPSMA 2.1 dBi Fixed / Mobile

A09-HABMM-P6I Articulated half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HABMM-6-P6I Articulated half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HBMM-P6I Straight half-wave w/ 6" pigtail MMCX 2.1 dBi Fixed / Mobile

A09-HRSM Right angle half-wave RPSMA 2.1 dBi Fixed

A09-HASM-7 Articulated half-wave RPSMA 2.1 dBi Fixed

A09-HG Glass mounted half-wave RPSMA 2.1 dBi Fixed

A09-HATM Articulated half-wave RPTNC 2.1 dBi Fixed

A09-H Half-wave dipole RPSMA 2.1 dBi Fixed

Yagiantennas(approvedwhenoperatingat1‐wattpoweroutputorlower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-Y6 2 Element Yagi RPN 6.1 dBi 1.7 dB Fixed / Mobile

A09-Y7 3 Element Yagi RPN 7.1 dBi 2.7 dB Fixed / Mobile

A09-Y8 4 Element Yagi RPN 8.1 dBi 3.7 dB Fixed / Mobile

A09-Y9 4 Element Yagi RPN 9.1 dBi 4.7 dB Fixed/ Mobile

A09-Y10 5 Element Yagi RPN 10.1 dBi 5.7 dB Fixed / Mobile

A09-Y11 6 Element Yagi RPN 11.1 dBi 6.7 dB Fixed / Mobile

A09-Y12 7 Element Yagi RPN 12.1 dBi 7.7 dB Fixed / Mobile

A09-Y13 9 Element Yagi RPN 13.1 dBi 8.7 dB Fixed / Mobile

A09-Y14 10 Element Yagi RPN 14.1 dBi 9.7 dB Fixed / Mobile

A09-Y14 12 Element Yagi RPN 14.1 dBi 9.7 dB Fixed / Mobile

A09-Y15 13 Element Yagi RPN 15.1 dBi 10.7 dB Fixed / Mobile

A09-Y15 15 Element Yagi RPN 15.1 dBi 10.7 dB Fixed / Mobile

A09-Y6TM 2 Element Yagi RPTNC 6.1 dBi 1.7 dB Fixed / Mobile

A09-Y7TM 3 Element Yagi RPTNC 7.1 dBi 2.7 dB Fixed / Mobile

A09-Y8TM 4 Element Yagi RPTNC 8.1 dBi 3.7 dB Fixed / Mobile

A09-Y9TM 4 Element Yagi RPTNC 9.1 dBi 4.7 dB Fixed / Mobile

A09-Y10TM 5 Element Yagi RPTNC 10.1 dBi 5.7 dB Fixed / Mobile

A09-Y11TM 6 Element Yagi RPTNC 11.1 dBi 6.7 dB Fixed / Mobile

A09-Y12TM 7 Element Yagi RPTNC 12.1 dBi 7.7 dB Fixed / Mobile

A09-Y13TM 9 Element Yagi RPTNC 13.1 dBi 8.7 dB Fixed / Mobile

A09-Y14TM 10 Element Yagi RPTNC 14.1 dBi 9.7 dB Fixed / Mobile

A09-Y14TM 12 Element Yagi RPTNC 14.1 dBi 9.7 dB Fixed / Mobile

A09-Y15TM 13 Element Yagi RPTNC 15.1 dBi 10.7 dB Fixed / Mobile

A09-Y15TM 15 Element Yagi RPTNC 15.1 dBi 10.7 dB Fixed / Mobile

Omni‐directionalbasestationantennas(approvedwhenoperatingat1‐wattpoweroutputorlower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-F0 Fiberglass Base Station RPN 0 dBi - Fixed

A09-F1 Fiberglass Base Station RPN 1.0 dBi - Fixed

A09-F2 Fiberglass Base Station RPN 2.1 dBi - Fixed

A09-F3 Fiberglass Base Station RPN 3.1 dBi - Fixed

A09-F4 Fiberglass Base Station RPN 4.1 dBi - Fixed

A09-F5 Fiberglass Base Station RPN 5.1 dBi - Fixed

A09-F6 Fiberglass Base Station RPN 6.1 dBi 0.1 dB* Fixed

A09-F7 Fiberglass Base Station RPN 7.1 dBi 1.1 dB* Fixed

A09-F8 Fiberglass Base Station RPN 8.1 dBi 2.1 dB* Fixed

A09-W7 Wire Base Station RPN 7.1 dBi 1.1 dB* Fixed

A09-F0 Fiberglass Base Station RPSMA 0 dBi - Fixed

A09-F1 Fiberglass Base Station RPSMA 1.0 dBi - Fixed

A09-F2 Fiberglass Base Station RPSMA 2.1 dBi - Fixed

A09-F3 Fiberglass Base Station RPSMA 3.1 dBi - Fixed

A09-F4 Fiberglass Base Station RPSMA 4.1 dBi - Fixed

A09-F5 Fiberglass Base Station RPSMA 5.1 dBi - Fixed

A09-F6 Fiberglass Base Station RPSMA 6.1 dBi 0.1 dB* Fixed

XTend™RFModule‐ProductManual

*FCCregulationsstipulatea36dBmEIRPpowerrequirement.Usersimplementingantennagaingreaterthan6.0dBmustcompensateforthe

addedgainwithcableloss.Whenoperatingat1Wpoweroutput,thesum(indB)ofcablelossandantennagainshallnotexceed6.0dB.

Disc patch antennas (approved when operating at 1-watt power level power output or lower)

*FCCregulationsstipulatea36dBmEIRPpowerrequirement.Usersimplementingantennagaingreaterthan6.0dBmustcompensateforthe

addedgainwithcableloss.Whenoperatingat1Wpoweroutput,thesum(indB)ofcablelossandantennagainshallnotexceed6.0dB.

Antenna Options (100 mW transmit power output or lower)

A09-F7 Fiberglass Base Station RPSMA 7.1 dBi 1.1 dB* Fixed

A09-F8 Fiberglass Base Station RPSMA 8.1 dBi 2.1 dB* Fixed

A09-W7SM Wire Base Station RPSMA 7.1 dBi 1.1 dB* Fixed

A09-F0TM Fiberglass Base Station RPTNC 0 dBi - Fixed

A09-F1TM Fiberglass Base Station RPTNC 1.0 dBi - Fixed

A09-F2TM Fiberglass Base Station RPTNC 2.1 dBi - Fixed

A09-F3TM Fiberglass Base Station RPTNC 3.1 dBi - Fixed

A09-F4TM Fiberglass Base Station RPTNC 4.1 dBi - Fixed

A09-F5TM Fiberglass Base Station RPTNC 5.1 dBi - Fixed

A09-F6TM Fiberglass Base Station RPTNC 6.1 dBi 0.1 dB* Fixed

A09-F7TM Fiberglass Base Station RPTNC 7.1 dBi 1.1 dB* Fixed

A09-F8TM Fiberglass Base Station RPTNC 8.1 dBi 2.1 dB* Fixed

A09-W7TM Wire Base Station RPTNC 7.1 dBi 1.1 dB* Fixed

Part Number Type Connector Gain Required Antenna Cable Loss Application

51-43-8227 Disc patch MMCX 0 dBi 0 dB Fixed/ Mobile

Mag Mount antennas (approved when operating at 1?watt power output or lower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-M0SM Mag Mount RPSMA 0 dBi - Fixed

A09-M2SM Mag Mount RPSMA 2.1 dBi - Fixed

A09-M3SM Mag Mount RPSMA 3.1 dBi - Fixed

A09-M5SM Mag Mount RPSMA 5.1 dBi - Fixed

A09-M7SM Mag Mount RPSMA 7.1 dBi 1.1 dB* Fixed

A09-M8SM Mag Mount RPSMA 8.1 dBi 2.1 dB* Fixed

A09-M0TM Mag Mount RPTNC 0 dBi - Fixed

A09-M2TM Mag Mount RPTNC 2.1 dBi - Fixed

A09-M3TM Mag Mount RPTNC 3.1 dBi - Fixed

A09-M5TM Mag Mount RPTNC 5.1 dBi - Fixed

A09-M7TM Mag Mount RPTNC 7.1 dBi 1.1 dB* Fixed

A09-M8TM Mag Mount RPTNC 8.1 dBi 2.1 dB* Fixed

Multi‐pathantennas(approvedwhenoperatingat1‐wattpoweroutputorlower)

Part Number Type Connector Gain Application

A09-DPSM-P12F omni directional permanent mount w/ 12ft pigtail RPSMA 3.0 dBi Fixed

A09-D3NF-P12F omni directional magnetic mount w/ 12ft pigtail RPN 3.0 dBi Fixed

A09-D3SM-P12F omni directional w/ 12ft pigtail RPSMA 3.0 dBi Fixed

A09-D3PNF omni directional permanent mount RPN 3.0 dBi Fixed

A09-D3TM-P12F omni directional w/ 12ft pigtail RPTNC 3.0 dBi Fixed

A09-D3PTM omni directional permanent mount RPTNC 3.0 dBi Fixed

A92-D4PNF 900 MHz / 2.4GHz permanent mount RPN 2.1 dBi Fixed

A92-D4P 900 MHz / 2.4GHz permanent mount RPSMA 2.1 dBi Fixed

A92-D4PTM 900 MHz / 2.4GHz permanent mount RPTNC 2.1 dBi Fixed

Half‐waveantennas(approvedwhenoperatingat100mWpoweroutputorlower)

Part Number Type Connector Gain Application

A09-QW Quarter-wave wire Permanent 1.9 dBi Fixed / Mobile

A09-QRAMM 3 " Quarter-wave wire MMCX 2.1 dBi Fixed / Mobile

A09-QSM-3 Quarter-wave straight RPSMA 1.9 dBi Fixed / Mobile

A09-QSM-3H Heavy duty quarter-wave straight RPSMA 1.9 dBi Fixed / Mobile

A09-QBMM-P6I Quarter-wave w/ 6" pigtail MMCX 1.9 dBi Fixed / Mobile

A09-QHRN Miniature Helical Right Angle solder Permanent -1 dBi Fixed / Mobile

A09-QHSN Miniature Helical Right Angle solder Permanent -1 dBi Fixed / Mobile

A09-QHSM-2 2" Straight RPSMA 1.9 dBi Fixed / Mobile

A09-QHRSM-2 2" Right angle RPSMA 1.9 dBi Fixed / Mobile

Omni‐directionalbasestationantennas(approvedwhenoperatingat1‐wattpoweroutputorlower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

XTend™RFModule‐ProductManual

IC (Industry Canada) Certification

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject

to the following two conditions: (1) this device may not cause interference, and (2) this device

must accept any interference, including interference that may cause undesired operation of the

device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne

doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label

on the outside of the final product must display the following text:

Contains Model XT09 Radio, IC: 1846A-9XTENDB

The integrator is responsible for its product to comply with IC ICES-003 and FCC Part 15, Sub. B -

Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts

FCC test report or CISPR 22 test report for compliance with ICES-003.

Transmitters for Detachable Antennas

This radio transmitter has been approved by Industry Canada to operate with the antenna types

listed in the table above with the maximum permissible gain and required antenna impedance for

each antenna type indicated. Antenna types not included in this list, having a gain greater than the

A09-QHRSM-170 1.7" Right angle RPSMA 1.9 dBi Fixed / Mobile

A09-QRSM-380 3.8" Right angle RPSMA 1.9 dBi Fixed / Mobile

A09-QAPM-520 5.2" Articulated Screw mount Permanent 1.9 dBi Fixed / Mobile

A09-QSPM-3 3" Straight screw mount Permanent 1.9 dBi Fixed / Mobile

A09-QAPM-3 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile

A09-QAPM-3H 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile

Yagiantennas(approvedwhenoperatingat100mWpoweroutputorlower)

Part Number Type Connector Gain Required Antenna Cable Loss Application

A09-Y6 2 Element Yagi RPN 6.1 dBi Fixed / Mobile

A09-Y7 3 Element Yagi RPN 7.1 dBi Fixed / Mobile

A09-Y8 4 Element Yagi RPN 8.1 dBi Fixed / Mobile

A09-Y9 4 Element Yagi RPN 9.1 dBi Fixed / Mobile

A09-Y10 5 Element Yagi RPN 10.1 dBi Fixed / Mobile

A09-Y11 6 Element Yagi RPN 11.1 dBi Fixed / Mobile

A09-Y12 7 Element Yagi RPN 12.1 dBi 1 dB Fixed / Mobile

A09-Y13 9 Element Yagi RPN 13.1 dBi 2 dB Fixed / Mobile

A09-Y14 10 Element Yagi RPN 14.1 dBi 3 dB Fixed / Mobile

A09-Y14 12 Element Yagi RPN 14.1 dBi 3 dB Fixed / Mobile

A09-Y15 13 Element Yagi RPN 15.1 dBi 4 dB Fixed / Mobile

A09-Y15 15 Element Yagi RPN 15.1 dBi 4 dB Fixed / Mobile

A09-Y6TM 2 Element Yagi RPTNC 6.1 dBi Fixed / Mobile

A09-Y7TM 3 Element Yagi RPTNC 7.1 dBi Fixed / Mobile

A09-Y8TM 4 Element Yagi RPTNC 8.1 dBi Fixed / Mobile

A09-Y9TM 4 Element Yagi RPTNC 9.1 dBi Fixed / Mobile

A09-Y10TM 5 Element Yagi RPTNC 10.1 dBi Fixed / Mobile

A09-Y11TM 6 Element Yagi RPTNC 11.1 dBi Fixed / Mobile

A09-Y12TM 7 Element Yagi RPTNC 12.1 dBi 1 dB Fixed / Mobile

A09-Y13TM 9 Element Yagi RPTNC 13.1 dBi 2 dB Fixed / Mobile

A09-Y14TM 10 Element Yagi RPTNC 14.1 dBi 3 dB Fixed / Mobile

A09-Y14TM 12 Element Yagi RPTNC 14.1 dBi 3 dB Fixed / Mobile

A09-Y15TM 13 Element Yagi RPTNC 15.1 dBi 4 dB Fixed / Mobile

A09-Y15TM 15 Element Yagi RPTNC 15.1 dBi 4 dB Fixed / Mobile

Half‐waveantennas(approvedwhenoperatingat100mWpoweroutputorlower)

Part Number Type Connector Gain Application

XTend™RFModule‐ProductManual

maximum gain indicated for that type, are strictly prohibited for use with this device. The required

antenna impedance is 50 ohms.

Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types

d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour

chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est

supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Detachable Antennas

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a

type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce

potential radio interference to other users, the antenna type and its gain should be so chosen that

the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful

communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner

avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par

Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des

autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une

communication satisfaisante.

C-TICK (Australia) Certification

Power Requirements

Regulations in Australia stipulate a maximum of 30 dBm EIRP (Effective Isotropic Radiated Power).

The EIRP equals the sum (in dBm) of power output, antenna gain and cable loss and cannot not

exceed 30 dBm.

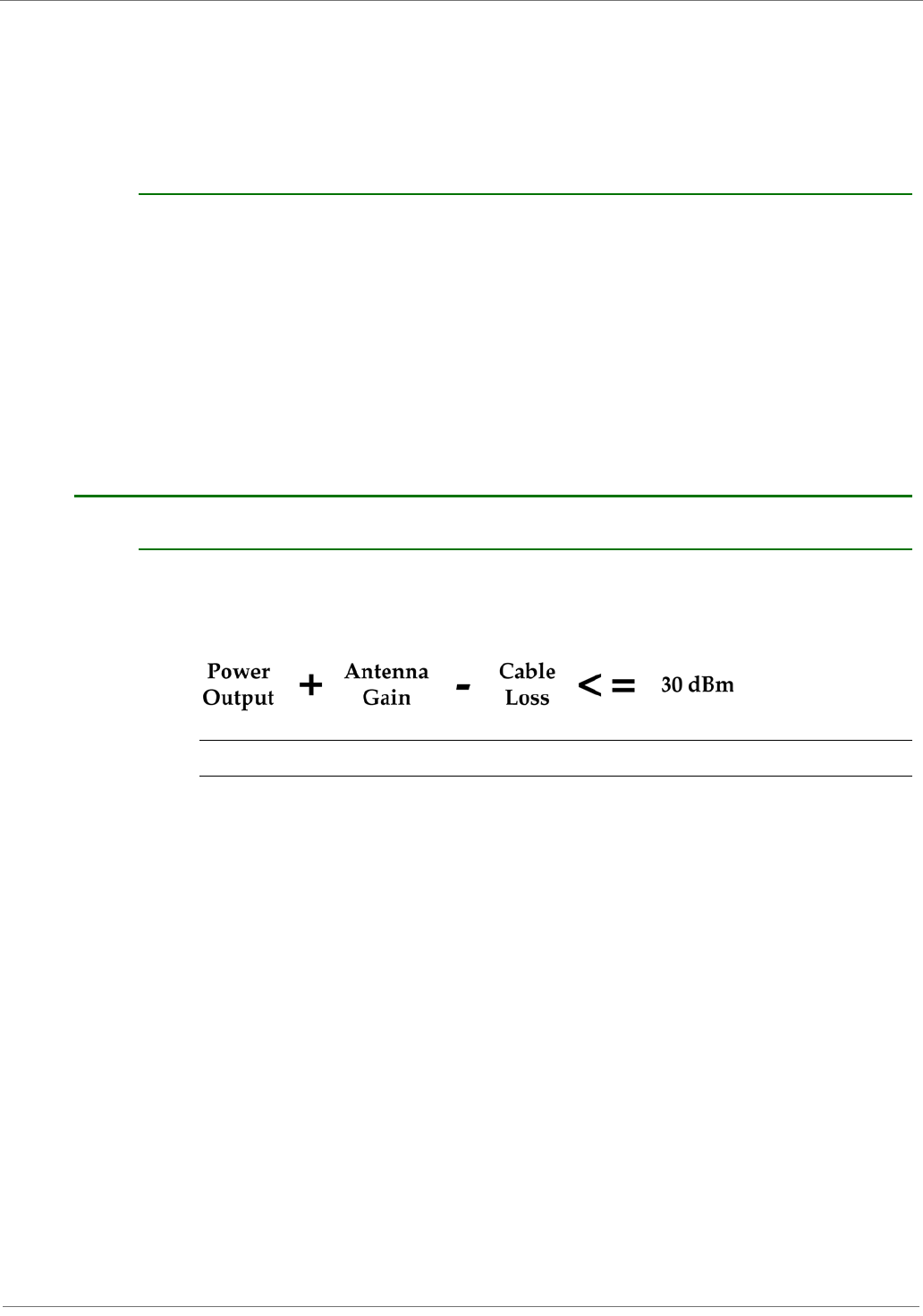

FigureA‐02. EIRPFormulaforAustralia

NOTE: The maximum EIRP for the FCC (United States) and IC (Canada) is 36 dBm.

These modules comply with requirements to be used in end products in Australia. All products with

EMC and radio communications must have a registered C-Tick mark. Registration to use the

compliance mark will only be accepted from Australian manufacturers or importers, or their agent,

in Australia. In order to have a C-Tick mark on an end product, a company must comply with a or

b below:

a) have a company presence in Australia.

b) have a company/distributor/agent in Australia that will sponsor the import of the end product.

Contact Digi for questions related to locating a contact in Australia.

AppendixB:DevelopmentGuide

Development Kit Contents

The XTend Development Kit includes the hardware and software needed to rapidly create long

range wireless links between devices.

Interfacing Hardware

The XTend Development Kit includes a pair of RS-232 interface boards that supports the RS-232/

485/422 protocols. When the modules are mounted to the interface boards, the boards provide

the following development tools:

• Fast and direct connection to serial devices (such as PCs) and therefore easy access to the

module registries - The parameters stored in the registry allow integrators to customize the

modules to suite the specific needs of their data systems.

• External DIP switch for automatic configuration of commonly used module profiles

• Conversion of signals between TTL levels and RS-232 levels

The Digi Interface board provides means for connecting the module to any device that has an

available RS-232 or RS-485/422 connection. The following sections illustrate how to use the

interface boards for development purposes.

Note: In the sections the follow, an RF module mounted to an interface board will be referred to as a

"Module Assembly".

TableB‐01. XTendDevelopmentKitContents

Item Qty. Description Part Number

XTend RF Module 1 Long Range 900 MHz RF Module (w/ RPSMA Connector) XT09-SI

XTend RF Module 1 Long Range 900 MHz RF Module (w/ MMCX antenna) XT09-MI

Antenna 1 900 MHz RPSMA, 6" Half-Wave, dipole, articulating, RPSMA A09-HASM-675

Antenna 1 900 MHz RPSMA, 7" Half-Wave, dipole, articulating, w/ pigtail, MMCX A09-HABMM-P5I

RS-232 Interface Board 2 Enables communication to RS-232 devices XTIB-R

RS-232 Cable (6') 2 Connects interface board to devices having an RS-232 serial port JD2D3-CDS-6F

Serial Loopback Adapter 1 Connects to the female RS-232 (DB-9) serial connector of the Digi

Interface Board and can be used to configure the module to function as

a repeater (for range testing) JD2D3-CDL-A

NULL Modem Adapter

(male-to-male) 1Connects to the female RS-232 (DB-9) serial connector of the Digi

Interface Board and can be used to connect the module to another

DCE (female DB9) device JD2D2-CDN-A

NULL Modem Adapter

(female-to-female) 1 Used to bypass radios to verify serial cabling is functioning properly JD3D3-CDN-A

Male DB-9 to RJ-45

Adapter 1Facilitates adapting the DB-9 Connector of the Digi Interface Board to a

CAT5 cable (male DB9 to female RJ45) JE1D2-CDA-A

Female DB-9 to RJ-45

Adapter 1Facilitates adapting the DB-9 Connector of the Digi Interface Board to a

CAT5 cable (female DB9 to female RJ45) JE1D3-CDA-A

Power Adapter 2 Allows Interface Board to be powered by a 110 Volt AC power supply

(not included with international (-INT) development kits) JP4P2-9V10-6F

CD 1 Contains documentation, software and tools needed for RF operation. MD0010

Quick Start Guide 1 Familiarizes users with some of the module's most important functions. MD0016

XTend™RFModule‐ProductManual

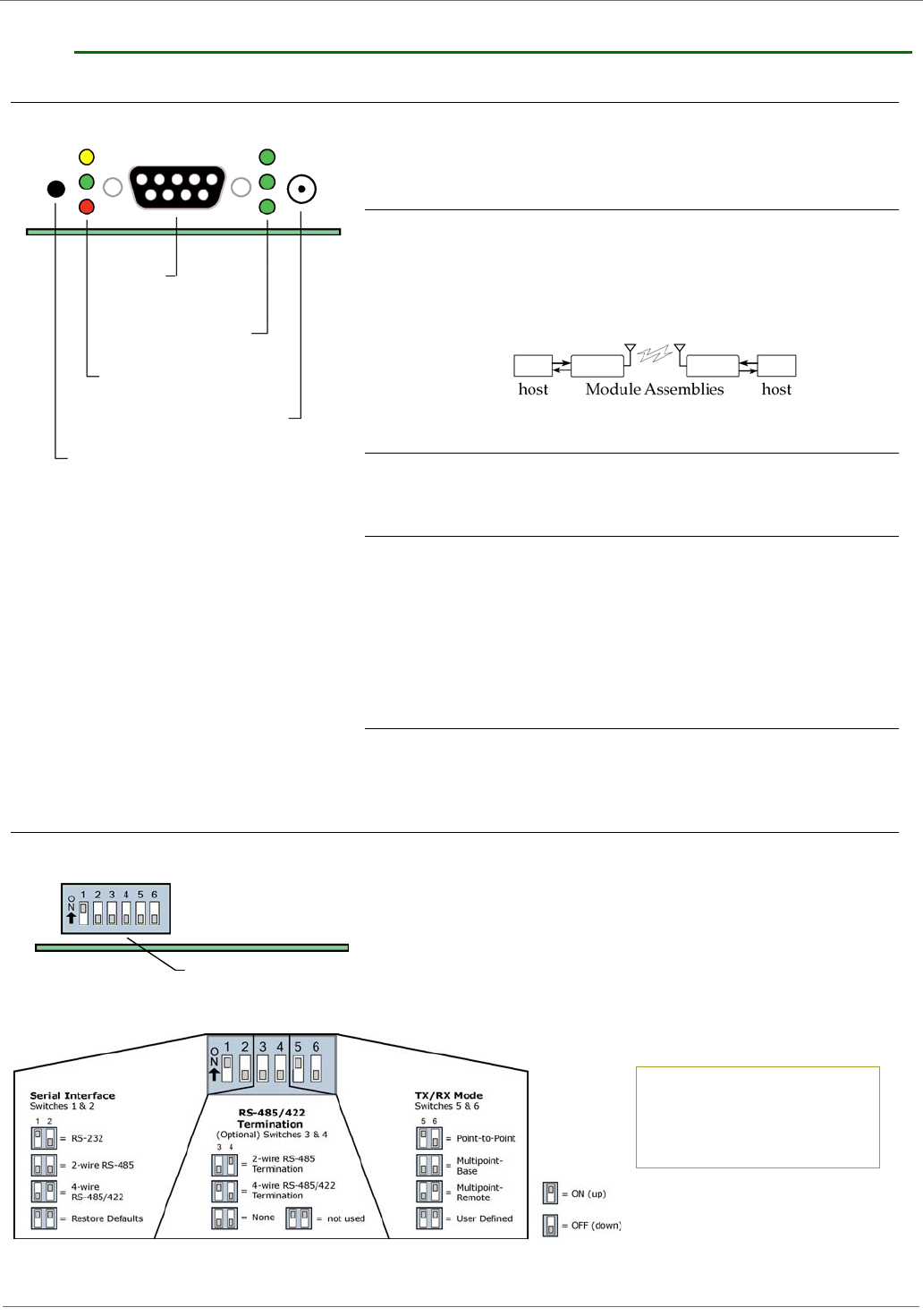

XTIB-R RS-232/485 Interface Board

FigureB‐03. DIPSwitchSettingsoftheXTIB‐R(RS‐232/485)InterfaceBoard

B-01a. Config (Configuration) Switch

FigureB‐01. FrontView The Config Switch provides an alternate method for entering into

Command Mode. To enter Command Mode at the module's default RF

data rate, hold the Configuration Switch down for two seconds.

B-01b. I/O & Power LEDs

The LEDs visualize gigantic status information and indicate module

activity as follows:

Yellow (top LED) = Serial Data Out (to host)

Green (middle) = Serial Data In (from host)

Red (bottom) = Power/TX Indicator (Red light is on when

powered; it pulses on/off briefly during RF transmission.))

B-01c. DB-9 Serial Port

Standard female DB-9 (RS-232) connector. This connector can also

be used for RS-485 and RS-422 connections.

B-01d. RSSI LEDs

RSSI LEDs indicate the amount of fade margin present in an active

wireless link. Fade margin is defined as the difference between the

incoming signal strength and the module's receiver sensitivity.

3 LEDs ON = Very Strong Signal (> 30 dB fade margin)

2 LEDs ON = Strong Signal (> 20 dB fade margin)

1 LED ON = Moderate Signal (> 10 dB fade margin)

0 LED ON = Weak Signal (< 10 dB fade margin)

B-01e. Power Connector

7-28 VDC power connector (Center positive, 5.5/2.1mm)

Note: The XTIB-R interface board can accept voltages as low as 5V.

Contact Digi Technical Support to enable this option.

B-02a. DIP Switch

FigureB‐02. BackView DIP Switch automatically configures the module to operate in

different modes during the power-on sequence. Each time the module

assembly (interface board + module) is powered-on, intelligence on

the board programs the attached module according to the positions of

the DIP Switch.

Figure B-03 illustrates DIP Switch settings. Table B-02 summarizes

the configurations triggered by the positions of the DIP Switch.

B‐01a.

ConfigSwitch

B‐01b.

I/O&PowerLEDs

B‐01c.

DB‐9SerialPort

B‐01d

RSSILEDs

B‐01e.

PowerConnector

B‐02a.

DIPSwitch

Refertothetablesinthe‘A u t o m a t i c 

DIPSwitchConfigurations’section

[nextpage]regardingconfigura‐

tionstriggeredbythepositionsof

theDIPSwitch(duringpower‐up).

XTend™RFModule‐ProductManual

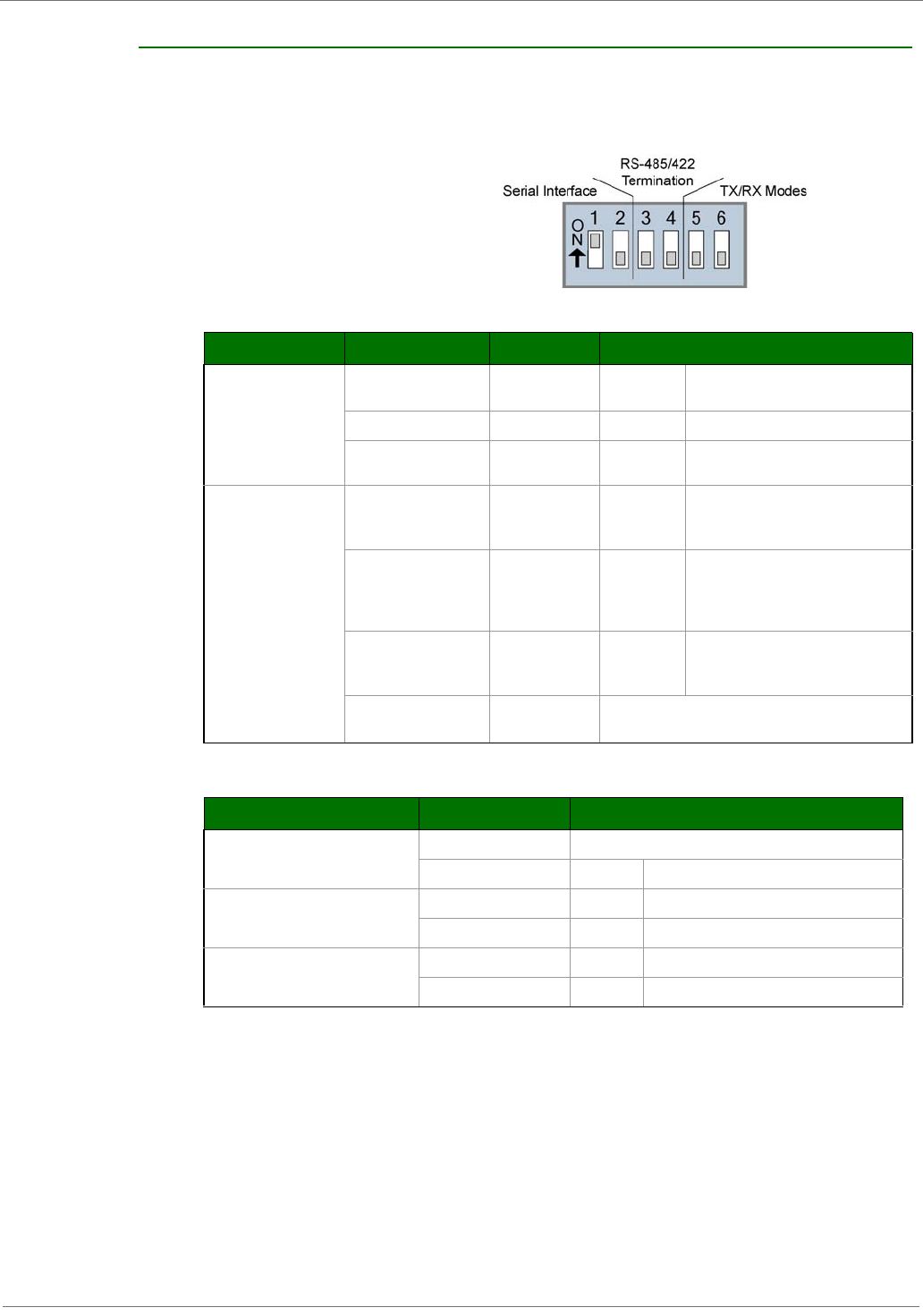

Automatic DIP Switch Configurations

Each time the module assembly is powered-on, AT commands are sent to the on-board RF module

as dictated by the positions of the DIP switches. DIP switch configurations are sent automatically

during the power-on sequence and affect module parameter values as shown in the table below.

FigureB‐04. XTIB‐RDIPSwitch

Note:TheresultsofSW2,5&6ONandSW5&6ONarethesame.

TableB‐02. Power‐upOptions‐CommandssenttothemoduleasresultofDIPSwitchSettings

(SW=DIPSwitch)

Switches Condition Behavior Commands Sent During Power-up

Switches 1 & 2

(Restore Defaults /

Serial Interfacing)

If SW1 & SW2 are 

ON (up) Restore Defaults ATRE

ATWR

(Restore Defaults)

(Write defaults to non-volatile memory)

If SW1 is ON (up) RS-232 Operation ATCS 0 (RS-232, CTS flow control)

If SW1 is OFF (down) RS-485/422

Operation ATCS 3 (RS-485 or RS-422 Operation)

Switches 5 & 6 

(TX/RX Modes)

If SW5 & SW6 are 

OFF (down) Multipoint Base

ATMY 0

ATDT FFFF

ATMT 3

(Source Address)

(Destination Address)

(Multi-Transmit option)

If SW5 is OFF (down) 

& SW6 is ON (up) Multipoint Remote

ATAM

ATDT 0

ATMT 0

ATRR A

(Auto-set MY, MY = unique)

(Destination Address)

(Multi-Transmit option)

(Retries)

If SW5 is ON (up) &

SW6 is OFF (down) Point-to-Point

ATAM

ATDT FFFF

ATMT 3

(Auto-set MY, MY = unique)

(Destination Address)

(Multi-Transmit option)

If SW5 is ON (up) &

SW6 is ON (up) User Defined Processor is disabled and AT Commands are not sent to

the module (except for CS command as shown below.)

TableB‐03. UserDefinedMode(Switches5and6areON(up))

Only DIP Switches ON (up) Condition Command Sent During Power-up

SW1, SW5 and SW6 If CS = 0, 1, 2 or 4 CS parameter remains the same

If CS = 3 ATCS 0 (RS-232 operation, CTS flow control)

SW2, SW5 and SW6 If CS = 2 ATCS 2 (GPO1 high)

If CS = 0, 1, 3 or 4 ATCS 3 (RS-485/422 Operation)

SW5 and SW6 only If CS = 2 ATCS 2 (GPO1 high)

If CS = 0, 1, 3 or 4 ATCS 3 (RS-485/422 Operation)

XTend™RFModule‐ProductManual

Adapters

The development kit includes several adapters that facilitate the following functions:

• Performing Range Tests

• Testing Cables

• Connecting to other RS-232 DCE and DTE devices

• Connecting to terminal blocks or RJ-45 (for RS-485/422 devices)

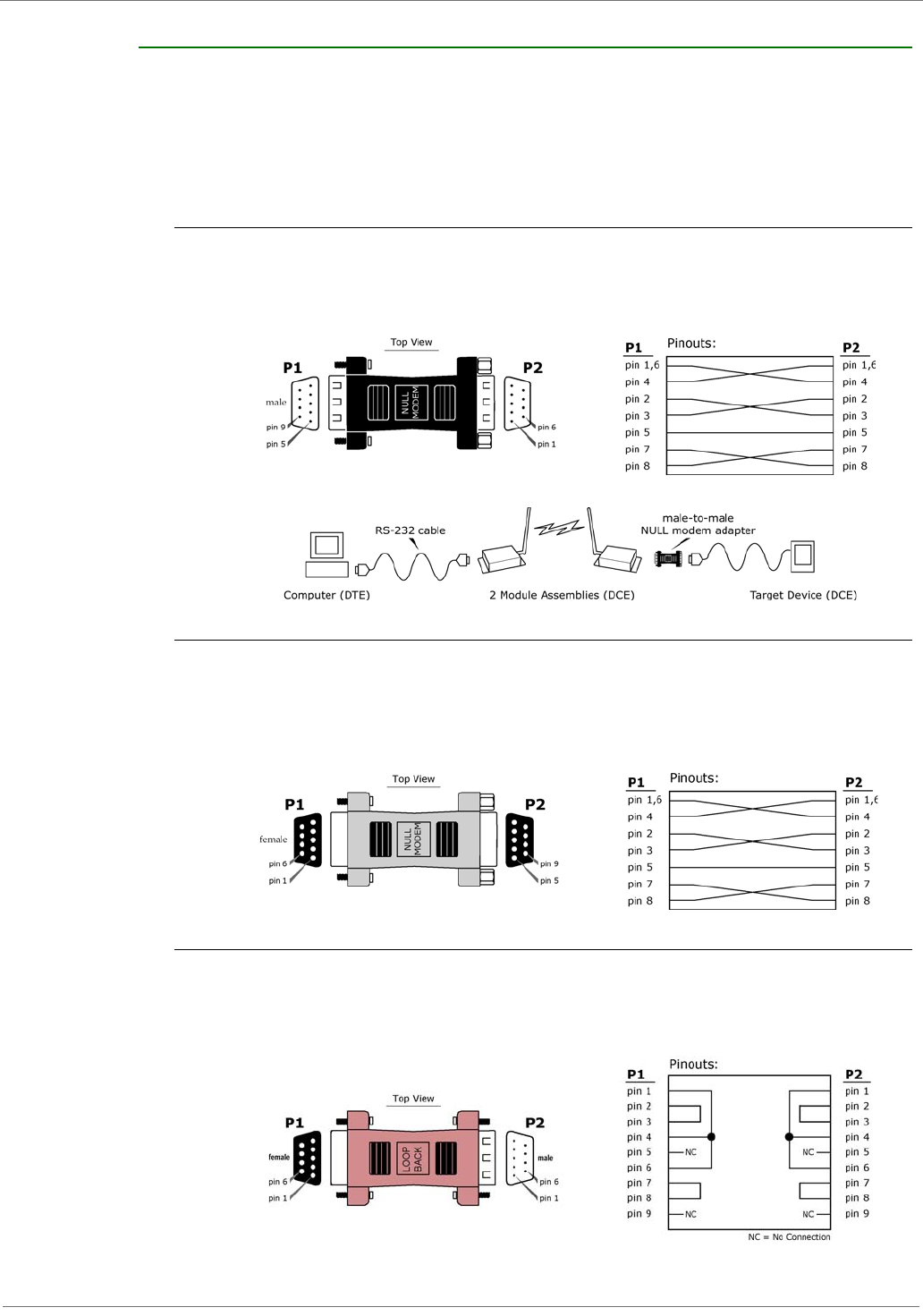

NULL Modem Adapter (male-to-male)

Part Number: JD2D2-CDN-A (Black, DB-9 M-M) The male-to-male NULL modem adapter is

used to connect two DCE devices. A DCE device connects with a straight-through cable to the male

serial port of a computer (DTE).

FigureB‐05. MaleNULLmodemadapterandpinouts

FigureB‐06. ExampleofaDigiRadioModem(DCEDevice)connectingtoanotherDCEdevice)

NULL Modem Adapter (female-to-female)

Part Number: JD3D3-CDN-A (Gray, DB-9 F-F) The female-to-female NULL modem adapter is

used to verify serial cabling is functioning properly. To test cables, insert the female-to-female

NULL modem adapter in place of a pair of module assemblies (RS-232 interface board + XTend RF

Module) and test the connection without modules in the connection.

FigureB‐07. FemaleNULLmodemadapterandpinouts

Serial Loopback Adapter

Part Number: JD2D3-CDL-A (Red, DB-9 M-F) The serial loopback adapter is used for range

testing. During a range test, the serial loopback adapter configures the module to function as a

repeater by looping serial data back into the radio for retransmission.

FigureB‐08. Serialloopbackadapterandpinouts

XTend™RFModule‐ProductManual

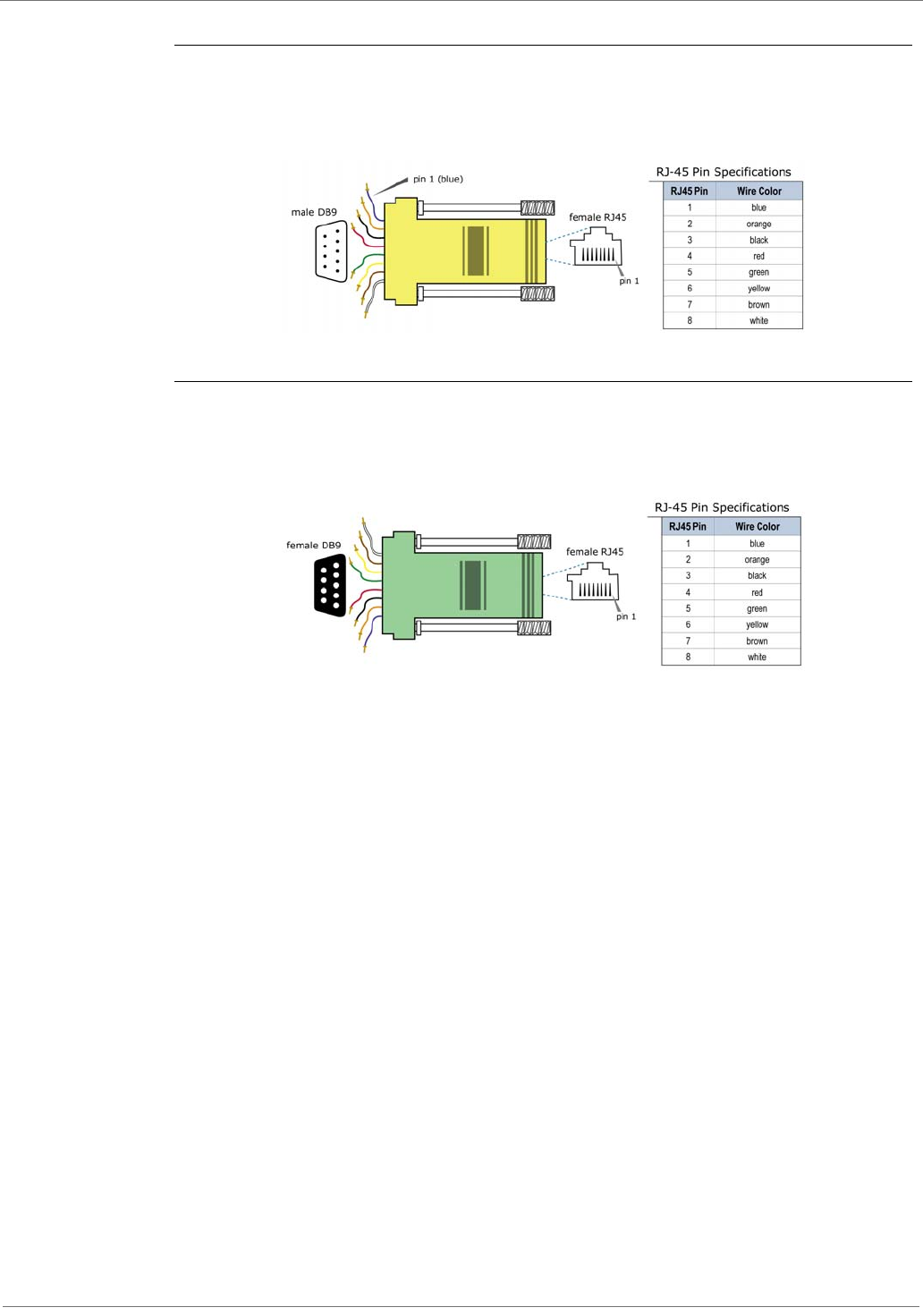

Male DB-9 to RJ-45 Adapter

Part Number: JD2D2-CDN-A (Yellow) This adapter facilitates adapting the DB-9 Connector of

the Digi Interface Board to a CAT5 cable (male DB9 to female RJ45).

Refer to the ‘RS-485 (4-wire) & RS-422 Operation’ sections for RS-485/422 connection guidelines.

FigureB‐09. MaleDB‐9toRJ‐45Adapterandpinouts

Female DB-9 to RJ-45 Adapter

Part Number: JD3D3-CDN-A (Green) This adapter Facilitates adapting the DB-9 Connector of

the Digi Interface Board to a CAT5 cable (female DB9 to female RJ45).

Refer to the ‘RS-485 (4-wire) & RS-422 Operation’ sections for RS-485/422 connection guidelines.

FigureB‐10. FemaleDB‐9toRJ‐45Adapterandpinouts

XTend™RFModule‐ProductManual

Interfacing Protocols

The XTend Module Assembly (XTend RF Module mounted to the XTIB-R Interface Board) supports

the following interfacing protocols:

• RS-232

• RS-485 (2-wire) Half-Duplex

• RS-485 (4-wire) and RS-422

RS-232 Operation

DIP Switch Settings and Serial Port Connections

FigureB‐11. FigureB‐12.

RS‐232DIPSwitchSettings PinsusedonthefemaleRS‐232(DB‐9)SerialConnector

*‘X‐CTU’issoftwarethatcanbeusedtoconfigurethemodule.Thesoftwareincludesanamingconvention

whereʺGPIʺstandsfor‘GeneralPurposeInput’andʺGPOʺfor‘GeneralPurposeOutput’.

TableB‐04. RS‐232SignalsandtheirimplementationsontheXTendModuleAssembly

(Low‐assertedsignalsaredistinguishedbyhorizontallineoverpinname.)

DB-9 Pin RS-232

Name X-CTU

Name* Description Implementation

1 DCD GPO2 Data-Carrier-Detect Connected to DSR (pin6 of DB-9)

2 RXD DO Received Data Serial data exiting the module assembly (to host)

3 TXD DI Transmitted Data Serial data entering into the module assembly (from host)

4 DTR GPI2 Data-Terminal-Ready Can enable Power-Down on the module assembly

5 GND - Ground Signal Ground

6 DSR GPO2 Data-Set-Ready Connected to DCD (pin1 of DB-9)

7RTS / CMD GPI1 Request-to-Send /

Command Mode Provides RTS flow control or enables Command Mode

8CTS GPO1 Clear-to-Send Provides CTS flow control

9 RI - Ring Indicator Optional power input that is connected internally to the

positive lead of the front power connector

DIPSwitchsettingsarereadandapplied

onlywhilepowering‐on.

XTend™RFModule‐ProductManual

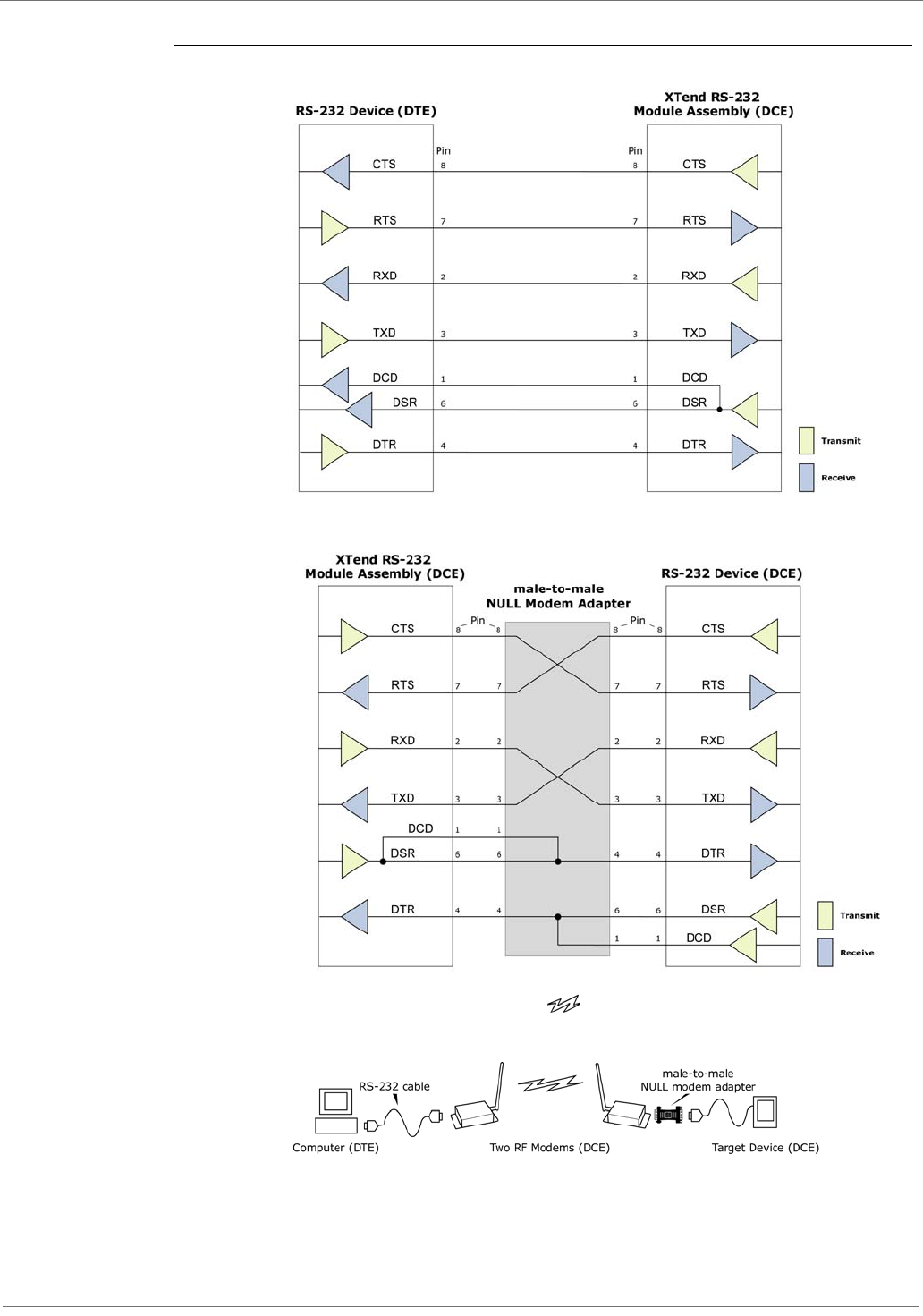

Wiring Diagrams

FigureB‐13.DTEDevice(RS‐232,maleDB‐9connector)wiredtoaDCEModuleAssembly(femaleDB‐9)

FigureB‐14.DCEModuleAssembly(femaleDB‐9connector)wiredtoaDCEDevice(RS‐232,maleDB‐9)

Sample Wireless Connection: DTE <--> DCE DCE <--> DCE

FigureB‐15.TypicalwirelesslinkbetweenDTEandDCEdevices

XTend™RFModule‐ProductManual

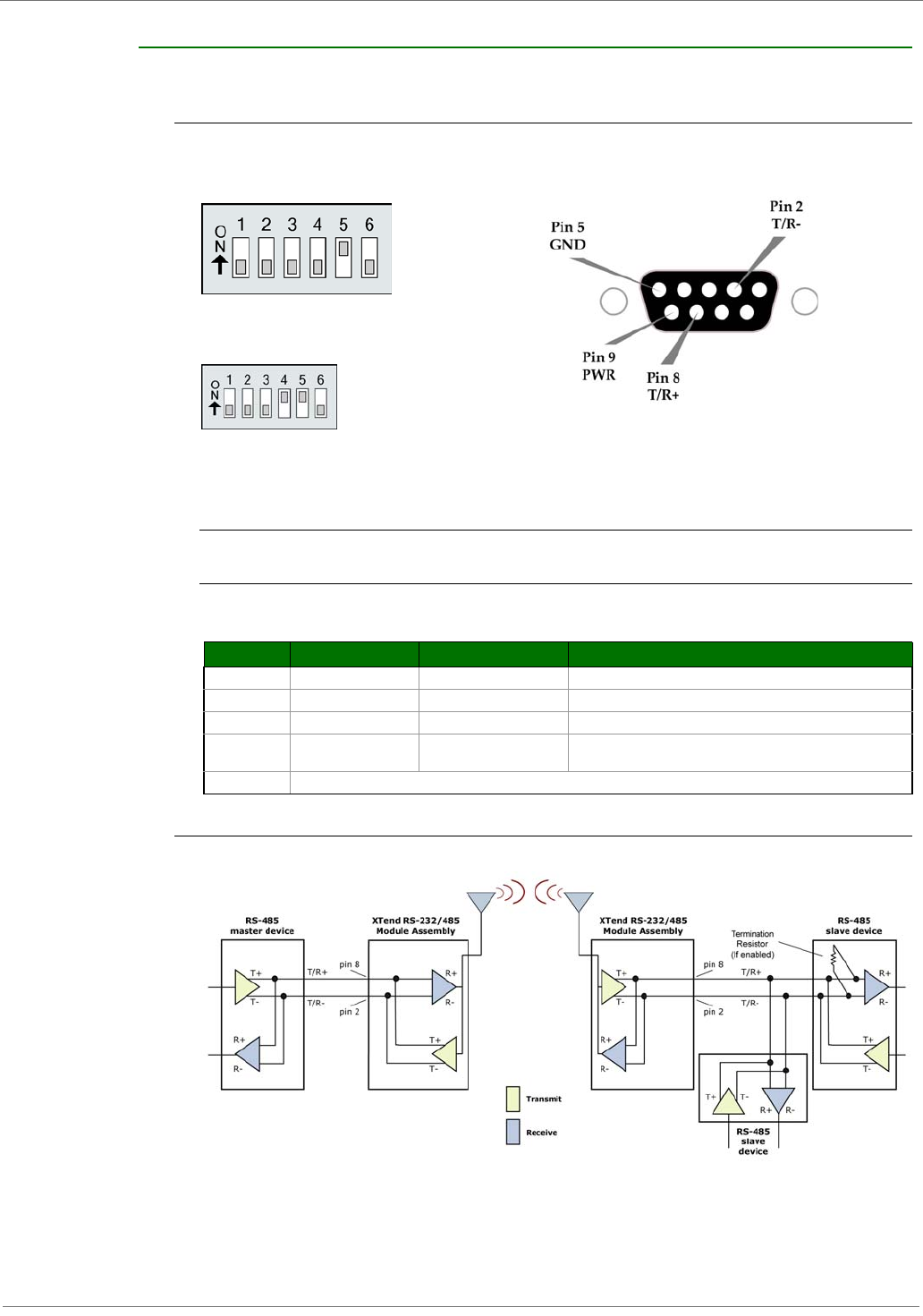

RS-485 (2-wire) Operation

When operating within the RS-485 protocols, all communications are half-duplex.

DIP Switch Settings and Serial Port Connections

FigureB‐16. FigureB‐17.

RS‐485(2‐wire)Half‐duplexPinsusedonthefemaleRS‐232(DB‐9)

DIPSwitchSettings SerialConnector

Note: Refer to Figures B-09 and B-10 for RJ-45 connector pin designations used in 

RS-485/422 environments.

Wiring Diagram

FigureB‐19.XTendModuleAssemblyinanRS‐485(2‐wire)half‐duplexenvironment

TableB‐05. RS‐485(2‐wirehalf‐duplex)signalsandtheirimplementationsontheXTendModuleAssembly

DB-9 Pin RS-485 Name Description Implementation

2 T/R- (TRA) Negative Data Line Transmit serial data to and from the XTend Module Assembly

5 GND Ground Signal Ground

8 T/R+ (TRB) Positive Data Line Transmit serial data to and from the XTend Module Assembly

9PWR Power Optional power input that is connected internally

to the front power connector

1, 3, 4, 6, 7 not used

FigureB‐18.

RS‐485(2‐wire)w/Termination(optional)

Terminationisthe120resistorbetweenT+andT‐.



DIPSwitchsettingsarereadandappliedonlywhilepowering‐on.

XTend™RFModule‐ProductManual

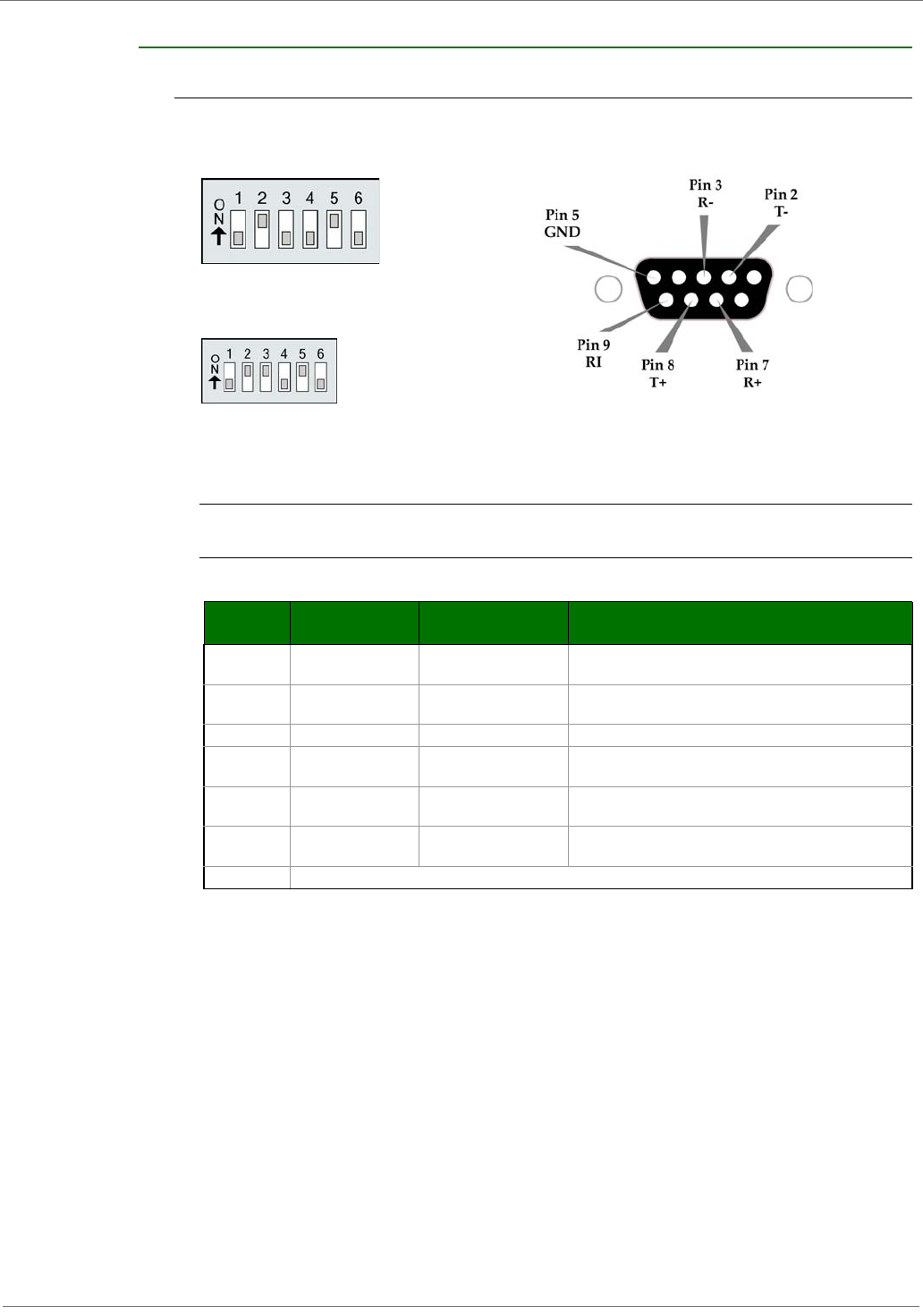

RS-485 (4-wire) & RS-422 Operation

DIP Switch Settings and Serial Port Connections

FigureB‐20. FigureB‐21.

RS‐485(4‐wire)&RS‐422PinsusedonthefemaleRS‐232(DB‐9)

DIPSwitchSettings SerialConnector

Note: Refer to Figures B-09 and B-10 for RJ-45 connector pin designations used in 

RS-485/422 environments.

TableB‐06. RS‐485/422(4‐wire)SignalsandtheirimplementationsontheXTendModuleAssembly

DB-9 Pin RS-485/422

Name Description Implementation

2T- (TA)

Transmit Negative

Data Line Serial data sent from the XTend Module Assembly

3R- (RA)

Receive Negative

Data Line Serial data received by the XTend Module Assembly

5 GND Signal Ground Ground

7 R+ (RB) Receive Positive

Data Line Serial data received by the XTend Module Assembly

8T+ (TB)

Transmit Positive

Data Line Serial data sent from the XTend Module Assembly

9PWR Power Optional power input that is connected internally

to the front power connector

1, 4, 6 not used

FigureB‐22.

RS‐485(4‐wire)&RS‐422w/Termination(optional)

Terminationisthe120resistorbetweenT+andT‐.



DIPSwitchsettingsarereadandappliedonlywhilepowering‐on.

XTend™RFModule‐ProductManual

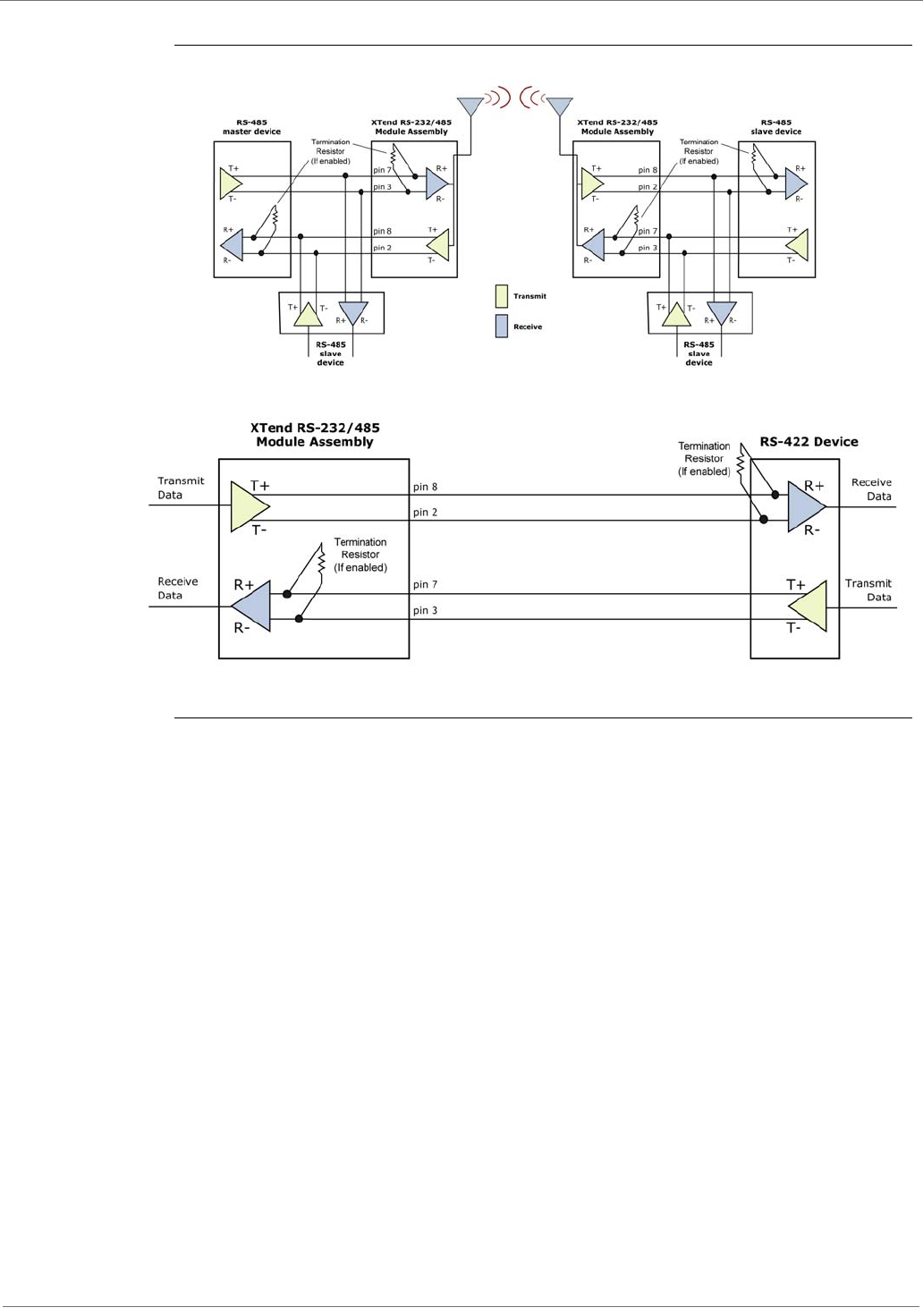

Wiring Diagrams

FigureB‐23.XTendModuleAssemblyinanRS‐485(4‐wire)environment

FigureB‐24.XTendModuleAssemblyinanRS‐422environment

RS-485/422 Connection Guidelines

The RS-485/422 protocol provides a solution for wired communications that can tolerate high

noise and push signals over long cable lengths. RS-485/422 signals can communicate as far as

4000 feet (1200 m). RS-232 signals are suitable for cable distances up to 100 feet (30.5 m).

RS-485 offers multi-drop capability in which up to 32 nodes can be connected. The RS-422

protocol is used for point-to-point communications.

Suggestions for integrating the XTend RF Module with the RS-485/422 protocol:

1. When using Ethernet twisted pair cabling: Select wires so that T+ and T- are connected to

each wire in a twisted pair. Likewise, select wires so that R+ and R- are connected to a

twisted pair. (For example, tie the green and white/green wires to T+ and T-.)

2. For straight-through Ethernet cable (not cross-over cable) - The following wiring pattern

works well: Pin3 to T+, Pin4 to R+, Pin5 to R-, Pin6 to T-

3. Note that the connecting cable only requires 4 wires (even though there are 8 wires).

4. When using phone cabling (RJ-11) - Pin2 in the cable maps to Pin3 on opposite end of

cable and Pin1 maps to Pin4 respectively.

XTend™RFModule‐ProductManual

X-CTU Software

X-CTU is a Digi-provided software program used to interface with and configure Digi RF Modules.

The software application is organized into the following four tabs:

• PC Settings tab - Setup PC serial ports for interfacing with an RF module

• Range Test tab - Test the RF module's range and monitor packets sent and received

• Terminal tab - Set and read RF module parameters using AT Commands

• Modem Configuration tab - Set and read RF module parameters

FigureB‐11. X‐CTUUserInterface(PCSettings,RangeTest,TerminalandModemConfigurationtabs)

NOTE: PC Setting values are visible at the bottom of the Range Test, Terminal and Modem Configura-

tion tabs. A shortcut for editing PC Setting values is available by clicking on any of the values.

Installation

Double-click the "setup_X-CTU.exe" file and follow prompts of the installation screens. This file is

located in the 'software' folder of the Digi CD and also under the 'Downloads' section of the

following web page: www.digi.com/support.

Setup

Serial Communications Software

A terminal program is built into the X-CTU Software. Other terminal programs such as

"HyperTerminal" can also be used to configure modules and monitor communications. When

issuing AT Commands through a terminal program interface, use the following syntax:

FigureB‐12. SyntaxforsendingATCommands

NOTE: To read a parameter value stored in a register, leave the parameter field blank.

The example above issues the DT (Destination Address) command to change destination address

of the module to "0x1F". To save the new value to the module’s non-volatile memory, issue WR

(Write) command after modifying parameters.

To use the X-CTU software, a module assembly (An RF module mounted to an interface Board)

must be connected to a serial port of a PC.

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate mismatch. The

interface data rate and parity settings of the serial port ("PC Settings" tab) must match those of

the module (BD (Baud Rate) and NB (Parity) parameters respectively).

AppendixC:AdditionalInformation

1-Year Warranty

WARRANTY PERIOD: Digi warranties hardware Product for a period of one (1) year.

WARRANTY PROCEDURE: Upon return of the hardware Product Digi will, at its option, repair or

replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts

and replacement Product will be furnished on an exchange basis and will be either reconditioned or

new. All replaced Product and parts become the property of Digi. If Digi determines that the

Product is not under warranty, it will, at the Customers option, repair the Product using current

Digi standard rates for parts and labor, and return the Product FedEx Ground at no charge in or out

of warranty.

XTend™RFModule‐ProductManual

Contact Digi

For the best in wireless data solutions and support, please use the following resources:

Office hours are 8:00 am - 5:00 pm [U.S. Mountain Standard Time]

Documentation: www.digi.com/support

Technical Support: Phone. (866) 765-9885 toll-free U.S.A. & Canada

(801) 765-9885 Worldwide

Email. rf-experts@digi.com

E-support: http://www.digi.com/support/eservice/eser-

vicelogin.jsp

Digi 9XTENDB XTend RF module User Manual product manual XTend OEM RF Module v2 x4x

Digi International Inc XTend RF module product manual XTend OEM RF Module v2 x4x

Contents

Updated User Manual

Navigation menu

Namespaces

Views

Navigation
