Digi PROS2B XBee PRO S2B OEM Module User Manual

Digi International Inc XBee PRO S2B OEM Module

UserManual.wiki >

Digi >

PROS2B User Manual HTML Version

User Manual

Digi International Inc.

11001 Bren Road East

Minnetonka, MN 55343

877 912-3444 or 952 912-3444

http://www.digi.com

XBee®/XBee-PRO® ZB RF Modules

ZigBee RF Modules by Digi International

Models: XBEE2, XBEEPRO2, PRO S2B

Hardware: S2 and S2B

Firmware Versions:

- 20xx - Coordinator - AT/Transparent Operation

- 21xx - Coordinator - API Operation

- 22xx - Router - AT/Transparent Operation

- 23xx - Router - API Operation

- 28xx - End Device - AT/Transparent Operation

- 29xx - End Device - API Operation

90000976_D

11/5/2009

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 2

Nopartofthecontentsofthismanualmaybetransmittedorreproducedinany

formorbyanymeanswithoutthewrittenpermissionofDigiInternational,Inc.

ZigBee®isaregisteredtrademarkoftheZigBeeAlliance.

XBee®andXBee‐PRO®areregisteredtrademarksofDigiInternational,Inc.

Technical Support: Phone: (866) 765-9885 toll-free U.S.A. & Canada

(801) 765-9885 Worldwide

8:00 am - 5:00 pm [U.S. Mountain Time]

Live Chat: www.digi.com

Online Support: http://www.digi.com/support/eservice/login.jsp

Email: rf-experts@digi.com

Contents

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternaitonal,Inc. 3

Overview 6

What's New in 2x7x 6

Firmware 6

Manual 7

Key Features 8

Worldwide Acceptance 8

Specifications 9

Mechanical Drawings 10

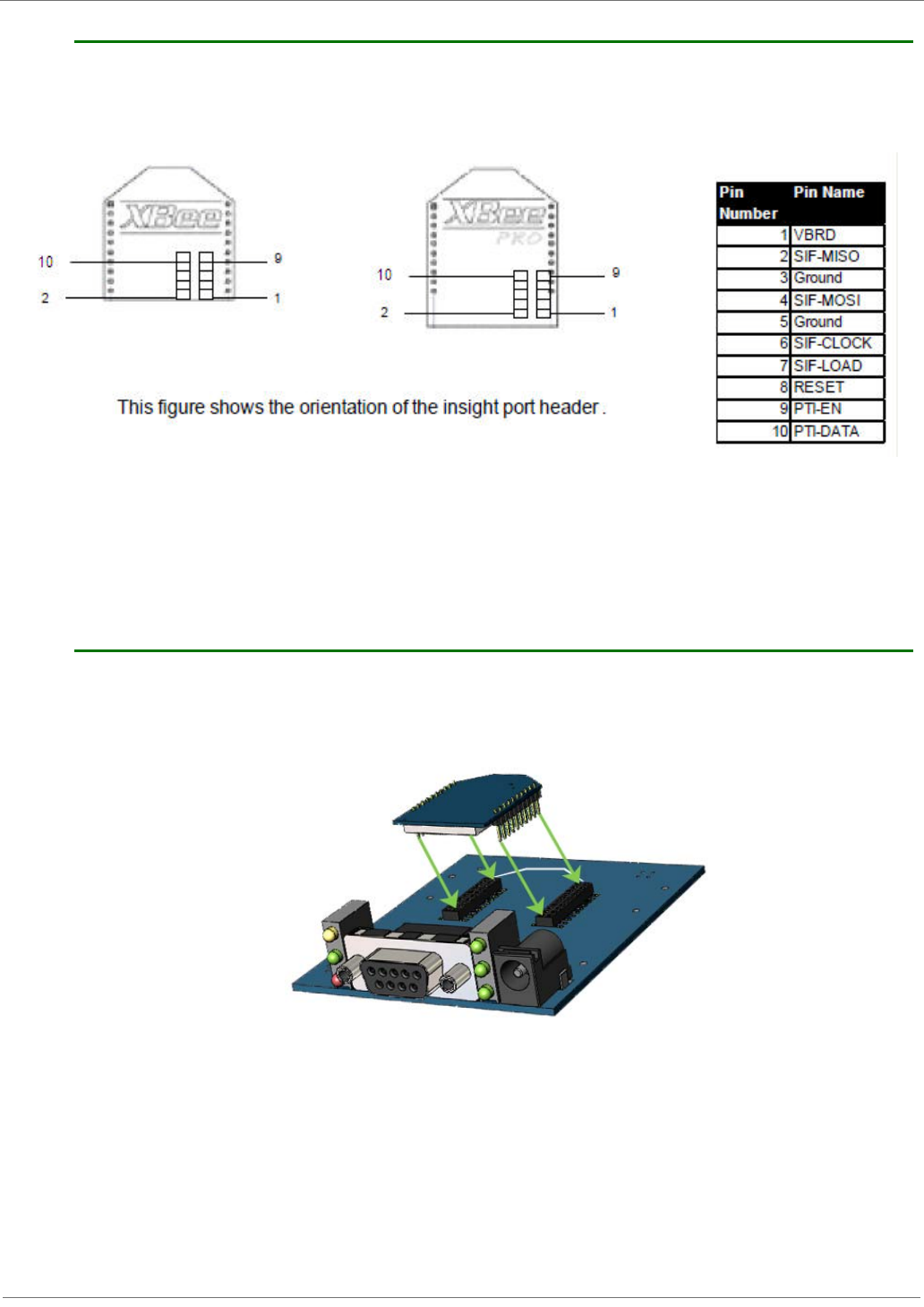

SIF Header Interface 11

Mounting Considerations 11

Pin Signals 12

EM250 Pin Mappings 13

Design Notes 13

Power Supply Design 13

Recommended Pin Connections 13

Board Layout 14

Electrical Characteristics 16

RF Module Operation 17

Serial Communications 17

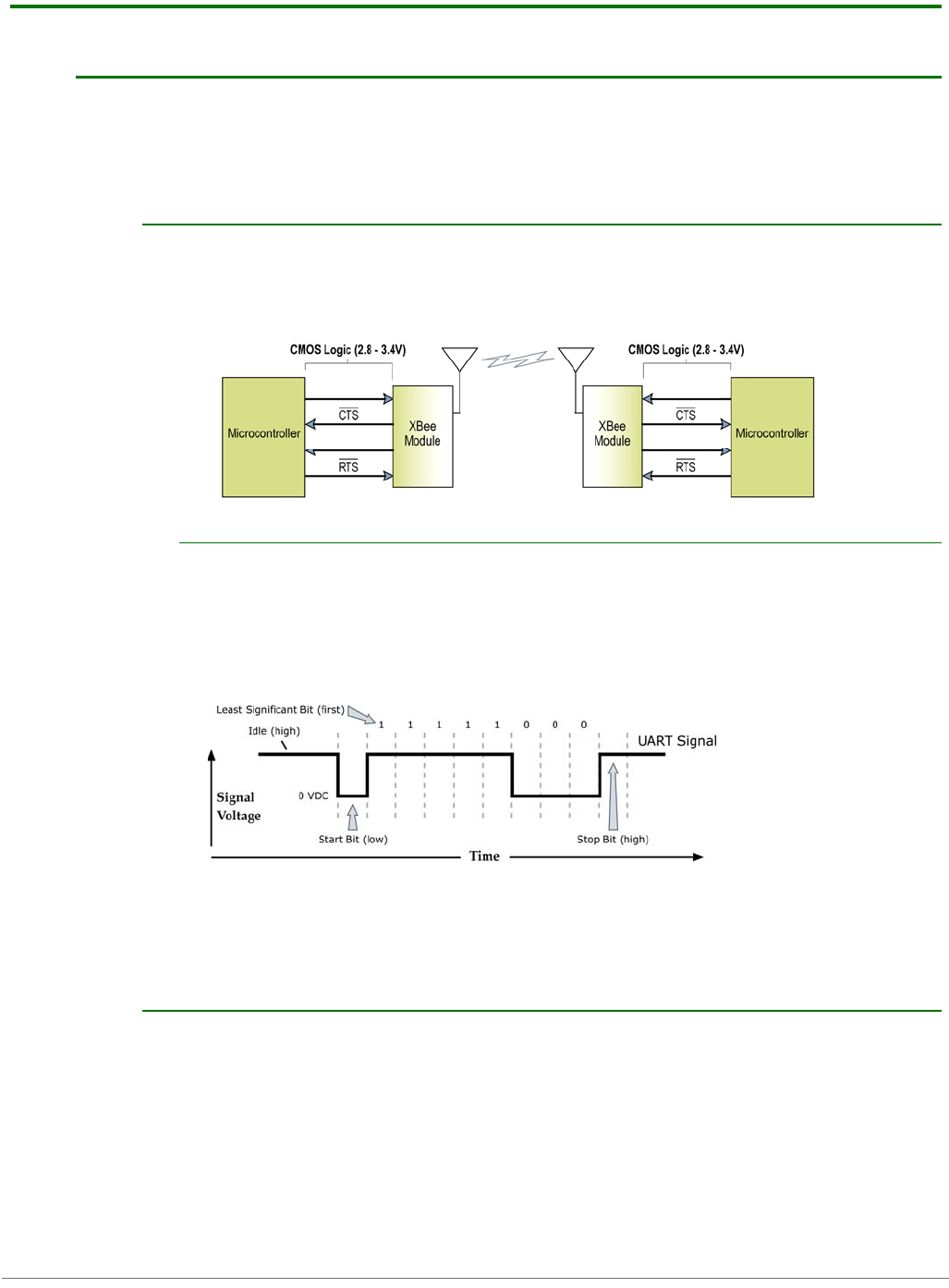

UART Data Flow 17

Serial Buffers 17

Serial Flow Control 18

Serial Interface Protocols 19

Modes of Operation 21

Idle Mode 21

Transmit Mode 21

Receive Mode 22

Command Mode 22

Sleep Mode 23

XBee ZigBee Networks 24

Introduction to ZigBee 24

ZigBee Stack Layers 24

Networking Concepts 24

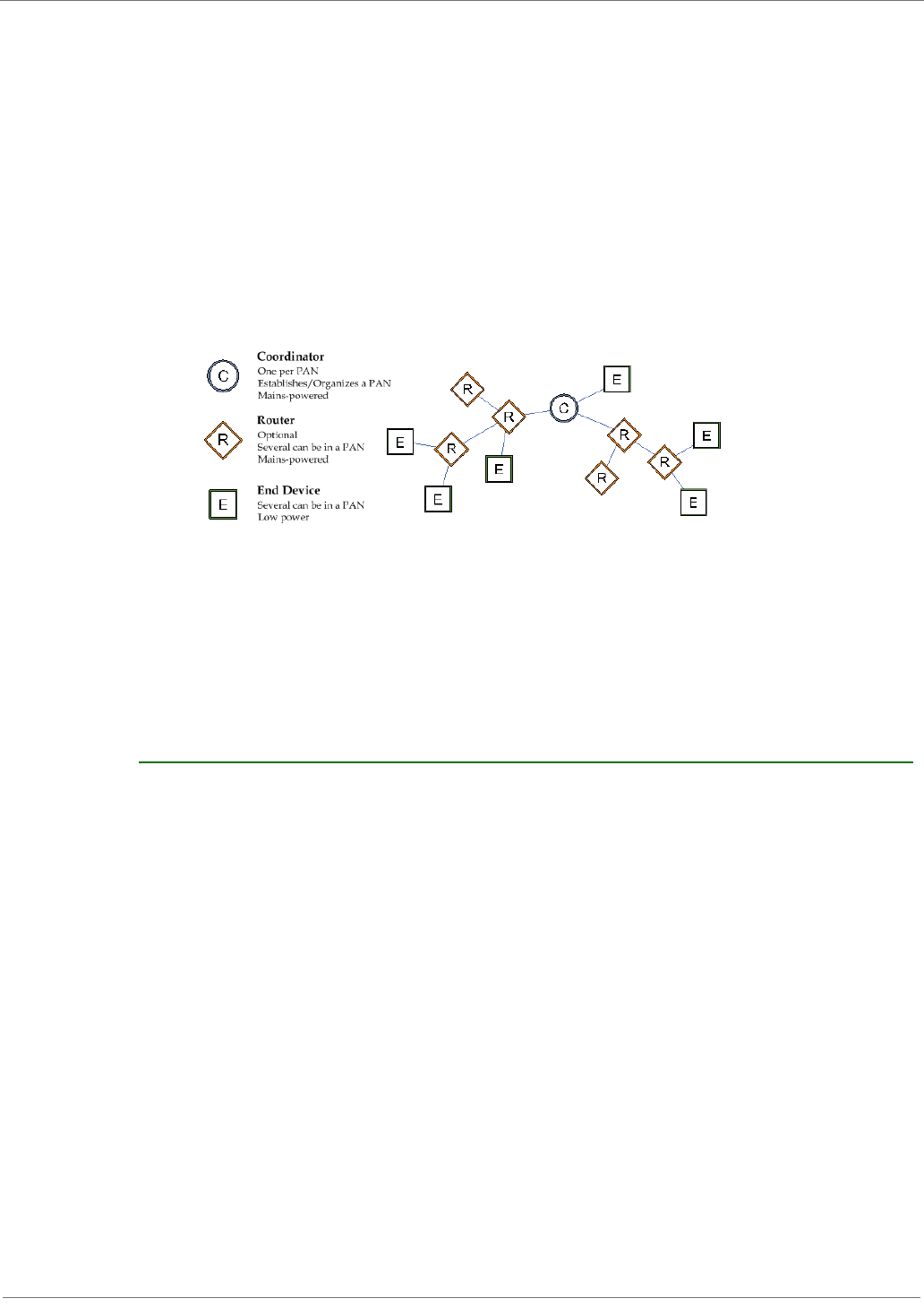

Device Types 24

PAN ID 25

Operating Channel 26

ZigBee Application Layers: In Depth 26

Application Support Sublayer (APS) 26

Application Profiles 26

Coordinator Operation 27

Forming a Network 27

Channel Selection 28

PAN ID Selection 28

Security Policy 28

Persistent Data 28

XBee ZB Coordinator Startup 28

Permit Joining 29

Resetting the Coordinator 29

Leaving a Network 30

Replacing a Coordinator (Security Disabled Only)

Example: Starting a Coordinator 31

Example: Replacing a Coordinator (security dis-

abled) 31

Router Operation 31

Discovering ZigBee Networks 31

Joining a Network 32

Authentication 32

Persistent Data 32

XBee ZB Router Joining 32

Permit Joining 34

Joining Always Enabled 34

Joining Temporarily Enabled 34

Router Network Connectivity 34

Leaving a Network 36

Resetting the Router 37

Example: Joining a Network 37

End Device Operation 37

Discovering ZigBee Networks 37

Joining a Network 38

Parent Child Relationship 38

End Device Capacity 38

Authentication 38

Persistent Data 38

Orphan Scans 39

XBee: ZB End Device Joining 39

Parent Connectivity 40

Resetting the End Device 40

Leaving a Network 40

Example: Joining a Network 41

Channel Scanning 41

Managing Multiple ZigBee Networks 41

PAN ID Filtering 42

Preconfigured Security Keys 42

Permit Joining 42

Application Messaging 42

Data Transmission, Addressing, and Routing 43

Contents

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternaitonal,Inc. 4

Addressing 43

64-bit Device Addresses 43

16-bit Device Addresses 43

Application Layer Addressing 43

Data Transmission 43

Broadcast Transmissions 44

Unicast Transmissions 44

Data Transmission Examples 46

RF Packet Routing 48

Link Status Transmission 48

AODV Mesh Routing 49

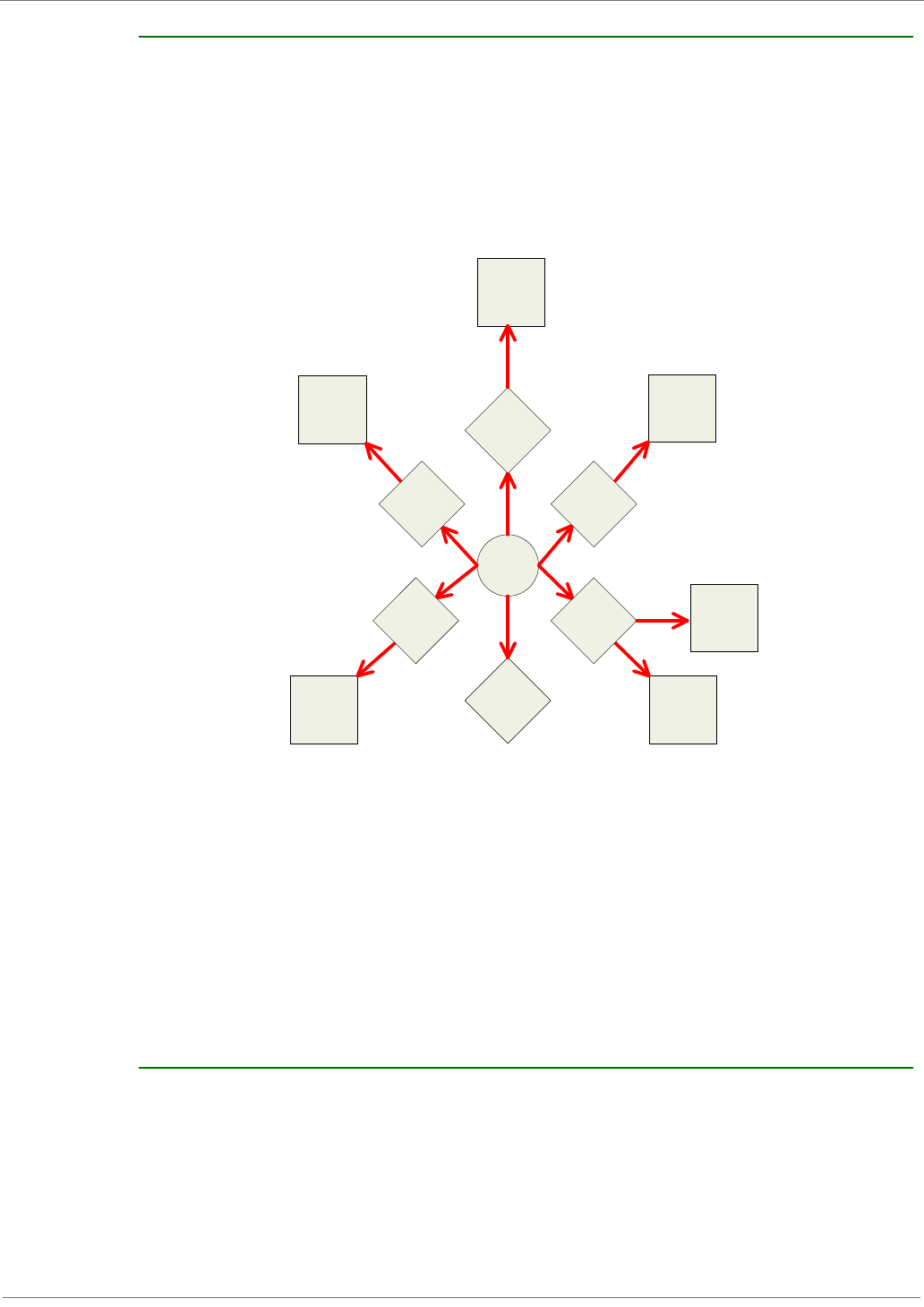

Many-to-One Routing 51

Source Routing 52

Encrypted Transmissions 55

Maximum RF Payload Size 56

Throughput 56

ZDO Transmissions 56

ZigBee Device Objects (ZDO) 57

Sending a ZDO Command 57

Receiving ZDO Commands and Responses 57

Transmission Timeouts 59

Unicast Timeout 59

Extended Timeout 59

Transmission Examples 60

Security 62

Security Modes 62

ZigBee Security Model 62

Network Layer Security 62

Frame Counter 63

Message Integrity Code 63

Network Layer Encryption and Decryption 63

Network Key Updates 64

APS Layer Security 64

Message integrity Code 64

APS Link Keys 64

APS Layer Encryption and Decryption 65

Network and APS Layer Encryption 65

Trust Center 65

Forming and Joining a Secure Network 65

Implementing Security on the XBee 66

Enabling Security 66

Setting the Network Security Key 66

Setting the APS Trust Center Link Key 66

Enabling APS Encryption 66

Using a Trust Center 67

XBee Security Examples 67

Example 1: Forming a network with security

(pre-configured link keys) 67

Example 2: Forming a network with security (ob-

taining keys during joining) 68

Network Commissioning and Diagnostics 69

Device Configuration 69

Device Placement 69

Link Testing 69

RSSI Indicators 70

Device Discovery 70

Network Discovery 70

ZDO Discovery 70

Joining Announce 70

Commissioning Pushbutton and Associate LED

71Commissioning Pushbutton 71

Associate LED 72

Managing End Devices 74

End Device Operation 74

Parent Operation 74

End Device Poll Timeouts 75

Packet Buffer Usage 75

Non-Parent Device Operation 76

XBee End Device Configuration 76

Pin Sleep 76

Cyclic Sleep 78

Transmitting RF Data 81

Receiving RF Data 81

IO Sampling 82

Waking End Devices with the Commissioning

Pushbutton 82

Parent Verification 82

Rejoining 82

XBee Router/Coordinator Configuration 83

RF Packet Buffering Timeout 83

Child Poll Timeout 83

Transmission Timeout 83

Putting it all Together 84

Short Sleep Periods 84

Extended Sleep Periods 84

Sleep Examples 84

Contents

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternaitonal,Inc. 5

XBee Analog and Digital IO Lines 86

IO Configuration 86

IO Sampling 86

Queried Sampling 88

Periodic IO Sampling 88

Change Detection Sampling 88

RSSI PWM 88

IO Examples 89

API Operation 90

API Frame Specifications 90

API Examples 92

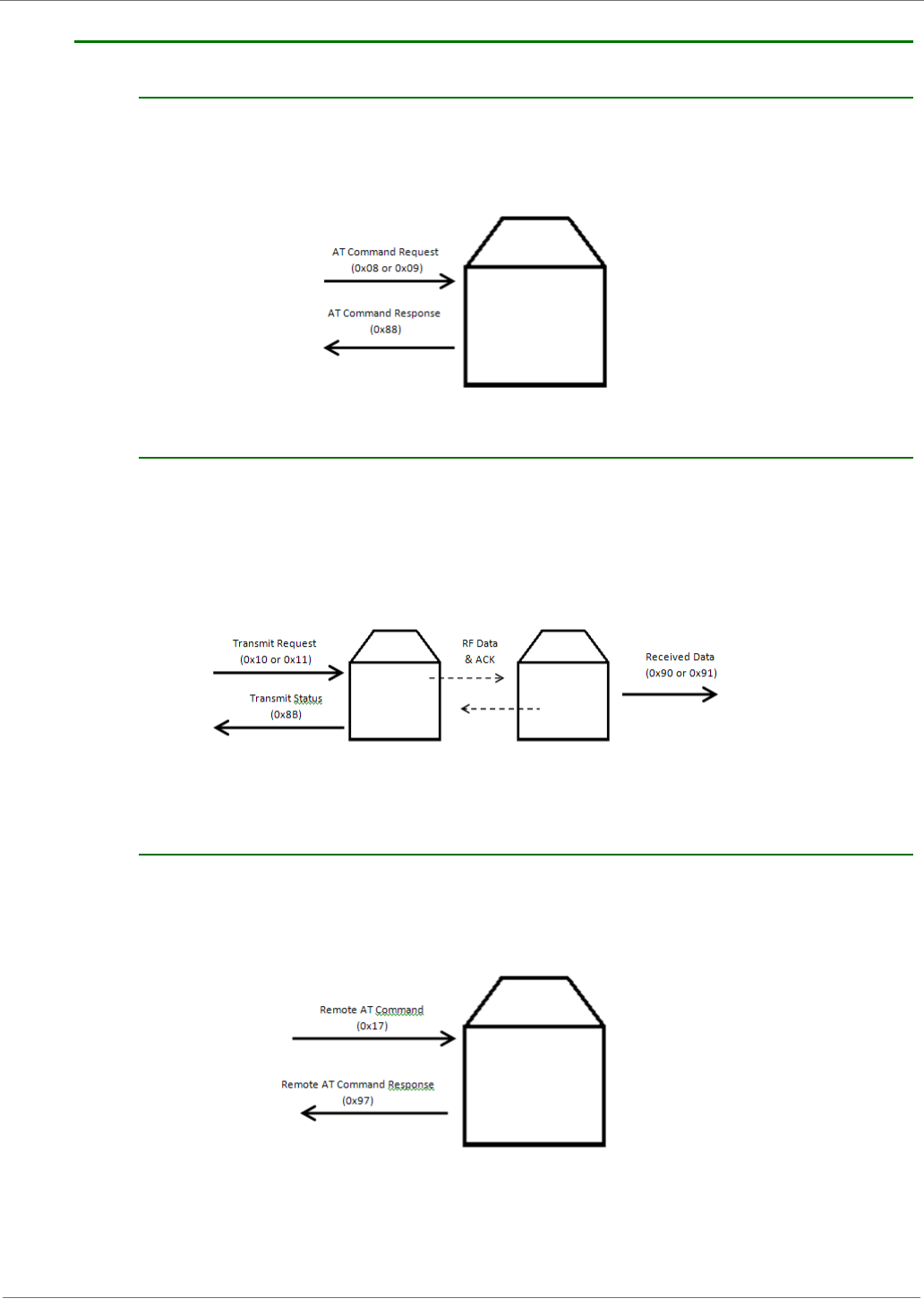

API UART Exchanges 93

AT Commands 93

Transmitting and Receiving RF Data 93

Remote AT Commands 93

Source Routing 94

Supporting the API 94

API Frames 94

AT Command 94

AT Command - Queue Parameter Value 95

ZigBee Transmit Request 95

Explicit Addressing ZigBee Command Frame 97

Remote AT Command Request 99

Create Source Route 100

AT Command Response 101

Modem Status 101

ZigBee Transmit Status 102

ZigBee Receive Packet 103

ZigBee Explicit Rx Indicator 104

ZigBee IO Data Sample Rx Indicator 105

XBee Sensor Read Indicator 106

Node Identification Indicator 108

Remote Command Response 109

Over-the-Air Firmware Update Status 110

Route Record Indicator 111

Many-to-One Route Request Indicator 112

Sending ZigBee Device Objects (ZDO) Com-

mands with the API 113

Sending ZigBee Cluster Library (ZCL) Com-

mands with the API 115

Sending Public Profile Commands with the API

117

XBee Command Reference Tables 118

Module Support 128

X-CTU Configuration Tool 128

Customizing XBee ZB Firmware 128

Design Considerations for Digi Drop-In Net-

working 128

XBee Bootloader 128

Programming XBee Modules 129

Serial Firmware Updates 129

Invoke XBee Bootloader 129

Send Firmware Image 129

SIF Firmware Updates 130

Writing Custom Firmware 130

Regulatory Compliance 130

Enabling GPIO 1 and 2 130

Detecting XBee vs. XBee-PRO 131

Ensuring Optimal Output Power 131

Improving Low Power Current Consumption

132

XBee (non-PRO) Initialization: 132

When sleeping (end devices): 132

When waking from sleep (end devices): 132

Appendix A:Definitions 133

Appendix B: Agency Certifications 135

Appendix C:Migrating from ZNet 2.5 to XBee ZB

143

Appendix D:Additional Information 144

©2009DigiInternational,Inc. 6

1.Overview

This manual describes the operation of the XBee/XBee-

PRO ZB RF module, which consists of ZigBee firmware

loaded onto XBee S2 and S2B hardware, models: XBEE2,

XBEEPRO2 and PRO S2B. The XBee/XBee-PRO ZB RF

Modules are designed to operate within the ZigBee

protocol and support the unique needs of low-cost, low-

power wireless sensor networks. The modules require

minimal power and provide reliable delivery of data

between remote devices.

The modules operate within the ISM 2.4 GHz frequency band and are compatible with the

following:

• XBee RS-232 Adapter

• XBee RS-485 Adapter

• XBee Analog I/O Adapter

• XBee Digital I/O Adapter

• XBee Sensor

• XBee USB Adapter

•XStick

• ConnectPort X Gateways

• XBee Wall Router.

The XBee/XBee-PRO ZB firmware release can be installed on XBee ZNet or ZB modules. The XBee

ZB firmware is based on the EmberZNet 3.x ZigBee PRO Feature Set mesh networking stack, while

the XBee ZNet 2.5 firmware is based on Ember's proprietary "designed for ZigBee" mesh stack

(EmberZNet 2.5.x). ZB and ZNet 2.5 firmware are similar in nature, but not over-the-air

compatible. Devices running ZNet 2.5 firmware cannot talk to devices running the ZB firmware.

What's New in 2x7x

Firmware

XBee/XBee-PRO ZB firmware includes the following new features (compared with 2x6x):

• Using Ember stack version 3.4.1.

• Support for the PRO S2B with temperature compensation and an overvoltage check. Within 15

seconds of the supply voltage exceeding 3.9V, the API will emit a 0x08 modem status (Over-

voltage) message, and then the AT/API versions will do a watchdog reset.

• ZDO passthru added. If AO=3, then ZDO requests which are not supported by the stack will

be passed out the UART.

• An attempt to send an oversized packet (256+ bytes) will result in a Tx Status message with

a status code of 0x74.

• End devices have two speed polling. 7.5 seconds is the slow rate, which switches to the fast

rate to trasact with its parent. When transactions are done, it switches back to the slow rate.

• A new receive option bit (0x40) indicates if the packet came from an end device.

• If the extended timeout option is enabled, then use it because end devices need more time

than routers to ack their packets.

• An option bit (0x01) was added to disable APS retries.

• If an end device has not had its polls answered for 5 secs, it will leave and attempt to rejoin

the network.

• XBee S2B has a new TP command which returns the temperature compensation sensor read-

ing in units if Celsius degrees.

• The PP command returns the power dBm setting when PL4 is selected.

• The PO command sets the slow polling rate on end devices. Range is 1-0x1770 in units of 10

msec (10 msec to 60 sec). Default is 0 which invokes a 100 msec delay.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 7

• Rejoining now can proceed without a NR or NRO command after a Mgmt_Leave_req is pro-

cessed.

• Command ranges were changed for the SC, IR, and LT commands.

• A PAN Id corruption problem was fixed.

See the 2x7x release notes for a complete list of new features and bug fixes at www.digi.com/

support.

Manual

The XBee/XBee-PRO/S2B ZB 2x7x manual includes the following corrections over the 2x6x

manual:

• Descriptions and specification for the PRO S2B.

• SIF Header Interface, pin 8 relabeled as pin 10.

• Pin mappings for pins 22 and 24 updated.

• New modem status codes were added.

• Corrections to the ZigBee Receive Packet description.

• Description changes for the SC, PL, PP, AO, IR, %V, and PO commands.

• Updates to Appendix B.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 8

Key Features

Worldwide Acceptance

FCC Approval (USA) Refer to Appendix A for FCC Requirements.

Systems that contain XBee®/XBee-PRO® ZB RF Modules inherit Digi Certifications.

ISM (Industrial, Scientific & Medical) 2.4 GHz frequency band

Manufactured under ISO 9001:2000 registered standards

XBee®/XBee-PRO® ZB RF Modules are optimized for use in US, Canada, Europe,

Australia, and Japan (contact Digi for complete list of agency approvals).

High Performance, Low Cost

XBee

• Indoor/Urban: up to 133’ (40 m)

• Outdoor line-of-sight: up to 400’ (120 m)

• Transmit Power: 2 mW (3 dBm)

• Receiver Sensitivity: -96 dBm

XBee-PRO (S2)

• Indoor/Urban: up to 300’ (90 m), 200' (60

m) for International variant

• Outdoor line-of-sight: up to 1 mile (1600

m), 2500' (750 m) for International variant

• Transmit Power: 50mW (17dBm), 10mW

(10dBm) for International variant

• Receiver Sensitivity: -102 dBm

XBee-PRO (S2B)

• Indoor/Urban: up to 300’ (90 m), 200' (60

m) for International variant

• Outdoor line-of-sight: up to 1 mile (1600

m), 2500' (750 m) for International variant

• Transmit Power: 68mW (18dBm), 10mW

(10dBm) for International variant

• Receiver Sensitivity: -102 dBm

Advanced Networking & Security

Retries and Acknowledgements

DSSS (Direct Sequence Spread Spectrum)

Each direct sequence channel has over

65,000 unique network addresses available

Point-to-point, point-to-multipoint 

and peer-to-peer topologies supported

Self-routing, self-healing and fault-tolerant

mesh networking

Low Power

XBee

• TX Peak Current: 40 mA (@3.3 V)

• RX Current: 40 mA (@3.3 V)

• Power-down Current: < 1 uA

XBee-PRO (S2)

• TX Peak Current: 295mA (170mA for

international variant)

• RX Current: 45 mA (@3.3 V)

• Power-down Current: < 10 uA

XBee-PRO (S2B)

• TX Peak Current: 205mA (117mA for 

international variant)

• RX Current: 47 mA (@3.3 V)

• Power-down Current: < 10 uA

Easy-to-Use

No configuration necessary for out-of box

RF communications

AT and API Command Modes for 

configuring module parameters

Small form factor

Extensive command set

Free X-CTU Software

(Testing and configuration software)

Free & Unlimited Technical Support

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 9

Specifications

SpecificationsoftheXBee®/XBee‐PRO®ZBRFModule

Specification XBee XBee-PRO (S2) XBee-PRO (S2B)

Performance

Indoor/Urban Range up to 133 ft. (40 m) Up to 300 ft. (90 m), up to 200 ft (60 m)

international variant Up to 300 ft. (90 m), up to 200 ft (60 m)

international variant

Outdoor RF line-of-sight

Range up to 400 ft. (120 m) Up to 1 mile (1600 m), up to 2500 ft

(750 m) international variant Up to 1 mile (1600 m), up to 2500 ft (750 m)

international variant

Transmit Power Output 2mW (+3dBm), boost mode enabled

1.25mW (+1dBm), boost mode

disabled

50mW (+17 dBm)

10mW (+10 dBm) for International

variant

63mW (+18 dBm)

10mW (+10 dBm) for International variant

RF Data Rate 250,000 bps 250,000 bps 250,000 bps

Data Throughput up to 35000 bps (see chapter 4) up to 35000 bps (see chapter 4) up to 35000 bps (see chapter 4)

Serial Interface Data Rate

(software selectable)

1200 bps - 1 Mbps

(non-standard baud rates also

supported)

1200 bps - 1 Mbps

(non-standard baud rates also

supported)

1200 bps - 1 Mbps

(non-standard baud rates also supported)

Receiver Sensitivity -96 dBm, boost mode enabled

-95 dBm, boost mode disabled -102 dBm -102 dBm

Power Requirements

Supply Voltage 2.1 - 3.6 V 3.0 - 3.4 V 2.7 - 3.6 V

Operating Current

(Transmit, max output

power)

40mA (@ 3.3 V, boost mode

enabled)

35mA (@ 3.3 V, boost mode

disabled)

295mA (@3.3 V)

170mA (@3.3 V) international variant

205mA (@3.3 V)

117mA (@3.3 V) international variant

Operating Current

(Receive))

40mA (@ 3.3 V, boost mode

enabled)

38mA (@ 3.3 V, boost mode

disabled)

45 mA (@3.3 V) 47 mA (@3.3 V)

Idle Current (Receiver off) 15mA 15mA 15mA

Power-down Current < 1 uA @ 25oC < 10 uA @ 25oC < 10 uA @ 25oC

General

Operating Frequency

Band ISM 2.4 GHz ISM 2.4 GHz ISM 2.4 GHz

Dimensions 0.960” x 1.087” (2.438cm x 2.761cm) 0.960 x 1.297 (2.438cm x 3.294cm) 0.960 x 1.297 (2.438cm x 3.294cm)

Operating Temperature -40 to 85º C (industrial) -40 to 85º C (industrial) -40 to 85º C (industrial)

Antenna Options Integrated Whip, Chip, RPSMA, or

U.FL Connector Integrated Whip, Chip, RPSMA, or U.FL

Connector Integrated Whip, Integrated PCB, RPSMA,

or U.FL Connector

Networking & Security

Supported Network

Topologies Point-to-point, Point-to-multipoint,

Peer-to-peer, and Mesh Point-to-point, Point-to-multipoint, Peer-

to-peer, and Mesh Point-to-point, Point-to-multipoint, Peer-to-

peer, and Mesh

Number of Channels 16 Direct Sequence Channels 14 Direct Sequence Channels 15 Direct Sequence Channels

Addressing Options PAN ID and Addresses, Cluster IDs

and Endpoints (optional) PAN ID and Addresses, Cluster IDs and

Endpoints (optional) PAN ID and Addresses, Cluster IDs and

Endpoints (optional)

Agency Approvals

United States (FCC Part

15.247) FCC ID: OUR-XBEE2 FCC ID: MCQ-XBEEPRO2 FCC ID: MCQ-PROS2B

Industry Canada (IC) IC: 4214A-XBEE2 IC: 1846A-XBEEPRO2 IC: 1846A-PROS2B

Europe (CE) ETSI ETSI ETSI

Australia C-Tick C-Tick C-Tick

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 10

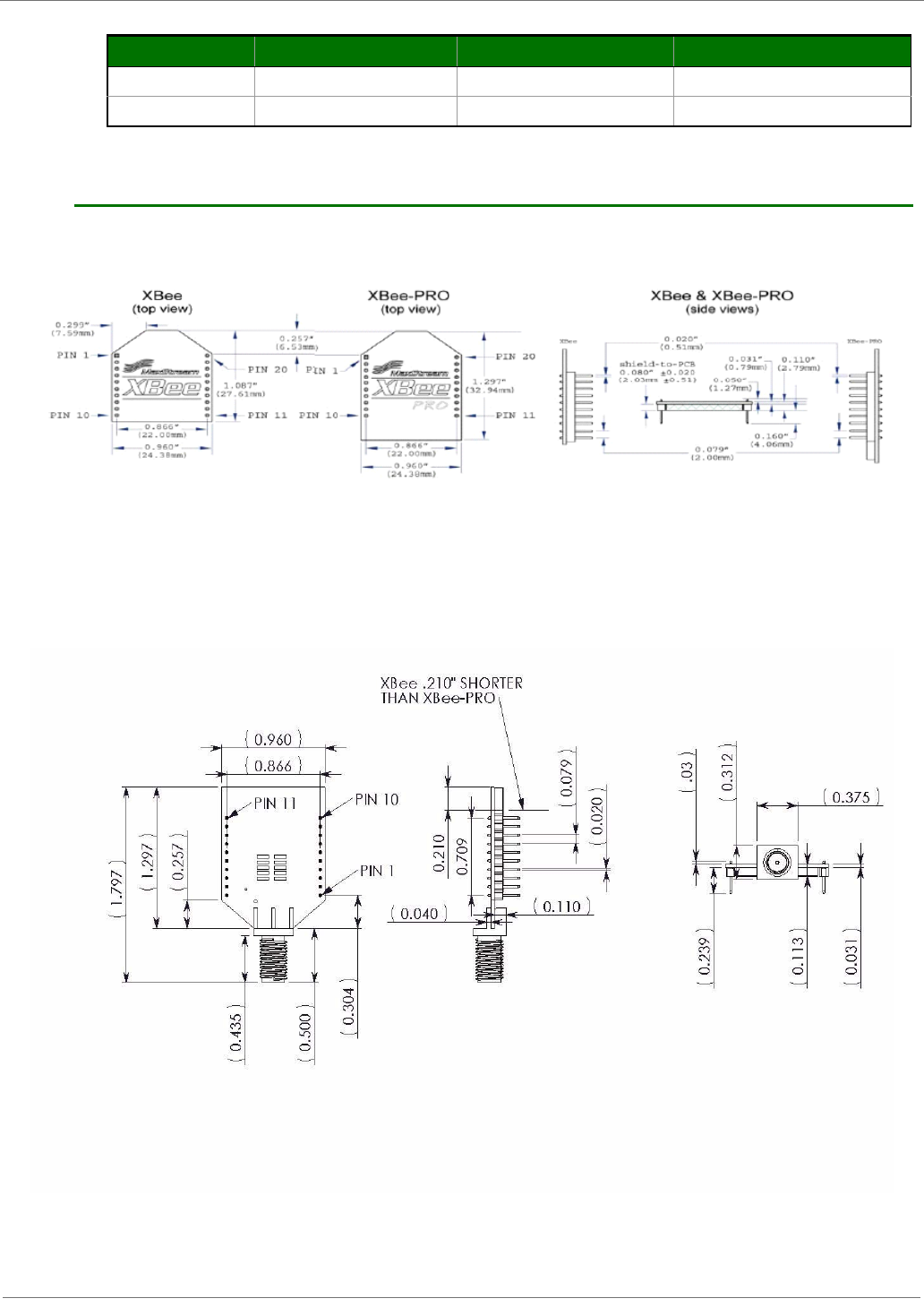

Mechanical Drawings

MechanicaldrawingsoftheXBee®/XBee‐PRO®ZBRFModules(antennaoptionsnotshown)

.

MechanicalDrawingsfortheRPSMAVari an t

Japan R201WW07215215 R201WW08215142

RoHS Compliant Compliant Compliant

SpecificationsoftheXBee®/XBee‐PRO®ZBRFModule

Specification XBee XBee-PRO (S2) XBee-PRO (S2B)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 11

SIF Header Interface

The XBee/XBee-PRO ZB modules include a SIF programming header that can be used with

Ember's programming tools to upload custom firmware images onto the XBee module. The SIF

header orientation and pinout are shown below.

A male header can be populated on the XBee that mates with Ember's 2x5 ribbon cable. The male

header and ribbon cables are available from Samtec:

2x5 Male Header - FTSH-105-01-F-DV-K

2x5 Ribbon Cable - FFSD-05-D-12.00-01-N

Mounting Considerations

The XBee modules were designed to mount into a receptacle (socket) and therefore does not

require any soldering when mounting it to a board. The XBee-PRO Development Kits contain RS-

232 and USB interface boards which use two 20-pin receptacles to receive modules.

XBee‐PROModuleMountingtoanRS‐232InterfaceBoard.

The receptacles used on Digi development boards are manufactured by Century Interconnect.

Several other manufacturers provide comparable mounting solutions; however, Digi currently uses

the following receptacles:

• Through-hole single-row receptacles - 

Samtec P/N: MMS-110-01-L-SV (or equivalent)

• Through-hole single-row receptacles - 

Mill-Max P/N: 831-43-0101-10-001000

• Surface-mount double-row receptacles - 

Century Interconnect P/N: CPRMSL20-D-0-1 (or equivalent)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 12

• Surface-mount single-row receptacles - 

Samtec P/N: SMM-110-02-SM-S

Digi also recommends printing an outline of the module on the board to indicate the orientation the

module should be mounted.

Pin Signals

XBee®/XBee‐PRO®ZBRFModulePinNumber

(topsidesshown‐shieldsonbottom)

• Signal Direction is specified with respect to the module

• See Design Notes section below for details on pin connections.

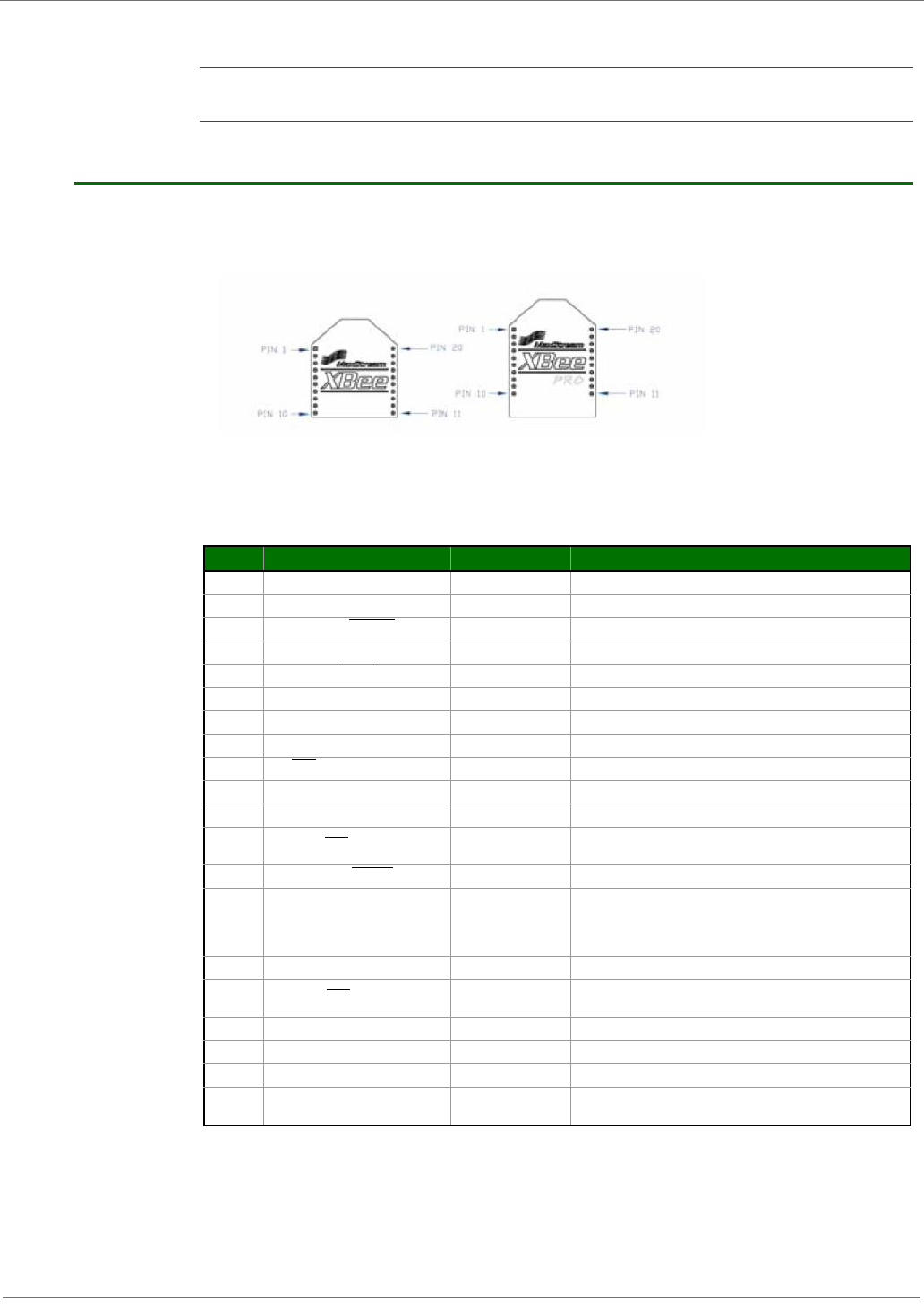

PinAssignmentsfortheXBee‐PROModules

(Low‐assertedsignalsaredistinguishedwithahorizontallineabovesignalname.)

Pin # Name Direction Description

1 VCC - Power supply

2 DOUT Output UART Data Out

3 DIN / CONFIG Input UART Data In

4 DIO12 Either Digital I/O 12

5RESET Input Module Reset (reset pulse must be at least 200 ns)

6 RSSI PWM / DIO10 Either RX Signal Strength Indicator / Digital IO

7 DIO11 Either Digital I/O 11

8 [reserved] - Do not connect

9DTR

/ SLEEP_RQ/ DIO8 Either Pin Sleep Control Line or Digital IO 8

10 GND - Ground

11 DIO4 Either Digital I/O 4

12 CTS / DIO7 Either Clear-to-Send Flow Control or Digital I/O 7. CTS, if enabled, is

an output.

13 ON / SLEEP Output Module Status Indicator or Digital I/O 9

14 VREF Input

Not used on this module. For compatibility with other XBee

modules, we recommend connecting this pin to a voltage

reference if Analog sampling is desired. Otherwise, connect to

GND.

15 Associate / DIO5 Either Associated Indicator, Digital I/O 5

16 RTS / DIO6 Either Request-to-Send Flow Control, Digital I/O 6. RTS, if enabled, is

an input.

17 AD3 / DIO3 Either Analog Input 3 or Digital I/O 3

18 AD2 / DIO2 Either Analog Input 2 or Digital I/O 2

19 AD1 / DIO1 Either Analog Input 1 or Digital I/O 1

20 AD0 / DIO0 / Commissioning

Button Either Analog Input 0, Digital IO 0, or Commissioning Button

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 13

EM250 Pin Mappings

The following table shows how the EM250 pins are used on the XBee.

Design Notes

The XBee modules do not specifically require any external circuitry or specific connections for

proper operation. However, there are some general design guidelines that are recommended for

help in troubleshooting and building a robust design.

Power Supply Design

Poor power supply can lead to poor radio performance especially if the supply voltage is not kept

within tolerance or is excessively noisy. To help reduce noise a 1uF and 8.2pF capacitor are

recommended to be placed as near to pin1 on the PCB as possible. If using a switching regulator

for your power supply, switching frequencies above 500kHz are preferred. Power supply ripple

should be limited to a maximum 250mV peak to peak.

Recommended Pin Connections

The only required pin connections are VCC, GND, DOUT and DIN. To support serial firmware

updates, VCC, GND, DOUT, DIN, RTS, and DTR should be connected.

EM250 Pin Number XBee Pin Number Other Usage

13 (Reset) 5 Connected to pin 8 on 2x5 SIF header.

19 (GPIO 11) 16

20 (GPIO 12) 12

21 (GPIO 0) 15

22 (GPIO 1)

XBee

Tied to ground (module identification)

XBee-PRO (S2)

Low-asserting shutdown line for output power compensation circuitry.

XBee-PRO (S2B)

Used to communicate with Temp Sensor and control Shutdown for low power mode.

24 (GPIO 2)

XBee

Not connected. Configured as output low.

XBee-PRO (S2)

Powers the output power compensation circuitry.

XBee-PRO (S2B)

Used to communicate with Temp Sensor and control Shutdown for low power mode.

25 (GPIO 3) 13

26 (GPIO 4 / ADC 0) 20 Connected to pin 9 on 2x5 SIF header.

27 (GPIO 5 / ADC 1) 19 Connected to pin 10 on 2x5 SIF header.

29 (GPIO 6 /ADC 2) 18

30 (GPIO 7 / ADC 3 17

31 (GPIO 8) 4

32 (GPIO 9) 2

33 (GPIO 10) 3

34 (SIF_CLK) Connected to pin 6 on 2x5 SIF header.

35 (SIF_MISO) Connected to pin 2 on 2x5 SIF header.

36 (SIF_MOSI) Connected to pin 4 on 2x5 SIF header.

37 (SIF_LOAD) Connected to pin 7 on 2x5 SIF header.

40 (GPIO 16) 7

41 (GPIO 15) 6

42 (GPIO 14) 9

43 (GPIO 13) 11

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 14

All unused pins should be left disconnected. All inputs on the radio can be pulled high with 30k

internal pull-up resistors using the PR software command. No specific treatment is needed for

unused outputs.

For applications that need to ensure the lowest sleep current, inputs should never be left floating.

Use internal or external pull-up or pull-down resistors, or set the unused I/O lines to outputs.

Other pins may be connected to external circuitry for convenience of operation including the

Associate LED pin (pin 15) and the Commissioning pin (pin 20). The Associate LED pin will flash

differently depending on the state of the module to the network, and a pushbutton attached to pin

20 can enable various join functions without having to send UART commands. Please see the

commissioning pushbutton and associate LED section in chapter 7 for more details. The source

and sink capabilities are limited to 4mA for all pins on the module.

The VRef pin (pin 14) is not used on this module. For compatibility with other XBee modules, we

recommend connecting this pin to a voltage reference if analog sampling is desired. Otherwise,

connect to GND.

Board Layout

XBee modules do not have any specific sensitivity to nearby processors, crystals or other PCB

components. Other than mechanical considerations, no special PCB placement is required for

integrating XBee radios except for those with integral antennas. In general, Power and GND traces

should be thicker than signal traces and be able to comfortably support the maximum currents.

The radios are also designed to be self sufficient and work with the integrated and external

antennas without the need for additional ground planes on the host PCB. However, considerations

should be taken on the choice of antenna and antenna location. Metal objects that are near an

antenna cause reflections and may reduce the ability for an antenna to efficiently radiate. Using an

integral antenna (like a wire whip antenna) in an enclosed metal box will greatly reduce the range

of a radio. For this type of application an external antenna would be a better choice.

External antennas should be positioned away from metal objects as much as possible. Metal

objects next to the antenna or between transmitting and receiving antennas can often block or

reduce the transmission distance. Some objects that are often overlooked are metal poles, metal

studs or beams in structures, concrete (it is usually reinforced with metal rods), metal enclosures,

vehicles, elevators, ventilation ducts, refrigerators and microwave ovens.

Wire Whip Antennas should be straight and perpendicular to the ground plane and/or chassis. It

should reside above or away from any metal objects like batteries, tall electrolytic capacitors or

metal enclosures. If the antenna is bent to fit into a tight space, it should be bent so that as much

of the antenna as possible is away from metal. Caution should be used when bending the antenna,

since this will weaken the solder joint where the antenna connects to the module. Antenna

elements radiate perpendicular to the direction they point. Thus a vertical antenna emits across

the horizon.

Embedded or Chip Antennas should not have any ground planes or metal objects above or below

the module at the antenna location. For best results the module should be in a plastic enclosure,

instead of metal one. It should be placed at the edge of the PCB to which it is mounted. The

ground, power and signal planes should be vacant immediately below the antenna section (See

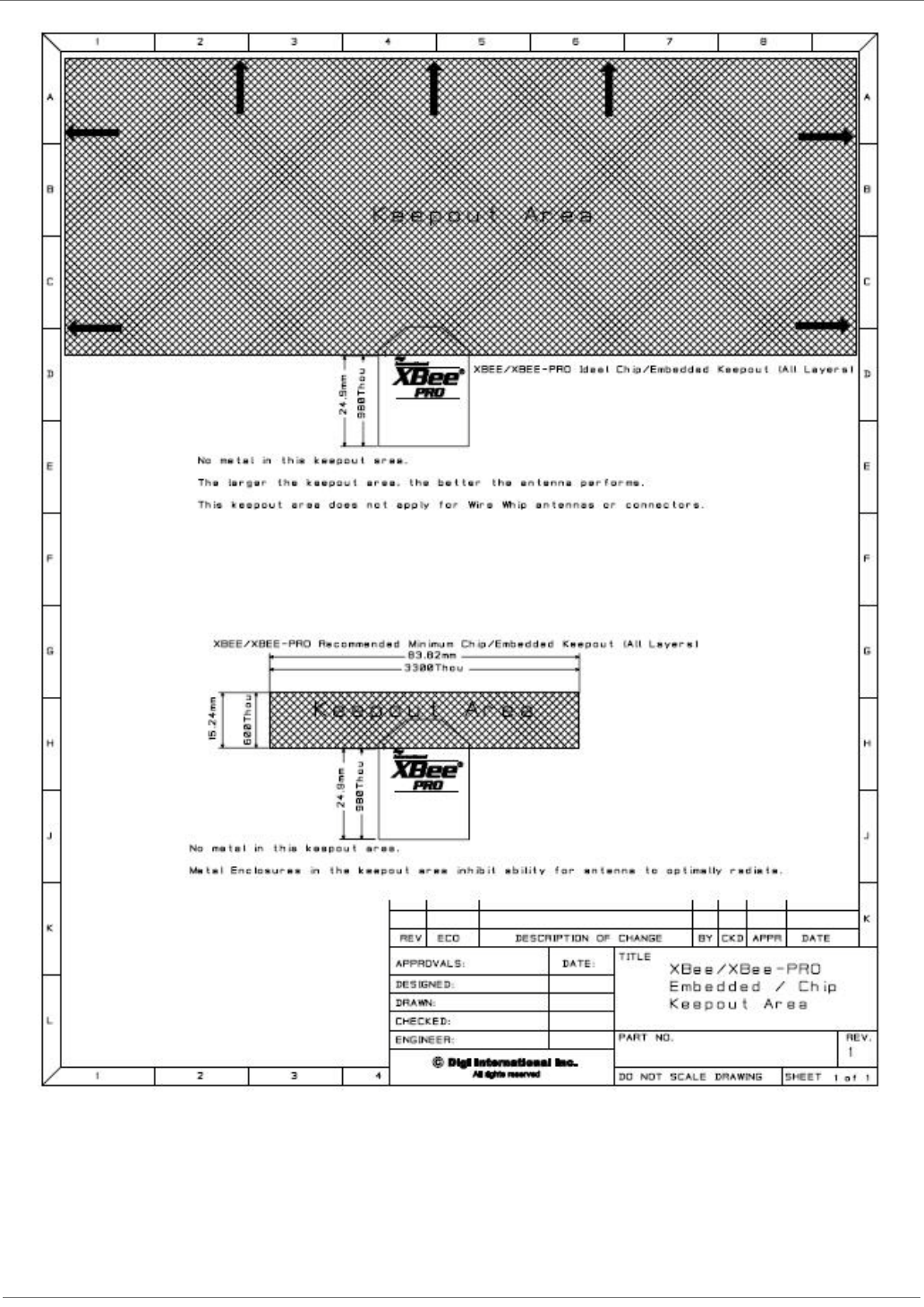

drawing for recommended keepout area).

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 15

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 16

Electrical Characteristics

DCCharacteristicsoftheXBee/XBee‐PRO

Symbol Parameter Condition Min Typical Max Units

VIL Input Low Voltage All Digital Inputs - - 0.2 * VCC V

VIH Input High Voltage All Digital Inputs 0.8 * VCC - - V

VOL Output Low Voltage VCC >= 2.7 V - - 0.18*VCC V

VOH Output High Voltage VCC >= 2.7 V 0.82*VCC - - V

IIIN Input Leakage Current VIN = VCC or GND, all inputs, per pin - - 0.5uA uA

IOHS Output source current (standard) All digital outputs except

RSSI/PWM, DIO10, DIO4 4mA

IOHH Output source current (high

current) RSSI/PWM, DIO10, DIO4 digital outputs 8 mA

IOLS Output sink current (standard All digital inputs except

RSSI/PWM, DIO10, DIO4 4mA

IOLH Output sink current (high current) RSSI/PWM, DIO10, DIO4 digital outputs 8 mA

IOH + IOL Total output current for all I/O pins All digital outputs 40 mA

©2009DigiInternational,Inc. 17

2.RFModuleOperation

Serial Communications

The XBee RF Modules interface to a host device through a logic-level asynchronous serial port.

Through its serial port, the module can communicate with any logic and voltage compatible UART;

or through a level translator to any serial device (for example: through a RS-232 or USB interface

board).

UART Data Flow

Devices that have a UART interface can connect directly to the pins of the RF module as shown in

the figure below.

SystemDataFlowDiagraminaUART‐interfacedenvironment

(Low‐assertedsignalsdistinguishedwithhorizontallineoversignalname.)

Serial Data

Data enters the module UART through the DIN (pin 3) as an asynchronous serial signal. The signal

should idle high when no data is being transmitted.

Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a stop bit

(high). The following figure illustrates the serial bit pattern of data passing through the module.

UARTdatapacket0x1F(decimalnumberʺ31ʺ)astransmittedthroughtheRFmodule

ExampleDataFormatis8‐N‐1(bits‐parity‐#ofstopbits)

Serial communications depend on the two UARTs (the microcontroller's and the RF module's) to be

configured with compatible settings (baud rate, parity, start bits, stop bits, data bits).

The UART baud rate, parity, and stop bits settings on the XBee module can be configured with the

BD, NB, and SB commands respectively. See the command table in chapter 10 for details.

Serial Buffers

The XBee modules maintain small buffers to collect received serial and RF data, which is illustrated

in the figure below. The serial receive buffer collects incoming serial characters and holds them

until they can be processed. The serial transmit buffer collects data that is received via the RF link

that will be transmitted out the UART.

DIN (data in) DIN (data in)

DOUT (data out) DOUT (data out)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 18

TInternalDataFlowDiagram

Serial Receive Buffer

When serial data enters the RF module through the DIN Pin (pin 3), the data is stored in the serial

receive buffer until it can be processed. Under certain conditions, the module may not be able to

process data in the serial receive buffer immediately. If large amounts of serial data are sent to

the module, CTS flow control may be required to avoid overflowing the serial receive buffer.

Cases in which the serial receive buffer may become full and possibly overflow:

1.If the module is receiving a continuous stream of RF data, the data in the serial receive buffer

will not be transmitted until the module is no longer receiving RF data.

2.If the module is transmitting an RF data packet, the module may need to discover the desti-

nation address or establish a route to the destination. After transmitting the data, the module

may need to retransmit the data if an acknowledgment is not received, or if the transmission is

a broadcast. These issues could delay the processing of data in the serial receive buffer.

Serial Transmit Buffer

When RF data is received, the data is moved into the serial transmit buffer and sent out the UART.

If the serial transmit buffer becomes full enough such that all data in a received RF packet won’t fit

in the serial transmit buffer, the entire RF data packet is dropped.

Cases in which the serial transmit buffer may become full resulting in dropped RF

packets

1. If the RF data rate is set higher than the interface data rate of the module, the module

could receive data faster than it can send the data to the host.

2. If the host does not allow the module to transmit data out from the serial transmit buffer

because of being held off by hardware flow control.

Serial Flow Control

The RTS and CTS module pins can be used to provide RTS and/or CTS flow control. CTS flow

control provides an indication to the host to stop sending serial data to the module. RTS flow

control allows the host to signal the module to not send data in the serial transmit buffer out the

uart. RTS and CTS flow control are enabled using the D6 and D7 commands.

CTS Flow Control

If CTS flow control is enabled (D7 command), when the serial receive buffer is 17 bytes away from

being full, the module de-asserts CTS (sets it high) to signal to the host device to stop sending

serial data. CTS is re-asserted after the serial receive buffer has 34 bytes of space.

Serial

Receiver

Buffer

RF TX

Buffer Transmitter

RF Switch

Antenna

Port

Receiver

Serial Transmit

Buffer

RF RX

Buffer

Processor

DIN

DOUT

CTS

RTS

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 19

RTS Flow Control

If RTS flow control is enabled (D6 command), data in the serial transmit buffer will not be sent out

the DOUT pin as long as RTS is de-asserted (set high). The host device should not de-assert RTS

for long periods of time to avoid filling the serial transmit buffer. If an RF data packet is received,

and the serial transmit buffer does not have enough space for all of the data bytes, the entire RF

data packet will be discarded.

Note: If the XBee is sending data out the UART when RTS is de-asserted (set high), the XBee

could send up to 5 characters out the UART after RTS is de-asserted.

Serial Interface Protocols

The XBee modules support both transparent and API (Application Programming Interface) serial

interfaces.

Transparent Operation

When operating in transparent mode, the modules act as a serial line replacement. All UART data

received through the DIN pin is queued up for RF transmission. When RF data is received, the data

is sent out through the DOUT pin. The module configuration parameters are configured using the

AT command mode interface.

Data is buffered in the serial receive buffer until one of the following causes the data to be

packetized and transmitted:

• No serial characters are received for the amount of time determined by the RO (Packetization

Timeout) parameter. If RO = 0, packetization begins when a character is received.

• The Command Mode Sequence (GT + CC + GT) is received. Any character buffered in the

serial receive buffer before the sequence is transmitted.

• The maximum number of characters that will fit in an RF packet is received.

RF modules that contain the following firmware versions will support Transparent Mode: 

20xx (AT coordinator), 22xx (AT router), and 28xx (AT end device).

API Operation

API operation is an alternative to transparent operation. The frame-based API extends the level to

which a host application can interact with the networking capabilities of the module. When in API

mode, all data entering and leaving the module is contained in frames that define operations or

events within the module.

Transmit Data Frames (received through the DIN pin (pin 3)) include:

• RF Transmit Data Frame

• Command Frame (equivalent to AT commands)

Receive Data Frames (sent out the DOUT pin (pin 2)) include:

• RF-received data frame

• Command response

• Event notifications such as reset, associate, disassociate, etc.

The API provides alternative means of configuring modules and routing data at the host

application layer. A host application can send data frames to the module that contain address and

payload information instead of using command mode to modify addresses. The module will send

data frames to the application containing status packets; as well as source, and payload

information from received data packets.

The API operation option facilitates many operations such as the examples cited below:

->Transmitting data to multiple destinations without entering Command Mode

->Receive success/failure status of each transmitted RF packet

->Identify the source address of each received packet

RF modules that contain the following firmware versions will support API operation: 21xx (API

coordinator), 23xx (API router), and 29xx (API end device).

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 20

A Comparison of Transparent and API Operation

The following table compares the advantages of transparent and API modes of operation:

As a general rule of thumb, API firmware is recommended when a device:

• sends RF data to multiple destinations

• sends remote configuration commands to manage devices in the network

• receives IO samples from remote devices

• receives RF data packets from multiple devices, and the application needs to know which

device sent which packet

• must support multiple ZigBee endpoints, cluster IDs, and/or profile IDs

• uses the ZigBee Device Profile services.

If the above conditions do not apply (e.g. a sensor node, router, or a simple application), then AT

firmware might be suitable. It is acceptable to use a mixture of devices running API and AT

firmware in a network.

Transparent Operation Features

Simple Interface All received serial data is transmitted unless the module is in command mode.

Easy to support It is easier for an application to support transparent operation and command mode

API Operation Features

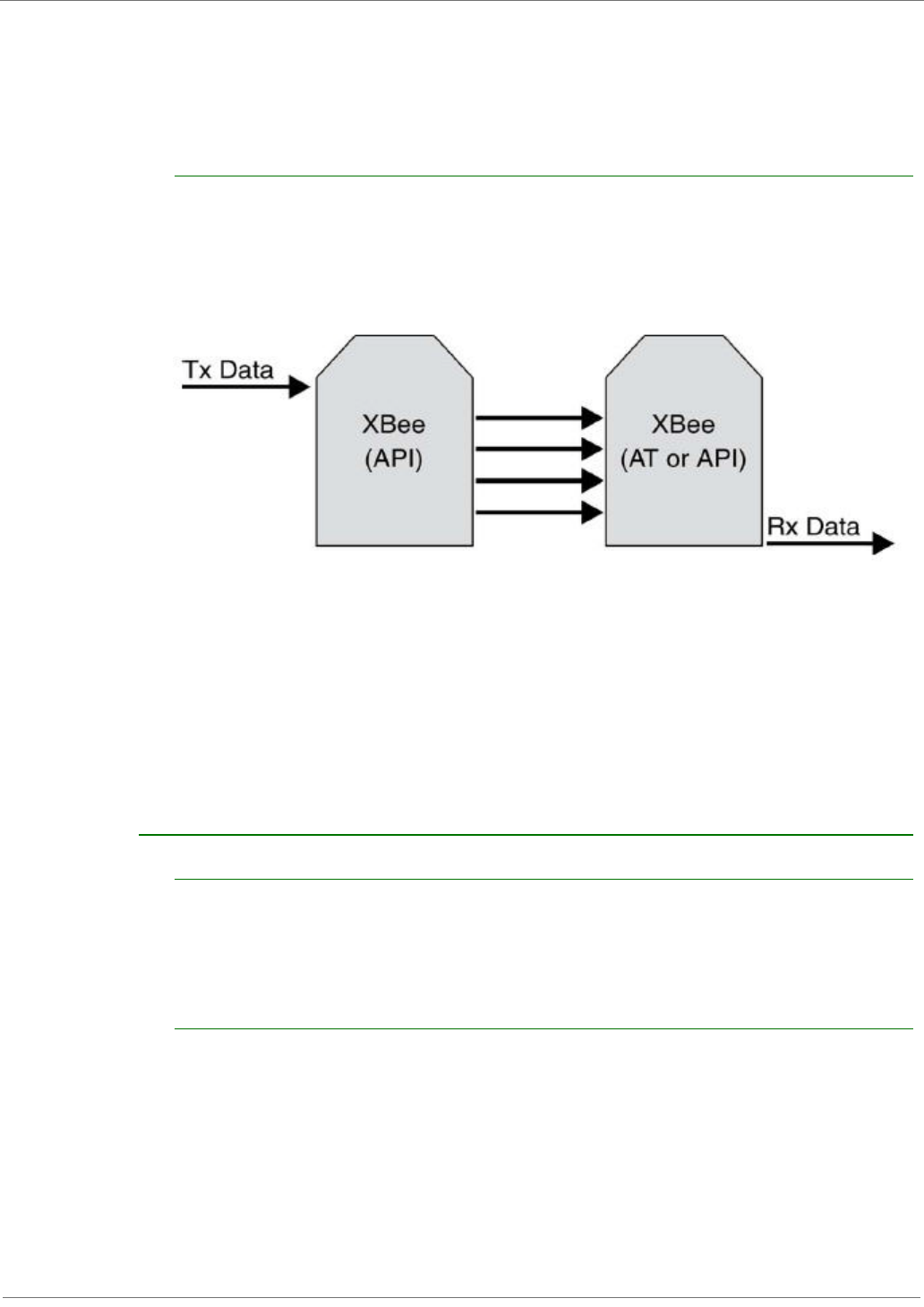

Easy to manage data

transmissions to multiple

destinations

Transmitting RF data to multiple remotes only requires changing the address in the API frame. This

process is much faster than in transparent operation where the application must enter AT command

mode, change the address, exit command mode, and then transmit data.

Each API transmission can return a transmit status frame indicating the success or reason for

failure.

Received data frames

indicate the sender's

address All received RF data API frames indicate the source address.

Advanced ZigBee

addressing support

API transmit and receive frames can expose ZigBee addressing fields including source and

destination endpoints, cluster ID and profile ID. This makes it easy to support ZDO commands and

public profile traffic.

Advanced networking

diagnostics API frames can provide indication of IO samples from remote devices, and node identification

messages.

Remote Configuration Set / read configuration commands can be sent to remote devices to configure them as needed

using the API.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 21

Modes of Operation

Idle Mode

When not receiving or transmitting data, the RF module is in Idle Mode. The module shifts into the

other modes of operation under the following conditions:

• Transmit Mode (Serial data in the serial receive buffer is ready to be packetized)

• Receive Mode (Valid RF data is received through the antenna)

• Sleep Mode (End Devices only)

• Command Mode (Command Mode Sequence is issued)

Transmit Mode

When serial data is received and is ready for packetization, the RF module will exit Idle Mode and

attempt to transmit the data. The destination address determines which node(s) will receive the

data.

Prior to transmitting the data, the module ensures that a 16-bit network address and route to the

destination node have been established.

If the destination 16-bit network address is not known, network address discovery will take place.

If a route is not known, route discovery will take place for the purpose of establishing a route to

the destination node. If a module with a matching network address is not discovered, the packet is

discarded. The data will be transmitted once a route is established. If route discovery fails to

establish a route, the packet will be discarded.

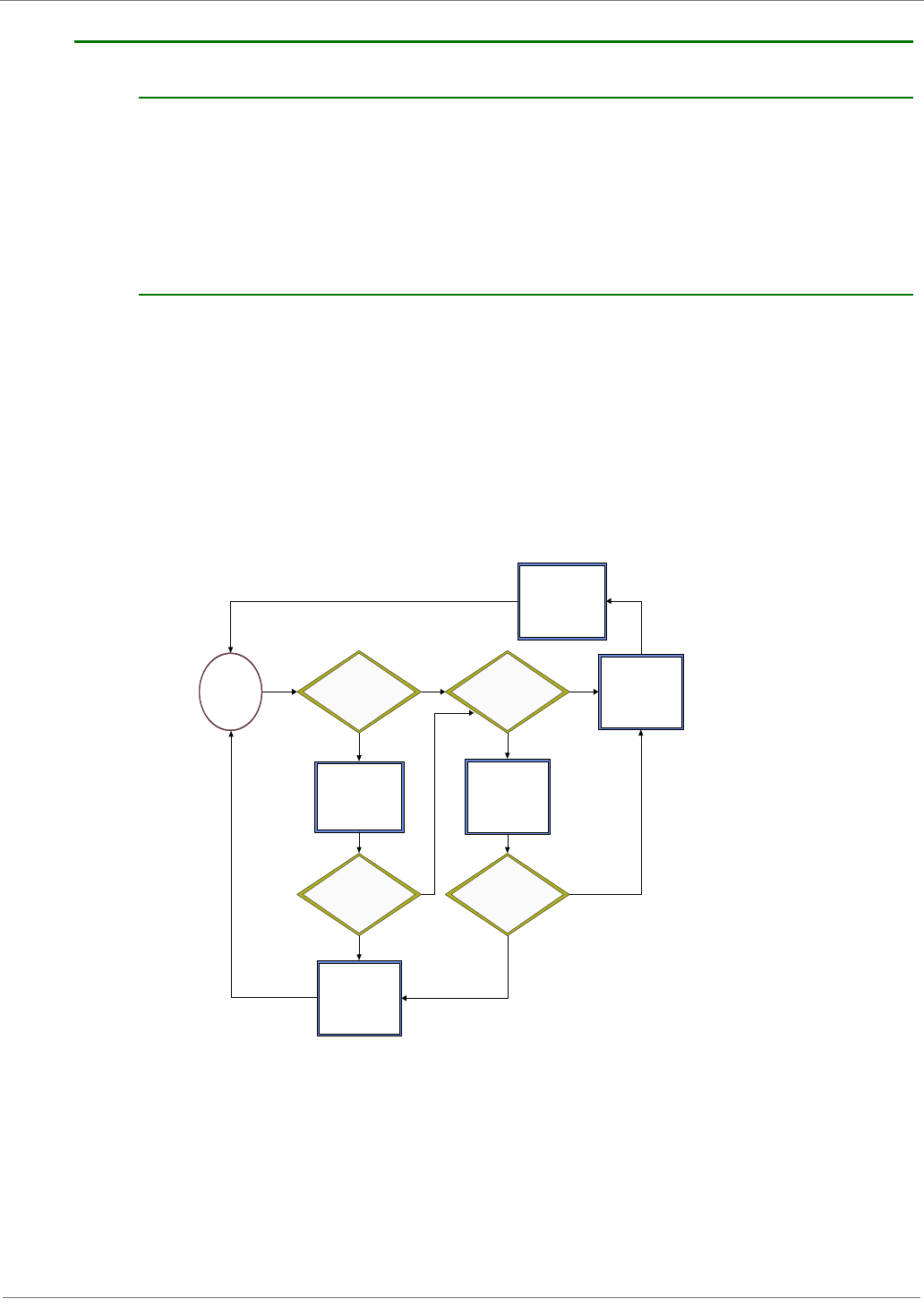

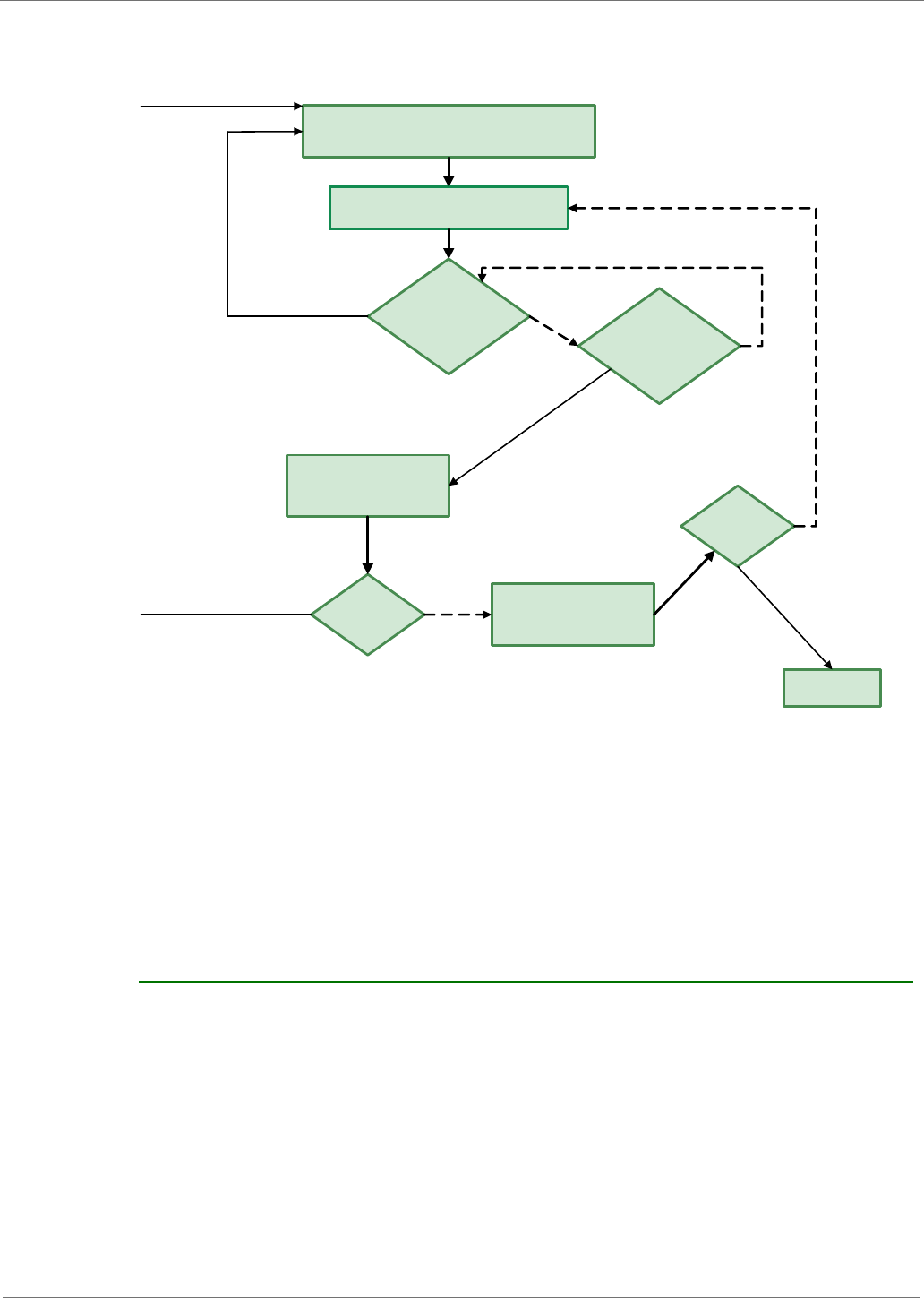

TransmitModeSequence

16-bit Network

Address Discovery

Data Discarded

Successful

Transmission

Yes

New

Transmission

16-bit Network

Address Discovered?

Route Known?

Route Discovered?

16-bit Network

Address Known?

Route Discovery

Transmit Data

Idle Mode

Yes

No No

Yes Yes

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 22

When data is transmitted from one node to another, a network-level acknowledgement is

transmitted back across the established route to the source node. This acknowledgement packet

indicates to the source node that the data packet was received by the destination node. If a

network acknowledgement is not received, the source node will re-transmit the data.

It is possible in rare circumstances for the destination to receive a data packet, but for the source

to not receive the network acknowledgment. In this case, the source will retransmit the data,

which could cause the destination to receive the same data packet multiple times. The XBee

modules do not filter out duplicate packets. The application should include provisions to address

this potential issue

See Data Transmission and Routing in chapter 4 for more information.

Receive Mode

If a valid RF packet is received, the data is transferred to the serial transmit buffer.

Command Mode

To modify or read RF Module parameters, the module must first enter into Command Mode - a

state in which incoming serial characters are interpreted as commands. Refer to the API Mode

section in chapter 9 for an alternate means of configuring modules.

AT Command Mode

To Enter AT Command Mode:

Send the 3-character command sequence “+++” and observe guard times before and after the

command characters. [Refer to the “Default AT Command Mode Sequence” below.]

Default AT Command Mode Sequence (for transition to Command Mode):

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

• Input three plus characters (“+++”) within one second [CC (Command Sequence Character)

parameter = 0x2B.]

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

Once the AT command mode sequence has been issued, the module sends an "OK\r" out the

DOUT pin. The "OK\r" characters can be delayed if the module has not finished transmitting

received serial data.

When command mode has been entered, the command mode timer is started (CT command), and

the module is able to receive AT commands on the DIN pin.

All of the parameter values in the sequence can be modified to reflect user preferences.

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate mismatch. By default,

the BD (Baud Rate) parameter = 3 (9600 bps).

To Send AT Commands:

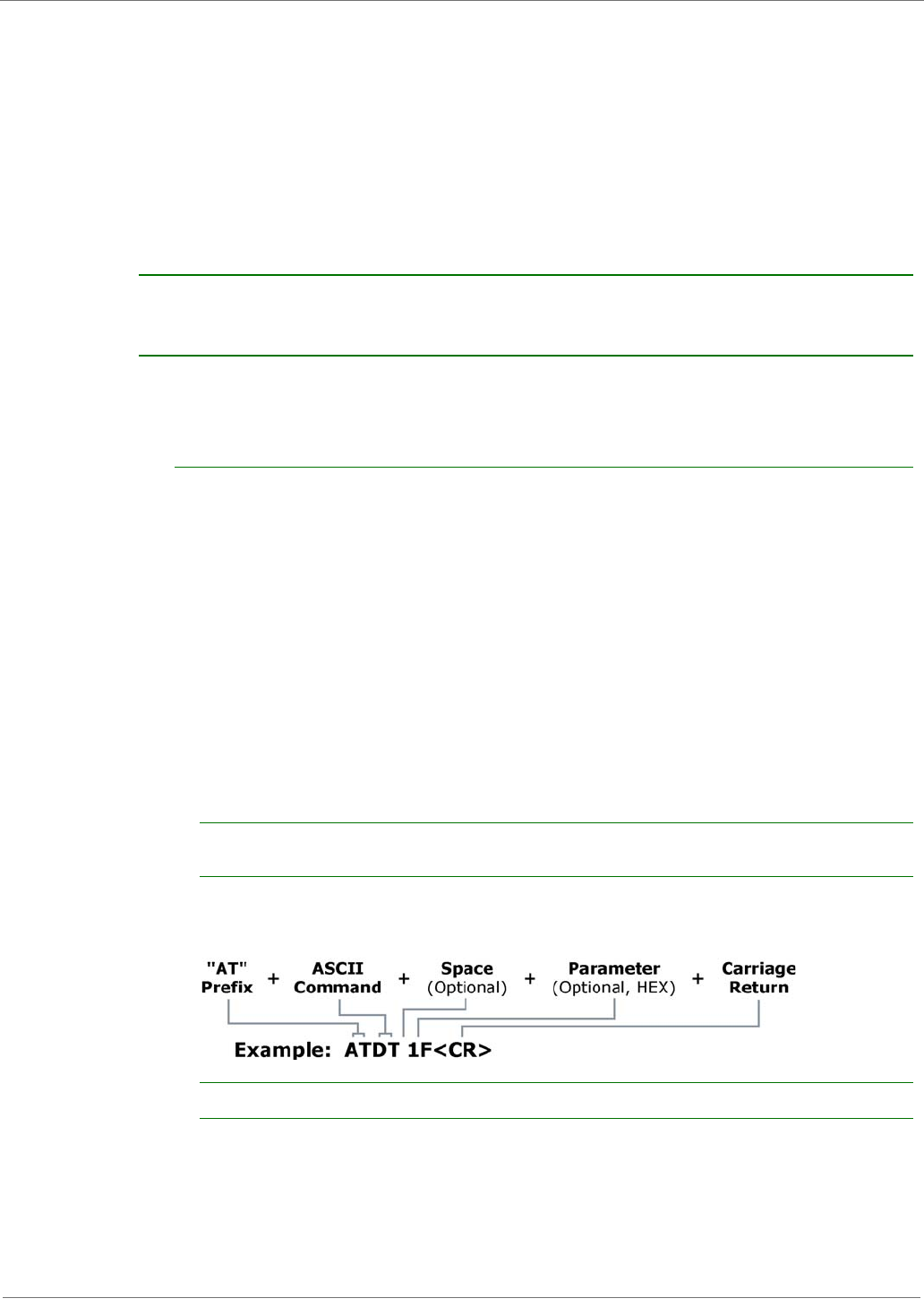

Send AT commands and parameters using the syntax shown below.

Figure2‐01.SyntaxforsendingATCommands

To read a parameter value stored in the RF module’s register, omit the parameter field.

The preceding example would change the RF module Destination Address (Low) to “0x1F”. To store

the new value to non-volatile (long term) memory, subsequently send the WR (Write) command.

For modified parameter values to persist in the module’s registry after a reset, changes must be

saved to non-volatile memory using the WR (Write) Command. Otherwise, parameters are

restored to previously saved values after the module is reset.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 23

Command Response

When a command is sent to the module, the module will parse and execute the command. Upon

successful execution of a command, the module returns an “OK” message. If execution of a

command results in an error, the module returns an “ERROR” message.

Applying Command Changes

Any changes made to the configuration command registers through AT commands will not take

effect until the changes are applied. For example, sending the BD command to change the baud

rate will not change the actual baud rate until changes are applied. Changes can be applied in one

of the following ways:

• The AC (Apply Changes) command is issued.

• AT command mode is exited.

To Exit AT Command Mode:

1. Send the ATCN (Exit Command Mode) command (followed by a carriage return).

[OR]

2. If no valid AT Commands are received within the time specified by CT (Command Mode

Timeout) Command, the RF module automatically returns to Idle Mode.

For an example of programming the RF module using AT Commands and descriptions of each config-

urable parameter, please see the Command Reference Table chapter.

Sleep Mode

Sleep modes allow the RF module to enter states of low power consumption when not in use. The

XBee RF modules support both pin sleep (sleep mode entered on pin transition) and cyclic sleep

(module sleeps for a fixed time). XBee sleep modes are discussed in detail in chapter 6.

©2009DigiInternational,Inc. 24

3.XBeeZigBeeNetworks

Introduction to ZigBee

ZigBee is an open global standard built on the IEEE 802.15.4 MAC/PHY. ZigBee defines a network

layer above the 802.15.4 layers to support advanced mesh routing capabilities. The ZigBee

specification is developed by a growing consortium of companies that make up the ZigBee

Alliance. The Alliance is made up of over 300 members, including semiconductor, module, stack,

and software developers.

ZigBee Stack Layers

The ZigBee stack consists of several layers including the PHY, MAC, Network, Application Support

Sublayer (APS), and ZigBee Device Objects (ZDO) layers. Technically, an Application Framework

(AF) layer also exists, but will be grouped with the APS layer in remaining discussions. The ZigBee

layers are shown in the figure below.

A description of each layer appears in the following table:

Networking Concepts

Device Types

ZigBee defines three different device types: coordinator, router, and end device.

Node Types / Sample of a Basic ZigBee Network Topology

A coordinator has the following characteristics: it

• Selects a channel and PAN ID (both 64-bit and 16-bit) to start the network

• Can allow routers and end devices to join the network

• Can assist in routing data

• Cannot sleep--should be mains powered

• Can buffer RF data packets for sleeping end device children.

ZigBee Layer Description

PHY Defines the physical operation of the ZigBee device

including receive sensitivity, channel rejection, output

power, number of channels, chip modulation, and

transmission rate specifications. Most ZigBee

applications operate on the 2.4 GHz ISM band at a

250kbps data rate. See the IEEE 802.15.4

specification for details.

MAC Manages RF data transactions between neighboring

devices (point to point). The MAC includes services

such as transmission retry and acknowledgment

management, and collision avoidance techniques

(CSMA-CA).

Network Adds routing capabilities that allows RF data packets

to traverse multiple devices (multiple "hops") to route

data from source to destination (peer to peer).

APS (AF) Application layer that defines various addressing

objects including profiles, clusters, and endpoints.

ZDO Application layer that provides device and service

discovery features and advanced network

management capabilities.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 25

A router has the following characteristics: it

• Must join a ZigBee PAN before it can transmit, receive, or route data

• After joining, can allow routers and end devices to join the network

• After joining, can assist in routing data

• Cannot sleep--should be mains powered.

• Can buffer RF data packets for sleeping end device children.

An end device has the following characteristics: it

• Must join a ZigBee PAN before it can transmit or receive data

• Cannot allow devices to join the network

• Must always transmit and receive RF data through its parent. Cannot route data.

• Can enter low power modes to conserve power and can be battery-powered.

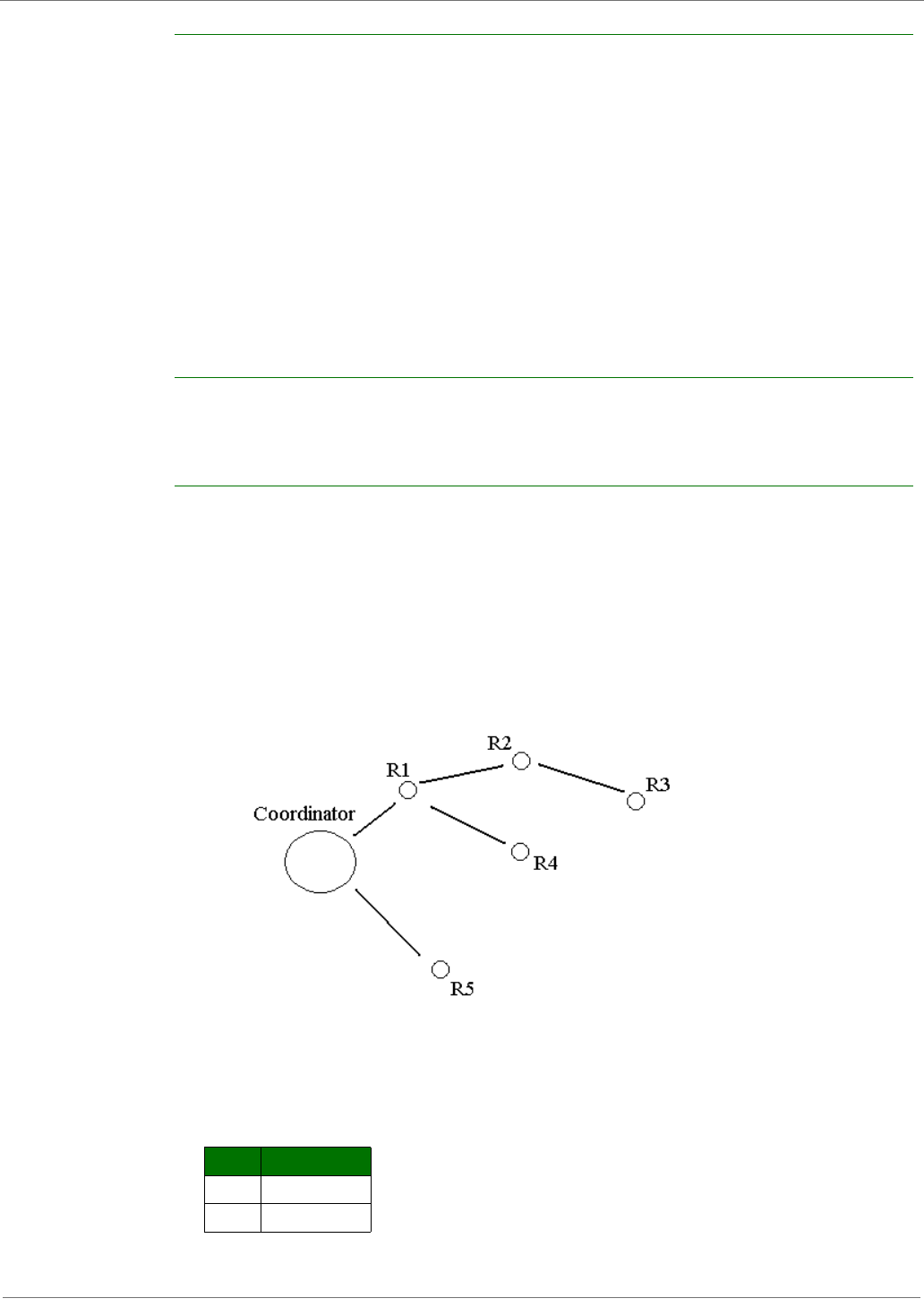

An example of such a network is shown below:

In ZigBee networks, the coordinator must select a PAN ID (64-bit and 16-bit) and channel to start

a network. After that, it behaves essentially like a router. The coordinator and routers can allow

other devices to join the network and can route data.

After an end device joins a router or coordinator, it must be able to transmit or receive RF data

through that router or coordinator. The router or coordinator that allowed an end device to join

becomes the "parent" of the end device. Since the end device can sleep, the parent must be able

to buffer or retain incoming data packets destined for the end device until the end device is able to

wake and receive the data.

PAN ID

ZigBee networks are called personal area networks or PANs. Each network is defined with a unique

PAN identifier (PAN ID). This identifier is common among all devices of the same network. ZigBee

devices are either preconfigured with a PAN ID to join, or they can discovery nearby networks and

select a PAN ID to join.

ZigBee supports both a 64-bit and a 16-bit PAN ID. Both PAN IDs are used to uniquely identify a

network. Devices on the same ZigBee network must share the same 64-bit and 16-bit PAN IDs. If

multiple ZigBee networks are operating within range of each other, each should have unique PAN

IDs.

The 16-bit PAN ID is used as a MAC layer addressing field in all RF data transmissions between

devices in a network. However, due to the limited addressing space of the 16-bit PAN ID (65,535

possibilities), there is a possibility that multiple ZigBee networks (within range of each other)

could use the same 16-bit PAN ID. To resolve potential 16-bit PAN ID conflicts, the ZigBee Alliance

created a 64-bit PAN ID.

The 64-bit PAN ID (also called the extended PAN ID), is intended to be a unique, non-duplicated

value. When a coordinator starts a network, it can either start a network on a preconfigured 64-bit

PAN ID, or it can select a random 64-bit PAN ID. The 64-bit PAN ID is used during joining; if a

device has a preconfigured 64-bit PAN ID, it will only join a network with the same 64-bit PAN ID.

Otherwise, a device could join any detected PAN and inherit the PAN ID from the network when it

joins. The 64-bit PAN ID is included in all ZigBee beacons and is used in 16-bit PAN ID conflict

resolution.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 26

Routers and end devices are typically configured to join a network with any 16-bit PAN ID as long

as the 64-bit PAN ID is valid. Coordinators typically select a random 16-bit PAN ID for their

network.

Since the 16-bit PAN ID only allows up to 65,535 unique values, and since the 16-bit PAN ID is

randomly selected, provisions exist in ZigBee to detect if two networks (with different 64-bit PAN

IDs) are operating on the same 16-bit PAN ID. If such a conflict is detected, the ZigBee stack can

perform PAN ID conflict resolution to change the 16-bit PAN ID of the network in order to resolve

the conflict. See the ZigBee specification for details.

To summarize, ZigBee routers and end devices should be configured with the 64-bit PAN ID of the

network they want to join. They typically acquire the 16-bit PAN ID when they join a network.

Operating Channel

ZigBee utilizes direct-sequence spread spectrum modulation and operates on a fixed channel. The

802.15.4 PHY defines 16 operating channels in the 2.4 GHz frequency band. XBee modules

support all 16 channels and XBee-PRO modules support 14 of the 16 channels.

ZigBee Application Layers: In Depth

This section provides a more in-depth look at the ZigBee application stack layers (APS, ZDO)

including a discussion on ZigBee endpoints, clusters, and profiles. Much of the material in this

section can introduce unnecessary details of the ZigBee stack that are not required in many cases.

Skip this section if

• The XBee does not need to interoperate or talk to non-Digi ZigBee devices

• The XBee simply needs to send data between devices.

Read this section if

• The XBee may talk to non-Digi ZigBee devices

• The XBee requires network management and discovery capabilities of the ZDO layer

• The XBee needs to operate in a public application profile (smart energy, home automation,

etc.)

Application Support Sublayer (APS)

The APS layer in ZigBee adds support for application profiles, cluster IDs, and endpoints.

Application Profiles

Application profiles specify various device descriptions including required functionality for various

devices. The collection of device descriptions forms an application profile. Application profiles can

be defined as "Public" or "Private" profiles. Private profiles are defined by a manufacturer whereas

public profiles are defined, developed, and maintained by the ZigBee Alliance. Each application

profile has a unique profile identifier assigned by the ZigBee Alliance.

Examples of public profiles include:

• Home Automation

• Smart Energy

• Commercial Building Automation

The Smart Energy profile, for example, defines various device types including an energy service

portal, load controller, thermostat, in-home display, etc. The Smart Energy profile defines required

functionality for each device type. For example, a load controller must respond to a defined

command to turn a load on or off. By defining standard communication protocols and device

functionality, public profiles allow interoperable ZigBee solutions to be developed by independent

manufacturers.

Digi XBee ZB firmware operates on a private profile called the Digi Drop-In Networking profile.

However, the API firmware in the module can be used in many cases to talk to devices in public

profiles or non-Digi private profiles. See the API Operations chapter for details.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 27

Clusters

A cluster is an application message type defined within a profile. Clusters are used to specify a

unique function, service, or action. For example, the following are some clusters defined in the

home automation profile:

• On/Off - Used to switch devices on or off (lights, thermostats, etc.)

• Level Control - Used to control devices that can be set to a level between on and off

• Color Control - Controls the color of color capable devices.

Each cluster has an associated 2-byte cluster identifier (cluster ID). The cluster ID is included in all

application transmissions. Clusters often have associated request and response messages. For

example, a smart energy gateway (service portal) might send a load control event to a load

controller in order to schedule turning on or off an appliance. Upon executing the event, the load

controller would send a load control report message back to the gateway.

Devices that operate in an application profile (private or public) must respond correctly to all

required clusters. For example, a light switch that will operate in the home automation public

profile must correctly implement the On/Off and other required clusters in order to interoperate

with other home automation devices. The ZigBee Alliance has defined a ZigBee Cluster Library

(ZCL) that contains definitions or various general use clusters that could be implemented in any

profile.

XBee modules implement various clusters in the Digi private profile. In addition, the API can be

used to send or receive messages on any cluster ID (and profile ID or endpoint). See the Explicit

Addressing ZigBee Command API frame in chapter 3 for details.

Endpoints

The APS layer includes supports for endpoints. An endpoint can be thought of as a running

application, similar to a TCP/IP port. A single device can support one or more endpoints. Each

application endpoint is identified by a 1-byte value, ranging from 1 to 240. Each defined endpoint

on a device is tied to an application profile. A device could, for example, implement one endpoint

that supports a Smart Energy load controller, and another endpoint that supports other

functionality on a private profile.

ZigBee Device Profile

Profile ID 0x0000 is reserved for the ZigBee Device Profile. This profile is implemented on all

ZigBee devices. Device Profile defines many device and service discovery features and network

management capabilities. Endpoint 0 is a reserved endpoint that supports the ZigBee Device

Profile. This endpoint is called the ZigBee Device Objects (ZDO) endpoint.

ZigBee Device Objects (ZDO)

The ZDO (endpoint 0) supports the discovery and management capabilities of the ZigBee Device

Profile. A complete listing of all ZDP services is included in the ZigBee specification. Each service

has an associated cluster ID.

The XBee ZB firmware allows applications to easily send ZDO messages to devices in the network

using the API. See the ZDO Transmissions section in chapter 4 for details.

Coordinator Operation

Forming a Network

The coordinator is responsible for selecting the channel, PAN ID (16-bit and 64-bit), security

policy, and stack profile for a network. Since a coordinator is the only device type that can start a

network, each ZigBee network must have one coordinator. After the coordinator has started a

network, it can allow new devices to join the network. It can also route data packets and

communicate with other devices on the network.

To ensure the coordinator starts on a good channel and unused PAN ID, the coordinator performs

a series of scans to discover any RF activity on different channels (energy scan) and to discover

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 28

any nearby operating PANs (PAN scan). The process for selecting the channel and PAN ID are

described in the following sections.

Channel Selection

When starting a network, the coordinator must select a "good" channel for the network to operate

on. To do this, it performs an energy scan on multiple channels (frequencies) to detect energy

levels on each channel. Channels with excessive energy levels are removed from its list of

potential channels to start on.

PAN ID Selection

After completing the energy scan, the coordinator scans its list of potential channels (remaining

channels after the energy scan) to obtain a list of neighboring PANs. To do this, the coordinator

sends a beacon request (broadcast) transmission on each potential channel. All nearby

coordinators and routers (that have already joined a ZigBee network) will respond to the beacon

request by sending a beacon back to the coordinator. The beacon contains information about the

PAN the device is on, including the PAN identifiers (16-bit and 64-bit). This scan (collecting

beacons on the potential channels) is typically called an active scan or PAN scan.

After the coordinator completes the channel and PAN scan, it selects a random channel and

unused 16-bit PAN ID to start on.

Security Policy

The security policy determines which devices are allowed to join the network, and which device(s)

can authenticate joining devices. See chapter 5 for a detailed discussion of various security

policies.

Persistent Data

Once a coordinator has started a network, it retains the following information through power cycle

or reset events:

•PAN ID

•Operating channel

• Security policy and frame counter values

• Child table (end device children that are joined to the coordinator).

The coordinator will retain this information indefinitely until it leaves the network. When the

coordinator leaves a network and starts a new network, the previous PAN ID, operating channel,

and child table data are lost.

XBee ZB Coordinator Startup

The following commands control the coordinator network formation process.

Networkformationcommandsusedbythecoordinatortoformanetwork.

Command Description

ID Used to determine the 64-bit PAN ID. If set to 0 (default), a random 64-bit PAN ID will be selected.

SC Determines the scan channels bitmask (up to 16 channels) used by the coordinator when forming a

network. The coordinator will perform an energy scan on all enabled SC channels. It will then perform a

PAN ID scan and then form the network on one of the SC channels.

SD Set the scan duration period. This value determines how long the coordinator performs an energy scan or

PAN ID scan on a given channel.

ZS Set the ZigBee stack profile for the network.

EE Enable or disable security in the network.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 29

Once the coordinator starts a network, the network configuration settings and child table data

persist through power cycles as mentioned in the "Persistent Data" section.

When the coordinator has successfully started a network, it

• Allows other devices to join the network for a time (see NJ command)

•Sets AI=0

• Starts blinking the Associate LED

• Sends an API modem status frame ("coordinator started") out the UART (API firmware only).

These behaviors are configurable using the following commands:

If any of the command values in the network formation commands table changes, the coordinator

will leave its current network and start a new network, possibly on a different channel. Note that

command changes must be applied (AC or CN command) before taking effect.

Permit Joining

The permit joining attribute on the coordinator is configurable with the NJ command. NJ can be

configured to always allow joining, or to allow joining for a short time.

Joining Always Enabled

If NJ=0xFF (default), joining is permanently enabled. This mode should be used carefully. Once a

network has been deployed, the application should strongly consider disabling joining to prevent

unwanted joins from occurring.

Joining Temporarily Enabled

If NJ < 0xFF, joining will be enabled only for a number of seconds, based on the NJ parameter. The

timer is started once the XBee joins a network. Joining will not be re-enabled if the module is

power cycled or reset. The following mechanisms can restart the permit-joining timer:

• Changing NJ to a different value (and applying changes with the AC or CN commands)

• Pressing the commissioning button twice (enables joining for 1 minute)

• Issuing the CB command with a parameter of 2 (software emulation of a 2 button press -

enables joining for 1 minute).

Resetting the Coordinator

When the coordinator is reset or power cycled, it checks its PAN ID, operating channel and stack

profile against the network configuration settings (ID, CH, ZS). It also verifies the saved security

policy against the security configuration settings (EE, NK, KY). If the coordinator's PAN ID,

operating channel, stack profile, or security policy is not valid based on its network and security

configuration settings, then the coordinator will leave the network and attempt to form a new

network based on its network formation command values.

To prevent the coordinator from leaving an existing network, the WR command should be issued

after all network formation commands have been configured in order to retain these settings

through power cycle or reset events.

NK Set the network security key for the network. If set to 0 (default), a random network security key will be

used.

KY Set the trust center link key for the network. If set to 0 (default), a random link key will be used.

EO Set the security policy for the network.

Command Description

NJ Sets the permit-join time on the coordinator,

measured in seconds.

D5 Enables the Associate LED functionality.

LT Sets the Associate LED blink time when

joined. Default is 1 blink per second.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 30

Leaving a Network

There are a couple of mechanisms that will cause the coordinator to leave its current PAN and start

a new network based on its network formation parameter values. These include the following:

• Change the ID command such that the current 64-bit PAN ID is invalid.

• Change the SC command such that the current channel (CH) is not included in the channel

mask.

• Change the ZS or any of the security command values (excluding NK).

• Issue the NR0 command to cause the coordinator to leave.

• Issue the NR1 command to send a broadcast transmission, causing all devices in the network

to leave and migrate to a different channel.

• Press the commissioning button 4 times or issue the CB command with a parameter of 4.

Note that changes to ID, SC, ZS, and security command values only take effect when changes are

applied (AC or CN commands).

Replacing a Coordinator (Security Disabled Only)

In rare occasions, it may become necessary to replace an existing coordinator in a network with a

new physical device. If security is not enabled in the network, a replacement XBee coordinator can

be configured with the PAN ID (16-bit and 64-bit), channel, and stack profile settings of a running

network in order to replace an existing coordinator.

NOTE: Having two coordinators on the same channel, stack profile, and PAN ID (16-bit and 64-bit)

can cause problems in the network and should be avoided. When replacing a coordinator, the old

coordinator should be turned off before starting the new coordinator.

To replace a coordinator, the following commands should be read from a device on the network:

Each of the commands listed above can be read from any device on the network. (These

parameters will be the same on all devices in the network.) After reading these commands from a

device on the network, these parameter values should be programmed into the new coordinator

using the following commands.

AT Command Description

OP Read the operating 64-bit PAN

ID.

OI Read the operating 16-bit PAN

ID.

CH Read the operating channel.

ZS Read the stack profile.

AT Command Description

ID Set the 64-bit PAN ID to match

the read OP value.

II Set the initial 16-bit PAN ID to

match the read OI value.

SC Set the scan channels bitmask

to enable the read operating

channel (CH command). For

example, if the operating

channel is 0x0B, set SC to

0x0001. If the operating channel

is 0x17, set SC to 0x1000.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 31

Note: II is the initial 16-bit PAN ID. Under certain conditions, the ZigBee stack can change the 16-

bit PAN ID of the network. For this reason, the II command cannot be saved using the WR

command. Once II is set, the coordinator leaves the network and starts on the 16-bit PAN ID

specified by II.

Example: Starting a Coordinator

1. Set SC and ID to the desired scan channels and PAN ID values. (The defaults should suffice.)

2. If SC or ID is changed from the default, issue the WR command to save the changes.

3. If SC or ID is changed from the default, apply changes (make SC and ID changes take effect)

either by sending the AC command or by exiting AT command mode.

4. The Associate LED will start blinking once the coordinator has selected a channel and PAN ID.

5. The API Modem Status frame ("Coordinator Started") is sent out the UART (API firmware only).

6. Reading the AI command (association status) will return a value of 0, indicating a successful

startup.

7. Reading the MY command (16-bit address) will return a value of 0, the ZigBee-defined 16-bit

address of the coordinator.

After startup, the coordinator will allow joining based on its NJ value.

Example: Replacing a Coordinator (security disabled)

1. Read the OP, OI, CH, and ZS commands on the running coordinator.

2. Set the ID, SC, and ZS parameters on the new coordinator, followed by WR command to save

these parameter values.

3. Turn off the running coordinator.

4. Set the II parameter on the new coordinator to match the read OI value on the old coordinator.

5. Wait for the new coordinator to start (AI=0).

Router Operation

Routers must discover and join a valid ZigBee network before they can participate in a ZigBee

network. After a router has joined a network, it can allow new devices to join the network. It can

also route data packets and communicate with other devices on the network.

Discovering ZigBee Networks

To discover nearby ZigBee networks, the router performs a PAN (or active) scan, just like the

coordinator does when it starts a network. During the PAN scan, the router sends a beacon

request (broadcast) transmission on the first channel in its scan channels list. All nearby

coordinators and routers operating on that channel (that are already part of a ZigBee network)

respond to the beacon request by sending a beacon back to the router. The beacon contains

information about the PAN the nearby device is on, including the PAN identifier (PAN ID), and

whether or not joining is allowed. The router evaluates each beacon received on the channel to

determine if a valid PAN is found. A router considers a PAN to be valid if the PAN:

• Has a valid 64-bit PAN ID (PAN ID matches ID if ID > 0)

• Has the correct stack profile (ZS command)

• Is allowing joining.

If a valid PAN is not found, the router performs the PAN scan on the next channel in its scan

channels list and continues scanning until a valid network is found, or until all channels have been

ZS Set the stack profile to match the

read ZS value.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 32

scanned. If all channels have been scanned and a valid PAN was not discovered, all channels will

be scanned again.

The ZigBee Alliance requires that certified solutions not send beacon request messages too

frequently. To meet certification requirements, the XBee firmware attempts 9 scans per minute for

the first 5 minutes, and 3 scans per minute thereafter. If a valid PAN is within range of a joining

router, it should typically be discovered within a few seconds.

Joining a Network

Once the router discovers a valid network, it sends an association request to the device that sent a

valid beacon requesting a join on the ZigBee network. The device allowing the join then sends an

association response frame that either allows or denies the join.

When a router joins a network, it receives a 16-bit address from the device that allowed the join.

The 16-bit address is randomly selected by the device that allowed the join.

Authentication

In a network where security is enabled, the router must then go through an authentication

process. See the Security chapter for a discussion on security and authentication.

After the router is joined (and authenticated, in a secure network), it can allow new devices to join

the network.

Persistent Data

Once a router has joined a network, it retains the following information through power cycle or

reset events:

•PAN ID

•Operating channel

• Security policy and frame counter values

• Child table (end device children that are joined to the coordinator).

The router will retain this information indefinitely until it leaves the network. When the router

leaves a network, the previous PAN ID, operating channel, and child table data are lost.

XBee ZB Router Joining

When the router is powered on, if it is not already joined to a valid ZigBee network, it immediately

attempts to find and join a valid ZigBee network.

Note: The DJ command can be set to 1 to disable joining. The DJ parameter cannot be written with

WR, so a power cycle always clears the DJ setting.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 33

The following commands control the router joining process.

Once the router joins a network, the network configuration settings and child table data persist

through power cycles as mentioned in the "Persistent Data" section previously. If joining fails, the

status of the last join attempt can be read in the AI command register.

If any of the above command values change, when command register changes are applied (AC or

CN commands), the router will leave its current network and attempt to discover and join a new

valid network.

When a ZB router has successfully joined a network, it:

• Allows other devices to join the network for a time

•Sets AI=0

• Starts blinking the Associate LED

• Sends an API modem status frame ("associated") out the UART (API firmware only).

Command Description

ID Sets the 64-bit PAN ID to join. Setting ID=0 allows the router to join any

64-bit PAN ID.

SC Set the scan channels bitmask that determines which channels a router

will scan to find a valid network. SC on the router should be set to match

SC on the coordinator. For example, setting SC to 0x281 enables

scanning on channels 0x0B, 0x12, and 0x14, in that order.

SD Set the scan duration, or time that the router will listen for beacons on

each channel.

ZS Set the stack profile on the device.

EE Enable or disable security in the network. This must be set to match the

EE value (security policy) of the coordinator.

KY Set the trust center link key. If set to 0 (default), the link key is expected to

be obtained (unencrypted) during joining.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 34

These behaviors are configurable using the following commands:

Permit Joining

The permit joining attribute on the router is configurable with the NJ command. NJ can be

configured to always allow joining, or to allow joining for a short time.

Joining Always Enabled

If NJ=0xFF (default), joining is permanently enabled. This mode should be used carefully. Once a

network has been deployed, the application should strongly consider disabling joining to prevent

unwanted joins from occurring.

Joining Temporarily Enabled

If NJ < 0xFF, joining will be enabled only for a number of seconds, based on the NJ parameter. The

timer is started once the XBee joins a network. Joining will not be re-enabled if the module is

power cycled or reset. The following mechanisms can restart the permit-joining timer:

• Changing NJ to a different value (and applying changes with the AC or CN commands)

• Pressing the commissioning button twice (enables joining for 1 minute)

• Issuing the CB command with a parameter of 2 (software emulation of a 2 button press -

enables joining for 1 minute)

• Causing the router to leave and rejoin the network.

Router Network Connectivity

Once a router joins a ZigBee network, it remains connected to the network on the same channel

and PAN ID as long as it is not forced to leave. (See Leaving a Network section for details.) If the

scan channels (SC), PAN ID (ID) and security settings (EE, KY) do not change after a power cycle,

the router will remain connected to the network after a power cycle.

If a router may physically move out of range of the network it initially joined, the application

should include provisions to detect if the router can still communicate with the original network. If

communication with the original network is lost, the application may choose to force the router to

leave the network (see Leaving a Network section for details). The XBee firmware includes two

provisions to automatically detect the presence of a network, and leave if the check fails.

Power-On Join Verification

The JV command (join verification) enables the power-on join verification check. If enabled, the

XBee will attempt to discover the 64-bit address of the coordinator when it first joins a network.

Once it has joined, it will also attempt to discover the 64-bit address of the coordinator after a

power cycle event. If 3 discovery attempts fail, the router will leave the network and try to join a

new network. Power-on join verification is disabled by default (JV defaults to 0).

Command Description

NJ Sets the permit-join time on

the router, or the time that it

will allow new devices to join

the network, measured in

seconds. If NJ=0xFF, permit

joining will always be enabled.

D5 Enables the Associate LED

functionality.

LT Sets the Associate LED blink

time when joined. Default is 2

blinks per second (router).

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 35

Network Watchdog

The NW command (network watchdog timeout) can be used for a powered router to periodically

check for the presence of a coordinator to verify network connectivity. The NW command specifies

a timeout in minutes where the router must receive communication from the coordinator or data

collector. The following events restart the network watchdog timer:

• RF data received from the coordinator

• RF data sent to the coordinator and an acknowledgment was received

• Many-to-one route request was received (from any device)

• Changing the value of NW.

If the watchdog timer expires (no valid data received for NW time), the router will attempt to

discover the 64-bit address of the coordinator. If the address cannot be discovered, the router

records one watchdog timeout. Once three consecutive network watchdog timeouts have expired

(3 * NW) and the coordinator has not responded to the address discovery attempts, the router will

leave the network and attempt to join a new network. Anytime a router receives valid data from

the coordinator or data collector, it will clear the watchdog timeouts counter and restart the

watchdog timer. The watchdog timer (NW command) is settable to several days. The network

watchdog feature is disabled by default (NW defaults to 0).

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 36

Leaving a Network

There are a couple of mechanisms that will cause the router to leave its current PAN and attempt

to discover and join a new network based on its network joining parameter values.

These include the following:

• Change the ID command such that the current 64-bit PAN ID is invalid.

• Change the SC command such that the current channel (CH) is not included in the channel

mask.

• Change the ZS or any of the security command values.

• Issue the NR0 command to cause the router to leave.

• Issue the NR1 command to send a broadcast transmission, causing all devices in the network

to leave and migrate to a different channel.

Clear Network Watchdog Failure Count

Restart Network Watchdog Timer

Received RF

Communication from

Coordinator or Data

Collector

Yes

Network Watchdog

Timer Expired?

Discover Coordinator

Yes

Coordinator

Found?

Yes

Network Watchdog Failure

Count +=1

Network

Watchdog

Failure Count

=3 ?

Leave

Yes

Network Watchdog Behavior

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 37

• Press the commissioning button 4 times or issue the CB command with a parameter of 4.

Note that changes to ID, SC, ZS, and security command values only take effect when changes are

applied (AC or CN commands).

Resetting the Router

When the router is reset or power cycled, it checks its PAN ID, operating channel and stack profile

against the network configuration settings (ID, SC, ZS). It also verifies the saved security policy is

valid based on the security configuration commands (EE, KY). If the router's PAN ID, operating

channel, stack profile, or security policy is invalid, the router will leave the network and attempt to

join a new network based on its network joining command values.

To prevent the router from leaving an existing network, the WR command should be issued after

all network joining commands have been configured in order to retain these settings through

power cycle or reset events.

Example: Joining a Network

After starting a coordinator (that is allowing joins), the following steps will cause a router to join

the network:

1. Set ID to the desired 64-bit PAN ID, or to 0 to join any PAN.

2. Set SC to the list of channels to scan to find a valid network.

3. If SC or ID is changed from the default, apply changes (make SC and ID changes take effect)

by issuing the AC or CN command.

4. The Associate LED will start blinking once the router has joined a PAN.

5. If the Associate LED is not blinking, the AI command can be read to determine the cause of join

failure.

6. Once the router has joined, the OP and CH commands will indicate the operating 64-bit PAN ID

and channel the router joined.

7. The MY command will reflect the 16-bit address the router received when it joined.

8. The API Modem Status frame ("Associated") is sent out the UART (API firmware only).

9. The joined router will allow other devices to join for a time based on its NJ setting.

End Device Operation

Similar to routers, end devices must also discover and join a valid ZigBee network before they can

participate in a network. After an end device has joined a network, it can communicate with other

devices on the network. Since end devices are intended to be battery powered and therefore

support low power (sleep) modes, end devices cannot allow other devices to join, nor can they

route data packets.

Discovering ZigBee Networks

End devices go through the same process as routers to discover networks by issuing a PAN scan.

After sending the broadcast beacon request transmission, the end device listens for a short time in

order to receive beacons sent by nearby routers and coordinators on the same channel. The end

device evaluates each beacon received on the channel to determine if a valid PAN is found. An end

device considers a PAN to be valid if the PAN:

• Has a valid 64-bit PAN ID (PAN ID matches ID if ID > 0)

• Has the correct stack profile (ZS command)

• Is allowing joining

• Has capacity for additional end devices (see End Device Capacity section below).

If a valid PAN is not found, the end device performs the PAN scan on the next channel in its scan

channels list and continues this process until a valid network is found, or until all channels have

been scanned. If all channels have been scanned and a valid PAN was not discovered, the end

device may enter a low power sleep state and scan again later.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 38

If scanning all SC channels fails to discover a valid PAN, XBee ZB modules will attempt to enter a

low power state and will retry scanning all SC channels after the module wakes from sleeping. If

the module cannot enter a low power state, it will retry scanning all channels, similar to the router.

To meet ZigBee Alliance requirements, the end device will attempt up to 9 scans per minute for

the first 5 minutes, and 3 scans per minute thereafter.

Note: The XBee ZB end device will not enter sleep until it has completed scanning all SC channels

for a valid network.

Joining a Network

Once the end device discovers a valid network, it joins the network, similar to a router, by sending

an association request (to the device that sent a valid beacon) to request a join on the ZigBee

network. The device allowing the join then sends an association response frame that either allows

or denies the join.

When an end device joins a network, it receives a 16-bit address from the device that allowed the

join. The 16-bit address is randomly selected by the device that allowed the join.

Parent Child Relationship

Since an end device may enter low power sleep modes and not be immediately responsive, the

end device relies on the device that allowed the join to receive and buffer incoming messages in its

behalf until it is able to wake and receive those messages. The device that allowed an end device

to join becomes the parent of the end device, and the end device becomes a child of the device

that allowed the join.

End Device Capacity

Routers and coordinators maintain a table of all child devices that have joined called the child

table. This table is a finite size and determines how many end devices can join. If a router or

coordinator has at least one unused entry in its child table, the device is said to have end device

capacity. In other words, it can allow one or more additional end devices to join. ZigBee networks

should have sufficient routers to ensure adequate end device capacity.

In the XBee ZB 2x6x firmware, a coordinator can support 10 end devices, and a router can support

12 end devices.

In ZB firmware, the NC command (number of remaining end device children) can be used to

determine how many additional end devices can join a router or coordinator. If NC returns 0, then

the router or coordinator device has no more end device capacity. (Its child table is full.)

Also of note, since routers cannot sleep, there is no equivalent need for routers or coordinators to

track joined routers. Therefore, there is no limit to the number of routers that can join a given

router or coordinator device. (There is no "router capacity" metric.)

Authentication

In a network where security is enabled, the end device must then go through an authentication

process. See chapter 5 for a discussion on security and authentication.

Persistent Data

The end device can retain its PAN ID, operating channel, and security policy information through a

power cycle. However, since end devices rely heavily on a parent, the end device does an orphan

scan to try and contact its parent. If the end device does not receive an orphan scan response

(called a coordinator realignment command), it will leave the network and try to discover and join

a new network. When the end device leaves a network, the previous PAN ID and operating channel

settings are lost.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 39

Orphan Scans

When an end device comes up from a power cycle, it performs an orphan scan to verify it still has

a valid parent. The orphan scan is sent as a broadcast transmission and contains the 64-bit

address of the end device. Nearby routers and coordinator devices that receive the broadcast

check their child tables for an entry that contains the end device's 64-bit address. If an entry is

found with a matching 64-bit address, the device sends a coordinator realignment command to

the end device that includes the end device's 16-bit address, 16-bit PAN ID, operating channel,

and the parent's 64-bit and 16-bit addresses.

If the orphaned end device receives a coordinator realignment command, it is considered joined to

the network. Otherwise, it will attempt to discover and join a valid network.

XBee: ZB End Device Joining

When an end device is powered on, if it is not joined to a valid ZigBee network, or if the orphan

scan fails to find a parent, it immediately attempts to find and join a valid ZigBee network.

Note: The DJ command can be set to 1 to disable joining. The DJ parameter cannot be written with

WR, so a power cycle always clears the DJ setting.

Similar to a router, the following commands control the end device joining process.

Once the end device joins a network, the network configuration settings can persist through power

cycles as mentioned in the "Persistent Data" section previously. If joining fails, the status of the

last join attempt can be read in the AI command register.

If any of these command values changes, when command register changes are applied, the end

device will leave its current network and attempt to discover and join a new valid network.

Networkjoiningcommandsusedbyanenddevicetojoinanetwork.

Command Description

ID Sets the 64-bit PAN ID to join. Setting ID=0 allows the router

to join any 64-bit PAN ID.

SC Set the scan channels bitmask that determines which

channels an end device will scan to find a valid network. SC

on the end device should be set to match SC on the

coordinator and routers in the desired network. For example,

setting SC to 0x281 enables scanning on channels 0x0B,

0x12, and 0x14, in that order.

SD Set the scan duration, or time that the end device will listen

for beacons on each channel.

ZS Set the stack profile on the device.

EE Enable or disable security in the network. This must be set to

match the EE value (security policy) of the coordinator.

KY Set the trust center link key. If set to 0 (default), the link key

is expected to be obtained (unencrypted) during joining.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 40

When a ZB end device has successfully started a network, it

•Sets AI=0

• Starts blinking the Associate LED

• Sends an API modem status frame ("associated") out the UART (API firmware only)

• Attempts to enter low power modes.

These behaviors are configurable using the following commands:

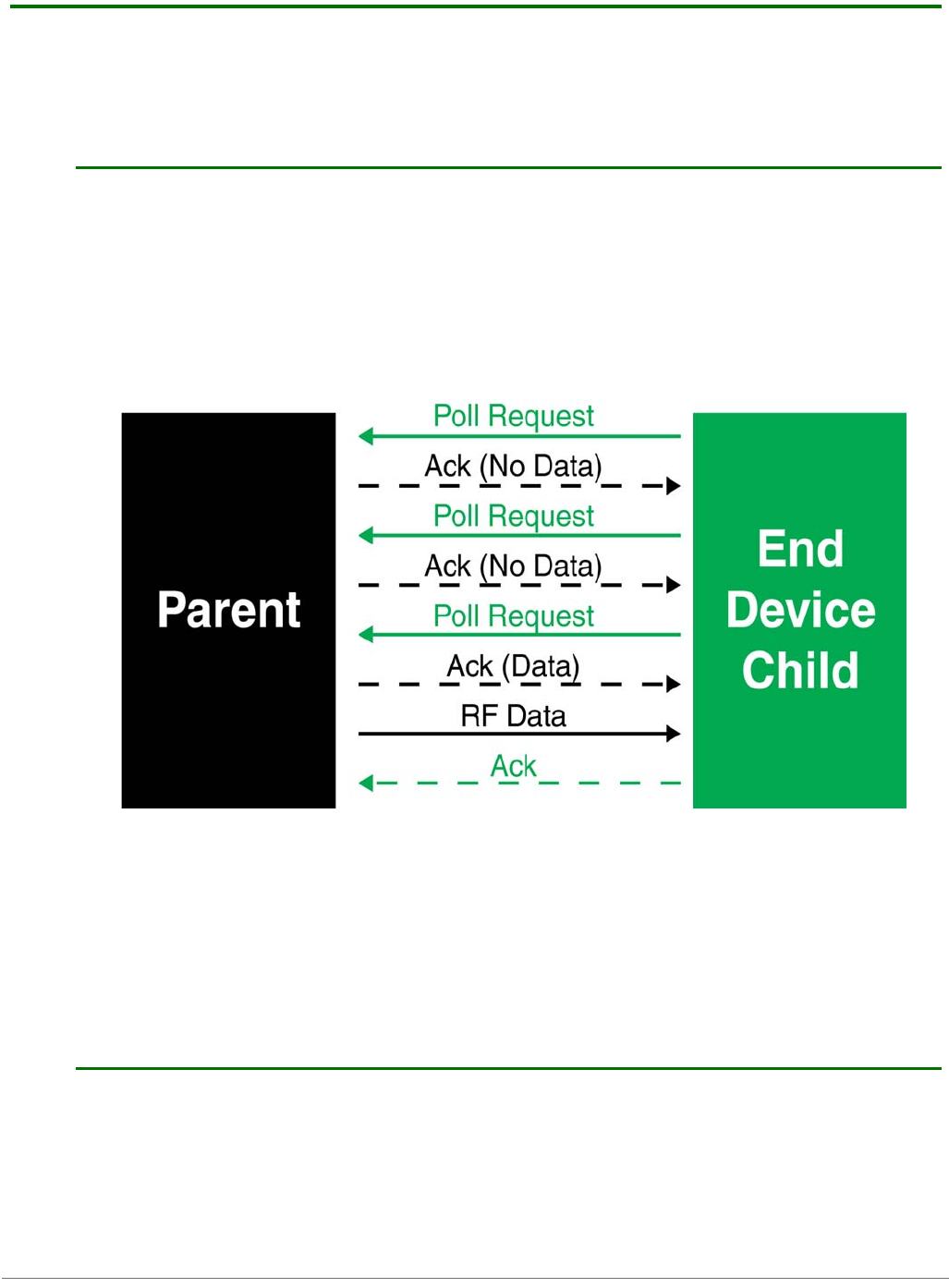

Parent Connectivity

The XBee ZB end device sends regular poll transmissions to its parent when it is awake. These poll

transmissions query the parent for any new received data packets. The parent always sends a MAC

layer acknowledgment back to the end device. The acknowledgment indicates whether the parent

has data for the end device or not.

If the end device does not receive an acknowledgment for 3 consecutive poll requests, it considers

itself disconnected from its parent and will attempt to discover and join a valid ZigBee network.

See "Managing End Devices" chapter for details.

Resetting the End Device

When the end device is reset or power cycled, if the orphan scan successfully locates a parent, the

end device then checks its PAN ID, operating channel and stack profile against the network

configuration settings (ID, SC, ZS). It also verifies the saved security policy is valid based on the

security configuration commands (EE, KY). If the end device's PAN ID, operating channel, stack

profile, or security policy is invalid, the end device will leave the network and attempt to join a new

network based on its network joining command values.

To prevent the end device from leaving an existing network, the WR command should be issued

after all network joining commands have been configured in order to retain these settings through

power cycle or reset events.

Leaving a Network

There are a couple of mechanisms that will cause the router to leave its current PAN and attempt

to discover and join a new network based on its network joining parameter values. These include

the following:

• The ID command changes such that the current 64-bit PAN ID is invalid.

• The SC command changes such that the current operating channel (CH) is not included in the

channel mask.

• The ZS or any of the security command values change.

• The NR0 command is issued to cause the end device to leave.

• The NR1 command is issued to send a broadcast transmission, causing all devices in the net-

work to leave and migrate to a different channel.

• The commissioning button is pressed 4 times or the CB command is issued with a parameter

of 4.

Command Description

D5 Enables the Associate LED functionality.

LT Sets the Associate LED blink time when joined. Default is 2 blinks per

second (end devices).

SM, SP, ST, SN,

SO Parameters that configure the sleep mode characteristics. (See

Managing End Devices chapter for details.)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 41

• The end device's parent is powered down or the end device is moved out of range of the par-

ent such that the end device fails to receive poll acknowledgment messages.

Note that changes to command values only take effect when changes are applied (AC or CN

commands).

Example: Joining a Network

After starting a coordinator (that is allowing joins), the following steps will cause an XBee end

device to join the network:

1. Set ID to the desired 64-bit PAN ID, or to 0 to join any PAN.

2. Set SC to the list of channels to scan to find a valid network.

3. If SC or ID is changed from the default, apply changes (make SC and ID changes take effect)

by issuing the AC or CN command.

4. The Associate LED will start blinking once the end device has joined a PAN.

5. If the Associate LED is not blinking, the AI command can be read to determine the cause of join

failure.

6. Once the end device has joined, the OP and CH commands will indicate the operating 64-bit

PAN ID and channel the end device joined.

7. The MY command will reflect the 16-bit address the router received when it joined.

8. The API Modem Status frame ("Associated") is sent out the UART (API firmware only).

9. The joined end device will attempt to enter low power sleep modes based on its sleep

configuration commands (SM, SP, SN, ST, SO).

Channel Scanning

As mentioned previously, routers and end devices must scan one or more channels to discover a

valid network to join. When a join attempt begins, the XBee sends a beacon request transmission

on the lowest channel specified in the SC (scan channels) command bitmask. If a valid PAN is

found on the channel, the XBee will attempt to join the PAN on that channel. Otherwise, if a valid

PAN is not found on the channel, it will attempt scanning on the next higher channel in the SC

command bitmask. The XBee will continue to scan each channel (from lowest to highest) in the SC

bitmask until a valid PAN is found or all channels have been scanned. Once all channels have been

scanned, the next join attempt will start scanning on the lowest channel specified in the SC

command bitmask.

For example, if the SC command is set to 0x400F, the XBee would start scanning on channel 11

(0x0B) and scan until a valid beacon is found, or until channels 11, 12, 13, 14, and 25 have been

scanned (in that order).

Once an XBee router or end device joins a network on a given channel, if the XBee is told to leave

(see "Leaving a Network" section), it will leave the channel it joined on and continue scanning on

the next higher channel in the SC bitmask.

For example, if the SC command is set to 0x400F, and the XBee joins a PAN on channel 12 (0x0C),

if the XBee leaves the channel, it will start scanning on channel 13, followed by channels 14 and

25 if a valid network is not found. Once all channels have been scanned, the next join attempt will

start scanning on the lowest channel specified in the SC command bitmask.

Managing Multiple ZigBee Networks

In some applications, multiple ZigBee networks may exist in proximity of each other. The

application may need provisions to ensure the XBee joins the desired network. There are a number

of features in ZigBee to manage joining among multiple networks. These include the following:

•PAN ID Filtering

• Preconfigured Security Keys

• Permit Joining

• Application Messaging

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 42

PAN ID Filtering

The XBee can be configured with a fixed PAN ID by setting the ID command to a non-zero value. If

the PAN ID is set to a non-zero value, the XBee will only join a network with the same PAN ID.

Preconfigured Security Keys

Similar to PAN ID filtering, this method requires a known security key be installed on a router to

ensure it will join a ZigBee network with the same security key. If the security key (KY command)

is set to a non-zero value, and if security is enabled (EE command), an XBee router or end device

will only join a network with the same security key.

Permit Joining

The Permit Joining parameter can be disabled in a network to prevent unwanted devices from

joining. When a new device must be added to a network, permit-joining can be enabled for a short

time on the desired network. In the XBee firmware, joining is disabled by setting the NJ command

to a value less than 0xFF on all routers and coordinator devices. Joining can be enabled for a short

time using the commissioning push-button (see Network Commissioning chapter for details) or the

CB command.

Application Messaging

If the above mechanisms are not feasible, the application could build in a messaging framework

between the coordinator and devices that join its network. For example, the application code in

joining devices could send a transmission to the coordinator after joining a network, and wait to

receive a defined reply message. If the application does not receive the expected response

message after joining, the application could force the XBee to leave and continue scanning (see

NR parameter).

©2009DigiInternational,Inc. 43

4.DataTransmission,Addressing,andRout‐

ing

Addressing

All ZigBee devices have two different addresses, a 64-bit and a 16-bit address. The characteristics

of each are described below.

64-bit Device Addresses

The 64-bit address is a unique device address assigned during manufacturing. This address is

unique to each physical device. The 64-bit address includes a 3-byte Organizationally Unique

Identifier (OUI) assigned by the IEEE. The 64-bit address is also called the extended address.

16-bit Device Addresses

A device receives a 16-bit address when it joins a ZigBee network. For this reason, the 16-bit

address is also called the "network address". The 16-bit address of 0x0000 is reserved for the

coordinator. All other devices receive a randomly generated address from the router or coordinator

device that allows the join. The 16-bit address can change under certain conditions:

• An address conflict is detected where two devices are found to have the same 16-bit address

• A device leaves the network and later joins (it can receive a different address)

All ZigBee transmissions are sent using the source and destination 16-bit addresses. The routing

tables on ZigBee devices also use 16-bit addresses to determine how to route data packets

through the network. However, since the 16-bit address is not static, it is not a reliable way to

identify a device.

To solve this problem, the 64-bit destination address is often included in data transmissions to

guarantee data is delivered to the correct destination. The ZigBee stack can discover the 16-bit

address, if unknown, before transmitting data to a remote.

Application Layer Addressing

ZigBee devices can support multiple application profiles, cluster IDs, and endpoints. (See "ZigBee

Application Layers - In Depth" in chapter 3.) Application layer addressing allows data

transmissions to be addressed to specific profile IDs, cluster IDs, and endpoints. Application layer

addressing is useful if an application must

• Interoperate with other ZigBee devices outside of the Digi application profile

• Utilize service and network management capabilities of the ZDO

• Operate on a public application profile such as Home Controls or Smart Energy.

The API firmware provides a simple yet powerful interface that can easily send data to any profile

ID, endpoint, and cluster ID combination on any device in a ZigBee network.

Data Transmission

ZigBee data packets can be sent as either unicast or broadcast transmissions. Unicast

transmissions route data from one source device to one destination device, whereas broadcast

transmissions are sent to many or all devices in the network.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 44

Broadcast Transmissions

Broadcast transmissions within the ZigBee protocol are intended to be propagated throughout the

entire network such that all nodes receive the transmission. To accomplish this, the coordinator

and all routers that receive a broadcast transmission will retransmit the packet three times.

Note: when a router or coordinator delivers a broadcast transmission to an end device child, the

transmission is only sent once (immediately after the end device wakes and polls the parent for

any new data). See Parent Operation section in chapter 6 for details.

BroadcastDataTransmission

Each node that transmits the broadcast will also create an entry in a local broadcast transmission

table. This entry is used to keep track of each received broadcast packet to ensure the packets are

not endlessly transmitted. Each entry persists for 8 seconds. The broadcast transmission table

holds 8 entries.

For each broadcast transmission, the ZigBee stack must reserve buffer space for a copy of the

data packet. This copy is used to retransmit the packet as needed. Large broadcast packets will

require more buffer space. This information on buffer space is provided for general knowledge; the

user does not and cannot change any buffer spacing. Buffer spacing is handled automatically by

the XBee module.

Since broadcast transmissions are retransmitted by each device in the network, broadcast

messages should be used sparingly.

Unicast Transmissions

Unicast transmissions are sent from one source device to another destination device. The

destination device could be an immediate neighbor of the source, or it could be several hops away.

Unicast transmissions that are sent along a multiple hop path require some means of establishing

a route to the destination device. See the "RF Packet Routing" section in chapter 4 for details.

Legend

C=Coordinator

R=Router

E=End Device

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 45

Address Resolution

As mentioned previously, each device in a ZigBee network has both a 16-bit (network) address

and a 64-bit (extended) address. The 64-bit address is unique and assigned to the device during

manufacturing, and the 16-bit address is obtained after joining a network. The 16-bit address can

also change under certain conditions.

When sending a unicast transmission, the ZigBee network layer uses the 16-bit address of the

destination and each hop to route the data packet. If the 16-bit address of the destination is not

known, the ZigBee stack includes a discovery provision to automatically discover the destination

device's 16-bit address before routing the data.

To discover a 16-bit address of a remote, the device initiating the discovery sends a broadcast

address discovery transmission. The address discovery broadcast includes the 64-bit address of

the remote device whose 16-bit address is being requested. All nodes that receive this

transmission check the 64-bit address in the payload and compare it to their own 64-bit address.

If the addresses match, the device sends a response packet back to the initiator. This response

includes the remote's 16-bit address. When the discovery response is received, the initiator will

then transmit the data.

Address Table

Each ZigBee device maintains an address table that maps a 64-bit address to a 16-bit address.

When a transmission is addressed to a 64-bit address, the ZigBee stack searches the address

table for an entry with a matching 64-bit address, in hopes of determining the destination's 16-bit

address. If a known 16-bit address is not found, the ZigBee stack will perform address discovery

to discover the device's current 16-bit address.

The XBee modules can store up to 10 address table entries. For applications where a single device

(e.g. coordinator) may send unicast transmissions to more than 10 devices, the application should

implement an address table to store the 16-bit and 64-bit addresses for each remote device. Any

XBee that will send data to more than 10 remotes should also use API firmware. The application

can then send both the 16-bit and 64-bit addresses to the XBee in the API transmit frames which

will significantly reduce the number of 16-bit address discoveries and greatly improve data

throughput.

If an application will support an address table, the size should ideally be larger than the maximum

number of destination addresses the device will communicate with. Each entry in the address table

should contain a 64-bit destination address and its last known 16-bit address.

When sending a transmission to a destination 64-bit address, the application should search the

address table for a matching 64-bit address. If a match is found, the 16-bit address should be

populated into the 16-bit address field of the API frame. If a match is not found, the 16-bit

address should be set to 0xFFFE (unknown) in the API transmit frame.

The API provides indication of a remote device's 16-bit address in the following frames:

• All receive data frames

Rx Data (0x90)

Rx Explicit Data (0x91)

IO Sample Data (0x92)

Node Identification Indicator (0x95)

Route Record Indicator (0xA1)

SampleAddressTable

64-bit Address 16-bit Address

0013 A200 4000 0001 0x4414

0013 A200 400A 3568 0x1234

0013 A200 4004 1122 0xC200

0013 A200 4002 1123 0xFFFE (unknown)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 46

etc.

• Transmit status frame (0x8B)

The application should always update the 16-bit address in the address table when one of these

frames is received to ensure the table has the most recently known 16-bit address. If a

transmission failure occurs, the application should set the 16-bit address in the table to 0xFFFE

(unknown).

Fragmentation

Each unicast transmission may support up to 84 bytes of RF payload. (Enabling security or using

source routing can reduce this number. See the NP command for details.) However, the XBee ZB

firmware supports a ZigBee feature called fragmentation that allows a single large data packet to

be broken up into multiple RF transmissions and reassembled by the receiver before sending data

out its UART. This is shown in the image below.

The API transmit frame can include up to 255 bytes of data, which will be broken up into multiple

transmissions and reassembled on the receiving side. If one or more of the fragmented messages

are not received by the receiving device, the receiver will drop the entire message, and the sender

will indicate a transmission failure in the Tx Status API frame.

Applications that do not wish to use fragmentation should avoid sending more than the maximum

number of bytes in a single RF transmission. See the "Maximum RF Payload Size" section for

details.

Devices will not receive or reassemble fragmented RF packets if RTS flow control is enabled (D6

command).

Data Transmission Examples

AT Firmware

To send a data packet in AT firmware, the DH and DL commands must be set to match the 64-bit

address of the destination device. DH must match the upper 4-bytes, and DL must match the

lower 4 bytes. Since the coordinator always receives a 16-bit address of 0x0000, a 64-bit address

of 0x0000000000000000 is defined as the coordinator's address (in ZB firmware). The default

values of DH and DL are 0x00, which sends data to the coordinator.

Example 1: Send a transmission to the coordinator.

(In this example, a '\r' refers to a carriage return character.)

A router or end device can send data in two ways. First, set the destination address (DH and DL

commands) to 0x00.

1. Enter command mode ('+++')

2. After receiving an OK\r, issue the following commands:

a. ATDH0\r

b. ATDL0\r

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 47

c. ATCN\r

3. Verify that each of the 3 commands returned an OK\r response.

4. After setting these command values, all serial characters will be sent as a unicast transmission

to the coordinator.

Alternatively, if the coordinator's 64-bit address is known, DH and DL can be set to the

coordinator's 64-bit address. Suppose the coordinator's address is 0x0013A200404A2244.

1. Enter command mode ('+++')

2. After receiving an OK\r, issue the following commands:

a. ATDH13A200\r

b. ATDL404A2244\

c. ATCN\r

3. Verify that each of the 3 commands returned an OK\r response.

4. After setting these command values, all serial characters will be sent as a unicast transmission

to the coordinator.

API Firmware

Use the transmit request, or explicit transmit request frame (0x10 and 0x11 respectively) to send

data to the coordinator. The 64-bit address can either be set to 0x0000000000000000, or to the

64-bit address of the coordinator. The 16-bit address should be set to 0xFFFE when using the 64-

bit address of all 0x00s.

To send an ascii "1" to the coordinator's 0x00 address, the following API frame can be used:

7E 00 0F 10 01 0000 0000 0000 0000 FFFE 00 00 31 C0

If the explicit transmit frame is used, the cluster ID should be set to 0x0011, the profile ID to

0xC105, and the source and destination endpoints to 0xE8 (recommended defaults for data

transmissions in the Digi profile.) The same transmission could be sent using the following explicit

transmit frame:

7E 00 15 11 01 0000 0000 0000 0000 FFFE E8 E8 0011 C105 00 00 31 18

Notice the 16-bit address is set to 0xFFFE. This is required when sending to a 64-bit address of

0x00s.

Now suppose the coordinator's 64-bit address is 0x0013A200404A2244. The following transmit

request API frame (0x10) will send an ASCII "1" to the coordinator:

7E 00 0F 10 01 0013 A200 404A 2244 0000 0000 31 18

Example 2: Send a broadcast transmission.

(In this example, a '\r' refers to a carriage return character.)

Perform the following steps to configure a broadcast transmission:

1. Enter command mode ('+++')

2. After receiving an OK\r, issue the following commands:

a. ATDH0\r

b. ATDLffff\r

c. ATCN\r

3. Verify that each of the 3 commands returned an OK\r response

4. After setting these command values, all serial characters will be sent as a broadcast

transmission.

API Firmware

This example will use the transmit request API frame (0x10) to send an ASCII "1" in a broadcast

transmission.

To send an ascii "1" as a broadcast transmission, the following API frame can be used:

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 48

7E 00 0F 10 01 0000 0000 0000 FFFF FFFE 00 00 31 C2

Notice the destination 16-bit address is set to 0xFFFE for broadcast transmissions.

RF Packet Routing

Unicast transmissions may require some type of routing. ZigBee includes several different ways to

route data, each with its own advantages and disadvantages. These are summarized in the table

below.

Note – End devices do not make use of these routing protocols. Rather, an end device sends a

unicast transmission to its parent and allows the parent to route the data packet in its behalf.

Link Status Transmission

Before discussing the various routing protocols, it is worth understanding the primary mechanism

in ZigBee for establishing reliable bi-directional links. This mechanism is especially useful in

networks that may have a mixture of devices with varying output power and/or receiver sensitivity

levels.

Each coordinator or router device periodically sends a link status message. This message is sent

as a 1-hop broadcast transmission, received only by one-hop neighbors. The link status message

contains a list of neighboring devices and incoming and outgoing link qualities for each neighbor.

Using these messages, neighboring devices can determine the quality of a bi-directional link with

each neighbor and use that information to select a route that works well in both directions.

For example, consider a network of two neighboring devices that send periodic link status

messages. Suppose that the output power of device A is +18dBm, and the output power of device

B is +3dBm (considerably less than the output power of device A). The link status messages might

indicate the following:

Routing Approach Description When to Use

Ad hoc On-demand

Distance Vector (AODV)

Mesh Routing

Routing paths are created between source and

destination, possibly traversing multiple nodes

(“hops”). Each device knows who to send data

to next to eventually reach the destination

Use in networks that will not scale beyond about

40 destination devices.

Many-to-One Routing A single broadcast transmission configured

reverse routes on all devices into the device that

sends the broadcast

Useful when many remote devices must send

data to a single gateway or collector device.

Source Routing Data packets include the entire route the packet

should traverse to get from source to

destination

Improves routing efficiency in large networks

(over 40 remote devices)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 49

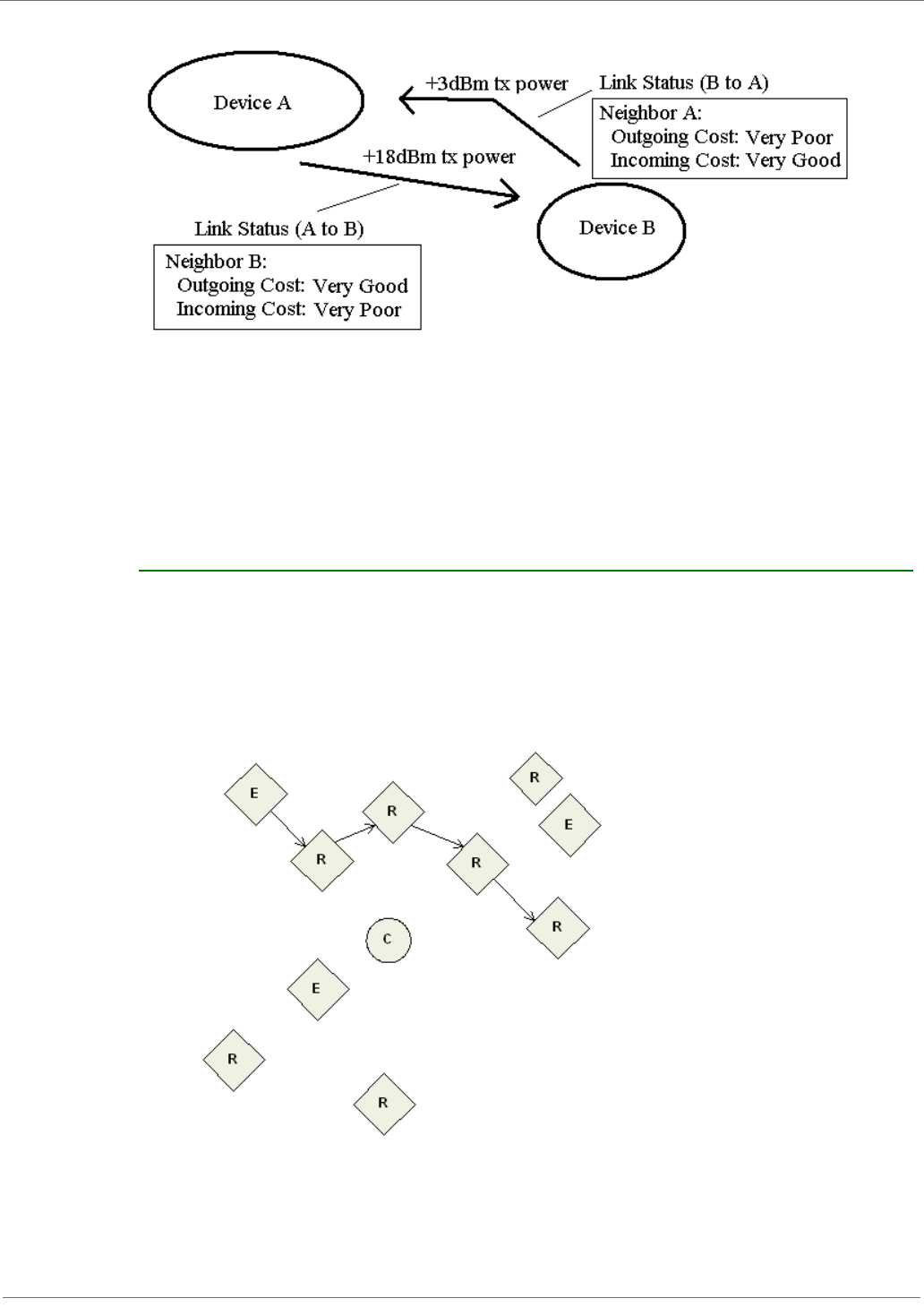

This mechanism enables devices A and B to recognize that the link is not reliable in both directions

and select a different neighbor when establishing routes. (Such links are called asymmetric links,

meaning the link quality is not similar in both directions.)

When a router or coordinator device powers on, it sends link status messages every couple

seconds to attempt to discover link qualities with its neighbors quickly. After being powered on for

some time, the link status messages are sent at a much slower rate (about every 3-4 times per

minute).

AODV Mesh Routing

ZigBee employs mesh routing to establish a route between the source device and the destination.

Mesh routing allows data packets to traverse multiple nodes (hops) in a network to route data

from a source to a destination. Routers and coordinators can participate in establishing routes

between source and destination devices using a process called route discovery. The Route

discovery process is based on the AODV (Ad-hoc On-demand Distance Vector routing) protocol.

SampleTransmissionThroughaMeshNetwork

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 50

AODV (Ad-hoc On-demand Distance Vector) Routing Algorithm

Routing under the AODV protocol is accomplished using tables in each node that store the next

hop (intermediary node between source and destination nodes) for a destination node. If a next

hop is not known, route discovery must take place in order to find a path. Since only a limited

number of routes can be stored on a Router, route discovery will take place more often on a large

network with communication between many different nodes.

When a source node must discover a route to a destination node, it sends a broadcast route

request command. The route request command contains the source network address, the

destination network address and a path cost field (a metric for measuring route quality). As the

route request command is propagated through the network (refer to the Broadcast Transmission),

each node that re-broadcasts the message updates the path cost field and creates a temporary

entry in its route discovery table.

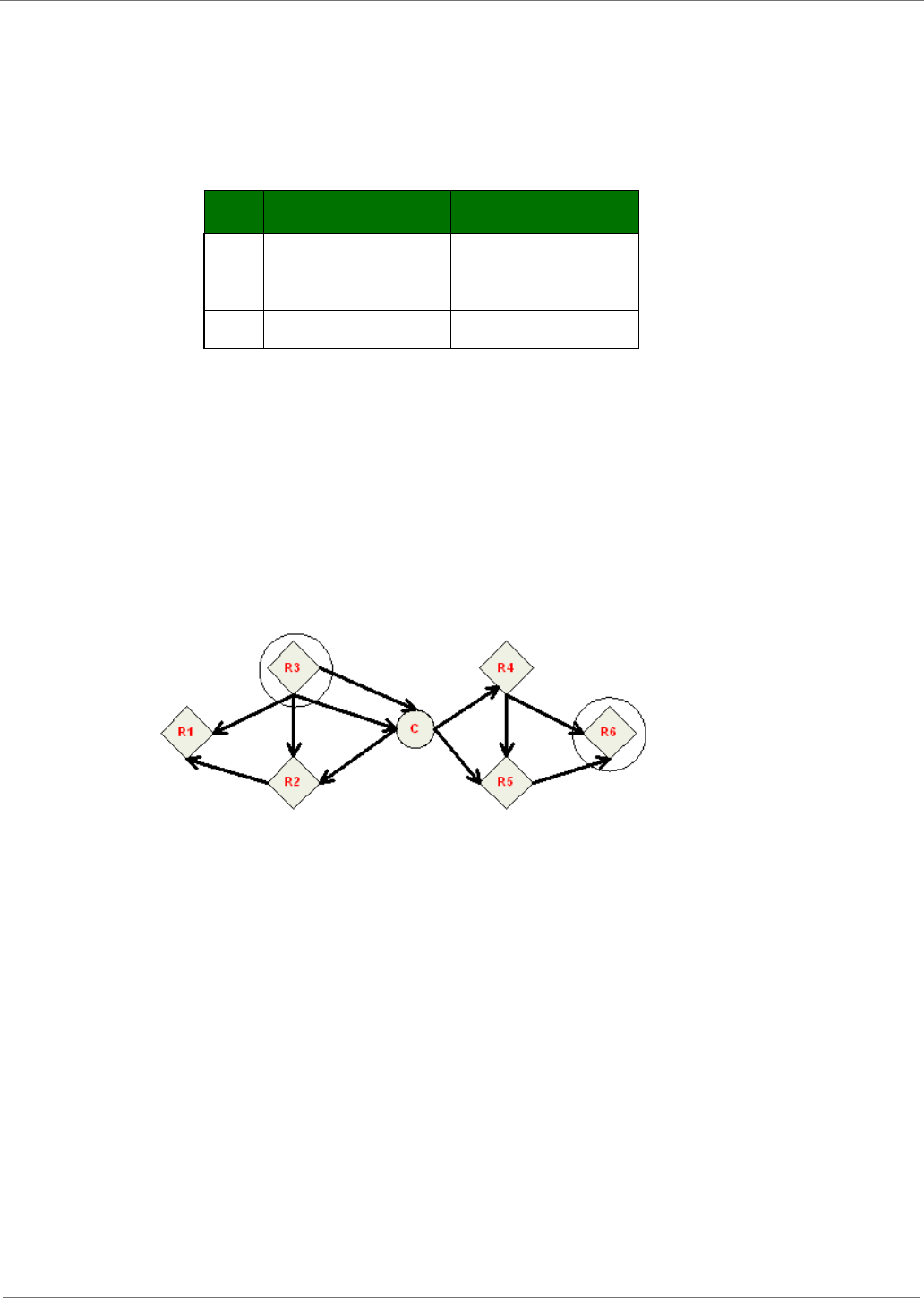

SampleRouteRequest(Broadcast)TransmissionWhereR3isTryingtoDiscoveraRoutetoR6

When the destination node receives a route request, it compares the ‘path cost’ field against

previously received route request commands. If the path cost stored in the route request is better

than any previously received, the destination node will transmit a route reply packet to the node

that originated the route request. Intermediate nodes receive and forward the route reply packet

to the source node (the node that originated route request).

Node Destination Address Next Hop Address

R3 Router 6 Coordinator

CRouter 6 Router 5

R5 Router 6 Router 6

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 51

SampleRouteReply(Unicast)WhereR6SendsaRouteReplytoR3.

Note: R6 could send multiple replies if it identifies a better route.

Retries and Acknowledgments

ZigBee includes acknowledgment packets at both the Mac and Application Support (APS) layers.

When data is transmitted to a remote device, it may traverse multiple hops to reach the

destination. As data is transmitted from one node to its neighbor, an acknowledgment packet

(Ack) is transmitted in the opposite direction to indicate that the transmission was successfully

received. If the Ack is not received, the transmitting device will retransmit the data, up to 4 times.

This Ack is called the Mac layer acknowledgment.

In addition, the device that originated the transmission expects to receive an acknowledgment

packet (Ack) from the destination device. This Ack will traverse the same path that the data

traversed, but in the opposite direction. If the originator fails to receive this Ack, it will retransmit

the data, up to 2 times until an Ack is received. This Ack is called the ZigBee APS layer

acknowledgment.

Refer to the ZigBee specification for more details.

Many-to-One Routing

In networks where many devices must send data to a central collector or gateway device, AODV

mesh routing requires significant overhead. If every device in the network had to discover a route

before it could send data to the data collector, the network could easily become inundated with

broadcast route discovery messages.

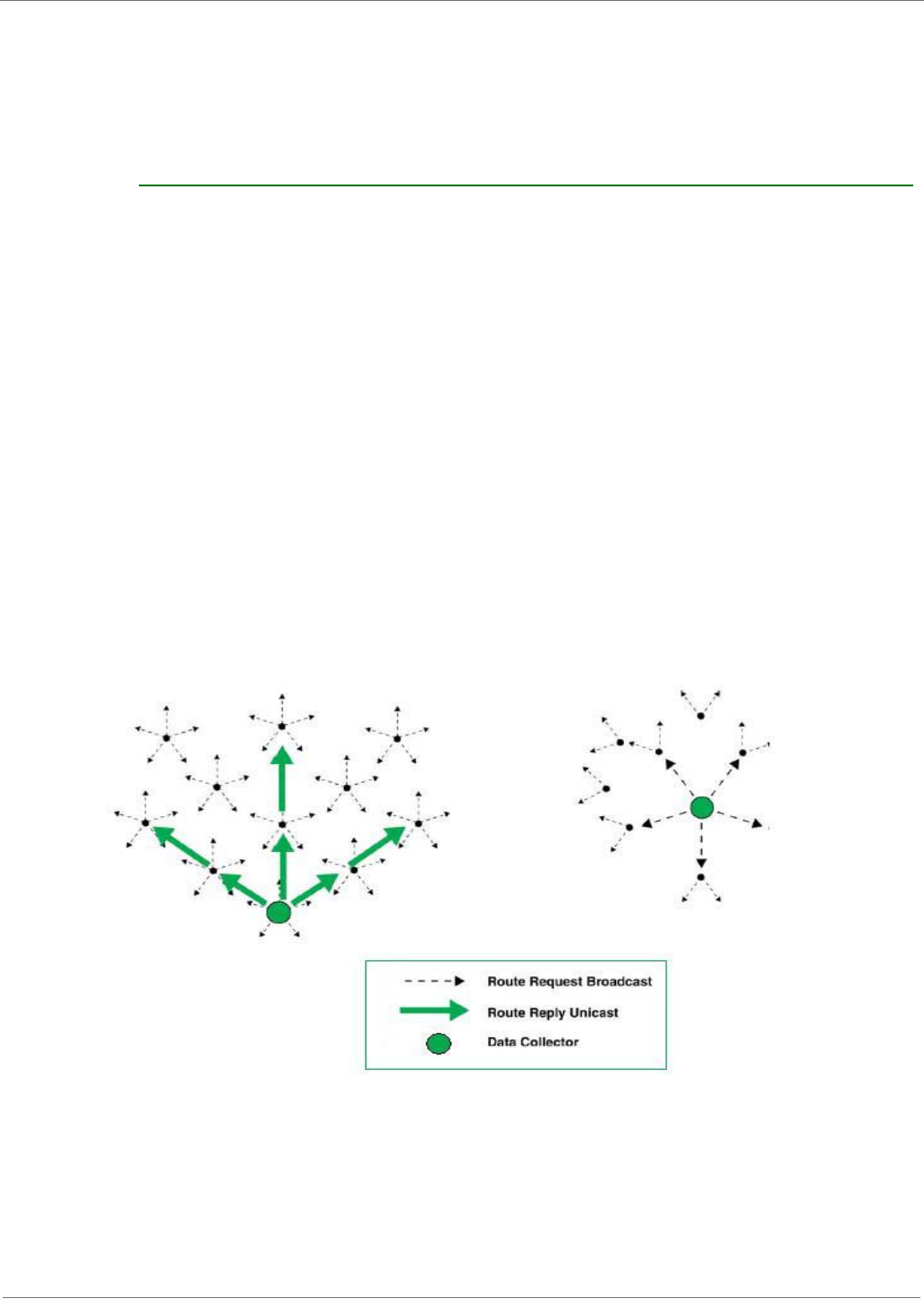

Many-to-one routing is an optimization for these kinds of networks. Rather than require each

device to do its own route discovery, a single many-to-one broadcast transmission is sent from the

data collector to establish reverse routes on all devices. This is shown in the figure below. The left

side shows the many broadcasts the devices can send when they create their own routes and the

route replies generated by the data collector. The right side shows the benefits of many-to-one

routing where a single broadcast creates reverse routes to the data collector on all routers.

The many-to-one broadcast is a route request message with the target discovery address set to

the address of the data collector. Devices that receive this route request create a reverse many-to-

one routing table entry to create a path back to the data collector. The ZigBee stack on a device

uses historical link quality information about each neighbor to select a reliable neighbor for the

reverse route.

When a device sends data to a data collector, and it finds a many-to-one route in its routing table,

it will transmit the data without performing a route discovery. The many-to-one route request

should be sent periodically to update and refresh the reverse routes in the network.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 52

Applications that require multiple data collectors can also use many-to-one routing. If more than

one data collector device sends a many-to-one broadcast, devices will create one reverse routing

table entry for each collector.

In ZB firmware, the AR command is used to enable many-to-one broadcasting on a device. The AR

command sets a time interval (measured in 10 second units) for sending the many to one

broadcast transmission. (See the command table for details.)

Source Routing

In applications where a device must transmit data to many remotes, AODV routing would require

performing one route discovery for each destination device to establish a route. If there are more

destination devices than there are routing table entries, established AODV routes would be

overwritten with new routes, causing route discoveries to occur more regularly. This could result in

larger packet delays and poor network performance.

ZigBee source routing helps solve these problems. In contrast to many-to-one routing that

establishes routing paths from many devices to one data collector, source routing allows the

collector to store and specify routes for many remotes.

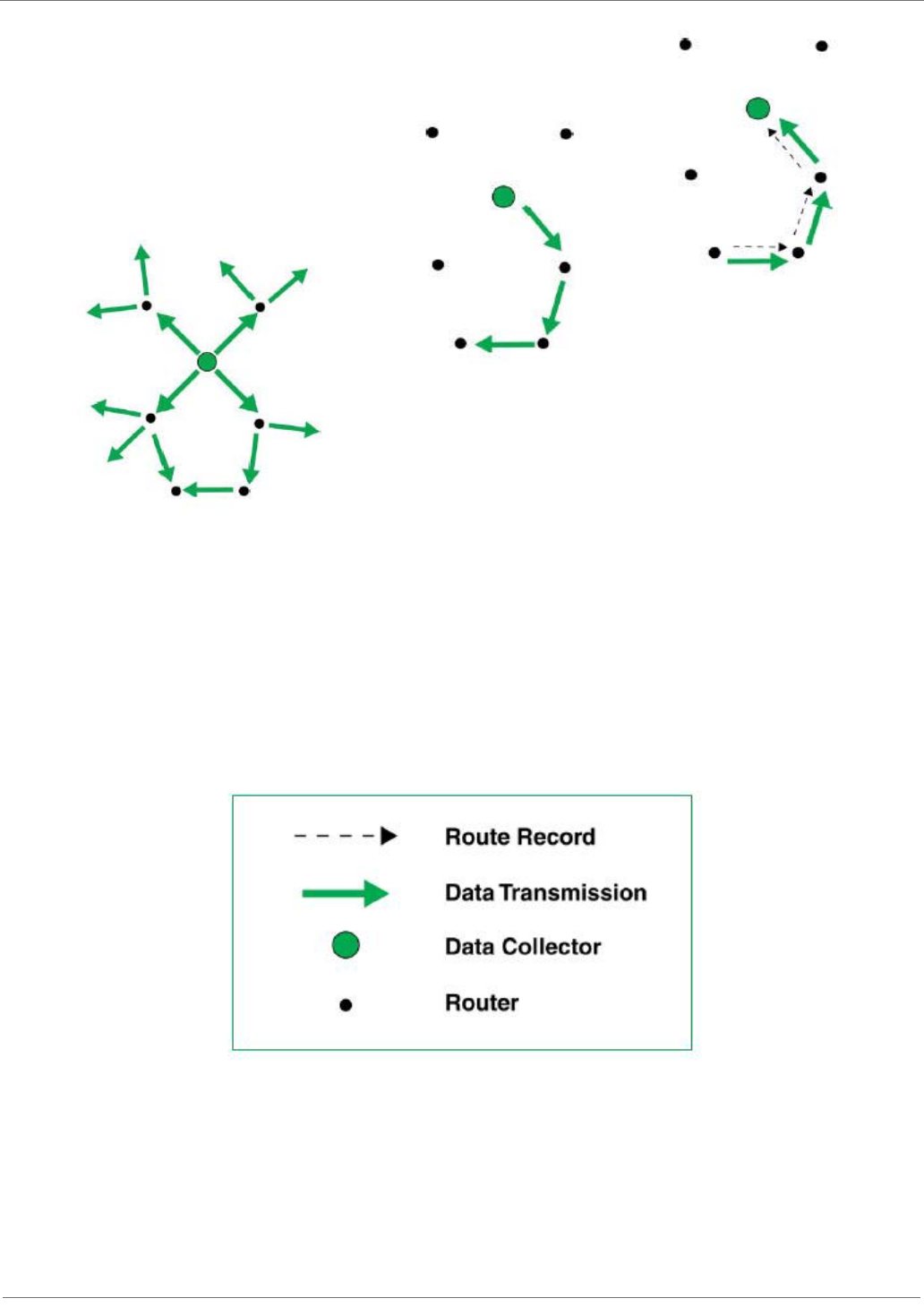

To use source routing, a device must use the API firmware, and it must send periodic many-to-one

route request broadcasts (AR command) to create a many-to-one route to it on all devices. When

remote devices send RF data using a many-to-one route, they first send a route record

transmission. The route record transmission is unicast along the many-to-one route until it

reaches the data collector. As the route record traverses the many-to-one route, it appends the

16-bit address of each device in the route into the RF payload. When the route record reaches the

data collector, it contains the address of the sender, and the 16-bit address of each hop in the

route. The data collector can store the routing information and retrieve it later to send a source

routed packet to the remote. This is shown in the images below.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 53

A remote device sends

an RF data packet to

the data collector.

(This is prefaced by a

route record

transmission to the

data collector.)

After obtaining a

source route, the

data collector sends

a source routed

transmission to the

remote device.

The data collector sends a many-to-one route

request broadcast to create reverse routes on

all devices.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 54

Acquiring Source Routes

Acquiring source routes requires the remote devices to send a unicast to a data collector (device

that sends many-to-one route request broadcasts). There are several ways to force remotes to

send route record transmissions.

1. If the application on remote devices periodically sends data to the data collector, each

transmission will force a route record to occur.

2. The data collector can issue a network discovery command (ND command) to force all XBee

devices to send a network discovery response. Each network discovery response will be prefaced

by a route record.

3. Periodic IO sampling can be enabled on remotes to force them to send data at a regular rate.

Each IO sample would be prefaced by a route record. (See chapter 8 for details.)

4. If the NI string of the remote device is known, the DN command can be issued with the NI

string of the remote in the payload. The remote device with a matching NI string would send a

route record and a DN response.

Storing Source Routes

When a data collector receives a route record, it sends it out the UART as a Route Record Indicator

API frame (0xA1). To use source routing, the application should receive these frames and store the

source route information.

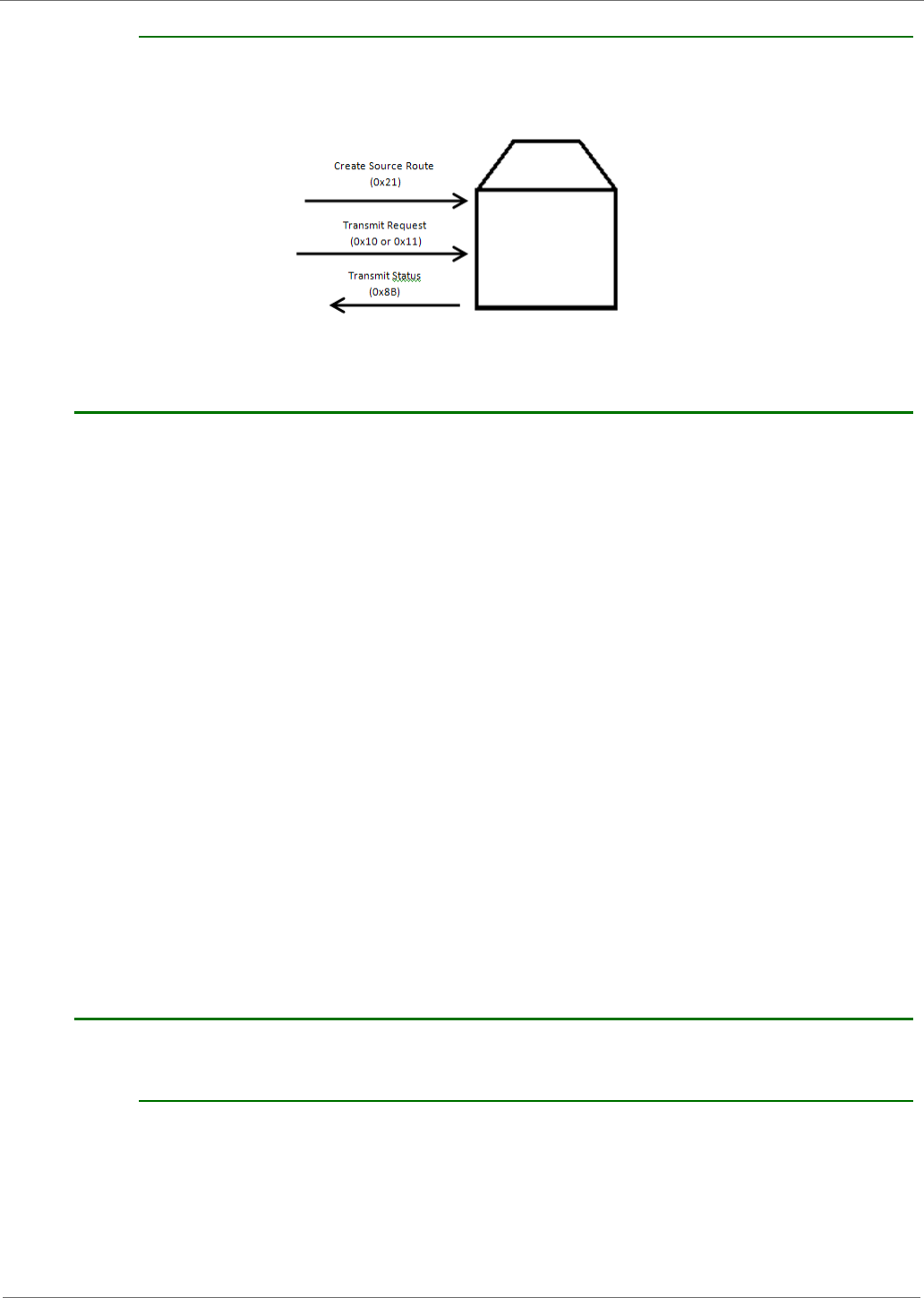

Sending a Source Routed Transmission

To send a source routed transmission, the application should send a Create Source Route API

frame (0x21) to the XBee to create a source route in its internal source route table. After sending

the Create Source Route API frame, the application can send data transmission or remote

command request frames as needed to the same destination, or any destination in the source

route. Once data must be sent to a new destination (a destination not included in the last source

route), the application should first send a new Create Source Route API frame. The XBee can

buffer one source route that includes up to 10 hops (excluding source and destination).

For example, suppose a network exists with a coordinator and 5 routers (R1, R2, R3, R4, R5) with

known source routes as shown below.

To send a source-routed packet to R3, the application must send a Create Source Route API frame

(0x21) to the XBee, with a destination of R3, and 2 hops (R1 and R2). If the 64- bit address of R3

is 0x0013A200 404a1234 and the 16-bit addresses of R1, R2, and R3 are:

Device 16-bit address

R1 0xAABB

R2 0xCCDD

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 55

Then the Create Source Route API frame would be:

7E 0012 21 00 0013A200 404A1234 EEFF 00 02 CCDD AABB 5C

Where:

0x0012 - length

0x21 - API ID (create source route)

0x00 - frame ID (set to 0 always)

0x0013A200 404A1234 - 64-bit address of R3 (destination)

0xEEFF - 16-bit address of R3 (destination)

0x00 - Route options (set to 0)

0x02 - Number of intermediate devices in the source route

0xCCDD - Address of furthest device (1-hop from target)

0xAABB - Address of next-closer device

0x5C - Checksum (0xFF - SUM (all bytes after length))

Repairing Source Routes

It is possible in a network to have an existing source route fail (i.e. a device in the route moves or

goes down, etc.). If a device goes down in a source routed network, all routes that used the device

will be broken.

As mentioned previously, source routing must be used with many-to-one routing. (A device that

uses source routing must also send a periodic many-to-one broadcast in order to keep routes

fresh). If a source route is broken, remote devices must send in new route record transmissions to

the data collector to provide it with a new source route. This requires that remote devices

periodically send data transmissions into the data collector. See the earlier "Acquiring Source

Routes" section for details.

Retries and Acknowledgments

ZigBee includes acknowledgment packets at both the Mac and Application Support (APS) layers.

When data is transmitted to a remote device, it may traverse multiple hops to reach the

destination. As data is transmitted from one node to its neighbor, an acknowledgment packet

(Ack) is transmitted in the opposite direction to indicate that the transmission was successfully

received. If the Ack is not received, the transmitting device will retransmit the data, up to 4 times.

This Ack is called the Mac layer acknowledgment.

In addition, the device that originated the transmission expects to receive an acknowledgment

packet (Ack) from the destination device. This Ack will traverse the same path that the data

traversed, but in the opposite direction. If the originator fails to receive this Ack, it will retransmit

the data, up to 2 times until an Ack is received. This Ack is called the ZigBee APS layer

acknowledgment.

Refer to the ZigBee specification for more details.

Encrypted Transmissions

Encrypted transmissions are routed similar to non-encrypted transmissions with one exception. As

an encrypted packet propagates from one device to another, each device decrypts the packet

using the network key, and authenticates the packet by verifying packet integrity. It then re-

encrypts the packet with its own source address and frame counter values, and sends the

message to the next hop. This process adds some overhead latency to unicast transmissions, but

it helps prevent replay attacks. See chapter 5 for details.

R3 0xEEFF

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 56

Maximum RF Payload Size

XBee ZB firmware includes a command (ATNP) that returns the maximum number of RF payload

bytes that can be sent in a unicast transmission. Querying the NP command, like most other

commands, returns a HEXADECIMAL value. This number will change based on whether security is

enabled or not. If security is enabled (EE command), the maximum number of RF payload bytes

decreases since security requires additional overhead.

After reading the NP value, the following conditions can affect the maximum number of data bytes

in a single RF transmission:

• Broadcast transmissions can support 8 bytes more than unicast transmissions.

• If source routing is used, the 16-bit addresses in the source route are inserted into the RF

payload space. For example, if NP returns 84 bytes, and a source route must traverse 3 inter-

mediate hops (3 16-bit addresses), the total number of bytes that can be sent in one RF

packet is 78.

• Enabling APS encryption (API tx option bit set) will reduce the number of payload bytes by 4.

Throughput

Throughput in a ZigBee network can vary by a number of variables, including: number of hops,

encryption enabled/disabled, sleeping end devices, failures/route discoveries. Our empirical

testing showed the following throughput performance in a robust operating environment (low

interference).

Data Throughput*

RR = router to router,

RE = router to end device (non-sleeping),

ER = end device (non-sleeping) to router,

SD = security disabled,

SE = security enabled.

4 hops = 5 nodes total, 3 intermediate router nodes

* Data throughput measurements were made setting the serial interface rate to 115200 bps, and

measuring the time to send 100,000 bytes from source to destination. During the test, no route

discoveries or failures occurred.

ZDO Transmissions

ZigBee defines a ZigBee Device Objects layer (ZDO) that can provide device and service discovery

and network management capabilities. This layer is described below.

Configuration Data Throughput

1 hop, RR, SD 35kbps

1 hop, RR, SE 19kbps

1 hop, RE, SD 25kbps

1 hop, RE, SE 16kbps

1 hop, ER, SD 21kbps

1 hop, ER, SE 16kbps

4 hops, RR, SD 10kbps

4 hops, RR, SE 5kbps

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 57

ZigBee Device Objects (ZDO)

The ZigBee Device Objects (ZDO) is supported to some extent on all ZigBee devices. The ZDO is

an endpoint that implements services described in the ZigBee Device Profile in the ZigBee

specification. Each service has an assigned cluster ID, and most service requests have an

associated response. The following table describes some common ZDO services.

Refer to the ZigBee specification for a detailed description of all ZigBee Device Profile services.

Sending a ZDO Command

To send a ZDO command, an explicit transmit API frame must be used and formatted correctly.

The source and destination endpoints must be set to 0, and the profile ID must be set to 0. The

cluster ID must be set to match the cluster ID of the appropriate service. For example, to send an

active endpoints request, the cluster ID must be set to 0x0005.

The first byte of payload in the API frame is an application sequence number (transaction

sequence number) that can be set to any single byte value. This same value will be used in the

first byte of the ZDO response. All remaining payload bytes must be set as required by the ZDO.

All multi-byte values must be sent in little endian byte order.

Receiving ZDO Commands and Responses

In XBee ZB firmware, ZDO commands can easily be sent using the API. In order to receive

incoming ZDO commands, receiver application addressing must be enabled with the AO command.

(See examples later in this section.) Not all incoming ZDO commands are passed up to the

application.

When a ZDO message is received on endpoint 0 and profile ID 0, the cluster ID indicates the type

of ZDO message that was received. The first byte of payload is generally a sequence number that

corresponds to a sequence number of a request. The remaining bytes are set as defined by the

ZDO. Similar to a ZDO request, all multi-byte values in the response are in little endian byte order.

Example 1: Send a ZDO LQI Request to read the neighbor table contents of a remote.

Looking at the ZigBee specification, the cluster ID for an LQI Request is 0x0031, and the payload

only requires a single byte (start index). This example will send an LQI request to a remote device

with a 64-bit address of 0x0013A200 40401234. The start index will be set to 0, and the

transaction sequence number will be set to 0x76

Cluster Name Cluster ID Description

Network Address

Request 0x0000 Request a 16-bit address of the

radio with a matching 64-bit

address (required parameter).

Active Endpoints

Request 0x0005 Request a list of endpoints from a

remote device.

LQI Request 0x0031 Request data from a neighbor table

of a remote device.

Routing Table

Request 0x0032 Request to retrieve routing table

entries from a remote device.

Network Address

Response 0x8000 Response that includes the 16-bit

address of a device.

Cluster Name Cluster ID Description

LQI Response 0x8031 Response that includes neighbor

table data from a remote device.

Routing Table

Response 0x8032 Response that includes routing

table entry data from a remote

device.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 58

API Frame:

7E 0016 11 01 0013A200 40401234 FFFE 00 00 0031 0000 00 00 76 00 CE

0x0016 - length

0x11 - Explicit transmit request

0x01 - frame ID (set to a non-zero value to enable the transmit status message, or set to 0 to

disable)

0x0013A200 40401234 - 64-bit address of the remote

0xFFFE - 16-bit address of the remote (0xFFFE = unknown). Optionally, set to the 16-bit address

of the destination if known.

0x00 - Source endpoint

0x00 - Destination endpoint

0x0031 - Cluster ID (LQI Request, or Neighbor table request)

0x0000 - Profile ID (ZigBee Device Profile)

0x00 - Broadcast radius

0x00 - Tx Options

0x76 - Transaction sequence number

0x00 - Required payload for LQI request command

0xCE - Checksum (0xFF - SUM (all bytes after length))

Description:

This API frame sends a ZDO LQI request (neighbor table request) to a remote device to obtain

data from its neighbor table. Recall that the AO command must be set correctly on an API device

to enable the explicit API receive frames in order to receive the ZDO response.

Example 2: Send a ZDO Network Address Request to discover the 16-bit address of a re-

mote.

Looking at the ZigBee specification, the cluster ID for a network Address Request is 0x0000, and

the payload only requires the following:

[64-bit address] + [Request Type] + [Start Index]

This example will send a Network Address Request as a broadcast transmission to discover the 16-

bit address of the device with a 64-bit address of 0x0013A200 40401234. The request type and

start index will be set to 0, and the transaction sequence number will be set to 0x44

API Frame:

7E 001F 11 01 00000000 0000FFFF FFFE 00 00 0000 0000 00 00 44 34124040 00A21300 00 00

0x001F - length

0x11 - Explicit transmit request

0x01 - frame ID (set to a non-zero value to enable the transmit status message, or set to 0 to

disable)

0x00000000 0000FFFF - 64-bit address for a broadcast transmission

0xFFFE - Set to this value for a broadcast transmission.

0x00 - Source endpoint

0x00 - Destination endpoint

0x0000 - Cluster ID (Network Address Request)

0x0000 - Profile ID (ZigBee Device Profile)

0x00 - Broadcast radius

0x00 - Tx Options

0x44 - Transaction sequence number

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 59

0x34124040 00A21300 00 00 - Required payload for Network Address Request command

0x33 - Checksum (0xFF - SUM (all bytes after length))

Description:

This API frame sends a broadcast ZDO Network Address Request to obtain the 16-bit address of a

device with a 64-bit address of 0x0013A200 40401234. Note the bytes for the 64-bit address were

inserted in little endian byte order. All multi-byte fields in the API payload of a ZDO command must

have their data inserted in little endian byte order. Also recall that the AO command must be set

correctly on an API device to enable the explicit API receive frames in order to receive the ZDO

response.

Transmission Timeouts

The ZigBee stack includes two kinds of transmission timeouts, depending on the nature of the

destination device. For destination devices such as routers whose receiver is always on, a unicast

timeout is used. The unicast timeout estimates a timeout based on the number of unicast hops the

packet should traverse to get data to the destination device. For transmissions destined for end

devices, the ZigBee stack uses an extended timeout that includes the unicast timeout (to route

data to the end device's parent), and it includes a timeout for the end device to finish sleeping,

wake, and poll the parent for data.

The ZigBee stack includes some provisions for a device to detect if the destination is an end device

or not. The ZigBee stack uses the unicast timeout unless it knows the destination is an end device.

The XBee API includes a transmit options bit that can be set to specify if the extended timeout

should be used for a given transmission. If this bit is set, the extended timeout will be used when

sending RF data to the specified destination. To improve routing reliability, applications should set

the extended timeout bit when sending data to end devices if:

• The application sends data to 10 or more remote devices, some of which are end devices,

AND

• The end devices may sleep longer than the unicast timeout

Equations for these timeouts are computed in the following sections.

Note: The timeouts in this section are worst-case timeouts and should be padded by a few

hundred milliseconds. These worst-case timeouts apply when an existing route breaks down (e.g.

intermediate hop or destination device moved).

Unicast Timeout

The unicast timeout is settable with the NH command. The actual unicast timeout is computed as

((50 * NH) + 100). The default NH value is 30 which equates to a 1.6 second timeout.

The unicast timeout includes 3 transmission attempts (1 attempt and 2 retries). The maximum

total timeout is about:

3 * ((50 * NH) + 100).

For example, if NH=30 (0x1E), the unicast timeout is about

3 * ((50 * 30) + 100), or

3 * (1500 + 100), or

3 * (1600), or

4800 ms, or

4.8 seconds.

Extended Timeout

The worst-case transmission timeout when sending data to an end device is somewhat larger than

when transmitting to a router or coordinator. As described later in chapter 6, RF data packets are

actually sent to the parent of the end device, who buffers the packet until the end device wakes to

receive it. The parent will buffer an RF data packet for up to (1.2 * SP) time.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 60

To ensure the end device has adequate time to wake and receive the data, the extended

transmission timeout to an end device is:

(50 * NH) + (1.2 * SP)

This timeout includes the packet buffering timeout (1.2 * SP) and time to account for routing

through the mesh network (50 * NH).

If an acknowledgment is not received within this time, the sender will resend the transmission up

to two more times. With retries included, the longest transmission timeout when sending data to

an end device is:

3 * ((50 * NH) + (1.2 * SP))

The SP value in both equations must be entered in millisecond units. (The SP command setting

uses 10ms units and must be converted to milliseconds to be used in this equation.)

For example, suppose a router is configured with NH=30 (0x1E) and SP=0x3E8 (10,000 ms), and

that it is either trying to send data to one of its end device children, or to a remote end device. The

total extended timeout to the end device is about:

3 * ((50 * NH) + (1.2 * SP)), or

3 * (1500 + 12000), or

3 * (13500), or

40500 ms, or

40.5 seconds.

Transmission Examples

Example 1: Send a unicast API data transmission to the coordinator using 64-bit address 0,

with payload "TxData".

API Frame:

7E 0014 10 01 00000000 00000000 FFFE 00 00 54 78 44 61 74 61 AB

Field Composition:

0x0014 - length

0x10 - API ID (tx data)

0x01 - frame ID (set greater than 0 to enable the tx-status response)

0x00000000 00000000 - 64-bit address of coordinator (ZB definition)

0xFFFE - Required 16-bit address if sending data to 64-bit address of 0.

0x00 - Broadcast radius (0 = max hops)

0x00 - Tx options

0x54 78 44 61 74 61 - ASCII representation of "TxData" string

0xAB - Checksum (0xFF - SUM (all bytes after length))

Description:

This transmission sends the string "TxData" to the coordinator, without knowing the coordinator

device's 64-bit address. A 64-bit address of 0 is defined as the coordinator in ZB firmware. If the

coordinator's 64-bit address was known, the 64-bit address of 0 could be replaced with the

coordinator's 64-bit address, and the 16-bit address could be set to 0.

Example 2 - Send a broadcast API data transmission that all devices can receive (including

sleeping end devices), with payload "TxData".

API Frame:

7E 0014 10 01 00000000 0000FFFF FFFE 00 00 54 78 44 61 74 61 AD

Field Composition:

0x0014 - length

0x10 - API ID (tx data)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 61

0x01 - frame ID (set to a non-zero value to enable the tx-status response)

0x00000000 0000FFFF - Broadcast definition (including sleeping end devices

0xFFFE - Required 16-bit address to send broadcast transmission.

0x00 - Broadcast radius (0 = max hops)

0x00 - Tx options

0x54 78 44 61 74 61 - ASCII representation of "TxData" string

0xAD - Checksum (0xFF - SUM (all bytes after length))

Description:

This transmission sends the string "TxData" as a broadcast transmission. Since the destination

address is set to 0xFFFF, all devices, including sleeping end devices can receive this broadcast.

If receiver application addressing is enabled, the XBee will report all received data frames in the

explicit format (0x91) to indicate the source and destination endpoints, cluster ID, and profile ID

that each packet was received on. (Status messages like modem status and route record

indicators are not affected.)

To enable receiver application addressing, set the AO command to 1 using the AT command frame

(0x08). Here's how to do this:

API Frame:

7E 0005 08 01 414F 01 65

Field Composition:

0x0005 - length

0x08 - API ID (at command)

0x01 - frame ID (set to a non-zero value to enable AT command response frames)

0x414F - ASCII representation of 'A','O' (the command being issued)

0x01 - Parameter value

0x65 - Checksum (0xFF - SUM (all bytes after length))

Description:

Setting AO=1 is required for the XBee to use the explicit receive API frame (0x91) when RF data

packets are received. This is required if the application needs indication of source or destination

endpoint, cluster ID, and/or profile ID values used in received ZigBee data packets. ZDO

messages can only be received if AO=1.

©2009DigiInternational,Inc. 62

5.Security

ZigBee supports various levels of security that can be configured depending on the needs of the

application. Security provisions include:

• 128-bit AES encryption

• Two security keys that can be preconfigured or obtained during joining

• Support for a trust center

• Provisions to ensure message integrity, confidentiality, and authentication.

The first half of this chapter describes various security features defined in the ZigBee-PRO

specification, while the last half illustrates how the XBee and XBee-PRO modules can be configured

to support these features

Security Modes

The ZigBee standard supports three security modes – residential, standard, and high security.

Residential security was first supported in the ZigBee 2006 standard. This level of security requires

a network key be shared among devices. Standard security adds a number of optional security

enhancements over residential security, including an APS layer link key. High security adds entity

authentication, and a number of other features not widely supported.

XBee ZB modules primarily support standard security, although end devices that support

residential security can join and interoperate with standard security devices. The remainder of this

chapter focuses on material that is relevant to standard security.

ZigBee Security Model

ZigBee security is applied to the Network and APS layers. Packets are encrypted with 128-bit AES

encryption. A network key and optional link key can be used to encrypt data. Only devices with the

same keys are able to communicate together in a network. Routers and end devices that will

communicate on a secure network must obtain the correct security keys.

Network Layer Security

The network key is used to encrypt the APS layer and application data. In addition to encrypting

application messages, network security is also applied to route request and reply messages, APS

commands, and ZDO commands. Network encryption is not applied to MAC layer transmissions

such as beacon transmissions, etc. If security is enabled in a network, all data packets will be

encrypted with the network key.

Packets are encrypted and authenticated using 128-bit AES. This is shown in the figure below.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 63

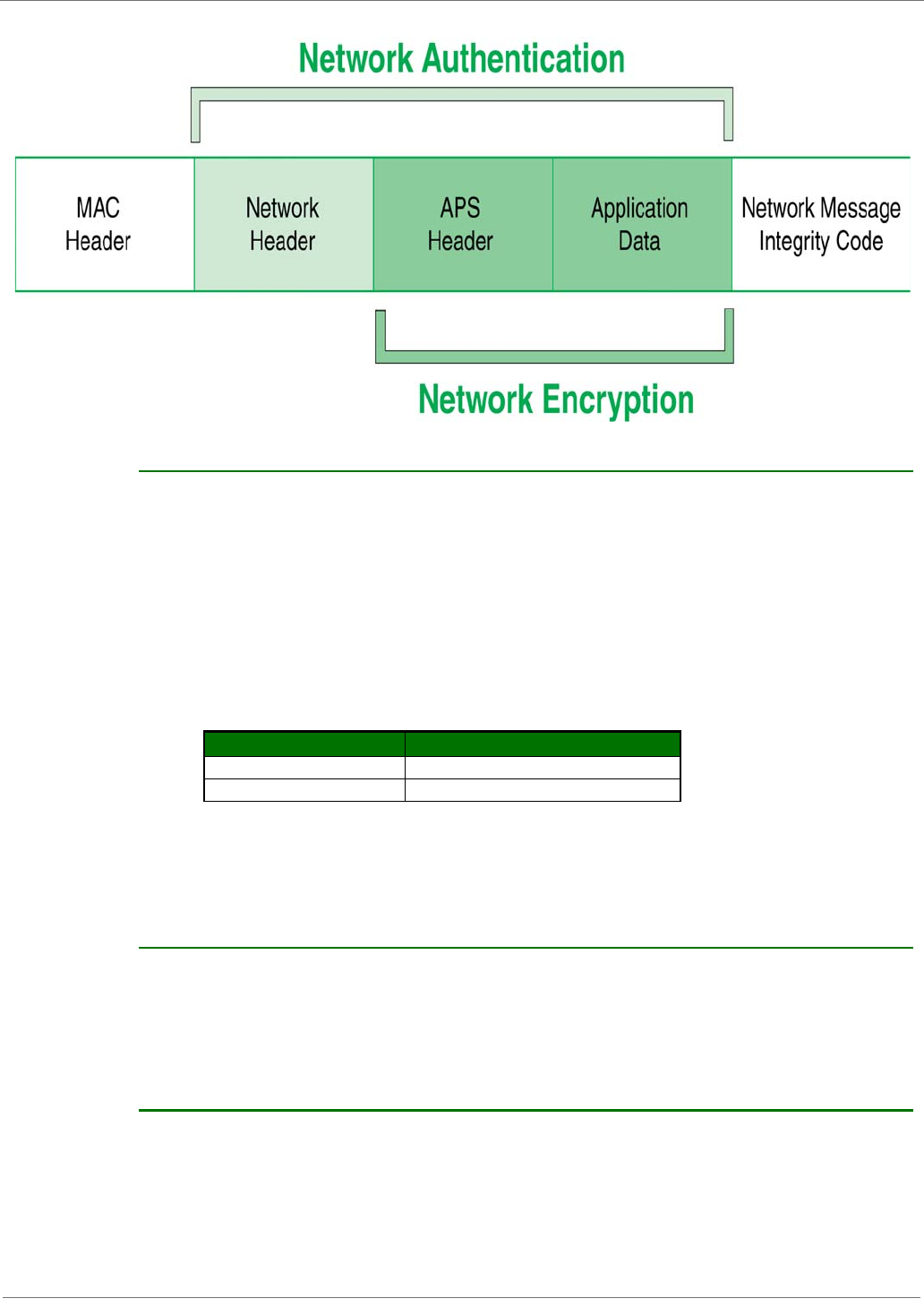

Frame Counter

The network header of encrypted packets includes a 32-bit frame counter. Each device in the

network maintains a 32-bit frame counter that is incremented for every transmission. In addition,

devices track the last known 32-bit frame counter for each of its neighbors. If a device receives a

packet from a neighbor with a smaller frame counter than it has previously seen, the packet is

discarded. The frame counter is used to protect against replay attacks.

If the frame counter reaches a maximum value of 0xFFFFFFFF, it does not wrap to 0 and no more

transmissions can be sent. Due to the size of the frame counters, reaching the maximum value is

a very unlikely event for most applications. The following table shows the required time under

different conditions, for the frame counter to reach its maximum value.

To clear the frame counters without compromising security, the network key can be changed in the

network. When the network key is updated, the frame counters on all devices reset to 0. (See the

Network Key Updates section for details.)

Message Integrity Code

The network header, APS header, and application data are all authenticated with 128-bit AES. A

hash is performed on these fields and is appended as a 4-byte message integrity code (MIC) to the

end of the packet. The MIC allows receiving devices to ensure the message has not been changed.

The MIC provides message integrity in the ZigBee security model. If a device receives a packet

and the MIC does not match the device’s own hash of the data, the packet is dropped.

Network Layer Encryption and Decryption

Packets with network layer encryption are encrypted and decrypted by each hop in a route. When

a device receives a packet with network encryption, it decrypts the packet and authenticates the

packet. If the device is not the destination, it then encrypts and authenticates the packet, using its

own frame counter and source address in the network header section.

Average Transmission Rate Time until 32-bit frame counter expires

1 / second 136 years

10 / second 13.6 years

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 64

Since network encryption is performed at each hop, packet latency is slightly longer in an

encrypted network than in a non-encrypted network. Also, security requires 18 bytes of overhead

to include a 32-bit frame counter, an 8-byte source address, 4-byte MIC, and 2 other bytes. This

reduces the number of payload bytes that can be sent in a data packet.

Network Key Updates

ZigBee supports a mechanism for changing the network key in a network. When the network key

is changed, the frame counters in all devices reset to 0.

APS Layer Security

APS layer security can be used to encrypt application data using a key that is shared between

source and destination devices. Where network layer security is applied to all data transmissions

and is decrypted and re-encrypted on a hop-by-hop basis, APS security is optional and provides

end-to-end security using an APS link key that only the source and destination device know. APS

security can be applied on a packet-by-packet basis. APS security cannot be applied to broadcast

transmissions.

If APS security is enabled, packets are encrypted and authenticated using 128-bit AES. This is

shown in the figure below:

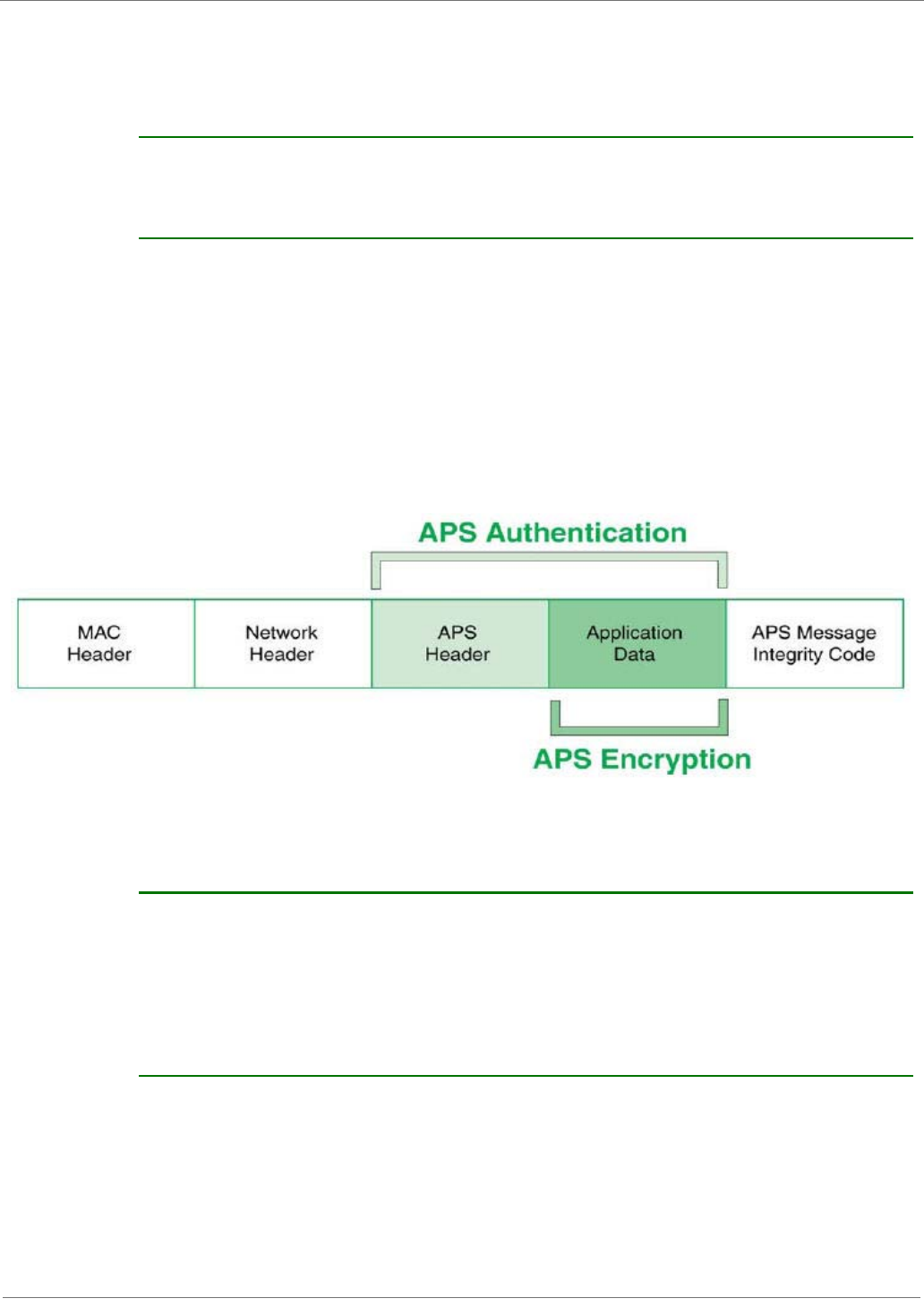

Message integrity Code

If APS security is enabled, the APS header and data payload are authenticated with 128-bit AES. A

hash is performed on these fields and appended as a 4-byte message integrity code (MIC) to the

end of the packet. This MIC is different than the MIC appended by the network layer. The MIC

allows the destination device to ensure the message has not been changed. If the destination

device receives a packet and the MIC does not match the destination device’s own hash of the

data, the packet is dropped.

APS Link Keys

There are two kinds of APS link keys – trust center link keys and application link keys. A trust

center link key is established between a device and the trust center, where an application link key

is established between a device and another device in the network where neither device is the

trust center.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 65

APS Layer Encryption and Decryption

Packets with APS layer encryption are encrypted at the source and only decrypted by the

destination. Since APS encryption requires a 5-byte header and a 4-byte MIC, the maximum data

payload is reduced by 9 bytes when APS encryption is used.

Network and APS Layer Encryption

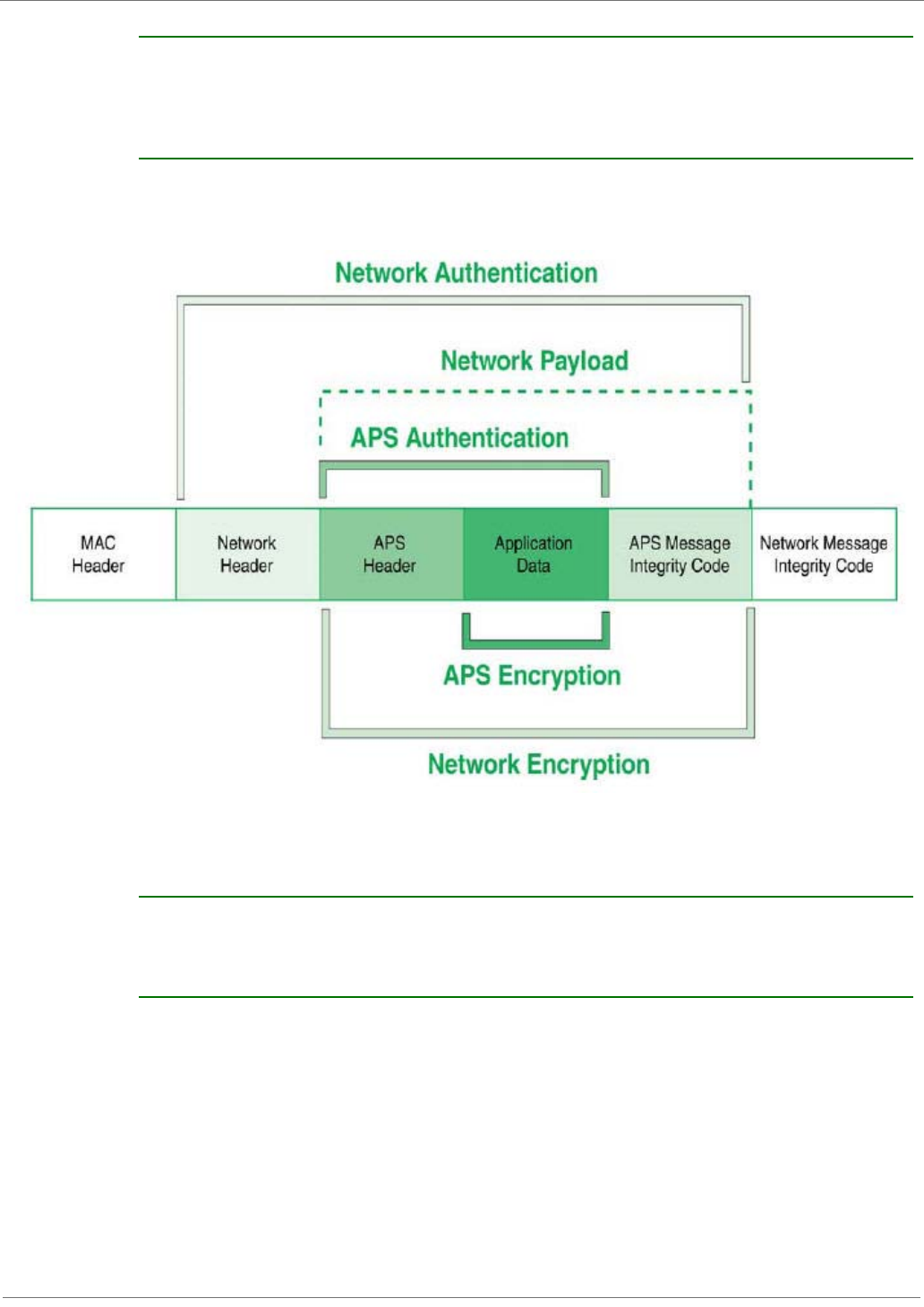

Network and APS layer encryption can both be applied to data. The following figure demonstrates

the authentication and encryption performed on the final ZigBee packet when both are applied.

Trust Center

ZigBee defines a trust center device that is responsible for authenticating devices that join the

network. The trust center also manages link key distribution in the network.

Forming and Joining a Secure Network

The coordinator is responsible for selecting a network encryption key. This key can either be

preconfigured or randomly selected. In addition, the coordinator generally operates as a trust

center and must therefore select the trust center link key. The trust center link key can also be

preconfigured or randomly selected.

Devices that join the network must obtain the network key when they join. When a device joins a

secure network, the network and link keys can be sent to the joining device. If the joining device

has a pre-configured trust center link key, the network key will be sent to the joining device

encrypted by the link key. Otherwise, if the joining device is not pre-configured with the link key,

the device could only join the network if the network key is sent unencrypted (“in the clear”). The

trust center must decide whether or not to send the network key unencrypted to joining devices

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 66

that are not pre-configured with the link key. Sending the network key unencrypted is not

recommended as it can open a security hole in the network. To maximize security, devices should

be pre-configured with the correct link key.

Implementing Security on the XBee

If security is enabled in the XBee ZB firmware, devices acquire the network key when they join a

network. Data transmissions are always encrypted with the network key, and can optionally be

end-to-end encrypted with the APS link key. The following sections discuss the security settings

and options in the XBee ZB firmware.

Enabling Security

To enable security on a device, the EE command must be set to 1. If the EE command value is

changed and changes are applied (e.g. AC command), the XBee module will leave the network

(PAN ID and channel) it was operating on, and attempt to form or join a new network.

If EE is set to 1, all data transmissions will be encrypted with the network key. When security is

enabled, the maximum number of bytes in a single RF transmission will be reduced. See the NP

command for details.

Note: The EE command must be set the same on all devices in a network. Changes to the EE

command should be written to non-volatile memory (to be preserved through power cycle or reset

events) using the WR command.

Setting the Network Security Key

The coordinator must select the network security key for the network. The NK command (write-

only) is used to set the network key. If NK=0 (default), a random network key will be selected.

(This should suffice for most applications.) Otherwise, if NK is set to a non-zero value, the network

security key will use the value specified by NK. NK is only supported on the coordinator.

Routers and end devices with security enabled (ATEE=1) acquire the network key when they join a

network. They will receive the network key encrypted with the link key if they share a pre-

configured link key with the coordinator. See the following section for details.

Setting the APS Trust Center Link Key

The coordinator must also select the trust center link key, using the KY command. If KY=0

(default), the coordinator will select a random trust center link key (not recommended).

Otherwise, if KY is set greater than 0, this value will be used as the pre-configured trust center link

key. KY is write-only and cannot be read.

Note: Application link keys (sent between two devices where neither device is the coordinator) are

not supported in ZB firmware at this time.

Random Trust Center Link Keys

If the coordinator selects a random trust center link key (KY=0, default), then it will allow devices

to join the network without having a pre-configured link key. However, this will cause the network

key to be sent unencrypted over-the-air to joining devices and is not recommended.

Pre-configured Trust Center Link Keys

If the coordinator uses a pre-configured link key (KY > 0), then the coordinator will not send the

network key unencrypted to joining devices. Only devices with the correct pre-configured link key

will be able to join and communicate on the network.

Enabling APS Encryption

APS encryption is an optional layer of security that uses the link key to encrypt the data payload.

Unlike network encryption that is decrypted and encrypted on a hop-by-hop basis, APS encryption

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 67

is only decrypted by the destination device. The XBee must be configured with security enabled

(EE set to 1) to use APS encryption.

APS encryption can be enabled in API firmware on a per-packet basis. To enable APS encryption

for a given transmission, the "enable APS encryption" transmit options bit should be set in the API

transmit frame. Enabling APS encryption decreases the maximum payload size by 9 bytes.

Using a Trust Center

The EO command can be used to define the coordinator as a trust center. If the coordinator is a

trust center, it will be alerted to all new join attempts in the network. The trust center also has the

ability to update or change the network key on the network.

In ZB firmware, a secure network can be established with or without a trust center. Network and

APS layer encryption are supported if a trust center is used or not.

Updating the Network Key with a Trust Center

If the trust center has started a network and the NK value is changed, the coordinator will update

the network key on all devices in the network. (Changes to NK will not force the device to leave

the network.) The network will continue to operate on the same channel and PAN ID, but the

devices in the network will update their network key, increment their network key sequence

number, and restore their frame counters to 0.

Updating the Network Key without a Trust Center

If the coordinator is not running as a trust center, the network reset command (NR1) can be used

to force all devices in the network to leave the current network and rejoin the network on another

channel. When devices leave and reform then network, the frame counters are reset to 0. This

approach will cause the coordinator to form a new network that the remaining devices should join.

Resetting the network in this manner will bring the coordinator and routers in the network down

for about 10 seconds, and will likely cause the 16-bit PAN ID and 16-bit addresses of the devices

to change.

XBee Security Examples

This section covers some sample XBee configurations to support different security modes. Several

AT commands are listed with suggested parameter values. The notation in this section includes an

'=' sign to indicate what each command register should be set to - for example, EE=1. This is not

the correct notation for setting command values in the XBee. In AT command mode, each

command is issued with a leading 'AT' and no '=' sign - for example ATEE1. In the API, the two

byte command is used in the command field, and parameters are populated as binary values in the

parameter field.

Example 1: Forming a network with security (pre-configured link keys)

1. Start a coordinator with the following settings:

a. ID=2234 (arbitrarily selected)

b. EE=1

c. NK=0

d. KY=4455

e. WR (save networking parameters to preserve them through power cycle)

2. Configure one or more routers or end devices with the following settings:

a. ID=2234

b. EE=1

c. KY=4455

d. WR (save networking parameters to preserve them through power cycle)

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 68

3. Read the AI setting on the coordinator and joining devices until they return 0 (formed or joined

a network).

In this example, EE, ID, and KY are set the same on all devices. After successfully joining the

secure network, all application data transmissions will be encrypted by the network key. Since NK

was set to 0 on the coordinator, a random network key was selected. And since the link key (KY)

was configured the same on all devices, to a non-zero value, the network key was sent encrypted

by the pre-configured link key (KY) when the devices joined.

Example 2: Forming a network with security (obtaining keys during joining)

1. Start a coordinator with the following settings:

a. ID=2235

b. EE=1

c. NK=0

d. KY=0

e. WR (save networking parameters to preserve them through power cycle)

2. Configure one or more routers or end devices with the following settings:

a. ID=2235

b. EE=1

c. KY=0

d. WR (save networking parameters to preserve them through power cycle)

3. Read the AI setting on the coordinator and joining devices until they return 0 (formed or joined

a network).

In this example, EE, ID, and KY are set the same on all devices. Since NK was set to 0 on the

coordinator, a random network key was selected. And since KY was set to 0 on all devices, the

network key was sent unencrypted ("in the clear") when the devices joined. This approach

introduces a security vulnerability into the network and is not recommended.

©2009DigiInternational,Inc. 69

6.NetworkCommissioningandDiagnostics

Network commissioning is the process whereby devices in a mesh network are discovered and

configured for operation. The XBee modules include several features to support device discovery

and configuration. In addition to configuring devices, a strategy must be developed to place

devices to ensure reliable routes.

To accommodate these requirements, the XBee modules include various features to aid in device

placement, configuration, and network diagnostics.

Device Configuration

XBee/XBee-PRO ZB modules can be configured locally through serial commands (AT or API), or

remotely through remote API commands. API devices can send configuration commands to set or

read the configuration settings of any device in the network.

Device Placement

For a mesh network installation to be successful, the installer must be able to determine where to

place individual XBee devices to establish reliable links throughout the mesh network.

Link Testing

A good way to measure the performance of a mesh network is to send unicast data through the

network from one device to another to determine the success rate of many transmissions. To

simplify link testing, the modules support a loopback cluster ID (0x12) on the data endpoint

(0xE8). Any data sent to this cluster ID on the data endpoint will be transmitted back to the

sender. This is shown in the figure below:

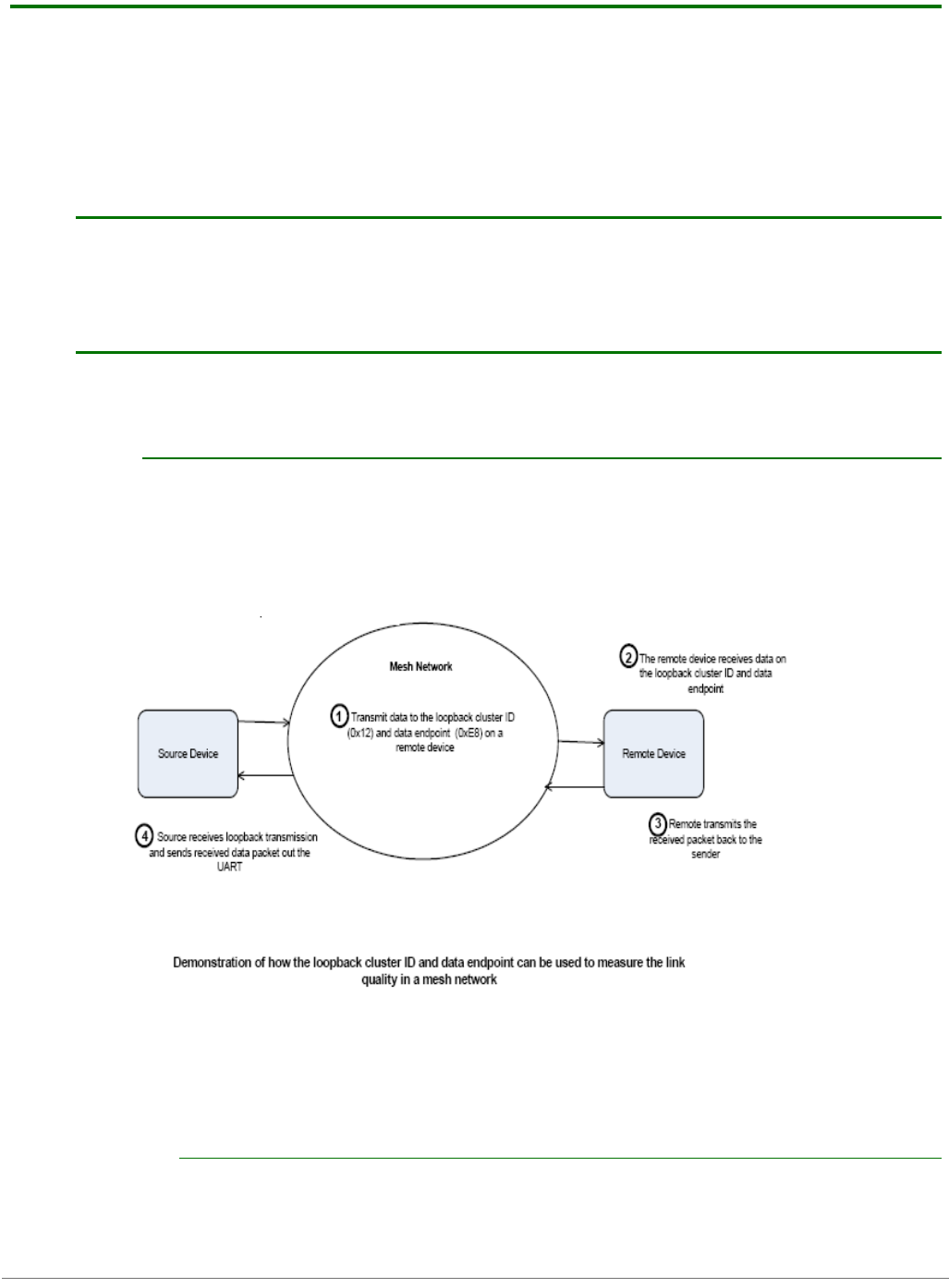

The configuration steps to send data to the loopback cluster ID depend on the firmware type.

AT Firmware

To send data to the loopback cluster ID on the data endpoint of a remote device, set the CI

command value to 0x12. The SE and DE commands should be set to 0xE8 (default value). The DH

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 70

and DL commands should be set to the address of the remote (0 for the coordinator, or the 64-bit

address of the remote). After exiting command mode, any received serial characters will be

transmitted to the remote device, and returned to the sender.

API Firmware

Send an Explicit Addressing ZigBee Command API frame (0x11) using 0x12 as the cluster ID and

0xE8 as the source and destination endpoint. Data packets received by the remote will be echoed

back to the sender.

RSSI Indicators

It is possible to measure the received signal strength on a device using the DB command. DB

returns the RSSI value (measured in –dBm) of the last received packet. However, this number can

be misleading. The DB value only indicates the received signal strength of the last hop. If a

transmission spans multiple hops, the DB value provides no indication of the overall transmission

path, or the quality of the worst link – it only indicates the quality of the last link and should be

used sparingly.

The DB value can be determined in hardware using the RSSI/PWM module pin (pin 6). If the RSSI

PWM functionality is enabled (P0 command), when the module receives data, the RSSI PWM is set

to a value based on the RSSI of the received packet. (Again, this value only indicates the quality of

the last hop.) This pin could potentially be connected to an LED to indicate if the link is stable or

not.

Device Discovery

Network Discovery

The network discovery command can be used to discover all Digi modules that have joined a

network. Issuing the ND command sends a broadcast node discovery command throughout the

network. All devices that receive the command will send a response that includes the device’s

addressing information, node identifier string (see NI command), and other relevant information.

This command is useful for generating a list of all module addresses in a network.

When a device receives the node discovery command, it waits a random time before sending its

own response. The maximum time delay is set on the ND sender with the NT command. The ND

originator includes its NT setting in the transmission to provide a delay window for all devices in

the network. Large networks may need to increase NT to improve network discovery reliability.

The default NT value is 0x3C (6 seconds).

ZDO Discovery

The ZigBee Device Profile includes provisions to discover devices in a network that are supported

on all ZigBee devices (including non-Digi products). These include the LQI Request (cluster ID

0x0031) and the Network Update Request (cluster ID 0x0038). The LQI Request can be used to

read the devices in the neighbor table of a remote device, and the Network Update Request can be

used to have a remote device do an active scan to discover all nearby ZigBee devices. Both of

these ZDO commands can be sent using the XBee Explicit API transmit frame (0x11). See the API

chapter for details. Refer to the ZigBee specification for formatting details of these two ZDO

frames.

Joining Announce

All ZigBee devices send a ZDO Device Announce broadcast transmission when they join a ZigBee

network (ZDO cluster ID 0x0013). These frames will be sent out the XBee's UART as an Explicit Rx

Indicator API frame (0x91) if AO is set to 1. The device announce payload includes the following

information:

[ Sequence Number] + [16-bit address] + [64-bit address] + [Capability]

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 71

The 16-bit and 64-bit addresses are received in little-endian byte order (LSB first). See the ZigBee

specification for details.

Commissioning Pushbutton and Associate LED

The XBee modules support a set of commissioning and LED behaviors to aid in device deployment

and commissioning. These include the commissioning pushbutton definitions and associate LED

behaviors. These features can be supported in hardware as shown below.

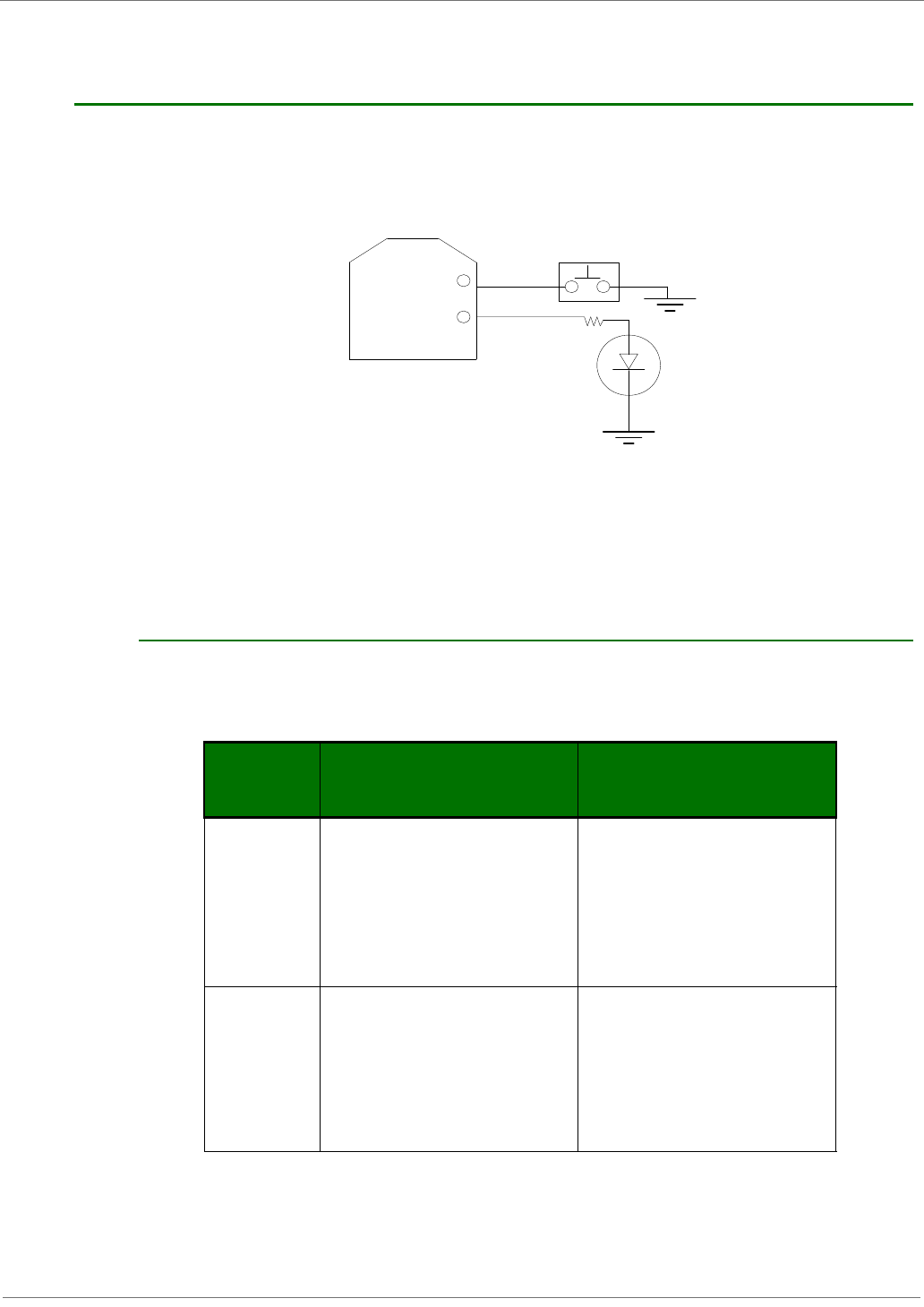

CommissioningPushbuttonandAssociateLEDFunctionalities

Commissioning Pushbutton

The commissioning pushbutton definitions provide a variety of simple functions to aid in deploying

devices in a network. The commissioning button functionality on pin 20 is enabled by setting the

D0 command to 1 (enabled by default).

Button

Presses

If module is joined to a network If module is not joined to a net-

work

• Wakes an end device for

30 seconds

• Sends a node identifica-

tion broadcast transmis-

sion

• Wakes an end device for

30 seconds

• Blinks a numeric error

code on the Associate pin

indicating the cause of

join failure (see section

6.4.2).

• Sends a broadcast trans-

mission to enable joining

on the coordinator and all

devices in the network for

1 minute. (If joining is

permanently enabled on a

device (NJ = 0xFF), this

action has no effect on

that device.)

•N/A

XBee

Push button

RAssociate

LED

A pushbutton and an LED can be connected to module pins 20 and 15 respectively to

support the commissioning pushbutton and associate LED functionalities.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 72

Button presses may be simulated in software using the ATCB command. ATCB should be issued

with a parameter set to the number of button presses to execute. (e.g. sending ATCB1 will execute

the action(s) associated with a single button press.)

The node identification frame is similar to the node discovery response frame – it contains the

device’s address, node identifier string (NI command), and other relevant data. All API devices

that receive the node identification frame send it out their UART as an API Node Identification

Indicator frame (0x95).

Associate LED

The Associate pin (pin 15) can provide indication of the device’s network status and diagnostics

information. To take advantage of these indications, an LED can be connected to the Associate pin

as shown in the figure above. The Associate LED functionality is enabled by setting the D5

command to 1 (enabled by default). If enabled, the Associate pin is configured as an output and

will behave as described in the following sections.

Joined Indication

The Associate pin indicates the network status of a device. If the module is not joined to a

network, the Associate pin is set high. Once the module successfully joins a network, the Associate

pin blinks at a regular time interval. This is shown in the following figure.

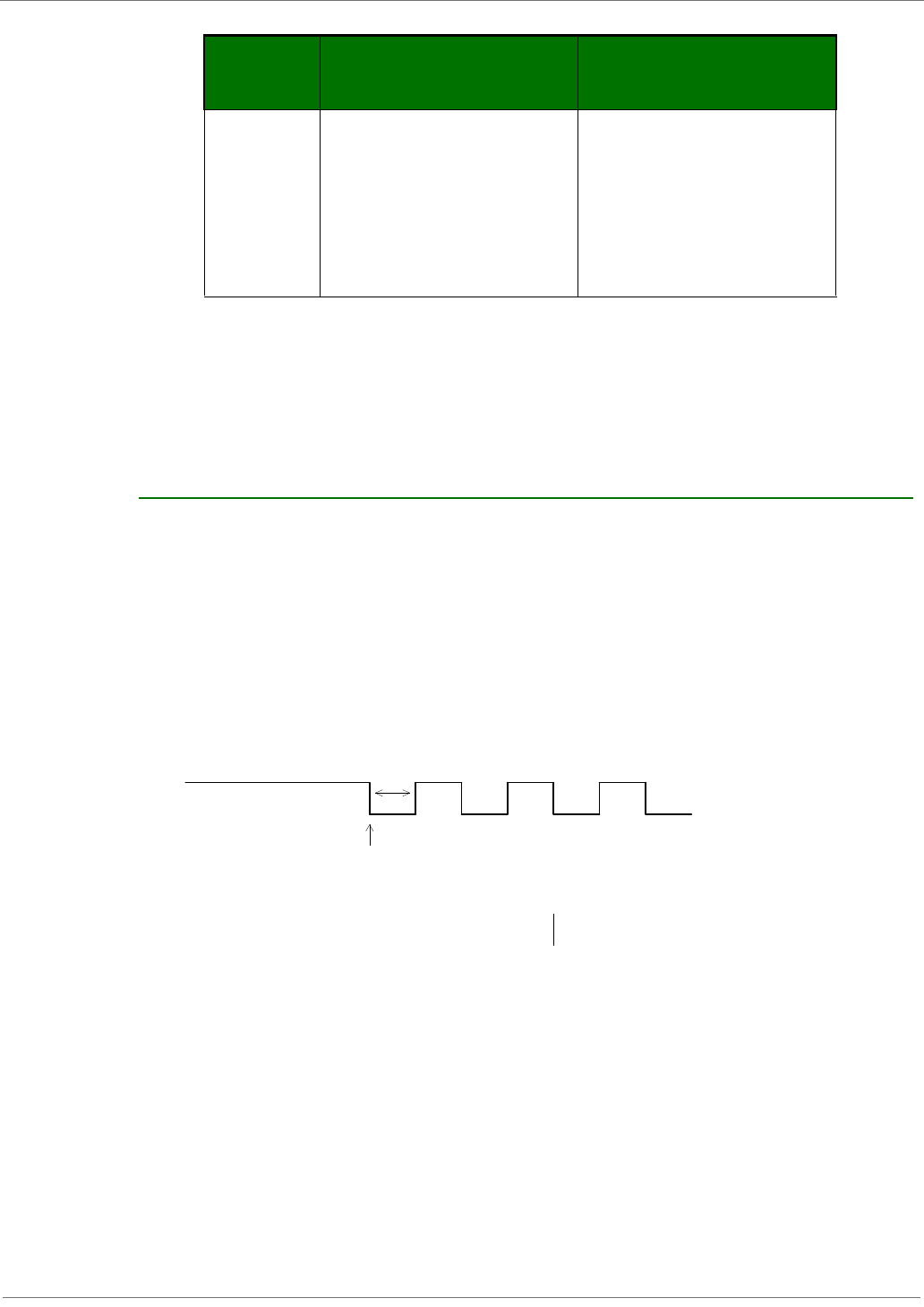

JoinedStatusofaDevice

The LT command defines the blink time of the Associate pin. If set to 0, the device uses the default

blink time (500ms for coordinator, 250ms for routers and end devices).

Diagnostics Support

The Associate pin works with the commissioning pushbutton to provide additional diagnostics

behaviors to aid in deploying and testing a network. If the commissioning push button is pressed

once, and the device has not joined a network, the Associate pin blinks a numeric error code to

indicate the cause of join failure. The number of blinks is equal to (AI value – 0x20). For example,

if AI=0x22, 2 blinks occur.

If the commissioning push button is pressed once, and the device has joined a network, the device

transmits a broadcast node identification packet. If the Associate LED functionality is enabled (D5

command), a device that receives this transmission will blink its Associate pin rapidly for 1 second.

• Causes the device to leave

the PAN.

• Issues ATRE to restore

module parameters to

default values, including

ID and SC.

• The device attempts to

join a network based on

its ID and SC settings.

• Issues ATRE to restore

module parameters to

default values, including

ID and SC.

• The device attempts to

join a network based on

its ID and SC settings.

Button

Presses

If module is joined to a network If module is not joined to a net-

work

Δt

Device Not Joined

Device has joined a network

Associate

The associate pin can indicate the joined status of a device . Once the device has joined a

network, the associate pin toggles state at a regular interval (Δt). The time can be set by

using the LT command.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 73

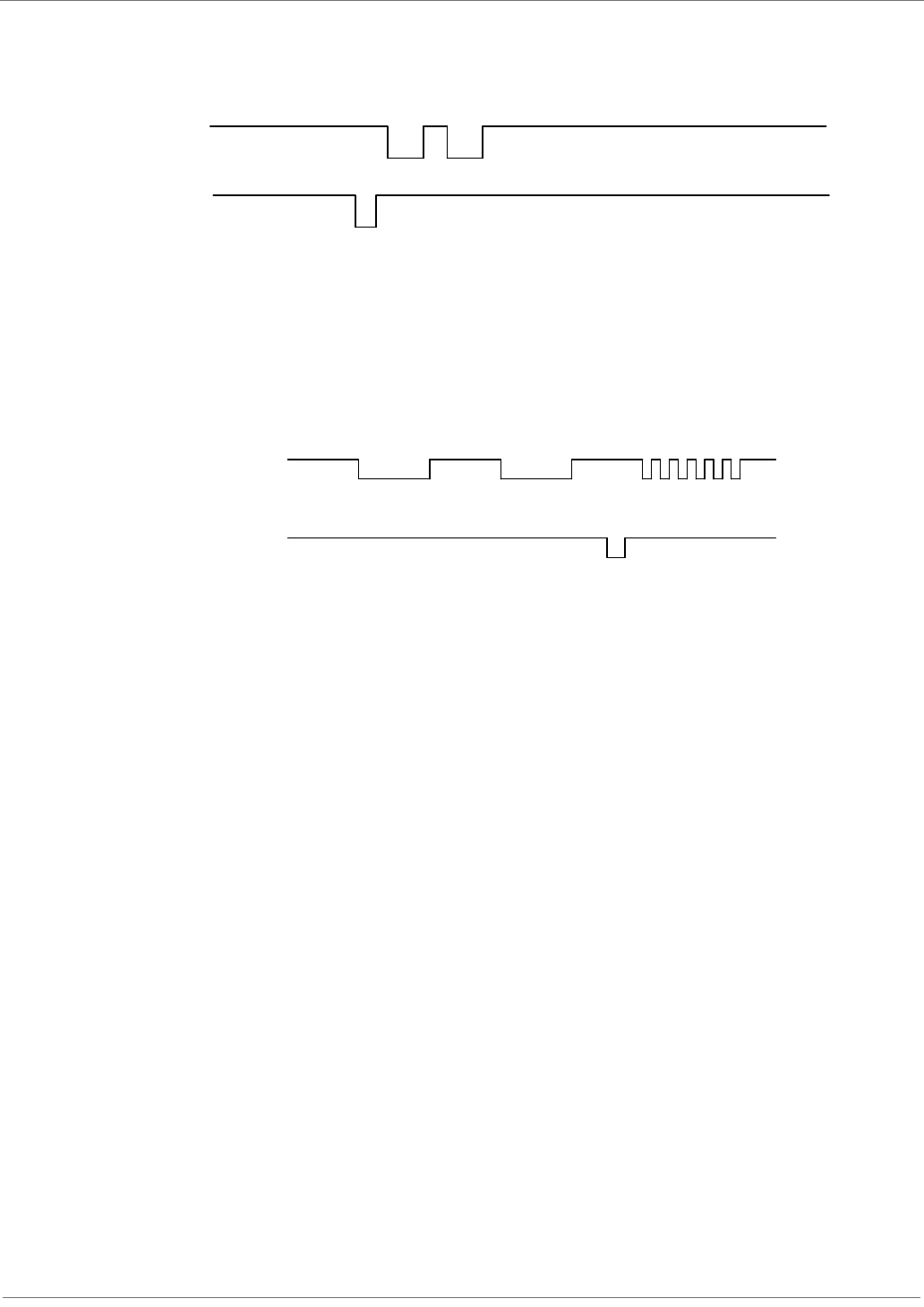

The following figures demonstrate these behaviors.

AI=0x22

BroadcastNodeIdentificationTransmission

Associate

(D5 = 1

Device not joined)

A single commissioning button press when the device has not joined a network that

causes the associate pin to blink to indicate the AI Code where: AI = # blinks + 0x20.

In this example, AI = 0x22.

AD0/DIO0

Associate Pin

(D5 = 1)

AD0/DIO0 Pin

(Remote Device)

A single button press on a remote device causes a broadcast node identification transmission

to be sent. All devices that receive this transmission blink their associate pin rapidly for one

second if the associate LED functionality is enabled. (D5 = 1)

©2009DigiInternational,Inc. 74

7.ManagingEndDevices

ZigBee end devices are intended to be battery-powered devices capable of sleeping for extended

periods of time. Since end devices may not be awake to receive RF data at a given time, routers

and coordinators are equipped with additional capabilities (including packet buffering and

extended transmission timeouts) to ensure reliable data delivery to end devices.

End Device Operation

When an end device joins a ZigBee network, it must find a router or coordinator device that is

allowing end devices to join. Once the end device joins a network, a parent-child relationship is

formed between the end device and the router or coordinator that allowed it to join. See chapter 3

for details.

When the end device is awake, it sends poll request messages to its parent. When the parent

receives a poll request, it checks a packet queue to see if it has any buffered messages for the end

device. It then sends a MAC layer acknowledgment back to the end device that indicates if it has

data to send to the end device or not.

If the end device receives the acknowledgment and finds that the parent has no data for it, the

end device can return to idle mode or sleep. Otherwise, it will remain awake to receive the data.

This polling mechanism allows the end device to enter idle mode and turn its receiver off when RF

data is not expected in order to reduce current consumption and conserve battery life.

The end device can only send data directly to its parent. If an end device must send a broadcast or

a unicast transmission to other devices in the network, it sends the message directly to its parent

and the parent performs any necessary route or address discoveries to route the packet to the

final destination.

Parent Operation

Each router or coordinator maintains a child table that contains the addresses of its end device

children. A router or coordinator that has unused entries in its child table is said to have end

device capacity, or the ability to allow new end devices to join. If the child table is completely filled

(such that the number of its end device children matches the number of child table entries), the

device cannot allow any more end devices to join to it.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 75

Since the end device children are not guaranteed to be awake at a given time, the parent is

responsible for managing incoming data packets in behalf of its end device children. If a parent

receives an RF data transmission destined for one of its end device children, and if the parent has

enough unused buffer space, it will buffer the packet. The data packet will remain buffered until a

timeout expires, or until the end device sends a poll request to retrieve the data.

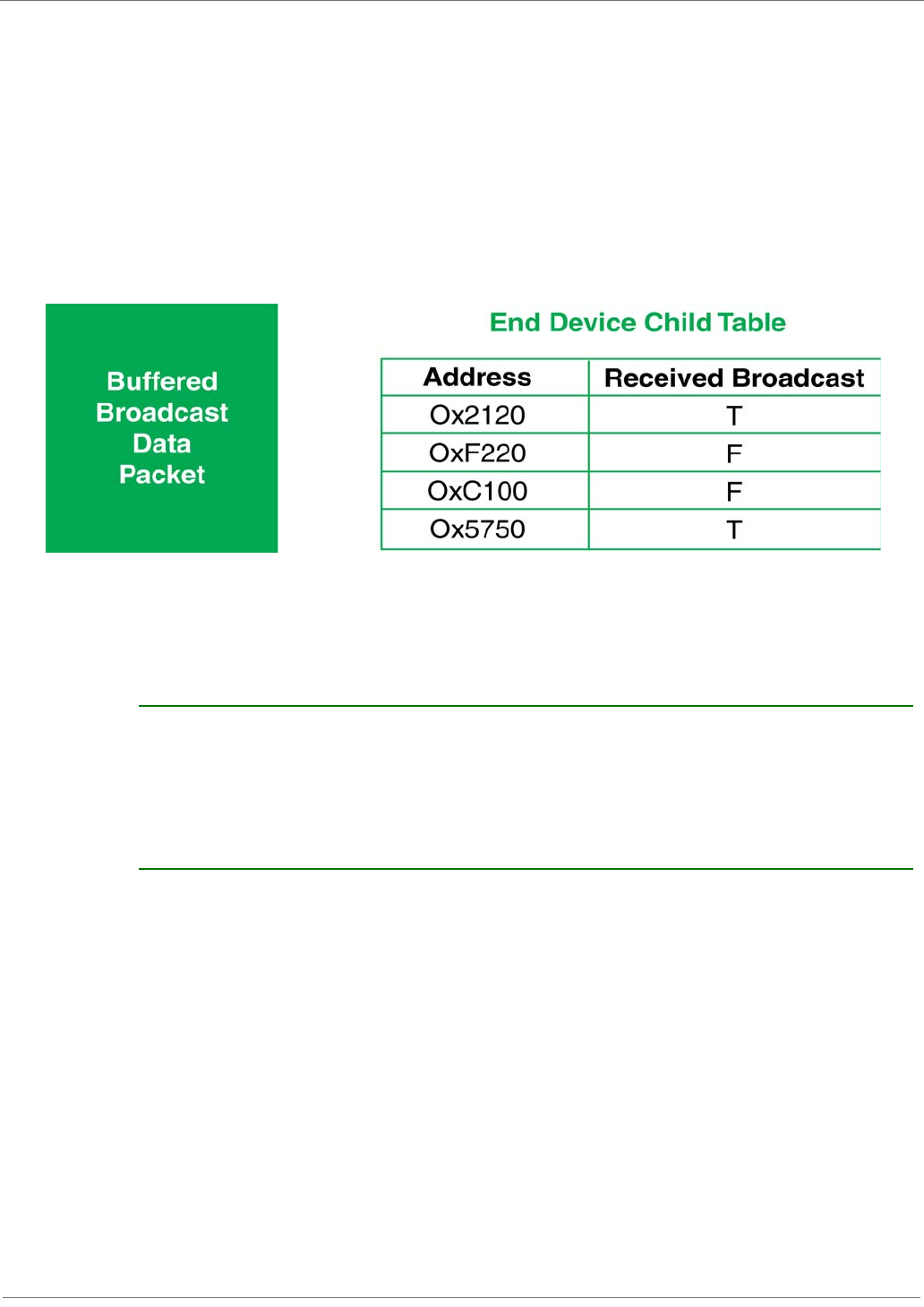

The parent can buffer one broadcast transmission for all of its end device children. When a

broadcast transmission is received and buffered, the parent sets a flag in its child table when each

child polls and retrieves the packet. Once all children have received the broadcast packet, the

buffered broadcast packet is discarded. If all children have not received a buffered broadcast

packet and a new broadcast is received, the old broadcast packet is discarded, the child table flags

are cleared, and the new broadcast packet is buffered for the end device children. This is

demonstrated in the figure below.

When an end device sends data to its parent that is destined for a remote device in the network,

the parent buffers the data packet until it can establish a route to the destination. The parent may

perform a route or 16-bit address discovery in behalf of its end device children. Once a route is

established, the parent sends the data transmission to the remote device.

End Device Poll Timeouts

To better support mobile end devices (end devices that can move around in a network), parent

router and coordinator devices have a poll timeout for each end device child. If an end device does

not send a poll request to its parent within the poll timeout, the parent will remove the end device

from its child table. This allows the child table on a router or coordinator to better accommodate

mobile end devices in the network.

Packet Buffer Usage

Packet buffer usage on a router or coordinator varies depending on the application. The following

activities can require use of packet buffers for up to several seconds:

• Route and address discoveries

• Application broadcast transmissions

• Stack broadcasts (e.g. ZDO "Device Announce" messages when devices join a network)

• Unicast transmissions (buffered until acknowledgment is received from destination or retries

exhausted)

• Unicast messages waiting for end device to wake.

Applications that use regular broadcasting or that require regular address or route discoveries will

use up a significant number of buffers, reducing the buffer availability for managing packets for

end device children. Applications should reduce the number of required application broadcasts,

and consider implementing an external address table or many-to-one and source routing if

necessary to improve routing efficiency.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 76

Non-Parent Device Operation

Devices in the ZigBee network treat data transmissions to end devices differently than

transmissions to other routers and coordinators. Recall that when a unicast transmission is sent, if

a network acknowledgment is not received within a timeout, the device resends the transmission.

When transmitting data to remote coordinator or router devices, the transmission timeout is

relatively short since these devices are powered and responsive. However, since end devices may

sleep for some time, unicast transmissions to end devices use an extended timeout mechanism in

order to allow enough time for the end device to wake and receive the data transmission from its

parent.

If a non-parent device does not know the destination is an end device, it will use the standard

unicast timeout for the transmission. However, provisions exist in the Ember ZigBee stack for the

parent to inform the message sender that the destination is an end device. Once the sender

discovers the destination device is an end device, future transmissions will use the extended

timeout. See the XBee Router / Coordinator Configuration section in this chapter for details.

XBee End Device Configuration

XBee end devices support two different sleep modes:

•Pin Sleep

•Cyclic Sleep.

Pin sleep allows an external microcontroller to determine when the XBee should sleep and when it

should wake by controlling the Sleep_RQ pin. In contrast, cyclic sleep allows the sleep period and

wake times to be configured through the use of AT commands. The sleep mode is configurable

with the SM command.

In both pin and cyclic sleep modes, XBee end devices poll their parent every 100ms while they are

awake to retrieve buffered data. When a poll request has been sent, the end device enables the

receiver until an acknowledgment is received from the parent. (It generally takes less than 10ms

from the time the poll request is sent until the acknowledgment is received.) The acknowledgment

indicates if the parent has buffered data for the end device child or not. If the acknowledgment

indicates the parent has pending data, the end device will leave the receiver on to receive the

data. Otherwise, the end device will turn off the receiver and enter idle mode (until the next poll

request is sent) to reduce current consumption (and improve battery life).

Once the module enters sleep mode, the On/Sleep pin (pin 13) is de-asserted (low) to indicate the

module is entering sleep mode. If CTS hardware flow control is enabled (D7 command), the CTS

pin (pin 12) is de-asserted (high) when entering sleep to indicate that serial data should not be

sent to the module. The module will not respond to serial or RF data when it is sleeping.

Applications that must communicate serially to sleeping end devices are encouraged to observe

CTS flow control.

When the XBee wakes from sleep, the On/Sleep pin is asserted (high), and if flow control is

enabled, the CTS pin is also asserted (low). If the module has not joined a network, it will scan all

SC channels after waking to try and find a valid network to join.

Pin Sleep

Pin sleep allows the module to sleep and wake according to the state of the Sleep_RQ pin (pin 9).

Pin sleep mode is enabled by setting the SM command to 1.

When Sleep_RQ is asserted (high), the module will finish any transmit or receive operations and

enter a low power state. For example, if the module has not joined a network and Sleep_RQ is

asserted (high), the module will sleep once the current join attempt completes (i.e. when scanning

for a valid network completes). The module will wake from pin sleep when the Sleep_RQ pin is de-

asserted (low).

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 77

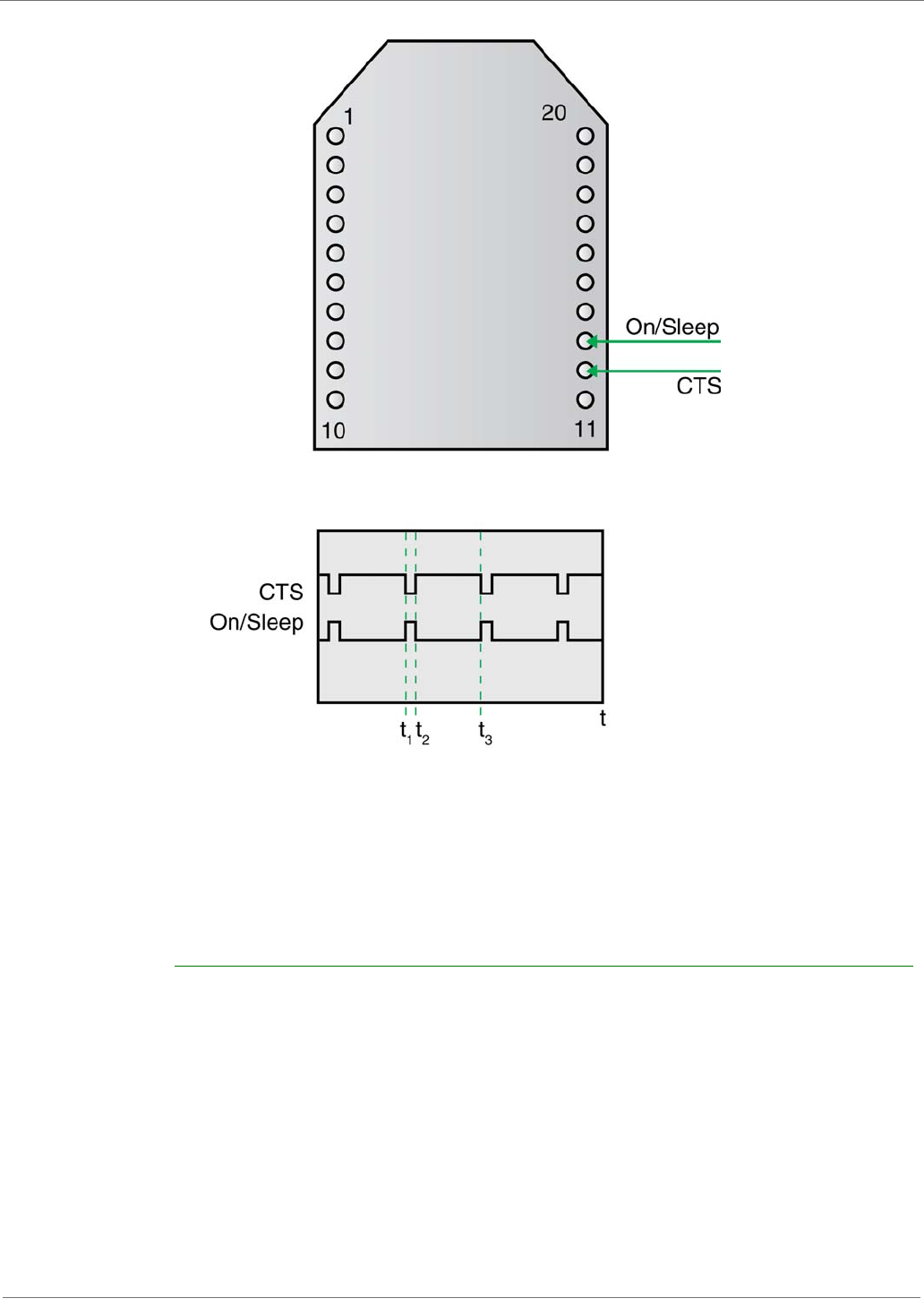

In the figure above, t1, t2, and t3 represent the following events:

•T1 - Time when Sleep_RQ is asserted (high)

• T2 - Time when the XBee enters sleep (CTS state change only if hardware flow control is

enabled)

• T3 - Time when Sleep_RQ is de-asserted (low) and the module wakes.

The time between T1 and T2 varies depending on the state of the module. In the worst case

scenario, if the end device is trying to join a network, or if it is waiting for an acknowledgment

from a data transmission, the delay could be up to a few seconds.

When the XBee is awake and is joined to a network, it sends a poll request to its parent to see if

the parent has any buffered data for it. The end device will continue to send poll requests every

100ms while it is awake.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 78

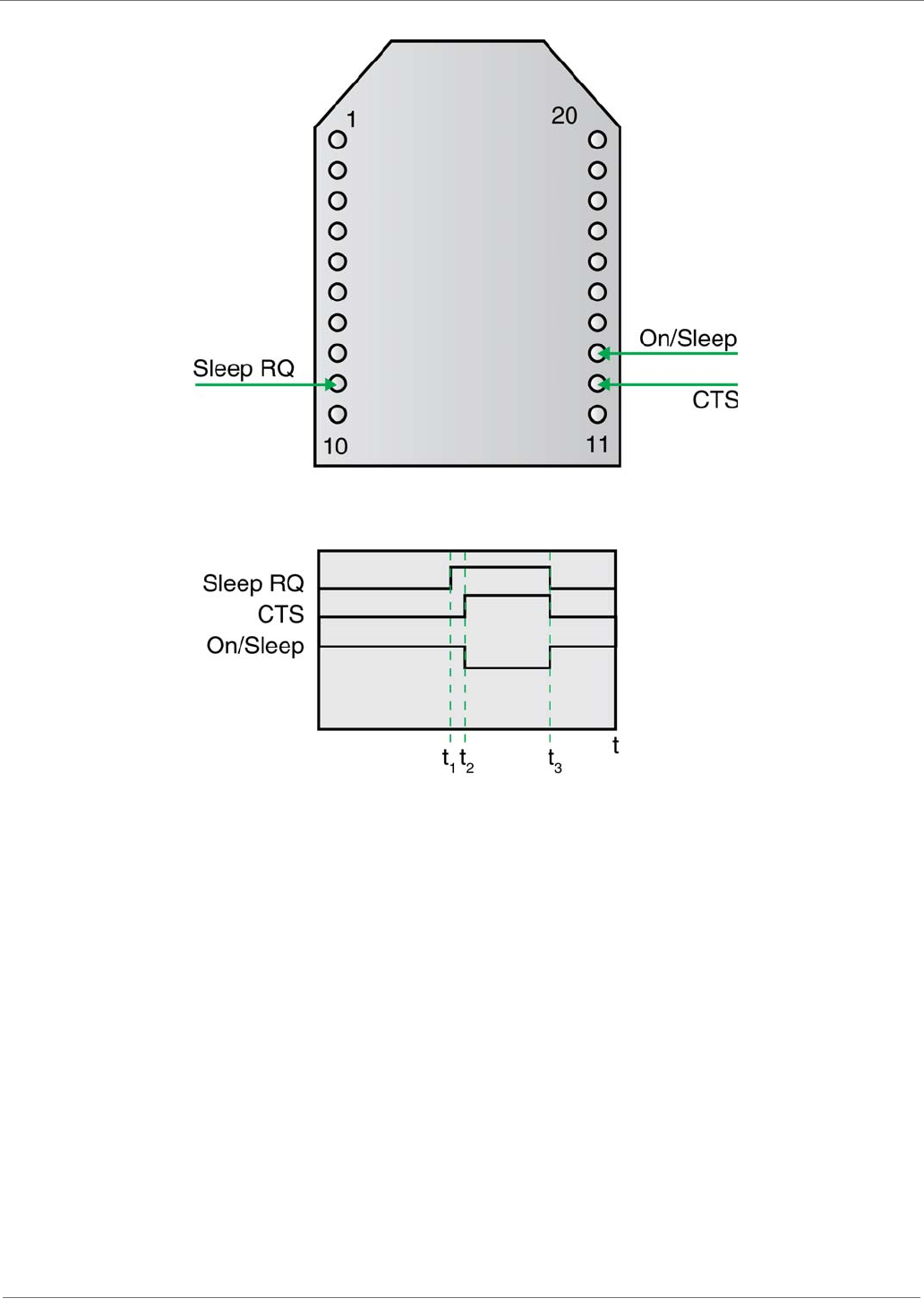

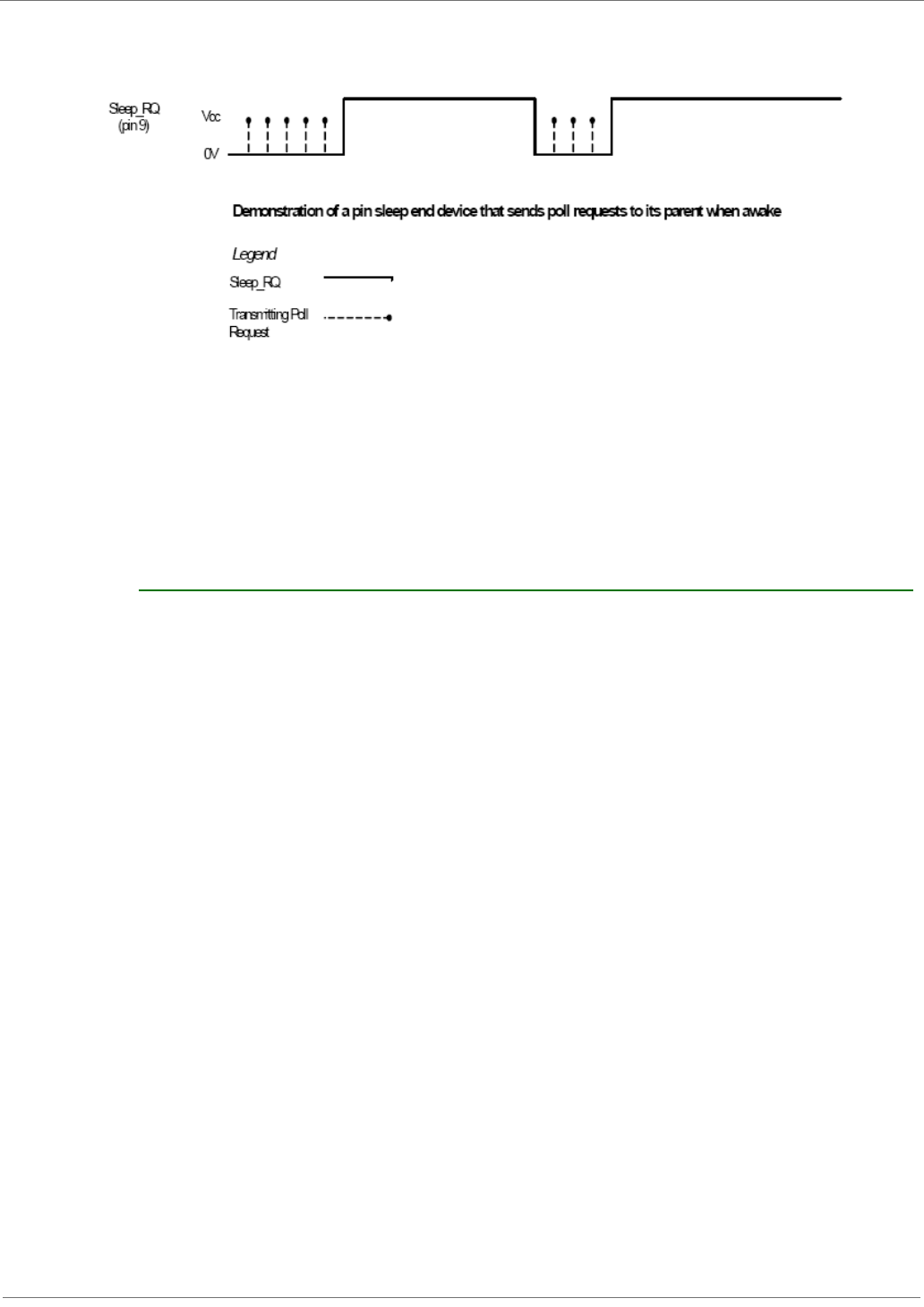

DemonstrationofPinSleep

Parent and remote devices must be configured to buffer data correctly and to utilize adequate

transmission timeouts. See the XBee Router / Coordinator Configuration section in this chapter for

details.

Cyclic Sleep

Cyclic sleep allows the module to sleep for a specified time and wake for a short time to poll its

parent for any buffered data messages before returning to sleep again. Cyclic sleep mode is

enabled by setting the SM command to 4 or 5. SM5 is a slight variation of SM4 that allows the

module to be woken prematurely by asserting the Sleep_RQ pin (pin 9). In SM5, the XBee can

wake after the sleep period expires, or if a high-to-low transition occurs on the Sleep_RQ pin.

Setting SM to 4 disables the pin wake option.

In cyclic sleep, the module sleeps for a specified time, and then wakes and sends a poll request to

its parent to discover if the parent has any pending data for the end device. If the parent has

buffered data for the end device, or if serial data is received, the XBee will remain awake for a

time. Otherwise, it will enter sleep mode immediately.

The On/Sleep line is asserted (high) when the module wakes, and is de-asserted (low) when the

module sleeps. If hardware flow control is enabled (D7 command), the CTS pin will assert (low)

when the module wakes and can receive serial data, and de-assert (high) when the module sleeps.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 79

In the figure above, t1, t2, and t3 represent the following events:

• T1 - Time when the module wakes from cyclic sleep

• T2 - Time when the module returns to sleep

• T3 - Later time when the module wakes from cyclic sleep.

The wake time and sleep time are configurable with software commands as described in the

sections below.

Wake Time (Until Sleep)

In cyclic sleep mode (SM=4 or 5), if serial or RF data is received, the module will start a sleep

timer (time until sleep). Any data received serially or over the RF link will restart the timer. The

sleep timer value is settable with the ST command. While the module is awake, it will send poll

request transmissions every 100ms to check its parent for buffered data messages. The module

returns to sleep when the sleep timer expires, or if the SI command is sent to it. The following

image shows this behavior.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 80

Sleep Period

The sleep period is configured based on the SP, SN, and SO commands. The following table lists

the behavior of these commands.

The XBee module supports both a short cyclic sleep and an extended cyclic sleep that make use of

these commands. These two modes allow the sleep period to be configured according to the

application requirements.

Short Cyclic Sleep

In short cyclic sleep mode, the sleep behavior of the module is defined by the SP and SN

commands, and the SO command must be set to 0x00 (default) or 0x02. In short cyclic sleep

mode, the SP command defines the sleep period and is settable up to 28 seconds. When the XBee

enters short cyclic sleep, it remains in a low power state until the SP time has expired.

After the sleep period expires, the XBee sends a poll request transmission to its parent to

determine if its parent has any buffered data waiting for the end device. Since router and

coordinator devices can buffer data for end device children up to 30 seconds, the SP range (up to

28 seconds) allows the end device to poll regularly enough to receive buffered data. If the parent

has data for the end device, the end device will start its sleep timer (ST) and continue polling

every 100ms to receive data. If the end device wakes and finds that its parent has no data for it,

the end device can return to sleep immediately.

The SN command can be used to control when the On/Sleep line is asserted (high). If SN is set to

1 (default), the On/Sleep line will be set high each time the XBee wakes from sleep. Otherwise, if

SN is greater than 1, the On/Sleep line will only be set high if RF data is received, or after SN wake

cycles occur. This allows an external device to remain powered off until RF data is received, or until

a number of sleep periods have expired (SN sleep periods). This mechanism allows the XBee to

wake at regular intervals to poll its parent for data without waking an external device for an

extended time (SP * SN time). This is shown in the figure below.

Command Range Description

SP 0x20 - 0xAF0 (x 10 ms)

(320 - 28,000 ms) Configures the sleep period of the module.

SN 1 - 0xFFFF Configures the number of sleep periods

multiplier.

SO 0 - 0xFF

Defines options for sleep mode behavior.

0x02 - Always wake for full ST time

0x04 - Enable extended sleep (sleep for full

(SP * SN) time)

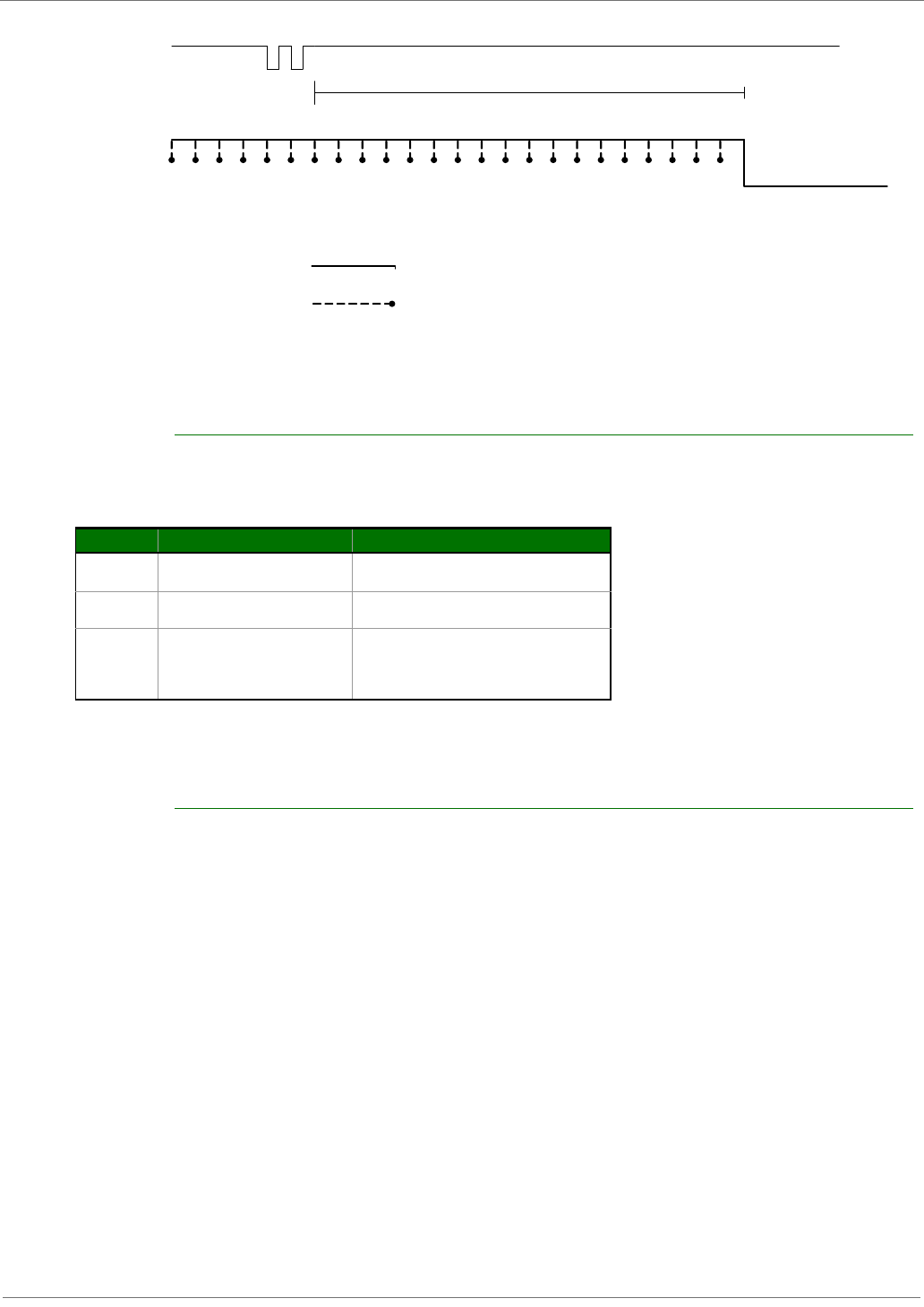

DIN

A cyclic sleep end device enters sleep mode when no serial or RF data is received for ST time .

ST = Time Awake

On/Sleep

Legend

On/Sleep

Transmitting Poll

Request

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 81

Note: SP controls the packet buffer time on routers and coordinators. SP should be set on all

router and coordinator devices to match the longest end device SP time. See the XBee Router /

Coordinator Configuration section for details.

Extended Cyclic Sleep

In extended cyclic sleep operation, an end device can sleep for a multiple of SP time which can

extend the sleep time up to several days. The sleep period is configured using the SP and SN

commands. The total sleep period is equal to (SP * SN) where SP is measured in 10ms units. The

SO command must be set correctly to enable extended sleep.

Since routers and coordinators can only buffer incoming RF data for their end device children for

up to 30 seconds, if an end device sleeps longer than 30 seconds, devices in the network need

some indication when an end device is awake before they can send data to it. End devices that use

extended cyclic sleep should send a transmission (such as an IO sample) when they wake to

inform other devices that they are awake and can receive data. It is recommended that extended

sleep end devices set SO to wake for the full ST time in order to provide other devices with enough

time to send messages to the end device.

Similar to short cyclic sleep, end devices running in this mode will return to sleep when the sleep

timer expires, or when the SI command is received.

Transmitting RF Data

An end device may transmit data when it wakes from sleep and has joined a network. End devices

transmit directly to their parent and then wait for an acknowledgment to be received. The parent

will perform any required address and route discoveries to help ensure the packet reaches the

intended destination before reporting the transmission status to the end device.

Receiving RF Data

After waking from sleep, an end device sends a poll request to its parent to determine if the parent

has any buffered data for it. In pin sleep mode, the end device polls every 100ms while the

Sleep_RQ pin is de-asserted (low). In cyclic sleep mode, the end device will only poll once before

returning to sleep unless the sleep timer (ST) is started (serial or RF data is received). If the sleep

timer is started, the end device will continue to poll every 100ms until the sleep timer expires.

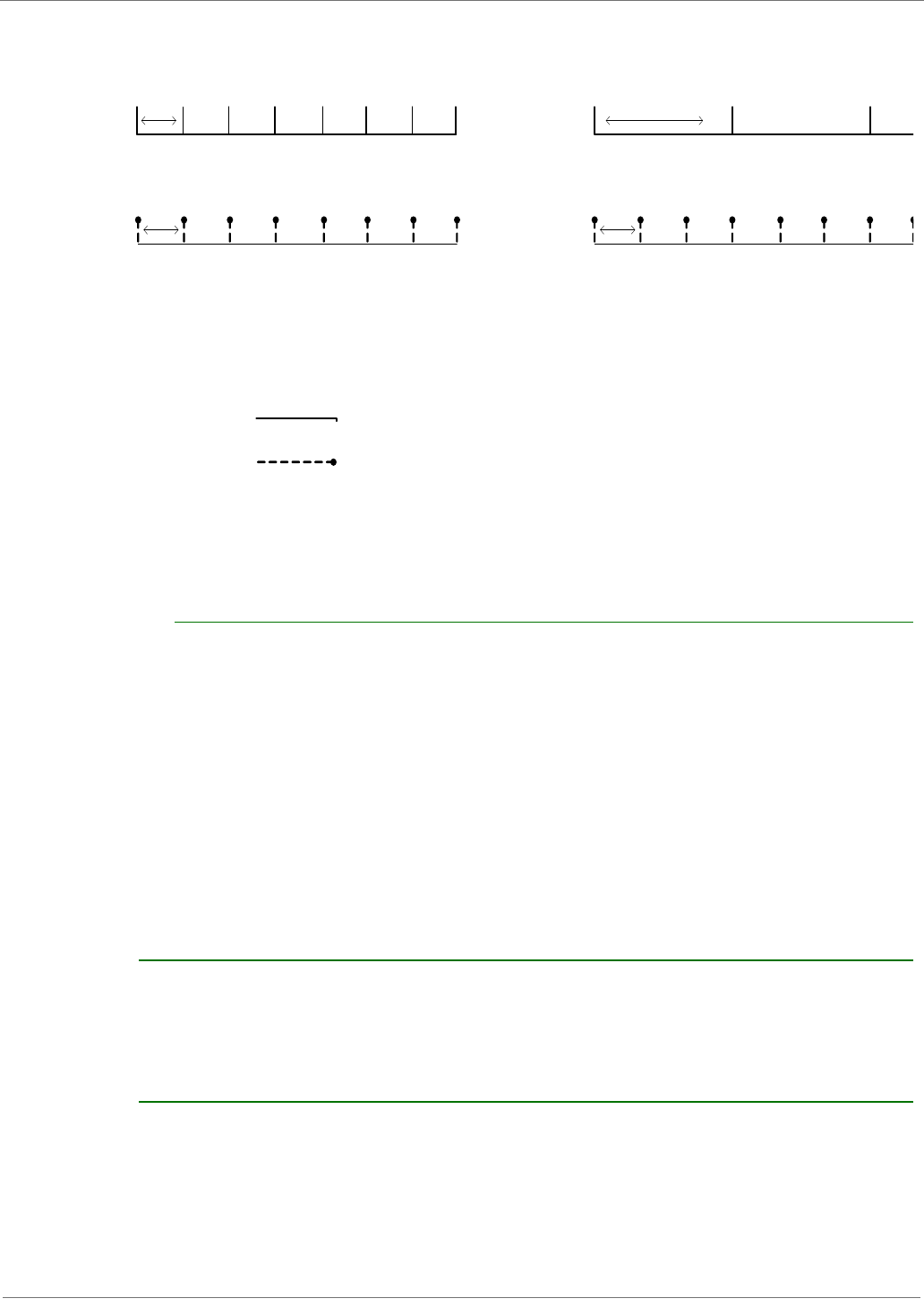

On/Sleep

Δt = SP

Δt = SP * SN

(SN = 1)

Setting SN > 1 allows the XBee to silently poll for data without asserting On /Sleep. If RF data is received

when polling, On/Sleep will immediately assert .

Transmitting poll request to parent

Δt = SP

Sleep_RQ

Transmitting Poll

Request

Legend

Δt = SP * SN

On/Sleep

(SN = 3)

Transmitting poll request to parent

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 82

The XBee ZB 2x6x firmware includes an adaptive polling enhancement where, if an end device

receives RF data from its parent, it sends another poll after a very short delay to check for more

data. The end device continues to poll at a faster rate as long as it receives data from its parent.

This feature greatly improves data throughput to end devices. When the end device no longer

receives data from its parent, it resumes polling every 100ms.

IO Sampling

End devices can be configured to send one or more IO samples when they wake from sleep. To

enable IO sampling on an end device, the IR command must be set to a non-zero value, and at

least one analog or digital IO pin must be enabled for sampling (D0 - D9, P0-P2 commands). If IO

sampling is enabled, an end device sends an IO sample when it wakes and starts the ST timer. It

will continue sampling at the IR rate until the sleep timer (ST) has expired. See chapter 8 for

details.

Waking End Devices with the Commissioning Pushbutton

If the commissioning pushbutton functionality is enabled (D0 command), a high-to-low transition

on the AD0/DIO0 pin (pin 20) will cause an end device to wake for 30 seconds. See the

Commissioning Pushbutton section in chapter 7 for details.

Parent Verification

Since an end device relies on its parent to maintain connectivity with other devices in the network,

XBee end devices include provisions to verify its connection with its parent. End devices monitor

their link with their parent when sending poll messages and after a power cycle or reset event as

described below.

When an end device wakes from sleep, it sends a poll request to its parent. In cyclic sleep, if RF or

serial data is not received and the sleep timer is not started, the end device polls one time and

returns to sleep for another sleep period. Otherwise, the end device continues polling every

100ms. If the parent does not send an acknowledgment response to three consecutive poll

request transmissions, the end device assumes the parent is out of range, and attempts to find a

new parent.

After a power-up or reset event, the end device does an orphan scan to locate its parent. If the

parent does not send a response to the orphan scan, the end device attempts to find a new

parent.

Rejoining

Once all devices have joined a ZigBee network, the permit-joining attribute should be disabled

such that new devices are no longer allowed to join the network. Permit-joining can be enabled

later as needed for short times. This provides some protection in preventing other devices from

joining a live network.

If an end device cannot communicate with its parent, the end device must be able to join a new

parent to maintain network connectivity. However, if permit-joining is disabled in the network, the

end device will not find a device that is allowing new joins.

To overcome this problem, ZigBee supports rejoining, where an end device can obtain a new

parent in the same network even if joining is not enabled. When an end device joins using

rejoining, it performs a PAN ID scan to discover nearby networks. If a network is discovered that

has the same 64-bit PAN ID as the end device, it will join the network by sending a rejoin request

to one of the discovered devices. The device that receives the rejoin request will send a rejoin

response if it can allow the device to join the network (i.e. child table not full). The rejoin

mechanism can be used to allow a device to join the same network even if permit-joining is

disabled.

To enable rejoining, NJ should be set less than 0xFF on the device that will join. If NJ < 0xFF, the

device assumes the network is not allowing joining and first tries to join a network using rejoining.

If multiple rejoining attempts fail, or if NJ=0xFF, the device will attempt to join using association.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 83

XBee Router/Coordinator Configuration

XBee routers and coordinators may require some configuration to ensure the following are set

correctly:

• RF packet buffering timeout

•Child poll timeout

• Transmission timeout.

The value of these timeouts depends on the sleep time used by the end devices. Each of these

timeouts are discussed below.

RF Packet Buffering Timeout

When a router or coordinator receives an RF data packet intended for one of its end device

children, it buffers the packet until the end device wakes and polls for the data, or until a packet

buffering timeout occurs. This timeout is settable using the SP command. The actual timeout is

(1.2 * SP), with a minimum timeout of 1.2 seconds and a maximum of 30 seconds. Since the

packet buffering timeout is set slightly larger than the SP setting, SP should be set the same on

routers and coordinators as it is on cyclic sleep end devices. For pin sleep devices, SP should be

set as long as the pin sleep device can sleep, up to 30 seconds.

Note: In pin sleep and extended cyclic sleep, end devices can sleep longer than 30 seconds. If end

devices sleep longer than 30 seconds, parent and non-parent devices must know when the end

device is awake in order to reliably send data. For applications that require sleeping longer than 30

seconds, end devices should transmit an IO sample or other data when they wake to alert other

devices that they can send data to the end device.

Child Poll Timeout

Router and coordinator devices maintain a timestamp for each end device child indicating when

the end device sent its last poll request to check for buffered data packets. If an end device does

not send a poll request to its parent for a certain period of time, the parent will assume the end

device has moved out of range and will remove the end device from its child table. This allows

routers and coordinators to be responsive to changing network conditions. The NC command can

be issued at any time to read the number of remaining (unused) child table entries on a router or

coordinator.

The child poll timeout is settable with the SP and SN commands. SP and SN should be set such

that SP * SN matches the longest expected sleep time of any end devices in the network. The

actual timeout is calculated as (3 * SP * SN), with a minimum of 5 seconds. For networks

consisting of pin sleep end devices, the SP and SN values on the coordinator and routers should be

set such that SP * SN matches the longest expected sleep period of any pin sleep device. The 3

multiplier ensures the end device will not be removed unless 3 sleep cycles pass without receiving

a poll request. The poll timeout is settable up to a couple of months.

Transmission Timeout

As mentioned in chapter 4, when sending RF data to a remote router, since routers are always on,

the timeout is based on the number of hops the transmission may traverse. This timeout it

settable using the NH command. (See chapter 4 for details.)

Since end devices may sleep for lengthy periods of time, the transmission timeout to end devices

also includes some allowance for the sleep period of the end device. When sending data to a

remote end device, the transmission timeout is calculated using the SP and NH commands. If the

timeout occurs and an acknowledgment has not been received, the source device will resend the

transmission until an acknowledgment is received, up to two more times.

The transmission timeout per attempt is:

3 * ((unicast router timeout) + (end device sleep time)), or

3 * ((50 * NH) + (1.2 * SP)), where SP is measured in 10ms units.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 84

Putting it all Together

Short Sleep Periods

Pin and cyclic sleep devices that sleep less than 30 seconds can receive data transmissions at any

time since their parent device(s) will be able to buffer data long enough for the end devices to

wake and poll to receive the data. SP should be set the same on all devices in the network. If end

devices in a network have more than one SP setting, SP on the routers and coordinators should be

set to match the largest SP setting of any end device. This will ensure the RF packet buffering, poll

timeout, and transmission timeouts are set correctly.

Extended Sleep Periods

Pin and cyclic sleep devices that might sleep longer than 30 seconds cannot receive data

transmissions reliably unless certain design approaches are taken. Specifically, the end devices

should use IO sampling or another mechanism to transmit data when they wake to inform the

network they can receive data. SP and SN should be set on routers and coordinators such that (SP

* SN) matches the longest expected sleep time. This configures the poll timeout so end devices

are not expired from the child table unless a poll request is not received for 3 consecutive sleep

periods.

As a general rule of thumb, SP and SN should be set the same on all devices in almost all cases.

Sleep Examples

This section covers some sample XBee configurations to support different sleep modes. Several AT

commands are listed with suggested parameter values. The notation in this section includes an '='

sign to indicate what each command register should be set to - for example, SM=4. This is not the

correct notation for setting command values in the XBee. In AT command mode, each command is

issued with a leading 'AT' and no '=' sign - for example ATSM4. In the API, the two byte command

is used in the command field, and parameters are populated as binary values in the parameter

field.

Example 1

Configure a device to sleep for 20 seconds, but set SN such that the On/Sleep line will

remain de-asserted for up to 1 minute.

The following settings should be configured on the end device.

SM = 4 (cyclic sleep) or 5 (cyclic sleep, pin wake)

SP = 0x7D0 (2000 decimal). This causes the end device to sleep for 20 seconds since SP is

measured in units of 10ms.

SN = 3. (With this setting, the On/Sleep pin will assert once every 3 sleep cycles, or when RF data

is received)

SO = 0

All router and coordinator devices on the network should set SP to match SP on the end device.

This ensures that RF packet buffering times and transmission timeouts will be set correctly.

Since the end device wakes after each sleep period (ATSP), the SN command can be set to 1 on all

routers and the coordinator.

Example 2

Configure an end device to sleep for 20 seconds, send 4 IO samples in 2 seconds, and

return to sleep.

Since SP is measured in 10ms units, and ST and IR are measured in 1ms units, configure an end

device with the following settings:

SM = 4 (cyclic sleep) or 5 (cyclic sleep, pin wake)

SP = 0x7D0 (2000 decimal). This causes the end device to sleep for 20 seconds.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 85

SN = 1

SO = 0

ST = 0x7D0 (2000 decimal). This sets the sleep timer to 2 seconds.

IR = 0x258 (600 decimal). Set IR to a value greater than (2 seconds / 4) to get 4 samples in 2

seconds. The end device sends an IO sample at the IR rate until the sleep timer has expired.

At least one analog or digital IO line must be enabled for IO sampling to work. To enable pin 19

(AD1/DIO1) as a digital input line, the following must be set:

D1 = 3

All router and coordinator devices on the network should set SP to match SP on the end device.

This ensures that RF packet buffering times and transmission timeouts will be set correctly.

Example 3

Configure a device for extended sleep: to sleep for 4 minutes.

SP and SN must be set such that SP * SN = 4 minutes. Since SP is measured in 10ms units, the

following settings can be used to obtain 4 minute sleep.

SM = 4 (cyclic sleep) or 5 (cyclic sleep, pin wake)

SP = 0x7D0 (2000 decimal, or 20 seconds)

SN = 0x0B (12 decimal)

SO = 0x04 (enable extended sleep)

With these settings, the module will sleep for SP * SN time, or (20 seconds * 12) = 240 seconds =

4 minutes.

For best results, the end device should send a transmission when it wakes to inform the

coordinator (or network) when it wakes. It should also remain awake for a short time to allow

devices to send data to it. The following are recommended settings.

ST = 0x7D0 (2 second wake time)

SO = 0x06 (enable extended sleep and wake for ST time)

IR = 0x800 (send 1 IO sample after waking). At least one analog or digital IO sample should be

enabled for IO sampling.

With these settings, the end device will wake after 4 minutes and send 1 IO sample. It will then

remain awake for 2 seconds before returning to sleep.

SP and SN should be set to the same values on all routers and coordinators that could allow the

end device to join. This will ensure the parent does not timeout the end device from its child table

too quickly.

The SI command can optionally be sent to the end device to cause it to sleep before the sleep

timer expires.

©2009DigiInternational,Inc. 86

8.XBeeAnalogandDigitalIOLines

XBee ZB firmware supports a number of analog and digital IO pins that are configured through

software commands. Analog and digital IO lines can be set or queried. The following table lists the

configurable IO pins and the corresponding configuration commands.

IO Configuration

To enable an analog or digital IO function on one or more XBee module pin(s), the appropriate

configuration command must be issued with the correct parameter. After issuing the configuration

command, changes must be applied on the module for the IO settings to take effect.

Pull-up resistors can be set for each digital input line using the PR command. The PR value updates

the state of all pull-up resistors.

IO Sampling

The XBee ZB modules have the ability to monitor and sample the analog and digital IO lines. IO

samples can be read locally or transmitted to a remote device to provide indication of the current

IO line states. (Only API firmware devices can send remote IO sample data out their UART.)

There are three ways to obtain IO samples, either locally or remotely:

Module Pin Names Module Pin Numbers Configuration Command

CD/DIO12 4 P2

PWM0/RSSIM/DIO10 6 P0

PWM/DIO11 7 P1

DIO4 11 D4

CTS/DIO7 12 D7

ASSOC/DIO5 15 D5

RTS/DIO6 16 D6

AD3/DIO3 17 D3

AD2/DIO2 18 D2

AD1/DIO1 19 DI

AD0/DIO0 20 D0

Pin Command Parameter Description

0 Unmonitored digital input

1 Reserved for pin-specific alternate functionalities

2 Analog input, single ended (A/D pins only)

3 Digital input, monitored

4 Digital output, default low

5 Digital output, default high

6-9 Alternate functionalities, where applicable

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 87

•Queried Sampling

•Periodic Sampling

• Change Detection Sampling.

IO sample data is formatted as shown in the table below

The sampled data set will include 2 bytes of digital IO data only if one or more IO lines on the

device are configured as digital IO. If no pins are configured as digital IO, these 2 bytes will be

omitted.

The digital IO data is only relevant if the same bit is enabled in the digital IO mask.

Analog samples are returned as 10-bit values. The analog reading is scaled such that 0x0000

represents 0V, and 0x3FF = 1.2V. (The analog inputs on the module cannot read more than 1.2V.)

Analog samples are returned in order starting with AIN0 and finishing with AIN3, and the supply

voltage. Only enabled analog input channels return data as shown in the figure below.

To convert the A/D reading to mV, do the following:

AD(mV) = (A/D reading * 1200mV) / 1024

Bytes Name Description

1 Sample Sets Number of sample sets in the packet. (Always set to 1.)

2 Digital Channel Mask

Indicates which digital IO lines have sampling enabled. Each bit corresponds to one

digital IO line on the module.

• bit 0 = AD0/DIO0

• bit 1 = AD1/DIO1

• bit 2 = AD2/DIO2

• bit 3 = AD3/DIO3

• bit 4 = DIO4

• bit 5 = ASSOC/DIO5

•bit 6 = RTS/DIO6

•bit 7 = CTS/GPIO7

• bit 8 = N/A

• bit 9 = N/A

• bit 10 = RSSI/DIO10

• bit 11 = PWM/DIO11

• bit 12 = CD/DIO12

For example, a digital channel mask of 0x002F means DIO0,1,2,3, and 5 are enabled

as digital IO.

1 Analog Channel Mask

Indicates which lines have analog inputs enabled for sampling. Each bit in the analog

channel mask corresponds to one analog input channel.

• bit 0 = AD0/DIO0

• bit 1 = AD1/DIO1

• bit 2 = AD2/DIO2

• bit 3 = AD3/DIO3

• bit 7 = Supply Voltage

Variable Sampled Data Set

A sample set consisting of 1 sample for each enabled ADC and/or DIO channel,

which has voltage inputs of 1143.75 and 342.1875mV.

If any digital IO lines are enabled, the first two bytes of the data set indicate the state

of all enabled digital IO. Only digital channels that are enabled in the Digital Channel

Mask bytes have any meaning in the sample set. If no digital IO are enabled on the

device, these 2 bytes will be omitted.

Following the digital IO data (if any), each enabled analog channel will return 2 bytes.

The data starts with AIN0 and continues sequentially for each enabled analog input

channel up to AIN3, and the supply voltage (if enabled) at the end.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 88

The reading in the sample frame represents voltage inputs of 1143.75 and 342.1875mV for AD0

and AD1 respectively.

Queried Sampling

The IS command can be sent to a device locally, or to a remote device using the API remote

command frame (see chapter 8 for details). When the IS command is sent, the receiving device

samples all enabled digital IO and analog input channels and returns an IO sample. If IS is sent

locally, the IO sample is sent out the UART. If the IS command was received as a remote

command, the IO sample is sent over-the-air to the device that sent the IS command.

If the IS command is issued in AT firmware, the module returns a carriage return-delimited list

containing the above-listed fields. The API firmware returns an AT command response packet with

the IO data included in the command data portion of the response frame.

The following table shows an example of the fields in an IS response.

Periodic IO Sampling

Periodic sampling allows an XBee/XBee-PRO module to take an IO sample and transmit it to a

remote device at a periodic rate. The periodic sample rate is set by the IR command. If IR is set to

0, periodic sampling is disabled. For all other values of IR, data will be sampled after IR

milliseconds have elapsed and transmitted to a remote device. The DH and DL commands

determine the destination address of the IO samples. DH and DL can be set to 0 to transmit to the

coordinator, or to the 64-bit address of the remote device (SH and SL). Only devices running API

firmware can send IO data samples out their UART. Devices running AT firmware will discard

received IO data samples.

A sleeping end device will transmit periodic IO samples at the IR rate until the ST timer expires

and the device can resume sleeping.

Change Detection Sampling

Modules can be configured to transmit a data sample immediately whenever a monitored digital IO

pin changes state. The IC command is a bitmask that can be used to set which digital IO lines

should be monitored for a state change. If one or more bits in IC is set, an IO sample will be

transmitted as soon as a state change is observed in one of the monitored digital IO lines. Change

detection samples are transmitted to the 64-bit address specified by DH and DL.

RSSI PWM

The XBee module features an RSSI/PWM pin (pin 6) that, if enabled, will adjust the PWM output to

indicate the signal strength of the last received packet. The P0 (P-zero) command is used to

enable the RSSI pulse width modulation (PWM) output on the pin. If P0 is set to 1, the RSSI/PWM

pin will output a pulse width modulated signal where the frequency is adjusted based on the

received signal strength of the last packet. Otherwise, for all other P0 settings, the pin can be used

for general purpose IO.

When a data packet is received, if P0 is set to enable the RSSI/PWM feature, the RSSI PWM output

is adjusted based on the RSSI of the last packet. The RSSI/PWM output will be enabled for a time

based on the RP command. Each time an RF packet is received, the RSSI/PWM output is adjusted

based on the RSSI of the new packet, and the RSSI timer is reset. If the RSSI timer expires, the

Example Sample AT Response

0x01 [1 sample set]

0x0C0C [Digital Inputs: DIO 2, 3, 10, 11 low]

0x03 [Analog Inputs: A/D 0, 1]

0x0408 [Digital input states: DIO 3, 10 high, DIO 2, 11 low]

0x03D0 [Analog input ADIO 0= 0x3D0]

0x0124 [Analog input ADIO 1=0x120]

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 89

RSSI/PWM pin is driven low. RP is measured in 100ms units and defaults to a value of 40 (4

seconds).

The RSSI PWM runs at 12MHz and has 2400 total counts (200us period).

RSSI (in dBm) is converted to PWM counts using the following equation:

PWM counts = (41 * RSSI_Unsigned) - 5928

IO Examples

Example 1: Configure the following IO settings on the XBee.

Configure AD1/DIO1 as a digital input with pullup resistor enabled

Configure AD2/DIO2 as an analog input

Configure DIO4 as a digital output, driving high.

To configure AD1/DIO1 as an input, issue the ATD1 command with a parameter of 3 ("ATD13"). To

enable pull-up resistors on the same pin, the PR command should be issued with bit 3 set (e.g.

ATPR8, ATPR1FFF, etc.).

The ATD2 command should be issued with a parameter of 2 to enable the analog input ("ATD22").

Finally, DIO4 can be set as an output, driving high by issuing the ATD4 command with a parameter

value of 5 ("ATD45").

After issuing these commands, changes must be applied before the module IO pins will be updated

to the new states. The AC or CN commands can be issued to apply changes (e.g. ATAC).

Example 2: Calculate the PWM counts for a packet received with an RSSI of -84dBm.

RSSI = -84 = 0xAC = 172 decimal (unsigned)

PWM counts = (41 * 172) - 5928

PWM counts = 1124

With a total of 2400 counts, this yields an ON time of (1124 / 2400) = 46.8%

Example 3: Configure the RSSI/PWM pin to operate for 2 seconds after each received RF

packet.

First, ensure the RSSI/PWM functionality is enabled by reading the P0 (P-zero) command. It

should be set to 1 (default).

To configure the duration of the RSSI/PWM output, set the RP command. To achieve a 2 second

PWM output, set RP to 0x14 (20 decimal, or 2 seconds) and apply changes (AC command).

After applying changes, all received RF data packets should set the RSSI timer for 2 seconds.

©2009DigiInternational,Inc. 90

9.APIOperation

As an alternative to Transparent Operation, API (Application Programming Interface) Operations

are available. API operation requires that communication with the module be done through a

structured interface (data is communicated in frames in a defined order). The API specifies how

commands, command responses and module status messages are sent and received from the

module using a UART Data Frame.

Please note that Digi may add new API frames to future versions of firmware, so please build into

your software interface the ability to filter out additional API frames with unknown Frame Types.

API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable) command. Use

the following AP parameter values to configure the module to operate in a particular mode:

•AP = 1: API Operation

•AP = 2: API Operation (with escaped characters)

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), the UART data frame structure is defined as follows:

UARTDataFrameStructure:

MSB=MostSignificantByte,LSB=LeastSignificantByte

Any data received prior to the start delimiter is silently discarded. If the frame is not received

correctly or if the checksum fails, the module will reply with a module status frame indicating the

nature of the failure.

API Operation - with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), the UART data frame structure is defined as follows:

UARTDataFrameStructure‐withescapecontrolcharacters:

MSB=MostSignificantByte,LSB=LeastSignificantByte

Escape characters. When sending or receiving a UART data frame, specific data values must be

escaped (flagged) so they do not interfere with the data frame sequencing. To escape an

interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20.

Length

(Bytes 2-3)

Checksum

(Byte n + 1)

MSB LSB 1 Byte

Start Delimiter

(Byte 1)

0x7E

Frame Data

(Bytes 4-n)

API-specific Structure

Start Delimiter

(Byte 1)

Length

(Bytes 2-3)

Frame Data

(Bytes 4-n)

Checksum

(Byte n + 1)

0x7E MSB LSB API-specific Structure 1 Byte

Characters Escaped If Needed

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 91

Data bytes that need to be escaped:

• 0x7E – Frame Delimiter

•0x7D – Escape

• 0x11 – XON

• 0x13 – XOFF

Example - Raw UART Data Frame (before escaping interfering bytes): 

0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame: 

0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Note: In the above example, the length of the raw data (excluding the checksum) is 0x0002 and

the checksum of the non-escaped data (excluding frame delimiter and length) is calculated as:

0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Length

The length field has a two-byte value that specifies the number of bytes that will be contained in

the frame data field. It does not include the checksum field.

Frame Data

Frame data of the UART data frame forms an API-specific structure as follows:

UARTDataFrame&API‐specificStructure:

The cmdID frame (API-identifier) indicates which API messages will be contained in the cmdData

frame (Identifier-specific data). Note that multi-byte values are sent big endian.The XBee modules

support the following API frames:

APIFrameNamesandValues

API Frame Names API ID

AT Command 0x08

AT Command - Queue Parameter Value 0x09

ZigBee Transmit Request 0x10

Explicit Addressing ZigBee Command Frame 0x11

Remote Command Request 0x17

Create Source Route 0x21

AT Command Response 0x88

Modem Status 0x8A

ZigBee Transmit Status 0x8B

ZigBee Receive Packet (AO=0) 0x90

ZigBee Explicit Rx Indicator (AO=1) 0x91

ZigBee IO Data Sample Rx Indicator 0x92

XBee Sensor Read Indicator (AO=0) 0x94

Node Identification Indicator (AO=0) 0x95

Remote Command Response 0x97

Over-the-Air Firmware Update Status 0xA0

Route Record Indicator 0xA1

Many-to-One Route Request Indicator 0xA3

Length

(Bytes 2-3)

Checksum

(Byte n + 1)

MSB LSB 1 Byte

Start Delimiter

(Byte 1)

0x7E

Frame Data

(Bytes 4-n)

API-specific Structure

Identifier-specific Data

cmdData

API Identifier

cmdID

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 92

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data.

To calculate: Not including frame delimiters and length, add all bytes keeping only the lowest 8

bits of the result and subtract the result from 0xFF.

To verify: Add all bytes (include checksum, but not the delimiter and length). If the checksum is

correct, the sum will equal 0xFF.

API Examples

Example: Create an API AT command frame to configure an XBee to allow joining (set NJ to

0xFF). The frame should look like:

0x7E 0x00 0x05 0x08 0x01 0x4E 0x4A 0xFF 5F

Where 0x0005 = length

0x08 = AT Command API frame type

0x01 = Frame ID (set to non-zero value)

0x4E4A = AT Command ('NJ')

0xFF = value to set command to

0x5F = Checksum

The checksum is calculated as [0xFF - (0x08 + 0x01 + 0x4E + 0x4A + 0xFF)]

Example: Send an ND command to discover the devices in the PAN. The frame should look like:

0x7E 0x00 0x04 0x08 0x01 0x4E 0x44 0x64

Where 0x0004 = length

0x08 = AT Command API frame type

0x01 = Frame ID (set to non-zero value)

0x4E44 = AT command ('ND')

0x64 = Checksum

The checksum is calculated as [0xFF - (0x08 + 0x01 + 0x4E + 0x44)]

Example: Send a remote command to the coordinator to set AD1/DIO1 as a digital input (D1=3)

and apply changes to force the IO update. The API remote command frame should look like:

0x7E 0x00 0x10 0x17 0x01 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF 0xFE 0x02

0x44 0x31 0x03 0x70

Where

0x10 = length (16 bytes excluding checksum)

0x17 = Remote Command API frame type

0x01 = Frame ID

0x0000000000000000 = Coordinator's address (can be replaced with coordinator's actual 64-

bit address if known)

0xFFFE = 16- bit Destination Address

0x02 = Apply Changes (Remote Command Options)

0x4431 = AT command ('D1')

0x03 = Command Parameter (the parameter could also be sent as 0x0003 or 0x00000003)

0x70 = Checksum

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 93

API UART Exchanges

AT Commands

The following image shows the API frame exchange that takes place at the UART when sending an

AT command request to read or set a module parameter. The response can be disabled by setting

the frame ID to 0 in the request.

Transmitting and Receiving RF Data

The following image shows the API exchanges that take place at the UART when sending RF data

to another device. The transmit status frame is always sent at the end of a data transmission

unless the frame ID is set to 0 in the transmit request. If the packet cannot be delivered to the

destination, the transmit status frame will indicate the cause of failure. The received data frame

(0x90 or 0x91) is set by the AP command.

Remote AT Commands

The following image shows the API frame exchanges that take place at the UART when sending a

remote AT command. A remote command response frame is not sent out the UART if the remote

device does not receive the remote command.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 94

Source Routing

The following image shows the API frame exchanges that take place at the UART when sending a

source routed transmission.

Supporting the API

Applications that support the API should make provisions to deal with new API frames that may be

introduced in future releases. For example, a section of code on a host microprocessor that

handles received serial API frames (sent out the module's DOUT pin) might look like this:

API Frames

The following sections illustrate the types of frames encountered while using the API.

AT Command

Frame Type: 0x08

Used to query or set module parameters on the local device. This API command applies changes

after executing the command. (Changes made to module parameters take effect once changes are

applied.) The API example below illustrates an API frame when modifying the NJ parameter value

of the module

void XBee

HandleRxAPIFrame

(

apiFrameUnion

papiFrame

)

{

switch(papiFrame->api_id){

case RX_RF_DATA_FRAME:

//process received RF data frame

break;

case RX_IO_SAMPLE_FRAME:

//process IO sample frame

break;

case NODE_IDENTIFICATION_FRAME:

//process node identification frame

break;

default:

//Discard any other API frame types that are not being used

break;

}

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 95

The above example illustrates an AT command when querying an NJ value.

AT Command - Queue Parameter Value

Frame Type: 0x09

This API type allows module parameters to be queried or set. In contrast to the “AT Command” API

type, new parameter values are queued and not applied until either the “AT Command” (0x08) API

type or the AC (Apply Changes) command is issued. Register queries (reading parameter values)

are returned immediately.

Example: Send a command to change the baud rate (BD) to 115200 baud, but don't apply

changes yet. (Module will continue to operate at the previous baud rate until changes are applied.)

Note: In this example, the parameter could have been sent as a zero-padded 2-byte or 4-byte

value.

ZigBee Transmit Request

Frame Type: 0x10

A Transmit Request API frame causes the module to send data as an RF packet to the specified

destination.

The 64-bit destination address should be set to 0x000000000000FFFF for a broadcast

transmission (to all devices). The coordinator can be addressed by either setting the 64-bit

address to all 0x00s and the 16-bit address to 0xFFFE, OR by setting the 64-bit address to the

coordinator's 64-bit address and the 16-bit address to 0x0000. For all other transmissions, setting

the 16-bit address to the correct 16-bit address can help improve performance when transmitting

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x04

Frame-specific Data Frame Type 30x08

Frame ID 4 0x52 (R) Identifies the UART data frame for the host to correlate

with a subsequent ACK (acknowledgement). If set to 0,

no response is sent.

AT Command 50x4E (N) Command Name - Two ASCII characters that identify the

AT Command.

60x4A (J)

Parameter Value

(optional)

If present, indicates the requested parameter

value to set the given register.

If no characters present, register is queried.

Checksum 7 0x0D 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x05

Frame-specific Data Frame Type 30x09

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent ACK (acknowledgement). If set to 0,

no response is sent.

AT Command 5 0x42 (B) Command Name - Two ASCII characters that identify the

AT Command.

6 0x44 (D)

Parameter Value

(ATBD7 = 115200

baud) 70x07

If present, indicates the requested parameter

value to set the given register.

If no characters present, register is queried.

Checksum 8 0x68 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 96

to multiple destinations. If a 16-bit address is not known, this field should be set to 0xFFFE

(unknown). The Transmit Status frame (0x8B) will indicate the discovered 16-bit address, if

successful.

The broadcast radius can be set from 0 up to NH. If set to 0, the value of NH specifies the

broadcast radius (recommended). This parameter is only used for broadcast transmissions.

The maximum number of payload bytes can be read with the NP command.

Note: if source routing is used, the RF payload will be reduced by two bytes per intermediate hop

in the source route. This example shows if escaping is disabled (AP=1).

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x16

Frame-specific Data Frame Type 30x10

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent ACK (acknowledgement). If set to 0,

no response is sent.

64-bit Destination

Address

MSB 5 0x00

Set to the 64-bit address of the destination device. The

following addresses are also supported:

0x0000000000000000 - Reserved 64-bit address for the

coordinator

0x000000000000FFFF - Broadcast address

60x13

70xA2

80x00

90x40

10 0x0A

11 0x01

LSB 12 0x27

16-bit Destination

Network Address

MSB 13 0xFF Set to the 16-bit address of the destination device, if

known. Set to 0xFFFE if the address is unknown, or if

sending a broadcast.

LSB 14 0xFE

Broadcast Radius 15 0x00

Sets maximum number of hops a

broadcast transmission can occur.

If set to 0, the broadcast radius will

be set to the maximum hops value.

Options 16 0x00

Bitfield of supported transmission options. Supported

values include the following:

0x20 - Enable APS encryption (if EE=1)

0x40 - Use the extended transmission timeout for this

destination

Enabling APS encryption decreases the maximum

number of RF payload bytes by 4 (below the value

reported by NP).

Setting the extended timeout bit causes the stack to set

the extended transmission timeout for the destination

address. (See chapter 4.)

All unused and unsupported bits must be set to 0.

RF Data

17 0x54

Data that is sent to the destination device

18 0x78

19 0x44

20 0x61

21 0x74

22 0x61

23 0x30

24 0x41

Checksum 25 0x13 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 97

Example: The example above shows how to send a transmission to a module where escaping is

disabled (AP=1) with destination address 0x0013A200 40014011, payload "TxData1B". If

escaping is enabled (AP=2), the frame should look like:

0x7E 0x00 0x16 0x10 0x01 0x00 0x7D 0x33 0xA2 0x00 0x40 0x0A 0x01 0x27

0xFF 0xFE 0x00 0x00 0x54 0x78 0x44 0x61 0x74 0x61 0x30 0x41 0x7D 0x33

The checksum is calculated (on all non-escaped bytes) as [0xFF - (sum of all bytes from API frame

type through data payload)].

Example: Send a transmission to the coordinator without specifying the coordinator's 64-bit

address. The API transmit request frame should look like:

0x7E 0x00 0x16 0x10 0x01 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF 0xFE 0x00

0x00 0x54 0x78 032 0x43 0x6F 0x6F 0x72 0x64 0xFC

Where 0x16 = length (22 bytes excluding checksum)

0x10 = ZigBee Transmit Request API frame type

0x01 = Frame ID (set to non-zero value)

0x0000000000000000 = Coordinator's address (can be replaced with coordinator's actual

64-bit address if known

0xFFFE = 16-bit Destination Address

0x00 = Broadcast radius

0x00 = Options

0x547832436F6F7264 = Data payload ("Tx2Coord")

0xFC = Checksum

Explicit Addressing ZigBee Command Frame

Frame Type: 0x11

Allows ZigBee application layer fields (endpoint and cluster ID) to be specified for a data

transmission.

Similar to the ZigBee Transmit Request, but also requires ZigBee application layer addressing

fields to be specified (endpoints, cluster ID, profile ID). An Explicit Addressing Request API frame

causes the module to send data as an RF packet to the specified destination, using the specified

source and destination endpoints, cluster ID, and profile ID.

The 64-bit destination address should be set to 0x000000000000FFFF for a broadcast

transmission (to all devices). The coordinator can be addressed by either setting the 64-bit

address to all 0x00s and the 16-bit address to 0xFFFE, OR by setting the 64-bit address to the

coordinator's 64-bit address and the 16-bit address to 0x0000. For all other transmissions, setting

the 16-bit address to the correct 16-bit address can help improve performance when transmitting

to multiple destinations. If a 16-bit address is not known, this field should be set to 0xFFFE

(unknown). The Transmit Status frame (0x8B) will indicate the discovered 16-bit address, if

successful.

The broadcast radius can be set from 0 up to NH. If set to 0, the value of NH specifies the

broadcast radius (recommended). This parameter is only used for broadcast transmissions.

The maximum number of payload bytes can be read with the NP command. Note: if source routing

is used, the RF payload will be reduced by two bytes per intermediate hop in the source route.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 98

Example: Send a data transmission to the coordinator (64-bit address of 0x00s) using a source

endpoint of 0xA0, destination endpoint 0xA1, cluster ID =0x1554, and profile ID 0xC105. Payload

will be "TxData".

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x1A

Frame-specific Data Frame Type 30x11

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent ACK (acknowledgement). If set to 0,

no response is sent.

64-bit Destination

Address

MSB 5 0x00

Set to the 64-bit address of the destination device. The

following addresses are also supported:

0x0000000000000000 - Reserved 64-bit address for the

coordinator

0x000000000000FFFF - Broadcast address

60x00

70x00

80x00

90x00

10 0x00

11 0x00

12 0x00

16-bit Destination

Network Address

MSB 13 0xFF Set to the 16-bit address of the destination device, if

known. Set to 0xFFFE if the address is unknown, or if

sending a broadcast.

LSB 14 0xFE

Source Endpoint 15 0xA0 Source endpoint for the transmission.

Destination Endpoint 16 0xA1 Destination endpoint for the

transmission.

Cluster ID 17 0x15 Cluster ID used in the transmission

18 0x54

Profile ID 19 0xC1 Profile ID used in the transmission

20 0x05

Broadcast Radius 21 0x00 Sets the maximum number of hops a broadcast

transmission can traverse. If set to 0, the transmission

radius will be set to the network maximum hops value.

Transmit Options 22 0x00

Bitfield of supported transmission options. Supported

values include the following:

0x20 - Enable APS encryption (if EE=1)

0x40 - Use the extended transmission timeout for this

destination

Enabling APS encryption decreases the maximum

number of RF payload bytes by 4 (below the value

reported by NP).

Setting the extended timeout bit causes the stack to set

the extended transmission timeout for the destination

address. (See chapter 4.)

All unused and unsupported bits must be set to 0.

Data Payload

23 0x54

Data that is sent to the destination device

24 0x78

25 0x44

26 0x61

27 0x74

28 0x61

Checksum 29 0x3A 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 99

Remote AT Command Request

Frame Type: 0x17

Used to query or set module parameters on a remote device. For parameter changes on the

remote device to take effect, changes must be applied, either by setting the apply changes options

bit, or by sending an AC command to the remote.

Example: Send a remote command to change the broadcast hops register on a remote device to

1 (broadcasts go to 1-hop neighbors only), and apply changes so the new configuration value

immediately takes effect. In this example, the 64-bit address of the remote is 0x0013A200

40401122, and the destination 16-bit address is unknown.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x10

Frame-specific Data Frame Type 30x17

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent ACK (acknowledgement). If set to 0,

no response is sent.

64-bit Destination

Address

MSB 5 0x00

Set to the 64-bit address of the destination device. The

following addresses are also supported:

0x0000000000000000 - Reserved 64-bit address for the

coordinator

0x000000000000FFFF - Broadcast address

60x13

70xA2

80x00

90x40

10 0x40

11 0x11

LSB 12 0x22

16-bit Destination

Network Address

MSB 13 0xFF Set to the 16-bit address of the destination device, if

known. Set to 0xFFFE if the address is unknown, or if

sending a broadcast.

LSB 14 0xFE

Remote Command

Options 15 0x02 (apply

changes)

Bitfield to enable various remote command options.

Supported values include:

0x02 - Apply changes on remote. (If

not set, AC command must be sent

before changes will take effect.)

All other bits must be set to 0.

All unused and unsupported bits must be set to 0.

AT Command 16 0x42 (B) Name of the

command

17 0x48 (H)

Command Parameter 18 0x01

If present, indicates the requested

parameter value to set the given

the register is queried.

Checksum 19 0xF5 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 100

Create Source Route

Frame Type: 0x21

This frame creates a source route in the module. A source route specifies the complete route a

packet should traverse to get from source to destination. Source routing should be used with

many-to-one routing for best results.

Note: Both the 64-bit and 16-bit destination addresses are required when creating a source route.

These are obtained when a Route Record Indicator (0xA1) frame is received.

Example: Intermediate hop addresses must be ordered starting with the neighbor of the

destination, and working closer to the source. For example, suppose a route is found between A

and E as shown below.

A ' B ' C ' D ' E

If device E has the 64-bit and 16-bit addresses of 0x0013A200 40401122 and 0x3344, and if

devices B, C, and D have the following 16-bit addresses:

B = 0xAABB

C = 0xCCDD

D = 0xEEFF

The example above shows how to send the Create Source Route frame to establish a source route

between A and E.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x14

Frame-specific Data Frame Type 30x21

Frame ID 4 0x00 The Frame ID should always be set to 0.

64-bit Destination

Address

MSB 5 0x00

Set to the 64-bit address of the destination device. The

following addresses are also supported:

0x0000000000000000 - Reserved 64-bit address for the

coordinator

0x000000000000FFFF - Broadcast address

60x13

70xA2

80x00

90x40

10 0x40

11 0x11

LSB 12 0x22

16-bit Destination

Network Address

MSB 13 0x33 Set to the 16-bit address of the destination device, if

known. Set to 0xFFFE if the address is unknown, or if

sending a broadcast.

LSB 14 0x44

Route Command

Options 15 0x00 Set to 0.

Number of Addresses 16 0x03

The number of addresses in the

source route (excluding source

and destination).

Address 1 17 0xEE (neighbor of

destination)

18 0xFF

Address 2 (closer hop 19 0xCC Address of intermediate hop

20 0xDD

Address 3 21 0xAA (neighbor of source)

22 0xBB

Checksum 23 0x01 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 101

AT Command Response

Frame Type: 0x88

In response to an AT Command message, the module will send an AT Command Response

message. Some commands will send back multiple frames (for example, the ND (Node Discover)

command).

Example: Suppose the BD parameter is changed on the local device with a frame ID of 0x01. If

successful (parameter was valid), the above response would be received.

Modem Status

Frame Type: (0x8A)

RF module status messages are sent from the module in response to specific conditions.

Example: The following API frame is returned when an API coordinator forms a network.

Note: New modem status codes may be added in future firmware releases.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x05

Frame Type 30x88

Frame ID 40x01 Identifies the UART data frame being reported. Note: If

Frame ID = 0 in AT Command Mode, no AT Command

Response will be given.

AT Command 5 ‘B’ = 0x42 Command Name - Two ASCII characters that identify the

AT Command.

6 ‘D’ = 0x44

Command Status 70x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

Command Data Register data in binary format. If the register was set,

then this field is not returned, as in this example.

Checksum 8 0xF0 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x02

Frame-specific Data

Frame Type 30x8A

Status 40x06

0 = Hardware reset

1 = Watchdog timer reset

2 =Joined network (routers and end devices)

3 =Disassociated

6 =Coordinator started

7 = Network security key was updated

0x0D = Voltage supply limit exceeded (PRO S2B only)

0x10 = Key establishment complete

0x80+ = stack error

Checksum 5 0x6F 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 102

ZigBee Transmit Status

Frame Type: 0x8B

When a TX Request is completed, the module sends a TX Status message. This message will

indicate if the packet was transmitted successfully or if there was a failure.

Example: Suppose a unicast data transmission was sent to a destination device with a 16-bit

address of 0x7D84. (The transmission could have been sent with the 16-bit address set to 0x7D84

or 0xFFFE.)

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x07

Frame Type 30x8B

Frame ID 40x01 Identifies the UART data frame being reported. Note: If

Frame ID = 0 in AT Command Mode, no AT Command

Response will be given.

16-bit address of

destination

5 0x7D 16-bit Network Address the

packet was delivered to (if

success). If not success, this

address matches the

Destination Network Address

that was provided in the

Transmit Request Frame.

60x84

Transmit Retry Count 70x00

The number of application

transmission retries that

took place.

Delivery Status 80x00

0x00 = Success

0x02 = CCA Failure

0x15 = Invalid destination

endpoint

0x21 = Network ACK Failure

0x22 = Not Joined to Network

0x23 = Self-addressed

0x24 = Address Not Found

0x25 = Route Not Found

0x74 = Data payload too large

Discovery Status 90x01

0x00 = No Discovery

Overhead

0x01 = Address Discovery

0x02 = Route Discovery

0x03 = Address and Route

Discovery

Checksum 10 0x71 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 103

ZigBee Receive Packet

Frame Type: (0x90)

When the module receives an RF packet, it is sent out the UART using this message type.

Example: Suppose a device with a 64-bit address of 0x0013A200 40522BAA, and 16-bit address

0x7D84 sends a unicast data transmission to a remote device with payload "RxData". If AO=0 on

the receiving device, it would send the above example frame out its UART.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x11

Frame Type 30x90

64-bit Source

Address

MSB 4 0x00

50x13

64-bit address of sender. Set to 0xFFFFFFFFFFFFFFFF

(unknown 64-bit address) if the sender's 64-bit address is

unknown.

60xA2

70x00

80x40

90x52

10 0x2B

LSB 11 0xAA

16-bit Source

Network Address

MSB 12 0x7D 16-bit address of sender

LSB 13 0x84

Receive Options 14 0x01

0x01 - Packet Acknowledged

0x02 - Packet was a broadcast packet

0x20 - Packet encrypted with APS encryption

0x40 - Packet was sent from an end device (if known)

Received Data

15 0x52

Received RF data

16 0x78

17 0x44

18 0x61

19 0x74

20 0x61

Checksum 21 0x0D 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 104

ZigBee Explicit Rx Indicator

Frame Type:0x91

When the modem receives a ZigBee RF packet it is sent out the UART using this message type

(when AO=1).

Example: Suppose a device with a 64-bit address of 0x0013A200 40522BAA, and 16-bit address

0x7D84 sends a broadcast data transmission to a remote device with payload "RxData". Suppose

the transmission was sent with source and destination endpoints of 0xE0, cluster ID=0x2211, and

profile ID=0xC105. If AO=1 on the receiving device, it would send the above frame out its UART.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x18

Frame-specific Data

Frame Type 30x91

64-bit Source

Address

MSB 4 0x00

64-bit address of sender. Set to 0xFFFFFFFFFFFFFFFF

(unknown 64-bit address) if the sender's 64-bit address is

unknown.

50x13

60xA2

70x00

80x40

90x52

10 0x2B

LSB 11 0xAA

16-bit Source

Network Address

MSB 12 0x7D 16-bit address of sender.

LSB 13 0x84

Source Endpoint 14 0xE0 Endpoint of the source that initiated the

transmission

Destination Endpoint 15 0xE0 Endpoint of the destination the message is

addressed to.

Cluster ID 16 0x22 Cluster ID the packet was addressed

to.

17 0x11

Profile ID 18 0xC1 Profile ID the packet was

addressed to.

19 0x05

Receive Options 20 0x02

0x01 – Packet Acknowledged

0x02 – Packet was a broadcast packet

0x20 - Packet encrypted with APS encryption

0x40 - Packet was sent from an end device (if known)

Received Data

21 0x52

Received RF data

22 0x78

23 0x44

24 0x61

25 0x74

26 0x61

Checksum 27 0x52 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 105

ZigBee IO Data Sample Rx Indicator

Frame Type: 0x92

When the module receives an IO sample frame from a remote device, it sends the sample out the

UART using this frame type (when AO=0). Only modules running API firmware will send IO

samples out the UART.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x14

Frame Type 30x92

64-bit Source

Address

MSB 4 0x00

64-bit address of sender

50x13

60xA2

70x00

80x40

90x52

10 0x2B

LSB 11 0xAA

16-bit Source

Network Address

MSB 12 0x7D 16-bit address of sender.

LSB 13 0x84

Receive Options 14 0x01 0x01 - Packet Acknowledged

0x02 - Packet was a broadcast packet

Number of Samples 15 0x01

Number of sample sets

included in the payload.

(Always set to 1)

Digital Channel Mask*

16 0x00 Bitmask field that indicates

which digital IO lines on the

remote have sampling

enabled (if any).

17 0x1C

Analog Channel

Mask** 18 0x02

Bitmask field that indicates

which analog IO lines on the

remote have sampling

enabled (if any).

Digital Samples (if

included)

19 0x00 If the sample set includes any digital IO lines

(Digital Channel Mask > 0), these two bytes

contain samples for all enabled digital IO lines.

DIO lines that do not have sampling enabled

return 0. Bits in these 2 bytes map the same as

they do in the Digital Channels Mask field.

20 0x14

Analog Sample

21 0x02 If the sample set includes any analog input lines

(Analog Channel Mask > 0), each enabled analog input

returns a 2-byte value indicating the A/D measurement

of that input. Analog samples are ordered sequentially

from AD0/DIO0 to AD3/DIO3, to the supply voltage.

22 0x25

Checksum 23 0xF5 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

N/A N/A N/A CD/DIO

PWM/DI

O11

RSSI/DI

O10

N/A N/A

CTS/DI

RTS/DI

ASSOC/

DIO5

DIO4 AD3/DI

AD2/DI

AD1/DI

AD0/DI

Supply

Voltage

N/A N/A N/A AD3 AD2 AD1 AD0

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 106

Example: Suppose an IO sample is received with analog and digital IO, from a remote with a 64-

bit address of 0x0013A200 40522BAA and a 16-bit address of 0x7D84. If pin AD1/DIO1 is enabled

as an analog input, AD2/DIO2 and DIO4 are enabled as a digital inputs (currently high), and AD3/

DIO3 is enabled as a digital output (low) the IO sample is shown in the API example in the table

above.

XBee Sensor Read Indicator

Frame Type: 0x94

When the module receives a sensor sample (from a Digi 1-wire sensor adapter), it is sent out the

UART using this message type (when AO=0).

Example: Suppose a 1-wire sensor sample is received from a device with a 64-bit address of

0x0013A200 40522BAA and a 16-bit address of 0xDD6C. If the sensor sample was taken from a

1-wire humidity sensor, the API frame could look like this (if AO=0):

For convenience, let's label the A/D and temperature readings as AD0, AD1, AD2, AD3, and T.

Using the data in this example:

AD0 = 0x0002

AD1 = 0x00CE

AD2 = 0x00EA

AD3 = 0x0052

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x17

Frame Type 30x94

64-bit Source

Address

MSB 4 0x00

64-bit address of sender

50x13

60xA2

70x00

80x40

90x52

10 0x2B

LSB 11 0xAA

16-bit Source

Network Address

MSB 12 0xDD 16-bit address of sender.

LSB 13 0x6C

Receive Options 14 0x01 0x01 - Packet Acknowledged

0x02 - Packet was a broadcast packet

1-Wire

Sensors 15 0x03

0x01 = A/D Sensor Read

0x02 = Temperature Sensor Read

0x60 = Water present (module CD pin low)

A/D Values

16 0x00

Indicates a two-byte value for each of four A/D sensors

(A, B, C, D)

Set to 0xFFFFFFFFFFFFFFFF if no A/Ds are found.

17 0x02

18 0x00

19 0xCE

20 0x00

21 0xEA

22 0x00

23 0x52

Temperature

Read 24 0x01 Indicates the two-byte value read from a digital

thermometer if present. Set to 0xFFFF if not found.

25 0x6A

Checksum 26 0x8B 0xFF - the 0x8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 107

T = 0x016A

To convert these to temperature and humidity values, the following equations should be used.

Temperature (°C) = (T / 16), for T < 2048

= - (T & 0x7FF) / 16, for T >= 2048

Vsupply = (AD2 * 5.1) / 255

Voutput = (AD3 * 5.1) / 255

Relative Humidity = ((Voutput / Vsupply) - 0.16) / (0.0062)

True Humidity = Relative Humidity / (1.0546 - (0.00216 * Temperature (°C)))

Looking at the sample data, we have:

Vsupply = (234 * 5.1 / 255) = 4.68

Voutput = (82 * 5.1 / 255) = 1.64

Temperature = (362 / 16) = 22.625°C

Relative H = (161.2903 * ((1.64/4.68) - 0.16)) = 161.2903 * (0.19043) = 30.71%

True H = (30.71 / (1.0546 - (0.00216 * 22.625))) = (30.71 / 1.00573) = 30.54%

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 108

Node Identification Indicator

Frame Type: 0x95

This frame is received when a module transmits a node identification message to identify itself

(when AO=0). The data portion of this frame is similar to a network discovery response frame (see

ND command).

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x20

Frame Type 30x95

64-bit Source

Address

MSB 4 0x00

64-bit address of sender

50x13

60xA2

70x00

80x40

90x52

10 0x2B

LSB 11 0xAA

16-bit Source

Network Address

MSB 12 0x7D 16-bit address of sender.

LSB 13 0x84

Receive Options 14 0x02 0x01 - Packet Acknowledged

0x02 - Packet was a broadcast packet

Source 16-bit

address

15 0x7D Set to the 16-bit network address of the remote. Set to

0xFFFE if unknown.

16 0x84

64-bit Network

address

17 0x00

Indicates the 64-bit address of the remote module that

transmitted the node identification frame.

18 0x13

19 0xA2

20 0x00

21 0x40

22 0x52

23 0x2B

24 0xAA

NI String 25 0x20 Node identifier string on the remote device. The NI-String

is terminated with a NULL byte (0x00).

26 0x00

Parent 16-bit

address

27 0xFF Indicates the 16-bit address of the remote's parent or

0xFFFE if the remote has no parent.

28 0xFE

Device Type 29 0x01

0 = Coordinator

1 = Router

2 = End Device

Source Event 30 0x01

1 = Frame sent by node identification pushbutton event

(see D0 command)

2 = Frame sent after joining event occurred (see JN

command).

3 = Frame sent after power cycle event occurred (see JN

command).

Digi Profile ID 31 0xC1 Set to Digi's application profile ID.

32 0x05

Manufacturer ID 33 0x10 Set to Digi's Manufacturer ID.

34 0x1E

Checksum 35 0x1B 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

©2009DigiInternational,Inc. 109

Example: If the commissioning push button is pressed on a remote router device with 64-bit

address 0x0013A200 40522BAA, 16-bit address 0x7D84, and default NI string, the following node

identification indicator would be received.

Remote Command Response

Frame Type: 0x97

If a module receives a remote command response RF data frame in response to a Remote AT

Command Request, the module will send a Remote AT Command Response message out the UART.

Some commands may send back multiple frames--for example, Node Discover (ND) command.

Example: If a remote command is sent to a remote device with 64-bit address 0x0013A200

40522BAA and 16-bit address 0x7D84 to query the SL command, and if the frame ID=0x55, the

response is shown in the example API frame in the table above.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x13

Frame-specific Data

Frame Type 30x97

Frame ID 40x55 This is the same value passed in to the request.

64-bit Source

(remote) Address

MSB 5 0x00

The address of the remote radio returning this response.

60x13

70xA2

80x00

90x40

10 0x52

11 0x2B

LSB 12 0xAA

16-bit Source

(remote) Address

MSB 13 0x7D Set to the 16-bit network

address of the remote.

Set to 0xFFFE if

unknown.

LSB 14 0x84

AT Commands 15 0x53 Name of the command

16 0x4C

Command Status 17 0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

4 = Remote Command Transmission Failed

Command Data

18 0x40

then this field is not returned.

19 0x52

20 0x2B

21 0xAA

Checksum 22 0xF0 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

Over-the-Air Firmware Update Status

Frame Type: 0xA0

The Over-the-Air Firmware Update Status frame provides a status indication of a firmware update

transmission attempt. If a query command (0x01 0x51) is sent to a target with a 64-bit address of

0x0013A200 40522BAA through an updater with 64-bit address 0x0013A200403E0750 and 16-bit

address 0x0000, the following is the expected response.

If a query request returns a 0x15 (NACK) status, the target is likely waiting for a firmware update

image. If no messages are sent to it for about 75 seconds, the target will timeout and accept new

query messages.

If a query returns a 0x51 (QUERY) status, then the target's bootloader is not active and will not

respond to query messages.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x16

Frame-specific Data

Frame Type 30xA0

64-bit Source

(remote) Address

MSB 4 0x00

The address of the remote radio returning this response.

50x13

60xA2

70x00

80x40

90x3E

10 0x07

LSB 11 0x50

16-bit Destination

Address 12 0x00 16-bit address of the updater device

13 0x00

Receive Options 14 0x01 0x01 - Packet Acknowledged.

0x02 - Packet was a broadcast.

Bootloader Message

Type 15 0x52

0x06 - ACK

0x15 - NACK

0x40 - No Mac ACK

0x51 - Query (received if the bootloader is not active on

the target)

0x52 - Query Response

Block Number 16 0x00 Block number used in the update request. Set to 0 if not

applicable.

64-bit Target Address

17 0x00

64-bit Address of remote device that is being updated

(target).

18 0x13

19 0xA2

20 0x00

21 0x40

22 0x52

23 0x2B

24 0xAA

Checksum 25 0x66 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

Route Record Indicator

Frame Type: 0xA1

The route record indicator is received whenever a device sends a ZigBee route record command.

This is used with many-to-one routing to create source routes for devices in a network.

Example: Suppose device E sends a route record that traverses multiple hops en route to data

collector device A as shown below.

A B C D E

If device E has the 64-bit and 16-bit addresses of 0x0013A200 40401122 and 0x3344, and if

devices B, C, and D have the following 16-bit addresses:

B = 0xAABB

C = 0xCCDD

D = 0xEEFF

The data collector will send the above API frame out its UART.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x13

Frame-specific Data

Frame Type 30xA1

64-bit Source

Address

MSB 4 0x00

64-bit address of the device that

initiated the route record.

50x13

60xA2

70x00

80x40

90x40

10 0x11

LSB 11 0x22

Source (updater)

16-bit Address

12 0x33 16-bit address of the

device that initiated the

route record.

13 0x44

Receive Options 14 0x01 0x01 - Packet Acknowledged.

0x02 - Packet was a broadcast.

Number of Addresses 15 0x03

The number of addresses in the

source route (excluding source

and destination).

Address 1 16 0xEE (neighbor of

destination)

17 0xFF

Address 2 (closer hop 18 0xCC Address of intermediate hop

19 0xDD

Address n (neighbor

of source)

20 0xAA Two bytes per 16-bit address.

21 0xBB

Checksum 22 0x80 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

Many-to-One Route Request Indicator

Frame Type: 0xA3

The many-to-one route request indicator frame is sent out the UART whenever a many-to-one

route request is received

Example: Suppose a device with a 64-bit address of 0x0013A200 40401122 and 16-bit address

of 0x0000 sends a many-to-one route request. All remote routers with API firmware that receive

the many-to-one broadcast would send the above example API frame out their UART.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

LSB 2 0x0C

Frame-specific Data

Frame Type 30xA3

64-bit Source

Address

MSB 4 0x00

64-bit address of the device that sent the many-to-one

route request

50x13

60xA2

70x00

80x40

90x40

10 0x11

LSB 11 0x22

Source 16-bit Address MSB 12 0x00 16-bit address of the device that initiated the many-to-one

route request.

LSB 13 0x00

Reserved 14 0x00 Set to 0.

Checksum 15 0xF4 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee®/XBee‐PRO®ZBRFModules

Sending ZigBee Device Objects (ZDO) Commands with the API

ZigBee Device Objects (ZDOs) are defined in the ZigBee Specification as part of the ZigBee Device

Profile. These objects provide functionality to manage and map out the ZigBee network and to

discover services on ZigBee devices. ZDOs are typically required when developing a ZigBee

product that will interoperate in a public profile such as home automation or smart energy, or

when communicating with ZigBee devices from other vendors. The ZDO can also be used to

perform several management functions such as frequency agility (energy detect and channel

changes - Mgmt Network Update Request), discovering routes (Mgmt Routing Request) and

neighbors (Mgmt LQI Request), and managing device connectivity (Mgmt Leave and Permit Join

Request).

The following table shows some of the more prominent ZDOs with their respective cluster

identifier. Each ZDO command has a defined payload. See the "ZigBee Device Profile" section of

the ZigBee Specification for details

The Explicit Transmit API frame (0x11) is used to send ZigBee Device Objects commands to

devices in the network. Sending ZDO commands with the Explicit Transmit API frame requires

some formatting of the data payload field.

When sending a ZDO command with the API, all multiple byte values in the ZDO command (API

payload) (e.g. u16, u32, 64-bit addresses) must be sent in little endian byte order for the

command to be executed correctly on a remote device.

For an API XBee to receive ZDO responses, the AO command must be set to 1 to enable the

explicit receive API frame.

The following table shows how the Explicit API frame can be used to send an "Active Endpoints"

request to discover the active endpoints on a device with a 16-bit address of 0x1234.

ZDO Command Cluster ID

Network Address Request 0x0000

IEEE Address Request 0x0001

Node Descriptor Request 0x0002

Simple Descriptor Request 0x0004

Active Endpoints Request 0x0005

Match Descriptor Request 0x0006

Mgmt LQI Request 0x0031

Mgmt Routing Request 0x0032

Mgmt Leave Request 0x0034

Mgmt Permit Joining Request 0x0036

Mgmt Network Update Request 0x0038

XBee®/XBee‐PRO®ZBRFModules

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific Data

LSB 2 0x17

Frame Type 30x11

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent transmit status. If set to 0, no transmit

status frame will be sent out the UART.

64-bit Destination

Address

MSB 5 0x00

64-bit address of the destination device (big endian byte

order). For unicast transmissions, set to the 64-bit

address of the destination device, or to

0x0000000000000000 to send a unicast to the

coordinator. Set to 0x000000000000FFFF for broadcast.

60x00

70x00

80x00

90x00

10 0x00

11 0xFF

12 0xFF

16-bit Destination

Network Address

MSB 13 0xFF 16-bit address of the destination device (big endian byte

order). Set to 0xFFFE for broadcast, or if the 16-bit

address is unknown.

LSB 14 0xFE

Source Endpoint 15 0x00 Set to 0x00 for ZDO transmissions (endpoint 0 is the

ZDO endpoint).

Destination Endpoint 16 0x00 Set to 0x00 for ZDO transmissions (endpoint 0 is the

ZDO endpoint).

Cluster ID MSB 17 0x00 Set to the cluster ID that corresponds to the ZDO

command being sent.

0x0005 = Active Endpoints Request

LSB 18 0x05

Profile ID MSB 19 0x00 Set to 0x0000 for ZDO transmissions (Profile ID 0x0000

is the ZigBee Device Profile that supports ZDOs).

LSB 20 0x00

Broadcast Radius 21 0x00 Sets the maximum number of hops a broadcast

transmission can traverse. If set to 0, the transmission

radius will be set to the network maximum hops value.

Transmit Options 22 0x00 All bits must be set to 0.

Data Payload Transaction Sequence

Number 23 0x01 The required payload for a ZDO command. All multi-byte

ZDO parameter values (u16, u32, 64-bit address) must

be sent in little endian byte order.

The Active Endpoints Request includes the following

payload:

[16-bit NwkAddrOfInterest]

Note the 16-bit address in the API example (0x1234) is

sent in little endian byte order (0x3412).

ZDO Payload 24 0x34

25 0x12

Checksum 26 0xA6 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee®/XBee‐PRO®ZBRFModules

Sending ZigBee Cluster Library (ZCL) Commands with the API

The ZigBee Cluster Library defines a set of attributes and commands (clusters) that can be

supported in multiple ZigBee profiles. The ZCL commands are typically required when developing a

ZigBee product that will interoperate in a public profile such as home automation or smart energy,

or when communicating with ZigBee devices from other vendors. Applications that are not

designed for a public profile or for interoperability applications can skip this section.

The following table shows some prominent clusters with their respective attributes and

commands.

The ZCL defines a number of profile-wide commands that can be supported on any profile, also

known as general commands. These commands include the following.

The Explicit Transmit API frame (0x11) is used to send ZCL commands to devices in the network.

Sending ZCL commands with the Explicit Transmit API frame requires some formatting of the data

payload field.

When sending a ZCL command with the API, all multiple byte values in the ZCL command (API

Payload) (e.g. u16, u32, 64-bit addresses) must be sent in little endian byte order for the

command to be executed correctly on a remote device.

Cluster (Cluster ID) Attributes (Attribute ID) Cluster ID

Basic (0x0000)

Application Version (0x0001)

Hardware Version (0x0003)

Model Identifier (0x0005)

-Reset to defaults

(0x00)

Identify (0x0003) Identify Time (0x0000) Identify (0x00)

Identify Query (0x01)

Time (0x000A)

Time (0x0000)

Time Status (0x0001)

Time Zone (0x0002)

Thermostat (0x0201) Local Temperature (0x0000)

Occupancy (0x0002) -Setpoint raise / lower

(0x00)

Command (Command ID) Description

Read Attributes (0x00) Used to read one or

more attributes on a

remote device.

Read Attributes Response (0x01) Generated in

response to a read

attributes command.

Write Attributes (0x02) Used to change one

or more attributes on

a remote device.

Write Attributes Response (0x04) Sent in response to a

write attributes

command.

Configure Reporting (0x06)

Used to configure a

device to

automatically report

on the values of one

or more of its

attributes.

Report Attributes (0x0A)

Used to report

attributes when report

conditions have been

satisfied.

Discover Attributes (0x0C) Used to discover the

attribute identifiers on

a remote device.

Discover Attributes Response (0x0D) Sent in response to a

discover attributes

command.

XBee®/XBee‐PRO®ZBRFModules

Note: When sending ZCL commands, the AO command should be set to 1 to enable the explicit

receive API frame. This will provide indication of the source 64- and 16-bit addresses, cluster ID,

profile ID, and endpoint information for each received packet. This information is required to

properly decode received data.

The following table shows how the Explicit API frame can be used to read the hardware version

attribute from a device with a 64-bit address of 0x0013A200 40401234 (unknown 16-bit address).

This example uses arbitrary source and destination endpoints. Recall the hardware version

attribute (attribute ID 0x0003) is part of the basic cluster (cluster ID 0x0000). The Read Attribute

general command ID is 0x00.

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific

Data

LSB 2 0x19

Frame Type 30x11

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent transmit status. If set to 0, no transmit

status frame will be sent out the UART.

64-bit

Destination

Address

MSB 5 0x00

64-bit address of the destination device (big endian byte

order). For unicast transmissions, set to the 64-bit

address of the destination device, or to

0x0000000000000000 to send a unicast to the

coordinator. Set to 0x000000000000FFFF for broadcast.

60x13

70xA2

80x00

90x40

10 0x40

11 0x12

12 0x34

16-bit

Destination

Network

Address

MSB 13 0xFF 16-bit address of the destination device (big endian byte

order). Set to 0xFFFE for broadcast, or if the 16-bit

address is unknown.

LSB 14 0xFE

Source

Endpoint 15 0x41 Set to the source endpoint on the sending device. (0x41

arbitrarily selected).

Destination

Endpoint 16 0x42 Set to the destination endpoint on the remote device.

(0x42 arbitrarily selected)

Cluster ID MSB 17 0x00 Set to the cluster ID that corresponds to the ZCL

command being sent.

0x0000 = Basic Cluster

LSB 18 0x00

Profile ID MSB 19 0xD1 Set to the profile ID supported on the device. (0xD123

arbitrarily selected).

LSB 20 0x23

Broadcast

Radius 21 0x00 Sets the maximum number of hops a broadcast

transmission can traverse. If set to 0, the transmission

radius will be set to the network maximum hops value.

Transmit

Options 22 0x00 All bits must be set to 0.

Data Payload

ZCL Frame

Header

Frame Control 23 0x00 Bitfield that defines the command type and other relevant

information in the ZCL command. See the ZCL

specification for details.

Transaction

Sequence

Number 24 0x01

A sequence number used to correlate a ZCL command

with a ZCL response. (The hardware version response

will include this byte as a sequence number in the

response.) The value 0x01 was arbitrarily selected.

Command ID 25 0x00 Since the frame control "frame type" bits are 00, this byte

specifies a general command. Command ID 0x00 is a

Read Attributes command.

ZCL Payload Attribute ID 26 0x03 The payload for a "Read Attributes" command is a list of

Attribute Identifiers that are being read.

Note the 16-bit Attribute ID (0x0003) is sent in little

endian byte order (0x0300). All multi-byte ZCL header

and payload values must be sent in little endian byte

order.

27 0x00

Checksum 28 0xFA 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee®/XBee‐PRO®ZBRFModules

In the above example, the Frame Control field (offset 23) was constructed as follows:

See the ZigBee Cluster Library specification for details.

Sending Public Profile Commands with the API

Commands in public profiles such as Smart Energy and Home Automation can be sent with the

XBee API using the Explicit Transmit API frame (0x11). Sending public profile commands with the

Explicit Transmit API frame requires some formatting of the data payload field. Most of the public

profile commands fit into the ZigBee Cluster Library (ZCL) architecture as described in the

previous section.

The following table shows how the Explicit API frame can be used to send a demand response and

load control message (cluster ID 0x701) in the smart energy profile (profile ID 0x0109) in the

revision 14 Smart Energy specification. The message will be a "Load Control Event" (command ID

0x00) and will be sent to a device with 64-bit address of 0x0013A200 40401234 with a 16-bit

address of 0x5678. The event will start a load control event for water heaters and smart

appliances, for a duration of 1 minute, starting immediately.

Note: When sending public profile commands, the AO command should be set to 1 to enable the

explicit receive API frame. This will provide indication of the source 64- and 16-bit addresses,

cluster ID, profile ID, and endpoint information for each received packet. This information is

required to properly decode received data.

Name Bits Example Value Description

Frame Type 0-1 00 - Command acts across the entire profile

Manufacturer Specific 2 0 - The manufacturer code field is omitted from the ZCL Frame Header.

Direction 3 0 - The command is being sent from the client side to the server side.

Disable Default Response 4 0 - Default response not disabled

Reserved 5-7 Set to 0.

XBee®/XBee‐PRO®ZBRFModules

Frame Fields Offset Example Description

Start Delimiter 00x7E

Length MSB 1 0x00 Number of bytes between the length and the checksum

Frame-specific

Data

LSB 2 0x19

Frame Type 30x11

Frame ID 40x01 Identifies the UART data frame for the host to correlate

with a subsequent transmit status. If set to 0, no transmit

status frame will be sent out the UART.

64-bit

Destination

Address

MSB 5 0x00

64-bit address of the destination device (big endian byte

order). For unicast transmissions, set to the 64-bit

address of the destination device, or to

0x0000000000000000 to send a unicast to the

coordinator. Set to 0x000000000000FFFF for broadcast.

60x13

70xA2

80x00

90x40

10 0x40

11 0x12

12 0x34

16-bit

Destination

Network

Address

MSB 13 0x56 16-bit address of the destination device (big endian byte

order). Set to 0xFFFE for broadcast, or if the 16-bit

address is unknown.

LSB 14 0x78

Source

Endpoint 15 0x41 Set to the source endpoint on the sending device. (0x41

arbitrarily selected).

Destination

Endpoint 16 0x42 Set to the destination endpoint on the remote device.

(0x42 arbitrarily selected)

Cluster ID MSB 17 0x07 Set to the cluster ID that corresponds to the ZCL

command being sent.

0x0701 = Demand response and load control cluster ID

LSB 18 0x01

Profile ID MSB 19 0x01 Set to the profile ID supported on the device.

0x0109 = Smart Energy profile ID.

LSB 20 0x09

Broadcast

Radius 21 0x00 Sets the maximum number of hops a broadcast

transmission can traverse. If set to 0, the transmission

radius will be set to the network maximum hops value.

Transmit

Options 22 0x00 All bits must be set to 0.

Data Payload

ZCL Frame

Header

Frame Control 23 0x09 Bitfield that defines the command type and other relevant

information in the ZCL command. See the ZCL

specification for details.

Transaction

Sequence

Number 24 0x01

A sequence number used to correlate a ZCL command

with a ZCL response. (The hardware version response

will include this byte as a sequence number in the

response.) The value 0x01 was arbitrarily selected.

25 0x00

Since the frame control "frame type" bits are 01, this byte

specifies a cluster-specific command. Command ID 0x00

in the Demand Response and Load Control cluster is a

Load Control Event command. (See Smart Energy

specification.)

XBee®/XBee‐PRO®ZBRFModules

In the above example, the Frame Control field (offset 23) was constructed as follows:

ZCL Payload -

Load Control

Event Data

Issuer Event ID

26 0x78 4-byte unique identifier.

Note the 4-byte ID is sent in little endian byte order

(0x78563412).

The event ID in this example (0x12345678) was

arbitrarily selected.

27 0x56

28 0x34

29 0x12

Device Class

30 0x14 to apply the load control event.

A bit value of 0x0014 enables smart appliances and

water heaters.

Note the 2-byte bit field value is sent in little endian byte

order.

31 0x00

Utility

Enrollment

Group 32 0x00 Used to identify sub-groups of devices in the device-

class. 0x00 addresses all groups.

Start Time

33 0x00

UTC timestamp representing when the event should

start. A value of 0x00000000 indicates "now".

34 0x00

35 0x00

36 0x00

Duration in

Minutes 37 0x01 This 2-byte value must be sent in little endian byte order.

38 0x00

Criticality Level 39 0x04 Indicates the criticality level of the event. In this example,

the level is "voluntary".

Cooling

Temperature 40 0xFF Requested offset to apply to the normal cooling set point.

A value of 0xFF indicates the temperature offset value is

not used.

Heating

Temperature

Offset 41 0xFF Requested offset to apply to the normal heating set point.

A value of 0xFF indicates the temperature offset value is

not used.

Cooling

Temperature

Set Point

42 0x00 Requested cooling set point in 0.01 degrees Celsius.

A value of 0x8000 means the set point field is not used in

this event.

Note the 0x80000 is sent in little endian byte order.

43 0x80

Heating

Temperature

Set Point

44 0x00 Requested heating set point in 0.01 degrees Celsius.

A value of 0x8000 means the set point field is not used in

this event.

Note the 0x80000 is sent in little endian byte order.

45 0x80

Average Load

Adjustment

Percentage 46 0x80

Maximum energy usage limit.

A value of 0x80 indicates the field is not used.

Duty Cycle 47 0xFF Defines the maximum "On" duty cycle.

A value of 0xFF indicates the duty cycle is not used in this

event.

Duty Cycle

Event Control 48 0x00 A bitmap describing event options.

Checksum 49 0x5B 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Name Bits Example Value Description

Frame Type 0-1 01 - Command is specific to a cluster

Manufacturer Specific 2 0 - The manufacturer code field is omitted from the ZCL Frame Header.

Direction 3 1 - The command is being sent from the server side to the client side.

Disable Default Response 4 0 - Default response not disabled

Reserved 5-7 Set to 0.

Frame Fields Offset Example Description

10.XBeeCommandReferenceTables

Addressing

Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

AddressingCommands

AT

Command Name and Description Node

Type1Parameter Range Default

Destination Address High.Set/Get the upper 32 bits of the 64-bit destination address.

When combined with DL, it defines the 64-bit destination address for data transmission.

Special definitions for DH and DL include 0x000000000000FFFF (broadcast) and

0x0000000000000000 (coordinator).

CRE 0 - 0xFFFFFFFF 0

Destination Address Low. Set/Get the lower 32 bits of the 64-bit destination address.

When combined with DH, it defines the 64-bit destination address for data

transmissions. Special definitions for DH and DL include 0x000000000000FFFF

(broadcast) and 0x0000000000000000 (coordinator).

CRE 0 - 0xFFFFFFFF 0xFFFF(Coordinator)

0 (Router/End Device)

MY 16-bit Network Address. Read the 16-bit network address of the module. A value of

0xFFFE means the module has not joined a ZigBee network CRE 0 - 0xFFFE

[read-only] 0xFFFE

MP 16-bit Parent Network Address. Read the 16-bit network address of the module's

parent. A value of 0xFFFE means the module does not have a parent. E0 - 0xFFFE

[read-only] 0xFFFE

NC Number of Remaining Children. Read the number of end device children that can join

the device. If NC returns 0, then the device cannot allow any more end device children

to join. CR 0 - MAX_CHILDREN

(maximum varies) read-only

SH Serial Number High. Read the high 32 bits of the module's unique 64-bit address. CRE 0 - 0xFFFFFFFF 

[read-only] factory-set

SL Serial Number Low. Read the low 32 bits of the module's unique 64-bit address. CRE 0 - 0xFFFFFFFF

[read-only] factory-set

Node Identifier. Stores a string identifier. The register only accepts printable ASCII

data. In AT Command Mode, a string can not start with a space. A carriage return ends

the command. Command will automatically end when maximum bytes for the string

have been entered. This string is returned as part of the ND (Node Discover) command.

This identifier is also used with the DN (Destination Node) command. In AT command

mode, an ASCII comma (0x2C) cannot be used in the NI string

CRE 20-Byte printable 

ASCII string ASCII space

character (0x20)

Source Endpoint. Set/read the ZigBee application layer source endpoint value. This

value will be used as the source endpoint for all data transmissions. SE is only

supported in AT firmware.The default value 0xE8 (Data endpoint) is the Digi data

endpoint

CRE 0 - 0xFF 0xE8

DE Destination Endpoint. Set/read Zigbee application layer destination ID value. This

value will be used as the destination endpoint all data transmissions. DE is only

supported in AT firmware.The default value (0xE8) is the Digi data endpoint. CRE 0 - 0xFF 0xE8

CI Cluster Identifier. Set/read Zigbee application layer cluster ID value. This value will be

used as the cluster ID for all data transmissions. CI is only supported in AT

firmware.The default value0x11 (Transparent data cluster ID). CRE 0 - 0xFFFF 0x11

Maximum RF Payload Bytes. This value returns the maximum number of RF payload

bytes that can be sent in a unicast transmission. If APS encryption is used (API transmit

option bit enabled), the maximum payload size is reduced by 9 bytes. If source routing

is used (AR < 0xFF), the maximum payload size is reduced further.

Note: NP returns a hexadecimal value. (e.g. if NP returns 0x54, this is equivalent to 84

bytes)

CRE 0 - 0xFFFF [read-only]

Device Type Identifier. Stores a device type value. This value can be used to

differentiate different XBee-based devices. Digi reserves the range 0 - 0xFFFFFF.

For example, Digi currently uses the following DD values to identify various ZigBee

products:

0x30001 - ConnectPort X8 Gateway

0x30002 - ConnectPort X4 Gateway

0x30003 - ConnectPort X2 Gateway

0x30005 - RS-232 Adapter

0x30006 - RS-485 Adapter

0x30007 - XBee Sensor Adapter

0x30008 - Wall Router

0x3000A - Digital I/O Adapter

0x3000B - Analog I/O Adapter

0x3000C - XStick

0x3000F - Smart Plug

0x30011 - XBee Large Display

0x30012 - XBee Small Display

CRE 0 - 0xFFFFFFFF 0x30000

XBee®/XBee‐PRO®ZBRFModules

Networking

NetworkingCommands

AT

Command Name and Description Node

Type1Parameter Range Default

CH Operating Channel. Read the channel number used for transmitting and receiving

between RF modules. Uses 802.15.4 channel numbers. A value of 0 means the device

has not joined a PAN and is not operating on any channel. CRE 0, 0x0B - 0x1A (XBee)

0, 0x0B - 0x18 (XBee-

PRO) [read-only]

Extended PAN ID. Set/read the 64-bit extended PAN ID. If set to 0, the coordinator will

select a random extended PAN ID, and the router / end device will join any extended

PAN ID. Changes to ID should be written to non-volatile memory using the WR

command to preserve the ID setting if a power cycle occurs.

CRE 0 -

0xFFFFFFFFFFFFFFFF 0

OP Operating Extended PAN ID. Read the 64-bit extended PAN ID. The OP value reflects

the operating extended PAN ID that the module is running on. If ID > 0, OP will equal ID. CRE 0x01 -

0xFFFFFFFFFFFFFFFF [read-only]

Maximum Unicast Hops. Set / read the maximum hops limit. This limit sets the

maximum broadcast hops value (BH) and determines the unicast timeout. The timeout

is computed as (50 * NH) + 100 ms. The default unicast timeout of 1.6 seconds

(NH=0x1E) is enough time for data and the acknowledgment to traverse about 8 hops.

CRE 0 - 0xFF 0x1E

BH Broadcast Hops. Set/Read the maximum number of hops for each broadcast data

transmission. Setting this to 0 will use the maximum number of hops. CRE 0 - 0x1E 0

OI Operating 16-bit PAN ID. Read the 16-bit PAN ID. The OI value reflects the actual 16-

bit PAN ID the module is running on. CRE 0 - 0xFFFF [read-only]

Node Discovery Timeout. Set/Read the node discovery timeout. When the network

discovery (ND) command is issued, the NT value is included in the transmission to

provide all remote devices with a response timeout. Remote devices wait a random

time, less than NT, before sending their response.

CRE 0x20 - 0xFF [x 100 msec] 0x3C (60d)

Network Discovery options. Set/Read the options value for the network discovery

command. The options bitfield value can change the behavior of the ND (network

discovery) command and/or change what optional values are returned in any received

ND responses or API node identification frames. Options include:

0x01 = Append DD value (to ND responses or API node identification frames)

002 = Local device sends ND response frame when ND is issued.

CRE 0 - 0x03 [bitfield] 0

Scan Channels. Set/Read the list of channels to scan.

Coordinator - Bit field list of channels to choose from prior to starting network.

Router/End Device - Bit field list of channels that will be scanned to find a Coordinator/

Router to join.

Changes to SC should be written using WR command to preserve the SC setting if a

power cycle occurs.

Bit (Channel): 0 (0x0B) 4 (0x0F) 8 (0x13) 12 (0x17)

1 (0x0C) 5 (0x10) 9 (0x14) 13 (0x18)

2 (0x0D) 6 (0x11) 10 (0x15) 14 (0x19)

3 (0x0E) 7 (0x12) 11 (0x16) 15 (0x1A)

CRE

XBee

1 - 0xFFFF [bitfield]

XBee-PRO (S2)

1 - 0x3FFF [bitfield]

(bits 14, 15 not allowed)

XBee-PRO (S2B)

1-0x7FFF

(bit 15 is not allowed)

0x3FFE

Scan Duration. Set/Read the scan duration exponent. Changes to SD should be

written using WR command.

Coordinator - Duration of the Active and Energy Scans (on each channel) that are

used to determine an acceptable channel and Pan ID for the Coordinator to startup on.

Router / End Device - Duration of Active Scan (on each channel) used to locate an

available Coordinator / Router to join during Association.

Scan Time is measured as:(# Channels to Scan) * (2 ^ SD) * 15.36ms - The number of

channels to scan is determined by the SC parameter. The XBee can scan up to 16

channels (SC = 0xFFFF).

Sample Scan Duration times (13 channel scan):

If SD = 0, time = 0.200 sec 

SD = 2, time = 0.799 sec 

SD = 4, time = 3.190 sec 

SD = 6, time = 12.780 sec

Note: SD influences the time the MAC listens for beacons or runs an energy scan on a

given channel. The SD time is not a good estimate of the router/end device joining time

requirements. ZigBee joining adds additional overhead including beacon processing on

each channel, sending a join request, etc. that extend the actual joining time.

CRE 0 - 7 [exponent] 3

ZS ZigBee Stack Profile. Set / read the ZigBee stack profile value. This must be set the

same on all devices that should join the same network. CRE 0 - 2 0

Node Join Time. Set/Read the time that a Coordinator/Router allows nodes to join.

This value can be changed at run time without requiring a Coordinator or Router to

restart. The time starts once the Coordinator or Router has started. The timer is reset

on power-cycle or when NJ changes.

CR 0 - 0xFF 

[x 1 sec] 0xFF 

(always allows joining)

Channel Verification. Set/Read the channel verification parameter. If JV=1, a router

will verify the coordinator is on its operating channel when joining or coming up from a

power cycle. If a coordinator is not detected, the router will leave its current channel and

attempt to join a new PAN. If JV=0, the router will continue operating on its current

channel even if a coordinator is not detected.

0 - Channel verification

disabled

1 - Channel verification

enabled 0

XBee®/XBee‐PRO®ZBRFModules

Network Watchdog Timeout. Set/read the network watchdog timeout value. If NW is

set > 0, the router will monitor communication from the coordinator (or data collector)

and leave the network if it cannot communicate with the coordinator for 3 NW periods.

The timer is reset each time data is received from or sent to a coordinator, or if a many-

to-one broadcast is received.

0 - 0x64FF

[x 1 minute]

(up to over 17 days)

0 (disabled)

Join Notification. Set / read the join notification setting. If enabled, the module will

transmit a broadcast node identification packet on power up and when joining. This

action blinks the Associate LED rapidly on all devices that receive the transmission, and

sends an API frame out the UART of API devices. This feature should be disabled for

large networks to prevent excessive broadcasts.

RE 0 - 1 0

AR Aggregate Routing Notification. Set/read time between consecutive aggregate route

broadcast messages. If used, AR should be set on only one device to enable many-to-

one routing to the device. Setting AR to 0 only sends one broadcast CR 0 - 0xFF 0xFF

NetworkingCommands

AT

Command Name and Description Node

Type1Parameter Range Default

XBee®/XBee‐PRO®ZBRFModules

Security

RF Interfacing

1.Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

SecurityCommands

AT

Command Name and Description Node

Type1Parameter Range Default

EE Encryption Enable. Set/Read the encryption enable setting. CRE 0 - Encryption disabled

1 - Encryption enabled 0

Encryption Options. Configure options for encryption. Unused option bits should be set

to 0. Options include:

0x01 - Send the security key unsecured over-the-air during joins

0x02 - Use trust center (coordinator only

CRE 0 - 0xFF

NK Network Encryption Key. Set the 128-bit AES network encryption key. This command

is write-only; NK cannot be read. If set to 0 (default), the module will select a random

network key. C128-bit value 0

Link Key. Set the 128-bit AES link key. This command is write only; KY cannot be read.

Setting KY to 0 will cause the coordinator to transmit the network key in the clear to

joining devices, and will cause joining devices to acquire the network key in the clear

when joining.

CRE 128-bit value 0

RFInterfacingCommands

AT

Command Name and Description Node

Type1Parameter Range Default

PL Power Level. Select/Read the power level at which the RF module transmits conducted

power. For XBee-PRO (S2B) Power Level 4 is calibrated and the other power levels are

approximate. CRE

XBee

(boost mode disabled)

0 = -8 dBm

1 = -4 dBm

2 = -2 dBm

3 = 0 dBm

4 = +2 dBm

XBee-PRO (S2)

4 = 17 dBm

XBee-PRO (S2)

(International Variant)

4 = 10dBm

XBee-PRO (S2B)

(Boost mode enabled)

4 = 18dBM

3 = 16dBm

2 = 14dBm

1 = 12dBm

0 = 10dBm

XBee-PRO (S2B)

(International Variant)

(Boost mode enabled)

4 = 10dBm

3 = 8dBm

2 = 6dBm

1 = 4dBm

0 = 2dBm

Power Mode. Set/read the power mode of the device. Enabling boost mode will improve

the receive sensitivity by 1dB and increase the transmit power by 2dB

Note: Enabling boost mode on the XBee-PRO (S2) will not affect the output power. Boost

mode imposes a slight increase in current draw. See section 1.2 for details.

CRE

0-1, 

0= -Boost mode disabled,

1= Boost mode enabled. 1

Received Signal Strength. This command reports the received signal strength of the

last received RF data packet. The DB command only indicates the signal strength of the

last hop. It does not provide an accurate quality measurement for a multihop link. DB can

be set to 0 to clear it. The DB command value is measured in -dBm. For example if DB

returns 0x50, then the RSSI of the last packet received was

-80dBm. As of 2x6x firmware, the DB command value is also updated when an APS

acknowledgment is received.

CRE

0 - 0xFF

Observed range for

XBee-PRO:

0x1A - 0x58

For XBee:

0x 1A - 0x5C

PP Peak Power. Read the dBm output when maximum power is selected (PL4). CRE 0x0-0x12 [read only]

XBee®/XBee‐PRO®ZBRFModules

Serial Interfacing (I/O)

1.Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

SerialInterfacingCommands

AT

Command Name and Description Node

Type1Parameter Range Default

AP API Enable. Enable API Mode.

The AP command is only supported when using API firmware: 21xx (API coordinator),

23xx (API router), 29xx (API end device). CRE

1 - 2

1 = API-enabled

2 = API-enabled 

(w/escaped control

characters)

AO API Options. Configure options for API. Current options select the type of receive API

frame to send out the Uart for received RF data packets. CRE

0 - Default receive API

indicators enabled

1 - Explicit Rx data

indicator API frame

enabled (0x91)

3 - enable ZDO

passthrough of ZDO

requests to the UART

which are not supported

by the stack, as well as

Simple_Desc_req,

Active_EP_req, and

Match_Desc_req.

Interface Data Rate. Set/Read the serial interface data rate for communication between

the module serial port and host.

Any value above 0x07 will be interpreted as an actual baud rate. When a value above

0x07 is sent, the closest interface data rate represented by the number is stored in the

BD register.

CRE 0x80 - 0xE1000 (non-

standard rates up to

921kbps) 3

NB Serial Parity. Set/Read the serial parity setting on the module. CRE

0 = No parity

1 = Even parity

2 = Odd parity

3 = Mark parity

SB Stop Bits. Set/read the number of stop bits for the UART. (Two stop bits are not

supported if mark parity is enabled.) CRE 0 = 1 stop bit

1 = 2 stop bits 0

Packetization Timeout. Set/Read number of character times of inter-character silence

required before packetization. Set (RO=0) to transmit characters as they arrive instead of

buffering them into one RF packet The RO command is only supported when using AT

firmware: 20xx (AT coordinator), 22xx (AT router), 28xx (AT end device).

CRE 0 - 0xFF

[x character times] 3

D7 DIO7 Configuration. Select/Read options for the DIO7 line of the RF module. CRE

0 = Disabled

1 = CTS Flow Control

3 = Digital input

4 = Digital output, low

5 = Digital output, high

6 = RS-485 transmit

enable (low enable)

7 = RS-485 transmit

enable (high enable)

D6 DIO6 Configuration. Configure options for the DIO6 line of the RF module. CRE

0 = Disabled

1 = RTS flow control

3 = Digital input

4 = Digital output, low

5 = Digital output, high

XBee®/XBee‐PRO®ZBRFModules

I/O Commands

I/OCommands

AT

Command Name and Description Node

Type1Parameter Range Default

IO Sample Rate. Set/Read the IO sample rate to enable periodic sampling. For periodic

sampling to be enabled, IR must be set to a non-zero value, and at least one module pin

must have analog or digital IO functionality enabled (see D0-D8, P0-P2 commands). The

sample rate is measured in milliseconds.

CRE 0, 0x32:0xFFFF (ms) 0

IO Digital Change Detection. Set/Read the digital IO pins to monitor for changes in the

IO state. IC works with the individual pin configuration commands (D0-D8, P0-P2). If a

pin is enabled as a digital input/output, the IC command can be used to force an

immediate IO sample transmission when the DIO state changes. IC is a bitmask that can

be used to enable or disable edge detection on individual channels. Unused bits should

be set to 0.

Bit (IO pin): 0 (DIO0)4 (DIO4)8 (DIO8)

1 (DIO1) 5 (DIO5) 9 (DIO9)

2 (DIO2) 6 (DIO6) 10 (DIO10)

3 (DIO3) 7 (DIO7) 11 (DIO11)

CRE : 0 - 0xFFFF 0

P0 PWM0 Configuration. Select/Read function for PWM0. CRE

0 = Disabled

1 = RSSI PWM

3 - Digital input,

monitored

4 - Digital output, default

low

5 - Digital output, default

high

P1 DIO11 Configuration. Configure options for the DIO11 line of the RF module. CRE

0 - Unmonitored digital

input

3- Digital input,

monitored

4- Digital output, default

low

5- Digital output, default

high

P2 DIO12 Configuration. Configure options for the DIO12 line of the RF module. CRE

0 - Unmonitored digital

input

3- Digital input,

monitored

4- Digital output, default

low

5- Digital output, default

high

P3 DIO13 Configuration. Set/Read function for DIO13. This command is not yet

supported. CRE

0, 3-5

0 – Disabled

3 – Digital input

4 – Digital output, low

5 – Digital output, high

D0 AD0/DIO0 Configuration. Select/Read function for AD0/DIO0. CRE

1 - Commissioning button

enabled

2 - Analog input, single

ended

3 - Digital input

4 - Digital output, low

5 - Digital output, high

D1 AD1/DIO1 Configuration. Select/Read function for AD1/DIO1. CRE

0, 2-5

0 – Disabled

2 - Analog input, single

ended

3 – Digital input

4 – Digital output, low

5 – Digital output, high

D2 AD2/DIO2 Configuration. Select/Read function for AD2/DIO2. CRE

0, 2-5

0 – Disabled

2 - Analog input, single

ended

3 – Digital input

4 – Digital output, low

5 – Digital output, high

XBee®/XBee‐PRO®ZBRFModules

D3 AD3/DIO3 Configuration. Select/Read function for AD3/DIO3. CRE

0, 2-5

0 – Disabled

2 - Analog input, single

ended

3 – Digital input

4 – Digital output, low

5 – Digital output, high

D4 DIO4 Configuration. Select/Read function for DIO4. CRE

0, 3-5

0 – Disabled

3 – Digital input

4 – Digital output, low

5 – Digital output, high

D5 DIO5 Configuration. Configure options for the DIO5 line of the RF module. CRE



0 = Disabled

1 = Associated

indication LED

3 = Digital input

4 = Digital output, default

low

5 = Digital output, default

high

D8 DIO8 Configuration. Set/Read function for DIO8. This command is not yet supported. CRE

0, 3-5

0 – Disabled

3 – Digital input

4 – Digital output, low

5 – Digital output, high

Assoc LED Blink Time. Set/Read the Associate LED blink time. If the Associate LED

functionality is enabled (D5 command), this value determines the on and off blink times

for the LED when the module has joined a network. If LT=0, the default blink rate will be

used (500ms coordinator, 250ms router/end device). For all other LT values, LT is

measured in 10ms.

CRE 0, 0x0A - 0xFF (100 -

2550 ms) 0

Pull-up Resistor. Set/read the bit field that configures the internal pull-up resistor status

for the I/O lines. "1" specifies the pull-up resistor is enabled. "0" specifies no pullup.(30k

pull-up resistors)

Bits:"

0 - DIO4 (Pin 11)

1 - AD3 / DIO3 (Pin 17)

2 - AD2 / DIO2 (Pin 18)

3 - AD1 / DIO1 (Pin 19)

4 - AD0 / DIO0 (Pin 20)

5 - RTS / DIO6 (Pin 16)

6 - DTR / Sleep Request / DIO8 (Pin 9)

7 - DIN / Config (Pin 3)

8 - Associate / DIO5 (Pin 15)

9 - On/Sleep / DIO9 (Pin 13)

10 - DIO12 (Pin 4)

11 - PWM0 / RSSI / DIO10 (Pin 6)

12 - PWM1 / DIO11 (Pin 7)

13 - CTS / DIO7 (Pin 12)

CRE 0 - 0x3FFF 0 - 0x1FFF

RP RSSI PWM Timer. Time the RSSI signal will be output on the PWM after the last RF data

reception or APS acknowledgment.. When RP = 0xFF, output will always be on. CRE 0 - 0xFF [x 100 ms] 0x28 (40d)

%V Supply Voltage. Reads the voltage on the Vcc pin. Scale by 1200/1024 to convert to

mV units. For examplee, a %V reading of 0x900 (2304 decimal) represents 2700mV or

2.7OV. CRE -0x-0xFFFF [read only] -

V+

Voltage Supply Monitoring. The voltage supply threshold is set with the V+ command.

If the measured supply voltage falls below or equal to this threshold, the supply voltage

will be included in the IO sample set. V+ is set to 0 by default (do not include the supply

voltage). After scaling by 1024/1200 to convert to mV units to internal units. For example,

for a 2700mV threshold enter 0x900.

CRE 0-0xFFFF 0

TP Reads the module temperature in Degrees Celsius. Accuracy +/- 7 degrees.

1° C = 0x0001 and -1° C = 0xFFFF. Command is only available in PRO S2B CRE 0x0-0xFFFF -

I/OCommands

AT

Command Name and Description Node

Type1Parameter Range Default

XBee®/XBee‐PRO®ZBRFModules

Diagnostics

1.Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

AT Command Options

1.Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

DiagnosticsCommands

AT

Command Name and Description Node

Type1Parameter Range Default

Firmware Version. Read firmware version of the module.

The firmware version returns 4 hexadecimal values (2 bytes) "ABCD". Digits ABC are

the main release number and D is the revision number from the main release. "B" is a

variant designator.

XBee and XBee-PRO ZB modules return:

0x2xxx versions.

XBee and XBee-PRO ZNet modules return:

0x1xxx versions. ZNet firmware is not compatible with ZB firmware.

CRE 0 - 0xFFFF [read-only] Factory-set

Hardware Version. Read the hardware version of the module.version of the module.

This command can be used to distinguish among different hardware platforms. The

upper byte returns a value that is unique to each module type. The lower byte indicates

the hardware revision.

XBee ZB and XBee ZNet modules return the following (hexadecimal) values:

0x19xx - XBee module

0x1Axx - XBee-PRO module

CRE 0 - 0xFFFF [read-only] Factory-set

Association Indication. Read information regarding last node join request:

0x00 - Successfully formed or joined a network. (Coordinators form a network, routers

and end devices join a network.)

0x21 - Scan found no PANs

0x22 - Scan found no valid PANs based on current SC and ID settings

0x23 - Valid Coordinator or Routers found, but they are not allowing joining (NJ expired)

0x27 - Node Joining attempt failed (typically due to incompatible security settings)

0x2A - Coordinator Start attempt failed‘

0x2B - Checking for an existing coordinator

0xAB - Attempted to join a device that did not respond.

0xAC - Secure join error - network security key received unsecured

0xAD - Secure join error - network security key not received

0xAF - Secure join error - joining device does not have the right preconfigured link key

0xFF - Scanning for a ZigBee network (routers and end devices)

Note: New non-zero AI values may be added in later firmware versions. Applications

should read AI until it returns 0x00, indicating a successful startup (coordinator) or join

(routers and end devices)

CRE 0 - 0xFF

[read-only] --

ATCommandOptionsCommands

AT

Command Name and Description Node

Type1Parameter Range Default

CT Command Mode Timeout. Set/Read the period of inactivity (no valid commands

received) after which the RF module automatically exits AT Command Mode and returns

to Idle Mode. CRE 2 - 0x028F [x 100 ms] 0x64 (100d)

CN Exit Command Mode. Explicitly exit the module from AT Command Mode. CRE -- --

GT Guard Times. Set required period of silence before and after the Command Sequence

Characters of the AT Command Mode Sequence (GT + CC + GT). The period of silence

is used to prevent inadvertent entrance into AT Command Mode. CRE 1 - 0x0CE4 [x 1 ms]

(max of 3.3 decimal sec) 0x3E8

(1000d)

Command Sequence Character. Set/Read the ASCII character value to be used

between Guard Times of the AT Command Mode Sequence (GT + CC + GT). The AT

Command Mode Sequence enters the RF module into AT Command Mode.

The CC command is only supported when using AT firmware: 20xx (AT coordinator),

22xx (AT router), 28xx (AT end device).

CRE 0 - 0xFF 0x2B 

(‘+’ ASCII)

XBee®/XBee‐PRO®ZBRFModules

Sleep Commands

Execution Commands Where most AT commands set or query register values, execution commands cause an action to

be executed on the module. Execution commands are executed immediately and do not require

changes to be applied.

SleepCommands

AT

Command Name and Description Node

Type1Parameter Range Default

Sleep Mode Sets the sleep mode on the RF module. An XBee loaded with router

firmware can be configured as either a router (SM set to 0) or an end device (SM > 0).

Changing a device from a router to an end device (or vise versa) forces the device to

leave the network and attempt to join as the new device type when changes are applied.

0-Sleep disabled (router)

1-Pin sleep enabled

4-Cyclic sleep enabled

5 - Cyclic sleep, pin wake

0 - Router

4 - End

Device

SN Number of Sleep Periods. Sets the number of sleep periods to not assert the On/Sleep

pin on wakeup if no RF data is waiting for the end device. This command allows a host

application to sleep for an extended time if no RF data is present CRE 1 - 0xFFFF 1

Sleep Period. This value determines how long the end device will sleep at a time, up to

28 seconds. (The sleep time can effectively be extended past 28 seconds using the SN

command.) On the parent, this value determines how long the parent will buffer a

message for the sleeping end device. It should be set at least equal to the longest SP

time of any child end device.

CRE 0x20 - 0xAF0 x 10ms

(Quarter second

resolution) 0x20

ST Time Before Sleep Sets the time before sleep timer on an end device.The timer is reset

each time serial or RF data is received. Once the timer expires, an end device may enter

low power operation. Applicable for cyclic sleep end devices only. E 1 - 0xFFFE (x 1ms) 0x1388 (5

seconds)

Command

Sleep Options. Configure options for sleep. Unused option bits should be set to 0.

Sleep options include:

0x02 - Always wake for ST time

0x04 - Sleep entire SN * SP time

Sleep options should not be used for most applications. See chapter 6 for more

information.

E0 - 0xFF 0

Wake Host. Set/Read the wake host timer value. If the wake host timer is set to a non-

zero value, this timer specifies a time (in millisecond units) that the device should allow

after waking from sleep before sending data out the UART or transmitting an IO sample.

If serial characters are received, the WH timer is stopped immediately.

E 0 - 0xFFFF (x 1ms)

SI Sleep Immediately. See Execution Commands table below..

ExecutionCommands

AT

Command Name and Description Node Type1Parameter Range Default

Apply Changes. Applies changes to all command registers causing queued command

command will not change the UART interface rate until changes are applied with the AC

command. The CN command and 0x08 API command frame also apply changes.

CRE -

Write. Write parameter values to non-volatile memory so that parameter modifications

persist through subsequent resets.

Note: Once WR is issued, no additional characters should be sent to the module until

after the "OK\r" response is received. The WR command should be used sparingly. The

EM250 supports a limited number of write cycles.“

CRE -- --

RE Restore Defaults. Restore module parameters to factory defaults. CRE -- --

FR Software Reset. Reset module. Responds immediately with an OK status, and then

performs a software reset about 2 seconds later. CRE -- --

Network Reset. Reset network layer parameters on one or more modules within a PAN.

Responds immediately with an “OK” then causes a network restart. All network

configuration and routing information is consequently lost.

If NR = 0: Resets network layer parameters on the node issuing the command.

If NR = 1: Sends broadcast transmission to reset network layer parameters on all nodes

in the PAN.

CRE 0 - 1 --

SI Sleep Immediately. Cause a cyclic sleep module to sleep immediately rather than wait

for the ST timer to expire. E- -

PO Polling Rate. Sets the polling rate for the end device. E 0-0x1770 [10 msec] 0

Commissioning Pushbutton. This command can be used to simulate commissioning

button presses in software. The parameter value should be set to the number of button

presses to be simulated. For example, sending the ATCB1 command will execute the

action associated with 1 commissioning button press.

CRE

XBee®/XBee‐PRO®ZBRFModules

Nodetypesthatsupportthecommand:C=Coordinator,R=Router,E=EndDevice

Node Discover. Discovers and reports all RF modules found. The following information

is reported for each module discovered.

MY<CR>

SH<CR>

SL<CR>

NI<CR> (Variable length)

PARENT_NETWORK ADDRESS (2 Bytes)<CR>

DEVICE_TYPE<CR> (1 Byte: 0=Coord, 1=Router, 2=End Device)

STATUS<CR> (1 Byte: Reserved)

PROFILE_ID<CR> (2 Bytes)

MANUFACTURER_ID<CR> (2 Bytes)

<CR>

After (NT * 100) milliseconds, the command ends by returning a <CR>. ND also accepts

a Node Identifier (NI) as a parameter (optional). In this case, only a module that matches

the supplied identifier will respond.

If ND is sent through the API, each response is returned as a separate

AT_CMD_Response packet. The data consists of the above listed bytes without the

carriage return delimiters. The NI string will end in a "0x00" null character. The radius of

the ND command is set by the BH command.

CRE optional 20-Byte 

NI or MY value --

Destination Node. Resolves an NI (Node Identifier) string to a physical address (case-

sensitive). The following events occur after the destination node is discovered:

<AT Firmware>

1. DL & DH are set to the extended (64-bit) address of the module with the matching 

NI (Node Identifier) string.

2. OK (or ERROR)\r is returned. 

3. Command Mode is exited to allow immediate communication

<API Firmware>

1. The 16-bit network and 64-bit extended addresses are returned in an API 

Command Response frame.

If there is no response from a module within (NT * 100) milliseconds or a parameter is

not specified (left blank), the command is terminated and an “ERROR” message is

returned. In the case of an ERROR, Command Mode is not exited. The radius of the DN

command is set by the BH command.

CRE up to 20-Byte printable

ASCII string --

IS Force Sample Forces a read of all enabled digital and analog input lines. CRE -- --

1S XBee Sensor Sample. Forces a sample to be taken on an XBee Sensor device. This

command can only be issued to an XBee sensor device using an API remote command. RE - -

ExecutionCommands

AT

Command Name and Description Node Type1Parameter Range Default

11.ModuleSupport

This chapter provides customization information for the XBee/XBee-PRO ZB modules. In addition

to providing an extremely flexible and powerful API, the XBee and XBee-PRO ZB modules are a

robust development platform that have passed FCC and ETSI testing. Developers can customize

default parameters, or even write or load custom firmware for Ember's EM250 chip.

X-CTU Configuration Tool

Digi provides a Windows X-CTU configuration tool for configuring module parameters and updating

firmware. The XCTU has the capability to do the following:

• Discover all XBee devices in the network

• Update firmware on a local module (requires USB or serial connection)

• Read or write module configuration parameters on a local or remote device

• Save and load configuration profiles containing customized settings.

Contact Digi support for more information about the X-CTU.

Customizing XBee ZB Firmware

Once module parameters are tested in an application and finalized, Digi can manufacture modules

with specific, customer-defined configurations for a nominal fee. These custom configurations can

lock in a firmware version or set command values when the modules are manufactured,

eliminating the need for customers to adjust module parameters on arrival. Alternatively, Digi can

program custom firmware, including Ember's EZSP UART image, into the modules during

manufacturing. Contact Digi to create a custom configuration.

Design Considerations for Digi Drop-In Networking

XBee/XBee-PRO embedded RF modules contain a variety of features that allow for interoperability

with Digi's full line of Drop-in Networking products. Interoperability with other "DIN" products can

offer these advantages:

• Add IP-connectivity to your network via Cellular, Ethernet or WiFi with a ConnectPort X Gate-

way.

• Extend the range of your network with the XBee Wall Router.

• Make deployment easy by enabling the Commissioning Pushbutton (pin 20) and AssociateLED

(pin 15) to operate with the Network Commissioning Tool software.

• Interface with standard RS-232, USB, Analog & Digital I/O, RS-485, and other industrial

devices using XBee Adapters.

• Monitor and manage your network securely from remote locations with iDigi Platform.

• We encourage you to contact our technical representatives for consideration, implementation,

or design review of your product for interoperability with Digi's Drop-in Networking solutions.

XBee Bootloader

XBee modules use a modified version of Ember’s bootloader. This bootloader version supports a

custom entry mechanism that uses module pins DIN (pin 3), DTR / SLEEP_RQ (pin 9), and RTS (pin

16). To invoke the bootloader, do the following:

1. Set DTR / SLEEP_RQ low (TTL 0V) and RTS high.

2. Send a serial break to the DIN pin and power cycle or reset the module.

3. When the module powers up, DTR / SLEEP_RQ and DIN should be low (TTL 0V) and RTS should

be high.

4. Terminate the serial break and send a carriage return at 115200bps to the module.

5. If successful, the module will send the Ember bootloader menu out the DOUT pin at 115200bps.

XBee®/XBee‐PRO®ZBRFModules

6. Commands can be sent to the bootloader at 115200bps.

Note: Hardware flow control should be disabled when entering and communicating with the

EM250 bootloader.

Programming XBee Modules

Firmware on the XBee and XBee-PRO ZB modules can be updated through one of two means:

•Serially

•SIF header.

Each method is described below.

Serial Firmware Updates

Serial firmware updates make use of the XBee custom bootloader which ships in all units. This

modified bootloader is based on Ember's standalone bootloader, but with a modified entry

mechanism. The modified entry mechanism uses module pins 3, 9, and 16 (DIN, DTR, and RTS

respectively).

The X-CTU program can update firmware serially on the XBee and XBee-PRO ZB modules. Contact

Digi support for details.

If an application requires custom firmware to update the XBee firmware serially, the following

steps are required.

Invoke XBee Bootloader

See the "XBee Bootloader" section above for steps to invoke the bootloader.

Send Firmware Image

After invoking the bootloader, the Ember bootloader will send the bootloader menu characters out

the UART at 115200 bps. The application should do the following to upload a firmware image.

1. Look for the bootloader prompt "BL >" to ensure the bootloader is active

2. Send an ASCII "1" character to initiate a firmware update

3. After sending a "1", the EM250 waits for an XModem CRC upload of an .ebl image over the

serial line at 115200 bps. The .ebl file must be sent to the EM250 in order.

If no serial transaction is initiated within a 60 second timeout period, the bootloader times out and

returns to the menu. If the upload is interrupted with a power cycle or reset event, the EM250 will

detect an invalid application image and enter bootloader mode. The entire ebl image should be

uploaded again to recover. If an error occurs while uploading, the EM250 bootloader returns an

error code from the following table:

Hex Error Code Description

0x21 The bootloader encountered an error while

trying to parse the Start of Header (SOH)

character in the XModem frame.

0x22 The bootloader detected an invalid checksum

in the XModem frame.

0x23 The bootloader encountered an error while

trying to parse the high byte of the CRC in the

XModem frame.

0x24 The bootloader encountered an error while

trying to parse the low byte of the CRC in the

XModem frame.

0x25 The bootloader encountered an error in the

sequence number of the current XModem

frame.

XBee®/XBee‐PRO®ZBRFModules

SIF Firmware Updates

The XBee/XBee-PRO modules have a 2x5 SIF header that can be used with Ember's InSight tools

to upload firmware onto the modules. These tools include a USB device (USBLink) and Ethernet-

enabled InSight Adapters. Contact Ember for details.

Warning: If programming firmware through the SIF interface, be aware that uploading firmware

through the SIF header can potentially erase the XBee bootloader. If this happens, serial firmware

updates will not work.

(The pinout for the SIF headers are shown in chapter 1.)

Writing Custom Firmware

The XBee/XBee-PRO module can be used as a hardware development platform for the EM250.

Custom firmware images can be developed around the EmberZNet 2.5.x and 3.x mesh stacks (for

the EM250) and uploaded to the XBee.

Warning: If programming firmware through the SIF interface, be aware that uploading firmware

through the SIF header can potentially erase the XBee bootloader. If this happens, serial firmware

updates will not work.

Regulatory Compliance

XBee modules are FCC and ETSI certified for operation on all 16 channels. The EM250 output

power can be configured up to 3dBm with boost mode enabled.

XBee-PRO modules are certified for operation on 14 of the 16 band channels (channels 11 - 24).

The scan channels mask of XBee-PRO devices must be set in the application to disable the upper

two channels (e.g. 0x01FFF800). The XBee-PRO contains power compensation circuitry to adjust

the output power near 18dBm or 10dBm depending on the part number. For best results, the

EM250 should be configured with an output power level of 0dBm (or -2dBm if boost mode is

enabled). The end product is responsible to adhere to these requirements.

Enabling GPIO 1 and 2

Most of the remaining sections in this chapter describe how to configure GPIO 1 and 2 to function

correctly in custom applications that run on the XBee and XBee-PRO modules. In order for GPIO

pins 1 and 2 to be configurable, the application must set the GPIO_CFG register to enable GPIO 1

and 2. Bits 4 - 7 in the GPIO_CFG register control the functionality of various GPIO lines. The

0x26 The frame that the bootloader was trying to

parse was deemed incomplete (some bytes

missing or lost).

0x27 The bootloader encountered a duplicate of the

previous XModem frame.

0x41 No .ebl header was received when expected.

0x42 Header failed CRC.

0x43 File failed CRC.

0x44 Unknown tag detected in .ebl image.

0x45 Invalid .ebl header signature.

0x46 Trying to flash odd number of bytes.

0x47 Indexed past end of block buffer.

0x48 Attempt to overwrite bootloader flash.

0x49 Attempt to overwrite SIMEE flash.

0x4A Flash erase failed.

0x4B Flash write failed.

0x4C End tag CRC wrong length.

0x4D Received data before query request/response

Hex Error Code Description

XBee®/XBee‐PRO®ZBRFModules

following table lists values for these bits that enable GPIO 1 and 2. Other functionality is affected

by these settings. See the EM250 datasheet from Ember for a complete listing of functionality.

Example 1

The following code enables GPIO 0, 1, 2, 3, 9, 10, 11, and 12 and maintains all other GPIO_CFG

bits.

int16u x;

x = GPIO_CFG;

x &= (0xFF0F);// Clear bits 4 - 7

GPIO_CFG = x;

Example 2

The following code enables GPIO 0, 1, 2, 3, and 12 and maintains all other GPIO_CFG bits.

int16u x;

x = GPIO_CFG;

x &= (0xFF0F);// Clear bits 4 - 7

x |= 0x0070;// Set bits 4 - 7 to 0111 as shown in the table above.

GPIO_CFG = x;

Detecting XBee vs. XBee-PRO

For some applications, it may be necessary to determine if the code is running on an XBee or an

XBee-PRO device. The GPIO1 pin on the EM250 is used to identify the module type (see table 1-03

in chapter 1). GPIO1 is connected to ground on the XBee module. The following code could be

used to determine if a module is an XBee or XBee-PRO:

GPIO_DIRCLRL = GPIO(1);// Set GPIO1 as an input

GPIO_PUL |= GPIO(1);// Enable GPIO1 pullup resistor

ModuleIsXBeePro = (GPIO_INL & GPIO(1));//ModuleIsXBeePro > 0 if XBee-PRO, =0 if non-PRO.

Ensuring Optimal Output Power

XBee modules manufactured before February 2008 had an incorrect configuration setting that

caused the default output power mode to be set incorrectly. Digi's ZB and ZNet firmware

compensate for this by setting the output power mode in the application firmware.

Custom applications should call the emberSetTxPowerMode() function to set the output power

mode as shown below:

XBee Applications

emberSetTxPowerMode(EMBER_TX_POWER_MODE_DEFAULT); or

emberSetTxPowerMode(EMBER_TX_POWER_MODE_BOOST);

XBee-PRO Applications:

emberSetTxPowerMode(EMBER_TX_POWER_MODE_ALTERNATE); or

emberSetTxPowerMode(EMBER_TX_POWER_MODE_BOOST_AND_ALTERNATE);

GPIO_CFG[7:4]Enabled Functionality Enabled Functionality

0000 GPIO 0, 1, 2, 3, 9, 10, 11, 12

0111 0111GPIO 0, 1, 2, 3, 12

1010 GPIO 0, 1, 2, 3

1101 GPIO 0, 1, 2, 3, 11, 12

XBee®/XBee‐PRO®ZBRFModules

XBee-PRO modules must also set a couple of IO lines to enable output power compensation. This

is shown below. Once the IO lines are initialized (after powerup), the XBee will enable the power

amplifier and LNA as needed.

On Powerup:

/* GPIO 2 should be set low for at least 10 milliseconds when coming up from power cycle. */

GPIO_DIRSETL = GPIO(2);// Set GPIO 2 as an output

GPIO_CLRL = GPIO(2);// Drive GPIO 2 low

/* After at least 10ms, GPIO 2 should be set high to power the output power compensation

circuitry.

At the same time GPIO 1 should be configured as an output and set low to enable the output

power compensation circuitry. */

GPIO_DIRSETL = GPIO(1) | GPIO(2);// Set GPIO 1,2 as outputs

GPIO_CLRL = GPIO(1);// Drive GPIO 1 low

GPIO_SETL = GPIO(2);// Drive GPIO 2 high

Improving Low Power Current Consumption

To improve low power current consumption, the XBee should set a couple of unused IO lines as

output low. This can be done during application initialization as shown below.

XBee (non-PRO) Initialization:

/* GPIO 1 and 2 are not used in the XBee (non-PRO) and should be set as outputs and driven low

to reduce current draw. */

GPIO_DIRSETL = GPIO(1) | GPIO(2);// Set GPIO 1,2 as outputs

GPIO_CLRL = GPIO(1) | GPIO(2);// Set GPIO 1,2 low

XBee-PRO modules should disable the power compensation circuitry when sleeping to reduce

current draw. This is shown below.

When sleeping (end devices):

/* The power compensation shutdown line on XBee-PRO modules (GPIO 1) should be set high

when entering sleep to reduce current consumption. */

GPIO_SETL = GPIO(1);

When waking from sleep (end devices):

/* The power compensation shutdown line on XBee-PRO (GPIO 1) should be set low to enable the

power compensation circuitry and LNA. */

GPIO_CLRL = GPIO(1);

AppendixA:Definitions

Definitions

ZigBee Node Types

Coordinator A node that has the unique function of forming a network. The coor-

dinator is responsible for establishing the operating channel and PAN

ID for an entire network. Once established, the coordinator can form

a network by allowing routers and end devices to join to it. Once the

network is formed, the coordinator functions like a router (it can par-

ticipate in routing packets and be a source or destination for data

packets).

-- One coordinator per PAN

-- Establishes/Organizes PAN

-- Can route data packets to/from other nodes

-- Can be a data packet source and destination

-- Mains-powered

Refer to the XBee coordinator section for more information.

Router A node that creates/maintains network information and uses this

information to determine the best route for a data packet. A router

must join a network before it can allow other routers and end

devices to join to it.

A router can participate in routing packets and is intended to be a

mains-powered node.

-- Several routers can operate in one PAN

-- Can route data packets to/from other nodes

-- Can be a data packet source and destination

-- Mains-powered

Refer to the XBee router section for more information.

End device End devices must always interact with their parent to receive or

transmit data. (See ‘joining definition.) They are intended to sleep

periodically and therefore have no routing capacity.

An end device can be a source or destination for data packets but

cannot route packets. End devices can be battery-powered and offer

low-power operation.

-- Several end devices can operate in one PAN

-- Can be a data packet source and destination 

-- All messages are relayed through a coordinator or router

-- Lower power modes

ZigBee Protocol

PAN Personal Area Network - A data communication network that

includes a coordinator and one or more routers/end devices.

XBee®/XBee‐PRO®ZBRFModules

Joining The process of a node becoming part of a ZigBee PAN. A node

becomes part of a network by joining to a coordinator or a router

(that has previously joined to the network). During the process of

joining, the node that allowed joining (the parent) assigns a 16-bit

address to the joining node (the child).

Network Address The 16-bit address assigned to a node after it has joined to another

node. The coordinator always has a network address of 0.

Operating Channel The frequency selected for data communications between nodes. The

operating channel is selected by the coordinator on power-up.

Energy Scan A scan of RF channels that detects the amount of energy present on

the selected channels. The coordinator uses the energy scan to

determine the operating channel.

Route Request Broadcast transmission sent by a coordinator or router throughout

the network in attempt to establish a route to a destination node.

Route Reply Unicast transmission sent back to the originator of the route request.

It is initiated by a node when it receives a route request packet and

its address matches the Destination Address in the route request

packet.

Route Discovery The process of establishing a route to a destination node when one

does not exist in the Routing Table. It is based on the AODV (Ad-hoc

On-demand Distance Vector routing) protocol.

ZigBee Stack ZigBee is a published specification set of high-level communication

protocols for use with small, low-power modules. The ZigBee stack

provides a layer of network functionality on top of the 802.15.4 spec-

ification.

For example, the mesh and routing capabilities available to ZigBee

solutions are absent in the 802.15.4 protocol.

AppendixB:AgencyCertifications

United States FCC

The XBee RF Module complies with Part 15 of the FCC rules and regulations. Compliance with the

labeling requirements, FCC notices and antenna usage guidelines is required.

To fulfill FCC Certification, the OEM must comply with the following regulations:

1.The system integrator must ensure that the text on the external label provided with this

device is placed on the outside of the final product. [Figure A-01]

2.XBee RF Module may only be used with antennas that have been tested and approved for use

with this module [refer to the antenna tables in this section].

OEM Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling

requirements are met. This includes a clearly visible label on the outside of the final

product enclosure that displays the contents shown in the figure below.

Required FCC Label for OEM products containing the XBee RF Module

Required FCC Label for OEM products containing the XBee PRO RF Module

FCC Notices

IMPORTANT: The XBee and XBee PRO RF Module have been certified by the FCC for use with

other products without any further certification (as per FCC section 2.1091). Modifications not

expressly approved by Digi could void the user's authority to operate the equipment.

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section

15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules.

IMPORTANT: The RF module has been certified for remote and base radio applications. If the

module will be used for portable applications, the device must undergo SAR testing.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

Contains FCC ID: OUR-XBEE2*

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any

interference received, including interference that may cause undesired operation.

Contains FCC ID:MCQ-XBEEPRO2*

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any

interference received, including interference that may cause undesired operation.

Contains FCC ID:MCQ-PROS2B*

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any

interference received, including interference that may cause undesired operation.

XBee®/XBee‐PRO®ZBRFModules

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures: Re-orient or relocate the receiving

antenna, Increase the separation between the equipment and receiver, Connect equipment and

receiver to outlets on different circuits, or Consult the dealer or an experienced radio/TV technician

for help.

FCC-Approved Antennas (2.4 GHz)

The XBee and XBee-PRO RF Module can be installed utilizing antennas and cables constructed with

standard connectors (Type-N, SMA, TNC, etc.) if the installation is performed professionally and

according to FCC guidelines. For installations not performed by a professional, non-standard

connectors (RPSMA, RPTNC, etc.) must be used.

The modules are FCC approved for fixed base station and mobile applications on channels 0x0B-

0x1A for Xbee ZB and on channels 0x0B - 0x18 for Xbee-PRO ZB. If the antenna is mounted at

least 20cm (8 in.) from nearby persons, the application is considered a mobile application.

Antennas not listed in the table must be tested to comply with FCC Section 15.203 (Unique

Antenna Connectors) and Section 15.247 (Emissions).

XBee RF Modules: XBee RF Modules have been tested and approved for use with all the antennas

listed in the tables below. (Cable-loss IS required when using gain antennas as shown below.)

The antennas in the tables below have been approved for use with this module. Digi does not carry

all of these antenna variants. Contact Digi Sales for available antennas.

AntennasapprovedforusewiththeXBee®/XBee‐PRO®(S2)ZBRFModules(Cable‐lossisnotrequired.)

AntennasapprovedforusewiththeXBee®/XBee‐PRO®(S2B)ZBRFModules(Cable‐lossisnotrequired.)

Part Number Type (Description) Gain Application* Min. Separation

A24-HASM-450 Dipole (Half-wave articulated RPSMA - 4.5”) 2.1 dBi Fixed/Mobile 20 cm

A24-HABSM Dipole (Articulated RPSMA) 2.1 dBi Fixed 20 cm

A24-HABUF-P5I Dipole (Half-wave articulated bulkhead mount U.FL. w/ 5” pigtail) 2.1 dBi Fixed 20 cm

A24-HASM-525 Dipole (Half-wave articulated RPSMA - 5.25") 2.1 dBi Fixed/Mobile 20 cm

A24-QI Monopole (Integrated whip) 1.5 dBi Fixed 20 cm

OMNI-DIRECTIONAL ANTENNAS for All Channels

Part Number Type (Description) Gain Application* Min

Separation

Minimum Cable

Loss/Power

Reduction/

Attenuation

Required

A24-HASM-450 Dipole (Half-wave articulated RPSMA - 4.5”) 2.1 dBi Fixed/Mobile 20 cm N/A

A24-HABSM Dipole (Articulated RPSMA) 2.1 dBi Fixed 20 cm N/A

A24-HABUF-P5I Dipole (Half-wave articulated bulkhead mount U.FL. w/ 5” pigtail) 2.1 dBi Fixed 20 cm N/A

A24-HASM-525 Dipole (Half-wave articulated RPSMA - 5.25") 2.1 dBi Fixed/Mobile 20 cm N/A

A24-QI Monopole (Integrated whip) 1.5 dBi Fixed 20 cm N/A

29000294 Integral PCB antenna -0.5 dBi Fixed/Mobile 20 cm N/A

XBee®/XBee‐PRO®ZBRFModules

AntennasapprovedforusewiththeXBeeRFModule

YAGI CLASS ANTENNAS

Part Number Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-Y6NF Yagi (6-element) 8.8 dBi Fixed 2 m N/A

A24-Y7NF Yagi (7-element) 9.0 dBi Fixed 2 m N/A

A24-Y9NF Yagi (9-element) 10.0 dBi Fixed 2 m N/A

A24-Y10NF Yagi (10-element) 11.0 dBi Fixed 2 m N/A

A24-Y12NF Yagi (12-element) 12.0 dBi Fixed 2 m N/A

A24-Y13NF Yagi (13-element) 12.0 dBi Fixed 2 m N/A

A24-Y15NF Yagi (15-element) 12.5 dBi Fixed 2 m N/A

A24-Y16NF Yagi (16-element) 13.5 dBi Fixed 2 m N/A

A24-Y16RM Yagi (16-element, RPSMA connector) 13.5 dBi Fixed 2 m N/A

A24-Y18NF Yagi (18-element) 15.0 dBi Fixed 2 m N/A

OMNI-DIRECTIONAL ANTENNAS

Part Number Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-C1 Surface Mount integral chip -1.5 dBi Fixed/Mobile 20 cm N/A

A24-F2NF Omni-directional (Fiberglass base station) 2.1 dBi Fixed/Mobile 20 cm N/A

A24-F3NF Omni-directional (Fiberglass base station) 3.0 dBi Fixed/Mobile 20 cm N/A

A24-F5NF Omni-directional (Fiberglass base station) 5.0 dBi Fixed/Mobile 20 cm N/A

A24-F8NF Omni-directional (Fiberglass base station) 8.0 dBi Fixed 2 m N/A

A24-F9NF Omni-directional (Fiberglass base station) 9.5 dBi Fixed 2 m N/A

A24-F10NF Omni-directional (Fiberglass base station) 10.0 dBi Fixed 2 m N/A

A24-F12NF Omni-directional (Fiberglass base station) 12.0 dBi Fixed 2 m N/A

A24-F15NF Omni-directional (Fiberglass base station) 15.0 dBi Fixed 2 m N/A

A24-W7NF Omni-directional (Base station) 7.2 dBi Fixed 2 m N/A

A24-M7NF Omni-directional (Mag-mount base station) 7.2 dBi Fixed 2 m N/A

PANEL CLASS ANTENNAS

Part PANEL

CLASS

ANTENNNumber Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m N/A

A24-P8NF Flat Panel 8.5 dBi Fixed 2 m N/A

A24-P13NF Flat Panel 13.0 dBi Fixed 2 m N/A

A24-P14NF Flat Panel 14.0 dBi Fixed 2 m N/A

A24-P15NF Flat Panel 15.0 dBi Fixed 2 m N/A

A24-P16NF Flat Panel 16.0 dBi Fixed 2 m N/A

A24-P19NF Flat Panel 19.0 dBi Fixed 2m 1.5 dB

XBee®/XBee‐PRO®ZBRFModules

AntennasapprovedforusewiththeXBee‐PRO(S2)RFModule

YAGI CLASS ANTENNAS

Part Number Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-Y6NF Yagi (6-element) 8.8 dBi Fixed 2 m 7.8dB

A24-Y7NF Yagi (7-element) 9.0 dBi Fixed 2 m 8 dB

A24-Y9NF Yagi (9-element) 10.0 dBi Fixed 2 m 9 dB

A24-Y10NF Yagi (10-element) 11.0 dBi Fixed 2 m 10 dB

A24-Y12NF Yagi (12-element) 12.0 dBi Fixed 2 m 11 dB

A24-Y13NF Yagi (13-element) 12.0 dBi Fixed 2 m 11 dB

A24-Y15NF Yagi (15-element) 12.5 dBi Fixed 2 m 11.5 dB

A24-Y16NF Yagi (16-element) 13.5 dBi Fixed 2 m 12.5 dB

A24-Y16RM Yagi (16-element, RPSMA connector) 13.5 dBi Fixed 2 m 12.5 dB

A24-Y18NF Yagi (18-element) 15.0 dBi Fixed 2 m 14 dB

OMNI-DIRECTIONAL ANTENNAS

Part Number Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-C1 Surface Mount integral chip -1.5dBi Fixed/Mobile 20 cm -

A24-F2NF Omni-directional (Fiberglass base station) 2.1 dBi Fixed/Mobile 20 cm -

A24-F3NF Omni-directional (Fiberglass base station) 3.0 dBi Fixed/Mobile 20 cm .3 dB

A24-F5NF Omni-directional (Fiberglass base station) 5.0 dBi Fixed/Mobile 20 cm 2.3 dB

A24-F8NF Omni-directional (Fiberglass base station) 8.0 dBi Fixed 2 m 5.3 dB

A24-F9NF Omni-directional (Fiberglass base station) 9.5 dBi Fixed 2 m 6.8 dB

A24-F10NF Omni-directional (Fiberglass base station) 10.0 dBi Fixed 2 m 7.3 dB

A24-F12NF Omni-directional (Fiberglass base station) 12.0 dBi Fixed 2 m 9.3dB

A24-F15NF Omni-directional (Fiberglass base station) 15.0 dBi Fixed 2 m 12.3dB

A24-W7NF Omni-directional (Base station) 7.2 dBi Fixed 2 m 4.5 dB

A24-M7NF Omni-directional (Mag-mount base station) 7.2 dBi Fixed 2 m 4.5 dB

PANEL CLASS ANTENNAS

Part Number Type (Description) Gain Application* Min. Separation

Required Cable-loss

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m 8.2 dB

A24-P8NF Flat Panel 8.5 dBi Fixed 2 m 82 dB

A24-P13NF Flat Panel 13.0 dBi Fixed 2 m 12.7 dB

A24-P14NF Flat Panel 14.0 dBi Fixed 2 m 13.7 dB

A24-P15NF Flat Panel 15.0 dBi Fixed 2 m 14.7 dB

A24-P16NF Flat Panel 16.0 dBi Fixed 2 m 15.7 dB

A24-P19NF Flat Panel 19.0 dBi Fixed 2m 18.7 dB

XBee®/XBee‐PRO®ZBRFModules

AntennasapprovedforusewiththeXBee‐PRO(S2B)RFModule

YAGI CLASS ANTENNAS for Channels 11 to 24

Part Number Type (Description) Gain Application* Min. Separation

Minimum Cable Loss/

Power Reduction/

Attenuation Required

for 18dBm Output

A24-Y6NF Yagi (6-element) 8.8 dBi Fixed 2 m N/A

A24-Y7NF Yagi (7-element) 9.0 dBi Fixed 2 m N/A

A24-Y9NF Yagi (9-element) 10.0 dBi Fixed 2 m N/A

A24-Y10NF Yagi (10-element) 11.0 dBi Fixed 2 m N/A

A24-Y12NF Yagi (12-element) 12.0 dBi Fixed 2 m N/A

A24-Y13NF Yagi (13-element) 12.0 dBi Fixed 2 m N/A

A24-Y15NF Yagi (15-element) 12.5 dBi Fixed 2 m N/A

A24-Y16NF Yagi (16-element) 13.5 dBi Fixed 2 m N/A

A24-Y16RM Yagi (16-element, RPSMA connector) 13.5 dBi Fixed 2 m N/A

A24-Y18NF Yagi (18-element) 15.0 dBi Fixed 2 m N/A

OMNI-DIRECTIONAL ANTENNAS for Channels 11 to 24

Part Number Type (Description) Gain Application* Min. Separation

Minimum Cable Loss/

Power Reduction/

Attenuation Required

for 18dBm Output

29000294 Integral PCB antenna -0.5 dBi Fixed/Mobile 20 cm N/A

A24-HASM-450 Dipole (Half-wave articulated RPSMA - 4.5”) 2.1 dBi Fixed/Mobile 20 cm N/A

A24-HABSM Dipole (Articulated RPSMA) 2.1 dBi Fixed 20 cm N/A

A24-HABUF-

P5I Dipole (Half-wave articulated bulkhead mount U.FL. w/

5” pigtail) 2.1 dBi Fixed 20 cm N/A
