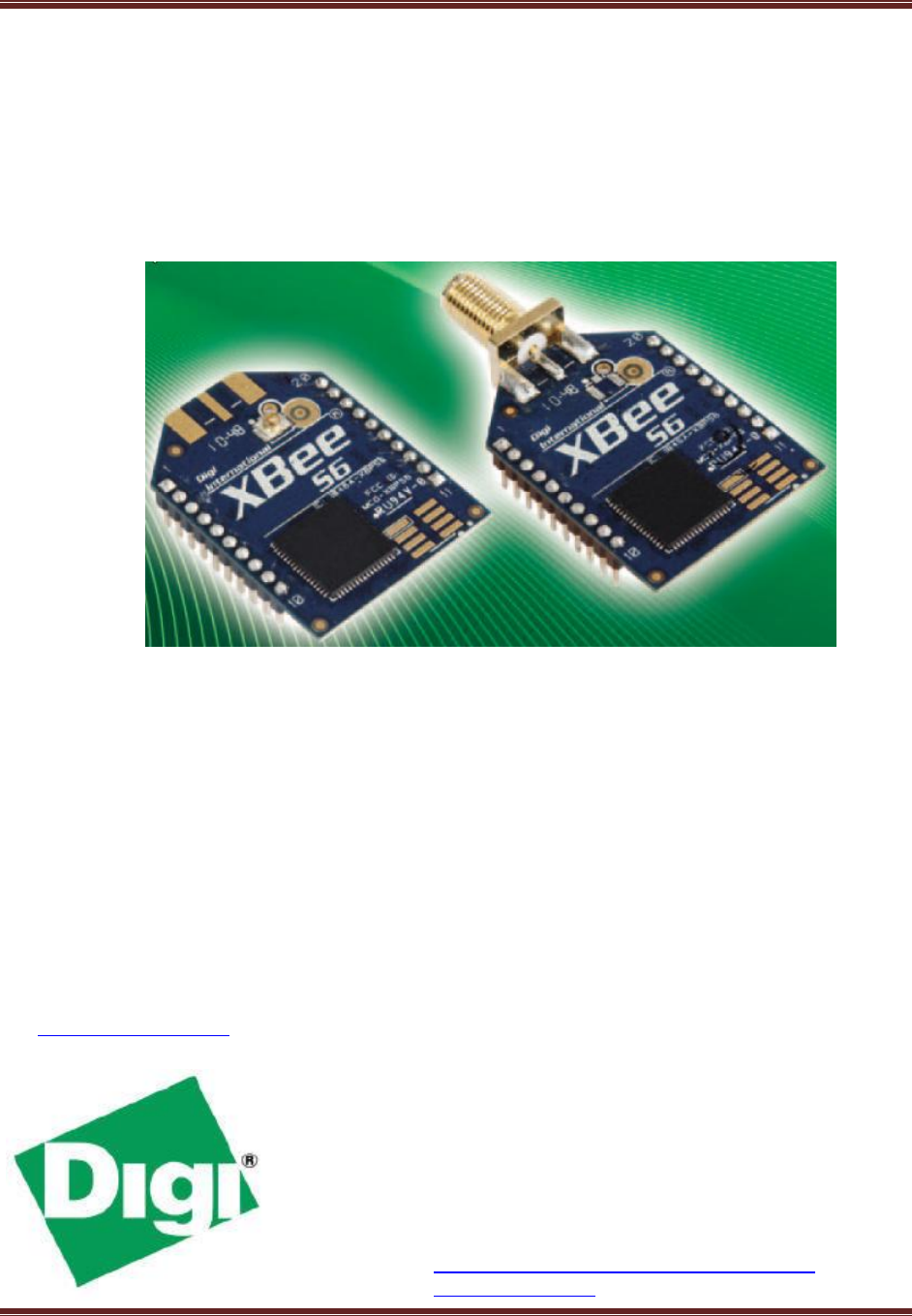

Digi XBS6 XBee Wi-Fi RF Module User Manual

XBee® Wi-Fi RF Modules

XBee® Wi-Fi RF Module

This manual describes the operation of the XBee® Wi-Fi RF module, which consists of 802.11 bgn firmware loaded

onto XBee® hardware. The XBee® Wi-Fi RF Modules are designed to operate within the 802.11 protocol and

support the unique needs of low-cost, low-power wireless sensor networks. The modules require minimal power

and provide reliable delivery of data between remote devices and wireless 802.11 b, g or n access points and

routers. The modules operate within the ISM 2.4 GHz frequency band.

Digi International Inc.

11001 Bren Road East

Minnetonka, MN 55343 877 912-3444 or 952 912-3444

http://www.digi.com

No part of the contents of this manual may be transmitted or reproduced in

any form or by any means without the written permission of Digi

International, Inc.

XBee® is a registered trademark of Digi International, Inc.

Technical Support Phone: (866) 765-9885 toll-free U.S.A. & Canada

(801) 765-9885 Worldwide

8:00 am - 5:00 pm [U.S. Mountain Time]

Online Support: http://www.digi.com/support/eservice/login.jsp

Email: rf-experts@digi.com

XBee® Wi-Fi RF Modules

Contents

1. Overview ............................................................................................................................................. 5

Specifications ...................................................................................................................................... 6

General Specifications .................................................................................................................... 6

RF Specifications ............................................................................................................................. 7

Electrical Specifications ................................................................................................................ 11

Environmental Specifications ....................................................................................................... 11

Serial Communications Specifications .......................................................................................... 12

UART ............................................................................................................................................. 12

SPI ................................................................................................................................................. 12

GPIO Specifications ........................................................................................................................... 13

Agency Approvals ............................................................................................................................. 14

Pin Signals ......................................................................................................................................... 14

Design Notes ..................................................................................................................................... 15

Power Supply ................................................................................................................................ 15

Recommended Pin Connections .................................................................................................. 15

Board Layout ................................................................................................................................ 16

Mounting Considerations ............................................................................................................. 18

2. RF Module Operation ....................................................................................................................... 19

Serial Communications ..................................................................................................................... 19

UART Communications ................................................................................................................. 19

SPI Communications ..................................................................................................................... 20

Serial Buffers .................................................................................................................................... 21

Serial Receive Buffer ..................................................................................................................... 21

Serial Transmit Buffer ................................................................................................................... 21

UART Flow Control ....................................................................................................................... 21

Serial Interface Protocols ................................................................................................................. 22

Transparent Operation ................................................................................................................. 22

API Operation ............................................................................................................................... 23

A Comparison of Transparent and API Operation ........................................................................ 23

Modes of Operation ......................................................................................................................... 24

Idle Mode ..................................................................................................................................... 24

Transmit Mode ............................................................................................................................. 24

Receive Mode ............................................................................................................................... 24

Command Mode ........................................................................................................................... 24

XBee® Wi-Fi RF Modules

Sleep Mode ....................................................................................................................................... 26

3. 802.11 bgn Networks ....................................................................................................................... 27

Infrastructure Networks ................................................................................................................... 27

Ad Hoc Networks .............................................................................................................................. 27

Network Basics ................................................................................................................................. 28

XBee® Wi-Fi Standards ..................................................................................................................... 28

Encryption ........................................................................................................................................ 28

CHANNELS ........................................................................................................................................ 29

4. XBee IP Services ................................................................................................................................ 29

XBee Application Service .................................................................................................................. 30

Local Host ..................................................................................................................................... 30

Network Client .............................................................................................................................. 31

Serial Communication Service .......................................................................................................... 34

Transparent mode ........................................................................................................................ 34

API mode ...................................................................................................................................... 34

5. Sleep ................................................................................................................................................. 35

Sleeping with the UART .................................................................................................................... 35

Sleeping with the SPI ........................................................................................................................ 35

Sleep Options ................................................................................................................................... 36

AP Associated sleep ...................................................................................................................... 36

Deep sleep (non-associated sleep) ............................................................................................... 36

Sampling data using sleep modes .................................................................................................... 37

Sample Rate (ATIR) ....................................................................................................................... 37

Wake Host .................................................................................................................................... 37

6. XBee Analog and Digital IO Lines ...................................................................................................... 38

IO Sampling ....................................................................................................................................... 38

Queried Sampling ......................................................................................................................... 40

Periodic IO Sampling ..................................................................................................................... 40

I/O Examples ................................................................................................................................. 41

7. API Operation ................................................................................................................................... 42

API Frame Specifications .................................................................................................................. 42

API UART and SPI Exchanges ............................................................................................................ 45

AT Commands ............................................................................................................................... 45

Transmitting and Receiving RF Data ............................................................................................. 45

Remote AT commands ................................................................................................................. 46

XBee® Wi-Fi RF Modules

Supporting the API ........................................................................................................................ 46

API Frames ........................................................................................................................................ 47

TX (Transmit) request: 64-Bit ....................................................................................................... 47

AT Command ................................................................................................................................ 47

AT Command-Queue Parameter Value ........................................................................................ 48

Remote AT Command Request .................................................................................................... 49

Transmit (TX) request: IPv4 .......................................................................................................... 51

AT Command Response ................................................................................................................ 52

Modem Status .............................................................................................................................. 53

Transmission Status ...................................................................................................................... 54

IO Data Sample RX Indicator ........................................................................................................ 55

Remote Command Response ....................................................................................................... 57

RX (Receive) Packet: IPv4 ............................................................................................................. 58

8. XBee Command Reference Tables.................................................................................................... 59

Addressing ........................................................................................................................................ 59

Networking Commands .................................................................................................................... 60

Security Commands .......................................................................................................................... 60

RF Interfacing Commands ................................................................................................................ 60

Serial Interfacing ............................................................................................................................... 61

I/O Settings ....................................................................................................................................... 62

Diagnostics Interfacing ..................................................................................................................... 65

AT Command Options ...................................................................................................................... 66

Sleep Commands .............................................................................................................................. 66

Execution Commands ....................................................................................................................... 67

9. Module Support ................................................................................................................................ 68

X-CTU Configuration Tool ................................................................................................................ 68

Serial Firmware Updates ............................................................................................................. 68

Regulatory Compliance ................................................................................................................ 68

Agency Certifications ................................................................................................................... 68

United States FCC ............................................................................................................................. 68

OEM Labeling Requirements ....................................................................................................... 69

FCC Notices ................................................................................................................................... 69

FCC-Approved Antennas (2.4 GHz) .............................................................................................. 70

RF Exposure .................................................................................................................................. 73

Europe (ETSI) .................................................................................................................................... 74

XBee® Wi-Fi RF Modules

OEM Labeling Requirements ....................................................................................................... 74

Restrictions .................................................................................................................................. 74

Declarations of Conformity ......................................................................................................... 74

Approved Antennas ..................................................................................................................... 75

XBee RF Module ........................................................................................................................... 75

Canada (IC) ....................................................................................................................................... 76

Transmitters with Detachable Antennas .................................................................................... 76

Detachable Antenna .................................................................................................................... 76

Australia (C-Tick) .............................................................................................................................. 77

10. Warranty Information .................................................................................................................... 78

1-Year Warranty............................................................................................................................... 78

Appendix A: Definitions ...................................................................................................................... 79

1. Overview

The XBee® Wi-Fi RF module provides wireless connectivity to end-point devices in 802.11 bgn

networks. Utilizing the 802.11 feature set, these modules are interoperable with other 802.11

bgn devices, including devices from other vendors. With XBee, users can have their 802.11 bgn

network up-and running in a matter of minutes.

The XBee® Wi-Fi modules are compatible with other devices that use 802.11 bgn technology.

These include Digi external 802.11x devices like the ConnectPort and the Digi Connect Wi-SP, as

well as embedded products like the ConnectCore series and Digi Connect series of products.

More information on these Digi products can be found at:

http://www.digi.com/products/wireless/wifisolutions/

XBee® Wi-Fi RF Modules

Specifications

General Specifications

Specification

XBee Wi-Fi

Dimensions

0.960 x 1.297 (2.438cm x 3.294cm)

Operating Temperature

-40 to 85° C (Industrial)

Antenna Options

PCB Antenna, U.FL Connector, RPSMA Connector, or

Integrated Wire

XBee® Wi-Fi RF Modules

RF Specifications

Specification

XBee Wi-Fi

Frequency

ISM 2.4-2.5GHz

Number of Channels

14

Channels

1 to 14

Adjustable Power

Yes

Interface immunity

802.11 b, g, and n

Indoor/Urban Range

TBD

Outdoor RF line-of-sight

Range

TBD

Transmit Power Output

>15dBm

RF Data Rate

802.11 b 1, 2, 5.5, and 11Mbps

802.11 g 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11 n 6.5, 13, 19.5, 26, 39, 52, 58.5, and 65 Mbps

EVM

802.11 b 1Mbps 8%

802.11 b 2Mbps 17%

802.11 b 5.5Mbps 10%

802.11 b 11Mbps 12%

802.11 g 6Mbps -13dB

802.11 g 9Mbps -15dB

802.11 g 12Mbps -16dB

802.11 g 18Mbps -18dB

802.11 g 24Mbps -19dB

802.11 g 36Mbps -21dB

802.11 g 48Mbps -24dB

802.11 g 54 Mbps -25dB

802.11 n MCS0 6.5Mbps -15dB

802.11 n MCS1 13Mbps -16dB

802.11 n MCS2 19.5Mbps -17dB

802.11 n MCS3 26Mbps -19dB

802.11 n MCS4 39Mbps -20dB

802.11 n MCS5 52Mbps -21dB

802.11 n MCS6 58Mbps -23dB

802.11 n MCS7 65Mbps -24dB

Receiver Sensitivity

802.11 b 1Mbps -97dBm (<8% PER)

802.11 b 2Mbps -93dBm (<8% PER)

802.11 b 11Mbps -89dBm (<8% PER)

802.11 g 6Mbps -91dBm (<10% PER)

802.11 g 54 Mbps -75dBm (<10% PER)

802.11 n 65Mbps -72dBm (<10% PER)

XBee® Wi-Fi RF Modules

Specification

XBee Wi-Fi

Frequency

ISM 2.4-2.5GHz

Number of

Channels

14

Channels

1 to 14

Adjustable Power

Yes

Interface

immunity

802.11 b, g, and n

Indoor/Urban

Range

TBD

Outdoor RF line-

of-sight Range

TBD

Transmit Power

(Average)

802.11 b 1Mbps 16dBm

802.11 b 2Mbps 16dBm

802.11 b 5.5Mbps 16dBm

802.11 b 11Mbps 16dBm

802.11 g 6Mbps 16dBm

802.11 g 9Mbps 16dBm

802.11 g 12Mbps 16dBm

802.11 g 18Mbps 16dBm

802.11 g 24Mbps 15dBm

802.11 g 36Mbps 15dBm

802.11 g 48Mbps 14dBm

802.11 g 54 Mbps 14dBm

802.11 n MCS0 6.5Mbps 16dBm

802.11 n MCS1 13Mbps 16dBm

802.11 n MCS2 19.5Mbps 16dBm

802.11 n MCS3 26Mbps 16dBm

802.11 n MCS4 39Mbps 15dBm

802.11 n MCS5 52Mbps 15dBm

802.11 n MCS6 58Mbps 14dBm

802.11 n MCS7 65Mbps 14dBm

Transmit Power

Range (Peak)

802.11b: 11.16 dBm to 19.21 dBm (13.06 mW to 83.37 mW)

802.11g: 13.89 dBm to 20.70 dBm (24.49 mW to 117.49 mW)

802.11n: 14.17dBm to 20.46 dBm (26.12 mW to 111.17 mW)

Overall: 11.16 dBm to 20.70 dBm (13.06 mW to 117.49 mW)

RF Data Rate

802.11 b 1, 2, 5.5, and 11Mbps

802.11 g 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11 n 6.5, 13, 19.5, 26, 39, 52, 58.5, and 65 Mbps

EVM

802.11 b 1Mbps 8%

802.11 b 2Mbps 17%

802.11 b 5.5Mbps 10%

802.11 b 11Mbps 12%

XBee® Wi-Fi RF Modules

802.11 g 6Mbps -13dB

802.11 g 9Mbps -15dB

802.11 g 12Mbps -16dB

802.11 g 18Mbps -18dB

802.11 g 24Mbps -19dB

802.11 g 36Mbps -21dB

802.11 g 48Mbps -24dB

802.11 g 54 Mbps -25dB

802.11 n MCS0 6.5Mbps -15dB

802.11 n MCS1 13Mbps -16dB

802.11 n MCS2 19.5Mbps -17dB

802.11 n MCS3 26Mbps -19dB

802.11 n MCS4 39Mbps -20dB

802.11 n MCS5 52Mbps -21dB

802.11 n MCS6 58Mbps -23dB

802.11 n MCS7 65Mbps -24dB

Receiver

Sensitivity

802.11 b 1Mbps -97dBm (<8% PER)

802.11 b 2Mbps -93dBm (<8% PER)

802.11 b 11Mbps -89dBm (<8% PER)

802.11 g 6Mbps -91dBm (<10% PER)

802.11 g 54 Mbps -75dBm (<10% PER)

802.11 n 65Mbps -72dBm (<10% PER)

XBee® Wi-Fi RF Modules

Spectral Mask

XBee Wi-Fi

Data Rate

-50 to 22

MHz

-22 to -11

MHz

11 To 22

Mhz

22 to 50

MHz

Units

802.11 b 1Mbps

-52

-39

-52

dBc

802.11 b 2Mbps

-52

-38

-54

dBc

802.11 b 5.5Mbps

-56

-43

-48

-54

dBc

802.11 b 11Mbps

-54

-39

-37

-55

dBc

Data Rate

-50 to -30

MHz

-30 to -20

MHz

-20 to -11

MHz

-11 to -9

MHz

9 to 11

MHz

11 to 20

MHz

20 to 30

MHz

30 to 50

MHz

Units

802.11 g 6Mbps

-46

-43.5

-28.5

-16.5

-27.5

-42.5

-47

dBc

802.11 g 9Mbps

-46

-42.5

-27.5

-17.5

-16.5

-27.5

-42.5

-46

dBc

802.11 g 12Mbps

-46

-42.5

-28.5

-17.5

-27.5

-41.5

-47

dBc

802.11 g 18Mbps

-46

-42.5

-27.5

-17.5

-27.5

-41.5

-45

dBc

802.11 g 24Mbps

-47

-44.5

-30.5

-19.5

-30.5

-43.5

-47

dBc

802.11 g 36Mbps

-47

-44.5

-30.5

-21.5

-30.5

-46.5

-49

dBc

802.11 g 48Mbps

-47

-48.5

-36.5

-23.5

-24.5

-36.5

-48.5

-52

dBc

802.11 g 54Mbps

-47

-48.5

-33.5

-24.5

-23.5

-33.5

-49.5

-49

dBc

802.11 n MCS0 6.5Mbps

-45

-39.5

-26.5

-16.5

-26.5

-39.5

-45

dBc

802.11 n MCS1 13Mbps

-44

-40.5

-26.5

-16.5

-15.5

-25.5

-39.5

-45

dBc

802.11 n MCS2 19.5Mbps

-44

-41.5

-27.5

-16.5

-27.5

-40.5

-45

dBc

802.11 n MCS3 26Mbps

-44

-40.5

-27.5

-16.5

-25.5

-38.5

-45

dBc

802.11 n MCS4 39Mbps

-45

-42.5

-30.5

-19.5

-29.5

-42.5

-47

dBc

802.11 n MCS5 52Mbps

-46

-43.5

-30.5

-18.5

-29.5

-43.5

-46

dBc

802.11 n MCS6 58Mbps

-47

-45.5

-34.5

-22.5

-33.5

-46.5

-48

dBc

802.11 n MCS7 65Mbps

-47

-46.5

-34.5

-22.5

-33.5

-46.5

-49

dBc

XBee® Wi-Fi RF Modules

Electrical Specifications

Specification

XBee Wi-Fi

Supply Voltage

3.1 - 3.6 V

Operating Current

(transmit, max output

power)

802.11 b 1Mbps 260mA

802.11 b 2Mbps 260mA

802.11 b 5.5Mbps 260mA

802.11 b 11Mbps 260mA

802.11 g 6Mbps 240mA

802.11 g 9Mbps 220mA

802.11 g 12Mbps 210mA

802.11 g 18Mbps 200mA

802.11 g 24Mbps 190mA

802.11 g 36Mbps 180mA

802.11 g 48Mbps 170mA

802.11 g 54 Mbps 170mA

802.11 n MCS0 6.5Mbps 230mA

802.11 n MCS1 13Mbps 210mA

802.11 n MCS2 19.5Mbps 200mA

802.11 n MCS3 26Mbps 200mA

802.11 n MCS4 39Mbps 190mA

802.11 n MCS5 52Mbps 180mA

802.11 n MCS6 58Mbps 180mA

802.11 n MCS7 65Mbps 180mA

Operating Current

(Receive)

140mA

Deep Sleep

Current

<2uA @25C

Environmental Specifications

XBee® Wi-Fi RF Modules

Serial Communications Specifications

The XBee Wi-Fi RF modules support both UART (Universal Asynchronous Receiver/Transmitter)

and SPI (Serial Peripheral Interface, in master or slave mode) serial connections.

UART

Specification

XBee Wi-Fi

UART Pins

Module Pin Number

DOUT/DIO13

2

DIN/DIO14

3

nCTS/DIO7

12

nRTS/DIO6

16

More information on UART operation is found in the UART section in chapter 2.

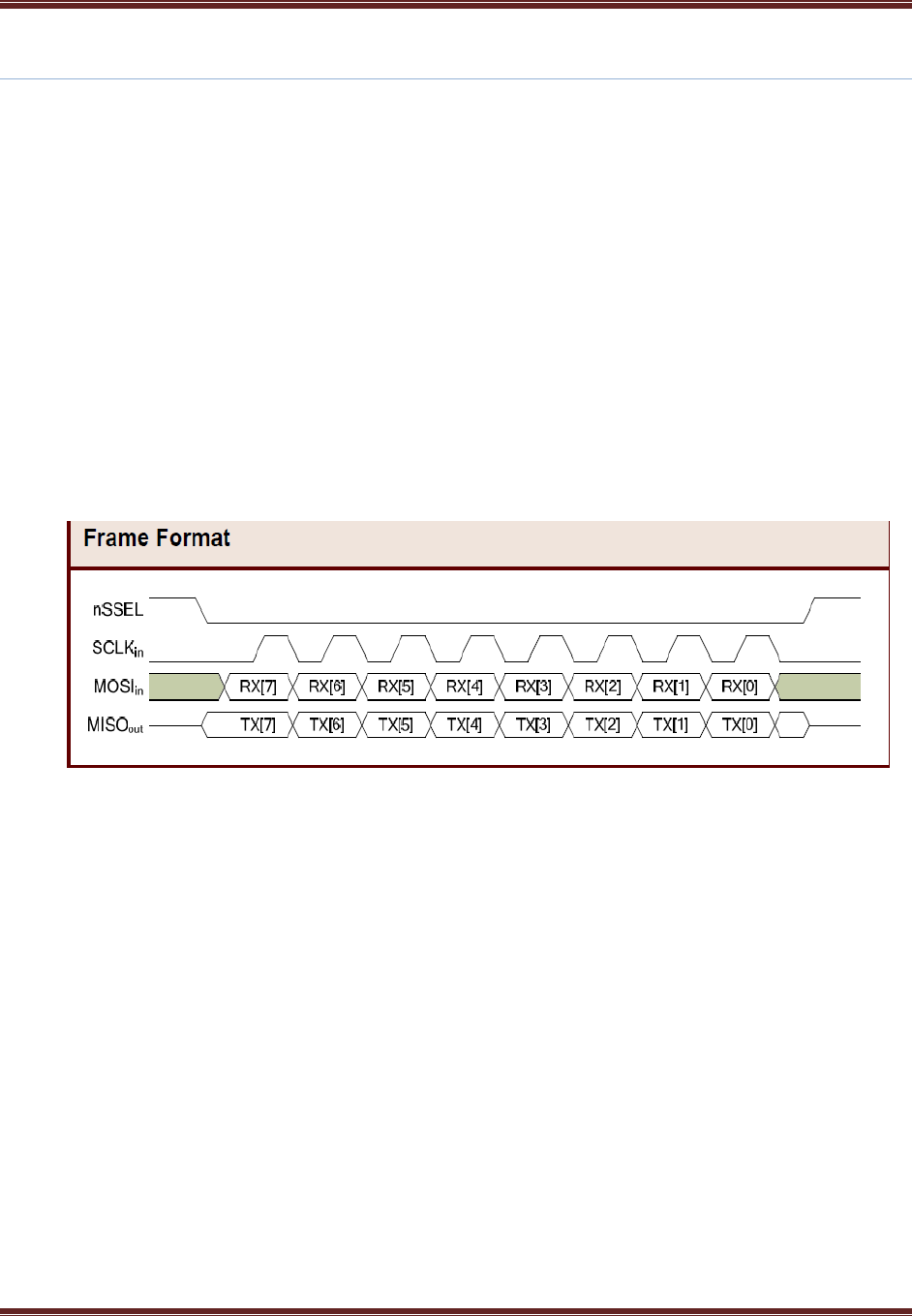

SPI

The SC2 (Serial Communication Port 2) of the module is connected to the SPI port.

SPI Pin Assignments

Specification

XBee Wi-Fi

SPI Pins

Module Pin Number

SPI_SCLK/DIO2

18

SPI_SSEL/DIO3

17

SPI_MOSI/DIO4

11

SPI_MISO/DIO12

4

SPI_ATTN/DIO9

13

For more information on SPI operation see the SPI section in chapter 2.

XBee® Wi-Fi RF Modules

GPIO Specifications

The XBee Wi-Fi modules have 14 GPIO (General Purpose Input Output) ports available. Those

available will depend on the module configuration as some GPIO’s are consumed by serial

communication, etc.

See GPIO section for more information on configuring and using GPIO ports

Electrical Specification for GPIO pads

Parameter

Condition

Min

Typ

Max

Units

Input Low Voltage

0.3VDD

V

Input High Voltage

0.7VDD

V

Output high Voltage relative to

VDD

Sourcing 6mA, VDD=3.0V

95

%

Output low voltage relative to

VDD

Sourcing 6mA, VDD=3.0V

5

%

Output fall time

0.5 mA drive strength and load

capacitance CL=12.5-25pF.

20+0.1CL

250

ns

2 mA drive strength and load

capacitance CL=350-600pF.

20+0.1CL

250

ns

I/O pin hysteresis (VIOTHR+ -

Viothr-)

VDD=3 to 3.6V

0.1VDD

V

Pulse width of pulses to be

removed by the glitch

suppression filter

10

50

ns

XBee® Wi-Fi RF Modules

Agency Approvals

Specification

XBee Wi-Fi

United States (FCC Part 15.247)

FCC ID: MCQ-XBS6

Industry Canada (IC)

IC: 1846A-XBS6

Europe (DC)

ETSI

Australia

Pending

Brazil

Pending

Japan

Pending

FCC Approval (USA) Refer to Chapter 12 FCC Requirements. Systems that contain XBee Wi-Fi modules inherit Digi

Certifications.

Pin Signals

Pin Assignment for the XBee Wi-Fi module

(Low‐asserted signals are distinguished with a lower case n before the signal name.)

Pin #

Name

Direction

Default State

Description

1

VCC

-

Power Supply

2

DOUT/DIO13

Both

Output

UART Data out

3

Din/nConfig/DIO14

Both

Input

UART Data In

4

DIO12/SPI_MISO

Both

Output

GPIO/ SPI slave out

5

nRESET

Input

Module Reset

6

DIO10

Both

GPIO

7

DIO11

Both

GPIO

8

reserved

-

Disabled

Do Not Connect

9

nDTR/SLEEP_RQ/DIO8

Both

Input

Pin Sleep Control line /GPIO

10

GND

-

Ground

11

DIO4/AD4/SPI_MOSI

Both

GPIO/SPI slave In

12

nCTS/DIO7

Both

Output

Clear-to-Send Flow

Control/GPIO

13

On_nSLEEP/DIO9/SPI_nATTN

Output

Module Status Indicator/GPIO

14

VREF

Input

-

NC

15

Associate/DIO5

Both

Output

Associate Indicator/GPIO

16

nRTS/DIO6

Both

Input

Request-to-Send Flow

Control/GPIO

17

AD3/DIO3/SPI_nSSEL

Both

Analog Input/GPIO/SPI Select

18

AD2/DIO2/SPI_CLK

Both

Analog Input/GPIO/SPI Clock

19

AD0/DIO0

Both

Analog Input/GPIO

20

AD1/DIO1

Both

Analog Input/GPIO

XBee® Wi-Fi RF Modules

Design Notes

The XBee modules do not specifically require any external circuitry or specific connections for

proper operation. However, there are some general design guidelines that are recommended

for help in troubleshooting and building a robust design.

Power Supply

Poor power supply can lead to poor radio performance especially if the supply voltage is not

kept within tolerance or is excessively noisy. To help reduce noise a 1uF and 8.2pF capacitor

are recommended to be placed as near to pin 1 on the PCB as possible. If using a switching

regulator for your power supply, switching frequencies above 500 kHz are preferred. Power

supply ripple should be limited to a maximum 50mV peak to peak.

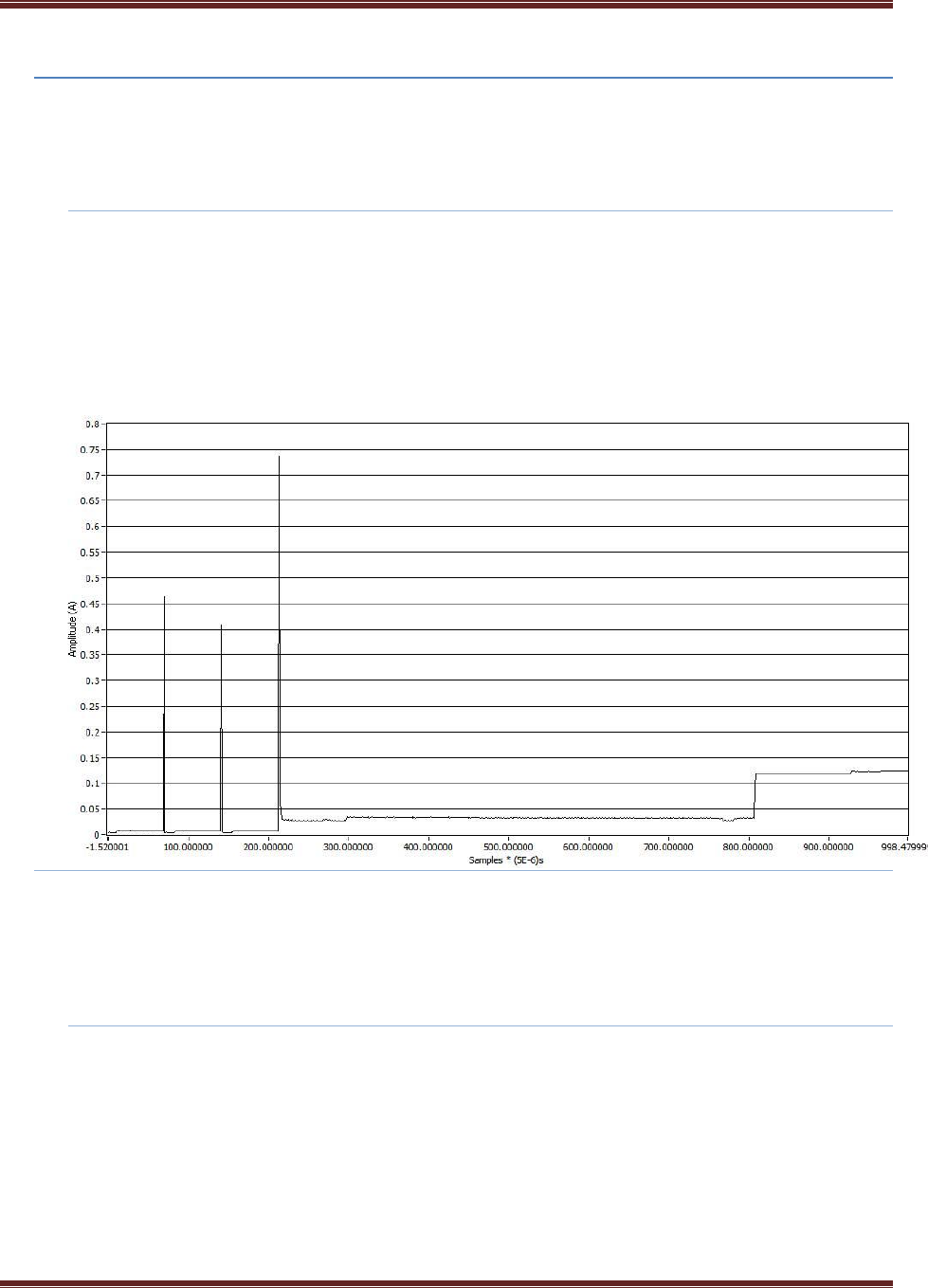

Typical start up current for the module is shown in the graph below:

Due to the fast nature of the current peaks, it is recommended that at least a 500uF capacitor

be placed on the VCC line. This will enable the XBee to start up with an acceptable voltage

slump in the power supply.

Recommended Pin Connections

The only required pin connections are VCC, GND, and either DOUT and DIN or SPI_CLK,

SPI_SSEL, SPI_MOSI, and SPI MISO. To support serial firmware updates, VCC, GND,

DOUT, DIN, RTS, and DTR should be connected.

All unused pins should be left disconnected. All inputs on the radio can be pulled high

with 30k internal pull-up resistors using the PR software command. No specific

treatment is needed for unused outputs.

XBee® Wi-Fi RF Modules

For applications that need to ensure the lowest sleep current, inputs should never be

left floating. Use internal or external pull-up or pull-down resistors, or set the unused

I/O lines to outputs.

Other pins may be connected to external circuitry for convenience of operation

including the Associate pin (pin 15) and the On_nSLEEP pin (pin 13) will change level or

behavior based on the state of the module.

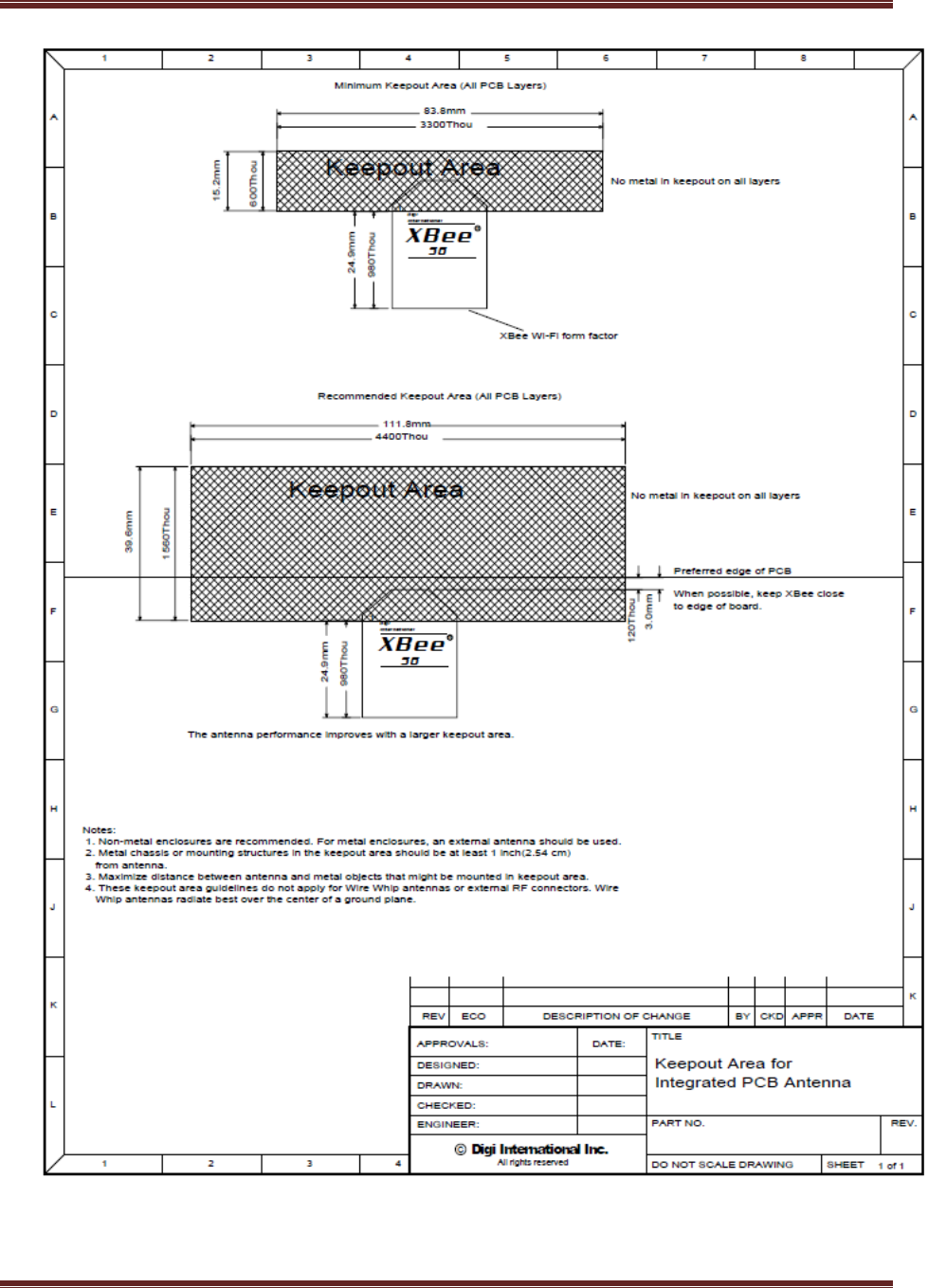

Board Layout

XBee modules do not have any specific sensitivity to nearby processors, crystals or other

PCB components. Other than mechanical considerations, no special PCB placement is

required for integrating XBee radios except for those with integral antennas. In general,

Power and GND traces should be thicker than signal traces and be able to comfortably

support the maximum currents.

The radios are also designed to be self sufficient and work with the integrated and

external antennas without the need for additional ground planes on the host PCB.

However, considerations should be taken on the choice of antenna and antenna

location. Metal objects that are near an antenna cause reflections and may reduce the

ability for an antenna to efficiently radiate. Using an integral antenna in an enclosed

metal box will greatly reduce the range of a radio. For this type of application an

external antenna would be a better choice.

External antennas should be positioned away from metal objects as much as possible.

Metal objects next to the antenna or between transmitting and receiving antennas can

often block or reduce the transmission distance. Some objects that are often overlooked

are metal poles, metal studs or beams in structures, concrete (it is usually reinforced

with metal rods), metal enclosures, vehicles, elevators, ventilation ducts, refrigerators

and microwave ovens.

Antennas should reside above or away from any metal objects like batteries, tall

electrolytic capacitors or metal enclosures. Antenna elements radiate perpendicular to

the direction they point. Thus a vertical antenna emits across the horizon.

PCB Antennas should not have any ground planes or metal objects above or below the

module at the antenna location. For best results the module should be in a plastic

enclosure, instead of metal one. It should be placed at the edge of the PCB to which it is

mounted. The ground, power and signal planes should be vacant immediately below the

antenna section (See drawing for recommended keep out area).

XBee® Wi-Fi RF Modules

Mounting Considerations

XBee modules were designed to mount into a receptacle (socket) and therefore do not require

any soldering when mounting to a board. The XBee Wi-Fi Development Kits contain 2 USB

interface boards which use two 10-pin receptacles to receive modules.

The receptacles used on Digi development boards are manufactured by Century Interconnect.

Several other manufacturers provide comparable mounting solutions; however, Digi currently

uses the following receptacles:

 Through-hole single-row receptacles - Samtec P/N: MMS-110-01-L-SV (or equivalent)

 Through-hole single-row receptacles - Mill-Max P/N: 831-43-0101-10-001000

 Surface-mount double-row receptacles - Century Interconnect P/N: CPRMSL20-D-0-1 (or

equivalent)

 Surface-mount single-row receptacles - Samtec P/N: SMM-110-02-SM-S

 Digi also recommends printing an outline of the module on the board to indicate the

orientation the module should be mounted.

XBee® Wi-Fi RF Modules

2. RF Module Operation

Serial Communications

The XBee RF Modules interface to a host device through a logic-level asynchronous serial port, or

a Serial Peripheral Interface (SPI) port. Through its serial ports, the module can communicate

with any logic and voltage compatible UART or SPI; or through a level translator to any serial

device (for example: through a RS-232 or USB interface board).

UART Communications

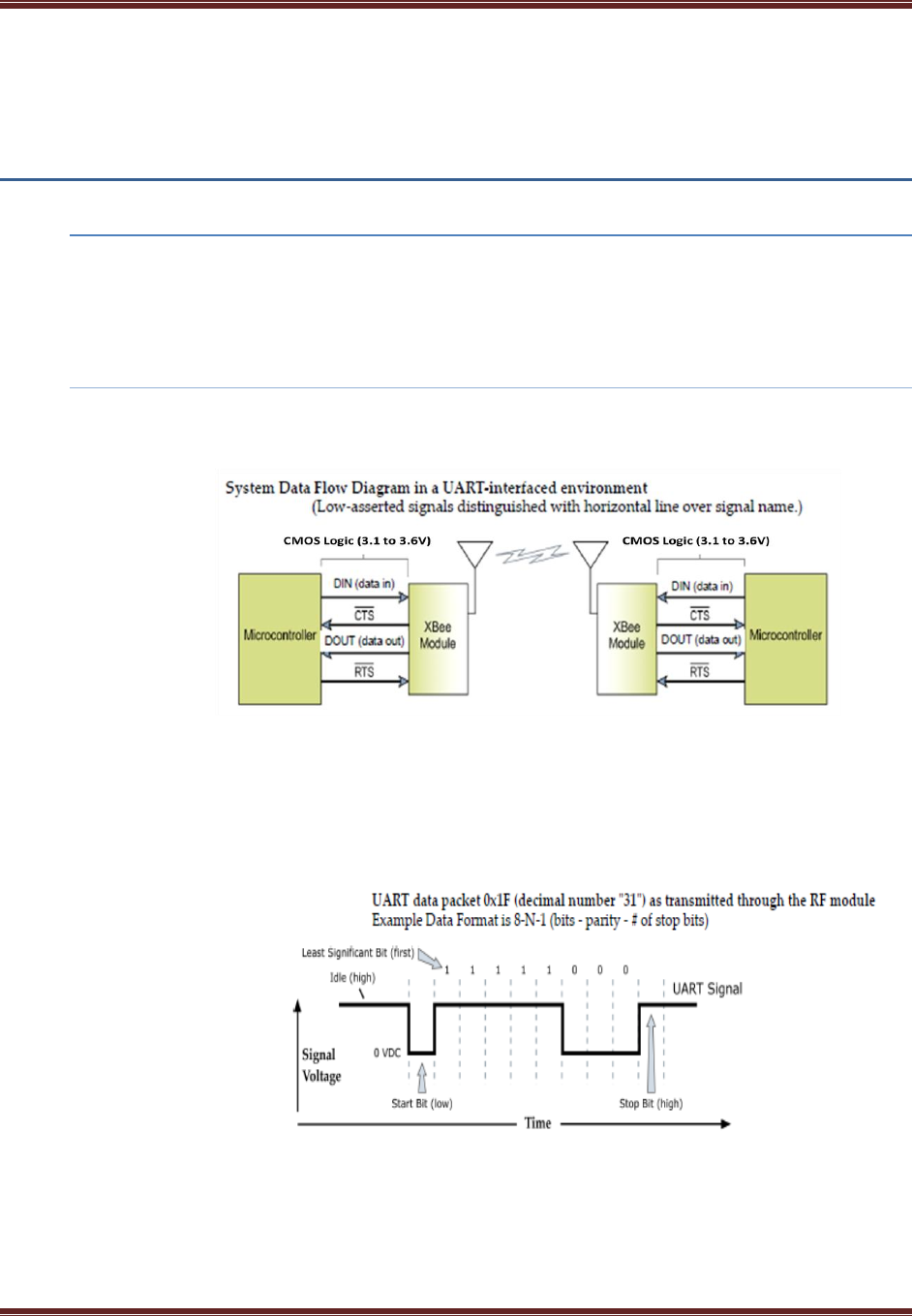

UART Data Flow

Devices that have a UART interface can connect directly to the pins of the RF module as shown in

the figure below.

UART Serial Data

Data enters the module UART through the DIN (pin 3) as an asynchronous serial signal. The signal

should idle high when no data is being transmitted.

Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a stop bit

(high). The following figure illustrates the serial bit pattern of data passing through the module.

Serial communications depend on the two UARTs (the microcontroller's and the RF module's) to

be configured with compatible settings (baud rate, parity, start bits, stop bits, data bits).

The UART baud rate, parity, and stop bits settings on the XBee module can be configured with

the BD, NB, and SB commands respectively. See the command table in chapter 10 for details.

XBee® Wi-Fi RF Modules

SPI Communications

The XBee Wi-Fi module supports SPI communications in the slave mode. Slave mode receives the clock signal

and data from the master and returns data to the master. The SPI port uses the following signals on the XBee:

 SPI_MOSI (Master Out, Slave In) – inputs serial data from the master

 SPI_MISO (Master In, Slave Out) – outputs serial data to the master

 SPI_SCLK (Serial Clock) – clocks data transfers on MOSI and MISO

 SPI_nSSEL (Slave Select) – enables serial communication with the slave

 SPI_nATTN(Attention) – Alerts the master that slave has data queued to send. The XBee module will

assert this pin as soon as data is available to send to the SPI master and it will remain asserted until

the SPI master has clocked out all available data.

In this mode the following apply:

 SPI Clock rates up to 3.5 MHz are possible.

 Data is MSB first

 Frame Format mode 0 is used. This means CPOL=0 (idle clock is low) and CPHA=0 (data is sampled on

the clock’s leading edge). Mode 0 is diagramed below.

 SPI port is setup for API mode and is equivalent to AP=1.

Frame Format for SPI communications

SPI mode is chip to chip communication. Digi does not supply SPI communication option on the Device

Development Evaluation Boards.

SPI mode is enabled by holding DOUT/DIO13 (pin 2) low while resetting the module until SPI_nATTN

asserts. By this means, the XBee Wi-Fi module will disable the UART and go straight into SPI

communication mode. Once configuration is completed, a modem status frame is queued by the module

to the SPI port which will cause the SPI_nATTN line to assert. The host can use this to determine that the

SPI port has been configured properly. This method internally forces the configuration for the AP, D2, D3,

D4, D9, and P2 commands as needed for SPI operations. As long as a WR command is not issued, these

configuration values will revert back to previous values after a power on reset. If, on the other hand, a

WR command is issued while in SPI mode, these same parameters will be written to flash. It is then the

user’s responsibility to set these parameters as appropriate

When the slave select (SPI_nSSEL) signal is asserted by the master, SPI transmit data is driven to the

output pin SPI_MISO, and SPI data is received from the input pin SPI_MOSI. The SPI_nSSEL pin has to be

asserted to enable the transmit serializer to drive data to the output signal SPI_MISO. A falling edge on

SPI_nSSEL causes the SPI_MISO line to be tri-stated such that another slave device can drive it, if so

desired..

XBee® Wi-Fi RF Modules

If the output buffer is empty, the SPI serializer transmits the last valid bit repeatedly, which may be either

high or low. Otherwise, the module formats all output in API mode 1 format, as described in chapter 7.

The attached host is expected to ignore all data that is not part of a formatted API frame.

Serial Buffers

The XBee modules maintain buffers to collect received serial and RF data, which is illustrated in the figure

below. The serial receive buffer collects incoming serial characters and holds them until they can be

processed. The serial transmit buffer collects data that is received via the RF link that will be transmitted out

the UART or SPI port

Serial Receive Buffer

When serial data enters the RF module through the DIN Pin (or the MOSI pin), the data is stored in the

serial receive buffer until it can be processed. Under certain conditions, the module may not be able to

process data in the serial receive buffer immediately. If large amounts of serial data are sent to the

module such that the serial receive buffer would overflow, then the new data will be discarded. If the

UART is in use, this can be avoided by the host side honoring CTS flow control.

Serial Transmit Buffer

When RF data is received, the data is moved into the serial transmit buffer and sent out the UART or SPI

port. If the serial transmit buffer becomes full and system buffers are also full, then the entire RF data

packet is dropped. Whenever data is received faster than it can be processed and transmitted out the

serial port, there is a potential of dropping data, even in TCP mode.

UART Flow Control

The nRTS and nCTS module pins can be used to provide RTS and/or CTS flow control. CTS flow control

provides an indication to the host to stop sending serial data to the module. RTS flow control allows the

host to signal the module to not send data in the serial transmit buffer out the UAR. RTS and CTS flow

control are enabled using the D6 and D7 commands.

XBee® Wi-Fi RF Modules

nCTS Flow Control

The FT command allows the user to specify how many bytes of data can be queued up in the serial

transmit buffer before the module asserts CTS low. The serial receive buffer can hold up the 2100 bytes,

but FT cannot be set any larger than 2083 bytes, leaving 17 bytes that can be sent by the host before the

data is dropped.

By default, FT is 2035 (0x7F3), which allows the host to send 65 bytes to the module after the module

asserts CTS before the data is dropped.

In either case, CTS will not be re-asserted until the serial receive buffer has FT-17 or less bytes in use.

nRTS Flow Control

If RTS flow control is enabled (D6 command), data in the serial transmit buffer will not be sent out the

DOUT pin as long as nRTS is de-asserted (set high). The host device should not de-assert nRTS for long

periods of time to avoid filling the serial transmit buffer. If an RF data packet is received, and the serial

transmit buffer does not have enough space for all of the data bytes, the entire RF data packet will be

discarded.

Note: If RTS flow control is enabled and the XBee is sending data out the UART when nRTS is de-asserted

(set high), the XBee could send up to 4 characters out the UART to clear its FIFO after nRTS is de-asserted.

This implies that the user needs to de-assert nRTS by the time its receive capacity is within 4 bytes of full.

Serial Interface Protocols

The XBee modules support both transparent and API (Application Programming Interface) serial

interfaces.

Transparent Operation

When operating in transparent mode, the modules act as a serial line replacement. All UART

data received is queued up for RF transmission. When RF data is received, the data is sent out

through the UART. The module configuration parameters are configured using the AT command

mode interface. Please note that transparent operation is not an option when using SPI.

Data is buffered in the serial receive buffer until one of the following causes the data to be

packetized and transmitted:

 No serial characters are received for the amount of time determined by the RO

parameter. If RO is zero, data is packetized as soon as it is received, without delay.

If RO is non-zero, the data is packetized after RO character times of no transitions

on the DIN pin. However, if the time required for RO characters is less than 100

microseconds, then DIN must still be idle for at least 100 microseconds, which is the

minimal idle time required for packetizing packets at any baud rate.

 The Command Mode Sequence (GT + CC + GT) is received. Any character buffered in

the serial receive buffer before the sequence is packetized and transmitted before

command mode is entered.

 The maximum number of characters that will fit in an RF packet is received.

XBee® Wi-Fi RF Modules

API Operation

API operation is an alternative to transparent operation. The frame-based API extends the level

to which a host application can interact with the networking capabilities of the module. When in

API mode, all data entering and leaving the UART or SPI is contained in frames that define

operations or events within the module.

Transmit Data Frames (received through the DIN pin (pin 3) or SPI_MOSI (pin 11 )) include:

 RF Transmit Data Frame

 Local commands (equivalent to AT commands)

 Remote commands to be sent to another radio

Receive Data Frames (sent out the DOUT pin (pin 2) or SPI_MISO (pin 4 )) include:

 RF-received data frames

 Local command responses

 Remote command responses

 I/O samples from a remote radio

 Event notifications such as transmission status, reset, associate, disassociate, etc.

The API provides an alternative means of configuring modules and of routing data at the local

host application layer. A local host application can send data frames to the module that contain

address and payload information instead of using command mode to modify addresses. The

module will send data frames to the application containing status packets; as well as source, and

payload information from received data packets. The API operation option facilitates many

operations such as the examples cited below:

 Transmitting data to multiple destinations without entering Command Mode

 Receive success/failure status of each transmitted RF packet

 Identify the source address of each received packet

A Comparison of Transparent and API Operation

The following table compares the advantages of transparent and API modes of operation:

Transparent Operation Features

Simple Interface

All received serial data is transmitted unless the module is in command mode.

Easy to support

It is easier for an application to support transparent operation and command mode.

API Operation Features

Easy to manage data

transmissions to multiple

destinations

Transmitting RF data to multiple remotes only requires changing the address in the

API frame. This Process is much faster than transparent operation where the

application must enter AT command mode, change the address, exit command mode,

and then transmit data. Each API transmission can return a transmit status frame

indicating the success or reason for failure

Received data frames

indicate the sender's

address

All received RF data API frames indicate the source address.

Advanced Networking

diagnostics

API frames can provide indication of IO samples from remote devices, transmission

status messages, and local radio status messages.

XBee® Wi-Fi RF Modules

Remote Configuration

Set/read configuration commands can be sent to remote devices to configure them

as needed using the API.

As a general rule of thumb, API firmware is recommended when a device:

 sends RF data to multiple destinations

 sends remote configuration commands to manage devices in the network

 receives IO samples from remote devices

 receives RF data packets from multiple devices, and the application needs to

know which device sent which packet

If the above conditions do not apply, (e.g. in a sensor node, or a simple application) then

transparent operation might be suitable. It is acceptable to use a mixture of devices

running API mode and transparent mode in a network.

Modes of Operation

Idle Mode

When not receiving or transmitting data, the RF module is in Idle Mode. The module

shifts into the other modes of operation under the following conditions:

 Transmit Mode (Serial data in the serial receive buffer is ready to be packetized)

 Receive Mode (Valid RF data is received through the antenna)

 Sleep Mode

 Command Mode (Command Mode Sequence is issued)

Transmit Mode

When serial data is received and is ready to be packetized, the RF module will exit Idle

Mode and attempt to transmit the data. The destination address determines which

node(s) will receive the data.

Receive Mode

If a valid RF packet is received, the data is transferred to the serial transmit buffer.

Command Mode

To modify or read RF Module parameters, the module must first enter into Command

Mode - a state in which incoming serial characters are interpreted as commands. Refer

to the API Operation chapter for an alternate means of configuring modules, which is

the only method available for SPI mode. (Command mode is unavailable when using the

SPI interface.)

AT Command Mode

To Enter AT Command Mode:

Send the 3-character command sequence “+++” and observe guard times before and

after the command characters. [Refer to the “Default AT Command Mode Sequence”

below.]

XBee® Wi-Fi RF Modules

Default AT Command Mode Sequence (for transition to Command Mode):

 No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

 Input three plus characters (“+++”) within one second *CC (Command Sequence

Character) parameter = 0x2B.]

 No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

Once the AT command mode sequence has been issued, the module sends an "OK\r"

out the UART. The "OK\r" characters can be delayed if the module has not finished

transmitting received serial data.

When command mode has been entered, the command mode timer is started (CT

command), and the module is able to receive AT commands on the UART or SPI port.

All of the parameter values in the sequence can be modified to reflect user preferences.

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate

mismatch. By default, the BD (Baud Rate) parameter = 3 (9600 bps).

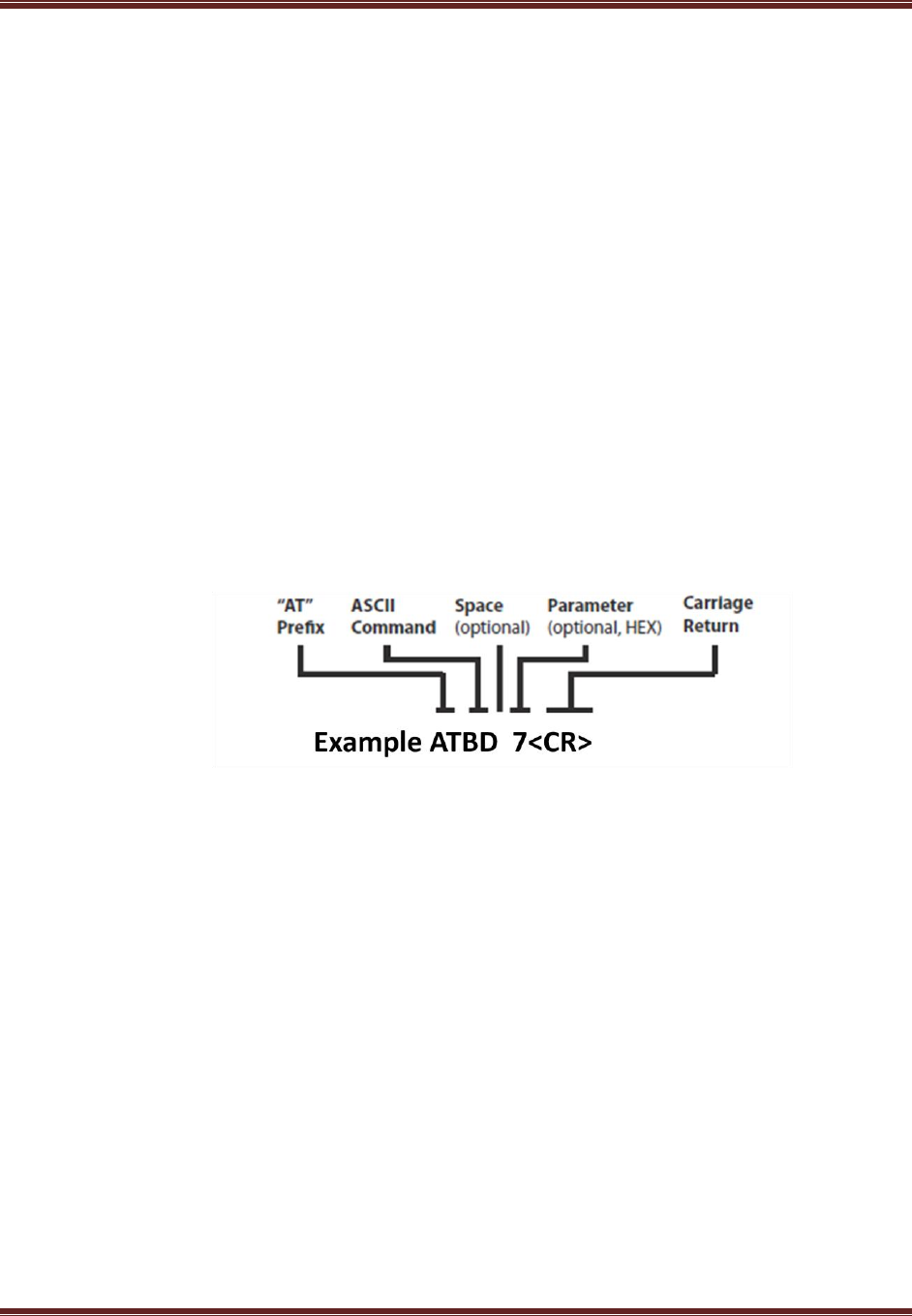

To Send AT Commands, send AT commands and parameters using the syntax shown

below:

To read a parameter value stored in the RF module’s register, omit the parameter field.

The preceding example would change the RF module baud rate to 7, which would allow

operation at 115,200bps. To store the new value to non-volatile (long term) memory,

subsequently send the WR (Write) command.

For modified parameter values to persist in the module’s registry after a reset, changes

must be saved to non-volatile memory using the WR (Write) Command. Otherwise,

parameters are restored to previously saved values after the module is reset.

Command Response

When a command is sent to the module, the module will parse and execute the

command. Upon successful execution of a command, the module returns an “OK”

message. If execution of a command results in an error, the module returns an “ERROR”

message.

Applying Command Changes

Any changes made to the configuration command registers through AT commands will

not take effect until the changes are applied. For example, sending the BD command to

XBee® Wi-Fi RF Modules

change the baud rate will not change the actual baud rate until changes are applied.

Changes can be applied in one of the following ways:

 The AC (Apply Changes) command is issued.

 AT command mode is exited.

To Exit AT Command Mode:

1. Send the ATCN (Exit Command Mode) command (followed by a carriage return).

[OR]

2. If no valid AT Commands are received within the time specified by CT (Command

Mode Timeout) Command, the RF module automatically returns to Idle Mode.

For an example of programming the RF module using AT Commands and descriptions

of each configurable parameter, please see the Command Reference Table chapter.

Sleep Mode

Sleep modes allow the RF module to enter states of low power consumption when not in use.

The XBee Wi-Fi modules support both pin sleep (sleep mode entered on pin transition) and

cyclic sleep (module sleeps for a fixed time). XBee sleep modes are discussed in detail in chapter

5.

XBee® Wi-Fi RF Modules

3. 802.11 bgn Networks

Infrastructure Networks

The main type of wireless network will involve a number of wireless devices (called

stations) talking through a master wireless device known as an Access Point (AP for

short). This type of setup is called an Infrastructure or BSS (Basic Service Set) network.

Most wireless networks are of this type. An example of an infrastructure wireless

network is shown below:

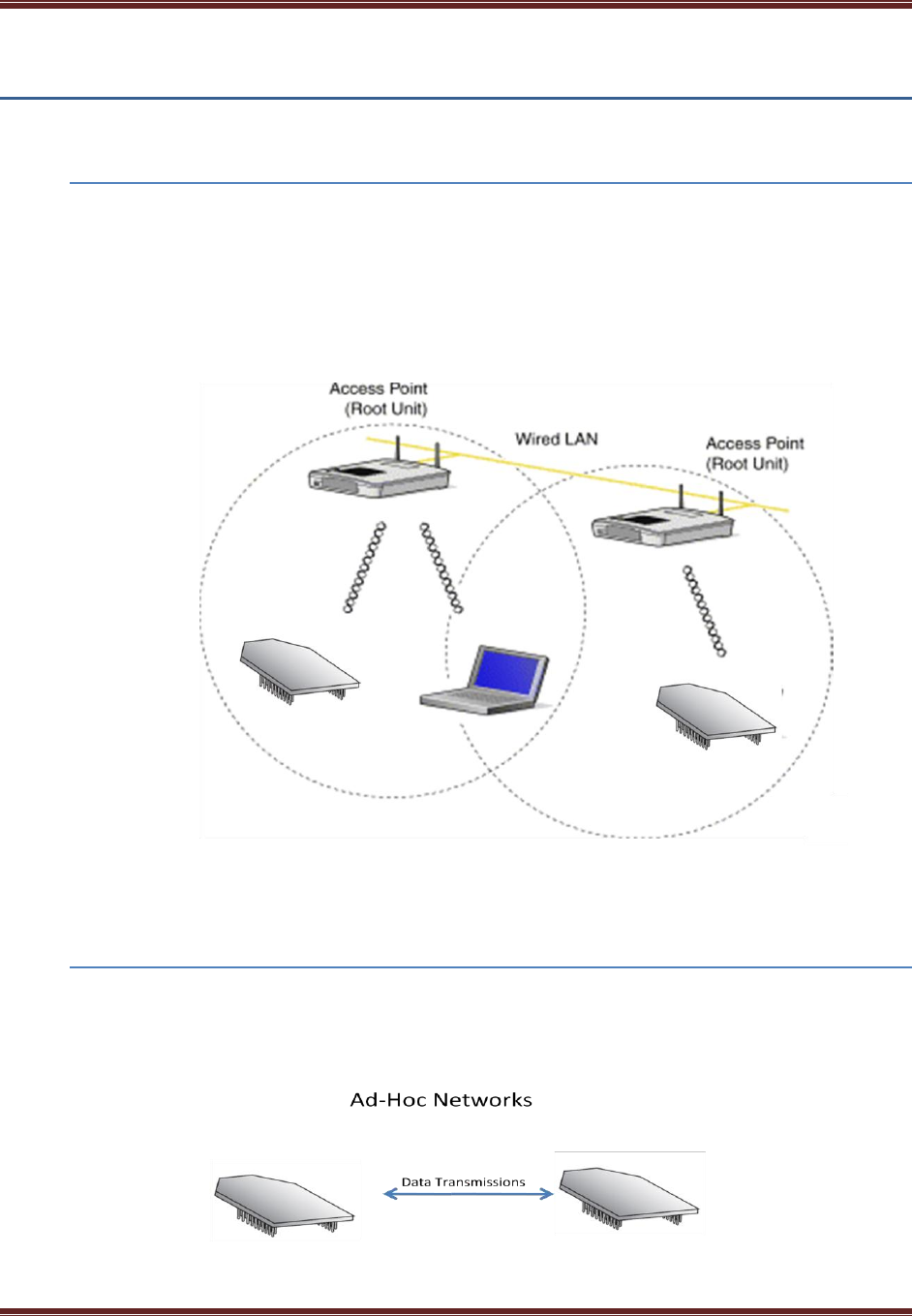

Infrastructure Wireless Network

Ad Hoc Networks

Wireless devices can get on a wireless network without an access point. This is called an

Ad Hoc or IBSS (Independent Basic Service Set) network. An example of an ad hoc

wireless network is shown below:

XBee® Wi-Fi RF Modules

Network Basics

Clients will need to join the wireless network before they can send data across it. This is

called Association. In order for a device to associate it must know the following items about

the desired wireless network:

 SSID: the name of the wireless network.

 Encryption: if and how the network encrypts or scrambles its data.

 Authentication: how and if the network requires its members to ―prove their identity.

 Channel: what channel (frequency range) the wireless network uses.

Once a device is associated it can send and receive data from other associated devices on

the same network. When the client is done or needs to leave, it then can Dis-associate and

be removed from the wireless network.

XBee® Wi-Fi Standards

The XBee Wi-Fi module will operate in three of the available 802.11 standards.

802.11 b

The 802.11b standard was approved in July 1999 and can be considered the second

generation. 802.11b operates in the 2.4 GHz frequency ISM band. The data rate is from

1 to 11 Mbps.

802.11 g

The 802.11g standard was approved in 2003. It provides a maximum data rate of 54

Mbps. In addition, the standard is also fully backwards-compatible with existing 802.11b

wireless networks.

802.11 n

The 802.11n standard was approved in 2009. It provides for data rates up to 300Mbps.

The XBee® Wi-Fi module uses the single stream n mode with 20MHz bandwidth and is

capable of 65 Mbps over the air in n mode.

Encryption

Encryption is a method of scrambling a message that makes it unreadable to unwanted

parties, adding a degree of secure communications. There are different protocols for

providing encryption, and the XBee Wi-Fi module supports WPA, and WPA2.

AUTHENTICATION

Authentication deals with proving the identity of the wireless device attempting to

associate with the network. There are different methods of doing this. The XBee Wi-Fi

module supports Open and Shared Key.

Open

Open Authentication is when the access point simply accepts the wireless devices

identify without verifying or proving it. The benefits to this is simplicity and compatibility

(all devices can do it).

XBee® Wi-Fi RF Modules

Shared Key

Shared Key is when the wireless devices must present the proper key to get on the

network. Although Shared Key has more security than Open Authentication it should

not be considered secure. One of the benefits of Shared Key Authentication is simplicity.

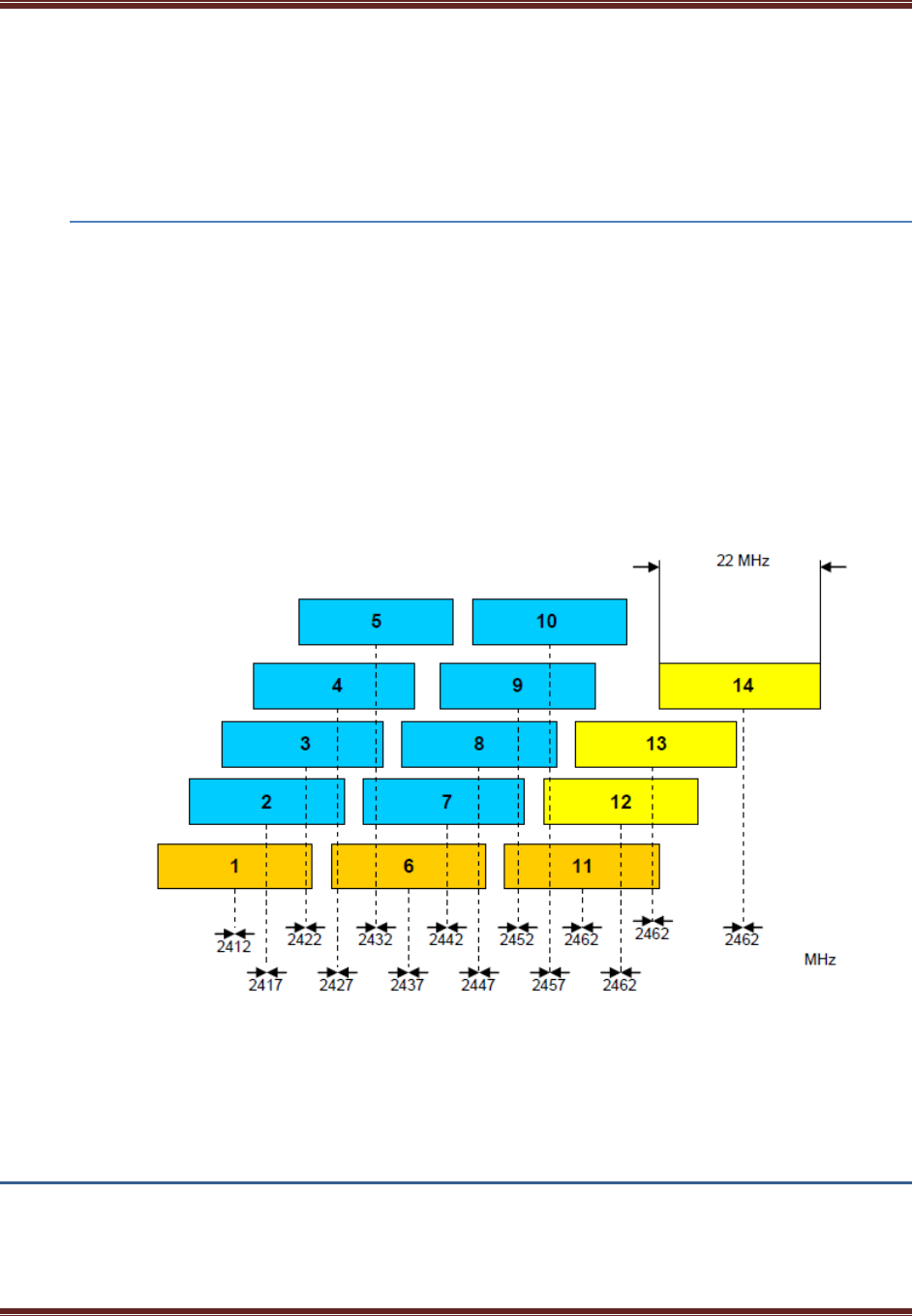

CHANNELS

The XBee® Wi-Fi modules operate in the 2.412-2.484 MHz range. The frequency range is

broken down into 14 channels. Data is transmitted on a channel by radio frequencies

over a certain frequency range. In order to avoid bad performance caused by the

overlapping (“collision”) of channel frequencies in a wireless LAN environment, it is very

important that the channels of neighboring access points are selected accordingly.

The center frequencies of the 14 possible channels range from 2.412 GHz to 2.484 GHz,

with each channel being 22 MHz wide and centered in 5 MHz intervals. This means that

only 3 channels (1, 6, and 11) in North America are not subject to overlapping.

4. XBee IP Services

The XBee provides services using IP (Internet Protocol) for XBee and other clients on the

network. IP services provide functionality to allow XBee configuration and direct serial port

access. There are two XBee services:

XBee® Wi-Fi RF Modules

 XBee Application Service

 Serial Communication Service

XBee Application Service

This service primarily provides for XBee configuration. It also provides API compatibility

for customers who have designed around other XBee’s. It uses UDP to transfer packets

on port number 0xBEE. Packets are optionally acknowledged by the service but retries

are not available. An extra header is added to the packet data to define commands for

configuration and serial data transfer. The following sections describe how this service

can be accessed from a local host or network client.

Local Host

From a local host this functionality is accessed through XBee API frames. There are

remote AT command frames as well as transmission frames. The API frames are listed

as follows:

 TX request: 64-bit (TX64)

 RX indicator: 64-bit (RX64)(This frame is generated by the XBee module.)

 Remote AT command

TX64 and RX64 API frames

The intent of the XBee transmit and receive 64-bit API frames is to provide a

standardized set of API frames to use for a point to multipoint network—a

closed network of XBee Wi-Fi modules. These frames are compatible with the

XBee 802.15.4 module.

Transmitting data

The local host uses the TX64 frame to send data to another XBee using this

service. When the frame is received through the serial port the XBee converts

the contents of the frame to a serial data transfer command as defined by the

XBee application service.

Receiving data

A received Serial data transfer command will go to the serial port. The mode of

the serial port will determine the format of the data. When in API mode the

data will be sent to the host using the RX 64-bit frame.

Note: It is not recommended to use this service to send data to a network client.

Use the serial communication service.

Remote AT command configuration

The Remote AT command frame is used to change configuration on a remote Xbee. See

Remote AT command frame in the API Operation chapter for more information.

XBee® Wi-Fi RF Modules

Network Client

This port is accessed by sending a packet from the client using the UDP protocol on port 0xBEE.

Data sent to this port must have an additional header preceding the data. The header

description follows:

Field

Name

Offset

Description

Command

ID

0

Serial Data:0x0

Remote AT command:0x2 Application acknowledgements are not supported

Serial Data Acknowledgement: 0x80 Sent in response to option bit 1 sent for the Serial Data

command

Serial Data Acknowledgement: 0x80

Remote AT command response:0x82

Command

options

1

Sending configuration commands

AT commands can be sent to the XBee Wi-Fi module from a network client. The following packet

structure must used to send the command.

Packet Fields

Offset

Example

Description

Client Packet Data

Command

ID

0

0x02

Command

options

1

0

Options are not available for this command

Command

Specific

Data

Frame ID

2

0x01

This is provided for application support and is not used by the

XBee. The value will be sent back as part of the response

packet.

Configuration

options

3

0x02

0 – Queue command parameter. Must send AC command or

use option 2 to apply changes.

2 – Apply changes to all changed commands

AT Command

MSB 4

0x49 (I)

Command Name - Two ASCII characters that identify the AT

command

LSB 5

0x44(D)

Parameter Value

If present, indicates the requested parameter value to set the

given command. If no characters present, command is

queried.

The response will be sent back to the host with the following bytes.

XBee® Wi-Fi RF Modules

Packet Fields

Offset

Example

Description

Client Packet Data

Command ID

0

0x82

Command

Options

1

0x00

Options not available for this response

Command

Specific Data

Frame ID

3

0x01

Copied from the command

Configuration

command options

3

0x88

Options not available for this response

AT Command

MSB 5

0x49 (I)

Command Name - Two ASCII characters that identify

the AT command

LSB 6

0x44 (D)

Status

0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

Parameter Value

7

The first

byte of

the ID

value

would

start here

Register data in binary or ASCII format, based on the

command. For the ID command, the data is in ASCII

format. If the command was set, then this field is not

returned.

Sending serial data command to XBee

Using this service to send data out the serial port is not required. Most users will choose to use

the Serial Communication Service (see below) for sending data from a network client. One

reason to use the XBee Application Service to send the serial data command from a network

client is to receive an acknowledgment when sending a UDP packet.

The client can request an acknowledgement from the XBee but must wait to receive the

acknowledgement before sending the next packet. The client is responsible for retransmissions

due to missed acknowledgments. When resending packets, duplicates can be received at the

destination due to a successful serial data command and a failed acknowledgment packet. The

host in this case must be able to handle duplicate packets.

Serial Data Command:

Packet Fields

Offset

Example

Description

Client Packet data

Command ID

0

Command

Options

1

0x2

bit 1 - Request acknowledgment be sent.

Command

Specific Data

Serial Data

3

0x01

Can be up to 1400 bytes. Data will be sent out the

XBee's serial port.

XBee® Wi-Fi RF Modules

Serial Data command acknowledgment if requested:

Packet Fields

Offset

Example

Description

Client Packet Data

Command ID

0

0x80

Command

Options

1

0x0

Options not available for this response

Command

Specific Data

No command specific data

Receiving I/O sampled data

Sample data generated by the module will be sent to the address configured by the DL

commands. This data can be sent to either XBee or a network client. It will be sent using UDP on

the 0xBEE port as with other XBee Application services. Sample data will be received by the

client as follows:

X

B

e

P

a

c

k

e

t

D

a

t

a

Frame Fields

Offset

Example

Description

Command ID

0

0x04

Command

Options

1

0x00

Options not available for this response

Command

Specific Data

Number Samples

3

0x01

Will be set to one. DIO and ADC considered a sample. At

least one DIO or ADC must be enabled to get this packet

type.

Digital Mask

MSB 4

0x00

Bit Mask. Each bit represents an enabled DIO I/O line

starting with DIO0 at bit 0.

LSB 5

0x01

Analog Mask

6

0x02

Bit Mask. Each bit represents an enabled ADC starting

with ADC0 at bit 0.

Digital Sample

MSB 7

0x00

This field is only present if at least one DIO I/O is

enabled. Use the digital mask to determine if sample is

present. Each bit represents a DIO line start with bit 0 for

DIO0.

LSB 8

0x01

Analog Sample

MSB 9

0x01

Analog Samples start here and will be in order as

indicated in the Analog Mask. Only those lines enabled

will be sent. In the example this sample is for AD1.

LSB 10

0x00

Supply Voltage

11

0xC1C

Indicates that the supply voltage is 0xC1C = 3100

(decimal) mV = 3.1V on the radio that sent the I/O

sample

XBee® Wi-Fi RF Modules

Serial Communication Service

A client or XBee can send data directly to the serial port using this service. No additional header

or formatting is required. The port is configured using the C0 command. The behavior of this

service varies based on the mode of the serial port and is discussed in the following sections.

Transparent mode

Only one port is available and can be either UDP or TCP. It is configured through the IP

command. Data received by the service is sent to the serial port without any additional

processing.

UDP

When the IP command is configured for UDP, data received on the serial

port will be packetized and sent to the IP address specified by the DL

command and to the destination port specified by the DE command.

The source port is defined by the C0 command.

TCP

TCP provides for a connection based protocol. When in transparent

mode the module will only allow one connection at a time. A

connection can be initiated by a local host or by a network client.

A local host initiates a connection by sending data to the serial port. A

connection will be created based on the DL (IP address) and DE

(destination port) commands.

A network client establishing a TCP connection to the XBee will use the

port defined by the C0 command. When established any data sent by

the local host will not create a new connection based on DL and DE, but

rather the existing connection will be utilized.

API mode

Because API mode has more capabilities both UDP and TCP are supported at the

same time. The local host will utilize the TX IPv4 transmit frame to send data

from the module and will receive data through the RX IPv4 received frame.

These frames give greater IP control and visibility to the local host. See the API

section for more information.

XBee® Wi-Fi RF Modules

5. Sleep

The XBee Wi-Fi module supports two different sleep modes.

 Pin Sleep

 Cyclic Sleep

In addition the sleep mode current draw can be modified with the following sleep options.

 AP Associated Sleep

 Deep Sleep

Pin sleep allows an external microcontroller to determine when the XBee should sleep and when it

should wake by controlling the Sleep_RQ pin when using the UART or SPI_nSSEL when using SPI. In

contrast, cyclic sleep allows the sleep period and wake times to be configured through the use of AT

commands or through the DTIM setting on the access point (associated sleep). The module can stay

associated to the access point or can enter a deeper sleep and associate to the access point for each

sleep/wake occurrence. The sleep mode is configurable with the SM and SO commands.

Besides the four sleep modes mentioned above, each of them operate a little differently based on

the serial interface (UART or SPI).

Sleeping with the UART

When the serial interface is UART, the On/nSleep pin is used to indicate that the module is entering

sleep mode, unless pin 13 is configured for a different usage. (See command reference table) If D9

is configured for On/nSleep, then it is driven low when asleep and high when awake, whether using

pin sleep or cyclic sleep.

If CTS hardware flow control is enabled (D7 command), the CTS pin (pin 12) is de-asserted (high)

when entering sleep to indicate that serial data should not be sent to the module. The module will

not respond to serial or RF data when it is sleeping. Applications that utilize the UART are

encouraged to observe CTS flow control in any of the sleep modes. When the XBee wakes from

sleep with flow control enabled, the CTS pin is asserted (low).

If using pin sleep, D8 (mapped to XBee pin 9) must be configured for SleepRq (See command

reference table) to put the module to sleep. Otherwise, there is no sleep at all, meaning the module

will always stay awake in full power mode. When D8 is configured for SleepRq, the host should

drive pin 9 high to wake the module up and the host should drive pin 9 low to wake the module up.

Sleeping with the SPI

When the serial interface is SPI, pin 13 is used as an attention indicator to tell the SPI master when it

has data to send. Since SPI only operates in API mode, it will assert SPI/nATTN and send out a

modem status indicator after initialization. The host can use this to know when the radio is ready to

operate as a SPI slave. Since the function of pin 13 is to indicate when the XBee has data to send to

the host, it may legitimately be driven high or low while the module is awake. Therefore, there is no

equivalent to the On/nSleep indicator when using the SPI.

XBee® Wi-Fi RF Modules

SPI_SSEL (pin 17) is the equivalent of SleepRq for the SPI interface. The SPI master drives pin 17 low

not only to indicate that the XBee is selected as the active slave, but also to indicate that the XBee

should wake up. When the SPI master drives pin 17 high, that gives the XBee license to go back to

sleep, which it will do after data is clocked out.

Sleep Options

AP Associated sleep

This option allows the module to sync up with beacons sent from the AP which contains

the DTIM (Delivery Traffic Indication Message). The DTIM indicates when broadcast and

multicast data will be sent on the network. This property is configured on the AP and is

typically configured as a number that sets up an interval of beacon sent between

beacons with DTIM.

The sleep modes are described as follows with this option enabled.

Pin sleep mode

The module remains associated to the AP and will wake based on the period of the

DTIM. This wake period will not be seen by the local host unless data has been sent to

the module. In this case the module will ‘wake’ by asserting the appropriate I/O lines.

The local UART host is then required to de-assert SleepRq to awaken the module. Note

that the module will be drawing more current when waiting for the host to de-assert

SleepRq. Once SleepRq is de-asserted the module will then send the data to the host.

SPI operation is similar except that the radio asserts nATTN when data becomes

available and then the local host is expected to assert SPI_SSEL and to provide a clock

until the data available is sent out.

When the local UART host needs to send data it de-asserts SleepRq. Once the

appropriate status I/O lines are asserted (CTS and/or On/nSleep) the module is ready to

accept data. However data will be queued and not sent until the next DTIM.

When the local SPI host needs to send data it asserts nATTN. This wakes up the module,

which will then accept the incoming data. However data will be queued and not sent

until the next DTIM.

Cyclic sleep mode

The module remains associated to the AP and will sleep based on the period of the

DTIM. After DTIM, the module will awaken for 30 milliseconds to check for data from

the AP and to allow the host to send data or commands. This time is factored in as part

of the overall ST time. When data is received or sent then the module will remain

awake for ST time and any further activity will not restart this time. The module will

draw the RX current during the wake period.

Deep sleep (non-associated sleep)

XBee® Wi-Fi RF Modules

This option allows the Wi-Fi circuitry to be power down resulting in the lowest sleep

current but at the expense of longer wake up times. This is due to the module

associating with the access point every time it wakes up. The intent of this option is to

allow for very long sleep times.

Pin sleep mode

In this mode when SleepRq _RQ is asserted the module will power down the Wi-Fi

circuitry. When SleepRq is de-asserted the Wi-Fi circuitry is powered up. This causes

the module to associate to the access point for each wake event. The module could

take many seconds to complete the association and longer if DHCP is used.

Cyclic sleep mode

In this mode the module will enter and exit sleep based on the SP and ST commands.

The module will control power to the Wi-Fi circuitry as it cycles through sleep and wake.

This causes the module to associate to the access point for each wake event. The

module could take many seconds to complete the association and longer if DHCP is

used. However to control battery usage, ST specifies and limits the wake time. If ST

expires before association is successful, sleeping is resumed without ever associating. It

is the user’s responsibility to configure ST as needed. Also, the user should wait for

association after waking up before sending data. When data is sent by the local host

then the module will remain awake for ST time and any further activity will not restart

this time. The module will draw RX current during the wake period.

Sampling data using sleep modes

Data can be sampled when waking from any sleep mode by enabling an ADC or digital input and

setting IR appropriately with respect to ST to obtain the desired number of samples.

Sample Rate (ATIR)

If multiple samples are wanted during the wake period then IR can be used. This will

provide ST/IR+1 samples. Each sample will be sent separately.

Wake Host

Wake host parameter (ATWH) delays UART and sample data from being initiated until

the timer has expired. This allows the host to wake up before receiving data or a sensor

to power up before an I/O sample is taken.

Digital outputs and special function outputs such as ON_SLEEP and CTS are not affected

by WH. This is to allow these signals to be used to wake up devices.

Note that for deep sleep, both WH must be expired and the module must be associated

before I/O samples are taken.

XBee® Wi-Fi RF Modules

6. XBee Analog and Digital IO Lines

XBee-PRO Wi-Fi firmware supports a number of analog and digital IO pins that are configured

through software commands. Analog and digital IO lines can be set or queried. The following

table lists the configurable IO pins and the corresponding configuration commands.

Pin name(s)

Module pin

AT cmd

Command Range

DIO12/SPI_MISO

4

P2

0,1,3-5

DIO10

6

P0

0,3-5

DIO11

7

P1

0,3-5

DIO8/nDTR/SLEEP_RQ

9

D8

0-5

DIO4/AD4/SPI_MOSI

11

D4

0-5

DIO7/nCTS

12

D7

0,1,3-7

DIO9/ON_nSLEEP/SPI_nATTN

13

D9

0,1,3-6

DIO5/ASSOCIATE

15

D5

0,1,3-5

DIO6/nRTS

16

D6

0,1,3-5

DIO3/AD3/SPI_nSSEL

17

D3

0-5

DIO2/AD2/SPI_CLK

18

D2

0-5

DIO1/AD1

19

D1

0-5

DIO0/AD0

20

D0

0-5

IO Configuration

To enable an analog or digital IO function on one or more XBee module pin(s), the appropriate

configuration command must be issued with the correct parameter. After issuing the configuration

command, changes must be applied on the module for the IO settings to take effect. Pull-up

resistors can be set for each digital input line using the PR command. The PR value updates the state

of all pull-up resistors.

Pin Command Parameter

Description

0

Disabled

1

Peripheral control

2

Analog

3

Data in monitored

4

Data out default low

5

Data out default High

6

RS485 enable low/SPI_nATTN

7

RS485 enable high

>7

Unsupported

IO Sampling

The XBee ZB modules have the ability to monitor and sample the analog and digital IO lines. IO

samples can be read locally or transmitted to a remote device to provide indication of the

XBee® Wi-Fi RF Modules

current IO line states. (Only API firmware devices can send remote IO sample data out their

UART or SPI ports.)

There are three ways to obtain IO samples, either locally or remotely:

•Queried Sampling

•Periodic Sampling

•Change Detection Sampling.

IO sample data is formatted as shown in the table below

Bytes

Name

Description

1

Sample Sets

Number of sample sets in the packet. (Always set to 1.)

2

Digital Channel mask

Digital IO line on the module.

 bit 0 = DIO0

 bit 1 = DIO1

 bit 2 = DIO2

 bit 3 = DIO3

 bit 4 = DIO4

 bit 5 = DIO5

 bit 6 = DIO6

 bit 7 = DIO7

 bit 8 = DIO8

 bit 9 = DIO9

 bit 10 = DIO10

 bit 11 = DIO11

 bit 12 = DIO12

For example, a digital channel mask of 0x002F means

DIO0 1, 2, 3, and 5 are enabled as digital IO.

1

Analog Channel Mask

Indicates which lines have analog inputs enabled for

sampling. Each bit in the analog channel mask

corresponds to one analog input channel.

• bit 0 = AD0

• bit 1 = AD1

• bit 2 = AD2

• bit 3 = AD3

• bit 4 = AD4

Variable

Sampled Data Set

If any digital IO lines are enabled, the first two bytes of

the data set indicate the state of all enabled digital IO.

Only digital channels that are enabled in the Digital

Channel Mask bytes have any meaning in the sample

set. If no digital IO is enabled on the device, these 2

bytes will be omitted.

Following the digital IO data (if any), each enabled

analog channel will return 2 bytes. The data starts with

AD0 and continues sequentially for each enabled analog

input channel up to AD4, and the supply voltage at the

end.

XBee® Wi-Fi RF Modules

The sampled data set will include 2 bytes of digital IO data only if one or more IO lines on the

device are configured as digital IO. If no pins are configured as digital IO, these 2 bytes will be

omitted.

The digital IO data is only relevant if the same bit is enabled in the digital IO mask.

Analog samples are 10 bit values and aligned on a 16 bit boundary. The analog reading is scaled

such that 0x0000 represents 0V, and 0x3FF = 3.0V. The analog inputs on the module are capped

at 0x3FF. Analog samples are returned in order starting with AD0 and finishing with AD4, and

the supply voltage. Only enabled analog input channels return data as shown in the figure

below.

To convert the A/D reading to mV, do the following:

AD (mV) = (A/D reading (converted to decimal) * 3081) / 1023

The reading in the sample frame represents voltage inputs of 2939.4 mV (0x3D0) and 879.43

mV (0x124) for AD0 and AD1 respectively.

Queried Sampling

The IS command can be sent to a device locally, or to a remote device using the API remote

command frame (see chapter 8 for details). When the IS command is sent, the receiving device

samples all enabled digital IO and analog input channels and returns an IO sample. If IS is sent

locally, the IO sample is sent out the UART or SPI port. If the IS command was received as a

remote command, the IO sample is sent over-the-air to the device that sent the IS command.

If the IS command is issued in command mode, the module returns a carriage return-delimited

list containing the above-listed fields. If the IS command is issued in API mode, the module

returns an API command response packet with the IO data included in the command data

portion of the response frame.

The following table shows an example of the fields in an IS response.

Example

Sample AT Response

0x01

[1 sample set]

0x0C0C

[Digital Inputs: DIO 2, 3, 10, 11 selected]

0x03

[Analog Inputs; A/D 0,1]

0x0408

[Digital input states: DIO 3,10 high, DIO 2,11 low]

0x03D0

[Analog input ADIO 0=0x3D0]

0x0124

[Analog input ADIO 1=0x120]

0x0CC9

Voltage source is 0xCC9mV = 3.273 volts

Periodic IO Sampling

Periodic sampling allows the XBee module to take an IO sample and transmit it to a

remote device at a periodic rate. The periodic sample rate is set by the IR command. If

IR is set to 0, periodic sampling is disabled. For all other values of IR, data will be

sampled after IR milliseconds have elapsed and transmitted to a remote device. The DL

command determines the destination address of the IO samples. DL can be set to

transmit to a network client or another XBee Wi-Fi module. Only modules with API

XBee® Wi-Fi RF Modules

mode enabled for the UART can send IO data samples out their UART. Network clients

will receive the IO data packet as described in the XBee IP Services chapter.

A module will transmit periodic IO samples at the IR rate until the ST timer expires and

the device can resume sleeping.

Change Detection Sampling

Modules can be configured to transmit a data sample immediately whenever a

monitored digital IO pin changes state. The IC command is a bitmask that can be used to

set which digital IO lines should be monitored for a state change. If one or more bits in

IC is set, an IO sample will be transmitted as soon as a state change is observed in one of

the monitored digital IO lines. Change detection samples are transmitted to the IPv4

address specified by DL.

I/O Examples

Example 1: Configure the following IO settings on the XBee

Configure AD1/DIO1 as a digital input with pull-up resistor enabled

Configure AD2/DIO2 as an analog input

Configure DIO4 as a digital output, driving high.

To configure AD1/DIO1 as an input, issue the ATD1 command with a parameter of 3

("ATD13"). To enable pull-up resistors on the same pin, the PR command should be

issued with bit 3 set (e.g. ATPR8, ATPR1FFF, etc.). The ATD2 command should be issued

with a parameter of 2 to enable the analog input ("ATD22"). Finally, DIO4 can be set as

an output, driving high by issuing the ATD4 command with a parameter value of 5

("ATD45").

After issuing these commands, changes must be applied before the module IO pins will

be updated to the new states. The AC or CN commands can be issued to apply changes

(e.g. ATAC).

XBee® Wi-Fi RF Modules

7. API Operation

As an alternative to Transparent Operation, API (Application Programming Interface) Operations are

available. API operation requires that communication with the module be done through a structured

interface (data is communicated in frames in a defined order). The API specifies how commands,

command responses and module status messages are sent and received from the module using a

UART or SPI Data Frame.

Please note that Digi may add new API frames to future versions of firmware, so please build into

your software interface the ability to filter out additional API frames with unknown Frame Types.

API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable) command.

Use the following AP parameter values to configure the module to operate in a particular mode:

 AP = 1: API Operation

 AP = 2: API Operation (with escaped characters)

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), the UART or SPI data frame structure is defined as

follows:

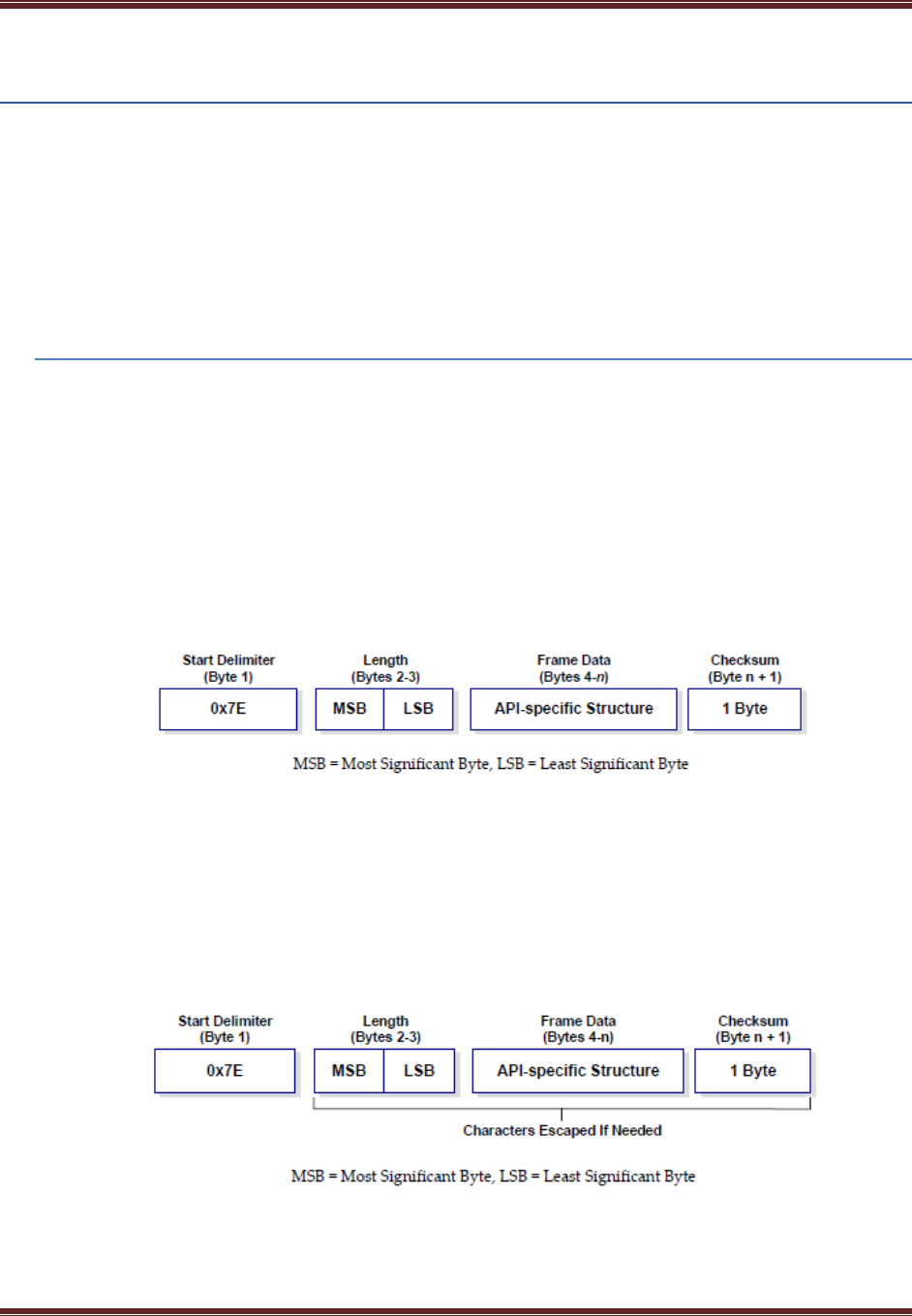

UART or SPI Data Frame Structure:

Any data received prior to the start delimiter is silently discarded. If the frame is not received

correctly or if the checksum fails, the module will reply with a module status frame indicating

the nature of the failure.

API Operation-with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), SPI mode is not supported and the UART frame

structure is defined as follows:

UART Data Frame Structure ‐ with escape control characters:

Escape characters

XBee® Wi-Fi RF Modules

When sending or receiving a UART or SPI data frame, specific data values must be escaped

(flagged) so they do not interfere with the data frame sequencing. To escape an interfering data

byte, insert 0x7D and follow it with the byte to be escaped XOR’d with 0x20.

Data bytes that need to be escaped:

•0x7E – Frame Delimiter

•0x7D – Escape

•0x11 – XON

•0x13 – XOFF

Example - Raw UART Data Frame (before escaping interfering bytes):

0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame:

0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Note: In the above example, the length of the raw data (excluding the checksum) is 0x0002 and

the checksum of the non-escaped data (excluding frame delimiter and length) is calculated as:

0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Length

The length field has a two-byte value that specifies the number of bytes that will be contained in

the frame data field. It does not include the checksum field.

Framed Data

Frame data of the UART or SPI data frame forms an API-specific structure as follows:

UART or SPI Data Frame & API‐specific Structure:

The cmdID frame (API-identifier) indicates which API messages will be contained in the cmdData

frame (Identifier-specific data). Note that multi-byte values are sent big endian. The XBee

modules support the following API frames:

XBee® Wi-Fi RF Modules

API Frame Names and Values

API Frame Names

API ID

Tx64 Request

0x00

AT Command

0x08

AT Command - Queue Parameter Value

0x09

Remote Command Request

0x07

TX IPv4

0x20

Rx64 Indicator

0x80

AT Command Response

0x88

TX Status

0x89

Modem Status

0x8A

IO Data Sample Rx Indicator

0x82

Remote Command Response

0x87

RX IPv4

0xB0

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data.

To calculate: Not including frame delimiters and length, add all bytes keeping only the lowest 8

bits of the result and subtract the result from 0xFF.

To verify: Add all bytes (include checksum, but not the delimiter and length). If the checksum is

correct, the sum will equal 0xFF.

API Examples

Example: Create an API AT command frame to configure an XBee baud rate to 230,400 (set BD

to 0x08). The frame should look like (in hex):

7E 00 05 08 01 42 44 08 68

Where:

0x0005 = length excluding checksum

0x08 = AT Command API frame type

0x01 = Frame ID (set to non-zero value for transmit status)

0x4244 = AT Command ('BD')

0x08 = value to set command to

0x68 = Checksum

The checksum is calculated as [0xFF - (0x08 + 0x01 + 0x42 + 0x44 + 0x08)]

Example: Send a remote command to a module who’s IP address is 192.168.0.103 (C0 A8 00 67)

to set AD1/DIO1 as a digital input (D1=3) and apply changes to force the IO update. The API

remote command frame should look like (in hex):

XBee® Wi-Fi RF Modules

7E 00 0E 07 01 00 00 00 00 C0 A8 01 64 02 44 31 03 B0

Where:

0x000E = length (14 bytes excluding checksum)

0x07 = Remote Command API frame type

0x01 = Frame ID

0x00000000 C0A80067 = Remote address (Pad first 4 bytes with 00)

0x02 = Apply Changes (Remote Command Options)

0x4431 = AT command ('D1')

0xB0 = Checksum

API UART and SPI Exchanges

AT Commands

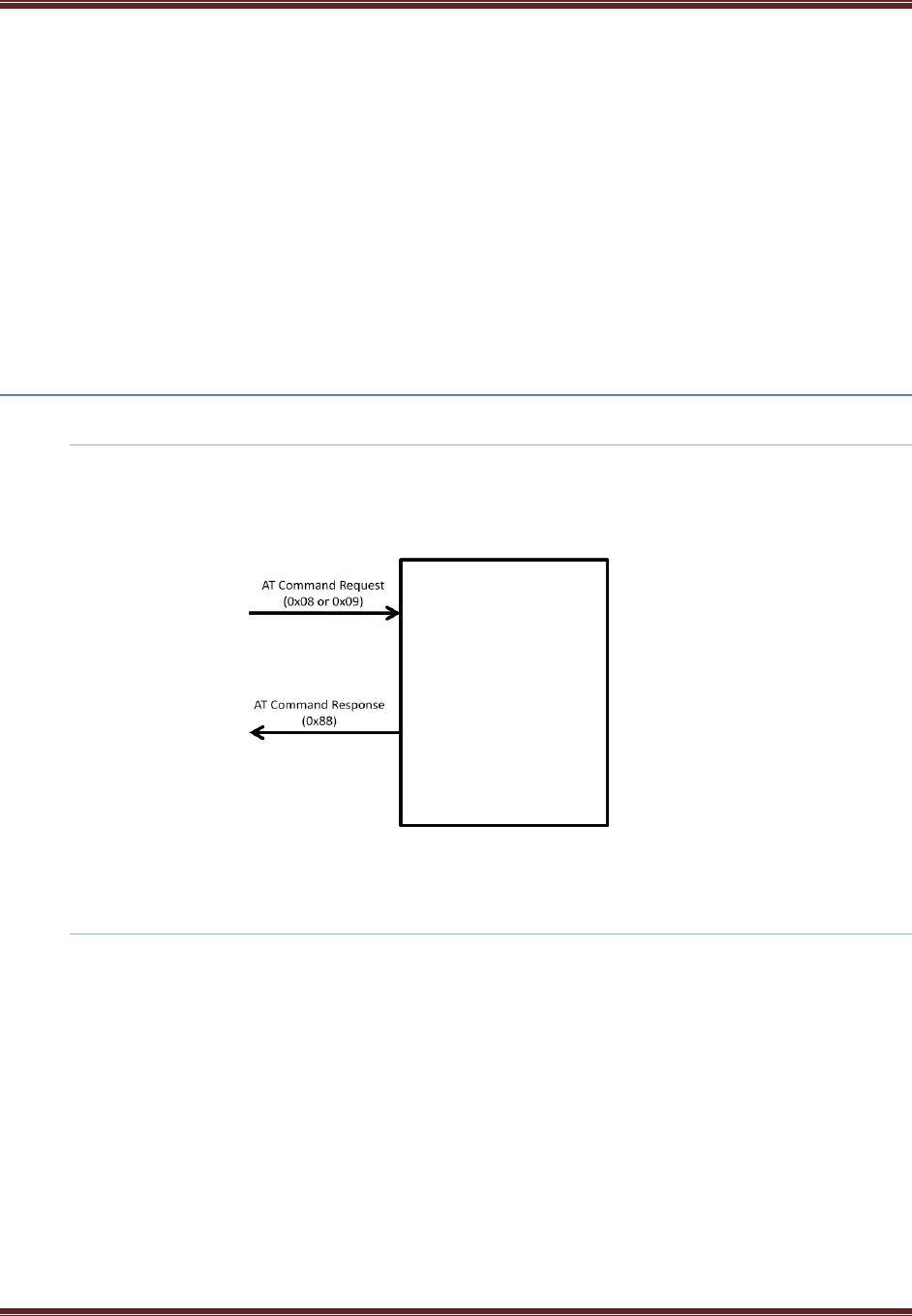

The following image shows the API frame exchange that takes place at the UART or SPI

when sending an AT command request to read or set a module parameter. The

response can be disabled by setting the frame ID to 0 in the request.

Transmitting and Receiving RF Data

The following image shows the API exchanges that take place at the UART or SPI when

sending RF data to another device. The transmit status frame is always sent at the end

of a data transmission unless the frame ID is set to 0 in the transmit request. If the

packet cannot be delivered to the destination, the transmit status frame will indicate

the cause of failure. The received data frame (0x80 or 0xB0) is set by the AP command.

XBee® Wi-Fi RF Modules

Remote AT commands

The following image shows the API frame exchanges that take place at the UART or SPI

when sending a remote AT command. A remote command response frame is not sent

out the UART or SPI if the remote device does not receive the remote command.

Supporting the API

Applications that support the API should make provisions to deal with new API frames

that may be introduced in future releases. For example, a section of code on a host

microprocessor that handles received serial API frames (sent out the module's DOUT

pin) might look like this:

void XBee_HandleRxAPIFrame(_apiFrameUnion *papiFrame){

switch(papiFrame->api_id){

case RX_RF_DATA_FRAME:

//process received RF data frame break;

case RX_IO_SAMPLE_FRAME:

XBee® Wi-Fi RF Modules

//process IO sample frame break;

default:

//Discard any other API frame types that are not being used break;

}

API Frames

The following sections illustrate the types of frames encountered while using the API.

TX (Transmit) request: 64-Bit

Frame Type: 0x0

This frame type uses the XBee Application Service. This command allows for software

compatibility with other XBee module such as the 802.15.4 module.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the

checksum

LSB 2

0x0D

API Frame

Specific Data

API Frame

Identifier

3

0x00

Frame ID

4

0x01

64-Bit

Destination

Address

5

0x00

Align IP address to low 32-bits of the field. The

other bytes set to 0. IP address is in hex. The

address in this example is 192.168.0.100

0x00

0xC0

0xA8

0x00

0x64

TX Options

13

0x00

0x01 – Disable ACK

All other bits must be set to 0.

Data

14

0x1516

Max is 1398 bytes. Data will be sent to the XBee

application service port.

Checksum

0xD9

0xFF minus the 8 bit sum of bytes from offset 3 to

this byte.

AT Command

Frame Type: 0x08

XBee® Wi-Fi RF Modules

Used to query or set module parameters on the local device. This API command applies

changes after executing the command. (Changes made to module parameters take

effect once changes are applied.) The API example below illustrates an API frame when

modifying the NI parameter value of the module.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the

checksum

LSB 2

0x05

API Frame

Specific

Data

API Frame Identifier

3

0x08

Frame ID

4

0x01

AT Command

MSB 5

0x4E(N)

Command Name - Two ASCII characters that identify

the AT command

LSB 6

0x49(I)

Parameter Value

-

If present, indicates the requested parameter value

to set the given register. If no characters present,

register is queried.

Checksum

7

0x5E

0xFF minus the 8 bit sum of bytes from offset 3 to

this byte.

AT Command-Queue Parameter Value

Frame Type: 0x09

This API type allows module parameters to be queried or set. In contrast to the “AT Command”

API type, new parameter values are queued and not applied until either the “AT Command”

(0x08) API type or the AC (Apply Changes) command is issued. Register queries (reading

parameter values) are returned immediately.

Example: Send a command to change the baud rate (BD) to 115200 baud, but don't apply

changes yet. (Module will continue to operate at the previous baud rate until changes are

applied.)

XBee® Wi-Fi RF Modules

Frame Fields

Offset

Example

Description

API Packet

Start Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x05

API Frame

Specific Data

API Frame

Identifier

3

0x09

Frame ID

4

0x01

AT Command

MSB 5

0x42 (B)

Command Name - Two ASCII characters that identify the

AT command

LSB 6

0x44 (D)

Parameter Value

7

0x07

If present, indicates the requested parameter value to set

the given register. If no characters present, register is

queried.

Checksum

8

0x68

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: In this example, the parameter could have been sent as a zero-padded 2-byte or 4-byte

value.

Remote AT Command Request

Frame Type: 0x07

Used to query or set module parameters on a remote device. For parameter changes on the remote

device to take effect, changes must be applied, either by setting the apply changes options bit, or by

sending an AC command to the remote.

XBee® Wi-Fi RF Modules

Example: Send a remote command to query the DL register on a remote device. In this example,

the IP address of the remote is 192.168.0.100.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x0D

API Frame

Specific Data

API Frame

Identifier

3

0x07

Frame ID

4

0x01

64-Bit

Destination

Address

5

0x00

Align IP address to low 32-bits of the field. The other bytes

set to 0. IP address is in hex. The address in this example is

192.168.0.100

6

0x00

7

0x00

8

0x00

9

0xC0

10

0xA8

11

0x00

12

0x64

Command

Options

13

0x02

0x02 – Apply changes on the remote. If not set then the AC

command must be sent or the last remote command sent

must set this option.

AT

Command

MSB 14

0x44(D)

Command Name - Two ASCII characters that identify the

AT command

LSB 15

0x4C(L)

Parameter

Value

-

If present, indicates the requested parameter value to set

the given register. If no characters present, register is

queried.

Checksum

16

0x99

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

Transmit (TX) request: IPv4

Frame Type: 0x20

This frame type utilizes the serial data service. The frame gives greater control to the application

over the IP setting for the data.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x11

API Frame

Specific Data

API Frame

Identifier

3

0x20

Frame ID

4

0x01

Set to a value that will be passed back in the Tx Status frame.

0 disables the Tx Status frame.

IPv4 32 bit

Destination

Address

MSB 5

0xC0

Use 0xFFFFFFFF for broadcast when protocol is UDP. The

address in the example is for a destination of 192.168.0.100

6

0xA8

7

0x00

8

0x64

16 Bit

Destination

Port

MSB 9

0x26

UDP or TCP port number

LSB 10

0x16

16 bit Source

Port

MSB 11

0x26

UDP or TCP port number

LSB 12

0x16

Protocol

13

0x00

0 = UDP, 1= TCP - Protocol use for the transmitted data

Transmit

Options

Bitfield

14

0x00

Bit field: BIT 1 =

1 - Terminate socket after tx complete

0 - Leave socket open (use TCP timeout).

Ignore bit for UDP packets. All other bits are reserved and

should be 0.

RF Data

15

0x48(‘H’)

Up to 1400 bytes of data

16

0x65(‘e’)

17

0x6C(‘l’)

18

0x6C('l’)

19

0x6F('o')

Checksum

20

0xA6

0xFF minus the 8 bit sum of bytes from offset 3 to this byte.

XBee® Wi-Fi RF Modules

AT Command Response

Frame Type: 0x88

In response to an AT Command message, the module will send an AT Command Response

message. Some commands will send back multiple frames (for example, the AS (Active Scan)

command).

Example: Suppose the BD parameter is changed on the local device with a frame ID of 0x01. If

successful (parameter was valid), the response below would be received.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x05

API Frame

Specific Data

API Frame

Identifier

3

0x88

Frame ID

4

0x01

AT

Command

MSB 5

0x42 (B)

Command Name - Two ASCII characters that identify the

AT command

LSB 6

0x44 (D)

Status

0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

Parameter

Value

7

Register data in binary format. If the register was set, then

this field is not returned, as in this example.

Checksum

8

0xF0

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

Modem Status

Frame Type: (0x8A)

RF module status messages are sent from the module in response to specific conditions.

Example: The following API frame is returned when a module is powered on in API mode.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x02

API Frame

Specific Data

API Frame

Identifier

3

0x8A

Status

4

0x00

0 = Hardware reset or power up

1 = Watchdog timer reset

2 = Joined

3 = No longer joined to access point

4 = IP configuration error

Checksum

5

0x75

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: New modem status codes may be added in future firmware releases.

XBee® Wi-Fi RF Modules

Transmission Status

Frame Type: (0x89)

RF transmission status messages are sent from the module in response to transmission attempts.

Example: The following API frame is returned when a successful transmission occurs on an API

transmission using frame ID 01.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x03

API Frame

Specific Data

API Frame

Identifier

3

0x89

Frame ID

4

0x01

Identifies the frame for which status is being reported.

This number corresponds with the Frame ID provided in

the transmission. If that frame ID was 0, then this frame

will not be generated.

Status

5

0x00

0x00 = Success

0x03 = Transmission was purged because it was

attempted before stack was completely up.

0x04 = Physical error occurred on the interface with the

WiFi transceiver.

0x21 = TX64 transmission timed out awaiting an

acknowledgement from the remote device.

0x32 = Resource Error; Either buffers or sockets were

depleted, preventing a transmission from occurring.

0x74 = Message not sent because it was too long

0x76 = Attempt to create a client socket failed

Checksum

6

0x75

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: New transmission status codes may be added in future firmware releases.

XBee® Wi-Fi RF Modules

IO Data Sample RX Indicator

Frame Type: 0x82

When the module receives an IO sample frame from a remote device, it sends the sample out

the UART or SPI using this frame type. Only modules running API mode will be able to receive IO

samples.

Example: The following is the IO sample response from a radio at IP address 192.168.0.103

reporting one active DIO (DIO8) and one active analog input (AN1).

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the

checksum

LSB 2

0x15

API Frame

Specific Data

API Frame

Identifier

3

0x82

64-Bit

Source

Address

4

0x00

Align IP address to low 32-bits of the field. The other

bytes set to 0. IP address is in hex. The example uses

address 192.168.0.103

5

0x00

6

0x00

7

0x00

8

0xC0

9

0xA8

10

0x00

11

0x67

RSSI at

time of

join

12

0x2E

Receive

Options

13

0x00

0x01 - Packet Acknowledged

Number of

samples

14

0x01

Number of sample sets included in the payload.

(Always set to 1)

Digital

Channel

Mask*

MSB

15

0x01

Bitmask field that indicates which digital IO lines on

the remote have sampling enabled (if any). In this

example DIO8 is active.

LSB 16

0x00

Analog

Channel

Mask**

17

0x81

Bitmask field that indicates which analog IO lines on

the remote have sampling enabled (if any). The most

significant bit signals that the Vcc value is included in

the frame. In this example Analog input 1 and Vcc are

active.

Digital

Samples (if

included)

MSB

18

0x00

If the sample set includes any digital IO lines (Digital

Channel Mask > 0), these two bytes contain samples

for all enabled digital IO lines. DIO lines that do not

have sampling enabled return 0. The bits in these 2

bytes map the same as they do in the Digital Channels

Mask field. In this example, DIO8 has value 0.

LSB 19

0x00

Analog

Sample

MSB

20

0x03

If the sample set includes any analog input lines

(Analog Channel Mask > 0), each enabled analog input

returns a 2-byte value indicating the A/D

measurement of that input. Analog samples are

ordered sequentially from AD0/DIO0 to AD4/DIO4, to

the supply voltage.

LSB 21

0xB5

XBee® Wi-Fi RF Modules

Vcc

MSB

22

0x0C

Vcc in mV (hex). In this example Vcc is 3231 mV.

LSB 23

0x9F

Checksum

24

0x9A

0xFF - the 8 bit sum of bytes from offset 3 to this byte.

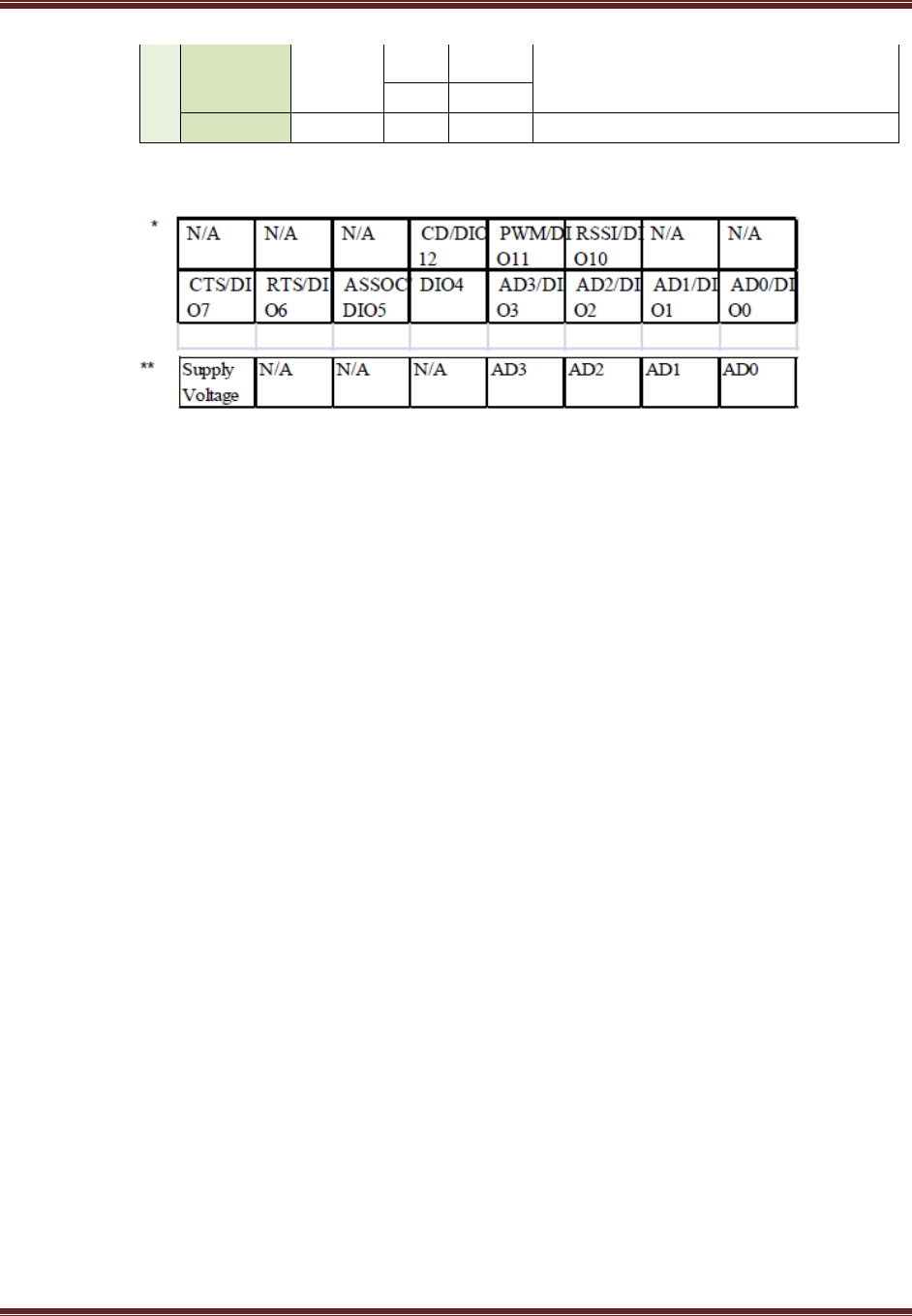

XBee® Wi-Fi RF Modules

Remote Command Response

Frame Type: 0x87

If a module receives a remote command response RF data frame in response to a Remote AT

Command Request, the module will send a Remote AT Command Response message out the

UART or SPI.

Example: If a remote command is sent to a remote device with an IP address of 192.168.0.103

to set the D1 parameter to 3 (digital input), the response is shown in the example API frame in

the table below.

Frame Fields

Offset

Example

Description

API Packet

Start

Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the checksum

LSB 2

0x0D

API Frame

Specific Data

API Frame

Identifier

3

0x87

Frame ID

4

0x01

64-Bit

Responder

Address

5

0x00

Align IP address to low 32-bits of the field. The other bytes

set to 0. Value is in hex. In this example the IP address is

192.168.0.103

6

0x00

7

0x00

8

0x00

9

0xC0

10

0xA8

11

0x00

12

0x67

AT

Command

MSB

13

0x44 (D)

Command Name - Two ASCII characters that identify the

AT command

LSB 14

0x31 (1)

Status

15

0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

4 = Tx Failure

Parameter

Value

-

If present, indicates the requested parameter value to set

the given register. If no characters present, register is

queried.

Checksum

16

0x33

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

RX (Receive) Packet: IPv4

Frame Type: 0xB0

This frame is used by XBee when RF data is received using the Serial Data service on the

port defined by the C0 command.

Example: When a module in API mode receives an IPv4 transmission, it will produce an

RX notification (0xB0) and send it out the UART or SPI. This example is the response to a

UDP transmission to IP address 192.168.0.103 with data ‘Hello’ from the source address

192.168.0.104.

Frame Fields

Offset

Example

Description

API Packet

Start Delimiter

0

0x7E

Length

MSB 1

0x00

Number of bytes between the length and the

checksum

LSB 2

0x10

API Frame

Specific Data

API Frame

Identifier

3

0xB0

IPv4 32 bit

Source

Address

MSB 4

0xC0

The address in the example is for a source

address of 192.168.0.104

5

0xA8

6

0x00

7

0x68

16 Bit

Destination

Port

MSB 8

0x26

Same value as the C0 command.

LSB 9

0x16

16 bit

Source Port

MSB

10

0x26

LSB 11

0x16

Protocol

MSB

12

0x00

0 = UDP, 1= TCP - Protocol use for the

transmitted data

Status

13

0x00

Reserved

RF Data

14

0x48 'H'

Up to 1400 bytes of data

15

0x65 'e'

16

0x6C 'l'

17

0x6C 'l'

18

0x6F 'o'

Checksum

19

0x13

0xFF minus the 8 bit sum of bytes from offset

3 to this byte.

XBee® Wi-Fi RF Modules

8. XBee Command Reference Tables

Addressing

AT Command

Name and Description

Parameter Range

Default

DL

Destination Address Low. Set/Get the 32 bits of the IPv4 destination

address. Using AT command mode this value is entered using dotted

notation (example 192.168.0.100).

0.0.0.0 – 255.255.255.255

255.255.255.255

MY

IP Network Address. Read the 32-bit network address of the module when

using DHCP. Set/Read values when using static IP address.

0.0.0.0 – 255.255.255.255

0.0.0.0

MK

IP Address Mask. This command is read only when DHCP is enabled.

0.0.0.0 – 255.255.255.255

0.0.0.0

GW

Gateway IP address. This command is read only when DHCP is enabled.

0.0.0.0 – 255.255.255.255

0.0.0.0

SH

Serial Number High. Read the high 16 bits of the module's unique 48-bit

address.

0 - 0xFFFFFFFF [read-only]

factory-set

SL

Serial Number Low. Read the low 32 bits of the module's unique 48-bit

address.

0 - 0xFFFFFFFF [read-only]

factory-set

NI

Node Identifier. Stores a string identifier. The register only accepts printable

ASCII data. In AT Command Mode, a string cannot start with a space. A

carriage return ends the command. Command will automatically end when

maximum bytes for the string have been entered.

20-Byte printable ASCII

string

ASCII space

character (0x20)

DE

Destination Port. Set/Get destination UDP/TCP port value.

0 - 0xFFFF

0x2616

C0

Serial Communication Service Port. Set/Get port number used to provide the

serial communication service. Data sent to this port will come out of the

serial port of the module. The protocol used is set by the IP command when

UART is in transparent mode.

0 – 0xFFFF

0x2616

DD

Device Type Identifier. Stores a device type value. This value can be used to

differentiate different XBee-based devices. Digi reserves the range 0 -

0xFFFFFF.

0-0xFFFFFFFF

0x50000

NP

Maximum RF Payload Bytes. This value returns the maximum number of RF

payload bytes that can be sent in a transmission Note: NP returns a

hexadecimal value. (e.g. if NP returns 0x54, this is equivalent to 84 bytes)

0 - 0xFFFF

[read-only]

XBee® Wi-Fi RF Modules

Networking Commands

AT

Command

Name and Description

Parameter Range

Default

ID

SSID. Set/read the SSID of the access point, which may be up to 31 ASCII characters

Up to 31 bytes of

printable ASCII

NULL

AH

Network Type. Set/read network type. Network types supported are Infrastructure

(using an access point) and Adhoc (IBSS).

0-IBSS Joiner

1-IBSS Creator

2 - Infrastructure

2

IP

IP Protocol. Set/Read the protocol used for the serial communication service. This is

the port used by the C0 command.

0 – UDP

1 - TCP

0

MA

IP Addressing Mode. Set / read the IP addressing mode.

0 – DHCP

1 – Static

0

TM

TCP timeout. Set/Read the timeout for connection on TCP socket. If 0, socket closes

immediately after data sent.

0-0xFF [x 100 msec]

0x0A

Security Commands

AT

Command

Name and Description

Parameter Range

Default

EE

Encryption Enable. Set/Read the encryption enable setting.

0 – No security

1 – WPA

2 – WPA2

0

PK

Security Key. Set the security key used for WPA and WPA2 security. This command is

write only; PK cannot be read.

0 -31-ASCII

characters

RF Interfacing Commands

AT

Command

Name and Description

Parameter Range

Default

PL

Power Level. Select/Read the power level at which the RF module transmits

conducted power.

0– 7 dBm

1-7 dBm

2- 7 dBm

3- 10 dBm

4- 15 dBm

4

CH

Channel. Read the channel number of the access point or 0xFF if not associated.

Channel can be set when AH is configured for Adhoc creator mode. Note when using

Adhoc mode note all channels are available in all countries. It is the responsibility of

the installer to use the appropriate channels.

1-0xE

[read only]

BR

Bit Rate of IBSS Creator. Data rates MCS0-7 are 802.11n data rates from 6.5 Mbps to

65Mbps. If not IBSS creator, 0 (auto-rate) is the only valid rate.

0- Auto-rate

1- 1 Mbps

2 – 2 Mbps

3 – 5.5 Mbps

4 – 11 Mbps

5 – 6 Mbps

6 – 9 Mbps

7 – 12 Mbps

8 – 18 Mbps

9 – 24 Mbps

0x0A – 36 Mbps

0x0B – 48 Mbps

0x0C – 54 Mbps

0x0D – MCS0

0x0E – MCS1

0x0F – MCS2

0x10 – MCS3

0x11 – MCS4

0x12 – MCS5

0x13 – MCS6

0x14 – MCS7

0

XBee® Wi-Fi RF Modules

Serial Interfacing

AT Command

Name and Description

Parameter Range

Default

AP

API Enable. Enable API Mode.

0 = Transparent

mode

1 = API-enabled

2 = API-enabled

(w/escaped control

characters)

1

BD

Interface Data Rate. Set/Read the serial interface data rate for communication

between the module serial port and host. Any value above 0x08 will be interpreted as

an actual baud rate. When a value above 0x08 is sent, the closest interface data rate

represented by the number is stored in the BD register.

0 - 7

(standard baud

rates)

0 = 1200 bps

1 = 2400

2 = 4800

3 = 9600

4 = 19200

5 = 38400

6 = 57600

7 = 115200

8= 230400

0x100 - 0xE1000

(non-standard rates

up to 921kbps)

3

NB

Serial Parity. Set/Read the serial parity setting on the module.

0 = No parity

1 = Even parity

2 = Odd parity

0

SB

Stop Bits. Set/read the number of stop bits for the UART. (Two stop bits are not

supported if mark parity is enabled.)

0 = 1 stop bit

1 = 2 stop bits

0

RO

Packetization Timeout. Set/Read number of character times of inter-character

silence required before packetization. Set (RO=0) to transmit characters as they

arrive instead of buffering them into one RF packet . Regardless of how small RO is,

the inter-character silence required to trigger a transmission of the data is 100 usec.

0 - 0xFF

[x character times]

3

FT

Flow Control Threshold. De-assert CTS when FT bytes are in the UART receive buffer

0x11 – 0x823

0x7F3

D7

DIO7 Configuration. Select/Read options for the DIO7 line of the RF module.

0 = Disabled

1 = CTS Flow

Control

3 = Digital input

4 = Digital output,

low

5 = Digital output,

high

6 = RS-485 transmit

enable (low enable)

7 = RS-485 transmit

enable (high enable)

1

D6

DIO6 Configuration. Configure options for the DIO6 line of the RF module.

0 = Disabled

1 = RTS flow control

3 = Digital input

4 = Digital output,

low

5 = Digital output,

high

0

XBee® Wi-Fi RF Modules

I/O Settings

AT

Command

Name and Description

Parameter Range

Default

IR

IO Sample Rate. Set/Read the IO sample rate to enable periodic sampling. For

periodic sampling to be enabled, IR must be set to a non-zero value, and at least one

module pin must have analog or digital IO functionality enabled (see D0-D8, P0-P2

commands). The sample rate is measured in milliseconds.

0-0xFFFF (x 1 ms)

0 – no sampling

IC

IO Digital Change Detection. Set/Read the digital IO pins to monitor for changes in

the IO state. IC works with the individual pin configuration commands (D0-D9, P0-P2).

If a pin is enabled as a digital input/output, the IC command can be used to force an

immediate IO sample transmission when the DIO state changes. IC is a bitmask that

can be used to enable or disable edge detection on individual channels. Unused bits

should be set to 0.

0 - 0xFFFF

0

IF

Sample from Sleep Rate. The number of sleep cycles that must elapse between

periodic I/O samples. This allows I/O samples to be taken only during some wake

cycles. During those cycles I/O samples are taken at the rate specified by IR. IR can be

0 which will cause only one sample to be taken.

1-0xFF

(1 gives you a

sample every sleep

cycle)

1

P0

DIO10 Configuration. Select/Read function for the DIO10 line of the RF module.

0 = Disabled,

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

P1

DIO11 Configuration. Select/Read function for the DIO11 line of the RF module.

0 = Disabled

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

P2

DIO12 Configuration. Select/Read function for the DIO12 line of the RF module.

0 = Disabled

1 = SPI_MISO

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

XBee® Wi-Fi RF Modules

AT

Command

Name and Description

Parameter Range

Default

D0

AD0/DIO0 Configuration. Select/Read function for AD0/DIO0.

0 = Disabled

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

D1

AD1/DIO1 Configuration. Select/Read function for AD1/DIO1

0 - Disabled

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

D2

AD2/DIO2 Configuration. Select/Read function for AD2/DIO2

0 = Disabled

1 = SPI_MOSI

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

D3

AD3/DIO3 Configuration. Select/Read function for AD3/DIO3.

0 = Disabled

1 = SPI_SSEL

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

D4

DIO4 Configuration. Select/Read function for DIO4.

0 = Disabled

1 = SPI_MOSI

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

0

D5

DIO5 Configuration. Select/Read function for DIO5.

0 = Disabled

1 = Associated LED

3 = Digital input

4 = Digital output,

default low

5 = Digital output,

default high

1

XBee® Wi-Fi RF Modules

AT

Command

Name and Description

Parameter Range

Default

D8

DIO8 Configuration. Select/Read function for DIO8.

0 = Disabled

1 = SleepRq

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

1

D9

DIO9 Configuration. Select/Read function for DIO9

0 = Disabled

1 = On/Sleep

indicator

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

6 = SPI_ATTN

1

LT

Assoc LED Blink Time. Set/Read the Associate LED blink time. If the Associate LED

functionality is enabled (D5 command), this value determines the on and off blink

times for the LED when the module has joined a network. If LT=0, the default blink

rate of 250ms will be used. For all other LT values, LT is measured in 10ms.

0, 0x14 - 0xFF (200 -

2550 ms)

0

PR

Pull-up Resistor. Set/read the bit field that configures the internal pull-up resistor

status for the I/O lines. "1" specifies the pull-up resistor is enabled. "0" specifies no

pullup.(30k pull-up resistors)

Bits:*

0 - DIO4 (Pin 11)

1 - AD3 / DIO3 (Pin 17)

2 - AD2 / DIO2 (Pin 18)

3 - AD1 / DIO1 (Pin 19)

4 - AD0 / DIO0 (Pin 20)

5 - RTS / DIO6 (Pin 16)

6 - DTR / Sleep Request / DIO8 (Pin 9)

7 - DIN / Config (Pin 3)

8 - Associate / DIO5 (Pin 15)

9 - On/Sleep / DIO9 (Pin 13)

10 - DIO12 (Pin 4)

11 - DIO10 (Pin 6)

12 - DIO11 (Pin 7)

13 - CTS / DIO7 (Pin 12)

0 - 0x7FFF

0 - 0x7F7F

XBee® Wi-Fi RF Modules

Diagnostics Interfacing

AT

Command

Name and Description

Parameter Range

Default

VR

Firmware Version. Read firmware version of the module.

The firmware version returns 4 hexadecimal values (2 bytes) "ABCD". Digits ABC are

the main release number and D is the revision number from the main release. "B" is a

variant designator where 0 means standard release.

0 - 0xFFFF [read-

only]

Factory-set

HV

Hardware Version. Read the hardware version of the module.

This command can be used to distinguish among different hardware platforms. The

upper byte returns a value that is unique to each module type. The lower byte

indicates the hardware revision.

XBee WiFi modules return 0x1Fxx for the HV command.

0 - 0xFFFF [read-

only]

Factory-set

AI

Association Indication. Read information regarding last node join request:

0x00 - Successfully joined an access point, established IP addresses and IP listening

sockets.

0x01 – WiFi initialization in progress. This status should only be seen for a few

milliseconds.

0x22 – Selected SSID not found

0x23 – SSID not configured. (An active scan can occur in this state.

0x27 – SSID was found, but join failed

0xff – Module is currently scanning for the configured SSID

0x41 – Module joined a network and is waiting for IP configuration to complete,

which usually means it is waiting for a DHCP provided address

0x42 – Module is joined, IP is configured, and listening sockets are being set up

Note: New non-zero AI values may be added in later firmware versions. Applications

should read AI until it returns 0x00, indicating a successful startup (coordinator) or

join (routers and end devices)

0 - -

only]

-

AS

Active Scan. Scan for access points in the vicinity. This command can only be issued

when SSID is NULL, which can be forced by first issuing the NR command. If SSID is

not NULL, then the active scan command returns an error.

This command may be issued in command mode or in API mode. In either case, the

following information is returned for each access point found:

01 – Indicates scan type of 802.11

FF – Place holder for future use

ST – Security type where: 00=open, 01=WPA, 02=WPA2, and 03=WPA

RS – RSSI of access point (negated hex value

ID = SSID of access point found.

When this command is issued in command mode, the above record is displayed, one

per line for each access point found. Readable ASCII characters are output with

commas between fields and carriage returns between records.

When it is issued in API mode, each record (i.e. each access point) outputs a separate

AT command response of type 0x88 with the above fields in binary format.

Note that this command is not available as a remote command.

-

TP

Temperature. Read temperature of module in degrees Celsius.

-40 to 85C

-

CK

Configuration Code. Read the configuration code associated with the current AT

command configuration

2 bytes

-

%V

Supply Voltage. Read supply voltage in millivolt units.

3.1 to 3.6V

-

XBee® Wi-Fi RF Modules

AT Command Options

AT

Command

Name and Description

Parameter Range

Default

CT

Command Mode Timeout. Set/Read the period of inactivity (no valid commands

received) after which the RF module automatically exits AT Command Mode and

returns to Idle Mode. This time can be up to ten minutes.

2 - 0x1770 [x 100

ms]

0x64 (100d)

CN

Exit Command Mode. Explicitly exit the module from AT Command Mode. (Whether

command mode is left by the CN command or by CT timing out, changes will be

applied upon exit.

-

GT

Guard Times. Set required period of silence before and after the Command Sequence

Characters of the AT Command Mode Sequence (GT + CC + GT). The period of silence

is used to prevent inadvertent entrance into AT Command Mode.

2 -

(max of 3.3 decimal

sec)

0x3E8

(1000d)

CC

Command Mode Character Set/read the command mode character used between

guard times of the AT Command Mode Sequence (GT + CC + CC + CC + GT). This

sequence allows the module to enter into AT Command Mode.

0 - 0xFF

0x2B

(‘+’ ASCII)

Sleep Commands

AT

Command

Name and Description

Parameter Range

Default

SM

Sleep Mode Sets the sleep mode on the RF module. Sleep mode is also affected by

the SO command, option bit 6. See the “Sleep” chapter for a full explanation of the

various sleep modes.

0 = No sleep

1 = Pin sleep

4 = Cyclic sleep

5 = Cyclic sleep, pin

wake

0

SP

Sleep Period. This value determines how long the device will sleep at a time, up to 24

hours or 86,400 seconds. This corresponds to 0x83d600 in 10ms units.

1 - 0x83D600 x

10ms

0xC8 (2 seconds)

SO

Command

Sleep Options. Configure options for sleep. Unused option bits should be set to 0.

Sleep options include:

0x40 – Stay associated with AP during sleep. Draw more current during sleep with

this option enabled, but also awake from sleep more rapidly.

0x100 – For cyclic sleep, ST specifies the time before returning to sleep. With this bit

set, new receptions from either the serial or the RF port will NOT restart the ST timer.

Current implementation does not support this bit being turned off.

0 - 0xFF

0x100

WH

Wake Host. Set/Read the wake host timer value. If the wake host timer is set to a

non-zero value, this timer specifies a time (in millisecond units) that the device

should allow after waking from sleep before sending data out the UART or

transmitting an IO sample. If serial characters are received, the WH timer is stopped

immediately.

0 - 0xFFFF (x 1ms)

0

ST

Wake Time. Wake time for cyclic modes. New data will not refresh the timer.

However, if there is data to transmit or receive after ST expires, those actions will

occur before the module goes to sleep. Max wake time is 3600 seconds.

0x1 – 0x36EE80 (x 1

ms)

0x7D0

XBee® Wi-Fi RF Modules

Execution Commands

Where most AT commands set or query register values, execution commands cause an action to be executed on

the module. Execution commands are executed immediately and do not require changes to be applied.

AT

Command

Name and Description

Parameter

Range

Default

AC

Apply Changes. Applies changes to all command registers causing queued command

register values to be applied. For example, changing the serial interface rate with the

BD command will not change the UART interface rate until changes are applied with

the AC command. The CN command and 0x08 API command frame also apply

changes.

-

WR

Write. Write parameter values to non-volatile memory so that parameter

modifications persist through subsequent resets. Note: Once WR is issued, no

additional characters should be sent to the module until after the "OK\r" response is

received. The WR command should be used sparingly to preserve flash.

-

RE

Restore Defaults. Restore module parameters to factory defaults.

-

FR

Software Reset. Reset module. Responds immediately with an OK status, and then

performs a software reset about 2 seconds later.

-

NR

Network Reset. Reset network layer. For WiFi, this means to disassociate from the

access point and set SSID to NULL, thereby preventing the node from immediately

establishing the same connection with the same access point. This also allows the

active scan command to be executed so that access point candidates can be selected

from the resultant list.

Note that NR and NR0 both do the same thing and may be used interchangeably.

0

-

IS

Force Sample Forces a read of all enabled digital and analog input lines.

-

XBee® Wi-Fi RF Modules

9. Module Support

This chapter provides customization information for the XBee Wi-Fi module. In addition to providing

an extremely flexible and powerful API, the XBee module is a robust development platform that has

passed FCC and ETSI testing.

X-CTU Configuration Tool

Digi provides a Windows X-CTU configuration tool for configuring module parameters and updating

firmware. The XCTU has the capability to do the following:

 Update firmware on a local module (requires USB or serial connection)

 Read or write module configuration parameters on a local

 Save and load configuration profiles containing customized settings.

Contact Digi support for more information about the X-CTU.

Serial Firmware Updates

Serial firmware updates make use of the XBee custom bootloader which ships in all units. This

modified bootloader is based on Ember's standalone bootloader, but with a modified entry

mechanism. The modified entry mechanism uses module pins 4, 10, and 30 (DIN, DTR, and RTS

respectively).

The X-CTU program can update firmware serially on the XBee module. Contact Digi support for

details.

Regulatory Compliance

XBee modules are certified for FCC and IC operation on all 11 channels (1-11) allowable, and ESTI certified for

all 13 channels (1-13) allowable.

Agency Certifications

United States FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

XBee® Wi-Fi RF Modules

The XBee RF Module complies with Part 15 of the FCC rules and regulations. Compliance with the

labeling requirements, FCC notices and antenna usage guidelines is required.

To fulfill FCC Certification, the OEM must comply with the following regulations:

1. The system integrator must ensure that the text on back side of the module is placed on

the outside of the final product.

2. XBee RF Module may only be used with antennas that have been tested and approved for

use with this module [refer to the antenna tables in this section].

OEM Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling

requirements are met. This includes a clearly visible label on the outside of the final product

enclosure.

Required FCC Label for OEM products containing the XBee S6 RF Module

Contains FCC ID: MCQ-XBS6

The integrator is responsible for its product to comply with FCC Part 15, Sub. B - Unintentional

Radiators.

FCC Notices

IMPORTANT: The XBee Module have been certified by the FCC for use with other products without any

further certification (as per FCC section 2.1091). Modifications not expressly approved by Digi could void the

user's authority to operate the equipment.

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section 15.107 &

15.109) before declaring compliance of their final product to Part 15 of the FCC Rules.

IMPORTANT: The RF module has been certified for remote and base radio applications. If the module will be

used for portable applications, the device must undergo SAR testing.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures: Re-orient or relocate the receiving antenna, Increase the separation between the

XBee® Wi-Fi RF Modules

equipment and receiver, Connect equipment and receiver to outlets on different circuits, or Consult the dealer

or an experienced radio/TV technician for help.

FCC-Approved Antennas (2.4 GHz)

The XBee Wi-Fi Module can be installed utilizing antennas and cables constructed with non-standard

connectors (RPSMA, RPTNC, etc.).

The modules are FCC approved for fixed base station and mobile applications for the channels indicated in the

tables below. If the antenna is mounted at least 20cm (8 in.) from nearby persons, the application is

considered a mobile application. Antennas not listed in the table must be tested to comply with FCC Section

15.203 (Unique Antenna Connectors) and Section 15.247 (Emissions).

XBee Wi-Fi Module: XBee RF Modules have been tested and approved for use with all the antennas listed in

the tables below. (Cable-loss is required when using gain antennas as shown below.)

The antennas in the tables below have been approved for use with this module. Digi does not carry all of these

antenna variants. Contact Digi Sales for available antennas.

Antennas approved for use with the XBee Wi-Fi Module

Integrated Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number

Type (Description)

Gain

Application

Min

Separation

b mode

g mode

n mode

Integrated PCB antenna

0 dBi

Fixed/Mobile

20 cm

N/A

29000294

Integral PCB antenna

-0.5

dBi

Fixed/Mobile

20 cm

N/A

A24-QI

Monopole (Integrated Whip)

1.5

dBi

Fixed/Mobile

20 cm

N/A

Dipole Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number

Type (Description)

Gain

Application

Min

Separation

b mode

g mode

n mode

A24-HASM-450

Dipole (Half-wave articulated

RPSMA-4.5")

2.1

dBi

Fixed/Mobile

20 cm

N/A

A24-HABSM

Dipole (Articulated RPSMA)

2.1

dBi

Fixed

20 cm

N/A

A24-HABUF-P5I

Dipole (Half-wave bulkhead

mount U.FL s/ 5" pigtail)

2.1

dBi

Fixed

20 cm

N/A

A24-HASM-525

Dipole (Half-wave articulated

RPSMA-5.25")

2.1

dBi

Fixed/Mobile

20 cm

N/A

XBee® Wi-Fi RF Modules

Omi-Directional Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number

Type (Description)

Gain

Application

Min

Separation

b mode

g mode

n mode

A24-F2NF

Omin-Directional (Fiberglass

base station)

2.1

dBi

Fixed/Mobile

20 cm

N/A

A24-F3NF

Omin-Directional (Fiberglass

base station)

3.0

dBi

Fixed/Mobile

20 cm

N/A

A24-F5NF

Omin-Directional (Fiberglass

base station)

5.0

dBi

Fixed

20 cm

N/A

0.12dB

A24-F8NF

Omin-Directional (Fiberglass

base station)

8.0

dBi

Fixed

2 m

N/A

3.12dB

A24-F9NF

Omin-Directional (Fiberglass

base station)

9.5

dBi

Fixed

2 m

N/A

1.0dB

4.62dB

A24-F10NF

Omin-Directional (Fiberglass

base station)

10

dBi

Fixed

2 m

N/A

1.5dB

5.12dB

A24-F12NF

Omin-Directional (Fiberglass

base station)

12

dBi

Fixed

2 m

N/A

3.5dB

7.12dB

A24-F15NF

Omin-Directional (Fiberglass

base station)

15

dBi

Fixed

2 m

0.56dB

6.5dB

10.12dB

A24-W7NF

Omin-Directional ( base station)

7.2

dBi

Fixed

2 m

N/A

2.32dB

A24-M7NF

Omin-directional (Mag-mount

base station)

7.2

dBi

Fixed

2 m

N/A

2.32dB

PANEL CLASS ANTENNAS

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number

Type (Description)

Gain

Application

Min Separation

b

mode

g mode

n mode

A24-P8SF

Flat Panel

8.5 dBi

Fixed

2 m

N/A

5.96dB

10.04dB

A24-P8NF

Flat Panel

8.5 dBi

Fixed

3 m

N/A

5.96dB

10.04dB

A24-P13NF

Flat Panel

13 dBi

Fixed

4 m

N/A

10.46dB

14.54dB

A24-P14NF

Flat Panel

14 dBi

Fixed

5 m

N/A

11.46dB

15.54dB

A24-P15NF

Flat Panel

15.0 dBi

Fixed

2 m

0.12dB

12.46dB

16.54dB

A24-P16NF

Flat Panel

16.0 dBi

Fixed

2 m

1.12dB

13.46dB

17.54dB

A24-19NF

Flat Panel

19.0 dBi

Fixed

2 m

4.12dB

16.46dB

20.54dB

XBee® Wi-Fi RF Modules

YAGI CLASS ANTENNAS for Channel 11-25

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number

Type (Description)

Gain

Application

Min

Separation

b

mode

g mode

n mode

A24-Y6NF

Yagi (6 element)

8.8dBi

Fixed

2 m

N/A

5.58dB

7.52dB

A24-Y7NF

Yagi (7 element)

9.0 dBi

Fixed

2 m

N/A

5.78dB

7.72dB

A24-Y9NF

Yagi (9 element)

10.0 dBi

Fixed

2 m

N/A

6.78dB

8.72dB

A24-Y10NF

Yagi (10 element)

11.0 dBi

Fixed

2 m

N/A

7.78dB

9.72dB

A24-Y12NF

Yagi (12element)

12.0 dBi

Fixed

2 m

N/A

8.78dB

10.72dB

A24-Y13NF

Yagi (13 element)

12.0 dBi

Fixed

2 m

N/A

8.78dB

10.72dB

A24-Y15NF

Yagi (15 element)

12.5 dBi

Fixed

2 m

N/A

9.28dB

11.22dB

A24-Y16NF

Yagi (16 element)

13.5 dBi

Fixed

2 m

N/A

10.28dB

12.22dB

A24-Y16RM

Yagi (16 element, RPSMA connector)

13.5 dBi

Fixed

2 m

N/A

10.28dB

12.22dB

A24-Y18NF

Yagi (18 element)

15.0 dBi

Fixed

2 m

0.56dB

11.78dB

13.72dB

XBee® Wi-Fi RF Modules

* If using the RF module in a portable application (for example - if the module is used in a handheld device and

the antenna is less than 20cm from the human body when the device is in operation): The integrator is responsible

for passing additional SAR (Specific Absorption Rate) testing based on FCC rules 2.1091 and FCC Guidelines for

Human Exposure to Radio Frequency Electromagnetic Fields, OET Bulletin and Supplement C. The testing results

will be submitted to the FCC for approval prior to selling the integrated unit. The required SAR testing measures

emissions from the module and how they affect the person.

RF Exposure

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a

separation distance of 20 cm or more should be maintained between the antenna of this device

and persons during device operation. To ensure compliance, operations at closer than this

distance are not recommended. The antenna used for this transmitter must not be co-located

in conjunction with any other antenna or transmitter.

The preceding statement must be included as a CAUTION statement in OEM product manuals in order to alert

users of FCC RF Exposure compliance.

XBee® Wi-Fi RF Modules

Europe (ETSI)

The XBee RF Module has been certified for use in several European countries. For a complete list, refer to

www.digi.com

If the XBee RF Modules are incorporated into a product, the manufacturer must ensure compliance of the final

product to the European harmonized EMC and low-voltage/safety standards. A Declaration of Conformity

must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive.

Furthermore, the manufacturer must maintain a copy of the XBee user manual documentation and ensure the

final product does not exceed the specified power ratings, antenna specifications, and/or installation

requirements as specified in the user manual. If any of these specifications are exceeded in the final product, a

submission must be made to a notified body for compliance testing to all required standards.

OEM Labeling Requirements

The 'CE' marking must be affixed to a visible location on the OEM product.

CE Labeling Requirements

The CE mark shall consist of the initials "CE" taking the following form:

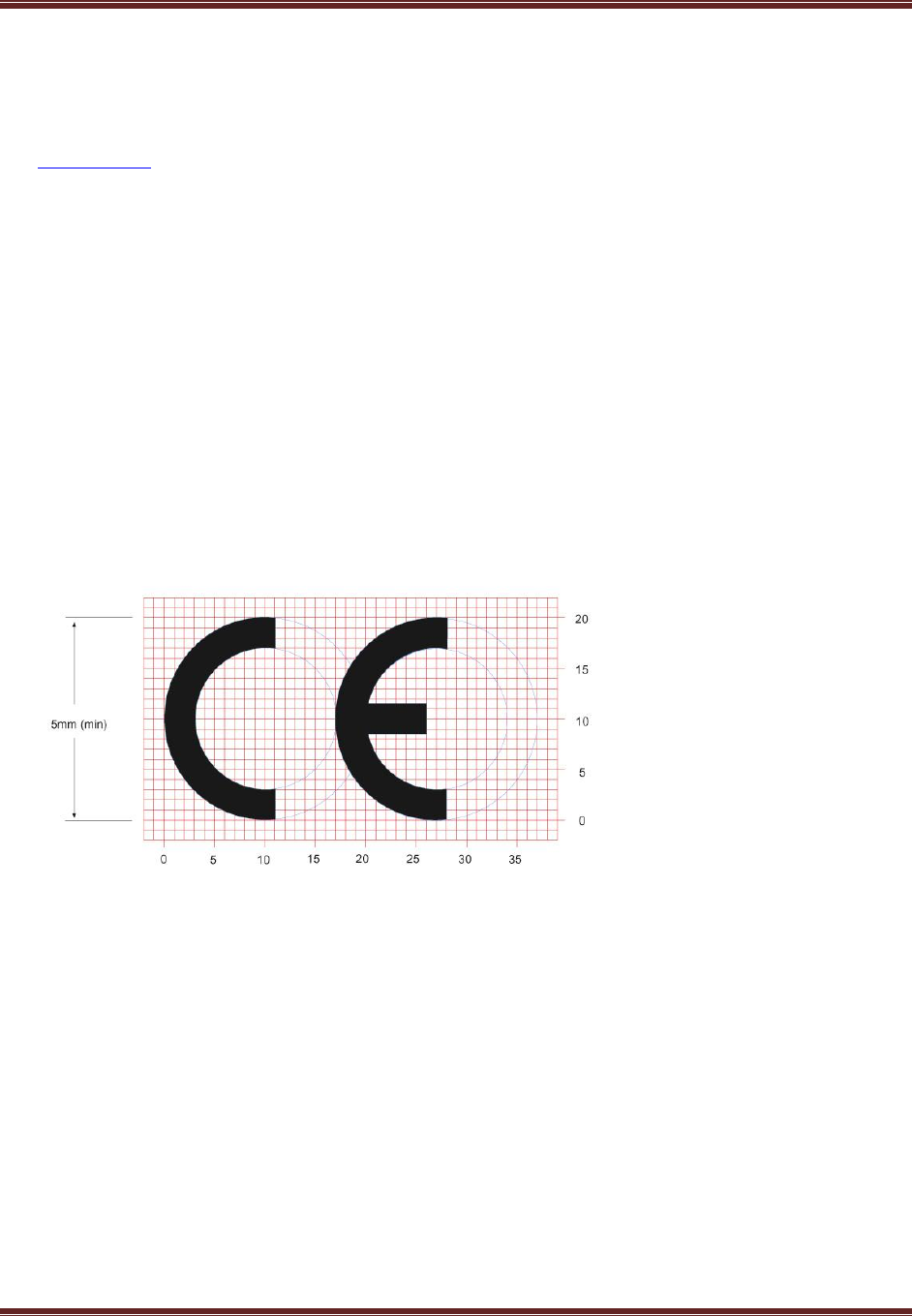

 If the CE marking is reduced or enlarged, the proportions given in the above graduated

drawing must be respected.

 The CE marking must have a height of at least 5mm except where this is not possible on

account of the nature of the apparatus.

 The CE marking must be affixed visibly, legibly, and indelibly.

Restrictions

Declarations of Conformity

Digi has issued Declarations of Conformity for the XBee RF Modules concerning emissions, EMC and safety.

Files can be obtained by contacting Digi Support.

XBee® Wi-Fi RF Modules

Important Note:

Digi does not list the entire set of standards that must be met for each country. Digi customers assume full

responsibility for learning and meeting the required guidelines for each country in their distribution market.

For more information relating to European compliance of an OEM product incorporating the XBee RF Module,

contact Digi, or refer to the following web sites:

CEPT ERC 70-03E - Technical Requirements, European restrictions and general requirements: Available at

www.ero.dk/.

R&TTE Directive - Equipment requirements, placement on market: Available at www.ero.dk/.

Approved Antennas

When integrating high-gain antennas, European regulations stipulate EIRP power maximums. Use the

following guidelines to determine which antennas to design into an application.

XBee Wi-Fi RF Module

The following antennas types have been tested and approved for use with the XBee Module: XBee® Wi-FI RF

Antenna Type: Yagi

RF module was tested and approved with 15 dBi antenna gain with 1 dB cable-loss (EIRP Maximum of 14

dBm). Any Yagi type antenna with 14 dBi gain or less can be used with no cable-loss.

Antenna Type: Omni-Directional

RF module was tested and approved with 15 dBi antenna gain with 1 dB cable-loss (EIRP Maximum of 14

dBm). Any Omni-Directional type antenna with 14 dBi gain or less can be used with no cable-loss.

Antenna Type: Flat Panel

RF module was tested and approved with 19 dBi antenna gain with 4.8 dB cable-loss (EIRP Maximum of 14.2

dBm). Any Flat Panel type antenna with 14.2 dBi gain or less can be used with no cable-loss.

XBee RF Module

The following antennas have been tested and approved for use with the embedded XBee RF Module:

- Dipole (2.1 dBi, Omni-directional, Articulated RPSMA, Digi part number A24-HABSM)

- PCB Antenna (0 dBi)

-Wire Whip Antenna (1.5 dBi)

XBee® Wi-Fi RF Modules

Canada (IC)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit

pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on

the outside of the final product enclosure must display the following text:

Contains IC: 1846A-XBS6

The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B -

Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts

FCC test report or CISPR 22 test report for compliance with ICES-003.

Transmitters with Detachable Antennas

This radio transmitter (IC: 1846A-XBS6) has been approved by Industry Canada to operate with the

antenna types listed in the table above with the maximum permissible gain and required antenna

impedance for each antenna type indicated. Antenna types not included in this list, having a gain

greater than the maximum gain indicated for that type, are strictly prohibited for use with this

device.

Le présent émetteur radio (IC: 1846A-XBS6) a été approuvé par Industrie Canada pour fonctionner

avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance

requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain

est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Detachable Antenna

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a

type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce

potential radio interference to other users, the antenna type and its gain should be so chosen that

the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful

communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner

avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par

Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des

autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope

XBee® Wi-Fi RF Modules

rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une

communication satisfaisante.

Australia (C-Tick)

These modules comply with requirements to be used in end products in Australia. All products with

EMC and radio communications must have a registered C-Tick mark. Registration to use the

compliance mark will only be accepted from Australian manufacturers or importers, or their agent,

in Australia.

In order to have a C-Tick mark on an end product, a company must comply with a or b below.

a. have a company presence in Australia.

b. have a company/distributor/agent in Australia that will sponsor the importing of the end

product.

Contact Digi for questions related to locating a contact in Australia.

XBee® Wi-Fi RF Modules

10. Warranty Information

1-Year Warranty

XBee RF Modules from Digi International, Inc. (the "Product") are warranted against defects in

materials and workmanship under normal use, for a period of 1-year from the date of purchase. In

the event of a product failure due to materials or workmanship, Digi will repair or replace the

defective product. For warranty service, return the defective product to Digi International, shipping

prepaid, for prompt repair or replacement.

The foregoing sets forth the full extent of Digi International's warranties regarding the Product.

Repair or replacement at Digi International's option is the exclusive remedy. THIS WARRANTY IS

GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND DIGI SPECIFICALLY

DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN

NO EVENT SHALL DIGI, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE,

COMMERCIAL LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE

FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING

EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights

which vary from state to state may also apply.

XBee® Wi-Fi RF Modules

Appendix A: Definitions

Definitions

Local Host

A device which is electrically connected to an XBee. Typically this is a microcontroller connected to

the serial pins of the module.

MAC address

A unique network identifier. All network devices are required to have their own unique

MAC address. The MAC address is on a sticker on your Digi device server. The number

is displayed as 12 hexadecimal digits, usually starting with 00:40:9D.

Network Client

A device which communicates with an XBee through the 802.11 network.

Static IP address assignment

The process of assigning a specific IP address to a device. Contrast with assigning a

device through Dynamic Host Configuration Protocol (DHCP), or Automatic Private IP

Addressing (APIPA or Auto-IP).

TCP

See Transmission Control Protocol.

Temporal Key Integrity Protocol (TKIP)

Part of the IEEE 802.11i encryption standard for wireless LANs. TKIP is the next

generation of the Wired Equivalent Privacy (WEP), which is used to secure 802.11 wireless LANs.

TKIP provides per-packet key mixing, a message integrity check and a

re-keying mechanism, and addresses several design shortcomings of the original WEP.

Transmission Control Protocol (TCP)

A set of rules (protocol) used along with the Internet Protocol (IP) to send data in the

form of message units between computers over the Internet. While IP handles the actual

delivery of the data, TCP handles keeping track of the individual units of data (called

packets) that a message is divided into for efficient routing through the Internet.

For example, when an HTML file is sent to you from a Web server, the Transmission

Control Protocol (TCP) program layer in that server divides the file into one or more

packets, numbers the packets, and then forwards them individually to the IP program

layer. Although each packet has the same destination IP address, it may get routed

differently through the network. At the other end (the client program in your computer),

TCP reassembles the individual packets and waits until they have arrived to forward

them to you as a single file.

TCP is known as a connection-oriented protocol, which means that a connection is

established and maintained until such time as the message or messages to be exchanged

by the application programs at each end have been exchanged. TCP is responsible for

ensuring that a message is divided into the packets that IP manages and for

reassembling the packets back into the complete message at the other end. In the Open

XBee® Wi-Fi RF Modules

Systems Interconnection (OSI) communication model, TCP is in layer 4, the Transport

Layer.

UDP

See User Datagram Protocol.

User Datagram Protocol (UDP)

A communications protocol that offers a limited amount of service when messages are

exchanged between computers in a network that uses the Internet Protocol (IP). UDP is

an alternative to the Transmission Control Protocol (TCP) and, together with IP, is

sometimes referred to as UDP/IP. Like the Transmission Control Protocol, UDP uses

the Internet Protocol to actually get a data unit (called a datagram) from one computer

to another. Unlike TCP, however, UDP does not provide the service of dividing a

message into packets (datagrams) and reassembling it at the other end. Specifically,

UDP does not provide sequencing of the packets in which the data arrives, nor does it

guarantee delivery of data. This means that the application program that uses UDP must

be able to make sure that the entire message has arrived and is in the right order.

Network applications that want to save processing time because they have very small

data units to exchange (and therefore very little message reassembling to do) may prefer

UDP to TCP. The Trivial File Transfer Protocol (TFTP) uses UDP instead of TCP.

UDP provides two services not provided by the IP layer. It provides port numbers to

help distinguish different user requests and, optionally, a checksum capability to verify

that the data arrived intact.

Wi-Fi Protected Access (WPA)

A data encryption/ user authentication method for 802.11 wireless LANs. WPA uses the

Temporal Key Integrity Protocol (TKIP).

WPA

See Wi-Fi Protected Access.

WPA2/802.11i

WPA with AES-based encryption (CCMP)

Digi XBS6 XBee Wi-Fi RF Module User Manual

Digi International Inc XBee Wi-Fi RF Module

User Manual

Navigation menu

Namespaces

Views

Navigation
