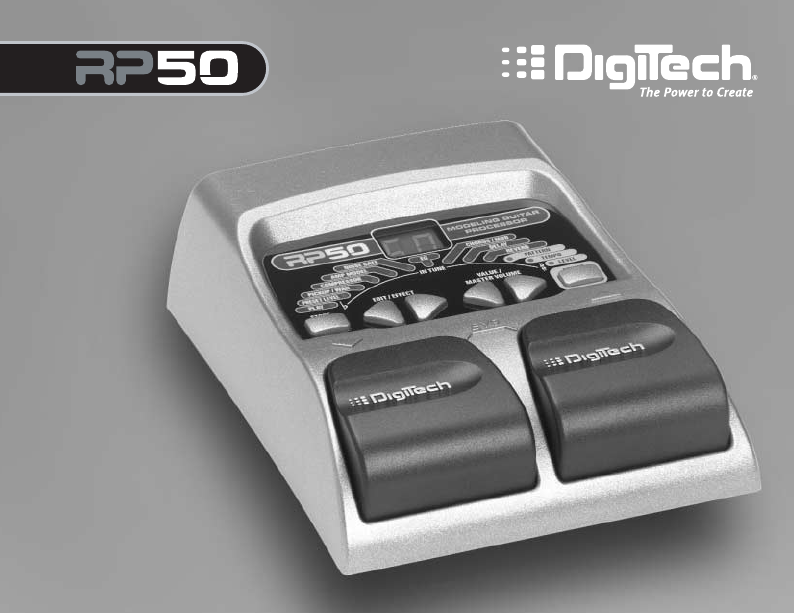

Introduction

Thanks to the continuous advances in musical technology, the RP50 offers you the flexibility,

power, and capability of producing sonic creations never before thought possible. We

recommend that you become better acquainted with us, and what we have to offer by going

through this User’s Guide with your RP50 in front of you. It is your key to unlocking the

potential within the RP50.

Included Items

Before you get started, please make sure that the following items have been included:

• RP50

• Warranty Card

The utmost care was taken while your RP50 was being manufactured. Everything should be

included and in perfect working order. If anything is missing, contact the factory at once. Please

help us become acquainted with you and your needs by completing your warranty card or

registering online at http://www.digitech.com.

It is your safeguard should a problem arise with your RP50.

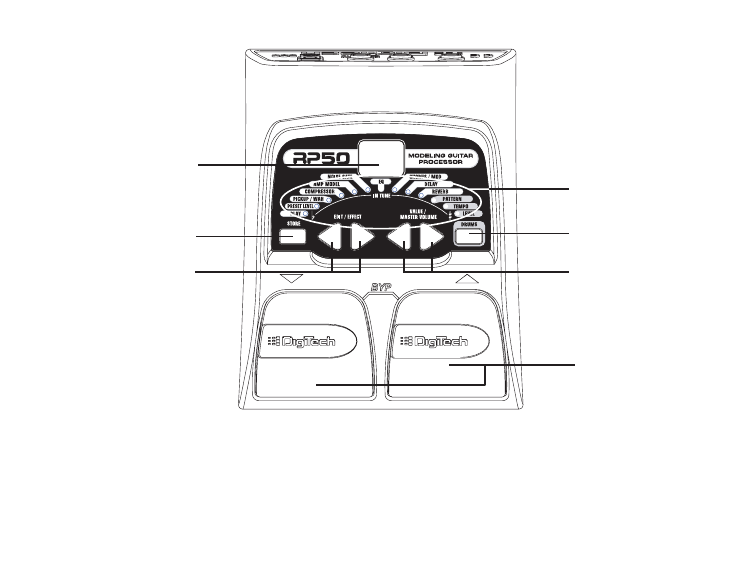

The Front Panel

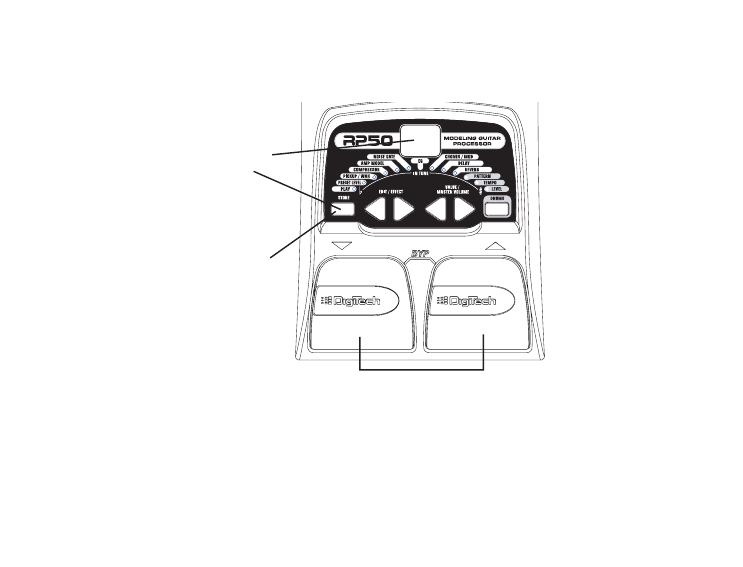

1. Footswitches - These 2 Footswitches are used to select presets, access the Tuner, or bypass

the RP50. The Up Footswitch increments, and the Down Footswitch

decrements through the presets. Pressing both Footswitches simultaneously

bypasses the selected preset. Pressing and holding both Footswitches

accesses the Tuner.

2.Value Buttons - The Value Buttons perform various functions depending on which mode is

selected. In Play mode, these buttons control RP50’s Master Level. In Edit

mode, these buttons adjust the selected effect. These buttons also change

the Pattern,Tempo, and Level of the Drum machine when it is turned on.

When the Tuner is enabled, these buttons select the tuning reference.

3. Effect/Edit Buttons - Pressing either Edit buttons enters Edit mode and selects the

individual effects to be edited. Press the left and right Edit buttons to

move through the effects. Each effect LED will light to indicate which

effect you are editing

4. Drums - The Drums button is used to turn on and off the RP50’s drum machine. When the

Drums feature is active, the Drums LED lights and the selected drum pattern plays

continuously.

5. Effect LEDs - The Effect LEDs provide information regarding the current preset. In Edit

mode, the LEDs indicate the effect selected for editing. In Tuner mode, the

LEDs indicate whether the note played is sharp, flat, or in tune.

6. Display - The Display provides information for different functions depending on the selected

mode. In Play mode, the display shows the selected preset number. In Edit mode,

the display shows the value of the parameter being adjusted. When the Tuner is

enabled, the display shows the note played.

7. Store - The Store button saves your custom edits to the user presets.

Rear Panel

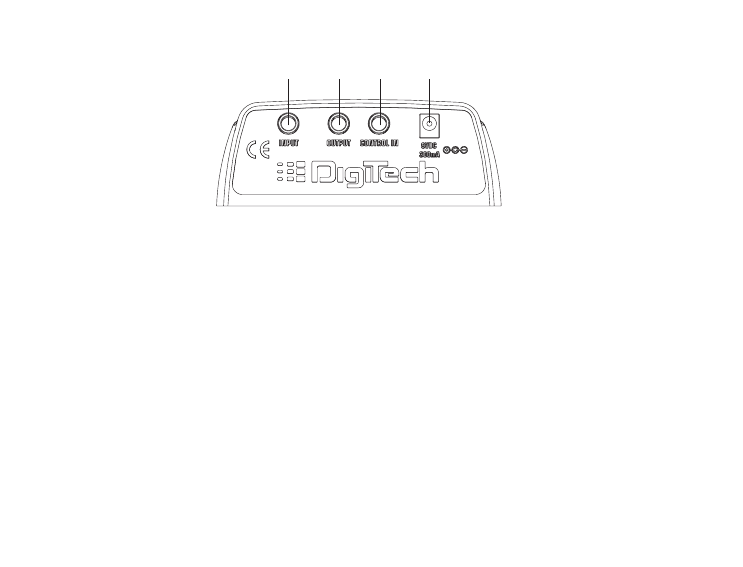

1. Input - Connect your instrument to this jack.

2. Output - This is a stereo TRS jack. Connect from this jack to the input of a single amplifier

for mono applications, or use a TRS stereo “Y” cord to connect to the inputs of 2

amplifiers for stereo applications. This jack also can be used as a headphone jack.

Note: When using the RP50 direct into a mixer or recording device, or when using

it with headphones, you can enable the Global Cabinet Modeling feature to

emulate speaker simulation on each of the RP50’s presets. (See Page 20 for

more on Global Cabinet Modeling.)

3. Control In - Connect a passive volume pedal to this jack to control Volume, Wah, and

Whammy™in the RP50.

4. Power Input - Connect only the optional DigiTech PS200R power supply to this jack.

1 2 3 4

Making Connections

There are several different connection options available when using the RP50. The following

diagrams show the connections for some of these options.

Before connecting the RP50, make sure that the power to your amplifier is turned off, and the

power to the RP50 is disconnected.There is not a power switch on the RP50. To turn the RP50

off, disconnect your instrument from the Input Jack (for battery power) or disconnect the

optional PS200R power supply from the Power Jack or from the AC outlet.

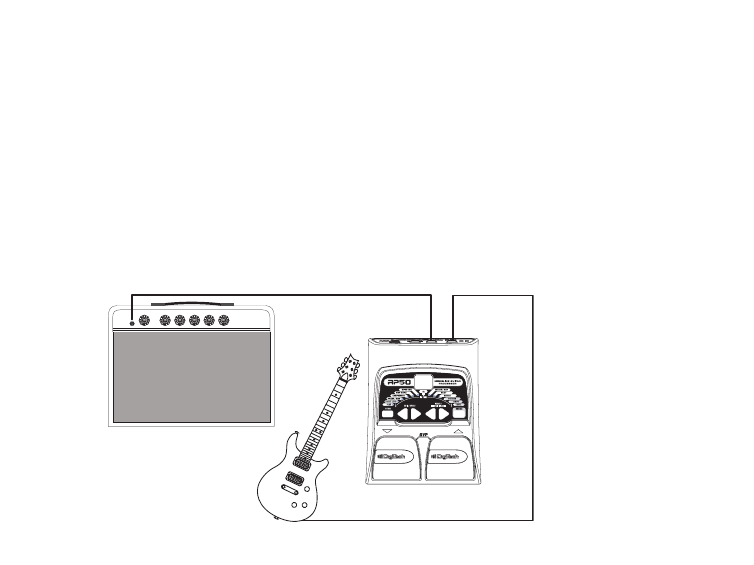

Mono Operation

Connect your guitar to the Input of the RP50. Connect a single mono instrument cable

from the Stereo Output of the RP50 to the instrument input on your amplifier.

Guitar Amp Input / Effect Return

InputOutput

Stereo Operation

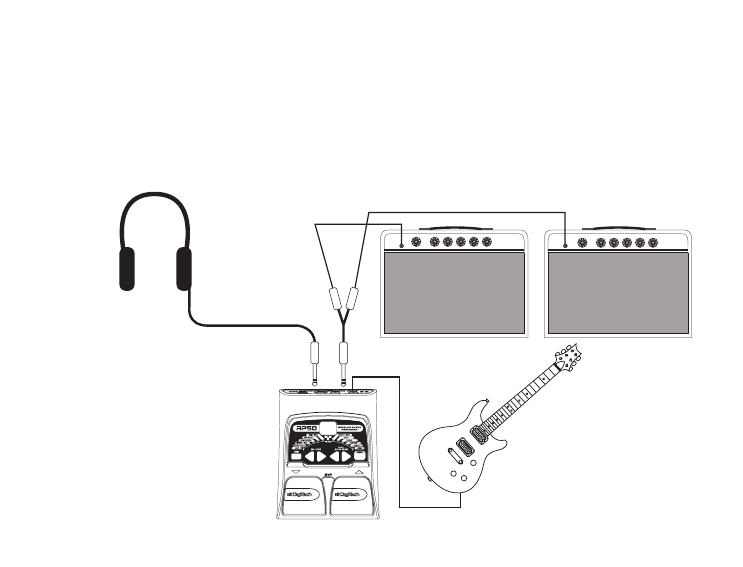

For stereo operation connect the guitar to the Input of the RP50. Connect a TRS stereo

“Y” cord or a pair of stereo headphones to the RP50’s Output. When using a “Y” cord,

connect one end of the “Y” cord to the input of one amplifier or channel of a mixer.

Connect the second end of the “Y” cord to a second amplifier, or second channel of a

mixer. If connecting to a mixing console, set the pan controls of the mixer hard left and

right to retain stereo separation. To emulate a guitar cabinet sound when using the RP50

with a mixer or headphones, you can enable Global Cabinet Modeling (see page 20).

Guitar Amp Input / Effect Return

Headphones or

Stereo TRS "Y" Cable

Connected to Output

Input

Applying Power

There are two options for powering the RP50: battery power, and the optional PS200R DC

power supply. Before applying power to anything, set your amp(s) to a clean tone and set the

tone controls to a flat EQ response (on most amps, this would be 0 or 5 on the tone controls).

Battery Power

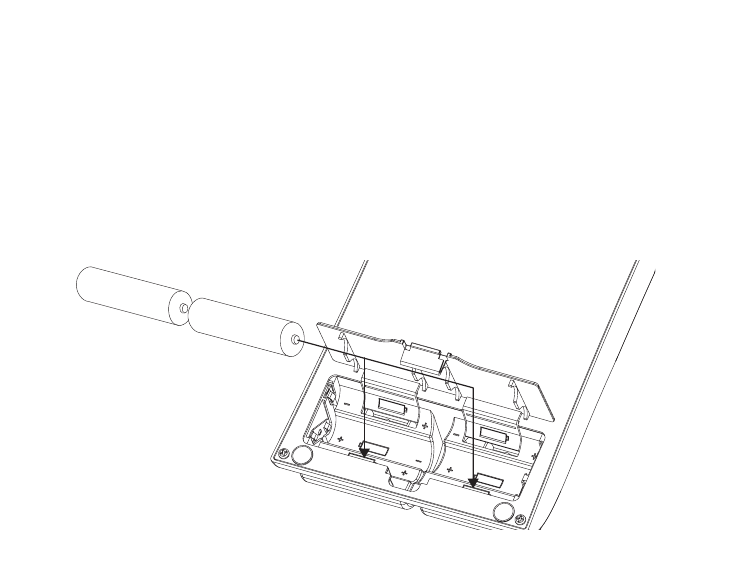

The RP50 can be run for more than 15 hours on 6 AA batteries.The battery compartment

is located on the bottom of the RP50. The following diagram shows how to install the

batteries.

Note: Pay close attention to the battery polarity when installing batteries as

polarity changes direction for each pair.

Connecting a cable to the Input applies power to the RP50. Disconnecting your instrument

from the Input of the RP50 disconnects the battery power. Turn your amplifier(s) on and

adjust the volume(s) to a normal playing level. To prolong the battery life, disconnect your

instrument from the RP50’s Input when not in use .

AC Power

The RP50 can also be powered with the optional PS200R power supply. Connect the plug

of the PS200R power supply to the power jack on the rear panel of the RP50. Connect the

other end of the PS200R power supply to an AC outlet. Turn your amplifier(s) on and

adjust the volume(s)to a normal playing level.

About the RP50

The Presets

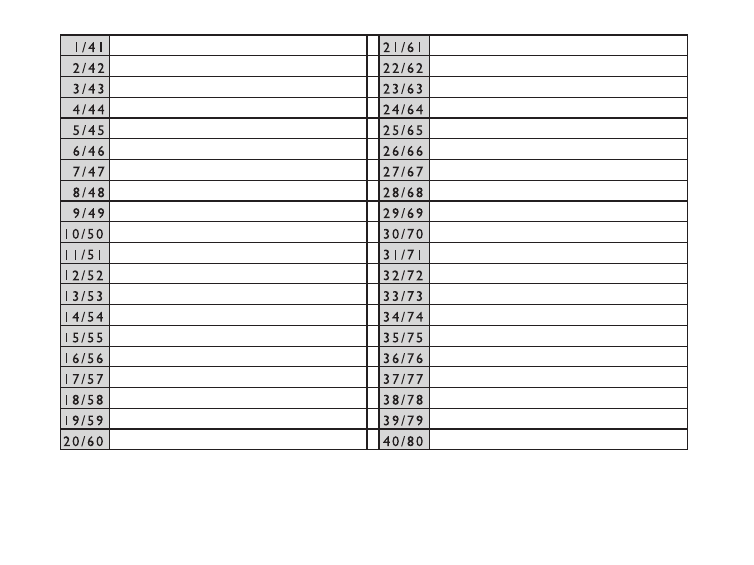

Presets are numbered locations of programmed sounds. Presets are recalled with the

Footswitches.The RP50 comes with 40 User Presets (Presets 1-40) and 40 Factory Presets

(Presets 41-80). The User Presets are locations where you may store presets you create.

The Factory Presets may not be saved over. From the factory, the 40 User Presets are

exact duplicates of the 40 Factory Presets. This lets you make your own presets without

the worry of losing any Factory Presets.

Play Mode

When you first apply power to the RP50, it powers up in Play mode. The far left LED lights,

indicating you’re in Play mode. In Play mode, use the Up and Down Footswitches to access

the presets.

Tuner

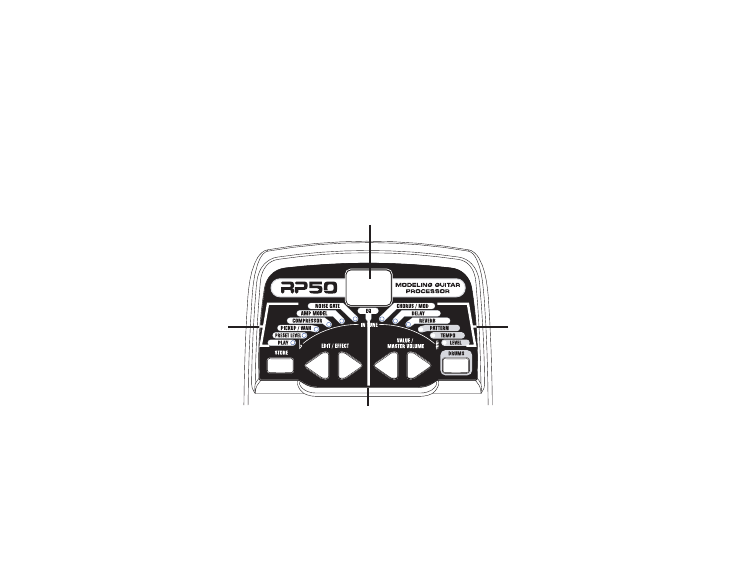

The Tuner in the RP50 lets you quickly tune or check the tuning of your guitar. Enter the

Tuner by pressing and holding both Footswitches simultaneously. The tu briefly displays

indicating that you are in Tuner mode. To begin tuning, play a note on your guitar (the neck

pickup usually works best). The display shows the note being played. The Effect LEDs

indicate whether the note is sharp or flat. The right 6 red LEDs indicate the note is sharp

and should be tuned down. The left 6 red LEDs indicate the note is flat and should be

tuned up. The center Green LED indicates the note is in tune. The output is muted in

Tuner mode.

When the Tuner is enabled, you can change your tuning reference.The default factory

setting is A=440 Hz. (displayed as 40). Press the Value Buttons to select alternate dropped

tunings. Alternate tunings are A = Ab (displayed as Ab),A = G (displayed as G), and A = Gb

The display shows the note played.

LEDs to the left

of the EQ LED

indicate the note is flat.

LEDs to the right

of the EQ LED

indicate the note is sharp.

When the EQ LED is lit,

the note is in tune.

(displayed as Gb).The display window briefly flashes the selected tuning preference. Exit

tuner mode by pressing either Footswitch. The tuning reference is retained when the unit is

turned off.

Bypass

The RP50 presets can be bypassed for a clean, unprocessed guitar tone. To bypass the

RP50, press both footswitches simultaneously. The display reads By indicating the preset is

bypassed. Press either footswitch to exit Bypass and return the the last selected preset.

Editing/Creating Presets

Creating your own signature sound with the RP50 is easy and intuitive. The RP50 lets you create

your own presets, or fine tune existing Presets to suit your needs. When creating or editing a

sound, you must start with a User or Factory Preset. It is not possible to start with an empty

preset. You can save your preset to any User Preset location while storing the preset (see

Storing a Preset pg 12).

To edit or create a Preset:

1. Press the FOOTSWITCHES to select a preset

2. Press the EDIT buttons in conjunction with the Effect LEDs to choose the effect you want

to edit.

3. Press the VALUE Buttons to change the parameter values.

The Effect LEDs

When editing a preset, the Effect LEDs are used to indicate which effect is selected for editing.

The Edit buttons move you through the Effect modules. The LEDs light indicating which effect

group is selected. Each effect has multiple settings to select from. The Value buttons are used to

change the value for the selected effect. As a button is pressed, the value or status is shown in

the display.

When the stored value of an effect is changed, the lower right decimal point in the display lights

indicating you need to store the changes. Changing presets, or turning the power off before

storing any changes will erase any changes made and revert to the stored values for the preset.

The EDIT/EFFECT buttons

select which effect to edit.

The VALUE/MASTER VOLUME

buttons edit the selected

effect.

Storing/Copying a Preset

Once the preset has been modified, you may store your settings to one of the 40 User Preset

locations (Presets 1-40). The following steps outline how to store changes to a preset or copy a

preset to a different location:

1. Press the STORE button once. The current preset location flashes in the display.

2. Press the FOOTSWITCHES to select the User Preset location.

3 Press the STORE button again to save the changes.

1. Press the STORE button.

The display flashes.

3. Press the STORE button

again to save your

changes.

2. Use the footswitches to

select the preset location you

want to store your changes to.

Effect Definitions

The RP50 can be thought of as several different “virtual” amplifiers, and individual hi-tech effects.

Each effect within the RP50 can be programmed to suit your personal application.

Understanding how these effects alter the sound helps you achieve the sound you are looking

for. The following overview of the RP50’s effects outlines what each effect does.

Preset Level

Controls the individual level for each preset. Because this setting is individual to each

preset, you may adjust the volume when using louder or softer amp models.

Pickup/Wah

The Pickup Simulator gives the thick tone of a humbucker pickup from a guitar with single

coil pickups, or the bright edgy sound of a single coil pickup from a guitar with a humbucker.

Wah is an effect controlled by an expression pedal making the guitar sound as if it’s saying

“Wah.”

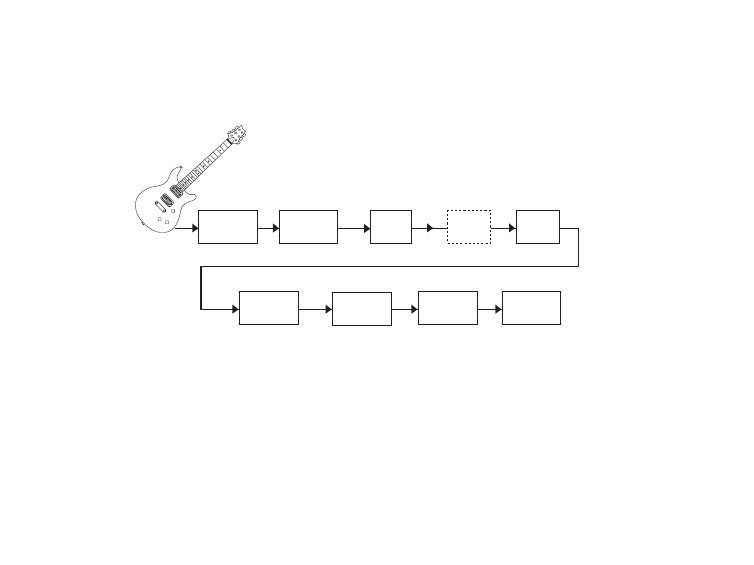

Pickup Sim /

Wah Compressor Amp

Modeling

Cabinet

Modeling

Noise

Gate

Chorus / ModEQ Delay Reverb

Pickup/Wah Type - The Value buttons select the Pick Up or Wah type that is simulated.

OF - Turns the Pickup Simulator / Wah module off.

SH - Gives a single coil pick up the warm tone of a humbucker.

HS - Gives a humbucker the unique sound of a single coil.

Cr - Cry Wah is a traditional sounding Wah.

bo - Boutique Wah is a wider sweeping Wah with a more modern sound.

Fr - Full Range Wah sweeps the entire spectrum of audible frequencies.

Compressor

A Compressor is used to automatically limit the dynamic level of the guitar signal.

1to 15 - Controls the amount of compression (ratio and sustain) and ranges

from 1 (slight compression) through infinity (maximum sustain) or

turns the compression effect off.

Amp/Cabinet Modeling

Amp Modeling is a technology that applies the tones of several popular modern and vintage

amps and acoustic guitar simulation. Values 1-9 increase the amp’s gain and level.

Any trademarks are the property of their respective companies and are in no way associated with DigiTech.

b1-b9 - Based on a Blackface

o1-o9 - Based on Boutique

r1-r9 - Based on a Rectifier

H1-h9 - Based on a Hot Rod

t1-t9 - Based on a Classic Tweed

C1-C9 - Based on a British Combo

c1-c9 - Based on a Clean Tube amp

s1-s9 - Based on a British Stack

U1-U9 - A nice crunchy tube combo

G1-g9 - Based on High Gain tube amp

F1-f9 - A vintage fuzz distortion

AC - A flat top acoustic guitar

Equalization is used to shape the tonal response of your guitar signal. The EQ in the RP50

is similar to the tone knobs on an amplifier. Values 1-4 cut the level of each band, 5 is flat

(no cut or boost), and values 6-9 boost the level of each band.

Bass (b1- b9 ) - The Value buttons adjust the amount of low end enhancement (Bass).

Mid (d1- d9)- The Value buttons adjust the amount of mid range enhancement.

Treble (t1- t9)- The Value buttons adjust the amount of high end enhancement (Treble).

Noise Gate

A Noise Gate is designed to eliminate noise while you are not playing. The AutoSwell

setting creates a volume pedal effect automatically with varying attack times. Different

guitars and pickups require different threshold settings. Choose a setting that fully mutes

the sound when you are not playing for the lowest setting.

Of.G1-G9 - Selects the Silencer™ Noise Gate. Settings 1-9 select the threshold. Of turns

the gate effect off.

s1-s9 - Selects the Auto Swell volume swell effect. Settings 1-9 select the attack time.

Chorus/Mod

The Chorus/Mod module is a multi-function module that lets you select the following

effects: Chorus, Flanger, Phaser,Tremolo, Panner,Vibrato, Rotary Speaker, AutoYa™,

Envelope, Detune, Pitch Shift, and Whammy™ effects. When the Chorus/Mod module is

selected, the Value buttons are used to choose the type of effect. Only one of the effects in

this row can be used at a time. The following list describes each effect and their

parameters in more detail.

Chorus (C1-C9)

A Chorus adds a short delay to your signal. The delayed signal is modulated in and out

of tune and then mixed back with the original signal to create a thicker sound, and

stereo image. Use the Value buttons to select one of the nine Chorus settings.

Flange (F1-f9)

A Flanger uses the same principle as a Chorus but uses a shorter delay time and adds

regeneration (or repeats) to the modulating delay. This results in an exaggerated up

and down sweeping motion to the effect. Use the Value buttons to select one of the

nine Flanger settings.

Phaser (P1-p9)

A phaser splits the incoming signal, and changes the phasing of the signal. The signal is

taken in and out of phase and mixed back in with the original signal. As the phasing

changes, different frequencies get canceled resulting in a warm sort of twisting sound.

Use the Value buttons to select one of the nine Phaser settings.

Tremolo (t1-t9)

A Tremolo effect modulates the volume of the signal at an even rate. Use the Value

buttons to select one of the nine predetermined settings.

Panner (n1-n9)

An Auto Panner modulates the sound from left to right at an even rate. Use the Value

buttons to select one of the nine Panner settings.

Vibrato (b1-b9)

A Vibrato effect modulates the pitch of the incoming signal at an even rate. Use the

Value buttons to select one of the nine Vibrato settings.

Rotary Speaker (r1-r9)

Rotary Speaker is an emulation of a device that included a spinning horn and woofer.

The rotation of these two speakers produces an interesting combination of sound

panning from side to side with a slight pitch change produced from the speed of the

sound coming towards, and then going away from the listener. Use the Value buttons

to select one of the nine Rotary Speaker settings.

AutoYa™ (a1-a9)

An AutoYa™ combines the characteristics of a Wah and a Flanger together creating an

almost human vowel characteristic as if the guitar were saying “Yah.” The AutoYa™

provides animation to the sound based on string attack. Use the Value buttons to

select one of the nine AutoYa™ settings.

Envelope Filter (E1-e9)

The Envelope Filter is a dynamic Wah effect that alters your sound based upon how

hard you play. Use the Value buttons to select one of the nine Envelope Filter settings.

Detune (d1-d9)

A Detuner makes a copy of your incoming signal, takes the copied signal slightly out of

tune from the original, and mixes the two signals together. The result is a doubling type

of effect as if two guitars were playing the same part together. Use the Value buttons

to select one of the nine Detuner settings.

Pitch Shift (H1-H9)

The Pitch Shifting copies the incoming signal, and shifts the pitch of the copy to a

different note.The shifted note is mixed back with the original signal sounding as if two

guitars were playing different notes. Use the Value buttons to select one of the nine

Pitch Shift settings. The Pitch Shift settings are as follows:

Whammy™ (Y1-y9)

Whammy™ is an effect that uses an Expression Pedal to bend the pitch of the

incoming signal, or add a bendable harmony with the original signal. As the Pedal is

moved, the note bends either up or down. Use the Value buttons to select one of the

nine Whammy™ settings. W denotes Whammy bends and Hdenotes harmony bends.

The Whammy settings are as follows:

y1=WOctave Up

y2=W2 Octaves Up

y3=WOctave Down

y4=W2 Octaves Down

y5=Hm3rd/Maj 3rd Up

y6=H2nd/Maj 3rd Up

y7=H3rd/4th Up

y8=HOctave Up

y9=HOctave Down

H1= -12 semitones

H2= -7 semitones

H3= -5 semitones

H4= -4 semitones

H5= +3 semitones

H6= +4 semitones

H7= +5 semitones

H8= +7 semitones

H9= +12 semitones

Delay

The RP50 has 3 different delay types, Mono (D),Analog (A), and Ping Pong (P), each with 2

seconds of delay time available. There are two different parameters used to program the

delay, Delay Variation and Time. The first parameter of the delay effect is Delay

Type/Variation, which selects the delay type to be used and varies the amount of feedback

(number of repeats) and level. The second delay parameter is Delay Time. This is indicated

by a value 1-99 (10ms-990ms), 1.0 and 2.0 (1 and 2 seconds respectively) in the display

when the Delay LED is lit. Delay settings are as follows:

Reverb

Using reverb in recorded program material gives the listener a sense that the material is

being performed in an actual room or hall. It is this similarity to actual acoustic spaces that

makes reverberation a useful tool in recorded music. Use the Value buttons to select one

of the nine predetermined settings. The higher numbers indicate there is more reverb level.

The reverb settings are as follows:

r1-f9 = Room

H1-H9 - Hall

P1-p9 - Plate

C1-C9=Church

A1-a9 = Arena

S1-s9 - Spring

d,a,p1=5% fback, level 15

d,a,p2=25% fback, level 15

d,a,p3=50% fback, level 15

d,a,p4=5% fback, level 30

d,a,p5=25% fback, level 30

d,a,p6=50% fback, level 30

d,a,p7=5% fback, level 50

d,a,p8=25% fback, level 50

d,a,p9=50% fback, level 50

Other Functions

Expression Pedal

The rear panel of the RP50 includes an input for an expression pedal. Any passive volume

pedal can be used as an expression pedal with the RP50. Connect from the output of a

passive volume pedal to the Expression Pedal Input on the RP50. The expression pedal

controls the RP50’s Volume,Wah, or Whammy™ parameters. If Wah and Whammy are

disabled, the expression pedal functions as a volume pedal. If the Wah or Whammy™

effects are enabled, the expression pedal control these effects.

Drum Machine

The RP50 includes several sampled drum patterns that are useful for developing a good

sense of timing. Press the Drums button to enter Drums mode and start playback of the

drum loop (except when in Store or Bypass mode). In Drums mode, the Edit buttons

selects the drum Pattern, Tempo, and Level of the drum loop. Press the Drums button again

to stop playback of the drum loop.

Global Cabinet Modeling

The RP50 includes cabinet modeling that can be enabled on all presets when running it into

a mixer, recording device, or when using it with headphones. This feature emulates a

speaker cabinet connected to each of the amp models in all presets. Each amp model has a

specific cabinet model that optimizes its sound when using the RP50 in this manner. To

enable Cabinet Modeling:

1. Press and hold the drums button when applying power to the RP50. Wait until the display

reads Cabinet On. Release the Drums button.

Cabinet Modeling is now enabled for all amp models in all presets. The following lists what

cabinet accompanies each model:

b1-b9 – Blackface – 2x12 Cabinet

o1-o9 – Boutique – Vintage 4x12 Cabinet

r1-r9 – Rectifier – Vintage 4x12 Cabinet

H1-H9 – Hot Rod – British 4x12 Cabinet

t1-t9 – Classic Tweed – 2x12 Cabinet

C1-C9 – British Combo – 2x12 Cabinet

c1-c9 – Clean Tube – British 4x12 Cabinet

s1-s9 – British Stack – British 4x12 Cabinet

U1-U9 – Crunch – Vintage 4x12 Cabinet

G1-G9 – High Gain Tube – British 4x12 Cabinet

F1-f9 – Fuzz – British 4x12 Cabinet

Factory Reset

This function resets the RP50 to its original factory settings.This procedure erases all

custom user presets. Performing this function erases all user-programmed data.

All such data will be lost forever!

The procedure for performing a Factory Reset is as follows:

1. Disconnect the power supply from the RP50 (AC Power) or unplug the guitar from the

input jack (battery power).

2. Press and hold the left EDIT button while re-connecting the power or plugging your

guitar into the RP50’s input.

3.When the display reads --, release the button and press the STORE button. The display

reads rE. The RP50 is now restored to its factory settings.

Appendix

Specifications:

Input: 1/4” input

Output: 1 - 1/4” Stereo TRS (can be used as a headphone output)

Control In: 1/4” input (Use a passive volume pedal as an expression controller)

A/D/A: 24 bit Delta Sigma

Power Supply: 6 AA Batteries or DigiTech PS200R (9VDC) power supply

Power Consumption: 5 Watts Maximum (w/ optional PS200R power supply)

Battery Life: >15 hours with continuous useage

Memory: 40 User/40 Factory Presets

Effects: Pickup Simulator,Wah, Compressor, 11 Amp Models,Acoustic Guitar Simulator, 3

band EQ, Noise Gate, Cabinet Modeling, Chorus, Flange, Phaser,Tremolo, Panner,

Vibrato, Rotary Speaker, Auto Ya™, Envelope Filter, Pitch Shift, Detune,Whammy™,

Delay, and Reverb

Drum Machine: 30 Patterns

Simultaneous Effects: up to 8

Dimensions: 6” L x 5” W x 2.125”H

Weight: 0.85 lbs (1.85 lbs. w/ power supply)

Preset List (User/Factory)

Stacked

Recto Delay

Clean Chorus

Octave Drive

Classic Blackface

Crunchy Phase

Fuzz Church

Grindy Detune

Big Boutique

Acoustic Chorus

Sustainium

Rotary Blues

Wahtch It

Power Flange

Campfire Tremolo

Detune Tube

Whammy Time

Mr. Guts

Ottowah

Volume Swell

Bad Dog

Steely Phase

Rhythm Crunch

Metal Scoop

Slap Rhythm

20 Fathoms

Electro-Sitar

Smooth Drive

Fuzzboy

Surfin'

Clean Flange

Thickerer

Pedal Steel

Short Stack

Dirt Combo

Triplet Chunk

Roto Jazz

Acoustic 5ths

Ya Ya Sure

Octavian

DigiTech

8760 South Sandy Parkway

Sandy, Utah 84070

PH (801) 566-8800

FAX (801) 566-7005

DigiTech® is a registered trademark

of the Harman Music Group Inc.

Printed 5/2003

RP50 Modeling Guitar Processor

User’s Guide 18-1396V

Please visit DigiTech

on the World Wide Web at:

www.digitech.com

DigiTech RP50 User Manual To The Df178536 1a17 4ce4 Bb3a Cfb2c1522e59

Navigation menu

Versions of this User Manual:

Views

Navigation
