Digigram MULTIE PCI Express Audio Cards User Manual PCX1211 1222HR 12 2006

Digigram PCI Express Audio Cards PCX1211 1222HR 12 2006

Manual PCX1222e PCX1221e

D i g i g r a m
PCX1221e
PCX1222e
Professional Multichannel
Sound Cards
User’s manual
D i g i g r a m
2
For technical support,
please contact your system supplier
Digigram S.A.
Parc de Pré Milliet, 38330 Montbonnot - FRANCE
Tel: +33 (0)4 76 52 55 01• Fax: +33 (0) 4 76 52 53 07• E-mail: info@digigram.com
Digigram Inc.
2101 Wilson Boulevard, Suite 1004, Arlington, VA 22201-USA
Tel: +1 703 875 9100 • Fax: +1 703 875 9161 • E-mail: input@digigram.com
Digigram Asia Pte Ltd.
350 Orchard Road - #19-07 Shaw House Singapore 238868-SINGAPORE
Tel: +65 6291 2234 • Fax: +65 6291 3433 • E-mail: info_asia@digigram.com
PCX1221e & PCX1222e
User’s Manual
3
Table of Contents
INFORMATION FOR THE USER
............................................................................... 4
IMPORTANT NOTICE
......................................................................................................... 4
CONTENTS OF THIS PACKAGE
............................................................................... 5
FEATURES
...................................................................................................................................... 6
PCX1221e main hardware features......................................................................................... 6
PCX1222e main hardware features......................................................................................... 6
Main software features................................................................................................................. 7
REQUIREMENTS
....................................................................................................................... 7
Minimum hardware requirements ............................................................................................. 7
Software requirements .................................................................................................................. 7
Supported operating systems ...................................................................................................... 7
HARDWARE INSTALLATION
..................................................................................... 8
Installing the card............................................................................................................................ 8
Interrupt and memory address ...................................................................................................8
SOFTWARE INSTALLATION
........................................................................................ 8
Standard installation under Windows 2000, XP, and Windows Server 2003 ............. 8
Parameterizing the ASIO driver..........................................................................................10
Parameterizing the Wave driver ........................................................................................10
Removing the driver under Windows 2000, XP, and Windows Server 2003 ............11
HOW TO CHECK THE INSTALLATION
............................................................11

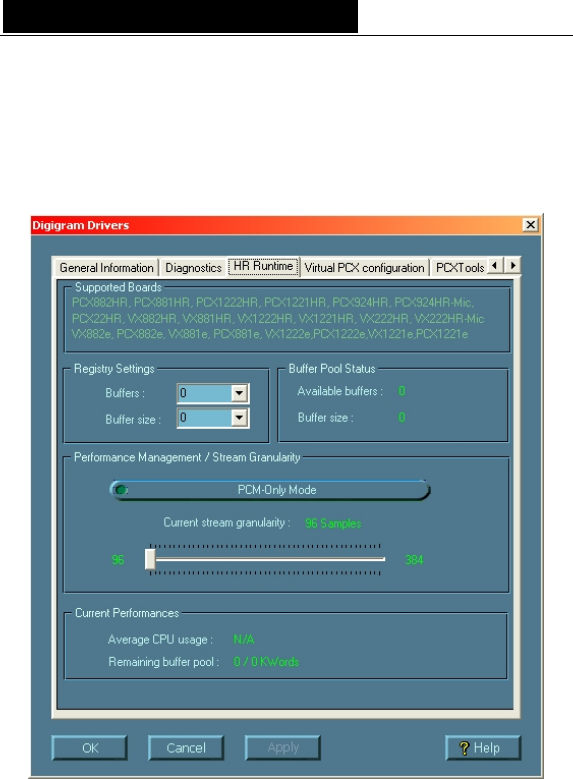

THE ‘DIGIGRAM HARDWARE SETTINGS’
(‘DHS’) CONTROL PANEL
...........................................................................................13
SPECIFICATIONS
...................................................................................................................14
Configuration............................................................................................................................14
Inputs .........................................................................................................................................14
Outputs......................................................................................................................................15
Connectors................................................................................................................................15
Audio specifications................................................................................................................15
Audio Performance.................................................................................................................16
Development environments .................................................................................................16
APPENDICES
..............................................................................................................................17

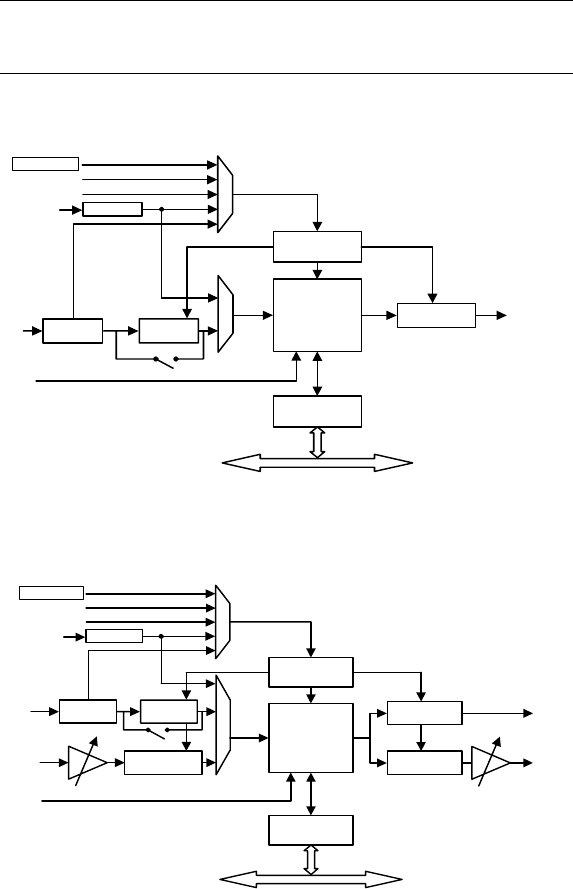

PCX1221e Schematic Diagram.........................................................................................17
PCX1222e Schematic Diagram.........................................................................................17

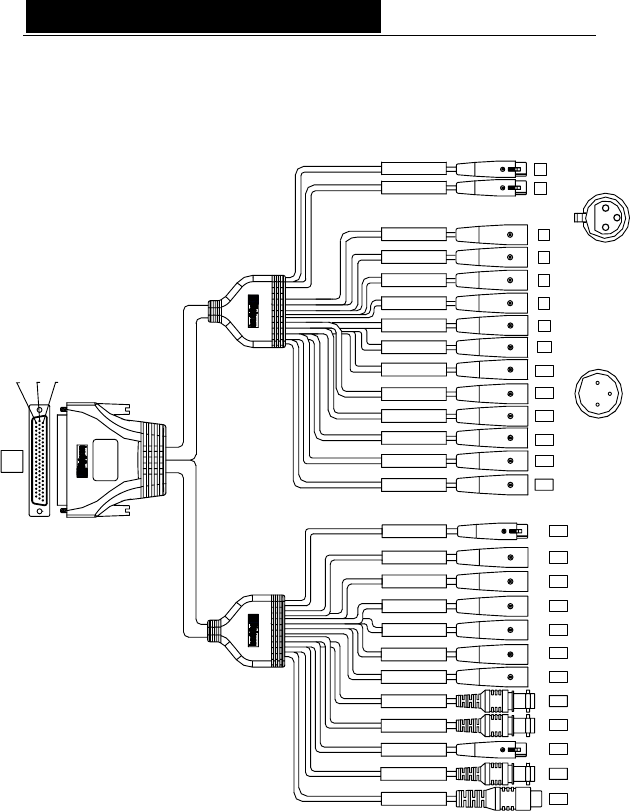

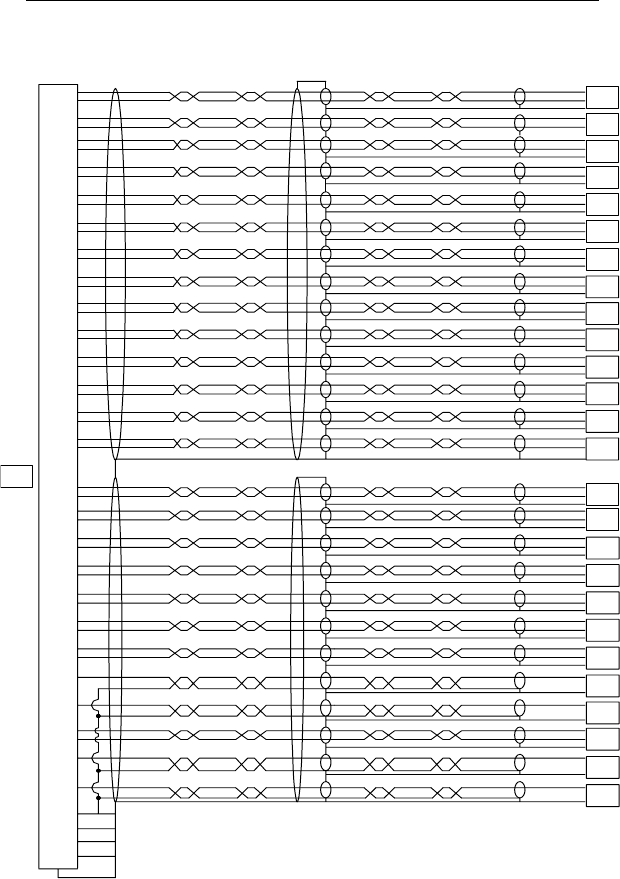

Wiring diagram .......................................................................................................................19

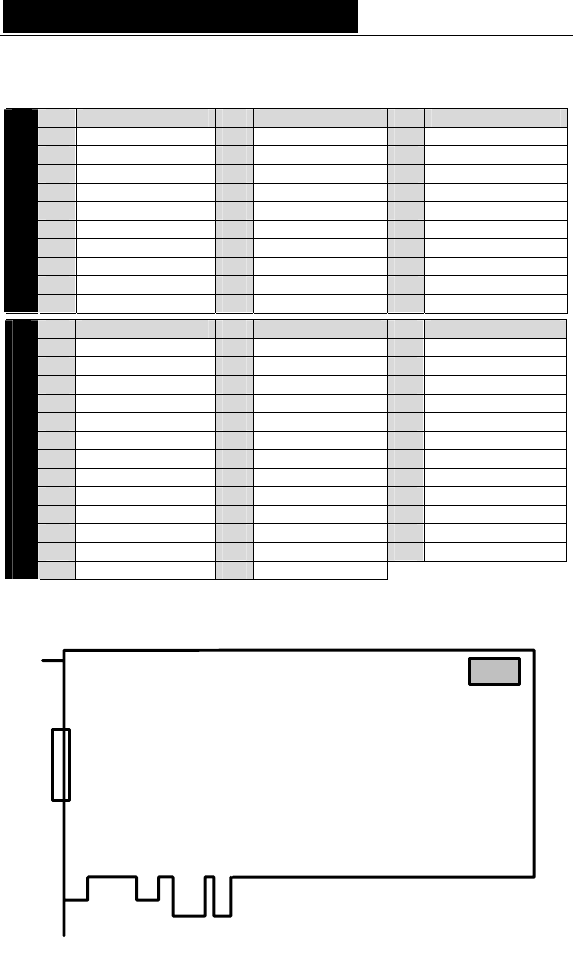

Cable pinout.............................................................................................................................20
Layout.........................................................................................................................................20
Copyright 2007 Digigram. All rights reserved.
No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection
claimed here includes photocopying, translation and/or reformatting of the information contained in this manual.
While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and
reserves the right to make improvements or changes in the products and programs described without notice.
Digigram and the Digigram logo, PCX1222e, and PCX1221e are registered trademarks or trademarks of Digigram S.A.
Other trademarks are property of their respective holders.
D i g i g r a m
4
INFORMATION FOR THE USER
This device complies with part 15 of FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a CLASS B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions contained in this data sheet, may
cause harmful interference to radio and television communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* reorient or relocate the receiving antenna
* increase the separation between the equipment and the receiver
* connect the equipment into an outlet on a circuit different from that of the receiver
* consult the dealer or an experienced audio television technician.
Note: Connecting this device to peripheral devices that do not comply with CLASS B
requirements or using an unshielded peripheral data cable could also result in
harmful interference to radio or television reception. The user is cautioned
that any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment. To ensure
that the use of this product does not contribute to interference, it is necessary to use
shielded I/O cables.
IMPORTANT NOTICE
This card has been tested and found to comply with the following standards:
• International: CISPR22 Class B
• Europe: EMC 89/336/CEE (1992) specifications
• United States: FCC Rules-Part 15-Class B (digital device)
In order to guarantee compliance with the above standards in an installation,
the following must be done:
• the provided cable must not be modified
• additional cables used must have their respective shield connected to
each extremity
PCX1221e & PCX1222e
User’s Manual
5
Warning:
Electrostatic discharge (ESD) can damage several
components on the board. To avoid such damage in
handling the board, take the following precautions:
Bring the device and everything that contacts it to
ground potential by providing a conductive surface and
discharge paths. As a minimum, observe these
precautions:
• Disconnect all power and signal sources.
• Place the device on a grounded conductive work surface.
• Ground yourself via a grounding wrist strap or by holding
a grounded object.
• Ground any tool that will contact the device.
CONTENTS OF THIS PACKAGE
Thank you for purchasing a Digigram PCX sound card.
The package consists of the following components:
* a PCX1222e or PCX1221e sound card
* the user’s manual at hand
The breakout cables to connect the card’s I/Os are not part of this package.
They are delivered separately.
D i g i g r a m
6
FEATURES
PCX1222e and PCX1221e are audio cards for PCI EXPRESSTM (PCIe®). They
are in PCI EXPRESSTM x1 format and can thus be plugged into any PCIe® slot
(x1, x2, x4, x8, x16, x32).
PCX1221e main hardware features
• 1 digital AES/EBU∗ stereo input, with hardware sample rate converter
(up to 96 kHz) and programmable digital gain
• 6 digital AES/EBU∗ stereo outputs (up to 192 kHz) with programmable
digital gain
• 1 digital AES/EBU∗ stereo sync input (up to 192 kHz in play and record)
• 1 standard Word Clock input (up to 96 kHz)
• 1 standard Word Clock output (up to 96 kHz)
• 1 video sync input
• 1 SMPTE/LTC (Linear Time Code) sync input
PCX1222e main hardware features
All features of the PCX1221e, plus:
• 2 balanced∗∗ analog mono line inputs, with software programmable
analog and digital gain
• 12 servo-balanced∗∗∗ analog mono line outputs, with software
programmable analog and digital gain
• 192 kHz / 24-bit converters
• Maximum level on analog inputs and outputs: +24 dBu
Note: The digital outputs always play the digital version of the corresponding analog output.
The selection of the AES/EBU input excludes the selection of the analog inputs.
∗ can be used as S/PDIF interface as well
∗∗ can be used with unbalanced signals
∗∗∗ Electronically servo-balanced outputs provide automatic level adjustment to accommodate
either balanced or unbalanced lines
PCX1221e & PCX1222e
User’s Manual
7
Main software features
• Real-time, simultaneous record and playback in PCM (8, 16 and 24 bits)
as well as in MPEG Audio Layer I, Layer II and Layer IIIL, Float IEEE754
conversion supported (with 24-bit fixed-point dynamic range)
• When using the np SDK, real-time mixing of several PCM and MPEG
audio streams, direct monitoring, level adjustment, panning, cross-fades,
punch-in/punch-out, scrubbing, time-stretching, pitch-shifting, 3-band
parametric equalizer, maximizer, format and frequency conversions
• Low latency DirectSound, Wave, and ASIO drivers. Under DirectSound
and ASIO, the cards operate in PCM mode only (nevertheless, an
application can integrate coders/decoders on the host PC). Under Wave,
PCX PCIe boards can operate in both PCM and MPEG (layer 1 and layer
2).
L MPEG Layer III play-only on DSP;
MPEG Layer III recording on the host computer is available through
Digigram's PC Codec option using the np SDK
REQUIREMENTS
Minimum hardware requirements
PC with one free PCI EXPRESSTM (PCIe®) slot
(x1, x2, x4, x8, x16 ou x32).
CPU power and memory required depend on the operating system and on the
audio application used.
Software requirements
To use your PCX1221e or PCX1222e, install the driver from the HR Runtime
package version 1.60 or higher. This package includes:
• a Digigram np driver enabling OEM applications to best capitalize
on the PCX PCIe® boards
• a WDM DirectSound driver. Microsoft DirectX 9 or higher must be
installed on your computer
• a Wave driver (installation optional).
• an ASIO driver (installation optional)
Supported operating systems
D i g i g r a m
8
PCX1221e and PCX1222e cards run under Windows 2000, XP∗, and
Windows Server 2003∗.
HARDWARE INSTALLATION
The card has to be installed in the computer prior to installing its driver.
Installing the card
Gently plug the card into a free PCI slot and press it down to position it
firmly. Tighten the screw.
Interrupt and memory address
Hardware interrupt and addresses are automatically set up at start-up by the
PCI PnP BIOS.
SOFTWARE INSTALLATION
Please visit the Digigram web site at www.digigram.com for the most recent
driver.
In case you run a specific application developed or installed by a Digigram
Partner, this application might require the use of a specific driver version. In
this case, make sure that the updated driver has been approved by your
supplier.
To update an HR driver, please uninstall the old version, then install the more
recent one.
Standard installation under Windows 2000, XP, and
Windows Server 2003
If the driver has been downloaded from our web site, it has to be expanded
prior to the driver’s installation as follows: double-click on the downloaded
file (self-expanding). You can use the default destination location (Windows
temporary folder) or select another directory.
Important note
: this default procedure installs the ‘Digigram Hardware Settings’
control panel. This application allows the configuration of the hardware resources of
Digigram cards for all audio applications. The DHS allows for instance to define the
clock of the card, the input source, input and output analog and digital gain,
Sample Rate Converters, digital output format, etc...
∗ 32-bit version
PCX1221e & PCX1222e
User’s Manual
9
Please note that, with the DHS installed, controls available through the DirectSound
control panel are limited to:
• Volume control for input and output
• Wave control
You may also install the driver without installing the DHS control panel, and in this
case more controls available are through the DirectSound control panel:
• Volume control for input
• Wave control
• Monitoring control
• Analog input level
• Digital input level
• Clock selection: AES Sync, AES1, Word Clock
• Digital output format: professional, consumer
To do so, install the driver with the command line: “
setup x_topology
”. For
detailed information, please refer to the dedicated document on our web site.
• Shut down your computer and insert your PCX card.
• Restart your computer.
• Click on Cancel if the Found New Hardware Wizard appears.
• Double-click on the HR Runtime vxx.msi icon to launch the
driver installation.
• A welcome message is displayed, click Next to continue.
• The “License Agreement” window appears: read it, and click on
“I accept the terms in the license agreement” to approve it.
• Do the same in the next window for Virtual PCX and PC Codec
Legal Notice.
• In the “Custom Setup” window, the “Drivers for the HR boards” are
displayed; by default, both WDM DirectSound and ASIO HR are
installed. Next.
• In the “Ready to Install the Program Window”, click on Install to
start copying the files.
Note: In case you use an unsigned driver version, the “Digital
Signature Not Found” message may appear because a non-
Microsoft software is about to be installed.
Click on Continue anyway in the “Hardware
installation” window (Windows XP, Server 2003).
• In the “Digigram drivers” window, select the number and the size
of buffers required by your applications. Click on Ok.
• Click Finish to complete the driver installation.
D i g i g r a m
10
Parameterizing the ASIO driver
• To use the ASIO driver on your PCX sound card, the option “PCM only”
has to be activated in the Digigram control panel (CPL). To access this
control panel, go to <Start>, <Programs>, <Digigram>, <Digigram
Control Center>.
Parameterizing the Wave driver
• In the case of an application managing exclusively PCM audio, the
latency of the Wave driver can be optimized activating the option “PCM
only” in the Digigram control panel (CPL). With this option enabled, the
latency of the Wave driver is optimized (in this case the PCX on-board
MPEG encoding/decoding is disabled). To access this control panel, go to
<Start>, <Programs>, <Digigram>, <Digigram Control Center>.
PCX1221e & PCX1222e
User’s Manual
11
Removing the driver under Windows 2000, XP, and
Windows Server 2003
• Open the Windows Control Panel and double-click on the
Add/Remove Software icon.
• Select “Digigram HR Runtime …”, and Change/Remove.
• Select Remove in the np Runtime window.
• Follow the instructions to finish driver removal.
How to check the installation
Once the cards and the driver have been installed according to the procedure
described in this manual, you can verify that the card is properly installed and
works fine as follows:
• Menu <Start> <Settings> <Control panel>, <Sound and
Multimedia>, tab “Audio”, Default device (Playback device,
Recording device). The card’s channels can be selected. The card can
be used with any DirectSound application.
Available WDM recording and playback devices are:
• PCX1221 (PCX1222) 1+2 (WDM) (record and playback)
• PCX1221 (PCX1222) 3+4 (WDM) (playback)
• PCX1221 (PCX1222) 5+6 (WDM) (playback)
• PCX1221 (PCX1222) 7+8 (WDM) (playback)
• PCX1221 (PCX1222) 9+10 (WDM) (playback)
• PCX1221 (PCX1222) 11+12 (WDM) (playback)
• PCX1221 (PCX1222) 5.1A (WDM) (playback)
• PCX1221 (PCX1222) 7.1 (WDM) (playback)
• PCX1221 (PCX1222) 5.1B (WDM) (playback)
• The card is also visible via the np interface: go to <Start>
<Programs> <Digigram> and select <Digigram Control Center>.
• In the “Digigram drivers” window, select the ‘General
Information’ tab.
In the “Modules Information” window, you can see the HR
Runtime modules that have been installed, and their versions.
• In the “Digigram drivers” window, select the ‘Diagnostics’
tab.
You should see here the icons of the cards you have installed.
• If the card you have installed is listed:
• Right click on the icon of the card.
• Select ‘Diagnostics’, and Play Sine. This plays in loop a
sine signal on the outputs of the card. You can also select
D i g i g r a m
12
Play file to play in loop a file of your choice (PCM only).
If the playback is correct, the card is correctly installed
and works.
• To stop the playback, right click on the card icon, and
select Stop Activities.
• If the card is not displayed:
• Make sure that during the HR runtime installation the
“Driver for the HR boards” has been selected in the
“Select components” window.
• Make sure that the card is correctly inserted in the PCI
slot, and screwed on the PC chassis.
• If necessary, uninstall the HR runtime package as
described in this manual, and re-install it.
• If the Wave driver has been installed:
• Go to menu <Start>, <Settings>, <Control panel>,
<Sound and Multimedia>, tab “Audio”, Default device
(Playback device, Recording device). The card’s channels
can be selected. The card can be used with any Wave
application.
Available Wave recording and playback devices are:
• PCX1221 (PCX1222) 1+2 (Wave) (record and playback)
• PCX1221 (PCX1222) 3+4 (Wave) (playback)
• PCX1221 (PCX1222) 5+6 (Wave) (playback)
• PCX1221 (PCX1222) 7+8 (Wave) (playback)
• PCX1221 (PCX1222) 9+10 (Wave) (playback)
• PCX1221 (PCX1222) 11+12 (Wave) (playback)
• PCX1221 (PCX1222) 5.1A (Wave) (playback)
• PCX1221 (PCX1222) 5.1B (Wave) (playback)
• PCX1221 (PCX1222) 7.1 (Wave) (playback)
• PCX1221 (PCX1222) 5.1+2 (Wave) (playback)
• PCX1221 (PCX1222) 7.1+2 (Wave) (playback)
• If the ASIO driver has been installed:
• The card is visible from any ASIO application.
Note:
5.1A plays on outputs 1, 2, 3, 4, 5, 6
5.1B plays on outputs 7, 8, 9, 10, 11, 12
7.1 plays on outputs 1, 2, 3, 4, 5, 6, 7, 8
5.1+2 plays on outputs 1, 2, 3, 4, 5, 6, 7, 8
7.1+2 plays on outputs 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
PCX1221e & PCX1222e
User’s Manual
13
The ‘Digigram Hardware Settings’
(‘DHS’) control panel
Digigram Hardware Settings (DHS) is an application allowing to configure the
hardware resources of Digigram cards for all audio applications using them.
This application is installed by default with the driver unless the command
line “setup x_topology” has been executed to install the driver.
A resource being managed by the DHS application can not be modified by any
other applications. To enable an audio application to modify a Digigram card
resource, this resource must not be managed by the DHS.
Note: As soon as a resource of a card is managed by the DHS, the clock
selection of this card MUST be defined in the DHS.
The DHS allows to:
• Select the clock the card uses
• Select of the input source
• Adjust analog and digital gains of inputs and outputs
• Enable Sample Rate Converters of an input
• Select the input monitored on an output
• Set the monitoring gains
• Define the digital output format
For more detailed information on how to use this control panel, please refer to its
on-line help.
D i g i g r a m
14
SPECIFICATIONS
Configuration
PCX1221e PCX1222e
Bus/Format PCI EXPRESSTM (PCIe®) x1
(x2, x4, x8, x16, x32 compatible)
Digital Signal Processor Motorola 56321 at 240 MHz
RAM 512 kWords
Size 168 mm x 111 mm x 20 mm
Power requirements
(+3.3V / +12V)
1.5 A / 0.1 A
3 A / 0.4 A
Operating: temp / humidity
(non-condensing) 0°C / +50°C • 5% / 90%
Storage: temp / humidity
(non-condensing) -5°C / +70°C • 0% / 95%
Inputs
PCX1221e PCX1222e
Analog line inputs (mono) - 2 balanced∗
Maximum input level/
impedance - +24 dBu/ >10 kΩ
Digital input (stereo) 1 AES/EBU∗∗ with hw Sample Rate Converter,
7.5:1 to 1:8, up to 192 kHz
Programmable input gain digital:
from –110 dB to +18 dB
analog:
from –94.5dB à +15.5 dB⊗
digital:
from –110 dB à +18 dB
Other inputs AES/EBU Sync (up to 192 kHz),
Word clock (up to 96 kHz), LTC, Video
AES11 synchronization Yes
∗
can be used with unbalanced signals
∗∗
can be used as S/PDIF interface as well
⊗ maximum sensitivity: 0 dBFs for –15.5 dBu input
PCX1221e & PCX1222e
User’s Manual
15
Outputs
PCX1221e PCX1222e
Analog line outputs (mono) - 12 servo-balanced∗∗∗
Maximum output level /
impedance - +24 dBu / <100 Ω
Digital outputs (stereo) 6 AES/EBU∗∗, up to 192 kHz
Programmable output gain digital:
from –110 dB to +18 dB
analog:
from –86 dB to +24 dB
digital:
from –110 dB to +18 dB
Other outputs Word clock (up to 96 kHz)
Connectors
PCX1221e PCX1222e
Internal connectors Inter-board Sync
External connector 68-pin SCSI MDR
Audio specifications
PCX1221e PCX1222e
Sampling frequencies
available Programmable from 8 to 192 kHz
A/D and D/A
converter resolution - 24 bits
Supported audio formats PCM (8, 16, 24 bits), Float IEEE754
∗∗∗
electronically servo-balanced outputs provide automatic level adjustment to accommodate
either balanced or unbalanced lines
D i g i g r a m
16
Audio Performance
measured at Fs=48 kHz
PCX1221e PCX1222e
Frequency response
(record + play) - 20 Hz–20 kHz: ±0.3 dB
Channel phase difference:
20/20kHz - <0.2°/2°
Dynamic range
(A-weighted) - Analog In: >104 dB
Analog Out: >110 dB
THD + noise 1 kHz at –1 dBfs - Analog In: <–96 dB
Analog Out: <–96 dB
Crosstalk (Analog in or out) - 1 kHz at 24 dBu: <–100 dB
15 kHz at 24 dBu: <–90 dB
Development environments
PCX1221e PCX1222e
Digigram management np SDK (HR Runtime, PCM only)
Other management Wave (PCM, MPEG),
ASIO, and DirectSound (PCM only)
OS supported Windows 2000, XP∗, and Windows Server 2003∗
Main on-board processing
features (with np SDK)
PCM play, rec, Float IEEE754, and MPEG layer 1 et
layer 2 (layer 3 in playback) direct monitoring, real-
time mixing, level adjustment, panning, cross-fade,
punch-in/punch-out, scrubbing
∗ 32-bit version
PCX1221e & PCX1222e
User’s Manual
17
APPENDICES
PCX1221e Schematic Diagram
PCIe
BUS
CLOCK
GENERATION
DSP
INTERFACE
AES/EBU Sync
Word Clock
CRYSTAL
Video
LTC
AES/EBU
IN 1 RECEIVE SRC
Bypass
TRANSMIT AES/EBU
OUT 1 - 6
RECEIVE
PCX1222e Schematic Diagram
PCIe
BUS
AES/EBU
IN 1
DAC
Level adjust
TRANSMIT AES/EBU
OUT 1 - 6
CLOCK
GENERATION
DSP
INTERFACE
RECEIVE
ADC
ANALOG
LINE IN 1 – 2
LINE OUT
1 - 12
Video
Word Clock
CRYSTAL
SRC
LTC
Bypass
AES/EBU Sync RECEIVE
D i g i g r a m
18
Cable diagram
Schematic diagram of the cable delivered by Digigram*:
3
3
3
3
43 22 1
J1
OUT 3 J10
OUT 8
OUT 7
OUT 6
OUT 5
OUT 4
AES EBU IN 1
23
3
3
1
3
3
3
3
J15
3
3
3
J8
J9
2
1
J12
J13
J14
1
J11
2
OUT 2
OUT 12
OUT 11
OUT 10
OUT 9
OUT 1
3
3
3
3
AES EBU SYNC
LTC IN
VIDEO IN
3
3
AES EBU OUT 4
AES EBU OUT 3
AES EBU OUT 2
AES EBU OUT 1
WORD CLOCK OUT
WORD CLOCK IN
3
3
3
3
3IN 2
IN 1
3
3
3
RCA Female
BNC Female
XLR-3P Male
XLR-3P Female
J2
J3
J4
J5
J6
J7
J16
J17
J18
J21
J22
J24
J25
J27
J23
AES EBU OUT 5
AES EBU OUT 6
J26
J20
J19
* Your cable may look different if it is not a Digigram cable.
PCX1221e & PCX1222e
User’s Manual
19
Wiring diagram
Shell
Shell
9
27,30,
39,42
33,36,
22,24,
45
+
+
23
+
4
3
+
49
50 +
6
5
+
28
+
8
+
46
7
47
48 +
26
+
29
25
+
Outside
Shell
Shell
Shell
Shell
Shell
Shell
Shell
J24
1
J27
Outside
Center
Outside
Center
2
1
3
Center
Outside
Center
J26
2
1
3
J25
1
J23
3
3
2
1
2
2
1
3
J22
J20
2
3
2
1
J21
3
J19
+
35
+
+
44
43
10
11 +
13
12
+
52
51
J1
53
+
54
+
17
55
+
15
14
16
56 +
31
+
58
57
34
32 +
+
62
40
38
37
+
+
41
20
+
21
61
2
Shell
Shell
Shell
Shell
Shell
Shell
Shell
Shell
Shell
Shell
1
3
1
2
J18
3
1
2
J15
3
2
3
1
1
2
3
2
J14
2
J12
3
2
1
3
1
J13
1
2
3
J11
J9
3
2
3
1
1
J10
1
2
3
J8
Shell
Shell
Shell
Shell
2J2
3
J5
J6
1
3
1
2
J7
2
3
1
J4
2
3
1
J3
J17
J16
D i g i g r a m
20
Cable pinout
Pin Signal Pin Signal Pin Signal
1 AES/EBU IN 6 + 11 AES/EBU OUT 2 + 41 GND
2 AES/EBU IN 6 - 12 AES/EBU OUT 2 - 42 GND
3 AES/EBU SYNC + 15 Video IN 43 AES/EBU OUT 3 +
4 AES/EBU SYNC - 16 GND 44 AES/EBU OUT 3 -
5 NC 35 AES/EBU IN 5 + 45 AES/EBU OUT 1 +
6 NC 36 AES/EBU IN 5 - 46 AES/EBU OUT 1 -
7 GND 37 Reserved 47 Word Clock IN
8 GND 38 Reserved 48 GND
9 AES/EBU OUT 4 + 39 AES/EBU IN 1 + 49 Word Clock OUT
Digital
10 AES/EBU OUT 4 - 40 AES/EBU IN 1 - 50 GND
Pin Signal Pin Signal Pin Signal
13 LTC IN 28 OUT 12 - 57 OUT 1 +
14 GND 29 OUT 10 + 58 OUT 1 +
17 OUT 8 + 30 OUT 10 - 59 GND
18 OUT 8 - 31 NC 60 GND
19 OUT 6 + 32 NC 4 - 61 OUT 11 +
20 OUT 6 - 33 IN 2 + 62 OUT 11 -
21 OUT 4 + 34 IN 2 - 63 OUT 9 +
22 OUT 4 - 51 OUT 7 + 64 OUT 9 -
23 OUT 2 + 52 OUT 7 - 65 NC
24 OUT 2 - 53 OUT 5 + 66 NC
25 GND 54 OUT 5 - 67 IN 1 +
26 GND 55 OUT 3 + 68 IN 1 -
Analog
27 OUT 12 + 56 OUT 3 -
LAYOUT
J1
PCX1221HR
PCX1222HR
Inter-board
sync
J1: Analog/digital cable

Navigation menu
