High resolution 1/3” Color CCD
480 TV Lines of Resolution
16 IR LEDs provide IR range up to 50ft. (15m)
(under ideal conditions. Objects at or beyond may be
partially or completely obscured, depending on the camera
application)
Varifocal Lens (4-9mm)
External zoom & focus adjustment
Auto Back Light Compensation
Weatherproof Design: Ideal for outdoor & indoor
applications (IP67)*
12V DC / 24V AC dual voltage
Includes 12V DC power supply
ß
ß
ß
ß
ß
ß
ß
ß
ß
The DCBHR1535 is a high resolution, color bullet camera
with 480 TV lines, 16 high intensity IR LEDs and an adjustable
Varifocal lens. This economical camera is ideal for most indoor
residential, commercial or industrial applications.
High Resolution Color Day/Night IR
Bullet Camera with Varifocal Lens
DCBHR1535
www.digimerge.com
Features:
STANDARD HIGH RESOLUTION
* Not recommended for submersion in water
Digimerge Technologies Inc.
300 Alden Road, Markham, ON Canada L3R 4C1
Tel: 905.946.8477 Fax: 905.947.0138
Because our products are subject to continuous
improvement, Digimerge reserves the right to
modify product design and specifications without
notice and without incurring any obligation. E&O.E.
®
5.3in/134mm
4.7in/
118mm
3in/77 mm
Image Sensor: 1/3” High Resolution Color CCD
Lens: Varifocal (4 - 9 mm)
Horizontal Res.: 480 TV lines
# Effective Pixels: 768 (H) x 494 (V) (380K)
Sync. System: Internal Sync.
S/N Ratio: 45dB (AGC Off)
Electronic Shutter: 1/60 ~ 1/10,000 Sec.
LED: 16 LEDs
MIn. Illumination: 0 Lux (LED on)
IR Distance: 50 ft. / 15 m.
Video Output: 1.0Vp-p @ 75 ohms
Power Requirement: 12V DC / 24V AC
IP Rating: IP67
Operating Temp: -10°~ 50°C (14°F ~ 122°F)
Storage Temp: -20°~ 60°C (-4°F ~ 140°F )
Dimension: 3”/77mm (w) x 5.3”/134mm(D) X 4.7”/118mm (H)
16 IR LEDs provide IR range up to 50ft. / 15m (under ideal conditions.
Objects at or beyond may be partially or completely obscured, depending
on the camera application)
ß
Specifications: Dimension:
Picture automatically switches camera to B&W
delivering better clarity in low light conditions
ß
DAY / NORMAL LIGHT LOW LIGHT CONDIITION
IR Range
Includes:
Camera
Mounting Bracket
Power Supply

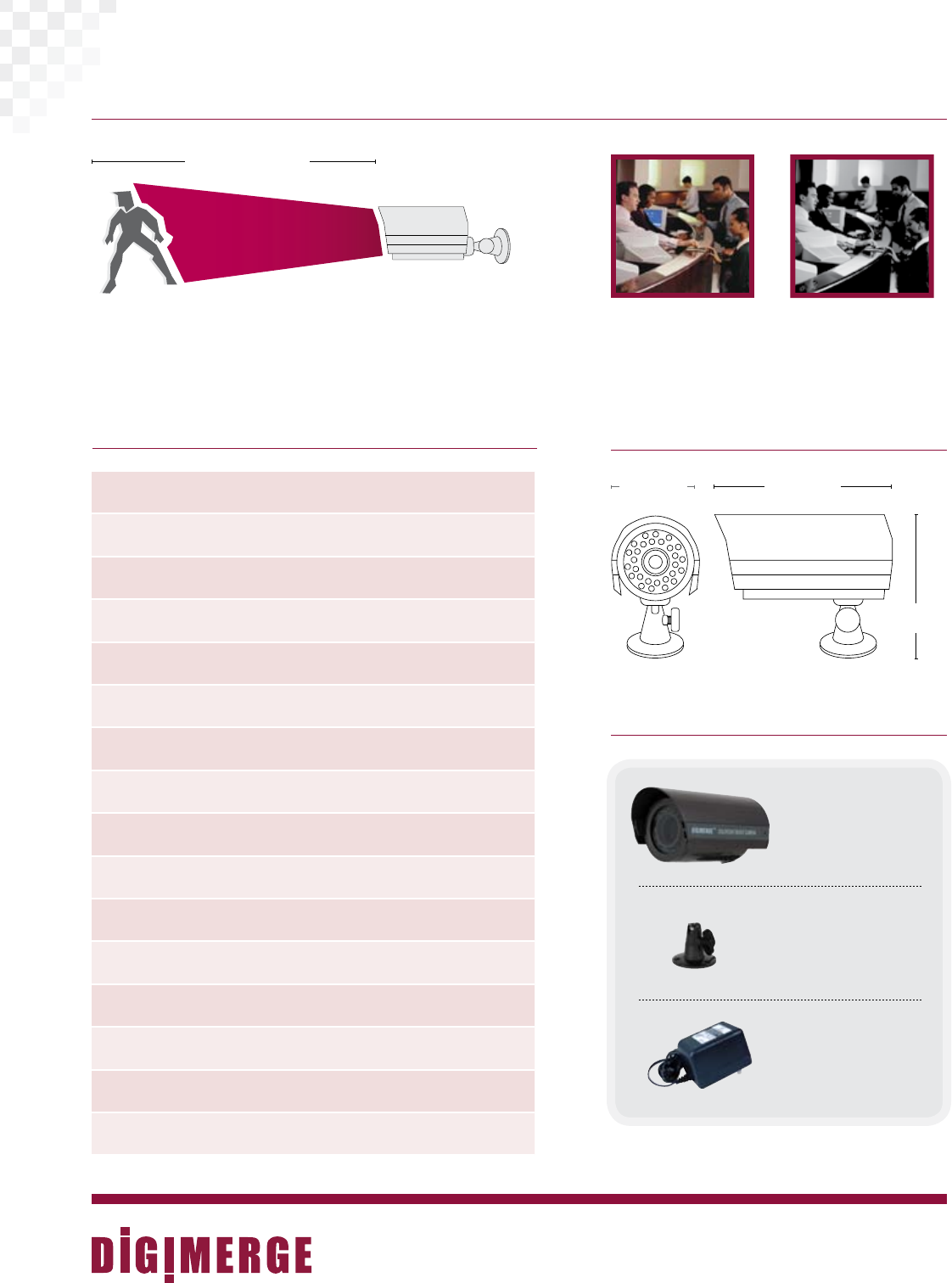

IR Illumination Range & Day/Night Mode:
16 IR LEDS
Up to 50 ft. / 15M
480 TV lines
530 TV lines
480 TV lines
530 TV lines
