For Nextel iDEN (QPSK), E-GSM & GSM-900
Amplifier
Amplifier
Cell phone
Cell phone
adapter cable
Cell phone
adapter cable
or car kit
Cell phone

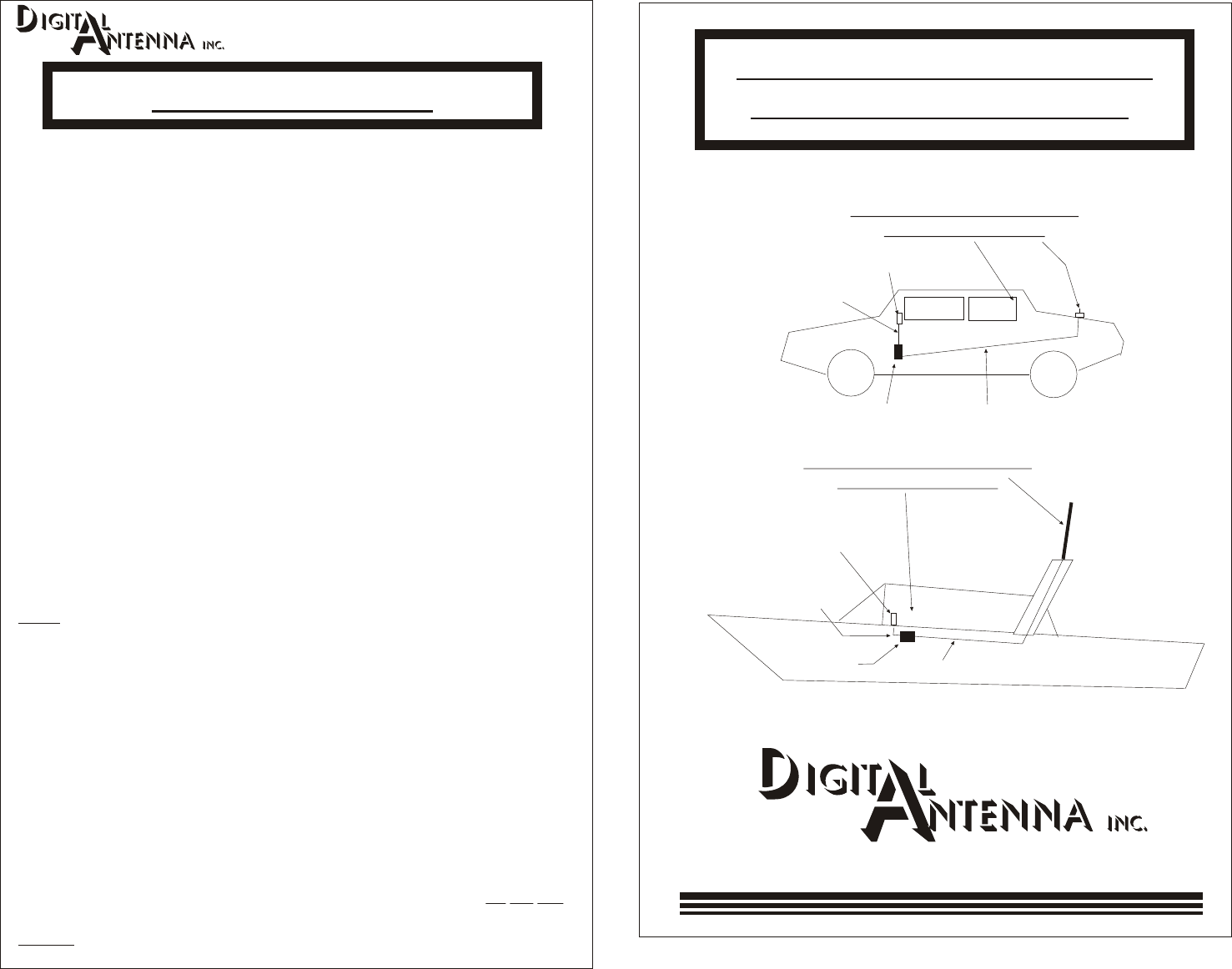

Typical Vehicle/Boat Installation
User Instructions
phone (954) 747-7022 fax (954) 747-7088 www.DigitalAntenna.com
5325 N.W. 108 th Avenue, Sunrise, FL 33351
ll
Cell amplifier installation instructions.
1) Place the amplifier in a suitable location in the instrument console and plug the
power cord into the cigarette socket or appropriate power jack. If hard wiring to a
power block, be certain that the positive lead connects to the center pin of the
amplifier power connector.
Caution:
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. Failure to observe the following
restri ctions will result in exceeding the FCC RF exposure limits.
Antennas used for this transmitter must not exceed an antenna gain of 3 dBi with a
minimum cable loss of 2.9 dB. For rear deck trunk and roof top installations, the
antenna must be located at least 20 cm away from rear-seat passengers and
bystanders in order to comply with the FCC RF exposure requirements.
Antennas used for this transmitter must not exceed an antenna gain of 7 dBi with
minimum cable loss of 5.4 dB. The antenna m ust be located at least 20 cm away
from passengers in order to comply with the FCC RF exposure requirements.
3) Connect one end of the cell phone adapter cable to the amplifier were it is
marked "phone" and the other end to the cell phones antenna port.
4) After you are certain that all connections are tight and secure, move the switch
labeled "on/off" to the on position. A green light will illuminate indicating that the
amplifier is ready for use.
2)"FCCRFExposureRequirements"
(a)Vehicle-AntennaInstallation:
(b)Boat-AntennaInstallation:
: NOTE It is normal for the amplifier to be warm during operation.
This equipment has been tested and found to comply with the limits for a class B
device, pursuant to Part 15 and the Specialized Mobile Radio Service authorized
under subpart H of part 22 and part 90 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with this instruction manual, may cause harmful
interference to radio commun ications, However there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or other electronic reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of more of the following measures:
Reorient or relocate the receiving antenna
Increasetheseparationbetweentheequipmentandreceiver
Connecttoisolatedpowerwithagroundcablegoingdirectlyt othebatteryor
DCsource
Repositioningofthecoaxialcablemayalsoeliminateinterference.
ConsultthedealeroranexperienceElectronicstechnicianforhelp.
:ChangesormodificationsnotexpresslyapprovedbyDigitalAntenna,
Inc.couldvoidtheuser'sauthoritytooperatetheequipment.
l
l
l
l
l
Donotcoil
Warning
Model #DA4000N
Cellular Amplifier
