Digital Antenna DA4500 Dual Band Direct Connect Bi-directional Signal Booster User Manual DA4500 JJnew 2
Digital Antenna Inc. Dual Band Direct Connect Bi-directional Signal Booster DA4500 JJnew 2
Users Manual
,
User Instructions
Model:DA4500
Cellular Amplifier
Cell Amplifier instructions
1) Mount the amplifier in a suitable location. Itshouldbemountedthree
feetawayfromnormallyoccupiedareas.DO NOT APPLY POWER TO
THE AMPIFIER. If hard wiring to a power block, the positive lead connects
to the center pin of the amplifier power connector.
2) Antenna mounting. Mount antenna in a secure fashion with the
following constraints. When using a unity gain vehicle mount antenna, the
external antenna must be located at least 16 inches from occupants.
When using an external high gain antenna, antenna gain is 2dBi.
These guidelines comply with FCC rules concerning MPE (Maximum Permissible
Exposure) safety limits. Install the antenna coaxial cable in a suitable path and connect to
the amplifier connector marked "antenna".
3) Connect one end of the cell phone adapter cable to the amplifier where it
is marked "phone" and the other end to the cell phones antenna port.
4) After you are certain that all connections are tight and secure, insert the
power cable’s plug into the power connector. A green light will illuminate
indicating that the amplifier is ready for use.
Warning: Changes or modifications not expressly approved by Digital Antenna,
Inc. could void the user's authority to operate the equipment.
Digital Antenna Inc. 5325 NW 108 Ave P
hone 954.747.7022
WWW.digitalantenna.com Sunrise, FL 33351 fax 954.747.7088

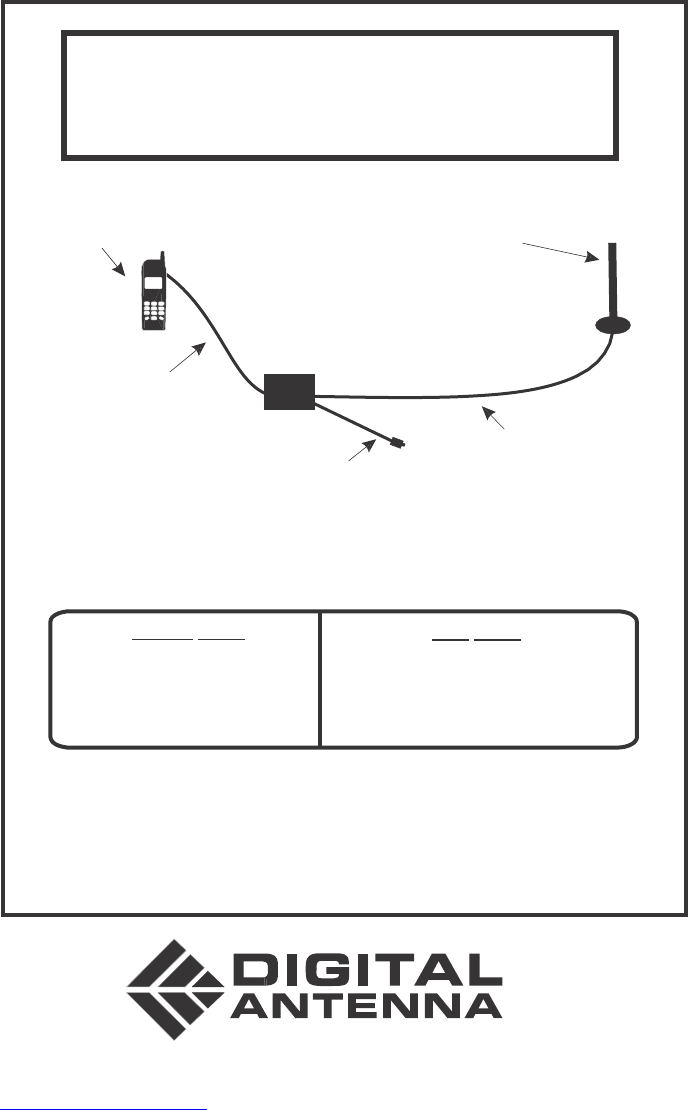

Typical Installation
Cell phone
Cell phone
adapter cable
(sold separately)
External antenna (sold separately)
Follow MPE guidelines for antenna
distance from persons
Antenna cable
DA4500 Amplifier
includes 12v
cigarette lighter
adapter
Cellular Band:
Frequency Range
PCS Band:
Frequency Range
Connectors: mini-UHF female
FCC ID: PZODA4500
IC: 4260A-DA4500
Digital Antenna Inc. 5325 NW 108 Ave P
hone 954.747.7022
WWW.digitalantenna.com Sunrise, FL 33351 fax 954.747.7088
824-849 MHz / 869-894 MHz 1850-1910 MHz / 1930-1990 MHz
