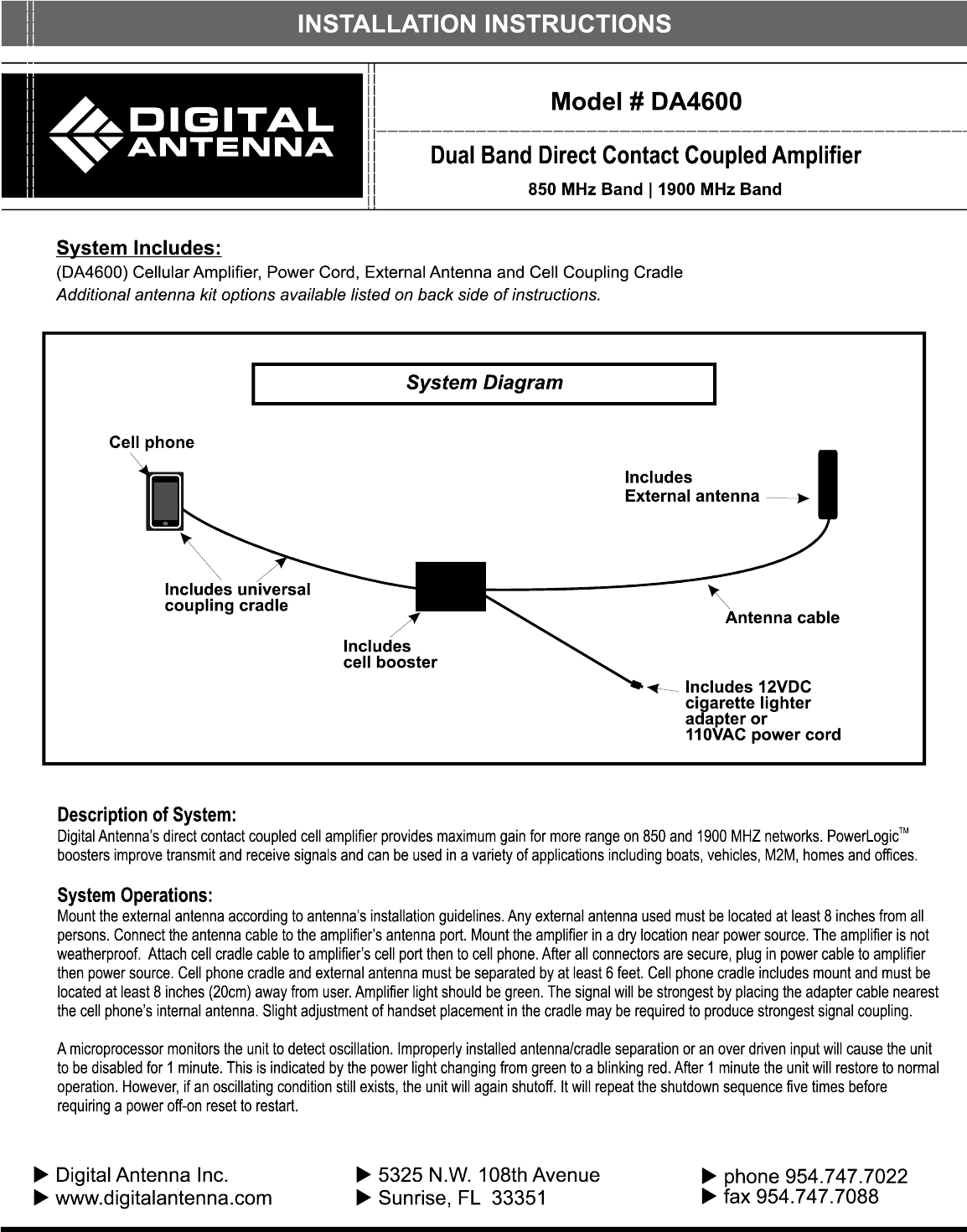

Digital Antenna DA4600 Dual Band Direct Connect Amplifier, Bi-directional signal Booster User Manual rev2
Digital Antenna Inc. Dual Band Direct Connect Amplifier, Bi-directional signal Booster rev2
User Manual.rev2
BEFOREUSE MUSTREGISTERTHISDEVICE
MUST
MUST
, you with your wireless provider and
have your provider’s consent. Most wireless providers consent to the use of signal
boosters. Some providers may not consent to the use of this device on their network.
Ifyouareunsure,contactyour provider.
You operate this devicewith approved antennas andcables as specifiedby the
manufacturer.Antennas beinstalledatleast20cm(8inches)fromanyperson.
You cease operating this device immediately if requested by the FCC or a
licensedwirelessserviceprovider.
E911 location information may not be provided or may be inaccurate for
callsserved byusing thisdevice.
MUST
WARNING.
This is a CONSUMER device.
Warranty: Digital Antenna, Inc. warrants Antennas for five (5)
years and Cellular Amplifiers, Repeaters and Accessories for
two (2) years, that its Products sold hereunder will at the time
of shipment be free from defects in material and workmanship
and will conform to Digital Antenna's applicable specifications.
Antenna Safety Guidelines
Any antenna used with this device must be located at least 8 inches from all persons. The antennas listed
below are approved for use with Digital Antenna’s direct contact coupled cell boosters.
Use of unauthorized antennas, cables, and/or coupling devices violates FCC regulations.Warning:
Outside Antenna Kit Options:
Uplink Frequency(MHz) 824-849 1850-1910
Uplink Output Power (dBm) 17 17
FCC ID PZODA4600
IC 4260A-DA4600
*Antennas include cable not listed
Antenna Type: O = Omni-Directional, D = Directional Gain: 824-849, 1850-1910 MHz
Antenna
with Type Gain
dB
10' DA240
Cable
15' DA240
Cable
30' DA240
Cable
50' DA340
Cable
75' DA340
Cable
100' DA340
Cable
150' DA440
Cable
1273-PW O 3, 4.5 1273-24010 1273-24015 1273-24030 1273-34050 1273-34075 1273-340100 1273-440150
1285-PW O3, 4.5 1285-24010 1285-24015 1285-24030 1285-34050 1285-34075 1285-340100 1285-440150
854-CW O2.8, 4.3 854-24010 854-24015 854-24030 854-34050 854-34075 854-340100 854-440150
883-CW O2.8, 4.3 883-24010 883-24015 883-24030 883-34050 883-34075 883-340100 883-440150
897-CW O2.8, 4.3 897-24010 897-24015 897-24030 897-34050 897-34075 897-340100 897-440150
1197-CW O 2.8, 4.3 1197-24010 1197-24015 1197-24030 1197-34050 1197-34075 1197-340100 1197-440150
861-CW O 2.8, 4.3 861-24010 861-24015 861-24030 861-34050 861-34075 861-340100 861-440150
1161-CW O2.8, 4.3 1161-24010 1161-24015 1161-24030 1161-34050 1161-34075 1161-340100 1161-440150
865-CW O2.8, 4.3 865-24010 865-24015 865-24030 865-34050 865-34075 865-340100 865-440150
1154-CW O2.8, 4.3 1154-24010 1154-24015 1154-24030 1154-34050 1154-34075 1154-340100 1154-440150
1183-CW O2.8, 4.3 1183-24010 1183-24015 1183-24030 1183-34050 1183-34075 1183-340100 1183-440150
1165-CW O 2.8, 4.3 1165-24010 1165-24015 1165-24030 1165-34050 1165-34075 1165-340100 1165-440150
869-CW O 2.8, 4.3 869-24010 869-24015 869-24030 869-34050 869-34075 869-340100 869-440150
1169-CW O 2.8, 4.3 1169-24010 1169-24015 1169-24030 1169-34050 1169-34075 1169-340100 1169-440150
288-PW O2.5, 4 288-24010 288-24015 288-24030 288-34050 288-34075 288-340100 288-440150
295-PW O2.5, 4 295-24010 295-24015 295-24030 295-34050 295-34075 295-340100 295-440150
437-PW D 3.2, 7.8 N/A N/A 437-24030 437-34050 437-34075 437-340100 437-440150
457-DB D 7.3, 7.5 N/A N/A 457-24030 457-34050 457-34075 457-340100 457-440150
426-PW D 4.2, 8.8 N/A N/A 426-24030 426-34050 426-34075 426-340100 426-440150
489-DB D 5.8, 7.8 N/A N/A 489-24030 489-34050 489-34075 489-340100 489-440150
408-YB D 8.8, -5.2 N/A N/A N/A 408-34050 408-34075 408-340100 408-440150
492-YB D -9.7, 10.8 N/A N/A N/A 492-34050 492-34075 492-340100 492-440150
419-YB D -8.4, 10.5 N/A N/A N/A 419-34050 419-34075 419-340100 419-440150
184-TR O 1, 3.2 184-24010 N/A N/A N/A N/A N/A N/A
179-TR* O 1, 3.2 N/A N/A N/A N/A N/A N/A N/A
196-TR* O 1, 3.2 N/A N/A N/A N/A N/A N/A N/A
561-CW* O 2.8, 4.3 N/A N/A N/A N/A N/A N/A N/A
563-CW* O 2.8, 4.3 N/A N/A N/A N/A N/A N/A N/A
567-CW* O 2.8, 4.3 N/A N/A N/A N/A N/A N/A N/A
CA09P* D 4.2, 1.2 N/A N/A N/A N/A N/A N/A N/A
CA55M* O .7, 3.2 N/A N/A N/A N/A N/A N/A N/A
This device uses a direct contact (inductive cradle) for the server antenna input. Mobile Station Coupling Loss is 7dB at 836mHz and 9dB at 1880mHz.
Nominal passband gain:
Nominal bandwidth:
NOTICE:
22dB
Cell band: uplink 824-849MHz, downlink 869-894MHz, PCS band: uplink 1850-1910MHz, downlink 1930-1990MHz
The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the
rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
Mean output power: Input/output impedance:17dBm 50 ohm
The above combinations do not exceed 13dB gain. Any kitted antenna/cable combination must not exceed 13 dB of gain.
