Digital Device DPD-4210 42 inch Plasma Display Monitor User Manual
Digital Device Inc. 42 inch Plasma Display Monitor Users Manual
Users Manual
User’s Manual
PLASMA
P
PL
LA
AS
SM
MA
A
DISP
PLAY Monitor
D
DI
IS
SPL
LA
AY
Y
M
Mo
on
ni
it
to
or
r
MODEL : DPD-4210
It’s the creative world of plasma display
WARNING
RISK OF ELECTRICAL
SHOCK, DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER(OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with the arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute an electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
- -
2
Features and Package
Features
- 42" Diagonal Viewing Area
- Menu driven On Screen Display (OSD) for Brightness and Contrast, Shar
p
ness, Hue and
Saturation , NTSC/PAL, PIP(Picture in Picture), Aspect Ratio, Input Source, Audio, Audio Adjust,
Language, Color Temperature
- IR Remote control for all functions
- Built-in Television Tuner
- Zoom Feature (up to 500%)
- Freeze Picture Feature
- Rotate Picture Feature
- Headphone output (only sub sound)
- Speaker output : Left, Right, Center, Surround-L, Surround-R, Sub-Woofer
- Selectable Aspect Ratio (16:9, 4:3, User Adjusting Mode)
- PIP (Picture in Picture) Function
- Multiple Mounting Options : Wallmount or Stand
- Monitor Composite Video Output
- Large Viewing Angle (160 °)
- Seven (7) Possible Video Sources : 1 PC
2 External RCA A/V Inputs
1 S-VHS Input
1 SCART Input
1 Component Video Input
Package Contents
- 42" Plasma Monitor
- User's Manual
- Full function Remote Control
- A set of three AAA Batteries for Remote Control
- AV Cord
- AC Power Cord
- -
3
I/O Definitions
Front Panel Controls
- Main Power ON/OFF
- Power ON/OFF
- Volume UP
- Volume DOWN
- AV
Rear Unit I/O's
- AC Power Input
- Monitor Composite Video Output
- Monitor Line Level Audio Output
- S-VHS Input
- Composite Video Input (2)
- Line Level Audio Input (2)
- SCART Input/Output
- DVD Component Video Input
- DVD Line Level Audio Input
- PC D-sub Connector Input
- PC Headphone Audio Input
- Headphone Audio Output
- Speaker Output : Left, Right, Center, Surround-L, Surround-R, Sub-woofer
- -
4

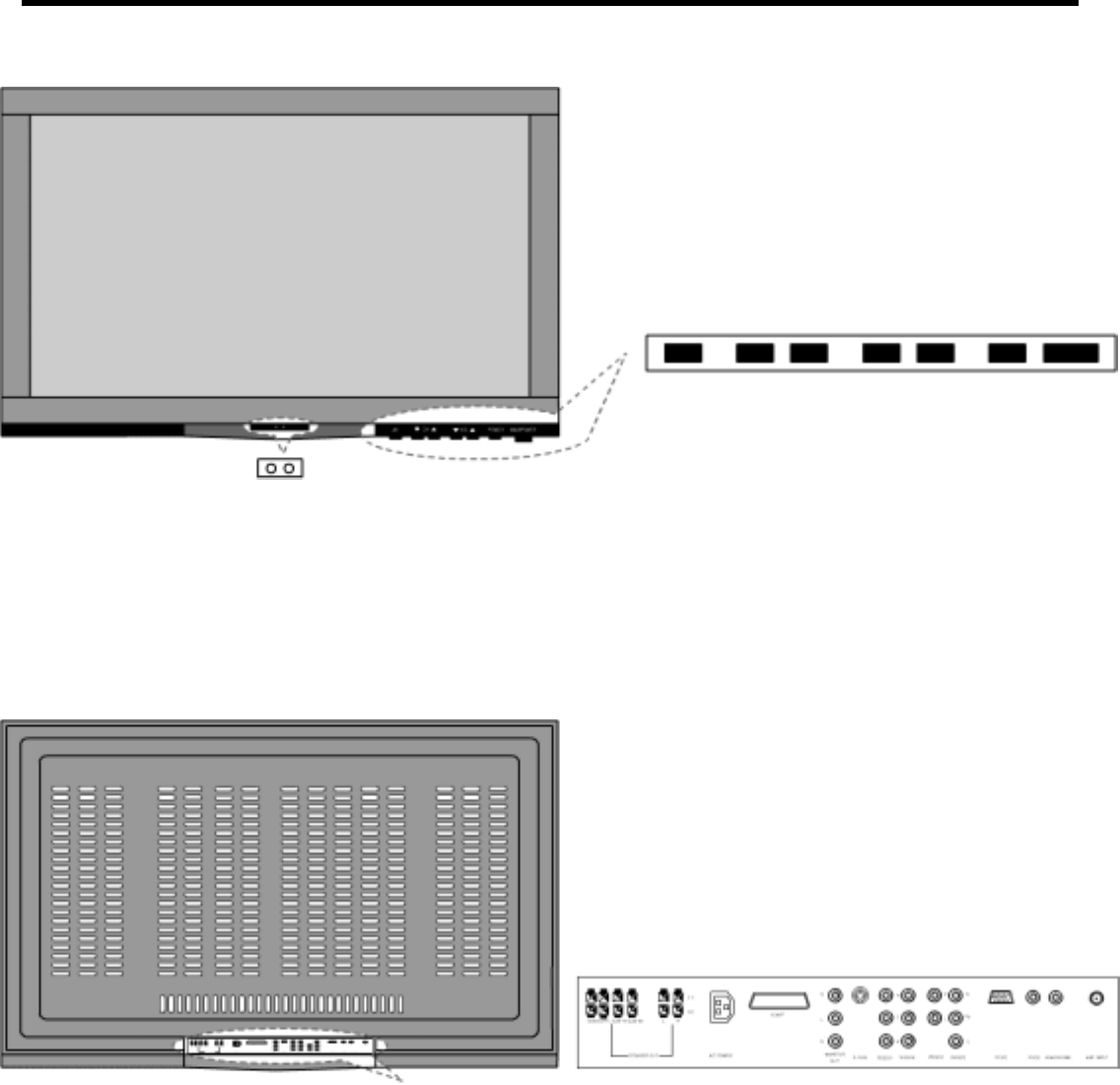

Front and Rear Controls

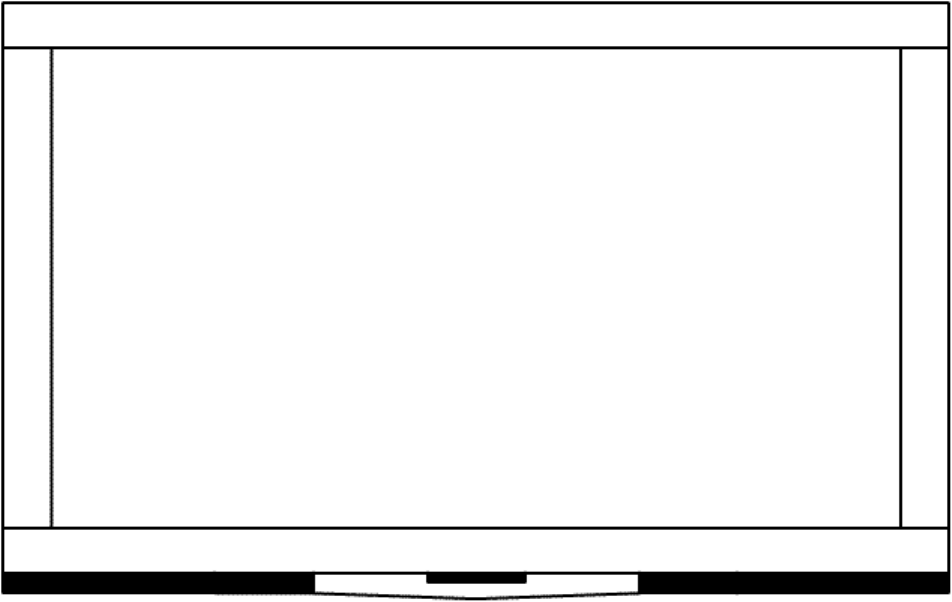

Front
AV Vol Down/Up Power /Main Power
LED / Remote Control Receiver
Rear Controls
AV Input/Output Terminal
The recessed AV input/output terminals allow the user to have the option of using the mounting stand
or wall mounting the 42" Plasma Monitor. The Monitor itself is only 95mm wide.
- -
5

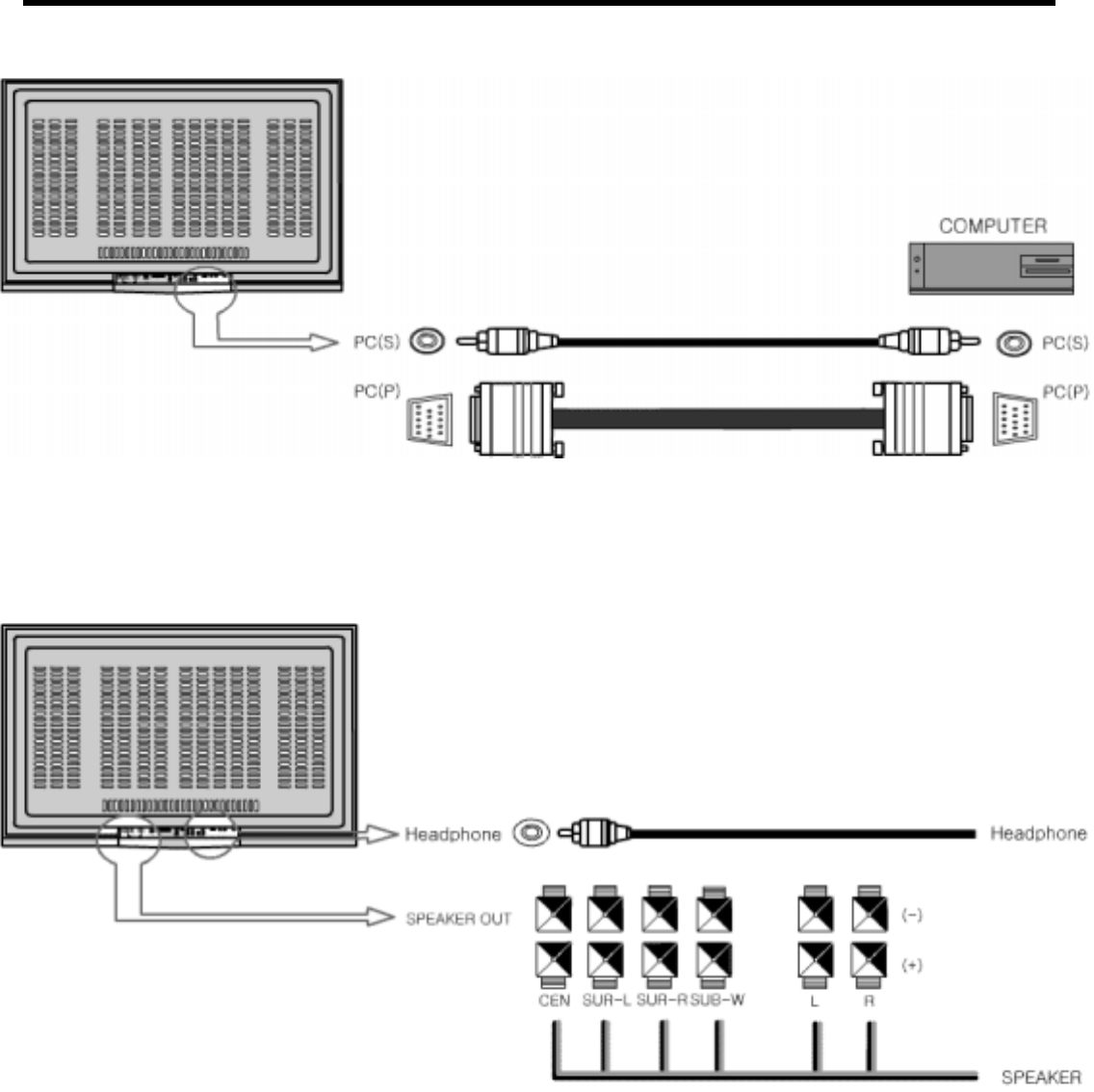

Basic Operation
PC
1. Connect as the shown drawing.
2. Power on.
3. Press the [PC] button.
External Speaker & Headphone Connection
1. Power Off.
2. Connect as the shown drawing.
3. Power on.
4. Adjusting Audio setting.
<Caution> Headphone outputs Sub-Signal Sounds.
- -
6
Specifications
Power Source AC100V~240V, 50/60㎐
Power Consumption < 350W (Typical)
Display Panel Screen Size 921 mm (H) × 518 mm (V) <42" diagonal>
Number of Pixels 853(Horizontal) × 480 (Vertical)
Brightness 550 cd/m2
Contrast Ratio 700:1
Displayable Colors 16,770,000 Colors
Viewing Angle Over 160 degrees
Input/Output Input PC (P), PC(S)
Video1(V, L, R)/S-VHS
Video2 (V, L, R)/SCART
Video3 [Component (Y, Pb, Pr), Sound (L, R)]
Output Monitor Out (V, L, R)/ SCART
Speaker Out (L,R,Center,Surround L/R,Sub-W), Headphone
Weight Without Stand 33 Kg
Dimensions Without Stand 1080 mm (W) × 670mm (H) ×99.5 mm (D)
Operation Condition Temperature 0° C ～ 40° C
Humidity 20% ～ 80%
Storage Temperature -25° C ～ 60° C
- -
7
Troubleshooting
Symptom Cause Possible Solution
No Power Power to the Monitor is not Check source of power to the Monitor.
plugged in.
Unit will not respond to Sensor is blocked. Clear path for sensors.
remote control Batteries in remote control Clean sensor lens.
are weak. Replace batteries.
No signal is displayed Video source incorrect. Check video source connection.
Make sure Monitor is set to correct video
source.
- -
8
FCC Compliance Statements
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates ,uses and can radiate radio frequency energy and ,if not installed and used in
accordance with the instruction , may cause harmful interference to radio communication. However , there is no
guarantee that interference will not occur in a particular installation.
If this equipment dose harmful interference to radio or television reception ,which can be determined by
turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following measures :
Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio / TV technician for help.
Warning : Your are cautioned that any change or modifications to the equipment not prissily approved by the
party responsible for compliance could void your authority to operate such equipment.
- -
9
