Digital Device DPD-5000 50'' PLASMA DISPLAY MONITOR User Manual
Digital Device Inc. 50'' PLASMA DISPLAY MONITOR
User Manual
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Appendix 6. User Manual
User’s Manual
P
P
PL
L
LA
A
AS
S
SM
M
MA
A
A
D
D
DI
I
IS
S
SP
P
PL
L
LA
A
AY
Y
Y
It’s the creative world of plasma display
MODEL : DPD-5000
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Information to the User

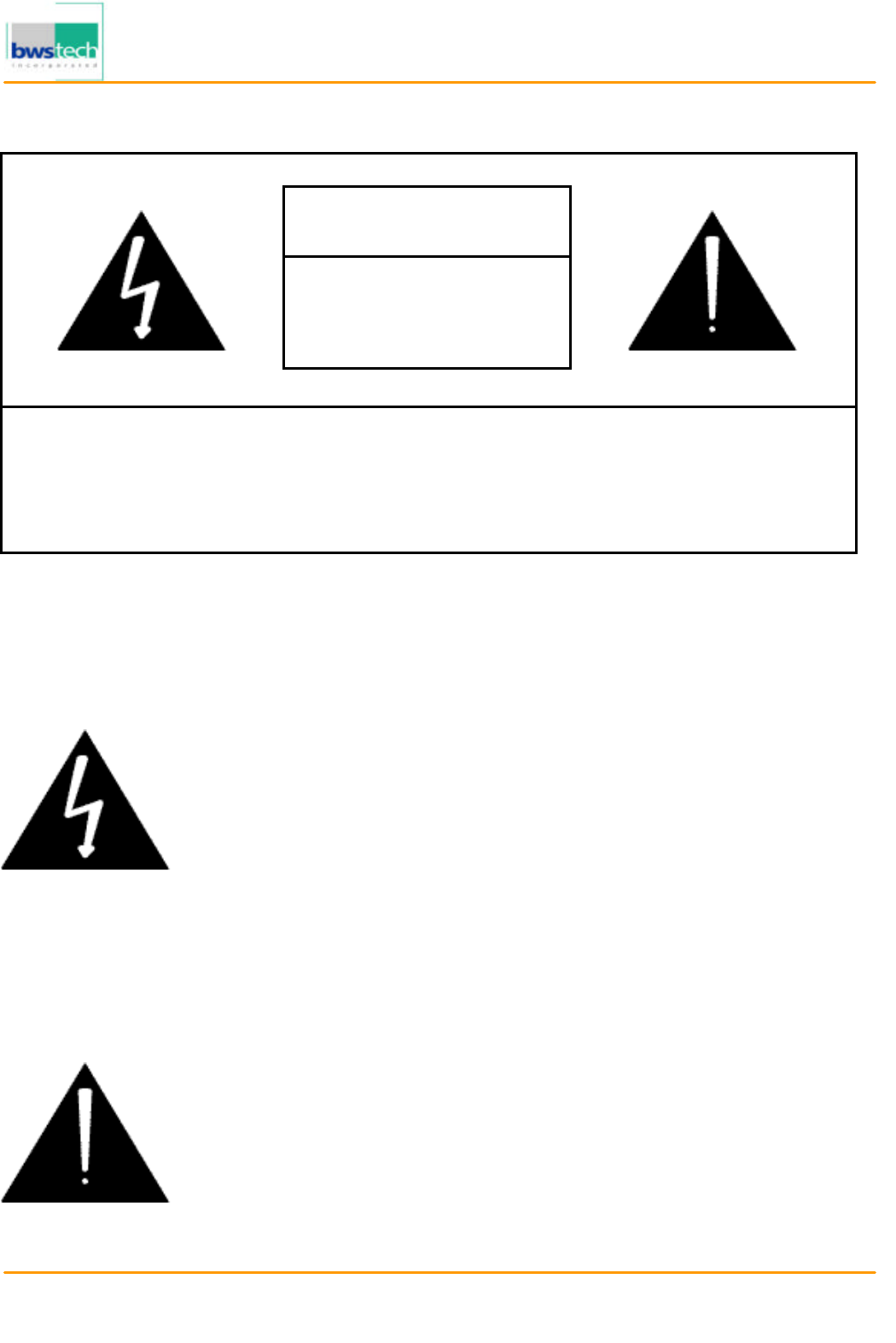

WARNING
RISK OF ELECTRICAL
SHOCK, DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE
COVER(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with the arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute an electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
Notices to User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
One or more of the following statements may be applicable:
FCC Warning
CAUTION : Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Manual Contents
Manual Contents 3
Features and Package Contents - Features 4
- Packages Contents 4
I/O Definitions 5
Front and Rear Controls - Front 6
- Rear Controls 6
Remote Control - Remote Control Basic 7
- Remote Control Details 8
Basic Operation - AV Input/Ouput Terminal 10
- TV 10
- Video 10
- S-VHS 11
- SCART 11
- Monitor Out Connection 12
- Component Video 12
- PC 13
- External Speaker & Headphone Connection 13
TV Channel Memory - Auto Channel Memory 14
- Manual Channel Memory 15

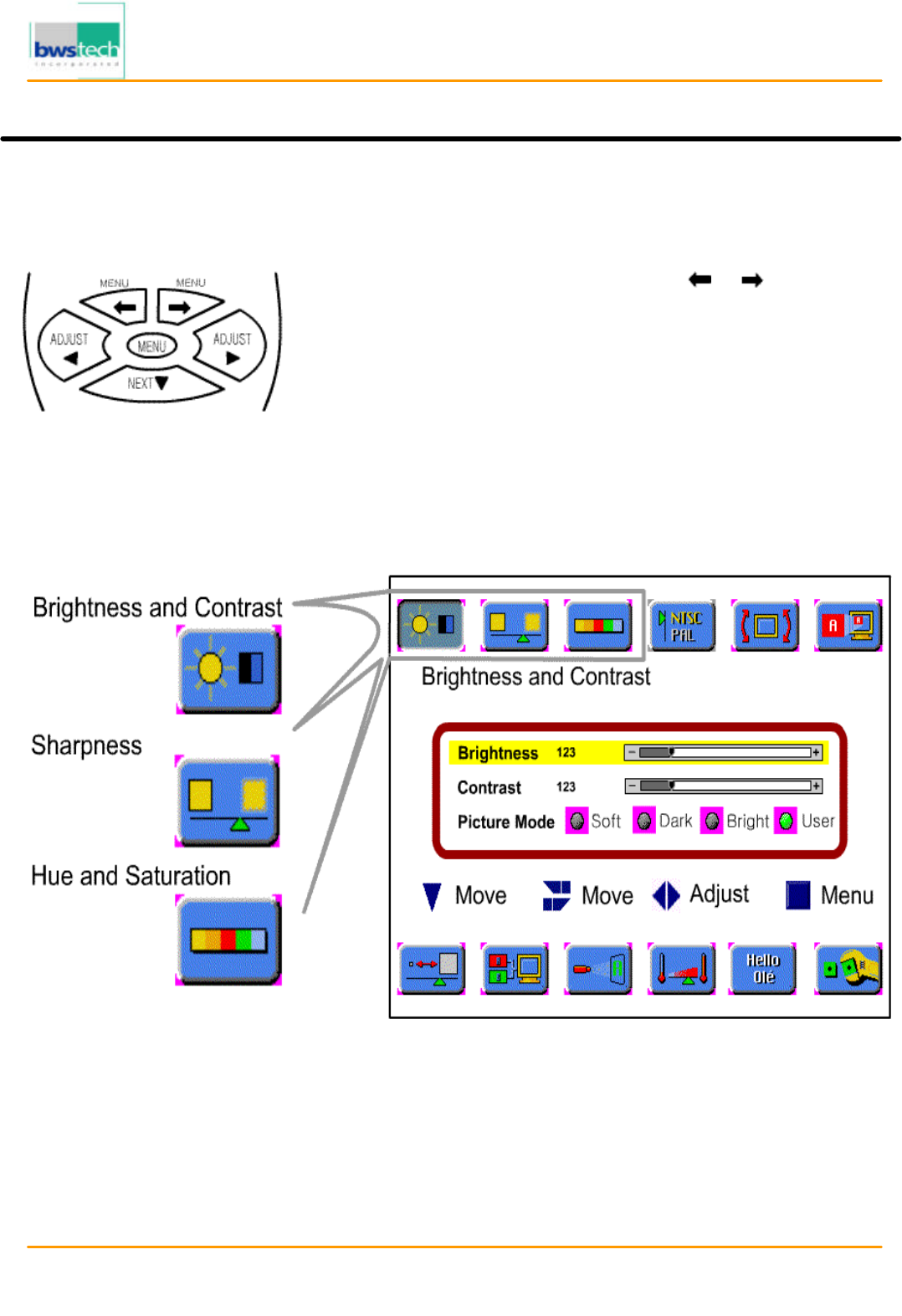

Picture - Picture Adjustment 16

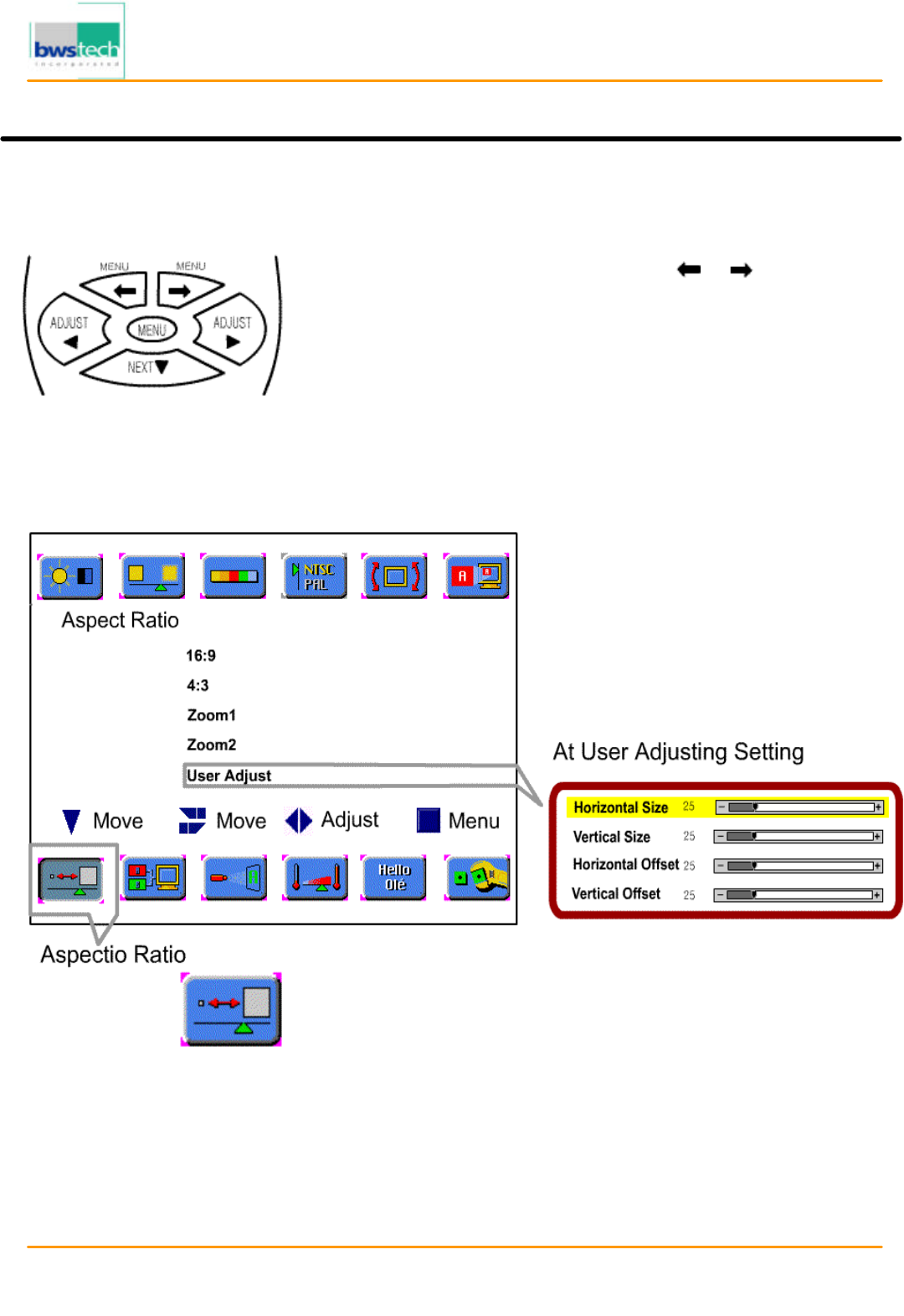

- Picture Size Adjustment 17

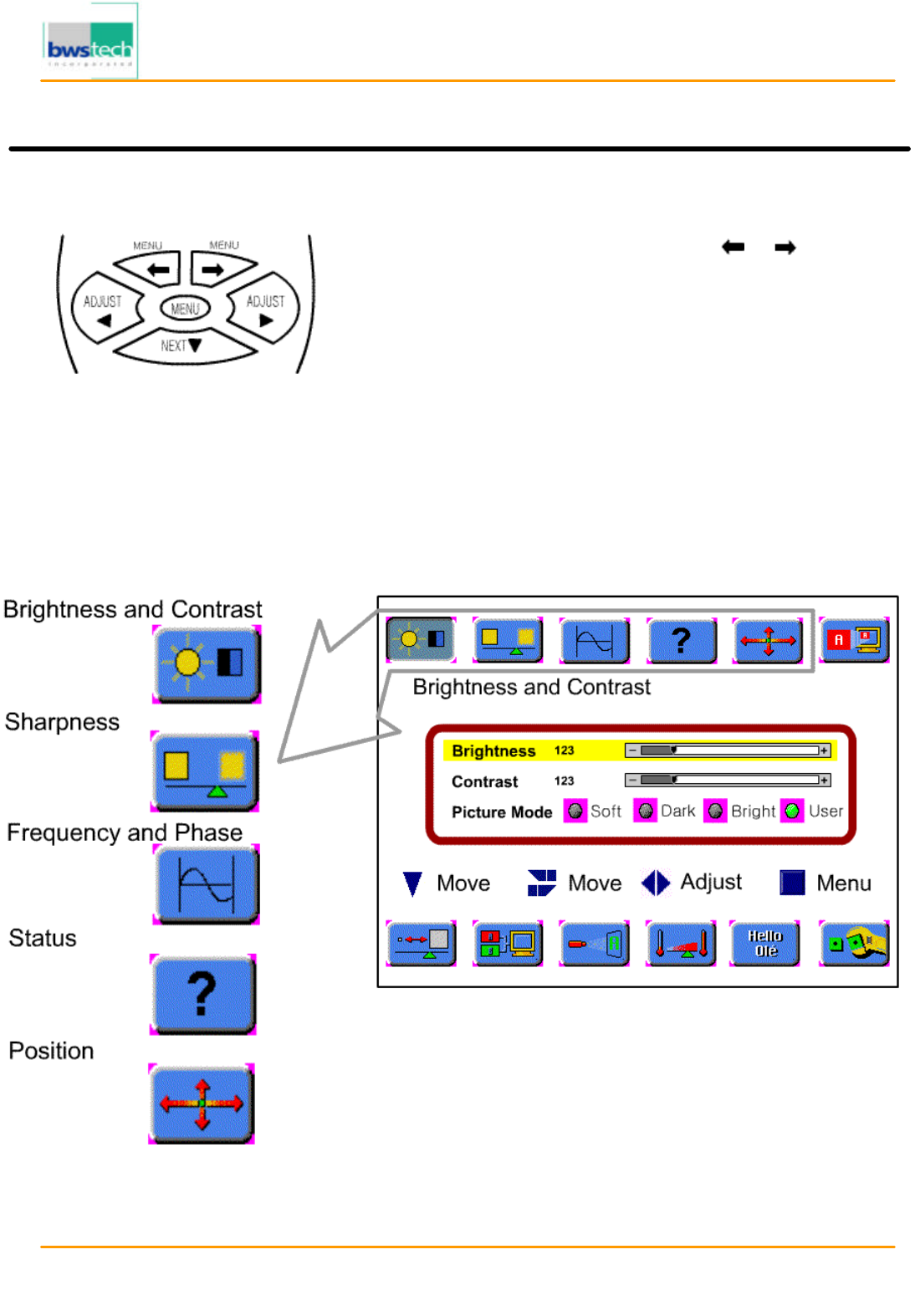

- Picture Adjustment in PC Mode 18
- Picture Size Adjustment in PC Mode 19

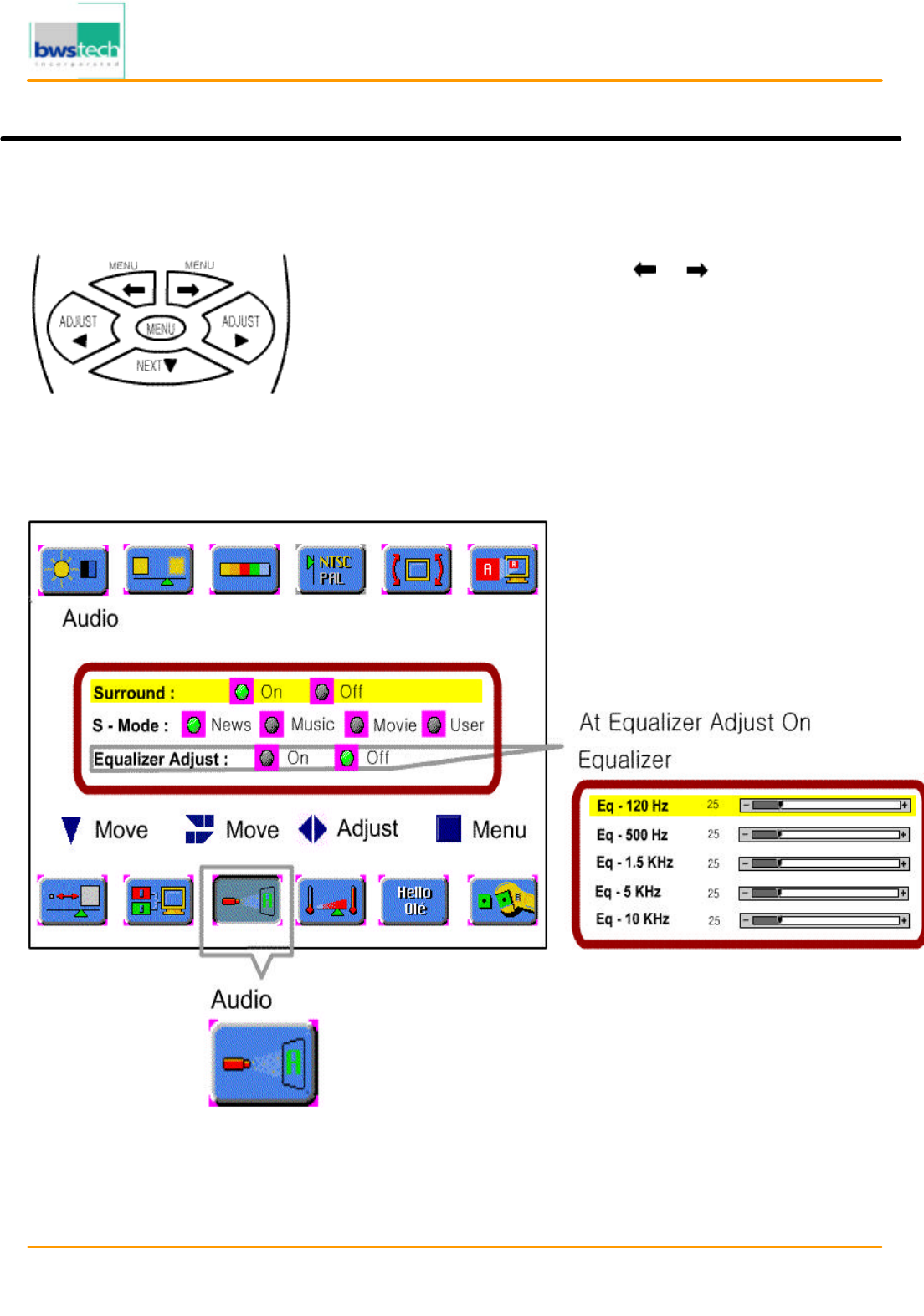

Audio - Audio Mode Setting 20

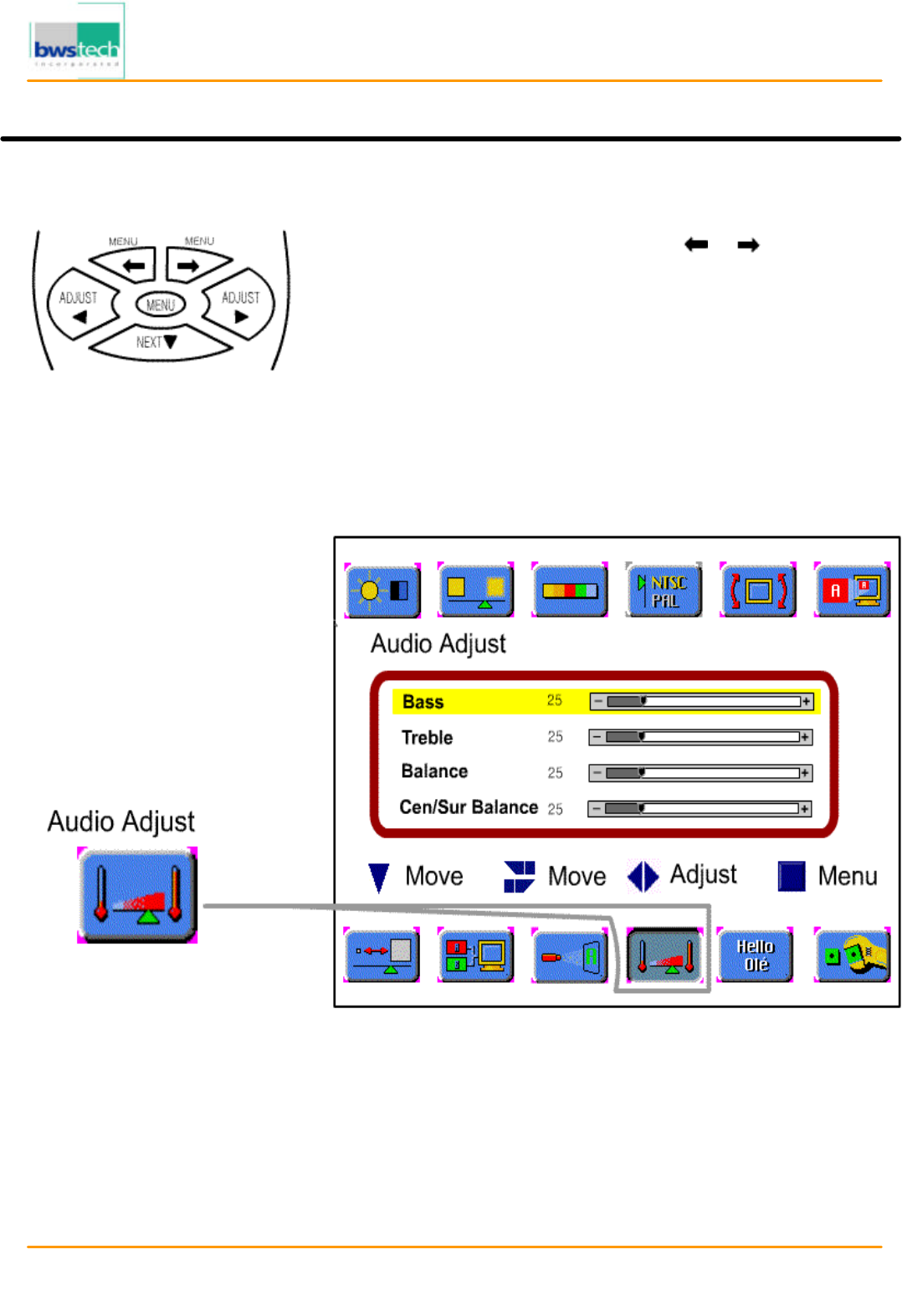

- Audio Adjustment 21

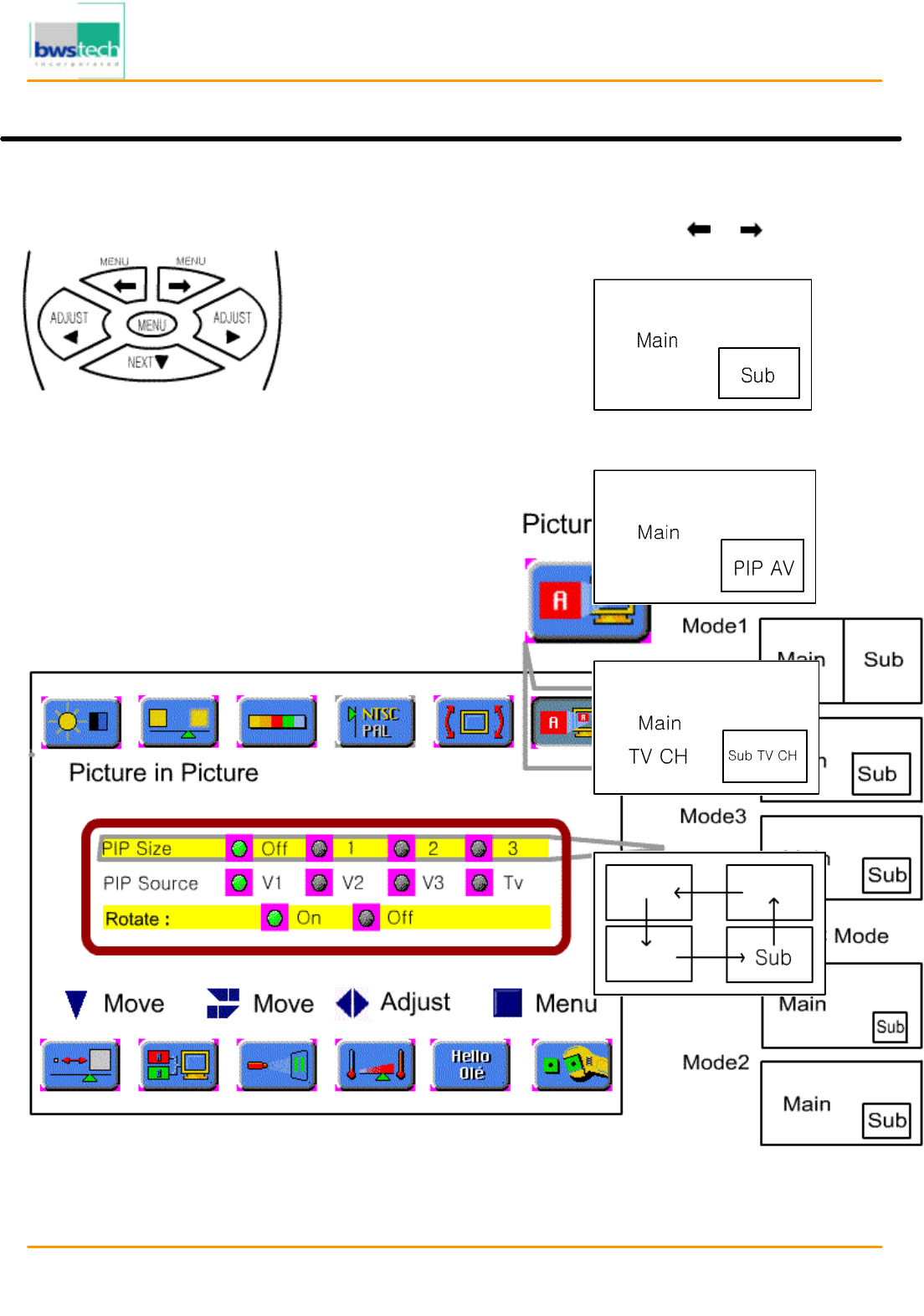

Picture in Picture - Picture in Picture Mode Setting 22
- Watching Picture in Picture 23

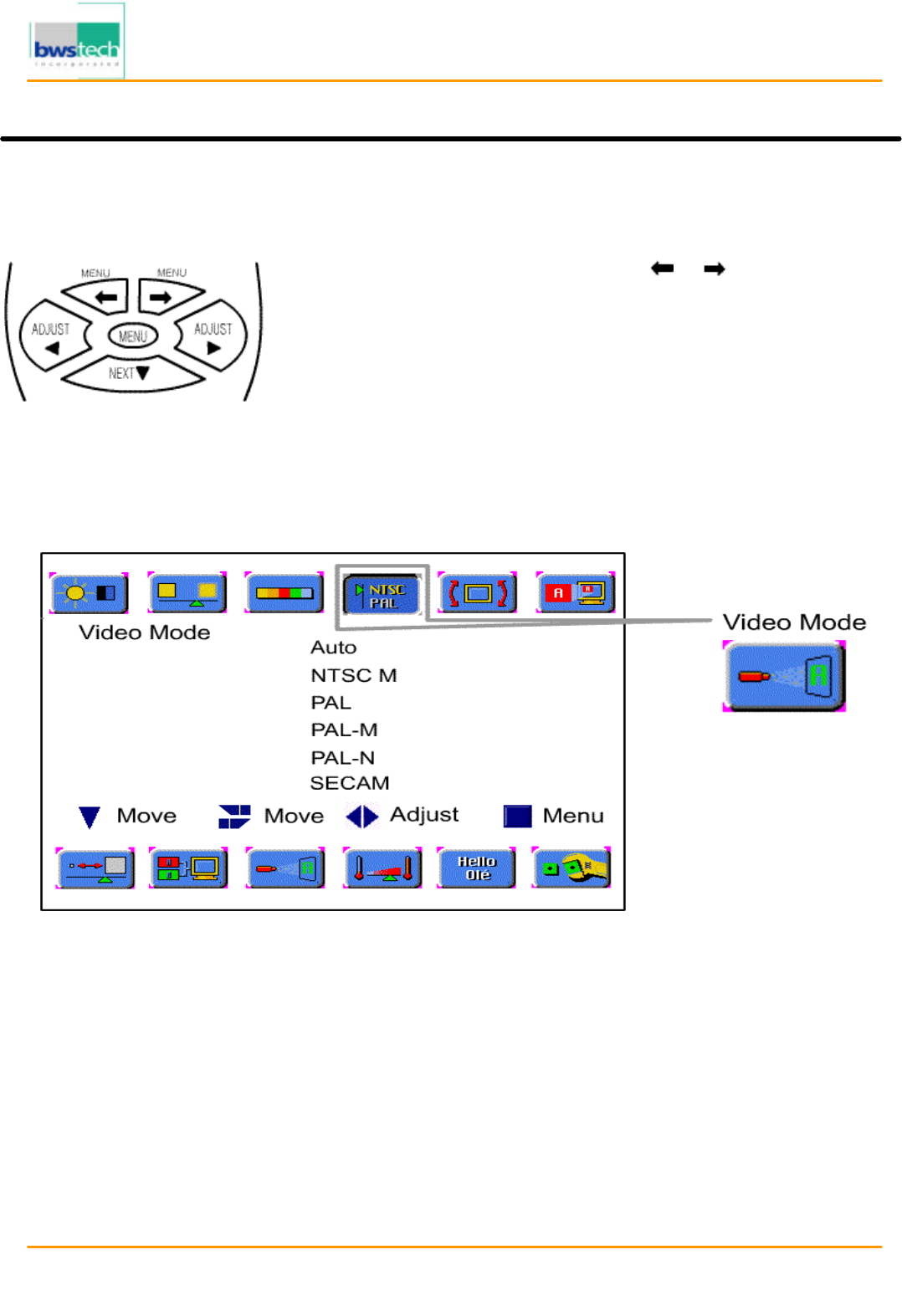

Video Signal Format - Video Signal Format Setting 24

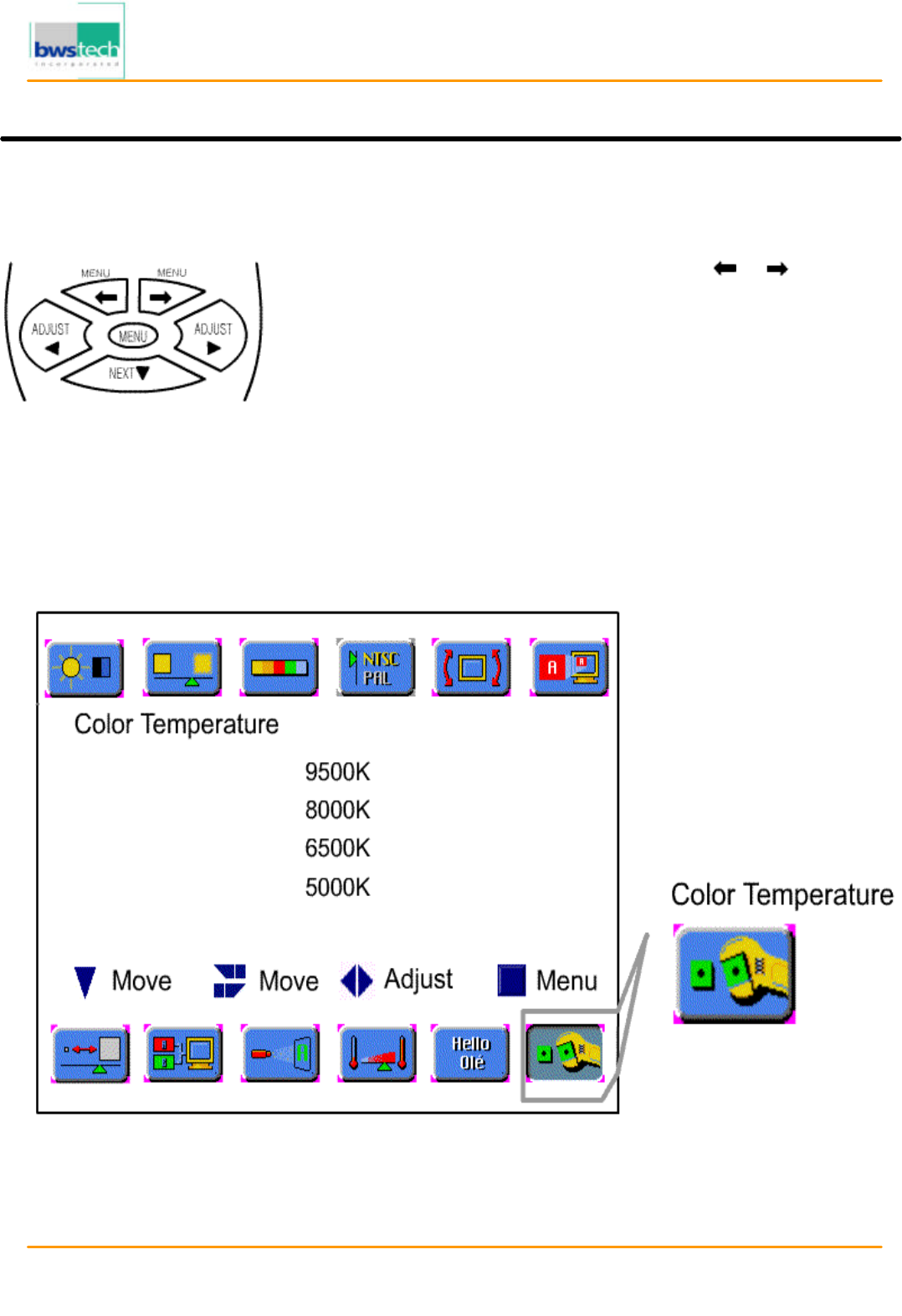

Color Temperature - Color Temperature Setting 25
Specifications 26
Troubleshooting 27
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Features and Package
Features
- 42" Diagonal Viewing Area
- Menu driven On Screen Display (OSD) for Brightness and
Contrast, Sharpness, Hue and
Saturation , NTSC/PAL, Channel, PIP(Picture in Picture), Aspect Ratio, Input Source,
Audio, Audio Adjust, Language, Color Temperature
- Cable TV ready
- IR Remote control for all functions
- Built-in Television Tuner
- Zoom Feature (up to 500%)
- Freeze Picture Feature
- Rotate Picture Feature
- Headphone output (only sub sound)
- Speaker output : Left, Right, Center, Surround-L, Surround-R, Sub-Woofer
- Selectable Aspect Ratio (16:9, 4:3, User Adjusting Mode)
- PIP (Picture in Picture) Function
- Multiple Mounting Options : Wallmount or Stand
- Monitor Composite Video Output
- Large Viewing Angle (160 °)
- Seven (7) Possible Video Sources : 1 PC
2 External RCA A/V Inputs
1 S-VHS Input
1 SCART Input
1 Component Video Input
1 TV
Package Contents
- 42" Plasma TV
- User's Manual
- Full function Remote Control
- A set of three AAA Batteries for Remote Control
- AV Cord
- AC Power Cord
I/O Definitions
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Front Panel Controls
- Main Power ON/OFF
- Power ON/OFF
- Channel UP
- Channel DOWN
- Volume UP
- Volume DOWN
- AV
Rear Unit I/O's
- AC Power Input
- F-Type (NTSC) or Din-Type (PAL) Connector for Antenna Input
- Monitor Composite Video Output
- Monitor Line Level Audio Output
- S-VHS Input
- Composite Video Input (2)
- Line Level Audio Input (2)
- SCART Input/Output
- DVD Component Video Input
- DVD Line Level Audio Input
- PC D-sub Connector Input
- PC Headphone Audio Input
- Headphone Audio Output
- Speaker Output : Left, Right, Center, Surround-L, Surround-R,
Sub-woofer

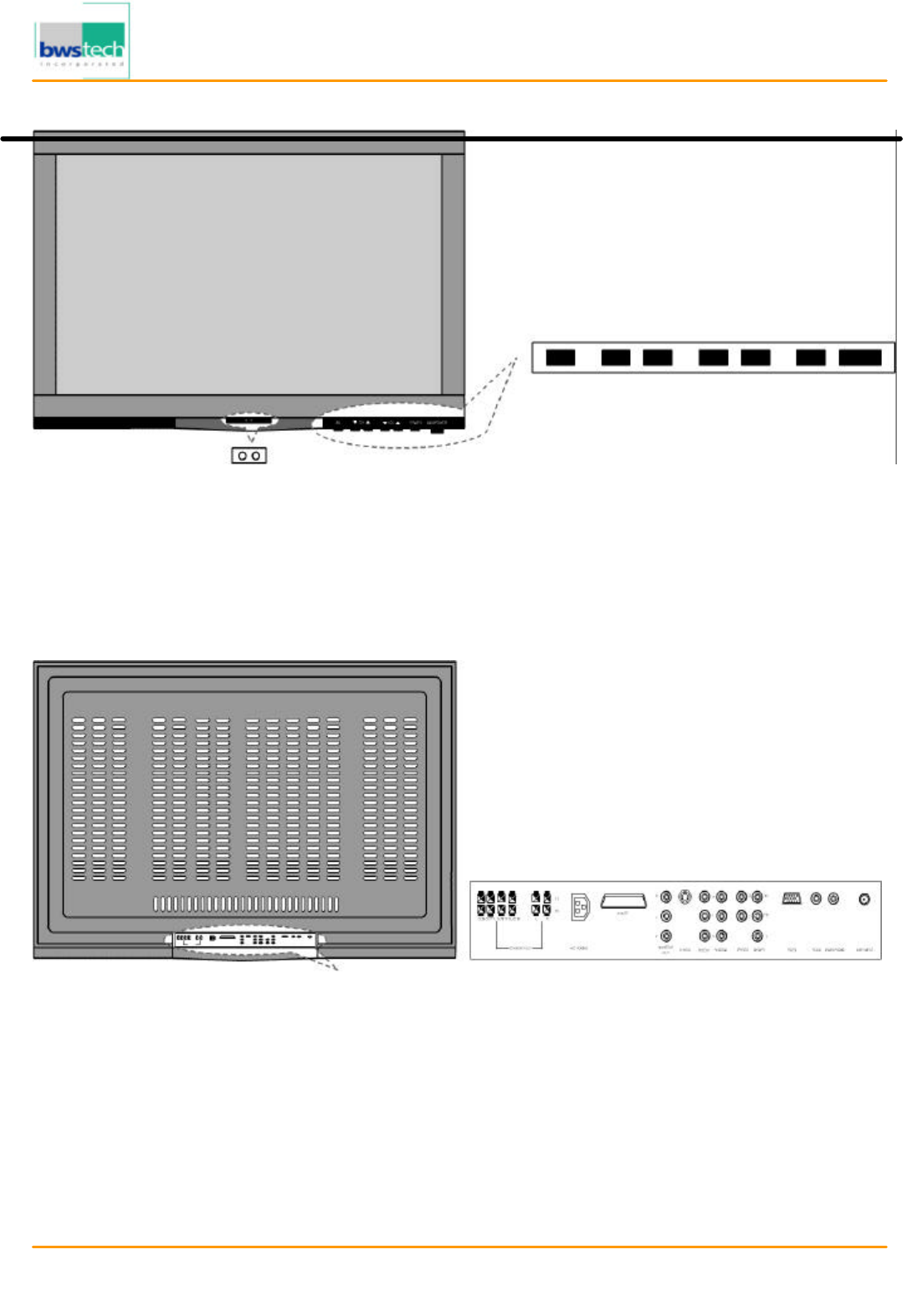

Front and Rear Controls
Front
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Rear Controls
The recessed AV input/output terminals allow the user to have the option of using the
mounting stand or wall mounting the 42" Plasma Television. The television itself is only 95mm
wide.
Remote Control
Remote Control Basic
AV Input/Output Terminal
AV CH Down/Up Vol Down/Up Po
wer
/Main Power
LED / Remote Control
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

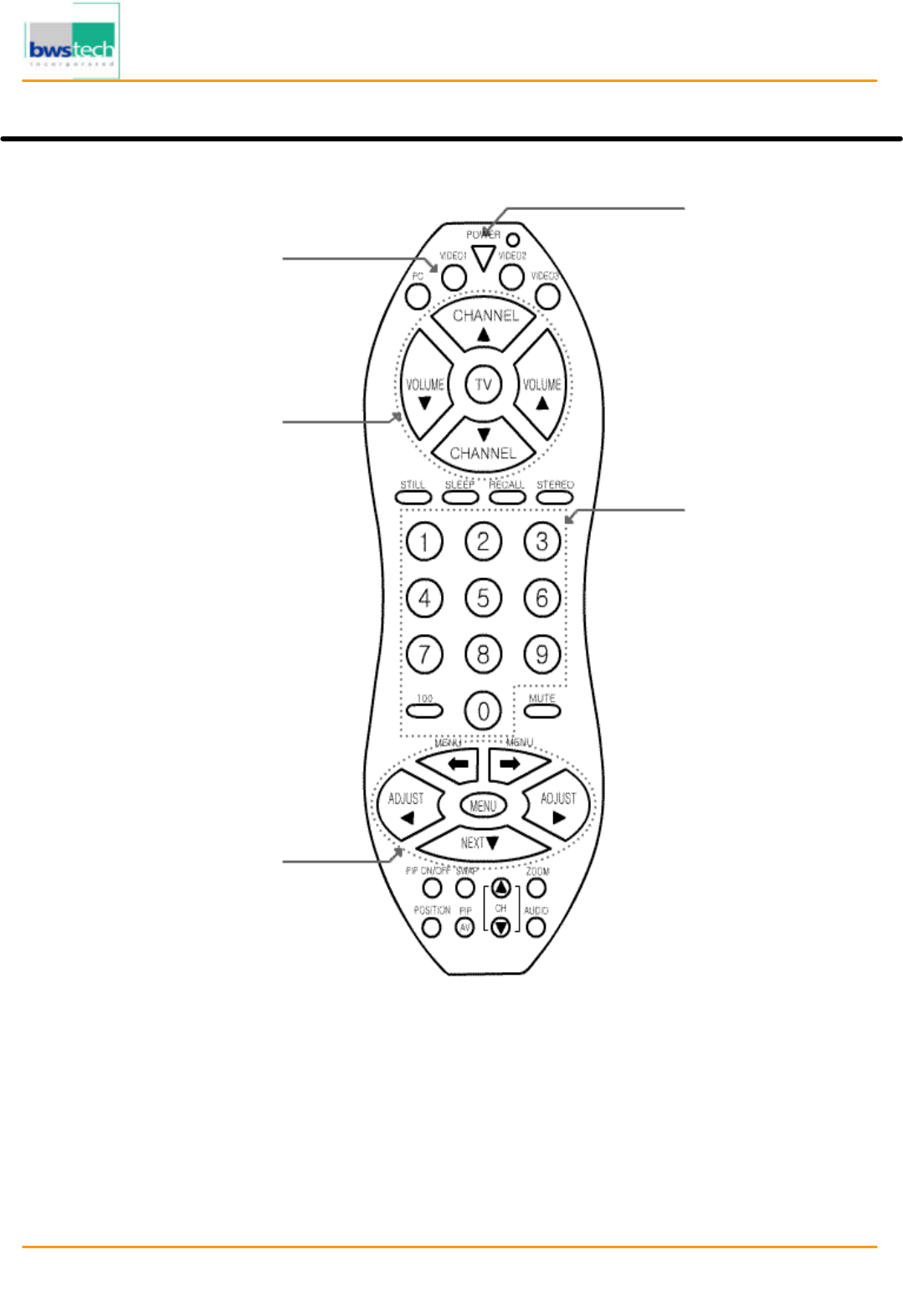

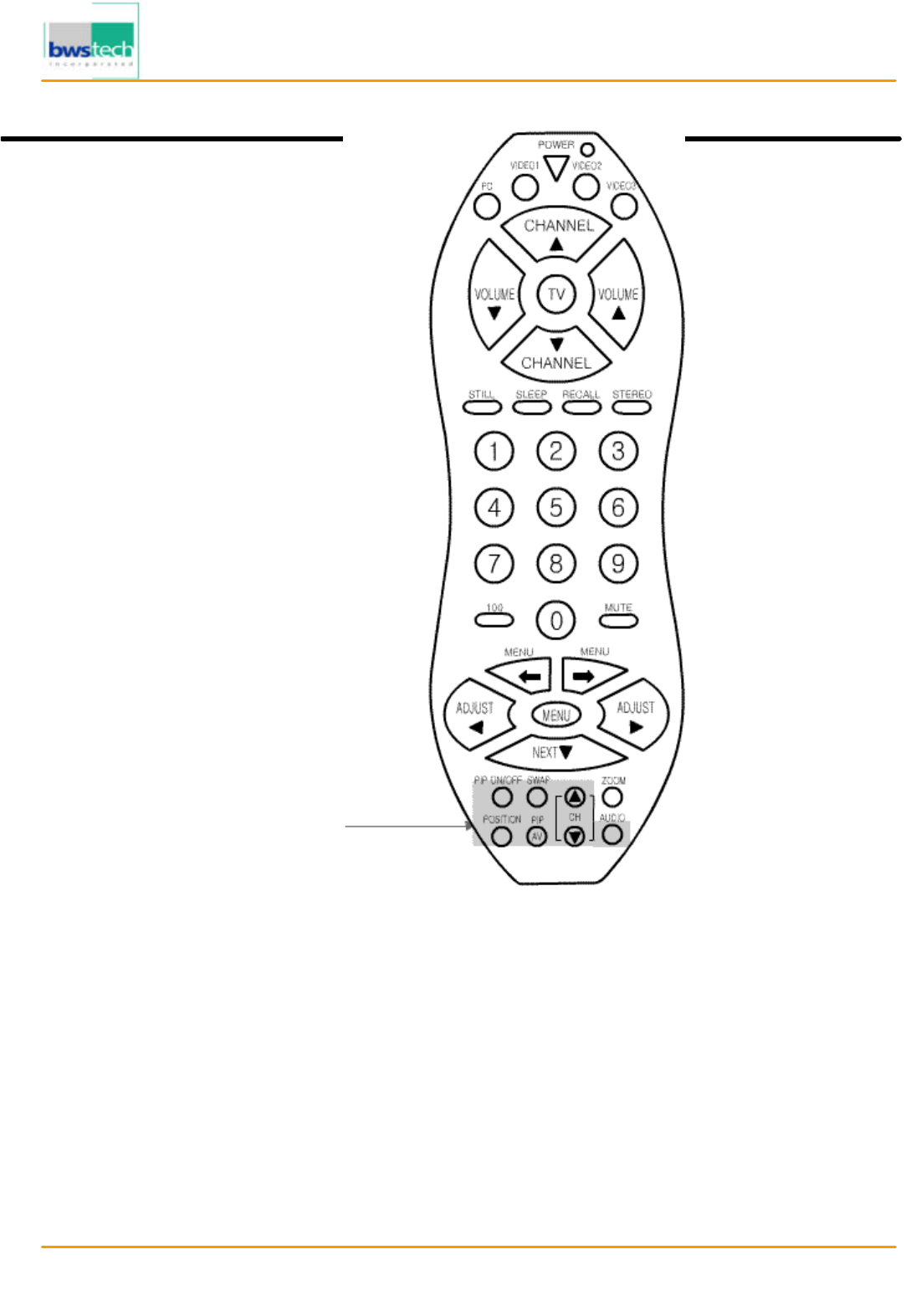

Remote Control
Remote Control Details
POWER
Pressing this button
turns the television
ON and OFF.
CH/VOL BUTTONS
These buttons are used
to adjust the channel
selected and the volume
level. Number Buttons
Used to enter
channels selected.
AV Buttons
( PC / VIDEO1 /
VIDEO2 / VIDEO3 /
TV )
Use this button for signal
Menu Button
The center button is used
to pull up the menu
screen. The surrounding
buttons are used to make
adjustments to the menu
item selected. (ex.
Picture, Sound and PIP
adjustments)
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

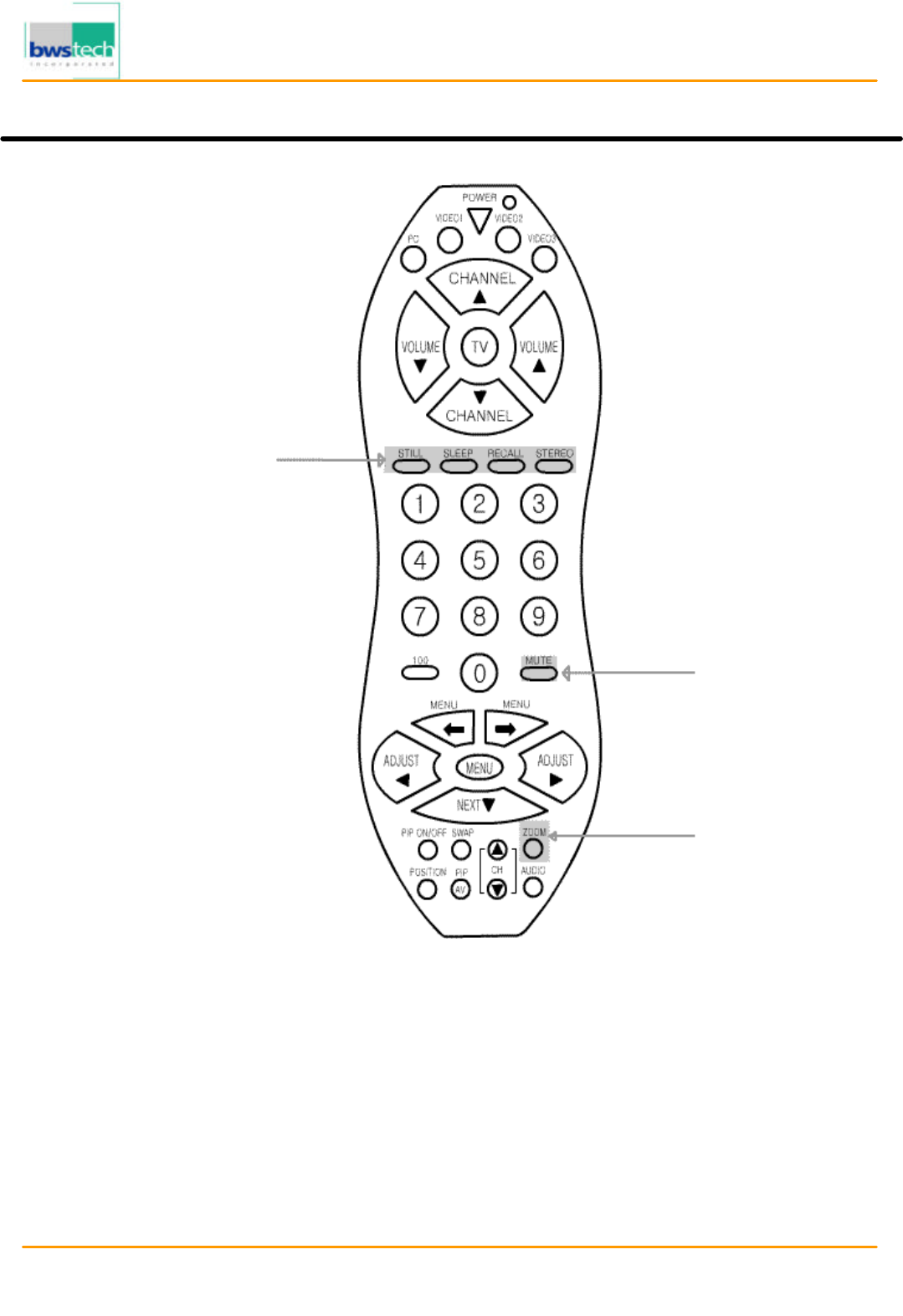

Remote Control
MUTE
This button mutes
the televisions
sound.
STILL
Pressing this button will
stop/freeze the picture.
SLEEP
This button allows the
user to set the sleep
timer.
RECALL
This button will allow the
user to view the setting
status.
STEREO
Allows MONO, STEREO or
SAP mode selection.
ZOOM
Pressing the up and
down buttons allows
the user to zoom in
or out the picture.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Basic Operation
1. AV Input/Output Terminal

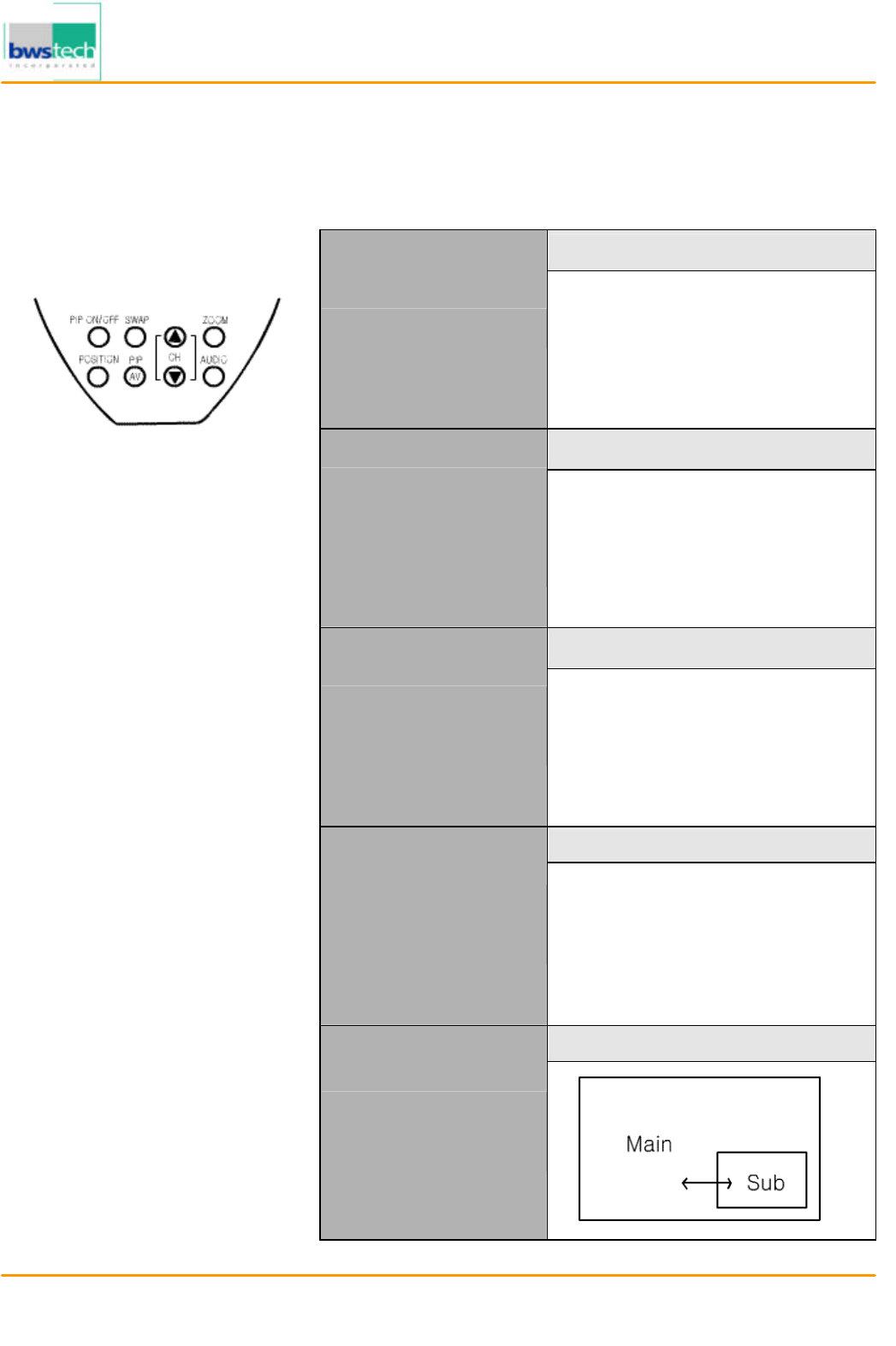

PIP ON/OFF
Pressing this button
toggles picture in picture
on and off.
SWAP
This button allows the
user to swap the picture
in picture for picture on
the main screen.
CH ▲/▼
Pressing this button up
or down allows
channel selection of
the picture in picture.
POS
This button switches the
screen location of the
picture in picture viewing
screen. There are four
possible screen
locati
ons for the picture in
picture.
PIP AV
This button switches
the mode selection of
the picture in picture
viewing screen.
AUDIO
This button switches the
Speaker Out of picture in
picture Mode.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

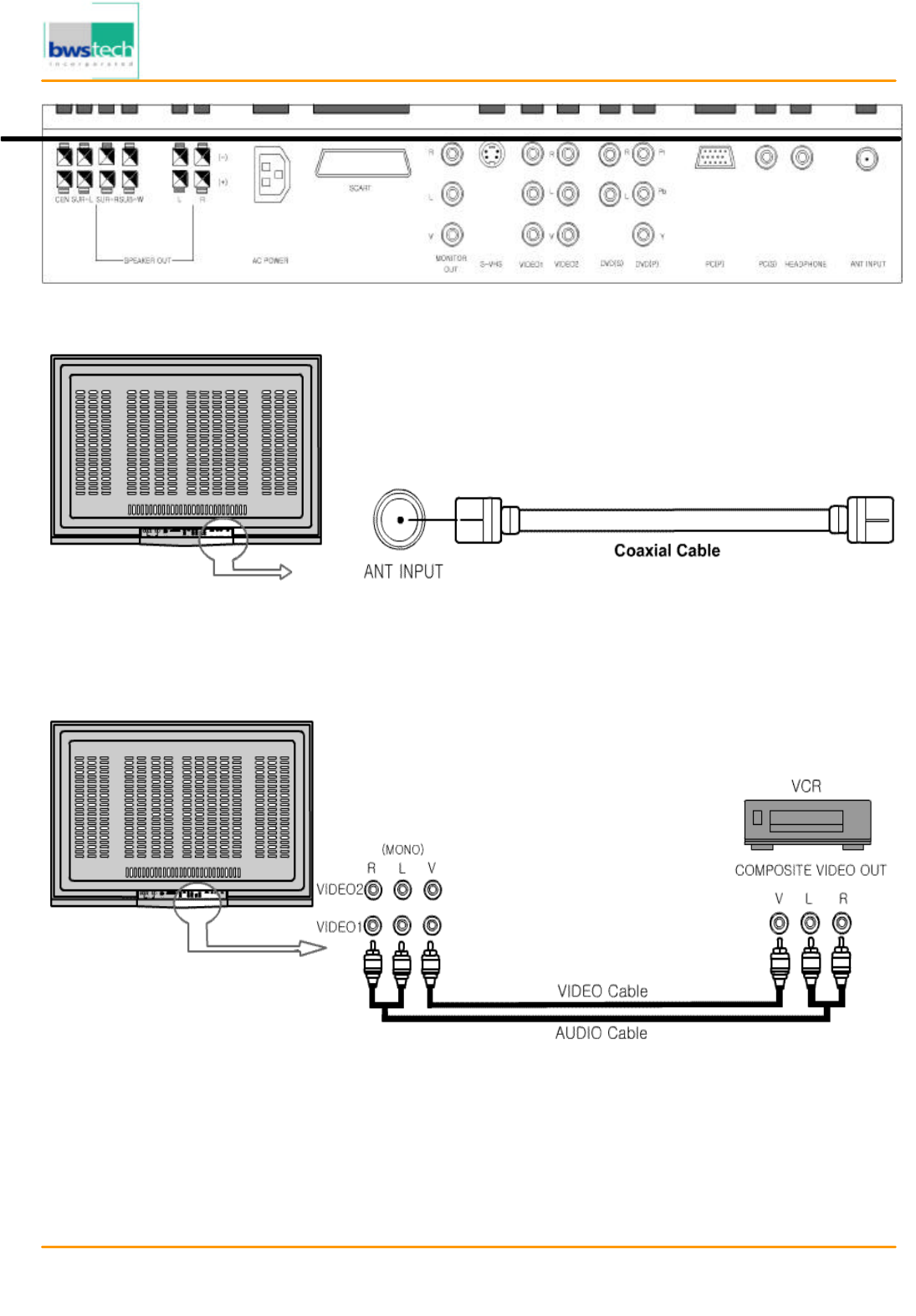

2. TV
3. VIDEO
Basic Operation

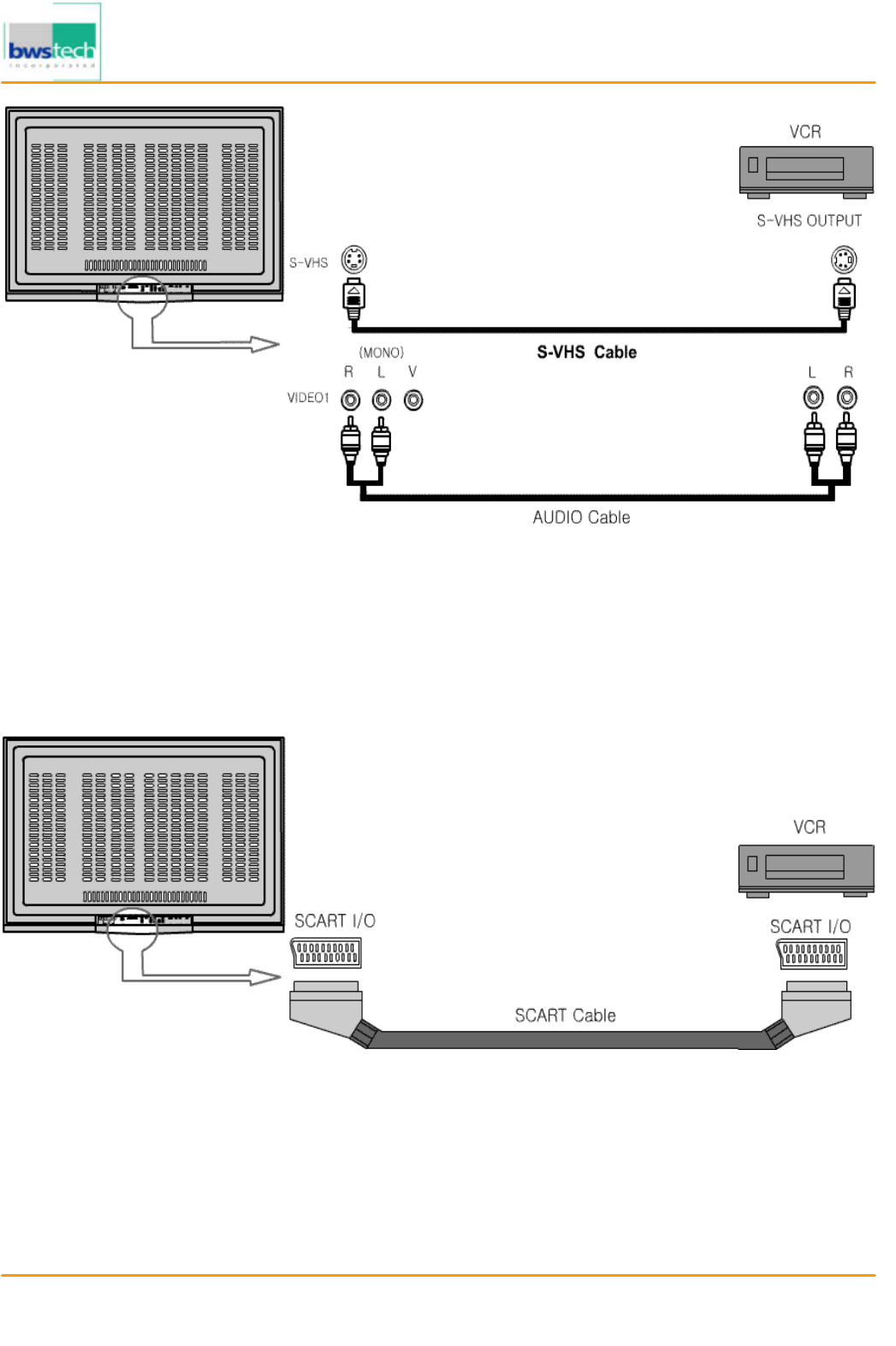

4. S-VHS
1. Connect as the shown drawing.
2. Power on.
3. Press the [TV] button.
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO1] or [VIDEO2] button.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
5. SCART Connection
Basic Operation
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO1] button.
<Caution> Audio input must be connected with [Video1].
In the case when all input sources of S-VHS and Video1 Port are occupied, S-VHS input Sources
display preceding to Video1 Port.
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO2] button.
<Caution> In the case when all input sources of SCART and Video2 Port are occupied, SCART input Sources
display preceding to Video2 Port.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

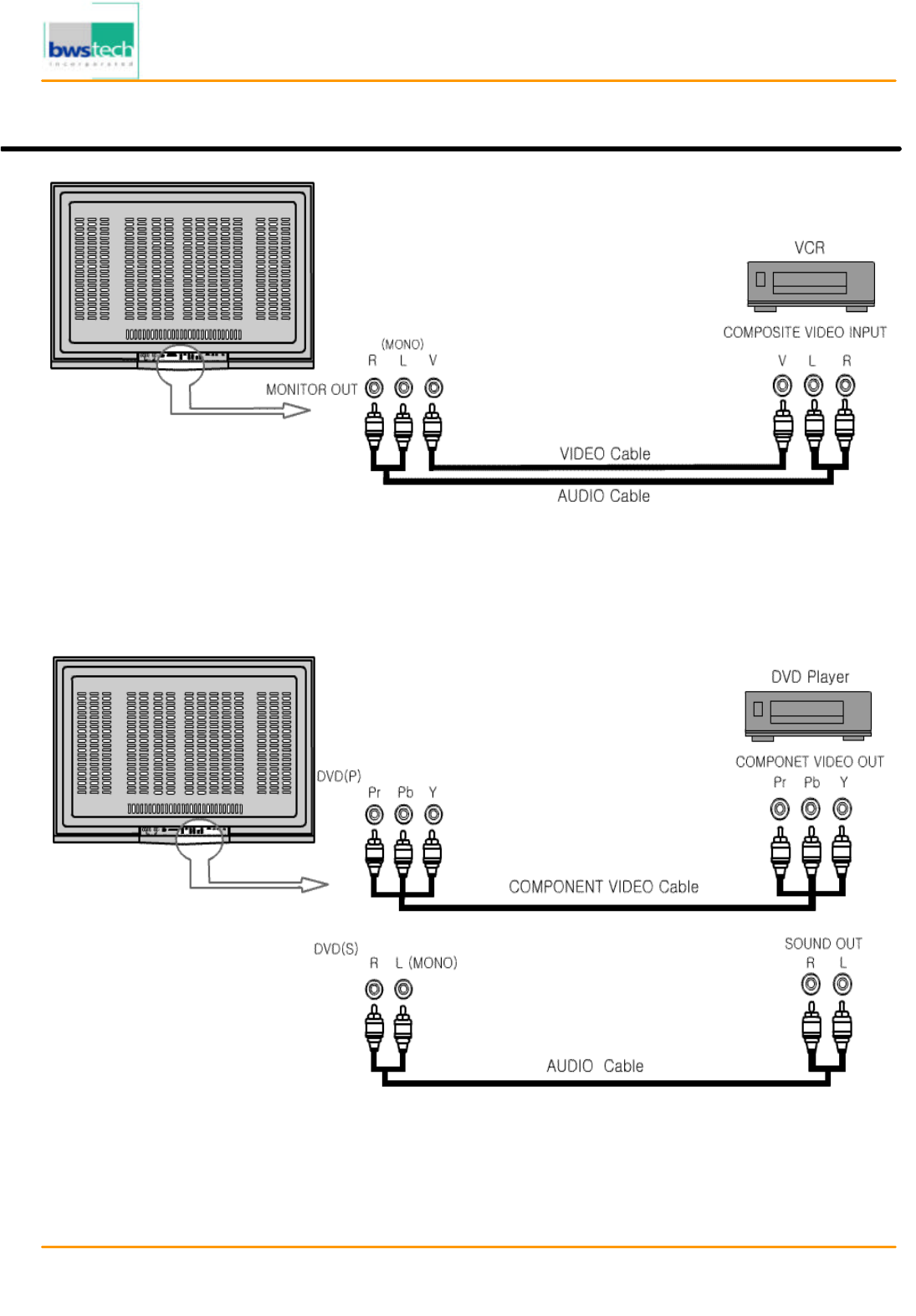

6. MONITOR OUT Connection
7. COMPONENT Video (ex. DVD, DTV Set-top Box)
Basic Operation
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO3] button.
<Caution> Monitor out is only applied to [TV], [VIDEO1], [VIDEO2].
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

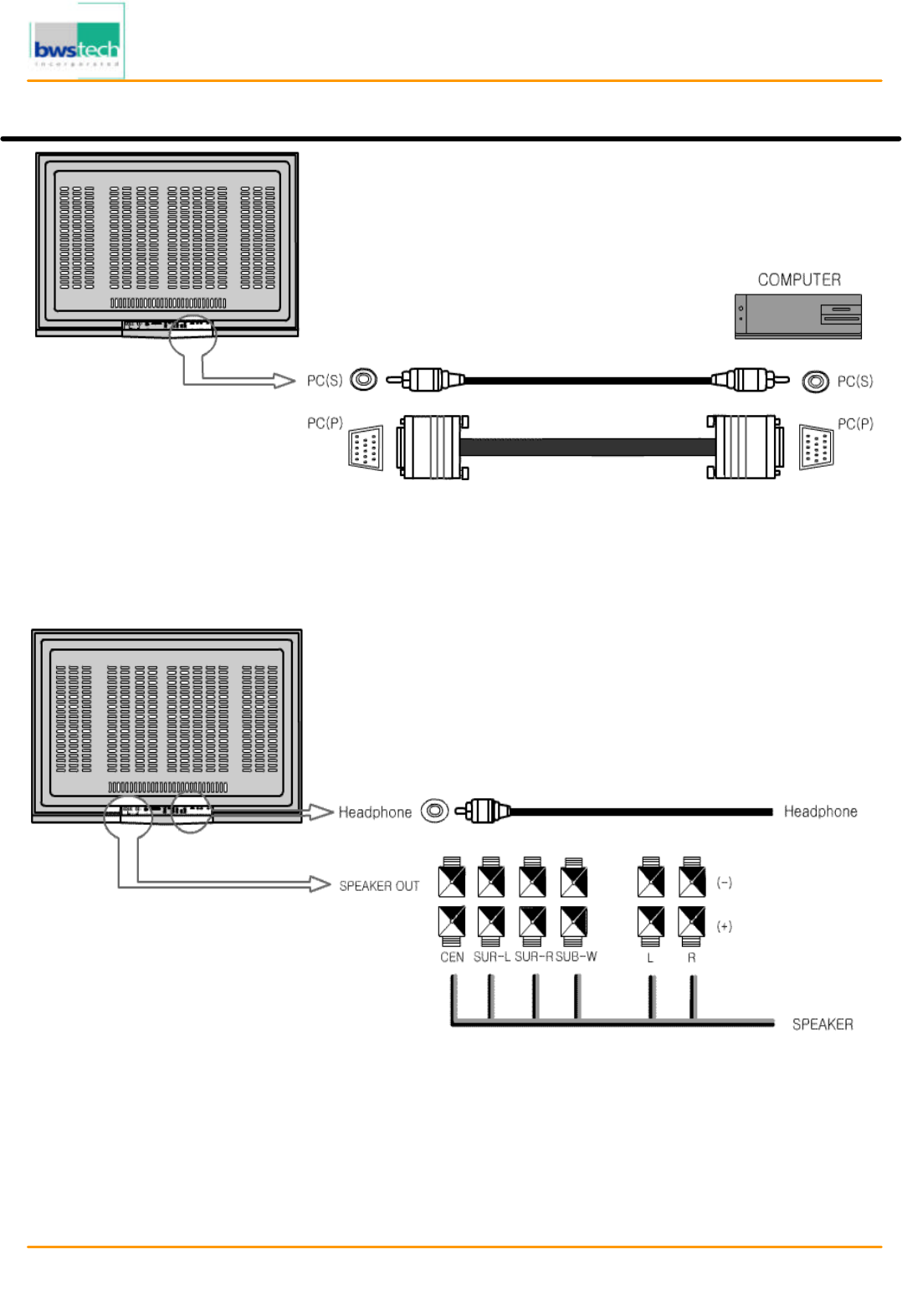

8. PC
9. External Speaker & Headphone Connection
TV Channel Memory
1. Connect as the shown drawing.
2. Power on.
3. Press the [PC] button.
1. Power Off.
2. Connect as the shown drawing.
3. Power on.
4. Adjusting Audio setting.
<Caution> Headphone outputs Sub-Signal Sounds.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

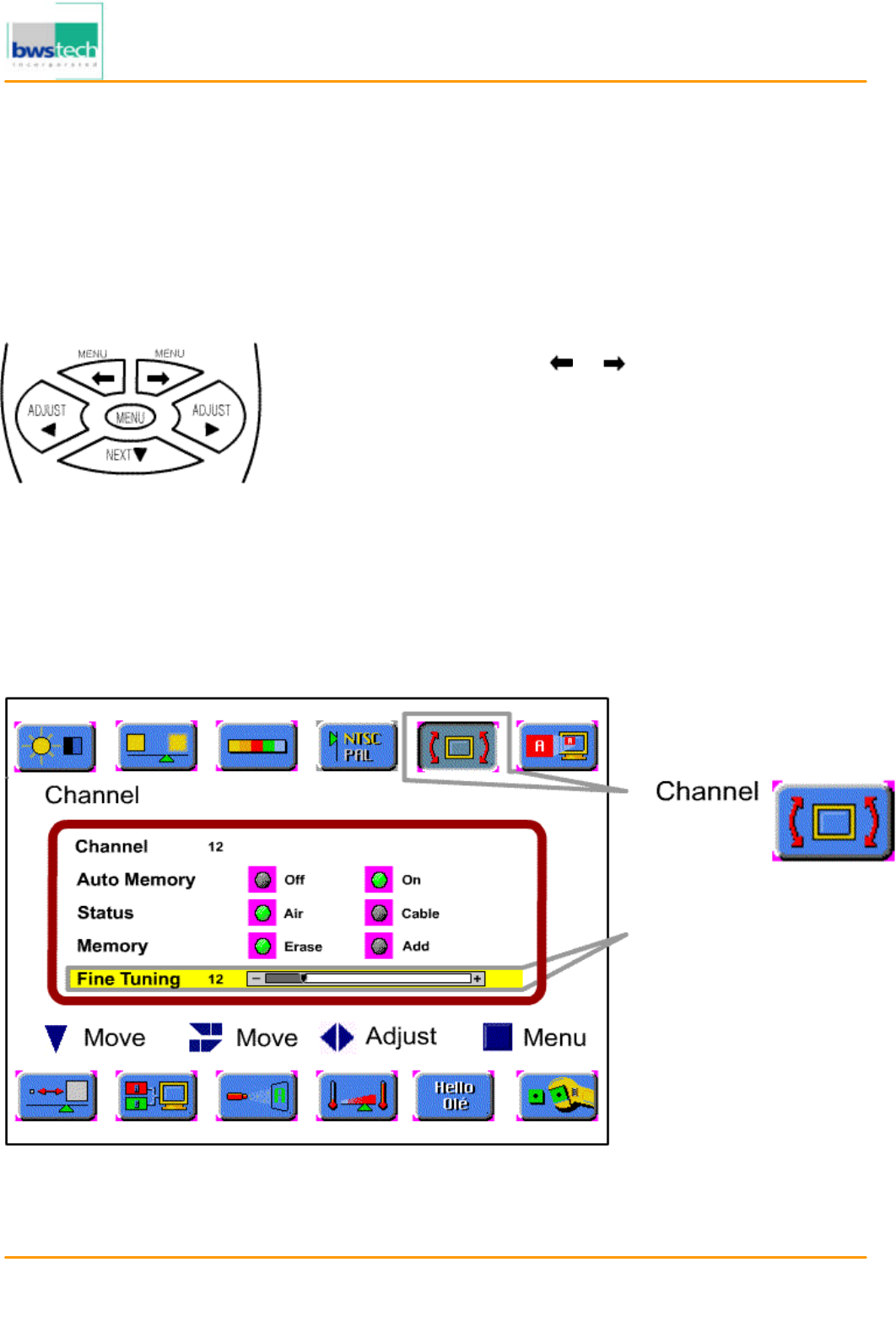

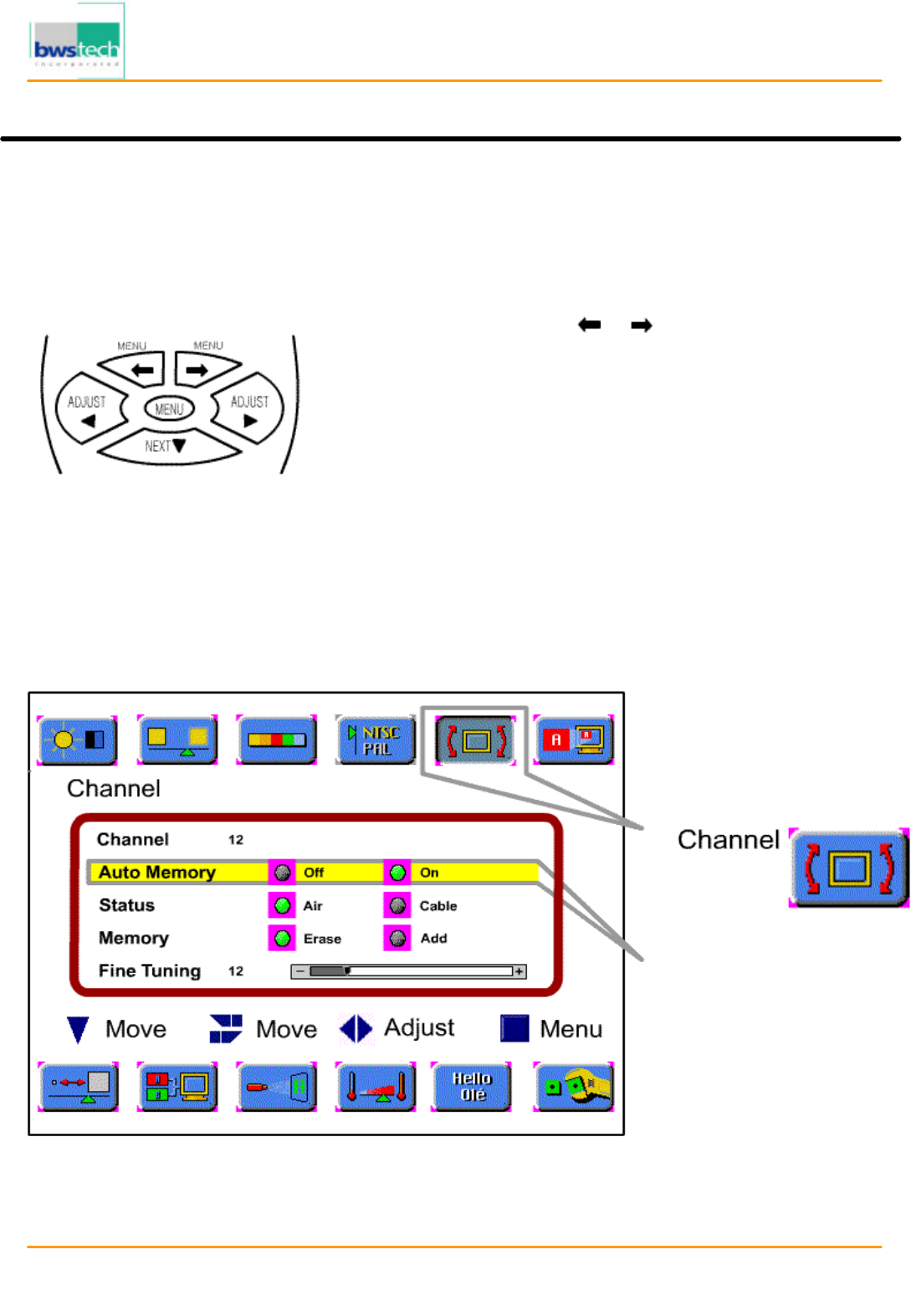

Auto Channel Memory
Follow these steps for setting the Channel Memory automatically:
TV Channel Memory
• Press the [MENU] button.
‚ Select [Channel] by the [ ]/[ ] buttons.
ƒ Select [Status] by pressing the [NEXT] button.
„ Select TV signal input mode by pressing the [ADJUST] button.
… Select [Auto Channel] by pressing the [NEXT] button.
† Select [ON] by pressing the [ADJUST] buttons.
‡ Press the [MENU] button to stop the auto channel memory.
Auto Memory
When Auto memory is on,
it will scan CH 2～69 on the
Air setting and CH 1～125
on the Cable setting.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Manual Channel Memory
Follow these steps to manually set the Channel Memory :
• Select the channel by pressing the number button(s).
‚ Press the [MENU] button.
ƒ Select [Channel] by the [ ]/[ ] buttons.
„ Select [Fine Tuning] mode by using the [NEXT] button.
… Press the [ADJUST] button for the tuning adjustment.
† Select [Memory] by using the [NEXT] button.
‡ Select [Erase] or [Add] by pressing the [ADJUST] buttons.
ˆ Press the [MENU] button to exit the Channel Memory setting.
Fine Tuning
The [ADJUST] button on
the remote control will
move the slide adjustment
of the fine tuning bar
positively or negatively.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Picture Adjustment
Follow these steps to adjust the picture :
• Press the [MENU] button.
‚ Select the desired Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button for adjusting the picture
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Picture Size Adjustment
Follow these steps to adjust the picture size :
• Press the [MENU] button.
‚ Select the Aspect Ratio by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to adjust the picture size ratio.
… Press the [MENU] button to exit Picture Size Adjustment.
[ZOOM + ] / [ZOOM - ] Button
: Using the [ZOOM] button on the remote controller, you can expand the picture size 0 up to 500%.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Picture Adjustment in PC Mode
Follow these steps to adjust the picture in PC Mode :
• Press the [MENU] button.
‚ Select the desired Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„
Press the [ADJUST] button for adjusting the picture in PC Mode
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000

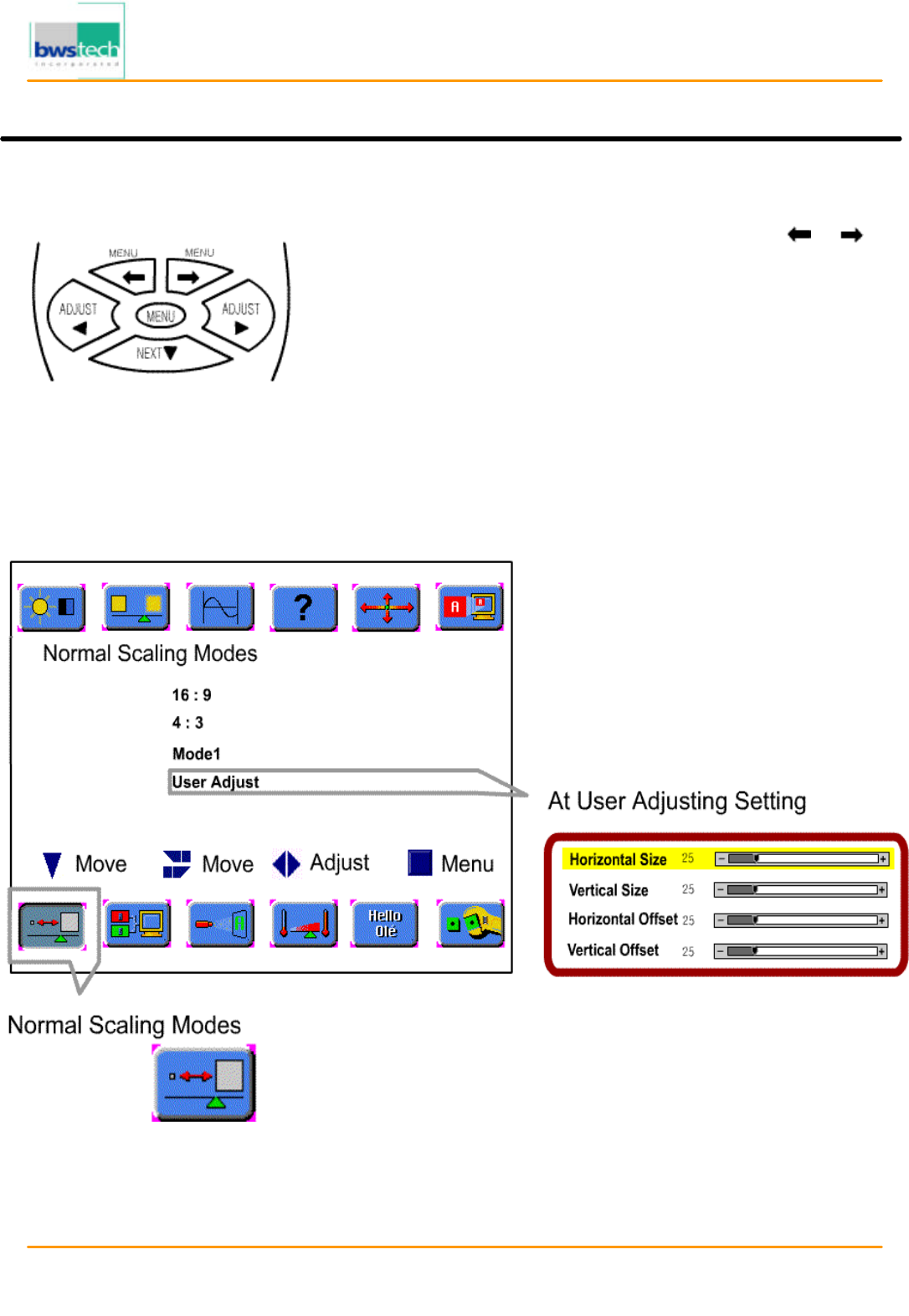

Picture Size Adjustment in PC Mode
Follow these steps for setting the Picture Size Adjustment of PC Mode.
Audio
• Press the [MENU] button.
‚ Select the Normal Scaling Modes by using the [ ]/[ ]
uttons.
ƒ Move to the desired mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the proper mode.
… Press the [MENU] button to exit the adjustment menu.
[ZOOM + ] / [ZOOM - ] Button
: Using the [ZOOM] button on the remote controller, you can expand the picture size 0 up to 500%.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Audio Mode Setting
Follow these steps for setting Sound Mode :
Audio
• Press the [MENU] button.
‚ Select the Audio by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to make the adjustment for Sound
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Audio Adjustment
Follow these steps to adjust the Sound :
Picture in Picture
• Press the MENU button.
‚ Select the Audio Adjust by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to make the adjustment for Sound
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
BASS : Changes the level of low frequency sound.
TREBLE : Changes the level of high frequency sound
BALANCE : Changes the balance of the left and right channels.
Cen/Sur BALANCE : Changes the balance of the center and surround
channels.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Picture in Picture Mode Setting
Follow these steps below to set Picture in Picture mode :
Picture in Picture
Watching Picture in Picture
• Press the [MENU] button.
‚ Select Picture in Picture by using the [ ]/[ ] button.
ƒ Select PIP size mode by pressing the [NEXT] button.
„ Move to desired mode by pressing the [ADJUST] button.
… Select PIP Source Mode by pressing the [NEXT] button.
† Select PIP Source by pressing the ADJUST button.
‡ Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Video Signal Format
Press the [PIP ON/OFF] button.
Watching PIP
Press the [PIP AV] button.
Changing
the Sub Picture to
AV
Press the [▲ CH ▼] button.
Changing the Sub
Picture Channel
Press the [POS] button.
Changing the Sub
Picture Position
Press the [SWAP] button.
PIP at PC Mode
PC signal can be seen on the
main picture but not on the sub
picture. AT 800×600 mode, you
can optimize PIP.
Swapping Main for
Sub picture
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Video Signal Format Setting
Follow these steps for setting the Video Signal Format.
Color Temperature
• Press the [MENU] button.
‚ Select the Video Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired system by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the desired system.
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Auto : The video signals are automatically detected and the format is set accordingly.
NTSC M : This is the standard format used mainly in the United States and Korea.
PAL : This is the standard format used mainly in the United Kingdom and Germany.
PAL-M : This is the standard format used mainly in Brazil.
PAL-N : This is the standard format used mainly in Argentina.
SECAM : This is the standard format used mainly in France and Russia.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Color Temperature Setting
Follow these steps for setting the Color Temperature.
Specifications
• Press the [MENU] button.
‚ Select the Color Temperature by using the [ ]/[ ] buttons.
ƒ Move to the desired mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the desired mode.
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Color Temperature : The higher temperature the coolest image looks like.
The lower temperature the warmest image looks like.
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Troubleshooting
Power Source AC100V~240V, 50/60㎐
Power Consumption < 350W (Typical)
Display Panel Screen Size 1106.5(H) x 622.1(W) <50"(127mm)
Number of Pixels 1366(H) × 768(V)
Brightness 550 cd/m2
Contrast Ratio 700:1
Displayable Colors 16,770,000 Colors
Viewing Angle Over 160 degrees
Display Mode Input Signal TV, Video, S-VHS, Component, PC
RF Input System NTSC(F-Type) or PAL(DIN-Type)
Video Input System NTSC, PAL, SECAM
Input/Output Input PC (P), PC(S)
Video1(V, L, R)/S-VHS
Video2 (V, L, R)/SCART
Video3 [Component (Y, Pb, Pr), Sound (L, R)]
RF IN (NTSC F-TYPE, PAL DIN-TYPE)
Output Monitor Out (V, L, R)/ SCART
Speaker Out (L,R,Center,Surround L/R,Sub-W),
Headphone
Weight Without Stand 43 Kg
Dimensions Without Stand 1246.5(W) x 770.5(H) x 100mm(D)
Operation Condition Temperature 0° C ～ 40° C
Humidity 20% ～ 80%
Storage Temperature -25° C ～ 60° C
Report No: BWS-03-EF-0019
FCC ID : PQZDPD-5000
Date of Test : April 17, 2003
Digital Device Inc.
50
”
PLASMA DISPLAY MONITOR DPD
-
5000
Symptom Cause Possible Solution
No Power Power to the TV is not Check source of power to the TV.
plugged in.
Unit will not respond to Sensor is blocked. Clear path for sensors.
remote control Batteries in remote control Clean sensor lens.
are weak. Replace batteries.
No signal is displayed Video source incorrect. Check video source connection.
Make sure TV is set to correct video
source.
Picture scrolls or is Antenna type or location Change antenna.
fuzzy Try antenna in different location.
