1118 Wireless Remote Panic LED Output
Description
The 1118 Wireless Remote Panic LED Output provides one remote LED indicator output that can be used to visually
notify the user that a panic alarm has been activated. The 1118 is designed to operate on one CR123A battery or
connect to an optional 12 VDC power supply.
The 1118 operates with the XR500 or XR100 Series Command Processor™ panels version 119 using the 1100X Wireless
Receiver version 103 or with the XRSuper6, XR20, and XR40 Command Processor™ Panels version 304 using the 1100D
Wireless Receiver version 104.
What is Included
The 1118 includes the following:
• One 1118 Wireless Remote Panic LED Output
• One 3V Lithium CR123A battery
• Hardware pack
• Serial number label
Optional Model 376 DC Power Supply (not included)
Output Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the wireless
output, record the serial number or place the pre-printed serial number label on the panel programming sheet. This
number is required during programming.
Programming the Output in the Panel
Program the wireless output in Output Information during panel programming and enter the output number, output
name, eight-digit serial number, and supervision time. Specic output numbers are provided for wireless outputs.
The output number used indicates whether the wireless output LED responds within 15 seconds (slow response) or
within 1 second (fast response). Refer to the XR500 Series Programming Guide (LT-0679), XR100 Series Programming
Guide (LT-0896), or the XRSuper6/XR20/XR40 Programming Guide (LT-0305) as needed.
Note: When a receiver is installed, powered down and powered up, the panel is reset, or programming is complete,
the supervision time for output transmitters is reset. If the receiver has been powered down for more than one
hour, wireless output transmitters may take up to an additional hour to send a supervision message unless tripped,
tampered, or powered up. This operation extends battery life for output transmitters. A missing message may
display on the keypad until the output transmitter sends a supervision message.
Selecting the Proper Location (LED Survey Operation)
The 1118 provides a survey capability to allow one person to conrm output transmitter communication with the
receiver while the cover is removed. The 1118 PCB Red Survey LED (see Figure 2) turns on whenever data is sent
to the receiver then immediately turns off when the receiver acknowledgement is received. Pressing the tamper
switch is a convenient way to send data to the receiver to conrm operation. When the output transmitter does
not receive an acknowledgement from the receiver the survey LED remains on for about 8 seconds to let you know
communication is not established. Communication is also faulty when the LED ashes multiple times in quick
succession. Relocate the output transmitter or receiver until the LED immediately turns off indicating the output
transmitter and receiver are communicating properly. Proper communication between the output transmitter
and receiver is veried when for each press or release of the tamper switch, the LED blinks immediately on and
immediately off. Repeat this test to conrm ve separate consecutive LED blinks. Any indication otherwise means
proper communication has not been established.
Squeeze to
Remove Cover
Squeeze to
Remove Cover
Power Supply
Plug Location
Red Remote
Indicator Light

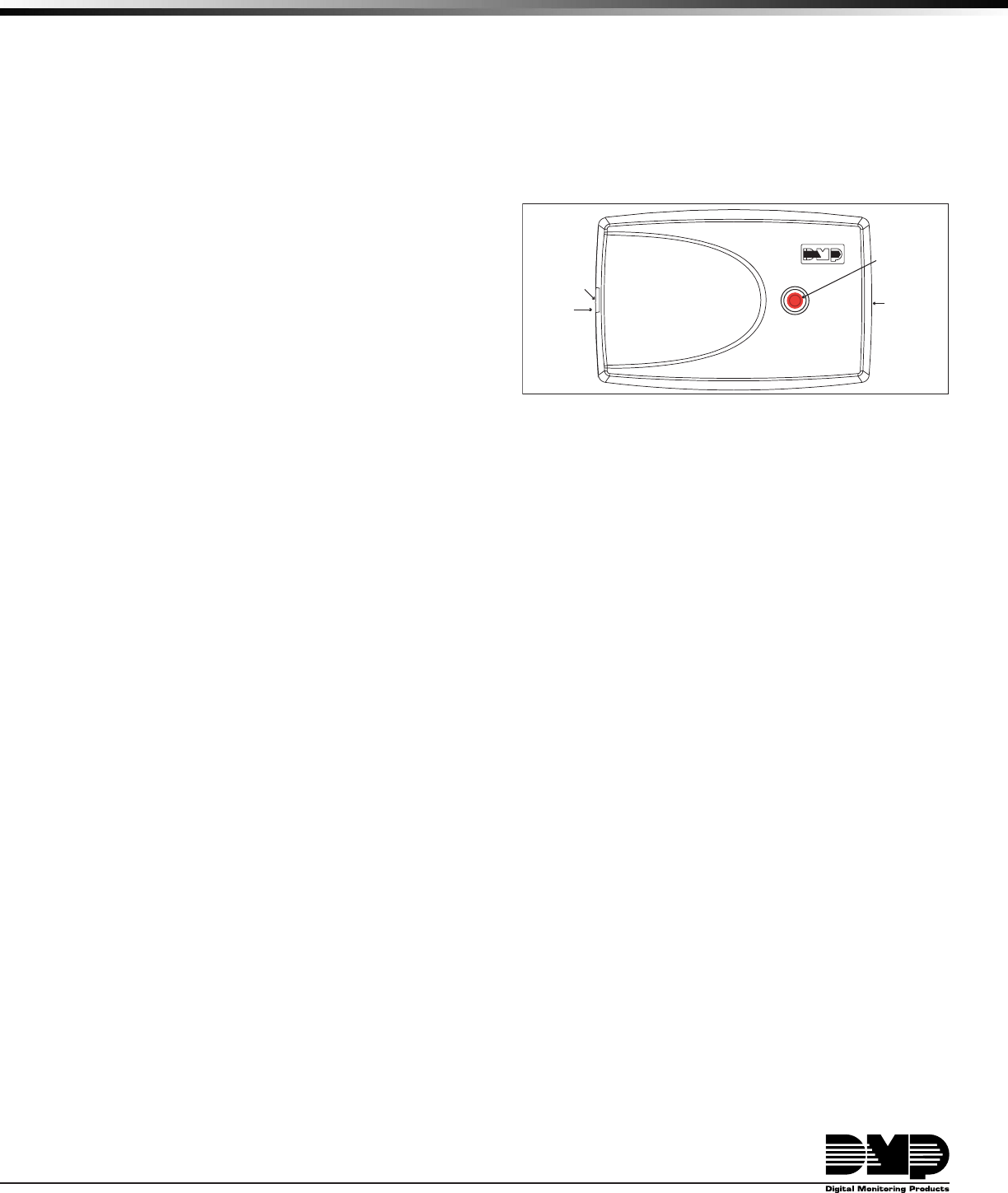

Figure 1: 1118 Panic Output
INSTALLATION GUIDE
Digital Monitoring Products 1118 Installation Guide
2
1118 Installation Guide Digital Monitoring Products
3
1118 LED Output Operation
When a Panic Alarm is sent, the LED is on steady for ve (5) minutes and then turns off. When a Panic Test is sent to
the 1118 from the 1100 Series Receiver, the LED ashes quickly for ve (5) minutes and then turns off.
Installing the 1118 Output
Mount the 1118 on a at surface such as a wall or single-gang box. When using plug-in power supply operation,
mount the 1118 near a wall outlet. See Figure 2 for mounting hole locations.
Red LED
(Survey)
Tamper
Switch Red Remote
IndicatorLight
Mounting Holes
+
3.0V
Lithium
Battery
—
Internal
Antenna
Location
Power Supply
Adapter Plug
Housing
EXT
BAT

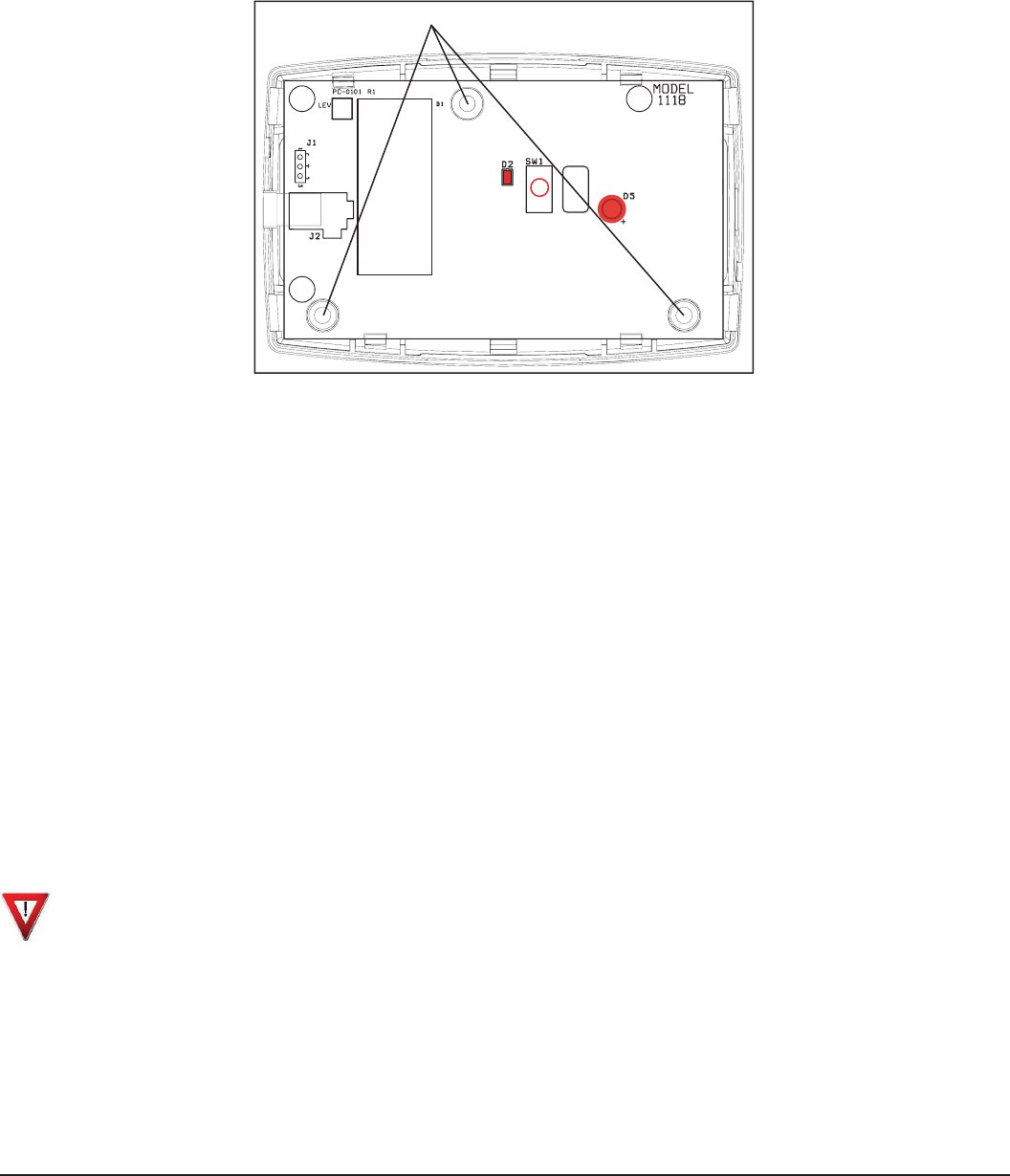

Figure 2: 1118 Output Transmitter PCB and Battery
Powering the 1118 Output
The 1118 output can be powered by:
• CR123A 3.0 VDC battery
• Model 376 plug-in power supply
• 12 VDC Power Supply
Battery Power
Observe polarity when installing the battery. Use only 3.0V Lithium batteries, DMP Model CR123, or the equivalent
battery from a local retail outlet. Do not connect the power supply when operating using battery power.
Note: When setting up a wireless system, it is recommended to program outputs and connect the receiver
before installing batteries in the output transmitters or connecting the optional power supply.
1. Squeeze the cover left and right sides together to remove. See Figure 1.
2. Install a jumper on the two J1 pins next to BAT to enable battery operation.
Note: Battery operation is not enabled if the jumper is on the J1 pins next to EXT.
3. If replacing the battery, remove the old battery and dispose of it properly.
4. Place the 3.0V Lithium battery in the holder and press into place. See Figure 3 for Battery location.
5. Snap the cover back into place.
Caution: Properly dispose of unused batteries. Do not recharge, disassemble, heat above 212°F (100°C),
or incinerate. Risk of re, explosion, and burns.
Digital Monitoring Products 1118 Installation Guide
2
1118 Installation Guide Digital Monitoring Products
3
Battery Life Expectancy
Typical battery life expectancy for DMP Model 1118 wireless output transmitter is two to three months when
programmed as a fast response output and three to four years when programmed as a slow response output. Refer
to the XR500 Series Programming Guide (LT-0679), XR100 Series Programming Guide (LT-0896), or the XRSuper6/
XR20/XR40 Programming Guide (LT-0305) as needed. DMP wireless equipment uses two-way communication to
extend battery life.
The following situation can extend battery life expectancy:
• Minimal use of the LED for annunciation.
• Extend output transmitter supervision time in panel programming.
• Program the annunciator as a slow response output in panel programming.
The following situations can reduce battery life expectancy:
• If a receiver is unplugged, too far away, or not installed.
Note: Output transmitters continue to send supervision messages until a receiver returns an
acknowledgement. After an hour the output transmitter only attempts a supervision message every
60 minutes.
• When installed in extreme hot or cold environments.
Optional External DC Plug-in Power Supply
When using the optional plug-in DC power supply, mount the 1118 near
a wall outlet. Do not install a battery when operating using the plug-in
power supply. The plug-in power supply does not charge the battery.
Use the following steps to connect the plug-in power supply:
1. Squeeze the left and right cover sides together to remove. See
Figure 1.
2. Install a jumper on the two J1 pins next to EXT to enable power
supply operation.
Note: Power supply operation is not enabled if the jumper is on
the J1 pins next to BAT.
3. Snap the cover back into place.
4. Plug the power supply barrel connector into the J2 barrel jack at
the side of the 1118 transmitter cover. See Figure 3.
5. Plug the power supply into a 110 Volt AC outlet.
Optional External 12 VDC Power Supply
The 1118 can also be powered from a 12 VDC power supply such as a DMP Model 502-12. Use 22 AWG wire to connect
the barrel connector to the power supply. Purchase the barrel connector at a retail outlet. The power supply does
not charge the battery.
Use the following steps to connect the power supply:
1. Squeeze the left and right cover sides together to remove.
See Figure 1.
2. Install a jumper on the two J1 pins next to EXT to enable
power supply operation.
Note: Power supply operation is not enabled if the jumper is
on the J1 pins next to BAT.
3. Snap the cover back into place.
4. Use 22 AWG wire and connect the positive wire to the pin and
negative wire (GND) to the ring (barrel) on a 5.5 x 2.1 mm
barrel connector. See Figure 4.
5. Connect the other ends of the wires to the J6 DC connector on
the 502-12 power supply PCB. Observe positive and negative
polarity on all connections.
Side View
J2
Power
Supply
Battery Connectors
Barrel Jack
J1
EXT BAT
Jumper
Barrel
Connector

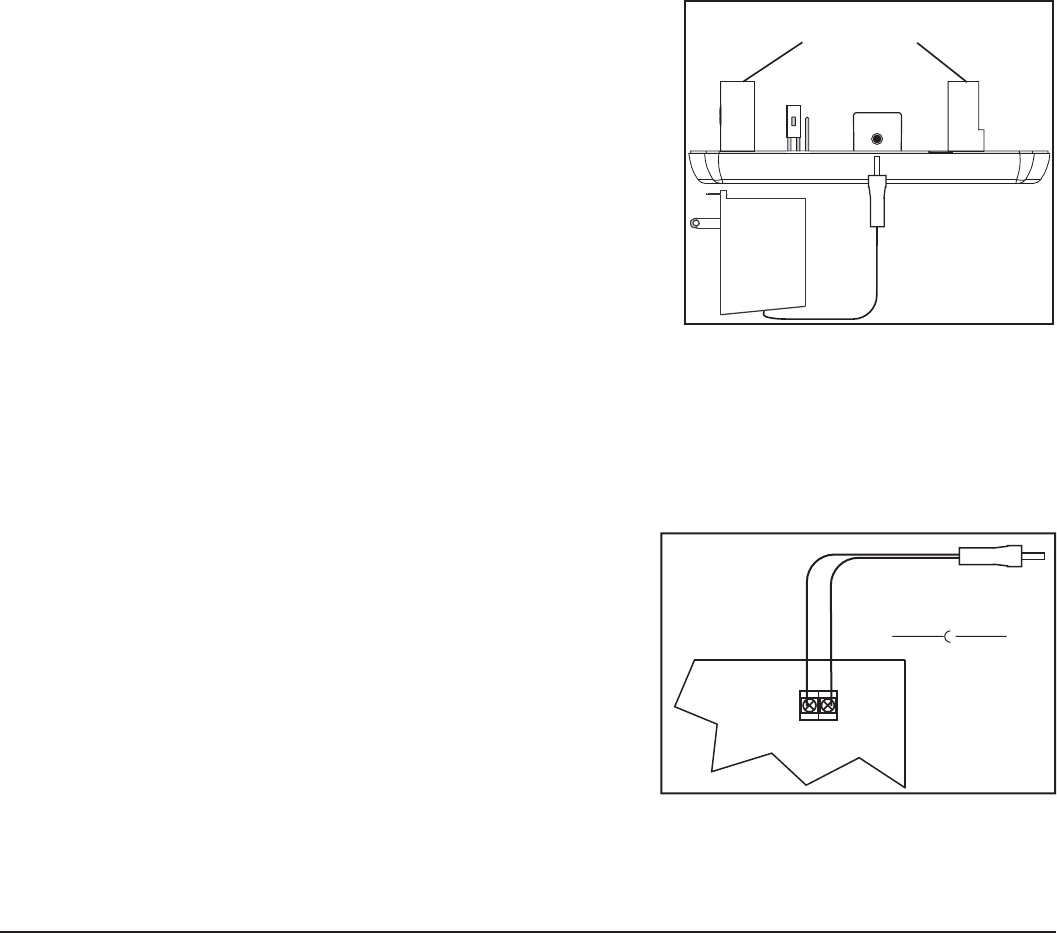

Figure 3: 1118 Side View
Figure 4: Power Supply Connection
LT-0924 (4/07) © 2007 Digital Monitoring Products, Inc.
INTRUSION • FIRE • ACCESS • NETWORKS
2500 North Partnership Boulevard
800-641-4282
www.dmp.com
Made in the USA Springeld, Missouri 65803-8877
Specications
Battery
Life Expectancy
2-3 months (Fast Response)
3-4 years (Slow Response)
Type 3.0V Lithium CR123A
See Battery Life Expectancy for full details.
Frequency Range 903-927 MHz
Dimensions 4.65” L x 3.1” W x 1.4” H
Color White
Housing Material Flame retardant ABS
Accessories
CR123 DMP 3.0V Lithium Battery
376 DC Plug-in Power Supply
502-12 12 VDC Power Supply
Compatibility
The 1118 Wireless Remote Panic LED Output is
compatible with:
XR500 or XR100 panels version 119
1100X Receiver version 103
XRSuper6, XR20, and XR40 panels version 304
1100D Receiver version 104
Patents
Patent(s) Pending
Listings and Approvals
FCC Part 15 Registration ID CCKPC0101
Output Testing
To test the 1118 output from a keypad, access the User Menu Outputs On/Off option. The 1118 LED should light
within 15 seconds of entering the assigned output number and selecting on. Refer to the XR500/XR100 User's Guide
(LT-0683), XRSuper6 User's Guide (LT-0622), XR20 User's Guide (LT-0303), or XR40 User's Guide (LT-0494).
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
The antenna used for this output transmitter must be installed to provide a separation distance of at least 20 cm
(7.874 in.) from all persons. It must not be co-located or operated in conjunction with any other antenna or output
transmitter.
Changes or modications made by the user and not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
