Digital Monitoring PC0110 LOW POWER SPREAD SPECTRUM TRANSMITTER User Manual USERS MANUAL
Digital Monitoring Products Inc LOW POWER SPREAD SPECTRUM TRANSMITTER USERS MANUAL
USERS MANUAL
INSTALLATION GUIDE
1100R Wireless Repeater
Description
The 1100R Wireless Repeater provides increased communication range when used with the 1100 Series Wireless
Receivers. Up to eight repeaters can be installed on a wireless system. Using the on-board LEDs, the 1100R Wireless
Repeater provides built-in survey capability to allow for single-person installations, eliminating the requirement for
an external survey kit. For added security, an internal case tamper switch is provided.
Compatibility
The 1100R Repeater operates with the XR500 Series Command Processor™ panels or XR100 Series Command
Processor™ panels using the 1100X, 1100XI or 1100XH Receiver or with the XRSuper6, XR20, and XR40 Command
Processor™ panels using the 1100D, 1100DI or 1100DH Receiver.
What is Included
The 1100R Wireless Repeater includes the following items:
• One Model 1100R Repeater
• One Lithium Polymer Rechargeable Battery
• One Model 376 DC Power Supply
• Zone name and number label
• Serial number label
• Hardware pack
Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the device,
record the serial number or place the pre-printed serial number label on the panel programming sheet. This number
is required during programming. As needed, use the zone name and number label to identify a specic repeater.
Programming the Transmitter in the Panel
Refer to the XR500 Series Programming Guide (LT-0679), XR100 Series Programming Guide (LT-0896), or the
XRSuper6/XR20/XR40 Programming Guide (LT-0305) as needed. Program the device as a zone in Zone Information
during panel programming. At the Serial Number: prompt, enter the eight-digit serial number, including leading
zeros. Continue to program the zone as directed in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional
hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the transmitter sends a supervision message.
Selecting the Proper Location (LED Survey Operation)
The 1100R provides a survey capability to allow one person to conrm communication with the receiver while the
cover is removed.
Battery Only Startup
The 1100R provides the option to power up using the Lithium battery for survey operation. Briey short the Battery
Start pads together to power up. Refer to Figure 1.
Survey LEDs
The 1100R automatically begins establishing communication at power up so there is no need to fault the tamper
switch. The 1100R Green Survey LED turns on steady when communication with the receiver is established. The
1100R Red Survey LED turns on steady when communication cannot be established with the receiver. Communication
is faulty when the Green and Red LEDs alternate ashing. Relocate the repeater until the Green LED turns on steady
indicating communication has been established.
Digital Monitoring Products 1100R Installation Guide
2
1100R Installation Guide Digital Monitoring Products
3
Installing the Wireless Repeater
Mount the 1100R on a at surface such as a wall or single-gang box near a wall outlet for the Model 376 plug-in
power supply. The 1100R Wireless Repeater is typically mounted in a location that will be located between the
1100 Series transmitters and the 1100 Series Receiver used in the installation. Install the repeater away from large
metal objects. Mounting the repeater on or near metal surfaces impairs performance. When selecting the proper
mounting location of a repeater, refer to the LED Survey Operation section.
Remove the cover from the plastic housing by squeezing both sides toward each other. Secure the repeater to the
wall in the desired location using the supplied screws in the mounting hole locations as shown in Figure 1. Snap the
cover back on the unit.

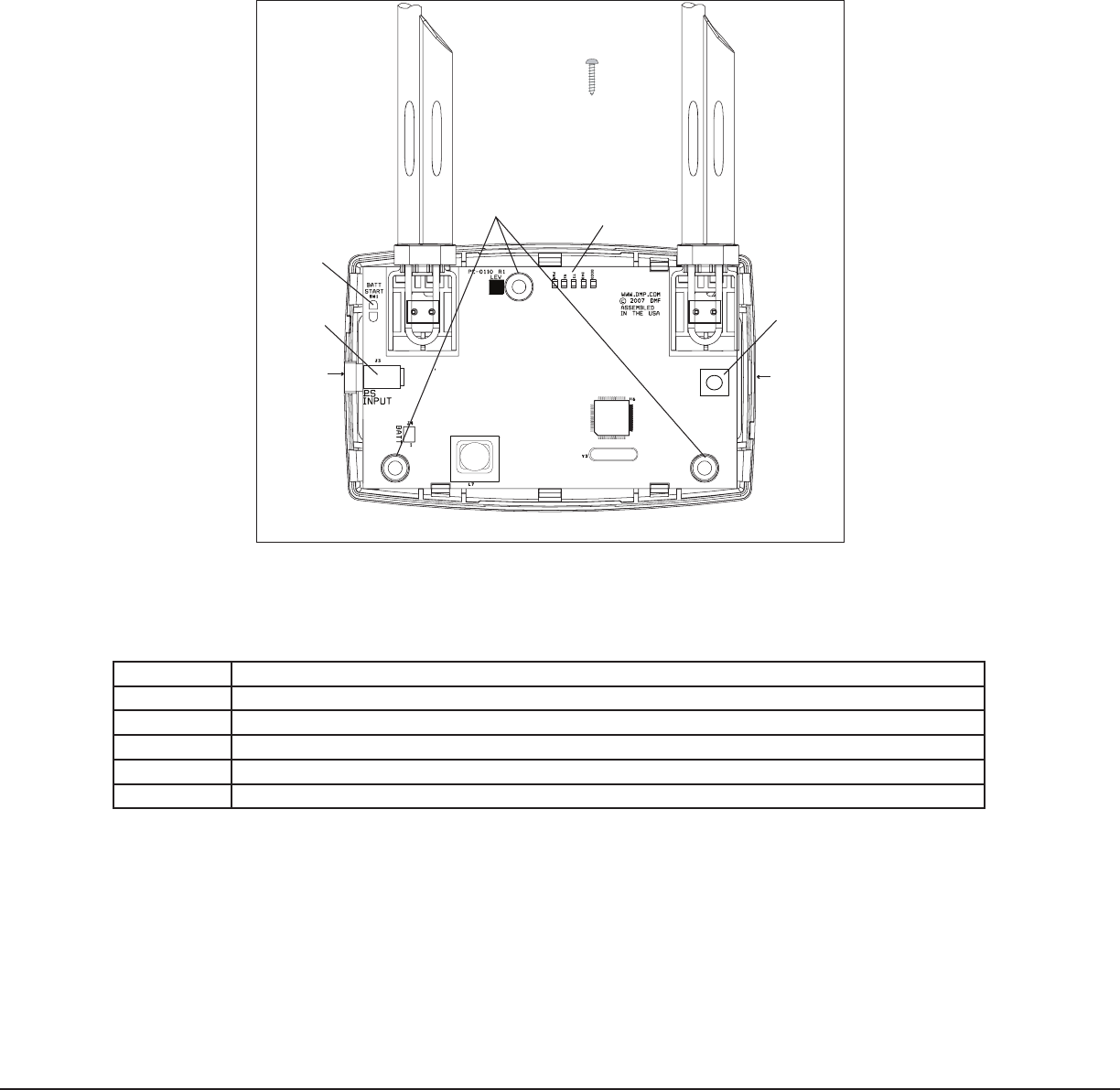

Figure 1: 1100R Repeater PCB Layout
LED Operation
Five LEDs display repeater operation and activity. Refer to the table below as required.
LEDs Operation
PWR Steady Green to indicate there is power to the repeater.
RX Flashes Yellow to indicate data is being received.
TX Flashes Green to indicate data is being sent.
BAD Steady Red to indicate the repeater cannot establish communication with the receiver.
GOOD Steady Green to indicate communication has been established with the receiver.
J41
J1
1
Mounting Hole
Locations LEDs
Tamper
Switch
Squeeze to
Remove Cover
Battery
Start
DC Power
Supply
Barrel Jack
Squeeze to
Remove Cover
Mounting Screw
Digital Monitoring Products 1100R Installation Guide
2
1100R Installation Guide Digital Monitoring Products
3
Battery Life Expectancy
The 1100R battery is used to provide 24 hours of backup battery power when AC power is not available. The
following situations can reduce battery life expectancy:
• If the battery leads are not properly plugged into the connector
• DC power supply is not connected or not plugged in
Installing or Replacing the Battery Assembly
Observe polarity when plugging the battery connector into the header. Use only DMP Model 1100RBAT.
Removing the Battery Assembly
1. Remove the repeater housing cover.
2. Disconnect the battery lead connector from the repeater J4 battery header.
3. Remove the battery PCB from the four standoffs.
4. Properly dispose the used battery.
Caution: Risk of re, explosion, and burns. Do not disassemble, heat above 212°F (100°C), or incinerate.
Properly dispose of used batteries.
Installing the Battery Assembly
1. Align the four battery PCB standoffs with the standoff mounting holes. See Figure 2.
2. Snap the battery assembly in place.
3. Observe polarity and connect the battery lead connector to the repeater J4 battery header.

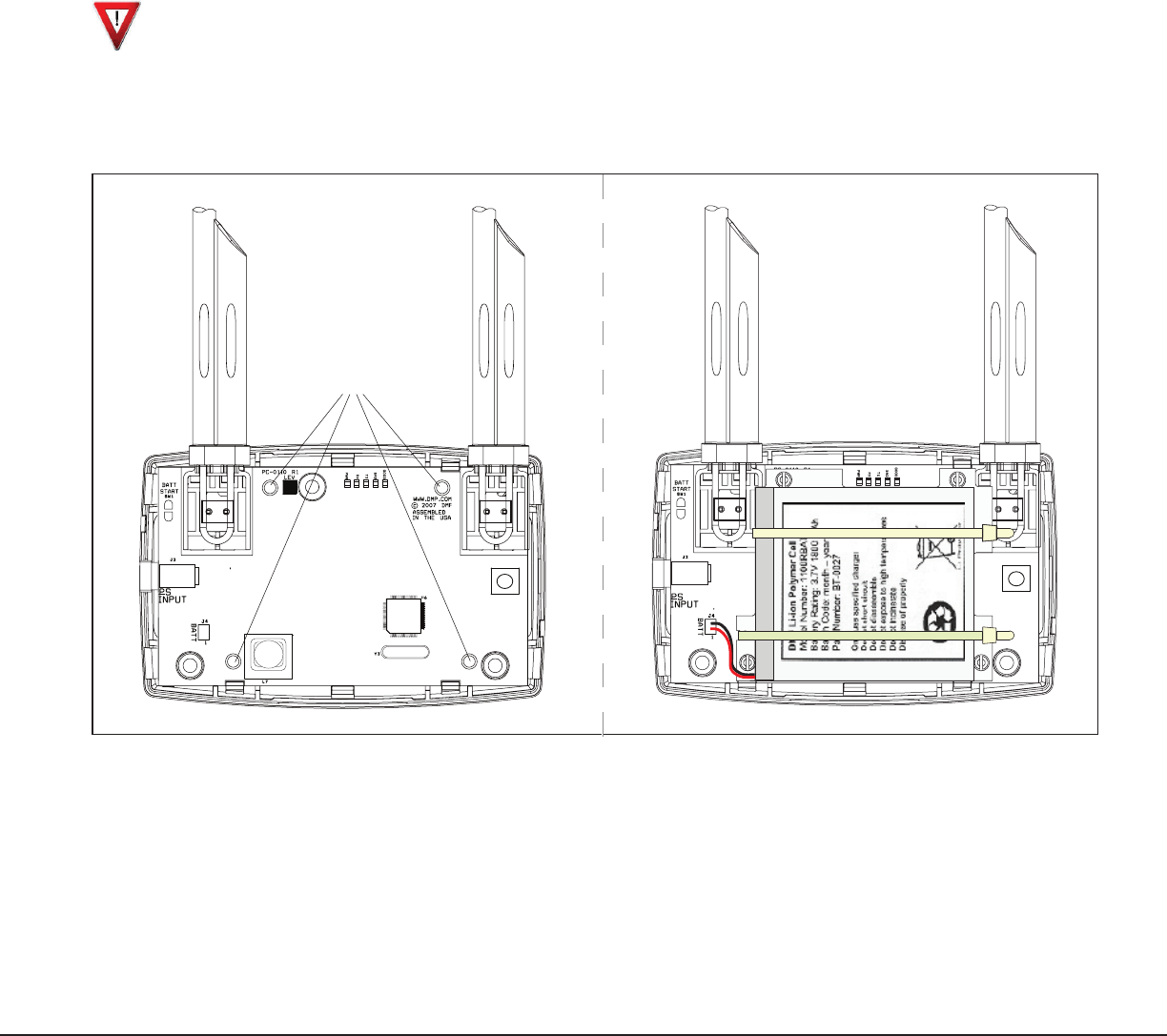

Figure 2: Battery Assembly
Battery Assembly
standoff mounting holes
LT-0972 © 2008 Digital Monitoring Products, Inc.
800-641-4282
www.dmp.com
Made in the USA
INTRUSION • FIRE • ACCESS • NETWORKS
2500 North Partnership Boulevard
Springfield, Missouri 65803-8877
8085
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications made by the user and not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Specications
Battery
Life Expectancy 3 years
Type Lithium Polymer
See Battery Life Expectancy for full details.
Frequency Range: 903-927 MHz
Dimensions
Housing 4.65” L x 3.1” W x 1.4” H
Antennas 8.6” H
Color White
Housing Material Flame retardant ABS
Patents
U. S. Patent No. 7,239,236
Listings and Approvals
FCC Part 15 Registration ID CCKPC0110
IC Registration ID 5251A-PC0110
