1100XH HIGH POWER WIRELESS
RECEIVER
Installation Guide 1
WIRE THE 1100XH
2MOUNT THE 1100XH
Select a Location
When selecting a location to mount the 1100XH, keep in mind
that the receiver should be centrally located between the
1100 Series transmitters used in the installation and no more
than 1,000 feet (305 meters) away from the panel. Be sure to
mount the receiver away from large metal objects because it
may impair the receiver’s performance. Also, be sure to not use
shielded wire between the panel and receiver.
Mount the 1100XH
1. Remove the cover from the plastic housing.
2. Use the included #6 screws to secure the 1100XH to the
wall. See Figure 2 for mounting hole locations.
The 1100XH interfaces with the panel uisng the on-board X-Bus
connection. Connect the red, yellow, green, and black wires to
the PANEL terminal on the 1100XH and connect the other to the
XBUS terminal on the panel. See Figure 2.
Note: The receiver can’t operate if it’s connected to the
keypad bus.
PROGRAM THE PANEL
RF RX
RF TX
PANEL RX
PANEL TX
WALL
TAMPER
ENABLE
DISABLE
STATUS
PWR

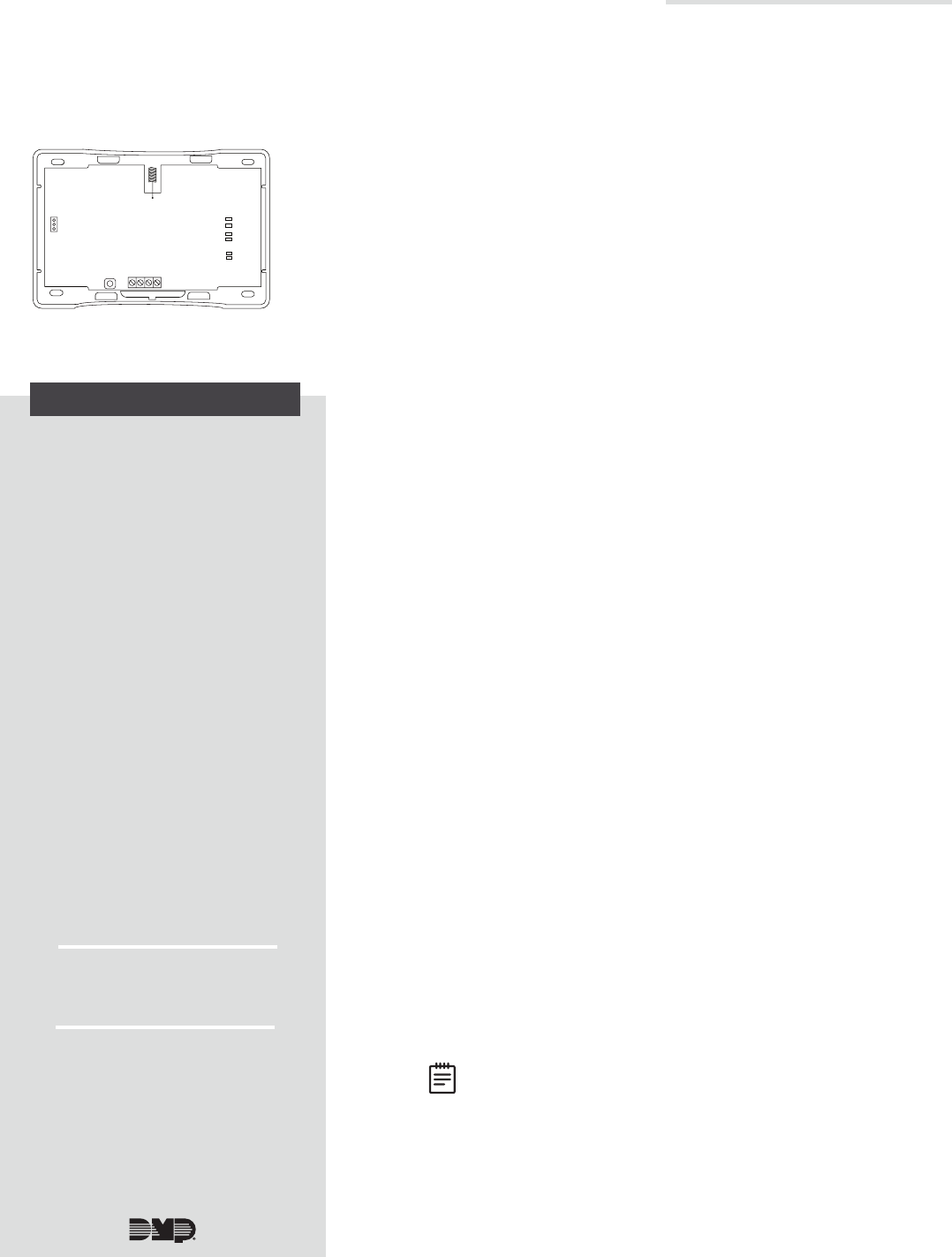

Figure 1: 1100XH High
Power Wireless Receiver
Refer to the panel programming guide as needed.
1. Reset the panel.
2. At a keypad, enter 6653 (PROG) to access the
PROGRAMMER menu.
3. In SYSTEM OPTIONS, program a HOUSE CODE between
1 and 50. See House Code Explained for more information.
4. In ZONE INFORMATION, enter a ZONE NAME and press
CMD.
5. Select the ZONE TYPE and press CMD.
6. At NEXT ZN?, select NO.
7. Select YES when WIRELESS? displays.
8. Enter the eight-digit SERIAL# and press CMD.
9. Enter the SUPRVSN TIME and press CMD.
10. At the NEXT ZN? prompt, select YES to finish
programming or select NO for additional programming
options.
3
DESCRIPTION
The 1100XH High Power Wireless
Receiver provides up to 100
wireless zones for XR150 Series
panels and up to 500 wireless
zones for XR550 Series panels.
The 1100XH provides
two-way, supervised
communication using 900 MHz
frequency hopping-spread-
spectrum technology.
The 1100XH High Power Wireless
Receiver contains additional
transmit and receiver amplifiers
to enable greater distances for
1100 Series operation at greater
distances or harsh building
environments. The additional gain
introduced by this amplification
may inhibit proper communication
with 1100 Series transmitters
located within 4 feet of the receiver.
This distance may be 8 feet when
using the 1121 PIR or 9000 Series
Wireless Keypads.
The 1100XH can be mounted up to
1,000 feet (305 meters) from the
panel enclosure and is equipped
with a case and wall tamper.
Compatibility
DMP XR150/XR550 Series Panels
What is Included?
• One 1100XH High Power
Wireless Receiver
• 4-Wire Harness
• Hardware Pack
2 1100XH WIRELESS RECEIVER | DIGITAL MONITORING PRODUCTS
Can be extended up to 1,000
feet from the panel using 22
AWG or 250 feet using 18 AWG
XR150/XR550
Series Panel
Battery Start
Power LED
1100XH
Receiver
REC - Receive LED
XMT - Transmit LED
RF RX
RF TX
PANEL RX
PANEL TX
WALL
TAMPER
ENABLE
DISABLE
Mounting Hole
Locations
STAT U S
PWR
PANEL

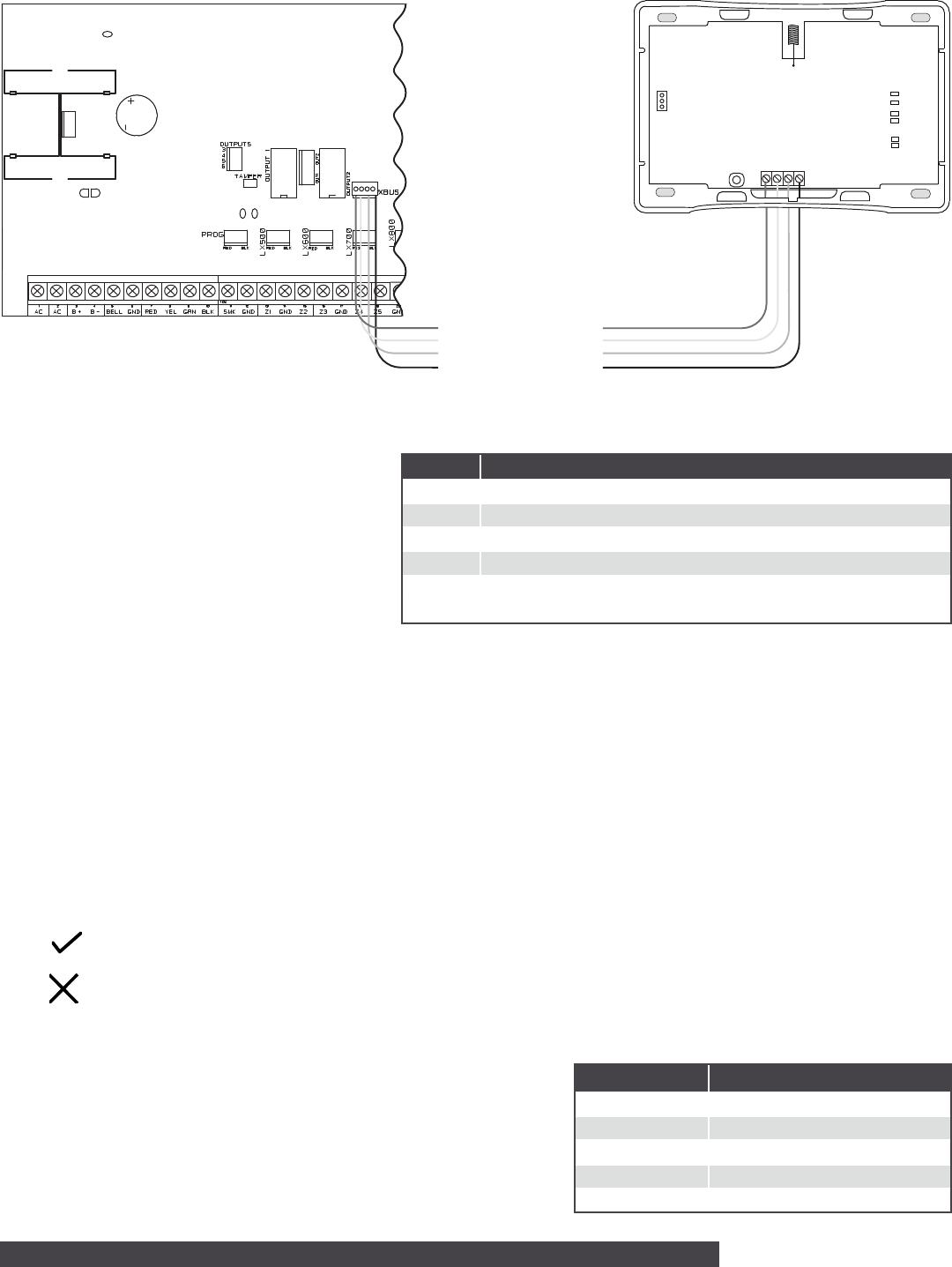

Figure 2: Wiring The 1100XH to the Panel
ADDITIONAL INFORMATION
1100XH LED Operation
The six labeled LEDs on the 1100XH PCB display
wireless receiver operation and activity.
See Figure 2 for LED locations and Table 1 for
LED indications.
House Code Explained
The house code identifies the panel, receiver,
and transmitters to each other. The 1100XH
automatically sends the specified house code
to wireless transmitters when transmitter serial
numbers are programmed in to the panel. The
1100XH only listens for transmissions using
the specified house code or the programmed
transmitters’ serial numbers.
LED Survey Operation for 1100 Series Transmitters
1100 Series transmitters provide a survey operation that allows one person to confirm that each transmitter is
communicating with the wireless receiver or panel to easily determine the best location for the transmitters and the
wireless receiver. Follow the directions below to test communication of the wireless transmitters:
1. Remove the transmitter’s cover.
2. Hold the transmitter in the exact desired location.
3. Press the tamper switch to send data to the wireless receiver and determine if communication is confirmed or
faulty.
Confirmed: If communication is confirmed, the survey LED turns on when data is sent to the wireless receiver
and o when acknowledgment is received.
Faulty: If communication is faulty, the LED remains on for several seconds or flashes multiple times in quick
succession. Relocate the transmitter or the wireless receiver until the LED confirms clear communication.
Proper communication between the transmitter and wireless receiver is verified when for each press or
release of the tamper switch, the transmitter’s LED blinks immediately on and immediately o.
Programming Zones
Refer to the panel XR150/XR550 Series Programming Guide
(LT-1232) for complete wireless programming information. When
any wireless input zone for a particular address is programmed, the
1100XH responds to the panel for this address. Other devices, such as
keypads or hardwired zone expanders, cannot use this address. Zones
connected directly to the panel cannot be wireless. See Table 2 for
designated zone numbers.
ZONE NUMBERS DESIGNATIONS
400-449 1144 Wireless Key Fobs
450-479 Slow Response Outputs (15 sec.)
480-499 Fast Response Outputs (1 sec.)
500-599 Wireless Devices (XR150)
500-999 Wireless Devices (XR550)
Table 2: Zone Number Designations
LED INDICATIONS
RF RX Flashes yellow to indicate data is being received from a transmitter.
RF TX Flashes green to indicate data is being sent to a transmitter.
PANEL RX Flashes yellow to indicate data is being receiver from a panel.
PANEL TX Flashes green to indicate data is being sent to the panel.
STATUS Solid red to indicate memory is being uploaded. Turns o when complete.
PWR Solid green to indicate there is power to the wireless receiver.
Table 1: 1100XH LED Indications
1100XH WIRELESS RECEIVER | DIGITAL MONITORING PRODUCTS 3
For applications that must conform to a National Recognized Testing Laboratory certified system, read the information
below for additional information.
Commercial Fire
Transmitters must be programmed as supervised. Refer to Table 1 for specific supervision times. The maximum line
impedance of the 4-wire bus is 16.2 Ohms for 1, 000 feet (305 meters). The recommended wire gauge for panel to
receiver connection is 22 AWG.
After all transmitters are in position, the WLS option of the panel’s Walk Test must be operated and all transmitters
programmed for Fire (FI) or Supervisory (SV) must show that their check-in message was received. Refer to the panel
programming guide for Trip Counter for DMP Wireless Check-in Test (WLS) which describes that both numbers of the
counter must match. If not and a failed wireless zone is displayed at END, decrease that transmitter’s range with the
receiver and perform the Wireless Walk Test again.
LISTED COMPLIANCE SPECIFICATIONS
Transmitter Supervision Time
For UL Listed installations, program the transmitter supervision time in panel zone programming as listed in the following
table. Refer to the panel programming guide for complete wireless programming information.
UL Listing Listed Accessories Supervision Time
UL 268 Smoke-Automatic Fire Detectors • 1100R Repeater
• 1164 Wireless Synchronized Smoke Detector 3
UL 365 Police Station Connected Burglar Accessory • 1100R Repeater
• 1103 Universal Transmitter 60
UL 521 Heat Detectors for Fire Protective Signaling
Systems
• 1100R Repeater
• 1183-135F, 1183-1353R Heat Detector 3
UL 609 Local Burglar Alarm Units and System Accessory • 1100R Repeater
• 1103 Universal Transmitter 60
UL 634 Connections and Switches for use with Burglar
Alarm Systems Accessory
• 1100R Repeater
• 1101, 1102, 1103, 1106 Universal Transmitters 60
UL 636 Holdup Alarm Units and Systems Accessory 1142 Two-Button Holdup Transmitter 60
UL 639 Intrusion Detection Units Accessory • 1100R Repeater
• 1127W, 1127C PIR Motion Detectors 60
UL 864 Fire Protective Signaling Systems • 1100R Repeater
• 1103 Universal Transmitter 3
UL 985 Household Fire Warning System Accessory
• 1100R Repeater
• 1135 Wireless Sounder
• 9060, 9063 Wireless Keypads
240
UL 1023 Household Burglary System Units Accessory
• 1100R Repeater
• 1101, 1102, 1103, 1106 Universal Transmitters
• 1127W, 1127C PIR Motion Detectors
• 1135 Wireless Sounder
• 1142 Two-Button Holdup Transmitter
• 9060, 9063 Wireless Keypads
60
UL 1076 Proprietary Burglar Alarm Units Accessory • 1100R Repeater
• 1103 Universal Transmitter 60
UL 1610 Central Station Burglar Alarm Units Accessory
• 1100R Repeater
• 1103 Universal Transmitter
• 1135 Wireless Sounder
• 9060, 9063 Wirless Keypads
60
UL 2075 Gas and Vapor Detectors and Sensors • 1184 Wireless Carbon Monoxide Detector 240
Table 3: Wireless Transmitter Supervision Times
Designed, engineered, and
manufactured in Springfield, MO
using U.S. and global components.
LT-1823 18224
1100XH HIGH POWER WIRELESS
RECEIVER
Specifications
Operating Voltage 8 to 14 VDC
Current Draw 240 mA
RF Power Rating 720 mW
Frequency Range 905-924 MHz
Housing Dimensions 5.5”W x 3.75”L x 1”H
Housing Color White
Housing Material Flame Retardant ABS
Patents
U.S. Patent Number 7, 239, 236
Certifications
FCC Part 15: CCKP0114R6
Industry Canada: 5251A-PC0114R6
Underwriters Laboratory (UL) Listed
• ANSI/UL 365 Police Station Connected Burglar
• ANSI/UL 609 Local Burglar Alarm Unites and Systems
• ANSI/UL 634 Connections and Switches for use with
Burglar Alarm Systems Accessory
• ANSI/UL 636 Holdup Alarm Units and Systems
• ANSI/UL 639 Intrusion Detections Units Accessory
• ANSI/UL 1023 Household Burglar Alarm System Units
• ANSI/UL 1076 Proprietary Burglar Alarm Units
• ANSI/UL 1610 Central Station Burglar Alarm Units
• ANSI/UL 864 Fire Protective Signaling Systems
• ANSI/UL 985 Household Fire Warning System
INTRUSION • FIRE • ACCESS • NETWORKS
2500 North Partnership Boulevard
Springfield, Missouri 65803-8877
888.436.7832 | DMP.com
FCC INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm (7.874 in.) from
all persons. It must not be located or operated in conjunction with any other antenna or transmitter.
Changes or modifications made by the user and not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Information
This device complies with Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
1. This device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.
This system has been evaluated for RF Exposure per RSS-102 and is in compliance with the limits specified by Health
Canada Safety Code 6. The system must be installed at a minimum separation distance from the antenna to a general
bystander of 7.87 inches (20 cm) to maintain compliance with the General Population limits.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
L’exposition aux radiofréquences de ce système a été évaluée selon la norme RSS-102 et est jugée conforme aux limites
établies par le Code de sécurité 6 de Santé Canada. Le système doit être installé à une distance minimale de 7.87 pouces
(20 cm) séparant l’antenne d’une personne présente en conformité avec les limites permises d’exposition du grand
public.
