InstallatIon GuIde
1137 Emergency Light
Description
The 1137 Emergency Light is a battery powered, wireless LED light
activated by a loss of AC power output from your panel and may be
used as a stair or path light. The 1137 operates using the supplied 3.0
Vdc Lithium batteries.
Compatibility
All DMP 1100 Series Wireless Receivers and Panels
What is Included
The 1137 Emergency Light includes the following:
• One 1137 Emergency Light
• Two 3.0 Vdc Lithium batteries
• Serial number label
Emergency Light Serial Number
For your convenience, an additional pre-printed serial number label
is included. Prior to installing the light, record the serial number or
place the pre-printed serial number label on the 1137 base (see Figure
3). This number is required during programming. As needed, use the
zone name and number label to identify a specic Emergency Light.
Programming the Emergency Light in the Panel
Refer to the panel programming guide as needed. Program the device as an AC Power Trouble Output in ZONE
INFORMATION during panel programming. At the Serial Number prompt, enter the eight-digit serial number. Continue
to program the zone as directed in the panel programming guide.
LED Survey
The 1137 Emergency Light provides a survey capability to allow one person to conrm communication with the
receiver. The 1137 Emergency Light Status LED turns on whenever data is sent to the receiver then immediately
turns off when the receiver acknowledgement is received.
Pressing the button sends data to the receiver to conrm operation. When the Emergency Light does not receive
an acknowledgement from the receiver the LED remains on for approximately eight seconds to indicate that
communication is not established. Communication is also faulty when the LED ashes multiple times in quick
succession. Relocate the light or receiver until the LED immediately turns off indicating the light and receiver are
communicating properly. Proper communication between the light and receiver is veried when for each press of the
button, the LED blinks immediately on and immediately off. Repeat this test to conrm ve separate consecutive
LED blinks. Any indication otherwise means proper communication has not been established.

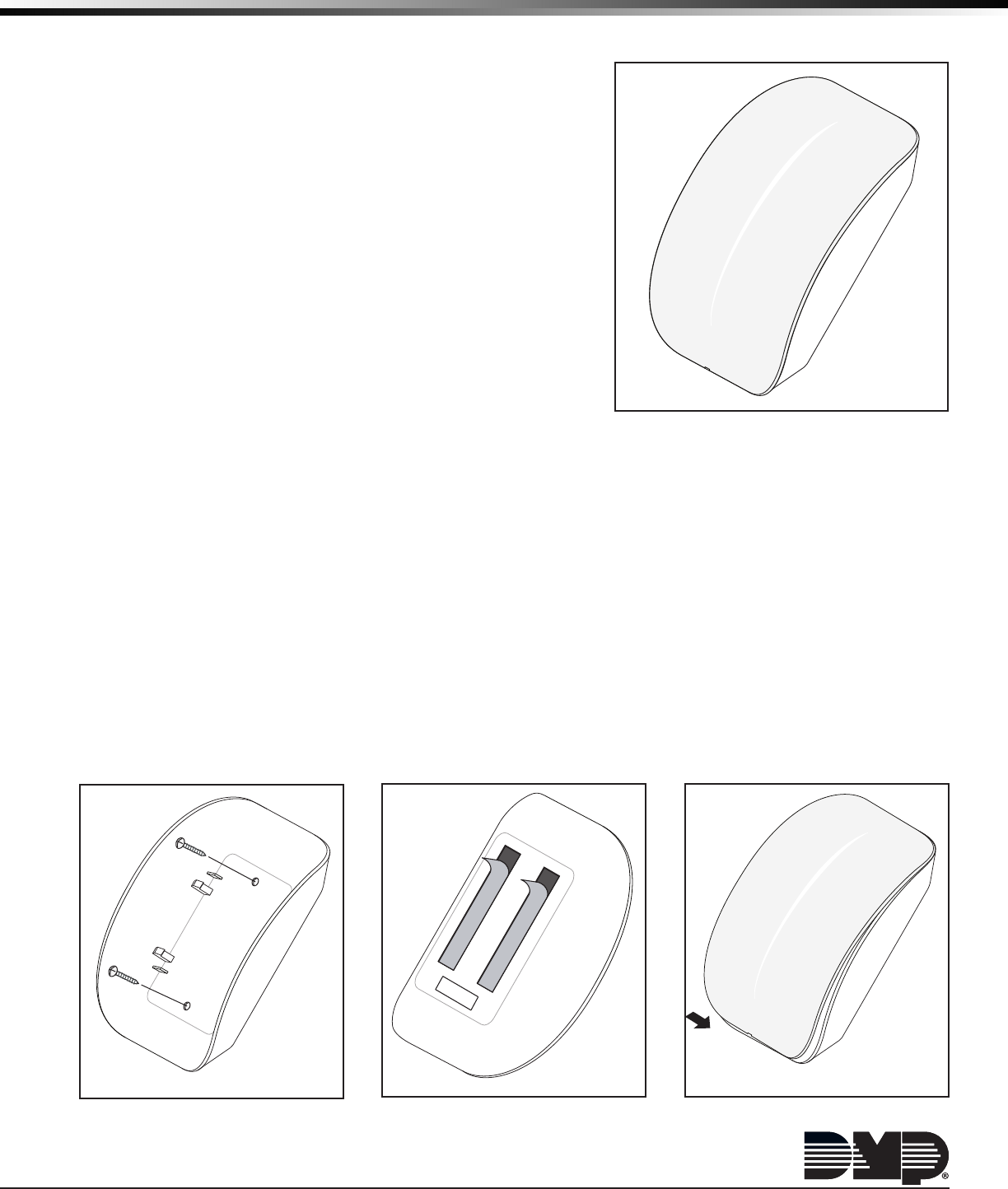

Figure 1: 1137 Emergency Light
Figure 4: Installing the Top HousingFigure 3: Double-Sided Tape Mount
SERIAL #
Figure 2: Screw Mount
Digital Monitoring Products 1137 Installation Guide
2
Mounting the Light
These instructions cover installing the 1137 on an interior wall. Figures 2 and 3
show the base housing inside and outside views.
Double-sided tape mounting
1. Install a 1/2” wide strip of double-sided tape (not included) in each of the
indentations on the back of the base housing.
2. Remove the backing from the tape and place the housing in the desired
location on the wall with the cover slot toward the bottom. See Figure 4.
Screw mounting
1. Insert a at screwdriver into the slot on the bottom of the 1137 cover
housing and gently push down on the screwdriver handle while pulling the
halves apart. See Figure 5.
2. Set aside the top housing containing the button and internal assembly.
3. Using two #6 Phillips head screws (not included), press through the
depressions and mount the base to the wall. See Figure 2.
4. Align the top cover snap with the base and snap the bottom of the cover in
place. See Figure 4.
Installing or Replacing the Batteries
Observe polarity when installing batteries. Use only 3.0 Vdc Lithium batteries, DMP Model CR123A, or the equivalent
battery from a local retail outlet.
Note: When setting up a wireless system, it is recommended
to program zones and connect the receiver before installing
batteries in the Emergency Lights.
1. Remove the top housing containing the PCB and lens
assembly. Insert a at screwdriver into the slot on the
bottom of the housing and gently lift the screwdriver handle
while pulling the halves apart. See Figure 5.
2. Using your hands, gently separate the top housing from the
base.
3. Turn the top housing over and remove the old batteries.
Dispose of the used batteries properly. See Figure 6 for
battery location.
4. Observing polarity, place the 3.0 Vdc lithium batteries in
the holders and press into place.
5. Snap the top housing back on to the base with PCB notch
toward the top. See Figure 6.
Caution: Properly dispose of used batteries. Do not
recharge, disassemble, heat above 212°F (100°C), or
incinerate.
Risk of re, explosion, and burns.
Battery Life Expectancy
Typical battery life expectancy for DMP Model 1137 Emergency
Light is 2 years. DMP wireless equipment uses two-way
communication to extend battery life.
The following situations can reduce battery life expectancy:
• If a receiver is unplugged, or not installed.
Note: Emergency Lights continue to send supervision messages until a receiver returns an acknowledgement.
After an hour the Emergency Light only attempts a supervision message every 60 minutes.
• When installed in extreme hot or cold environments.
The following situation can extend battery life expectancy:
• Extend or remove Emergency Light supervision time in panel programming.

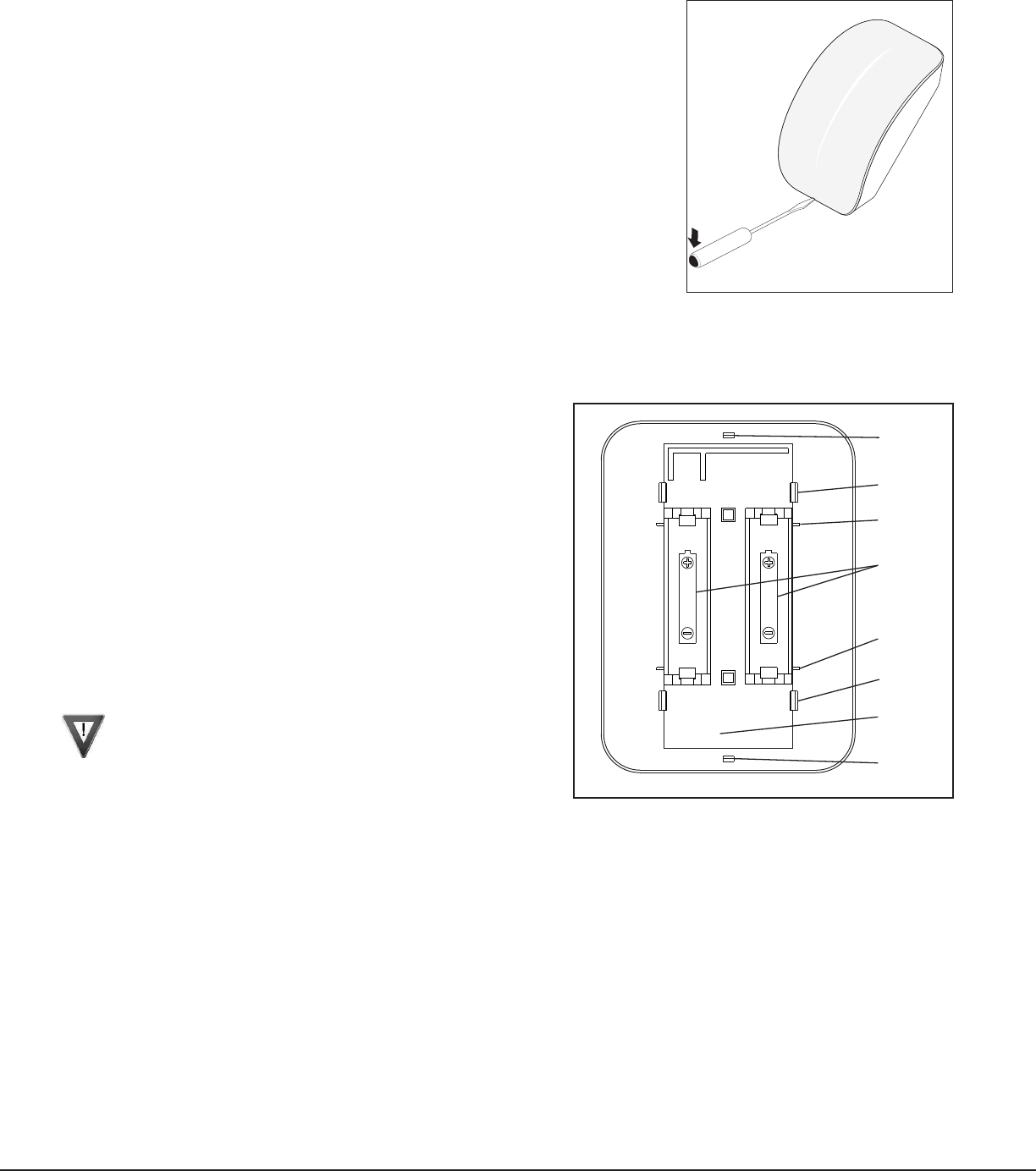

Figure 6: Top Housing PCB
and Battery Location
Top PCB
Snap
Bottom
PCB Snap
PCB
Support
Serial
Number
Label
Battery
Holders
PCB
Support
Bottom
Cover Snap
Top Cover
Snap
Figure 5: Removing the Cover
1137 Installation Guide Digital Monitoring Products
3
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.874 in.)
from all persons. It must not be co-located or operated in conjunction with any other antenna or transmitter.
Changes or modications made by the user and not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Information
This device complies with Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
800-641-4282
      
www.dmp.com 2500 North Partnership Boulevard

 
LT-1383 © 2015 Digital Monitoring Products, Inc.
15065
Specications
Battery
Life Expectancy 4 years (normal operation)
Type 3 Vdc Lithium CR123A
See Battery Life Expectancy for full details.
Frequency Range 903-927 MHz
Button Press
Time to Activate 1/8 sec. (.125 sec.)
Dimensions
Emergency Light Case 3” H x 2-1/2” W x 3/4” D
Color White
Housing Material Flame retardant ABS
Patents
U. S. Patent No. 7,239,236
Certications
FCC Part 15 Registration ID: CCKPC0155
Industry Canada: 5251A-PC0155
