WELCOME!
Congratulations on your latest purchase and
welcome to the Q-See family. This guide will help get
your camera up and running.
STEP 1
Before installing, please register your device on the
Q-See Support Portal at www.q-see.com/register
to receive critical updates and support for your
system. Registering will also help us to assist you with
any technical or warranty issues if ever necessary.
Please be sure to keep a record of your model
number(s) and to save this guide, as you will
need this information if you are ever in need
of technical or warranty support.
NOTE: Your username and password used to register
your device are not the same as those you use to log in
to your system. Please write down your username, pass-
word, and model number(s) in the spaces provided below:
Username:
Password:
Model #:
2
WHAT’S INCLUDED
• (1) QCW4K1MC Wi-Fi Camera
• (1) Power Adapter
• (1) Mounting Hardware
• (1) Quick Start Guide
STEP 2
Plug the camera into a power source and wait
until the indicator light begins to ash. After 15-
30 seconds the light should slowly ash green
which indicates it is ready to congure. If the light
displays solid red, hold the reset button for 15
seconds to reset the camera.
IMPORTANT: Go through all of the steps to setup
and test your system before mounting your camera.
Visit www.q-see.com/support to nd the most
recent guides and up-to-date support for your
Q-See products.
STEP 3
Download the Q-See Plus app
from the App Store on your mobile
device. Once installed, ensure that
your mobile device is connected
to the Wi-Fi network you wish to
use for your camera. Launch the
app on your mobile device.

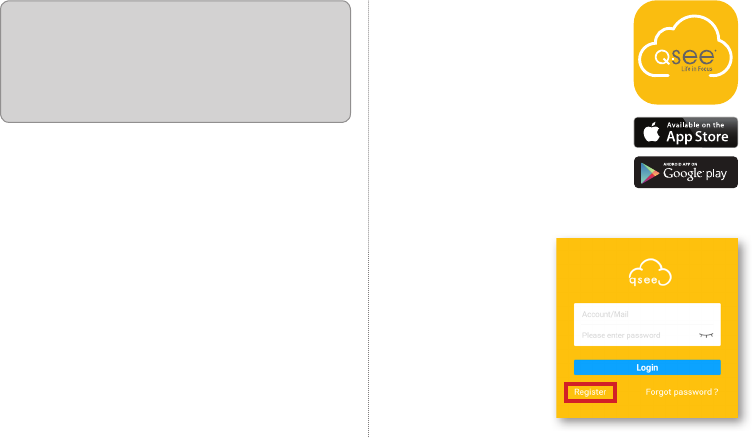

STEP 4
Tap on Register and
create an account for
the new camera.
*All screenshots shown
are from the Q-See Plus
app on Android.
3
STEP 5
Enter an email
address to use for
your account. You
should immediately
receive an email with
a verication code.
You will have two
minutes to enter the verication code, so be sure
you will have quick access to the email address
used. Tap Send verication code to mail.
STEP 7
Create a password
for your account.
You will enter the
same password
twice to conrm. Tap
Register Again to
continue.
STEP 8
Enter your email
address again and
the new password.
Tap Login to
continue.
STEP 6
Enter the verication
code and click Next.
4

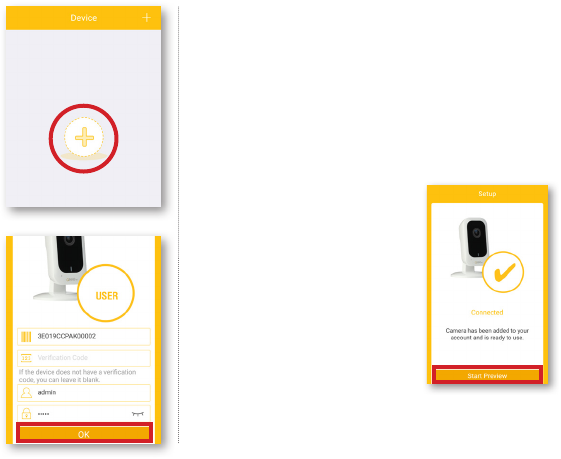

STEP 9
Tap the + symbol to
continue. In the following
screen, select “Wi-Fi
Camera” for device type.
Next, using your mobile
device’s camera, scan
the QR code on the back
of the Wi-Fi camera.
STEP 11
In the next screen, tap “Yes, cong Wi-Fi”. Enter
your Wi-Fi network’s password and before tapping
“Next”, place your mobile device within 12” of the
Wi-Fi camera. Click “Next” to proceed. Connecting
may take over a minute. Once connected, the LED
on the front of the Wi-Fi camera will turn solid green.
STEP 10
Once the QR code scans,
a new screen will appear
with login credentials.
Do not edit any of the
credentials. Do not enter
a verication code. Tap
OK to continue.
STEP 12
You should then see the
conrmation screen. Tap Start
Live Preview and follow the
on-screen prompt to nalize
the setup. If the camera
is unable to connect, try
temporarily moving the camera
closer to your Wi-Fi router to
complete the setup process.
If that doesn’t work, hold the
reset button for 15 seconds and start the process
over. Read on for more troubleshooting steps.
5
WI-FI CONNECTIVITY TROUBLESHOOTING
If you are having issues connecting your QCW Wi-Fi camera to the desired Wi-Fi network, this tutorial will show
you how to establish the connection with the help of a standard Ethernet (CAT5) cable.

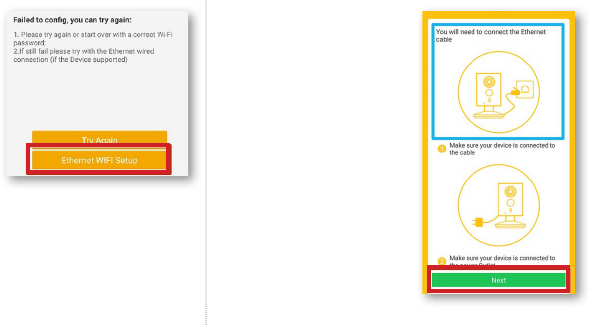

STEP 1
Select Ethernet Wi-Fi
Setup.
STEP 2
Connect the Wi-Fi camera
to your router using
an Ethernet cable (not
included). Select Next.
6

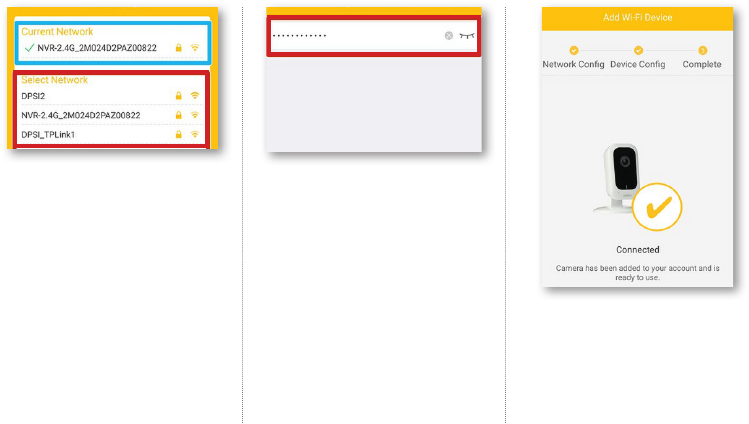

STEP 3
If your camera is already
connected to a Wi-Fi
network it will appear at
the top. Select the Wi-Fi
network you wish to connect
your camera to.
STEP 4
Enter the password for your
Wi-Fi network.
STEP 5
Select Start Preview once the
camera is connected. You may
now disconnect the Ethernet
cable from your camera.
7
CAMERA FEATURES
The camera’s microphone and speaker
will enable you to both hear and speak
through your camera for two-way audio
purposes.
The PIR sensor will help to reduce false
alarm motion alerts by detecting body heat
combined with motion.
The micro SD card memory slot allows
for local storage of videos and motion
alert footage. We recommend using the
Cloud storage option so if the camera is
damaged or stolen the video will still be
backed up.
8

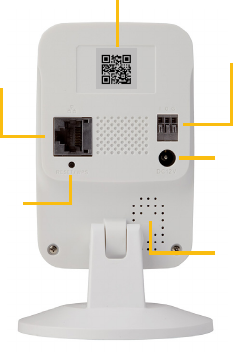

CAMERA
LENS
MICROPHONE
MICRO S.D.
CARD SLOT
P.I.R.
SENSOR
L.E.D. INDICATOR
RESETTING YOUR CAMERA
Press and hold the reset button for 15
seconds in order to reset the camera to
its original factory settings.
The LED indicator light will ensure that
your camera is connected to Wi-Fi. A
ashing green light means it is ready to
connect. A solid green light means it is
connected to a Wi-Fi network. A solid red
light indicates that there is problem with
the connection.
9
SPEAKER
Q.R. CODE
NETWORK
PORT
POWER
PORT
ALARM
PORT
RESET
BUTTON
10
