CPE INSTALLATION
AND
USER GUIDE
Gen6 CPE – model 2X
Version 3 Users and Installation Manual
This guide covers the assembly and configuration of the 2xWireless CPE equipment.
Introduction
The 2xWireless customer premise equipment (CPE) wireless device is a high performing, all outdoor
device designed to provide high capacity data transfer, low latency and low jitter. The 2xWireless CPE
provides a full duplex wireless connection utilizing a patent pending Frequency Division Duplex – Time
Division Duplexing FDD-TDD 802.11 protocol capable of connection distances up to 25 miles. The
protocols used in the CPE deliver latency of less than 1ms, over 1 million packets per second, and up to
40 Mbps of data. Designed with performance in mind, 2xWireless CPE’s provide end users with
increased throughput, better reliability, and a higher quality solution than many of the other wireless
solutions on the market today. 2xWireless’ CPE’s are an easily deployed, affordable last mile solution for
service providers.
![](/img.php?id=2024510&img=bg3.png)
Contents

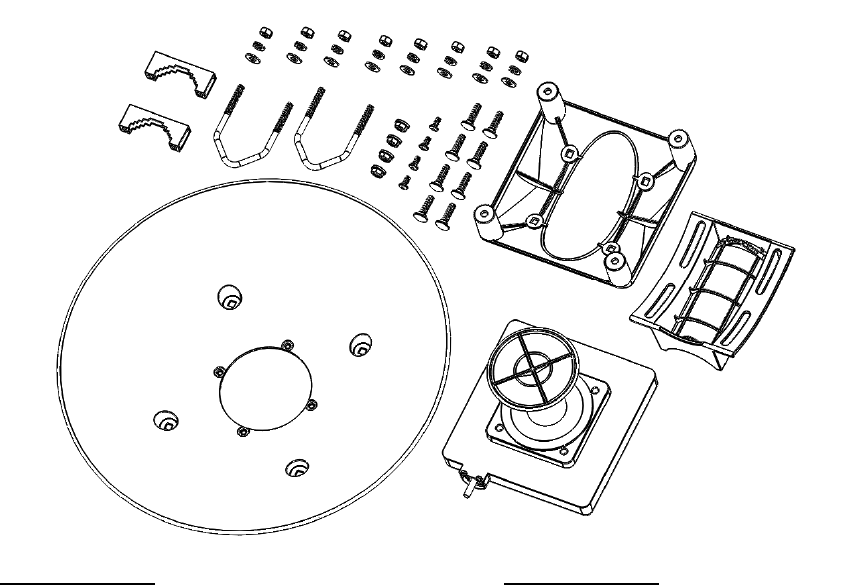

Each 2xWireless CPE kit comes with the following components. Shielded Ethernet cable and grounding
cable are not included in the CPE package. Remove all parts from packaging and inspect for damage and
missing parts before beginning assembly.
Qty - Description
A (1) 16” Dish
B (1) Radio Unit
C (1) Mounting Bracket 1
D (1) Mounting Bracket 2
E (2) Steel Tooth Bracket
F (4) 10-24 Phillips Machine Screws
G (1) Power Supply
H (1) Ethernet Patch Cable
Qty - Description
I (2) V-Bolts
J (4) ¼”-20 Serrated Flange Nuts
K (8) ¼”-20 Carriage Bolts
L (8) ¼”-20 Hex Nuts
M (8) ¼” Lock Washers
N (8) ¼” Flat Washers
O (1) Surge Suppressor
![](/img.php?id=2024510&img=bg4.png)
CPE Assembly Instructions
Assembly of the mounting bracket
1. Insert both V-bolts through the inside of mounting bracket 1. The completed step should look
like this.
2. Insert (4) of the 1” carriage bolts through the flat side of mounting bracket 2 as shown. Seat the
base of the carriage bolt into the square hole in the bracket. Place the 2 halves of the bracket
together, the larger end of bracket A should be facing downwards. Bolt plastic brackets together
using (4) flat washers, (4) lock washers, and (4) ¼”-20 hex nuts. Finger tighten only. These bolts
will be tightened during installation and adjustment. Set the assembly aside.
![](/img.php?id=2024510&img=bg5.png)
Assembly of the radio unit and reflector

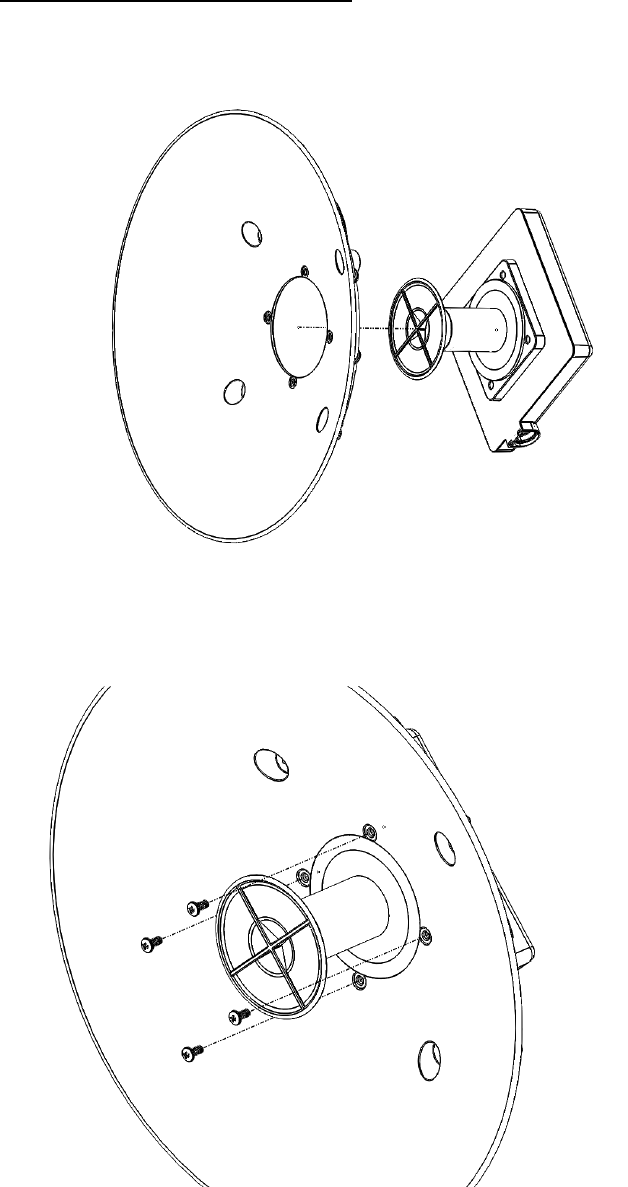

3. Insert the feed horn of the radio unit through the hole of the reflector plate as shown.
Orientation is not important at this time.
4. Attach the reflector to the radio unit with (4) 10-24 Phillips machine screws. Tighten the screws
¼ turn past snug.
![](/img.php?id=2024510&img=bg6.png)
Final assembly
5. Bolt the reflector and radio assembly to the mounting bracket assembly with the remaining four
1” long ¼”-20 carriage bolts and the four Serrated flange nuts. Tighten the nuts ¼ turn past
snug. Note: The cable entry port must be facing down to prevent water from entering the
device. Improper installation will cause water damage and void the warranty.
Installation and adjustment
6. Place assembly with bracket against pole and slide the two steel tooth brackets onto the V bolts
as shown. For proper installation, the larger end of bracket A should be on the bottom and the
cable entry point should be pointing down. The brackets are held in place with (4) flat washers,
(4) split lock washers and (4) ¼”-20 hex nuts. Finger tighten at this time to allow azimuth
adjustment of the CPE on the mounting pole during alignment.
![](/img.php?id=2024510&img=bg7.png)
7. Insert the cable through rubber grommet and terminate the cable end. The cabling for
installation is standard EIA/TIA 586B. For reference, the wiring diagram is included below the
programming information.
8. Insert the cable end into the CPE. The tab on the end should click when properly seated in the
radio unit. Confirm the end is securely seated in the radio unit. Slide the rubber grommet into
the cable entry point. It will fit snugly and recess into the case approximately ½ the thickness of
the grommet.
9. Complete the wire run to the entry point of the building and install the surge suppressor per the
instructions supplied with the surge device.
10. Connect the power cord with the power supply and insert it into a surge protected outlet or
uninterruptible power supply (UPS). Connect the cable leading from the surge device to the
power supply port marked ‘POE’. Connect the port labeled ‘LAN’ to a computer for
programming with a standard patch cable. CAUTION: connecting any device other than the CPE
to the POE port may cause damage.
11. When correctly installed and powered up the CPE will issue DHCP addresses in the
192.168.100.x subnet.
CPE Login Instructions

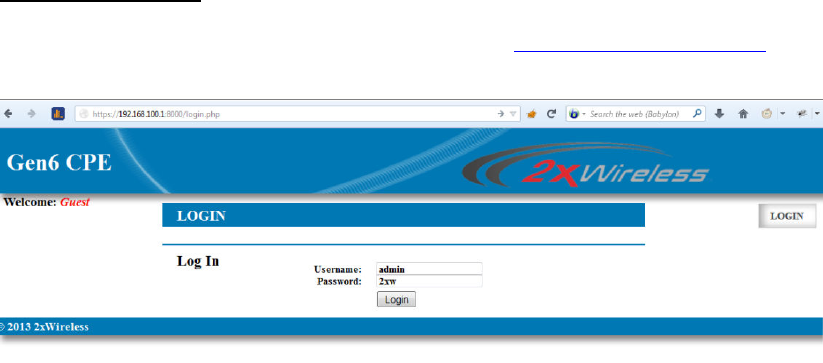

1. Access the web interface via the default address: https://192.168.100.1:8000
2. At the log in prompt, enter the default username: admin and password: 2xw as shown below.
3. Choose the desired mode for the CPE to operate in. ‘Bridge’ mode will pass the network without
any routing required.
4. click the choose button.

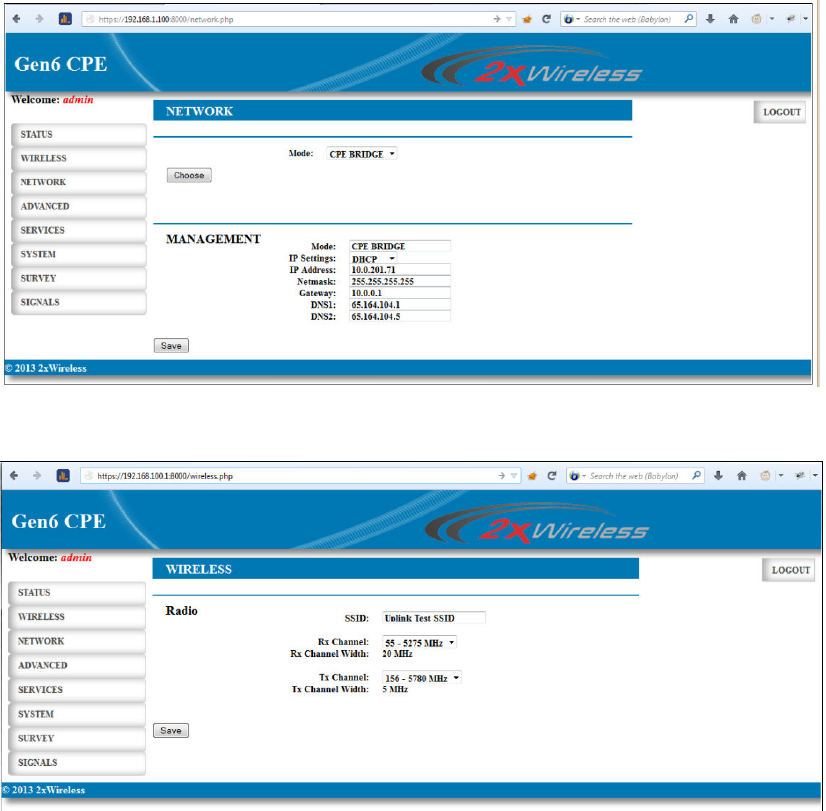

5. You will then be able to set your network information, which his self-explanatory, including site-
surveys.
![](/img.php?id=2024510&img=bg8.png)
6. Wireless setup screen.
![](/img.php?id=2024510&img=bg9.png)
Cable Pin outs

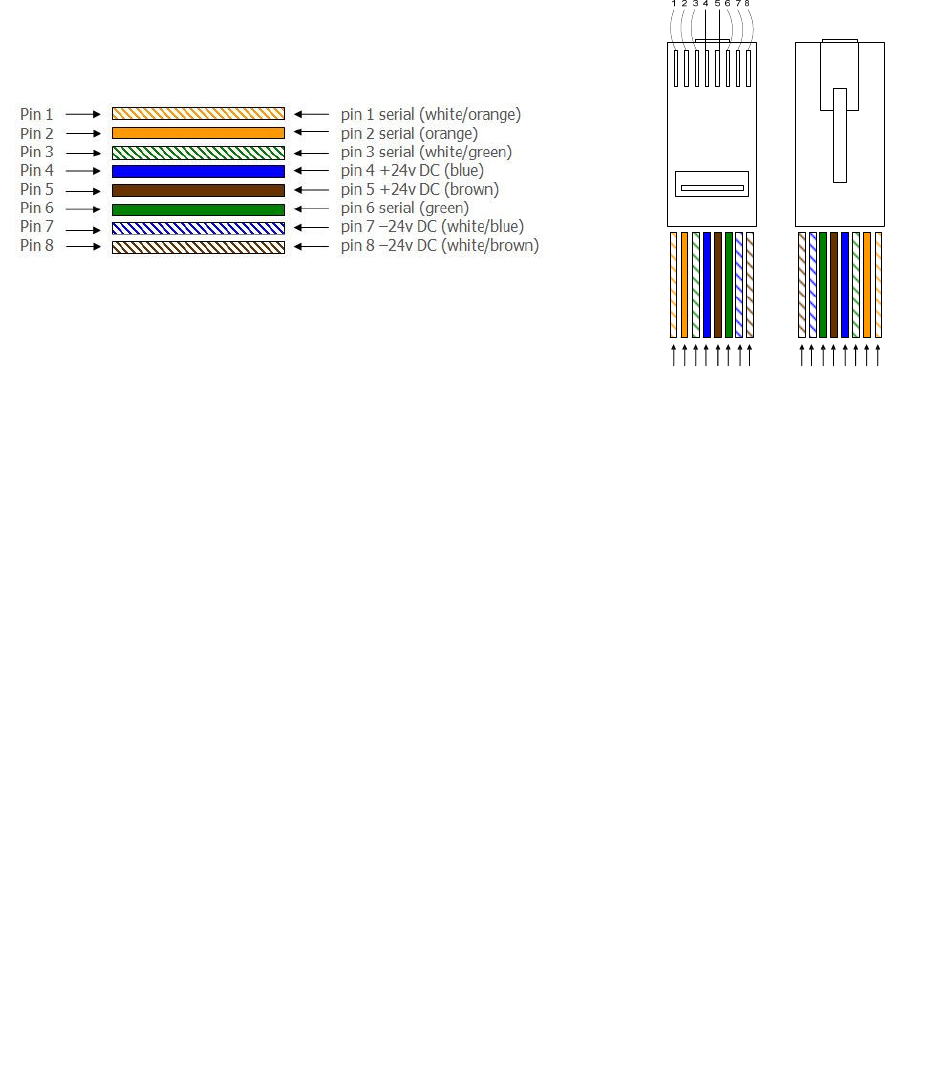

An Industry Standard Ethernet pin-out is used in the installation of the CPE. Below is a picture depicting
the cable pin-out for a straight-through cable. The image below conforms to the EIA/TIA industry
standard for 568B.
FCC Compliance & Installation Statement for FCC ID: RHK-G6CPE
This is a Class B digital device. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This device generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this device does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to operate
the equipment under FCC rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
Attention: This equipment is intended for outdoor point-to-point use only.
![](/img.php?id=2024510&img=bga.png)
FCC statement 15.27(b)
This device should be professionally installed by a trained technician. The installer shall be responsible
for ensuring that the proper antenna is employed to comply with FCC requirements. The equipment
described herein may only be used in accordance with accessories listed in below for FCC ID numbers
RHK-G6CPE.
Operational Transmit Channels
Channel
Width
Lowest Channel (MHz) Highest Channel (MHz)
15.247 5.725-5.85GHz Band
5MHz 5730 (146) 5845 (169)
10MHz 5735 (147) 5840 (168)
Notice of FCC power compliance for transmit power settings
Channel Width Setting Maximum Transmit output power
5 MHz 24dBm
10 MHz 25dBm
Parts List & Tune-Up Information
- Surge Suppression
Ethernet Surge Suppression (optional, but required for outdoor wall penetration with cat5 by National
Electric Code standards in the United States.)
Optional Ethernet/Power Surge Suppressor – Part # H-LS-001.01 – DigitalPath, Inc
UL # 3VEO – Model DPISURG5E
- Power Supply ITE 24V DC PoE – Model FAS24000050-C44
Ferrites on power lead (QTY 1) – Steward 28A2024-0A0. Placed on cat5 cable(s) coupled together with
data/power together out from 24v DC power adapter. Included in installation package.
Warranty Information
2xWireless equipment must be professionally installed. Shielded Ethernet cable and earth grounding are
necessary for proper operation of the surge device. Failure to properly ground the devices may result in
damage to the devices, damage to other equipment and will void the product warranty. It is the
installers responsibility to follow local building and safety regulations including operation within legal
frequency channels, output power, and the installation is complete and secure. When installed, this
equipment is to be connected to a Lightning/Surge Protection device that meets all applicable local and
national safety requirements.
2xWireless equipment and devices are warranted against defects in materials and workmanship for a
period of one (1) year from original date of purchase. The extent of the responsibility of 2xWireless
through this warranty and the terms and conditions are as follows:
1. Proof of date of purchase is required for warranty service on this product.
2. This warranty will become void when service is performed by anyone other than 2xWireless.
3. This warranty does not apply to any product or device that has been taken apart, serviced by
others, altered, subjected to abuse, neglect, or accident, exposed to faulty power, lightning
strikes, had/has the serial number removed or altered, or that has been connected, installed or
adjusted not in accordance with the instructions provided by 2xWireless.
4. This warranty does not cover the costs of labor for removing and reinstalling the equipment or
device being sent in for repair or the costs of any expendable parts in need of replacement or
associated with the removal or reinstallation of the equipment or device. Also, this Warranty
does not cover loss of use, fees, loss of revenue or other costs associated with failure of any
2xWireless device, including damage to other property.
5. The sole responsibility of 2xWireless under this warranty shall be limited to repair or
replacement of the faulty equipment or device, at the sole discretion of 2xWireless.
6. If it is necessary to return any defective device or part to 2xWireless, the product must be
shipped in its original carton or equivalent packaging, fully insured with shipping charges
prepaid. 2xWireless will not assume responsibility for any loss or damage incurred in shipping.
Warranty disclaimer: limitation of liability. Except in only the limited express warranty set forth above,
there are no expressed or implied warranties of merchantability and fitness for a particular purpose. In
no event will 2xWireless be liable for any direct, special, or consequential damages arising
out of, or in connection with, the delivery, use, inability to use, or performance of this product.
Should any difficulties arise with the performance of this product during warranty, contact 2xWireless
at:
2xWireless
ATTN: Warranty Department
1065 Marauder Street
Chico, CA 95973
![](/img.php?id=2024510&img=bgc.png)
LIMITATION OF LIABILITY
2XWIRELESS SHALL NOT BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OF ANY NATURE INCLUDING WITHOUT LIMITATION LOSS OF PROFIT, PROMOTIONAL OR
MANUFACTURING EXPENSES, OVERHEAD, DATA, INJURY TO REPUTATION OR LOSS TO CUSTOMERS,
ARISING OUT OF OR IN CONNECTION WITH THE PURCHASE, SALE, USE, PERFORMANCE OR FAILURE OF
THE PRODUCTS, WHETHER SUCH LIABILITY ARISES UNDER CONTRACT, TORT (INCLUDING NEGLIGENCE),
STRICT PRODUCT LIABILITY OR OTHERWISE, EVEN IF 2XWIRELESS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR IF SUCH DAMAGE COULD HAVE BEEN REASONABLY FORESEEN. IN
NO EVENT WILL 2XWIRELESS’ LIABILITY TO BUYER ARISING OUT OF OR RELATING TO THE PRODUCTS OR
THESE TERMS EXCEED THE AMOUNT OF THE PURCHASE PRICE PAID TO 2XWIRELESS BY BUYER FOR THE
PRODUCT THAT GIVES RISE TO THE CLAIM.
2xWireless. Printed in USA. All rights reserved. www.2xwireless.com
