DigitalPath G7RL10 Gen7 AP User Manual
DigitalPath, Inc. Gen7 AP Users Manual
Users Manual
![](/img.php?id=3737373&img=bg1.png)
1 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Generation 7
Documentation
Manual: Beta version 1
Software version qsdk5
Date: 12/7/2017
![](/img.php?id=3737373&img=bg2.png)
2 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Table of Contents
Logging into a device ................................................................................................ 4
1. How to login to the device locally................................................................... 4
Types of Gen 7 Repeaters ......................................................................................... 6
Generation 7 Operational Modes ................................................................................ 7
1. Gateway ....................................................................................................... 7
2. Secured Location .......................................................................................... 7
3. Customer ..................................................................................................... 7
Configuring a Gateway .............................................................................................. 8
Configuring the Connection .................................................................................... 9
Saving .................................................................................................................. 9
Manually Selecting Channels ................................................................................... 9
Manual Power Settings ......................................................................................... 10
Configuring a Secured Location ................................................................................ 11
Configuring The Tunnel: ...................................................................................... 11
Saving ................................................................................................................ 11
Manually Selecting an Uplink ................................................................................ 12
Manually Selecting Channels ................................................................................. 13
Manual Power Settings ......................................................................................... 14

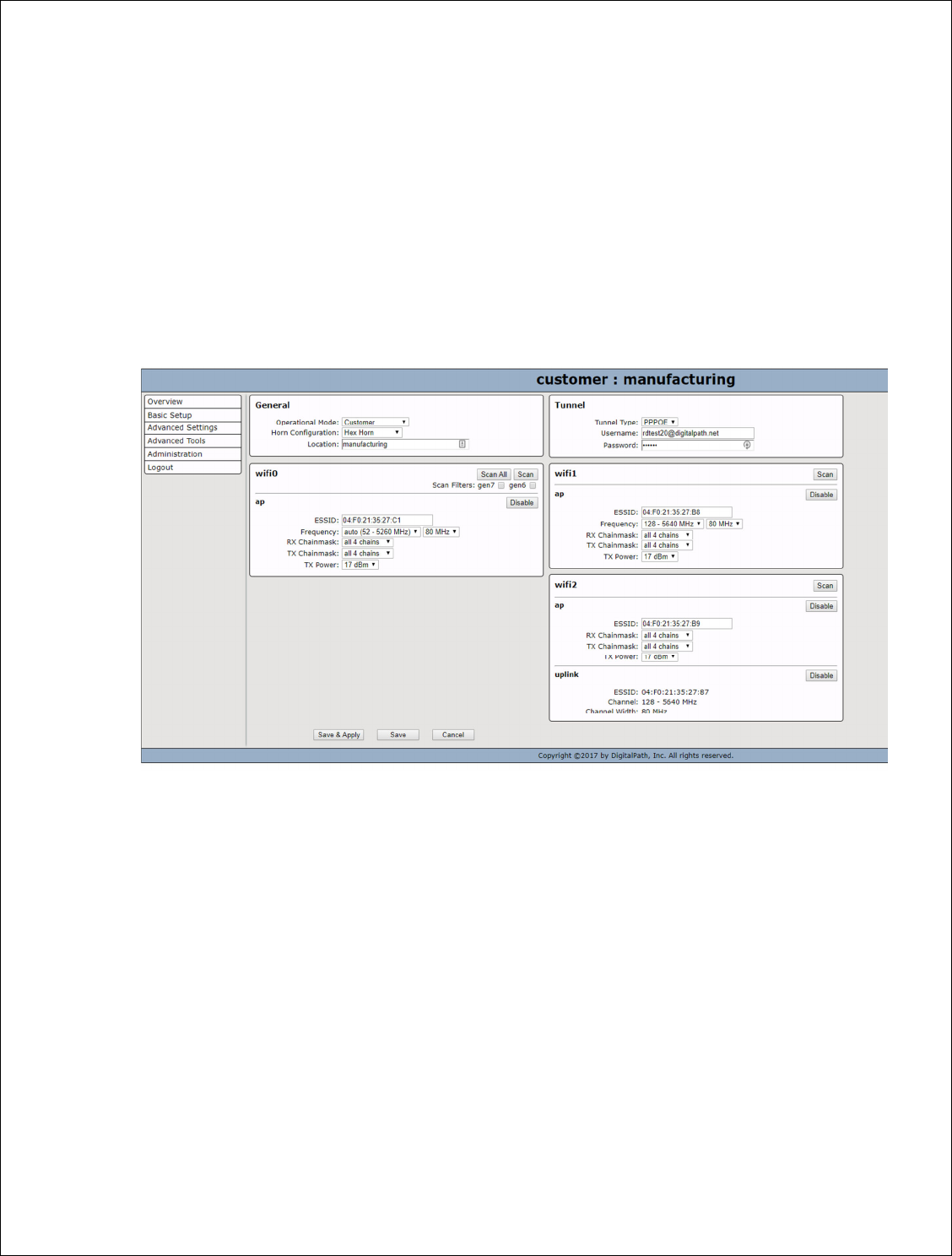

Configuring a Customer Device ................................................................................ 15
Configuring The Tunnel: ...................................................................................... 15
Saving ................................................................................................................ 15
Manually Selecting an Uplink ................................................................................ 16
Manually Selecting Channels ................................................................................. 17
Manual Power Settings ......................................................................................... 18
Understanding the Status Page ................................................................................ 19
Understanding the Basic Setup Page ........................................................................ 19
Understanding the Administration Section ................................................................ 20

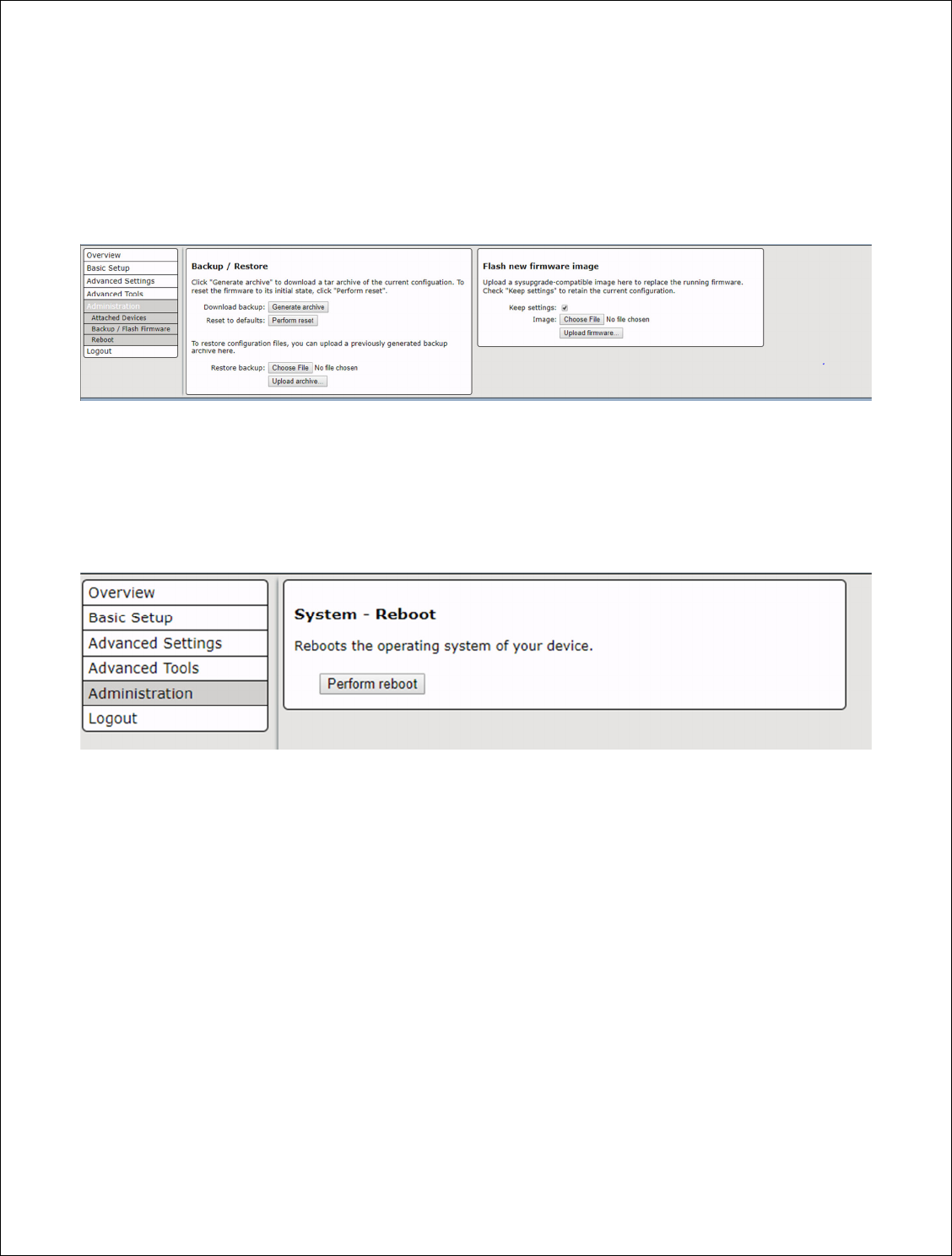

Backup / Flash Firmware ...................................................................................... 20
Reboot: ............................................................................................................... 20
![](/img.php?id=3737373&img=bg3.png)
3 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Identifying Types of Repeaters and Antennas ........................................................... 21
5GHZ 2ft 28db Dish .......................................................................................... 23
Installation Guide .................................................................................................... 24
Hex Horn ......................................................................................................... 24
Single Horn ...................................................................................................... 24
FCC Compliance & Installation Statement ................................................................. 25
Definitions ....................................................................................................... 25
Statement ........................................................................................................ 25
Attention ......................................................................................................... 25
FCC statement 15.21(a) .................................................................................... 27
Professional Installation .................................................................................... 27
Parts List & Tune-Up Information ............................................................................. 28
External RF Cables for Connection to Modularized Connector Ports ...................... 28
Ethernet Surge Suppression .............................................................................. 28
Power Supply ................................................................................................... 28
Antenna ................................................................................................................. 29
Channels and Maximum Power By Antenna .............................................................. 29
(Based on Center Frequency) .................................................................................. 29
Notice of FCC power compliance for transmit power settings ..................................... 33
![](/img.php?id=3737373&img=bg4.png)
4 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Logging into a device
1. How to login to the device locally
Note: This device will setup as a DHCP server initially, you should not have to
hard set your IP in most cases. If you need to, instructions below:
First, hard set a local area connection to a IP address in the range of
192.168.100.X e.g. 192.168.100.50 with a subnet mask of 255.255.255.0
with no gateway.
![](/img.php?id=3737373&img=bg5.png)
5 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
- Plug in a power-supply to an electrical outlet and then, run a patch cable
from the pigtail to the left port (eth0) on the repeater. You will then see a
green light on in the water box.
- After, plug the other end of the pigtail (the 4-inch black cable) into the
Ethernet port we earlier set to the 192 hard set IP address.
- Open a web browser and try to login to https://192.168.100.1:8000
a. Find the default login information with the packaging provided
b. Troubleshooting logging in

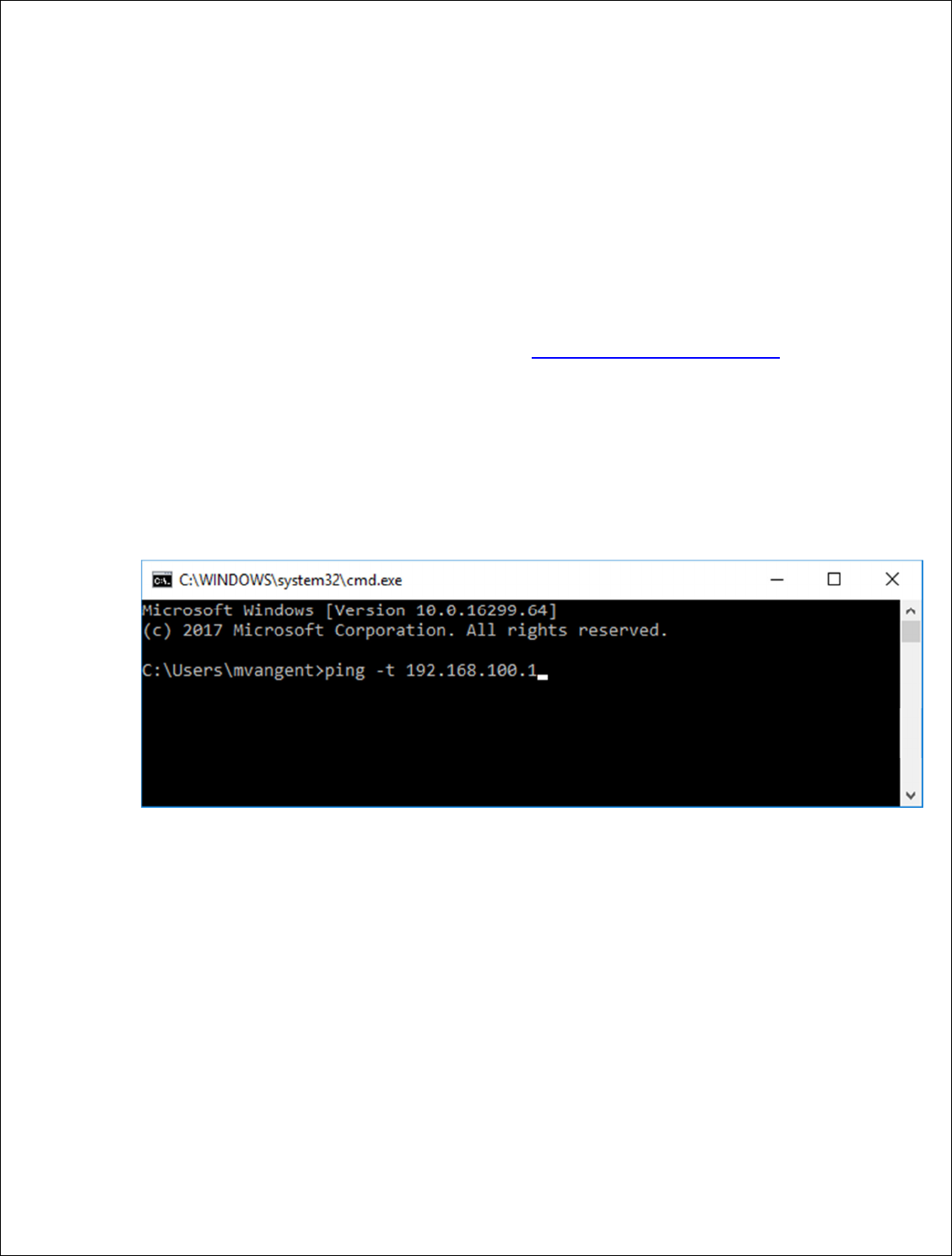

- If you can’t get into the device open a command prompt window Ping the
192.168.100.1. If you can’t ping the 192.168.100.1 try pinging the
192.168.100.x address we assigned to the local area connection. If you can
ping the local area connection than locally it is correct.
- Then go to your local area connection and right-click and go to repair. After it
repairs attempt to ping the 192.168.100.1. If you can’t go back to the local
area connection and disable and then enable it again. Then attempt to ping
the 192.168.100.1. You should be able to ping the address and login to the
device. If not start back at the beginning step 1.
![](/img.php?id=3737373&img=bg6.png)
6 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

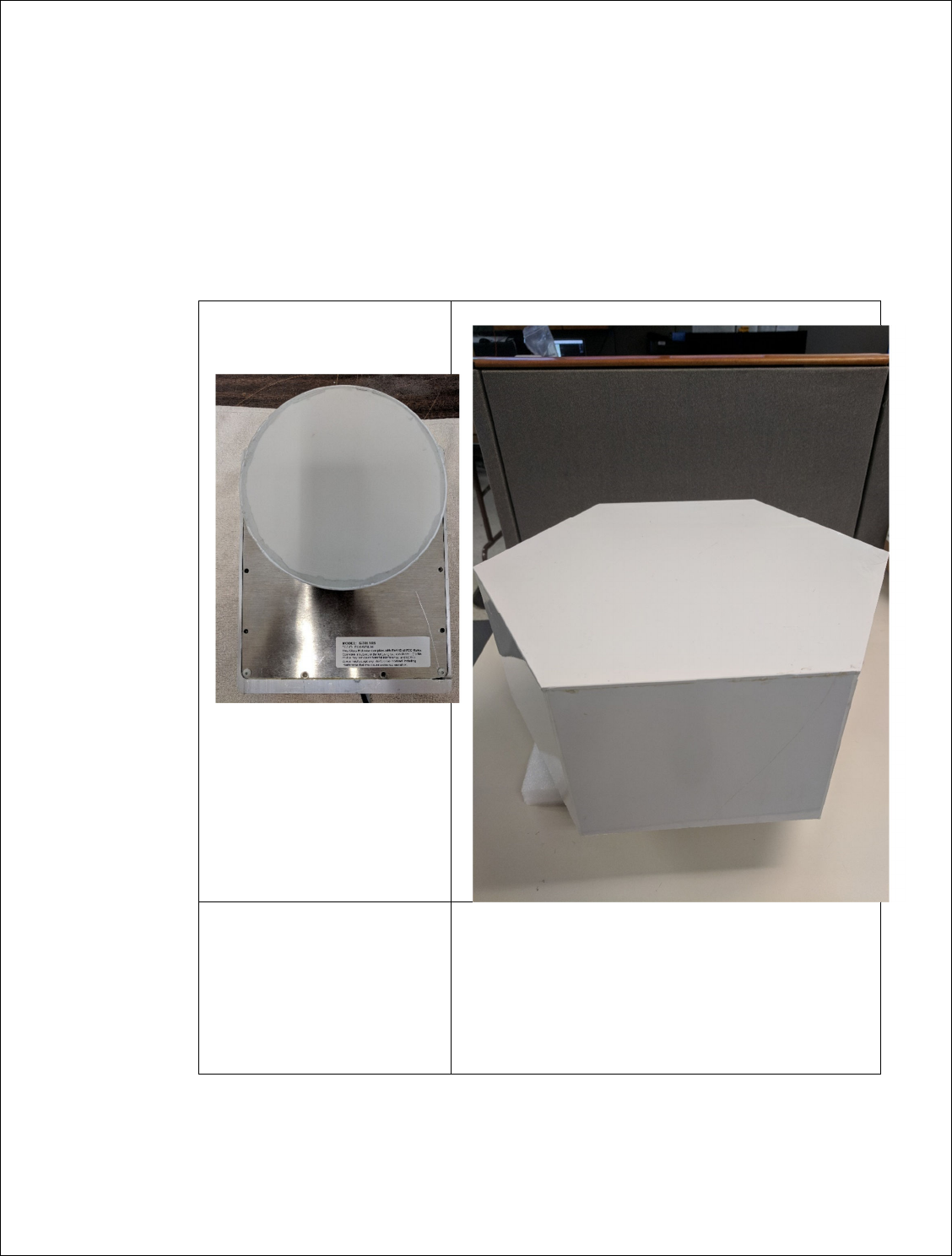

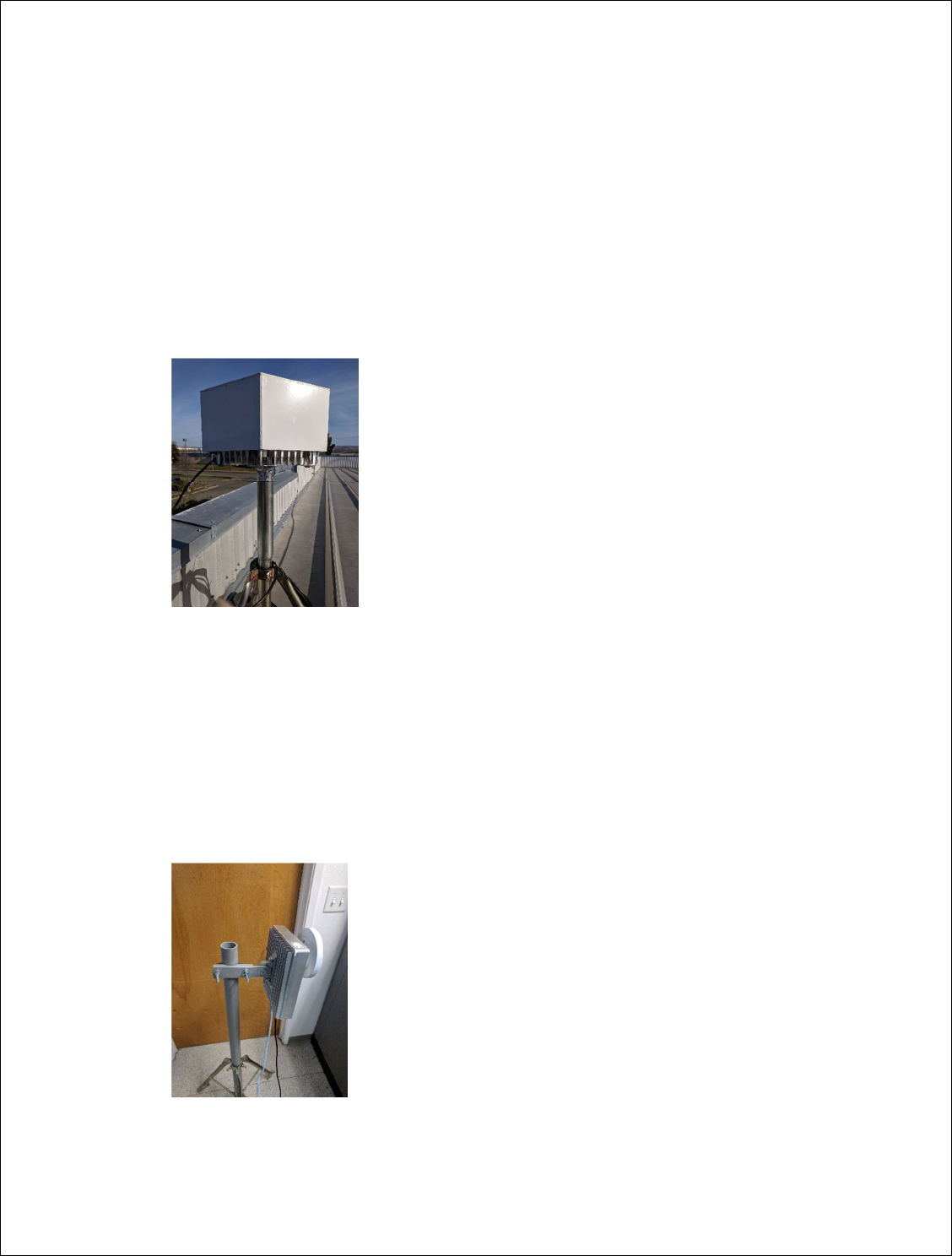

Types of Gen 7 Repeaters
PRODUCT CODE
DESCRIPTION
G7RL10S
Single Antenna
+
Ex
ternal
Connectors for up to five dual
polarized antennas
G7RL10H
Hex Horn (
Dual Polarized
Six
Antenna array)
*Determining what type of repeater you are using at the bottom of the
repeater there is a sticker that will list the following information.
- Product Code: G7RL10H or G7RL10S
- Date Created: MM/YY/DD
- FCC ID: RHK-G7RL10
![](/img.php?id=3737373&img=bg7.png)
7 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Generation 7 Operational Modes
1. Gateway
A device that is connected directly to a upstream router and provides service
to downstream devices.
2. Secured Location
A customer or relay device in a location that is considered secure, device is
not likely to have customer caused outages. This scores the device higher in
the automatic uplink selection process.
3. Customer
Customer Premises Device, includes the concentrator system and performs
routing transparent to the customer
![](/img.php?id=3737373&img=bg8.png)
8 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

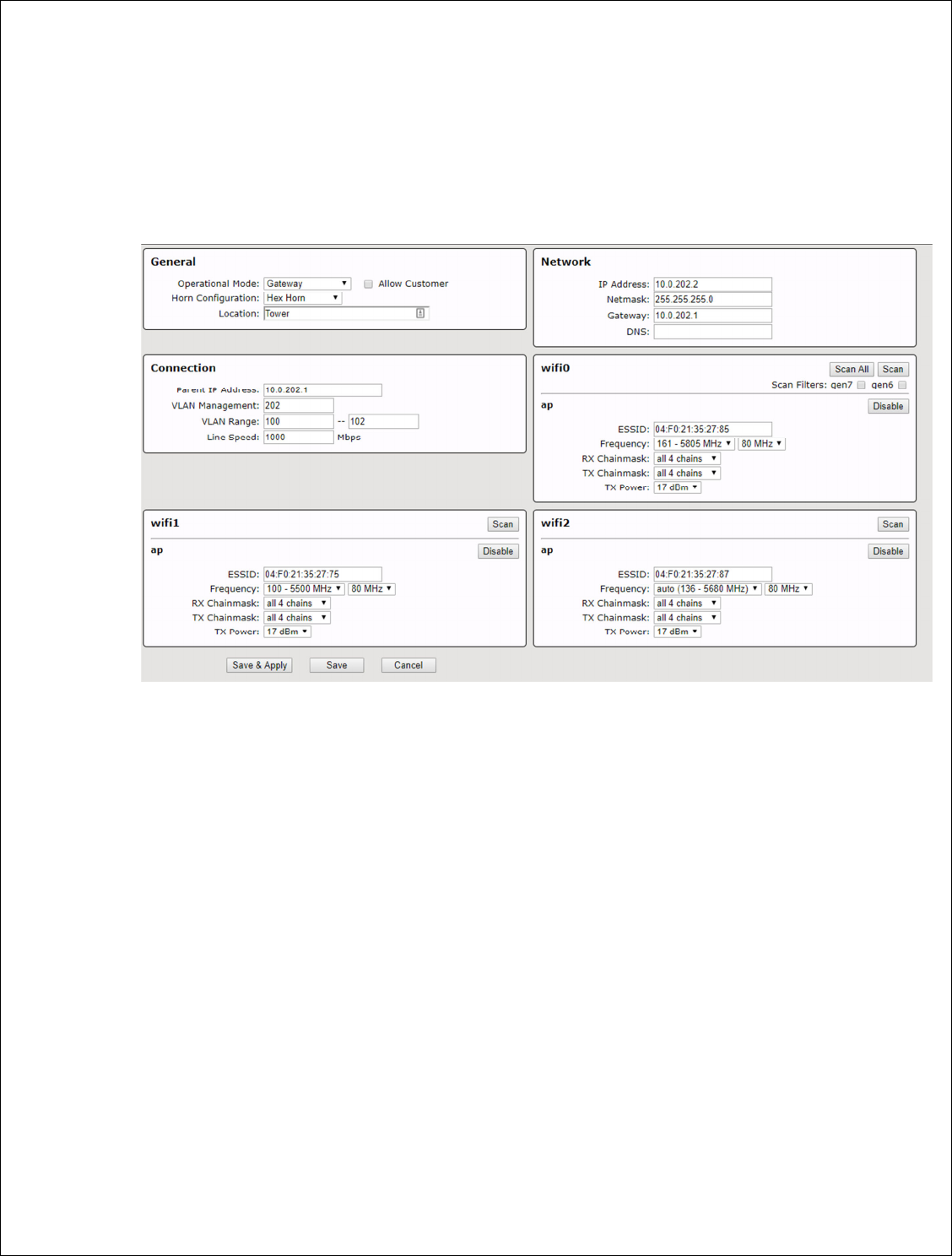

Configuring a Gateway
1. After logging into the relay go to Basic Setup. Next, choose Gateway
2. Set the Horn Configuration to match the device type.
3. Give the Location a name that will describe the site, this name will show in
Netmon
4. Network: This will be the device’s 10.x management ip, as a gateway this must
be a static ip.
![](/img.php?id=3737373&img=bg9.png)
9 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

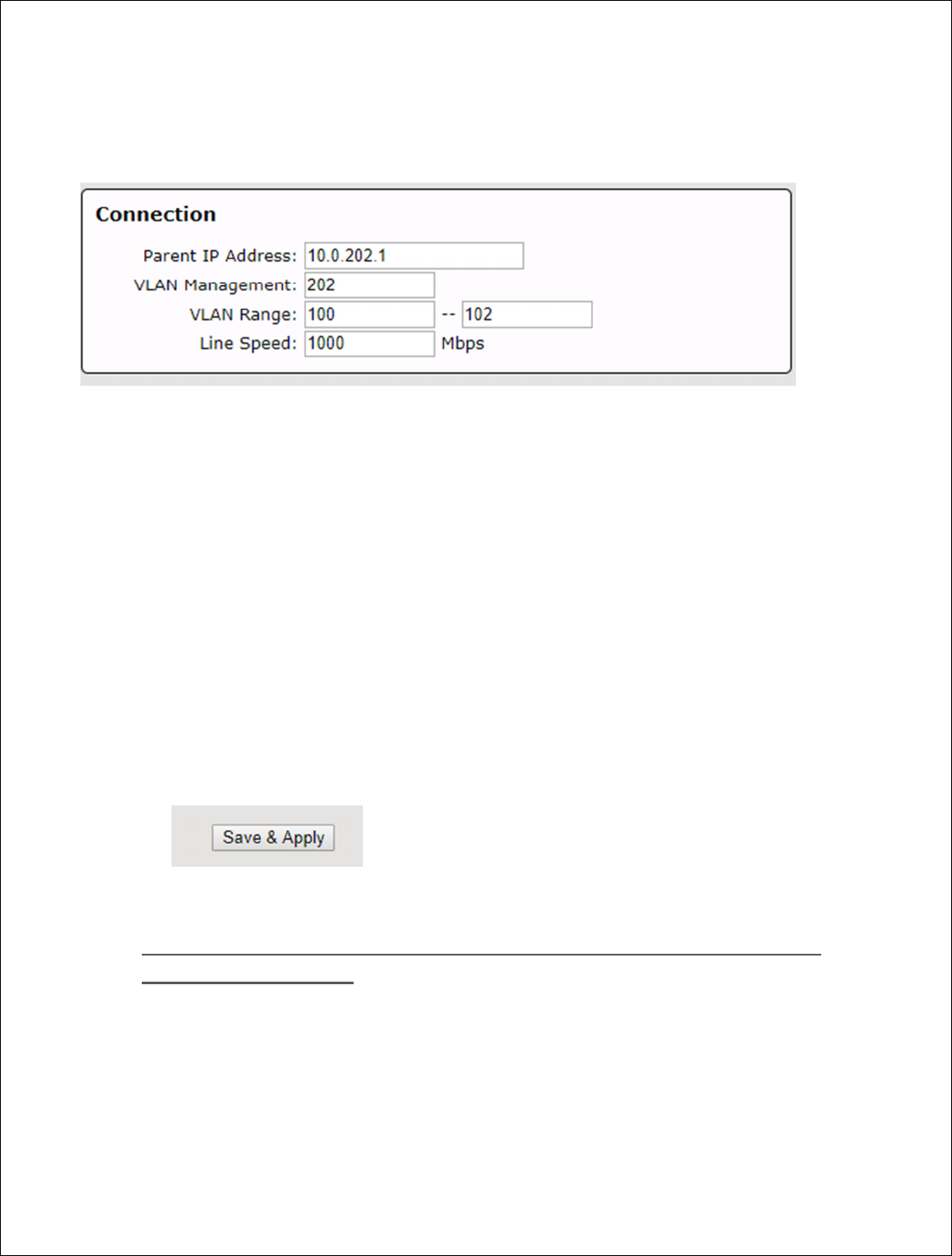

Configuring the Connection
1. Set the parent IP Address. This should be the IP of the switch or router that the
gateway is directly connected to.
2. Set the Management VLAN. This VLAN is untagged into the device, and is only
placed here for documentation purposes.
3. Set the VLAN Range. This is the range of VLAN’s that are available to this device
for concentrator connections. This range will vary based on the location.
4. Set the Line Speed. This is the amount of upstream bandwidth available for this
device, and will factor heavily into the auto uplink selection for customer devices.
Saving
After configuring the device you will need to save the settings, which will restart
the whole network stack and the device will cease to be available at the
192.168.100.1 IP and assume the new IP you assigned in the networking
section.

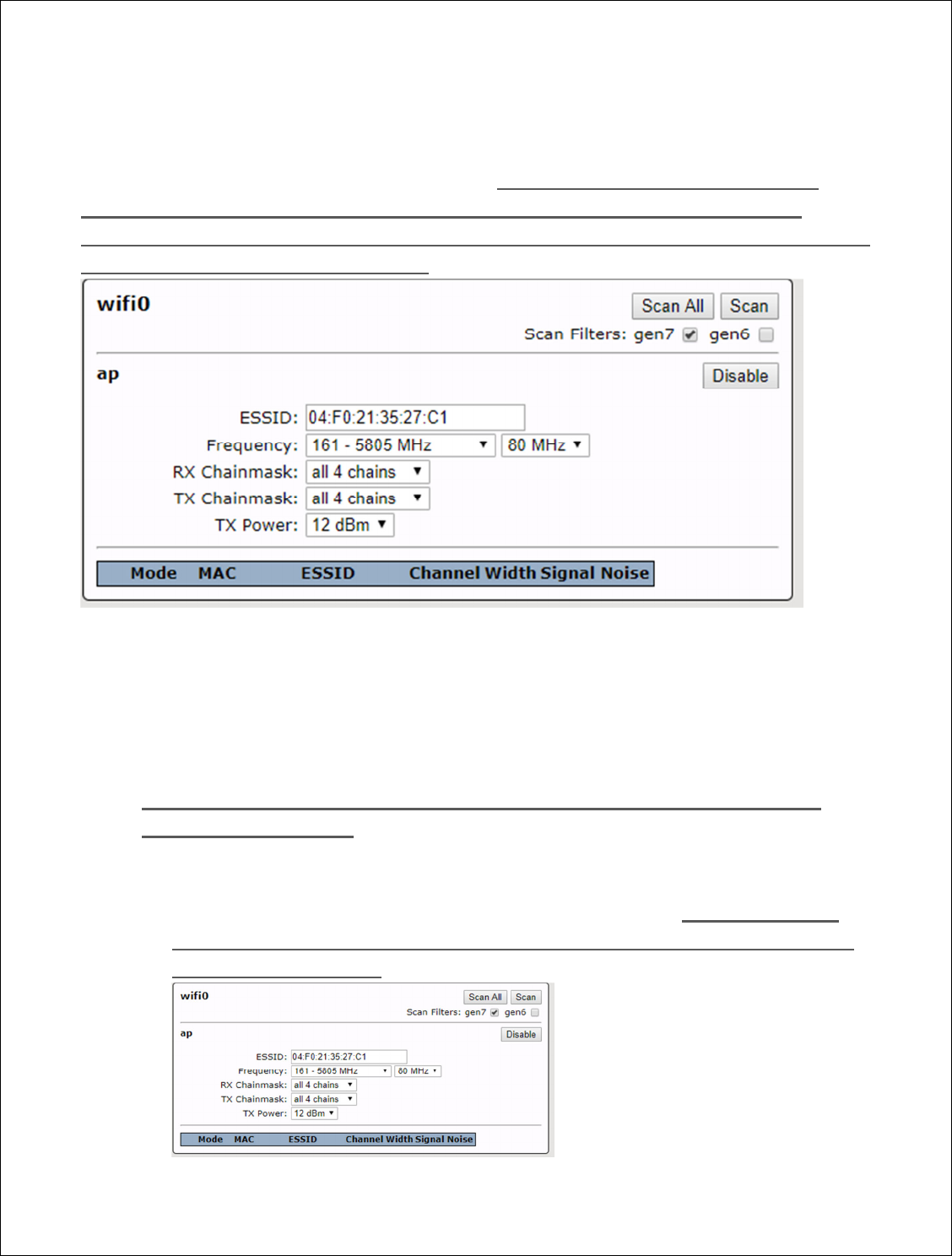

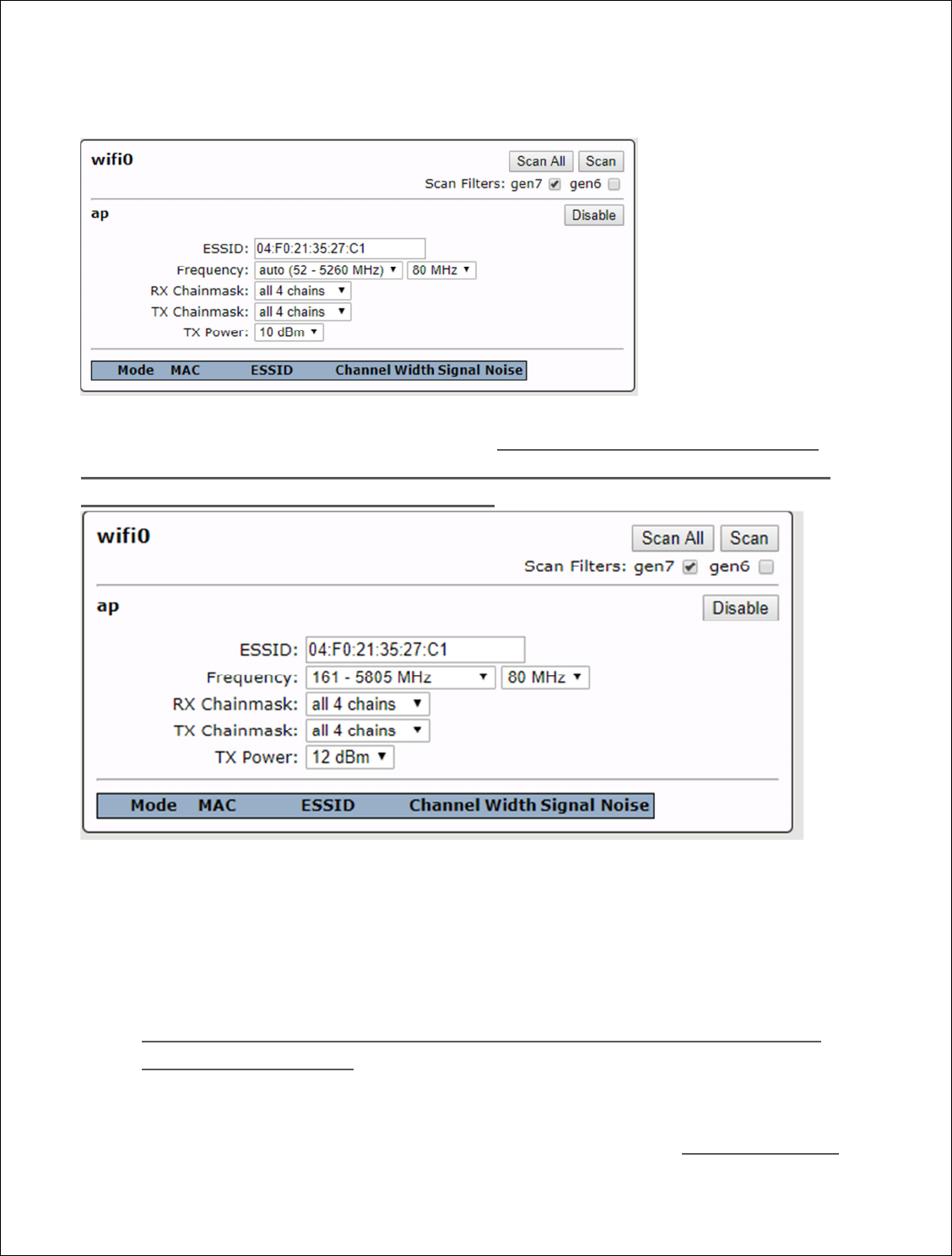

Manually Selecting Channels
NOTE: This is an advanced process and should not be used without
consulting R&D first.
In most cases the Generation 7 Device will channel itself automatically, and thus
the Frequency Field should be set to “Auto”. This will trigger the “icm” program
that will pick the best channel for that card and use it.
![](/img.php?id=3737373&img=bga.png)
10 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
In some instances, we will have to manually channel the device. This can be done by
setting the Frequency in the dropdown menu. NOTE: If you select a frequency
where we are limited on output power, the tx power will be limited to the
maximum value for the antenna utilized.
Manual Power Settings
NOTE: This is an advanced process and should not be used without
consulting R&D first.
The Generation 7 Device can automatically set its channel power, however in
some cases transmit power must be set manually. In that case simply use the
TX Power dropdown menu to select your desired power. NOTE: You will
![](/img.php?id=3737373&img=bgb.png)
11 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
not be able to set a TX Power higher than we are allowed to use on
the given frequency.

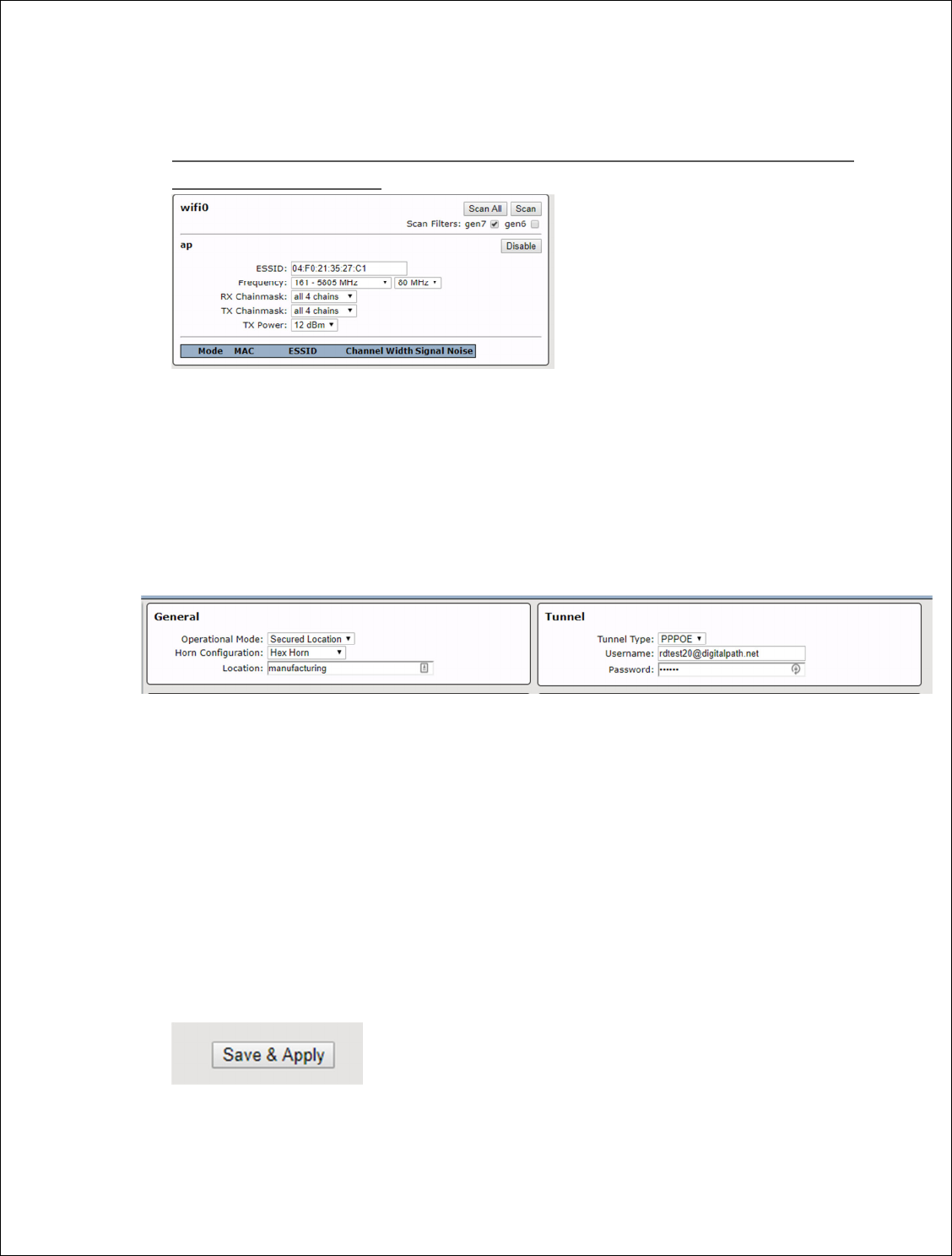

Configuring a Secured Location
1. After logging into the device go to Basic Setup
2. Next set Operational mode to Secured Location
3. Set the Horn Configuration to match the device you are setting up.
Configuring The Tunnel:
1. Set the Tunnel Type (PPPOE or ENAT, PPPOE unless otherwise told).
2. Set the Customers Radius Username
3. Set Customers Password.
Saving
After configuring the device you will need to save the settings, which will restart
the whole network stack and the device link up to the concentrator and begin to
provide internet within 90 seconds.
![](/img.php?id=3737373&img=bgc.png)
12 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

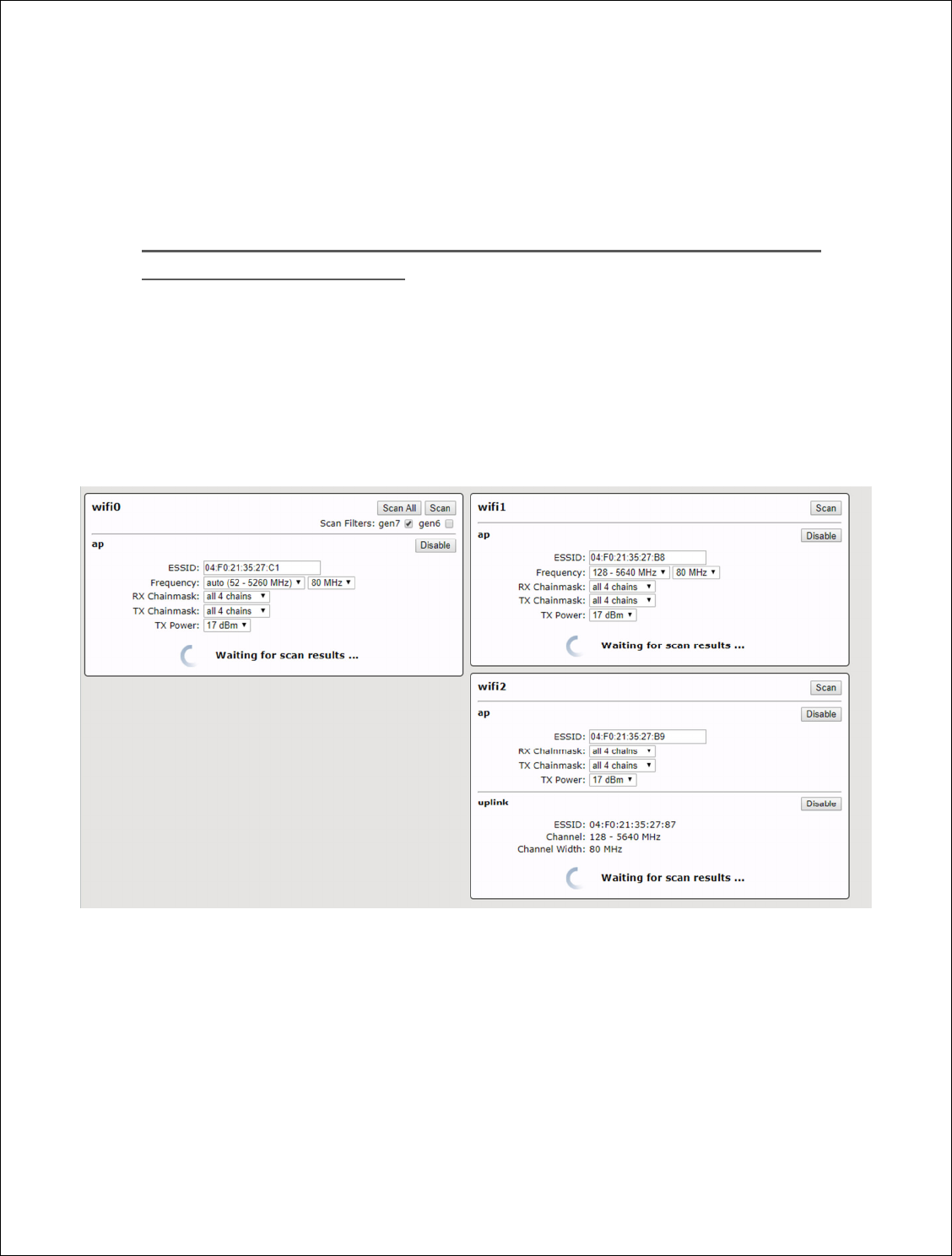

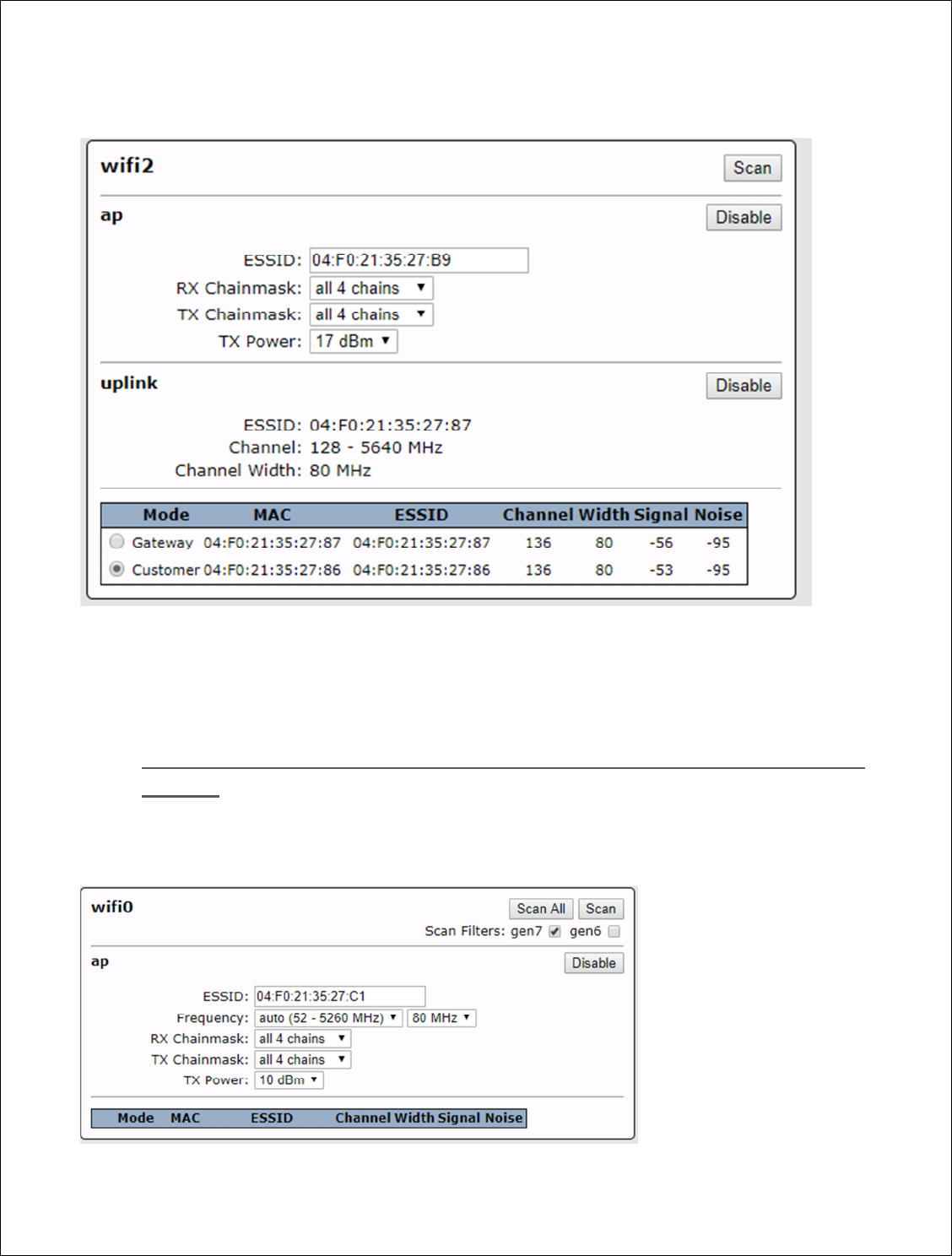

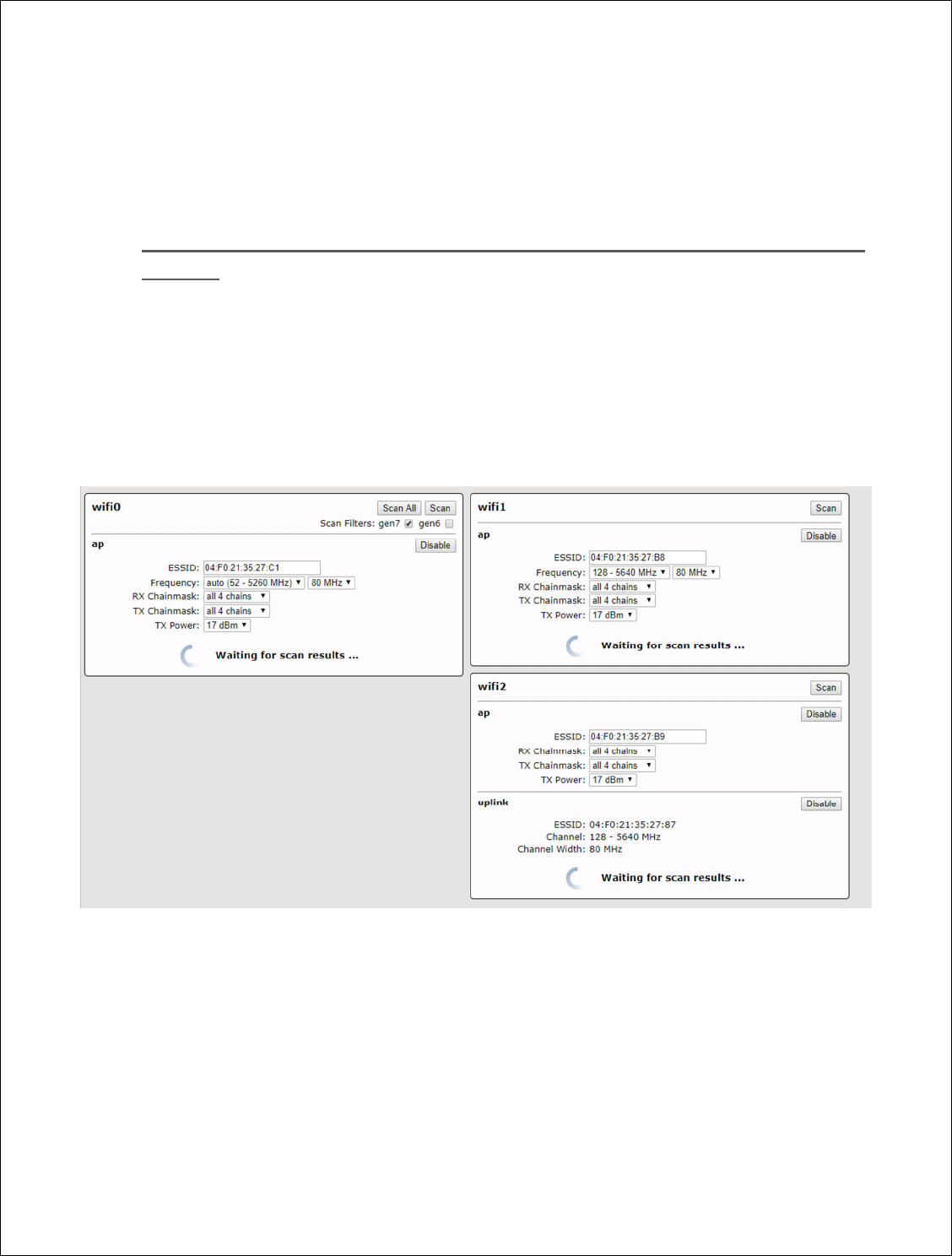

Manually Selecting an Uplink
NOTE: This is an advanced process and should not be used without
consulting with R&D first.
Normally the Generation 7 Device will automatically select an uplink and should
not require any intervention. In rare instances the uplink will need to be
manually set.
1. Login to the device and go to the Basic Setup Page
2. Select the gen7 scan filter and click Scan All
3. Allow the scan to run, this will usually be 90 seconds
4. Look through the results for your desired uplink SSID.
5. Click the radio button next to your desired uplink.
![](/img.php?id=3737373&img=bgd.png)
13 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
6. Press Save & Apply
7. Wait approx. 2 minutes for the device to come back online.
Manually Selecting Channels
NOTE: This is an advanced process and should not be used without
consulting R&D first.
In most cases the Generation 7 Device will channel itself automatically, and thus
the Frequency Field should be set to “Auto”. This will trigger the “icm” program
that will pick the best channel for that card and use it.
![](/img.php?id=3737373&img=bge.png)
14 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
In some instances, we will have to manually channel the device. This can be done by
setting the Frequency in the dropdown menu. NOTE: If you select a frequency
where we are limited on output power, the tx power will automatically
reduce to the highest power allowed for that frequency and antenna, and will
not allow higher powers to be set.
Manual Power Settings
NOTE: This is an advanced process and should not be used without
consulting R&D first.
The Generation 7 Device can automatically set its channel power, however in
some cases transmit power must be set manually. In that case simply use the
TX Power dropdown menu to select your desired power. NOTE: You will
not be able to set a TX Power higher than we are allowed to use on
the given frequency.
![](/img.php?id=3737373&img=bgf.png)
15 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

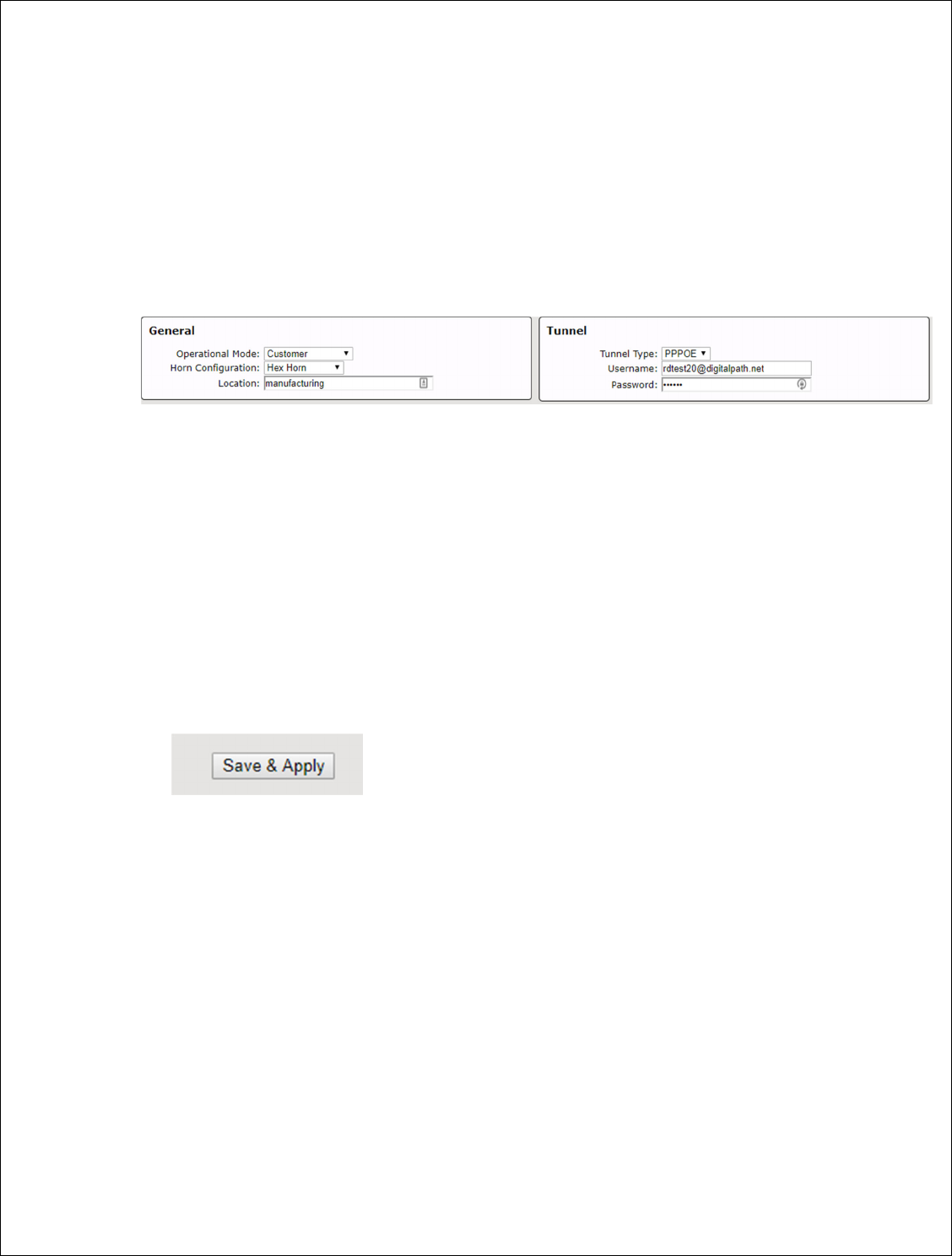

Configuring a Customer Device
4. After logging into the device go to Basic Setup
5. Next set Operational mode to Customer
6. Set the Horn Configuration to match the device you are setting up.
Configuring The Tunnel:
4. Set the Tunnel Type (PPPOE or ENAT, PPPOE unless otherwise told).
5. Set the Customers Radius Username
6. Set Customers Password.
Saving
After configuring the device you will need to save the settings, which will restart
the whole network stack and the device link up to the concentrator and begin to
provide internet within 90 seconds.
![](/img.php?id=3737373&img=bg10.png)
16 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Manually Selecting an Uplink
NOTE: This is an advanced process and should only be used for channel
testing.
Normally the Generation 7 Device will automatically select an uplink and should
not require any intervention. In rare instances the uplink will need to be
manually set.
8. Login to the device and go to the Basic Setup Page
9. Select the gen7 scan filter and click Scan All
10. Allow the scan to run, this will usually be 90 seconds
11. Look through the results for your desired uplink SSID.
12. Click the radio button next to your desired uplink.
![](/img.php?id=3737373&img=bg11.png)
17 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
13. Press Save & Apply
14. Wait approx. 2 minutes for the device to come back online.
Manually Selecting Channels
NOTE: This is an advanced process and should only be used for channel
testing.
In most cases the Generation 7 Device will channel itself automatically, and thus
the Frequency Field should be set to “Auto”. This will trigger the “icm” program
that will pick the best channel for that card and use it.
![](/img.php?id=3737373&img=bg12.png)
18 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
In some instances, we will have to manually channel the device. This can be done by
setting the Frequency in the dropdown menu. NOTE: If you select a frequency
where we are limited on output power, the tx power will automatically
reduce to the highest power allowed for that frequency, and will not allow
higher powers to be set.
Manual Power Settings
NOTE: This is an advanced process and should not be used without
consulting R&D first.
The Generation 7 Device can automatically set its channel power, however in
some cases transmit power must be set manually. In that case simply use the
TX Power dropdown menu to select your desired power. NOTE: You will
not be able to set a TX Power higher than we are allowed to use on
the given frequency.
![](/img.php?id=3737373&img=bg13.png)
19 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Understanding the Status Page
The Gen 7 Repeater’s status page is not functional at the time of this manual
writing.
Understanding the Basic Setup Page
The Basic Setup Page has useful information for setting up a device
The General and Tunnel Settings are explained above in the “Configuring a
Customer Device” section.
The 3 wifi cards have the following information and options
1. ESSID: This is automatically generated and should not be changed.
2. Frequency: This should be set to auto unless told otherwise. It should be
set to 40 or 80MHZ, usually 80MHZ
3. RX Chainmask: This turns on either Chain 1 & 2, or Chain 3 & 4, or both.
This enables either one horn, the other horn, or both in the case of a hex
horn. On a single horn device this should be Chain 1 & 2.
4. TX Chainmask: This turns on either Chain 1 & 2, or Chain 3 & 4, or both.
This enables either one horn, the other horn, or both in the case of a hex
horn. On a single horn device this should be Chain 1 & 2.
5. TX Power. This is the transmit power for the device.
![](/img.php?id=3737373&img=bg14.png)
20 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Understanding the Administration Section
The administration section is where Firmware changes can be made, as well
as a manual reboot.
Backup / Flash Firmware
This page lets you backup and restore device config, as well as reset the
device to default settings and upload new firmware images
Reboot: This will reboot the repeater.
![](/img.php?id=3737373&img=bg15.png)
21 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Identifying Types of Repeaters and Antennas
Digitalpath uses many different types of repeater and antenna combinations
here are some examples.
Single Horn
5 GHZ 90 degree Horn
(9dBi) with external
connectors as shown, 50
degree horns also an
option
Hex Horn
5 GHZ (6) 50 Degree Horn(13 dBi)
![](/img.php?id=3737373&img=bg16.png)
22 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Single Horn
5 GHZ 30 degree Horn (17.5dBi) with external connectors as shown.
![](/img.php?id=3737373&img=bg17.png)
23 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved

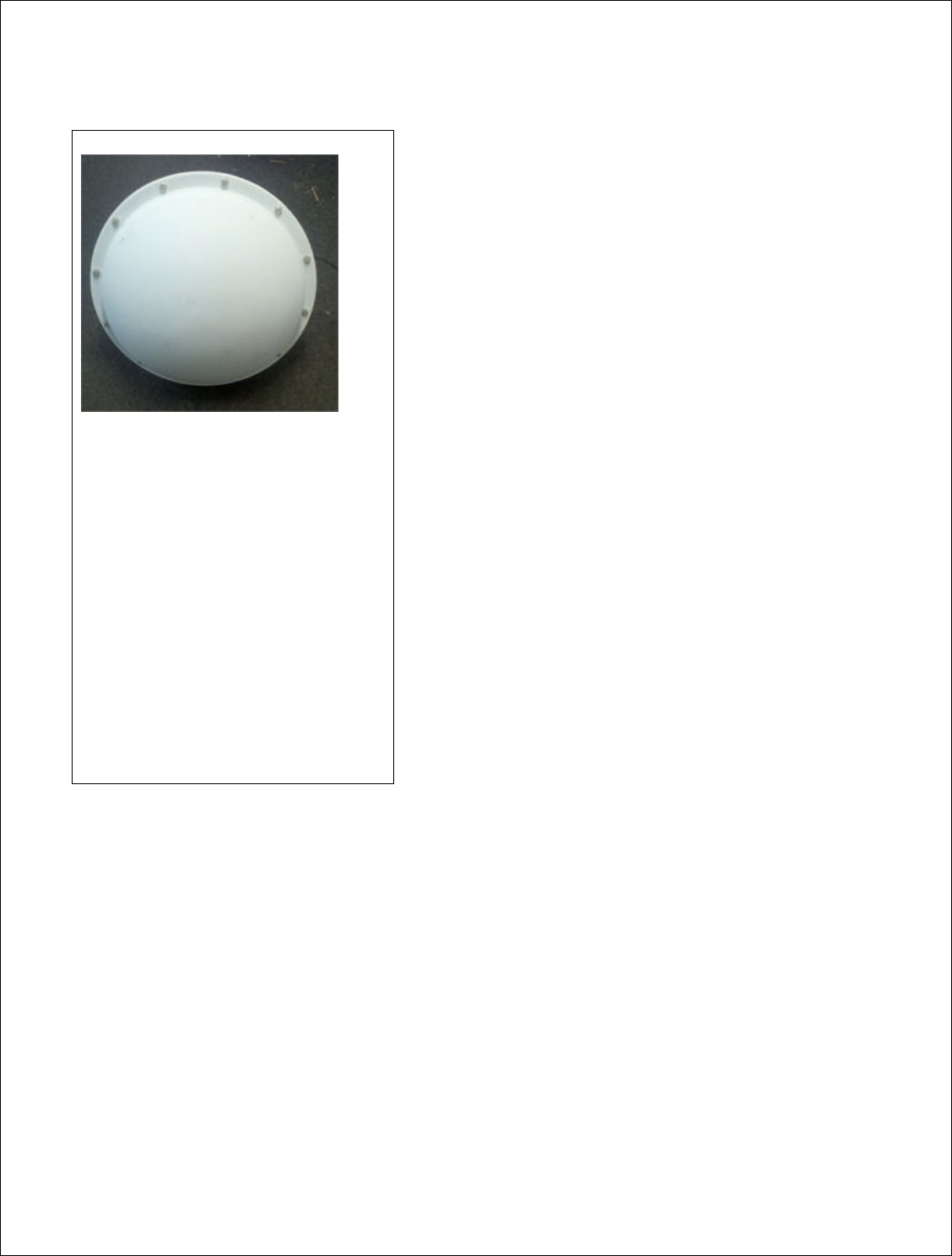

5GHZ 2ft 28db Dish – Dishes are used for longer
distance links. They give you a 15 degree beam
width. Dishes can be installed on any external 5
GHz port. Point to Point links only in the UNII-3
band (5725-5850MHz).
5ghz External Dish
Single polarity Vertical
2 ft 28dbi net Gain
** Please see RF exposure
documentation on this
antenna. Must be 1 meter
away from a habitable
location, such as a mast on a
rooftop or tower location.
This antenna is used for PTP
(Point to Point) links only.
![](/img.php?id=3737373&img=bg18.png)
24 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Installation Guide
Hex Horn
The Gen 7 Hex Horn unit is designed to be mounted directly to a 1.5” pipe. It
must be installed as pictured below, with a set screw installed to prevent
rotation.
The Gen 7 must be cabled such that the ethernet cabling goes from the
device, to a Ethernet surge suppressor that is grounded, to a POE Injector, to
the customer device.

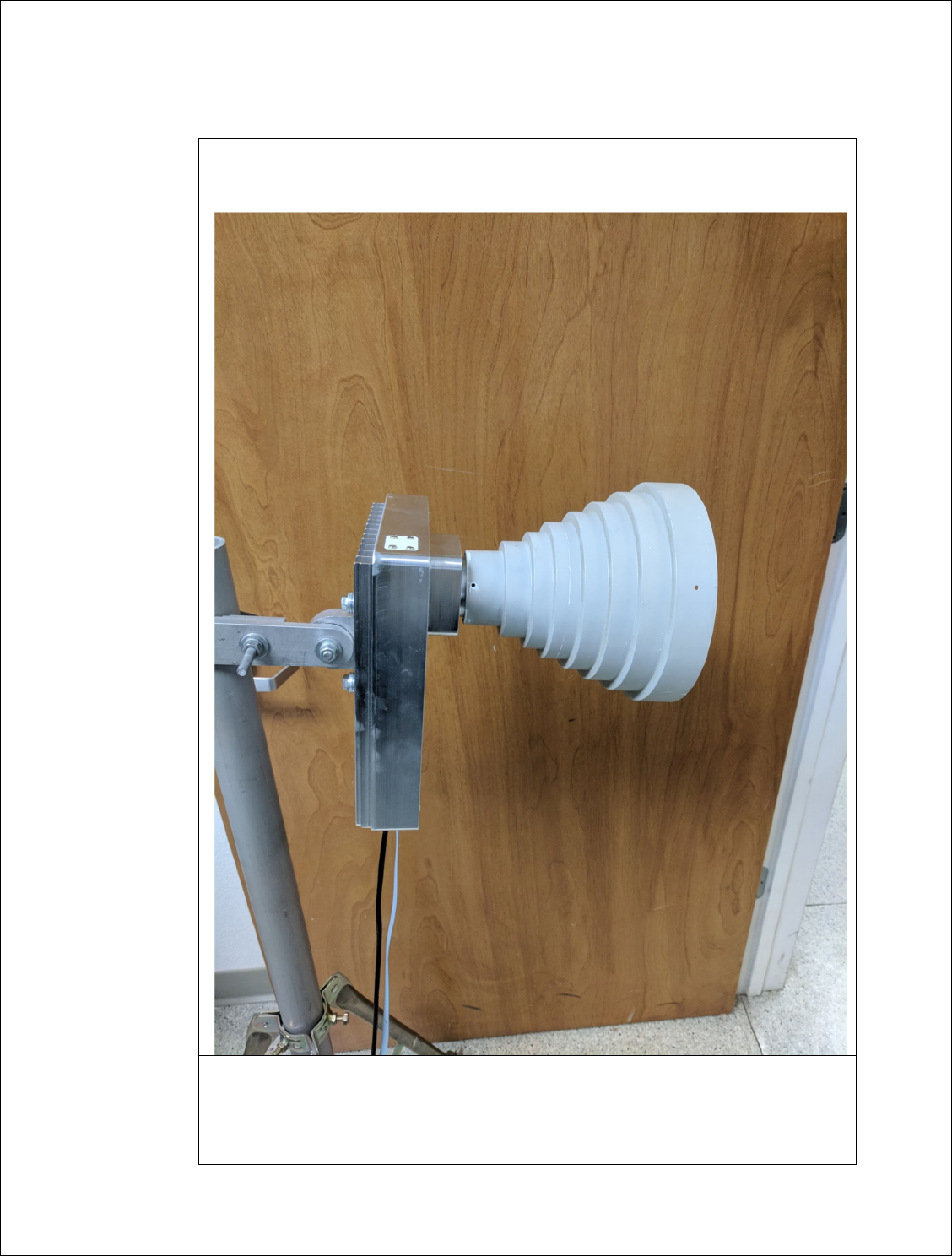

Single Horn
The Gen 7 Single Horn unit is designed to use a mounting bracket as pictured
below to attach to a variety of pipes, and provide 3 axis’s of alignment. All
screws must be secured to prevent movement.
![](/img.php?id=3737373&img=bg19.png)
25 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
The Gen 7 must be cabled such that the ethernet cabling goes from the
device, to a Ethernet surge suppressor that is grounded, to a POE Injector, to
the customer device.
FCC Compliance & Installation Statement
Definitions
15.3(h) Class A digital device. A digital device that is marketed for use in a
commercial, industrial or business environment, exclusive of a device which is
marketed for use by the general public or is intended to be used in the home.
15.3(i) Class B digital device. A digital device that is marketed for use in a
residential environment notwithstanding use in commercial, business and
industrial environments. Examples of such devices include, but are not
limited to, personal computers, calculators, and similar electronic devices that
are marketed for use by the general public.
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Attention
This device is intended for outdoor use only.
![](/img.php?id=3737373&img=bg1a.png)
26 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
![](/img.php?id=3737373&img=bg1b.png)
27 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
FCC statement 15.21(a)
Modifications not expressly approved by Digital Path, Inc could void your
authority to operate the equipment. Do not make modifications to the
equipment unless authorized by Digital Path, Inc.
FCC ID
Relay Point: RHK-G7RL10
Professional Installation
FCC statement 15.27(b)
This device should be professionally installed by a trained technician. The
installer shall be responsible for ensuring that the proper antenna is employed
to comply with FCC requirements. The equipment described herein may
only be used in accordance with accessories listed in below for FCC ID
numbers RHK-G7RL10.
![](/img.php?id=3737373&img=bg1c.png)
28 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Parts List & Tune-Up Information
External RF Cables for Connection to Modularized Connector Ports
This equipment must be professionally installed when utilizing modularized
connector ports.
SMA to N-Connector Cable PN # Hana Wireless CA-185 (3’) - CA195-NM-
SMAM-3
Ethernet Surge Suppression
Ethernet/Power Surge Suppressor –Mimosa, Inc - Model NID
Ethernet/Power Surge Suppressor – APC
UL # 13KA – Model PNET1GB
Power Supply
Great Power Co
Model: GRT-560110A
Ubiquiti Networks Inc
Model: GP-C500-120G
![](/img.php?id=3737373&img=bg1d.png)
29 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Antenna
5GHz
UNII – 5150-5250 - 5250-5350 – 5470-5725 and 5725-5850
Directional Antenna
DPI Horn 9dBi
DPI Horn 13dBi
DPI Horn 17.5dBi
PacWireless Dish* 28.0 dBi ** (5725-5850MHz only)
*This equipment must be professionally installed when utilizing modularized connector ports.
*SMA to N-Connector Cable PN # Hana Wireless CA-185 (3’) - CA195-NM-SMAM-3
**Additionally, the 28dBi antenna must have an RF exposure separation of 1-meter from a person. This
antenna should be mounted only to rooftops with a pole or mast, or tower locations where a person will not
reside within 1-meter of said antenna. This antenna is for PTP (Point to Point) use only.
Channels and Maximum Power By Antenna
(Based on Center Frequency)
Note: Power table below assumes PTMP mode. The 28dBi dish is only PTP
mode, and power listed in that table is assumed PTP. This table lists the
band-edge and center channels tested.
17.5 dBi 30 Degree
Horn
20 MHz
TxPower Channel
16
36
16
40
12.5
52
14
64
14.5
100
14
104
14
124
14
125
13.5
140
![](/img.php?id=3737373&img=bg1e.png)
30 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
18
149
18
168
17.5 dBi 30 Degree
Horn
40 MHz
TxPower Channel
12
40
15
48
12
52
12
60
9
62
14
104
14
106
13.5
140
19.5
152
19.5
165
17.5 dBi 30 Degree
Horn
80 MHz
TxPower Channel
10
48
10
52
10
108
17.5
149
17.5
164
9dBi 90 Degree Horn
20 MHz
TxPower Channel
20
36
22
38
22
61
21
62
19
64
![](/img.php?id=3737373&img=bg1f.png)
31 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
22
100
22
152
22
168
9dBi 90 Degree Horn
40 MHz
TxPower Channel
14
36
17
38
18.5
40
18.5
52
15
64
17.5 100
22
168
9dBi 90 Degree Horn
80 MHz
TxPower Channel
14
40
16
41
14
60
11.5
102
17
103
19
112
19
149
19
168
13dBi 50 Degree Horn
20 MHz
TxPower Channel
![](/img.php?id=3737373&img=bg20.png)
32 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
16
36
12.5
52
16
64
16.5
100
16.5
104
16.5
124
16.5
128
20
168
13dBi 50 Degree Horn
40 MHz
TxPower Channel
12
40
16
42
12
52
15
60
15
62
15
100
17
104
17
106
17
118
17
120
17
140
20
152
22
165
13dBi 50 Degree Horn
80 MHz
TxPower Channel
12
52
10
48
13
103
13
108
15
112
17
120
19
163
![](/img.php?id=3737373&img=bg21.png)
33 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
19
164
28dBi Dish
20 MHz
TxPower Channel
24
149
24
168
28dBi Dish
40 MHz
TxPower Channel
21
149
21
162
20
163
19
165
28dBi Dish (PTP only)
80 MHz
TxPower Channel
15
149
18
168
Notice of FCC power compliance for transmit power settings
The professional installer of this equipment is prohibited from adjusting radio and
antenna power values outside of the recommendations listed in this manual.
Professional Installation Transmit Power Settings Tables
Antenna type, channel width and frequency band specified. Each each radio must be in
a different band (e.g. 5.1, 5.3, 5.5, 5.8 GHz). DFS (Dynamic Frequency Selection) is
enabled for the 5250-5350, 5470-5725.
Uncorrelated Power
![](/img.php?id=3737373&img=bg22.png)
34 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
Each antenna chain will be utilizing unique data. Each individual chain connected to a
radio will utilize different polarizations (H/V). Each antenna with dual polarized
antennas connected to the same radio must be oriented in different directions.
NOTE: The device has an integrated GPS and can determine the
distance from the coordinates below. Channels below within
35km should not be used if using manual channel selection. The
device will utilize an auto-channel method in operation, unless the
channel is set in the UI.
Table 1. TDWR Location Information
STATE CITY LONGITUDE LATITUDE FREQUENCY
TERRAIN
ELEVATION
(MSL) [ft]
ANTENNA
HEIGHT
ABOVE
TERRAIN
[ft]
AZ PHOENIX W 112 09 46 N 33 25 14 5610 MHz 1024 64
CO DENVER W 104 31 35 N 39 43 39 5615 MHz 5643 64
FL
FT
LAUDERDALE W 080 20 39 N 26 08 36 5645 MHz 7 113
FL MIAMI W 080 29 28 N 25 45 27 5605 MHz 10 113
FL ORLANDO W 081 19 33 N 28 20 37 5640 MHz 72 97
FL TAMPA W 082 31 04 N 27 51 35 5620 MHz 14 80
FL
WEST PALM
BEACH W 080 16 23 N 26 41 17 5615 MHz 20 113
GA ATLANTA W 084 15 44 N 33 38 48 5615 MHz 962 113
IL MCCOOK W 087 51 31 N 41 47 50 5615 MHz 646 97
IL CRESTWOOD W 087 43 47 N 41 39 05 5645 MHz 663 113
![](/img.php?id=3737373&img=bg23.png)
35 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
STATE CITY LONGITUDE LATITUDE FREQUENCY
TERRAIN
ELEVATION
(MSL) [ft]
ANTENNA
HEIGHT
ABOVE
TERRAIN
[ft]
IN INDIANAPOLIS W 086 26 08 N 39 38 14 5605 MHz 751 97
KS WICHITA W 097 26 13 N 37 30 26 5603 MHz 1270 80
KY
COVINGTON
CINCINNATI W 084 34 48 N 38 53 53 5610 MHz 942 97
KY LOUISVILLE W 085 36 38 N 38 02 45 5646 MHz 617 113
LA
NEW
ORLEANS W 090 24 11 N 30 01 18 5645 MHz 2 97
MA BOSTON W 070 56 01 N 42 09 30 5610 MHz 151 113
MD BRANDYWINE W 076 50 42 N 38 41 43 5635 MHz 233 113
MD BENFIELD W 076 37 48 N 39 05 23 5645 MHz 184 113
MD CLINTON W 076 57 43 N 38 45 32 5615 MHz 249 97
MI DETROIT W 083 30 54 N 42 06 40 5615 MHz 656 113
MN MINNEAPOLIS W 092 55 58 N 44 52 17 5610 MHz 1040 80
MO KANSAS CITY W 094 44 31 N 39 29 55 5605 MHz 1040 64
MO SAINT LOUIS W 090 29 21 N 38 48 20 5610 MHz 551 97
MS
DESOTO
COUNTY W 089 59 33 N 34 53 45 5610 MHz 371 113
NC CHARLOTTE W 080 53 06 N 35 21 39 5608 MHz 807 113
NC
RALEIGH
DURHAM W 078 41 50 N 36 00 07 5647 MHz 400 113
NJ WOODBRIDGE W 074 16 13 N 40 35 37 5620 MHz 19 113
NJ PENNSAUKEN W 075 04 12 N 39 56 57 5610 MHz 39 113
![](/img.php?id=3737373&img=bg24.png)
36 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
STATE CITY LONGITUDE LATITUDE FREQUENCY
TERRAIN
ELEVATION
(MSL) [ft]
ANTENNA
HEIGHT
ABOVE
TERRAIN
[ft]
NV LAS VEGAS W 115 00 26 N 36 08 37 5645 MHz 1995 64
NY
FLOYD
BENNETT
FIELD W 073 52 49 N 40 35 20 5647 MHz 8 97
OH DAYTON W 084 07 23 N 40 01 19 5640 MHz 922 97
OH CLEVELAND W 082 00 28 N 41 17 23 5645 MHz 817 113
OH COLUMBUS W 082 42 55 N 40 00 20 5605 MHz 1037 113
OK
AERO. CTR
TDWR #1 W 097 37 31 N 35 24 19 5610 MHz 1285 80
OK
AERO. CTR
TDWR #2 W 097 37 43 N 35 23 34 5620 MHz 1293 97
OK TULSA W 095 49 34 N 36 04 14 5605 MHz 712 113
OK
OKLAHOMA
CITY W 097 30 36 N 35 16 34 5603 MHz 1195 64
PA HANOVER W 080 29 10 N 40 30 05 5615 MHz 1266 113
PR SAN JUAN W 066 10 46 N 18 28 26 5610 MHz 59 113
TN NASHVILLE W 086 39 42 N 35 58 47 5605 MHz 722 97
TX
HOUSTON
INTERCONTL W 095 34 01 N 30 03 54 5605 MHz 154 97
TX PEARLAND W 095 14 30 N 29 30 59 5645 MHz 36 80
TX
DALLAS LOVE
FIELD W 096 58 06 N 32 55 33 5608 MHz 541 80
TX
LEWISVILLE
DFW W 096 55 05 N 33 03 53 5640 MHz 554 31
![](/img.php?id=3737373&img=bg25.png)
37 | P a g e
DigitalPath, Inc. 1065 Marauder St., Chico, CA 95973 | 800-676-PATH |www.digitalpath.net
CONFIDENTIAL
© 2000-2017 DigitalPath, Inc. All rights reserved
STATE CITY LONGITUDE LATITUDE FREQUENCY
TERRAIN
ELEVATION
(MSL) [ft]
ANTENNA
HEIGHT
ABOVE
TERRAIN
[ft]
UT
SALT LAKE
CITY W 111 55 47 N 40 58 02 5610 MHz 4219 80
VA LEESBURG W 077 31 46 N 39 05 02 5605 MHz 361 113
WI MILWAUKEE W 088 02 47 N 42 49 10 5603 MHz 820 113
Latitude and Longitude are specified in NAD 83
