PCȬ502Datasheetȱ
Overviewȱ
The PC-502 is a wall mounted module that can be
used to expand the range of a Layer-1 or Layer-2 RF
network, or can be used to provide the protocol gateway
from S5-bus to Layer-1 or Layer-2 RF protocol.
In the Layer-1 RF network the PC-502 is designed to provide
S5-bus to RF protocol conversion to allow any
product participating in the Integrated Room
Automation System (IRAS) an RF transceiver for control of
wireless products in the guestroom.
In the Layer-2 802.15.4 Zigbee 2006 mesh network, the PC-
502 is designed to patch areas within the network where
signal strength is lost due to distance limitations or
interference. It also serves to create multiple pathways,
increasing the redundancy of the mesh communications to
ensure maximum network reliability.
Featuresȱ
xSmall wall mountable form factor
x2.4Ghz IEEE 802.15.4 compliant RF transceiver (CC2430 radio core)
xMedium and long range variants available
xIndustrial temperature ratings 0-65 degrees C
xFCC Part 15b listed
Specificationȱ
ParameterȱPCȬ502.1 PCȬ502.2
RF Data Rate 250kbps 250kbps
Antenna Type SMT SMT
Indoor Range 70ft 100ft
Outdoor/ RF line-of-sight range 540ft 1000ft+
Transmit Power 1mW (+0dBm) 10mW (+18dBm)
Receive Sensitivity -94.6dBm -94.6dBm
Frequency Band 2.4Ghz 2.4Ghz
Encryption AES-128 AES-128
Protocol 802.15.4 802.15.4
Frequency Channels 11-26 11-26
Input Voltage 12VDC 12VDC
Current Consumption 50mA (Peak) 100mA (Peak)
Operating Ambient Temperature 0° C 40 ° C
LED /Switch Reset indication, blinks when unit is connected to an RF
network. Rapid blink during binding association.
Figureȱ1ȱPCȬ502ȱ
PC-502 Datasheet Page | 2
Ranges are determined by performing an RF link quality test using e528.3G thermostats as the
transmitter, and the PC-502.x as the receiver. The maximum distance threshold is based on a 95%
overall link quality. Outdoor ranges were conducted in a low noise, free air environment. Indoor
ranges are for reference. Indoor ranges are impacted by the ambient environmental noise floor,
and building construction materials.

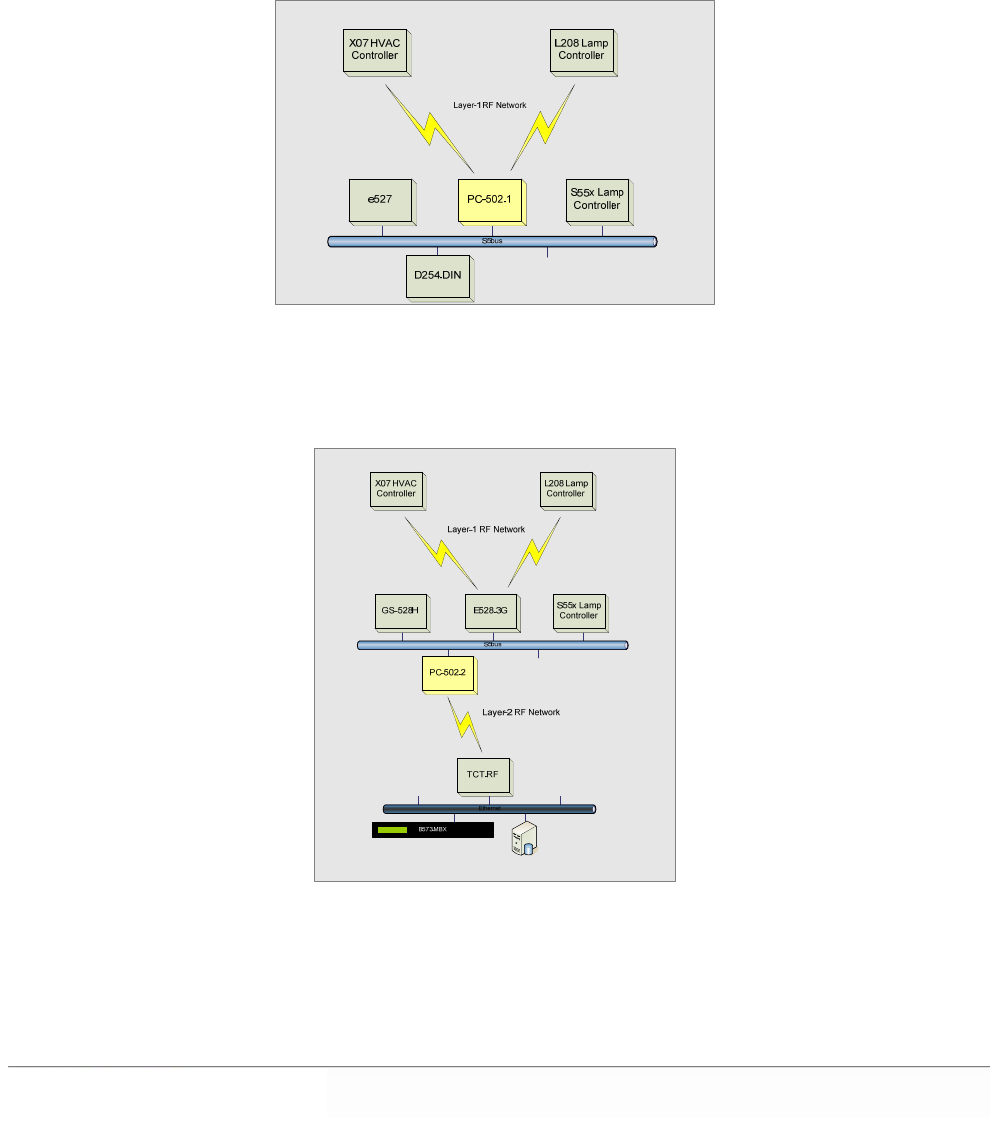

NetworkȱTopologyȱ
Figureȱ2ȱPCȬ502ȱLayerȬ1ȱTopologyȱ
In this application, the PC-502 acts as the S5-bus to RF gateway in the Layer-1 network. This
would allow products that do not inherently support an RF radio to participate in the Layer-1
network. The PC-502 could also be used as a repeater to re-broadcast network traffic into areas
that are difficult to maintain sold RF network links.
ȱ
Figureȱ3ȱPCȬ502ȱLayerȬ2ȱTopologyȱ
In this application, the PC-502 provides the Layer-1 to Layer-2 RF Bridge where both wireless
applications are required. Additionally, the PC-502 could be used as a repeater to improve the link
quality on the Layer-2 network.ȱ
PC-502 Datasheet Page | 3
Safety/Regulatoryȱ
ParameterȱConditionȱStatus
FCC Part 15b 02-9994 is FCC listed. 02-9894, and 02-9927 FCC listings are pending.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

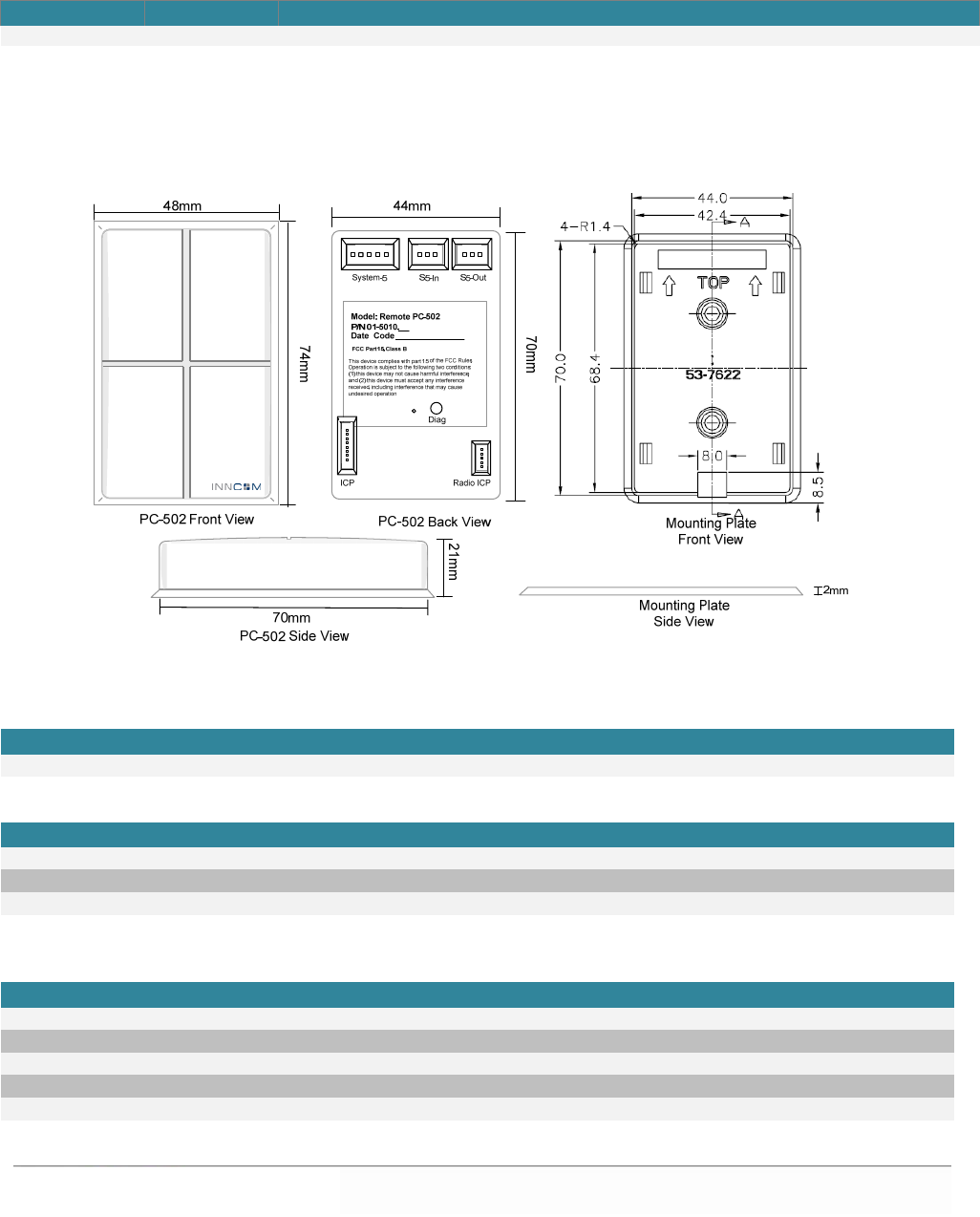

PCȬ502ȱDimensionsȱ
ȱ
HeaderȱandȱConnectionsȱ
H3 (In System Programming)
PinȱFunction Type MinȱMax
1-8 Programming - - -
H4 / H5 (S5-bus In/Out)
PinȱFunction Type MinȱMax
1-GND Common - - -
2-12VDC Input voltage In 11.75 12.25
3-S5-bus Multi-drop In/Out - -
H6 (System-5)
PinȱFunction Type MinȱMax
1-GND Common - - -
2-12VDC Input voltage In 11.75 12.25
3-S5-bus Multi-drop In/Out - -
4 –InOut1 TTL In/Out - -
5- InOut2 TTL In/Out - -
PC-502 Datasheet Page | 4
OrderingȱInformationȱ
PartȱNumberȱOPN Descriptionȱ
01-5010.1 PC-502.1 PC-502 with 02-9994 0 db Radio
01-5010.2 PC-502.2 PC-502 with 02-9894 20db Radio
DocumentȱRevisionȱHistoryȱ
RevisionȱDateȱIssued Reasonȱ
0.1 27-Mar-2009 FCC for PC-502
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
