Disruptive PG467UR Unity Remote User Manual

Disruptive Ltd. Unity Remote

User Manual

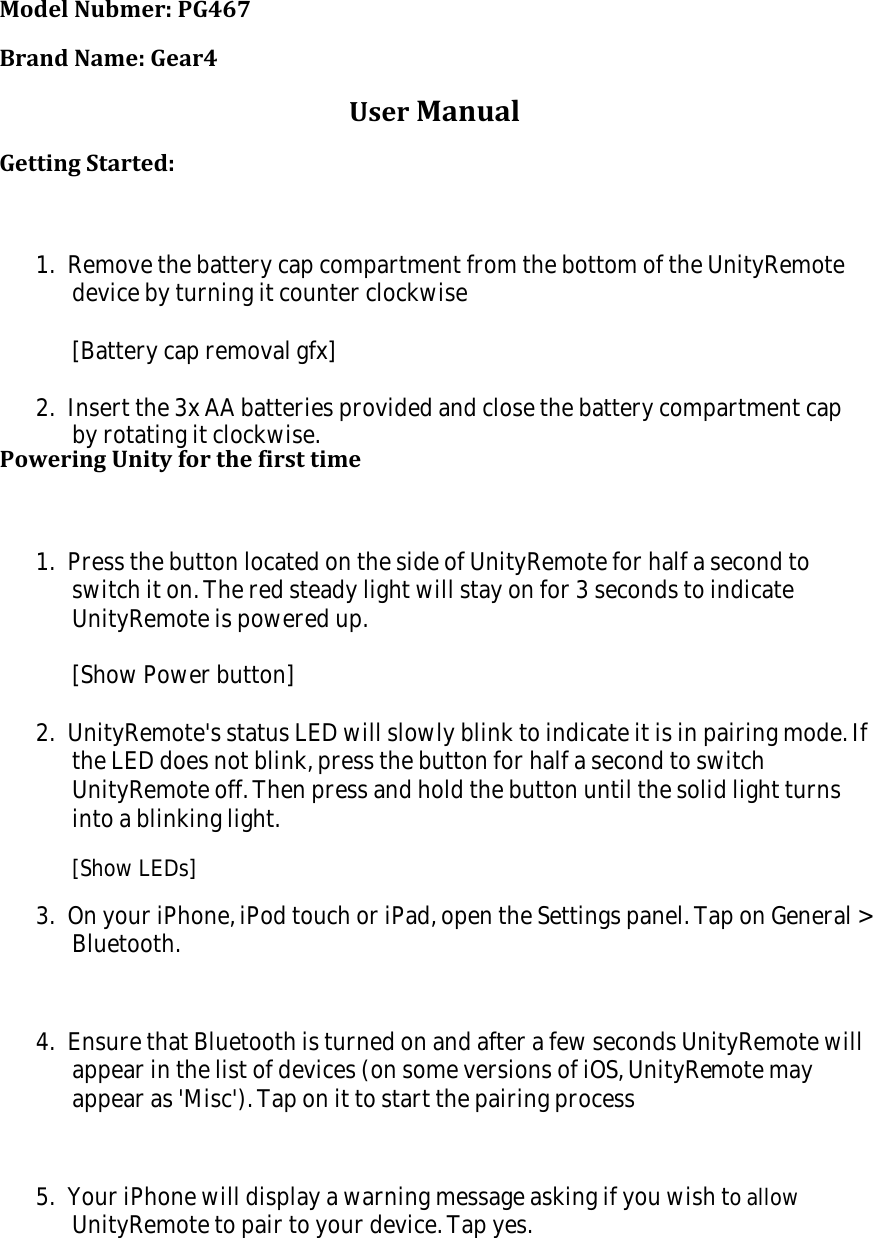

Model Nubmer: PG467Brand Name: Gear4User ManualGetting Started:1.  Remove the battery cap compartment from the bottom of the UnityRemotedevice by turning it counter clockwise[Battery cap removal gfx]2.  Insert the 3x AA batteries provided and close the battery compartment capby rotating it clockwise.Powering Unity for the first time1.  Press the button located on the side of UnityRemote for half a second toswitch it on. The red steady light will stay on for 3 seconds to indicateUnityRemote is powered up.[Show Power button]2.  UnityRemote's status LED will slowly blink to indicate it is in pairing mode. Ifthe LED does not blink, press the button for half a second to switchUnityRemote off. Then press and hold the button until the solid light turnsinto a blinking light.[Show LEDs]3.  On your iPhone, iPod touch or iPad, open the Settings panel. Tap on General >Bluetooth.4.  Ensure that Bluetooth is turned on and after a few seconds UnityRemote willappear in the list of devices (on some versions of iOS, UnityRemote mayappear as 'Misc'). Tap on it to start the pairing process5.  Your iPhone will display a warning message asking if you wish to allowUnityRemote to pair to your device. Tap yes.

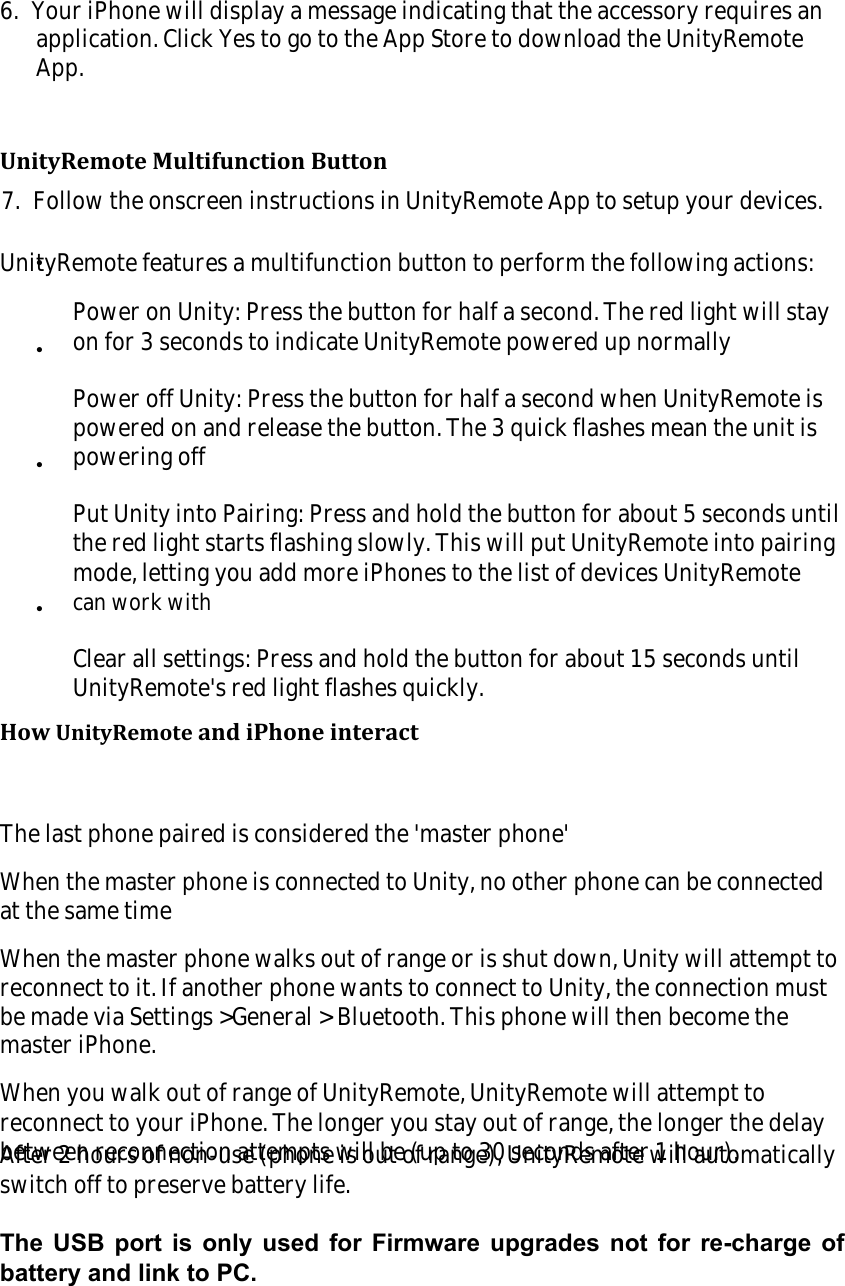

6.  Your iPhone will display a message indicating that the accessory requires anapplication. Click Yes to go to the App Store to download the UnityRemoteApp.7.  Follow the onscreen instructions in UnityRemote App to setup your devices.UnityRemote Multifunction ButtonUnityRemote features a multifunction button to perform the following actions:•Power on Unity: Press the button for half a second. The red light will stayon for 3 seconds to indicate UnityRemote powered up normally•Power off Unity: Press the button for half a second when UnityRemote ispowered on and release the button. The 3 quick flashes mean the unit ispowering off•Put Unity into Pairing: Press and hold the button for about 5 seconds untilthe red light starts flashing slowly. This will put UnityRemote into pairingmode, letting you add more iPhones to the list of devices UnityRemotecan work with•Clear all settings: Press and hold the button for about 15 seconds untilUnityRemote's red light flashes quickly.How UnityRemote and iPhone interactThe last phone paired is considered the 'master phone'When the master phone is connected to Unity, no other phone can be connectedat the same timeWhen the master phone walks out of range or is shut down, Unity will attempt toreconnect to it. If another phone wants to connect to Unity, the connection mustbe made via Settings >General > Bluetooth. This phone will then become themaster iPhone.When you walk out of range of UnityRemote, UnityRemote will attempt toreconnect to your iPhone. The longer you stay out of range, the longer the delaybetween reconnection attempts will be (up to 30 seconds after 1 hour).After 2 hours of non-use (phone is out of range), UnityRemote will automaticallyswitch off to preserve battery life.The USB port is only used for Firmware upgrades not for re-charge ofbattery and link to PC.
FCC Compliance StatementThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules.  These limits are designedto  provide  reasonable  protection  against  harmful  interference  in  a  residentialinstallation.        This    equipment    generates,    uses    and    can    radiate    radiofrequencyenergy  and,  if  not  installed  and  used  in  accordance  with  the  instructions,maycause  harmful  interference  to  radio  communications.    However,  there  is  noguarantee  that  interference  will  not  occur  in  a  particular  installation.    If  thisequipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouragedto try to correct the interference by one of the following measures:lReorient or relocate the receiving antenna.lIncrease the separation between the equipment and receiver.lConnect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.lConsult the dealer or an experienced radio/TV technician for help.FCC Caution: Any changes or modifications not expressly approved by the partyresponsible  for  compliance  could  void  the  user's  authority  to  operate  thisequipment.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.This device and its antenna(s) must not be co-located or operating in conjunctionwith any other antenna or transmitter.FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated withminimum distance 20 cmbetween the radiator & your body.
