Divoom Technology BLUETUNE-POP Multimedia Speaker System User Manual use manual
Shenzhen DIVOOM Technology Co., Ltd. Multimedia Speaker System use manual
User Manual
![](/img.php?id=1858046&img=bg1.png)
Multimedia Speaker System
MODEL: BLUETUNE-POP
Made in China
Shenzhen Divoom Technology Co., Ltd.
1506 Block C, Tiley Central Plaze, Nanshan Shenzhen, China
CONTENTS:
1 PC of Bluetune-POP speaker
1 pc of rechargeable USB cable
1 pc of manual

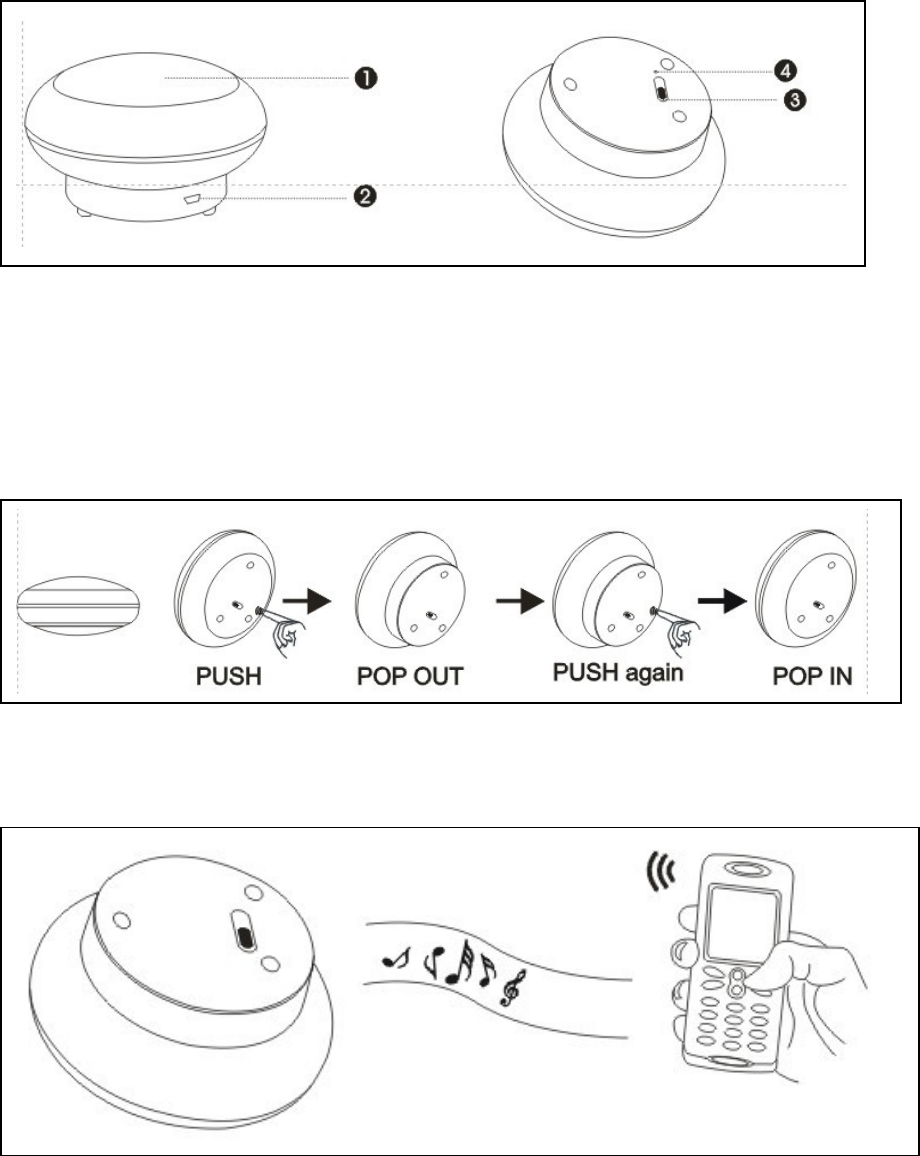

Parts:
1.speaker unit
2.USB charging port
3.power switch
4. LED indicator
Patented POP Bass design:
How to use it?
![](/img.php?id=1858046&img=bg2.png)
Listen to your Bluetooth-Enabled music player
1. Turn on Bluetune-POP then the LED indicator will show blue
2. Open the Bluetooth function in your device and search Bluetune-POP , LED
indicator starts blinking quickly
3. Connect your device to Bluetune-POP Successfully, LED indicator
stop blinking and show blue
4. Play the music in your device then enjoy your favorite music

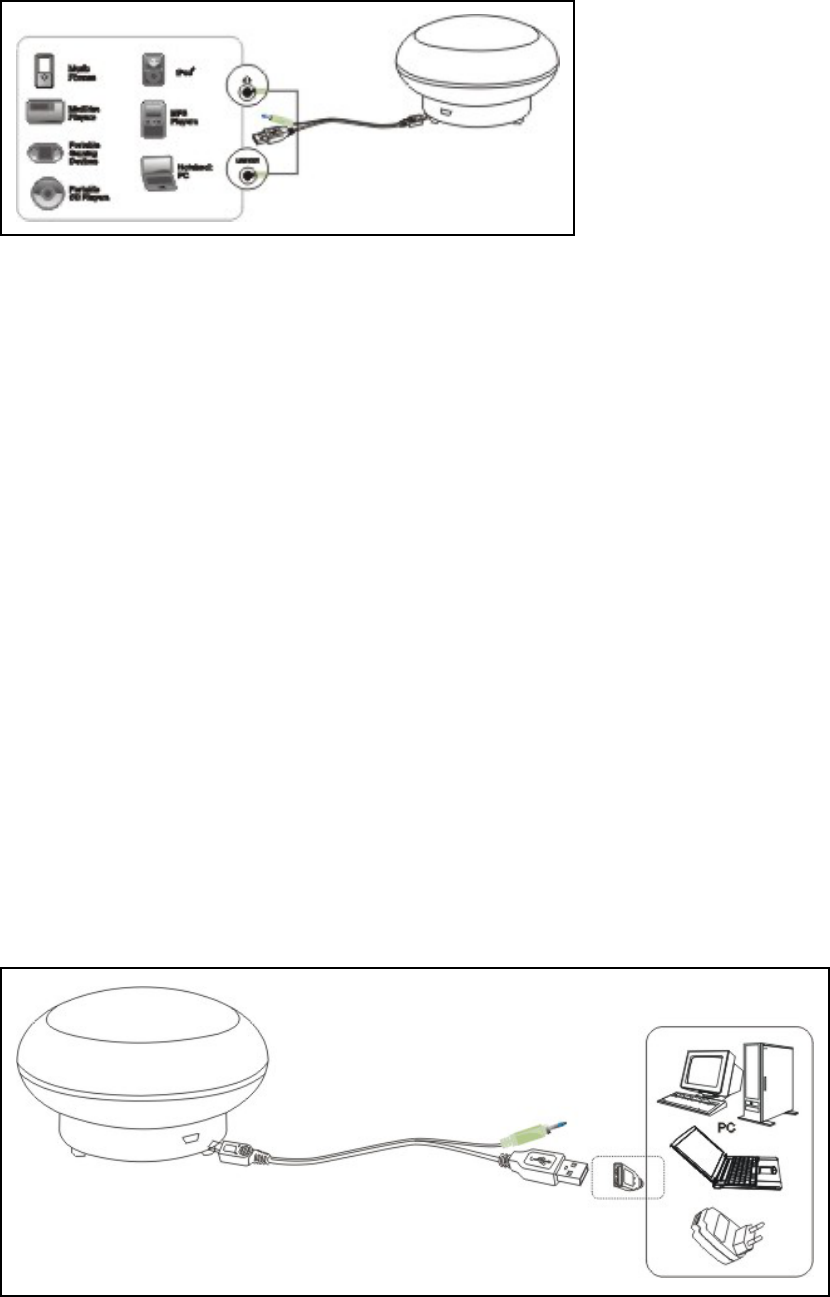

Listen to your non-bluetooth-enabled audio device
1. Insert one end of USB connector into the charging port of Bluetune-POP
2. Insert the 3.5mm audio connector into your audio device directly.
3. Turn on you audio device and start the music playing.
4. Adjust the volume in your audio device.
5. Enjoy your favorite music.
NOTICE: 1) Please fully charge it with USB cable before using
2) Bluetune-POP only can connect with one Bluetooth device when
it s working
3) Bluetune-POP doesn’t have any button to adjust the volume, you
should control the volume in your Bluteooth devices.
4) in order to keep clear sound, please keep Bluetune-POP away
from microwave, TV or other household appliances.
How to charge it ?
Standard USB rechargeable jack compatible to all PC USB ports and AC
adaptors
If used the adapter for charging, adapter shall be installed near the equipment and
shall be easily accessible.
The USB interface of this EUT is for charging purpose only without data
exchange function.
![](/img.php?id=1858046&img=bg3.png)
Extreme Bass Expansion Technology(EBE(TM))
EBE is a new technology which allows easy expansion of the sound field, by
simply extending the rear of the speaker. EBE is activated simply by using the
patented. Push POP technology(PPT). EBE provides clear &precise audio
entertainment, with extensive coverage of highly defined bass capability.
Monophonic Surround Stereo system(Mss(TM))
MSS is the latest technology in which a singular speaker unit is integrated to the
specially designed speaker structure, to reproduce surround stereo audio , This
technology is capable of magnifying the audio to 10 times its original sound.
Features
1.Patented Expandable Bass system
2.Excellent audio quality with powerful base, RF range is up to 10M
3.Support iphone ipad and all of music device with Bluetooth
4.Class-D digital amplifier delivers up to 4W loud sound
5.Built in rechargeable-chargeable Li-ion battery, giving up to 8 hours of constant
playback
Specification
Output power
Speaker units
Impedance
Frequency range
Voltage supply
Charging Voltage
Dimensions
Bluetooth compliant
Bluetooth profile support
USB
Operation temperature
Storage temperature
:
:
:
:
:
:
:
:
:
:
:
:
4W
45mm micro driver
4 Ohm
80-20kHz
3.7V 500mAh
USB 5V 0.1A or AC/DC adaptor 5V
87D x 85H(mm)
V3.0
A2DP
2.0
-20~55°
-20~70°
Warning
15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
15.21 Information to user.
The users manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
15.105 Information to the user.
(b) For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
