MIPSpro™ Fortran 77

Programmer’s Guide

Document Number 007-2361-002

MIPSpro™ Fortran 77 Programmer’s Guide

Document Number 007-2361-002

CONTRIBUTORS

Written by Chris Hogue

Edited by Christina Carey

Illustrated by Gloria Ackley

Production by Julia Lin

Engineering contributions by Bill Johnson, Bron Nelson, Calvin Vu, Marty Itzkowitz,

Dick Lee

This document contains proprietary and conﬁdential information of Silicon

Graphics, Inc. The contents of this document may not be disclosed to third parties,

copied, or duplicated in any form, in whole or in part, without the prior written

permission of Silicon Graphics, Inc.

RESTRICTED RIGHTS LEGEND

Use, duplication, or disclosure of the technical data contained in this document by

the Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the

Rights in Technical Data and Computer Software clause at DFARS 52.227-7013

and/or in similar or successor clauses in the FAR, or in the DOD or NASA FAR

Supplement. Unpublished rights are reserved under the Copyright Laws of the

United States. Contractor/manufacturer is Silicon Graphics, Inc., 2011 N. Shoreline

Blvd., Mountain View, CA 94043-1389.

Silicon Graphics and IRIS are registered trademarks, and CASEVision,

CHALLENGE, Crimson, Indigo2, IRIS 4D, IRIX, MIPSpro, and POWER

CHALLENGE are trademarks of Silicon Graphics, Inc. UNIX is a registered

trademark in the United States and other countries, licensed exclusively through

X/Open Company, Ltd. VMS and VAX are trademarks of Digital Equipment

Corporation.

Portions of this product and document are derived from material copyrighted by

Kuck and Associates, Inc.

iii

Contents

Examples ix

Figures xi

Tables xiii

Introduction xv

Organization xv

Additional Reading xvi

Typographical Conventions xvii

1. Compiling, Linking, and Running Programs 1

Compiling and Linking 2

Drivers 2

Compilation 2

Compiling Multilanguage Programs 4

Linking Objects 5

Specifying Link Libraries 7

Driver Options 7

Compiling Simple Programs 8

Specifying Source File Format 8

Specifying Compiler Input and Output Files 9

Specifying Target Machine Features 10

Specifying Memory Allocation and Alignment 10

Specifying Debugging and Profiling 11

Specifying Optimization Levels 11

Controlling Compiler Execution 14

Object File Tools 14

Archiver 15

Run-Time Considerations 15

Invoking a Program 15

Maximum Memory Allocations 16

File Formats 17

Preconnected Files 18

File Positions 18

Unknown File Status 19

Quad-Precision Operations 19

Run-Time Error Handling 19

Floating Point Exceptions 20

2. Storage Mapping 21

Alignment, Size, and Value Ranges 22

Access of Misaligned Data 25

Accessing Small Amounts of Misaligned Data 26

Accessing Misaligned Data Without Modifying Source 26

3. Fortran Program Interfaces 27

How Fortran Treats Subprogram Names 28

Working with Mixed-Case Names 28

Preventing a Suffix Underscore with $ 29

Naming Fortran Subprograms from C 29

Naming C Functions from Fortran 29

Testing Name Spelling Using nm 30

Correspondence of Fortran and C Data Types 30

Corresponding Scalar Types 30

Corresponding Character Types 32

Corresponding Array Elements 32

How Fortran Passes Subprogram Parameters 33

Normal Treatment of Parameters 34

Calling Fortran from C 35

Calling Fortran Subroutines from C 35

Calling Fortran Functions from C 38

Calling C from Fortran 40

Normal Calls to C Functions 41

Using Fortran COMMON in C Code 43

Using Fortran Arrays in C Code 44

Calls to C Using LOC%, REF% and VAL% 45

Making C Wrappers with mkf2c 48

Using mkf2c and extcentry 52

Makefile Considerations 53

4. System Functions and Subroutines 55

Library Functions 55

Extended Intrinsic Subroutines 63

DATE 64

IDATE 64

ERRSNS 64

EXIT 65

TIME 65

MVBITS 66

Extended Intrinsic Functions 67

SECNDS 67

RAN 67

5. Scalar Optimizations 69

Overview 69

Performing General Optimizations 71

Enabling Loop Fusion 71

Controlling Global Assumptions 71

Setting Invariant IF Floating Limits 72

Setting the Optimization Level 74

Controlling Variations in Round Off 76

Controlling Scalar Optimizations 78

Using Vector Intrinsics 79

Performing Advanced Optimizations 82

Using Aggressive Optimization 82

Controlling Internal Table Size 83

Performing Memory Management Transformations 84

Enabling Loop Unrolling 86

Recognizing Directives 88

Specifying Recursion 89

6. Inlining and Interprocedural Analysis 91

Overview 91

Using Command Line Options 92

Specifying Routines for Inlining or IPA 93

Specifying Occurrences for Inlining and IPA 94

Specifying Where to Search for Routines 97

Creating Libraries 98

Conditions That Prevent Inlining and IPA 100

7. Fortran Enhancements for Multiprocessors 103

Overview 104

Parallel Loops 104

Writing Parallel Fortran 105

C$DOACROSS 106

C$& 112

C$ 112

C$MP_SCHEDTYPE and C$CHUNK 113

Nesting C$DOACROSS 113

Analyzing Data Dependencies for Multiprocessing 114

Breaking Data Dependencies 120

Work Quantum 126

Cache Effects 128

Performing a Matrix Multiply 129

Understanding Trade-Offs 129

Load Balancing 131

vii

Advanced Features 133

mp_block and mp_unblock 133

mp_setup, mp_create, and mp_destroy 134

mp_blocktime 134

mp_numthreads, mp_set_numthreads 135

mp_my_threadnum 135

Environment Variables: MP_SET_NUMTHREADS, MP_BLOCKTIME,

MP_SETUP 136

Environment Variables: MP_SUGNUMTHD,

MP_SUGNUMTHD_VERBOSE, MP_SUGNUMTHD_MIN,

MP_SUGNUMTHD_MAX 137

Environment Variables: MP_SCHEDTYPE, CHUNK 138

mp_setlock, mp_unsetlock, mp_barrier 138

Local COMMON Blocks 138

Compatibility With sproc 139

DOACROSS Implementation 140

Loop Transformation 140

Executing Spooled Routines 142

PCF Directives 143

Parallel Region 145

PCF Constructs 146

Restrictions 157

A Few Words About Efficiency 158

8. Compiling and Debugging Parallel Fortran 159

Compiling and Running 159

Using the –static Option 160

Examples of Compiling 160

Profiling a Parallel Fortran Program 161

Debugging Parallel Fortran 162

General Debugging Hints 162

viii

9. Fine-Tuning Program Execution 165

Overview 166

Directives 166

Assertions 168

Fine-Tuning Scalar Optimizations 170

Controlling Internal Table Size 170

Setting Invariant IF Floating Limits 170

Optimization Level 172

Variations in Round Off 173

Controlling Scalar Optimizations 174

Enabling Loop Unrolling 174

Fine-Tuning Inlining and IPA 175

Using Equivalenced Variables 176

Using Assertions 176

Using Aliasing 177

C*$* ASSERT [NO] ARGUMENT ALIASING 177

C*$* ASSERT RELATION 178

Fine-Tuning Global Assumptions 179

C*$* ASSERT [NO]BOUNDS VIOLATIONS 179

C*$* ASSERT NO EQUIVALENCE HAZARD 180

C*$* ASSERT [NO] TEMPORARIES FOR CONSTANT

ARGUMENTS 181

Ignoring Data Dependencies 182

A. Run-Time Error Messages 183

Index 191

Examples

Example 3-1 Example Subroutine Call 34

Example 3-2 Example Function Call 34

Example 3-3 Example Fortran Subroutine with COMPLEX

Parameters 36

Example 3-4 C Declaration and Call with COMPLEX Parameters 36

Example 3-5 Example Fortran Subroutine with String Parameters 36

Example 3-6 C Program that Passes String Parameters 37

Example 3-7 C Program that Passes Different String Lengths 37

Example 3-8 Fortran Function Returning COMPLEX*16 38

Example 3-9 C Program that Receives COMPLEX Return Value 39

Example 3-10 Fortran Function Returning CHARACTER*16 39

Example 3-11 C Program that Receives CHARACTER*16 Return 40

Example 3-12 C Function Written to be Called from Fortran 41

Example 3-13 Common Block Usage in Fortran and C 43

Example 3-14 Fortran Program Sharing an Array in Common with C 44

Example 3-15 C Subroutine to Modify a Common Array 44

Example 3-16 Fortran Function Calls Using %VAL 46

Example 3-17 Fortran Call to gmatch() Using %REF 47

Example 3-18 Fortran Call to gmatch() Using %VAL(%LOC()) 48

Example 3-19 C Function Using varargs 51

Example 3-20 C Code to Retrieve Hidden Parameters 51

Example 3-21 Source File for Use with extcentry 52

Figures

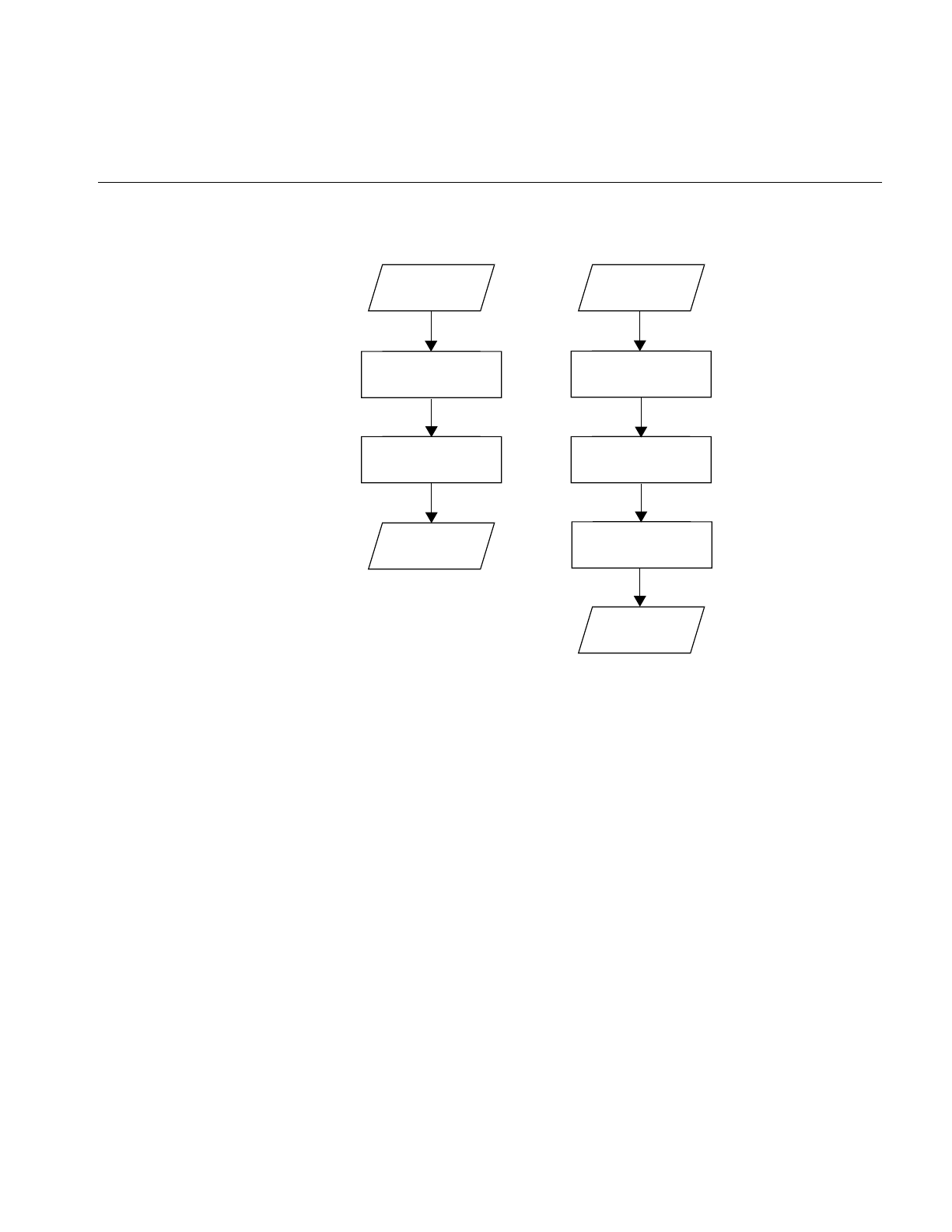

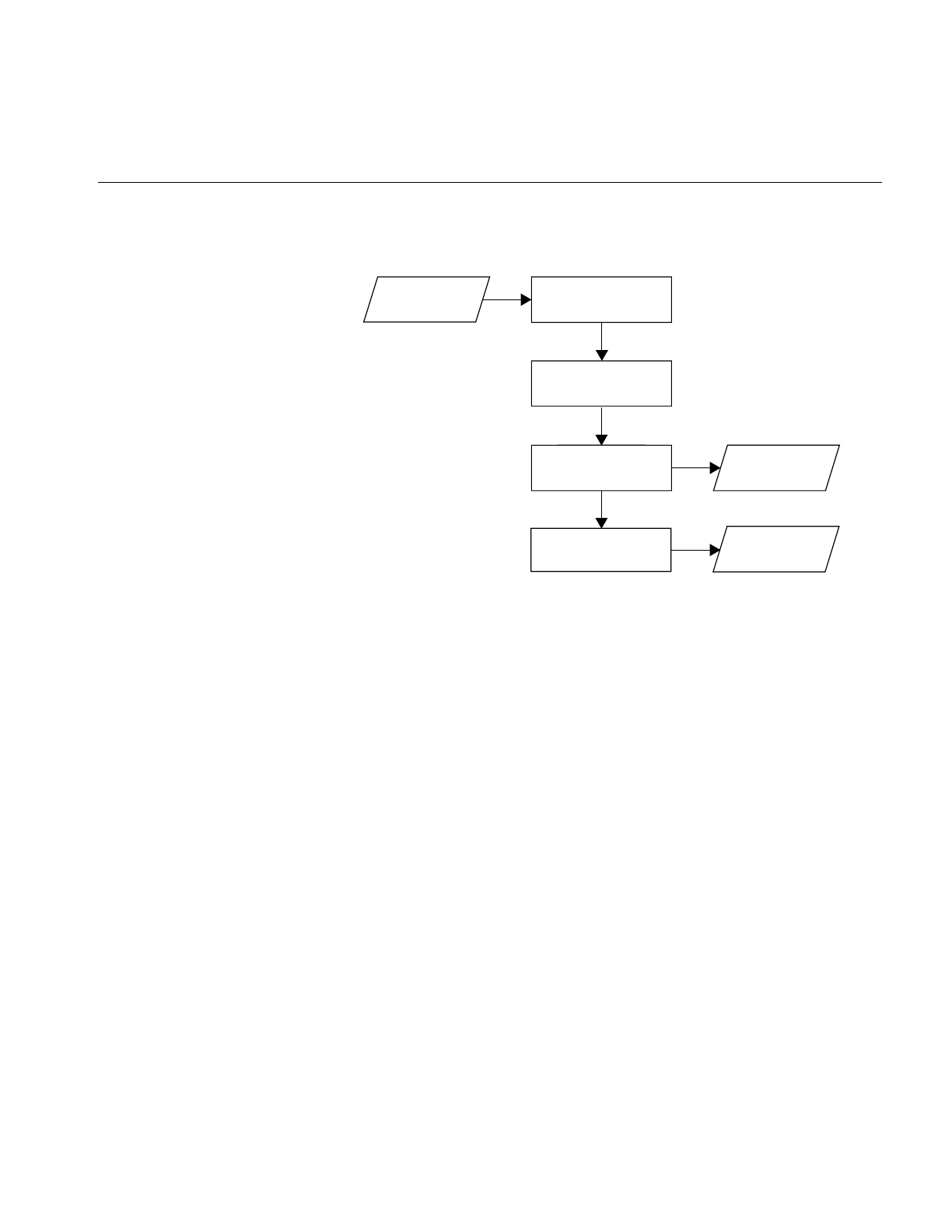

Figure 1-1 Compilation Process 3

Figure 1-2 Compiling Multilanguage Programs 5

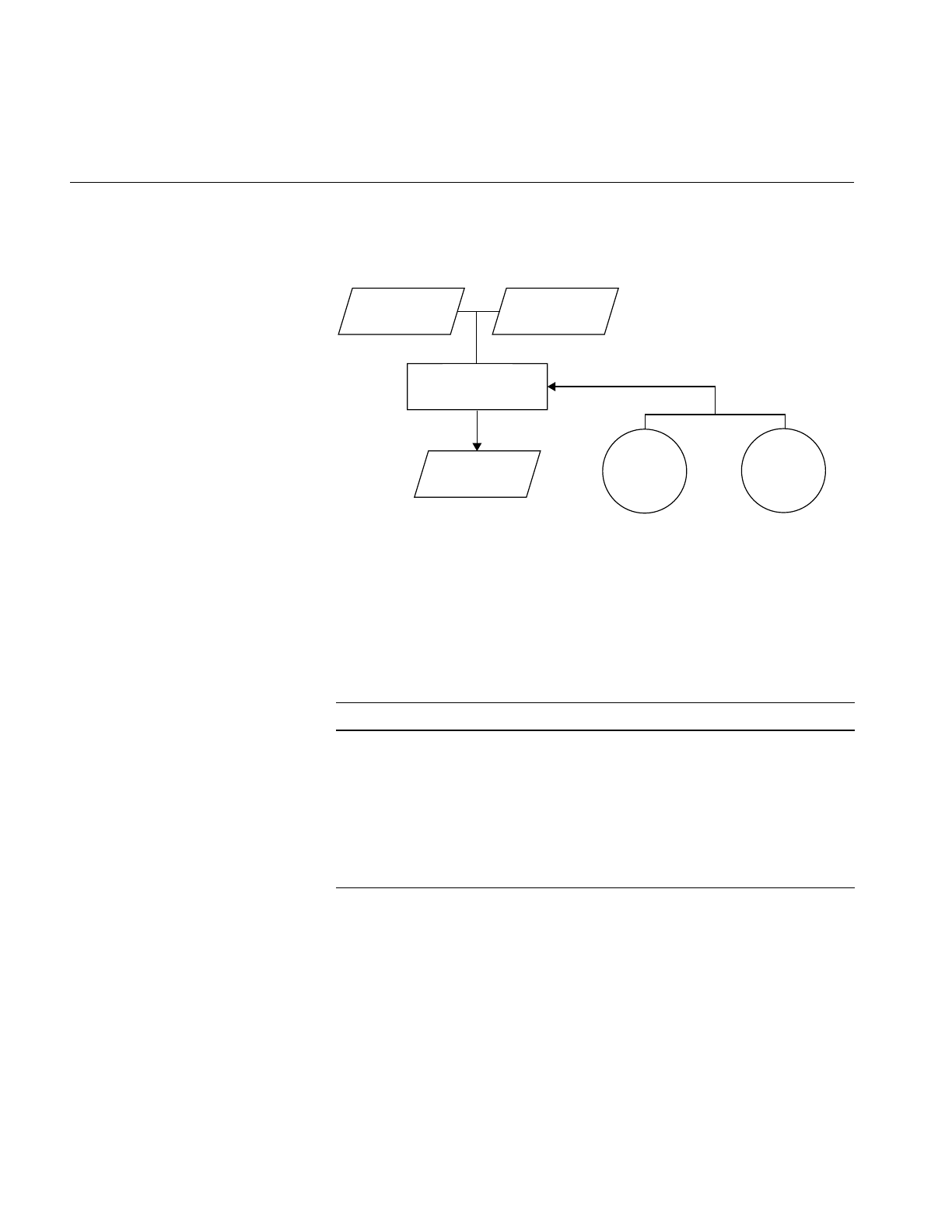

Figure 1-3 Linking 6

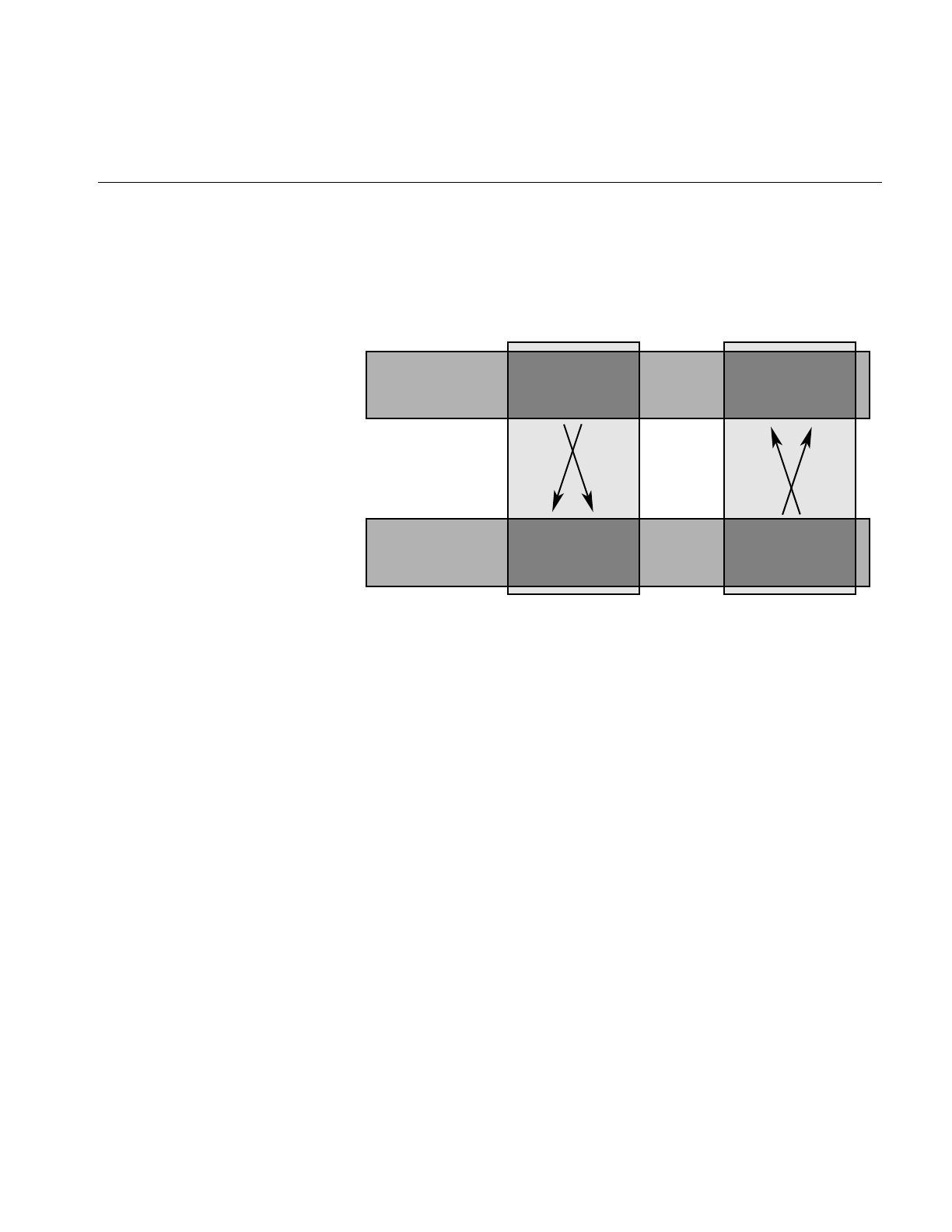

Figure 3-1 Correspondence Between Fortran and C Array

Subscripts 33

xiii

Tables

Table 1-1 Link Libraries 6

Table 1-2 Compile Options for Source File Format 8

Table 1-3 Compile Options that Select Files 9

Table 1-4 Compile Options for Target Machine Features 10

Table 1-5 Compile Options for Memory Allocation and

Alignment 10

Table 1-6 Compile Options for Debugging and Profiling 11

Table 1-7 Compile Options for Optimization Control 12

Table 1-8 Power Fortran Defaults for Optimization Levels 13

Table 1-9 Compile Options for Compiler Phase Control 14

Table 1-10 Preconnected Files 18

Table 2-1 Size, Alignment, and Value Ranges of Data Types 22

Table 2-2 Valid Ranges for REAL*4 and REAL*8 Data Types 23

Table 2-3 Valid Ranges for REAL*16 Data Type 23

Table 3-1 Corresponding Fortran and C Data Types 31

Table 3-2 How mkf2c treats Function Arguments 49

Table 4-1 Summary of System Interface Library Routines 56

Table 4-2 Overview of System Subroutines 63

Table 4-3 Information Returned by ERRSNS 65

Table 4-4 Arguments to MVBITS 66

Table 4-5 Function Extensions 67

Table 5-1 Optimization Options 70

Table 5-2 Vector Intrinsic Function Names 82

Table 5-3 Recommended Cache Option Settings 85

xiv

Table 6-1 Inlining and IPA Options 92

Table 6-2 Inlining and IPA Search Command Line Options 97

Table 6-3 Filename Extensions 97

Table 7-1 Summary of PCF Directives 144

Table 9-1 Directives Summary 167

Table 9-2 Assertions and Their Duration 168

Table A-1 Run-Time Error Messages 184

Introduction

This manual provides information on implementing Fortran 77 programs

using the MIPSpro™ Fortran 77 compiler on IRIX™ 6.0.1 Power

CHALLENGE, Power CHALLENGE Array, and Power Indigo systems. This

implementation of Fortran 77 contains full American National Standards

Institute (ANSI) Programming Language Fortran (X3.9–1978). Extensions

provide full VMS Fortran compatibility to the extent possible without the

VMS operating system or VAX data representation. This implementation of

Fortran 77 also contains extensions that provide partial compatibility with

programs written in SVS Fortran.

Organization

This manual contains the following chapters and appendix:

• Chapter 1, “Compiling, Linking, and Running Programs,” gives an

overview of components of the compiler system, and describes how to

compile, link, and execute a Fortran program. It also describes special

considerations for programs running on IRIX systems, such as ﬁle

format and error handling.

• Chapter 2, “Storage Mapping,” describes how the Fortran compiler

implements size and value ranges for various data types and how they

are mapped to storage. It also describes how to access misaligned data.

• Chapter 3, “Fortran Program Interfaces,” provides reference and guide

information on writing programs in Fortran and C that can

communicate with each other. It also describes the process of

generating wrappers for C routines called by Fortran.

• Chapter 4, “System Functions and Subroutines,” describes functions

and subroutines that can be used with a program to communicate with

the IRIX operating system.

xvi

Introduction

• Chapter 5, “Scalar Optimizations,” describes the scalar optimizations

you can enable from the command line.

• Chapter 6, “Inlining and Interprocedural Analysis,” explains how to

perform inlining and interprocedural analysis by specifying options to

the compiler.

• Chapter 7, “Fortran Enhancements for Multiprocessors,” describes

programming directives for running Fortran programs in a

multiprocessor mode.

• Chapter 8, “Compiling and Debugging Parallel Fortran,” describes and

illustrates compilation and debugging techniques for running Fortran

programs in a multiprocessor mode.

• Chapter 9, “Fine-Tuning Program Execution,” describes how to

ﬁne-tune program exection by specifying assertions and directives in

your source program.

• Appendix A, “Run-Time Error Messages,” lists the error messages that

can be generated during program execution.

Additional Reading

Refer to the MIPSpro Fortran 77 Language Reference Manual for a description

of the Fortran 77 language as implemented on Silicon Graphics systems.

Refer to the MIPS Compiling and Performance Tuning Guide for information on

the following topics:

• an overview of the compiler system

• improving program performance by using the proﬁling and

optimization facilities of the compiler system

• general discussion of performance tuning

• the dump utilities, archiver, debugger, and other tools used to maintain

Fortran programs

Refer to the MIPSpro Porting and Transition Guide for information on:

• an overview of the 64-bit compiler system

• language implementation differences

Typographical Conventions

xvii

• porting source code to the 64-bit system

• compilation and run-time issues

For information on interfaces to programs written in assembly language,

refer to the MIPSpro Assembly Language Programmer's Guide.

Refer to the CASEVision™/WorkShop Pro MPF User’s Guide for information

about using WorkShop Pro MPF.

Typographical Conventions

The following conventions and symbols are used in the text to describe the

form of Fortran statements:

Bold Indicates literal command line options, ﬁlenames,

keywords, function/subroutine names, pathnames, and

directory names.

Italics Represents user-deﬁned values. Replace the item in italics

with a legal value. Italics are also used for command names,

manual page names, and manual titles.

Courier Indicates command syntax, program listings, computer

output, and error messages.

Courier bold Indicates user input.

[ ] Enclose optional command arguments.

() Surround arguments or are empty if the function has no

arguments following function/subroutine names.

Surround manual page section in which the command is

described following IRIX commands.

{} Enclose two or more items from which you must specify

exactly one.

| Separates two or more optional items.

... Indicates that the preceding optional items can appear more

than once in succession.

xviii

Introduction

#IRIX shell prompt for the superuser.

%IRIX shell prompt for users other than the superuser.

Here are two examples illustrating the syntax conventions.

DIMENSION a(d) [,a(d)] …

indicates that the Fortran keyword DIMENSION must be written as shown,

that the user-deﬁned entity a(d) is required, and that one or more of a(d) can

be optionally speciﬁed. Note that the pair of parentheses ( ) enclosing dis

required.

{STATIC | AUTOMATIC} v [,v] …

indicates that either the STATIC or AUTOMATIC keyword must be written

as shown, that the user-deﬁned entity vis required, and that one or more of

v items can be optionally speciﬁed.

Chapter 1

1. Compiling, Linking, and Running Programs

This chapter contains the following major sections:

• “Compiling and Linking” describes the compilation environment and

how to compile and link Fortran programs. This section also contains

examples that show how to create separate linkable objects written in

Fortran, C, or other languages supported by the compiler system and

how to link them into an executable object program.

• “Driver Options” gives an overview of debugging, proﬁling,

optimizing, and other options provided with the Fortran f77 driver.

• “Object File Tools” brieﬂy summarizes the capabilities of the dump,dis,

nm,ﬁle, size and strip programs that provide listing and other

information on object ﬁles.

• “Archiver” summarizes the functions of the ar program that maintains

archive libraries.

• “Run-Time Considerations” describes how to invoke a Fortran

program, how the operating system treats ﬁles, and how to handle

run-time errors.

Also refer to the Fortran Release Notes for a list of compiler enhancements,

possible compiler errors, and instructions on how to circumvent them.

Chapter 1: Compiling, Linking, and Running Programs

Compiling and Linking

Drivers

Programs called drivers invoke the major components of the compiler

system: the C preprocessor, the Fortran compiler, the optimizing code

generator, and the linker. The f77 command runs the driver that causes your

programs to be compiled, optimized, assembled, and linked.

The format of the f77 driver command is as follows:

f77 [option] … ﬁlename [option]

where

f77 invokes the various processing phases that compile,

optimize, assemble, and link the program.

option represents the driver options through which you provide

instructions to the processing phases. They can be

anywhere in the command line. These options are discussed

later in this chapter.

ﬁlename is the name of the ﬁle that contains the Fortran source

statements. The ﬁlename must always have the sufﬁx .f,.F,

.for,.FOR, or .i. For example, myprog.f.

Compilation

The driver command f77 can both compile and link a source module.

Figure 1-1 shows the primary drivers phases. It also shows their principal

inputs and outputs for the source modules more.f.

Compiling and Linking

Figure 1-1 Compilation Process

Note the following:

• The source ﬁle ends with the required sufﬁxes .f,.F,.for,.FOR, or .i.

• The source ﬁle is passed through the C preprocessor, cpp, by default. cpp

does not recognize Hollerith strings and may interpret a character

sequence in a Holleritch string that looks like a C-style comment or a

macro as a C-style comment or macro. The –nocpp option prevents this

misinterpretation. (See the –nocpp option in “Driver Options” on page

7 for details.) In the example

%f77 myprog.f –nocpp

the ﬁle myprog.f will not be preprocessed by cpp.

• The driver produces a linkable object ﬁle when you specify the –c

driver option. This ﬁle has the same name as the source ﬁle, except with

the sufﬁx .o.For example, the command line

%f77 more.f -c

produces the more.o ﬁle in the above example.

cpp

Fortran Front End

Optimizing

Linker

more.f

more.o

a.out

Code Generator

Chapter 1: Compiling, Linking, and Running Programs

• The default name of the executable object ﬁle is a.out.For example, the

command line

%f77 myprog.f

produces the executable object a.out.

• You can specify a name other than a.out for the executable object by

using the driver option –o name, where name is the name of the

executable object. For example, the command line

%f77 myprog.o -o myprog

links the object module myprog.o and produces an executable object

named myprog.

• The command line

%f77 myprog.f -o myprog

compiles and links the source module myprog.f and produces an

executable object named myprog.

Compiling Multilanguage Programs

The compiler system provides drivers for other languages, including C and

C++. If one of these drivers is installed in your system, you can compile and

link your Fortran programs to the language supported by the driver. (See the

MIPS Compiling and Performance Tuning Guide for a list of available drivers

and the commands that invoke them; refer to Chapter 3, “Fortran Program

Interfaces,” in this manual for conventions you must follow when writing

Fortran program interfaces to C programs.)

When your application has two or more source programs written in different

languages, you should compile each program module separately with the

appropriate driver and then link them in a separate step. Create objects

suitable for linking by specifying the –c option, which stops the driver

immediately after the assembler phase. For example,

%cc -c main.c

%f77 -c rest.f

The two command lines shown above produce linkable objects named

main.o and rest.o,as illustrated in Figure 1-2.

Compiling and Linking

Figure 1-2 Compiling Multilanguage Programs

Linking Objects

You can use the f77 driver command to link separate objects into one

executable program when any one of the objects is compiled from a Fortran

source. The driver recognizes the .o sufﬁx as the name of a ﬁle containing

object code suitable for linking and immediately invokes the linker. The

following command links the object created in the last example:

%f77 -o myprog main.o rest.o

You can also use the cc driver command, as shown below:

%cc -o myprog main.o rest.o -lftn -lm

C Preprocessor

main.c

main.o

rest.f

rest.o

Code Generator

Code Generator Fortran Front End

C Front End C Preprocessor

Chapter 1: Compiling, Linking, and Running Programs

Figure 1-3 shows the ﬂow of control for this link.

Figure 1-3 Linking

Both f77 and cc use the C link library by default. However, the cc driver

command does not know the names of the link libraries required by the

Fortran objects; therefore, you must specify them explicitly to the linker

using the –l option as shown in the example. The characters following –l are

shorthand for link library ﬁles, as shown in Table 1-1.

See the section called “FILES” in the f77(1) manual page for a complete list

of the ﬁles used by the Fortran driver. Also refer to the ld(1) manual page for

information on specifying the –l option.

Table 1-1 Link Libraries

–l Link Library Contents

ftn /usr/lib64/nonshared/libftn.a Intrinsic function, I/O, multiprocessing,

IRIX interface, and indexed sequential

access method library for nonshared

linking and compiling

ftn /usr/lib64/libftn.so Same as above, except for shared linking

and compiling (this is the default library)

m /usr/lib64/libm.so Mathematics library

All

main.o rest.o

CFortran

Linker

Driver Options

Specifying Link Libraries

You may need to specify libraries when you use IRIX system packages that

are not part of a particular language. Most of the manual pages for these

packages list the required libraries. For example, the getwd(3B) subroutine

requires the BSD compatibility library libbsd.a. Specify this library as follows:

%f77 main.o more.o rest.o -lbsd

To specify a library created with the archiver, type in the pathname of the

library as shown below.

%f77 main.o more.o rest.o libfft.a

Note: The linker searches libraries in the order you specify. Therefore, if you

have a library (for example, libfft.a) that uses data or procedures from –lm,

you must specify libfft.a ﬁrst.

Driver Options

This section contains an overview of the Fortran–speciﬁc driver options.

Thef77(1) reference page has a complete description of the compiler options.

This discussion only covers the relationships between some of the options,

so as to help you make sense of the many options in the reference page. For

for information you can review:

• TheMIPS Compiling and Performance Tuning Guide for a discussion of the

compiler options that are common to all MIPSpro compilers.

• The fopt(1) reference page for options related to the scalar optimizer.

• The pfa(1) reference page for options related to the parallel optimizer.

• The ld(1) reference page for a description of the linker options.

Tip: The command f77 -help lists all compiler options for quick reference.

Use the -show option to have the compiler document each phase of

execution, showing the exact default and nondefault options passed to each.

Chapter 1: Compiling, Linking, and Running Programs

Compiling Simple Programs

You need only a very few compiler options when you are compiling a simple

program. Examples of simple programs include

• Test cases used to explore algorithms or Fortran language features

• Programs that are principally interactive

• Programs whose performance is limited by disk I/O

• Programs you will execute under a debugger

In these cases you need only specify -g for debugging, the target machine

architecture, and the word-length. For example, to compile a single source

ﬁle to execute under dbx on a Power Challenge XL, you could use the

following commands.

f77 -g -mips4 -64 -o testcase testcase.f

dbx testcase

However, a program compiled in this way will take little advantage of the

performance features of the machine. In particular, its speed when doing

heavy ﬂoating-point calculations will be far slower than the machine is

capable of. For simple programs, that is not important.

Specifying Source File Format

The options summarized in Table 1-2 tell the compiler how to treat the

program source ﬁle.

Table 1-2 Compile Options for Source File Format

Options Purpose

-ansi Report any nonstandard usages.

-backslash Treat \ in character literals as a character, not as

the ﬁrst character of an escape sequence.

-col72,-col120,-extend_source,

-noextend_source Specify margin columns of source lines.

Driver Options

Specifying Compiler Input and Output Files

The options summarized in Table 1-3 tell the compiler what output ﬁles to

generate.

-d_lines Compile lines with D in column 1.

-Dname,-Dname=def,-Uname Deﬁne, undeﬁne names to the C preprocessor.

Table 1-3 Compile Options that Select Files

Options Purpose

-c Generate a single object ﬁle for each input ﬁle; do not

link.

-E Run only the macro preprocessor and write its output to

standard output.

-I,-Idir,-nostdinc Specify location of include ﬁles.

-listing Request a listing ﬁle.

-MDupdate Request Makeﬁle dependency output data.

-o Specify name of output ﬁle.

-S Specify only assembly-language source output.

Table 1-2 (continued) Compile Options for Source File Format

Options Purpose

Chapter 1: Compiling, Linking, and Running Programs

Specifying Target Machine Features

The options summarized in Table 1-4 are used to specify the characteristics

of the machine where the compiled program will be used.

Specifying Memory Allocation and Alignment

The options summarized in Table 1-5 tell the compiler how to allocate

memory and how to align variables in it. These options can have a strong

effect on both program size and program speed.

Table 1-4 Compile Options for Target Machine Features

Options Purpose

-32,-64 Whether target machine runs 64-bit mode (the usual) or

32-bit mode. The -64 option is allowed only with the -mips3

and -mips4 architecture options.

-mips3,-mips4 The instruction architure available in the target machine: use

-mips3 for MIPS R4x00 machines in 64-bit mode; use -mips4

for MIPS R8000 and R10000 machines.

-TARG:option,... Specify certain details of the target CPU. Most of these

options have correct default values based on the preceding

options.

-TENV:option,... Specify certain details of the software environment in which

the source module will execute. Most of these options have

correct default values based on other, more general values.

Table 1-5 Compile Options for Memory Allocation and Alignment

Options Purpose

-align8,-align16,

-align32,-align64 Align all variables size n on n-byte address boundaries.

-d8,-d16 Specify the size of DOUBLE and DOUBLE COMPLEX

variables.

-i2,-i4,-i8 Specify the size of INTEGER and LOGICAL variables.

-r4,-r8 Specify the size of REAL and COMPLEX variables.

Driver Options

Specifying Debugging and Proﬁling

The options summarized in Table 1-6 direct the compiler to include more or

less extra information in the object ﬁle for debugging or proﬁling.

For more information on debugging and proﬁling, see the manuals listed in

the preface.

Specifying Optimization Levels

The MIPSpro Fortran 77 compiler contains three optimizer phases. One is

part of the compiler “back end”; that is, it operates on the generated code,

after all syntax analysis and source transformations are complete. The use of

this standard optimizer, which is common to all MIPSpro compilers, is

discussed in the MIPS Compiling and Performance Tuning Guide.

In addition, MIPSpro Fortran 77 contains two phases of accelerators, one for

scalar optimization and one for parallel array optimization. These operate

during the initial phases of the compilation, transforming the source

statements before they are compiled to machine language. The options of the

scalar optimizer are detailed in the fopt(1) reference page. The options of the

parallel optimizer are detailed in the pfa(1) reference page.

-static Allocate all local variables statically, not dynamically on

the stack.

-Gsize,-xgot Specify use of the global option table.

Table 1-6 Compile Options for Debugging and Proﬁling

Options Purpose

-g0,-g2,-g3,-g Leave more or less symbol-table information in the

object ﬁle for use with dbx or Workshop Pro cvd.

-p Cause proﬁling to be enabled when the program is

loaded.

Table 1-5 (continued) Compile Options for Memory Allocation and Alignment

Options Purpose

Chapter 1: Compiling, Linking, and Running Programs

Note: The reason these optimizer phases are documented in separate

reference pages is that, when compiling for 32-bit machines, these phases

use a separate product, the Power Fortran Accelerator, which has been

integrated into the MIPSpro Fortran 77 compiler.

The options summarized in Table 1-7 are used to communicate to the

different optimization phases.

Table 1-7 Compile Options for Optimization Control

Options Purpose

-O,-O0,-O1,

-O2,-O3 Select basic level of optimization, setting defaults for all

optimization phases.

-GCM:option,... Specify details of global code motion performed by the

back-end optimizer.

-OPT:option,... Specify miscellaneous details of optimization.

-SWP:option,... Specify details of pipelining done by back-end

optimizer.

-sopt[,option,...] Request execution of the scalar optimizer, and pass

options to it.

-pfa Request execution of the parallel source-to-source

optimizer.

-WK,option,... Pass options to either phase of Power Fortran.

Driver Options

When you use -O to specify the optimization level, the compiler assumes

default options for the accelerator phases. These defaults are listed in

Table 1-8. Remember, to see all options that are passed to a compiler phase,

use the -show option.

In addition to optimizing options, the compiler system provides other

options that can improve the performance of your programs:

• Two linker options,–G and –bestG, control the size of the global data

area, which can produce signiﬁcant performance improvements. See

Chapter 2 of the Compiling, Debugging, and Performance Tuning Guide

and the ld(1) reference page for more information.

• The –jmpopt option permits the linker to ﬁll certain instruction delay

slots not ﬁlled by the compiler front end. This option can improve the

performance of smaller programs not requiring extremely large blocks

of virtual memory. See the ld(1) reference page for more information.

Table 1-8 Power Fortran Defaults for Optimization Levels

Optimization Level Power Fortran Defaults Passed

-O0 –WK,–roundoff=0,–scalaropt=0,–optimize=0

-O1 –WK,–roundoff=0,–scalaropt=0,–optimize=0

-O2 –WK,–roundoff=0,–scalaropt=0,–optimize=0

-O3 –WK,–roundoff=2,–scalaropt=3,–optimize=5

-sopt –WK,–roundoff=0,–scalaropt=3,–optimize=5

Chapter 1: Compiling, Linking, and Running Programs

Controlling Compiler Execution

The options summarized in Table 1-9 control the execution of the compiler

phases.

Object File Tools

The following tools provide information on object ﬁles as indicated:

elfdump Lists headers, tables, and other selected parts of an

ELF-format object or archive ﬁle.

dis Disassembles object ﬁles into machine instructions.

nm Prints symbol table information for object and archive ﬁles.

ﬁle Lists the properties of program source, text, object, and

other ﬁles. This tool often erroneously recognizes command

ﬁles as C programs. It does not recognize Pascal or LISP

programs.

size Prints information about the text, rdata, data, sdata, bss, and

sbss sections of the speciﬁed object or archive ﬁles. See the

a.out(4) manual page for a description of the contents and

format of section data.

strip Removes symbol table and relocation bits.

Table 1-9 Compile Options for Compiler Phase Control

Options Purpose

-E,-P Execute only the C preprocessor.

-fe Stop compilation immediately after the front-end

(syntax analysis) runs.

-M Run only the macro preprocessor.

-Yc,path Load the compiler phase speciﬁed by c from the

speciﬁed path.

-Wc,option,... Pass the speciﬁed list of options to the compiler phase

speciﬁed by c.

Archiver

For more information on these tools, see the MIPS Compiling and Performance

Tuning Guide and the dis(1), elfdump(1), ﬁle(1), nm(1), size(1), and strip(1)

manual pages.

Archiver

An archive library is a ﬁle that contains one or more routines in object (.o) ﬁle

format. The term object as used in this chapter refers to an .o ﬁle that is part

of an archive library ﬁle. When a program calls an object not explicitly

included in the program, the link editor ld looks for that object in an archive

library. The link editor then loads only that object (not the whole library) and

links it with the calling program. The archiver (ar) creates and maintains

archive libraries and has the following main functions:

• copying new objects into the library

• replacing existing objects in the library

• moving objects about the library

• copying individual objects from the library into individual object ﬁles

See the Compiling, Debugging, and Performance Tuning Guide and the ar(1)

manual page for additional information on the archiver.

Run-Time Considerations

Invoking a Program

To run a Fortran program, invoke the executable object module produced by

the f77 command by entering the name of the module as a command. By

default, the name of the executable module is a.out. If you included the –o

ﬁlenameoption on the ld(orf77) command line, the executable object module

has the name that you speciﬁed.

Chapter 1: Compiling, Linking, and Running Programs

Maximum Memory Allocations

The total memory allocation for a program, and in some cases individual

arrays, can exceed 2 gigabytes (2 GB, or 2,048 MB).

Previous implementations of Fortran 77 limited the total program size, as

well as the size of any single array, to 2 GB. The current release allows the

total memory in use by the program to far exceed this. (For details on the

memory use of individual scalar values, see “Alignment, Size, and Value

Ranges” on page 22.)

Local Variable (Stack Frame) Sizes

Arrays that are allocated on the process stack must not exceed 2 GB, but the

total of all stack variables can exceed that limit. For example,

parameter (ndim = 16380)

integer*8 xmat(ndim,ndim), ymat(ndim,ndim), &

zmat(ndim,ndim)

integer k(1073741824)

integer l(33554432, 256)

However, when an array is passed as an argument, it is not limited in size.

subroutine abc(k)

integer k(8589934592_8)

Static and Common Sizes

When compiling with the -static ﬂag, global data is allocated as part of the

compiled object (.o) ﬁle. The total size of any .o ﬁle may not exceed 2 GB.

However, the total size of a program linked from multiple .o ﬁles may exceed

2 GB.

An individual common block may not exceed 2 GB. However, you can

declare multiple common blocks each having that size.

Run-Time Considerations

Pointer-based Memory

There is no limit on the size of a pointer-based array. For example,

integer *8 ndim

parameter (ndim = 20001)

pointer (xptr, xmat), (yptr, ymat), (zptr, zmat), &

(aptr, amat)

xptr = malloc(ndim*ndim*8)

yptr = malloc(ndim*ndim*8)

zptr = malloc(ndim*ndim*8)

aptr = malloc(ndim*ndim*8)

It is important to make sure that malloc is called with an INTEGER*8 value.

A count greater than 2 GB would be truncated if assigned to an INTEGER*4.

File Formats

Fortran supports ﬁve kinds of external ﬁles:

• sequential formatted

• sequential unformatted

• direct formatted

• direct unformatted

• key indexed ﬁle

The operating system implements other ﬁles as ordinary ﬁles and makes no

assumptions about their internal structure.

Fortran I/O is based on records. When a program opens a direct ﬁle or key

indexed ﬁle, the length of the records must be given. The Fortran I/O system

uses the length to make the ﬁle appear to be made up of records of the given

length. When the record length of a direct ﬁle is 1 byte, the system treats the

ﬁle as ordinary system ﬁles (as byte strings, in which each byte is

addressable). A READ or WRITE request on such ﬁles consumes bytes until

satisﬁed, rather than restricting itself to a single record.

Because of special requirements, sequential unformatted ﬁles will probably

be read or written only by Fortran I/O statements. Each record is preceded

and followed by an integer containing the length of the record in bytes.

Chapter 1: Compiling, Linking, and Running Programs

During a READ, Fortran I/O breaks sequential formatted ﬁles into records

by using each new line indicator as a record separator. The Fortran 77

standard does not deﬁne the required result after reading past the end of a

record; the I/O system treats the record as being extended by blanks. On

output, the I/O system writes a new line indicator at the end of each record.

If a user program also writes a new line indicator, the I/O system treats it as

a separate record.

Preconnected Files

Table 1-10 shows the standard preconnected ﬁles at program start.

All other units are also preconnected when execution begins. Unit n is

connected to a ﬁle named fort.n. These ﬁles need not exist, nor will they be

created unless their units are used without ﬁrst executing an open. The

default connection is for sequentially formatted I/O.

File Positions

The Fortran 77 standard does not specify where OPEN should initially

position a ﬁle explicitly opened for sequential I/O. The I/O system positions

the ﬁle to start of ﬁle for both input and output. The execution of an OPEN

statement followed by a WRITE on an existing ﬁle causes the ﬁle to be

overwritten, erasing any data in the ﬁle. In a program called from a parent

process, units 0, 5, and 6 remain where they were positioned by the parent

process.

Table 1-10 Preconnected Files

Unit # Unit

5 Standard input

6 Standard output

0 Standard error

Run-Time Considerations

Unknown File Status

When the parameter STATUS="UNKNOWN" is speciﬁed in an OPEN

statement, the following occurs:

• If the ﬁle does not exist, it is created and positioned at start of ﬁle.

• If the ﬁle exists, it is opened and positioned at the beginning of the ﬁle.

Quad-Precision Operations

When running programs that contain quad-precision operations, you must

run the compiler in round-to-nearest mode. Because this mode is the default,

you usually do not need to be concerned with setting it. You usually need to

set this mode when writing programs that call your own assembly routines.

Refer to the swapRM manual page for details.:

Run-Time Error Handling

When the Fortran run-time system detects an error, the following action

takes place:

• A message describing the error is written to the standard error unit

(unit 0). See Appendix A, “Run-Time Error Messages,” for a list of the

error messages.

• A core ﬁle is produced if the f77_dump_ﬂag environment variable is

set, as described in Appendix A, “Run-Time Error Messages.” You can

use dbx to inspect this ﬁle and determine the state of the program at

termination. For more information, see the dbx Reference Manual.

To invoke dbx using the core ﬁle, enter the following:

% dbx binary-file core

where binary-ﬁle is the name of the object ﬁle output (the default is

a.out). For more information on dbx, see the dbx User's Guide.

Chapter 1: Compiling, Linking, and Running Programs

Floating Point Exceptions

The library libfpe provides two methods for handling ﬂoating point

exceptions.

Note: Owing to the different architecture of the MIPS R8000 and R10000

processors, library libfpe is not available with the current compiler. It will be

provided in a future release. When porting 32-bit programs that depend on

trapping exceptions using the facilities in libfpe, you will have to temporarily

change the programs to do without it.

The library provides the subroutine handle_sigfpes and the environment

variable TRAP_FPE. Both methods provide mechanisms for handling and

classifying ﬂoating point exceptions, and for substituting new values. They

also provide mechanisms to count, trace, exit, or abort on enabled

exceptions. See the handle_sigfpes(3F) manual page for more information.

Chapter 2

2. Storage Mapping

This chapter contains two sections:

• “Alignment, Size, and Value Ranges” describes how the Fortran

compiler implements size and value ranges for various data types as

well as how data alignment occurs under normal conditions.

• “Access of Misaligned Data” describes two methods of accessing

misaligned data.

Chapter 2: Storage Mapping

Alignment, Size, and Value Ranges

Table 2-1 contains information about various Fortran scalar data types. (For

details on the maximum sizes of arrays, see “Maximum Memory

Allocations” on page 16.)

a. Byte boundary divisible by two.

b. When the –i2 option is used, type INTEGER is equivalent to INTEGER*2; when the –i8 option

is used, INTEGER is equivalent to INTEGER*8.

c. Byte boundary divisible by four.

Table 2-1 Size, Alignment, and Value Ranges of Data Types

Type Synonym Size Alignment Value Range

BYTE INTEGER*1 8 bits Byte –128…127

INTEGER*2 16 bits Half worda–32,768…32,767

INTEGER INTEGER*4b32 bits Wordc –231…231 –1

INTEGER*8 64 bits Double word –263…263 –1

LOGICAL*1 8 bits Byte 0…1

LOGICAL*2 16 bits Half worda0…1

LOGICAL LOGICAL*4d32 bits Wordc0…1

LOGICAL*8 64 bits Double word 0...1

REAL REAL*4e32 bits WordcSee Table 2-2

DOUBLE

PRECISION REAL*8f64 bits Double wordgSee Table 2-2

REAL*16 128 bits Double word See Table 2-3

COMPLEX COMPLEX*8h64 bits Double wordcSee the fourth

bullet item below

DOUBLE

COMPLEX COMPLEX*16i128 bits Double wordgSee the fourth

bullet item below

COMPLEX*32 256 bits Double word See the fourth

bullet item below

CHARACTER 8 bits Byte –128…127

Alignment, Size, and Value Ranges

The following notes provide details on some of the items in Table 2-1.

• Table 2-2 lists the approximate valid ranges for REAL*4 and REAL*8.

•REAL*16 constants have the same form as DOUBLE PRECISION

constants, except the exponent indicator is Q instead of D. Table 2-3

lists the approximate valid range for REAL*16.REAL*16 values have

an 11-bit exponent and a 107-bit mantissa; they are represented

internally as the sum or difference of two doubles. So, for REAL*16

“normal” means that both high and low parts are normals.

• Table 2-1 states that REAL*8 (that is, DOUBLE PRECISION) variables

always align on a double-word boundary. However, Fortran permits

d. When the –i2 option is used, type LOGICAL is equivalent to LOGICAL*2; when the –i8 op-

tion is used, type LOGICAL is equivalent to LOGICAL*8.

e. When the –r8 option is used, type REAL is equivalent to REAL*8.

f. When the –d16 option is used, type DOUBLE PRECISION is equivalent to REAL*16.

g. Byte boundary divisible by eight.

h. When the –r8 option is used, type COMPLEX is equivalent to COMPLEX*16.

i. When the –d16 option is used, type DOUBLE COMPLEX is equivalent to COMPLEX*32.

Table 2-2 Valid Ranges for REAL*4 and REAL*8 Data Types

Range REAL*4 REAL*8

Maximum 3.40282356 * 1038 1.7976931348623158 * 10308

Minimum normalized 1.17549424 * 10 -38 2.2250738585072012 * 10-308

Minimum denormalized 1.40129846 * 10-46 1.1125369292536006 * 10 -308

Table 2-3 Valid Ranges for REAL*16 Data Type

Range Precise Exception Mode w/FS Bit Clear Fast Mode or Precise Exception Mode w/FS Bit Set

Maximum 1.797693134862315807937289714053023* 10308 1.797693134862315807937289714053023* 10308

Minimum

normalized 2.0041683600089730005034939020703004* 10 -292 2.0041683600089730005034939020703004* 10 -292

Minimum

denormalized 4.940656458412465441765687928682214* 10 -324 2.225073858507201383090232717332404* 10-308

Chapter 2: Storage Mapping

these variables to align on a word boundary if a COMMON statement

or equivalencing requires it.

• Forcing INTEGER,LOGICAL,REAL, and COMPLEX variables to

align on a halfword boundary is not allowed, except as permitted by

the –align8,–align16, and –align32 command line options. See

Chapter 1, “Compiling, Linking, and Running Programs.”

•ACOMPLEX data item is an ordered pair of REAL*4 numbers; a

DOUBLE COMPLEX data item is an ordered pair of REAL*8 numbers;

aCOMPLEX*32 data item is an ordered pair of REAL*16 numbers. In

each case, the ﬁrst number represents the real part and the second

represents the imaginary part. Therefore, refer to Table 2-2 and

Table 2-3 for valid ranges.

•LOGICAL data items denote only the logical values TRUE and FALSE

(written as .TRUE. or .FALSE.). However, to provide VMS

compatibility, LOGICAL variables can be assigned all integral values of

the same size.

• You must explicitly declare an array in a DIMENSION declaration or

in a data type declaration. To support DIMENSION, the compiler

– allows up to seven dimensions

– assigns a default of 1 to the lower bound if a lower bound is not

explicitly declared in the DIMENSION statement

– creates an array the size of its element type times the number of

elements

– stores arrays in column-major mode

• The following rules apply to shared blocks of data set up by the

COMMON statements:

– The compiler assigns data items in the same sequence as they

appear in the common statements deﬁning the block. Data items

are padded according to the alignment compiler options or the

compiler defaults. See “Access of Misaligned Data” on page 25 for

more information.

– You can allocate both character and noncharacter data in the same

common block.

Access of Misaligned Data

– When a common block appears in multiple program units, the

compiler allocates the same size for that block in each unit, even

though the size required may differ (due to varying element names,

types, and ordering sequences) from unit to unit. The size allocated

corresponds to the maximum size required by the block among all

the program units except when a common block is deﬁned by using

DATA statements, which initialize one or more of the common

block variables. In this case the common block is allocated the same

size as when it is deﬁned.

Access of Misaligned Data

The Fortran compiler allows misalignment of data if speciﬁed by the use of

special options.

As discussed in the previous section, the architecture of the IRIS-4D series

assumes a particular alignment of data. ANSI standard Fortran 77 cannot

violate the rules governing this alignment. Many opportunities for

misalignment can arise when using common extensions to the dialect. This

is particularly true for small integer types, which

• allow intermixing of character and non-character data in COMMON

and EQUIVALENCE statements

• allow mismatching the types of formal and actual parameters across a

subroutine interface

• provide many opportunities for misalignment to occur

Code using the extensions that compiled and executed correctly on other

systems with less stringent alignment requirements may fail during

compilation or execution on the IRIS-4D. This section describes a set of

options to the Fortran compilation system that allow the compilation and

execution of programs whose data may be misaligned. Be forewarned that

the execution of programs that use these options is signiﬁcantly slower than

the execution of a program with aligned data.

This section describes the two methods that can be used to create an

executable object ﬁle that accesses misaligned data.

Chapter 2: Storage Mapping

Accessing Small Amounts of Misaligned Data

Use the ﬁrst method if the number of instances of misaligned data access is

small or to provide information on the occurrence of such accesses so that

misalignment problems can be corrected at the source level.

This method catches and corrects bus errors due to misaligned accesses. This

ties the extent of program degradation to the frequency of these accesses.

This method also includes capabilities for producing a report of these

accesses to enable their correction.

To use this method, keep the Fortran front end from padding data to force

alignment by compiling your program with one of two options to f77.

• Use the –align8 option if your program expects no restrictions on

alignment.

• Use the –align16 option if your program expects to be run on a machine

that requires half-word alignment.

You must also use the misalignment trap handler. This requires minor source

code changes to initialize the handler and the addition of the handler binary

to the link step (see the ﬁxade(3f) manual page).

Accessing Misaligned Data Without Modifying Source

Use the second method for programs with widespread misalignment or

whose source may not be modiﬁed.

In this method, a set of special instructions is substituted by the IRIS-4D

assembler for data accesses whose alignment cannot be guaranteed. The

generation of these more forgiving instructions may be opted for each source

ﬁle independently.

You can invoke this method by specifying of one of the alignment options

(–align8,–align16) to f77 when compiling any source ﬁle that references

misaligned data (see the f77(1) manual page). If your program passes

misaligned data to system libraries, you might also need to link it with the

trap handler. See the ﬁxade(3f) manual page for more information.

Chapter 3

3. Fortran Program Interfaces

Sometimes it is necessary to create a program that combines modules

written in Fortran and another language. For example,

• In a Fortran program, you need access to a facility that is only available

as a C function, such as a member of a graphics library.

• In a program in another language, you need access to a computation

that has been implemented as a Fortran subprogram, for example one

of the many well-tested, efﬁcient routines in the BLAS library.

Tip: Fortran subroutines and functions that give access to the IRIX system

functions and other IRIX facilities already exist, and are documented in

Chapter 4 of this manual.

This chapter focusses on the interface between Fortran and the most

common other language, C. However other language can be called, for

example C++.

Note: You should be aware that all compilers for a given version of IRIX use

identical standard conventions for passing parameters in generated code.

These conventions are documented at the machine instruction level in the

MIPSpro Assembly Language Programmer's Guide, which also details the

differences in the conventions used in different releases.

Chapter 3: Fortran Program Interfaces

How Fortran Treats Subprogram Names

The Fortran compiler normally changes the names of subprograms and

named common blocks while it translates the source ﬁle. When these names

appear in the object ﬁle for reference by other modules, they are normally

changed in two ways:

• converted to all lowercase letters

• extended with a ﬁnal underscore ( _ ) character

Normally the following declarations

SUBROUTINE MATRIX

function MixedCase()

COMMON /CBLK/a,b,c

produce the identiﬁers matrix_,mixedcase_, and cblk_ (all lowercase with

appended underscore) in the generated object ﬁle.

Note: The Fortran intrinsic functions are not named according to these rules.

The external names of intrinsic functions as deﬁned in the Fortran library are

not directly related to the intrinsic function names as they are written in a

program. The use of intrinsic function names is discussed in the MIPSpro

Fortran 77 Language Reference Manual.

Working with Mixed-Case Names

There is no way by which you can make the Fortran compiler generate an

external name containing uppercase letters. If you are porting a program

that depends on the ability to call such a name, you will have to write a C

function that takes the same arguments but which has a name composed of

lowercase letters only. This C function can then call the function whose name

contains mixed-case letters.

Note: Previous versions of the Fortran 77 compiler for 32-bit systems

supported the -U compiler option, telling the compiler to not force all

uppercase input to lowercase. As a result, uppercase letters could be

preserved in external names in the object ﬁle. As now implemented, this

option does not affect the case of external names in the object ﬁle.

How Fortran Treats Subprogram Names

Preventing a Sufﬁx Underscore with $

You can prevent the compiler from appending an underscore to a name by

writing the name with a terminal currency symbol ( $ ). The ‘$’ is not

reproduced in the object ﬁle. It is dropped, but it prevents the compiler from

appending an underscore. The declaration

EXTERNAL NOUNDER$

produces the name nounder (lowercase, but no trailing underscore) in the

object ﬁle.

Note: This meaning of ‘$’ in names applies only to subprogram names. If

you end the name of a COMMON block with ‘$,’ the name in the object ﬁle

includes the ‘$’ and ends with an underscore regardless.

Naming Fortran Subprograms from C

In order to call a Fortran subprogram from a C module you must spell the

name the way the Fortran compiler spells it—normally, using all lowercase

letters and a trailing underscore. A Fortran subprogram declared as follows:

SUBROUTINE HYPOT()

would typically be declared in a C function as follows (lowercase with a

trailing underscore):

extern int hypot_()

You must ﬁnd out if the subprogram is declared with a terminal ‘$’ to

suppress the underscore.

Naming C Functions from Fortran

The C compiler does not modify the names of C functions. C functions can

have uppercase or mixed-case names, and they have terminal underscores

only when the programmer writes them that way.

In order to call a C function from a Fortran program you must ensure that

the Fortran compiler spells the name correctly. When you control the name

Chapter 3: Fortran Program Interfaces

of the C function, the simplest solution is to give it a name that consists of

lowercase letters with a terminal underscore. For example, the following C

function:

int fromfort_() {...}

could be declared in a Fortran program as follows:

EXTERNAL FROMFORT

When you do not control the name of a C function, you must cause the

Fortran compiler to generate the correct name in the object ﬁle. Write the C

function’s name using a terminal ‘$’ character to suppress the terminal

underscore. (You cannot cause the compiler to generate an external name

with uppercase letters in it.)

Testing Name Spelling Using

You can verify the spelling of names in an object ﬁle using the nm command

(or with the elfdump command with the -t or -Dt options). To see the

subroutine and common names generated by the compiler, apply nm to the

generated .o (object) or executable ﬁle.

Correspondence of Fortran and C Data Types

When you exchange data values between Fortran and C, either as

parameters, as function results, or as elements of common blocks, you must

make sure that the two languages agree on the size, alignment, and subscript

of each data value.

Corresponding Scalar Types

The correspondence between Fortran and C scalar data types is shown in

Table 3-1. This table assumes the default precisions. Use of compiler options

such as -i2 or -r8 affects the meaning of the words LOGICAL, INTEGER, and

REAL.

Correspondence of Fortran and C Data Types

The rules governing alignment of variables within common blocks are

covered under “Alignment, Size, and Value Ranges” on page 22.

a. Assuming default precision

Table 3-1 Corresponding Fortran and C Data Types

Fortran Data Type Corresponding C type

BYTE, INTEGER*1, LOGICAL*1 signed char

CHARACTER*1 unsigned char

INTEGER*2, LOGICAL*2 short

INTEGERa, INTEGER*4,

LOGICALa, LOGICAL*4 int or long

INTEGER*8, LOGICAL*8 long long

REALa, REAL*4 ﬂoat

DOUBLE PRECISION, REAL*8 double

REAL*16 long double

COMPLEXa, COMPLEX*8 typedef struct{ﬂoat real, imag; } cpx8;

DOUBLE COMPLEX,

COMPLEX*16 typedef struct{ double real, imag; } cpx16;

COMPLEX*32 typedef struct{long double real, imag;} cpx32;

CHARACTER*n(n>1) typedef char fstr_n[n];

Chapter 3: Fortran Program Interfaces

Corresponding Character Types

The Fortran CHARACTER*1 data type corresponds to the C type unsigned

char. However, the two languages differ in the treatment of strings of

characters.

A Fortran CHARACTER*n (n>1) variable contains exactly n characters at all

times. When a shorter character expression is assigned to it, it is padded on

the right with spaces to reach n characters.

A C vector of characters is normally sized 1 greater than the longest string

assigned to it. It may contain fewer meaningful characters than its size

allows, and the end of meaningful data is marked by a null byte. There is no

null byte at the end of a Fortran string. (The programmer can create a null

byte using the Hollerith constant '\0' but this is not normally done.)

Since there is no terminal null byte, most of the string library functions

familiar to C programmers (strcpy(),strcat(),strcmp(), and so on) cannot be

used with Fortran string values. The strncpy(),strncmp(),bcopy(), and bcmp()

functions can be used because they depend on a count rather than a

delimiter.

Corresponding Array Elements

Fortran and C use different arrangements for the elements of an array in

memory. Fortran uses column-major order (when iterating sequentially

through memory, the leftmost subscript varies fastest), whereas C uses

row-major order (the rightmost subscript varies fastest to generate

sequential storage locations). In addition, Fortran array indices are normally

origin-1, while C indices are origin-0.

To use a Fortran array in C,

• Reverse the order of dimension limits when declaring the array

• Reverse the sequence of subscript variables in a subscript expression

• Adjust the subscripts to origin-0 (usually, decrement by 1)

How Fortran Passes Subprogram Parameters

The correspondence between Fortran and C subscript values is depicted in

Figure 3-1. You derive the C subscripts for a given element by decrementing

the Fortran subscripts and using them in reverse order; for example, Fortran

(99,9) corresponds to C [8][98].

Figure 3-1 Correspondence Between Fortran and C Array Subscripts

For a coding example, see “Using Fortran Arrays in C Code” on page 44.

Note: A Fortran array can be declared with some other lower bound than

the default of 1. If the Fortran subscript is origin-0, no adjustment is needed.

If the Fortran lower bound is greater than 1, the C subscript is adjusted by

that amount.

How Fortran Passes Subprogram Parameters

The Fortran compiler generates code to pass parameters according to

simple, uniform rules; and it generates subprogram code that expects

parameters to be passed according to these rules. When calling non-Fortran

functions, you must know how parameters will be passed; and when calling

Fortran subprograms from other languages you must cause the other

language to pass parameters correctly.

x,y

y+1,x+1

y−1,x−1

x,y

Fortran

Chapter 3: Fortran Program Interfaces

Normal Treatment of Parameters

Every parameter passed to a subprogram, regardless of its data type, is

passed as the address of the actual parameter value in memory. This simple

rule is extended for two special cases:

• The length of each CHARACTER*n parameter (when n>1) is passed as

an additional, INTEGER value, following the explicit parameters.

• When a function returns type CHARACTER*n parameter (n>1), the

address of the space to receive the result is passed as the ﬁrst parameter

to the function and the length of the result space is passed as the second

parameter, preceding all explicit parameters.

Example 3-1 Example Subroutine Call

COMPLEX*8 cp8

CHARACTER*16 creal, cimag

CALL CPXASC(creal,cimag,cp8)

The code generated from the CALL in Example 3-1 prepares the following 5

argument values:

1. The address of creal

2. The address of cimag

3. The address of cp8

4. The length of creal, an integer value of 16

5. The length of cimag, an integer value of 16

Example 3-2 Example Function Call

CHARACTER*8 symbl,picksym

CHARACTER*100 sentence

INTEGER nsym

symbl = picksym(sentence,nsym)

Calling Fortran from C

The code generated from the function call in Example 3-2 prepares the

following 5 argument values:

1. The address of variable symbl, the function result space

2. The length of symbl, an integer value of 8

3. The address of sentence, the ﬁrst explicit parameter

4. The addrss of nsym, the second explicit parameter

5. The length of sentence, an integer value of 100

You can force changes in these conventions using %VAL and %LOC; this is

covered under “Calls to C Using LOC%, REF% and VAL%” on page 45.

Calling Fortran from C

There are two types of callable Fortran subprograms: subroutines and

functions (these units are documented in the MIPSpro Fortran 77 Language

Reference Manual). In C terminology, both types of subprogram are external

functions. The difference is the use of the function return value from each.

Calling Fortran Subroutines from C

From the standpoint of a C module, a Fortran subroutine is an external

function returning int. The integer return value is normally ignored by a C

caller (its meaning is discussed in “Alternate Subroutine Returns” on

page 38).

Chapter 3: Fortran Program Interfaces

The following two examples show a simple Fortran subroutine and a sketch

of a call to it.

Example 3-3 Example Fortran Subroutine with COMPLEX Parameters

SUBROUTINE ADDC32(Z,A,B,N)

COMPLEX*32 Z(1),A(1),B(1)

INTEGER N,I

DO 10 I = 1,N

Z(I) = A(I) + B(I)

10 CONTINUE

RETURN

END

Example 3-4 C Declaration and Call with COMPLEX Parameters

typedef struct{long double real, imag;} cpx32;

extern int

addc32_(cpx32*pz,cpx32*pa,cpx32*pb,int*pn);

cpx32 z[MAXARRAY], a[MAXARRAY], b[MAXARRAY];

...

int n = MAXARRAY;

(void)addc32_(&z, &a, &b, &n);

The Fortran subroutine in Example 3-3 is named in Example 3-4 using

lowercase letters and a terminal underscore. It is declared as returning an

integer. For clarity, the actual call is cast to (void) to show that the return

value is intentionally ignored.

The trivial subroutine in the following example takes adjustable-length

character parameters.

Example 3-5 Example Fortran Subroutine with String Parameters

SUBROUTINE PRT(BEF,VAL,AFT)

CHARACTER*(*)BEF,AFT

REAL VAL

PRINT *,BEF,VAL,AFT

RETURN

END

Calling Fortran from C

Example 3-6 C Program that Passes String Parameters

typedef char fstr_16[16];

extern int

prt_(fstr_16*pbef, float*pval, fstr_16*paft,

int lbef, int laft);

main()

{

float val = 2.1828e0;

fstr_16 bef,aft;

strncpy(bef,”Before..........”,sizeof(bef));

strncpy(aft,”...........After”,sizeof(aft));

(void)prt_(bef,&val,aft,sizeof(bef),sizeof(aft));

}

The C program in Example 3-6 prepares CHARACTER*16 values and passes

them to the subroutine in Example 3-5. Observe that the subroutine call

requires 5 parameters, including the lengths of the two string parameters. In

Example 3-6, the string length parameters are generated using sizeof(),

derived from the typedef fstr_16.

Example 3-7 C Program that Passes Different String Lengths

extern int

prt_(char*pbef, float*pval, char*paft, int lbef, int laft);

main()

{

float val = 2.1828e0;

char *bef = "Start:";

char *aft = ":End";

(void)prt_(bef,&val,aft,strlen(bef),strlen(aft));

}

When the Fortran code does not require a speciﬁc length of string, the C code

that calls it can pass an ordinary C character vector, as shown in

Example 3-7. In Example 3-7, the string length parameter length values are

calculated dynamically using strlen().

Chapter 3: Fortran Program Interfaces

Alternate Subroutine Returns

In Fortran, a subroutine can be deﬁned with one or more asterisks ( * ) in the

position of dummy parameters. When such a subroutine is called, the places

of these parameters in the CALL statement are supposed to be ﬁlled with

statement numbers or statement labels. The subroutine returns an integer

which selects among the statement numbers, so that the subroutine call acts

as both a call and a computed go-to (for more details, see the discussions of

the CALL and RETURN statements in the MIPSpro Fortran 77 Language

Reference Manual).

Fortran does not generate code to pass statement numbers or labels to a

subroutine. No actual parameters are passed to correspond to dummy

parameters given as asterisks. When you code a C prototype for such a

subroutine, simply ignore these parameter positions. A CALL statement

such as

CALL NRET (*1,*2,*3)

is treated exactly as if it were the computed GOTO written as

GOTO (1,2,3), NRET()

The value returned by a Fortran subroutine is the value speciﬁed on the

RETURN statement, and will vary between 0 and the number of asterisk

dummy parameters in the subroutine deﬁnition.

Calling Fortran Functions from C

A Fortran function returns a scalar value as its explicit result. This

corresponds exactly to the C concept of a function with an explicit return

value. When the Fortran function returns any type shown in Table 3-1 other

than CHARACTER*n(n>1), you can call the function from C and handle its

return value exactly as if it were a C function returning that data type.

Example 3-8 Fortran Function Returning COMPLEX*16

COMPLEX*16 FUNCTION FSUB16(INP)

COMPLEX*16 INP

FSUB16 = INP

END

Calling Fortran from C

The trivial function shown in Example 3-8 accepts and returns

COMPLEX*16 values. Although a COMPLEX value is declared as a

structure in C, it can be used as the return type of a function.

Example 3-9 C Program that Receives COMPLEX Return Value

typedef struct{ double real, imag; } cpx16;

extern cpx16 fsub16_( cpx16 * inp );

main()

{

cpx16 inp = { -3.333, -5.555 };

cpx16 oup = { 0.0, 0.0 };

printf("testing fsub16...");

oup = fsub16_( &inp );

if ( inp.real == oup.real && inp.imag == oup.imag )

printf("Ok\n");

else

printf("Nope\n");

}

The C program in Example 3-9 shows how the function in Example 3-8 is

declared and called. Observe that the parameters to a function, like the

parameters to a subroutine, are passed as pointers, but the value returned is

a value, not a pointer to a value.

Note: In IRIX 5.3 and earlier, you can not call a Fortran function that returns

COMPLEX (although you can call one that returns any other arithmetic

type). The register conventions used by compilers prior to IRIX 6.0 do not

permit returning a structure value from a Fortran function to a C caller.

Example 3-10 Fortran Function Returning CHARACTER*16

CHARACTER*16 FUNCTION FS16(J,K,S)

CHARACTER*16 S

INTEGER J,K

FS16 = S(J:K)

RETURN

END

The function in Example 3-10 has a CHARACTER*16 return value. When

the Fortran function returns a CHARACTER*n(n>1) value, the returned

value is not the explicit result of the function. Instead, you must pass the

Chapter 3: Fortran Program Interfaces

address and length of the result area as the ﬁrst two parameters of the

function.

Example 3-11 C Program that Receives CHARACTER*16 Return

typedef char fstr_16[16];

extern void

fs16_ (fstr_16 *pz,int lz,int *pj,int *pk,fstr_16*ps,int ls);

main()

{

char work[64];

fstr_16 inp,oup;

int j=7;

int k=11;

strncpy(inp,"0123456789abcdef",sizeof(inp));

fs16_ ( oup, sizeof(oup), &j, &k, inp, sizeof(inp) );

strncpy(work,oup,sizeof(oup));

work[sizeof(oup)] = '\0';

printf("FS16 returns <%s>\n",work);

}

The C program in Example 3-11 calls the function in Example 3-10. The

address and length of the function result are the ﬁrst two parameters of the

function. (Since type fstr_16 is an array, its name, oup, evaluates to the

address of its ﬁrst element.) The next three parameters are the addresses of

the three named parameters; and the ﬁnal parameter is the length of the

string parameter.

Calling C from Fortran

In general, you can call units of C code from Fortran as if they were written

in Fortran, provided that the C modules follow the Fortran conventions for

passing parameters (see “How Fortran Passes Subprogram Parameters” on

page 33). When the C program expects parameters passed using other

conventions, you can either write special forms of CALL, or you can build a

“wrapper” for the C functions using the mkf2c command..

Calling C from Fortran

Normal Calls to C Functions

The C function in this section is written to use the Fortran conventions for its

name (lowercase with ﬁnal underscore) and for parameter passing.

Example 3-12 C Function Written to be Called from Fortran

|| C functions to export the facilities of strtoll()

|| to Fortran 77 programs. Effective Fortran declaration:

|| INTEGER*8 FUNCTION ISCAN(S,J)

|| CHARACTER*(*) S

|| INTEGER J

|| String S(J:) is scanned for the next signed long value

|| as specified by strtoll(3c) for a "base" argument of 0

|| (meaning that octal and hex literals are accepted).

|| The converted long long is the function value, and J is

|| updated to the nonspace character following the last

|| converted character, or to 1+LEN(S).

|| Note: if this routine is called when S(J:J) is neither

|| whitespace nor the initial of a valid numeric literal,

|| it returns 0 and does not advance J.

#include <ctype.h> /* for isspace() */

long long iscan_(char *ps, int *pj, int ls)

{

int scanPos, scanLen;

long long ret = 0;

char wrk[1024];

char *endpt;

Chapter 3: Fortran Program Interfaces

/* when J>LEN(S), do nothing, return 0 */

if (ls >= *pj)

{

/* convert J to origin-0, permit J=0 */

scanPos = (0 < *pj)? *pj-1 : 0 ;

/* calculate effective length of S(J:) */

scanLen = ls - scanPos;

/* copy S(J:) and append a null for strtoll() */

strncpy(wrk,(ps+scanPos),scanLen);

wrk[scanLen] = ‘\0’;

/* scan for the integer */

ret = strtoll(wrk, &endpt, 0);

|| Advance over any whitespace following the number.

|| Trailing spaces are common at the end of Fortran

|| fixed-length char vars.

while(isspace(*endpt)) { ++endpt; }

*pj = (endpt - wrk)+scanPos+1;

}

return ret;

}

The following program in demonstrates a call to the function in

Example 3-12.

EXTERNAL ISCAN

INTEGER*8 ISCAN

INTEGER*8 RET

INTEGER J,K

CHARACTER*50 INP

INP = '1 -99 3141592 0xfff 033 '

J = 0

DO 10 WHILE (J .LT. LEN(INP))

K = J

RET = ISCAN(INP,J)

PRINT *, K,': ',RET,' -->',J

10 CONTINUE

END

Calling C from Fortran

Using Fortran COMMON in C Code

A C function can refer to the contents of a COMMON block deﬁned in a

Fortran program. The name of the block as given in the COMMON

statement is altered as described in “How Fortran Treats Subprogram

Names” on page 28 (that is, forced to lowercase and extended with an

underscore). The name of the “blank common” is _BLNK__ (one leading,

two ﬁnal, underscores).

In order to refer to the contents of a common block, take these steps:

• Declare a structure whose ﬁelds have the appropriate data types to

match the successive elements of the Fortran common block. (See

Table 3-1 for corresponding data types.)

• Declare the common block name as an external structure of that type.

An example is shown below.

Example 3-13 Common Block Usage in Fortran and C

INTEGER STKTOP,STKLEN,STACK(100)

COMMON /WITHC/STKTOP,STKLEN,STACK

struct fstack {

int stktop, stklen;

int stack[100];

}

extern fstack withc_;

int peektop_()

{

if (withc_.stktop) /* stack not empty */

return withc_.stack[withc_.stktop-1];

else...

}

Chapter 3: Fortran Program Interfaces

Using Fortran Arrays in C Code

As described under “Corresponding Array Elements” on page 32, a C

program must take special steps to access arrays created in Fortran.

Example 3-14 Fortran Program Sharing an Array in Common with C

INTEGER IMAT(10,100),R,C

COMMON /WITHC/IMAT

R = 74

C = 6

CALL CSUB(C,R,746)

PRINT *,IMAT(6,74)

END

The Fortran fragment in Example 3-14 prepares a matrix in a common block,

then calls a C subroutine to modify the array.

Example 3-15 C Subroutine to Modify a Common Array

extern struct { int imat[100][10]; } withc_;

int csub_(int *pc, int *pr, int *pval)

{

withc_.imat[*pr-1][*pc-1] = *pval;

return 0; /* all Fortran subrtns return int */

}

The C function in Example 3-15 stores its third argument in the common

array using the subscripts passed in the ﬁrst two arguments. In the C

function, the order of the dimensions of the array are reversed. The subscript

values are reversed to match, and decremented by 1 to match the C

assumption of 0-origin indexing.

Calling C from Fortran

Calls to C Using LOC%, REF% and VAL%

Using the special intrinsic functions %VAL, %REF, and %LOC you can pass

parameters in ways other than the standard Fortran conventions described

under ‘“How Fortran Passes Subprogram Parameters” on page 33. These

intrinsic functions are documented in the MIPSpro Fortran 77 Language

Reference Manual.

Using %VAL

%VAL is used in parameter lists to cause parameters to be passed by value

rather than by reference. Examine the following function prototype (from

the random(3b) reference page).

char *initstate(unsigned int seed, char *state, int n);

This function takes an integer value as its ﬁrst parameter. Fortran would

normally pass the address of an integer value, but %VAL can be used to

make it pass the integer itself. Example 3-16 demonstrates a call to function

initstate() and the other functions of the random() group.

Chapter 3: Fortran Program Interfaces

Example 3-16 Fortran Function Calls Using %VAL

C declare the external functions in random(3b)

C random() returns i*4, the others return char*

EXTERNAL RANDOM$, INITSTATE$, SETSTATE$

INTEGER*4 RANDOM$

INTEGER*8 INITSTATE$,SETSTATE$

C We use "states" of 128 bytes, see random(3b)

C Note: An undocumented assumption of random() is that

C a "state" is dword-aligned! Hence, use a common.

CHARACTER*128 STATE1, STATE2

COMMON /RANSTATES/STATE1,STATE2

C working storage for state pointers

INTEGER*8 PSTATE0, PSTATE1, PSTATE2

C initialize two states to the same value

PSTATE0 = INITSTATE$(%VAL(8191),STATE1)

PSTATE1 = INITSTATE$(%VAL(8191),STATE2)

PSTATE2 = SETSTATE$(%VAL(PSTATE1))

C pull 8 numbers from state 1, print

DO 10 I=1,8

PRINT *,RANDOM$()

10 CONTINUE

C set the other state, pull 8 numbers & print

PSTATE1 = SETSTATE$(%VAL(PSTATE2))

DO 20 I=1,8

PRINT *,RANDOM$()

20 CONTINUE

END

The use of %VAL(8191) or %VAL(PSTATE1) causes that value to be passed,

rather than an address of that value.

Using %REF

%REF is used in parameter lists to cause parameters to be passed by

reference, that is, to pass the address of a value rather than the value itself.

Passing parameters by reference is the normal behavior of Silicon Graphics

Fortran 77 compilers, so there is no effective difference between writing

%REF(parm) and writing parm alone in a parameter list. However, this may

not be the case with Fortran compilers from other manufacturers. In other

compilers, %REF(parm) might be effective and different from parm alone.

Calling C from Fortran

Hence when calling a C function that expects the address of a value rather

than the value itself, you can write %REF(parm) simply as documentation of

the kind of parameter. Examine this C prototype (see the gmatch(3G)

reference page).

int gmatch (const char *str, const char *pattern);

This function gmatch() could be declared and called from Fortran.

Example 3-17 Fortran Call to gmatch() Using %REF

LOGICAL GMATCH$

CHARACTER*8 FNAME,FPATTERN

FNAME = 'foo.f\0'

FPATTERN = '*.f\0'

IF ( GMATCH$(%REF(FNAME),%REF(FPATTERN)) )...

The use of %REF() in Example 3-17 simply documents the fact that gmatch()

expects addresses of character strings.

Note: The code in Example 3-17 passes two additional hidden parameters,

the lengths of the two string parameters. Probably, a C function such as

gmatch() would ignore these. However, they can be suppressed using %LOC,

as discussed in the following topic.

Using %LOC

%LOC returns the address of its argument. It can be used in any expression

(not only within parameter lists), and is often used to set POINTER

variables. However, it can be used with %VAL to prevent passing the lengths

of character values as hidden parameters.

Refer again to the prototype of gmatch(). This function expects the address of

two character strings in memory, but it is not written to expect the Fortran

convention of also passing the lengths of character parameters.

Chapter 3: Fortran Program Interfaces

Example 3-18 Fortran Call to gmatch() Using %VAL(%LOC())

LOGICAL GMATCH$

CHARACTER*8 FNAME,FPATTERN

FNAME = 'foo.f\0'

FPATTERN = '*.f\0'

IF ( GMATCH$(%VAL(%LOC(FNAME)),%VAL(%LOC(FPATTERN))) )...

The code fragment in Example 3-18 shows how to pass only the addresses.

Each parameter consists of an address (%LOC) passed by value (%VAL).

Since neither parameter is a character string, Fortran does not pass the

character string lengths as hidden parameters.

Making C Wrappers with

mkf2c

The program mkf2c provides an alternate interface for C routines called by

Fortran. (Some details of mkf2c are covered in the mkf2c(1) reference page.)

The mkf2c program reads a ﬁle of C function prototype declarations and

generates an assembly language module. This module contains one callable

entry point for each C function. The entry point, or “wrapper,” accepts

parameters in the Fortran calling convention, and passes the same values to

the C function using the C conventions.

A simple case of using a function as input to mkf2c is

simplefunc (int a, double df)

{ /* function body ignored */ }

For this function, mkf2c (with no options) generates a wrapper function

named simple_ (truncated to 6 characters, made lowercase, with an

underscore appended). The wrapper function expects two parameters, an

integer and a REAL*8, passed according to Fortran conventions; that is, by

reference. The code of the wrapper loads the values of the parameters into

registers using C conventions for passing parameters by value, and calls

simplefunc().

Calling C from Fortran

Parameter Assumptions by

mkf2c

Since mkf2c processes only the C source, not the Fortran source, it treats the

Fortran parameters based on the data types speciﬁed in the C function

header. These treatments are summarized in Table 3-2.

Note: Through compiler release 6.0.2, mkf2c does not recognize the C data

types “long long” and “long double” (INTEGER*8 and REAL*16). It treats

arguments of this type as “long” and “double” respectively.

Table 3-2 How mkf2c treats Function Arguments

Data Type in C Prototype Treatment by Generated Wrapper Code

unsigned char Load CHARACTER*1 from memory to register,

no sign extension

char Load CHARACTER*1 from memory to register;

sign extension only when -signed is speciﬁed

unsigned short, unsigned int Load INTEGER*2 or INTEGER*4 from memory

to register, no sign extension

short Load INTEGER*2 from memory to register with

sign extension

int, long Load INTEGER*4 from memory to register with

sign extension

long long (Not supported through 6.0.2)

ﬂoat Load REAL*4 from memory to register,

extending to double unless -f is speciﬁed

double Load REAL*8 from memory to register

long double (Not supported through 6.0.2)

char name[], name[n] Pass address of CHARACTER*n and pass length

as integer parameter as Fortran does

char * Copy CHARACTER*n value into allocated

space, append null byte, pass address of copy

Chapter 3: Fortran Program Interfaces

Character String Treatment by

mkf2c

In Table 3-2, notice the different treatments for an argument declared as a

character array and one declared as a character address (even though these

two declarations are semantically the same in C).

When the C function expects a character address, mkf2c generates the code

to dynamically allocate memory and to copy the Fortran character value, for

its speciﬁed length, to memory. This creates a null-terminated string. In this

case,

• The address passed to C points to allocated memory

• The length of the value is not passed as an implicit argument

• There is a terminating null byte in the value

• Changes in the string are not reﬂected back to Fortran

A character array is passed by mkf2c as a Fortran CHARACTER*n value. In

this case,

• The address prepared by Fortran is passed to the C function

• The length of the value is passed as an implicit argument (see “Normal

Treatment of Parameters” on page 34)

• The character array contains no terminating null byte (unless the

Fortran programmer supplies one)

• Changes in the array by the C function will be visible to Fortran

Since the C function cannot declare the extra string-length parameter (if it

declared the parameter, mkf2c would process it as an explicit argument) the

C programmer has a choice of ways to access the string length. When the

Fortran program always passes character values of the same size, the length

parameter can simply be ignored. If its value is needed, the varargs macro

can be used to retrieve it.

For example, if the C function prototype is speciﬁed as follows

void func1 (char carr1[],int i, char *str, char carr2[]);

mkf2c passes a total of six parameters to C. The ﬁfth parameter is the length

of the Fortran value corresponding to carr1. The sixth is the length of carr2.

The C function can use the varargs macros to retrieve these hidden

Calling C from Fortran

parameters. mkf2c ignores the varargs macro va_alist appearing at the end of

the parameter name list.

When func1 is changed to use varargs, the C source ﬁle is as follows.

Example 3-19 C Function Using varargs

#include "varargs.h"

void

func1 (char carr1[],int i,char *str,char carr2[],va_alist);

{}

The C routine would retrieve the lengths of carr1 and carr2, placing them in

the local variables carr1_len and carr2_len using code like the following

fragment.

Example 3-20 C Code to Retrieve Hidden Parameters

va_list ap;

int carr1_len, carr2_len;

va_start(ap);

carr1_len = va_arg (ap, int)

carr2_len = va_arg (ap, int)

Restrictions of

mkf2c

When it does not recognize the data type speciﬁed in the C function, mkf2c

issues a warning message and generates code to simply pass the pointer

passed by Fortran. It does this in the following cases:

• Any nonstandard data type name, for example a data type that might

be declared using typedef or a data type deﬁned as a macro

• Any structure argument

• Any argument with multiple indirection (two or more asterisks, for

example char**)

Since mkf2c does not support structure-valued arguments, it does not

support passing COMPLEX*n values.

Chapter 3: Fortran Program Interfaces

Using

mkf2c

and

extcentry

mkf2c understands only a limited subset of the C grammar. This subset

includes common C syntax for function entry point, C-style comments, and

function bodies. However, it does not include constructs such as typedefs,

external function declarations, or C preprocessor directives.

To ensure that only the constructs understood by mkf2c are included in

wrapper input, you need to place special comments around each function

for which Fortran-to-C wrappers are to be generated (see example below).

Once these special comments, /* CENTRY */ and /* ENDCENTRY */, are

placed around the code, use the program excentry(1) before mkf2c to generate

the input ﬁle for mkf2c.

Example 3-21 Source File for Use with extcentry

typedef unsigned short grunt [4];

struct {

long 1,11;

char *str;

} bar;

main ()

{

int kappa =7;

foo (kappa,bar.str);

}

/* CENTRY */

foo (integer, cstring)

int integer;

char *cstring;

{

if (integer==1) printf("%s",cstring);

} /* ENDCENTRY */

Example 3-21 illustrates the use of extcentry. It shows the C ﬁle foo.c

containing the function foo, which is to be made Fortran callable.

Calling C from Fortran

The special comments /* CENTRY */ and /* ENDCENTRY */ surround the

section that is to be made Fortran callable. To generate the assembly

language wrapper foowrp.s from the above ﬁle foo.c, use the following set of

commands:

%extcentry foo.c foowrp.fc

%mkf2c foowrp.fc foowrp.s

The programs mkf2c and extcentry are found in the directory /usr/bin.

Makeﬁle Considerations

make(1) contains default rules to help automate the control of wrapper

generation. The following example of a makeﬁle illustrates the use of these

rules. In the example, an executable object ﬁle is created from the ﬁles main.f

(a Fortran main program) and callc.c:

test: main.o callc.o

f77 -o test main.o callc.o

callc.o: callc.fc

clean:

rm -f *.o test *.fc

In this program, main calls a C routine in callc.c. The extension .fc has been

adopted for Fortran-to-call-C wrapper source ﬁles. The wrappers created

from callc.fc will be assembled and combined with the binary created from

callc.c. Also, the dependency of callc.o on callc.fc will cause callc.fc to be

recreated from callc.c whenever the C source ﬁle changes. (The programmer

is responsible for placing the special comments for extcentry in the C source

as required.)

Note: Options to mkf2c can be speciﬁed when make is invoked by setting the

make variable F2CFLAGS. Also, do not create a .fc ﬁle for the modules that

need wrappers created. These ﬁles are both created and removed by make in

response to the ﬁle.o:ﬁle.fc dependency.

Chapter 3: Fortran Program Interfaces

The makeﬁle above controls the generation of wrappers and Fortran objects.

You can add modules to the executable object ﬁle in one of the following

ways:

• If the ﬁle is a native C ﬁle whose routines are not to be called from

Fortran using a wrapper interface, or if it is a native Fortran ﬁle, add the

.o speciﬁcation of the ﬁnal make target and dependencies.

• If the ﬁle is a C ﬁle containing routines to be called from Fortran using a

wrapper interface, the comments for extcentry must be placed in the C

source, and the .o ﬁle placed in the target list. In addition, the

dependency of the .o ﬁle on the .fc ﬁle must be placed in the makeﬁle.

This dependency is illustrated in the example makeﬁle above where

callf.o depends on callf.fc.

Chapter 4

4. System Functions and Subroutines

This chapter describes extensions to Fortran 77 that are related to the IRIX

compiler and operating system.

• “Library Functions” summarizes the Fortran run-time library

functions.

• “Extended Intrinsic Subroutines” describes the extensions to the

Fortran intrinsic subroutines.

• “Extended Intrinsic Functions” describes the extensions to the Fortran

functions.

Library Functions

The Fortran library functions provide an interface from Fortran programs to

the IRIX system functions. System functions are facilities that are provided

by the IRIX system kernel directly, as opposed to functions that are supplied

by library code linked with your program. System functions are

documented in volume 2 of the reference pages, with an overview in the

intro(2) reference page.

Table 4-1 summarizes the functions in the Fortran run-time library. In

general, the name of the interface routine is the same as the name of the

system function as it would be called from a C program. For details on any

function use the command

man 2 name_of_function

Note: You must declare the time function as EXTERNAL; if you do not, the

compiler will assume you mean the VMS-compatible intrinsic time function

rather than the IRIX system function. (In general it is a good idea to declare

any library function in an EXTERNAL statement as documentation.)

Chapter 4: System Functions and Subroutines

Table 4-1 Summary of System Interface Library Routines

Function Purpose

abort abnormal termination

access determine accessibility of a ﬁle

acct enable/disable process accounting

alarm execute a subroutine after a speciﬁed time

barrier perform barrier operations

blockproc block processes

brk change data segment space allocation

chdir change default directory

chmod change mode of a ﬁle

chown change owner

chroot change root directory for a command

close close a ﬁle descriptor

creat create or rewrite a ﬁle

ctime return system time

dtime return elapsed execution time

dup duplicate an open ﬁle descriptor

etime return elapsed execution time

exit terminate process with status

fcntl ﬁle control

fdate return date and time in an ASCII string

fgetc get a character from a logical unit

fork create a copy of this process

fputc write a character to a Fortran logical unit

free_barrier free barrier

Library Functions

fseek reposition a ﬁle on a logical unit

fseek64 reposition a ﬁle on a logical unit for 64-bit architecture

fstat get ﬁle status

ftell reposition a ﬁle on a logical unit

ftell64 reposition a ﬁle on a logical unit for 64-bit architecture

gerror get system error messages

getarg return command line arguments

getc get a character from a logical unit

getcwd get pathname of current working directory

getdents read directory entries

getegid get effective group ID

gethostid get unique identiﬁer of current host

getenv get value of environment variables

geteuid get effective user ID

getgid get user or group ID of the caller

gethostname get current host ID

getlog get user’s login name

getpgrp get process group ID

getpid get process ID

getppid get parent process ID

getsockopt get options on sockets

getuid get user or group ID of caller

gmtime return system time

iargc return command line arguments

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Chapter 4: System Functions and Subroutines

idate return date or time in numerical form

ierrno get system error messages

ioctl control device

isatty determine if unit is associated with tty

itime return date or time in numerical form

kill send a signal to a process

link make a link to an existing ﬁle

loc return the address of an object

lseek move read/write ﬁle pointer

lseek64 move read/write ﬁle pointer for 64-bit architecture

lstat get ﬁle status

ltime return system time

m_fork create parallel processes

m_get_myid get task ID

m_get_numprocs get number of subtasks

m_kill_procs kill process

m_lock set global lock

m_next return value of counter

m_park_procs suspend child processes

m_rcle_procs resume child processes

m_set_procs set number of subtasks

m_sync synchronize all threads

m_unlock unset a global lock

mkdir make a directory

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Library Functions

mknod make a directory/ﬁle

mount mount a ﬁlesystem

new_barrier initialize a barrier structure

nice lower priority of a process

open open a ﬁle

oserror get/set system error

pause suspend process until signal

perror get system error messages

pipe create an interprocess channel

plock lock process, test, or data in memory

prctl control processes

proﬁl execution-time proﬁle

ptrace process trace

putc write a character to a Fortran logical unit

putenv set environment variable

qsort quick sort

read read from a ﬁle descriptor

readlink read value of symbolic link

rename change the name of a ﬁle

rmdir remove a directory

sbrk change data segment space allocation

schedctl call to scheduler control

send send a message to a socket

setblockproccnt set semaphore count

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Chapter 4: System Functions and Subroutines

setgid set group ID

sethostid set current host ID

setoserror set system error

setpgrp set process group ID

setsockopt set options on sockets

setuid set user ID

sginap put process to sleep

sginap64 put process to sleep in 64-bit environment

shmat attach shared memory

shmdt detach shared memory

sighold raise priority and hold signal

sigignore ignore signal

signal change the action for a signal

sigpause suspend until receive signal

sigrelse release signal and lower priority

sigset specify system signal handling

sleep suspend execution for an interval

socket create an endpoint for communication TCP

sproc create a new share group process

stat get ﬁle status

stime set time

symlink make symbolic link

sync update superblock

sysmp control multiprocessing

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Library Functions

sysmp64 control multiprocessing in 64-bit environment

system issue a shell command

taskblock block tasks

taskcreate create a new task

taskctl control task

taskdestroy kill task

tasksetblockcnt set task semaphore count

taskunblock unblock task

time return system time (must be declared EXTERNAL)

ttynam ﬁnd name of terminal port

uadmin administrative control

ulimit get and set user limits

ulimit64 get and set user limits in 64-bit architecture

umask get and set ﬁle creation mask

umount dismount a ﬁle system

unblockproc unblock processes

unlink remove a directory entry

uscalloc shared memory allocator

uscalloc64 shared memory allocator in 64-bit environment

uscas compare and swap operator

usclosepollsema detach ﬁle descriptor from a pollable semaphore

usconﬁg semaphore and lock conﬁguration operations

uscpsema acquire a semaphore

uscsetlock unconditionally set lock

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Chapter 4: System Functions and Subroutines

usctlsema semaphore control operations

usdumplock dump lock information

usdumpsema dump semaphore information

usfree user shared memory allocation

usfreelock free a lock

usfreepollsema free a pollable semaphore

usfreesema free a semaphore

usgetinfo exchange information through an arena

usinit semaphore and lock initialize routine

usinitlock initialize a lock

usinitsema initialize a semaphore

usmalloc allocate shared memory

usmalloc64 allocate shared memory in 64-bit environment

usmallopt control allocation algorithm

usnewlock allocate and initialize a lock

usnewpollsema allocate and initialize a pollable semaphore

usnewsema allocate and initialize a semaphore

usopenpollsem attach a ﬁle descriptor to a pollable semaphore

uspsema acquire a semaphore

usputinfo exchange information through an arena

usrealloc user share memory allocation

usrealloc64 user share memory allocation in 64-bit environment

ussetlock set lock

ustest lock test lock

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Extended Intrinsic Subroutines

This section describes the intrinsic subroutines that are extensions to Fortran

77 (the intrinsic functions that are standard to Fortran 77 are documented in

Appendix A of the MIPSpro Fortran 77 Language Reference Manual). The rules

for using the names of intrinsic subroutines are also discussed in that

appendix.

Table 4-2 gives an overview of the intrinsic subroutines and their function;

they are described in detail in the sections following the topics.

ustestsema return value of semaphore

ustrace trace

usunsetlock unset lock

usvsema free a resource to a semaphore

uswsetlock set lock

wait wait for a process to terminate

write write to a ﬁle

Table 4-2 Overview of System Subroutines

Subroutine Information Returned

DATE Current date as nine-byte string in ASCII representation

IDATE Current month, day, and year, each represented by a separate integer

ERRSNS Description of the most recent error

EXIT Terminates program execution

TIME Current time in hours, minutes, and seconds as an eight-byte string in

ASCII representation

MVBITS Moves a bit ﬁeld to a different storage location

Table 4-1 (continued) Summary of System Interface Library Routines

Function Purpose

Chapter 4: System Functions and Subroutines

DATE

The DATE routine returns the current date as set by the system; the format

is as follows:

CALL DATE (buf)

where buf is a variable, array, array element, or character substring nine

bytes long. After the call, buf contains an ASCII variable in the format

dd-mmm-yy, where dd is the date in digits, mmm is the month in alphabetic

characters, and yy is the year in digits.

IDATE

The IDATE routine returns the current date as three integer values

representing the month, date, and year; the format is as follows:

CALL IDATE (m

wherem, d, and y are either INTEGER*4 or INTEGER*2 values representing

the current month, day and year. For example, the values of m, d, and y on

August 10, 1989, are

m = 8

d = 10

y = 89

ERRSNS

The ERRSNS routine returns information about the most recent program

error; the format is as follows:

CALL ERRSNS (arg1,arg2,arg3,arg4,arg5)

Extended Intrinsic Subroutines

The arguments (arg1, arg2, and so on) can be either INTEGER*4 or

INTEGER*2 variables. On return from ERRSNS, the arguments contain the

information shown in Table 4-3.

Although only arg1 and arg4 return relevant information, arg2,arg3, and arg5

are always required.

EXIT

The EXIT routine causes normal program termination and optionally

returns an exit-status code; the format is as follows:

CALL EXIT (status)

wherestatus is an INTEGER*4 or INTEGER*2 argument containing a status

code.

TIME

The TIME routine returns the current time in hours, minutes, and seconds;

the format is as follows:

CALL TIME (clock)

whereclock is a variable, array, array element, or character substring; it must

be eight bytes long. After execution, clock contains the time in the format

Table 4-3 Information Returned by ERRSNS

Argument Contents

arg1 IRIX global variable errno, which is then reset to zero after the call

arg2 Zero

arg3 Zero

arg4 Logical unit number of the ﬁle that was being processed when the

error occurred

arg5 Zero

Chapter 4: System Functions and Subroutines

hh:mm:ss, where hh, mm, and ss are numerical values representing the hour,

the minute, and the second.

MVBITS

The MVBITS routine transfers a bit ﬁeld from one storage location to

another; the format is as follows:

CALL MVBITS (source

sbit

length

destination

dbit)

Table 4-4 deﬁnes the arguments. Arguments can be declared as INTEGER*2,

INTEGER*4, or INTEGER*8.

Table 4-4 Arguments to MVBITS

Argument Type Contents

source Integer variable or array element Source location of bit ﬁeld to be

transferred.

sbit Integer expression First bit position in the ﬁeld to be

transferred from source.

length Integer expression Length of the ﬁeld to be transferred

from source.

destination Integer variable or array element Destination location of the bit ﬁeld

dbit Integer expression First bit in destination to which the

ﬁeld is transferred.

Extended Intrinsic Functions

Table 4-5 gives an overview of the intrinsic functions added as extensions of

Fortran 77.

These functions are described in detail in the following sections.

SECNDS

SECNDS is an intrinsic routine that returns the number of seconds since

midnight, minus the value of the passed argument; the format is as follows:

s = SECNDS(n)

After execution, s contains the number of seconds past midnight less the

value speciﬁed by n. Both s and n are single-precision, ﬂoating point values.

RAN

RAN generates a pseudo-random number. The format is as follows:

v = RAN(s)

The argument s is an INTEGER*4 variable or array element. This variable

serves as a seed in determining the next random number. It should initially

be set to a large, odd integer value. You can compute multiple random

number series by supplying different variables or array elements as the seed

argument to different calls of RAN.

Table 4-5 Function Extensions

Function Information Returned

SECNDS Elapsed time as a ﬂoating point value in seconds. This is an

intrinsic routine.

RAN The next number from a sequence of pseudo-random numbers.

This is not an intrinsic routine.

Chapter 4: System Functions and Subroutines

Note: Because RAN modiﬁes the argument s, calling the function with a

constant can cause a core dump.

The algorithm used in RAN is the linear congruential method. The code is

similar to the following fragment:

S = S * 1103515245L + 12345

RAN = FLOAT(IAND(RSHIFT(S,16),32767))/32768.0

RAN is supplied for compatibility with VMS. For demanding applications,

consider using the functions described in the random(3b) reference page.

These can all be called using techniques described under “Using %VAL” on

page 45.

Chapter 5

5. Scalar Optimizations

This chapter contains the following sections:

• “Overview” provides an overview of the scalar optimization command

line options.

• “Performing General Optimizations” describes the general scalar

optimizations you can enable from the command line.

• “Performing Advanced Optimizations” describes the advanced scalar

optimizations you can enable from the command line.

Overview

You can use the compiler to perform various scalar optimizations by

specifying any of the options listed in Table 5-1 from the command line.

Specify the options in a comma-separated list following the –WK option

without any intervening blanks, as follows:

%f77 f77options -WK,option[,option] ... ﬁle

Note: These options speciﬁcally control optimizations performed by the

Fortran front end. The defaults are usually sufﬁcient. You should use these

options when trying to improve the last bit of performance of your code.

Chapter 5: Scalar Optimizations

You can also initiate many of these optimizations with compiler directives

(see Chapter 9, “Fine-Tuning Program Execution.”)

The –On option directly initiates basic optimizations. Refer to Chapter 1,

“Compiling, Linking, and Running Programs” for details.

Table 5-1 Optimization Options

Long Name Short Name Default Value

–aggressive=letter –ag=letter option off

–arclimit=integer –arclm=integer 5000

–[no]assume=list –[n]as=list CEL

–cacheline=integer –chl=integer 4

–cachesize=integer –chs=integer 256

–[no]directives=list –[n]dr=list ackpv

–dpregisters=integer –dpr=integer 16

–each_invariant_if_growth=integer –eiifg=integer 20

–fpregisters=integer –fpr=integer 16

–fuse –fuse option on with –scalaropt=2

or –optimize=5

–max_invariant_if_growth=integer –miifg=integer 500

–optimize=integer –o=integer depends on –O option

–recursion –rc option on

–roundoff=integer –r=integer depends on –O option

–scalaropt=integer –so=integer depends on –O option

–setassociativity=integer –sasc=integer 1

–unroll=integer –ur=integer 4

–unroll2=weight –ur2=weight 100

Performing General Optimizations

This section discusses the general optimizations that you can enable.

Enabling Loop Fusion

The –fuse option enables loop fusion, an optimization that transforms two

adjacent loops into a single loop. The use of data-dependence tests allows

fusion of more loops than is possible with standard techniques. You must

also specify –scalaropt=2 or –optimize=5 to enable loop fusion.

Controlling Global Assumptions

The –assume=list option (or –as=list) controls certain global assumptions of

a program. You can also control most of these assumptions with various

assertions (see “Controlling Global Assumptions” in Chapter 5). The default

is –assume=cel.

list can contain the following characters:

a Allows procedure argument aliasing, which is when

different subroutine or function parameters refer to the

same object. This practice is forbidden by the Fortran 77

standard. This option provides a method of dealing with

programs that use argument aliasing anyway.

b Allows array subscripts to go outside the declared bounds.

c Places constants used in subroutine or function calls in

temporary variables.

e Allows variables in EQUIVALENCE statements to refer to

the same memory location inside one DO loop nest.

l Uses temporary variables within an optimized loop and

assigns the last value to the original scalar, if the compiler

determines that the scalar can be reused before it is

assigned.

Chapter 5: Scalar Optimizations

By default, the compiler assumes that a program conforms to the Fortran 77

standard, that is, –assume=el, and includes –asssume=c to simplify some

analysis and inlining. You can disable the default values by specifying the

–noassume option.

Example

The following command compiles the Fortran program source.f, and

permits argument aliasing and subscripts out of bounds:

%f77 -WK,-assume=ab source.f

Setting Invariant IF Floating Limits

When a loop contains an IF statement whose condition does not change from

one iteration to another (loop-invariant), the compiler performs the same

test for every iteration. The code can often be made more efﬁcient by ﬂoating

the IF statement out of the loop and putting the THEN and ELSE sections

into their own loops. This process is called invariant IF ﬂoating.

The–each_invariant_if_growth and the –max_invariant_if_growth options

control limits on invariant IF ﬂoating. This process generally involves

duplicating the body of the loop, which can increase the amount of code

considerably.

The –each_invariant_if_growth=integer option (or –eiifg=integer) controls

the rewriting of IF statements nested within loops. This option speciﬁes a

limit on the number of executable statements in a nested IF statement. If the

number of statements in the loop exceeds this limit, the compiler does not

rewrite the code. If there are fewer statements, the compiler improves

execution speed by interchanging the loop and IF statements.

Valid values for integer are from 0 to 100; the default is 20.

This process becomes complicated when there is other code in the loop, since

a copy of the other code must be included in both the THEN and ELSE

loops.

Performing General Optimizations

For example, the following code:

DO I = ...

section-1

IF ( ) THEN

section-2

ELSE

section-3

ENDIF

section-4

ENDDO

becomes

IF ( ) THEN

DO I = ...

section-1

section-2

section-4

ENDDO

ELSE

DO I = ...

section-1

section-3

section-4

ENDDO

ENDIF

When sections 1 and 4 are large, the extra code generated can slow a

program down (through cache contention, extra paging, and so on) more

than the reduced number of IF tests speed it up. The

–each_invariant_if_growth option provides a maximum size (in number of

lines of executable code) of sections 1 and 4, below which the compiler will

try to ﬂoat an invariant IF statement outside a loop.

This can be controlled on a loop-by-loop basis with the C*$*

EACH_INVARIANT_IF_GROWTH (integer) directive within the source

(see “Setting Invariant IF Floating Limits” in Chapter 9).

You can limit the total amount of additional code generated in a program

unit through invariant IF ﬂoating by specifying the

–max_invariant_if_growth option.

Chapter 5: Scalar Optimizations

The –max_invariant_if_growth=integer option (or –miifg=integer) speciﬁes

an upperbound on the total number of additional lines of code the compiler

can generate in each program unit through invariant IF ﬂoating. This limit is

applied on a per subroutine basis. For example, if a subroutine is 400 lines

long and –miifg=500, the compiler can add at most 100 lines in the process

of invariant IF ﬂoating. The default for integer is 500.

Note: Other compiler optimizations can add or delete lines, so the ﬁnal

number of lines might differ from the value speciﬁed with –miifg.

This can be controlled on a loop-by-loop basis with the C*$*

MAX_INVARIANT_IF_GROWTH (integer) directive within the source (see

“Setting Invariant IF Floating Limits” in Chapter 9).

Setting the Optimization Level

The –optimize=integer option (or –o=integer) sets the optimization level.

Each optimization level is cumulative (that is, level 5 performs everything

up to and including level 5). You can also modify the optimization level on

a loop-by-loop basis by using the C*$* OPTIMIZE(integer) directive within

the source (see “Optimization Level” in Chapter 9).

Valid values for integer are:

fe0 Disables optimization.

1 Performs only simple optimizations. Enables induction

variable recognition.

2 Performs lifetime analysis to determine when last-value

assignment of scalars is necessary.

3 Recognizes triangular loops and attempts loop

interchanging to improve memory referencing. Uses special

case data dependence tests. Also, recognizes special index

sets called wrap-around variables.

4 Generates two versions of a loop, if necessary, to break a

data dependence arc.

5 Enables array expansion and loop fusion.

Performing General Optimizations

There is no default value for this option. If you do not specify it, this option

can still be in effect through the –O option.

Although higher optimization levels increase performance, they also

increase compilation time.

The output of following example is described for –optimize=1,

–optimize=2, and –optimize=5 to illustrate the range of this option. (This

example also uses –minconcurrent=0.)

ASUM = 0.0

DO 10 I = 1,M

DO 10 J = 1,N

ASUM = ASUM + A(I,J)

C(I,J) = A(I,J) + 2.0

10 CONTINUE

At –optimize=1, the compiler sees the summation in ASUM as an

intractable data dependence between iterations and does not try to optimize

the loop. At –optimize=2 (perform lifetime analysis and do not interchange

around reduction):

ASUM = 0.

C$DOACROSS SHARE(M,N,A,C),LOCAL(I,J),REDUCTION(ASUM)

DO 3 I=1,M

DO 2 J=1,N

ASUM = ASUM + A(I,J)

C(I,J) = 2. + A(I,J)

2 CONTINUE

3 CONTINUE

Specifying –optimize=5 (loop interchange around reduction to improve

memory referencing) produces the following:

ASUM = 0.

C$DOACROSS SHARE(N,M,A,C),LOCAL(J,I),REDUCTION(ASUM)

DO 3 J=1,N

DO 2 I=1,M

ASUM = ASUM + A(I,J)

C(I,J) = 2. + A(I,J)

2 CONTINUE

3 CONTINUE

Chapter 5: Scalar Optimizations

Controlling Variations in Round Off

The –roundoff=integer option (or –r=integer) controls the amount of

variation in round-off error produced by optimization. If an arithmetic

reduction is accumulated in a different order than in the scalar program, the

round-off error is accumulated differently and the ﬁnal result might differ

from the output of the original program. Although the difference is usually

insigniﬁcant, certain restructuring transformations performed by the

compiler must be disabled to obtain exactly the same answers as the scalar

program.

The values you can specify for integer are cumulative. For example,

–roundoff=3 performs what is described for level 3, in addition to what is

listed for the previous levels. Valid values for integer are

0 Suppresses any transformations that change round-off

error.

1 Performs expression simpliﬁcation, which might generate

various overﬂow or underﬂow errors, for expressions with

operands between binary and unary operators, expressions

that are inside trigonometric intrinsic functions returning

integer values, and after forward substitution. Enables

strength reduction. Performs intrinsic function

simpliﬁcation for max and min. Enables code ﬂoating if

–scalaropt is at least 1. Allows loop interchanging around

serial arithmetic reductions, if –optimize is at least 4.

Allows loop rerolling, if –scalaropt is at least 2.

2 Allows loop interchanging around arithmetic reductions if

–optimize is at least 4. For example, the ﬂoating point

expression A/B/C is computed as A/(B*C).

3 Recognizes REAL (ﬂoat) induction variables if –scalaropt

greater than 2 or–optimize is at least 1. Enables sum

reductions. Enables memory management optimizations if

–scalaropt=3 (see “Performing Memory Management

Transformations” on page 84 for details about memory

management transformations).

There is no default value for this option. If you do not specify it, this option

can still be in effect through the –O option.

Performing General Optimizations

Example

Consider the following code segment:

ASUM = 0.0

DO 10 I = 1,M

DO 10 J = 1,N

ASUM = ASUM + A(I,J)

C(I,J) = A(I,J) + 2.0

10 CONTINUE

When –roundoff=1, the compiler does not transform the summation

reduction. The compiler distributes the loop.

ASUM = 0.

DO 2 J=1,N

DO 2 I=1,M

ASUM = ASUM + A(I,J)

2 CONTINUE

DO 3 J=1,N

DO 3 I=1,M

C(I,J) = A(I,J) + 2.

3 CONTINUE

When–roundoff=2 and –optimize=5, (reduction variable identiﬁcation and

loop interchange around arithmetic reduction) the original code becomes:

ASUM = 0.

DO 10 J=1,N

DO 2 I=1,M

ASUM = ASUM + A(I,J)

C(I,J) = A(I,J) + 2.

2 CONTINUE

10 CONTINUE

When –roundoff=3 and –optimize=5, the compiler recognizes REAL

induction variables. In this example, the compiler performs forward

substitution of the transformed induction variable X.

Chapter 5: Scalar Optimizations

The following code:

ASUM = 0.0

X = 0.0

DO 10 I = 1,N

ASUM = ASUM + A(I)*COS(X)

X = X + 0.01

10 CONTINUE

becomes

ASUM = 0.

X = 0.

DO 10 I=1,N

ASUM = ASUM + A(I) * COS ((I - 1) * 0.01)

10 CONTINUE

Controlling Scalar Optimizations

The –scalaropt=integer option (or –so=integer) controls the level of scalar

optimizations that the compiler performs. Valid values for integer are

0 Disables all scalar optimizations.

1 Enables simple scalar optimizations—dead code

elimination, global forward substitution of variables, and

conversion of IF-GOTO to IF-THEN-ELSE.

2 Enables the full range of scalar optimizations— ﬂoating

invariant IF statements out of loops, loop rerolling and

unrolling (if –roundoff is greater than zero), array

expansion, loop fusion, loop peeling, and induction

variable recognition.

3 Enables memory management transformations if

–roundoff=3 (see “Performing Memory Management

Transformations” on page 84 for details about memory

management transformations). Performs dead-code

elimination during output conversion.

There is no default value for this option. If you do not specify it, this option

can still be in effect through the –O option.

Performing General Optimizations

Unlike the –scalaropt command line option, the C*$* SCALAR OPTIMIZE

directive sets the level of loop-based optimizations (for example, loop

fusion) only, and not straight-code optimizations (for example, dead-code

elimination). Refer to “Controlling Scalar Optimizations” in Chapter 9 for

details about the C*$* SCALAR OPTIMIZE directive.

Using Vector Intrinsics

The nine intrinsic functions ASIN, ACOS, ATAN, COS, EXP, LOG, SIN, TAN

and SQRT have a scalar (element by element) version and a special version

optimized for vectors. When you use -O3 optimization, the compiler uses

the vector versions if it can. On the MIPS R8000 and R10000 processors, the

vector function is signiﬁcantly faster than the scalar version, but has a few

restrictions on use.

Finding Vector Intrinsics

To apply the vector intrinsics, the compiler searches for loops of the

following form:

real a(10000), b(10000)

do j = 1, 1000

b(2*j) = sin(a(3*j))

enddo

The compiler can recognize the eight functions ASIN, ACOS, ATAN, COS,

EXP, LOG, SIN, and TAN when they are applied between elements of named

variables in a loop (SQRT is not recognized automatically). The compiler

automatically replaces the loop with a single call to a special, vectorized

version of the function.

Chapter 5: Scalar Optimizations

The compiler cannot use the vector intrinsic when the input is based on a

temporary result or when the output replaces the input. In the following

example, only certain functions can be vectorized.

real a(400,400), b(400,400), c(400,400), d( 400,400 )

call xx(a,b,c,d)

do j = 100,300,2

do i = 100, 300,3

a(i,j) = 1.23*i + a(i,j)

b(i,j) = sin(a(i,j) + 1.0)

a(i,j) = log(a(i,j))

c(i,j) = sin(c(i,j)) / cos(d(i,j))

d(i+30,j-10) = tan( d(j,i) )

enddo

call xx(a,b,c,d)

end

In the preceding function,

• The ﬁrst SIN call is applied to a temporary value and cannot be

vectorized

• The LOG call can be vectorized

• Results from the second SIN call and ﬁrst COS call are used in

temporary expressions and cannot be vectorized

• The TAN call can be vectorized

Limitations of the Vector Intrinsics

The vector intrinsics are limited in the following ways:

• The SQRT function is not used automatically in the current release (but

it can be called directly; see “Calling Vector Functions Directly” on

page 81).

• The single-precision COS, SIN, and TAN functions are valid only for

arguments whose absolute value is less than or equal to 2**28.

• The double-precision COS, SIN and TAN functions are valid only for

arguments whose absolute value is less than or equal to PI*219.

Performing General Optimizations

The vector functions assume that the input and output arrays either coincide

completely, or do not overlap. They do not check for partial overlap, and will

produce unpredictable results if it occurs .

Disabling Vector Intrinsics

If you need to disable use of vector intrinsics while still compiling at -O3

level, you can do so. Specify the option -OPT:vector_intrinsics=OFF.

f77 -64 -mips4 -O3 -OPT:vector_intrinsics=OFF trig.f

Calling Vector Functions Directly

The vector intrinsic functions are C functions that can be called directly

using the techniques discussed under “Calls to C Using LOC%, REF% and

VAL%” on page 45. The prototype of one function is as follows:

__vsinf( void*from, void*dest, int count, int fromstride, int deststride )

Note the two leading underscore characters in the name. The arguments are

For example, the compiler converts a loop of this form:

real a(10000), b(10000)

do j = 1, 1000

b(2*j) = sin(a(3*j))

enddo

into nonlooping code of this form:

real a(10000), b(10000)

call __VSINF$(%REF(A(1)),%REF(A(2)),%VAL(1000),%VAL(3),%VAL(2))

from Address of the ﬁrst element of the source array

dest Address of ﬁrst element of destination array

count Number of elements to process

fromstride Number of elements to advance in the source array

deststride Number of elements to advance in the destination array

Chapter 5: Scalar Optimizations

All the vector intrinsic functions have the same prototype as the one shown

above for __vsinf. The names of the available vector functions are shown in

Table 5-2.

Performing Advanced Optimizations

This section describes advanced optimization techniques you can use to

obtain maximum performance.

Using Aggressive Optimization

The–aggressive=letter option (or –ag=letter) performs optimizations that are

normally forbidden. When using this option, your program must be a single

ﬁle, so that the compiler can analyze all of it simultaneously.

The only available value for letter is a, which instructs the compiler to add

padding to Fortran COMMON blocks. This optimization provides

favorable alignments of the virtual addresses. This option does not have a

default value.

%f77 -WK,-ag=a program.f

Table 5-2 Vector Intrinsic Function Names

Operation REAL*4 Function Name REAL*8 Function Name

acos __vacosf __vacos

asin __vasinf __vasin

atan __vatanf __vatan

cos __vcosf __vcos

exp __vexpf __vexp

log __vlogf __vlog

sin __vsinf __vsin

sqrt __vsqrtf __vsqrt

tan __vtanf __vtan

Performing Advanced Optimizations

For example, on a machine with a 64-kilobyte direct-mapped cache, a

COMMON deﬁnition such as:

COMMON /alpha/ a(128,128),b(128,128),c(128,128)

can degrade performance if your program contains the following statement:

a(i,j) = b(i,j) * c(i,j)

All three of the arrays a,b, and c have the same starting virtual address

modulo the cache size, and so every access to the array elements causes a

cache miss. It would be much better to add some padding between each of

the arrays to force the virtual addresses to be different. The –aggressive=a

option does exactly this. Unfortunately, this transformation is not always

possible. Fortran allows different routines to have different deﬁnitions of

COMMON. If some other routine contained the deﬁnition

COMMON /alpha/ scratch(49152)

the compiler could not arbitrarily add padding. Therefore, when using this

option the entire program must be in a single source ﬁle, so the compiler can

check for this sort of occurrence.

Controlling Internal Table Size

The –arclimit=integer option (or –arclm=integer) sets the size of the internal

table that the compiler uses to store data dependence information. The

default value for integer is 5000.

The compiler dynamically allocates the dependence data structure on a

loop-nest-by-loop-nest basis. If a loop contains too many dependence

relationships and cannot be represented in the dependence data structure,

the compiler will stop analyzing the loop. Increasing the value of –arclimit

allows the compiler to analyze larger loops.

Note: The number of data dependencies (and the time required to do the

analysis) is potentially non-linear in the length of the loop. Very long loops

(several hundred lines) may be impossible to analyze regardless of the value

of –arclimit.

Chapter 5: Scalar Optimizations

You can use the –arclimit option to increase the size of the data structure to

enable the compiler to perform more optimizations. (Most users do notneed

to change this value.)

Performing Memory Management Transformations

Memory management transformations are advanced optimizations you can

enable by specifying options along with the –WK option.

Memory Management Techniques

When both –roundoff and –scalaropt are set to 3, the compiler attempts to

perform outer loop unrolling (to improve register utilization) and automatic

loop blocking (to improve cache utilization).

Normal loop unrolling (enabled with the –unroll and –unroll2 options)

applies to the innermost loop in a nest of loops. In outer loop unrolling, one

of the other loops (typically the next innermost) is unrolled. In certain

situations, this technique (also called “unroll and jam”) can greatly improve

the register utilization.

Loop blocking is a transformation that can be applied when the loop nesting

depth is greater than the dimensions of the data arrays being manipulated.

For example, the simple matrix multiply uses a nest of three loops operating

on two-dimensional arrays. The simple approach repeatedly sweeps across

the entire arrays. A better approach is to break the arrays up into blocks, each

block being small enough to ﬁt into the cache, and then make repeated

sweeps over each (in cache) block. (This technique is also sometimes called

“tiles” or “tiling.”) However, the code needed to implement a block style

algorithm is often very complex and messy. This automatic transformation

allows you to write the simpler method, and have the compiler transform it

into the more complex and efﬁcient block method.

Memory Management Options

The compiler recognizes the following memory management command line

options when speciﬁed with the -WK option:

•–cacheline speciﬁes the width of the memory channel between cache

and main memory.

Performing Advanced Optimizations

•–cachesize speciﬁes the data cache size.

•–fpregisters speciﬁes an unrolling factor.

•–dpregisters ensures that registers do not overﬂow during loop

unrolling.

•–setassociativity speciﬁes which memory management transformation

to use.

The –cacheline=integer option (or –chl=integer) speciﬁes the width of the

memory channel, in bytes, between the cache and main memory. The default

value for integer is 4. Refer to Table 5-3 for the recommended setting for your

machine.

The –cachesize=integer option (or –chs=integer) speciﬁes the size of the data

cache, in kilobytes, for which to optimize. The default value for integer is 256

kilobytes. Refer to Table 5-3 for the recommended setting for your machine.

You can obtain the cache size for a given machine with the hinv(1) command.

This option is generally useful only in conjunction with the other memory

management transformations.

The–setassociativity=integer option (or –sasc=integer) provides information

on the mapping of physical addresses in main memory to cache pages. The

default value for integer, 1, says a datum in main memory can be put in only

one place in the cache. If this cache page is already in use, its contents must

be rewritten or ﬂushed so that the newly-accessed page can be copied into

the cache. SGI recommends you set this value to 1 for all machines, except

the POWER CHALLENGE series, where you should set it to 4.

Table 5-3 Recommended Cache Option Settings

Machine Cacheline Value Cache Size Value

POWER Series 4D/100 16 64

POWER Series 4D/200 64 64

R4000 (including Crimson™ and

Indigo2™) 16 8

CHALLENGE™ and POWER

CHALLENGE™ Series 128 16

Chapter 5: Scalar Optimizations

The –dpregisters=integer option (or –dpr=integer) speciﬁes the number of

DOUBLE PRECISION registers each processor has. The –fpregistersoption

(or –fpr=integer) speciﬁes the number of single precision (that is, ordinary

ﬂoating point) registers each processor has.

Silicon Graphics recommends you specify the same value for both

–dpregisters and –fpregisters. The default values for integer are 16 for both

options. When compiled in 32-bit mode, SGI recommends that you do not

specify 16, although that is what the hardware supports. It is better to specify

a smaller value for integer, like 12, to provide extra registers in case the

compiler needs them. In 64-bit mode, where the hardware supports 32

registers, specify 28 for integer.

Enabling Loop Unrolling

The –unroll and the –unroll2 options control how the compiler unrolls

scalar loops. When loops cannot be optimized for concurrent execution, loop

execution is often more efﬁcient when the loops are unrolled. (Fewer

iterations with more work per iteration require less overhead overall.) You

must also specify –scalaropt= 2 when using these options.

The –unroll=integer (or –ur=integer) option directs the compiler to unroll

inner loops. integer speciﬁes the number of times to replicate the loop. The

default value is 4.

0 Uses default values to unroll.

1 Disables unrolling.

2-nUnrolls at most, this many iterations.

The –unroll2=weight (or –ur2=weight) option speciﬁes an upper bound on

the number of operations in a loop when unrolling it with the –unroll

option. The default value for weight is 100. The compiler unrolls an inner

loop until the number of operations (the amount of work) in the unrolled

loop is close to this upper bound, or until the number of iterations speciﬁed

in the –unroll option is reached, whichever occurs ﬁrst.

Performing Advanced Optimizations

For the –unroll2 option the compiler analyzes a given loop by computing an

estimate of the computational work that is inside the loop for one iteration.

This rough estimate is obtained by adding the number of:

• assignments

•IF statements

• subscripts

• arithmetic operations

The following example uses the C*$* UNROLL directive (see “Enabling

Loop Unrolling” in Chapter 9) to specify 8 for the maximum number of

iterations to unroll and 100 for the maximum “work per unrolled iteration.”

(This is equivalent to specifying –WK,–unroll=8,–unroll2=100.)

C*$*UNROLL(8,100)

DO 10 I = 2,N

A(I) = B(I)/A(I-1)

10 CONTINUE

This example has:

1 assignment

0IF statements

3 subscripts

2 arithmetic operators

-------------------------

6 is the weighted sum (the work for 1 iteration)

This weighted sum is then divided into 100 to give a potential unrolling

factor of 16. However, the example has also speciﬁed 8 for the maximum

number of unrolled iterations. The compiler takes the minimum of the two

values (8) and unrolls that many iterations. (The maximum number of

iterations the compiler unrolls is 100.)

Chapter 5: Scalar Optimizations

In this case (an unknown number of iterations), the compiler generates two

loops - the primary unrolled loop and a cleanup loop to ensure that the

number of iterations in the main loop is a multiple of the unrolling factor.

The result is the following:

INTEGER I1

C*$*UNROLL(8,100)

I1 = MOD (N - 1, 8)

DO 2 I=2,I1+1

A(I) = B(I) / A(I-1)

2 CONTINUE

DO 10 I=I1+2,N,8

A(I) = B(I)/A(I-1)

A(I+1) = B(I+1) / A(I)

A(I+2) = B(I+2) / A(I+1)

A(I+3) = B(I+3) / A(I+2)

A(I+4) = B(I+4) / A(I+3)

A(I+5) = B(I+5) / A(I+4)

A(I+6) = B(I+6) / A(I+5)

A(I+7) = B(I+7) / A(I+6)

10 CONTINUE

Recognizing Directives

The –directives=list option (or –dr=list) speciﬁes which type of directives to

accept. list can contain any combination of the following values:

a Accepts Silicon Graphics C*$* ASSERT assertions.

c Accepts Cray CDIR$ directives.

k Accepts Silicon Graphics C*$* and C$PAR directives.

p Accepts parallel programming directives.

s Accepts Sequent C$ directives.

v Accepts VAST CVD$ directives.

The default value for list is ackpv. For example, –WK,–directives=k enables

Silicon Graphics directives only, whereas –WK,–directives=kas enables

Silicon Graphics directives and assertions and Sequent directives. To disable

all of the above options, enter –nodirectives or –directives (without any

values for list) on the command line. Chapter 9, “Fine-Tuning Program

Performing Advanced Optimizations

Execution,” describes the Silicon Graphics, Cray, Sequent, and VAST

directives the compiler accepts.

Assertions are similar in form to directives, but they assert program

characteristics that the compiler can use in its optimizations. In addition to

specifying a in list, you can control whether the compiler accepts assertions

using the C*$* ASSERTIONS and C*$* NOASSERTIONS directives (refer

to “Using Assertions” in Chapter 9).

Specifying Recursion

The –recursion option (or –rc) allows the compiler to call subroutines and

functions in the source program recursively (that is, a subroutine or function

calls itself, or it calls another routine which calls it). Recursion affects storage

allocation decisions.

This option is enabled by default. To disable it, specify –norecursion (or

–nrc).

Unsafe transformations can occur unless the –recursion option is enabled

for each recursive routine that the compiler processes.

Chapter 6

6. Inlining and Interprocedural Analysis

This chapter contains the following sections:

• “Overview” describes inlining and interprocedural analysis.

• “Using Command Line Options” explains how to use command line

options to perform inlining and interprocedural analysis (IPA).

• “Conditions That Prevent Inlining and IPA” lists several conditions that

prevent inlining and interprocedural analysis.

Overview

Inlining is the process of replacing a function reference with the text of the

function. This process eliminates the overhead of the function call and can

assist other optimizations by making relationships between function

arguments, returned values, and the surrounding code easier to ﬁnd.

Interprocedural analysis (IPA) is the process of inspecting called functions

for information on relationships between arguments, returned values, and

global data. This process can provide many of the beneﬁts of inlining

without replacing the function reference.

You can perform inlining and IPA from the command line and using

directives in your source code.

Chapter 6: Inlining and Interprocedural Analysis

Using Command Line Options

The compiler performs inlining and IPA when you specify the options listed

in Table 6-1 along with the –WK option using the following syntax:

%f77 [f77option ...] -WK,option[,option]... ﬁle

f77_option is any option you can specify directly to the compiler and option is

any of the options listed in Table 6-1.

Table 6-1 Inlining and IPA Options

Long Option Name Short Option Name Default Value

–inline[=list] –inl[=list] option off

–ipa[=list] –ipa[=list] option off

–inline_and _copy –inlc option off

–inline_looplevel=integer –inll=integer 2

–ipa_looplevel=integer –ipall=integer 2

–inline_depth=integer –ind=integer 2

–inline_man –inm option off

–ipa_man –ipam option off

–inline_from_ﬁles=list –inff=list option off

–ipa_from_ﬁles=list –ipaff=list option off

–inline_from_libraries=list –inﬂ=list option off

–ipa_from_libraries=list –ipa=list option off

–inline_create[=name] –incr=[=name] option off

–ipa_create=[=name] –ipacr=[=name] option off

Using Command Line Options

Specifying Routines for Inlining or IPA

The –inline[=list] option (or –inl[=list]) provides a list of routines to be

expanded inline; the –ipa[=list] option provides a list of routines to be

analyzed. The routine names in list must be separated by colons. If you do

not specify a list of routines, the compiler expands all eligible routines. The

compiler looks for the routines in the current source ﬁle, unless you specify

an –inline_from or –ipa_from option. Refer to “Specifying Where to Search

for Routines” on page 97 for details.

Example

The following command performs inline expansion on the two routines

saxpy and daxpy from the ﬁle foo.f:

%f77 -WK,-inline=saxpy:daxpy foo.f

Refer to “Conditions That Prevent Inlining and IPA” on page 100 for

information about conditions that prevent inlining and IPA.

The –inline_and_copy (or –inlc) option functions like the –inline option,

except that the compiler copies the unoptimized text of a routine into the

transformed code ﬁle each time the routine is called or referenced. Use this

option when inlining routines that are called from the ﬁle in which they are

located. This option has no special effect when the routines being inlined are

being taken from a library or separate source ﬁle.

When a routine has been inlined everywhere it is used, leaving it

unoptimized saves compilation time. When a program involves multiple

source ﬁles, the unoptimized routine is still available in case another source

ﬁle contains a reference to it.

Note: The –inline_and_copy algorithm assumes that all CALLs and

references to the routine precede the routine itself in the source ﬁle. If the

routine is referenced after the text of the routine and the compiler cannot

inline that particular call site, it invokes the unoptimized version of the

routine.

Chapter 6: Inlining and Interprocedural Analysis

Specifying Occurrences for Inlining and IPA

The loop level, depth, and manual options allow you to specify speciﬁc

instances of the routines speciﬁed with the –inline or –ipa options to

process.

Loop Level

The–inline_looplevel=integer (or –inll=integer) and –ipa_looplevel=integer

(or –ipall=integer) options enable you to limit inlining and interprocedural

analysis to routines that are referenced in deeply nested loops, where the

reduced call overhead or enhanced optimization is multiplied.

integer is deﬁned from the most deeply nested leaf of the call graph. To

determine which loops are most deeply nested, the compiler constructs a call

graph to account for nesting of loops farther up the call chain. For example,

if you specify 1 for integer, the compiler expands routines in only the most

deeply nested loop. If you specify 2 for integer, the compiler expand routines

in the deepest and second deepest nested loops, and so on. Specifying a large

number for integer enables inlining/IPA at any nesting level up to and

including the integer value. If you do not specify –inline/ipa_looplevel, the

loop level is 2.

Example

Consider the following code:

PROGRAM MAIN

CALL A ------> SUBROUTINE A

CALL B -----> SUBROUTINE B

ENDDO DO

CALL C -------> SUBROUTINE C

ENDDO

Using Command Line Options

The CALL B is inside a doubly-nested loop and therefore, is more proﬁtable

for the compiler to expand than the CALL A. The CALL C is quadruply

nested, so inlining Cyields the greatest gain of the three.

For –inline_looplevel=1, only the routines referenced in the most

deeply-nested call sites are inlined (subroutine C in the above example). (If

more than one routine is called at the same loop nest level, the compiler

selects all of them when that level is inlined/analyzed.)

–inline_looplevel=2 inlines only routines called at the most deeply-nested

level and one loop less deeply-nested. (–inline_looplevel=3 would be

required to inline subroutine B, because its call is two loops less nested than

the call to subroutine C. A value of 3 or greater causes the compiler to inline

C into B, then the new B to be inlined into the main program.)

The calling tree written to the listing ﬁle includes the nesting depth level of

each call in each program unit and the aggregate nesting depth (the sum of

the nesting depths for each call site, starting from the main program). You

can use this information to identify the best routines for inlining.

A routine that passes the –inline_looplevel test is inlined everywhere it is

used, even places that are not in deeply-nested loops. If some, but not all,

invocations of a routine are to be expanded, use the C*$* INLINE or C*$*

IPA directives just before each CALL/reference to be expanded (refer to

“Fine-Tuning Inlining and IPA” in Chapter 9).

Because inlining increases the size of the code, the extra paging and cache

contention can actually slow down a program. Restricting inlining to

routines used in DO loops multiplies the beneﬁts of eliminating subroutine

and function call overhead for a given amount of code space expansion. (If

inlining appears to have slowed an application code, investigate using IPA,

which has little effect on code space and the number of temporary variables.)

Chapter 6: Inlining and Interprocedural Analysis

Depth

The –inline_depth=integer option (or –ind=integer) restricts the number of

times the compiler continues to attempt inlining already inlined routines.

Valid values for integer are

1-10 Speciﬁes a depth to which inlining is limited. The default

is 2.

0 Uses the default value.

-1 Limits inline expansion to only those routines that do not

reference other routines (that is, only leaf routines are

inlined). The compiler does not support any other negative

values.

When a routine is expanded inline, it can contain references to other

routines. The compiler must decide whether to recursively expand these

references (which might themselves contain yet other references, and so on).

This option limits the number of times the compiler performs this recursive

expansion. Note that the default setting is quite low; if you know inlining is

useful for a particular program, increase this setting.

Note: There is no –ipa_depth option.

Recursive inlining can be quite expensive in compilation time. Exercise

discretion in its use.

Manual Control

The –inline_man (or –inm) option enables recognition of the C*$* INLINE

directive. This directive, described in “Fine-Tuning Inlining and IPA” in

Chapter 9, allows you to select individual instances of routines to be inlined.

The –ipa_man (or –ipam) option is the analogous option for the C*$* IPA

directive.

Using Command Line Options

Specifying Where to Search for Routines

The options listed in Table 6-2 tell the compiler where to search for the

routines speciﬁed with the –inline or –ipa options. If you do not specify

either option, the compiler searches the current source ﬁle by default.

If one of the names in list is a directory, the compiler uses all appropriate ﬁles

in that directory. You can specify multiple ﬁles and directories

simultaneously using a colon-separated list.

For example

-WK,-inline_from_files=file1:file2:file3

The compiler recognizes the type of ﬁle from its extension, or lack of one, as

described in Table 6-3.

Table 6-2 Inlining and IPA Search Command Line Options

Long Option Name Short Option Name

–inline_from_ﬁles=list –inff=list

–ipa_from_ﬁles=list –ipaff=list

–inline_from_libraries=list –inﬂ=list

–ipa_from_libraries=list –ipaﬂ=list

Table 6-3 Filename Extensions

Extension Type of File

.f, .F, .for, .FOR Fortran source

.i Fortran source run through cpp

.klib Library created with –inline_create or –ipa_create option

Other Directory

Chapter 6: Inlining and Interprocedural Analysis

The compiler recognizes two special abbreviations when speciﬁed in list:

• “-” means current source ﬁle (as listed on the command line or

speciﬁed in an –input=ﬁle command line option)

• “.” means the current working directory

Example

The following command speciﬁes inline expansion on the source ﬁle, calc.f:

%f77 -WK,-inline,-inline_from_files=-:input.f calc.f

When executed, the compiler searches the current source ﬁlecalc.f and

input.f for all eligible routines to expand.It also searches for all eligible

routines because the –inline option was speciﬁed without a list.

If you specify a non-existent ﬁle or directory, the compiler issues an error.

If you specify multiple –inline_from or –ipa_from options, the compiler

concatenates their lists to produce a bigger universe. The lists are searched

in the order that they appear on the command line.

The compiler resolves routine name references by a searching for them in the

order that they appear in –inline_from/–ipa_from options on the command

line. Libraries are searched in their original lexical order.

Note: These options by themselves do not initiate inlining or IPA. They only

specify where to look for the routines. Use them in conjunction with the

appropriate –inline or –ipa option.

Creating Libraries

When performing inlining and IPA, the compiler analyzes the routines in the

source program. Normally, inlining is done directly from a source ﬁle.

However, when inlining the same set of routines in many different

programs, it is more efﬁcient to create a pre-analyzed library of the routines.

Use the –inline_create[=name] option (or –incr[=name]) to create a library of

prepared routines (for later use with the –inline_from_libraries option). The

compiler assigns name to the library ﬁle it creates; for maximum

compatibility, use the ﬁle name extension .klib. For example: samp.klib.

Using Command Line Options

The –ipa_create[=name] option (or –ipacr[=name]) is the analogous option

for IPA.

You do not have to generate your inlining/IPA library from the same source

that will actually be linked into the running program. This capability can

cause errors, but it can also be quite useful. For example, you can write a

library of hand-optimized assembly language routines, then construct an

IPA library using Fortran routines that mimic the behavior of the assembly

code. Thus, you can do parallelism analysis with IPA correctly, but still

actually call the hand-optimized assembly routines.

The procedure for creating and using a library for inlining or IPA is given

below.

1. Create a library using the –inline_create option (or the –ipa_create

option for IPA). For example, the following command line creates a

library called prog.klib for the source program prog.f:

%f77 -WK,-inline_create=prog.klib prog.f

When you specify this option the compiler creates only the library; it

does not compile the source program or create a transformed version of

the ﬁle.

2. Compile the program with inlining enabled and specify the new

library:

%f77 -WK,-inl,-inlf=prog.klib samp.f

Note: Libraries created for inlining contain complete information and can be

used for both inlining and IPA. Libraries created for IPA contain only

summary information and can be used only for IPA.

When creating a library, you can specify only one –inline_create

(–ipa_create) option. Therefore, you can create only one library at a time. The

compiler overwrites any existing ﬁle with the same name as the library.

If you do not specify the –inline (–ipa) option along with the –inline_create

(–ipa_create) option, the compiler includes all routines from the inlining

universe in the library, if possible. If you specify –inline=list or –ipa=list, the

compiler includes only the named routines in the library.

100

Chapter 6: Inlining and Interprocedural Analysis

Conditions That Prevent Inlining and IPA

This section lists conditions that prevent the compiler from inlining and

analyzing subroutines and functions, whether from a library or source ﬁle.

Many constructs that prevent inlining will also stop or restrict

interprocedural analysis.

Conditions that inhibit inlining:

• Dummy and actual parameters are mismatched in type or class.

• Dummy parameters are missing.

• Actual parameters are missing and the corresponding dummy

parameters are arrays.

• An actual parameter is a non-scalar expression (for example, A+B,

where A and B are arrays).

• The number of actual parameters differs from the number of dummy

parameters.

• The size of an array actual parameter differs from the array dummy

parameter and the arrays cannot be made linear.

• The calling routine and called routine have mismatched COMMON

declarations.

• The called routine has EQUIVALENCE statements (some of these can

be handled).

• The called routine contains NAMELIST statements.

• The called routine has dynamic arrays.

• The CALL to be expanded has alternate return parameters.

Conditions That Prevent Inlining and IPA

101

Inlining is also inhibited when the routine to be inlined

• is too long (he limit is about 600 lines)

• contains a SAVE statement

• contains variables that are live-on-entry, even if they are not in explicit

SAVE statements

• contains a DATA statement (DATA implies SAVE) and the variable is

live-on-entry

• contains a CALL with a subroutine or function name as an argument

• contains a C*$*INLINE directive

• contains unsubscripted array references in I/O statements

• contains POINTER statements

103

Chapter 7

7. Fortran Enhancements for Multiprocessors

This chapter contains these sections:

• “Overview” provides an overview of this chapter.

• “Parallel Loops” discusses the concept of parallel DO loops.

• “Writing Parallel Fortran” explains how to use compiler directives to

generate code that can be run in parallel.

• “Analyzing Data Dependencies for Multiprocessing” describes how to

analyze DO loops to determine whether they can be parallelized.

• “Breaking Data Dependencies” explains how to rewrite DO loops that

contain data dependencies so that some or all of the loop can be run in

parallel.

• “Work Quantum” describes how to determine whether the work

performed in a loop is greater than the overhead associated with

multiprocessing the loop.

• “Cache Effects” explains how to write loops that account for the effect

of the cache.

• “Advanced Features” describes features that override multiprocessing

defaults and customize parallelism.

• “DOACROSS Implementation” discusses how multiprocessing is

implemented in a DOACROSS routine.

• “PCF Directives” describes how the PCF directives implement a

general model of parallelism.

104

Chapter 7: Fortran Enhancements for Multiprocessors

Overview

The Silicon Graphics Fortran compiler allows you to apply the capabilities

of a Silicon Graphics multiprocessor workstation to the execution of a single

job. By coding a few simple directives, the compiler splits the job into

concurrently executing pieces, thereby decreasing the wall-clock run time of

the job.

This chapter discusses techniques for analyzing your program and

converting it to multiprocessing operations. Chapter 8, “Compiling and

Debugging Parallel Fortran,” gives compilation and debugging instructions

for parallel processing.

Parallel Loops

The model of parallelism used focuses on the Fortran DO loop. The compiler

executes different iterations of the DO loop in parallel on multiple

processors. For example, suppose a DO loop consisting of 200 iterations will

run on a machine with four processors using the SIMPLE scheduling

method (described in“CHUNK, MP_SCHEDTYPE” on page 108). The ﬁrst

50 iterations run on one processor, the next 50 on another, and so on. The

multiprocessing code adjusts itself at run time to the number of processors

actually present on the machine. Thus, if the above 200-iteration loop was

moved to a machine with only two processors, it would be divided into two

blocks of 100 iterations each, without any need to recompile or relink. In fact,

multiprocessing code can even be run on single-processor machines. The

above loop would be divided into one block of 200 iterations. This allows

code to be developed on a single-processor Silicon Graphics workstation,

and later run on an IRIS POWER Series multiprocessor.

The processes that participate in the parallel execution of a task are arranged

in a master/slave organization. The original process is the master. It creates

zero or more slaves to assist. When a parallel DO loop is encountered, the

master asks the slaves for help. When the loop is complete, the slaves wait

on the master, and the master resumes normal execution. The master process

and each of the slave processes are called a thread of execution or simply a

thread. By default, the number of threads is set equal to the number of

processors on the particular machine (this number cannot exceed four).

Writing Parallel Fortran

105

If you want, you can override the default and explicitly control the number

of threads of execution used by a Fortran job.

For multiprocessing to work correctly, the iterations of the loop must not

depend on each other; each iteration must stand alone and produce the same

answer regardless of when any other iteration of the loop is executed. Not all

DO loops have this property, and loops without it cannot be correctly

executed in parallel. However, many of the loops encountered in practice ﬁt

this model. Further, many loops that cannot be run in parallel in their

original form can be rewritten to run wholly or partially in parallel.

To provide compatibility for existing parallel programs, Silicon Graphics has

chosen to adopt the syntax for parallelism used by Sequent Computer

Corporation. This syntax takes the form of compiler directives embedded in

comments. These fairly high-level directives provide a convenient method

for you to describe a parallel loop, while leaving the details to the Fortran

compiler. For advanced users the proposed Parallel Computing Forum

(PCF) standard (ANSI-X3H5 91-0023-B Fortran language binding) is

available (refer to “PCF Directives” on page 143). Additionally, there are a

number of special routines that permit more direct control over the parallel

execution (refer to “Advanced Features” on page 133 for more information.)

Writing Parallel Fortran

The Fortran compiler accepts directives that cause it to generate code that

can be run in parallel. The compiler directives look like Fortran comments:

they begin with a C in column one. If multiprocessing is not turned on, these

statements are treated as comments. This allows the identical source to be

compiled with a single-processing compiler or by Fortran without the

multiprocessing option. The directives are distinguished by having a $ as the

second character. There are six directives that are supported:

C$DOACROSS,C$&,C$,C$MP_SCHEDTYPE,C$CHUNK, and

C$COPYIN. The C$COPYIN directive is described in “Local COMMON

Blocks” on page 138. This section describes the others.

106

Chapter 7: Fortran Enhancements for Multiprocessors

C$DOACROSS

The essential compiler directive for multiprocessing is C$DOACROSS. This

directive directs the compiler to generate special code to run iterations of a

DO loop in parallel. The C$DOACROSS directive applies only to the next

statement (which must be a DO loop).

The C$DOACROSS directive has the form

C$DOACROSS [clause [ [,] clause ...]

where valid values for the optional clause are

[IF (logical_expression)]

[{LOCAL | PRIVATE} (item[,item ...])]

[{SHARED | SHARE} (item[,item ...])]

[{LASTLOCAL | LAST LOCAL} (item[,item ...])]

[REDUCTION (item[,item ...])]

[MP_SCHEDTYPE=mode ]

[{CHUNK=integer_expression | BLOCKED(integer_expression)}]

The preferred form of the directive (as generated by WorkShop Pro MPF)

uses the optional commas between clauses. This section discusses the

meaning of each clause.

TheIF clause determines whether the loop is actually executed in parallel. If

the logical expression is TRUE, the loop is executed in parallel. If the

expression is FALSE, the loop is executed serially. Typically, the expression

tests the number of times the loop will execute to be sure that there is enough

work in the loop to amortize the overhead of parallel execution. Currently,

the break-even point is about 4000 CPU clocks of work, which normally

translates to about 1000 ﬂoating point operations.

LOCAL, SHARE, LASTLOCAL

The LOCAL,SHARE, and LASTLOCAL clauses specify lists of variables

used within parallel loops. A variable can appear in only one of these lists.

To make the task of writing these lists easier, there are several defaults. The

loop-iteration variable is LASTLOCAL by default. All other variables are

SHARE by default.

Writing Parallel Fortran

107

LOCAL Speciﬁes variables that are local to each process. If a variable

is declared as LOCAL, each iteration of the loop is given its

own uninitialized copy of the variable. You can declare a

variable as LOCAL if its value does not depend on any

other iteration of the loop and if its value is used only within

a single iteration. In effect the LOCAL variable is just

temporary; a new copy can be created in each loop iteration

without changing the ﬁnal answer. The name LOCAL is

preferred over PRIVATE.

SHARE Speciﬁes variables that are shared across all processes. If a

variable is declared as SHARE, all iterations of the loop use

the same copy of the variable. You can declare a variable as

SHARE if it is only read (not written) within the loop or if it

is an array where each iteration of the loop uses a different

element of the array. The name SHARE is preferred over

SHARED.

LASTLOCAL Speciﬁes variables that are local to each process.Unlike with

the LOCAL clause, the compiler saves only the value of the

logically last iteration of the loop when it exits. The name

LASTLOCAL is preferred over LAST LOCAL.

LOCAL is a little faster than LASTLOCAL, so if you do not need the ﬁnal

value, it is good practice to put the DO loop index variable into the LOCAL

list, although this is not required.

Only variables can appear in these lists. In particular, COMMON blocks

cannot appear in a LOCAL list (but see the discussion of local COMMON

blocks in “Advanced Features” on page 133). The SHARE,LOCAL, and

LASTLOCAL lists give only the names of the variables. If any member of the

list is an array, it is listed without any subscripts.

REDUCTION

The REDUCTION clause speciﬁes variables involved in a reduction

operation. In a reduction operation, the compiler keeps local copies of the

variables and combines them when it exits the loop. For an example and

details see “Example 4: Sum Reduction” on page 123 of “Breaking Data

Dependencies.” An element of the REDUCTION list must be an individual

variable (also called a scalar variable) and cannot be an array. However, it

108

Chapter 7: Fortran Enhancements for Multiprocessors

can be an individual element of an array. In a REDUCTION clause, it would

appear in the list with the proper subscripts.

One element of an array can be used in a reduction operation, while other

elements of the array are used in other ways. To allow for this, if an element

of an array appears in the REDUCTION list, the entire array can also appear

in the SHARE list.

The four types of reductions supported are sum(+), product(*), min(), and

max(). Note that min(max) reductions must use the min(max) intrinsic

functions to be recognized correctly.

The compiler conﬁrms that the reduction expression is legal by making some

simple checks. The compiler does not, however, check all statements in the

DO loop for illegal reductions. You must ensure that the reduction variable

is used correctly in a reduction operation.

CHUNK, MP_SCHEDTYPE

The CHUNK and MP_SCHEDTYPE clauses affect the way the compiler

schedules work among the participating tasks in a loop. These clauses do not

affect the correctness of the loop. They are useful for tuning the performance

of critical loops. See “Load Balancing” on page 131 for more details.

For the MP_SCHEDTYPE=mode clause, mode can be one of the following:

[SIMPLE | simple | STATIC | static]

[DYNAMIC | dynamic]

[INTERLEAVE | interleave | INTERLEAVED | interleaved]

[GUIDED | guided | GSS | gss]

[RUNTIME | runtime]

You can use any or all of these modes in a single program. The CHUNK

clause is valid only with the DYNAMIC and INTERLEAVE modes.

SIMPLE,DYNAMIC,INTERLEAVE,GSS, and RUNTIME are the

preferred names for each mode.

The simple method (MP_SCHEDTYPE=SIMPLE) divides the iterations

among processes by dividing them into contiguous pieces and assigning one

piece to each process.

Writing Parallel Fortran

109

In dynamic scheduling (MP_SCHEDTYPE=DYNAMIC) the iterations are

broken into pieces the size of which is speciﬁed with the CHUNK clause. As

each process ﬁnishes a piece, it enters a critical section to grab the next

available piece. This gives good load balancing at the price of higher

overhead.

The interleave method (MP_SCHEDTYPE=INTERLEAVE) breaks the

iterations into pieces of the size speciﬁed by the CHUNK option, and

execution of those pieces is interleaved among the processes. Instead of the

CHUNK option, you can specify the –WK,–chunk command line option

(see “Memory Management Options” in Chapter 5 for details). For example,

if there are four processes and CHUNK=2, then the ﬁrst process will execute

iterations 1–2, 9–10, 17–18, …; the second process will execute iterations 3–4,

11–12, 19–20,…; and so on. Although this is more complex than the simple

method, it is still a ﬁxed schedule with only a single scheduling decision.

The fourth method is a variation of the guided self-scheduling algorithm

(MP_SCHEDTYPE=GSS). Here, the piece size is varied depending on the

number of iterations remaining. By parceling out relatively large pieces to

start with and relatively small pieces toward the end, the system can achieve

good load balancing while reducing the number of entries into the critical

section.

In addition to these four methods, you can specify the scheduling method at

run time (MP_SCHEDTYPE=RUNTIME). Here, the scheduling routine

examines values in your run-time environment and uses that information to

select one of the other four methods. See “Advanced Features” on page 133

for more details.

If both the MP_SCHEDTYPE and CHUNK clauses are omitted, SIMPLE

scheduling is assumed.If MP_SCHEDTYPE is set to INTERLEAVE or

DYNAMIC and the CHUNK clause are omitted, CHUNK=1 is assumed. If

MP_SCHEDTYPE is set to one of the other values, CHUNK is ignored. If the

MP_SCHEDTYPE clause is omitted, but CHUNK is set, then

MP_SCHEDTYPE=DYNAMIC is assumed.

110

Chapter 7: Fortran Enhancements for Multiprocessors

Example 1

The code fragment

DO 10 I = 1, 100

A(I) = B(I)

10 CONTINUE

could be multiprocessed with the directive

C$DOACROSS LOCAL(I), SHARE(A, B)

DO 10 I = 1, 100

A(I) = B(I)

10 CONTINUE

Here, the defaults are sufﬁcient, provided A and B are mentioned in a

nonparallel region or in another SHARE list. The following then works:

C$DOACROSS

DO 10 I = 1, 100

A(I) = B(I)

10 CONTINUE

Example 2

Consider the following code fragment:

DO 10 I = 1, N

X = SQRT(A(I))

B(I) = X*C(I) + X*D(I)

10 CONTINUE

You can be fully explicit, as shown below:

C$DOACROSS LOCAL(I, X), share(A, B, C, D, N)

DO 10 I = 1, N

X = SQRT(A(I))

B(I) = X*C(I) + X*D(I)

10 CONTINUE

Writing Parallel Fortran

111

You can also use the defaults:

C$DOACROSS LOCAL(X)

DO 10 I = 1, N

X = SQRT(A(I))

B(I) = X*C(I) + X*D(I)

10 CONTINUE

See Example 5 in “Analyzing Data Dependencies for Multiprocessing” on

page 114 for more information on this example.

Example 3

Consider the following code fragment:

DO 10 I = M, K, N

X = D(I)**2

Y = X + X

DO 20 J = I, MAX

A(I,J) = A(I,J) + B(I,J) * C(I,J) * X + Y

20 CONTINUE

10 CONTINUE

PRINT*, I, X

Here, the ﬁnal values of I and X are needed after the loop completes. A

correct directive is shown below:

C$DOACROSS LOCAL(Y,J), LASTLOCAL(I,X),

C$& SHARE(M,K,N,ITOP,A,B,C,D)

DO 10 I = M, K, N

X = D(I)**2

Y = X + X

DO 20 J = I, ITOP

A(I,J) = A(I,J) + B(I,J) * C(I,J) *X + Y

20 CONTINUE

10 CONTINUE

PRINT*, I, X

112

Chapter 7: Fortran Enhancements for Multiprocessors

You can also use the defaults:

C$DOACROSS LOCAL(Y,J), LASTLOCAL(X)

DO 10 I = M, K, N

X = D(I)**2

Y = X + X

DO 20 J = I, MAX

A(I,J) = A(I,J) + B(I,J) * C(I,J) *X + Y

20 CONTINUE

10 CONTINUE

PRINT*, I, X

I is a loop index variable for the C$DOACROSS loop, so it is LASTLOCAL

by default. However, even though J is a loop index variable, it is not the loop

index of the loop being multiprocessed and has no special status. If it is not

declared, it is assigned the default value of SHARE, which produces an

incorrect answer.

C$&

Occasionally, the clauses in the C$DOACROSS directive are longer than one

line. Use the C$& directive to continue the directive onto multiple lines. For

example:

C$DOACROSS share(ALPHA, BETA, GAMMA, DELTA,

C$& EPSILON, OMEGA), LASTLOCAL(I, J, K, L, M, N),

C$& LOCAL(XXX1, XXX2, XXX3, XXX4, XXX5, XXX6, XXX7,

C$& XXX8, XXX9)

TheC$ directive is considered a comment line except when multiprocessing.

A line beginning with C$ is treated as a conditionally compiled Fortran

statement. The rest of the line contains a standard Fortran statement. The

statement is compiled only if multiprocessing is turned on. In this case, the

C and $ are treated as if they are blanks. They can be used to insert

debugging statements, or an experienced user can use them to insert

arbitrary code into the multiprocessed version.

Writing Parallel Fortran

113

The following code demonstrates the use of the C$ directive:

C$ PRINT 10

C$ 10 FORMAT('BEGIN MULTIPROCESSED LOOP')

C$DOACROSS LOCAL(I), SHARE(A,B)

DO I = 1, 100

CALL COMPUTE(A, B, I)

END DO

C$MP_SCHEDTYPE and C$CHUNK

The C$MP_SCHEDTYPE=mode directive acts as an implicit

MP_SCHEDTYPE clause for all C$DOACROSS directives in scope. mode is

any of the modes listed in the section called “CHUNK, MP_SCHEDTYPE”

on page 108. A C$DOACROSS directive that does not have an explicit

MP_SCHEDTYPE clause is given the value speciﬁed in the last directive

prior to the look, rather than the normal default. If the C$DOACROSS does

have an explicit clause, then the explicit value is used.

The C$CHUNK=integer_expression directive affects the CHUNK clause of a

C$DOACROSS in the same way that the C$MP_SCHEDTYPE directive

affects the MP_SCHEDTYPE clause for all C$DOACROSS directives in

scope. Both directives are in effect from the place they occur in the source

until another corresponding directive is encountered or the end of the

procedure is reached.

You can also invoke this functionality from the command line during a

compile. The –mp_schedtype=schedule_type and –chunk= integer command

line options have the effect of implicitly putting the corresponding

directive(s) as the ﬁrst lines in the ﬁle.

Nesting C$DOACROSS

The Fortran compiler does not support direct nesting of C$DOACROSS

loops.

114

Chapter 7: Fortran Enhancements for Multiprocessors

For example, the following is illegal and generates a compilation error:

C$DOACROSS LOCAL(I)

DO I = 1, N

C$DOACROSS LOCAL(J)

DO J = 1, N

A(I,J) = B(I,J)

END DO

However, to simplify separate compilation, a different form of nesting is

allowed. A routine that uses C$DOACROSS can be called from within a

multiprocessed region. This can be useful if a single routine is called from

several different places: sometimes from within a multiprocessed region,

sometimes not. Nesting does not increase the parallelism. When the ﬁrst

C$DOACROSS loop is encountered, that loop is run in parallel. If while in

the parallel loop a call is made to a routine that itself has a C$DOACROSS,

this subsequent loop is executed serially.

Analyzing Data Dependencies for Multiprocessing

The essential condition required to parallelize a loop correctly is that each

iteration of the loop must be independent of all other iterations. If a loop

meets this condition, then the order in which the iterations of the loop

execute is not important. They can be executed backward or even at the same

time, and the answer is still the same. This property is captured by the notion

of data independence. For a loop to be data-independent, no iterations of the

loop can write a value into a memory location that is read or written by any

other iteration of that loop. It is all right if the same iteration reads and/or

writes a memory location repeatedly as long as no others do; it is all right if

many iterations read the same location, as long as none of them write to it.

In a Fortran program, memory locations are represented by variable names.

So, to determine if a particular loop can be run in parallel, examine the way

variables are used in the loop. Because data dependence occurs only when

memory locations are modiﬁed, pay particular attention to variables that

appear on the left-hand side of assignment statements. If a variable is not

modiﬁed or if it is passed to a function or subroutine, there is no data

dependence associated with it.

Analyzing Data Dependencies for Multiprocessing

115

The Fortran compiler supports four kinds of variable usage within a parallel

loop: SHARE,LOCAL,LASTLOCAL, and REDUCTION. If a variable is

declared as SHARE, all iterations of the loop use the same copy. If a variable

is declared as LOCAL, each iteration is given its own uninitialized copy. A

variable is declared SHARE if it is only read (not written) within the loop or

if it is an array where each iteration of the loop uses a different element of the

array. A variable can be LOCAL if its value does not depend on any other

iteration and if its value is used only within a single iteration. In effect the

LOCAL variable is just temporary; a new copy can be created in each loop

iteration without changing the ﬁnal answer. As a special case, if only the

very last value of a variable computed on the very last iteration is used

outside the loop (but would otherwise qualify as a LOCAL variable), the

loop can be multiprocessed by declaring the variable to be LASTLOCAL.

“REDUCTION” on page 107 describes the use of REDUCTION variables.

It is often difﬁcult to analyze loops for data dependence information. Each

use of each variable must be examined to see if it fulﬁlls the criteria for

LOCAL,LASTLOCAL,SHARE, or REDUCTION. If all of the variables’

uses conform, the loop can be parallelized. If not, the loop cannot be

parallelized as it stands, but possibly can be rewritten into an equivalent

parallel form. (See “Breaking Data Dependencies” on page 120 for

information on rewriting code in parallel form.)

An alternative to analyzing variable usage by hand is to use Power Fortran.

This optional software package is a Fortran preprocessor that analyzes loops

for data dependence. If Power Fortran determines that a loop is

data-independent, it automatically inserts the required compiler directives

(see “Writing Parallel Fortran” on page 105). If Power Fortran cannot

determine whether the loop is independent, it produces a listing ﬁle

detailing where the problems lie. You can use Power Fortran in conjunction

with WorkShop Pro MPF to visualize these dependencies and make it easier

to understand the obstacles to parallelization.

The rest of this section is devoted to analyzing sample loops, some parallel

and some not parallel.

Example 1: Simple Independence

DO 10 I = 1,N

10 A(I) = X + B(I)*C(I)

116

Chapter 7: Fortran Enhancements for Multiprocessors

In this example, each iteration writes to a different location in A, and none

of the variables appearing on the right-hand side is ever written to, only read

from. This loop can be correctly run in parallel. All the variables are SHARE

except for I, which is either LOCAL or LASTLOCAL, depending on

whether the last value of I is used later in the code.

Example 2: Data Dependence

DO 20 I = 2,N

20 A(I) = B(I) - A(I-1)

This fragment contains A(I) on the left-hand side and A(I-1) on the right.

This means that one iteration of the loop writes to a location in A and the

next iteration reads from that same location. Because different iterations of

the loop read and write the same memory location, this loop cannot be run

in parallel.

Example 3: Stride Not 1

DO 20 I = 2,N,2

20 A(I) = B(I) - A(I-1)

This example looks like the previous example. The difference is that the

stride of the DO loop is now two rather than one. Now A(I) references every

other element of A, and A(I-1) references exactly those elements of A that are

not referenced by A(I). None of the data locations on the right-hand side is

ever the same as any of the data locations written to on the left-hand side.

The data are disjoint, so there is no dependence. The loop can be run in

parallel. Arrays A and B can be declared SHARE, while variable I should be

declared LOCAL or LASTLOCAL.

Example 4: Local Variable

DO I = 1, N

X = A(I)*A(I) + B(I)

B(I) = X + B(I)*X

END DO

In this loop, each iteration of the loop reads and writes the variable X.

However, no loop iteration ever needs the value of X from any other

iteration. X is used as a temporary variable; its value does not survive from

Analyzing Data Dependencies for Multiprocessing

117

one iteration to the next. This loop can be parallelized by declaring X to be a

LOCAL variable within the loop. Note that B(I) is both read and written by

the loop. This is not a problem because each iteration has a different value

for I, so each iteration uses a different B(I). The same B(I) is allowed to be

read and written as long as it is done by the same iteration of the loop. The

loop can be run in parallel. Arrays A and B can be declared SHARE, while

variable I should be declared LOCAL or LASTLOCAL.

Example 5: Function Call

DO 10 I = 1, N

X = SQRT(A(I))

B(I) = X*C(I) + X*D(I)

10 CONTINUE

The value of X in any iteration of the loop is independent of the value of X in

any other iteration, so X can be made a LOCAL variable. The loop can be run

in parallel. Arrays A, B,C, and D can be declared SHARE, while variable I

should be declared LOCAL or LASTLOCAL.

The interesting feature of this loop is that it invokes an external routine,

SQRT. It is possible to use functions and/or subroutines (intrinsic or user

deﬁned) within a parallel loop. However, make sure that the various parallel

invocations of the routine do not interfere with one another. In particular,

SQRT returns a value that depends only on its input argument, does not

modify global data, and does not use static storage. We say that SQRT has

no side effects.

All the Fortran intrinsic functions listed in Appendix A of the MIPSpro

Fortran 77 Language Reference Manual have no side effects and can safely be

part of a parallel loop. For the most part, the Fortran library functions and

VMS intrinsic subroutine extensions (listed in Chapter 4, “System Functions

and Subroutines,”) cannot safely be included in a parallel loop. In particular,

rand is not safe for multiprocessing. For user-written routines, it is the

responsibility of the user to ensure that the routines can be correctly

multiprocessed.

Caution: Do not use the –static option when compiling routines called

within a parallel loop.

118

Chapter 7: Fortran Enhancements for Multiprocessors

Example 6: Rewritable Data Dependence

INDX = 0

DO I = 1, N

INDX = INDX + I

A(I) = B(I) + C(INDX)

END DO

Here, the value of INDX survives the loop iteration and is carried into the

next iteration. This loop cannot be parallelized as it is written. Making INDX

aLOCAL variable does not work; you need the value of INDX computed in

the previous iteration. It is possible to rewrite this loop to make it parallel

(see Example 1 in “Breaking Data Dependencies” on page 120).

Example 7: Exit Branch

DO I = 1, N

IF (A(I) .LT. EPSILON) GOTO 320

A(I) = A(I) * B(I)

END DO

320 CONTINUE

This loop contains an exit branch; that is, under certain conditions the ﬂow

of control suddenly exits the loop. The Fortran compiler cannot parallelize

loops containing exit branches.

Example 8: Complicated Independence

DO I = K+1, 2*K

W(I) = W(I) + B(I,K) * W(I-K)

END DO

At ﬁrst glance, this loop looks like it cannot be run in parallel because it uses

both W(I) and W(I-K). Closer inspection reveals that because the value of I

varies between K+1 and 2*K, then I-K goes from 1 to K. This means that the

W(I-K) term varies from W(1) up to W(K), while the W(I) term varies from

W(K+1) up to W(2*K). So W(I-K) in any iteration of the loop is never the

same memory location as W(I) in any other iterations. Because there is no

data overlap, there are no data dependencies. This loop can be run in

parallel. Elements W,B, and K can be declared SHARE, while variable I

should be declared LOCAL or LASTLOCAL.

Analyzing Data Dependencies for Multiprocessing

119

This example points out a general rule: the more complex the expression

used to index an array, the harder it is to analyze. If the arrays in a loop are

indexed only by the loop index variable, the analysis is usually

straightforward though tedious. Fortunately, in practice most array indexing

expressions are simple.

Example 9: Inconsequential Data Dependence

INDEX = SELECT(N)

DO I = 1, N

A(I) = A(INDEX)

END DO

There is a data dependence in this loop because it is possible that at some

point I will be the same as INDEX, so there will be a data location that is

being read and written by different iterations of the loop. In this special case,

you can simply ignore it. You know that when I and INDEX are equal, the

value written into A(I) is exactly the same as the value that is already there.

The fact that some iterations of the loop read the value before it is written

and some after it is written is not important because they all get the same

value. Therefore, this loop can be parallelized. Array A can be declared

SHARE, while variable I should be declared LOCAL or LASTLOCAL.

Example 10: Local Array

DO I = 1, N

D(1) = A(I,1) - A(J,1)

D(2) = A(I,2) - A(J,2)

D(3) = A(I,3) - A(J,3)

TOTAL_DISTANCE(I,J) = SQRT(D(1)**2 + D(2)**2 + D(3)**2)

END DO

In this fragment, each iteration of the loop uses the same locations in the D

array. However, closer inspection reveals that the entire D array is being

used as a temporary. This can be multiprocessed by declaring D to be

LOCAL. The Fortran compiler allows arrays (even multidimensional arrays)

to be LOCAL variables with one restriction: the size of the array must be

known at compile time. The dimension bounds must be constants; the

LOCAL array cannot have been declared using a variable or the asterisk

syntax.

120

Chapter 7: Fortran Enhancements for Multiprocessors

Therefore, this loop can be parallelized. Arrays TOTAL_DISTANCE and A

can be declared SHARE, while array D and variable I should be declared

LOCAL or LASTLOCAL.

Breaking Data Dependencies

Many loops that have data dependencies can be rewritten so that some or all

of the loop can be run in parallel. The essential idea is to locate the

statement(s) in the loop that cannot be made parallel and try to ﬁnd another

way to express it that does not depend on any other iteration of the loop. If

this fails, try to pull the statements out of the loop and into a separate loop,

allowing the remainder of the original loop to be run in parallel.

The ﬁrst step is to analyze the loop to discover the data dependencies (see

“Writing Parallel Fortran” on page 105). You can use WorkShop Pro MPF

with MIPSpro Power Fortran 77 to identify the problem areas. Once you

have identiﬁed these areas, you can use various techniques to rewrite the

code to break the dependence. Sometimes the dependencies in a loop cannot

be broken, and you must either accept the serial execution rate or try to

discover a new parallel method of solving the problem. The rest of this

section is devoted to a series of “cookbook” examples on how to deal with

commonly occurring situations. These are by no means exhaustive but cover

many situations that happen in practice.

Example 1: Loop Carried Value

INDX = 0

DO I = 1, N

INDX = INDX + I

A(I) = B(I) + C(INDX)

END DO

This code segment is the same as in “Example 6: Rewritable Data

Dependence” on page 118. INDX has its value carried from iteration to

iteration. However, you can compute the appropriate value for INDX

without making reference to any previous value.

Breaking Data Dependencies

121

For example, consider the following code:

C$DOACROSS LOCAL (I, INDX)

DO I = 1, N

INDX = (I*(I+1))/2

A(I) = B(I) + C(INDX)

END DO

In this loop, the value of INDX is computed without using any values

computed on any other iteration. INDX can correctly be made a LOCAL

variable, and the loop can now be multiprocessed.

Example 2: Indirect Indexing

DO 100 I = 1, N

IX = INDEXX(I)

IY = INDEXY(I)

XFORCE(I) = XFORCE(I) + NEWXFORCE(IX)

YFORCE(I) = YFORCE(I) + NEWYFORCE(IY)

IXX = IXOFFSET(IX)

IYY = IYOFFSET(IY)

TOTAL(IXX, IYY) = TOTAL(IXX, IYY) + EPSILON

100 CONTINUE

It is the ﬁnal statement that causes problems. The indexes IXX and IYY are

computed in a complex way and depend on the values from the IXOFFSET

andIYOFFSET arrays. We do not know if TOTAL (IXX,IYY) in one iteration

of the loop will always be different from TOTAL (IXX,IYY) in every other

iteration of the loop.

122

Chapter 7: Fortran Enhancements for Multiprocessors

We can pull the statement out into its own separate loop by expanding IXX

and IYY into arrays to hold intermediate values:

C$DOACROSS LOCAL(IX, IY, I)

DO I = 1, N

IX = INDEXX(I)

IY = INDEXY(I)

XFORCE(I) = XFORCE(I) + NEWXFORCE(IX)

YFORCE(I) = YFORCE(I) + NEWYFORCE(IY)

IXX(I) = IXOFFSET(IX)

IYY(I) = IYOFFSET(IY)

END DO

DO 100 I = 1, N

TOTAL(IXX(I),IYY(I)) = TOTAL(IXX(I), IYY(I)) + EPSILON

100 CONTINUE

Here, IXX and IYY have been turned into arrays to hold all the values

computed by the ﬁrst loop. The ﬁrst loop (containing most of the work) can

now be run in parallel. Only the second loop must still be run serially. This

will be true if IXOFFSET or IYOFFSET are permutation vectors.

Before we leave this example, note that if we were certain that the value for

IXX was always different in every iteration of the loop, then the original loop

could be run in parallel. It could also be run in parallel if IYY was always

different. If IXX (or IYY) is always different in every iteration, then

TOTAL(IXX,IYY) is never the same location in any iteration of the loop, and

so there is no data conﬂict.

This sort of knowledge is, of course, program-speciﬁc and should always be

used with great care. It may be true for a particular data set, but to run the

original code in parallel as it stands, you need to be sure it will always be true

for all possible input data sets.

Breaking Data Dependencies

123

Example 3: Recurrence

DO I = 1,N

X(I) = X(I-1) + Y(I)

END DO

This is an example of recurrence, which exists when a value computed in one

iteration is immediately used by another iteration. There is no good way of

running this loop in parallel. If this type of construct appears in a critical

loop, try pulling the statement(s) out of the loop as in the previous example.

Sometimes another loop encloses the recurrence; in that case, try to

parallelize the outer loop.

Example 4: Sum Reduction

SUM = 0.0

DO I = 1,N

SUM = SUM + A(I)

END DO

This operation is known as a reduction. Reductions occur when an array of

values is combined and reduced into a single value. This example is a sum

reduction because the combining operation is addition. Here, the value of

SUM is carried from one loop iteration to the next, so this loop cannot be

multiprocessed. However, because this loop simply sums the elements of

A(I), we can rewrite the loop to accumulate multiple, independent subtotals.

124

Chapter 7: Fortran Enhancements for Multiprocessors

Then we can do much of the work in parallel:

NUM_THREADS = MP_NUMTHREADS()

C IPIECE_SIZE = N/NUM_THREADS ROUNDED UP

IPIECE_SIZE = (N + (NUM_THREADS -1)) / NUM_THREADS

DO K = 1, NUM_THREADS

PARTIAL_SUM(K) = 0.0

C THE FIRST THREAD DOES 1 THROUGH IPIECE_SIZE, THE

C SECOND DOES IPIECE_SIZE + 1 THROUGH 2*IPIECE_SIZE,

C ETC. IF N IS NOT EVENLY DIVISIBLE BY NUM_THREADS,

C THE LAST PIECE NEEDS TO TAKE THIS INTO ACCOUNT,

C HENCE THE "MIN" EXPRESSION.

DO I =K*IPIECE_SIZE -IPIECE_SIZE +1, MIN(K*IPIECE_SIZE,N)

PARTIAL_SUM(K) = PARTIAL_SUM(K) + A(I)

END DO

C NOW ADD UP THE PARTIAL SUMS

SUM = 0.0

DO I = 1, NUM_THREADS

SUM = SUM + PARTIAL_SUM(I)

END DO

The outer K loop can be run in parallel. In this method, the array pieces for

the partial sums are contiguous, resulting in good cache utilization and

performance.

This is an important and common transformation, and so automatic support

is provided by the REDUCTION clause:

SUM = 0.0

C$DOACROSS LOCAL (I), REDUCTION (SUM)

DO 10 I = 1, N

SUM = SUM + A(I)

10 CONTINUE

The previous code has essentially the same meaning as the much longer and

more confusing code above. It is an important example to study because the

idea of adding an extra dimension to an array to permit parallel

computation, and then combining the partial results, is an important

Breaking Data Dependencies

125

technique for trying to break data dependencies. This idea occurs over and

over in various contexts and disguises.

Note that reduction transformations such as this do not produce the same

results as the original code. Because computer arithmetic has limited

precision, when you sum the values together in a different order, as was

done here, the round-off errors accumulate slightly differently. It is likely

that the ﬁnal answer will be slightly different from the original loop. Both

answers are equally “correct.” Most of the time the difference is irrelevant,

but sometimes it can be signiﬁcant, so some caution is in order. If the

difference is signiﬁcant, neither answer is really trustworthy.

This example is a sum reduction because the operator is plus (+). The Fortran

compiler supports three other types of reduction operations:

1. sum: p = p+a(i)

2. product: p = p*a(i)

3. min: m = min(m,a(i))

4. max: m = max(m,a(i))

For example,

C$DOACROSS LOCAL(I),REDUCTION(BG_SUM,BG_PROD,BG_MIN,BG_MAX)

DO I = 1,N

BG_SUM = BG_SUM + A(I)

BG_PROD = BG_PROD * A(I)

BG_MIN = MIN(BG_MIN, A(I))

BG_MAX = MAX(BG_MAX, A(I)

END DO

126

Chapter 7: Fortran Enhancements for Multiprocessors

One further example of a reduction transformation is noteworthy. Consider

the following code:

DO I = 1, N

TOTAL = 0.0

DO J = 1, M

TOTAL = TOTAL + A(J)

END DO

B(I) = C(I) * TOTAL

END DO

Initially, it might look as if the inner loop should be parallelized with a

REDUCTION clause. However, look at the outer I loop. Although TOTAL

cannot be made a LOCAL variable in the inner loop, it fulﬁlls the criteria for

aLOCAL variable in the outer loop: the value of TOTAL in each iteration of

the outer loop does not depend on the value of TOTAL in any other iteration

of the outer loop. Thus, you do not have to rewrite the loop; you can

parallelize this reduction on the outer I loop, making TOTAL and J local

variables.

Work Quantum

A certain amount of overhead is associated with multiprocessing a loop. If

the work occurring in the loop is small, the loop can actually run slower by

multiprocessing than by single processing. To avoid this, make the amount

of work inside the multiprocessed region as large as possible.

Example 1: Loop Interchange

DO K = 1, N

DO I = 1, N

DO J = 1, N

A(I,J) = A(I,J) + B(I,K) * C(K,J)

END DO

Here you have several choices: parallelize the J loop or the I loop. You cannot

parallelize the K loop because different iterations of the K loop will all try to

read and write the same values of A(I,J). Try to parallelize the outermost DO

loop possible, because it encloses the most work. In this example, that is the

Work Quantum

127

I loop. For this example, use the technique called loop interchange. Although

the parallelizable loops are not the outermost ones, you can reorder the loops

to make one of them outermost.

Thus, loop interchange would produce

C$DOACROSS LOCAL(I, J, K)

DO I = 1, N

DO K = 1, N

DO J = 1, N

A(I,J) = A(I,J) + B(I,K) * C(K,J)

END DO

Now the parallelizable loop encloses more work and shows better

performance. In practice, relatively few loops can be reordered in this way.

However, it does occasionally happen that several loops in a nest of loops are

candidates for parallelization. In such a case, it is usually best to parallelize

the outermost one.

Occasionally, the only loop available to be parallelized has a fairly small

amount of work. It may be worthwhile to force certain loops to run without

parallelism or to select between a parallel version and a serial version, on the

basis of the length of the loop.

Example 2: Conditional Parallelism

J = (N/4) * 4

DO I = J+1, N

A(I) = A(I) + X*B(I)

END DO

DO I = 1, J, 4

A(I) = A(I) + X*B(I)

A(I+1) = A(I+1) + X*B(I+1)

A(I+2) = A(I+2) + X*B(I+2)

A(I+3) = A(I+3) + X*B(I+3)

END DO

Here you are using loop unrolling of order four to improve speed. For the

ﬁrst loop, the number of iterations is always fewer than four, so this loop

does not do enough work to justify running it in parallel. The second loop is

128

Chapter 7: Fortran Enhancements for Multiprocessors

worthwhile to parallelize if N is big enough. To overcome the parallel loop

overhead, N needs to be around 500.

An optimized version would use the IF clause on the DOACROSS directive:

J = (N/4) * 4

DO I = J+1, N

A(I) = A(I) + X*B(I)

END DO

C$DOACROSS IF (J.GE.500), LOCAL(I)

DO I = 1, J, 4

A(I) = A(I) + X*B(I)

A(I+1) = A(I+1) + X*B(I+1)

A(I+2) = A(I+2) + X*B(I+2)

A(I+3) = A(I+3) + X*B(I+3)

END DO

ENDIF

Cache Effects

It is good policy to write loops that take the effect of the cache into account,

with or without parallelism. The technique for the best cache performance is

also quite simple: make the loop step through the array in the same way that

the array is laid out in memory. For Fortran, this means stepping through the

array without any gaps and with the leftmost subscript varying the fastest.

Note that this optimization does not depend on multiprocessing, nor is it

required in order for multiprocessing to work correctly. However,

multiprocessing can affect how the cache is used, so it is worthwhile to

understand.

Cache Effects

129

Performing a Matrix Multiply

Consider the following code segment:

DO I = 1, N

DO K = 1, N

DO J = 1, N

A(I,J) = A(I,J) + B(I,K) * C(K,J)

END DO

This is the same as Example 1 in “Work Quantum” on page 126 (after

interchange). To get the best cache performance, the I loop should be

innermost. At the same time, to get the best multiprocessing performance,

the outermost loop should be parallelized. For this example, you can

interchange the I and J loops, and get the best of both optimizations:

C$DOACROSS LOCAL(I, J, K)

DO J = 1, N

DO K = 1, N

DO I = 1, N

A(I,J) = A(I,J) + B(I,K) * C(K,J)

END DO

Understanding Trade-Offs

Sometimes you must choose between the possible optimizations and their

costs. Look at the following code segment:

DO J = 1, N

DO I = 1, M

A(I) = A(I) + B(J)*C(I,J)

END DO

130

Chapter 7: Fortran Enhancements for Multiprocessors

This loop can be parallelized on I but not on J. You could interchange the

loops to put I on the outside, thus getting a bigger work quantum.

C$DOACROSS LOCAL(I,J)

DO I = 1, M

DO J = 1, N

A(I) = A(I) + B(J)*C(I,J)

END DO

However, putting J on the inside means that you will step through the C

array in the wrong direction; the leftmost subscript should be the one that

varies the fastest. It is possible to parallelize the I loop where it stands:

DO J = 1, N

C$DOACROSS LOCAL(I)

DO I = 1, M

A(I) = A(I) + B(J)*C(I,J)

END DO

However, M needs to be large for the work quantum to show any

improvement. In this example, A(I) is used to do a sum reduction, and it is

possible to use the reduction techniques shown in Example 4 of “Breaking

Data Dependencies” on page 120 to rewrite this in a parallel form. (Recall

that there is no support for an entire array as a member of the REDUCTION

clause on a DOACROSS.) However, that involves converting array A from

a one-dimensional array to a two-dimensional array to hold the partial

sums; this is analogous to the way we converted the scalar summation

variable into an array of partial sums.

Cache Effects

131

If A is large, however, the conversion can take more memory than you can

spare. It can also take extra time to initialize the expanded array and increase

the memory bandwidth requirements.

NUM = MP_NUMTHREADS()

IPIECE = (N + (NUM-1)) / NUM

C$DOACROSS LOCAL(K,J,I)

DO K = 1, NUM

DO J = K*IPIECE - IPIECE + 1, MIN(N, K*IPIECE)

DO I = 1, M

PARTIAL_A(I,K) = PARTIAL_A(I,K) + B(J)*C(I,J)

END DO

C$DOACROSS LOCAL (I,K)

DO I = 1, M

DO K = 1, NUM

A(I) = A(I) + PARTIAL_A(I,K)

END DO

You must trade off the various possible optimizations to ﬁnd the

combination that is right for the particular job.

Load Balancing

When the Fortran compiler divides a loop into pieces, by default it uses the

simple method of separating the iterations into contiguous blocks of equal

size for each process. It can happen that some iterations take signiﬁcantly

longer to complete than other iterations. At the end of a parallel region, the

program waits for all processes to complete their tasks. If the work is not

divided evenly, time is wasted waiting for the slowest process to ﬁnish.

Example

DO I = 1, N

DO J = 1, I

A(J, I) = A(J, I) + B(J)*C(I)

END DO

132

Chapter 7: Fortran Enhancements for Multiprocessors

The previous code segment can be parallelized on the I loop. Because the

inner loop goes from 1 to I, the ﬁrst block of iterations of the outer loop will

end long before the last block of iterations of the outer loop.

In this example, this is easy to see and predictable, so you can change the

program:

NUM_THREADS = MP_NUMTHREADS()

C$DOACROSS LOCAL(I, J, K)

DO K = 1, NUM_THREADS

DO I = K, N, NUM_THREADS

DO J = 1, I

A(J, I) = A(J, I) + B(J)*C(I)

END DO

In this rewritten version, instead of breaking up the I loop into contiguous

blocks, break it into interleaved blocks. Thus, each execution thread receives

some small values of I and some large values of I, giving a better balance of

work between the threads. Interleaving usually, but not always, cures a load

balancing problem.

You can use the MP_SCHEDTYPE clause to automatically perform this

desirable transformation.

C$DOACROSS LOCAL (I,J), MP_SCHEDTYPE=INTERLEAVE

DO 20 I = 1, N

DO 10 J = 1, I

A (J,I) = A(J,I) + B(J)*C(J)

10 CONTINUE

20 CONTINUE

The previous code has the same meaning as the rewritten form above.

Note that interleaving can cause poor cache performance because the array

is no longer stepped through at stride 1. You can improve performance

somewhat by adding a CHUNK=integer_expression clause. Usually 4 or 8 is

a good value for integer_expression. Each small chunk will have stride 1 to

improve cache performance, while the chunks are interleaved to improve

load balancing.

Advanced Features

133

The way that iterations are assigned to processes is known as scheduling.

Interleaving is one possible schedule. Both interleaving and the “simple”

scheduling methods are examples of ﬁxed schedules; the iterations are

assigned to processes by a single decision made when the loop is entered.

For more complex loops, it may be desirable to use DYNAMIC or GSS

schedules.

Comparing the output from pixie or from pc sampling allows you to see how

well the load is being balanced so you can compare the different methods of

dividing the load. Refer to the discussion of the MP_SCHEDTYPE clause in

“C$DOACROSS” on page 106 for more information.

Even when the load is perfectly balanced, iterations may still take varying

amounts of time to ﬁnish because of random factors. One process may take

a page fault , another may be interrupted to let a different program run, and

so on. Because of these unpredictable events, the time spent waiting for all

processes to complete can be several hundred cycles, even with near perfect

balance.

Advanced Features

A number of features are provided so that sophisticated users can override

the multiprocessing defaults and customize the parallelism to their

particular applications. This section provides a brief explanation of these

features.

mp_block and mp_unblock

mp_block puts the slave threads into a blocked state using the system call

blockproc. The slave threads stay blocked until a call is made to

mp_unblock. These routines are useful if the job has bursts of parallelism

separated by long stretches of single processing, as with an interactive

program. You can block the slave processes so they consume CPU cycles

only as needed, thus freeing the machine for other users. The Fortran system

automatically unblocks the slaves on entering a parallel region should you

neglect to do so.

134

Chapter 7: Fortran Enhancements for Multiprocessors

mp_setup, mp_create, and mp_destroy

The mp_setup,mp_create, and mp_destroy subroutine calls create and

destroy threads of execution. This can be useful if the job has only one

parallel portion or if the parallel parts are widely scattered. When you

destroy the extra execution threads, they cannot consume system resources;

they must be re-created when needed. Use of these routines is discouraged

because they degrade performance; the mp_block and mp_unblock

routines should be used in almost all cases.

mp_setup takes no arguments. It creates the default number of processes as

deﬁned by previous calls to mp_set_numthreads, by the environment

variable MP_SET_NUMTHREADS (described in “Environment Variables:

MP_SET_NUMTHREADS, MP_BLOCKTIME, MP_SETUP” on page 136), or

by the number of CPUs on the current hardware platform. mp_setup is

called automatically when the ﬁrst parallel loop is entered to initialize the

slave threads.

mp_create takes a single integer argument, the total number of execution

threads desired. Note that the total number of threads includes the master

thread. Thus, mp_create(n) creates one thread less than the value of its

argument. mp_destroy takes no arguments; it destroys all the slave

execution threads, leaving the master untouched.

When the slave threads die, they generate a SIGCLD signal. If your program

has changed the signal handler to catch SIGCLD, it must be prepared to deal

with this signal when mp_destroy is executed. This signal also occurs when

the program exits; mp_destroy is called as part of normal cleanup when a

parallel Fortran job terminates.

mp_blocktime

The Fortran slave threads spin wait until there is work to do. This makes

them immediately available when a parallel region is reached. However, this

consumes CPU resources. After enough wait time has passed, the slaves

block themselves through blockproc. Once the slaves are blocked, it requires

a system call to unblockproc to activate the slaves again (refer to the

unblockproc(2) man page for details). This makes the response time much

longer when starting up a parallel region.

Advanced Features

135

This trade-off between response time and CPU usage can be adjusted with

the mp_blocktime call. mp_blocktime takes a single integer argument that

speciﬁes the number of times to spin before blocking. By default, it is set to

10,000,000; this takes roughly one second. If called with an argument of 0, the

slave threads will not block themselves no matter how much time has

passed. Explicit calls to mp_block, however, will still block the threads.

This automatic blocking is transparent to the user’s program; blocked

threads are automatically unblocked when a parallel region is reached.

mp_numthreads, mp_set_numthreads

Occasionally, you may want to know how many execution threads are

available. mp_numthreads is a zero-argument integer function that returns

the total number of execution threads for this job. The count includes the

master thread.

mp_set_numthreads takes a single-integer argument. It changes the default

number of threads to the speciﬁed value. A subsequent call to mp_setup will

use the speciﬁed value rather than the original defaults. If the slave threads

have already been created, this call will not change their number. It only has

an effect when mp_setup is called.

mp_my_threadnum

mp_my_threadnum is a zero-argument function that allows a thread to

differentiate itself while in a parallel region. If there are nexecution threads,

the function call returns a value between zero and n – 1. The master thread

is always thread zero. This function can be useful when parallelizing certain

kinds of loops. Most of the time the loop index variable can be used for the

same purpose. Occasionally, the loop index may not be accessible, as, for

example, when an external routine is called from within the parallel loop.

This routine provides a mechanism for those cases.

136

Chapter 7: Fortran Enhancements for Multiprocessors

Environment Variables: MP_SET_NUMTHREADS,

MP_BLOCKTIME, MP_SETUP

The MP_SET_NUMTHREADS,MP_BLOCKTIME, and MP_SETUP

environment variables act as an implicit call to the corresponding routine(s)

of the same name at program start-up time.

For example, the csh command

%setenv MP_SET_NUMTHREADS 2

causes the program to create two threads regardless of the number of CPUs

actually on the machine, just like the source statement

CALL MP_SET_NUMTHREADS (2)

Similarly, the sh commands

%set MP_BLOCKTIME 0

%export MP_BLOCKTIME

prevent the slave threads from autoblocking, just like the source statement

call mp_blocktime (0)

For compatibility with older releases, the environment variable

NUM_THREADS is supported as a synonym for

MP_SET_NUMTHREADS.

To help support networks with several multiprocessors and several CPUs,

the environment variable MP_SET_NUMTHREADS also accepts an

expression involving integers +,–,min,max, and the special symbol all,

which stands for “the number of CPUs on the current machine.”

For example, the following command selects the number of threads to be

two fewer than the total number of CPUs (but always at least one):

%setenv MP_SET_NUMTHREADS max(1,all-2)

Advanced Features

137

Environment Variables: MP_SUGNUMTHD,

MP_SUGNUMTHD_VERBOSE, MP_SUGNUMTHD_MIN,

MP_SUGNUMTHD_MAX

Prior to the current (6.02) compiler release, the number of threads utilized

during execution of a multiprocessor job was generally constant, set for

example using MP_SET_NUMTHREADS.

In an environment with long running jobs and varying workloads, it may be

preferable to vary the number of threads during execution of some jobs.

Setting MP_SUGNUMTHD causes the run-time library to create an

additional, asynchronous process that periodically wakes up and monitors

the system load. When idle processors exist, this process increases the

number of threads, up to a maximum of MP_SET_NUMTHREADS. When

the system load increases, it decreases the number of threads, possibly to as

few as 1. When MP_SUGNUMTHD has no value, this feature is disabled and

multithreading works as before.

The environment variables MP_SUGNUMTHD_MIN and

MP_SUGNUMTHD_MAX are used to limit this feature as desired. When

MP_SUGNUMTHD_MIN is set to an integer value between 1 and

MP_SET_NUMTHREADS, the process will not decrease the number of

threads below that value.

When MP_SUGNUMTHD_MAX is set to an integer value between the

minimum number of threads and MP_SET_NUMTHREADS, the process

will not increase the number of threads above that value.

If you set any value in the environment variable

MP_SUGNUMTHD_VERBOSE, informational messages are written to

stderr whenever the process changes the number of threads in use.

Calls to mp_numthreads and mp_set_numthreads are taken as a sign that the

application depends on the number of threads in use. The number in use is

frozen upon either of these calls; and if MP_SUGNUMTHD_VERBOSE is

set, a message to that effect is written to stderr.

138

Chapter 7: Fortran Enhancements for Multiprocessors

Environment Variables: MP_SCHEDTYPE, CHUNK

These environment variables specify the type of scheduling to use on

DOACROSS loops that have their scheduling type set to RUNTIME. For

example, the following csh commands cause loops with the RUNTIME

scheduling type to be executed as interleaved loops with a chunk size of 4:

%setenv MP_SCHEDTYPE INTERLEAVE

%setenv CHUNK 4

The defaults are the same as on the DOACROSS directive; if neither

variable is set, SIMPLE scheduling is assumed. If MP_SCHEDTYPE is set,

but CHUNK is not set, a CHUNK of 1 is assumed. If CHUNK is set, but

MP_SCHEDTYPE is not, DYNAMIC scheduling is assumed.

mp_setlock, mp_unsetlock, mp_barrier

mp_setlock,mp_unsetlock, and mp_barrier are zero-argument subroutines

that provide convenient (although limited) access to the locking and barrier

functions provided by ussetlock,usunsetlock, and barrier. These

subroutines are convenient because you do not need to initialize them; calls

such as usconﬁg and usinit are done automatically. The limitation is that

there is only one lock and one barrier. For most programs, this amount is

sufﬁcient. If your program requires more complex or ﬂexible locking

facilities, use the ussetlock family of subroutines directly.

Local COMMON Blocks

A special ld option allows named COMMON blocks to be local to a process.

Each process in the parallel job gets its own private copy of the common

block. This can be helpful in converting certain types of Fortran programs

into a parallel form.

The common block must be a named COMMON (blank COMMON may

not be made local), and it must not be initialized by DATA statements.

Advanced Features

139

To create a local COMMON block, give the special loader directive

–Xlocal followed by a list of COMMON block names. Note that the external

name of a COMMON block known to the loader has a trailing underscore

and is not surrounded by slashes. For example, the command

%f77 –mp a.o –Xlocal foo_

makes the COMMON block /foo/ a local COMMON block in the resulting

a.out ﬁle. You can specify multiple –Xlocal options if necessary.

It is occasionally desirable to be able to copy values from the master thread’s

version of the COMMON block into the slave thread’s version. The special

directive C$COPYIN allows this. It has the form

C$COPYIN item [, item …]

Eachitem must be a member of a local COMMON block. It can be a variable,

an array, an individual element of an array, or the entire COMMON block.

For example,

C$COPYIN x,y, /foo/, a(i)

propagates the values for x and y, all the values in the COMMON block foo,

and the ith element of array a. All these items must be members of local

COMMON blocks. Note that this directive is translated into executable

code, so in this example i is evaluated at the time this statement is executed.

Compatibility With sproc

The parallelism used in Fortran is implemented using the standard system

call sproc. It is recommended that programs not attempt to use both

C$DOACROSS loops and sproc calls. It is possible, but there are several

restrictions:

• Any threads you create may not execute $DOACROSS loops; only the

original thread is allowed to do this.

• The calls to routines like mp_block and mp_destroy apply only to the

threads created by mp_create or to those automatically created when

the Fortran job starts; they have no effect on any user-deﬁned threads.

140

Chapter 7: Fortran Enhancements for Multiprocessors

• Calls to routines such as m_get_numprocs do not apply to the threads

created by the Fortran routines. However, the Fortran threads are

ordinary subprocesses; using the routine kill with the arguments 0 and

sig (for example, kill(0,sig)) to signal all members of the process group

might kill the threads used to execute C$DOACROSS.

• If you choose to intercept the SIGCLD signal, you must be prepared to

receive this signal when the threads used for the C$DOACROSS loops

exit; this occurs when mp_destroy is called or at program termination.

• Note in particular that m_fork is implemented using sproc, so it is not

legal to m_fork a family of processes that each subsequently executes

C$DOACROSS loops. Only the original thread can execute

C$DOACROSS loops.

DOACROSS Implementation

This section discusses how multiprocessing is implemented in a

DOACROSS routine. This information is useful when you use a debugger

or interpret the results of an execution proﬁle.

Loop Transformation

When the Fortran compiler encounters a C$DOACROSS directive, it spools

the body of the corresponding DO loop into a separate subroutine and

replaces the loop with a call to a special library routine __mp_parallel_do.

The newly created routine is named by appending .pregion to the name of

the original routine, followed by the number of the parallel loop in the

routine (where 0 is the ﬁrst loop). For example, the ﬁrst parallel loop in a

routine named foo is named foo.pregion0, the second parallel loop is

foo.pregion1, and so on.

If a loop occurs in the main routine and if that routine has not been given a

name by the PROGRAM statement, its name is assumed to be main. Any

variables declared to be LOCAL in the original C$DOACROSS statement

are declared as local variables in the spooled routine. References to SHARE

variables are resolved by referring back to the original routine.

DOACROSS Implementation

141

Because the spooled routine is now just a DO loop, the routine uses

subroutine arguments to specify which part of the loop a particular process

is to execute. The spooled routine has three arguments: the starting value for

the index, the number of times to execute the loop, and a special ﬂag word.

As an example, the following routine that appears on line 1000:

SUBROUTINE EXAMPLE(A, B, C, N)

REAL A(*), B(*), C(*)

C$DOACROSS LOCAL(I,X)

DO I = 1, N

X = A(I)*B(I)

C(I) = X + X**2

END DO

C(N) = A(1) + B(2)

RETURN

END

produces this spooled routine to represent the loop:

SUBROUTINE EXAMPLE.pregion

X ( _LOCAL_START, _LOCAL_NTRIP, _THREADINFO)

INTEGER*4 _LOCAL_START

INTEGER*4 _LOCAL_NTRIP

INTEGER*4 _THREADINFO

INTEGER*4 I

REAL X

INTEGER*4 _DUMMY

I = _LOCAL_START

DO _DUMMY = 1,_LOCAL_NTRIP

X = A(I)*B(I)

C(I) = X + X**2

I = I + 1

END DO

END

142

Chapter 7: Fortran Enhancements for Multiprocessors

Executing Spooled Routines

The set of processes that cooperate to execute the parallel Fortran job are

members of a process share group created by the system call sproc. The

process share group is created by special Fortran start-up routines that are

used only when the executable is linked with the –mp option, which enables

multiprocessing.

The ﬁrst process is the master process. It executes all the nonparallel portions

of the code. The other processes are slave processes; they are controlled by

the routine mp_slave_control. When they are inactive, they wait in the

special routine __mp_slave_wait_for_work.

The __mp_parallel_do routine divides the work and signals the slaves. The

master process then calls the spooled routine to do its share of the work.

When a slave is signaled, it wakes up from the wait loop, calculates which

iterations of the spooled DO loop it is to execute, and then calls the spooled

routine with the appropriate arguments. When a slave completes its

execution of the spooled routine, it reports that it has ﬁnished and returns to

__mp_slave_wait_for_work.

When the master completes its execution of its portion of the spooled

routine, it waits in the special routine mp_wait_for_loop_completion until

all the slaves have completed processing. The master then returns to the

main routine and continues execution.

PCF Directives

143

PCF Directives

In addition to the simple loop-level parallelism offered by the

C$DOACROSS directive (described in “Parallel Loops” on page 104), the

compiler supports a more general model of parallelism. This model is based

on the work done by the Parallel Computing Forum (PCF), which itself

formed the basis for the proposed ANSI-X3H5 standard. The compiler

supports this model through compiler directives, rather than extensions to

the source language.

The main concept in this model is the parallel region, which can be any

arbitrary section of code (not just a DO loop). Within the parallel region,

there are special work-sharing constructs that can be used to divide the work

among separate processes or threads. The parallel region can also contain a

critical section construct, where exactly one process executes at a time.

The master thread executes the user program until it reaches a parallel

region. It then spawns one or more slave threads that begin executing code

at the beginning of a parallel region. Each thread executes all the code in the

region until a work sharing construct is encountered. Each thread then

executes some portion of the work sharing construct, and then resumes

executing the parallel region code. At the end of the parallel region, all the

threads synchronize, and the master thread continues execution of the user

program.

The PCF directives, summarized in Table 7-1, implement the general model

of parallelism. They look like Fortran comments, with a C in column one.

The compiler recognizes these directives when multiprocessing is enabled

with either the –mp option. (Multiprocessing is also enabled with the –pfa

option if you have purchased Power Fortran 77.) If multiprocessing is not

enabled, the compiler treats these statements as comments. Therefore, you

can compile identical source with a single-processing compiler or by Fortran

without the multiprocessing option. The PCF directives start with the

characters C$PAR.

144

Chapter 7: Fortran Enhancements for Multiprocessors

Table 7-1 Summary of PCF Directives

Directive Description

C$PAR BARRIER Ensures that each process waits until

all processes reach the barrier before

proceeding.

C$PAR [END] CRITICAL SECTION Ensures that the enclosed block of

code is executed by only one process

at a time by using a lock variable.

C$PAR [END] PARALLEL Encloses a parallel region, which

includes work-sharing constructs and

critical sections.

C$PAR PARALLEL DO Precedes a single DO loop for which

separate iterations are executed by

different processes. This directive is

equivalent to the C$ DOACROSS

directive.

C$PAR [END] PDO Separate iterations of the enclosed

loop are executed by different

processes. This directive must be

inside a parallel region.

C$PAR [END] PSECTION[S] Parcels out each block of code in turn

to a process.

C$PAR SECTION Signiﬁes a starting line for an

individual section within a parallel

section.

C$PAR [END] SINGLE PROCESS Ensures that the enclosed block of

code is executed by exactly one

process.

C$PAR & Continues a PCF directive onto

multiple lines.

PCF Directives

145

Parallel Region

A parallel region encloses any number of PCF constructs (described in “PCF

Constructs” on page 146). It signiﬁes the boundary within which slave

threads execute. A user program can contain any number of parallel regions.

The syntax of the parallel region is

C$PAR PARALLEL [clause [[,] clause]...]

code

C$PAR END PARALLEL

where valid clauses are

[IF ( logical_expression )]

[{LOCAL | PRIVATE}(item [,item ...])]

[{SHARED | SHARE}(item [,item ...])]

The IF,LOCAL, and SHARED clauses have the same meaning as in the C$

DOACROSS directive (refer to “Writing Parallel Fortran” on page 105).

The preferred form of the directive has no commas between the clauses. The

SHARED clause is preferred over SHARE and LOCAL is preferred over

PRIVATE.

In the following code, all threads enter the parallel region and call the

routine foo:

subroutine ex1(index)

integer i

C$PAR PARALLEL LOCAL(i)

i = mp_my_threadnum()

call foo(i)

C$PAR END PARALLEL

end

146

Chapter 7: Fortran Enhancements for Multiprocessors

PCF Constructs

The three types of PCF constructs are work-sharing constructs, critical

sections, and barriers. All master and slave threads synchronize at the

bottom of a work-sharing construct. None of the threads continue past the

end of the construct until they all have completed execution within that

construct.

The four work-sharing constructs are

• parallel DO

• PDO

• parallel sections

• single process

If speciﬁed, the PDO, parallel section, and single process constructs must

appear inside of a parallel region; the parallel DO construct cannot.

Specifying a parallel DO construct inside of a parallel region produces a

syntax error.

The critical section construct protects a block of code with a lock so that it is

executed by only one thread at a time. Threads do not synchronize at the

bottom of a critical section.

The barrier construct ensures that each process that is executing waits until

all others reach the barrier before proceeding.

Parallel DO

The parallel DO construct is the same as the C$DOACROSS directive

(described in “C$DOACROSS” on page 106) and conceptually the same as a

parallel region containing exactly one PDO construct and no other code.

Each thread inside the enclosing parallel region executes separate iterations

of the loop within the parallel DO construct. The syntax of the parallel DO

construct is

C$PAR PARALLEL DO [clause [[,] clause]...]

PCF Directives

147

“C$DOACROSS” on page 106 describes valid values for clause with the

exception of the MP_SCHEDTYPE=mode clause. For the C$PAR

PARALLEL DO directive, MP_SCHEDTYPE= is optional; you can just

specify mode.

PDO

Each thread inside the enclosing parallel region executes a separate iteration

of the loop within the PDO construct. The syntax of the PDO construct,

which can only be speciﬁed within a parallel region, is

C$PAR PDO [clause [[,] clause]...]

code

[C$PAR END PDO [NOWAIT]]

where valid values for clause are

[{LOCAL | PRIVATE} (item[,item ...])]

[{LASTLOCAL | LAST LOCAL} (item[,item ...])]

[(ORDERED)]

[sched ]

[chunk ]

LOCAL , LASTLOCAL, sched, and chunk have the same meaning as in the

C$DOACROSS directive (refer to “Writing Parallel Fortran” on page 105).

Note in particular that it is legal to declare a data item as LOCAL in a PDO

even if it was declared as SHARED in the enclosing parallel region. The

(ORDERED) clause is equivalent to a sched clause of DYNAMIC and a chunk

clause of 1. The parenthesis are required.

LASTLOCAL is preferred over LAST LOCAL and LOCAL is preferred over

PRIVATE.

The END PDO directive is optional. If speciﬁed, this directive must appear

immediately after the end of the DO loop. The optional NOWAIT clause

speciﬁes that each process should proceed directly to the code immediately

following the directive. If you do not specify NOWAIT, the processes will

wait until all have reached the directive before proceeding.

148

Chapter 7: Fortran Enhancements for Multiprocessors

As an example of the PDO construct, consider the following code:

subroutine ex2(a,n)

real a(n)

C$PAR PARALLEL local(i) shared(a)

C$PAR PDO

do i = 1, n

a(i) = a(i) + 1.0

enddo

C$PAR END PARALLEL

end

This sample code is the same as a C$ DOACROSS loop. In fact, the compiler

recognizes this as a special case and generates the same (more efﬁcient) code

as for a C$ DOACROSS directive.

Parallel Sections

The parallel sections construct is a parallel version of the Fortran 90 SELECT

statement. Each block of code is parcelled out in turn to a separate thread.

The syntax of the parallel sections construct is

C$PAR PSECTION[S] [clause [[,]clause ]...

code

[C$PAR SECTION

code] ...

C$PAR END PSECTION[S] [NOWAIT]

where the only valid value for clause is

[{LOCAL | PRIVATE} (item [,item]) ]

LOCAL is preferred over PRIVATE and has the same meaning as for the C$

DOACROSS directive (refer to “C$DOACROSS” on page 106). Note in

particular that it is legal to declare a data item as LOCAL in a parallel

sections construct even if it was declared as SHARED in the enclosing

parallel region.

The optional NOWAIT clause speciﬁes that each process should proceed

directly to the code immediately following the directive. If you do not

specify NOWAIT, the processes will wait until all have reached the END

PSECTION directive before proceeding.

PCF Directives

149

Parallel sections must appear within a parallel region. They can contain

critical section contructs (described in “Critical Section” on page 154) but

cannot contain any of the following types of constructs:

• PDO

• parallel DO or C$ DOACROSS

• single process

Each code block is executed in parallel (depending on the number of

processes available). The code blocks are assigned to threads one at a time,

in the order speciﬁed. Each code block is executed by only one thread.

For example, consider the following code:

subroutine ex3(a,n1,b,n2,c,n3)

real a(n1), b(n2), c(n3)

C$PAR PARALLEL local(i) shared(a,b,c)

C$PAR PSECTIONS

C$PAR SECTION

do i = 1, n1

a(i) = 0.0

enddo

C$PAR SECTION

do i = 1, n2

b(i) = 0.5

enddo

C$PAR SECTION

call normalize(c,n3)

do i = 1, n3

c(i) = c(i) + 1.0

enddo

C$PAR END PSECTION

C$PAR END PARALLEL

end

The ﬁrst thread to enter the parallel sections construct executes the ﬁrst

block, the second thread executes the second block, and so on. This example

has only three sections, so if more than three threads are in the parallel

region, the fourth and higher threads wait at the C$PAR END PSECTION

150

Chapter 7: Fortran Enhancements for Multiprocessors

directive until all threads are ﬁnished. If the parallel region is being executed

by only two threads, whichever thread ﬁnishes its block ﬁrst continues and

executes the remaining block.

This example uses DO loops, but a parallel section can be any arbitrary block

of code. Be aware of the signiﬁcant overhead of a parallel construct. Make

sure the amount of work performed is enough to outweigh the extra

overhead.

The sections within a parallel sections construct are assigned to threads one

at a time, from the top down. There is no other implied ordering to the

operations within the sections. In particular, a later section cannot depend on

the results of an earlier section, unless some form of explicit synchronization

is used. If there is such explicit synchronization, you must be sure that the

lexical ordering of the blocks is a legal order of execution.

Single Process

The single process construct, which can only be speciﬁed within a parallel

region, ensures that a block of code is executed by exactly one process. The

syntax of the single process construct is

C$PAR SINGLE PROCESS [clause [[,] clause]...]

code

C$PAR END SINGLE PROCESS [NOWAIT]

where the only valid value for clause is

[{LOCAL | PRIVATE} (item [,item]) ]

LOCAL is preferred over PRIVATE and has the same meaning as for the C$

DOACROSS directive (refer to “C$DOACROSS” on page 106). Note in

particular that it is legal to declare a data item as LOCAL in a single process

construct even if it was declared as SHARED in the enclosing parallel

region.

The optional NOWAIT clause speciﬁes that each process should proceed

directly to the code immediately following the directive. If you do not

specifyNOWAIT, the processes will wait until all have reached the directive

before proceeding.

PCF Directives

151

This construct is semantically equivalent to a parallel sections construct with

only one section. The single process construct provides a more descriptive

syntax. For example, consider the following code:

real function ex4(a,n, big_max, bmax_x, bmax_y)

real a(n,n), big_max

integer bmax_x, bmax_y

C$ volatile big_max, bmax_x, bmax_y

C$ volatile cur_max, index_x, index_y

index_x = 0

index_y = 0

cur_max = 0.0

C$PAR PARALLEL local(i,j)

C$PAR& shared(a,n,index_x,index_y,cur_max,

C$PAR& big_max,bmax_x,bmax_y)

C$PAR PDO

do j = 1, n

do i = 1, n

if (a(i,j) .gt. cur_max) then

C$PAR CRITICAL SECTION

if (a(i,j) .gt. cur_max) then

index_x = i

index_y = j

cur_max = a(i,j)

endif

C$PAR END CRITICAL SECTION

endif

enddo

C$PAR SINGLE PROCESS

if (cur_max .gt. big_max) then

big_max = (big_max + cur_max) / 2.0

bmax_x = index_x

bmax_y = index_y

endif

C$PAR END SINGLE PROCESS

152

Chapter 7: Fortran Enhancements for Multiprocessors

C$PAR PDO

do j = 1, n

do i = 1, n

a(i,j) = a(i,j)/big_max

enddo

C$PAR END PARALLEL

ex4 = cur_max

end

The ﬁrst thread to reach the single process section executes the code in that

block. All other threads wait at the end of the block until the code has been

executed.

This example contains a number of interesting points to be examined. First,

note the use of the VOLATILE declaration. Any data item that might be

written by one thread and then read by a different thread must be marked as

VOLATILE. Making a variable VOLATILE can reduce opportunities for

optimization, so the declarations are preﬁxed by C$ to prevent the

single-processor version of the code from being penalized. Refer to the

MIPSpro Fortran 77 Language Reference Manual for more information about

the VOLATILE statement.

PCF Directives

153

Second, note the use of the odd looking repetition of the IF test in the ﬁrst

parallel loop:

if (a(i,j) .gt. cur_max) then

C$PAR CRITICAL SECTION

if (a(i,j) .gt. cur_max) then

This practice is usually called test&test&set. It is a multi-processing

optimization. Note that the following straight forward code segment is

incorrect:

do i = 1, n

if (a(i,j) .gt. cur_max) then

C$PAR CRITICAL SECTION

index_x = i

index_y = j

cur_max = a(i,j)

C$PAR END CRITICAL SECTION

endif

enddo

Because many threads execute the loop in parallel, there is no guarantee that

once inside the critical section, cur_max still has the same value it did in the

IF test outside the critical section (some other thread may have updated it).

In particular, cur_max may now have a value that is larger than a(i,j).

Therefore, the critical section must be locked before testing the value of

cur_max. Changing the previous code into the equally straightforward

do i = 1, n

C$PAR CRITICAL SECTION

if (a(i,j) .gt. cur_max) then

index_x = i

index_y = j

cur_max = a(i,j)

endif

C$PAR END CRITICAL SECTION

enddo

works correctly, but suffers from a serious performance penalty: the critical

section lock must be acquired and released (an expensive operation) for each

element of the array. Because the values are rarely updated, this process

involves a lot of wasted effort. It is almost certainly slower than just

executing the loop serially.

154

Chapter 7: Fortran Enhancements for Multiprocessors

Combining the two methods, as in the original example, produces code that

is both fast and correct. If the IF test outside of the critical section fails, you

can be certain that the values will not be updated, and can proceed. You can

expect that the outside IF test will account for the majority of cases. If the

outerIF test passes, then the values might be updated, but you cannot always

be certain. To ensure correctness, you must perform the test again after

acquiring the critical section lock.

You can preﬁx one of the two identical IF tests with C$ to reduce overhead

in the non-multiprocessed case.

Lastly, note the difference between the single process and critical section

constructs. If several processes arrive at a critical section construct, they

execute the code one at a time. However, they will all execute the code. If

several processes arrive at a single process construct, only one process

executes the code. The other processes bypass the code and wait at the end

of the construct for the chosen process to ﬁnish.

Critical Section

The critical section construct restricts execution of a block of code so that

only one process can execute it at a time. Another process attempting to gain

entry to the critical section must wait until the previous process has exited.

The critical section construct can appear anywhere in a program, including

inside and outside a parallel region and within a C$ DOACROSS loop. The

syntax of the critical section construct is

C$PAR CRITICAL SECTION [ ( lock_variable ) ]

code

C$PAR END CRITICAL SECTION

The lock_variable is an optional integer variable that must be initialized to

zero. The parenthesis are required. If you do not specify lock_variable, the

compiler automatically supplies one.

Multiple critical section constructs inside the same parallel region are

considered to be independent of each other unless they use the same explicit

lock_variable.

PCF Directives

155

Consider the following code:

integer function num_exceptions(a,n,biggest_allowed)

double precision a(n,n,n), biggest_allowed

integer count

integer lock_var

volatile count

count = 0

lock_var = 0

C$PAR PARALLEL local(i,j,k) shared(count,lock_var)

C$PAR PDO

do 10 k = 1,n

do 10 j = 1,n

do 10 i = 1,n

if (a(i,j,k) .gt. biggest_allowed) then

C$PAR CRITICAL SECTION (lock_var)

count = count + 1

C$PAR END CRITICAL SECTION (lock_var)

else

call transform(a(i,j,k))

if (a(i,j,k) .gt. biggest_allowed) then

C$PAR CRITICAL SECTION (lock_var)

count = count + 1

C$PAR END CRITICAL SECTION (lock_var)

endif

10 continue

C$PAR END PARALLEL

num_exceptions = count

return

end

156

Chapter 7: Fortran Enhancements for Multiprocessors

This example demonstrates the use of the lock variable (lock_var). A C$PAR

CRITICAL SECTION directive ensures that no more than one process

executes the enclosed block of code at a time. However, if there are multiple

critical sections, different processes can be in different critical sections at the

same time. This example does not allow different processes to be in different

critical sections at the same time because both critical sections control access

to the same variable (count). Specifying the same lock variable for both

critical sections ensures that no more than one process is executing either of

the critical sections that use that lock variable. Note that the lock_var must

be SHARED (so that all processes use the same lock), and that count must

be volatile (because other processes might change its value).

Barrier Constructs

A barrier construct ensures that each process waits until all processes reach

the barrier before proceeding. The syntax of the barrier construct is

C$PAR BARRIER

C$PAR &

Occasionally, the clauses in PCF directives are longer than one line. You can

use the C$PAR & directive to continue a directive onto multiple lines. For

example,

C$PAR PARALLEL local(i,j)

C$PAR& shared(a,n,index_x,index_y,cur_max,

C$PAR& big_max,bmax_x,bmax_y)

PCF Directives

157

Restrictions

The three work-sharing constructs, PDO,PSECTION, and SINGLE

PROCESS, must be executed by all the threads executing in the parallel

region (or none of the threads). The following is illegal:

C$PAR PARALLEL

if (mp_my_threadnum() .gt. 5) then

C$PAR SINGLE PROCESS

many_processes = .true.

C$PAR END SINGLE PROCESS

endif

This code will hang forever when run with enough processes. One or more

process will be stuck at the C$PAR END SINGLE PROCESS directive

waiting for all the threads to arrive. Because some of the threads never took

the appropriate branch, they will never encounter the construct. However,

the following kind of simple looping is supported:

code

C$PAR PARALLEL local(i,j) shared(a)

do i= 1,n

C$PAR PDO

do j = 2,n

code

The distinction here is that all of the threads encounter the work-sharing

construct, they all complete it, and they all loop around and encounter it

again.

Note that this restriction does not apply to the critical section construct,

which operates on one thread at a time without regard to any other threads.

Parallel regions cannot be lexically nested inside of other parallel regions,

nor can work-sharing constructs be nested. However, as an aid to writing

library code, you can call an external routine that contains a parallel region

even from within a parallel region. In this case, only the ﬁrst region is

158

Chapter 7: Fortran Enhancements for Multiprocessors

actually run in parallel. Therefore, you can create a parallelized routine

without accounting for whether it will be called from within an already

parallelized routine.

A Few Words About Efﬁciency

The more general PCF constructs are typically slower than the special case

parallelism offered by the C$DOACROSS directive. They are slower

because of the extra synchronization required. When a C$DOACROSS loop

executes, there is a synchronization point at entry and another at exit. When

a parallel region executes, there is a synchronization point at entry to the

region, another at each entry to a work-sharing construct, another at each

exit from a work-sharing construct, and one at exit from the region. Thus,

several separate C$DOACROSS loops typically execute faster than a single

parallel region with several PDO constructs. Limit your use of the parallel

region construct to those few cases that actually need it.

159

Chapter 8

8. Compiling and Debugging Parallel Fortran

This chapter gives instructions on how to compile and debug a parallel

Fortran program and contains the following sections:

• “Compiling and Running” explains how to compile and run a parallel

Fortran program.

• “Proﬁling a Parallel Fortran Program” describes how to use the system

proﬁler, prof, to examine execution proﬁles.

• “Debugging Parallel Fortran” presents some standard techniques for

debugging a parallel Fortran program.

This chapter assumes you have read Chapter 7, “Fortran Enhancements for

Multiprocessors,” and have reviewed the techniques and vocabulary for

parallel processing in the IRIX environment.

Compiling and Running

After you have written a program for parallel processing, you should debug

your program in a single-processor environment by calling the Fortran

compiler with the f77 command. You can also debug your program using the

WorkShop Pro MPF debugger, which is sold as a separate product. After

your program has executed successfully on a single processor, you can

compile it for multiprocessing. Check the f77(1) manual page for

multiprocessing options.

To turn on multiprocessing, add –mp to the f77 command line. This option

causes the Fortran compiler to generate multiprocessing code for the

particular ﬁles being compiled. When linking, you can specify both object

ﬁles produced with the –mp option and object ﬁles produced without it. If

any or all of the ﬁles are compiled with –mp, the executable must be linked

with –mp so that the correct libraries are used.

160

Chapter 8: Compiling and Debugging Parallel Fortran

Using the –static Option

A few words of caution about the –static compiler option: The

multiprocessing implementation demands some use of the stack to allow

multiple threads of execution to execute the same code simultaneously.

Therefore, the parallel DO loops themselves are compiled with the

–automatic option, even if the routine enclosing them is compiled with

–static.

This means that SHARE variables in a parallel loop behave correctly

according to the –static semantics but that LOCAL variables in a parallel

loop do not (see “Debugging Parallel Fortran” on page 162 for a description

of SHARE and LOCAL variables).

Finally, if the parallel loop calls an external routine, that external routine

cannot be compiled with –static. You can mix static and multiprocessed

object ﬁles in the same executable; the restriction is that a static routine

cannot be called from within a parallel loop.

Examples of Compiling

This section steps you through a few examples of compiling code using –mp.

The following command line

%f77 –mp foo.f

compiles and links the Fortran program foo.f into a multiprocessor

executable.

In this example

%f77 –c –mp –O2 snark.f

the Fortran routines in the ﬁle snark.f are compiled with multiprocess code

generation enabled. The optimizer is also used. A standard snark.o binary is

produced, which must be linked:

%f77 –mp –o boojum snark.o bellman.o

Profiling a Parallel Fortran Program

161

Here, the –mp option signals the linker to use the Fortran multiprocessing

library. The ﬁle bellman.o need not have been compiled with the –mp option

(although it could have been).

After linking, the resulting executable can be run like any standard

executable. Creating multiple execution threads, running and

synchronizing them, and task terminating are all handled automatically.

When an executable has been linked with –mp, the Fortran initialization

routines determine how many parallel threads of execution to create. This

determination occurs each time the task starts; the number of threads is not

compiled into the code. The default is to use whichever is less: 4 or the

number of processors that are on the machine (the value returned by the

system call sysmp(MP_NAPROCS); see the sysmp(2) man page). You can

override the default by setting the shell environment variable

MP_SET_NUMTHREADS. If it is set, Fortran tasks use the speciﬁed

number of execution threads regardless of the number of processors

physically present on the machine. MP_SET_NUMTHREADS can be from

1 to 64.

Proﬁling a Parallel Fortran Program

After converting a program, you need to examine execution proﬁles to judge

the effectiveness of the transformation. Good execution proﬁles of the

program are crucial to help you focus on the loops consuming the most time.

IRIX provides proﬁling tools that can be used on Fortran parallel programs.

Both pixie(1) and pc-sample proﬁling can be used. On jobs that use multiple

threads, both these methods will create multiple proﬁle data ﬁles (one for

each thread). You can use the standard proﬁle analyzer prof(1) to examine

this output. (Refer to the MIPS Compiling and Performance Tuning Guide for

details about using prof.)

The proﬁle of a Fortran parallel job is different from a standard proﬁle. As

mentioned in “Analyzing Data Dependencies for Multiprocessing” on page

114, to produce a parallel program, the compiler pulls the parallelDO loops

out into separate subroutines, one routine for each loop. Each of these loops

is shown as a separate procedure in the proﬁle. Comparing the amount of

162

Chapter 8: Compiling and Debugging Parallel Fortran

time spent in each loop by the various threads shows how well the workload

is balanced.

In addition to the loops, the proﬁle shows the special routines that actually

do the multiprocessing. The __mp_parallel_do routine is the synchronizer

and controller. Slave threads wait for work in the routine

__mp_slave_wait_for_work.The less time they wait, the more time they

work. This gives a rough estimate of how parallel the program is.

Debugging Parallel Fortran

This section presents some standard techniques to assist in debugging a

parallel program.

General Debugging Hints

• Debugging a multiprocessed program is much more difﬁcult than

debugging a single-processor program. Therefore you should do as

much debugging as possible on the single-processor version.

• Try to isolate the problem as much as possible. Ideally, try to reduce the

problem to a single C$DOACROSS loop.

• Before debugging a multiprocessed program, change the order of the

iterations on the parallel DO loop on a single-processor version. If the

loop can be multiprocessed, then the iterations can execute in any order

and produce the same answer. If the loop cannot be multiprocessed,

changing the order frequently causes the single-processor version to

fail, and standard single-process debugging techniques can be used to

ﬁnd the problem.

Debugging Parallel Fortran

163

Example: Erroneous C$DOACROSS

In this example, the bug is that the two references to a have the indexes in

reverse order. If the indexes were in the same order (if both were a(i,j) or

both were a(j,i)), the loop could be multiprocessed. As written, there is a data

dependency, so the C$DOACROSS is a mistake.

c$doacross local(i,j)

do i = 1, n

do j = 1, n

a(i,j) = a(j,i) + x*b(i)

end do

Because a (correct) multiprocessed loop can execute its iterations in any

order, you could rewrite this as:

c$doacross local(i,j)

do i = n, 1, –1

do j = 1, n

a(i,j) = a(j,i) + x*b(i)

end do

This loop no longer gives the same answer as the original even when

compiled without the –mp option. This reduces the problem to a normal

debugging problem. When a multiprocessed loop is giving the wrong

answer, make the following checks:

• Check the LOCAL variables when the code runs correctly as a single

process but fails when multiprocessed. Carefully check any scalar

variables that appear in the left-hand side of an assignment statement

in the loop to be sure they are all declared LOCAL. Be sure to include

the index of any loop nested inside the parallel loop.

A related problem occurs when you need the ﬁnal value of a variable

but the variable is declared LOCAL rather than LASTLOCAL. If the

use of the ﬁnal value happens several hundred lines farther down, or if

the variable is in a COMMON block and the ﬁnal value is used in a

completely separate routine, a variable can look as if it is LOCAL when

in fact it should be LASTLOCAL. To combat this problem, simply

declare all the LOCAL variables LASTLOCAL when debugging a loop.

164

Chapter 8: Compiling and Debugging Parallel Fortran

• Check for EQUIVALENCE problems. Two variables of different names

may in fact refer to the same storage location if they are associated

through an EQUIVALENCE.

• Check for the use of uninitialized variables. Some programs assume

uninitialized variables have the value 0. This works with the –static

option, but without it, uninitialized values assume the value left on the

stack. When compiling with –mp, the program executes differently and

the stack contents are different. You should suspect this type of problem

when a program compiled with –mp and run on a single processor

gives a different result when it is compiled without –mp. One way to

track down a problem of this type is to compile suspected routines with

–static. If an uninitialized variable is the problem, it should be ﬁxed by

initializing the variable rather than by continuing to compile –static.

• Try compiling with the –C option for range checking on array

references. If arrays are indexed out of bounds, a memory location may

be referenced in unexpected ways. This is particularly true of adjacent

arrays in a COMMON block.

• If the analysis of the loop was incorrect, one or more arrays that are

SHARE may have data dependencies. This sort of error is seen only

when running multiprocessed code. When stepping through the code

in the debugger, the program executes correctly. In fact, this sort of error

often is seen only intermittently, with the program working correctly

most of the time.

• The most likely candidates for this error are arrays with complicated

subscripts. If the array subscripts are simply the index variables of a

DO loop, the analysis is probably correct. If the subscripts are more

involved, they are a good choice to examine ﬁrst.

• If you suspect this type of error, as a ﬁnal resort print out all the values

of all the subscripts on each iteration through the loop. Then use

uniq(1) to look for duplicates. If duplicates are found, then there is a

data dependency.

165

Chapter 9

9. Fine-Tuning Program Execution

This chapter contains the following sections:

• “Overview” explains the concept of directives and assertions.

• “Fine-Tuning Scalar Optimizations” describes how you can use

directives to ﬁne-tune scalar optimizations.

• “Fine-Tuning Inlining and IPA” explains how you can use directives to

ﬁne tune inlining and IPA.

• “Using Equivalenced Variables” explains how you can inform the

compiler that your code uses or does not use equivalenced variables.

• “Using Assertions” explains how you can enable or disable compiler

recognition of assertions.

• “Using Aliasing” explains the assertions that enable or disable types of

aliasing.

• “Fine-Tuning Global Assumptions” describes how to use assertions to

ﬁne-tune global assumptions.

• “Ignoring Data Dependencies” explains how to instruct the compiler to

ignore data dependencies.

166

Chapter 9: Fine-Tuning Program Execution

Overview

After running a Fortran source program through the compiler’s scalar

optimizations once, you can use directives and assertions to ﬁne-tune

program execution by forcing the compiler to execute portions of code in

various ways.

By default, the compiler recognizes all Silicon Graphics directives and

assertions. You can use the –WK,–directives command line option to

selectively enable/disable certain directives and assertions. Refer to

“Recognizing Directives” in Chapter 5 for information about the –directives

option.

Directives

Directives enable, disable, or modify a feature of the compiler. Essentially,

directives are command line options speciﬁed within the input ﬁle instead

of on the command line. Unlike command line options, directives have no

default setting. To invoke a directive, you must either toggle it on or set a

desired value for its level.

Directives allow you to enable, disable, or modify a feature of the compiler

in addition to, or instead of, command line options. Directives placed on the

ﬁrst line of the input ﬁle are called global directives. The compiler interprets

them as if they appeared at the top of each program unit in the ﬁle. Use

global directives to ensure that the program is compiled with the correct

command line options. Directives appearing anywhere else in the ﬁle apply

only until the end of the current program unit. The compiler resets the value

of the directive to the global value at the start of the next program unit. (Set

the global value using a command line option or a global directive.)

Some command line options act like global directives. Other command line

options override directives. Many directives have corresponding command

line options. If you specify conﬂicting settings in the command line and a

directive, the compiler chooses the most restrictive setting. For Boolean

options, if either the directive or the command line has the option turned off,

it is considered off. For options that require a numeric value, the compiler

uses the minimum of the command line setting and the directive setting.

Overview

167

Table 9-1 lists the directives supported by the compiler. In addition to the

standard Silicon Graphics directives, the compiler supports the CrayTM and

VASTTM directives listed in the table. The compiler maps these directives to

corresponding Silicon Graphics assertions. Refer to “Assertions” on page

168 for details.

Table 9-1 Directives Summary

Directive Compatability

C*$*ARCLIMIT(n) Silicon Graphics

C*$*[NO]ASSERTIONS Silicon Graphics

C*$* EACH_INVARIANT_IF_GROWTH(n) Silicon Graphics

C*$* [NO]INLINE Silicon Graphics

C*$* [NO]IPA Silicon Graphics

C*$* MAX_INVARIANT_IF_GROWTH(n) Silicon Graphics

C*$* OPTIMIZE(n) Silicon Graphics

C*$* ROUNDOFF(n) Silicon Graphics

C*$* SCALAR OPTIMIZE(n) Silicon Graphics

C*$* UNROLL(integer[,weight]) Silicon Graphics

CDIR$ NO RECURRENCE Cray

CVD$ [NO] DEPCHK VAST

CVD$ [NO]LSTVAL VAST

168

Chapter 9: Fine-Tuning Program Execution

Assertions

Assertions provide the compiler with additional information about the

source program. Sometimes assertions can improve optimization results.

Use them only when speed is essential.

Assertions can be unsafe because the compiler cannot verify the accuracy of

the information provided. If you specify an incorrect assertion, the

compiler-generated code might produce different results than the original

serial program. If you suspect unsafe assertions are causing problems, use

the –WK,–nodirectives command line option or the C*$* NO

ASSERTIONS directive to tell the compiler to ignore all assertions.

Table 9-2 lists the supported assertions and their duration.

As with a directive, the compiler treats an assertion as a global assertion if it

comes before all comments and statements in the ﬁle. That is, the compiler

treats the assertion as if it were repeated at the top of each program unit in

the ﬁle.

Some assertions (such as C*$* ASSERT RELATION) include variable

names. If you specify them as global assertions, a program uses them only

when those variable names appear in COMMON blocks or are dummy

argument names to the subprogram. You cannot use global assertions to

make relational assertions about variables that are local to a subprogram.

Table 9-2 Assertions and Their Duration

Assertion Duration

C*$* ASSERT [NO] ARGUMENT ALIASING Until reset

C*$* ASSERT [NO] BOUNDS VIOLATIONS Until reset

C*$* ASSERT [NO] EQUIVALENCE HAZARD Until reset

C*$* ASSERT NO RECURRENCE Next loop

C*$* ASSERT RELATION (name.xx.name) Next loop

C*$* ASSERT [NO] TEMPORARIES FOR CONSTANT

ARGUMENTS Next loop

Overview

169

Many assertions, like directives, are active until the end of the program unit

(or ﬁle) or until you reset them. Other assertions are active within a program

unit, regardless of where they appear in that program unit.

Certain Cray and VAST directives function like Silicon Graphics assertions.

The compiler maps these directives to the corresponding Silicon Graphics

assertions. These directives are described along with the related assertions

later in this chapter.

There is no guarantee that a speciﬁed assertion will have an effect. The

compiler notes the information provided by the assertion and uses the

information if it will help.

To understand the process the compiler uses in interpreting assertions, you

must understand the concept of assumed dependences. The following loop

contains two types of dependences:

DO 10 i=1,n

10 X(i) = X(i-1) + X(m)

X is an array, n and m are scalars, and nothing is known about the

relationship between n and m. Between X(i) and X(i-1) there is a forward

dependence, and the distance is one. Between X(i) and X(m), the compiler

tries to ﬁnd a relation, but cannot, because it does not know the value of m

in relation to n. The second dependence is called an assumed dependence,

because it is assumed but cannot be proven to exist.

170

Chapter 9: Fine-Tuning Program Execution

Fine-Tuning Scalar Optimizations

The compiler supports several directives that allow you to ﬁne-tune the

scalar optimizations described in “Controlling Scalar Optimizations” in

Chapter 5.

Controlling Internal Table Size

TheC*$* ARCLIMIT(integer) directive sets the minimum size of the internal

table that the compiler uses for data dependence analysis. The greater the

value for integer, the more information the compiler can keep on complex

loop nests. The maximum value and default value for integer is 5000.

When you specify this directive globally, it has the same effect as the

–arclimit command line option (refer to “Controlling Internal Table Size” in

Chapter 5 for details).

Setting Invariant IF Floating Limits

The C*$* EACH_INVARIANT_IF_GROWTH and the C*$*

MAX_INVARIANT_IF_GROWTH directives control limits on invariant IF

ﬂoating. This process generally involves duplicating the body of the loop,

which can increase the amount of code considerably. Refer to “Setting

Invariant IF Floating Limits” in Chapter 5 for details about invariant IF

ﬂoating.

The C*$* EACH_INVARIANT_IF_GROWTH(integer) directive limits the

total number of additional lines of code generated through invariant IF

ﬂoating in a loop. You can control this limit globally with the

–each_invariant_if_growth command line option (see “Setting Invariant IF

Floating Limits” in Chapter 5).

You can limit the maximum amount of additional code generated in a

program unit through invariant IF ﬂoating with the C*$*

MAX_INVARIANT_IF_GROWTH(integer) directive. Use the

–max_invariant_if_growth command line option to control this limit

globally (see “Setting Invariant IF Floating Limits” in Chapter 5).

Fine-Tuning Scalar Optimizations

171

These directives are in effect until the end of the routine or until reset by a

succeeding directive of the same type.

Example

Consider the following code:

C*$*EACH_INVARIANT_IF_GROWTH(integer)

C*$*MAX_INVARIANT_IF_GROWTH(integer)

DO I = ...

C*$*EACH_INVARIANT_IF_GROWTH(integer)

C*$*MAX_INVARIANT_IF_GROWTH(integer)

DO J = ...

C*$*EACH_INVARIANT_IF_GROWTH(integer)

C*$*MAX_INVARIANT_IF_GROWTH(integer)

DO K = ...

section-1

IF ( ) THEN

section-2

ELSE

section-3

ENDIF

section-4

ENDDO

In ﬂoating the invariant IF out of the loop nest, the compiler honors the

constraints set by the innermost directives ﬁrst. If those constraints are

satisﬁed, the invariant IF is ﬂoated from the inner loop. The middle pair of

directives is tested and the invariant IF is ﬂoated from the middle loop as

long as the restrictions established by these directives are not violated. The

process of ﬂoating continues as long as the directive constraints are satisﬁed.

172

Chapter 9: Fine-Tuning Program Execution

Optimization Level

The C*$* OPTIMIZE(integer) directive sets the optimization level in the

same way as the –optimize command line option. As you increase integer,

the compiler performs more optimizations, and therefore takes longer to

compile. Valid values for integer are:

0 Disables optimization.

1 Performs only simple optimizations. Enables induction

variable recognition.

2 Performs lifetime analysis to determine when last-value

assignment of scalars is necessary.

3 Recognizes triangular loops and attempts loop

interchanging to improve memory referencing. Uses special

case data dependence tests. Also, recognizes special index

sets called wrap-around variables.

4 Generates two versions of a loop, if necessary, to break a

data dependence arc.

5 Enables array expansion and loop fusion.

Refer to “Controlling Scalar Optimizations” in Chapter 5 for examples.

Fine-Tuning Scalar Optimizations

173

Variations in Round Off

TheC*$* ROUNDOFF(integer) directive controls the amount of variation in

round off error produced by optimization in the same way as the –roundoff

command line option. Valid values for integer are

0 Suppresses any transformations that change round-off

error.

1 Performs expression simpliﬁcation, which might generate

various overﬂow or underﬂow errors, for expressions with

operands between binary and unary operators, for

expressions that are inside trigonometric intrinsic functions

returning integer values, and after forward substitution.

Enables strength reduction. Performs intrinsic function

simpliﬁcation for max and min. Enables code ﬂoating if

–scalaropt is at least 1. Allows loop interchanging around

serial arithmetic reductions, if –optimize is at least 4.

Allows loop rerolling, if –scalaropt is at least 2.

2 Allows loop interchanging around arithmetic reductions if

–optimize is at least 4. For example, the ﬂoating point

expression A/B/C is computed as A/(B*C).

3 Recognizes REAL (ﬂoat) induction variables if –scalaropt

greater than 2 or –optimize is at least 1. Enables sum

reductions. Enables memory management optimizations if

–scalaropt=3 (see “Performing Memory Management

Transformations” in Chapter 5 for details about memory

management transformations).

174

Chapter 9: Fine-Tuning Program Execution

Controlling Scalar Optimizations

The C*$* SCALAR OPTIMIZE(integer) directive controls the amount of

standard scalar optimizations that the compiler performs. Unlike the

–WK,–scalaropt command line option, the C*$* SCALAR OPTIMIZE

directive sets the level of loop-based optimizations (such as loop fusion)

only, and not straight-code optimizations (such as dead-code elimination).

Valid values for integer are

0 Disables all scalar optimizations.

1 Enables simple, loop-based, scalar optimization —changing

IF loops to DO loops, simple code ﬂoating out of loops, and

forward substitution of variables.

2 Enables the full range of loop-based scalar optimizations—

induction variable recognition, loop rerolling, loop

unrolling, loop fusion, and array expansion.

3 Enables memory management transformations if

–roundoff=3. Refer to “Performing Memory Management

Transformations” in Chapter 5 for details.

Enabling Loop Unrolling

The C*$* UNROLL(integer[,weight]) directive controls how the compiler

unrolls scalar loops. Loops that cannot be optimized for concurrent

execution usually execute more efﬁciently when they are unrolled. This

directive is recognized only when you specify –WK,–scalaropt=2.

The compiler unrolls the loop proceeding the C*$*UNROLL directive until

either the number of operations in the loop equals the weight parameter or

the number of iterations reaches the integer parameter, whichever occurs

ﬁrst. The –unroll and –unroll2 command line options act like a global C*$*

UNROLL directive. See “Enabling Loop Unrolling” in Chapter 5 for detailed

examples.

The C*$* UNROLL directive is in effect only for the loop immediately

following it, unlike other directives.

Fine-Tuning Inlining and IPA

175

Fine-Tuning Inlining and IPA

Chapter 6, “Inlining and Interprocedural Analysis,” explains how to use

inlining and IPA on an entire program. You can ﬁne-tune inlining and IPA

using the C*$*[NO] INLINE and C*$*[NO] IPA directives.

The compiler ignores these directives by default. They are enabled when you

specify any inlining or IPA command line option, respectively, on the

command line. The –inline_manual and –ipa_manual command line

options enable these directives without activating the automatic

inlining/algorithms.

The C*$* [NO] INLINE directive behaves like the –inline command line

option, but allows you to specify which occurrences of a routine are actually

inlined. The format for this directive is

C*$*[NO]INLINE [(name[,name ... ])] [HERE|ROUTINE|GLOBAL]

where

name Speciﬁes the routines to be inlined. If you do not specify a

name, this directive will affect all routines in the program.

HERE Applies the INLINE directive only to the next line;

occurrences of the named routines on that next line are

inlined.

ROUTINE Inlines the named routines everywhere they appear in the

current routine.

GLOBAL Inlines the named routines throughout the source ﬁle.

If you do not specify HERE,ROUTINE, or GLOBAL, the directive applies

only to the next statement.

The C*$*NOINLINE form overrides the –inline command line option and

so allows you to selectively disable inlining of the named routines at speciﬁc

points.

176

Chapter 9: Fine-Tuning Program Execution

Example

In the following code fragment, the C*$*INLINE directive inlines the ﬁrst

call to beta but not the second.

do i =1,n

C*$*INLINE (beta) HERE

call beta (i,1)

enddo

call beta (n, 2)

Using the speciﬁer ROUTINE rather than HERE inlines both calls. This

routine must be compiled with the –inline_man command line option for

the compiler to recognize the C*$* INLINE directive.

The C*$* [NO] IPA directive is the analogous directive for interprocedural

analysis. The format for this directive is

C*$*[NO]IPA [(name [,name...])] [HERE|ROUTINE|GLOBAL]

Using Equivalenced Variables

The C*$* ASSERT [NO] EQUIVALENCE HAZARD assertion tells the

compiler that your code does not use equivalenced variables to refer to the

same memory location inside one loop nest. Normally, EQUIVALENCE

statements allow your code to use different variable names to refer to the

same storage location. The –WK,-assume=e command line option acts like

the global C*$* ASSERT EQUIVALENCE HAZARD assertion (see

“Controlling Global Assumptions” on page 71 in Chapter 4). The C*$*

ASSERT EQUIVALENCE HAZARD assertion is active until you reset it or

until the end of the program.

Using Assertions

The C*$*[NO]ASSERTIONS directive instructs the compiler to accept or

ignore assertions. The C*$* NO ASSERTIONS version is in effect until the

next C*$* ASSERTIONS directive or the end of the program unit.

Using Aliasing

177

If you specify the –directives command line option without the assertions

parameter (that is, a), the compiler will ignore assertions regardless of

whether the ﬁle contains the C*$* ASSERTIONS directive. Refer to

“Recognizing Directives” in Chapter 5 for details on the –directives

command line option.

Using Aliasing

The compiler recognizes two assertions for use with aliasing.

C*$* ASSERT [NO] ARGUMENT ALIASING

The C*$* ASSERT [NO] ARGUMENT ALIASING assertion allows the

compiler to make assumptions about subprogram arguments in a program.

According to the Fortran 77 standard, you can alias a variable only if you do

not modify (that is, write to) the aliased variable.

The following subroutine violates the standard, because variable A is aliased

in the subroutine (through C and D) and variable X is aliased (through X and

E):

COMMON X,Y

REAL A,B

CALL SUB (A, A, X)

...

SUBROUTINE SUB(C,D,E)

COMMON X,Y

X = ...

C = ...

...

The command line option –assume=a acts like a global C*$* ASSERT

ARGUMENT ALIASING assertion (see “Controlling Global Assumptions”

in Chapter 5). A C*$* ARGUMENT ALIASING assertion is active until it is

reset or until the next routine begins.

178

Chapter 9: Fine-Tuning Program Execution

C*$* ASSERT RELATION

The C*$* ASSERT RELATION(name.xx.name) assertion indicates the

relationship between two variables or between a variable and a constant.

name is the variable or constant, and xx is any of the following: GT,GE,EQ,

NE,LT, or LE. This assertion applies only to the next DO statement.

TheC*$* ASSERT RELATION assertion includes variable names (name and

xx). When speciﬁed globally, this assertion will only be used when the

variable names appear in COMMON blocks or are dummy arguments to a

subprogram. You cannot use global assertions to make relational assertions

about variables that are local to a subprogram.

As an example of the use of the C*$* ASSERT RELATION assertion,

consider the following code:

DO 100 I = 1, N

A (I) = A (I+M) + B (I)

100 CONTINUE

If you know that M is greater than N, use the following assertion to give this

information to the compiler:

C*$* ASSERT RELATION (M .GT. N)

DO 100 I = 1, N

A (I) = A (I +M) + B (I)

100 CONTINUE

Knowing that M is greater than N, the compiler can generate parallel code

for this loop. If M is less than N at run time, the answers produced by the

code run in parallel could differ from the answers produced by the original

code run serially.

Note: Many relationships of this type can be cheaply tested for at run time.

The compiler attempts to answer questions of this sort by generating an IF

statement that explicitly tests the relationship at run time. Occasionally, the

compiler needs assistance, or you might want to squeeze that last bit of

performance out of some critical loop by asserting some relationship rather

than repeatedly checking it at run time.

Fine-Tuning Global Assumptions

179

Fine-Tuning Global Assumptions

You can use the assertions described in this section to ﬁne-tune the global

assumptions discussed in “Controlling Global Assumptions” in Chapter 5.

C*$* ASSERT [NO]BOUNDS VIOLATIONS

The C*$* ASSERT [NO] BOUNDS VIOLATIONS assertion indicates that

array subscript bounds may be violated during execution. If your program

does not violate array subscript bounds, do not specify this assertion. When

speciﬁed, this assertion is active until reset or until the end of the program.

For formal parameters, the compiler treats a declared last dimension of (1)

the same as (*).

The –WK,–assert=b command line option acts like a global C*$* ASSERT

BOUNDS VIOLATIONS assertion.

In the following example, the compiler assumes the ﬁrst loop nest is

standard-conforming, and therefore can optimize both loops. The loops can

be interchanged to improve memory referencing because no A(I,J) will

overwrite an A(I',J+1). In the second nest, the assertion warns the compiler

that the loop limit of the ﬁrst array index (I) might violate the declared array

bounds. The compiler plays it safe and optimizes only the right array index.

Note: The compiler always assumes that array references will be within the

array itself, so the rightness index will be concurrentizable.

DO 100 I = 1,M

DO 100 J = 1,N

A(I,J) = A(I,J) + B (I,J)

100 CONTINUE

C*$*ASSERT BOUNDS VIOLATIONS

DO 200 I = 1,M

DO 200 J = 1,N

A(I,J) = A(I,J) + B (I,J)

200 CONTINUE

180

Chapter 9: Fine-Tuning Program Execution

becomes

C$DOACROSS SHARE(N,M,A,B),LOCAL(J,I)

DO 2 J=1,N

DO 2 I=1,M

A(I,J) = A(I,J) + B (I,J)

2 CONTINUE

C*$*ASSERT BOUNDS VIOLATIONS

DO 4 I=1,M

C$DOACROSS SHARE(N,I,A,B),LOCAL(J)

DO 3 J=1,N

A(I,J) = A(I,J) + B (I,J)

3 CONTINUE

4 CONTINUE

C*$* ASSERT NO EQUIVALENCE HAZARD

The C*$* ASSERT NO EQUIVALENCE HAZARD assertion tells the

compiler that equivalenced variables will not be used to refer to the same

memory location inside one DO loop nest. Normally, EQUIVALENCE

statements allow different variable names to refer to the same storage

location. The –WK,–assume=e command line option acts like a global C*$*

ASSERT NO EQUIVALENCE HAZARD assertion. This assertion is active

until reset or until the end of the program.

In the following example, if arrays E and F are equivalenced, but you know

that the overlapping sections will not be referenced in this loop, then using

C*$* ASSERT NO EQUIVALENCE HAZARD allows the compiler to

concurrentize the loop:

EQUIVALENCE ( E(1), F(101) )

C*$* ASSERT NO EQUIVALENCE HAZARD

DO 10 I = 1,N

E(I+1) = B(I)

C(I) = F(I)

10 CONTINUE

Fine-Tuning Global Assumptions

181

becomes

EQUIVALENCE (E(1), F(101))

C*$* ASSERT NO EQUIVALENCE HAZARD

C$DOACROSS SHARE(N,E,B,C,F),LOCAL(I)

DO 10 I=1,N

E(I+1) = B(I)

C(I) = F(I)

10 CONTINUE

C*$* ASSERT [NO] TEMPORARIES FOR CONSTANT

ARGUMENTS

Sometimes the compiler does not perform certain transformations when

their effects on the rest of the program are unclear. For example, usually the

IF-to-intrinsic transformation changes the following code:

SUBROUTINE X(I,N)

IF (I .LT. N) I = N

END

into

SUBROUTINE X(I,N)

I = MAX(I,N)

END

But if the actual parameter for I were a constant such as the following,

CALL X(1,N)

it would appear that the value of the constant 1 was being reassigned.

Without additional information, the compiler does not perform

transformations within the subroutine.

Most compilers automatically put constant actual arguments into temporary

variables to protect against this case. The C*$*ASSERT TEMPORARIES

FOR CONSTANT ARGUMENTS assertion or the –WK,–assume=c

command line option (the default) informs the compiler that constant

parameters are protected. The NO version directs the compiler to avoid

transformations that might change the values of constant parameters.

182

Chapter 9: Fine-Tuning Program Execution

Ignoring Data Dependencies

The C*$* ASSERT NO RECURRENCE(variable) assertion tells the compiler

to ignore all data dependence conﬂicts caused by variable in the DO loop

that follows it. For example, the following code tells the compiler to ignore

all dependence arcs caused by the variable X in the loop:

C*$* ASSERT NO RECURRENCE (X)

DO 10 i=1,m,5

10 X(k) = X(k) + X(i)

Not only does the compiler ignore the assumed dependence, it also ignores

the real dependence caused by X(k) appearing on both sides of the

assignment.

The C*$* ASSERT NO RECURRENCE assertion applies only to the next

DO loop. It cannot be speciﬁed as a global assertion.

In addition to the C*$* ASSERT NO RECURRENCE assertion, the compiler

supports the Cray CDIR$ NORECURRENCE assertion and the VAST

CVD$ NODEPCHK directive, which perform the same function.

183

Appendix A

A. Run-Time Error Messages

Table A-1 lists possible Fortran run-time I/O errors. Other errors given by

the operating system may also occur (refer to the intro(2) and perror(3F)

reference pages for details).

Each error is listed on the screen alone or with one of the following phrases

appended to it:

apparent state: unit num named user ﬁlename

last format: string

lately (reading, writing) (sequential, direct, indexed)

formatted, unformatted (external, internal) IO

When the Fortran run-time system detects an error, the following actions

take place:

• A message describing the error is written to the standard error unit

(Unit 0).

• A core ﬁle, which can be used with dbx (the debugger) to inspect the

state of the program at termination, is produced if the f77_dump_ﬂag

environment variable is deﬁned and set to y.

When a run-time error occurs, the program terminates with one of the error

messages shown in Table A-1. All of the errors in the table are output in the

format user ﬁlename : message.

184

Appendix A: Run-Time Error Messages

Table A-1 Run-Time Error Messages

Number Message/Cause

100 error in format

Illegal characters are encountered in FORMAT statement.

101 out of space for I/O unit table

Out of virtual space that can be allocated for the I/O unit table.

102 formatted io not allowed

Cannot do formatted I/O on logical units opened for unformatted I/O.

103 unformatted io not allowed

Cannot do unformatted I/O on logical units opened for formatted I/O.

104 direct io not allowed

Cannot do direct I/O on sequential ﬁle.

106 can’t backspace file

Cannot perform BACKSPACE/REWIND on ﬁle.

107 null file name

Filename speciﬁcation in OPEN statement is null.

108 can’t stat file

The directory information for the ﬁle is not accessible.

109 file already connected

The speciﬁed ﬁlename has already been opened as a different logical

unit.

110 off end of record

Attempt to do I/O beyond the end of the record.

112 incomprehensible list input

Input data for list-directed read contains invalid character for its data

type.

113 out of free space

Cannot allocate virtual memory space on the system.

185

114 unit not connected

Attempt to do I/O on unit that has not been opened or cannot be

opened.

115 read unexpected character

Unexpected character encountered in formatted or directed read.

116 blank logical input field

Invalid character encountered for logical value.

117 bad variable type

Speciﬁed type for the namelist element is invalid. This error is most

likely caused by incompatible versions of the front end and the run-time

I/O library.

118 bad namelist name

The speciﬁed namelist name cannot be found in the input data ﬁle.

119 variable not in namelist

The namelist variable name in the input data ﬁle does not belong to the

speciﬁed namelist.

120 no end record

$END is not found at the end of the namelist input data ﬁle.

121 namelist subscript out of range

The array subscript of the character substring value in the input data ﬁle

exceeds the range for that array or character string.

122 negative repeat count

The repeat count in the input data ﬁle is less than or equal to zero.

123 illegal operation for unit

You cannot set your own buffer on direct unformatted ﬁles.

124 off beginning of record

Format edit descriptor causes positioning to go off the beginning of the

record.

125 no * after repeat count

An asterisk (*) is expected after an integer repeat count.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

186

Appendix A: Run-Time Error Messages

126 'new' file exists

The ﬁle is opened as new but already exists.

127 can’t find 'old' file

The ﬁle is opened as old but does not exist.

128 unknown system error

An unexpected error was returned by IRIX.

129 requires seek ability

The ﬁle is on a device that cannot do direct access.

130 illegal argument

Invalid value in the I/O control list.

131 duplicate key value on write

Cannot write a key that already exists.

132 indexed file not open

Cannot perform indexed I/O on an unopened ﬁle.

133 bad isam argument

The indexed I/O library function receives a bad argument because of a

corrupted index ﬁle or bad run-time I/O libraries.

134 bad key description

The key description is invalid.

135 too many open indexed files

Cannot have more than 32 open indexed ﬁles.

136 corrupted isam file

The indexed ﬁle format is not recognizable. This error is usually caused

by a corrupted ﬁle.

137 isam file not opened for exclusive access

Cannot obtain lock on the indexed ﬁle.

138 record locked

The record has already been locked by another process.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

187

138 key already exists

The key speciﬁcation in the OPEN statement has already been speciﬁed.

140 cannot delete primary key

DELETE cannot be executed on a primary key.

141 beginning or end of file reached

The index for the speciﬁed key points beyond the length of the indexed

data ﬁle. This error is probably because of corrupted ISAM ﬁles or a bad

indexed I/O run-time library.

142 cannot find request record

The requested key for indexed READ does not exist.

143 current record not defined

Cannot execute REWRITE, UNLOCK, or DELETE before doing a READ

to deﬁne the current record.

144 isam file is exclusively locked

The indexed ﬁle has been exclusively locked by another process.

145 filename too long

The indexed ﬁlename exceeds 128 characters.

148 key structure does not match file structure

Mismatch between the key speciﬁcations in the OPEN statement and the

indexed ﬁle.

149 direct access on an indexed file not allowed

Cannot have direct-access I/O on an indexed ﬁle.

150 keyed access on a sequential file not allowed

Cannot specify keyed access together with sequential organization.

151 keyed access on a relative file not allowed

Cannot specify keyed access together with relative organization.

152 append access on an indexed file not allowed

Cannot speciﬁy append access together with indexed organization.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

188

Appendix A: Run-Time Error Messages

153 must specify record length

A record length speciﬁcation is required when opening a direct or keyed

access ﬁle.

154 key field value type does not match key type

The type of the given key value does not match the type speciﬁed in the

OPEN statement for that key.

155 character key field value length too long

The length of the character key value exceeds the length speciﬁcation for

that key.

156 fixed record on sequential file not allowed

RECORDTYPE='ﬁxed' cannot be used with a sequential ﬁle.

157 variable records allowed only on unformatted

sequential file

RECORDTYPE='variable' can only be used with an unformatted

sequential ﬁle.

158 stream records allowed only on formatted sequential

file

RECORDTYPE='stream_lf' can only be used with a formatted sequential

ﬁle.

159 maximum number of records in direct access file

exceeded

The speciﬁed record is bigger than the MAXREC= value used in the

OPEN statement.

160 attempt to create or write to a read-only file

User does not have write permission on the ﬁle.

161 must specify key descriptions

Must specify all the keys when opening an indexed ﬁle.

162 carriage control not allowed for unformatted units

CARRIAGECONTROL speciﬁer can be used only on a formatted ﬁle.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

189

163 indexed files only

Indexed I/O can be done only on logical units that have been opened for

indexed (keyed) access.

164 cannot use on indexed file

Illegal I/O operation on an indexed (keyed) ﬁle.

165 cannot use on indexed or append file

Illegal I/O operation on an indexed (keyed) or append ﬁle.

167 invalid code in format specification

Unknown code is encountered in format speciﬁcation.

168 invalid record number in direct access file

The speciﬁed record number is less than 1.

169 cannot have endfile record on non-sequential file

Cannot have an endﬁle on a direct- or keyed-access ﬁle.

170 cannot position within current file

Cannot perform fseek() on a ﬁle opened for sequential unformatted I/O.

171 cannot have sequential records on direct access file

Cannot do sequential formatted I/O on a ﬁle opened for direct access.

173 cannot read from stdout

Attempt to read from stdout.

174 cannot write to stdin

Attempt to write to stdin.

175 stat call failed in f77inode

The directory information for the ﬁle is unreadable.

176 illegal specifier

The I/O control list contains an invalid value for one of the I/O

speciﬁers. For example, ACCESS='INDEXED'.

180 attempt to read from a writeonly file

User does not have read permission on the ﬁle.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

190

Appendix A: Run-Time Error Messages

181 direct unformatted io not allowed

Direct unformatted ﬁle cannot be used with this I/O operation.

182 cannot open a directory

The name speciﬁed in FILE= must be the name of a ﬁle, not a directory.

183 subscript out of bounds

The exit status returned when a program compiled with the –C option

has an array subscript that is out of range.

184 function not declared as varargs

Variable argument routines called in subroutines that have not been

declared in a $VARARGS directive.

185 internal error

Internal run-time library error.

Table A-1 (continued) Run-Time Error Messages

Number Message/Cause

191

Index

–aggressive option, 82

–align16 compiler option, 26

–align8 compiler option, 26

alignment, 24, 25

of COMMON blocks, 82

ANSI Fortran

data alignment, 25

ANSI-X3H5 standard, 105, 143

archiver, ar, 15

–arclimit option, 83

argument aliasing, 71

arrays

declaring, 24

assembly language routines, 19

assertions

C*$* ASSERT ARGUMENT ALIASING, 177

C*$* ASSERT NO ARGUMENT ALIASING, 177

C*$* ASSERT NO RECURRENCE, 182

C*$* ASSERT RELATION, 178

C*$* ASSERT TEMPORARIES FOR CONSTANT

ARGUMENTS, 181

enabling recognition of, 88

overview, 168

–assume option, 71, 176

assumed dependences, 169

assumptions

controlling globally, 71

–automatic compiler option, 160

barrier construct, 146, 156

barrier function, 138

–bestG compiler option, 13

blocking slave threads, 133

C$, 112

–C compiler option, 164

–c compiler option, 4

C macro preprocessor, 3

C$&, 112

C*$* ARCLIMIT, 170

C*$* ASSERT ARGUMENT ALIASING, 177

C*$* ASSERT NO ARGUMENT ALIASING, 177

C*$* ASSERT NO RECURRENCE, 182

C*$* ASSERT RELATION, 178

C*$* ASSERT TEMPORARIES FOR CONSTANT

ARGUMENTS, 181

C*$* EACH_INVARIANT_IF_GROWTH, 170

C*$* INLINE, 175

C*$* MAX_INVARIANT_IF_GROWTH, 170

C*$* NOINLINE, 175

C*$* NOIPA, 176

C*$* OPTIMIZE, 172

C*$* ROUNDOFF, 173

192

Index

C*$* SCALAROPTIMIZE, 174

C-style comments

accepting in Hollerith strings, 3

cache, 128

setting up page mapping, 85

specifying size, 85

specifying width of memory channel, 85

–cacheline option, 85

–cachesize option, 85

C$CHUNK, 113

C$COPYIN, 139

CDIR$ NORECURRENCE, 182

C$DOACROSS, 106

and REDUCTION, 107

continuing with C$&, 112

IF clause, 106

LASTLOCAL clause, 107

loop naming convention, 140

nesting, 114

CHUNK, 109, 132, 138

–chunk compiler option, 113

C$MP_SCHEDTYPE, 113

comments, 3

COMMON blocks, 107, 164

aligning, 82

making local to a process, 138

shared, 24

compilation, 2

compiler options, 7

–align16, 24, 26

–align8, 24, 26

–automatic, 160

–bestG, 13

–C, 164

–c, 4

–chunk, 113

–G, 13

–jmopt, 13

–l, 6

–mp, 142, 143, 159, 164

–mp_schedtype, 113

–nocpp, 3

–pfa, 143

–static, 117, 160, 164

–WK, 69

COMPLEX, 24

COMPLEX*16, 24

COMPLEX*32, 24

constructs

work-sharing, 146

core ﬁles, 19

producing, 183

C$PAR & directive, 156

C$PAR BARRIER, 156

C$PAR CRITICAL SECTION, 154

C$PAR PARALLEL, 145

C$PAR PARALLEL DO, 146

C$PAR PDO, 147

C$PAR PSECTIONS, 148

C$PAR SINGLE PROCESS, 150

cpp, 3

Cray assertions

CDIR$ NORECURRENCE, 182

critical section, 146

and SHARED, 156

PCF construct, 154

critical section construct, 143

differences between single process, 154

CVD$ NODEPCHK, 182

data dependencies, 116

analyzing for multiprocessing, 114

breaking, 120

193

complicated, 118

inconsequential, 119

rewritable, 118

data independence, 114

data types

alignment, 24, 25

DATE, 64

dbx, 183

debugging

parallel Fortran programs, 162

dependences

assumed, 169

direct ﬁles, 17

directives

C$, 112

C$&, 112

C*$* ARCLIMIT, 170

C*$* EACH_INVARIANT_IF_GROWTH, 170

C*$* INLINE, 175

C*$* MAX_INVARIANT_IF_GROWTH, 170

C*$* NOINLINE, 175

C*$* NOIPA, 176

C*$* OPTIMIZE, 172

C*$* ROUNDOFF, 173

C*$* SCALAROPTIMIZE, 174

C$CHUNK, 113

C$DOACROSS, 106

C$MP_SCHEDTYPE, 113

enabling recognition of, 88

list of, 105

overview, 166
