Topics in IRIX™ Programming

Document Number 007-2478-004

CONTRIBUTORS

Written by David Cortesi, Arthur Evans, Wendy Ferguson, and Jed Hartman

Edited by Christina Cary

Production by Linda Rae Sande

Engineering contributions by (in alphabetical order) Ivan Bach, Greg Boyd, Joe

CaraDonna, Srinivas Lingutla, Bill Mannell, Paul Mielke, Huy Nguyen, James

Pitcairne-Hill, Paul Roy, and Jonathan Thompson

St Peter’s Basilica image courtesy of ENEL SpA and InfoByte SpA. Disk Thrower

image courtesy of Xavier Berenguer, Animatica.

The contents of this document may not be copied or duplicated in any form, in whole

or in part, without the prior written permission of Silicon Graphics, Inc.

RESTRICTED RIGHTS LEGEND

Use, duplication, or disclosure of the technical data contained in this document by

the Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the

Rights in Technical Data and Computer Software clause at DFARS 52.227-7013

and/or in similar or successor clauses in the FAR, or in the DOD or NASA FAR

Supplement. Unpublished rights reserved under the Copyright Laws of the United

States. Contractor/manufacturer is Silicon Graphics, Inc., 2011 N. Shoreline Blvd.,

Mountain View, CA 94043-1389.

Silicon Graphics, Indigo2, IRIS, CHALLENGE, Onyx, Indy, and OpenGL are

registered trademarks and CASEVision, Impressario, Indigo Magic, Inventor,

IRIS GL, IRIS IM, IRIS Insight, IRIS POWER C, IRIS Showcase, IRIS Performer,

IRIS-4D, IRIX, POWER CHALLENGE, POWER CHALLENGEarray, Power Fortran,

POWER Series, REACT, RealityEngine, and WorkShop are trademarks of Silicon

Graphics, Inc. MIPS, MIPSpro, R5000, and R10000 are trademarks, and R4000, R4400,

and R8000 are registered trademarks of MIPS Technologies, Inc. AT&T is a trademark

of AT&T, Inc. POSIX is a registered trademark of the Institute of Electrical and

Electronic Engineers, Inc. (IEEE). UNIX is a registered trademark in the United States

and other countries, licensed exclusively through X/Open Company, Ltd.

OSF/Motif is a trademark of Open Software Foundation, Inc. The X Window System

is a trademark of the Massachusetts Institute of Technology. Ada is a registered

trademark of Ada Joint Program Ofﬁce, U.S. Government. Post-It is a registered

Topics in IRIX™ Programming

Document Number 007-2478-004

trademark of Minnesota Mining and Manufacturing. PostScript and Display

Postscript are registered trademarks of Adobe Systems, Inc. NFS is a registered

trademark of Sun Microsystems, Inc. Speedo is a trademark of Bitstream, Inc.

Contents

List of Examples xxi

List of Figures xxiii

List of Tables xxv

About This Manual xxix

What This Manual Contains xxix

What You Should Know Before Reading This Manual xxx

Other Useful References xxx

Obtaining Manuals xxxi

Conventions Used in This Manual xxxi

1. Process Address Space 3

Defining the Address Space 3

Address Space Boundaries 4

Page Numbers and Offsets 5

Address Definition 5

Address Space Limits 6

Delayed and Immediate Space Definition 7

Page Validation 9

Read-Only Pages 10

Copy-on-Write Pages 10

Interrogating the Memory System 10

Mapping Segments of Memory 11

The Segment Mapping Function mmap() 12

Describing the Mapped Object 12

Describing the New Segment 13

Contents

Mapping a File for I/O 15

Mapped File Sizes 16

Apparent Process Size 16

Mapping Portions of a File 16

File Permissions 17

NFS Considerations 17

File Integrity 17

Mapping a File for Shared Memory 18

Mapping a Segment of Zeros 19

Mapping Physical Memory 19

Mapping Kernel Virtual Memory 20

Mapping a VME Device 20

Choosing a Segment Address 21

Segments at Fixed Offsets 21

Segments at a Fixed Address 22

Locking and Unlocking Pages in Memory 23

Memory Locking Functions 23

Locking Program Text and Data 24

Locking Mapped Segments 25

Locking Mapped Files 25

Unlocking Memory 26

Reducing Cache Misses 27

Locality of Reference 27

Cache Mapping in Challenge and Onyx Systems 28

Multiprocessor Cache Conflicts 28

Detecting Cache Problems 29

Additional Memory Features 29

Changing Memory Protection 30

Synchronizing the Backing Store 30

Releasing Unneeded Pages 31

Contents

vii

2. Interprocess Communication 35

Types of Interprocess Communication Available 36

Using POSIX IPC 38

POSIX IPC Name Space 38

Using IRIX IPC 39

Using System V IPC 39

SVR4 IPC Name Space 40

Configuring the IPC Name Space 40

Listing and Removing Persistent Objects 40

Access Permissions 41

Choosing and Communicating Key Values 41

Using ID Numbers 41

Private Key Values 42

Using 4.2 BSD IPC 42

3. Sharing Memory Between Processes 43

Overview of Memory Sharing 43

Shared Memory Based on mmap() 44

Sharing Memory Between 32-Bit and 64-Bit Processes 44

POSIX Shared Memory Operations 45

Creating a Shared Object 45

Shared Object Pathname 45

Shared Object Open Flags 46

Shared Object Access Mode 46

Using the Shared Object File Descriptor 46

Using a Shared Object 47

Example Program 47

IRIX Shared Memory Arenas 50

Overview of Shared Arenas 50

Initializing Arena Attributes 51

Creating an Arena 52

Joining an Arena 53

Restricting Access to an Arena 53

Arena Access From Processes in a Share Group 53

viii

Contents

Allocating in an Arena 54

Exchanging the First Datum 55

System V Shared Memory Functions 60

Creating or Finding a Shared Memory Segment 60

Attaching a Shared Segment 61

Managing a Shared Segment 61

Information About Shared Memory 62

Shared Memory Examples 62

Example of Creating a Shared Segment 62

Example of Attaching a Shared Segment 63

4. Mutual Exclusion 67

Overview of Mutual Exclusion 68

Test-and-Set Instructions 68

Locks 69

Semaphores 70

Condition Variables 71

Barriers 72

POSIX Facilities for Mutual Exclusion 73

Managing Unnamed Semaphores 73

Managing Named Semaphores 74

Creating a Named Semaphore 75

Closing and Removing a Named Semaphore 76

Using Semaphores 76

Using Mutexes and Condition Variables 77

IRIX Facilities for Mutual Exclusion 77

Using IRIX Semaphores 77

Creating Normal Semaphores 77

Creating Polled Semaphores 78

Operating on Semaphores 79

Using Locks 80

Creating and Managing Locks 80

Claiming and Releasing Locks 81

Using Barriers 82

Contents

Using Test-and-Set Functions 82

Using Test-and-Set 83

Using Compare-and-Swap 83

Using Compiler Intrinsics for Test-and-Set 85

System V Facilities for Mutual Exclusion 87

Creating or Finding a Semaphore Set 88

Managing Semaphore Sets 88

Using Semaphore Sets 90

Example Programs 91

Example Uses of semget() 91

Example Uses of semctl() for Management 93

Example Uses of semctl() for Query 96

Example Uses of semop() 97

Using the Examples 100

5. Signalling Events 103

Signals 104

Signal Numbers 104

Signal Implementations 107

Signal Blocking and Signal Masks 107

Multiple Signals 108

Signal Handling Policies 108

Default Handling 108

Ignoring Signals 109

Catching Signals 109

Synchronous Signal Handling 109

Signal Latency 110

Signals Under X-Windows 110

POSIX Signal Facility 111

Signal Masking 112

Using Synchronous Handling 112

Using Asynchronous Handling 113

System V Signal Facility 115

BSD Signal Facility 116

Contents

Timer Facilities 117

Timed Pauses and Schedule Cession 117

Time Data Structures 118

Time Signal Latency 118

How Timers Are Managed 119

POSIX Timers 120

Getting Program Execution Time 121

Creating Timestamps 121

Using Interval Timers 123

BSD Timers 125

Hardware Cycle Counter 126

6. Message Queues 127

Overview of Message Queues 128

Implementation Differences 128

Uses of Message Queues 129

POSIX Message Queues 130

Managing Message Queues 131

Creating a Message Queue 131

Opening an Existing Queue 132

Using Message Queues 132

Sending a Message 133

Receiving a Message 133

Using Asynchronous Notification 133

Example Programs 134

Example of mq_getattr() 135

Example of mq_open() 136

Example of mq_send() 138

Example of mq_receive() 140

System V Message Queues 143

Contents

Managing SVR4 Message Queues 143

Creating a Message Queue 143

Accessing an Existing Queue 144

Modifying a Message Queue 144

Removing a Message Queue 144

Using SVR4 Message Queues 145

Sending a Message 145

Receiving a Message 145

Example Programs 146

Example of msgget 147

Example of msgctl 149

Example of msgsnd 152

Example of msgrcv 154

7. File and Record Locking 157

Overview of File and Record Locking 158

Terminology 158

Record 158

Read (Shared) Lock 159

Write (Exclusive) Lock 159

Advisory Locking 159

Mandatory Locking 159

Lock Promotion and Demotion 160

Controlling File Access With File Permissions 160

Using Record Locking 161

Opening a File for Record Locking 161

Setting a File Lock 162

Whole-File Lock With fcntl() 162

Whole-File Lock With lockf() 163

Whole-File Lock With flock() 164

Setting and Removing Record Locks 165

Getting Lock Information 169

Deadlock Handling 172

Enforcing Mandatory Locking 172

xii

Contents

Record Locking Across Multiple Systems 174

NFS File Locking 174

Configuring NFS Locking 175

Performance Impact 175

8. Models of Parallel Computation 179

Parallel Hardware Models 180

Parallel Programs on Uniprocessors 181

Types of Memory Systems 181

Single Memory Systems 181

Multiple Memory Systems 183

183

Parallel Execution Models 183

Process-Level Parallelism 184

Thread-Level Parallelism 185

Statement-Level Parallelism 187

Distributed Computation Models 187

Message-Passing Interface (MPI) Model 188

Portable Virtual Machine (PVM) Model 188

9. Statement-Level Parallelism 189

Products for Statement-Level Parallelism 189

Silicon Graphics Support 189

Products from Other Vendors 190

Creating Parallel Programs 190

Managing Statement-Parallel Execution 191

Controlling the Degree of Parallelism 192

Choosing the Loop Schedule Type 193

10. Process-Level Parallelism 195

Using Multiple Processes 195

Process Creation and Share Groups 196

Process Creation 196

Process Management 197

Process “Reaping” 199

Contents

xiii

Process Scheduling 199

Controlling Scheduling With IRIX and BSD-Compatible Facilities 200

Controlling Scheduling With POSIX Functions 202

Self-Dispatching Processes 203

Parallelism in Real-Time Applications 205

11. Thread-Level Parallelism 207

Overview of POSIX Threads 208

Compiling and Debugging a Pthread Application 209

Compiling Pthread Source 209

Debugging Pthread Programs 210

Debugging With dbx 211

Debugging With the Workshop Debugger 211

Creating Pthreads 212

Initial Detach State 213

Initial Scheduling Priority and Policy 213

Thread Stack Allocation 213

Preallocating Stack Areas 214

Caveats Regarding Stack Space 215

Executing and Terminating Pthreads 215

Getting the Thread ID 216

Initializing Static Data 216

Setting Event Handlers 217

Terminating and Being Terminated 217

Joining and Detaching 218

Using Thread-Unique Data 219

Pthreads and Signals 221

Setting Signal Masks 222

Setting Signal Actions 222

Receiving Signals Synchronously 223

Scheduling Pthreads 223

Scheduling Policy 224

Scheduling Priority 224

Synchronizing Pthreads 226

xiv

Contents

Mutexes 226

Preparing Mutex Objects 226

Using Mutexes 229

Condition Variables 229

Preparing Condition Variables 230

Using Condition Variables 230

12. Distributed Process Parallelism 235

Choosing Between MPI and PVM 236

Porting From PVM to MPI 237

Differences Between PVM and MPI 238

Comparing Library Routines 240

Comparable Routines 240

Nonportable PVM Functions 243

Converting a PVM Program to an MPI Program 244

Initial Environment Setup 244

Pure SPMD Program 245

General SPMD Model 245

MPMD Model 246

Common Environment Setup Changes 246

Task Environment Cleanup 247

Group Management Functions 247

Intertask Communication 248

Utility Functions 248

Example Programs 249

Example 1: SPMD Program 249

SPMD Program in PVM Version 249

SPMD Program in MPI Version 251

Example 2: MPMD Example 252

MPMD in PVM Version—Master Task 252

MPMD in PVM Version—Slave Task 254

MPMD in MPI Version—Master Task 255

MPMD in MPI Version—Slave Task 256

Contents

13. Working With Fonts 261

Font Basics 262

Terminology 262

Typography 262

Character 263

Font 263

Font Family, or Typeface 263

How Resolution Affects Font Size 264

Font Names 265

Writing Programs That Need to Use Fonts 266

Using Fonts With the X Window System 267

Listing and Viewing Fonts 267

Getting a List of Font Names and Font Aliases 267

Viewing Fonts 268

Getting the Current X Font Path 270

Changing the X Font Path 270

Installing and Adding Font and Font Metric Files 271

Locations of Font and Font Metric Files 271

Conventions for Bitmap Font File Names 272

Creating Font Aliases 273

Adding Font and Font Metric Files 273

Adding a Bitmap Font 274

Adding an Outline Font 276

Adding a Font Metric File 279

Downloading a Type 1 Font to a PostScript Printer 280

14. Internationalizing Your Application 285

Overview 286

Some Definitions 287

Locale 287

Internationalization (i18n) 287

Localization (l10n) 287

Nationalized Software 288

Multilingual Software 288

xvi

Contents

Areas of Concern in Internationalizing Software 288

Standards 289

Internationalizing Your Application: The Basic Steps 289

Additional Reading on Internationalization 291

Locales 292

Setting the Current Locale 292

Category 293

Locale 294

The Empty String 294

Nonempty Strings in Calls to setlocale() 295

Location of Locale-Specific Data 295

Locale Naming Conventions 295

Limitations of the Locale System 297

Multilingual Support 297

Misuse of Locales 297

No Filesystem Information for Encoding Types 298

Character Sets, Codesets, and Encodings 298

Eight-Bit Cleanliness 299

Character Representation 300

Multibyte Characters 301

Use of Multibyte Strings 302

Handling Multibyte Characters 302

Conversion to Constant-Size Characters 302

How Many Bytes in a Character? 302

How Many Bytes in an MB String? 303

How Many Characters in an MB String? 303

Wide Characters 304

Uses for wchar Strings 304

Support Routines for Wide Characters 305

Conversion to MB Characters 305

Reading Input Data 305

Cultural Items 305

Contents

xvii

Collating Strings 306

The Issue 306

The Solution 307

Specifying Numbers and Money 307

Using printf() 308

Using localeconv() 308

Using strfmon() 309

Formatting Dates and Times 309

Character Classification and ctype 309

The Issue 310

The Solution 310

Regular Expressions 311

Locale-Specific Behavior 311

Overview of Locale-Specific Behavior 312

Local Customs 312

Regular Expressions 312

The ANSI X3.159-198X Standard for C 312

Native Language Support and the NLS Database 314

Configuration Data 314

Collating Sequence Tables 315

Character Classification Tables 315

Shift Tables 316

Language Information 316

Using Regular Expressions 317

Internationalized Regular Expressions 318

Cultural Data 320

NLS Interfaces 322

NLS Utilities 322

NLS Library Functions 323

XSI Curses Interface 323

Strings and Message Catalogs 324

xviii

Contents

XPG/4 Message Catalogs 324

Opening and Closing XPG/4 Catalogs 324

Using an XPG/4 Catalog 325

XPG/4 Catalog Location 326

Creating XPG/4 Message Catalogs 326

Compiling XPG/4 Message Catalogs 327

SVR4 MNLS Message Catalogs 328

Putting MNLS Strings Into a Catalog 328

Using MNLS in Shell Scripts 328

Specifying MNLS Catalogs 329

Getting Strings From MNLS Message Catalogs 329

Using pfmt() 330

Labels, Severity, and Flags 330

Format Strings for pfmt() 331

Using fmtmsg() 331

Internationalizing File Typing Rule Strings With MNLS 332

Variably Ordered Referencing of printf() Arguments 333

Internationalization Support in X11R6 335

Limitations of X11R6 in Supporting Internationalization 335

Vertical Text 336

Character Sets 336

Xlib Interface Change 336

Resource Names 337

Getting X Internationalization Started 337

Initialization for Toolkit Programming 337

Initialization for Xlib Programming 337

Fontsets 338

Example: EUC in Japanese 338

Specifying a Fontset 338

Creating a Fontset 339

Using a Fontset 339

Text Rendering Routines 340

New Text Extents Functions 340

Contents

xix

Internationalization Support in Motif 342

User Input 343

About User Input and Input Methods 343

Reuse Sample Code 344

GL Input 344

About X Keyboard Support 344

Keys, Keycodes, and Keysyms 345

Composed Characters 345

Supported Keyboards 346

Input Methods (IMs) 347

Opening an Input Method 347

IM Styles 349

Root Window 349

Off-the-Spot 350

Over-the-Spot 350

On-the-Spot 351

Setting IM Styles 351

Using Styles 351

Input Contexts (ICs) 352

Find an IM Style 352

IC Values 353

Pre-Edit and Status Attributes 354

Creating an Input Context 355

Using the IC 355

Events Under IM Control 356

Using XFilterEvent() 356

Using XLookupString(), XwcLookupString(), and XmbLookupString() 357

GUI Concerns 359

X Resources for Strings 359

Contents

Layout 360

Dynamic Layout 360

Constant Layout 360

Localized Layout 361

IRIS IM Localization With editres 361

Icons 361

Popular Encodings 361

The ISO 8859 Family 362

Asian Languages 363

Some Standards 364

EUC 364

ISO 10646 and Unicode 365

A. ISO 3166 Country Names and Abbreviations 367

Index 371

xxi

List of Examples

Example 1-1 Using systune to Check Address Space Limits 7

Example 1-2 Function to Lock Maximum Stack Size 24

Example 3-1 POSIX Program to Demonstrate shm_open() 48

Example 3-2 Initializing a Shared Memory Arena 53

Example 3-3 Setting Up an Arena With uscasinfo() 56

Example 3-4 Resigning From an Arena 59

Example 3-5 shmget() System Call Example 62

Example 3-6 shmat() System Call Example 64

Example 4-1 Dynamic Allocation of POSIX Unnamed Semaphore 74

Example 4-2 Using Compare-and-Swap on a LIFO Queue 84

Example 4-3 Program to Demonstrate semget() 92

Example 4-4 Program to Demonstrate semctl() for Management 94

Example 4-5 Program to Demonstrate semctl() for Sampling 96

Example 4-6 Program to Demonstrate semop() 98

Example 5-1 Example of POSIX Time Functions 121

Example 6-1 Program to Demonstrate mq_getattr() and mq_setattr() 135

Example 6-2 Program to Demonstrate mq_open() 136

Example 6-3 Program to Demonstrate mq_send() 138

Example 6-4 Program to Demonstrate mq_receive() 140

Example 6-5 Program to Demonstrate msgget() 148

Example 6-6 Program to Demonstrate msgctl() 150

Example 6-7 Program to Demonstrate msgsnd() 152

Example 6-8 Program to Demonstrate msgrcv() 154

Example 7-1 Opening a File for Locked Use 161

Example 7-2 Setting a Whole-File Lock With fcntl() 163

Example 7-3 Setting a Whole-File Lock With lockf() 164

Example 7-4 Setting a Whole-File Lock With flock() 165

xxii

List of Examples

Example 7-5 Record Locking With Promotion Using fcntl() 166

Example 7-6 Record Locking Using lockf() 168

Example 7-7 Detecting Contending Locks Using fcntl() 170

Example 7-8 Testing for Contending Lock Using lockf() 171

Example 7-9 Setting Mandatory Locking Permission Bits 173

Example 10-1 Partial Code to Manage a Pool of Processes 203

Example 11-1 Debugger Display of Pthread Program 211

Example 11-2 One-Time Initialization 216

Example 11-3 Initializing Thread-Unique Data 220

Example 11-4 Establishing Relative Priority Levels 224

Example 11-5 Function to Set Own Priority 225

Example 11-6 Use of Condition Variables 232

Example 14-1 Find Number of Bytes in an MB Character 303

Example 14-2 Counting MB Characters Without Conversion 304

Example 14-3 Reading an XPG/4 Catalog 325

Example 14-4 Internationalized Code 334

Example 14-5 Initializing Xlib for a Locale 337

Example 14-6 Creating a Fontset 339

Example 14-7 Opening an IM 348

Example 14-8 Finding What a Client Can Do 352

Example 14-9 Setting the Desired IM Style 353

Example 14-10 Creating an Input Context With XCreateIC() 355

Example 14-11 Using the IC 356

Example 14-12 Event Loop 356

Example 14-13 KeyPress Event 358

xxiii

List of Figures

Figure 1-1 Segments With a Fixed Offset Relationship 21

Figure 13-1 X Window System Font Name Example 266

Figure 13-2 Sample Display From xfd 269

Figure 14-1 Root Window Input 349

Figure 14-2 Off-the-Spot Input 350

xxv

List of Tables

Table i Books for Further Reading in IRIX Development xxx

Table ii Typographical Conventions xxxi

Table 1-1 Memory System Calls 10

Table 1-2 Functions for Locking Memory 23

Table 1-3 Functions for Unlocking Memory 26

Table 2-1 Types of IPC and Compatibility 36

Table 2-2 SVR4 IPC Name Space Management 40

Table 3-1 POSIX Shared Memory Functions 45

Table 3-2 IRIX Shared Arena Management Functions 51

Table 3-3 Arena Features Set Using usconfig() 51

Table 3-4 IRIX Shared Memory Arena Allocation Functions 54

Table 3-5 IRIX Shared Memory First-Datum Functions 55

Table 3-6 SVR4 Shared Memory Functions 60

Table 3-7 SVR4 Shared Segment Management Operations 61

Table 4-1 POSIX Functions to Manage Unnamed Semaphores 73

Table 4-2 POSIX Functions to Manage Named Semaphores 74

Table 4-3 POSIX Functions to Operate on Semaphores 76

Table 4-4 IRIX Functions to Manage Nonpolled Semaphores 77

Table 4-5 IRIX IPC Functions for Managing Polled Semaphores 78

Table 4-6 IRIX IPC Functions for Semaphore Operations 79

Table 4-7 IRIX IPC Functions for Managing Locks 80

Table 4-8 IRIX IPC Functions for Using Locks 81

Table 4-9 IRIX IPC Functions for Barriers 82

Table 4-10 Compiler Intrinsics for Atomic Operations 85

Table 4-11 SVR4 Semaphore Management Functions 87

Table 4-12 SVR4 Semaphore Set Management Operations 88

Table 4-13 SVR4 Semaphore Management Operations 89

xxvi

List of Tables

Table 5-1 Signal Numbers and Default Actions 105

Table 5-2 Signal Handling Interfaces 107

Table 5-3 Functions for POSIX Signal Handling 111

Table 5-4 Functions for SVR4 Signal Handling 115

Table 5-5 Functions for BSD Signal Handling 116

Table 5-6 Functions for Timed Suspensions 117

Table 5-7 Time Data Structures and Usage 118

Table 5-8 POSIX Time Management Functions 120

Table 5-9 POSIX Time Management Functions 120

Table 5-10 BSD Functions for Interval Timers 125

Table 5-11 Types of itimer 125

Table 6-1 Abstract Operations on a Message Queue 128

Table 6-2 POSIX Functions for Managing Message Queues 131

Table 6-3 POSIX Functions for Using Message Queues 132

Table 6-4 SVR4 Functions for Managing Message Queues 143

Table 6-5 SVR4 Functions for Using Message Queues 145

Table 7-1 Functions for File and Record Locking 158

Table 8-1 Comparing Parallel Models 184

Table 9-1 Documentation for Statement-Level Parallel Products 189

Table 9-2 Loop Scheduling Types 193

Table 10-1 Commands and System Functions for Process Management 196

Table 10-2 Functions for Child Process Management 199

Table 10-3 Commands and Functions for Scheduling Control 200

Table 10-4 POSIX Functions for Scheduling 202

Table 11-1 Comparison of Pthreads and Processes 208

Table 11-2 Header Files Related to Pthreads 209

Table 11-3 Functions for Creating Pthreads 212

Table 11-4 Functions for Managing Thread Execution 215

Table 11-5 Functions for Thread-Unique Data 219

Table 11-6 Functions for Schedule Management 223

Table 11-7 Functions for Preparing Mutex Objects 227

Table 11-8 Functions for Using Mutexes 229

Table 11-9 Functions for Preparing Condition Variables 230

List of Tables

xxvii

Table 11-10 Functions for Using Condition Variables 231

Table 12-1 Corresponding PVM and MPI Routines 241

Table 13-1 Font and Font Metric Directories 271

Table 14-1 Locale Categories 293

Table 14-2 Category Environment Variables 294

Table 14-3 Some Monetary Formats 308

Table 14-4 ANSI Compatible Functions 313

Table 14-5 X/Open Additional Functions 314

Table 14-6 Regular Expression Libraries in IRIX 317

Table 14-7 Character Expressions in Internationalized Regular Expressions 318

Table 14-8 Examples of Internationalized Regular Expressions 319

Table 14-9 Cultural Data Names, Categories, and Settings 320

Table 14-10 ISO 8859 Character Sets 362

Table 14-11 Character Sets for Asian Languages 364

Table A-1 ISO 3166 Country Codes 367

xxix

About This Manual

This manual discusses several topics of interest to programmers writing applications for

the IRIX™ operating system on Silicon Graphics® computers, including memory

management, interprocess communication, models of parallel computation, ﬁle and

record locking, font access, and internationalization.

What This Manual Contains

This manual contains the following major parts:

•Part I, “The Process Address Space,” tells how the virtual address space of a process

is created and how objects are mapped into it.

•Part II, “Interprocess Communication,” covers all the facilities for communicating

and coordinating among processes such as semaphores, shared memory, signals,

message queues, and ﬁle and record locks.

•Part III, “Models of Parallel Computation,” gives an overview of the different ways

you can specify parallel execution in Silicon Graphics systems.

•Part IV, “Working With Fonts,” discusses typography and font use on Silicon

Graphics computers, and describes the Font Manager library.

•Part V, “Internationalizing Your Application,” explains how to create an application

that can be adapted for use in different countries.

•Appendix A, “ISO 3166 Country Names and Abbreviations,” lists country codes for

use with internationalization and localization.

xxx

About This Manual

What You Should Know Before Reading This Manual

This manual assumes you are writing an application that executes under IRIX version 6.2

or later, and that you are familiar with the programming conventions of UNIX® in

general and IRIX in particular.

All examples are in the C language, although the descriptions are valid for C++ or any

other language that provides access to IRIX kernel functions, such as Silicon Graphics

Ada95 or MIPSpro™Fortran 90.

Other Useful References

In addition to this manual, which covers speciﬁc IRIX features, you will need to refer to

Silicon Graphics manuals that describe compilers and programming languages. Some of

the most useful are listed in Table i.

Table i Books for Further Reading in IRIX Development

Topic Document Title Number

Overview of the IRIX library of

manuals for developers

Programming on Silicon Graphics Systems: An

Overview

007-2476-nnn

Compiling, linking, and tuning

programs in C, C++, or Fortran

MIPSpro Compiling and Performance Tuning

Guide

007-2360-nnn

Writing modules in assembly

language.

MIPSpro Assembly Language Programmer’s

Guide

007-2418-nnn

C language C Language Reference Manual 007-0701-nnn

C++ language C++ Language System Overview 007-1621-nnn

Fortran language MIPSpro Fortran 77 Programmer’s Guide

MIPSpro Fortran 90 Programmer’s Guide

007-2361-nnn

007-2761-nnn

Writing real-time applications REACT Real Time Programmer’s Guide 007-2499-nnn

Controlling devices directly IRIX Device Driver Programmer’s Guide 007-0911-nnn

Details of the MIPS processor

hardware

MIPS R4000 Microprocessor User’s Manual MIPS

Technologies

About This Manual

xxxi

You can ﬁnd additional information about internationalization from X/Open Company

Limited. X/Open Portability Guide,Volume 1, XSI Commands and Utilities, Volume 2;XSI

System Interface; and Volume 3, XSI Supplementary Deﬁnitions. Berkshire, United Kingdom.

Prentice-Hall, Inc.

Obtaining Manuals

Silicon Graphics manuals are usually read online using IRIS InSight™. This manual and

many of the books in Table i are installed as part of the IRIS Developer’s Option (IDO)

feature. When the books are installed or mounted on your workstation, use the

command iiv, or double-click the InSight icon.

When the manuals are not accessible to your workstation you can examine or order any

Silicon Graphics manual on the World Wide Web using the following URL:

http://www.sgi.com/Technology/TechPubs/

If you do not have Web access, you can order a printed manual from Silicon Graphics by

telephone. Inside the U.S. and Canada, call 1-800-627-9307. In other countries, call the

U.S. telephone number 415-960-1980, and ask for extension 5-5007.

Conventions Used in This Manual

This manual uses the conventions and symbols shown in Table ii.

Table ii Typographical Conventions

Type of Information Example of Typography

Filenames and pathnames This structure is declared in /usr/include/sys/time.h.

IRIX command names and options used in

normal text

Update these variables with systune; then build a

new kernel with autoconﬁg -vf.

Names of program variables, structures,

and data types

Global variable mainSema points to an IRIX

semaphore, which has type usema_t.

Names of IRIX kernel functions, library

functions, and functions in example code

Use mmap() to map an object into the address

space, and munmap() to remove it.

xxxii

About This Manual

When complete lines of example code or commands are set off from normal text, they are

displayed as follows.

ipcrm -s semid

Parts of the code or command that need to be typed exactly as shown are displayed in a

monospaced font. Operands that need to be supplied by you are italicized.

PART ONE

The Process Address Space I

Chapter 1

Tells how the virtual address space of a process is created under IRIX. Lists the

parts of the address space and their sources; discusses memory mapping; gives

tips on cache management.

Chapter 1

1. Process Address Space

When planning a complex program, you must understand how IRIX creates the virtual

address space of a process, and how you can modify the normal behavior of the address

space. The major topics covered here are as follows:

•“Deﬁning the Address Space” on page 3 tells what the address space is and how it

is created.

•“Interrogating the Memory System” on page 10 summarizes the ways your

program can get information about the address space.

•“Mapping Segments of Memory” on page 11 documents the different ways that you

can create new memory segments with predeﬁned contents.

•“Locking and Unlocking Pages in Memory” on page 23 discusses when and how to

lock pages of virtual memory to avoid page faults.

•“Additional Memory Features” on page 29 summarizes functions for address space

management.

Deﬁning the Address Space

Each user-level process has a virtual address space. This term means nothing more than

the set of memory addresses that the process can use without error. When 32-bit

addressing is in use, addresses can range from 0 to 0x7fffffff; that is, 2^31 possible

numbers, for a total theoretical size of 2 gigabytes. (Numbers greater than 2^31 are in the

IRIX kernel’s address space.)

When 64-bit addressing is used, a process’s address space can encompass 2^40 numbers.

(The numbers greater than 2^40 are reserved for kernel address spaces.) For more details

on the structure of physical and virtual address spaces, see the IRIX Device Driver

Programmer’s Guide and the MIPS architecture documents listed on page xxx.

Although the address space includes a vast quantity of potential numbers, usually only

a small fraction of the addresses are valid.

Chapter 1: Process Address Space

Asegment of the address space is any range of contiguous addresses. Certain segments

are created or reserved for certain uses.

The address space is called “virtual” because the address numbers are not directly

related to physical RAM addresses where the data resides. The mapping from a virtual

address to the corresponding real memory location is kept in a table created by the IRIX

kernel and used by the CPU.

Address Space Boundaries

A process has at least three segments of usable addresses:

•A text segment contains the executable image of the program. Another text segment

is created for each dynamic shared object (DSO) with which a process is linked.Text

segments are always read-only.

•A data segment contains the “heap” of dynamically allocated data space. A process

can create additional data segments in various ways described later.

•A stack segment contains the function-call stack. The segment is extended

automatically as needed.

Although the address space begins at location 0, by convention the lowest segment is

allocated at 0x0040 0000 (4 MB). Addresses less than this are left undeﬁned so that an

attempt to reference them (for example, through an uninitialized pointer variable) causes

a hardware exception.

Typically, the text segments are at smaller virtual addresses and stack and data segments

at larger ones, although you should not write code that depends on this.

Tip: The boundaries of all distributed DSOs are declared in the ﬁle /usr/lib/so_locations.

When IRIX loads a DSO that is not declared in this ﬁle, it seeks a segment of the address

space that does not overlap any declared DSO and that will not interfere with growth of

the stack segment.

Defining the Address Space

Page Numbers and Offsets

IRIX manages memory in units of a page. The size of a page can differ from one system

to another. The size when 32-bit addressing is used is typically (but not necessarily) 4,096

bytes. In each 32-bit virtual address,

•the least-signiﬁcant 12 bits specify an offset from 0 to 0x0fff within a page

•the most-signiﬁcant 20 bits specify a virtual page number (VPN)

The page size when 64-bit addressing is used is greater than 4,096 bytes. The page size in

any case can differ between versions of IRIX, but the bits of the virtual address are used

in the same way: the least-signiﬁcant bits of an address specify an offset within a page,

while the most-signiﬁcant bits specify the VPN.

You can learn the actual size of a page in the present system with getpagesize(), as noted

under “Interrogating the Memory System” on page 10.

Page tables, built by IRIX during a fork() or exec() call, deﬁne the address space by

specifying which VPNs are deﬁned. These tables are consulted by the hardware.

Recently used table entries are cached for instant lookup in the processor chip, in an

array called the Translation Lookaside Buffer (TLB).

Address Deﬁnition

Most of the possible addresses in an address space are undeﬁned; that is, not deﬁned in

the page tables, not related to contents of any kind, and not available for use. A reference

to an undeﬁned address causes a SIGSEGV error.

Addresses are deﬁned—that is, made available for potential use—in one of four ways:

Fork When a process is created using fork(), the new process is given a

duplicate copy of the parent process’s page table, so that any addresses

that were deﬁned in the parent’s address space are deﬁned in the address

space of the new process.

Stack The call stack is created and extended automatically. When a function is

entered and more stack space is needed, IRIX makes the stack segment

larger, deﬁning new addresses if required.

Chapter 1: Process Address Space

An address is deﬁned by entry in the page tables. A deﬁned address is always related to

abacking store, a source from which its contents can be retrieved. A page in the data or

stack segment is related to a page in a swap partition on disk.

The total size of the deﬁned pages in an address space is its virtual size, displayed by the

ps command under the heading SZ (see the ps(1) reference page).

Once addresses have been deﬁned in the address space by allocation, there is no way to

undeﬁne them except to terminate the process. To free allocated memory makes the freed

memory available for reuse within the process, but the pages are still deﬁned in the page

tables and the swap space is still allocated.

Address Space Limits

The segments of the address space have maximum sizes that are set as resource limits on

the process. Hard limits are set by these variables:

The limits active during a login session can be displayed and changed using the C-shell

command limits. The limits can be queried with getrlimit() and changed with setrlimit()

(see the getrlimit(2) reference page).

The initial default value and the possible range of a resource limit is established in the

kernel tuning parameters. For a quick look at the kernel limits, use

fgrep rlimit /var/sysgen/mtune/kernel

Mapping A process can ask IRIX to map (associate byte for byte) a segment of

address space to one of a number of special objects, for example, the

contents of a ﬁle. This is covered further under “Mapping Segments of

Memory” on page 11.

Allocation The brk() function extends the heap, the segment devoted to data, to a

speciﬁc virtual address. The malloc() function allocates memory for use,

calling brk() as required. (See the brk(2), malloc(3), and malloc(3x)

reference pages).

rlimit_vmem_max Total size of the address space of a process

rlimit_data_max Size of the portion of the address space used for data

rlimit_stack_max Size of the portion of the address space used for stack

Defining the Address Space

To examine and change the limits, use systune (see the systune(1) reference page):

Example 1-1 Using systune to Check Address Space Limits

systune -i

Updates will be made to running system and /unix.install

systune-> rlimit_vmem_max

rlimit_vmem_max = 536870912 (0x20000000) ll

systune-> resource

group: resource (statically changeable)

...

rlimit_vmem_max = 536870912 (0x20000000) ll

rlimit_vmem_cur = 536870912 (0x20000000) ll

...

rlimit_stack_max = 536870912 (0x20000000) ll

rlimit_stack_cur = 67108864 (0x4000000) ll

...

Tip: These limits interact in the following way: each time your program creates a process

with sproc() and does not supply a stack area (see the sproc(2) reference page), an

address segment equal to rlimit_stack_max is dedicated to the stack of the new process.

When rlimit_stack_max is set high, a program that creates many processes can quickly run

into the rlimit_vmem_max boundary.

Delayed and Immediate Space Deﬁnition

IRIX supports two radically different ways of deﬁning segments of address space.

The conventional behavior of UNIX systems, and the default behavior of current releases

of IRIX, is that space created using brk() or malloc() is immediately deﬁned. Page table

entries are created to deﬁne the addresses, and swap space is allocated as a backing store.

Three results follow from the conventional method:

•A program can detect immediately when swap space is exhausted. A call to

malloc() returns NULL when memory cannot be allocated. A program can ﬁnd the

limits of swap space by making repeated calls to malloc().

•A large memory allocation by one program can ﬁll swap, causing other programs to

see out-of-memory errors—whether the program ever uses its allocated memory or

not.

•Afork() or exec() call fails unless there is free space in swap equal to the data and

stack sizes of the new process.

Chapter 1: Process Address Space

By default in IRIX 5.2, and optionally in later releases, IRIX uses a different method

sometimes called “virtual swap.” In this method, the deﬁnition of new segments is

delayed until the space is actually used. Functions like brk() and malloc() merely test the

new size of the data segment against the resource limits. They do not actually deﬁne the

new addresses, and they do not cause swap disk space to be allocated. Addresses are

reserved with brk() or malloc(), but they are only deﬁned and allocated in swap when your

program references them.

When IRIX uses delayed deﬁnition (“virtual swap”), it has the following effects:

•A program cannot ﬁnd the limits of swap space using malloc(), which never returns

NULL until the program exceeds its resource limit.

Instead, when a program ﬁnally accesses a new page of allocated space and there is

at that time no room in the swap partition, the program receives a SIGKILL signal.

•A large memory allocation by one program cannot monopolize the swap disk until

the program actually uses the allocated memory, if it ever does.

•Much less swap space is required for a successful fork() call.

You can test whether the system uses virtual swap with the chkconﬁg command (as

described in the chkconﬁg(1) reference page):

# chkconfig vswap; echo $status

As you write a new program, assume that virtual swap may be used. Do not allocate

memory merely to ﬁnd out if you can. Allocate no more memory than your program

needs, and use the memory immediately after allocating it.

If you are porting a program written for a conventional UNIX system, you might

discover that it tests the limits of allocatable memory by calling malloc() until malloc()

returns a NULL, and then does not use the memory. In this case you have several choices:

•Recode this part of the program to derive the maximum memory size in some more

reasonable and portable way, for instance from an environment variable or the size

of an input ﬁle.

•Using setrlimit(), set a lower maximum for rlimit_data_max, so that malloc() returns

NULL at a reasonable allocation size (see the getrlimit(2) reference page).

•Restore the conventional UNIX behavior for the whole system. Use chkconﬁg to turn

off the variable vswap, and reboot (see the chkconﬁg(1) reference page).

Defining the Address Space

Note: The function calloc() touches all allocated pages in the course of ﬁlling them with

zeros. Hence memory allocated by calloc() is deﬁned as soon as it is allocated. However,

you should not rely on this behavior. It is possible to implement calloc() in such a way

that it, like malloc(), does not deﬁne allocated pages until they are used. This might be

done in a future version of IRIX.

Page Validation

Although an address is deﬁned, the corresponding page is not necessarily loaded in

physical memory. The sum of the deﬁned address spaces of all processes is normally far

larger than available real memory. IRIX keeps selected pages in real memory. A page that

is not present in real memory is marked as “invalid” in the page tables. The contents of

invalid pages can be supplied in one of the following ways:

When a process refers to a VPN that is deﬁned but invalid, a hardware interrupt occurs.

The interrupt handler in the IRIX kernel chooses a page of physical RAM to hold the

page. In order to acquire this space, the kernel might have to invalidate some other page

belonging to your process or to another process. The contents of the needed page are read

from the appropriate backing store into memory, and the process continues to execute.

Page validation takes from 10 to 50 milliseconds. Most applications are not impeded by

page fault processing, but a real-time program cannot tolerate these delays.

The total size of all the valid pages in an address space is displayed by the ps command

under the heading SZ. The aggregate size of the pages that are actually in memory is the

resident set size, displayed by ps under the heading RSS.

Text Pages of program text—executable code of programs and dynamically

linked libraries—can be retrieved on demand from the program ﬁle or

library ﬁles on disk.

Data Pages of data from the heap and stack can be retrieved from the swap

partition or ﬁle on disk.

Mapped When a segment is created by mmap(), the backing store ﬁle is speciﬁed at

creation time (see “Mapping Segments of Memory” on page 11).

Never used Pages that have been deﬁned but never used can be created as pages of

binary zero when they are needed.

Chapter 1: Process Address Space

Read-Only Pages

A page of memory can be marked as valid for reading but invalid for writing. Program

text is marked this way because program text is read-only; it is never changed. If a

process attempts to modify a read-only page, a hardware interrupt occurs. When the

page is truly read-only, the kernel turns this into a SIGSEGV signal to the program.

Unless the program is handling this signal the result is to terminate the program with a

segmentation fault.

Copy-on-Write Pages

When fork() is executed, the new process shares the pages of the parent process under a

rule of copy-on-write. The pages in the new address space are marked read-only. When

the new process attempts to modify a page, a hardware interrupt occurs. The kernel

makes a copy of that page, and changes the new address space to point to the copied

page. Then the process continues to execute, modifying the page of which it now has a

unique copy.

You can apply the copy-on-write discipline to the pages of an arena shared with other

processes (see “Mapping a File for Shared Memory” on page 18).

Interrogating the Memory System

You can get information about the state of the memory system with the system calls

shown in Table 1-1.

Table 1-1 Memory System Calls

Memory Information System Call Invocation

Size of a page uiPageSize = getpagesize();

ulPageSize = sysconf(_SC_PAGESIZE);

Virtual and resident sizes of a process syssgi(SGI_PROCSZ, pid, &uiSZ, &uiRSS);

Maximum stack size of a process uiStackSize = prctl(PR_GETSTACKSIZE)

Free swap space in 512-byte units swapctl(SC_GETFREESWAP, &uiBlocks);

Mapping Segments of Memory

The structure used with the sysmp() call shown above has this form (a more detailed

layout is in sys/sysmp.h):

struct rminfo {

long freemem; /* pages of free memory */

long availsmem; /* total real+swap memory space */

long availrmem; /* available real memory space */

long bufmem; /* not useful */

long physmem; /* total real memory space */

};

A sample program that applies swapctl() and sysmp() to display these numbers is

shipped in the 4DGifts example directory. See ~4Dgifts/examples/unix/irix/freevmen.c

Mapping Segments of Memory

Your process can create new segments within the address space. Such a “mapped”

segment can represent

•the contents of a ﬁle

•a portion of VME A24 or A32 bus address space (when a VME bus exists on the

system)

•a segment initialized to binary zero

•a POSIX® shared memory object

•a view of the kernel’s private address space or of physical memory

Total physical swap space in 512-byte

units

swapctl(SC_GETSWAPTOT, &uiBlocks);

Total real memory sysmp(MP_KERNADDR, MPSA_RMINFO, &rmstruct);

Free real memory sysmp(MP_KERNADDR, MPSA_RMINFO, &rmstruct);

Total real memory + swap space sysmp(MP_KERNADDR, MPSA_RMINFO, &rmstruct);

Table 1-1 (continued) Memory System Calls

Memory Information System Call Invocation

Chapter 1: Process Address Space

A mapped segment can be private to one address space, or it can be shared between

address spaces. When shared, it can be

•read-only to all processes

•read-write to the creating process and read-only to others

•read-write to all sharing processes

•copy-on-write, so that any sharing process that modiﬁes a page is given its own

unique copy of that page

Note: Some of the memory-mapping capabilities described in this section are unique to

IRIX and nonportable. Some of the capabilities are compatible with System V Release 4

(SVR4). IRIX also supports the POSIX 1003.1b shared memory functions. Compatibility

issues with SVR4 and POSIX are noted in the text of this section.

The Segment Mapping Function mmap()

The mmap() function (see the mmap(2) reference page) creates shared or unshared

segments of memory. The syntax and most basic features of mmap() are compatible with

SVR4 and with POSIX 1003.1b. A few features of mmap() are unique to IRIX.

The mmap() function performs many kinds of mappings based on six parameters. The

function prototype is

void * mmap(void *addr, size_t len, int prot, int ﬂags, int fd, off_t off)

The function returns the base address of a new segment, or else -1 to indicate that no

segment was created. The size of the new segment is len, rounded up to a page. An

attempt to access data beyond that point causes a SIGBUS signal.

Describing the Mapped Object

Three of the mmap() parameters describe the object to be mapped into memory (which

is the backing store of the new segment):

fd A ﬁle descriptor returned by open() or by the POSIX-deﬁned function

shm_open() (see the open(2) and shm_open(2) reference pages). All mmap() calls

require a ﬁle descriptor to deﬁne the backing store for the mapped segment. The

descriptor can represent a ﬁle, or it can be based on a pseudo-ﬁle that represents

kernel memory or a special device ﬁle.

Mapping Segments of Memory

Describing the New Segment

Three parameters of mmap() describe the segment to be created:

The elements of ﬂags determine the way the segment behaves, and are as follows:

The MAP_FIXED element of ﬂags modiﬁes the meaning of addr. Discussion of this is

under “Choosing a Segment Address” on page 21.

The MAP_AUTOGROW element of ﬂags speciﬁes what should happen when a process

stores data past the current end of the segment (provided storing is allowed by prot).

When ﬂags contains MAP_AUTOGROW, the segment is extended with zero-ﬁlled space.

off The offset into the object represented by fd where the mapped data begins. When

fd describes a disk ﬁle, off is an offset into the ﬁle. When fd describes memory, off

is an address in that memory. off must be an integral multiple of the memory page

size (see “Interrogating the Memory System” on page 10).

len The number of bytes of data from fd to be mapped. The initial size of the segment

is len, rounded up to a multiple of whole pages.

addr Normally 0 to indicate that IRIX should pick a convenient base address, addr

can specify a virtual address to be the base of the segment. See “Choosing a

Segment Address” on page 21.

prot Access control on the new segment. You use constants to specify a combination

of read, write, and execute permission. The access control can be changed later

(see “Changing Memory Protection” on page 30).

ﬂags Options on how the new segment is to be managed.

MAP_FIXED Take addr literally.

MAP_PRIVATE Changes to the mapped data are visible only to this process.

MAP_SHARED Changes to the mapped data are visible to all processes that map

the same object.

MAP_AUTOGROW Extend the object when the process stores beyond its end (not

POSIX)

MAP_LOCAL Map is not visible to other processes in share group (not POSIX)

MAP_AUTORESRV Delay reserving swap space until a store is done (not POSIX).

Chapter 1: Process Address Space

Otherwise the initial len value is a permanent limit, and an attempt to store more than len

bytes from the base address causes a SIGSEGV signal.

Two elements of ﬂags specify the rules for sharing the segment between two address

spaces when the segment is writable:

•MAP_SHARED speciﬁes that changes made to the common pages are visible to

other processes sharing the segment. This is the normal setting when a memory

arena is shared among multiple processes.

When a mapped segment is writable, any changes to the segment in memory are

also written to the ﬁle that is mapped. The mapped ﬁle is the backing store for the

segment.

When MAP_AUTOGROW is speciﬁed also, a store beyond the end of the segment

lengthens the segment and also the ﬁle to which it is mapped.

•MAP_PRIVATE speciﬁes that changes to shared pages are private to the process

that makes the changes.

The pages of a private segment are shared on a copy-on-write basis—there is only

one copy as long as they are unmodiﬁed. When the process that speciﬁes

MAP_PRIVATE stores into the segment, that page is copied. The process has a

private copy of the modiﬁed page from then on. The backing store for unmodiﬁed

pages is the ﬁle, while the backing store for modiﬁed pages is the system swap

space.

When MAP_AUTOGROW is speciﬁed also, a store beyond the end of the segment

lengthens only the private copy of the segment; the ﬁle is unchanged.

The difference between MAP_SHARED and MAP_PRIVATE is important only when the

segment can be modiﬁed. When the prot argument does not include PROT_WRITE, there

is no question of modifying or extending the segment, so the backing store is always the

mapped object. However, the choice of MAP_SHARED or MAP_PRIVATE does affect

how you lock the mapped segment into memory, if you do; see “Locking Program Text

and Data” on page 24.

Processes created with sproc() normally share a single address space, including mapped

segments (see the sproc(2) reference page). However, if ﬂags contains MAP_LOCAL,

each new process created with sproc() receives a private copy of the mapped segment on

a copy-on-write basis.

Mapping Segments of Memory

When the segment is based on a ﬁle or on /dev/zero (see “Mapping a Segment of Zeros”

on page 19), mmap() normally deﬁnes all the pages in the segment. This includes

allocating swap space for the pages of a segment based on /dev/zero. However, if ﬂags

contains MAP_AUTOGROW, the pages are not deﬁned until they are accessed (see

“Delayed and Immediate Space Deﬁnition” on page 7).

Note: The MAP_LOCAL and MAP_AUTOGROW ﬂag elements are IRIX features that

are not portable to POSIX or to System V.

Mapping a File for I/O

You can use mmap() as a simple, low-overhead way of reading and writing a disk ﬁle.

Open the ﬁle using open(), but instead of passing the ﬁle descriptor to read() or write(),

use it to map the ﬁle. Access the ﬁle contents as a memory array. The memory accesses

are translated into direct calls to the device driver, as follows:

•An attempt to access a mapped page, when the page is not resident in memory, is

translated into a call on the read entry point of the device driver to read that page of

data.

•When the kernel needs to reclaim a page of physical memory occupied by a page of

a mapped ﬁle, and the page has been modiﬁed, the kernel calls the write entry point

of the device driver to write the page. It also writes any modiﬁed pages when the

ﬁle mapping is changed by munmap() or another mmap() call, when the program

applies msync() to the segment, or when the program ends.

When mapping a ﬁle for input only (when the prot argument of mmap() does not contain

PROT_WRITE), you can use either MAP_SHARED or MAP_PRIVATE. When writing is

allowed, you must use MAP_SHARED, or changes will not be reﬂected in the ﬁle.

Memory mapping provides an excellent way to read a ﬁle containing precalculated,

constant data used by an interactive program. Time-consuming calculation of the data

elements can be done ofﬂine by another program; the other program also maps the ﬁle

in order to ﬁll it with data.

You can lock a mapped ﬁle into memory. This is discussed further under “Locking and

Unlocking Pages in Memory” on page 23.

Chapter 1: Process Address Space

Mapped File Sizes

Since the potential 32-bit address space is more than 2000 megabytes (and the 64-bit

address space vastly greater), you can in theory map very large ﬁles into memory. To map

an entire ﬁle, follow these steps:

1. Open the ﬁle to get a ﬁle descriptor.

2. Use lseek(fd,0,SEEK_END) to discover the size of the ﬁle (see the lseek(2) reference

page).

3. Map the ﬁle with an off of 0 and len of the ﬁle size.

Apparent Process Size

When you map a large ﬁle into memory, the space is counted as part of the virtual size of

the process. This can lead to very large apparent sizes. For example, under IRIX 5.3 and

6.2, the Object Server maps a large database into memory, with the result that a typical

result of ps -l looks like this:

70 S 0 566 1 0 26 20 * 33481:225 80272230 ? 0:45 objectser

The total virtual size of 33481 certainly gets your attention! However, note the more

modest real storage size of 225. Most of the mapped pages are not in physical memory.

Also realize that the backing store for pages of a mapped ﬁle is the ﬁle itself—no swap

space is used.

Mapping Portions of a File

You do not have to map the entire ﬁle; you can map any portion of it, from one page to

the ﬁle size. Simply specify the desired length as len and the starting offset as off.

You can remap a ﬁle to a different segment by calling mmap() again. In this way you can

use the off parameter of mmap() as the logical equivalent of lseek(). That is, to map a

different segment of the ﬁle, specify

•the same ﬁle descriptor

•the new offset in off

•the current segment base address as addr

•MAP_FIXED in ﬂags to force the use of addr as the base address (otherwise map the

new portion of the ﬁle as a different, additional memory segment)

Mapping Segments of Memory

The old segment is replaced with a new segment at the same address, now containing

data from a different offset in the ﬁle.

Each time you replace a segment with mmap(), the previous segment is discarded. The

new segment is not locked in memory, even if the old segment was locked.

File Permissions

Access to a ﬁle for mapping is controlled by the same ﬁle permissions that control I/O to

the ﬁle. The protection in prot must agree with the ﬁle permissions. For example, if the

ﬁle is read-only to the process, mmap() does not allow prot to specify write or execute

access.

Note: When a program runs with superuser privilege for other reasons, ﬁle permissions

are not a protection against accidental updates.

NFS Considerations

The ﬁle that is mapped can be local to the machine, or can be mounted by NFS®. In either

case, be aware that changes to the ﬁle are buffered and are not immediately reﬂected on

disk. Use msync() to force modiﬁed pages of a segment to be written to disk (see

“Synchronizing the Backing Store” on page 30).

If IRIX needs to read a page of a mapped, NFS mounted ﬁle, and an NFS error occurs (for

example, because the ﬁle server has gone down), the error is reﬂected to your program

as a SIGBUS exception.

Caution: When two or more processes in the same system map an NFS-mounted ﬁle,

their image of the ﬁle will be consistent. But when two or more processes in different

systems map the same NFS-mounted ﬁle, there is no way to coordinate their updates,

and the ﬁle can be corrupted.

File Integrity

Any change to a ﬁle is immediately visible in the mapped segment. This is always true

when ﬂags contains MAP_SHARED, and initially true when ﬂags contains

MAP_PRIVATE. A change to the ﬁle can be made by another process that has mapped

the same ﬁle.

Chapter 1: Process Address Space

A mapped ﬁle can also be changed by a process that opens the ﬁle for output and then

applies either write() to update the ﬁle or ftruncate() to shorten it (see the write(2) and

ftruncate(3) reference pages). In particular, if any process truncates a mapped ﬁle, an

attempt to access a mapped memory page that corresponds to a now-deleted portion of

the ﬁle causes a bus error signal (SIGBUS) to be sent.

When MAP_PRIVATE is speciﬁed, a private copy of a page of memory is created

whenever the process stores into the page (copy-on-write). This prevents the change

from being seen by any other process that uses or maps the same ﬁle, and it protects the

process from detecting any change made to that page by another process. However, this

applies only to pages that have been written into.

Frequently you cannot use MAP_PRIVATE because it is important to see data changes

and to share them with other processes that map the same ﬁle. However, it is also

important to prevent an unrelated process from truncating the ﬁle and so causing

SIGBUS exceptions.

The one sure way to block changes to the ﬁle is to install a mandatory ﬁle lock. You place

a ﬁle lock with the lockf() function (see Chapter 7, “File and Record Locking”). However,

a ﬁle lock is normally “advisory”; that is, it is effective only when every process that uses

the ﬁle also calls lockf() before changing it.

You create a mandatory ﬁle lock by changing the protection mode of the ﬁle, using the

chmod() function to set the mandatory ﬁle lock protection bit (see the chmod(2) reference

page). When this is done, a lock placed with lockf() is recognized and enforced by

open().

Mapping a File for Shared Memory

You can use mmap() simply to create a segment of memory that can be shared among

unrelated processes.

•In one process, create a ﬁle or a POSIX shared memory object to represent the

segment.

Typically a ﬁle is located in /var/tmp, but it can be anywhere. The permissions on the

ﬁle or POSIX object determine the access permitted to other processes.

•Map the ﬁle or POSIX object into memory with mmap(); initialize the segment

contents by writing into it.

Mapping Segments of Memory

•In another process, get a ﬁle descriptor using open() or the POSIX function

shm_open(), specifying the same pathname.

•In that other process, use mmap() specifying the ﬁle descriptor of the ﬁle.

After this procedure, both processes are using the identical segment of memory pages.

Data stored by one is immediately visible to the other.

This is the most basic method of sharing a memory segment. More elaborate methods

with additional services are discussed in Chapter 3, “Sharing Memory Between

Processes.”

Mapping a Segment of Zeros

You can use mmap() to create a segment of zero-ﬁlled memory. Create a ﬁle descriptor

by applying open() to the special device ﬁle /dev/zero. Map this descriptor with addr of 0,

off of 0, and len set to the segment size you want.

A segment created this way cannot be shared between unrelated processes. However, it

can be shared among any processes that share access to the original ﬁle descriptor—that

is, processes created with sproc() using the PR_SFDS ﬂag (see the sproc(2) reference

page). For more information about /dev/zero, see the zero(7) reference page.

The difference between using mmap() of /dev/zero and calloc() is that calloc() deﬁnes all

pages of the segment immediately. When you specify MAP_AUTOGROW, mmap() does

not actually deﬁne a page of the segment until the page is accessed. You can create a very

large segment and yet consume swap space in proportion to the pages actually used.

Note: This feature is unique to IRIX. The ﬁle /dev/zero may not exist in other versions of

UNIX. Since the feature is nonportable, you should not use the POSIX function

shm_open() with /dev/zero (or any device special ﬁle).

Mapping Physical Memory

You can use mmap() to create a segment that is a window on physical memory. To do so

you create a ﬁle descriptor by opening the special ﬁle /dev/mem. For more information,

see the mem(7) reference page.

Chapter 1: Process Address Space

Obviously the use of such a segment is nonportable, hardware-dependent, and

dependent on the OS release.

Mapping Kernel Virtual Memory

You can use mmap() to create a segment that is a window on the kernel’s virtual address

space. To do so you create a ﬁle descriptor by opening the special ﬁle /dev/mmem (note the

double “m”). For more information, see the mem(7) (single “m”) reference page.

The acceptable off and len values you can use when mapping /dev/mmem are deﬁned by

the contents of /var/sysgen/master.d/mem. Normally this ﬁle restricts possible mappings to

speciﬁc hardware registers such as the high-precision clock. For an example of mapping

/dev/mmem, see the example code in the syssgi(2) reference page under the

SGI_QUERY_CYCLECNTR argument.

Mapping a VME Device

You can use mmap() to create a segment that is a window on the bus address space of a

particular VME bus adapter. This allows you to do programmed I/O (PIO) to VME

devices.

To do PIO, you create a ﬁle descriptor by opening one of the special devices in /dev/vme.

These ﬁles correspond to VME devices. For details on the naming of these ﬁles, see the

usrvme(7) reference page.

The name of the device that you open and pass as the ﬁle descriptor determines the bus

address space (A16, A24, or A32). The values you specify in off and len must agree with

accessible locations in that VME bus space. A read or write to a location in the mapped

segment causes a call to the read or write entry of the kernel device driver for VME PIO.

An attempt to read or write an invalid location in the bus address space causes a SIGBUS

exception to all processes that have mapped the device.

Note: On the CHALLENGE® and Onyx® hardware, PIO reads and writes are

asynchronous. Following an invalid read or write, as much as 10 milliseconds can elapse

before the SIGBUS signal is raised.

For a detailed discussion of VME PIO, see the IRIX Device Driver Programmer’s Guide.

Mapping Segments of Memory

Note: Mapping of devices through mmap() is an IRIX feature that is not deﬁned by

POSIX standard. Do not use the POSIX shm_open() function with device special ﬁles.

Choosing a Segment Address

Normally there is no need to map a segment to any particular virtual address. You

specify addr as 0 and IRIX picks an unused virtual address. This is the usual method and

the recommended one.

You can specify a nonzero value in addr to request a particular base address for the new

segment. You specify MAP_FIXED in ﬂags to say that addr is an absolute requirement,

and that the segment must begin at addr or not be created. If you omit MAP_FIXED,

mmap() takes a nonzero addr as a suggestion only.

Segments at Fixed Offsets

In rare cases you may need to create two or more mapped segments with a ﬁxed

relationship between their base addresses. This would be the case when there are offset

values in one segment that refer to the other segment, as diagrammed in Figure 1-1.

Figure 1-1 Segments With a Fixed Offset Relationship

In Figure 1-1, a word in one segment contains an offset value A giving the distance in

bytes to an object in a different mapped segment. Offset A is accurate only when the two

segments are separated by a known distance, offset S.

Offset A

Offset S

Chapter 1: Process Address Space

You can create segments in such a relationship using the following procedure.

1. Map a single segment large enough to encompass the lengths of all segments that

need ﬁxed offsets. Use 0 for addr, allowing IRIX to pick the base address. Let this

base address be B.

2. Map the smaller segments over the larger one. For the ﬁrst (the one at the lowest

relative position), specify B for addr and MAP_FIXED in ﬂags.

3. For the remaining segments, specify B+S for addr and MAP_FIXED in ﬂags.

The initial, large segment establishes a known base address and reserves enough address

space to hold the other segments. The later mappings replace the ﬁrst one, which cannot

be used for its own sake.

Segments at a Fixed Address

You can specify any value for addr. IRIX creates the mapping if there is no conﬂict with

an existing segment, or returns an error if the mapping is impossible. However, you

cannot normally tell what virtual addresses will be available for mapping in any

particular installation or version of the operating system.

There are three exceptions. First, after IRIX has chosen an address for you, you can

always map a new segment of the same or shorter length at the same address. This allows

you to map different parts of a ﬁle into the same segment at different times (see

“Mapping Portions of a File” on page 16).

Second, the low 4 MB of the address space are unused (see “Address Space Boundaries”

on page 4). It is a very bad idea to map anything into the 0 page since that makes it hard

to trap the use of uninitialized pointers. But you can use other parts of the initial 4 MB

for mapping.

Third, the MIPS Application Binary Interface (ABI) speciﬁcation (an extension of the

System V ABI published by AT&T®) states that addresses from 0x3000 0000 through

0x3ffc 0000 are reserved for user-deﬁned segment base addresses.

You may specify values in this range as addr with MAP_FIXED in ﬂags. When you map

two or more segments into this region, no two segments can occupy the same 256-KB

unit. This rule ensures that segments always start in different pages, even when the

maximum possible page size is in use. For example, if you want to create two segments

each of 4096 bytes, you can place one at 0x30000000 through 0x3000 0fff and the other at

0x3004 0000 through 0x3004 0fff. (256 KB is 0x0004 0000.)

Locking and Unlocking Pages in Memory

Note: If two programs in the same system attempt to map different objects to the same

absolute address, the second attempt fails.

Locking and Unlocking Pages in Memory

A page fault interrupts a process for many milliseconds. Not only are page faults lengthy,

their occurrence and frequency are unpredictable. A real-time application cannot tolerate

such interruptions. The solution is to lock some or all of the pages of the address space

into memory. A page fault cannot occur on a locked page.

Memory Locking Functions

You can use any of the functions summarized in Table 1-2 to lock memory.

Locking memory causes all pages of the speciﬁed segments to be deﬁned before they are

locked. When virtual swap is in use, it is possible to receive a SIGKILL exception while

locking because there was not enough swap space to deﬁne all pages (see “Delayed and

Immediate Space Deﬁnition” on page 7).

Locking pages in memory of course reduces the memory that is available for all other

programs in the system. Locking a large program increases the rate of page faults for

other programs.

Table 1-2 Functions for Locking Memory

Function Name Compatibility Purpose and Operation

mlock(3C) POSIX Lock a speciﬁed range of addresses.

mlockall(3C) POSIX Lock the entire address space of the calling process.

mpin(3C) IRIX Lock a speciﬁed range of addresses.

plock(3C) SVR4 Lock all program text, or all data, or the entire address space.

Chapter 1: Process Address Space

Locking Program Text and Data

Using mpin() and mlock() you have to calculate the starting address and the length of

the segment to be locked. It is relatively easy to calculate the starting address and length

of global data or of a mapped segment, but it can be awkward to learn the starting

address and length of program text or of stack space.

Using mlockall() you lock all of the program text and data as it exists at the time of the

call. You specify a ﬂag, either MCL_CURRENT or MCL_FUTURE, to give the scope in

time. One possible way to lock only program text is to call mlockall() with

MCL_CURRENT early in the initialization of a program. The program’s text and static

data are locked, but not any dynamic or mapped pages that may be created subsequently.

Speciﬁc ranges of dynamic or mapped data can be locked with mlock() as they are

created.

Using plock() you specify whether to lock text, data, or both. When you specify the text

option, the function locks all executable text as loaded for the program, including shared

objects (DSOs). (It does not lock segments created with mmap() even when you specify

PROT_EXEC to mmap(). Use mlock() or mpin() to lock executable, mapped segments.)

When you specify the data option, plock() locks the default data (heap) and stack

segments, and any mapped segments made with MAP_PRIVATE, as they are deﬁned at

the time of the call. If you extend these segments after locking them, the newly deﬁned

pages are also locked as they are deﬁned.

Although new pages are locked when they are deﬁned, you still should extend these

segments to their maximum size while initializing the program. The reason is that it takes

time to extend a segment: the kernel must process a page fault and create a new page

frame, possibly writing other pages to backing store to make space.

One way to ensure that the full stack is created before it is locked is to call plock() from

a function like the function in Example 1-2.

Example 1-2 Function to Lock Maximum Stack Size

#define MAX_STACK_DEPTH 100000 /* your best guess */

int call_plock()

{

char dummy[MAX_STACK_DEPTH];

return plock(PROCLOCK);

}

Locking and Unlocking Pages in Memory

The large local variable forces the call stack to what you expect will be its maximum size

before plock() is entered.

The plock() function does not lock mapped segments you create with MAP_SHARED.

You must lock them individually using mpin(). You need to do this from only one of the

processes that shares the segment.

Locking Mapped Segments

It may be better for your program to not lock the entire address space, but to lock only a

particular mapped segment.

Immediately after calling mmap() you have the address and length of the mapped

segment. This is a convenient time to call either mpin() or mlock() to lock the mapped

segment.

The mmap() ﬂags MAP_AUTOGROW and MAP_AUTORESRV are unique to IRIX and

not deﬁned by POSIX. However, the POSIX mlock() function for IRIX does recognize

autogrow segments. If you lock an autogrow segment with mpin(),mlock(), or

mlockall() with the MCL_FUTURE ﬂag, additional pages are locked as they are added

to the segment. If you lock the segment with mlockall() with the MCL_CURRENT ﬂag,

the segment is locked for its current size only and added pages are not locked.

Locking Mapped Files

If you map a ﬁle before you use mlockall(MCL_CURRENT) or plock() to lock the data

segment into memory (see “Mapping a File for I/O” on page 15), the mapped ﬁle is read

into the locked pages during the lock operation. If you lock the program with

mlockall(MCL_FUTURE) and then map a ﬁle into memory, the mapped ﬁle is read into

memory and the pages locked.

If you map a ﬁle after locking the data segment with plock() or

mlockall(MCL_CURRENT), the new mapped segment is not locked. Pages of ﬁle data

are read on demand, as the program accesses them.

Chapter 1: Process Address Space

From these facts you can conclude the following:

•You should map small ﬁles before locking memory, thus getting fast access to their

contents without paging delays.

•Conversely, if you map a ﬁle after locking memory, your program could be delayed

for input on any access to the mapped segment.

•However, if you map a large ﬁle and then try to lock memory, the attempt to lock

could fail because there is not enough physical memory to hold the entire address

space including the mapped ﬁle.

One alternative is to map an entire ﬁle, perhaps hundreds of megabytes, into the address

space, but to lock only the portion or portions that are of interest at any moment. For

example, a visual simulator could lock the parts of a scenery ﬁle that the simulated

vehicle is approaching. When the vehicle moves away from a segment of scenery, the

simulator could unlock those parts of the ﬁle, and possibly use madvise() to release them

(see “Releasing Unneeded Pages” on page 31).

Unlocking Memory

The function summarized in Table 1-3 are used to unlock memory.

You should avoid mixing function families; for example, if you lock memory with the

POSIX function mlock(), do not unlock the memory using munpin().

The mpin() function maintains a counter for each locked page showing how many times

it has been locked. You must call munpin() the same number of times before the page is

unlocked. This feature is not available through the POSIX and SVR4 interfaces.

Table 1-3 Functions for Unlocking Memory

Function Name Compatibility Purpose and Operation

munlock(3C) POSIX Unlock a speciﬁed range of locked addresses.

mlockall(3C) POSIX Unlock the entire address space of the calling process.

munpin(3C) IRIX Unlock a speciﬁed range of addresses.

punlock() SVR4 Unlock addresses locked by plock().

Reducing Cache Misses

Locked pages of an address space are unlocked when the last process using the address

space terminates. Locked pages of a mapped segment are unlocked when the last process

that mapped the segment unmaps it or terminates.

Reducing Cache Misses

When performance requirements are high, you become concerned, not with the loss of

milliseconds to a page fault, but with the loss of microseconds to a cache miss. When

your program accesses instructions or data that are not in cache memory, the CPU

requests a load of a cache line, an aligned block of bytes, from main memory. The size of

a cache line differs from one hardware model and another, but is usually 128 bytes.

Possibly hundreds of CPU clock cycles pass while the cache line is loaded. Due to the

pipeline architecture of the CPU, it can often continue to work during this delay.

However, multiple successive cache misses can bring effective work to a halt for tens of

microseconds.

Locality of Reference

The key to good cache performance is to maintain strong locality of reference. This can

be restated as a rule of thumb: “Keep things that are used together, close together.” Or,

“Extract the greatest possible use from any 128-byte cache line before touching another.”

You must decide how to apply these principles in the context of your program design.

Some possible techniques:

•When designing a large data structure, group small ﬁelds together at one end of the

structure. Do not mix small and large ﬁelds.

•Consolidate frequently-tested switches, ﬂags, and pointers into a single record so

they tend to stay in cache.

•Avoid searching linked lists of structures. Each time a process visits a link merely to

ﬁnd the address of the next link, it is likely to incur a cache miss. Worse, a search

over a long list ﬁlls the cache with unneeded links, driving out useful data.

•Avoid striding through a large array of structures (such as an array of graphics

library objects) visiting only one or two ﬁelds in each structure. Whenever possible,

arrange the data so that any sequential scan visits and uses every byte before

moving on.

Chapter 1: Process Address Space

•Use inline function deﬁnitions for functions that are called within innermost loops.

Do not use inline deﬁnitions indiscriminately, however, because they increase the

total size of the binary, potentially causing more cache misses in non-looping code.

•Use memalign() to allocate important structures on 128-byte boundaries, so as to

ensure the structures ﬁt in the smallest number of cache lines (see the memalign(3)

reference page).

Cache Mapping in Challenge and Onyx Systems

The cache design in the Challenge and Onyx line depends on the CPU model in use. The

basic Challenge system uses the IP19 board, which uses a direct-mapped cache: the

address of a byte of data is taken modulo the cache size to generate the cache address.

This means that two words that are separated in main memory by an exact multiple of

the cache size are always loaded to the same cache location.

Note: The cache in later models such as the POWER Challenge system do not use simple

modulus mapping; these machines use 2-way or 4-way associative caches that are much

more resistant to cache conﬂicts.

Only one of the words can occupy the cache at a time, so if your program alternates

between words, it will have a cache miss on each reference. It is surprisingly easy to

create this situation. The following code fragment causes bad performance in an R4x00

Challenge system with a 1-MB cache:

float part1[262144]; /* 1 MB */

float part2[262144]; /* adjacent 1 MB */

for (j=0;j<262144;++j) part1[j] = part2[j];

In that code fragment, the words of each array hash to the identical cache lines, so each

assignment in the loop incurs two cache misses. (Some systems have caches of different

sizes, but the same principle applies.)

Multiprocessor Cache Conﬂicts

In a multiprocessor system such as a Challenge system, when one CPU modiﬁes cached

data, it broadcasts the fact on the bus. Any other CPU holding that same cache line marks

it invalid. If another CPU then needs to refer to the so-called “dirty” cache line, it has to

fetch the modiﬁed version from the ﬁrst CPU. This takes even longer than reloading the

cache line from main memory.

Additional Memory Features

These conﬂicts can cause cache delays when the processes in two or more CPUs are

working on the same data concurrently. There is no conﬂict so long as all CPUs are

reading the data. Each works from its own cache copy in that case. But whenever one CPU

modiﬁes the data, all other CPUs suffer a cache miss on the next access to the same data.

In general the only way to avoid such conﬂicts is to separate the readers and writers in

time. Arrange the program so that data is updated occasionally in a burst, then used for

a longer period.

Detecting Cache Problems

There are relatively few tools for detecting or ﬁxing cache problems in code. You can

combine the two IRIX proﬁling tools, pixie and prof (see the pixie(1) and prof(1) reference

pages), to arrive at a tentative diagnosis.

The pixie tool modiﬁes the executable of a program so that every basic block is counted

during execution. Its output ranks functions by the absolute count of instructions they

executed.

The prof tool samples the instruction counter of the program while the program is

executing. Its output ranks functions by the amount of time that the CPU spent in their

code.

Normally the output of these tools should agree on the location of the hot spots in a

program. However, if prof shows that a function is taking more time than is justiﬁed by

its pixie execution count, that function may be running slowly due to cache-miss

problems.

Additional Memory Features

Your program can work with the IRIX memory manager to change the handling of the

address space.

Chapter 1: Process Address Space

Changing Memory Protection

You can change the memory protection of speciﬁed pages using mprotect() (see the

mprotect(2) reference page). For a segment that contains a whole number of pages, you

can specify protection of these types:

Note: The mprotect() function changes the access rights only to the memory image of a

mapped ﬁle. You can apply it to the pages of a mapped ﬁle in order to control access to

the ﬁle image in memory. However, mprotect() does not affect the access rights to the ﬁle

itself, nor does it prevent other processes from opening and using the ﬁle as a ﬁle.

Synchronizing the Backing Store

IRIX writes modiﬁed pages to the backing store as infrequently as possible, in order to

save time. When pages are locked, they are never written to backing store. This does not

matter when the pages are ordinary data.

When the pages represent a ﬁle mapped into memory, you may want to force IRIX to

write any modiﬁcations into the ﬁle. This creates a checkpoint, a known-good ﬁle state

from which the program could resume.

Read-only By making pages read-only, you cause a SIGSEGV signal to be generated

in any process that tries to modify them. You could do this as a

debugging measure, to trap an intermittent program error.

You can change read-only pages back to read-write.

Read-write You can put read-write protection on pages of program text, but this is

bad idea except in unusual cases. For example, a debugging tool makes

text pages read-write in order to set breakpoints.

Executable Normal data pages cannot be executed. This is a protection against

program errors—wild branches into data are trapped quickly. If your

program constructs executable code, or reads it from a ﬁle, the protection

must be changed to executable before the code can be executed.

No access You can make pages inaccessible while retaining them as part of the

address space.

Additional Memory Features

The msync() function (see the msync(2) reference page) asks IRIX to write a speciﬁed

segment to backing store. The segment must be a whole multiple of pages. You can

optionally request

•synchronous writes, so the call does not return until the disk I/O is complete—

ensuring that the data has been written

•page invalidation, so that the memory pages are released and will have to be

reloaded from backing store if they are referenced again

Releasing Unneeded Pages

Using the madvise() function (see the madvise(2) reference page), you can tell IRIX that

a range of pages is not needed by your process. The pages remain deﬁned in the address

space, so this is not a means of reducing the need for swap space. However, IRIX puts the

pages at the top of its list of pages to be reclaimed when another process (or the calling

process) suffers a page fault.

The madvise() function is rarely needed by real-time programs, which are usually more

concerned with keeping pages in memory than with letting them leave memory.

However, there could be a use for it in special cases.

PART TWO

Interprocess Communication II

Chapter 2, “Interprocess Communication”

Provides an overview of the different communication mechanisms, and

describes the POSIX, System V, and BSD compatibility features.

Chapter 3, “Sharing Memory Between Processes”

Describes the different ways of sharing segments of memory between different

processes.

Chapter 4, “Mutual Exclusion”

Describes semaphores, locks, and other means of synchronization and exclusion

between processes and threads.

Chapter 5, “Signalling Events”

Describes the different interfaces to UNIX signals, and the interval timer

facilities.

Chapter 6, “Message Queues”

Describes two different facilities for creating and using message queues.

Chapter 7, “File and Record Locking”

Describes the different ways of locking ﬁles or records within ﬁles for exclusive

use between processes and systems.

Chapter 2

2. Interprocess Communication

The term interprocess communication (IPC) describes any method of coordinating the

actions of multiple processes, or sending data from one process to another. IPC is

commonly used to allow processes to coordinate the use of shared data objects; for

instance, to let two programs update the same data in memory without interfering with

each other, or to make data acquired by one process available to others.

This chapter provides an overview of the IPC implementations available, including:

•“Types of Interprocess Communication Available” on page 36

•“Using POSIX IPC” on page 38

•“Using IRIX IPC” on page 39

•“Using System V IPC” on page 39

•“Using 4.2 BSD IPC” on page 42

The following chapters in this Part provide details, as follows:

•Chapter 3, “Sharing Memory Between Processes,” covers shared memory.

•Chapter 4, “Mutual Exclusion,” covers semaphores, locks, and similar facilities.

•Chapter 5, “Signalling Events,” covers the different signal facilities.

•Chapter 6, “Message Queues,” describes two varieties of message queue.

•Chapter 7, “File and Record Locking,” describes the ﬁle locking facilities.

Chapter 2: Interprocess Communication

Types of Interprocess Communication Available

IRIX is compatible with a broad variety of IPC mechanisms. IRIX conforms to the

POSIX® standards for real-time extensions (IEEE standard 1003.1b) and threads (IEEE

1003.1c). Other IPC features are compatible with the two major schools of UNIX

programming: BSD UNIX and AT&T® System V Release 4 (SVR4) UNIX.

Table 2-1 summarizes the types of IPC that IRIX supports, and lists the systems with

which IRIX is compatible.

Table 2-1 Types of IPC and Compatibility

Type of IPC Purpose Compatibility

Signals A means of receiving notice of a software or

hardware event, asynchronously.

POSIX, SVR4, BSD

Shared memory A way to create a segment of memory that is mapped

into the address space of two or more processes, each

of which can access and alter the memory contents.

POSIX, IRIX, SVR4

Semaphores Software objects used to coordinate access to

countable resources.

POSIX, IRIX, SVR4

Locks, Mutexes,

and Condition

Variables

Software objects used to ensure exclusive use of

single resources or code sequences.

POSIX, IRIX

Barriers Software objects used to ensure that all processes in a

group are ready before any of them proceed.

IRIX

Message Queues Software objects used to exchange an ordered

sequence of messages.

POSIX, SVR4

File Locks A means of gaining exclusive use of all or part of a

ﬁle.

SVR4, BSD

Sockets Virtual data connections between processes that may

be in different systems.

BSD

Types of Interprocess Communication Available

The different implementations of these IPC features can be summarized as follows:

•POSIX compliant library calls are provided for signal handling, shared memory,

semaphores, mutexes, condition variables, and message queues. The

implementation is highly tuned and has low system overhead. POSIX facilities are

usable from POSIX threads (see Chapter 11, “Thread-Level Parallelism”).

•IRIX unique library calls are provided for shared memory, semaphores, locks, and

barriers. The implementation has slightly more overhead than POSIX operations,

but often takes better advantage of concurrent hardware in multiprocessors and has

a number of special features, such as the ability to apply poll() to semaphores.

•System function calls compatible with AT&T System V Release 4 are provided for

signal handling, shared memory, semaphores, message queues, and ﬁle locking.

The implementation is provided for ease of porting software, but is not particularly

efﬁcient.

•Library functions compatible with BSD UNIX are provided for signal handling, ﬁle

locking, and socket support.

Select your IPC mechanisms based on these guidelines:

•Never mix the implementations of a given mechanism in a single program. For

example, if a single program mixes POSIX and System V signal-handling functions,

or mixes both BSD and System V ﬁle locking calls, unpredictable results can follow.

•The POSIX libraries are the newest implementations, and in many cases they are the

most efﬁcient.

•A program based on POSIX threads should use POSIX synchronization

mechanisms because they are optimized for pthreads use.

•Use System V IPC functions for code that must comply with the MIPS® ABI, or code

that you are porting from another System V operating system.

Chapter 2: Interprocess Communication

Using POSIX IPC

In order to use the POSIX IPC functions described in this part of the book, you must

include the correct header ﬁles and link libraries when compiling.

The header ﬁles required for each function are listed in the reference pages for the

functions.

POSIX IPC functions are deﬁned in the standard libc library. That library is included

automatically in any link by the cc command.

POSIX IPC Name Space

POSIX shared memory segments, named semaphores, and message queues are

persistent objects that survive the termination of the program that creates them (unless

the program explicitly removes them). The POSIX standard speciﬁes that these persistent

names can be implemented in the ﬁlesystem, and the current IRIX implementation does

use ﬁlenames in the ﬁlesystem to represent IPC objects. In order to access a named

semaphore or message queue, a program opens the object using a pathname, similar to

the way a program opens a disk ﬁle.

Because these persistent objects are currently implemented as ﬁles, you can display and

access them using IRIX commands for ﬁles such as ls,rm,chmod and chown. However,

you should keep in mind that this is an implementation choice, not a standardized

behavior. Other implementations of POSIX IPC may implement a separate name space

for IPC objects, and the IRIX implementation is free to change its implementation in the

future. For best portability, do not assume that IPC objects are always ﬁles.

If you plan to share an object between processes that could be started from different

working directories, you should always open the object using the full pathname starting

with a slash (“/”). That ensures that unrelated processes always refer to the same object.

If the shared object is temporary, you can use the tempnam() library function to generate

a temporary pathname (see the tempnam(3) reference page).

Other POSIX IPC objects—nameless semaphores, mutexes, and condition variables—are

not persistent, but exist only in memory and are identiﬁed only by their addresses. They

disappear when the programs that use them terminate.

Using IRIX IPC

The IRIX IPC facilities are designed to meet the demands of parallel programming in

multiprocessor systems. They offer advantages for this use, but they are IRIX speciﬁc, so

code using them is not portable to other systems.

In order to use any IRIX IPC functions, you need to include the correct header ﬁles and

link libraries when compiling. The header ﬁles required for each function are listed in the

reference pages for the functions.

IRIX IPC functions are deﬁned in the standard libc library (it is included automatically in

any link by the cc command) and in the libmpc library, which you include with -lmpc.

IRIX IPC functions all require the use of a shared arena, a segment of memory that can be

mapped into the address spaces of multiple processes. The ﬁrst step in preparing to use

any IRIX IPC object is to create a shared arena, as documented under “Initializing Arena

Attributes” on page 51.

A shared arena is identiﬁed with a ﬁle that acts as the backing store for the arena memory.

Communicating processes gain access to the arena by specifying its ﬁlename. All

processes using the same arena have access to the same set of IPC objects. This makes it

relatively easy for unrelated processes to communicate using IRIX IPC; they only have to

know the ﬁlename of the arena to gain access.

Using System V IPC

IRIX supports SVR4 functions for signals, shared memory, semaphores, message queues,

and ﬁle locking. To use them you need to include the correct header ﬁles when

compiling. The header ﬁles required for each function are listed in the reference pages for

the functions.

System V functions are primarily kernel functions. No special library linkage is required

to access them. There is general discussion of SVR4 IPC operations in the intro(2)

reference page.

Chapter 2: Interprocess Communication

SVR4 IPC Name Space

All SVR4 IPC objects are named in a special IPC name space. An object such as a shared

memory segment or message queue is named by a numeric key, and has the following

attributes (which are deﬁned in the header ﬁle sys/ipc.h):

•the UID and GID of the creating process

•the UID and GID of the owning process (which can be different from the creator)

•access permissions in the same format as used with ﬁles

The commands and functions used to manage the IPC name space are listed in Table 2-2.

Conﬁguring the IPC Name Space

SVR4 IPC objects are stored in kernel tables of limited, ﬁxed size. You conﬁgure the size

of these tables by changing kernel tunable parameters. These parameters are

documented in detail in the book IRIX Admin: System Conﬁguration and Operation

(007-2859-nnn). See “Appendix A: IRIX Kernel Tunable Parameters.”

Listing and Removing Persistent Objects

Objects in the IPC name space are created by programs and can be removed by programs.

However, IPC objects by deﬁnition are used by multiple processes, and it is sometimes a

problem to determine which process should remove an object, and when it is safe to do

so.

For this reason, IPC objects are often created and never removed. In these cases, they

persist until the system is rebooted, or until they are removed manually.

Table 2-2 SVR4 IPC Name Space Management

Function Name Purpose and Operation

ipcs(1) List existing shared memory segments (and other IPC objects) in the system

name space with their status.

ipcrm(1) Remove a shared memory segment (or other IPC object) from the system

name space.

ftok(3) Create a semi-unique numeric key based on a ﬁle pathname.

Using System V IPC

You can list all the components of the IPC name space using the ipcs command. You can

remove an object with the ipcrm command. If you remove an object that is in use,

unpredictable results will follow.

Access Permissions

IPC objects are not part of any ﬁlesystem, but access to IPC objects is controlled by rules

like the rules that govern ﬁle access. For example, if the access permissions of a shared

memory segment are set to 640, the segment can be read-write for processes that have the

same UID as the segment owner, but the segment is read-only to processes that have only

the GID of the owner, and is not accessible to other processes.

Choosing and Communicating Key Values

The “name” of an IPC object is an integer. Two small problems are how a program can

select a unique key to use when making an IPC object and how to communicate the key

to all the processes that need access to the object. The ftok() library function can be used

to create a predictable key based on a ﬁle pathname. For example, unrelated but

cooperating programs can agree to use ftok() with a designated project ﬁle and project

code, so that each program will arrive at the same key.

Using ID Numbers

When an IPC object is created, it has the key it is given by the creating process, but it is

also assigned a second integer, the ID. The key number is chosen by the application, and

is predictable. If the application creates the object each time the application starts up, the

key is always the same. The ID number is arbitrary, and a new ID is arbitrary each time

an object is created.

A process can gain access to an object based on either number, the key or the ID. For

example, an SVR4 shared memory segment has a key and an ID. The shmget() function

takes a key and returns the corresponding ID. The ID is used to attach the segment.

However, if a process knows the ID, it can simply use it, without ﬁrst calling shmget() to

obtain it.

Chapter 2: Interprocess Communication

Private Key Values

When creating an IPC object, you can specify a key of KEY_PRIVATE (0). This causes an

object to be created and recorded in the IPC name space with a key of 0. The created

object cannot be accessed from another process by key, because if another process uses

KEY_PRIVATE, it creates its own object. However, another process can access a

key-private object using the object’s ID number.

You can use the KEY_PRIVATE feature when you want to create an IPC object for use

within a single process or share group (lightweight processes that share one address

space). The IPC object can be passed between processes by its address or by ID number.

Using 4.2 BSD IPC

The 4.2 BSD functions for signals and ﬁle locking are available. To use them, you must

include the correct header ﬁles and link libraries when compiling. The header ﬁles

required for each function are listed in the reference pages for the functions.

One header ﬁle, signal.h, declares both SVR4 and BSD signal-handling functions. Some of

the BSD and SVR4 functions have the same names but different types of arguments, or

different results when called. In order to declare the BSD family of signal functions in

your program, you must be sure to deﬁne the compiler variable _BSD_SIGNALS or

_BSD_COMPAT to the compiler. You could do this directly in the source code. More often

you will manage compilation with make, and you will include -D_BSD_SIGNALS as one

of the compiler options in the Makeﬁle.

The BSD compatible function for ﬁle locking, ﬂock(), is deﬁned in the standard libc

library. That library is included automatically in any link by the cc command. However,

when you are using C++ (not C), the function name “ﬂock” conﬂicts with a structure

name declared in sys/fcntl.h. In order to deﬁne the ﬂock() function and not the structure,

deﬁne the compiler variable _BSD_COMPAT.

A BSD-compatible kernel function for managing the termination of child processes,

wait3(), is discussed under “Process “Reaping”” on page 199.

Chapter 3

3. Sharing Memory Between Processes

There are three families of functions that let you create a segment of memory and share

it among the address spaces of multiple processes. All produce the same result: a

segment of memory that can be accessed or updated asynchronously by more than one

process. You have to design protocols that prevent one process from changing shared

data while another process is using the same data (see Chapter 4, “Mutual Exclusion”).

This chapter covers three major topics:

•“POSIX Shared Memory Operations” on page 45 describes the POSIX functions for

sharing memory.

•“IRIX Shared Memory Arenas” on page 50 describes IRIX shared memory arenas.

•“System V Shared Memory Functions” on page 60 describes the SVR4 functions.

Overview of Memory Sharing

The address space is the range of memory locations that a process can use without an

error. (The concept of the address space is covered in detail in Chapter 1, “Process

Address Space.”) In a pthreads program, all threads use the same address space and

share its contents. In a program that starts multiple, lightweight processes with sproc(),

all processes share the same address space and its contents. In these programs, the entire

address space is shared automatically.

Normally, distinct processes (created by the fork() or exec() system calls) have distinct

address spaces, with no writable contents in common. The facilities described in this

chapter allow you to deﬁne a segment of memory that can be part of the address space

of more than one process. Then processes or threads running in different address spaces

can share data simply by referring to the contents of the shared segment in memory.

Chapter 3: Sharing Memory Between Processes

Shared Memory Based on mmap()

The basic IRIX system operation for shared memory is the mmap() function, with which

a process makes the contents of a ﬁle part of its address space. The fundamental uses of

mmap() are covered under “Mapping Segments of Memory” on page 11 (see also the

mmap(2) reference page). When two or more processes map the same ﬁle into memory

with the MAP_SHARED option, that single segment is part of both address spaces, and

the processes can update its contents concurrently.

The POSIX shared memory facility is a simple, formal interface to the use of mmap() to

share segments. The IRIX support for shared arenas is an extension of mmap() to make

it simpler to create a shared allocation arena and coordinate its use. The SVR4 facilities

do not directly use mmap() but have similar results.

Sharing Memory Between 32-Bit and 64-Bit Processes

Larger Silicon Graphics, Inc. systems support both 32-bit and 64-bit programs at the same

time. It is possible for a memory segment to be mapped by programs using 32-bit

addresses, and simultaneously mapped by programs that use 64-bit addresses. There is

nothing to prevent such sharing.

However, such sharing can work satisfactorily only when the contents of the shared

segment include no addresses at all. Pointer values stored by a 64-bit program can’t be

used by a 32-bit program and vice versa. Also the two programs will disagree about the

size and offset of structure ﬁelds when structures contain addresses. For example, if you

initialize an allocation arena with acreate() from a 64-bit program, a 32-bit program

calling amalloc() on that same arena will almost certainly crash or corrupt the arena

pointers.

You can use POSIX shared memory, SVR4 shared memory, or basic mmap() to share a

segment between a 32-bit and a 64-bit program, provided you take extreme pains to

ensure that both programs view the data contents as having the same binary structure,

and that no addresses are shared. You cannot use an IRIX shared memory arena between

32-bit and 64-bit programs at all, because the arena support stores addresses in the arena.

POSIX Shared Memory Operations

Shared-memory support speciﬁed by POSIX is based on the functions summarized in

Table 3-1.

The use of mmap() is described at length under “Mapping Segments of Memory” on

page 11. In essence, mmap() takes a ﬁle descriptor and makes the contents of the

described object accessible as a segment of memory in the address space. In IRIX, a ﬁle

descriptor can describe a disk ﬁle, or a device, or a special pseudo-device such as

/dev/kmem. Thus mmap() can make a variety of objects part of the address space. POSIX

adds one more type of mappable object, a persistent shared segment you create using the

shm_open() function.

Creating a Shared Object

The shm_open() function is very similar to the open() function and takes the same

arguments (compare the shm_open(2) and open(2) reference pages). The arguments are

as follows:

In order to declare shm_open() and its arguments you need to include both sys/mman.h

and fcntl.h header ﬁles.

Shared Object Pathname

The POSIX standard says that a shared object name has the form of a ﬁle pathname, but

the standard leaves it “implementation deﬁned” whether the object is actually a ﬁle or

Table 3-1 POSIX Shared Memory Functions

Function Name Purpose and Operation

mmap(2) Map a ﬁle or shared memory object into the address space.

shm_open(2) Create, or gain access to, a shared memory object.

shm_unlink(2) Destroy a shared memory object when no references to it remain open.

path Name of object, a character string in the form of a ﬁle pathname.

oﬂag Option ﬂags, detailed in the reference page and discussed in following text.

mode Access mode for the opened object

Chapter 3: Sharing Memory Between Processes

not. In the IRIX implementation, a shared memory object is also a ﬁle. The pathname you

specify for a shared memory object is interpreted exactly like the pathname of a disk ﬁle

that you pass to open(). When you create a new object, you also create a disk ﬁle of the

same name. (See “POSIX IPC Name Space” on page 38.)

You can display the size, ownership, and permissions of an existing shared segment

using ls -l. You can dump its contents with a command such as od -X. You can remove it

with rm.

Shared Object Open Flags

The ﬂags you pass to shm_open() control its actions, as follows:

The ﬂags have the same meaning when opening a disk ﬁle with open(). However, a

number of other ﬂags allowed by open() are not relevant to shared memory objects.

You can use the combination O_CREAT+O_EXCL to ensure that only one process

initializes a shared object.

Shared Object Access Mode

The access mode that you specify when creating an object governs the users and groups

that can open the object later, exactly as with a disk ﬁle.

Using the Shared Object File Descriptor

The value returned by shm_open() is a ﬁle descriptor and you can use it as such; for

example you can apply the dup() function to make a copy of it. You can also use it as an

argument to fcntl(), but most of the features of fcntl() are irrelevant to a shared memory

object. (See the dup(2) and fcntl(2) reference pages.)

O_RDONLY Access can be used only for reading.

O_RDWR Access can be read-write (however, you can enforce read-only access

when calling mmap()).

O_CREAT If the object does not exist, create it.

O_TRUNC If the object does exist and O_RDWR is speciﬁed, truncate it to zero

length.

O_EXCL If the object does exist and O_CREAT is speciﬁed, return the EEXIST

error code.

POSIX Shared Memory Operations

Using a Shared Object

In order to use a shared object, your program ﬁrst opens it with shm_open(), then maps

it into memory with mmap(). The arguments to mmap() include

•the ﬁle descriptor for the shared object

•the size of the memory segment

•access protection ﬂags

The returned value is the base address of the segment in memory. You can then use it like

any block of memory. For example, you could create an allocation arena in the segment

using the acreate() function (see the amalloc(3) reference page). For more on the use of

mmap(), read “The Segment Mapping Function mmap()” on page 12 and “Mapping a

File for Shared Memory” on page 18.

Example Program

The program in Example 3-1 allows you to experiment with shm_open() and mmap()

from the command line. The program accepts the following command-line arguments:

To create a segment named /var/tmp/test.seg, use a command such as

shm_open -c -x -p 0644 -s 0x80000 /var/tmp/test.seg

path The pathname of a shared memory segment (ﬁle) that exists or that is to be

created.

-p perms The access permissions to apply to a newly-created segment, for example

-p 0664.

-s bytes The initial size at which to map the segment, for example -s 0x80000.

-c Use the O_CREAT ﬂag with open(), creating the segment if it doesn’t exist.

-x Use the O_EXCL ﬂag with open(), requiring the segment to not exist.

-t Use the O_TRUNC ﬂag with open(), truncating the ﬁle to zero length.

-r Use the O_RDONLY ﬂag with open() and PROT_READ with mmap(). If this

option is not used, the program uses O_RDWR with open() and

PROT_READ, PROT_WRITE, PROT_AUTOGROW with mmap().

-w Wait for keyboard input before exiting, allowing you to run other copies of

the program while this one has the segment mapped.

Chapter 3: Sharing Memory Between Processes

To attach that segment read-only and then wait, use the command

shm_open -r -w /var/tmp/test.seg

From a different terminal window, enter the command

shm_open /var/tmp/test.seg

In the original window, press <Enter> and observe that the value of the ﬁrst word of the

shared segment changed during the wait.

Example 3-1 POSIX Program to Demonstrate shm_open()

|| Program to test shm_open(3).

|| shm_open [-p <perms>] [-s <bytes>] [-c] [-x] [-r] [-t] [-w] <path>

|| -p <perms> access mode to use when creating, default 0600

|| -s <bytes> size of segment to map, default 64K

|| -c use O_CREAT

|| -x use O_EXCL

|| -r use O_RDONLY, default is O_RDWR

|| -t use O_TRUNC

|| -w wait for keyboard input before exiting

|| <path> the pathname of the queue, required

#include <sys/mman.h> /* shared memory and mmap() */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <fcntl.h> /* O_flags */

#include <stdio.h>

int main(int argc, char **argv)

{

int perms = 0600; /* permissions */

size_t size = 65536; /* segment size */

int oflags = 0; /* open flags receives -c, -x, -t */

int ropt = 0; /* -r option seen */

int wopt = 0; /* -w option seen */

int shm_fd; /* file descriptor */

int mprot = PROT_READ; /* protection flags to mmap */

int mflags = MAP_SHARED; /* mmap flags */

void *attach; /* assigned memory adddress */

char *path; /* ->first non-option argument */

int c;

while ( -1 != (c = getopt(argc,argv,"p:s:cxrtw")) )

{

switch (c)

POSIX Shared Memory Operations

{

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

break;

case 's': /* segment size */

size = (size_t) strtoul(optarg, NULL, 0);

break;

case 'c': /* use O_CREAT */

oflags |= O_CREAT;

break;

case 'x': /* use O_EXCL */

oflags |= O_EXCL;

break;

case 't': /* use O_TRUNC */

oflags |= O_TRUNC;

break;

case 'r': /* use O_RDONLY */

ropt = 1;

break;

case 'w': /* wait after attaching */

wopt = 1;

break;

default: /* unknown or missing argument */

return -1;

} /* switch */

} /* while */

if (optind < argc)

path = argv[optind]; /* first non-option argument */

else

{ printf("Segment pathname required\n"); return -1; }

if (0==ropt)

{ /* read-write access, reflect in mprot and mflags */

oflags |= O_RDWR;

mprot |= PROT_WRITE;

mflags |= MAP_AUTOGROW + MAP_AUTORESRV;

}

else

{ /* read-only access, mprot and mflags defaults ok */

oflags |= O_RDONLY;

}

shm_fd = shm_open(path,oflags,perms);

if (-1 != shm_fd)

{

attach = mmap(NULL,size,mprot,mflags,shm_fd,(off_t)0);

if (attach) /* mmap worked */

Chapter 3: Sharing Memory Between Processes

{

printf("Attached at 0x%lx, first word = 0x%lx\n",

attach, *((pid_t*)attach));

if (mprot & PROT_WRITE)

{

*((pid_t *)attach) = getpid();

printf("Set first word to 0x%lx\n",*((pid_t*)attach));

}

if (wopt) /* wait a while */

{

char inp[80];

printf("Press return to detach...");

gets(inp);

printf("First word is now 0x%lx\n",*((pid_t*)attach));

}

if (munmap(attach,size))

perror("munmap()");

}

else

perror("mmap()");

}

else

perror("shm_open()");

return errno;

}

IRIX Shared Memory Arenas

The shared memory arena is basic to all IRIX IPC mechanisms. IRIX semaphores, locks,

and barriers are all represented as objects within a shared arena.

Overview of Shared Arenas

A shared arena is a segment of memory that can be made part of the address space of

more than one process. Each shared arena is associated with a disk ﬁle that acts as a

backing store for the ﬁle (see “Page Validation” on page 9). Each process that wants to

share access to the arena does so by specifying the ﬁle pathname of the ﬁle. The ﬁle

pathname acts as the public name of the memory segment. The ﬁle access permissions

determine which user IDs and group IDs can share the ﬁle.

IRIX Shared Memory Arenas

The functions you use to manage a shared arena are discussed in the following topics and

are summarized in Table 3-2.

Initializing Arena Attributes

A program creates a shared memory arena with the usinit() function. However, many

attributes of a new arena are set by preceding calls to usconﬁg(). The normal sequence of

operations is to make several calls to usconﬁg() to establish arena attributes, then to make

one call to usinit() to create the arena.

You call usconﬁg() to establish the features summarized in Table 3-3.

Table 3-2 IRIX Shared Arena Management Functions

Function Name Purpose and Operation

usconﬁg(3) Establish the default size of an arena, the number of concurrent processes

that can use it, and the features of IPC objects in it.

usinit(3) Create an arena or join an existing arena.

usadd(3) Join an existing arena.

Table 3-3 Arena Features Set Using usconﬁg()

usconﬁg() Flag Name Meaning

CONF_INITSIZE The initial size of the arena segment. The default is 64 KB. Often you

know that more is needed.

CONF_AUTOGROW Whether or not the arena can grow automatically as more IPC objects

or data objects are allocated (default: yes).

CONF_INITUSERS The largest number of concurrent processes that can use the arena.

The default is 8; if more processes than this will use IPC, the limit

must be set higher.

CONF_CHMOD The effective ﬁle permissions on arena access. The default is 600,

allowing only processes with the effective UID of the creating process

to attach the arena.

CONF_ARENATYPE Establish whether the arena can be attached by general processes or

only by members of one program (a share group).

Chapter 3: Sharing Memory Between Processes

See the usconﬁg(3) reference page for a complete list of attributes. The use of metering

and history information for locks and semaphores is covered in Chapter 4, “Mutual

Exclusion.”

Tip: In programs that use an arena and start a varying number of child processes, it is a

common mistake to ﬁnd that the eighth child cannot be created simply because

usconﬁg() has not been called with CONF_INITUSERS to set a higher number of users

before the arena was created.

Creating an Arena

After setting the arena attributes with usconﬁg(), the program calls usinit(), specifying a

ﬁle pathname string.

Tip: The mktemp() library function can be used to create a unique temporary ﬁlename

(see the mktemp(3C) reference page).

If the speciﬁed ﬁle doesn’t exist, usinit() creates it (and gives it the access permissions

speciﬁed to usinit() with CONF_CHMOD). If a shared arena already exists based on that

name, usinit() joins that shared arena. If the ﬁle exists but is not yet a shared arena,

usinit() overwrites it. In any case, usinit() is subject to normal ﬁlesystem permission

tests, and it returns an error if the process doesn’t have read and write permission on the

ﬁle (if it already exists) or permission to create the ﬁle (if it doesn’t exist).

CONF_LOCKTYPE Whether or not lock objects allocated in the arena collect metering

statistics as they are used.

CONF_ATTACHADDR An explicit memory base address for the next arena to be created (see

“Choosing a Segment Address” on page 21).

CONF_HISTON

CONF_HISTOFF

Start and stop collecting usage history (more bulky than metering

information) for semaphores in a speciﬁed arena.

CONF_HISTSIZE Set the maximum size of semaphore history records.

Table 3-3 (continued) Arena Features Set Using usconﬁg()

usconﬁg() Flag Name Meaning

IRIX Shared Memory Arenas

Code to prepare an arena is shown in Example 3-2.

Example 3-2 Initializing a Shared Memory Arena

usptr_t

makeArena(size_t initSize, int nProcs)

{

int ret;

char * tmpname = "/var/tmp/arenaXXXXXX";

if (ret = usconfig(CONF_INITUSERS, nProcs))

{ perror("usconfig(#users)"); return 0; }

if (ret = usconfig(CONF_INITSIZE, initSize))

{ perror("usconfig(size)"); return 0; }

return usinit(mktemp(tmpname));

}

Joining an Arena

Only one process creates a shared arena. Other processes “join” or “attach” the arena.

There are three ways of doing this. When the arena is not restricted to a single process

family (either by ﬁle permissions or by CONF_ARENATYPE setting), any process that

calls usinit() and passes the same pathname string gains access to the same arena at the

same virtual base address. This process need not be related in any way to the process that

created the arena.

Restricting Access to an Arena

You can restrict arena access to a single process and the children it creates with sproc() (a

share group) by calling usconﬁg() to set CONF_ARENATYPE to US_SHAREDONLY

before creating the arena. When this is done, the ﬁle is unlinked immediately after the

arena is created. Then a call to usinit() with the same pathname from a different process

creates a different arena, one that is not shared with the ﬁrst one. This has several

side-effects that are detailed in usconﬁg(3).

Arena Access From Processes in a Share Group

An arena is a segment in the address space of a process. When that process creates a new

process using sproc(), the child process usually shares the same address space (see the

sproc(2) reference page and Chapter 10, “Process-Level Parallelism”). The child process

has access to the arena segment on the same basis as the parent process. However, the

child process needs to join the arena formally.

Chapter 3: Sharing Memory Between Processes

The child process should join the arena by calling usadd(), passing the address of the

arena. The child should test the return code of this function, since it can reﬂect an error

in either of two cases:

•The arena has not been created, or an incorrect arena address was passed.

•The arena was not conﬁgured to allow enough using processes, and no more users

can be allowed.

A child process can join an arena automatically, simply by using a semaphore, lock, or

barrier that was allocated within that arena. These function calls perform an automatic

call to usadd(). However, they can also encounter the error that too many processes are

already using the arena. It is best for the child process to check for this condition with an

explicit call to usadd().

Allocating in an Arena

Allocating shared memory from a shared arena is much like the regular process of

allocating memory using the malloc() and free() library routines. The functions related

to allocation within an arena are summarized in Table 3-4.

Table 3-4 IRIX Shared Memory Arena Allocation Functions

Function Name Purpose and Operation

usmalloc(3) Allocate an object of speciﬁed size in an arena.

uscalloc(3) Allocate an array of zero-ﬁlled units in an arena.

usmemalign(3) Allocate an object of speciﬁed size on a speciﬁed alignment boundary in

an arena.

usrealloc(3) Change the allocated size of an object in an arena.

usrealloc(3) Change the allocated size of an array created with uscalloc().

usmallocblksize(3) Query the actual size of an object as allocated.

usfree(3) Release an object allocated in an arena.

usmallopt(3) Tune the allocation algorithm using constants described in amallopt(3).

usmallinfo(3) Query allocation statistics (see amallinfo(3) for structure ﬁelds).

IRIX Shared Memory Arenas

The address of an object allocated using usmalloc() or a related function is a valid

address in any process that is attached to the shared arena. If the address is passed to a

process that has not attached the arena, the address is not valid for that process and its

use will cause a SIGSEGV.

The usmalloc() family of functions is based on the arena-allocation function family

described in the amalloc(3) reference page. The usmallopt() function is the same as the

amallopt() function, and both provide several options for modifying the memory

allocation methods in a particular arena. In a similar way, usmallinfo() is the same as

amallinfo(), and both return detailed statistics on usage of memory allocation in one

arena.

Exchanging the First Datum

The processes using a shared arena typically need to locate some fundamental data

structure that has been allocated within the arena. For example, the parent process

creates a foundation data structure in the arena, and initializes it with pointers to other

objects within the arena. Any process starting to use the arena needs the address of the

foundation structure in order to ﬁnd all the other objects used by the application.

The shared arena has a special one-pointer ﬁeld for storing such a basic address. This area

is accessed using the functions summarized in Table 3-5.

Note: The precision of the usgetinfo() ﬁeld in an arena, 32 or 64 bits, depends on the

execution model of the program that creates the arena. This is one reason that processes

compiled to different models cannot share one arena.

Often, the parent process creates and initializes the arena before it creates any of the child

processes that will share the arena. In this case, you expect no race conditions. The parent

can set the shared pointer using usputinfo() because no other process is using the arena

at that time. Each child process can fetch the value with usgetinfo().

Table 3-5 IRIX Shared Memory First-Datum Functions

Function Name Purpose and Operation

usputinfo(3) Set the shared-pointer ﬁeld of an arena to a value.

usgetinfo(3) Retrieve the value of the shared-pointer ﬁeld of an arena.

uscasinfo(3) Change the shared-pointer ﬁeld using a compare-and-swap.

Chapter 3: Sharing Memory Between Processes

The purpose of uscasinfo() is to change the contents of the ﬁeld in an atomic fashion,

avoiding any race condition between concurrent processes in a multiprocessor. All three

functions are discussed in detail in the usputinfo(3P) reference page.

Tip: The data type of the shared pointer ﬁeld is void*, a 64-bit value when the program

is compiled to the 64-bit model. If you need to cast the value to an integer, use the type

__psint_t, a pointer-sized integer in any model.

In the less-common case when an arena is shared by unrelated processes, each process

that calls usinit() might be the ﬁrst one to create the arena—or might not. If the calling

process is the ﬁrst, it should initialize the basic contents and set the shared pointer. If it is

not the ﬁrst, it should use the initialized contents that another process has already

prepared. This problem is resolved with uscasinfo(), as sketched by the code in

Example 3-3.

Example 3-3 Setting Up an Arena With uscasinfo()

typedef struct arenaStuff {

ulock_t updateLock; /* exclusive use of this structure */

short joinedProcs; /* number of processes joined */

...pointers to other things allocated by setUpArena()...

} arenaStuff_t;

|| The following function performs the one-time setup of the

|| arenaStuff contents. It assumes that updateLock is held.

extern void

setUpArena(usptr_t *arena, arenaStuff_t *stuff);

|| The following function joins a specified arena, creating it

|| and initializing it if necessary. It could be extended with

|| values to pass to usconfig(3) before the arena is created.

usptr_t*

joinArena(char *arenaPath)

{

usptr_t *arena;

arenaStuff_t *stuff;

int ret;

|| Join the arena, creating it if necessary. Exit on error.

if (!arena = usinit(arenaPath))

{

IRIX Shared Memory Arenas

perror("usinit");

return arena;

}

|| Do the following as many times as necessary until the arena

|| has been initialized.

for(ret=0; !ret; )

{

if (stuff = (arenaStuff_t *)usgetinfo(arena))

{

|| Another process has created the arena, and either has

|| initialized it or is initializing it right now. Acquire

|| the lock, which will block us until initializing is done.

ussetlock(stuff->updateLock);

/* here do anything needing exclusive use of arena */

++stuff->joinedProcs; /* another process has joined */

usunsetlock(stuff->updateLock); /* release arena */

ret = 1; /* end the loop */

}

else

{

|| This process appears to be first to call usinit().

|| Allocate an arenaStuff structure with its updateLock

|| already held and 1 process joined, and try to swap it

|| into place as the active one. We expect no errors

|| in setting up arenaStuff. If one occurs, the arena is

|| simply unusable, and we return a NULL to the caller.

if (! (stuff = usmalloc(sizeof(arenaStuff_t),arena) ) )

return stuff; /* should never occur */

if (! (stuff->updateLock = usnewlock(arena) ) );

return (usptr_t*)0; /* should never occur */

if (! uscsetlock(stuff->updateLock, 1) )

return (usptr_t*)0; /* should never occur */

stuff->joinedProcs = 1;

if (ret = uscasinfo(arena,0,stuff))

{

|| Our arenaStuff is now installed. Initialize it.

|| We hold the lock in arenaStuff as setUpArena expects.

|| The loop ends because ret is now nonzero.

Chapter 3: Sharing Memory Between Processes

setUpArena(arena,stuff);

usunsetlock(stuff->updateLock);

}

else

{

|| uscasinfo() either did not find a current value of 0

|| (indicates a race with another process executing this

|| code) or it failed for some other reason. In any case,

|| release allocated stuff and repeat the loop (ret==0).

usfreelock(stuff->updatelock,arena);

usfree(stuff,arena);

}

} /* usgetinfo returned 0 */

} /* while uscasinfo swap fails */

/* arena->initialized arena, updateLock not held */

return arena;

}

Example 3-3 assumes that everything allocated in the arena is accessed through a

collection of pointers, arenaStuff. The two problems to be solved are these:

•Which asynchronous process is the ﬁrst to call usinit(), and therefore should

allocate arenaStuff and initialize it with pointers to other objects?

•How can the second and subsequent processes know when the initialization of

arenaStuff (which might take some time) is complete and the arena is completely

ready for use?

The solution in Example 3-3 is based on the discussion in the uscasinfo(3P) reference

page. Each process calls function joinArena(). If a call to usgetinfo() returns nonzero, it

is the address of an arenaStuff_t that has been allocated by some other process. Possibly

that process is concurrently executing, initializing the arena. The current process waits

until the lock in the arenaStuff_t is released. On return from the ussetlock() call, the

process has exclusive use of arenaStuff until it releases the lock. It uses this exclusive

control to increment the count of processes using the arena.

When usgetinfo() returns 0, the calling process is probably the ﬁrst to create the arena,

so it allocates an arenaStuff structure, and also allocates the essential lock and puts it in a

locked state. Then it calls uscasinfo() to swap the arenaStuff address for the expected

value of 0. When the swap succeeds, the process completes initializing the arena and

releases the lock.

IRIX Shared Memory Arenas

The call to uscasinfo() could fail if, between the time the process receives a 0 from

usgetinfo() and the time it calls uscasinfo(), another process executes this same code and

installs its own arenaStuff. The process handles this unusual event by releasing the items

it allocated and repeating the whole process.

When unrelated processes join an arena with code like that shown in Example 3-3, they

should terminate their use of the arena with code similar to Example 3-4.

Example 3-4 Resigning From an Arena

|| The following function reverses the operation of joinArena.

|| Even if the calling process is the last one to hold the arena,

|| nothing drastic is done. This is because it is impossible to

|| perform {usinit(); usgetinfo(); ussetlock();} as an atomic

|| sequence. Once an arena comes into being it must remain

|| usable until the entire application shuts down. Unlinking the

|| arena file can be the last thing that main() does.

void

resignArena(usptr_t *arena)

{

arenaStuff_t *stuff = (arenaStuff_t *)usgetinfo(arena);

ussetlock(stuff->updateLock);

-- stuff->joinedProcs;

usunsetlock(stuff->updateLock);

}

It might seem that, when the function resignArena() in Example 3-4 ﬁnds that it has

reduced the joinedProcs count to 0, it could deinitialize the arena, for example unlinking

the ﬁle on which the arena is based. This is not a good idea because of the remote chance

of the following sequence of events:

1. Process A executes joinArena(), initializing the arena.

2. Unrelated process B executes joinArena() through the usinit() call, but is suspended

for a higher-priority process before executing usgetinfo().

3. Process A detects some error unrelated to arena use, and as part of termination, calls

resignArena().

4. Process B resumes execution with the call to usgetinfo().

If the resignArena() function did something irrevocable, such as unlinking or truncating

the arena ﬁle, it would leave process B in an unexpected state.

Chapter 3: Sharing Memory Between Processes

System V Shared Memory Functions

The System V shared memory functions allow two or more processes to share memory.

Unlike the IRIX method, in which the external name of a shared arena is also the name

of a ﬁle, the external name of an SVR4 shared segment is an integer held in an IPC name

table (see “SVR4 IPC Name Space” on page 40).

The functions and commands used with SVR4 shared memory are discussed in the

following topics and summarized in Table 3-6.

Creating or Finding a Shared Memory Segment

A process creates a shared memory segment, or locates an existing segment, using the

shmget() system function. When it creates a segment, the arguments to this function

establish:

•The numeric key of the segment.

•The size of the segment.

•The user ID and group ID of the segment creator and owner.

•The access permissions to the segment.

When the function locates an existing segment, access to the segment is controlled by the

access permissions and by the user ID and group ID of the calling process.

Table 3-6 SVR4 Shared Memory Functions

Function Name Purpose and Operation

shmget(2) Create a shared memory IPC object or return the ID of one.

shmctl(2) Get the status of a shared memory segment, change permissions or user IDs,

or lock or unlock a segment in memory.

shmat(2) Attach a shared memory segment to the address space.

shmdt(2) Detach a shared memory segment from the address space.

System V Shared Memory Functions

Unlike an IRIX shared arena, a shared segment does not grow automatically as it is used.

The size speciﬁed when it is created is ﬁxed. The shared segment is initialized to binary

zero. (As implemented in IRIX, the pages of the segment are created as they are ﬁrst

referenced; see “Mapping a Segment of Zeros” on page 19.)

The value returned by shmget() is the ID number of the segment. It is used to identify the

segment to other functions.

Attaching a Shared Segment

The shmget() function creates the segment, or veriﬁes that it exists, but does not actually

make it a part of the process address space. That remains to be done with a call to shmat()

(“attach”), passing the identiﬁer returned by shmget().

You can pass a desired base address to shmat(), or you can pass NULL to have the system

select the base address. It is best to let the system choose the base; this ensures that all

processes have the same base address for the segment.

A process can detach a segment from its address space by calling shmdt().

Managing a Shared Segment

The shmctl() function gives you the ability to get information about a segment, or to

modify its attributes. These operations are summarized in Table 3-7.

Table 3-7 SVR4 Shared Segment Management Operations

Keyword Operation Can Be Used By

IPC_STAT Get information about the segment. Any process having read access.

IPC_SET Set owner UID, owner GID, or access

permissions.

Creator UID, owner UID, or

superuser.

IPC_RMID Remove the segment from the IPC

name space.

Creator UID, owner UID, or

superuser.

SHM_LOCK Lock the segment pages in memory. Superuser process only.

SHM_UNLOCK Unlock a locked segment. Superuser process only.

Chapter 3: Sharing Memory Between Processes

Information About Shared Memory

The information structure returned by shmctl(IPC_STAT) is declared in the sys/shm.h

header ﬁle. The ﬁrst ﬁeld, shm_perm, is an ipc_perm structure. This structure is declared

in the sys/ipc.h header ﬁle.

Shared Memory Examples

The example programs in this section illustrate the use of some of the SVR4 shared

memory system functions.

Example of Creating a Shared Segment

The program in Example 3-5 illustrates the use of shmget(). You can specify command

parameters to exercise any combination of shmget() function arguments.

Example 3-5 shmget() System Call Example

|| Program to test shmget(2) for creating a segment.

|| shmget [-k <key>] [-s <size>] [-p <perms>] [-c] [-x]

|| -k <key> the key to use, default == 0 == IPC_PRIVATE

|| -s <size> size of segment, default is 64KB

|| -p <perms> permissions to use, default is 0600

|| -x use IPC_EXCL

|| -c use IPC_CREAT

#include <unistd.h> /* for getopt() */

#include <sys/shm.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key = IPC_PRIVATE; /* key */

size_t size = 65536; /* size */

int perms = 0600; /* permissions */

int shmflg = 0; /* flag values */

struct shmid_ds ds; /* info struct */

int c, shmid;

while ( -1 != (c = getopt(argc,argv,"k:s:p:cx")) )

{

switch (c)

System V Shared Memory Functions

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 's': /* size */

size = (size_t) strtoul(optarg, NULL, 0);

break;

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

break;

case 'c':

shmflg |= IPC_CREAT;

break;

case 'x':

shmflg |= IPC_EXCL;

break;

default: /* unknown or missing argument */

return -1;

}

shmid = shmget(key,size,shmflg|perms);

if (-1 != shmid)

{

printf("shmid = %d (0x%x)\n",shmid,shmid);

if (-1 != shmctl(shmid,IPC_STAT,&ds))

{

printf("owner uid/gid: %d/%d\n",

ds.shm_perm.uid,ds.shm_perm.gid);

printf("creator uid/gid: %d/%d\n",

ds.shm_perm.cuid,ds.shm_perm.cgid);

}

else

perror("shmctl(IPC_STAT)");

}

else

perror("shmget");

return errno;

}

Example of Attaching a Shared Segment

The program in Example 3-6 illustrates the process of actually attaching to and using a

shared memory segment. The segment must exist, and is speciﬁed by its ID or by its key.

You can use the program in Example 3-5 to create a segment for this program to use.

Chapter 3: Sharing Memory Between Processes

The attachment is either read-write or read-only, depending on the presence of the -r

command parameter. When the program attaches the segment read-write, it stores its

own PID in the ﬁrst word of the segment. Run the program several times; each time it

reports the previous PID value and sets a new PID value. This illustrates that the contents

of the segment persist between uses of the segment.

You can use the -w parameter to have the program wait after attaching. This allows you

to start more copies of the program so that multiple processes have attached the segment.

Example 3-6 shmat() System Call Example

|| Program to test shmat().

|| shmat {-k <key> | -i <id>} [-a <addr>] [-r] [-w]

|| -k <key> the key to use to get an ID..

|| -i <id> ..or the ID to use

|| -a <addr> address to attach, default=0

|| -r attach read-only, default read/write

|| -w wait on keyboard input before detaching

#include <unistd.h> /* for getopt() */

#include <sys/shm.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key = -1; /* key */

int shmid = -1; /* ..or ID */

void *addr = 0; /* address to request */

void *attach; /* address gotten */

int rwflag = 0; /* read or r/w */

int wait = 0; /* wait before detach */

int c, ret;

while ( -1 != (c = getopt(argc,argv,"k:i:a:rw")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* id */

shmid = (int) strtoul(optarg, NULL, 0);

break;

case 'a': /* addr */

System V Shared Memory Functions

addr = (void *) strtoul(optarg, NULL, 0);

break;

case 'r': /* read/write */

rwflag = SHM_RDONLY;

break;

case 'w': /* wait */

wait = 1;

break;

default:

return -1;

}

if (-1 == shmid) /* key must be given */

shmid = shmget(key,0,0);

if (-1 != shmid) /* we have an ID */

{

attach = shmat(shmid,addr,rwflag);

if (attach != (void*)-1)

{

printf("Attached at 0x%lx, first word = 0x%lx\n",

attach, *((pid_t*)attach));

if (rwflag != SHM_RDONLY)

{

*((pid_t *)attach) = getpid();

printf("Set first word to 0x%lx\n",*((pid_t*)attach));

}

if (wait)

{

char inp[80];

printf("Press return to detach...");

gets(inp);

printf("First word is now 0x%lx\n",*((pid_t*)attach));

}

if (shmdt(attach))

perror("shmdt()");

}

else

perror("shmat()");

}

else

perror("shmget()");

return errno;

}

Chapter 4

4. Mutual Exclusion

You use mutual exclusion facilities whenever data is shared by multiple, independent

processes or threads. Using such objects as locks (also called mutexes) and semaphores, you

can

•ensure that only one process or thread uses a particular data structure at any time

•coordinate the use of a shared collection such as a ring buffer or queue

•synchronize activities, so that processes or threads can wait for the completion of

events or actions by other processes or threads

In order to share data between processes, you share memory between them. Memory

sharing is covered in Chapter 3, “Sharing Memory Between Processes.” When

independent processes share access to data in disk ﬁles, they can ensure mutual

exclusion using ﬁle locks, which are covered in Chapter 7, “File and Record Locking.”

This chapter covers the following major topics:

•“Overview of Mutual Exclusion” on page 68 deﬁnes such terms as lock,mutex,

semaphore, and barrier.

•“POSIX Facilities for Mutual Exclusion” on page 73 covers the POSIX functions for

semaphores and mutexes.

•“IRIX Facilities for Mutual Exclusion” on page 77 covers IRIX locks, barriers, and

semaphores, and the test-and-set facility.

•“System V Facilities for Mutual Exclusion” on page 87 covers System V

semaphores.

Chapter 4: Mutual Exclusion

Overview of Mutual Exclusion

IRIX offers ﬁve kinds of mutual exclusion, each kind with its limits and advantages:

•Test-and-set instructions use special instructions in the MIPS CPU to update a

memory location in a predictable way.

•The lock (or mutex) enables processes to enforce serial use of data or code.

•The condition variable lets a thread give up a lock and sleep until an event happens,

then reclaim the lock and continue, all in a single operation.

•The semaphore lets independent processes manage a countable resource in an

orderly way.

•The barrier lets processes coordinate their initialization.

There is a hierarchy of complexity. Test-and-set instructions are a primitive facility that

could be used to implement the others. The lock is a simple object that could be used to

implement semaphores and barriers. The semaphore is the most ﬂexible and general

facility.

Test-and-Set Instructions

The MIPS instruction architecture includes two instructions designed to let programs

update memory from independent processes running concurrently in a multiprocessor.

•The Load Linked (LL) instruction loads a 32- or 64-bit word from memory and also

tags that cache line so that the hardware can recognize any change to memory from

any CPU in a multiprocessor.

•The Store Conditional (SC) instruction stores a 32- or 64-bit word into memory

provided that the destination cache line has not been modiﬁed. If the cache line has

been altered since the LL instruction was used, SC does not update memory and

sets a branch condition.

The combination of LL and SC can be used to guarantee that a change to a memory

location is effective, even when multiple concurrent CPUs are trying to update the same

location. You can use LL and SC only from an assembly language module. However, the

IRIX kernel contains a family of services that are implemented using LL/SC, and you can

call them from C or C++. These calls are discussed under “Using Test-and-Set Functions”

on page 82.

Overview of Mutual Exclusion

Locks

Alock is a small software object that stands for the exclusive right to use some resource.

The resource could be the right to execute a section of code, or the right to modify a

variable in memory, or the right to read or write in a ﬁle, or any other software operation

that must by performed serially, by one process at a time. Before using a serial resource,

the program claims the lock, and releases the lock when it is done with the resource.

The POSIX standard refers to an object of this kind as a mutex, a contraction of “mutual

exclusion” that is a conventional term in computer science. This book uses the simpler

word “lock” when discussing locks in general and IRIX locks in particular, and uses

“mutex” when discussing POSIX mutexes.

You can use IRIX locks to coordinate between unrelated processes or lightweight

processes through an IRIX shared memory arena. You can use POSIX mutexes to

coordinate between POSIX threads in a threaded program only (not IRIX processes).

You deﬁne the meaning of a lock in terms that are relevant to your program’s design. You

decide what resources can be used freely at any time, and you decide what resources

must be used serially, by one process at a time. You create and initialize a lock for each

serial resource.

It is also your job to ensure that locks are used consistently in all parts of the program.

Two errors are easy to make. You can forget to claim a lock, so that some part of the

program uses a resource freely instead of serializing. Or you can forget to release a lock,

so that other processes trying to claim the lock “hang,” or wait forever.

Both of these errors can be hard to ﬁnd because the symptoms can be intermittent. Most

of the time, there is no contention for the use of a shared variable. For example, if one

process sometimes fails to claim a lock before updating memory, the program can seem

to run correctly for hours (or months) before it suffers precisely the right combination of

coincidences that cause two processes to update the variable at the same time.

Chapter 4: Mutual Exclusion

Semaphores

Asemaphore is an integer count that is accessed atomically using two operations that are

conventionally called P and V:

•The P operation (mnemonic deplete) decrements the count. If the result is not

negative, the operation succeeds and returns. If the result is negative, the P

operation suspends the calling process until the count has been made nonnegative

by another process doing a V operation.

•The V operation (mnemonic revive) increments the count. If this changes the value

from negative to nonnegative, one process that is waiting in a P operation is

unblocked.

You can use a semaphore in place of a lock, to enforce serial use of resource. You initialize

the semaphore to a value of 1. The P operation claims the semaphore, leaving it at 0 so

that the next process to do P will be suspended. The V operation releases the semaphore.

You can also use a semaphore to control access to a pool that contains a countable number

for resources. For example, say that a buffer pool contains n buffers. A process can

proceed if there is at least 1 buffer available in the pool, but if there are no buffers, the

process should sleep until at least 1 buffer is returned.

A semaphore, initialized to n, represents the population of the buffer pool. The pool itself

might be implemented as a LIFO queue. The right to update the queue anchor (either to

remove a buffer or to return one) is a separate resource that is guarded by a lock. The

procedure for obtaining a buffer from the pool is as follows:

1. Perform P on the pool semaphore. When the operation completes, you are assured

there is at least one buffer in the pool; and you are also assured that the count

representing the buffer you need has been decremented from the semaphore.

2. Claim the lock that guards the buffer queue anchor. This ensures that there will be

no conﬂict with another process taking or returning a buffer at the same time.

3. Remove one buffer from the queue, updating the queue anchor. Step 1 assures that

the queue is not empty.

4. Release the lock on the queue anchor.

Overview of Mutual Exclusion

The procedure for returning a buffer to the pool is as follows:

1. Claim the lock that guards the buffer queue anchor. This ensures that there will be

no conﬂict with another process taking or returning a buffer at the same time.

2. Put the returned buffer back on the queue, updating the queue anchor. The queue

could be empty at this time.

3. Release the lock on the queue anchor.

4. Perform V on the pool semaphore. This announces that at least one additional buffer

is now free, and may unblock some process waiting for a buffer.

The same two basic procedures work to allocate any collection of objects. For example,

the semaphore could represent the number of open slots in a ring buffer, and the lock

could stand for the right to update the ring buffer pointers. (A LIFO queue can be

managed without a lock; see “Using Compare-and-Swap” on page 83.)

Semaphores created using POSIX functions, and semaphores created by the SVR4 IPC

facility, can be used to coordinate IRIX processes or POSIX threads. Semaphores

supported by the IRIX IPC facility can be used to coordinate IRIX processes only.

Condition Variables

A condition variable is a software object that represents the occurrence of an event.

Typically the event is a software action such as “other thread has supplied needed data.”

Condition variable support is included in the POSIX pthreads library, and can be used

only to coordinate among POSIX threads, not between IRIX processes. (See Chapter 11,

“Thread-Level Parallelism” for information on the pthread library.)

A thread that wants to wait for an event claims the condition variable, which causes the

thread to wait. The thread that recognizes the event signals the condition variable,

releasing one or all threads that are waiting for the event.

Chapter 4: Mutual Exclusion

In the expected mode of use, there is a shared resource that can be depleted. Access to the

resource is represented by a mutex. A thread claims the mutex, but then ﬁnds that the

shared resource is depleted or unready. This thread needs to do three things:

1. Give up the mutex so that some other thread can renew the shared resource.

2. Wait for the event that “resource is now ready for use.”

3. Re-claim the mutex for the shared resource.

These three actions are combined into one action using a condition variable. When a

thread claims a condition variable, it must pass a mutex that it owns. The claim releases

the mutex, waits, and reclaims the mutex in one operation.

Barriers

Barriers provide a convenient way of synchronizing parallel processes on multiprocessor

systems. To understand barriers, think of a time when you planned to go to lunch with

other people at your workplace. The group agrees to meet in the lobby of the building.

Some of your coworkers reach the lobby early, and others arrive later. One comes

running in last, apologizing. When all of you have gathered and you know that everyone

is ready, you all leave the building in a group.

A barrier is the software equivalent of the lobby where you waited. A group of processes

are going to work on a problem. None should start until all the data has been initialized.

However, starting each process is part of the initialization, and they cannot all be started

at the same time. Each process must be created; each must join an arena and perhaps

open a ﬁle; and you cannot predict when they will all be ready. To coordinate them, you

create a barrier. Each process, when it is ready to start the main operation, calls barrier(),

passing the address of the barrier and the number of processes that will meet. When that

many processes have called barrier(), all of them are released to begin execution.

Barriers are part of IRIX IPC and require the use of a shared arena. Barriers cannot be

used to coordinate POSIX threads.

POSIX Facilities for Mutual Exclusion

The POSIX real-time extensions (detailed in IEEE standard 1003.1b) include named and

unnamed semaphores. The POSIX threads library (detailed in IEEE standard 1003.1c)

introduces mutexes and condition variables.

Managing Unnamed Semaphores

An unnamed semaphore is a semaphore object that exists in memory only. An unnamed

semaphore can be identiﬁed only by its memory address, so it can be shared only by

processes or threads that share that memory location.

The functions for creating and freeing unnamed semaphores are summarized in

Table 4-1.

The type of a POSIX semaphore is sem_t, which is declared in the header ﬁle semaphore.h.

You create an unnamed semaphore by allocating memory for a sem_t variable, either

dynamically or statically, and initializing it with sem_init(). The function in Example 4-1

allocates and initializes an unnamed semaphore and returns its address. It returns NULL

if there is a failure of either malloc() or sem_init().

Table 4-1 POSIX Functions to Manage Unnamed Semaphores

Function Name Purpose and Operation

sem_init(3) Initialize a semaphore object, setting its value and preparing it for use.

sem_destroy(3) Make a semaphore unusable.

Chapter 4: Mutual Exclusion

Example 4-1 Dynamic Allocation of POSIX Unnamed Semaphore

sem_t * allocUnnSem(unsigned initVal)

{

sem_t *psem = (sem_t*)malloc(sizeof(sem_t));

if (sem_t) /* malloc worked */

{

if (sem_init(psem,0,initVal))

{

free(psem);

psem = NULL;

}

return psem;

}

The function in Example 4-1 passes the second argument of sem_init(),pshared, as 0,

meaning the semaphore can only be used within the current process. A semaphore of this

kind can be used to coordinate pthreads in a threaded program.

If you want to use a semaphore to coordinate between IRIX processes with separate

address spaces, you must create the semaphore with a nonzero pshared, and place the

semaphore in a memory segment that is shared among all processes. This feature is fully

supported. However, you should specify pshared as 0 when possible, because nonshared

semaphores have higher performance.

Managing Named Semaphores

A named semaphore is named in the ﬁlesystem, so it can be opened by any process

(subject to access permissions), even when the process does not share address space with

the creator of the semaphore. The functions used to create and manage named

semaphores are summarized in Table 4-2.

Table 4-2 POSIX Functions to Manage Named Semaphores

Function Name Purpose and Operation

sem_open(3) Create or access a named semaphore, returning an address.

sem_close(3) Give up access to a named semaphore, releasing a ﬁle descriptor.

sem_unlink(3) Permanently remove a named semaphore.

POSIX Facilities for Mutual Exclusion

The sem_open() function takes the following arguments:

Creating a Named Semaphore

The POSIX standard leaves it to the implementation whether or not a named semaphore

is represented by a disk ﬁle. The IRIX implementation does create a ﬁle to stand for each

named semaphore (see “POSIX IPC Name Space” on page 38). The ﬁle that stands for a

semaphore takes up no disk space other than the ﬁle node in a directory.

The oﬂag is used to handle the following cases:

•Specify 0 to receive an error if the semaphore does not exist; that is, to require that

the semaphore must exist.

•Specify O_CREAT+O_EXCL to receive an error if the semaphore does exist; that is,

to require that the semaphore not exist.

•Specify O_CREAT to have the semaphore created if necessary.

When sem_open() creates a semaphore, it sets the ﬁle permissions speciﬁed by mode.

These permissions control access to a semaphore by UID and GID, just as for a ﬁle. (See

the open(2) and chmod(2) reference pages.)

When sem_open() creates a semaphore, it sets the initial value to value, or to 0 if value is

not speciﬁed. Otherwise the value depends on the history of the semaphore since it was

created. The value of a semaphore is not preserved over a reboot (the POSIX standard

says it is not valid to depend on the value of a semaphore over a reboot).

A named semaphore is opened as a ﬁle, and takes up one entry in the ﬁle descriptor table

for the process. There is no way to convert between the address of the sem_t and the ﬁle

descriptor number, or vice versa. As a result, you cannot directly pass the semaphore to

a function such as fcntl() or chmod().

name Name of the semaphore in the form of a ﬁle pathname.

oﬂag Either zero, or O_CREAT, or O_CREAT+O_EXCL.

mode The access permissions to apply if the semaphore is created.

value Initial value of the semaphore.

Chapter 4: Mutual Exclusion

Closing and Removing a Named Semaphore

When a process stops using a named semaphore, it can close the semaphore, releasing

the associated ﬁle descriptor slot. This is done with sem_close(). The semaphore name

persists in the ﬁlesystem, and as long as the system is up, the current semaphore value

persists in a table in memory.

To permanently remove a semaphore, use sem_unlink().

Using Semaphores

POSIX named and unnamed semaphores can be used to coordinate the actions of IRIX

processes and POSIX threads. They are the only mutual-exclusion objects that can be

freely used to coordinate between threaded and unthreaded programs alike. (Message

queues can be used between threaded and unthreaded programs also; see Chapter 6,

“Message Queues.”)

The functions that operate on semaphores are summarized in Table 4-3.

The abstract operation P is implemented as the sem_wait() function. Use this to

decrement a semaphore’s value and, if the result is negative, to suspend the calling

function until the value is restored. The V operation is sem_post().

You can sample a semaphore’s value using sem_getvalue(). The sem_trywait() operation

is useful when a process or thread cannot tolerate being suspended.

Table 4-3 POSIX Functions to Operate on Semaphores

Function Name Purpose and Operation

sem_getvalue(3) Return a snapshot of the current value of a semaphore.

sem_post(3) Perform the P operation, incrementing a semaphore and possibly

unblocking a waiting process.

sem_trywait(3) Perform the V operation only if the value of the semaphore is 1 or more.

sem_wait(3) Perform the V operation, decrementing a semaphore and blocking if it

becomes negative.

IRIX Facilities for Mutual Exclusion

Using Mutexes and Condition Variables

Two additional types of mutual exclusion are available only within a threaded program,

to coordinate the actions of POSIX threads. The mutex is comparable to a lock or to a

semaphore initialized to a count of 1. The condition variable provides a convenient way

for a thread to give up ownership of a mutex, wait for something to happen, and then

reclaim the mutex.

Both of these facilities are covered in detail in Chapter 11, “Thread-Level Parallelism.”

See the headings “Mutexes” on page 226 and “Condition Variables” on page 229.

IRIX Facilities for Mutual Exclusion

IRIX supports a wide selection of mutual-exclusion facilities, all tuned for use between

processes that run concurrently in a multiprocessor.

Using IRIX Semaphores

Two kinds of semaphores are supported in IRIX IPC: normal and polled. Both are

allocated in a shared memory arena (see “IRIX Shared Memory Arenas” on page 50).

Creating Normal Semaphores

The functions for managing normal semaphores are summarized in Table 4-4.

Table 4-4 IRIX Functions to Manage Nonpolled Semaphores

Function Name Purpose and Operation

usnewsema(3P) Allocate a semaphore in an arena and give it an initial value.

usfreesema(3P) Release arena memory used by a semaphore (does not release any process

waiting on the semaphore).

usinitsema(3P) Reset a semaphore value and its metering information (does not release any

process waiting on the semaphore).

usctlsema(3P) Set and reset semaphore metering information and other attributes.

usdumpsema(3P) Dump semaphore metering information to a ﬁle.

Chapter 4: Mutual Exclusion

To allocate a new shared-arena semaphore and set its initial value, call usnewsema(). Use

usctlsema() to enable recursive use of the semaphore and to enable the collection of

metering information. You can use the metering information to ﬁnd out whether a

semaphore is a bottleneck or not.

Tip: When reading the reference pages cited above, notice that usnewsema() returns the

address of a usema_t object, and all the other functions take the address of a usema_t. That

is, usema_t represents the type of the semaphore object itself, and you refer to a

semaphore by its address. This is different from locks, which are discussed later in this

chapter.

Creating Polled Semaphores

A polled semaphore differs from a normal semaphore in the P operation. When

decrementing the semaphore value produces a negative number, the calling process is

not blocked. Instead, it receives a return code. The process then has to include the address

of the semaphore in the list of events passed to poll() (see the poll(2) reference page). The

V operation, applied to a polled semaphore, does not release a block process but rather

causes a poll() operation to end.

You can use polled semaphores to integrate semaphore handling with other events for

which you wait with poll(), such as ﬁle operations. You cannot combine the use of

normal semaphores with the use of polled devices, since a single process cannot wait in

apoll() call and in a uspsema() call at the same time. The functions for creating and

controlling polled semaphores are summarized in Table 4-5.

Table 4-5 IRIX IPC Functions for Managing Polled Semaphores

Function Name Purpose and Operation

usnewpollsema(3P) Allocate a polled semaphore in an arena and give it an initial value.

usopenpollsema(3P) Assign a ﬁle descriptor to a polled semaphore. The ﬁle descriptor can be

passed to poll() or select(). This must be done before the semaphore can

be used.

usclosepollsema(3P) Release a ﬁle descriptor assigned with usopenpollsema().

usfreepollsema(3P) Release arena memory used by a polled semaphore and invalidate any

ﬁle descriptors assigned to it.

IRIX Facilities for Mutual Exclusion

Operating on Semaphores

The functions for semaphore operations are summarized in Table 4-6.

To perform the P operation on a semaphore of either type, use uspsema(). When the

decremented semaphore value is nonnegative, the function returns 1. The action when

the decremented count would be negative differs between the polled and normal

semaphores:

•When a normal semaphore count remains or becomes negative, the calling process

is blocked; the function does not return until the count is nonnegative.

•When a polled semaphore count remains or becomes negative, the function returns

0 and the calling process must use poll() to ﬁnd out when it becomes nonnegative.

To perform the V operation on a semaphore of either type, call usvsema().

The uscpsema() function provides a conditional P operation: it performs a P operation

on the semaphore only if it can do so without making the value negative. The

ustestsema() function returns the current value of the semaphore—which of course is

immediately out of date.

The usinitsema() function reinitializes the semaphore to a speciﬁed value. Note that if

you reinitialize a semaphore on which processes are waiting, the processes continues to

wait. You should reinitialize a semaphore only in unusual circumstances.

Table 4-6 IRIX IPC Functions for Semaphore Operations

Function Name Purpose and Operation

uspsema(3P) Perform the P operation on either type of semaphore.

usvsema(3P) Perform the V operation on either type of semaphore.

ustestsema(3P) Return the current (instantaneous) value of a semaphore.

uscpsema(3P) Perform the P operation only if the resulting count will be nonnegative.

usinitsema(3P) Reset a semaphore value and its metering information (does not release

any process waiting on the semaphore).

usctlsema(3P) Set and reset semaphore metering information and other attributes.

usdumpsema(3P) Dump semaphore metering information to a ﬁle.

Chapter 4: Mutual Exclusion

You can call usctlsema() to enable the keeping of either metering information—

cumulative counts of usage—or a history trace. The metering information shows

whether a semaphore is a bottleneck in the program’s operations. The history trace can

be used to analyze bugs.

Using Locks

IRIX locks are implemented differently depending on the hardware architecture of the

computer using them. On a multiprocessor computer, locks are busy-wait locks, so the

processor continually tries to acquire the lock until it succeeds. This implementation

makes sense only on multiprocessor systems, where one processor can release the lock

while another processor is “spinning,” trying to acquire the lock. On a uniprocessor, a

process waiting to claim a lock is suspended until the lock is released by another process.

Creating and Managing Locks

The functions for creating and controlling locks are summarized in Table 4-7.

You decide whether the locks in an arena will have metering information or not. You

specify this before creating the arena, to usconﬁg() (see “Initializing Arena Attributes”

on page 51). When lock metering is enabled, you can retrieve the information about a

lock at any time to ﬁnd out whether a lock is a bottleneck in a program.

Table 4-7 IRIX IPC Functions for Managing Locks

Function Name Purpose and Operation

usnewlock(3P) Allocate a lock in a speciﬁed arena.

usfreelock(3P) Release lock memory (does not release any process waiting on the lock).

usinitlock(3P) Reset a lock and its metering information (does not release any process

waiting on the lock).

usctllock(3P) Fetch and reset semaphore metering information or debugging

information.

usdumplock(3P) Dump lock metering information to a ﬁle.

IRIX Facilities for Mutual Exclusion

Claiming and Releasing Locks

The functions for using locks are summarized in Table 4-8.

Tip: When reading the reference pages cited above, notice that usnewlock() returns a

ulock_t object, which is simply a pointer. All the functions that operate on locks take a

ulock_t object—not a pointer to a ulock_t. That is, the ulock_t type represents a handle or

reference to a lock, not a lock itself. This differs from the treatment of semaphores, which

is described under “Creating Normal Semaphores” on page 77.

On uniprocessors, none of the functions us[c,w]setlock() spin; if the lock is available they

return immediately, and if it is not, they suspend the calling process and give up the CPU.

On multiprocessors, ussettlock() spins for a default number of times before it suspends

the process. The function uswsetlock() is the same, but you can specify the number of

spins to take before suspending.

A process can call usunsetlock() on a lock that is either not locked or locked by another

process. In either case, the lock is unlocked. “Double tripping”—calling a set-lock

function twice with the same lock—is also permissible. The caller blocks until another

process unsets the lock.

Table 4-8 IRIX IPC Functions for Using Locks

Function Name Purpose and Operation

ussetlock(3P) Seize a lock, suspending the caller if necessary, until the lock is available.

usunsetlock(3P) Release a lock, making it available for other processes.

uscsetlock(3P) Seize a lock if it is available; otherwise return a 1.

uswsetlock(3P) Seize a lock, suspending the caller if necessary; takes a speciﬁed number of

spins as an argument.

ustestlock(3P) Test a lock, returning 0 if it is instantaneously available and 1 if it is not

available.

Chapter 4: Mutual Exclusion

Using Barriers

The functions to manage and use barriers are summarized in Table 4-9.

The main process uses new_barrier() to allocate a barrier in some arena. To use the

barrier, each process calls barrier(), passing the number of processes that are supposed

to meet before proceeding.

Note: The barrier() function assumes that it is used on a multiprocessor. It always passes

time by spinning in an empty loop. When used on a uniprocessor (or when used on a

multiprocessor with fewer available CPUs than barrier processes), a call to barrier(n) can

be quite inefﬁcient. The waiting functions spin until each in turn uses up its time-slice. In

general it is not a good idea to use barrier() except in a multiprocessor with a number of

CPUs approximately equal to the number of coordinating processes.

Using Test-and-Set Functions

The C library includes a family of functions that apply the MIPS instructions Load

Linked and Store Conditional to modify memory words in a reliable way in a

multiprocessor. These functions are detailed in the test_and_set(3) and uscas(3) reference

pages. In addition, the MIPSpro C and C++ compilers, version 7.0 and after, contain

built-in support for these operations.

Table 4-9 IRIX IPC Functions for Barriers

Function Name Purpose and Operation

new_barrier(3P) Allocate and initialize a barrier in a speciﬁed arena.

free_barrier(3P) Release the storage associated with a barrier.

barrier(3P) Wait at a barrier until a speciﬁed number of processes have gathered.

init_barrier(3P) Reinitialize a barrier (does not release any processes waiting).

IRIX Facilities for Mutual Exclusion

Using Test-and-Set

All test-and-set functions solve a similar problem: how to update the contents of a

memory word reliably from two or more CPUs concurrently. Use a test-and-set function

to avoid the traditional “race” condition. For example, suppose that two or more

processes could execute code to increment a variable, as in ++shared:

•Process A loads shared into a register and adds 1 to it.

•Process B loads shared into a register and adds 1 to it.

•Process A stores the value in memory.

•Process B stores the value in memory.

The result is to increment shared by 1 when it should be incremented by 2. However, if

both processes use test_then_add(&shared,1) instead, they are assured that both

increments will occur regardless of timing.

Using Compare-and-Swap

The test-and-set functions are not adequate to do race-free pointer manipulation; you

need a compare-and-swap function for that. The C library includes the uscas() and

uscas32() functions for this purpose. Use uscas() to work with pointer-sized values

(which can be either 32 or 64 bits depending on compile options). Use uscas32() to work

with words that should always be 32 bits in every program.

The compare-and-swap functions take four arguments:

The arena address u is not actually used by the functions. However, the functions cannot

work until usinit() has been called at least once. Passing an arena address ensures that

this has happened.

destp Address of the target memory ﬁeld you want to update.

old Expected current value of the memory ﬁeld.

new Desired new value, based on the expected old value.

uAddress of any IRIX shared memory arena.

Chapter 4: Mutual Exclusion

Use a compare-and-swap function in a loop like the following:

1. Copy the current value of the target memory ﬁeld.

2. Calculate a new value based on the current value.

3. Use compare-and-swap to install the new value, provided that the current value has

not changed during step 2.

4. If the compare failed so the swap was not done (uscas() returns 0), another process

has changed the target; return to step 1 and repeat.

The code in Example 4-2 illustrates how this type of loop can be used to manage a simple

LIFO queue.

Example 4-2 Using Compare-and-Swap on a LIFO Queue

#include <ulocks.h>

typedef struct item_s {

struct item_s *next;

/* ... other fields ... */

} item_t;

void push_item( item_t **lifo, item_t *new, usptr_t *u)

{

item_t *old;

do {

new->next = old = *lifo;

} while(0 == uscas(lifo,(ptrdiff_t)old,(ptrdiff_t)new,u));

}

item_t * pull_item( item_t **lifo, usptr_t *u)

{

item_t *old, *new;

do {

old = *lifo;

if (!old) break;

new = old->next;

} while(0 == uscas(lifo,(ptrdiff_t)old,(ptrdiff_t)new,u));

return old;

}

#include <stdio.h>

main()

{

usptr_t *arena = usinit("/var/tmp/cas.arena");

item_t *lifo = NULL;

item_t t1, t2;

item_t *p1, *p2;

IRIX Facilities for Mutual Exclusion

push_item(&lifo, &t1, arena);

push_item(&lifo, &t2, arena);

p2 = pull_item(&lifo, arena);

p1 = pull_item(&lifo, arena);

printf("%x == %x ?\n", &t1, p1);

printf("%x == %x ?\n", &t2, p2);

}

In Example 4-2, the push_item() function pushes an item_t onto a LIFO queue, and

pull_item() removes and returns the ﬁrst item_t from a queue. Both use uscas() to update

the queue anchor. The main() function contains a unit-test of the functions, ﬁrst pushing

two items, then pulling them off, ﬁnally displaying the addresses to verify that what was

pushed, could be pulled.

Using Compiler Intrinsics for Test-and-Set

The MIPSpro™ C and C++ compilers version 7.0 introduce the intrinsic functions

summarized in Table 4-10.

Table 4-10 Compiler Intrinsics for Atomic Operations

Intrinsic Prototype Purpose Barrier

_ _op_and_fetch(p,v...) Atomically execute {*p op= v; *p;}. The op can be

add,sub,or,and,xor, and nand.

Full

_ _fetch_and_op(p,v...) Atomically execute {t = *p; *p op= v; t;}. The op can

be add,sub,or,and,xor, and nand.

Full

_ _lock_test_and_set(p,v...) Atomically execute {t = *p; *p = v; t;}. Backward

_ _lock_release(p...) Atomically execute {*p = 0;}. Forward

_ _compare_and_swap(p,w,v...) Atomically execute (w==*p) ?(*p=v, 1): 0. Full

_ _synchronize(...) Issue the MIPS-3 instruction sync to synchronize

the cache with memory.

Full

Chapter 4: Mutual Exclusion

Each of the compiler intrinsics except __synchronize() causes the compiler to generate

inline code using Load Linked and Store Conditional to update memory predictably. In

this respect they are similar to the library functions documented in the test_and_set(3)

and uscas(3) reference pages. For example, the statement

__add_and_fetch(&shared,1);

is functionally equivalent to the library call

test_then_add(&shared,1);

The compiler intrinsic __compare_and_swap() is simpler to use than uscas() since you

do not have to create a shared memory arena ﬁrst.

The compiler intrinsics are different from the library functions, and different from an

assembly language subroutine you might write, in one important way. The optimizer

phases of the compiler recognize these intrinsics as barriers to code motion. The

“Barrier” column in Table 4-10 shows this effect. For example, the compiler cannot move

code in either direction across s use of __compare_and_swap(). However, it can move

code backward (but not forward) across __lock_test_and_set().

You can make the code motion barrier explicit or general. If you invoke

__compare_and_swap() passing only the pointer and two value arguments, the compiler

can move no code across that source line. Alternatively, you can list speciﬁc variables as

additional arguments to __compare_and_swap() (this is why the functions are shown as

having a variable number of arguments). When you do so, the compiler cannot move

assignments to the named variables across this point, but can move assignments to other

variables, if the optimizer needs to.

System V Facilities for Mutual Exclusion

The System V Release 4 (SVR4) semaphore facility lets you create persistent semaphores

that can be used to coordinate any processes or threads. The SVR4 facility differs from

POSIX named semaphores in two ways:

•Each object is a set of from 1 to 25 independent semaphores, rather than a single

semaphore. A process can operate on any selection of semaphores in a set in one

system call.

•You can use SVR4 semaphores in ways that IRIX and POSIX do not support:

incrementing or decrementing by more than 1, and waiting for a zero value.

•The name of a set is an integer in a kernel table, rather than a pathname in the

ﬁlesystem (see “SVR4 IPC Name Space” on page 40).

The functions used to create and operate on semaphore sets are summarized in

Table 4-11.

Semaphores are also discussed in the intro(2) reference page. You can display semaphore

sets from the command line using ipcs, and remove them with ipcrm (see the ipcs(1) and

ipcr(1) reference pages).

Table 4-11 SVR4 Semaphore Management Functions

Function Name Purpose and Operation

semget(2) Create a semaphore set, or return the ID of a semaphore set.

semctl(2) Query or change semaphore values; query or change semaphore set

attributes.

semop(2) Perform operations on one or more semaphores in a set.

Chapter 4: Mutual Exclusion

Creating or Finding a Semaphore Set

A process creates a semaphore set, or locates an existing set, using the semget() system

function. The function creates a set only if the speciﬁed key is IPC_PRIVATE, or no set

with that key exists, and the IPC_CREAT ﬂag is used. When it creates a set, the

arguments to the function establish

•the numeric key of the set

•the number of semaphores in the set, from 1 to 25

•the access permissions to the set

In addition, the effective user ID and group ID of the calling process become the creator

and owner identiﬁcation of the new semaphore set. (See “Example Uses of semget()” on

page 91 for example code.)

When semget() locates an existing set, access is controlled by the access permissions of

the set and by the user ID and group ID of the calling process.

The value returned by semget() is the ID number of the semaphore set. It is used to

identify the segment to other functions.

Managing Semaphore Sets

The semctl() function gives you the ability to get information about a semaphore set, or

to modify its attributes. These operations are summarized in Table 4-12.

Table 4-12 SVR4 Semaphore Set Management Operations

Keyword Operation Can Be Used By

IPC_STAT Get information about the set. Any process having read access.

IPC_SET Set owner UID, owner GID, or access

permissions.

Creator UID, owner UID, or

superuser.

IPC_RMID Remove the set from the IPC name

space.

Creator UID, owner UID, or

superuser.

System V Facilities for Mutual Exclusion

Examples of some of these uses can be found under “Example Uses of semctl() for

Management” on page 93.

In addition, semctl() allows you to query or set information about individual

semaphores within the set, as summarized in Table 4-13.

Examples of some of these uses can be seen under “Example Uses of semctl() for Query”

on page 96.

GETALL Copy current values of all semaphores

to an array.

Any process having read access.

SETALL Set current values of all semaphores

from an array of integers.

Any process having write access.

Table 4-13 SVR4 Semaphore Management Operations

Keyword Operation Can Be Used By

GETVAL Return value of one semaphore. Any process having read access.

GETPID Return process ID of the process that

last operated on a semaphore.

Any process having read access.

GETNCNT Return number of processes waiting

for one semaphore to exceed zero

Any process having read access.

GETZCNT Return number of processes waiting

for one semaphore to equal zero.

Any process having read access.

SETVAL Set current value of one semaphores. Any process having write access.

Table 4-12 (continued) SVR4 Semaphore Set Management Operations

Keyword Operation Can Be Used By

Chapter 4: Mutual Exclusion

Using Semaphore Sets

You perform operations on the semaphores in a set by calling semop(). This function

takes a semaphore set ID, and an array of one or more semaphore operation structures.

Each of the operation structures speciﬁes the following:

•The index of a semaphore in the set, numbering the semaphores from 0

•A number specifying one of three operations:

–Zero, meaning to test the semaphore for equality to 0.

–A positive number such as 1, meaning to increment the semaphore value,

possibly releasing waiting processes or threads (the V operation).

–A negative number such as -1, meaning to decrement the semaphore value

when that can be done without making it negative (the P operation).

•A ﬂag word that can specify these ﬂags:

–IPC_NOWAIT, do not suspend but return an error if the Zero test fails or the P

operation cannot be done.

–SEM_UNDO, undo this operation if it succeeds but an operation later in the

array should fail.

In the simplest case, you pass an array containing just one operation, to increment or

decrement one semaphore by 1 (the traditional V or P operation). Used this way, a

semaphore in a set is functionally the same as an IRIX or POSIX semaphore.

SVR4 semaphores permit additional operations not available with IRIX or POSIX

semaphores. The negative or positive value in the operation structure is not required to

be 1, so you can increment or decrement a semaphore by more than 1 in an operation.

The wait-for-zero operation allows one process or thread to monitor the state of a

semaphore, independent of the P and V operations performed on the semaphore by

other processes or threads.

You can also perform a sequence of operations—a sequence of P, or V, or zero-wait

operations, or a mix of operation types—on multiple semaphores in a single call. To do

this, you specify an array containing more than one operation structure. The semop()

function performs each operation in sequence.

System V Facilities for Mutual Exclusion

You can use this feature, for example, to claim multiple resources, each represented by a

different semaphore. Your array would specify the P operation on each of the

semaphores in sequence. When semop() returns successfully, you own all the resources.

A similar, multiple V operation returns all the resources at once.

The IPC_NOWAIT and SEM_UNDO ﬂags are important when claiming multiple

resources at once. Specify SEM_UNDO on all operations; and specify IPC_NOWAIT on

all but the ﬁrst one. If the second or later resource is unavailable, semop() restores all

preceding claims and returns an error code. As long as all processes or threads operate

on semaphores in the same order, this logic prevents deadlocks, and it avoids long,

fruitless suspensions.

Example Programs

The programs in this section allow you to experiment with semaphore sets from the

command line:

•Example 4-3 on page 92 can be used to experiment with semget(), creating

semaphore sets with different sizes and permissions.

•Example 4-4 on page 94 can be used to test semctl() for displaying and changing

owner IDs and permissions.

•Example 4-5 on page 96 can be used to test semctl() for sampling the values of

semaphores, or to display the state of a semaphore set.

•Example 4-6 on page 98 can be used to test semop() for single or multiple

operations.

Example Uses of semget()

The program in Example 4-3, semget, invokes semget() with arguments you specify on

the command line:

-k key Numeric key to identify the semaphore set, required; for example -k 99.

Default is IPC_PRIVATE.

-p perms Access permissions to apply to a created set; for example, -p 0664. Default

is octal 0666.

-s setsize Number of semaphores in a created set; for example -s 8. The limit

is 25, but feel free to experiment with larger numbers to see the return

code.

Chapter 4: Mutual Exclusion

Example 4-3 Program to Demonstrate semget()

|| semget: program to test semget(2) for creating semaphores.

|| semget [-k <key>] [-c] [-x] [-p <perms>] [-s <setsize>]

|| -k <key> the key to use, default == 0 == IPC_PRIVATE

|| -p <perms> permissions to use, default is 0600

|| -s <setsize> size to use, default is 1

|| -c use IPC_CREAT

|| -x use IPC_EXCL

#include <unistd.h> /* for getopt() */

#include <sys/sem.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key = IPC_PRIVATE; /* key */

int nsems = 1; /* setsize */

int perms = 0600; /* permissions */

int semflg = 0; /* flag values */

struct semid_ds ds; /* info struct */

int c, semid;

while ( -1 != (c = getopt(argc,argv,"k:p:s:xc")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 's': /* setsize */

nsems = (int) strtoul(optarg, NULL, 0);

break;

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

break;

case 'c':

semflg |= IPC_CREAT;

break;

case 'x':

semflg |= IPC_EXCL;

-c Use IPC_CREAT. No set is created unless this is speciﬁed.

-x Use IPC_EXCL. Use with -c to require that a set not exist.

System V Facilities for Mutual Exclusion

break;

default: /* unknown or missing argument */

return -1;

}

semid = semget(key,nsems,semflg+perms);

if (-1 != semid)

{

printf("semid = %d\n",semid);

if (-1 != semctl(semid,0,IPC_STAT,&ds))

{

printf(

"owner uid.gid: %d.%d creator uid.gid: %d.%d mode: 0%o nsems:%d\n"

ds.sem_perm.uid,ds.sem_perm.gid,

ds.sem_perm.cuid,ds.sem_perm.cgid,

ds.sem_perm.mode, ds.sem_nsems);

}

else

perror("semctl(IPC_STAT)");

}

else

perror("semget()");

return errno;

}

Example Uses of semctl() for Management

The program in Example 4-4, semmod, allows you to call semctl() from the command line

to display the size, permissions, and owner and creator IDs of a semaphore set, and to

change the permissions and owner. It takes the following arguments on the command

line:

-k key Numeric key to identify the semaphore set; for example -k 99.

-i id Semaphore ID number, alternative to specifying the key.

-p perms Access permissions to apply to the selected set; for example, -p 0664.

-u uid New user ID for the semaphore owner.

-g gid New group ID for the semaphore owner.

Chapter 4: Mutual Exclusion

If only the key or ID is given, the program only displays the state of the set. When you

specify permissions, owner, or group, the program ﬁrst queries the current information

to initialize an information structure. Then it inserts the new items you speciﬁed, and

calls semctl() with IPC_SET to change the information.

Example 4-4 Program to Demonstrate semctl() for Management

|| semmod: program to test semctl(2) for status, ownership and permissions.

|| semmod {-k <key> | -i <semid>} [-p <perms>] [-u <user>] [-g <group>]

|| -k <key> the key to use, or..

|| -i <semid> ..the semid to use

|| -p <perms> permissions to set with IPC_SET

|| -u <uid> uid to set as owner with IPC_SET

|| -g <gid> gid to set as owner with IPC_SET

#include <unistd.h> /* for getopt() */

#include <sys/sem.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key; /* key */

int semid = -1; /* object ID */

int perms, popt = 0; /* perms to set, if given */

int uid, uopt = 0; /* uid to set, if given */

int gid, gopt = 0; /* gid to set, if given */

int val, vopt = 0; /* setall value if given */

struct semid_ds ds;

int c;

while ( -1 != (c = getopt(argc,argv,"k:i:p:u:g:")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* semid */

semid = (int) strtoul(optarg, NULL, 0);

break;

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

popt = 1;

break;

case 'u': /* uid */

System V Facilities for Mutual Exclusion

uid = (int) strtoul(optarg, NULL, 0);

uopt = 1;

break;

case 'g': /* gid */

gid = (int) strtoul(optarg, NULL, 0);

gopt = 1;

break;

default: /* unknown or missing argument */

return -1;

}

if (-1 == semid) /* -i not given, must have -k */

semid = semget(key,0,0);

if (-1 != semid)

{

if (0 == semctl(semid,0,IPC_STAT,&ds))

{

if ((popt)||(uopt)||(gopt))

{

if (popt) ds.sem_perm.mode = perms;

if (uopt) ds.sem_perm.uid = uid;

if (gopt) ds.sem_perm.gid = gid;

if (0 == semctl(semid,0,IPC_SET,&ds) )

semctl(semid,0,IPC_STAT,&ds); /* refresh info */

else

perror("semctl(IPC_SET)");

}

printf(

"owner uid.gid: %d.%d creator uid.gid: %d.%d mode: 0%o nsems:%d\n",

ds.sem_perm.uid,ds.sem_perm.gid,

ds.sem_perm.cuid,ds.sem_perm.cgid,

ds.sem_perm.mode, ds.sem_nsems);

}

else

perror("semctl(IPC_STAT)");

}

else

perror("semget()");

}

Chapter 4: Mutual Exclusion

Example Uses of semctl() for Query

The program in Example 4-5, semsnap, displays a snapshot of the current values of all

semaphores in a set you specify. The value of each semaphore is displayed in the ﬁrst row

(GETVAL), followed by the count of processes waiting in a P operation (GETNCNT) and

the count of processes waiting for zero (GETZCNT). The arguments are as follows:

Example 4-5 Program to Demonstrate semctl() for Sampling

|| semsnap: program to test semctl(2) for semaphore status commands

|| semsnap {-k <key> | -i <semid>}

|| -k <key> the key to use, or..

|| -i <semid> ..the semid to use

#include <unistd.h> /* for getopt() */

#include <sys/sem.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key; /* key */

int semid = -1; /* object ID */

int nsems, j; /* setsize, and loop variable */

ushort_t semvals[25]; /* snapshot of values */

ushort_t semns[25]; /* snapshot of P-waiting */

ushort_t semzs[25]; /* snapshot of zero-waiting */

struct semid_ds ds;

int c;

while ( -1 != (c = getopt(argc,argv,"k:i:")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* semid */

semid = (int) strtoul(optarg, NULL, 0);

break;

default: /* unknown or missing argument */

return -1;

-k key Numeric key to identify the semaphore set; for example -k 99.

-i id Semaphore ID number, alternative to specifying the key.

System V Facilities for Mutual Exclusion

}

if (-1 == semid) /* -i not given, must have -k */

semid = semget(key,0,0);

if (-1 != semid)

{

if (0 == semctl(semid,0,IPC_STAT,&ds))

{

nsems = ds.sem_nsems;

semctl(semid,0,GETALL,semvals);

for (j=0; j<nsems; ++j)

{

semns[j] = semctl(semid,j,GETNCNT,NULL);

semzs[j] = semctl(semid,j,GETZCNT,NULL);

}

printf("vals:");

for (j=0; j<nsems; ++j) printf(" %2d",semvals[j]);

printf("\nncnt:");

for (j=0; j<nsems; ++j) printf(" %2d",semns[j]);

printf("\nzcnt:");

for (j=0; j<nsems; ++j) printf(" %2d",semzs[j]);

putc('\n',stdout);

}

else

perror("semctl(IPC_STAT)");

}

else

perror("semget()");

}

Example Uses of semop()

The program in Example 4-6, semop, performs one or more semaphore operations on a set

you specify. You can use it to specify any sequence of operations (including nonsensical

sequences) from the command line. The command arguments are:

-k key Numeric key to identify the semaphore set; for example -k 99.

-i id Semaphore ID number, alternative to specifying the key.

-n Apply IPC_NOWAIT to all following operations.

-u Apply SEM_UNDO to all following operations.

-p sem Apply the P (decrement by 1) operation to sem; for example, -p 1.

Chapter 4: Mutual Exclusion

You can give a sequence of operations. For example, consider the following sequence:

1. Wait for zero in semaphore 4.

2. Increment semaphore 0, with undo if a following operation fails.

3. Decrement semaphore 2, not waiting and with undo.

4. Decrement semaphore 3, not waiting and with undo.

The sequence above can be speciﬁed as follows:

semop -k 0x101 -z 4 -u -v 0 -n -p 2 -p 3

The program does not support incrementing or decrementing by other than 1, and there

is no way to turn off IPC_NOWAIT or SEM_UNDO once it is on.

Example 4-6 Program to Demonstrate semop()

|| semop: program to test semop(2) for all functions.

|| semop {-k <key> | -i <semid>} [-n] [-u] {-p <n> | -v <n> | -z <n>}...

|| -k <key> the key to use, or..

|| -i <semid> ..the semid to use

|| -n use the IPC_NOWAIT flag on following ops

|| -u use the SEM_UNDO flag on following ops

|| -p <n> do the P operation (+1) on semaphore <n>

|| -v <n> do the V operation (-1) on semaphore <n>

|| -z <n> wait for <n> to become zero

#include <unistd.h> /* for getopt() */

#include <sys/sem.h> /* for shmget etc */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key; /* key */

int semid = -1; /* object ID */

int nsops = 0; /* setsize, and loop variable */

short flg = 0; /* flag to use on all ops */

-v sem Apply the V (increment by 1) operation to sem; for example, -v 1.

-z sem Wait for sem to contain 0; for example, -z 4.

System V Facilities for Mutual Exclusion

struct semid_ds ds;

int c, s;

struct sembuf sops[25];

while ( -1 != (c = getopt(argc,argv,"k:i:p:v:z:nu")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* semid */

semid = (int) strtoul(optarg, NULL, 0);

break;

case 'n': /* use nowait */

flg |= IPC_NOWAIT;

break;

case 'u': /* use undo */

flg |= SEM_UNDO;

break;

case 'p': /* do the P() */

sops[nsops].sem_num = (ushort_t) strtoul(optarg, NULL, 0);

sops[nsops].sem_op = -1;

sops[nsops++].sem_flg = flg;

break;

case 'v': /* do the V() */

sops[nsops].sem_num = (ushort_t) strtoul(optarg, NULL, 0);

sops[nsops].sem_op = +1;

sops[nsops++].sem_flg = flg;

break;

case 'z': /* do the wait-for-zero */

sops[nsops].sem_num = (ushort_t) strtoul(optarg, NULL, 0);

sops[nsops].sem_op = 0;

sops[nsops++].sem_flg = flg;

break;

default: /* unknown or missing argument */

return -1;

}

if (-1 == semid) /* -i not given, must have -k */

semid = semget(key,0,0);

if (-1 != semid)

{

if (0 != semop(semid,sops,nsops) )

100

Chapter 4: Mutual Exclusion

perror("semop()");

}

else

perror("semget()");

}

Using the Examples

The following commands demonstrate the use of the example programs. First, a

semaphore set is created by semget and its existence veriﬁed with ipcs:

$ ipcs -s

IPC status from /dev/kmem as of Wed Jun 19 11:19:37 1996

T ID KEY MODE OWNER GROUP

Semaphores:

$ semget -k 0xfab -c -x -p 0666 -s 4

semid = 130

owner uid.gid: 1110.20 creator uid.gid: 1110.20 mode: 0100666 nsems:4

$ ipcs -s

IPC status from /dev/kmem as of Wed Jun 19 11:19:59 1996

T ID KEY MODE OWNER GROUP

Semaphores:

s 130 0x00000fab --ra-ra-ra- cortesi user

The effect of the IPC_EXCL ﬂag is tested:

$ semget -k 0xfab -c -x

semget(): File exists

The permissions are changed using semmod:

$ semmod -i 130 -p 0640

owner uid.gid: 1110.20 creator uid.gid: 1110.20 mode: 0100640 nsems:4

$ ipcs -s

IPC status from /dev/kmem as of Wed Jun 19 11:20:09 1996

T ID KEY MODE OWNER GROUP

Semaphores:

s 130 0x00000fab --ra-r----- cortesi user

System V Facilities for Mutual Exclusion

101

The present state of the four semaphores in the set is displayed, then semop is used to

increment the ﬁrst two.

$ semsnap -i 130

vals: 0 0 0 0

ncnt: 0 0 0 0

zcnt: 0 0 0 0

$ semop -i 130 -v 0 -v 1

$ semsnap -i 130

vals: 1 1 0 0

ncnt: 0 0 0 0

zcnt: 0 0 0 0

One instance of semop is started in the background to wait on a sequence of operations.

The semsnap display veriﬁes that one process is waiting on zero in semaphore 0:

$ semop -i 130 -z 0 -p 1 -p 2 &

9956

$ semsnap -i 130

vals: 1 1 0 0

ncnt: 0 0 0 0

zcnt: 1 0 0 0

Semaphore 0 is decremented, and semsnap reveals that there is no longer a process

waiting for zero in that semaphore, but that now a process is waiting for semaphore 2 to

be incremented:

$ semop -i 130 -p 0

$ semsnap -i 130

vals: 0 1 0 0

ncnt: 0 0 1 0

zcnt: 0 0 0 0

Semaphore 2 is incremented and now there are no processes waiting:

$ semop -i 130 -v 2

$ semsnap -i 130

vals: 0 0 0 0

ncnt: 0 0 0 0

zcnt: 0 0 0 0

102

Chapter 4: Mutual Exclusion

Another process is put in the background waiting on semaphore 0. Then the semaphore

set is removed with ipcrm. The waiting instance of semop ends, displaying the error code

from semop():

$ semop -i 130 -p 0 &

9962

$ ipcrm -s 130

$ semop(): Identifier removed

103

Chapter 5

5. Signalling Events

Processes can receive signals in order to respond to asynchronous requests from software

or to unexpected hardware events. There are three different programming interfaces for

receiving signals; you must select one and use it consistently throughout a program.

Many programs need access to time data for one of two purposes: to produce timestamps

so that data can be ordered by its time of origin, and to deﬁne intervals so the program

can take action at regular times. (Intervals are presented to the program as signals.)

These two issues are covered in the following topics:

•“Signals” on page 104 describes signal facilities in general and details the

differences between the POSIX, SVR4, and BSD interfaces.

•“Timer Facilities” on page 117 describes POSIX and IRIX methods of deﬁning

timestamps and intervals.

104

Chapter 5: Signalling Events

Signals

A signal is a notiﬁcation of an event, sent asynchronously to a process. Some signals

originate from the kernel in response to hardware traps; for example, the SIGFPE signal

that notiﬁes of an arithmetic overﬂow, or the SIGALRM that notiﬁes of the expiration of

a timer interval. Other signals are issued by software. For a detailed, formal discussion

of signals, read the signal(5) reference page.

A process can block all signals or selected signals, ignore some signals, or request a

default system handling for some signals. When a signal that has been sent to a process

is blocked by the process, the signal remains pending. When a signal is not blocked, the

process receives the signal. In a multithreaded process, signals can be blocked or received

by individual threads.

When receiving a signal, a process or thread can handle the signal by an asynchronous

call into a signal-handling function. Alternatively, using the POSIX interface, a process or

thread can handle signals synchronously, as a stream of event objects.

Signal Numbers

IRIX supports the following 64 signal numbers:

Signals with smaller numbers have priority for delivery. The low-numbered

BSD-compatible signals, which include all kernel-produced signals, are delivered ahead

of real-time signals, and signal 49 takes precedence over signal 64.

1-31 Same meanings as SVR4 and BSD; see Table 5-1.

32 Reserved by IRIX kernel.

33-48 Reserved by the POSIX standard for system use.

49-64 Reserved by POSIX for real-time programming.

Signals

105

Table 5-1 is reproduced from the signal(5) reference page for convenience.

Table 5-1 Signal Numbers and Default Actions

Symbolic

Name Numeric

Value Default Action Normal Meaning

SIGHUP 1 Terminate Controlling terminal disconnect; see termio(7).

SIGINT 2 Terminate Interrupt key signal from controlling terminal;

see termio(7).

SIGQUIT 3 Terminate and dump Quit key signal from controlling terminal; see

termio(7).

SIGILL 4 Terminate and dump Attempt to execute illegal instruction.

SIGTRAP 5 Terminate and dump Trace/breakpoint reached; see proc(4).

SIGABRT 6 Terminate and dump Abort.

SIGEMT 7 Terminate and dump Emulation trap.

SIGFPE 8 Terminate and dump Arithmetic exception; see math(3M),

sigfpe(3C), and matherr(3M).

SIGKILL 9 Terminate Kill request from software or user.

SIGBUS 10 Terminate and dump Bus error (hardware exception).

SIGSEGV 11 Terminate and dump Segmentation fault (illegal address).

SIGSYS 12 Terminate and dump Invalid system call.

SIGPIPE 13 Terminate Read or write to broken pipe; see pipe(2),

read(2),write(2).

SIGALRM 14 Terminate Interval timer elapsed; see “Timer Facilities” on

page 117.

SIGTERM 15 Terminate Process terminated.

SIGUSR1 16 Terminate Programmer-deﬁned; see also text below.

SIGUSR2 17 Terminate Programmer-deﬁned.

SIGCHLD or

SIGCLD

18 Terminate Child process status change; see wait(2) and

“Process “Reaping”” on page 199.

SIGPWR 19 Ignore Power fail/restart.

106

Chapter 5: Signalling Events

Although SIGUSR1 and SIGUSR2 are nominally deﬁned by the you for your program’s

purposes, they are also used by different application packages for special signals. For

example, if you set a ﬁle lock on an NFS mounted ﬁle, the NFS lock daemon may send

SIGUSR1—see “NFS File Locking” on page 174.

SIGWINCH 20 Ignore Change in size of window; see xterm(1).

SIGURG 21 Ignore Urgent socket condition; see socket(2).

SIGPOLL 22 Terminate Pollable event from a STREAMS device, see

streamio(7).

SIGIO 22 Terminate Input/output possible.

SIGSTOP 23 Suspend Stopped.

SIGTSTP 24 Suspend Stop key signal from controlling terminal; see

termio(7).

SIGCONT 25 Ignore Continued.

SIGTTIN 26 Suspend Attempt to read terminal from background

process; see termio(7).

SIGTTOU 27 Suspend Attempt to write terminal from background

process; see termio(7).

SIGVTALRM 28 Terminate Virtual timer expired; see getitimer(2).

SIGPROF 29 Terminate Proﬁling timer expired; see getitimer(2).

SIGXCPU 30 Terminate and dump CPU time limit exceeded; see getrlimit(2).

SIGXFSZ 31 Terminate and dump File size limit exceeded; see getrlimit(2) and

write(2).

(no symbol) 32-48 Terminate Unassigned; do not use.

SIGRTMIN -

SIGRTMAX

49-64 Terminate POSIX real-time signal range.

Table 5-1 (continued) Signal Numbers and Default Actions

Symbolic

Name Numeric

Value Default Action Normal Meaning

Signals

107

Signal Implementations

There are three UNIX traditions for signals, and IRIX supports all three. They differ in the

library calls used, in the range of signals allowed, and in the details of signal delivery.

The basic signal operations and the implementing functions are summarized in

Table 5-2.

It is important to not mix these signal facilities. Your program should use functions from

only one column of Table 5-2; otherwise unexpected results can occur.

Signal Blocking and Signal Masks

Certain ideas are basic to the use of signals. One basic idea is that a program can block

the delivery of any signal. When a signal that is sent to a program is blocked, the signal

is queued and remains pending until the program unblocks the signal, or terminates.

Certain urgent signals—SIGKILL, SIGSTOP, SIGCONT—cannot be blocked.

Table 5-2 Signal Handling Interfaces

Function POSIX Functions SVR4 Functions BSD 4.2 Functions

Set and query signal

handler

sigaction(2)

sigsetops(3)

sigaltstack(2)

sigset(2)

signal(2) sigvec(3)

signal(3)

Send a signal sigqueue(2)

kill(2)

pthread_kill(3P)

sigsend(2)

kill(2) kill(3)

killpg(3)

Temporarily block

speciﬁed signals

sigprocmask(2)

pthread_sigmask(3P) sighold(2)

sigrelse(2) sigblock(3)

sigsetmask(3)

Query pending signals sigpending(2) n.a. n.a.

Wait for a signal handler

to be invoked.

sigsuspend(2) sigpause(2) sigpause(3)

Wait for a signal and

receive synchronously

sigwait(2)

sigwaitinfo(2)

sigtimedwait(2)

n.a. n.a.

108

Chapter 5: Signalling Events

You specify which signals are blocked using a signal mask, a set of bits in which each bit

corresponds to one signal number. When a bit in the mask is set on, the signal is blocked

(if it is a signal that can be blocked).

Each process has a signal mask, inherited from its parent process. All three interfaces

provide ways to set and clear bits in the current signal mask. The BSD interface, however,

only lets you mask the ﬁrst 32 signal numbers listed in Table 5-1.

Each POSIX thread has a signal mask also. A multithreaded program (deﬁned as a

program that is linked with libpthread, so it uses the pthreads version of the standard

library) must use the POSIX interface for signal handling.

Multiple Signals

In most cases, if a signal of a certain number is pending for a process, and another signal

of the same number arrives, the second signal is discarded. In other words, at most one

signal of a given number can normally be pending for a process.

In the POSIX interface you can use one particular function, sigqueue(), to send a signal

that is queued regardless of how many signals of the same number are already pending.

Signal Handling Policies

You can specify one of three policies for handling an unblocked signal. You set the policy

for each signal number individually.

Default Handling

Initially, all signals receive default handling. This means that when a signal arrives and

is not blocked, it causes the default action listed in Table 5-1. In many cases the default

action is to ignore the signal, that is, to silently discard it. In other cases, the default action

is to terminate the program, or to terminate it with a dump.

Each signal interface gives you a way to specify non-default handling or a speciﬁed

signal, or to return a signal to default handling.

Signals

109

Ignoring Signals

You can request that a speciﬁed signal be ignored. You would do this when the signal is

not meaningful to your program and the default action is not what you wish. For

example, in a noninteractive program, you might set Ignore handling for SIGHUP (the

default action is to terminate).

Catching Signals

You can request that a signal be caught and handled asynchronously, at the moment it

arrives. You specify that a signal should be caught by specifying the address of a function

to be called when the signal is received.

The signal-handling function is entered asynchronously, without regard for what the

process was doing at the time the signal was delivered. You cannot be sure what code

was executing when the signal handler is called; it could have been any function in your

own code, or it could have been code in the C library or in any layer of the X-Windows

or Motif support libraries.

All three interfaces provide for passing the signal number as the ﬁrst argument of the

signal-handling function. Other arguments to the handler function depend on the

interface used and the options you specify when establishing the handler.

You can create an alternate memory area to be used as a stack when executing the signal

handler. Typically a signal handler does not require a great deal of stack space. On the

other hand, each POSIX thread has limited stack space, and when you provide an

alternate signal-handling stack, you do not have to allow for possible signals in

allocating thread stack space.

Synchronous Signal Handling

Using the POSIX signal interface you can process signals in a synchronous way, as a

stream of input items to your program. This allows you to design your program so that

signals are received when the process is in a known state, without the uncertainties of

asynchronous delivery.

110

Chapter 5: Signalling Events

Signal Latency

The time that elapses from the moment a signal is generated until a signal handler begins

to execute is the signal latency. Signal latency can be long (as real-time programs measure

time) and signal latency has a high variability.

The IRIX kernel normally delivers a pending, unblocked signal the next time the process

returns to user code from the kernel domain. In most cases, this occurs

•when the process is dispatched after a wait or preemption

•upon return from a system function

•upon return from the kernel’s usual 10-millisecond “tick” (dispatch) interrupt

SIGALRM, which signals the expiration of a real-time timer (see “Timer Facilities” on

page 117), is given special treatment. It is delivered as soon as the kernel is ready to

return to a user process after the timer interrupt, in order to preserve timer accuracy.

When a process is ready to run and is not preempted by a process of higher priority, and

is executing in user code, not calling a system function, the latency for other than

SIGALRM can be as much as 10 milliseconds. However, when the process is suspended

(for example, waiting on a semaphore), or when there are competing processes having

higher priorities, the delivery of a signal is delayed until the next time the receiving

process is scheduled. This can be many milliseconds.

In general, you should use signals to deliver infrequent messages of high priority. You

should not use the exchange of signals as the basis for real-time scheduling.

Signals Under X-Windows

If you plan to handle signals asynchronously in a program that uses X intrinsics, you

must take special steps. Before establishing a signal handler with the operating system,

you establish one or more signal callback procedures using XtAppAddSignal(). Then, in

the asynchronous signal handling function, you call XtNoticeSignal(). This function

ensures that the established signal callback will be invoked like other callback functions,

when it is safe to do so. This process is documented in the XtAppAddSignal(3Xt)

reference page.

The only X-windows function that can safely be called from a signal handler is

XtNoticeSignal().

Signals

111

POSIX Signal Facility

The POSIX interface to signals is the most functionally complete and robust of the three.

It is the recommended interface for all new programs. The functions used in POSIX style

signal handling are summarized in Table 5-3.

Table 5-3 Functions for POSIX Signal Handling

Function Purpose

kill(2) Send a signal to a process or process group. (Discards multiple signals

of the same number.)

sigqueue(3) Queue a signal to a speciﬁed process, including a sigval for added

information about the signal. (Queues multiple signals of the same

number.)

pthread_kill(3P) Send a signal to a speciﬁed thread.

sigprocmask(2)

pthread_sigmask(3P) Examine or change the mask of signals allowed and blocked. You

must use pthread_sigmask() in a program that is linked with

libpthread.

sigaction(2) Specify or query the signal handling policy for a speciﬁed signal.

sigaltstack(2) Specify or query an alternate stack area to be used by a signal handler.

sigpending(2) Return the set of signals pending for the calling process or thread.

sigsetops(3) Manipulate signal mask objects in memory.

sigsuspend(2) Unblock selected signals for the calling process or thread, and wait for

a signal to be received asynchronously.

sigwait(3)

sigtimedwait(3)

sigwaitinfo(3)

Wait for and receive speciﬁed signals in a synchronous manner.

112

Chapter 5: Signalling Events

In addition to the reference pages listed in Table 5-3, the following have important

information about signal handling:

Signal Masking

Each process and thread has an active signal mask. A single-thread program sets or

queries its signal mask using sigprocmask(). A multithreaded program (any program

that linked libpthread, which provides the pthread version of the standard library) must

use pthread_sigmask().

Besides the active signal mask, you may have other signal mask objects (type sigset_t) in

memory. The sigsetops(3) reference page documents a number of utility functions for

setting, clearing, and testing the bits in a signal mask object. Several POSIX signal

functions take a signal mask as an argument. For example, sigsuspend() takes a new

signal mask and swaps it for the current signal mask, establishing which pending signals

will be accepted while the process is suspended.

Using Synchronous Handling

You can design your program so that it treats arriving signals as a stream of event records

to be processed in sequence. For example, you could use one or more signal numbers in

the POSIX real-time range to signify events that are meaningful to your application. Your

application, or one thread in your application, can receive each signal in turn and act

upon it.

signal(5) Detailed overview of signals and signal handling.

siginfo(5) Description of the information structure passed to a POSIX

signal handler.

ucontext(5) Description of machine context structure passed to a POSIX

signal handler.

Signals

113

To implement this design approachk you would follow these steps:

1. Block the expected signal numbers in all processes or threads using sigprocmask()

or pthread_sigmask().

2. Send the signals using sigqueue(). This function permits you to augment the signal

number with a union sigval (in effect creating an open-ended set of sub-signals), and

also assures that multiple signals will be retained until you process them.

3. In the signal-processing loop, wait for the next signal with sigwaitinfo() or

sigtimedwait(). When the signal arrives, act accordingly and wait again.

The sigwaitinfo() and sigtimedwait() functions accept a new signal mask. They unblock

the speciﬁed signal or signals and suspend until one such signal arrives. They accept that

signal, restore the original signal mask, and return the signal information.

You could construct a very similar work-handling application using a message queue

(see Chapter 6, “Message Queues”). However, this design approach allows you to

integrate the handling of unplanned signals such as SIGPIPE, and interval-timer signals

such as SIGALRM, into the same scheme as planned application events.

Using Asynchronous Handling

Using sigaction(), you specify a function to be called when a particular signal is received.

You have a choice of function prototypes. In each case the signal handler is passed the

signal number, additional information about the signal, and information about the

machine context at the time the signal was delivered.

Your signal handler can have the POSIX prototype, as follows:

void name(int sig, siginfo_t *sip, ucontext_t *up)

The second argument, a POSIX information structure siginfo_t, contains these ﬁelds:

si_signo The signal number (again).

si_errno Either 0 or an error code from errno.h.

si_code An indication of the source of the signal.

si_value When si_code is SI_QUEUE, the union sigval passed to sigqueue().

si_pid When si_code is SI_USER, the process ID that called kill().

114

Chapter 5: Signalling Events

When the signal is an error reported by the kernel or hardware, si_code is an explanatory

number. These values are spelled out in detail in the siginfo(5) reference page. The third

argument, a pointer to a ucontext_t object, gives the machine state at the time the signal

was delivered. The ucontext_t is detailed in the ucontext(5) reference page.

Alternatively, your signal handler can have this prototype:

void name(int sig, int code, struct sigcontext *sc);

The second argument gives some added information about the signal (see signal(5) for a

list of codes). The third argument, a pointer to a sigcontext_t object, gives the machine

state at the time the signal was delivered (in slightly different form from the ucontext_t).

When you use sigaction() to set up a signal handler, you pass an argument structure

containing option ﬂags that affect the treatment of the signal:

SA_SIGINFO When set, you are specifying asynchronous handling and your

handler uses the POSIX prototype. Its address is passed in the

sa_sigaction structure ﬁeld. When not set, a handler uses the older

prototype and its address is passed in sa_handler.

SA_ONSTACK When set, your handler is called using alternate stack memory you

have previously assigned with sigaltstack(). Otherwise the

handler uses the stack of the process or thread stack executing at

the time of the signal.

SA_RESETHAND When set, the policy for this signal is reset to the default when your

handler is called. Your handler is expected to reestablish the action

if that is desired.

SA_NODEFER When not set, the signal is automatically blocked while your

handler executes, and unblocked when your handler returns.

When set, the same signal could be taken while your handler

executes, resulting in multiple entries to the handler.

SA_RESTART When not set, if this signal interrupts a blocked system function

the system function returns EINTR. When set, the system function

is restarted.

Signals

115

System V Signal Facility

The System V signal interface is compatible with code ported from UNIX System V. It

includes compatibility for release 3 (SVR3) and release 4 (SVR4). Table 5-4 summarizes

the functions you use to manage signals through this interface.

Only asynchronous signal handling is supported by the System V interface. Also, you

must block and unblock signals individually; there is no support for setting the entire

signal mask in one operation.

The semantics of SVR3-compatible signal established with signal() are not desirable for

most programs. When control enters a signal handler you established using signal(), the

handling of that same signal is set to default, and that signal remains unblocked. Your

signal handler can use signal() to reestablish itself as the handler, or it can use sighold()

to block the signal. However, even if these actions are the ﬁrst statements of the handler

function, there is a period of time at the beginning of the handler during which a second

signal of the same type could be received. If this occurs, the second signal receives default

handling and is not seen by your handler.

Table 5-4 Functions for SVR4 Signal Handling

Function Purpose

kill(2) Send a signal to a process or process group. (A duplicate of a pending signal

is discarded.)

sigsend(2) Send a signal to a set of processes or process groups, speciﬁed in a variety of

ways, for example by user ID.

signal(2) SVR3 call to establish handling policy of default, ignore, or catch for a

speciﬁed signal.

sigset(2) SVR4 call to establish handling policy of default, ignore, or catch for a

speciﬁed signal.

sighold(2) Hold (block) a speciﬁed signal.

sigignore(2) Set the handling for a speciﬁed signal to Ignore.

sigrelse(2) Release (unblock) a speciﬁed signal.

sigpause(2) Suspend the calling process until a speciﬁed signal arrives.

116

Chapter 5: Signalling Events

You can avoid this problem by using the SVR4 function sigset() instead of signal() to

establish a handler. Before a handler established by sigset() is called, that signal is

blocked until the handler returns, and the signal disposition is not reset to default.

BSD Signal Facility

The BSD signal facility is compatible with code ported from the BSD 4.2 distribution.

Table 5-5 summarizes the functions you use to manage signals with this interface.

Note: In order to use any of the functions in Table 5-5 you must deﬁne one of the

compiler variables _BSD_SIGNALS or _BSD_COMPAT prior to the inclusion of the

header ﬁle signal.h. You can do this directly in the source ﬁle with #deﬁne. More

commonly you will include -D_BSD_COMPAT as one of the compiler ﬂags you deﬁne in

your Makeﬁle.

Only asynchronous signal handling is supported by the BSD interface. It is possible to set

and interrogate the signal mask in a single operation; however, the signal mask type is

the integer, so only signal numbers 1-32 can be blocked. The BSD interface does not

recognize higher-numbered signals.

Table 5-5 Functions for BSD Signal Handling

Function Name Purpose and Operation

kill(3B) Send a signal to a speciﬁed process, or broadcast a signal to a process

group or to all processes with the same effective user ID. (A duplicate of

a pending signal is discarded.)

killpg(3B) Send a signal to all members of a process group. (A duplicate of a

pending signal is discarded.)

sigvec(3) Establish a policy of default, ignore, or catch for a speciﬁed signal.

signal(3B) Simpliﬁed interface to sigvec().

sigstack(2B) Establish an alternate stack for the use of signal-handling functions.

sigsetmask(3) Set the active signal mask.

sigblock(3) Add blocked signals to the active signal mask.

sigpause(3B) Wait for speciﬁed signals to arrive.

Timer Facilities

117

Timer Facilities

You use timer facilities for a number of purposes: to get information about program

performance; to make a program pause for a certain time; to program an interval of time;

and to create a timestamp value to store with other data.

Timed Pauses and Schedule Cession

In many instances a program, or a process within a multiprocess program, needs to

suspend execution for a period of time. IRIX contains a variety of functions that provide

this capability. The functions differ in their precision and in their portability. Table 5-6

contains a summary.

Sometimes you do not want to suspend for any particular amount of time, but simply

want to make the current process defer to other processes, so that any waiting processes

receive a chance to run. You can achieve this in two ways. The IRIX unique function

sginap() accepts an argument of 0, meaning to defer for the minimum amount of time.

However, sched_yield() is a POSIX compliant function for this purpose.

Table 5-6 Functions for Timed Suspensions

Reference Page Precision Compatibility Operation

sched_yield(2) n.a. POSIX Defer to any processes eligible to run.

sginap(2) dispatching

interval (10ms)

IRIX Defer to other processes for the speciﬁed

number of dispatching cycles.

sleep(3C) second POSIX Suspend for a number of seconds or until a

signal arrives.

usleep(3C) microsecond IRIX Suspend for a number of microseconds or

until a signal arrives.

nanosleep(2) nanosecond POSIX Suspend for a number of seconds and

nanoseconds or until a signal arrives.

118

Chapter 5: Signalling Events

Time Data Structures

The include ﬁles time.h and sys/time.h deﬁne several data types and data structures

related to time. Some of these are used in POSIX time functions and others in BSD-based

functions; and there are somewhat confusing similarities between them. Features of

these structures are summarized in Table 5-7.

Time Signal Latency

It takes time for the kernel to deliver the SIGALRM that notiﬁes your program at the end

of an interval. (The issue of signal latency in general is discussed under “Signal Latency”

on page 110.) The signal latency is less for SIGALRM than for other signals, since the

kernel initiates a scheduling cycle immediately after the timer interrupt, without waiting

for the end of a ﬁxed time slice. When the receiving process or thread is running or ready

to run, the latency is fairly short and consistent from one signal to the next. (Even so, it is

not advisable to use a repeating itimer as the time base for a real-time program). Under

less favorable conditions, signal latency can be variable and sometimes lengthy (tens of

milliseconds) relative to a fast timer frequency.

Table 5-7 Time Data Structures and Usage

Data Type Declared In Contains Some Functions Using This Type

time_t time.h long int with time in seconds since

00:00:00 UTC, January 1, 1970

time(2),ctime(3C),

cftime(3C),difftime(3C)

timeval sys/time.h structure of time_t giving seconds

and a long int giving microseconds

adjtime(2),getitimer(2),

getrusage(3C),

gettimeofday(3C),select(2),

utimes(3B)

itimerval sys/time.h structure of two timeval ﬁelds for

ﬁrst interval and repeat interval

getitimer(2) and setitimer(2)

timespec_t time.h structure of time_t giving seconds

and a long int giving nanoseconds

clock_gettime(2),

nanosleep(2),aio_suspend(3),

sigtimedwait(3C)

itimerspec time.h structure of two timespec ﬁelds for

ﬁrst interval and repeat interval

timer_settime(3C),

timer_gettime(3C)

tm time.h structure of int ﬁelds for seconds,

minutes, hours, day, month, etc.

localtime(2),gmtime(2),

strftime(3C)

Timer Facilities

119

How Timers Are Managed

The IRIX kernel can be asked to implement itimers for many processes at once, each

interval having a different length and starting at a different time. The kernel’s method

differs depending on the hardware architecture (this issue is discussed at length in the

timers(5) reference page).

•A few Silicon Graphics systems have no hardware support for interval timers, so

the kernel has to rely on frequent, periodic interrupts as a time base.

In these systems, the precision of timer interrupts is controlled by a kernel tuning

variable, fasthz, which determines the rate at which the kernel is interrupted to poll

for an expired timer.

•In newer architectures, each CPU has a clock comparator that the kernel can

program to cause an interrupt after a speciﬁc interval has elapsed.

In these systems, timer interrupts have sub-microsecond precision and do not

impose overhead for timer-polling interrupts.

In earlier versions of IRIX, in order to minimize the overhead of polling for elapsed

timers, the kernel did not allow normal processes to ask for timer intervals with ﬁne

granularity (sub-millisecond precision). Only processes that executed under real-time

scheduling priority could ask for precise timer intervals.

Starting with IRIX 6.2, in systems with hardware support for timers, any process can

request a timer interval with any precision. If this support is misused, it is possible to

cause performance problems. For example, a process can set up a repeating timer at an

interval so short that one CPU is monopolized by setting and handling that timer.

120

Chapter 5: Signalling Events

POSIX Timers

IRIX supports the time and timer facilities speciﬁed by IEEE standard 1003.1b-1993,

commonly called POSIX timers. This timer interface is the most complete, robust, and

portable, and is recommended for all new applications. The functions it includes for time

measurement are summarized in Table 5-8.

The POSIX functions for interval timers are summarized in Table 5-9.

Table 5-8 POSIX Time Management Functions

Function Name Purpose and Operation

time(2) Return a time_t value containing the count of seconds elapsed since

00:00:00 UTC, January 1, 1970.

times(2) Return user and system execution time consumption for the calling

process and its terminated child processes.

clock_gettime(2) Return the instantaneous reading of one of two clocks: the system

time (CLOCK_REALTIME), or the hardware cycle counter

(CLOCK_SGI_CYCLE).

clock_getres(2) Return the precision of the system time (CLOCK_REALTIME), the

hardware cycle counter in this system (CLOCK_SGI_CYCLE) or

the high-resolution timer base (CLOCK_SGI_FAST).

Table 5-9 POSIX Time Management Functions

Function Name Purpose and Operation

alarm(2) Cause a SIGALRM signal after a speciﬁed number of whole

seconds.

timer_create(3C) Create a POSIX timer and specify its time base

(CLOCK_REALTIME or CLOCK_SGI_FAST) and the signal

number it can generate.

timer_delete(3C) Remove a timer created with timer_create().

timer_settime(3C) Set expiration and reload times of a timer, or disarm it.

timer_gettime(3C) Query the time remaining in a timer.

timer_getoverrun(3C) Query the number of overrun events generated by a timer.

Timer Facilities

121

Getting Program Execution Time

The times() function returns counts of accumulated user-process and system execution

time. These counts have a resolution of the system dispatching interval, 10 milliseconds.

Creating Timestamps

The time() function returns a timestamp with a resolution of 1 second. A timestamp with

a resolution this coarse can be used only for infrequent events.

You can use the clock_gettime() function to sample the system time with a resolution of

0.01 second, or you can use it to read the hardware cycle counter—a free-running binary

counter with an update frequency near the machine clock rate. The clock_getres()

function returns the resolution of either of these clocks.

The program in Example 5-1 demonstrates the use of clock_gettime() and

clock_getres(). The following is an example of the output of this program, ptime, as

executed on an Indy® workstation:

$ ptime

CLOCK_REALTIME value: sec 835660711, ns 465330000 [8.35661e+08 sec]

CLOCK_REALTIME units: sec 0, ns 10000000 [0.01 sec]

CLOCK_SGI_CYCLE value: sec 83, ns 449744360 [83.4497 sec]

CLOCK_SGI_CYCLE units: sec 0, ns 40 [4e-08 sec]

CLOCK_SGI_FAST units: sec 0, ns 1000000 [0.001 sec]

Example 5-1 Example of POSIX Time Functions

|| Program to exercise POSIX clock_gettime() and clock_getres() functions.

|| ptime [-r -c -R -C]

|| -r display CLOCK_REALTIME value

|| -R display CLOCK_REALTIME resolution

|| -c display CLOCK_SGI_CYCLE value

|| -C display CLOCK_SGI_CYCLE resolution

|| -F display CLOCK_SGI_FAST resolution (cannot get time from this)

|| Default is display everything (-rRcC).

#include <time.h>

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <stdio.h>

void showtime(const timespec_t tm, const char *caption)

122

Chapter 5: Signalling Events

{

printf("%s: sec %ld, ns %ld [%g sec]\n",

caption, tm.tv_sec, tm.tv_nsec,

((double)tm.tv_sec) + ((double)tm.tv_nsec / 1e9));

}

main(int argc, char **argv)

{

int opta = 1;

int optr = 0;

int optR = 0;

int optc = 0;

int optC = 0;

int optF = 0;

timespec_t sample, res;

int c;

while ( -1 != (c = getopt(argc,argv,"arRcCF")) )

{

switch (c)

{

case 'a': opta=1; break;

case 'r': optr=1; opta=0; break;

case 'R': optR=1; opta=0; break;

case 'c': optc=1; opta=0; break;

case 'C': optC=1; opta=0; break;

case 'F': optF=1; opta=0; break;

default: return -1;

}

if (opta || optr)

{

if (!clock_gettime(CLOCK_REALTIME,&sample))

showtime(sample,"CLOCK_REALTIME value");

else

perror("clock_gettime(CLOCK_REALTIME)");

}

if (opta || optR)

{

if (!clock_getres(CLOCK_REALTIME,&res))

showtime(res,"CLOCK_REALTIME units");

else

perror("clock_getres(CLOCK_REALTIME)");

}

if (opta || optc)

{

if (!clock_gettime(CLOCK_SGI_CYCLE,&sample))

Timer Facilities

123

showtime(sample,"CLOCK_SGI_CYCLE value");

else

perror("clock_gettime(CLOCK_SGI_CYCLE)");

}

if (opta || optC)

{

if (!clock_getres(CLOCK_SGI_CYCLE,&res))

showtime(res,"CLOCK_SGI_CYCLE units");

else

perror("clock_getres(CLOCK_SGI_CYCLE)");

}

if (opta || optF)

{

if (!clock_getres(CLOCK_SGI_FAST,&res))

showtime(res,"CLOCK_SGI_FAST units");

else

perror("clock_getres(CLOCK_SGI_FAST)");

}

The real-time clock (CLOCK_REALTIME) can shift backward or jump forward under the

inﬂuence of adjustments to the system time by a time daemon. The Silicon Graphics

hardware cycle counter always increases at a steady rate. However, the cycle counter has

a limited precision that depends on the hardware. You can use the syssgi() system

function to ﬁnd out the precision of the cycle counter (see syssgi(2) and look for the

SGI_CYCLECNTR_SIZE option).

Using Interval Timers

You create an interval timer object by calling timer_create(). To this function you pass

codes that specify the time base to use and the signal to send upon timer expiration. It

returns an ID value to identify the timer to other functions.

The time base for a timer is either CLOCK_REALTIME or CLOCK_SGI_FAST (the latter

is a nonportable request). Typically CLOCK_SGI_FAST has ﬁner resolution, but you can

verify that using the clock_getres() function, as shown in Example 5-1.

124

Chapter 5: Signalling Events

You also pass a sigevent_t object to timer_create(). In it you would normally set the

following values:

You can pass a NULL instead of the address of a sigevent_t. In that case, the timer signals

with a SIGALRM.

Initially, a timer is disarmed (inactive). You start a timer by calling timer_settime(). The

principal argument to this function is an itimerspec_t object, which contains two times.

One, it_value, speciﬁes when the timer next expires. The other, it_interval, is the value to

be loaded into the timer when it expires. You can call timer_settime() to accomplish any

of three different operations:

•With it_value nonzero and it_interval zero, arm the timer and initiate a one-time

interval.

•With it_value nonzero and it_interval nonzero, arm and initiate a repeating timer.

•With it_value zero, disarm the timer, preventing it from expiring (if it has not

expired already).

You can also use timer_settime() to reprogram the intervals in a timer while it runs.

A timer can be programmed in terms of relative time (you pass an it_value that represents

increments past the present time) or absolute time (you pass an it_value that represents

actual future times when the timer should expire).

You can interrogate the time remaining in a timer by calling timer_gettime(). After a

timer has expired—for example, in the signal handling function—you can call

timer_getoverrun() to ﬁnd out how many additional intervals it would have signalled,

but could not signal because the ﬁrst signal was pending.

sigev_notify SIGEV_SIGNAL to have the timer generate a signal on

expiration.

sigev_signo The signal number you want sent, possibly selected from the

POSIX real-time range, for example, SIGRTMIN+1.

sigev_value.sival_int

sigev_value.sival_ptr

An extra value to be passed to the signal-handling function or

to sigwait() when the signal is delivered.

Timer Facilities

125

BSD Timers

IRIX supports the BSD UNIX feature of interval timers or “itimers.” Table 5-10

summarizes the functions you use to manage itimers.

Each process has three itimers available to it, as summarized in Table 5-11.

The ITIMER_VIRTUAL and ITIMER_PROF have a relatively coarse precision. Their

intervals vary depending on when and how often the process is dispatched. The

ITIMER_REAL timer is comparable to the POSIX time base CLOCK_SGI_FAST.

In order to use an itimer, you establish a signal handler for the appropriate signal as

shown in Table 5-11, then issue the setitimer() call. The principal argument to this

function is a struct itimerval, an object containing two incremental time values. The

it_value ﬁeld speciﬁes the time until the timer should expire. The it_interval ﬁeld, when

nonzero, gives the time that should be loaded into the timer after it expires.

Tip: One excellent reason not to mix BSD and POSIX timer support in the same program

is that the POSIX struct itimerspec, used to set a POSIX timer, and the BSD struct itermval,

used to set a BSD itimer, have ﬁelds with identical names, but these ﬁelds have different

data types and precisions.

Table 5-10 BSD Functions for Interval Timers

Function Name Purpose and Operation

setitimer(2) Set the expiration and repeat interval of a timer.

getitimer(2) Return the current value of a timer.

Table 5-11 Types of itimer

Kind of itimer Interval Measured Resolution Signal Sent

ITIMER_REAL Elapsed clock time 1 millisecond or less SIGALRM

ITIMER_VIRTUAL User time (process

execution time)

1 second SIGVTALRM

ITIMER_PROF User+system time 1 second SIGPROF

126

Chapter 5: Signalling Events

You can use setitimer() for any of three operations:

•With it_value nonzero and it_interval zero, initiate a one-time interval.

•With it_value nonzero and it_interval nonzero, initiate a repeating timer.

•With it_value zero, disarm the timer, preventing it from expiring (if it has not

expired already).

Hardware Cycle Counter

All current Silicon Graphics systems have a hardware “cycle counter,” a free-running

binary counter that is incremented at a high, regular frequency. You can use the cycle

counter as a high-precision timestamp.

The precision of the cycle counter is different in different system types; for example, it is

a 24-bit counter in the Indy workstation, but a 64-bit counter in Challenge and Onyx

systems. The rate at which the timer increments is its resolution, and this also varies with

the hardware type.

The cycle counter is an addressable hardware device that you can map into the address

space of your process (see “Mapping Physical Memory” on page 19). When this is done

you can sample the cycle counter as if it were a program variable. The code to do this

mapping is discussed in the syssgi(2) reference page under SGI_QUERY_CYCLECNTR.

However, the use of the hardware cycle counter has been integrated into the POSIX timer

support beginning in IRIX 6.2, and this makes access to the cycle counter much simpler

than before:

•In order to sample the cycle counter, call clock_gettime() passing

CLOCK_SGI_CYCLE.

•In order to ﬁnd out the resolution (update frequency) of the cycle counter, call

clock_getres() passing CLOCK_SGI_CYCLE.

•In order to ﬁnd out the precision of the cycle counter, call syssgi() passing

SGI_CYCLECNTR_SIZE. The returned value is the number of bits in the counter.

The ﬁrst two operations are illustrated in Example 5-1 on page 121.

127

Chapter 6

6. Message Queues

You use a message queue to pass blocks of data between processes or threads without

having to share any memory between the processes. One process or thread puts a

message into the queue. The message is held in the queue until another process or thread

asks for the message.

IRIX supports two implementations of message queues: a POSIX implementation as

speciﬁed by IEEE standard 1003.1b-1993, and an SVR4 implementation compatible with

System V Release 4. Both implementations can be used to coordinate POSIX threads or

IRIX processes. This chapter discusses message queues under these headings:

•“Overview of Message Queues” on page 128 describes message queues and the

differences between the two implementations.

•“POSIX Message Queues” on page 130 documents the use of the POSIX

implementation.

•“System V Message Queues” on page 143 documents the use of the SVR4

implementation.

128

Chapter 6: Message Queues

Overview of Message Queues

A message queue is a software object maintained by the IRIX kernel, logically apart from

the address space of any process. When you create a message queue, the queue has a

public identiﬁer. (The identiﬁer is a ﬁle pathname for POSIX, or an integer for SVR4.) A

process uses the identiﬁer to open the queue. When the queue is open, the process can

send messages to the queue or receive messages from the queue.

A message queue has an access mode similar to a ﬁle access mode, specifying read and

write access for its owner, its owner’s group, or all users. A process with an effective user

ID lacking access cannot open the queue. A process with an effective user ID giving only

read access can only receive messages from the queue.

A message queue has a limit on the amount of data that can be queued. (POSIX limits the

number of messages; SVR4 limits the total size of queued messages.) When a process

sends a message that would exceed the queue’s limit, the process can be notiﬁed

immediately with an error code, or it can be suspended until there is room.

When a process requests a message from a queue and no message is available, the

process can be notiﬁed immediately with an error code, or it can be suspended until a

message is sent.

Implementation Differences

The abstract operations that a message queue supports are summarized in Table 6-1 with

the names of the POSIX and SVR4 functions that implement them.

Table 6-1 Abstract Operations on a Message Queue

Operation POSIX Function SVR4 Function

Gain access to a queue, creating it if it

does not exist.

mq_open(3) msgget(2)

Query attributes of a queue and

number of pending messages.

mq_getattr(3) msgctl(2)

Change attributes of a queue. mq_setattr(3) msgctl(2)

Give up access to a queue. mq_close(3) n.a.

Remove a queue from the system. mq_unlink(3),rm(1) msgctl(2),ipcrm(1)

Overview of Message Queues

129

Both implementations can be used to communicate between POSIX threads and between

IRIX processes in any combination. Besides obvious features of syntax, the principal

differences between the two implementations are as follows:

•POSIX functions are implemented as library functions in the libc library and operate

primarily in the user process address space. SVR4 functions are implemented in the

kernel, and every operation requires a context switch.

•The identity of either a POSIX or an SVR4 queue is retained over a reboot. The

contents of a POSIX queue might or might not survive a reboot, but you cannot

depend on either type of queue to retain its state after the last program closes it.

•POSIX allows you to set a limit on the number of messages and the size of one

message. SVR4 allows you to set a limit on the aggregate size of queued messages

but not on their number or their individual sizes.

•With a POSIX queue, the choice of whether or not operations should block on a full

or empty queue is an attribute of the queue descriptor. With SVR4, you specify

blocking or nonblocking operation on each send or receive operation.

•POSIX supports asynchronous notiﬁcation of a message arrival. SVR4 does not.

•SVR4 allows a receiver to request a message from a particular priority class, in effect

creating sub-queues within the queue. POSIX always returns the ﬁrst message of

the highest priority class.

Uses of Message Queues

You can use message queues in a variety of ways. For example, you can use a message

queue to implement the “producer-consumer” model of cooperating processes or

threads. The “producer” sends its output to the queue; the “consumer” receives the data

from the queue. When one process gets ahead of the other, it is automatically suspended

on the queue until the other process catches up.

Send a message to a queue. mq_send(3) msgsnd(2)

Receive a message from a queue. mq_receive(3) msgrcv(2)

Request asynchronous notiﬁcation of a

message arriving at a queue.

mq_notify(3) n.a.

Table 6-1 (continued) Abstract Operations on a Message Queue

Operation POSIX Function SVR4 Function

130

Chapter 6: Message Queues

Another design model, common in real-time programming, is to use message queues to

dispatch units of work to waiting processes or threads. A process or thread dedicated to

one function waits on a message queue. Whenever a unit of work is ready to execute, it

is sent to that queue as a message.

Another use of a message queue is to regulate the use of a scarce resource, such as the

buffers in a pool of buffers. Each resource unit is represented by a message. In order to

obtain a unit, you receive one message from the queue. To release a unit for other

processes to use, you send the unit message back to the queue.

The latter scheme can be used to compensate for a performance problem. The speed of

communication through a queue is restricted by the fact that every message is copied

twice. When a message is sent, it is copied from the sender’s buffer to some reserved

memory space. When the message is received, it is copied into the buffer supplied by the

receiving process or thread. So long as messages are small, copying is not a problem.

When messages are large, copying can be avoided as follows. Allocate a pool of message

buffers. Set up a queue of small messages, each message representing a “ticket” to use a

particular buffer. In order to obtain a buffer, a process receives a message from this queue.

The process ﬁlls the buffer, then it sends the buffer without copying, by sending only the

“ticket” on another queue. The process that receives the “ticket” uses the data in the

buffer without needing to copy it, and returns the buffer by sending the “ticket” to the

original queue.

POSIX Message Queues

The POSIX real-time extensions (detailed in IEEE standard 1003.1b) include support for

messages queues. These functions are discussed in the following topics and

demonstrated in example programs.

POSIX Message Queues

131

Managing Message Queues

The POSIX functions for creating, controlling, closing, and removing message queues are

summarized in Table 6-2.

Creating a Message Queue

The mq_open() function has two purposes. It is used to gain access to a queue that exists,

and it can create a queue that does not exist. To create a new queue, call mq_open() with

four arguments as follows (using the names given in the reference page):

The name of a queue has the same form as a disk ﬁlename, and in fact a queue is

implemented as a ﬁle. The ﬁle retains the queued messages when the queue is not open,

so that the queued data persists beyond the termination of the programs that use the

queue. The queued data might persist across a reboot or might not, depending on

whether the data was written to disk before the system came down. You should not

depend on the state of the message queue after a reboot.

Once created, a queue is a persistent object that survives until removed. If you want the

program to create a queue, use it, and then remove it during termination, you can call

mq_unlink() to remove the queue.

Table 6-2 POSIX Functions for Managing Message Queues

Function Name Purpose and Operation

mq_open(3) Create a queue if it does not exist, and gain access to it.

mq_getattr(3) Get information about an open message queue.

mq_setattr(3) Change the blocking/nonblocking attribute of an open message queue.

mq_close(3) Give up access to a queue.

mq_unlink(3) Remove a message queue from the system when the last process to have it

open, closes it.

mq_name The pathname that the queue will have.

oﬂag A set of ﬂags that includes O_CREAT and may include O_EXCL.

mode The access permissions the queue will have.

mq_attr Either NULL or the address of an mq_attr structure specifying the

queue attributes of maximum message size and maximum messages.

132

Chapter 6: Message Queues

Opening an Existing Queue

It is more common to open an existing queue. When the program expects the queue to

exist, it passes only the path and oﬂag arguments to mq_open(), and omits the O_CREAT

ﬂag bit. If the queue does not exist, or if the effective user ID or group ID of the program

does not have access to the queue, an error is returned.

The program can specify the O_RDONLY, O_WRONLY, or O_RDWR ﬂag depending on

its intended use of the queue. Access is controlled by the access permissions of the queue,

just as for a ﬁle.

An important ﬂag when opening a queue is the O_NONBLOCK ﬂag. When it omits

O_NONBLOCK from oﬂag, the program speciﬁes that it is willing to be suspended when

sending a message to a full queue, or when receiving a message from an empty queue.

When O_NONBLOCK is speciﬁed, the program wants an immediate return with an

error code (EAGAIN) in these situations.

The O_NONBLOCK ﬂag applies to all operations using the queue descriptor returned

by mq_open(). (The same queue, opened under a different descriptor, might have

different blocking behavior.) The blocking behavior can be changed by applying

mq_setattr() to the queue descriptor. If the program normally wants to allow suspension,

but in a particular situation wants to avoid suspension, it can apply mq_setattr() to

change the blocking state, and then set it back again.

Using Message Queues

The POSIX functions for using an open queue are summarized in Table 6-3.

Table 6-3 POSIX Functions for Using Message Queues

Function Name Purpose and Operation

mq_send(3) Send a message to a queue.

mq_receive(3) Receive a message from a queue.

mq_notify(3) Request asynchronous notiﬁcation of a message on a queue.

POSIX Message Queues

133

Sending a Message

To send a message to a queue, call mq_send() specifying the queue, the address and

length of the message data, and an integer specifying the priority class of the message.

Messages on the queue are retained in arrival sequence within priority classes.

The message is copied out of the caller’s buffer, so the buffer can be reused immediately

after a successful send. The mq_send() function blocks if the queue is full, unless the

O_NONBLOCK attribute is in effect for the queue.

Receiving a Message

To receive a message, call mq_receive() specifying the queue, the address and size of a

buffer, and the address of an integer to receive the message’s priority. The size of the

buffer must be at least as large as the maximum size allowed by that queue. You can learn

this size using mq_getattr() (see Example 6-4 for an example of this).

The mq_receive() function blocks if the queue is empty, unless O_NONBLOCK is in

effect for the queue. The message returned is always the oldest message in the highest

priority class.

Using Asynchronous Notiﬁcation

Some applications are designed so that each process or thread does nothing but process

messages. In a design of this kind, it makes sense for a process or thread to suspend itself

when no messages are available on its queue.

Other applications are designed so that one process or thread performs multiple tasks

besides handling messages, or handles messages from multiple queues. In this kind of

program, a process cannot suspend itself on a message queue. Instead, it needs to do

other work and only request a message when a message is available. One way to do this

is to set the O_NONBLOCK ﬂag, and to periodically poll for a message by calling

mq_receive() and testing its return code. However, this is inefﬁcient.

The POSIX message facility offers the ability to receive an asynchronous notiﬁcation in

the event that a message is posted to an empty queue and no process or thread is

suspended waiting for that message. You do this by calling mq_notify() passing a queue

and a sigevent_t structure. (The sigevent_t is declared in sys/signal.h, which is included by

mqueue.h.)

134

Chapter 6: Message Queues

The sigevent_t structure allows you to specify either a signal or a callback function.

However, only the signal notiﬁcation (SIGEV_SIGNAL) request is supported by the

POSIX message queue implementation.

Example Programs

The following programs demonstrate the use of POSIX message queues:

•Example 6-1 on page 135 demonstrates the use of mq_getattr() to query the

attributes of a queue.

•Example 6-2 on page 136 demonstrates the use of mq_open() to create or access a

message queue.

•Example 6-3 on page 138 demonstrates the use of mq_send() to put messages onto a

message queue.

•Example 6-4 on page 140 demonstrates the use of mq_receive() to take messages

from a message queue.

The four example programs have a consistent design and use consistent command-line

arguments. Each accepts optional arguments that allow you to exercise most features of

each function, including most error return codes. The following is a simple example of

use. First, a queue is created:

$ mq_open -p 0664 -b 128 -m 32 -c -x /var/tmp/Q32x128

flags: 0x0 maxmsg: 32 msgsize: 128 curmsgs: 0

An attempt is made to send a message that is larger than the queue maximum size:

$ mq_send -b 129 /var/tmp/Q32x128

mq_send(): Inappropriate message buffer length

A message of appropriate size is sent. Its presence on the queue is veriﬁed using

mq_getattr():

$ mq_send -b 128 -p 7 /var/tmp/Q32x128

$ mq_attr /var/tmp/Q32x128

flags: 0x0 maxmsg: 32 msgsize: 128 curmsgs: 1

An attempt is made to send a message with an illegal priority (32 is the highest allowed):

$ mq_send -p 99 /var/tmp/Q32x128

mq_send(): Invalid argument

POSIX Message Queues

135

A message is sent with a valid priority:

$ mq_send -p 19 /var/tmp/Q32x128

$ mq_attr /var/tmp/Q32x128

flags: 0x0 maxmsg: 32 msgsize: 128 curmsgs: 2

The two messages are received. The one with higher priority is received ﬁrst:

$ mq_receive -c 2 /var/tmp/Q32x128

1: priority 19 len 63 text 00001 Fri Jun 14 09:19:12 1996

2: priority 7 len 128 text 00001 Fri Jun 14 09:17:15 1996

Another message is requested. Since the O_NONBLOCK ﬂag is used, the absence of any

message is reported as an error code, rather than suspending the process:

$ mq_receive -n /var/tmp/Q32x128

mq_receive(): Resource temporarily unavailable

Example of mq_getattr()

The program mq_attr in Example 6-1 uses mq_getattr() to get and display the queue

attributes. Only one command-line argument is accepted:

Example 6-1 Program to Demonstrate mq_getattr() and mq_setattr()

|| Program to test mq_getattr(3), displaying queue information.

|| mq_attr <path>

|| <path> pathname of the queue, which must exist

#include <mqueue.h> /* message queue stuff */

#include <errno.h> /* errno and perror */

#include <fcntl.h> /* O_RDONLY */

#include <stdio.h>

int main(int argc, char **argv)

{

mqd_t mqd; /* queue descriptor */

struct mq_attr obuf; /* output attr struct for getattr */

if (argc < 2)

{

printf("A pathname of a message queue is required\n");

return -1;

}

mqd = mq_open(argv[1],O_RDONLY);

path The ﬁle pathname of the queue must be given following all options.

136

Chapter 6: Message Queues

if (-1 != mqd)

{

if ( ! mq_getattr(mqd,&obuf) )

{

printf("flags: 0x%x maxmsg: %d msgsize: %d curmsgs: %d\n",

obuf.mq_flags, obuf.mq_maxmsg, obuf.mq_msgsize, obuf.mq_curmsgs);

}

else

perror("mq_getattr()");

}

else

perror("mq_open()");

}

Example of mq_open()

The program mq_open in Example 6-2 allows you to create a message queue from the

command line. The following command-line arguments are supported:

Example 6-2 Program to Demonstrate mq_open()

|| Program to test mq_open(3).

|| mq_open [-p <perms>] [-b <bytes>] [-m <msgs>] [-c] [-x] <path>

|| -p <perms> access mode to use when creating, default 0600

|| -b <bytes> maximum message size to set, default MQ_DEF_MSGSIZE

|| -m <msgs> maximum messages on the queue, default MQ_DEF_MAXMSG

|| -f <flags> flags to use with mq_open, including:

|| c use O_CREAT

|| x use O_EXCL

|| <path> the pathname of the queue, required

|| Numeric arguments can be given in any form supported by strtoul(3).

path The ﬁle pathname of the queue must be given, following all options.

-p perms Access permissions to set, for example, -p 0664.

-b bytes The maximum message size this queue allows, for example, -b 256.

-m msgs The maximum number of messages that can be pending on this queue,

for example, -m 64.

-c Use the O_CREAT ﬂag to create the queue if it doesn’t exist.

-x Use the O_EXCL ﬂag to require that the queue not exist.

POSIX Message Queues

137

#include <mqueue.h> /* message queue stuff */

#define MQ_DEF_MSGSIZE 1024

#define MQ_DEF_MAXMSG 16

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <fcntl.h> /* O_flags */

#include <stdio.h>

int main(int argc, char **argv)

{

int perms = 0600; /* permissions */

int oflags = O_RDWR; /* flags: O_CREAT + O_EXCL */

int rd=0, wr=0; /* -r and -w options */

mqd_t mqd; /* returned msg queue descriptor */

int c;

char *path; /* ->first non-option argument */

struct mq_attr buf; /* buffer for stat info */

buf.mq_msgsize = MQ_DEF_MSGSIZE;

buf.mq_maxmsg = MQ_DEF_MAXMSG;

while ( -1 != (c = getopt(argc,argv,"p:b:m:cx")) )

{

switch (c)

{

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

break;

case 'b': /* message size */

buf.mq_msgsize = (int) strtoul(optarg, NULL, 0);

break;

case 'm': /* max messages */

buf.mq_maxmsg = (int) strtoul(optarg, NULL, 0);

break;

case 'c': /* use O_CREAT */

oflags |= O_CREAT;

break;

case 'x': /* use O_EXCL */

oflags |= O_EXCL;

break;

default: /* unknown or missing argument */

return -1;

} /* switch */

} /* while */

if (optind < argc)

path = argv[optind]; /* first non-option argument */

else

{ printf("Queue pathname required\n"); return -1; }

138

Chapter 6: Message Queues

mqd = mq_open(path,oflags,perms,&buf);

if (-1 != mqd)

{

if ( ! mq_getattr(mqd,&buf) )

{

printf("flags: 0x%x maxmsg: %d msgsize: %d curmsgs: %d\n",

buf.mq_flags, buf.mq_maxmsg, buf.mq_msgsize, buf.mq_curmsgs);

}

else

perror("mq_getattr()");

}

else

perror("mq_open()");

}

Example of mq_send()

The mq_send program in Example 6-3 allows you to send from 1 to 9999 messages to a

queue from the command line. The following command line arguments are accepted:

The count argument is limited to 99,999 so that the message text will not exceed 32 bytes,

the (arbitrary) minimum message size the program deﬁnes.

Example 6-3 Program to Demonstrate mq_send()

|| Program to test mq_send(3)

|| mq_send [-p <priority>] [-b <bytes>] [-c <count>] [-n] <path>

|| -p <priority> priority code to use, default 0

|| -b <bytes> size of the message, default 64, min 32

|| -c <count> number of messages to send, default 1, max 9999

|| -n use O_NONBLOCK flag in open

|| <path> path to queue, required

|| The program sends <count> messages of <bytes> each at <priority>.

path The ﬁle pathname of the queue must be given following all options.

-b bytes Size of each message, for example -b 0x200.

-c count Number of messages to send. The default is 1.

-p priority Numeric priority of message to send. Numbers from 0 to 32 are allowed by

mq_send().

-n Use the O_NONBLOCK ﬂag with mq_open().

POSIX Message Queues

139

|| Each message is an ASCII string containing the time and date and

|| a serial number 1..<count>. The minimum message is 32 bytes.

#include <mqueue.h> /* message queue stuff */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <time.h> /* time(2) and ctime_r(3) */

#include <fcntl.h> /* O_WRONLY */

#include <stdlib.h> /* calloc(3) */

#include <stdio.h>

int main(int argc, char **argv)

{

char *path; /* -> first non-option argument */

int oflags = O_WRONLY; /* open flags, O_NONBLOCK may be added */

mqd_t mqd; /* queue descriptor from mq_open */

unsigned int msg_prio = 0; /* message priority to use */

size_t msglen = 64; /* message size */

int count = 1; /* number of messages to send */

char *msgptr; /* -> allocated message space */

int c;

while ( -1 != (c = getopt(argc,argv,"p:b:c:n")) )

{

switch (c)

{

case 'p': /* priority */

msg_prio = strtoul(optarg, NULL, 0);

break;

case 'b': /* bytes */

msglen = strtoul(optarg, NULL, 0);

if (msglen<32) msglen = 32;

break;

case 'c': /* count */

count = strtoul(optarg, NULL, 0);

if (count > 99999) count = 99999;

break;

case 'n': /* use nonblock */

oflags |= O_NONBLOCK;

break;

default: /* unknown or missing argument */

return -1;

}

if (optind < argc)

path = argv[optind]; /* first non-option argument */

else

140

Chapter 6: Message Queues

{ printf("Queue pathname required\n"); return -1; }

msgptr = calloc(1,msglen);

mqd = mq_open(path,oflags);

if (-1 != mqd)

{

char stime[26];

const time_t tm = time(NULL); /* current time value */

(void)ctime_r (&tm,stime); /* formatted time string */

stime[24] = '\0' ; /* drop annoying \n */

for( c=1; c<=count; ++c)

{

sprintf(msgptr,"%05d %s",c,stime);

if ( mq_send(mqd,msgptr,msglen,msg_prio) )

{

perror("mq_send()");

break;

}

else

perror("mq_open(O_WRONLY)");

}

Example of mq_receive()

The mq_receive program in Example 6-4 allows you to receive and display messages from

a queue. These command-line arguments are accepted:

You can use the -q option to keep the program from displaying messages. Do this when

receiving a large number of messages, for example, to test performance.

Example 6-4 Program to Demonstrate mq_receive()

|| Program to test mq_receive(3)

|| mq_receive [-c <count>] [-n] [-q] <path>

|| -c <count> number of messages to request, default 1

|| -n use O_NONBLOCK flag on open

path The ﬁle pathname of the queue must be given following all options.

-c count Number of messages to send. The default is 1.

-q Tells program not to display a line for each message received.

-n Use the O_NONBLOCK ﬂag with mq_open().

POSIX Message Queues

141

|| -q quiet, do not display messages

|| <path> path to message queue, required

|| The program calls mq_receive <count> times or until an error occurs.

#include <mqueue.h> /* message queue stuff */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <fcntl.h> /* O_RDONLY */

#include <stdlib.h> /* calloc(3) */

#include <stdio.h>

int main(int argc, char **argv)

{

char *path; /* -> first non-option argument */

int oflags = O_RDONLY; /* open flags, O_NONBLOCK may be added */

int quiet = 0; /* -q option */

int count = 1; /* number of messages to request */

mqd_t mqd; /* queue descriptor from mq_open */

char *msgptr; /* -> allocated message space */

unsigned int msg_prio; /* received message priority */

int c, ret;

struct mq_attr obuf; /* output of mq_getattr(): mq_msgsize */

while ( -1 != (c = getopt(argc,argv,"c:nq")) )

{

switch (c)

{

case 'c': /* count */

count = strtoul(optarg, NULL, 0);

break;

case 'q': /* quiet */

quiet = 1;

break;

case 'n': /* nonblock */

oflags |= O_NONBLOCK;

break;

default: /* unknown or missing argument */

return -1;

}

if (optind < argc)

path = argv[optind]; /* first non-option argument */

else

{ printf("Queue pathname required\n"); return -1; }

mqd = mq_open(path,oflags);

if (-1 != mqd)

{

142

Chapter 6: Message Queues

if (! (mq_getattr(mqd,&obuf)) ) /* get max message size */

{

msgptr = calloc(1,obuf.mq_msgsize);

for( c=1; c<=count; ++c)

{

ret = mq_receive(mqd,msgptr,obuf.mq_msgsize,&msg_prio);

if (ret >= 0) /* got a message */

{

if (!quiet)

{

if ( isascii(*msgptr) )

printf("%d: priority %ld len %d text %-32.32s\n",

c, msg_prio, ret, msgptr);

else

printf("%d: priority %ld len %d (nonascii)\n",

c, msg_prio, ret);

}

else /* an error on receive, stop */

{

perror("mq_receive()");

break;

}

} /* for c <= count */

} /* if getattr */

else

{

perror("mq_getattr()");

return -1;

}

} /* if open */

else

perror("mq_open(O_WRONLY)");

}

System V Message Queues

143

System V Message Queues

IRIX contains an implementation of message queues compatible with UNIX System V

Release 4 (SVR4). These message queue functions are demonstrated in example

programs in this section.

Managing SVR4 Message Queues

The functions used to create and control SVR4 message queues are summarized in

Table 6-4.

Unlike a POSIX message queue, whose name is also a ﬁlename, the external name of an

SVR4 message queue is an integer held in an IPC name table (see “SVR4 IPC Name

Space” on page 40). You specify this key when creating the message queue, and again

whenever you access it for use.

Creating a Message Queue

The msgget() function has two purposes. It is used to gain access to a queue that exists,

and it can create a queue that does not exist. To create a new queue, call msgget() with

the following arguments:

For example, a call to create a queue might be written as follows:

ret = msgget(PROJ_KEY,IPC_CREAT+IPC_EXCL+0660);

This example relies on a constant PROJ_KEY to supply the key; another option is to use

the ftok() library function (see the ftok(3C) reference page).

Table 6-4 SVR4 Functions for Managing Message Queues

Function Name Purpose and Operation

msgget(2) Create a message queue if it does not exist, and gain access to it.

msgctl(2) Query the status of a queue, change its owner ID or access permissions,

or remove it from the system.

key An integer key that is not deﬁned at this time.

msgﬂag A set of ﬂags that includes IPC_CREAT and may include IPC_EXCL.

This value also contains the access permission bits.

144

Chapter 6: Message Queues

Accessing an Existing Queue

When the program expects the queue to exist, it calls msgget() passing the expected key

value and omitting the IPC_CREAT ﬂag. If the queue does not exist, or if the effective

user and group ID of the process are not allowed access to the queue, an error is returned.

The program receives read-only or read-write access depending on the access

permissions of the queue, just as with a ﬁle.

Modifying a Message Queue

You can use msgctl() to modify four attributes of a queue after creating or accessing it:

•the user ID and group ID that owns the queue

•the access permissions

•the limit on the total size of all queued messages

The size limit on a new queue is set to the system limit (32,768 bytes as of IRIX release

6.2). This determines how many messages can be waiting, unreceived, on the queue. That

in turn determines how far the message-sending process can get ahead of the

message-reading process. You can lower the limit to the sending process or thread more

closely to the speed of the receiving process or thread.

Removing a Message Queue

You can remove a message queue using the ipcrm command (see the ipcrm(1) reference

page), or by calling msgctl() and passing the IPC_RMID command code. In many cases,

a message queue is meant for use within the scope of one program only, and you do not

want the queue to persist after the termination of that program. Call msgctl() to remove

the queue as part of termination.

System V Message Queues

145

Using SVR4 Message Queues

The SVR4 functions for using message queues are summarized in Table 6-5.

Sending a Message

To send a message to a queue, call msgsnd() and specify the queue, the address and

length of the message data, and a ﬂag number that can contain IPC_NOWAIT. The

message buffer contains an integer specifying the “type” of the message. Messages on the

queue are retained in arrival sequence within types.

The message is copied out of the caller’s buffer, so the buffer can be reused immediately

after a successful send. If the queue is full, the msgsnd() function blocks unless the

IPC_NOWAIT ﬂag is passed.

Receiving a Message

To receive a message, call msgrcv() and specify the queue, the address and size of a

buffer, a number for the desired message type, and a ﬂag value. If the queue is empty, the

msgrcv() function blocks unless the IPC_NOWAIT ﬂag is passed. If the message buffer is

not as large as the message, an error is returned unless the IPC_NOERROR ﬂag is passed.

Then the message is simply truncated to ﬁt the buffer.

The type value can be 0, to specify “any type,” or it can be a speciﬁc (positive) type

number to select the ﬁrst number of that type. Finally, it can be a negative value to specify

“any type less than or equal.”

Table 6-5 SVR4 Functions for Using Message Queues

Function Name Purpose and Operation

msgsnd(2) Send a message to a queue.

msgrcv(2) Receive a message from a queue.

146

Chapter 6: Message Queues

Example Programs

The following programs demonstrate the use of SVR4 message queues:

•Example 6-5 on page 148 demonstrates the use of msgget() to create or access a

queue.

•Example 6-6 on page 150 demonstrates the use of msgctl() to query or modify a

queue.

•Example 6-7 on page 152 demonstrates the use of msgsnd() to put messages onto a

queue.

•Example 6-8 on page 154 demonstrates the use of msgrcv() to take messages from a

queue.

The four example programs have a consistent design and use consistent command-line

argument letters. Each accepts optional arguments that allow you to exercise all the

features of one function, including most error return codes. The following is a simple

example of use. First, a queue is created with key 9:

$ ipcs -q

IPC status from /dev/kmem as of Wed Jun 12 10:36:38 1996

T ID KEY MODE OWNER GROUP

Message Queues:

$ msgget -k 9 -c

msqid = 0x0032. owner = 1110.20, perms = 100600, max bytes = 32768

0 msgs = 0 bytes on queue

$ ipcs -q

IPC status from /dev/kmem as of Thu Jun 20 09:32:25 1996

T ID KEY MODE OWNER GROUP

Message Queues:

q 50 0x00000009 --rw------- cortesi user

The use of the IPC_EXCL ﬂag is tested:

$ msgget -k 9 -c -x

msgget(): File exists

A message is sent to the queue:

$ msgsnd -i 50 -t 17

$ msgctl -i 50

owner = 1110.20, perms = 100600, max bytes = 32768

1 msgs = 64 bytes on queue

System V Message Queues

147

The maximum queue size is changed:

$ msgctl -k 9 -b 1024

owner = 1110.20, perms = 100600, max bytes = 1024

1 msgs = 64 bytes on queue

A second message is sent:

$ msgsnd -i 50 -t 18

$ msgctl -i 50

owner = 1110.20, perms = 100600, max bytes = 1024

2 msgs = 128 bytes on queue

The ﬁrst and second messages are received:

$ msgrcv -k 9

1: type 17 len 64 text 00001 Thu Jun 20 09:32:55 1996

$ msgrcv -i 50

1: type 18 len 64 text 00001 Thu Jun 20 09:33:18 1996

Another message receipt is attempted, ﬁrst with IPC_NOWAIT:

$ msgrcv -i 50 -n

msgrcv(): No message of desired type

Another message is attempted without IPC_NOWAIT. While msgrcv is suspended, the

message queue is removed, using ipcrm in a different shell window.

$ msgrcv -k 9 &

12477

$ ipcrm -q 50

$ msgrcv(): Identifier removed

Example of msgget

The program msgget in Example 6-5 allows you to create a message queue from the

command line. The following command-line arguments are supported:

-k key Numeric identiﬁer of a message queue, for example -k 99.

-p perms Access permissions to set, for example -p 0664.

-x Use the IPC_EXCL ﬂag with msgget().

-c Use the IPC_CREAT ﬂag with msgget().

148

Chapter 6: Message Queues

If the -k argument is omitted, the program uses a private key and thus creates a message

queue that can be used from this program only. (This is not useful, since the program

does nothing with the queue before it terminates.)

Example 6-5 Program to Demonstrate msgget()

|| Program to test msgget(2).

|| msgget [-k <key>] [-p <perms>] [-x] [-c]

|| -k <key> the key to use, default == 0 == IPC_PRIVATE

|| -p <perms> permissions to use, default 600

|| -x use IPC_EXCL

|| -c use IPC_CREAT

#include <sys/msg.h> /* msg queue stuff, ipc.h, types.h */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key = IPC_PRIVATE; /* key */

int perms = 0600; /* permissions */

int msgflg = 0; /* flags: CREAT + EXCL */

int msqid; /* returned msg queue id */

struct msqid_ds buf; /* buffer for stat info */

int c;

while ( -1 != (c = getopt(argc,argv,"k:p:xc")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'p': /* permissions */

perms = (int) strtoul(optarg, NULL, 0);

break;

case 'c':

msgflg |= IPC_CREAT;

break;

case 'x':

msgflg |= IPC_EXCL;

break;

default: /* unknown or missing argument */

return -1;

}

System V Message Queues

149

}

msqid = msgget (key, msgflg|perms);

if (-1 != msqid)

{

printf("msqid = 0x%04x. ",msqid);

if (-1 != msgctl(msqid,IPC_STAT,&buf))

{

printf("owner = %d.%d, perms = %04o, max bytes = %d\n",

buf.msg_perm.uid,

buf.msg_perm.gid,

buf.msg_perm.mode,

buf.msg_qbytes);

printf("%d msgs = %d bytes on queue\n",

buf.msg_qnum, buf.msg_cbytes);

}

else

perror("\nmsgctl()");

}

else

perror("msgget()");

}

Example of msgctl

The program msgctl in Example 6-6 allows you to display the state of a queue, or to

change the permissions, owner ID, group ID, or maximum size of a queue. The following

command-line arguments are supported:

-k key Numeric identiﬁer of a message queue, for example, -k 99.

-i id Message queue ID, alternative to specifying the key; for example, -i 80.

-p perms Access permissions to set, for example, -p 0664.

-b bytes Maximum size of the message queue, for example, -b 0x1000.

-u uid Numeric user ID to set as owner.

-g gid Numeric group ID to set as owner.

150

Chapter 6: Message Queues

Example 6-6 Program to Demonstrate msgctl()

|| Program to test msgctl(2).

|| msgctl {-k <key> -i <id>} [-b <bytes>] [-p <perms>] [-u <uid>] [-g <gid>]

|| -k <key> the key to use, or..

|| -i <id> ..the mq id

|| -b <bytes> new max number of bytes to set in msg_qbytes

|| -p <perms> new permissions to assign in msg_perm.mode

|| -u <uid> new user id (numeric) for msg_perm.uid

|| -g <gid> new group id (numeric) for msg_perm.gid

#include <sys/msg.h> /* msg queue stuff, ipc.h, types.h */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key; /* key for msgget.. */

int msqid = -1; /* ..specified or received msg queue id */

long perms = -1L; /* -1L is not valid for any of these */

long bytes = -1L;

long uid = -1L;

long gid = -1L;

struct msqid_ds buf;

int c;

while ( -1 != (c = getopt(argc,argv,"k:i:b:p:u:g:")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* id */

msqid = (int) strtoul(optarg, NULL, 0);

break;

case 'p': /* permissions */

perms = strtoul(optarg, NULL, 0);

break;

case 'b': /* bytes */

bytes = strtoul(optarg, NULL, 0);

break;

case 'u': /* uid */

uid = strtoul(optarg, NULL, 0);

break;

System V Message Queues

151

case 'g': /* gid */

gid = strtoul(optarg, NULL, 0);

break;

default: /* unknown or missing argument */

return -1;

}

if (-1 == msqid) /* no id given, try key */

msqid = msgget (key, 0);

if (-1 != msqid)

{

if (-1 != msgctl(msqid,IPC_STAT,&buf))

{

if ((perms!=-1L)||(bytes!=-1L)||(uid!=-1L)||(gid!=-1L))

{

/* put new values in buf fields as requested */

if (perms != -1L) buf.msg_perm.mode = (mode_t)perms;

if (uid != -1L) buf.msg_perm.uid = (uid_t)uid;

if (gid != -1L) buf.msg_perm.gid = (gid_t)gid;

if (bytes != -1L) buf.msg_qbytes = (ulong_t)bytes;

if (-1 == msgctl(msqid,IPC_SET,&buf))

perror("\nmsgctl(IPC_SET)");

}

printf("owner = %d.%d, perms = %04o, max bytes = %d\n",

buf.msg_perm.uid,

buf.msg_perm.gid,

buf.msg_perm.mode,

buf.msg_qbytes);

printf("%d msgs = %d bytes on queue\n",

buf.msg_qnum, buf.msg_cbytes);

}

else

perror("\nmsgctl(IPC_STAT)");

}

else

perror("msgget()");

}

152

Chapter 6: Message Queues

Example of msgsnd

The msgsnd program in Example 6-7 allows you to send one or more messages of

speciﬁed length and type to a message queue. The following command-line arguments

are supported:

The program sends as many messages as you specify, each with the speciﬁed type and

size. The ﬁrst 32 bytes of each message is a printable string containing a sequence number

and the date and time. The message is padded out to the speciﬁed size with binary 0.

Example 6-7 Program to Demonstrate msgsnd()

|| Program to test msgsnd(2)

|| msgsnd {-k <key> -i <id>} [-t <type>] [-b <bytes>] [-c <count>] [-n]

|| -k <key> the key to use, or..

|| -i <id> ..the mq id

|| -t <type> the type of each message, default = 1

|| -b <bytes> the size of each message, default = 64, min 32

|| -c <count> the number of messages to send, default = 1, max 99999

|| -n use IPC_NOWAIT flag

|| The program sends <count> messages of <type>, <bytes> each on the queue.

|| Each message is an ASCII string containing the time and date, and

|| a serial number 1..<count>, minimum message is 32 bytes.

#include <sys/msg.h> /* msg queue stuff, ipc.h, types.h */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <time.h> /* time(2) and ctime_r(3) */

#include <stdio.h>

int main(int argc, char **argv)

{

-k key Numeric identiﬁer of a message queue, for example, -k 99.

-i id Message queue ID, alternative to specifying the key; for example, -i 80.

-c count Number of messages to send. The default is 1.

-t type Numeric type of message to send. Types less than 1 are rejected by

msgsnd().

-b bytes Size of each message, for example, -b 0x200.

-n Use the IPC_NOWAIT ﬂag with msgsnd().

System V Message Queues

153

key_t key; /* key for msgget.. */

int msqid = -1; /* ..specified or received msg queue id */

int msgflg = 0; /* flag, 0 or IPC_NOWAIT */

long type = 1; /* message type -- 0 is not valid to msgsnd() */

size_t bytes = 64; /* message text size */

int count = 1; /* number to send */

int c;

struct msgspace { long type; char text[32]; } *msg;

while ( -1 != (c = getopt(argc,argv,"k:i:t:b:c:n")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* id */

msqid = (int) strtoul(optarg, NULL, 0);

break;

case 't': /* type */

type = strtoul(optarg, NULL, 0);

break;

case 'b': /* bytes */

bytes = strtoul(optarg, NULL, 0);

if (bytes<32) bytes = 32;

break;

case 'c': /* count */

count = strtoul(optarg, NULL, 0);

if (count > 99999) count = 99999;

break;

case 'n': /* nowait */

msgflg |= IPC_NOWAIT;

break;

default: /* unknown or missing argument */

return -1;

}

msg = (struct msgspace *)calloc(1,sizeof(long)+bytes);

if (-1 == msqid) /* no id given, try key */

msqid = msgget (key, 0);

if (-1 != msqid)

{

const time_t tm = time(NULL);

char stime[26];

(void)ctime_r (&tm,stime); /* format timestamp for msg */

stime[24] = '\0'; /* drop annoying \n */

154

Chapter 6: Message Queues

for( c=1; c<=count; ++c)

{

msg->type = type;

sprintf(msg->text,"%05d %s",c,stime);

if (-1 == msgsnd(msqid,msg,bytes,msgflg))

{

perror("msgsnd()");

break;

}

else

perror("msgget()");

}

Example of msgrcv

The program msgrcv in Example 6-8 allows you to receive messages from a speciﬁed

queue. The following arguments are used in more than one program:

As each message is received, it is displayed. A sequence number and the message type

are always displayed; the ﬁrst 32 bytes of the text are displayed if it begins with ASCII.

Example 6-8 Program to Demonstrate msgrcv()

|| Program to test msgrcv(2)

|| msgrcv {-k <key> -i <id>} [-t <type>] [-b <bytes>] [-c <count>]

|| [-n] [-e] [-q]

|| -k <key> the key to use, or..

|| -i <id> ..the mq id

|| -t <type> the type of message, default = 0 (any msg)

-k key Numeric identiﬁer of a message queue, for example -k 99.

-i id Message queue ID, alternative to specifying the key; for example, -i 80.

-c count Number of messages to attempt to receive.

-b bytes Maximum size of a message, for example ,-b 0x200.

-n Use the IPC_NOWAIT ﬂag with msgrcv().

-e Use the MSG_NOERROR ﬂag with msgrcv(), to truncate messages longer

than bytes.

-q Be quiet, do not display the received message. Use for performance testing.

System V Message Queues

155

|| -b <bytes> the max size to receive, default = 64

|| -c <count> the number of messages to receive, default = 1

|| -n use IPC_NOWAIT flag

|| -e use MSG_NOERROR flag (truncate long msg)

|| -q quiet, do not display received message

|| The program calls msgrcv <count> times or until an error occurs,

|| each time requesting a message of type <type> and max size <bytes>.

#include <sys/msg.h> /* msg queue stuff, ipc.h, types.h */

#include <unistd.h> /* for getopt() */

#include <errno.h> /* errno and perror */

#include <ctype.h> /* isascii() */

#include <stdio.h>

int main(int argc, char **argv)

{

key_t key; /* key for msgget.. */

int msqid = -1; /* ..specified or received msg queue id */

int msgflg = 0; /* flag, 0, IPC_NOWAIT, MSG_NOERROR */

long type = 0; /* message type */

size_t bytes = 64; /* message size limit */

int count = 1; /* number to receive */

int quiet = 0; /* quiet flag */

int c;

struct msgspace { long type; char text[32]; } *msg;

while ( -1 != (c = getopt(argc,argv,"k:i:t:b:c:enq")) )

{

switch (c)

{

case 'k': /* key */

key = (key_t) strtoul(optarg, NULL, 0);

break;

case 'i': /* id */

msqid = (int) strtoul(optarg, NULL, 0);

break;

case 't': /* type -- can be negative */

type = strtol(optarg, NULL, 0);

break;

case 'b': /* bytes -- no minimum */

bytes = strtoul(optarg, NULL, 0);

break;

case 'c': /* count - no maximum */

count = strtoul(optarg, NULL, 0);

break;

case 'n': /* nowait */

msgflg |= IPC_NOWAIT;

156

Chapter 6: Message Queues

break;

case 'e': /* noerror -- allow truncation of msgs */

msgflg |= MSG_NOERROR;

break;

case 'q': /* quiet */

quiet = 1;

break;

default: /* unknown or missing argument */

return -1;

}

if (-1 == msqid) /* no id given, try key */

msqid = msgget (key, 0);

msg = (struct msgspace *)calloc(1,sizeof(long)+bytes);

if (-1 != msqid)

{

for( c=1; c<=count; ++c)

{

int ret = msgrcv(msqid,msg,bytes,type,msgflg);

if (ret >= 0) /* got a message */

{

if (!quiet)

{

if (isascii(msg->text[0]))

printf("%d: type %ld len %d text %-32.32s\n",

c, msg->type, ret, msg->text);

else

printf("%d: type %ld len %d (nonascii)\n",

c, msg->type, ret);

}

else /* an error, end loop */

{

perror("msgrcv()");

break;

}

} /* for c<=count */

} /* good msgget */

else

perror("msgget()");

}

157

Chapter 7

7. File and Record Locking

IRIX supports the ability to place a lock upon an entire ﬁle or upon a range of bytes

within a ﬁle. Programs must cooperate in respecting record locks. A ﬁle lock can be made

mandatory but only at a cost in performance. For these reasons, ﬁle and record locking

should normally be seen as a synchronization mechanism, not a security mechanism.

The chapter includes these topics:

•“Overview of File and Record Locking” presents an introduction to locking

mechanisms.

•“Controlling File Access With File Permissions” discusses the relationship of ﬁle

permissions to exclusive ﬁle access.

•“Using Record Locking” discusses the use of ﬁle and record locks to get exclusive

data access.

•“Enforcing Mandatory Locking” describes how ﬁle locks can be made mandatory

on programs that do not use locking.

•“Record Locking Across Multiple Systems” discusses how ﬁle locking can be

extended to NFS-mounted ﬁles.

158

Chapter 7: File and Record Locking

Overview of File and Record Locking

Simultaneous access to ﬁle data is characteristic of many multiprocess, multithreaded, or

real-time applications.The purpose of the ﬁle and record locking facility is to provide a

way for programs to synchronize their use of common ﬁle data.

Advisory ﬁle and record locking can be used to coordinate independent, unrelated

processes. In mandatory locking, on the other hand, the standard I/O subroutines and

I/O system calls enforce the locking protocol. Mandatory locking keeps unrelated

programs from accessing data out of sequence, at some cost of access speed.

The system functions used in ﬁle and record locking are summarized in Table 7-1.

Terminology

The discussion of ﬁle and record locking depends on the terms deﬁned in this section.

Record

A record is any contiguous sequence of bytes in a ﬁle. The UNIX operating system does

not impose any record structure on ﬁles. The boundaries of records are deﬁned by the

programs that use the ﬁles. Within a single ﬁle, a record as deﬁned by one process can

overlap partially or completely on a record as deﬁned by some other process.

Table 7-1 Functions for File and Record Locking

Function Name Purpose and Operation

fcntl(2),fcntl(5) General function for modifying an open ﬁle descriptor; can be used to

set ﬁle and record locks.

lockf(3C),lockf(3F) Library function to set and remove ﬁle and record locks on open ﬁles

(SVR4 compatible).

ﬂock(3B) Library function to set and remove ﬁle and record locks on open ﬁles

(BSD compatible).

chmod(1),chmod(2) Command and system function that can enable mandatory ﬁle locking

on a speciﬁed ﬁle.

Overview of File and Record Locking

159

Read (Shared) Lock

A read lock keeps a record from changing while one or more processes read the data. If

a process holds a read lock, it may assume that no other process can alter that record at

the same time. A read lock is also a shared lock because more than one process can place

a read lock on the same record or on a record that overlaps a read-locked record. No

process, however, can have a write lock that overlaps a read lock.

Write (Exclusive) Lock

A write lock is used to gain complete control over a record. A write lock is an exclusive

lock because, when a write lock is in place on a record, no other process may read- or

write-lock that record or any data that overlaps it. If a process holds a write lock it can

assume that no other process will read or write that record at the same time.

Advisory Locking

An advisory lock is visible only when a program explicitly tries to place a conﬂicting

lock. An advisory lock is not visible to the ﬁle I/O system functions such as read() and

write(). A process that does not test for an advisory lock can violate the terms of the lock,

for example, by writing into a locked record.

Advisory locks are useful when all processes make an appropriate record lock request

before performing any I/O operation. When all processes use advisory locking, access to

the locked data is controlled by the advisory lock requests. The success of advisory

locking depends on the cooperation of all processes in enforcing the locking protocol; it

is not enforced by the ﬁle I/O subsystem.

Mandatory Locking

Mandatory record locking is enforced by the ﬁle I/O system functions, and so is effective

on unrelated processes that are not part of a cooperating group. Respect for locked

records is enforced by the creat(),open(),read(), and write() system calls. When a record

is locked, access to that record by any other process is restricted according to the type of

lock on the record. Cooperating processes should still request an appropriate record lock

before an I/O operation, but an additional check is made by IRIX before each I/O

operation to ensure the record locking protocol is being honored. Mandatory locking

offers security against unplanned ﬁle use by unrelated programs, but it imposes

additional system overhead on access to the controlled ﬁles.

160

Chapter 7: File and Record Locking

Lock Promotion and Demotion

A read lock can be promoted to write-lock status if no other process is holding a read lock

in the same record. If processes with pending write locks are waiting for the same record,

the lock promotion succeeds and the other (sleeping) processes wait. Demoting a write

lock to a read lock can be done at any time.

Because the lockf() function does not support read locks, lock promotion is not

applicable to locks set with that call.

Controlling File Access With File Permissions

The access permissions for each UNIX ﬁle control which users can read, write, or execute

the ﬁle. These access permissions may be set only by the owner of the ﬁle or by the

superuser. The permissions of the directory in which the ﬁle resides can also affect the

access permissions for a ﬁle. Note that if the permissions for a directory allow anyone to

write in the directory, and the “sticky bit” is not included in the permissions, ﬁles within

that directory can be removed even by a user who does not have read, write, or execute

permission for those ﬁles.

If your application warrants the use of record locking, make sure that the permissions on

your ﬁles and directories are also set properly. A record lock, even a mandatory record

lock, protects only the records that are locked, while they are locked. Unlocked parts of

the ﬁles can be corrupted if proper precautions are not taken.

Only a known set of programs or users should be able to read or write a database. This

can be enforced through ﬁle permissions as follows:

1. Using the chown facility (see the chown(1) and chown(2) reference pages), set the

ownership of the critical directories and ﬁles to reﬂect the authorized group ID.

2. Using the chmod facility (see also the chmod(1) and chmod(2) reference pages), set

the ﬁle permissions of the critical directories and ﬁles so that only members of the

authorized group have write access (“775” permissions).

3. Using the chown facility, set the accessing program executable ﬁles to be owned by

the authorized group.

4. Using the chmod facility, set the set-GID bit for each accessing program executable

ﬁle and to permit execution by anyone (“2755” permissions).

Using Record Locking

161

Users who are not members of the authorized group cannot modify the critical

directories and ﬁles. However, when an ordinary user executes one of the accessing

programs, the program automatically adopts the group ID of its owner. The accessing

program can create and modify ﬁles in the critical directory, but other programs started

by an ordinary user cannot.

Using Record Locking

This section covers the following topics:

•“Opening a File for Record Locking”

•“Setting a File Lock”

•“Setting and Removing Record Locks”

•“Getting Lock Information”

•“Deadlock Handling”

Opening a File for Record Locking

The ﬁrst requirement for locking a ﬁle or segment of a ﬁle is having a valid open ﬁle

descriptor. If read locks are to be used, then the ﬁle must be opened with at least read

access; likewise for write locks and write access.

Example 7-1 opens a ﬁle for both read and write access.

Example 7-1 Opening a File for Locked Use

#include <stdio.h>

#include <errno.h>

#include <fcntl.h>

int fd; /* file descriptor */

char *filename;

main(argc, argv)

int argc;

char *argv[];

{

extern void exit(), perror();

/* get database file name from command line and open the

* file for read and write access.

162

Chapter 7: File and Record Locking

if (argc < 2) {

(void) fprintf(stderr, "usage: %s filename\n", argv[0]);

exit(2);

}

filename = argv[1];

fd = open(filename, O_RDWR);

if(fd<0){

perror(filename);

exit(2);

}

The ﬁle is now open to perform both locking and I/O functions. The next step is to set a

lock.

Setting a File Lock

Several ways exist to set a lock on a ﬁle. These methods depend upon how the lock

interacts with the rest of the program. Issues of portability and performance need to be

considered. Three methods for setting a lock are given here: using the fcntl() system call;

using the /usr/group standards-compatible lockf() library function; and using the BSD

compatible ﬂock() library function.

Locking an entire ﬁle is just a special case of record locking—one record is locked, which

has the size of the entire ﬁle. The ﬁle is locked starting at a byte offset of zero and size of

the maximum ﬁle size. This size is beyond any real end-of-ﬁle so that no other lock can

be placed on the ﬁle.

You have a choice of three functions for this operation: the basic fcntl(), the library

function lockf(), and the BSD compatible library function ﬂock(). All three functions can

interoperate. That is, a lock placed by one is respected by the other two.

Whole-File Lock With fcntl()

The fcntl() function treats a lock length of 0 as meaning “size of ﬁle.” The function

lockWholeFile() in Example 7-2 attempts a speciﬁed number of times to obtain a

whole-ﬁle lock using fcntl(). When the lock is placed, it returns 0; otherwise it returns the

error code for the failure.

Using Record Locking

163

Example 7-2 Setting a Whole-File Lock With fcntl()

#include <fcntl.h>

#include <errno.h>

#define MAX_TRY 10

int

lockWholeFile(int fd, int tries)

{

int limit = (tries)?tries:MAX_TRY;

int try;

struct flock lck;

lck.l_type = F_WRLCK; /* write (exclusive) lock */

lck.l_whence = 0; /* 0 offset for l_start */

lck.l_start = 0L; /* lock starts at BOF */

lck.l_len = 0L; /* extent is entire file */

for (try = 0; try < limit; ++try)

{

if(0==fcntl(fd, F_SETLK, &lck) )

break; /* mission accomplished */

if ((errno != EAGAIN) && (errno != EACCES))

break; /* mission impossible */

sginap(1); /* let lock holder run */

}

return errno;

}

The following points should be noted in Example 7-2:

•Because fcntl() supports both read and write locks, the type of the lock (F_WRLCK)

is speciﬁed in the l_type.

•The operation code F_SETLK is used to request that the function return if it cannot

place the lock. The code F_SETLKW would request that the function suspend until

the lock can be placed.

•The starting location of the record is the sum of two ﬁelds, l_whence and l_start. Both

must be set to 0 in order to get the starting point to the beginning of the ﬁle.

Whole-File Lock With lockf()

Example 7-3 shows a version of the lockWholeFile() function that uses lockf(). Like

fcntl(),lockf() treats a record length of 0 as meaning “to end of ﬁle.”

164

Chapter 7: File and Record Locking

Example 7-3 Setting a Whole-File Lock With lockf()

#include <unistd.h> /* for F_TLOCK */

#include <fcntl.h> /* for O_RDWR */

#include <errno.h> /* for EAGAIN */

#define MAX_TRY 10

int

lockWholeFile(int fd, int tries)

{

int limit = (tries)?tries:MAX_TRY;

int try;

lseek(fd,0L,SEEK_SET); /* set start of lock range */

for (try = 0; try < limit; ++try)

{

if (0 == lockf(fd, F_TLOCK, 0L) )

break; /* mission accomplished */

if (errno != EAGAIN)

break; /* mission impossible */

sginap(1); /* let lock holder run */

}

return errno;

}

The following points should be noted about Example 7-3:

•The type of lock is not speciﬁed, because lockf() only supports exclusive locks.

•The operation code F_TLOCK speciﬁes that the function should return if the lock

cannot be placed. The F_LOCK operation would request that the function suspend

until the lock could be placed.

•The start of the record is set implicitly by the current ﬁle position. That is why

lseek() is called, to ensure the correct ﬁle position before lockf() is called.

Whole-File Lock With ﬂock()

Example 7-4 displays a third example of the lockWholeFile subroutine, this one using

ﬂock().

Using Record Locking

165

Example 7-4 Setting a Whole-File Lock With ﬂock()

#define _BSD_COMPAT

#include <sys/file.h> /* includes fcntl.h */

#include <errno.h> /* for EAGAIN */

#define MAX_TRY 10

int

lockWholeFile(int fd, int tries)

{

int limit = (tries)?tries:MAX_TRY;

int try;

for (try = 0; try < limit; ++try)

{

if(0==flock(fd, LOCK_EX+LOCK_NB) )

break; /* mission accomplished */

if (errno != EWOULDBLOCK)

break; /* mission impossible */

sginap(1); /* let lock holder run */

}

return errno;

}

The following points should be noted about Example 7-4:

•The compiler variable _BSD_COMPAT is deﬁned in order to get BSD-compatible

deﬁnitions from standard header ﬁles.

•The only use of ﬂock() is to lock an entire ﬁle, so there is no attempt to specify the

start or length of a record.

•The LOCK_NB ﬂag requests the function to return if the lock cannot be placed.

Without this ﬂag the function suspends until the lock can be placed.

Setting and Removing Record Locks

Locking a record is done the same way as locking a ﬁle, except that the record does not

encompass the entire ﬁle contents. This section examines an example problem of dealing

with two records (which may be either in the same ﬁle or in different ﬁles) that must be

updated simultaneously so that other processes get a consistent view of the information

they contain. This type of problem occurs, for example, when updating the inter-record

pointers in a doubly linked list.

166

Chapter 7: File and Record Locking

To deal with multiple locks, consider the following questions:

•What do you want to lock?

•For multiple locks, in what order do you want to lock and unlock the records?

•What do you do if you succeed in getting all the required locks?

•What do you do if you fail to get one or more locks?

In managing record locks, you must plan a failure strategy for the case in which you

cannot obtain all the required locks. It is because of contention for these records that you

have decided to use record locking in the ﬁrst place. Different programs might

•wait a certain amount of time, and try again

•end the procedure and warn the user

•let the process sleep until signaled that the lock has been freed

•a combination of the above

Look now at the example of inserting an entry into a doubly linked list. All the following

examples assume that a record is declared as follows:

struct record {

.../* data portion of record */...

long prev; /* index to previous record in the list */

long next; /* index to next record in the list */

};

For the example, assume that the record after which the new record is to be inserted has

a read lock on it already. The lock on this record must be promoted to a write lock so that

the record may be edited. Example 7-5 shows a function that can be used for this.

Example 7-5 Record Locking With Promotion Using fcntl()

|| This function is called with a file descriptor and the

|| offsets to three records in it: this, here, and next.

|| The caller is assumed to hold read locks on both here and next.

|| This function promotes these locks to write locks.

|| If write locks on "here" and "next" are obtained

|| Set a write lock on "this".

|| Return index to "this" record.

|| If any write lock is not obtained:

|| Restore read locks on "here" and "next".

|| Remove all other locks.

Using Record Locking

167

|| Return -1.

long set3Locks(int fd, long this, long here, long next)

{

struct flock lck;

lck.l_type = F_WRLCK; /* setting a write lock */

lck.l_whence = 0; /* offsets are absolute */

lck.l_len = sizeof(struct record);

/* Promote the lock on "here" to write lock */

lck.l_start = here;

if (fcntl(fd, F_SETLKW, &lck) < 0) {

return (-1);

}

/* Lock "this" with write lock */

lck.l_start = this;

if (fcntl(fd, F_SETLKW, &lck) < 0) {

/* Failed to lock "this"; return "here" to read lock. */

lck.l_type = F_RDLCK;

lck.l_start = here;

(void) fcntl(fd, F_SETLKW, &lck);

return (-1);

}

/* Promote lock on "next" to write lock */

lck.l_start = next;

if (fcntl(fd, F_SETLKW, &lck) < 0) {

/* Failed to promote "next"; return "here" to read lock... */

lck.l_type = F_RDLCK;

lck.l_start = here;

(void) fcntl(fd, F_SETLK, &lck);

/* ...and remove lock on "this". */

lck.l_type = F_UNLCK;

lck.l_start = this;

(void) fcntl(fd, F_SETLK, &lck);

return (-1)

}

return (this);

}

Example 7-5 uses the F_SETLKW command to fcntl(), with the result that the calling

process will sleep if there are conﬂicting locks at any of the three points. If the F_SETLK

command was used instead, the fcntl() system calls would fail if blocked. The program

would then have to be changed to handle the blocked condition in each of the error

return sections (as in Example 7-2).

168

Chapter 7: File and Record Locking

It is possible to unlock or change the type of lock on a subsection of a previously set lock;

this may cause an additional lock (two locks for one system call) to be used by the

operating system. This occurs if the subsection is from the middle of the previously set

lock.

Example 7-6 shows a similar example using the lockf() function. Since it does not

support read locks, all (write) locks are referenced generically as locks.

Example 7-6 Record Locking Using lockf()

|| This function is called with a file descriptor and the

|| offsets to three records in it: this, here, and next.

|| The caller is assumed to hold no locks on any of the records.

|| This function tries to lock "here" and "next" using lockf().

|| If locks on "here" and "next" are obtained

|| Set a lock on "this".

|| Return index to "this" record.

|| If any lock is not obtained:

|| Remove all other locks.

|| Return -1.

long set3Locks(int fd, long this, long here, long next)

{

/* Set a lock on "here" */

(void) lseek(fd, here, 0);

if (lockf(fd, F_LOCK, sizeof(struct record)) < 0) {

return (-1);

}

/* Lock "this" */

(void) lseek(fd, this, 0);

if (lockf(fd, F_LOCK, sizeof(struct record)) < 0) {

/* Failed to lock "this"; clear "here" lock. */

(void) lseek(fd, here, 0);

(void) lockf(fd, F_ULOCK, sizeof(struct record));

return (-1);

}

/* Lock "next" */

(void) lseek(fd, next, 0);

if (lockf(fd, F_LOCK, sizeof(struct record)) < 0) {

/* Failed to lock "next"; release "here"... */

(void) lseek(fd, here, 0);

(void) lockf(fd, F_ULOCK, sizeof(struct record));

/* ...and remove lock on "this". */

(void) lseek(fd, this, 0);

Using Record Locking

169

(void) lockf(fd, F_ULOCK, sizeof(struct record));

return (-1)

}

return (this);

}

Locks are removed in the same manner as they are set; only the lock type is different

(F_UNLCK or F_ULOCK). An unlock cannot be blocked by another process. An unlock

can affect only locks that were placed by the unlocking process.

Getting Lock Information

You can determine which processes, if any, are blocking a lock from being set. This can

be used as a simple test or as a means to ﬁnd locks on a ﬁle. To ﬁnd this information, set

up a lock as in the previous examples and use the F_GETLK command in the fcntl() call.

If the lock passed to fcntl() would be blocked, the ﬁrst blocking lock is returned to the

process through the structure passed to fcntl(). That is, the lock data passed to fcntl() is

overwritten by blocking lock information.

The returned information includes two pieces of data, l_pidf and l_sysid, that are used

only with F_GETLK. These ﬁelds uniquely identify the process holding the lock. (For

systems that do not support a distributed architecture, the value in l_sysid can be

ignored.)

If a lock passed to fcntl() using the F_GETLK command is not blocked by another lock,

the l_type ﬁeld is changed to F_UNLCK and the remaining ﬁelds in the structure are

unaffected.

Example 7-7 shows how to use this capability to print all the records locked by other

processes. Note that if several read locks occur over the same record, only one of these is

found.

170

Chapter 7: File and Record Locking

Example 7-7 Detecting Contending Locks Using fcntl()

|| This function takes a file descriptor and prints a report showing

|| all locks currently set on that file. The loop variable is the

|| l_start field of the flock structure. The function asks fcntl()

|| for the first lock that would block a lock from l_start to the end

|| of the file (l_len==0). When no lock would block such a lock,

|| the returned l_type contains F_UNLCK and the loop ends.

|| Otherwise the contending lock is displayed, l_start is set to

|| the end-point of that lock, and the loop repeats.

void printAllLocksOn(int fd)

{

struct flock lck;

/* Find and print "write lock" blocked segments of file. */

(void) printf("sysid pid type start length\n");

lck.l_whence = 0;

lck.l_start = 0L;

lck.l_len = 0L;

for( lck.l_type = 0; lck.l_type != F_UNLCK; )

{

lck.l_type = F_WRLCK;

(void) fcntl(fd, F_GETLK, &lck);

if (lck.l_type != F_UNLCK)

{

(void) printf("%5d %5d %c %8d %8d\n",

lck.l_sysid,

lck.l_pid,

(lck.l_type == F_WRLCK) ? 'W' : 'R',

lck.l_start,

lck.l_len);

if (lck.l_len == 0)

break; /* this lock goes to end of file, stop */

lck.l_start += lck.l_len;

}

fcntl() with the F_GETLK command always returns correctly (that is, it will not sleep or

fail) if the values passed to it as arguments are valid.

Using Record Locking

171

The lockf() function with the F_TEST command can also be used to test if there is a

process blocking a lock. This function does not, however, return the information about

where the lock actually is and which process owns the lock. Example 7-8 shows a code

fragment that uses lockf() to test for a lock on a ﬁle.

Example 7-8 Testing for Contending Lock Using lockf()

/* find a blocked record. */

/* seek to beginning of file */

(void) lseek(fd, 0, 0L);

/* set the size of the test region to zero

* to test until the end of the file address space.

if (lockf(fd, F_TEST, 0L) < 0) {

switch (errno) {

case EACCES:

case EAGAIN:

(void) printf("file is locked by another process\n");

break;

case EBADF:

/* bad argument passed to lockf */

perror("lockf");

break;

default:

(void) printf("lockf: unknown error <%d>\n", errno);

break;

}

When a process forks, the child receives a copy of the ﬁle descriptors that the parent has

opened. The parent and child also share a common ﬁle pointer for each ﬁle. If the parent

seeks to a point in the ﬁle, the child’s ﬁle pointer is also set to that location. Similarly,

when a share group of processes is created using sproc(), and the sproc() ﬂag PR_SFDS

is used to keep the open-ﬁle table synchronized for all processes (see the sproc(2)

reference page), then there is a single ﬁle pointer for each ﬁle and it is shared by every

process in the share group.

This feature has important implications when using record locking. The current value of

the ﬁle pointer is used as the reference for the offset of the beginning of the lock, in lockf()

at all times and in fcntl() when using an l_whence value of 1. Since there is no way to

perform the sequence lseek(); fcntl(); as an atomic operation, there is an obvious potential

for race conditions—a lock might be set using a ﬁle pointer that was just changed by

another process.

172

Chapter 7: File and Record Locking

The solution is to have the child process close and reopen the ﬁle. This creates a distinct

ﬁle descriptor for the use of that process. Another solution is to always use the fcntl()

function for locking with an l_whence value of 0 or 2. This makes the locking function

independent of the ﬁle pointer (processes might still contend for the use of the ﬁle pointer

for other purposes such as direct-access input).

Deadlock Handling

A certain level of deadlock detection and avoidance is built into the record locking

facility. This deadlock handling provides the same level of protection granted by the

/usr/group standard lockf() call. This deadlock detection is valid only for processes that

are locking ﬁles or records on a single system.

Deadlocks can potentially occur only when the system is about to put a record locking

system call to sleep. A search is made for constraint loops of processes that would cause

the system call to sleep indeﬁnitely. If such a situation is found, the locking system call

fails and sets errno to the deadlock error number.

If a process wishes to avoid using the system’s deadlock detection, it should set its locks

using F_GETLK instead of F_GETLKW.

Enforcing Mandatory Locking

File locking is usually an in-memory service of the IRIX kernel. The kernel keeps a table

of locks that have been placed. Processes anywhere in the system update the table by

calling fcntl() or lockf() to request locks. When all processes that use a ﬁle do this, and

respect the results, ﬁle integrity can be maintained.

It is possible to extend ﬁle locking by making it mandatory on all processes, whether or

not they were designed to be part of the cooperating group. Mandatory locking is

enforced by the ﬁle I/O function calls. As a result, an independent process that calls

write() to update a locked record is blocked or receives an error code.

The write() and other system functions test for a contending lock on a ﬁle that has

mandatory locking applied. The test is made for every operation on that ﬁle. When the

caller is a process that is cooperating in the lock, and has already set an appropriate lock,

the mandatory test is unnecessary overhead.

Enforcing Mandatory Locking

173

Mandatory locking is enforced on a ﬁle-by-ﬁle basis, triggered by a bit in the ﬁle inode

that is set by chmod (see the chmod(1) and chmod(2) reference pages). In order to enforce

mandatory locking on a particular ﬁle, turn on the set-group-ID bit along with a

nonexecutable group permission, as in these examples, which are equivalent:

$ chmod 2644 target.file

$ chmod +l target.file

The bit must be set before the ﬁle is opened; a change has no effect on a ﬁle that is already

open.

Example 7-9 shows a fragment of code that sets mandatory lock mode on a given

ﬁlename.

Example 7-9 Setting Mandatory Locking Permission Bits

#include <sys/types.h>

#include <sys/stat.h>

int setMandatoryLocking(char *filename)

{

int mode;

struct stat buf;

if (stat(filename, &buf) < 0)

{

perror("stat(2)");

return error;

}

mode = buf.st_mode;

/* ensure group execute permission 0010 bit is off */

mode &= ~(S_IEXEC>>3);

/* turn on 'set group id bit' in mode */

mode |= S_ISGID;

if (chmod(filename, mode) < 0)

{

perror("chmod(2)");

return error;

}

return 0;

}

When IRIX opens a ﬁle, it checks to see whether both of two conditions are true:

•Set-group-ID bit is 1.

•Group execute permission is 0.

174

Chapter 7: File and Record Locking

When both are true, the ﬁle is marked for mandatory locking, and each use of creat(),

open(),read(), and write() tests for contending locks.

Some points to remember about mandatory locking:

•Mandatory locking does not protect against ﬁle truncation with the truncate()

function (see the truncate(2) reference page), which does not look for locks on the

truncated portion of the ﬁle.

•Mandatory locking protects only those portions of a ﬁle that are locked. Other

portions of the ﬁle that are not locked may be accessed according to normal UNIX

system ﬁle permissions.

•Advisory locking is more efﬁcient because a record lock check does not have to be

performed for every I/O request.

Record Locking Across Multiple Systems

Record locking is always effective within a single copy of the IRIX kernel. Locking is

effective within a multiprocessor because processes running in different CPUs of the

multiprocessor share a single copy of the IRIX kernel.

Record locking can be effective on processes that execute in different systems that access

a ﬁlesystem mounted through NFS. However, there are these drawbacks:

•Deadlock detection is not possible between processes in different systems.

•You must make sure that the NFS locking daemon is running in both the NFS client

(application) and server systems.

•Using record locking on NFS ﬁles has a strong impact on performance.

NFS File Locking

When a process running in an NFS client system requests a ﬁle or record lock, a complex

sequence of events begins. (For details, consult the lockd(1M) reference page.)

First the kernel in the client system receives the lock request and determines that the ﬁle

resides on a ﬁlesystem mounted using NFS. The kernel sends the lock request to a

daemon called rpc.lockd. This daemon is responsible for communicating lock requests to

other systems.

Record Locking Across Multiple Systems

175

The rpc.lockd process sends the lock request to the rpc.lockd daemon running on the NFS

server where the target ﬁle is physically mounted. On the server, that rpc.lockd issues the

lock request locally. The server rpc.lockd sends the result, success or failure, back to the

server rpc.lockd. The result is passed back to the calling process.

When the lock succeeds on the server side, rpc.lockd on the client system requests another

daemon, rpc.statd, to monitor the NFS server that implements the lock. If the server fails

and then recovers, rpc.statd will be informed. It then tries to reestablish all active locks. If

the NFS server fails and recovers, and rpc.lockd is unable to reestablish a lock, it sends a

signal (SIGUSR1) to the process that requested the lock.

When a process writes to a write-locked record, the data is sent directly to the NFS server,

bypassing the local NFS buffer cache. This can have a signiﬁcant impact on ﬁle

performance.

Conﬁguring NFS Locking

When rpc.lockd is not running in the NFS client system, or in the NFS server system, a

cross-system lock cannot be established. In this case, locks are effective within the local

system, but are not effective against contending ﬁle access from other systems.

To discover whether rpc.lockd is running, use the chkconﬁg command:

% /etc/chkconfig | grep lockd

If the returned value is off, rpc.lockd is not running and locks have local scope only.

To use rpc.lockd, the administrator must conﬁgure it on as follows:

% /etc/chkconfig lockd on

Then the system must be rebooted. This must be done on both the NFS ﬁle server and on

all NFS clients where locks are requested.

Performance Impact

Normally, the NFS software uses a data cache to speed access to ﬁles. Data read or

written to NFS mounted ﬁles is held in a memory cache for some time, and access

requests to cached data is satisﬁed from memory instead of being read from the server.

Data caching has a major effect on the speed of NFS ﬁle access.

176

Chapter 7: File and Record Locking

As soon as any process places a ﬁle or record lock on an NFS mounted ﬁle, the ﬁle is

marked as uncachable. All I/O requests for that ﬁle bypass the local memory cache and

are sent to the NFS server. This ensures consistent results and data integrity. However, it

means that every read or write to the ﬁle, at any offset, and from any process, incurs a

network delay.

The ﬁle remains uncachable even when the lock is released. The ﬁle cannot use the cache

again until it has been closed by all processes that have it open.

PART THREE

Models of Parallel Computation III

Chapter 8, “Models of Parallel Computation”

Provides an overview of the different models around which you can design a

parallel or distributed application in Silicon Graphics systems.

Chapter 9, “Statement-Level Parallelism”

Gives an overview of the use of Power Fortran and Power C to execute do-loops

across multiple CPUs.

Chapter 10, “Process-Level Parallelism”

Describes the use of IRIX processes to execute in parallel within one address

space or in multiple address spaces.

Chapter 11, “Thread-Level Parallelism”

Describes the use of POSIX threads (IEEE 1003.1c) for parallel execution within

a single address space.

Chapter 12, “Distributed Process Parallelism”

Describes two different facilities for distributing an application across multiple

host computers: PVM and MPI.

179

Chapter 8

8. Models of Parallel Computation

You design a program to perform computations in parallel in order to get higher

performance, by bringing more hardware to bear on the problem concurrently. In order

to succeed, you need to understand the hardware architecture of the target system, and

also the software interfaces that are available.

The purpose of this chapter is to give a high-level overview of parallel programming

models and of the hardware that they use. The parallel models are discussed in more

detail in following chapters.

180

Chapter 8: Models of Parallel Computation

Parallel Hardware Models

Silicon Graphics makes a variety of systems:

•The Indy and Indigo2 workstations have single CPUs. Although they can perform

I/O operations in parallel with computing, they can execute only one stream of

instructions at a time, and time-share the CPU across all active processes.

•The Challenge and Onyx systems (and their POWER versions) are symmetric

multiprocessor (SMP) computers. In these systems at least 2, and as many as 36,

identical microprocessors access a single, common memory and a common set of

peripherals through a high-speed bus.

•The POWER CHALLENGEarray™ comprises 2 or more POWER CHALLENGE™

systems connected by a high-speed local HIPPI network. Each node in the array is

an SMP with 2 to 36 CPUs. Nodes do not share a common memory; communication

between programs in different nodes passes through sockets. However, the entire

array can be administered and programmed as a single entity.

Most programs have a single thread of execution that runs as if it were in a uniprocessor,

employing the facilities of a single CPU. The IRIX operating system applies CPUs to

different programs in order to maximize system throughput.

Parallel Hardware Models

181

You can write a program so that it makes use of more than one CPU at a time. The

software interface that you use for this is the parallel programming model. The IRIX

operating system gives you a variety of such interfaces. Each one is designed around a

different set of assumptions about the hardware, especially the memory system.

Each model is implemented using a different library of code linked with your program.

In some cases you can design a mixed-model program, but in general this is a recipe for

confusion.

Parallel Programs on Uniprocessors

It might seem a contradiction, but it is possible to execute some parallel programs in

uniprocessors. Obviously you would not do this expecting the best performance.

However, it is easier to debug a parallel program by running it in the more predictable

environment of a single CPU, on a multiprocessor or on a uniprocessor workstation.

Also, you might deliberately restrict a parallel program to one CPU in order to establish

a performance baseline.

Most parallel programming libraries adapt to the available hardware. They run

concurrently on multiple CPUs when the CPUs are available (up to some

programmer-deﬁned limit). They run on a limited number, or even just one CPU, when

necessary. For example, the Fortran programmer can control the number of CPUs used

by a MIPSpro Fortran 77 program by setting environment variables before the program

starts (see Chapter 9, “Statement-Level Parallelism”).

Types of Memory Systems

The key memory issue for parallel execution is this: Can one process access data in

memory that belongs to another concurrent process, and if so, what is the time penalty

for doing so? The answer depends on the hardware architecture, and determines the

optimal programming model.

Single Memory Systems

The CHALLENGE/Onyx system architecture uses a high speed system bus to connect

all components of the system.

182

Chapter 8: Models of Parallel Computation

One component is the physical memory system, which plugs into the bus and is equally

available to all other components. Other units that plug into the system bus are I/O

adapters, such as the VME bus adapter. CPU modules containing MIPS R4000®, R8000®,

or R10000™ CPUs are also plugged into the system bus.

In the CHALLENGE/Onyx architecture, the single, common memory has these features:

•There is a single address map; that is, the same word of memory has the same

address in every CPU.

•There is no time penalty for communication between processes because every

memory word is accessible in the same amount of time from any CPU.

•All peripherals are equally accessible from any process.

The effect of a single, common memory is that processes running in different CPUs can

share memory and can update the identical memory locations concurrently. For example,

suppose there are four CPUs available to a Fortran program that processes a large array

of data. You can divide a single DO-loop so that it executes concurrently on the four

CPUs, each CPU working in one-fourth of the array in memory.

As another example, IRIX allows processes to map a single segment of memory into the

virtual address spaces of two or more concurrent processes (see Chapter 3, “Sharing

Memory Between Processes”). Two processes can transfer data at memory speeds, one

putting the data into a mapped segment and the other process taking the data out. They

can coordinate their access to the data using semaphores located in the shared segment

(see Chapter 4, “Mutual Exclusion”).

183

Multiple Memory Systems

In an Array system, such as a POWER CHALLENGEarray, each node is a computer built

on the CHALLENGE/Onyx architecture. However, the only connection between nodes

is the high-speed HIPPI bus between nodes. The system does not offer a single system

memory; instead, there is a separate memory subsystem in each node. The effect is that:

•There is not a single address map. A word of memory in one node cannot be

addressed at all from another node.

•There is a time penalty for some interprocess communication. When data passes

between programs in different nodes, it passes over the HIPPI network, which takes

longer than a memory-to-memory transfer.

•Peripherals are accessible only in the node to which they are physically attached.

Nevertheless, it is possible to design an application that executes concurrently in

multiple nodes of an Array. The message-passing interface (MPI) is designed speciﬁcally

for this.

Parallel Execution Models

You can compare the available models for parallel programming on two features:

granularity The relative size of the unit of computation that executes in

parallel: a single statement, a function, or an entire process.

communication

channel

The basic mechanism by which the independent, concurrent units

of the program exchange data and synchronize their activity.

184

Chapter 8: Models of Parallel Computation

A summary comparison of the available models is shown in Table 8-1.

Process-Level Parallelism

A UNIX process consists of an address space, a large set of process state values, and one

thread of execution. The main task of the IRIX kernel is to create processes and to

dispatch them to different CPUs so as to maximize the utilization of the system.

IRIX contains a variety of interprocess communication (IPC) mechanisms, which are

discussed in Chapter 2, “Interprocess Communication.” These mechanisms can be used

to exchange data and to coordinate the activities of multiple, asynchronous processes

within a single-memory system. (Processes running in different nodes of an Array must

use one of the distributed models; see “Distributed Computation Models” on page 187.)

Table 8-1 Comparing Parallel Models

Model Granularity Communication

Power Fortran™, IRIS

POWER C™

Looping statement (DO or for

statement)

Shared variables in a single user

address space.

Ada95 tasks Ada Procedure Shared variables in a single user

address space.

POSIX threads C function Shared variables in a single user

address space.

Lightweight UNIX processes

(sproc())

C function Arena memory segment in a

single user address space.

General UNIX processes

(fork(),exec())

Process Arena segment mapped to

multiple address spaces.

Portable Virtual Memory

(PVM)

Process Memory copy within node;

HIPPI network between nodes.

Message-Passing (MPI) Process Memory copy within node;

special HIPPI Bypass interface

between nodes.

Parallel Execution Models

185

In traditional UNIX practice, one process creates another with the system call fork(),

which makes a duplicate of the calling process, after which the two copies execute in

parallel. Typically the new process immediately uses the exec() function to load a new

program. (The fork(2) reference page contains a complete list of the state values that are

duplicated when a process is created. The exec(2) reference page details the process of

creating a new program image for execution.)

IRIX also supports the system function sproc(), which creates a lightweight process. A

process created with sproc() shares some of its process state values with its parent

process (the sproc(2) reference page details how this sharing is speciﬁed).

In particular, a process made with sproc() does not have its own address space. It

continues to execute in the address space of the original process. In this respect, a

lightweight process is like a thread (see “Thread-Level Parallelism” on page 185).

However, a lightweight process differs from a thread in two signiﬁcant ways:

•A lightweight process still has a full set of UNIX state values. Some of these, for

example the table of open ﬁle descriptors, can be shared with the parent process,

but in general a lightweight process carries most of the state information of a

process.

•Dispatch of lightweight processes is done in the kernel, and has the same overhead

as dispatching any process.

The library support for statement-level parallelism is based on the use of lightweight

processes (see “Statement-Level Parallelism” on page 187).

Thread-Level Parallelism

A thread is an independent execution state within the context of a larger program. The

concept of a thread is well-known, but the most common formal deﬁnition of threads and

their operation is provided by POSIX standard 1003.1c, “System Application Program

Interface—Amendment 2: Threads Extension.”

186

Chapter 8: Models of Parallel Computation

There are three key differences between a thread and a process:

•A UNIX process has its own set of UNIX state information, for example, its own

effective user ID and set of open ﬁle descriptors.

Threads exist within a process and do not have distinct copies of these UNIX state

values. Threads share the single state belonging to their process.

•Normally, each UNIX process has a unique address space of memory segments that

are accessible only to that process (lightweight processes created with sproc() share

all or part of an address space).

Threads within a process always share the single address space belonging to their

process.

•Processes are scheduled by the IRIX kernel. A change of process requires two

context changes, one to enter the kernel domain and one to return to the user

domain of the next process. The change from the context of one process to the

context of another can entail many instructions.

In contrast, threads are scheduled by code that operates largely in the user address

space, without kernel assistance. Thread scheduling can be faster than process

scheduling.

The POSIX standard for multithreaded programs is supported by IRIX 6.2 with patches

1361, 1367, and 1389 installed, and in all subsequent releases of IRIX.

In addition, the Silicon Graphics implementation of the Ada95 language includes

support for multitasking Ada programs—using what are essentially threads, although

not implemented using the POSIX library. For a complete discussion of the Ada 95 task

facility, refer to the Ada 95 Reference Manual, which installs with the Ada 95 compiler

(GNAT) product.

Parallel Execution Models

187

Statement-Level Parallelism

The ﬁnest level of granularity is to run individual statements in parallel. This is provided

using any of three language products:

•MIPSpro Fortran 77 supports compiler directives that command parallel execution

of the bodies of DO-loops. The MIPSpro POWER Fortran 77 product is a

preprocessor that automates the insertion of these directives in a serial program.

•MIPSpro Fortran 90 supports parallelizing directives similar to MIPSpro Fortran 77,

and the MIPSpro POWER Fortran 90 product automates their placement.

•MIPSpro POWER C supports compiler pragmas that command parallel execution

of segments of code. The IRIS POWER C analyzer automates the insertion of these

pragmas in a serial program.

In all three languages, the run-time library—which provides the execution environment

for the compiled program—contains support for parallel execution. The compiler

generates library calls. The library functions create lightweight processes using sproc(),

and distribute loop iterations among them.

The run-time support can adapt itself dynamically to the number of available CPUs.

Alternatively, you can control it—either using program source statements, or using

environment variables at execution time—to use a certain number of CPUs.

Statement-level parallel support is based on using common variables in memory, and so

it can be used only within the bounds of a single-memory system, a CHALLENGE

system or a single node in a POWER CHALLENGEarray system.

Distributed Computation Models

You can “distribute” a computation by putting parts of the work on different computers.

Two models of distributed execution are supported by Silicon Graphics systems. Each is

a formal, abstract model for distributing a computation across the nodes of a

multiple-memory system, without having to reﬂect the system conﬁguration in the

source code. The programming models are:

•Message-Passing Interface (MPI)

•Portable Virtual Memory (PVM)

188

Chapter 8: Models of Parallel Computation

Message-Passing Interface (MPI) Model

MPI is a standard programming interface for the construction of a portable, parallel

application in Fortran 77 or in C, especially when the application can be decomposed into

a ﬁxed number of processes operating in a ﬁxed topology (for example, a pipeline, grid,

or tree).

A highly tuned, efﬁcient implementation of MPI is included with the Array 2.0 software

support for Array systems such as the POWER CHALLENGEarray. MPI is the

recommended parallel model for use with Array products.

MPI is discussed in more detail under Chapter 12, “Distributed Process Parallelism”.

Portable Virtual Machine (PVM) Model

PVM is an integrated set of software tools and libraries that emulates a general-purpose,

ﬂexible, heterogeneous, concurrent computing framework on interconnected computers

of varied architecture. Using PVM, you can create a parallel application that executes as

a set of concurrent processes on a set of computers that can include uniprocessors,

multiprocessors, and nodes of Array systems.

An implementation of PVM is included with the Array 2.0 software for Silicon Graphics

Array systems. PVM has a better ability to deal with a heterogenous computer network

than MPI does. In every other way, MPI is preferable. When the application runs in the

context of a single Array system, an MPI design has better performance.

PVM is discussed in more detail under Chapter 12, “Distributed Process Parallelism”.

189

Chapter 9

9. Statement-Level Parallelism

You can use statement-level parallelism in three language packages: Fortran 77,

Fortran 90, and C. This parallel model is unique in that you begin with a normal, serial

program, and you can always return the program to serial execution by recompiling.

Every other parallel model requires you to plan and write a parallel program from the

start.

Products for Statement-Level Parallelism

Software support for statement-level parallelism is available from Silicon Graphics and

from independent vendors.

Silicon Graphics Support

The parallel features of the three languages from Silicon Graphics are documented in

detail in the manuals listed in Table 9-1.

Table 9-1 Documentation for Statement-Level Parallel Products

Manual Document

Number Contents

IRIS POWER C User’s

Guide

007-0702-nnn Use of the IRIS POWER C Analyzer, including all

pragmas.

MIPSpro Fortran 77

Programmer’s Guide

007-2361-nnn General use of Fortran 77, including parallelizing

assertions and directives.

MIPSpro Power Fortran 77

Programmer’s Guide

007-2363-nnn Use of the Power Fortran source analyzer to place

directives automatically.

190

Chapter 9: Statement-Level Parallelism

Products from Other Vendors

In addition to these products from Silicon Graphics, the High Performance Fortran (HPF)

compiler from the Portland Group is a compiler for Fortran 90 augmented to the HPF

standard. It supports automatic parallelization. (Refer to http://www.pgroup.com for

more information).

The FORGE products from Applied Parallel Research (APRI) contain a Fortran 77 source

analyzer that can insert parallelizing directives, although not the directives supported by

MIPSpro Fortran 77. (Refer to http://www.infomall.org/apri for more information.)

Creating Parallel Programs

In each of the three languages, the language compiler supports explicit statements that

command parallel execution (#pragma lines for C; directives and assertions for Fortran).

However, placing these statements is a demanding, error-prone task. It is easy to create

a suboptimal program, or worse, a program that is incorrect in subtle ways. Furthermore,

small changes in program logic can invalidate parallel directives in ways that are hard to

foresee, so it is difﬁcult to modify a program that has been manually made parallel.

For each language, there is a source-level program analyzer that is sold as a separate

product (IRIS POWER C, MIPSpro Power Fortran 77, MIPSpro Power Fortran 90). The

analyzer identiﬁes sections of the program that can safely be executed in parallel, and

automatically inserts the parallelizing directives. After any logic change, you can run the

analysis again, so that maintenance is easier.

MIPSpro Fortran 90

Programmer’s Guide

007-2761-nnn General use of Fortran 90, including parallelizing

assertions and directives.

MIPSpro Power Fortran 90

Programmer’s Guide

007-2760-nnn Use of the Power Fortran 90 source analyzer to place

directives automatically.

Table 9-1 (continued) Documentation for Statement-Level Parallel Products

Manual Document

Number Contents

Managing Statement-Parallel Execution

191

The source analyzer makes conservative assumptions about the way the program uses

data. As a result, it often is unable to ﬁnd all the potential parallelism. However, the

analyzer produces a detailed listing of the program source, showing each segment that

could or could not be parallelized, and why. Directed by this listing, you insert source

assertions that give the analyzer more information about the program.

The method of creating an optimized parallel program is as follows:

1. Write a complete application that runs on a single processor.

2. Completely debug and verify the correctness of the program in serial execution.

3. Apply the source analyzer and study the listing it produces.

4. Add assertions to the source program. These are not explicit commands to

parallelize, but high-level statements that describe the program’s use of data.

5. Repeat steps 3 and 4 until the analyzer ﬁnds as much parallelism as possible.

6. Run the program on a single-memory multiprocessor.

When the program requires maintenance, you make the necessary logic changes and,

simultaneously, remove any assertions about the changed code—unless you are certain

that the assertions are still true of the modiﬁed logic. Then repeat the preceding

procedure from step 2.

Managing Statement-Parallel Execution

The run-time library for each of the languages uses IRIX lightweight processes to

implement parallel execution (see Chapter 10, “Process-Level Parallelism”).

When a parallel program starts, the run-time support creates a pool of lightweight

processes using the sproc() function. Initially the extra processes are blocked, while one

process executes the opening passage of the program. When execution reaches a parallel

section, the run-time library code unblocks as many processes as necessary. Each process

begins to execute the same block of statements. The processes share global variables,

while each allocates its own copy of variables that are local to one iteration of a loop, such

as a loop index.

192

Chapter 9: Statement-Level Parallelism

When a process completes its portion of the work of that parallel section, it returns to the

run-time library code, where it picks up another portion of work if any work remains, or

suspends until the next time it is needed. At the end of the parallel section, all extra

processes are suspended and the original process continues to execute the serial code

following the parallel section.

Controlling the Degree of Parallelism

You can specify the number of lightweight processes that are started by a program. In

IRIS POWER C, you can use #pragma numthreads to specify the exact number of processes

to start, but it is not a good idea to embed this number in a source program. In all

implementations, the run-time library by default starts enough processes so there is one

for each CPU in the system. That default is often too high, since typically not all CPUs

are available for one program.

The run-time library checks an environment variable, MPC_SET_NUM_THREADS, for

the number of processes to start. You can use this environment variable to choose the

number of processes used by a particular run of the program, thereby tuning the

program’s requirements to the system load. You can even force a parallelized program to

execute on a single CPU when necessary.

MIPSpro Fortran 77 and MIPSpro Fortran 90 also recognize additional environment

variables that specify a range of process numbers, and use more or fewer processes

within this range as system load varies. (See the Programmer’s Guide for the language for

details.)

At certain points the multiple processes must wait for one another before continuing.

They do this by waiting in a busy loop for a certain length of time, then by blocking until

they are signaled. You can specify the amount of time that a process should spend

spinning before it blocks, using either source directives or an environment variable (see

the Programmer’s Guide for the language for system functions for this purpose).

Managing Statement-Parallel Execution

193

Choosing the Loop Schedule Type

Most parallel sections are loops. The beneﬁt of parallelization is that some iterations of

the loop are executed in one CPU, concurrent with other iterations of the same loop in

other CPUs. But how are the different iterations distributed across processes? The

languages support four possible methods of scheduling loop iterations, as summarized

in Table 9-2.

The variables used in Table 9-2 are as follows:

Table 9-2 Loop Scheduling Types

Schedule Purpose

SIMPLE Each process executes N/P iterations starting at Q*(N/P). First process to

ﬁnish takes the remainder chunk, if any.

DYNAMIC Each process executes C iterations of the loop, starting with the next undone

chunk unit, returning for another chunk until none are left undone.

INTERLEAVE Each process executes C iterations at C*Q,C*2Q,C*3Q...

GSS Each process executes chunks of decreasing size, (N/2P), (N/4P),...

NNumber of iterations in the loop, determined from the source or at run-time.

PNumber of available processes, set by default or by environment variable

(see “Controlling the Degree of Parallelism” on page 192).

QNumber of a process, from 0 to N-1.

C“Chunk” size, set by directive or by environment variable.

194

Chapter 9: Statement-Level Parallelism

The effects of the scheduling types depend on the nature of the loops being parallelized.

For example:

•The SIMPLE method works well when N is relatively small. However, unless N is

evenly divided by P, there will be a time at the end of the loop when fewer than P

processes are working, and possibly only one.

•The DYNAMIC and INTERLEAVE methods allow you to set the chunk size so as to

control the span of an array referenced by each process. You can use this to reduce

cache effects. When N is very large so that not all data ﬁts in memory, INTERLEAVE

may reduce the amount of paging compared to DYNAMIC.

•The guided self-scheduling (GSS) method is good for triangular matrices and other

algorithms where loop iterations become faster toward the end.

You can use source directives or pragmas within the program to specify the scheduling

type and chunk size for particular loops. Where you do not specify the scheduling, the

run-time library uses a default method and chunk size. You can establish this default

scheduling type and chunk size using environment variables.

195

Chapter 10

10. Process-Level Parallelism

The process is the traditional unit of UNIX execution. The concept of the process (and its

relationship to the concept of a thread) are covered under “Process-Level Parallelism” on

page 184. The purpose of this chapter is to review how you can use IRIX processes to

perform parallel processing in a single program.

Using Multiple Processes

In general, you can create a new process for each unit of work that your program could

do in parallel. The processes can share the address space of the original program, or each

can have its own address space. You design the processes so that they coordinate work

and share data using any and all of the interprocess communication (IPC) features

discussed in Part II, “Interprocess Communication.”

Software products from Silicon Graphics use process-level parallelism. For example, the

IRIS Performer™ graphics library normally creates a separate lightweight process to

manage the graphics pipe in parallel with rendering work. The run-time library for

statement-level parallelism creates a pool of lightweight processes and dispatches them

to execute parts of loop code in parallel (see “Managing Statement-Parallel Execution”

on page 191).

196

Chapter 10: Process-Level Parallelism

Process Creation and Share Groups

The most important system functions you use to create and manage processes are

summarized in Table 10-1.

You can initiate a program at a speciﬁed nondegrading priority (explained under

“Process Scheduling” on page 199) using npri. You can initiate a program running on a

speciﬁc CPU of a multiprocessor using runon. Both attributes—the assigned priority and

the assigned CPU—are inherited by any child processes that the program creates.

Process Creation

The process that creates another is called the parent process. The processes it creates are

child processes, or siblings. The parent and its children together are a share group. IRIX

provides special services to share groups. For example, you can send a signal to all

processes in a share group.

Table 10-1 Commands and System Functions for Process Management

Function Name Purpose and Operation

npri(1) Command to run a process at a speciﬁed nondegrading priority.

runon(1) Command to run a process on a speciﬁc CPU.

fork(2) Create a new process with a private address space.

pcreate(3C) Create a new process with a private address space running a designated

program with speciﬁed arguments.

sproc(2) Create a new process in the caller’s address space using a private stack.

sprocsp(2) Create a new process in the caller’s address space using a preallocated

stack area.

prctl(2) Query and set assorted process attributes.

sysmp(2) Query multiprocessor status and assign processes to CPUs.

syssgi(2) Query process virtual and real memory use, and other operations.

Using Multiple Processes

197

The fork() function is the traditional UNIX way of creating a process. The new process is

a duplicate of the parent process, running in a duplicate of the parent’s address space.

Both execute the identical program text; that is, both processes “return” from the fork()

call, and you distinguish them by the return code, which is 0 in the child process and the

new process ID in the parent.

The sproc() and sprocsp() functions create a lightweight process. The difference between

the calls is that sproc() allocates a new memory segment to serve as the stack for the new

process. You use sprocsp() to specify a stack segment that you have already allocated—

for example, a block of memory that you allocate and lock against paging using mpin().

The sproc() calls take as an argument the address of the function that the new process

should execute. The new process begins execution in that function, and when that

function returns, the process is terminated. Read the sproc(2) reference page for details

on the ﬂags that specify which process attributes a child process shares with its parent,

and for other comparisons between fork() and sproc().

Note: The sproc() and sprocsp() functions are blocked to your use in a threaded program

(see Chapter 11, “Thread-Level Parallelism”). The pthreads library uses lightweight

processes to implement threading, and has to control the creation of processes. Also,

when your program uses the MPI library (see Chapter 12, “Distributed Process

Parallelism”), the use of sproc() and sprocsp() can cause problems.

Process Management

Certain system functions give you some control over the processes you create. The prctl()

function offers a variety of operations. These are some of the most useful:

PR_MAXPROCS Query the system limit on processes per user (also available from

sysconf(_SC_CHILD_MAX), see sysconf(2).

PR_MAXPPROCS Query the maximum number of CPUs that are available to the

calling process and its children. This reﬂects both the system

hardware and reservations made on CPUs, but does not reﬂect

system load.

PR_GETNSHARE Query the number of processes in the share group with the

calling process.

PR_GETSTACKSIZE Query the maximum size of the stack segment of the calling

process. For the parent process this reﬂects the system limit (also

available from getrlimit(RLIMIT_STACK), see getrlimit(2)). For

a process started by sprocsp(), the size of the allocated stack.

198

Chapter 10: Process-Level Parallelism

The sysmp() function gives a privileged process information about and control over the

use of a multiprocessor. Some of the operations it provides are as follows:

The runon command (see “Process Creation” on page 196 and runon(1)) initiates the

parent process of a program running on a speciﬁc CPU. Any child processes also runs on

that CPU unless the parent reassigns them to run anywhere, or to run on a different CPU,

using sysmp(). The use of restricted CPUs and assigned CPUs to get predictable real-time

performance is discussed at length in the REACT/Pro Real-Time Programmer’s Guide.

The syssgi() function has a number of interesting uses but only one of interest for

managing processes: syssgi(SGI_PROCSZ) returns the virtual and resident memory

occupancy of the calling process.

PR_SETSTACKSIZE Set an upper limit on stack growth for the calling process and for

child processes it creates in the future.

PR_RESIDENT Prevent the calling process from being swapped out. This has no

connection to paging, but to swapping out an entire, inactive

process under heavy system load.

MP_NPROCS Number of CPUs physically in the system.

MP_NAPROCS Number of CPUs available to the scheduler; should be

the same as prctl(PR_MAXPPROCS).

MP_MUSTRUN Assign the calling process to run on a speciﬁc CPU.

MP_MUSTRUN_PID Assign a speciﬁed other process (typically a just-created

child process) to run on a speciﬁc CPU.

MP_GETMUSTRUN

MP_GETMUSTRUN_PID

Query the must-run assignment of the calling process or

of a speciﬁed process.

MP_RUNANYWHERE

MP_RUNANYWHERE_PID

Allow the calling process, or a speciﬁed process, to run

on any CPU.

Using Multiple Processes

199

Process “Reaping”

A parent process should not terminate while its child processes continue to run. When it

does so, the parent process of each child becomes 1, the init process. This causes problems

if a child process should loop or hang. The functions you use to collect (the technical term

is to “reap”) the status of child processes are summarized in Table 10-2.

When the parent process has nothing to do after starting the child processes, it can loop

on wait() until wait() reports no more children exist; then it can exit.

Sometimes it is necessary to handle child termination and other work, and the parent

cannot suspend. In this case the parent can treat the termination of a child process as an

asynchronous event, and trap it in a signal handler for SIGCLD (see “Catching Signals”

on page 109). The wait(2) reference page has extensive discussion of the three methods

(BSD, SVR4, and POSIX) for handling this situation, with example code for each.

Process Scheduling

There are two different approaches to setting the scheduling priorities of a process, one

compatible with IRIX and BSD, the other POSIX compliant.

Table 10-2 Functions for Child Process Management

Function Name Purpose and Operation

wait(2) Function to block until a child stops or terminates, and to receive the cause

of its change of status.

waitpid(2) POSIX extension of wait() which allows more selectivity and returns more

information.

wait3(2) BSD extension of wait() that allows you to poll for terminated children

without suspending.

waitid(2) Function to suspend until one of a selected set of status changes occurs in

one or more child processes.

200

Chapter 10: Process-Level Parallelism

Controlling Scheduling With IRIX and BSD-Compatible Facilities

The IRIX compatible and BSD compatible scheduling operations are summarized in

Table 10-3.

For BSD compatibility, use the nice and renice commands to alter priorities, and within a

program use getpriority() and setpriority() to query and set priorities. These commands

and functions use priority numbers ranging from -20 through 0 to +20, with lower

arithmetic values having superior access to the CPU.

Only the IRIX schedctl() function gives you complete access to a variety of operations

related to process scheduling. Some of the key operations are as follows:

Table 10-3 Commands and Functions for Scheduling Control

Function Name Purpose and Operation

schedctl(2) Query and set IRIX process scheduling attributes.

getpriority(2) Return the scheduling priority of a process or share group.

setpriority(2) Set the priority of a process or process group.

nice(1) Run a program at a positive or negative increment from normal priority.

renice(1) Alter the priority of a running process by a positive or negative increment.

NDPRI Set a nondegrading priority for the calling process (see

text).

GETNDPRI Query the nondegrading priority of the calling process.

SETMASTER Set the master process of a share group. By default the

parent process is the master process, but it can transfer

that honor.

SCHEDMODE, SGS_SINGLE Cause all processes in the share group to be suspended

except the master process (set with SETMASTER).

SCHEDMODE, SGS_GANG Cause all processes in the share group to be scheduled as

a “gang,” with all running concurrently.

SCHEDMODE, SGS_FREE Schedule the share group in the default fashion.

Using Multiple Processes

201

A program started interactively inherits a scheduling discipline based on degrading

priorities. That is, the longer the process executes without voluntarily suspending, the

lower its dispatching priority becomes. This strategy keeps a runaway process from

monopolizing the hardware. However, you may have a CPU-intensive application that

needs a predictable execution rate. This is the purpose of nondegrading priorities set

with schedctl(NDPRI) or with the npri command (see the npri(1) reference page).

There are three bands of nondegrading priorities, designated by symbolic names

declared in sys/schedctl.h:

•A real-time band from NDPHIMAX to NDPHIMIN. System daemons and real-time

programs run in this band, which has higher priority than any interactive process.

•A normal band from NDPNORMMAX to NDPNORMMIN. These values have the

same priority as interactive programs. Processes at these priorities compete with

interactive processes, but their priorities do not degrade with time.

•A batch band from NDPLOMAX to NDPLOMIN. Processes at these priorities

receive available CPU time and are scheduled from a batch queue.

Tip: The IRIX priority numbers are inverted, in the sense that numerically smaller values

have superior priority. For example. NDPHIMAX is 30 and NDPHIMIN is 39. However,

as long as you declare priority values using symbolic expressions, the numbers work out

correctly. For example, the statement

#define NDPHIMIDDLE NDPHIMIN+((NDPHIMAX-NDPHIMIN)/2)

produces a “middle” value of 35, as it should.

When you create a cooperating group of processes, it is important that they all execute at

the same time, provided there are enough CPUs to handle all the members of the group

that are ready to run. This minimizes the time that members of the share group spend

waiting for each other to release locks or semaphores.

Use schedctl() to initiate “gang” scheduling for the share group. IRIX attempts to

schedule all processes to execute at the same time, when possible.

Note: Through IRIX 6.2, schedctl() also supported a scheduling mode called “deadline

scheduling.” This scheduling mode is being removed and will not be supported in the

future. Do not design a program based on the use of deadline scheduling.

202

Chapter 10: Process-Level Parallelism

Controlling Scheduling With POSIX Functions

The POSIX compliant functions to control process scheduling are summarized in

Table 10-4.

Use the functions sched_get_priority_max() and sched_get_priority_min() to get the

ranges of priority numbers you can use. Use sched_setparam() to change priorities.

POSIX dispatching priorities are nondegrading. (Note that in a program that links with

the pthreads library, these same function names are library functions that return thread

scheduling priority numbers unrelated to process scheduling.)

Tip: The POSIX scheduling priority values reported by these functions and declared in

sched.h are not numerically the same as the bands supported by schedctl() and declared

in sys/schedctl.h. The POSIX numbers are numerically higher for superior priority.

However, the POSIX range is functionally (but not numerically) equivalent to the

“normal” range supported by schedctl() (NDPNORMMAX to NDPNORMMIN).

POSIX scheduling uses one of two scheduling policies, strict FIFO and round-robin,

which are described in detail in the sched_setscheduler(2) reference page. The

round-robin scheduler, which rotates processes of equal priority on a time-slice basis, is

the default. You can query the time-slice interval with sched_get_rr_interval(). You can

change the policy and the priority both using sched_setscheduler().

Table 10-4 POSIX Functions for Scheduling

Function Name Purpose and Operation

sched_getparam(2)

sched_setparam(2) Query and change the POSIX scheduling priority of a process.

sched_getscheduler(2)

sched_setscheduler(2) Query and change the POSIX scheduling policy and priority of a

process.

sched_get_priority_max(2)

sched_get_priority_min(2) Query the maximum (most use of CPU) and minimum (least use)

priority numbers for use with sched_getparam().

sched_get_rr_interval(2) Query the timeslice interval of the round-robin scheduling

policy.

sched_yield(2) Let other processes of the same priority execute.

Using Multiple Processes

203

Self-Dispatching Processes

Often, each child process has a particular role to play in the application, and the function

that you name to sproc() represents that work. The child process stays in that function

until it terminates.

Another design is possible. In some applications, you may have to manage a ﬂow of

many relatively short activities that should be done in parallel. However, the sproc()

function has considerable overhead. It is inefﬁcient to continually create and destroy

child processes. You do not want to create a new child process for each small activity and

destroy it afterward. Instead, you can create a pool containing a small number of

processes. When a piece of work needs to be done, you can dispatch one process to do it.

The fragmentary code in Example 10-1 shows the general approach.

Example 10-1 Partial Code to Manage a Pool of Processes

typedef void (*workFunc)(void *arg);

struct oneSproc {

struct oneSproc *next; /* -> next oneSproc ready to run */

workFunc calledFunc; /* -> function the sproc is to call */

void *callArg; /* argument to pass to the called func */

usema_t *sprocDone; /* optional sema to post on completion */

usema_t *sprocWait; /* sproc waits for work here */

} sprocList[NUMSPROCS];

usema_t *readySprocs; /* count represents sprocs ready to work */

uslock_t sprocListLock; /* mutex control of sprocList head */

struct oneSproc *sprocList; /* -> first ready oneSproc */

|| Put a oneSproc structure on the ready list and sleep on it.

|| Called by a child process when its work is done.

void sprocSleep(struct oneSproc *theSproc)

{

ussetlock(sprocListLock); /* acquire exclusive rights to sprocList */

theSproc->next = sprocList; /* put self on the list */

sprocList = theSproc;

usunsetlock(sprocListLock); /* release sprocList */

usvsema(readySprocs); /* notify master, at least 1 on the list */

uspsema(theSproc->sprocWait);/* sleep until master posts me */

}

|| Body of a general-purpose child process. The argument, which must

|| be declared void* to match the sproc() prototype, is the oneSproc

|| structure that represents this process. The contents of that

204

Chapter 10: Process-Level Parallelism

|| struct, in particular sprocWait, are initialized by the parent.

void childBody(void *theSprocAsVoid)

{

struct oneSproc *mySproc = (struct oneSproc *)theSprocAsVoid;

/* here one could establish signal handlers, etc. */

for(;;)

{

sprocSleep(mySproc); /* wait for work to do */

mySproc->calledFunc(mySproc->callArg); /* do the work */

if (mySproc->sprocDone) /* if a completion sema is given, */

usvsema(mySproc->sprocDone); /* ..post it */

}

|| Acquire a oneSproc structure from the ready list, waiting if necessary.

|| Called by the master process as part of dispatching a sproc.

struct oneSproc *getSproc()

{

struct oneSproc *theSproc;

uspsema(readySprocs); /* wait until at least 1 sproc is free */

ussetlock(sprocListLock); /* acquire exclusive rights to sprocList */

theSproc = sprocList; /* get address of first free oneSproc */

sprocList = theSproc->next; /* make next in list, the head of list */

usunsetlock(sprocListLock); /* release sprocList */

return theSproc;

}

|| Start a function going asynchronously. Called by master process.

void execFunc(workFunc toCall, void *callWith, usema_t *done)

{

struct oneSproc *theSproc = getSproc();

theSproc->calledFunc = toCall; /* set address of func to exec */

theSproc->callArg = callWith; /* set argument to pass */

theSproc->sprocDone = done; /* set sema to post on completion */

usvsema(theSproc->sprocWait); /* wake up sleeping process */

}

Parallelism in Real-Time Applications

205

Parallelism in Real-Time Applications

In real-time programs such as aircraft or vehicle simulators, separate processes are used

to divide the work of the simulation and distribute it onto multiple CPUs. In these

demanding applications, the programmer frequently uses IRIX facilities to

•reserve one or more CPUs of a multiprocessor for exclusive use by the application

•isolate the reserved CPUs from all interrupts

•assign speciﬁc processes to execute on speciﬁc, reserved CPUs

These facilities are described in detail in the REACT Real-Time Programmer’s Guide

(007-2499-nnn). Also covered in that book is the use of the Frame Scheduler, an alternate

process scheduler. The normal process scheduling algorithm of the IRIX kernel attempts

to keep all CPUs busy and to keep all processes advancing in a fair manner. This

algorithm is in conﬂict with the stringent needs of a real-time program, which needs to

dedicate predictable amounts of hardware capacity to its processes, without regard to

fairness.

The Frame Scheduler seizes one or more CPUs of a multiprocessor, isolates them, and

executes a speciﬁed set of processes on each CPU in strict rotation. The Frame Scheduler

has much lower overhead than the normal IRIX scheduler,and it has features designed

for real-time work, including detection of overrun (when a scheduled process does not

complete its work in the necessary time) and underrun (when a scheduled process fails

to execute in its turn).

At this writing there are no real-time applications that use multiple nodes of an Array

system.

207

Chapter 11

11. Thread-Level Parallelism

IRIX supports IEEE standard 1003.1c-1995, “System Application Program Interface—

Amendment 2: Threads Extension”; that is, it supports POSIX threads, or pthreads.

Pthreads are supported by IRIX 6.2 after the following patches are applied: 1361, 1367,

and 1429.

In addition, the Silicon Graphics implementation of the Ada 95 language includes

support for multitasking Ada programs. The current implementation of Ada uses an

early version of the pthreads library. The next release of Ada will use the POSIX library.

For a complete discussion of the Ada 95 task facility, refer to the Ada 95 Reference Manual,

which installs with the Ada 95 compiler (GNAT) product.

This chapter contains the following main topics:

•“Overview of POSIX Threads” on page 208 summarizes the similarities and

differences of pthreads and processes.

•“Compiling and Debugging a Pthread Application” on page 209 covers compiling

and debugging tools.

•“Creating Pthreads” on page 212 covers the process of creating a pthread with the

desired attributes.

•“Executing and Terminating Pthreads” on page 215 discusses how threads initialize

themselves and how you synchronize on thread termination.

•“Using Thread-Unique Data” on page 219 tells how to deﬁne variables that have a

unique value in each thread.

•“Pthreads and Signals” on page 221 discusses the pthread-speciﬁc details of signal

handling (see “Signals” on page 104 for the general information).

•“Scheduling Pthreads” on page 223 covers scheduling priorities and policies.

•“Synchronizing Pthreads” on page 226 details the use of mutexes and condition

variables.

208

Chapter 11: Thread-Level Parallelism

Overview of POSIX Threads

Athread is an independent execution state; that is, a set of machine registers, a call stack,

and the ability to execute code. When IRIX creates a process, it also creates one thread to

execute that process. However, you can write a program that creates many more threads

to execute in the same address space. For a comparison of pthreads to processes, see

“Thread-Level Parallelism” on page 185.

POSIX threads are similar in some ways to IRIX lightweight processes made with sproc().

You use pthreads in preference to lightweight processes for two main reasons: portability

and performance. A program based on pthreads is normally easier to port from another

vendor’s equipment than a program that depends on a unique facility such as sproc().

Table 11-1 summarizes some of the differences between pthreads and lightweight

processes.

Table 11-1 Comparison of Pthreads and Processes

Attribute POSIX Threads Lightweight Processes UNIX Processes

Source portability Standard interface,

portable between

vendors

sproc() is unique to

IRIX

fork() is a UNIX

standard

Creation overhead Relatively small Moderately large Quite large

Block/Unblock

(Dispatch) Overhead

Few microseconds Many microseconds Many microseconds

Address space Shared Shared, or copy on

write, or separate

Separate

Memory-mapped

ﬁles and arenas

Shared Shared, or copy on

write, or separate

Explicit sharing only

Mutual exclusion

objects

Mutexes and condition

variables; POSIX

semaphores; message

queues

IRIX semaphores and

locks; POSIX

semaphores; message

queues

IRIX semaphores and

locks; POSIX

semaphores; message

queues

Files, pipes, and I/O

streams

Shared single-process

ﬁle table

Shared or separate ﬁle

table

Separate ﬁle table

Signal masks and

signal handlers

Each thread has a mask

but handlers are shared

Each process has a

mask and its own

handlers

Each process has a

mask and its own

handlers

Compiling and Debugging a Pthread Application

209

It takes relatively little time to create or destroy a pthread, as compared to creating a

lightweight process. On the other hand, threads share all resources and attributes of a

single process (except for the signal mask, see “Pthreads and Signals” on page 221). If

you want each executing entity to have its own set of ﬁle descriptors, or if you want to

make sure that one entity cannot modify data shared with another entity, you must use

lightweight processes or normal processes.

Compiling and Debugging a Pthread Application

A pthread application is a C program that uses some of the POSIX pthreads functions. In

order to use these functions, and in order to access the thread-safe versions of the

standard I/O macros, you must include the proper header ﬁles and link with the

pthreads library. You can debug and analyze the compiled program using some of the

tools available for IRIX.

Compiling Pthread Source

The header ﬁles related to pthreads functions are summarized in Table 11-2.

Resource limits Single-process limits Single-process limits Limits apply to each

process separately

Process ID One PID applies to all

threads

PID per process plus

share-group PID

PID per process

Effective user and

group IDs

Inherited and

unchangeable

Inherited, can be

changed

Inherited, can be

changed

Table 11-2 Header Files Related to Pthreads

Header Primary Contents

errno.h System error codes returned by pthreads functions.

pthread.h Pthread functions and special pthread data types.

sched.h The sched_param structure and related functions used in setting thread priorities.

Table 11-1 (continued) Comparison of Pthreads and Processes

Attribute POSIX Threads Lightweight Processes UNIX Processes

210

Chapter 11: Thread-Level Parallelism

Prior to the inclusion of stdio.h, be sure that the compiler variables _POSIX1C and

_NO_ANSIMODE are deﬁned. These variables are set by default in most compiles. Read

the header ﬁle /usr/include/standards.h (which is included by stdio.h) to see the logic of

standard namespace deﬁnition.

You can use pthreads with a program compiled to any of the supported execution

models: -32 for compatibility with older systems, -n32 for 64-bit data and 32-bit

addressing, or -64 for 64-bit addressing.

The pthreads functions are deﬁned in the library libpthread.so. Link with this library using

the -lpthread compiler option, which should be the last library on the command line. The

compiler chooses the correct library based on the execution model: /usr/lib/libpthread.so,

/usr/lib32/libpthread.so, and /usr/lib64/libpthread.so. (However, you must be sure that the

needed version of the library is installed; the -n32 and -64 libraries do not install by

default.)

Note: The deﬁnition of a threaded program or pthread program is: a program that links

with libpthread. Do not link with libpthread unless you intend to use the pthread interface,

since libpthread replaces many standard library functions.

Tip: Many names in libpthread override names deﬁned in libc. The linker displays

warning messages about these overrides. You can silence the warnings with the

-Wl,-woff,85 compile option.

Debugging Pthread Programs

The debugging and performance tuning tools distributed with IRIX and the IRIX

developer’s option can sometimes be used with a threaded program.

stdio.h Standard stream I/O macros, including thread-safe versions

sys/types.h IRIX and standard data types.

limits.h Some POSIX constants such as _POSIX_THREAD_THREADS_MAX

unistd.h Constants used when calling sysconf() to query POSIX limits (see the sysconf(3)

reference page).

Table 11-2 (continued) Header Files Related to Pthreads

Header Primary Contents

Compiling and Debugging a Pthread Application

211

Debugging With dbx

The dbx debugger is distributed with the IRIX Developer’s Option. Version 7.0 of dbx is

required to work properly with pthreads.

When debugging a pthreads program, you must set the following dbx variables:

•Set $promptonfork to 2.

•Set $mp_program to 1.

When you set a breakpoint with dbx, it is global to all threads. The ﬁrst thread to reach

the breakpoint trips the breakpoint. This stops execution of the entire process (all

threads). If you set the breakpoint in code used by more than one thread, the program

could be in a different thread each time it stops. The thread ID is displayed at the stop, as

in the display in Example 11-1.

Example 11-1 Debugger Display of Pthread Program

(dbx) showthread all

Thread: Start: State: Pid: Location:

0x10000 COND-WAIT _SGIPT_sched_block ["xp.c":966]

0x10001 work_thread RUNNING 1512 FLOCAL_ALIGN ["workfn.c":864]

0x10002 work_thread RUNNING 1520 FLOCAL_ALIGN ["workfn.c":850]

0x10003 work_thread RUNNING 1563 FLOCAL_ALIGN ["workfn.c":866]

0x10004>work_thread RUNNING 1425 thr_tst ["workfn.c":391]

You can single-step a threaded program as long as you know that only one thread is

executing the code through which you are stepping. When you single-step through code

that is executed by more than one thread, confusing results can occur. To single-step, dbx

sets a breakpoint where the program should stop next. However, breakpoints are global.

When you give the next command in one thread, the stop can occur in a different thread.

Debugging With the Workshop Debugger

The Workshop Debugger is part of the Developer Magic package. In version 2.6.2 of this

package, the debugger is aware of pthreads. The command line view in the debugger

main window can be used to set breakpoints and to produce a display similar to the one

in Example 11-1.

Breakpoints set with the Workshop Debugger are global to the program and are taken by

the next thread to reach them, as with dbx.

212

Chapter 11: Thread-Level Parallelism

The performance measurement tools of the Developer Magic package do not produce

reliable results with a threaded program.

Creating Pthreads

You create a pthread by calling pthread_create(). One argument to this function is a

thread attribute object of type pthread_attr_t. You pass a null address to request a thread

having default attributes, or you prepare an attribute object to reﬂect the features you

want the thread to have. You can use one attribute object to create many pthreads.

Functions related to attribute objects and pthread creation are summarized in Table 11-3

and described in the following text.

Table 11-3 Functions for Creating Pthreads

Function Purpose

pthread_attr_init(3P) Initialize a pthread_attr_t object to default settings.

pthread_attr_setdetachstate(3P) Set the automatic-detach attribute in a pthread_attr_t object.

pthread_attr_setinheritsched(3P) Specify whether scheduling attributes come from the

attribute object or are inherited from the creating thread.

pthread_attr_setschedparam(3P) Set the starting thread priority in a pthread_attr_t object.

pthread_attr_setschedpolicy(3P) Set the scheduling policy in a pthread_attr_t object.

pthread_attr_setstacksize(3P) Set the stack size attribute in a pthread_attr_t object.

pthread_attr_setstackaddr(3P) Set the address of memory to use as a stack in a

pthread_attr_t object (when you allocate the stack for the

new thread).

pthread_attr_destroy(3P) Uninitialize a pthread_attr_t object.

pthread_create(3P) Create a new thread based on an attribute object, or with

default attributes.

Creating Pthreads

213

Initial Detach State

After a thread has terminated, it can be “detached.” Detaching means that the pthreads

library deletes its information about the thread, possibly releasing some memory (see

“Joining and Detaching” on page 218). There are three ways to detach a thread:

•automatically when the thread terminates

•explicitly by calling pthread_join()

•explicitly by calling pthread_detach()

You can use pthread_attr_setdetachstate() to specify that a thread should be detached

automatically when it terminates. Do this when you know that the thread will not be

detached by an explicit function call.

Initial Scheduling Priority and Policy

Scheduling priorities and policies are described under “Scheduling Pthreads” on

page 223. You can specify an initial scheduling policy by calling

pthread_attr_setschedpolicy(), passing one of the policy constants SCHED_FIFO,

SCHED_RR, or SCHED_OTHER.

You can specify an initial thread priority in a struct sched_param object in memory (the

structure is declared in sched.h). Set the desired priority in the sched_priority ﬁeld. Pass the

structure to pthread_attr_setschedparam().

The pthread_attr_setinheritsched() function is used to specify, in the attribute object,

whether a new thread’s scheduling policy and priority should be taken from the attribute

object, or whether these things should be inherited from the thread that creates the new

thread. When you set an attribute object for inheritance, the scheduling policy and

priority in the attribute object are ignored.

Thread Stack Allocation

Each pthread has an execution stack area in memory. By default, pthread_create()

allocates stack space of the speciﬁed size from dynamic memory. When it does so, the

stack space is automatically released when the thread is detached.

214

Chapter 11: Thread-Level Parallelism

You use pthread_attr_setstacksize() to specify the size of this stack area. You cannot

specify a stack size less than a minimum. You can learn the minimum by calling sysconf()

with _SC_THREAD_STACK_MIN (see the sysconf(3C) reference page).

Preallocating Stack Areas

You can instead preallocate stack space from any source of dynamic memory such as

malloc(). When you preallocate stack space, you must do the following:

•Specify the address of the space using pthread_attr_setstackaddr().

This tells pthread_create() not to allocate space.

•Specify the size of the allocated space using pthread_attr_setstacksize().

This enables pthread_create() to initialize the correct starting stack address.

•Free the stack space when the thread terminates (see “Joining and Detaching” on

page 218).

There is normally no protection against a thread overrunning the space. If a thread

allocates too much automatic data or makes too many nested function calls, it will

attempt to modify memory outside the stack space. This might cause a segmentation

fault if that memory is not allocated, or it might modify memory used for other purposes.

Tip: When you preallocate stack space, you can create “red zones” around the allocated

stacks as follows:

•Allocate the stack memory in multiples of the system page size aligned on page

boundaries (see the getpagesize(2) and memalign(3C) reference pages).

•Allocate an extra page of memory above and below each stack area.

•Use the mprotect() function to set the protection of the extra pages to PROT_NONE

(see the mprotect(2) reference page).

This procedure creates untouchable pages at each end of the stack area. If the thread

misuses its stack, it will usually terminate at once with a segmentation fault. (It is still

possible for a thread to call a function that allocates more than a page of automatic

variables, and so skips over the “red zone” to modify memory beyond it.)

Executing and Terminating Pthreads

215

Caveats Regarding Stack Space

Because thread stack space is taken from dynamic memory, the allocation is charged

against the process virtual memory limit, not the process stack size limit as you might

expect (see the getrlimit(2) reference page for information on resource limits).

The stack segment of a process is extended automatically up to a (large) system limit as

necessary. The stack segment of a pthread is ﬁxed in size. The “ﬁrst” pthread in a

threaded program is no different from any other pthread in this regard. Every pthread

has a ﬁxed-size stack. The ﬁrst pthread has a stack of default size. If your “ﬁrst” or

“main” pthread needs more than the default stack size, the actual ﬁrst-started pthread

must set the desired stack size and create a thread to be “main,” and then terminate.

Executing and Terminating Pthreads

The functions you use to manage the progress of a thread are summarized in Table 11-4

and described in the following topics.

Table 11-4 Functions for Managing Thread Execution

Function Purpose

pthread_atfork(3P) Register functions to handle the event of a fork().

pthread_cancel(3P) Request cancellation of a speciﬁed thread.

pthread_cleanup_push(3P) Register function to handle the event of thread termination.

pthread_cleanup_pop(3P) Unregister and optionally call termination handler.

pthread_detach(3P) Detach a terminated thread.

pthread_exit(3P) Explicitly terminate the calling thread.

pthread_join(3P) Wait for a thread to terminate and receive its return value.

pthread_once(3P) Execute initialization function once only.

pthread_self(3P) Return the calling thread’s ID.

pthread_equal(3P) Compare two thread IDs for equality.

pthread_setcancelstate(3P) Permit or block cancellation of the calling thread.

216

Chapter 11: Thread-Level Parallelism

Getting the Thread ID

Call pthread_self() to get the thread ID of the calling thread. A thread can use this thread

ID when changing its own scheduling priority, for example (see “Scheduling Pthreads”

on page 223).

Initializing Static Data

Your program may use static data that should be initialized, but only once. The code can

be entered by multiple threads, and might be entered concurrently. How can you ensure

that only one thread will perform the initialization?

The answer is to create a variable of type pthread_once_t, statically initialized to the value

PTHREAD_ONCE_INIT. In the module code, call pthread_once() passing the addresses

of the variable and of an initialization function. The pthreads library ensures that the

initialization function is called only once, and that any other threads calling

pthread_once() for this variable wait until the ﬁrst thread completes the call. An example

is shown in Example 11-2.

Example 11-2 One-Time Initialization

pthread_once_t first_time_flag = PTHREAD_ONCE_INIT;

elaborate_struct_t uninitialized; /* thing to initialize */

void elaborate_initializer(void); /* function to do it */

int subroutine(...)

{

...

pthread_once(&first_time_flag, elaborate_initializer);

...

}

pthread_setcanceltype(3P) Specify deferred or asynchronous cancellation.

pthread_testcancel(3P) Permit cancellation to take place, if it is pending.

Table 11-4 (continued) Functions for Managing Thread Execution

Function Purpose

Executing and Terminating Pthreads

217

Setting Event Handlers

A thread can establish functions that are called when threads terminate and when the

process forks.

Call pthread_cleanup_push() to register a function that is to be called in the event that

the current thread terminates, either by exiting or by cancellation. Call

pthread_cleanup_pop() to retract this registration and, optionally, to call the handler.

These functions are often used in library code, with the push operation done on entry to

the library and the pop done upon exit from the library. The push and pop operations are

in fact implemented partly as macro code. For this reason, calls to them must be strictly

balanced—a pop for each push—and each push/pop pair must appear in a single C

lexical scope. A nonstructured jump such as a longjmp (see the setjmp(3) reference page)

or goto can cause unexpected results.

Call pthread_atfork() to register three handlers related to a UNIX fork() call. The ﬁrst

handler executes just before the fork() takes place; the second executes just after the

fork() in the parent process; the third executes just after the fork() in the child process.

The fork() operation creates a new process with a copy of the calling process’s address

space, including any locked mutexes or semaphores. Typically, the new process

immediately calls exec() to replace the address space with a new program. When this is

the case, there is no need for pthread_atfork() (see the exec(2) and fork(2) reference

pages). However, if the new process continues to execute with the inherited address

space, including perhaps calls to library code that uses pthreads, it may be necessary for

the library code to reinitialize data in the address space of the child process. You can do

this in the fork event handlers.

Terminating and Being Terminated

A thread begins execution in the function that is named in the pthread_create() call.

When it returns from that function, the thread terminates. A thread can terminate earlier

by calling pthread_exit(). In either case, the thread returns a value of type void*.

218

Chapter 11: Thread-Level Parallelism

One thread can request early termination of another by calling pthread_cancel(), passing

the thread ID of the target thread. A thread can protect itself against cancellation using

two built-in status switches:

•The pthread_setcancelstate() function lets you prevent cancellation entirely

(PTHREAD_CANCEL_DISABLE) or permit cancellation

(PTHREAD_CANCEL_ENABLE).

•The pthread_setcanceltype() function lets you decide when cancellation will take

place, if it is allowed at all. Cancellation can happen whenever it is requested

(PTHREAD_CANCEL_ASYNCHRONOUS) or only at deﬁned points

(PTHREAD_CANCEL_DEFERRED).

When you prevent cancellation by setting PTHREAD_CANCEL_DISABLE, a

cancellation request is blocked but remains pending until the thread terminates or

changes its cancellation state.

The initial state of a thread is PTHREAD_CANCEL_ENABLE and

PTHREAD_CANCEL_DEFERRED. In this state, a cancellation request is blocked until

the thread calls a function that is a deﬁned cancellation point. The functions that are

cancellation points are listed in the pthread_setcanceltype(3P) reference page. A thread

can explicitly permit cancellation by calling pthread_testcancel().

Joining and Detaching

Sometimes you do not care when threads terminate—your program starts a set of

threads, and they continue until the entire program terminates.

In other cases, threads are created and terminated as the program runs. One thread can

ﬁnd out when another has terminated by calling pthread_join(), specifying the thread

ID. The function does not return until the speciﬁed thread terminates. The value the

speciﬁed thread passed to pthread_exit() is returned. At this time, your program can

release any resources that you associate with the thread, for example, stack space (see

“Thread Stack Allocation” on page 213).

The pthread_join() function detaches the terminated thread. If your program does not

use pthread_join(), and does continue execution after threads have terminated, you

must arrange for terminated threads to be detached in some other way. One way is by

specifying automatic detachment when the threads are created (see “Initial Detach State”

on page 213). Another is to call pthread_detach() at any time after creating the thread,

including after it has terminated.

Using Thread-Unique Data

219

If your program continues for a long time creating threads and letting them terminate,

but does not arrange for detaching the completed threads, eventually an error will occur

because resources have been used up.

Using Thread-Unique Data

In some designs, especially modules of library code, you need to store data that is both

•unique to the calling thread

•persistent from one function call to another

Normally, the only data that is unique to a thread is the contents of its local variables on

the stack, and these do not persist between calls. However, the pthreads library provides

a way to create persistent, thread-unique data. The functions for this are summarized in

Table 11-5.

Your program calls pthread_key_create() to deﬁne a new storage key. A storage key

represents one kind or class of data. Each thread has a unique instance of this class of

data, with an initial value of NULL. The returned key value (of type pthread_key_t) is used

by all threads to store and retrieve data of this class.

Any thread can use pthread_getspeciﬁc() to retrieve that thread’s unique instance of the

value stored under this key. A thread can fetch only its own value, which is the value

stored by this same thread using pthread_setspeciﬁc(). Any thread’s stored value is

NULL until it stores a new value.

Table 11-5 Functions for Thread-Unique Data

Function Purpose

pthread_key_create(3P) Create a key (class of thread data).

pthread_key_delete(3P) Delete a key.

pthread_getspeciﬁc(3P) Retrieve this thread’s value for a key.

pthread_setspeciﬁc(3P) Set this thread’s value for a key.

220

Chapter 11: Thread-Level Parallelism

When you create a key, you can specify a destructor function that is called automatically

when a thread terminates. The destructor is called as long as the key is still valid and the

key value for the terminating thread is not NULL. The destructor receives the thread’s

value for the key as its argument.

You create keys by calling pthread_key_create(). Keys can be created before any threads

are created. However, when you are designing a library module for use from any

threaded program, you need to create a key upon ﬁrst entry to your library code. This is

an ideal application for a pthread_once_t variable (see “Initializing Static Data” on

page 216). The code in Example 11-3 suggests how a threaded module would create a key

if necessary, and initialize its contents for the current thread.

Example 11-3 Initializing Thread-Unique Data

typedef struct perThread_s {

...items of data unique to thread...

} perThread_t;

pthread_key_t perThreadKey; /* key used to find per-thread info */

pthread_once_t makePerThreadKey = PTHREAD_ONCE_INIT;

|| Destructor function, called when any thread exits with a

|| non-NULL value of perThreadKey.

void deletePerThread(void *arg)

{

free(arg);

}

|| One-time initializing function, called through pthread_once,

|| to create the perThreadKey.

void createPerThreadKey(void)

{

pthread_key_create(&perThreadKey,deletePerThread);

}

|| Return the address of this thread’s instance of perThread_t,

|| Create the struct if necessary. Create the key if necessary.

struct perThreadInfo *getPerThread(void);

{

perThread_t *ppt;

int ret;

pthread_once(&makePerThreadKey, createPerThreadKey);

Pthreads and Signals

221

ppt = pthread_getspecific(perThreadKey);

if (NULL==ppt)

{

ppt = (perThread_t*)malloc(sizeof(perThread_t));

...initialize fields of ppt->new per-thread struct...

ret = pthread_setspecific(perThreadKey,(void*)ppt);

if (ret) perror("pthread_setspecific()");

}

return ppt;

}

The code in Example 11-3 includes the following functions and global variables:

Pthreads and Signals

Signals are an integral part of UNIX programming. For a general overview of signal

concepts and numbers, see “Signals” on page 104 and the signal(5) reference page. IRIX

supports three different, partly-compatible, signal facilities: BSD signals, SVR4 signals,

and POSIX signals. When you are writing a pthreads program, you must be sure to use

only the POSIX signal facilities (see “POSIX Signal Facility” on page 111). Do not mix use

of other signal functions in a pthreads program or unpredictable results can follow.

perThreadKey The key that represents the class of perThread_t structures.

makePerThreadKey Apthread_once_t variable used to ensure that

pthread_key_create() is called only once.

deletePerThread() Destructor function, passed to pthread_key_create(), called

when any thread terminates leaving a non-NULL value

under the perThreadKey key.

createPerThreadKey() Function called via pthread_once() to create perThreadKey.

getPerThread() Function that can be called from any thread to retrieve that

thread’s value of perThreadKey. If the key itself has not been

deﬁned, the function deﬁnes it (calling

createPerThreadKey() by way of pthread_once()). If this

thread’s value of the key is NULL, the function creates and

initializes a value, and stores it using pthread_setspeciﬁc().

222

Chapter 11: Thread-Level Parallelism

Setting Signal Masks

A thread speciﬁes which signals it is willing to receive (see “Signal Blocking and Signal

Masks” on page 107). In a program that is linked with the pthreads library this must be

done using pthread_sigmask(). Each thread inherits the signal mask of the thread that

calls pthread_create(). Typically you set an initial mask in the ﬁrst thread, so that it can

be inherited by all other threads.

When a signal is directed to a speciﬁc thread that blocks the signal, the signal remains

pending until the thread unblocks the signal. When a signal is directed to the process, it

is delivered to the ﬁrst thread that is not blocking that signal. If all threads block that

signal, the signal remains pending until some thread unblocks the signal or the process

ends.

While the process runs, a thread can ﬁnd out which signals are pending by calling

sigpending(). This function returns a mask showing the combination of signals pending

for the process as a whole and for the calling thread; that is, the signals that could be

delivered to the calling thread if the signals were not blocked.

Setting Signal Actions

When a signal is not blocked and is delivered, some action is taken. You specify what that

action should be using the sigaction() function. Specify an action for each signal number

separately. These actions are set on a process-wide basis, not individually for each thread.

Each thread has a private signal mask, but signal actions are speciﬁed for all threads in

the process. Choose among the following actions for each signal:

When a signal is delivered to a function, you have the option of specifying a function that

receives a siginfo_t structure with information about the signal. These and other options

are spelled out under “Signal Handling Policies” on page 108.

SIG_DFL Default handling, which depends on the speciﬁc signal but is either

to ignore the signal or to terminate the process, with or without a

dump.

SIG_IGN Ignore the signal, that is, discard it when it is generated. Certain

signals cannot be ignored.

(function address) Signal is delivered by an asynchronous call to the speciﬁed

function.

Scheduling Pthreads

223

Receiving Signals Synchronously

You can design a program to receive signals in a synchronous manner instead of

asynchronously. To do this, set a mask that blocks all the signals that are to be received

synchronously. Then call one of the following three functions:

Using these functions you can write a thread that treats arriving signals as a stream of

events to be processed. This is generally the safest program model, much easier to work

with than the asynchronous model of signal delivery.

Scheduling Pthreads

By default, the pthreads library schedules the threads of a process in a round-robin

fashion. Much of the scheduling machinery is done in the library, within the context of

the user process, without assistance from the IRIX kernel. On a multiprocessor, threads

can run concurrently.

The scheduling algorithm is controlled by two parameters: a policy and a priority for

each thread. These variables are set initially when the thread is created (see “Initial

Scheduling Priority and Policy” on page 213), and can be modiﬁed while the thread is

running. The functions used in scheduling are summarized in Table 11-6.

sigwait(3) Suspend until one of a speciﬁed set of signals is generated, then

return the signal number.

sigwaitinfo(3) Like sigwait(), but returns additional information about the signal.

sigtimedwait(3) Like sigwaitinfo(), but also returns after a speciﬁed time has elapsed

if no signal is received.

Table 11-6 Functions for Schedule Management

Function Purpose

pthread_getschedparam(3P) Get a thread’s policy and priority.

pthread_setschedparam(3P) Set a thread’s policy and priority.

sched_get_priority_max(3C) Return the maximum priority value.

sched_get_priority_min(3C) Return the minimum priority value.

sched_yield(2) Relinquish the processor.

224

Chapter 11: Thread-Level Parallelism

Scheduling Policy

There are two scheduling policies in this implementation: ﬁrst-in-ﬁrst-out

(SCHED_FIFO) and round-robin (SCHED_RR). (The default SCHED_OTHER behaves

the same as SCHED_RR.) SCHED_FIFO and SCHED_RR are similar. The round-robin

scheduler ensures that when a thread has used a certain maximum amount of time

without blocking, it is moved to the end of the queue of threads of the same priority, and

can be preempted by other threads.

The details of scheduling are discussed in the pthread_attr_setschedpolicy(3) reference

page.

Scheduling Priority

The queues of runnable threads are ordered by thread priority numbers, with a small

number representing a low priority, and a larger number representing a higher priority.

Threads with higher priorities are chosen to execute before threads with lower priorities.

The sched_get_priority_max() and sched_get_priority_min() functions return the

highest and lowest priority numbers. There are at least 32 priority values and the lowest

is greater than or equal to 0. You can use these functions to set up a system of relative

priorities as suggested by the code in Example 11-4.

Example 11-4 Establishing Relative Priority Levels

#include <sched.h>

int higherP, mediumP, lowerP;

void setRelativePriorities()

{

int maxP, minP;

maxP = sched_get_priority_max();

minP = sched_get_priority_min();

mediumP = minP + ((maxP-minP)/2);

higherP = mediumP+1;

lowerP = mediumP-1;

}

When all threads use one of the three priorities higherP,mediumP, or lowerP, threads that

run at higherP will always run in preference to threads at the other two priorities.

Scheduling Pthreads

225

Note: There are system functions named sched_get_priority_max() and

sched_get_priority_min(); they are documented in “Controlling Scheduling With POSIX

Functions” on page 202 and the sched_get_priority_max(2) reference page. However,

when you link with libpthread, these names are deﬁned in the pthread library and access

the pthread priority values.

A thread can set another’s priority or scheduling policy, or both, using

pthread_setschedparam(). A simple function to set a speciﬁed priority on the current

thread, returning the previous value, is shown in Example 11-5.

Example 11-5 Function to Set Own Priority

#include <sched.h> /* struct sched_param */

int setMyPriority(int newP)

{

pthread_t myTid = pthread_self();

int ret, oldP, policy;

struct sched_param sp;

(void) pthread_getschedparam(myTID,&policy,&sp);

oldP = sp.sched_priority;

sp.sched_priority = newP;

ret = pthread_setschedparam(myTID,policy,&sp);

if (ret)

{ perror("pthread_setschedparam()"); }

return oldP;

}

226

Chapter 11: Thread-Level Parallelism

Synchronizing Pthreads

Asynchronous threads using a common address space must cooperate and coordinate

their use of shared variables. Independent processes coordinate using the mechanisms

described in previous chapters: IRIX semaphores and locks and SVR4 semaphores.

Threads cannot use these IPC mechanisms. Threads can coordinate using these

mechanisms:

•POSIX unnamed semaphores for general coordination and resource management

(see “Managing Unnamed Semaphores” on page 73).

•POSIX or SVR4 message queues (see Chapter 6, “Message Queues”).

•Mutex objects, which allow threads to gain exclusive use of a shared variable (see

“Mutexes” on page 226).

•Condition variables, which allow a thread to wait when a controlling predicate is

false (see “Condition Variables” on page 229).

You cannot use IRIX semaphores, locks, and barriers to coordinate between multiple

threads within a single program. Nor can you use SVR4 semaphores for this purpose.

Mutexes

A mutex is a software object that stands for the right to modify some shared variable, or

the right to execute a critical section of code. A mutex can be owned by only one thread

at a time; other threads trying to acquire it wait.

Preparing Mutex Objects

When a thread wants to modify a variable that it shares with other threads, or execute a

critical section, the thread claims the associated mutex. This can cause the thread to wait

until it can acquire the mutex. When the thread has ﬁnished using the shared variable or

critical code, it releases the mutex. If two or more threads claim the mutex at once, one

acquires the mutex and continues, while the others are blocked until the mutex is

released.

Synchronizing Pthreads

227

A mutex has attributes that control its behavior. The pthreads library contains several

functions used to prepare a mutex for use. These functions are summarized in Table 11-7.

A mutex must be initialized before use. You can do this in one of three ways:

•Static assignment of the constant PTHREAD_MUTEX_INITIALIZER.

•Calling pthread_mutex_init() passing NULL instead of the address of a mutex

attribute object.

•Calling pthread_mutex_init() passing a pthread_mutexattr_t object that you have set

up with attribute values.

The ﬁrst two methods initialize the mutex to default attributes. Dynamic initialization

should be done only once (see “Initializing Static Data” on page 216).

Table 11-7 Functions for Preparing Mutex Objects

Function Purpose

pthread_mutex_init(3P) Initialize a mutex object based on a

pthread_mutexattr_t.

pthread_mutex_destroy(3P) Uninitialize a mutex object.

pthread_mutexattr_init(3P) Initialize a pthread_mutexattr_t with default

attributes.

pthread_mutexattr_destroy(3P) Uninitialize a pthread_mutexattr_t.

pthread_mutexattr_getprotocol(3P) Query the priority protocol in a pthread_mutexattr_t.

pthread_mutexattr_setprotocol(3P) Set the priority protocol choice in a

pthread_mutexattr_t.

pthread_mutexattr_getprioceiling(3P) Query the minimum priority in a

pthread_mutexattr_t.

pthread_mutexattr_setprioceiling(3P) Set the minimum priority in a pthread_mutexattr_t.

228

Chapter 11: Thread-Level Parallelism

Two attributes can be set in a pthread_mutexattr_t. The priority inheritance protocol is the

more important. You can set the priority inheritance protocol using

pthread_mutexattr_setprotocol() to one of three values:

When a low-priority thread has acquired a mutex, and a thread with higher priority

claims the mutex and is blocked, a “priority inversion” takes place—a higher-priority

thread is forced to wait for one of lower priority. The PTHREAD_PRIO_INHERIT

protocol prevents this—when a thread of higher priority blocks, the thread holding the

mutex has its priority boosted during the time it holds the mutex.

When round-robin scheduling is used, and a mutex represents a critical section of code,

a second problem can arise. If a thread acquires the mutex, enters the critical section, and

then is suspended because its time slice is up, other threads can be blocked needlessly

waiting for the mutex. The PTHREAD_PRIO_PROTECT protocol prevents this. Using

pthread_mutexattr_setprioceiling() you set a priority higher than normal for the mutex.

A thread that acquires the mutex runs at this higher priority while it holds the mutex.

This keeps it at the front of the round-robin queue until it exits the critical section and

releases the mutex.

Tip: PTHREAD_PRIO_NONE uses a faster code path than the other two priority options

for mutexes.

PTHREAD_PRIO_NONE The mutex has no effect on the thread that acquires it.

PTHREAD_PRIO_PROTECT The thread holding the mutex runs at a priority at least

as high as the highest priority of any mutex that it

currently holds.

PTHREAD_PRIO_INHERIT The thread holding the mutex runs at a priority at least

as high as the highest priority of any thread blocked on

that mutex.

Synchronizing Pthreads

229

Using Mutexes

The functions for claiming, releasing, and using mutexes are summarized in Table 11-8.

To determine where mutexes should be used, examine the memory variables and other

objects (such as ﬁles) that can be accessed from multiple threads. Create a mutex for each

set of shared objects that are used together. Ensure that the code acquires the proper

mutex before it modiﬁes the shared objects. You acquire a mutex by calling

pthread_mutex_lock(), and release it with pthread_mutex_unlock(). When a thread

must not be blocked, it can use pthread_mutex_trylock() to test the mutex and lock it

only if it is available.

Condition Variables

A condition variable provides a way in which a thread can temporarily give up

ownership of a mutex, wait for a condition to be true, and then reclaim ownership of the

mutex, all in a single operation.

Table 11-8 Functions for Using Mutexes

Function Purpose

pthread_mutex_lock(3P) Claim a mutex, blocking until it is available.

pthread_mutex_trylock(3P) Test a mutex and acquire it if it is available, else return

an error.

pthread_mutex_unlock(3P) Release a mutex.

pthread_mutex_getprioceiling(3P) Query the minimum priority of a mutex.

pthread_mutex_setprioceiling(3P) Set the minimum priority of a mutex.

230

Chapter 11: Thread-Level Parallelism

Preparing Condition Variables

Like mutexes and threads themselves, condition variables are supplied with a

mechanism of attribute objects (pthread_condattr_t objects) and static and dynamic

initializers. However, a condition variable has no useful attributes to initialize in this

implementation. The functions for initializing one are summarized in Table 11-9.

A condition variable must be initialized before use. You can do this in one of three ways:

•Static assignment of the constant PTHREAD_COND_INITIALIZER.

•Calling pthread_cond_init() passing NULL instead of the address of an attribute

object.

•Calling pthread_cond_init() passing a pthread_condattr_t object that you have set up

with attribute values.

The ﬁrst two methods initialize the variable to default attributes. Dynamic initialization

should be done only once (see “Initializing Static Data” on page 216).

Using Condition Variables

A condition variable is a software object that represents a test of a Boolean condition.

Typically the condition changes because of a software event such as “other thread has

supplied needed data.” A thread that wants to wait for that event claims the condition

variable, which causes it to wait. The thread that recognizes the event signals the

condition variable, releasing one or all threads that are waiting for the event.

Table 11-9 Functions for Preparing Condition Variables

Function Purpose

pthread_cond_init(3P) Initialize a condition variable based on an attribute object.

pthread_condattr_init(3P) Initialize a pthread_condattr_t to default attributes.

pthread_condattr_destroy(3P) Uninitialize a pthread_condattr_t.

Synchronizing Pthreads

231

A thread holds a mutex that represents a shared resource. While holding the mutex, the

thread ﬁnds that the shared resource is not complete or not ready. The thread needs to do

three things:

•Give up the mutex so that some other thread can renew the shared resource.

•Wait for the event that “resource is now ready for use.”

•Re-acquire the mutex for the shared resource.

These three actions are combined into one using a condition variable. The functions used

with condition variables are summarized in Table 11-10.

The pthread_cond_wait() and pthread_cond_timedwait() functions require two

arguments: a mutex that is owned by the calling thread and a condition variable. The

mutex is released and the wait begins. When the event is signalled (or the time limit

expires), the mutex is reacquired, as if by a call to pthread_mutex_lock().

The POSIX standard explicitly warns that it is possible in some cases for a conditional

wait to return early, before the event has been signalled. For this reason, a conditional

wait should always be coded in a loop that tests the shared resource for the needed

status. These principles are suggested in the code in Example 11-6, which is modelled

after an example in the POSIX 1003.1c standard.

Table 11-10 Functions for Using Condition Variables

Function Purpose

pthread_cond_wait(3P) Wait on a condition variable.

pthread_cond_timedwait(3P) Wait on a condition variable, returning with an error after a

time limit expires.

pthread_cond_signal(3P) Signal that an awaited event has occurred, releasing at least

one waiting thread.

pthread_cond_broadcast(3P) Signal that an awaited event has occurred, releasing all

waiting threads.

232

Chapter 11: Thread-Level Parallelism

Example 11-6 Use of Condition Variables

#include <assert.h>

#include <pthread.h>

typedef int listKey_t;

typedef struct element_s { /* list element */

listKey_t key;

struct element_s *next;

int busyFlag;

pthread_cond_t notBusy; /* event of no-longer-in-use */

} element_t;

typedef struct listHead_s { /* list head and mutex */

pthread_mutex_t mutList; /* right to modify the list */

element_t *head;

} listHead_t;

|| Internal function to find an element in a list, returning NULL

|| if the key is not in the list.

|| A returned element could be in use by another thread (busy).

|| The caller is assumed to hold the list mutex, otherwise

|| the returned value could be made invalid at any time.

static element_t *scanList(listHead_t* lp, listKey_t key)

{

element_t *ep;

for (ep=lp->head; (ep) ; ep=ep->next)

{

if (ep->key == key) break;

}

return ep;

}

|| Public function to find a key in a list, wait until the element

|| is no longer busy, mark it busy, and return it.

element_t *getFromList(listHead_t* lp, listKey_t key)

{

element_t *ep;

pthread_mutex_lock(&lp->mutList); /* lock list against changes */

while ((ep=scanList(lp,key)) && (ep->busyFlag))

{

pthread_cond_wait(&ep->notBusy, &lp->mutList); /* (A) */

}

if (ep) ep->busyFlag = 1;

pthread_mutex_unlock(&lp->mutList);

Synchronizing Pthreads

233

return ep;

}

|| Public function to release an element returned by getFromList().

void freeInList(listHead_t* lp, element_t *ep)

{

assert(ep->busyFlag);

pthread_mutex_lock(&lp->mutList); /* lock list to prevent races */

ep->busyFlag = 0;

pthread_cond_signal(&ep->notBusy);

pthread_mutex_unlock(&lp->mutList);

}

|| Public function to delete a list element returned by getFromList().

void deleteInList(listHead_t* lp, element_t *ep)

{

element_t **epp;

assert(ep->busyFlag);

pthread_mutex_lock(&lp->mutList);

for (epp = &lp->head; ep != *epp; epp = &((*epp)->next))

{ /* finding anchor of *ep in list */ }

*epp = ep->next; /* remove *ep from list */

ep->busyFlag = 0;

pthread_cond_broadcast(&ep->notBusy);

pthread_mutex_unlock(&lp->mutList);

pthread_cond_destroy(&ep->notBusy);

free(ep);

}

The functions in Example 11-6 implement part of a simple library for managing lists. In

a list head, mutList is a mutex object that represents the right to modify any part of the

list. The elements of a list can be “busy,” that is, in use by some thread. An element that

is busy has a nonzero busyFlag ﬁeld.

The getFromList() function looks up an element in a speciﬁed list, makes that element

busy, and returns it. The function begins by acquiring the list mutex. This ensures that

the list cannot change while the function is searching the list, and makes it legitimate for

the function to change the busy ﬂag in an element.

234

Chapter 11: Thread-Level Parallelism

When it ﬁnds the element, the function might discover that the element is already busy.

In this case, it must wait for the event “element is no longer busy,” which is represented

by the condition variable notBusy in the element. In order to wait for this event,

getFromList() calls pthread_cond_wait() passing its list mutex and the condition

variable (point “(A)” in the code). This releases the list mutex so that other threads can

acquire the list and do their work on other elements.

When any thread wants to release the use of a list element, it calls freeInList(). After

clearing the busy ﬂag in the list element, freeInList() announces that the event “element

is no longer busy” has occurred, by calling pthread_cond_signal().

This call releases a thread that is waiting at point “(A).” If there is more than one thread

waiting for the same element, the ﬁrst in priority order is released. The released thread

re-acquires the list mutex and resumes execution. The ﬁrst thing it does is to repeat its

search of the list for the desired key and, on ﬁnding the element again, to test it again for

busyness. This repetition is needed because it is possible to get spurious returns from a

condition variable.

When a thread wants to delete a list element, it gets the list element by calling

getFromList(). This ensures that the element is busy, so no other thread is using it. Then

the thread calls deleteInList(). This function changes the list, so it begins by acquiring the

list mutex. Then it can safely modify the list pointers. It scans up the list looking for the

pointer that points to the target element. It removes the target element from the list by

copying its next ﬁeld to replace the pointer to the target element.

With the element removed from the list, deleteInList() calls pthread_cond_broadcast()

to wake up all threads—not just the ﬁrst thread—that might be waiting for the element

to become nonbusy. Each of these threads resumes execution at point “(A)” by

attempting to re-acquire the list mutex. However, deleteInList() is still holding the list

mutex. The mutex is released; then the other threads can resume execution following

point “(A),” but this time when they search the list, the desired key is no longer found.

Meanwhile, deleteInList() uses pthread_cond_destroy() to release any memory that the

pthreads library might have associated with the condition variable, before releasing the

list element object itself.

235

Chapter 12

12. Distributed Process Parallelism

Processes and threads allow you to execute in parallel within a single system memory.

When the system memory is distributed among multiple independent machines, your

program must be built around a message-passing model. In a message-passing model,

your application consists of multiple, independent processes, each with its own address

space, running in possibly many different computers. Each process shares data and

coordinates with the others by passing messages.

IRIX with the Array 2.0 software package supports two libraries on which you can build

a distributed, message-passing application: Message-Passing Interface (MPI) and

Portable Virtual Machine (PVM). High-level overviews of these are given under

“Distributed Computation Models” on page 187.

236

Chapter 12: Distributed Process Parallelism

Choosing Between MPI and PVM

Silicon Graphics has adopted the MPI interface as the primary and preferred model for

distributed applications on Array processors. There are occasions when you may elect to

use PVM instead, but in general MPI is recommended for new applications and for

applications that are being ported to a Silicon Graphics Array system.

In many ways, MPI and PVM are similar:

•Each is designed, speciﬁed, and implemented by third parties that have no direct

interest in selling hardware.

•Support for each is available over the Internet at low or no cost.

•Each deﬁnes portable, high-level functions that are used by a group of processes to

make contact and exchange data without having to be aware of the communication

medium.

•Each supports C and Fortran 77.

•Each provides for automatic conversion between different representations of the

same kind of data so that processes can be distributed over a heterogeneous

computer network.

The primary reason MPI is preferred for Array systems is performance. The design of

MPI is such that a highly optimized implementation could be created for the

homogenous environment of Silicon Graphics Array systems. Under Array 2.0, MPI

applications take advantage of a HIPPI “bypass” connection to exchange data with small

latencies and high data rates. Speciﬁc data rates and latencies are listed (with much more

about Array systems) in the book Getting Started With Array Systems, 007-3058-002.

The PVM implementation for Array systems is not as highly tuned, although still

effective for some work.

Another difference between MPI and PVM is in the support for the “topology” (the

interconnect pattern: grid, torus, or tree) of the communicating processes. In MPI, the

group size and topology are ﬁxed when the group is created. This permits low-overhead

group operations. The lack of run-time ﬂexibility is not usually a problem because the

topology is normally inherent in the algorithmic design. In PVM, group composition is

dynamic, which requires the use of a “group server” process and causes more overhead

in common group-related operations.

Choosing Between MPI and PVM

237

Other reasons can be found in the design details of the two interfaces. MPI, for example,

supports asynchronous and multiple message trafﬁc, so that a process can wait for any

of a list of message-receive calls to complete and can initiate concurrent sending and

receiving. MPI provides for a “context” qualiﬁer as part of the “envelope” of each

message. This permits you to build encapsulated libraries that exchange data

independently of the data exchanged by the client modules. MPI also provides several

elegant data-exchange functions for use by a program that is emulating an SPMD parallel

architecture.

PVM is possibly more suitable for distributing a program across a heterogenous network

that includes both uniprocessors and multiprocessors, and includes computers from

multiple vendors. When the application runs in the environment of a Silicon Graphics

Array system, MPI is the recommended interface.

Porting From PVM to MPI

Because MPI and PVM address similar problems in ways that are conceptually similar,

you can consider porting a program from PVM to MPI in order to get better performance

on an Array system. A detailed discussion of this process, with examples, appears under

“Converting a PVM Program to an MPI Program” on page 244.

PVM and MPI are two popular message-passing libraries that are in use across a variety

of platform. MPI assimilates the most attractive features of a number of existing

message-passing systems, including PVM (see “Choosing Between MPI and PVM” on

page 236).

Silicon Graphics has adopted MPI as the message-passing model for the POWER

CHALLENGEarray system and other Array products, and provides a low-latency,

high-bandwidth implementation of MPI for these systems. Programmers are encouraged

to write new message-passing applications using MPI, and to port existing applications

to MPI when that is feasible.

Many existing message-passing applications use the PVM library, owing to its

widespread use for the last ﬁve years. In order to support this application base, Silicon

Graphics also supports PVM for Array systems. However, the design of the MPI interface

is such that the performance of the MPI implementation on these systems is always better

than the performance of PVM. To obtain best performance, porting parallel programs

from PVM to MPI is recommended.

238

Chapter 12: Distributed Process Parallelism

This appendix covers the following main topics:

•“Differences Between PVM and MPI” on page 238 gives an overview of the

differences that are likely to cause difﬁculty in porting.

•“Comparing Library Routines” on page 240 lists the PVM routines and their MPI

counterparts, when a counterpart exists.

•“Converting a PVM Program to an MPI Program” on page 244 covers the tasks

involved in porting.

•“Example Programs” on page 249 shows example conversions.

Differences Between PVM and MPI

This section discusses the main differences between PVM and MPI from the user’s

perspective, focusing mainly on PVM functions that are not available in MPI.

Although to a large extent the library calls of MPI and PVM provide similar functionality,

some PVM calls do not have a counterpart in MPI, and vice versa. Additionally, the

semantics of some of the equivalent calls are inherently different for the two libraries

(owing, for example, to the concept of dynamic groups in PVM). Hence, the process of

converting a PVM program into an MPI program can be straightforward or complicated,

depending on the particular PVM calls in the program and how they are used. For many

PVM programs, conversion is straightforward.

In addition to a message-passing library, PVM also provides the concept of a parallel

virtual machine session. A user starts this session before invoking any PVM programs; in

other words, PVM provides the means to establish a parallel environment from which a

user invokes a parallel program.

Additionally, PVM includes a console, which is useful for monitoring and controlling the

states of the machines in the virtual machine and the state of execution of a PVM job. Most

PVM console commands have corresponding library calls.

The MPI standard does not provide mechanisms for specifying the initial allocation of

processes to an MPI computation and their binding to physical processors. Mechanisms

to do so at load time or run time are left to individual vendor implementations. However,

this difference between the two paradigms is not, by itself, signiﬁcant for most programs,

and should not affect the port from PVM to MPI.

Differences Between PVM and MPI

239

The chief differences between the current versions of PVM and MPI libraries are as

follows:

•PVM supports dynamic spawning of tasks, whereas MPI does not.

•PVM supports dynamic process groups; that is, groups whose membership can

change dynamically at any time during a computation. MPI does not support

dynamic process groups.

MPI does not provide a mechanism to build a group from scratch, but only from

other groups that have been deﬁned previously. Closely related to groups in MPI

are communicators, which specify the communication context for a communication

operation and an ordered process group that shares this communication context.

The chief difference between PVM groups and MPI communicators is that any PVM

task can join/leave a group independently, whereas in MPI all communicator

operations are collective.

•A PVM task can add or delete a host from the virtual machine, thereby dynamically

changing the number of machines a program runs on. This is not available in MPI.

•A PVM program (or any of its tasks) can request various kinds of information from

the PVM library about the collection of hosts on which it is running, the tasks that

make up the program, and a task’s parent. The MPI library does not provide such

calls.

•Some of the collective communication calls in PVM (for instance, pvm_reduce()) are

nonblocking. The MPI collective communication routines are not required to return

as soon as their participation in the collective communication is complete.

•PVM provides two methods of signaling other PVM tasks: sending a UNIX signal to

another task, and notifying a task about an event (from a set of predeﬁned events)

by sending it a message with a user-speciﬁed tag that the application can check. A

PVM call is also provided through which a task can kill another PVM task. These

functions are not available in MPI.

•A task can leave/unenroll from a PVM session as many times as it wants, whereas

an MPI task must initialize/ﬁnalize exactly once.

•A PVM task need not explicitly enroll: the ﬁrst PVM call enrolls the calling task into

a PVM session. An MPI task must call MPI_Init() before calling any other MPI

routine and it must call this routine only once.

•A PVM task can be registered by another task as responsible for adding new PVM

hosts, or as a PVM resource manager, or as responsible for starting new PVM tasks.

These features are not available in MPI.

240

Chapter 12: Distributed Process Parallelism

•A PVM task can multicast data to a set of tasks. As opposed to a broadcast, this

multicast does not require the participating tasks to be members of a group. MPI

does not have a routine to do multicasts.

•PVM tasks can be started in debug mode (that is, under the control of a debugger of

the user’s choice). This capability is not speciﬁed in the MPI standard, although it

can be provided on top of MPI in some cases.

•In PVM, a user can use the pvm_catchout() routine to specify collection of task

outputs in various ways. The MPI standard does not specify any means to do this.

•PVM includes a receive routine with a timeout capability, which allows the user to

block on a receive for a user-speciﬁed amount of time. MPI does not have a

corresponding call.

•PVM includes a routine that allows users to deﬁne their own receive contexts to be

used by subsequent PVM receive routines. Communicators in MPI provide this

type of functionality to a limited extent.

On the other hand, MPI provides several features that are not available in PVM,

including a variety of communication modes, communicators, derived data types,

additional group management facilities, and virtual process topologies, as well as a

larger set of collective communication calls. However, the set of MPI functions that are

not available in PVM is not discussed here, since they are not directly relevant to porting

from PVM to MPI.

Comparing Library Routines

Some PVM routines have close counterparts in MPI and others do not.

Comparable Routines

Table 12-1 lists all the PVM routines (showing both C and Fortran names) and the

corresponding MPI routines. As can be seen, most PVM routines have direct MPI

counterparts. Of the remaining routines, many can simply be removed owing to changes

in initial environment setup between PVM and MPI. These are marked by an asterisk (*)

in the MPI column, and also include utility routines and routines that can be easily

implemented at the application level (for example, pvm_mcast() and pvm_trecv()).

Comparing Library Routines

241

Routines that have a conceptual counterpart in MPI but are not directly translatable to a

single MPI call are listed with a phrase such as “communicators.” Finally, nonportable

routines are noted in the MPI column. Most of these nonportable PVM routines do not

have a Fortran counterpart, which is also noted in the PVM column.

Note that this table does not exhaustively cover all aspects of PVM routines. For instance,

it does not mention the various options of PVM calls. Also, there are some PVM routines

that do have MPI counterparts, but are needed only in special cases, such as

pvm_initsend() and MPI_Send_init(). Some routines, such as pvm_buﬁnfo() and

MPI_Get_count(), have more than one corresponding call in MPI; only one is listed in

the table.

Table 12-1 Corresponding PVM and MPI Routines

PVM Routine (C/Fortran) MPI Routine (C/Fortran)

pvm_addhosts/pvmfaddhost *

pvm_barrier/pvmfbarrier MPI_Barrier/MPI_BARRIER

pvm_bcast/pvmfbcast MPI_Bcast/MPI_BCAST

pvm_buﬁnfo/pvmfbuﬁnfo MPI_Get_count/MPI_GET_COUNT

pvm_catchout/pvmfcatchout *

pvm_conﬁg/pvmfconﬁg*

pvm_delhosts/pvmfdelhost *

pvm_exit/pvmfexit MPI_Finalize/MPI_FINALIZE

pvm_freebuf/pvmffreebuf MPI_Buffer_detach/MPI_BUFFER_DETACH

pvm_gather/pvmfgather MPI_Gather/MPI_GATHER

pvm_getinst/pvmfgetinst MPI_Group_rank/MPI_GROUP_RANK

pvm_getopt/pvmfgetopt *

pvm_getrbuf/pvmfgetrbuf Communicators

pvm_getsbuf/pvmfgetsbuf Communicators

pvm_gettid/pvmfgettid *

pvm_gsize/pvmfgsize MPI_Group_size/MPI_GROUP_SIZE

242

Chapter 12: Distributed Process Parallelism

pvm_halt/pvmfhalt *

pvm_hostsync/pvmfhostsync MPI_Wtime/MPI_WTIME

pvm_initsend/pvmﬁnitsend MPI_Send_init/MPI_SEND_INIT

pvm_joingrup/pvmfjoingroup MPI_Comm_group/MPI_COMM_GROUP

pvm_kill/pvmfkill PVM routine is nonportable

pvm_lvgroup/pvmﬂvgroup MPI_Group_free/MPI_GROUP_FREE

pvm_mcast/pvmfmcast *

pvm_mkbuf/pvmfmkbuf MPI_Buffer_attach/MPI_BUFFER_ATTACH

pvm_mstat/pvmfmstat *

pvm_mytid/pvmfmytid MPI_Init/MPI_INIT followed by

MPI_Comm_rank/MPI_COMM_RANK

pvm_notify/pvmfnotify PVM routine is nonportable.

pvm_nrecv/pvmfnrecv MPI_Irecv/MPI_IRECV

pvm_pk*/pvmfpack MPI_Pack/MPI_PACK

pvm_parent/pvmfparent *

pvm_perror/pvmfperror MPI_Error_string/MPI_ERROR_STRING

pvm_precv/pvmfprecv MPI_Recv/MPI_RECV

pvm_probe/pvmfprobe MPI_Iprobe/MPI_IPROBE

pvm_psend/pvmfpsend MPI_Bsend/MPI_BSEND

pvm_pstat/pvmfpstat *

pvm_recv/pvmfrecv MPI_Recv/MPI_RECV

pvm_recvf/no Fortran counterpart PVM routine is nonportable.

pvm_reduce/pvmfreduce MPI_Reduce/MPI_REDUCE

pvm_reg_hoster/no Fortran counterpart PVM routine is nonportable.

Table 12-1 (continued) Corresponding PVM and MPI Routines

PVM Routine (C/Fortran) MPI Routine (C/Fortran)

Comparing Library Routines

243

Nonportable PVM Functions

The PVM routines listed in this section cannot be translated directly into MPI routines.

These same routines are shown in Table 12-1 with the notation “PVM routine is

nonportable,” to distinguish them from the PVM routines that, while they have no MPI

counterpart, are easily removed in the MPI environment.

If the PVM program in question uses any of the following PVM functions, or uses

dynamic groups, it cannot be directly ported to an MPI program:

•pvm_kill()

•pvm_notify()

•pvm_recvf()

•pvm_reg_hoster()

pvm_reg_rm/no Fortran counterpart PVM routine is nonportable.

pvm_reg_tasker/no Fortran counterpart PVM routine is nonportable.

pvm_scatter/pvmfscatter MPI_Scatter/MPI_SCATTER

pvm_send/pvmfsend MPI_Send/MPI_SEND

pvm_sendsig/pvmfsendsig PVM routine is nonportable.

pvm_setopt/pvmfsetopt *

pvm_setrbuf/pvmfsetrbuf Communicators

pvm_setsbuf/pvmfsetsbuf Communicators

pvm_spawn/pvmfspawn *

pvm_tasks/pvmftasks *

pvm_tidtohost/pvmftidtohost *

pvm_trecv/pvmftrecv *

pvm_upk*/pvmfunpack MPI_Unpack/MPI_UNPACK

Table 12-1 (continued) Corresponding PVM and MPI Routines

PVM Routine (C/Fortran) MPI Routine (C/Fortran)

244

Chapter 12: Distributed Process Parallelism

•pvm_reg_rm()

•pvm_reg_tasker()

•pvm_sendsig()

You must change the PVM program to eliminate the use of these functions before it can

be ported to an MPI program. In some cases, this may not be possible. Note that most of

these functions are available in the PVM domain only as C routines, and are not

commonly used.

Converting a PVM Program to an MPI Program

This section discusses the basic steps for converting a PVM program to an MPI program.

Initial Environment Setup

PVM supports three different models of programming, and the initial environment setup

varies depending on the model in question. The initial environment setup consists of

determining the total number of PVM tasks to be used in the PVM job (including those

started by hand at a shell prompt and those started via a pvm_spawn()), and using that

as the initial static number for MPI. If the program being ported relies on dynamic

addition and deletion of hosts, you must change the program to use a static number of

hosts and tasks.

It is a common practice in PVM programs to start a task by hand, and then determine the

machine conﬁguration inside this task via the pvm_conﬁg() call, so as to dynamically

spawn tasks on the machines in the current conﬁguration. You must replace this practice

with a static determination of the hosts and tasks that form an MPI parallel program.

The rest of this section discusses the three programming models supported by PVM and

how to perform initial environment setup for each case.

Converting a PVM Program to an MPI Program

245

Pure SPMD Program

In the pure SPMD program model, ninstances of the same program are started as the n

tasks of the parallel job, using the spawn command of the PVM console (or by hand at

each of the nhosts simultaneously). No tasks are dynamically spawned in the tasks; that

is, the tasks do not use pvm_spawn(). This scenario is essentially the same as the current

MPI one where no tasks are dynamically spawned.

For this scenario, the initial parallel environment setup consists of specifying the hosts to

run the ntasks on. You can accomplish this setup using the mechanism provided on top

of the MPI library. For example, the setup can use a host ﬁle for mpirun or the procgroup

ﬁle for the MPICH implementation.

General SPMD Model

In this model, ninstances of the same program are executed as ntasks of the parallel job.

However, one or more tasks are started by hand at the beginning, and these dynamically

spawn the remaining tasks in turn.

Here, the change involves ﬁguring out how many PVM tasks are spawned in total

(including those started by hand and those dynamically spawned), and on what

machines these tasks are run. These two pieces of information can be directly translated

into information (number of MPI tasks and the hosts on which these are to be run) that

the hostﬁle/procgroup ﬁle of the MPI setup requires.

You must remove all instances of the pvm_spawn() call from the program. Most of the

options of this call can be dealt by a translation into the MPI initial setup. The option

PvmTaskDebug has no counterpart in MPI, so the corresponding MPI task cannot be

started in debug mode. The option PvmTaskTrace and its subsequent use with a tool such

as XPVM can be translated to whatever proﬁling interface and tools are available in the

given MPI implementation.

Similarly, you should also eliminate all calls to pvm_addhosts(),pvm_delhosts(), and

pvm_conﬁg(). Finally, if the program has a pvm_halt() call, remove it also.

246

Chapter 12: Distributed Process Parallelism

MPMD Model

In an MPMD programming model, one or more distinct tasks (having different

executables) are started by hand, and these tasks dynamically spawn other (possibly

distinct) tasks. The initial setup change required for this model is similar to the one

required for the general SPMD model discussed in the previous section; that discussion

applies here too. The main difference here is that the task executables are different

programs, and this information is encapsulated in the hostﬁle/procgroup ﬁle in the MPI

paradigm.

The initial MPI environment setup thus consists of ﬁguring out the number of instances

of each distinct executable that constitute the parallel job, and using the total as the static

initial number for the MPI environment. Again, you must remove all the pvm_spawn(),

pvm_conﬁg(),pvm_addhosts(),pvm_delhosts(), and pvm_halt() calls in each PVM

executable.

Common Environment Setup Changes

For all the three models, you must remove from the program being ported all calls that

query the library for virtual machine or tasks information, such as pvm_mstat(),

pvm_pstat() and pvm_tasks(). Handle any semantic dependency to these calls in the

program, other than initial environment setup, in the resulting MPI program.

Since tasks cannot enroll in and leave from an MPI run time environment more than

once, you must change all PVM tasks to reﬂect this requirement. Typically, a PVM task

enrolls via the pvm_mytid() call; in the absence of this call, the ﬁrst PVM call enrolls the

calling task. Additionally, a task can call pvm_mytid() several times in a program with

or without interleaved pvm_exit() calls. If it is not interleaved with pvm_exit() calls, the

calling task simply gets its task ID back from the PVM library on the second and

subsequent pvm_mytid() calls. You can easily eliminate these subsequent pvm_mytid()

calls from the program by saving the value of the task ID and passing it around.

Replace the ﬁrst pvm_mytid() call in a PVM program with the MPI_Init() routine, which

must precede all other MPI routines and must be called exactly once. Since an MPI

implementation can add its own command-line arguments to be processed by

MPI_Init(),you must place all the user’s command-line processing (anything that

accesses argc and argv) after MPI_Init(). This requirement is in contrast to PVM

programs, since PVM does not add its own arguments to those of the tasks being started.

Converting a PVM Program to an MPI Program

247

To ﬁnd out the number of tasks in the parallel job and its own task ID, an MPI task must

call the functions MPI_Comm_size() and MPI_Comm_rank(). Thus the initial portion of

a typical MPI program looks like the following:

/* Initialize the MPI environment. */

MPI_Init(&argc, &argv);

/* Get task id and the total number of tasks. */

/* The rank is essentially the task id. */

MPI_Comm_rank(MPI_COMM_WORLD, &taskId);

MPI_Comm_size(MPI_COMM_WORLD, &numTasks);

Task Environment Cleanup

Replace the pvm_exit() call at the end of each PVM program with the MPI_Finalize()

call, which cleans up all MPI states. This call should be the last MPI routine in a program.

You must ensure that all pending communications involving a process complete before

the process calls MPI_Finalize().

Group Management Functions

As far as groups are concerned, the main difference between PVM and MPI is that PVM

groups can be dynamic, whereas MPI groups are static. In PVM, a task can belong to

multiple groups and can join and leave a group an arbitrary number of times, so that

groups can change dynamically at any time during a computation. Additionally,

arbitrary groups can be formed by tasks.

In contrast, in MPI a group cannot be built from scratch, but only from other groups that

have been deﬁned previously. MPI has two predeﬁned groups: MPI_GROUP_EMPTY (a

group with no members), and the group associated with the initial communicator

MPI_COMM_WORLD (consisting of all processes), which forms the base group upon

which all other groups are deﬁned.

If the PVM program uses dynamic groups, modify it to use only static groups before it

can be ported to an MPI program. Note that most applications do not need dynamic

groups.

Once the PVM program to be ported deals only with static groups, replace all instances

of pvm_joingroup() with MPI_Comm_group() or one of its variants. Replace all

occurrences of pvm_lvgroup() with MPI_Group_free().

248

Chapter 12: Distributed Process Parallelism

Intertask Communication

All PVM intertask communication calls have counterparts in MPI, except for

pvm_mcast() and pvm_trecv(). You can easily replace multicasting in the PVM library

with multicasting at the application layer with a set of send calls or by deﬁning a group

and performing a broadcast in that group. Similarly, you can replace a timed receive in

the PVM library by an equivalent function at the application layer.

Some PVM collective communication calls, namely, pvm_gather() and pvm_reduce(),

are nonblocking. This characteristic should not lead to any changes in the application

code unless the PVM application has explicit synchronization calls (for example,

pvm_barrier()) after such nonblocking calls. In such a case, you can remove these

synchronization calls from the translated MPI program.

To send contiguous data of a given type, MPI does not require packing and unpacking of

data in send buffers, as PVM does. Additionally, for noncontiguous data, MPI provides

derived data types that avoid explicit packing and unpacking. However, MPI also

provides pack/unpack functions for sending noncontiguous data, for compatibility with

previous versions of libraries.

Multiple message buffers and their functionality in PVM can be emulated by

communicators in MPI.

Utility Functions

Most utility functions in PVM have corresponding setup options in the parallel setup

facility that comes with a particular MPI implementation. Some of these utility functions

may not be available; note, however, that these functions do not directly affect the basic

characteristics of the application. Instead they are provided as a convenience to

programmers. Such functions include pvm_catchout(),pvm_getopt(),pvm_setopt() and

pvm_tidtohost().

A PVM task has a parent task, whose task ID is returned by the pvm_parent() call. Since

MPI tasks are not spawned by other MPI tasks, this concept of a parent task does not exist

in MPI. Hence you must remove all instances of pvm_parent() and handle their logical

consequences in the program. For instance, one of the most common reasons for ﬁnding

out the parent’s task ID is to send computation-result messages back to it; this

functionality can be easily replicated in an MPI program (or even a PVM program) by a

task declaring itself to be the logical parent to whom all the computation-result messages

should be sent.

Example Programs

249

Example Programs

The two examples in this section illustrate some of the porting concepts presented in this

chapter. The ﬁrst one is a SPMD program where all the tasks are instances of the same

executable; here the ﬁrst task spawns the remaining ones in the PVM version. The second

example is a general MPMD program based on the master-slave paradigm, with one

master task and multiple slave tasks.

Both these examples are taken from the example set provided with the public domain

PVM software. Please note that several different translations are possible for each

example, and the ones given here may not be the most efﬁcient ones.

Example 1: SPMD Program

Note: The group functions in the PVM version of the program are not necessary in the

MPI counterpart, since the basic group corresponding to MPI_COMM_WORLD

containing all the tasks already exists in MPI.

SPMD Program in PVM Version

* SPMD example using PVM 3

* also illustrating group functions

#define NPROC 4

#include <stdio.h>

#include <sys/types.h>

#include "pvm3.h"

void dowork(int me, int nproc);

main()

{

int mytid; /* my task id */

int tids[NPROC]; /* array of task id */

int me; /* my process number */

int i;

/* enroll in pvm */

mytid = pvm_mytid();

/* Join a group and if I am the first instance */

/* i.e. me=0 spawn more copies of myself */

me = pvm_joingroup("foo");

printf("me = %d mytid = %d\n",me,mytid);

if( me == 0 )

250

Chapter 12: Distributed Process Parallelism

pvm_spawn("spmd", (char**)0, 0, "", NPROC-1,&tids[1]);

/* Wait for everyone to startup before proceeding. */

pvm_barrier("foo", NPROC);

/*------------------------------------------------------*/

dowork(me, NPROC);

/* Program finished. Leave group and exit pvm */

pvm_lvgroup("foo");

pvm_exit();

exit(1);

}

/* Simple example passes a token around a ring */

void dowork(int me, int nproc)

{

int token;

int src, dest;

int count = 1;

int stride = 1;

int msgtag = 4;

/* Determine neighbors in the ring */

src = pvm_gettid("foo", me-1);

dest= pvm_gettid("foo", me+1);

if(me == 0)

src = pvm_gettid("foo", NPROC-1);

if(me == NPROC-1)

dest = pvm_gettid("foo", 0);

if(me == 0)

{

token = dest;

pvm_initsend(PvmDataDefault);

pvm_pkint(&token, count, stride);

pvm_send(dest, msgtag);

printf("token ring begun: value sent = %d\n", token);

pvm_recv(src, msgtag);

pvm_upkint(&token, count, stride);

printf("token ring done: value recvd = %d\n", token);

}

else

{

pvm_recv(src, msgtag);

pvm_upkint(&token, count, stride);

pvm_initsend(PvmDataDefault);

pvm_pkint(&token, count, stride);

pvm_send(dest, msgtag);

}

Example Programs

251

SPMD Program in MPI Version

* SPMD example using MPI,

* illustrating porting from PVM to MPI.

#include <stdio.h>

#include <sys/types.h>

#include <mpi.h>

void dowork(int me, int nproc);

main(int argc, char *argv[])

{

int mytid; /* my task id */

int ntasks; /* total number of tasks */

int i;

/* Initialize MPI */

MPI_Init(&argc, &argv);

/* Get our task id (our rank in the basic group) */

MPI_Comm_rank(MPI_COMM_WORLD, &mytid);

/* Get the number of MPI tasks */

MPI_Comm_size(MPI_COMM_WORLD, &ntasks);

if(mytid == 0)

printf("mytid = %d, ntasks = %d\n", mytid, ntasks);

/* Wait for everyone to startup before proceeding. */

MPI_Barrier(MPI_COMM_WORLD);

/*-------------------------------------------------*/

dowork(mytid, ntasks);

MPI_Finalize();

exit(0);

}

/* Simple example passes a token around a ring */

void dowork(int me, int nproc)

{

int token;

int src, dest;

MPI_Status status;

int count = 1;

int msgtag = 4;

/* Determine neighbors in the ring */

src = me-1;

dest= me+1;

if(me == 0) src = nproc-1;

if(me == nproc-1) dest = 0;

if(me == 0)

{

252

Chapter 12: Distributed Process Parallelism

token = dest;

MPI_Send(&token, count, MPI_INT, dest, msgtag,

MPI_COMM_WORLD);

printf("token ring begun: value sent = %d\n", token);

MPI_Recv(&token, count, MPI_INT, src, msgtag,

MPI_COMM_WORLD, &status);

printf("token ring done: value rcvd = %d\n", token);

}

else

{

MPI_Recv(&token, count, MPI_INT, src, msgtag,

MPI_COMM_WORLD, &status);

MPI_Send(&token, count, MPI_INT, dest, msgtag,

MPI_COMM_WORLD);

}

Example 2: MPMD Example

In this example, in the PVM version, the slaves are sent all the slave TIDs by the master

and they use these to determine their logical ordering among each other. The MPI slaves

determine their logical ordering by the information available to them about their

individual task ID and the master’s task ID. This is just one of the many schemes by

which this can be implemented.

Also, instead of packing and unpacking used in the MPI version, MPI derived datatypes

could have been used.

MPMD in PVM Version—Master Task

#include <stdio.h>

#include "pvm3.h"

#define SLAVENAME "slave1"

main()

{

int mytid; /* my task id */

int tids[32]; /* slave task ids */

int n, nproc, numt, i, who, msgtype, nhost, narch;

float data[100], result[32];

struct pvmhostinfo *hostp[32];

/* enroll in pvm */

mytid = pvm_mytid();

/* Set number of slaves to start */

Example Programs

253

/* Can not do stdin from spawned task */

if(pvm_parent() == PvmNoParent){

puts("How many slave programs (1-32)?");

scanf("%d", &nproc);

}

else{

pvm_config(&nhost, &narch, hostp);

nproc = nhost;

if(nproc > 32) nproc = 32 ;

}

/* start up slave tasks */

numt=pvm_spawn(SLAVENAME, (char**)0, 0, "", nproc, tids);

if( numt < nproc ){

printf("Trouble spawning slaves. Aborting. ");

printf("Error codes are:\n");

for( i=numt ; i<nproc ; i++ ) {

printf("TID %d %d\n",i,tids[i]);

}

for( i=0 ; i<numt ; i++ ){

pvm_kill(tids[i]);

}

pvm_exit();

exit();

}

/* Begin User Program */

n = 100;

/* initialize_data( data, n ); */

for( i=0 ; i<n ; i++ ){

data[i] = 1;

}

/* Broadcast initial data to slave tasks */

pvm_initsend(PvmDataDefault);

pvm_pkint(&nproc, 1, 1);

pvm_pkint(tids, nproc, 1);

pvm_pkint(&n, 1, 1);

pvm_pkfloat(data, n, 1);

pvm_mcast(tids, nproc, 0);

/* Wait for results from slaves */

msgtype = 5;

for( i=0 ; i<nproc ; i++ ){

pvm_recv(-1, msgtype);

pvm_upkint(&who, 1, 1);

pvm_upkfloat(&result[who], 1, 1);

printf("I got %f from %d\n",result[who],who);

}

254

Chapter 12: Distributed Process Parallelism

/* Program Finished. Exit PVM before stopping */

pvm_exit();

}

MPMD in PVM Version—Slave Task

#include <stdio.h>

#include "pvm3.h"

float work(int me, int n, float *data, int *tids, int nproc );

main()

{

int mytid; /* my task id */

int tids[32]; /* task ids */

int n, me, i, nproc, master, msgtype;

float data[100], result;

float work();

/* enroll in pvm */

mytid = pvm_mytid();

/* Receive data from master */

msgtype = 0;

pvm_recv(-1, msgtype);

pvm_upkint(&nproc, 1, 1);

pvm_upkint(tids, nproc, 1);

pvm_upkint(&n, 1, 1);

pvm_upkfloat(data, n, 1);

/* Determine which slave I am (0 -- nproc-1) */

for(i=0; i<nproc ; i++)

if(mytid == tids[i])

{ me = i; break; }

/* Do calculations with data */

result = work(me, n, data, tids, nproc);

/* Send result to master */

pvm_initsend(PvmDataDefault);

pvm_pkint(&me, 1, 1);

pvm_pkfloat(&result, 1, 1);

msgtype = 5;

master = pvm_parent();

pvm_send(master, msgtype);

/* Program finished. Exit PVM before stopping */

pvm_exit();

}

float

work(int me, int n, float *data, int *tids, int nproc )

/*Simple ex: slaves exchange data with left neighbor*/

{

Example Programs

255

int i, dest;

float psum = 0.0;

float sum = 0.0;

for(i=0 ; i<n ; i++){

sum += me * data[i];

}

/*illustrate node-to-node communication*/

pvm_initsend(PvmDataDefault);

pvm_pkfloat(&sum, 1, 1);

dest = me+1;

if(dest == nproc) dest = 0;

pvm_send(tids[dest], 22);

pvm_recv(-1, 22);

pvm_upkfloat(&psum, 1, 1);

return(sum+psum);

}

MPMD in MPI Version—Master Task

#include <stdio.h>

#include <mpi.h>

main(int argc, char *argv[])

{

int mytid; /* my task id */

int n, nproc, ntasks, i, who, msgtype;

float data[100], result[32];

char sbuff[1000], rbuff[1000];

int position;

MPI_Status status;

/* Initialize MPI */

MPI_Init(&argc, &argv);

/* Get our task id (our rank in the basic group) */

MPI_Comm_rank(MPI_COMM_WORLD, &mytid);

/* Get the number of MPI tasks and slaves */

MPI_Comm_size(MPI_COMM_WORLD, &ntasks);

nproc = ntasks - 1;

if(mytid == 0)

printf("mytid = %d, ntasks = %d\n", mytid, ntasks);

/* Begin User Program */

n = 100;

/* initialize_data( data, n ); */

for( i=0 ; i<n ; i++ ){

data[i] = 1;

}

/* Pack initial data to be sent to slave tasks */

256

Chapter 12: Distributed Process Parallelism

position = 0;

MPI_Pack(&n, 1, MPI_INT, sbuff, 1000, &position,

MPI_COMM_WORLD);

MPI_Pack(data, 100, MPI_FLOAT, sbuff, 1000, &position,

MPI_COMM_WORLD);

/* Send initial data to slave tasks */

msgtype = 0;

for(i=0; i<ntasks; i++){

if(i != mytid){

MPI_Send(sbuff, position, MPI_PACKED, i, msgtype,

MPI_COMM_WORLD);

}

/* Wait for results from slaves */

msgtype = 5;

for( i=0 ; i<nproc ; i++ ){

MPI_Recv(rbuff, 1000, MPI_PACKED, MPI_ANY_SOURCE,

msgtype, MPI_COMM_WORLD, &status);

position = 0;

MPI_Unpack(rbuff, 1000, &position, &who, 1, MPI_INT,

MPI_COMM_WORLD);

MPI_Unpack(rbuff, 1000, &position, &result[who], 1,

MPI_FLOAT, MPI_COMM_WORLD);

printf("I got %f from %d\n",result[who],who);

}

/* Program Finished. Exit MPI before stopping */

MPI_Finalize();

}

MPMD in MPI Version—Slave Task

Note the use of the buffered sends in the slave task (MPI version). Using standard sends

instead would lead to deadlock in MPI implementations that do not use buffering for

standard sends.

#include <stdio.h>

#include <mpi.h>

float work(int mytid, int me, int n, float *data, int ntasks, int master)

main(int argc, char *argv[])

{

int mytid; /* my task id */

int me; /* logical ordering among slaves. */

int n, i, ntasks, master, msgtype;

float data[100], result;

Example Programs

257

float work();

char rbuff[1000], sbuff[1000];

int position;

MPI_Status status;

/* Initialize MPI */

MPI_Init(&argc, &argv);

/* Get our task id (our rank in the basic group) */

MPI_Comm_rank(MPI_COMM_WORLD, &mytid);

/* Get the number of MPI tasks */

MPI_Comm_size(MPI_COMM_WORLD, &ntasks);

/* Receive initial data from master. */

msgtype = 0;

MPI_Recv(rbuff, 1000, MPI_PACKED, MPI_ANY_SOURCE,

msgtype, MPI_COMM_WORLD, &status);

/* Find out master’s task id. */

master = status.MPI_SOURCE;

/* Unpack data. */

position = 0;

MPI_Unpack(rbuff, 1000, &position, &n, 1, MPI_INT,

MPI_COMM_WORLD);

MPI_Unpack(rbuff, 1000, &position, data, n, MPI_FLOAT,

MPI_COMM_WORLD);

/* Determine which slave I am (value of me) */

/* If mytid < master, me = mytid */

/* Else me=mytid-1 */

if(mytid > master)

me = mytid-1;

else

me = mytid;

/* Do calculations with data */

result = work(mytid, me, n, data, ntasks, master);

/* Pack result */

position = 0;

MPI_Pack(&me, 1, MPI_INT, sbuff, 1000, &position,

MPI_COMM_WORLD);

MPI_Pack(&result, 1, MPI_FLOAT, sbuff, 1000, &position,

MPI_COMM_WORLD);

/* Send result to master */

msgtype = 5;

MPI_Send(sbuff, position, MPI_PACKED, master, msgtype,

MPI_COMM_WORLD);

/* Program finished. Exit from MPI */

MPI_Finalize();

}

float

258

Chapter 12: Distributed Process Parallelism

work(int mytid, int me, int n, float *data, int ntasks, int master)

/* Simple example: slaves exchange data with left

neighbor (wrapping) */

{

int i, dest;

MPI_Status status;

float psum = 0.0;

float sum = 0.0;

char outbuff[100];

for(i=0 ; i<n ; i++){

sum += me * data[i];

}

/* illustrate node-to-node communication */

dest = mytid+1;

if(dest == ntasks)

dest=0;

if(dest == master)

dest++;

MPI_Buffer_attach(outbuff, 100);

MPI_Bsend(&sum, 1, MPI_FLOAT, dest, 22, MPI_COMM_WORLD);

MPI_Recv(&psum, 1, MPI_FLOAT, MPI_ANY_SOURCE, 22,

MPI_COMM_WORLD, &status);

return(sum+psum);

}

PART FOUR

Working With Fonts IV

Chapter 13, “Working With Fonts”

Describes the use of fonts and font metric ﬁles within the X window system, and

the installation of bit-mapped and Type 1 fonts.

261

Chapter 13

13. Working With Fonts

This chapter describes how to work with fonts on Silicon Graphics computers. It begins

with an introduction to fonts and digital typography. Then it explains which fonts are

available and how to install additional fonts. It also covers how to download outline

fonts in the Type 1 format to a PostScript® printer.

This chapter contains these sections:

•“Font Basics” deﬁnes fonts and provides some general background information.

•“Using Fonts With the X Window System” discusses some of the most useful font

utilities of the X Window System™.

•“Installing and Adding Font and Font Metric Files” explains how to install and add

font ﬁles and font metric ﬁles for system-wide use.

•“Downloading a Type 1 Font to a PostScript Printer” explains how to download a

Type 1 font to a PostScript printer.

262

Chapter 13: Working With Fonts

Font Basics

Fonts are collections of characters. A font contains the information about the shape, size,

and position of each character in a character set. That information is needed by programs

that process characters, such as editing, word-processing, desktop publishing,

multimedia, titling, and prepress application programs. Almost all software components

in a computer system use fonts to display messages, prompts, titles, and so forth.

Binary digits are used to represent all types of information stored in a digital computer,

including fonts. Digital typography deals with the style, arrangement, and appearance

of typeset matter in digital systems. If you want to use font and font metric ﬁles to

correctly typeset text on a digital computer, you need to know some basics about digital

typography. This section contains a brief introduction to fonts and digital typography.

You may want to read a book on typography for more in-depth information.

This section covers the following topics:

•“Terminology” introduces a few basic terms.

•“How Resolution Affects Font Size” describes horizontal and vertical resolution,

pixels, and bitmap fonts.

•“Font Names” explains the differences between PostScript and X Windows font

names.

•“Writing Programs That Need to Use Fonts” covers X programs, Display

Postscript® (DPS) programs, and IRIS GL™ and IRIS GL/X programs.

Terminology

Before discussing how to use fonts, consider these terms.

Typography

Typography is the art and technique of working with type. In traditional typography, the

term type refers to a piece of wood or metal with a raised image of a character or

characters on its upper face. Such pieces of wood or metal are assembled into lines and

pages, which are printed by a letterpress process. What typographers do with type is

called typesetting or composition. Type can also refer to the images produced by using

such pieces of wood or metal.

Font Basics

263

Traditional typesetting is seldom used today. In modern typography, type usually refers

to the images produced on typesetting or composition systems, which do not use

wooden or metal type, such as photo and digital composition systems. The typography

on a digital system, such as a digital computer, is called digital typography.

Digital typography is based on a hierarchy of objects called characters,fonts, and font

families (or typefaces). Numeric values or measurements related to those objects can be

divided into character metrics,font metrics, and typeface metrics. Sometimes all information

about a font family, or typeface, is stored in a set of font ﬁles, but sometimes metric

information for a set of font ﬁles is stored in a separate ﬁle called the font metric ﬁle.

Character

A character is a graphical or mathematical representation of a glyph. Letters, digits,

punctuation marks, mathematical symbols, and cursors are examples of glyphs.

Font

A font is a set of characters, that is, a set of representations of characters. In a bitmap font,

the shape of each character is represented by a rectangular array of bit values, 1 or 0,

forming a bitmap of the shape. In an outline font, the shape of a character is represented

by a mathematical description of its outline.

A distinction exists between a base and composite font. A base font is a set of characters

of the same size and style. Characters in a base font usually match one another in size,

style, weight, and slant because their shape, size, position, and spacing have been

carefully designed by a skilled font designer. A composite font is composed of base fonts

with various attributes, for example roman and italic, or book weight and semibold.

Font Family, or Typeface

A professional font designer usually creates an entire font family, or typeface, composed of

a variety of base fonts with related forms, rather than a single font. A base font family, or

typeface, is a set of base fonts with the same style or design. A composite font family, or

composite typeface, is composed of base font families. A base font family can consist of

bitmap fonts in certain sizes, a scalable font that can be used to produce bitmap fonts in

different sizes, or both.

264

Chapter 13: Working With Fonts

How Resolution Affects Font Size

The images on most output devices, such as laser printers and video monitors, are

created by coloring a rectangular array of small dots or pixels (picture elements). The

number of dots or pixels that can be drawn per unit of length in a horizontal direction is

called the horizontal resolution, while the number of pixels that can be drawn per unit of

length in a vertical direction is called the vertical resolution. The most commonly used unit

of measure for resolution is the number of dots per inch (dpi). Resolution is a

device-dependent unit of measure.

To display the resolution of your video monitor, enter this command:

xdpyinfo | grep resol

You should get a response similar to this:

resolution: 93x93 dots per inch

The ﬁrst number is the horizontal resolution; the second the vertical resolution.

If you draw a single character at a given resolution, the bounding box of the character is

the smallest rectangle that enclose that character.

If you display all of the characters in a font in the same place (without advancing), you

get a composite image of those characters. If you then draw the smallest rectangle that

encloses that composite image, you have the bounding box for the font. The size of a font

is usually measured in the vertical direction. That size is usually not smaller than the

height of the font bounding box, but it can be greater than that height. It may include

additional vertical spacing that is considered part of the font design.

Typographers use small units of measure called points to specify font size. A point is

approximately equal to 1/72 of an inch. The exact value is 1/72.27 (0.013837) of an inch,

or 0.351 mm.

A point is a device-independent unit of measure. Its size does not depend on the

resolution of an output device. A 12-point font should have approximately the same size

on different output devices, regardless of the resolution of those devices.

Font Basics

265

If the resolution of an output device is equal to 72 dots per inch (dpi), the size of a dot or

pixel is approximately equal to the size of a point. If the resolution of an output device is

greater than 72 dpi, the size of a dot or pixel is smaller than the size of a point, and vice

versa. You can use the following formula to calculate a pixel size from a point size:

pixel-size = point-size x device-resolution / 72.27

A bitmap font is usually designed for a particular resolution. Such a font has the point

size speciﬁed by its designer only when it is used on an output device whose resolution

matches the resolution for which that font was designed. This is because a font designer

speciﬁes a ﬁxed bitmap for each character. If a pixel is smaller than a point, characters

will be smaller than intended, and vice versa.

Font Names

When a font is designed, it is assigned a name such as Courier Oblique. This font belongs

to a font family called Courier, which includes:

•Courier

•Courier Bold

•Courier Bold Oblique

•Courier Oblique

When the PostScript page description software language was developed by Adobe

Systems, the spaces embedded in font names were replaced with dashes. PostScript font

names look like this:

Courier

Courier-Bold

Courier-BoldOblique

HeiseiMin-W3--Adobe-Japan1-2

The size of a font is usually not part of the name of a scalable font because it can be scaled

to any size. Bitmap fonts are usually designed in speciﬁc sizes. They are referred to by

names such as 12-point Courier or 10-pixel Courier Bold.

The X Consortium speciﬁed 14-part font names for the X Window System. Each name is

in effect a complete description of the font.

266

Chapter 13: Working With Fonts

Figure 13-1 shows an example 14-part name for a bitmap font, with each part labeled.

Point sizes in X font names are speciﬁed in decipoints (tenths of a point).

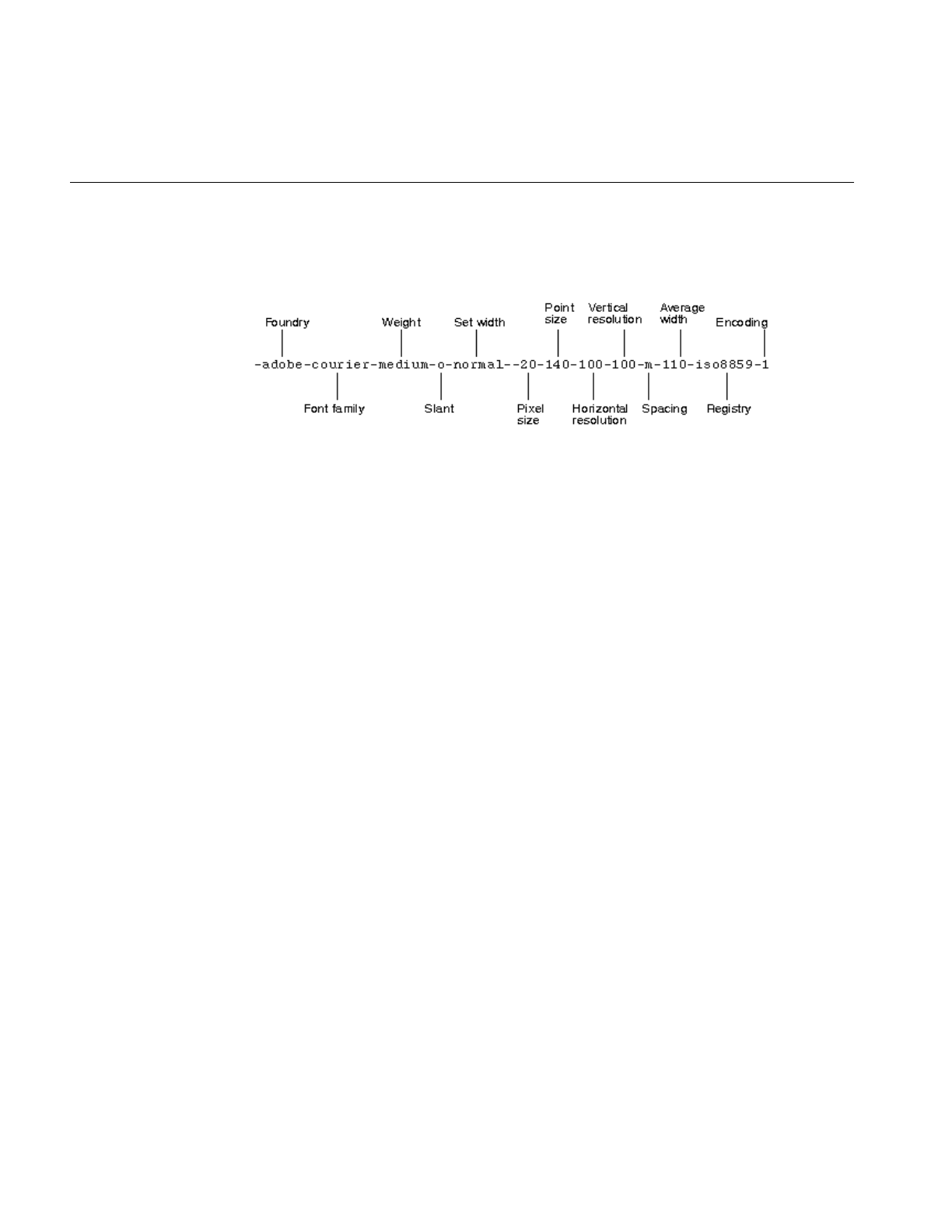

Figure 13-1 X Window System Font Name Example

Writing Programs That Need to Use Fonts

You can write different types of programs for Silicon Graphics computers, for example,

X, Display PostScript (DPS), IRIS GL, OpenGL®, and mixed-model programs. Some of

your programs need fonts.

How a program accesses font ﬁles depends on the program type:

•X programs access fonts by calling X font functions, such as XListFonts() and

XLoadFont().

•DPS programs access fonts by calling X and DPS functions, or by using PostScript.

•IRIS GL and IRIS GL/X mixed-model programs usually access fonts by calling font

management (fm) functions from the IRIS GL Font Manager library (fmenumerate()

and fmﬁndfont(), for example).

Most fonts are installed when you install the X Window System (X11 Execution

Environment). Some fonts are installed with other software components, such as DPS

and IRIS Showcase™. Some bitmap fonts are installed when you install a language

module, such as the Japanese Language Module (JLM). Some outline fonts are installed

when you install a font module, such as the Japanese Font Module (JFM). However, most

fonts are shared by the X Window System, DPS (which is an extension of the X Window

System), IRIS GL Font Manager, Impressario™, and other software components.

Using Fonts With the X Window System

267

To maintain compatibility and portability, it is best not to access font ﬁles directly from

an application program because font formats, font names, font contents, and the location

of font directories may change. Your program should use the Application Programming

Interfaces (APIs) speciﬁed for the X Window System, DPS, and IRIS GL Font Manager, or

call even higher level functions for the 2D and 3D text available from toolkits such as

IRIS Inventor™ and IRIS Performer™.

Using Fonts With the X Window System

This section describes how to use fonts with the X Window System. The X Window

System has several font utilities. This section covers a few of the most useful utilities and

includes:

•“Listing and Viewing Fonts” explains using the xlsfonts command.

•“Viewing Fonts” describes the xfd command.

•“Getting the Current X Font Path” covers the xset command.

•“Changing the X Font Path” explains the xset fp command.

For a complete description of the utilities, refer to your X Window System

documentation.

Listing and Viewing Fonts

Getting a List of Font Names and Font Aliases

To ﬁnd out which font names and font aliases are known to the X Window System, use

the command xlsfonts.For more information about that command, see the reference page

xlsfonts(1). If you enter the command:

xlsfonts | more

the resulting display contains entries such as:

-adobe-courier-bold-o-normal--0-0-0-0-m-0-iso8859-1

-adobe-courier-bold-o-normal--14-100-100-100-m-90-iso8859-1

-sgi-screen-medium-r-normal--14-140-72-72-m-70-iso8859-1

screen14

268

Chapter 13: Working With Fonts

The ﬁrst entry is an example of a 14-part X name for an outline (scalable) font. Numeric

parts of font names are set to zero for outline fonts, because those fonts can be scaled to

various sizes. The second and third entries are examples of 14-part X font names for

bitmap fonts, while the last entry is an alias for the third entry. An X or DPS program can

get a list of available fonts by calling XListFonts() or the function XListFontsWithInfo().

Viewing Fonts

To see what a particular font looks like, use the command xfd, and specify a font name or

font alias known to the X Window System by using the option -fn. For example, to

display the 14-point Adobe Courier Bold font, enter:

xfd -fn -adobe-courier-bold-r-normal--14-140-75-75-m-90-iso8859-1

To request a Utopia Regular font scaled to the size of 28 points, enter:

xfd -fn -adobe-utopia-medium-r-normal--0-280-0-0-p-0-iso8859-1

You can use an asterisk (*) to indicate that any value is acceptable for a part of an X font

name. However, asterisks in a command must be protected from the shell with quotes.

For example, enter:

xfd -fn "-*-itc bookman-demi-i-normal--11-80-100-100-p-63-iso8859-1"

to indicate that xfd can use an ITC Bookman Demi Italic font from any foundry.

The xfd command displays all characters in a speciﬁed font, as shown in Figure 13-2.

Using Fonts With the X Window System

269

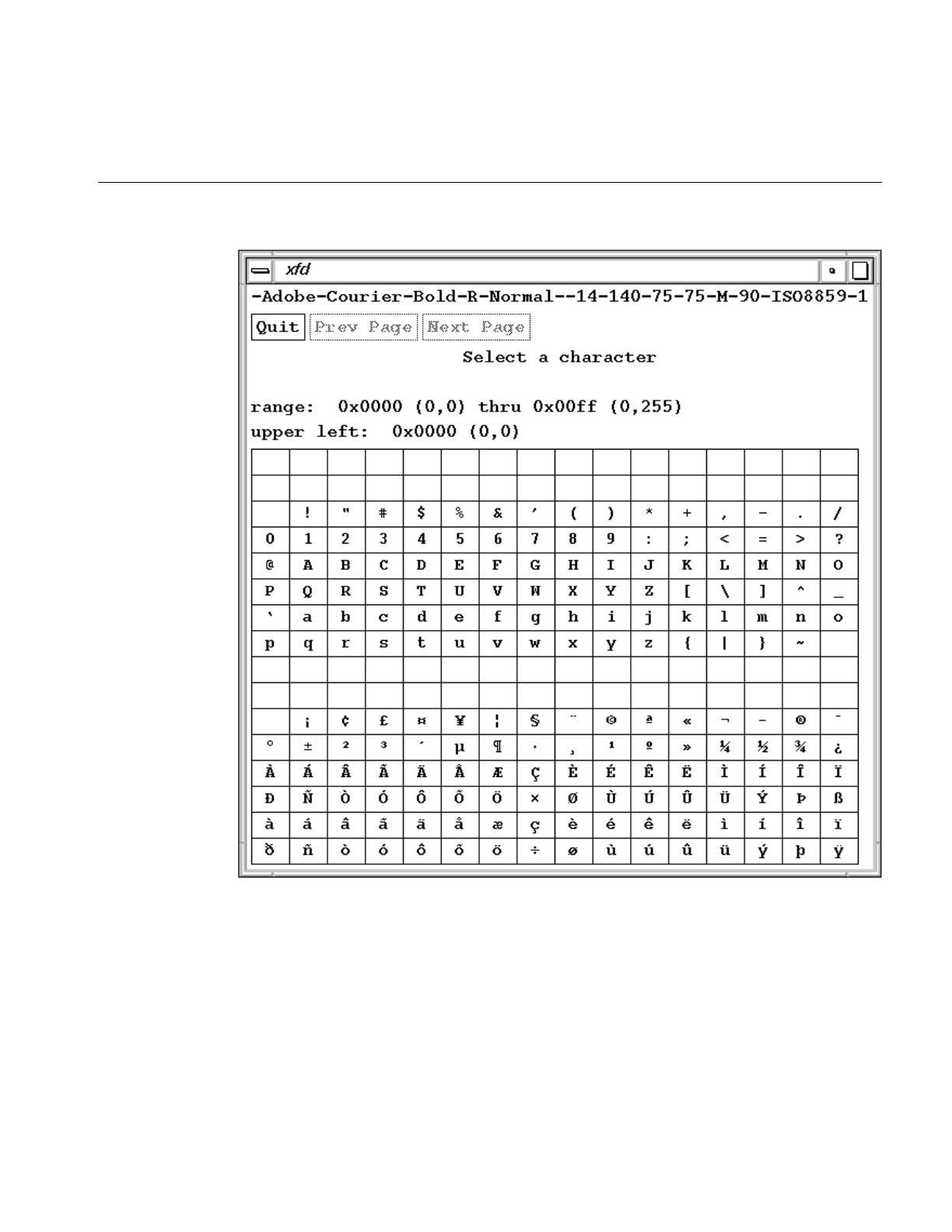

Figure 13-2 Sample Display From xfd

270

Chapter 13: Working With Fonts

To open a shell window that uses a certain font, enter:

xwsh -fn font-name

Getting the Current X Font Path

The X system locates font ﬁles along a path, similar to the execution path used to ﬁnd

executable ﬁles. To display the current X font path, enter this command:

xset q

In addition to other information, the xset utility displays font path information that may

look like this:

Font Path:

/usr/lib/X11/fonts/100dpi/,/usr/lib/X11/fonts/75dpi/,

/usr/lib/X11/fonts/misc/,/usr/lib/X11/fonts/Type1/,

/usr/lib/X11/fonts/Speedo/,/usr/lib/X11/fonts/CID/

The X Window System checks the resolution of your video monitor. If that resolution is

closer to 75 dpi than 100 dpi, it puts the directory 75dpi ahead of the directory 100dpi in

the X font path.

Changing the X Font Path

You can change the default X font path by using the option fp= on an xset command line.

For example, enter:

xset fp=newpath

This command changes the X font path to the new font path (newpath).

Installing and Adding Font and Font Metric Files

271

Installing and Adding Font and Font Metric Files

This section explains where the various types of font and font metric ﬁles are installed by

default, and how you can add one of your font or font metric ﬁles to the IRIX operating

system.

This section describes the following topics:

•“Locations of Font and Font Metric Files” covers the conventional directories and

names for font ﬁles.

•“Adding Font and Font Metric Files” details adding a bitmap and outline font, and

adding a font metric ﬁle.

Locations of Font and Font Metric Files

By default, font and font metrid ﬁles are installed in the directories listed in Table 13-1.

Table 13-1 Font and Font Metric Directories

Directory Path Conventional Contents

/usr/lib/DPS/outline/base Outline font ﬁles in the Adobe Type 1 format

/usr/lib/X11/fonts/Type1 Symbolic links to font ﬁles in /usr/lib/DPS/outline/base

/usr/lib/DPS/AFM Adobe Font Metric (AFM) ﬁles

/usr/lib/X11/fonts/100dpi Bitmap fonts designed for the screen resolution of 100 dpi

/usr/lib/X11/fonts/75dpi Bitmap fonts designed for the screen resolution of 75 dpi

/usr/lib/X11/fonts/misc Miscellaneous other bitmap fonts

/usr/lib/X11/fonts/Speedo Outline font ﬁles in the Bitstream Speedo™ format

/usr/lib/X11/fonts/CID AFM, CCM, CFM, CIDFont and CMap ﬁles for large outline fonts

in the Adobe CID-keyed format

272

Chapter 13: Working With Fonts

The X Window System, Display PostScript, IRIS GL Font Manager, Impressario, and

other software components use the directories listed in Table 13-1 by default. The

locations of font ﬁles are made known to the X Window System in two ways:

•Within each directory speciﬁed in the X font path, a ﬁle named fonts.dir contains a

directory of ﬁlenames with their corresponding 14-part font names. For example, to

see the font names available in /usr/lib/X11/fonts/100dpi, use the command

more /usr/lib/X11/fonts/100dpi/fonts.dir

This ﬁle is created by mkfontdir (see the mkfontdir(1) reference page).

•The ﬁles /usr/lib/X11/fonts/ps2xlfd_map* are used by the X Window System and the

IRIS Font Manager to map PostScript names or short font names to 14-part X font

names, and vice versa. The IRIS Font Manager does not use any bitmap fonts that

do not have an entry in those ﬁles.

Conventions for Bitmap Font File Names

The names of bitmap font ﬁles are speciﬁed according to the following conventions:

•Filenames begin with three or four letters unique to the font family, such as cour for

the Courier family, or 8x13 for a utility bitmap family.

•When a family has different style variants such as Roman and Italic, the next

character of the ﬁlename is an uppercase letter to indicate the style, for example

courO for Courier Oblique, or 8x13B for a utility bold font.

•The last two characters of the ﬁlename are two digits giving the nominal size of the

font in points, as in courO18.

•Most bitmap ﬁles are of the Portable Compiled Format (PCF) type and have the ﬁle

sufﬁx.pcf, as in courO18.pcf or 8x13B.pcf.

•Files are compressed using the compress command (see the compress(1) reference

page), and, therefore, have the terminal sufﬁx.Z as in courO18.pcf.Z.

In /usr/lib/DPS/AFM there is one font metric ﬁle per typeface. When you install a font

module, such as the Japanese Font Module, metric ﬁles for CID-keyed fonts are stored in

the directory /usr/lib/X11/fonts/CID/character-collection/AFM. Font metric ﬁles are

primarily used by text-processing and desktop-publishing programs to, for example,

generate PostScript code for a speciﬁed document.

Installing and Adding Font and Font Metric Files

273

Creating Font Aliases

If you do not want to use long X font names, you can specify shorter aliases for those

names. Silicon Graphics uses a ﬁle called fonts.alias to specify short aliases for fonts. There

can be a fonts.alias ﬁle in an X font directory. For example, see the ﬁle fonts.alias in the

directory /usr/lib/X11/fonts/100dpi.

A typical font alias looks like this:

fixed -misc-fixed-medium-r-semicondensed--13-120-75-75-c-60-iso8859-1

This associates the short alias “ﬁxed” to the longer name that follows it. The alias ﬁle can

also be used to specify alternate conventions for the component parts of a 14-part font

name. For example, the following entry creates an alias that uses “regular” instead of

“medium” for the weight component:

-adobe-utopia-regular-i-normal--14-100-100-100-p-74-iso8859-1

-adobe-utopia-medium-i-normal--14-100-100-100-p-74-iso8859-1

To specify your own font aliases in a font directory, store them in a ﬁle called

fonts.alias.local in that directory. That way your entries do not disappear when you

upgrade your system software.

Adding Font and Font Metric Files

When you purchase a font or obtain a font that is in the public domain, you need to add

that font to your system and possilby to your printer in order to use it. Adobe Systems

donated bitmap, outline, and font metric ﬁles for the Utopia font family to the X

Consortium. This section shows how the font and font metric ﬁles for Utopia Regular

were added to the IRIX operating system. Other font and font metric ﬁles can be added

in a similar way.

You need superuser privilege to make changes to X font directories. Before you make any

changes to any IRIX directory, make a copy of its contents so that you can restore that

directory if anything goes wrong. For example, your font ﬁles may not be in the right

format, and they may interfere with the access of Silicon Graphics font ﬁles. Keep a log

of the changes you make, and mention those changes when you report a problem with

font ﬁles to Silicon Graphics; otherwise, it may be very difﬁcult or impossible for other

people to reproduce any problems that you might report.

274

Chapter 13: Working With Fonts

Adding a Bitmap Font

The procedure in this section shows how to add Utopia Regular bitmap fonts to IRIX.

Other fonts can be added in a similar way.

To add the Utopia bitmap fonts to the X Window System, Display PostScript, and IRIS

GL Font Manager, follow these steps:

1. Log in as root.

2. Choose names for the installed bitmap ﬁles. Refer to the naming conventions for

existing bitmap font ﬁles (see “Conventions for Bitmap Font File Names” on

page 272) and use names with a consistent format when you create new font names.

For example, Adobe provided Utopia Regular bitmap font ﬁles designed for the

resolutions of 100 and 75 dpi. The original names of these ﬁles were UTRG_10.bdf

through UTRG_24.bdf

Filenames closer to IRIX conventions are utopR10 through utopR24 (followed by the

appropriate ﬁle sufﬁxes).

3. Convert ﬁles in Bitmap Distribution Format (BDF) to Portable Compiled Format

(PCF) font ﬁles.

BDF font ﬁles are text (ASCII) ﬁles. You can think of them as source font ﬁles. You

can put BDF font ﬁles into an X font directory, but noormal practice is to use only

binary font formats such as the PCF (.pcf) or compressed PCF format (.pcf.Z) for

performance reasons.

Use the bdftopcf command to convert a BDF font ﬁle to a PCF font ﬁle (see the

bdftopcf(1) reference page). For example, Adobe provided two sets of Utopia

Regular bitmap font ﬁles that were designed for the resolutions of 100 and 75 dpi.

These ﬁles were in the extended Bitmap BDF 2.1 format. The original names of the

bitmap ﬁles were UTRG_10.bdf through UTRG_24.bdf. One of them could be

converted with the following command:

bdftopcf -o utopR10.pcf UTRG_10.bdf

However, you normally want to compress the PCF ﬁle as well.You can compress a

PCF ﬁle by entering a command such as:

compress utopR10.pcf

But you could combine both steps simply as follows:

bdftopcf UTRG_10.bdf | compress -c >utopR10.pcf.Z

Installing and Adding Font and Font Metric Files

275

4. Move the bitmap font ﬁles to the appropriate directory, /usr/lib/X11/fonts/100dpi or

/usr/lib/X11/fonts/75dpi. You can of course combine this step with the format

conversion step as follows:

bdftopcf UTRG_10.bdf | compress -c

>/usr/lib/X11/fonts/100dpi/utopR10.pcf.Z

You can tell the resolution for which a font was designed by the name of the

directory in which the font designer stored the font ﬁles, or by the information in

the header of a bitmap font ﬁle. In a BDF 2.1 font ﬁle, the horizontal and vertical

resolution are speciﬁed in the X font name. They are also speciﬁed after the point

size as the second and third numeric values in a SIZE entry. For example, the entry:

SIZE 8 100 100

within the ﬁle indicates an 8-point font that was designed for the horizontal and

vertical resolution of 100 dpi.

5. For Type 1 PostScript font families, there is one entry per font family in the ﬁle

/usr/lib/X11/fonts/ps2xlfd_map. For each Japanese font family shipped by Silicon

Graphics, there is an entry in the ﬁle /usr/lib/X11/fonts/ps2xlfd_map.japanese.

When adding a new Type 1 font, insert an entry in the appropriate ﬁle for each style

variation in the font family. It is not necessary to have an entry for each bitmap size.

For example, the entries in ps2xlfd_map for the Utopia fonts are:

Utopia-Bold -adobe-utopia-bold-r-normal--0-0-0-0-p-0-iso8859-1

Utopia-BoldItalic -adobe-utopia-bold-i-normal--0-0-0-0-p-0-iso8859-1

Utopia-Italic -adobe-utopia-medium-i-normal--0-0-0-0-p-0-iso8859-1

Utopia-Regular -adobe-utopia-medium-r-normal--0-0-0-0-p-0-iso8859-1

The ﬁrst ﬁeld is the PostScript font name, as speciﬁed in the outline font ﬁle (see

“Adding an Outline Font” on page 276). The second ﬁeld is the X 14-part font name

with 0 for all speciﬁc dimension values.

When you add your own bitmap or outline fonts, put their entries in a ﬁle called

/usr/lib/X11/fonts/ps2xlfd_map.local. That way your entries do not disappear when

you upgrade your system software.

Make sure that there is no overlap between your entries and the entries in other

ps2xlfd_map* ﬁles.

6. If you want to establish alias names for any of the new fonts, create or edit fonts.alias

ﬁles in the appropriate directories (see “Creating Font Aliases” on page 273).

276

Chapter 13: Working With Fonts

7. Invoke the mkfontdir command to rebuild the fonts.dir database in each directory

where you added bitmap ﬁles. Enter the command:

mkfontdir /usr/libX11/fonts/*dpi

to create a new fonts.dir (fonts directory) ﬁle in the 100dpi and 75dpi directories.

8. Use the xset command to notify the window system to rebuild its list of fonts:

xset fp rehash

9. To check whether the fonts you added are known to the X Window System, enter:

xlsfonts > /tmp/fontlist

The names of the fonts you added should appear on the list of font names and

aliases produced by xlsfonts.

Bitmap fonts should now be added to the X Window System and the IRIS GL Font

Manager. Since DPS needs both outline and bitmap fonts for each supported typeface, it

ﬁrst checks which outline fonts are stored in the directory /usr/lib/DPS/outline/base. Then

it looks for the corresponding bitmap fonts in other X font directories. It ignores all other

bitmap fonts. Therefore, DPS ignores the bitmap fonts you added until you add the

corresponding outline fonts.

Adding an Outline Font

To add the Utopia Regular outline font to the X Window System, Display PostScript, and

the IRIS GL Font Manager, follow these steps:

You can install only Adobe text (ASCII) Type 1 font ﬁles or compatibles, not binary Type

1 font ﬁles and not Type 3 font ﬁles. Display PostScript can handle Type 3 font ﬁles, but

the X Window System and IRIS GL Font Manager cannot.

1. Log in as root.

2. Convert the ﬁle to Printer Font ASCII (PFA) format if necessary. Printer Font Binary

(PFB) ﬁles are not supported. To convert .pfb ﬁles to .pfa ﬁles, use the pfb2pfa

command shipped with IRIX version 5.3 and higher (see the pfb2pfa(1) reference

page). For example, to convert the Adobe ﬁle UTRG____.pfb, enter

pfb2pfa UTRG____.pfb UTRG____.pfa

Installing and Adding Font and Font Metric Files

277

3. Look at the names of existing outline font ﬁles in the directory

/usr/lib/DPS/outline/base. Display PostScript requires that the name of each outline

font ﬁle match the PostScript font name speciﬁed in the /FontName entry in the

header of that outline font ﬁle. For example, if you enter:

grep /FontName Courier-Bold

in the directory /usr/lib/DPS/outline/base, you get:

/FontName /Courier-Bold def

The name revealed is used for the ﬁlename of the outline font, the ﬁlename of the

metric ﬁle, and in the /usr/lib/X11/fonts/ps2xlfd.map ﬁle.

For example, Adobe provided the Utopia Regular outline font ﬁle UTRG____.pfa,

which is an outline font ﬁle in the Type 1 format. To ﬁnd the PostScript font name

for this font, enter:

grep /FontName UTRG____.pfa

You should get the response:

/FontName Utopia-Regular def

When this font was added to IRIX, the name of the ﬁle UTRG____.pfa was changed

to Utopia-Regular.

4. Put the ﬁle Utopia-Regular in the directory /usr/lib/DPS/outline/base, because that

outline font is in the Type 1 format. If you have an outline font in the Speedo format,

put it in the directory:

/usr/lib/X11/fonts/Speedo

5. To add the Utopia Regular font and font metric ﬁles to Display PostScript, enter:

/usr/bin/X11/makepsres -o /usr/lib/DPS/DPSFonts.upr

/usr/lib/DPS/outline/base /usr/lib/DPS/AFM

You should now be able to access the font ﬁle you added via Display PostScript.

6. For most font families shipped by Silicon Graphics, there is one entry per font

family in the ﬁle:

/usr/lib/X11/fonts/ps2xlfd_map

as described in “Adding a Bitmap Font.” The same entry is used for both bitmap

and outline fonts.

278

Chapter 13: Working With Fonts

If you add your own (local) bitmap or outline fonts, put an entry for each font

family in the ﬁle called:

/usr/lib/X11/fonts/ps2xlfd_map.local

You can use entries in the ﬁle ps2xlfd_map as templates for entries in the ﬁle

ps2xlfd_map.local.

If the ﬁle ps2xlfd_map.local does not exist, log in as root, and create it.

You can now access the font you added via the IRIS GL Font Manager.

7. Display PostScript is an extension of the X Window System. To add an outline font

in the Type 1 format to the rest of the X Window System, in any directory, enter the

commands:

type1xfonts

xset fp rehash

This re-creates symbolic links in the directory /usr/lib/X11/fonts/Type1 that point to

outline font ﬁles in the directory /usr/lib/DPS/outline/base, and instructs the X

Window System to check which fonts are available.

8. To check whether the outline fonts you added are known to the X Window System,

enter:

xlsfonts | grep family-name

The entries for the outline fonts you added should appear on the list of font names and

aliases produced by xlsfonts.

Adding of large outline fonts in the CID-keyed format is so complicated that you should

contact Silicon Graphics if you want to add a font in that format. You will need to provide

CIDFont and AFM ﬁles for a CID-keyed font. If existing CMap ﬁles are not sufﬁcient, you

will need to also provide one or more CMap ﬁles. Silicon Graphics will then generate

CCM and CFM ﬁles from those ﬁles.

Installing and Adding Font and Font Metric Files

279

Adding a Font Metric File

Adobe Font Metric (AFM) ﬁles are primarily used by application programs—for

example, to generate PostScript code for a speciﬁed document. Follow these steps to add

a font metric ﬁle for an outline font in the Type 1 format:

1. Log in as root.

2. Put Adobe Font Metric ﬁles in the directory /usr/lib/DPS/AFM.

The name of an AFM ﬁle must match the PostScript font name as given in the ﬁle

/usr/lib/X11/fonts/ps2xlfd_map (see “Locations of Font and Font Metric Files” on page 271).

For example, Adobe provided the Utopia Regular font metric ﬁle UTRG____.AFM.

When this font was added to IRIX, the name was changed to Utopia-Regular to

correspond to the line

Utopia-Regular -adobe-utopia-medium-r-normal--0-0-0-0-p-0-iso8859-1

in /usr/lib/X11/fonts/ps2xlfd_map.

The ﬁle was put in the directory /usr/lib/DPS/AFM.

Font metric ﬁles for a large outline font in the CID-keyed format should be put in the

directory /usr/lib/X11/fonts/CID/character-collection/AFM. There is one AFM ﬁle for each

CIDFont ﬁle, and one AFM ﬁle for each CID-keyed font.

280

Chapter 13: Working With Fonts

Downloading a Type 1 Font to a PostScript Printer

Some outline fonts are usually built into a PostScript printer. You can ﬁnd out which

fonts are known to the PostScript interpreter in your printer by sending the following ﬁle

to that printer:

% Produce a list of available fonts

/f 100 string def

/Times-Roman findfont 12 scalefont setfont

/y 700 def

72 y moveto

FontDirectory {

pop f cvs show 72 /y y 13 sub def y moveto

} forall

showpage

Utopia fonts are not usually built into PS printers. If you try to print a document that

requires a Utopia font on a PS printer that does not have that font, a warning message

about the replacement of a missing font with a Courier font is sent to the ﬁle

/usr/spool/lp/log on the system to which that PS printer is attached.

You can download a Type 1 font to a PS printer in either of the following two ways:

•You can insert a Type 1 font ﬁle at the beginning of the PostScript ﬁle that needs that

font. You should have a statement that starts with:

Put this statement at the beginning of your PS ﬁle. If you have two such lines, delete

the second one.

When you download a font this way, the font is available only while your print job

is being processed.

•You can make a copy of a Type 1 font ﬁle, and then insert the statement:

serverdict begin 0 exitserver

after the ﬁrst group of comment statements (lines that start with %) if no password

has been speciﬁed for your printer; otherwise, replace 0 in the above statement with

the password for your printer. Then send the edited ﬁle to your printer.

Downloading a Type 1 Font to a PostScript Printer

281

When you download a font this way, the warning message:

%%[ exitserver: permanent state may be changed ]%%

is sent to the ﬁle /usr/spool/lp/log on the system to which the printer is attached.

The permanent state of the printer is not really changed. Downloaded fonts

disappear when you reset the printer by switching its power off and on. If there is

not enough memory for additional fonts, you receive a message about a Virtual

Memory (VM) error, and the font is not downloaded.

If you again send the program that produces a list of available fonts to your printer,

you should see the PostScript names of the fonts you downloaded on that list.

PART SIX

Internationalizing Your Application V

Chapter 14, “Internationalizing Your Application”

Documents how to prepare an application to execute in more than one language

environment, including the use of character sets and locale-speciﬁc behaviors.

285

Chapter 14

14. Internationalizing Your Application

Internationalization is the process of generalizing an application so that it can easily be

customized—or localized—to run in more than one language environment. You can

provide internationalized software that will produce output in a user’s native language,

format data (such as currency values and dates) according to local standards, and tailor

software to a speciﬁc culture.

This chapter describes how to create such an application. It contains the following major

sections:

•“Overview” presents an introduction to internationalization and deﬁnes some

common terms.

•“Locales” explains how to set the current locale and limitations of the locale system.

•“Character Sets, Codesets, and Encodings” describes various ways of encoding

characters, the traditional ASCII being just one of these.

• “Cultural Items” discusses the ways in which different cultures affect the way a

string can be viewed, for example in outputting or collating.

•“Locale-Speciﬁc Behavior” covers native language support (NLS) and the NLS

database, regular expressions, and cultural data.

•“Strings and Message Catalogs”describes how to create and use catalogs of

messages to send diagnostic information to users in various locales.

•“Internationalization Support in X11R6” describes internationalization support

provided by X11, Release 6 (including features from X11R5).

•“Internationalization Support in Motif” points to information describing how to

internationalize a Motif application.

•“User Input” discusses the translation of keyboard events into programmatic

character strings for a variety of keyboards.

286

Chapter 14: Internationalizing Your Application

•“GUI Concerns” discusses internationalizing applications that use graphical user

interfaces (GUIs)

•“Popular Encodings” presents some common non-ASCII encodings.

For a list of ISO 3166 country names and abbreviations, see Appendix A, “ISO 3166

Country Names and Abbreviations.” You can ﬁnd detailed information about fonts in

Chapter 13, “Working With Fonts.” Also, you can ﬁnd additional information about

internationalizing an application in the Indigo Magic Desktop Integration Guide.

Overview

Internationalized software can be made to produce output in a user’s native language, to

format data (such as dates and currency values) according to the user’s local customs,

and to otherwise make the software easier to use for users from a culture other than that

of the original software developer. As computers become more widely used in

non-American cultures, it becomes increasingly important that developers stop relying

on the conventions of American programming and the English language in their

programs. This chapter provides information on how to make your applications more

widely accessible.

This section presents the following topics:

•“Some Deﬁnitions” covers locales, internationalization, localization, nationalized

software, and multilingual software.

•“Areas of Concern in Internationalizing Software” points out a few concerns to

watch for when internationalizing your software.

•“Standards” covers standard-compliant features.

•“Internationalizing Your Application: The Basic Steps” lists the procedures to use

when internationalizing an icon.

•“Additional Reading on Internationalization” provides references you can consult

for additional information about internationalization.

Overview

287

Some Deﬁnitions

This section deﬁnes some of the terms used in this chapter.

Locale

Locale refers to a set of local customs that determine many aspects of software input and

output formatting, including natural language, culture, character sets and encodings,

and formatting and sorting rules. The locale of a program is the set of such parameters

that are currently selected. For information on the method for selecting locales, see

“Additional Reading on Internationalization” below.

Internationalization (i18n)

Internationalization is the process of making a program capable of running in multiple

locales without recompiling. To put it another way, an internationalized program is one

that can be easily localized without changing the program itself. (See “Localization

(l10n),” below, for an explanation of the term “localization.”)

Note: The word “internationalization” consists of an i followed by 18 letters followed by

an n. It is thus often abbreviated “i18n” in informal writing. On similar principles,

“localization” is often abbreviated “l10n.”

A program written for a speciﬁc locale may be difﬁcult to run in a different environment.

Rewriting such a program to operate in each desired environment would be tedious and

costly.

Your goal as a developer should thus be to write locale-independent programs, programs

that make no assumptions about languages, local customs, or coded character sets. Such

internationalized applications can run in a user’s native environment following native

conventions with native messages, without recompiling or relinking. A single copy of an

internationalized program can be used by a world of different users.

Localization (l10n)

Localization is the act of providing an internationalized application with the environment

and data it needs to operate in a particular locale. For example, adding German system

messages to IRIX is a part of localizing IRIX for the German locale.

288

Chapter 14: Internationalizing Your Application

Nationalized Software

Nationalized programs run in only one language and are governed by one set of customs;

in other words, in a nationalized program the locale is built into the application. Even if

the application doesn’t use ASCII or English, as long as it is a single-language program

it is nationalized, not internationalized. Most older UNIX programs can be thought of as

being nationalized for the United States.

Consider two applications, hello and bonjour. The application hello always produces the

output

Hello, world.

and bonjour always produces

Bonjour, tout le monde.

Neither hello nor bonjour are internationalized; they are both nationalized.

There are no special requirements for writing or porting nationalized applications,

whether they are text or graphics programs. Terminal-based programs work on suitable

terminals, including internationalized terminal emulators. “Suitable” means that the

terminal supports any necessary fonts and understands the encoding of the application

output. Graphics programs simply do as they have always done. Applications using

existing interfaces to operate in non-English or non-ASCII environments should

continue to compile and run under an internationalized operating system.

Multilingual Software

Amultilingual program is one that uses several different locales at the same time.

Examples are described in “Multilingual Support” on page 297.

Areas of Concern in Internationalizing Software

Few developers will have to pay attention to more than a few items described in this

section. Most will need to catalog their strings. Some will need to use library routines for

character sorting or locale-dependent date, time, or number formatting. A few whose

applications use the eighth bit of 8-bit characters inappropriately will need to stop doing

so. The few applications that do arithmetic to manipulate characters will need to be

cleaned up. Some GUI designers will have to spend just a little more time thinking. But

for the large majority of developers, there isn’t much to do.

Overview

289

The information presented in the following sections addresses internationalization

issues pertinent to a developer; some sections, however, may not be relevant to your

applications.

Standards

IRIX internationalization includes these standards-compliant features, among others:

•ANSI C and POSIX (ISO 9945-1): Locale

•X/OPEN Portability Guide, Issue 4 (XPG/4): XPG/4 message catalogs, interpretation

of locale strings

•UNIX™ System V Release 4: Multi-National Language Support (MNLS) message

catalogs

•X11R5 and X11R6: Input methods, text rendering, resource ﬁles

Internationalizing Your Application: The Basic Steps

To internationalize your icon, follow these steps:

1. Call setlocale() as soon as possible to put the process into the desired locale. See

“Setting the Current Locale” on page 292 for instructions.

2. Make your application 8-bit clean. (An application is 8-bit clean if it does not use the

high bit of any data byte to convey special information.) See “Eight-Bit Cleanliness”

on page 299 for instructions.

3. If you’re writing a multilingual application, you must do one of two things:

•fork, and then call setlocale() differently in each process

• call setlocale() repeatedly as necessary to change from language to language

See “Multilingual Support” on page 297 for more information.

4. Use wide character (WC) or multibyte (MB) characters and strings to allow for more

than one byte per character (this is needed for Asian languages, which often require

two or even four bytes per character). See “Character Representation” on page 300

for more information.

290

Chapter 14: Internationalizing Your Application

5. Do not rely on ASCII and English sorting rules. Locale-speciﬁc collation should be

performed with strcoll() and strxfm(). (These are table-driven functions; the tables

are supplied as part of locale support.) See “Collating Strings” on page 306 for more

information.

6. Use the localeconv() function to ﬁnd out about general details of numeric

formatting. Use strfmon() to format currency amounts in particular. See “Specifying

Numbers and Money” on page 307 for more information.

7. Use strftime() to format dates and times (strftime() gives a host of options for

displaying locale-speciﬁc dates and times.) See “Formatting Dates and Times” on

page 309 for more information.

8. Avoid arithmetic on character values. Use the macros in ctype.h to get information

about a given character. (These macros are table-driven and locale-sensitive.) If you

prefer, you can use the functions that correspond to these macros instead.

“Character Classiﬁcation and ctype” on page 309 provides more detailed

information on these macros and functions.

9. If you do your own regular expression parsing and matching, use the XPG/4

extensions to traditional regular expression syntax for internationalized software.

See “Regular Expressions” on page 311 for more information.

10. Where possible, use the XPG/4, rather than the MNLS interface in order to

maximize portability. See “Strings and Message Catalogs” on page 324 for more

information.

11. Provide a catalog for your locale. See “SVR4 MNLS Message Catalogs” on page 328

for more information.

12. The File Typing Rule (FTR) strings that are used to customize the Indigo Magic

desktop can be Internationalized. See “Internationalizing File Typing Rule Strings

With MNLS” on page 332 for more information.

13. Use message catalogs for printf() format strings that take linguistic parameters, and

allow localizers to localize the format strings as well as text strings. See “Variably

Ordered Referencing of printf() Arguments” on page 333 for more information.

14. If you’re using Xlib, initialize Xlib’s internationalization state after calling

setlocale(). See “Initialization for Xlib Programming” on page 337 for more

information.

15. Specify a default fontset suitable for the default locale. Make sure that the

application accepts localized fontset speciﬁcations via resources (or message

catalogs) or command-line options. See “Fontsets” on page 338 for more

information.

Overview

291

16. Use X11R5 and X11R6 text rendering routines that understand multibyte and wide

character strings, not the X11R4 text rendering routines XDrawText(),

XDrawString(), and XDrawImageString(). See “Text Rendering Routines” on

page 340 for more information.

17. Use X11R5 and X11R6 MB and WC versions of width and extents interrogation

routines. See “New Text Extents Functions” on page 340 for more information.

18. If you are writing a toolkit text object, or if you can’t use a toolkit to manage event

processing for you, then you have to deal with input methods. Follow the

instructions in “User Input” on page 343.

19. Use resources to label any object that employs some sort of text label. Your

application’s app-defaults ﬁle should specify every reasonable string resource. See

“X Resources for Strings” on page 359 for more information.

20. Use dynamic layout objects that calculate layout depending on the natural

(localized) size of the objects involved. Some IRIS IM widgets providing these

services are XmForm, XmPanedWindow, and XmRowColumn. See “Dynamic

Layout” on page 360 for more information. If you can’t use dynamic layout objects,

refer to “Layout” on page 360 for instructions.

21. Make sure that all icons and other pictographic representations used by your

application are localizable. See “Icons” on page 361 for more information.

Additional Reading on Internationalization

For more information on internationalization, refer to:

•O’Reilly Volume 1, Xlib Programming Manual

•X Window System, by Robert Scheiﬂer and Jim Gettys

•X/Open Portability Guide

•OSF/Motif Style Guide

292

Chapter 14: Internationalizing Your Application

Locales

An internationalized system is capable of presenting and receiving data understandably

in a number of different formats, cultures, languages, and character sets. An application

running in an internationalized system must indicate how it wants the system to behave.

IRIX uses the concept of a locale to convey that information.

A process can have only one locale at a time. Most internationalization interfaces rely on

the locale of the current process being set properly; the locale governs the behavior of

certain library routines.

This section covers the following topics:

•“Setting the Current Locale” explains categories, locales, strings, location of

locale-speciﬁc data, and locale naming conventions.

•“Limitations of the Locale System” describes multilingual support, misuses of

locales, and encoding.

You can ﬁnd additional information in “Locale-Speciﬁc Behavior” on page 311, which

describes native language support, regular expressions, and cultural data.

Setting the Current Locale

Applications begin in the C locale. (C is the name used to indicate the system default

locale; it usually corresponds to American English.) Applications should therefore call

setlocale() as soon as possible to put the process into the desired locale. The syntax for

setlocale() is:

#include <locale.h>

char *setlocale(int category, const char *locale);

The call almost always looks either like this:

if (setlocale(LC_ALL, "") == NULL)

exit_with_error();

Locales

293

or like this:

if (setlocale(LC_ALL, "") == NULL)

setlocale(LC_ALL, "C");

Details of the two parameters are given in the next two sections.

Category

Applications need not perform every aspect of their work in the same locale. Although

this approach is not recommended, an application could (for example) perform most of

its activities in the English locale but use French sorting rules. You can use locale

categories to do this kind of locale-mixing. (Mixing locale categories is not the same as

multilingual support—see “Multilingual Support.”)

The category argument is a symbolic constant that tells setlocale() which items in a locale

to change. Table 14-1 lists the available category choices.

Categories correspond to databases that contain relevant information for each deﬁned

locale. The locations of these databases are given in the “Location of Locale-Speciﬁc

Data” on page 295.

a. LC_MESSAGES is supported by SVR4 but isn’t required by XPG/4.

Table 14-1 Locale Categories

Category Affects

LC_ALL All categories below

LC_COLLATE Regular expressions, strcoll(), and strxfrm()

LC_CTYPE Regular expressions and ctype routines (such as islower())

LC_MESSAGESagettxt(),pfmt(), and nl_langinfo()

LC_MONETARY localeconv() and strfomon()

LC_NUMERIC Decimal-point character for formatted I/O and nonmonetary formatting

information returned by localeconv()

LC_TIME ascftime(),cftime(),getdate(), and strftime()

294

Chapter 14: Internationalizing Your Application

Locale

The setlocale() function attempts to set the locale of the speciﬁed category to the

speciﬁed locale. You should almost always pass the empty string as the locale parameter

to conform to user preferences.

On success, setlocale() returns the new value of the category. If setlocale() couldn’t set

the category to the value requested, it returns NULL and does not change locale.

The Empty String

An empty string passed as the locale parameter is special. It speciﬁes that the locale

should be chosen based on environment variables. This is the way a user speciﬁes a

preferred locale, and that preference should almost always be honored. The variables are

checked hierarchically, depending on category, as shown in Table 14-2; for instance, if the

category is LC_COLLATE, an empty-string locale parameter indicates that the locale

should be chosen based on the value of the environment variable LC_COLLATE—or, if

that value is undeﬁned, the value of the environment variable LANG, which should

contain the name of the locale that the user wishes to work in.

Specifying the category LC_ALL attempts to set each category individually to the value

of the appropriate environment variable.

If no non-null environment variable is available, setlocale() returns the name of the

current locale.

Table 14-2 Category Environment Variables

Category First Environment Variable Second Environment Variable

LC_COLLATE LC_COLLATE LANG

LC_CTYPE LC_CTYPE LANG

LC_MESSAGES LC_MESSAGES LANG

LC_MONETARY LC_MONETARY LANG

LC_NUMERIC LC_NUMERIC LANG

LC_TIME LC_TIME LANG

Locales

295

Nonempty Strings in Calls to setlocale()

Here are the possibilities for specifying the locale parameter:

Location of Locale-Speciﬁc Data

Except for XPG/4 message catalogs, locale-speciﬁc data (that is, the “compiled” ﬁles

containing the collation information, monetary information, and so on) are located in

/usr/lib/locale/<locale>/<category>, where <locale> and <category> are the names of the

locale and category, respectively. For example, the database for the LC_COLLATE

category of the French locale fr would be in /usr/lib/locale/fr/LC_COLLATE.

There will probably be multiple locales symbolically linked to each other, usually in cases

where a speciﬁc locale name points to the more general case. For example,

/usr/lib/locale/En_US.ascii might point to /usr/lib/locale/C.

Locale Naming Conventions

A locale string is of the form

language[_territory[.encoding]][@modiﬁer]...

where

•language is the two-letter ISO 639 abbreviation for the language name.

•territory is the two-uppercase-letter ISO 3166 abbreviation for the territory name.

(For a list of these abbreviations, see the table in Appendix A, “ISO 3166 Country

Names and Abbreviations.”)

NULL Specifying a null pointer argument—not the same as the empty

string—causes setlocale() to return the name of the current locale.

“C”Specifying a locale value of the single-character string “C” requests

whatever locale the system uses as a default. (Note that this is a

string and not just a character.)

Other strings Request a particular locale by specifying its name. This overrides

any user preferences and should only be done with good reason.

296

Chapter 14: Internationalizing Your Application

•encoding is the name of the character encoding (mapping between numbers and

characters). For western languages, this is typically the codeset, such as 8859-1 or

ASCII. For Asian languages, where an encoding may encode multiple codesets, the

encodings themselves have names, such as UJIS or EUC (these encodings are

described later in this section). “Character Sets, Codesets, and Encodings” on

page 298 discusses codesets and encodings.

•modiﬁers are not actually part of the locale name deﬁnition; they give more speciﬁc

information about the desired localized behavior of an application. For example,

under X11R5 or X11R6, a user can select an input method with modiﬁers. (To use the

xwnmo Input Method server provided by Silicon Graphics, for example, add

@im=_XWNMO to the locale string.) No standards exist for this part of a locale

string.

Language data is implementation speciﬁc; databases for the language en (English) might

contain British cultural data in England and American cultural data in the United States.

If other than the default settings are required, the territory ﬁeld may be used. For

example, the above cases could be more strictly deﬁned by setting LANG to en_EN or

en_US. Full rigor might lead to en_EN.88591 for England (the locale encoding

speciﬁcation for ISO 8859-1 is “88591”) and en_US.ascii for the USA.

ANSI C has deﬁned a special locale value of C. The C locale is guaranteed to work on all

compliant systems and provides the user with the system’s default locale. This default is

typically American English and ASCII, but need not be. POSIX has also deﬁned a special

locale value, POSIX, which is identical to the C locale.

The length of the locale string may not exceed NL_LANGMAX characters

(NL_LANGMAX is deﬁned in /usr/include/limits.h). However, XPG/4 recommends that

this string (not counting modiﬁers) not exceed 14 characters.

Locales

297

Limitations of the Locale System

This section explains multilingual support, misuse of locales, and the absence of

ﬁlesystem information for encoding types.

Multilingual Support

There can be only one locale at a time associated with any given process in an

internationalized system. Therefore, although multilingual applications—which give the

appearance of using more than one locale at a time—can be created, internationalization

does not provide inherent support for them. Here are two examples of multilingual

programs:

•An application creates and maintains windows on four different displays, operated

by four different users. The program has a single controlling process, which is

associated with only one locale at any given time. However, the application can

switch back and forth between locales as it switches between users, so the four users

may each use a different locale.

•In a sophisticated editing system with a complex user interface, a user may wish to

operate the interface in one language while entering or editing text in another. For

instance, a user whose ﬁrst language is German may wish to compose a Japanese

document, using Japanese input and text manipulation, but with the user interface

operating in German. (There is no standard interface for such behavior.)

In writing a multilingual application, the ﬁrst task is identifying the locales for the

program to run in and when they apply. (There is no standard method for performing

this task.) Once the application has chosen the desired locales, it must do one of the

following:

•fork, and then call setlocale() differently in each process

•call setlocale() repeatedly as necessary to change from language to language

Misuse of Locales

The LANG environment variable and the locale variables provide the freedom to

conﬁgure a locale, but they do not protect the user from creating a nonsensical

combination of settings. For example, you are allowed to set LANG to fr (French) and

LC_COLLATE to ja_JP.EUC (Japanese). In such a case, string routines would assume text

encoded in 8859-1—except for the sorting routines, which might assume French text and

Japanese sorting rules. This would likely result in arbitrary-seeming behavior.

298

Chapter 14: Internationalizing Your Application

No Filesystem Information for Encoding Types

The IRIX ﬁlesystem does not contain information about what encoding should be

associated with any given data. Thus, applications must assume that data presented to

an application in some locale is properly encoded for that locale. In other words, a ﬁle is

interpreted differently depending on locale; there is no way to ask the ﬁle what it thinks

its encoding is.

For example, you may have created a ﬁle while in a Japanese locale using EUC. Later, you

might try printing it while in a French locale. The results will likely resemble a random

collection of Latin 1 characters.

This problem applies to almost all stored strings. Most strings are uninterpreted

sequences of nonzero bytes. This includes, for example, ﬁlenames. You can, if you want

to, name your ﬁles using Chinese characters in a Chinese locale, but the names will look

odd to anyone who runs /bin/ls on the same ﬁlesystem using a non-Chinese locale.

Character Sets, Codesets, and Encodings

One major difference between nationalized and internationalized software is the

availability in internationalized software of a wide variety of methods for encoding

characters. Developers of internationalized software no longer have the convenience of

always being able to assume ASCII. Three terms that describe groupings of characters are

the following:

character set An abstract collection of characters.

codeset A character set with exactly one associated numerical encoding for each

character. The English alphabet is a character set; ASCII is a codeset.

encoding A set of characters and associated numbers; however, this term is more

general than “codeset.” A single encoding may include multiple codesets;

Extended UNIX Code (EUC), for instance, is an encoding that provides for

four codesets in one data stream.

Character Sets, Codesets, and Encodings

299

This section describes these topics:

•“Eight-Bit Cleanliness” explains how to make 8-bit clean characters.

•“Character Representation” discuses multibyte and wide characters.

•“Multibyte Characters” covers using and handling multibyte characters,

conversions to constant-size characters, and the number of bytes in a character and

string.

•“Wide Characters” explains wchar strings, support routines, and conversion to

multibyte characters.

•“Reading Input Data” covers nonuser-originated data.

For information on installing and using fonts with an application, refer to Chapter 13,

“Working With Fonts.”

Eight-Bit Cleanliness

A program is 8-bit clean if it does not use the high bit of any data byte to convey special

information. ASCII characters are speciﬁed by the low seven bits of a byte, so some

programs use the high bit of a data byte as a ﬂag; such programs are not 8-bit clean.

Internationalized programs must be 8-bit clean, because they cannot expect data to be in

the form of ASCII bytes; non-ASCII character sets usually use all eight bits of each byte

to specify the character. But a program must go out of its way to manipulate bytes based

on the value of the high bit, and since changing data without cause is seldom desirable,

most programs are already 8-bit clean.

The old csh (before this problem was ﬁxed in the IRIX 5.0 release) was a good example of

a program that was not 8-bit clean; it used the high bit in input strings to distinguish

aliases from unaliased commands. An effect of this misuse was that csh stripped the

eighth bit from all characters. For example, the user command

echo I know an architect named Mañosa

Produced the response

I know an architect named Maqosa

Another example is the speciﬁcation of Internet messages, which calls for 7-bit data.

Thus, if sendmail fails to strip the 8th bit from a character prior to sending it, it violates a

protocol; if it does strip the bit, it could garble a non-ASCII message (this protocol

problem is being addressed).

300

Chapter 14: Internationalizing Your Application

One of the simplest things to do to remove the American bias from a program is to

replace the ASCII assumption with the assumption that the Latin 1 codeset will be used.

This approach is not true internationalization, but it can make the application usable in

most of Western Europe. Latin 1 uses only one byte per character, unlike some other

codesets, so 8-bit clean ASCII software should work without modiﬁcation using the Latin

1 codeset.

Ensuring that code is 8-bit clean is the single most important aspect of internationalizing

software.

Another caveat about 8-bit characters applies only to a particular set of circumstances: If

you are not using a multibyte character type (see the next section), you should not declare

characters as type signed char. (The default in IRIX C is for char to imply unsigned char.) If

you try to cast a signed char to an int (as you must do to use the ctype() functions) and the

character’s high bit is set (as it may be in an 8-bit character set), the high bit is interpreted

as a sign bit and extends into the full width of the int.

Character Representation

Western languages usually require only one byte for each character. Asian languages,

however, often require two or even four bytes per character, and some Asian encodings

allow a variable number of bytes per character.

The two kinds of encodings that allow more than one byte per character are

•multibyte (MB) characters are of variable size

•wide characters (WC or wchar characters) are a ﬁxed number of bytes long)

Character Sets, Codesets, and Encodings

301

The application developer must decide where to use WC and MB characters and strings:

•Multibyte strings are almost the default: string I/O uses MB, MB code works for

ASCII and ISO 8859, and MB characters use less space than do wide characters.

However, manipulating individual characters within a multibyte string is difﬁcult.

Note: Traditional strings are merely a special case of multibyte strings, where every

character happens to be one byte long and there is only one codeset. All MB code,

including conversion to and from wchars, works for traditional ASCII, or ISO 8859,

strings.

•Applications that do heavy string manipulation typically use WC strings for such

activity, because manipulating individual WC characters in a string is much simpler

than doing the same thing with MB characters. So wide characters are used as

necessary to provide programming ease or runtime speed; however, they take up

more space than MB characters.

Note: WC is system dependent—applications should not use it for I/O strings or

communication.

Multibyte Characters

A multibyte character is a series of bytes. The character itself contains information on

how many bytes long it is. Multibyte characters are referenced as strings (and are

therefore of type char *); before parsing, a string is indistinguishable from a multibyte

character. The zero byte is still used as a string (and MB character) terminator.

A string of MB characters can be considered a null-terminated array of bytes, exactly like

a traditional string. A multibyte string may contain characters from multiple codesets.

Usually, this is done by incorporating special bytes that indicate that the next character

(and only the next character) will be in a different codeset. Very little application code

should ever need to be aware of that, though; you should use the available library

routines to ﬁnd out information about multibyte strings rather than look at the

underlying byte structure, because that structure varies from one encoding to another.

For one example of an encoding that allows characters from multiple codesets, see

“EUC” on page 364.

302

Chapter 14: Internationalizing Your Application

Use of Multibyte Strings

Multibyte strings are very easy to pass around. They efﬁciently use space (both data and

disk space), since “extra” bytes are used only for characters that require them. MB strings

can be read and written without regard to their contents, as long as the strings remain

intact. Displaying MB strings on a terminal is done with the usual routines: printf(),

puts(), and so on. Many programs (such as cat) need never concern themselves with the

multibyte nature of MB strings, since they operate on bytes rather than on characters; so

MB strings are often used for string I/O.

Manipulation of individual characters in an MB string can be difﬁcult, since ﬁnding a

particular character or position in a string is nontrivial (see “Handling Multibyte

Characters,” below). Therefore, it is common to convert to WC strings for that kind of

work.

Handling Multibyte Characters

Usually, multibyte characters are handled just like char strings. Editing such strings,

however, requires some care.

You cannot tell how many bytes are in a particular character until you look at the

character. You cannot look at the nth character in a string without looking at all the

previous n - 1 characters, because you cannot tell where a character starts without

knowing where the previous character ends. Given a byte, you don’t know its position

within a character. Thus, we say the string has state or is context-sensitive; that is, the

interpretation we assign to any given byte depends on where we are in a character.

This analysis of characters is locale-dependent, and therefore must be done by routines

that understand locale.

Conversion to Constant-Size Characters

Multibyte characters and strings are convertible to wchars using mbtowc() for individual

characters and mbstowcs() for strings (see the mbtowc(3) and mbstowcs() reference

pages).

How Many Bytes in a Character?

To ﬁnd out how many bytes make up a given single MB character, use mblen(), as shown

in Example 14-1 (see also the mblen(3) reference page).

Character Sets, Codesets, and Encodings

303

Example 14-1 Find Number of Bytes in an MB Character

#include <stdlib.h>

. . .

size_t n;

int len;

char *pStr;

. . .

len = mblen(pStr, n); /* examine no more than n bytes */

It is the application’s responsibility to ensure that pStr points to the beginning of a

character, not to the middle of a character.

The maximum number of bytes in a multibyte character is MB_LEN_MAX, which is

deﬁned in limits.h. The maximum number of bytes in a character under the current locale

is given by the macro MB_CUR_MAX, deﬁned in stdlib.h.

How Many Bytes in an MB String?

Since strlen() simply counts bytes before the ﬁrst NULL, it tells you how many bytes are

in an MB string.

How Many Characters in an MB String?

When mbstowcs() converts MB strings to WC strings, it returns the number of characters

converted. This is the simplest way to count characters in an MB string.

Note: Many code segments that deal with individual characters within a string are better

served by wide character strings. Since counting often involves conversion, such

segments are often better served by working with a WC string, then converting back.

Getting the length without performing the conversion is straightforward, but not as

simple. mbtowc() converts one character and returns the number of bytes used, but

returns the same information without conversion if a NULL is passed as the address of

the WC destination. Thus

len = mblen(pStr, n);

is equivalent to

len = mbtowc((wchar_t *) NULL, pStr, n);

304

Chapter 14: Internationalizing Your Application

In fact, mblen() calls mbtowc() to perform its count. Therefore, counting characters in an

MB string without converting would look like the code in Example 14-2.

Example 14-2 Counting MB Characters Without Conversion

int cLen;

char *tStr = pStr;

numChars = 0;

cLen = mbtowc((wchar_t *) NULL, tStr, MB_CUR_MAX);

while (cLen > 0) {

tStr += cLen;

numChars++;

cLen = mbtowc((wchar_t *) NULL, tStr, MB_CUR_MAX);

if (cLen == -1)

numChars = cLen; /* invalid MB character */

}

Wide Characters

A wide character (WC or wchar) is a data object of type wchar_t, which is guaranteed to

be able to hold the system’s largest numerical code for a character. wchar_t is deﬁned in

stdlib.h. Under IRIX 4.0.x, sizeof(wchar_t) was 1. In IRIX 5.1 and above, it is 4. All wchars

on a system are the same size, independent of locale, encoding, or any other factors.

Uses for wchar Strings

The single advantage of WC strings is that all characters are the same size. Thus, a string

can be treated as an array, and a program can simply index into the array in order to

modify its contents. Most applications’char manipulation routines work with little

modiﬁcation other than a type change to wchar_t, with appropriate attention to byte

count and sizeof().

So, when applications have signiﬁcant string editing to perform, they typically keep the

strings in WC format while doing that editing. Those WC strings may or may not be

converted to or from MB strings at other points in the application.

Wide characters are often large and are not as space efﬁcient as multibyte strings.

Applications that do not need to perform string editing probably shouldn’t use wchars.

If an application intends to both maintain and edit large numbers of strings, then the

developer needs to make size and complexity trade-off decisions.

Cultural Items

305

Support Routines for Wide Characters

Analogs to the routines deﬁned in string.h and stdio.h are supplied in libw.a and deﬁned

in widec.h. This includes routines such as getwchar(),putwchar(),putws(),wscpy(),

wslen(), and wsrchr() (see the wcstring(3) reference page).

Conversion to MB Characters

Wide characters and strings are convertible to MB strings via wctomb() and wcstombs(),

respectively.

Reading Input Data

Input can be divided into two categories: user events and other data. This section deals

with nonuser-originated data, which is assumed to come from ﬁle descriptors or streams.

User events are discussed in “User Input” on page 343.

It is generally fair to assume that unless otherwise speciﬁed, data read by an application

is encoded suitably for the current locale. Text strings typically are in MB format.

Streams can be read in WC format by using routines deﬁned in widec.h.

Cultural Items

This section discusses several aspects of a locale that may differ between locales. It

includes these topics:

•“Collating Strings” describes string collation.

•“Specifying Numbers and Money” explains some monetary formats, and the

printf() and localeconv() functions.

•“Formatting Dates and Times” covers using strftime() to format of dates and times.

•“Character Classiﬁcation and ctype” discusses associations between character

codes, and using macros and functions from /usr/lib/ctype.h.

•“Regular Expressions” presents information for developers who do their own

regular expression parsing and matching.

306

Chapter 14: Internationalizing Your Application

Also see “Cultural Data” for additional information.

Collating Strings

Different locales can have different rules governing collation of strings, even within

identical encodings.

The Issue

In English, sorting rules are extremely simple: each character sorts to exactly one unique

place. Under ASCII, the characters are even in numeric order. However, neither of those

statements is necessarily true for other languages and other codesets. Furthermore:

•Sorting order for a language may be completely unrelated to the (numerical) order

of the characters in a given encoding.

•Even with a correctly sorted list of the characters in a character set, you may not be

able to sort words properly.

•Locales using identically encoded character sets may use very different sorting

rules.

Programs using ASCII can do simple arithmetic on characters and directly calculate

sorting relationships; such programs frequently rely on truisms such as the fact that

’a’ < ’b’

in ASCII. But internationalized programs cannot rely on ASCII and English sorting rules.

Consider some non-English collation rule types:

•One-to-Two mappings collate certain characters as if they were two. For example, the

German ß collates as if it were “ss.”

•Many-to-One mappings collate a string of characters as if they were one. For

example, Spanish sorts “ch” as one character, following “c” and preceding “d.” In

Spanish, the following list is in correct alphabetical order: calle,creo,chocolate,decir.

•Don’t-Care Character rules collate certain characters as if they were not present. For

example, if “-” were a don’t-care character, “co-op” and “coop” would sort

identically.

•First-Vowel rules sort words based ﬁrst on the ﬁrst vowel of the word, then by

consonants (which may precede or follow the vowel in question).

Cultural Items

307

•Primary/Secondary sorts consider some characters as equals until there is a tie. For

example, in French, a, á, à, and â all sort to the same primary location. If two strings

(such as “tache” and “tâche”) collate to the same primary order, then the secondary

sort distinguishes them.

•Special case sorts exist for some Asian languages. For example, Japanese kanji has

no strict sorting rules. Kanji strings can be sorted by the strokes that make up the

characters, by the kana (phonetic) spellings of the characters, or by other

agreed-upon rules.

It should be clear that a programmer cannot hope to collate strings by simple arithmetic

or by traditional methods.

The Solution

Locale-speciﬁc collation should be performed with strcoll() and strxfrm(). These are

table-driven functions; the tables are supplied as part of locale support. The value of

LC_COLLATE determines which ordering table to use. (See the strcoll(3) and strxfrm(3)

reference pages.)

strcoll() has the same interface as strcmp() and can be directly substituted into code that

uses strcmp(). However, strcoll() can consume more CPU time, so where it is used in a

time-critical loop you may have to redesign.

Specifying Numbers and Money

Format of simple numbers differs from locale to locale. Characters used for decimal radix

and group separators vary. Grouping rules may also vary. Even though we assume that

decimal numbers are universal, there are some eighteen varying aspects of numeric

formatting deﬁned by a locale. Many of these are details of monetary formatting.

308

Chapter 14: Internationalizing Your Application

For example, Germany uses a comma to denote a decimal radix and a period to denote a

group separator. English reverses these. India groups digits by two except for the last

three digits before the decimal radix. Many locales have particular formats used for

money, some of which are shown in Table 14-3.

Using printf()

printf() function, detailed in the printf(3S) reference page, examines LC_NUMERIC and

chooses the appropriate decimal radix. If none is available, it tries to use ASCII period.

No further locale-speciﬁc formatting is done directly by printf(). However, see “Variably

Ordered Referencing of printf() Arguments,” for a way to handle locale-speciﬁc ordering

of syntactic elements in messages.

Using localeconv()

The localeconv() function, detailed in the localeconv(3C) reference page, can be called to

ﬁnd out about numeric formatting data, including the decimal radix (inappropriately

called decimal_point), the grouping separator (inappropriately called thousands_sep), the

grouping rules, and a great deal of monetary formatting information.

The localeconv() function leaves actual use of formatting information other than the

decimal radix to the application.

Table 14-3 Some Monetary Formats

Country Positive Format Negative Format

India Rs1,02,34,567.89 Rs(1,02,34,567.89)

Italy L.10.234.567 -L.10.234.567

Japan ¥10,234,567 -¥10,234,567

Netherlands F10.234.567,89 F-10.234.567,89

Norway Kr10.234.567,89 Kr10.234.567,89-

Switzerland SFr10,234,567.89 SFr10,234,567.89C

Cultural Items

309

Using strfmon()

The strfmon() function, detailed in the strfmon(3S) reference page, is new with IRIX

version 6.2. Like sprintf(),strfmon() takes an output area, a format string that contains

conversion speciﬁcations, and one or more argument values to be converted. It creates an

output string containing ﬁxed data and converted values.

Only two conversion types are supported: %i to convert a double value to international

currency representation, and %n to convert a double value to national currency

representation. You can use strfmon() to format currency values as strings, and then use

printf() or other functions to write the formatted strings.

Formatting Dates and Times

All of these dates can mean the same thing to different people:

92.1.4

4/1/92

1/4/92

All of these can mean the same time to different people:

2:30 PM

14:30

14h30

Dates and times can be easily formatted by using strftime(), which gives a host of options

for displaying locale-speciﬁc dates and times. The ascftime() and cftime() functions give

further options, but should be avoided because they do not conform to ANSI and XPG/4

speciﬁcations. The old asctime() and ctime() functions are now obsolete; use strftime()

instead. For more information, see the strftime(3C) reference page.

Character Classiﬁcation and ctype

The ctype.h header ﬁle is described in the ctype(3C) reference page and deﬁnes macros to

determine various kinds of information about a given character: isalpha(),isupper(),

islower(),isdigit(),isxdigit(),isalnum(),isspace(),ispunct(),isprint(),isgraph(),

iscntrl(), and isascii().

310

Chapter 14: Internationalizing Your Application

The Issue

When programmers knew that a character set was ASCII, some convenient assumptions

could be made about characters and letters. It was common for programmers to do

arithmetic with the ASCII code values in order to perform some simple operations. For

example, raising a character to upper case could be done by subtracting the difference

between the code for a and the code for A. Numeric characters could be identiﬁed by

inspection: if they fell between 0 and 9, they were numeric; otherwise, they weren’t. You

could tell if a character was (for instance) printable, a letter, or a symbol by comparing to

known encoding values. Macros for such activity have long been available in ctype.h, but

lots of programs did character arithmetic anyway. Since character encoding and

linguistic semantics are completely independent, such arithmetic in an internationalized

program leads to unpleasant results.

Furthermore, characters exist outside of ASCII that break some non-arithmetic

assumptions. Consider the German character ß which is a lowercase alphabetic character

(letter), yet has no uppercase. Consider also French (as written in France), where the

uppercase of é is E, not É.

Clearly, the programmer of an internationalized application has no way of directly

computing all the character associations that were available in English under ASCII.

The Solution

Strict avoidance of arithmetic on character values should remove any trouble in this area.

The macros in ctype.h are table-driven and are therefore locale-sensitive. If you think of

characters as abstract characters rather than as the numbers used to represent them, you

can avoid pitfalls in this area.

Locale-Specific Behavior

311

Regular Expressions

XPG/4 speciﬁes some extensions to traditional regular expression syntax for

internationalized software. Few application developers do their own regular expression

parsing and matching, however, so we do not include full details here. Brieﬂy, the

extensions provide the ability to specify matches based on:

•character class (such as alpha,digit,punct, or space)

•equivalence class (for instance, a,á,à,â,A,Á,À, and Â may be equivalent)

•collating symbols (allowing you to match the Spanish ch as one element because it is

a single collating token)

•generalization of range speciﬁcations of the form [c1-c2] to include the above

If you are processing expressions, see the description of internationalized regular

expression grammar in “Using Regular Expressions.”

Locale-Speciﬁc Behavior

You can internationalize an application so it can span a range of language and cultural

environments. This section covers some locale-speciﬁc topics you should consider when

internationalizing an application. Topics include

•“Overview of Locale-Speciﬁc Behavior”

•“Native Language Support and the NLS Database”

•“Using Regular Expressions”

•“Cultural Data”

Much of the information in this section is from the X/Open Portability Guide. For

additional information on locale-speciﬁc behavior, refer to the X/Open Portability Guide,

Volume 3, “XSI Supplementary Deﬁnitions.”

312

Chapter 14: Internationalizing Your Application

Overview of Locale-Speciﬁc Behavior

This section covers

•“Local Customs”

•“Regular Expressions”

•“The ANSI X3.159-198X Standard for C”

Local Customs

To meet the requirements of local customs, the X/Open Native Language System (NLS)

interface provides a set of library functions that allow cultural data appropriate to the

user to be determined at run-time.

Regular Expressions

Regular expressions provide pattern-matching facilities for text. A variety of regular

expression support libraries are supplied with IRIX. Most of them parse regular

expressions in terms of machine collating sequences, the English language, and the

ASCII coded character set.

When a program deals with internationalized input text, it is important to extend regular

expression facilities to cover internationalized strings and coded character sets. It is

difﬁcult to write regular expressions that apply to more than one language, or to

languages with accented/multi-character collating elements because of limitations in

syntax.

Application programs can use the wsregexp function library, documented in the

wsregexp(3W) reference page, to support internationalized regular expression behavior.

The ANSI X3.159-198X Standard for C

The American National Standards Committee X3J11 standard for the C programming

language includes a number of library functions that are deﬁned to operate

internationally; that is, they modify their operation in a manner appropriate to the user’s

native language and cultural environment.

Locale-Specific Behavior

313

The X/Open deﬁnition includes the international functions in Table 14-4 as deﬁned in

Draft ANSI X3.159, Programming Language C. ANSI functions that are enhanced by the

X/Open deﬁnition are marked with an asterisk.

Draft ANSI X3.159, Programming Language C also deﬁnes a number of multi-byte

functions, and an additional function for manipulating monetary values. At this stage,

the X/Open deﬁnition is only guaranteed to work correctly for single-byte 8-bit

characters, and thus does not include the multi-byte functions.

Table 14-4 ANSI Compatible Functions

Function Function (continued)

atof() scanf() *

fprintf() * setlocale()

fscanf() * sprintf() *

isalnum() sscanf() *

isalpha() strcoll()

isgraph() sterror()

islower() strftime()

isprint() strtod()

ispunct() strxfrm()

isspace() tolower()

isupper() toupper()

printf() *

314

Chapter 14: Internationalizing Your Application

In addition, X/Open deﬁnes internationalized regular expression compile and match

functions, native language message-handling functions, and native language versions of

the error-handling functions (see Table 14-5).

Native Language Support and the NLS Database

The X/Open NLS interface deﬁnes the functional capabilities of a generic database that

holds various language-dependent entities. This section describes those entities:

•“Conﬁguration Data”

•“Collating Sequence Tables”

•“Character Classiﬁcation Tables”

•“Shift Tables”

•“Language Information”

Conﬁguration Data

Conﬁguration data identify the languages supported on a system in terms of the

recognized settings of language, territory, and codeset. Each valid combination of these

settings has its own set of collating sequence, character classiﬁcation and shift tables,

language information data, and message catalogs.

Table 14-5 X/Open Additional Functions

Function Function (continued)

catclose() regexp()

catgets() vfprintf()

catopen() vprintf()

nl_langinfo() vsprintf()

perror()

Locale-Specific Behavior

315

Collating Sequence Tables

Collating sequence tables deﬁne the collating sequence for each supported language. The

binary values of characters in the associated coded character set are used as indices into

the table, individual entries of which indicate the relative position of that character in the

language collating sequence. The interface deﬁnition supports the following capabilities:

•one-to-one character mappings

•one-to-two character mappings, where certain characters require treatment as if

they were two characters

•n-to-one character mappings, where certain character sequences require treatment

as if they represented a single character in the collating sequence. The maximum

value of N is deﬁned separately for each supported language, where N is a number

in the range [1,{NL_NMAX}].

•don’t care characters, where certain characters are ignored by the collating sequence

These capabilities extend to providing support for the relative ordering of collating

elements within an equivalent class (for example, where two characters are ﬁrst

compared for equality ignoring accents, and if equal, are then ordered by accent

sequence).

Character Classiﬁcation Tables

These contain the lookup tables for character classiﬁcation. Each character code from the

deﬁned coded character set is used as an index into the relevant language lookup table.

Each entry language lookup table contains a series of ﬂags identifying the truth or

falsehood of a particular language assertion, such as

•upper-case alphabetic character

•lower-case alphabetic character

•punctuation character

•control character

•space character

316

Chapter 14: Internationalizing Your Application

Shift Tables

Shift tables contain the corresponding upper- and lower-case combinations for each

character deﬁned in a coded character set. Thus, the upshifted or downshifted value of a

character can be determined by accessing the relevant character entry in the shift table.

Language Information

Language information (or langinfo) contains message text speciﬁc to a particular

localization. The library function nl_langinfo() provides a procedural interface to this

data, allowing applications to discover cultural and language-speciﬁc information at

run-time. Individual items of langinfo data are identiﬁed by constants in Volume 2, XSI

System Interfaces and Headers, <langinfo.h>.

Information speciﬁc to a culture or language includes the following :

•Date and time formats

•Days of the week and months of the year

•Abbreviated names of days and months

•Radix character

•Separator for thousands

•Afﬁrmative and negative responses to yes/no questions

•Currency symbol and its position within a currency value

Locale-Specific Behavior

317

Using Regular Expressions

Regular expression are used widely throughout the services and are powerful

mechanisms for locating and manipulating patterns in text. In order to be compatible

with a variety of historic UNIX systems, the IRIX Developer’s Option includes the

unique regular expression library sets listed in Table 14-6. Note that only the last,

wsregexp, supports internationalization.

Table 14-6 Regular Expression Libraries in IRIX

Library

Documentation Type of Support Provided

regcmp(3G) Function regcmp() compiles a pattern string; regex() applies the pattern to a

target string. Syntax is said to be that of ed but “syntax and semantics have been

changed slightly” in unspeciﬁed ways.

regcmp(1) Command applies regcmp() against a ﬁle of pattern strings, generating C code

for literal strings that can be included in a source program so as to preclude

having to compile patterns at run-time.

REGEX(3) Function re_comp() compiles a pattern string; re_exec() applies the

last-compiled pattern against a target string. No means of storing compiled

patterns. No documentation of supported syntax, but cross-references ed(1),

with which it may or may not be compatible.

regexp(5) Function compile() compiles a pattern string; step() or advance() applies a

stored pattern against a target string. Unusual interface compiles these

functions directly into your source module, using macro functions you must

deﬁne. Pattern syntax clearly documented.

wsregexp(3W) Function wsrecompile() compiles a pattern string; wsrestep() or wsrematch()

applies a pattern against a target. Both pattern and target strings are wide

characters. Expression syntax is that of regexp augmented with

internationalization expressions.

318

Chapter 14: Internationalizing Your Application

Internationalized Regular Expressions

A few utilities distributed with IRIX, in particular grep (see the grep(1) reference page)

support internationalized regular expressions, which provide additional syntax for

matching character classes, sequences, or ranges. The internationalized regular

expressions supported by the wsregexp library are as shown in Table 14-7.

Table 14-7 Character Expressions in Internationalized Regular Expressions

Expression Description

cThe single character c where c is not a special character.

[[:class:]] A character class expression. Any character of type class, as deﬁned by category

LC_CTYPE in the program’s locale (for example, see isalpha()). For class, substitute

one of the following:

alpha, a letter

upper, an upper-case letter

lower, a lower-case letter

digit, a decimal digit

xdigit, a hexadecimal digit

alnum, an alphanumeric (letter or digit)

space, a character that produces white space in displayed text

punct, a punctuation character

print, a printing character

graph, a character with a visible representation

cntrl, a control character

[[=c=]] An equivalence class. Any collation element deﬁned as having the same relative

order in the current collation sequence as c. As an example, if A and a belong to the

same equivalence class, then both [[=A=]b] and [[=a=]b] are equivalent to [Aab].

Locale-Specific Behavior

319

Within square brackets, a period (.) that is not part of a [[.c.]] sequence, a colon (:) that is

not part of a [[:class:]] sequence, and an equals sign (=) that is not part of a [[=c=]]

sequence matches itself.

Table 14-8 shows examples of simple regular expressions.

[[.cc.]] A collating symbol. Multi-character collating elements must be represented as

collating symbols to distinguish them from single-character collating elements. As

an example, if the string ch is a valid collating element, then [[.ch.]] is treated as an

element matching the same string of characters, while ch is treated as a simple list

of c and h. If the string is not a valid collating element in the current collating

sequence deﬁnition, the symbol is treated as an invalid expression.

[c-c] Any collation element in the character expression range c-c, where c can identify a

collating symbol or an equivalence class. If the hyphen character, -, appears

immediately after an opening square bracket, or immediately prior to a closing

square bracket, it has no special meaning.

Table 14-8 Examples of Internationalized Regular Expressions

Pattern Deﬁnition

[[=a=]]bcd any form of a followed by bcd

[[.ch.]-e] any element that collates between ch and e

[[:lower:]] any lower case letter

Table 14-7 (continued) Character Expressions in Internationalized Regular Expressions

Expression Description

320

Chapter 14: Internationalizing Your Application

Cultural Data

The items of cultural data listed in Table 14-9 are deﬁned in the C locale.

Table 14-9 Cultural Data Names, Categories, and Settings

Item Category Setting for the C Locale

D_T_FMT LC_TIME "%a %b %d %H:%M:%S %Y"

D_FMT LC_TIME "%m/%d/%y"

T_FMT LC_TIME "%H:%M:%S"

AM_STR LC_TIME "AM"

PM_STR LC_TIME "PM"

DAY_1 LC_TIME "Sunday"

DAY_2 LC_TIME "Monday"

DAY_3 LC_TIME "Tuesday"

DAY_4 LC_TIME "Wednesday"

DAY_5 LC_TIME "Thursday"

DAY_6 LC_TIME "Friday"

DAY_7 LC_TIME "Saturday"

ABDAY_1 LC_TIME "Sun"

ABDAY_2 LC_TIME "Mon"

ABDAY_3 LC_TIME "Tue"

ABDAY_4 LC_TIME "Wed"

ABDAY_5 LC_TIME "Thu"

ABDAY_6 LC_TIME "Fri"

ABDAY_7 LC_TIME "Sat"

MON_1 LC_TIME "January"

MON_2 LC_TIME "February"

Locale-Specific Behavior

321

MON_3 LC_TIME "March"

MON_4 LC_TIME "April"

MON_5 LC_TIME "May"

MON_6 LC_TIME "June"

MON_7 LC_TIME "July"

MON_8 LC_TIME "August"

MON_9 LC_TIME "September"

MON_10 LC_TIME "October"

MON_11 LC_TIME "November"

MON_12 LC_TIME "December"

ABMON_1 LC_TIME "Jan"

ABMON_2 LC_TIME "Feb"

ABMON_3 LC_TIME "Mar"

ABMON_4 LC_TIME "Apr"

ABMON_5 LC_TIME "May"

ABMON_6 LC_TIME "Jun"

ABMON_7 LC_TIME "Jul"

ABMON_8 LC_TIME "Aug"

ABMON_9 LC_TIME "Sep"

ABMON_10 LC_TIME "Oct"

ABMON_11 LC_TIME "Nov"

ABMON_12 LC_TIME "Dec"

RADIXCHAR LC_NUMERIC "."

THOUSEP LC_NUMERIC " "

Table 14-9 (continued) Cultural Data Names, Categories, and Settings

Item Category Setting for the C Locale

322

Chapter 14: Internationalizing Your Application

NLS Interfaces

The NLS interfaces listed here are utilities and library functions.

NLS Utilities

The list below identiﬁes the minimum set of utilities that provide 8-bit transparency on

all X/Open compliant systems. The deﬁnitions of these commands, in terms of their

syntax and parameters, are not changed by the operation of NLS.

YESSTR LC_ALL "yes"

NOSTR LC_ALL "no"

CRNCYSTR LC_MONENTARY " "

ar date kill pg tail uulog

awk diff lex pr tar uuname

cancel echo ln ps tee uupick

cat ed lp pwd test uustat

cc egrep lpstat red tr uuto

cd expr ls rm true uux

chgrp false mail rmdir tty wait

chmod fgrep mailx sed umask wc

chown ﬁnd mkdir sh uname who

cmp gencat mv sleep uniq

cp grep pack sort unpack

cpio iconv pcat stty uucp

Table 14-9 (continued) Cultural Data Names, Categories, and Settings

Item Category Setting for the C Locale

Locale-Specific Behavior

323

The cc,yacc, and lex commands provide 8-bit transparency for characters contained in

character strings, character constants, and comment strings. An 8-bit character string

enables a programmer to deﬁne default messages in languages other than English. The

support of 8-bit characters in identiﬁer names is implementation deﬁned.

The 8-bit operation of commands that communicate with other systems cannot be

guaranteed in all circumstances. For example, intersystem mail may be restricted to 7-bit

data by the underlying network, 8-bit data and ﬁlenames may not be portable to

noninternationalized systems, and so forth. Under these circumstances, it is

recommended that you use only characters deﬁned in the ASCII 7-bit range of characters

for data transfer between machines, and you use only characters deﬁned in the Portable

Filename Character Set for naming remote ﬁles.

NLS Library Functions

The list below shows library functions usable by internationalized application programs

Also, all functions deﬁned in the X/Open Portability Guide, Volume 2, XSI System Interfaces

and Headers, and X/Open Portability Guide, Volume 3, XSI Curses Interface, provide 8-bit

transparency on X/Open compliant systems.

XSI Curses Interface

The XSI curses interface is internationalized. For more information, see the X/Open

Portability Guide, Volume 3, XSI Curses Interface.

atof() isgraph() scanf() toupper()

catclose() islower() setlocale() vfprintf()

catgets() isprint() sprintf() vprintf()

catopen() ispunct() sscanf() vsprintf()

fprint() isspace() strcoll()

fscanf() isupper() strerror()

gcvt() nl_langinfo() strftime()

isalnum() perror() strtod()

isalpha() printf() strxfrm()

iscntrl() regexp() tolower()

324

Chapter 14: Internationalizing Your Application

Strings and Message Catalogs

Message catalogs are compiled databases of strings. While a major role of message

catalogs is to provide communications text in locale-speciﬁc natural language, the strings

can be used for any purpose. The idea is that an application uses only strings from a

catalog, thus allowing localizers to supply catalogs suitable for a given locale.

Two different and incompatible interfaces to message catalogs exist in IRIX: MNLS and

XPG/4. Developers working on SVR4 or other AT&T code, or related base-system

utilities, probably use MNLS. Developers working on independent projects probably use

XPG/4. Neither is a solid standard, but XPG/4 is closer to being a standard than MNLS.

Thus applications developers who have to choose between the two interfaces are

encouraged to use XPG/4 to maximize their portability. XPG/4 seems to be popular in

Europe.

This section covers the following topics:

•“XPG/4 Message Catalogs”

•“SVR4 MNLS Message Catalogs”

•“Variably Ordered Referencing of printf() Arguments”

XPG/4 Message Catalogs

The XPG/4 message catalog interface requires that a catalog be opened before it is read,

and requires that catalog references specify a catalog descriptor.

Since catalog references include a default to be used in case of failure, applications will

work normally without a catalog when in the default locale. This means catalog

generation is exclusively the task of localizers. But in order to inform the localizer as to

what strings to translate and how they should comprise a catalog, the application

developer should provide a catalog for the developer’s locale.

Opening and Closing XPG/4 Catalogs

catopen() locates and opens a message catalog ﬁle:

#include <nl_types.h>

nl_catd catopen(char *name, int unused);

Strings and Message Catalogs

325

The argument name is used to locate the catalog. Usually, this is a simple, relative

pathname that is combined with environment variables to indicate the path to the catalog

(see “XPG/4 Catalog Location” for details). However, the catalog assumes names that

begin with “/ ” are absolute pathnames. Use of a hard-coded pathname like this is

strongly discouraged; it doesn’t allow the user to specify the catalog’s locale through

environment variables.

When an application is ﬁnished using a message catalog, it should close the catalog and

free the descriptor using catclose():

int catclose(nl_catd);

Using an XPG/4 Catalog

Catalogs contain sets of numbered messages. The application developer must know the

contents of the catalog in order to specify the set and number of a message to be obtained.

catgets() is used to retrieve strings from a message catalog (see the catopen(3) and

catgets(3) reference pages). Example 14-3 shows a program that reads the ﬁrst message

from the ﬁrst message set in the appropriate catalog, and displays the result.

Example 14-3 Reading an XPG/4 Catalog

#include <stdio.h>

#include <locale.h>

#include <nl_types.h>

#define SET1 1

#define WRLD_MSG 1

int main(){

nl_catd msgd;

char *message;

setlocale(LC_ALL, "");

msgd = catopen("hw",0);

message = catgets(msgd, SET1, WRLD_MSG,"Hello, world\n");

printf(message);

catclose(msgd);

}

326

Chapter 14: Internationalizing Your Application

The previous example uses printf() instead of puts() in order to make a point: the format

string of printf() came from a catalog. Note the crucial difference between these two

statements:

printf(catgets(msgd, set, num, defaultStr));

printf("%s", catgets(msgd, set, num, defaultStr));

In the ﬁrst statement, the catalog provides the printf() formatting string, possibly

containing conversion speciﬁcations and escape sequences. In the second statement, the

string from the catalog is treated as data and not interpreted for conversion

speciﬁcations. For further discussion of issues relating to this important distinction, see

“Variably Ordered Referencing of printf() Arguments.”

XPG/4 Catalog Location

XPG/4 message catalogs are located using the environment variable NLSPATH. The

default NLSPATH is /nlslib/%L/%N, where %L is ﬁlled in by the LANG environment

variable and %N is ﬁlled in by the name argument to catopen(). NLSPATH can specify

multiple pathnames in ordered precedence, much like the PATH variable. The following

is a sample NLSPATH assignment:

NLSPATH=/usr/lib/locale/%L/%N:/usr/local/lib/locale/%L/%N:/usr/defaults/%N

Creating XPG/4 Message Catalogs

Message catalogs are of this general form (these forms are detailed in the gencat(1)

reference page):

$set n comment

a message-a\n

b message-b\n

c message-c\n

$quote "

d " message-d "

$this is a comment

Each message is identiﬁed by a message number and a set. Sets are often used to separate

messages into more easily usable groups, such as error messages, help messages,

directives, and so on. Alternatively, you could use a different set for each source ﬁle,

containing all of that source ﬁle’s messages.

Strings and Message Catalogs

327

$set n speciﬁes the beginning of set n, where n is a set identiﬁer in the range from 1 to

NL_SETMAX. All messages following the $set statement belong to set n until either a

$delset or another $set is reached. You can skip set numbers (for example, you can have

a set 3 without having a set 2), but the set numbers that you use must be listed in

ascending numerical order (and every set must have a number). Any string following the

set identiﬁer on the same line is considered a comment.

$delset n deletes the set n from a message catalog.

$quote c speciﬁes a quote character, c, which can be used to surround message text so that

trailing spaces or null (empty) messages are visible in a message source line. By default,

there is no quote character and messages are separated by newlines. To continue a

message onto a second line, add a backslash to the end of the ﬁrst line:

$set 1

1 Hello, world.

2 here is a long \

string.\n

3 Hello again.

n message-text-n

Message #2 in set #1 is “here is a long string.\n”.

Compiling XPG/4 Message Catalogs

After creating the message catalog sources, you need to compile them into binary form

using gencat, which has the following syntax:

gencat catfile msgfile [msgfile ...]

where catﬁle is the target message catalog and msgﬁle is the message source ﬁle (see the

gencat(1) reference page). If an old catﬁle exists, gencat attempts to merge new entries

with the old. gencat “resolves” set and message number conﬂicts with new information

replacing the old.

The catﬁle then needs to be placed in a location where catopen() can ﬁnd it; see the

“XPG/4 Catalog Location” on page 326.

328

Chapter 14: Internationalizing Your Application

SVR4 MNLS Message Catalogs

There are many ways to use strings from MNLS message catalogs. You can get strings

directly and then use them, or you can use output routines that search catalogs.

Putting MNLS Strings Into a Catalog

An MNLS catalog source ﬁle contains a list of strings separated by new lines. For an

empty string, an empty line is used. Strings are referenced by line number in the original

source ﬁle.

Applications access the catalog by line number, so it’s very important not to change the

line numbers of existing catalog entries. This means that, when you want to add a new

string to an existing catalog source, you should always append it to the end of the ﬁle—

if you put it in the middle of the ﬁle, then you change the line number for subsequent

strings.

The following tools can help you compile MNLS message catalogs:

When a ﬁle of strings is ready to be compiled, simply run mkmsgs and put the results in

the directory /usr/lib/locale/localename/LC_MESSAGES.

Using MNLS in Shell Scripts

One difference between MNLS and XPG/4 catalog functions is that the MNLS catalog

can be used from commands, and hence it can be used to internationalize a shell script.

The following table summarizes MNLS functions that have both a command line and a

function library version:

exstr(1) Searches a C source ﬁle for literal strings and lists them, or replaces

them with MNLS function calls.

mkmsgs(1) Creates a message catalog for a particular locale, converting source text

lines to the form used by exstr.

srchtxt(1) Displays selected strings from a message catalog.

gettxt(1) Retrieve a string from the catalog.

lfmt(1) Retrieve a format string, insert arguments, display to stderr and to

system log or textport.

pfmt(1) Retrieve a format string, insert arguments, display to stderr.

Strings and Message Catalogs

329

Specifying MNLS Catalogs

MNLS message catalogs do not need to be speciﬁcally opened. The catalog of choice can

be set explicitly once, or it can be speciﬁed every time a string is needed.

To specify the default message catalog to be used by subsequent calls to MNLS functions

that reference catalogs, use setcat():

#include <pfmt.h>

char *setcat(const char *catalog);

catalog is limited to 14 characters, and may contain no character equal to zero or to the

ASCII codes for slash (/) or colon (:). (See the setcat(3) reference page.)

setcat() doesn’t check to see if the catalog name is valid; it just stores the string for future

reference. For an example of use, see the following topic. The catalog indicated by the

string must be found in the directory /usr/lib/locale/localename/LC_MESSAGES.

Getting Strings From MNLS Message Catalogs

MNLS message catalogs do not need to be speciﬁcally opened. The catalog of choice can

be set explicitly once, or it can be speciﬁed in each reference call. Strings are read from a

catalog via gettxt() (see the gettxt(3) reference page):

#include <unistd.h>

char *gettxt(const char *msgid, const char *defaultStr);

msgid is a string containing two ﬁelds separated by a colon:

msgfilename:msgnumber

The msgﬁlename is a catalog name as described previously in the “Specifying MNLS

Catalogs” on page 329. For example, to get message 10 from the MQ catalog, you could

use either:

char *str = gettxt("MQ:10", "Hello, world.\n");

setcat("MQ");

str = gettxt(":10", "Hello, world.\n");

330

Chapter 14: Internationalizing Your Application

Using pfmt()

pfmt() is one of the most important routines dealing with MNLS catalogs, because it is

used to produce most system diagnostic messages. pfmt() formats like printf() and

produces standard error message formats (see the pfmt(3) reference page for the

function, or pfmt(1) for shell use). It can usually be used in place of perror(). For example,

pfmt(stderr, MM_ERROR, "MQ:64:Permission denied");

would produce, by default (such as when the Mozambique locale is unavailable),

ERROR: Permission denied.

The syntax of pfmt() is

#include <pfmt.h>

int pfmt(FILE *stream, long flags, char *format, ... );

The ﬂags are used to indicate severity, type, or control details to pfmt(). The format string

includes information specifying which message from which catalog to look for. Flag

details are discussed in the following section. The format is discussed in the “Format

Strings for pfmt()” on page 331.

Labels, Severity, and Flags

pfmt() ﬂags are composed of several groups; specify no more than one from each group.

Specify multiple ﬂags by using OR. The groups are as follows:

pfmt() prints messages in the form label:severity:text.Severity is speciﬁed in the ﬂags. The

text comes from a message catalog (or a default) as speciﬁed in the format, and the label is

speciﬁed earlier by the application.

In the example above, if no label has been set, we get only the output:

ERROR: Permission denied.

output format control MM_NOSTD, MM_STD

catalog access control MM_NOGET, MM_GET

severity MM_HALT, MM_ERROR, MM_WARNING, MM_INFO

action message speciﬁcation MM_ACTION

Strings and Message Catalogs

331

Typically, an application sets the label once early in its life; subsequent error messages

have the label prepended. For example

setlabel("UX:myprog");

...

pfmt(stderr, MM_ERROR, "MQ:64:Permission denied");

would produce (by default)

UX:myprog: ERROR: Permission denied.

For details, consult the pfmt(3) and setlabel(3) reference pages.

Format Strings for pfmt()

pfmt() format strings are of this form:

[[catalog:]messagenum:]defaultstring

The catalog ﬁeld is in the format described in “Specifying MNLS Catalogs” on page 329.

messagenum is the message number in the catalog to use as the format. defaultstring

speciﬁes the string to use if the catalog lookup fails for any reason.

An important feature of pfmt() is its ability to refer to format arguments in

format-speciﬁed order just as printf() does. See “Variably Ordered Referencing of printf()

Arguments” for details.

Using fmtmsg()

fmtmsg() is a comprehensive formatter using the MNLS catalogs and “standard”

formats. You probably won’t need to use it; most applications should get by with pfmt(),

gettxt(), and printf(). Consult the fmtmsg(3) reference page for details.

332

Chapter 14: Internationalizing Your Application

Internationalizing File Typing Rule Strings With MNLS

You can internationalize the strings deﬁned in the LEGEND and MENUCMD rules in the

File Typing Rule (FTR) ﬁle. To internationalize these rules, precede the string with the

following:

:[catalogname:]msgnumber:

catalogname is optional and should be a valid MNLS catalog; msgnumber is the line

number in catalogname. If you omit catalogname, the uxsgidesktop catalog is used by

default.

You can use these rules to create your own FTR catalog. For example, an entry looks like

this:

LEGEND :mycatalog:7:Archive 8mm Tape Drive

This entry uses line 7 from the catalog, mycatalog, as the LEGEND for this FTR. If

mycatalog is not available, or line 7 is not accessible from mycatalog, “Archive 8mm Tape

Drive” is used as the LEGEND.

LEGEND :7:Archive 8mm Tape Drive

This entry uses line 7 from the uxsgidesktop catalog, if available. Otherwise, “Archive

8mm Tape Drive” is used.

The next example,

MENUCMD \‘mycatalog:9:Eject Tape\’ /usr/sbin/eject /dev/tape

displays line 9 from mycatalog, if available. Otherwise “Eject Tape” is displayed on the

menu that pops up when you click an icon that uses this FTR.

You can internationalize strings in the command part of MENUCMD and CMD rules by

using gettxt or any other convenient policy detailed in this section. For example

CMD OPEN xconfirm -t "Tape tool not available"

can be internationalized to

CMD OPEN xconfirm -t "‘gettxt mycatalog:376 ’Tape tool not available’‘"

Strings and Message Catalogs

333

In this example, gettxt is invoked to access line 376 from the catalog, mycatalog, and the

string returned by gettxt is passed to xconﬁrm for display. If line 376 from mycatalog is not

accessible, then gettxt returns the string “Tape tool not available.”

For more information about FTRs, see the Indigo Magic Desktop Integration Guide.

Variably Ordered Referencing of printf() Arguments

printf() and its variants can now refer to arguments in any speciﬁed order. Consider the

following scenario: an application has chosen “house” from a list of objects and “white”

from a list of colors. The application wishes to display this choice. The code might look

like this:

char *obj, *color;

... /* make choices */ ...

printf("%s %s\n", color, obj);

The printf() call produces this:

white house

Even once we make sure that obj and color are localized strings, we are not quite ﬁnished.

If our locale is Spanish, the printf() yields:

blanca casa

That is incorrect grammar; in Spanish, it should be:

casa blanca

The solution to this problem is variably ordered referencing of printf() arguments. The

syntax of printf() format strings has been expanded to deal with this.

The original deﬁnition of printf() is that each conversion speciﬁcation %T (where T

represents any of the printf() conversion characters) is implicitly matched to an

argument value by position. In order to deal with variably ordered strings, printf()

allows an argument position index D to appear in the conversion speciﬁcation following

the %, so that where a format string contains %T , it can now contain %D$T. The value D,

set off by a currency symbol ($), selects the argument from the argument list to be used.

This means you can write

printf("2nd parameter is %2$s; the 1st is %1$s", p1, p2)

334

Chapter 14: Internationalizing Your Application

The second parameter is printed ﬁrst, with the ﬁrst parameter printed second. For

example:

char *store = "Macy’s";

char *obj = "a cup";

printf("At %1$s, I bought %2$s.\n", store, obj);

printf("I bought %2$s at %1$s.\n", store, obj);

This code displays

At Macy’s, I bought a cup.

I bought a cup at Macy’s.

In English, we are able to come up with strings suitable for either word order; in some

other language, we might not be so lucky. Nor can we predict which order such

languages might prefer. So the developer has no way of knowing how to create

traditional printf() format strings suitable for all languages.

Developers should therefore use message catalogs for their printf() format strings that

take linguistic parameters, and allow localizers to localize the format strings as well as

text strings. This means that the localizer has much greater ability to create intelligible

text. An internationalized version of the above code appears in Example 14-4.

Example 14-4 Internationalized Code

/* internationalized (XPG/4) version */

char *form = catgets(msgd, set, formNum,

"At %1$s, I bought %2$s.\n");

char *store = catgets(msgd, set, storeNum, "Macy’s");

char *obj = catgets(msgd, set, objNum, "a cup");

printf(form, store, obj);

The unlocalized (default) version would produce

At Macy’s, I bought a cup.

A localized version might produce

Compré una tasa en Macy’s.

In practice, variably ordered format strings are found only in message catalogs and not

in default strings. The default string usually simply uses the parameters in the order

they’re given, without the new variable-order format strings.

Internationalization Support in X11R6

335

Internationalization Support in X11R6

X11R6 internationalization support is provided on the X client side; that is, the

application must take care of such support instead of relying on the X server. No server

changes are necessary, and the protocol is unchanged. Full backward compatibility is

preserved, so a new internationalized application can run on an old server.

Note: X11R6 internationalization refers to features in X11R5 and X11R6.

X uses existing internationalization standards to do its internationalization support;

there are no X-speciﬁc interfaces to set and change locale. Internationalized X

applications receive no help from X when attempting multilingual support. No locales or

special process states are peculiar to X.

This section covers the following topics:

•“Limitations of X11R6 in Supporting Internationalization” discusses vertical text,

character sets, and Xlib interface changes.

•“Resource Names” covers encoding of resource names.

•“Getting X Internationalization Started” describes initialization of Xlib and toolkit

programming.

•“Fontsets” explains specifying, creating, and using fontsets.

•“Text Rendering Routines” discusses the XmbDrawText(),XmbDrawString(), and

XmbDrawImageString() functions.

•“New Text Extents Functions” describes a few new extents-related functions,

including XFontSetExtents.

Limitations of X11R6 in Supporting Internationalization

Since X is locale-independent, there are some limitations on its ability to support

internationalization. The X protocol and Xlib speciﬁcation, together with ANSI C and

POSIX restrictions, have led to certain choices being made in X11R6. These are described

in the following paragraphs.

336

Chapter 14: Internationalizing Your Application

Vertical Text

There is no built-in support for vertical text. Applications may draw strings vertically

only by laying out the text manually.

Character Sets

In previous releases of X, there was no general support for character sets other than Latin

1. X11R6, however, does allow other character sets.

X11R6 includes the deﬁnition of the X Portable Character Set, which is required to exist in

all locales supported by Xlib. There is no encoding deﬁned for this set; it is only a

character set. The set—which is similar to printable ASCII plus the newline and tab—

consists of these characters:

abcdefghijklmnoqrstuvwxyz

ABCDEFGHIJKLMNOPQRSTUVWXYZ

0123456789

!"#$%&’()*+,-./:;<=>?@[\]^_‘{|}~

The Host Portable Character Encoding is the encoding of the X Portable Character Set on

the Xlib host. This encoding is part of X, and is thus independent of locale—the coding

remains the same for all locales supported by the host.

Strings used or returned by Xlib routines are either in the Host Portable Character

Encoding or a locale-speciﬁc encoding. The Xlib reference pages specify which encodings

are used where. Some string constructs (such as TextProperty) contain information

regarding their own encoding.

Xlib Interface Change

Full use of X11R6’s internationalization features means calling some new routines

supplied in the X11R6 Xlib. While all old Xlib applications work with the new Xlib,

developers should change their code in places. These are described below.

Internationalization Support in X11R6

337

Resource Names

Resource names are compiled into programs. Because of that, their encoding must be

known independent of locale. Trying to add a level of indirection here results in a

problem: you’re always left with something compiled that can’t be localized. Resource

names therefore use the X Portable Character Set. The names may be anything; at least

they’ll mean something to the application author. (If the names were numbers, for

example, they would be meaningless to everybody.)

Getting X Internationalization Started

Xlib’s internationalization state, like that of libc, needs to be initialized.

Initialization for Toolkit Programming

If you’re using Xt (with a widget set such as IRIS IM, Motif, or XaW), then don’t use

setlocale(). Instead, use

XtSetLanguageProc(NULL, NULL, NULL)

If you’re using a toolkit other than Xt, call setlocale() as early as possible after execution

begins.

Initialization for Xlib Programming

Initialize Xlib’s internationalization state after calling setlocale(). Xlib is being initialized,

not a server or server-speciﬁc object, so a server connection is not necessary.

Example 14-5 Initializing Xlib for a Locale

if ( setlocale(LC_ALL, "") == NULL )

exit_with_error();

if ( ! XSupportsLocale() )

exit_with_other_error();

if ( XSetLocaleModifiers("") == NULL)

give_warning();

XSetLocaleModiﬁers() is required only for input. Just as passing an empty string to

setlocale() honors the user’s environment, so does passing an empty string to

XSetLocaleModiﬁers().

338

Chapter 14: Internationalizing Your Application

Fontsets

In X11R5 and X11R6, unlike previous releases of X, a string may contain characters from

more than one codeset. There are several methods for determining which codeset a given

character is in; which method is appropriate depends on the locale and the encoding

used.

For information on installing and using fontsets with an application, refer to Chapter 13,

“Working With Fonts.”

Such multiple-codeset strings usually cannot be rendered using a single font. A fontset is

a collection of fonts suitable for rendering all codesets represented in a locale’s encoding.

A fontset includes information to indicate which locale it was created in. Applications

create fontsets for their own use; when a program creates a fontset, it is told which of the

requested fonts are unavailable.

Example: EUC in Japanese

To render strings encoded in EUC in Japanese, an application would need fonts encoded

in 8859-1, JIS X 208, and JIS X 201. The application doesn’t need to know which characters

in a string go with which font, since it doesn’t deal with locale speciﬁcs. So it creates a

fontset that is made from a list of user-speciﬁed fonts (under the assumption that the

localizer has provided an appropriate list). Rendering is then done using that fontset. The

locale-aware rendering system chooses the appropriate fonts for each character being

rendered, from the supplied list. You can ﬁnd additional information about EUC in

“Asian Languages.”

Specifying a Fontset

A fontset speciﬁcation is just a string, enumerating XLFD names of fonts. (See X Logical

Font Description Conventions, an MIT X Consortium standard, as well as “Font Names” on

page 265.) This string can include wild card characters. For example, a speciﬁcation of

16-point “ﬁxed” fonts might be as follows:

char *fontSetSpecString = "*fixed-medium-r-normal*150*";

Based on the fonts available, a particular server might expand this to a string such as:

-jis-fixed-medium-r-normal--16-150-75-75-c-160-jisx0208.1983-0

-sony-fixed-medium-r-normal--16-150-75-75-c-80-iso8859-1

-sony-fixed-medium-r-normal--16-150-75-75-c-80-jisx0201.1976-0

Internationalization Support in X11R6

339

Specifying the fontset by simply enumerating the fonts is perfectly acceptable:

char *fontSetSpecString =

"-jis-fixed-medium-r-normal*150-75-75*jisx0208.1983-0,\

-sony-fixed-medium-r-normal*150-75-75*iso8859-1,\

-sony-fixed-medium-r-normal*150-75-75*jisx0201.1976-0";

A German locale would work with only the ISO font; a Japanese locale might use all

three; a Chinese locale would have trouble with this fontset.

The developer should specify a default fontset suitable for the default locale.

Furthermore, developers should ensure that the application accepts localized fontset

speciﬁcations via resources (or message catalogs) or command line options. Localizers

are responsible for providing default fontset speciﬁcations suitable for their locales.

Creating a Fontset

Creating fontsets in X is simply a matter of providing a string that names the fonts, as

described above.

Example 14-6 Creating a Fontset

XFontSet fontset;

char *base_name; /* should get from resource */

char **missingCharsetList;

int missingCharsetCount;

char *defaultStringForMissingCharsets;

base_name = "*fixed-medium-r*150*"; /* use resources! */

fontset = XCreateFontSet(display, base_name,

&missingCharsetList,

&missingCharsetCount,

&defaultStringForMissingCharsets);

The locale in effect at create time is bound to the fontset. Fontsets are freed with

XFreeFontSet().

Using a Fontset

Fontsets are used when rendering text with X11R6 Xmb or Xwc text rendering routines.

These routines are described in “Text Rendering Routines.”

340

Chapter 14: Internationalizing Your Application

Text Rendering Routines

X11R6 includes text rendering routines that understand multibyte and wide-character

strings. These routines are analogous to the X11R4 text rendering routines XDrawText(),

XDrawString(), and XDrawImageString(). The old routines continue to operate, but do

not take fontsets, and don’t know how to handle characters longer than one byte.

•XmbDrawText() and XwcDrawText() take lists of TextItems, each of which contains

(among other things) a string. The strings are rendered using fontsets. These

routines allow complex spacing and fontset shifts between strings.

•XmbDrawString() and XwcDrawString() render a string using a fontset. These

routines render in foreground only and use the raster operation from the current

graphics context.

•XmbDrawImageString() and XwcDrawImageString also render a string using a

fontset. These routines ﬁll the background rectangle of the entire string with the

background, then render the string in the foreground color, ignoring the currently

active raster operation.

Consult the appropriate reference pages for more details on these routines.

New Text Extents Functions

X11R6 provides MB and WC versions of width and extents interrogation routines,

supplying the maximum amount of space required to draw any character in a given

fontset. These routines depend on fontsets to interpret strings and use locale-speciﬁc

data.

The XFontSetExtents structure contains the two kinds of extents a string can have:

typedef struct {

XRectangle max_ink_extent;

XRectangle max_logical_extent;

} XFontSetExtents;

Internationalization Support in X11R6

341

max_ink_extent gives the maximum boundaries needed to render the drawable characters

of a fontset. It considers only the parts of glyphs that would be drawn, and gives

distances relative to a constant origin. max_logical_extent gives the maximum extent of

the occupied space of drawable characters of a fontset. The occupied space of a character

is a rectangle specifying the minimum distance from other graphical features; other

graphics generated by a client should not intersect this rectangle. max_logical_extent is

used to compute interline spacing and the minimum amount of space needed for a given

number of characters.

Here are descriptions of a few of the new extents-related functions (consult the

appropriate reference pages for details):

•XExtentsOfFontSet() returns an XFontSetExtents structure for a fontset.

•XmbTextEscapement() and XwcTextEscapement() take a string and return the

distance in pixels (in the current drawing direction) to the origin of the next

character after the string, if the string were drawn. Escapement is always positive,

regardless of direction.

•XmbTextExtents() and XwcTextExtents() take a string and return information

detailing the overall rectangle bounding the string’s image and the space the string

occupies (for spacing purposes).

•XmbTextPerCharExtents() and XwcTextPerCharExtents() take a string and return

ink and logical extents for each character in the string. Use this for redrawing

portions of strings or for word justiﬁcation. If the fontset might include

context-dependent drawing, the client cannot assume that it can redraw individual

characters and get the same rendering.

•XContextDependentDrawing() returns a Boolean telling whether a fontset might

include context-dependent drawing.

342

Chapter 14: Internationalizing Your Application

Internationalization Support in Motif

Your applications can use Motif’s internationalization capabilities. Refer to the chapter

titled “Internationalization” in the OSF/Motif Programmer’s Guide for information about

the following topics:

•issues in internationalized applications

•compound strings, fonts, and text display

•localizing applications

•advanced topics in internationalization

There are some important points to remember when you internationalize and localize

your application:

•At the top of your main program, issue the call

XtSetLanguageProc(NULL, NULL, NULL);

•Translate your app-defaults and install it in /usr/lib/X11/$LANG/app-defaults.

•Motif uses font sets and font lists to display text. Specify a font list in your

application defaults ﬁle using the following format:

*fontList: font-list-string:

Be sure to separate elements in the font-list-string as follows:

•Separate single fonts with a comma (,).

•Separate elements within a font set with a semicolon (;).

•End the string with a colon (:).

An example of specifying a Japanese fontList is as follows:

*fontList: 7x14;--mincho-*--14-*;--14-*:

User Input

343

User Input

This section explains the translation of physical user events into programmatic character

strings or special keyboard data (such as “backspace”). This kind of work should be done

by toolkits. If you can use a toolkit to manage event processing for you, do so, and

blissfully ignore this section. If you are writing a toolkit text object, or are writing a truly

extraordinary application, then this section is for you.

This section on user input covers these topics:

•“About User Input and Input Methods” presents an overview of user input and

input methods.

•“About X Keyboard Support” covers X keyboard support, including keys,

keycodes, keysyms, and composed characters.

•“Input Methods (IMs)” describes how input methods are opened and closed.

•“IM Styles” discusses the use and naming of IM styles.

•“Input Contexts (ICs)” explains an IM styles, IC values, pre-edit and status

attributes, and creating and using ICs.

•“Events Under IM Control” describes differences in processing events under IM

control including XFilterEvent() and LookupString routines.

About User Input and Input Methods

Just as internationalized programs cannot assume that data is in ASCII, they cannot

assume that user input will use any speciﬁc keyboard. Keyboards change from country

to country and language to language; internationalized software should never assume

that a certain position on the keyboard is bound to a certain character, or that a given

character will be available as a single keystroke on all keyboards.

No useful physical keyboard—not even one speciﬁcally designed for multilingual

work—could possibly contain a key for every character we would ever wish to type.

Certainly there are characters commonly used in other areas of the world that are not

present on most USA keyboards. So methods have been invented that provide for input

of almost any known character on even the most naïve keyboards. These schemes are

referred to as input methods (IMs).

344

Chapter 14: Internationalizing Your Application

Input methods vary signiﬁcantly in design, use, and behavior, but there is a single API

that developers use to access them. The object is for the application simply to ask for an

IM and let the system check the locale and choose the appropriate IM.

Some IMs are complex; others are very simple. The API is designed to be a low-level

interface, like Xlib. Usually, only toolkit text object authors must deal with the IM

interfaces. However, some applications developers are unable to use toolkit objects, so

the concepts are described here.

Reuse Sample Code

A sample program demonstrating some of the concepts in this section is given in Chapter

11 of the Xlib Programming Manual, Volume One. Looking carefully at that code may be

easier than starting from scratch.

GL Input

The old GL function qdevice() has a hard-coded view of a keyboard (see

/usr/include/gl/device.h for details). Some ﬂexibility, particularly for Europe, is available if

you queue KEYBD instead of individual keys, but the GL has no general solution to

non-ASCII input. There is no supported way to input Chinese (for instance) to the old

GL.

OpenGL does not contain input code but leaves that to the operating environment, which

in IRIX means X.

In short, support for internationalized input means a departure from qread(). Under

IRIX, that means using mixed-model input, all the more reason to use a toolkit.

About X Keyboard Support

This section provides some background that may help make the following sections easier

to understand.

User Input

345

Keys, Keycodes, and Keysyms

When a client connects to the X server, the server announces its range of keycodes and

exports a table of keysyms. Each key event the client receives has a single byte keycode,

which directly represents a physical key, and a single byte state, which represents

currently engaged modiﬁer keys, such as Shift or Alt.

Note: The mapping of state bits to modiﬁers is done by another table acquired from the

server.

Keysyms are well deﬁned, and there has been an attempt to have a keysym for every

engraving one might possibly ﬁnd on any keyboard, anywhere. (An engraving is the

image imprinted on a physical key.) These are contained in /usr/include/X11/keysymdef.h.

Keysyms represent the engravings on the actual keys, but not their meanings. The

server’s idea of the keysym table can be changed by clients, and clients may receive

KeyMap events when this remapping happens, but such events don’t happen often.

When a client receives a Key event, it asks Xlib to use the keycode to index into its

keysym table to ﬁnd a list of keysyms. (This list is usually very short. Most keys have

only one or two engravings on them.) Using the state byte, Xlib chooses a keysym from

the list to ﬁnd out what was engraved on the key the user pressed.

At this point, the client can choose to act on the keysym itself (if, for instance, it was a

backspace) or it can ask for a character string represented by the keysym (or both).

Generating such a string is tricky; it is discussed in “Input Methods (IMs),” below.

Details on X keyboard support can be found in X Window System, Third Edition, from

Digital Press. Details on input methods are also available in that book, as well as in the

Xlib Programming Manual, Volume One.

Composed Characters

There are two ways to compose characters that do not exist on a keyboard: explicit and

implicit. It is common for an application to be modal and switch between the two. For

example, Japanese input of kana is often done via implicit composition.

Users switch between a mode where input is interpreted as romaji (Latin characters) and

a mode where input is translated to kana.

346

Chapter 14: Internationalizing Your Application

Furthermore, both styles may operate simultaneously. While an application is

supporting implicit composition of certain characters, other characters may be

composable via explicit composition.

Not every keystroke produces a character, even if the associated keysym normally

implies character text. The event-to-string translation routines ﬁgure out what result a

given set of keystrokes should produce (see “Using XLookupString(),

XwcLookupString(), and XmbLookupString()” in this section).

Character composition from the user’s aspect is discussed in the compose(5) and

composetable(5) reference pages.

Explicit Composition

Explicit composition is requested when the user presses the Compose

key and then types a key sequence that corresponds to the desired

character. For example, to compose the character ñ under some

keymaps, you might press the Compose key and then type ~n.

Note: The xmodmap(1) reference page tells how to map the

XK_Multi_key keysym onto whatever key you want to use as Compose.

Implicit Composition

Implicit composition mimics many existing European typewriters that

have “dead” keys: keys that type a character but do not advance the

carriage. When a special “dead” key is struck, the system attempts to

compose a character using the next character struck. For example, on a

keyboard that had a diaeresis (¨) and an O, but no Ö, you would strike ¨

and then O to compose Ö.

Implicit composition support usually comes with some speciﬁed way

to leave characters uncomposed.

Supported Keyboards

IRIX currently supports 12 keyboard layouts: American, Belgian, Danish, English,

French, German, Italian, Norwegian, Portuguese, Spanish, Swedish, and Swiss. All are

representable in Latin 1; the American keyboard needs only ASCII.

User Input

347

Input Methods (IMs)

Input methods (IMs) are ways to translate keyboard-input events into text strings. You

would use a different input method, for instance, to type on a USA keyboard in Chinese

than to type on the same keyboard in English. Nobody would build a keyboard suitable

for direct input of the tens of thousands of distinct Chinese characters.

IMs come in two ﬂavors, front-end and back-end. Both types can use identical application

programming interfaces, so you lose no generality by using back-end methods for our

examples here.

To use an IM, follow these steps:

1. Open the IM.

2. Find out what the IM can do.

3. Agree upon capabilities to use.

4. Create input contexts with preferences and window(s) speciﬁed (see “Input

Contexts (ICs)” on page 352).

5. Set the input context focus.

6. Process events.

Although all applications go through the same setup when establishing input methods,

the results can vary widely. In a Japanese locale, you might end up with networked

communications with an input method server and a kanji translation server, with

circuitous paths for Key events. But in a Swiss locale for example, it is likely that nothing

would occur besides a ﬂag or two being set in Xlib. Since operating in non-Asian locales

ends up bypassing almost all of the things that might make input methods expensive,

Western users are not noticeably penalized for using Asia-ready applications.

Opening an Input Method

XOpenIM() opens an input method appropriate for the locale and modiﬁers in effect

when it is called (see the XOpenIM(3X11) reference page). The locale is bound to that IM

and cannot be changed. (But you could open another IM if you wanted to switch later.)

Strings returned by XmbLookupString() and XwcLookupString() are encoded in the

locale that was current when the IM was opened, regardless of current input context.

348

Chapter 14: Internationalizing Your Application

The syntax is

XIM XOpenIM(Display *dpy, XrmDataBase db, char *res_name,

char *res_class);

The res_name is the resource name of the application, res_class is the resource class, and

db is the resource database that the input method should use for looking up resources

private to itself. Any of these can be NULL. The fragment in Example 14-7 shows how

easy it is to open an input method.

Example 14-7 Opening an IM

XIM im;

im = XOpenIM(dpy, NULL, NULL, NULL);

if (im == NULL)

exit_with_error();

XOpenIM() ﬁnds the IM appropriate for the current locale. If XSupportsLocale() has

returned good status (see “Initialization for Xlib Programming”) and XOpenIM() fails,

something is amiss with the administration of the system.

XSetLocaleModiﬁers() determines conﬁgure locale modiﬁers. The local host X locale

modiﬁers announcer (the XMODIFIERS environment variable) is appended to the

modiﬁer list to provide default values on the locale host. The modiﬁer list argument is a

null-terminated string containing zero or more concatenated expressions of this form:

@category=value

For example, if you want to connect Input Method Server xwnmo, set modiﬁers

_XWNMO as follows:

XSetLocaleModifiers("@im=_XWNMO");

Or, set environment variable XMODIFIERS to the string @im=_XWNMO and execute

XSetLocaleModifiers("");

Note: The library routines are not prepared for the possibility of XSupportsLocale()

succeeding and XOpenIM() failing, so it’s up to application developers to deal with such

an eventuality. (This circumstance could occur, for example, if the IM died after

XSupportsLocale() was called.) This topic is under some debate in the MIT X

consortium. If XSetLocaleModiﬁers() is wrong, XOpenIM() will fail.

User Input

349

Most of the complexity associated with IM use comes from conﬁguring an input context

to work with the IM. Input contexts are discussed in “Input Contexts (ICs)” on page 352.

To close an input method, call XCloseIM().

IM Styles

If the application requests it, an input method can often supply status information about

itself. For example, a Japanese IM may be able to indicate whether it is in Japanese input

mode or romaji input mode. An input method can also supply pre-edit information,

partial feedback about characters in the process of being composed. The way an IM deals

with status and pre-edit information is referred to as an IM style. This section describes

styles and their naming.

Root Window

The Root Window style has a pre-edit area and a status area in a window owned by the

IM as a descendant of the root. The application does not manage the pre-edit data, the

pre-edit area, the status data, or the status area. Everything is left to the input method to

do in its own window, as illustrated in Figure 14-1.

Figure 14-1 Root Window Input

Status Pre-edit information IM window

Main body of window; text input occurs here.

root window

Application window

350

Chapter 14: Internationalizing Your Application

Off-the-Spot

The Off-the-Spot style places a pre-edit area and a status area in the window being used,

usually in reserved space away from the place where input appears. The application

manages the pre-edit area and status area, but allows the IM to update the data there.

(The application provides information regarding foreground and background colors,

fonts, and so on.) A window using Off-the-Spot input style might look like that shown in

Figure 14-2.

Figure 14-2 Off-the-Spot Input

Over-the-Spot

The Over-the-Spot style involves the IM creating a small, pre-edit window over the point

of insertion. The window is owned and managed by the IM as a descendant of the root,

but it gives the user the impression that input is being entered in the right place; in fact,

the pre-edit window often has no borders and is invisible to the user, giving the

appearance of On-the-Spot input. The application manages the status area as in

Off-the-Spot, but speciﬁes the location of the editing so that the IM can place pre-edit

data over that spot.

Pre-edit informationStatus

Main body of window; text input occurs here.

root window

Application window

User Input

351

On-the-Spot

On-the-Spot input is by far the most complex for the application developer. The IM

delivers all pre-edit data via callbacks to the application, which must perform in-place

editing—complete with insertion and deletion and so on. This approach usually involves

a great deal of string and text rendering support at the input generation level, above and

beyond the effort required for completed input. Since this may mean a lot of updating of

surrounding data or other display management, everything is left to the application.

There is little chance an IM could ever know enough about the application to be able to

help it provide user feedback. The IM therefore provides status and edit information via

callbacks.

Done well, this style can be the most intuitive one for a user.

Setting IM Styles

A style describes how an IM presents its pre-edit and status information to the user. An

IM supplies information detailing its presentation capabilities. The information comes in

the form of ﬂags combined with OR. The ﬂags to use with each style are as follows:

For example, if you wanted a style variable to match an Over-the-Spot IM style, you

could write:

XIMStyle over = XIMPreeditPosition | XIMStatusArea;

If an IM returns XIMStatusNone (not to be confused with XIMStatusNothing), it means the

IM will not supply status information.

Using Styles

An input method supports one or more styles. It’s up to the application to ﬁnd a style

that is supported by both the IM and the application. If several exist, the application must

choose. If none exist, the application is in trouble.

Root Window XIMPreeditNothing | XIMStatusNothing

Off-the-Spot XIMPreeditArea | XIMStatusArea

Over-the-Spot XIMPreeditPosition | XIMStatusArea

On-the-Spot XIMPreeditCallbacks | XIMStatusCallbacks

352

Chapter 14: Internationalizing Your Application

Input Contexts (ICs)

An input method may be serving multiple clients, or one client with multiple windows,

or one client with multiple input styles on one window. The speciﬁcation of style and

client/IM communication is done via input contexts. An input context is simply a

collection of parameters that together describe how to go about receiving and examining

input under a given set of circumstances.

To set up and use an input context:

1. Decide what styles your application can support.

2. Query the IM to ﬁnd out what styles it supports.

3. Find a match.

4. Determine information that the IC needs in order to work with your application.

5. Create the IC.

6. Employ the IC.

Find an IM Style

The IM may be able to support multiple styles—for example, both Off-the-Spot and Root

Window. The application may be able to do, in order of preference, Over-the-Spot,

Off-the-Spot, and Root Window. The application should determine that the best match in

this case is Off-the-Spot.

First, discover what the IM can do, then set up a variable describing what the application

can do, as shown in Example 14-8.

Example 14-8 Finding What a Client Can Do

XIMStyles *IMcando;

XIMStyle clientCanDo; /* note type difference */

XIMStyle styleWeWillUse = NULL;

XGetImValues(im, XNQueryInputStyle, &IMcando, NULL);

clientCanDo =

/*none*/ XIMPreeditNone | XIMStatusNone |

/*over*/ XIMPreeditPosition | XIMStatusArea |

/*off*/ XIMPreeditArea | XIMStatusArea |

/*root*/ XIMPreeditNothing | XIMStatusNothing;

User Input

353

A client should always be able to handle the case of

XIMPreeditNone | XIMStatusNone, which is likely in a Western locale. To the

application, this is not very different from a RootWindow style, but it comes with less

overhead.

Once you know what the application can handle, look through the IM styles for a match,

as shown in Example 14-9.

Example 14-9 Setting the Desired IM Style

for(i=0; i < IMcando->count_styles; i++) {

XIMStyle tmpStyle;

tmpStyle = IMcando->support_styles[i];

if ( ((tmpStyle & clientCanDo) == tmpStyle) )

styleWeWillUse = tmpStyle;

}

if (styleWeWillUse = NULL)

exit_with_error();

XFree(IMcando);

/* styleWeWillUse is set, which is what we were after */

IC Values

There are several pieces of information an input method may require, depending on the

input context and style chosen by the application. The input method can acquire any

such information it needs from the input context, ignoring any information that does not

affect the style or IM.

A full description of every item of information available to the IM is supplied in X

Window System, Third Edition. The following is a brief list:

XNClientWindow Speciﬁes to the IM which client window it can display data in

or create child windows in. Set once and cannot be changed.

XNFilterEvents An additional event mask for event selection on the client

window.

XNFocusWindow The window to receive processed (composed) Key events.

XNGeometryCallback A geometry handler that is called if the client allows an IM to

change the geometry of the window.

XNInputStyle Speciﬁes the style for this IC.

354

Chapter 14: Internationalizing Your Application

Pre-Edit and Status Attributes

When an IM is going to provide state, it needs some simple X information with which to

do its work. For example, if an IM is going to draw status information in a client window

in an Off-the-Spot style, it needs to know where the area is, what color and font to render

text in, and so on. The application gives this data to the IC for use by the IM.

As with the “IC Values” section, full details are available in X Window System, Third

Edition.

XNResourceClass,

XNResourceName

The resource class and name to use when the IM looks up

resources that vary by IC.

XNStatusAttributes,

XNPreeditAttributes

The attributes to be used for any status and pre-edit areas

(nested, variable-length lists).

XNArea A rectangle to be used as a status or pre-edit area.

XNAreaNeeded The rectangle desired by the attribute writer. Either the

application or the IM may provide this information,

depending on circumstances.

XNBackgroundPixmap A pixmap to be used for the background of windows the IM

creates.

XNColormap The colormap to use.

XNCursor The cursor to use.

XNFontSet The fontset to use for rendering text.

XNForeground,

XNBackground

The colors to use for rendering.

XNLineSpacing The line spacing to be used in the pre-edit window if more

than one line is used.

XNSpotLocation Speciﬁes where the next insertion point is, for use by

XIMPreeditPosition styles.

XNStdColormap Speciﬁes that the IM should use XGetRGBColormaps() with

the supplied property (passed as an Atom) in order to ﬁnd

out which colormap to use.

User Input

355

Creating an Input Context

Creating an input context is a simple matter of calling XCreateIC() with a variable-length

list of parameters specifying IC values. Example 14-10 shows a simple example that

works for the root window.

Example 14-10 Creating an Input Context With XCreateIC()

XVaNestedList arglist;

XIC ic;

arglist = XVaCreateNestedList(0, XNFontSet, fontset,

XNForeground,

WhitePixel(dpy, screen),

XNBackground,

BlackPixel(dpy, screen),

NULL);

ic = XCreateIC(im, XNInputStyle, styleWeWillUse,

XNClientWindow, window, XNFocusWindow, window,

XNStatusAttributes, arglist,

XNPreeditAttributes, arglist, NULL);

XFree(arglist);

if (ic == NULL)

exit_with_error();

Using the IC

A multi-window application may choose to use several input contexts. But for simplicity,

assume that the application just wants to get to the internationalized input using one

method in one window.

Using the IC is a matter of making sure you check events the IC wants, and of setting IC

focus. If you are setting up a window for the ﬁrst time, you know the event mask you

want, and you can use it directly. If you are attaching an IC to a previously conﬁgured

window, you should query the window and add in the new event mask.

356

Chapter 14: Internationalizing Your Application

Example 14-11 Using the IC

unsigned long imEventMask;

XGetWindowAttributes(dpy, win, &winAtts);

XGetICValues(ic, XNFilterEvents, &imEventMask, NULL);

imEventMask |= winAtts.your_event_mask;

XSelectInput(dpy, window, imEventMask);

XSetICFocus(ic);

At this point, the window is ready to be used.

Events Under IM Control

Processing events under input method control is almost the same in X11R6 as it was

under R4 and before. There are two essential differences: the XFilterEvent() and

X*LookupString() routines.

Using XFilterEvent()

Every event received by your application should be fed to the IM via XFilterEvent(),

which returns a value telling you whether or not to disregard the event. IMs asks you to

disregard the event if they have extracted the data and plan on giving it to you later,

possibly in some other form. All events (not just KeyPress and KeyRelease events) go to

XFilterEvent().

If you compacted the event processing into a single routine, a typical event loop would

look something like the code in Example 14-12.

Example 14-12 Event Loop

Xevent event;

while (TRUE) {

XNextEvent(dpy, &event);

if (XFilterEvent(&event, None))

continue;

DealWithEvent(&event);

}

User Input

357

Using XLookupString(), XwcLookupString(), and XmbLookupString()

When using an input method, you should replace calls to XLookupString() with calls to

XwcLookupString() or XmbLookupString(). The MB and WC versions have very

similar interfaces. The examples below arbitrarily use XmbLookupString(), but apply to

both versions.

There are two new situations to deal with:

1. The string returned may be long.

2. There may be an interesting keysym returned, an interesting set of characters

returned, both, or neither.

Dealing with the former is a matter of maintaining an arena, as in Example 14-13.

To tell the application what to pay attention to for a given event, XmbLookupString()

returns a status value in a passed parameter, equal to one of the following:

XmbLookupString() also returns the length of the string in question. Note that

XmbLookupString() returns the length of the string in bytes, while XwcLookupString()

returns the length of the string in characters.

The example below should help show how these functions work. Most event processors

perform a switch on the event type; assume you have done that and have received a

KeyPress event.

XLookupKeysym Indicates that the keysym should be checked.

XLookupChars Indicates that a string has been typed or composed.

XLookupBoth Means both of the above.

XLookupNone Means neither is ready for processing.

XBufferOverﬂow Means the supplied buffer is too small—call XmbLookupString()

again with a bigger buffer

358

Chapter 14: Internationalizing Your Application

Example 14-13 KeyPress Event

case KeyPress:

{

Keysym keysym;

Status status;

int buflength;

static int bufsize = 16;

static char *buf = NULL;

if (buf == NULL) {

buf = malloc(bufsize);

if (buf < 0) StopSequence();

}

buflength = XmbLookupString(ic, &event, buf, bufsize,

&keysym, &status);

/* first, check to see if that worked */

if (status == XBufferOverflow) {

buf = realloc(buf, (bufsize = buflength));

buflength = XmbLookupString(ic, &event, buf, bufsize,

&keysym, &status);

}

/* We have a valid status. Check that */

switch(status) {

case XLookupKeysym:

DealWithKeysym(keysym);

break;

case XLookupBoth:

DealWithKeysym(keysym);

/* **FALL INTO** charcter case */

case XLookupChars:

DealWithString(buf, buflength);

case XLookupNone:

break;

} /* end switch(status) */

} /* end case KeyPress segment */

break; /* we are in a switch(event.type) statement */

GUI Concerns

359

GUI Concerns

It shouldn’t be signiﬁcantly more difﬁcult to internationalize an application with a

graphical user interface than an application without such an interface, but there are a few

further issues that must be addressed:

•“X Resources for Strings” covers labeling objects using X resources.

•“Layout” describes creating layouts that are usable after localization.

•“Icons” explains some concerns for localizing icons.

X Resources for Strings

Resource lookup mechanisms in Xlib as well as in toolkits monitor locale environment

variables when locating resource ﬁles. For string constants that are used within toolkit

objects, resources provide a simpler solution than do message catalogs.

These are some common objects that should deﬁnitely get their text from resources:

•Labels

•Buttons

•Menu items

•Dialog notices and questions

Any object that employs some sort of text label should be labeled via resources. Since the

localizer wants to provide strings for the local version of the application, the app-defaults

ﬁle for the application should specify every reasonable string resource. Reference pages

should identify all localizable string resources.

Localizers of an application provide a separate resource ﬁle for each locale that the

application runs in.

360

Chapter 14: Internationalizing Your Application

Layout

Layout management is of special interest when you cannot predict how large a button or

other label might be. The nature of the problem of layout composition and management

does not change, but one must construct the layout management without full knowledge

of the ﬁnal appearance.

It’s worth noting that localization efforts can be assumed to be “reasonable” in some

sense. For example, X resources have always allowed a user to specify an extremely large

font for buttons, but applications correctly choose to let such users live with the results.

But it’s not always that clear what is reasonable and what isn’t; you don’t always know

what will be difﬁcult to translate succinctly in some locale. So while you need not

provide for all combinations of resource speciﬁcations, you must make the application

localizable.

Three main approaches to the layout problem are described below: dynamic layout,

constant layout, and localized layout

Dynamic Layout

Most toolkits provide form,pane,rowcolumn, or other layout objects that calculate layout

depending on the “natural” (localized) size of the objects involved. Most use some hints

provided by the developer that can regulate this layout. For example, some IRIS IM

widgets providing these services are XmForm,XmPanedWindow, and XmRowColumn.

Dynamic layout is probably the simplest way to prevent localization difﬁculties.

Note: The IRIS IM product is the Silicon Graphics port of the OSF/Motif product, and

should not be confused with IM, the abbreviation for Input Methods.

Constant Layout

Under certain circumstances, an application may insist on having a predeﬁned layout.

When this is so, the application must provide objects that are constructed to allow

localization. A “Quit” button that just barely allows room for the Latin 1 string “Quit” is

not likely to sufﬁce when localizers attempt to ﬁt their translations into that small space.

In order to enforce constant layout, the developer incurs the heavy responsibility of

making sure the objects are localizable. This means a lot of investigation; the “there, that

ought to be enough” approach is chancy at best.

Popular Encodings

361

Localized Layout

Some toolkits provide for layout control by run-time reading of strings or other data ﬁles.

Applications that use such toolkits can easily ﬁnesse the layout issue by providing the

capability for localization of the layout, as well as localization of the contents of the

layout. This provides each localizer maximum freedom in presenting the application to

the local users. The application developer is responsible for providing localizers with

instructions and the mechanisms necessary to produce layout data.

IRIS IM Localization With editres

IRIX provides an interactive method of laying out widgets for IRIS IM and Xaw (the

Athena Widget Set): a utility called editres. With editres, you can construct and edit

resources and see how your widgets will look on the screen; the program even generates

a usable app-defaults ﬁle for you. But note that if you hard-code any resources into your

IRIS IM code, you won’t be able to edit them using this method.

Icons

Icons attempt to be fairly generic representations of their antecedents. Unfortunately, it

is very difﬁcult for a designer to know what is generic or recognizable in other cultures.

Therefore, it is important that any pictographic representations used by an application

be localizable.

Graphic representations can be stored as strings representing X bitmaps, as names of

data ﬁles containing pictographs, or in whatever manner the developer thinks best, so

long as the developer provides a way for the localizer to produce and deliver localized

pictographs.

Popular Encodings

This section discusses three encodings that are commonly used:

•“The ISO 8859 Family” explains the ISO 8859 family of encodings.

•“Asian Languages” describes Asian language encodings.

•“ISO 10646 and Unicode” covers the ISO 10646 and Unicode.

362

Chapter 14: Internationalizing Your Application

The ISO 8859 Family

American English is easily representable in 7-bit ASCII. Most other languages are not.

For example, the character é is not in ASCII.

Most Western European languages are representable in 8-bit ISO 8859-1, which is

commonly known as Latin 1. Latin 1 is a superset of ASCII that includes characters used

by several Western European languages (such as ö, £, ñ, ç, ¿).

ISO 8859 comes in nine parts, many of which overlap; all are supersets of ASCII.

The ISO 8859 Character Sets are shown in Table 14-10.

Table 14-10 ISO 8859 Character Sets

Character Set Common Name Languages Supported

8859-1 Latin 1 Danish, Dutch, English, Faeroese, Finnish, French, German,

Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish,

Swedish

8859-2 Latin 2 Albanian, Czech, English, German, Hungarian, Polish,

Rumanian, Serbo-Croatian, Slovak, Slovene

8859-3 Latin 3 Afrikaans, Catalan, Dutch, English, Esperanto, German,

Italian, Maltese, Spanish, Turkish

8859-4 Latin 4 Danish, English, Estonian, Finnish, German, Greenlandic,

Lapp, Latvian, Lithuanian, Norwegian, Swedish

8859-5 Latin/Cyrillic Bulgarian, Byelorussian, English, Macedonian, Russian,

Serbo-Croatian, Ukrainian

8859-6 Latin/Arabic Arabic, English (see ISO 8859-6 speciﬁcation)

8859-7 Latin/Greek English, Greek (see ISO 8859-7 speciﬁcation)

8859-8 Latin/Hebrew English, Hebrew (see ISO 8859-8 speciﬁcation)

8859-9 Latin 5 Danish, Dutch, English, Finnish, French, German, Irish,

Italian, Norwegian, Portuguese, Spanish, Swedish, Turkish

Popular Encodings

363

IRIX contains over 500 Latin 1 fonts, as well as a few fonts for each of the other

8859-encoded character sets, except 8859-6 and 8859-8. Currently, IRIX contains no fonts

for use with the 8859-6 or 8859-8 character sets.

To get the list of ISO-8859 fonts, enter the following:

xlsfonts

Or you can restrict the amount of output, for example, by typing

xlsfonts ‘*8859-2’

To see the encoding, use the xfd command. For example:

xfd -fn -sgi-screen-medium-r-normal--9-90-72-72-m-60-iso8859-1

For more information on xlsfonts and xfd, and installing and using fonts, refer to

Chapter 13, “Working With Fonts.”

Asian Languages

Asian languages are commonly ideographic and employ large numbers of characters for

their representation. For example, Japanese and Korean can be practically encoded in 16

bits. Daily-use Chinese can be, also, but archives and scholars frequently need more, so

Chinese is often encoded with up to four bytes per character.

364

Chapter 14: Internationalizing Your Application

Some Standards

Various Asian character sets have been developed, some of which are considered

standard. Encodings for these sets are less standardized. Asian character sets usually

require larger-than-byte character types like those described in “Multibyte Characters.”

Table 14-11 lists some of these standard character sets. Note that some of these character

sets have multiple associated codesets, usually designated by appending the year the

codeset was adopted to the character set name. (For example, JIS X 208-1983 is different

from JIS X 208-1990.)

EUC

EUC is Extended UNIX Code, an encoding methodology that supports concurrent use of

four codesets in one encoding. It employs two special “shift state” bytes:

ss1 = 0x8e

ss2 = 0x8f

These are used to identify codesets within a string. The EUC encoding scheme uses the

following patterns to indicate which codeset is in use at any given time:

Codeset #0: 0xxxxxxx

Codeset #1: 1xxxxxxx [ 1xxxxxxx ...]

Codeset #2: ss1 1xxxxxxx [ 1xxxxxxx ...]

Codeset #3: ss2 1xxxxxxx [ 1xxxxxxx ...]

Table 14-11 Character Sets for Asian Languages

Language Character Set Standards Support

Japanese JIS X 0201.1976-0

JIS X 0208.1983-0

JIS X 0212.1990-0

Katakana

Kanji,kana, Latin, Greek,

Cyrillic, symbols, others

Supplemental kanji, others

Chinese GB 2312.1980-0

Korean KSC 5601.1987-0 Hangul

Taiwan CNS 11643

Popular Encodings

365

So if ss1 appears in a string, it means that the next character—however many bytes long

it is—should be interpreted as a character from codeset #2. If there are multiple

characters in a row from codeset #2, each one is preceded by ss1. Similarly, ss2 indicates

that the following character belongs to codeset #3. If any other byte whose high bit is 1

appears in the string (without being preceded by ss1 or ss2), it is interpreted as all or part

of a character from codeset #1.

In EUC, codeset #1 is always ASCII. The other codesets are implementation- or

user-deﬁned. This is why EUC cannot support Latin 1 in Asian locales.

EUC implementations exist (but are not standardized) for all ideographic Asian

languages.

ISO 10646 and Unicode

ISO and the Unicode Consortium have jointly developed a character set designed to

cover almost every character normally used by any language in the world. The

characters have two- and four-byte representations. ISO calls this ISO IS 10646. The

Unicode Consortium embraces a subset of 10646, called the Basic Multilingual Plane

(BMP) of 10646, and calls it Unicode. The only characters deﬁned in either standard are

the characters in the BMP.

It appears that ISO 10646 will grow signiﬁcantly in acceptance, but widespread use is still

some years away.

367

Appendix A

A. ISO 3166 Country Names and Abbreviations

Table A-1 lists the ISO 3166 country codes, alphabetized by country name (the table reads

from left to right, and top to bottom).

Table A-1 ISO 3166 Country Codes

Country Name Code Country Name Code Country Name Code

Afghanistan AF Albania AL Algeria DZ

American Samoa AS Andorra AD Angola AO

Anguilla AI Antarctica AQ Antigua and

Barbuda

Argentina AR Aruba AW Australia AU

Austria AT Bahamas BS Bahrain BH

Bangladesh BD Barbados BB Belgium BE

Belize BZ Benin BJ Bermuda BM

Bhutan BT Bolivia BO Botswana BW

Bouvet Island BV Brazil BR British Indian

Ocean Territory

Brunei

Darussalam

BN Bulgaria BG Burkina Faso BF

Burma BU Burundi BI Byelorussia BY

Cameroon CM Canada CA Cape Verde CV

Cayman Islands KY Central African

Republic

CF Chad TD

Chile CL China CN Christmas Island CX

Cocos Islands CC Colombia CO Comoros KM

368

: ISO 3166 Country Names and Abbreviations

Congo CG Cook Islands CK Costa Rica CR

Cote D'Ivoire CI Cuba CU Cyprus CY

Czech Republic CS Denmark DK Djibouti DJ

Dominica DM Dominican

Republic

DO East Timor TP

Ecuador EC Egypt EG El Salvador SV

Equatorial

Guinea

GQ Ethiopia ET Falkland Islands FK

Faroe Islands FO Fiji FJ Finland FI

France FR French Guiana GF French Polynesia PF

French Southern

Territories

TF Gabon GA Gambia GM

Germany DE Ghana GH Gibraltar GI

Greece GR Greenland GL Grenada GD

Guadalupe GP Guam GU Guatemala GT

Guinea GN Guinea-Bissau GW Guyana GY

Haiti HT Heard and

McDonald

Islands

HM Honduras HN

Hong Kong HK Hungary HU Iceland IS

India IN Indonesia ID Iran IR

Iraq IQ Ireland IE Israel IL

Italy IT Jamaica JM Japan JP

Jordan JO Kampuchea KH Kenya KE

Kiribati KI Korea KP or

Kuwait KW

Table A-1 (continued) ISO 3166 Country Codes

Country Name Code Country Name Code Country Name Code

369

Laos LA Lebanon LB Lesotho LS

Liberia LR Libya LY Liechtenstein LI

Luxembourg LU Macau MO Madagascar MG

Malawi MW Malaysia MY Maldives MV

Mali ML Malta MT Marshall Islands MH

Martinique MQ Mauritania MR Mauritius MU

Mexico MX Micronesia FM Monaco MC

Mongolia MN Montserrat MS Morocco MA

Mozambique MZ Namibia NA Nauru NR

Nepal NP Netherlands NL Netherlands

Antilles

Neutral Zone NT New Caledonia NC New Zealand NZ

Nicaragua NI Niger NE Nigeria NG

Niue NU Norfolk Island NF Northern

Mariana Islands

Norway NO Oman OM Pakistan PK

Palau PW Panama PA Pangaea GE

Papua New

Guinea

PG Paraguay PY Peru PE

Philippines PH Pitcairn PN Poland PL

Portugal PT Puerto Rico PR Qatar QA

Quebec QC Reunion RE Romania RO

Rwanda RW Saint Kitts and

Nevis

KN Saint Lucia LC

Saint Vincent and

the Grenadines

VC Samoa WS San Marino SM

Table A-1 (continued) ISO 3166 Country Codes

Country Name Code Country Name Code Country Name Code

370

: ISO 3166 Country Names and Abbreviations

Sao Tome and

Principe

ST Saudi Arabia SA Senegal SN

Seychelles SC Sierra Leone SL Singapore SG

Solomon Islands SB Somalia SO South Africa ZA

Spain ES Sri Lanka LK St. Helena SH

St. Pierre and

Miquelon

PM Sudan SD Suriname SR

Svalbard and Jan

Mayen Islands

SJ Swaziland SZ Sweden SE

Switzerland CH Syrian Arab

Republic

SY Taiwan TW

Tanzania TZ Thailand TH Togo TG

Tokelau TK Tonga TO Trinidad and

Tobago

Tunisia TN Turkey TR Turks and Caicos

Islands

Tuvalu TV Uganda UG Ukraine UA

United Arab

Emirates

AE United Kingdom GB United States

Minor Outlying

Islands

Uruguay UY Vanuatu VU Vatican City State VA

Venezuela VE Viet Nam VN Virgin Islands

(British)

Virgin Islands

(USA)

VI Wallis and

Futuna Islands

WF Western Sahara EH

Yemen YE or

Yugoslavia

(Former)

YU Zaire ZR

Zambia ZM Zimbabwe ZW

Table A-1 (continued) ISO 3166 Country Codes

Country Name Code Country Name Code Country Name Code

371

arenas

IRIX IPC, 39

Argentina country code, 367

ASCII strings. See internationalization

codesets, ASCII

Australia country code, 367

Austria country code, 367

backing store, 6, 9, 12, 30

barriers

allocating, 82

Belgium country code, 367

Brazil country code, 367

brk(),6, 7

BSD and IPC, 36

cache

address mapping in Challenge/Onyx, 28

effect of miss, 27

management, 27-29

multiprocessor conﬂicts, 28

cache line, 27

calloc(),9

catalogs. See message catalogs

Numbers

32-bit addressing

address size, 3

page size, 5

64-bit addressing

address size, 3

page size, 5

8-bit clean codesets, 299

address range, 3

address space, 3-10

cannot undeﬁne, 6

copy-on-write pages, 10

deﬁning addresses, 5

heap segment, 4

interrogating, 10

limits of, 6

low 4 MB reserved, 22

lowest used address, 4

protection, 30

read-only pages, 10

resident set size, 9

segment, 4

segment reserved for user mapping, 22

stack segment, 4

text segment, 4

virtual size of, 6, 16

Index

372

Index

Challenge/Onyx architecture

cache address mapping, 28

cache management in, 27

PIO error latency, 20

character sets. See internationalization, character sets

Chile country code, 367

China country code, 367

chkconﬁg command, 8

chmod command, 18

C local value, 296

codes, country, 367

codesets. See internationalization, codesets

Colombia country code, 367

conventions, syntax, xxxi

country codes, 367-370

Courier font, 265

ctype

character classiﬁcation, 309

data segment

locking, 24

deadlocks, 172

Denmark country code, 368

/dev/mem,19

/dev/mmem, 20

/dev/vme, 20

/dev/zero

and mmap(),15, 19

DSO, text segment for, 4

editres,361

Egypt country code, 368

empty strings, 294

encodings. See internationalization, encodings

EUC encoding

Chinese, 339

German, 339

Japanese, 338

ﬁle, mapping into memory, 15, 25

ﬁle access permissions and mmap(),17

ﬁle and record locking, ??-176

across systems, 174

deadlocks, 172

efﬁciency, comparative, 174

F_GETLK, 169

F_SETLK, 167

F_TEST, 171

F_ULOCK, 169

F_UNLCK, 169

failure, 166

forking, 172

lock information, 169

locking a ﬁle, 162

mandatory, 174

assuring, 173

multiple read locks, 169

opening ﬁles, 161

order of lock removal, 169

removing locks, 165

setting locks, 165

373

Index

ﬁle descriptor

with mmap(),12

ﬁle typing rules, 332

LEGEND, 332

MENUCMD, 332

Finland country code, 368

fonts, 261-281

accessing, 266

adding, 271-279

bitmap font, 274-276

font ﬁles, 273

font metric ﬁle, 279

outline font, 276-279

Utopia Regular font ﬁles, 273

aliases, 267

character, deﬁned, 263

display characters, 268

downloading, 280

images, 264

installing, 271-279

missing fonts, 280

names, 265, 267

opening a shell window, 270

path, 270

pixels, 264

point size, 264

PostScript printers, 280

programming access, 266

resolution and size, 264

scaling, 268

Speedo format, 271

Type 1 font, 271, 280-281

typeface, deﬁned, 263

using APIs, 266

Utopia fonts, 280

viewing, 268

virtual memory, 281

xfd command, 268

X Window System, 265, 267-279

fontsets, 338-339

creating, 339

specifying, 338

using, 339

fork()

deﬁnes address space, 5

new address space copy-on-write, 10

forking, 172

France country code, 368

ftruncate() on memory-mapped ﬁle, 17

Germany country code, 368

getpagesize(),5

getrlimit(),6

heap segment, 4, 6

Hong Kong country code, 368

i18n. See internationalization

inline functions and cache management, 28

input methods. See internationalization, input

methods

internationalization, 285-365

ANSI compatible functions, 313

character classiﬁcation, 309

character classiﬁcation tables, 315

character expressions, 318

character sets

and X, 336

deﬁned, 298

374

Index

codesets

ASCII, 299, 301

deﬁned, 298

collating sequence tables, 315

composing characters, 345

conﬁguration data, 314

ctype,309

cultural data, 320

customs, 312

date formats, 309

deﬁned, 287

eight-bit cleanliness, 299

encodings

about, 296

and ﬁlesystem, 298

Asian languages, 363

deﬁned, 298

EUC, 364

European languages, 362

ISO 10646, 365

ISO 8859, 362

Latin 1, 362

multibyte, 300

Unicode, 365

wchar,300, 304

ﬁle I/O, 305

ﬁle typing rules, 332

fmtmsg(),331

GL input, 344

GUIs, 359-361

composition, 360

editres,361

icons, 361

layout, 360

localized layout, 361

object labels, 359

text labels, 359

icons, 361

initializing Xlib,337

input contexts, 352-356

creating, 355

styles, 352

using, 355

values, 353

input methods, 347-358

about, 343

event handling, 356

Off-the-Spot style, 350

On-the-Spot style, 351

opening, 347

Over-the-Spot style, 350

root window style, 349

setting styles, 351

status, 349

strings, 357

using styles, 351

XFilterEvent(),356

XLookupString(),357

language information, 316

languages

Asian, 363, 364

in locale strings, 295

Japanese, 363

Latin

library functions, 312

localeconv(),308

locale-speciﬁc behavior, 311

locales. See locales

message catalogs, 324

MNLS

fmtmsg(),331

message catalogs. See message catalogs, MNLS

pfmt(),330

monetary formats, 307

Motif, 342

multibyte characters

about

converting, 302

size of, 302

string length, 303

using, 301

multilingual support, 297

375

Index

native language support, 314

numerical formats, 307

pfmt(),330

printf(),308, 333

regular expressions, 311, 312, 317

regular expressions, examples, 319

setlocal(),294

setting locale, 292

shift tables, 316

signed chars, 300

sorting rules, 306

standards, 289

strings, 324

territories, 295

time formats, 309

Unicode, 365

user input, 343

application programming, 343

text objects, 343

toolkit text object, 343

wide characters

about, 300

converting, 305

XFontSetExtents(),340

XPG/3

message catalogs. See message catalogs

regular expressions, 311

X Window System

about, 335

changes, 335

character sets, 336

EUC encoding, 338

fontsets, 338

keyboard support, 345-346

limitations, 335

resource names, 337

string resources, 359

vertical text, 336

XFontSetExtents,340

Xlib changes, 336

Inter-Process Communication. See IPC

interrupt

validity fault, 9

IPC

arenas, 39

barriers, 82

BSD-style, 36

IRIX arenas, 39

IRIX-style, 36, 39, ??-82

locks, 80

parallel programming, 39

portability, 37

POSIX-style, 36, 38

shared memory, 43-65

attaching, 61

controlling, 61

detaching, 61

IRIX, 50-59

POSIX, 45-50

shmat(),61

shmctl(),61

shmdt(),61

shmget()

example, 62

SVR4, 60-65

shmat(),61

shmctl(),61

shmdt(),61

SVR4-style, 36

types, 37

Iran country code, 368

Ireland country code, 368

IRIX and IPC, 36

ISO 3166 Country Codes, 367-370

Israel country code, 368

Italy country code, 368

Japan country code, 368

376

Index

Kenya country code, 368

kernel

address space limits in, 6

kernel address space, 3

Korea country code, 368

l10n. See localization

languages, ISO. See internationalization, encodings

languages, Latin. See internationalization, encodings

Laos country code, 369

LC_ALL, 293

LC_COLLATE, 293

LC_CTYPE, 293

LC_MESSAGES, 293

LC_MONETARY, 293

LC_NUMERIC, 293

LC_TIME, 293

LEGEND, 332

lightweight process

and mapped segments, 14

limits command, 6

linked lists and cache management, 27

locale

Motif, 342

locales, 292-298

categories, 293

C locale value, 296

collation, 307

cultural data, 320

data location, 295

date formats, 309, 320

deﬁned, 287

empty strings, 294

encoding, 296

languages, 295

location of data, 295

modiﬁers, 296

monetary formats, 307

naming conventions, 295

nonempty strings, 295

numerical formats, 307

setlocale(),292

setting current, 292

sorting rules, 306

territories, 295

time formats, 309

locale-speciﬁc behavior

date, 320

time, 320

Locality of Reference, 27

localization

deﬁned, 287

empty strings, 294

nonempty strings, 295

lockf()

to protect mapped ﬁle, 18

lock removal, order, 169

locks

allocate, 80

and shared arenas, 80

operations on, 81

log ﬁle warning messages, 281

lp log ﬁle warning messages, 281

lseek()

for ﬁle size, 16

Macau country code, 369

madvise(),31

377

Index

malloc(),6, 7

use, 8

used to ﬁnd limit of swap, 7

MAP_AUTOGROW ﬂag, 13, 15, 19

MAP_FIXED ﬂag, 16, 21, 22

MAP_LOCAL ﬂag, 14, 15

MAP_PRIVATE ﬂag, 14, 17

MAP_SHARED ﬂag, 14, 17

memalign(),28

memory, 3-31

address ranges of, 3

backing store for, 6

interrogating size of, 10

locking pages in, 23-27

page, 5

protection, 30

segment, 4

See also memory mapping, virtual memory, 11

memory, shared. See IPC

memory mapping, 6, 11-23

and ﬁle access permissions, 17

at ﬁxed addresses, 22

choosing segment address for, 21

conﬂicts with normal ﬁle access, 17

for I/O, 15-18

locking mapped ﬁle, 25

mandatory ﬁle locks with, 18

of kernel memory, 20

of NFS-mounted ﬁlemsync(),17

of physical memory, 19

of segment of zeros, 19

of VME device, 20

private copy of ﬁle, 18

replacing a mapped segment, 17

to create shared segments, 18

when pages are deﬁned, 15

MENUCMD, 332

message catalogs, 324-334

closing, 325

ﬁle typing rules, 332

incompatibilities, 324

locating, 326

MNLS

fmtmsg(),331

pfmt(),330

pfmt() ﬂags, 330

pfmt() format strings, 331

strings, 328

using, 328

NLSPATH, 326

opening, 325

reading, 325

specifying, MNLS, 329

XPG/3

about, 324

compiling, 327

creating, 326

using, 325

Mexico country code, 369

MIPS ABI

reserved address space, 22

mmap(),12-23

and ﬁle permissions, 17

and NFS-mounted ﬁles, 17

in place of lseek(),16

of /dev/mem, 19

of /dev/mmem, 20

of /dev/vme/*, 20

of zero segment, 19

parameters of, 12, 18

using speciﬁed addresses, 22

when swap is allocated, 15

MNLS

Also see message catalogs

message catalogs, 328-333

monitor resolution, 264

Motif

internationalization, 342

378

Index

MPI

converting PVM program to, 244-258

differences from PVM, 238-240

msync(),15, 31

multibyte characters. See internationalization,

multibyte characters

multilingual support, 297

names, country, 367

nationalized software, 288

New Zealand country code, 369

NFS and memory-mapped ﬁles, 17

Nigeria country code, 369

NLSPATH, 326

Off-the-Spot style, 350

On-the-Spot style, 351

open(),12

of /dev/zero, 19

Over-the-Spot style, 350

page

copy on write, 10

locking, 23

read-only, 10

releasing unneeded, 31

page fault

prevent by locking memory, 23

page size, 5

page validation, 9

parallel programming, 39

path

fonts, 270

performance effects of cache, 27

performance tools, 29

pixie command, 29

plock()

example of, 24

polled semaphore, 78

Portugal country code, 369

POSIX and IPC, 36

PostScript printers, 280

printers, PostScript, 280

printf(),333

printf() message catalogs, 333

process

address space, 4

prof command, 29

programming

fonts, 266

parallel, 39

ps command, 6

pscommand, 9

PVM

converting program to MPI program, 244-258

differences from MPI, 238-??, 240-??

nonportable functions, 243

resident set size, 9

rlimit kernel parameter, 6

379

Index

Saudi Arabia country code, 370

segment, 4

heap, 4

locking, 24

lowest address, 4

stack, 4

text, 4

segment address, 21

segments at ﬁxed offsets, 21

semaphores

operations on, 79

polled, 78

setlocal(),294

setlocale(),292

setrlimit(),6

limit, 8

shared arenas, 39-82

barriers, 82

initializing, 51

locks, 80

shared memory. See IPC

shared memory segment, 18

shmat(),61

shmctl(),61

shmdt(),61

SIGALRM

from interval timer, 125

SIGBUS

on access to truncated mapped ﬁle, 18

on NFS error in mapped ﬁle, 17

on PIO access to invalid bus address, 20

on reference past end of mapped segment, 12

on reference to undeﬁned page, 5

SIGKILL

on reaching limit of virtual swap, 8

possible when locking pages, 23

signal, 104-??

SIGALRM, 125

SIGBUS, 5, 12, 17, 18, 20

SIGKILL, 8, 23

signal numbers, 104

SIGSEGV, 10, 14, 30

SIGSEGV

on access to read-only page, 30

on attempt to change read-only page, 10

on store past end of mapped segment, 14

South Africa country code, 370

Spain country code, 370

Speedo format fonts, 271

sproc()

and mapped segments, 14

stack segment, 4, 5

locking, 24

structures and cache management, 27

SVR4 and IPC, 36

swap, 6, 9

Sweden country code, 370

Switzerland country code, 370

syntax, conventions, xxxi

systune command, 7

Taiwan country code, 370

text rendering routines, 340

text segment, 4

loaded from program ﬁle, 9

locking, 24

read-only, 10

Type 1 font. See fonts

typographical conventions, xxxi

typography. See fonts

380

Index

Uganda country code, 370

Utopia fonts, 280

validity fault, 9

video resolution, 264

virtual address space. See address space

virtual memory

font loading, 281

loading pages, 9

synchronizing backing store, 30

007 2478 004
