Open Inventor™ 2.1 Porting and

Performance Tips

Document Number 007-3078-001

Open Inventor™ 2.1 Porting and Performance Tips

Document Number 007-3078-001

CONTRIBUTORS

Written by Renate Kempf and Josie Wernecke

Edited by Cindy Kleinfeld

Production by Gloria Ackley

Engineering contributions by Gavin Bell, Alan Norton, Helga Thorvaldsdóttir.

Cover design and illustration by Rob Aguilar, Rikk Carey, Dean Hodgkinson,

Erik Lindholm, and Kay Maitz

This document contains proprietary and conﬁdential information of Silicon

Graphics, Inc. The contents of this document may not be disclosed to third parties,

copied, or duplicated in any form, in whole or in part, without the prior written

permission of Silicon Graphics, Inc.

RESTRICTED RIGHTS LEGEND

Use, duplication, or disclosure of the technical data contained in this document by

the Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the

Rights in Technical Data and Computer Software clause at DFARS 52.227-7013

and/or in similar or successor clauses in the FAR, or in the DOD or NASA FAR

Supplement. Unpublished rights reserved under the Copyright Laws of the United

States. Contractor/manufacturer is Silicon Graphics, Inc., 2011 N. Shoreline Blvd.,

Mountain View, CA 94043-1389.

Silicon Graphics, the Silicon Graphics logo, and OpenGL are registered trademarks

and Open Inventor, Indigo2, Extreme, IRIX, IRIS Annotator, IRIS InSight, CaseVision,

and WebSpace Author are trademarks of Silicon Graphics, Inc. Extreme is a

trademark used under license by Silicon Graphics Inc.

iii

Contents

About This Guide ix

What This Guide Contains ix

What You Should Know Before Reading This Manual x

Background Reading x

Conventions Used in This Guide x

1. Porting to Open Inventor 2.1: Getting Started 1

Porting Applications With No Custom Classes 1

Porting Custom Classes 3

2. Incompatible API Changes 5

Overview of Changes By Class Name 6

Changes to Shape Hints 8

Changes to Complexity 9

Changes to Materials and Colors 10

Changes to Normals 12

Changes to Texture Coordinates 12

Changes to Vertex-Based Shapes 13

Changes to Viewers 14

Miscellaneous Changes 16

3. Scene Appearance Changes in Inventor 2.1 19

Contents

4. New Features 21

Version-Related Changes 21

File Version 21

Inventor Revision Symbols 22

DSO Directories and Versions 22

File Reading and Writing 23

Support for VRML Files 23

User-Defined File Headers 23

SoOutput::setFloatPrecision 23

New Nodes 23

SoVertexProperty Node 24

SoLOD Node 26

SoLocateHighlight Node 26

VRML Nodes 26

New Fields 27

The “fields” Field 27

The “isA” Field 27

Miscellaneous Additions 28

SoGLRenderAction Render Abort Callback Changes 28

New Manipulator for Transformations 29

OpenGL Texture Object Extension 29

SoXtViewer Changes 29

New and Updated Utilities 30

File Downgrade Utility 30

Program for Converting Files to Use Vertex Properties 30

Program for Optimizing Scene Graphics 31

Program for Analyzing Rendering Performance 31

Contents

5. Incompatible Extender API Changes 33

Methods 33

The GLRender() Method 34

readInstance() Method 35

copy() Method 36

Elements 37

Changes in Shape Hints Element Methods 37

Changes in Binding Elements 37

Changes in Texture Elements 37

Changes in Material Elements 38

Implementation of Node Override 39

Shape Nodes 40

Generating Normals 40

Managing the Material State 40

Using the Material Bundle 44

Getting a Bounding Box 45

Material Property Nodes 45

Engine Evaluation 46

6. Optimizing Open Inventor Applications 47

Benchmarking Tips 48

Setting Performance Goals 48

Measuring Performance 49

Determining Bottlenecks 49

Modifying Your Application to Reduce Bottlenecks 50

Are You Finished Yet? 51

The Five Performance Commandments 52

Contents

Optimizing Rendering 52

Determining Whether Rendering Is the Problem 52

Isolating Rendering 53

Using the ivperf Utility to Analyze Rendering Performance 53

Correcting Window Clear Bottlenecks 55

Improving Traversal Performance 55

Organizing the Scene for Caching 56

Improving Material Change Bottlenecks 57

Optimizing Transformations 58

Performance Tip for Face Sets 58

Optimizing Textures 59

Optimizing Texture Management 59

Using Lights Efficiently 61

Optimizing Vertex Transformations 61

Optimizing Pixel Fill Operations 63

Correcting Problems ivperf Does Not Measure 63

Optimizing Everything Else 68

Useful Tools 69

Optimizing Memory Usage 69

Looking at CPU Usage 70

Optimizing Action Construction and Setup 70

Decreasing Notification Overhead 71

Picking and Handling Events 72

A. Creating a Node 73

Overview 74

Initializing the Node Class 75

Enabling Elements in the State 75

Inheritance Within the Element Stack 76

Defining the Constructor 76

Setting Up the Node’s Fields 77

Defining Enumerated Values for a Field 77

Contents

vii

Implementing Actions 78

The doAction() Method 78

Changing and Examining State Elements 80

Element Bundles 81

The SoLazyElement 82

Creating a Property Node 82

Creating a Shape Node 88

Generating Primitives 88

Rendering 90

Picking 91

Getting a Bounding Box 93

Pyramid Node 94

Creating a Group Node 108

Child List 108

Hidden Children 108

Using the Path Code 109

What Happens If an Action Is Terminated? 111

Alternate Node 111

Using New Node Classes 116

Creating an Abstract Node Class 120

The copyContents() Method 120

The affectsState() Method 121

Uncacheable Nodes 121

Creating an Alternate Representation 122

Generating Default Normals 122

Index 123

About This Guide

Open Inventor 2.1 Porting and Performance Tips explains how to port your Open Inventor™

2.0 application to Open Inventor 2.1. Emphasis is on making the porting process go

smoothly and on helping you make your application run as efﬁciently as possible, using

the various performance enhancements provided by Open Inventor 2.1.

What This Guide Contains

This guide consists of six chapters and one appendix:

Chapter 1, “Porting to Open Inventor 2.1: Getting Started,” steps you through the

porting process, pointing to other relevant information as appropriate.

Chapter 2, “Incompatible API Changes,” helps you ﬁnd and correct for incompatible API

changes by ﬁrst providing an overview list, then explaining each change in more detail.

Chapter 3, “Scene Appearance Changes in Inventor 2.1,” is useful if you run your Open

Inventor application after it has compiled successfully and ﬁnd that the scene

appearance isn’t the same it was in Inventor 2.0. The chapter provides a table that

correlates scene appearance changes and the underlying API changes.

Chapter 4, “New Features,” describes the major new features in Open Inventor 2.1.

Chapter 5, “Incompatible Extender API Changes,” is for users who have customized

existing Inventor 2.0 classes or created subclasses of them. It explains the new features

and changes to the protected and extender methods.

Chapter 6, “Optimizing Open Inventor Applications,” explains how to determine what

is limiting the performance of your Open Inventor application, and provides suggestions

for improving its performance.

Appendix A, “Creating a Node,” provides an update to Chapter 2 of The Inventor

Toolmaker based on changes to Inventor in 2.1.

About This Guide

What You Should Know Before Reading This Manual

To work successfully with this manual, you should know how to write and debug Open

Inventor applications. Most readers of this book probably port applications they wrote

themselves. If you haven’t worked with Open Inventor before, you are urged to read the

materials listed here and to gain some experience programming with Open Inventor

before you attempt to port an application.

Background Reading

The following books provide background and complementary information for this

manual. Books available in hard copy as well the IRIS InSight™ online viewer are

marked with (I):

•Wernecke, Josie, and the Open Inventor Architecture Group. The Inventor Mentor:

Programming Object-Oriented 3D Graphics with Open Inventor, Release 2, Menlo Park:

Addison-Wesley Publishing Company, 1994.(I)

•Open Inventor Architecture Group. Open Inventor C++ Reference Manual. Menlo

Park: Addison-Wesley Publishing Company, 1994.

•Wernecke, Josie, and the Open Inventor Architecture Group. The Inventor Toolmaker.

Extending Open Inventor, Release 2. Menlo Park: Addison-Wesley Publishing

Company, 1994.(I)

Conventions Used in This Guide

This guide uses the following typographical conventions:

Italics Filenames, IRIX command names, command-line options, function

parameters, ﬂags, and book titles.

Fixed-width Code examples and system output.

Bold C++ class names and ﬁelds. Function or method names with

parentheses following the name, for example getPackedValue().

Chapter 1

1. Porting to Open Inventor 2.1: Getting Started

This chapter gets you started porting to Open Inventor 2.1. It steps you

through the porting process, pointing to other relevant information as

appropriate.

The process of porting to Open Inventor 2.1 is much simpler if your

application has no custom classes derived from the Inventor classes. This

chapter therefore discusses the process in two separate sections:

•“Porting Applications With No Custom Classes” on page 1

•“Porting Custom Classes” on page 3

Porting Applications With No Custom Classes

To port an application without custom classes, follow these steps:

1. Compile your application under Inventor 2.1.

If you have no errors, go to Step 4. Otherwise, continue with Step 2.

2. If you have compile or link problems, go to “Overview of Changes By

Class Name” on page 6 and from there to the more detailed description.

3. Fix all your problems in sequence and recompile, or recompile after

each ﬁx. The approach you take depends on your application and your

personal preference.

4. Run the application with the debug version of the library as follows:

■Set the environment variable LD_LIBRARY_PATH to

/usr/lib/libInventorDebug to run your application with the debug

version of the library.

■Note any debug messages that occur while running your

application and ﬁx problems. (The messages should be

self-explanatory.)

Chapter 1: Porting to Open Inventor 2.1: Getting Started

5. When your application compiles and links without errors, run it and

watch carefully whether there are changes to the appearance of your

scenes. Because some defaults changed, things may not look exactly as

they did before.

6. If you ﬁnd problems, go to Chapter 3, “Scene Appearance Changes in

Inventor 2.1.” The chapter provides a table that lets you access the API

problem description based on the appearance problem description.

After the application compiles and runs satisfactorily, you are urged to also

prepare it for the future by removing obsolete nodes, ﬁelds, and so on, that

are supported for compatibility only.

In some cases, the old version of the API is supported in addition to the new

version. This is done only to make the transition from 2.0 to 2.1 easier. To

ﬂush out cases where your code is still using the old version, compile your

code with -DIV_STRICT as an option to cc.

Finally, optimize the application to really get the most out of Inventor 2.1 as

follows:

1. Change the program and the scene graphs to take advantage of the new

vertexProperty ﬁeld of vertex-based shapes.

2. Look at the other new features discussed in Chapter 4, “New Features,”

and make sure you’re taking advantage of the available enhancements

and optimizations.

3. Look at the information in Chapter 6, “Optimizing Open Inventor

Applications.” It has been updated for 2.1 from the booklet of the same

name (which was not previously available online). Optimize your

program using that information as appropriate.

Porting Custom Classes

If your application has custom classes, porting becomes more complex.

Consider doing the following:

1. Attempt to update your classes as appropriate before you compile the

application for the ﬁrst time. See Chapter 5, “Incompatible Extender

API Changes,” for information that’s useful when updating custom

classes.

2. When you believe you’ve ﬁxed most problems, go through the steps in

“Porting Applications With No Custom Classes” on page 1.

3. If compiling or linking uncovers further problems with your custom

classes, see also the include ﬁles in /usr/include/Inventor.

Chapter 2

2. Incompatible API Changes

The 2.1 release of Open Inventor provides signiﬁcant performance

enhancements over previous releases. In some cases an infrequently used

feature was slowing down rendering, even when the feature wasn’t being

used. In Open Inventor 2.1, some of those features have therefore been

slightly modiﬁed and some have been removed altogether.

This chapter helps you ﬁnd these incompatible changes, providing the

following information:

•“Overview of Changes By Class Name” on page 6

•“Changes to Shape Hints” on page 8

•“Changes to Complexity” on page 9

•“Changes to Materials and Colors” on page 10

•“Changes to Normals” on page 12

•“Changes to Texture Coordinates” on page 12

•“Changes to Complexity” on page 9

•“Changes to Viewers” on page 14

•“Miscellaneous Changes” on page 16

Note: This chapter only lists incompatible API changes. For additions to the

API, see Chapter 4, “New Features.”

Chapter 2: Incompatible API Changes

Overview of Changes By Class Name

This section provides an overview of the incompatible API changes. If you’re

using the online version of this manual, you can access a change description

directly by clicking on it:

•SoShapeHints—creaseAngle default value changed.

•SoShapeHints, SoDrawStyle, SoClipPlane—Wireframe and clipped

objects behavior changed.

•SoShapeHints, SoCube, SoCone, SoSphere, SoCylinder—Primitive

shapes behavior changed.

•SoComplexity, nodes derived from SoVertexShape—Geometry is no

longer dropped for complexity values smaller than 0.5.

•SoComplexity, SoTexture2—textureQuality ﬁeld behavior changed.

•SoComplexity, SoTexture2—Default texture quality is point sampling

on some systems.

•SoComplexity, SoTexture2—Textures sometimes use only 12 bits of

color.

•SoMaterial—Multiple materials support changed.

•SoMaterialIndex—Obsolete.

•SoColorIndex, SoLightModel—Indexed colors with PHONG light

model no longer supported.

•SoPackedColor—Field for storing packed colors changed.

•SoPackedColor—getPackedValue(), setPackedValue() methods

changed.

•SoMaterialBinding, SoMaterial—Correct number of diffuse colors

required.

•SoMaterialBinding, SoMaterial—Correct number of transparencies

required.

•SoMaterialBinding—DEFAULT and NONE bindings obsolete.

•SoNormal—Default normal no longer provided.

•SoNormalBinding, SoNormal—Correct number of normals required.

•SoNormalBinding, SoNormal—Normals generated automatically.

Overview of Changes By Class Name

•SoNormalBinding—DEFAULT and NONE bindings obsolete.

•SoTextureCoordinate2—Default texture coordinate no longer provided.

•SoTextureCoordinate2—Automatic generation of texture coordinates as

needed.

•SoTextureCoordinate2—Correct number of texture coordinates

required.

•SoTextureCoordinateBinding—DEFAULT binding obsolete.

•Shapes derived from SoNonIndexedShape—startIndex ﬁeld obsolete.

•Shapes derived from SoNonIndexedShape—

USE_REST_OF_VERTICES not fully supported.

•SoXtViewer—Texture mapping interactive draw style change.

•SoXtPlaneViewer, SoXtExamineViewer, SoXtWalkViewer—Key

bindings changed.

•Shapes derived from SoNonIndexedShape—

USE_REST_OF_VERTICES not fully supported.

•All nodes—Limited support for Override ﬂag.

•SoOutput—isASCIIHeader() and isBinaryHeader() no longer

supported.

•SoCallback, SoEventCallback—Reset required after making direct

OpenGL calls.

•SoLineHighlightRenderAction, SoBoxHighlightRenderAction,

SoGLRenderAction—Constructor arguments changed.

•SoSFLong, SoMFLong, SoSFULong, SoMFULong—long changed to

int32.

•All draggers and manipulators—Control key change.

Chapter 2: Incompatible API Changes

Changes to Shape Hints

•SoShapeHints—creaseAngle default value changed.

The creaseAngle ﬁeld is used when default normals are generated. The

default value has been changed from 0.5 radians to 0.0 radians. As a

result, default normals are generated faster and use less memory.

However, objects that were smoothly shaded by default by previous

versions of Inventor will have faceted normals in Inventor 2.1.

•SoShapeHints,SoDrawStyle,SoClipPlane—Wireframe and clipped

objects behavior changed.

Drawing in wireframe mode (using the SoDrawStyle node) or clipped

mode (using SoClipPlane nodes) no longer turns off SOLID

SoShapeHints; clipped or wireframe objects have backfaces removed if

the appropriate SoShapeHints value is speciﬁed.

•SoShapeHints,SoCube,SoCone,SoSphere,SoCylinder—Primitive

shapes behavior changed.

The primitive shapes (SoCube,SoCone,SoSphere,SoCylinder) no

longer automatically turn on shapeType = SOLID and vertexOrdering =

COUNTERCLOCKWISE on SoShapeHints nodes. You must insert an

SoShapeHints node at the top of your scenes to get the old primitive

behavior. Note that if you don’t insert an SoShapeHints node, backface

culling is disabled. This may slow down the frame rate.

On the other hand, you can now specify an SoShapeHints node of

shapeType = UNKNOWN_SHAPE_TYPE and vertexOrdering =

COUNTERCLOCKWISE if you want both the interior and exterior

surfaces of primitive shapes to be lit. If you only want the inside of the

object lit, for example if the viewer is always inside a sphere, you can

specify an SoShapeHints node with shapeType = SOLID and

vertexOrdering = CLOCKWISE.

Changes to Complexity

•SoComplexity, nodes derived from SoVertexShape—Geometry is no

longer dropped for complexity values smaller than 0.5.

When you applied complexity values of less than 0.5 to triangle strips

and other vertex-based shapes in Inventor 2.0, some of the geometry

was dropped (for example, alternate strips were deleted from a triangle

strip set). In Inventor 2.1 this no longer happens. No geometry is

deleted from such shapes because this was not an effective way of

speeding up the rendering of complex shapes.

•SoComplexity, SoTexture2—textureQuality ﬁeld behavior changed.

The textureQuality ﬁeld of the SoComplexity node now takes effect

only when the next SoTexture2 node is traversed, not immediately as in

Inventor 2.0. As a result, mipmap creation for an SoTexture2 node can

be avoided if the texture quality is low enough. If you arranged your

scene graphs so that the textureQuality ﬁeld of SoComplexity

followed the SoTexture2 nodes, re-arrange them so that the

SoComplexity node is traversed ﬁrst.

•SoComplexity,SoTexture2—Default texture quality is point sampling

on some systems.

On systems that do not provide hardware support for texture mapping,

the default textureQuality ﬁeld is interpreted to mean point sampling

of the texture, and mipmaps are not used.

•SoComplexity,SoTexture2—Textures sometimes use only 12 bits of

color.

If textureQuality is less than 0.8, only 12 bits of texture color is used

(instead of 24) on systems that support the OpenGL texture extension

(EXT_texture). This increases the ﬁll rate but decreases visual quality.

Chapter 2: Incompatible API Changes

Changes to Materials and Colors

•SoMaterial—Multiple materials support changed.

Open Inventor 2.1 no longer supports multiple values for the following

properties speciﬁed in an SoMaterial node:

– ambientColor

– specularColor

– emissiveColor

– shininess

Open Inventor 2.1 continues to support multiple values for:

–diffuseColor

– transparency

If you provide multiple transparencies, you must provide as many

transparencies as diffuse colors. If you provide just one transparency, it

applies to all materials in the shape.

For backward compatibility, the ﬁeld types for ambientColor,

specularColor,emissiveColor, and shininess, have not changed. They

are still SoMF- ﬁelds.

Note that the new SoVertexProperty node provides explicit support

(and accelerated performance) for changing diffuse color and

transparency within a shape.

•SoMaterialIndex—Obsolete.

The SoMaterialIndex node is no longer supported. For indexed color

rendering, use the SoColorIndex node instead.

•SoColorIndex,SoLightModel—Indexed colors with PHONG light

model no longer supported.

The PHONG light model is no longer supported with indexed colors.

Indexed colors can still be used with BASE_COLOR lighting.

Changes to Materials and Colors

•SoPackedColor—Field for storing packed colors changed.

The ﬁeld for storing packed colors in the SoPackedColor node has been

changed to be more compatible with OpenGL. The ﬁeld name is now

orderedRGBA, and the packing order is 0xrrggbbaa, where aa

represents the alpha value, and rr, gg, and bb represent the red, green,

and blue components of the color, respectively. In previous releases, the

ﬁeld name was rgba and the packing order was 0xaabbggrr.

•SoPackedColor—getPackedValue(),setPackedValue() methods

changed.

The getPackedValue() and setPackedValue() methods on the SbColor

class have changed.

–getPackedValue() now takes a transparency value to pack with the

color.

–setPackedValue() returns a transparency value along with the

SbColor. The transparency value, like the transparency ﬁeld in

SoMaterial, ranges from 0.0 to 1.0, where 0.0 is fully opaque, and

1.0 is fully transparent.

•SoMaterialBinding,SoMaterial—Correct number of diffuse colors

required.

Open Inventor 2.1 assumes the correct number of diffuse colors is

speciﬁed. When the material binding of a vertex-based shape is not

OVERALL, provide one diffuse color for each vertex, face, or part,

depending on whether PER_VERTEX, PER_FACE, or PER_PART

binding is used. If you don’t provide enough diffuse colors, you may

see unexpected results. Note that in previous releases, Inventor

cyclically reused the colors provided.

•SoMaterialBinding,SoMaterial—Correct number of transparencies

required.

If not enough transparencies are provided, the ﬁrst one is used.

•SoMaterialBinding—DEFAULT and NONE bindings obsolete.

The DEFAULT and NONE material bindings are obsolete. Files

containing these bindings are transparently upgraded as if they

speciﬁed OVERALL materials. Applications that use DEFAULT or

NONE continue to work, unless they are compiled with -DIV_STRICT.

Chapter 2: Incompatible API Changes

Changes to Normals

•SoNormal—Default normal no longer provided.

In previous releases, an SoNormal node contained one normal by

default. In Open Inventor 2.1 the default is not to provide any normals.

•SoNormalBinding, SoNormal—Correct number of normals required.

If any normals are provided in a scene, Open Inventor 2.1 assumes the

correct number is speciﬁed. There should be one normal for each shape,

part, face, or vertex, depending on whether the normal binding is

speciﬁed as OVERALL, PER_PART, PER_FACE, or PER_VERTEX.

•SoNormalBinding,SoNormal—Normals generated automatically.

In previous releases, normals were automatically generated only if the

normal binding was DEFAULT. In Open Inventor 2.1, normals are

always automatically generated if they are needed and if the user does

not provide any normals in the scene. The correct number of normals is

generated, depending on the normal binding.

•SoNormalBinding—DEFAULT and NONE bindings obsolete.

The DEFAULT and NONE normal bindings are obsolete. Files

containing these bindings are transparently upgraded as if they

speciﬁed PER_VERTEX_INDEXED normals. Applications that use the

DEFAULT or NONE enums continue to work, unless they are compiled

with -DIV_STRICT.

Changes to Texture Coordinates

•SoTextureCoordinate2—Default texture coordinate no longer

provided.

In previous releases, an SoTextureCoordinate2 node contained one

texture coordinate by default. In Open Inventor 2.1 the default is not to

provide any texture coordinates at all.

•SoTextureCoordinate2—Automatic generation of texture coordinates

as needed.

In Open Inventor 2.1, texture coordinates are always automatically

generated if they are needed and no texture coordinates are provided in

the scene.

Changes to Vertex-Based Shapes

•SoTextureCoordinate2—Correct number of texture coordinates

required.

If any texture coordinates are provided in a scene, Open Inventor 2.1

assumes there is one for each vertex. You will see unexpected results if

there are fewer texture coordinates than Inventor expected.

•SoTextureCoordinateBinding—DEFAULT binding obsolete.

The DEFAULT for the SoTextureCoordinateBinding node is obsolete.

You can still specify PER_VERTEX or PER_VERTEX_INDEXED.

Changes to Vertex-Based Shapes

•Shapes derived from SoNonIndexedShape—startIndex ﬁeld obsolete.

The startIndex ﬁeld of a vertex-based shape is replaced by the new

SoVertexProperty node.

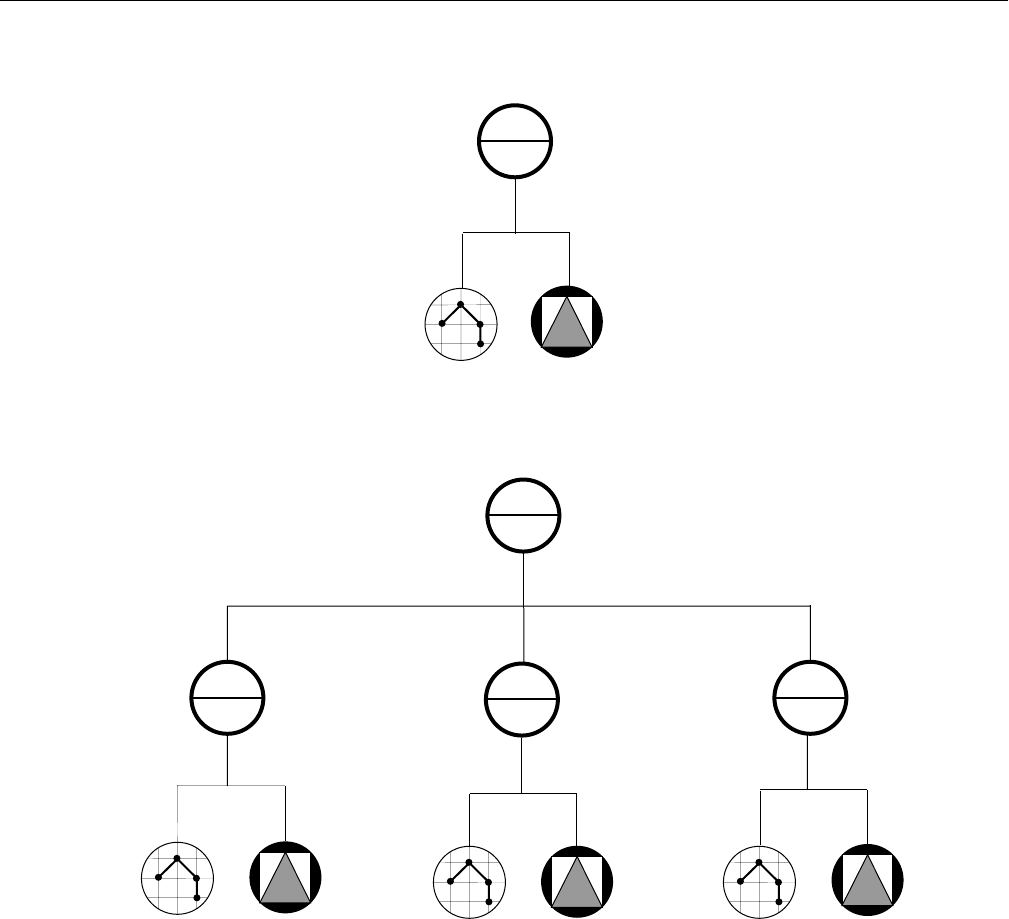

Previously you could specify the vertex properties for multiple shape

nodes with one set of property nodes by having a different startIndex

for each shape. However, a nonzero startIndex ﬁeld may not work as

expected when used with coordinates in an SoVertexProperty node.

Furthermore, confusion arises if some of the vertex properties come

from the vertexProperty ﬁeld of the shape and others are inherited

from nodes in the scene.

To facilitate transition from Inventor 2.0, Inventor 2.1 continues to

support use of startIndex when all vertex properties are speciﬁed in the

state. You are urged to remove dependencies on this capability.

•Shapes derived from SoNonIndexedShape—

USE_REST_OF_VERTICES not fully supported.

In previous releases, when a value of -1 was found in the numVertices

ﬁeld of non-indexed shapes—for example, SoTriangleStripSet—all the

remaining values in the current coordinates were used. In Inventor 2.1,

this is not supported when the coordinates are speciﬁed through the

new vertexProperty ﬁeld of the shape. Inventor 2.1 continues to

support the use of -1 for numVertices when the coordinates are

speciﬁed in the inherited state. You are urged to remove dependencies

on the old behavior.

Chapter 2: Incompatible API Changes

Changes to Viewers

The following changes to viewers were made in Inventor 2.1:

•SoXtViewer—Texture mapping interactive draw style change.

On systems that do not have hardware support for texture mapping,

the viewers now by default set the interactive draw style to move

without textures. In other words, by default, the viewers show the

texture on these systems when the camera is not moving, but when you

interact with the camera, the texture is disabled. Use the

setDrawStyle() method of the SoXtViewer class to change the viewer

draw style. End users of the viewer can change the draw style using the

right-mouse popup menu.

•SoXtPlaneViewer,SoXtExamineViewer,SoXtWalkViewer—Key

bindings changed.

The key bindings for the three viewers have changed to make them

more consistent with each other and to match WebSpace Navigator

Viewers.

The new bindings for SoXtPlaneViewer are the following:

Action Result

Left mouse Zoom in and out.

Ctrl + left mouse

Middle mouse

Translate up, down, left, right.

Ctrl + middle mouse Rotate around the viewer in forward direction (roll action).

<s> click Alternative to Seek button. Press (but don’t hold) the <s>

key, then click on a target object.

Left mouse Zoom in and out.

Ctrl + left mouse,

Middle mouse

Translate up, down, left, right.

Right mouse Open pop-up menu.

Changes to Viewers

The key bindings for SoXtExaminerViewer have changed to be the

following:

The key bindings for SoXtWalkViewer have changed to be the following:

Action Result

Left mouse Tumbles the virtual trackball.

Middle mouse

Ctrl + left mouse

Translate up, down, left, and right

Ctrl + middle mouse

Left and middle mouse

Zoom in and out.

<s> click Alternative to Seek button. Press (but don’t hold) the <s>

key, then click on a target object.

Right mouse Open pop-up menu.

Action Result

Left mouse Walk mode. Hold the mouse button and move up/down for

forward/backward motion. Move right and left for turning.

Speed increases exponentially with the distance from the

mouse-down origin.

Ctrl + left mouse

Middle mouse

Translate up, down, left, right.

Ctrl + middle mouse Tilt the camera up/down and right/left. This lets you look

around while stopped.

<s> click Alternative to Seek button. Press (but don’t hold) the <s>

key, then click on a target object.

<u> click Press (but don’t hold) the <u> key, then click on a target

object to set the up direction to the surface normal. By

default, positive y is the up direction.

Right mouse Open pop-up menu.

Chapter 2: Incompatible API Changes

Miscellaneous Changes

•All nodes—Limited support for Override ﬂag.

In Open Inventor 2.1, not all of the nodes support the Override ﬂag. The

following nodes do support override:

–SoColorIndex

–SoComplexity

–SoDrawStyle

–SoFont

–SoLightModel

–SoMaterial

–SoMaterialBinding

–SoPackedColor

–SoPickStyle

–SoShapeHints

–SoTexture2

Other node classes ignore the Override ﬂag. Note that you can still set

the ﬂag for those classes, but it has no effect.

An Override ﬂag on an SoMaterial node also overrides the diffuseColor

and transparency ﬁelds of SoVertexProperty nodes (in the scene graph

or in the vertexProperty ﬁeld of shapes). Likewise an Override ﬂag in a

SoMaterialBinding node overrides the materialBinding ﬁeld in a

vertex property node. However, you cannot override just the diffuse

color or just the transparency. If you override one, the other is obtained

from the state when the override occurs.

•SoOutput—isASCIIHeader() and isBinaryHeader() no longer

supported.

The SoOutput methods isASCIIHeader() and isBinaryHeader() are no

longer supported. Use SoDB::isValidHeader() to verify that a header is

valid, or SoDB::getHeaderData() to see if a particular header is for

ASCII or binary ﬁles.

Miscellaneous Changes

•SoCallback,SoEventCallback—Reset required after making direct

OpenGL calls.

You must notify the Inventor material state management mechanism by

calling SoGLLazyElement::reset() if you directly make any of the

following OpenGL calls from a callback node:

–glColor()

–glMaterial()

–glColorMaterial()

–glEnable() or glDisable(), with a GL_COLOR_MATERIAL,

GL_BLEND, GL_LIGHTING, or GL_POLYGON_STIPPLE

argument.

–glPushAttrib() or glPopAttrib() with GL_ENABLE_BIT,

GL_LIGHTING_BIT, GL_POLYGON_BIT,

GL_POLYGON_STIPPLE_BIT

After the last OpenGL call in your callback node, you must call

SoGLLazyElement::reset(state, bitmask). The value of the bitmask

depends on which of the above OpenGL calls you made.

If you invoke glColor() or glMaterial(), logical-OR one or more of the

following bitmasks as argument to SoGLLazyElement::reset()

(depending on which components of the OpenGL material state you

are altering):

–SoLazyElement::DIFFUSE_MASK

–SoLazyElement::EMISSIVE_MASK

–SoLazyElement::SPECULAR_MASK

–SoLazyElement::SHININESS_MASK

–SoLazyElement::AMBIENT_MASK

If you invoke glColorMaterial(), or enable or disable

GL_COLOR_MATERIAL, the corresponding mask is

SoLazyElement::COLOR_MATERIAL_MASK.

If you enable or disable GL_BLEND, use

SoLazyElement::BLENDING_MASK.

Chapter 2: Incompatible API Changes

If you alter the GL stipple transparency, either with glEnable(),

glDisable(),glPushAttrib(), or glPopAttrib(), use

SoLazyElement::TRANSPARENCY_MASK.

If you alter lighting, either with glEnable(),glDisable(),

glPushAttrib(), or glPopAttrib(), use

SoLazyElement::LIGHT_MODEL_MASK

•SoLineHighlightRenderAction, SoBoxHighlightRenderAction,

SoGLRenderAction—Constructor arguments changed.

The constructor argument no longer takes useCurrentGLValues as an

argument.

•SoSFLong,SoMFLong,SoSFULong,SoMFULong—long changed to

int32.

The So*Long ﬁelds have been changed to So*Int32 ﬁelds as follows:

–SoSFLong -> SoSFInt32

–SoSFULong -> SoSFUInt32

–SoMFLong -> SoMFInt32

–SoMFULong -> SoMFUInt32

You need to change your program to use the new ﬁelds, and to use the

types int32_t and uint32_t, deﬁned in inttypes.h in place of long and

unsigned long. Use the longToInt32 utility program provided in the

inventor_dev.src.sample subsystem to help you do this.

To ease the transition, a typedef links the So*Long ﬁelds to SoInt32

ﬁelds and, where possible and feasible, methods taking arguments of

type long are supported.

Since the C++ compiler cannot distinguish overloaded functions by

return type alone, some methods are no longer supported. If you

compile your program with -DIV_STRICT, the So*Long ﬁelds cause a

compile time error.

•All draggers and manipulators—Control key change.

All draggers and manipulators now use the <Ctrl><Meta> key where

they used the <Alt> key in Inventor 2.0.

Chapter 3

3. Scene Appearance Changes in Inventor 2.1

Because certain ﬁelds in some nodes changed their defaults, and because of

other changes described in Chapter 2, your Inventor 2.0 application may

look different in Inventor 2.1 even if it compiles and runs ﬁne.

Table 3-1 lists changes in appearance and points to information that helps

you ﬁx the problem. If you’re working with the online version of the manual,

click on any “Reason” for more detailed information.

Table 3-1 Scene Appearance Changes in Inventor 2.1

Scene Appearance Change Reason

Texture quality looks different. SoComplexity, SoTexture2—textureQuality

ﬁeld behavior changed.

SoComplexity, SoTexture2—Textures

sometimes use only 12 bits of color.

SoComplexity, SoTexture2—Default texture

quality is point sampling on some systems.

When you view a texture-mapped

object, the texture seems to

disappear.

SoXtViewer—Texture mapping interactive

draw style change.

Shapes that were smooth shaded

look faceted.

SoShapeHints—creaseAngle default value

changed.

When you set the draw style to

wireframe, some of the lines are

missing.

SoShapeHints, SoDrawStyle, SoClipPlane—

Wireframe and clipped objects behavior

changed.

A scene that has many spheres

(and/or cones, cubes, cylinders)

seems to render slower than before.

SoShapeHints, SoCube, SoCone, SoSphere,

SoCylinder—Primitive shapes behavior

changed.

Chapter 3: Scene Appearance Changes in Inventor 2.1

Vertex-based shapes look the same,

regardless of the SoComplexity

value.

SoComplexity, nodes derived from

SoVertexShape—Geometry is no longer

dropped for complexity values smaller than

0.5.

The material looks different than it

did in Inventor 2.0 for objects that

had a different material for every part

or every vertex speciﬁed.

SoMaterial—Multiple materials support

changed.

Colors in a shape look wrong. SoMaterial—Multiple materials support

changed.

SoMaterialBinding, SoMaterial—Correct

number of diffuse colors required.

A vertex-based shape used several

colors repeatedly for the different

parts and this no longer looks right.

SoMaterialBinding, SoMaterial—Correct

number of diffuse colors required.

In a program that contains direct calls

to OpenGL, the materials look

wrong.

SoCallback, SoEventCallback—Reset

required after making direct OpenGL calls.

Table 3-1 Scene Appearance Changes in Inventor 2.1

Scene Appearance Change Reason

Chapter 4

4. New Features

This chapter describes the major new features that distinguish Open

Inventor 2.1 from Open Inventor 2.0. It discusses the following topics:

•“Version-Related Changes” on page 21

•“File Reading and Writing” on page 23

•“New Nodes” on page 23

•“New Fields” on page 27

•“Miscellaneous Additions” on page 28

•“New and Updated Utilities” on page 30

Version-Related Changes

This section discusses various issues directly related to the version change:

•“File Version”

•“Inventor Revision Symbols”

•“DSO Directories and Versions”

File Version

The ﬁle version has been updated to 2.1; ﬁles written out with Open Inventor

2.1 have the ﬁle header #Inventor V2.1 ascii or #Inventor V2.1 binary.

Inventor 2.1 programs are still able to read 2.0 and 1.0 ﬁles. Older programs

cannot read 2.1 ﬁles; the ﬁles must be converted to the appropriate version

with the ivdowngrade program discussed in “File Downgrade Utility” on

page 30.

Chapter 4: New Features

Inventor Revision Symbols

C preprocessor symbols SO_VERSION and SO_VERSION_REVISION have

been added to Inventor/SbBasic.h to identify the revision of Inventor being

compiled against:

•SO_VERSION is the major version number (for Inventor 2.1, “2”)

•SO_VERSION_REVISION is the minor revision number (for Inventor

2.1, “1”)

If you use parts of the Inventor API that changed between revisions, you can

use these symbols to conditionally compile (#ifdef) your code if you want

the same source to compile against multiple versions of Inventor.

DSO Directories and Versions

To avoid problems with incompatible code, the places Inventor searches for

DSOs (dynamic shared objects) implementing new nodes has been changed.

Inventor 2.1 searches in the following order:

LD_LIBRARY_PATH:/usr/lib:/lib (normal rld rules)

.:/usr/local/lib/InventorDSO:/usr/lib/InventorDSO (new)

If you’re running a setuid or setgid program, or if running as root, the order is:

/usr/lib:/lib (normal rld rules)

/usr/lib/InventorDSO (new)

The /usr/lib/Inventor and /usr/local/lib/Inventor directories were used for

Inventor 2.0. For example, if you created a new node of type NewNode and

created NewNode.so DSOs for both Inventor 2.0 and Inventor 2.1, you could

put the Inventor 2.0 NewNode.so in the /usr/local/lib/Inventor/ directory and

put the Inventor 2.1 NewNode.so in the /usr/local/lib/InventorDSO/ directory.

To avoid future problems with incompatible DSOs, Inventor 2.1 and future

releases of Inventor will search for DSOs that are given the same version

number as the Inventor libraries. For Inventor 2.1, DSOs for new nodes and

engines must be tagged with version “sgi3.0”. This is accomplished by

adding the ﬂag -set_version “sgi3.0” when creating the DSO. See the reference

page for ld for more information on DSO versioning, and the Inventor

release notes for information on creating DSOs for new Inventor classes.

File Reading and Writing

This section explains changes related to ﬁle reading and writing.

Support for VRML Files

The SoDB read methods now also read ﬁles with the VRML 1.0 header.

User-Deﬁned File Headers

The SoDB class now includes methods for registering your own ﬁle headers.

This is useful, for example, if you have an application that supports a

superset of the Inventor ﬁle format, and you want to use the Inventor ﬁle

reading mechanism to parse the ﬁle. Similarly, you can specify your own

header for output ﬁles using methods of the SoOutput class. See the

reference pages for more details.

SoOutput::setFloatPrecision

You can now specify the precision Inventor uses when writing ﬂoating point

numbers in the ASCII ﬁle format. The new setFloatPrecision() method on

SoOutput takes one argument, an integer specifying the desired precision.

For example, a precision of 2 limits the output of ﬂoating point numbers to

2 signiﬁcant digits.

New Nodes

This section discusses new nodes that don’t result in incompatible API

changes or scene appearance changes. It provides information about:

•“SoVertexProperty Node”

•“SoLOD Node”

•“SoLocateHighlight Node”

•“VRML Nodes”

Chapter 4: New Features

SoVertexProperty Node

A new node class, SoVertexProperty, has been added. The

SoVertexProperty node is a performance feature of Inventor 2.1; it does not

add functionality. Open Inventor applications that use this node may show

a speed improvement, particularly for non-cached rendering.

Description

The SoVertexProperty node allows you to specify in one node all the vertex

data for a vertex-based shape (that is, any shape derived from

SoVertexShape). This is more efﬁcient than inheriting the data from several

different nodes. An SoVertexProperty node has the following ﬁelds:

vertex the coordinates, speciﬁed as SoMFVec3f

normal the normal vectors, speciﬁed as SoMFVec3f

normalBinding the normal binding, speciﬁed as SoSFEnum

orderedRGBA the packed color and alpha values, speciﬁed as

SoMFUInt32

materialBinding

the material binding, speciﬁed as SoSFEnum

texCoord the texture coordinates, speciﬁed as SoMFVec2f

When the SoVertexProperty node is used, it replaces the SoCoordinate3,

SoNormal,SoNormalBinding,SoTextureCoordinate2,SoMaterial (when

used to specify multiple colors), and SoMaterialBinding nodes.

Defaults

The vertex,normal,orderedRGBA, and texCoord ﬁelds are all NULL by

default. If any of these ﬁelds are not speciﬁed, the shape inherits the values

from other nodes in the scene.

The default normalBinding is PER_VERTEX, and the default

materialBinding is OVERALL. However, the normalBinding is ignored if

the normal ﬁeld is not used. Similarly, the materialBinding ﬁeld is ignored

if the orderedRGBA ﬁeld is not used.

New Nodes

Usage

The SoVertexProperty node can be used by the shape in either of two ways:

•The SoVertexProperty node is placed in the scene and inherited by the

shape node.

This is the same model used for inheritance for other property nodes in

Inventor.

•The vertex-based shapes have a new SoSFNode ﬁeld, vertexProperty,

that allows you to directly include the SoVertexProperty node in the

shape.

This is a signiﬁcant change from the inheritance model used for other

properties. The properties speciﬁed in the node apply only to the shape

in which it was included; they do not affect any subsequent shapes.

Performance Considerations

For maximum performance, observe the following rules of thumb:

•Use the SoVertexProperty node to specify properties for the

vertex-based shapes if you have a scene that cannot be cached.

•Use the vertexProperty ﬁeld of the shapes to directly include the

SoVertexProperty node; don’t place the SoVertexProperty node in the

scene and inherit by the shape node.

•Use the ﬁelds in the SoVertexProperty node to specify all the data you

need for a shape; don’t mix and match data from the SoVertexProperty

node and inherited values from other nodes.

•Specify normals and texture coordinates if you need them; don’t rely on

the automatic generation, which is expensive if the scene cannot be

cached.

•Don’t use the convenience feature of specifying the number of vertices

as -1 (that is, use all remaining vertices); specifying the actual number is

more efﬁcient.

Chapter 4: New Features

SoLOD Node

Open Inventor 2.1 has an improved version of the node that provides

switching between different levels of detail in the scene. The new node is

named SoLOD, to avoid conﬂict with the old node, SoLevelOfDetail. For

compatibility, the old node is still supported.

The new SoLOD node switches between different levels, depending on the

distance of the object from the eye. The old SoLevelOfDetail node used

screen area to determine when to switch levels. Using distance is much faster

than using screen area.

SoLocateHighlight Node

SoLocateHighlight is a new, special separator that performs locate

highlighting. When the window cursor is over the contents of this separator,

it efﬁciently redraws itself in a different color. This is useful for indicating hot

spots in a scene. See the reference page for more details.

VRML Nodes

The Open Inventor ﬁle format formed the basis for the Virtual Reality

Modeling Language (VRML), the industry-standard, platform-independent

ﬁle format for 3D graphics on the Internet. VRML 1.0 includes a few nodes

that were not in Inventor 2.0; these nodes have been added to Open Inventor

2.1, which is now a superset of VRML 1.0. The new nodes in Open Inventor

2.1 are:

•SoWWWAnchor

•SoWWWInline

•SoAsciiText

•SoFontStyle

See the reference pages for more information on these nodes. For more

information on VRML, visit the World Wide Web page at

http://vrml.wired.com.

New Fields

This section looks at two new ﬁelds, “The “ﬁelds” Field” and “The “isA”

Field.”

The “ﬁelds” Field

Inventor writes custom nodes with an extra ﬁeld named ﬁelds that lists the

names of all ﬁelds in the node along with their types. Inventor 2.0 ﬁles could

not be read if a ﬁelds ﬁeld was included in a node that was a standard part

of the library. To be fully compliant with VRML 1.0, Inventor 2.1 ﬁles now

support a ﬁelds ﬁeld in all nodes.

For example, the following code fragment is legal in an Inventor 2.1 ﬁle:

Cube {

fields [SFFloat width,

SFFloat height,

SFFloat depth,]

width 10

height 4

depth 3

}

The “isA” Field

When a new node type is a superset of an existing node, and an

implementation for the new node type cannot be found, the new node type

can be treated as the existing node it is based on (with some loss of

functionality).

To support this, new node types can deﬁne an MFString ﬁeld called isA

containing the names of the types of which it is a superset.

For example, assume a new subset of Material called ExtendedMaterial

adds the index of refraction as a material property. This type can be deﬁned

as follows:

Chapter 4: New Features

ExtendedMaterial {

fields [ MFString isA, MFFloat indexOfRefraction,

MFColor ambientColor, MFColor diffuseColor,

MFColor specularColor, MFColor emissiveColor,

MFFloat shininess, MFFloat transparency ]

isA [ "Material" ]

indexOfRefraction .34

diffuseColor .8 .54 1

}

If the ExtendedMaterial node is not known, an alternateRep ﬁeld

containing an SoMaterial node is automatically created.

Miscellaneous Additions

This section brieﬂy discusses:

•“SoGLRenderAction Render Abort Callback Changes”

•“New Manipulator for Transformations”

•“OpenGL Texture Object Extension”

•“SoXtViewer Changes”

SoGLRenderAction Render Abort Callback Changes

The render abort callback in Open Inventor 2.1 no longer returns a simple

Boolean value. Instead, it returns an abort code (similar to the

SoCallbackAction::Response code) that is one of CONTINUE, ABORT,

PRUNE, or DELAY.

•CONTINUE is the same as returning FALSE in previous versions of

Inventor; it means that rendering should continue as usual.

•ABORT is the same as returning TRUE in previous versions; it

terminates the current render traversal.

•PRUNE indicates that traversal should skip the current node and all

nodes under it.

Miscellaneous Additions

•DELAY postpones traversal of the current node until after all other

nodes have been traversed, just like the SoAnnotation node.

PRUNE and DELAY are new features that allow applications to modify

Inventor’s standard rendering order.

New Manipulator for Transformations

A new manipulator, SoTransformerManip, has been added to the set of

Inventor manipulators. It provides a full interface for rotation, translation,

and scale in three dimensions. This new manipulator provides better

feedback than the older manipulators, and uses the new locate highlighting

feature to indicate which of its parts to pick. See the reference page for more

details.

SoTransformerManip is used in IRIS Annotator™and WebSpace Author.™.

OpenGL Texture Object Extension

Open Inventor 2.1 makes use of the OpenGL extension for texture objects.

Consequently, you see improved texture mapping performance on systems

where this OpenGL extension is available.

SoXtViewer Changes

There are two changes to SoXtViewer:

•When a viewer is in pick mode, you can temporarily switch to view

mode by holding down the <ALT> key.

•The method SoXtViewer::setCursorEnabled() allows you to specify

whether the viewer is allowed to change the cursor over the render area

window. Disabling the cursor enables the application to set the cursor

directly. This is useful, for example, if you want to set a busy cursor in

the window.

Chapter 4: New Features

New and Updated Utilities

The following new and updated utilities are available in Inventor 2.1 and are

discussed in this section:

•“File Downgrade Utility”

•“Program for Converting Files to Use Vertex Properties”

•“Program for Optimizing Scene Graphics”

•“Program for Analyzing Rendering Performance”

Note: The utility program ivquicken is no longer supported.

File Downgrade Utility

A new utility program, /usr/sbin/ivdowngrade, takes an Inventor ﬁle and

converts it to Inventor version 2.0 or 1.0. See the reference page for more

details.

Program for Converting Files to Use Vertex Properties

The ivAddVP utility program helps convert Inventor ﬁles into 2.1 ﬁles that

use the vertexProperty ﬁeld for the vertex-based shapes. The source code,

including a Makeﬁle, is distributed in the inventor_dev.src.sample subsystem.

It is installed in the directory /usr/share/src/Inventor/tools/ivAddVP.

New and Updated Utilities

Program for Optimizing Scene Graphics

A new utility program, /usr/sbin/ivﬁx, restructures Inventor scene graphs for

improved rendering performance. ivﬁx ﬁrst analyzes the organization of the

input scene graph and tries to sort it to take advantage of coherence. For

example, it tries to organize subgraphs by common textures, since switching

textures is expensive. Once sorting is complete, ivﬁx also tries to combine

subgraphs so that the ﬁnal result has fewer nodes. Finally, ivﬁx “ﬂattens” the

subgraphs, tessellating all shapes into triangles that are then organized into

triangle strips. For example, two spheres may be combined into one triangle

strip.

The source code to ivﬁx, including a Makeﬁle, is distributed in the

inventor_dev.src.sample subsystem. It is installed in the directory

/usr/share/src/Inventor/tools/ivﬁx.

Program for Analyzing Rendering Performance

The utility program ivperf, for analyzing rendering performance, is provided

in source code format in the inventor_dev.src.sample subsystem. It is installed

in the directory /usr/share/src/Inventor/tools/ivperf. For information on ivperf,

see Chapter 6, “Optimizing Open Inventor Applications.”

Chapter 5

5. Incompatible Extender API Changes

This chapter is for developers who have customized existing Inventor 2.0

classes or have created subclasses of them. If you have problems porting an

application with custom classes or subclasses, this chapter helps you solve

them by explaining the new features and changes to the protected and

extender methods.

Note: To make your transition to Inventor 2.1 easier, the old version of the

API is still supported in some cases. To ﬂush out cases where your code is

still using the old version, compile your program with -DIV_STRICT.

This chapter discusses the following topics:

•“Methods” on page 33

•“Elements” on page 37

•“Shape Nodes” on page 40

•“Material Property Nodes” on page 45

•“Engine Evaluation” on page 46

Methods

This section provides information about changed methods, discussing the

following topics:

•“The GLRender() Method”

•“readInstance() Method”

•“copy() Method”

Chapter 5: Incompatible Extender API Changes

The GLRender() Method

There are two potential changes when working with a GLRender() method:

•“Overriding Existing GLRender() Methods”

•“Implementing SoSeparator GLRender() Methods Efﬁciently”

For additional information, see “How to Convert GLRender() Methods” on

page 42 in “Managing the Material State.”

Overriding Existing GLRender() Methods

Overriding an existing node’sGLRender() method by registering a method

using SoGLRenderAction::addMethod() no longer works.

SoGLRenderAction no longer uses the static action/method table for its

traversal, but instead calls GLRender() methods directly (see

“Implementing SoSeparator GLRender() Methods Efﬁciently”).

Instead of calling SoGLRenderAction::addMethod(), implement a subclass

of the node(s) with the GLRender() methods you wish to override and use

the SoType::overrideType() method in its initClass() routine instead of the

normal SO_NODE_INIT_CLASS() macro. See the comments in SoType.h for

more information on SoType::overrideType().

Implementing SoSeparator GLRender() Methods Efﬁciently

To make rendering traversal faster, SoNode now deﬁnes four different

rendering methods: GLRender(),GLRenderBelowPath(),

GLRenderInPath(), and GLRenderOffPath(). By default, the three new

methods just call GLRender(). However, for optimal rendering speed, group

nodes can redeﬁne GLRender() to call one of the other methods based on the

current path code (the SoAction::getPathCode() method returns the current

path code).

For example, SoSeparator deﬁnes a GLRender() method that calls

SoSeparator::GLRenderBelowPath() or SoSeparator::GLRenderInPath(),

based on the path code. Once GLRenderBelowPath() is called, traversal is

faster, since the path code is guaranteed not to change underneath the

separator, and the separator can just call its children’s

GLRenderBelowPath() methods.

Methods

If you have a class derived from SoSeparator and you implemented a

GLRender() method for that class, you need to implement

GLRenderBelowPath() and GLRenderInPath() methods; otherwise, the

methods of the SoSeparator are called and your special rendering code is

not executed.

readInstance() Method

This section discusses two changes to the readInstance() method:

“Additional Argument to readInstance()” and “Implementation of

readInstance() for Group Nodes Changed.”

Additional Argument to readInstance()

If you have node or engine subclasses with readInstance() methods, you

have to add an extra argument to your readInstance() method;

SoFieldContainer::readInstance() now takes the following arguments:

SoInput *in, unsigned short flags

If you call your base class’sreadInstance() method, you must pass it the ﬂags

argument. Otherwise, you can simply ignore this argument.

Implementation of readInstance() for Group Nodes Changed

If a group node reads children directly, you should have readInstance() code

that emulates the readInstance() code of SoGroup and checks to see if

children were written in the binary ﬁle format, as follows:

// Reads stuff into instance of SoGroup. Returns FALSE on

// error. Also deals with field data (if any), so this method

// should also be useful for most subclasses of SoGroup.

// Use: protected

SbBool

SoGroup::readInstance(SoInput *in, unsigned short flags)

{

SbBool readOK = TRUE;

// First, turn off notification for this node

SbBool saveNotify = enableNotify(FALSE);

// Read field info. We can’t just call

// SoNode::readInstance() to read the fields here

Chapter 5: Incompatible Extender API Changes

// because we need to tell the SoFieldData that it’s ok

// if a name is found that is not a valid field name -

// it could be the name of a child node.

SbBool notBuiltIn; // Not used

readOK = getFieldData()->read(in, this, FALSE,

notBuiltIn);

if (!readOK) return readOK;

// If binary BUT was written without children (which can

// happen if it was read as an unknown node and then

// written out in binary), don’t try to read children:

if (!in->isBinary() || (flags & IS_GROUP))

readOK = readChildren(in);

// Re-enable notification

enableNotify(saveNotify);

return readOK;

}

This change was made so that binary ﬁles containing unknown group nodes

with no children are correctly read.

copy() Method

Node copying now works correctly. For example, multiple references to a

node (through children, ﬁelds, or connections) under the node to be copied

are no longer copied individually; multiple instances of a single copy are

created instead.

These changes required a change to the extender API. The changes affect you

only if you have created a new node class and have implemented a copy()

method for it that differs from that of its base class.

In Inventor 2.1, the SoNode::copy() method is no longer virtual. Instead, the

copy() method creates an empty node of the correct type and then calls the

virtual copyContents() method on it to copy from the existing node. The

default implementation of copyContents() for SoNode copies the ﬁeld

values. The implementation for SoGroup copies the children as well. If your

node has other (non-ﬁeld, non-child) information that needs to be copied,

redeﬁne copyContents() for it. See “The copyContents() Method” on

page 120 for more information.

Elements

This section looks at element changes and related information in Inventor

2.1, discussing the following topics:

•“Changes in Shape Hints Element Methods”

•“Changes in Binding Elements”

•“Changes in Texture Elements”

•“Changes in Material Elements”

•“Implementation of Node Override”

Changes in Shape Hints Element Methods

The SoShapeHintsElement methods setFilled(),setClipped(),isFilled(),

isClipped(),getDefaultIsFilled(), and getDefaultIsClipped() are no longer

supported.

Changes in Binding Elements

The DEFAULT and NONE values are obsolete for the nodes

SoMaterialBinding and SoNormalBinding. The corresponding elements

contain enum values for DEFAULT and NONE that make them the same as

OVERALL for materials and PER_VERTEX_INDEXED for normals. If the

code is compiled with -DIV_STRICT, these elements do not include values

for DEFAULT and NONE, and any reference to them causes a compile-time

error.

Changes in Texture Elements

The element SoGLTextureQualityElement is obsolete. Use

SoTextureQualityElement instead.

Chapter 5: Incompatible Extender API Changes

The following elements (and their OpenGL counterparts) are replaced by

SoTextureImageElement (and its OpenGL counterpart):

•SoTextureBlendColorElement

•SoTextureModelElement

•SoTextureWrapSElement

•SoTextureWrapTElement

Changes in Material Elements

Several elements that were responsible for material properties have been

combined into two elements: SoLazyElement and its derived OpenGL

version SoGLLazyElement.

•SoLazyElement is responsible for setting and getting material state.

•SoGLLazyElement is responsible for tracking the OpenGL state, and

issuing send commands, invalidating caches, and so on.

Both elements are required, because some actions (for example callback

actions) do not involve OpenGL. The following elements and their OpenGL

counterparts are replaced by the lazy elements:

•SoDiffuseColorElement

•SoSpecularColorElement

•SoAmbientColorElement

•SoEmissiveColorElement

•SoTransparencyElement

•SoShininessElement

•SoLightModelElement

•SoGLPolygonStippleElement

•SoCurrentGLMaterialElement

•SoGLColorIndexElement

Elements

Implementation of Node Override

In Inventor 2.0, the SoElement base class automatically implemented

override for all elements. Setting override on a node automatically caused an

override ﬂag to be set on every element that node overrode.

In Inventor 2.1, a node has to explicitly implement override. A new element,

SoOverrideElement, has methods for getting and setting a bit for each

element that can be overridden. Nodes must cooperate with one another by

not doing anything if the bit for a particular element is set and by setting the

bit for an element if the node’sOverride ﬂag is set.

Many of the set methods on Inventor’s built-in elements no longer take

SoNode * parameters. In cases where the only reason for the SoNode *

parameter was to test whether the node had its override set, the SoNode *

parameter was removed. Elements that are subclasses of

SoReplacedElement still take an SoNode * parameter in their set routines for

cache dependencies.

This change improves performance and cache dependencies on override

elements. Performance is improved because many nodes don’t need

override and they no longer have to pay for it. Cache dependencies are

improved because the setting of the SoOverrideElement sets up the right

dependencies.

If you created your own element and want to implement override behavior

for it, you can either add and set override methods to the element (this is

easier to implement) or implement another element that stores override

information (this is better for caching).

Chapter 5: Incompatible Extender API Changes

Shape Nodes

This section provides information about implementing shape nodes with

Inventor 2.1, discussing the following topics:

•“Generating Normals”

•“Managing the Material State”

•“Using the Material Bundle”

•“Getting a Bounding Box”

Generating Normals

The SoNormalGenerator class constructors take an argument that

determines whether or not the polygons passed are in clockwise or

counterclockwise order. Inventor now correctly generates normals for

built-in shapes when the SoShapeHints node sets the vertex ordering to

CLOCKWISE.

You don’t have to change extender shapes that use SoNormalBundle to

generate normals for them. You do have to modify extender shapes that use

the SoNormalGenerator class directly to get the vertex ordering out of the

ShapeHintsElement and pass TRUE or FALSE to the SoNormalGenerator

constructor.

Managing the Material State

Inventor 2.1 has a new, more efﬁcient mechanism for managing the material

state during scene traversal. This section ﬁrst discusses the new

SoLazyElement and SoGLLazyElement, then provides instructions for

converting GLRender() methods that use the lazy elements.

Shape Nodes

Using SoLazyElement and SoGLLazyElement

The SoMaterialBundle is still supported for backward compatibility, but

you should use SoLazyElement and SoGLLazyElement for improved

performance. You also need to use the lazy elements if you are issuing any

of the following OpenGL calls:

•glColor()

•glMaterial()

•glColorMaterial()

•glEnable() or glDisable(), with the following arguments:

–GL_COLOR_MATERIAL

–GL_BLEND

–GL_LIGHTING

–GL_POLYGON_STIPPLE

•glPushAttrib() or glPopAttrib(), with the following bits:

–GL_ENABLE_BIT

–GL_LIGHTING_BIT

–GL_POLYGON_BIT

–GL_POLYGON_STIPPLE_BIT

The lazy element tracks the OpenGL state for all components of the lazy

element. If you issue OpenGL calls that change that state, you must call

SoGLLazyElement::reset() to inform the lazy element that the OpenGL state

has changed.

It is important to keep track of state::push() and pop() calls that occur while

rendering, because the identity of the current lazy element will probably

change during a push and pop. This can cause problems if

SoMaterialBundle is used as in the Inventor 2.0 example code

/usr/share/src/inventor/examples/Toolmaker/02.Nodes/Pyramid.c++.

Chapter 5: Incompatible Extender API Changes

The SoShape::beginSolidShape() and SoShape::endSolidShape() methods

are unnecessary and actually can cause problems in that example, because

the destructor for the material bundle is invoked after a pop(). This

potentially invalidates state that is no longer current. The example code has

been revised to work correctly in Inventor 2.1 (see also Appendix A,

“Creating a Node”).

How to Convert GLRender() Methods

This section provides step-by-step instructions for converting a shape node’s

GLRender() method to use the lazy elements.

The shape nodes are responsible for managing transparency state, managing

glShadeModel, issuing glColorMaterial(), and issuing OpenGL calls to

send graphics state.

•In the simplest case (one color per shape), you need only call

SoGLLazyElement::sendAllMaterial(), once, prior to rendering the

shape.

•If there are multiple colors or transparencies in the shape, you may

need to do more.

In the most general case, follow these steps:

1. If your node is setting a new value in the lazy element state, call

SoLazyElement::setColorMaterial(),setBlending(), and so on.

When ColorMaterial is TRUE, glColor() calls modify the current

GL_DIFFUSE color. By default, ColorMaterial is FALSE. You should

only set it if it needs to be TRUE, and be sure to set it back to FALSE at

the end of rendering.

2. After you’ve set all values, but before any geometry has been sent to

OpenGL, issue one of the following calls:

•SoGLLazyElement::sendAllMaterial()

•SoGLLazyElement::sendNoMaterial()

•SoGLLazyElement::sendOnlyDiffuseColor()

Shape Nodes

The sendAllMaterial() call ensures that all of the state managed by the

lazy element is current in OpenGL. If the light model is BASE_COLOR,

use SendOnlyDiffuseColor() instead, to avoid unnecessary OpenGL

calls to set ambient colors, specular colors, and so on. If you are

providing your own glMaterial() or glColor() calls, use

sendNoMaterial(). This ensures that the OpenGL state is current with

respect to transparency, light model, color material, and so on.

3. To send additional materials, for example, PER_VERTEX or PER_FACE,

to OpenGL, call SoGLLazyElement::sendDiffuseByIndex() or issue

OpenGL commands.

4. The OpenGL shade model is by default GL_SMOOTH. If you need to

have ﬂat shading, invoke glShadeModel(GL_FLAT) before rendering,

but be sure to set it back to GL_SMOOTH at completion of GLRender().

5. If you are managing transparency, it may be necessary to call

glEnable() or glDisable() with arguments GL_BLENDING or

GL_POLYGON_STIPPLE. Be sure to issue SoGLLazyElement::reset()

on the transparency components of the SoGLLazyElement, namely

TRANSPARENCY and BLENDING, if you called glEnable() or

glDisable() to affect transparency.

6. If you use stipple transparency, only the ﬁrst transparency value in the

state is used to determine the transparency value in the stipple pattern.

If you use other forms (additive or blending transparency), and if you

provide as many transparency values as diffuse colors, then

transparency varies across the shape, with a transparency being

associated with each diffuse color.

7. If you do not want to issue OpenGL calls but need to have multiple

colors sent while rendering a shape, use the sendDiffuseByIndex()

routine for all color send calls after the ﬁrst. You can use this routine to

send a speciﬁc diffuse color and/or transparency from the state. When

you invoke lazyElt::sendDiffuseByIndex(), make sure the lazy element

that you are using is current, that is, that there is no push() or pop()

between:

Chapter 5: Incompatible Extender API Changes

SoGLLazyElement* lazyElt =

(SoGLLazyElement*)SoLazyElement::getInstance(state);

and

lazyElt->sendDiffuseByIndex();

8. If you issued glColor() or glMaterial() calls, or call

sendDiffuseByIndex() during rendering, you have to inform the lazy

element that the OpenGL state is not the same as the Inventor state. Call

SoGLLazyElement::reset(state, bitmask)at the completion of rendering,

with bitmask the logical OR of one or more of the following bitmasks,

depending on which material you sent:

•SoLazyElement::DIFFUSE_MASK

•SoLazyElement::AMBIENT_MASK

•SoLazyElement::EMISSIVE_MASK

•SoLazyElement::SPECULAR_MASK

•SoLazyElement::SHININESS_MASK

Make sure that the lazy element to which reset() is applied is current.

Don’t issue a push() or pop() between obtaining the lazy element and

applying reset().

After rendering, call SoLazyElement::setColorMaterial(FALSE) to

disable glColorMaterial(), if color material was enabled.

Using the Material Bundle

For backward compatibility, the material state of a shape can be managed (as

in Inventor 2.0) by use of SoMaterialBundle. You have to set up the

GLRender() method of the shape as follows:

Constructor: SoMaterialBundle mb(action);

Prior to ﬁrst rendering: mb.sendFirst()

For each new material: mb.send(index)

Destructor: (implicitly invoked at the end of GLRender())

Material Property Nodes

For correct use of the material bundle, there should not be a push() or pop()

of state between mb.sendFirst() and the invocation of the destructor, for

example, consider the following code fragment:

beginSolidShape(action)

{//Scope material bundle

SoMaterialBundle mb;

...

}

endSolidShape(action);

Do not, for example, invoke SoShape::endSolidShape() until after the end

of the scope of the material bundle because it pops the state, for example:

{//Don’t do it this way

SoMaterialBundle mb;

beginSolidShape(action)

...

endSolidShape(action)

}

Getting a Bounding Box

If an Inventor 2.1 shape consists of lines and/or points, you must implement

agetBoundingBox() method that calls ﬁrst the parents method and then:

SoBoundingBoxCache::setHasLinesOrPoints(action -> getState())

See “Getting a Bounding Box” on page 93 for more detailed information.

Material Property Nodes

If you implement a property node to manage material state (colors, light

model, or transparency), note that in the doAction(action) method (that is,

when the node is traversed), material properties are set in the state by

SoLazyElement methods (see SoLazyElement.h):

•setTransparency

•setDiffuse

•setAmbient

Chapter 5: Incompatible Extender API Changes

•setSpecular

•setShininess

•setEmissive

•setPacked

•setLightModel

•setColorIndices

It is not necessary send materials to OpenGL during traversal of property

nodes in Inventor 2.1. For efﬁciency, the lazy element delays such sends until

they are required by the shape node.

If you set either the diffuse color or the transparency, but not both, use

SoColorPacker to pack the material you are setting into a packed color in the

state. If you are setting both diffuse color and transparency, you should pack

them both into a packed color and use SoLazyElement::setPackedColor to

set them in the state. See the Glow example (Example A-2 on page 84) for an

illustration of how SoColorPacker is used.

Before issuing a set() on an element, if that element can be overridden, check

SoOverrideElement for the status of the override on that element. It is now

the responsibility of the application to test for override, and to not set the

corresponding property in the state if override is set.

Engine Evaluation

If you’ve written engines that do not use the SO_ENGINE_OUTPUT macro

but instead directly write into the ﬁelds they are connected to then you have

to make the following change: before writing to a connected ﬁeld, you must

check if the ﬁeld is not read only (!ﬁeld::isReadOnly()) instead of checking

if the ﬁeld is engine modifying (ﬁeld::isEngineModifying()). This change

was made as part of the optimization of engine notiﬁcation and evaluation.

Chapter 6

6. Optimizing Open Inventor Applications

This chapter explains how to determine what is limiting the performance of

your Open Inventor application, and provides suggestions on how to

improve its performance.

Note: This chapter was previously available as a small booklet. The

information has been updated to Inventor 2.1 as appropriate.

The chapter discusses the following topics:

•“Benchmarking Tips” on page 48—Describes a process for effectively

investigating and improving performance—discovering where an

application is spending its time is not a matter of random trial and

error.

•“Optimizing Rendering” on page 52—Provides for each step in the

rendering process:

–Information about that step.

–A method for determining how much time your application is

spending in that step.

–Techniques for reducing that time.

•“Optimizing Everything Else” on page 68—Suggests ways of

structuring your scene and application for maximum performance

when doing tasks other than rendering (for example, picking or

modifying the scene).

For more information on Open Inventor programming in general and on

speciﬁc nodes, see The Inventor Mentor.

Chapter 6: Optimizing Open Inventor Applications

Benchmarking Tips

Like ﬁxing bugs or eliminating memory leaks, performance tuning is a

necessary chore during application development. Proper organization and

planning can speed up this chore and make it more pleasant.

This section looks at the steps to take when optimizing your application.

discussing these topics:

1. “Setting Performance Goals”

2. “Measuring Performance”

3. “Determining Bottlenecks”

4. “Modifying Your Application to Reduce Bottlenecks”

5. Finally, measuring your application against your goal again and

repeating steps 2, 3 and 4 above until performance meets your goal (see

“Are You Finished Yet?” on page 51).

Setting Performance Goals

Setting a performance goal helps you use your time wisely. Typically, you

should decide on a desired frame rate, such as running at 20 frames per

second with a particular scene. A reasonable performance goal for

interactive programs is a frame rate of at least 10 frames per second. Most

users ﬁnd that frame rate acceptable for most tasks (more is always better, of

course).

When setting a goal, keep in mind the capabilities of your hardware. If the

absolute top speed for drawing polygons on your system is 60,000 unlit,

single-color triangles per second, don’t try to get 10 frames per second while

drawing 6,000 lit, color-per-vertex triangles. Write short OpenGL

benchmark programs, or feed test scene graphs to ivview -p to help set your

expectations.

Benchmarking Tips

Measuring Performance

It is important to have an objective way of measuring your application’s

performance. You’re likely to waste time on insigniﬁcant optimizations if

you just watch your application run and try to see if it seems faster.

Adding code to your application that measures the number of polygons in

your scene and how fast they are being rendered is fairly simple; see, for

example, the source code for ivview in /usr/share/src/Inventor/tools/ivview.

The osview utility can also be useful. The “swapbuf” number in the Graphics

section tells you how many frames per second your application is getting

(assuming that your application is double-buffered, and that it is the only

double-buffered application running).

Note: Don’t confuse osview with its graphical counterpart, gr_osview, which

doesn’t have this feature.

Be sure to keep good records of your application’s performance before you

start optimization. Comparing “before” and “after” performance numbers

ensures that you are not making things worse.

Determining Bottlenecks

Most applications spend most of their time executing a small part of the

code. Optimizing a procedure that is taking up only 5% of the total time is

probably not worthwhile: even if you manage to double the performance of

the procedure, the application will speed up by only 2.5%. In fact, on some

systems graphical operations can occur in parallel. For example, ﬁlling in

polygons and transforming polygon vertices might occur at the same time.

If the bottleneck is in the vertex transformation stage, increasing the pixel ﬁll

time may not increase performance at all! Find the bottlenecks ﬁrst, and then

work on improving them.

Finding bottlenecks is an experimental science. You should ﬁrst come up

with a theory on where the bottleneck might be, then devise an experiment

that proves or disproves that theory. Create experiments that isolate one

small part of your application’s performance, and make sure you

understand what you are measuring every time you run an experiment.

Chapter 6: Optimizing Open Inventor Applications

“Optimizing Rendering” and “Optimizing Everything Else” describe

frequently encountered bottlenecks, show how to determine the amount of

time your application is spending in each of them, and give suggestions on

improving them. The following topics are discussed:

•“Correcting Window Clear Bottlenecks”

•“Improving Traversal Performance”

•“Optimizing Pixel Fill Operations”

•“Correcting Problems ivperf Does Not Measure”

•“Correcting Culling Bottlenecks”

•“Correcting Level of Detail Bottlenecks”

•“Optimizing Memory Usage”

•“Optimizing Action Construction and Setup”

•“Decreasing Notiﬁcation Overhead”

•“Picking and Handling Events”

Feel free to start with bottlenecks you suspect are responsible for the most

noticeable slowdown. You can look at the sections in any order; just make

sure you always know what you are measuring and keep good records of

your experiments.

Modifying Your Application to Reduce Bottlenecks

When you apply a performance optimization, make sure that the

modiﬁcation is really an improvement: don’t assume that all the suggestions

made in this (or any other) document automatically apply to your

application. For example, render culling usually increases performance.

However, if you have an application in which all objects are always visible,

render culling actually hurts performance.

Benchmarking Tips

Again, keep good records. Record what you do and how much it improves

performance. Try to minimize the number of things you change at any one

time; for example, if you make two “optimizations” and performance goes

up by 10%, the speedup might be caused by a 5% improvement for each

optimization, or might be caused by a 100% speedup caused by one

optimization and a 90% slowdown caused by the other! It is tempting to read

a document like this, make lots of changes, then see if the application gets

faster. This not only wastes time, it can also be counter-productive.

Are You Finished Yet?

One of the most frustrating things about optimizing an application’s

performance is that it can be difﬁcult to determine when you are done. Once

you have successfully eliminated one bottleneck, something else becomes

the factor limiting performance. Before spending more time on optimization,

you should ask yourself:

•Did you meet your performance goal? If you did, go home early. If not,

try to ﬁnd other bottlenecks, consider eliminating features that hurt

performance, or reexamine your goals.

•Is your application running at 60 or 72 frames per second?

Double-buffered programs never render faster than the refresh rate of

your monitor.

•Do you need to experiment on different systems? Different systems

have different bottlenecks; on a system with very fast graphics, the

bottleneck is more likely to be either in the application’s code or in

Inventor’s code. On a system with slow graphics and a fast CPU, the

bottleneck is more likely to be inside the OpenGL calls. If your

application will be used on different types of systems, make sure

performance is acceptable on all of them.

Chapter 6: Optimizing Open Inventor Applications

The Five Performance Commandments

1. Be scientiﬁc.

2. Keep good records.

3. Find bottlenecks.

4. Change one thing at a time.

5. Test all the types of systems your application supports.

Optimizing Rendering

The main goal of performance tuning is to make the application look and feel

faster. However, just because the goal is to make the application render

faster, don’t assume that rendering is the bottleneck.

Determining Whether Rendering Is the Problem

To ﬁnd out whether rendering is the problem, modify your application so

that it does everything it normally does except render, and then measure its

performance. An easy way of getting your application to do everything but

rendering is to insert an SoSwitch node with its whichChild ﬁeld set to

SO_SWITCH_NONE (the default) above your scene. So, for example,

modify your application’s code from:

myViewer->setSceneGraph(root);

To:

SoSwitch *renderOff = new SoSwitch;

renderOff->ref();

renderOff->addChild(root);

myViewer->setSceneGraph(renderOff);

This experiment gives an upper limit on how much you can improve your

application’s performance by increasing rendering performance. If your

application doesn’t run much faster after this change, then rendering is not

your bottleneck. See “Optimizing Everything Else” on page 68 for

information on optimizing the rest of your application.

Optimizing Rendering

Isolating Rendering

If you have determined that your application is spending a signiﬁcant

amount of time rendering the scene, the next step is to isolate rendering from

the rest of the things your application does. This makes it easier to ﬁnd out

where the bottleneck in rendering occurs. The easiest way to isolate

rendering is to write your scene to a ﬁle and then use the ivperf program to

perform a series of rendering experiments.

The code for writing your scene may look like the following:

SoOutput out;

if (!out.openFile(“myScene.iv”)) { ... error ... };

SoWriteAction wa(&out);

wa.apply(root);

Using the ivperf Utility to Analyze Rendering Performance

The ivperf utility reads in a scene graph and analyzes its rendering

performance. It estimates the time spent in each stage of the rendering

process while rendering the scene graph.

The process of rendering a single frame can be decomposed into ﬁve main

stages:

1. Clearing the graphics window

2. Traversing the Inventor scene graph

3. Changing the graphics state (including materials, transformations, and

textures)

4. Transforming vertices in the graphics pipeline

5. Filling polygons

Chapter 6: Optimizing Open Inventor Applications

The sum of the times spent in these stages does not, in general, equal the

total time it takes to render the scene. Depending on the underlying

hardware platform and graphics pipeline, some or all of the above can

overlap with each other. Thus, completely eliminating one of the stages does

not necessarily speed up the application by the time taken by that stage.

ivperf takes this into account; it answers questions of the type “if I could

completely eliminate xxx from my scene, how much faster would rendering

be?” For example, if ivperf indicates that 50% of your time is spent changing

the material graphics state, then making your entire scene a single material

would make it render twice as fast. Knowing that materials are taking up a

signiﬁcant part of your rendering time, you can then concentrate on

minimizing the number of material changes made by your scene.

If you have created your own node classes, either create DSO’s for them (see

“DSO Directories and Versions” on page 22) or call their initClass() methods

just after the call to SoInteraction:init() in the ivperf source and link their .o

ﬁles into ivperf.

The camera control used by ivperf is simplistic: it calls viewAll() for the scene

and just spins the scene around in front of the camera when benchmarking.

If you have a sophisticated walk-through or ﬂy-through application that

uses level of detail and/or render culling, modify ivperf so that its camera

motion is more appropriate for your application. For example, have ivperf

use the following little scene instead of just SoPerspectiveCamera:

TransformSeparator {

Rotor { rotation 0 1 0 .1 speed .1 }

Translation { translation 100 0 0 }

PerspectiveCamera { nearDistance .1 farDistance 600 }

}

ivperf correctly reports the performance of changing scenes, as long as you

give it enough information. It automatically deals with scenes containing

engines and animation nodes, but if you are using an SoSensor to modify

the scene, you should mark nodes that your application frequently changes

by giving them the special name “NoCache.” For example, if your

application is frequently changing a transformation in the scene, the

transformation should appear in the ﬁle given to ivperf as:

DEF NoCache Transform { }

Optimizing Rendering

Correcting Window Clear Bottlenecks

The ﬁrst step in the rendering process is clearing the window. It is easy to

forget this step, but depending on the size of your application’s window and

the type of system you are running on, clearing the window can take a

surprisingly long time. If your application’s main window is typically 1000

by 1000 pixels, run ivperf like this:

ivperf -w 1000,1000 myScene.iv

ivperf performs many different rendering experiments, and eventually prints

information on each rendering stage.

For example, on an Indigo2™ Extreme™ running IRIX 5.3, ivperf reports that

for rendering a simple cube in a 1000 by 1000 pixel window 46% of the time

is spent clearing the window.

Unfortunately, if clearing the window takes too much time, there is not a lot

you can do. One possibility is to make the window’s default size smaller

(while still allowing users to resize the window if necessary).

Improving Traversal Performance

After running ivperf, you know how much time your application spends

clearing the color and depth buffers. The next experiment is designed to ﬁnd

out how much time Inventor spends traversing your scene. Traversal is the

process of walking through the scene graph, deciding which render method

needs to be called at each node. Inventor automatically caches the parts of

your scene that aren’t changing and that are expensive to traverse, building

an OpenGL display list and eliminating the traversal overhead.

If most of your scene is changing, or if your scene is not organized for

efﬁcient caching, Inventor may not be able to build render caches, and

traversal might be the bottleneck in your application. ivperf measures the

difference between rendering your scene with nothing changing, and

rendering with the camera, engines, and nodes named “NoCache”

changing.

Chapter 6: Optimizing Open Inventor Applications

If traversing the scene is a bottleneck in your program, there are several

ways of reducing the traversal overhead:

•Reduce the number of nodes in the scene. For example, eliminate

SoSeparator and SoGroup nodes that have only one child by replacing

them with the child.

•Use the vertexProperty ﬁeld of the vertex-based shapes to specify

coordinates, normals, texture coordinates, and colors. (See

“SoVertexProperty Node” on page 24).

•Beware of features that require multiple traversals of the scene graph

for each render update. For example, avoid using accumulation buffer

antialiasing and SoAnnotation nodes, and use the transparency type

SoGLRenderAction::SCREEN_DOOR.

•Organize your scene graph for caching. The next section discusses ways

of doing this. If you are using SoLOD nodes or render culling, also see

“Correcting Culling Bottlenecks” on page 66 and “Correcting Level of

Detail Bottlenecks” on page 67 for hints on optimizing those features,

which ivperf also reports as part of caching behavior.

Organizing the Scene for Caching

You may be able to organize your scene so that Inventor can build and use

render caches even if part of the scene is changing. Note that the following

things inhibit caching:

•Changing ﬁelds in the scene destroys caches inside all SoSeparator

nodes above the node that changed. Even ﬁelds that do not affect

rendering, such as ﬁelds in the SoLabel or SoPickStyle nodes, destroy

caches if they are changed.

Tip: You can disable notiﬁcation on these nodes using the

SoNode::enableNotify() method to keep changes to them from

destroying caches.

•The SoLOD node (and the older SoLevelOfDetail node) breaks caches

above it whenever either the camera or any of the matrix nodes

affecting it change. Make the children of the SoLOD node SoSeparator

nodes, so that they will be cached. See “Correcting Level of Detail

Bottlenecks” for more information on efﬁcient use of the SoLOD node.

Optimizing Rendering

•Any shape using SCREEN_SPACE complexity breaks caches above it

whenever the camera or any of the matrix nodes affecting it change.

•The SoText2 node breaks caches above it whenever the camera changes

(in order to correctly position and justify each line of text, it must

perform a calculation based on the camera). Since most applications

change the camera frequently, try to separate SoText2 nodes from the

other objects in your scene, to allow the other objects to be cached.

Tip: In Inventor 2.1, single-line, left-justiﬁed SoText2 nodes do not break

render caches.

•Changing the override status of properties at the top of the scene, or

changing global properties such as SoDrawStyle or SoComplexity that

affect the rest of the scene, inhibits efﬁcient caching. SoSeparator nodes

build multiple render caches (by default, a maximum of two) to handle

cases in which a small set of global properties are changed back and

forth, but you should avoid continuously changing a global property;

for example, putting an engine on the value ﬁeld of an SoComplexity

node at the top of your scene is bad for caching.

For more information on Inventor’s render caching, see Chapter 9 of The

Inventor Mentor.

Improving Material Change Bottlenecks

If ivperf reports that material changes are the rendering bottleneck, try the

following:

•Use fewer material nodes. Group objects by material, and use one

material node for several objects.

Tip: When the ivﬁx utility rearranges scene graphs, it groups objects by

material.

•Changing between materials with different shininess values is much

more expensive than changing any of the other material properties.

•If you are using shapes with a materialIndex ﬁeld, try to sort their parts

by material index to minimize material changes. For example, try to

change:

Chapter 6: Optimizing Open Inventor Applications

IndexedFaceSet { materialIndex [ 0,1,0,1,0,1,0,1 ] ... }

to:

IndexedFaceSet { materialIndex [ 0,0,0,0,1,1,1,1 ] ... }

This works only for PER_PART_INDEXED or PER_FACE_INDEXED

material bindings.

Optimizing Transformations

For transformation, ivperf reports two numbers: the overhead of changing

the OpenGL transformation matrix between rendering shapes and the time

it takes to transform the vertices in your scene through that matrix. This

section helps with the former, giving suggestions on how to make Inventor

execute fewer OpenGL matrix operations. See “Optimizing Vertex

Transformations” on page 61 for hints on optimizing the transformation of

vertices.

•To measure how much time transformations might be taking, ivperf

temporarily removes all transformations from your scene and then

measures how much faster it runs. Beware! This sometimes gives

unreliable results; for example, if all your objects become very large or

very small without the transformations, then more (or less) time may be

spent ﬁlling in pixels. If your scene uses render culling, removing the

transformations makes more (or fewer) of the objects culled, distorting

the results reported by ivperf.

•Use SoRotation, SoRotationXYZ,SoScale, or SoTranslation nodes

instead of the general SoTransform node. However, don’t bother doing

this if you have to replace the SoTransform node with more than one of

the simpler nodes to get the same transformation.

Performance Tip for Face Sets

For best performance when creating SoFaceSet and SoIndexedFaceSet

shapes, arrange all the triangles ﬁrst, then quads, and then other faces.

Optimizing Rendering

Optimizing Textures

If your scene contains textures, ivperf reports two numbers: the time you

would save if you could turn off textures completely, and the time you

would save if you could make your scene use only one texture. On systems

with texturing hardware, the number of textures used can dramatically

affect performance; see “Optimizing Texture Management” on page 59 for

hints on optimizing texture management. On systems without texture

mapping hardware, the bottleneck is probably ﬁlling in the textured

polygons.

Inventor 2.1 automatically does two things to speed up rendering on

systems without texture mapping hardware:

•Inventor’s viewers display the scene untextured during interaction by

default.

•Inventor uses lower-quality ﬁlters for minifying or magnifying

textures.

Optimizing Texture Management

If ivperf reports a lot of time is spent in texture management, then you are

running out of hardware texture memory. Try the following:

•Use smaller textures. Use the izoom utility to scale down the images you

are using; inadvertently using one big image can easily ﬁll up texture

memory on many systems.

•Make textures a power of 2 wide and high. Textures of those

dimensions (for example 128 x 64 instead of 129 x 70) make startup

faster.

•Reuse nodes. Inventor allows you to modify a texture once it has been

read into your application (using the image ﬁeld of SoTexture2), and to

change the search path for textures (using methods on SoInput). It

therefore does not use the same texture memory for two different

SoTexture2 nodes with the same ﬁlename ﬁeld. Be sure to reuse the

same SoTexture2 node instead of creating another node with the same

ﬁlename.

Chapter 6: Optimizing Open Inventor Applications

For example, this scene is inefﬁcient:

Separator {

Texture2 { filename foo.rgb }

Cube { }

}

Sphere { }

Separator {

Texture2 { filename foo.rgb }

Text3 { string “Hello” }

}

This scene uses texture-memory efﬁciently:

Separator {

DEF foo Texture Texture2 { filename foo.rgb }

Cube { }

}

Sphere { }

Separator {

USE foo

Text3 { string “Hello” }

}

•Textures are not shared if they are below an SoSeparator with

renderCaching turned on. Textures use less texture memory by

building an OpenGL display list or texture object containing the

OpenGL texture commands. However, if an OpenGL display list is

already created the ﬁrst time an SoTexture2 node is traversed, it must

add the texture commands to the already open display list. Inventor’s

automatic caching algorithm handles this correctly; it is only a problem

if you turn caching on explicitly. For example, this scene uses twice as

much texture memory with the renderCaching ﬁeld of the SoSeparator

set to ON:

Separator { renderCaching ON # BAD

DEF TEX Texture2 { filename foo.rgb }

Cube { }

... more stuff, other textures, etc...

USE TEX

Cube { }

}

Optimizing Rendering

•Use SoLOD nodes to create simpler versions of your objects that are

not textured or use smaller texture images when the objects are far

away.

•Use render culling so the textures for textured objects outside the view

volume are not used. For example, imagine a scene that contains 100

textured objects (each with a unique texture), but only 10 of them are in

the view volume at any given time. When the scene is rendered, only 10

of the textures need to be in texture memory at any given time,

resulting in much better texture management performance.

Using Lights Efﬁciently

If the scene given to ivperf contains light sources, ivperf informs you how

expensive they are compared to rendering your scene with just a single

directional light. If ivperf reports that lights are a signiﬁcant performance

bottleneck, try to use fewer light sources, and use simpler lights (a

DirectionalLight is simpler than a PointLight, which is simpler than a

SpotLight). If possible, put lights inside separators so that they affect only

part of the scene, increasing performance for the rest of the scene.

Optimizing Vertex Transformations

If ivperf reports that vertex transformations (which include per-vertex

lighting calculations) take up a signiﬁcant portion of the time it takes to

render a frame, you can do the following to optimize per-vertex operations:

•Use fewer vertices in your objects. Use SoComplexity to turn down

complexity for Inventor’s primitive objects. If you are using a system

with hardware-accelerated texturing, texturing can be used to add

visual complexity with very few vertices.

Chapter 6: Optimizing Open Inventor Applications

•Create less detailed versions of your objects and use SoLOD nodes so

that fewer vertices are drawn when objects are small. Use an empty

SoInfo node as the lowest level of detail so that objects disappear when

they get very small. A good rule of thumb for choosing levels of detail

is that the switch between levels of detail should be fairly obvious if

you are concentrating on the object; for most applications, the user

concentrates on objects in the foreground and does not notice

background objects “popping” between levels of detail. Beware that

SoLOD nodes cause smaller caches to be built, which may slow down

traversal. See “Correcting Level of Detail Bottlenecks” for more

information on efﬁcient use of level of detail.

•Make your vertices simpler. Try to use OVERALL rather than

PER_VERTEX material binding. Turn off fog. Note that these

suggestions are system-speciﬁc; on systems with a lot of hardware for

accelerated rendering, fogged vertices may be no slower than plain

vertices. Be sure to do a quick ivperf test before spending time

modifying your application.

•Make sure you are not turning on two-sided lighting unnecessarily;

avoid SoShapeHints nodes that:

–set vertexOrdering ﬁelds to COUNTERCLOCKWISE or

CLOCKWISE and

–set shapeType ﬁelds to UNKNOWN_SHAPE_TYPE

•If parts of your scene do not require lighting, use an SoLightModel

node set to model BASE_COLOR to turn off lighting for those parts of

the scene. However, be aware that turning lighting on and off can itself

become a bottleneck if done too often.

•If you are using SoFaceSet or SoIndexedFaceSet, try using ivﬁx to

convert them into SoIndexedTriangleStripSet, which draws more

triangles with fewer vertices. Note that ivﬁx cannot create a mesh if

your objects have sharp facets or PER_FACE material or normal

bindings.

•Watch out for expensive primitives with lots of vertices, like SoText3

and SoSphere. ivperf reports the number of triangles in your scene;

make sure the number is reasonable for your desired performance.

Optimizing Rendering

•Organize your scene graph so that objects that are close to each other

spatially are under the same SoSeparator, and turn on render culling so

that Inventor won’t send those objects’ vertices when the objects are not

in view. See The Inventor Mentor, Chapter 9, for more information on

render culling.

•See “Making Inventor Produce Efﬁcient OpenGL” on page 64 for hints

on making Inventor produce more efﬁcient OpenGL calls.

Optimizing Pixel Fill Operations

A common bottleneck on low-end systems is drawing the pixels in ﬁlled

polygons. This is especially common for applications that have just a few

large polygons, as opposed to applications that have lots of little polygons.

If ivperf reports that a large percentage of each frame is spent ﬁlling in pixels,

try to optimize your scene as follows:

•Render your scene, or parts of your scene, in wireframe or as points

when possible. Viewers have “move wireframe” and “move points”

modes built in for exactly this case.

•Some systems can ﬁll ﬂat-shaded polygons faster that Gouraud-shaded

polygons. Triangle strips and quad meshes set shademodel(FLAT) if

they have PER_FACE normals and don’t have PER_VERTEX materials

(and vice versa).

•SCREEN_DOOR transparency (the default) is faster than blended

transparency on some systems (it is slower on other systems). Use the

setTransparencyType() method on either SoXtRenderArea or

SoGLRenderAction to change the transparency type.

Correcting Problems ivperf Does Not Measure

There are several performance problems that ivperf doesn’t catch. The

following sections describe them, and give hints on how to improve them.

Chapter 6: Optimizing Open Inventor Applications

Making Inventor Produce Efﬁcient OpenGL

If your application is rendering only 10 frames per second with 1,000

triangles per frame, and you know that your graphics hardware is capable

of rendering 100,000 triangles per second (10,000 triangles per frame at 10

frames/second), and ivperf reports that your bottleneck is vertex

transformations, then your problem might be that Inventor is not making

efﬁcient OpenGL calls.

Inventor is much more efﬁcient at rendering multiple triangles if they are all

part of one node. For example, you can create a multifaceted polygonal

shape using a number of different coordinate and face set nodes, as shown

in the lower half of Figure 6-1. A much better technique is to put all the

coordinates for the polygonal shape into one SoCoordinate or

SoVertexProperty node, and the description of all the face sets into a second

SoFaceSet node, as shown in the upper half of Figure 6-1.

Tip: The ivﬁx utility program collapses multiple shapes into single triangle

strip sets.

Optimizing Rendering

Figure 6-1 Condensing Face Sets Into Fewer Nodes

faceset2

faceset1

coords1 coords2 faceset3

coords3

all_coords faceset

Not Efficent

Efficent

Chapter 6: Optimizing Open Inventor Applications

Using fewer nodes to get the same picture reduces traversal overhead for

scenes that cannot be cached. Note also that Inventor optimizes on a node by

node basis and generally can’t optimize across nodes.

An SoFaceSet or SoIndexedFaceSet has special code for drawing 3 and

4-vertex polygons. To take advantage of that, you must arrange the polygons

so that the 3-vertex polygons (if any) are ﬁrst in the coordIndex array,

followed by the 4-vertex polygons, followed by the polygons with more than

4 vertices.

For some applications, consider implementing your own nodes that

implement the functionality of a subgraph of your scene. For example, a

molecular modeling application might implement a BallAndStick node

with ﬁelds specifying the atoms and bonds in a molecule, instead of using

the more general SoSphere,SoCylinder,SoMaterial,SoTransform, and

SoGroup nodes. If the molecular modeling application changes the

molecule frequently so Inventor cannot cache the scene, using a specialized

node could make traversal orders of magnitude faster (for example, a simple

water molecule scene graph with three atoms and two bonds might consist

of 20 nodes; replacing this with a single BallAndStick node would make

traversal 20 times faster). The BallAndStick node could also perform

application-speciﬁc optimizations not done by Inventor, such as not

drawing bonds between spheres whose radii were large enough that they

intersected, sorting the spheres and cylinders by color, and so on. See The

Inventor Toolmaker for complete information on implementing your own

nodes.

Correcting Culling Bottlenecks

If your application uses render culling, it may be spending most of its time

deciding whether or not objects should be culled. ivperf lumps this in with

bad caching behavior. To ﬁnd out whether this is the case, use prof,pixie, or

the CaseVision™/WorkShop Performance Analyzer tools to look for a lot of

CPU time being spent in the SoSeparator::cullTest() or

SoBoundingBoxAction::apply() routines. See the reference pages for prof,

pixie, or cvspeed for information on using these tools.

Optimizing Rendering

If a large percentage of the rendering time is spent doing cull tests, try to

reorganize your scene so that more triangles are culled for each culling

SoSeparator. For example, if you have a city scene with thousands of

buildings, it may be better to perform one cull test for each city block rather

than the thousands of cull tests needed to decide whether or not each

individual building is visible. Doing this also allows Inventor to build larger

render caches, which may increase traversal speed.

Also, remember that render culling breaks render caches when the camera

or transformation matrices change, so double-check to make sure that no

SoSeparator nodes above an SoSeparator doing render culling have their

renderCaching ﬁelds set to ON.

If a lot of time is being spent inside SoGetBoundingBoxAction::apply(),

something is breaking bounding box caches.

Correcting Level of Detail Bottlenecks

If your application uses SoLOD nodes, it might be spending a signiﬁcant

amount of time deciding which level of detail should be drawn. One way of

testing to see if this is the case is to temporarily replace all of the SoLOD

nodes in your scene with SoSwitch nodes set to traverse the highest level of

detail. Then run ivperf again and compare the results. If the SoSwitch node

scene is much faster, try doing the following:

•Try to group objects so that one level of detail test determines the level

of detail for several objects. For example, if you have a group of 10

buildings that are near each other, use one level of detail node instead

of 10 level of detail nodes. Doing this also makes it easier for Inventor

to build larger render caches, which may increase performance by

increasing traversal speed.

•Remember that level of detail nodes break render caches when the

camera or transformation matrices change, so make sure that no

SoSeparator nodes above an SoLOD have their renderCaching ﬁelds

set to ON.

•Make sure you use the SoLOD node introduced in Inventor 2.1 instead

of the SoLevelOfDetail node. The SoLOD node is more efﬁcient

because it uses the distance to a point as the switching criterion. See the

reference page for more detail.

Chapter 6: Optimizing Open Inventor Applications

Making Your Application Feel Faster

Sometimes it is worthwhile to sacriﬁce features temporarily to make your

application seem faster to the user. Inventor has several features that make

this easier:

•Use the SoGLRenderAction::setAbortCallback() method to interrupt

rendering before the entire scene has been drawn. For this to be most

effective, you must organize your scene so that the most important

objects are drawn ﬁrst, and you should abort only when it is important

that rendering happen quickly, even if the rendering is not complete,

such as when the user is interactively manipulating the scene.

•Use one of the “Move ...” draw styles if you are using a viewer, so that a

simpler version of the scene is drawn when the user is interacting with

the viewer.

•Use the start and ﬁnish callbacks of manipulators and components to

temporarily modify the scene to make it simpler while the user is

interacting with it.

Optimizing Everything Else

If you have determined that rendering is not your bottleneck, or if you have

already optimized rendering as much as possible and a signiﬁcant amount

of time is still being spent doing something other than rendering, it’s time to

look for other bottlenecks. This section helps you ﬁnd other bottlenecks, and

suggests Inventor-speciﬁc things to look for by discussing the following:

•“Useful Tools”

•“Optimizing Memory Usage”

•“Looking at CPU Usage”

•“Optimizing Action Construction and Setup”

•“Decreasing Notiﬁcation Overhead”

•“Picking and Handling Events”

Optimizing Everything Else

Useful Tools

The standard performance analysis tools (prof,pixie, or the

CaseVision/WorkShop Performance Analyzer) make performance analysis

of the non-graphics part of your application easy. See the reference pages for

prof,pixie, or cvspeed for information on using these tools.

Optimizing Memory Usage

First, make sure your application isn’t running out of physical memory by

running gr_osview with the -a ﬂag and looking for “swap” in the “CPU Wait”

usage bar. If your application is swapping, try to reduce its memory usage

as follows:

•Turn off render caching. Call SoSeparator::setNumRenderCaches(0)

just after initializing Inventor to globally turn off automatic render

caching. You can also turn off render caching for parts of your scene

using the renderCaching ﬁeld of SoSeparator.

The automatic caching algorithm in Inventor 2.1 avoids caching notes

that contain a large number of polygons.

•If you are using caching, avoid using PER_FACE or

PER_FACE_INDEXED materials or normal bindings for

SoTriangleStripSet,SoIndexedTriangleStripSet, and SoQuadMesh

nodes. FACE bindings force Inventor to break each triangle or quad

into an individual triangle or quad, more than doubling the space the

node takes in the render cache.

•If you have SoBaseColor or SoMaterial nodes containing just diffuse

colors, change them to SoPackedColor nodes, which use less memory.

•Use instancing instead of duplicating geometry or properties wherever

possible. Instancing makes your scene graph take up less memory and

enables Inventor to build OpenGL display lists that are used more than

once. This is especially important for SoTexture2 nodes.

Chapter 6: Optimizing Open Inventor Applications

Looking at CPU Usage

If memory is not the problem, start by looking at “inclusive” CPU times for

your procedures (inclusive times include time spent in that procedure and

all procedures it calls; exclusive times are just the time spent in that

procedure). Ignore the very highest level routines like main() or

SoXt::mainLoop(); look for Inventor beginTraversal() methods or for

application routines that are taking a signiﬁcant percentage of time. If a lot

of time is spent in SoGLRenderAction::beginTraversal(), see “Optimizing

Rendering” on page 52 for information on improving rendering

performance.

If your application is spending a lot of time in code written by you, you are

on your own! The rest of this section describes Inventor routines that often

show up on proﬁle traces, describes what these routines do, and suggests

ways of using them more efﬁciently.

Optimizing Action Construction and Setup

Inventor actions perform a lot of work the ﬁrst time they are applied to a

scene (subsequent traversals are very fast). Therefore, if your performance

traces show a lot of time being spent inside an action’s constructor or the

SoAction::setUpState() method, try to create an action once and reapply it

instead of constructing a new action. For example, if you often compute the

bounding boxes of some objects in the scene, keep an instance of an

SoBoundingBoxAction around that is reused:

static SoGetBoundingBoxAction *bbAction = NULL;

if (bbAction == NULL) bbAction = new SoGetBoundingBoxAction;

bbAction->apply(myScene);

instead of the much less efﬁcient:

SoGetBoundingBoxAction bbAction;

// inefficient if called a lot!

bbAction.apply(myScene);

Optimizing Everything Else

Decreasing Notiﬁcation Overhead

Every time you change a ﬁeld in the scene, Inventor performs a process

called notiﬁcation. A notiﬁcation message travels up the scene graph to the

node’s parents, scheduling sensors, causing caches to be destroyed, and

marking any connections to engines or other ﬁelds as needing evaluation.

If your performance traces show a lot of time is being spent in a startNotify()

method, try the following to decrease notiﬁcation overhead:

•If you are modifying several values in a multiple-valued ﬁeld, use the

setValues() methods or the startEditing()/ﬁnishEditing() methods

instead of repeatedly calling the set1Value() method.

•Build scenes from the bottom up. Set leaf nodes’ ﬁelds ﬁrst, then add

them to their parents, then add the parents to their parents, and so on.

For example, do this:

SoCube *myCube = new SoCube;

c->width = 10.0;

SoCylinder *myCylinder = new SoCylinder;

myCylinder->radius = 4.0;

SoSwitch *mySwitch = new SoSwitch;

mySwitch->whichChild = 0;

mySwitch->addChild(cube);

mySwitch->addChild(cylinder);

SoSeparator *root = new SoSeparator;

root->ref();

root->addChild(mySwitch);

instead of the less efﬁcient:

SoSeparator *root = new SoSeparator;

root->ref();

SoSwitch *mySwitch = new SoSwitch;

root->addChild(mySwitch);

mySwitch->whichChild = 1;

SoCube *myCube = new SoCube;

mySwitch->addChild(myCube);

myCube->width = 4.0;

SoCylinder *myCylinder = new SoCylinder;

mySwitch->addChild(myCylinder);

myCylinder->radius = 4.0;

Chapter 6: Optimizing Open Inventor Applications

•Using many path sensors can cause notiﬁcation to become slow, since

an SoPathSensor is notiﬁed whenever any change happens underneath

the head node of the SoPath monitored by the SoPathSensor.

Note: SoPath itself does not have this problem in Inventor 2.X (but did

in Inventor 1.X).

•Notiﬁcation can be enabled or disabled on a per-node or per-engine

basis. Beware that because caching, sensors, and connections rely on

notiﬁcation for proper operation, you must be very careful when using

this feature. See the SoFieldContainer reference page for information

on the enableNotify() method.

Picking and Handling Events

If your application proﬁles show a lot of time is spent inside the methods

SoHandleEventAction::beginTraversal() or

SoPickAction::beginTraversal(), try the following to improve picking

and/or event handling performance:

•Insert SoPickStyle::UNPICKABLE nodes in your scene to turn off

picking for objects that should never be picked (for example “dead”

background graphics).

•Insert SoPickStyle::BOUNDING_BOX nodes in your scene if you do

not need detailed picking information. This helps most for complicated

objects like SoText3 or SoTriangleStripSets with many triangles.

•If you have objects with a lot (thousands) of polygons in them, break

them up into several objects under different separators, grouping

polygons that are close to each other. This allows SoSeparator pick

culling to quickly reject many of the triangles.

•To speed up event handling, try to put active objects that respond to

events toward the left and top of the scene graph. An

SoHandleEventAction ends traversal as soon as a node reports that it

has handled the event.

•If you write your own event callback node, or implement a node that

responds to events, be sure to use the grabEvents() method when

appropriate. Because grabbing short-circuits traversal of the scene, it is

a useful way to speed up event distribution.

Appendix A

A. Creating a Node

This appendix explains how you can create new subclasses of SoNode. It

discusses enabling elements in the state, constructing a node, and

implementing actions for it. Chapter 1 in The Inventor Toolmaker provides

important background material on these concepts, and this appendix

assumes you are familiar with the material presented there.

Note: This appendix provides an update of Chapter 2, “Creating a Node,”

of The Inventor Toolmaker. Its main purpose is to help developers who are new

to Inventor work with Inventor 2.1 without being hindered by outdated

information. Developers familiar with Inventor may prefer to look at

Chapter 5, “Incompatible Extender API Changes” and at the revised

example programs instead of reading this complete appendix.

The ﬁrst part of this appendix offers an overview of the steps required to

create a new node. When necessary, additional sections explain key concepts

in further detail and list the relevant macros. Next, the appendix examples

show how to create three new node classes:

•“Creating a Property Node” on page 82

•“Creating a Shape Node” on page 88

•“Creating a Group Node” on page 108

Sections at the end of the chapter discuss the following:

•“Using New Node Classes” on page 116

•“Creating an Abstract Node Class” on page 120

•“The copyContents() Method” on page 120

•“The affectsState() Method” on page 121

•“Uncacheable Nodes” on page 121

•“Generating Default Normals” on page 122

•“Creating an Alternate Representation” on page 122

Appendix A: Creating a Node

Overview

The ﬁle SoSubNode.h contains the macros for deﬁning new node classes. The

SO_NODE_HEADER() macro declares type identiﬁer and naming variables

and methods that all node classes must support. The SO_NODE_SOURCE()

macro deﬁnes the static variables and methods declared in the

SO_NODE_HEADER() macro. Other macros useful in creating new node

classes are mentioned in the following sections.

Creating a new node requires these steps:

1. Select a name for the new node class and determine what class it is

derived from.

2. Deﬁne and name each ﬁeld in the node.

3. Deﬁne an initClass() method to initialize the type information and to

ensure that the required elements are enabled in the state (see

“Initializing the Node Class” on page 75).

4. Deﬁne a constructor (see “Deﬁning the Constructor” on page 76).

5. Implement the actions supported by the node (see “Implementing

Actions” on page 78).

■For a property node, you usually need to implement the

GLRender() and callback() methods (see “Creating a Property

Node” on page 82). You may also need to implement

getBoundingBox(),getMatrix(), and other methods.

■For a shape node, you need to implement the generatePrimitives()

method for the SoCallbackAction as well as the getBoundingBox()

method. You may want to implement a speciﬁcGLRender() or

rayPick() method as well (see “Creating a Shape Node” on

page 88). For vertex-based shapes, you may need to implement a

generateDefaultNormals() method.

■For a group node, you need to implement all actions to ensure that

the children are traversed (see “Creating a Group Node” on

page 108).

6. Implement a copyContents() method if the node contains any non-ﬁeld

instance data (see “The copyContents() Method” on page 120).

7. Implement an affectsState() method if it cannot be inherited from the

parent class (see “The affectsState() Method” on page 121).

Initializing the Node Class

As discussed in Chapter 1 of The Inventor Toolmaker, the initClass() method

sets up the type identiﬁer and ﬁle format name information for the class. The

initialization macro for nodes, SO_NODE_INIT_CLASS(), does most of the

work for you. One additional task for you as the node writer is to enable each

of the elements in the state for each action the node supports. The following

subsections provide additional information about enabling elements in the

state.

Enabling Elements in the State

In the initClass() method, use the SO_ENABLE() macro (deﬁned in

SoAction.h) to enable the elements required by your node in the state. To use

a simple example, SoDrawStyle enables these elements in the

SoGLRenderAction:

SO_ENABLE(SoGLRenderAction, SoGLDrawStyleElement);

SO_ENABLE(SoGLRenderAction, SoGLLinePatternElement);

SO_ENABLE(SoGLRenderAction, SoGLLineWidthElement);

SO_ENABLE(SoGLRenderAction, SoGLPointSizeElement);

SoDrawStyle also implements the SoCallbackAction. It enables these

elements in the SoCallbackAction:

SO_ENABLE(SoCallbackAction, SoDrawStyleElement);

SO_ENABLE(SoCallbackAction, SoLinePatternElement);

SO_ENABLE(SoCallbackAction, SoLineWidthElement);

SO_ENABLE(SoCallbackAction, SoPointSizeElement);

Tip: If you know that the element is already enabled by another node or

action, you can skip this step.

Now that these elements have been enabled, their values can be set and

queried. (The debugging version of Inventor generates an error if you try to

access or set an element that has not been enabled.)

Appendix A: Creating a Node

Inheritance Within the Element Stack

The example using SoDrawStyle elements in the previous section brings up

another feature of the element stack: Some elements have corresponding GL

versions that are derived from them. The SoGL version of an element

typically sends its value to OpenGL when it is set. SoGLDrawStyleElement

is derived from SoDrawStyleElement, and SoGLLinePatternElement is

derived from SoLinePatternElement. The parent element class and its

derived class share the same stack index.

If you try to enable two classes that share a stack index (for example,

SoGLDrawStyleElement and SoDrawStyleElement), only the more

derived class is actually enabled (in this case, SoGLDrawStyleElement).

However, you can always use the base class static method to set or get the

value for either the parent or the derived class. (You cannot, however, enable

only the parent version and then try to treat it as the derived GL version.)

Deﬁning the Constructor

The constructor deﬁnes the ﬁelds for the node and sets up their default

values. If the ﬁelds contain enumerated values, their names and values are

deﬁned in the constructor as well. Use the SO_NODE_CONSTRUCTOR()

macro to perform the basic work.

The SO_NODE_IS_FIRST_INSTANCE() macro returns a Boolean value that

can be tested in constructors. If your class requires considerable overhead

when it is initialized, you may want to perform this work only once when

the ﬁrst instance of the class is created. For example, the SoCube class sets

up the coordinates and normals of the cube faces during construction of its

ﬁrst instance. (You could put this code in the initClass() method, but putting

it in the constructor guarantees that someone is actually using your node

class ﬁrst.)

Defining the Constructor

Setting Up the Node’s Fields

The SO_NODE_ADD_FIELD() macro deﬁnes the ﬁelds in the node and sets

up their default values. The ﬁrst parameter is the name of the ﬁeld. The

second parameter is the default ﬁeld value, in parentheses. Using

SoDrawStyle as an example:

SO_NODE_ADD_FIELD(style, (SoDrawStyleElement::getDefault()));

SO_NODE_ADD_FIELD(lineWidth,

(SoLineWidthElement::getDefault()));

SO_NODE_ADD_FIELD(linePattern,

(SoLinePatternElement::getDefault()));

SO_NODE_ADD_FIELD(pointSize,

(SoPointSizeElement::getDefault()));

To add a ﬁeld with a vector value, the syntax is as follows:

SO_NODE_ADD_FIELD(translation, (0.0, 0.0, 0.0));

Deﬁning Enumerated Values for a Field

In the preceding example, the style ﬁeld contains an enumerated value:

FILLED, LINES, POINTS, or INVISIBLE. Use the SO_NODE_DEFINE_-

ENUM_VALUE() macro to deﬁne the enumerated values. The ﬁrst

parameter is the type of the enumerated value. The second parameter is its

value, as shown here:

SO_NODE_DEFINE_ENUM_VALUE(Style, FILLED);

SO_NODE_DEFINE_ENUM_VALUE(Style, LINES);

SO_NODE_DEFINE_ENUM_VALUE(Style, POINTS);

SO_NODE_DEFINE_ENUM_VALUE(Style, INVISIBLE);

Then, to specify that these enumerated values can be used in the style ﬁeld

of the SoDrawStyle node, use the SO_NODE_SET_SF_ENUM_TYPE()

macro:

O_NODE_SET_SF_ENUM_TYPE(style, Style);

Appendix A: Creating a Node

Implementing Actions

Your next task is to implement each of the actions your new node supports.

The SoDrawStyle node, as you have already seen, supports two actions, the

SoGLRenderAction and the SoCallbackAction, in addition to the

SoSearchAction and the SoWriteAction, which it inherits from SoNode.

Tip: Do not apply a new action within another action (because caching will

not function properly). Also, if you are creating a new node, do not modify

the node (for example, call setValue() on a ﬁeld) within an action method.

The doAction() Method

For the GL render action, the SoDrawStyle node changes the values of 4

elements in the state based on the value of the corresponding ﬁelds. For

example, if its style ﬁeld has a value of INVISIBLE, it changes the value of

the SoGLDrawStyleElement in the state to INVISIBLE. First it must check if

another node has overridden the draw style. The code to set the element’s

value is:

if (! style.isIgnored() &&

! SoOverrideElement::getDrawStyleOverride(state)) {

if (isOverride()) {

SoOverrideElement::setDrawStyleOverride(state, this,

TRUE);

}

SoDrawStyleElement::set(state,

(SoDrawStyleElement::Style) style.getValue());

}

For the callback action, SoDrawStyle does the same thing: It sets the value

of the element based on the value of the corresponding ﬁeld in the node.

Since the two actions perform exactly the same tasks, the common code is

put into a separate method that both the GL render and the callback actions

can call. By convention, this shared method used by property nodes is called

doAction(), which is a virtual method on SoNode. The code for the

draw-style node’s callback action followed by the node’s GL render action:

void

SoDrawStyle::callback(SoCallbackAction *action)

(

Implementing Actions

doAction(action);

}

void

SoDrawStyle::GLRender(SoGLRenderAction *action)

(

doAction(action);

}

This is the draw-style node’sdoAction() method:

SoDrawStyle::doAction(SoAction *action)

{

SoState *state = action->getState();

if (! style.isIgnored() &&

! SoOverrideElement::getDrawStyleOverride(state)) {

if (isOverride()) {

SoOverrideElement::setDrawStyleOverride(

state, this, TRUE);}

SoDrawStyleElement::set(state,

(SoDrawStyleElement::Style)

style.getValue());

}

if (! pointSize.isIgnored() &&

! SoOverrideElement::getPointSizeOverride(state)) {

if (isOverride()) {

SoOverrideElement::setPointSizeOverride(

state, this, TRUE);}

SoPointSizeElement::set(state, pointSize.getValue());

}

if (! lineWidth.isIgnored() &&

! SoOverrideElement::getLineWidthOverride(state)) {

if (isOverride()) {

SoOverrideElement::setLineWidthOverride(state,

state, this, TRUE);}

SoLineWidthElement::set(state, lineWidth.getValue());

}

Appendix A: Creating a Node

if (! linePattern.isIgnored() &&

!SoOverrideElement::getLinePatternOverride(state)) {

if (isOverride()) {

SoOverrideElement::setLinePatternOverride(

state, this, TRUE);}

SoLinePatternElement::set(state,

linePattern.getValue());

}

The advantage of this scheme becomes apparent when you consider

extending the set of actions (see Chapter 4 of The Inventor Toolmaker). You can

deﬁne a new action class and implement a static method for SoNode that

calls doAction(). Then all properties that implement doAction() will

perform the appropriate operation without needing any static methods for

them.

Changing and Examining State Elements

As discussed in Chapter 1 of The Inventor Toolmaker, each element class

provides methods for setting and querying its value. The static set() method

usually has two parameters, as shown in the previous section:

•The state from which to retrieve the element (which the element obtains

from the given action)

•The new value for the element

Most element classes also deﬁne a static get() method that returns the

current value stored in an element instance. For example, to obtain the

current draw style, use:

style = SoDrawStyleElement::get(action->getState());

Elements that have multiple values may deﬁne a different sequence of get()

methods. For example, the material color elements and coordinate element

can contain many values. In these cases, the element class deﬁnes three

methods:

getInstance() returns the top instance of the element in the state as a const

pointer

Implementing Actions

getNum() returns the number of values in the element

get(n)returns the nth value in the element

Element Bundles

Elements are designed to be small and speciﬁc, for two reasons. The ﬁrst is

that it should be possible for a node to change one aspect of the state without

having to change any of the rest, including related elements. For example,

the SoMaterialBinding node changes only the SoMaterialBindingElement

without affecting any other material elements. The second reason has to do

with caching. It is easy to determine when any element’s value has changed,

since (typically) the whole element changes at once. Therefore, determining

which nodes affect a cache is a straightforward task.

However, some elements are related to each other, and it’s good to deal with

them together for convenience and efﬁciency. Classes called bundles provide

simple interfaces to collections of related elements.

Supported Inventor bundle classes are:

•SoMaterialBundle

•SoNormalBundle

•SoTextureCoordinateBundle

The SoMaterialBundle class accesses all elements having to do with surface

materials. In Inventor 2.1, these functions are more efﬁciently performed by

using the SoLazyElement (see the next section for more information). The

following examples use the SoLazyElement instead of material bundles.

Methods on the SoMaterialBundle allow shapes to step easily through

sequential materials and to send the current material to OpenGL.

SoNormalBundle lets you step easily through sequential normals and

provides functions for generating default normals.

SoTextureCoordinateBundle lets you step through texture coordinates and

provides methods for generating texture coordinates if the shape is using

SoTextureCoordinatePlane or SoTextureCoordinateEnvironment.

Appendix A: Creating a Node

The SoLazyElement

Several elements that were responsible for material properties in Inventor

2.0 have been combined into two elements: SoLazyElement and

SoGLLazyElement, its derived OpenGL version.

•SoLazyElement is responsible for setting and getting material state.

•SoGLLazyElement is responsible for tracking the OpenGL state,

invalidating caches, and so on.

See “Changes in Material Elements” on page 38 for more information.

Creating a Property Node

The easiest way to learn how to add a node class is by example. The ﬁrst

example creates a new property class called Glow, which modiﬁes the

emissive color of the current material to make objects appear to glow. It has

a ﬁeld called color, which is the color of the glow, and a ﬂoat ﬁeld called

brightness, ranging from 0 to 1, indicating how much the object should glow

and a transparency ﬁeld, indicating the transparency of the glowing

material. Its value is between 0 (opaque) and 1 (invisible).

In Inventor 2.1, the transparency and diffuse color are combined in the state

into a packed color. To facilitate dealing with diffuse colors and transparency

independently, a class SoColorPacker is provided. In the example that

follows, the SoColorPacker is constructed in the Glow node constructor,

and is used whenever the transparency is set in the state.

The doAction() method of the Glow node must check whether the emissive

color or transparency is already being overridden by another material node.

The SoOverrideElement determines what is overridden.

For this class, the program needs to implement actions that deal with

materials: GLRender() and callback(). It uses doAction() (see “The

doAction() Method” on page 78) since it performs the same operation for

both actions. The doAction() method for the Glow class updates the lazy

color element based on the values of the color,transparency, and brightness

ﬁelds of the node.

Creating a Property Node

The class header for the new node is shown in Example A-1.

Example A-1 Glow.h

#include <Inventor/SbColor.h>

#include <Inventor/fields/SoSFColor.h>

#include <Inventor/fields/SoSFFloat.h>

#include <Inventor/nodes/SoSubNode.h>

// Need SoColorPacker to put the transparency into the state:

class SoColorPacker;

class Glow : public SoNode {

SO_NODE_HEADER(Glow);

public:

// Fields:

SoSFColor color; // Color of glow

SoSFFloat brightness; // Amount of glow (0-1)

SoSFFloat transparency; // transparency of glowing object

// Initializes this class for use in scene graphs. This

// should be called after database initialization and

// before any instance of this node is constructed.

static void initClass();

// Constructor

Glow();

protected:

// These implement supported actions. The only actions

// dealing with materials are the callback and GL render

// actions. We will inherit all other action methods from

// SoNode.

virtual void GLRender(SoGLRenderAction *action);

virtual void callback(SoCallbackAction *action);

// This implements generic traversal of Glow node, used in

// both of the above methods.

virtual void doAction(SoAction *action);

private:

// Destructor. Private to keep people from trying to

// delete nodes instead of using reference count

Appendix A: Creating a Node

// mechanism.

virtual ~Glow();

// A pointer to the color packer is required in nodes

// that set diffuse or transparency. This will

// be initialized in constructor, deleted in destructor:

SoColorPacker *colorPacker;

// Keep a copy of the transparency that this node puts

// into the state:

float transpValue;

The Glow node is representative of most property nodes in that it is

concerned solely with editing the current traversal state, regardless of the

action being performed.

The source code for the Glow class is shown in Example A-2.

Example A-2 Glow.c++

#include <Inventor/actions/SoCallbackAction.h>

#include <Inventor/actions/SoGLRenderAction.h>

#include <Inventor/elements/SoLazyElement.h>

#include <Inventor/elements/SoOverrideElement.h>

#include "Glow.h"

SO_NODE_SOURCE(Glow);

// Initializes the Glow class. This is a one-time thing that

// is done after database initialization and before any

// instance of this class is constructed.

void

Glow::initClass()

{

// Initialize type id variables. Arguments to the macro

// are: the name of the node class, the class this is

// derived from, and the name registered with the type of

// the parent class.

SO_NODE_INIT_CLASS(Glow, SoNode, "Node");

}

Creating a Property Node

// Constructor

Glow::Glow()

{

// Do standard constructor stuff:

SO_NODE_CONSTRUCTOR(Glow);

// Add "color" field to the field data. The default value

// for this field is R=G=B=1, which is white.

SO_NODE_ADD_FIELD(color, (1.0, 1.0, 1.0));

// Add "brightness" field to the field data. The default

// value for this field is 0.

SO_NODE_ADD_FIELD(brightness, (0.0));

// Add "transparency" field to the field data. Default

// value is 0 (opaque).

SO_NODE_ADD_FIELD(transparency, (0.0));

// Initialize the color Packer (required of any property

// node that uses an SoColorPacker to set diffuse color

// or transparency):

colorPacker = new SoColorPacker;

}

// Destructor

Glow::~Glow()

{

// Delete the color Packer:

delete colorPacker;

}

// Implements GL render action.

void

Glow::GLRender(SoGLRenderAction *action)

Appendix A: Creating a Node

{

// Set the elements in the state correctly. Note that we

// prefix the call to doAction() with the class name. This

// avoids problems if someone derives a new class from the

// Glow node and inherits the GLRender() method; Glow's

// doAction() will still be called in that case.

Glow::doAction(action);

// Note that in Inventor 2.1 the GLRender method only

// sets the color in the lazy element; it does not send

// it to GL. This is for efficiency, since there is no

// need to send it until it is really used.

}

// Implements callback action.

void

Glow::callback(SoCallbackAction *action)

{

// Set the elements in the state correctly.

Glow::doAction(action);

}

// Typical action implementation; it sets the correct element

// in the action's traversal state. We assume that the lazy

// element has been enabled.

void

Glow::doAction(SoAction *action)

{

// Make sure the "brightness" field is not ignored. If it

// is, then we don't need to change anything in the state.

// Also check that the emissive color is not being

// overridden; if it is, this node should not set it.

if (! brightness.isIgnored() &&

! SoOverrideElement::getEmissiveColorOverride

(action->getState())) {

Creating a Property Node

SbColor emissiveColor = color.getValue() *

brightness.getValue();

//Use the Lazy element to set emissive color.

//Note that this won’t actually send the color to GL.

SoLazyElement::setEmissive(action->getState(),

&emissiveColor);

}

// To send transparency we again check ignore flag and

// override element.

if (! transparency.isIgnored() &&

! SoOverrideElement::getTransparencyOverride

(action->getState())) {

// Keep a copy of the transparency that we are

// putting in the state:

transpValue = transparency.getValue();

// The color packer must be provided when

// transparency is set, so that the transparency

// will be merged with current diffuse color

// in the state:

SoLazyElement::setTransparency(action->getState(),

this, 1, &transpValue, colorPacker);

}

Appendix A: Creating a Node

Creating a Shape Node

This next example is more complicated than the property-node example,

because shape nodes need to access more of the state and implement

different behaviors for different actions. For example, a shape needs to draw

geometry during rendering, return intersection information during picking,

and compute its extent when getting a bounding box.

All shapes need to deﬁne at least two methods: generatePrimitives() and

getBoundingBox(). When you deﬁne the generatePrimitives() method for

your new class, you can inherit the GLRender() and rayPick() methods from

the base class, SoShape, because they use the generated primitives. This

feature saves time at the prototyping stage, since you need to implement

only the generatePrimitives() method, and rendering and picking are

provided at no extra cost. When you are ready for ﬁne-tuning, you can

redeﬁne these two methods to improve performance.

Generating Primitives

When a shape node is traversed to generate primitives for the

SoCallbackAction, it generates triangles, line segments, or points. The

information for each vertex of the triangle, line segment, or point is stored in

an instance of SoPrimitiveVertex. The shape ﬁlls in the information for each

vertex. Then, for each primitive generated (that is, triangle, line segment, or

point), an appropriate callback function is invoked by a method on

SoShape. For example, if the shape generates triangles, the triangle callback

function is invoked for every triangle generated. Filled shapes, such as

SoCone and SoQuadMesh, generate triangles (regardless of draw style),

line shapes (such as SoLineSet and SoIndexedLineSet) generate line

segments, and point shapes (such as SoPointSet) generate points.

Creating a Shape Node

SoPrimitiveVertex

The SoPrimitiveVertex contains all information for that vertex:

•Point (coordinates, in object space)

•Normal

•Texture coordinates

•Material index

•A pointer to an instance of an SoDetail subclass (may be NULL)

The shape’sgeneratePrimitives() method sets each of these values.

The appropriate callback function can be invoked either automatically or

explicitly. If you want explicit control over when the callback function is

invoked, you can use the following methods provided by the SoShape class:

•invokeTriangleCallbacks()

•invokeLineSegmentCallbacks()

•invokePointCallbacks()

To take advantage of the automatic mechanism, use these three methods,

provided by the SoShape base class as a convenience:

•beginShape(action,shapeType)

•shapeVertex(&vertex)

•endShape()

The shapeType parameter is TRIANGLE_FAN, TRIANGLE_STRIP,

TRIANGLES, or POLYGON. For example, if you choose TRIANGLE_FAN,

this method performs the necessary triangulation and invokes the

appropriate callbacks for each successive triangle of the shape. This

mechanism is similar to OpenGL’s geometry calls.

Appendix A: Creating a Node

Creating Details

You may want your shape to store additional information in an SoDetail—

for example, what part of the shape each vertex belongs to. In this case, you

can use an existing subclass of SoDetail (see The Inventor Mentor, Chapter 9),

or you can create a new SoDetail subclass to hold the appropriate

information. By default, the pointer to the detail in SoPrimitiveVertex is

NULL.

If you decide to store information in an SoDetail, you create an instance of

the subclass and store a pointer to it in the SoPrimitiveVertex by calling

setDetail().

Rendering

For rendering, you may be able to inherit the GLRender() method from the

SoShape class. In this case, you deﬁne a generatePrimitives() method as

described in the previous sections. Each primitive is generated and then

rendered separately.

In other cases, you may want to write your own render method for the new

shape class, especially if it would be more efﬁcient to send the vertex

information to OpenGL in some other form, such as triangle strips. The

Pyramid node created later in this appendix implements its own

GLRender() method. Before rendering, the shape should test whether it

needs to be rendered. You can use the SoShape::shouldGLRender()

method, which checks for INVISIBLE draw style, BOUNDING_BOX

complexity, delayed transparency, and render abort.

Inventor takes care of sending the draw-style value to OpenGL (where it is

handled by glPolygonMode()). This means that ﬁlled shapes are drawn

automatically as lines or points if the draw style indicates such. Note that if

your object is composed of lines, but the draw style is POINTS, you need to

handle that case explicitly. You need to check whether the draw-style

element in the state is points or lines and render the shape accordingly.

The lazy elements are used in the GLRender() method of the Pyramid to

send the colors to OpenGL. This has to be set up as follows:

Creating a Shape Node

•SoLazyElement::getLightModel() is used to tell if lighting is on. If so, it

is necessary to send normals to OpenGL.

•SoLazyGLElement::sendAllMaterial() is needed prior to rendering the

shape. This ensures that the OpenGL material state is in agreement

with the current Inventor state.

•SoGLLazyElement::sendDiffuseByIndex() is required if more than

one diffuse color or transparency is sent. This issues the appropriate

OpenGL commands to send the speciﬁed color and transparency to

OpenGL.

•SoGLLazyElement::reset() is required at the end of rendering, if colors

other than the ﬁrst color were sent to OpenGL. This informs the lazy

element that the current color in the state is not the last one sent to GL.

Picking

For picking, you may also be able to inherit the rayPick() method from the

SoShape class. In this case, you deﬁne a generatePrimitives() method, and

the parent class rayPick() method tests the picking ray against each

primitive that has been generated. If the ray intersects the primitive, it

creates an SoPickedPoint.SoShape provides three virtual methods for

creating details:

•createTriangleDetail()

•createLineDetail()

•createPointDetail()

The default methods return NULL, but your shape can override this to set

up and return a detail instance.

The Pyramid node created later in this appendix inherits the rayPick()

method from SoShape in this manner.

For some shapes, such as spheres and cylinders, it is more efﬁcient to check

whether the picking ray intersects the object without tessellating the object

into primitives. In such cases, you can implement your own rayPick()

method and use the SoShape::shouldRayPick() method, which ﬁrst checks

to see if the object is pickable.

Appendix A: Creating a Node

The following excerpt from the SoSphere class shows how to implement

your own rayPick() method:

void

SoSphere::rayPick(SoRayPickAction *action)

{

SbVec3f enterPoint, exitPoint, normal;

SbVec4f texCoord(0.0, 0.0, 0.0, 1.0);

SoPickedPoint *pp;

// First see if the object is pickable.

if (! shouldRayPick(action))

return;

// Compute the picking ray in our current object space.

computeObjectSpaceRay(action);

// Create SbSphere with correct radius, centered at zero.

float rad = (radius.isIgnored() ? 1.0 :

radius.getValue());

SbSphere sph(SbVec3f(0., 0., 0.), rad);

// Intersect with pick ray. If found, set up picked

// point(s).

if (sph.intersect(action->getLine(), enterPoint,

exitPoint)) {

if (action->isBetweenPlanes(enterPoint) &&

(pp = action->addIntersection(enterPoint)) !=

NULL) {

normal = enterPoint;

normal.normalize();

pp->setObjectNormal(normal);

// This macro computes the s and t texture

// coordinates for the shape.

COMPUTE_S_T(enterPoint, texCoord[0], texCoord[1]);

pp->setObjectTextureCoords(texCoord);

}

if (action->isBetweenPlanes(exitPoint) &&

(pp = action->addIntersection(exitPoint)) != NULL){

normal = exitPoint;

normal.normalize();

pp->setObjectNormal(normal);

Creating a Shape Node

COMPUTE_S_T(exitPoint, texCoord[0], texCoord[1]);

texCoord[2] = texCoord[3] = 0.0;

pp->setObjectTextureCoords(texCoord);

}

Getting a Bounding Box

SoShape provides a getBoundingBox() method that your new shape class

can inherit. This method calls a virtual computeBBox() method, which you

need to deﬁne. (The computeBBox() method is also used during rendering

when bounding-box complexity is speciﬁed.)

If you are deriving a class from SoNonIndexedShape, you can use the

computeCoordBBox() method within your computeBBox() routine. This

method computes the bounding box by looking at the speciﬁed number of

vertices, starting at startIndex. It uses the minimum and maximum

coordinate values to form the diagonal for the bounding box and uses the

average of the vertices as the center of the object.

If you are deriving a class from SoIndexedShape, you can inherit

computeBBox() from the base SoIndexedShape class. This method uses all

nonnegative indices in the coordinates list to ﬁnd the minimum and

maximum coordinate values. It uses the average of the coordinate values as

the center of the object.

For improved picking performance, the rayPick() action assumes that the

bounding boxes include only surfaces; not lines or points. If your shape

object is composed of lines and/or points, you must implement a

getBoundingBox() method similar to the following method from the

SoLineSet implementation:

void

SoLineSet::getBoundingBox(SoGetBoundingBoxAction *action)

{

// Let our parent class do the real work

SoNonIndexedShape::getBoundingBox(action);

Appendix A: Creating a Node

// If there are any open bounding box caches, tell them

// that they contain lines

SoBoundingBoxCache::setHasLinesOrPoints

(action->getState());

}

Pyramid Node

This example creates a Pyramid node, which has a square base at y = −1 and

its apex at (0.0, 1.0, 0.0). The code presented here is similar to that used for

other primitive (nonvertex-based) shapes, such as cones and cylinders. The

pyramid behaves like an SoCone, except that it always has four sides. And,

instead of a bottomRadius ﬁeld, the Pyramid class has baseWidth and

baseDepth ﬁelds in addition to the parts and height ﬁelds.

Some of the work for all shapes can be done by methods on the base shape

class, SoShape. For example, SoShape::shouldGLRender() checks for

INVISIBLE draw style when rendering. SoShape::shouldRayPick() checks

for UNPICKABLE pick style when picking. This means that shape

subclasses can concentrate on their speciﬁc behaviors.

To deﬁne a vertex-based shape subclass, you probably want to derive your

class from either SoNonIndexedShape or SoIndexedShape. These classes

deﬁne some methods and macros that can make your job easier.

You may notice in this example that there are macros (deﬁned in

SoSFEnum.h) that make it easy to deal with ﬁelds containing enumerated

types, such as the parts ﬁeld of our node. Similar macros are found in

SoMFEnum.h and in the header ﬁles for the bitmask ﬁelds.

The class header for the Pyramid node is shown in Example A-3.

Example A-3 Pyramid.h

#include <Inventor/SbLinear.h>

#include <Inventor/fields/SoSFBitMask.h>

#include <Inventor/fields/SoSFFloat.h>

#include <Inventor/nodes/SoShape.h>

// SoShape.h includes SoSubNode.h; no need to include it here

// Pyramid texture coordinates are defined on the sides so

Creating a Shape Node

// that the seam is along the left rear edge, wrapping

// counterclockwise around the sides. The texture

// coordinates on the base are set up so the texture is

// right side up when the pyramid is tilted back.

class Pyramid : public SoShape {

SO_NODE_HEADER(Pyramid);

public:

enum Part { // Pyramid parts:

SIDES = 0x01, // The 4 side faces

BASE = 0x02, // The bottom square face

ALL = 0x03, // All parts

};

// Fields

SoSFBitMask parts; // Visible parts

SoSFFloat baseWidth; // Width of base

SoSFFloat baseDepth; // Depth of base

SoSFFloat height; // Height, base to apex

// Initializes this class

static void initClass();

// Constructor

Pyramid();

// Turns on/off a part of the pyramid. (Convenience)

void addPart(Part part);

void removePart(Part part);

// Returns whether a part is on or off. (Convenience)

SbBool hasPart(Part part) const;

protected:

// This implements the GL rendering action. We inherit

// all other action behavior, including rayPick(), which

// is defined by SoShape to pick against all of the

// triangles created by generatePrimitives.

virtual void GLRender(SoGLRenderAction *action);

// Generates triangles representing a pyramid

virtual void generatePrimitives(SoAction *action);

Appendix A: Creating a Node

// This computes the bounding box and center of a pyramid.

// It is used by SoShape for the SoGetBoundingBoxAction;

// also to compute the correct box to render or pick when

// complexity is BOUNDING_BOX. Note that we do not have to

// define a getBoundingBox() method, since SoShape already

// takes care of that (using this method).

virtual void computeBBox(SoAction *action,

SbBox3f &box, SbVec3f &center);

private:

// Face normals. These are static because they are

// computed once and are shared by all instances

static SbVec3f frontNormal, rearNormal;

static SbVec3f leftNormal, rightNormal;

static SbVec3f baseNormal;

// Destructor

virtual ~Pyramid();

// Computes and returns half-width, half-height, and

// half-depth based on current field values

void getSize(float &halfWidth,

float &halfHeight,

float &halfDepth) const;

};

The source code for the Pyramid node is shown in Example A-4.

Example A-4 Pyramid.c++

/*-----------------------------------------------------------

* This is an example from the Inventor Toolmaker,

* chapter 2, example 4.

* Source file for "Pyramid" shape node.

*----------------------------------------------------------*/

#include <GL/gl.h>

#include <Inventor/SbBox.h>

#include <Inventor/SoPickedPoint.h>

#include <Inventor/SoPrimitiveVertex.h>

#include <Inventor/actions/SoGLRenderAction.h>

#include <Inventor/actions/SoRayPickAction.h>

#include <Inventor/elements/SoGLLazyElement.h>

#include <Inventor/elements/SoGLTextureCoordinateElement.h>

#include <Inventor/elements/SoGLTextureEnabledElement.h>

Creating a Shape Node

#include <Inventor/elements/SoMaterialBindingElement.h>

#include <Inventor/elements/SoModelMatrixElement.h>

#include <Inventor/misc/SoState.h>

#include "Pyramid.h"

// Shorthand macro for testing whether the current parts

// field value (parts) includes a given part (part)

#define HAS_PART(parts, part) (((parts) & (part)) != 0)

SO_NODE_SOURCE(Pyramid);

// Normals to four side faces and to base

SbVec3f Pyramid::frontNormal, Pyramid::rearNormal;

SbVec3f Pyramid::leftNormal, Pyramid::rightNormal;

SbVec3f Pyramid::baseNormal;

// This initializes the Pyramid class.

void

Pyramid::initClass()

{

// Initialize type id variables

SO_NODE_INIT_CLASS(Pyramid, SoShape, "Shape");

}

// Constructor

Pyramid::Pyramid()

{

SO_NODE_CONSTRUCTOR(Pyramid);

SO_NODE_ADD_FIELD(parts, (ALL));

SO_NODE_ADD_FIELD(baseWidth, (2.0));

SO_NODE_ADD_FIELD(baseDepth, (2.0));

SO_NODE_ADD_FIELD(height, (2.0));

// Set up static values and strings for the "parts"

// enumerated type field. This allows the SoSFEnum class

// to read values for this field. For example, the first

// line below says that the first value (index 0) has the

// value SIDES (defined in the header file) and is

// represented in the file format by the string "SIDES".

Appendix A: Creating a Node

SO_NODE_DEFINE_ENUM_VALUE(Part, SIDES);

SO_NODE_DEFINE_ENUM_VALUE(Part, BASE);

SO_NODE_DEFINE_ENUM_VALUE(Part, ALL);

// Copy static information for "parts" enumerated type

// field into this instance.

SO_NODE_SET_SF_ENUM_TYPE(parts, Part);

// If this is the first time the constructor is called,

// set up the static normals.

if (SO_NODE_IS_FIRST_INSTANCE()) {

float invRoot5 = 1.0 / sqrt(5.0);

float invRoot5Twice = 2.0 * invRoot5;

frontNormal.setValue(0.0, invRoot5, invRoot5Twice);

rearNormal.setValue( 0.0, invRoot5, -invRoot5Twice);

leftNormal.setValue( -invRoot5Twice, invRoot5, 0.0);

rightNormal.setValue( invRoot5Twice, invRoot5, 0.0);

baseNormal.setValue(0.0, -1.0, 0.0);

}

// Destructor

Pyramid::~Pyramid()

{

}

// Turns on a part of the pyramid. (Convenience function.)

void

Pyramid::addPart(Part part)

{

parts.setValue(parts.getValue() | part);

}

// Turns off a part of the pyramid. (Convenience function.)

void

Creating a Shape Node

Pyramid::removePart(Part part)

{

parts.setValue(parts.getValue() & ~part);

}

// Returns whether a given part is on or off. (Convenience

// function.)

SbBool

Pyramid::hasPart(Part part) const

{

return HAS_PART(parts.getValue(), part);

}

// Implements the SoGLRenderAction for the Pyramid node.

void

Pyramid::GLRender(SoGLRenderAction *action)

{

// Access the state from the action.

SoState *state = action->getState();

// See which parts are enabled.

int curParts = (parts.isIgnored() ? ALL :

parts.getValue());

// First see if the object is visible and should be

// rendered now. This is a method on SoShape that checks

// for INVISIBLE draw style, BOUNDING_BOX complexity, and

// delayed transparency.

if (! shouldGLRender(action))

return;

// Declare a pointer to a GLLazyElement. This will be

// used if we send multiple colors.

SoGLLazyElement* lazyElt;

// In Inventor 2.1 we do not use beginSolidShape and

// endSolidShape. Instead, this information should be

// provided in shape hints.

100

Appendix A: Creating a Node

// Change the current GL matrix to draw the pyramid with

// the correct size. This is easier than modifying all of

// the coordinates and normals of the pyramid. (For extra

// efficiency, you can check if the field values are all

// set to default values - if so, then you can skip this

// step.) Scale world if necessary.

float halfWidth, halfHeight, halfDepth;

getSize(halfWidth, halfHeight, halfDepth);

glPushMatrix();

glScalef(halfWidth, halfHeight, halfDepth);

// See if texturing is enabled. If so, we will have to

// send explicit texture coordinates. The "doTextures"

// flag will indicate if we care about textures at all.

// Note this has changed slightly in Inventor version 2.1.

// The texture coordinate type now is either FUNCTION or

// DEFAULT. Texture coordinates are needed only for

// DEFAULT textures.

SbBool doTextures =

(SoGLTextureEnabledElement::get(state) &&

SoTextureCoordinateElement::getType(state) !=

SoTextureCoordinateElement::FUNCTION);

// Determine if we need to send normals. Normals are

// necessary if we are not doing BASE_COLOR lighting.

// Use the lazy element to get the light model.

SbBool sendNormals = (SoLazyElement::getLightModel(state)

!= SoLazyElement::BASE_COLOR);

// Determine if there's a material bound per part.

SoMaterialBindingElement::Binding binding =

SoMaterialBindingElement::get(state);

SbBool materialPerPart =

(binding == SoMaterialBindingElement::PER_PART ||

binding ==

SoMaterialBindingElement::PER_PART_INDEXED);

// Issue a lazy element send.

// The send ensures all material state in GL is current.

SoGLLazyElement::sendAllMaterial(state);

Creating a Shape Node

101

// Render the parts of the pyramid. We don't have to worry

// about whether to render filled regions, lines, or

// points, since that is already taken care of. We are

// also ignoring complexity, which we could use to render

// a more finely tesselated version of the pyramid.

// We'll use this macro to make the code easier. It uses

// the "point" variable to store the vertex point to send.

SbVec3f point;

#define SEND_VERTEX(x, y, z, s, t) \

point.setValue(x, y, z); \

if (doTextures) \

glTexCoord2f(s, t); \

glVertex3fv(point.getValue())

if (HAS_PART(curParts, SIDES)) {

// Draw each side separately, so that normals are

// correct. If sendNormals is TRUE, send face normals

// with the polygons. Make sure the vertex order obeys

// the right-hand rule.

glBegin(GL_TRIANGLES);

// Front face: left front, right front, apex

if (sendNormals)

glNormal3fv(frontNormal.getValue());

SEND_VERTEX(-1.0, -1.0, 1.0, .25, 0.0);

SEND_VERTEX( 1.0, -1.0, 1.0, .50, 0.0);

SEND_VERTEX( 0.0, 1.0, 0.0, .325, 1.0);

// Right face: right front, right rear, apex

if (sendNormals)

glNormal3fv(rightNormal.getValue());

SEND_VERTEX( 1.0, -1.0, 1.0, .50, 0.0);

SEND_VERTEX( 1.0, -1.0, -1.0, .75, 0.0);

SEND_VERTEX( 0.0, 1.0, 0.0, .625, 1.0);

// Rear face: right rear, left rear, apex

if (sendNormals)

glNormal3fv(rearNormal.getValue());

SEND_VERTEX( 1.0, -1.0, -1.0, .75, 0.0);

SEND_VERTEX(-1.0, -1.0, -1.0, 1.0, 0.0);

SEND_VERTEX( 0.0, 1.0, 0.0, .875, 1.0);

102

Appendix A: Creating a Node

// Left face: left rear, left front, apex

if (sendNormals)

glNormal3fv(leftNormal.getValue());

SEND_VERTEX(-1.0, -1.0, -1.0, 0.0, 0.0);

SEND_VERTEX(-1.0, -1.0, 1.0, .25, 0.0);

SEND_VERTEX( 0.0, 1.0, 0.0, .125, 1.0);

glEnd();

}

if (HAS_PART(curParts, BASE)) {

// Send the next material if it varies per part.

// Use SoGLLazyElement::sendDiffuseByIndex().

// This also sends transparency, so that if

// transparency type is not SCREEN_DOOR, there can be

// a change of transparency across the shape.

if (materialPerPart){

//Obtain a current copy of the SoGLLazyElement;

//use this for the send.

lazyElt =

(SoGLLazyElement*)SoLazyElement::getInstance(state);

lazyElt->sendDiffuseByIndex(1);

}

if (sendNormals)

glNormal3fv(baseNormal.getValue());

// Base: left rear, right rear, right front, left front

glBegin(GL_QUADS);

SEND_VERTEX(-1.0, -1.0, -1.0, 0.0, 0.0);

SEND_VERTEX( 1.0, -1.0, -1.0, 1.0, 0.0);

SEND_VERTEX( 1.0, -1.0, 1.0, 1.0, 1.0);

SEND_VERTEX(-1.0, -1.0, 1.0, 0.0, 1.0);

glEnd();

}

// Restore the GL matrix.

glPopMatrix();

// Reset the diffuse color, if we sent it twice.

if (materialPerPart)

lazyElt->reset(state, SoLazyElement::DIFFUSE_MASK);

Creating a Shape Node

103

}

// Generates triangles representing a pyramid.

void

Pyramid::generatePrimitives(SoAction *action)

{

// The pyramid will generate 6 triangles: 1 for each side

// and 2 for the base. (Again, ignore complexity.)

// This variable is used to store each vertex.

SoPrimitiveVertex pv;

// Access the state from the action.

SoState *state = action->getState();

// See which parts are enabled.

int curParts = (parts.isIgnored() ? ALL :

parts.getValue());

// We need the size to adjust the coordinates.

float halfWidth, halfHeight, halfDepth;

getSize(halfWidth, halfHeight, halfDepth);

// See if we have to use a texture coordinate function,

// rather than generating explicit texture coordinates.

SbBool useTexFunc =

(SoTextureCoordinateElement::getType(state) ==

SoTextureCoordinateElement::FUNCTION);

// If we need to generate texture coordinates with a

// function, we'll need an SoGLTextureCoordinateElement.

// Otherwise, we'll set up the coordinates directly.

const SoTextureCoordinateElement *tce;

SbVec4f texCoord;

if (useTexFunc)

tce = SoTextureCoordinateElement::getInstance(state);

else {

texCoord[2] = 0.0;

texCoord[3] = 1.0;

}

// Determine if there's a material bound per part.

SoMaterialBindingElement::Binding binding =

104

Appendix A: Creating a Node

SoMaterialBindingElement::get(state);

SbBool materialPerPart =

(binding == SoMaterialBindingElement::PER_PART ||

binding ==

SoMaterialBindingElement::PER_PART_INDEXED);

// We use this macro to make the code easier. It uses the

// "point" variable to store the primitive vertex's point.

SbVec3f point;

#define GEN_VERTEX(pv, x, y, z, s, t, normal) \

point.setValue(halfWidth * x, \

halfHeight * y, \

halfDepth * z); \

if (useTexFunc) \

texCoord = tce->get(point, normal); \

else { \

texCoord[0] = s; \

texCoord[1] = t; \

} \

pv.setPoint(point); \

pv.setNormal(normal); \

pv.setTextureCoords(texCoord); \

shapeVertex(&pv)

if (HAS_PART(curParts, SIDES)) {

// We will generate 4 triangles for the sides of the

// pyramid. We can use the beginShape(), shapeVertex(),

// andendShape() convenience functions on SoShape to

// make the triangle generation easier and clearer.

// The shapeVertex() call is built into the macro.

// Note that there is no detail information for the

// Pyramid. If there was, we would create an instance

// of the correct subclass of SoDetail (such as

// PyramidDetail) and call pv.setDetail(&detail) once.

beginShape(action, TRIANGLES);

// Front face: left front, right front, apex

GEN_VERTEX(pv, -1.0, -1.0, 1.0, .25, 0.0,

frontNormal);

GEN_VERTEX(pv, 1.0, -1.0, 1.0, .50, 0.0,

frontNormal);

Creating a Shape Node

105

GEN_VERTEX(pv, 0.0, 1.0, 0.0, .325, 1.0,

frontNormal);

// Right face: right front, right rear, apex

GEN_VERTEX(pv, 1.0, -1.0, 1.0, .50, 0.0,

rightNormal);

GEN_VERTEX(pv, 1.0, -1.0, -1.0, .75, 0.0,

rightNormal);

GEN_VERTEX(pv, 0.0, 1.0, 0.0, .625, 1.0,

rightNormal);

// Rear face: right rear, left rear, apex

GEN_VERTEX(pv, 1.0, -1.0, -1.0, .75, 0.0,

rearNormal);

GEN_VERTEX(pv, -1.0, -1.0, -1.0, 1.0, 0.0,

rearNormal);

GEN_VERTEX(pv, 0.0, 1.0, 0.0, .875, 1.0,

rearNormal);

// Left face: left rear, left front, apex

GEN_VERTEX(pv, -1.0, -1.0, -1.0, 0.0, 0.0,

leftNormal);

GEN_VERTEX(pv, -1.0, -1.0, 1.0, .25, 0.0,

leftNormal);

GEN_VERTEX(pv, 0.0, 1.0, 0.0, .125, 1.0,

leftNormal);

endShape();

}

if (HAS_PART(curParts, BASE)) {

// Increment the material index in the vertex if

// necessary. (The index is set to 0 by default.)

if (materialPerPart)

pv.setMaterialIndex(1);

// We will generate two triangles for the base, as a

// triangle strip.

beginShape(action, TRIANGLE_STRIP);

106

Appendix A: Creating a Node

// Base: left front, left rear, right front, right rear

GEN_VERTEX(pv, -1.0, -1.0, 1.0, 0.0, 1.0,

baseNormal);

GEN_VERTEX(pv, -1.0, -1.0, -1.0, 0.0, 0.0,

baseNormal);

GEN_VERTEX(pv, 1.0, -1.0, 1.0, 1.0, 1.0,

baseNormal);

GEN_VERTEX(pv, 1.0, -1.0, -1.0, 1.0, 0.0,

baseNormal);

endShape();

}

// Computes the bounding box and center of a pyramid.

void

Pyramid::computeBBox(SoAction *, SbBox3f &box, SbVec3f

&center)

{

// Figure out what parts are active.

int curParts = (parts.isIgnored() ? ALL :

parts.getValue());

// If no part is active, set the bounding box to be tiny.

if (curParts == 0)

box.setBounds(0.0, 0.0, 0.0, 0.0, 0.0, 0.0);

else {

// These points define min and max extents of the box.

SbVec3f min, max;

// Compute the half-width, half-height, and half-depth

// of the pyramid. We'll use this info to set the min

// and max points.

float halfWidth, halfHeight, halfDepth;

getSize(halfWidth, halfHeight, halfDepth);

min.setValue(-halfWidth, -halfHeight, -halfDepth);

Creating a Shape Node

107

// The maximum point depends on whether the SIDES are

// active. If not, only the base is present.

if (HAS_PART(curParts, SIDES))

max.setValue(halfWidth, halfHeight, halfDepth);

else

max.setValue(halfWidth, -halfHeight, halfDepth);

// Set the box to bound the two extreme points

box.setBounds(min, max);

}

// This defines the "natural center" of the pyramid. We

// could define it to be the center of the base, if we

// want, but let's just make it the center of the

// bounding box.

center.setValue(0.0, 0.0, 0.0);

}

// Computes and returns half-width, half-height, and

// half-depth based on current field values.

void

Pyramid::getSize(float &halfWidth,

float &halfHeight,

float &halfDepth) const

{

halfWidth = (baseWidth.isIgnored() ? 1.0 :

baseWidth.getValue() / 2.0);

halfHeight = (height.isIgnored() ? 1.0 :

height.getValue() / 2.0);

halfDepth = (baseDepth.isIgnored() ? 1.0 :

baseDepth.getValue() / 2.0);

}

Tip: The easiest way to make sure your generatePrimitives() method is

working is to use it for rendering, by temporarily commenting out your

shape’sGLRender() method (if it has one).

108

Appendix A: Creating a Node

Creating a Group Node

The example discussed in this section illustrates how to create a group node

subclass. (It is unlikely, however, that you’ll need to create a new group

class.) Our example class, Alternate, traverses every other child (that is,

child 0, then child 2, and so on). Since, like the base SoGroup class, it has no

ﬁelds, this example also illustrates how to create a node with no ﬁelds.

If you do create a new group class, you probably need to deﬁne a new

traversal behavior for it. You may be able to inherit some of the traversal

behavior from the parent class. Most groups deﬁne a protected

traverseChildren() method that implements their “typical” traversal

behavior. Your new group can probably inherit the read() and write()

methods from SoGroup.

Child List

SoGroup, and all classes derived from it, store their children in an instance

of SoChildList. This extender class provides useful methods for group

classes, including the traverse() method, which has three forms:

traverse(action) traverses all children in the child list

traverse(action, ﬁrstChild, lastChild)

traverses the children from ﬁrst child to last child, inclusive

traverse(action, childIndex)

traverses one child with the speciﬁed index

Hidden Children

If you want your new node to have children, but you don’t want to grant

public access to the child list, you can implement the node to have hidden

children. Node kits are an example of groups within the Inventor library that

have hidden children. Because node kits have a speciﬁc internal structure,

access to the children needs to be restricted. If you want the node to have

hidden children, it should not be derived from SoGroup, which has public

children only.

Creating a Group Node

109

SoNode provides a virtual getChildren() method that returns NULL by

default. To implement a new node with hidden children, you need to do the

following:

1. Maintain an SoChildList for the node. This list can be a hierarchy of

nodes.

2. Implement a getChildren() method that returns a pointer to the child

list. (SoPath uses getChildren() to maintain paths.)

Using the Path Code

Recall that an action can be applied to a node, a single path, or a path list.

Before a group can traverse its children, it needs to know what the action has

been applied to. The getPathCode() method of SoAction returns an

enumerated value that indicates whether the action is being applied to a

path and, if so, where this group node is in relation to the path or paths. The

values returned by getPathCode() are as follows:

NO_PATH The action is not applied to a path (that is, the action is

applied to a node).

BELOW_PATH This node is at or below the last node in the path chain.

OFF_PATH This node is not on the path chain (the node is to the left of

the path; it needs to be traversed if it affects the nodes in the

path).

IN_PATH The node is in the chain of the path (but is not the last node).

For SoGroup, if the group’s path code is NO_PATH, BELOW_PATH, or

OFF_PATH, it traverses all of its children. (Even if a node is OFF_PATH, you

need to traverse it because it affects the nodes in the path to its right. Note,

though, that if an SoSeparator is OFF_PATH, you do not need to traverse it

because it does not have any effect on the path.) If a node is IN_PATH, you

may not need to traverse all children in the group, since children to the right

of the action path do not affect the nodes in the path. In this case,

getPathCode() returns the indices of the children that need to be traversed.

The traverseChildren() method for SoGroup looks like this:

110

Appendix A: Creating a Node

void

SoGroup::traverseChildren(SoAction *action)

{

int numIndices;

const int *indices;

if (action->getPathCode(numIndices, indices)

== SoAction::IN_PATH)

children.traverse(action, 0, indices[numIndices - 1]);

// Traverse all children up to and including the

// last child to traverse.

else

children.traverse(action); // traverse all children

}

The GL render, callback, handle event, pick, and search methods for

SoGroup all use traverseChildren(). The write method for SoGroup, which

can be inherited by most subclasses, tests each node in the group before

writing it out. The get matrix method does not use traverseChildren()

because it doesn’t need to traverse as much. If the path code for a group is

NO_PATH or BELOW_PATH, it does not traverse the children. Here is the

code for SoGroup::getMatrix():

void

SoGroup::getMatrix(SoGetMatrixAction *action)

{

int numIndices;

const int *indices;

switch (action->getPathCode(numIndices, indices)) {

case SoAction::NO_PATH:

case SoAction::BELOW_PATH:

break;

case SoAction::IN_PATH:

children.traverse(action, 0,

indices[numIndices - 1]);

break;

case SoAction::OFF_PATH:

children.traverse(action);

break;

}

Creating a Group Node

111

If a node is IN_PATH, the getMatrix() method traverses all the children in

the group up to and including the last child in the action path (but not the

children to the right of the path). If a node is OFF_PATH, the getMatrix()

method traverses all the children in the group, since they can affect what is

in the path.

What Happens If an Action Is Terminated?

Some actions, such as the GL render, handle event, and search actions, can

terminate prematurely—for example, when the node to search for has been

found. The SoAction class has a ﬂag that indicates whether the action has

terminated. The SoChildList class checks this ﬂag automatically, so this

termination is built into the SoChildList::traverse() methods, and the group

traversal methods do not need to check the ﬂag.

The new Alternate class can inherit the read and write methods from

SoGroup. We just have to deﬁne the traversal behavior for the other actions.

Most of the other actions can be handled by the traverseChildren() method.

If your group subclass is derived from SoSeparator, you must write special

rendering methods that correspond to the different path nodes. See “The

GLRender() Method” on page 34.

Alternate Node

The class header for the Alternate node is shown in Example A-5.

Example A-5 Alternate.h

#include <Inventor/nodes/SoGroup.h>

// SoGroup.h includes SoSubNode.h; no need to include it.

class Alternate : public SoGroup {

SO_NODE_HEADER(Alternate);

public:

// Initializes this class.

static void initClass();

112

Appendix A: Creating a Node

// Default constructor

Alternate();

// Constructor that takes approximate number of children

// as a hint

Alternate::Alternate(int numChildren);

protected:

// Generic traversal of children for any action.

virtual void doAction(SoAction *action);

// These implement supported actions.

virtual void getBoundingBox(SoGetBoundingBoxAction

*action);

virtual void GLRender(SoGLRenderAction *action);

virtual void handleEvent(SoHandleEventAction *action);

virtual void pick(SoPickAction *action);

virtual void getMatrix(SoGetMatrixAction *action);

virtual void search(SoSearchAction *action);

private:

// Destructor

virtual ~Alternate();

};

The Alternate class source code is shown in Example A-6.

Example A-6 Alternate.c++

#include <Inventor/misc/SoChildList.h>

#include <Inventor/actions/SoGLRenderAction.h>

#include <Inventor/actions/SoGetBoundingBoxAction.h>

#include <Inventor/actions/SoGetMatrixAction.h>

#include <Inventor/actions/SoHandleEventAction.h>

#include <Inventor/actions/SoPickAction.h>

#include <Inventor/actions/SoSearchAction.h>

#include "Alternate.h"

SO_NODE_SOURCE(Alternate);

// This initializes the Alternate class.

void

Alternate::initClass()

{

Creating a Group Node

113

// Initialize type id variables

SO_NODE_INIT_CLASS(Alternate, SoGroup, "Group");

}

// Constructor

Alternate::Alternate()

{

SO_NODE_CONSTRUCTOR(Alternate);

}

// Constructor that takes approximate number of children.

Alternate::Alternate(int numChildren) : SoGroup(numChildren)

{

SO_NODE_CONSTRUCTOR(Alternate);

}

// Destructor

Alternate::~Alternate()

{

}

// Each of these implements an action by calling the standard

// traversal method. Note that (as in the Glow node source)

// we prefix the call to doAction() with the name of the

// class to avoid problems with derived classes.

void

Alternate::getBoundingBox(SoGetBoundingBoxAction *action)

{

Alternate::doAction(action);

}

void

Alternate::GLRender(SoGLRenderAction *action)

{

Alternate::doAction(action);

}

void

Alternate::handleEvent(SoHandleEventAction *action)

{

Alternate::doAction(action);

}

114

Appendix A: Creating a Node

void

Alternate::pick(SoPickAction *action)

{

Alternate::doAction(action);

}

// This implements the traversal for the SoGetMatrixAction,

// which is handled a little differently: it does not

// traverse below the root node or tail of the path it is

// applied to. Therefore, we need to compute the matrix only

// if this group is in the middle of the current path chain

// or is off the path chain (since the only way this could

// be true is if the group is under a group that affects the

// chain).

void

Alternate::getMatrix(SoGetMatrixAction *action)

{

int numIndices;

const int *indices;

// Use SoAction::getPathCode() to determine where this

// group is in relation to the path being applied to (if

// any).

switch (action->getPathCode(numIndices, indices)) {

case SoAction::NO_PATH:

case SoAction::BELOW_PATH:

// If there's no path, or we're off the end, do nothing.

break;

case SoAction::OFF_PATH:

case SoAction::IN_PATH:

// If we are in the path chain or we affect nodes in the

// path chain, traverse the children.

Alternate::doAction(action);

break;

}

// This implements the traversal for the SoSearchAction,

// which is also a little different. The search action is

// set to either traverse all nodes in the graph or just

// those that would be traversed during normal traversal. We

// need to check that flag before traversing our children.

Creating a Group Node

115

void

Alternate::search(SoSearchAction *action)

{

// If the action is searching everything, then traverse

// all of our children as SoGroup would.

if (action->isSearchingAll())

SoGroup::search(action);

else {

// First, make sure this node is found if we are

// searching for Alternate (or group) nodes.

SoNode::search(action);

// Traverse the children in our usual way.

Alternate::doAction(action);

}

// This implements typical action traversal for an Alternate

// node, skipping every other child.

void

Alternate::doAction(SoAction *action)

{

int numIndices;

const int *indices;

// This will be set to the index of the last (rightmost)

// child to traverse.

int lastChildIndex;

// If this node is in a path, see which of our children

// are in paths, and traverse up to and including the

// rightmost of these nodes (the last one in the

// "indices" array).

if (action->getPathCode(numIndices, indices) ==

SoAction::IN_PATH)

lastChildIndex = indices[numIndices - 1];

// Otherwise, consider all of the children.

else

lastChildIndex = getNumChildren() - 1;

// Now we are ready to traverse the children, skipping

// every other one. For the SoGetBoundingBoxAction, we

116

Appendix A: Creating a Node

// have to do some extra work in between each pair of

// children - we have to make sure the center points get

// averaged correctly.

if (action->isOfType(

SoGetBoundingBoxAction::getClassTypeId())) {

SoGetBoundingBoxAction *bba =

(SoGetBoundingBoxAction *) action;

SbVec3f totalCenter(0.0, 0.0, 0.0);

int numCenters = 0;

for (int i = 0; i <= lastChildIndex; i += 2) {

children->traverse(bba, i);

// If the traversal set a center point in the action,

// add it to the total and reset for the next child.

if (bba->isCenterSet()) {

totalCenter += bba->getCenter();

numCenters++;

bba->resetCenter();

}

// Now, set the center to be the average. Since the

// centers were already transformed, there's no need to

// transform the average.

if (numCenters != 0)

bba->setCenter(totalCenter / numCenters, FALSE);

}

// For all other actions, just traverse every other child.

else

for (int i = 0; i <= lastChildIndex; i += 2)

children->traverse(action, i);

}

Using New Node Classes

Node classes you have created must be initialized in every application that

uses them. Example A-7 shows how this is done, using the Glow,Pyramid,

and Alternate node classes deﬁned in the previous examples. The program

reads a ﬁle (newNodes.iv, shown in Example A-8) that has a scene graph

containing instances of these nodes. It writes the scene graph to standard

output and then opens an examiner viewer to display the graph.

Using New Node Classes

117

You can see from this example that extender node classes should be

initialized after standard classes, which are initialized by SoDB::init(). In

this program, SoDB::init() is called by SoXt::init(). Also, base classes must

be initialized before any classes derived from them, since the initialization

macros for a node class refer to the parent class.

Notice in Example A-8 that the Pyramid and Glow nodes, because they are

not built into the Inventor library, write out their ﬁeld names and types. (The

Alternate class has no ﬁelds.) See the discussion of the ﬁle format for new

(unknown) nodes in The Inventor Mentor, Chapter 11.

The isBuiltIn ﬂag is a protected variable in SoFieldContainer, from which

SoNode is derived. If this ﬂag is FALSE, ﬁeld types are written out along

with the ﬁeld values. By default, this ﬂag is FALSE, but all Inventor classes

set it to TRUE. If you are building a toolkit that uses Inventor and want your

new classes to appear the same as Inventor classes, be sure to set this ﬂag to

TRUE.

Example A-7 NewNodes.c++

#include <Inventor/SoDB.h>

#include <Inventor/SoInput.h>

#include <Inventor/Xt/SoXt.h>

#include <Inventor/Xt/viewers/SoXtExaminerViewer.h>

#include <Inventor/actions/SoWriteAction.h>

#include <Inventor/nodes/SoSeparator.h>

// Header files for new node classes

#include "Glow.h"

#include "Pyramid.h"

#include "Alternate.h"

main(int, char **argv)

{

SoInput myInput;

SoSeparator *root;

// Initialize Inventor and Xt.

Widget myWindow = SoXt::init(argv[0]);

if (myWindow == NULL) exit(1);

// Initialize the new node classes.

Glow::initClass();

Pyramid::initClass();

118

Appendix A: Creating a Node

Alternate::initClass();

if (! myInput.openFile("newNodes.iv")) {

fprintf(stderr, "Can't open \"newNodes.iv\"\n");

return 1;

}

root = SoDB::readAll(&myInput);

if (root == NULL) {

printf("File \"newNodes.iv\" contains bad data\n");

return 2;

}

root->ref();

// Write the graph to stdout.

SoWriteAction wa;

wa.apply(root);

// Render it.

SoXtExaminerViewer *myViewer =

new SoXtExaminerViewer(myWindow);

myViewer->setSceneGraph(root);

//The following results in high-quality transparency and

//will permit PER_PART material binding to vary

//transparency. Delete it and the pyramid will be

//rendered with the same SCREEN_DOOR transparency

//overall.

myViewer->setTransparencyType

(SoGLRenderAction::SORTED_OBJECT_BLEND);

myViewer->setTitle("NewNodes");

myViewer->show();

myViewer->viewAll();

SoXt::show(myWindow);

SoXt::mainLoop();

return 0;

}

Using New Node Classes

119

Example A-8 newNodes.iv

#Inventor V2.0 ascii

# Input file for "newNodes" example program

Separator {

MaterialBinding { value PER_PART }

Material {

diffuseColor [.3 .6 .3, .9 .3 .2]

transparency [ 0.8 , 0.0]

shininess .5

}

# Skip every other child.

Alternate {

fields []

Pyramid {

fields []

}

Cube {} # This child is skipped

Separator {

MaterialBinding { value OVERALL }

Glow {

fields [ SFColor color , SFFloat brightness ,

SFFloat transparency]

brightness .6

color .8 .3 .3

transparency .9

}

Transform {

translation 3 .6 0

}

Pyramid {

fields [SFFloat height ]

height 3.2

}

120

Appendix A: Creating a Node

Sphere {} # This child is skipped.

}

Creating an Abstract Node Class

Creating an abstract node class is slightly different from creating a

nonabstract one. Examples of abstract node classes are SoCamera,SoLight,

and SoShape.

First, abstract classes should use the ABSTRACT versions of the macros

described in SoSubNode.h. For example, the SoLight class makes this call in

its initClass() method:

SO_NODE_INIT_ABSTRACT_CLASS(SoLight, "Light", SoNode);

Second, the constructor for an abstract class should be protected, meaning

that it is impossible to create an instance of it.

The copyContents() Method

The copy() method deﬁned for SoNode creates a copy of an instance of a

node. It invokes the virtual copyContents() method. If your node has no

data other than ﬁelds and public children, then the copyContents() methods

deﬁned for SoNode and SoGroup should sufﬁce.

However, if you have extra instance data in your node that needs to be

copied, you have to override the copyContents() method. For example, if the

Pyramid node class deﬁned earlier contained a private integer member

variable called count (for some private reason), the copyContents() method

would look like this:

void

Pyramid::copyContents(const SoFieldContainer *fromFC,

SbBool copyConnections)

{

// Copy the usual stuff by calling the base class method.

SoShape::copyContents(fromFC, copyConnections);

The affectsState() Method

121

// Copy the "count" field explicitly.

count = ((Pyramid *)fromFC)->count;

}

The affectsState() Method

The affectsState() method on SoNode indicates whether a node has a net

effect on the state. (For example, SoSeparator changes the state, but it

restores the state, so there’s no net effect.) The default value for this method

is TRUE, but some node classes such as SoSeparator,SoShape,SoArray, and

SoMultipleCopy deﬁne it to be FALSE. When you deﬁne a new node class,

you may need to redeﬁne its affectsState() method if it differs from that of

the parent class.

Uncacheable Nodes

You may create a new node whose effects should not be cached during

rendering or bounding-box computation. For example, the SoCallback node

allows a user to change the effect of the callback function, such as drawing a

cube instead of a sphere, without ever making an Inventor call.

Uncacheable nodes such as SoCallback should call:

SoCacheElement::invalidate(state)

which aborts construction of the current cache. This call can be made during

the render or bounding box action (the two actions that support caching).

The invalidate() method also turns off auto-caching on any SoSeparator

nodes over the uncacheable node.

122

Appendix A: Creating a Node

Creating an Alternate Representation

When you create a new node, you probably also want to create an alternate

representation for it that can be written to a ﬁle. For example, a good

alternate representation for the Glow node would be an SoMaterial node

with all ﬁelds ignored except for emissiveColor and transparency. The

alternate representation is in the form of a ﬁeld called alternateRep, of type

SoSFNode. If your node is later read into an Inventor application that is not

linked with this new node, Inventor can render the node using this alternate

representation even though the node has not been initialized with the

database. (See Chapter 11 in The Inventor Mentor on reading in extender

nodes and engines.)

Within your program, when a change is made to the original node, you may

want the alternate representation to change as well. In this case, override the

write() method on SoNode to update the alternate representation, and then

have it call the write() method of the base class.

Generating Default Normals

If you deﬁne your own vertex-based shape class and the parent class does

not generate default normals, you need to generate default normals for

rendering with the Phong lighting model and for generating primitives.

SoVertexShape provides the generateDefaultNormals() method. Although

the speciﬁcs depend on the shape itself, SoNormalBundle provides

methods to facilitate this process.

Tip: If you deﬁne a node class that creates a node sensor attached to itself or

a ﬁeld sensor attached to one of its ﬁelds, you need to redeﬁne

readInstance() so that the sensor doesn’t ﬁre when the node is read from a

ﬁle. Your readInstance() method needs to detach the sensor, call the

readInstance() method of the parent class, and then reattach the sensor.

Node kits provide the setUpConnections() method to make and break these

connections (see Chapter 7 in The Inventor Toolmaker).

123

Index

Numbers

3-vertex polygons, 66

4-vertex polygons, 66

abstract node classes, 120

actions

applying, 109

implementing, 78

optimizing, 70

007 3078 001

Navigation menu

Versions of this User Manual:

Views

Navigation
