NQE Administration

SG–2150 3.3

Document Number 007–3799–001

be reproduced in any form unless permitted by contract or by written permission of Cray Research.

RESTRICTED RIGHTS LEGEND

Use, duplication, or disclosure of the technical data contained in this document by the Government is subject to restrictions as set

forth in subdivision (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 52.227-7013 and/or in

similar or successor clauses in the FAR, or in the DOD or NASA FAR Supplement. Unpublished rights reserved under the

Copyright Laws of the United States. Contractor/manufacturer is Silicon Graphics, Inc., 2011 N. Shoreline Blvd., Mountain View,

CA 94043-1389.

Autotasking, CF77, CRAY, Cray Ada, CraySoft, CRAY Y-MP, CRAY-1, CRInform, CRI/TurboKiva, HSX, LibSci, MPP Apprentice,

SSD, SUPERCLUSTER, UNICOS, and X-MP EA are federally registered trademarks and Because no workstation is an island, CCI,

CCMT, CF90, CFT, CFT2, CFT77, ConCurrent Maintenance Tools, COS, Cray Animation Theater, CRAY APP, CRAY C90,

CRAY C90D, Cray C++ Compiling System, CrayDoc, CRAY EL, CRAY J90, CRAY J90se, CrayLink, Cray NQS,

Cray/REELlibrarian, CRAY S-MP, CRAY SSD-T90, CRAY T90, CRAY T3D, CRAY T3E, CrayTutor, CRAY X-MP, CRAY XMS,

CRAY-2, CSIM, CVT, Delivering the power . . ., DGauss, Docview, EMDS, GigaRing, HEXAR, IOS,

ND Series Network Disk Array, Network Queuing Environment, Network Queuing Tools, OLNET, RQS, SEGLDR, SMARTE,

SUPERLINK, System Maintenance and Remote Testing Environment, Trusted UNICOS, UNICOS MAX, and UNICOS/mk are

trademarks of Cray Research, Inc.

AIX and IBM are trademarks and RISC System/6000 is a product of International Business Machines Corporation. AXP, DEC,

DECnet, and Digital are trademarks of Digital Equipment Corporation. DynaText is a trademark of Electronic Book Technologies.

FLEXlm is a trademark of GLOBEtrotter Software, Inc. HP and HP-UX are trademarks of Hewlett-Packard Company. IRIS, IRIX,

and Silicon Graphics are registered trademarks and IRIS InSight, Origin2000, and the Silicon Graphics logo are trademarks of

Silicon Graphics, Inc. Kerberos is a trademark of the Massachusetts Institute of Technology. Motif is a trademark of Open

Software Foundation, Inc. NASTRAN is a trademark of the National Aeronatics and Space Administration. Netscape is a

trademark of Netscape Communications Corporation. Oracle is a trademark of Oracle Corporation. UniChem is a trademark of

Oxford Molecular. NFS, Solaris, Sun, and SunOS are trademarks of Sun Microsystems, Inc.

The UNICOS operating system is derived from UNIX®System V. The UNICOS operating system is also based in part on the

Fourth Berkeley Software Distribution (BSD) under license from The Regents of the University of California.

New Features

NQE Administration SG–2150 3.3

This revised NQE Administration, publication SG–2150, supports the 3.3 release of the Network Queuing

Environment (NQE) release.

NQE system administration documentation was revised to support the following NQE 3.3 features:

•On CRAY T3E systems, NQE now supports checkpointing and restarting of jobs. This feature was

initially supported in the NQE 3.2.1 release. This feature requires the UNICOS/mk 2.0 release or later.

•On CRAY T3E systems, NQE now supports the Political Scheduling feature. This feature was initially

supported in the NQE 3.2.1 release. This feature requires the UNICOS/mk 2.0 release or later.

•On CRAY T3E systems, NQE now supports mixed mode scheduling.

•Applications running on a CRAY T3E system are killed when a PE assigned to the application goes

down. NQS is now notiﬁed when a job is terminated by a SIGPEFAILURE signal (UNICOS/mk systems

only). NQE will requeue the job and either restart or rerun the job, as applicable.

• For CRAY T3E systems, this release adds CPU and memory scheduling weighting factors for application

PEs. The NQS scheduling weighting factors are used with the NQS priority formula to calculate the

intra-queue job initiation priority for NQS runnable jobs. This release also restores user-speciﬁed priority

scheduling functionality.

• The multilevel security (MLS) feature on UNICOS/mk systems is supported with this NQE release.

• Distributed Computing Environment (DCE) support was enhanced as follows:

– Ticket forwarding and inheritance is now supported. This feature allows users to submit jobs in a

DCE environment without providing passwords.

– IRIX systems now support access to DCE resources for jobs submitted to NQE.

– UNICOS/mk systems now support access to DCE resources for jobs submitted to NQE.

DCE is supported on all NQE platforms except SunOs. Ticket forwarding is not supported for the

Digital UNIX operating system in the NQE 3.3 release.

• For IRIX systems running NQE, this release introduces a new scheduler called the Miser scheduler. The

Miser scheduler is a predictive scheduler that evaluates the number of CPUs and the amount of memory

a batch will require. NQE now supports the submission of jobs that specify Miser resources.

• Array services support was added for UNICOS systems.

•The new nqeinfo(5) man page documents all NQE conﬁguration variables; the nqeinfo(5) man page

is provided in online form only and is accessible by using the man(1) command or through the NQE

conﬁguration utility Help facility.

•This release replaces the NQE_TYPE variable in the nqeinfo(5) ﬁle with a new

NQE_DEFAULT_COMPLIST variable, which deﬁnes the list of NQE components to be started or stopped.

The NQE 3.3 release is shipped with the NQE_DEFAULT_COMPLIST variable set to the following

components: NQS,COLLECTOR, and NLB.

•The following NQE database enhancements were made:

–Increased number of simultaneous connections for clients and execution servers to the NQE database.

–The MAX_SCRIPT_SIZE variable was added to the nqeinfo ﬁle, allowing an administrator to limit

the size of the script ﬁle submitted to the NQE database. If the MAX_SCRIPT_SIZE variable is set to

0 or is not set, a script ﬁle of unlimited size is allowed. The script ﬁle is stored in the NQE database;

if the ﬁle is bigger than MAX_SCRIPT_SIZE, it can affect the performance of NQE database and the

nqedbmgr. The nqeinfo(5) man page includes the description of this new variable.

•The csuspend utility has the following two new command-line options: -l loopcount and -p period.

These two new options suspend or enable batch processing based on interactive use. The amount of

interactive use is determined by calls to sar. These options give the administrator greater control over

how sar is used and, consequently, the frequency of checking on whether to suspend or start NQE. The

csuspend(8) man page were revised to reﬂect this new capability.

•The qstart(8) and qstop(8) commands now allow an administrator to execute programs immediately

before and after the NQS daemon starts (NQE_ETC/qstart.pre and NQE_ETC/qstart.pst, where

NQE_ETC is deﬁned in the nqeinfo ﬁle) and immediately before and after the the NQS daemon is shut

down (NQE_ETC/qstop.pre and NQE_ETC/qstop.pst, where NQE_ETC is deﬁned in the nqeinfo

ﬁle). The administrator must create the ﬁle and it must be executable. The nqeinit(8), nqestop(8),

qstart(8), and qstop(8) man pages were revised to reﬂect this new capability.

•NQS sets several environment variables that are passed to a login shell when NQS initiates a job. One of

the environment variables set is LOGNAME, which is the name of the user under whose account the job

will run. Some platforms, such as IRIX, use the USER environment variable rather than LOGNAME.On

those platforms, csh writes an error message into the job’sstderr ﬁle, noting that the USER variable is

not deﬁned. To accommodate this difference, NQS now sets both the LOGNAME and USER environment

variables to the same value before initiating a job. The ilb(1) man page were revised to include this

new variable.

•Year 2000 support for NQE has been completed.

•The chapters documenting “Preparing a Node to Run NQE”and “NQE Version Maintenance”removed

from this administration guide; they are included in NQE Installation, publication SG–5236.

•The project ID is added to the end of the current accounting records in the NQS accounting ﬁle

(nqsacct) written by the NQS daemon accounting.

For a complete list of new features for the NQE 3.3 release, see the NQE Release Overview, publication

RO–5237.

Record of Revision

Version Description

1.0 December 1993.

Original Printing. This publication describes how to use the Network Queuing

Environment (NQE) release 1.0, running on UNIX or UNICOS systems.

1.1 June 1994.

Incorporates information for NQE release 1.1.

2.0 May 1995.

Incorporates information for the NQE 2.0 release. This publication also supports

Network Queuing EXtentions (NQX) synchronous with the UNICOS 9.0 release.

3.0 March 1996.

Incorporates information for the NQE 3.0 release.

3.1 September 1996.

Incorporates information for the NQE 3.1 release.

3.2 February 1997.

Incorporates information for the NQE 3.2 release. This document was revised and is

provided in online form only for this release.

3.3 March 1998.

Incorporates information for the NQE 3.3 release.

SG–2150 3.3 i

Contents

Page

Preface xxiii

Related Publications . . . .................... xxiii

Ordering Cray Research Publications . . . ............... xxiv

Conventions . ......................... xxiv

Reader Comments ........................ xxv

NQE Overview [1] 1

Scope of This Manual . . . .................... 1

NQE Environment ........................ 2

Running NQE As an Environment ................... 6

NQE File Structure ........................ 8

Using the World Wide Web Interface . . . ............... 9

Concepts and Terms [2] 11

Batch Requests ......................... 11

Nice Values ......................... 11

Shell Interpretation . . . .................... 11

Alternate User Validation . .................... 14

Intraqueue Priority . . . .................... 15

Resource Limits ........................ 15

Request States ......................... 15

Queues . . ......................... 17

Batch Queues ......................... 18

Pipe Queues ......................... 18

Queue, Queue Complex, and Global Limits ............... 19

SG–2150 3.3 iii

NQE Administration

Page

Request Processing ........................ 19

Request Destination . . . .................... 19

NQS Server Local Submission .................... 20

NQE Client Submission . .................... 20

Client Submission to NQS .................... 20

Client Submission to NQE Database . . ............... 21

NQS Server Remote Submission ................... 22

Daemon Processing . . . .................... 23

Controlling and Deleting Requests . . . ............... 23

Displaying Queue Status . .................... 24

Queue Attributes ........................ 24

Batch and Pipe Queue Attributes ................... 24

Access Restrictions . . .................... 24

pipeonly ......................... 25

Interqueue and Intraqueue Priority . . ............... 25

Queue Run Limit . . . .................... 25

Batch Queue Attributes . . .................... 25

loadonly ......................... 25

Queue Group Limit . . .................... 26

Queue Memory Limit . .................... 27

Queue User Limit . . .................... 27

Queue MPP Processing Element (PE) Limit ............... 27

Queue Quick-ﬁle Limit . .................... 27

Queue States ......................... 27

Queue Complexes ........................ 28

Global Limits ......................... 29

Load Balancing and Destination Selection . . ............... 29

NLB ........................... 29

iv SG–2150 3.3

Contents

Page

NLB Servers ........................ 30

Destination Selection . . .................... 30

Policies . ......................... 31

NLB Collectors . . . .................... 31

NLB Clients ........................ 31

NQE Database ........................ 31

NQE Database Server (MSQL) ................... 32

NQE Database Monitor . .................... 33

Scheduler ......................... 33

Lightweight Server (LWS) (Bridge to NQS) ............... 33

File Transfer . ......................... 33

File Transfer Services . . .................... 34

Domain Names ........................ 34

FTA Users . ......................... 34

Network Peer-to-peer Authorization . . . ............... 34

File Transfer Requests . . .................... 34

Queue Directories . . . .................... 34

Conﬁguring NQE variables [3] 35

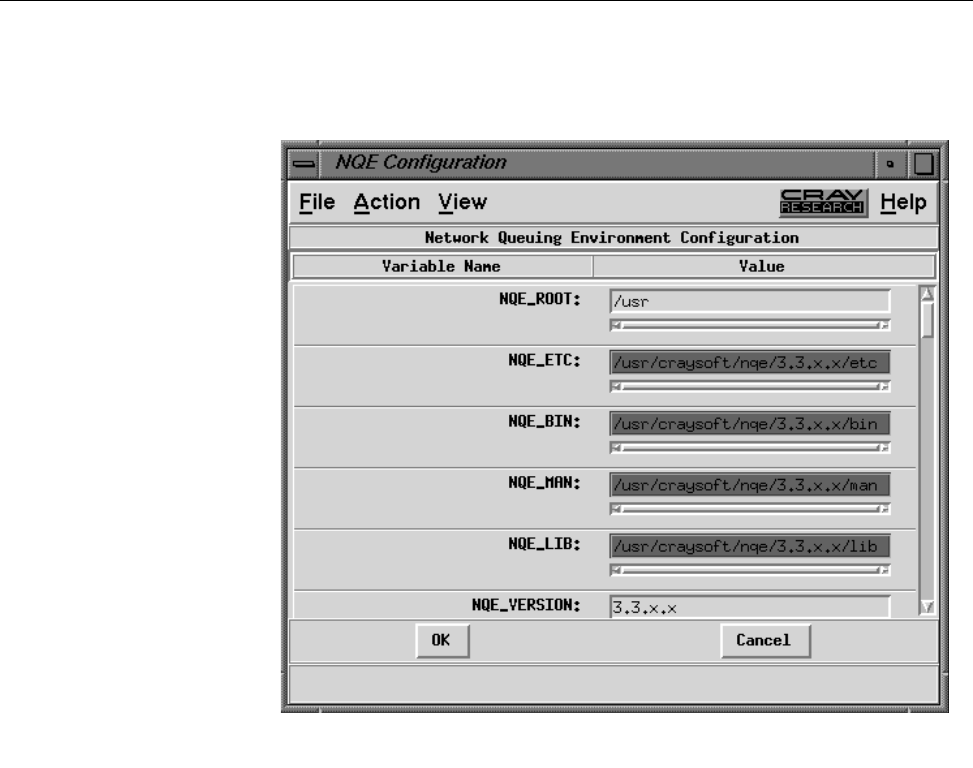

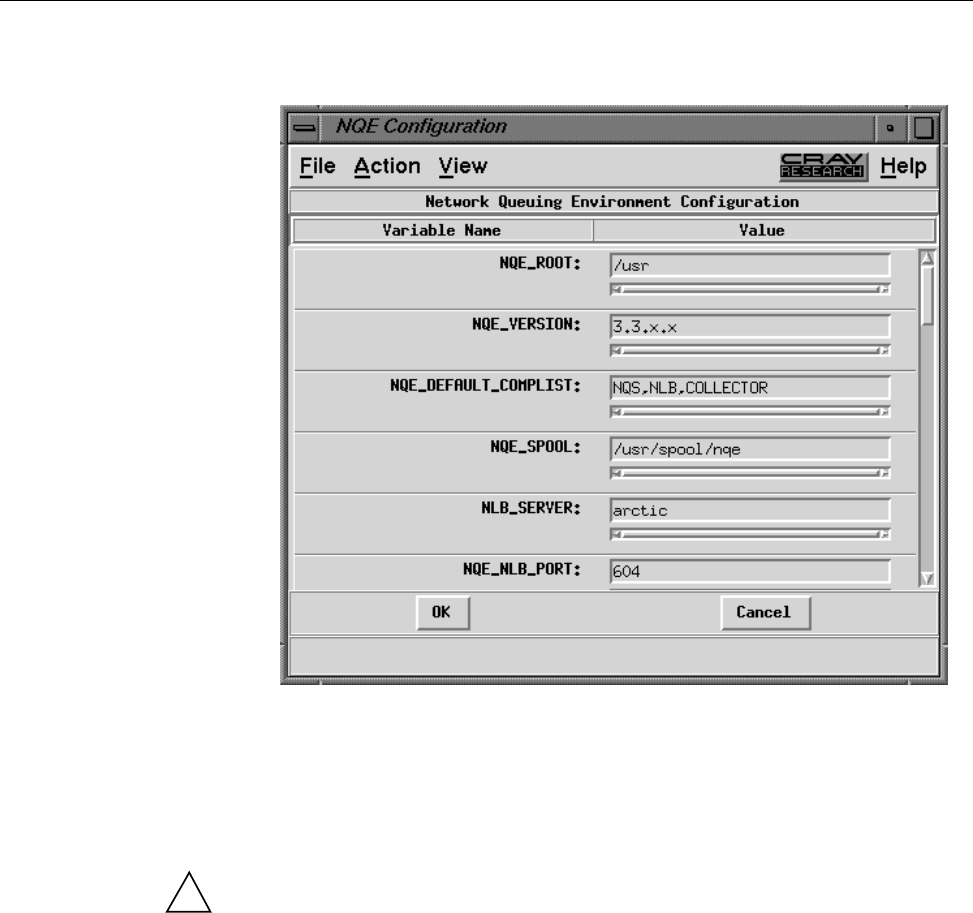

Starting the NQE Conﬁguration Utility . . . ............... 35

Editing the NQE Conﬁguration Variables . . ............... 36

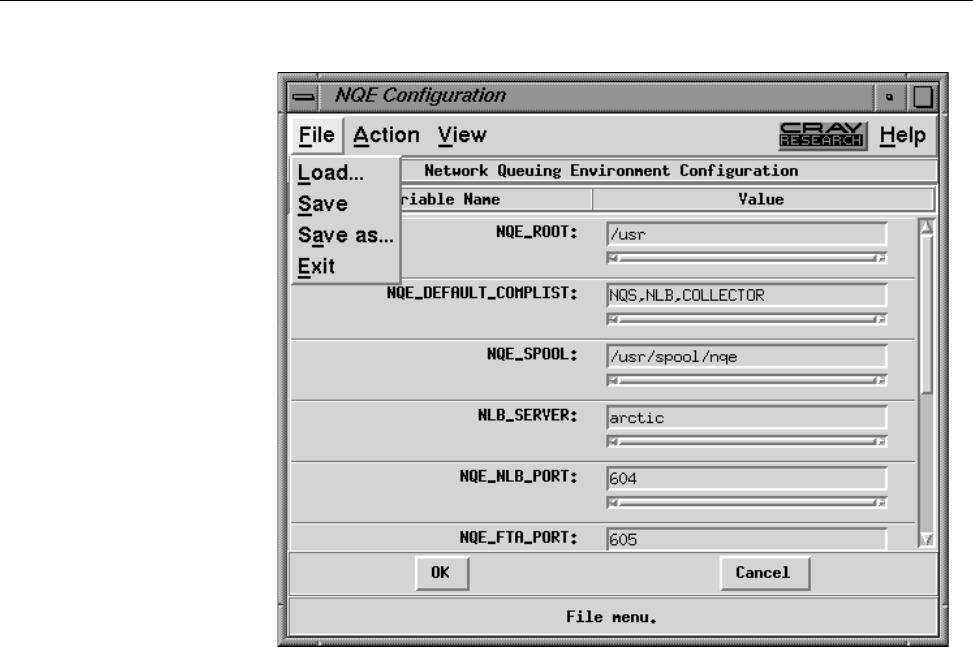

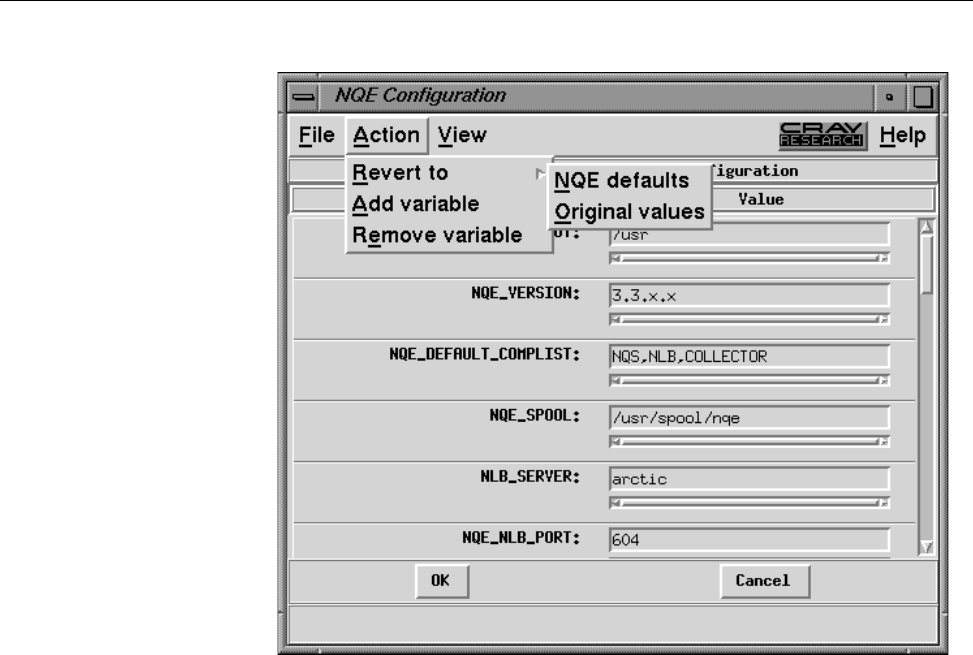

NQE Configuration Display Menus . . . ............... 38

Starting and Stopping NQE [4] 45

Starting NQE ......................... 45

Stopping NQE ......................... 46

NQS Conﬁguration [5] 47

Conﬁguration Guidelines . . .................... 48

Overview of NQS Manager Actions ................... 49

SG–2150 3.3 v

NQE Administration

Page

Deﬁning NQS Hosts in the Network . . . ............... 50

Conﬁguring Remote Output Agents . . . ............... 52

Commands for Deﬁning Machines . . . ............... 54

TCP/IP Network Conﬁguration Example . ............... 55

Stand-alone Conﬁguration Example . . . ............... 56

Deﬁning Managers and Operators ................... 56

Commands for Deﬁning Managers and Operators . . . .......... 57

Example of Adding Managers and Operators ............... 58

Conﬁguring the Scope of the User Status Display .............. 58

Deﬁning NQS Queues . . . .................... 58

Setting Queue Limits . . .................... 61

Hints for Deﬁning Queues . .................... 62

Commands Used to Deﬁne Queues . . . ............... 63

Adding Destinations to a Pipe Queue . ............... 63

Resetting Destinations for a Queue . . ............... 64

Deleting Destinations from a Queue . . ............... 65

Changing the Interqueue Priority for a Queue .............. 65

Changing the Run Limit for a Queue . ............... 65

Changing the Pipe Client Server for a Queue .............. 65

Commands for Conﬁguring Destination-selection Queues . .......... 65

Displaying Details of the Currently Deﬁned Queues . . . .......... 66

Examples of Deﬁning Queues .................... 66

Example of Changing the Order of the Destinations . . .......... 68

Deleting a Queue . . . .................... 68

Deﬁning a Default Queue . . .................... 68

Displaying the Current Default Queue . . ............... 69

Example of Deﬁning a Default Queue . . ............... 69

vi SG–2150 3.3

Contents

Page

Restricting User Access to Queues ................... 69

Hints on Restricting User Access to Queues ............... 69

Commands Available to Restrict User Access ............... 70

Displaying Details of the Currently Deﬁned Queues . . . .......... 71

Example of Restricting User Access . . . ............... 71

Deﬁning Queue Complexes . .................... 71

Queue Complex Examples . .................... 73

Deﬁning Global Limits . . . .................... 73

Displaying the Current Global Limits . . ............... 74

Example of Setting Limits . .................... 75

Deﬁning Per-request and Per-process Limits . ............... 75

Displaying Per-process and Per-request Limits .............. 80

Example of Setting Per-process and Per-request Limits . . .......... 81

How Queue Limits Affect Requests . . . ............... 82

Enabling per Request Limits on Memory Size, CPU Time, and Number of Processors on IRIX

Systems . ......................... 82

Deﬁning Job Scheduling Parameters . . . ............... 82

Example Commands for Scheduler Weighting Factors . . .......... 85

Example Display of Scheduler Weighting Factors .............. 87

Deﬁning Political Scheduling Daemon Threshold .............. 87

Uniﬁed Resource Manager (URM) for UNICOS Systems . . .......... 88

Miser Scheduler for IRIX Systems ................... 89

Setting the Job Scheduling Type ................... 90

Directing Batch Queues to Forward Requests to the Miser Scheduler ........ 90

NQS Periodic Checkpointing . .................... 92

Periodic Checkpoint File Restrictions . . ............... 93

Periodic Checkpoint Modes .................... 93

Compatibility Mode . . .................... 93

SG–2150 3.3 vii

NQE Administration

Page

User-initiated Mode . . .................... 94

CPU Time Mode . . . .................... 94

Wall-clock Mode . . . .................... 95

CPU and Wall-clock Mode .................... 96

Periodic Checkpoint Behavior in NQS . . ............... 97

NQS System Shutdown . .................... 97

Request Completion . . .................... 97

qchkpnt Command . . .................... 97

Abort . ......................... 97

Modify Request . . . .................... 97

Hold Request ........................ 97

Preempt Request . . . .................... 98

Release Request . . . .................... 98

Rerun Request . . . .................... 98

Restore Request . . . .................... 98

Resume Request . . . .................... 98

Suspend Request . . . .................... 99

Setting the Log File ........................ 99

Displaying Information on the Current Log File .............. 101

Log File Command Examples .................... 102

Setting the Debug Level . . .................... 102

Establishing NQS Accounting Procedures . . ............... 103

Enabling and Disabling Accounting . . . ............... 103

Accounting Records . . . .................... 104

Setting the Validation Strategy for Remote Access .............. 107

User Validation Commands .................... 109

Example of Setting User Validation . . . ............... 109

Deﬁning Other System Parameters ................... 110

viii SG–2150 3.3

Contents

Page

Setting Retry Limits . . . .................... 110

Displaying the Current Retry Limits . . ............... 110

Example of Setting Retry Limits . . . ............... 110

Deﬁning the Sender of NQS Mail . . . ............... 111

Displaying the Current Sender of Mail . ............... 111

Example of Setting NQS Mail User . . ............... 111

Locking and Unlocking Daemon Processes . ............... 111

Displaying the Current Locking State . ............... 112

Using a Script File As Input to the qmgr Utility ............... 112

Creating a qmgr Script File of the Current Conﬁguration . .......... 113

Output Validation ........................ 114

NQS and Multilevel Security on UNICOS and UNICOS/mk Systems ........ 115

NQS Multilevel Directories (MLDs) . . . ............... 117

PALs ........................... 119

Security Policies ........................ 119

MAC Security Policy . .................... 120

DAC Security Policy . . .................... 123

I&A Security Policy . . .................... 124

System Management . . .................... 124

Auditing ......................... 125

NQS Multilevel Security Conﬁguration . . ............... 126

Converting to Wildcard Labeled Directories .............. 127

NQS Local Changes for UNICOS and UNICOS/mk Systems . .......... 128

NQS User Exits for UNICOS and UNICOS/mk Systems . .......... 128

NQS Source-code Modiﬁcation for UNICOS Systems . . .......... 132

Operating NQS [6] 133

Overview of Operator Actions .................... 133

SG–2150 3.3 ix

NQE Administration

Page

Starting NQS . ......................... 134

NQS Shutdown and Restart . .................... 140

Monitoring NQS ........................ 141

Displaying System Parameters ................... 142

Displaying a List of Managers and Operators ............... 150

Displaying a Summary Status of NQS Queues .............. 150

Displaying All the Characteristics Deﬁned for an NQS Queue .......... 153

Displaying Summary Status of User Requests in NQS Queues .......... 156

Displaying the Mid Database .................... 159

Controlling the Availability of NQS Queues . ............... 159

Enabling and Disabling Queues ................... 160

Example of Enabling and Disabling Queues .............. 160

Starting and Stopping Queues ................... 161

Example of Starting and Stopping Queues ............... 161

Manipulating Requests . . . .................... 162

Moving Requests between NQS Queues . ............... 162

Example of Moving Requests between Queues .............. 162

Moving Requests within a Queue . . . ............... 163

Example of Moving Requests within a Queue .............. 163

Holding and Releasing Requests ................... 164

Example of Holding and Releasing Requests .............. 164

Suspending, Resuming, and Rerunning Executing Requests .......... 165

Example of Suspending and Resuming Requests . . . .......... 165

Modifying the Characteristics of Requests in Queues . . .......... 166

Example of Modifying a Queued Request ............... 168

Deleting Requests in NQS Queues . . . ............... 168

Example of Deleting a Queued Request . ............... 169

x SG–2150 3.3

Contents

Page

Deleting or Signaling Requests in Remote NQS Queues . . .......... 169

Recovering Jobs Terminated Because of Hardware Problems . .......... 170

NLB Administration [7] 173

NLB Overview ......................... 173

Overview of NLB Conﬁguration .................... 175

Server Database Integrity . .................... 175

Editing the NLB Conﬁguration File ................... 176

Conﬁguring ACLs for the NLB .................... 178

Starting the NLB Server . . .................... 179

Specifying the NLB Server Location ................... 179

Creating Redundant NLB Servers ................... 181

Starting NLB Collectors . . .................... 181

Managing the NLB Server . . .................... 185

Specifying the Server on the Command Line ............... 185

Verifying the NLB Server Is Running . . ............... 186

Shutting down the Server . .................... 186

Rereading the policies File .................... 186

Conﬁguring Name Maps, Objects, and ACLs ............... 186

Examples of Conﬁguring Name Maps and Objects . . . .......... 189

Changing ACL Permissions .................... 189

Implementing NLB Policies [8] 193

Deﬁning Load-balancing Policies ................... 193

The policies File ........................ 194

Example of How Policies Are Applied . . . ............... 196

Step 1: The Name . . . .................... 196

Step 2: The Constraints . . .................... 196

Step 3: The Sort ........................ 197

SG–2150 3.3 xi

NQE Administration

Page

Step 4: The Count . . . .................... 197

Approaches to Designing Policies: Averaging Data . . . .......... 198

Other Factors: Weighting Machines . . . ............... 199

Other Factors: Alternate Policies for Different Time Periods .......... 200

Policy Examples ........................ 201

Example of Writing a Load-balancing Policy ............... 201

Testing Policies ......................... 203

File Formats . ......................... 204

The Name Map File . . . .................... 204

The Object Data File . . .................... 211

Implementing NQS Destination-selection Policies .............. 214

Conﬁguring NQS Destination Selection . . ............... 214

NQS User Interface to NLB .................... 215

Policy Deﬁnition ........................ 215

NQS Processing ........................ 217

Example of Load Balancing Using the Default Policy . . .......... 219

Example of Load Balancing by Selection . ............... 219

Using Batch Request Limits in Policies . . . ............... 221

Deﬁning Request-attribute Policies . . . ............... 223

Testing the Policy . . . .................... 225

Storing Arbitrary Information in the NLB Database (Extensible Collector) . . . .... 226

NLB Differences on UNICOS/mk ................... 229

NQE Database [9] 231

NQE Database Model . . . .................... 231

NLB Scheduling Versus NQEDB Scheduling . ............... 232

Failure Recovery ........................ 232

Number of Connections . .................... 232

xii SG–2150 3.3

Contents

Page

Cluster Rerun ......................... 232

Performance ......................... 233

Relative Priority of Jobs . .................... 233

Site-deﬁned Scheduling . . .................... 233

Overview of the NQE Database .................... 234

NQE Database Components . .................... 235

Database Server (MSQL) . .................... 236

Monitor System Task . . .................... 237

Scheduler System Task . . .................... 237

LWS System Task . . . .................... 237

Client Commands . . . .................... 238

NQE Database Concepts and Terms ................... 239

Objects . . ......................... 239

Task Owners ......................... 240

Task States ......................... 241

Events . . ......................... 243

Starting the NQE Database . .................... 244

Stopping the NQE Database . .................... 246

Obtaining Status ........................ 247

Security . . ......................... 248

Connection ......................... 249

Target ........................... 251

Events . . ......................... 252

Status . . ......................... 252

Compacting the NQE Database .................... 253

Conﬁguring the Database Components . . . ............... 253

Global Conﬁguration Attributes for the NQE Database . . .......... 254

Scheduler Attributes . . .................... 256

LWS Attributes ........................ 258

SG–2150 3.3 xiii

NQE Administration

Page

Writing an NQE Scheduler [10] 261

The Scheduler System Task . .................... 261

Writing a Simple Scheduler . .................... 263

Requirements ......................... 263

Goal . . ......................... 266

Step 1: Create a New Scheduler System Task Object . . . .......... 266

Step 2: Create the Simple Scheduler File . ............... 267

Step 3: Write a Tinit Callback Function . ............... 269

Step 4: Write a Tentry Callback Function for New Tasks . .......... 271

Step 5: Write a Tpass Callback Function . ............... 276

Step 6: Write a Tnewowner Callback Function .............. 280

Step 7: Write a Tentry Callback Function for User Tasks Returned from an LWS .... 282

Step 8: Run the New Scheduler ................... 283

TclErrors ......................... 284

Trace Levels ........................ 285

Examining Tcl Variables . .................... 285

Step 9: Add Conﬁguration Enhancements . ............... 286

Tracking down Problems . .................... 287

Attribute Names and nqeinfo File Variable Names . . . .......... 289

nqeinfo Variables . . . .................... 289

Event Objects ......................... 290

User Task Attributes . . .................... 292

System Task Object . . . .................... 297

Global Conﬁguration Object .................... 299

Tcl Built-in Functions . . . .................... 302

Using csuspend [11] 307

csuspend Options ........................ 307

csuspend Functionality . . .................... 308

xiv SG–2150 3.3

Contents

Page

csuspend Examples . . . .................... 310

Job Dependency Administration [12] 313

Managing the NLB Database for Job Dependency .............. 313

Multiple NLB Servers and Job Dependency . ............... 314

FTA Administration [13] 317

FTA Overview ......................... 317

User Interface ......................... 318

Common Services . . . .................... 318

File Transfer Services . . .................... 319

Conﬁguration ......................... 320

Viewing the FTA Conﬁguration ................... 321

Global FTA Conﬁguration Parameters . . ............... 321

FTA Domain Conﬁguration .................... 323

Changing the FTA Conﬁguration ................... 326

FTA Conﬁguration for UNICOS Systems That Run Only the NQE Subset . . .... 327

Changing the ftpd Port Number . . . ............... 329

Editing System Conﬁguration Files . . . ............... 329

Conﬁguring Network Peer-to-peer Authorization .............. 330

Conﬁguring S-keys . . .................... 331

NPPA Example ........................ 332

Modifying the NLB Database for NPPA . . ............... 335

Example of Modifying the NLB Database ............... 336

Administration ......................... 336

FTA System Startup . . . .................... 336

FTA Recovery ........................ 337

Byte-level Recovery of Binary Transfers . ............... 337

Setting the Recovery Interval ................... 337

SG–2150 3.3 xv

NQE Administration

Page

Types of Failure . . . .................... 339

FTA Recovery Limits . .................... 340

FTA Recovery Strategy . .................... 341

Information Log ........................ 342

FTA Management Functions and Status . . ............... 344

Transfer Status ........................ 348

Conﬁguring DCE/DFS [14] 351

Enabling DCE Support for NQE .................... 351

Using a Password to Submit a Task ................... 352

Using a Forwardable Ticket to Submit a Task . ............... 354

Checkpoint and Restart Support on UNICOS Systems . . . .......... 355

Support for Renewing and Refreshing Tickets ............... 355

User Requirements ........................ 356

Administrating Kerberos and DCE ................... 357

Conﬁguring ilb [15] 361

ilbrc File . ......................... 361

SYSTEM Blocks ........................ 362

$HOME/.ilbrc File . . . .................... 362

User Environment Variables . .................... 363

Problem Solving [16] 365

Verifying That NQE Components Are Running ............... 365

Verifying That Daemons Are Running . . . ............... 366

NQS Troubleshooting . . . .................... 368

A Request Has Disappeared .................... 368

A Queued Request Will Not Run ................... 369

xvi SG–2150 3.3

Contents

Page

Limits Reached . . . .................... 369

Pipe Queue’s Destination List Points to a Disabled Batch Queue ........ 369

Standard Output and Standard Error Files Cannot Be Found .......... 369

Syntax Errors ......................... 370

File Not Found Errors in Standard Error File ............... 371

Queues Shut Off by NQS . .................... 371

Unexpected Changes in Request States . . ............... 371

Problems Issuing qmgr Commands . . . ............... 371

NQS or qmgr Fails with a no local machine id Message .......... 371

NQS Seems to Be Running Slowly . . . ............... 373

Conﬁguring the Scope of User Status Display ............... 373

Client Troubleshooting . . . .................... 373

Client Users Cannot Access the NQS Server ............... 374

Non-secure network port Messages . ............... 374

A Request Is Accepted by NQS but Not Run ............... 375

No account authorization at transaction peer Messages . . . .... 375

Commands Do Not Execute .................... 375

ctoken generation failure Messages ............... 376

NQE Load Display Fails . .................... 376

NLB Troubleshooting . . . .................... 377

NLB Commands Report cannot determine server location ........ 377

Collector Is Running, but No Data Appears in Server . . .......... 377

nlbconfig -pol Reports Errors ................... 377

Collectors on Solaris Systems Report Incorrect Data . . . .......... 377

Policies Cause Unexpected Results . . . ............... 378

Modifying ACL for Type C_OBJ Reports no privilege for requested operation . 378

NQE Database Troubleshooting .................... 378

NQE Database Authorization Failures . . ............... 378

SG–2150 3.3 xvii

NQE Administration

Page

NQE Database Connection Failures . . . ............... 379

Network Debugging . . . .................... 379

Checking Connectivity . . .................... 379

Checking Transport Service Connections . ............... 380

Connection failed Messages ................... 380

User’s Job Project Displays As 0.................... 381

Reinstalling the Software . . .................... 381

Calling Customer Service . . .................... 382

Appendix A Man Page List 383

User Man Pages ......................... 383

Application Interfaces Man Pages ................... 384

File Formats Man Pages for UNICOS Systems ............... 385

Product Support Man Page . .................... 385

Administrator-level Man Pages .................... 385

Appendix B NQE Sample Conﬁgurations 387

NQE Servers and Clients . . .................... 387

NQE Cluster Conﬁguration . .................... 388

Simple Cluster ........................ 388

NQE Load-balanced Cluster .................... 389

NQE Scheduler Cluster . . .................... 390

Server Considerations . . .................... 390

Load-balancing Policies . . .................... 390

NQE Scheduler and NQE Database Options ............... 390

NQS Queue Conﬁguration . .................... 391

NQE Database and Scheduler Structure . . ............... 393

Appendix C config.h/nqeinfo File Variables 395

xviii SG–2150 3.3

Contents

Page

Index 419

Figures

Figure 1. Sample NQE Conﬁguration . . . ............... 7

Figure 2. NQE File Structure .................... 9

Figure 3. Request Processing for Local Submission . . . .......... 20

Figure 4. Request Processing for Client Submission to NQS . .......... 21

Figure 5. Request Processing for Client Submission to the NQE Database . . .... 22

Figure 6. Request Processing for Remote Submission . . . .......... 23

Figure 7. Queue Conﬁguration That Uses theloadonly Attribute ......... 26

Figure 8. Basic Concept of the NQE Database ............... 32

Figure 9. NQE Configuration Display, Condensed View ........... 37

Figure 10. NQE Configuration Display, File Menu . . .......... 39

Figure 11. NQE Configuration Display, Action Menu . .......... 40

Figure 12. NQE Configuration Display, View Menu . . .......... 41

Figure 13. NQE Configuration Display, Full View ............ 42

Figure 14. NQE Configuration Display, Install View ........... 43

Figure 15. Example of a TCP/IP network . ............... 55

Figure 16. Average Machine Load Data . . ............... 198

Figure 17. Instantaneous Machine Load Data ............... 199

Figure 18. NQS Conﬁguration with Load Balancing by Default .......... 219

Figure 19. NQS Conﬁguration with Load Balancing by Selection ......... 220

Figure 20. NQE Database Layout ................... 235

Figure 21. NQE Database Components . . ............... 236

Figure 22. User Task Owners and States . . ............... 242

Figure 23. Scheduler Program Structure . . ............... 262

Figure 24. Component Relationships in FTA ............... 320

SG–2150 3.3 xix

NQE Administration

Page

Figure 25. NPPA Conﬁguration Example . ............... 334

Figure 26. Simple NQE Cluster ................... 389

Figure 27. NQE Load-balanced Cluster . . ............... 389

Figure 28. Default NQE Queue Conﬁguration ............... 392

Figure 29. NQE Database and NQE Scheduler Components . .......... 393

Tables

Table 1. Information for deﬁning machines . ............... 51

Table 2. Machine IDs, names, and output agents .............. 56

Table 3. Deﬁnable queue characteristics . . ............... 59

Table 4. Platform support of NQS limits . . ............... 77

Table 5. Accounting records .................... 105

Table 6. Attribute Types . . .................... 207

Table 7. Reserved Host Object Attributes . ............... 208

Table 8. Attribute Implementation Across Platforms . . . .......... 210

Table 9. Request Limit Attributes ................... 223

Table 10. Standard Events . .................... 244

Table 11. nqedbmgr Process Startup Control Commands . . .......... 245

Table 12. nqedbmgr Process Shutdown Control Commands . .......... 247

Table 13. nqedbmgr Status Commands . . ............... 248

Table 14. nqedbmgr Predeﬁned Global NQE Database Conﬁguration Attributes .... 255

Table 15. nqedbmgr Predeﬁned Scheduler Attributes . . . .......... 258

Table 16. nqedbmgr Predeﬁned LWS Attributes .............. 259

Table 17. Mandatory Task States Recognized by the Tentry Callback ........ 271

Table 18. Variables That May Be Deﬁned in the nqeinfo File .......... 289

Table 19. Event Objects Attributes ................... 291

Table 20. Events Deﬁned by Default . . . ............... 292

Table 21. User Task Object Attributes . . . ............... 292

Table 22. System Task Object Attributes . . ............... 298

xx SG–2150 3.3

Contents

Page

Table 23. Global Conﬁguration Object Attributes .............. 300

Table 24. Tcl Built-in Functions .................... 302

Table 25. Additional Functions Implemented in Tcl . . . .......... 304

Table 26. File Transfer Components . . . ............... 317

Table 27. FTA_FTS Class Parameters . . ............... 325

Table 28. FTA_FLAGS Parameters . . . ............... 325

Table 29. fta -config Output and nlbconfig Output Comparison . . . .... 329

Table 30. Example of NPPA Conﬁguration Characteristics . .......... 333

Table 31. NQE Server Daemons ................... 366

SG–2150 3.3 xxi

Preface

This publication describes how to conﬁgure, monitor, and control the Cray

Network Queuing Environment (NQE) running on a UNIX system. NQE is a

software product that lets users submit, monitor, and control batch requests for

execution on an NQS server in an NQE cluster. This publication is written for

NQE administrators who are responsible for deﬁning and maintaining the NQE

network conﬁguration. This publication also may be accessed online by using

the Cray Research online documentation reader.

The NQE graphical user interface (GUI) allows users to submit and control

batch requests to a central storage database and to obtain status on their batch

requests and ﬁle transfers.

The Network Load Balancer (NLB) uses the system load information received

from NQE execution servers to offer NQS an ordered list of servers to run a

request; NQS uses the list to distribute the request.

The NQE database provides an alternate mechanism for distributing work.

Requests are submitted and stored centrally. The NQE scheduler examines each

request and determines when and where the request is run.

The File Transfer Agent (FTA) provides asynchronous and synchronous ﬁle

transfer. You can queue your transfers so that they are retried if a network link

fails.

Related Publications

The following documents contain additional information that may be helpful:

•NQE Release Overview, publication RO–5237, provides NQE release

information.

•NQE Installation, publication SG–5236, describes how to install or upgrade

the NQE software.

•Introducing NQE, publication IN–2153, provides an overview of NQE

functionality and describes how to access documentation online. This

publication also may be accessed online by using the Cray Research online

documentation reader.

•NQE User’s Guide, publication SG–2148, provides more detailed user-level

information than Introducing NQE, such as how to do user tasks by using

SG–2150 3.3 xxiii

NQE Administration

either the NQE graphical user interface (GUI) or the command-line interface,

how to customize your environment, and so on. This publication may also

be accessed online by using the Cray Research online documentation reader.

Ordering Cray Research Publications

The User Publications Catalog, Cray Research publication CP–0099, describes the

availability and content of all Cray Research hardware and software documents

that are available to customers. Cray Research customers who subscribe to the

Cray Inform (CRInform) program can access this information on the CRInform

system.

To order a document, either call the Distribution Center in Mendota Heights,

Minnesota, at +1–612–683–5907, or send a facsimile of your request to fax

number +1–612–452–0141. Cray Research employees may send electronic mail

to orderdsk (UNIX system users).

Customers who subscribe to the CRInform program can order software release

packages electronically by using the Order Cray Software option.

Customers outside of the United States and Canada should contact their local

service organization for ordering and documentation information.

Conventions

The following conventions are used throughout this document:

Convention Meaning

command This ﬁxed-space font denotes literal items such as

commands, ﬁles, routines, path names, signals,

messages, and programming language structures.

manpage(x) Man page section identiﬁers appear in

parentheses after man page names. The following

list describes the identiﬁers:

1 User commands

1B User commands ported from BSD

2 System calls

3 Library routines, macros, and

opdefs

xxiv SG–2150 3.3

Preface

4 Devices (special ﬁles)

4P Protocols

5 File formats

7 Miscellaneous topics

7D DWB-related information

8 Administrator commands

Some internal routines (for example, the

_assign_asgcmd_info() routine) do not have

man pages associated with them.

variable Italic typeface denotes variable entries and words

or concepts being deﬁned.

user input This bold, ﬁxed-space font denotes literal items

that the user enters in interactive sessions.

Output is shown in nonbold, ﬁxed-space font.

[ ] Brackets enclose optional portions of a command

or directive line.

... Ellipses indicate that a preceding element can be

repeated.

The default shell in the UNICOS and UNICOS/mk operating systems, referred

to in Cray Research documentation as the standard shell, is a version of the Korn

shell that conforms to the following standards:

•Institute of Electrical and Electronics Engineers (IEEE) Portable Operating

System Interface (POSIX) Standard 1003.2–1992

•X/Open Portability Guide, Issue 4 (XPG4)

The UNICOS and UNICOS/mk operating systems also support the optional use

of the C shell.

Reader Comments

If you have comments about the technical accuracy, content, or organization of

this document, please tell us. You can contact us in any of the following ways:

•Send us electronic mail at the following address:

publications@cray.com

SG–2150 3.3 xxv

NQE Administration

•Contact your customer service representative and ask that an SPR or PV be

ﬁled. If ﬁling an SPR, use PUBLICATIONS for the group name, PUBS for the

command, and NO-LICENSE for the release name.

•Call our Software Publications Group in Eagan, Minnesota, through the

Customer Service Call Center, using either of the following numbers:

1–800–950–2729 (toll free from the United States and Canada)

+1–612–683–5600

•Send a facsimile of your comments to the attention of “Software Publications

Group”in Eagan, Minnesota, at fax number +1–612–683–5599.

We value your comments and will respond to them promptly.

xxvi SG–2150 3.3

NQE Overview [1]

The Network Queuing Environment (NQE) is a framework for distributing

work across a network of heterogeneous systems. NQE consists of the

following components:

•Cray Network Queuing System (NQS)

•NQE clients

•Network Load Balancer (NLB)

•NQE database and its scheduler

•File Transfer Agent (FTA)

Note: Cray PVP systems that do not have an NQE license are limited to

accessing and using only the NQE subset (NQS and FTA components).

After you have installed NQE, follow the instructions in Chapters 3 through 6

of this administrator’s guide. For information about the content of this guide,

see Section 1.1.

1.1 Scope of This Manual

This manual provides information on how to conﬁgure and manage NQE. This

manual contains the following chapters:

•Chapter 1, page 1 (this chapter) describes the components of NQE and

provides an overview of NQE.

•Chapter 2, page 11 describes concepts and terms relevant to NQE. It is

meant to act as an introduction for administrators unfamiliar with batch

concepts; it also can act as a reference for more experienced administrators.

•Chapter 3, page 35 describes how to use the nqeconfig(8) utility to

conﬁgure the NQE conﬁguration ﬁle (nqeinfo ﬁle).

•Chapter 4, page 45 describes how to start and stop NQE. It also describes the

list of valid NQE components set in the NQE_DEFAULT_COMPLIST variable

in the nqeinfo(5) ﬁle used by the nqeinit(8) and nqestop(8) scripts.

SG–2150 3.3 1

NQE Administration

•Chapter 5, page 47 describes conﬁguration and management of the NQS

component of NQE. It describes the use of qmgr commands that are

available only to NQS managers.

•Chapter 6, page 133 describes the qmgr commands that are available to NQS

operators.

•Chapter 7, page 173 describes conﬁguration and management of the NLB

components of NQE.

•Chapter 8, page 193 describes how to implement load-balancing policies

with NQE.

•Chapter 9, page 231 provides an overview of the NQE database and its

components, and it describes management and conﬁguration of the NQE

database and the NQE scheduler.

•Chapter 10, page 261 describes how to modify the NQE scheduler to meet

the needs of your site.

•Chapter 11, page 307 describes how to use the csuspend(8) command to

make use of unused cycles on a server.

•Chapter 12, page 313 describes how the job dependency feature affects NQE

administration.

•Chapter 13, page 317 describes conﬁguration and management of the FTA

component of NQE.

•Chapter 14, page 351 describes conﬁguration of the Distributed Computing

Environment (DCE) when using NQE.

•Chapter 15, page 361 describes conﬁguration of the ilb(1) command.

•Chapter 16, page 365 provides possible solutions to problems you may

encounter as an NQE administrator.

•Appendixes provide supplemental information to help you administer NQE.

1.2 NQE Environment

NQE supports computing with a large number of nodes in a large network

supporting two basic models:

•The NQE database model that supports up to 36 servers and hundreds of

clients

2 SG–2150 3.3

NQE Overview [1]

•The NQS model that supports an unlimited number of servers and

hundreds of clients

The grouping of servers and clients is referred to as an NQE cluster. The servers

provide reliable, unattended processing and management of the NQE cluster.

Users who have long running requests and a need for reliability can submit

batch requests to an NQE cluster.

NQE clients support the submission, monitoring, and control of work from the

workstation for job execution of the batch requests on the nodes. The client

interface has minimal overhead and administrative cost; for example, no

machine ID (mid) administration is needed for a client machine. NQE clients are

intended to run on every node in the NQE cluster where users need an

interactive interface to the NQE cluster. The NQE client provides the NQE GUI,

which is accessed through the nqe command. The NQE client also provides a

command-line interface. For a list of user-level commands, see Appendix A,

page 383. For information about using the NQE GUI and the command-line

interface, see the NQE User’s Guide, publication SG–2148.

The Network Queuing System (NQS) initiates requests on NQS servers. An NQS

server is a host on which NQS runs. As system administrator, you designate

the default NQS server in the NQE conﬁguration ﬁle (nqeinfo ﬁle); a user

may submit a request to the default NQS server or submit it to a speciﬁc NQS

server by using the NQE GUI Config window or by setting the NQS_SERVER

environment variable. Cray NQS provides unattended execution of shell script

ﬁles (known as batch requests) in batch mode. Users can monitor and control the

progress of a batch request through NQE components in the NQE cluster.

When the request has completed execution, standard output and standard error

ﬁles are returned to the user in the default location or speciﬁed alternate

location. Privileged users deﬁned as qmgr managers can conﬁgure, monitor,

and control NQS; users deﬁned as qmgr operators can control NQS queues and

requests with the qmgr utility.

The NQE database provides a central repository for batch requests in the NQE

cluster. When a request is submitted to the NQE database, it works with an

administrator-deﬁned NQE scheduler to analyze aspects of the request and to

determine which NQS server will receive and process the request. When the

scheduler has chosen a server for your request, the lightweight server (LWS) on

the selected server obtains request information from the NQE database, veriﬁes

validation, submits the copy of a request to NQS, and obtains exit status of

completed requests from NQS. By default, the copy of the request is submitted

directly into a batch queue on the NQS server. Because the original request

remains in the NQE database, if a problem occurs during execution and the

server copy of the request is lost, a new copy can be resubmitted for processing

SG–2150 3.3 3

NQE Administration

if you have the clusterwide rerun feature enabled. For additional information

about the NQE database and NQE scheduler, see Chapter 9, page 231, and

Chapter 10, page 261.

The Network Load Balancer (NLB) provides status and control of work

scheduling within the group of components in the NQE cluster. Sites can use

the NLB to provide policy-based scheduling of work in the cluster. NLB

collectors periodically collect data about the current workload on the machine

where they run. The data from the collectors is sent to one or more NLB

servers, which store the data and make it accessible to the NQE GUI Status

and Load functions. The NQE GUI Status and Load functions display the

status of all requests which are in the NQE cluster and machine load data.

Cray FTA allows reliable (asynchronous and synchronous) unattended ﬁle

transfer across the network using the ftp protocol. Network peer-to-peer

authorization allows users to transfer ﬁles without specifying passwords.

Transfer may be queued so that they are retried if a network link fails. Queued

transfer requests may be monitored and controlled.

The csuspend(8) utility lets you suspend and restart batch activity on a server

when interactive use occurs.

The NQE_DEFAULT_COMPLIST variable in the nqeinfo(5) ﬁle contains the list

of NQE components to be started or stopped (see Chapter 4, page 45). You can

set this list to one or more of any of the following valid NQE components:

NQS Network Queuing System

NLB Network Load Balancer

COLLECTOR NLB collector

NQEDB NQE database

MONITOR NQE database monitor

SCHEDULER NQS scheduler

LWS Lightweight server

Beginning with the NQE 3.3 release, the default component list consists of the

following components: NQS,NLB, and COLLECTOR.

Below ﬁnd a brief a description of the valid NQE components:

•The Network Load Balancer (NLB) server which receives and stores

information from the NLB collectors in the NLB database which it manages.

For more information on the NLB, see Section 2.9.1, page 29.

4 SG–2150 3.3

NQE Overview [1]

•The NQE database server which serves connections from clients, the

scheduler, the monitor and lightweight server (LWS) components in the

cluster to add, modify, or remove data from the NQE database. Currently,

NQE uses the mSQL database.

For more information on the NQE database server, see Section 2.9.2, page 31.

•The NQE scheduler which analyses data in the NQE database, making

scheduling decisions.

For more information on the NQE scheduler, see Section 2.9.2.3, page 33.

•The NQE database monitor which monitors the state of the database and

which NQE database components are connected.

For more information on the NQE database monitor, see Section 2.9.2.2, page

33.

•NQE clients (running on numerous machines) contain software so users may

submit, monitor, and control requests by using either the NQE graphical

user interface (GUI) or the command-line interface. From clients, users also

may monitor request status, delete or signal requests, monitor machine load,

and receive request output using the FTA.

The machines in your network where you run NQS are usually machines where

there is a large execution capacity. Job requests may be submitted from

components in an NQE cluster, but they will only be initiated on an NQS server

node.

FTA can be used from any NQS server to transfer data to and from any node in

the network by using the ftpd daemon. It also can provide ﬁle transfer by

communicating with ftad daemons that incorporate network peer-to-peer

authorization, which is a more secure method than ftp.

On NQS servers you need to run a collector process to gather information about

the machine for load balancing and request status for the NQE GUI Status and

Load windows programs. The collector forwards this data to the NLB server.

The NLB server runs on one or more NQE nodes in a cluster, but it is easiest to

run it initially on the ﬁrst node where you install NQE. Redundant NLB servers

ensure greater availability of the NLB database if an NLB server is unreachable

through the cluster.

Note: The NQE database must be on only one NQE node, there is no

redundancy.

SG–2150 3.3 5

NQE Administration

You can start the csuspend(8) utility on any NQS server to monitor interactive

terminal session (tty) activity on that server. If tty activity equals or exceeds the

input or output thresholds you set, NQE suspends batch activity. When

interactive activity drops below the thresholds you specify, batch work is

resumed.

Client nodes provide access to the following client commands: nqe(1) (which

invokes the NQE GUI), cevent(1), cqsub(1), cqstatl(1), and cqdel(1).

Client nodes also require access to the FTA ftad daemon (which services FTA

requests issued by the requests and NQE itself). In a typical conﬁguration, there

would be many more client nodes than any other type of NQE node. Also, you

can conﬁgure the client nodes to use the ilb(1) utility so that a user may

execute a load-balanced interactive command; for more information, see

Chapter 15, page 361.

In addition to the client commands, server nodes provide access to the

following commands: qalter(1), qchkpnt(1), qconfigchk(1), qdel(1),

qlimit(1), qmgr(1), qmsg(1), qping(1), qstat(1), and qsub(1).

For a complete list of commands, see Appendix A, page 383.

1.3 Running NQE As an Environment

The example given in this section shows how the NQE components work as an

environment. For information about NQE user features and about setting NQE

environment variables, see Introducing NQE, publication IN–2153, and the NQE

User’s Guide, publication SG–2148. Both documents, as well as this

administration document, are available online (see Introducing NQE, publication

IN–2153, for information about accessing NQE documentation online).

Figure 1 shows a possible NQE conﬁguration. The user mary uses the client

workstation snow, which has an NQE client interface to the NQS server latte

(set by the environment variable NQS_SERVER to latte). mary wants the

output from her batch request to go to her research assistant (fred) at another

NQE client workstation, gale.

6 SG–2150 3.3

NQE Overview [1]

user fred on workstation gale

running an NQE client

latte

running NQS

a10261

user mary on workstation snow

running an NQE client

NQS_SERVER latte

Figure 1. Sample NQE Conﬁguration

User mary has several batch requests to run. One of the requests (named jjob)

looks like the following example:

#QSUB -eo #merge stdout and stderr

#QSUB -J m #append NQS job log to stdout

#QSUB -o "%fred@gale/nppa_latte:/home/gale/fred/mary.jjob.output"

#returns stdout to fred@gale

#QSUB -me #sends mail to submitter at completion

#QSUB #optional qsub delimiter

date #prints date

rft -user mary -host snow -domain nppa_latte -nopassword -function get jan.data nqs.data

#use FTA to transfer jan.data from latte to the NQS server (latte)

cc loop.c -o prog.out #compile loop.c./prog.out

rm -f loop.c prog.out jan.data nqs.data #delete files

echo job complete

The following embedded qsub option uses FTA to return the standard output

ﬁle from the request to fred at the workstation gale;nppa_latte is the FTA

domain:

#QSUB -o "%fred@gale/nppa_latte:/home/gale/fred/mary.jjob.output"

The request script uses FTA (the rft command) to transfer its ﬁles as shown in

the following example:

rft -user mary -host snow -domain nppa_latte -nopassword -function get jan.data nqs.data

SG–2150 3.3 7

NQE Administration

The FTA domain name nppa_latte and the option -nopassword indicate

that peer-to-peer authorization is used, so mary does not need to specify a

password; however, mary must have a .netrc ﬁle on latte to log into

fred’s account and mary must also have an account on gale with permission

to read fred’sﬁle (see the #QSUB example, above).

User mary submits the request by using the following command line

(alternatively, mary could submit the request by using the NQE GUI):

cqsub jjob

The request is sent to the NQS server latte, since mary ’s environment

variable NQS_SERVER is set to latte.

The load-balancing policy for mary’s site allows work to be shared among NQS

systems on latte,pendulum,telltale, and gevalia. Because of the

workload on the machines, mary’sﬁrst request is sent to gevalia, the second

and third are sent to latte, the fourth and ﬁfth are sent to pendulum, and the

sixth is sent to telltale. User mary does not need to know where her

requests are executing to ﬁnd out their status. She can use the NQE GUI

Status window to determine their status.

Because NQE GUI Status window is refreshed periodically, user mary can

monitor the progress of all her requests. Because she used the embedded

#QSUB -me option, she receives mail when each request completes.

For more information about FTA and rft syntax, about using #QSUB directives,

or about using the NQE GUI Status window to determine status of requests,

see the NQE User’s Guide, publication SG–2148.

1.4 NQE File Structure

Throughout this guide, the path /nqebase is used in place of the default NQE

path name, which is /opt/craysoft/nqe on UNICOS, UNICOS/mk, and

Solaris systems and is /usr/craysoft/nqe on all other supported platforms.

Figure 2 shows the NQE ﬁle structure.

8 SG–2150 3.3

NQE Overview [1]

a10527

bin etc examples include lib man src www

$NQE_VERSION

/nqebase

license.dat

nqs_config

name_map

fta.conf

cat1

cat3

cat5

cat7

cat8

cgi_src

cgi_bin

images

help

nqein

nqeout

database nqeinfo

ftaqueue

log

msqldb

nlbdir

fta_conf

config

policies

nqedb

nqedb_iddir

nqedbusers

spool

$HOST

directories

Symbolic links to /nqebase/$NQE_VERSION directories

/etc/nqeinfo is a symbolic link to this file

Symbolic link to $NQE_SPOOL as defined in nqeinfo file

Key

[/opt /usr]/nqebase

files

README

install.log

dependencies

news

5For UNICOS and UNICOS/mk systems only

6For UNICOS systems that run only the NQE subset (NQS and FTA components)

Figure 2. NQE File Structure

1.5 Using the World Wide Web Interface

The NQE release contains a World Wide Web (WWW) interface to NQE. You

can access the interface through WWW clients such as Mosaic or Netscape. A

single interface lets users submit requests (from a ﬁle or interactively), obtain

status on their requests, delete requests, signal requests, view output, and save

output. Online help is provided.

NQE administrators are encouraged to conﬁgure and customize this interface.

It is provided so that administrators may supply users of nonsupported NQE

platforms (such as personal computers) a tool that allows them to access NQE

resources.

For information about managing the interface, read the /nqebase/www/README

ﬁle. You can obtain the most current version of the NQE WWW interface at

ftp.cray.com in the /pub/nqe/www ﬁle.

SG–2150 3.3 9

NQE Administration

Note: The WWW interface is not available to UNICOS systems that run only

the NQE subset (NQS and FTA components).

10 SG–2150 3.3

Concepts and Terms [2]

This chapter discusses concepts and terms important to NQE use and

administration.

2.1 Batch Requests

Batch requests are shell scripts that are executed independently of any interactive

terminal connection. The operating system treats this shell script as the standard

input ﬁle (stdin). The only difference between this and a conventional shell

script is that you can include NQS options (preceded by a special preﬁx) in the

batch request ﬁle as comments before the ﬁrst executable shell command.

When a request is submitted from the local or remote host, the standard output

(stdout) and standard error (stderr)ﬁles are returned to the directory from

which the request was submitted or returned to a user-speciﬁed alternative

path. Optionally, users can request that stdout,stderr, and the job log ﬁle be

merged (a job log ﬁle contains messages of NQS activity about a request).

Batch requests can have the attributes that are described in the following

sections.

2.1.1 Nice Values

The nice value is the execution priority of the processes that form the batch

request. A user can explicitly set the nice value (through the Job Limits

selection of the Configure menu on the NQE GUI Submit window or as a

cqsub or qsub command option) or NQS can set the nice value implicitly,

based on the queue in which the request resides. Increasingly negative nice

values increase the relative execution priority of a process.

Warning: Do not specify a negative nice increment for a queue because it

may cause serious CPU scheduling problems, such as timeouts in system

daemons or interference with kernel scheduling.

2.1.2 Shell Interpretation

A batch request can specify the full path name of a shell to interpret its shell

script. If a user does not specify a shell, the user’s login shell is used.

When NQS initiates a request, it spawns a second shell.

SG–2150 3.3 11

NQE Administration

The second shell invoked is always /bin/sh unless another shell is speciﬁed

by the user. The two-shell method allows stdin read-ahead by commands

such as remsh and cat.

To deﬁne a shell for the ﬁrst shell invoked, users can use the General

Options selection of the Configure menu on the NQE GUI Submit window

or use the cqsub -s or qsub -s command.

Users can deﬁne a shell other than /bin/sh to interpret their batch request by

including the following line as the ﬁrst line of the ﬁle (before any #QSUB

directives):

#! shell_path

(such as /bin/csh)

You can include shell options on this line.

NQS sets the QSUB_SHELL environment variable to the shell the user is in

when executing a request. NQS sets the SHELL environment variable to the

initial shell executed by NQS.

The initial shell is not necessarily the same shell as the second shell. The second

shell will always be /bin/sh, unless the user includes #! shell_path as the ﬁrst

line of the batch request.

The following example uses the cqsub command and shows how to verify the

shells that an NQS request is using. User jjj uses csh as a login shell. The

batch request ﬁle job1 contains only one line, as follows:

ps -ef | fgrep jjj

The request is submitted by using the following command:

cqsub -s /bin/csh job1

The following output shows that the request was executed under /bin/sh

because jjj did not modify the ﬁrst line of the ﬁle as required:

jjj 11874 11873 2 15:18:17 ? 0:00 fgrep jjj

jjj 11355 11354 0 14:54:37 pts/0 0:00 -csh

jjj 11873 11871 2 15:18:17 ? 0:00 /bin/sh

/nqebase/nqeversion/poe/database/spool/scripts/++++2++cd4X+++

jjj 11871 11870 22 15:18:16 ? 0:00 -csh

jjj 11875 11874 9 15:18:17 ? 0:00 ps -ef

12 SG–2150 3.3

Concepts and Terms [2]

To run the request under csh, you must modify the batch request ﬁle as follows:

#!/bin/csh

ps -ef | fgrep jjj

The cqsub -s /bin/csh job1 command produces the following output:

jjj 11969 11967 19 15:23:06 ? 0:00 /bin/csh

/nqebase/nqeversion/pendulum/database/spool/scripts/++++3++cd4X+++

jjj 11355 11354 0 14:54:37 pts/0 0:00 -csh

jjj 11967 11966 5 15:23:05 ? 0:00 -csh

jjj 11974 11969 9 15:23:08 ? 0:00 ps -ef

If you want to use a one-shell invocation method, you can set the

NQSCHGINVOKE environment variable to true or yes. The environment

variable is set on a per-request basis; you must export environment variables by

using the General Options selection of the Configure menu on the NQE

GUI Submit window or by using the qsub -x option. If NQSCHGINVOKE is set

to true, and you do not request a shell (by using the General Options

selection of the Configure menu on the NQE GUI Submit window or by

using cqsub -s or qsub -s), NQS invokes the request owner’s UDB shell on

UNICOS and UNICOS/mk systems or their login shell on UNIX systems.

To set a ﬁxed shell path and invocation method, edit the nqeinfo ﬁle to deﬁne

the following two variables:

NQE_NQS_SHELLPATH

NQE_NQS_SHELLINVOCATION

The default values are a null string for the shell path and 2 for the invocation

method.

The allowed value for NQE_NQS_SHELLPATH is any valid shell path name. The

default null string for NQE_NQS_SHELLPATH uses the user’s login shell. If you

specify a shell path name for NQE_NQS_SHELLPATH, the shell you specify is

used for batch request processing.

The value speciﬁed by using the General Options selection of the

Configure menu on the NQE GUI Submit window or speciﬁed by using the

cqsub -s or qsub -s option, if used, overrides the system-level shell path

conﬁgured in the nqeinfo ﬁle.

SG–2150 3.3 13

NQE Administration

The allowed value for NQE_NQS_SHELLINVOCATION is 1 or 2. A value of 1 for

NQE_NQS_SHELLINVOCATION uses a one-shell invocation method for all NQS

requests. A value of 2 uses the default two-shell invocation method.

The value of any NQSCHGINVOKE environment variable received with a request

overrides the system-level invocation method conﬁgured in the nqeinfo ﬁle.

During NQS startup, the values of these two variables are veriﬁed. If a stat()

system call of a non-null shell path name fails, or if the value of the invocation

method is not either 1 or 2, the nqsdaemon aborts its startup. Messages

describing the problem are written to the NQS console ﬁle and/or the log ﬁle.

2.1.3 Alternate User Validation

Note: Alternate user validation applies only for NQS requests submitted

using the cqsub command.

By default, an NQE job is submitted for execution under the user name

executing the cqsub command. By using the cqsub -u command, or by

setting the User Name ﬁeld in the NQE GUI Submit display, a user can

submit a request for execution under a different user name.

The user account on the client workstation is referred to as the originating client

user account, and the user account on the NQS server is referred to as the target

user account.

The nqeinfo ﬁle variable NQE_NQS_NQCACCT controls which user account is

validated on the NQS_SERVER when a user submits a job for execution under a

different user name. The value of this variable on the NQS_SERVER host

determines which user name is used for validation on the NQS_SERVER.

The value ORIGIN means that the originating client user account is validated

on the NQS_SERVER. This means that the client user must have an account on

the NQS_SERVER with the same name (but not necessarily the same UID) as the

originating client user account.

The value TARGET means that the target user account is validated on the

NQS_SERVER. It is not necessary for the client user to have an account on the

NQS_SERVER with the same name as the client user account.

If the NQE_NQS_NQCACCT variable is not set on the NQS_SERVER, it defaults to

the value ORIGIN.

If NQE_NQS_NQCACCT is set to ORIGIN, and password validation is set on the

NQS_SERVER, then both the client user account on the NQS_SERVER and the

14 SG–2150 3.3

Concepts and Terms [2]

target user account on the NQS server must have the same password or the

password validation will fail.

2.1.4 Intraqueue Priority

The intraqueue priority determines the order in which requests are initiated.

After a request is accepted into a batch queue, the NQS scheduler calculates the

intraqueue priority each time it scans the requests in the queue. The order in

which queues are considered does not change; only the order in which requests

are selected from a queue changes. The eligible request with the highest

intraqueue priority is selected next for initiation. (Eligible means the request

meets all quotas such as run limit, user limit, and group limit). For additional

information, see Section 5.12, page 82.

2.1.5 Resource Limits

A request or the individual processes of a request can impose a set of limits on

the use of a resource. Typical limits are maximum ﬁle size, CPU time, and

maximum memory size. A user can explicitly set up resource limits by using

NQE GUI options or cqsub command options, or NQS can set the resource

limits implicitly, based on the batch queue in which the request executes.

The limits supported by NQS are described in Section 5.11, page 75.

2.2 Request States

The state of a request can be found by using the NQE GUI Status window or

the cqstatl -f or qstat -f command. The state is displayed after Status:

or at the top right of the detailed request display. (To access a detailed request

display through the NQE GUI Status window, double-click on a request line.)

An abbreviated form of the status also is displayed on the NQE GUI Status

window under the Job Status column or under the ST column of the request

summary display of the cqstatl -a or qstat -a command.

The current state of the request shown on the cqstatl or qstat display can

be composed of a major and a minor status value. Major status values are as

follows:

Code Description

A Arriving

SG–2150 3.3 15

NQE Administration

C Checkpointed

D Departing

E Exiting

H Held

N NQE Database request

Q Queued

R Routing (pipe queues only)

R Running (batch queues only)

S Suspended

U Unknown state

W Waiting for a date and/or time speciﬁed by the -a option to

cqsub, waiting for a license, or waiting for a network connection

Minor status values are described on the cqstatl(1) and qstat(1) man pages.

A batch request submitted to the NQE database typically progresses through

the following states; the ﬁrst four characters of a state are displayed in the ST

column of a database request summary (shown by using the cqstatl -a or

qstat -a command):

State Description

New The request is in the NQE database.

Pending The request is in the NQE database awaiting

scheduling.

Scheduled The request is in the NQE database and has been

scheduled by the NQE scheduler.

Submitted A copy of the request has been submitted from

the NQE database for processing.

Completed The copy of the request submitted from the NQE

database for processing has completed processing.

Terminated The copy of the request submitted from the NQE

database for processing has terminated.

A batch request submitted to a local pipe queue for routing to a batch queue

(deﬁned in the next section) typically progresses through the following states at

a local pipe queue:

16 SG–2150 3.3

Concepts and Terms [2]

State Description

queued Awaiting routing to another queue

routing Being moved to another queue

A request progresses through the following states in a batch queue:

State Description

arriving Being moved from another queue

queued Awaiting processing

running Being processed

waiting Waiting for a speciﬁed execution time

exiting Processing complete

departing Left the queue but not yet deleted

An executing request can also have the following states:

State Description

held Held by NQS operator action; resources are not

released.

suspended Processing temporarily suspended by an

operator; resources are released.

The ordering of requests within a queue does not always determine the order in

which the request is processed; the NQS request scheduler determines the

processing order, depending on the various limits that the system administrator

or operator imposes.

2.3 Queues

Aqueue is a set of batch requests. NQS assigns requests to a particular queue,

where they wait until they are selected for execution. NQS also assigns an

execution priority to each request. NQS executes each request according to its

priority and routes any output to the speciﬁed destination. The following

sections describe the two types of queues: batch and pipe.

NQE is shipped with one pipe queue and one batch queue conﬁgured on each

NQS server. The default pipe queue is nqenlb . The default batch queue is

nqebatch. This conﬁguration uses the nqenlb queue to send requests to the

NLB, which then sends requests to nqebatch on the most appropriate system,

SG–2150 3.3 17

NQE Administration

based on an NLB policy. The default NLB policy, called nqs, sends batch

requests to the system with the most available CPU cycles. If requests are

submitted to the queue nqebatch, the request runs on the local NQS server.

2.3.1 Batch Queues

Batch queues accept and process batch requests. Each batch queue has an

associated set of request and process resource limits. If a request is to be

accepted in a particular batch queue, no resource limit speciﬁed by the request

may exceed the corresponding limit speciﬁed by the target batch queue. If a

batch request fails to specify a resource limit that is enforced, NQS sets the limit

for the request to the corresponding default limit of the queue. The qmgr

commands deﬁne the queue default values.

Note: For UNICOS and UNICOS/mk systems, NQS assigns the limit for the

request to either the default limit of the queue or the user database (UDB)

limit, whichever is more restrictive.

If the qmgr manager lowers the request and process resource of a queue, all

requests that are already in the queue with quotas that exceed the new limits

remain in the queue through a "grandfather" clause.

Every batch queue also has a set of associated queue limits, which are described

in Section 2.5, page 24.

2.3.2 Pipe Queues

Pipe queues handle the routing and delivery of requests from one queue to

another. They serve as pipelines, transporting requests to other local and

remote queue destinations.

Pipe queues do not have associated quota limits (although they can have

attributes). Pipe queues have a set of associated queue destinations, on both

local and remote machines, to which they route requests. These destinations

can be batch queues or other pipe queues.

NLB pipe queues used for load balancing do not have destinations associated

with them.

Each request in a pipe queue is routed to one of the queue’s destinations.

Destinations are considered in the order in which the administrator conﬁgures

them. If a request cannot be accepted by a destination queue (for example, if its

resource requirements exceed those allowed for membership in the queue), the

18 SG–2150 3.3

Concepts and Terms [2]

next destination is considered. If no destination accepts the request, the request

is deleted, and the user receives a mail message.

If a destination is inaccessible (for example, if the network connection is broken

or if the loadonly limit for a queue has been reached), NQS tries to requeue

the request at speciﬁed intervals (deﬁned by the qmgr command set default

destination_retry wait) for a speciﬁed length of time (deﬁned by the

qmgr command set default destination_retry time). If these

attempts fail, NQS abandons the attempted request and the user receives a mail

message.

Each pipe queue has an associated program spawned to handle every request

initiated from the queue for routing and delivery. In the context of the

client/server network connection, this program is referred to as the pipeclient

process.

2.3.3 Queue, Queue Complex, and Global Limits

Queue, queue complex, and global limits (deﬁned beginning with Section 2.5,

page 24) limit the number of requests that can run concurrently. You can use

qmgr commands to set a ﬁnite value that limits the maximum number of

requests that can run at one time. Most limits can be set to unlimited. When

a queue is created, these limits are deﬁned as unspecified;unspecified

means that the queue has the default value for that limit.

You do not have to set every limit. A comprehensive set of limits is provided so

that you can conﬁgure the workload to meet your site’s needs.

2.4 Request Processing

This section provides summary information on the request submission process,

controlling requests, and monitoring requests.

2.4.1 Request Destination

By default, requests are sent to NQS. You may change the default and have

requests sent to the NQE database, or your users may select the destination of

their individual requests. For additional information about conﬁguring the

NQE database, see Chapter 9, page 231.

SG–2150 3.3 19

NQE Administration

2.4.2 NQS Server Local Submission

When a user submits a batch request to NQS, the request is sent to nqsdaemon.

The nqsdaemon checks the request qualiﬁers (if there are any) against the

deﬁned queue limits and attributes. Based on these checks, nqsdaemon accepts

or rejects the request. If the queue is a pipe queue, when nqsdaemon

determines that a request should be routed, it spawns the pipeclient

program to route the request from the pipe queue to another pipe or batch

queue. Figure 3 shows this process.

Request

executes

Batch

request nqsdaemon

Request

submitted

pipeclient nqsdaemon

Pipe

queue Batch

queue

a10262

Figure 3. Request Processing for Local Submission

Note: The concept of local submission does not apply for requests submitted

to the NQE database.

2.4.3 NQE Client Submission

A user can submit a request to NQS or to the NQE database. The following

sections describe the process of submitting a request to each destination.

2.4.3.1 Client Submission to NQS

When a user submits a request to NQS using the NQE GUI Submit window or

the NQE cqsub command, no queues are involved on the local host. The

request is sent to the netdaemon process on the server machine as speciﬁed by

the NQS_SERVER variable. The netdaemon creates a child process

(netserver) to handle the request. The child process tries to queue the request

with nqsdaemon.netserver ensures that the user has an account on the

target host and that the user name on the local machine is authorized to run

requests on the target machine.

The target nqsdaemon then checks the request qualiﬁers against the deﬁned

queue limits and attributes and, based on these checks, accepts or rejects the

request. Figure 4 shows this process.

20 SG–2150 3.3

Concepts and Terms [2]

pipeclient

Request executes

Batch

request

request Batch

queue

Local NQE client

netdaemon

netserver

Pipe

queue

nqsdaemon

NQS server

a10263

Figure 4. Request Processing for Client Submission to NQS

2.4.3.2 Client Submission to NQE Database

When a user submits a request to the NQE database using the NQE GUI

Submit window or the NQE cqsub command, the NQE scheduler determines

when and where the request will execute. The NQE database routes a copy of

the request to the lightweight server (LWS) on the node running the NQS

server. The LWS veriﬁes validation, sends a copy of the request to the NQS

batch queue for processing, and obtains exit status of completed requests.

Figure 5 shows request processing for client submission to the NQE database.

SG–2150 3.3 21

NQE Administration

NQE

client

Batch

request

NQE

scheduler

Client

displays

8Output

returned

Copy of

request

routed

NQS

batch

queue

LWS

Status

returned 6

Output

returned

NQE

database

a11561

Node A

Node B

Figure 5. Request Processing for Client Submission to the NQE Database

2.4.4 NQS Server Remote Submission

If the request is sent from one NQS system to a remote NQS system,

pipeclient sends the request to the remote netdaemon. The rest of the

processing is the same as it is for client submission to NQS. Figure 6 shows this

process.

Note: The concept of remote submission does not apply for requests

submitted to the NQE database.

22 SG–2150 3.3

Concepts and Terms [2]

pipeclient

Pipe

queue

Request

executes

Batch

request

nqsdaemon

Request

submitted

pipeclient

Local NQS

netdaemon

netserver

nqsdaemon nqsdaemon

NQS server

Pipe

queue

Batch

queue

a10265

Figure 6. Request Processing for Remote Submission

2.4.5 Daemon Processing

When nqsdaemon determines that a request is eligible to run, it spawns a

shepherd process. The shepherd process sets up the environment for the

request and runs it. It sends mail to the user if it cannot execute the request.

The shepherd process waits for the request to complete and returns output

ﬁle(s) to the speciﬁed or default ﬁle destination.

2.4.6 Controlling and Deleting Requests

NQS users can control or delete their own requests by using the NQE GUI

Status window Actions menu options or by using the cqdel or the qdel

command. NQS operators and managers can control requests with the

following qmgr commands (see Section 6.6, page 162, for a description of these

commands and examples of their use):

•abort request

•delete request

•hold request

•modify request

•move request

SG–2150 3.3 23

NQE Administration

•release request

•rerun request

•resume request

•schedule request (first,next,now,system)

•suspend request

Managers and operators can also delete requests from any user by using the

cqdel or qdel command.

2.4.7 Displaying Queue Status

The cqstatl command, the qstat command, and the qmgr commands show

long queues and show queues display the current status of NQS queues.

2.5 Queue Attributes

Queue attributes deﬁne the properties of a queue. A queue attribute can be

assigned by using the qmgr set attribute command. For a description of

how to set attributes, use the qmgr help set attribute command.

The following sections describe possible attributes for NQS queues. For

additional information about deﬁning queue properties, see Section 5.6, page 58.

2.5.1 Batch and Pipe Queue Attributes

The queue attributes described in the following sections apply to both batch

and pipe queues.

2.5.1.1 Access Restrictions

Queue access can be either restricted or unrestricted. If access is restricted, only

requests submitted by users deﬁned in the access set for the queue are accepted.

If access is unrestricted, any request can enter the queue.

The access set is composed of individual users or groups and is deﬁned by the

system administrator.

24 SG–2150 3.3

Concepts and Terms [2]

2.5.1.2 pipeonly

A batch queue or a pipe queue can be declared pipeonly, meaning that it can

accept requests only from a pipe queue. This declaration is useful when the

pipeclient process selects the ﬁnal queue, based on the network queue

conﬁguration. For example, if all requests are submitted to a pipe queue, the

pipe queue can retry submissions if no batch queues are currently accepting

requests. Another example might be that you want to conﬁgure your queues

such that requests of a certain size go to certain queues; if all requests are

submitted to pipe queues, the pipe queue can route the requests to the proper

queues without users having to know which queue to use.

2.5.1.3 Interqueue and Intraqueue Priority

The interqueue priority dictates the order in which queues of each type (batch

or pipe) are scanned in a search for the next request to process. The queue with

the highest priority is scanned ﬁrst.

The difference between interqueue and intraqueue priority is important. The

interqueue priority determines the order in which queues are searched for

requests to process; the intraqueue priority determines the order in which

requests within a queue are considered for initiation when the queue is

searched.

2.5.1.4 Queue Run Limit

The queue run limit is the maximum number of requests allowed to be

executing from the queue at any one time.

2.5.2 Batch Queue Attributes

The queue attributes described in the following sections apply only to batch

queues.

2.5.2.1 loadonly

You may not submit requests directly to a loadonly queue. Requests may

come only from a pipe queue. In other words, a loadonly queue is a

pipeonly queue that has the additional restriction of being able to accept only

a limited number of requests.

A batch queue can be declared loadonly, meaning that it can accept only a

limited number of requests. The number of requests that can be queued is

SG–2150 3.3 25

NQE Administration

restricted to the run limit of that queue. Therefore, if no other limits exist, a

loadonly queue accepts only the number of requests that it can run.

Speciﬁcally, the algorithm is the number of requests queued +number of requests

running +number of requests waiting +number of requests arriving <= run limit.

This algorithm can be used for load sharing between multiple machines or

across multiple queues on a single machine. In the example in Figure 7,

requests are submitted to the pipe queues batch@hot and batch@ice; they

are routed from these queues to the central pipe queue, which queries all three

batch queues on both hot and ice. The central pipe queue would try to route

a small request to smalljobs@hot ﬁrst, next try smalljobs@ice, and

continue down the list until a place in a queue became available. Without using

loadonly queues, the queue smalljobs@hot may accept the request, and the

request may remain queued.

Pipe queue

batch@ice

Central

pipe queue

smalljobs@hot

mediumjobs@hot

largejobs@hot

mediumjobs@ice

largejobs@hot

largejobs@ice

Pipe queue

batch@hot

smalljobs@hot

smalljobs@ice

mediumjobs@hot

Request

submitted

Request

submitted

a10266

Figure 7. Queue Conﬁguration That Uses theloadonly Attribute

2.5.2.2 Queue Group Limit

The queue group limit associated with each batch queue is the maximum

number of requests allowed to run in the queue at any one time that were

submitted by all users who are members of one group.

26 SG–2150 3.3

Concepts and Terms [2]

2.5.2.3 Queue Memory Limit

The queue memory limit associated with a batch queue is the maximum

amount of memory that can be requested by all running requests in the queue

at one time.

2.5.2.4 Queue User Limit

The queue user limit associated with a batch queue is the maximum number of

requests allowed to be run in the queue at any time by one user.

2.5.2.5 Queue MPP Processing Element (PE) Limit

For Cray MPP systems, each batch queue has an associated MPP PE limit. This

is the maximum number of MPP PEs that can be requested by all running jobs

in the queue at any one time.

2.5.2.6 Queue Quick-ﬁle Limit

For UNICOS systems with SSD solid-state storage devices, each batch queue

has an associated quick-ﬁle limit. This is the maximum size of secondary data

segments that can be allocated to all batch requests running concurrently in the

queue.

2.6 Queue States

At any time, the state of a queue is deﬁned by two properties:

•The queue’s ability to accept requests. The states associated with this

property are as follows:

State Description

CLOSED The NQS daemon (nqsdaemon) is not

running at the local host.

DISABLED The queue is not currently accepting requests.

ENABLED The queue is currently accepting requests.

•The queue’s ability to route (pipe queue) or initiate (batch queue) requests.

The states associated with this property are as follows:

SG–2150 3.3 27

NQE Administration

State Description

INACTIVE Queued requests are allowed to run, although

none are currently running.

RUNNING Queued requests are allowed to run, and some

are currently running.

SHUTDOWN NQS is not running on the host in which the

queue resides.

STOPPED Queued requests are not allowed to run, and

none are currently running.

STOPPING New queued requests are not allowed to run,

although currently executing requests are

running to completion.

2.7 Queue Complexes

Aqueue complex is a set of local batch queues. Each complex has a set of

associated attributes, which provide for control of the total number of

concurrently running requests in member queues. This, in turn, provides a level

of control between queue limits and global limits (see Section 2.5, page 24, for

information about queue attributes and Section 2.8, page 29, for information

about global limits). The following queue complex limits can be set:

•Group limits

•Memory limits

•Run limits

•User limits

•MPP processing element (PE) limits (CRAY T3D systems), or MPP

application processing elements (CRAY T3E systems, or number of

processors (IRIX systems)

•Quick-ﬁle limits (UNICOS systems with SSDs only)

Several queue complexes can be created at a given host, and a batch queue can

be a member of several complexes.

Note: A batch request is considered for running only when all limits of all

complexes of which the request is a member have been met.

28 SG–2150 3.3

Concepts and Terms [2]

Section 5.9, page 71, describes how to set queue complex limits.

2.8 Global Limits

Global limits restrict the total workload executing concurrently under NQS

control. While queue limits restrict requests in queues and complex limits

restrict requests in a complex, global limits restrict the activity in the entire NQS

system. The following global limits may be set:

•Batch limits

•Group limits

•Memory limits

•Pipe limits

•Tape drive limits

•User limits

•MPP processing element (PE) limits (CRAY T3D systems), or MPP

application processing elements (CRAY T3E systems, or number of

processors (IRIX systems)

•Quick-ﬁle limits (UNICOS systems with SSDs only)

Section 5.10, page 73, describes how to set global limits.

2.9 Load Balancing and Destination Selection

Load balancing is the process of allocating work (such as NQS batch requests) in

order to spread the work more evenly among the available hosts in a group of

NQE nodes in the NQE cluster. Load balancing can minimize instances in

which one machine has idle time while another remains saturated with work.

Load balancing can be done either by using the Cray Network Load Balancer

(NLB) or by using the NQE database and its associated scheduler. The two

methods are described in the following sections.

2.9.1 NLB

The following sections describe the concepts used in the Cray Network Load

Balancer (NLB).

SG–2150 3.3 29

NQE Administration

2.9.1.1 NLB Servers

The NLB server provides a generic, network-accessible data storage mechanism

that can be used for a variety of purposes, including load balancing, NQS

request status, and network conﬁguration. Because the data can be used for

various purposes, the server holds data as generic network data objects; it has

no knowledge of the meaning of the data it stores. The programs that load and

interrogate the database, known as collectors and clients, deﬁne the meaning of

the data in the server.

NLB servers can be replicated to ensure that if connection to one is lost, a

duplicate can be reached by collectors and clients. The server is a passive

process; it does not actively solicit data from other processes. The NLB

collectors periodically generate new information and send it to all conﬁgured

NLB servers. The various NLB clients query NLB servers one by one in the

conﬁgured order until they ﬁnd one that is running or until they exhaust the list.

Some object types require access control to prevent unauthorized entry and

extraction of data. Such objects are controlled with access control lists (ACLs)

used in conjunction with authentication data sent with each message to the

NLB server. ACLs are also groups of objects and can be edited and viewed

using nlbconfig. The master ACL controls access to all other ACLs; it is

deﬁned in the NLB conﬁguration ﬁle.

The server associates an ACL with each group of objects it maintains. Records

in the ACL consist of a user name, host name, and a set of privileges (read,

update,ordelete). There are two special ACL user names: OWNER and

WORLD. If an object has an owner attribute associated with it, the OWNER ACL

controls the particular user’s permissions. An ACL record with the same name

and host as the user making a request controls that user’s access rights, and the

WORLD record controls all other users.

The read privilege lets users extract an object from the server; the update

privilege lets users add new objects of that type or modify existing objects; and

the delete privilege lets users remove objects from the server.

When an object is sent to the server by an authenticated collector, a special

OWNER attribute may be present. This attribute is used to check permissions to

read the object on subsequent queries.

2.9.1.2 Destination Selection

Destination selection is the process of determining the best host to which to send

work. A destination selection policy (also called a load-balancing policy) is the

mechanism whereby the NLB server determines which host to recommend as

30 SG–2150 3.3

Concepts and Terms [2]

the target for work (such as a batch request). When a batch request is submitted

to a load-balanced queue within NQS, the NLB server applies a policy to the

current information it has on hosts in the group of NQE nodes in the NQE

cluster. It then provides NQS with a list of machines, ordered according to the

speciﬁcations of the policy.

An NQS pipe queue can be conﬁgured to obtain its destinations by applying a

policy rather than having the destinations deﬁned with qmgr commands. If you

deﬁne an NLB pipe queue, you do not deﬁne any destinations for it, because

the NLB selects destinations for you.

2.9.1.3 Policies

Aload-balancing policy is a set of equations used to select hosts and sort them

into an order based on the data held in the NLB.

2.9.1.4 NLB Collectors

NLB collectors periodically collect data about the machines on which they are

running and forward this data to the NLB server. Some of the data on machine

load and batch request status is gathered dynamically from the operating

system. Other data can be read from a ﬁle by the collector or written directly

into the NLB server using the nlbconfig program. These collectors reside in

the program ccollect. (The ccollect program will reﬂect the port number.)

For more information about NLB collectors, see Chapter 7, page 173.

2.9.1.5 NLB Clients

NLB clients query servers for information to use for destination selection or for

use in displays. Examples of NLB clients are the NQS pipeclient and the

NQE graphical user interface (GUI).

2.9.2 NQE Database

The NQE database provides the following:

•A mechanism for the client user to submit requests to a central storage

database.

•A scheduler that analyses the requests in the NQE database and chooses

when and where a request will run.

SG–2150 3.3 31

NQE Administration

•The ability for a request to be submitted to the selected NQS server once the

NQE scheduler has selected it.

Figure 8 shows the basic concept of the NQE database in the NQE:

Database Client commands

NQS

server

Scheduler

Client machine

Submit

run request

NQS

server

NQS

server

Decide where

and when to

run request request

a11563

Node A

Node B

Node C

Node D

Figure 8. Basic Concept of the NQE Database

The components of the NQE database are described in the following sections.

2.9.2.1 NQE Database Server (MSQL)

The NQE database server (mSQL) serves connections from clients in the

network or locally to access data in the database. The database used is mSQL,

and it has the following features:

•Simple, single-threaded network database server

32 SG–2150 3.3

Concepts and Terms [2]

•Relational database structure with queries issued in a simple form of SQL

2.9.2.2 NQE Database Monitor

The monitor is responsible for monitoring the state of the database and which

NQE database components are connected. Speciﬁcally, it determines which

component processes are connected and alive and, optionally, it purges old

requests (called tasks when they are within the database) from the database.

2.9.2.3 Scheduler

The scheduler analyses data in the database, making scheduling decisions.

Speciﬁcally, it does the following:

•Tracks the lightweight servers (LWSs) currently available for use in

destination selection.

•Receives new requests, veriﬁes them for validity, and accepts or rejects them.

•Executes a regular scheduling pass to ﬁnd NQS servers to run pending

requests.

Administrator-deﬁned functions may be written in Tcl to perform site-speciﬁc

scheduling (see Chapter 10, page 261).

2.9.2.4 Lightweight Server (LWS) (Bridge to NQS)

The LWS performs the following tasks:

•Obtains request information from the database for requests assigned to it by

the scheduler.

•Checks authorization ﬁles locally.

•Changes context and submits requests to NQS.

•Obtains the exit status of completed requests from NQS and updates the

NQE database with this information.

2.10 File Transfer

The following sections describe terms commonly used with the File Transfer

Agent (FTA). FTA provides ﬁle transfer between remote systems on a network.

SG–2150 3.3 33

NQE Administration

2.10.1 File Transfer Services

Aﬁle transfer service is a program that provides FTA with access to a network

system that uses a speciﬁcﬁle transfer protocol.

2.10.2 Domain Names

A unique FTA domain_name is assigned to each of the ﬁle transfer services that

are available to FTA. A domain name is subsequently used to identify a speciﬁc

transfer service.

2.10.3 FTA Users

FTA deﬁnes speciﬁc types of users, as follows:

•Admin users: A user or a member of a group who is listed in the FTA

conﬁguration ﬁle as an administrator.

•Status users: A user or member of a group who is listed in the FTA

conﬁguration ﬁle as a status user.

2.10.4 Network Peer-to-peer Authorization

Network peer-to-peer authorization ( NPPA) lets users transfer ﬁles without

sending a password across the network. It requires FTA on the local system and

support for network peer-to-peer authorization on the remote system. It can be

used to authorize both batch and interactive ﬁle transfers.

2.10.5 File Transfer Requests

Aﬁle transfer request is an object containing information that describes the ﬁle

transfer operations to be performed by FTA on behalf of a user. Each request is

a separate ﬁle, which is located in the FTA queue directory.

2.10.6 Queue Directories

Aqueue directory is a ﬁle system directory that contains ﬁle transfer request ﬁles.

34 SG–2150 3.3

Conﬁguring NQE variables [3]

The NQE conﬁguration utility (nqeconfig(8)) assists administrators in creating

and maintaining the NQE conﬁguration ﬁle (nqeinfo ﬁle). The NQE

conﬁguration ﬁle contains the NQE conﬁguration variables and is created by

the NQE installation procedure. All conﬁgured NQE server nodes and clients

must each have a unique NQE conﬁguration ﬁle.

When you use the NQE conﬁguration utility, each NQE conﬁguration variable

is displayed along with its value. Most variables are conﬁgurable. However,

some variables are derived from the values of other variables and may not be

changed. This helps to ensure that changes are propagated throughout the ﬁle

and reduces the risk of misconﬁguration due to conﬂicting values of related

variables.

Note: Some variables may be set in the user’s environment to indicate

individual preferences. The NQE conﬁguration ﬁle variables are used only if

an individual has not indicated a preference.

This chapter describes how to start and use the NQE conﬁguration utility. For a

complete list of all NQE conﬁguration variables, see the nqeinfo(5) man page

or the NQE conﬁguration utility Help facility.

Note: For UNICOS 9.0.xand 9.1 systems upgrading to this NQE release,

Appendix C, page 395, includes a list of NQE conﬁguration ﬁle (nqeinfo

ﬁle) names that were previously included in the config.h ﬁle.

3.1 Starting the NQE Conﬁguration Utility

To start the NQE conﬁguration utility, use the nqeconfig(8) command. The

nqeconfig(8) command has the following syntax:

nqeconfig [-a] [-f ﬁlename][-o ﬁlename]

[-D variable=value[,variable=value,...]]

The nqeconfig(8) command accepts the following options:

Option Description

-a Instructs nqeconfig(8) to run in autopilot mode.

No prompting occurs when this command is run

SG–2150 3.3 35

NQE Administration

in this mode. The conﬁguration ﬁle is generated

using the values from the ﬁle indicated by the

NQEINFOFILE environment variable (or from the

/etc/nqeinfo ﬁle if the NQEINFOFILE variable

is not set), from the values in the input ﬁle

speciﬁed on the command line with the -f

option, and from other values speciﬁed with the

-D option.

-f ﬁlename Indicates the input ﬁle used to specify additional

conﬁguration variables and new values for

existing variables. The format of this ﬁle is the

same as that of the nqeinfo ﬁle.

-o ﬁlename Speciﬁes the ﬁle location for the new

conﬁguration ﬁle. This location may be

overridden in the File menu of the

nqeconfig(8) display.

-D variable=value

[,variable=value,...]

Allows you to specify, on the command line,

additional conﬁguration variables and new values

for existing variables. The argument to this

variable is a comma-separated list of variable=value

pairs. Multiple -D options may be speciﬁed.

3.2 Editing the NQE Conﬁguration Variables

By default, after you execute the nqeconfig(8) command, the following NQE

Configuration display appears, as shown in Figure 9:

36 SG–2150 3.3

Conﬁguring NQE variables [3]

a11555

Figure 9. NQE Configuration Display, Condensed View

Caution: Always stop NQE before making changes to the NQE

conﬁguration. Each NQE command and server program reads the

conﬁguration ﬁle once during command or server initialization. Changes

made to the conﬁguration ﬁle while NQE is running can result in NQE

commands and servers using different conﬁguration ﬁle values, which will

result in unpredictable problems.

The NQE Configuration display presents the NQE conﬁguration variables

and their associated values. Values with a dark background are derived from

the values of other variables and may not be edited. Other values may be

SG–2150 3.3 37

NQE Administration

edited either by entering the appropriate text or by choosing a value from a set

of options. The scrollbar allows you to scroll through the list.

When you have ﬁnished making conﬁguration changes, write the conﬁguration

changes to the new conﬁguration ﬁle by clicking on the OK button, or you can

cancel the changes by clicking on the Cancel button.

Context-sensitive help is available at the bottom of the display.

3.3 NQE Configuration Display Menus

The following menus provide additional functionality:

Menu Description

File menu Contains options that allow you to save your

changes to the default ﬁle location, to the location

speciﬁed with the -o option on the command

line, to specify another ﬁle and save the changes,

or to exit the utility without saving changes. The

File menu is as follows:

38 SG–2150 3.3

Conﬁguring NQE variables [3]

a11556

Figure 10. NQE Configuration Display, File Menu

Action menu Allows you to revert to the NQE default

conﬁguration values, to revert to the values in

use when the utility started, or to add variables

to or remove variables from the conﬁguration.

The Action menu is as follows:

SG–2150 3.3 39

NQE Administration

a11557

Figure 11. NQE Configuration Display, Action Menu

View menu Allows you to select one of three views:

Condensed,Full,orInstall. The View menu

is as follows:

40 SG–2150 3.3

Conﬁguring NQE variables [3]

a11558

Figure 12. NQE Configuration Display, View Menu

The Condensed view displays only the variables

that you may modify. This is the default view

when you execute the nqeconfig(8) command.

The Condensed view is shown in Figure 9, page

37.

The Full view, as shown below, displays all

variables that will be placed in the output ﬁle:

SG–2150 3.3 41

NQE Administration

a11559

Figure 13. NQE Configuration Display, Full View

The Install view, which is shown as follows, is

functional only during the NQE installation

process; this view applies to all systems except

UNICOS/mk systems, UNICOS systems, and

IRIX systems that use the inst utility:

42 SG–2150 3.3

Conﬁguring NQE variables [3]

a11552

Figure 14. NQE Configuration Display, Install View

SG–2150 3.3 43

Starting and Stopping NQE [4]

This chapter describes how to start and stop NQE.

Caution: You must monitor the ﬁles in $NQE_SPOOL/log to ensure the log

ﬁles for the startup and shutdown utilities (for nqeinit(8), nqestop(8),

qstart(8), and qstop(8)) and related utilities do not accumulate and

consume space needlessly.

4.1 Starting NQE

The nqeinit(8) script is called to start the NQE cluster and to initialize its

components. It checks the NQE_DEFAULT_COMPLIST variable in the

nqeinfo(5) ﬁle for the list of components to be started. You can set this list to

one or more of any of the following valid NQE components:

NQS Network Queuing System

NLB Network Load Balancer

COLLECTOR NLB collector

NQEDB NQE database

MONITOR NQE database monitor

SCHEDULER NQS scheduler

LWS Lightweight server

Beginning with the NQE 3.3 release, the default component list consists of the

following components: NQS,NLB, and COLLECTOR.

Component names in the NQE_DEFAULT_COMPLIST component list can be

speciﬁed in upper or lower case, but not mixed case for one component name.

When more than one component name is speciﬁed (that is, a list of

components), the component names are separated by a comma (,).

You can use the -C component option of the nqeinit command to override the

NQE_DEFAULT_COMPLIST variable component list. When you use the nqeinit

-C option, only the components speciﬁed (see valid component names in Section

4.1, page 45, above) are started and the NQE_DEFAULT_COMPLIST variable in

the nqeinfo ﬁle is ignored for this invocation of the nqeinit(8) command.

SG–2150 3.3 45

NQE Administration

Note: For UNICOS systems that run only the NQE subset (NQS and FTA

components), use the qstart(8) command instead of the nqeinit(8) script

to start NQS. For additional information, see Section 6.2, page 134.

Note: Start any NQE nodes conﬁgured to run the NQE database server or

the NLB server ﬁrst because each node once started sends system status

information to the NLB server for use in load balancing.

Typically, nqeinit(8) should be called as part of the normal system startup

procedure by using either a direct call in a system startup script or a startup

utility such as sdaemon(8).

For information about nqeinit(8) command-line options, see the nqeinit(8)

man page.

For information about symbolic links used by NQE, see the nqemaint(8) man

page.

4.2 Stopping NQE

The nqestop(8) script is called to stop the NQE cluster and to shutdown its

components. It checks the NQE_DEFAULT_COMPLIST variable in the

nqeinfo(5) ﬁle for the list of components to be stopped. You can set this list to

one or more of any of the following valid NQE components: NQS,COLLECTOR,

NLB,NQEDB,MONITOR,SCHEDULER, and LWS. For more information on these

components, see Section 4.1, page 45. For more information on the

NQE_DEFAULT_COMPLIST variable, see Section 4.1, page 45.

You can use the -C component option of the nqestop command to override the

NQE_DEFAULT_COMPLIST variable component list. When you use the

nqeinit -C option, only the components speciﬁed (see valid component

names in , above) are stopped and the NQE_DEFAULT_COMPLIST variable in

the nqeinfo ﬁle is ignored for that invocation of the nqestop(8) command.

Note: For UNICOS systems that run only the NQE subset (NQS and FTA

components), use the qstop(8) command to stop NQS. For additional

information, see Section 6.3, page 140

Typically, nqestop(8) should be called as part of the normal system shutdown

procedure by using either a direct call in a system shutdown script or a

shutdown utility such as sdaemon(8).

For information about nqestop(8) command-line options, see the nqestop(8)

man page.

46 SG–2150 3.3

NQS Conﬁguration [5]

When you install NQE, a default conﬁguration is provided for you. You may

not ﬁnd it necessary to make many changes to the initial installation and

conﬁguration as it is described in the installation instructions. However, if you

do need to make changes to your NQE conﬁguration, this chapter describes

how to make changes to the NQS conﬁguration in the network and on the local

host. All of these actions are performed using the qmgr utility. An NQS

manager can also perform the daily operations of the NQS system as described

in Chapter 6, page 133.

This chapter discusses the following topics:

•Conﬁguration guidelines

•Overview of manager actions

•Deﬁning the NQS hosts in the network

•Deﬁning managers and operators

•Conﬁguring the scope of the user status display

•Deﬁning NQS queues

•Deﬁning a default queue

•Restricting user access to queues

•Deﬁning queue complexes

•Deﬁning global limits

•Deﬁning per-request and per-process limits

•Deﬁning job scheduling parameters

•Deﬁning the political scheduling daemon threshold

•Uniﬁed Resource Manager (URM) for UNICOS systems

•Miser scheduler for IRIX systems

•NQS periodic checkpointing

•Setting the log ﬁle

SG–2150 3.3 47

NQE Administration

•Setting the debug level

•Establishing NQS accounting procedures

•Setting the validation strategy for remote access

•Deﬁning other system parameters (such as the default time a request can

wait in a pipe queue and the name of the user who sends NQS mail)

•Using a script ﬁle as input to the qmgr utility, and generating a script ﬁle for

the currently deﬁned conﬁguration

•Output validation

•NQS and multilevel security on UNICOS systems and on UNICOS/mk

systems

•NQS user exits for UNICOS and UNICOS/mk systems

5.1 Conﬁguration Guidelines

You can use the qmgr(8) subsystem to conﬁgure the local NQS host to meet

site-speciﬁc requirements. However, many of the NQS parameters are already

conﬁgured with a chosen default value and may not require modiﬁcation.

Usually, NQS conﬁguration is done only once, when NQS is started for the ﬁrst

time. This conﬁguration is preserved through subsequent shutdowns and

startups. You can change the conﬁguration at any NQS startup by providing a

new conﬁguration ﬁle as input to the qstart -i command or the nqeinit -i

command (see the qstart(8) and nqeinit(8) man pages for more

information).

You should consider the following guidelines when conﬁguring NQS:

•Abbreviated forms of commands can be used with qmgr; however, you

should use the full form in standard conﬁguration scripts to avoid confusion.

•If you do not use load balancing, you can provide better control by deﬁning

batch queues as pipeonly and creating pipe queues that have batch queue

destinations.

•Avoid conﬁguring pipe queues that have other local pipe queues as

destinations, which can create a loop. No check exists for an occurrence of

this in NQS.

48 SG–2150 3.3

NQS Conﬁguration [5]

•When a request is forwarded from a nonload-balancing pipe queue, the

destinations are considered in the order you conﬁgured them by using the

qmgr add destination command. A request is accepted into the ﬁrst

batch queue with per-process and per-request limits that are not exceeded

by the request. Therefore, always set the order for pipe queue destinations

and batch queue limits so that a batch request is accepted by the most

appropriate queue.

•The scheduler weighting factors have signiﬁcant value only when they are

compared with each other. See Section 2.1.4, page 15, for a description of

intraqueue priority and Section 5.12, page 82, for a description and examples

of the set sched_factor commands.

•When deﬁning checkpoint_directory, consider whether a speciﬁc

device has sufﬁcient space available to save the checkpoint images of all

currently executing batch requests.

The absolute_pathname that you select as the checkpoint directory must be an

absolute path name to a valid directory that has only owner read, write, and

search permissions (NQS sets the permission bits to 0700). The directory

named by absolute_pathname must also be retained across UNICOS system

restarts (you should not use the /tmp directory) and should be dedicated to

NQS checkpoint ﬁles. The checkpoint ﬁles that are created are used to

restart the NQS jobs when NQS restarts.

5.2 Overview of NQS Manager Actions

An NQS manager is responsible for the conﬁguration of an NQS system. An

NQS manager also can perform all of the operator actions; see Chapter 6, page

133, for a description of operator actions.

SG–2150 3.3 49

NQE Administration

The actions for managing a conﬁguration include using the qmgr utility to do

the following:

•Deﬁne the NQS systems in the network

•Deﬁne the users who can be NQS managers or operators

•Create NQS queues

•Restrict user access (if desired) to NQS queues, and set the type of user

validation to authenticate the users’identities

•Deﬁne other system parameters such as the name of the default NQS queue,

the name of the log ﬁle, and the retry limits to use when an attempt to send

a request on to another system fails

After the conﬁguration is initially deﬁned, an NQS manager can change it by

using the qmgr utility. Changes can be made to any of the parameters when the

NQS system is running without stopping and restarting the system.

Note: Except for deﬁning the list of NQS systems in the network, the

nqsdaemon must be started before you can deﬁne or change any other

conﬁguration items; see Section 6.2, page 134, for a description of how to

start nqsdaemon.

5.3 Deﬁning NQS Hosts in the Network

Each NQS system in the network must know about the other NQS systems in

the network. If NQS will not be communicating with any remote hosts, you

need only the local host deﬁned. Typically, the qmgr commands used to deﬁne

hosts appear in the NQS conﬁguration ﬁle.

Because each NQS server in a TCP/IP network can have multiple host names

and Internet addresses (usually one for each network to which the server is

connected or for each interface the server has), it may not be sufﬁcient to

uniquely identify the server by host name and Internet address. Therefore, NQS

uses machine IDs (mids) to deﬁne each server in the network.

When NQS tries to connect between two hosts, it veriﬁes that the name

provided by the TCP/IP protocol has the same name and a corresponding mid

on both hosts.

The hostname or alias associated with the mid is used to obtain the network

address from the /etc/hosts ﬁle. When NQS detects a connection from

another machine, it is given the peer network address, which is then located in

50 SG–2150 3.3

NQS Conﬁguration [5]

the /etc/hosts ﬁle, yielding the network path corresponding to an alias or

hostname in the network database. Some systems may store host name

information on NIS, NIS+, or DSN. The network path is then used to verify the

mid of the peer. If the mids and names do not match, the connection is refused.

Table 1 describes the elements in each host deﬁnition.

Table 1. Information for deﬁning machines

Item Description

mid A machine ID number in the NQS database that has a maximum value of 231-1 and is

unique for each machine in the network. If you do not supply a mid, NQS creates one

for you from the lower 31 bits of the TCP/IP address of the host.

hostname A unique name for each machine in the network; the name speciﬁed must correspond

to the machine’s entry in the /etc/hosts ﬁle (see hosts(5) for more information).

agents Agents available to spool output on the machine. The following agents are supported

(see Section 5.3.1, page 52):

fta File Transfer Agent (FTA)

nqs NQS internal spooling

alias A local machine name or another network interface that consists of a maximum of 255

characters. You must deﬁne all network interfaces or requests will be rejected.

If you are conﬁguring more than one NQS server, you must add NQS mids to

each NQS database. NQE clients do not need mids.

The mid and host name must be the same in the database of each machine in

the network. Aliases must be unique to each machine in the local conﬁguration,

but may differ from server to server.

Note: After the NQS database is generated, the mid for the local machine

should not be changed. If a change is required, the local NQS database must

be re-created and all requests are lost.

The agents element deﬁnes how the standard error and standard output ﬁles of

completed requests will be returned to the submitting user. For more

information, see Section 5.3.1.

A machine alias is known only to the local server. However, a server can be

known by more than one alias. The alias list may include host names associated

SG–2150 3.3 51

NQE Administration

with any interface on the local host. An alias is required for each possible route

between hosts.

5.3.1 Conﬁguring Remote Output Agents

You can set the output agent for each NQS host deﬁned in the NQS database.

The output agent at each host deﬁnes how the standard error and standard

output ﬁles of completed requests are returned to the submitting user.

Note: Output agents are not conﬁgured for clients. Client output return uses

the File Transfer Agent (FTA), then RCP. NQS always uses FTA with the

default domain, which is inet. For information about FTA and network

peer-to-peer authorization (NPPA) of users, see Chapter 13, page 317.

When you specify nqs (the default output agent), NQS tries to connect directly

to the remote NQS host to transfer the ﬁles. If any errors occur during the

processing, the output is returned to the user’s home directory on the execution

host. If for some reason, this is not possible (for example, if the owner does not

have write permission), NQS will place the ﬁles in

$NQE_NQS_SPOOL/private/root/failed.NQE_NQS_SPOOL is deﬁned in

the nqeinfo ﬁle.

When you specify fta, NQS passes control of the output ﬁle transfer to FTA by

creating an FTA ﬁle transfer request to move the output ﬁle to the remote host.

When you specify fta as the output agent, NQS validation is used; for detailed

information, see Chapter 13, page 317, and the nqsfts(8) man page. If any

errors occur during the processing of the output ﬁle transfer, FTA will save the

transfer request and try to transfer it again, or return the output to the user’s

home directory on the execution host. If the error is transient (for example, the

network failed during the ﬁle transfer), FTA retries the transfer request.

You can use the following qmgr commands to add or delete the output agents,

respectively. You must include either the machine ID (mid) or the host name:

add output_agent agent mid|host

delete output_agent agent mid|host

The order in which you add output agents is important. The order in which

you add the agents becomes the order in which the agents are used to attempt

transfer.

To display current conﬁguration, use either of the following qmgr commands:

show mid

show mid hostname|mid

52 SG–2150 3.3

NQS Conﬁguration [5]

In the resulting display, the output agents are shown in the column called

AGENTS.

The following list shows the output agents that you can specify and their

descriptions:

Agent Description

<NONE> NQS immediately places the output ﬁles in the

user’s home directory on the host that executed

the request. The user receives a mail message

when the ﬁles are returned.

To set the agent to <NONE>, use the following

command:

delete output_agent nqs [mid,hostname]

fta NQS creates an FTA ﬁle transfer request to

transfer the output ﬁle to the remote host.

fta nqs NQS tries to create an FTA ﬁle transfer request to

handle the output ﬁle transfer. If FTA fails, NQS

tries to connect to the NQS system on the remote

host and directly transfer the request output ﬁle.

nqs NQS tries to connect to the NQS system on the

remote host and directly transfer the request’s

output ﬁle. This option directs NQS to handle the

output ﬁle transfer directly. This is the default

agent.

nqs fta NQS tries to connect to the NQS system on the to

the remote host and directly transfer the request’s

output ﬁle. If NQS fails, NQS tries to create an

FTA ﬁle transfer request to handle the output ﬁle

transfer.

The nqs output agent is conﬁgured automatically unless you conﬁgure the

output agent differently.

Note: In the case that all transfer agents fail to return output, the output is

placed in the user’s home directory on the host that executed the request.

This is the same as conﬁguring with output agent <NONE>.

SG–2150 3.3 53

NQE Administration

An output agent should always be conﬁgured for the local host to avoid output

being inadvertently returned to the user’s home directory on the host of

execution; this is usually done by specifying the nqs agent.

See Chapter 13, page 317, and the fta(8), nqsfts(8), and fta.conf(5) man

pages for details about how to conﬁgure FTA. NQS uses the FTA domain name

nqs-rqs to spool output over TCP/IP.

5.3.2 Commands for Deﬁning Machines

You can use the following qmgr command to add a new entry to the mid

database (see Table 1, page 51, for an explanation of mid,hostname,agent, and

alias). You do not have to specify a mid; if you do not, qmgr creates one for you

from the lower 31 bits of the TCP/IP address for the host. An optional list of

aliases may be supplied on the same line. You do not enter the commands on

client systems or issue add mid commands for client machines.

add mid [mid]hostname[alias alias ...]

The following command adds an alias name to the list of aliases for the system

with the speciﬁed mid or hostname:

add name [=] alias mid|hostname

The following command adds an output agent to the list of output agents for

the system with the speciﬁed mid or hostname.

add output_agent [=] agent mid|hostname

See Section 5.3.1, page 52, for more information on output agents.

A similar series of delete commands can be used to delete an entry

completely from the list, delete an alias name from an entry, and delete an

output agent from an entry. You can specify either a mid or a hostname:

delete mid mid|hostname

delete name [=] alias

delete output_agent [=] agent mid|hostname

To display information about a speciﬁcmid or hostname, use the following qmgr

command:

show mid [mid|hostname]

To display information about all known mids, use the following qmgr command:

show mid

54 SG–2150 3.3

NQS Conﬁguration [5]

See Section 5.3.1, page 52, for an example display.

5.3.3 TCP/IP Network Conﬁguration Example

Figure 15 shows an example of a network that consists of four machines, each

with two paths. In the example, hn refers to host name, and na refers to

network address.

rain-ip

na =

128.162.11.1

ec-net = 128.162.10

rain-ec

na =

128.162.10.1

squall-ip

na =

128.162.11.2

squall-ec

na =

128.162.10.2

gale-ip

na =

128.162.11.3

gale-ec

na =

128.162.10.3

gust-ip

na =

128.162.11.4

gust-ec

na =

128.162.10.4

ip-net = 128.162.11

mid

= 10619649

= rain

mid

= 10619650

= squall

mid

= 10619651

= gale

mid

= 10619652

= gust

a10268

Figure 15. Example of a TCP/IP network

In this example, the /etc/hosts ﬁle contains the following:

128.162.12.0 rain rain-ip

128.162.10.1 rain-ec

128.162.11.2 squall squall-ip

128.162.10.2 squall-ec

128.162.11.3 gale gale-ip

128.162.10.3 gale-ec

128.162.11.4 gust gust-ip

128.162.10.4 gust-ec

SG–2150 3.3 55

NQE Administration

Table 2 shows the contents of the NQS network database for the previous

example:

Table 2. Machine IDs, names, and output agents

Machine ID Principal name Agents Aliases

10619649 rain nqs fta rain-ip, rain-ec

10619650 squall nqs fta squall-ip, squall-ec

10619651 gale nqs gale-ip, gale-ec

10619652 mist nqs mist-ip, mist-ec

The qmgr commands used to create the database in the preceding example are

as follows (you may supply your own mid value):

add mid rain rain-ip rain-ec

add output_agent fta rain

add mid squall squall-ip squall-ec

add output_agent fta squall

add mid gale gale-ip gale-ec

add mid mist mist-ip mist-ec

To create the database on each NQS server, you would enter these commands

on each.

5.3.4 Stand-alone Conﬁguration Example

If you are running NQS but will not be accessing any other systems in the

network, a mid database must still be created, consisting of the machine on

which NQS is running. This mid database is automatically created for you

during installation and system startup.

5.4 Deﬁning Managers and Operators

You can deﬁne two special classes of users: managers and operators. NQS

qmgr managers have full access to all qmgr commands to monitor, control, and

conﬁgure NQS. Operators are allowed to monitor and control all queues and

requests. The only qmgr commands available to users without special

privileges are show,help,exit, and quit.

56 SG–2150 3.3

NQS Conﬁguration [5]

When NQS is initially installed, root must run qmgr ﬁrst to deﬁne other users

as either an NQS manager or an operator. root cannot be deleted from the list

of NQS managers. On a UNICOS system that is running MLS or on a

UNICOS/mk system that is running Cray ML-Safe and that has a PAL assigned

to the qmgr program, people in the default qmgr PAL categories can also deﬁne

other users as either an NQS manager or operator.

Managers can execute all qmgr commands; operators can execute only a subset

of the qmgr commands that allow them to monitor and control submitted batch

requests when they are in local NQS queues. An operator cannot deﬁne another

user as an operator or as a manager. Only a manager can add and delete

managers or operators.

5.4.1 Commands for Deﬁning Managers and Operators

The following qmgr commands add a user name to the list of managers or list

of operators, respectively, for the local NQS system:

add managers username:m

add managers username:o

The sufﬁx indicates that the user is a manager (:m) or an operator (:o).

If you want to set the list of NQS managers or NQS operators to a single user

name (in addition to root), you can use one of the following two commands

because any users deﬁned previously as managers or operators (except root)

are removed from the list.

set managers username:m

set managers username:o

To delete a user name from the list of managers or operators, use one of the

following commands.

delete managers username:m

delete managers username:o

To display the currently deﬁned managers and operators, use the following

qmgr command:

show managers

See Section 6.4.2, page 150, for an example display.

SG–2150 3.3 57

NQE Administration

5.4.2 Example of Adding Managers and Operators

To add a user called abc to the list of operators or to set the list of managers to

one user called xyz, use the following qmgr commands:

add managers abc:o

set managers xyz:m

5.5 Conﬁguring the Scope of the User Status Display

NQE allows the administrator to expand the default scope of the information

displayed to non-NQS managers using the qstat(1) or cqstatl(1) commands.

The default behavior for these commands is to only display information to

non-NQS managers regarding jobs that they have submitted themselves. To

allow users to display the status of all jobs residing at that NQS node when

they execute the qstat(1) or cqstatl(1) command, use the nqeconfig(1)

command and deﬁne the nqeinfo ﬁle variable NQE_NQS_QSTAT_SHOWALL to

be 1.

Note: NQE must be stopped and restarted for this change to take effect.

5.6 Deﬁning NQS Queues

NQS has both batch and pipe queues. Batch queues accept and process batch

requests; pipe queues receive batch requests and then route those requests to

another destination. Section 2.3, page 17, provides background information

about queues and how they work.

NQE is shipped with one pipe queue and one batch queue conﬁgured on each

NQS server. The default pipe queue is nqenlb . The default batch queue is

nqebatch. This conﬁguration uses the nqenlb queue to send requests to the

NLB, which then sends requests to nqebatch on the most appropriate system,

based on an NLB policy. The default NLB policy, called nqs, sends batch

requests to the system with the most available CPU cycles. If requests are

submitted to the queue nqebatch, the request runs on the local NQS server.

To create batch or pipe queues, use the following qmgr commands:

create batch_queue characteristics

create pipe_queue characteristics

Table 3 shows the characteristics you can deﬁne for an NQS queue.

58 SG–2150 3.3

NQS Conﬁguration [5]

Table 3. Deﬁnable queue characteristics

Characteristic Description Queue type

queue_name Each NQS queue must have a name that is

unique among the other NQS queues deﬁned at

this host. This is the name users use when

submitting requests.

The queue name can consist of a maximum of

15 characters, and it can consist of any

printable character, except @,=,(,),], and the

space character. The name cannot begin with a

number (0 through 9).

Batch and Pipe

destination Each NQS pipe queue must have one or more

destinations, which can be either another NQS

pipe or batch queue.

Pipe

The destination queue can be in one of the

following forms:

local_queuename

local_queuename@local_hostname

remote_queuename@local_hostname

remote_queuename@[remote_mid]

Any hostname must be deﬁned in the NQS

conﬁguration machine ID (mid) database. For a

remote queue, the last of the preceding forms

lets you specify the mid rather than the host

name (for example, bqueue15@[23]).

The mid must be enclosed within brackets.

run_limit By default, a queue can process only one

request at a time (although any number may be

waiting in the queue). You can increase this

limit by deﬁning a run limit for a queue. This

limit sets the maximum number of requests that

can be processed in the queue at any one time.

Batch and Pipe

SG–2150 3.3 59

NQE Administration

Characteristic Description Queue type

interqueue_priority Each queue has an interqueue priority. This

deﬁnes the order in which queues are searched

to ﬁnd the next request to process. The queue

with the highest priority is scanned ﬁrst. The

priority is an unsigned integer in the range from

0 (lowest priority) through 63 (highest priority).

Requests also have an intraqueue priority that a

user can specify when submitting a request.

This is different from interqueue priority. The

request intraqueue priority determines the

order in which requests are considered for

initiation when a queue is searched.

Batch and Pipe

loadonly qualiﬁer By default, an NQS batch queue can receive

requests either directly from a user submitting

the request or from a pipe queue. A batch

queue can be declared loadonly, meaning

that it can accept only a limited number of

requests and requests must be routed through a

local or remote pipe queue. The number of

requests that can be queued is restricted to the

runlimit of that queue (the runlimit is the

number of requests that can be processed).

Therefore, if there are no other limits to

consider, a loadonly queue accepts only the

number of requests that it can run. See Section

2.5.2, page 25, for a description of how

loadonly queues can be used.

Batch

pipeonly qualiﬁer If a queue has the characteristic pipeonly,a

user cannot submit a request directly to the

queue. The queue can receive only requests

sent from a local NQS pipe queue.

Batch and Pipe

60 SG–2150 3.3

NQS Conﬁguration [5]

Characteristic Description Queue type

server NQS pipe queues can be associated with a

server from which they will receive requests.

This server is an image the pipe queue runs to

do work. For example, you must deﬁne a

server when you create pipe queues for load

balancing. If you specify pipeclient, NQS

looks for the binary in the NQE_bin directory

as conﬁgured in the /etc/nqeinfo ﬁle. If the

pipeclient is not in that directory, then you

must specify the absolute location. It is

recommended that you use pipeclient.

A pipe queue can be deﬁned as a

destination-selection (load-balancing), as

described in Section 5.6.4, page 65. When you

deﬁne a destination-selection queue, you must

include, as part of the server deﬁnition, the

characters CRI_DS in uppercase, the

load-balancing policy name (the default is

nqs), and the TCP/IP host and service name

on which the NLB server(s) are running (the

default is the NLB_SERVER deﬁned in the

nqeinfo ﬁle).

Pipe

These are the basic characteristics of an NQS queue. You also can deﬁne other

controls on the use of a queue, as follows:

•You can deﬁne a list of users who have permission to use a queue. Requests

belonging to a user who is not on this list cannot be placed in the queue.

See Section 5.8, page 69.

•You can specify global system defaults for queues. See Section 5.10, page 73.

•You can specify limits on the number and size of the requests in a queue, as

described in Section 5.6.1.

5.6.1 Setting Queue Limits

To specify limits on the requests running in a queue, use the following qmgr

command:

set queue option = limit queuename

SG–2150 3.3 61

NQE Administration

An NQS operator or manager can executed this command. The option can be

one of the following:

Option Description

group_limit Sets the maximum number of requests allowed to

run in the queue at one time from users in one

group.

memory_limit Sets the maximum amount of memory that can be

requested by all running requests in the queue at

one time.

run_limit Sets the maximum number of batch requests that

can run in a queue concurrently. You also can set

this limit by using the command create batch

queue run_limit.

user_limit Sets the maximum number of requests allowed to

be run in the queue at one time by one user.

mpp_pe_limit Sets the maximum number of MPP processing

elements (PEs) that are available to all batch

requests running concurrently in a queue.

quickfile_limit Sets the quickﬁle space limit for a queue. The

limit determines the maximum quickﬁle space

that can be allocated to all batch requests running

concurrently in a queue. The queue must exist

already and be a batch type queue.

Some queue limits are enforced only for certain machines. For more

information on these limits, see Table 4, page 77.

5.6.2 Hints for Deﬁning Queues

The NQS daemon must be started before you can create or change the

characteristics of a queue because nqsdaemon is the process that manipulates

queues.

The destinations for an NQS pipe queue are usually NQS batch queues,

although they could be any type of queue, such as a pipe queue on a speciﬁc

remote machine.

Before a queue can receive requests, it must be enabled by using the qmgr

command enable queue (see Section 6.5.1, page 160). Enabling a queue means

62 SG–2150 3.3

NQS Conﬁguration [5]

that requests can be placed in the queue. Before a queue can process its

requests, the queue must be started using the qmgr command start queue

(see Section 6.5.2, page 161).

Avoid conﬁguring pipe queues that have other local pipe queues as

destinations, which can create a loop. NQS has no check for this situation.

5.6.3 Commands Used to Deﬁne Queues

The ﬁrst time a queue is deﬁned, it must be created by using one of the

following qmgr commands:

create batch_queue queuename \

priority = queue-priority[loadonly] [pipeonly] \

[run_limit = run-limit]

create pipe_queue queuename \

priority = queue-priority[pipeonly] \

[destination = (destinations)] \

[run_limit = run-limit]\

[server = (pipeclient_and_options)]

See Table 3, page 59, for a description of these parameters. The queuename

argument and the priority parameter are required. A pipe queue (unless it is

a destination-selection (load-balancing) queue) also must have at least one

destination deﬁned by using this command, the add destination command,

or the set destination command.

The destinations argument can be one or more destinations; destinations must be

separated with a comma.

Note: See Section 5.6.4, page 65, for information on conﬁguring a

destination-selection queue.

5.6.3.1 Adding Destinations to a Pipe Queue

To add destinations to those already deﬁned for a pipe queue, use the following

command:

add destination [=] destinations queuename \[position]

The destinations argument is one or more destinations to be added to the list of

destinations for queuename. If you specify more than one destination, they must

be enclosed in parentheses and separated with a comma. If you omit the

SG–2150 3.3 63

NQE Administration

position argument, the destinations are added at the end of the existing

destinations deﬁned for queuename.

The position argument can be one of the following:

Position Description

first Places the speciﬁed destinations at the start of the

existing list

before old-des Places the speciﬁed destinations in the list

immediately before the existing destination old-des

after old-des Places the speciﬁed destinations in the list

immediately after the existing destination old-des

last Places the speciﬁed destinations at the end of the

existing list

Destinations are not used in destination-selection (load-balancing) queues.

Note: A pipe queue’s destination list should not contain any elements that

are disabled batch queues. In the event that this does occur, any jobs that are

submitted to the pipe queue remain stuck in the pipe queue if they cannot be

sent to any of the other destinations in the list. Because the disabled batch

queue exists, NQS waits for the queue to become enabled or for it to be

deleted before it moves the job from the pipe queue. To ensure that jobs are

not sent to a particular destination in the pipe queue’s list, remove the

destination from the list rather than disabling the batch queue.

5.6.3.2 Resetting Destinations for a Queue

If you want to change the destinations for a queue, you can use the following

command:

set destination [=] destinations queuename

If you include more than one destination, separate them with a comma.

This command discards all the previous destinations.

64 SG–2150 3.3

NQS Conﬁguration [5]

5.6.3.3 Deleting Destinations from a Queue

To delete one or more destinations from the list of those deﬁned for a pipe

queue, use the following command:

delete destination [=] destinations queuename

Separate the destinations with a comma.

Any requests in the queue that are currently being transferred to a destination

that is deleted by this command are allowed to transfer successfully.

Requests can be submitted to a queue that has no destinations, but the requests

are not routed until a destination is deﬁned for the queue.

5.6.3.4 Changing the Interqueue Priority for a Queue

To change the interqueue priority for an existing queue, use the following

command:

set priority = priority queuename

5.6.3.5 Changing the Run Limit for a Queue

To change the run limit for an existing NQS queue, use the following command:

set queue run_limit = run-limit queuename

5.6.3.6 Changing the Pipe Client Server for a Queue

To change the pipe client server that is invoked to process a request sent to the

speciﬁed NQS queue, use the following command:

set pipe_client = (client-and-arguments)queuename

5.6.4 Commands for Conﬁguring Destination-selection Queues

Load balancing is described in Chapter 8, page 193. The pipe queue nqenlb is

deﬁned by default to accept requests that use load balancing. The following

qmgr command creates a destination-selection (load-balancing) pipe queue

named nlbqueue:

create pipe_queue nlbqueue priority=priority \

server=(pipeclient CRI_DS [policyname][hostname:port])

SG–2150 3.3 65

NQE Administration

The arguments unique to creating a destination selection queue are as follows:

•The name of the executable for the pipe client server (pipeclient).

•The characters CRI_DS in uppercase, which mark this as a

destination-selection pipe queue.

•The load-balancing policy name (such as nqs). This policy must be deﬁned

in the NLB policies ﬁle. If this ﬁeld is omitted, the policy name defaults

to nqs.

•An optional list of 1 to 8 host:port pairs that deﬁne the TCP/IP host and

service name where the NLB server(s) are running. If this ﬁeld is omitted,

the NLB database server name defaults to the hosts conﬁgured in the NLB.

The NLB_SERVER is deﬁned in the nqeinfo ﬁle. There should be one pair

for each NLB server from which you want to gather host information. Only

one is necessary, but if servers are replicated for redundancy in case of

network failure, all servers should be included. In the example, hostname is

the host name where the server resides and port is a service name (from the

/etc/services ﬁle) or a port number on which the server is listening.

After the qmgr create command is issued, users can submit requests for

destination selection to the queue nlbqueue.

If you want this new queue to be the default for requests, use the following

qmgr command:

set default batch_request queue nlbqueue

5.6.5 Displaying Details of the Currently Deﬁned Queues

You must use the cqstatl or qstat command (instead of the qmgr utility) to

display details about an NQS queue; for example:

cqstatl -f queues

See Section 6.4.4, page 153, for an example display.

5.6.6 Examples of Deﬁning Queues

In the following example, an NQS pipe queue is required that routes requests to

a remote NQS system called host1. A maximum of two requests can be

processed in the NQS pipe queue at any one time. The following qmgr

commands are required:

66 SG–2150 3.3

NQS Conﬁguration [5]

%qmgr

Qmgr: create pipe_queue standard priority=60 server=(pipeclient)

Qmgr: set queue run_limit=2 standard

Qmgr: add destination st_express@host1 standard

Qmgr: add destination st_little@host1 standard

Qmgr: add destination st_medium@host1 standard

Qmgr: quit%

SG–2150 3.3 67

NQE Administration

This queue could also be deﬁned in one command, as follows:

%qmgr

Qmgr: create pipe_queue standard priority=60 server=(pipeclient)

destination=(st_express@host1,st_little@host1,st_medium@host1)

run_limit=2

5.6.6.1 Example of Changing the Order of the Destinations

The order of the destinations is important because this is the order in which

NQS tries to route a request. In this example, if you want to move st_little

to the beginning of the destination list, you could type in the following two

qmgr commands:

delete destination st_little@host1 standard

add destination st_little@host1 standard first

To redeﬁne all the destinations for the queue, use the following qmgr command:

set destination=(st_little@host1, st_express@host1,

st_medium@host1) standard

5.6.7 Deleting a Queue

After a queue has been stopped and disabled, delete it by using the following

qmgr command:

delete queue queuename

If the queuename argument is also the default queue, you should deﬁne a new

default queue (see Section 5.7).

5.7 Deﬁning a Default Queue

To deﬁne an NQS queue to be the default queue, use the following qmgr

command:

set default batch_request queue queuename

The queuename argument can be the name of any NQS batch queue that you

have already created.

68 SG–2150 3.3

NQS Conﬁguration [5]

To change the deﬁnition of the default queue so that there is no longer a default

queue, use either of the following qmgr commands:

set no_default batch_request queue

set default batch_request queue none

5.7.1 Displaying the Current Default Queue

To display the current default queue, use the following qmgr command:

show parameters

The setting is shown next to Default batch_request queue. See Section

6.4.1, page 142, for an example display.

5.7.2 Example of Deﬁning a Default Queue

To deﬁne the default NQS queue to be bqueue10, use the following qmgr

command:

set default batch_request queue bqueue10

5.8 Restricting User Access to Queues

When you initially create an NQS queue, any user can submit a request to it. To

restrict user access to a queue, create a list of the users and a list of the groups

whose members can access the queue. These lists are held in the NQS

conﬁguration database and NQS manager can edit them by using qmgr

commands.

5.8.1 Hints on Restricting User Access to Queues

For a user to have access to a queue, one of the following requirements must be

true:

•Access to the queue is unrestricted (this is true when a queue is ﬁrst created

or when the qmgr command set unrestricted_access was issued for

the queue).

•The user belongs to a group that was added to the list of groups that can

access the queue by using the qmgr command add groups.

SG–2150 3.3 69

NQE Administration

•The user was added to the list of users who can access the queue by using

the qmgr command add users.root does not have automatic access to all

queues.

If the access to the queue is unrestricted, you cannot use the add groups or

add users command. You must ﬁrst set the queue to have no access by using

the qmgr command set no_access.

5.8.2 Commands Available to Restrict User Access

To restrict the access to the queue, use qmgr commands, as follows:

1. Deﬁne the queue as having no access by any user, using the following qmgr

command:

set no_access queuename

2. Add individual users, or user groups, to the list of users or groups that can

submit requests to the queue, as follows:

add users = (user-names)queuename

add groups = (group-names)queuename

The user-names argument is one or more user names; group-names is one or

more group names. If you specify more than one user name or group

name, you must enclose all the names in parentheses and separate them

with a space or a comma. Use the numeric UNIX user IDs and group IDs

(which must be enclosed in brackets []) as an alternative to user names

and group names.

If you later want to allow any user to access the queue, enter the following

qmgr command:

set unrestricted_access queuename

To delete users or groups from the list of those allowed to access a queue, use

the following qmgr commands:

delete users = (user-names)queuename

delete groups = (group-names)queuename

70 SG–2150 3.3

NQS Conﬁguration [5]

5.8.3 Displaying Details of the Currently Deﬁned Queues

To display the current restrictions on user and group access to a queue, use the

cqstatl or the qstat command instead of a qmgr utility; for example:

cqstatl -f queues

The access restrictions appear on the display under the heading <ACCESS>.

See Section 6.4.4, page 153, for an example display.

5.8.4 Example of Restricting User Access

In the following example, you want to restrict access to an NQS queue called

standard. Unless the access permissions to a queue have been changed, any

user can access it. You ﬁrst issue the set no_access command to restrict all

users, and then add those groups you want to have access. To restrict access to

only those users belonging to a UNIX user group called research, enter the

following two qmgr commands:

set no_access standard

add groups research standard

5.9 Deﬁning Queue Complexes

To create a queue complex (a set of batch queues), use the following qmgr

command:

create complex = (queuename(s))complexname

To add or remove queues in an existing complex, use the following qmgr

commands:

add queues = (queuename(s))complexname

remove queues = (queuename(s))complexname

Note: The difference between the commands remove queues and delete

queues is important. The remove queues command removes a queue from

the queue complex, but the queue still exists. The delete queues

command deletes the queue completely.

SG–2150 3.3 71

NQE Administration

After a complex has been created and the appropriate queues added to it,

associate complex limits with it by using the following qmgr command:

set complex option=limit complexname

The option provides for control of the total number of concurrently running

requests in the queues on the local host. option may be one of the following:

Option Description

group_limit Sets the maximum number of requests that all

users in a group can run concurrently in all

queues in the complex

memory_limit Sets the maximum amount of memory for all

requests running concurrently in all queues in the

complex

mpp_pe_limit Each batch queue has an associated MPP PE

limit. This is the maximum number of MPP PEs

that can be requested by all running jobs in the

queue at any one time.

quickfile_limit (UNICOS systems with SSD solid state storage

devices) Each batch queue has an associated

quick-ﬁle limit. This is the maximum size of

secondary data segments that can be requested by

all running jobs in the queue at any one time.

run_limit Sets the maximum number of requests allowed to

run concurrently in all queues in the complex

user_limit Sets the maximum number of requests that any

one user is allowed to run concurrently in all

queues in the complex

Note: A batch request is considered for running only when all limits of all

complexes of which the request is a member have been met.

NQS managers and operators can set queue complex limits. Some complex

limits are enforced only on certain machines. For more information on what

limits are enforced, see Table 4, page 77.

72 SG–2150 3.3

NQS Conﬁguration [5]

5.9.1 Queue Complex Examples

The following example creates a queue complex named weather that contains

the bqueue11,bqueue12, and bqueue13 queues:

create complex=( bqueue11,bqueue12,bqueue13) weather

The following example limits all users in one group to a maximum of 20

requests in the queue complex weather:

set complex group_limit=20 weather

5.10 Deﬁning Global Limits

To set limits on the total workload executing concurrently under NQS control

on the local host, use the following qmgr command:

set global option=limit

Queue limits restrict requests in queues and complex limits restrict requests in a

complex. Global limits restrict the activity in the entire NQS system. NQS

managers and operators can set global limits.

The option can be one of the following:

Option Description

batch_limit Sets the maximum number of batch requests

allowed to run concurrently at the host.

group_limit Sets the maximum number of batch requests all

users in a group can run at the host.

memory_limit Sets the maximum amount of memory that can be

allocated to all batch requests running

concurrently at the host.

mpp_pe_limit The maximum number of MPP PEs that can be

requested by all batch requests running

concurrently under NQS control.

pipe_limit Sets the maximum number of pipe requests

allowed to run concurrently at the host.

quickfile_limit (UNICOS systems with SSDs) The maximum

amount of secondary data segment space that can

SG–2150 3.3 73

NQE Administration

be requested by all batch requests running

concurrently under NQS control.

tape_drive_limit Sets the maximum number of tape drives per

device group that can be requested by all batch

requests running concurrently at the host. NQS

supports eight tape groups (see the qmgr(8) man

page).

user_limit Sets the maximum number of batch requests that

any one user is allowed to run concurrently at the

host.

Some global limits are enforced only on certain machines. For more information

on what limits are enforced, see Table 4, page 77.

5.10.1 Displaying the Current Global Limits

To display the current global limits, use the following qmgr command:

show global_parameters

The resulting display resembles the following:

Global batch group run-limit: 20

Global batch run-limit: 30

Global batch user run-limit: 20

Global MPP Processor Element limit: unspecified

Global memory limit: unlimited

Global pipe limit: 20

Global quick-file limit: unlimited

Global tape-drive a limit: unspecified

Global tape-drive b limit: unspecified

Global tape-drive c limit: unspecified

Global tape-drive d limit: unspecified

Global tape-drive e limit: unspecified

Global tape-drive f limit: unspecified

Global tape-drive g limit: unspecified

Global tape-drive h limit: unspecified

You also can see these limits in the show parameters display. See Section

6.4.1, page 142, for an example. Some parameters are not enforced if the

operating system does not support the feature, such as MPP processor elements.

74 SG–2150 3.3

NQS Conﬁguration [5]

5.10.2 Example of Setting Limits

To set global limits as they are displayed in the previous display, use the

following qmgr commands:

set global group_limit = 20

set global batch_limit = 30

set global user_limit = 20

set global pipe_limit = 20

5.11 Deﬁning Per-request and Per-process Limits

To set per-process and per-request limits on batch queues, use the following

qmgr commands:

set per_process option = limit queuename

set per_request option = limit queuename

Per-request limits apply to the request as a whole; they limit the sum of the

resources used by all processes started by the request. Per-process limits apply to

individual processes started by a request (including the parent shell and each

command executed). For example, the per-request memory size limit is a limit

on the sum total of memory used by all processes started by the request; the

per-process memory size limit is the maximum amount of memory that each

process can use.

Per-process and per-request limits on a queue are compared with the limits set

on a request. If the request’s limits are lower, it can enter the queue. If the limits

are higher, the request cannot enter the queue. If requests have improperly set

limits and enter queues with lower limits than the request actually needs, the

request may abort when it attempts to exceed limits imposed by the queue.

Table 4, page 77, shows the limits that can be enforced on NQS requests. This

table uses the following notation:

Symbol Meaning

Y Limit is supported and enforced on this platform

N Limit is not supported or enforced on this platform

PP Limit is a per-process limit

SG–2150 3.3 75

NQE Administration

PR Limit is a per-request limit

Note: The limits included in Table 4 can be set by using the qsub command

option listed in the table or by using the NQE GUI Job Limits submenu of

the Configure menu on the Submit window. For detailed information

about the command options, see the qsub(1) man page. For detailed

information about using the NQE GUI Job Limits submenu of the

Configuration menu, see the NQE User’s Guide, publication SG–2148.

76 SG–2150 3.3

NQS Conﬁguration [5]

Table 4. Platform support of NQS limits

Run-time enforcement on executing NQS

Description Limit type qsub qualiﬁer

UNICOS/mk

and

UNICOS Solaris AIX DEC HP-UX IRIX

Core ﬁle size PP -lc Y Y YYN Y

Data segment size PP -ld N Y YYN Y

Permanent ﬁle size PP -lf Y Y YYN Y

PR -lF Y N NNN N

Memory size PP -lm Y N NNN Y

PR -lM Y N NNN Y2

MPP memory size PP -1 p_mpp_m Y N NNN N

PR -1 mpp_m Y N NNN N

Nice value PP -ln Y Y YYY Y

Quick ﬁle size (not on

UNICOS/mk)

PP -lq Y N NNN N

PR -lQ Y N NNN N

Stack segment size PP -ls N Y YYN Y

CPU time PP -lt Y Y YYN Y

PR -lT YY1Y1Y1NY2

1The per-request limit is enforced as if it were per-process.

SG–2150 3.3 77

NQE Administration

Run-time enforcement on executing NQS

Description Limit type qsub qualiﬁer

UNICOS/mk

and

UNICOS Solaris AIX DEC HP-UX IRIX

Tape drive limit PR -lU Y N NNN N

Temporary ﬁle size PP -lv N N NNN N

PR -lV Y N NNN N

Working set size PP -lw N Y YYN Y

MPP processing

elements (T3D systems)

or MPP application

processing elements

(T3E systems) or

Number of processors

(IRIX systems)

PR -l mpp_p Y N NNN Y2

MPP residency time

(T3D systems) or CPU

time for application PEs

(T3E systems)

PP -l p_mpp_t Y N NNN N

PR -l mpp_t Y N NNN N

Shared memory size PR -l shm_limit Y N NNN N

Shared memory

segment size

PR -l shm_segments Y N NNN N

The following options to the qmgr commands set per_process and set

per_request set per-process and per-request limits on NQS queues.

2Optionally enabled. See Section 5.11.4, page 82.

78 SG–2150 3.3

NQS Conﬁguration [5]

Option Description

corefile_limit Sets the maximum size (in bytes) of a core ﬁle

that may be created by a process in the speciﬁed

batch queue.

cpu_limit Sets the per-process or per-request maximum

CPU time limit (in seconds) for the speciﬁed

batch queue. On CRAY T3E systems, this CPU

time limit applies to command PEs (commands

and single-PE applications); for CRAY T3E

applications PEs (multi-PE applications),

maximum CPU time is set by using the set

per_process and set per_request

mpp_limit command.

The value can be speciﬁed as seconds,as

minutes:seconds or as hours:minutes:seconds.

data_limit Sets the maximum size (in bytes) for the data

segment of a process in the speciﬁed batch queue.

This deﬁnes how far a program may extend its

break with the sbrk () system call.

memory_limit Sets the per-process or per-request maximum

memory size limit for the speciﬁed batch queue.

mpp_memory_limit Sets the per-process or per-request MPP

application PE memory size requirements for the

speciﬁed batch queue.

mpp_pe_limit Sets the MPP processing element (PE) limit for a

batch queue against which the per-request MPP

PE limit for a request is compared.

mpp_time_limit Sets the CRAY T3D MPP per-process or

per-request wall-clock residency time limit or sets

the CRAY T3E MPP per-process or per-request

CPU time limit for application PEs (multi-PE

applications) for the subsequent acceptance of a

batch request into the named batch queue.

permfile_limit Sets the per-process or per-request maximum

permanent ﬁle size limit (in bytes) for the

speciﬁed batch queue. The per-process request

limit is the maximum size of ﬁles created by all

processes on any type of directory. The

SG–2150 3.3 79

NQE Administration

per-request limit is the maximum amount of disk

space used by all processes that make up an NQS

request.

quickfile_limit Sets the per-request maximum quickﬁle space for

a batch queue against which the per-request

quickﬁle space limit for a request is compared.

shm_limit Sets the maximum per-request shared memory

size limit for a batch queue against which the

per-request shared memory size limit for a

request is compared.

shm_segment Sets the maximum per-request shared memory

segment limit for a batch queue against which the

per-request shared memory segment limit for a

request is compared.

stack_limit Sets the per-process maximum size (in bytes) for

a stack segment in the speciﬁed batch queue.

This deﬁnes how far a program’s stack segment

may be extended automatically by the system.

tape_limit Sets the per-request maximum tape devices of the

speciﬁed group for the speciﬁed batch queue.

tempfile_limit Sets the per-request maximum temporary ﬁle

space for an NQS batch queue; not enforced on

Cray NQS but available for compatibility with

other versions of NQS.

working_set_limit Sets the maximum size (in bytes) of the working

set of a process in the speciﬁed batch queue. This

imposes a limit on the amount of physical

memory to be given to a process; if memory is

limited, the system may take memory from

processes that are exceeding their declared

working set size.

5.11.1 Displaying Per-process and Per-request Limits

To check the per-process and per-request limits assigned to a queue, use the

cqstatl -f or qstat -f command; for example:

cqstatl -f queuename

80 SG–2150 3.3

NQS Conﬁguration [5]

The limits appear under the characters <REQUEST LIMITS>. There is one

column for per-process limits and one for per-request limits. See the next section

for a partial example, or Section 6.4.4, page 153, for a full example display.

5.11.2 Example of Setting Per-process and Per-request Limits

The following qmgr commands set per-process limits for CPU time, permanent

ﬁle space, and memory:

set per_process cpu_limit = 10:0 bqueue15

set per_process permfile_limit = 1Mb bqueue15

When you set the limits to 10 minutes, as in this example, that value appears in

the cqstatl or qstat command display as 600 seconds.

The following qmgr commands set per-request limits for CPU time and

permanent ﬁle size:

set per_request cpu_limit = 10:20 bqueue15

set per_request permfile_limit = 1Mb bqueue15

SG–2150 3.3 81

NQE Administration

These commands result in the following CPU Time Limit and Memory Size

ﬁelds in the cqstatl output:

PROCESS LIMIT REQUEST LIMIT

CPU Time Limit <600sec> <620sec>

Memory Size <256mw> <256mw>...

Some parameters are not enforced if the operating system does not support the

feature; see Table 4, page 77, for a list of limit enforcements.

5.11.3 How Queue Limits Affect Requests

Request limits are set to the lower of the user-requested limit or the queue limit

you set when you created the queue. If a user does not specify a limit, the

request inherits the limit set on the queue.

For example, if a user speciﬁes a per-request memory limit, NQS tries to send it

to a queue that allows the speciﬁed limit. If the same user does not specify a

per-process memory limit, the request inherits the per-process memory limit of

the queue to which it is sent (even though it was not speciﬁed on the command

line).

5.11.4 Enabling per Request Limits on Memory Size, CPU Time, and Number of Processors on IRIX

Systems

Per request limits on memory size, CPU time, and number of processors must

be enabled on IRIX systems. These limits are not turned on by default. To

enable checking of these limits, add NQE_NQS_JL_INTERVAL =”seconds”to the

nqeinfo(5) ﬁle. The ”seconds”value speciﬁes the number of seconds between

limits checking operations. Values of 15 to 120 seconds are recommend, if limits

are enabled. Low interval values produce more accurate checking. High

interval values generate less overhead.

5.12 Deﬁning Job Scheduling Parameters

To set the weighting factors that will determine the intraqueue priority for

runnable requests, use the following qmgr commands:

set sched_factor share

set sched_factor cpu

set sched_factor memory

82 SG–2150 3.3

NQS Conﬁguration [5]

set sched_factor time

set sched_factor mpp_cpu

set sched_factor mpp_pe

set sched_factor user_priority

All requests in a speciﬁc queue are ranked according to four criteria; the

following weighting factors determine the importance of each criteria:

Factor Description

share Fair share (UNICOS and UNICOS/mk systems

only)

cpu Per-request CPU limit requested

memory Per-request memory limit requested

time Time the request has been waiting in the queue

for initiation

mpp_cpu Per-request MPP application PE CPU limit

requested

mpp_pe Per-request number of MPP application PEs

requested

user_priority Per-request user speciﬁed priority requested

Each value must be a positive integer less than 1,000,000, including 0. To turn

off a weighting factor, specify 0.

The values of the weighting factors are signiﬁcant only in relation to each other.

As the value of one factor increases relative to the others, it has more impact in

choosing a request from the suitable requests. If all weighting factors are 0, the

request is selected from a speciﬁc queue on a ﬁrst-in, ﬁrst-out (FIFO) basis.

For all supported platforms except UNICOS/mk, the NQS request scheduler

uses the following algorithm to select a request for initiation from all of the

eligible requests in a speciﬁc queue:

intraqueue_priority = ((time_in_queue/max_time_in_queue)*normalized_time_wt)+

((1.0 - (cpu_time /max_cpu_time))*normalized_cpu_wt)+

((1.0 - (memory_sz /max_memory_sz)) * normalized_mem_wt)+

((1.0 - (share_pri /max_share_pri)) * normalized_share_wt)+

((1.0 - (mpp_cpu_time /max_mpp_cpu_time)) * _mpp_cpu_wt)+

((1.0 - (mpp_pe /max_mpp_pe)) * normalized_mpp_pe_wt)+

((user_priority /max_user_priority)*normalized_user_pri_wt)

SG–2150 3.3 83

NQE Administration

For UNICOS/mk systems, the NQS request scheduler uses the following

algorithm to select a request for initiation from all of the eligible requests in a

speciﬁc queue:

intraqueue_priority=

((time_in_queue/max_time_in_queue)*rel_time_wt)+

((1.0 - (cpu_time /max_cpu_time))*rel_cpu_wt)+

((1.0 - (memory_sz /max_memory_sz)) * rel_mem_wt)+

((share_pri /max_share_pri)) * rel_share_wt)+

((1.0 - (mpp_cpu_time /max_mpp_cpu_time)) * rel_mpp_cpu_wt)+

((1.0 - (mpp_pe /max_mpp_pe)) * rel_mpp_pe_wt)+

((user_priority /max_user_priority)*rel_user_pri_wt

Each of the job-scheduling resources is scaled from 0 to 1 relative to the other

queued jobs. The scheduling weighting factors are also normalized. The

normalized share_wt,time_wt,cpu_wt, and mem_wt parameters are determined

by the qmgr command set sched_factor. They determine the amount of

inﬂuence of the fair-share usage, time-in-queue, total requested CPU time, and

total requested memory values, respectively, on the computation of the

intraqueue priority. The algorithm is designed so that, when all parameters are

set to the same value, all of the weighting factors will have an equal effect. The

share_wt value is valid only for UNICOS and UNICOS/mk systems.

The cpu_requested and the mem_requested values are the per-request CPU and

memory limits from the batch request. These values and the time-in-queue value

are from the batch request structure. The share_priority value is the fair-share

usage value and is valid only for UNICOS and UNICOS/mk systems. On

UNICOS systems, the fair-share usage value is obtained by accessing the lnode

information through the limits(2) system call if the user is active at that time;

otherwise, the UDB is used to obtain the value. On UNICOS/mk systems, the

share_priority is obtained from the political scheduling daemon.

On UNICOS/mk or IRIX systems, the number of requested application PEs

(mpp_pe) and the application PE CPU time (max_mpp_pe) weighting factors

allow you to further tune the NQS job initiation (intraqueue) priority formula.

If a user speciﬁes a priority by using the General Options selection of the

Configure menu on the NQE GUI Submit window, the priority is displayed

by the cqstatl or qstat command while the request resides in a pipe queue,

and it continues to be in the request queue if the request is routed to another

machine. The value speciﬁed by the user is not used in the calculation of the

intraqueue priority; it is still valid on NQE systems because it allows

compatibility with public-domain versions of NQS.

84 SG–2150 3.3

NQS Conﬁguration [5]

For UNICOS systems, the qsub -p priority and cqsub -p priority commands

specify the user-requested intraqueue priority for all systems or the Uniﬁed

Resource Manager (URM) priority increment for UNICOS systems running

URM. The priority is an integer between 0 and 63. If you do not use this option,

the default is 1.

If you are running URM, the priority is passed to URM during request

registration. URM adds this value as an increment value to the priority that it

calculates for the request.

To change the intraqueue priority of queued job requests, use the qmgr

schedule request commands. Scheduling a request changes the position of

a request within a queue. The request must still meet the global, complex,

queue, and user limits criteria before it is initiated, except when it is speciﬁed in

the schedule request now command. Requests in queues that have a

higher interqueue priority usually are initiated before requests in lower-priority

queues, regardless of whether they have been scheduled.

user_priority is the scheduling weighting factor for user speciﬁed priority.

In order to get the previously supported behavior of the qsub -p command

user speciﬁed priority for job initiation scheduling, you should set the

user_priority weighting factor to nonzero and set all of the other weighting

factors to 0. Then, only user speciﬁed priority will be used in determining a

job’s intraqueue priority for job initiation. The qmgr modify request

command can still be used to modify a job’s user priority.

The user speciﬁed priority is displayed in request full status displays of the

qstat(1), cqstatl(1), and the NQE GUI. The column name displays as

follows:

User Priority/URM Priority Increment: 22

The qsub -p submission option is used for both user priority and URM

priority. If NQS is conﬁgured for URM job scheduling, then any -p submission

option is handled as an URM minirank priority increment by the nqsdaemon.

Otherwise, the -p submission option is handled as a user speciﬁed priority,

which is used with the NQS job initiation formula when calculating intraqueue

priority for the job. Either NQS or URM is making job ordering decisions, but

not both at the same time.

5.12.1 Example Commands for Scheduler Weighting Factors

Perhaps the most effective way to use intraqueue priority is to set the scheduling

factors so a request is kept waiting in relation to how long it will take to run.

SG–2150 3.3 85

NQE Administration

For example, if there are two requests with a disparate need for CPU time, they

can greatly affect each other. If request big needs 900 seconds of CPU time and

request small needs only 10 seconds, letting big run before small is

signiﬁcant for the user who submits small.Ifbig will take 900 seconds to

run, the effect on big of letting small run ﬁrst is about 2% of big’s expected

run time. However, if big runs before small, the effect on small is about

6000% of small ’s expected run time. Thus, it makes more sense to give small

the higher priority.

However, it is also signiﬁcant how long a request has been waiting to run. If

big has been set aside in favor of smaller requests for several days, it too

suffers a disproportionate waiting time.

For UNICOS and UNICOS/mk systems, you can set a job-scheduling factor

that seeks to schedule according to the considerations just described. You can

schedule by the requested CPU time and the time the request has been waiting

in the queue. The following settings for the set sched_factor commands

equally weight the amount of time the request has been waiting and the

amount of CPU time requested (the qmgr command set sched_factor

share is valid only on UNICOS systems):

set sched_factor share = 0

set sched_factor cpu = 100

set sched_factor memory = 0

set sched_factor time = 100

set sched_factor mpp cpu = 0

set sched_factor mpp pe = 0

set sched_factor user specified priority = 0

The value of 100 is not signiﬁcant; what is signiﬁcant is that CPU time and time

waiting in the queue are equal.

In this scenario, the more CPU time the request needs, the lower its scheduling

priority. After it waits longer than its requested CPU time, it has a higher

scheduling priority. This stops a large request from being excluded indeﬁnitely

by many small requests.

86 SG–2150 3.3

NQS Conﬁguration [5]

5.12.2 Example Display of Scheduler Weighting Factors

The following example shows the qmgr display from a show parameters

command for a machine that has set a strategy that equally weights requested

CPU time and time waiting in a queue:

Job Initiation Weighting Factors:

Fair Share is not enabled.

Fair Share Priority = 0

Requested CPU Time = 1

Requested Memory = 0

Time-in-Queue = 1

Requested MPP CPU Time = 0

Requested MPP PEs = 0

User Specified Priority = 0

5.13 Deﬁning Political Scheduling Daemon Threshold

NQS uses various user, queue, complex and global conﬁgurable limits for

CRAY T3E application PEs when deciding whether a particular job should be

initiated. Since this information is not directly related to the actual availability

of PEs on a CRAY T3E system, NQS can initiate jobs which then wait in a

Global Resource Manager (GRM) queue, waiting for sufﬁcient application PEs

to become available.

You can conﬁgure NQS to query the CRAY T3E political scheduling daemon

(psched) to receive the current size of the maximum contiguous block of

application PEs. A threshold to be used before contacting the psched daemon

is conﬁgurable within the nqeinfo(5) ﬁle. This new variable is

NQE_PSCHED_THRESHOLD. The valid values for this variable are as follows:

•-1 (default value)

•0 through 100

This value represents a percentage amount. The default of -1 disables the

checking of the application PE size. This variable is not in the default nqeinfo

ﬁle. You can use the nqeconfig(8) command to add this variable to the

nqeinfo ﬁle.

The threshold percentage is applied against the number of application PEs that

NQS thinks are available, using NQS requested PE counts of running jobs and

the NQS global PE limit. If a job requests that threshold amount or a number of

application PEs greater than the threshold amount, then the nsqdaemon(8) calls

SG–2150 3.3 87

NQE Administration

the psched daemon to get the current maximum contiguous application PE

size. If the job’s requested application PEs are at or below this size, the job is

initiated. Otherwise, the job is not initiated and the job’s status display

substatus is set to mp. The mp substatus indicates that the job was not initiated

because there were not enough application PEs available.

Here is an example given this scenario:

The NQE_PSCHED_THRESHOLD variable is added to the nqeinfo(5) ﬁle and is

set to 80.

The NQS global application PE limit is 240.

Currently running jobs submitted through NQS have requested 200 application

PEs.

NQS assumes that 40 applications PEs are still available.

The application PE space is fragmented and only 37 application PEs are

available in a contiguous block.

The next job selected to be initiated requests 36 application PEs. The 80 percent

threshold is applied against the 40 PEs that NQS thinks are available. The job is

asking for application PEs above the threshold of 32 PEs, so the psched

daemon is contacted. The returned application PE contiguous job size of 37

allows this job to be initiated.

If the job had requested 38 application PEs, the job would not be initiated. A

status display for this job would show a substatus of mp, indicating that

insufﬁcient applications PEs were available to run the job.

If the nqsdaemon is unable to get application PE size information from the

psched daemon for any reason, the job is not held back but is initiated.

Messages are written to the NQS logﬁle describing the error.

5.14 Uniﬁed Resource Manager (URM) for UNICOS Systems

The UNICOS Uniﬁed Resource Manager (URM) is a job scheduler that provides

a high-level method of controlling the allocation of system resources to run

jobs. When you enable URM scheduling within NQS, NQS registers certain jobs

with URM. Which jobs are registered depends upon which job-scheduling type

the set job scheduling command has speciﬁed. The jobs registered with

URM are in a qmgr scheduling pool and show, in the qstat display, a major

status of Qand a substatus of us.

88 SG–2150 3.3

NQS Conﬁguration [5]

URM advises NQS when to initiate jobs that have been placed in the scheduling

pool. When URM scheduling is in effect, the intraqueue priority has no

meaning and is displayed as ---. All qmgr schedule commands, except qmgr

schedule now, have no effect when URM is recommending which jobs to

initiate. The qmgr schedule now command initiates a job immediately

without consulting URM as to whether the current machine load can tolerate

the submission.

For more information about URM, see UNICOS Resource Administration,

publication SG–2302.

5.15 Miser Scheduler for IRIX Systems

The IRIX 6.5 release introduces a new scheduler called the Miser scheduler. The

Miser scheduler (also referred to as Miser) is a predictive scheduler. As a

predictive scheduler, Miser evaluates the number of CPUs and amount of

memory a batch job will require. Using this information, Miser consults a

schedule that it maintains to track the utilization of CPU and memory resources

on the system. Miser determines the time when a batch job can be started and

have its requirement for CPU and memory usage met. The batch job is then

scheduled to begin execution based on this time.

Miser is beneﬁcial because it reserves the resources that a batch job requests. As

a result, when the batch job begins to execute, it does not need to compete with

other processes for CPU and memory resources. A disadvantage of using Miser

is that a job may have to wait for its reservation period before it can begin

executing. Additionally, batch jobs must provide the Miser scheduler with a list

of resources that they will require. Currently, those resources are the number of

CPUs, the amount of memory required, and the length of execution time

required.

For a request to be successfully submitted to the Miser scheduler on an NQE

execution host, the following criteria must be met:

•The job scheduling class must equal Miser Normal. For more information

on Miser Normal, see Section 5.15.1, page 90.

•The request speciﬁes a Miser resource reservation option. For more

information on the Miser resource reservation option, see the NQE User’s

Guide, publication SG–2148.

•The destination batch queue has been directed to forward requests to the

Miser scheduler. For more information on directing batch queues to forward

requests to the Miser scheduler, see Section 5.15.2, page 90.

SG–2150 3.3 89

NQE Administration

•Miser is running on the execution host.

•The Miser queue exists and is accessible on the execution host .

•The request can be scheduled to begin execution before the scheduling

window expires. The schedule for a request will depend upon the resources

requests (CPU, memory, and time). For more information, see Section 5.15.2,

page 90.

5.15.1 Setting the Job Scheduling Type

A new job scheduling type has been created to allow NQS to inter-operate with

the Miser scheduler on IRIX systems. The new scheduling type is Miser

Normal. The Miser Normal scheduling type is derived from the Nqs

Normal scheduling type. Under Miser Normal scheduling, the order of the

batch jobs in the NQS queues is determined by the queue ordering algorithms

that operate under Nqs Normal scheduling.

The difference between Miser Normal and Nqs Normal scheduling is

realized when a job is being analyzed to determine if it should be executed.

During this analysis, the request is scanned to determine if Miser resource

options have been speciﬁed. If Miser options are speciﬁed, the NQS batch

queue is directed to forward requests to the Miser scheduler and NQS queries

the Miser scheduler. If no Miser options are speciﬁed, the request is started as a

normal NQS request (the request will be processed by the operating system

default scheduler).

When querying the Miser scheduler, NQS tries to determine if the request can

be started by Miser, given the resources requested, before the deﬁned

scheduling window expires. If the request cannot be scheduled, NQS continues

to hold the request in the batch queue.

For more information on Miser Normal scheduling and for the syntax to set

the job scheduling type, see the qmgr(8) man page.

5.15.2 Directing Batch Queues to Forward Requests to the Miser Scheduler

To conﬁgure NQS to operate with the IRIX Miser scheduler you must deﬁne the

batch queue to indicate that it is capable of forwarding requests to a Miser

scheduling queue. You can use the qmgr(8) command to set the batch queue to

forward requests to the Miser scheduling queue as follows:

qmgr> set miser [batch queue] [miser queue] [H:M.S|INT[s|m|h]

90 SG–2150 3.3

NQS Conﬁguration [5]

The options for the qmgr(8) command are as follows:

batch queue Name of the NQS batch queue

miser queue Name of the Miser scheduler resource queue

H:M.S|INT[s|m|h Time for the scheduling window deﬁned in

hours: minutes.seconds or an integer value with

the sufﬁx: sfor seconds, mfor minutes, and hfor

hours.

For the qmgr command to execute successfully, the batch queue must exist,

Miser must be running, and the Miser resource queue must exist.

The scheduling window determines how long a request can wait in the Miser

scheduler resource queue before it begins executing; that is, before its resource

reservation period arrives. This scheduling window can be used to control the

job mix that is forwarded to the Miser resource queue. For example, three NQS

batch queues might be deﬁned as follows:

•One queue is deﬁned for jobs that require 32 or more CPUs.

•A second queue may be deﬁned for jobs that require between 8 and 32 CPUs.

•A third queue may be deﬁned for jobs that require less than 8 CPUs.

All of these batch queues can be designated to send requests to the same Miser

resource queue.

You can deﬁne the scheduling windows so that the batch queues that forward

requests that require larger amounts of resources are given a larger scheduling

window. You can also deﬁne scheduling windows so that batch queues that

require fewer resources are given smaller scheduling windows. Deﬁning the

scheduling windows in this manner results in a conﬁguration where requests

that are lightweight are throttled back so that they do not interfere with the

scheduling of requests that require more resources.

An example of the set miser command is as follows:

qmgr> set miser batnam1 chemistry 20m

This example shows that the NQS batch queue batnam1 will forward requests

to the Miser resource queue chemistry. The scheduling window speciﬁed is

20 minutes. When NQS attempts to execute a request in queue batnam1, it will

query the Miser scheduler to determine when the request will be given the

resources it has requested using the qsub -X command. If the query indicates

that the request will begin executing before the scheduling window expires, the

SG–2150 3.3 91

NQE Administration

request is submitted to Miser. Otherwise, NQS will continue to queue the

request.

To remove the relationship between a NQS batch queue and Miser run queue,

subsitute the keyword none for the Miser resource queue name. The value for

the scheduling window is irrelevant in this case. The following example shows

how you can remove the relationship between the NQS batch queue batnam1

and the Miser resource queue chemistry:

qmgr> set miser batnam1 none 0

5.16 NQS Periodic Checkpointing

On UNICOS, UNICOS/mk, and IRIX systems, NQS periodic checkpointing

provides transparent automatic checkpointing of NQS requests. The checkpoint

ﬁles restart NQS requests from the time the checkpoint ﬁle was created. To

checkpoint the requests at intervals that are site-controlled, use the qmgr set

periodic_checkpoint commands. For more information, see the qmgr(8)

man page.

Periodic checkpointing initiates a checkpoint for all NQS requests based on the

amount of CPU time that is used or the amount of wall-clock time that has

elapsed. An NQS administrator can tailor the following periodic checkpoint

options:

•Enable and disable periodic checkpointing for all NQS requests

•Enable and disable periodic checkpoint intervals based on the CPU time

•Enable and disable periodic checkpoint intervals based on the wall-clock

time

•Exclude short running requests

•Exclude large memory requests

•Exclude large secondary data segments (SDS) requests (UNICOS systems

only)

•Set an interval for periodic checkpoints based on the CPU and wall-clock

time

•Set the maximum number of concurrent periodic checkpoints

•Deﬁne an interval to check eligible requests

92 SG–2150 3.3

NQS Conﬁguration [5]

Users can enable and disable periodic checkpointing during the life of a job by

using the qalter command in jobs. For more information, see the qalter(1)

man page.

5.16.1 Periodic Checkpoint File Restrictions

The periodic checkpoint/restart ﬁle cannot be a network ﬁle system (NFS) ﬁle,

but a process with open NFS ﬁles can be checkpointed and restarted.

If a process is checkpointed with an open NFS ﬁle, and the ﬁle is on a ﬁle

system that was manually mounted, that ﬁle system also must be manually

mounted when the process is restarted; otherwise, the restart will fail.

5.16.2 Periodic Checkpoint Modes

You can set your periodic checkpoint environment to one of the following

modes:

•Compatibility mode (default)

•User-initiated mode

•CPU time mode

•Wall-clock mode

•CPU and wall-clock mode

This section describes how to set each periodic checkpoint mode of operation

by using the NQS qmgr(8) and qalter(1) commands.

5.16.2.1 Compatibility Mode

To set your periodic checkpoint environment to compatibility mode, keep the

periodic checkpointing turned off. This is the default environment for periodic

checkpoint. To disable periodic checkpointing, use the following command:

set periodic_checkpoint status off

If the qalter(1) command is used in a request, the settings are retained while

periodic checkpointing is disabled and used if periodic checkpointing is

enabled later. The jobs are checkpointed at NQS shutdown.

SG–2150 3.3 93

NQE Administration

5.16.2.2 User-initiated Mode

To set your periodic checkpoint environment to user-initiated mode, you must

enable periodic checkpointing with the CPU and wall-clock intervals disabled.

This mode periodically checkpoints a request that contains qalter(1)

commands to enable checkpointing for the request. The following example

shows how you can use periodic checkpoint commands to set the user-initiated

mode:

set periodic_checkpoint status on

set periodic_checkpoint time_status off

set periodic_checkpoint cpu_status off

set periodic_checkpoint cpu_interval = 15

set periodic_checkpoint time_interval = 90

set periodic_checkpoint max_mem_limit = 64MW

set periodic_checkpoint max_sds_limit = 48MW

set periodic_checkpoint min_cpu_limit = 600

set periodic_checkpoint scan_interval = 60

set periodic_checkpoint concurrent_checkpoints = 1

In this example, individual requests can be periodically checkpointed. The NQS

system status is enabled, but the wall-clock and CPU time status are disabled.

NQS lets requests that were modiﬁed by the qalter(1) command be enabled

for periodic checkpointing. If a qalter command enables the CPU-based

periodic checkpointing but does not deﬁne an interval, the request receives the

default of 15 minutes. If a qalter command enables the wall-clock based

periodic checkpointing but does not deﬁne an interval, the request receives the

system default value of 90 minutes.

If a request has a limit of more than 64 Mwords of memory, more than 48

Mwords of SDS space, or has a CPU time limit of less than 600 seconds, it is

excluded from periodic checkpointing. NQS scans requests every 60 seconds to

determine whether a running request is eligible for periodic checkpointing.

Only one periodic checkpoint request can be run at a time. The jobs are

checkpointed at NQS shutdown.

5.16.2.3 CPU Time Mode

To set your periodic checkpoint environment to CPU time mode, you must

enable periodic checkpointing to create the checkpoint ﬁles after a speciﬁc

amount of CPU time has been used by the request.

On IRIX systems, job limit checking must be enable per CPU time mode

periodic checkpoint.

94 SG–2150 3.3

NQS Conﬁguration [5]

The following example shows how you can use the periodic checkpoint

commands to set the CPU time mode:

set periodic_checkpoint status on

set periodic_checkpoint time_status off

set periodic_checkpoint cpu_status on

set periodic_checkpoint cpu_interval = 30

set periodic_checkpoint time_interval = 60

set periodic_checkpoint max_mem_limit = 32MW

set periodic_checkpoint max_sds_limit = 32MW

set periodic_checkpoint min_cpu_limit = 900

set periodic_checkpoint scan_interval = 60

set periodic_checkpoint concurrent_checkpoints = 1

In this example, NQS system-wide periodic checkpointing is enabled, and

CPU-time-based checkpointing is enabled. The wall-clock-time checkpointing is

disabled. NQS checkpoints requests every 30 CPU minutes.

If a request has a limit of more than 32 Mwords of memory or more than 32

Mwords of SDS space, or has a CPU time limit of less than 900 seconds, it is

excluded from periodic checkpointing. NQS scans requests every 60 seconds to

determine whether a running request is eligible for periodic checkpointing. No

more than one periodic checkpoint request can be running. The jobs are

checkpointed at NQS shutdown.

5.16.2.4 Wall-clock Mode

To set your periodic checkpoint environment to wall-clock mode, you must

enable periodic checkpointing to create the checkpoint ﬁles after a speciﬁed

amount of wall-clock time has elapsed for a request.

The following example shows how you can use the periodic checkpointing

commands to set the wall-clock mode:

set periodic_checkpoint status on

set periodic_checkpoint time_status on

set periodic_checkpoint cpu_status off

set periodic_checkpoint cpu_interval = 30

set periodic_checkpoint time_interval = 60

set periodic_checkpoint max_mem_limit = 64MW

set periodic_checkpoint max_sds_limit = 64MW

set periodic_checkpoint min_cpu_limit = 900

set periodic_checkpoint scan_interval = 120

set periodic_checkpoint concurrent_checkpoints = 2

SG–2150 3.3 95

NQE Administration

In this example, NQS system-wide periodic checkpointing is enabled, and

checkpointing based on wall-clock time is enabled. The CPU-time-based

checkpointing is disabled. NQS checkpoints requests every 60 wall-clock

minutes.

If a request has a limit of more than 64 Mwords of memory or more than 64

Mwords of SDS space, or has a CPU time limit of less than 900 seconds, it is

excluded from periodic checkpointing. NQS scans requests every 120 seconds

to determine whether a running request is eligible for periodic checkpointing.

Two periodic checkpoint requests can run simultaneously. The jobs are

checkpointed at NQS shutdown.

5.16.2.5 CPU and Wall-clock Mode

To set your periodic checkpoint environment to CPU and wall-clock mode, you

must enable periodic checkpointing to create the checkpoint ﬁles after a

speciﬁed amount of CPU or wall-clock time has elapsed for a request,

whichever occurs ﬁrst. The following example shows how you can use the

periodic checkpoint commands to set the CPU and wall-clock mode:

set periodic_checkpoint status on

set periodic_checkpoint time_status on

set periodic_checkpoint cpu_status on

set periodic_checkpoint cpu_interval = 20

set periodic_checkpoint time_interval = 45

set periodic_checkpoint max_mem_limit = 64MW

set periodic_checkpoint max_sds_limit = 64MW

set periodic_checkpoint min_cpu_limit = 1200

set periodic_checkpoint scan_interval = 90

set periodic_checkpoint concurrent_checkpoints = 3

In this example, NQS system-wide periodic checkpointing, CPU-time-based

checkpointing, and wall-clock-time-based checkpointing are all enabled. NQS

checkpoints requests every 45 wall-clock minutes or every 20 CPU minutes,

whichever occurs ﬁrst.

If a request has a limit of more than 64 Mwords of memory or more than 64

Mwords of SDS space, or has a CPU time limit of less than 1200 seconds, it is

excluded from periodic checkpointing. NQS scans requests every 90 seconds to

determine whether a running request is eligible for periodic checkpointing.

Three periodic checkpoint requests can run simultaneously. The jobs are

checkpointed at NQS shutdown.

96 SG–2150 3.3

NQS Conﬁguration [5]

5.16.3 Periodic Checkpoint Behavior in NQS

The following sections describe how periodic checkpointing affects NQS events.

5.16.3.1 NQS System Shutdown

Periodic checkpoints are not initiated during a system shutdown. The

checkpoints that are in progress continue to run until they are completed.

5.16.3.2 Request Completion

No checkpointing occurs when a request is terminating. However, a checkpoint

event can be initiated and a request can terminate during the grace period. In

this case, NQS request completion cleans up the checkpoint end. If this request

will be requeued, the previous valid checkpoint ﬁle is retained.

5.16.3.3 qchkpnt Command

Aqchkpnt(1) command is similar to a periodic checkpoint event. If another

checkpoint event is in progress, a qchkpnt command is rejected. A qchkpnt

event is counted toward a periodic checkpoint event, and the timers are reset

for the next periodic event after a qchkpnt completes.

5.16.3.4 Abort

A periodic checkpoint that is in progress during an abort event is terminated,

and the checkpoint ﬁle is deleted.

5.16.3.5 Modify Request

If you modify a request, its CPU or memory limit can change. This change can

make the request ineligible for periodic checkpointing if its CPU time is set to a

value less than the value of the set periodic_checkpoint

min_cpu_limit command, its memory limit is set to a value greater than the

value of the set periodic_checkpoint max_mem_limit command, or its

SDS request limit is set to a value greater than the value of the set

periodic_checkpoint max_sds_limit command.

5.16.3.6 Hold Request

If a request is being held, it will be checkpointed, terminated, and requeued. If

another checkpoint event is in progress, the requests that are being held are

SG–2150 3.3 97

NQE Administration

rejected. After a request has been held, it is no longer running or eligible for

periodic checkpointing.

5.16.3.7 Preempt Request

If a request is being preempted or has completed preemption, no checkpoint

events for that request can occur. If a request is currently in a preempted state

or in the process of being preempted, no periodic checkpointing is tried.

5.16.3.8 Release Request

If a request is released, it requeues a previously held request and makes it

eligible for initiation. The request is started from the last checkpoint ﬁle that

was created. Any changes that are related to periodic checkpointing are

retained, and those values are used when the request is spawned.

5.16.3.9 Rerun Request

If a request is rerun, it is terminated and requeued, and any checkpoint ﬁles are

deleted. The request is rerun as though it were a new request. Periodic

checkpointing is not affected. If the qalter(1) command changed any periodic

checkpoint options, they revert back to the system-wide default values that

qmgr(8) deﬁned.

5.16.3.10 Restore Request

If a request is restored, it resumes a request that was previously preempted and

makes it eligible for execution. If changes related to periodic checkpointing

were made while the request was preempted, they are retained, and those

values are used when the request begins to execute.

5.16.3.11 Resume Request

If a request is resumed, it resumes a request that was previously suspended and

makes it eligible for execution. If changes related to periodic checkpointing

were made while the request was suspended, they are retained, and those

values are used when the request begins to execute.

98 SG–2150 3.3

NQS Conﬁguration [5]

5.16.3.12 Suspend Request

If a request is being suspended or has completed suspension, checkpoint events

for a request cannot occur. If a request is currently in a suspended state or in

the process of being suspended, no periodic checkpoint is tried.

5.17 Setting the Log File

NQS maintains a log ﬁle in which time-stamped messages of NQS activity are

recorded. These messages are in text format. To deﬁne the ﬁle speciﬁcation of

the log ﬁle, use the following command:

set log_file name

The name speciﬁed may be either an absolute path name or a path name

relative to the spool directory. If you specify the same log ﬁle name as the

existing log ﬁle, new information is appended to that ﬁle.

To truncate the current log ﬁle, use the following qmgr command:

reset logfile

The log ﬁle is maintained throughout every shutdown and recovery sequence;

new messages are appended to the end of the ﬁle. If the log ﬁle name is

changed, the old ﬁle is preserved and is then available for further processing.

NQS can be conﬁgured to copy the existing log ﬁle automatically to a new ﬁle

and then reset the existing log ﬁle to its beginning. This process is called

segmenting the log ﬁle.

To specify the directory where the segmented log ﬁle is kept, use the following

command:

set segment directory dirname

The dirname is either the absolute speciﬁcation of the directory in which

segmented ﬁles are to be placed, or it is relative to the spool directory (as

indicated by the value of NQE_NQS_SPOOL in the nqeinfo ﬁle). Segmentation

will not take place if directory is not set or is set to none. You should not

specify /dev/null as the log ﬁle name. The segmented NQS log ﬁle names

reﬂect the date and time of the earliest information contained in the segment.

SG–2150 3.3 99

NQE Administration

To set the log ﬁle segmentation at NQS start-up, use the following qmgr

commands:

set segment on_init on

set segment on_init off

To segment the log ﬁle when it reaches a certain size or age, use the following

qmgr commands:

set segment size = bytes

set segment time_interval = minutes

To control the detail level of the information recorded in the log ﬁle, use the

following qmgr commands:

set message_types on event_type(s)

set message_types off event_type(s)

Warning, fatal, and unrecoverable messages are always recorded in the log ﬁle.

You can turn off informational, efﬁciency, caution, and trace messages for

speciﬁc types of events. The following is a list of the event types; the brackets

indicate the portion of the command that does not need to be typed when it is

entered:

100 SG–2150 3.3

NQS Conﬁguration [5]

al[l] (except ﬂow) db_r[eads] op[er] rec[overy]

ac[ccounting] db_w[rites] ou[tput] req[uest]

ch[eckpoint] f[low] packet_c[ontents] rou[uting]

com[mand_flow] network_m[isc] packet_f[low] s[cheduling]

con[fig] network_r[eads] proto_c[ontents] user1

db_m[isc] network_w[rites] proto_f[low] user2

user3

user4

user5

Note: Use the set message_types on flow command only for a short

time interval to help with problem analysis because it can cause severe

performance degradation.

To control the amount of information in the header of each log message, use the

following qmgr commands:

set message_header long

set message_header short

Long message headers can help with quicker problem resolution.

To control the level of detail of information in the log ﬁle, set the debug level

through the qmgr command set debug. For more information, see Section

5.18, page 102.

5.17.1 Displaying Information on the Current Log File

To display information about the current log ﬁle, use the following qmgr

command:

show parameters

The settings are shown next to the Log_file,MESSAGE_Header,

MESSAGE_Types, and various SEgment display entries. See Section 6.4.1, page

142, for an example display.

SG–2150 3.3 101

NQE Administration

5.17.2 Log File Command Examples

To set the log ﬁle name, the message header information level, the recorded

message types, and the segmentation interval for the log ﬁle (the ﬁle is relative

to the NQS spool directory), use the following qmgr commands:

set log_file active.log

set message_header long

set message_types on all

set segment on_init on

set segment directory = nqs.log

set segment time_interval = 1440

Segmented log ﬁles are placed in the nqs.log directory under the NQS spool

directory, which is set as described in Section 5.17, page 99.

5.18 Setting the Debug Level

To control the level of information recorded in the log ﬁle, use the following

qmgr command to set the debug level for NQS:

set debug level

Currently, two sets of debug information are supported:

Level Meaning

0 No debug information is recorded.

1-3 When you specify each higher number (level), the amount of

debugging information that is recorded increases, respectively.

To avoid excessive disk usage, set a nonzero debug level only when extra

information is required to analyze a problem. The default on an installed NQS

system is 0.

To display the current debug level, use the following qmgr command:

show parameters

The setting is shown next to the words Debug level on the display. See

Section 6.4.1, page 142, for an example display.

102 SG–2150 3.3

NQS Conﬁguration [5]

5.19 Establishing NQS Accounting Procedures

The accounting information that NQS produces is part of daemon accounting.

This information deals with job initiation, termination, and conditions, such as

rerun, restart, and preemption. The set accounting off and set

accounting on commands in the qmgr(8) subsystem let you specify whether

this information will be produced.

The accounting ﬁle location is $NQE_SPOOL/spool/private/root/nqsacct

or $NQE_NQS_SPOOL/private/root/nqsacct, where $NQE_SPOOL is the

spool location deﬁned at installation time. Both variables appear in the

nqeinfo ﬁle.

5.19.1 Enabling and Disabling Accounting

The qmgr commands set accounting off and set accounting on are

used to turn NQS daemon accounting off or on.

On UNICOS and UNICOS/mk systems, NQS daemon accounting information

is set using the standard UNICOS and UNICOS/mk accounting system. For

detailed information about UNICOS accounting, see UNICOS System

Administration, publication SG–2113 or UNICOS/mk Resource Administration,

publication SG–2602.

On UNIX systems, NQS simply writes accounting records to the ﬁle

private/root/nqsacct (as indicated by the value of NQE_NQS_SPOOL in the

nqeinfo ﬁle) under the NQS spool directory. The ﬁle format is ASCII and has

the following ﬁelds: User ID, Job ID, Sequence Number, Time, Type, Subtype,

Host, Request name, and Queue. For job termination records, the user, system,

child user, and child system time for NQS shepherd processes are also recorded.

The same information can be logged to the NQS log ﬁle by using the qmgr

command set message_type on accounting.

The following qmgr command is used to turn NQS daemon accounting off:

set accounting off

The current state of NQS daemon accounting can be displayed by using the

show parameters command.

The following qmgr command is used to turn NQS daemon accounting on:

set accounting on

SG–2150 3.3 103

NQE Administration

Note: This is with respect to NQS. For UNICOS and UNICOS/mk systems, it

is up to the UNICOS or UNICOS/mk accounting system to actually enable

NQS daemon accounting.

The current state of NQS daemon accounting can be displayed by using the

qmgr command show parameters.

5.19.2 Accounting Records

Accounting records are written to the NQS log and/or the NQS accounting ﬁle.

Table 5 describes the record types and subtypes. The formats of the Type 1 and

Type 2 records that are written follow the table.

104 SG–2150 3.3

NQS Conﬁguration [5]

Table 5. Accounting records

Type Subtype Format Description

NQ_INFO NQ_INFO_ACCTON Type 1 Written when accounting is enabled

NQ_INFO NQ_INFO_ACCTOFF Type 1 Written when accounting is disabled

NQ_RECV NQ_RECV_NEW Type 1 Written when new request is received

NQ_RECV NQ_RECV_LOCAL Type 1 Written when new request is received

from local pipe queue

NQ_RECV NQ_RECV_REMOTE Type 1 Written when new request is received

from remote pipe queue

NQ_INIT NQ_INIT_START Type 1 Written when request is started on

NQS execution server

NQ_INIT NQ_INIT_RESTART Type 1 Written when request is restarted on

NQS execution server

NQ_INIT NQ_INIT_RERUN Type 1 Written when request is rerun on

NQS execution server

NQ_TERM NQ_TERM_EXIT Type 2 Written when request terminates

normally

NQ_TERM NQ_TERM_REQUEUE Type 2 Written when request terminates

normally and will be requeued

NQ_TERM NQ_TERM_PREEMPT Type 2 Written when request terminates

normally because it was preempted

NQ_TERM NQ_TERM_HOLD Type 2 Written when request terminates

normally because it was held

NQ_TERM NQ_TERM_OPRERUN Type 2 Written when request terminates

normally because the operator reran

the request

NQ_TERM NQ_TERM_RERUN Type 2 Written when request terminates

normally and will be rerun

NQ_DISP NQ_DISP_NORM Type 1 Written when request is disposed

normally

NQ_DISP NQ_DISP_BOOT Type 1 Written when request cannot be

requeued at boot time

SG–2150 3.3 105

NQE Administration

Type Subtype Format Description

NQ_SENT NQ_SENT_INIT Type 2 Written when request starts being

sent to NQS

NQ_SENT NQ_SENT_TERM Type 2 Written when request completes

being sent to NQS

NQ_SPOOL NQ_SPOOL_INIT Type 1 Written when request output starts

being transferred

NQ_SPOOL NQ_SPOOL_TERM Type 1 Written when request output

completes being transferred

NQE writes two formats of accounting records; the formats are described below.

In both formats, all records are ASCII text and ﬁelds are separated by spaces.

The Type 1 record format is as follows:

Format Description

uid UNIX user ID number for this request

jobid Process ID of the NQE shepherd for this request

sequence_number NQE request sequence number

time_of_day Time of day the record is written; such as,

Tue Oct 10 08:49:17 1995

type Record type

subtype Record subtype

host_name Host name on which the record was written

request_name NQE request name

queue_name NQE queue name

utime User time of NQE shepherd for this job

stime System time of NQE shepherd for this job

cutime Sum of user CPU time for all processes in this job

cstime Sum of system CPU time for all processes in job

106 SG–2150 3.3

NQS Conﬁguration [5]

project_id Project ID for all processes in this job (IRIX

systems only)

Note: Total job time = utime +stime +cutime +cstime

Total overhead = utime +stime

Total user time = cutime +cstime

The Type 2 record format is as follows:

Format Description

uid UNIX user ID number for this request

jobid Process ID of the NQE shepherd for this request

sequence_number NQE request sequence number

time_of_day Time of day the record is written; such as,

Tue Oct 10 08:49:17 1995

type Record type

subtype Record subtype

host_name Host name on which the record was written

request_name NQE request name

queue_name NQE queue name

project_id Project ID for all processes in this job (IRIX

systems only)

The units used for utime,stime,cutime, and cstime vary by machine and

operating system level. The unit is measured in ticks per second. The unit is

deﬁned on each system by the value of sysconf (_SC_CLK_TCK), which can

vary by machine and may be run-time alterable.

5.20 Setting the Validation Strategy for Remote Access

To provide security against unauthorized remote access of the local NQS

system, you can specify that you want to validate incoming client requests. The

type of validation you select is performed for all actions: submitting requests,

monitoring requests and queues, and deleting or signaling requests.

SG–2150 3.3 107

NQE Administration

The administrator of each NQS server in the group of NQE nodes in the NQE

cluster can set a validation type. To avoid confusing users, all NQS servers in

the group of NQE nodes in the NQE cluster should use the same validation

type. The default validation type for an NQS server when ﬁrst installed is

validation ﬁle checking.

You can specify the following validation types for the NQS host:

Validation type Description

No validation No validation is performed by NQS. If the name

of the user under which a command is issued

(the target user) is a valid user at the NQS server,

the command is successful.

Validation ﬁles A validation ﬁle is examined to determine

whether there is an entry that allows the user

under which the command is issued to access the

server. The validation ﬁle can be either an

.rhosts or .nqshosts ﬁle in the user’s home

directory at the NQS server. (If you do not use

.rhosts ﬁles at your site, you can use

.nqshosts). Individual users create these ﬁles.

Note: If a machine name has any aliases, the

.rhosts ﬁles must contain all forms of the

machine name.

Password checking The NQS user is required to supply a password

for the user name at the NQS server at which the

request is to be run. A password may be no

longer than 8 characters. The password is

checked only at the NQS server. The password is

used for validating the user name under which a

user command will be executed (either through

the NQE GUI functions or through the following

commands: cqsub,cqstatl,cqdel,qsub,

qstat, and qdel).

The password is encrypted and passed over the

network, and NQS checks the password ﬁle to

ensure that the password is valid.

Password checking and

validation ﬁles

In this combined method, a user may supply a

password when issuing a command as is done in

password checking. If a password is supplied, the

108 SG–2150 3.3

NQS Conﬁguration [5]

local NQS server validates it; if the password is

incorrect, NQS rejects the action the client

command requested. If a password is not

supplied, validation ﬁle checking is performed.

Note: For client commands, the user is prompted for a password if the -P

option is speciﬁed on the command line or if the NQS_PASSWORD_NEEDED

environment variable is set.

5.20.1 User Validation Commands

To set the validation type, use the following qmgr commands:

set validation [password] [file]

The default validation is by file. You can specify one or both of the

parameters, as follows:

Parameter Deﬁnition

password Password checking only.

file Validation ﬁle checking only.

password file Password checking if a password is supplied;

otherwise, validation ﬁle checking is performed.

To turn off validation, use the following command:

set no_validation

The following ﬁeld in the qmgr command show parameters display indicates

the validation policy is by file:

Validation type = validation files

See Section 6.4.1, page 142, for a full example display.

5.20.2 Example of Setting User Validation

To set the method of validation to password checking only, use the following

qmgr command:

set validation password

SG–2150 3.3 109

NQE Administration

5.21 Deﬁning Other System Parameters

This section describes miscellaneous NQS conﬁguration settings.

5.21.1 Setting Retry Limits

If the NQS system cannot send a request from a local pipe queue to its

destinations (for example, because the network connection to the system

supporting the destinations has failed), it will try resending the request at

regular intervals. To deﬁne how often the server will retry sending a request,

use two qmgr commands, as follows:

•To de ﬁne the interval (in minutes) between successive attempts to send the

request, use the following qmgr command:

set default destination_retry wait interval

The initial value for a newly installed NQS system is 5 minutes.

•To avoid continuous retries, use the following qmgr command to deﬁne the

maximum elapsed time (in hours) for which a request can be retried. If this

time is exceeded, the request submission fails and a mail message is sent to

the user who submitted the request.

set default destination_retry time time

The initial value for a newly installed NQS system is 72 hours.

5.21.1.1 Displaying the Current Retry Limits

The following ﬁelds in the qmgr command show parameters display indicate

the values for retry limits:

Default destination_retry time = 72 hours

Default destination_retry wait = 5 minutes

See Section 6.4.1, page 142, for a full example display.

5.21.1.2 Example of Setting Retry Limits

In this example, you want to retry requests every 10 minutes. However, you

want to set a limit of 48 hours on the time during which the retries can occur;

after this time, NQS will abandon sending the request and inform the user that

the request failed. To do this, you must enter the following qmgr commands:

110 SG–2150 3.3

NQS Conﬁguration [5]

set default destination_retry wait 10

set default destination_retry time 48

5.21.2 Deﬁning the Sender of NQS Mail

NQS can send different types of mail messages to users. For example, a message

can be sent when the request completes execution if the qsub -me option was

used in the request submission. Messages are also sent when errors occur. The

initial setting uses the user name root in the From ﬁeld of the message.

To change the name in the From ﬁeld to another name, use the following qmgr

command:

set mail name

The name argument must be the name of a valid user at the system running the

server.

5.21.2.1 Displaying the Current Sender of Mail

The following ﬁeld in the show parameters display indicates that root is the

sender of NQS mail:

Mail account = root

See Section 6.4.1, page 142, for a full example display.

5.21.2.2 Example of Setting NQS Mail User

If you have a special user account as the NQS manager, you may want users to

identify mail messages from that user account rather than just indicating that

they are from root. For example, if there is a user called nqsman, enter the

following qmgr command:

set mail nqsman

Mail then seems to come from a user called nqsman.

5.21.3 Locking and Unlocking Daemon Processes

The UNIX system swaps processes in and out of memory as required.

Therefore, more processes can be run simultaneously than when all the

processes are in memory all of the time. Although this does slightly increase

SG–2150 3.3 111

NQE Administration

the overhead on the system performance to manage the swapping, it is not

usually useful to lock a process into memory.

By default, the NQS daemon nqsdaemon is not locked into memory (it can be

swapped in and out as required). If you want to lock it into memory, use the

following qmgr command:

lock local_daemon

Note: The ability to lock nqsdaemon into memory is supported only for

systems running a derivative of UNIX System V.

To unlock the process from memory, use the following qmgr command:

unlock local_daemon

5.21.3.1 Displaying the Current Locking State

The following ﬁeld in the show parameters display indicates that the NQS

daemon is not currently locked in memory:

NQS daemon is not locked into memory.

See Section 6.4.1, page 142, for a full example display.

5.22 Using a Script File As Input to the qmgr Utility

If you are deﬁning many systems or queues, perform the conﬁguration

manually or create a script ﬁle of qmgr commands to use as input to qmgr

instead of entering the information at the qmgr prompt.

After you complete an initial conﬁguration, use the qmgr snap command to

generate a script ﬁle automatically. This ﬁle contains the qmgr commands that

will generate the current NQS conﬁguration; see Section 5.22.1, page 113 for

more information.

To edit the script ﬁle, use any standard text editor. The qmgr commands in the

ﬁle are the same as those you would enter at the qmgr prompt.

To pipe the ﬁle into the qmgr utility, use the following command line:

cat ﬁlename | qmgr

Each line in the ﬁle is executed as if it were entered at the qmgr prompt.

Messages are displayed by qmgr as usual in response to the commands. If a

112 SG–2150 3.3

NQS Conﬁguration [5]

command produces an error, the error message is displayed, and execution

continues to the next line of the ﬁle.

To record the output that qmgr produces (the size of the output display usually

is larger than the size of your screen display), use the following command to

redirect the standard output to a ﬁle:

cat ﬁlename | qmgr > output-ﬁlename

5.22.1 Creating a qmgr Script File of the Current Conﬁguration

The qmgr command snap creates a ﬁle containing the qmgr commands that are

necessary to redeﬁne the current NQS conﬁguration. This ﬁle can then be input

to qmgr at another NQS system to build a duplicate copy of the conﬁguration

there.

The format of the snap command is as follows:

snap [file = pathname]

The pathname argument is the path name of the ﬁle that will receive the qmgr

commands. If you omit this argument, the qmgr commands are written to the

ﬁle speciﬁed by the qmgr command set snapfile.Ifnoﬁle was speciﬁed,

the snap command fails.

The format of the set snapfile command is as follows:

set snapfile pathname

The pathname is relative to the NQS spool directory, or it can be an absolute

path name. The current ﬁle (if any) is shown on the display produced by the

qmgr command show parameters. The name appears after the characters

snap_file. The initial value of the ﬁle name is /dev/null. See Section 6.4.1,

page 142, for an example display.

To input a snap ﬁle to qmgr, use the cat(1) command, as follows:

cat pathname | qmgr

The pathname is an absolute path name or relative to the current directory.

In the following example, the default ﬁle that snap uses is ﬁrst set to nqssnap

in the NQS spool directory, and then snap is used to write the ﬁle. The more(1)

command displays the ﬁrst few lines of the snap ﬁle to show what is written to

the ﬁle.

SG–2150 3.3 113

NQE Administration

snow% qmgr

Qmgr: set snapfile nqssnap

NQS manager[TCML_COMPLETE ]: Transaction complete at local host.

Qmgr: snap

Qmgr: quit

snow% more nqssnap

#Create the nqs network information concerning Mid, Service,

#and Aliases.

add mid rain rain-hy rain-ec

add output_agent fta rain

add mid squall squall-hy squall-ec

add output_agent fta squall

--More--

The script ﬁle produced by snap contains comments that divide the commands

into functional groups.

The next screen shows how this script ﬁle can be used as input to qmgr at

another NQS system:

$cat /nqebase/database/spool/snapfile | qmgr > outfile

5.23 Output Validation

The NQS server returns output from requests to the client host or to another

host (depending on the location that the user speciﬁed in the request’s output

options) by either writing output to a common ﬁle space or using fta or rcp.

The default is fta using ftp protocol. Return output to the DFS system is

restricted to writing output to a common ﬁle space or using fta;rcp does not

support DFS.

Output option Output location

No location speciﬁed or

ﬁlename speciﬁed

The user’s working directory at submission on

the client workstation.

host and ﬁlename

speciﬁed

Speciﬁed server and ﬁle name. The directory is

the user’s home directory on host, unless

otherwise speciﬁed.

114 SG–2150 3.3

NQS Conﬁguration [5]

user, host and/or domain,

and pathname speciﬁed

Speciﬁed user, host, and path name. The pathname

can be a simple ﬁle name or an absolute path. If

the pathname is a simple ﬁle name, the ﬁle is

placed in the user’s home directory on the

speciﬁed host. The domain speciﬁes an FTA

domain name that uses network peer-to-peer

authorization (NPPA) rather than a password. If

users do not want to use NPPA, they can provide

apassword.

NQS tries to return output to the correct user and directory according to what

the user speciﬁed. The NQS server uses the following methods to determine

how output will be returned to the client (listed in order of precedence):

Note: When using the qsub(1) command, numbers 2 and 3 do not apply, and

the order of precedence is dependent upon the output agents deﬁned.

1. If the output destination host is the local NQS server (NQS_SERVER), output

is placed locally in the directory from which the request was submitted or

in a speciﬁed local location.

2. If the output destination host is not the local NQS server, NQS uses FTA.

NQS always tries to locate a password for the FTA transfer, which may be

embedded in the cqsub -o command line or in the user’s.netrc ﬁle, or it

may be speciﬁed when using the NQE GUI to submit a request. FTA

transfers the ﬁle according to the rules conﬁgured for the domain speciﬁed.

If the user omits domain, FTA uses its default domain, which is inet unless

you have reconﬁgured FTA. The inet domain uses ftp protocol and

requires a password unless you have conﬁgured NPPA. If you have

conﬁgured NPPA, no password is required.

3. If the FTA transfer fails, NQS tries to send the output using rcp.rcp uses

the .rhosts ﬁle on the destination host.

4. If all of these methods fail, NQS places the output in the home directory of

the user on the execution host.

5.24 NQS and Multilevel Security on UNICOS and UNICOS/mk Systems

This section explains the differences for NQS when used on UNICOS or

UNICOS/mk systems that run the multilevel security feature (MLS). It is

assumed that you are familiar with the UNICOS or UNICOS/mk

documentation about general system administration and the multilevel security

feature on the UNICOS or UNICOS/mk system.

SG–2150 3.3 115

NQE Administration

Note: If you are running NQE 3.3 on a UNICOS 10.0 system or UNICOS/mk

2.0.2, this section applies to your system since the MLS features are always

available at these release levels.

If you are running UNICOS 9.0, this section applies to your system if you are

running the MLS feature.

When NQS runs on a UNICOS or UNICOS/mk system that runs the multilevel

security feature, the following differences exist:

Note: If the MLS feature on UNICOS or security enhancements on

UNICOS/mk are enabled on your system, the job output ﬁles are labeled

with the job execution label. For jobs that are submitted locally, the return of

the job output ﬁles may fail if the job submission directory label does not

match the job execution label. For example, if a job is submitted from a level

0 directory, and the job is executed at a requested level 2, the job output ﬁles

cannot be written to the level 0 directory. If the home directory of the

UNICOS user under whom the job ran is not a level 2 directory, does not

have a wildcard label, or is not a multilevel directory, the job output ﬁles

cannot be returned to that directory either. The job output ﬁles will be stored

in the NQS failed directory.

If the MLS feature on UNICOS or security enhancements on UNICOS/mk

are enabled on your system and you submitted a job remotely, the Internet

Protocol Security Options (IPSO) type and label range that are deﬁned in the

network access list (NAL) entry for the remote host affect the job output ﬁle

return.

•When job output is returned, the output ﬁles are labeled at the job execution

label for both local and remote destinations.

•When a job is restarted, the session security attributes are reveriﬁed; if these

attributes are not in a valid range, based on the user’s user database (UDB)

entry and the socket (or system) security attributes when the job was

queued, the job is deleted. If the job is deleted, a message is written to the

syslog ﬁle.

•A label requested by using the -L and -C options of the qsub or cqsub

command or the NQE GUI must dominate the job submission label.

•Mail is sent at the appropriate job label. Mail is not sent at the nqsdaemon

label, but at either the job submission or job execution label, as applicable. If

the job has not yet been initiated, mail sent to the job owner is sent at the

job submission label. If the job has been initiated or has completed

116 SG–2150 3.3

NQS Conﬁguration [5]

execution, mail is sent at the job execution label. To read this mail, users

must have their current active label set appropriately.

•Session security attributes are constrained by the socket security attributes

when the job was queued and the user’s UDB entry. For local submissions,

the system minimum and maximum label range is used. For more

information on the socket security attributes, see your UNICOS or

UNICOS/mk system administration documentation.

•The workstation access list (WAL) is checked for remote job activity, such as

job acceptance, job status, and deleting jobs. If the execution host has a WAL

entry for the origin host that restricts access to NQS services for the caller,

remote job activity to a remote host can fail. For more information on the

WAL, see your UNICOS or UNICOS/mk system administration

documentation.

•For sites running the MLS SECURE_MAC feature, all NQS user commands

are labeled as trusted processes so that they can write to a syshigh labeled

log ﬁle. The NQS user commands write messages to the NQS log ﬁle.

•On an upgrade installation from a system not running the multilevel

security feature to a system that is running the multilevel security feature or

an upgrade installation from UNICOS 9.0 to UNICOS 10.0, the jobs are held

and are not initiated at NQS startup. The NQS administrator can then either

release the job (which will then run at the job owner’s UDB default label) or

delete the job.

For information on implementing the multilevel security feature, see your

UNICOS or UNICOS/mk system administration documentation.

5.24.1 NQS Multilevel Directories (MLDs)

If you are upgrading your NQS conﬁguration to use multilevel directories, you

must convert your wildcard directories to multilevel directories (MLDs). To

convert between existing wildcard-labeled directories and MLDs, use the

cvtmldir command. (For more information, see the cvtmldir(8) man page.)

This conversion must be performed in single-user mode after installing NQE.

The cvtmldir command requires absolute path names; you must rename the

affected spool directories before calling cvtmldir to convert from wildcard

directories to multilevel directories. In the following examples, the

NQS_SPOOL/private/root/control directory is being converted, but you

also must convert the following NQS directories, the locations of which are

deﬁned in your nqeinfo ﬁle:

SG–2150 3.3 117

NQE Administration

•NQS_SPOOL/private/requests

•NQS_SPOOL/private/root/chkpnt

•NQS_SPOOL/private/root/control

•NQS_SPOOL/private/root/data

•NQS_SPOOL/private/root/failed

•NQS_SPOOL/private/root/interproc

•NQS_SPOOL/private/root/output

•NQS_SPOOL/private/root/reconnect

To convert from wildcard directories to MLDs, use the following procedure

(you must be root):

1. Ensure that the nqsdaemon is not running while the conversion is

occurring. For more information on how to shut down NQS, see the

qstop(8) man page. For more information on nqsdaemon, see the

nqsdaemon(8) man page.

2. Activate the secadm category by entering the setucat secadm command

if needed.

3. Change to the parent directory; in this example, to convert the

NQS_SPOOL/private/root/control directory, change to the

NQS_SPOOL/private/root directory.

4. Rename the control directory to control.temp by entering the

following command:

/bin/mv ./control ./control.temp

5. Enter the following command to create a multilevel symbolic link called

NQS_SPOOL/private/root/control, which points to a directory named

NQS_SPOOL/private/root/control.mld. The ﬁles in the

control.temp directory are linked or copied, when necessary, into the

new control.mld directory. The ﬁles are not deleted from the

control.temp directory.

/etc/cvtmldir -m $NQS_SPOOL/private/

root/control.temp $NQS_SPOOL/private/root/control

118 SG–2150 3.3

NQS Conﬁguration [5]

6. Enter the following command to create a relative path name for the

multilevel symbolic link output, allowing access to the ﬁles and directories

in NQS_SPOOL/private/root while running with the caller’s privileges:

/etc/unlink NQS_SPOOL/private/root/control

/bin/ln -m ./control.mld ./control

You should ensure that the directories were converted successfully. The

control.temp directory and its ﬁles should not be deleted until NQS has

been restarted and the jobs are successfully requeued or restarted. Repeat the

preceding steps for each NQS directory that is listed earlier in this section.

5.24.2 PALs

Note: PALs are required for UNICOS 10.0 and UNICOS/mk systems but not

for UNICOS 9.0 systems.

You must assign the privilege assignment lists (PALs) by running the

privcmd(8) command. For more information on PALs and the multilevel

security feature, see your UNICOS or UNICOS/mk system administration

documentation. Multilevel security on a UNICOS or UNICOS/mk system

provides a default set of PALs.

To install PALs on each UNICOS or UNICOS/mk multilevel security server,

execute the following command:

/etc/privcmd -b /nqebase/etc/nqs.db

5.24.3 Security Policies

This section describes the following multilevel security policies that are

available on a UNICOS or UNICOS/mk system, which are supported on NQS.

Note: To determine if these policies are supported on your system, see your

UNICOS or UNICOS/mk system administration documentation.

•Mandatory access controls (MACs)

•Discretionary access controls (DACs)

•Identiﬁcation and authentication (I&A)

•System management

•Auditing

SG–2150 3.3 119

NQE Administration

5.24.3.1 MAC Security Policy

Mandatory access controls (MACs) are rules that control access based directly on a

comparison of the subject’s clearance and the object’s classiﬁcation.

The security policy controls read and write operations to prohibit unauthorized

disclosure of any system or user information. The security policy is deﬁned as

the set of rules and practices by which a system regulates the disclosure of

information.

NQS provides enforcement of the MAC rules for status, signal, and delete

requests (local and remote). To audit the delete requests, use the SLG_NQS audit

record for both successful and failed requests. To audit the MAC override for

NQS managers and operators, use the SLG_TRUST (trusted process) audit

record. For more information on auditing, see the description of the multilevel

secuity feature in your UNICOS or UNICOS/mk system administration

documentation.

The MAC rules for status requests require that the caller’s active security label

dominate the submission label of a job before information about that job can be

displayed (that is, the caller’s label must be greater than or equal to the job

label).

The MAC rules for signal and delete requests require that the caller’s active

security label equal the label of the job. If the job is queued, the caller’s active

label must equal that of the job submission label. If the job is executing, the

caller’s active label must equal that of the job execution label.

If you want to enforce the MAC rules, set the NQE_NQS_MAC_COMMAND

conﬁguration parameter to 1 in the nqeinfo ﬁle before NQS is started;

otherwise, MAC checking is not performed. The setting of this parameter does

not affect the NQS managers and operators, who can automatically bypass the

MAC rules and administer NQS without additional restrictions.

If MAC rules enforcement is enabled, users from a system that is not running

the multilevel security feature can check the status of and delete their jobs only

if the jobs have a level 0, no compartments label (UNICOS 9.0 systems only).

Depending on the network access list (NAL) conﬁguration on the execution host,

these users may not be allowed to submit jobs that request a higher label. For

more information on the NAL conﬁguration, see your UNICOS or UNICOS/mk

system administration documentation and the spnet(8) man page.

NQS lets you specify a job execution label by using the NQE GUI or the -C and

-L options of the qsub and cqsub commands. Descriptions of the execution

120 SG–2150 3.3

NQS Conﬁguration [5]

labels follow, assuming that the user’s UDB security attributes allow the

speciﬁed execution label:

•If no -C or -L command–line options are speciﬁed, or if the job execution

label is not speciﬁed using the NQE GUI:

–For a local job, the execution label equals the job submission label.

–For a remote job, the execution label equals the user’s default label if it is

within the session bounds (based on the socket minimum and maximum

values and the user’s UDB minimum and maximum values); if it is not

within the session bounds, the execution label equals the session

minimum label.

•If the -C command–line option is speciﬁed, or if the job execution label is

not speciﬁed using the NQE GUI:

–For a local job, the execution label equals the job submission level and

the requested compartment set.

–For a remote job, the execution label equals the socket active level and

the requested compartment set.

•If the -L command–line option is speciﬁed, or if the job execution label is

speciﬁed using the NQE GUI:

–For a local job, the execution label equals the requested level and the

submission compartment set.

–For a remote job, the execution label equals the requested level and the

socket active compartment set.

•If both the -C and -L command–line options are speciﬁed, or if the job

execution label is speciﬁed using the NQE GUI:

–For a local job, the execution label equals the requested level and the

requested compartment set.

–For a remote job, the execution label equals the requested level and the

requested compartment set.

A requested label must dominate the job submission label. For example, if a

user has an active label of level 2 and compartments sysadm and secadm, and

submits a job by using the qsub -L 4 -C sysadm command, this requested

label does not dominate the submission label. The requested compartment set

must be a superset of the submission compartment set. If the user’s UDB entry

allows authorized compartments of secadm,sysadm, and sysops, the qsub

SG–2150 3.3 121

NQE Administration

-L 4 -C sysadm,secadm command and the qsub -L 4 -C

sysadm,secadm,sysops command would dominate.

For a remote job, the socket security information is stored during job acceptance

in the tail of the control ﬁle, as the new record type s, and also within the

rawreq extension structure. If the receiving host is conﬁgured for strict B1

compliance, the stored socket minimum level and maximum level are set to the

socket active level, and the stored socket valid compartment set is set to the

socket active compartment set. This constrains the session security minimum

and maximum to the socket active label, and, therefore, also contains the job

execution label to the socket active label.

If a remote job is queued when the system is not enabled for multilevel security

and the system is then conﬁgured to be enabled for multilevel security, the s

record values are set based on the system security values, and the submission

label is set to the user’s default label.

If you have installed PALs on your system, any user with an active secadm,

sysadm,sysops,orsystem category can start nqsdaemon; this procedure is

audited. The qst PAL privilege text identiﬁes which categories of users can

start nqsdaemon. The shutdown procedure is not changed; the caller must be

an NQS administrator, who does not need an active category. For more

information on nqsdaemon, see the nqsdaemon(8) man page.

The following changes occur in NQS with the MAC security policy:

•The following directories are either labeled as multilevel directories (MLDs)

or are wildcard directories as deﬁned in your nqeinfo ﬁle:

–NQS_SPOOL/private/root/control

–NQS_SPOOL/private/root/data

–NQS_SPOOL/private/root/failed

–NQS_SPOOL/private/root/interproc

–NQS_SPOOL/private/root/output

–NQS_SPOOL/private/root/chkpnt

–NQS_SPOOL/private/requests

–NQS_SPOOL/private/reconnect

•If UNICOS or UNICOS/mk is conﬁgured to support the syslow and

syshigh MAC labels, the log ﬁle, console ﬁle, and daemons ﬁle are labeled

122 SG–2150 3.3

NQS Conﬁguration [5]

system high (syshigh); all other NQS database ﬁles are labeled system low

(syslow).

•The client processes access the NQS protocol named pipe through the

privilege mechanism (or the pipe is labeled as wildcarded).

•Enforcement of the MAC rules for status and delete operations is

conﬁgurable; NQS administrators bypass this enforcement.

•The MAC rules for writing to job output ﬁles are enforced; NQS

administrators bypass this enforcement. For more information on writing

messages to job output ﬁles, see the qmsg(1) man page.

•Output ﬁles are labeled at the job execution label.

•Mail is sent at the job label using the following conditions:

–If the job is queued, mail is sent at the job submission label.

–If the job has been initiated or has completed, the mail is sent at the job

execution label.

•The socket security attributes at job acceptance are used to determine the

session security attributes for jobs that are submitted remotely; this

constrains the user’s UDB security attributes.

•Session security attributes are reveriﬁed at job restart; if constraints have

changed, the job may be deleted instead of restarted.

5.24.3.2 DAC Security Policy

Discretionary access controls (DACs) are rules that control and limit access to an

object, based on an identiﬁed individual’s need to know and without

intervention by a security ofﬁcer for each individual assignment.

This is accomplished by using standard mode permission bits and an access

control list (ACL); the ACL and mode bits allow the owner of a ﬁle to control

r/w/x access to that ﬁle. The owner of the ﬁle can create or modify an ACL

that contains the identiﬁers and the r/w/x permissions for those individuals

and groups that will be allowed to access the ﬁle.

The mandatory policy restrictions established by the security administrator

always govern object access.

For more information on how ACLs are used and for examples that show how

to create and maintain ACLs, see the spacl(1) man page and your UNICOS or

UNICOS/mk system administration documentation.

SG–2150 3.3 123

NQE Administration

When DAC is used on a secure system, the following changes occur in NQS:

•You must explicitly add root to the queue access lists (this is also true on

non-multilevel security systems).

•Any current NQS manager or user who is authorized through the PAL (see

Section 5.24.3.4) can add NQS administrators.

5.24.3.3 I&A Security Policy

The identiﬁcation and authentication (I&A) feature describes the login and

password features used on a UNICOS or UNICOS/mk system that is running

multilevel security. When I&A is used on a secure system, the following

changes occur in NQS:

•Centralized authentication is used to authenticate remote and alternative

users (this is also true on UNICOS 9.0 non-multilevel security systems).

•When the NQS validation type is file, and the system is conﬁgured for

strict B1 compliance, the effect on the alternative user is as follows:

–The remote user must be the same as the local user.

–The remote host must be in the /etc/hosts.equiv ﬁle.

–The remote host must be in the local user’s.rhosts/.nqshosts ﬁle.

–To provide alternative user capability for NQS when it is conﬁgured for

ﬁle validation on a system that has multilevel security enabled, you must

add the NETW_RCMD_COMPAT conﬁguration parameter to the

SECURE_NET_OPTIONS macro in the system config.h ﬁle before

building and installing the kernel.

•The WAL is checked for remote job queuing, remote status, and remote

signal/deletion events to see whether the user is allowed access to NQS.

5.24.3.4 System Management

Note: For UNICOS 10.0 and UNICOS/mk systems, sites can run with

PRIV_SU and PALs or PAL-only Trusted UNICOS or PAL-only Cray ML-Safe.

The ability to separate and deﬁne different administrative roles and tasks is part

of the security-related system management policies and procedures. This

section describes the authorizations required to perform each administrative

task or function for each system management mechanism.

124 SG–2150 3.3

NQS Conﬁguration [5]

•All NQS user commands are labeled as trusted processes because they may

write to the syshigh labeled log ﬁle; this is when SECURE_MAC is turned

on. The privcmd(8) command is used to assign PALs, and MAC and DAC

labels.

•When using the super-user mechanism (PRIV_SU), only root can change

the user validation type.

•When using the PAL privilege mechanism, the chgm privilege text (for an

active secadm or sysadm category) is used to determine who can add,

delete, and set managers, and to change the user validation type. To change

the user validation type, the caller must be an NQS manager.

5.24.3.5 Auditing

The site can deﬁne the security auditing policy for a UNICOS or UNICOS/mk

system on which the multilevel security feature is enabled. The site policy

should be determined before the system is up and running, and it should be

applied consistently at all times. Consistent and proper use of the the

multilevel security auditing features will help ensure site security.

For information on producing the NQS security log records in the multilevel

security feature, see your UNICOS or UNICOS/mk system administration

documentation.

The audit records speciﬁc to NQS are SLG_NQS and SLG_NQSCF. Whenever an

NQS delete request is made, the SLG_NQS record is produced. These entries are

logged through the slgentry(2) system call. Whenever a security-related

change is made to the conﬁguration of NQS, the SLG_NQSCF record is

produced. These entries are logged through the slgentry(2) system call.

To enable auditing, you can use either the /etc/spaudit -e record_type

(record_type is either nqs or nqscf) command or the UNICOS

Installation/Conﬁguration Menu System (on UNICOS systems) or the system

conﬁguration ﬁles (on UNICOS/mk systems). For more information on

auditing the multilevel security feature on a UNICOS or UNICOS/mk system,

see your UNICOS or UNICOS/mk system administration documentation and

the spaudit(8) man page. The following security-related events are audited by

the NQS audit records, or the SLG_LOGN or SLG_TRUST audit records:

•User authentication success/failure (SLG_LOGN)

•Failure to set job process label (SLG_LOGN)

•Job deletion (SLG_NQS)

SG–2150 3.3 125

NQE Administration

•Queue access list insertions and deletions (SLG_NQSCF)

•User validation type changes (SLG_NQSCF)

•Add, delete, and set managers and operators (SLG_NQSCF)

•Attempt to execute qmgr subcommands by a nonprivileged user

(SLG_NQSCF)

•Bypass of the MAC rules enforcement by NQS administrators (SLG_TRUST)

5.24.4 NQS Multilevel Security Conﬁguration

The conﬁgurable multilevel security features for NQS on UNICOS or

UNICOS/mk systems, which are described in Section 5.24.3, page 119, are

disabled by default. To enable these features, you must make the following

conﬁguration changes.

Note: To determine if these policies are supported on your system, see your

UNICOS or UNICOS/mk system administration documentation.

1. Enforce the MAC rules for status and delete requests by setting the

NQE_NQS_MAC_COMMAND variable to 1 in the nqeinfo ﬁle.

2. Use MLDs instead of wildcard-labeled spool directories by setting the

NQE_NQS_MAC_DIRECTORY variable to 1 in the nqeinfo ﬁle.

If the NQS spool directories already exist, see Section 5.24.1, page 117, for

conversion instructions.

Note: To execute the mlmkdir(8) command, which is used to create

MLDs, special authorization is required. To create or convert to MLDs in

the NQS spool area, you must be root and must have the following

additional authorizations, depending on your system conﬁguration:

PAL-based (Active secadm category) and PRIV_SU (No additional

privilege).

3. Set the NQE_NQS_PRIV_FIFO variable to 1 in the nqeinfo ﬁle. This action

enforces the use of privilege through PALs for client processes, such as

qsub, by writing over the NQS protocol named pipe and the NQS log pipe.

Before starting NQS, see NQE Installation, publication SG–5236, appendix A,

Preparing a Node to Run NQE. For more information, see the privcmd(8)

man page.

126 SG–2150 3.3

NQS Conﬁguration [5]

Warning: If your system is conﬁgured to enforce the syshigh and syslow

security labels, the NQS spool directories and the NQS log ﬁle and console

ﬁle must be on a ﬁle system that has syshigh and syslow in its label range.

On UNICOS systems, ensure that the UNICOS installation tool menu is set as

follows:

Configure system -> Multilevel security (MLS) configuration ->

System options -> Enforce system high/low security labels -> ON

5.24.4.1 Converting to Wildcard Labeled Directories

Note: To use the mlmkdir(8) command, which is used to create MLDs,

special authorization is required. To create or convert to MLDs in the NQS

spool area, you must be root and must have the following additional

authorizations, depending on your system conﬁguration:

PAL-based Active secadm category

PRIV_SU No additional authorization

To convert from MLDs to wildcard-labeled directories, use the following

procedure:

1. Ensure that the nqsdaemon is not running while the conversion is

occurring. For more information on how to shut down NQS, see the

qstop(8) man page. For more information on nqsdaemon, see the

nqsdaemon(8) man page.

2. As root, activate the secadm category, if needed, by entering the setucat

secadm command.

3. Change to the directory that you want to convert; in this example, change

to the NQS_SPOOL/private/root directory.

4. Remove the multilevel symbolic link control, so that a name can be used

with the cvtmldir(8) command to create the directory that will be labeled

as a wildcard directory by entering the following commands:

/bin/ln -m ./control.mld ./control.temp

/etc/unlink ./control

The control.temp directory is now a symbolic link pointing to

.control/.mld.

SG–2150 3.3 127

NQE Administration

5. Create a multilevel symbolic link called

NQS_SPOOL/private/root/control, which points to a directory named

NQS_SPOOL/private/root/control.mld, by entering the following

command:

/etc/cvtmldir -w $NQS_SPOOL/private

/root/control.temp $NQS_SPOOL/private/root/control

The ﬁles in the control.mld directory are linked or copied, when

necessary, into the new control directory. The ﬁles are not deleted from

the control.mld directory.

6. Set the NQE_NQS_MAC_DIRECTORY parameter value to 0 in the nqeinfo

ﬁle. You must restart NQS with these values.

The administrator should ensure that the directories were converted

successfully. You should not delete the control.temp directory and its ﬁles

until NQS has been restarted and the jobs are requeued or restarted

successfully. You must repeat the preceding steps for each NQS directory that is

listed at the beginning of Section 5.24.1, page 117.

5.25 NQS Local Changes for UNICOS and UNICOS/mk Systems

On UNICOS and UNICOS/mk systems, you may make local changes to NQS.

For Cray PVP systems, you may make changes to NQS by using user exits and

by making source-code modiﬁcations. For UNICOS/mk systems, you may

make changes to NQS only by using user exits.

5.25.1 NQS User Exits for UNICOS and UNICOS/mk Systems

For UNICOS and UNICOS/mk systems that support the user exit feature, the

NQS user exits (which are located in the /usr/src/lib/libuex directory) let

you introduce local code at deﬁned points (compatible from release to release)

to customize NQS without having access to the source.

The user exits let sites tailor various functions of NQS, including queue

destination selection, qsub(1) option preprocessing, job startup and termination

processing, and NQS startup and shutdown processing.

NQS user exits are used for the following functions:

•NQS daemon packet. Lets sites add functionality when a packet arrives.

128 SG–2150 3.3

NQS Conﬁguration [5]

•NQS destination ordering. Lets sites control the order of pipe queue

destinations within NQS.

•NQS fair-share priority calculation for the share_pri value.

•NQS job selection. Lets sites determine whether the request chosen by NQS

should be started, and lets them customize the order in which requests are

started by NQS.

•NQS job initiation. Allows a user exit before job initiation.

•NQS job termination. Allows a user exit after job termination.

•NQS qmgr(8) command. Allows additional functionality when a qmgr

command will be processed.

•qsub directives. Allows user exits before the ﬁrst #QSUB directive, on each

#QSUB directive, and after the last #QSUB directive.

•NQS startup. Lets sites perform processing during the NQS startup.

•NQS shutdown. Lets sites perform processing during the NQS shutdown.

•Job submission. NQS uses the centralized user password identiﬁcation and

authentication (I&A) routines. The user exits that are a part of the new

validation routines allow sites to implement their own NQS user

identiﬁcation and validation algorithms. For more information on the I&A

user exits in the multilevel security feature, see your UNICOS or

UNICOS/mk system administration documentation.

To use the user exits, follow these steps:

Warning: The NQE /opt header ﬁles are not available in a chroot

environment. If you create an NQS user exit which references header ﬁles in

/nqebase/nqe/.../ and then build UNICOS, the libuex.a library build

described in the steps below will fail. You must keep your UNICOS build

and your build for NQS user exits separate.

1. Copy the user exit template ﬁle (or the site’s customized ﬁle) to

/usr/src/lib/libuex/local (for example, copy

nqs_uex_jobselect.template to local/nqs_uex_jobselect.c).

2. Ensure that the path names to the NQS header ﬁles (.h) are correct.

3. Execute the nmakefile ﬁle by using the nmake install command in the

/usr/src/lib/libuex directory to build the libuex.a library. This

SG–2150 3.3 129

NQE Administration

library must be rebuilt whenever a user exit is modiﬁed, added to, or

deleted from libuex/local.

4. Execute the NQS nmakefile ﬁle by using the /etc/build_nqs script in

the /nqebase/$NQE_VERSION directory to rebuild NQS.

To disable a user exit, you must remove (or rename) your local user exit ﬁle (for

example, local/nqs_uex_jobselect.c) and repeat steps 3 and 4 to rebuild

libuex.a and NQS with the default user exit stub. For examples on how to

code the NQS user exits, see the /usr/src/lib/libuex directory.

The NQS user exits are described as follows:

User exit Description

nqs_uex_dorder Lets sites change the destination list of a pipe

client just before it tries to send a request to that

list of destinations. To conﬁgure the pipe queue

destinations, use the qmgr create pipe_queue

and qmgr add destinations commands. The

order of the pipe queue destinations determines

the order in which they are contacted. If the

conﬁgured list of destinations is empty, this user

exit is not called.

A return code of 0 is the only valid return code

and indicates successful completion of this user

exit; any other return code is treated as if it were

a0.

nqs_uex_jobinit Lets sites provide additional functionality when a

job is initiated. A site can use this exit to set

additional environment variables.

A return code of 0 is the only valid return code

and indicates successful completion of this user

exit; any other return code is treated as if it were

a0.

nqs_uex_jobselect Determines whether the request chosen by NQS

should be started. You can customize the order in

which NQS starts requests.

A return code of 0 indicates that normal NQS

scheduling should occur. A return code of 1

indicates that the job should not be started. A

130 SG–2150 3.3

NQS Conﬁguration [5]

return code of 2 indicates that the job should be

started.

nqs_uex_jobterm Lets sites provide additional functionality when a

job is terminated.

A return code of 0 is the only valid return code;

any other return code is treated as if it were a 0.

nqs_uex_packet Lets sites provide additional functionality when

speciﬁc NQS packets arrive in the daemon. A

user exit is required in the NQS daemon each

time a packet arrives.

A return code of 0 indicates that NQS should

process this packet. A return code of 1 indicates

that NQS should ignore this packet.

nqs_uex_qmgr Lets sites provide additional functionality when a

qmgr subcommand is entered, providing control

of the operator functions and the customization

of requests.

A return code of 0 indicates that NQS should

process this command. A return code of 1

indicates that NQS should ignore this command.

nqs_uex_qsub_after Lets sites provide additional functionality after all

qsub options have been processed. This user exit

executes under the user’s process.

A return code of 0 indicates that NQS should

continue processing this request. A return code of

1 indicates that NQS should discard this request.

nqs_uex_qsub_before Lets sites provide additional functionality before

qsub handles the ﬁrst QSUB directive. This user

exit executes under the user’s process.

A return code of 0 indicates that NQS should

continue processing this request. A return code of

1 indicates that NQS should discard this request.

nqs_uex_qsub_each Lets sites interrogate or change each QSUB

directive that is processed by QSUB. This user exit

executes under the user’s process.

SG–2150 3.3 131

NQE Administration

A return code of 0 indicates that NQS should

continue processing this request. A return code of

1 indicates that NQS should discard this request.

nqs_uex_shrpri Lets sites provide their own calculation for the

share_pri value when the fair-share scheduler is

active. The share_pri value is used in the priority

calculation for job scheduling.

A return code of 0 indicates that the share_pri

value generated by NQS should be used. A

nonzero return code indicates that the share_pri

value from this user exit should be used.

nqs_uex_shutdown Lets sites do additional processing when the NQS

daemon is terminating.

A return code of 0 is the only valid return code;

any other return code is treated as if it were a 0.

nqs_uex_start Lets sites do additional processing when the NQS

daemon is initializing.

A return code of 0 indicates that NQS should

continue the startup; a return code of 1 indicates

that NQS should abort the startup.

5.25.2 NQS Source-code Modiﬁcation for UNICOS Systems

For Cray PVP systems, you may make changes to NQS by making source-code

modiﬁcations. The source code is provided when you receive NQS; it is located

in /nqebase/src.

If you wish to modify NQS by changing the source-code, make a backup copy

of the content of the /nqebase directory, and then modify the source as desired.

Rebuild NQS by using the /etc/build_nqs script in the

/nqebase/$NQE_VERSION directory.

132 SG–2150 3.3

Operating NQS [6]

This chapter describes how a user deﬁned as an NQS operator can monitor and

control NQS on the local execution server. Most of these actions are performed

using the commands of the qmgr utility. A user deﬁned as an NQS manager

can perform all of the actions described in this chapter.

This chapter discusses the following topics:

•Overview of operator actions

•Starting and stopping NQS on the local execution server

•Monitoring the local NQS server, including displaying system parameters,

monitoring the status of queues and requests, and displaying the list of

machines currently deﬁned in the network

•Controlling the availability of local NQS queues, including starting and

enabling queues

•Manipulating batch requests on the local execution server

6.1 Overview of Operator Actions

An NQS operator can perform the following actions on the local NQS server

(these actions may also be performed by an NQS manager):

•Controlling the availability of NQS:

–Starting up and shutting down the system

–Enabling and disabling NQS queues

–Starting and stopping NQS queues

•Monitoring NQS by using various qmgr show commands and by using the

cqstatl or qstat utility to display the following:

–The current values of system parameters

–The status of NQS queues

–A detailed description of the characteristics of NQS queues

–The status of individual requests in NQS queues

SG–2150 3.3 133

NQE Administration

You must use the cqstatl or qstat command to display information about

NQS queues.

•Controlling the processing of batch requests that users submit to the system:

–Moving requests between queues or within queues

–Holding and releasing requests in various ways

–Modifying characteristics of a request

–Deleting requests

6.2 Starting NQS

The nqeinit script is responsible for starting all NQE components. It calls

qstart to start the NQS component. You can also start an individual process

by executing the qstart command (as follows), which then automatically

starts the other NQS processes.

% qstart options

Note: For customers who plan to install PALs on UNICOS systems that run

only the NQE subset (NQS and FTA components), the qstart -c option

should be used to direct the NQS console ﬁle into a directory that does not

require root to write to it.

See the qstart(8) man page for a complete description of the syntax of the

qstart command.

The qstart command is a shell script that starts nqsdaemon and passes qmgr

startup commands to the daemon. By default, qstart performs the following

functions:

•Starts nqsdaemon

•Initializes the system’s NQS environment with commands deﬁned in the

qmgr input ﬁle

On startup, the nqeinit and qstart commands check whether the NQS

database has been created. If it has not, the commands create it. During the

creation of the NQS database, default values are taken from the following ﬁle:

/nqebase/etc/nqs_config

134 SG–2150 3.3

Operating NQS [6]

When NQS is being conﬁgured, this process occurs only once, unless you delete

the NQS database structure. After the database is created, nqs_config is not

used again.

During each startup of NQS, /nqebase/etc is examined for a ﬁle called

NQS.startup. If the ﬁle exists, NQS uses it as input to qmgr as NQS is being

started. If it does not exist, NQS is brought up and the qmgr start all

command is issued. You can see a log of the startup activity in the NQS log

directory ($NQE_SPOOL/log).

The directory structure under $NQE_SPOOL/log is as follows:

#cd $NQE_SPOOL

#ls

# ftaqueue log nlbdir spool

#ls log

nqscon.26553.out nqslog qstart.26553.out

Except for the nqslog ﬁle, the ﬁles have the UNIX process ID appended, which

makes the ﬁles unique across invocations of qstart and qstop.

After the initial boot of NQS on a system, you should make subsequent

database changes interactively using qmgr. After changes are made, you can

use the qmgr snap file command to save the current conﬁguration. To

update the standard conﬁguration ﬁle, you can replace the nqs_config ﬁle

with the snap ﬁle.

Note: In order to use the qmgr snap file command, you must have NQS

manager privilege.

You do not need an NQS.startup ﬁle to preserve changes made to qmgr. Any

qmgr changes are written to the NQS database and preserved across shutdowns

and startups. You should make a copy of your changes to either the

nqs_config or NQS.startup ﬁle, in case your database is ever corrupted.

After nqsdaemon is initialized, qstart determines whether the NQS spool

database (usually in $NQE_SPOOL/spool) exists. If qstart ﬁnds that the

database is missing, the /nqebase/etc/nqs_config conﬁguration ﬁle is sent as

input to qmgr. This ﬁle should contain the complete NQS database

conﬁguration, including the machine IDs, queues, and global limits. You can

copy the output from a qmgr snap ﬁle to /nqebase/etc/nqs_config when

you are doing an upgrade and an NQS database must be constructed. NQS

executes the /nqebase/etc/NQS.startup ﬁle each time it starts up, whether or

not an NQS database exists.

SG–2150 3.3 135

NQE Administration

The changes that you make to the /nqebase/etc/nqs_config ﬁle are not

propagated automatically into the active NQS spool database. Usually, the

database is in $NQE_SPOOL/spool when the system is booted; therefore, the

conﬁguration is already loaded (except when the system is initially installed or

when a clean $NQE_SPOOL/spool is being used).

To ensure that the NQS daemon is running, use the following command:

#/nqebase/bin/qping -v

# nqs-2550 qping: INFO

# The NQS daemon is running.

The following is a sample NQS.startup ﬁle, which the site can conﬁgure. A

copy of the ﬁle, as it is shown in this example, is contained in

/nqebase/examples.

136 SG–2150 3.3

Operating NQS [6]

# USMID %Z%%M% %I% %G% %U%

# NQS.startup - Qmgr commands to start up NQS.

# Example of site-configurable script that resides in /nqebase/etc/config;

#/nqebase/etc/qstart will invoke /nqebase/etc/NQS.startup unless the

# -i option is specified.

# Set general parameters.

# Fewer timeouts on qstat, qmgr, etc., if nqsdaemon locked in memory.

lock local_daemon

# Site may not run accounting during nonprime time to save disk space.

set accounting on

# Could have put checkpoint directory in /tmp/nqs/chkpnt

# for a benchmark; so make sure it is in usual place

# for prime time.

set checkpoint_directory =(/usr/spool/nqe/spool/private/root/chkpnt)

# Could ensure that NQS will not fill up /usr/spool/nqe by

# setting the log_file to /tmp/nqs/nqslog.

set log_file =/usr/spool/nqe/log/nqslog

# Debug level may have been set to 3 (verbose) for testing;

# reduce log file size for prime time by reducing level.

set debug 0

# There are many NQS message types that can be turned on and

# off separately. Set some message types on when wanting

# more information logged for areas of interest or set all

# message types on when tracking problems. Note that

# "set message_type on all" will turn on all but "flow"

# messages. Using "set message_type on flow" should only be

# used very selectively in controlled situations for tracking

# a very difficult problem.

SG–2150 3.3 137

NQE Administration

set message_type off all

# NQS message headers in the log file can now be set to short

# (same as always) or long, which includes information on where

# the message is being issued from. Use long when tracking

# problems.

set message_header short

# NQS log files can be automatically segmented based on time, size,

# or at each startup of NQS. The directory to which NQS will

# segment the log file is specified with the "set segment directory"

# command.

set segment directory /usr/spool/nqe/log

# NQS can now automatically segment the NQS log file each time NQS

# is started.

set segment on_init on

# Name "batch" is not magic; corresponds to hypothetical pipe_queue.

# See nqs/example/qmgr.example.

set default batch_request queue batch

# Number of hours during which a pipe queue can be unreachable;

# a routing request that exceeds this limit is marked as failed.

set default destination_retry time 72

# Number of minutes to wait before trying a pipe queue destination

# that was unreachable at the time of the last attempt.

set default destination_retry wait 5

# Turn on the default return of the user’s job log file.

set default job_log on

# Assumes NQS account exists on the Cray Research system

# and belongs to group root. If -me or -mb on qsub; this is

138 SG–2150 3.3

Operating NQS [6]

# who mail will be from.

set mail nqs

# Now set global parameters.

set global batch_limit = 20

set global user_limit = 20

set global group_limit = 15

# Consider this number an "oversubscription"; it does not

# have to be the size of the machine.

set global memory_limit = 256Mw

# Consider this number an "oversubscription"; it does not

# have to be the size of the SSD.

set global quickfile_limit = 1Gw # Y-MP Only

# The numbers in each tape group must reflect

# local site configuration.

set global tape_limit a = 10

set global tape_limit b = 5

set global tape_limit c = 5

set global tape_limit d = 0

set global tape_limit e = 0

set global tape_limit f = 0

set global tape_limit g = 0

set global tape_limit h = 0

# Maximum number of pipe requests allowed to run concurrently.

set global pipe_limit = 5

# Capture configuration status at startup; written to

# /usr/spool/nqe/log/qstart.out unless otherwise specified.

# These commands are entirely optional, but handy

# for reference if problems occur.

sho queues

SG–2150 3.3 139

NQE Administration

sho parameters

sho mids

sho man

# Now NQS will begin scheduling jobs.

start all_queues

6.3 NQS Shutdown and Restart

The nqestop script is responsible for stopping all NQE components. It calls

qstop to stop the NQS component. You can also stop an individual NQS

process by executing the qstop(8) command as follows:

% qstop options

See the qstop(8) man page for a complete description of the syntax of the

qstop command.

Caution: When you stop NQS by using the qstop command, you should be

aware that you have not stopped NQE. The Network Load Balancer collector

daemon uses logdaemon services . The qstop command does not stop NLB

collectors; use nqestop(8) to stop all of NQE.

When the qmgr shutdown command shuts down NQS, all processes that

make up a restartable running batch request on the local host are killed. On

UNICOS, UNICOS/mk, and IRIX systems, an image of the request is saved in a

ﬁle in the checkpoint directory by NQS using the chkpnt(2) system call on

UNICOS and UNICOS/mk systems and the cpr(1) command on IRIX systems.

For UNICOS, UNICOS/mk, and IRIX systems, for a batch request to be

considered restartable, it must meet the recoverability criteria of job and process

recovery, as described in General UNICOS System Administration, publication

SG–2301 or in the Checkpoint and Restart Operation Guide, publication

007–3236–001, a Silicon Graphics publication.

When NQS is restarted, checkpointed requests are recovered from the images in

their respective restart ﬁles. They resume processing from the point of

suspension before the shutdown. After a request is restarted successfully, the

restart ﬁle is kept until the request completes (in which case, the ﬁle is removed)

or the request is checkpointed again (in which case, the ﬁle is overwritten).

140 SG–2150 3.3

Operating NQS [6]

The following is a sample NQS.shutdown ﬁle, which the site can conﬁgure. A

copy of the ﬁle, as it is shown in this example, is contained in

/nqebase/examples.

# USMID %Z%%M% %I% %G% %U%

# NQS.shutdown - Qmgr commands to shut down NQS.

# Example of site-configurable script that resides in /nqebase/etc/config;

#/nqebase/etc/qstop invokes /etc/config/NQS.shutdown, unless the

# -i option is specified.

stop all

# The "set accounting off" line has been removed from this example

# as it was found that setting accounting off at NQS.shutdown time

# turned NQS accounting off before accounting records had been given

# their appropriate terminating status and this caused problems with

# the post-processing accounting routine summaries of the accounting

# data.

# The 60-second grace period means shutdown will take longer than 60

# seconds. The nqsdaemon sends a SIGSHUTDN signal to the processes

# of all running requests and then waits for the number of seconds

# specified by the grace period. After the grace period, nqsdaemon

# attempts to checkpoint all running requests that are restartable;

# i.e., qsub option -nc NOT specified. nqsdaemon will send SIGKILL to

# processes of requests that were not checkpointed, including those

# for which the checkpoint failed. All checkpointed requests and

# rerunnable requests (i.e., qsub option -nr NOT specified) will be

# requeued to be restarted or rerun when NQS is next initiated.

shutdown 60

6.4 Monitoring NQS

Several qmgr commands are available to monitor NQS; these commands all

begin with show.

You also can use the NQE GUI Status display and the cqstatl or the qstat

command to gather valuable information about requests and queues.

SG–2150 3.3 141

NQE Administration

6.4.1 Displaying System Parameters

To display the current values for system parameters, use the following qmgr

command:

show parameters

An example of the display follows:

142 SG–2150 3.3

Operating NQS [6]

Qmgr: sho parameters

sho para

Checkpoint directory =

/nqebase/version/pendulum/database/spool/private/root/chkpnt

Debug level = 1

Default batch_request queue = nqenlb

Default destination_retry time = 72 hours

Default destination_retry wait = 5 minutes

Default return of a request’s job log is OFF

Global batch group run-limit: unspecified

Global batch run-limit: 5

Global batch user run-limit: 2

Global MPP Processor Element limit: unspecified

Global memory limit: unlimited

Global pipe limit: 5

Global quick-file limit: unspecified

Global tape-drive a limit: unspecified

Global tape-drive b limit: unspecified

Global tape-drive c limit: unspecified

Global tape-drive d limit: unspecified

Global tape-drive e limit: unspecified

Global tape-drive f limit: unspecified

Global tape-drive g limit: unspecified

Global tape-drive h limit: unspecified

Job Initiation Weighting Factors:

Fair Share Priority = 0 (Fair Share is not enabled)

Requested CPU Time = 0

Requested Memory = 0

Time-in-Queue = 1

Requested MPP CPU Time = 0

Requested MPP PEs = 0

User Specified Priority = 0

Job Scheduling: Configured = nqs normal Active = nqs normal

Log_file = /nqebase/version/pendulum/database/spool/../log/nqslog

MESSAGE_Header = Short

SG–2150 3.3 143

NQE Administration

MESSAGE_Types:

Accounting OFF CHeckpoint OFF COMmand_flow OFF

CONfig OFF DB_Misc OFF DB_Reads OFF

DB_Writes OFF Flow OFF NETWORK_Misc OFF

NETWORK_Reads OFF NETWORK_Writes OFF OPer OFF

OUtput OFF PACKET_Contents OFF PACKET_Flow OFF

PROTOCOL_Contents OFF PROTOCOL_Flow OFF RECovery OFF

REQuest OFF ROuting OFF Scheduling OFF

USER1 OFF USER2 OFF USER3 OFF

USER4 OFF USER5 OFF

Mail account = root

Netdaemon = /nqebase/bin/netdaemon

Network client = /nqebase/bin/netclient

Network retry time = 31 seconds

Network server = /nqebase/bin/netserver

NQS daemon accounting is OFF

NQS daemon is not locked in memory

Periodic_checkpoint concurrent_checkpoints = 1

Periodic_checkpoint cpu_interval = 60

Periodic_checkpoint cpu_status on

Periodic_checkpoint max_mem_limit = 32mw

Periodic_checkpoint max_sds_limit = 64mw

Periodic_checkpoint min_cpu_limit = 60

Periodic_checkpoint scan_interval = 60

Periodic_checkpoint status off

Periodic_checkpoint time_interval = 180

Periodic_checkpoint time_status off

SEgment Directory = NONE

SEgment On_init = OFf

SEgment Size = 0 bytes

SEgment Time_interval = 0 minutes

Sequence number for next request = 0

Snapfile = /nqebase/version/pendulum/database/spool/snapfile

Validation type = validation files

This information also is displayed by the following qmgr command (along with

the list of managers and operators and any user access restrictions on queues):

show all

144 SG–2150 3.3

Operating NQS [6]

The following qmgr command displays only the global limits (a subset of the

output displayed in the preceding command):

show global_parameters

All entries in the show parameters display, except for the Sequence

number for next request, can be conﬁgured by qmgr commands.

Note: Some parameters are not enforced if the operating system does not

support the feature, such as MPP processing elements or checkpointing.

The following list explains each entry and shows the qmgr command (in

parentheses) that is used to change the entry. Most of these commands can be

used only by an NQS manager; commands that can be issued by an NQS

operator are preﬁxed by a dagger (†).

Display

entry

Description

Debug level

The level of information written to the log ﬁle (set debug).

Default batch request queue

The queue to which requests are submitted if the user does not

specify a queue (set [no_]default batch_request

queue).

Default destination retry time

The maximum time that NQS tries to send a request to a pipe

queue (set default destination_retry time).

Default destination retry wait

The interval between successive attempts to retry sending a

request (set default destination_retry wait).

Default return of request’s job log

Determines whether the default action is to send a job log to

users when the request is complete (set default job log

on/off).

Global batch group run-limit

The maximum number of batch requests that all users of a

group can run concurrently (†set global group_limit).

SG–2150 3.3 145

NQE Administration

Global batch run-limit

The maximum number of batch requests that can run

simultaneously at a host (†set global batch_limit).

Global batch user run-limit

The maximum number of batch requests any one user can run

concurrently (†set global user_limit).

Global MPP Processor Element limit

The maximum number of MPP processing elements available to

all batch requests running concurrently (†set global

mpp_pe_limit). Valid only on the Cray MPP systems and

optionally enabled on IRIX systems (see Section 5.11.4, page 82).

Global memory limit

The maximum memory that can be allocated to all batch

requests running concurrently (†set global memory_limit).

Global pipe limit

The maximum number of requests that can be routed

simultaneously at the host (†setglobal pipe_limit).

Global quick-file limit

The maximum quickﬁle space that can be allocated to all batch

requests running concurrently on NQS on UNICOS systems

(†set global quickfile_limit).

Global tape-drive xlimit

The maximum number of the speciﬁed tape drives that can be

allocated to all batch requests running concurrently (†set

global tape_limit).

Job Initiation Weighting Factoring

The weight of the speciﬁed factor in selecting the next request

initiated in a queue (set sched_factor

Job Scheduling option(s)

The job scheduling type used by nqsdaemon (set

job_scheduling).

146 SG–2150 3.3

Operating NQS [6]

Log file

The path name of the log ﬁle (set log_file).

MESSAGE_Header

The NQS message header (set message_header

long|short).

MESSAGE_Types

The type of NQS messages sent to message destinations such as

the NQS log ﬁle or the user’s terminal (set message_types

off|on).

Mail account

The name that appears in the From: ﬁeld of mail sent to users

by NQS (set mail).

Netdaemon

The name of the TCP/IP network daemon (set

[no_]network daemon).

Network client

The name of the network client process (set network

client).

Network retry time

The maximum number of seconds a network function can fail

before being marked as completely failed (set network

retry_time).

Network server

The name of the network server process (set network

server).

NQS daemon accounting

Determines whether NQS daemon accounting is enabled (set

accounting off|on).

SG–2150 3.3 147

NQE Administration

NQS daemon is/is not locked in memory

The state of the nqsdaemon process; that is, whether it is

locked into memory or not (†lock local daemon and

†unlock local daemon).

Periodic_checkpoint concurrent_checkpoints

The maximum number of checkpoints that can occur

simultaneously during a periodic checkpoint scan interval

(valid only on UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint concurrent_checkpoints).

Periodic_checkpoint cpu_interval

The default CPU time interval for periodic checkpointing (valid

only on UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint cpu_interval).

Periodic_checkpoint cpu_status on

Determines whether NQS periodic checkpoints are initiated

based on the CPU time used by a request (valid only on

UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint cpu_status off|on).

Periodic_checkpoint max_mem_limit

The maximum memory limit for a request that can be

periodically checkpointed (valid only on UNICOS,

UNICOS/mk, and IRIX systems) (set

periodic_checkpoint max_mem_limit).

Periodic_checkpoint max_sds_limit

The maximum SDS limit for a request that can be periodically

checkpointed (valid only on UNICOS systems) (set

periodic_checkpoint max_sds_limit).

Periodic_checkpoint min_cpu_limit

The minimum CPU limit for a request that can be periodically

checkpointed (valid only on UNICOS, UNICOS/mk, and IRIX

systems) (set periodic_checkpoint max_mem_limit).

148 SG–2150 3.3

Operating NQS [6]

Periodic_checkpoint scan_interval

The time interval in which NQS scans running requests to ﬁnd

those eligible for periodic checkpointing (valid only on

UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint scan_interval).

Periodic_checkpoint status off

Determines whether NQS will examine running requests to see

whether they can be checkpointed and then schedule them for

checkpointing (on). If the status is off, no requests are

periodically checkpointed (valid only on UNICOS,

UNICOS/mk, and IRIX systems) (set

periodic_checkpoint status off|on).

Periodic_checkpoint time_interval

The default wall-clock time interval for periodic checkpointing

(valid only on UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint cpu_interval).

Periodic_checkpoint time_status off

Determines whether NQS periodic checkpoints are initiated

based on wall-clock time used by a request (valid only on

UNICOS, UNICOS/mk, and IRIX systems) (set

periodic_checkpoint time_status off|on).

SEgment Directory

The name of the directory containing log ﬁle segments (set

segment directory).

SEgment ON_init

Determines whether the log ﬁle is segmented at initialization

(set segment on_init off|on).

SEgment Size

The maximum size of an NQS log ﬁle before it is segmented

(set segment size).

SEgment Time_interval

The maximum time that can elapse before the NQS log ﬁle is

segmented (set segment time_interval).

SG–2150 3.3 149

NQE Administration

Sequence number for next request

The next sequence number that will be assigned to a batch

request.

Snap_file

The default name of the ﬁle that will receive output from the

snap command (set snapfile).

Validation type

The type of user validation that will be performed on user

requests (set [no_]validation).

6.4.2 Displaying a List of Managers and Operators

To display a list of the currently deﬁned NQS managers and operators for this

server, use the following qmgr command:

show managers

In the resulting display, users who are managers are indicated by a :m sufﬁx;

operators are indicated by a :o sufﬁx, as follows:

Qmgr: show managers

show managers

root:m

snowy:m

fred:o

xyz:o

The list always includes root (as a manager).

6.4.3 Displaying a Summary Status of NQS Queues

To display a brief summary status of all currently deﬁned batch and pipe

queues, use the following qmgr command:

show queue

An example of the display follows; it is identical to that produced by the

cqstatl -s or qstat -s command:

150 SG–2150 3.3

Operating NQS [6]

Qmgr: show queue

show queue

-----------------------------

NQS BATCH QUEUE SUMMARY

-----------------------------

QUEUE NAME LIM TOT ENA STS QUE RUN

----------------------- --- --- --- --- --- ---

nqebatch 5 0 yes on 0 0

----------------------- --- --- --- --- --- ---

pendulum 5 0 0 0

----------------------- --- --- --- --- --- ---

----------------------------

NQS PIPE QUEUE SUMMARY

----------------------------

QUEUE NAME LIM TOT ENA STS QUE ROU

----------------------- --- --- --- --- --- ---

nqenlb 1 0 yes on 0 0

----------------------- --- --- --- --- --- ---

pendulum 5 0 0 0

----------------------- --- --- --- --- --- ---

To display a more detailed summary, use the following qmgr command:

show long queue

An example of the display follows; it is identical to that produced by the

cqstatl or qstat command.

SG–2150 3.3 151

NQE Administration

Qmgr: show long queue

show long queue

-----------------------------

NQS BATCH QUEUE SUMMARY

-----------------------------

QUEUE NAME LIM TOT ENA STS QUE RUN WAI HLD ARR EXI

---------------------- --- --- --- --- --- --- --- --- --- ---

nqebatch 5 0 yes on 0 0 0 0 0 0

---------------------- --- --- --- --- --- --- --- --- --- ---

latte 5 0 0 0 0 0 0 0

---------------------- --- --- --- --- --- --- --- --- --- ---

----------------------------

NQS PIPE QUEUE SUMMARY

----------------------------

QUEUE NAME LIM TOT ENA STS QUE ROU WAI HLD ARR DEP DESTINATIONS

---------------------- --- --- --- --- --- --- --- --- --- --- -------------

nqenlb 1 0 yes on 0 0 0 0 0 0

cool 1 0 yes on 0 0 0 0 0 0 batch@cool

---------------------- --- --- --- --- --- --- --- --- --- --- -------------

latte 5 0 0 0 0 0 0 0

---------------------- --- --- --- --- --- --- --- --- --- --- -------------

The columns in these summary displays are described as follows:

Column name Description

QUEUE NAME Indicates the name of the queue.

LIM Indicates the maximum number of requests that

can be processed in this queue at any one time.

This is the run limit that the NQS manager

deﬁnes for the queue.

For batch queues, LIM indicates the maximum

number of requests that can execute in this queue

at one time. After this limit is reached, additional

requests will be queued until a request already in

the queue completes execution.

For pipe queues, LIM indicates the maximum

number of requests that can be routed at one time.

TOT Indicates the total number of requests currently in

the queue.

152 SG–2150 3.3

Operating NQS [6]

ENA Indicates whether the queue was enabled to

accept requests. If the queue is disabled (ENA is

no), the queue will not accept requests.

STS Indicates whether the queue has been started. If a

queue was not started (STS is off), the queue

will accept requests, but it will not process them.

QUE The number of requests that are waiting to be

processed.

ROU The number of pipe queue requests that are

currently being routed to another queue.

RUN The number of batch queue requests that are

currently running.

WAI The number of requests that are waiting to be

processed at a speciﬁc time.

HLD The number of requests the NQS operator or

manager has put into the hold state.

ARR The number of requests currently arriving from

other queues.

DEP The number of requests currently terminating

their processing.

DESTINATIONS The destinations that were deﬁned for the queue

by the NQS manager.

The last line of the display shows the total ﬁgures for the use of the queues by

users at the NQS host (host1 in the example), except for the LIM column,

which shows the global pipe limit for this system.

When you use a cqstatl command rather than qmgr show commands, you

can limit the display to NQS pipe queues by using the -p option, or limit the

display to NQS batch queues by using the -b option.

6.4.4 Displaying All the Characteristics Deﬁned for an NQS Queue

To display details of all the characteristics deﬁned for NQS queues, use the

cqstatl -f or the qstat -f command. You can restrict the display to speciﬁc

queues by using the queues option.

You must separate queue names with a space character.

SG–2150 3.3 153

NQE Administration

An example of a full display for the batch queue nqebatch follows:

%cqstatl -f nqebatch

-------------------------------------

NQS BATCH QUEUE: nqebatch@latte Status: ENABLED/INACTIVE

-------------------------------------

Priority: 30

Total: 0

Running: 0 Queued: 0 Waiting: 0

Holding: 0 Arriving: 0 Exiting: 0

Queue: 5 User: unspecified Group: unspecified

LIMIT ALLOCATED

Memory Size unspecified 0kw

Quick File Space unspecified 0kw

MPP Processor Elements unspecified 0

PER-PROCESS PER-REQUEST

type a Tape Drives unspecified

type b Tape Drives unspecified

type c Tape Drives unspecified

type d Tape Drives unspecified

type e Tape Drives unspecified

type f Tape Drives unspecified

type g Tape Drives unspecified

type h Tape Drives unspecified

Core File Size unspecified

Data Size unspecified

Permanent File Space unspecified unspecified

Memory Size unspecified unspecified

Nice Increment 0

Quick File Space unspecified unspecified

Stack Size unspecified

CPU Time Limit unlimited unlimited

Temporary File Space unspecified unspecified

Working Set Limit unspecified

MPP Processor Elements unspecified

MPP Time Limit unspecified unspecified

154 SG–2150 3.3

Operating NQS [6]

Shared Memory Limit unspecified

Shared Memory Segments unspecified

MPP Memory Size unspecified unspecified

Route: Unrestricted Users: Unrestricted

System Time: 904.22 secs User Time: 59.14 secs

Some parameters are not enforced if the operating system does not support the

feature, such as MPP processor elements.

An example of a full display for the pipe queue nqenlb follows:

%cqstatl -f nqenlb

----------------------------------

NQS PIPE QUEUE: nqenlb@latte Status: ENABLED/INACTIVE

----------------------------------

Priority: 63

Total: 0

Running: 0 Queued: 0 Waiting: 0

Holding: 0 Arriving: 0 Departing: 0

/nqebase/bin/pipeclient CRI_DS

Route: Unrestricted Users: Unrestricted

System Time: 269.92 secs User Time: 95.21 secs

The cqstatl or qstat command also can be used to display details of

characteristics deﬁned for NQS queues on other hosts. The difference is that

you must give the name of the remote host where the queues are located. For

SG–2150 3.3 155

NQE Administration

example, for the cqstatl command, you could include the -h option to

specify the remote host, as follows:

cqstatl -d nqs -h target_host -f queues

You also can change your NQS_SERVER environment variable to specify the

remote host.

6.4.5 Displaying Summary Status of User Requests in NQS Queues

You can display a summary of the requests currently in the queue if you

include the queue-name parameter in the qmgr commands show queue and

show long queue:

show queue queue-name

show long queue queue-name

If no requests are currently in the queue, the following message is displayed:

nqs-2224 qmgr: CAUTION

no requests in queue queue-name

You can restrict the display to the requests in the queue that were submitted by

a speciﬁc user by including the name of that user after the queue-name argument:

show queue queue-name username

show long queue queue-name username

An example of the display for a batch queue follows:

Qmgr: show long queue nqebatch

show long queue nqebatch

-------------------------------

NQS BATCH REQUEST SUMMARY

-------------------------------

IDENTIFIER NAME USER LOCATION/QUEUE JID PRTY REQMEM REQTIM ST

---------- ----- -------- ---------------- ---- ---- ------ ------ ---

39.latte STDIN mary nqebatch@latte 10644 --- 262144 ** R

The columns in this display have the following descriptions:

Column name Description

IDENTIFIER The request identiﬁer (as displayed when the

request was submitted).

156 SG–2150 3.3

Operating NQS [6]

NAME The name of the script ﬁle.

USER The user name under which the request will be

executed at the NQS system.

LOCATION/QUEUE The NQS queue in which the request currently

resides.

JID The job identiﬁer for the request at the NQS

system.

PRTY The nice value of the request.

REQMEM The number of kilowords of memory the request

is using.

REQTIM The number of seconds of CPU time remaining to

the request.

ST An indication of the current state of the request.

This can be composed of a major and a minor

status value. Major status values are as follows:

AArriving

CCheckpointed

DDeparting

EExiting

HHeld

QQueued

RRunning

SSuspended

UUnknown state

WWaiting

See the cqstatl(1) and qstat(1) man pages for

a list of the minor values.

The show queue display has much of this information, but it does not contain

the USER,QUEUE,JID, and PRTY ﬁelds.

The following example display is a summary of all requests in an NQS pipe

queue called squall at a system called host1:

SG–2150 3.3 157

NQE Administration

Qmgr: show long queue nqenlb

show long queue nqenlb

------------------------------

NQS PIPE REQUEST SUMMARY

------------------------------

IDENTIFIER NAME OWNER USER LOCATION/QUEUE PRTY ST

------------- ------- -------- -------- --------------------- ---- ---

40.latte STDIN 1201 mary nqenlb@latte 1 Q

The columns in this display have the following meanings:

Column name Description

IDENTIFIER The request identiﬁer (as displayed when the

request was submitted).

NAME The name of the script ﬁle, or stdin if the

request was created from standard input.

OWNER The user name under which the request was

submitted.

USER The user name under which the request will be

executed.

LOCATION/QUEUE The queue in which the request currently resides.

PRTY The intraqueue priority of the request.

ST An indication of the current state of the request

(in this case, Qmeans the request is queued and

ready to be routed to a batch queue).

The show queue display has much of this information in it, but it does not

contain the OWNER,USER,QUEUE, and PRTY ﬁelds.

A list of all requests that run in all NQS queues can be displayed by root or an

NQS manager (otherwise, the display shows only the submitting user’s

requests). Use the cqstatl or qstat command with the -a option; for

example:

cqstatl -a

Note: For information about displaying requests in the NQE database, see

Chapter 9, page 231.

158 SG–2150 3.3

Operating NQS [6]

6.4.6 Displaying the Mid Database

To display a list of NQS systems that are currently deﬁned in the machine ID

(mid) database, use the following qmgr command:

show mid

An example of the display follows:

Qmgr: sho mid

sho mid

MID PRINCIPAL NAME AGENTS ALIASES

-------- -------------- ------ -------

10111298 latte nqs latte.cray.com

10653450 pendulum nqs

10671237 gust nqs gust.cray.com

This display shows that three systems are currently deﬁned; the descriptions of

these entries are explained in Section 5.3, page 50.

The following qmgr command displays information on a speciﬁcmid or host:

show mid hostname|mid

An example of such a display follows:

Qmgr: show mid latte

show mid latte

MID PRINCIPAL NAME AGENTS ALIASES

-------- -------------- ------ -------

10111298 latte nqs latte.cray.com

6.5 Controlling the Availability of NQS Queues

Before an NQS queue can receive and process requests submitted by a user, it

must meet the following requirements:

•The queue must be enabled so that it can receive requests. If a queue is

disabled, it can still process requests already in the queue, but it cannot

receive any new requests.

SG–2150 3.3 159

NQE Administration

•The queue must be started so that it can process requests that are waiting in

the queue. If a queue is stopped, it can still receive new requests from users,

but it will not try to process them.

The NQS operator (or manager) can control these states, thereby controlling the

availability of a queue.

For example, you can disable all queues before shutting down the NQS system

and prevent users from submitting any additional requests. The requests that

are already in the queues will be processed.

Another example might be when no destination for a pipe queue will be

available for some time (for example, the destination host may not be

functioning). You can stop the queue rather than having NQS repeatedly try to

send requests and deplete system resources. There is a system limit to the

amount of time a request can wait in a queue.

6.5.1 Enabling and Disabling Queues

To enable a queue and allow requests to be placed in it, use the following qmgr

command:

enable queue queue-name

If the queue is already enabled, no action is performed.

To disable a queue and prevent any additional requests from being placed in it,

use the following qmgr command:

disable queue queue-name

If the queue is already disabled, no action is performed. If requests are already

in the queue, these can still be processed (if the queue has been started).

An NQS manager also can prevent or enable individual users’access to a queue

(see Section 5.8, page 69).

6.5.1.1 Example of Enabling and Disabling Queues

In the following example, you want to prevent users from sending requests to

the NQS queue called express for a few hours. To disable the queue, use the

following qmgr command:

disable queue express

160 SG–2150 3.3

Operating NQS [6]

When you want to enable the queue, use the following qmgr command:

enable queue express

6.5.2 Starting and Stopping Queues

To start an NQS queue and allow it to process any requests waiting in it, use

the following qmgr command:

start queue queue-name

If the queue is already started, no action is performed.

To start all NQS queues, use the following qmgr command:

start all_queues

To stop a queue and prevent any further requests in it from being processed,

use the following qmgr command:

stop queue queue-name

If the queue is already stopped, no action is performed. A request that had

already begun processing before the command was issued is allowed to

complete processing. All other requests in the queue, and any new requests

placed in the queue, are not processed until the queue is started.

To stop all NQS queues, use the following qmgr command:

stop all_queues

You can also suspend the processing of a speciﬁc request in a queue (instead of

the entire queue); see Section 6.6.4, page 165.

6.5.2.1 Example of Starting and Stopping Queues

In the following example, you can stop all NQS queues except the queue called

cray1-std,byﬁrst stopping all queues and then restarting cray1-std,as

follows:

stop all_queues

start queue cray1-std

The following qmgr command starts all of the queues:

start all_queues

SG–2150 3.3 161

NQE Administration

6.6 Manipulating Requests

You can perform certain actions by using qmgr commands on requests that

were submitted by users. To delete a request, you must have either operator

privileges on NQS or be the owner of the request.

6.6.1 Moving Requests between NQS Queues

To move a request from one NQS queue to another, use the following qmgr

command:

move request = request queue_name

A request can be moved only if it has not yet started processing (that is, has not

yet started being transferred to another queue).

The request argument is the request identiﬁer. It corresponds to the value

displayed under the IDENTIFIER column of the summary request display (see

Section 6.4.5, page 156). The queue_name argument is the name of the queue to

hold the request.

To move more than one request, use the following qmgr command:

move request = (requests)queue_name

You must separate request identiﬁers with a space or a comma and enclose

them all in parentheses.

To move all requests that have not started processing in one queue to another

queue, use the following qmgr command:

move queue from_queue_name to_queue_name

6.6.1.1 Example of Moving Requests between Queues

The following example moves the two requests with request identiﬁers 123 and

135 from the current queue to another queue called fast:

move request = (123,135) fast

You do not have to specify the queue in which these requests currently reside.

162 SG–2150 3.3

Operating NQS [6]

6.6.2 Moving Requests within a Queue

The following qmgr command schedules queued requests manually, changing

their position in a queue:

schedule request request(s) [order]

The request argument is one or more request identiﬁers of the request to be

rescheduled. If you specify more than one request, you must enclose them all in

parentheses and separate them with a space character or a comma.

The order argument can be one of the following:

•first, before all other requests in the queue, including restarted or rerun

requests

•next, after all other qmgr scheduled requests in the queue

•now, immediately initiating the request and bypassing all NQS limit checks

•system, moving a previously scheduled request back to system-controlled

scheduling

You can use the schedule command only on queued requests.

If a queue has a higher interqueue priority, the requests in that queue are

usually initiated before those in queues with a lower interqueue priority.

6.6.2.1 Example of Moving Requests within a Queue

The following example repositions the requests 100,101, and 102 to the order

101,102, and then 100:

schedule request 100 next

schedule request 101 now

schedule request 102 first

Request 101 is scheduled immediately, before all other queued requests.

Request 102 is scheduled to go before all other requests scheduled by qmgr

(but not before those scheduled with the schedule now command, which take

precedence).

Request 100 is scheduled to go after all requests scheduled by qmgr, but before

system-scheduled requests.

SG–2150 3.3 163

NQE Administration

6.6.3 Holding and Releasing Requests

To hold speciﬁc queued requests so that they are not processed, use the

following qmgr command:

hold request request(s) [grace-period]

The request argument is one or more request identiﬁers of the requests to be

held. If you specify more than one request, you must enclose them all in

parentheses and separate them with a space character or a comma.

The grace-period argument is the number of seconds between when the command

is issued and when the request is actually held; the default is 60 seconds.

Held requests become ineligible for processing; they are removed from the run

queue and their NQS resources are released. UNICOS, UNICOS/mk, and IRIX

requests that are running can be held; they are checkpointed until they are

released. On other platforms, running requests cannot be held because they

cannot be checkpointed.

You can hold more than one request at a time. Until it is released, you cannot

process a held request (for instance, move it to another queue).

To release requests that are held, use the following qmgr command:

release request request(s)

The qmgr command release request does not affect any request that is in a

state other than being held. No grace period exists for releasing a request.

6.6.3.1 Example of Holding and Releasing Requests

In the following example, the request with identiﬁer 123 is immediately held to

prevent it from being routed to a destination by using the following qmgr

command:

hold request 123 0

When you want to begin processing the request, release the request by using

the following qmgr command:

release request 123

164 SG–2150 3.3

Operating NQS [6]

6.6.4 Suspending, Resuming, and Rerunning Executing Requests

To suspend speciﬁc requests that are running and make their processes

ineligible for execution, use the following qmgr command:

suspend request request(s)

The request argument is one or more request identiﬁers of the requests to be

held. If you specify more than one request, you must enclose them all in

parentheses and separate them with a space character or a comma.

The resources of the request are not released with the suspend command.

You can suspend more than one request at a time.

When you suspend a request, its processes are sent a SIGSTOP signal; when

you resume processing of the request, a SIGCONT signal is sent. On UNICOS

and UNICOS/mk systems, NQS uses the suspend(2) system call.

You cannot process a suspended request (for instance, route it to another queue)

until it is resumed.

To resume requests that are suspended, use the following qmgr command:

resume request request(s)

The resume request command does not affect any request that is in a state

other than suspension.

To abort and immediately requeue a running request, use the following qmgr

command:

rerun request request(s)

This command kills processes of the request and the request is returned to the

queued state at its current priority. If a request is not running or cannot be

rerun, no action is taken. Users can specify that a request cannot be rerun by

using the NQE GUI Submit display, the cqsub or qsub command with the

-nr option, or the qalter -r command.

6.6.4.1 Example of Suspending and Resuming Requests

In the following example, the request with identiﬁer 222 is suspended and its

processes become ineligible for execution:

suspend request 222

SG–2150 3.3 165

NQE Administration

When you want to begin processing the request, you must release the request

by using the following qmgr command:

resume request 222

6.6.5 Modifying the Characteristics of Requests in Queues

The following qmgr command changes characteristics of a request in a queue:

modify request request option=limit

The request argument is the request identiﬁer of the request to be modiﬁed.

The limit argument overrides the limit speciﬁed when the request was

submitted and overrides the default limit deﬁned for the batch queue in which

the request is to be executed. NQS considers the new limit for selecting the

batch queue in which the request will execute.

The option can set the following per-process and per-request attributes; the

actual name of the option is given in parentheses:

Attribute Description

CPU time limit Per-request and per-process CPU time that can be

used; on CRAY T3E MPP systems, this limit

applies to command PEs (commands and

single-PE applications) (rtime_limit and

ptime_limit).

priority NQS user speciﬁed priority of a request.

To enable user speciﬁed priority for job initiation

scheduling, you should set the user_priority

weighting factor to nonzero and set all of the

other weighting factors to 0. Then, only user

speciﬁed priority will be used in determining a

job’s intraqueue priority for job initiation.

Memory limit Per-request and per-process memory that can be

used (rmemory_limit and pmemory_limit).

Nice value Execution priority of the processes that form the

batch request; speciﬁed by a nice increment

between 1 and 19 (nice_limit).

Per-request permanent

ﬁle space limit

Per-request permanent ﬁle space that can be used

(rpermfile_limit).

166 SG–2150 3.3

Operating NQS [6]

Per-process permanent

ﬁle space limit

Per-process permanent ﬁle space that can be used

(ppermfile_limit).

Per-request MPP

processing elements

(CRAY T3D systems) or

MPP application

processing elements

(CRAY T3E systems) or

number of processors

(IRIX systems) limit;

optionally enabled on

IRIX systems, see

Section 5.11.4, page 82

Per-request Cray MPP processing elements (PEs)

limit (-l mpp_p).

Per-process Cray MPP

residency time limit

For CRAY T3D MPP systems, sets the per-process

wallclock residency time limit, or for CRAY T3E

MPP systems, sets the per-process CPU time limit

for application PEs (multi-PE applications) for

subsequent acceptance of a batch request into the

speciﬁed batch queue (-l p_mpp_time_limit).

Per-request Cray MPP

residency time limit

For CRAY T3D MPP systems, sets the per-request

wallclock residency time limit, or for CRAY T3E

MPP systems, sets the per-request CPU time limit

for application PEs (multi-PE applications) for

subsequent acceptance of a batch request into the

speciﬁed batch queue (-l r_mpp_time_limit).

Per-request quick-ﬁle

size limit

(UNICOS systems with SSDs) The user’s

per-process secondary data segments (SDS) limit,

which is set to the value of the user’s user

database (UDB) entry for per-process SDS limits

(-lQ).

Per-request shared

memory size limit

Per-request shared memory size limit

(-l shm_limit).

Per-request shared

memory segment limit

Per-request shared memory segment limit

(-l shm_segment).

MPP memory size Per-process and Per-request MPP application PE

memory size limits (-l p_mpp_m,mpp_m).

You can add a sufﬁx to the memory limit with one of the following characters

(these are case sensitive) which denote the units of size used. A word is 8 bytes

SG–2150 3.3 167

NQE Administration

on UNICOS, UNICOS/mk, and 64-bit IRIX systems, and a word is 2 bytes on

other supported systems.

SufﬁxUnits

bBytes (default)

wWords

kb Kilobytes (210 bytes)

kw Kilowords (210 words)

mb Megabytes (220 bytes)

mw Megawords (220 words)

gb Gigabytes (230 bytes)

gw Gigawords (230 words)

6.6.5.1 Example of Modifying a Queued Request

In this example, a request with identiﬁer 1340 is waiting to execute in an NQS

queue. The submitter of the request wants to increase the memory allocated to

the request to 500 Mwords. To do this, you can enter the following qmgr

command:

modify request 1340 rmemory_limit=500mw

6.6.6 Deleting Requests in NQS Queues

The following qmgr commands delete a request that is in a NQS queue:

•abort request, which sends a SIGKILL signal to each of the processes of

a running request.

•delete request, which deletes requests that are not currently running.

The request is removed from the queue and cannot be retrieved. The original

script ﬁle of the request is unaffected by this command.

To delete all requests in a particular NQS queue, use the following qmgr

command:

•abort queue, which sends a SIGKILL signal to all running requests in the

speciﬁed queue

•purge queue, which purges all waiting, held, and queued requests in the

speciﬁed queue but allows running requests to complete

168 SG–2150 3.3

Operating NQS [6]

To delete requests using the NQE GUI Status window, select the request to be

deleted by clicking on the request line; then select Delete from the Actions

menu.

You can also use the cqdel or the qdel command to delete requests; an

example of the syntax follows:

cqdel -u username requestids

The username argument is the name of the user who submitted the request.

6.6.6.1 Example of Deleting a Queued Request

To delete all requests waiting in the queue bqueue15, use the following qmgr

command:

purge queue bqueue15

6.6.7 Deleting or Signaling Requests in Remote NQS Queues

After a request is in an NQS queue at a remote system, you can use the NQE

GUI Status window or the cqdel or qdel command to delete or signal the

request (the qmgr subcommands affect only requests in local NQS queues). You

must authenticate yourself by entering the correct password or having an entry

in your .rhosts or .nqshosts ﬁle and in the .rhosts or .nqshosts ﬁle of

the job’s owner. You do not have any special privileges to delete other users’

requests on remote NQS systems, even if you are an NQS operator or manager

on both the local and the remote host.

Note: If you are using the NQE database, you only need system access to the

NQE database from your remote host. For more information, see Chapter 9,

page 231, and the nqedbmgr(8) man page.

To delete requests using the NQE GUI Status window, select the request to be

deleted by clicking on the request line; then select Delete Job from the

Actions menu. For more information about using the cqdel and qdel

commands to delete or signal requests on NQS, see the cqdel(1) and qdel(1)

man pages.

SG–2150 3.3 169

NQE Administration

6.7 Recovering Jobs Terminated Because of Hardware Problems

When a process within a job has been terminated by a SIGUME or SIGRPE

signal or a SIGPEFAILURE signal (UNICOS/mk systems only), NQS requeues

the job rather than deleting it if either of the following is true:

•The job is rerunnable

•The job is restartable and has a restart ﬁle

Applications running on a CRAY T3E system are killed when a PE assigned to

the application goes down. NQS is now notiﬁed when a job is terminated by a

SIGPEFAILURE signal. NQS will requeue the job and either restart or rerun the

job, as applicable.

Periodic checkpointing should be enabled so that restart ﬁles will be available

for restarting rather than rerunning jobs which were terminated by a downed

PE SIGPEFAILURE signal.

By default, each NQS job is both rerunnable and restartable. These defaults can

be changed through use of the qsub -nr and -nc options and through use of

the qalter -r n and -c n options. The job’s owner can specify the qsub

options and use the qalter command to modify the job rerun and/or restart

attributes. An administrator can also use the qalter command to modify any

job’s rerun and/or restart attributes.

If NQS requeues a job because the job was terminated by either the SIGUME or

SIGRPE signals, the following message is written into the system syslog, the

NQS log ﬁle, and the job’s log ﬁle:

Request <1.subzero>: Request received SIGRPE or SIGUME

signal; request requeued.

If NQS requeues a job because the job was terminated by the SIGPEFAILURE

signal, the following message is written into the system syslog, the NQS log

ﬁle, and the job’s log ﬁle:

Request <1.subzero>: Request received SIGPEFAILURE signal; request requeued.

As a requeued job, the job will be reinitiated after it is selected by the NQS

scheduler. The qmgr schedule request now command can be used to force

the job to be reinitiated immediately.

170 SG–2150 3.3

Operating NQS [6]

The following actions can be expected when a job is terminated by either a

SIGRPE or SIGUME signal or a SIGPEFAILURE signal (UNICOS/mk systems

only):

•For a job that has default rerun and restart attributes, the job is requeued

and rerun.

•For a job that has default rerun and restart attributes and has a restart ﬁle

associated with it, the job is requeued and restarted from the restart ﬁle.

•For a job that has the no-rerun attribute and has no restart ﬁle, the job is

deleted.

•For a job that has the no-rerun attribute but does have a restart ﬁle, the job

is requeued and restarted from the restart ﬁle.

•For a job that has the no-restart attribute and uses the default rerun

attribute, the job is requeued and rerun.

•For a job that has the no-rerun and no-restart attributes, the job is deleted.

SG–2150 3.3 171

NLB Administration [7]

The Network Load Balancer (NLB) is comprised of servers, collectors, and

clients. The NQE GUI Status function uses collectors that communicate with

the NLB server to obtain batch request status information.

This chapter describes NLB administration. The following topics are discussed:

•Overview of NLB

•Overview of NLB conﬁguration

•Editing NLB conﬁguration ﬁle

•Conﬁguring ACLs for the NLB

•Starting the NLB server

•Specifying the NLB server location

•Creating redundant NLB servers

•Starting NLB collectors

•Managing the NLB server, including shutdown

The NQE User’s Guide, publication SG–2148, describes the NQE GUI Load

window, which allows you to monitor machine load and system usage across

the complex.

For information about the NQE database and NQE scheduler, see Chapter 9,

page 231.

7.1 NLB Overview

The Network Load Balancer (NLB) server contains the NLB database for NQE

information. It stores this information in the form of objects.Apolicy is the

mechanism by which the NLB server selects destinations based on the

information in the NLB database. (Policies are described in Section 8.1, page

193.)

Each object in the NLB database is uniquely identiﬁed by a combination of its

type (the deﬁnition of the object) and its name. All objects of a speciﬁc type have

SG–2150 3.3 173

NQE Administration

unique names to differentiate them; these object names are case insensitive. The

following example describes one object in the NLB database:

object NLB (host1)

The object type is NLB and the name of the object is host1.

Each object contains a set of attributes. An attribute consists of unique attribute

names, which identify it and its corresponding attribute value. Attribute names

are deﬁned when the object type is deﬁned; attribute names are case insensitive.

The object type and attribute names are deﬁned in the name map.

The following is an example of an object with one of its attributes:

object NLB (host1) {

NLB_HARDWARE = "Sun4c"

}

The NLB object named host1 contains an attribute called NLB_HARDWARE,

which is set to Sun4c. For a complete list of attributes for an object type, use

the following command:

nlbconfig -mdump -t object_type

Although the NLB database can store any deﬁned object, within NQE only the

following object types are deﬁned and used:

Object type Description

NLB Data sent by the collector processes containing

information about the NQE server that may be

used for destination selection. Attributes of this

object include such things as CPU load.

NJS and NJS_ALIVE Data sent by collector processes describing NQS

requests on the NQE server. This is used by the

NQE GUI Status function. NJS_ALIVE tells you

the last time the NLB hear from a collector; it is

used by the NQE GUI Load function to indicate

an NQE server is no longer talking to the NLB. It

may also be used for destination selection.

FTA_CONFIG and

FTA_DOMAIN

FTA conﬁguration objects. For information on

deﬁning these objects, see Section 13.2.10, page

335.

174 SG–2150 3.3

NLB Administration [7]

NLB_JOB Data sent to the NLB about the request, which the

NLB uses to choose a destination for the request.

C_OBJ Conﬁguration for the NLB itself.

7.2 Overview of NLB Conﬁguration

The NLB has the following conﬁguration requirements:

•The NLB server can be run from any account unless it is conﬁgured to use a

privileged TCP/IP port number.

•The server requires a working directory and free space for data storage. This

directory holds conﬁguration ﬁles used by the server; it also stores a

permanent copy of the NLB database. To run 750 requests, 250 Kbytes

should be ample space.

•There are two conﬁguration ﬁles, as follows:

–config, which deﬁnes some constants of operation and the master ACL

used to control administrative access to the server. It is read at startup

time.

–policies, which contains the deﬁnitions of policies. This ﬁle also is read

at startup, but the servers reads it again when the administrator issues

the nlbconfig -pol command. This ﬁle is described in Section 8.2,

page 194. NQS is shipped with a policy named nqs, which selects batch

queues based on which system has the highest average idle CPU load.

The location of these ﬁles is deﬁned in the NLB_SERVER_DIR attribute of the

nqeinfo ﬁle.

7.2.1 Server Database Integrity

The NLB server database is held in memory, but it is periodically backed up to

disk if it has been modiﬁed. The update interval is conﬁgurable; the default is

30 seconds. See the SKULK ﬁeld in the NLB conﬁguration ﬁle, described in the

following section. The NLB database also is written out to disk on server

shutdown. When the server restarts, it reads the NLB database from disk.

Access control lists (ACLs) are read and written in the same manner as the NLB

server database. (For a description of ACLs, see Section 7.9.5, page 186.)

SG–2150 3.3 175

NQE Administration

The restart sequence, in combination with collectors, provides a high degree of

consistency between NLB database contents and the information sent to the

server.

7.3 Editing the NLB Conﬁguration File

The NLB conﬁguration ﬁle sets the conﬁgurations that cannot be changed while

the NLB server is running. To change these settings, edit the NLB conﬁguration

ﬁle and then restart the NLB.

The NLB conﬁguration ﬁle, $NLB_SERVER_DIR/config (where

NLB_SERVER_DIR is deﬁned in the nqeinfo ﬁle), is an ASCII text ﬁle that has

the following format:

KEY:value

The KEY ﬁeld deﬁnes the parameter being controlled; value gives the setting of

the parameter. The interpretation of value depends on the KEY. Any text after a

#symbol is a comment; spaces or tabs can be used anywhere in the ﬁle. There

are defaults for all ﬁelds.

KEY Description of value

OBJECTS: Number of different object types the server will allow. The

default is 32.

PORT: TCP/IP port number or service name on which the server should

listen for connections. The default is nlb.

SKULK: The interval (in seconds) between NLB database write operations

to disk. The server checks for NLB database modiﬁcations every

value seconds, and it writes out those object lists or ACLs that

have changes. The default is 30 seconds.

M_ACL: The record to add to the master ACL. This determines who is

allowed access to the ACL objects.

This value contains three ﬁelds: the user name, the host name,

and the privileges to be granted. The host name can be used to

allow the user access from any location.

If no M_ACL record is present, the ACL defaults to the user who

started the server on the same host as the server.

D_ACL: Record to add to the default ACL for a new object. This value has

the same format as the M_ACL record. If it is not speciﬁed, there

176 SG–2150 3.3

NLB Administration [7]

is no default ACL, and any user is allowed access to any object

except ACL objects. Read access is allowed for the ACL for the

C_OBJ object type, but no access is allowed for any other ACLs.

DBASE: Path name of the directory used for object storage. You can

override it by using the nlbserver -d option.

OBJ: Controls the storage class for an object, which you can conﬁgure

by using the nlbconfig command.

Two ﬁelds are required: the object ID and the storage class.

Storage class is one of the following:

persistent Objects are written to disk at the

rate controlled by SKULK.

permanent Objects are written to disk when

the server is shut down.

transient Objects are never written to disk.

SG–2150 3.3 177

NQE Administration

The following is an example of a conﬁguration ﬁle:

# NLB server configuration file - master and default ACLs

# OBJECTS: - defines maximum number of different object types

# SKULK: - interval in seconds between database update

# PORT: - TCP service name or port number to listen on

# M_ACL: - record for master ACL (can be repeated)

# D_ACL: - record for default ACL (can be repeated)

# If M_ACL is not defined then it defaults to the user who

# started the server on the same machine. The master ACL

# controls the editing of other ACLs.

# If D_ACL is not defined the default ACL is empty which

# means objects are not restricted. If there is an ACL for an

# individual object type it overrides the default ACL

OBJECTS: 32 # number of different objects

PORT: nlb # tcp service name

SKULK: 30

OBJ: 500 permanent

OBJ: 501 permanent

# User Host Privs

# ---- ---- -----

M_ACL: root * all

M_ACL: fred * all

7.4 Conﬁguring ACLs for the NLB

Access to data in the NLB is controlled through Access Control Lists (ACLs).

Each object type may have its own ACL. If no ACL is deﬁned for an object

type, then the default ACL (D_ACL) is used for objects of that object type. If

there is no ACL for an object type and there is not an ACL, then access to any

object of that object type is unrestricted. The ability to access the ACLs is

controlled by the master ACL (M_ACL).

178 SG–2150 3.3

NLB Administration [7]

The M_ACL and the D_ACL are controlled by the config ﬁle in

NLB_SERVER_DIR (as deﬁned in the nqeinfo ﬁle) and may not be changed

without restarting the NLB.

The following values are supplied with the initial installation of NQE:

# User Host Privs

# ---- ---- -----

M_ACL: root * all

M_ACL: WORLD * r

D_ACL: root * all

D_ACL: OWNER * all

D_ACL: WORLD * r

With the initial conﬁguration, only root is able to change ACLs; everyone else,

indicated by the keyword WORLD, has read-only access. Access may be granted

for speciﬁc hosts, but an asterisk (*) is a wildcard indicating root access,

regardless of the NQE server. If no ACLs are deﬁned, the default ACL is used,

and either root or an object’s owner may change the object. Everyone else may

view the object but not change it (read-only access). The types of privileges are:

d(delete the object), u(update (change) the object), and r(read the object).

For information about editing the NLB conﬁguration ﬁle, see Section 7.3, page

176.

For information about changing ACLs for different object types, see Section

7.9.7, page 189.

7.5 Starting the NLB Server

To start the NLB server, use the following command:

nlbserver

The nlbserver command automatically runs in the background; you will

receive the system prompt before the command completes execution.

7.6 Specifying the NLB Server Location

All programs that communicate with the NLB server (the collector, the NQE

GUI Status and Load functions, and the nlbconfig and nlbpolicy clients)

SG–2150 3.3 179

NQE Administration

can use the same set of mechanisms to locate the server. These mechanisms are

as follows; they are listed in order of precedence:

1. The command line

2. The NLB_SERVER environment variable

3. The value set in the nqeinfo ﬁle at installation

4. The .Xdefaults ﬁle

In each of these cases, the syntax is as follows. For one server, the syntax is:

"hostname[:service_name]"

If you have multiple servers, specify multiple hostname[:service_name]pairs;

commas are not allowed, use a space to separate the servers. The syntax is as

follows:

"hostname[:service_name]hostname[:service_name]hostname[:service_name]"

The hostname is the Internet host name of the server host. The optional

service_name can be either a name that is mapped to a port number or an ASCII

representation of the port number. The service name is the string contained in

the conﬁguration ﬁle (see Section 7.3, page 176) as a value for the keyword

PORT. The default value of service_name is nlb. Use quotation marks on the

command line or when setting the NLB_SERVER environment variable. The

following are examples of NLB_SERVER syntax:

"cool:nlb_server"

"ice:10001"

"hot:604 wind rain gust:705"

If you place the environment variable NLB_SERVER in the system startup ﬁle

on a host, it will be available for all NLB commands. Specifying a server on a

command line will override the environment variable.

In the case of the collector, data is sent to all servers listed. For all other

programs the servers are tried in turn until one responds. If a server exits, the

clients will automatically switch to the next speciﬁed server.

Note: If you will send data to multiple NLB servers and will use job

dependency, read Section 12.2, page 314.

180 SG–2150 3.3

NLB Administration [7]

7.7 Creating Redundant NLB Servers

Running redundant NLB servers ensures that all of the NQE nodes can still

communicate with an NLB server, even if a network failure occurs.

When you install NQE collector nodes, specify all of the hosts on which you

will run NLB servers so that collectors can send data to all NLB nodes.

You can set the NLB_SERVER environment variable to point to several hosts.

The ﬁrst host speciﬁed is the ﬁrst one queried for information. If the ﬁrst host

does not respond, NQE tries the second host, and so on. For more information

on setting environment variables, see Chapter 3, page 35.

Warning: The job dependency feature does not provide synchronization of

events over multiple NLB servers. If you will use job dependency and

redundant NLB servers, you must read the information about job

dependency in Chapter 12, page 313.

7.8 Starting NLB Collectors

An NLB collector should be conﬁgured to run on each NQE node on which

NQS is conﬁgured to run. The collector extracts various statistics from the

system at regular intervals and sends them to the server.

Note: If you will send data to multiple NLB servers and will use job

dependency, read Section 12.2, page 314.

A number of attributes are collected (see Section 8.5, page 204). For those

attributes that collect dynamic statistics (such as NLB_PHYSMEM), both the

current value and a rolling average are collected. The rolling average is the

value of the attribute over the last nseconds; nis speciﬁed with the ccollect

-r option.

You can start the collector from any directory. To start the collector, use the

following command:

ccollect option

The ccollect command automatically runs in the background; you will

receive the system prompt before the command completes execution.

The option can have the following meanings:

SG–2150 3.3 181

NQE Administration

Option Description

-a Speciﬁes that you want to use awk(1) to parse

request (qstat) information instead of getting

the information directly from the NQS database,

which is the default source of information. To

customize how data is parsed, use this option in

conjunction with the -f,-p, and -q options.

-c Speciﬁes whether NLB will have a permanent

TCP/IP connection to the server. The default is to

establish a new connection for each update. Even

though new connections mean that the server

uses more CPU time, they reduce the number of

connections the server needs to have open.

-C ﬁlename Speciﬁes the full or relative path name of a ﬁle

that contains custom objects that are read by the

collector and then sent to the NLB server. If the

path is relative, the directory search order is the

current working directory and then the

/nqebase/etc directory (which is $NQE_ETC,as

deﬁned in the nqeinfo ﬁle), or the

$NQE_ETC/config directory. You can specify

this option multiple times. You also can set this

option by using the NQE_CUSTOM_FILE_LIST

variable either in the nqeinfo ﬁle or in the

environment. If the variable exists in both places,

the value in the environment takes precedence.

The variable mechanism syntax lets you specify

multiple ﬁles by separating them with either a

space or a comma. The search order is the same

as above.

Files used with the -C option are read when the

collector performs an update, and the values for

the attributes are sent to the NLB server.

-d ﬁle_system Reports the kilobytes of free disk space to the

NLB server. The -d option adds the following

attributes to the name_map ﬁle:

NLB_TMPNAME Directory name

182 SG–2150 3.3

NLB Administration [7]

NLB_FREETMP Free space in the

ﬁle system (in

kilobytes)

NLB_A_FREETMP The rolling average

of NLB_FREETMP

-f parseﬁle Speciﬁes the name of a ﬁle used to parse qstat

information. The default is njs_qstat.awk.

When you use this option, you also must use -a.

-i interval Speciﬁes the interval (in seconds) at which the

collector gathers machine load information. The

default is 15 seconds.

-I interval Speciﬁes the interval (in seconds) at which the

collector gathers information about NQS batch

requests. The default is 30 seconds.

-J Starts a collector that collects only job status

statistics.

-L Starts a collector that collects only machine load

statistics.

-o ﬁlename Used at collector startup time only. Speciﬁes an

object deﬁnition ﬁle that contains extra attributes

to be sent to the server from this collector.

Specifying additional attributes allows a site to

use its own attributes in displays and policies (for

example, a site might write a policy that uses a

weighted value based on the number of CPUs).

-p "parse_command"Speciﬁes a pattern-scanning command used to

parse the output of a qstat command. When

you use this option, also you must use -a.

-q "qstat_command"Speciﬁes a qstat command to be used in

gathering network job status statistics. This

option is used if the qstat command is not in

the collector’sPATH environment variable. This

must be a full path name. When you use this

option, you also must use -a.

-Q queue (Required) Speciﬁes the host’sNLB_QUEUE_NAME

attribute in the NLB database, which deﬁnes the

queue name NQS uses when it sends

load-balanced requests to this machine. If you are

SG–2150 3.3 183

NQE Administration

using the default NQE queue conﬁguration, this

queue is nqebatch.

-r interval Speciﬁes the interval (in seconds) over which the

rolling averages of attributes are calculated. This

value is turned into a multiple of the update

interval. A value of 0 turns off the rolling average

attributes.

Rolling average attributes are provided to prevent

load-balancing decisions from being inﬂuenced

by sudden spikes in the various measurements.

However, the longer the time period over which

the averages are taken, the longer it will take the

load balancer to note changes in a machine’s

current load. For more information on averaging

data, see Section 8.3.5, page 198.

-s server Speciﬁes the name of the NLB server to which to

send information. If you want to specify that

multiple servers will be updated from this

collector, you either can specify the -s option

more than once, or you can specify the option

once but place the server names in quotation

marks. If you omit the option, the NLB_SERVER

environment variable is used to locate the server.

The default mechanism for gathering batch request information is to read it

directly from the NQS database. To customize the method by which data is

collected and stored, use the -a,-f,-p, and -q options.

If you use the -a option, batch request information is parsed by using the

qstat -af | awk -f njs_qstat.awk command.

To change the path name of the qstat command, use the ccollect -q option.

You may want to do this if qstat is not in the collector’sPATH environment

variable. You must specify a full path name. If you use this option, you also

must use the -a option.

To change the awk command used to parse the qstat output, use the -p

option. For example, you may want to use nawk(1). If you use this option, you

also must use the -a option.

To change the ﬁle name used to parse qstat information, use the -f option.

You can customize the script njs_qstat.awk to parse the data the collector

gathers so that it suits your site’s needs. For example, you can modify the

184 SG–2150 3.3

NLB Administration [7]

script so that two different collectors report information to two different NLB

servers, thus keeping user communities separated.

To customize NLB collectors, see Section 8.8, page 226.

7.9 Managing the NLB Server

The nlbconfig facility lets you maintain and administer the NLB server. It

provides the following capabilities:

•Shutdown an NLB server

•Instruct an NLB server to reread its policy ﬁle (the ﬁle name is policies)

•Display, write, and modify name map information

•Display, write, and modify object information

•Display, write, and modify ACL information

•Change storage class of objects

The following sections describe the nlbconfig command.

7.9.1 Specifying the Server on the Command Line

To specify a server on the command line, use the following command:

nlbconfig -s server

The server is the name of the host on which the NLB server resides. The server

also can be speciﬁed in the nqeinfo ﬁle or with the NLB_SERVER environment

variable (as described in Section 7.6, page 179). Specifying -s server overrides

the value of NLB_SERVER. If you do not specify a server name and it is not set

by any of the methods listed in Section 7.6, page 179, the nlbconﬁg command

will fail with the following message:

nlbconfig: cannot determine server location

SG–2150 3.3 185

NQE Administration

7.9.2 Verifying the NLB Server Is Running

To ensure that the NLB server is running, use the following command:

nlbconfig -ping

The response you receive tells you whether the NLB server is running. If the

server is running, the response tells you the name of the server that was

contacted when you issued the command.

7.9.3 Shutting down the Server

To shut down the server, use the following command:

nlbconfig -kill

7.9.4 Rereading the policies File

To reread the policies ﬁle and make any new information in it available to

the NLB, use the following command:

nlbconfig -pol

Note: The policies ﬁle that NLB reads when you issue an nlbconfig

-pol command is in the location deﬁned in the nqeinfo ﬁle

NLB_SERVER_DIR/policies. Do not confuse this ﬁle with the policies

ﬁle located in the /nqebase/etc directory, which is only used when the NLB

directory is created. If you make changes to the policies ﬁle, make them to

the NLB_SERVER_DIR/policies ﬁle.

7.9.5 Conﬁguring Name Maps, Objects, and ACLs

The nlbconfig command uses similar options to operate on name maps,

objects, and access control lists (ACLs).

You can list and dump the contents of the name map, object, and ACL ﬁles the

server is currently using. When you list information, you receive basic

information about the type of objects in the server. When you dump

information, the current values of the objects are formatted and displayed. The

following options perform these operations:

Option Description

-mlist Lists names, types, and storage classes in the name map ﬁle

186 SG–2150 3.3

NLB Administration [7]

-olist Lists names of objects

-alist Lists names of an ACL list

-mdump Dumps values in name map ﬁle

-odump Dumps values in the object ﬁle

-adump Dumps values in the ACL list

The following options replace the contents (or part of the contents) of the name

map, object, and ACL ﬁles.

Option Description

-mput Downloads a name map ﬁle to the server

-oput Downloads the speciﬁed object(s) to the server

-aput Downloads the speciﬁed ACLs to the server

The following options delete objects or ACLs in the server’sﬁles:

Option Description

-odel Deletes the speciﬁed object(s)

-adel Deletes the speciﬁed ACLs

-mdel Deletes the name map for the speciﬁed object types from the

server

The following option adds attributes to objects in the server’sﬁles, leaving all

the current attributes unchanged:

Option Description

-oupdat Updates the speciﬁed object(s) with additional attributes

The following options change the storage class of an object in the name map ﬁle

(see page Section 8.5.1, page 204 for more information about storage classes):

Option Description

-perm Changes the storage class of the speciﬁed object to permanent

-pers Changes the storage class of the speciﬁed object to persistent

SG–2150 3.3 187

NQE Administration

-tran Changes the storage class of the speciﬁed object to transient

Options are provided to qualify the options already described. For example,

when you want to download a name map ﬁle, you use the -f option with the

nlbconfig command to specify the ﬁle name of the new ﬁle. The following

qualifying options are provided (for deﬁnitions of objects, object names, and

attribute names, see Section 7.1, page 173):

Option Description

-f ﬁle Speciﬁes a ﬁle name that contains objects or ACL descriptions.

-t type Speciﬁes an object type or ACL type.

-h host Speciﬁes an ACL host name; the default is "*" (denoting all

names).

-n name Speciﬁes an object name.

-a

attribute

Speciﬁes an object attribute name or a set of ACL privileges.

-u user Speciﬁes an ACL user name.

The following list indicates the options that can be qualiﬁed:

Option Qualiﬁer

-adel Object type, user, and host

-adump Object type and output ﬁle

-alist Object type and output ﬁle

-aput Object type, object attribute, user, host, and output ﬁle

-mdel Object type

-mdump Object type and output ﬁle

-mlist Object type and output ﬁle

-mput Input ﬁle

-odel Object type and object name

-odump Object type, object name, object attribute, and ﬁle

-olist Object type, object name, and ﬁle

-oput Input ﬁle

-oupdat Input ﬁle

188 SG–2150 3.3

NLB Administration [7]

-perm Object type

-pers Object type

-trans Object type

The -kill,-pol, and -ping options do not use qualiﬁers.

7.9.6 Examples of Conﬁguring Name Maps and Objects

The following example lists the name map for the server deﬁned by the

NLB_SERVER environment variable:

nlbconfig -mlist

This command produces the following output:

object type id storage class

----------- ---- -------------

NLB 1024 persistent

NJS 500 permanent

C_OBJ 1 persistent

NJS_ALIVE 501 permanent

FTA_CONFIG 400 persistent

FTA_DOMAIN 401 persistent

FTA_DATA 402 persistent

FTA_ACTION 403 persistent

NLB_JOB 1025 persistent

NLB_POL 3 persistent

EVENT 601 transaction

The following example deletes the object of type C_OBJ with the name gust on

the server deﬁned (to locate the server, use the mechanisms described in Section

7.6, page 179):

nlbconfig -odel -t C_OBJ -n gust

7.9.7 Changing ACL Permissions

ACLs control permissions for reading, updating, or deleting objects in the NLB

server. ACL permissions are usually changed with the nlbconfig command.

SG–2150 3.3 189

NQE Administration

The following example adds an ACL to the ACL list that allows user mario to

read (r) all objects of type C_OBJ from any host (the default) on the server

deﬁned by the NLB_SERVER environment variable:

nlbconfig -aput -t C_OBJ -u mario -a r

The master ACL controls all other ACLs; only users in this ACL can edit other

ACL lists with nlbconfig. If you receive the following error message, you

need to change the master ACL:

# nlbconfig -aput -t C_OBJ -u mario -a r

gust: No privilege for requested operation

To change the master ACL, edit the $NLB_SERVER_DIR/config ﬁle and

restart the NLB; you cannot change it by using nlbconfig.

By default, all users have read permission for ACL information in the server

database. The keyword WORLD is used to specify all users. If you changed

permissions for any users, you must explicitly add WORLD read permission

again.

To modify data in the server database, the NLB collector account (that is, the

account from which the ccollect command is issued) must have u(update)

and d(delete) permission.

All users can monitor all requests (through the NQE GUI Status window) in

the NQE cluster.

To avoid having to issue a long list of commands, you can place the

information in a ﬁle and then download that ﬁle to the server. The following

command places the current ACL for NJS objects in a ﬁle named acl_njs:

nlbconfig -s cool -alist -f acl_njs

The acl_njs ﬁle has the following format:

type user host priv

---- ---- ---- ----

NJS luigi * dru

NJS root * dru

NJS mario * dru

NJS WORLD * r

All jobs in the NQE database will be seen, regardless of how you set you ACL.

190 SG–2150 3.3

NLB Administration [7]

The following nlbconfig command places the information in the server:

nlbconfig -aput -f acl_file

SG–2150 3.3 191

Implementing NLB Policies [8]

This chapter describes the NQE Network Load Balancer (NLB) policies and

their implementation. The following topics are discussed:

•Deﬁning load-balancing policies

•The policies ﬁle

•Examples of how policies are applied

•Testing policies

•File formats

•Implementing NQS destination-selection policies

•Using batch request limits in policies

•Storing arbitrary information in the NLB database (extensible collector)

8.1 Deﬁning Load-balancing Policies

Aload-balancing policy is the mechanism whereby the NLB server determines a

list of hosts (with the most desirable ﬁrst) to be used as the target for a batch

request. For example, when a request is submitted to a load-balanced queue,

the NLB server applies a policy to the current information it has about hosts in

the complex. The server provides NQS with a list of machines sorted by the

speciﬁcations of the policy.

Policies are ﬁlters and sort routines that are applied to destination selection.

The information in the NLB database objects is used to determine how to ﬁlter

and sort the destinations (that is, how to balance the load across the NQE.)

Policies consist of a set of Boolean and arithmetic expressions that use kernel

statistics collected from the target machines. These expressions are deﬁned in

the policies ﬁle of the server and you can reread the ﬁle using the

nlbconfig(8) command. Multiple policies can exist at any one time.

Some attributes are reserved by the NLB, and others can be deﬁned by a site.

Sites have different requirements for the way they want work to be assigned to

machines, and the workload in an NQE complex is often varied; therefore, no

single set of rules need be successfully applied. Sites have the ability to

determine their own policies based on their unique needs.

SG–2150 3.3 193

NQE Administration

8.2 The policies File

When the system is installed and initially conﬁgured, the NLB reads the

$NQE_ETC/policies ﬁle for the initial conﬁguration and writes it to the

$NLB_SERVER_DIR/policies ﬁle. After that, only the

$NLB_SERVER_DIR/policies ﬁle is read. You should deﬁne any local,

site-deﬁned policies in the $NQE_SPOOL/policies ﬁle.

Note: The policies ﬁle that NLB reads when you issue an nlbconfig

-pol command is located by default in $NLB_SERVER_DIR/policies.Do

not confuse this ﬁle with the policies ﬁle located in the /nqebase/etc

directory, which is used only on NQE start-up (after an install) if

$NLB_SERVER_DIR/policies does not exist. If you make changes to the

policies ﬁle, make them to the ﬁle in /usr/spool/nqe/nlbdir.

The template for a policy deﬁnition is as follows:

# name is the mechanism for selecting an individual policy

policy: name

# A host must satisfy all specified constraints to be

# selected as a destination by the policy. There can be

# zero, one or many constraints.

constraint: Boolean expression

# Hosts which meet all constraints are then sorted by an

# equation. The operation is applied to the attributes of

# each host in turn, the host producing the largest result

# is returned first.

sort: arithmetic operation

# Optional maximum number of results, prevents NQS from

# attempting to send the request to too many destinations.

count: integer

Multiple policies can exist in the ﬁle. The ﬁrst policy is deﬁned as the default

policy, which is named NQS and is the one used if the client does not specify a

policy by name or if it speciﬁes a policy that does not exist.

The following Boolean operators are supported in all expressions in a policy:

194 SG–2150 3.3

Implementing NLB Policies [8]

Operator Description

|| Logical OR

&& Logical AND

^Exclusive or (aor bbut not aand b)

!Logical not

== Equal to

!= Not equal to

>= Greater than or equal to

<= Less than or equal to

>Greater than

<Less than

=> Implies. For example, a=>bmeans that if ais true, bmust also

be true for the expression to be true. If ais false, the value of bis

not examined and the expression is false.

Operator precedence is the same as in the C language. The implies operator

(=>) has the lowest precedence; that is, the => operation will be performed after

all other operators.

The following functions also are available to you when deﬁning load-balancing

policies:

Function Description

[variable == "regex"] Tests that the string variable equals the regular

expression (regex). This is a regular expression as

understood by grep and ed, not the shell ﬁle

name expansion form. Regular expressions are

case insensitive.

exists (attrib)Tests the existence of an attribute. The expression

is true if the attribute exists and false if the

attribute does not exist.

age The number of seconds that have elapsed since

this host’s attributes were last updated. Used to

ﬁlter out hosts that are not responding.

All expressions support (),/,*,+, and -operators. The attributes of the hosts

are used as the variables in the policy expressions. NQS attributes speciﬁed by

SG–2150 3.3 195

NQE Administration

using the NQE GUI or by using the -la option of the qsub or cqsub

command can also be used in policies.

Attributes provided at startup are described in Table 7, page 208. Additional

static attributes can be deﬁned and set using the nlbconfig command; these

attributes can then be used in policies.

Note: The extensible collector allows you to add your own dynamic

attributes. For additional information about the extensible collector, see

Section 8.8, page 226.

8.3 Example of How Policies Are Applied

The following section describes how a policy for NQS load balancing is applied.

For information about how to specify a policy name, see Section 5.6.4, page 65.

8.3.1 Step 1: The Name

After receiving a request in a load-balanced pipe queue, NQS will send a query

to the NLB server. This query includes the name of the policy to be used.

The policy name is used to ﬁnd the correct policy to apply. If the name is not

that of a known policy, the default policy is applied. The default policy is the

one named NQS.

NQS is shipped with a policy named nqs, which selects batch queues based on

which system has the highest average idle CPU load.

8.3.2 Step 2: The Constraints

The ﬁrst constraint is taken in and applied to the list of hosts that have sent

data to the server by using the ccollect process (described in Section 7.8,

page 181). It is applied to the objects of object type NLB. For a list of these

objects, use the following command:

nlbconfig -olist -t NLB

A constraint is expected to be a Boolean expression, and a true result means

that the host is kept as a valid target. A false result means the host is

discarded.

Each subsequent constraint is applied to the hosts that met the previous

constraints. This process continues until no more constraints are left, or until no

196 SG–2150 3.3

Implementing NLB Policies [8]

hosts meet a constraint. If there are no acceptable hosts, NLB returns a null list,

and NQS retries the request later. If there are no constraints, all hosts are

assumed to be acceptable targets for the policy.

Constraints can ﬁlter out machines that physically cannot run a request, as in

the following example:

# Policy for SPARC-specific requests

policy: SPARC

constraint: [ NLB_HARDWARE == "SPARC" ]

For the nqs policy, any machines that do not have a queue name associated

with them are ﬁltered out. It is also important to ﬁlter out machines that have

not sent data recently. The time period used to evaluate this depends on the

time interval between samples sent from the collectors. The following example

sets the time period to 300 seconds:

constraint: exists(NLB_QUEUE_NAME) && age < 300

Constraints can also remove machines that are currently not good choices. For

example, the following policy selects only machines that have more than 32768

Kbytes of free memory (32 Mbytes). Memory is measured in units of Kbytes:

policy: bigjob

constraint: NLB_FREEMEM > 32768

8.3.3 Step 3: The Sort

After the list of hosts has been ﬁltered, the sort expression/operation is used to

order them. The expression/operation is applied to each host in turn, and the

result for that host is stored in the NLB database as the NLB_POLICY attribute.

The hosts are then sorted on this number. The host with the largest

NLB_POLICY value is regarded as the best choice.

8.3.4 Step 4: The Count

A policy can optionally specify a count of the maximum number of targets that

should be returned. This is needed in large networks to reduce the number of

different systems to which NQS might attempt to send a batch request.

SG–2150 3.3 197

NQE Administration

8.3.5 Approaches to Designing Policies: Averaging Data

Policies are based on statistical data gathered from machines by NLB collectors.

This data reﬂects the state of the machine in the recent past, but its current state

may be different.

The data available to the server is a dynamic snapshot of the machine state;

therefore, the server’s picture of the state of machines in the network is always

a little out-of-date.

This section describes a special collection of attributes, which, by convention,

are named NLB_A_regular attribute name, such as NLB_A_IDLECPU.

Because an instantaneous snapshot of machine load could cause an incorrect

view of its true state over time, the collectors provide two sets of

measurements: the instantaneous data (which is of most use in the NQE GUI

Load window displays) and averaged data for use in policies. The averaged

data tends to smooth out the short-term peaks and troughs in the instantaneous

data and to give a more accurate view of the overall load, as can be seen in

Figure 16 and Figure 17.

a10269

Figure 16. Average Machine Load Data

198 SG–2150 3.3

Implementing NLB Policies [8]

a10270

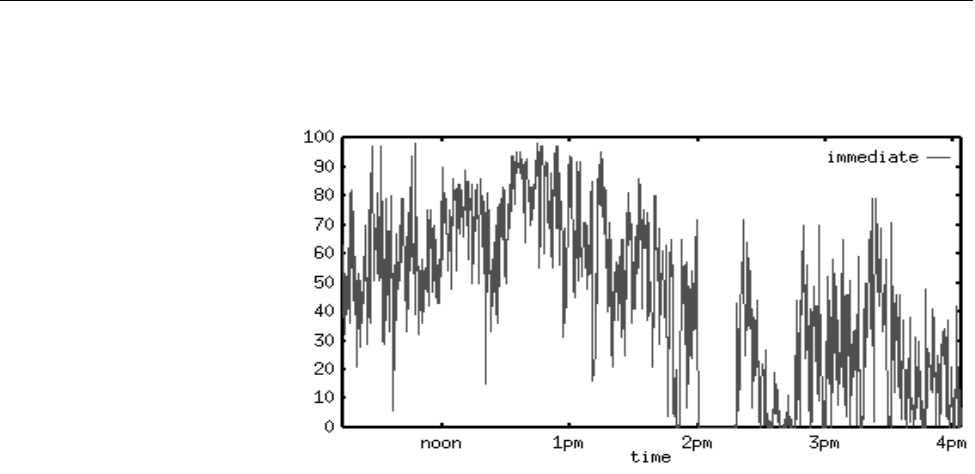

Figure 17. Instantaneous Machine Load Data

The averaged data (stored in attributes beginning with NLB_A_) are calculated

by adding the instantaneous measures taken over the last nseconds and

dividing by the number of samples taken (the ccollect -r option controls n).

You can tune the averaging of data in the policy to reﬂect the type of work

being run on a machine. For example, you can user longer sampling periods on

machines at which long requests are run. However, the longer the period you

use, the longer it takes the measures to catch up with reality; for example, even

after a large requests is ﬁnished, it takes time for the load it produced to work

its way out of the data.

8.3.6 Other Factors: Weighting Machines

A network usually will contain a mix of machines: different types of machines

and perhaps machines of the same type but differing capacity (such as

CRAY T90 and CRAY J90 systems).

The measures sent by the collectors reﬂect what is actually happening on a

particular machine, but they do not indicate how that activity compares to the

maximum capacity of that machine, or how that machine compares to others in

SG–2150 3.3 199

NQE Administration

the network. To measure these factors, you must introduce weighting or

normalization factors into policies.

For example, if you are concerned with the amount of idle CPU time available

on a machine (which is reported as a percentage), you could write a policy that

sorts on this factor, as follows:

policy: idlecpu

sort: NLB_IDLECPU

In this case, a small workstation may be selected as the best target for work in

preference to a large Cray Research system, even though 10% idle time

available on the Cray Research system could well represent much more

computing power than 50% idle time on the workstation.

By adding weighting factors to machines, you can balance out this difference. If

you deﬁne a new attribute called NLB_SITE_CPUNORM for each host (as in the

example in Section 8.3.9, page 201), and assign values representing the relative

CPU powers of the different machines (machine Ais 100 while machine Bis

10), you can factor this into the policy, as follows:

policy: idlecpu

sort: NLB_IDLECPU * NLB_SITE_CPUNORM

Of course, the relative powers of different machines are related to the nature of

the request to be executed. A highly vectorized application probably requires a

larger difference in weightings between a workstation and a Cray Research

system than would a scalar application.

8.3.7 Other Factors: Alternate Policies for Different Time Periods

You may want to apply different policies at different times of the day or the

week. For instance, you may want to allow requests to run on ﬁle servers at

night when there is little NFS activity. Although there is no direct support for

this in the NLB, you could use a cron job to load a new set of policies into the

server at deﬁned times. This job would replace the policies ﬁle and cause

the server to reread it, as in the following example:

cp policies policies.day

cp policies.night policies

nlbconfig -pol

200 SG–2150 3.3

Implementing NLB Policies [8]

The following example would switch the policies ﬁles back again:

cp policies policies.night

cp policies.day policies

nlbconfig -pol

For this example to work, root must be in the master access control list (ACL)

for the server deﬁned in its conﬁguration ﬁle, because this ACL controls who

can update the policies ﬁle.

8.3.8 Policy Examples

The following example selects all hosts that have the attribute

NLB_QUEUE_NAME and for which the data has been updated within the last

minute (AGE < 60). The hosts are then sorted by weighted idle CPU time (as

described in Section 8.3.6, page 199).

policy: AGE

constraint: exists(NLB_QUEUE_NAME) && AGE < 60

sort: NLB_A_IDLECPU * NLB_SITE_CPUNORM

The following example selects all machines with an average system load of

10%/CPU (or less); NLB_A_SYSCPU is the average system CPU (percentage)

and NLB_NCPUS is the number of CPUs:

policy: default

constraint: [NLB_HARDWARE == "CRAY"] =>

(NLB_A_SYSCPU / NLB_NCPUS) < 10.0

constraint: [NLB_HARDWARE == "sun"] => NLB_PHYSMEM >= 32768

sort: NLB_NCPUS

8.3.9 Example of Writing a Load-balancing Policy

The following example deﬁnes a new attribute used to normalize CPU loads.

This is useful for a site with machines that have widely different CPU power.

First a new object attribute is created, then values are assigned to the attribute,

and ﬁnally the policy is added to the server NLB database so that data

associated with it can be stored. All this can occur without any part of the

system being restarted.

1. Deﬁne an attribute.

For a new attribute to be usable, it must be placed in the server’s

name_map ﬁle.

SG–2150 3.3 201

NQE Administration

To extract the name map from the server, use the following command:

nlbconfig -mdump -f name_map

This command produces a ﬁle containing all of the name maps known to

the server. To deﬁne an attribute, you must edit this ﬁle to contain a name,

description, and type for the new attribute, as in the following example:

map NLB=1024

{

NLB_SITE_CPUNORM "CPU Normalization Factor" integer(1000);

existing attributes

}

The new name (NLB_SITE_CPUNORM) and the new ID (1000) must not

match any existing ones. The attribute must appear in the list of attributes

for the NLB object (the top line of the example), and all existing attributes

must be included in the ﬁle. If you do not include all of the existing

attributes, they will be deleted when the new name_map ﬁle is read by the

server.

2. Add the attribute to the name map by using the following command:

nlbconfig -mput -f name_map

You have to do this only once; the server stores this data in its NLB

database until you explicitly overwrite it again.

3. Add a value for the new attribute to the host data by creating an object

deﬁnition that sets the value of the attribute for each NLB object, as follows:

object NLB (bighost) {

NLB_SITE_CPUNORM = 1000;

}

object NLB (smallhost) {

NLB_SITE_CPUNORM = 1;

}

This ﬁle is then loaded into the NLB database by using the following

command:

nlbconfig -oupdat -f obj_defs

The new attribute is now available for use in policies (in step 4).

202 SG–2150 3.3

Implementing NLB Policies [8]

4. Add a policy using the newly-deﬁned attributes.

After values for an attribute have been placed in the NLB database (step 3),

you can write policies based on these values. The following policy could be

placed in the policies ﬁle to select hosts based on CPU normalization:

policy: idlecpu

sort: NLB_IDLECPU * NLB_SITE_CPUNORM

5. Issue the following command to cause the server to reread its policy ﬁle:

nlbconfig -pol

This policy is now available for use by NQS.

Note: Ensure an NQS load-balancing queue is deﬁned to use the new

policy.

8.4 Testing Policies

The load-balancing policies that work best for your site depend on the

workload at your site. To help you develop policies, the nlbpolicy program

is provided as a direct interface to the NLB. You can, for example, experiment

with a policy without submitting requests to NQS. The syntax of the

nlbpolicy command is as follows:

nlbpolicy [-a attribute = value][-c count][-d][-h host][-p policy]

[-s server]

The nlbpolicy command sends the server a policy query. The -a option

speciﬁes a list of attribute names and an optional value to ﬁnd a host with the

speciﬁed attribute set, or the speciﬁed attribute set to the speciﬁed value. You

may specify more than one attribute and corresponding value. The value must

be a decimal integer or ﬂoat, in normal or scientiﬁc notation. You must expand

(to a value in bytes) unit symbols to be acceptable to NQS commands, such as

10kw (for example, 10kw would be 10 x 8192 = 81,920).

The -c option controls the maximum number of hosts returned. The -p option

selects a policy by name. The -h option (which can be repeated) speciﬁes an

acceptable target host to return.

Without the -d option, the program prints out the returned hosts ordered by

the policy sort equation and the result of the equation for that host. With the -d

option, all the information about each host is printed as an object data ﬁle.

SG–2150 3.3 203

NQE Administration

The following policy, called AGE, returns a list of hosts ordered by the

percentage of idle CPU time multiplied by a weighting factor:

policy:AGE

sort: NLB_A_IDLECPU * NLB_SITE_CPUNORM

To test the policy, use the following command:

nlbpolicy -p AGE

The following output is returned:

cool 5.000000

cloudy 0.701754

gust 0.239234

hot 0.028249

The following command uses the same policy, but the -d option dumps all of

the objects for the host, and the -c option limits the number of hosts to 2:

nlbpolicy -p AGE -d -c2

This command prints out all of the attributes of the selected hosts (objects of

object type NLB).

8.5 File Formats

The following two sections describe the NLB name map and the object data ﬁle

formats.

8.5.1 The Name Map File

The NLB server supports mappings between the internal values used to

represent objects and attributes, and the human-readable names and

descriptions. The mapping is deﬁned by conﬁguration data held within the

server. This data can be downloaded from the server and converted to a text

form by nlbconfig. The nlbconfig program also can take the text form of

the name map and load it back into the server, allowing you to add new

deﬁnitions to the map. This text form of the name map is known as a

name_map ﬁle.

The name_map ﬁle contains a sequence of deﬁnitions for different object types

and their associated attributes. Each object has a name and an ID. Each

attribute of an object has a name, a text description, and an ID formed from a

204 SG–2150 3.3

Implementing NLB Policies [8]

type and a number. The attribute ID and name must be unique from all other

attributes of that object.

A name map for an object of object type NLB (information about an individual

host) would be as follows; column one is the attribute name, column two is the

attribute description, and column three is the attribute type ID:

SG–2150 3.3 205

NQE Administration

map NLB = 1024

{

NLB_OSNAME "OS name" string(1);

NLB_RELEASE "Release" string(2);

NLB_VERSION "Version" string(3);

NLB_HARDWARE "Hardware" string(4);

NLB_QUEUE_NAME "Queue name" string(5);

NLB_TMPNAME "Temp file path" string(6);

NLB_BSUSPEND "Auto suspend state" string(7);

NLB_IDLECPU "Idle cpu" float(1);

NLB_RUNQLEN "Run queue" float(2);

NLB_SWAPPING "Swap activity" float(3);

NLB_POLICY "Policy Weighting" float(4);

NLB_SYSCPU "System cpu" float(5);

NLB_RUNQOCC "Run queue occupancy" float(6);

NLB_A_IDLECPU "Ave Idle cpu" float(11);

NLB_A_RUNQLEN "Ave Run queue" float(12);

NLB_A_SWAPPING "Ave Swap activity" float(13);

NLB_A_SYSCPU "Ave System cpu" float(14);

NLB_PHYSMEM "Memory" integer(1);

NLB_FREEMEM "Free memory" integer(2);

NLB_CLOCK "Clock speed" integer(3);

NLB_NCPUS "Num CPUs" integer(4);

NLB_PSWCH "Context switches" integer(5);

NLB_NUMPROC "Process count" integer(6);

NLB_FREETMP "Free temp space" integer(7);

NLB_KEYIDLE "Keyboard idle time" integer(8);

NLB_SWAPSIZE "Swap Device size" integer(9);

NLB_SWAPFREE "Free Swap space" integer(10);

NLB_A_FREEMEM "Ave Free memory" integer(11);

NLB_A_PSWCH "Ave Context switches" integer(12);

NLB_A_NUMPROC "Ave Process count" integer(13);

NLB_A_FREETMP "Ave Free temp space" integer(14);

NLB_A_SWAPFREE "Ave Free Swap space" integer(15);

NLB_IOTOTAL "Total user I/O rate" integer(16);

NLB_A_IOTOTAL "Ave Total user I/O Rate" integer(17);

NLB_IOREQS "I/O Requests per sec" integer(18);

NLB_A_IOREQS "Ave I/O Requests per sec" integer(19);

NLB_SYSCALLS "System calls per second" integer(20);

NLB_A_SYSCALLS "Ave system calls per second" integer(21);

NLB_TPDAEMONUP "Tape Daemon running" integer(22);

206 SG–2150 3.3

Implementing NLB Policies [8]

NLB_MPP_UP "Cray T3D available" integer(23);

NLB_NQS_UP "NQS available flag" integer(24);

NLB_NQS_VALTYPE "NQS validation type" integer(25);

NLB_TIMESTAMP "Update time" time(4096);

NLB_HOST "Originating host" string(4098);

}

You can change the attribute names (such as NLB_OSNAME) and the attribute

descriptions. However, you cannot change the attribute type ID. The type ID

numbers are built into ccollect(8); because of this, speciﬁc attributes always

represent the same piece of information.

Note: It is recommended that you do not change attribute names because

they are used in X resource deﬁnitions for the NQE GUI Load window

displays and in policy deﬁnitions.

Table 6 lists the allowed attribute types:

Table 6. Attribute Types

Type Contents

float Floating-point value

integer Integer value

string Null-terminated ASCII string

time Time stamp (the number of seconds since 1 January 1970)

You can add new attributes and store values to the NLB database at any time

by using the nlbconfig command. However, the data cannot be used

anywhere until the attribute has been deﬁned in the name_map ﬁle, even if

objects in the NLB database possess the attribute. These site-deﬁned values can

then be used in policies and the X resource deﬁnitions for the machine load

displays, which are displayed by using the NQE GUI Load window. For an

example of writing a load-balancing policy, see Section 8.3.9, page 201.

A number of object and attribute names are reserved. They are hardcoded into

the NLB collectors. A default name mapping ﬁle is supplied for these objects

and attributes. Attribute numbers below 8192 are reserved for Cray Research.

Table 7 lists the reserved host object attributes.

SG–2150 3.3 207

NQE Administration

There are averaged versions of all integer and ﬂoating-point attributes except

for NLB_POLICY,NLB_KEYIDLE,NLB_PHYSMEM,NLB_CLOCK,NLB_NCPUS, and

NLB_SWAPSIZE. These attributes use the naming convention _A inserted in the

middle of the name (for example, NLB_A_IDLECPU is the average version of

NLB_IDLECPU).

Table 7. Reserved Host Object Attributes

Attribute Description Type

NLB_BSUSPEND Status of interactive activity on a server

running csuspend(8).

String

NLB_CLOCK Clock speed. Integer (picoseconds)

NLB_FREEMEM Amount of memory currently available. Integer (Kbytes)

NLB_FREETMP Amount of free temporary ﬁle space. Integer (Mbytes)

NLB_HARDWARE Hardware type as shown by the uname(1)

command.

String

NLB_IDLECPU Percentage of idle CPU time. Float (0 to 100)

NLB_IOTOTAL Amount of I/O being performed by user

processes (read and write system calls).

Integer (Kbyte/s)

NLB_IOREQS Number of read and write system calls per

second.

Integer

NLB_KEYIDLE Amount of time since console key pressed or

mouse moved. Only valid on workstations.

Integer (minutes)

NLB_MPP_UP CRAY T3D MPP system available. True/false

NLB_NCPUS Number of conﬁgured CPUs. Integer

NLB_NUMPROC Number of processes in system at the last

sample point.

Integer

NLB_OSNAME Operating system name as shown by the

uname(1) command.

String

NLB_PHYSMEM Total amount of physical memory available to

user processes.

Integer (Kbytes)

NLB_POLICY Result of last policy sort equation applied to

host.

Float

208 SG–2150 3.3

Implementing NLB Policies [8]

Attribute Description Type

NLB_PSWCH Context switches per second. Integer

NLB_QUEUE_NAME Queue name for load-balanced NQS requests,

deﬁned by the ccollect option -Q.

String

NLB_RELEASE Operating system release as shown by the

uname(1) command.

String

NLB_RUNQOCC Percentage of the time that the run queue was

occupied (that is, processes were waiting for

the CPU). A low number indicates the system

is under used.

Float (0 to 100)

NLB_RUNQLEN Number of runnable processes. Float

NLB_SWAPFREE Amount of unused swap space. Integer (Mbytes)

NLB_SWAPPING Rate of data movement to and from swap

devices.

Float (Kbyte/s)

NLB_SWAPSIZE Amount of swap space conﬁgured. Integer (Mbytes)

NLB_SYSCALLS Number of system calls executed per second. Integer

NLB_SYSCPU Percentage system CPU time. Float (0 to 100)

NLB_TMPNAME Path name of ﬁle system used for the

NLB_FREETMP attribute, deﬁned by the

ccollect option -d.

String

NLB_TPDAEMONUP UNICOS tape daemon is present. True/false

NLB_VERSION Operating system version as shown by the

uname(1) command.

String

Table 8 lists the availability of the attribute data across platforms. The following

conventions are used in the table:

Y Indicates data is available

- Indicates no kernel data is available

The NLB_TPDAEMONUP and NLB_MPP_UP attributes are collected only from

UNICOS and UNICOS/mk systems.

SG–2150 3.3 209

NQE Administration

Table 8. Attribute Implementation Across Platforms

Attribute AIX Digital

UNIX

HP-UX IRIX Solaris UNICOS UNICOS/mk

NLB_OSNAME YYYYYY Y

NLB_RELEASE YYYYYY Y

NLB_VERSION YYYYYY Y

NLB_HARDWARE YYYYYY Y

NLB_QUEUENAME YYYYYY Y

NLB_TMPNAME YYYYYY Y

NLB_IDLECPU YYYYYY Y

NLB_RUNQLEN YYYYYY Y

NLB_SWAPPING YYYYYY -

NLB_SYSCPU YYYYYY Y

NLB_RUNQOCC Y- - YY Y Y

NLB_PHYSMEM YYYYYY Y

NLB_FREEMEM YYYYYY -

NLB_CLOCK -- - YY Y Y

NLB_NCPUS -YYYYY Y

NLB_PSWCH YYYYYY Y

NLB_NUMPROC YYYYYY Y

NLB_FREETMP YYYYYY Y

NLB_KEYIDLE -Y - YY Y Y

NLB_SWAPSIZE YYYYYY -

NLB_SWAPFREE YYYYYY -

NLB_IOTOTAL Y- - YY Y Y

NLB_IOREQS Y-YYYY Y

NLB_SYSCALLS YYYYYY Y

210 SG–2150 3.3

Implementing NLB Policies [8]

Attribute AIX Digital

UNIX

HP-UX IRIX Solaris UNICOS UNICOS/mk

NLB_TPDAEMONUP YYYYYY Y

NLB_MPP_UP YYYYYY Y

The NLB also stores attributes for running requests. There is an attribute for

each ﬁeld in the cqstatl or qstat -f display (over 200 attributes are

included). To obtain a list of these attributes, use the following command:

nlbconfig -mdump -t NJS | more

The output from this command lists attribute names, descriptions, and types.

An abbreviated example follows:

#nlbconfig -mdump -t NJS |more

###############################################

# creation date: Wed Mar 22 15:08:13 1995

# created by: ljgm

# object timestamp: Sat Mar 18 11:56:52 1995

########

map NJS = 500

{

NJS_NQSID "NQS identifier" string(1);

NJS_JOBSTAT "Job status" string(2);

NJS_NUMPROC "Processes in job" integer(3);

NJS_RUNUSER "Running user" string(4);

NJS_QUENAM "Queue name" string(5);

NJS_CPUREQLIM "Per-request CPU limit" integer(6);

NJS_CPUREQUSE "Per-request CPU use" integer(7);

NJS_MEMREQLIM "Per-request memory limit" float(8);

NJS_MEMREQUSE "Per-request memory use" float(9);

NJS_PFSREQLIM "Per-request PFS limit" float(10);

NJS_PFSREQUSE "Per-request PFS use" float(11);

NJS_ORGHOST "Originating host" string(12);

NJS_ORIGUSER "Originating user" string(13);

NJS_QUEENT "Position in queue" integer(14);...

8.5.2 The Object Data File

An object data ﬁle may be used to assign values to attributes for each object.

Objects can be represented in a text format. Functions and commands are

SG–2150 3.3 211

NQE Administration

provided so administrators can create their own objects and insert them into the

NLB database.

An object data ﬁle consists of a sequence of objects. Each object has a type, a

name, and a sequence of assignment statements that deﬁne attribute values.

The type names for objects and names for attributes are taken from the name

map in the NLB database. The following example deﬁnes two attributes on

three different hosts:

object NLB (cloudy) {

NLB_SITE_CPUNORM = 10;

NLB_APPLICATIONS = "UniChem dbase";

}

object NLB (gust) {

NLB_SITE_CPUNORM = 12;

NLB_APPLICATIONS = "UniChem TurboKiva";

}

object NLB (hot) {

NLB_SITE_CPUNORM = 24;

NLB_APPLICATIONS = "";

}

The legal values for an attribute depend on its type as deﬁned in the name

map, as follows:

Type Contents

float Floating-point value. Only ﬁxed-point representation is supported

(such as 35000.0 and not 3.5e4).

integer Integer value. This can be a signed integer. A leading 0 implies

octal.

string A string surrounded by quotation marks (") or a single word

containing only alphanumeric characters.

time Cannot be speciﬁed as input.

First you would update the name_map ﬁle with the new attributes

NLB_APPLICATIONS and NLB_SITE_CPUNORM and load it into the

nlbserver. Note that because of how the server code works any attributes

that are to be used in policies must be in either the NLB object or the NLB_JOB

object. If any attribute is used in the policy ﬁle that is not in either of these two

objects the policies ﬁle will not be read successfully by the nlbserver.

212 SG–2150 3.3

Implementing NLB Policies [8]

name_map ﬁle:

map NLB = 1024

{

NLB_APPLICATIONS

"Resident Applications"

string(999);

}

Second, the appropriate objects must have attributes set properly. For this

example, these are set with the following object data ﬁle that is downloaded to

the nlbserver with the following command:

nlbconfig -t nlb -oupdat ﬁlename

object NLB (gust) {

NLB_APPLICATIONS = "Unichem TurboKiva Nastran";

}

object NLB (wind) {

NLB_APPLICATIONS = "Nastran";

}

object NLB (rain) {

NLB_APPLICATIONS = "Unichem";

}

object NLB (frost) {

NLB_APPLICATIONS = "TurboKiva";

}

Third, write some policies that use the attribute in question.

Policy ﬁle:

policy:

first

constraint:

[NLB_APPLICATIONS == "Nastran"]

sort: (NLB_A_IDLECPU +5)/10000

policy:

second

constraint:

[NLB_APPLICATIONS == "Unichem"] ||\n [NLB_APPLICATIONS == "TurboKiva"]

sort: (NLB_A_IDLECPU +5)/10000

Finally see the results of the policies when they are invoked.

SG–2150 3.3 213

NQE Administration

Output from nlbpolicy:

nlbpolicy -p first

gust

0.0092525

wind

0.003213

nlbpolicy -p second

gust

0.009225

rain

0.004950

frost

0.000500

8.6 Implementing NQS Destination-selection Policies

It is relatively simple to set a policy that selects target NQS systems with the

lightest CPU load.

To use this destination selection mechanism, batch requests must be submitted

to a pipe queue that is conﬁgured to perform destination selection. By deﬁning

both standard NQS pipe queues and destination-selection pipe queues, and by

setting an appropriate default batch queue, sites can deﬁne several workable

environments that allow integration of destination selection into their

environment.

The examples in Section 8.6.5, page 219, and Section 8.6.6, page 219, show how

sites might conﬁgure NQS destination-selection queues to determine how batch

requests are routed.

8.6.1 Conﬁguring NQS Destination Selection

To conﬁgure an NQS destination selection environment, deﬁne a pipe queue as

a destination selection pipe queue on each system that will route requests using

NLB (as described in Section 8.6.5, page 219). No destinations should be deﬁned

for this pipe queue. The queue must be marked as a destination selection pipe

queue (CRI_DS). (For additional information, see Section 5.6.4, page 65.)

214 SG–2150 3.3

Implementing NLB Policies [8]

The collectors on your NQE nodes have been reporting their availability. When

you submit a request to the new queue, the NLB selects one of these servers as

the destination queue for your job.

8.6.2 NQS User Interface to NLB

If the qmgr default batch queue is set to a destination-selection pipe queue, all

requests that do not designate a speciﬁc queue are routed using NLB. If the

default queue is not a destination-selection queue, you can use the General

Options Queue Name selection of the Configure menu on the NQE GUI

Submit window, use the -q queues option, or designate the queue in the script

ﬁle to select a destination-selection queue.

If you are using ﬁle validation, each user must create a .rhosts or

.nqshosts ﬁle on each system to which a request might be routed by the

NLB. If you are using password validation, the user’s password must be the

same on all systems to which the NLB could route the request.

8.6.3 Policy Deﬁnition

The following example could be used as a policy deﬁnition in the NLB

policies ﬁle:

SG–2150 3.3 215

NQE Administration

# Policy for load-balancing between Cray systems

# Note that NLB_HARDWARE can be "CRAY J90", "CRAY Y-MP",

# "CRAY T3E", etc. and still match [ NLB_HARDWARE == "cray" ]

# ( AGE < 300 ) for systems that have sent data in the

# last 5 minutes

# (NLB_PHYSMEM - NLB_A_FREEMEM....) for a ratio of memory used

# (real and swap) to real memory of less than 4

# (NLB_NCPUS <= 2.... for less than 20% system CPU per CPU for

# hosts with 1 or 2 CPUs

# (NLB_NCPUS > 2.... for less than 3.5% system CPU per CPU for

# hosts with more than 2 CPUs

#Sorted by ratio of number of CPUs to length of the run queue

policy: RUNQUEUE

constraint:[NLB_HARDWARE == "cray"] && age < 300

constraint:(NLB_PHYSMEM - NLB_A_FREEMEM +

(NLB_SWAPSIZE - NLB_SWAPFREE) * 1024)

/NLB_PHYSMEM < 4

constraint: NLB_NCPUS <= 2 => NLB_A_SYSCPU / NLB_NCPUS <20

constraint:(NLB_NCPUS > 2) => (NLB_A_SYSCPU / NLB_NCPUS <3.5)

sort: NLB_NCPUS / NLB_A_RUNQLEN

Destination selection can be used to limit requests when host resources reach a

threshold. For example, the following policy omits any host with system CPU

usage greater than 10%. This can keep a busy system from receiving more

requests.

policy: AGE

constraint: AGE < 300

constraint: NLB_A_SYSCPU < 10

sort: NLB_A_IDLECPU * NLB_NCPUS

NQS destination-selection queues used for load balancing specify the policy for

that queue. For this reason, you may want to have multiple load-balancing

queues for requests with disparate resource requirements. For example,

CPU-bound requests could be routed to a machine with idle CPU but little free

memory. The following policies, MEMORY and CPU, serve this purpose. The ﬁrst

limits hosts to those with more than 32 Mbytes of memory and a low memory

demand, calculated by the memory oversubscription. Hosts are then sorted so

that larger memory machines are chosen ﬁrst.

216 SG–2150 3.3

Implementing NLB Policies [8]

The CPU policy uses additional NLB attributes that would be added by the site.

NLB_SYSCPU_LIMIT would be deﬁned as an integer value that could be

different for each host. NLB_RUNQLEN_LIMIT also could be different for each

host. The CPU policy limits the system CPU time and the run queue length.

Hosts are sorted so that those with idle CPU time are ﬁrst, and those with more

CPUs are preferred. If there is no idle CPU time, the hosts are sorted by the

number of CPUs.

policy: MEMORY

constraint: NLB_PHYSMEM > 32768

constraint: (NLB_PHYSMEM - NLB_A_FREEMEM +

(NLB_SWAPSIZE - NLB_SWAPFREE) * 1024)

/ NLB_PHYSMEM < 3

sort: NLB_PHYSMEM

policy: CPU

constraint: NLB_A_SYSCPU / NLB_NCPUS < NLB_SYSCPU_LIMIT

constraint: NLB_A_RUNQLEN / NLB_NCPUS < NLB_RUNQLEN_LIMIT

sort: NLB_A_IDLECPU * NLB_NCPUS + NLB_NCPUS

8.6.4 NQS Processing

This section discusses NQS behavior when processing a batch request

submitted to a destination selection queue.

When a batch request is submitted to a destination selection queue, it obtains a

list of destinations from the NLB server. The list of destinations is tried one at a

time until the request is accepted by one of the destinations or until the list is

exhausted. If no destination accepts the request, NQS waits and tries again,

based on the interval set by the qmgr command set default

destination_retry time (the default is 5 minutes). NQS continues to try

to deliver the request to a destination until the request is accepted or the

request has waited the maximum allowable time, which is deﬁned by the qmgr

command set default destination_retry wait (the default is 72

hours). If no destination accepts the request during the maximum time, the

request is deleted and the submitting user is notiﬁed by mail.

One of the following situations also may occur:

•If a destination selection pipe queue is deﬁned incorrectly, the destination

selection function is not invoked and the request is rejected. The user

receives mail indicating that the request was submitted to a queue with no

destinations.

SG–2150 3.3 217

NQE Administration

•If an NLB server is not available at any of the hosts deﬁned by

$NLB_SERVER, a message is written to the NQS log ﬁle. No other attempt is

made to route the request to a destination host. NQS continues to attempt to

deliver the request until it is accepted or until NQS has waited the

maximum allowable time.

•If the list of destinations is empty, a message is generated in the NQS log

ﬁle. NQS continues to attempt to deliver the request until it is accepted or

until the request has waited the maximum allowable time indicated by the

qmgr command set default destination_retry wait.

•If no host in the list of destinations will accept the request, a message is

generated in the NQS log ﬁle. NQS continues to attempt to deliver the

request until it is accepted or until the request has waited the maximum

allowable time indicated by the qmgr command set default

destination_retry wait.

•If you are using ﬁle validation, each user submitting requests to a

load-balanced pipe queue must have a .rhosts or .nqshosts ﬁle in their

home directory for each batch system that could run work. These ﬁles are

required to route requests to execution hosts and return results to the

originating host. If you are using password validation, the user’s password

must be the same on all NQE servers; for example, if you are using NIS.

•Requests that are routed using destination selection are not guaranteed to

run, because the local NQS systems may apply local limits to its queues. For

information about using batch request limits in policies, see Section 8.7, page

221.

218 SG–2150 3.3

Implementing NLB Policies [8]

8.6.5 Example of Load Balancing Using the Default Policy

a10271

NQS system on host cool

pipe queue nqebatch@cool

NLB collector

NLB server

List of queue@host

nlbqueue

Default queue

on all systems

NQS system on host gale

pipe queue nqebatch@gale

NLB collector

NQS system on host ice

NLB collector

Queries hosts in turn

pipe queue nqebatch@gale

pipe queue nqebatch@hot

pipe queue nqebatch@ice

NQS system on host hot

Query server

NQS system on host gale

Figure 18. NQS Conﬁguration with Load Balancing by Default

The following qmgr commands create the pipe queue nlbqueue and deﬁne it

as the default queue for batch job requests:

%qmgr

Qmgr: create pipe_queue nlbqueue server=(pipeclient CRI_DS) priority=33

Qmgr: set default batch_request queue nlbqueue

Qmgr: quit

All requests that use the default queue are routed to a destination host by the

destination selection algorithm. The NLB policy (for load balancing) defaults to

nqs. The NLB server host defaults to NLB_SERVER.

8.6.6 Example of Load Balancing by Selection

In this scenario, a site has multiple NQS systems. The systems are similar, but

there is production work that must run on speciﬁc systems. There is also work

SG–2150 3.3 219

NQE Administration

that could run on any available system. The default is that requests are

submitted to a standard pipe queue. Users are encouraged to choose a

destination selection queue when they submit work that can run anywhere in

the complex.

This situation can be accommodated by deﬁning two pipe queues, as shown in

Figure 19. One is a standard pipe queue, called standard. The second, called

nlbqueue, is conﬁgured to perform destination selection.

a10272

NQS system on host cool

pipe queue nqebatch@cool

NLB collector

NLB server

standard

Default queue

NQS system on host gale

pipe queue nqebatch@gale

NLB collector

NQS system on host ice

NLB collector

pipe queue nqebatch@rain

pipe queue nqebatch@hot

pipe queue nqebatch@ice

NQS system on host hot

NQS system on host rain

nlbqueue

On all systems

Figure 19. NQS Conﬁguration with Load Balancing by Selection

The following qmgr commands create these pipe queues and set the default

queue to standard so that requests are routed by standard NQS routing. The

pipe queue standard explicitly deﬁnes a policy name, NLB host, and NLB

port.

Qmgr: create pipe_queue standard server=(pipeclient) \

destination=(nqebatch@cool,nqebatch@gale) priority=30

Qmgr: create pipe_queue nlbqueue \

server=(pipeclient CRI_DS CPU cool:nlb) priority=30

Qmgr: set default batch_request queue standard

220 SG–2150 3.3

Implementing NLB Policies [8]

Requests that are submitted to the queue nlbqueue are routed to the most

lightly loaded system.

8.7 Using Batch Request Limits in Policies

Users can set various per-process and per-request limits on batch requests when

they submit the request. You can use these limits to deﬁne policies that route a

request based on the size of the limits. NQS lets you specify attributes on a

request by using the General Options Attributes selection of the

Configure menu on the NQE GUI Submit window or by using the cqsub

-la option. These attributes can be used within NLB policies by deﬁning the

same attributes in the NLB name map.

For example, using the cqsub -la option, the user speciﬁes an NQS attribute

as follows:

cqsub -la nastran

When it receives the request, NQS adds the characters job_ to the beginning of

the attribute name and checks to see if the attribute has been deﬁned in the

NLB name map. JOB_ attributes are attributes of type NLB_JOB. In this

example, the JOB_NASTRAN attribute is deﬁned in the name map, and it will

have the value 1 when applying the policy.

For example, you could deﬁne a policy that restricts large memory requests to

large memory machines, or requests with small time limits could use less strict

constraints when selecting a destination.

Using nlbconfig, you can deﬁne absolute request size limits for hosts and

have policies enforce these limits. For example, a policy could constrain

requests that require more than a speciﬁed amount of memory, disk space, or

CPU time from being sent to speciﬁc machines.

The data sent by the destination selection module of the NQS pipeclient

includes the attributes shown in Table 9. The attributes are present only when

the associated command-line option was used in the request. All attributes,

with the exception of tape drives, are ﬂoating-point numbers, and all values are

normalized so that measurements are in bytes (or seconds for CPU limits). Tape

drive attributes are integers.

The string attribute JOB_REQNAME that contains the request name is always

present. You can use this attribute to make speciﬁc decisions for special request

names.

SG–2150 3.3 221

NQE Administration

Note: The following limits can also be set by selecting the General

Options Job Limits submenus of the Configure menu on the NQE GUI

Submit window.

222 SG–2150 3.3

Implementing NLB Policies [8]

Table 9. Request Limit Attributes

Option Description Attribute name

-lc Speciﬁes the per-process core ﬁle size limit. JOB_PPCORESIZE

-ld Speciﬁes the per-process data segment size limit. JOB_PPDATASIZE

-lf Speciﬁes the per-process permanent ﬁle space limits. JOB_PPPFILESIZE

-lF Speciﬁes the per-request permanent ﬁle space limits. JOB_PRPFILESPACE

-lm Speciﬁes the per-process memory size limits. JOB_PPMEMSIZE

-lM Speciﬁes the per-request memory size limits. JOB_PRMEMSIZE

-lQ Speciﬁes the per-request SDS limits. JOB_PRQFILESPACE

-ls Speciﬁes the per-process stack size limit. JOB_PPSTACKSIZE

-lt Speciﬁes the per-process CPU time limits. JOB_PPCPUTIME

-lT Speciﬁes the per-request CPU time limits. JOB_PRCPUTIME

-lw Speciﬁes the per-process working set size limit. JOB_PPWORKSET

-lU type Speciﬁes the per-request tape drive limits for type,

which can be a,b,c,d,e,f,g,orh.

JOB_TAPES_A to

JOB_TAPES_H

8.7.1 Deﬁning Request-attribute Policies

If you have three different application packages, NASTRAN, Oracle, and

UniChem, which are used by requests but not available on all machines, you

would set up a policy as described in this section. To let users specify on the

command line which application packages are required, you can perform the

following steps:

1. Deﬁne attribute names for hosts and requests to represent these packages.

Download a copy of the existing name map by using the following

command:

nlbconfig -mdump -f name_map

Edit the ﬁle name_map as shown in the following example. The attributes

for the request must be deﬁned for object type NLB_JOB with ID 1025 and

must start with job_. When you edit the ﬁle, do not delete the existing

names from the name map. If you do not include all of the existing names,

they will be deleted when the server reads the new name_map ﬁle. The

SG–2150 3.3 223

NQE Administration

host attributes enable you to specify whether or not each host has that

application available. Notice in step 2 that two of the three machines have

UniChem, two have Oracle, and only one has NASTRAN. If a job requires

an application, you want to submit it to a machine that has that application.

This is how you deﬁne whether or not a machine has that application.

map NLB_JOB = 1025

{

(All names from the existing name map must be included)

job_nastran "Job requires nastran" integer(8192);

job_oracle "Job requires oracle" integer(8193);

job_unichem "Job requires unichem" integer(8194);

}

map NLB = 1024

{

(All existing names from the name map must be included)

host_nastran "Host supports nastran" integer(8192);

host_oracle "Host supports oracle" integer(8193);

host_unichem "Host requires unichem" integer(8194);

}

To add these names to the name map, use the following command:

nlbconfig -mput -f name_map

2. Deﬁne the host_ attributes by creating an object data ﬁle and downloading

this into the server.

object NLB (cool) {

host_nastran = 1;

host_unichem = 1;

}

object NLB (gust) {

224 SG–2150 3.3

Implementing NLB Policies [8]

host_oracle = 1;

host_unichem = 1;

}

object NLB (hot) {

host_oracle = 1;

}

To load this ﬁle into the server, use the following command:

nlbconfig -oupdat -f obj_defs

3. Add constraints to the policy.

You must deﬁne constraints for the policy that selects hosts based on the

job_ attributes. These constraints have no effect unless the user speciﬁes

an attribute using the -la option of the cqsub command or if using the

General Options Job Limits submenus of the Configure menu on

the NQE GUI Submit window.

Use the implies operator (=>), as follows:

constraint: exists(job_nastran) => exists(host_nastran)

constraint: exists(job_oracle) => exists(host_oracle)

constraint: exists(job_unichem) => exists(host_unichem)

Using the implies operator (=>) in these constraints means that if a job_

attribute is speciﬁed by the user, the equivalent host attribute also must

exist. If the job_ attribute is not present, the equivalent host attribute is

not required either.

Such job_ attributes can be used for any purpose. They are not restricted to

the presence or absence of applications on hosts.

8.7.2 Testing the Policy

You can test a policy by using the nlbpolicy -p option. Its syntax is as

follows:

nlbpolicy -p policyname

Optionally, you can use the -a option to specify any attribute described in

Table 9, page 223, or you can create your own attributes and add them to the

name map. Valid attributes are deﬁned in the NLB for object type NLB_JOB.

SG–2150 3.3 225

NQE Administration

They must begin with the characters JOB_ and can be either a decimal

integer or a float. The value can be either a decimal or a ﬂoat, in normal or

scientiﬁc notation. You cannot specify negative, hexadecimal, or octal numbers.

8.8 Storing Arbitrary Information in the NLB Database (Extensible Collector)

The extensible collector is a mechanism built into NQE that allows you to store

arbitrary information in the NLB database. This information is periodically sent

to the NLB along with the data that is normally stored and updated by NQE.

Once the customized data is in the NLB database, it can be used in policies or

displays just as any other data in the NLB database. NQE collects and stores

the customized data, but you deﬁne, generate, and update it.

The customized data that is stored in the NLB database is added as new

attributes to either the NLB object or the NLB_JOB object. Only attributes that

are in these two objects can be used in policies and displays. Attributes that are

in any other object that is used in a policy will result in the policy ﬁle not being

read, and no policies will be available.

As a background for the rest of this description, you should be familiar with

the following terms:

•Name map or name map ﬁle

•Object or NLB object

•Attribute

•Object data ﬁle

•nlbconfig command

•nqeinfo ﬁle; which is the site NQE conﬁguration ﬁle, and it is generated at

installation time (see Chapter 3, page 35)

The following steps are necessary to get customized objects into NQE:

1. Deﬁne the new attributes and put them in either the NLB object or the

NLB_JOB object in the name map ﬁle so that they are available for use in a

load-balancing policy.

To add attributes to an object, the current name_map ﬁle should be

retrieved from the NLB server by using the nlbconfig command. Then

add the new attribute deﬁnitions to the current name_map ﬁle. (The current

name_map ﬁle retrieved from the NLB server is an ASCII ﬁle, so any

226 SG–2150 3.3

Implementing NLB Policies [8]

additions are done using an editor.) Finally, using the nlbconfig

command, download the updated name_map ﬁle to the NLB server.

SG–2150 3.3 227

NQE Administration

2. Generate an ASCII ﬁle of the following form:

object NLB ("host name") {

NEW_ATTRIBUTE_1 = 12345;

NEW_ATTRIBUTE_2 = "This is a text string";

}

The attribute values may be added to an object without specifying all

attributes of the object. This ASCII ﬁle is referred to as a custom object ﬁle.

3. Write a program or a shell script to populate a ﬁle with instances of the

newly deﬁned attributes. The format of this ﬁle is that of an object data ﬁle.

This program or script will periodically update this object data ﬁle with

new values for the attributes that have been deﬁned.

4. Instruct the NQE collector program to read from the new object data ﬁle.

This is done by using either the -C option of the ccollect program or by

using the variable NQE_CUSTOM_COLLECTOR_LIST in either the nqeinfo

ﬁle or as an environment variable. To specify multiple input ﬁles, use the

-C option for each ﬁle.

Note: If the environment variable method is used, it must be deﬁned

before the collector is started.

The custom object ﬁles speciﬁed to the collector will be read once each

interval and forwarded to the NLB server. After the program that generates

the custom objects exists, the collector provides an additional option that

starts the user program each time the collector is started. The collector

automatically checks the NQE_CUSTOM_COLLECTOR_LIST variable for a list

of programs to start. In addition to starting a program, the collector detects

when the program terminates and restarts it.

The following example shows the syntax required to specify a list of custom

collectors that the NLB collector will start. The NLB collector looks for this list

in the NQE_CUSTOM_COLLECTOR_LIST environment variable or looks in the

nqeinfo ﬁle for a variable of the same name. This example assumes the

nqeinfo ﬁle is being used:

NQE_CUSTOM_COLLECTOR_LIST="prog1,arg1,arg2:prog2:prog3,arg1"

The program names are separated by a colon, and the arguments are separated

by a comma. The program names are either full path names, or they are

interpreted as being relative to the directory from which the NQE collector was

started, which is NQE_BIN if the nqeinit script is used.

228 SG–2150 3.3

Implementing NLB Policies [8]

An additional feature, called customized collector startup, can help automate the

generation of the extended object data ﬁles. This feature allows the

administrator to specify one or more programs that will be automatically

started by the NLB collector. The program can be either an executable ﬁle or a

script ﬁle. Each program can have multiple command-line arguments. The NLB

collector detects when any of the customized collectors has terminated and will

restart it during its next cycle.

8.9 NLB Differences on UNICOS/mk

The NLB database information is supplied by the ccollect program.

ccollect relies on the sar command for retrieving system performance data.

The sar command on UNICOS/mk systems currently does not provide system

performance data for memory or swapping usage statistics. As a result, the

NQE GUI Load window for memory demand displays a ﬁxed value of 96%

when used for UNICOS/mk systems.

In addition, the following NLB attributes are not meaningful for UNICOS/mk

systems: NLB_A_SWAPPING,NLB_SWAPPING,NLB_SWAPSIZE,

NLB_SWAPFREE,NLB_FREEMEM, and NLB_A_FREEMEM.

SG–2150 3.3 229

NQE Database [9]

This chapter provides basic information about the NQE database and its

components. It includes the following information:

•NQE database model

•NLB scheduling versus NQEDB scheduling

•An overview of the NQE database

•NQE database components

•NQE database concepts and terms

•Starting the NQE database

•Stopping the NQE database

•Obtaining status

•Security

•Conﬁguring the NQE database components

•Compacting the NQE database

Chapter 10, page 261, describes the NQE scheduler in detail and includes a

tutorial for writing a simple NQE scheduler.

9.1 NQE Database Model

While the NQE database model works well for speciﬁc environments, it has

some limitations. The database used has a limit of 40 simultaneous connections.

A connection is used for each execution server and each active client command.

The performance of the database makes it well suited for environments where

there are a small number of long running job scripts. It does not perform as

well when there are large numbers of job scripts or very large single scripts.

Also, using the NQE database model requires that an installation write their

own scheduler. The scheduler must be written using the TCL script language.

SG–2150 3.3 231

NQE Administration

9.2 NLB Scheduling Versus NQEDB Scheduling

This section provides a brief overview of the advantages and disadvantages of

both NLB scheduling and NQE database scheduling.

9.2.1 Failure Recovery

Failure recovery for the NLB is possible by specifying a list of nodes for the

NLB_SERVER variable in the nqeinfo(5) ﬁle. The collectors will update the

NLB database on each speciﬁed NLB server so that all nodes have up-to-date

information. The NLB clients query the NLB servers one by one in the

conﬁgured order until they ﬁnd one that is running or until they exhaust the

list. The one potential problem with NLB failure recovery involves using the

cevent(1) command for Job Dependency. For more information, see Section

12.2, page 314.

There is no failure recovery for the NQEDB node. If the NQEDB node goes

down or loses network access, the cluster becomes a set of individual NQS

servers. If jobs ﬁnish while the NQEDB node is inaccessible, the NQE database

will not be updated and the jobs will still be marked as running in the NQE

database.

9.2.2 Number of Connections

The NQE database is limited to 36 connections. Four permanent connections

are used by the NQEDB sever and one permanent connection is used by each

lightweight server. Client connections are all transient and therefore limited

only by performance considerations. However, if all 36 connections are used by

servers, there is no connection left for clients connections. Therefore, the

maximum number of nodes that may be in an NQE cluster is somewhere

between 30 and 35, depending on the amount of expected client trafﬁc.

9.2.3 Cluster Rerun

Cluster rerun of jobs is not available with NLB scheduling.

Cluster rerun of jobs is available with the NQE database. However, if there are

network problems between the NQEDB sever and an NQS server, the NQS

server will appear to be down. In this situation, the NQEDB sever will rerun

the job on another server; this results in the job running twice.

232 SG–2150 3.3

NQE Database [9]

9.2.4 Performance

Performance is better with the NLB. The NQE database and scheduler are

written in TCL, an interpretative language, and is slower. Also, you can run the

NLB without the NQEDB sever, but you can not run the NQEDB sever without

the NLB, if you are interested in total cycles.

9.2.5 Relative Priority of Jobs

NQS queues give users a rough idea of the relative position of their jobs on that

node.

In the NQE database implementation, there is no way for users to understand

their job request priority relative to other job requests in queued state.

9.2.6 Site-deﬁned Scheduling

The NLB allows sites to deﬁne policies for destination selection (routing) but

not for priority scheduling of job requests. Priority scheduling is strictly ﬁrst in,

ﬁrst out (FIFO).

The NQE Database as shipped uses FIFO scheduling but also allows sites to

deﬁne their own schedulers using TCL scripts. This ﬂexibility adds a level of

complexity, as well as the obvious level of effort. However, the following types

of scheduling would be possible with a customized NQE Scheduler:

•Destination selection where the job may not be sent immediately. An

example of this would be sending a job to a server only if that server has an

average idle CPU of greater than 50%, with the job remaining queued if no

server is available.

•Network-wide limits. An example of this would be maintaining a global or

network-wide limit on the number of jobs that a given user may run

simultaneously.

•Normalizing resources across machines. For example, CPU time-limit

requirements in a heterogeneous network are generally found empirically. It

would be useful for the submitting user to supply the CPU requirements in

an arbitrary unit that is then converted to seconds for the particular server

on which the job is run.

•Network-wide rerun of failed jobs. For example, if a server on the network

is detected as no longer running, certain jobs that were running on that

server could be rerouted and run on another server.

SG–2150 3.3 233

NQE Administration

•Scheduling on arbitrary data. Certain site-speciﬁc information may be

important in scheduling. For example, a site may possess only a limited

number of network-wide or server licenses for a particular application and

the scheduler should not attempt to start up too many jobs using this

application.

9.3 Overview of the NQE Database

The NQE database provides the following:

•A mechanism for the client user to submit requests to a central storage

database.

•A scheduler that analyzes the requests in the NQE database and chooses

when and where a request will run.

•The ability for a request to be submitted to the selected NQS server once the

NQE scheduler has selected it.

Figure 20 shows an example of the layout of the NQE database. Jobs are

submitted using client commands from client machines. The jobs are placed in

the NQE database on one machine. A scheduler program determines which

machine should run the job. In the example shown in Figure 20, the job is sent

to Node D, where it is submitted and run in NQS.

234 SG–2150 3.3

NQE Database [9]

Database Client commands

NQS

server

Scheduler

Client machine

Submit

Run request

NQS

server

NQS

server

Decide where

and when to

run request request

a11564

Node A

Node B

Node C

Node D

NQE cluster

Figure 20. NQE Database Layout

9.4 NQE Database Components

Figure 21 shows in greater detail the processes and components of the NQE

database. The components are described in the following sections.

SG–2150 3.3 235

NQE Administration

Database

Submit

NQS

server

LWS system task

(Bridge to NQS)

Monitor system task

Scheduler system

Client machine

Status application

Client machine

Job status

Job control

Running job

and exit status

NQS job

Delete

Database server

(mSQL)

task

Job

submission

a11562

Node A

Node B

NQE cluster

Figure 21. NQE Database Components

9.4.1 Database Server (MSQL)

The NQE database server (mSQL) serves connections from clients in the cluster

or locally to access data in the database. The database used is mSQL, and it has

the following features:

•Simple, single-threaded network database server

•Relational database structure with queries issued in a simple form of SQL

236 SG–2150 3.3

NQE Database [9]

9.4.2 Monitor System Task

The monitor system task is responsible for monitoring the state of the database

and which NQE database components are connected. Speciﬁcally, it determines

which system tasks are connected and alive and, optionally, it purges old

requests (called tasks when they are within the database) from the database.

Asystem task is an application that remains constantly connected to the

database and performs a special task.

9.4.3 Scheduler System Task

The scheduler system task analyzes data in the database, making scheduling

decisions. Speciﬁcally, it does the following:

•Keeps track of lightweight servers (LWSs) currently available for use in

destination selection

•Receives new requests, veriﬁes them for validity, and accepts or rejects them

•Executes a regular scheduling pass to ﬁnd NQS servers to run pending

requests

Administrator-deﬁned functions may be written in Tcl to perform site-speciﬁc

scheduling (see Chapter 10, page 261).

9.4.4 LWS System Task

The lightweight server (LWS) system task is a bridge to NQS, which performs

the following tasks:

•Obtains request information from the database for requests assigned to it by

the scheduler

•Checks authorization ﬁles locally

•Changes context and submits requests to NQS

•Obtains the exit status of completed requests from NQS and updates the

NQE database with this information

SG–2150 3.3 237

NQE Administration

9.4.5 Client Commands

The following client commands give access to the NQE database; for additional

information, see the man page for the speciﬁc command or see the NQE User’s

Guide, publication SG–2148:

•cqsub -d nqedb ...

This command submits the task to the NQE database rather than to NQS

directly. The NQE database, scheduler, and LWS then submit an NQS

request.

Note: If you use the nqe command to invoke the NQE GUI, the NQE

GUI Submit window has a Submit to NQE selection on the General

Options menu that provides the same function as this command.

•cqstatl -d nqedb ...

This command gets the status of tasks in the NQE database, which allows

you to see the status of all tasks in the NQE database, not just the local NQS

system.

•cqdel -d nqedb ...

This command sends a signal event to the task in the NQE database. This

event is translated to signal or delete the corresponding NQS request; this

action does not delete the task from the NQE database.

Note: If you use the nqe command to invoke the NQE GUI, the NQE GUI

Status window has a Signal Job selection and a Delete selection on

the Actions menu that provide the same functions as this command.

•If you use the nqe command to invoke the NQE GUI, the NQE GUI

Status window provides status information for all requests (from the NQE

database as well as for requests submitted directly to NQS).

•nqedbmgr

This is the NQE database administration command. The command allows

administrators to connect to the NQE database, and to examine and modify

data in the database. In addition, it provides commands to start and stop

aspects of the NQE database. These functions are described in the following

sections.

•compactdb

238 SG–2150 3.3

NQE Database [9]

This is an NQE database administration command. The command allows an

administrator to compact the NQE database to improve its performance. For

more information, see Section 9.10, page 253.

9.5 NQE Database Concepts and Terms

This section describes the following NQE database terms and concepts:

•Objects

•Task owners

•Task states

•Events

9.5.1 Objects

The NQE database is comprised of objects. Each object is, in turn, made up of

attributes, which are simply name and value pairs. An instance of an object in

the NQE database can contain any number of attributes.

Each instance of an object always contains at least the following attributes:

Attribute name Description

type One-character attribute used to differentiate

between object types.

Object types are described below.

id A unique identiﬁer for the object.

timein The UNIX time (seconds since 00:00:00 GMT,

January 1, 1970) at which the object was ﬁrst

inserted into the NQE database.

timeup The UNIX time at which the object was last

updated in the NQE database.

sec.ins.dbuser The NQE database user name of the user who

inserted the object.

The following object types are deﬁned:

SG–2150 3.3 239

NQE Administration

Object type (and

abbreviation)

Description

Task or User task (t) The object associated with an NQS request.

Whenever a request is inserted into the NQE

database, a new object of type tis created.

Examples of attributes in a task object are:

script,exit.status, and env.HOME. For a

list of user task object attributes, see Table 21,

page 292.

Event (e) The object describing an event. Event objects are

inserted into the NQE database in order to cause

an action to occur. For a list of standard events,

see Table 10, page 244.

Posting an event to the NQE database simply

means inserting an event object into the NQE

database.

System task (s) The object describing a system task. One object of

this type is created for each system task

connected to the NQE database.

Examples of information stored include s.host

(host in which the system task is running and

s.pid (process ID) of the system task).

Global object (g) The object containing global conﬁguration data.

There is only one instance of this object type; it

contains any conﬁguration information required

by any client connecting to the NQE database.

Conﬁguration information stored here includes

the rate at which system tasks query the NQE

database for events, tasks, and so on. For a list of

conﬁguration attributes, see Table 14, page 255.

9.5.2 Task Owners

The task owner is the system task that is currently responsible for a given user

task. Only the task owner may modify the attributes of a task. The task owner

is deﬁned in the attributes t.sysclass and t.sysname.

240 SG–2150 3.3

NQE Database [9]

The name of a system task is expressed in the following form:

class.name

For example, the default scheduler’s name is scheduler.main.

•class groups together system tasks that perform similar functions. There are

three classes, which are deﬁned as follows:

–The monitor system task has a class name of monitor.

–The scheduler system task has a class name of scheduler.

–All LWS system tasks have a class name of lws.

•name describes the system task. The name used is dependent upon the

system task class. A default name of main is given to both monitor and

scheduler system tasks. The default name of an LWS is the name of the host

on which the LWS runs.

As administrator, you may set the name of the scheduler and LWS system

tasks. This feature can be used to create, for example, a test scheduler.

Each system task regularly queries the NQE database to ﬁnd any new user

tasks it owns.

The scheduler chooses a host on which the user task will run and then changes

ownership of the user task to the LWS system task for that host. The LWS

system task then submits the task to the LWS daemon on that host. The LWS

daemon issues the job request to the local NQS system.

9.5.3 Task States

User tasks have a state attribute (t.state). Different states signify different

stages in the progress of the task through the system. There is no limit to the

number of states a user task may pass through, and the name of a state is

arbitrary. However, there are some well-deﬁned states.

A task’s state may be changed without changing the owner. Also, the owner of

a task may be changed without changing its state.

Figure 22 shows some ownership changes and state changes possible for a user

task.

SG–2150 3.3 241

NQE Administration

scheduler

monitor

lws

Scheduled

Key:

cqsub

Failed

New

Aborted

Completed

System task owner class

New task state

Pending Submitted

Terminated

State unchanged

a10275

Figure 22. User Task Owners and States

A typical path for a user task is as follows:

1. The user uses the cqsub command to insert the task into the NQE database.

2. cqsub assigns ownership to the default scheduler system task

(scheduler.main) with a state, New.

3. scheduler.main checks the task’s validity and places it in state Pending.

The Pending state is an example of an internal state; the scheduler may

deﬁne many such states. (How long the task is in the Pending state

depends upon the scheduler’s algorithm.)

4. When the task is scheduled to run, scheduler.main assigns it to one of

the lws system tasks with state Scheduled. There is, in general, one lws

242 SG–2150 3.3

NQE Database [9]

system task for each node in the cluster. The LWS system task sends the

request to the LWS daemon on its node.

5. The lws attempts to submit the task as an NQS request to the NQS running

locally. If this action succeeds, the state is changed internally to Submitted.

Until NQS completes the job, the user task remains in the Submitted state.

6. Upon job completion, the lws assigns task ownership back to

scheduler.main. The state will be one of the following:

•Completed, meaning that the request completed normally.

•Failed, meaning that the request was not successfully submitted to

NQS.

•Aborted, meaning that something went wrong with the request while it

was assigned to NQS.

•Terminated, meaning that the request was deleted because a signal or

delete command was sent to the request.

7. After job completion, scheduler.main examines the task’s state and

either places the task back in Pending state (signifying that the task is to

be rerun) or passes the task to the monitor system task (monitor.main)

without changing its state.

8. monitor.main receives all user tasks that will never run again. It is

responsible for removing the task from the NQE database.

9.5.4 Events

Events form the mechanism for communication among users, administrators,

user tasks, and system tasks.

Any client program connected to the NQE database may insert and post an

event by inserting an object of type e. System tasks regularly check for any new

user tasks they own. Once an event has been acted upon, it is marked as

acknowledged and may be removed from the NQE database. (The monitor

system task can be conﬁgured to automatically purge old events from the NQE

database.)

Users may only post the signal event (by using either NQE GUI menu selection

or the cqdel command) when it is targeted at user tasks they submitted.

System tasks and administrators may send events to any object (including

system tasks).

SG–2150 3.3 243

NQE Administration

To send an event, use the nqedbmgr event post or ask command. For

example, to post the event xyz with value 123 to object s23, use the following

command; case is ignored for xyz in the example:

event post s23 xyz 123

Table 10 lists the standard events:

Table 10. Standard Events

Event name Usual target Description

DUMP_VARS System task Request that a system task dump to its log ﬁle all

global Tcl variable names and values matching the

event value. The value may be a glob pattern to match

the desired variable(s), such as *config*, or values.

SHUTDOWN System task Request that the targeted system task shut down.

SIGDEL User task Send a signal to the NQS request represented by the

user task. Delete the NQS request if the job request is

not running. Assign the user task to the monitor

system task. Note that this does not delete the user

task from the NQE database. The value is optional

and may be a signal number or name.

TINIT System task Reinitialize without shutting down. This event is

typically posted to the scheduler to force it to restart.

TPASS Scheduler Request that the scheduler perform a scheduling pass.

TRACE_LEVEL System task Change the tracing level of the system task.

9.6 Starting the NQE Database

During installation, one NQE node may have been deﬁned to run the mSQL

database server by specifying NQEDB,SCHEDULER, and MONITOR in the NQE

componets to be started or stopped by default (set by the

NQE_DEFAULT_COMPLIST variable of the nqeinfo(5) ﬁle). For more

information on the NQE_DEFAULT_COMPLIST variable and starting or stopping

NQE components, see Chapter 4, page 45. If so, ensure that the MSQL_SERVER

nqeinfo ﬁle variable is set to the name of the local machine. MSQL_SERVER

should have the same value across all nodes, and clients in the cluster.

244 SG–2150 3.3

NQE Database [9]

The LWS component should be speciﬁed in the NQE_DEFAULT_COMPLIST

variable of the nqeinfo ﬁle on each NQE node where an NQS server is

conﬁgured.

The nqeinit script is used to start all NQE components.

The nqedbmgr utility allows ﬁner control over process startup. Table 11

describes commands available for this control; these commands are also

described on the nqedbmgr(8) man page:

Table 11. nqedbmgr Process Startup Control Commands

Command Description Example

db start Starts the database server (msqld).

This command will attempt to start the mSQL

daemon. If the daemon is already running, an

appropriate message is displayed.

You must be root and be on the NQE database

server node to perform this command.

db start

db create database Creates the NQE database.

This command creates all the table deﬁnitions

required for NQE’s database. If the tables are

already created, an appropriate message is

displayed.

You must be root and be on the NQE database

server node to perform this command.

db create database

create global name

[tclarrayname]

Creates the NQE global object.

This command inserts an object into the database

containing global conﬁguration data. This object is

read by all processes connected to the database.

No action is performed if the object already exists.

tclarrayname is an optional name of a Tcl array

containing any extra conﬁguration attributes for

the object.

create global config

SG–2150 3.3 245

NQE Administration

Command Description Example

create systask name

[tclarrayname]

Creates a system task object.

This command inserts an object into the database

to be used by system tasks.

One systask object is required for each system

process that is to connect to the database. That is,

one is needed for the monitor process, one is

needed for the scheduler process, and one is

needed for each lws process.

create systask

monitor

create systask lws

start systask Starts up the system task.

This command starts the named system task

process. On the MSQL_SERVER,nqeinit will start

amonitor,ascheduler, and an lws process.

On other NQE servers, nqeinit will create an

lws system task object and start an lws process on

the NQE server.

start lws

start monitor

start scheduler

start lws.$host

The nqeinit startup script uses nqedbmgr Tcl input scripts to perform all the

startup operations. See those input scripts for examples of how the individual

components are started.

Note: If NQS is not running on a system, the corresponding LWS system task

will be marked Exited, and no tasks will be scheduled for that node.

9.7 Stopping the NQE Database

The nqestop script stops all system tasks and shuts down all NQE components.

The nqedbmgr utility allows ﬁner control over process shutdown. Table 12

describes commands available for this control:

246 SG–2150 3.3

NQE Database [9]

Table 12. nqedbmgr Process Shutdown Control Commands

Command Description Example

shutdown all Shuts down all system tasks.

This command sends events to all system tasks,

requesting that they shut down.

shutdown all

db shutdown Shuts down the database server.

This command stops the mSQL database daemon.

Any clients connected to the database are

immediately disconnected.

Any system tasks running when the mSQL daemon

is shut down continue to run but enter a

Connection retry loop.

db shutdown

The nqestop shutdown script uses nqedbmgr Tcl input scripts to perform all

the shutdown operations. See those iput scripts for examples of how the

individual components are stopped.

9.8 Obtaining Status

The nqedbmgr utility provides commands for determining the status of the

NQE database and examining data in the database. Table 13 describes

commands available to obtain status; these commands are also described on the

nqedbmgr(8) man page:

SG–2150 3.3 247

NQE Administration

Table 13. nqedbmgr Status Commands

Command Description Example

status [all|db] Provides a status of the components of the NQE

database.

status by itself displays which system tasks are

running, their PIDs, and the host on which they

are running.

status db obtains version information from the

mSQL server.

status all displays everything.

status

Note: If you are running NQE on more than one

host in your cluster and the system times for

each of these hosts are not synchronized, the

Last heartbeat: value for one or more of the

LWS objects shown by the status command

may show a negative number of seconds. This

has no effect on the operation of the NQE cluster

but can be resolved by synchronizing the system

times on each host running NQE in your cluster.

select options Reads data from the database and displays it.

This command reads (or selects) data from the

database and displays it. See the nqedbmgr(8)

man page for details.

select -f t

9.9 Security

Authorization is performed at the following points:

•Connection: Upon connecting to the NQE database (all client commands

and system tasks must connect to the database).

•Target: On the LWS machine just before a request is submitted on the target

host selected by the NQE scheduler.

•Events: When an event is inserted into the NQE database (a delete or signal

request sent by using the cqdel command or the NQE GUI inserts an event

in order to delete a job).

•Status: When reading (selecting) information from the database.

248 SG–2150 3.3

NQE Database [9]

Conﬁguration requirements for each of these authorization points are described

in the following sections.

9.9.1 Connection

Every client user (including a system task) wishing to connect to the mSQL

daemon requires a valid database user entry in a ﬁle called nqedbusers; the

nqedbusers ﬁle resides in the NQE spool directory deﬁned by NQE_SPOOL in

the nqeinfo ﬁle. When connected, any object (that is, request) inserted into the

database is owned by the dbuser. The dbuser name may be a string of any

alphanumeric characters and does not necessarily have to be a UNIX user name

(dbusers do not need /etc/passwd entries on the machine running the

mSQL daemon).

The mSQL daemon reads and uses the contents of the nqedbusers ﬁle to

determine whether a given client may connect to the database. If, as a result of

this check, the client user’s connection request is refused, a Connection

disallowed message is passed back to the client and the connection is broken.

The nqedbusers ﬁle is made up of an optional %host segment followed by

multiple %dbuser segments. Blank lines and lines beginning with #are

ignored.

The host segment speciﬁes an optional list of client host names explicitly

allowed or disallowed access to the database. If the segment is not supplied, or

the list of host names is empty, any client host may connect to the database, and

the checks move on to the dbuser segments. The syntax in the nqedbusers

ﬁle is as follows:

%host

[clienthostspec

clienthostspec

...]

Aclienthostspec is a host name optionally preﬁxed by + (to allow access

explicitly) or —(to disallow access).

The database user segment deﬁnes allowed or disallowed access for a speciﬁed

database user. The syntax in the nqedbusers ﬁle is as follows:

%dbuser dbusernamespec privtype

[clienthostspec clientuserspec

clienthostspec clientuserspec

...]

SG–2150 3.3 249

NQE Administration

The dbusernamespec is the dbuser name and may be optionally preﬁxed by —

to explicitly disallow the dbuser. The following formats allow any user to

connect to the NQE database:

%dbuser

%dbuser +

%dbuser + user

If the dbusernamespec is not supplied, or the list of dbuser names is empty, any

user may connect to the database. A dbusernamespec of + alone has a special

meaning and corresponds to a dbuser equal to the client user name. This entry

allows access for many users using their existing UNIX user names without the

necessity of explicitly specifying each name in the ﬁle. The %dbuser + user

format allows any user to connect to the NQE database; user is the privtype.

System tasks (monitor, scheduler and LWS) connect using a dbuser of root.

privtype speciﬁes the type of connection privilege. Two types are deﬁned, as

follows:

•user, which allows a request to be submitted and deleted and allows a user

to obtain the status of the request by using the cqsub,cqstatl,cqdel,

and NQE GUI interfaces.

•system, which allows full access to the NQE database.

clientuserspec is a UNIX user name optionally preﬁxed by + (to allow access

explicitly) or - (to disallow access). An entry of simply + allows any client to

connect as the given dbusername.

An example of an nqedbusers ﬁle follows:

# nqedbusers file

# Allow root access from any host

%host

# Disallow hosts

-badhost

# Allow other hosts

%dbuser root system

localhost root

server1 root

server2 root

%dbuser fred user

client1 shirley

250 SG–2150 3.3

NQE Database [9]

# Allow any user access from any host.

# ( db username = client username )

%dbuser + user

-badclient bob

- amy

In this ﬁle, access is completely denied for host badhost, but all other hosts are

allowed access. A dbuser of root has been deﬁned with full access privileges

(system) for hosts localhost,server1, and server2, which allows the

LWS to run from those three hosts. A dbuser of fred has been deﬁned and

may be used by shirley from client host client1. All other users are

allowed to use their UNIX names to connect as the dbuser name, with the

exceptions of bob from badclient (bob can connect from anywhere except

from badclient) and amy, who cannot connect from any host.

9.9.2 Target

The administrator may deﬁne how the LWS validates jobs from the NQE

database before submitting them to NQS locally. Valid values are as follows:

•FILE. The LWS checks for a ﬁle called ~user/.nqshosts or

~user/.rhosts. Within the ﬁle is a list identifying which client users from

which client hosts are allowed or disallowed access. The task attributes

sec.ins.clienthost and sec.ins.clientuser are used to determine

which client hosts allow access by which users. These client host and client

user names must be included in the .rhosts ﬁle or .nqshosts ﬁle. For

information about user task attributes, see Section 10.3.3, page 292.

•PASSWD. A valid UNIX password is required.

The initial value when NQE is ﬁrst started is FILE. After that, you must update

the global conﬁguration object in the NQE database and post a TINIT event to

the lws to tell it to re-read the conﬁguration. For example:

SG–2150 3.3 251

NQE Administration

% select s

Connected to coffee as DB user root (conn=3)

ID CLASS NAME STATE

s2 monitor main Running

s3 scheduler main Running

s4 lws coffee Running

s5 lws latte Running

s6 lws cappuchino Running

% select -f s4 {run_mechanism}

Object s4:

run_mechanism = File

% update s4 {run_mechanism Passwd}

Object s4 updated

% select -f s4 {run_mechanism}

Object s4:

run_mechanism = Passwd

% event post s4 TINIT

Posted event e16516

9.9.3 Events

Event objects are used to communicate between tasks, both system tasks and

user tasks. For example, if you change the global conﬁguration, you need to

send a TINIT event to the appropriate system tasks in order to tell these tasks

to re-read the conﬁguration and get the new values.

Table 20, page 292, lists the predeﬁned events you may want to send.

Adbuser connected with the privilege type of user may only send events to

job tasks created by the same dbuser. Those connected with the privilege type

of system may send events to any task, including system tasks.

9.9.4 Status

Adbuser connected with system privilege may read any object in the

database by using the nqedbmgr interface. That is, any task may be examined.

252 SG–2150 3.3

NQE Database [9]

Adbuser connected with user privilege is restricted to using the cqsub,

cqstatl,cqdel, and NQE GUI interfaces.

The administrator may allow the user to see summary information on all tasks

in the NQE database, not just the user’s requests and tasks. This is achieved

with the global conﬁguration attribute status.access.

Note: You do not need to post an event when you issue the following

nqedbmgr commands.

The following nqedbmgr command allows users to see summary information

on all requests and tasks (the default is all):

update config {status.access all}

The following nqedbmgr command allows a user to see only the requests and

tasks the user created:

update config {status.access own}

9.10 Compacting the NQE Database

The NQE database is an mSQL database that grows, but never shrinks. This

can degrade the performance of the database. You can use the compactdb(8)

script to compact the NQE database (nqedb) to improve its performance.

Warning: You must shut down the NQE database server before you invoke

the compactdb(8) script to avoid corruption of the database or lost data. You

can use the nqestop(8) script to stop all system tasks and shut down the

NQE database.

9.11 Conﬁguring the Database Components

The MAX_SCRIPT_SIZE nqeinfo ﬁle variable lets the administrator limit the

size of scripts that are submitted through nqedb. If a script contains more lines

than the number of lines deﬁned by the MAX_SCRIPT_SIZE variable, it is not

allowed. If MAX_SCRIPT_SIZE is 0 or is not set, scripts of unlimited size are

allowed.

You can set and/or update various global conﬁguration attributes for the NQE

database by using the following nqedbmgr command syntax:

SG–2150 3.3 253

NQE Administration

update conﬁg_obj {attribname attribvalue...}

For example:

update g1 {status.access all}

A system task must be re-initialized or restarted in order to read any updated

global conﬁguration attributes.

Note: If you are not certain which system tasks are affected by your change,

it is recommended that you re-initialize all system tasks to ensure all tasks

that read a speciﬁc variable are notiﬁed of the variable’s updated attributes.

To re-initialize a system task (for example, the scheduler), enter the

nqedbmgr command that inserts a TINIT event object into the database; this

object is read by the scheduler and acknowledged:

ask scheduler tinit

The following sections describe the predeﬁned global conﬁguration attributes

for the NQE database, NQE scheduler, and LWS attributes that you can use.

9.11.1 Global Conﬁguration Attributes for the NQE Database

Table 14 lists the predeﬁned global conﬁguration attributes for the NQE

database (this table is also provided on the nqedbmgr(8) man page):

254 SG–2150 3.3

NQE Database [9]

Table 14. nqedbmgr Predeﬁned Global NQE Database Conﬁguration Attributes

Attribute name Description

Default if not

speciﬁed

hb.systask_timeout_period Time before monitor system task marks a

given system task as down.

The value may be a mathematical

expression. Units are seconds.

hb.update_period Time between each update of the

heartbeat. Each system task will update

the database within this period. It is used

by the monitor to determine whether a

system task is still alive.

The value may be a mathematical

expression. Units are seconds.

purge.systask_age Age (elapsed time since last update) of

acknowledged events concerning system

tasks that the monitor is to delete. The

monitor will delete all tasks that are the

speciﬁed age or older.

The value may be a mathematical

expression. Units are seconds.

24*60*60

purge.task_age Age (elapsed time since last update) of

completed user tasks and user events that

the monitor is to delete.

The value may be a mathematical

expression. Units are seconds.

24*60*60

status.access Type of access allowed by users when

attempting to obtain summary information

of jobs in the database. Value can be:

•all, which allows user to select

summary information from all tasks

•own, which allows user to select only

tasks submitted by the user

A user may only see full information for

tasks submitted by that user.

all

SG–2150 3.3 255

NQE Administration

Attribute name Description

Default if not

speciﬁed

sys.ev_rate Rate at which system tasks check for new

events targeted at them or at tasks they

own.

This attribute may be a mathematical

expression. Units are seconds.

sys.purge_rate Rate at which monitor checks the age of

user tasks, user events, and system events.

This attribute may be a mathematical

expression. Units are seconds.

5*60

sys.st_rate Rate at which system tasks check for new

tasks, changes in task state, and so on.

This attribute may be a mathematical

expression. Units are seconds.

sys.upd_rate Rate at which an LWS system task checks

for messages from NQS.

This attribute may be a mathematical

expression. Units are seconds.

9.11.2 Scheduler Attributes

The default scheduler ﬁle is situated in the /nqebase/bin directory and is called

local_sched.tcl. The default scheduler has the following properties:

•The number of tasks that may run on an LWS can be limited.

•The number of tasks per user that may run on an LWS can be limited.

•LWS selection can be performed by a simple round-robin or by using an

NLB policy (passing memory and CPU requirements).

•Tasks are ordered by time in.

•The user may narrow the list of target NQS servers by passing a

colon-separated list of hosts as a named request attribute, lws. For example,

cqsub -la lws=hosta:hostb narrows the target server list to hosta

and hostb.

•A simple cluster rerun facility is implemented.

256 SG–2150 3.3

NQE Database [9]

The default scheduler can interpret the following predeﬁned attributes, which

are overridden if they are set in the system scheduler object. The following

example sets the scheduler passrate attribute, which overrides the default

value of 60:

nqedbmgr update scheduler {passrate 70}

Table 15 lists these attributes (this table is also provided on the nqedbmgr(8)

man page).

SG–2150 3.3 257

NQE Administration

Table 15. nqedbmgr Predeﬁned Scheduler Attributes

Attribute name Description Default if not speciﬁed

max_fail_count Cluster rerun attribute.

Maximum job failures allowed (i.e., number

of times LWS returns a job to the scheduler

without completing it) before the job is no

longer requeued.

nlbpolicy NLB policy to use to determine a

destination-selection list for each task. none

means use round-robin.

none

passrate Rate, in seconds, at which scheduling passes

are made.

s.clrerun Allow cluster rerun. No

s.schedfile Name of scheduler ﬁle. The ﬁle name may

be the absolute path name or relative to the

NQE bin directory as deﬁned by NQE_BIN

in the nqeinfo ﬁle.

Note: This attribute is always recognized; it

deﬁnes which scheduler is running.

local_sched.tcl

total_lws_max Limit on number of tasks that may be

running on any one LWS.

total_lws_user_max Limit on number of tasks that any one user

may have running on any one LWS.

9.11.3 LWS Attributes

Table 16 lists the predeﬁned LWS attributes (this table is also provided on the

nqedbmgr(8) man page):

258 SG–2150 3.3

NQE Database [9]

Table 16. nqedbmgr Predeﬁned LWS Attributes

Attribute Name Description

Default if not

speciﬁed

default_queue Name of the default NQS queue to which jobs are

submitted.

nqebatch

qmgrnow If set and true, requests that LWS follow any submission

to NQS by the qmgr> scheduler request xyz now,

where xyz is the NQS request ID.

This will force NQS to run a job, even if local NQS

scheduling parameters deny it.

Yes

run_mechanism Deﬁnes the validation mechanism used to check the target

user against the client user for local submission to NQS.

The mechanisms available are:

•File, which indicates that NQS ﬁle validation is to

be used

•Passwd, which indicates that NQS password

validation is to be used.

File

SG–2150 3.3 259

Writing an NQE Scheduler [10]

The scheduling algorithm used by the NQE scheduler is designed to be

modiﬁed. Also, it is possible to completely rewrite the scheduler. This chapter

describes the NQE database and scheduler in greater detail than Chapter 9,

page 231, and it guides you in writing a site-speciﬁc scheduler.

You should note the following points:

•All data concerning requests submitted to the NQE database is contained

within that database. Therefore, any data that the NQE scheduler wishes to

remain in existence after it shuts down must be stored in the NQE database.

Examples of this data include request information, request script ﬁles, job

log/history information, and scheduling conﬁguration and request exit

statuses.

•If the scheduler is killed and then restarted, or the connection to the NQE

database is lost and then regained, the scheduler should be capable of

recovering its state based entirely on the contents of the NQE database.

This chapter contains information about the following:

•Scheduler system task

•Writing a simple scheduler

•Attribute names and nqeinfo ﬁle variable names

•Tcl built-in functions

10.1 The Scheduler System Task

All system tasks, including the scheduler, consist of Tcl scripts that do the

following:

•Run with root privilege.

•Connect to the NQE database and remain continuously connected.

•Regularly make queries of the NQE database, analyze data, and modify or

act on that data.

Figure 23 shows the structure of the scheduler system task (referred to as the

NQE scheduler). As shown by the diagram, it consists of three main parts:

SG–2150 3.3 261

NQE Administration

•nqe_tclsh. This is the NQE version of the Tcl shell. It contains built-in Tcl

functions to perform, among other things, the task of connecting to and

accessing the NQE database.

•nqedb_scheduler.tcl. This is the name of the Tcl script that implements

the mandatory parts of the NQE scheduler. It may be invoked as the ﬁrst

argument to nqe_tclsh or directly as an executable script. The nqedbmgr

command start scheduler, simply executes this Tcl script as a

background UNIX process.

•local_sched.tcl. This is the name of the local scheduler (that is, the Tcl

script containing the local or site-speciﬁc scheduling algorithm). It is

sourced by nqedb_scheduler and contains callback functions to

implement the algorithm.

nqe_tclsh

Database

nqedb_scheduler.tcl

local_sched.tcl

Version of Tcl shell containing built-in functions

to access the NQE database

The main Tcl script for the scheduler

Site-defined script containing a local

scheduling algorithm

Tcl function callbacks (Tentry etc.)

a10276

Figure 23. Scheduler Program Structure

262 SG–2150 3.3

Writing an NQE Scheduler [10]

By default, the local scheduler script resides in the location deﬁned by NQE_BIN

in the nqeinfo ﬁle. Its name and location may be changed by either of the

following:

•Deﬁning another nqeinfo ﬁle variable, NQEDB_SCHEDFILE, set to the name

of the script ﬁle (this can be an absolute path name or relative to NQE_BIN).

•Setting a new attribute, s.schedfile, for a particular scheduler system

task object. See Section 10.2 for an example of how to do this.

10.2 Writing a Simple Scheduler

The scheduler is written in the Tcl language. The most effective way of

describing the operation of the NQE scheduler and the way in which it can be

modiﬁed is by performing the steps necessary to create a new, site-speciﬁc NQE

scheduler.

This section provides a tutorial in writing an NQE scheduler.

10.2.1 Requirements

The following is required before starting the tutorial:

•You must have knowledge of the Tcl language in order to modify the NQE

scheduler. Tcl is a very simple but powerful interpreted language. Many Tcl

language books include excellent tutorials on the language.

•You must have root access on the NQE database server node running the

mSQL daemon, the NQE scheduler system task, and the NQE monitor

system task. Only one NQE node is conﬁgured to run the mSQL daemon.

This is typically determined during installation of NQE. To ensure that a

given machine is conﬁgured to run the NQE database server, check that the

nqeinfo ﬁle variable NQE_DEFAULT_COMPLIST setting contains the

NQEDB,SCHEDULER,MONITOR, and LWS components, and that the

MSQL_SERVER variable is set to the name of the local machine.

•Your PATH must include the directory deﬁned by the nqeinfo ﬁle variable,

NQE_BIN.

•The NQE database , NQE scheduler, and NQE monitor must be running.

SG–2150 3.3 263

NQE Administration

The nqeinit process should start these system tasks by default; the

following message is displayed:

NQE database startup complete

To check that system tasks are running, execute the nqedbmgr command

status. The output should show that mSQL is running and that the

monitor,scheduler, and at least the local lws system tasks are running.

Following is an example of the status output for a two node cluster with the

NQE database server running on latte and a LWS running on pendulum:

264 SG–2150 3.3

Writing an NQE Scheduler [10]

nqedbmgr status

----------------------------------------------------------------

Connection:

-----------

Connecting... Successful

Client user name: root

DB user name: root

DB server name: latte

DB server port: 603

----------------------------------------------------------------

Global config object:

---------------------

Heartbeat timeout: 90

Heartbeat rate: 30

System event purge rate: 24*60*60

User task purge rate: 24*60*60

Summary status: all

----------------------------------------------------------------

System tasks:

-------------

monitor.main (id=s2):

Status: Running

Pid and host: 2669 on latte

Last heartbeat: 26 seconds ago (Update rate is every 30 secs)

scheduler.main (id=s3):

Status: Running

Pid and host: 2678 on latte

Last heartbeat: 22 seconds ago (Update rate is every 30 secs)

lws.latte (id=s4):

Status: Running

Pid and host: 2686 on latte

Last heartbeat: 20 seconds ago (Update rate is every 30 secs)

Default queue: nqebatch

lws.pendulum (id=s5):

Status: Running

Pid and host: 24149 on pendulum

Last heartbeat: 22 seconds ago (Update rate is every 30 secs)

Default queue: nqebatch

SG–2150 3.3 265

NQE Administration

10.2.2 Goal

The goals of the tutorial are as follows:

•Create a new NQE scheduler, called simple, that will work alongside the

default NQE scheduler (by default called main).

•Write a simple scheduler algorithm that schedules tasks to lightweight

servers (LWSs) in a round-robin manner. The simple scheduler should also

limit the total number of jobs a given LWS can run at any time; in other

words, you will implement a global LWS run limit.

•Test the scheduler.

•Add the enhancement of allowing the run limit to be conﬁgurable.

The steps in achieving this are listed below and are described in the following

sections:

1. Create a new scheduler system task object for simple

2. Create a simple local scheduler ﬁle

3. Write a Tinit callback function to initialize variables

4. Write a Tentry callback function to handle user tasks newly assigned or

newly reassigned to your scheduler

5. Write a Tpass callback function to schedule user tasks

6. Write a Tnewowner callback function to update internal counts and lists

7. Write a Tentry callback function for user tasks returned from an LWS

8. Run the new scheduler and submit jobs that it will schedule

9. Add conﬁguration enhancements to the Tinit callback function

10.2.3 Step 1: Create a New Scheduler System Task Object

It is desirable to develop and test a scheduler without disturbing any

production NQE scheduler already running on the system. This can be achieved

by creating a new scheduler system task object with the following command:

nqedbmgr create systask scheduler.simple

This command inserts a new system task object into the NQE database.

266 SG–2150 3.3

Writing an NQE Scheduler [10]

Note: This action does not start the scheduler; it only creates the system task

object.

The output should look similar to the following:

Connected to latte as DB user root (conn=4)

Object scheduler.simple inserted (s6)

Here the local host name is latte. A new system task object has been created

with the ID s6. This ID varies depending upon how many system task objects

already exist in the NQE database. The system task class is scheduler. Its

name is simple (the default scheduler name is main). When test jobs are

submitted to the NQE database, you will be able to specify which scheduler

should receive, own, and schedule the job.

The system task object can be deleted by using the following commands:

nqedbmgr shutdown scheduler.simple

nqedbmgr delete scheduler.simple

Caution: The delete command should never be issued while the simple

scheduler is still running.

For additional information about the nqedbmgr shutdown command, see

Section 9.7, page 246.

10.2.4 Step 2: Create the Simple Scheduler File

The following local scheduler ﬁles are provided with NQE:

File Description

template_sched.tcl (Located in the /nqebase/bin directory). This is a

template ﬁle for local schedulers. If run without

modiﬁcations, this scheduler will accept all tasks

but never schedule them.

local_sched.tcl (Located in the /nqebase/bin directory). This is

the default scheduler supplied. (For more

information about the default scheduler, see

Section 9.11.2, page 256.)

simple_sched.tcl (Located in the /nqebase/examples directory).

This is a ﬁnal version of the simple scheduler

SG–2150 3.3 267

NQE Administration

described in the remainder of this tutorial and

may be used for comparison.

Copy the template ﬁle to a ﬁle named simple_sched.tcl in the $NQE_BIN

directory. Ensure that the ﬁle has write permission because it will be modiﬁed

in later steps.

The newly created scheduler system task object (step 1) must be conﬁgured as

follows to read the Tcl ﬁle you just created:

nqedbmgr

% update scheduler.simple {s.schedfile simple_sched.tcl}

% exit

This command updates the scheduler.simple system task object, setting the

attribute s.schedfile to simple_sched.tcl.

You can list the attributes in scheduler.simple by using the following

command:

nqedbmgr select -f scheduler.simple

The scheduler will read this object and source the ﬁle speciﬁed by this attribute.

It is the responsibility of the local scheduler ﬁle, simple_sched.tcl, to do the

following:

•Deﬁne at least four special Tcl functions to perform the scheduling. These

special Tcl functions are callbacks used by the scheduler program.

•Invoke the Tcl function sched_set_callback for each of the four

callbacks to register the functions’names. The syntax is as follows:

sched_set_callback callback functionname

callback may be one of the following:

Function Description

Tinit Initialize scheduler

Tentry Handle new tasks

Tpass Make a scheduling pass

268 SG–2150 3.3

Writing an NQE Scheduler [10]

Tnewowner Assign a new owner

An example of its use follows:

# Register function fnc_Tinit for callback Tinit

sched_set_callback Tinit fnc_Tinit

The remaining steps describe how to create the functions listed above and

explain their purpose.

10.2.5 Step 3: Write a Tinit Callback Function

Write a Tinit callback function.

The Tinit callback is called when the following occurs:

•The scheduler starts up.

•The scheduler receives the TINIT event. You can send an event to the

simple scheduler by using the following nqedbmgr command:

nqedbmgr ask scheduler.simple tinit

•The scheduler reconnects to the NQE database after a previous, unexpected

disconnection.

The Tinit callback should be used to perform any local initialization required

by the scheduler. It returns with a value of 1 if initialization was successful;

otherwise, it returns with a value of 0, and the scheduler shuts down.

The following two global Tcl variables are deﬁned before the Tinit callback is

invoked:

•Obj_config. This is a global Tcl array containing the global conﬁguration

object. The elements of the array correspond to the attributes of the NQE

database object of type gand name config.main.

The config.main object is read from the NQE database just before the

Tinit callback function is called. The object can contain any conﬁguration

information required by user commands and system tasks.

For a list of predeﬁned attributes, see Section 10.3.5, page 299. You may add

others.

•Obj_me. This global Tcl array contains the attributes corresponding to the

scheduler system task object itself.

SG–2150 3.3 269

NQE Administration

This array is the main mechanism for passing conﬁguration data to a

particular system task.

For a list of predeﬁned attributes, see Section 10.3.4, page 297.

The ﬁrst version of the simple scheduler will not make use of the two global Tcl

arrays. It will, however, use its own global Tcl array (called Sched) to store all

running information concerning the tasks. This array should be unset and

initialized at this point. The code for the Tinit callback follows. The variables

initialized will be described later. The following code should be added to

simple_sched.tcl:

# Register the function

sched_set_callback Tinit fnc_Tinit

# Define function fnc_tinit

# Arguments: None

proc fnc_Tinit {} {

global Obj_config Obj_me

global Sched

sched_log "TINIT: Entered"

if { [info exists Sched] } {

# Clear internal information array if it exists

unset Sched

}

# Global run limit per LWS

set Sched(total_lws_max) 5

sched_trace "TPASS: Global per-LWS run limit:\

$Sched(total_lws_max) "

# Scheduler pass rate (when idle)

set Sched(passrate) 60

# The round-robin index

set Sched(rrindex) 0

# Initialize lists

270 SG–2150 3.3

Writing an NQE Scheduler [10]

set Sched(pending_list) ""

set Sched(schedule_list) ""

return 1

}

10.2.6 Step 4: Write a Tentry Callback Function for New Tasks

Write a Tentry callback function to handle new tasks.

The Tentry callback is called when the following occurs:

•A newly submitted user task is detected. New tasks always enter the system

with state New.

•Upon startup or Tinit,Tentry is called once for each user task already

owned by the scheduler.

•A user task is completed or fails on an LWS.

The Tentry callback should be used to update local lists and counts,

depending upon the state of the user task. The Tentry callback may also

change the state and/or owner of the user task.

A local scheduler may deﬁne as many states as it wants for the user tasks it

owns. Table 17 lists the states that must be recognized by the Tentry callback:

Table 17. Mandatory Task States Recognized by the Tentry Callback

Task state Description

New Indicates the initial state immediately after submission by

user (by using NQE GUI or the cqsub command).

Scheduled Indicates the scheduler has assigned a user task to a

speciﬁc LWS. The LWS system task interprets this state as

meaning "This task is to be submitted to the local NQS."

After successful submission, the LWS places the task in

Submitted state. However, this latter state is never

communicated to the scheduler and does not need to be

trapped.

Completed Indicates that the job request has completed successfully.

Failed Indicates that the job request cannot be submitted to NQS.

SG–2150 3.3 271

NQE Administration

Task state Description

Aborted Indicates that NQS cannot run the job request associated

with this user task. This may occur, for example, if the

job request is successfully submitted to an NQS pipe

queue but then cannot be placed in a batch queue due to

queue limits.

Terminated Indicates that a user task has been terminated by

execution of a delete request (either through the NQE

GUI or the cqdel command).

In this step, you will write code to deal with the New state and to deﬁne a new

local state, Pending, which indicates that the user task has been accepted by

this scheduler and is queued.

272 SG–2150 3.3

Writing an NQE Scheduler [10]

Replace the template version of fnc_Tentry with the following fnc_Tentry

function:

# Register the function

sched_set_callback Tentry fnc_Tentry

# Define function fnc_Tentry

# Argument: objid. Object ID of user task

proc fnc_Tentry { objid } {

global Obj_config Obj_me Us Lwsid

global Sched

# Associate global variable Obj_$objid

# with variable obj in this fnc.

upvar #0 Obj_$objid obj

# Set some local variables for ease of use

set state $obj(t.state)

set substate $obj(t.substate)

# Log a message to scheduler log file

sched_log "TENTRY: objid = $objid, state =

$state/$substate"

# Look at the state of this task

switch -regexp $state {

New {

# New: Task has just been submitted to NQE by cqsub

set upd(t.state) Pending

sched_update $objid upd

}

Pending {

# Pending: Scheduler-specific state

# Add task to pending_list

nqe_listrep Sched(pending_list) $objid

SG–2150 3.3 273

NQE Administration

# Acknowledge task

sched_update $objid

# Ask for a scheduling pass as soon as possible

sched_post_tpass

}

return

}

The following two additional global Tcl variables are deﬁned before the Tentry

callback is invoked:

•Us. This global Tcl array contains various scheduling values. It is described

in more detail in the next step.

•Obj_$objid. Each attribute of each user task object owned by the

scheduler is represented in Tcl by an array with a name of the form

Obj_$objid;$objid is the object ID of the task (such as, t6).

Unfortunately, Tcl arrays with variable names are difﬁcult to access directly

in Tcl scripts. Therefore, it is usually more convenient to associate the name

of the array with a local name for the duration of the function. This is

achieved by using either the Tcl function upvar #0 or the NQE Tcl function

globvar. See standard Tcl documentation for a full description of these

functions.

274 SG–2150 3.3

Writing an NQE Scheduler [10]

The following important functions have been introduced in this step:

Tcl

function

Description

sched_log message [severity]

Log a message to the log ﬁle.

message is the message to log.

severity describes the severity level of the message. It may be

one of the following:

iInformational

wWarning

eError

fFatal

If a severity level is provided, the message is preﬁxed in the log

ﬁle by a string showing that severity. If no severity level is

provided, the message is logged without a preﬁx.

The following example

sched_log "My message" w

logs a message similar to the following:

11/08/95 16:36:51 WARN: My message

The function does not return any value.

sched_post_tpass

Request a scheduling pass.

This function causes the scheduling algorithm to be called as

soon as possible. In other words, as soon as the Tentry

callback completes, the Tpass callback is invoked.

The function does not return any value.

SG–2150 3.3 275

NQE Administration

sched_update objid updatearr

sched_update objid updatelist

This is the main NQE database update function. It must be

used to update any attributes in a user task object.

objid is the object ID of the object to be updated.

updatearr is the name of a Tcl array that contains all the

attributes to update.

The following example updates the object with ID t6, setting

attributes t.state and otherattrib:

set upd(t.state Pending)

set upd(otherattrib 23)

sched_update t6 upd

The equivalent syntax is as follows:

sched_update t6 [list t.state Pending

otherattrib 23]

The function does not return any value. If an error occurs, Tcl

traps it and deals with it elsewhere.

10.2.7 Step 5: Write a Tpass Callback Function

Write the Tpass scheduling algorithm.

The Tpass callback is called as follows:

•Once upon receipt of Tinit or upon startup

•Regularly (as deﬁned by the Tpass callback’s return value)

•Soon after any call to sched_post_tpass

Note: The Tpass callback is not called when the state of any LWS

changes. This means that the scheduler may not react to the startup of a

new LWS until the next regular scheduling pass.

The Tpass callback should attempt to ﬁnd a user task that can be scheduled on

an LWS. In other words, the main scheduling algorithm should be coded here.

276 SG–2150 3.3

Writing an NQE Scheduler [10]

Only one task should be scheduled in any one pass, and no internal counts or

lists should be updated by this function. These jobs should be left to the

Tentry and Tnewowner callbacks. This ensures that lists and counts are based

solely on the contents of the NQE database.

The simple scheduler algorithm is as follows:

# Register the function

sched_set_callback Tpass fnc_Tpass

# Define function fnc_Tpass

# Argument: None

proc fnc_Tpass {} {

global Obj_config Obj_me Us Lwsid

global Sched

sched_trace "TPASS..."

# Skip if there are no lws running

if { $Us(lwsruncount) <= 0 } {

sched_trace "TPASS: No running LWS"

return $Sched(passrate)

}

# Loop through tasks

foreach taskid $Sched(pending_list) {

# Find an ordered list of target LWS

set lwstouselist [getrrlist]

foreach lws $lwstouselist {

# Has the lws any room?

if { [info exists Sched(total $lws)] && \

$Sched(total_$lws) >= $Sched(total_lws_max)} {

#This LWS is already at its limit

continue

}

# Schedule the task to this LWS

SG–2150 3.3 277

NQE Administration

sched_log "TPASS: Scheduling $taskid\

to $lws ($Lwsid($lws))"

set upd(t.state) Scheduled

set upd(t.sysclass) $Us(lwsclass)

set upd(t.sysname) $lws

sched_update $taskid upd

# Update round-robin index

incr Sched(rrindex)

# Ask for another pass as soon as possible

return 0

}

return $Sched(passrate)

}

The Us global Tcl array contains useful scheduling information. The following

array items are deﬁned:

•lwsclass, which is the name of the LWS class. This is needed to assign

ownership of a user task to an LWS. It is always set to lws.

•lwscount, which is set to the number of LWS system tasks conﬁgured. Not

all LWSs conﬁgured are necessarily running.

•lwslist, which is set to the names of the LWS system task objects

conﬁgured. The number of names in this list equals lwscount.

•lwsruncount, which is set to the number of LWS system tasks currently

running (that is, in Running state).

•lwsrunlist, which is set to the names of the LWS system tasks currently

running.

•monitorclass, which is the name of the monitor class. This is needed to

assign ownership of a user task to the monitor when the task is completed.

It is always set to monitor.

•monitorname, which is the name of the monitor. This is needed to assign

ownership of a user task to the monitor. It is always set to main.

278 SG–2150 3.3

Writing an NQE Scheduler [10]

•schedulerclass, which is the name of the scheduler class. This is needed

to assign ownership of a user task to another scheduler. It is usually set to

scheduler.

•schedulername, which is the name of this scheduler. For the tutorial

example scheduler, the name will be simple.

Note: sched_update may change any attribute. The following attributes

are often modiﬁed:

Name of attribute Description

t.state New state of the task. This serves both as

information and as a veriﬁcation for the

system task that owns this task. When

changing ownership to a new system task,

the state must be set to a value known to

that system task.

t.sysclass Name of the class of the system task object

that is to own this task. The classes may be

obtained from the global Tcl array Us.

t.sysname Name of the system task object that is to

own this user task. The name is, by default,

main for the scheduler and monitor, and is

usually the name of the host for the lws.

The function to obtain an ordered list of LWSs by the round-robin method

(getrrlist) is as follows; this function is in the scheduler released with NQE,

in the ﬁle local_sched.tcl:

proc getrrlist {} {

global Us Sched

# Round-robin tasks to the current active LWS list

if { $Us(lwsruncount) <= $Sched(rrindex) } {

# Round-robin index is greater than the current number

# of active LWSs, reset to 0

set Sched(rrindex) 0

}

# Create the LWS to use list in round-robin order

SG–2150 3.3 279

NQE Administration

return [concat \

[lrange $Us(lwsrunlist) $Sched(rrindex) end] \

[lrange $Us(lwsrunlist) 0 [expr $Sched(rrindex) - 1]] \

]

}

10.2.8 Step 6: Write a Tnewowner Callback Function

Write the Tnewowner callback function.

The Tnewowner callback is called as follows:

•Once for every user task owned by any LWS, immediately after Tinit or

upon startup.

•Whenever the system task ownership of a task changes away from the

scheduler. In other words, the Tnewowner callback is invoked after

sched_update has been used to assign a user task to an LWS to run or to a

monitor to be disposed.

The Tnewowner callback should update any lists based on the new owner of

the task. When the function returns, the scheduler will unset the in-memory Tcl

global array of the user task because the task will no longer be owned by the

scheduler. The following code writes the Tnewowner callback function:

# Register the function

sched_set_callback Tnewowner fnc_Tnewowner

# Define function fnc_Tnewowner

# Arguments: objid - object ID of task

# oclass - new owner class

# oname - new owner name

proc fnc_Tnewowner { objid oclass oname } {

global Obj_config Obj_me Us Lwsid

global Sched

# Associate global variable Obj_$objid with variable obj

upvar #0 Obj_$objid obj

lg_log "TNEWOWNER: objid = $objid, owner now $oclass/$oname"

280 SG–2150 3.3

Writing an NQE Scheduler [10]

# See which type of system task now owns the task

switch $oclass {

lws {

# A LWS now owns task. This occurs immediately after

# changing the owner of the task to a lws (i.e. after

# scheduling a task to run in Tpass).

# Remove it from the pending list

nqe_listrem Sched(pending_list) $objid

# Add task ID to list of scheduled tasks

nqe_listrep Sched(schedule_list) $objid

#Update counts

if { ! [info exists Sched(total $oname)] }{

set Sched(total_$oname) 0

}

incr Sched(total $oname)

sched_trace "LWS $oname run count increased to\

$Sched(total_$oname)"

}

monitor {

# Monitor now owns task. This occurs when a task

# has completed and is never to run again.

# Remove it from the lists.

nqe_listrem Sched(pending_list) $objid

nqe_listrem Sched(schedule_list) $objid

}

return

}

The following additional functions were introduced in this section (step 6):

Tcl

function

Description

nqe_listrem listname element

Remove an element from a list.

SG–2150 3.3 281

NQE Administration

This function searches for and deletes an element of a list. No

action is performed if the list does not exist or if the element is

not found.

nqe_listrep listname element

Adds an element in a list.

If the list does not yet exist, this function creates the list and

adds the element to the list. If the list exists, this function adds

the element to the list. Otherwise, it performs no action.

10.2.9 Step 7: Write a Tentry Callback Function for User Tasks Returned from an LWS

Add to the Tentry callback.

When a user task that is owned by an LWS completes or fails in some way, it is

reassigned to the scheduler. This action allows the scheduler to update local

counts and possibly requeue the task to run again.

Tasks to be rerun enter the scheduler in the same way as new tasks.

In this simple scheduler, the scheduler will assign any task in Completed,

Failed,Aborted,orTerminated state to the monitor unmodiﬁed. A more

sophisticated scheduler could analyze the reasons for completion and perform

some other action.

Merge the following code into the Tentry function that you have already

deﬁned:

proc fnc_Tentry { objid } {

...

# Note use of -regexp to allow "|" in cases

switch -regexp $state {

New {

...

}

Pending {

...

}

Completed|Failed|Aborted|Terminated {

282 SG–2150 3.3

Writing an NQE Scheduler [10]

# Task finished

# Send to the monitor.

sched_log "$objid: Task has completed ($state)" i

# Update the LWS lists/counts

# Note that task attribute t.lastlws

# contains the name of the lws which owned the task

if { [lsesarch -exact $Sched(schedule_list) $objid] \

>=0 } {

incr Sched(total_$obj(t.lastlws)) -1

sched_trace "LWS $obj(t.lastlws) run count\

reduced to $Sched(total_$obj(t.lastlws))"

}

set upd(t.sysclass) $Us(monitorclass)

set upd(t.sysname) $Us(monitorname)

sched_update $objid upd

sched_post_tpass

}

default {

# Catch-all for unknown states.

sched_log "$objid: Unknown state,\

$state. Task disposed"

sched_update $objid [list

t.state $state \

t.sysclass $Us(monitorclass) \

t.sysname $Us(monitorname) \

]

}

return

}

The t.lastlws attribute is deﬁned automatically and contains the name of the

LWS that last ran this task.

10.2.10 Step 8: Run the New Scheduler

The following two mechanisms exist for running the scheduler:

SG–2150 3.3 283

NQE Administration

1. Invoke the nqedb_scheduler.tcl script interactively as a command in a

terminal by using the following command:

nqedb_scheduler.tcl name

This command is useful while debugging. Logging and tracing output is

sent to the screen.

2. Use the nqedbmgr start scheduler.simple command. This command

sets the process in the background and creates a log ﬁle in the log directory

under NQE’s spool directory (see the nqeinfo ﬁle variable NQE_SPOOL).

This command is useful when the scheduler is in production.

Before invoking the scheduler, set a trace level so that scheduling trace

messages are reported; this will aid debugging. Use the nqedbmgr ask or

nqedbmgr post event command to set the trace level. For information about

trace levels and how to set them, see Section 10.2.10.2.

This tutorial uses the ﬁrst mechanism to invoke the scheduler; to do this,

simply type the following command:

nqedb_scheduler.tcl simple

The ﬁrst argument is the name of the scheduler. If no name is supplied, main is

assumed. Output and trace messages will appear on the screen.

To submit a job that will be scheduled by scheduler simple, use the

scheduler attribute of the cqsub command, as follows:

cqsub -d nqedb -la scheduler=simple

10.2.10.1 Tcl Errors

It is very possible that the Tcl interpreter will encounter syntax errors while a

local scheduler is being developed.

All Tcl errors are trapped. If the error was due to a failure in the connection to

the NQE database server, the scheduler enters a retry state. All other Tcl errors

cause the scheduler to abort immediately. A description of the error and a Tcl

stack trace are placed in the log ﬁle (or printed to the screen if the scheduler is

being run interactively).

A signiﬁcant advantage to Tcl is the ability to quickly correct this type of

problem.

284 SG–2150 3.3

Writing an NQE Scheduler [10]

10.2.10.2 Trace Levels

It is possible to increase the amount of information logged by the scheduler by

setting its trace_level attribute. Its value is a mask of the types of tracing

required. Values may be separated by commas. The following list provides

some useful trace-level names:

Trace-level name Usage

sched Local scheduler trace messages; this type of trace

is reserved for use by local schedulers.

pr Process fork/exec tracing.

gen General system task tracing.

db NQE database function tracing.

0Disable tracing; this is the default trace-level

setting.

You can set the trace level while the system object is running or when it is not

running. To set the trace level while the system object is running, use the

nqedbmgr ask or the nqedbmgr post event command. The nqedbmgr

ask command is the same as the nqedbmgr post event command, except

that it waits for a response. The following example sets the trace level to sched

on the simple scheduler as it runs:

nqedbmgr ask scheduler.simple trace_level sched

The nqedbmgr post event -o command sets the trace level whether or not

the system object is in a Running state. The following example sets the trace

level to sched on the simple scheduler whether or not it is running:

nqedbmgr post event -o scheduler.simple trace_level sched

10.2.10.3 Examining Tcl Variables

The DUMP_VARS event causes the contents and names of a running scheduler’s

global Tcl variables to be logged. The event value is a glob pattern to match the

global Tcl variable name or value.

For example, to ask the simple scheduler to dump out the contents of the

Sched array, use the following command:

nqedbmgr ask scheduler.simple dump_vars Sched

SG–2150 3.3 285

NQE Administration

To dump out all variables, use the following command:

nqedbmgr ask scheduler.simple dump_vars "*"

The quotation marks are needed if the command is passed on a UNIX

command line.

10.2.11 Step 9: Add Conﬁguration Enhancements

The following simple addition to the Tinit callback allows modiﬁcation of

conﬁguration:

proc fnc_Tinit {} {

global Obj_config Obj_me

...

# Global run limit per LWS

set Sched(total_lws_max) 5

catch {set Sched(total_lws_max) $Obj_me(total_lws_max)}

sched_trace "TPASS: Global per-LWS run limit:\n $Sched(total_lws_max) "

# Scheduler pass rate (when idle)

set Sched(passrate) 60

catch {set Sched(passrate) $Obj_me(passrate)}

...

return 1

}

The total_lws_max and passrate attributes can be overridden by setting

attributes with the same names in the system task’s object (Obj_me). The

simple scheduler loads its own system task object on startup or after receiving

the TINIT event.

Update the system task’s object as follows:

nqedbmgr

% update scheduler.simple {total_lws_max 2}

% exit

Restart the scheduler or post the Tinit event. The new maximum should now

be in force.

286 SG–2150 3.3

Writing an NQE Scheduler [10]

10.2.12 Tracking down Problems

This section describes some common errors you may experience and provides

suggested solutions.

FATAL: Failure occurred. Was not loss of connection

FATAL: Don’t know what to do here. Exiting

This shows a general problem encountered by a system task. A

Tcl error description and Tcl stack trace follow the messages.

FATAL: TINIT reports fatal error

The local scheduler Tinit function returned 0, signifying that

it could not initialize correctly. Check the local scheduler’s

Tinit code.

FATAL: System object abc.xyz must be created before starting

up this system task

An attempt was made to start a system task before its system

task object was inserted into the database. Insert its object by

using the nqedbmgr create command before starting the

system task.

FATAL: System task file lock could not be obtained.

Currently held by PID xxxx

INFO: Another system task with ID sxx may be running

This signiﬁes that a system task of the same ID is already

running on this host. Check for a process with this PID on the

system.

FATAL: Configured time syntax for "xyz" is bad: expr

A global or system task attribute representing a time value (for

example, purge.task_age) is not a valid mathematical

expression. Check the attribute (using nqedbmgr select -f

obj) and modify it. The system task should be restarted.

WARN: Callback Tpass is not defined. No regular scheduling

passes will occur

Your local scheduler has not registered a Tpass function. This

means that no regular scheduling passes can ever occur. Edit

the scheduler, and either restart the scheduler or send it a

TINIT event.

SG–2150 3.3 287

NQE Administration

WARN: System object xyz host name attribute (hostA) different

from this host (hostB)

This warning is issued if a given system task is started on a

machine other than the machine used for its previous invocation

(this means system ﬁle locks cannot be used to ensure that

multiple system tasks are not running). It may occur as a result

of moving the mSQL database to another machine.

ERROR: DB_CONNECT: Failed. Retry in 10 secs...

The system task could not connect to the NQE database. This

may be due to one of the following:

•Incorrectly conﬁgured nqeinfo ﬁle; check that the variables

MSQL_SERVER and MSQL_TCP are set to the host name and

port running the mSQL server.

•The mSQL server is not running; check that the msqld

process is running and that the nqedbmgr command

status db executes successfully.

•Connection was refused by the mSQL server; check the

msqld log ﬁle. It may give a security authorization reason

for the connection failure.

ERROR: Cannot find the user scheduler file: xyz

You have speciﬁed a local scheduler ﬁle that does not exist.

Check the nqeinfo ﬁle variable NQEDB_SCHEDFILE and the

scheduler’s system task attribute, s.schedfile (which takes

precedence), for the ﬁle name given. If the ﬁle name is not an

absolute path name, it is assumed to be relative to the NQE

bin directory.

INFO: Interrupt occurred

An interrupt was received by the system task. This generally

occurs when the scheduler is being run interactively, and

288 SG–2150 3.3

Writing an NQE Scheduler [10]

CONTROL-C is pressed. The scheduler will shut down and must

be restarted.

10.3 Attribute Names and nqeinfo File Variable Names

This section lists and describes all predeﬁned attribute names for the nqeinfo

ﬁle and for NQE database objects.

10.3.1 nqeinfo Variables

Table 18 describes variables that may be deﬁned in the nqeinfo ﬁle. The table

also indicates its default value if it has one.

Table 18. Variables That May Be Deﬁned in the nqeinfo File

Name of variable Description Notes

MSQL_DBDEFS Location and name of mSQL table deﬁnitions

for NQE database.

The ﬁle speciﬁed by this variable is used as

input to mSQL to create tables for the ﬁrst

time. Once the NQE database is created, the

ﬁle is no longer required.

Default value is

$NQE_BIN/nqedb.struct.

Needed by the node

conﬁgured as the NQE

database server only.

MSQL_DBNAME Name of mSQL database.

The mSQL daemon may serve multiple

databases. Each database comprises one or

more SQL tables. After connecting, NQE

database clients such as cqsub and system

tasks will select a database based on this name.

Default value is nqedb. Value

must not be greater than 8

characters in length.

Needed by the node

conﬁgured as the NQE

database server only.

MSQL_HOME Location of mSQL database ﬁles.

This directory speciﬁes the location on disk of

the data stored by the mSQL daemon.

Default value is $NQE_SPOOL.

mSQL automatically uses the

msqld directory below this.

Needed by the node

conﬁgured as the NQE

database server only.

SG–2150 3.3 289

NQE Administration

Name of variable Description Notes

MSQL_SERVER Name of mSQL daemon server host.

This variable contains the name (plus optional

colon followed by TCP port) of the host that is

running the mSQL daemon. Only master

server machines can run the daemon and only

one should be deﬁned for the network.

No default is deﬁned.

May be overridden by setting

the environment variable

MSQL_SERVER.

Needed by all NQE machines.

MSQL_TCP_PORT Name of mSQL daemon server port.

This contains the name or number of the TCP

port on which the mSQL daemon listens.

Mandatory if no port

speciﬁed in MSQL_SERVER.

Default is 603.

May be overridden by setting

port number in

MSQL_TCP_PORT .If

MSQL_SERVER is set with a

port number, the value of

MSQL_TCP_PORT is ignored.

Needed by all NQE machines.

NQEDB_IDDIR Name of directory to contain the LWS ID ﬁles.

The ID directory contains ﬁles used for

communication between an NQS and its local

LWS system task.

Default is

$NQE_SPOOL/nqedb_iddir.

Needed by nodes conﬁgured

as the NQE database server,

NQS server, and LWS.

NQEDB_SCHEDFILE File speciﬁcation of local scheduler Tcl script.

This variable may be set to give an alternative

name (relative to NQE_BIN) or the full path

name of the Tcl script used to implement local

scheduling algorithms.

Default if not speciﬁed is

local_sched.tcl.

Overridden by deﬁning the

attribute s.schedfile in the

scheduler’s system task object.

Used by the node conﬁgured

as the Scheduler.

10.3.2 Event Objects

The event object type is e. Event objects are used to communicate among tasks

(both system and user). Attributes are described in Table 19:

290 SG–2150 3.3

Writing an NQE Scheduler [10]

Table 19. Event Objects Attributes

Name of attribute Description Notes

type Object type (e)

e.ack This ﬁeld is used by the system to record

when a system task has acknowledged the

existence of the user task object it now owns.

0means that this task has changed owner but

that the new owner has not acknowledged it.

1means that the new owner has

acknowledged ownership.

e.name A name for this event. See Table 20, page 292, for list

of predeﬁned event names.

e.response Optional response associated with the event.

This is set when an event is acknowledged.

If not explicitly set, is set to

"".

e.targid Object ID of the target task intended for this

event. It may be a user task or system task ID.

e.targtype Object type of the target of this event.

e.value Optional value for event. If not explicitly set, is set to

"".

id Unique ID for the task. In mSQL, this is in

the form en, where nis an integer.

Allocated when the task is

ﬁrst inserted into the NQE

database.

sec.ins.dbuser NQE database user name of originator of this

task.

See Section 9.9, page 248.

timein Time object was inserted into NQE database.

timeup Time object was last updated.

Table 20 lists the events that are deﬁned by default:

SG–2150 3.3 291

NQE Administration

Table 20. Events Deﬁned by Default

Event name Value Description

DUMP_VARS Glob pattern for variables to dump Dump to the log all variable names and

values matching the glob pattern

supplied. For debugging.

SIGDEL Signal name or number Send the signal to the process if it is

running. Otherwise, delete the process.

This event is posted by qdel/cqdel.

SHUTDOWN None Shut down the system task.

TRACE_LEVEL Trace level Set the trace level of the target system

object to the value passed.

TINIT None Reinitialize the system task. This event

causes the system task to leave Running

state and enter connected state, where

it clears and reloads all information.

The principal use of this event is to

restart the scheduler.

10.3.3 User Task Attributes

The user task object type is t. This object is used to contain all information

concerning a job to run on NQS. Attributes are described in Table 21:

Table 21. User Task Object Attributes

Name of attribute Description Notes

att.account Account name or project name. cqsub option: -A

att.compartment Compartment names. cqsub option: -C

att.seclevel Security levels. cqsub option: -L

att.time.sched Request run time. cqsub option: -a

file.1.name Standard output ﬁle speciﬁcation name. cqsub option: -o

file.2.name Standard error ﬁle name. cqsub option: -e

292 SG–2150 3.3

Writing an NQE Scheduler [10]

Name of attribute Description Notes

file.3.name Job log ﬁle name. cqsub option: -j

file.eo Merge standard error and standard output

ﬁles.

cqsub option: -eo

file.jo Job log control (-J m|n|y). cqsub option: -J

file.ke Keep standard error ﬁle on execution machine.

The option is set if value is 1 and is not set if

value is 0 or attribute is not set.

cqsub option: -ke

file.kj Keep job log ﬁle on execution machine.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -kj

file.ko Keep standard output ﬁle on execution

machine.

The option is set if value is 1, and is not set if

value is 0 or attribute is not set.

cqsub option: -ko

id Unique ID for the task. In mSQL, this will be

of the form tn, where nis an integer.

Mandatory attribute.

Allocated when the task is

ﬁrst inserted into the NQE

database.

lim.core Core ﬁle size limit. cqsub option: -lc

lim.data Data segment size limit. cqsub option: -ld

lim.mpp_m Per-request MPP memory size limit cqsub option: -l mpp_m

lim.mpp_p Per-request MPP processor elements. cqsub option: -l mpp_p

lim.p_mpp_m Per-process MPP memory size limit cqsub option: -l p_mpp_m

lim.mpp_t Per-request MPP time limit. cqsub option: -l mpp_t

lim.p_mpp_t Per-process MPP time limit. cqsub option: -l p_mpp_t

lim.ppcpu Per-process CPU time limit. cqsub option: -lt

lim.ppfile Per-process permanent ﬁle size limit. cqsub option: -lf

lim.ppmem Per-process memory size limit. cqsub option: -lm

lim.ppnice Per-process nice value. cqsub option: -ln

lim.pptemp Per-process temporary ﬁle size limit. cqsub option: -lv

lim.prcpu Per-request CPU time limit. cqsub option: -lT

SG–2150 3.3 293

NQE Administration

Name of attribute Description Notes

lim.prfile Per-request permanent ﬁle size limit. cqsub option: -lF

lim.prmem Per-request memory size limit. cqsub option: -lM

lim.prq Per-request quick ﬁle space limit. cqsub option: -lQ

lim.prtemp Per-request temporary ﬁle size limit. cqsub option: -lV

lim.shm Per-request shared memory limit. cqsub option: -l shm_lim

lim.shm_seg Per-request shared memory segments. cqsub option: -l shm_seg

lim.stack Stack segment size limit. cqsub option: -ls

lim.tape.a Per-request drive limit for tape type a.cqsub option: -lUa

lim.tape.b Per-request drive limit for tape type b.cqsub option: -lUb

lim.tape.c Per-request drive limit for tape type c.cqsub option: -lUd

lim.tape.d Per-request drive limit for tape type d.cqsub option: -lUc

lim.tape.e Per-request drive limit for tape type e.cqsub option: -lUe

lim.tape.f Per-request drive limit for tape type f.cqsub option: -lUf

lim.tape.g Per-request drive limit for tape type g.cqsub option: -lUg

lim.tape.h Per-request drive limit for tape type h.cqsub option: -lUh

lim.work Working set size limit. cqsub option: -lw

mail.begin Send mail upon beginning execution.

The option is set if value is 1 and is not set if

value is 0 or the attribute is not set.

cqsub option: -mb

mail.end Send mail upon ending execution.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -me

mail.rerun Send mail upon request rerun.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -mr

mail.transfer Send mail upon request transfer.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -mt

mail.user User name to which mail is sent; default is the

user submitting the request.

cqsub option: -mu

294 SG–2150 3.3

Writing an NQE Scheduler [10]

Name of attribute Description Notes

nqs.export Export environment variables.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -x

nqs.nochkpnt Do not checkpoint; not restartable.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -nc

nqs.norerun Do not rerun.

The option is set if value is 1, and is not set if

value is 0 or the attribute is not set.

cqsub option: -nr

nqs.pri Intraqueue request priority. cqsub option: -p

nqs.queue Queue name for submission.

If not set or set to "default", the LWS will use

a default queue (deﬁned in its system task

attribute default_queue).

cqsub option: -q

nqs.re Writes to the standard error ﬁle while the

request is executing.

The option is set if value is 1, and is not set if

value is 0 or attribute is not set.

cqsub option: -re

nqs.ro Writes to the standard output ﬁle while the

request is executing.

The option is set if value is 1, and not set if

value is 0 or attribute is not set.

cqsub option: -ro

nqs.shell Batch script shell name; initial shell when a

job is spawned.

cqsub option: -s

sec.ins.clienthost Client host name. Host name used for ﬁle

validation; name must be in

the .rhosts or .nqshosts

ﬁle.

sec.ins.clientuser Client user name. User name used for ﬁle

validation; name must be in

the .rhosts or .nqshosts

ﬁle.

sec.ins.dbuser NQE database user name of originator of this

task.

See Section 9.9, page 248.

sec.ins.hash Hash value for sec.ins.* values.

SG–2150 3.3 295

NQE Administration

Name of attribute Description Notes

sec.ins.tuser Target user speciﬁcation.

sec.ins.tuser.pwe Target user speciﬁcation (encrypted).

sec.target.user Target user for a particular LWS. This attribute is created by

the LWS after the task is

submitted locally.

script.0 Script ﬁle contents. This may be a very long

attribute and may not be

displayable by nqedbmgr.

t.ack This ﬁeld is used by the system to record

when a system task has acknowledged the

existence of the user task object it now owns.

0means that this task has changed owner but

that the new owner has not acknowledged

ownership.

1means that the new owner has

acknowledged ownership.

t.class The class name for this task. Always set to USER.

t.failedlws List of LWS names where this job has failed.

This may be used to determine whether the

task should be rescheduled to a given LWS.

t.failure Failure message.

t.lastlws Name of LWS that last submitted this task to

NQS. This is updated by the LWS when the

task is completed or has failed.

This is set by the scheduler

when passing ownership to

an lws.

t.lastsched System task name of the scheduler that

owned and scheduled the task.

This is set by the scheduler

when passing ownership to

an lws.

t.message Messages concerning success or failure of job.

t.name A name for this task. The name is not used

except for information. By default, it is set to

the name of the NQS job, as speciﬁed by -r.

cqsub option: -r

t.reqid The current NQS request ID for this task. This

ID may change if the task is submitted to one

LWS’s NQS, fails, and is then submitted to

another.

Not set until task has been

submitted to NQS.

296 SG–2150 3.3

Writing an NQE Scheduler [10]

Name of attribute Description Notes

t.state State of task. This serves both as information

and as a checkpoint for the system task that

owns this task. When changing owner from

one system task to another, the state must be

set to a value known to the new system task.

t.substate Substate. May be "".

t.sysclass Name of class of system object that owns this

task. The class may be scheduler,lws,or

monitor.

t.sysname Name of system object that owns this task.

The name is main for the scheduler and

monitor and the name of the host for the

lws.

timein Time at which the task was inserted into the

NQE database.

timeup Time at which the task was last updated.

type Task type (t). Always set to tfor user

tasks.

user.attr_name Job attributes. cqsub option: -la

10.3.4 System Task Object

The system task object type is s. One system task object is created for each

system task that is to run in this system. On a typical system, there is one

scheduler system task, one monitor system task, and one LWS system task for

each NQS server node. Attributes are described in Table 22:

SG–2150 3.3 297

NQE Administration

Table 22. System Task Object Attributes

Name of attribute Description Notes

default_queue Provides the name of the NQS queue to

which jobs are submitted by default.

Used by the LWS only.

id Unique ID for the object. In mSQL, this will

be of the form sn, where nis an integer.

Mandatory attribute.

Allocated when the task is

ﬁrst inserted into the NQE

database.

qmgrnow If set and true, requests that the LWS follow

any submission to NQS with the command

qmgr>scheduler request xyz now, where

xyz is the NQS request ID.

This forces NQS to run a job, even if local

NQS scheduling parameters deny it.

LWS speciﬁc.

run_mechanism Deﬁnes the validation mechanism used to

check the target user against the client user

for local submission to NQS.

Used only by the LWS. If it is

set to File, LWS checks for

local ~/.nqshosts or

~/.rhosts ﬁle; if it is set to

Passwd, LWS checks for target

password.

s.class The class name of this system task. Possible

values at present are as follows:

•lws (LWS system task) There may be

more than 1 instance of these.

•scheduler (scheduler system task)

•monitor (monitor system task)

s.host Name of host on which this system task is

running.

s.name The system task’s name. This is main for the

scheduler and monitor and is, by default, the

host name for the LWS.

s.pid UNIX PID of the system task. Set to -1 when system task

exits.

298 SG–2150 3.3

Writing an NQE Scheduler [10]

Name of attribute Description Notes

s.schedfile Local scheduler (user scheduler) ﬁle. The ﬁle

may include the absolute path name or the

path name relative to the NQE bin directory.

This attribute is always recognized, no matter

which local scheduler is running.

Used by the scheduler only.

Default is local_sched.tcl.

See Section 10.2.4, page 267,

for usage.

s.state State of system task:

•Exited: The system task is no longer

running.

•Aborted: The system task aborted. Check

log ﬁle for reason.

•Running: The system task is running.

•Down: The monitor has marked this

system task as down.

sec.ins.dbuser NQE database user name of the originator of

this task. For a system task, this will usually

be root.

See Section 9.9, page 248.

trace_level Current trace level for the system task. Default setting is 0.

10.3.5 Global Conﬁguration Object

The global conﬁguration object type is g. This special object type exists for the

purposes of containing global conﬁguration data. There is only one instance of

this object type in the NQE database. Attributes are described in Table 23:

SG–2150 3.3 299

NQE Administration

Table 23. Global Conﬁguration Object Attributes

Name of attribute Description Notes

hb.systask_timeout

_period

Time before monitor system task marks a

given system task as Down.

The value may be a mathematical

expression. Units are seconds.

Default value is 90.

hb.update_period Time between each update of the heartbeat.

Each system task will update the NQE

database within this period. The heartbeat

is used by the monitor to determine

whether a system task is still alive.

The value may be a mathematical

expression. Units are seconds.

Default value is 30.

id Unique ID for the object. In mSQL, this will

be of the form gn, where nis an integer.

Allocated when the object is

ﬁrst inserted into the NQE

database.

purge.systask_age The monitor system task will delete (purge

from the NQE database) all acknowledged

events concerning system tasks that have

not been updated within the speciﬁed time

period.

The value may be a mathematical

expression. Units are seconds.

Default value is 24*60*60

purge.task_age The monitor system task will delete (purge

from the NQE database) all user tasks that

are ﬁnished and have not been updated

within the speciﬁed time period.

The value may be a mathematical

expression. Units are seconds.

Default value is 24*60*60

s.class Object class (config).

s.name Object name (main).

sec.ins.dbuser NQE database user name of the originator

of this object (usually root).

See Section 9.9, page 248.

300 SG–2150 3.3

Writing an NQE Scheduler [10]

Name of attribute Description Notes

status.access Type of access granted to users when

attempting to obtain summary information

about jobs in the NQE database. Value can

be one of the following:

•all: Allows user to select summary

information for all tasks.

•own: Allows user to select only

information about tasks submitted by

the user.

A user may only see full information for

tasks submitted by that user.

Default value is all.

sys.ev_rate Rate at which system tasks check for new

events targeted at them or at tasks they own.

This attribute may be a mathematical

expression. Units are seconds.

Default value is 10.

sys.purge_rate Rate at which the monitor checks the age of

a completed job.

This attribute may be a mathematical

expression. Units are seconds.

Default value is 5*60.

sys.st_rate Rate at which system tasks check for new

tasks, changes in task state, and so on.

This attribute may be a mathematical

expression. Units are seconds.

sys.upd_rate Rate at which LWS system tasks check for

messages from NQS.

This attribute may be a mathematical

expression. Units are seconds.

timehb Time of last heartbeat.

timein Time at which object was inserted into the

NQE database.

timeup Time at which object was last updated.

type Object type (s); always set to sfor system

tasks.

SG–2150 3.3 301

NQE Administration

10.4 Tcl Built-in Functions

Tcl was chosen to become part of NQE scheduling for the purpose of providing

a simple, standard interpreted language with which administrators can write

schedulers. It is very portable and can be interfaced to C very easily.

The manager command, nqedbmgr, is simply Tcl invoked interactively. All

nqedbmgr commands are Tcl functions (deﬁned in nqedbmgr.tcl).

In order to use Tcl effectively in system tasks, various built-in functions (that is,

functions written in C and linked with Tcl) were implemented. Table 24

provides a brief description of these functions.

Table 24. Tcl Built-in Functions

Tcl built-in function Description

globvar Because Tcl arrays with variable names

are difﬁcult to access directly in Tcl

scripts, globvar is used to associate the

name of the array with a local name for

the duration of the function.

lg_init,lg_config,lg_log,

lg_trace

Logging and tracing functions.

pr_create,pr_set,pr_get,

pr_execute,pr_signal,

pr_wait,pr_clear

Provide a mechanism for forking and

execing processes, and changing context

to another user.

nqe_after,nqe_pause Implementation of a simple asynchronous

timing loop. These functions are used to

give the system tasks event-driven

characteristics.

nqe_curtime Returns the elapsed seconds since UNIX

Epoch.

nqe_daemon_init() Initializes the caller as a daemon process.

It makes a setid() call to create a new

session with no controlling tty and also

ignores SIGHUP signals.

nqe_strtime Converts UNIX Epoch to a

human-readable string.

302 SG–2150 3.3

Writing an NQE Scheduler [10]

Tcl built-in function Description

nqe_lock,nqe_locked,

nqe_unlock

File locking functions.

nqe_pipe UNIX pipe() implementation.

nqe_rmfile Unlink or remove a ﬁle.

nqedb_connect,

nqedb_insert,

nqedb_select,

nqedb_getobj,

nqedb_update,

nqedb_delete,

nqedb_disconnect

nqedb_insert_event,

nqedb_insert_task,

nqedb_cancel_event

Tcl implementations of the NQE database

C APIs.

nqe_getenv,nqe_getvar Obtain environment variable/ nqeinfo

ﬁle variables.

nqe_getid Returns effective/real UIDs and GIDs.

nqe_gethostname Returns local host name.

Table 25 lists other useful functions implemented in Tcl:

SG–2150 3.3 303

NQE Administration

Table 25. Additional Functions Implemented in Tcl

Tcl built-in function Description

nqe_listrem listname element Removes an element from a list.

This function searches for and deletes an element of

a list. No action is performed if the list does not

exist or if the element is not found.

nqe_listrep listname element Replaces an element from a list.

This function adds an element to a list if the list

does not yet exist or if the element is not in the list;

otherwise, it performs no action.

sched_log message [severity] Logs a message to the log ﬁle. message is the

message to the log. severity describes the severity

level of the message. It may be one of the following:

iInformational

wWarning

eError

fFatal

If a severity level is provided, the message is

preﬁxed in the log ﬁle with a string showing that

severity. If no severity level is provided, the

message is logged without a preﬁx. There is no

return.

304 SG–2150 3.3

Writing an NQE Scheduler [10]

Tcl built-in function Description

sched_post_tpass Requests a scheduling pass.

This function causes the scheduling algorithm

(Tpass) to be called as soon as possible.

There is no return value.

sched_set_callbac callback functionanme Registers the Tcl function, functionname, with

callback callback.

callback may be one of the following:

Tinit Initialize

Tentry Task

entry

Tpass Scheduling

pass

Tnewowner New

owner

There is no return value.

sched_update objid updatearr or sched_update

objid updatelist

This is the main NQE database update function. It

must be used to update any attributes in a user task

object. objid is the object ID of the object to be

updated.

updatearr is the name of a Tcl array that contains all

the attributes to update.

Alternatively, you may pass a list of attribute names

and values in updatelist.

The function does not return any value. If an error

occurs, Tcl traps it and deals with it elsewhere.

SG–2150 3.3 305

Using csuspend [11]

NQE lets you put to use the unused cycles on servers generally reserved for

interactive use. This process is sometimes called cycle stealing. This chapter

describes how to use the csuspend(8) command to enable or disable batch

work, depending on interactive use. The following topics are discussed:

•csuspend options

•csuspend functionality

•csuspend examples

11.1 csuspend Options

The syntax of the csuspend command is as follows:

csuspend [-i value][-l loopcount][-o value][-p period][-s][-t

interval]

The options are described as follows:

Option Description

-i value Speciﬁes the input character rate (in bytes) that is

compared to the input character rate of sar -y.

If the current tty input rate on the server equals

or exceeds value,csuspend initiates suspension

of batch activity. If the current tty input rate on

the server is less than value,csuspend initiates

resumption of batch activity. If you omit value,

the default is 1.

-l loopcount Speciﬁes the number of periods for which sar

collects interactive activity data to determine if

NQE will resume, be suspended, or continue to

be suspended. The default number of periods

(loopcount) is 7. See the -p period option for

information about specifying the length of a

period.

SG–2150 3.3 307

NQE Administration

-o value Speciﬁes the output character rate (in bytes) that

is compared to the output character rate of sar

-y. If the current tty input rate on the server

equals or exceeds value,csuspend initiates

suspension of batch activity. If the current tty

input rate on the server is less than value,

csuspend initiates resumption of batch activity.

If you omit value, the default is 100.

-pperiod Speciﬁes the length of time (in seconds) that sar

collects interactive activity data. The default

period is 10 seconds. The minimum setting

allowed for period is 5 seconds; if period is set to

less than 5, it is automatically set to 5 seconds.

-s Speciﬁes that the NLB object NLB_BSUSPEND

attribute is set to YES when batch activity is

suspended and NO when batch activity is

resumed. NLB policies can use this value to

distribute work to the server. The default is not

to update the NLB database.

-t interval Speciﬁes the interval (in seconds) that csuspend

waits before it begins to check tty status. The

check of tty status takes 60 seconds. The default

value to wait between checks is 10 seconds.

11.2 csuspend Functionality

The csuspend command uses sar to monitor interactive terminal session (tty)

activity on a speciﬁc server. You must invoke csuspend on the server. If tty

activity equals or exceeds the input or output thresholds set by using the -i or

-o options, NQE suspends NQS batch activity. All queues are disabled, and no

additional batch work is accepted. This process allows interactive users the full

use of the server. When interactive activity drops below the thresholds

speciﬁed, batch jobs are resumed. Using the -l and -p options gives an

administrator greater control over how sar is used and the frequency of the

check on whether to suspend or start NQE.

To use csuspend in Network Load Balancer (NLB) policies, invoke it with the

-s option. Using this option ensures that the NLB server is aware when NQS is

suspended.

308 SG–2150 3.3

Using csuspend [11]

The csuspend command runs in a scan loop until the command is terminated

with a CONTROL-C or the kill-15 signal. It is often run in the background

with standard output (stdout) and standard error (stderr) directed to a ﬁle.

The csuspend utility has no log ﬁle; by default, stdout and stderr are

written to the terminal screen. If you want to log csuspend activity, redirect

the output to a ﬁle.

When you stop csuspend, it resets queue states and exits. Even if the NQS

server is shut down (by using nqestop(8) or qstop(8)), csuspend continues

to run. When NQS is started (by using nqeinit(8) or qstart(8)), csuspend

will recognize it.

Note: nqeinit and nqestop do not start or stop the csuspend process.

When csuspend detects interactive use, it performs the following functions:

•Reports tty input and output rates.

•Disables and suspends all pipe queues on the server.

•Disables and suspends all batch queues on the server.

•Suspends all running batch requests.

•Logs a suspend message to the request’s job log.

•If you used the -s option, the NLB object NLB_BSUSPEND attribute is set to

YES.

When csuspend detects cessation of interactive use, it performs the following

functions:

•Reports tty input and output rates.

•Resumes all running batch requests.

•Resumes and enables all batch queues on the server.

•Resumes and enables all pipe queues on the server.

•Logs a resume message to the request’s job log.

•If you used the -s option, the NLB object NLB_BSUSPEND attribute is set to

NO.

The csuspend command uses the following commands and ﬁles; they must be

present on the server on which you invoke csuspend:

SG–2150 3.3 309

NQE Administration

•awk(1)

•getopts(1)

•ksh(1)

•nqeinfo ﬁle

•qmgr(8)

•qstat(1)

•sar(1)

•If you use the -s option, the nlbconfig(8) command and the NLB must be

available.

Because csuspend needs access to NQS spool directories and uses qmgr(8)

commands, you must invoke it from root.

Because csuspend is a ksh script, you can tailor it for individual site and

server needs. The default values for its options appear after the initial comment

lines at the start of the script ﬁle ($NQE_ETC/csuspend). To change the

defaults or parts of the command logic, edit this ﬁle.

11.3 csuspend Examples

The following example invokes csuspend and places it in the background.

nohup csuspend -i 5 -o 50 -s -t 30 &

If the sar -y tty input character count equals or exceeds 5 (set by using -i), or

if the output character count equals or exceeds 50 (set by using -o), batch

request are suspended. When the rates fall below these values, batch request

are resumed. The NLB_BSUSPEND attribute is updated (set by using -s).

csuspend examines interactive tty activity every 30 seconds.

The following example invokes csuspend with all default values, which are

echoed to stdout:

310 SG–2150 3.3

Using csuspend [11]

# csuspend

Mar 30 23:50:58 - csuspend initiated for nqe server latte

Mar 30 23:50:58 - using options: i=1,o=100,s=NO,t=10

Mar 30 23:50:58 - using NQE in /usr

Mar 30 23:50:58 - using NLB server latte

Mar 30 23:52:09 - auto resume processing cycle initiated

Mar 30 23:52:09 - input character rate=0, output character rate=0

Mar 30 23:52:10 - found 1 batch queues to process

Mar 30 23:52:10 - processing batch queue nqebatch

Mar 30 23:52:11 - found 2 pipe queues to process

Mar 30 23:52:11 - processing pipe queue nqenlb

Mar 30 23:52:12 - processing pipe queue gate

(character input occurs)

Mar 31 08:07:28 - auto suspend processing cycle initiated

Mar 31 08:07:28 - input character rate=4, output character rate=0

Mar 31 08:07:29 - found 2 pipe queues to process

Mar 31 08:07:29 - processing pipe queue nqenlb

Mar 31 08:07:30 - processing pipe queue gate

Mar 31 08:07:31 - found 1 batch queues to process

Mar 31 08:07:31 - processing batch queue nqebatch

The following example uses the -l and -p options to suspend or enable batch

processing based upon the interactive use as determined by calls to sar.

csuspend -l 11 -p 60 &

If period is set to 60 and loopcount is set to 11, sar collects data over a 60-second

period, and if the interactive activity is low enough during 10 (11 minus 1)

periods, then NQE resumes. Otherwise, NQE is suspended or remains

suspended.

SG–2150 3.3 311

Job Dependency Administration [12]

This chapter discusses administrative tasks that job dependency requires. The

following topics are covered:

•Managing the NLB database for job dependency

•Multiple NLB servers and job dependency

12.1 Managing the NLB Database for Job Dependency

Job dependency event information remains in the NLB database until it is

explicitly cleared either by you or the user who issued the cevent(1) command.

In order to keep the size of the NLB database manageable, you should clear

unwanted events regularly. To list and clear events, use the cevent command.

User root can list any event from any event group by using the following

command:

cevent -la

The following example shows how the output looks when you use the default

delimiter:

#cevent -la

Time: Group: Name: Value:

--------------------------------------------------------------

Mon Dec 11 12:18:15 1995 g1 n1 <NONE>

Mon Dec 11 12:18:18 1995 g2 n1 <NONE>

Mon Dec 11 12:18:21 1995 g4 n1 <NONE>

You can parse and analyze the output from the cevent -la command from

within a script to produce a set of events to delete. To do this, it may be useful

to redeﬁne the delimiter character. If you use the -d to specify the delimiter !,

the output would look like the following example:

#cevent -la -d ’!’

Mon Dec 11 12:18:15 1995!g1!n1!<NONE>

Mon Dec 11 12:18:18 1995!g2!n1!<NONE>

Mon Dec 11 12:18:21 1995!g4!n1!<NONE>

SG–2150 3.3 313

NQE Administration

To delete all events from all groups, use the following command:

cevent -ca

To delete all events from a group named g1, use the following command:

cevent -c -g g1

To delete the events n1 and n2 from the group g1, use the following command:

cevent -c -g g1 n1 n2

12.2 Multiple NLB Servers and Job Dependency

A potential problem exists when you use job dependency and multiple NLB

servers. This section describes the problem and methods you can use to prevent

it from occurring.

Multiple or redundant NLB servers work like disk mirroring. The NLB collector

processes on each node conﬁgured to run as a collector send the same system

and request status information to all deﬁned NLB servers. If an NLB server

goes down and then comes back up, the collectors will soon resend their data to

it and make it current.

If you specify more than one NLB server in your nqeinfo ﬁle, the cevent

command tries to send information to the ﬁrst server listed. If that server is

temporarily down (or unavailable due to network problems), the cevent

command tries the second server, and so on. If the ﬁrst server subsequently

comes up, the cevent command will send information to it (rather than the

one to which it previously sent information).

For example, assume that your nqeinfo ﬁle lists two NLB servers, as follows;

quotes are required in the syntax:

# NLB_SERVER - Location of NLB server host

NLB_SERVER="host1 host2"

If a user posts job dependency information on the server that uses this

nqeinfo ﬁle, the collector on the server tries to send the information to the

NLB server database on host host1.Ifhost1 does not respond, the collector

tries to send the information to host2. If both fail, cevent returns an error.

314 SG–2150 3.3

Job Dependency Administration [12]

If a user posts an event when host1 is unavailable, the event is posted to

host2.Ifhost1 becomes available, any cevent commands will use it because

it is ﬁrst on the list in the nqeinfo ﬁle. If cevent tries to read an event that

was posted to host2, it will actually look for the event on host1. The event

will not be read because it is not posted on host1.

To prevent these problems, users can set their NLB_SERVER environment

variable to one machine before they invoke cevent. This will force all

subsequent cevent invocations to use the speciﬁed server. The cevent -w

command will wait a speciﬁed number of seconds for a response, so the user

can wait for transient network, NLB, or system problems on the server to be

corrected.

You can use the following methods to avoid the problem:

•If the NLB server on host host1 or host1 goes down, ensure that the NLB

server on host1 stays down until some quiet period. Then bring the NLB

server on host2 down. Move the NLB data on host2 to host1 by copying

all obj_* ﬁles in /usr/spool/nqe/nlbdir on host2 to

/usr/spool/nqe/nlbdir on host1. Then bring both NLB servers back

up.

•This method requires a manual procedure or a script. If the NLB server on

host host1 or host1 goes down, log in to host2 as root during a quiet

period and dump (using nlbconfig -odump) all of the cevent objects for

all event groups in the NLB database on host2. Log in to host1 as root

and update all events with this data (by using nlbconfig -oupdat).

•You can rename the cevent script, create a new script in the same directory,

and name the new script cevent. The new script then sets the

NLB_SERVER environment variable and calls cevent under the new name.

This guarantees that cevent will use the NLB server that you specify in the

script.

SG–2150 3.3 315

FTA Administration [13]

The File Transfer Agent (FTA) can be used to transfer ﬁles to and from any node

in the Network Queuing Environment (NQE) in either immediate (interactive)

or queued mode. It also provides network peer-to-peer authorization (NPPA) of

users, which is a more secure method than ftp(1) provides.

This chapter provides the following information about managing FTA:

•FTA overview

•Conﬁguration

•Administration

13.1 FTA Overview

The FTA facility consists of the three components shown in Table 26.

Table 26. File Transfer Components

Component Program Location of description

User interface ftua(1) and rft(1) Section 13.1.1, page 318

Common services fta(8) Section 13.1.2, page 318

File transfer services ftad(8) and

nqsfts(8)

Section 13.1.3, page 319

and

Section 13.1.3, page 319

The three-tier stack of ﬁle transfer components consists of the ﬁle transfer user

interface, the common services, and the ﬁle transfer services (FTS).

The ftua(1) and rft(1) commands use FTA to transfer ﬁles. A ﬁle transfer

request is an object that contains information describing the ﬁle transfer

operations that FTA will perform on behalf of a user.

The fta command performs the actions required for reliable ﬁle transfer

between hosts. These functions include transfer retry, status, and recovery. File

transfer management options are also provided.

SG–2150 3.3 317

NQE Administration

Using fta, the ﬁle transfer user commands are given a common interface to the

ﬁle transfer services that operate on various networks. A domain name selects

the ﬁle transfer services for a given host name.

13.1.1 User Interface

The ftua(1) and rft(1) commands are the user interfaces to FTA services.

They transfer ﬁles to and from a remote host by using the ﬁle transfer services

supported by the underlying ﬁle transfer agent. FTA supports ﬁle transfer

services that use TCP/IP protocols. In fact, ftua operates like the TCP/IP

ftp(1B) ﬁle transfer program. The ftua utility supports autologin through the

use of the .netrc ﬁle to allow access to accounts without specifying a

password.

Note: The ftua autologin feature is prohibited on UNICOS and

UNICOS/mk systems when the multilevel security feature is enabled.

See the NQE User’s Guide, publication SG–2148, for an overview of the user

interface commands. The ftua(1) and rft(1) man pages contain complete

reference information.

13.1.2 Common Services

The fta(8) program provides the following FTA common services, which are

common to any protocol used to transfer ﬁles:

•Creation of the ﬁle transfer requests

•Management of ﬁle transfer requests

•Invocation of the ﬁle transfer services

•Display of status information

•Management of security keys for NPPA

•Status about ﬁle transfers

File transfer requests are created when user agents invoke fta with the

-service option.

Management functions must be invoked speciﬁcally. The primary management

function is transfer recovery, which restarts transfers that failed or were

interrupted.

318 SG–2150 3.3

FTA Administration [13]

To examine the status of requests, use the -queue option. You will get more

complete output by also including the -verbose option.

Note: For UNICOS and UNICOS/mk systems running the multilevel

security feature, in order for fta to operate correctly, you must install fta

with a speciﬁc security environment. This can be done by using the spset

command as follows to ensure that the fqueue directory is wildcarded (see

the spset(1) man page for additional information); the NQE_FTA_QUEUE

variable is set in the nqeinfo ﬁle:

spset -l63 NQE_FTA_QUEUE

The fta(8) man page contains complete reference information.

13.1.3 File Transfer Services

The ﬁle transfer service establishes the connection to the remote system. If the

ﬁle transfer service being used is anything other than ftp, the invocation of the

service results in an additional process. When the ﬁle transfer service

completes, FTA updates the status of the request ﬁle and exits.

The FTS operation proceeds as follows:

1. Establishes a network connection to the remote host

2. Passes user validation information to the remote host

3. Performs ﬁle transfer operations

4. Closes the network connection

The ﬁle transfer service for the TCP/IP protocol FTP is integrated into the fta

program. See the fta(8) man page for further details.

The nqsfts(8) program provides the ﬁle transfer service for exclusive use by

NQS. This service supports only the NPK_MVOUTFILE subset of the NQS

protocol. NQS can use this service through fta(8) to transfer job output ﬁles

between NQS systems. This service supports the NQS hosts by using the

TCP/IP network. See the nqsfts(8) man page for further details.

Figure 24 shows the relationships among the FTA components.

SG–2150 3.3 319

NQE Administration

User

ftua(1)

User

agents rft(1) NQS

Common services fta(8)

Queue files

File transfer

services (FTS) fta(8) nqsfts(8)

ftp protocol

TCP/IP

network

NQS protocol

Data files

a10277

Figure 24. Component Relationships in FTA

13.2 Conﬁguration

FTA conﬁguration information is stored in the Network Load Balancer (NLB)

during NQE startup. This FTA conﬁguration applies to all hosts in the NQE

except UNICOS systems that run only the NQE subset. For information about

conﬁguring FTA for UNICOS systems that run only the NQE subset, see Section

13.2.5, page 327.

The NPPA S-keys must be conﬁgured on each separate system. For information

about conﬁguring S-keys, see Section 13.2.8.1, page 331.

320 SG–2150 3.3

FTA Administration [13]

FTA conﬁguration information is contained in the NLB database. Two FTA

object types exist in the NLB database: FTA_CONFIG and FTA_DOMAIN.

Note: If you change or add a port, you must edit system ﬁles on each

system, as described in Section 13.2.7, page 329, in order for the FTA daemon

(ftad(8)) to be invoked when a transfer request is received.

FTA administration must take place on each system, even if the systems are

reading the same conﬁguration from the NLB. For more information about FTA

administration, see Section 13.3, page 336.

This section explains how to view and change the FTA conﬁguration.

13.2.1 Viewing the FTA Conﬁguration

FTA conﬁguration is contained in the NLB. The FTA conﬁguration is contained

in the NLB as objects of the following two attribute types:

Type Description

FTA_CONFIG Global type

FTA_DOMAIN Describes each domain

Also, the queue parameter is deﬁned in the nqeinfo ﬁle (see Section 13.2.2).

FTA conﬁguration may be viewed by using the nlbconfig command.

13.2.2 Global FTA Conﬁguration Parameters

Note: For UNICOS systems that run only the NQE subset (NQS and FTA

components), see Section 13.2.5, page 327, for information about conﬁguring

FTA.

If you issue the nlbconfig -odump -t FTA_CONFIG -n DEFAULT

command, the output is as follows:

SG–2150 3.3 321

NQE Administration

%nlbconfig -odump -t FTA_CONFIG -n DEFAULT

###############################################

# creation date: Mon Nov 13 16:45:09 1995

# created by: luigi

# object timestamp: Tue oct 10 15:16:15 1995

########

object FTA_CONFIG ("DEFAULT") {

FTA_MODE = 384;

FTA_RESTART_LIMIT = 30;

FTA_ADMIN_USER = "root";

FTA_ADMIN_GROUP = "bin";

Note: FTA_MODE is represented in the NLB database as a decimal number

(384).

The nlbconfig FTA_CONFIG object type, displayed with the command

nlbconfig -odump -t FTA_CONFIG,isdeﬁned as follows:

Parameter Description

queue "path"

Deﬁnes the directory that holds transfer request control ﬁles

while they are present in the queue. This parameter is always

required. You can change this parameter in the nqeinfo

conﬁguration ﬁle.

Note: On UNICOS and UNICOS/mk systems running the

multilevel security feature, the queue directory must be

wildcarded to ensure that users can write a queue ﬁle to the

database directory. Use the spset(1) command to do this.

FTA_RESTART_LIMIT=limit

Deﬁnes the maximum number of FTS processes (limit) that will

be started during transfer recovery. This ﬁgure is independent

of any domain-speciﬁc limit. If limit is none or unspeciﬁed,

limits are not applied.

FTA_MODE=ﬁle-mode

Deﬁnes the ﬁle permission mode of the ﬁles in the queue

directory. The default permission mode is 0600. Octal values

must have a leading 0.

322 SG–2150 3.3

FTA Administration [13]

FTA_ADMIN_USER "username"|

FTA_ADMIN_GROUP "groupname" [,...]

Deﬁnes the users, groups, or a combination of the two that can

perform FTA management functions on behalf of other users.

Without this parameter, only the super user has this privilege.

FTA_STATUS_USER "username"|

FTA_STATUS_GROUP "groupname" [,...]

Deﬁnes the users, groups, or a combination of the two that can

perform FTA status functions on behalf of other users. Without

this parameter, only the super user has this privilege.

13.2.3 FTA Domain Conﬁguration

Note: For UNICOS systems that run only the NQE subset (NQS and FTA

components), to conﬁgure FTA, see Section 13.2.5, page 327.

If you issue the nlbconfig -odump -t FTA_DOMAIN -n inet command,

the output is as follows:

%nlbconfig -odump t FTA_DOMAIN -n inet

###############################################

# creation date: Wed Nov 15 12:45:39 1995

# created by: luigi

# object timestamp: Fri Nov 13 09:34:31 1995

########

object FTA_DOMAIN ("inet") {

FTA_PORT = 605;

FTA_RESTART_LIMIT = 30;

FTA_FTS = "ftp";

FTA_FLAGS = "nopassword";

The nlbconfig FTA_DOMAIN object type, displayed with the command

nlbconfig -odump -t FTA_DOMAIN is deﬁned as follows:

Parameter Description

FTA_FTS=class

Deﬁnes the ﬁle transfer service class to be associated with a

domain. The valid class identiﬁers are described below. The

SG–2150 3.3 323

NQE Administration

validity of other domain conﬁguration parameters depends on

the FTA_FTS class used. This parameter is required. See Table

27 for a list of classes that may be used.

FTA_RESTART_LIMIT=limit

Deﬁnes the maximum number of FTS processes (limit) that will

be started for a domain during transfer recovery.

FTA_GATEWAY="hostname"

Deﬁnes the name of a gateway host.

FTA_PORT=number

Deﬁnes the port number to connect to on the remote system.

The default is 605 on NQE systems. By default, the ftad

daemon listens on port 605; the ftpd demon listens on port 21.

FTA_PATH="fts_path"

Deﬁnes the path of the FTS process to be invoked.

FTA_FLAGS=ﬂag [,ﬂag]...

Deﬁnes the ﬂags to be used with the domain. An exclamation

point (!) can precede a ﬂag to explicitly declare a ﬂag to be off.

See Table 28 for a list of ﬂags that can be used with this

parameter.

The class associated with the FTA_FTS parameter can be any of the following,

as shown in Table 27:

324 SG–2150 3.3

FTA Administration [13]

Table 27. FTA_FTS Class Parameters

Class Description

common Deﬁnes a domain in which the FTS uses a standard FTS

interface module. The path of the FTS program is required.

dap Deﬁnes a domain for a remote DECnet (DAP) gateway, which

is controlled by using the built-in FTP FTS program. The

hostname associated with the FTA_GATEWAY parameter must

be running an FTP/DAP gateway. A gateway TCP/IP

hostname name is required and deﬁned using the

FTA_GATEWAY parameter.

ftp Deﬁnes an Internet FTP domain. The ftp FTS program is

built into fta. An additional path parameter is not required.

The ﬂags associated with the FTA_FLAGS parameter can be any of the

following, as shown in Table 28:

Table 28. FTA_FLAGS Parameters

Flag Description

cancel Speciﬁes that user agent cancellation will be performed using

the FTS.

debug Speciﬁes that the FTS be run with debug tracing enabled. The

FTS program determines the exact function of the FTS debug

tracing ﬂag.

nopassword Speciﬁes that a password need not be provided before a ﬁle

transfer request is accepted; that is, the password is optional.

NPPA requires this ﬂag.

nopermanent Speciﬁes that any permanent error be treated as transient.

This will enable the transfer to be recovered.

nostart Speciﬁes that a request should not be started when the user

agent completes a session with the fta server; instead, a

request is processed when transfer recovery is initiated.

notify Speciﬁes that user agent notiﬁcation will be performed using

the FTS.

SG–2150 3.3 325

NQE Administration

privileged Speciﬁes that the FTS will be invoked as a privileged process,

inheriting all privileges endowed to the fta recovery process.

This usually results in the FTA process running as root (user

ID 0).

trace Speciﬁes that the FTS will be run with protocol tracing

enabled. The FTS program determines the exact function of

the FTS protocol tracing ﬂag.

13.2.4 Changing the FTA Conﬁguration

You can change the default FTA conﬁguration using the following procedure:

1. List the FTA objects in the NLB database with the following commands:

#nlbconfig -olist -t FTA_CONFIG

------ type: FTA_CONFIG count: 1 ------

DEFAULT

#nlbconfig -olist -t FTA_DOMAIN

------ type: FTA_DOMAIN count: 4 ------

inet ftp nqe nqs-rqs

The output indicates that there is one FTA conﬁguration object named

DEFAULT. There are four FTA domain objects named inet,ftp,nqe, and

nqs-rqs. When the count is more than one, specify a speciﬁc name with

the nlbconfig -t type -n name command.

2. To display all the attributes of the object type FTA_CONFIG with the name

DEFAULT, issue the following command:

nlbconfig -odump -t FTA_CONFIG -n DEFAULT

You will receive output similar to the following:

326 SG–2150 3.3

FTA Administration [13]

###############################################

# creation date: Mon Dec 25 16:45:09 1995

# created by: luigi

# object timestamp: Fri Oct 13 15:16:15 1995

########

object FTA_CONFIG ("DEFAULT") {

FTA_MODE = 384;

FTA_RESTART_LIMIT = 30;

FTA_ADMIN_USER = "root";

FTA_ADMIN_GROUP = "bin";

You can either completely replace this information with new information, or

update it to change a part of it. Note that the FTA_MODE is represented in

the NLB database as a decimal number (384).

3. To change the information, create a ﬁle (called, for example, odat.1) that

contains the attribute(s) you want to change or add, as in the following

example:

object FTA_CONFIG ("DEFAULT") {

FTA_ADMIN_USER = "root, luigi";

}

4. Update the object ﬁle by using the nlbconfig -oupdat -f odat.1

command. All of the existing information is retained, and the

FTA_ADMIN_USER attribute is modiﬁed.

5. To completely replace the information in the object ﬁle, dump the

information in the object ﬁle into working ﬁle (called, for example, odat.2)

by using the following command:

nlbconfig -odump -f odat.2

Edit this ﬁle to contain the information you want and replace the entire

object ﬁle with the following command:

nlbconfig -oput -f odat.2

13.2.5 FTA Conﬁguration for UNICOS Systems That Run Only the NQE Subset

For UNICOS systems that run only the NQE subset (NQS and FTA

components), FTA conﬁguration is not maintained in the NLB. Instead,

UNICOS FTA conﬁguration is maintained in the FTA conﬁguration ﬁle

/nqebase/etc/fta.conf. To view fta conﬁguration for UNICOS systems, use

SG–2150 3.3 327

NQE Administration

the fta -config command. For additional information, see the fta.conf(5)

man page.

Note: If you change or add a port, you must edit system ﬁles on each

system, as described in Section 13.2.7, page 329, in order for the FTA daemon

(ftad(8)) to be invoked when a transfer request is received.

You must add the entry NQE_FTA_FTACONF=/nqebase/etc/fta.conf to the

nqeinfo ﬁle (either by using the nqeconfig(8) utility or by manually adding

the entry to the end of the ﬁle). To initially generate the fta.conf ﬁle and FTA

queue directory, use the configure.fta script in the /nqebase/examples

directory. This script will use values that are in the nqeinfo ﬁle to create the

proper FTA conﬁguration.

If you issue the fta -config command, the output is as follows. The section

of the output that begins with FTA corresponds to the FTA_CONFIG NLB object.

The section of the output that begins with FTS corresponds to the FTA_DOMAIN

NLB object. NQE_FTA_QUEUE is set in the nqeinfo ﬁle.

%fta -config

FTA

queue="NQE_FTA_QUEUE"

mode=0600

admin_users="root"

admin_groups="bin"

restartlimit=30

FTS

domain="inet"

fts=ftp

restartlimit=30

port=605

flags="nopassword"

Table 29 describes how the fta -config output corresponds to the output

from the nlbconfig commands.

328 SG–2150 3.3

FTA Administration [13]

Table 29. fta -config Output and nlbconfig Output Comparison

fta -config output nlbconfig output

mode FTA_MODE

admin_users FTA_ADMIN_USER

admin_groups FTA_ADMIN_GROUP

restartlimit FTA_RESTART_LIMIT

domain FTA_DOMAIN

fts FTA_FTS

port FTA_PORT

flags FTA_FLAGS

Note: nlbconfig represents FTA_MODE as a decimal number, rather than the

octal number that is displayed when you use the fta -config command.

13.2.6 Changing the ftpd Port Number

If you are running a TCP/IP transport service from another vendor (that is, one

other than the remote system TCP/IP), and the ftp daemon is already

conﬁgured on port 21, you must add the ftpd service to an unused port

number that is greater than 256 and less than 1024.

To add the ftpd service to an unused port number, you must ensure that this

matches the ftp/fta port number on the local system.

13.2.7 Editing System Conﬁguration Files

FTA itself is conﬁgured during the installation of NQE. However, if you change

or add a port, you must edit the following system ﬁles on each machine in

order for inetd to invoke ftad when a transfer request is received:

/etc/services

/etc/inetd.conf

Optionally, you might edit /etc/syslogd.conf.

Add the following line to /etc/services:

fta unused_port_number/tcp

SG–2150 3.3 329

NQE Administration

Add the following lines to /etc/inetd.conf:

#<service_name> <socket_type> <proto> <flags> <user> <server_pathname> <args> <options>

# FTAD daemon

fta stream tcp nowait root /nqebase/bin/ftad ftad options

You can add the -d option to the end of the last line. The -d option allows the

server to log messages to syslogd.

If this option is required, ensure that the following line is included in

syslog.conf (it may already be included if other daemons are already

sending messages to syslogd):

*.debug /var/adm/messages

The inetd utility rereads its conﬁguration ﬁle once when it is started and again

whenever it receives the hangup signal (SIGHUP). New services can be

activated and existing services can be deleted or modiﬁed by editing the

conﬁguration ﬁle, then sending inetd aSIGHUP signal.

Note: On AIX systems, if you manually edit the inetd.conf ﬁle, you must

synchronize the inetd.conf ﬁle and the object data manager (ODM)

database by using the inetimp command.

For additional information about setting port numbers, see the NQE Installation,

publication SG–5236.

13.2.8 Conﬁguring Network Peer-to-peer Authorization

You can authorize users to transfer ﬁles without exposing passwords across the

network. This is especially desirable for NQS users who might otherwise have

to make their FTA passwords visible in the NQS job ﬁle script. Network

peer-to-peer authorization (NPPA) is a method of enabling users to open a

connection to a remote system without sending a password across the network.

Note: NPPA is enabled by default on all platforms except UNICOS and

UNICOS/mk systems. To enable NPPA on UNICOS and UNICOS/mk

systems, use the ftad -N command in /etc/inetd.conf.

NPPA requires the use of ftua or rft on the local system and ftad on the

remote system. Both systems must have support for the NPPA process. NPPA

330 SG–2150 3.3

FTA Administration [13]

only works if you have a ﬂat user name space; that is the user name of an FTA

user must be the same on both systems.

The FTA domains inet and nqe are set up to use NPPA by default. You do not

have to make changes to the FTA domain conﬁguration to use NPPA in these

domains. If you want to use a different name for NPPA connections, you can

add another domain. This procedure is described in Section 13.2.10, page 335.

Each system that is going to use NPPA must be conﬁgured with the

authentication information that it will send to another system during session

setup, and with the authentication information that it will expect to receive

from other NPPA systems. This authentication information consists of an S-key

(security key) and a password, both of which are alphanumeric strings. The

ﬁrst S-key and password pair deﬁned on each system is designated as the

primary S-key and password pair for that system.

When a user starts ftua or rft and uses a domain conﬁgured for NPPA, the

system encrypts its primary S-key and password pair and sends it to the system

with which it is attempting to establish a connection. The remote system

performs a similar encryption for each S-key and password pair on its list of

expected authorization information and accepts the connection when it ﬁnds a

match.

Note: If multiple ftads are conﬁgured on different ports, they will all use

the NPPA conﬁguration ﬁle (fta.nppa) pointed to by the

NQE_FTA_NPPAPATH variable that is set in the nqeinfo ﬁle.

13.2.8.1 Conﬁguring S-keys

To conﬁgure network peer-to-peer authorization, the administrator must

establish the primary S-key and password pair for each system. These S-key

and password pairs can be the same for all systems, or they may differ.

The ﬁrst S-key set up on each system becomes the primary S-key, which is sent

to remote systems during connection establishment. After deﬁning the primary

S-key on a system, the administrator adds all the S-key and password pairs for

all the hosts that will be authorized to open NPPA connections to that system.

To conﬁgure network peer-to-peer authorization, you must assign S-key and

password pairs on all of the systems that will use NPPA.

To create and delete S-keys, you must be root.

Note: On UNICOS systems that run only the NQE subset, use the fta(8)

command to conﬁgure S-keys.

SG–2150 3.3 331

NQE Administration

To assign S-keys, use the skey -addkey keylabel command, as follows:

#skey -addkey key1

Enter key password

Verification

Alternatively, if FTA is running on the system, you can also use the fta

-addkey command. The effect of the two commands is identical.

To display the keys on the system, use the -showkey option, as follows:

#skey -showkey

Keys on this system

1) key1 - Primary Key

To delete S-keys, use the skey -delkey keylabel command.

Note: For UNICOS systems running NQE 2.0 or earlier in your network, you

cannot use ftua to connect to a UNICOS platform (whether it is a Cray

Research system-to-Cray Research system or a workstation-to-Cray Research

system) because UNICOS systems running the earlier versions of NQE do

not support ftad. NQE version 3.0 running on UNICOS does support ftad.

13.2.9 NPPA Example

This example is based on having three systems that you want to communicate

by using FTA. The systems are called host1,host2, and host3. They have

the following characteristics:

332 SG–2150 3.3

FTA Administration [13]

Table 30. Example of NPPA Conﬁguration Characteristics

System FTS Port FTS listens on Port provided for

domain nppa

S-keys

host1 ftp 21 (ftpd) 605 key2

host2 ftp 605 (ftad) 605 key1

host3 ftp 605 (ftad) 605 key1,key2

Figure 25 shows this conﬁguration.

SG–2150 3.3 333

NQE Administration

NLB database entry:

object FTA_DOMAIN ("nppa") {

FTA_PORT = 605;

FTA_RESTART_LIMIT = 10;

FTA_FTS = "ftp";

FTA_FLAGS = "nopassword";

Output from skey -showkey:

Keys on this system

1) key2 - Primary Key

ftpd listens on port 21

System: host1

NLB database entry:

object FTA_DOMAIN ("nppa") {

FTA_PORT = 605;

FTA_RESTART_LIMIT = 10;

FTA_FTS = "ftp";

FTA_FLAGS = "nopassword";

Output from skey -showkey:

Keys on this system

1) key1 - Primary Key

ftad listens on 605

System: host2

NLB database entry:

object FTA_DOMAIN ("nppa") {

FTA_PORT = 605;

FTA_RESTART_LIMIT = 10;

FTA_FTS = "ftp";

FTA_FLAGS = "nopassword";

Output from skey -showkey:

Keys on this system

1) key1 - Primary Key

2) key2

ftad listens on port 605

System: host3

a10278

Figure 25. NPPA Conﬁguration Example

In this conﬁguration, you want users to be able to use cqsub to submit NQS

batch requests from host3 to host1 and to have FTA return the output. FTA

on host1 will construct an authentication packet that includes the S-key key2 as

334 SG–2150 3.3

FTA Administration [13]

one of its components. host1 transmits its authentication packet to host3.On

host3, two authentication packets are generated, one that uses the S-key key2

and one that uses the S-key key1. Both of the packets generated on host3 are

checked against the packet received from host1. The packet that uses the

S-key key2 matches, and the authentication succeeds.

If users initiate an FTA session from host3 to host1 that uses the domain

nppa, the session will fail because no FTA daemon is listening on port 605 on

the host1 system.

If users initiate an FTA session from host3 to host1 without specifying a

domain, a connection to the ftp daemon port (usually 21) can be made

successfully. This session will not use NPPA because the ftp daemon does not

support NPPA.

Users can use cqsub to submit an NQS batch request from host3 to host2

and have FTA return the output. FTA on host2 constructs an authentication

packet that includes the S-key key1 as a component. host2 transmits this

packet to host3.Onhost3, two authentication packets are generated, and the

one that uses the S-key key1 matches, and authentication succeeds.

If users initiate an FTA session from host3 to host2 that uses the domain

nppa, the session will succeed because the FTA daemon is listening on the

same port number (605)onhost2.

13.2.10 Modifying the NLB Database for NPPA

If you want to create a new FTA domain for users to specify when they use

NPPA, you must add that FTA domain to the NLB database. You must have

ACL write privileges to change the NLB database. The domain must have the

following attributes; you can add others if you want:

Attribute Description

FTA_FTS = ftp File transfer class used by the

remote system; ftp is an

example.

FTA_PORT = nnn TCP/IP ftad port number on

the remote system on which

the fta daemon is listening;

Section 13.2.10.1, page 336

contains an example.

SG–2150 3.3 335

NQE Administration

FTA_FLAGS = nopassword Flag (nopassword) that

informs FTA that NPPA can

be used for this domain.

For a complete listing of possible attributes and values, see Section 13.2.1, page

321.

13.2.10.1 Example of Modifying the NLB Database

To add an NPPA domain to the NLB database, create a ﬁle (called, for example,

nppa.odat) such as the following, which adds the domain nppa on the local

system, with the ftad daemon listening on port number 258:

object FTA_DOMAIN ( "nppa" ) {

FTA_FTS = "ftp";

FTA_PORT = 258;

FTA_FLAGS = "nopassword";

}

To update NLB object ﬁle and add the new domain object to the NLB database,

use the following command:

nlbconfig -oupdat -f nppa.odat

For more details on how to modify the NLB database, see Section 13.2.4, page

326.

13.3 Administration

FTA startup, logging, and recovery functions are not entirely contained within

the bounds of the fta(8) program. This section explains some of the interactions

that occur between the FTA facility and other parts of the operating system.

The actions described in this section are done (or a default value is provided)

during installation. If you want to make changes, you can use these procedures.

Note: FTA administration must take place on each system, even if the

systems are reading the same conﬁguration from the NLB.

13.3.1 FTA System Startup

At system boot time, you can restart any FTA ﬁle transfers that stopped when

the system shut down by running a recovery process.

Note: Do not start a recovery process before TCP/IP is brought up.

336 SG–2150 3.3

FTA Administration [13]

The system startup recovery process is started as follows:

fta -recover

13.3.2 FTA Recovery

The following sections describe FTA recovery.

13.3.2.1 Byte-level Recovery of Binary Transfers

Binary transfers can be recovered at the byte level. System administrators

enable or disable this recovery level by setting the NQE_FTA_SMART_RESTART

environment variable to be ON or OFF. The NQE_FTA_SMART_RESTART

environment variable may be set in the nqeinfo ﬁle or through the shell. The

default value is ON.

Note: The conﬁguration variable is ignored if the operation is not taking

place in binary mode; restarting will be disabled.

The FTA_DBY NLB attribute of the FTA_ACTION object appears only after the

transfer has begun; it remains even if the transfer is interrupted.

13.3.2.2 Setting the Recovery Interval

FTA does not have a daemon recovery service; that is, the recovery of a queued

request is not automatically provided. Therefore, it is recommended that you

start a recovery process either at regular intervals or at speciﬁc times of the day

or week.

If you use the clock daemon, cron(8), to start FTA recovery for all users, you

must use the super-user crontab ﬁle. The following example of a crontab

entry starts an FTA recovery process every 15 minutes, each day of the week.

Refer to crontab(1) for syntax information.

0,15,30,45 **** fta-recover

It also is useful to run a recovery process at signiﬁcant times, such as the

following:

•Nightly, to clean up any failures.

•After network failure is resolved. Use -domain as a selector to direct the

recovery for a speciﬁc domain or network.

SG–2150 3.3 337

NQE Administration

•After a remote host is rebooted. Use -host to recover requests that transfer

to or from that speciﬁc host.

To recover queued requests for all users of the system, run the fta -recover

process, using the root user ID or the ID of an FTA administrator.

The following example runs the recovery process on the speciﬁcﬁle transfer

request entry aa003yy;-debug is used to monitor the process:

338 SG–2150 3.3

FTA Administration [13]

%fta -debug -recover -entry aa003yy

fta: debug: getuid=11431, geteuid=11431

fta: debug: Reading config file...

fta: debug: ftsconf: class=1, domain=solaris, gateway=None, path=None, port=510

fta: debug: ftsconf: class=1, domain=osf, gateway=None, path=None, port=535

fta: debug: ftsconf: class=6, domain=nppa_ice, gateway=ice, path=None, port=256

fta: debug: ftsconf: class=1, domain=inet, gateway=None, path=None, port=0

fta: debug: User is an administrator

fta: debug: User can see status

fta: debug: queue: reading dir NQE_FTA_QUEUE

fta: debug: entry aa006bk rejected (name mismatch)

fta: debug: queue: opening file qfaa003yy

fta: debug: entry aa003yy selected

fta: debug: entry aa001bb rejected (name mismatch)

fta: debug: entry aa004WE rejected (name mismatch)

fta: debug: entry aa004YM rejected (name mismatch)

fta: debug: entry aa004dw rejected (name mismatch)

fta: debug: entry aa004fJ rejected (name mismatch)

fta: debug: entry aa0053J rejected (name mismatch)

fta: debug: entry aa0059I rejected (name mismatch)

fta: debug: entry aa005Q0 rejected (name mismatch)

fta: log: aa003yy: starting recovery.

fta: debug: setUserId: uid=11431, euid=11431

fta: debug: ftp_open: connecting to yankee...

fta: debug: ftp_connect: connection up

fta: debug: waiting for initial 220 msg...

fta: debug: got initial 220 msg

fta: debug: doing request

fta: debug: operation Copy (get)

fta: debug: copyio: called

fta: debug: copyio: 2879 bytes transferred

fta: debug: operation completed (status = 20200)

fta: debug: pullstatus: status = 20200

fta: debug: updating/removing request entry

fta: debug: request succeeded (ES_NONE)

fta: log: aa003yy: completed successfully.

fta: debug: rmEntry: aa003yy: request removed

13.3.2.3 Types of Failure

The following problems might prevent ﬁle transfers from occurring when FTA

is used:

SG–2150 3.3 339

NQE Administration

•A network route is down.

•A remote system is down.

•User validation information is not valid.

•Aﬁle transfer operation is not valid.

These errors are categorized as either transient or permanent.

Type of error Resulting action

Transient FTA retains the request ﬁle in the request queue

directory. Status information showing the reason

for the failure is included in the request.

Permanent FTA notiﬁes the user or user agent (ftua or rft)

with a message containing information that

describes the error, and the transfer request is

removed from the request queue directory.

When ﬁle transfer is successful, FTA removes the request ﬁle from the queue

directory. You can use the ftua notify command to notify the user of

successful completion.

A queued request that fails with a transient error can be rerun by invoking a

recovery process. Recovery proceeds with the following steps:

1. Scan the queue for entries.

2. Invoke FTA and FTS processes for each request to be recovered.

3. Update the status of the request queue.

If you are root or an FTA administrator, you can start a recovery process by

executing the following command:

fta -recover

13.3.2.4 FTA Recovery Limits

If many ﬁle transfer requests are queued, recovery can create many processes.

This can create a heavy load on the system. To reduce the load, you can limit

the number of requests that are recovered at any one time. The

FTA_RESTART_LIMIT attribute of the FTA_CONFIG NLB object controls the

number of requests that are started at any one time. The number of requests

340 SG–2150 3.3

FTA Administration [13]

recovered at any one time, regardless of domain, is controlled by this limit. The

following NLB object shows a global conﬁguration restart limit of 30:

object FTA_CONFIG ("DEFAULT") {

FTA_MODE

FTA_RESTART_LIMIT = 30;

To control the load presented by a speciﬁc domain, assign a limit on a

per-domain basis. This limit is known as a domain restart limit. Section 13.2.4,

page 326, explains how to change the FTA conﬁguration.

The following example from the NLB object shows that the inet domain

restart limit as 10:

object FTA_DOMAIN ("inet") {

FTA_FTS = "common";

FTA_RESTART_LIMIT = 10;

}

Both the fta and domain restart limits are applied to the queue during

recovery. If either limit is reached, the number of requests recovered is

constrained. If a domain restart limit is set higher than the fta restart limit, the

number of requests recovered for that domain is constrained by the fta restart

limit.

If neither an fta nor a domain restart limit is deﬁned, no limit is applied. It

also is possible to use the keyword none in place of a number to explicitly

denote that there is no limit.

13.3.2.5 FTA Recovery Strategy

When you start a recovery process, the queue of ﬁle transfer requests is sorted

before any restart limits are applied. The following criteria determine the order

in which requests are recovered. The order of the following list is signiﬁcant;

the ﬁrst differentiating factor determines the order in which the requests are

recovered. Selector options are applied to the queue to ﬁlter out the requests

chosen by a user.

1. Requests that were never run are favored over those that ran before.

2. Requests that were run least recently are favored over those that were run

most recently.

3. Requests that were queued least recently are favored over those that were

queued most recently.

SG–2150 3.3 341

NQE Administration

The following example shows an application of these criteria. Because requests

aa00093 and aa00136 never ran, they are favored over the other requests

(rule 1). Because request aa00093 is older, it is placed before aa00136 in an

internal recovery list (rule 3). Requests aa00101 and aa00127 have run.

Because both have the same run date, they are equally qualiﬁed under rule 2;

however, aa00101 was queued before aa00127,soaa00101 is favored over

aa00127 (rule 3). Recovery would occur in the following order: aa00093,

aa00136,aa00101, and aa00127.

QID Date queued Date run

aa00093 Thu Nov 16 08:16:35 Never

aa00101 Thu Nov 16 08:18:22 Thu Nov 16 08:28:14 BST 1995

aa00127 Thu Nov 16 08:28:12 Thu Nov 16 08:28:14 BST 1995

aa00136 Thu Nov 16 08:30:43 Never

If the restart limit were set to 3, which limits the number of recovered requests,

only the ﬁrst three requests from this sorted list (that is, aa00093,aa00136,

and aa00101) would be recovered.

Suppose that after the recovery the queue state is as follows:

QID Date queued Date run

aa00101 Thu Nov 16 08:18:22 Thu Nov 16 09:45:13 BST 1995

aa00127 Thu Nov 16 08:28:12 Thu Nov 16 08:28:14 BST 1995

Requests aa00093 and aa00136 completed, but request aa00101 experienced

a transient error and was requeued. If a second recovery starts now, neither

request qualiﬁes under rule 1; therefore, queue ordering would be determined

by rule 2, the time the requests were last run. In this example, request aa00127

would be placed before aa00101, because aa00127 ran least recently.

13.3.3 Information Log

The NQE_FTA_NLBCOLLECT variable activates logging of transfer information

to the NLB. Values may be ON or OFF. The variable may be set in the nqeinfo

ﬁle or as an environment variable. The default value is ON.

342 SG–2150 3.3

FTA Administration [13]

FTA information is logged by the syslogd(8) daemon under the facility name

daemon. Three syslogd priorities are used: notice,err, and debug.

Normal FTA events are logged with the notice priority; FTA errors are logged

with the err priority, and all events are logged when debug is turned on.

Other facilities also use the syslogd facility name daemon, and a

corresponding syslog.conf entry might already be in use. Review the

syslog.conf ﬁle for other uses of the daemon facility.

The following is a sample entry from a syslog.conf ﬁle used to direct FTA

notice and error logging information to the /usr/adm/syslog/daylog

system log ﬁle:

daemon.notice;daemon.err /usr/adm/syslog/daylog

With the addition of the following line, FTA errors also are sent to an operator’s

terminal:

daemon.err operator

A typical entry in a log ﬁle that is generated by fta using syslogd follows:

Sep 29 12:27:21 yankee fta[16331]: aa003z7: starting recovery

Sep 29 12:27:22 yankee fta[16331]: User: js Host: yankee Request: aa003z7

Mode: Immediate

Sep 29 12:27:22 yankee fta[16331]: Remote file: lgn Local

file: /net/home/palm3/js/temp Size: 879 bytes

Sep 29 12:27:22 yankee fta[16331]: aa003z7: completed successfully

Sep 29 12:28:20 yankee fta[16335]: aa005Q0: cancelled (null operation)

Sep 29 12:28:20 yankee fta[16335]: aa005Q0: failed: Cancelled by user/operator

Sep 29 12:28:26 yankee sendmail[16337]: AA16337:

message-id=<9309291728.AA16337@yankee.yankeegroup>

Sep 29 12:28:26 yankee sendmail[16337]: AA16337: from=js, size=563, class=0,

received from local

Sep 29 12:28:27 yankee sendmail[16339]: AA16337: to=js@palm, delay=00:00:06,

stat=Sent

Sep 29 12:29:18 yankee fta[16342]: aa004YM: cancel: request active

SG–2150 3.3 343

NQE Administration

Caution: When you invoke FTA recovery, you can use the -log option to

route the information logged to the standard output of the fta recovery

process. If this option is used from a tty, you must redirect the standard

output. If no redirection or pipe is used, and the output is sent to the

controlling tty, some of the log output will be lost. This behavior is a side

effect caused by fta using the setjob(2) system call during the recovery

process

13.3.4 FTA Management Functions and Status

FTA management functions include the following:

•Canceling requests

•Deleting requests

•Holding requests

•Releasing requests

•Displaying request status

The super user can perform management functions on any requests that exist in

the FTA queue.

If necessary, speciﬁc users or groups of users can be authorized to use FTA

management functions. In the following NLB object example, user joe and the

members of the group operator are authorized to perform FTA management

functions:

object FTA_CONFIG ("DEFAULT") {

FTA_MODE = 384;

FTA_RESTART_LIMIT = 30;

FTA_ADMIN_USER = "joe";

FTA_ADMIN_GROUP = "operator";

Speciﬁc users or groups of users also can be authorized to display the status of

any requests in the FTA queue. In the following NLB object example, user joe

and the members of the group staff can display the status of any request:

object FTA_CONFIG ("DEFAULT") {

FTA_MODE = 384;

FTA_RESTART_LIMIT = 30;

FTA_STATUS_USER = "joe";

FTA_STATUS_GROUP = "staff";

344 SG–2150 3.3

FTA Administration [13]

Note: Unless explicitly listed, users can perform management functions on,

and display the status of, only their own requests.

You can use selector options to ﬁlter sets of requests for speciﬁc status or

management functions (see the fta man page). Selectors are provided to ﬁlter

requests based on the following attributes:

•Time the request was queued

•Domain name

•Host name

•Request owner

•Queue request identiﬁer

•Request status

If you combine different selectors, a request is selected only when it satisﬁes all

attributes speciﬁed with the given selectors. If selectors are not speciﬁed, all

requests are selected. The following example lists all requests that were queued

at or before 12 P.M. and that tried to transfer but failed.

fta -before 12:00 -failed -queue

The following examples use the -debug option to show the output from

requests to cancel and delete an entry:

SG–2150 3.3 345

NQE Administration

%fta -cancel -entry aa005Q0 -debug

fta: debug: getuid=11431, geteuid=11431

fta: debug: Reading config file...

fta: debug: ftsconf: class=1, domain=solaris, gateway=None, path=None, port=510

fta: debug: ftsconf: class=1, domain=osf, gateway=None, path=None, port=535

fta: debug: ftsconf: class=6, domain=nppa_ice, gateway=ice, path=None, port=256

fta: debug: ftsconf: class=1, domain=inet, gateway=None, path=None, port=0

fta: debug: User is an administrator

fta: debug: User can see status

fta: debug: queue: reading dir NQE_FTA_QUEUE

fta: debug: entry aa006bk rejected (name mismatch)

fta: debug: entry aa001bb rejected (name mismatch)

fta: debug: entry aa004WE rejected (name mismatch)

fta: debug: entry aa004YM rejected (name mismatch)

fta: debug: entry aa004dw rejected (name mismatch)

fta: debug: entry aa004fJ rejected (name mismatch)

fta: debug: entry aa0053J rejected (name mismatch)

fta: debug: entry aa0059I rejected (name mismatch)

fta: debug: queue: opening file qfaa005Q0

fta: debug: entry aa005Q0 selected

fta: log: aa005Q0: cancelled (null operation).

fta: log: aa005Q0: failed: Cancelled by user/operator.

fta: debug: rmEntry: aa005Q0: request removed

346 SG–2150 3.3

FTA Administration [13]

%fta -delete -entry aa006bk -debug

fta: debug: getuid=11431, geteuid=11431

fta: debug: Reading config file...

fta: debug: ftsconf: class=1, domain=solaris, gateway=None, path=None, port=510

fta: debug: ftsconf: class=1, domain=osf, gateway=None, path=None, port=535

fta: debug: ftsconf: class=6, domain=nppa_ice, gateway=ice, path=None, port=256

fta: debug: ftsconf: class=1, domain=inet, gateway=None, path=None, port=0

fta: debug: User is an administrator

fta: debug: User can see status

fta: debug: queue: reading dir NQE_FTA_QUEUE

fta: debug: queue: opening file qfaa006bk

fta: debug: entry aa006bk selected

fta: debug: entry aa001bb rejected (name mismatch)

fta: debug: entry aa004WE rejected (name mismatch)

fta: debug: entry aa004YM rejected (name mismatch)

fta: debug: entry aa004dw rejected (name mismatch)

fta: debug: entry aa004fJ rejected (name mismatch)

fta: debug: entry aa0053J rejected (name mismatch)

fta: debug: entry aa0059I rejected (name mismatch)

fta: debug: rmEntry: aa006bk: request removed

The following examples show the output from requests to display the status of

an entry:

SG–2150 3.3 347

NQE Administration

%fta -queue

--QID-- ---Queued On --- --User-- ---State--- -----Status-----

aa001bb Tue Sep 14 09:19 sparks Active UA connected

aa004WE Tue Sep 21 08:54 sparks Active Connecting

aa004YM Tue Sep 21 09:00 sparks Active Connected

aa004fJ Tue Sep 21 09:36 sparks Active Connecting

aa0053J Tue Sep 21 11:52 sparks Active Connecting

aa0059I Tue Sep 21 12:09 sparks Active Connecting

%fta -queue -verbose

--QID-- ---Queued On --- --User-- --Group--

aa001bb Tue Sep 14 09:19 sparks rqsgrp

State: Active

Status: UA connected

Priority: 0

Last Attempt: Tue Sep 14 10:33:22

Controlling-PID: 27788

Domain: osf

Host: alphabet

Username: sparks

Copy (get)

RemoteFile: fta30.1.tar

LocalFile: /net/home/palm3/sparks/fta.tar

aa004WE Tue Sep 21 08:54 sparks rqsgrp

State: Active

Status: Connecting

Priority: 0

Last Attempt: Never

Domain: inet

Host: alphabet

13.3.5 Transfer Status

FTA provides progress statistics about ﬁle transfer status. The total ﬁle size,

bytes transferred, and estimated time to completion are tracked, and the

progress statistics are stored in the NLB. Users and administrators can view this

status information by using the FTA summary option of the NQE GUI Status

window. You can change the interval between NLB updates by setting the

NQE_FTA_STAT_INTERVAL variable, which may be set in the nqeinfo ﬁle;

alternatively, you can override the conﬁgured internal value through the

NQE_FTA_STAT_IN environment variable in the shell. The variable is an

348 SG–2150 3.3

FTA Administration [13]

integer, which represents the number of seconds between NLB updates. If the

NQE_FTA_STAT_INTERVAL environment variable is set to 0, progress statistics

are disabled. The default value is 2.

For DFS transfers, the FTA_DFS NLB attribute of the FTA_ACTION object

appears only after the transfer has begun; it remains even if the transfer is

interrupted. The FTA_DFS NLB attribute is set to -1 if FTA is unable to

determine the ﬁle size; this action does not prevent the transfer from continuing.

SG–2150 3.3 349

Conﬁguring DCE/DFS [14]

This chapter describes how to administrate the interoperability of NQE tasks

and Distributed Computing Environment (DCE) resources such as the

Distributed File System (DFS).

Note: DCE support is optional, and is disabled by default. It is a licensed

feature of NQE.

The following topics are discussed in this chapter:

•Enabling DCE support for NQE

•Using a password to submit a task

•Using a forwardable ticket to submit a task

•Checkpoint and restart support

•Support for renewing and refreshing tickets

•User requirements

•Administrating Kerberos and DCE

14.1 Enabling DCE Support for NQE

Before enabling DCE support, system administrators should note the following:

•The NQE Distributed Computing Environment/Distributed File Service

(DCE/DFS) feature is restricted to operating within a single DCE cell. Cross

realm authentication is not supported.

•Ticket forwarding is dependent upon the use of the NQE database when

submitting tasks.

•Support for tasks that use forwarded tickets for DCE authentication is

provided on UNICOS, UNICOS/mk, IRIX, and Solaris platforms only.

Support for tasks that use a password for DCE authentication is available on

all NQE 3.3 (or later) platforms. Tickets may be forwarded from any NQE

3.3 or later client to any NQE 3.3 (or later) server that supports forwarded

tickets as a means of DCE authentication. (Ticket forwarding for either

clients or servers is not supported for the Digital UNIX platform in the NQE

3.3 release.)

SG–2150 3.3 351

NQE Administration

•NQE support for DCE/DFS does not include installations residing in DFS

accessible ﬁle space. Installed components must reside in UNIX ﬁle space.

•If DCE support is enabled, a system cannot be conﬁgured to disable ticket

forwarding.

•Kerberos is the authentication component of DCE.

•NQE supports Open Software Foundation (OSF) DCE version 1.1 only.

Note: For UNICOS and IRIX systems, the DCE integrated login feature

must be enabled for DCE credentials to be passed through NQE. For more

information, see the Cray DCE Client Services/Cray DCE DFS Server Release

Overview, publication RO–5225.

To enable DCE support on an NQE node, use the Action menu of the NQE

conﬁguration utility, nqeconfig(8)), to add the following variables to the

nqeinfo ﬁle:

•NQE_AUTHENTICATION. Set the NQE authentication type. The value of this

variable should be dce to enable DCE/DFS support.

•NQE_DCE_REFRESH. If DCE support is enabled, DCE renew/refresh support

is automatically set to a value of 300 minutes. The value assigned to this

variable must be an integer representing the number of minutes between

each renew/refresh attempt. The value should be approximately half of the

minimum ticket lifetime for any user. A value of 0disables the DCE refresh

feature.

•NQE_DCE_BIN. If the path to the kdestroy and kinit commands is not

the default /opt/dcelocal/bin path, then add the NQE_DCE_BIN

variable to the nqeinfo ﬁle, and set it to the correct full path name.

To enable DCE ticket forwarding support on an NQE client machine, only the

NQE_AUTHENTICATION variable needs to be set in the nqeinfo ﬁle on the

client.

14.2 Using a Password to Submit a Task

In order for a task, which utilizes DCE authentication, such as DFS, to access

resources , it must ﬁrst acquire credentials. This is accomplished in two ways;

either by providing a password or by forwarding existing credentials. When a

user submits a task to NQE, they may choose to provide a password. The

password remains with the task until it is complete, and it is used by NQS to

acquire and refresh credentials for the user on the execution host. When

352 SG–2150 3.3

Conﬁguring DCE/DFS [14]

submitting a task from the command line, a user may provide a password by

appending the -P argument to the cqsub(1) command. The user will be

prompted for their password prior to submission of the task. When submitting

a task using the NQE GUI, a user may specify a password by selecting the Set

Password item of the Actions menu in the NQE Job Submission window.

Note: This action is separate from the user authentication performed by NQS

when queuing a remotely submitted request or validating an alternate user

identity. Although a password is required to obtain DCE credentials, the

NQS user validation type deﬁned within qmgr can remain unchanged.

Caution: If user home directories are located in DFS space, NQS user

validation must be set to password or no_validation if ticket

forwarding will not be used .

The integrated login feature is used on UNICOS or IRIX NQE servers for DCE

authentication when a password is supplied. The DCE credentials acquired

through integrated login are used for both initiating the request and returning

request output ﬁles. Because integrated login is unavailable on most UNIX NQE

servers, NQS makes DCE security login library calls to obtain separate sets of

DCE credentials when initiating the request and returning request output ﬁles.

Failure to obtain DCE credentials results in a nonfatal error on all NQE

platforms. The request will be initiated even if the attempt to obtain DCE

credentials for the request owner fails. If DCE credentials are successfully

obtained, the KRB5CCNAME environment variable is set within the request

process that is initiated.

Note: Users may use the klist(1) command within a request script to verify

that DCE credentials were obtained.

Messages are written to the NQS log ﬁle when attempts are made to obtain

DCE credentials. A sample message indicating a successful attempt to obtain

DCE credentials follows:

Request 1927.latte: Acquired DCE credentials for user <jane>,

KRB5CCNAME <FILE:/opt/dcelocal/var/security/creds/dcecred_41fffce1>.

A sample message indicating an unsuccessful attempt to obtain DCE credentials

follows:

Request 1928.latte: Failed to get DCE credentials for user <jane>.

SG–2150 3.3 353

NQE Administration

14.3 Using a Forwardable Ticket to Submit a Task

Another method of DCE authentication involves forwarding a user’s credentials

between machines to submit a task. When a user obtains their initial DCE

credentials using the kinit(1) command, they may explicitly request that they

be granted a forwardable ticket. This allows the user to establish a new DCE

context without having to provide their password again. After the user

provides their password to the kinit command, their credential cache ﬁle is

populated with a forwardable Kerberos ticket.

A user may also request that their DCE credentials be renewable. Because

credentials have lifetimes associated with them, they eventually expire. When a

user’s credentials expire, they are no longer granted access to resources that

utilize DCE as an authentication mechanism. The user’s credentials have two

lifetimes associated with them; the ticket lifetime and the renewable lifetime.

The ticket lifetime is usually less than one day. The renewable lifetime is

generally much longer than the ticket lifetime, and may last for weeks or

months. Before the ticket lifetime of a user’s credentials expires, they may

request that it be renewed. If the ticket has not exceeded its maximum

renewable lifetime, the lifetime of the ticket is reset. In this way, a user’s

credentials may be valid throughout the maximum renewable lifetime of the

ticket.

For information on DCE policy regarding ticket lifetime, see the OSF DCE

Administration Guide - Core Services.

In order to use ticket forwarding, DCE authentication must be enabled for NQE

(see Section 14.1, page 351). Prior to submitting a task to NQE, a user must

acquire a forwardable and renewable Kerberos ticket granting ticket (TGT). This

may be accomplished by using the kinit(1) command. Here is an example:

/opt/dcelocal/bin/kinit -f -r 100h jane

This command speciﬁes that user jane is requesting that a forwardable ticket

be granted with a renewable lifetime of one hundred hours. The user is then

prompted for their DCE password. Upon entering the correct password, a

credential cache ﬁle may be created if one does not already exist. Otherwise,

the user’s existing credential cache will be updated.

Note: Although this example refers speciﬁcally to the kinit(1) command

supplied with DCE, a properly conﬁgured version of kinit from the

Massachusetts Institute of Technology (MIT) Kerberos Version 5 package may

also be used. In this way, it is possible for an NQE client machine without

DCE installed to submit tasks that access DCE dependent resources when

they are executed.

354 SG–2150 3.3

Conﬁguring DCE/DFS [14]

The user may now use the cqsub(1) command to submit a task to the NQE

database. It is not necessary to pass any additional arguments to the cqsub

command to enable ticket forwarding. Forwarding is attempted by default

when NQE authentication is set to DCE. If the user’s credentials could not be

forwarded, an informational message will be printed as shown in the following

example:

CQSUB: INFO: Unable to forward Kerberos ticket: <Explanation>

This is not a fatal error. The task will be scheduled to run, although it will not

obtain DCE credentials unless an appropriate password was provided with the

task.

14.4 Checkpoint and Restart Support on UNICOS Systems

On UNICOS systems, requests accessing DFS ﬁles can be checkpointed and

restarted. NQS obtains new DCE credentials for the request owner just before

restarting the request. The qmgr(8) subcommands which checkpoint and restart

requests, handle this automatically.

Caution: A restarted job correctly gets the new credentials obtained from

NQS, but the KRB5CCNAME environment variable within the restart ﬁle is not

reset to the new cache ﬁle name. After the job is restarted, a klist within

the job script will incorrectly state that there are no credentials.

Consequently, DCE services are affected but not DFS, which continues to

work with the new credentials.

14.5 Support for Renewing and Refreshing Tickets

In order for a user’s credentials to remain valid throughout the life of a task, it

may be necessary to periodically refresh the credentials . The DCE credential

renew/refresh feature within NQE provides this functionality. For tasks using

DCE ticket forwarding, it allows the user’s credentials to remain valid

throughout the maximum renewable lifetime of the user’s initial ticket granting

ticket. For tasks submitted with a password, the ticket may be refreshed as long

as the password remains valid for the user. This feature is available on all NQE

servers that support DCE.

When a task is submitted to the NQE database, the scheduler may choose not

to assign the task to a lightweight server (LWS) immediately. The scheduler

SG–2150 3.3 355

NQE Administration

provided with the NQE 3.3 release periodically refreshes the credentials

associated with the task if DCE ticket forwarding is being used.

Note: It will be necessary to make changes to your default scheduler if you

are upgrading to the NQE 3.3 release, and plan to use your old scheduler

with this feature. Pay special attention to the addition of the ticket

commands within the new scheduler.

Once the task has been scheduled, the LWS will submit the job to its NQS

server. The NQS request server will acquire credentials for the task and

continue to renew/refresh the credentials until the task is complete.

The default renew/refresh interval is 300 minutes. This value should be

approximately half of the minimum ticket lifetime for any user. For example, if

user jane has the smallest default ticket lifetime of any user conﬁgured in the

DCE cell of two hours, then the refresh interval should be conﬁgured to a value

of 60. To change the renew/refresh interval, see Section 14.1, page 351.

14.6 User Requirements

Users who submit tasks that make use of NQE DCE/DFS interoperability

should be aware of the following:

•Tasks must be submitted to the NQE database. If this is not conﬁgured as the

default behavior, the user must include -d nqedb as part of the cqsub(1)

command arguments. This behavior must be conﬁgured in the NQE Job

Submission Options window when using the NQE GUI to submit tasks.

•A password, forwardable credentials, or both must be available at task

submission time in order for credentials to be acquired when the task is

executed.

•A user’s home directory may reside within DFS space.

•The request script ﬁle may reside within DFS space.

•The target directory for job output may reside within DFS space. Directing

output to DFS space may be accomplished by using the standard cqsub

arguments, which specify the destination of standard output (-o) and

standard error (-e)ﬁles. The format of the DFS path should begin with

/:/ followed by the remainder of the desired location.

•The user supplied password and the DCE registry password for the user

must be identical.

356 SG–2150 3.3

Conﬁguring DCE/DFS [14]

Caution: NQS limits a password to eight characters. If a user’s DCE

password is more than eight characters, DCE authentication will fail and

credentials will not be acquired.

•A user may provide a different DCE registry user name when submitting a

request by using the User Name ﬁeld of the NQE GUI Submit window

General Options menu or by using the -u option of the cqsub(1)

command.

•After a request completes, NQS on UNICOS systems uses the kdestroy(1)

command to destroy any credentials obtained by NQS on behalf of the

request owner. On non-UNICOS systems, this is accomplished by calling

built-in Kerberos library routines.

Caution: Including a kdestroy command within a request script ﬁle on

UNICOS systems will destroy the credentials obtained by NQS and prevent

NQS from returning request output ﬁles into DFS space.

14.7 Administrating Kerberos and DCE

In order for NQE tasks to utilize DCE/DFS resources, it is necessary to properly

conﬁgure your DCE/DFS environment. To accomplish this, several issues must

be addressed. These issues can be broken into two main groups; Kerberos

speciﬁc and DCE/DFS speciﬁc.

Conﬁguration issues relating speciﬁcally to DCE are as follows:

•User accounts (or principals) within DCE should be inspected to determine

the range of ticket lifetimes. As discussed earlier, the renew/refresh interval

within NQE should be approximately half of the minimum conﬁgured value

in this range. Performing a ticket refresh is not a particularly expensive

operation in most cases, but need not be performed at an unnecessarily high

frequency. The administrator may choose to extend the ticket lifetime of all

user principals to a period of at least ten hours. This allows the default NQE

renew/refresh interval (300 minutes = 5 hours) to ﬁt appropriately with the

ticket lifetimes of the user principals.

•User accounts (or principals) within DCE should be inspected to determine

the range of renewable lifetimes. The renewable lifetime of a principal

should always exceed the maximum projected task lifetime (time from task

submission to completion) for a user. If a task lives longer than the

renewable lifetime of its associated credentials, the task will lose access to

SG–2150 3.3 357

NQE Administration

DCE/DFS resources unless a valid DCE password is associated with the

task. This is most important for tasks utilizing DCE ticket forwarding.

•User accounts (or principals) within DCE should be set to allow

forwardable, renewable, and proxiable certiﬁcates.

•The account and password lifespan policies should be inspected. If an

account expires, or if its password becomes invalid, the task may lose access

to DCE controlled resources.

•Kerberos performs authentication in part based on an IP address encrypted

within the ticket. The KDC (or DCE security service) checks that the ticket

granting ticket (TGT) contains a IP address that matches the IP address of

the interface that the request was made on. This can create difﬁculty for

machines that have multiple IP addresses (multi-homed). The Domain Name

Service (DNS) can store multiple interface IP addresses for a multi-homed

host. Therefore , if you run named(8) on your Cray Research system you can

accommodate multi-homed hosts. Kerberos 5 has the ability to store

multiple IP addresses for a host within the TGT. If you do not run named

you must ensure that the IP address provided by a gethostbyname(3C) call

will return the same address on every machine that is to act as a login utility

client (that is the host you wish to run klogin on for example). This IP

address must also be the interface that the destination host (the host running

klogind) will use to make requests to the KDC (DCE security service).

Conﬁguration issues relating speciﬁcally to Kerberos are as follows:

•All systems that have both NQE and DCE or Kerberos installed will need to

be conﬁgured for Kerberos.

•The ﬁle /etc/krb5.conf should contain realm speciﬁc data. In the

following example, the default realm is conﬁgured to be the system latte,

which acts as a DCE key distribution center (KDC):

[libdefaults]

default_realm = latte.cray.com

default_tkt_enctypes = des-cbc-crc

default_tgs_enctypes = des-cbc-crc

kdc_req_checksum_type = 2

ccache_type = 2

358 SG–2150 3.3

Conﬁguring DCE/DFS [14]

[realms]

latte.cray.com = {

kdc = latte

default_domain = cray.com

}

[domain_realm]

.cray.com = latte.cray.com

•The entries in /etc/services must be conﬁgured so that either the

kerberos or kerberos-sec services operate on port 88/udp. To preserve

an existing Kerberos V4 conﬁguration, use the following entry:

kerberos-sec 88/udp kdc

For Kerberos V5 only, the entry may be as follows:

kerberos 88/udp kdc

•For more detailed information regarding Kerberos conﬁguration, please refer

to the Kerberos V5 Installation Guide available from MIT.

SG–2150 3.3 359

Conﬁguring ilb [15]

The ilb utility executes a command on a machine chosen by the Network Load

Balancer (NLB). To use the utility, enter the ilb(1) command followed by the

command you want to execute. The NLB is queried to determine the machine

to which you will be connected. After the login process is complete, the

command is executed and I/O is connected to your terminal or pipeline. For

information about using the ilb utility, see the ilb(1) man page.

Administration of ilb involves three main components, which affect the

behavior of the ilb application. The components are as follows and are

described in this chapter:

•ilbrc ﬁle (requires a speciﬁc format)

•$HOME/.ilbrc ﬁle (requires a speciﬁc format)

•User’s environment variables

15.1 ilbrc File

The ilbrc ﬁle is located in the /nqebase/etc directory. There are two categories

of information contained in the ilbrc ﬁle: LOGIN blocks and SYSTEM blocks.

15.1.1 LOGIN Blocks

containing LOGIN <name> and end with the line END LOGIN. There are three

directives in the LOGIN block, USER,INVOKE, and SYS, which are described as

follows:

Directive Description

USER Speciﬁes whether a line is to be input from (USER<) or output to

(USER>) the user’s terminal. For example, the USER> directive

indicates that the remainder of the line is printed to the user’s

terminal. The USER< directive must be followed by a temporary

variable that indicates where the input will be stored. The

USER_QUIET< directive is used for non-echoing input so that

passwords are not visible when entered.

SG–2150 3.3 361

NQE Administration

INVOKE Speciﬁes the application to be started to initiate a connection to a

remote system.

SYS Sends data to (SYS>) or receives data from ( SYS<) the remote

system in order to complete the connection.

The following three variables, which may be used in LOGIN blocks, are set

automatically by the ilb utility:

Variable Description

$SYS Stores the name of the system that was selected by the NLB for

the session.

$USER Stores the user name of the account to log into. The $USER

variable is set with the -l option, or by reading the environment

variables ILB_USER and LOGNAME or USER.

$PROMPT Speciﬁes a user’s prompt; it contains a regular expression and may

be changed by setting the environment variable ILB_PROMPT.

15.1.2 SYSTEM Blocks

SYSTEM blocks deﬁne options speciﬁc to machine names. The SYSTEM blocks

begin with the line SYSTEM name;name is the name of a system or is DEFAULT

to deﬁne the fallback case. The SYSTEM block ends with END SYSTEM.

The CONNECT attribute of the SYSTEM block deﬁnes which of the LOGIN

blocks should be applied to a particular system.

The AVOID directive is placed outside of the LOGIN and SYSTEM blocks. It

should be followed by a space-separated list of machine names; the ilb should

not use these names. This is useful when a user or administrator wants to

eliminate certain systems for use with the ilb.

15.2 $HOME/.ilbrc File

Users may have their own ilb conﬁguration ﬁles residing in their home

directory. These conﬁguration ﬁles are called .ilbrc. If this ﬁle is not present,

the ilb uses the information contained in the system’silbrc ﬁle. The format

of this ﬁle is identical to that of the system’silbrc ﬁle, which is deﬁned in

Section 15.1, page 361.

362 SG–2150 3.3

Conﬁguring ilb [15]

15.3 User Environment Variables

The user may also control the behavior of the ilb by deﬁning the following

speciﬁc environment variables.

Note: The user may need to set up these variables if the default values do

not work correctly.

Variable Description

ILB_USER Deﬁnes the login name to use on the remote

system. This variable also alters the value of

$USER in the ilbrc ﬁles. The default value is

whatever $LOGNAME or $USER is set to be in the

user’s environment.

ILB_PROMPT A regular expression that identiﬁes the user’s

prompt on a remote machine. The default value

is "^.*\[%$#:\] $", which looks for any string

ending with %,$,#,or:.

NLB_SERVER Deﬁnes the machine name and port number of

the NLB server.

SG–2150 3.3 363

Problem Solving [16]

This chapter helps you to identify common problems you may experience while

administering NQE; possible causes and resolutions are also included.

For information on DCE/DFS issues, see Chapter 14, page 351.

For information on obtaining support from customer service, see Section 16.10,

page 382.

The following categories of problems are included in this chapter:

•Verifying that NQE components are running

•Verifying that daemons are running

•NQS troubleshooting

•Client troubleshooting

•NLB troubleshooting

•NQE database troubleshooting

•Network debugging

•Determining Array Services status

•Reinstalling the software

•Calling customer service

16.1 Verifying That NQE Components Are Running

To ensure that NQE components are running, complete the following steps:

1. Ensure that the daemons are running as described in Section 16.2.

2. Determine whether the NLB server daemon is up and running by using the

following command:

/nqebase/bin/nlbconfig -ping

3. Determine whether the nqsdaemon is up and running by using the

following command:

/nqebase/bin/qping -v

SG–2150 3.3 365

NQE Administration

4. Determine the systems that are candidates for accepting requests based on

current NLB policies by using the following command:

/nqebase/bin/nlbpolicy -p nqs

5. Display load-balancing request information by selecting the Load button on

the NQE GUI.

6. Display information about queues by using the cqstatl-f or qstat-f

command.

7. Display NQS request information by selecting the Status button on the

NQE GUI display or by using the cqstatl-f or qstat-f command.

If all of these steps display nonerror information, your NQE software is ready

for use.

16.2 Verifying That Daemons Are Running

To ensure that the daemons are running, complete the following steps:

1. Log in as root.

2. Depending on which ps command you have in your search path, use either

the ps -e or the ps -aux command to display running processes. Some

systems truncate the daemon names in your ps display.

If one or more of the daemons shown in Table 31 are not running but are

conﬁgured to run on this node, NQE is not operational. In that case, you

should have received an error from the nqeinit script or have an error in the

NQS NQE_SPOOL/log/nqslog log ﬁle or in the qstart.$$.out ﬁle (where

$$ is the PID of the process running qstart), or in the nqscon.$$.out ﬁle,

which logs NQS activity until the NQS log daemon starts.

You also can check the license manager log ﬁles for any error information.

Table 31 describes the NQE server daemons.

Table 31. NQE Server Daemons

Component Daemons

Collector ccol NLBportnumber

FTA ftad (when FTA NPPA transfers are active)

366 SG–2150 3.3

Problem Solving [16]

Component Daemons

fta (when any FTA transfers are active)

Load balancer nlbserver

NQE database msqld

LWS nqedb_lws.tcl

NQS logdaemon,netdaemon, and nqsdaemon

If you have checked all of the steps described in Section 16.1, page 365, and the

NQE daemons still are not running, try the following steps:

•Ensure that you have added the necessary NQE port numbers to your

/etc/services ﬁle. You may have already had these port numbers

assigned to other daemons and not realized it, or you may have made a

typing error when you entered the information.

•Ensure that you have conﬁgured all desired NQE components in the

nqeinfo(5) ﬁle. Client software contains only commands; it has no

daemons.

•Check the /nqebase/nqeversion/host/nqeinfo ﬁle for typing errors. This ﬁle

records your choices during installation. The host is the TCP/IP host name

of the machine on which you installed the software. Ensure that all of the

information in this ﬁle is correct. If not, you should reinstall the software as

described in NQE Installation, publication SG–5236.

To ensure that NQE is running properly, try the following steps:

•Ensure that the nqenlb and nqebatch queues exist, are enabled, and are

started on each node NQS is conﬁgured for by using the NQE cqstatl or

qstat command.

•Ensure that TCP/IP is running between all NQE clients and servers by using

the telnet and ftp commands between the client and server systems.

•If you are using ﬁle validation, ensure that NQS validation is correct by

checking that you have a valid account on all NQS servers and that the

submitting user name matches the user name at the executing NQS server.

Check that the submitting account has an entry in either a .rhosts or

.nqshosts ﬁle in the home directory of the target user on each NQS server.

Entries must have the format hostname username.

SG–2150 3.3 367

NQE Administration

•Examine the NQS log ﬁle for any error messages. The NQS log ﬁle contains

messages from the various NQS daemon processes, messages indicating

successful completion of events, and messages indicating speciﬁc errors that

may have occurred.

To determine the NQS log ﬁle path name, use the following qmgr command:

show parameters

To increase the amount of information recorded in the log ﬁle, use the

following qmgr command:

set message_types on all

16.3 NQS Troubleshooting

This section describes some common problems users may encounter in running

NQS, along with their possible causes and resolutions.

16.3.1 A Request Has Disappeared

If you cannot ﬁnd a request, try the following steps to locate it.

1. The following may show the location of the request:

•The NQE GUI Status window displays all requests in the complex.

•The cqstatl -a and the qstat -a command display all requests on

the server deﬁned by the NQS_SERVER environment variable. The

cqstatl -a also displays an NQE database request summary (the NQE

database server is deﬁned by the MSQL_SERVER,MSQL_TCP_PORT, and

NQE_DEST_TYPE environment variables).

•The cqstatl -a -h remote-hostname and qstat -a -h

remote-hostname commands display all requests at a remote host.

2. The request may have been completed. The user should check for the

standard output and standard error ﬁles produced by the request. Unless

the user speciﬁed a different location for these ﬁles, they should be in the

directory from which the request was submitted. If they are not there,

check the user’s home directory on the remote system.

3. The user should check electronic mail. If NQS encounters problems running

a request, it may send a mail message to the issuing user.

368 SG–2150 3.3

Problem Solving [16]

16.3.2 A Queued Request Will Not Run

A request may be queued without being run for the following reasons.

16.3.2.1 Limits Reached

A request may be queued without being run when it reaches an NQS batch

queue, even though the NQS batch queue has not reached its limits. This could

happen because the limits for the queue complex, the user’s group, or the NQS

server global limits were reached.

To get details of the request, including its requested resource limits, use the

cqstatl or qstat command. Following is an example of the command:

cqstatl -f -h target_host requestids

Compare these limits with the limits deﬁned for the batch queue by using the

same command to receive details about the queue. Following is an example of

the command:

cqstatl -f queues

16.3.2.2 Pipe Queue’s Destination List Points to a Disabled Batch Queue

When a pipe queue’s destination list points to a disabled batch queue, the

default retry time for re-queuing requests has no effect.

A pipe queue’s destination list should not contain any elements that are

disabled batch queues. In the event that this does occur, any jobs that are

submitted to the pipe queue will remain in the pipe queue if they cannot be

sent to any of the other destinations in the list. Because the disabled batch

queue exists, NQS waits for the queue to become enabled or for it to be deleted

before it moves the job from the pipe queue. To ensure that jobs are not sent to

a particular destination in the pipe queue’s list, remove the destination from the

list instead of disabling the batch queue.

16.3.3 Standard Output and Standard Error Files Cannot Be Found

Unless the user speciﬁed a different location for these ﬁles, they should be in

the directory that was current when the request was submitted. If they are not

there, check the user’s home directory or the home directory at the remote

system of the user under which the request executed.

SG–2150 3.3 369

NQE Administration

If you cannot ﬁnd any output ﬁles, check for electronic mail messages sent to

the user. NQS might have removed the request for a variety of reasons (for

example, it requested more of a resource than was allowed for that user or the

request violated your system’s security). The mail message contains a

description of the problem.

The user may get a mail message stating that the standard output and error

ﬁles could not be written back to the user’s system. The message indicates

where these ﬁles were actually placed (usually in the home directory of the

remote user under which the request was run). These ﬁles usually cannot be

written back because the user’s home directory does not contain a suitable

validation ﬁle entry that authorizes NQS to write the output ﬁles. However, it

also may be due to a problem with the network connection to the NQS system.

NQS tries the following methods to return output to a user:

1. NQS tries to send the output over an NQS protocol.

2. NQS tries to use FTA.

3. NQS tries to use rcp, which works if the user has a .rhosts entry for the

server on the user’s submitting system (NQE client).

4. NQS sends the user mail stating that it could not deliver the output to its

ﬁrst destination. It places the output in the user’s home directory (or in the

home directory of the target user) on the server that executed the request.

5. If for some reason NQS cannot write to the user’s home directory on the

server that executed the request (for example, if the permissions on the

user’s home directory are r-xr-xr-x), it writes the output to the

$NQE_NQS_SPOOL/private/root/failed directory (only root can

access this directory) .

16.3.4 Syntax Errors

If the standard error ﬁle contains an excessive number of syntax errors, the user

may be using the wrong shell. Usually, it is the shell ﬂow control commands

(such as if,while,for, and foreach) that cause errors when the wrong shell

is used. Ensure that the user is using the correct shell strategy.

370 SG–2150 3.3

Problem Solving [16]

16.3.5 File Not Found Errors in Standard Error File

If the user receives an error message such as file not found or file does

not exist in the standard error ﬁle, the batch request may have tried to

access a ﬁle that could not be found.

NQS assumes that any ﬁles the user is trying to access are in the home directory

of the user at the execution host. To indicate that a ﬁle is in another location, the

user should either specify the full path name or use the cd command to move

to that directory before trying to access the ﬁle within the batch request script.

16.3.6 Queues Shut Off by NQS

NQS can shut off a queue or several queues (with no intervention from a

manager or operator). The reason for the action might be that the nqsdaemon

session reached a process limit or that it cannot allocate a resource. To

determine the reason, you should examine the NQS log ﬁle. After determining

the reason and correcting the problem, the queue(s) can be restarted manually.

16.3.7 Unexpected Changes in Request States

Requests may unexpectedly switch states from queued to wait.A

checkpointed UNICOS, UNICOS/mk, or IRIX request may be waiting for a

speciﬁc process or a job ID to become available. When it becomes available, the

request will remain in queued state until it executes.

16.3.8 Problems Issuing qmgr Commands

Most qmgr commands can be executed only by an NQS manager or operator.

An operator can issue only a subset of the commands that are available to the

manager. If you try to use a command that you are not allowed to use, the

following message is displayed:

NQS manager[TCML_INSUFFPRV ]: Insufficient privilege at

local host.

16.3.9 NQS or qmgr Fails with a no local machine id Message

If NQS or qmgr fails with a no local machine id message, and the site is

using DNS (Domain Name Service) to resolve host names, follow these

procedures:

SG–2150 3.3 371

NQE Administration

1. Use the hostname command to ﬁnd the true host name that NQS or qmgr

would be using. For example:

# hostname sn9031

2. Use the nslookup utility to ﬁnd out what the DNS server thinks your host

name really is (that is, the name/alias(s) it goes by); for example:

#nslookup

Default Server: VGER.PRIUS.JNJ.CO

Address: 122.147.94.7

sn9031

Server: VGER.PRIUS.JNJ.COM

Address: 122.147.94.7

Name: Cray1.PRIUS.JNJ.com

Address: 122.147.92.39

Aliases: SN9031.PRIUS.JNJ.com

exit

3. The DNS on the system above says sn9031 has the name

Cray1.PRIUS.JNJ.com and has an alias of SN9031.PRIUS.JNJ.com.

Use qmgr commands to add the machine ID with those names. Assuming

that the machine ID is to be 1, the command would be as follows:

# qmgr

ADd MId 1 sn9031 Cray1.PRIUS.JNJ.com SN9031.PRIUS.JNJ.com

exit

It is important to note that it does make a difference in the host

names/aliases if they are upper- or lowercase; the names/aliases must be

entered exactly as DNS shows them. The result of the preceding example is

shown by using the qmgr sho mi command as follows:

# qmgr sho mi

MID PRINCIPAL NAME AGENTS ALIASES

-------- -------------- ------ -------

1 sn9031 nqs Cray1.PRIUS.JNJ.com

SN9031.PRIUS.JNJ.com

372 SG–2150 3.3

Problem Solving [16]

qmgr can now ﬁnd the machine ID for the host name of the local machine.

16.3.10 NQS Seems to Be Running Slowly

If NQS appears to be running slowly, you may need to edit the /etc/hosts

ﬁle.

Because NQS supports networks of machines, it uses the gethostbyname

system call to get the host information for a request. The implementation makes

calls to this routine while processing all requests, including requests that are

submitted on a local machine for execution on the local machine.

The gethostbyname system call looks up the host name by doing a sequential

search of the /etc/hosts.bin binary ﬁle (or the text version /etc/hosts if

the binary ﬁle does not exist).

The bigger the host ﬁle, and the further down in the ﬁle the local machine

name appears, the longer it will take for the system call to complete, and the

longer the nqsdaemon will take to process requests.

To solve this problem, edit the /etc/hosts ﬁle so that the local machine

appears at the top of the ﬁle, then use the mkbinhost ﬁle to make a new copy

of the binary /etc/host.bin ﬁle.

16.3.11 Conﬁguring the Scope of User Status Display

NQE allows an administrator to expand the default scope of the information

displayed to non-NQS managers using the qstat(1) or cqstatl(1) commands.

The default behavior for these commands is to display information only to

non-NQS managers regarding jobs that they have submitted themselves. To let

users display the status of all jobs residing at that NQS node when they execute

the qstat(1) or cqstatl(1) command, use the NQE conﬁguration utility

(nqeconfig(8) command) and set the nqeinfo ﬁle variable

NQE_NQS_QSTAT_SHOWALL to 1, which modiﬁes the information that is

displayed to the users of these commands.

16.4 Client Troubleshooting

This section describes several common problems users may encounter in

running NQE clients, along with their possible causes and resolutions.

SG–2150 3.3 373

NQE Administration

Note: If a user does not specify a user name when submitting a request, the

user name must be the same on both the client host and the NQS server or

account authorization will fail. If the NQE_NQS_NQCACCT environment

variable is set to ORIGIN, the user must have the same account name on both

the client and the server.

16.4.1 Client Users Cannot Access the NQS Server

If the NQS_SERVER environment variable is not set, the client tries to connect to

the NQS server on the local host. If the user cannot connect to a local NQS

server, the following message is displayed:

QUESR: ERROR: Failed to connect to NQS_SERVER at host[port]

obtaining UNIX environment failed

NETWORK: ERROR: Connect: Connection refused

Ensure that the NQS_SERVER environment variable is set. This must be set in

each user’s environment to contain the host name of the machine running the

NQS server.

It also may be true that the NQS server is not running or that a networking

problem exists between the workstation and the NQS server (see Section 16.7,

page 379).

16.4.2 Non-secure network port Messages

NQE clients are installed with set UID (suid), are owned by root, and use

secure ports. This means that clients running at a speciﬁc NQE release level are

rejected if they try to connect to an NQE server running at a different NQE

release level. The following messages are displayed:

QUESRV: ERROR: Failed to retrieve status information

QUESRV: ERROR: Non-secure network port verification error at

transaction peer

QUESRV: ERROR: Received response NONSECPORT (01462) for

transaction NPK_QSTAT

If you receive these messages, you should upgrade your client software.

374 SG–2150 3.3

Problem Solving [16]

16.4.3 A Request Is Accepted by NQS but Not Run

A request that remains in an NQS queue for a long time without executing

usually indicates that NQS is not running or that the machine system itself is

not running.

However, you should check the status of the queue in which the request is

waiting to see whether the queue is currently stopped. Enter the qmgr

command show queue and look under the column STS, which displays on

when the queue is started. A stopped queue cannot process requests that are

waiting in it.

You also can check any request attributes speciﬁed on the cqsub or the qsub

command line. Ensure that they match the attributes of the batch queue.

16.4.4 No account authorization at transaction peer Messages

The default validation type in NQS is ﬁle validation. File validation requires a

.rhosts (or .nqshosts)ﬁle in the home directory of your account on all of

the NQS server systems on which your request may run. This applies even if

your target NQS server is your local machine.

If a client command returns the message No account authorization at

transaction peer,orifacqsub command results in the message being

returned in a mail message, one of the following may be true:

•No .nqshosts or .rhosts ﬁle exists for this user. This may be the case if

the $HOME environment variable points to a location that does not have

these ﬁles.

•The proper hostname username pair is not contained in either the .nqshosts

or .rhosts ﬁle. NQS checks the .rhosts ﬁle only when the .nqshosts

ﬁle does not exist. An example .rhosts ﬁle entry for the user jane to

submit requests to host snow is as follows:

snow jane

•The ﬁle mode of the .nqshosts or .rhosts ﬁle may need to be changed to

644 (rw-r--r--). This may not be true for all platforms that NQE supports.

16.4.5 Commands Do Not Execute

Before you can use the NQE commands, you must add the NQE bin and etc

directories to your search path. Before you can use the man pages (which tell

you about the NQE commands and command options), you must add the NQE

SG–2150 3.3 375

NQE Administration

man directories to your search path. For a description of how to set these

variables, see Introducing NQE, publication IN–2153.

16.4.6 ctoken generation failure Messages

If you submit requests by using the cqsub or qsub command and receive

ctoken generation failure messages in the NQS log, it indicates that

NQS tried to use FTA to deliver output ﬁles and did not ﬁnd a user-supplied

password, a .netrc ﬁle, or an NPPA S-key. The log also contains a message

indicating that the FTA transfer failed.

When NQS returns output, it tries to use FTA. FTA checks ﬁrst for a

user-supplied password on the cqsub or qsub command. (To determine the

syntax used to specify the FTA password, see the description of the -e option

on the cqsub(1) or qsub man page.)

If no password was supplied, FTA tries to send the output to the host and user

(with an associated password) by using the user’s.netrc ﬁle on the NQS

execution host. If no .netrc ﬁle exists, FTA tries to send the ﬁle by using

NPPA. If you have not deﬁned S-keys as described in Section 13.2.8.1, page 331,

you will receive ctoken generation failure messages.

NQS then tries to return the output by using rcp.

You can ensure that you do not receive the messages by using any of the

following methods:

•Ensure that users supply a password on the cqsub or qsub command line.

•Ensure that users have a .netrc ﬁle on the NQS execution host that

contains an entry for the destination host and user name and an associated

password.

•Conﬁgure NPPA as described in section Chapter 13, page 317.

•Change the conﬁguration of the FTA default inet domain so that the

nopassword ﬂag is not set. Section 13.2.8.1, page 331, describes how to

make changes to the FTA conﬁguration.

16.4.7 NQE Load Display Fails

If your NQE Load display fails, ensure that your NLB_SERVER environment

variable is set to a host that is running an NLB server. You do not have to

specify the host port number unless the NLB server is conﬁgured with a NLB

port number that is different from the default (604) provided during installation.

376 SG–2150 3.3

Problem Solving [16]

16.5 NLB Troubleshooting

This section describes some common problems you may encounter in running

NLB, along with their possible causes and resolutions.

16.5.1 NLB Commands Report cannot determine server location

If NLB commands report that they cannot determine the server location, no

information is available to locate the server. NQE may not have been

conﬁgured on the host. To connect to the server, deﬁne the NLB_SERVER

environment variable or use the -s option on the command line.

16.5.2 Collector Is Running, but No Data Appears in Server

If a collector is running on a host, but no data appears in the NLB server for

that host, check the following:

•The collector may be pointing to the wrong location. Check that the

machine on which the collector is running is conﬁgured to point at the

correct host name and TCP/IP port to connect properly to the server.

•An ACL may be preventing the collector from entering data into the server.

If you have an ACL for NLB or NQE GUI status data, it must include a

record to allow the user ID running the collector to insert and delete data.

This can be either an explicit entry for a user ID on the collector host, or an

entry for that ID on all hosts using "*" for the host name.

16.5.3 nlbconfig -pol Reports Errors

If you have modiﬁed the policies ﬁle and the nlbconfig -pol command

reports an error, the policies ﬁle that you downloaded to the server may

contain a syntax error. If this is true, the nlbconfig -pol command fails;

however, you do not receive an explanation of the error. To see the error, stop

the server (with nlbconfig -kill) and start it again (with nlbserver). Any

errors in parsing the policy ﬁle will be reported to stderr. The server does not

treat an error in the policy ﬁle as fatal, but load balancing will not work until

you have a correct policies ﬁle.

16.5.4 Collectors on Solaris Systems Report Incorrect Data

Collectors on Solaris systems may report incorrect data under the following

conditions:

SG–2150 3.3 377

NQE Administration

•If a collector appears to be working, but reports zero memory size for a

machine, you are running the collector from an account that does not have

permission to read from /dev/kmem, which is used when ﬁnding memory

size. You must run the collector from an account with permission to read

from /dev/kmem.

•If a collector appears to be running, but reports random data, check that sar

is working correctly. The collector tries to execute /usr/bin/sar -crquw

1to obtain data. If the command does not work, you must ﬁx the system

problem.

•If swap space data seems to be invalid, check that /usr/sbin/swap -s

works. If the command does not work, you must ﬁx the system problem.

16.5.5 Policies Cause Unexpected Results

If you are using a policy and getting unexpected results, probably the wrong

policy is being used. If a policy name is not deﬁned, a default policy is used.

The policy name might be deﬁned incorrectly if you misspell the policy name

either in the NQS queue deﬁnition or in the nlbpolicy command.

16.5.6 Modifying ACL for Type C_OBJ Reports no privilege for requested operation

If you try to modify the ACL for object type C_OBJ, you will receive the

message No privilege for requested operation. You cannot modify

the ACL for C_OBJ because it is ﬁxed. It consists of the master ACL plus

WORLD read permission. These permissions are necessary because, if a user

cannot read the C_OBJ object type, most commands will fail.

16.6 NQE Database Troubleshooting

This section describes some common problems you may encounter in running

the NQE database, along with their possible causes and resolutions.

16.6.1 NQE Database Authorization Failures

A client trying to connect to the NQE database without the proper validation

will result in an error such as the following:

378 SG–2150 3.3

Problem Solving [16]

NETWORK: ERROR: NQE Database connection failure:

Connection disallowed.

latte$

If this occurs, verify that the user has an entry in the nqedbusers ﬁle. For

additional information about the nqedbusers ﬁle, see Chapter 9, page 231.

16.6.2 NQE Database Connection Failures

If a user is trying to submit a request to the NQE database and the NQE

database server is not up, the following message will be sent:

NETWORK: ERROR: NQE Database connection failure:

Cannot connect to MSQL server on latte.

latte$

For additional information on checking network connectivity, see Section 16.7.

16.7 Network Debugging

The following sections discuss how to diagnose network problems.

16.7.1 Checking Connectivity

The ﬁrst step in network debugging is to ensure that the machine that is being

accessed can be reached by the local host.

To ensure that you can access a host through TCP/IP, use the ping command.

This command sends a data packet to the destination host and does not rely on

the presence of any speciﬁc service at the destination. For example, if the node

name is rhubarb, enter the following command:

ping rhubarb

Entering the previous command can result in several replies:

•ping: unknown host rhubarb

If you receive this reply, the host name is unknown on your machine; obtain

its Internet address and ensure that this address is in your /etc/hosts ﬁle

or the network information service (NIS).

SG–2150 3.3 379

NQE Administration

•sendto: Network is unreachable

If you receive this reply, your machine does not know how to send a packet

to the destination machine. Consult with your network administrator and

explain what you are trying to do, because the solution may require action

on his or her part. For example, a routing table may need updating, a

gateway machine may be down, or the network to which you are trying to

connect cannot be reached.

•no answer from rhubarb

If you receive this reply, your machine knows how to get to the destination

node, but did not get a reply. This usually means that either the destination

machine is shut down, or the destination machine is running but does not

know how to send a packet to your machine. In this case, check the routing

on the destination machine.

•rhubarb is alive.

As far as ping is concerned, everything is working.

16.7.2 Checking Transport Service Connections

If the host-to-host network connection is running, the next step is to examine

the individual connections on your machine and the machine with which you

are trying to communicate.

The main tool for examining TCP/IP connections is the netstat command,

which examines kernel data structures and prints the current state of all

connections to and from the host on which it is run. For more information on

how to use this command, see the operating system manuals for your machine.

When you specify the netstat(1) command without any parameters, it reports

each open connection on a machine; netstat -a also reports the connections

offered by servers.

The most important information to check is the protocol type (Proto), your

local address (Local Address), and the status of the connection (state).

16.7.3 Connection failed Messages

If you receive connection failed messages, ensure that your NQS_SERVER

environment variable is set to a host that is running an NQS server. You do not

have to specify the host port number unless the NQS server is conﬁgured with

380 SG–2150 3.3

Problem Solving [16]

an NQS port number that is different from the default (607) provided during

installation.

If a transient network error condition exists that allows the connection to be

retried, you will receive messages such as the following:

Retrying connection to NQS_SERVER on host ice (127.111.21.90) . . .

QUESRV: ERROR: Failed to connect to NQS_SERVER at ice [port 607]

NETWORK: ERROR: NQS network daemon not responding

These messages indicate that the command received a connection refused

error from the connect () system call or that an address it is trying to use is

temporarily in use. This could be true, for example, because the server is just

coming up or is not listening, or the network is busy. NQS retries its connection

to the server for 30 seconds.

16.8 User’s Job Project Displays As 0

If a user’s job project is displayed as 0instead of the project speciﬁed in

/etc/project, the Array Services daemon may not be running. For

information about Array Services administration, see the Silicon Graphics

publication Getting Started with Array Systems.

16.9 Reinstalling the Software

If you want to reinstall the software, complete the following steps:

1. Stop all NQE daemons by using the nqestop(8) command. If this does not

stop all of them, or does not work, you can use the kill -9 command to

stop them.

2. Delete the desired version of NQE using the nqemaint(8) utility.

3. Reinstall the software as described in NQE Installation, publication SG–5236.

SG–2150 3.3 381

NQE Administration

16.10 Calling Customer Service

To obtain support for NQE, contact your local call center or local service

representative. The cs_support(7) man page provides NQE product support

information.

You also can send a facsimile (fax) to +1-404-631-2226. To obtain service, you

must have your NQE product customer number.

Before you call your local call center or local service representative, have the

following information ready to help with your problem:

•The exact error messages and unexpected behavior you are seeing.

•The ps displays of all daemons that are running on the systems with which

you are having problems.

•A list of NQE binary ﬁles, their paths, their protections, and their sizes.

•The qstat -f or cqstatl -f output from all queues in the batch complex.

•Hardware platforms, model numbers, system software levels, and additional

software patches applied to your NQE platforms.

•Accounting information, if any, about the exit status of any daemons or

commands aborting (such as copies of the corresponding NQE log ﬁle and

any error messages sent to the user).

382 SG–2150 3.3

Man Page List [A]

The man command provides online help on all NQE commands. To view a man

page online, type man commandname.

You must ensure that your MANPATH is set properly; it must include the path

name of the NQE man pages. The default name is /nqebase/man.

A.1 User Man Pages

The following user-level online man pages are provided with your NQE

software:

User-level man

page

Description

cevent(1) Posts, reads, and deletes job-dependency event

information.

cqdel(1) Deletes or signals to a speciﬁed batch request.

cqstatl(1) Provides a line-mode display of requests and

queues on a speciﬁed host.

cqsub(1) Submits a batch request to NQE.

ftua(1) Transfers a ﬁle interactively (this command is

issued on an NQE server only).

ilb(1) Executes a load-balanced interactive command.

nqe(1) Provides a graphical user interface (GUI) to NQE

functionality.

qalter(1) Alters the attributes of one or more NQS requests

(this command is issued on an NQE server only).

qchkpnt(1) Checkpoints an NQS request on a UNICOS,

UNICOS/mk, or IRIX system (this command is

issued on an NQE server only).

qdel(1) Deletes or signals NQS requests (this command is

issued on an NQE server only).

qlimit(1) Displays NQS batch limits for the local host (this

command is issued on an NQE server only).

SG–2150 3.3 383

NQE Administration

qmsg(1) Writes messages to stderr,stdout, or the job

log ﬁle of an NQS batch request (this command is

issued on an NQE server only).

qping(1) Determines whether the local NQS daemon is

running and responding to requests (this

command is issued on an NQE server only).

qstat(1) Displays the status of NQS queues, requests, and

queue complexes (this command is issued on an

NQE server only).

qsub(1) Submits a batch request to NQS (this command is

issued on an NQE server only).

rft(1) Transfers a ﬁle in a batch request (this command

is issued on an NQE server only).

A.2 Application Interfaces Man Pages

The following online man pages are provided with your NQE software to help

those who must develop applications that others might use to perform work

using NQE, such as writing a scheduler or modifying the NQE GUI:

Application interface man page Description

nqeapi(3) Describes general NQE

functions for formatted lists.

nqe_get_policy_list(3) Queries the NLB to retrieve a

formatted list of hosts that

match a speciﬁed policy.

nqe_get_request_ids(3) Returns a list of all NQS

request IDs known.

nqe_get_request_info(3) Returns a list of all

information known about a

speciﬁc NQS request ID from

a speciﬁed NLB server.

nqe_request_delete(3) Deletes a speciﬁc NQS

request.

384 SG–2150 3.3

Man Page List [A]

nqe_request_submit(3) Submits a batch request to

NQS.

For more detailed information, you also may want to read a reference book

about Tcl or Tk, such as the Tcl and the Tk Toolkit by John K. Ousterhout

(Addison Wesley publisher) or Practical Programming in Tcl and Tk by Brent B.

Welch (Prentice Hall publisher).

A.3 File Formats Man Pages for UNICOS Systems

The following online man pages describe the content of NQE conﬁguration ﬁles

and are provided with your NQE software:

Conﬁguration ﬁle man

pages

Description

fta.conf(5) UNICOS systems that run only the NQE subset

(NQS and FTA components) use the fta.conf(5)

command, which is the ﬁle transfer agent (FTA)

conﬁguration ﬁle for these systems. The

fta.conf(5) online man page documents the

fta.conf ﬁle, which contains the list of ﬁle

transfer services (FTSs) that FTA operates.

nqeinfo(5) The nqeinfo ﬁle is the NQE conﬁguration ﬁle.

The nqeinfo(5) online man page documents all

NQE conﬁguration variables.

A.4 Product Support Man Page

The cs_support(7) online man page is provided with your NQE software; it

includes product support information.

A.5 Administrator-level Man Pages

The following administrator-level online man pages are provided with your

NQE software:

Administrator-level man

page

Description

ccollect(8) Daemon that provides NLB data to NQE.

compactdb(8) Compacts the NQE database.

SG–2150 3.3 385

NQE Administration

csuspend(8) Suspends NQE batch activity.

fta(8) Performs ﬁle transfer management.

ftad(8) Invokes the FTA ﬁle transfer protocol server.

nlbconfig(8) Conﬁgures and maintains the NLB server.

nlbpolicy(8) Queries the NLB server.

nlbserver(8) Starts an NLB server.

nqeconfig(8) Conﬁgures the NQE nqeinfo variables.

nqedbmgr(8) NQE database administration.

nqeinit(8) Starts NQE.

nqemaint(8) Performs NQE version maintenance.

nqestop(8) Stops NQE.

nqsdaemon(8) Starts the NQS main daemon.

nqsfts(8) File transfer service for NQS.

qconfigck(8) Veriﬁes the NQS conﬁguration of customized

variables.

qmgr(8) Enters the NQS queue manager subsystem.

qstart(8) Starts NQS.

qstop(8) Stops NQS.

skey(8) FTA daemon network peer-to-peer authorization

management.

386 SG–2150 3.3

NQE Sample Conﬁgurations [B]

This appendix describes sample NQE conﬁgurations for NQE administrators

and discusses the following topics:

•NQE servers and clients

•NQE cluster conﬁguration

•NQS queue structure

•NQE database and scheduler structure

B.1 NQE Servers and Clients

NQE consists of a cluster of servers and clients. The following components can

be conﬁgured to run on nodes in an NQE cluster:

•The Network Load Balancer (NLB) server which receives and stores

information from the NLB collectors in the NLB database which it manages.

•The NQE database server which serves connections from clients, the

scheduler, the monitor and lightweight server (LWS) components in the

cluster to add, modify, or remove data from the NQE database.

•The NQE scheduler which analyses data in the NQE database, making

scheduling decisions.

•The NQE database monitor which monitors the state of the database and

which NQE database components are connected.

•NQS which schedules and initiates batch requests on the local server.

•FTA which adds reliability through transfer retry and recovery and through

network peer-to-peer authorization (NPPA). FTA transfers may be initiated

on any server and those transfers may retrieve ﬁles from or copy ﬁles to any

NQE server or client.

•NLB collectors which collect and communicate system load information to

the NLB server so that the NLB can provide NQS with a list of servers, in

order of preference, to run a request and provide status information upon

request.

•The LWS which obtains request information from the NQE database, veriﬁes

validation, submits the copy of a request to NQS, and obtains exit status of

SG–2150 3.3 387

NQE Administration

completed requests from NQS. The LWS may override NQS scheduling. For

information about LWS attributes, see Chapter 9, page 231, and Chapter 10,

page 261.

•NQE clients contain software so users may submit, monitor, and control

requests by using either the NQE graphical user interface (GUI) or the

command-line interface. From clients, users also may monitor request status,

delete or signal requests, monitor machine load, and receive request output.

For more information on components which can be conﬁgured to run on nodes

in an NQE cluster, see Section 1.2, page 2.

NQE uses the FLEXlm license manager to license the product. Before you can

run NQE, a license manager must be installed and running. The license

manager can run on any server or on another (nonserver) host.

The NLB collector is run on all NQS server nodes to collect the following:

•NQS request status data

•Host load information for destination selection

By default, the collector is conﬁgured to report the system batch queue as

nqebatch@ hostname and to send information to the NLB server.

The initial conﬁguration of NQE starts the following components: NQS, NLB,

and Collector

B.2 NQE Cluster Conﬁguration

This section describes NQE clusters and gives you information about selecting

servers. You can expand the examples to suit the needs of your network.

B.2.1 Simple Cluster

Asimple cluster has one node to execute batch requests and has some clients, as

shown in Figure 26.

388 SG–2150 3.3

NQE Sample Conﬁgurations [B]

NQE clientNQE client

NQE client NQE client

License manager

a11565

NQS, NLB, and Collector

Figure 26. Simple NQE Cluster

B.2.2 NQE Load-balanced Cluster

An NQE load-balanced cluster has one NLB server, multiple NQS servers, and

multiple clients, as shown in Figure 27. Clients submit work to an NQE

load-balancing queue on any node. In this network, requests are sent to any

node in an NQE cluster. To set up a quorum, the license manager is placed on

each node.

NQE client

NQE client NQE client

a11566

NQS, NLB, and Collector

NQS and Collector NQS and Collector

Figure 27. NQE Load-balanced Cluster

SG–2150 3.3 389

NQE Administration

B.2.3 NQE Scheduler Cluster

An NQE scheduler cluster has one NQE database server, multiple NQS servers,

one NLB server, and multiple clients, and is in this sense the same as the

load-balanced cluster shown in Figure 27. The difference between the two

clusters lies in how work is scheduled, as described in section Section B.4, page

393.

B.2.4 Server Considerations

The following types of NQE servers can exist in the NQE cluster:

•At least one node with high availability for the NQE cluster. The NLB

load-balancing server and NQE database server run on this node.

•Typically, the NQE cluster includes additional NQS servers that have

sufﬁcient CPU cycles to be used for executing batch requests. However, in a

simple network, this might be the same node as the NLB server.

•Typically, many workstations are designated as NQE clients, which do not

provide batch execution cycles to the NQE cluster.

B.2.5 Load-balancing Policies

NQE comes conﬁgured with a default NQS load-balancing policy that assumes

all of your NLB servers are of similar speed and that you want requests sent to

the system that has the lowest CPU load. You can alter this policy or create

others to suit your needs. For example, you could create policies that weigh

and normalize differences in system CPU, or you could create policies that

deﬁne sets of systems with important characteristics (some systems might run a

given application, some systems might be for compiling, and so on). Chapter 8,

page 193, describes how to deﬁne and implement load-balancing policies.

B.2.6 NQE Scheduler and NQE Database Options

In certain environments, it is not sufﬁcient to choose a destination for a request

by using NLB policies. For example, you may want to wait to send requests to

a machine until its idle CPU is greater than 90%, or you may want to allow a

user to run only one request at a time across the entire NQE cluster, regardless

of which machine.

In such cases, you can use the NQE scheduler and NQE database. For a

summary of how the NQE scheduler and NQE database are structured, see

390 SG–2150 3.3

NQE Sample Conﬁgurations [B]

section Section B.4, page 393. For more information, see Chapter 9, page 231,

and Chapter 10, page 261.

B.3 NQS Queue Conﬁguration

NQS supports two types of queues: batch queues, which initiate requests; and

pipe queues, which route work to appropriate destinations for execution or

further routing. A destination selection queue is a pipe queue that uses

load-balancing to route requests. These pipe queues are associated with policies.

When requests enter a destination-selection queue, NQS queries the NLB for a

list of destinations. The list is ordered based on the policy. When multiple

destinations ﬁt the policy, NQS tries the ﬁrst destination. If for some reason the

ﬁrst destination cannot accept the request, NQS tries the second, and so on.

When you submit a request, NQS places it in the default queue unless you

specify otherwise. NQE is shipped with the following queues conﬁgured:

•The destination-selection queue nqenlb, which is the default for request

submission.

•The batch queue nqebatch, which handles local batch request submissions

and accepts requests from other destination-selection queues in the NQE

cluster.

This conﬁguration uses the NLB to send requests to the most appropriate

system, based on an NLB policy. The default NLB policy, called nqs, sends

batch requests to the system that has the lowest CPU load.

If users submit requests to the nqebatch queue, the request runs on the local

NQS server.

Part of the conﬁguration process is to deﬁne these queues and to interconnect

the different instances of NQS to form the NQE cluster.

The NQS_SERVER environment variable points to the NQS server that handles

NQE request submission. If you want your request run on another NQS server

explicitly, you can change the NQS_SERVER environment variable to point to

another host running NQS. You must have access to an account on this host

and must have set up NQS validation as described in Introducing NQE,

publication IN–2153.

Figure 28 shows how the default NQE conﬁguration would look in a network

that had one NLB server and two NQS servers. The nqebatch queue on each

NQS system is conﬁgured by default to allow no more than six requests to run

SG–2150 3.3 391

NQE Administration

at one time and to allow no more than two requests from a user to run at one

time on each NQS system. If the queue is full (running the predeﬁned number

of requests), requests wait in the nqebatch queue until an opening occurs, or

until the queue limits are changed.

nqebatch

Batch queue

NLB server

Collector nqenlb

nqebatch

Batch queue

Pipe queue

Collector

nqenlb

nqebatch

Batch queue

Pipe queue

NQE client

Collector

Pipe queue

nqenlb

Request

submitted Request

submitted

Request

submitted

a11567

NQE node

NQS server

Figure 28. Default NQE Queue Conﬁguration

392 SG–2150 3.3

NQE Sample Conﬁgurations [B]

B.4 NQE Database and Scheduler Structure

The NQE database and NQE scheduler let clients submit work to the NQE

central storage database on the NQE database server. The scheduler analyzes

the requests in the database, and selects when and on which NQS server the

request will run.

The NQE scheduler and database components are shown in Figure 29.

The database server system task serves connections from clients (either locally

or in the network) to access data in the database.

The monitor system task monitors the state of the databases and which system

tasks are connected.

The scheduler system task analyzes data in the database and makes scheduling

decisions.

The lightweight server (LWS) system task obtains request information from the

database, checks authorization ﬁles locally, submits request to NQS, and obtains

their exit status.

NQE client

Request

submitted

a11568

Scheduler

Database server

(mSQL)

Monitor

Database

Lightweight

server

NQS server

Node A

Node B

Figure 29. NQE Database and NQE Scheduler Components

SG–2150 3.3 393

config.h/nqeinfo File Variables [C]

This appendix applies only to UNICOS 9.0.xand UNICOS 9.1 systems.

NQS config.h ﬁle customization variables have been moved into the

nqeinfo ﬁle. This appendix lists each new nqeinfo ﬁle variable name and its

equivalent config.h ﬁle variable name, along with the default setting and a

description of the variable’s function. All nqeinfo ﬁle conﬁguration variables

are documented on the nqeinfo(5) man page.

Note: Use the NQE conﬁguration utility (nqeconfig(8)) to add any of the

NQE_NQS_xxxx variables listed in this appendix to the nqeinfo ﬁle.

NQE_NQS_ABORT_WAIT IC_ABORT_WAIT

Default is: 60

Speciﬁes the default time, in seconds, to wait after sending a

SIGTERM signal to all processes for each request running in a

queue that has received a PKT_ABOQUE packet. At the end of

this time period, any remaining queue processes receive a

SIGKILL signal. This variable is the default grace period for

the qmgr commands abort queue,hold request, and

preempt request. This variable is an integer from 0 to 600.

NQE_NQS_CHKPNT_DELAY IC_CHKPNT_DELAY

Default is: 0

Deﬁnes the number of seconds to wait before a chkpnt(2)

system call is retried during periodic checkpointing. This

variable can be 0 or any positive integer.

NQE_NQS_CHKPNT_DELAY_KILL IC_CHKPNT_DELAY_KILL

Default is: 60

Deﬁnes the number of seconds to wait before a chkpnt(2)

system call is retried during a hold or shutdown. This variable

can be 0 or any positive integer.

NQE_NQS_CHKPNT_TRIES IC_CHKPNT_TRIES

Default is: 1

SG–2150 3.3 395

NQE Administration

Deﬁnes the total number of chkpnt(2) system calls that will be

retried. This variable is an integer; a value that is less than 1 is

treated as a 1.

NQE_NQS_CHKPNT_TRIES_KILL IC_CHKPNT_TRIES_KILL

Default is: 3

Deﬁnes the total number of chkpnt(2) system calls that will be

retried. This variable is an integer; a value that is less than 1 is

treated as a 1.

NQE_NQS_DEF_NETRETTIM IC_DEF_NETRETTIM

Default is: 31

Sets the maximum number of seconds during which a network

function may continue to fail, because of a temporary condition,

before being marked as completely failed. This variable is an

integer from 0 to 600.

NQE_NQS_DEF_USRRETTIM IC_DEF_USRRETTIM

Default is: 15

Deﬁnes the maximum time, in seconds, that is allowed for the

qdel(1) or qstat(1) command to try to connect to a remote

machine. This variable is an integer from 0 to 600.

NQE_NQS_DLIM_PPCORECOEFF IC_DLIM_PPCORECOEFF

Default is: 256

Deﬁnes the default per-process core size limit coefﬁcient. The

complete limit is expressed as NQE_NQS_DLIM_PPCORECOEFF

* NQE_NQS_DLIM_PPCOREUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647

((231)-1).

NQE_NQS_DLIM_PPCOREUNITS IC_DLIM_PPCOREUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process core size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PPCORECOEFF

* NQE_NQS_DLIM_PPCOREUNITS. When no speciﬁc value is

396 SG–2150 3.3

config.h/nqeinfo File Variables [C]

set during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPCPUMS IC_DLIM_PPCPUMS

Default is: 0

Deﬁnes the time, in milliseconds, of the default per-process

CPU limit. The complete limit is expressed as

NQE_NQS_DLIM_PPCPUSECS + NQE_NQS_DLIM_PPCPUMS.

When no speciﬁc value is set during the creation of a queue,

this variable is used as the default value. This variable is an

integer from 0 to 999.

NQE_NQS_DLIM_PPCPUSECS IC_DLIM_PPCPUSECS

Default is: 720000

Deﬁnes the time, in seconds, of the default per-process CPU

limit. The complete limit is expressed as

NQE_NQS_DLIM_PPCPUSECS + NQE_NQS_DLIM_PPCPUMS.To

change this variable for an individual queue, use the qmgr set

per_process cpu_limit command; when no speciﬁc value

is set during the creation of a queue, this variable is used as the

default value creation of a queue. This variable is an integer

from 1 to 2,147,483,647.

NQE_NQS_DLIM_PPDATACOEFF IC_DLIM_PPDATACOEFF

Default is: 256

Deﬁnes the default per-process data size limit coefﬁcient. The

complete limit is expressed as NQE_NQS_DLIM_PPDATACOEFF

SG–2150 3.3 397

NQE Administration

* NQE_NQS_DLIM_PPDATAUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPDATAUNITS IC_DLIM_PPDATAUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process data size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PPDATACOEFF

* NQE_NQS_DLIM_PPDATAUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPMEMCOEFF IC_DLIM_PPMEMCOEFF

Default is: 256

Deﬁnes the default per-process memory size limit coefﬁcient.

The complete limit is expressed as

NQE_NQS_DLIM_PPMEMCOEFF *

NQE_NQS_DLIM_PPMEMUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPMEMUNITS IC_DLIM_PPMEMUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process memory size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PPMEMCOEFF *

NQE_NQS_DLIM_PPMEMUNITS. When no speciﬁc value is set

during the creation of a queue, this value is used as the default

value. This variable is one of the following values:

398 SG–2150 3.3

config.h/nqeinfo File Variables [C]

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPMPP_SECS IC_DLIM_PPMPP_SECS

Default is: 10

Deﬁnes the default per-process massively parallel processing

Cray MPP systems time limit. To change this variable for an

individual queue, use the qmgr set per_process

mpp_time_limit command. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. If you change this value, it will not alter all

queue limits, but it will be used only when another queue is

created. The variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPNICE IC_DLIM_PPNICE

Default is: 0

Deﬁnes the default nice value assigned to requests in a queue.

For more information, see the qmgr set nice_increment

command. This variable is an integer from -20 to 19. You

should specify only a positive value because a negative value is

used for the initial queue nice value during the queue creation

for all queues. To change this variable for an individual queue,

use the qmgr set nice_increment command. When no

speciﬁc value is set during the creation of a queue, this variable

is used as the default value.

NQE_NQS_DLIM_PPPFILECOEFF IC_DLIM_PPPFILECOEFF

Default is: 100

Deﬁnes the default per-process permanent ﬁle size limit

coefﬁcient. To change this value for an individual queue, use the

qmgr set per_process permfile_limit command. The

SG–2150 3.3 399

NQE Administration

complete limit is expressed as NQE_NQS_DLIM_PPPFILECOEFF

* NQE_NQS_DLIM_PPPFILEUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPPFILEUNITS IC_DLIM_PPPFILEUNITS

Default is: QLM_MBYTES

Deﬁnes the default per-process permanent ﬁle size limit units.

To change this value for an individual queue, use the qmgr set

per_process permfile_limit command. The complete

limit is expressed as NQE_NQS_DLIM_PPPFILECOEFF *

NQE_NQS_DLIM_PPPFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPQFILECOEFF IC_DLIM_PPQFILECOEFF

Default is: 0

Deﬁnes the default per-process quick-ﬁle size limit coefﬁcient.

The complete limit is expressed as

NQE_NQS_DLIM_PPQFILECOEFF *

NQE_NQS_DLIM_PPQFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPQFILEUNITS IC_DLIM_PPQFILEUNITS

Default is: QLM_MBYTES

400 SG–2150 3.3

config.h/nqeinfo File Variables [C]

Deﬁnes the default per-process permanent quick-ﬁle size limit

units. The complete limit is expressed as

NQE_NQS_DLIM_PPQFILECOEFF *

NQE_NQS_DLIM_PPQFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value during the creation of a queue. This variable is

one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPSTACKCOEFF IC_DLIM_PPSTACKCOEFF

Default is: 256

Deﬁnes the default per-process stack size limit coefﬁcient. The

complete limit is expressed as NQE_NQS_DLIM_PPSTACKCOEFF

* NQE_NQS_DLIM_PPSTACKUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPSTACKUNITS IC_DLIM_PPSTACKUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process stack size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PPSTACKCOEFF

* NQE_NQS_DLIM_PPSTACKUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

SG–2150 3.3 401

NQE Administration

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPTFILECOEFF IC_DLIM_PPTFILECOEFF

Default is: 0

Deﬁnes the default per-process temporary ﬁle size limit

coefﬁcient. The complete limit is expressed as

NQE_NQS_DLIM_PPTFILECOEFF *

NQE_NQS_DLIM_PPTFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPTFILEUNITS IC_DLIM_PPTFILEUNITS

Default is: QLM_MBYTES

Deﬁnes the default per-process temporary ﬁle size limit units.

The complete limit is expressed as

NQE_NQS_DLIM_PPTFILECOEFF *

NQE_NQS_DLIM_PPTFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PPWORKCOEFF IC_DLIM_PPWORKCOEFF

Default is: 256

402 SG–2150 3.3

config.h/nqeinfo File Variables [C]

Deﬁnes the default per-process work size limit coefﬁcient. The

complete limit is expressed as NQE_NQS_DLIM_PPWORKCOEFF

* NQE_NQS_DLIM_PPWORKUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PPWORKUNITS IC_DLIM_PPWORKUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process work size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PPWORKCOEFF

* NQE_NQS_DLIM_PPWORKUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PRCPUMS IC_DLIM_PRCPUMS

Default is: 0

Deﬁnes the milliseconds portion of the default per-request CPU

limit. To change this variable for an individual queue, use the

qmgr set per_request cpu_limit command. The

complete limit is expressed as NQE_NQS_DLIM_PRCPUMS +

NQE_NQS_DLIM_PRCPUSECS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 999.

NQE_NQS_DLIM_PRCPUSECS IC_DLIM_PRCPUSECS

Default is: 720000

Deﬁnes the seconds portion of the default per-request CPU

limit. To change this variable for an individual queue, use the

SG–2150 3.3 403

NQE Administration

qmgr set per_request cpu_limit command. The

complete limit is expressed as NQE_NQS_DLIM_PRCPUMS +

NQE_NQS_DLIM_PRCPUSECS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 1 to 2,147,483,647.

NQE_NQS_DLIM_PRDRIVES IC_DLIM_PRDRIVES

Default is: 0

Deﬁnes the per-request tape drive limit. To change this variable

for an individual queue, use the qmgr set per_request

tape_limit command. When no speciﬁc value is set during

the creation of a queue, this variable is used as the default

value. This variable is an integer from 0 to 255.

NQE_NQS_DLIM_PRMEMCOEFF IC_DLIM_PRMEMCOEFF

Default is: 256

Deﬁnes the default per-request memory size limit coefﬁcient.

To change this variable for an individual queue, use the qmgr

set per_request memory_limit command. The complete

limit is expressed as NQE_NQS_DLIM_PRMEMCOEFF *

NQE_NQS_DLIM_PRMEMUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PRMEMUNITS IC_DLIM_PRMEMUNITS

Default is: QLM_MWORDS

Deﬁnes the default per-process memory size limit units. The

complete limit is expressed as NQE_NQS_DLIM_PRMEMCOEFF *

NQE_NQS_DLIM_PRMEMUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

404 SG–2150 3.3

config.h/nqeinfo File Variables [C]

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PRMPP_PES IC_DLIM_PRMPP_PES

Default is: 0

Deﬁnes the default per-request Cray MPP systems processing

element (PE) limit. To change this variable for an individual

queue, use the qmgr set per_request mpp_pe_limit

command. When no speciﬁc value is set during the creation of

a queue, this variable is used as the default value. If you

change this value, it will not alter all queue limits, but it will be

used only when another queue is created. The variable is an

integer from 0 to NQE_NQS_MAX_MPPPES.

NQE_NQS_DLIM_PRMPP_SECS IC_DLIM_PRMPP_SECS

Default is: 10

Deﬁnes the default per-request Cray MPP systems time limit. To

change this variable for an individual queue, use the qmgr set

per_request mpp_time_limit command. When no speciﬁc

value is set during the creation of a queue, this variable is used

as the default value. If you change this value, it will not alter

all queue limits, but it will be used only when another queue is

created. The variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PRPFILECOEFF IC_DLIM_PRPFILECOEFF

Default is: 0

Deﬁnes the default per-request permanent ﬁle size limit

coefﬁcient. To change this variable for an individual queue, use

the qmgr set per_request permﬁle_limit command. The

complete limit is expressed as NQE_NQS_DLIM_PRPFILECOEFF

* NQE_NQS_DLIM_PRPFILEUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PRPFILEUNITS IC_DLIM_PRPFILEUNITS

Default is: QLM_BYTES

Deﬁnes the default per-request permanent ﬁle size limit units.

To change this variable for an individual queue, use the qmgr

SG–2150 3.3 405

NQE Administration

set per_request permﬁle_limit command. The complete limit is

expressed as NQE_NQS_DLIM_PRPFILECOEFF *

NQE_NQS_DLIM_PRPFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PRQFILECOEFF IC_DLIM_PRQFILECOEFF

Default is: 0

Deﬁnes the default per-request quick-ﬁle-size limit coefﬁcient.

To change this variable for an individual queue, use the qmgr

set per_request quickfile_limit command. The

complete limit is expressed as NQE_NQS_DLIM_PRQFILECOEFF

* NQE_NQS_DLIM_PRQFILEUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PRQFILEUNITS IC_DLIM_PRQFILEUNITS

Default is: QLM_BYTES

Deﬁnes the default per-request quick-ﬁle size limit units. To

change this variable for an individual queue, use the qmgr set

per_request quickfile_limit command. The complete

limit is expressed as NQE_NQS_DLIM_PRQFILECOEFF *

NQE_NQS_DLIM_PRQFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

406 SG–2150 3.3

config.h/nqeinfo File Variables [C]

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_DLIM_PRSHM_COEFF IC_DLIM_PRSHM_COEFF

Default is: 0

Deﬁnes the default per-request shared memory size limit

coefﬁcient. The complete limit is expressed as

NQE_NQS_DLIM_PRSHM_COEFF *

NQE_NQS_DLIM_PRSHM_UNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to

NQE_NQS_MAX_SHM_COEFF.

NQE_NQS_DLIM_PRSHM_SEGS IC_DLIM_PRSHM_SEGS

Default is: 0

Deﬁnes the default per-request shared memory segment limit.

When no speciﬁc value is set during the creation of a queue,

this variable is used as the default value. This variable is an

integer from 0 to NQE_NQS_MAX_SHM_SEGS.

NQE_NQS_DLIM_PRSHM_UNITS IC_DLIM_PRSHM_UNITS

Default is: QLM_MWORDS

Deﬁnes the default per-request shared memory size limit units.

The complete limit is expressed as

NQE_NQS_DLIM_PRSHM_COEFF *

NQE_NQS_DLIM_PRSHM_UNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value.

NQE_NQS_DLIM_PRTFILECOEFF IC_DLIM_PRTFILECOEFF

Default is: 0

Deﬁnes the default per-request temporary ﬁle size limit

coefﬁcient. To change this variable for an individual queue, use

the qmgr set per_request tempfile command. The

SG–2150 3.3 407

NQE Administration

complete limit is expressed as NQE_NQS_DLIM_PRTFILECOEFF

* NQE_NQS_DLIM_PRTFILEUNITS. When no speciﬁc value is

set during the creation of a queue, this variable is used as the

default value. This variable is an integer from 0 to 2,147,483,647.

NQE_NQS_DLIM_PRTFILEUNITS IC_DLIM_PRTFILEUNITS

Default is: QLM_BYTES

Deﬁnes the default per-request temporary ﬁle size limit units.

To change this variable for an individual queue, use the qmgr

set per_request tempfile command. The complete limit

is expressed as NQE_NQS_DLIM_PRTFILECOEFF *

NQE_NQS_DLIM_PRTFILEUNITS. When no speciﬁc value is set

during the creation of a queue, this variable is used as the

default value. This variable is one of the following values:

QLM_BYTES Allocate in units of bytes

QLM_WORDS Allocate in units of words

QLM_KBYTES Allocate in units of Kbytes

QLM_KWORDS Allocate in units of Kwords

QLM_MBYTES Allocate in units of Mbytes

QLM_MWORDS Allocate in units of Mwords

QLM_GBYTES Allocate in units of Gbytes

QLM_GWORDS Allocate in units of Gwords

NQE_NQS_ER_WAIT_TIME IC_ER_WAIT_TIME

Default is: 60

Deﬁnes the time interval (in seconds) to wait when checking

whether external resources are available again after being

unavailable. If the time interval elapses and the external

resources are still unavailable, the timer is reset to wait again.

Otherwise, the scheduler is called to process any queued

requests that require the resources. This variable is an integer

from 1 to 300.

NQE_NQS_EVENT_LOG_MODE IC_EVENT_LOG_MODE

Default is: 1

408 SG–2150 3.3

config.h/nqeinfo File Variables [C]

Deﬁnes the conﬁguration switch that controls whether the

request-related event messages will be logged automatically to

the job log area in the tail of the request’s control ﬁle. If this

variable is set to 0, no messages are generated automatically. If

this variable is set to 1, the messages are logged automatically

to the request’s control ﬁle as events happen to the request.

NQE_NQS_FAIR_RATIO IC_FAIR_RATIO

Default is: 0

Deﬁnes the conﬁguration ﬂag that controls which fair-share

algorithm will be used. This variable can be set to 0 for the

standard fair-share algorithm, or 1 for the share/usage ratio

algorithm. When the kernel fair-share process scheduling is

enabled, you should use the standard algorithms. You should

use the alternative share/usage ratio algorithm only when the

kernel is collecting share data.

NQE_NQS_IPC_TIMEOUT IC_IPC_TIMEOUT

Default is: 90

Deﬁnes the minor time-out interval that is used for the

interprocess communication time-out for NQS

daemon-to-daemon requests. When this timer expires, the NQS

daemon is queried to determine whether it is still running and

available to process requests. This timer is set again and a wait

occurs. This continues until NQE_NQS_IPC_WAIT_TIME

expires, which causes the request to fail. This is important for

long-running tasks, such as suspend or checkpoint, so that they

do not time out. This variable is an integer from 1 to 86,400.

NQE_NQS_IPC_TIMEOUT_I IC_IPC_TIMEOUT_I

Default is: 15

Deﬁnes the minor time-out interval that is used for the

interprocess communication time-out for NQS user

commands-to-daemon requests. When this timer expires, the

NQS daemon is queried to determine whether it is still running

and available to process requests. If the daemon is still

available, the following message is displayed on the user’s

screen: Waiting on local NQS daemon to complete transaction.

This timer is set again and a wait occurs. This continues until

NQE_NQS_IPC_WAIT_TIME expires, which causes the request

SG–2150 3.3 409

NQE Administration

to fail. This is important for long-running tasks, such as

suspend or checkpoint so that they do not time out. This

variable is an integer from 1 to 86,400.

NQE_NQS_IPC_WAIT_TIME IC_IPC_WAIT_TIME

Default is: 5400

Deﬁnes the major time-out interval that is used for the

interprocess communication time-out for NQS commands and

daemons. This time-out value is used with the

NQE_NQS_IPC_TIMEOUT and NQE_NQS_IPC_TIMEOUT_I

variables. If this time-out value expires, the current task ends

with a time-out response. This variable is an integer from 1 to

86,400.

NQE_NQS_MAC_COMMAND IC_MAC_COMMAND

Default is: 0

Enables mandatory access control (MAC) checking for job

status and deletion. If enabled, qstat lets users display only

job information that their MAC label dominates. If enabled,

qdel lets users delete jobs that are equal to their MAC label

(user-owned jobs only). To disable MAC checking, set this

variable to 0; to enable MAC checking, set it to 1.

NQE_NQS_MAC_DIRECTORY IC_MAC_DIRECTORY

Default is: 0

Enables multilevel directory (MLD) support for NQS spool

directories that hold ﬁles with different MAC labels. To specify

wildcard directories, set this variable to 0; to specify MLDs, set

it to 1.

NQE_NQS_MAX_ENVIRONMENT IC_MAX_ENVIRONMENT

Default is: 5120

Deﬁnes the maximum amount of environment space, in bytes,

for a request. If this value is reduced, requests that are queued

before the change may fail. This variable is an integer from

5120 to 50,000.

NQE_NQS_MAX_ENVIRONVARS IC_MAX_ENVIRONVARS

Default is: 400

410 SG–2150 3.3

config.h/nqeinfo File Variables [C]

Deﬁnes the maximum number of environment variables for a

request server. If this value is reduced, requests that are queued

before the change may fail. This variable is an integer from 100

to 25,000.

NQE_NQS_MAX_EXTREQUESTS IC_MAX_EXTREQUESTS

Default is: 250

Deﬁnes the maximum number of requests from other remote

machines that can be queued at a given time on this machine.

The NQE_NQS_MAX_EXTREQUESTS value must always be less

than or equal to NQE_NQS_MAX_TRANSACTS. Any change in

NQE_NQS_MAX_TRANSACTS must be considered carefully. If

any NQS requests are on the local host, you can only increase

the value of NQE_NQS_MAX_TRANSACTS. If one or more

requests are on the local host, you cannot decrease the value of

NQE_NQS_MAX_TRANSACTS. Any change to

NQE_NQS_MAX_EXTREQUESTS also must be carefully

considered. Any increase in this value is always safe. A danger,

however, in decreasing this value exists. You can reduce

NQE_NQS_MAX_EXTREQUESTS only if you know that the

number of requests currently queued on the local system is less

than or equal to the reduced value of

NQE_NQS_MAX_EXTREQUESTS. If this condition is not true,

NQS cannot requeue all of the requests on rebooting. If a value

smaller than the current number of transactions in the NQS

database is speciﬁed, the value will be increased to the current

read count.

This variable is an integer from 1 to 65,536. If you change this

variable when queued requests are in NQS, the queued requests

will be deleted when the NQS databases are re-created.

NQE_NQS_MAX_GBLBATLIMIT IC_MAX_GBLBATLIMIT

Default is: 20

Deﬁnes the global maximum number of batch requests that are

running simultaneously. To change this variable for an

individual queue, use the qmgr set global batch_limit

command. This variable is an integer from 1 to 65,536.

SG–2150 3.3 411

NQE Administration

NQE_NQS_MAX_GBLNETLIMIT IC_MAX_GBLNETLIMIT

Default is: 20

Deﬁnes the global maximum number of network queue servers

that are running simultaneously. This variable is an integer

from 1 to 65,536.

NQE_NQS_MAX_GBLPIPLIMIT IC_MAX_GBLPIPLIMIT

Default is: 20

Deﬁnes the global maximum number of pipe queue servers that

are running simultaneously. This value acts only as an initial

value. You can conﬁgure other values through the qmgr

program. To change this variable for an individual queue, use

the qmgr set global pipe_limit command. This variable

is an integer from 1 to 65,536.

NQE_NQS_MAX_GBLTAPLIMIT IC_MAX_GBLTAPLIMIT

Default is: 100

Deﬁnes the global maximum number of tape drives that can be

allocated simultaneously. To change this variable for an

individual queue, use the qmgr set global tape_limit

command. This variable is an integer from 1 to 65,536.

NQE_NQS_MAX_MPPPES IC_MAX_MPPPES

Default is: 4096 on Cray MPP systems running UNICOS/mk or

Origin 64-bit systems, 64 on all other platforms

Deﬁnes the maximum number of MPP processing elements

(PEs) on a Cray MPP system or the maximum number of CPUs

on an Origin 64-bit system that are accessible at the local host.

This variable is an integer from 0 to 65,533.

NQE_NQS_MAX_NETRETTIM IC_MAX_NETRETTIM

Default is: 300

Sets the maximum number of seconds (retry time) during

which a network function can continue to fail, because of a

temporary condition, before being marked as completely failed.

To change this variable for an individual queue, use the qmgr

412 SG–2150 3.3

config.h/nqeinfo File Variables [C]

set network retry_time command. This variable is an

integer from 1 to 86,400.

NQE_NQS_MAX_QPRIORITY IC_MAX_QPRIORITY

Default is: 63

Deﬁnes the maximum priority that can be assigned to an NQS

queue. This variable is an integer from 0 to 63.

NQE_NQS_MAX_SHM_COEFF IC_MAX_SHM_COEFF

Default is: MAX_NQS_LIM_SHM_L

Deﬁnes the maximum ﬁnite value of the shared memory limit

coefﬁcient. This variable is an integer from 0 to

MAX_NQS_LIM_SHM_L.

NQE_NQS_MAX_SHM_SEGS IC_MAX_SHM_SEGS

Default is: MAX_NQS_LIM_SHM_S

Deﬁnes the maximum ﬁnite value of the number of shared

memory segments that can be created. This variable is an

integer from 0 to MAX_NQS_LIM_SHM_S.

NQE_NQS_MAX_TRANSACTS IC_MAX_TRANSACTS

Default is: 500

Deﬁnes the maximum number of concurrent transactions. Each

request on the system has a transaction descriptor. Therefore,

the value of this parameter sets a limit on the maximum

number of requests that can be queued on the local host.

The NQE_NQS_MAX_EXTREQUESTS value must always be less

than or equal to NQE_NQS_MAX_TRANSACTS. You must

consider carefully any change in NQE_NQS_MAX_TRANSACTS.If

any NQS requests are on the local host, you can only increase

the value of NQE_NQS_MAX_TRANSACTS. If one or more

requests are on the local host, you cannot decrease the value of

NQE_NQS_MAX_TRANSACTS. You also must consider carefully

any decrease to NQE_NQS_MAX_EXTREQUESTS. A danger,

however, in decreasing this value exists. You can reduce

NQE_NQS_MAX_EXTREQUESTS only if you know that the

number of requests currently queued on the local system is less

than or equal to the reduced value of

SG–2150 3.3 413

NQE Administration

NQE_NQS_MAX_EXTREQUESTS. If this condition is not true,

NQS will not requeue all of the requests on rebooting.

This variable is an integer from 1 to 65,536. If you change this

variable when queued requests are in NQS, the queued requests

will be deleted when the NQS databases are re-created.

NQE_NQS_MPP_CHECK IC_MPP_CHECK

Default is: 0 for a UNIX system, 1 for CRAY T3D systems

running UNICOS

Enables checking for CRAY T3D availability. If enabled, NQS

checks for the availability of the CRAY T3D device before it

initiates a request that requires the device. If it is disabled, no

checking is performed. To disable this variable, set it to 0; to

enable it, set it to 1. This variable is intended for use only in a

test environment; you should not change it in a production

environment.

NQE_NQS_MSG_CAT_MODE IC_MSG_CAT_MODE

Default is: 1

Deﬁnes the default mode in which NQS will use the UNICOS

message catalog for its user and log messages. This variable can

be set to either 0 to reduce the memory that is required at the

expense of additional I/O, or set to 1 to reduce I/O at the

expense of additional memory.

NQE_NQS_NQS_NICE IC_NQS_NICE

Default is: -5

Deﬁnes the nice value of the NQS daemons. This variable is an

integer from -19 to 20, however, NQS should always run at a

more desirable nice value than all user processes and at a less

desirable nice value than the kernel.

NQE_NQS_PRIV_FIFO IC_PRIV_FIFO

Default is: 0

Enables use of privilege through privilege assignment lists

(PALs) to read and write on the NQS protocol FIFO named pipe

and the NQS LOGFIFO pipe. If this variable is not enabled,

these two pipes are created with a wildcard label. To use a

414 SG–2150 3.3

config.h/nqeinfo File Variables [C]

wildcard label, set this variable to 0; to use the privilege

mechanism, set it to 1.

NQE_NQS_QSTAT_SHOWALL IC_QSTAT_SHOWALL

Default is: 0

Deﬁnes the behavior of a qstat -a command, and lets the site

conﬁgure it to display either all jobs or just the user’s jobs. You

can set this variable to either 0 to display only the user’s own

jobs, or 1 to display all jobs.

NQE_NQS_SHELLINVOCATION IC_SHELL_INVOCATION

Default is: 2

Deﬁnes the invocation method used to initiate batch jobs. This

variable can be set either to 1 for the one-shell invocation

method or to 2 for the two-shell invocation method.

NQE_NQS_SHELLPATH IC_SHELL_PATH

Default is: Null string

Deﬁnes the shell used to initiate a batch job. The default value,

a null string, indicates that the user’s UDB shell should be used.

This variable can be any valid shell path name.

NQE_NQS_SHUTDOWN_WAIT IC_SHUTDOWN_WAIT

Default is: 60

Deﬁnes the default time, in seconds, to wait after sending a

SIGTERM signal to all processes for each request that runs in

any queue after it receives a qmgr shutdown command. At the

end of this time period, all remaining processes of any

remaining NQS requests receive a SIGKILL signal. This

variable is an integer from 1 to 86,400.

NQE_NQS_TAPED_CHECK IC_TAPED_CHECK

Default is: 0 for a UNIX system, 1 for a UNICOS or

UNICOS/mk system

Enables checking for tape daemon availability. If enabled, NQS

checks for the availability of the tape daemon before it initiates

a request that requires a tape device. If it is disabled, no

checking is performed. To disable checking, set this variable to

SG–2150 3.3 415

NQE Administration

0; to enable checking, set it to 1. This variable is intended for

use only in a test environment; you should not change it in a

production environment.

NQE_NQS_TCP_SERVICE IC_TCP_SERVICE

Default is: nqs

Deﬁnes the TCP/IP port or service name from the

/etc/services ﬁle that will be used for NQS. This variable

must be a valid TCP/IP port or service name that is deﬁned in

the /etc/services ﬁle.

NQE_NQS_TMPDIR IC_TMPDIR

Default is: JTMPDIR

Deﬁnes the name of the temporary directory for NQS batch

requests. A subdirectory is created in NQE_NQS_TMPDIR for

each NQS job. The name of the NQS temporary directory must

be a valid directory; NQS does not create this directory. On

UNICOS and UNICOS/mk systems, valid values are JTMPDIR,

which translates into the use of /tmp,orJTMPDIRNQS, which

translates into the use of /nqstmp. On UNIX systems, this

variable can be set to any valid directory path.

If a UNICOS NQS administrator wishes to use a directory other

than /tmp or /nqstmp, such as /scratch, a solution is to

create a link between /nqstmp and /scratch (that is, ln -s

/scratch /nqstmp) and then set the NQE_NQS_TMPDIR

value to JTMPDIRNQS.

The environment variable TMPDIR is created and sent to the

user shell.

NQE_NQS_TMPMODE IC_TMPMODE

Default is: JTMPMODE

Deﬁnes the permissions (mode) for the temporary directory that

is created for each NQS job that is initiated. This mode setting is

for each user’s temporary directory. The name of that temporary

directory will be generated by NQE_NQS_TMPDIR. This does not

set the mode for TMPDIR itself. The default value for

NQE_NQS_TMPMODE comes from /usr/include/tmpdir.h;it

uses the value of the variable JTMPMODE as a default. The value

of JTMPMODE is 0700. This variable is any valid mode bit mask.

416 SG–2150 3.3

config.h/nqeinfo File Variables [C]

NQE_NQS_TREE_TIMER IC_TREE_TIMER

Default is: 15

Controls the frequency, in minutes, that the NQS share tree for

fair-share scheduling is regenerated. After NQS startup, the

share tree is regenerated periodically with any changes related

to user IDs, account IDs, shares, or resource groups. If

fair-share scheduling is not used for NQS job scheduling, or

there are few changes to the UDB values, you can specify a

long frequency. If there are many changes or you want to keep

current values, you can specify a short frequency. This variable

is an integer from 5 to 1440.

NQE_NQS_URM_RETRY IC_URM_RETRY

Default is: 120

For UNICOS sytems, deﬁnes the default Uniﬁed Resource

Manager (URM) connection retry time, in seconds. If the

connection between NQS and URM is broken, NQS retries the

connection every IC_URM_RETRY seconds. This variable is an

integer from 60 to 2,147,483,647 ((231)-1).

NQE_NQS_URM_SERVICE IC_URM_SERVICE

Default is: urm

For UNICOS systems, deﬁnes the URM port or service name

from /etc/services that NQS will use to interface to URM.

This variable string must be a valid TCP/IP port or service

name that is deﬁned in /etc/services.

SG–2150 3.3 417

Index

abort queue command, 168

abort request command, 168

Access

restricting queue attributes, 24

restricting user

to queues, 69

Access Control List, 30

Access Control Lists

conﬁguring for the NLB, 178

Accounting

setting for NQS, 103

ACLs

changing permissions for NLB, 190

conﬁguring for the NLB, 178

conﬁguring NLB, 186

user names, 30

add destination command, 63

add groups command, 70

add managers command, 57

add mid command, 54

add name command, 54

add output_agent command, 52

add queues command, 71

add users command, 70

addkey option

fta command

for conﬁguring NPPA security keys, 332

skey command

for conﬁguring NPPA security keys, 332

Administration, FTA, 336

Administrator-level man pages, 385

agents

NQS

deﬁnition, 51

alias

NQS

deﬁnition, 51

Alias list, 51

Alternate user validation, 14

Application interfaces man pages, 384

Applying policies

in NLB, 196

Array services status, 381

Attribute names

NLB, 174

Attributes

NLB

host object list, 208

types, 207

values, 212

NQS requests with NLB policies, 221

Authorization

FTA

NPPA, 330

Autologin for FTA, 318

.netrc ﬁle, 318

Batch queue

attributes, 25

deﬁnition, 18

Batch queues

in NQE conﬁgurations, 391

Batch request

deﬁnition, 11

shell interpretation, 11

batch_limit option

set global command

qmgr, 73

build_nqs script, 130

SG–2150 3.3 419

NQE Administration

ccollect command, 181

options, 182

cevent command, 313

Changing FTA conﬁguration, 326

Changing the ftpd port number, 329

Characteristics

NQS queues, 58

Checkpointing, 92

abort event, 97

compatibility mode, 93

CPU time mode, 94, 96

ﬁle restrictions, 93

hold request, 97

mode types, 93

modify request, 97

NQS system shutdown, 97

preempt request, 98

qchkpnt command, 97

release request, 98

request completion, 97

rerun request, 98

restore request, 98

resume request, 98

suspend request, 99

user-initiated mode, 94

wall-clock mode, 95, 96

Client

deﬁnition, 5, 388

Client request processing, 20

Clients

NLB, 31

CLOSED state

NQS queues, 27

cluster, 3

Cluster rerun

default setting, 258

enabling, 258

Collector (NLB)

starting, 181

Commands

to display currently deﬁned machines, 55

Commands do not execute, 375

Common services

FTA, 318

compactdb command, 239

conﬁgﬁle

NLB conﬁguration ﬁle, 176

conﬁg.h customization variables, 395

Conﬁguration, 387

ﬁles

FTA, 329

FTA

changing with NLB, 326

NLB, 173

NQS

description, 47

guidelines, 48

conﬁguration enhancements, adding to a

scheduler, 286

Conﬁguration variables, 35

Conﬁguration, FTA, 320

Conﬁguring ACLs for the NLB, 178

Conﬁguring NQE database components, 253

script size limit, 253

Conﬁguring scope of user status display, 373

connection failed messages, 380

Constraint expressions

in NLB policies, 195

Constraints

policy

NLB, 196

coreﬁle_limit option

set per-process command

qmgr, 79

Count

policy

NLB, 197

cpu_limit option

set per-process command

qmgr, 79

cqdel -d command, 238

cqstatl -d command, 238

cqsub -d command, 238

420 SG–2150 3.3

Index

Cray Research Customer Service

contacting, 382

CRAY T3E

NLB differences, 229

create batch_queue command, 63

create complex command, 71

create pipe_queue command, 63

for destination-selection queues, 61, 65, 219,

220

cs_support man page, 382

csuspend command, 307

examples, 310

ctoken authorization failure messages, 376

ctoken generation failure messages, 376

Customer service

contacting, 382

Customized collector startup

storing arbitrary data in NLB database, 229

cvtmldir command, 117

Cycle stealing

with csuspend command, 307

Daemon

processes

lock and unlock, 111

Daemons

NQS, 134

Daemons not running, 366

Data

in NLB policies

averaging, 198

data_limit option

set per-process command

qmgr, 79

DCE credentials, 353

Forwardable ticket, 354

Renewable ticket, 354

DCE support, 351

Administration of Kerberos and DCE, 357

checkpoint support, 355

DCE credentials, 355

enabling DCE support, 351

KRB5CCNAME caution, 355

KRB5CCNAME variable, 355

NQE_AUTHENTICATION, 352

NQE_DCE_BIN, 352

NQE_DCE_REFRESH, 352

restart caution, 355

restart support, 355

Task submission using a password, 352

Task submission using ticket forwarding, 354

ticket renew/refresh, 355

user requirements, 356

kdestroy command caution, 357

password, 356

Debug level

setting for NQS, 102

Debugging

network, 379

Debugging Tcl errors, 284, 287

Default NQE database scheduler, 256

Default NQE path name, 8

Default queue

displaying, 69

setting, 68

Deﬁnition of NQS queues

commands for, 63

delete command, 53

delete destination command, 65

delete groups command, 70

delete managers command, 57

delete mid command, 54

delete name command, 54

Delete or signal requests, 169

delete output_agent command, 52

delete privilege

NLB ACLs, 30

delete queue command, 68

delete request command, 168

delete users command, 70

Deleting requests, 169

delkey option

SG–2150 3.3 421

NQE Administration

fta command

for conﬁguring NPPA security keys, 332

skey command

for conﬁguring NPPA security keys, 332

Destination characteristic

NQS queues, 59

Destination selection, 29

deﬁnition, 30

queues

creating, 61, 65, 219, 220

Destination-selection policies

deﬁning for NQS, 214

Destinations

changing order in pipe queues

example, 68

deleting from a queue

from a queue, 65

for NQS pipe queues

adding, 63

deleting, 65

resetting, 64

for pipe queues, 18

disable queue command, 160

DISABLED state

NQS queues, 27

Display

currently deﬁned machines, 54

Displaying

current

retry limits, 110

Displaying requests, 158

Domain name

in FTA, 34

DUMP_VARS event, 285

Editing system conﬁguration ﬁles, FTA, 329

enable queue command, 160

ENABLED state

NQS queues, 27

Environment variables

NLB_SERVER, 180

etc/build_nqs script, 130

etc/conﬁg/fta.conf

editing for new ftpd port number, 329

editing to add NPPA domain

example, 336

etc/inetd.conf ﬁle

editing for FTA, 329

/etc/librc ﬁle

SYSTEM blocks, 362

/etc/librc ﬁle for ilb command, 361

etc/services ﬁle

editing for FTA, 329

etc/syslogd.conf ﬁle

editing for FTA, 329

Event objects, 290

Execution priority

of requests, 17

Extensible collector, 226

customized collector startup, 229

Failure types

FTA, 340

Feature descriptions

added in this release

File formats

in NLB, 204

File formats man page, 385

File names

for output speciﬁcation, 114

File structure for NQE, 9

File Transfer Agent, 4

File transfer request, 52

deﬁnition, 34

File transfer service

deﬁnition, 34

File transfer services, 319

File transfer status, 348

422 SG–2150 3.3

Index

File validation

NQS, 107

default, 108

FLEXlm

deﬁnition of license manager, 388

FTA, 5

admin users, deﬁnition, 34

administration, 317, 336

information log, 342

recovery, 337

system startup, 336

autologin, 318

canceling requests, 344

common services, 318

conﬁguration, 320

changing, 321

changing ftpd port number, 329

changing with NLB, 326

editing system conﬁguration ﬁles, 329

modifying NLB database for NPPA, 335

network peer-to-peer authorization, 330

NPPA example, 332

viewing, 321

deleting requests, 344

displaying request status, 344

domain name, deﬁnition, 34

editing conﬁguration ﬁles, 329

errors, 340

failure types, 339

ﬁle transfer services, 319

ﬁle transfer status, 348

functionality, 4

holding requests, 344

logging, 343

management functions, 344

modifying NLB database

for NPPA, 335

peer-to-peer authorization, 330

queue directory, deﬁnition, 34

recovery, 337

recovery limits, 340

recovery strategy, 341

releasing requests, 344

status, 344

status users, deﬁnition, 34

user interface, 318

fta command

-addkey option

for conﬁguring NPPA security keys, 332

-showkey option

for displaying NPPA security keys, 332

FTA conﬁguration ﬁle, 385

fta nqs output agent, 53

fta output agent

NQS

conﬁguring, 52

FTA type

NLB object, 175

fta.conf ﬁle, 328

fta.conf(5) man page, 385

ftpd port number

changing for new NPPA domains, 329

FTS, 319

Global conﬁguration object, 299

Global limits

deﬁning for NQS, 73

deﬁnition, 29

displaying, 74

Global Resource Manager, 87

GRM

See "Global Resource Manager", 87

Group limits

queue attributes, 26

group_limit option

set complex command

qmgr, 72

set global command

qmgr, 73

set queue command

qmgr, 62

SG–2150 3.3 423

NQE Administration

hold request command, 164

Holding requests in UNIX queues, 165

$HOME/.ilbrc ﬁle for ilb command, 362

Host object

attributes list

NLB, 208

hostname

deﬁnition of NQS hosts, 51

ilb command, 361

conﬁguring, 361

/etc/librc ﬁle, 361

$HOME/.ilbrc ﬁle, 362

SYSTEM blocks, 362

user environment variables, 363

INACTIVE state

NQS queues, 28

inetd.conf ﬁle

editing for FTA, 329

Initial conﬁguration

NQE, 387

Initializing an NQE cluster, 45

Installation procedures

reinstalling software, 381

Interactive connection with your work, 361

Interactive load balancing

ilb command, 361

Interactive load-balanced command, 361

Interqueue priority

characteristic

NQS queues, 60

for NQS pipe queues

setting, 65

queue attributes, 25

Uniﬁed Resource Manager (URM)

scheduling, 60

Intraqueue priority

deﬁnition, 15

queue attributes, 25

Job ﬂow through NQE ﬁgure

NQE database, 21

NQS, 20

Job log ﬁle

deﬁnition, 11

Job recovery

SIGPEFAILURE signal, 170

SIGRPE signal, 170

SIGUME signal, 170

Job scheduling

URM on UNICOS systems, 88

Job scheduling parameters

setting, 82

kdestroy command caution for DCE support, 357

KRB5CCNAME DCE variable caution, 355

Licensing

deﬁnition of license manager, 388

Lightweight server, 33, 237

Lightweight server process

NQE database, 387, 393

Limits

NQS

deﬁning global, 73

deﬁning per-process, 75

deﬁning per-request, 75

deﬁning queue complex, 72

retry of requests, 110

Load display fails, 376

424 SG–2150 3.3

Index

Load window, 173

Load-balancing, 29

changing ACL permissions, 190

conﬁgﬁle, 176

conﬁguring ACLs, 186

conﬁguring objects, 186

conﬁguring the name map, 186

deﬁnition, 29

destination selection, 29

location of NLB server, 180

managing the NLB server, 185

policies, deﬁnition, 31

rereading policies ﬁle, 186

shutting down the NLB server, 186

starting the NLB collector, 181

verifying the NLB server is running, 186

Load-balancing policies

deﬁning, 193

example of use by selection, 220

testing, 203

Load-balancing queues

commands for conﬁguring, 65

loadonly

diagram of use, 26

queue attributes, 25

loadonly characteristic

NQS queues, 60

Local scheduler name, 262

local_sched.tcl, 262

Location/queue, 157, 158

Lock and unlock daemon processes, 111

Log ﬁle

NQS

displaying, 101

setting for NQS, 99

logdaemon and nqestop, 140

Logging

FTA, 343

LWS

deﬁnition, 33, 237

lws system task, 241

Machine database

displaying, 159

Mail

NQS

deﬁning sender of, 111

Mail sender

of RQS UNIX mail, 111

Man pages provided online, 383

administrator-level man pages, 385

application interfaces man pages, 384

ﬁle formats man page, 385

product support man page, 385

user-level man pages, 383

Management

FTA, 344

Managers

NQS

overview of actions, 49

NQS list display, 150

MANPATH environment variable, 383

MAX_SCRIPT_SIZE nqeinfo ﬁle variable, 253

Memory limit

queue attributes, 27

memory_limit option

set complex command

qmgr, 72

set global command

qmgr, 73

set per-process command

qmgr, 79

set queue command

qmgr, 62

Message types

NQS

recorded in log ﬁle, 100

Messages and solutions for scheduler writing, 287

mid

add mid command, 54

deﬁnition, 51

delete mid command, 54

SG–2150 3.3 425

NQE Administration

mid database

displaying, 159

Miser scheduler

Miser scheduler for IRIX systems, 89

MLS

NQS, 115

auditing, 125

converting to wildcard labeled

directories, 127

DAC security policy, 123

differences, 116

identiﬁcation and authentication (I&A), 124

MAC security policy, 120

multilevel directories (MLDs), 117

NQS MLS conﬁguration, 126

privilege assignment lists (PALs), 119

security policies supported, 119

system management, 124

modify request command, 166

Modifying the NLB database for NPPA, 335

Monitor for NQE database

deﬁnition, 33, 237

Monitor process

NQE database, 393

monitor system task, 241

Monitoring NQS, 141

Monitoring system load, 181, 193

move queue command, 162

move request command, 162

mpp_memory_limit option

set per-process command

qmgr, 79

mpp_pe_limit option

set per-request command

qmgr, 79

mpp_per_limit option

set queue command

qmgr, 62

mpp_time_limit option

set per-process command

qmgr, 79

set per-request command

qmgr, 79

mSQL server, 32, 236

MSQL_SERVER variable, 244

Multilevel security

NQS differences, 116

UNICOS and UNICOS/mk systems

auditing, 125

converting to wildcard labeled

directories, 127

identiﬁcation and authentication (I&A), 124

MAC security policy, 120

NQS conﬁguration, 126

NQS multilevel directories (MLDs), 117

privilege assignment lists (PALs), 119

security policies supported, 119

system management, 124

Name

policy deﬁnition

NLB, 196

Name map

NLB, 186

name_map ﬁle

example, 206

example of downloading, 202

example of loading, 202

example of updating, 202

format of, 204

Negative nice increment for a queue warning, 11

.netrc ﬁle

autologin for FTA, 318

Network

debugging, 379

checking connectivity, 379

checking transport service connections, 380

transport service connections, 380

deﬁning NQE cluster in, 388

Network conﬁguration

NQS, 50

Network Load Balancer, 4, 29, 173, 193

426 SG–2150 3.3

Index

Network Load Balancer (NLB), 391

default policy, 391

Network peer-to-peer authorization

deﬁnition, 34

Network Queuing System, 3

New features

added in this release

Nice value

deﬁnition, 11

NJS_ALIVE object type, 174

NLB, 176

accessing servers, 30

ACLs, changing permissions, 190

ACLs, conﬁguring, 186

C_OBJ object type, 175

client deﬁnition, 31

collector, 179

collector deﬁnition, 31

collector, starting, 181

conﬁguration, 173

conﬁguring ACLs, 178

conﬁguring name map, 186

conﬁguring objects, 186

controlling access to servers, 30

CRAY T3E differences, 229

customized collector startup, 229

deﬁnition, 29

differences on UNICOS/mk, 229

extensible collector, 226

ﬁle formats

example of downloading, 204

FTA object type, 175

functionality, 4

host object attributes

list, 208

name map

example of downloading, 202

example of loading, 202

example of updating, 202

name map ﬁle

example, 206

format of, 204

NLB_JOB object type, 175

object attribute name, 174

object attribute types, 207

object attribute value, 174, 212

object data ﬁle

format of, 211

object name, deﬁnition, 173

object type deﬁnition, 173

object type list, 174

objects

deﬁnition, 173

overview, 173, 193

policies

applying, 196

Boolean operators, 194

constraint expressions, 194

deﬁnition, 194

weighting factors for machines in, 199

policies, deﬁnition, 31

policies, NQS request attributes, 221

policy constraints

applying, 196

policy count

applying, 197

policy data

averaging, 198

policy examples, 201

policy name

deﬁnition, 196

policy sort

applying, 197

redundant NLB servers, 181

replicating servers, 30

server, 30, 185

server, deﬁnition, 30

storing arbitrary data in NLB database, 226

time-based policies

applying, 200

writing policies, 201

NLB collector, 181

starting, 181

NLB database

customized collector startup, 229

SG–2150 3.3 427

NQE Administration

editing to add NPPA domain, 335

extensible collector, 226

NLB name

attribute, 174

NLB server

and job dependency, 314

location, 180

managing, 185

shutting down, 186

verifying the NLB server is running, 186

NLB server veriﬁcation, 186

NLB_SERVER environment variable, 180

nlbconﬁg -mdump command

example, 202

nlbconﬁg -mput command

example, 202

nlbconﬁg -oupdat command

example, 202

nlbconﬁg -pol command

example, 203

nlbconﬁg command, 185

nlbpolicy command, 203

nlbserver command, 179

nmake install command, 129

nonsecure network port messages, 374

NPPA

conﬁguring, 331, 335

deﬁnition, 34

editing /etc/conﬁg/fta.conf

for new ftpd port number, 329

to add NPPA domain, 336

editing NLB database

to add NPPA domain, 335

security keys

conﬁguring NPPA with fta options, 332

conﬁguring NPPA with skey options, 332

NQE

client deﬁnition, 5

client functionality, 3

component location, 5

environment overview, 2

ﬁle structure, 9

NQE clients

output speciﬁcation in commands, 114

NQE clients, deﬁnition, 388

NQE cluster

deﬁning for your network, 388

NQE components

deﬁnition, 387

Network Load Balancer (NLB) server, 4

NQE clients, 5

NQE database monitor, 5

NQE database server, 5

NQE scheduler, 5

NQE components not running, 365

NQE conﬁguration, 387, 391

nqeconﬁg(8) command, 35

nqeinfo ﬁle, 35

NQE database, 393

attribute names, 289

authorization, 248

connection, 249

events, 252

FILE, 251

nqedbusers ﬁle, 249

PASSWD, 251

status, 252

target, 251

client commands, 238

compactdb command, 239

components, 31, 235

concepts, 239

conﬁguring components, 253

global conﬁguration attributes, 254

LWS attributes, 258

scheduler attributes, 256

default scheduler attributes, 256

deﬁnition, 31

delete a request, 238

description, 234

event objects, 290

events, 243

events for authorization, 252

global conﬁguration attributes, 254

global conﬁguration object, 299

428 SG–2150 3.3

Index

job ﬂow through NQE ﬁgure, 22

lightweight server process, 387, 393

LWS, 33, 237

LWS attributes, 258

lws system task, 241

modifying a scheduler, 261

monitor, 33, 237

monitor process, 393

monitor system task, 241

mSQL server, 32, 236

MSQL_SERVER variable, 244

NQE node, 244

nqedbmgr command, 238

shut down commands, 246

startup control commands, 245

status commands, 247

nqeinfo ﬁle names, 289

nqeinfo ﬁle variables, 289

nqestop command, 246

objects, 239

scheduler, 33, 237

scheduler attributes, 256

scheduler system task, 241, 261

scheduler, writing, 261

script size limit, 253

security, 248

server, 32, 236

shut down commands, 246

signal a request, 238

standard events, 244

starting, 244

startup control commands, 245

state tasks, 241

status, 247

status commands, 247

status of request, 238

status, authorization, 252

stopping, 246

submit a request to, 238

system task deﬁnition, 237

system task object, 297

task owners, 240

Tcl built-in functions, 302

terms, 239

troubleshooting

authorization failures, 378

connection failures, 379

user task attributes, 292

uses, 232

writing a scheduler, 261

writing a simple scheduler, 263

NQE database and scheduler, 173

NQE database server, 393

NQE GUI load function, 179

NQE GUI status function, 173, 179

NQE job ﬂow ﬁgure

NQE database, 21

NQS, 20

NQE running slowly, 373

NQE scheduler, 393

NQE support

contacting, 382

NQE troubleshooting

commands do not execute, 375

conﬁguring user status display, 373

connection failed messages, 380

ctoken generation failure messages, 376

daemons not running, 366

load display fails, 376

nonsecure network port messages, 374

NQE components not running, 365

NQE running slowly, 373

NQS running slowly, 373

scope of user status display, 373

NQE_AUTHENTICATION

DCE support, 352

NQE_CUSTOM_COLLECTOR_LIST variable, 228

NQE_DCE_BIN

DCE support, 352

NQE_DCE_REFRESH

DCE support, 352

NQE_NQS_MAC_COMMAND conﬁguration

parameter, 120

NQE_NQS_NQCACCT variable, 14

nqe_tclsh, 262

SG–2150 3.3 429

NQE Administration

/nqebase

default NQE path name, 8

nqebatch queue

deﬁnition, 17, 58

nqeconﬁg(8) command, 35

nqedb_scheduler.tcl, 262

nqedbmgr command, 238

nqedbusers ﬁle, 249

%dbuser segment, 249

%host segment, 249

nqeinfo ﬁle

conﬁg.h customization variables, 395

conﬁguration variables, 35

cutomization variables, 395

nqeinfo ﬁle customization variables, 395

nqeinfo ﬁle variables, 289

nqeinfo(5) man page, 385

nqeinit(8) script, 46

nqenlb queue

deﬁnition, 17, 58

nqestop command, 140

nqestop(8) script, 46

NQS

accounting, 103

checkpointing, 92

conﬁguration

description, 47

guidelines, 48

conﬁguring remote output agents, 52

daemon, 134

debug level

setting, 102

deﬁning hosts in the network

commands for, 54

deﬁning queues, 58

commands for, 63

hints, 62

deﬁnition of network hosts

agents, 51

alias, 51

host name, 51

machine ID, 51

nonnetworking example, 56

NQS protocol, 50

remote output agents, 53

TCP/IP example, 55

functionality, 3

global limits, 73

hosts

deﬁning in the network, 50

job ﬂow through NQE ﬁgure, 21

load-balancing policies, 214

example of use by selection, 220

local changes, 128

source-code modiﬁcation, 132

user exits, 128

log ﬁle, 99

mail

deﬁning sender, 111

managers

deﬁning, 57

MLS , 115

auditing, 125

converting to wildcard labeled

directories, 127

DAC security policy, 123

identiﬁcation and authentication (I&A), 124

MAC security policy, 120

multilevel directories (MLDs), 117

NQS differences, 116

privilege assignment lists (PALs), 119

security policies supported, 119

system management, 124

MLS (UNICOS systems)

NQS multilevel security conﬁguration, 126

operator actions, overview, 133

operators

deﬁning, 57

periodic checkpointing, 92

abort event, 97

compatibility mode, 93

CPU time mode, 94, 96

ﬁle restrictions, 93

hold request, 97

mode types, 93

430 SG–2150 3.3

Index

modify request, 97

NQS system shutdown, 97

preempt request, 98

qchkpnt command, 97

release request, 98

request completion, 97

rerun request, 98

restore request, 98

resume request, 98

suspend request, 99

user-initiated mode, 94

wall-clock mode, 95

periodic checkpointing wall-clock mode, 96

queue limits

setting, 61

queues

setting run limit for, 65

queues, controlling availability, 159

queues, deleting requests in, 168

queues, disabling, 160

queues, enabling, 160

queues, holding requests, 164

queues, modifying requests in, 166

queues, moving requests between, 162

queues, moving requests within, 163

queues, releasing requests, 164

queues, starting, 161

queues, stopping, 161

request scheduler

and intraqueue priority, 83, 84

resuming requests, 165

retry limits

setting, 110

snapshot of conﬁguration, 113

source-code modiﬁcation, 132

starting, 134

stopping, 140

suspending requests, 165

system parameters, displaying, 142

user exits, 128

user status display scope, 58

validation strategy

default, 108

setting, 107

NQS accounting procedures, 103

NQS limits

global

deﬁning, 73

displaying, 74

per-process

deﬁning, 75

per-request

deﬁning, 75

nqs output agent

NQS

conﬁguring, 52

NQS request limits, 76

NQS running slowly, 373

NQS server deﬁnition, 3

NQS_SERVER and user validation, 14

nqsdaemon

deﬁnition, 20

nqsdaemon daemon, 134

nqshosts ﬁle, 375

Object data ﬁle

NLB

format of, 211

Objects

conﬁguring NLB, 186

NLB, 173, 174

attribute types, 207

attribute values, 212

host object attributes list, 208

NLB attribute value, 174

NLB type, 174

Objects deﬁnition

NLB, 173

Online man pages, 383

Operators

in NLB policy constraint expressions, 194

NQS, 133

SG–2150 3.3 431

NQE Administration

NQS list display, 150

Output agents, 52, 53

Output speciﬁcation

in client commands, 114

OWNER user name

NLB ACLs, 30

Password

checking, 108

length, 108

maximum number of characters, 108

requirements, 108

validation, 108

Password validation

NQS, 108

Per-process limits

deﬁning for NQS, 75

Per-process resource limit, 75

Per-request limits

deﬁning for NQS, 75

Per-request resource limit, 75

Periodic checkpointing, 92

abort event, 97

compatibility mode, 93

CPU time mode, 94, 96

ﬁle restrictions, 93

hold request, 97

mode types, 93

modify request, 97

NQS system shutdown, 97

preempt request, 98

qchkpnt command, 97

release request, 98

request completion, 97

rerun request, 98

restore request, 98

resume request, 98

suspend request, 99

user-initiated mode, 94

wall-clock mode, 95, 96

Permanent errors

in FTA, 340

permﬁle_limit option

set per-process command

qmgr, 79

Pipe queues

adding destinations to, 63

deﬁnition, 18

deleting destinations to, 65

in NQE conﬁgurations, 391

resetting destinations to, 64

pipe_limit option

set global command

qmgr, 73

pipeclient process

deﬁnition, 19

setting for queues, 65

pipeonly

queue attributes, 25

pipeonly characteristic

NQS queues, 60

Policies

destination-selection

deﬁning for NQS, 214

load-balancing, 193

deﬁning for NQS, 220

testing, 203

NLB

applying, 196

averaging data, 198

constraint expressions, 194

constraints, 196

count, 198

deﬁnition, 194

examples, 201

name deﬁnition, 196

NQS request attributes in, 221

sort, 197

time-based, 200

weighting factors for machines, 199

writing, 201

rereading NLB policies, 186

432 SG–2150 3.3

Index

policies ﬁle, 194

rereading, 186

Political scheduling

Polictiacl scheduling threshold

NQE_PSCHED_THRESHOLD, 87

Political scheduling daemon, 87

Political scheduling daemon threshold, 87

Port number

ftpd

editing /etc/conﬁg/fta.conf for new

domains, 329

Priority

executing requests, 17

intraqueue, deﬁnition, 15

setting for queues, 65

Problem analysis, 101

Problems

array services, 381

commands do not execute, 375

common

solving, 377, 378, 368, 373

conﬁguring user status display, 373

connection failed messages, 380

ctoken generation failure messages, 376

daemons not running, 366

job project displays as 0, 381

limits reached, 369

load display fails, 376

nonsecure network port messages, 374

NQE components not running, 365

NQE database troubleshooting

authorization failures, 378

connection failures, 379

NQE running slowly, 373

NQS running slowly, 373

qmgr, 371

re-queuing requests has no effect, 369

reinstalling software, 381

scope of user status display, 373

solving, 365

changes in request state, 371

commands cannot determine server

(NLB), 377

ﬁle could not be found, 371

Modifying C_OBJ object type, 378

NLB collectors not recording data, 377

NLB collectors recording incorrect data, 378

NLB polices cause unexpected results, 378

NQE database troubleshooting, 378

policies ﬁle, 377

queued request will not run, 369

queues shut off by NQS, 371

request has disappeared, 368

request reporting connection failure, 374

request reporting transaction failure, 375

requests are not being sent to NQS, 375

standard output and standard error ﬁles

not found, 369

syntax errors in standard error ﬁle, 370

with NLB, 377

with NQC, 373

with NQS, 368

user’s job project displays as 0, 381

Processing element limit (Cray MPP systems)

queue attributes, 27

Product support man page, 385

psched daemon

See "Political scheduling daemon", 87

purge queue command, 168

qmgr

manager actions, 49

operator actions, 133

qmgr input ﬁle, 134

qmgr manager

deﬁning, 57

qmgr operators

deﬁning, 57

qmgr set periodic_checkpoint commands, 92

qmgr shutdown command, 140

qstart command, 134

qstop command, 140

SG–2150 3.3 433

NQE Administration

qsub -la command

NLB policies, 221

Qualifying options, 188

Queue

adding destinations to, 63

attributes, 24

changing

run limit, 65

complexes, 28

complexes, deﬁning, 71

conﬁguring for destination-selection, 214

commands, 65

conﬁguring for load-balancing

example of use by selection, 220

controlling availability of, 159

default

displaying, 69

setting, 68

deﬁning

characteristics, 58

deﬁning in NQS

examples, 66

deﬁnition, 17

deleting, 68

deleting destinations to, 65

deleting requests in, 168

disabling, 160

displaying details of, 71

displaying summary status, 150

enabling, 160

FTA directories, 34

hints for deﬁning, 62

holding requests, 164

limits, setting, 61

modifying requests in, 166

moving requests between, 162

moving requests within, 163

NQS

commands for deﬁning, 63

overview, 17

releasing requests, 164

resetting destinations to, 64

restricting

user access, 70

resuming requests, 165

setting pipeclient process for, 65

setting priority, 65

setting run limit for, 65

starting, 161

states, 27

stopping, 161

suspending requests, 165

user access

restricting, 69

Queue attributes

access restrictions, 24

group limit, 26

interqueue priority, 25

intraqueue priority, 25

loadonly, 25

memory limit, 27

MPP processing limit, 27

overview, 24

pipeonly, 25

quick–ﬁle limit, 27

run limit, 25

user limit, 27

Queue complex

deﬁning, 71

deﬁnition, 28

Queue directories

in FTA, 34

Queue group limit

queue attributes, 26

Queue limits

NQS queues, 61

Queue memory limit

queue attributes, 27

Queue negative nice increment warning, 11

Queue processing element (PE) limit

queue attributes, 27

Queue quick-ﬁle limit

queue attributes, 27

Queue run limit

queue attributes, 25

434 SG–2150 3.3

Index

Queue states, 27

Queue user limit

queue attributes, 27

queue_name characteristic

NQS queues, 59

Quick-ﬁle limit

queue attributes, 27

quickﬁle_limit option

set per-request command

qmgr, 80

Read permission for ACL, 190

read privilege

NLB ACLs, 30

Recovering jobs terminated because of

hardware problems, 170

Recovery

FTA, 337

Recovery limits

FTA, 340

Recovery strategy

FTA, 341

Reinstalling software, 381

release request command, 164

Releasing requests in UNIX queues, 165

Remote output agents

NQS

conﬁguring, 52

remove queues command, 71

Request and queue information, 141

Request processing

client submission, 20

client submission to NQE database, 21

client submission to NQS, 20

local submission, 20

overview, 19

remote submission, 22

Request states, 15

Requests

batch, 11

controlling, 23

deleting in NQS queues, 168

example, 7

FTA

canceling, 344

deleting, 344

displaying status of, 344

holding, 344

releasing, 344

holding in NQS queues, 164

manipulating, 162

modifying in NQS queues, 166

moving between NQS queues, 162

moving within NQS queues, 163

NLB policies attributes, 221

releasing in NQS queues, 164

resuming in NQS queues, 165

setting job scheduling parameters for, 82

setting retry limits for, 110

signalling in NQS queues, 168

suspending in NQS queues, 165

rerun request command, 165

reset logﬁle command, 99

Resource limits

and batch queues, 18

deﬁnition, 15

limit assignment strategy (UNICOS and

UNICOS/mk systems), 18

per-process and per-request, 75

Resource Manager (URM) scheduling

interqueue priority, 60

Restriction

of user access to queues, 69

resume request command, 165

Retry limits

displaying current, 110

setting for NQS, 110

rft command

example, 7

rhosts ﬁle, 375

Run limit

changing, 65

SG–2150 3.3 435

NQE Administration

queue attributes, 25

setting for queues, 65

run_limit characteristic

NQS queues, 59

run_limit option

set complex command

qmgr, 72

set queue command

qmgr, 62

Running scheduler, tutorial, 283

RUNNING state

NQS queues, 28

S-keys

conﬁguring, 331, 332

conﬁguring with fta command options, 332

conﬁguring with skey command options, 332

schedule request command, 163

Scheduler

NQE database default, 256

Scheduler ﬁle, 267

Scheduler for NQE database

deﬁnition, 33, 237

Scheduler system task, 261

scheduler system task, 241

Scheduler, writing, 263

Scheduling

Miser scheduler for IRIX systems, 89

setting for batch requests, 82

Script

as input to the qmgr utility, 112

Segmentation, 99

Server

NLB location, 180

Server (NLB)

managing, 185

server characteristic

NQS queues, 61

Service

contacting Cray Research, 382

services ﬁle

editing for FTA, 329

set complex command, 72

set default batch_request queue command, 68

set default destination_retry command, 110

set destination command, 64

set global command, 73

set log_ﬁle command, 99

set managers command, 57

set message_header command, 101

set message_types command, 100

set no_access command, 70

set no_validation command, 109

set per_process command, 75

set per_request command, 75

set pipe_client command, 65

set priority command, 65

set queue command, 61

set queue run_limit command, 65

set sched_factor cpu command, 82

set sched_factor memory command, 82

set sched_factor mpp_cpu 0 command, 83

set sched_factor mpp_pe 0 command, 83

set sched_factor share command, 82

set sched_factor time command, 83

set sched_factor user_priority command, 83

set segment directory command, 99

set segment on_init command, 100

set segment size command, 100

set segment time_interval command, 100

set snapﬁle command, 113

set unrestricted_access command, 70

set validation command, 109

Shell interpretation, 11

shm_limit option

set per-request command

qmgr, 80

shm_segments option

set per-request command

qmgr, 80

show global_parameters command, 74, 145

show long queue command, 151

436 SG–2150 3.3

Index

show managers command, 57, 150

show mid command, 52

example, 159

show parameters command, 142

show queue command, 150

showkey option

fta command

for displaying NPPA security keys, 332

skey command

for displaying NPPA security keys, 332

shutdown command

qmgr, 140

SHUTDOWN state

NQS queues, 28

Signaling requests, 168

skey command

-addkey option

for conﬁguring NPPA security keys, 332

-delkey option

for conﬁguring NPPA security keys, 332

-showkey option

for displaying NPPA security keys, 332

snap command, 113

Solving problems, 365

with NLB, 377

with NQC, 373

with NQS, 368

Sort

policy

NLB, 197

Source-code modiﬁcation

NQS, 132

batch request summary display, 15

stack_limit option

set per-process command

qmgr, 80

start all_queues command, 161

start queue command, 161

Starting an NQE cluster, 46

Startup

NQS, 134

State

displaying for a submitted request, 15

Status

NQS queues list, 150

Status values

for requests, 15

stop queue command, 161

STOPPED state

NQS queues, 28

Stopping

NQS, 140

Stopping an NQE cluster, 46

Stopping NQE, 140

Stopping NQS, 140

Stopping queues

NQS, 161

STOPPING state

NQS queues, 28

Support

contacting, 382

Support telephone numbers, 385

suspend request command, 165

syslogd.conf ﬁle

editing for FTA, 329

SYSTEM blocks for ilb command, 362

System monitoring, 181, 193

System parameters

NQS, 142

System startup

FTA, 336

System task deﬁnition, 237

System task object, 266, 297

tape_drive_limit option

set global command

qmgr, 74

tape_limit option

set per-process command

qmgr, 80

Tcl built-in functions, 302

SG–2150 3.3 437

NQE Administration

Tcl errors, 284, 287

Tcl script for scheduler, 262

Tcl shell for NQE, 262

Tcl variables, 285

tempﬁle_limit option

set per-process command

qmgr, 80

Tentry callback function, 282

Ticket renew/refresh

DCE support, 355

Time-based policies

NLB

applying, 200

Tinit callback function, 269

Tnewowner callback function, 280

Tpass callback function, 276

trace_level attribute, 285

Transient errors

in FTA, 340

Trentry callback function, 271

Troubleshooting, 365

NLB, 377

NQC, 374

NQS, 368

Type

attribute

NLB, 207

C_OBJ object, 175

NLB object, 173

NLB_JOB object, 175

Uniﬁed Resource Manager (URM), 88

update privilege

NLB ACLs, 30

URM for UNICOS systems, 88

User access

restricting for NQS queues, 69

User environment variables for ilb command, 363

User exits

NQS, 128

User limit

queue attributes, 27

User status display

viewing all NQS jobs, 58

user status display scope, 373

User task attributes, 292

User validation

alternate user validation, 14

NQE_NQS_NQCACCT, 14

user’s job project displays as 0, 381

User-level man pages, 383

user_limit option

set complex command

qmgr, 72

set global command

qmgr, 74

set queue command

qmgr, 62

Validation

NQS, 107

default, 108

types in NQS, 108

user

setting, example, 109

Value

attribute

NLB, 212

NLB attribute, 174

Viewing all NQS jobs, 58

Viewing FTA conﬁguration, 321

Web interface, 9

Weighting machines

policies for

NLB, 199

438 SG–2150 3.3

Index

working_set_limit option

set per-process command

qmgr, 80

WORLD user name

NLB ACLs, 30

World Wide Web interface, 9

Writing a simple scheduler, 263

conﬁguration enhancements, adding, 286

create scheduler ﬁle, 267

create system task object, 266

goal, 266

requirements, 263

running the scheduler, 283

Tcl errors, 284, 287

Tcl variables, 285

trace levels, 285

write Tentry callback function, 282

write Tinit callback function, 269

write Tnewowner callback function, 280

write Tpass callback function, 276

write Trentry callback function, 271

Writing policies, 201

SG–2150 3.3 439

007 3799 001
