Recommended Versions
Tool/Framework/Language Recommended Version More Details
Java Java 8 http://www.in28minutes.co
m/spr...
Eclipse Eclipse Java EE Oxygen Basics
Spring Boot Spring Boot 2.0.0.RELEASE
Spring Version 5 or greater
Installation
Video :https://www.youtube.com/playlist?
list=PLBBog2r6uMCSmMVTW_QmDLyASBvovyAO3
PDF
:https://github.com/in28minutes/SpringIn28Minutes/blob/master/InstallationGuid
e-JavaEclipseAndMaven_v2.pdf
More Details :https://github.com/in28minutes/getting-started-in-5-steps

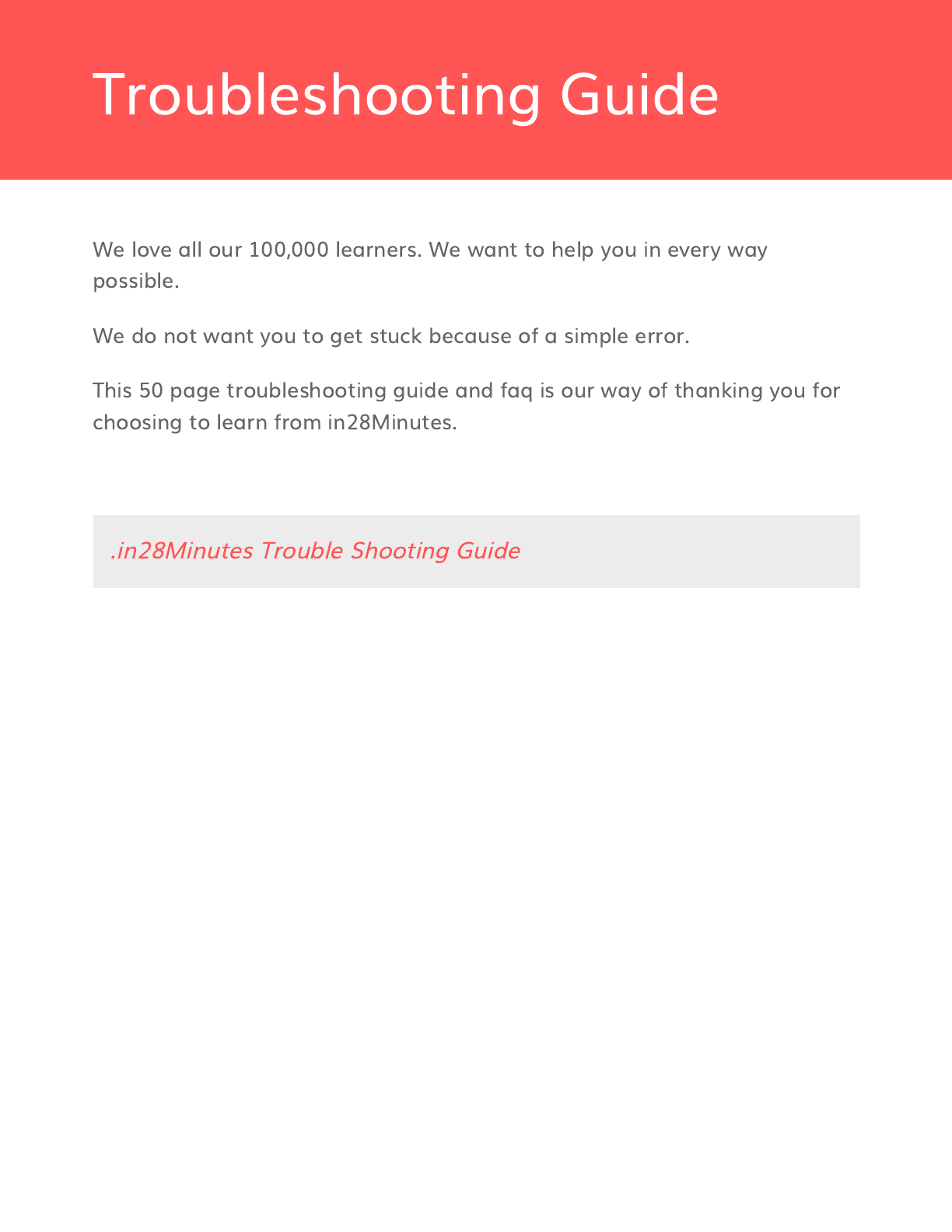

Troubleshooting
A 50 page troubleshooting guide with more than 200 Errors and Questions
answered
Getting Started
Github Repo
https://github.com/in28minutes/spring-web-services
Course Overview
Title Github Folder
Introduction To Web Services None
SOAP Web Services with Spring and Spring Boot Project Folder on Github
RESTful Web Services with Spring and Spring Boot Project Folder on Github
Connecting RESTful Web Service to JPA Project Folder on Github
RESTful Web Services - Best Practices None
3 Bonus Sections - Introduction to Spring, Spring
Boot and JPA
Title Category Github
Spring Framework in 10 Steps Introduction Project Folder on Github
Spring Boot in 10 Steps Introduction Project Folder on Github
JPA in 10 Steps Introduction Project Folder on Github
Spring Web Services - Course
Overview
Introduction to Web Services
What is a Web Service?
Important How Questions related to Web Services
Web Services - Key Terminology
Introduction to SOAP Web Services
Introduction to RESTful Web Services
SOAP vs RESTful Web Services
Web Service
Service delivered over the web?
Is the Todo Management Application a Web Service?
Introduction to Web Services
It delivers HTML output - Not consumable by other applications.
Can I reuse the Business Layer by creating a JAR?
Not Platform independent
Communication of Changes
Managing Dependencies - like Database
How can I make my Todo application consumable by other applications?
That where we get into the concept of a web service!
Web Service - W3C definition
Software system designed to support interoperable machine-to-machine
interaction over a network.
3 Keys
Designed for machine-to-machine (or application-to-application) interaction
Should be interoperable - Not platform dependent
Should allow communication over a network
How?
How does data exchange between applications take place?
How can we make web services platform independent?
XML
<getCourseDetailsRequest>
<id>Course1</id>
</getCourseDetailsRequest>
JSON
[
{
"id": 1,
"name": "Even",
"birthDate": "2017-07-10T07:52:48.270+0000"
},
{
"id": 2,
"name": "Abe",
"birthDate": "2017-07-10T07:52:48.270+0000"
}
]
How does the Application A know the format of Request and Response?
How does Application A and Web Service convert its internal data to (XML
or JSON)?
Key Terminology
Request and Response
Message Exchange Format
XML and JSON
Key Terminology
Service Provider or Server
Service Consumer or Client
Service Definition
Key Terminology
Transport
HTTP and MQ
Web Service Groups
SOAP-based
REST-styled
SOAP and REST are not really comparable.
SOAP
SOAP?
<getCourseDetailsRequest>
<id>Course1</id>
</getCourseDetailsRequest>
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<ns2:getCourseDetailsResponse
xmlns:ns2="http://in28minutes.com/courses">
<ns2:course>
<ns2:id>Course1</ns2:id>
<ns2:name>Spring</ns2:name>
<ns2:description>10 Steps</ns2:description>
</ns2:course>
</ns2:getCourseDetailsResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
SOAP
Format - SOAP XML Request - SOAP XML Response
Transport
SOAP over MQ
SOAP over HTTP

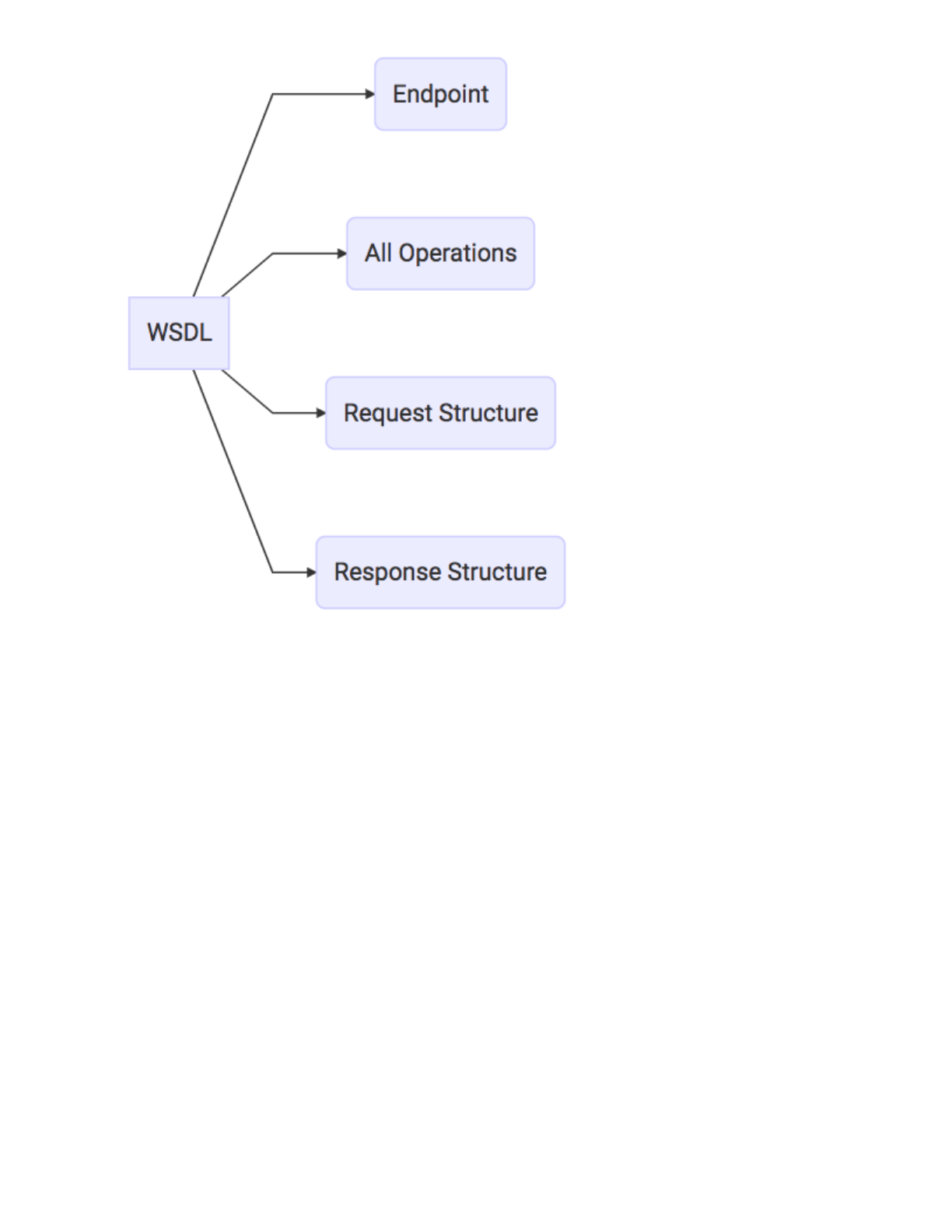

Service Definition
WSDL
REST
REpresentational State Transfer
REST is a style of software architecture for distributed hypermedia systems
Make best use of HTTP
Key abstraction - Resource
A resource has an URI (Uniform Resource Identifier)
/users/Ranga/todos/1
/users/Ranga/todos
/users/Ranga
A resource can have different representations
XML
HTML
JSON
Example
Create a User - POST /users
Delete a User - DELETE /users/1
Get all Users - GET /users
Get one Users - GET /users/1
REST
Data Exchange Format - No Restriction. JSON is popular
Transport
Only HTTP
Service Definition
No Standard. WADL/Swagger/…
REST vs SOAP
Restrictions vs Architectural Approach
Data Exchange Format
Service Definition
Transport
Ease of implementation
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<ns2:GetCourseDetailsRequest
xmlns:ns2="http://in28minutes.com/courses">
<ns2:id>Course1</ns2:id>
</ns2:GetCourseDetailsRequest>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<ns2:GetCourseDetailsResponse
xmlns:ns2="http://in28minutes.com/courses">
<ns2:CourseDetails>
<ns2:id>Course1</ns2:id>
<ns2:name>Spring</ns2:name>
<ns2:description>10 Steps</ns2:description>
</ns2:CourseDetails>
</ns2:GetCourseDetailsResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
Github Folder
https://github.com/in28minutes/spring-web-services/tree/master/soap-web-services
SOAP Web Services Step By Step Details
Step 01 - Initialize a Spring Web Services application with Spring Boot
Step 02 - Overview of creating SOAP Web Service using Contract First Approach
Step 03 - Define Request and Response XML Structure
Step 04 - Define XML Schema Definition (XSD) for Request -
GetCourseDetailsRequest
Step 05 - Define XML Schema Definition (XSD) for Respone -
GetCourseDetailsResponse
Step 06 - More about XML Schema Definition and Implementing XSD Best Practices
Step 07 - Introduction to Java API for XML Binding (JAXB) and Configuring JAXB 2
Maven Plugin
Step 08 - Configuring an Endpoint for GetCourseDetailsRequest
Step 09 - Spring Web Services Configuration - Message Dispatcher Servlet
Step 10 - Spring Web Services Configuration - Generating WSDL
Step 11 - Using Wizdler to execute SOAP Requests
Step 12 - Implementing a service - Course Details Service - backend with in
memory array list
Step 13 - Implementing SOAP Web Service for GetAllCourseDetailsRequest
Step 14 - Quick introduction to different parts of a WSDL
Step 15 - Implementing SOAP Web Service for DeleteCourseDetailsRequest
Step 16 - Improving the DeleteCourseDetailsRequest - Using an Enum for Status
Step 17 - Exception Handling and SOAP Fault Responses
Step 18 - Implementing Security for SOAP Web Services with WS Security
SOAP Web Services
Step 01 - Initialize a Spring Web Services application with
Spring Boot
Creating a Spring Project with Spring Initializr is a cake walk.
Spring Initializrhttp://start.spring.io/is great tool to bootstrap your Spring
Boot projects.
Launch Spring Initializr and choose the following
Choose Version 2.0.0.RELEASE or greater
Choose Group as shown in the figure
Choose Artifact as shown in the figure
Choose Dependencies as shown in the figure
Click Generate Project.
Import the project into Eclipse.
/pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.in28minutes.soap.webservices</groupId>
<artifactId>soap-course-management</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>jar</packaging>
<name>soap-course-management</name>
<description>Demo project for Spring
Boot</description>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-
parent</artifactId>
<version>2.0.0.RELEASE</version>
<relativePath/> <!-- lookup parent from
repository -->
</parent>
<properties>
<project.build.sourceEncoding>UTF-
8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-
8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-
jpa</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-
web-services</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-
test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-
maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
SoapCourseManagementApplication.java
package
com.in28minutes.soap.webservices.soapcoursemanagement;
import org.springframework.boot.SpringApplication;
import
org.springframework.boot.autoconfigure.SpringBootApplicatio
n;
@SpringBootApplication
public class SoapCourseManagementApplication {
public static void main(String[] args) {
SpringApplication.run(SoapCourseManagementApplication.class
, args);
} }
/src/main/resources/application.properties
/src/test/java/com/in28minutes/soap/webservices/soapcoursemanagement/S
oapCourseManagementApplicationTests.java
package
com.in28minutes.soap.webservices.soapcoursemanagement;
import org.junit.Test; import org.junit.runner.RunWith;
import
org.springframework.boot.test.context.SpringBootTest;
import
org.springframework.test.context.junit4.SpringRunner;
@RunWith(SpringRunner.class) @SpringBootTest public class
SoapCourseManagementApplicationTests {
@Test
public void contextLoads() {
}
}
Step 02 - Overview of creating SOAP Web Service using
Contract First Approach
Lets first define an XSD.
Step 03 - Define Request and Response XML Structure
/example-files/Request.xml
<?xml version="1.0" encoding="UTF-8"?>
<GetCourseDetailsRequest
xmlns="http://in28minutes.com/courses"
xsi:schemaLocation="http://in28minutes.com/courses course-
details.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-
instance">
<id>123</id> <!-- numbers -->
</GetCourseDetailsRequest>
/example-files/Response.xml
<?xml version="1.0" encoding="UTF-8"?>
<GetCourseDetailsResponse
xmlns="http://in28minutes.com/courses">
<CourseDetails>
<id>123</id>
<name>Spring in28minutes</name>
<description>You would learn the basics of
Spring Framework</description>
</CourseDetails> </GetCourseDetailsResponse>
Step 04 - Define XML Schema Definition (XSD) for Request -
GetCourseDetailsRequest
/example-files/course-details.xsd
<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://in28minutes.com/courses"
xmlns:tns="http://in28minutes.com/courses"
elementFormDefault="qualified">
<element name="GetCourseDetailsRequest">
<complexType>
<sequence>
<element name= "id"
type="integer"></element>
</sequence>
</complexType>
</element>
</schema>
<!--
<GetCourseDetailsRequest
xmlns="http://in28minutes.com/courses">
<id>123</id>
</GetCourseDetailsRequest>
-->
Step 05 - Define XML Schema Definition (XSD) for Respone -
GetCourseDetailsResponse
/example-files/Response.xml Modified
<?xml version="1.0" encoding="UTF-8"?>
<GetCourseDetailsResponse
xmlns="http://in28minutes.com/courses"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://in28minutes.com/courses course-
details.xsd">
<CourseDetails>
<id>123</id>
<name>Spring in28minutes</name>
<description>You would learn the basics of
Spring Framework</description>
</CourseDetails> </GetCourseDetailsResponse>
/example-files/course-details.xsd Modified
<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://in28minutes.com/courses"
xmlns:tns="http://in28minutes.com/courses"
elementFormDefault="qualified">
<element name="GetCourseDetailsRequest">
<complexType>
<sequence>
<element name= "id"
type="integer"></element>
</sequence>
</complexType>
</element>
<element name="GetCourseDetailsResponse">
<complexType>
<sequence>
<element name=
"CourseDetails" type="tns:CourseDetails"></element>
</sequence>
</complexType>
</element>
<complexType
name="CourseDetails">
<sequence>
<element name="id"
type="integer"/>
<element name="name"
type="string"/>
<element name="description"
type="string"/>
</sequence>
</complexType>
</schema>
Step 06 - More about XML Schema Definition and
Implementing XSD Best Practices
/example-files/course-details.xsd Modified
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://in28minutes.com/courses"
xmlns:tns="http://in28minutes.com/courses"
elementFormDefault="qualified">
<xs:element name="GetCourseDetailsRequest">
<xs:complexType>
<xs:sequence>
<xs:element name= "id"
type="xs:integer"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="GetCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element name=
"CourseDetails" type="tns:CourseDetails"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:complexType name="CourseDetails">
<xs:sequence>
<xs:element name="id"
type="xs:integer"/>
<xs:element name="name"
type="xs:string"/>
<xs:element name="description"
type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:schema>
Step 07 - Introduction to Java API for XML Binding (JAXB) and
Configuring JAXB 2 Maven Plugin
Step 08 - Configuring an Endpoint for
GetCourseDetailsRequest
/pom.xml Modified
New Lines
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>jaxb2-maven-plugin</artifactId>
<version>1.6</version>
<executions>
<execution>
<id>xjc</id>
<goals>
<goal>xjc</goal>
</goals>
</execution>
</executions>
<configuration>
<schemaDirectory>${project.basedir}/src/main/resources</sch
emaDirectory>
<outputDirectory>${project.basedir}/src/main/java</
outputDirectory>
<clearOutputDir>false</clearOutputDir>
</configuration> </plugin>
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/CourseDetailsEndpoint.java New
package
com.in28minutes.soap.webservices.soapcoursemanagement.soap;
import
org.springframework.ws.server.endpoint.annotation.Endpoint;
import
org.springframework.ws.server.endpoint.annotation.PayloadRo
ot;
import
org.springframework.ws.server.endpoint.annotation.RequestPa
yload;
import
org.springframework.ws.server.endpoint.annotation.ResponseP
ayload;
import com.in28minutes.courses.CourseDetails; import
com.in28minutes.courses.GetCourseDetailsRequest;
import com.in28minutes.courses.GetCourseDetailsResponse;
@Endpoint public class CourseDetailsEndpoint {
// method
// input - GetCourseDetailsRequest
// output - GetCourseDetailsResponse
// http://in28minutes.com/courses
// GetCourseDetailsRequest
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"GetCourseDetailsRequest")
@ResponsePayload
public GetCourseDetailsResponse
processCourseDetailsRequest(@RequestPayload
GetCourseDetailsRequest request)
{
GetCourseDetailsResponse response = new
GetCourseDetailsResponse();
CourseDetails courseDetails = new
CourseDetails();
courseDetails.setId(request.getId());
courseDetails.setName("Microservices
Course");
courseDetails.setDescription("That would be
a wonderful course!");
response.setCourseDetails(courseDetails);
return response;
}
}
/src/main/resources/course-details.xsd New
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://in28minutes.com/courses"
xmlns:tns="http://in28minutes.com/courses"
elementFormDefault="qualified">
<xs:element name="GetCourseDetailsRequest">
<xs:complexType>
<xs:sequence>
<xs:element name= "id"
type="xs:int"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="GetCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element name=
"CourseDetails" type="tns:CourseDetails"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:complexType name="CourseDetails">
<xs:sequence>
<xs:element name="id"
type="xs:int"/>
<xs:element name="name"
type="xs:string"/>
<xs:element name="description"
type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:schema>
Step 09 - Spring Web Services Configuration - Message
Dispatcher Servlet
Step 10 - Spring Web Services Configuration - Generating
WSDL
/pom.xml Modified
New Lines
<dependency>
<groupId>wsdl4j</groupId>
<artifactId>wsdl4j</artifactId>
</dependency>
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/WebServiceConfig.java New
package
com.in28minutes.soap.webservices.soapcoursemanagement.soap;
import
org.springframework.boot.web.servlet.ServletRegistrationBea
n;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import
org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.ws.config.annotation.EnableWs;
import
org.springframework.ws.transport.http.MessageDispatcherServ
let; import
org.springframework.ws.wsdl.wsdl11.DefaultWsdl11Definition;
import org.springframework.xml.xsd.SimpleXsdSchema;
import org.springframework.xml.xsd.XsdSchema;
//Enable Spring Web Services
@EnableWs
// Spring Configuration
@Configuration
public class WebServiceConfig {
// MessageDispatcherServlet
// ApplicationContext
// url -> /ws/*
@Bean
public ServletRegistrationBean
messageDispatcherServlet(ApplicationContext context)
{
MessageDispatcherServlet
messageDispatcherServlet = new MessageDispatcherServlet();
messageDispatcherServlet.setApplicationContext(context);
messageDispatcherServlet.setTransformWsdlLocations(
true);
return new
ServletRegistrationBean(messageDispatcherServlet, "/ws/*");
}
// /ws/courses.wsdl
// course-details.xsd
@Bean(name = "courses")
public DefaultWsdl11Definition
defaultWsdl11Definition(XsdSchema coursesSchema) {
DefaultWsdl11Definition definition = new
DefaultWsdl11Definition();
definition.setPortTypeName("CoursePort");
definition.setTargetNamespace("http://in28minutes.c
om/courses");
definition.setLocationUri("/ws");
definition.setSchema(coursesSchema);
return definition;
}
@Bean
public XsdSchema coursesSchema() {
return new SimpleXsdSchema(new
ClassPathResource("course-details.xsd"));
}
}
Step 11 - Using Wizdler to execute SOAP Requests
Step 12 - Implementing a service - Course Details Service -
backend with in memory array list
/pom.xml Modified
New Lines
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-
devtools</artifactId>
</dependency>
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/CourseDetailsEndpoint.java Modified
@Endpoint public class CourseDetailsEndpoint {
@Autowired
CourseDetailsService service;
// method
// input - GetCourseDetailsRequest
// output - GetCourseDetailsResponse
// http://in28minutes.com/courses
// GetCourseDetailsRequest
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"GetCourseDetailsRequest")
@ResponsePayload
public GetCourseDetailsResponse
processCourseDetailsRequest(@RequestPayload
GetCourseDetailsRequest request)
{
Course course =
service.findById(request.getId());
return mapCourse(course);
}
private GetCourseDetailsResponse mapCourse(Course
course)
{
GetCourseDetailsResponse response = new
GetCourseDetailsResponse();
CourseDetails courseDetails = new
CourseDetails();
courseDetails.setId(course.getId());
courseDetails.setName(course.getName());
courseDetails.setDescription(course.getDescription());
response.setCourseDetails(courseDetails);
return response;
}
}
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/bean/Course.java New
package
com.in28minutes.soap.webservices.soapcoursemanagement.soap.
bean;
public class Course {
private int id;
private String name;
private String description;
public Course(int id, String name, String
description) {
super();
this.id = id;
this.name = name;
this.description =
description;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getDescription() {
return description;
}
public void setDescription(String description) {
this.description = description;
}
@Override
public String toString() {
return String.format("Course [id=%s,
name=%s, description=%s]", id, name, description);
}
}
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/service/CourseDetailsService.java New
package
com.in28minutes.soap.webservices.soapcoursemanagement.soap.
service;
import java.util.ArrayList; import java.util.Iterator;
import java.util.List;
import org.springframework.stereotype.Component;
import
com.in28minutes.soap.webservices.soapcoursemanagement.soap.
bean.Course;
@Component
public class CourseDetailsService {
private static List<Course> courses = new
ArrayList<>();
static {
Course course1 = new Course(1, "Spring",
"10 Steps");
courses.add(course1);
Course course2 = new Course(2, "Spring
MVC", "10 Examples");
courses.add(course2);
Course course3 = new Course(3, "Spring
Boot", "6K Students");
courses.add(course3);
Course course4 = new Course(4, "Maven",
"Most popular maven course on internet!");
courses.add(course4);
}
// course - 1
public Course findById(int id) {
for (Course course : courses) {
if (course.getId() == id)
return
course;
}
return null;
}
// courses
public List<Course> findAll() {
return courses;
}
public int deleteById(int id) {
Iterator<Course> iterator =
courses.iterator();
while (iterator.hasNext()) {
Course course = iterator.next();
if (course.getId() == id) {
iterator.remove();
return 1;
}
}
return 0;
}
// updating course & new course }
Step 13 - Implementing SOAP Web Service for
GetAllCourseDetailsRequest
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/CourseDetailsEndpoint.java Modified
New Lines
@Endpoint public class CourseDetailsEndpoint
{
@Autowired
CourseDetailsService
service;
// method
// input - GetCourseDetailsRequest
// output - GetCourseDetailsResponse
// http://in28minutes.com/courses
// GetCourseDetailsRequest
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"GetCourseDetailsRequest")
@ResponsePayload
public GetCourseDetailsResponse
processCourseDetailsRequest(@RequestPayload
GetCourseDetailsRequest request) {
Course course =
service.findById(request.getId());
return mapCourseDetails(course);
}
private GetCourseDetailsResponse
mapCourseDetails(Course course) {
GetCourseDetailsResponse response = new
GetCourseDetailsResponse();
response.setCourseDetails(mapCourse(course));
return response;
}
private GetAllCourseDetailsResponse
mapAllCourseDetails(List<Course> courses) {
GetAllCourseDetailsResponse response = new
GetAllCourseDetailsResponse();
for (Course course : courses) {
CourseDetails mapCourse =
mapCourse(course);
response.getCourseDetails().add(mapCourse);
}
return response;
}
private CourseDetails mapCourse(Course course) {
CourseDetails courseDetails = new
CourseDetails();
courseDetails.setId(course.getId());
courseDetails.setName(course.getName());
courseDetails.setDescription(course.getDescription());
return courseDetails;
}
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"GetAllCourseDetailsRequest")
@ResponsePayload
public GetAllCourseDetailsResponse
processAllCourseDetailsRequest(
@RequestPayload
GetAllCourseDetailsRequest request) {
List<Course> courses =
service.findAll();
return mapAllCourseDetails(courses);
}
}
/src/main/resources/course-details.xsd Modified
New Lines
<xs:element name="GetAllCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element name="CourseDetails"
type="tns:CourseDetails"
maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:complexType name="CourseDetails">
<xs:sequence>
<xs:element name="id" type="xs:int"/>
<xs:element name="name" type="xs:string"/>
<xs:element name="description"
type="xs:string"/>
</xs:sequence>
</xs:complexType>
Step 14 - Quick introduction to different parts of a WSDL
Step 15 - Implementing SOAP Web Service for
DeleteCourseDetailsRequest
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/CourseDetailsEndpoint.java Modified
New Lines
@PayloadRoot(namespace = "http://in28minutes.com/courses",
localPart = "DeleteCourseDetailsRequest")
@ResponsePayload
public DeleteCourseDetailsResponse
deleteCourseDetailsRequest(
@RequestPayload
DeleteCourseDetailsRequest request) {
int status = service.deleteById(request.getId());
DeleteCourseDetailsResponse response = new
DeleteCourseDetailsResponse();
response.setStatus(status);
return response;
}
/src/main/resources/course-details.xsd Modified
New Lines
<xs:element name="DeleteCourseDetailsRequest">
<xs:complexType>
<xs:sequence>
<xs:element name= "id"
type="xs:int"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="DeleteCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<!-- 1 is success 0 for
failure -->
<xs:element name= "status"
type="xs:int"/>
</xs:sequence>
</xs:complexType>
</xs:element>
Step 16 - Improving the DeleteCourseDetailsRequest - Using
an Enum for Status
Step 17 - Exception Handling and SOAP Fault Responses
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/CourseDetailsEndpoint.java Modified
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"GetCourseDetailsRequest")
@ResponsePayload
public GetCourseDetailsResponse
processCourseDetailsRequest(@RequestPayload
GetCourseDetailsRequest request) {
Course course =
service.findById(request.getId());
if (course == null)
throw new
CourseNotFoundException("Invalid Course Id " +
request.getId());
return mapCourseDetails(course);
}
@PayloadRoot(namespace =
"http://in28minutes.com/courses", localPart =
"DeleteCourseDetailsRequest")
@ResponsePayload
public DeleteCourseDetailsResponse
deleteCourseDetailsRequest(@RequestPayload
DeleteCourseDetailsRequest request) {
Status status =
service.deleteById(request.getId());
DeleteCourseDetailsResponse response = new
DeleteCourseDetailsResponse();
response.setStatus(mapStatus(status));
return response;
}
private com.in28minutes.courses.Status
mapStatus(Status status) {
if (status == Status.FAILURE)
return
com.in28minutes.courses.Status.FAILURE;
return
com.in28minutes.courses.Status.SUCCESS;
}
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/exception/CourseNotFoundException.java New
package
com.in28minutes.soap.webservices.soapcoursemanagement.soap.
exception;
import
org.springframework.ws.soap.server.endpoint.annotation.Faul
tCode;
import
org.springframework.ws.soap.server.endpoint.annotation.Soa
pFault;
@SoapFault(faultCode=FaultCode.CUSTOM,
customFaultCode="
{http://in28minutes.com/courses}001_COURSE_NOT_FOUND")
public class CourseNotFoundException extends
RuntimeException {
private static final long serialVersionUID =
3518170101751491969L;
public CourseNotFoundException(String message) {
super(message);
}
}
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/service/CourseDetailsService.java Modified
public enum Status {
SUCCESS, FAILURE;
}
public Status deleteById(int id) {
Iterator<Course> iterator =
courses.iterator();
while (iterator.hasNext()) {
Course course = iterator.next();
if (course.getId() == id) {
iterator.remove();
return Status.SUCCESS;
}
}
return Status.FAILURE;
}
/src/main/resources/course-details.xsd Modified
New Lines
<xs:element name="DeleteCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element name= "status"
type="tns:Status"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:simpleType name="Status">
<xs:restriction base="xs:string">
<xs:enumeration value="SUCCESS"/>
<xs:enumeration value="FAILURE"/>
</xs:restriction>
</xs:simpleType>
Step 18 - Implementing Security for SOAP Web Services with
WS Security
/example-files/Request-Security.xml New
<Envelope
xmlns="http://schemas.xmlsoap.org/soap/envelope/">
<Header>
<wsse:Security
xmlns:wsse="http://docs.oasis-
open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-
1.0.xsd"
mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>user</wsse:Username>
<wsse:Password>password</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
</Header>
<Body>
<GetCourseDetailsRequest
xmlns="http://in28minutes.com/courses">
<id>1</id>
</GetCourseDetailsRequest>
</Body>
</Envelope>
/example-files/Response-Fault.xml New
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header />
<SOAP-ENV:Body>
<SOAP-ENV:Fault>
<faultcode
xmlns:ns0="http://in28minutes.com/courses">ns0:001_COURSE_N
OT_FOUND</faultcode>
<faultstring xml:lang="en">Invalid
Course Id 1234</faultstring>
</SOAP-ENV:Fault>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
/pom.xml Modified
New Lines
<dependency>
<groupId>org.springframework.ws</groupId>
<artifactId>spring-ws-
security</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.security</groupId>
<artifactId>spring-
security-core</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>com.sun.xml.wss</groupId>
<artifactId>xws-security</artifactId>
<version>3.0</version>
<exclusions>
<exclusion>
<groupId>javax.xml.crypto</groupId>
<artifactId>xmldsig</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>javax.activation</groupId>
<artifactId>activation</artifactId>
<version>1.1.1</version>
</dependency>
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/WebServiceConfig.java Modified
//XwsSecurityInterceptor
@Bean
public XwsSecurityInterceptor
securityInterceptor(){
XwsSecurityInterceptor securityInterceptor
= new XwsSecurityInterceptor();
//Callback Handler ->
SimplePasswordValidationCallbackHandler
securityInterceptor.setCallbackHandler(callbackHandler());
//Security Policy -> securityPolicy.xml
securityInterceptor.setPolicyConfiguration(new
ClassPathResource("securityPolicy.xml"));
return
securityInterceptor;
}
@Bean
public SimplePasswordValidationCallbackHandler
callbackHandler() {
SimplePasswordValidationCallbackHandler
handler = new SimplePasswordValidationCallbackHandler();
handler.setUsersMap(Collections.singletonMap("user",
"password"));
return handler;
}
//Interceptors.add -> XwsSecurityInterceptor
@Override
public void
addInterceptors(List<EndpointInterceptor> interceptors)
{
interceptors.add(securityInterceptor());
}
/src/main/java/com/in28minutes/soap/webservices/soapcoursemanagement/
soap/exception/CourseNotFoundException.java Modified
@SoapFault(faultCode = FaultCode.CUSTOM, customFaultCode =
"{http://in28minutes.com/courses}001_COURSE_NOT_FOUND")
public class CourseNotFoundException extends
RuntimeException {
/src/main/resources/course-details.xsd Modified
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://in28minutes.com/courses"
xmlns:tns="http://in28minutes.com/courses"
elementFormDefault="qualified">
<xs:element name="GetCourseDetailsRequest">
<xs:complexType>
<xs:sequence>
<xs:element name="id"
type="xs:int" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="GetCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element
name="CourseDetails" type="tns:CourseDetails" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="GetAllCourseDetailsRequest">
<xs:complexType>
</xs:complexType>
</xs:element>
<xs:element name="GetAllCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element
name="CourseDetails" type="tns:CourseDetails"
maxOccurs="unbounded" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="DeleteCourseDetailsRequest">
<xs:complexType>
<xs:sequence>
<xs:element name="id"
type="xs:int" />
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="DeleteCourseDetailsResponse">
<xs:complexType>
<xs:sequence>
<xs:element name="status"
type="tns:Status"
/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:simpleType
name="Status">
<xs:restriction base="xs:string">
<xs:enumeration value="SUCCESS" />
<xs:enumeration value="FAILURE" />
</xs:restriction>
</xs:simpleType>
<xs:complexType name="CourseDetails">
<xs:sequence>
<xs:element name="id" type="xs:int"
/>
<xs:element name="name"
type="xs:string" />
<xs:element name="description"
type="xs:string" />
</xs:sequence>
</xs:complexType>
</xs:schema>
/src/main/resources/securityPolicy.xml New
<?xml version="1.0" encoding="UTF-8"?>
<xwss:SecurityConfiguration
xmlns:xwss="http://java.sun.com/xml/ns/xwss/config"
>
<xwss:RequireUsernameToken
passwordDigestRequired="false"
nonceRequired="false" />
</xwss:SecurityConfiguration>
Example Requests and Responses
<Envelope
xmlns="http://schemas.xmlsoap.org/soap/envelope/">
<Header>
<wsse:Security
xmlns:wsse="http://docs.oasis-
open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-
1.0.xsd"
mustUnderstand="1">
<wsse:UsernameToken>
<wsse:Username>user</wsse:Username>
<wsse:Password>password</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
</Header>
<Body>
<GetCourseDetailsRequest
xmlns="http://in28minutes.com/courses">
<id>1</id>
</GetCourseDetailsRequest>
</Body>
</Envelope>
/example-files/Request.xml
<Envelope
xmlns="http://schemas.xmlsoap.org/soap/envelope/">
<Body>
<GetCourseDetailsRequest
xmlns="http://in28minutes.com/courses">
<id>1</id>
</GetCourseDetailsRequest>
</Body>
</Envelope>
/example-files/Response-Fault.xml
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header />
<SOAP-ENV:Body>
<SOAP-ENV:Fault>
<faultcode
xmlns:ns0="http://in28minutes.com/courses">ns0:001_COURSE_N
OT_FOUND</faultcode>
<faultstring xml:lang="en">Invalid
Course Id 1234</faultstring>
</SOAP-ENV:Fault>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
/example-files/Response.xml
<SOAP-ENV:Envelope xmlns:SOAP-
ENV="http://schemas.xmlsoap.org/soap/envelope/">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<ns2:GetCourseDetailsResponse
xmlns:ns2="http://in28minutes.com/courses">
<ns2:CourseDetails>
<ns2:id>1</ns2:id>
<ns2:name>Spring</ns2:name>
<ns2:description>10 Steps</ns2:description>
</ns2:CourseDetails>
</ns2:GetCourseDetailsResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
Github Folder
https://github.com/in28minutes/spring-web-
services/tree/master/restful-web-services
Restful Web Services with Spring Boot
Step 01 - Initializing a RESTful Services Project with Spring Boot
Step 02 - Understanding the RESTful Services we would create in this course
Step 03 - Creating a Hello World Service
Step 04 - Enhancing the Hello World Service to return a Bean
Step 05 - Quick Review of Spring Boot Auto Configuration and Dispatcher Servlet
Step 06 - Enhancing the Hello World Service with a Path Variable
Step 07 - Creating User Bean and User Service
Step 08 - Implementing GET Methods for User Resource
Step 09 - Implementing POST Method to create User Resource
Step 10 - Enhancing POST Method to return correct HTTP Status Code and Location
Step 11 - Implementing Exception Handling - 404 Resource Not Found
Step 12 - Implementing Generic Exception Handling for all Resources
Step 13 - Exercise : User Post Resource and Exception Handling
Step 14 - Implementing DELETE Method to delete a User Resource
Step 15 - Implementing Validations for RESTful Services
Step 16 - Implementing HATEOAS for RESTful Services
Step 17 - Overview of Advanced RESTful Service Features
Step 18 - Internationalization for RESTful Services
Step 19 - Content Negotiation - Implementing Support for XML
Restful Web Services with
Spring Boot
Step 20 - Configuring Auto Generation of Swagger Documentation
Step 21 - Introduction to Swagger Documentation Format
Step 22 - Enhancing Swagger Documentation with Custom Annotations
Step 23 - Monitoring APIs with Spring Boot Actuator
Step 24 - Implementing Static Filtering for RESTful Service
Step 25 - Implementing Dynamic Filtering for RESTful Service
Step 26 - Versioning RESTful Services - Basic Approach with URIs
Step 27 - Versioning RESTful Services - Header and Content Negotiation Approach
Step 28 - Implementing Basic Authentication with Spring Security
Step 29 - Overview of Connecting RESTful Service to JPA
Step 30 - Creating User Entity and some test data
Step 31 - Updating GET methods on User Resource to use JPA
Step 32 - Updating POST and DELETE methods on User Resource to use JPA
Step 33 - Creating Post Entity and Many to One Relationship with User Entity
Step 34 - Implementing a GET service to retrieve all Posts of a User
Step 35 - Implementing a POST service to create a Post for a User
Step 36 - Richardson Maturity Model
Step 37 - RESTful Web Services - Best Practices
Useful Links
POSTMAN -http://www.getpostman.com
Links from course examples
Basic Resources
http://localhost:8080/hello-world
http://localhost:8080/hello-world-bean
http://localhost:8080/hello-world/path-variable/Ranga
http://localhost:8080/users/
http://localhost:8080/users/1
JPA Resources
http://localhost:8080/jpa/users/
http://localhost:8080/jpa/users/1
http://localhost:8080/jpa/users/10001/posts
Filtering
http://localhost:8080/filtering
http://localhost:8080/filtering-list
Actuator
http://localhost:8080/actuator
Versioning
http://localhost:8080/v1/person
http://localhost:8080/v2/person
http://localhost:8080/person/param
params=[version=1]
http://localhost:8080/person/param
params=[version=2]
http://localhost:8080/person/header
headers=[X-API-VERSION=1]
http://localhost:8080/person/header
headers=[X-API-VERSION=2]
http://localhost:8080/person/produces
produces=[application/vnd.company.app-v1+json]
http://localhost:8080/person/produces
produces=[application/vnd.company.app-v2+json]
Swagger
http://localhost:8080/swagger-ui.html
http://localhost:8080/v2/api-docs
H2-Console
http://localhost:8080/h2-console
Error in the Log
Resolved exception caused by Handler execution:
org.springframework.http.converter.HttpMessageNotWritableEx
ception:
No converter found for return value of type:
class
com.in28minutes.rest.webservices.restfulwebservices.HelloWo
rldBean
This happened because there were no getters in HelloWorldBean class
Questions to Answer
What is dispatcher servlet?
Who is configuring dispatcher servlet?
What does dispatcher servlet do?
How does the HelloWorldBean object get converted to JSON?
Who is configuring the error mapping?
Mapping servlet: ‘dispatcherServlet’ to [/]
Mapped “{[/hello-world],methods=[GET]}” onto public java.lang.String
com.in28minutes.rest.webservices.restfulwebservices.HelloWorldController.helloW
orld()
Mapped “{[/hello-world-bean],methods=[GET]}” onto public
com.in28minutes.rest.webservices.restfulwebservices.HelloWorldBean
com.in28minutes.rest.webservices.restfulwebservices.HelloWorldController.helloW
orldBean()
Mapped “{[/error]}” onto public
org.springframework.http.ResponseEntity<java.util.Map<java.lang.String,
java.lang.Object»
org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.err
or(javax.servlet.http.HttpServletRequest)
Mapped “{[/error],produces=[text/html]}” onto public
org.springframework.web.servlet.ModelAndView
org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController.err
orHtml(javax.servlet.http.HttpServletRequest,javax.servlet.http.HttpServletRespons
e)
Example Requests
GEThttp://localhost:8080/users
[
{
"id": 1,
"name": "Adam",
"birthDate": "2017-07-19T04:40:20.796+0000"
},
{
"id": 2,
"name": "Eve",
"birthDate": "2017-07-19T04:40:20.796+0000"
},
{
"id": 3,
"name":
"Jack",
"birthDate":
"2017-07-19T04:40:20.796+0000"
}
]
GEThttp://localhost:8080/users/1
{
"id":
1,
"name": "Adam",
"birthDate": "2017-07-19T04:40:20.796+0000"
}
POSThttp://localhost:8080/users
{
"name": "Ranga",
"birthDate": "2000-07-19T04:29:24.054+0000"
}
GEThttp://localhost:8080/users/1000
Get request to a non existing resource.
The response shows default error message structure auto configured by Spring
Boot.
{
"timestamp": "2017-07-19T05:28:37.534+0000",
"status": 404,
"error": "Not Found",
"message": "id-500",
"path": "/users/500"
}
GEThttp://localhost:8080/users/1000
Get request to a non existing resource.
The response shows a Customized Message Structure
{
"timestamp": "2017-07-19T05:31:01.961+0000",
"message": "id-500",
"details": "Any details you would want to add"
}
POSThttp://localhost:8080/userswith Validation Errors
Request
{
"name": "R",
"birthDate": "2000-07-19T04:29:24.054+0000"
}
Response - 400 Bad Request
{
"timestamp": "2017-07-19T09:00:27.912+0000",
"message": "Validation Failed",
"details":
"org.springframework.validation.BeanPropertyBindingResult:
1 errors\nField error in object 'user' on
field 'name': rejected value [R]; codes
[Size.user.name,Size.name,Size.java.lang.String,Size];
arguments
[org.springframework.context.support.DefaultMessageSourceRe
solvable: codes [user.name,name]; arguments []; default
message [name],2147483647,2]; default message [Name should
have atleast 2 characters]" }
GEThttp://localhost:8080/users/1with HATEOAS
{
"id": 1,
"name":
"Adam",
"birthDate": "2017-07-19T09:26:18.337+0000",
"_links":
{
"all-users": {
"href": "http://localhost:8080/users"
}
} }
XML Representation of Resources
GEThttp://localhost:8080/users
Accept application/xml
<List>
<item>
<id>2</id>
<name>Eve</name>
<birthDate>2017-07-19T10:25:20.450+0000</birthDate>
</item>
<item>
<id>3</id>
<name>Jack</name>
<birthDate>2017-07-
19T10:25:20.450+0000</birthDate>
</item>
<item>
<id>4</id>
<name>Ranga</name>
<birthDate>2017-07-19T10:25:20.450+0000</birthDate>
</item> </List>
POSThttp://localhost:8080/users
Accept : application/xml
Content-Type : application/xml
Request
<item>
<name>Ranga</name>
<birthDate>2017-07-19T10:25:20.450+0000</birthDate>
</item>
Response
Status - 201 Created
Generating Swagger Documentation
public static final Contact DEFAULT_CONTACT = new
Contact(
"Ranga Karanam", "http://www.in28minutes.com",
"in28minutes@gmail.com");
public static final ApiInfo DEFAULT_API_INFO = new
ApiInfo(
"Awesome API Title", "Awesome API Description",
"1.0",
"urn:tos", DEFAULT_CONTACT,
"Apache 2.0",
"http://www.apache.org/licenses/LICENSE-2.0");
private static final Set<String>
DEFAULT_PRODUCES_AND_CONSUMES =
new HashSet<String>(Arrays.asList("application/json",
"application/xml"));
@Bean
public Docket api() {
return new
Docket(DocumentationType.SWAGGER_2)
.apiInfo(DEFAULT_API_INFO)
.produces(DEFAULT_PRODUCES_AND_CONSUMES)
.consumes(DEFAULT_PRODUCES_AND_CONSUMES);
}
Resource Method description
@GetMapping("/users/{id}")
@ApiOperation(value = "Finds Users by
id",
notes = "Also returns a link to retrieve all users with
rel - all-users")
public Resource<User> retrieveUser(@PathVariable int id)
{
API Model
@ApiModel(value="User Details", description="Contains all
details of a user")
public class User
{
@Size(min=2, message="Name should have atleast 2
characters")
@ApiModelProperty(notes = "Name should have atleast 2
characters")
private String
name;
@Past
@ApiModelProperty(notes = "Birth Date should be in the
Past")
private Date birthDate;
Filtering
Code
@JsonIgnoreProperties(value={"field1"}) public class
SomeBean {
private String
field1;
@JsonIgnore
private String field2;
private String field3;
Response
{
"field3": "value3"
}
Versioning
Media type versioning (a.k.a “content negotiation” or “accept header”)
GitHub
(Custom) headers versioning
Microsoft
URI Versioning
Twitter
Request Parameter versioning
Amazon
Factors
URI Pollution
Misuse of HTTP Headers
Caching
Can we execute the request on the browser?
API Documentation
No Perfect Solution
More
https://www.mnot.net/blog/2011/10/25/web_api_versioning_smackdown
http://urthen.github.io/2013/05/09/ways-to-version-your-api/
http://stackoverflow.com/questions/389169/best-practices-for-api-versioning
http://www.lexicalscope.com/blog/2012/03/12/how-are-rest-apis-versioned/
https://www.3scale.net/2016/06/api-versioning-methods-a-brief-reference/
Table Structure
create table user (
id integer not null, birth_date timestamp,
name varchar(255),
primary key (id)
);
create table post (
id integer not null,
description varchar(255),
user_id integer,
primary key (id) );
alter table post add constraint post_to_user_foreign_key
foreign key (user_id) references user;
Step 01 - Initializing a RESTful Services Project with Spring
Boot
Creating a Spring Project with Spring Initializr is a cake walk.
Spring Initializrhttp://start.spring.io/is great tool to bootstrap your Spring
Boot projects.
As shown in the image above, following steps have to be done
Launch Spring Initializr and choose the following
Choose com.in28minutes.rest.webservices as Group
Choose restful-web-services as Artifact
Choose Release >= 2.0.0 (Avoid SNAPSHOT!)
Choose following dependencies
Web
DevTools
JPA
H2
Click Generate Project.
Import the project into Eclipse.
Step 02 - Understanding the RESTful Services we would
create
Social Media Application Resource Mappings
User -> Posts
Retrieve all Users - GET /users
Create a User - POST /users
Retrieve one User - GET /users/{id} -> /users/1
Delete a User - DELETE /users/{id} -> /users/1
Retrieve all posts for a User - GET /users/{id}/posts
Create a posts for a User - POST /users/{id}/posts
Retrieve details of a post - GET /users/{id}/posts/{post_id}
Step 03 - Creating a Hello World Service
@RestController
public class HelloWorldController {
@GetMapping(path =
"/hello-world")
public String helloWorld() {
return "Hello World";
}
}
Step 04 - Enhancing the Hello World Service to return a Bean
@GetMapping(path = "/hello-world-bean")
public HelloWorldBean helloWorldBean() {
return new HelloWorldBean("Hello World");
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Hello
WorldBean.java New
package
com.in28minutes.rest.webservices.restfulwebservices;
public class HelloWorldBean {
private String
message;
public HelloWorldBean(String message) {
this.message =
message;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
@Override
public String toString() {
return String.format("HelloWorldBean [message=%s]",
message);
}
}
Step 05 - Quick Review of Spring Boot Auto Configuration and
Dispatcher Servlet
Let us understand Spring Boot Auto Configuration in depth
-http://www.springboottutorial.com/spring-boot-auto-configuration
Step 06 - Enhancing the Hello World Service with a Path
Variable
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Hello
WorldController.java
package
com.in28minutes.rest.webservices.restfulwebservices;
import org.springframework.web.bind.annotation.GetMapping;
import
org.springframework.web.bind.annotation.PathVariable;
import
org.springframework.web.bind.annotation.RestController;
//Controller @RestController public class
HelloWorldController {
@GetMapping(path =
"/hello-world")
public String helloWorld() {
return "Hello World";
}
@GetMapping(path = "/hello-world-bean")
public HelloWorldBean helloWorldBean()
{
return new HelloWorldBean("Hello World");
}
///hello-world/path-variable/in28minutes
@GetMapping(path = "/hello-world/path-variable/{name}")
public HelloWorldBean
helloWorldPathVariable(@PathVariable String name)
{
return new HelloWorldBean(String.format("Hello World,
%s",
name));
}
}
/src/main/resources/application.properties Modified
New Lines
logging.level.org.springframework = info
Step 07 - Creating User Bean and User Service
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Hello
WorldBean.java
Package Change
package
com.in28minutes.rest.webservices.restfulwebservices.hellowo
rld;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Hello
WorldController.java
Package Change
package
com.in28minutes.rest.webservices.restfulwebservices.hellowo
rld;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
ser.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import java.util.Date;
public class User
{
private Integer id;
private String
name;
private Date
birthDate;
public User(Integer id, String name, Date birthDate) {
super();
this.id = id;
this.name = name;
this.birthDate = birthDate;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id =
id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name =
name;
}
public Date getBirthDate() {
return birthDate;
}
public void setBirthDate(Date birthDate) {
this.birthDate = birthDate;
}
@Override
public String toString() {
return String.format("User [id=%s, name=%s,
birthDate=%s]", id, name, birthDate);
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serDaoService.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
import org.springframework.stereotype.Component;
@Component public class UserDaoService
{
private static List<User> users = new
ArrayList<>();
private static int usersCount = 3;
static {
users.add(new User(1, "Adam", new Date()));
users.add(new User(2, "Eve", new Date()));
users.add(new User(3, "Jack", new Date()));
}
public List<User> findAll()
{
return users;
}
public User save(User user)
{
if (user.getId() == null) {
user.setId(++usersCount);
}
users.add(user);
return user;
}
public User findOne(int id) {
for (User user : users) {
if (user.getId() == id) {
return user;
}
}
return null;
}
}
Step 08 - Implementing GET Methods for User Resource
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import java.util.List;
import
org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import
org.springframework.web.bind.annotation.PathVariable;
import
org.springframework.web.bind.annotation.RestController;
@RestController public class UserResource
{
@Autowired
private UserDaoService
service;
@GetMapping("/users")
public List<User> retrieveAllUsers() {
return service.findAll();
}
@GetMapping("/users/{id}")
public User retrieveUser(@PathVariable int id) {
return service.findOne(id);
}
}
/src/main/resources/application.properties Modified
New Lines
#This is not really needed as this is the default after
2.0.0.RELEASE spring.jackson.serialization.write-dates-as-
timestamps=false
Step 09 - Implementing POST Method to create User Resource
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
// input - details of user
// output - CREATED & Return the created URI
@PostMapping("/users")
public void createUser(@RequestBody User user){
User savedUser = service.save(user);
}
Step 10 - Enhancing POST Method to return correct HTTP
Status Code and Location
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
// input - details of user
// output - CREATED & Return the created
URI
@PostMapping("/users")
public ResponseEntity<Object> createUser(@RequestBody
User user) {
User savedUser = service.save(user);
// CREATED
// /user/{id} savedUser.getId()
URI location = ServletUriComponentsBuilder
.fromCurrentRequest()
.path("/{id}")
.buildAndExpand(savedUser.getId()).toUri();
return ResponseEntity.created(location).build();
}
Step 11 - Implementing Exception Handling - 404 Resource Not
Found
Step 12 - Implementing Generic Exception Handling for all
Resources
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/excepti
on/CustomizedResponseEntityExceptionHandler.java New
package
com.in28minutes.rest.webservices.restfulwebservices.excepti
on;
import java.util.Date;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import
org.springframework.web.bind.annotation.ControllerAdvice;
import
org.springframework.web.bind.annotation.ExceptionHandler;
import
org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.request.WebRequest;
import
org.springframework.web.servlet.mvc.method.annotation.Respo
nseEntityExceptionHandler;
import
com.in28minutes.rest.webservices.restfulwebservices.user.Us
erNotFoundException;
@ControllerAdvice @RestController
public class CustomizedResponseEntityExceptionHandler
extends ResponseEntityExceptionHandler {
@ExceptionHandler(Exception.class)
public final ResponseEntity<Object>
handleAllExceptions(Exception ex, WebRequest request) {
ErrorDetails errorDetails = new ErrorDetails(new
Date(), ex.getMessage(),
request.getDescription(false));
return new ResponseEntity(errorDetails,
HttpStatus.INTERNAL_SERVER_ERROR);
}
@ExceptionHandler(UserNotFoundException.class)
public final ResponseEntity<Object>
handleUserNotFoundException(UserNotFoundException ex,
WebRequest request) {
ErrorDetails errorDetails = new ErrorDetails(new
Date(), ex.getMessage(),
request.getDescription(false));
return new ResponseEntity(errorDetails,
HttpStatus.NOT_FOUND);
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/excepti
on/ErrorDetails.java New
package
com.in28minutes.rest.webservices.restfulwebservices.excepti
on;
import java.util.Date;
public class ErrorDetails {
private Date timestamp;
private String message;
private String details;
public ErrorDetails(Date timestamp, String message,
String details) {
super();
this.timestamp = timestamp;
this.message = message;
this.details = details;
}
public Date getTimestamp() {
return timestamp;
}
public String getMessage() {
return
message;
}
public String getDetails()
{
return details;
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serNotFoundException.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import org.springframework.http.HttpStatus; import
org.springframework.web.bind.annotation.ResponseStatus;
@ResponseStatus(HttpStatus.NOT_FOUND)
public class UserNotFoundException extends RuntimeException
{
public UserNotFoundException(String message) {
super(message);
}
}
Step 13 - Exercise : User Post Resource and Exception Handling
Step 14 - Implementing DELETE Method to delete a User
Resource
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serDaoService.java Modified
public User deleteById(int id) {
Iterator<User> iterator = users.iterator();
while (iterator.hasNext()) {
User user =
iterator.next();
if (user.getId() == id)
{
iterator.remove();
return user;
}
}
return null;
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
@GetMapping("/users/{id}")
public User retrieveUser(@PathVariable int id) {
User user = service.findOne(id);
if(user==null)
throw new UserNotFoundException("id-"+ id);
return user;
}
@DeleteMapping("/users/{id}")
public void deleteUser(@PathVariable int id) {
User user =
service.deleteById(id);
if(user==null)
throw new UserNotFoundException("id-"+ id);
}
//
// input - details of user
// output - CREATED & Return the created
URI
@PostMapping("/users")
public ResponseEntity<Object> createUser(@RequestBody
User user)
{
User savedUser = service.save(user);
// CREATED
// /user/{id}
savedUser.getId()
URI location = ServletUriComponentsBuilder
.fromCurrentRequest()
.path("/{id}")
.buildAndExpand(savedUser.getId()).toUri();
return ResponseEntity.created(location).build();
}
Step 15 - Implementing Validations for RESTful Services
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/excepti
on/CustomizedResponseEntityExceptionHandler.java Modified
@Override
protected ResponseEntity<Object>
handleMethodArgumentNotValid(MethodArgumentNotValidExceptio
n ex,
HttpHeaders headers, HttpStatus status, WebRequest
request) {
ErrorDetails errorDetails = new ErrorDetails(new Date(),
"Validation Failed",
ex.getBindingResult().toString());
return new ResponseEntity(errorDetails,
HttpStatus.BAD_REQUEST);
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
ser.java Modified
@Size(min=2, message="Name should have atleast 2
characters")
private String
name;
@Past
private Date birthDate;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
public ResponseEntity<Object> createUser(@Valid
@RequestBody User user) {
Step 16 - Implementing HATEOAS for RESTful Services
/pom.xml Modified
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-hateoas</artifactId>
</dependency>
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
@GetMapping("/users/{id}")
public Resource<User> retrieveUser(@PathVariable int id)
{
User user = service.findOne(id);
if(user==null)
throw new UserNotFoundException("id-"+ id);
//"all-users", SERVER_PATH +
"/users"
//retrieveAllUsers
Resource<User> resource = new Resource<User>(user);
ControllerLinkBuilder linkTo =
linkTo(methodOn(this.getClass()).retrieveAllUsers());
resource.add(linkTo.withRel("all-users"));
//HATEOAS
return resource;
}
//HATEOAS
@PostMapping("/users")
public ResponseEntity<Object> createUser(@Valid
@RequestBody User user) {
User savedUser = service.save(user);
// CREATED
// /user/{id} savedUser.getId()
URI location = ServletUriComponentsBuilder
.fromCurrentRequest()
.path("/{id}")
.buildAndExpand(savedUser.getId()).toUri();
return ResponseEntity.created(location).build();
}
Step 17 - Overview of Advanced RESTful Service Features
Step 18 - Internationalization for RESTful Services
Step 19 - Content Negotiation - Implementing Support for XML
Step 20 - Configuring Auto Generation of Swagger Documentation
Step 21 - Introduction to Swagger Documentation Format
Step 22 - Enhancing Swagger Documentation with Custom Annotations
Step 23 - Monitoring APIs with Spring Boot Actuator
Step 24 - Implementing Static Filtering for RESTful Service
Step 25 - Implementing Dynamic Filtering for RESTful Service
Step 26 - Versioning RESTful Services - Basic Approach with URIs
Step 27 - Versioning RESTful Services - Header and Content Negotiation Approach
Step 28 - Implementing Basic Authentication with Spring Security
Step 18 - Internationalization for RESTful Services
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Restfu
lWebServicesApplication.java Modified
New Lines
import java.util.Locale;
import org.springframework.context.annotation.Bean;
import
org.springframework.context.support.ResourceBundleMessageSo
urce; import
org.springframework.web.servlet.LocaleResolver; import
org.springframework.web.servlet.i18n.SessionLocaleResolver
;
@Bean
public LocaleResolver localeResolver() {
SessionLocaleResolver localeResolver = new
SessionLocaleResolver();
localeResolver.setDefaultLocale(Locale.US);
return localeResolver;
}
@Bean
public ResourceBundleMessageSource messageSource() {
ResourceBundleMessageSource messageSource = new
ResourceBundleMessageSource();
messageSource.setBasename("messages");
return
messageSource;
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/hellow
orld/HelloWorldController.java Modified
New Lines
import java.util.Locale;
import
org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.MessageSource; import
org.springframework.web.bind.annotation.RequestHeader;
@Autowired
private MessageSource messageSource;
@GetMapping(path = "/hello-world-internationalized")
public String helloWorldInternationalized(
@RequestHeader(name="Accept-Language", required=false)
Locale locale) {
return messageSource.getMessage("good.morning.message",
null, locale); }
/src/main/resources/messages.properties New
good.morning.message=Good Morning
/src/main/resources/messages_fr.properties New
good.morning.message=Bonjour
/src/main/resources/messages_nl.properties New
good.morning.message=Goede Morgen
Step 18 Part 2 - Simplifying Internationalization for RESTful
Services
Use AcceptHeaderLocaleResolver
@SpringBootApplication
public class RestfulWebServicesApplication {
....
@Bean
public LocaleResolver localeResolver() {
AcceptHeaderLocaleResolver localeResolver = new
AcceptHeaderLocaleResolver();
localeResolver.setDefaultLocale(Locale.US);
return localeResolver;
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/hellow
orld/HelloWorldController.java
@GetMapping(path = "/hello-world-internationalized")
public String helloWorldInternationalized() {
return messageSource.getMessage("good.morning.message",
null,
LocaleContextHolder.getLocale());
}
Use MessageSource configuration from application.properties
spring.messages.basename=messages
Step 19 - Content Negotiation - Implementing Support for XML
/pom.xml Modified
New Lines
<dependency>
<groupId>com.fasterxml.jackson.dataformat</groupId>
<artifactId>jackson-dataformat-xml</artifactId>
</dependency>
Step 20 - Configuring Auto Generation of Swagger
Documentation
Step 21 - Introduction to Swagger Documentation Format
Step 22 - Enhancing Swagger Documentation with Custom
Annotations
/pom.xml Modified
New Lines
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.4.0</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.4.0</version>
</dependency>
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/Swagg
erConfig.java New
package
com.in28minutes.rest.webservices.restfulwebservices;
import java.util.Arrays; import java.util.HashSet;
import java.util.Set;
import org.springframework.context.annotation.Bean;
import
org.springframework.context.annotation.Configuration;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import
springfox.documentation.swagger2.annotations.EnableSwagger2
;
@Configuration
@EnableSwagger2 public class SwaggerConfig {
public static final Contact DEFAULT_CONTACT = new
Contact(
"Ranga Karanam", "http://www.in28minutes.com",
"in28minutes@gmail.com");
public static final ApiInfo DEFAULT_API_INFO = new
ApiInfo(
"Awesome API Title", "Awesome API Description",
"1.0",
"urn:tos", DEFAULT_CONTACT,
"Apache 2.0",
"http://www.apache.org/licenses/LICENSE-2.0");
private static final Set<String>
DEFAULT_PRODUCES_AND_CONSUMES =
new HashSet<String>(Arrays.asList("application/json",
"application/xml"));
@Bean
public Docket api()
{
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(DEFAULT_API_INFO)
.produces(DEFAULT_PRODUCES_AND_CONSUMES)
.consumes(DEFAULT_PRODUCES_AND_CONSUMES);
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/UserA
piDocumentationConfig.java New
package
com.in28minutes.rest.webservices.restfulwebservices;
import io.swagger.annotations.Contact; import
io.swagger.annotations.ExternalDocs;
import io.swagger.annotations.Info;
import io.swagger.annotations.License;
import io.swagger.annotations.SwaggerDefinition;
@SwaggerDefinition(
info = @Info(
description = "Awesome Resources",
version = "V12.0.12",
title = "Awesome Resource API",
contact = @Contact(
name = "Ranga Karanam",
email =
"ranga.karanam@in28minutes.com",
url = "http://www.in28minutes.com"
),
license =
@License(
name = "Apache 2.0",
url =
"http://www.apache.org/licenses/LICENSE-2.0"
)
),
consumes = {"application/json", "application/xml"},
produces = {"application/json", "application/xml"},
schemes = {SwaggerDefinition.Scheme.HTTP,
SwaggerDefinition.Scheme.HTTPS},
externalDocs = @ExternalDocs(value = "Read This For
Sure", url = "http://in28minutes.com")
) public interface UserApiDocumentationConfig {
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
ser.java Modified
@ApiModel(description="All details about the user. ")
public class User {
private Integer id;
@Size(min=2, message="Name should have atleast 2
characters")
@ApiModelProperty(notes="Name should have atleast 2
characters")
private String
name;
@Past
@ApiModelProperty(notes="Birth date should be in the
past")
private Date birthDate;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serResource.java Modified
@GetMapping("/users/{id}")
public Resource<User> retrieveUser(@PathVariable int id)
{
User user = service.findOne(id);
if(user==null)
throw new UserNotFoundException("id-"+ id);
//"all-users", SERVER_PATH +
"/users"
//retrieveAllUsers
Resource<User> resource = new Resource<User>(user);
ControllerLinkBuilder linkTo
=
linkTo(methodOn(this.getClass()).retrieveAllUsers());
resource.add(linkTo.withRel("all-users"));
//HATEOAS
return resource;
}
Step 23 - Monitoring APIs with Spring Boot Actuator
/pom.xml Modified
New Lines
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-rest-hal-
browser</artifactId>
</dependency>
application.properties Modified
management.endpoints.web.exposure.include=*
Step 24 - Implementing Static Filtering for RESTful Service
Step 25 - Implementing Dynamic Filtering for RESTful Service
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/UserA
piDocumentationConfig.java Deleted
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/filterin
g/FilteringController.java New
package
com.in28minutes.rest.webservices.restfulwebservices.filteri
ng;
import java.util.Arrays;
import java.util.List;
import
org.springframework.http.converter.json.MappingJacksonValue
;
import org.springframework.web.bind.annotation.GetMapping;
import
org.springframework.web.bind.annotation.RestController;
import com.fasterxml.jackson.databind.ser.FilterProvider;
import
com.fasterxml.jackson.databind.ser.impl.SimpleBeanProperty
Filter;
import
com.fasterxml.jackson.databind.ser.impl.SimpleFilterProvide
r;
@RestController public class FilteringController {
// field1,field2
@GetMapping("/filtering")
public MappingJacksonValue retrieveSomeBean() {
SomeBean someBean = new SomeBean("value1", "value2",
"value3");
SimpleBeanPropertyFilter filter =
SimpleBeanPropertyFilter.filterOutAllExcept("field1",
"field2");
FilterProvider filters = new
SimpleFilterProvider().addFilter("SomeBeanFilter",
filter);
MappingJacksonValue mapping = new
MappingJacksonValue(someBean);
mapping.setFilters(filters);
return mapping;
}
// field2, field3
@GetMapping("/filtering-list")
public MappingJacksonValue retrieveListOfSomeBeans()
{
List<SomeBean> list = Arrays.asList(new
SomeBean("value1", "value2", "value3"),
new SomeBean("value12", "value22",
"value32"));
SimpleBeanPropertyFilter filter =
SimpleBeanPropertyFilter.filterOutAllExcept("field2",
"field3");
FilterProvider filters = new
SimpleFilterProvider().addFilter("SomeBeanFilter",
filter);
MappingJacksonValue mapping = new
MappingJacksonValue(list);
mapping.setFilters(filters);
return mapping;
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/filterin
g/SomeBean.java New
package
com.in28minutes.rest.webservices.restfulwebservices.filteri
ng;
import com.fasterxml.jackson.annotation.JsonFilter;
@JsonFilter("SomeBeanFilter")
public class SomeBean {
private String field1;
private String
field2;
private String field3;
public SomeBean(String field1, String field2, String
field3) {
super();
this.field1 = field1;
this.field2 = field2;
this.field3 =
field3;
}
public String getField1() {
return field1;
}
public void setField1(String field1) {
this.field1 = field1;
}
public String getField2()
{
return field2;
}
public void setField2(String field2) {
this.field2 = field2;
}
public String getField3() {
return
field3;
}
public void setField3(String field3) {
this.field3 = field3;
}
}
Step 26 - Versioning RESTful Services - Basic Approach with
URIs
Step 27 - Versioning RESTful Services - Header and Content
Negotiation Approach
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versio
ning/Name.java New
package
com.in28minutes.rest.webservices.restfulwebservices.version
ing;
public class Name {
private String firstName;
private String lastName;
public Name()
{
}
public Name(String firstName, String lastName) {
super();
this.firstName = firstName;
this.lastName = lastName;
}
public String getFirstName() {
return firstName;
}
public void setFirstName(String firstName) {
this.firstName = firstName;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versio
ning/PersonV1.java New
package
com.in28minutes.rest.webservices.restfulwebservices.version
ing;
public class PersonV1
{
private String name;
public PersonV1() {
super();
}
public PersonV1(String name)
{
super();
this.name = name;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versio
ning/PersonV2.java New
package
com.in28minutes.rest.webservices.restfulwebservices.versio
ning;
public class PersonV2
{
private Name name;
public PersonV2() {
super();
}
public PersonV2(Name name)
{
super();
this.name = name;
}
public Name getName()
{
return name;
}
public void setName(Name name) {
this.name = name;
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/versio
ning/PersonVersioningController.java New
package
com.in28minutes.rest.webservices.restfulwebservices.version
ing;
import org.springframework.web.bind.annotation.GetMapping;
import
org.springframework.web.bind.annotation.RestController;
@RestController
public class PersonVersioningController {
@GetMapping("v1/person")
public PersonV1 personV1() {
return new PersonV1("Bob Charlie");
}
@GetMapping("v2/person")
public PersonV2 personV2() {
return new PersonV2(new Name("Bob", "Charlie"));
}
@GetMapping(value = "/person/param", params =
"version=1")
public PersonV1 paramV1() {
return new PersonV1("Bob Charlie");
}
@GetMapping(value = "/person/param", params =
"version=2")
public PersonV2 paramV2() {
return new PersonV2(new Name("Bob", "Charlie"));
}
@GetMapping(value = "/person/header", headers = "X-API-
VERSION=1")
public PersonV1 headerV1() {
return new PersonV1("Bob Charlie");
}
@GetMapping(value = "/person/header", headers =
"X-API-VERSION=2")
public PersonV2 headerV2()
{
return new PersonV2(new Name("Bob", "Charlie"));
}
@GetMapping(value = "/person/produces", produces =
"application/vnd.company.app-v1+json")
public PersonV1 producesV1() {
return new PersonV1("Bob Charlie");
}
@GetMapping(value = "/person/produces", produces =
"application/vnd.company.app-v2+json")
public PersonV2 producesV2() {
return new PersonV2(new Name("Bob", "Charlie"));
}
}
Step 28 - Implementing Basic Authentication with Spring
Security
/pom.xml Modified
New Lines
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
/src/main/resources/application.properties Modified
New Lines
spring.security.filter.dispatcher-types=request
spring.security.user.name=username
spring.security.user.password=password
Step 29 - Overview of Connecting RESTful Service to JPA
Step 30 - Creating User Entity and some test data
Step 31 - Updating GET methods on User Resource to use JPA
Step 32 - Updating POST and DELETE methods on User Resource to use JPA
Step 33 - Creating Post Entity and Many to One Relationship with User Entity
Step 34 - Implementing a GET service to retrieve all Posts of a User
Step 35 - Implementing a POST service to create a Post for a User
Step 30 - Creating User Entity and some test data
Step 31 - Updating GET methods on User Resource to use JPA
Step 32 - Updating POST and DELETE methods on User
Resource to use JPA
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
ser.java Modified
New Lines
@ApiModel(description="All details about the user. ")
@Entity
public class User {
@Id
@GeneratedValue
private Integer id;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serJPAResource.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import static
org.springframework.hateoas.mvc.ControllerLinkBuilder.link
To;
import static
org.springframework.hateoas.mvc.ControllerLinkBuilder.metho
dOn;
import java.net.URI;
import java.util.List;
import java.util.Optional;
import javax.validation.Valid;
import
org.springframework.beans.factory.annotation.Autowired;
import org.springframework.hateoas.Resource; import
org.springframework.hateoas.mvc.ControllerLinkBuilder;
import org.springframework.http.ResponseEntity; import
org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import
org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import
org.springframework.web.bind.annotation.RestController;
import
org.springframework.web.servlet.support.ServletUriComponent
sBuilder;
@RestController
public class UserJPAResource {
@Autowired
private UserDaoService
service;
@Autowired
private UserRepository userRepository;
@GetMapping("/jpa/users")
public List<User> retrieveAllUsers() {
return userRepository.findAll();
}
@GetMapping("/jpa/users/{id}")
public Resource<User> retrieveUser(@PathVariable int id)
{
Optional<User> user = userRepository.findById(id);
if(!user.isPresent())
throw new UserNotFoundException("id-"+ id);
//"all-users", SERVER_PATH + "/users"
//retrieveAllUsers
Resource<User> resource = new
Resource<User>(user.get());
ControllerLinkBuilder linkTo =
linkTo(methodOn(this.getClass()).retrieveAllUsers());
resource.add(linkTo.withRel("all-users"));
//HATEOAS
return resource;
}
@DeleteMapping("/jpa/users/{id}")
public void deleteUser(@PathVariable int id)
{
User user = service.deleteById(id);
if(user==null)
throw new UserNotFoundException("id-"+ id);
}
//
// input - details of user
// output - CREATED & Return the created URI
//HATEOAS
@PostMapping("/jpa/users")
public ResponseEntity<Object> createUser(@Valid
@RequestBody User user) {
User savedUser = service.save(user);
URI location =
ServletUriComponentsBuilder
.fromCurrentRequest()
.path("/{id}")
.buildAndExpand(savedUser.getId()).toUri();
return
ResponseEntity.created(location).build();
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serRepository.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import
org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;
@Repository public interface UserRepository extends
JpaRepository<User, Integer>{
}
/src/main/resources/application.properties Modified
New Lines
management.endpoints.web.exposure.include=*
spring.jpa.show-sql=true
spring.h2.console.enabled=true
/src/main/resources/data.sql New
insert into user values(1, sysdate(), 'AB'); insert into
user values(2, sysdate(), 'Jill');
insert into user values(3, sysdate(), 'Jam');
Step 33 - Creating Post Entity and Many to One Relationship
with User Entity
Step 34 - Implementing a GET service to retrieve all Posts of a
User
Step 35 - Implementing a POST service to create a Post for a
User
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/P
ost.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import javax.persistence.Entity;
import javax.persistence.FetchType; import
javax.persistence.GeneratedValue; import
javax.persistence.Id;
import javax.persistence.ManyToOne;
import com.fasterxml.jackson.annotation.JsonIgnore;
@Entity
public class Post {
@Id
@GeneratedValue
private Integer id;
private String description;
@ManyToOne(fetch=FetchType.LAZY)
@JsonIgnore
private User
user;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getDescription() {
return description;
}
public void setDescription(String description)
{
this.description = description;
}
public User getUser() {
return user;
}
public void setUser(User user) {
this.user = user;
}
@Override
public String toString() {
return String.format("Post [id=%s, description=%s]",
id,
description);
}
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/P
ostRepository.java New
package
com.in28minutes.rest.webservices.restfulwebservices.user;
import
org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;
@Repository
public interface PostRepository extends JpaRepository<Post,
Integer>{
}
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
ser.java Modified
@OneToMany(mappedBy="user")
private List<Post> posts;
/src/main/java/com/in28minutes/rest/webservices/restfulwebservices/user/U
serJPAResource.java Modified
@RestController
public class UserJPAResource {
@Autowired
private UserRepository
userRepository;
@Autowired
private PostRepository postRepository;
@GetMapping("/jpa/users")
public List<User> retrieveAllUsers()
{
return userRepository.findAll();
}
@GetMapping("/jpa/users/{id}")
public Resource<User> retrieveUser(@PathVariable int id)
{
Optional<User> user = userRepository.findById(id);
if (!user.isPresent())
throw new UserNotFoundException("id-" +
id);
// "all-users", SERVER_PATH +
"/users"
// retrieveAllUsers
Resource<User> resource = new Resource<User>
(user.get());
ControllerLinkBuilder linkTo =
linkTo(methodOn(this.getClass()).retrieveAllUsers());
resource.add(linkTo.withRel("all-users"));
// HATEOAS
return
resource;
}
@DeleteMapping("/jpa/users/{id}")
public void deleteUser(@PathVariable int id) {
userRepository.deleteById(id);
}
//
// input - details of
user
// output - CREATED & Return the created URI
// HATEOAS
@PostMapping("/jpa/users")
public ResponseEntity<Object> createUser(@Valid
@RequestBody User user) {
User savedUser = userRepository.save(user);
URI location =
ServletUriComponentsBuilder.fromCurrentRequest().path("/{id
}").buildAndExpand(savedUser.getId())
.toUri();
return ResponseEntity.created(location).build();
}
@GetMapping("/jpa/users/{id}/posts")
public List<Post> retrieveAllUsers(@PathVariable int id)
{
Optional<User> userOptional =
userRepository.findById(id);
if(!userOptional.isPresent()) {
throw new UserNotFoundException("id-" + id);
}
return
userOptional.get().getPosts();
}
@PostMapping("/jpa/users/{id}/posts")
public ResponseEntity<Object> createPost(@PathVariable
int id, @RequestBody Post post) {
Optional<User> userOptional =
userRepository.findById(id);
if(!userOptional.isPresent()) {
throw new UserNotFoundException("id-" + id);
}
User user = userOptional.get();
post.setUser(user);
postRepository.save(post);
URI location =
ServletUriComponentsBuilder.fromCurrentRequest().path("/{id
}").buildAndExpand(post.getId())
.toUri();
return
ResponseEntity.created(location).build();
}
}
/src/main/resources/data.sql Modified
New Lines
insert into user values(10001, sysdate(), 'AB');
insert into user values(10002, sysdate(), 'Jill'); insert
into user values(10003, sysdate(), 'Jam');
insert into post values(11001, 'My First Post', 10001);
insert into post values(11002, 'My Second Post', 10001);
Richardson Maturity Model
Level 0
Expose SOAP web services in REST style
http://server/getPosts
http://server/deletePosts
http://server/doThis
Level 1
Expose Resources with proper URI
http://server/accounts
http://server/accounts/10
Improper use of HTTP Methods
Level 2
Level 1 + HTTP Methods
Level 3
Level 2 + HATEOAS
Data + Next Possible Actions
Best Practices in RESTful Design
Consumer First
Make best use of HTTP
Request Methods
GET
POST
PUT
RESTful Best Practices
DELETE
Response Status
200 - SUCCESS
404 - RESOURCE NOT FOUND
400 - BAD REQUEST
201 - CREATED
401 - UNAUTHORIZED
500 - SERVER ERROR
No Secure Info in URI
Use Plurals
Prefer /users to /user
Prefer /users/1 to /user/1
Use Nouns for Resources
For Exceptions
Define a Consistent Approach
/search
PUT /gists/{id}/star
DELETE /gists/{id}/star
Consumer First
Define Organizational Standards
YARAS -https://github.com/darrin/yaras
Naming Resources
Request Response Structures
Common Features Standardization
Error Handling
Versioning
Searching
Filtering
Support for Mock Responses
HATEOAS
Build a Framework
Focus on Decentralized Governance
