Model No. 020244-1 (2050 PSI Pressure Washer) Manual No. 197182GS Revision 0 (04/08/2005)
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline
Llame: Línea Directa del Lavador a Presión - 1-800-743-4115 M-F 8-5 CT
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
Owner’s Manual
2050PSI
CleanShot™ is a trademark of Briggs & Stratton Power Products.
CleanShot™ es una marca registrada de Briggs & Stratton Power Products.
Before using this product, read this manual and follow all
Safety Rules and Operating Instructions.
CAUTION
Antes de utilizar el producto, lea este manual y siga todas
las Reglas de Seguridad e Instrucciones de Uso.
PRECAUCIÓN
CleanShot™ 2050 PSI Pressure Washer
2
TABLE OF CONTENTS
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Know Your Pressure Washer. . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
EQUIPMENT
DESCRIPTION
Read this manual carefully and become familiar
with your pressure washer. Know its
applications, its limitations and any hazards
involved.
This manual contains information for a pressure washer
that operates at 2,050 PSI at a flow rate of 1.9 gallons per
minute.This high quality residential system features
7” wheels, axial cam pump with stainless steel pistons,
automatic cool down system, chemical injection system,
adjustable spray nozzle. Includes safety goggles, heavy duty
25’ hose, and more.
Every effort has been made to ensure that information in
this manual is accurate and current. However, we reserve
the right to change, alter or otherwise improve the product
and this document at any time without prior notice.

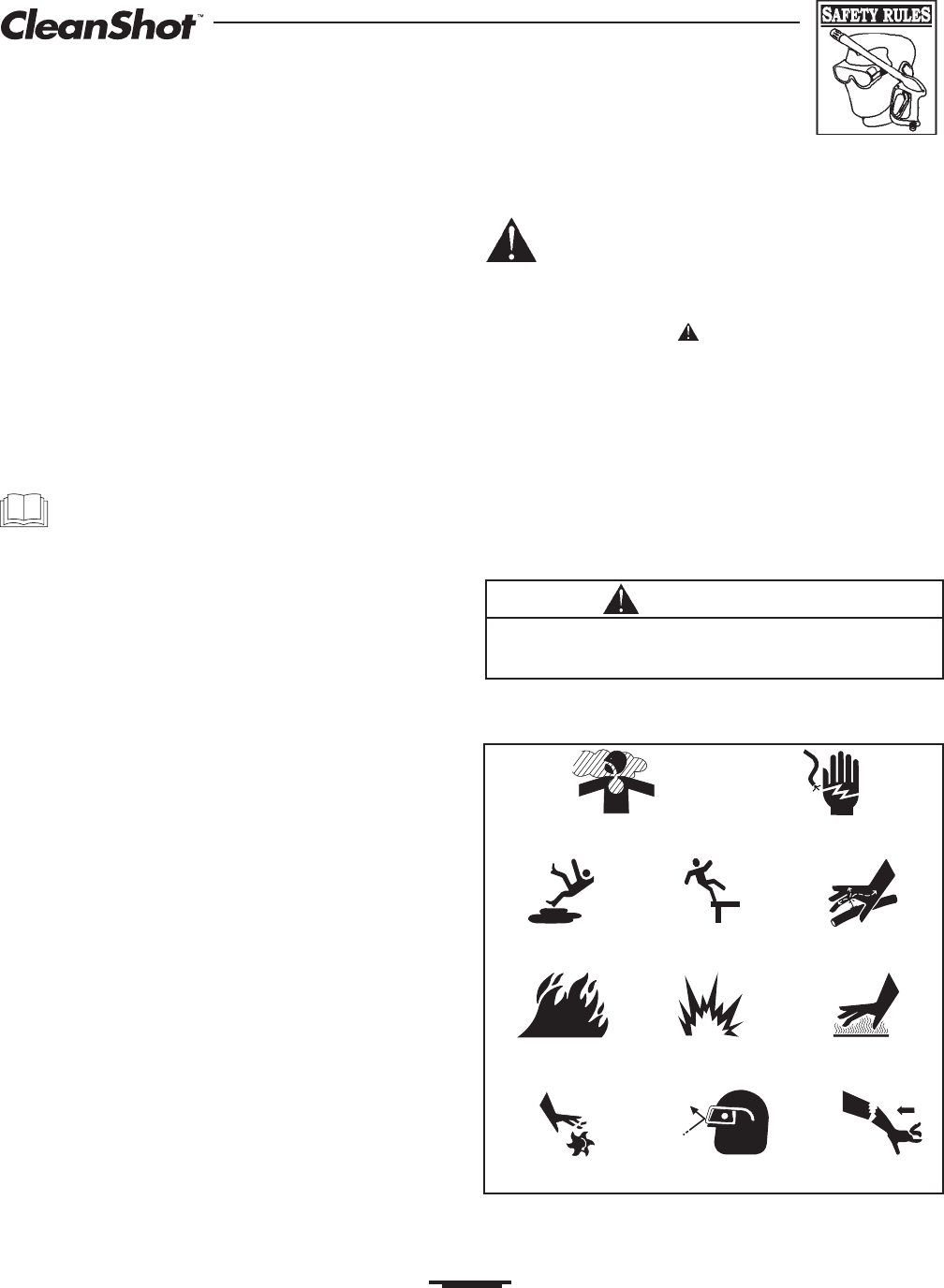

SAFETY RULES
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety message to alert you to hazards. DANGER indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not avoided,
could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage. Follow safety messages to
avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
Fire Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Slippery Surface Fall
Kickback
Flying Objects
Fluid Injection
Copyright © 2005 Briggs & Stratton Power Products
Group, LLC. All rights reserved. No part of this material
may be reproduced or transmitted in any form by any
means without the express written permission of Briggs &
Stratton Power Products Group, LLC.
SAVE THESE INSTRUCTIONS
CleanShot™ 2050 PSI Pressure Washer
3

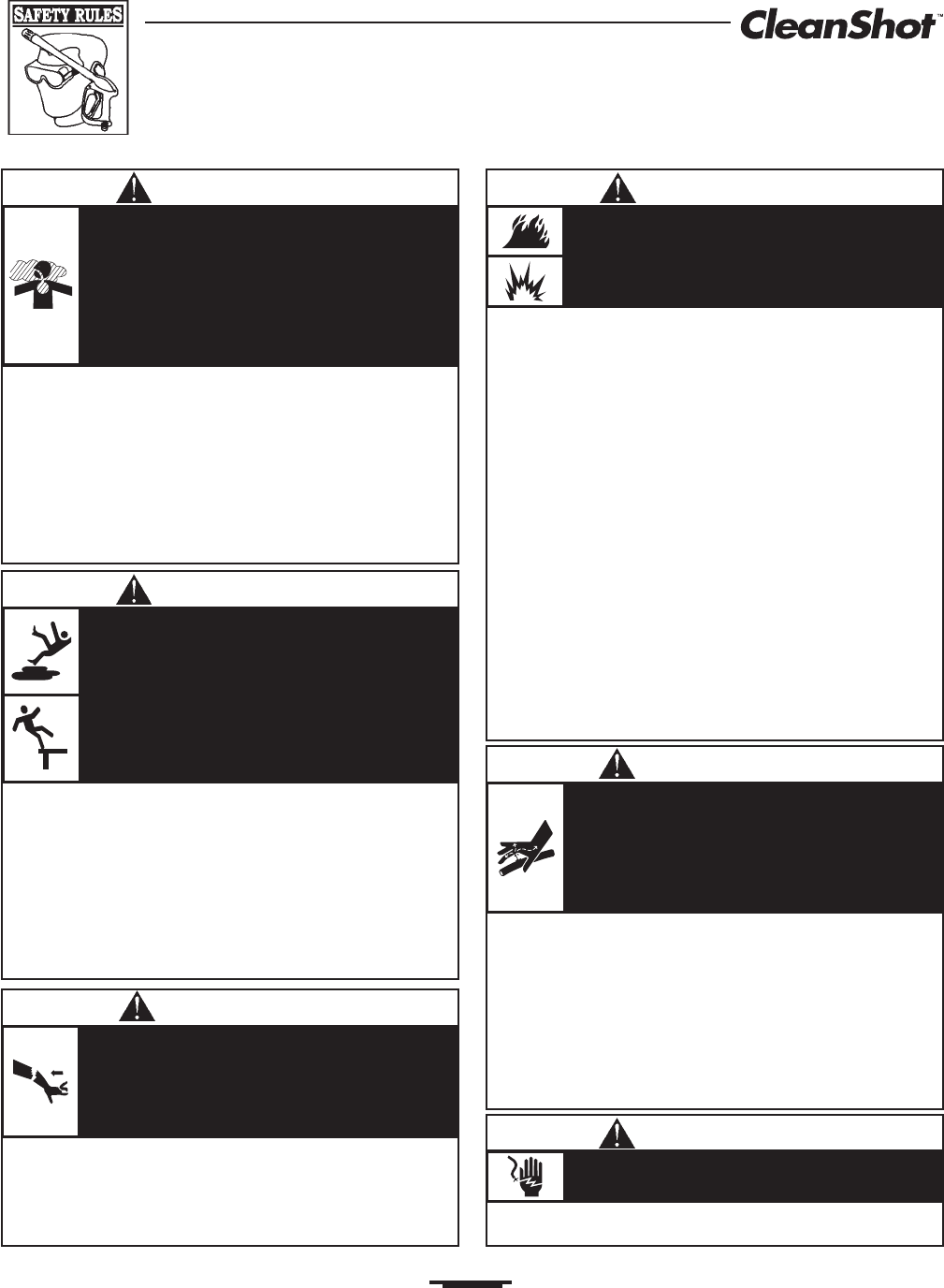

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or
enclosure.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful vapors.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide will cause nausea,
fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning.
WARNING
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury if gun kicks back.
Use of pressure washer can create puddles and
slippery surfaces.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• If engine starts and fails to continue to run or if increased
resistance is felt during starting pull attempts, squeeze trigger
on spray gun.
Rapid retraction of starter cord (kickback) will
pull hand and arm toward engine faster than
you can let go.
Broken bones, fractures, bruises or sprains could
result.
WARNING
• Keep water spray away from electric wiring or fatal electric
shock may result.
Spray contact with electrical wiring can result in
electrocution.
WARNING
WHEN ADDING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes
before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank.Allow space for fuel expansion.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• DO NOT light a cigarette or smoke.
WHEN OPERATING EQUIPMENT
• DO NOT tip engine or equipment at angle which causes fuel
to spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
• Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL
IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WARNING
• NEVER aim spray gun at people, animals or plants.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• Squeeze trigger on spray gun to relieve trapped pressure,
every time you stop engine. Engage trigger lock on spray gun.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun retains high pressure when pressure
washer is shut down, which can cause injury.
WARNING
CleanShot™ 2050 PSI Pressure Washer
4
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
Excessively high or low operating speeds increase risk
of injury and damage to pressure washer.
CAUTION
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
PRESSURE WASHER
• Disconnect spark plug wire from spark plug and place wire
where it cannot contact spark plug.
Unintentional sparking can result in fire or
electric shock.
WARNING
• DO NOT point spray gun at glass when in jet spray mode.
• NEVER aim spray gun at plants.
High pressure spray may damage fragile items including
glass.
CAUTION
• DO NOT wear loose clothing, jewelry or anything that may
be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
WARNING
• Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is
running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
• If you have questions about intended use, ask dealer or
contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or
without protective housing or covers.
• DO NOT by–pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on high pressure hose. Use
handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure
washer.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used
with parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.
Improper treatment of pressure washer can damage it
and shorten its life.
CAUTION
• DO NOT touch hot surfaces.
• Allow equipment to cool before touching.
• The pressure washer must be at least 5 feet from structures
having combustible walls and/or other combustible materials.
• Keep at least 3 feet of clearance on all sides of pressure
washer for adequate cooling, maintenance and servicing.
• In the State of California a spark arrester is required by law
(Section 4442 of the California Public Resources Code). Other
states may have similar laws. Federal laws apply on federal
lands. If you equip the muffler with a spark arrester, it must be
maintained in effective working order.
Running engines produce heat.Temperature of
muffler and nearby areas can reach or exceed
150°F (65°C).
Severe burns can occur on contact.
Combustible debris, such as leaves, grass, brush,
etc. can catch fire.
WARNING
CleanShot™ 2050 PSI Pressure Washer
5

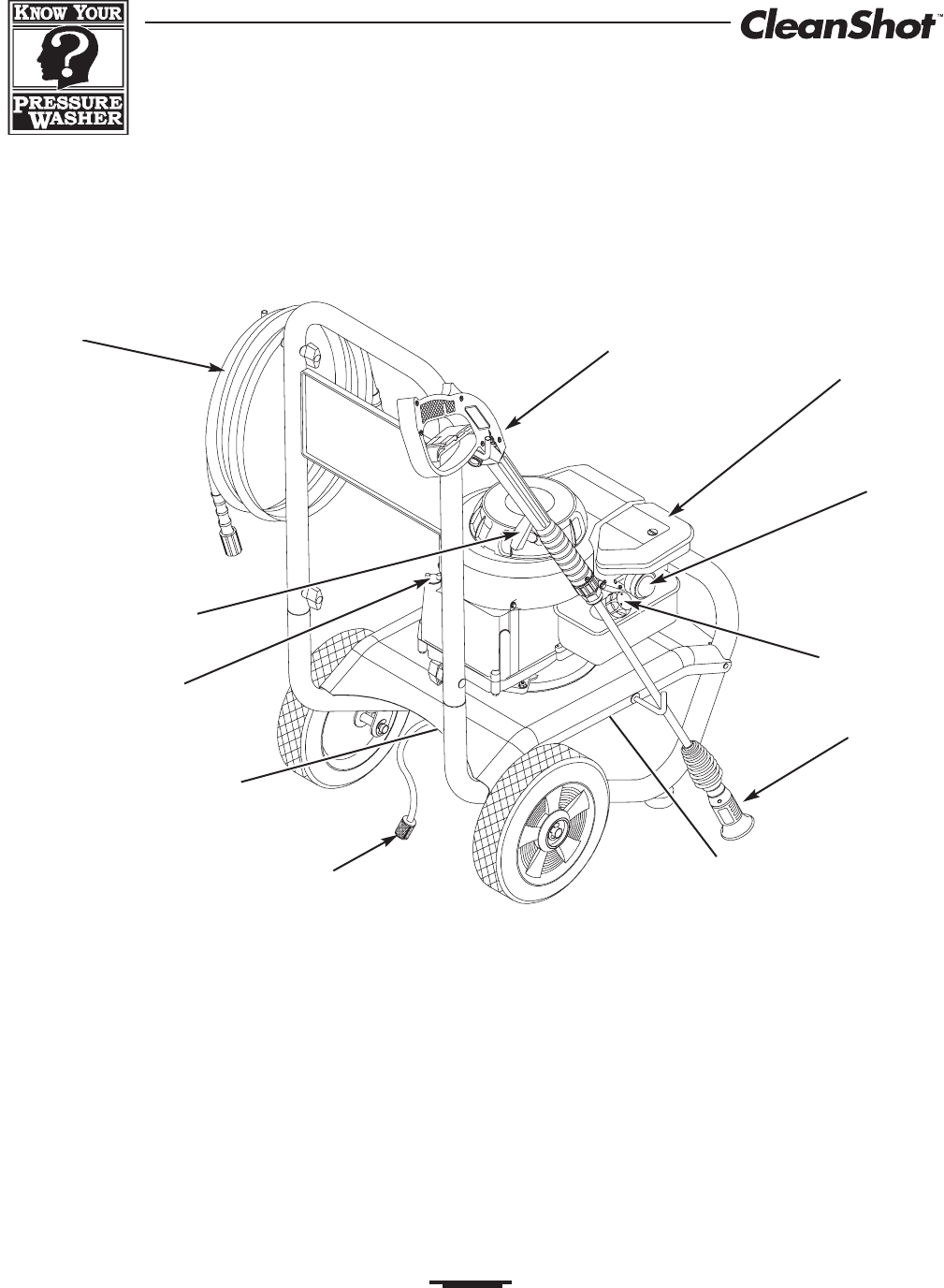

KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Adjustable Nozzle — Always attached to nozzle
extension.Adjustable nozzle allows you to adjust spray
pressure and spray pattern.
Air Filter — Protects engine by filtering dust and debris
out of intake air.
Automatic Cool Down System — Cycles water
through pump when water reaches 125°-155°F.Warm
water will discharge from pump onto ground.This system
prevents internal pump damage.
Chemical Injection Siphon/Filter — Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
High Pressure Hose — Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet — Connection for high pressure
hose.
Data Tag (not shown, near rear of base plate) –
Provides model and serial number of pressure washer.
Please have these readily available if calling for assistance.
Oil Fill/Dipstick — Check and fill with oil here.
Primer Bulb — Prepares a cold engine for starting.
Pump — Develops high pressure.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
Water Inlet — Connection for garden hose.
Air Filter
Primer Bulb
Fuel Tank
Pump equipped with
Automatic Cool Down System
Recoil Starter
High Pressure Outlet
& Water Inlet
Chemical Injection
Siphon/Filter
Spray Gun
High Pressure Hose
Adjustable Nozzle
Oil Fill/Dipstick
CleanShot™ 2050 PSI Pressure Washer
6

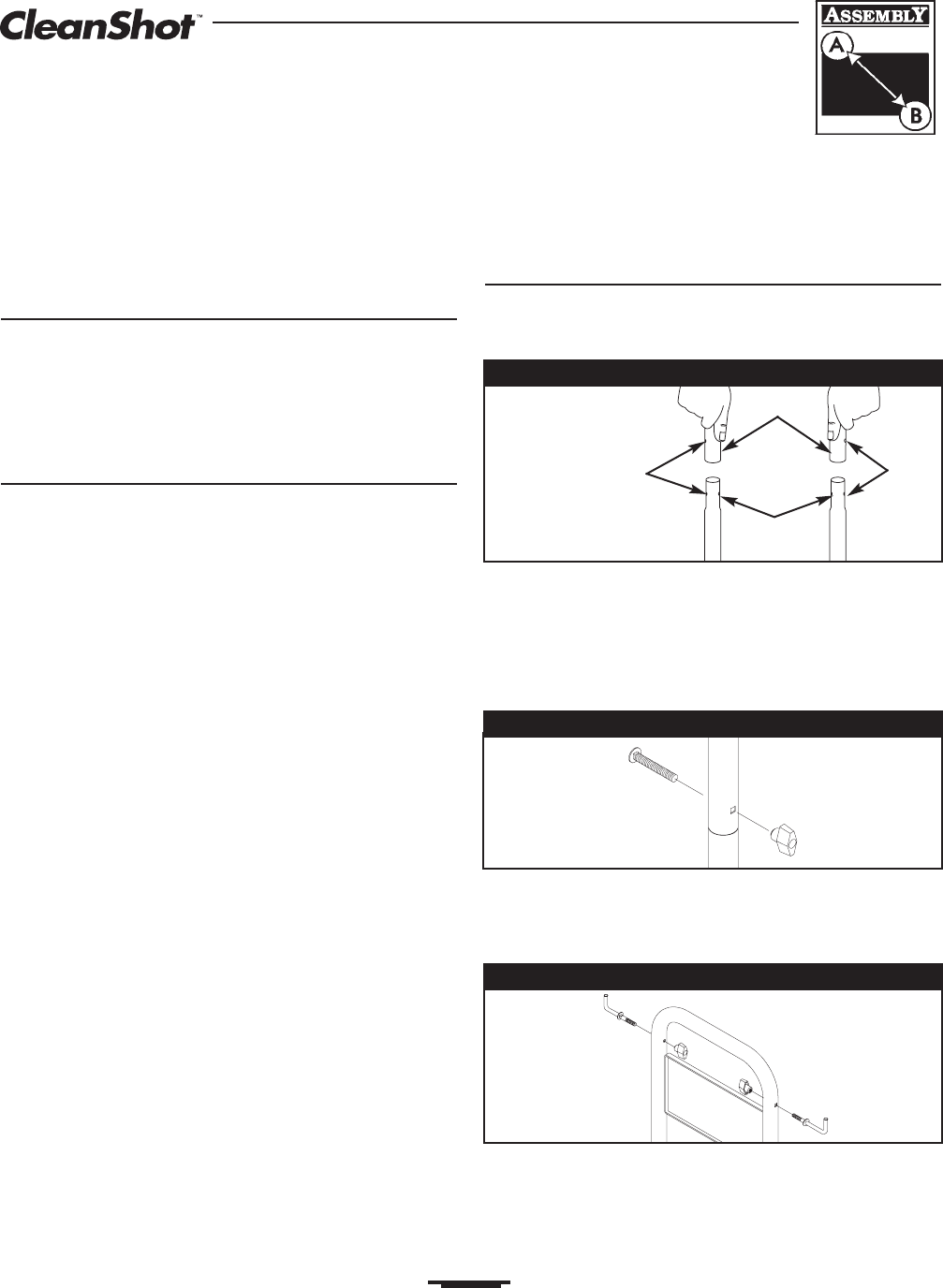

ASSEMBLY
IMPORTANT: Read entire owner’s manual before you
attempt to assemble or operate your new pressure washer.
Remove Pressure Washer From
Carton
1. Remove the parts bag, accessories, and inserts included
with pressure washer.
2. Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat.
3. Remove pressure washer from carton.
Carton Contents
Items in the carton include:
• Main Unit
• Handle
• High Pressure Hose
• Spray Gun
• Adjustable Nozzle Extension
• Safety Goggles
• Oil Bottle
• Parts Bag (which includes the following):
• Owner’s Manual
• Engine Manual
• Owner’s Registration Card
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolts (2)
• “L” Hooks (2)
• Plastic Knobs (4)
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-743-4115. If calling for
assistance, please have the model, revision, and serial
number from the data tag available.
To prepare your pressure washer for operation, you
will need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle to main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
Attach Handle
1. Place handle assembly onto handle supports connected
to main unit. Make sure holes in handle align with
holes on handle supports (Figure 1).
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
2. Insert carriage bolts through holes from outside of
unit and attach a plastic knob from inside of unit
(Figure 2).Tighten by hand.
3. Insert one “L” hook through hole just above billboard
on left side of handle (viewing from rear of unit). Hold
hook in place and attach a plastic knob from inside of
unit (Figure 3).Tighten by hand.
4. Insert other “L” hook through hole just above
billboard on right side of handle (viewing from rear of
unit). Hold hook in place and attach a plastic knob
from inside of unit (Figure 3).Tighten by hand.
Align Holes
Handle
Handle
Supports
Figure 1 — Attach Handle to Base
Figure 2 — Secure Handle
Hose Hook
Spray Gun Hook
Figure 3 — Attach “L” Hooks to Handle
CleanShot™ 2050 PSI Pressure Washer
7

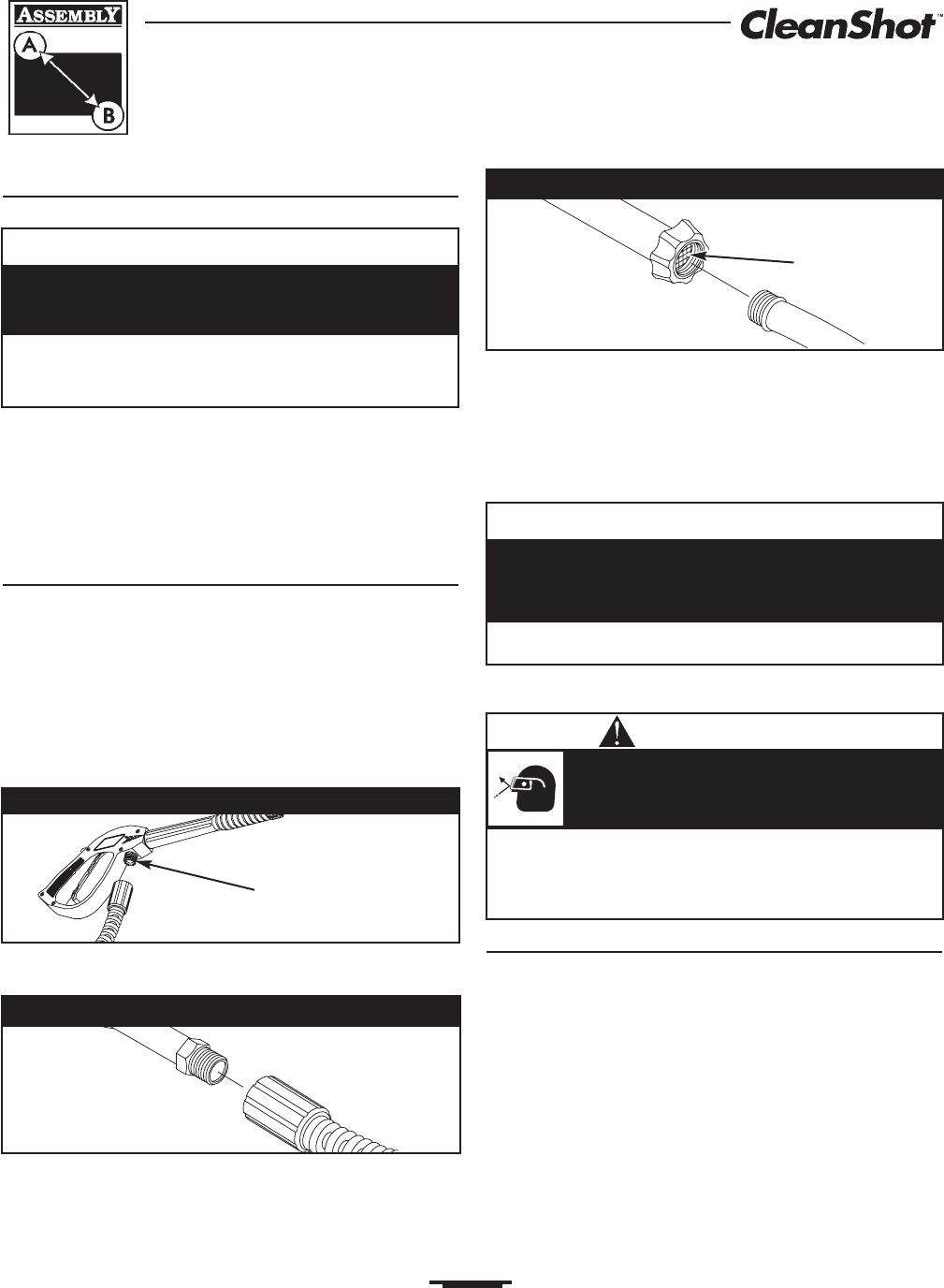

Add Engine Oil and Fuel
• Place pressure washer on a level surface.
• Refer to engine owner’s manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine owner’s manual for recommendations.
Connect Hose and Water Supply to
Pump
IMPORTANT: To avoid pump damage, you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
NOTE: Remove and discard the shipping caps from the
pumps high pressure outlet and water inlet before
attaching hoses.
1. Uncoil high pressure hose and attach one end of hose
to base of spray gun (Figure 4).Tighten by hand.
2. Attach other end of high pressure hose to high
pressure outlet on pump (Figure 5).Tighten by hand.
3. Before connecting garden hose to water inlet, inspect
inlet screen (Figure 6). Clean screen if it contains
debris or have it replaced if damaged. DO NOT RUN
PRESSURE WASHER IF INLET SCREEN IS DAMAGED.
4. Run water through your garden hose for 30 seconds
to clean out any debris.
IMPORTANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than 100°F).
5. Connect the garden hose (not to exceed 50 feet in
length) to the water inlet.Tighten by hand (Figure 6).
6. Turn ON the water and squeeze the trigger on the
gun to purge the pump system of air and impurities.
Checklist Before Starting Engine
Review the unit’s assembly to ensure you have performed
all of the following.
1. Make sure handle is in place and secure.
2. Check that oil has been added to proper level in the
engine crankcase.
3. Add proper gasoline to fuel tank.
4. Check for properly tightened hose connections.
5. Check to make sure there are no kinks, cuts, or
damage to high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read “Safety Rules” and “How To Use Your
Pressure Washer” before using pressure washer.
Connect high pressure
hose here
Figure 4 — Connect High Pressure Hose to Spray Gun
Figure 5 — Connect High Pressure Hose to Pump
CAUTION
• Refer to engine manual for oil and fuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
There MUST be at least ten feet of unrestricted garden
hose between the pressure washer inlet and any flow
shut off device, such as a ‘Y’ shut-off connector or other
convenience-type water shut-off valve.
Inspect inlet
screen, DO NOT
use if damaged;
clean if dirty.
Figure 6 — Connect the Garden Hose to Water Inlet
• Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate eye protection.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING
CleanShot™ 2050 PSI Pressure Washer
8
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure washer,
please call the pressure washer helpline at 1-800-743-4115.
Pressure Washer Location
Pressure Washer Clearance
The pressure washer must be at least 5 ft. (152 cm) from
structures having combustible walls and/or other
combustible materials. Leave at least 3 ft. (92 cm) all around
pressure washer including overhead, for adequate cooling,
maintenance and servicing.
Place pressure washer in a well ventilated area, which will
allow for removal of deadly exhaust gas. DO NOT place
pressure washer where exhaust gas could accumulate and
enter inside or be drawn into a potentially occupied
building. Ensure exhaust gas is kept away from any
windows, doors, ventilation intakes or other openings that
can allow exhaust gas to collect in a confined area
(Figure 7). Prevailing winds and air currents should be taken
into consideration when positioning pressure washer.
How to Start Your Pressure Washer
To start your pressure washer for the first time, follow
these instructions step-by-step.This starting information
also applies if you have let the pressure washer sit idle for
at least a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
2.9 gallons per minute and no less than 20 PSI at
pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See “Preparing Pressure Washer
for Use” for illustrations.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure
washer pump. Turn ON water.
5. Attach adjustable nozzle extension to spray gun
(Figure 8).Tighten by hand.
6. Position nozzle in low pressure mode (see “How to
Use the Adjustable Nozzle”) and squeeze trigger on
spray gun to relieve air pressure caused by turning ON
water.Water will flow out of spray gun in a thin
stream. Continue to hold trigger until there is a steady
stream of water and no air remains in system.This will
make it easier to pull start engine. Release trigger.
7. Engage trigger lock on spray gun trigger (Figure 9).
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
DO NOT run the pump without the water supply
connected and turned on.
Figure 8 — Connect Nozzle Extension to Spray Gun
Trigger Lock
Figure 9 — Spray Gun with Trigger Lock Engaged
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or
enclosure.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide will cause nausea,
fainting or death.
WARNING

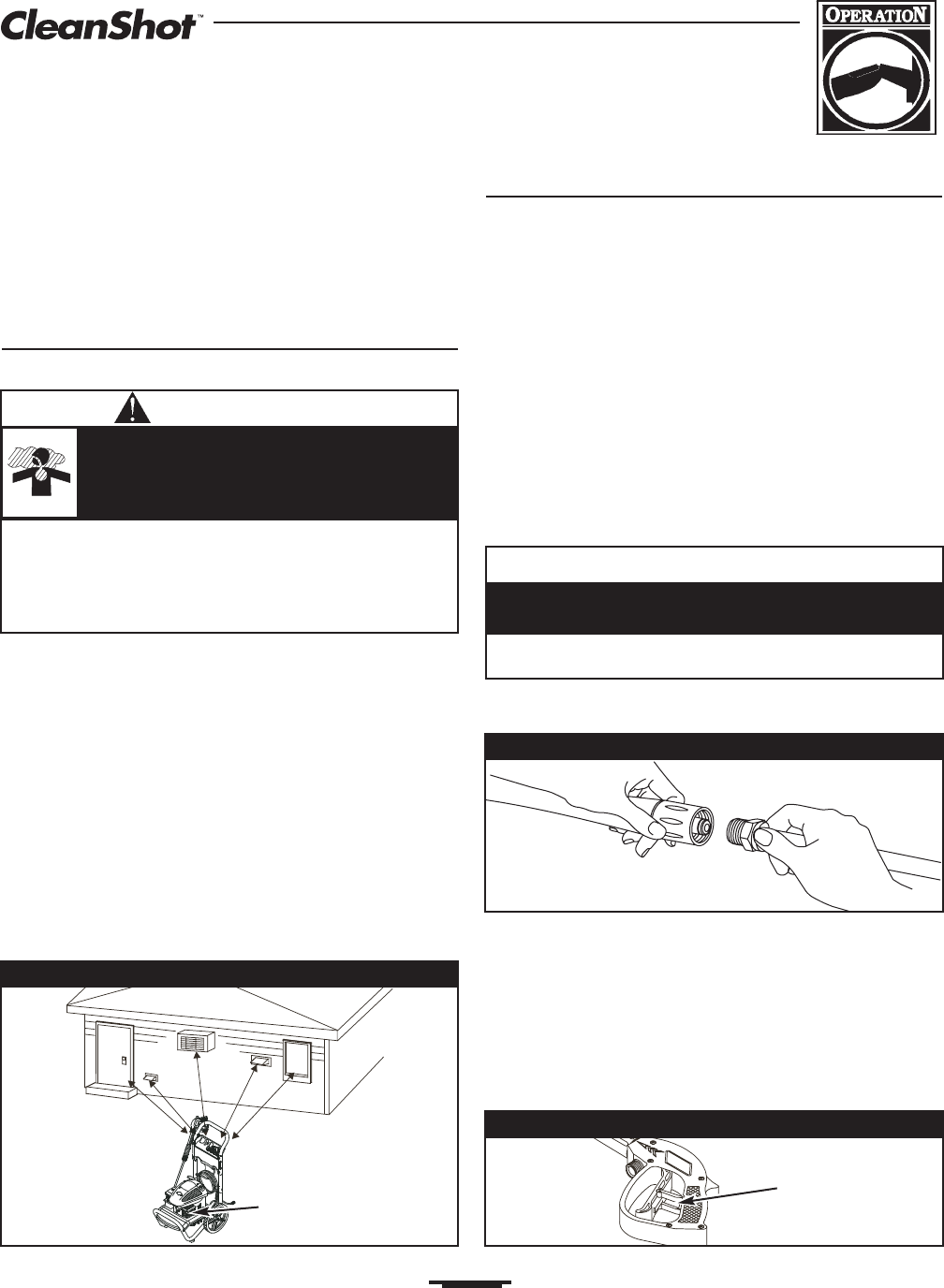

Figure 7 — Pressure Washer Clearance
Exhaust Port
Typical Pressure
Washer Shown
CleanShot™ 2050 PSI Pressure Washer
9
8. Start engine according to instructions given in engine
owner’s manual.Also see operating instructions tag
located on the pressure washer.
NOTE: Always keep the throttle lever in the “Fast”
position when operating the pressure washer.
How to Stop Your Pressure Washer
1. Let engine idle for two minutes.
2. Turn engine off according to instructions given in
engine owner’s manual.
3. Squeeze trigger on spray gun to relieve trapped
pressure in hose to avoid injury.
NOTE: A small amount of water will squirt out when
pressure is released.
4. Engage trigger lock on spray gun when not in use.
How to Use the Adjustable Nozzle
You should now know how to START and STOP your
pressure washer.The information in this section will tell
you how to adjust the spray pattern and to apply detergent
or other cleaning chemicals.
• NEVER adjust spray pattern when spraying.
• NEVER put hands in front of nozzle to adjust spray pattern.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• Squeeze trigger on spray gun to relieve trapped pressure,
every time you stop engine. Engage trigger lock on spray gun.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun retains high pressure when pressure
washer is shut down, which can cause injury.
WARNING
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• If engine starts and fails to continue to run or if increased
resistance is felt during starting pull attempts, squeeze trigger
on spray gun.
Rapid retraction of starter cord (kickback) will
pull hand and arm toward engine faster than
you can let go.
Broken bones, fractures, bruises or sprains could
result.
WARNING
• DO NOT touch hot surfaces.
• Allow equipment to cool before touching.
• The pressure washer must be at least 5 feet from structures
having combustible walls and/or other combustible materials.
• Keep at least 3 feet of clearance on all sides of pressure
washer for adequate cooling, maintenance and servicing.
• In the State of California a spark arrester is required by law
(Section 4442 of the California Public Resources Code). Other
states may have similar laws. Federal laws apply on federal
lands. If you equip the muffler with a spark arrester, it must be
maintained in effective working order.
Running engines produce heat.Temperature of
muffler and nearby areas can reach or exceed
150°F (65°C).
Severe burns can occur on contact.
Combustible debris, such as leaves, grass, brush,
etc. can catch fire.
WARNING
CleanShot™ 2050 PSI Pressure Washer
10

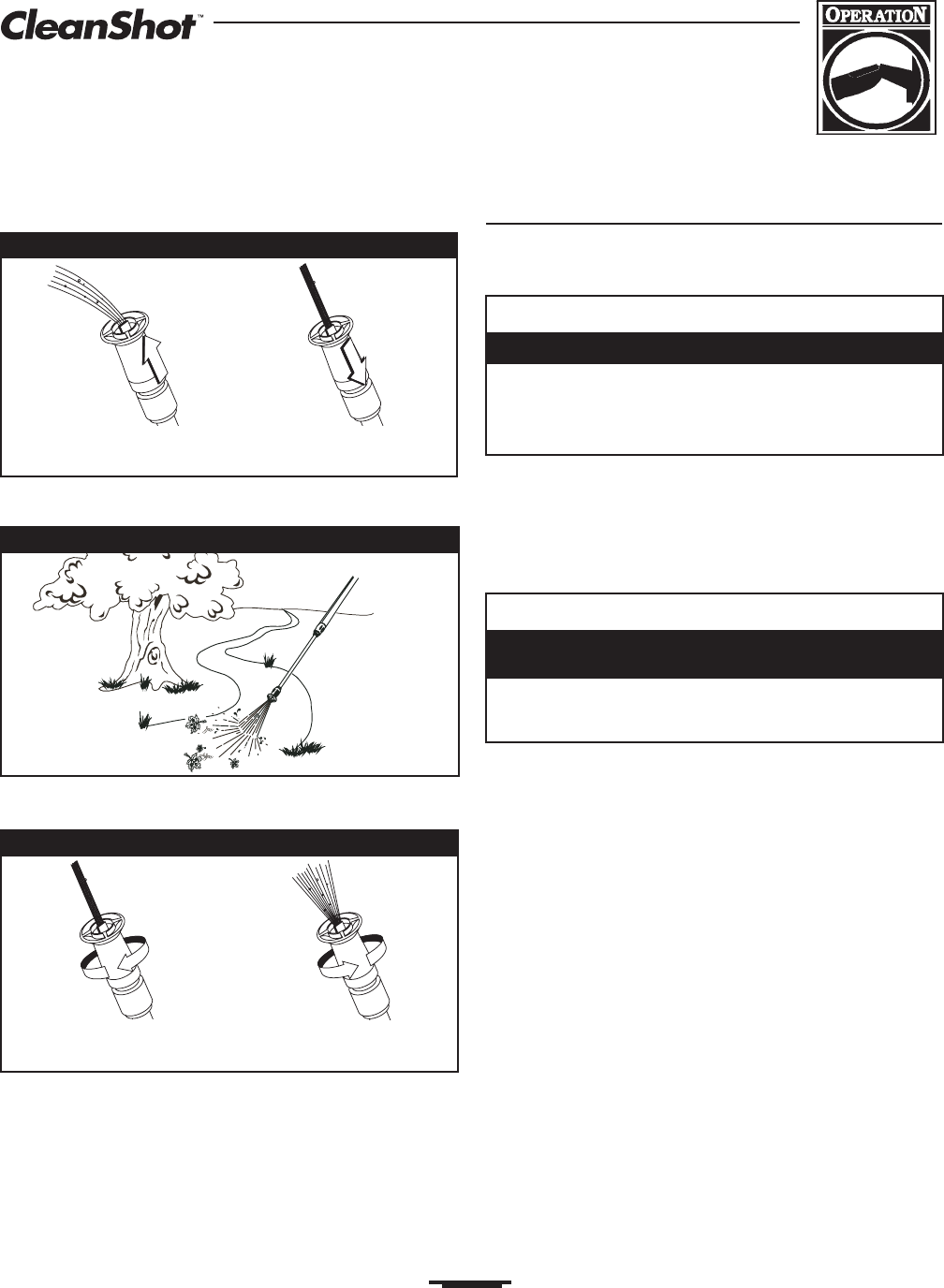

1. Slide nozzle forward when you wish to adjust spray to
low pressure mode (Figure 10). Slide nozzle backward
to achieve high pressure.
2. Point nozzle down towards a firm surface and press
trigger to test spray pattern (Figure 11).
3. Twisting nozzle adjusts spray pattern from a narrow
pattern to a fan pattern (Figure 12).
Usage Tips
• For most effective cleaning, keep spray nozzle from 8 to
24 inches away from cleaning surface.
• If you get spray nozzle too close, especially using high
pressure mode, you may damage surface being cleaned.
• DO NOT get closer than 6 inches when cleaning tires.
Applying Detergent with the
Adjustable Nozzle
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage
the pump.
To apply detergent, follow these steps:
1. Review use of adjustable nozzles.
2. Prepare detergent solution as required by job.
3. Place filter end of chemical injection hose into
detergent container.
4. Slide adjustable nozzle forward to low pressure mode.
Detergent cannot be applied with nozzle in high
pressure position.
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump. Start engine.
6. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes.
7. Allow detergent to "soak in" for 3-5 minutes before
washing and rinsing. Reapply as needed to prevent
surface from drying. DO NOT allow detergent to dry
on (prevents streaking).
IMPORTANT: You must flush the chemical injection
system after each use by placing the filter into a bucket of
clean water, then run the pressure washer in low pressure
for 1-2 minutes.
CAUTION
• Starting the engine without all the hoses connected and
without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
You must attach all hoses before you start the engine.
CAUTION
• When inserting the filter into a detergent solution bottle,
route the tube so as to keep it from inadvertently contacting
the hot muffler.
Keep the chemical injection tube from coming in contact
with the hot muffler.
Figure 11 — Testing the Spray Pattern
Figure 12 — Adjusting the Nozzle for Spray Pattern
Counterclockwise =
Narrow Spray Pattern
Clockwise = Fan Spray
Pattern
Backward = High Pressure
Mode
Forward = Low Pressure
and Detergent Mode
Figure 10 — Adjusting Nozzle for Pressure
CleanShot™ 2050 PSI Pressure Washer
11
Pressure Washer Rinsing
For Rinsing:
1. Slide the nozzle backward to high pressure, press the
trigger and wait for the detergent to clear.
NOTE: You can also stop detergent from flowing by simply
removing chemical injection hose from bottle.
2. Keep the spray gun a safe distance from the area you
plan to spray.
3. Apply a high pressure spray to a small area, then check
the surface for damage.Adjust spray pattern or move
spray nozzle further away from cleaning surface, if
necessary.
4. Start at the top of the area to be rinsed, working
down with same overlapping strokes as you used for
washing and applying detergent.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must flush it
with clean water before stopping the engine.
1. Place chemical injection siphon/filter in a bucket full of
clean water.
2. Slide adjustable nozzle forward to low pressure
position.
3. Flush for 1-2 minutes.
4. Shut off engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the spray gun to
relieve the pressure in the hose.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures
above 125°F.The system engages to cool the pump by
discharging the warm water onto the ground.
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury if gun kicks back.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING
CleanShot™ 2050 PSI Pressure Washer
12
SPECIFICATIONS
Outlet Pressure . . . . . . . . . . . . . . . . . . . . . . . . . 2050 psi
Flow Rate . . . . . . . . . . . . . . 1.9 gallons per minute (gpm)
Detergent Use detergent approved for pressure washers
Water Supply . . . . . . . . . . . . . . . . Not to Exceed 100°F
Temperature
Automatic Cool . . . . . . . . . . . . . Will cycle when water
Down System reaches 125°-155°F
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .54 lbs.
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover items that
have been subjected to operator abuse or negligence.To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual.
NOTE: Should you have questions about replacing
components on your CleanShot™ pressure washer, please
call 1-800-743-4115 for assistance.
• Some adjustments will need to be made periodically to
properly maintain your pressure washer.
• All maintenance in this manual and the engine owner’s
manual should be made at least once each season.
• Once a year you should clean or replace the spark plug,
clean or replace the air filter and check the spray gun and
adjustable nozzle extension assembly for wear.A new spark
plug and clean air filter assure proper fuel-air mixture and
help your engine run better and last longer. Please refer to
your engine owner’s manual for more details.
• If equipped with inflatable tires, keep the air pressure at
the value marked on the tire or within 15 and 40 psi.
Before Each Use
• Check engine oil level.
• Check water inlet screen for damage.
• Check in-line filter for damage.
• Check high pressure hose for leaks.
• Check detergent siphoning tube and filter for damage.
• Check spray gun and adjustable nozzle extension
assembly for leaks.
• Rinse out garden hose to flush out debris.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before using
it. Check for cuts, leaks, abrasions or bulging of cover,
damage or movement of couplings. If any of these
conditions exist, replace the hose immediately.
Check Detergent Siphoning Tube
Examine the filter on the detergent tube and clean if
clogged.The tube should fit tightly on the barbed fitting.
Examine the tube for leaks or tears. Replace the filter or
tube if either is damaged.
Check Gun and Adjustable Nozzle
Extension
Examine the hose connection to the spray gun and make
sure it is secure.Test the trigger by pressing it and making
sure it “springs back” into place when you release it. Put
the trigger lock in the ON position and test the trigger.
You should not be able to press the trigger.
• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure
rating of unit.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING
CleanShot™ 2050 PSI Pressure Washer
13
Check In-Line Filter

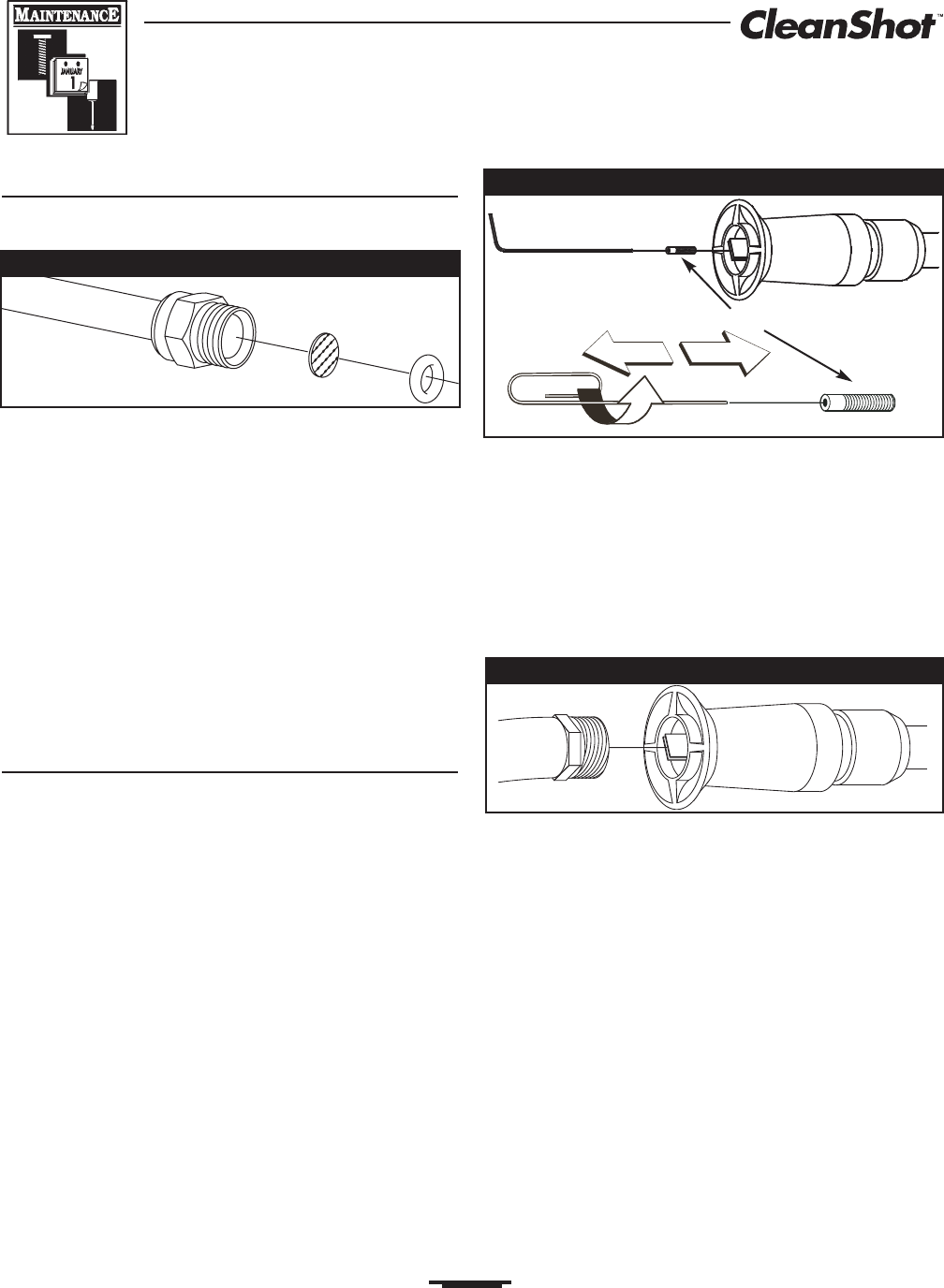

Refer to Figure 13 and service the in-line filter if it
becomes clogged, as follows:
1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from spray
gun and remove o-ring and screen from nozzle
extension. Flush screen, spray gun, and adjustable
nozzle extension with clean water to clear debris.
2. Place in-line filter screen into threaded end of nozzle
extension. Direction does not matter. Push screen in
with eraser end of pencil until it rests flat at bottom of
opening.Take care not to bend the screen.
3. Place o-ring into recess. Push o-ring snugly against in-
line filter screen.
4. Assemble nozzle extension to spray gun, as described
earlier in manual.
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure.The
principal cause of excessive pump pressure is a nozzle
clogged or restricted with foreign materials, such as dirt,
etc.To correct the problem, immediately clean the orifice
following these instructions:
1. Shut off engine and turn off water supply.
2. Remove orifice from end of nozzle extension. Separate
nozzle extension from spray gun.Twist nozzle
clockwise to stream position. Using a 2mm (5/64) allen
wrench, remove orifice from end of nozzle extension
(Figure 14).
3. Remove in-line filter from other end of nozzle
extension.
4. Use a small paper clip to free any foreign material
clogging or restricting orifice (Figure 14).
5. Using a garden hose, remove additional debris by back
flushing water through nozzle extension (Figure 15).
Back flush between 30 to 60 seconds.Turn adjustable
nozzle extension to stream spray and move nozzle
from low to high while flushing.
6. Reinstall orifice and in-line filter into nozzle extension.
DO NOT overtighten orifice with allen wrench.
7. Reconnect nozzle extension to spray gun.
8. Reconnect water supply, turn on water, and start
engine.
9. Test pressure washer by operating with nozzle in high
and low positions.
Nozzle Extension
Filter Screen
O-ring
Figure 13 — Clean In-Line Filter
Orifice
Figure 14 — Removing and Cleaning Orifice
Figure 15 — Backflushing the Nozzle
CleanShot™ 2050 PSI Pressure Washer
14
O–Ring Maintenance
Purchase an O–Ring/Maintenance Kit, part number
191922GS by contacting the nearest authorized service
center. It is not included with the pressure washer.This kit
includes replacement o-rings, rubber washer and water
inlet filter. Refer to the instruction sheet provided in the kit
to service your unit’s o-rings.

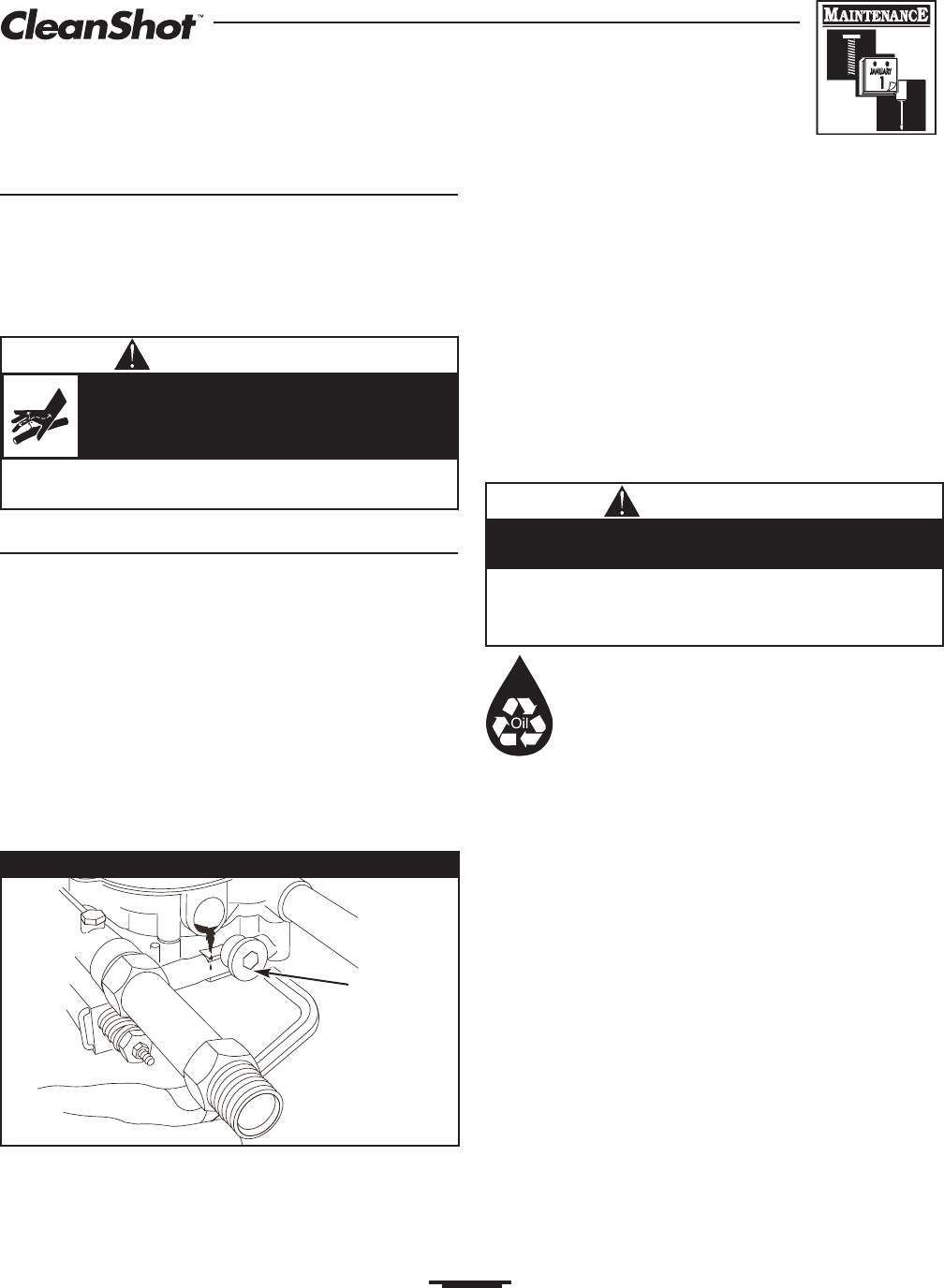

Pump Maintenance
Changing Pump Oil
Change oil every 50 hours or once yearly, whichever
occurs first.
NOTE: Purchase a premeasured bottle of pump oil, item
number 190586GS, by contacting the nearest authorized
service center.
Change pump oil as follows:
1. Drain engine oil and fuel from pressure washer.
2. Use a 8mm allen wrench to remove black pump oil cap
between high pressure outlet and garden hose inlet
(Figure 16).
3. Tilt pressure washer to drain oil into an approved
container until it drips slowly from pump.
4. Tilt pressure washer in opposite direction and empty
premeasured pump oil bottle into same opening (a
small funnel may be helpful).
5. Install black pump oil cap and tighten firmly.
6. Set pressure washer in upright position.Add fuel and
engine oil.
ENGINE MAINTENANCE
See the engine owner’s manual for instructions on how to
properly maintain the engine.
KEEP OUT OF REACH OF CHILDREN. DON'T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
Oil Cap
Figure 16 - Changing Pump Oil
• Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
• Thoroughly wash exposed areas with soap and water.
Avoid prolonged or repeated skin contact with used
motor oil.
CAUTION
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING
CleanShot™ 2050 PSI Pressure Washer
15
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unit for long periods of
time. Sediments or minerals can deposit on pump parts and
“freeze” pump action. If you do not plan to use the
pressure washer for more than 30 days, follow this
procedure:
1. Flush chemical injection hose by placing filter into a pail
of clean water while running pressure washer in low
pressure mode (adjustable nozzle in forward position).
Flush for one to two minutes.
2. Shut off engine and let it cool, then remove high
pressure and garden hoses. Disconnect spark plug wire
from spark plug.
3. Empty pump of all pumped liquids by pulling recoil
handle about 6 times.This should remove most liquid
in pump.
4. Use PumpSaver to prevent corrosion build up and
freezing of pump.
5. Store unit in a clean, dry area.
Protecting the Pump
To protect the pump from damage caused by mineral
deposits or freezing, use PumpSaver to treat pump.This
prevents freeze damage and lubricates pistons and seals.
NOTE: PumpSaver is available as an optional accessory. It
is not included with the pressure washer. Contact the
nearest authorized service center to purchase PumpSaver.
To use PumpSaver, make sure the pressure washer is
turned off and disconnected from supply water. Read and
follow all instructions and warnings given on the PumpSaver
container.
NOTE: If PumpSaver is not available, draw RV antifreeze
(non-alcohol) into the pump by pouring the solution into a
3-foot section of garden hose connected to inlet adapter
and pulling recoil handle twice.
STORING THE ENGINE
See the engine owner’s manual for instructions on how to
properly prepare the engine for storage.
CAUTION
• Failure to do so will permanently damage your pump and
render your unit inoperable.
• Freeze damage is not covered under warranty.
You must protect your unit from freezing temperatures.
• Always wear eye protection when using PumpSaver.
Read and follow all cautions and warnings on the
PumpSaver can label.
CAUTION
CAUTION
• Protect surfaces from dripping PumpSaver.
PumpSaver will drip from pump after treatment and
will stain wood and concrete.
16
CleanShot™ 2050 PSI Pressure Washer
TROUBLESHOOTING
Problem Cause Correction
Pump has following problems:
failure to produce pressure, erratic
pressure, chattering, loss of
pressure, low water volume.
1. Nozzle in low pressure mode.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over 100°F.
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Orifice is obstructed.
10. Pump is faulty.
1. Pull nozzle backward for high
pressure mode.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean orifice.
10. Contact local service facility.
Detergent fails to mix with spray.
1. Detergent siphoning tube is not
submerged.
2. Chemical filter is clogged or
cracked.
3. Dirty in-line filter.
4. Nozzle is in high pressure mode.
1. Insert detergent siphoning tube
into detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. See "Check In-Line Filter".
4. Push nozzle forward for low
pressure mode.
Engine runs good at no-load but
"bogs" when load is added.
Engine speed is too slow. Move throttle control to FAST
position. If engine still "bogs down",
contact Briggs and Stratton service
facility.
Pressure washer stops during
operation.
Out of gasoline. Fill fuel tank.
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC EQUIPMENT OWNER WARRANTY POLICY
LIMITED WARRANTY
Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the equipment that is defective in material
or workmanship or both. Transportation charges on parts submitted for repair or replacement under this warranty must be borne by
purchaser. This warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest
Authorized Service Dealer in our dealer locator map at www.briggspowerproducts.com.
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW ANY
AND ALL IMPLIED WARRANTIES ARE EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED
TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty
lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state
to state or country to country.
OUR EQUIPMENT*
OUTBOARD
MOTOR PRESSURE
WASHER WATER PUMP
(Not available in the
USA)
PORTABLE
GENERATOR
WELDER LLeessss tthhaann 1100 KKWW1100 KKWW oorr ggrreeaatteerrTTrraannssffeerr sswwiittcchh
2 years
none
1 year
90 days
1 year
90 days
2 years
1 year
2 years
none
3 years or
1500 hours
none
3 years
none
WARRANTY PERIOD**
HOME STANDBY GENERATOR SYSTEM
Consumer Use
Commercial Use
* The engine and starting batteries are warranted solely by the manufacturers of those products.
** 2 years for all consumer products in the European Union. Parts only on 2nd year for consumer use of Portable Generator and
Home Standby Generator System - Less than 10 KW, outside of European Union.
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time
stated in the table above. “Consumer use" means personal residential household use by a retail consumer. “Commercial use" means all other
uses, including use for commercial, income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter
be considered as commercial use for purposes of this warranty. Equipment used for prime power in place of utility are not applicable to
this warranty. Electric powered pressure washers used for commercial purposes are not warranted.
NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR
PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY
SERVICE IS REQUESTED, THE MANUFACTURING DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY
PERIOD.
ABOUT YOUR WARRANTY
We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most
warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not
apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation.
Similarly, the warranty is void if the manufacturing date or the serial number on the equipment has been removed or the equipment has been altered
or modified. During the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to
be defective under normal use and service. This warranty will not cover the following repairs and equipment:
•Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or the equipment.
•Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized
installation or alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as,
in our judgment, to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as adjustments,
fuel system cleaning and obstruction (due to chemical, dirt, carbon, lime, etc.).
•Other Exclusions: This warranty excludes wear items such as quick couplers, oil gauges, belts, o-rings, filters, pump packing, etc., pumps that
have been run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or improper servicing
or freezing or chemical deterioration. Accessory parts such as guns, hoses, wands and nozzles are excluded from the product warranty. This
warranty excludes failures due to acts of God and other force majeure events beyond the manufacturers control. Also excluded is used,
reconditioned, and demonstration equipment; equipment used for prime power in place of utility power and equipment used in life support
applications. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WI, USA
Effective September 1, 2004 replaces all undated Warranties and all Warranties dated before September 1, 2004

Navigation menu
