User Manual: IH6065

Open the PDF directly: View PDF PDF.
Page Count: 31

Recliners
Mobile Recumbent Chairs
IH6065 and IH6074 Series
Clinical Treatment Chairs
IH6077 Series
Parts Catalog Issued: Sep 30, 2014
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 04-047. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples:
= Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2014 Invacare Corporation, Elyria, Ohio. Invacare, the Medallion Design and Yes, you can. are registered trademarks of the Invacare Corporation.
Information is subject to change without notification.
Parts Catalog Usage Guide
1
Form No. 04-047
To order call toll free 1-800-333-6900, or www.invacare.com
Caster Kits - IH6065 Series ...................................................................................................... 3
Caster Kits - IH6074 Series ...................................................................................................... 12
Caster Kits - IH6077 Series ...................................................................................................... 20
Mechanical Hardware Kits - IH6065 Series .............................................................................. 5
Mechanical Hardware Kits - IH6074 Series .............................................................................. 13
Mechanical Hardware Kits - IH6077 Series .............................................................................. 24
Tray and Side Panel Kits - IH6065 Series ................................................................................ 7
Tray and Side Panel Kits - IH6074 Series ................................................................................ 15
Tray and Side Panel Kits - IH6077 Series ................................................................................ 22
Upholstery Kits - IH6065 Series ............................................................................................... 9
Upholstery Kits - IH6074 Series ............................................................................................... 17
Upholstery Kits - IH6077 Series ............................................................................................... 26
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

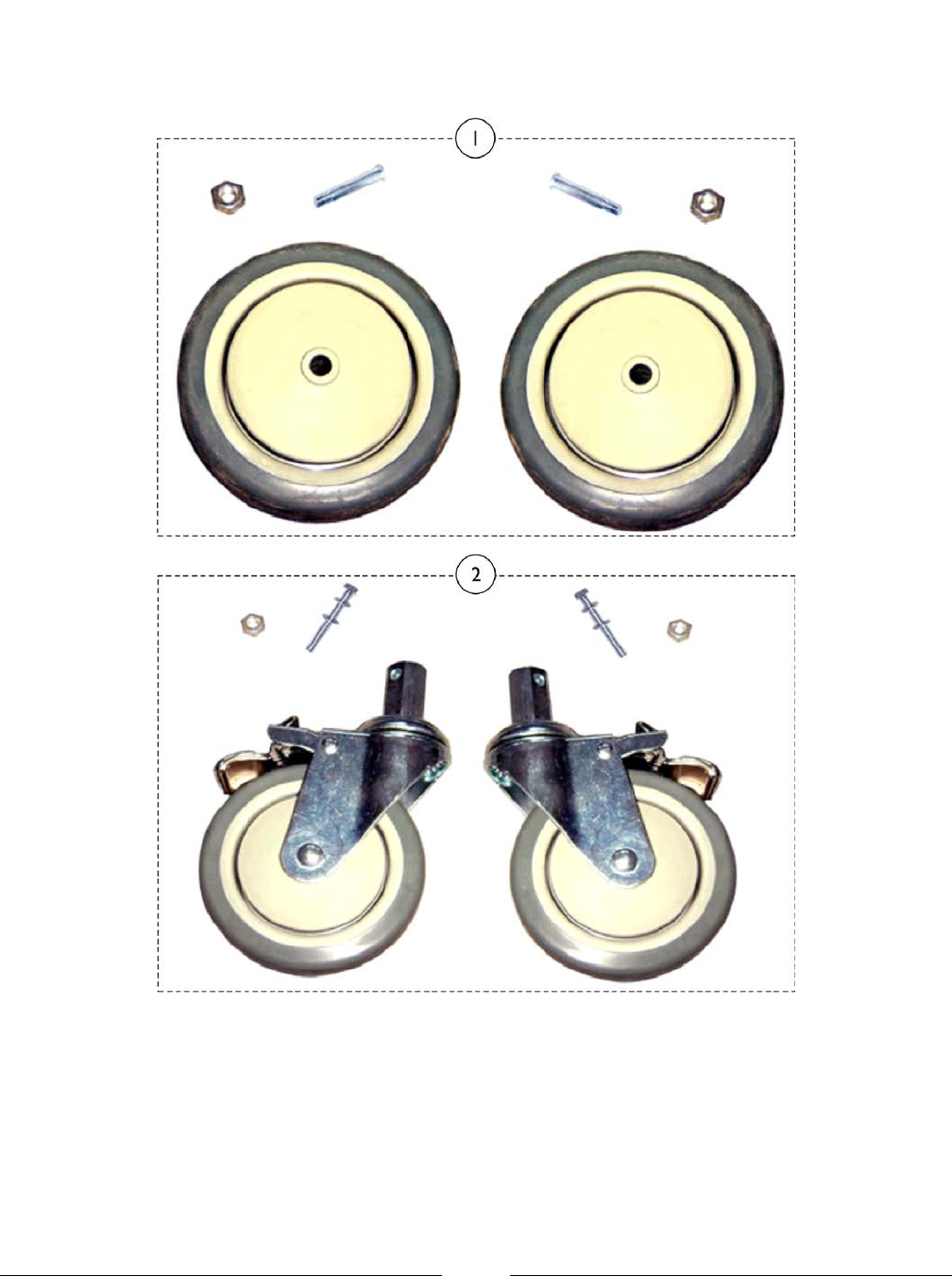

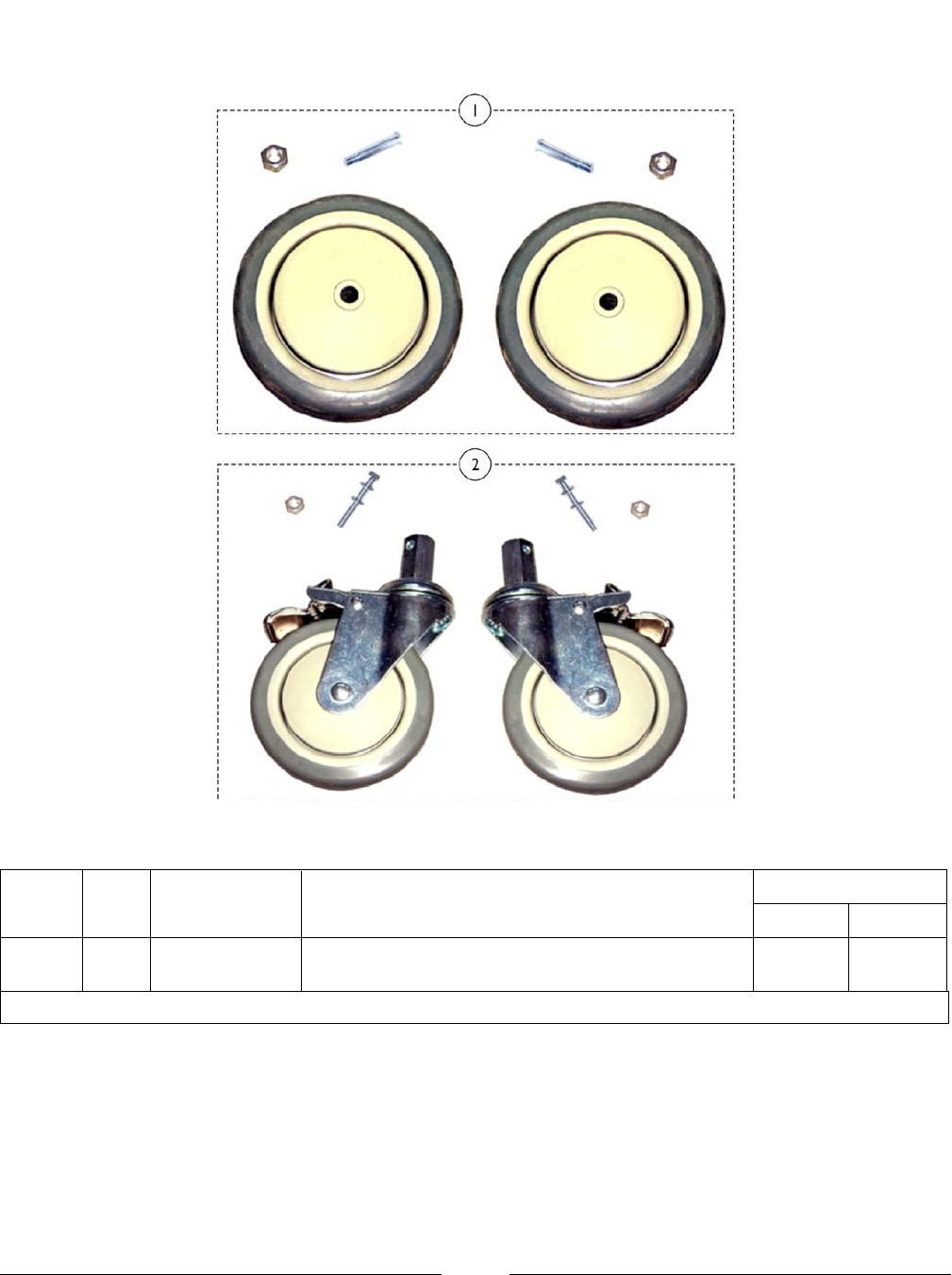

Caster Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Caster Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126605 Kit, Casters - Front 1 11 A
1126606 Kit, Casters - Rear 1 12 B
A - Kit includes: (2) Casters, (2) Pan Head Stem Bolts (10M x 16) and (2) Nylock Nuts (10mm).
B - Kit includes: (2) Locking Casters, (2) Hex Head Stem Bolts (M6 x 43), (4) Washers (6mm) and (2) Hex Nuts (6mm).
NOTE:
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

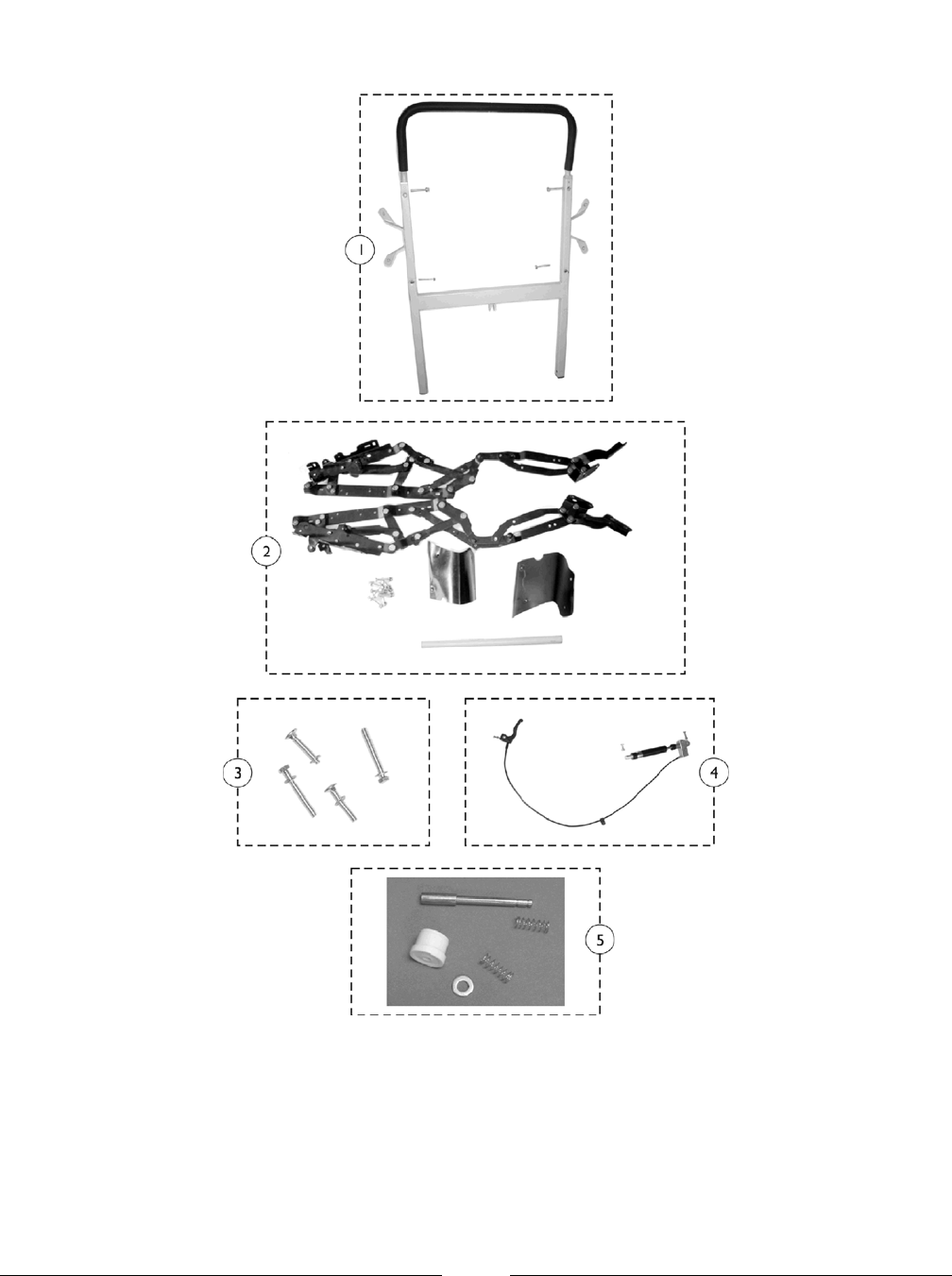

Mechanical Hardware Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

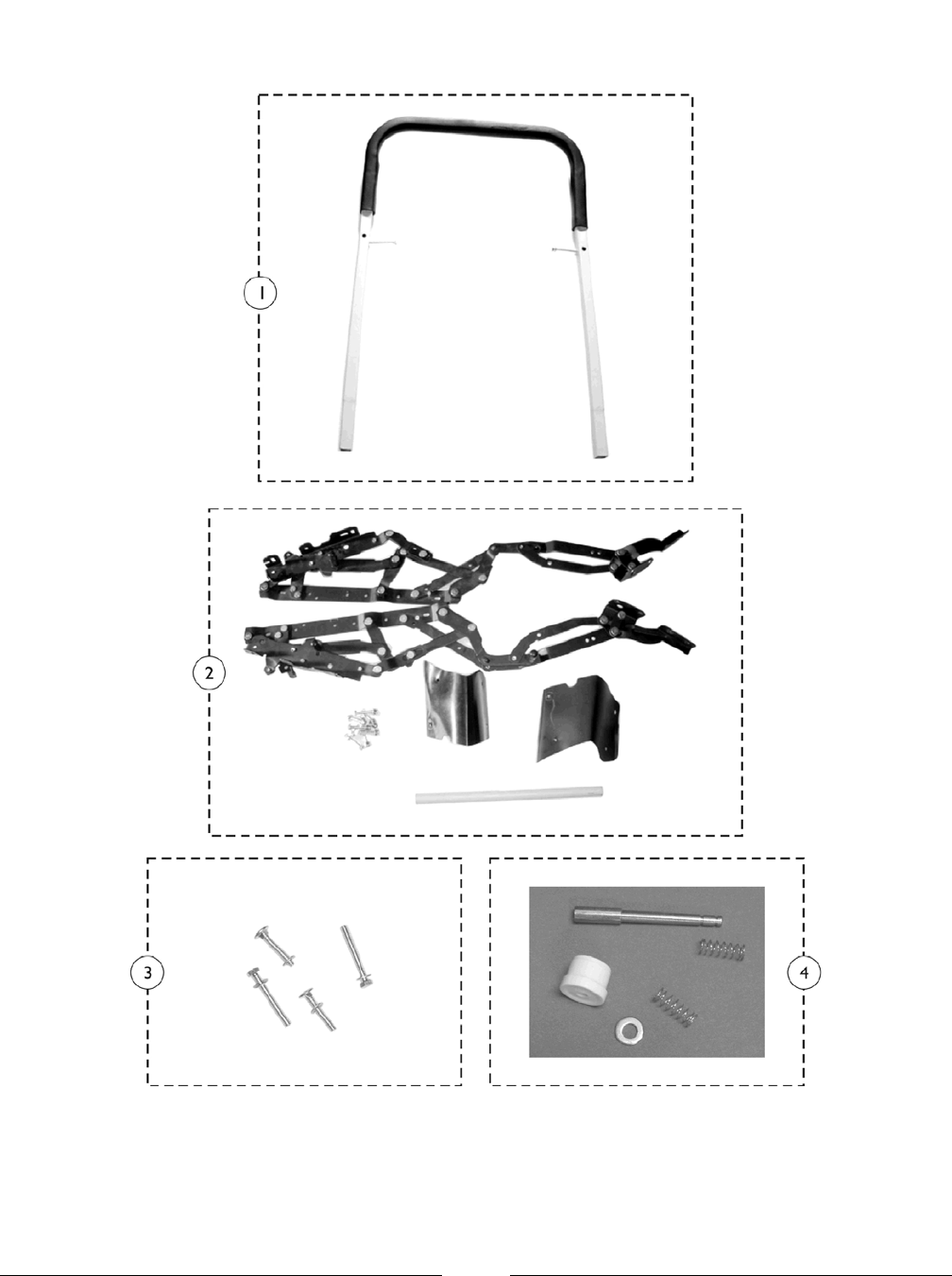

Mechanical Hardware Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126608 Bar, Push, Back 1 11 A,J
1126609 Reclining Mechanism Assembly w/ Hardware 1 12 B
1126607 Kit, Hardware 1 13 C
1163840 Pin, Plunger w/ Hardware 1 14 G
1165494 Bar, Push w/ Attaching Hardware 1 1F,H
1163960 Ratchet Assembly, Grey - 6065A, 6074A 1 1D,E
1162517 Ratchet Assembly, Grey - 6065WD 1 1D,F
A - Includes (2) Hex Head Screws (M6 x 55).
B - Kit includes: (2) Reclining Mechanisms, (2) Finger Guards, (8) Phillips Head Screws (M6 x 40) and (8) Hex Nuts (6mm).
C - Kit includes: (2) Phillips Head Screws (M6 x 35) with (2) Washers (6mm) and (2) Hex Head Bolts (M6.35 x 50) with (2)
D - Not Shown.
E - Use only with IH6065A model.
F - Use only with IH6065WD model.
G - Kit includes Plunger Pin (1), Plunger Cap (1), Spring (2) and Washer (1).
H - Kit includes Hex Head Screw (2), Washers (2) and Handle.
J - Used with the IH6065A and IH6065DA only.
NOTE:
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

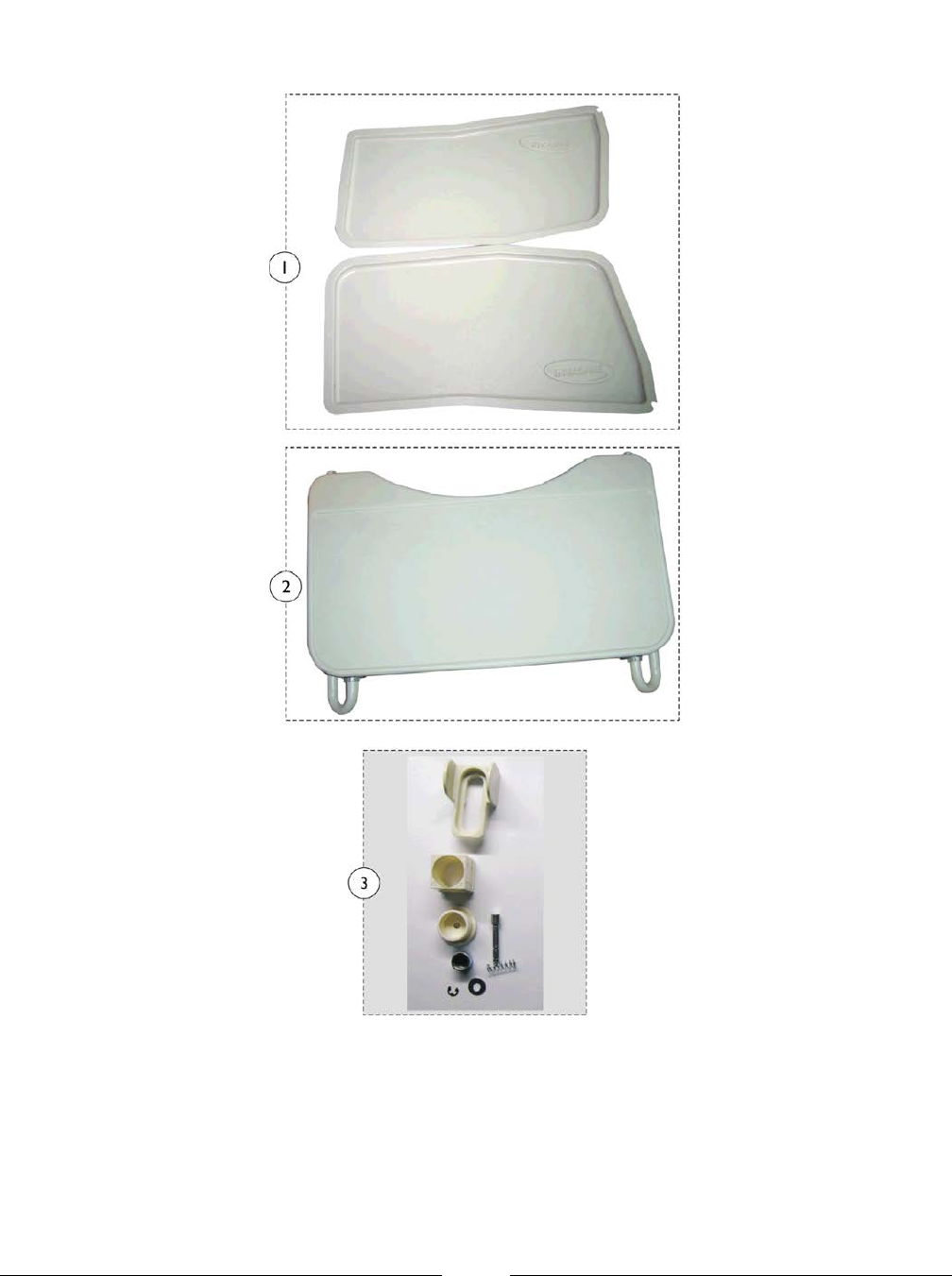

Tray and Side Panel Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Tray and Side Panel Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126611-NLA NLA - Kit, Side Panels - Plastic (31.8" x 16.8") 1 11 A
Panel, Side - Vacuum Formed - Right 1 1
Panel, Side - Vacuum Formed - Left 1 1
1164310 Kit, Side Panels - Plastic (32.33" x 17.24") 1 11 A
Panel, Side - Vacuum Formed - Right 1 1
Panel, Side - Vacuum Formed - Left 1 1
1126610 Tray Assembly
(For Model IH6065A ONLY) 1 12 B,C
1134780 Kit, Tray Maintenance 1 13
See Chart Side Panel Kit 1 14 D,E
A - To determine which part number to use, measure the outside dimension (length and width) to match part number to order.
B - Tray Assembly is only available on Model IH6065A.
C - Includes: Tray, (2) Mounting Tubes and Socket Screws (M5 x 15).
D - Includes: (2) Upholstery Side Panels and (6) Phillips Head Screws (M5 x 40). Available for Model IH6065DA only. See
Chart for colors.
E - Not Shown.
NOTE:
Side Panel Kits
Model - IH6065DA Only
Model Number/
Upholstery Color IH60
Rosewood IH61
Blue Ridge IH68
Jade
1126630-NLA1126629-NLA1126628-NLAKit Number
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

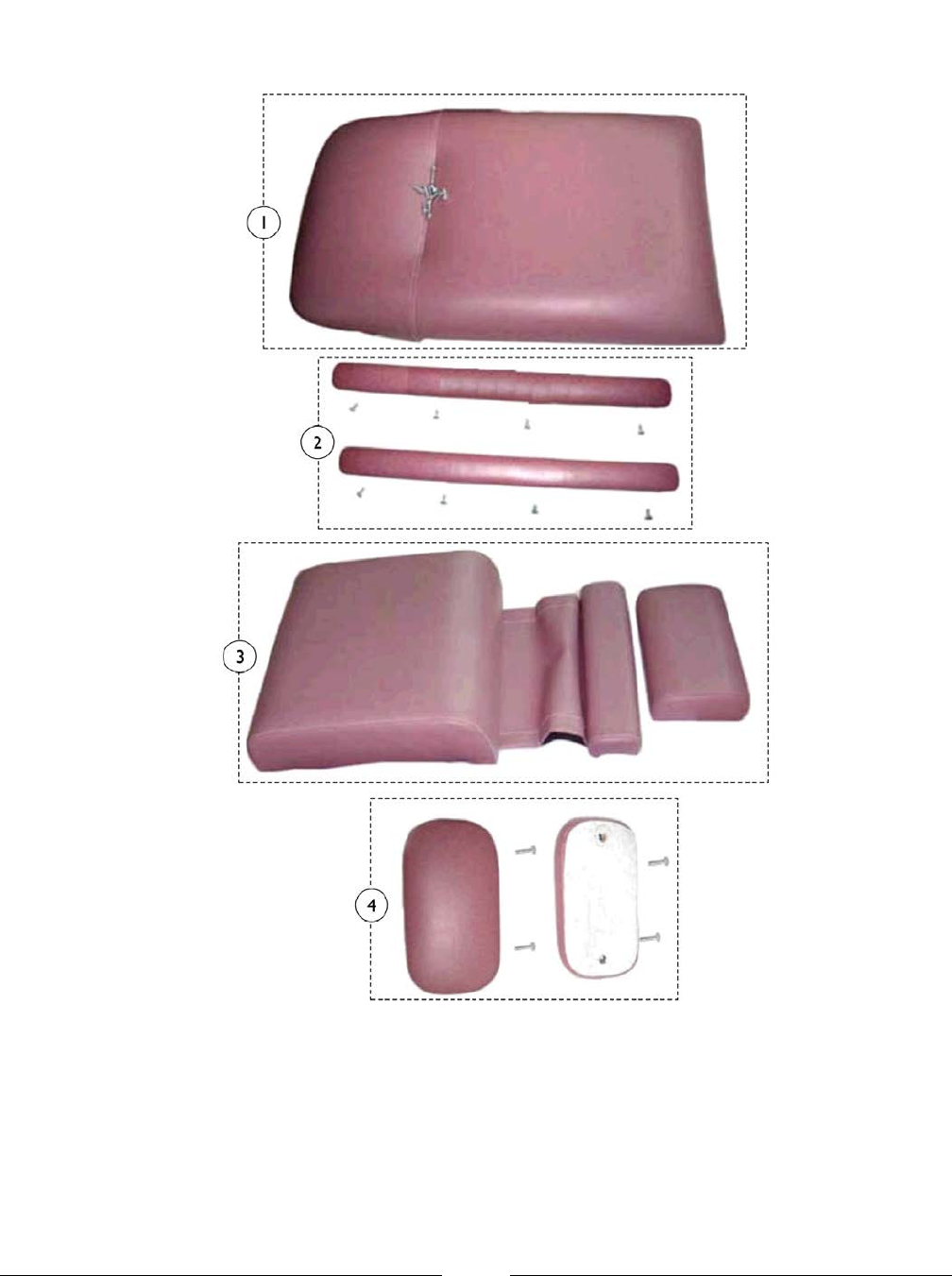

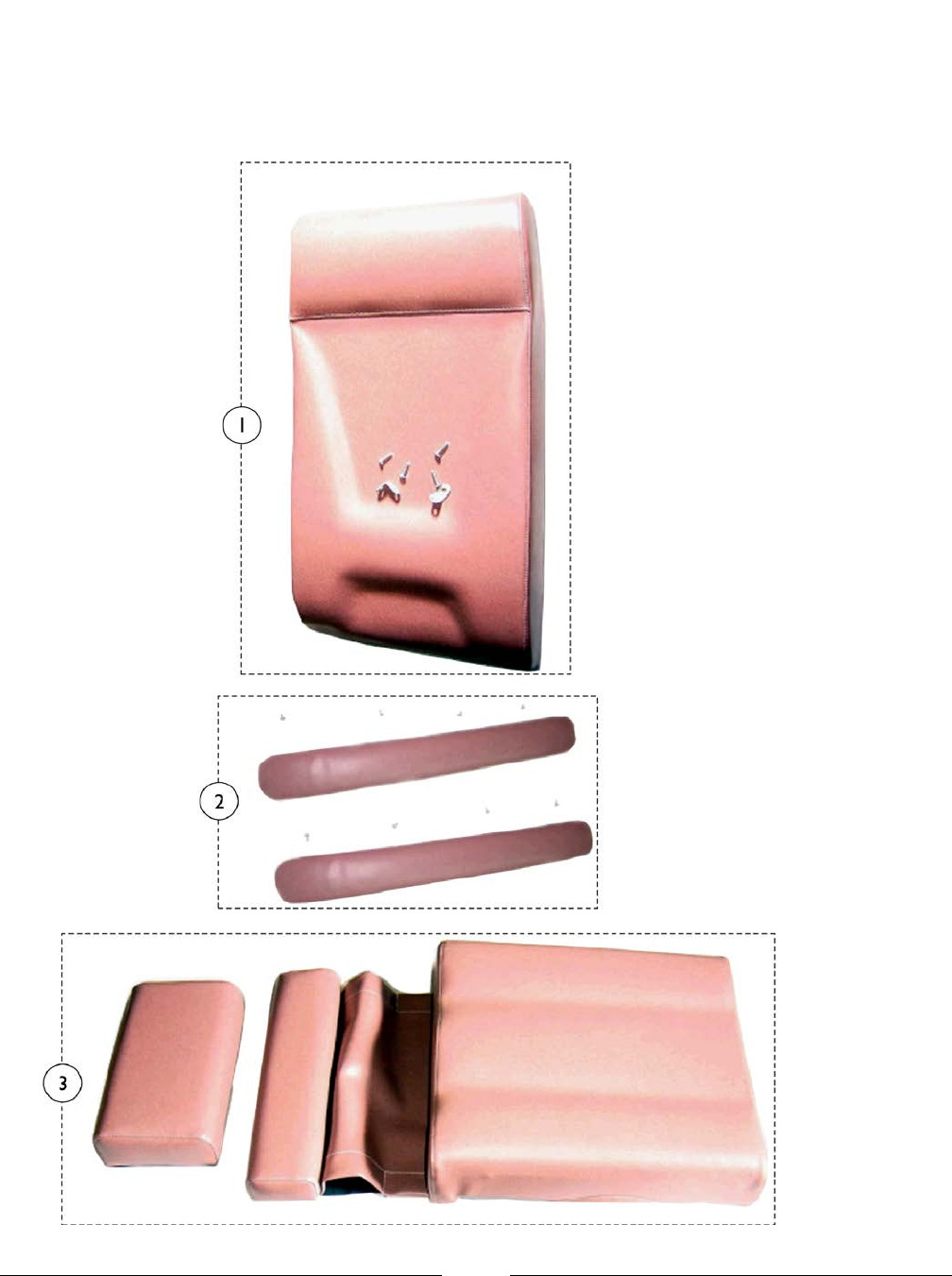

Upholstery Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Upholstery Kits shown with Rosewood upholstery. See Charts for other Colors.
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Back and Headrest Upholstery Kits 1 11 A
See Chart Arm Rest Upholstery Kits 1 12 B
See Chart Seats with Footrest Pad and Skirt Upholstery Kits 1 13 C
A - Kit includes: Back, Headrest, (4) Hex Head Screws (M6 x 55) and (4) Angle Brackets.
B - Kit includes: (2) Arm Rests and (8) Phillips Head Screws (M6 x 16).
C - Kit includes: Seat with Foot Rest, Skirt and (8) Phillips Head Screws (M6 x 27).
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6065 Series
Models 6065A, 6065DA, 6065PT & 6065WD
Chart 1 - Back and Headrest
Color IH6065A IH6065DA IH6065PT IH6065WD
1126652-NLA1126636-NLA1126612-NLA1126589IH60 - Rosewood
11266531126637-NLA11266131126590IH61 - Blue Ridge
1126654-NLA1126638-NLA11266141126591-NLAIH68 - Jade
Chart 2 - Arm Rest
Color IH6065A, IH6065DA, IH6065PT, IH6065WD
1126581IH60 - Rosewood
1126582IH61 - Blue Ridge
1126583IH68 - Jade
Chart 3 - Seat with Footrest Pad and Skirt
Color IH6065A IH6065DA IH6065PT IH6065WD
11266601126644-NLA1126620-NLA1126597IH60 - Rosewood
11266611126645-NLA1126621-NLA1126598IH61 - Blue Ridge
11266621126646-NLA1126622-NLA1126599IH68 - Jade
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126605 Kit, Casters - Front 1 11 A
1126606 Kit, Casters - Rear 1 12 B
A - Kit includes: (2) Casters, (2) Pan Head Stem Bolts (10M x 16) and (2) Nylock Nuts (10mm).
B - Kit includes: (2) Locking Casters, (2) Hex Head Stem Bolts (M6 x 43), (4) Washers (6mm) and (2) Hex Nuts (6mm).
NOTE:
Caster Kits - IH6074 Series
Models 6074A
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Mechanical Hardware Kits - IH6074 Series
Models 6074A
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Mechanical Hardware Kits - IH6074 Series
Models 6074A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126608 Bar, Push, Back 1 11 A
1126609 Reclining Mechanism Assembly w/ Hardware 1 12 B
1126607 Kit, Hardware 1 13 C
1163840 Pin, Plunger w/ Hardware 1 14 D
1163960 Ratchet Assembly, Grey - 6065A, 6074A 1 15
A - Includes (2) Hex Head Screws (M6 x 55).
B - Kit includes: (2) Reclining Mechanisms, (2) Finger Guards, (8) Phillips Head Screws (M6 x 40) and (8) Hex Nuts (6mm).
C - Kit includes: (2) Phillips Head Screws (M6 x 35) with (2) Washers (6mm) and (2) Hex Head Bolts (M6.35 x 50) with (2)
D - Kit includes Plunger Pin (1), Plunger Cap (1), Spring (2) and Washer (1).
NOTE:
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

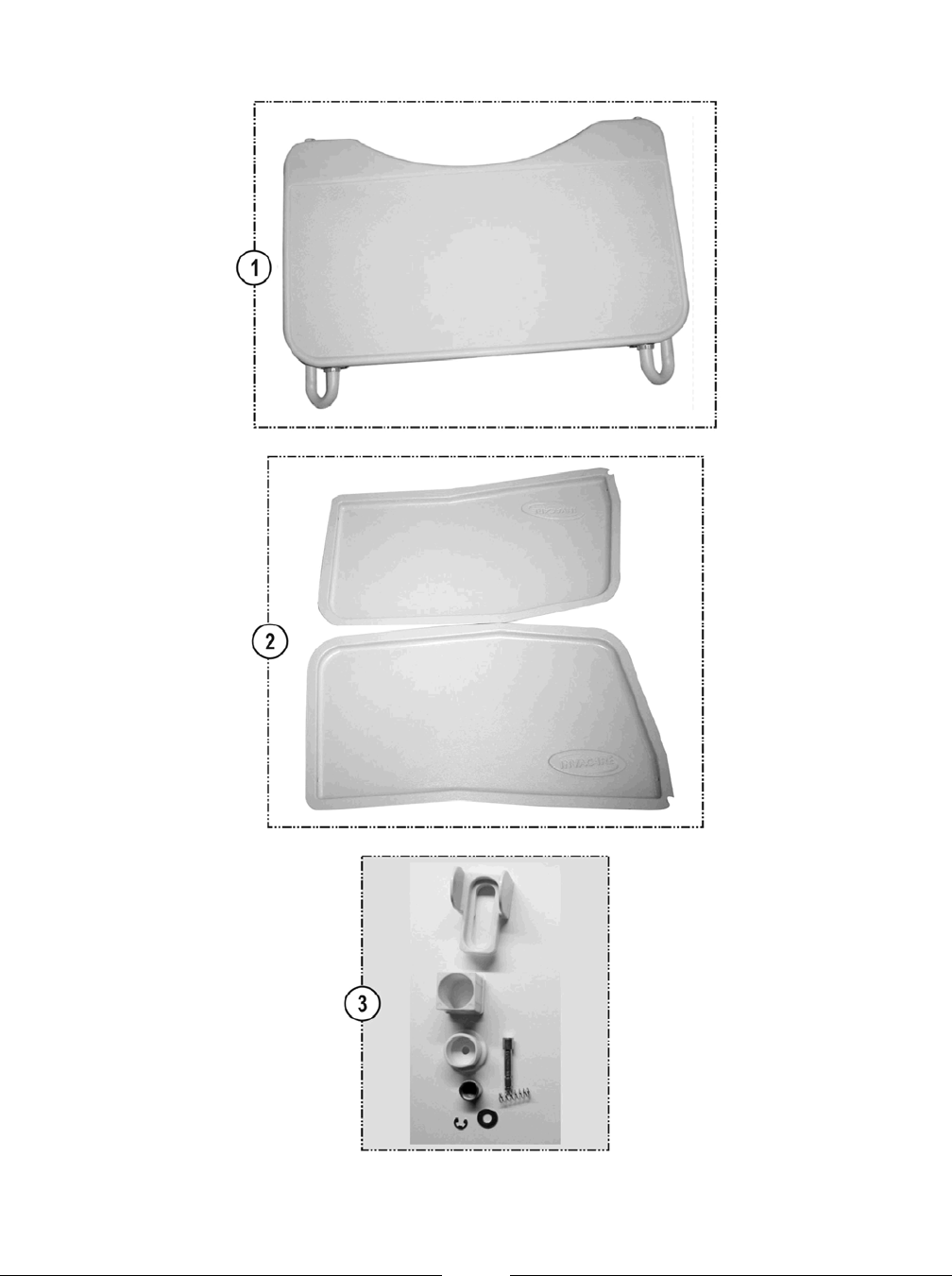

Tray and Side Panel Kits - IH6074 Series
Models 6074A
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

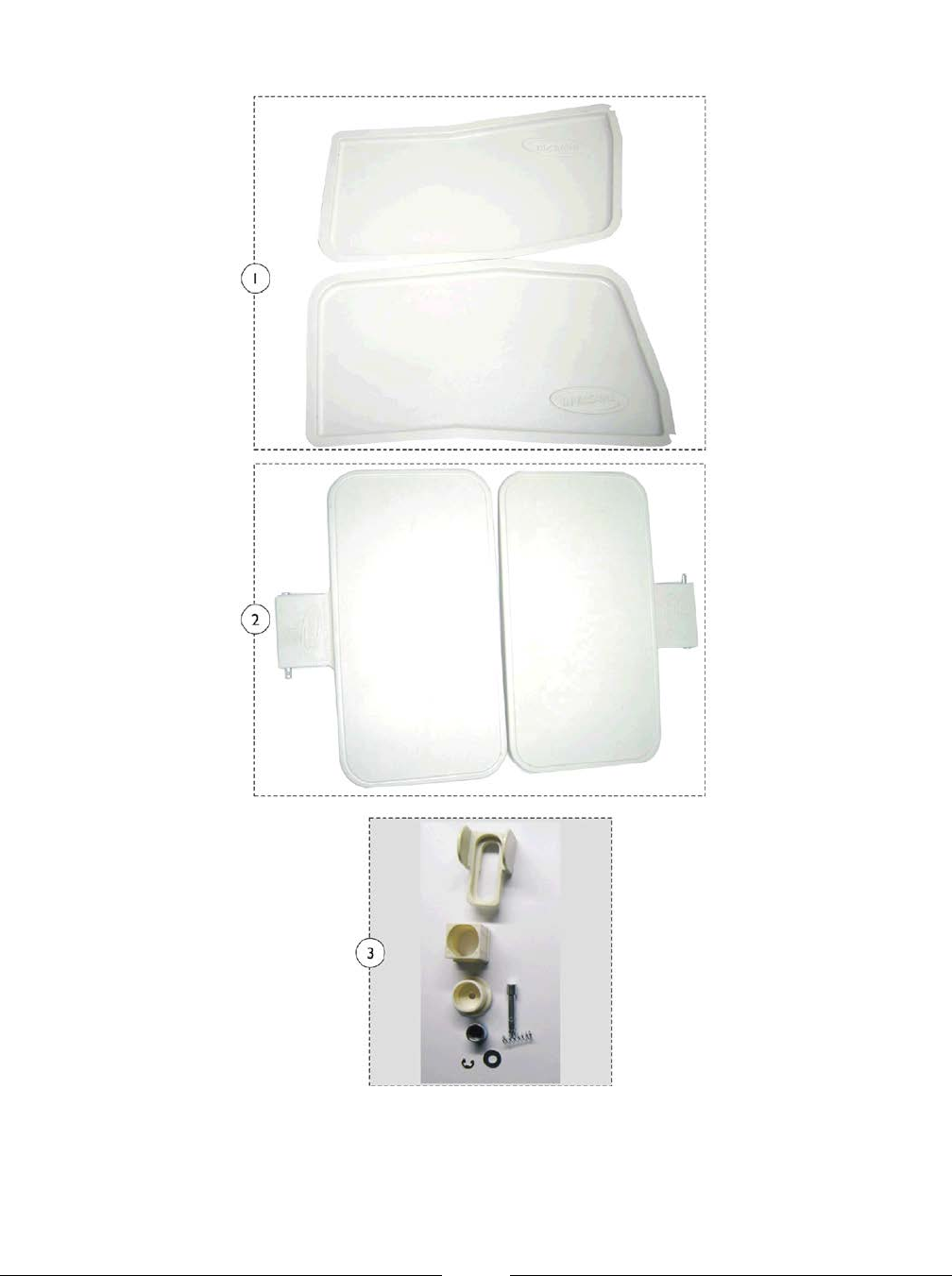

Tray and Side Panel Kits - IH6074 Series
Models 6074A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126692 Tray Assembly 1 11 A
1126611-NLA NLA - Kit, Side Panels - Plastic (31.8" x 16.8") 1 12 B
Panel, Side - Vacuum Formed - Right 1 1
Panel, Side - Vacuum Formed - Left 1 1
1164310 Kit, Side Panels - Plastic (32.33" x 17.24") 1 12 B
Panel, Side - Vacuum Formed - Right 1 1
Panel, Side - Vacuum Formed - Left 1 1
1134780 Kit, Tray Maintenance 1 13
A - Includes: Tray Assembly with (2) Mounting Tubes and (2) Phillips Head Screws (M6 x 34).
B - To determine which part number to use, measure the outside dimension (length and width) to match part number to order.
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047

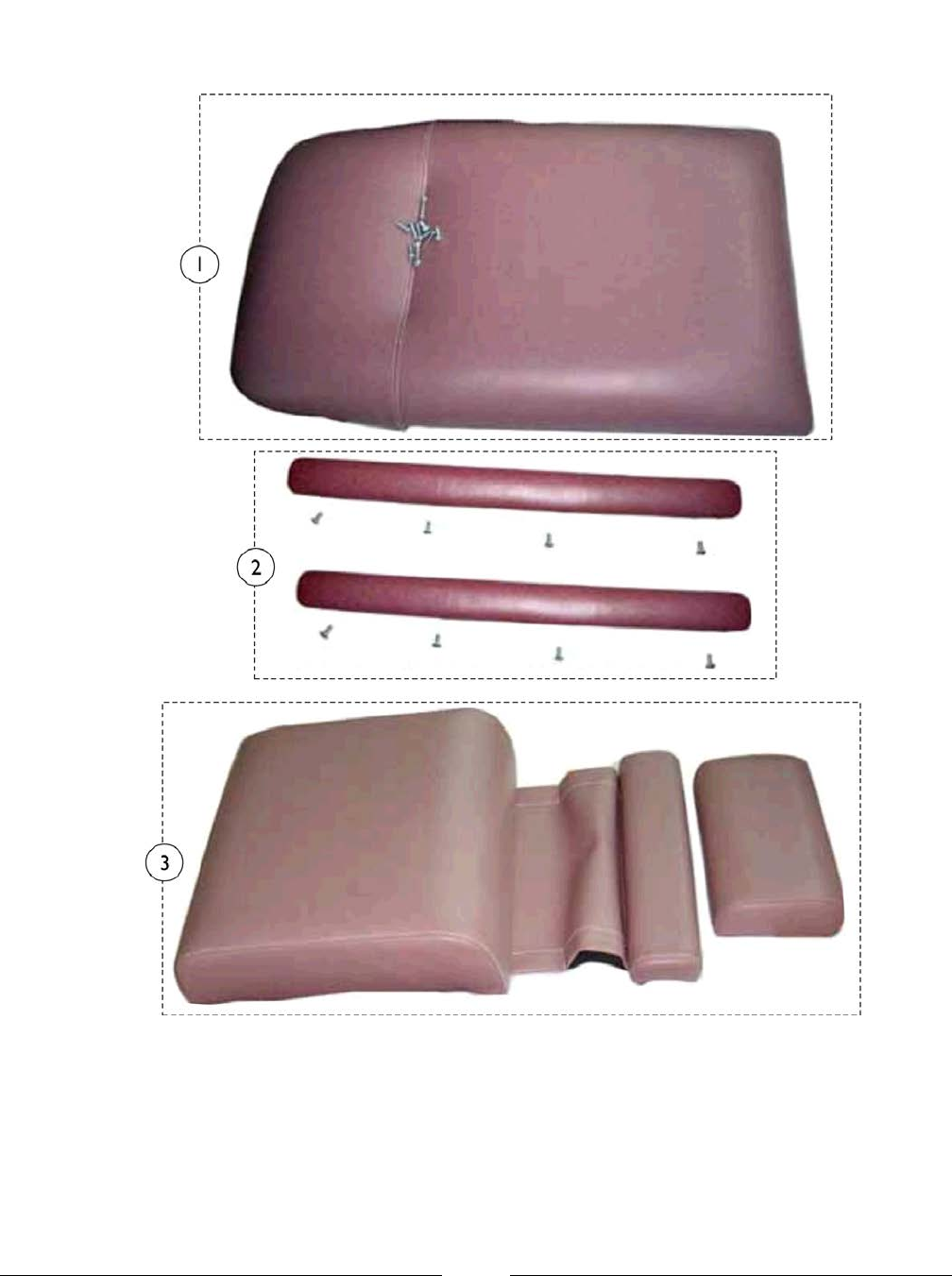

Upholstery Kits - IH6074 Series
Models 6074A
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6074 Series
Models 6074A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Back and Headrest Upholstery Kits 1 11 A
See Chart Arm Rest Upholstery Kits 1 12 B
See Chart Seat with Footrest Upholstery Kits 1 13 C
A - Kit includes: Back, Headrest, (4) Hex Head Screws (M6 x 55) and (4) Angle Brackets.
B - Kit includes: (2) Arm Rests and (8) Phillips Head Screws (M6 x 16).
C - Kit includes: Seat with Foot Rest, Skirt and (8) Phillips Head Screws (M6 x 27).
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6074 Series
Models 6074A
Chart 1 - Back and Headrest Upholstery Kits
Color Kit Number
1126676IH60 - Rosewood
1126677IH61 - Blue Ridge
1126678IH68 - Jade
Chart 2 - Arm Rest Upholstery Kits
Color Kit Number
1126668IH60 - Rosewood
1126669IH61 - Blue Ridge
1126670IH68 - Jade
Chart 3 - Seat with Footrests Upholstery Kits
Color Kit Number
1126684IH60 - Rosewood
1126685IH61 - Blue Ridge
1126686-NLAIH68 - Jade
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Caster Kits - IH6077 Series
Models 6077A
20
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Caster Kits - IH6077 Series
Models 6077A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126605 Kit, Casters - Front 1 11 A
1126606 Kit, Casters - Rear 1 12 B
A - Kit includes: (2) Casters, (2) Pan Head Stem Bolts (10M x 16) and (2) Nylock Nuts (10mm).
B - Kit includes: (2) Locking Casters, (2) Hex Head Stem Bolts (M6 x 43), (4) Washers (6mm) and (2) Hex Nuts (6mm).
NOTE:
21
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Tray and Side Panel Kits - IH6077 Series
Models 6077A
22
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Tray and Side Panel Kits - IH6077 Series
Models 6077A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126728 Kit, Side Panels - Plastic (32-1/2" x 18-1/4") 1 11 A,C,D
1165090 Kit, Side Panels, Right/Left (IH6077A) 1 11 E,F
Panel, Side, Vacuum Formed - Right 1 1
Panel, Side, Vacuum Formed - Left 1 1
1126727 Tray Assemblies with Mounting Tubes 1 12 B
1134780 Kit, Tray Maintenance 1 13
A - Kit includes: (2) Side Panels.
B - Kit includes: (2) Tray Assemblies with Mounting Tubes.
C - To determine which part number to use, measure the outside dimension (length and width) to match part number to order.
D - Used on Recliner Models built before October 2008.
E - Used on Recliner Models built after Octber 2008.
F - Kit includes Left and Right Side Panels.
NOTE:
23
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Mechanical Hardware Kits - IH6077 Series
Models 6077A
24
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Mechanical Hardware Kits - IH6077 Series
Models 6077A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126730 Bar, Push, Back 1 11 A
1126729 Kit, Recliner Mechanism with Finger Guards 1 12 B
1126607 Kit, Hardware 1 13 C
1126731 Kit, Gas Spring w/ Handle 1 14 D,H
1163960 Ratchet Assembly, Grey - 6065A, 6074A 1 1E
1163840 Pin, Plunger w/ Hardware 1 15 G
A - Includes: Push Bar with Screws and Back.
B - Kit includes: (2) Recliner Mechanism with Finger Guards.
C - Kit includes: (2) Phillips Head Screws (M6 x 35), (2) Washers (6mm), (2) Hex Head Bolts (M6.35 x 50) and (2) Washers
(6.35mm).
D - Kit includes: Gas Spring with Handle, Cable Bracket and Lock Pin.
E - Not Shown.
G - Kit includes Plunger Pin (1), Plunger Cap (1), Spring (2) and Washer (1).
H - Part is no longer available for recliners built before 12/1/08. For use on recliners built after 11/30/08 only.
NOTE:
25
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6077 Series
Models 6077A
26
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6077 Series
Models 6077A
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Back and Headrest Upholstery Kits 1 11 A
See Chart Arm Rest Upholstery Kits 1 12 B
See Chart Seat with Footrest Upholstery Kits 1 13 C
See Chart Wing Pad KIts 1 14 D
A - Kit includes: Back, Headrest, (4) Hex Head Screws (M6 x 55) and (4) Angle Brackets.
B - Kit includes: (2) Arm Rests and (8) Phillips Head Screws (M6 x 16).
C - Kit includes: Seat with Foot Rest, Skirt and (8) Phillips Head Screws (M6 x 27).
D - Kit includes: (2) Wing Pads with Backs and (4) Phillips Head Screws (M6 x 27).
NOTE:
27
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6077 Series
Models 6077A
Chart 1 - Back and Headrest Upholstery Kits
Upholstery Color Kit Number
1126701IH60 - Rosewood
1126702IH61 - Blue Ridge
1126703-NLAIH68 - Jade
Chart 2 - Arm Rest Upholstery Kits
Upholstery Color Kit Number
1126693IH60 - Rosewood
1126694IH61 - Blue Ridge
1126695IH68 - Jade
28
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Upholstery Kits - IH6077 Series
Models 6077A
Chart 3 - Seat with Footrests Upholstery Kits
Upholstery Color Kit Number
1126709-NLAIH60 - Rosewood
1126710IH61 - Blue Ridge
1126711-NLAIH68 - Jade
Chart 4 - Wing Pads Upholstery Kits
Upholstery Color Kit Number
1126717IH60 - Rosewood
1126718IH61 - Blue Ridge
1126719IH68 - Jade
29
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 04-047
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Customer Service
800-333-6900
Customer Service
800-333-6900
Form No.
04-047
© 2014 Invacare Corporation, Elyria, Ohio.
All rights reserved. Trademarks are
identified by the symbols ™ and ®. All
trademarks are owned by or licensed to
Invacare Corporation unless otherwise
noted. Information is subject to change
without notification.
(Revised 09/30/12)

Navigation menu
