2007 Brochure (SPRING Vol.2)

2007 SPRING Mobile Entertainment Brochure

2 — 2007 Mobile Entertainment Brochure

ECLIPSE is a specialist company that deepens its commitment to audio even as it develops the

navigation and visual technologies that define today’s mobile entertainment. Our dedication to

expanding the possibilities of the mobile environment and making driving more enjoyable

makes ECLIPSE stand out more than ever.

ECLIPSE — a great sound story

2007 Mobile Entertainment Brochure — 3

Since 1955, our commitment to high fidelity has

remained unchanged. Constant research and refining

technologies maintain ECLIPSE's position as a leading

mobile audio specialist. From anechoic chambers to

computer-aided simulation and the latest digital audio

research, the ECLIPSE non-compromise approach

achieves the best sound possible.

An audio philosophy that values

excellence

Because the absolute sound is live sound, it is

constantly referenced through recording, reproduction

and extensive listening as products are developed. Our

dedicated research has led to developing the ECLIPSE

TD or Time Domain speaker which sees use in

professional audio applications as an important

monitoring tool.

Technological strengths to nurture

superb products

Every ECLIPSE product is tested as well as the

individual components that are used in a product. From

performance characteristics to reliability to sonic and

visual attributes, quality checks and inspection

procedures are imposed at every stage of a production

process. Finished products are again tested and

evaluated. It is only by completing such comprehensive

processes products meet ECLIPSE standards.

Beyond pure performance

Navigation to go. Anywhere.

4 — 2007 Mobile Entertainment Brochure

AVN Series

A new solution with more possibilities

2007 Mobile Entertainment Brochure — 5

As with other TomTom PNDs, the

AVN2210p’s navigation section

detaches easily from its docking

station. Autonomous, small and

light, it can be removed when the

car is parked as a theft

deterrence measure.

Detachable PND section improves security

A new approach for conventional Portable Navigation Device (PND) mounting

options, the AVN2210p has a high-grade professional appearance.

Impressions do matter

Simpler to access any desired control

More intuitive operation is achieved with the

multi-function rotary knob and touch control

screen that efficiently work to streamline

operations and control adjustments, allowing

the user to quickly complete complex

operations.

Touch control

Rotary knob Just add the optional AUX105 for connecting personal music players.

Dedicated AUX input increases expansion options

Other portable

player

AUX105 cable

Bluetooth®

USB

iPod®

4ch Amp

1ch Amp

SP SP

SP SP

SW

SIR-ECL1

AVN2210p

In-Dash Portable Navigation with CD/USB Muliti-Source Receiver

Design that emphasizes function and ease of use

Bringing the best of both worlds together Expansion options for configuring your ideal system

Accessories

The AVN2210p marks the start of a new generation in mobile navigation and entertainment. It brings

together all the acclaimed technology of the TomTom Portable Navigation Device (PND) with the

high-performance audio, connectivity and system expansion capabilities of ECLIPSE products.

USB

Touch Control

50W

✕

4

5V Pre-out

Connection

CD, CD-R/RW MP3 (CD/ USB) WMA (CD)

SAT Radio

-ready

iPod® Full control

-ready

1 AUX Input Ready

Bluetooth

®

Built-in

TomTom PND

Detachable

6 — 2007 Mobile Entertainment Brochure

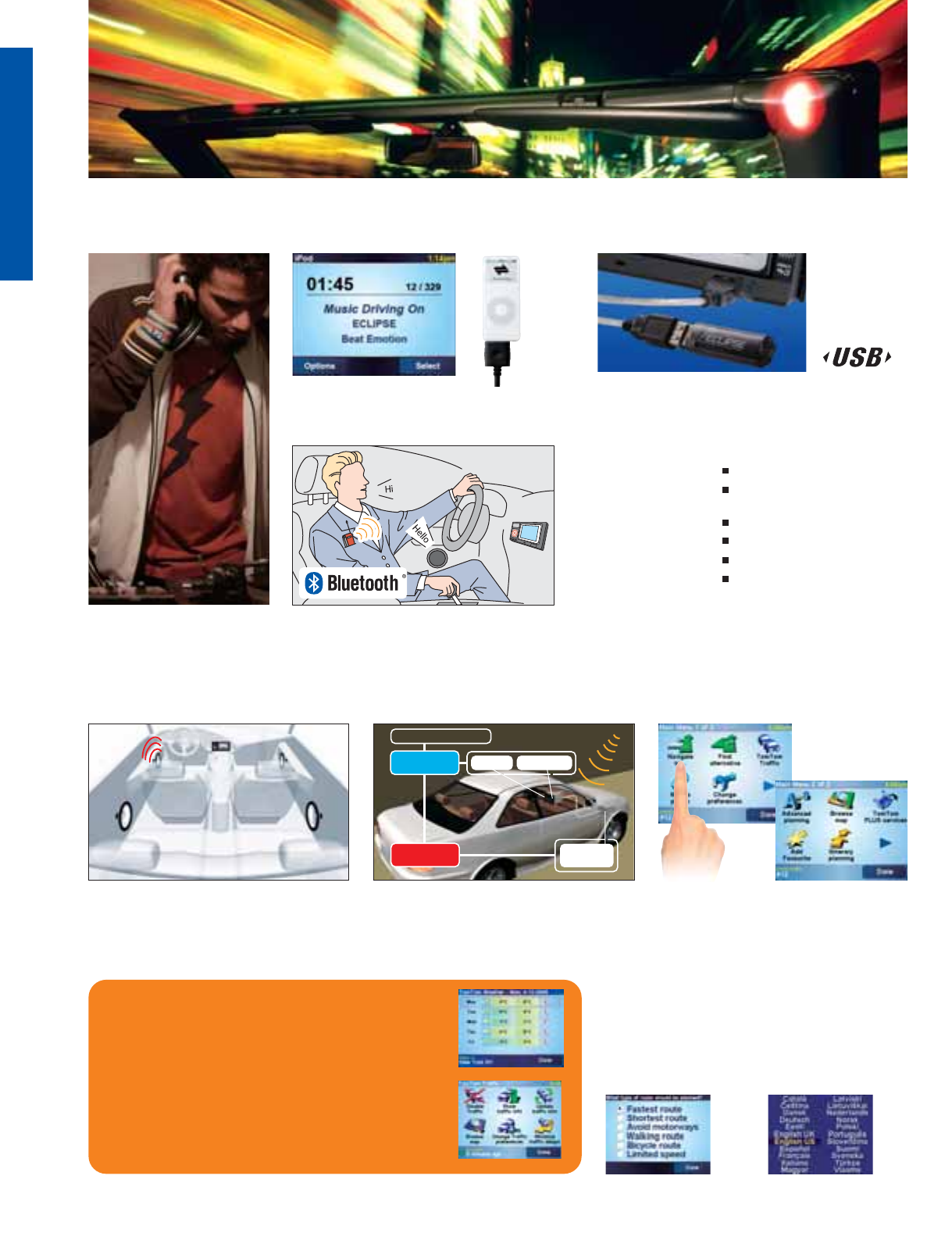

Optional dedicated connection cable2 to link an iPod® with

the unit, allowing full iPod controls and functions.

iPod® -friendly 1

An AVN2210p facilitates digital data portability and playback of MP3

music files transferred to a USB flash drive from PCs.

USB connection1

Being Bluetooth enabled,

the AVN2210p benefits from

the Bluetooth expertise of

TomTom in hands-free calls.

It allows hands-free mobile

phone operations with high

audio quality via the car

speakers.

Built-in Bluetooth

connectivity 1

Enjoy optional mobile content3 on demand using a mobile

phone4 and a wireless data connection. Real-time traffic reports,

road plus weather conditions (free service) are downloaded right

to the AVN2210p. Other downloadable services include maps,

routes, points-of-interest and various guidance voices. TomTom’s

services are constantly being upgraded and improved. TomTom

HOME is a free program to install on your computer so that you

can update your TomTom with the latest software and services

automatically.

TomTom PLUS services

TomTom Weather

TomTom Traffic

Make a mode selection from the touchscreen menu to

be taken to more detailed menus in various categories

such as routing and language choices for the spoken

instructions.

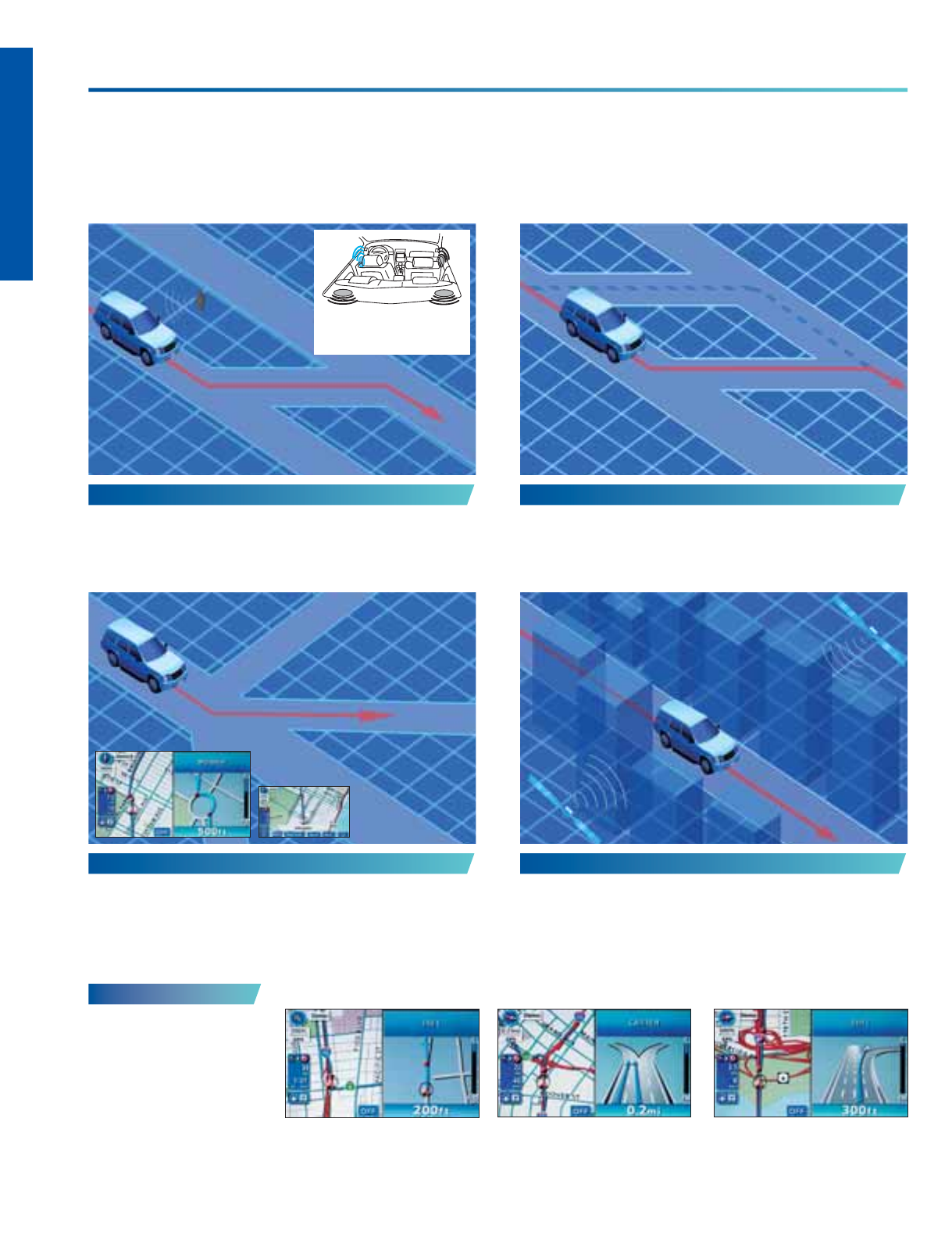

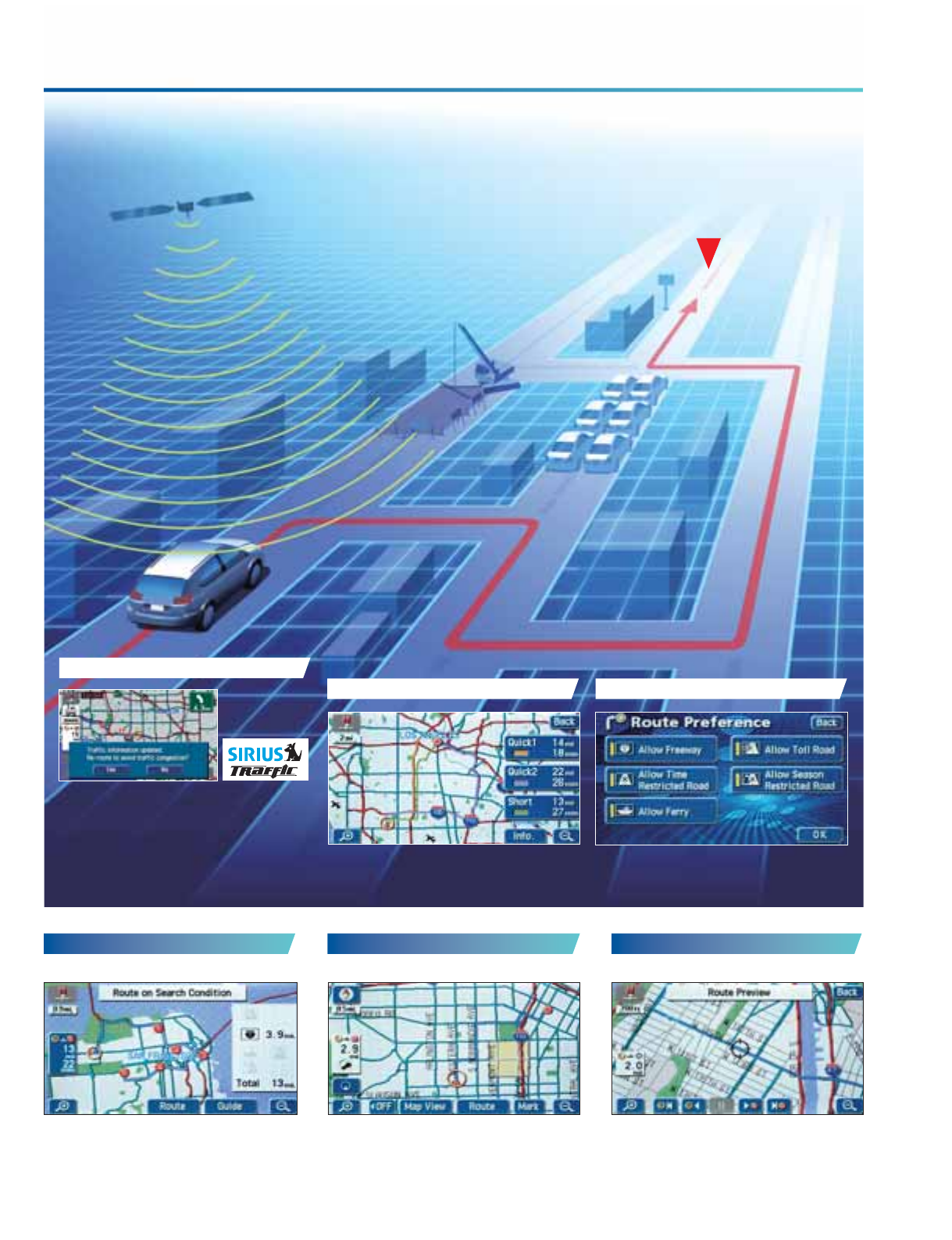

The AVN2210p combines GPS information as well as its

speed sensor data to ensure perfect navigation even in

tunnels or underground sections of roads.

Spoken instructions are heard through the speaker closest

to the driver. Program material automatically mutes so

spoken instructions are better heard by the driver.

Spoken instructions sound much better

Navigate well in any condition

Convenient touchscreen menu selection

Positioning by

GPS radio wave

Fulltime map matching

auto speed

pulse

Independent

navigation

GPS Antenna

AVN2210p

Connectivity for iPod® and USB flash drives as well as hands-free mobile phone operation.

Multiple expansion options enhance functionality

*Speaker muting characteristics differ when playing program

material from auxiliary devices connected to the AVN2210p.

Delivers high-performance audio

5V PRE-OUT

Multiformat-capable

(CD, CD-R/RW, MP3 and WMA)

Separate Bass/Mid/Treble controls

Source Volume Control

Crossover (low pass filter)

50W × 4 channels output

1 these features are available only when the PND is docked with the main unit. 2 cable to be purchased separately.

3 additional charges may apply 4 please check compatible phones at www.tomtom.com

AVN Series

The AVN2210p incorporates TomTom GPS for a total performance that goes well beyond conventional portable navigation units.

In-car navigation that's more accurate and enjoyable to use

Making navigation much

more functional

A wide selection of various

routes are conveniently

presented to choose from.

Choose preferred route

The user-friendly AVN2210p’s

spoken instructions can be

heard in any of 22 languages.

Multi-language selection

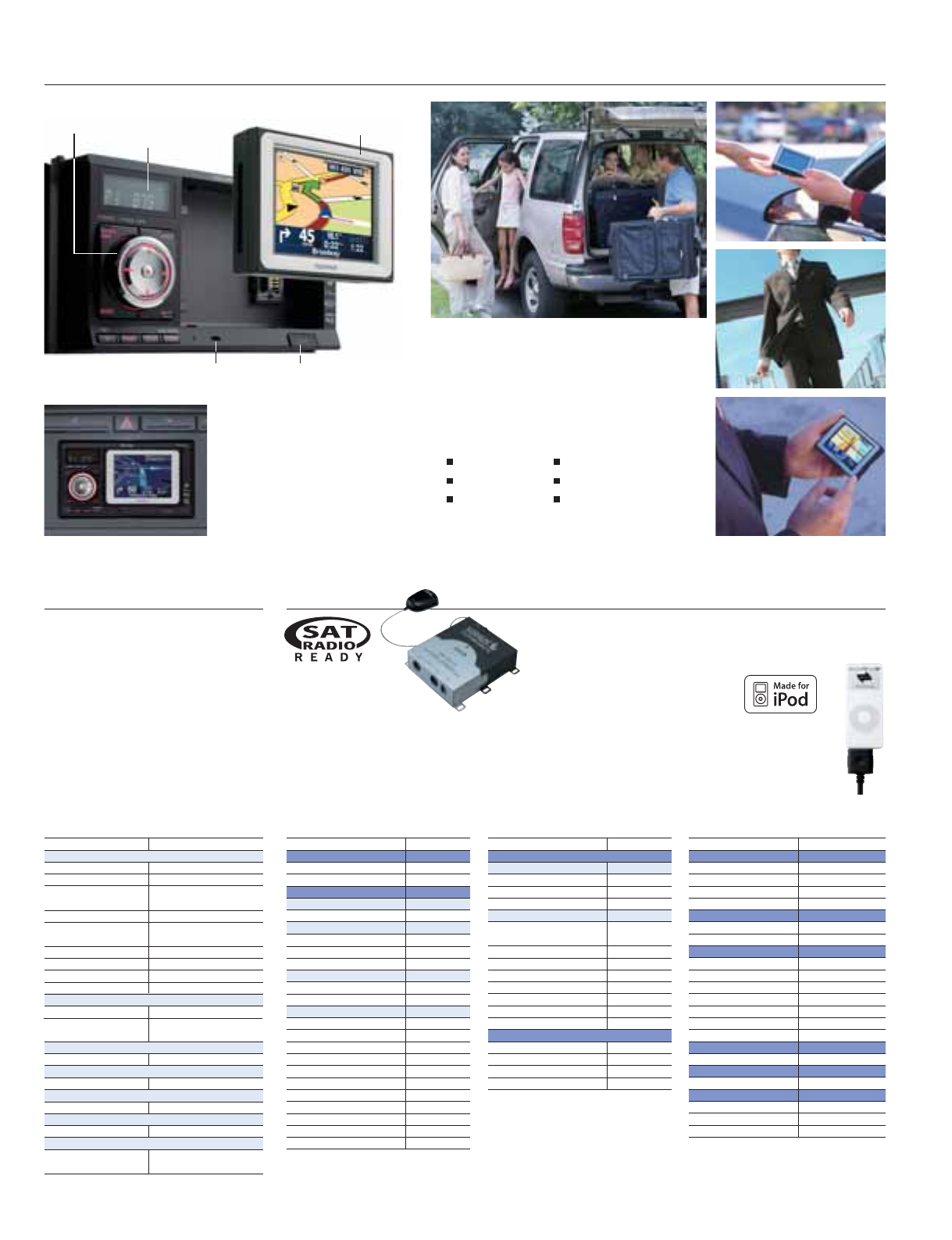

2007 Mobile Entertainment Brochure — 7

Feature

4-direction, Rotary & Push Knob

Built-in hands-free microphone USB I/F

8-digit LCD

3.5˝ TFT Monitor

Portable on demand

The AVN2210p’s TomTom navigation section detaches to

provide perfect navigation anywhere — whether it's in-car

or detached and used in other cars, or even when walking

around outdoors.

Automatic night mode

illumination

The AVN2210p’s "factory-fit"

installation conveniently makes the

unit automatically switch to its night

illumination mode when the car’s

headlights are switched on. This can

be manually switched as well.

Dedicated Travel Kit TRK-107p option available

AC Adapter

Lighter Adapter

USB Cable5

Windshield Screen Dock

Installation Poster

Main Unit Connector Cover

5 For connecting the AC Adapter to the Lighter Adapter.

Accessories

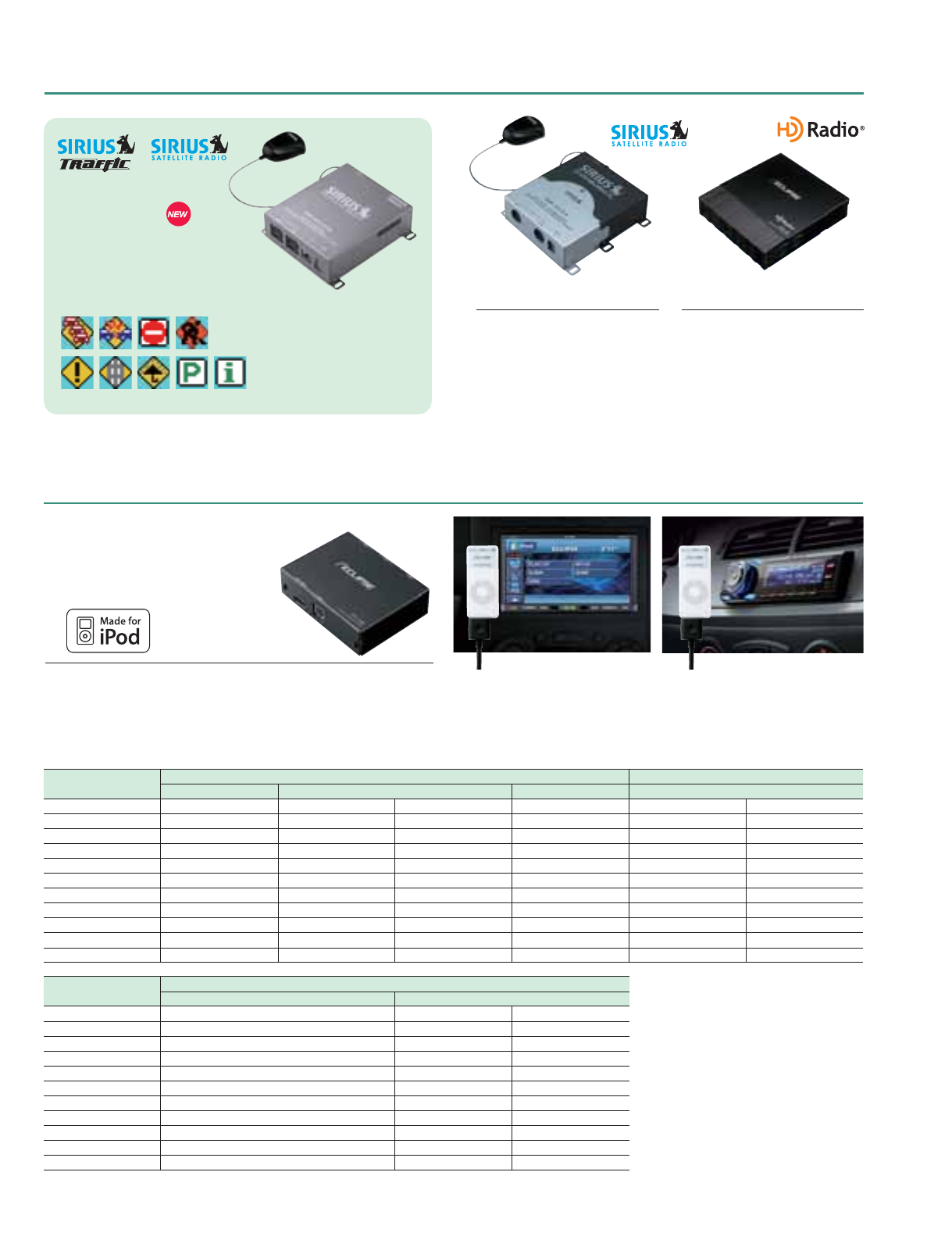

ECLIPSE offers the optional SIR-ECL1 dedicated tuner

for accessing the popular entertainment channels that

SIRIUS makes available. Relevant information is clearly

displayed on the navigation section’s screen.

SIRIUS-ready

Feature List

OPTIONAL

iPod® Full control-ready ●

SAT radio-ready ●

AVN2210p

SECURITY

Detachable structure (PND part)

OTHER

Bluetooth

●

●

CONTROL

AUDIO

CD ●

CD-R/RW ●

MP3 CD-R/USB

WMA CD-R

Crossover ●

Bass/Mid/Treble control ●

Amplifier 50W × 4

Preamp output F/R/NF, 5V

Balance/Fader control ●

Non-Fader/Phase level control

●

●

AUX-ready ●

TUNER

FM

FM1: 6 FM2: 6 FM3: 6

AM AM: 6

MEDIA

Navi Device

CD

AVN2210p AVN2210p

●

USB Memory ●

Display 3.5˝ TFT

3D view graphics ●

Day/Night view ●

Assistance

Routing

Searching

Operation

NAVIGATION

Touch panel control ●

Hands-free calls ●

Address search ●

POI Name ●

POI Category ●

Favorite search ●

Recent destinations search

●

Map search ●

Intersection search ●

Coordinates search ●

Home search ●

Town search ●

Last docked search ●

Displaying

SD Map storage ● (1GB)

6 routes choice ●

Itinerary planning ●

Route summary ●

Traffic Information ●

(TomTom Traffic)

Spoken instructions ●

Spoken instruction switch L/R

●

Spoken instruction volume control

●

Intersection zooming ●

Freeway guidance ●

Auto rerouting ●

Estimate arrival time ●

Battery life 1.30h

Integrated GPS antenna ●

Integrated speaker ●

Accessory Car Dock ●

NAVIGATION

PORTABLE NAVIGATION

Source volume control

NAME

GENERAL

Power output

Dimensions

(W × H × D)

Weight

DISPLAY

Display

Resolution

AVN2210p

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝

(180 × 100 × 165mm)

5.5lbs (2.5kg)

3.5˝ TFT

230,400 dots

(320 × 240 × 3)

87.75 — 107.9MHz (200kHz step)

Power supply 13.2V DC (11—16V)

Specifications

Dimensions (PND only)

(W × H × D)

4˝ × 3˝ × 1˝

(101 × 76.1 × 23.3mm)

Weight 0.4lbs (0.2kg)

Operating temperature range -4˚F to 149˚F (-20˚C — 65˚C)

Operating temperature range (PND only)

14˚F to 131˚F (-10˚C — 55˚C)

Suitable load impedance

(PND only)

FM TUNER

Frequency range

530 — 1710MHz (10kHz step)

AM TUNER

Frequency range

-3±3dB(1kHz:0dB)

CD SECTION

Frequency response

1.1

USB MEMORY PLAYER SECTION

USB Interface

±12dB at 80Hz/±12dB at

700Hz/±12dB at 10kHz/

EQUALIZER SECTION

Bass/Mid/Treble Control

TRK-107p

Travel Kit

● AC Adapter

● Lighter Adapter

● USB Cable5

● Windshield Screen Dock

● Installation Poster

● Main Unit Connector Cover

iPC-107p

Direct Cable for iPod®

5 For connecting the AC Adapter

to the Lighter Adapter.

Standard (provided in box)

● SD Card (1GB)

(Includes map data)

● USB Cable

● Quick Start Guide

● Installation CD

(Includes TomTom HOME, Full Manual)

● Product Code Card

● Sleeve

● PND Connector Cover

SIR-ECL 1

ECLIPSE COMPATIBLE

SIRIUS SATELLITE RADIO TUNER

4Ω

HDD Series

The 30GB HDD holds 3,000 music tracks for an incredible mobile jukebox.

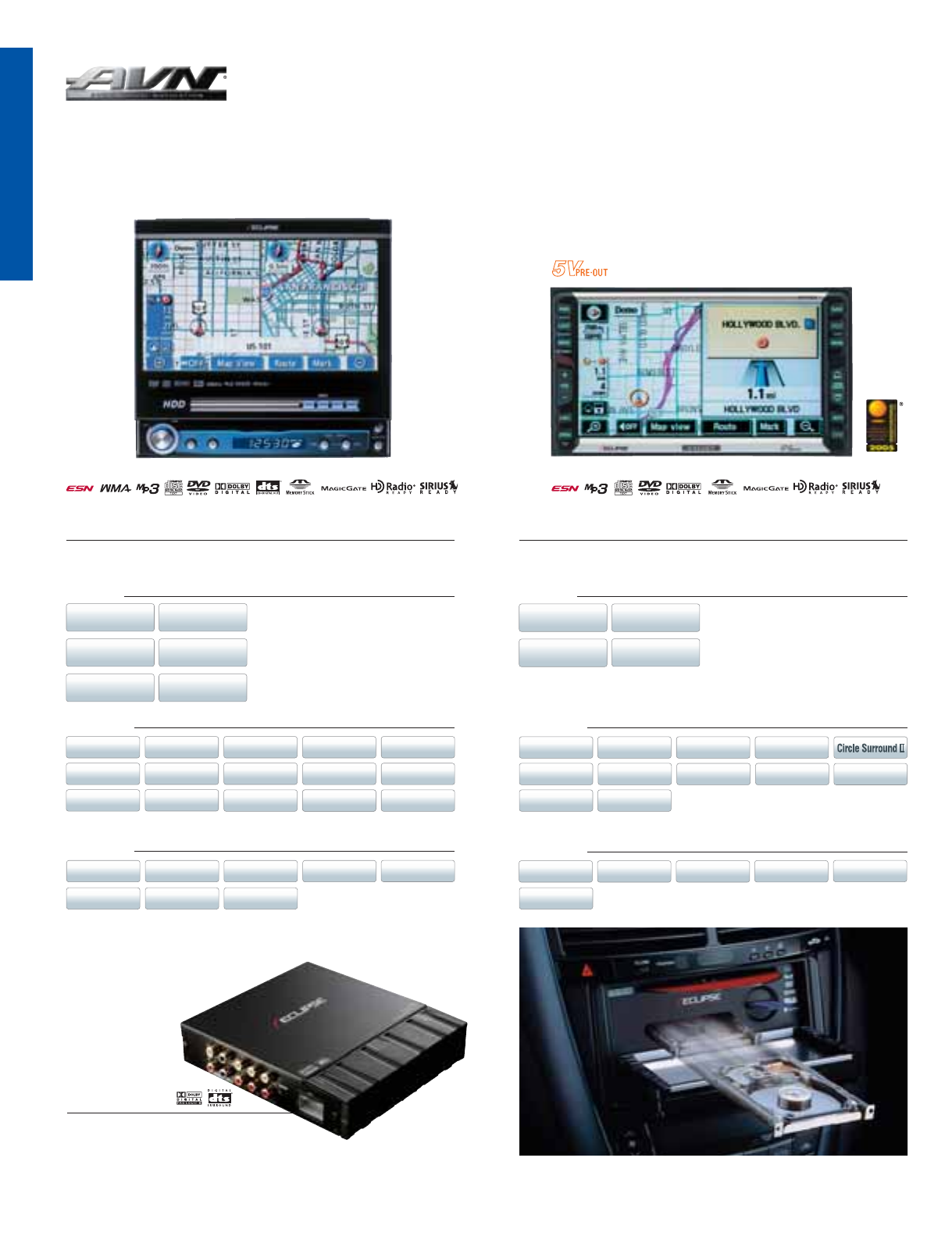

AVN Series

8 — 2007 Mobile Entertainment Brochure

Full-featured AVN in a compact 1-DIN configuration HDD-based unit with 3,000 song Music Juke feature

Dimensions (W × H × D)

6-15/16˝ × 1-7/16˝ × 6-5/16˝ 175 × 36.5 × 160mm

( for AVN7000, AVX5000 )

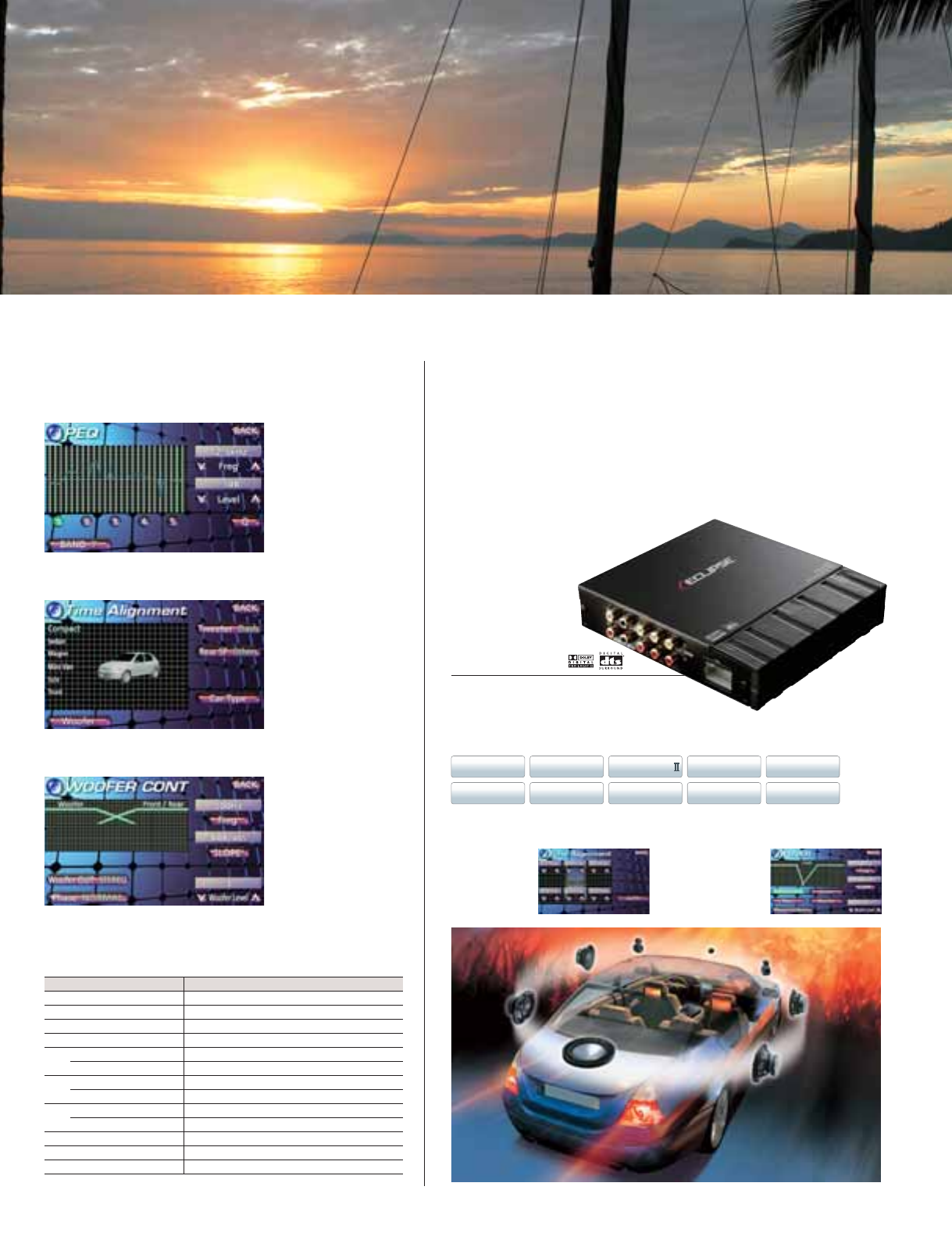

DCU 105

5.1ch. Decoder/AV Matrix Unit

DCU105 Audio Video Matrix

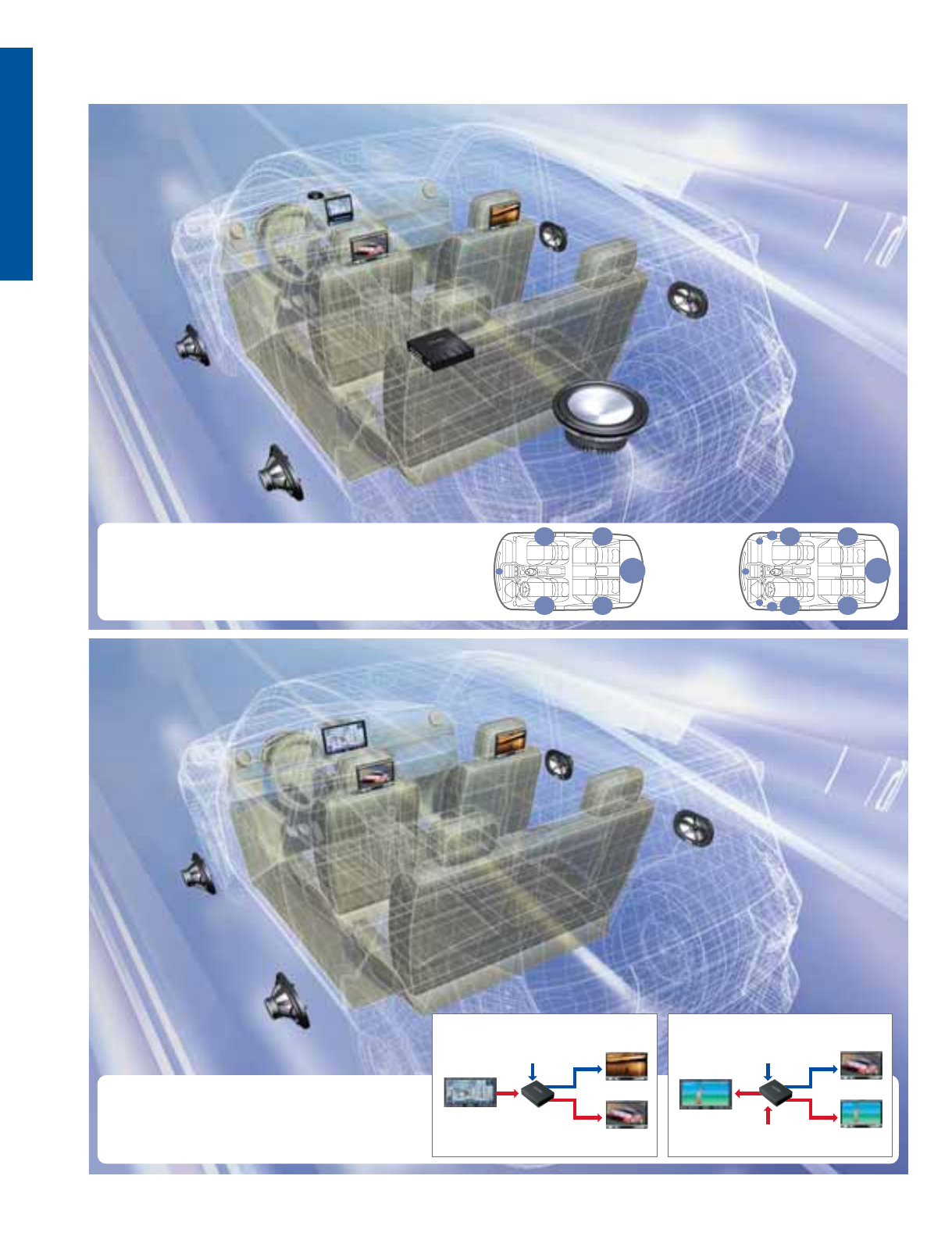

Adding the optional DCU105 transforms

a front 3-way system to a full

theater-level 5.1 ch. surround system.

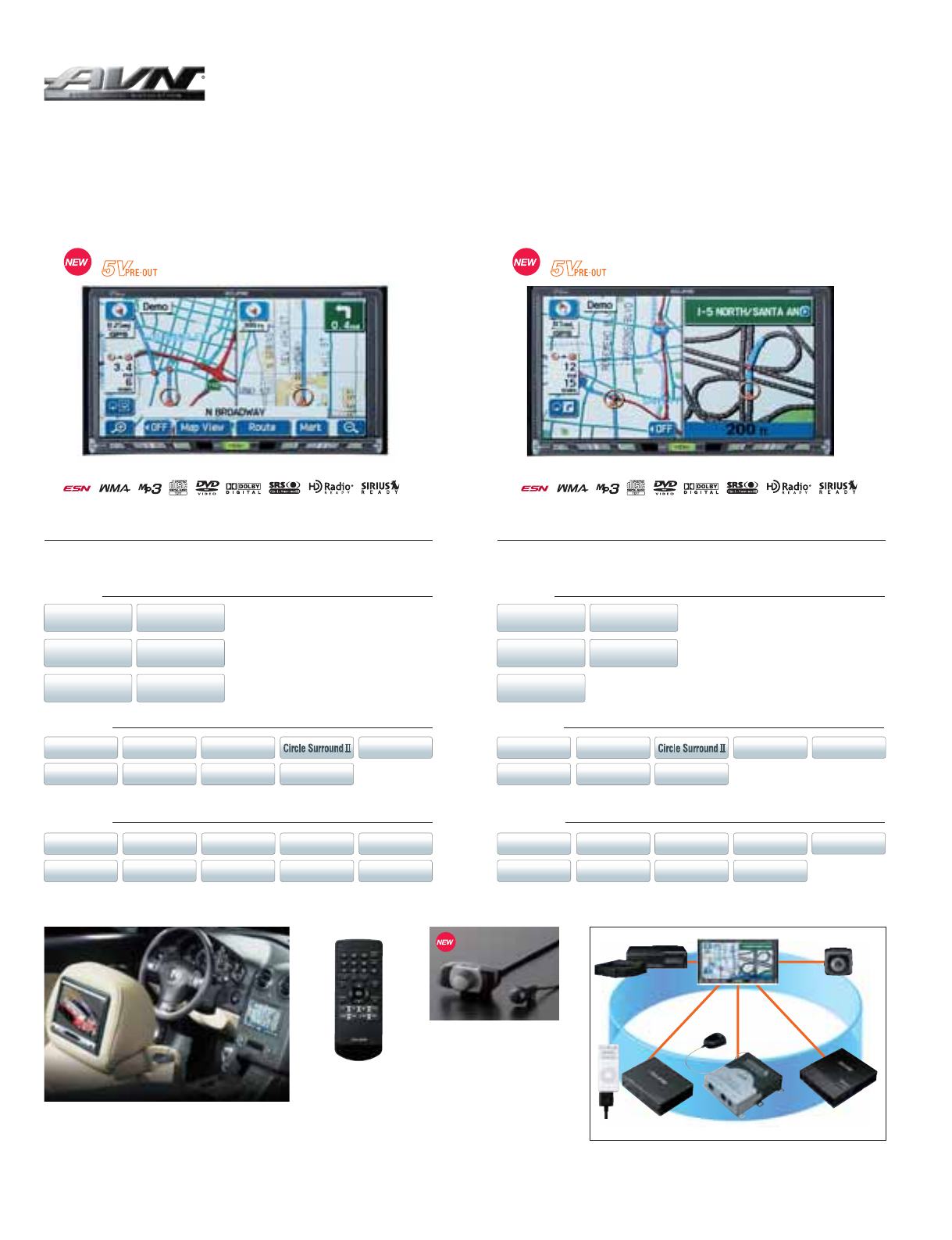

AVN7000

HDD Navigation System with 7˝ Wide TFT Display

and DVD/MS Multi-Source Receiver

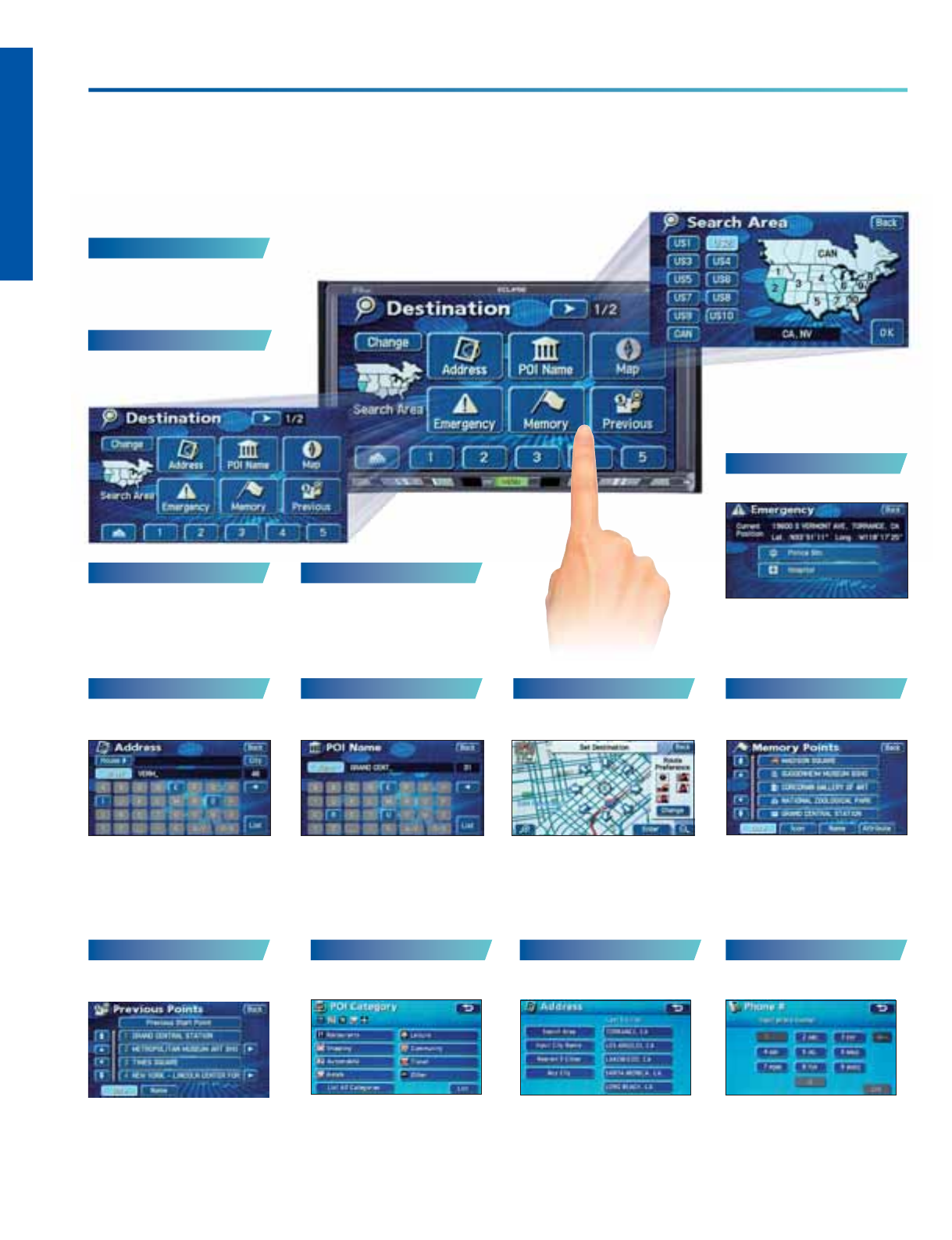

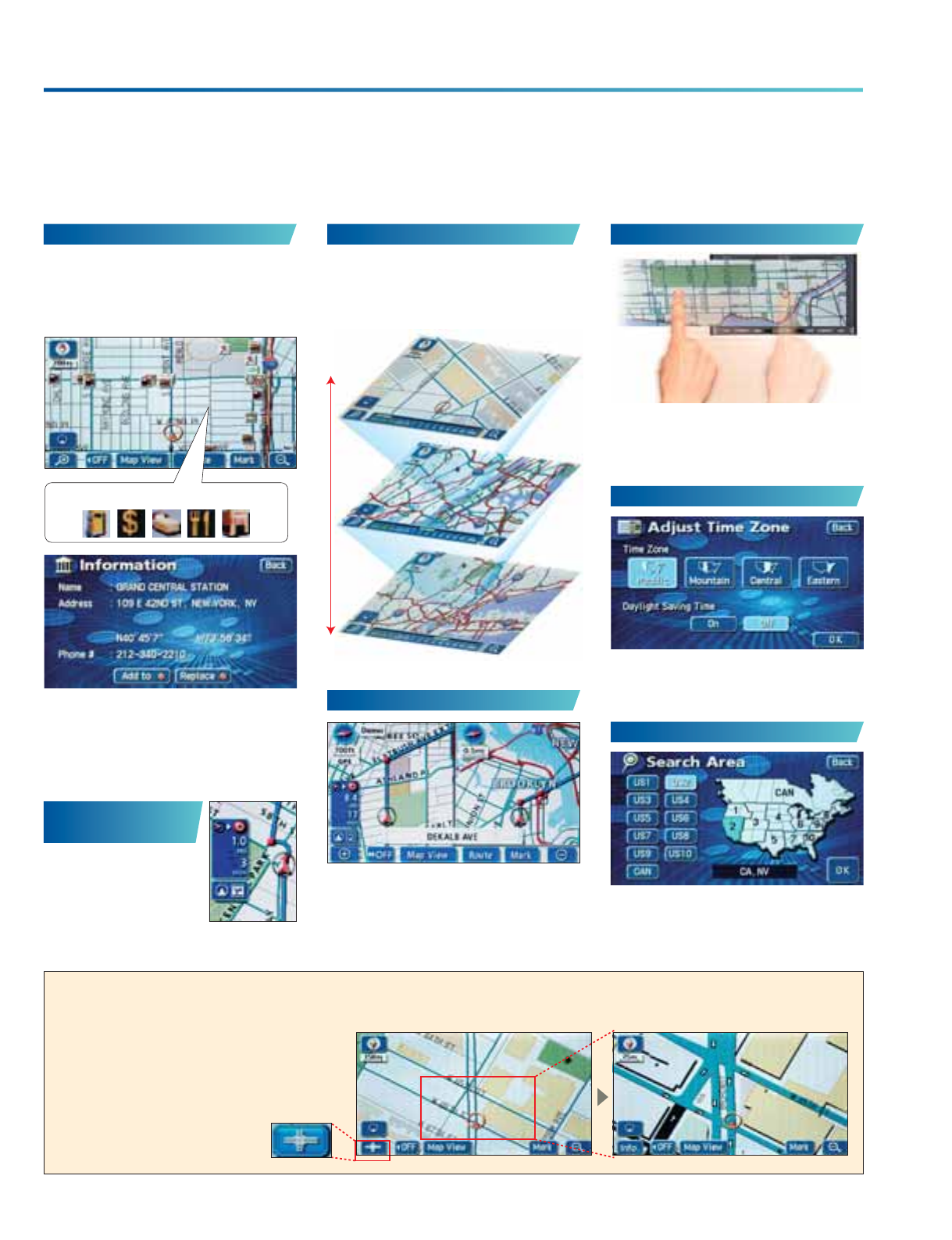

• Multiple search modes

• Split screen displays in navigation

• Map scale from 150 feet to 250 miles

• Time zone (7 areas including Hawaii)

• Voice guidance in English and French

Navigation

Audio/Visual

Accessories

7 ˝ wide display

Ultima Engine

over 32,000

Touch control

map colors

20GB

1.8˝ HDD

approx. 4 milllion

POIs

approx. 3 milllion

POIs

Dual zone

operation MOSFET 50W ✕ 4

TV Tuner

-ready

Rear view

camera

-ready

Side view

camera

-ready

*

1

CD Changer

-ready

(2 units)

HD Radio

-ready

SIRIUS

Satellite

Radio

-ready

FM/AM Advanced

24-bit Δ∑ DAC 7-band PEQ Time alignment

Crossover

MS ESN security

Detachable front panel

Memory Stick DUO

Dual color

illumination

DVD Video

Listening

Position Selector

5.1 ch.

SOUND

(option)

E-iSERV

(option)

connectivity

• 5V preamp output (with DCU105) • AV output for rear monitor • AV input

Side view

camera

-ready

*

Accessories

Rear view

camera

-ready

CD Changer

-ready

(2 units)

HD Radio

-ready

SIRIUS

Satellite

Radio

-ready

DVD Video

• Multiple search modes

• Split screen displays in navigation

• Map scale from 150 feet to 250 miles

• Time zone (5 areas including Hawaii)

• Voice guidance in English and French

Navigation

Audio/Visual

6.5 ˝ wide

display

Touch control

30GB

HDD

50W ✕ 4

FM/AM 5-mode

acoustic control 9-band GEQ

CDDB-enabled

Memory Stick

• 5V preamp output • Video output for rear monitor • AV input

Advanced

24-bit Δ∑ DAC

MS ESN security

Listening

Position Selector

AVN5495

ESN 6.5˝ Wide TFT Touch-Panel Display CD/DVD/MS

Multi-Source Receiver with HDD Navigation

3,000

track

Music Juke

TEL Mute

*1: Operation requires CAB106 Power Supply.

*2: Some operations may be limited. Please refer to all control details on p25.

iPod®control

-ready

*2iPod®control

-ready

*2

DVD Series

Dual play provides independent front and rear

entertainment options.

Because the AVN6610 has 2 DVD decks

(1for navigation) rear seat entertainment can

be enjoyed simultaueously with navigation.

Basic high performance and built-in expandability makes the AVN5510

ideal as the heart of even the most complex system.

RRC 106

Remote Control for

Rear Seat Entertainment

BT-E600/BT-E500

Hands-Free Car Kits

This remote is for use with

dual play to control the rear

monitor.

Optional for: AVN6610

2007 Mobile Entertainment Brochure — 9

Dual Play delivers independent entertainment

for driver and passengers

Wide 7˝ display, 5V preamp output and other

premium features

HDR 105

SIR-ECL 1

iPC- 106

CH3083 BEC 106

Allows hands-free operation with

the AVN6610 (BT-E600) and

AVN5510 (BT-E500) using any

Bluetooth®-enabled cellular

phone so incoming calls can be

heard over system speakers and

calls can be made with voice

control over phonebook entries.

Parrot Bluetooth®

iPod® Full control

-ready

iPod® Full control

-ready

Accessories

TV Tuner

-ready

TEL Mute

Side view

camera

-ready

*Rear view

camera

-ready

CD Changer

-ready

(2 units)

SIRIUS

Satellite

Radio

-ready

HD Radio

-ready

SIRIUS

Traffic

Radio

-ready

Parrot Bluetooth®

-ready

DVD Video

• Multiple search modes

• Split screen displays in navigation

• Map scale from 150 feet to 250 miles

• Time zone (4 areas)

• Voice guidance in English, French and

Spanish

Navigation

Audio/Visual

7 ˝ wide display

Touch control

City map

Traffic Information

City map

DVD Navigation

approx. 8.55 milllion

POIs

approx. 8.55 milllion

POIs

Dual zone

operation 50W ✕ 4 FM/AM

Advanced

24-bit Δ∑ DAC 7-band PEQ Crossover Listening

Position Selector

• 5V preamp output • AV output for rear monitor • AV input

DVD Navigation System with 7˝ Wide TFT Display

and Dual DVD Multi-Source Receiver

AVN6610

TV Tuner

-ready

TEL Mute

Side view

camera

-ready

*

Rear view

camera

-ready

CD Changer

-ready

(2 units)

HD Radio

-ready

SIRIUS

Satellite

Radio

-ready

Accessories

DVD Video

• Multiple search modes

• Split screen displays in navigation

• Map scale from 150 feet to 250 miles

• Time zone (4 areas)

• Voice guidance in English, French and

Spanish

Touch control

7 ˝ wide display

50W ✕ 4 FM/AM Advanced

24-bit Δ∑ DAC

7-band PEQ Crossover Listening

Position Selector

Navigation

Audio/Visual

• 5V preamp output • AV output for rear monitor • AV input

DVD Navigation System with 7˝ Wide TFT Display

and DVD Multi-Source Receiver

AVN5510

*Operation requires CAB106 Power Supply.

Parrot Bluetooth®

-ready

DVD Navigation

Searching

AVN Series

10 — 2007 Mobile Entertainment Brochure

Offering the most convenient ways to find your destination

Conveniently focuses on a general

region for more efficient searching.

All searching starts with selecting the

general area the destination is in.

If only the phone number is known,

the address corresponding to the

telephone number will be shown.

Shows all the closest-to-get-to

POIs from the car’s current location.

An address is all that is needed.

Input a street name and number to

initiate a search.

Alternately, a telephone number

will result in a search.

A speed search that can be

activated by city or nearby vicinity.

Convenient presets for general

inquiries save time.

Making it simple to find locations.

Another easy method is to directly

access a map of the search area

and zoom in or out as desired.

No more wasted time looking

for a map.

Conveniently, the last 100 locations

can be instantly displayed for

selecting.

Where the car has been.

Just input the name of a freeway

and the entrance/exit you want.

Simplifies highway travel.

Presets for instantly accessing

a location.

100 useful locations are preset for

quickly scrolling through and

selecting. Favorite locations can

have sound tags assigned, even

with directivity.

Offers a route to the input city’s

central area. Up to 5 favorite cities

can be conveniently grouped

together. A 20 mile vicinity of the city

can also be shown.

For a particular type of location

such as a mall, restaurant or other,

AVN brings up listings. Touch one

and see more details.

Once a home address is registered,

it is easy to return from anywhere.

This always guides the car home,

no matter where it is.

Searches by latitude and longitude.

5 buttons can be preset to any

desired destination for instant recall.

Most required information right away.

In an emergency, AVN notes the

car’s position and only displays the

closest emergency services such

as police and hospitals.

Address search POI Name

Phone Number *1

City search *2

POI Category *1

Map search

Previous Points

Freeway search

Memory Points

Emergency

Home search

Coordinates search

Quick Access Points

*1: AVN7000, AVN5495 only. *2: AVN7000, AVN6610, AVN5510 only.

Routing

2007 Mobile Entertainment Brochure — 11

congestion

Destination

construction

enroute stopping point

Any selected route can be conveniently previewed

in its entirety to get familiarized with it.

Before the final destination, any 5 locations can be

programmed into the route such as a supermarket,

gas station, or ATM.

Instantly sets 3. For any destination, a choice of

Quick 1, Quick 2 and Short routes to suit

personal preferences adds flexibility.

Program locations prone to problems.

Choose when and where to take breaks.

Multiple selection of routes to choose from

Preset travel method preferences such as

expressways and toll roads are factored into the

routes the user can choose from.

Now it is easy to avoid up to 10 chronically

congested and problem areas. Simply select an

onscreen area, drag to resize it up or down as

desired and the best detours are presented.

Route preference

3 routes

This optional SIRIUS service offers breaking

reports regarding accidents, road closings,

traffic flow/congestion and other conditions to

maintain smooth user progress. The

SIR-ECL 2nt integrates seamlessly with the

car’s own AVN system with SIRIUS Traffic

real-time data enhancing mapping.

SIRIUS Traffic (Optional for : AVN6610)

Enroute stopping points Detours Route preview

AVN Series

12 — 2007 Mobile Entertainment Brochure

Wrong turns and missed streets are no longer a problem because AVN

instantly reroutes to put the user right back on track.

When approaching an intersection where a turn is required, the display

automatically splits into two screens to show a more close-up view with

details such as landmarks.

Useful when faced with

unfamiliar locations, AVN

makes it foolproof to get on

hard-to-locate freeway

entrances, offering smooth

guidance through the most

complex interchanges and

getting off exactly where

required.

Comprehensive assist features make driving easier

No more missed turns.

Entrance displays

Instant response ensures no wasted time.

Display zooms up just when needed.

For stress-free driving, AVN advises upcoming turns and will continue to warn

as the turn approaches. Other guidance for curves and driving lanes will also

be announced.

Constant tracking maintains accurate position.

The AVN constantly tracks the car even where it cannot receive satellite

signals. A gyro sensor and auto speed pulse help correlate the car’s travel

with the onscreen map so that car’s position is always accurate.

Freeway interchanges

Guidance is provided when

approaching a freeway entrance with

the entrance name also displayed.

Untangling the most complex

interchanges is easy with the 3D views

and correct lane views AVN displays.

Exit displays

No more worries about missing the

right exit because it is shown in a 3D

view along with name and other useful

information.

Display automatically

splits as an intersection

is approached.

Assistance

Music cuts off at the front left

speaker and the navigation voice

message is heard.

Freeway assistance

Intersection zooming

Auto rerouting

Voice announcements and guidance

Map and positional updating

2007 Mobile Entertainment Brochure — 13

Gas stations, restaurants, ATMs and other useful

locations show up onscreen as POI displays,

each category distinguishable by a unique icon.

Press an icon and more information about that

location is displayed.

Making navigation easier than ever

This convenient function can be activated as

desired to combine zoom in and out displays,

maps of different scales and other combinations

of various modes as desired.

Useful information regarding

distance to the destination as

well as the estimated time of

arrival can be seen.

When traveling across time zones, the AVN

automatically adjusts the time correctly.

Just a light fingertip touch is all that is needed on

the touch control screen for the map to scroll by

smoothly and accurately following the fingertip.

AVN6610 and AVN5510 navigation databases do

not include Hawaii.

Information regarding a POI also appears on the

display.

250 miles

150 feet

Map scale can be quickly controlled by shifting

magnification values. Seamless zooming is

broader, covering 150 feet to 250 miles for

maximum flexibility.

City Map

A new addition to navigation assistance, this

mode is accessed through the button. The

display shows a detailed view to improve

recognition of streets, buildings and other

identifying points.

(AVN6610, AVN5510 only)

Brand new display mode for easier urban navigation

150 feet 75 feet

Most display images on p6-p9 are from the AVN6610.

Please consult respective models for their features/functions as there may be some differences.

Note:

Special display features

Versatile zooming

Split screen function

Time zones

Smooth multi-directional scrolling

Mapping coverage

POI displays

Driving distance and

arrival time displays

POI genres simultaneously onscreen: 5

AVN Series

14 — 2007 Mobile Entertainment Brochure

Creating an ideal system for your specific preferences

AVN7000 + DCU105

AVN6610/AVN5510/AVN5495 + MRE-700W

Adding a DCU105 to the AVN7000 instantly opens up a

wealth of system expansion possibilities that satisfy all

occupants in a car with personalized entertainment options.

For the above-listed AVN products, adding the RAS-100 AV

Matrix enables putting together an ideal rear seat entertainment

system with full routing and switching capabilities.

Front 1-way Front 3-way

Program material signals routed from

the AVN6610 to the RAS-100.

Routing program material signals from the RAS-100

through the AVN6610.

AVN6610

Output 3

Output 2

DVD Player

MRE-700

MRE-700

Input 1

Input 2

Output 1

GAME

Output 2

Output 1

DVD Player

MRE-700

MRE-700

Input 1

Input 2

AVN6610

(video)

Program material from 2 sources seen on 2 monitors. Program material from 2 sources seen on 3 monitors.

2007 Mobile Entertainment Brochure — 15

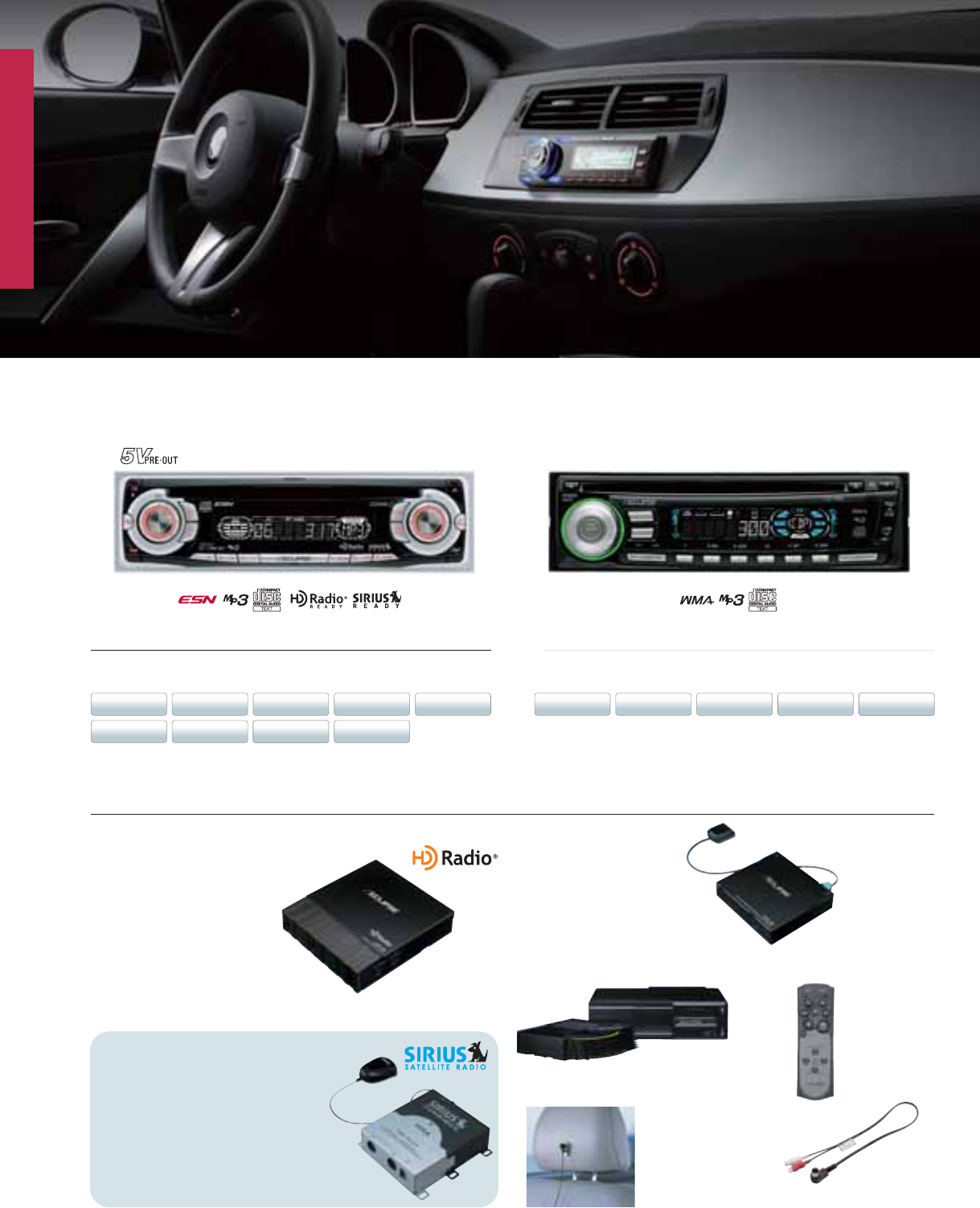

Accessories for system expansion

Get instant access to SIRIUS

satellite-based RTTI information for useful

real-time traffic conditions. Whether

traffic jams, congested areas or open

streets, all information is clearly displayed

onscreen, enhancing AVN navigation and

offering additional driving advice.

For AVN6610 only

SIR-ECL 1

ECLIPSE COMPATIBLE

SIRIUS SATELLITE RADIO TUNER

HDR 105

HD Radio Tuner Unit

Dimensions (W × H × D)

4-15/16˝ × 1-7/16˝ × 4-3/16˝

125 × 35 × 105mm

Optional for:

AVN7000, AVN5495, AVN6610, AVN5510,

AVX5000, CD7100, CD5100, CD3100 and

CD2000

Dimensions (W × H × D)

6-15/16˝ × 1-7/16˝ × 6-5/16˝

175 × 36.5 × 160mm

Optional for:

AVN7000, AVN5495, AVN6610, AVN5510,

AVX5000, CD7100, CD5100, CD3100 and

CD2000

SIR-ECL 2nt

ECLIPSE COMPATIBLE

SIRIUS SATELLITE RADIO TUNER

Dimensions (W × H × D)

5-7/16˝ × 1-7/16˝ × 4-3/16 ˝

126 × 35 × 105mm

BEC 106

Rear View Camera

RMC 105

Wireless Remote

The BEC106 optional rear camera can be

connected to the AVN units to facilitate parking.

CH3083

8-Disc CD Changer

with Magazine Unit

E505CSP

Center Speaker with Power Amplifier

The easiest way to enjoy surround sound

by adding a central active speaker.

Allows hands-free operation with

AVN6610 (BT-E600) and AVN5510

(BT-E500) .

Dimensions (W × H × D)

5-15/16˝ × 1-3/16˝ × 4-3/16˝

150 × 30 × 105.2mm

TVR 105

TV Tuner Unit

Dimensions (W × H × D):

6-3/4˝ × 1-1/16˝ × 4-9/16˝

171.5 × 25.5 × 115.1mm

MRE-700

7 ˝ Widescreen Monitor

MRE-700W

7˝ Widescreen Monitor Package

Contains all the components and

hardware that is required to create an

ideal rear entertainment system.

Includes:

MRE-700 × 2, RAS-100 (AV Matrix),

dedicated wireless remote control.

WHP-100

Wireless Headphones

These wireless headphones are

ideal for rear entertainment when

different program sources are

simultaneously being played.

Switchable between 2 frequencies.

Note:

For connection details of each unit, please see p13.

MDV-07D

2007 Version Update Navigation Disc

For: AVN6600, AVN5500, AVN5435 and

AVN2454. MDV-06D data compiled as of

December 2005. POI category now increased

to 8.55 million points and City Maps* cover

more areas.

iPC- 106

Interface Adapter for iPod ®

Allows enjoying favorite music

from an iPod. Also recharges

when connected.

Dimensions (W × H × D)

4-11/16˝ × 1-5/16˝ × 3-9/16˝

120 × 32 × 90mm

Its slim and silver-colored enclosure

adds the perfect touch of style to rear

entertainment systems, featuring

automatic screen dimming to suit

ambient light, a built-in speaker and

headphones jack. Dedicated WHP-100

wireless headphones can also be used.

AV inputs are on front and back of unit.

Front-mount camera that scans the sides as well as the front of the

vehicle. Easily mounts behind the grille. Requires CAB106 Power Supply

for Camera to be used.

FEC 106

Side View Camera

CAB 106

Power Supply for Camera

*For City Map coverage details please go to the ECLIPSE website.

Photo: AVN6610

For digital radio applications:

For more driving assistance:

For expanding entertainment options:

Full control: AVN6610, AVN5510, CD7100, CD5100 and CD3100

Optional for:

AVN7000, AVN6610, AVN5510

and AVX5000

BT-E600/BT-E500

Hands-Free Car Kits

Note: Using the BEC106 together with the FEC106 also requires the CAB106 Power Supply for Camera.

Note: Using the BEC106 alone does not require the CAB106

Power Supply for Camera.

Parrot Bluetooth®

AVN Serirs

16 — 2007 Mobile Entertainment Brochure

MEDIA

HDD

DVD

CD

SONY Memory Stick

NAVIGATION

SECURITY

Navigation Device

Displaying

Operation

Searching

DVD Navigation

Ultima Engine

HDD Navigation

Display

Street name

Point-of-Interest (POI)

Touch panel control

Address search

POI Name

POI Category

Memory search

Emergency search

Previous search

Map search

Intersection search

Freeway search (ENTER/EXIT)

Coordinates search

Telephone number search

Home search

Quick access point search

ECLIPSE Security Network

Detachable front panel

OTHER

TEL Mute

Split screen

1.8˝ 20GB

●

7˝ EGA

●

●

●

●

approx. 4,000,000 points

●

●

●

●

●

Hospital/Police

●

●

●

●

●

●

●

●

●

●

●

●

●*1 (MS Duo only)

AVN7000

30GB

●

6.5˝ EGA

●

●

—

—

—

●

approx. 3,150,000 points

●

●

●

●

●

Hospital/Police

●

●

●

●

●

●

●

●

●

—

●

●

●

AVN5495

—

—

7˝ EGA

●

●

—

●

approx. 8,550,000 points

●

●

●

—

●

Hospital/Police

●

●

●

●

●

—

●

●

●

—

●

●

—

AVN6610

—

AVN5510

—

7˝ EGA

●

●

●

●

—

●

approx. 8,550,000 points

City map ——●●

●

●

●

—

●

Hospital/Police

●

●

●

●

●

—

●

●

●

—

●

●

—

Features List

Specifications

NAME

GENERAL

Power output

Dimensions (W × H × D)

Weight

DISPLAY

Display

Resolution

FM TUNER

Frequency range

Usable sensitivity

Screen aspect ratio

AVN7000

MOSFET 50W × 4 (MAX)

7˝ × 2˝ × 6-1/2˝ (180 × 50 × 165mm)

5.1lbs (2.3kg)

7˝ wide (16:9), low-glare panel

336,960 dots (480 × 234 × 3)

87.75 — 107.9MHz (200kHz step)

19dBf (98.1MHz)

4 types

AVN5495

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

7.9lbs (3.6kg)

6.5˝ wide (16:9), low-glare panel

280,800 dots (400 × 234 × 3)

87.75 — 107.9MHz (200kHz step)

12dBf (98.1MHz)

4 types

AVN6610

50W × 4 (MAX)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

7.0lbs (3.2kg)

7˝ wide (16:9), low-glare panel

336,960 dots (480 × 234 × 3)

87.75 — 107.9MHz (200kHz step)

12dBf (98.1MHz)

4 types

AVN5510

50W × 4 (MAX)

Power supply 13.2V DC (11—16V) 13.2V DC (11—16V) 13.2V DC (11—16V) 13.2V DC (11—16V)

7˝ × 4˝ × 6-1/2˝ (180 × 100 × 165mm)

7.3lbs (3.3kg)

7˝ wide (16:9), low-glare panel

336,960 dots (480 × 234 × 3)

87.75 — 107.9MHz (200kHz step)

12dBf (98.1MHz)

4 types

Routing

3 routes information

Detours

Enroute stopping points

Route preview

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Assistance

Real Time Traffic Information

Voice guidance

Voice guidance switch L/R

Intersection zooming

Voice guidance volume control

Freeway assistance

Auto rerouting

Estimated arrival time

—

English/French

●

●

●

●

●

●

—

English/French

—

●

●

●

●

●

● (SIRIUS Traffic)

English/French/Spanish

—

●

●

●

●

●

—

English/French/Spanish

—

●

●

●

●

●

*1: Sony Magic Gate Memory Stick Duo is sold separately.

2007 Mobile Entertainment Brochure — 17

Front-1 way system

DCU105 connected

Front-3 way system

DVD-Video

AVN7000 only

—

—

—

—

———

DVD

CD

MS

Audio function

Audio device

Analogue radio tuner

●

DVD-R/RW, DVD+R/RW ●

●

●

●

●

Dolby Digital 5.1ch.

dts 5.1ch.

Dolby Pro Logic

II

CD

●CD-R/RW

●

—

MP3

●WMA

● (SONY Magic Gate Memory Stick Duo)

●

ATRAC3

Time Alignment

7 bands 7 bands

9 bands —

Parametric EQ

Graphic EQ

F/R/C: independent 5 bands, SW: 1 band

Crossover

MP3/WMA/ATRAC3 MP3/ATRAC3 MP3/WMA MP3/WMAMulti-Harmonizer

FR, FL, F, R, OFF

● (Audio customize)

Listening Position selector

Non Fader Level/Phase control

●Woofer output

E-iSERV Connectivity

MOSFET 50W × 4

FM1: 6, FM2: 6, FM3: 6

Amplifier

●Advanced 24-Bit Δ∑ DAC

F/R/NF, 2VPre Amp Output Front/Rear/Center/Subwoofer, 5V

AV Output ●

AV Input ●

●Digital Output (Coaxial)

—

Digital Input (Coaxial)

—

Digital Input (Optical)

●

●

FM

AM: 6AM

SIRIUS SATELLITE RADIO-ready

Ready for iPod®

●

CD Changer-ready 2 (daisy chain)

Rear View Camera-ready ●

TV Tuner-ready ●

Rear Monitor output 12

HD Radio-ready ●

▲

OPTIONAL

AUDIO

Car type: 6 types,

Speaker position:

Tweeter

Rear SP

Front (L/R), Rear (L/R),

Center, Subwoofer

F-Hi (L/R), F-Mid (L/R),

F-ML (L/R), R (L/R),

Center, Subwoofer

F (HPF)/R (HPF)/

C (HPF)/SW (LPF)

F-Hi (HPF), F-Mid

(HPF/LPF), F-ML (HPF/LPF),

R (HPF), SW (LPF)

*2

● ●—●

MUSIC JUKE ●

(3,000 tracks) ——

—Circle Surround II ●●●

AVN7000 AVN5495 AVN6610 AVN5510

—

—

●

●

—

—

—

●

●

—

—

—

●

●

—

●

●

●

●

●

—

—

●

●

●

—

▲ (video only)

—

●——

—

—

—7 bands

—

—

—

●

●

●

●

●

●

●

●

50W × 4

F/R/NF, 5V

FM: 6

AM: 6

2 (daisy chain)

●

●

●

—

1

▲

●

●

—

—

●

●

●

—

●

—

50W × 4

F/R/NF, 5V

FM1: 6, FM2: 6, FM3: 6

AM: 6

2 (daisy chain)

●

●

●

●

1

●

●

●

—

—

●

●

●

—

▲ (video only)

—

50W × 4

F/R/NF, 5V

FM1: 6, FM2: 6, FM3: 6

AM: 6

2 (daisy chain)

●

●

●

●

Parrot Bluetooth®-ready ——●●

1

●

*3*3

AM TUNER

Frequency range 530 — 1.710kHz (10kHz step)

Usable sensitivity 22μV

CD SECTION

Frequency response 20 — 20,000Hz ±3dB

EQUALIZER SECTION

Equalizer 63Hz — 16kHz (25 points) ±10dB

Total harmonic distortion 0.04% (0dB 1kHz)

MS SECTION

Frequency response 20 — 20,000Hz ±3dB

Total harmonic distortion 0.04% (0dB 1kHz)

HDD SECTION

Operating temperature range –10 — 65°C

Storage temperature range –40 — 70°C

530 — 1.710kHz (10kHz step)

22μV

20 — 20,000Hz ±3dB

63Hz — 12kHz (1/2oct.step) ±10dB

0.04% (0dB 1kHz)

20 — 20,000Hz ±3dB

0.04% (0dB 1kHz)

–10 — 65°C

–40 — 85°C

530 — 1.710kHz (10kHz step)

22μV

20 — 20,000Hz ±1dB

63Hz — 16kHz (25 points) ±10dB

0.01% (0dB 1kHz)

—

—

—

—

530 — 1.710kHz (10kHz step)

22μV

20 — 20,000Hz 0±2dB

63Hz — 16kHz (25 points) ±10dB

0.01% (0dB 1kHz)

—

—

—

—

AVN7000 AVN5495 AVN6610 AVN5510

*2: Please refer to Notes and Precautions. *3: Please refer to iPod Control Function chart on p25.

—Sound Field Control —5 modes 5 modes

AVX Series

18 — 2007 Mobile Entertainment Brochure

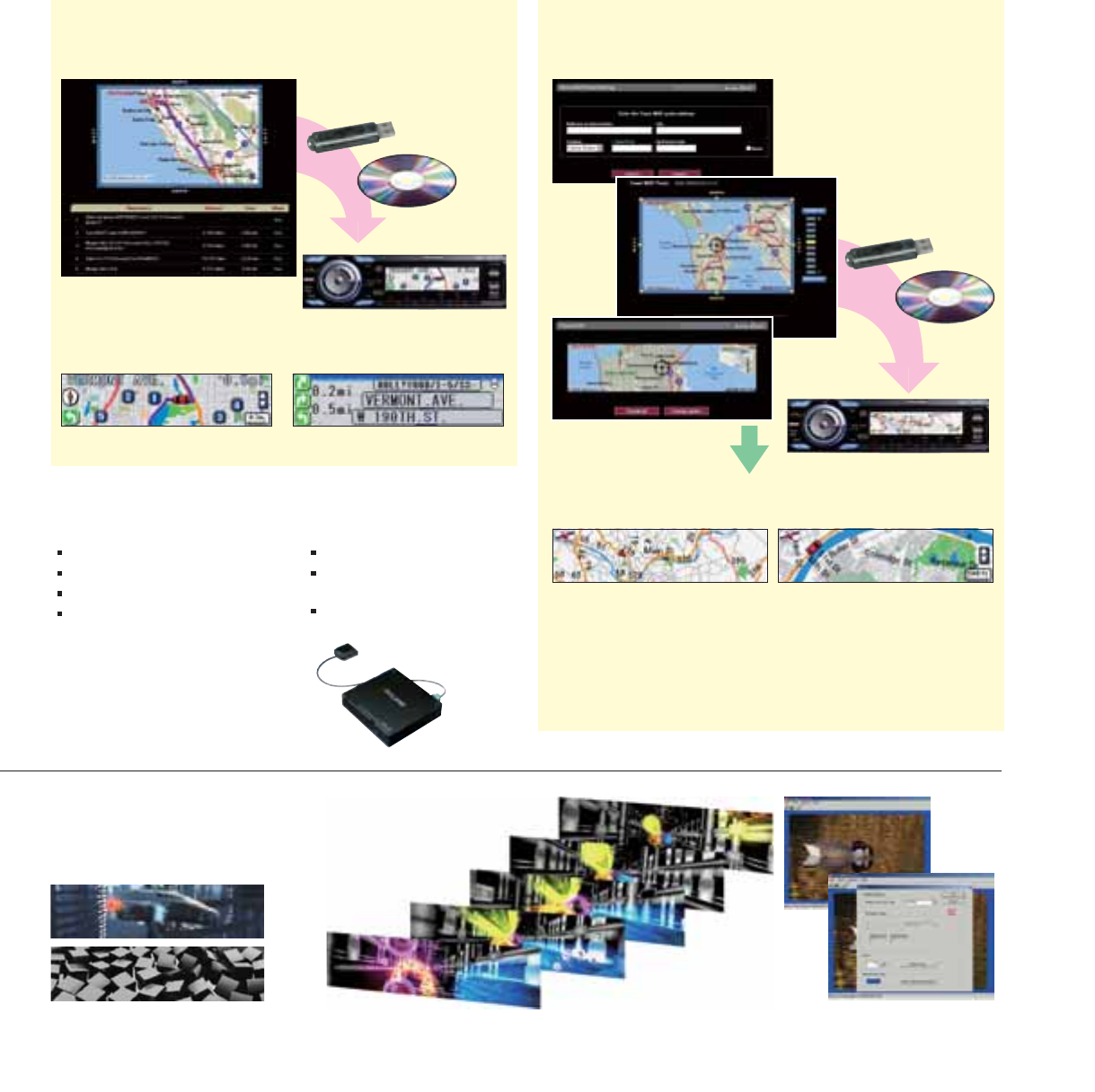

The Area Shot feature has been newly refined to offer more

assistance for travel routes. Now map displays are in full-color

and up to 5 POIs can be shown. Location displays can now

conveniently be viewed with 3-step zoom in ability.

Area Shot

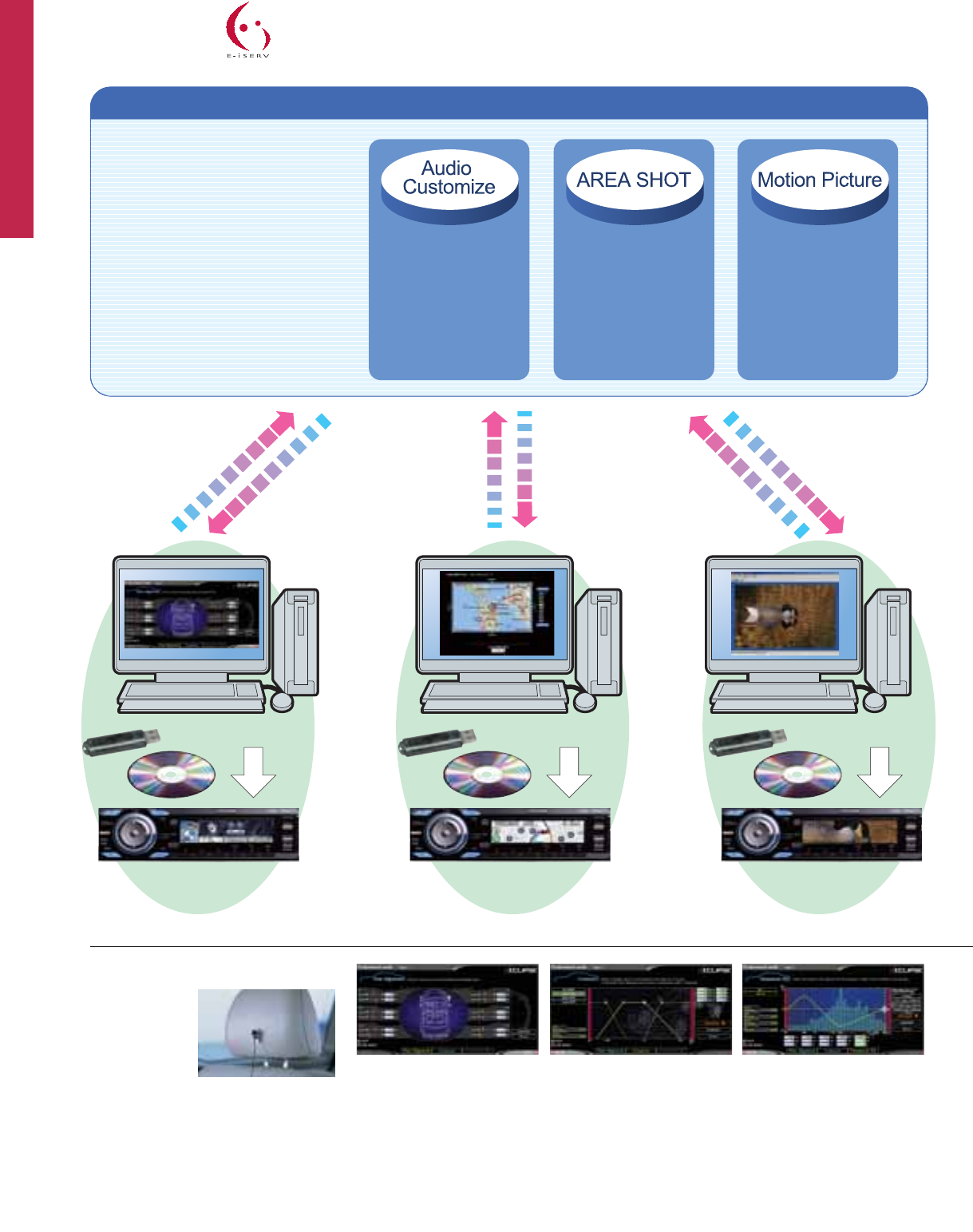

Routes can be set by accessing ECLIPSE’s E-iSERV server. Map data is then

downloaded onto a Memory Stick Duo which can be input into the AVX5000.

Location displays

have 3-step zoom

viewing ability.

Note: Area Shot is convenient for reviewing the route. However, the car must not be in motion

when using Area Shot. GPS option for AVX5000 allows current position to be displayed.

NAVTEQ ON BOARD is a trademark of NAVTEQ.

wide

close-up

medium

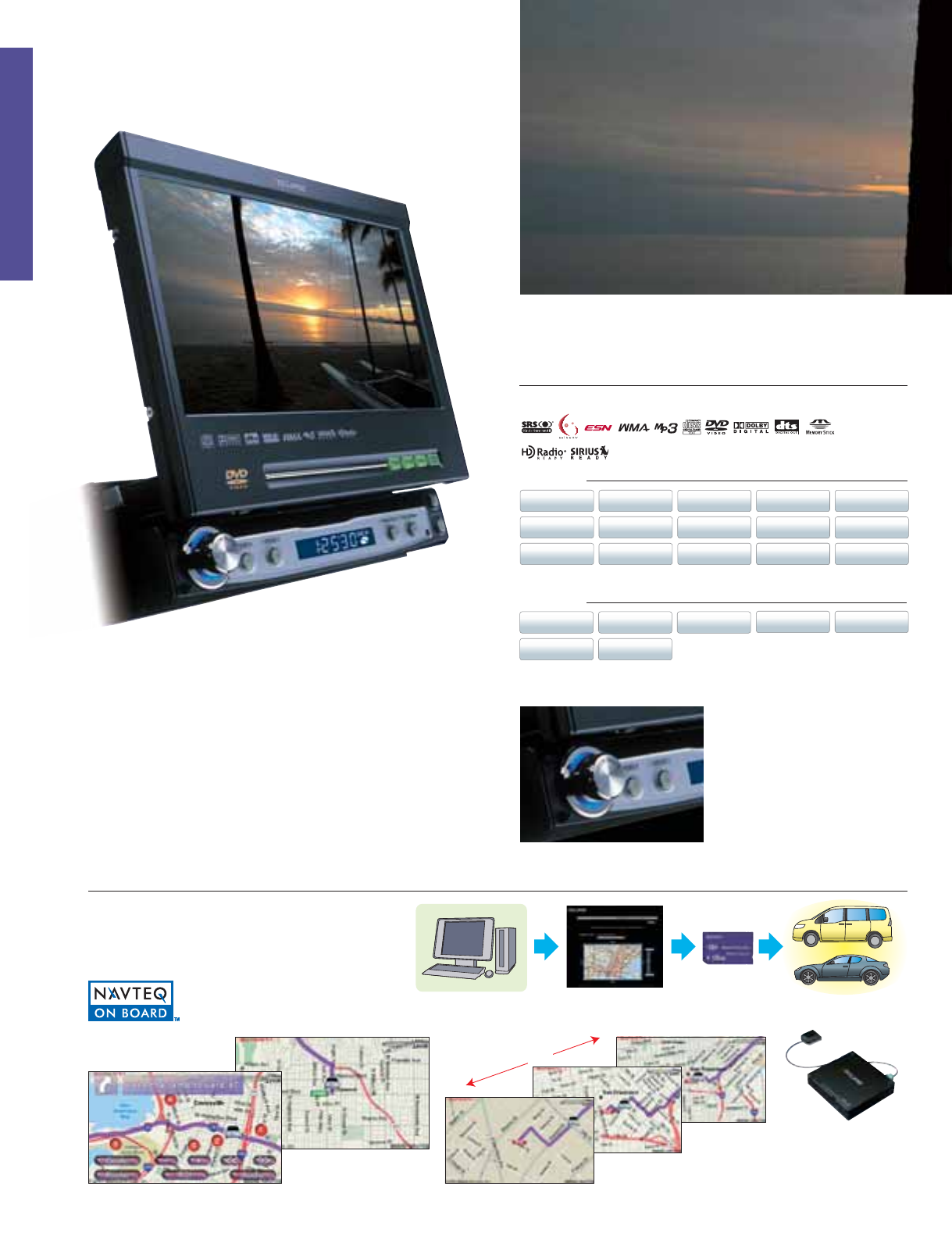

AVX5000

DVD/MS Multi-Source Receiver with 7˝ Wide TFT Display

MOSFET 50W ✕ 4

TV Tuner

-ready

Rear view

camera

-ready

CD Changer

-ready

(2 units)

HD Radio

-ready

SIRIUS

Satellite

Radio

-ready

FM/AM Advanced

24-bit Δ∑ DAC 7-band PEQ Time alignment

Crossover

MS ESN security

Detachable front panel

Memory Stick DUO

Dual color

illumination

Listening

Position Selector

5.1 ch.

SOUND

(option)

E-iSERV

(option)

connectivity

• 5V preamp output (with DCU105) • AV output for rear monitor • AV input

Featuring a sophisticated design and

appearance that enhances any interior,

the AVX5000 sports a matte black finish

with translucent acrylic and silver design

accents that give it a stylish look. Its

slim, single DIN dimensions contain a

large, high-resolution 7˝ display that

emerges at the touch of a button.

Stylish appearance complements any cockpit

The AVX5000 is an elegant and compact unit that effortlessly handles

program material on DVD, CD, and Memory Stick with its uncompromising

build quality and use of premium parts and components. The AVX5000 can

also be partnered with the amazing DCU105 Audio Video Matrix to take

advantage of complete surround features and functions as well as versatile

signal routing to increase system expansion options. This allows DVD Dual

Play so that the front and rear passengers can enjoy separate entertainment.

In addition, E-iSERV connectivity enables easy comprehensive audio

customization to optimize system response for any car.

Dedicated to providing the best in entertainment

7 ˝ wide

display Touch control

Accessories

Audio/Visual

AVX5000 + DCU105

Side view

camera

-ready

*

1

GPS 105

Adding the GPS105 will display

the car’s location as it moves!

Optional for:

AVX5000, CD7100 and CD5100

iPod®control

-ready

*2

*1: Operation requires CAB106 Power Supply.

*2: Some operations may be limited. Please refer to all control

details on p25.

2007 Mobile Entertainment Brochure — 19

Effective PEQ method

for quickly creating a

satisfactory acoustic

environment to suit

program material or

preference.

AVX5000 — Standard operations

7-band Parametric EQ

Easy preset parameter

groupings can be

selected and adjusted for

a time-aligned system

response that results in

better sound quality.

Time Alignment

Makes it simple to

optimize setting up a

subwoofer with a

4-speaker system to

extend the system’s

frequency bandwidth.

Crossover

Specifications

14.4V Power Supply AVX5000

Max. Power Output 50W × 4

Display 7˝ wide (16:9), low-glare panel

Display Resolution 336,960 dots (480 × 234 × 3)

Screen Aspect Ratio 4 types

FM Frequency Range 87.75 — 107.9MHz (200kHz step)

Usable Sensitivity 15dBf

AM Frequency Range 530 — 1710kHz (10kHz step)

Usable Sensitivity 24μV

CD Frequency Response 20 — 20,000Hz, -2±2dB — 0±2dB

Total Harmonic Distortion 0.03% (0dB, 1kHz)

Equalizer

Parametric: 63Hz — 16kHz±10dB, (25 points)

Dimensions (W × H × D) 7˝ × 2˝ × 6-1/2˝ (180 × 50 × 165mm)

Weight 4.8lbs (2.2kg)

Dimensions (W × H × D)

6-15/16˝ × 1-7/16˝ × 6-5/16˝

175 × 36.5 × 160mm

DCU 105

5.1ch. Decoder/AV Matrix Unit

Partners the AVX5000 to provide 5.1ch.

surround sound for surround-encoded

material as well as upmixing 2-channel

sources to surround. Also expands

connectivity and flexible routing of

multiple program sources.

DCU105 Audio Video Matrix

MOSFET 50W ✕ 4

Time Alignment Pro

5V Pre-Out

Crossover Pro

Parametric EQ Pro AV Matrix Selector

5.1 ch.

Dolby

Digital

5.1 ch.

dts

E-iSERV

(option)

connectivity

Dolby Pro Logic

Time Alignment Pro Crossover Pro

Full 5.1 ch. surround sound options that

create the perfect in-car environment for

any entertainment media.

Synchronizes all

speaker sound

arrival times at

listener.

Optimizes speaker

to speaker

transitions for a

smoother system

response.

(For AVN7000 and AVX5000)

Going beyond entertainment

20 — 2007 Mobile Entertainment Brochure

CD Receivers

Head of the class by a long shot

2007 Mobile Entertainment Brochure — 21

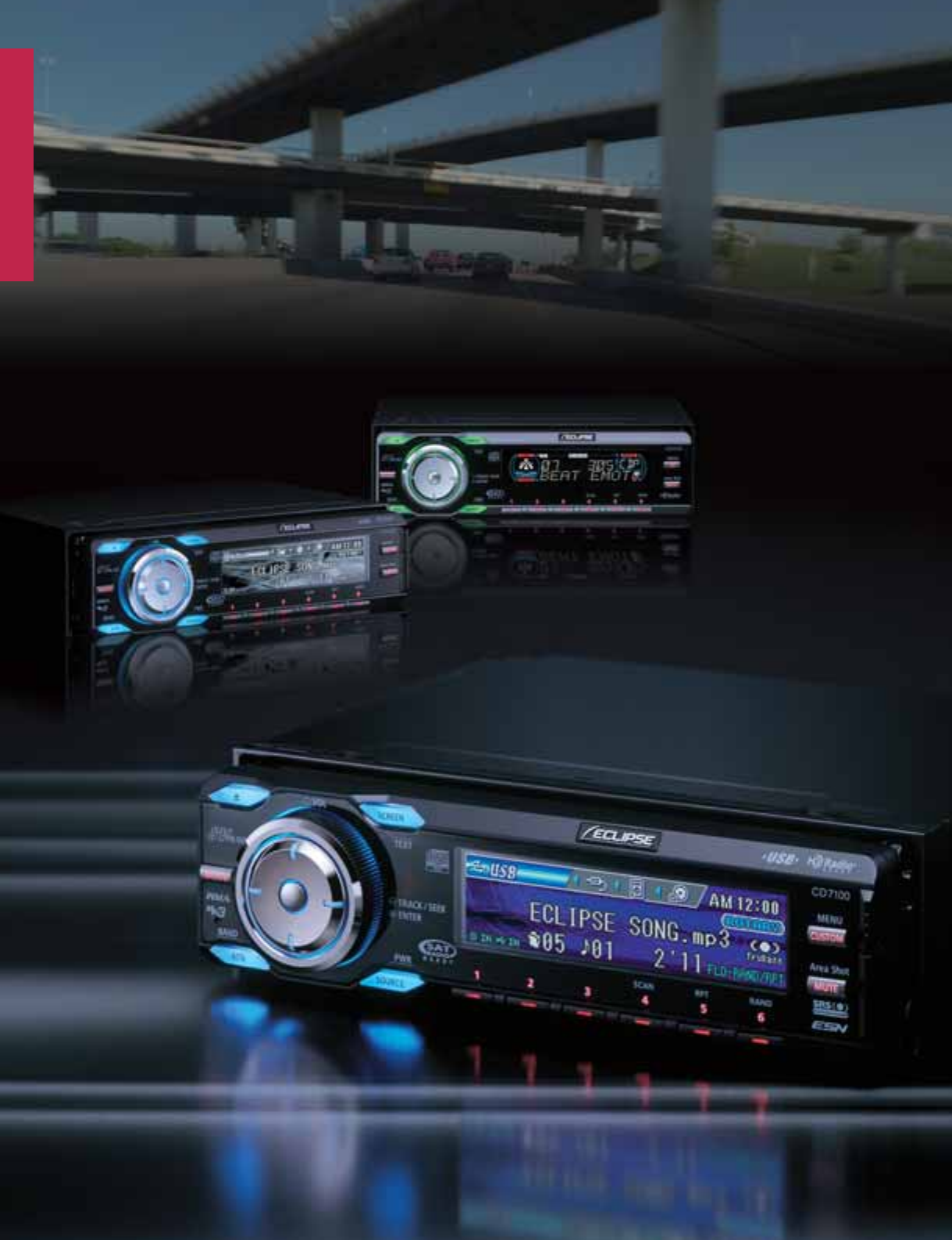

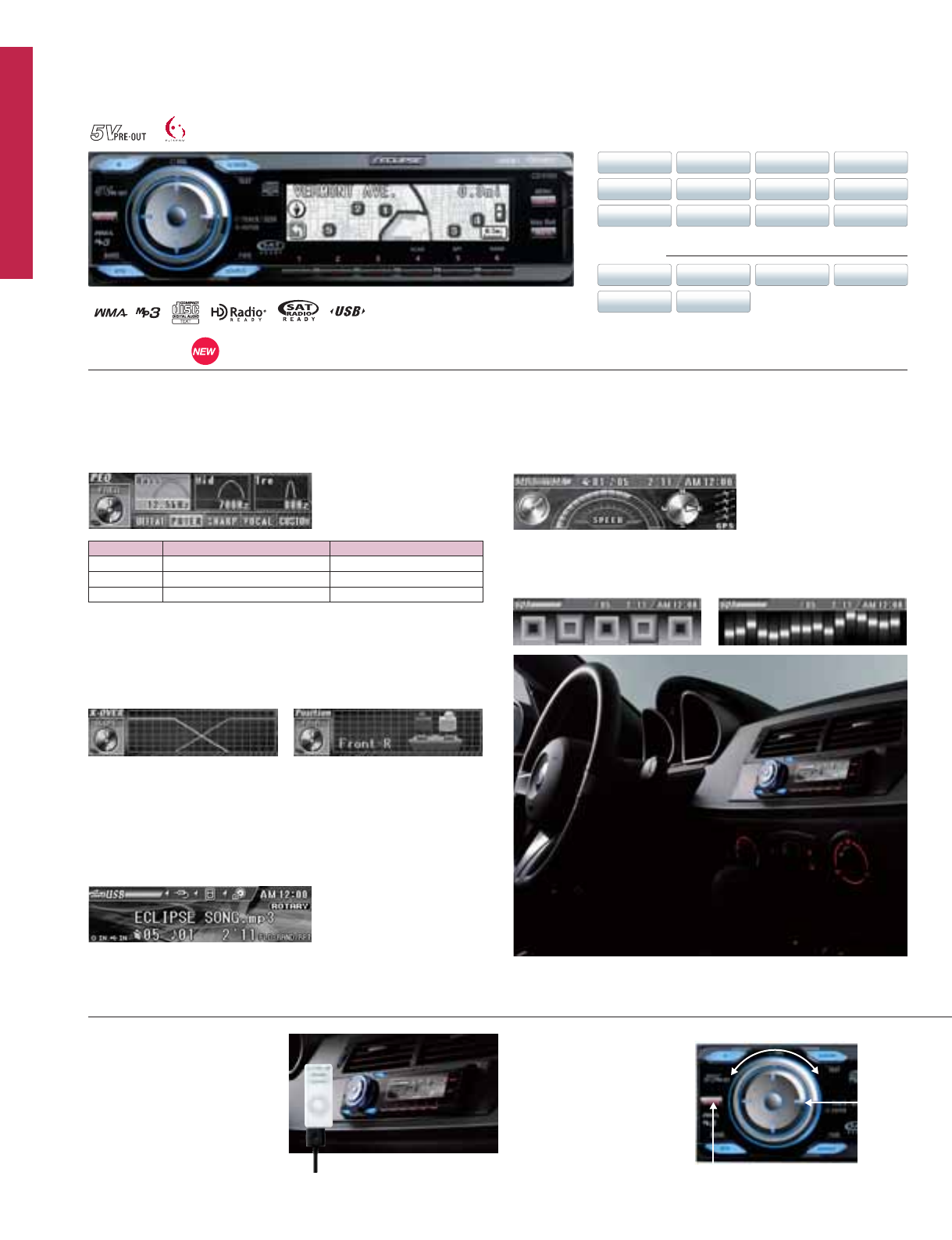

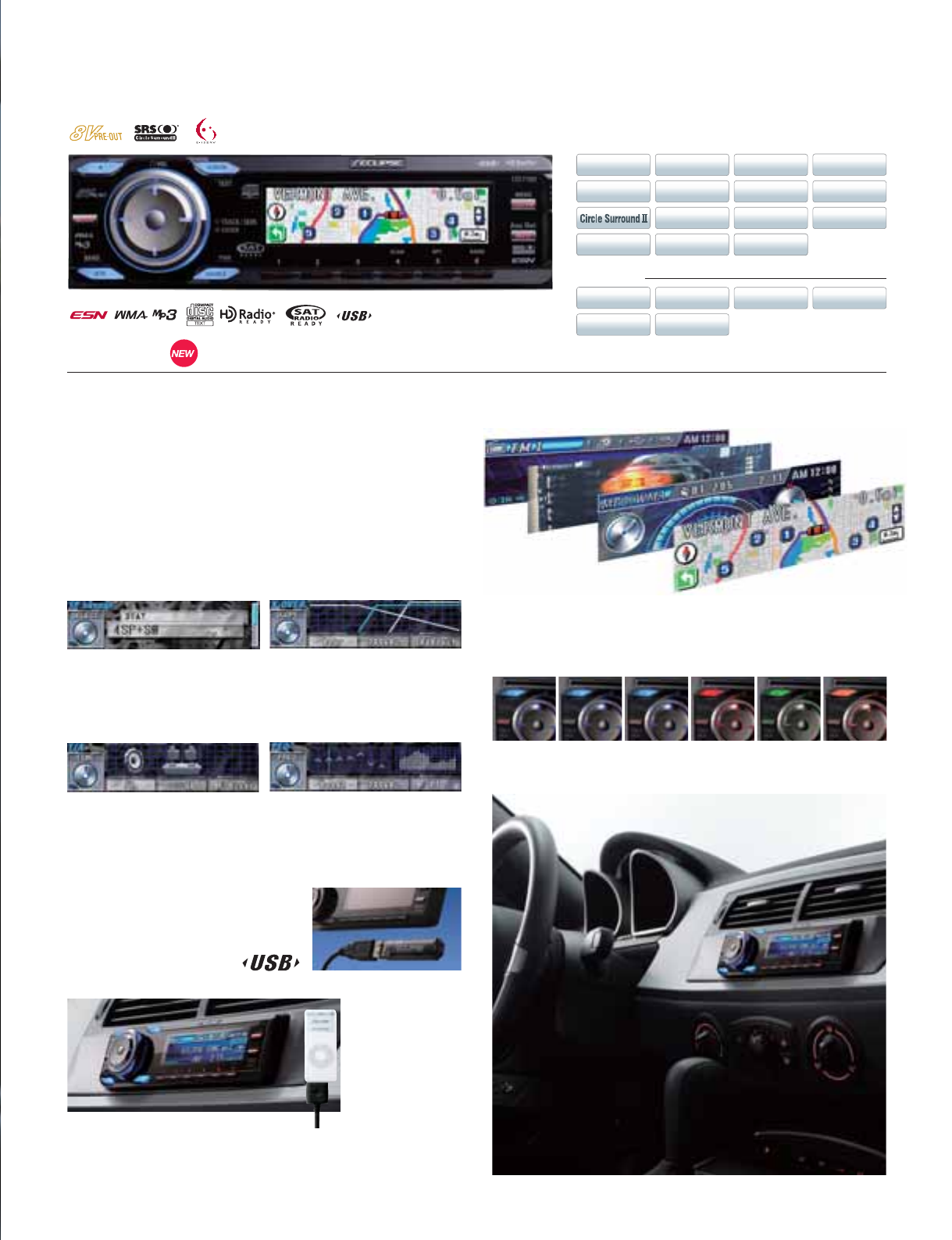

CD7100

CD/USB Multi-Source Receiver with Color Organic EL Display

At the heart of the CD7100 is a 24-bit DSP that takes care of various audio

processing tasks including unit input level, precision EQ settings and others.

ECLIPSE has made sure its no-compromise audio technologies deliver

extraordinary audio performance.

Highend audio performance and driving assistance

combine for an unbeatable performer.

24-bit DSP

Bright legible makes it easy to follow driving assistance maps and routes. It also

makes finding favorite tracks from large playlists fast and fuss-free.

Color Organic EL Display

Speaker layout changeable

11 band / 7 band Parametric EQ

Time Alignment

X-OVER

6 Pattern Illumination

Color OEL

display

MOSFET 50W ✕ 4

USB

GPS unit

- ready

Area Shot

11-band / 7-band

PEQ Time alignment

8V Pre-Out

Crossover

Remote Control

AUX Input

Twin Security System

6-pattern

illumination

1 AUX Input Ready

E-iSERV

connectivity

HD Radio

-ready

SAT Radio

-ready

Connection

E-LAN data link

system

Automatically optimize overall system

response for a Front-3 way speaker system

or higher performance 4-speaker plus

subwoofer speaker system.

Easily set the crossover frequencies for the

separate speakers in the system for a

smooth, seamless blending between them,

providing an effortless, more natural sound

at any volume.

Sophisticated processing to ensure the

sound from all speakers arrives at the

listener’s ears at the same time and in

correct phase for the best listening

experience.

Precision tonal response contouring is easy

with this advanced parametric equalization

function, creating a flat system frequency

response as well as storable EQ curves to

suit listening and music genre preferences.

The optional iPC-106 can effectively control a connected iPod®. Connected to a CD

receiver, the adapter provides full control capabilities and the Rotary Mode Switch will

quickly scroll up and down many songs as well as Playlists, Artists, Albums and Genres.

Interface Adapter for iPod

®

For taking advantage of digital music library portability

with USB memory devices and music players to enjoy

music files as well as E-iSERV and Area Shot data.

USB Connector

Accessories

Blue / Red Blue / Green Blue / Amber All red All green All amber

CD Changer

-ready

(2 units)

iPod® Full control

-ready

22 — 2007 Mobile Entertainment Brochure

Setting a new benchmark in its class

Well-designed interface makes it

quick and easy to select tracks

and seek files even from a large

capacity USB device.

New Rotary Control

The optional iPC-106 can effectively

control a connected iPod®. Connected

to a CD Receiver, the adapter provides

full control capabilities and the Rotary

Mode Switch will quickly scroll up and

down many songs as well as Playlists,

Artists, Albums and Genres.

Interface Adapter for iPod®

Features

For taking advantage of digital

music library portability with USB

memory devices and music players

to enjoy music files. Also useful for

transferring E-iSERV and Area Shot

data from PC to head unit.

USB Connector

Flexible equalization for Bass,

Mid and Treble with center

frequency bandwidth control for

optimizing tonal response.

This type of display features a

self-luminous property that

allows a wide viewing angle,

and increased contrast ratio

offering a very legible and clear

display for at-a-glance

confirmation of status.

4 preset EQ settings (Defeat, Sharp,

Vocal and Power) to suit listener

preferences and music genres.

Allows configuring a user’s own EQ

setting to apply as desired.

Easy adjustments allow seamlessly

blending system speakers and

dedicated subwoofer(s) for a more

natural, effortless sound with greater

dynamic range.

Electronically compensates to ensure

an optimal and balanced soundfield

no matter where listeners are seated.

Fr-R / Fr-L / Fr / Rear / off

3 Band Parametric EQ Monochrome Organic EL Display

Sound Meter

4 Mode Preset EQ

X-Over Simplified Position Selector

User-customizable EQ preset

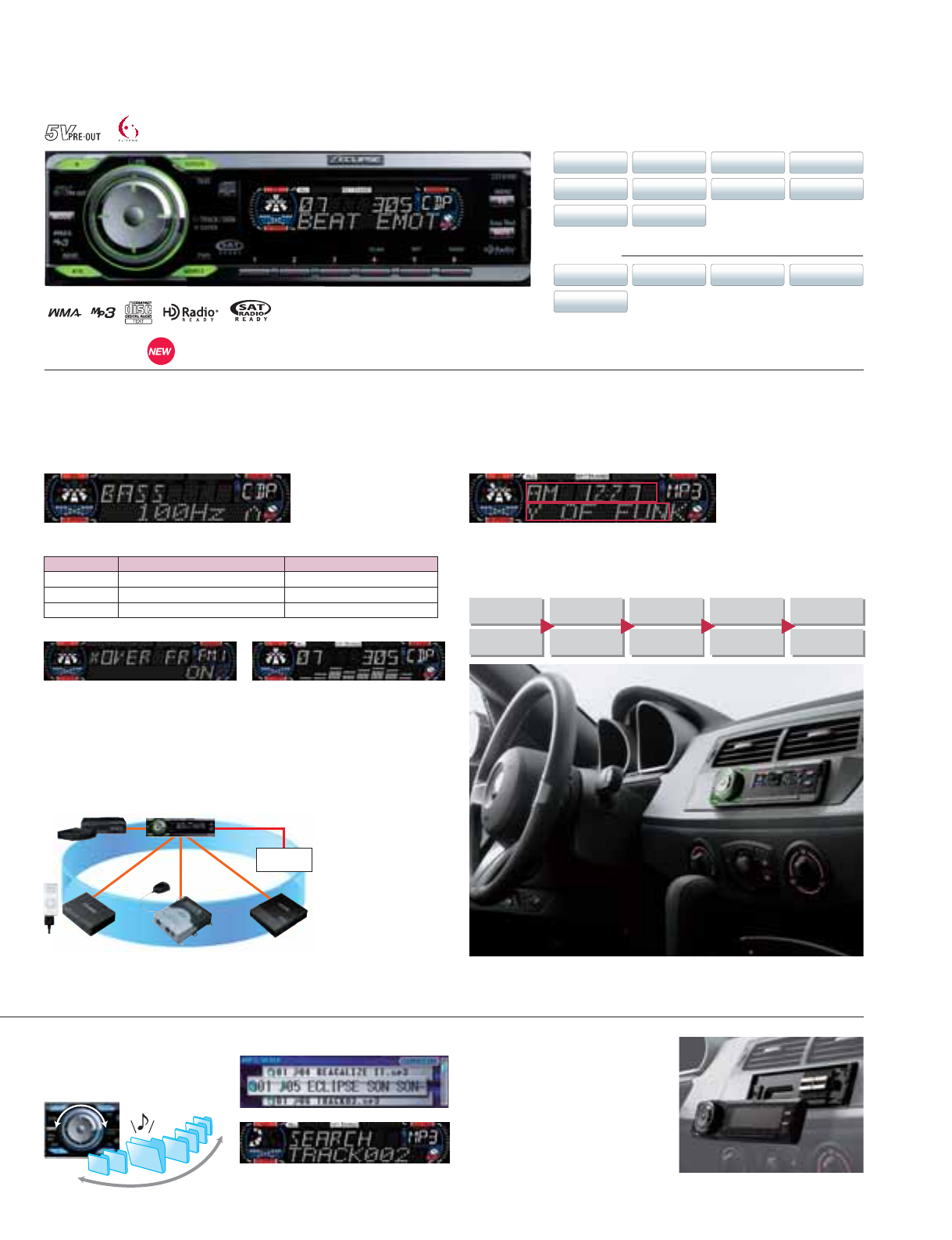

CD5100

CD/USB Multi-Source Receiver with Organic EL Display

MOSFET 50W ✕ 4

USB

OEL

Area Shot

3-band PEQ 5-mode EQ Crossover

Detachable front panel

E-iSERV

connectivity

Connection

display

Freq. bands

BASS

MID

TRE

“Q” bandwidth

WIDE/MidWIDE/NORMAL/NARROW

NORMAL/NARROW

NORMAL (

Fixed

)

Center freq.

60Hz/80Hz/100Hz/120Hz

700Hz (Fixed)

7.5Hz/10kHz/12.5kHz/15kHz

Rortary

Track/Seek

Rotary mode switchover

Photo: CD5100

GPS unit

- ready

Remote Control

HD Radio

-ready

E-LAN data link

system

Accessories

CD Changer

-ready

(2 units)

CD Receivers

SAT Radio

-ready

AUX Input

iPod® Full control

-ready

1 AUX Input Ready

2007 Mobile Entertainment Brochure — 23

Makes it fast and easy to search

through numerous folders and files

to locate the desired music files.

File list display

The front panel easily detaches

from the unit, making it totally

inoperative once removed and

increasing theft deterrence as well.

Detachable Front Panel

Easy adjustments allow seamlessly

blending system speakers and

dedicated subwoofer(s) for a more

natural, effortless sound with greater

dynamic range.

The CD3100 has a high level

of basic performance as well

as extraordinary expandability.

Other sources such an iPod®,

SIRIUS tuner, and CD

Changer connect easily and

compatibility with MP3 and

WMA files allows the CD3100

to break out of entry level

limitations.

A bright and legible display

that manages to

simultaneously show 2

information levels indicating

track status such elapsed time and others along with the Sound Meter.

Various information displays can also have their positions switched as desired.

Display Pattern

Sound MeterX-Over

Adding an animated feel to the

display, the Sound Meter offers a

realtime frequency spectrum display

and also indicates media playback in

progress.

CD3100

CD Multi-Source Receiver

MOSFET 50W ✕ 4

Area Shot

3-band PEQ

5-mode EQ 3 color LCD

Crossover

Remote Control

Detachable front panel

1 AUX Input Ready

E-iSERV

connectivity

HD Radio

-ready

E-LAN data link

system

(Text)

Flexible equalization for

bass, mid and treble with

center frequency

bandwidth control for

optimizing tonal response.

3 Band Parametric EQ

Freq. bands

BASS

MID

TRE

“Q” bandwidth

WIDE/MidWIDE/NORMAL/NARROW

NORMAL/NARROW

NORMAL (

Fixed

)

Center freq.

60Hz/80Hz/100Hz/120Hz

700Hz (Fixed)

7.5Hz/10kHz/12.5kHz/15kHz Elapsed time

Elapsed time

Tag/Folder & file

info etc.

Elapsed time

Sound Meter 1

Elapsed time

Sound Meter 2

Time Time

Tag/Folder & file

info etc.

Redefining just how advanced entry level can be

Accessories

CD Changer

-ready

(2 units)

An entry level product that offers more than any other in its class

HDR105

SIR-ECL 1

iPC- 106

CD3100

CH3083

SAT Radio

-ready

Portable

Music Player

AUX105 cord

For example, when playing back MP3s and WMA files.

iPod® Full control

-ready

E-iSERV

24 — 2007 Mobile Entertainment Brochure

Time Alignment Crossover Parametric EQ

Audio Customize

USB or CD

AREA SHOT Motion Picture

Audio Customize

Set delay and level for each

speaker to align arrival times for a

more natural imaging soundfield.

Adjusts speaker to speaker

transition frequencies for smooth

system integration, creating a

better overall response without

speaker discontinuities.

Up to 10 frequency bands for each

channel can be adjusted to

eliminate peaks and dips in system

frequency response.

E-iSERV allows a

degree of user

customization

previously

unavailable except

with test equipment and technicians. Audio

data and system response from a specific car is

sent to a dedicated audio processing server

where it is evaluated and adjusted to create a

system response tailored for that particular car.

Download DownloadAccess DownloadAccessAccess

This is where E-iSERV starts! — www.eclipse-web.com

CD Receivers

(CD7100 only)

Data customized for the user’s own car and

map data for Area Shot is downloaded from

E-iSERV, put on a USB device or CD, then

input into the head unit.

ECLIPSE’s E-iSERV has raised user

customization to a new level that many thought

could not be done. By using the internet and a

personal computer, the user can access

functions and features that can optimize in-car

system response and provide map guidance,

along with customizing displays and enhanced

control abilities.

An in-car environment is

hard to optimize for natural

sound with its mix of

reflective and absorptive

surfaces. E-iSERV can be

used to achieve a pro-level,

flat frequency response

that sounds superb.

Indispensable resource

for free maps that can be

downloaded and used for

simplified navigation and

electronic driving

guidance.

Ideal for personalizing a

system using personal

images for system

wallpaper. “Cutting board”

software can be

downloaded that makes it

fun and easy to assemble

animated image

sequences.

FREE MAP

DOWNLOADS!*

USB or CD USB or CD

*The free map download feature is subject to change as required.

It may also be discontinued.

(CD7100 only) (CD7100/CD5100) (CD7100/CD5100)

2007 Mobile Entertainment Brochure — 25

AREA SHOT (CD7100/CD5100)

AREA SHOT does a lot to make driving more enjoyable

Motion Picture (CD7100/CD5100)

Town Map

Town Map allows unlimited downloading map data from a vast archive of

street-level scale maps. If the GPS option is used, map displays will also

indicate the traveling car's current position.

Route Assist

Route Assist will guide you perfectly all the way to the hotel.

In addition to the new features, Area Shot also includes other effective

functions that assist driving.

A greatly improved Area Shot with new functions and powerful capabilities offers

useful guidance for trips and driving tasks. With an awesome assortment of maps

available to the user, guidance and assistance for any trip can be enjoyed.

“Cutting board” software can

be downloaded that makes it

fun and easy to assemble

animated image sequences.

Customizing the display panel is easy using a downloadable

proprietary application to edit and sequence up to a

maximum of 70 images to create a 7-sec. animated clip.

Download

For a complete route from home to hotel, download AREA SHOT data to a

USB device or CD and install the data into the head unit.

Turnlist shows both street names and distances.

5 POIs can be displayed at the same time.

Display can switch between a map display and

turnlist.

Confirm desired map scale

then download to USB

device or CD-R.

Automated map display switching

Upcoming intersection heads up signal

Realtime progress reports

Intersection-to-intersection displays

Map Turnlist

For example, taking a road trip from Los Angeles to San Francisco

How to get to your destination in the easiest way

Before setting out, download San Francisco Town Maps data, store and

install the data.

Featuring all the important information that makes it easy to enjoy driving,

even in unfamiliar environments.

How to take the ideal San Francisco tour

AREA SHOT’s detailed electronic street maps

make it easy to go anywhere.

San Francisco Town Map

Other Area Shot features

Useful moving location display

Quick POI information

Aligning display with the car’s

direction of travel

Full route simulation

GPS 105

Adding the GPS105 will display the car’s

location as it moves!

Optional for: AVX5000, CD7100 and CD5100

USB or CD

USB or CD

26 — 2007 Mobile Entertainment Brochure

CD2000

CD Multi-Source Receiver

CD 1000

CD Multi-Source Receiver

MOSFET 50W × 4 (max.) 50W × 4 (max.)

CH3083

RMC 105

Wireless Remote

MEI-100

Remote Control-ready

Accessories

SIR-ECL 1

SIRIUS Satellite Radio-ready

The CD Receivers are able to take advantage

of all the benefits of satellite broadcasting.

The optional ECLIPSE SIR-ECL1 satellite

radio tuner can be easily connected for

enjoying this exciting new entertainment.

HD Radio-ready

The CD Receivers will deliver all the potential

of HD Radio-enhanced broadcasts

simply by connecting the optional

HDR105 HD Radio Tuner. GPS 105

GPS Unit

CD Changer-ready

GPS Unit-ready

Connects to compatible CD

Receiver units for use with Area

Shot to enhance its features.

Measures system response

to help optimize system

frequency response.

Solid performers that concentrate on the basics to an exceptional degree

3-band GEQ

High Contrast LCD

Remote Control

-ready

HD Radio

-ready

8-Disc CD Changer

with Magazine Unit

HDR 105

HD Radio Tuner Unit

AUX 105

AUX CORD

(Works with CD7100, CD5100, CD3100)

Pro Tuning Microphone

ECLIPSE COMPATIBLE SIRIUS

SATELLITE RADIO TUNER

SIRIUS

Satellite

Radio

-ready

FM/AM

ESN security

6-mode EQ

2 color LCD

Remote Control

-ready

FM/AM

Detachable front panel

MOSFET 50W ✕ 4

CD Receivers

Optional for:

AVN7000, AVN5495, AVN6610, AVN5510

AVX5000, CD7100, CD5100, CD3100, CD2000

Optional for:

AVN7000, AVN5495, AVN6610,

AVN5510, AVX5000,

CD7100, CD5100, CD3100, CD2000

Optional for:

AVX5000, CD7100, CD5100

for CD7100 only

iPod®control

-ready

*

*Some operations may be limited. Please refer to all control details on p25.

2007 Mobile Entertainment Brochure — 27

Specifications

(178 × 50 × 150mm)

14.4V Power Supply CD7100 CD5100 CD3100 CD2000 CD1000

Max. Power Output 50W × 4 (MOSFET) 50W × 4

Lineout Output Level/Impedance 8V(0dB)/55Ω 5V(0dB)/55Ω 2.5V(0dB)/1kΩ

Tone Bass/Mid/Treble

±12dB at 80Hz/±12dB at 630Hz/±12dB at 10kHz

±12dB/±12dB/±12dB

±12dB at 80Hz/±12dB at 630Hz/±12dB at 10kHz

±10dB at 100Hz/—/±10dB at 100Hz

Control Loudness +10dB at 100Hz/+6dB at 10kHz

+10dB at 100Hz/+6.5dB at 10kHz +8.5dB at 100Hz/+4dB at 10kHz

FM Frequency Range USA: 87.75 — 107.9 MHz (200kHz step) Latin America: 87.75 — 107.9 MHz (100kHz step)

Usable Sensitivity 15dBf 13dBf 11.3dBf

Frequency Response 30 — 15,000Hz ±3dB

30 — 15,000Hz

40 — 15,000Hz

Stereo Separation 38dB (1kHz) 35dB (1kHz)

AM Frequency Range USA/Latin America: 530 — 1,710kHz (10kHz step)

Usable Sensitivity 22μV 20μV 20μV

CD Frequency Response 20 — 20,000Hz, ±3dB 5 — 20,000Hz, ±3dB

S/N Ratio (A-weighted) 100dB 95dB 98dB

Total Harmonic Distortion 0.008% 0.01%

Channel Separation 85dB 80dB

USB Frequency Response 20 — 20,000Hz, ±3dB —

S/N Ratio (A-weighted) 100dB 95dB —

Total Harmonic Distortion 0.008% —

Dimensions (W × H × D)

7˝ × 2˝ × 6-1/8˝ (178 × 50 × 155mm) 7˝ × 2˝ × 5-7/8˝

CD7100 CD5100 CD3100 CD2000 CD1000

CONTROL

Remote Control ●

●

● optional optional

CD Changer Control ●

●

●

●

—

CD, CD-R/RW ●

●

●

●

●

USB ●

●

— — —

WMA ●

●

● — ●

MP3 ●

●

●

● ●

SAT Radio-ready ●

●

●

● (SIRIUS only) —

HD Radio-ready

●

●

●

● —

Ready for iPod

●

●

●

▲ —

TUNER

AM/FM 6/18 6/18 6/18 6/18 6/18

Station Name Input

●

● — — —

AUDIO

Output Voltage and Impedance 8V/55Ω 5V/55Ω 5V/55Ω 5V/55Ω 2.5V/1kΩ

MOSFET Amplification

●

●

●

● —

Advanced 24-bit ΔΣ DAC

● — — — —

Source Volume Control (SVC) ●

●

● — —

Circle Surround II

● — — — —

Front 3 way 4 sp+SW

Parametric EQ

11 band 7 band 3 band PEQ 3 band PEQ — —

+ 5 mode Preset EQ + 5 mode Preset EQ

Graphic EQ — — — ● (3 band) ● (2 band)

Time Alignment

● — — — —

Crossover

● ● ● — —

Bass/Mid/Treble Control ● ● ● ● ▲

(Bass/Treble)

Loudness

● ● ● ● ●

Multi-Harmonizer ● — — — —

Simplified Position Selector — ● — — —

Non Fader Level/Phase control ● ● ● ● —

Non Fader Mono/Stereo changeble ● — — — —

Dual Pre Outputs ● ● ● ● ●

Non Fader Pre Outputs ● ● ● ● —

AUX Input

● (RCA + 1optional) ● (RCA + 1optional) ▲

(optional) — —

GENERAL

Display Multi color OEL Mono OEL 3 color LCD LCD 2 color LCD

Illumination 6 pattern Blue/Red Green/Red Amber Green

Dimmer Control

●

● ● — ●

ESN Security ● — — ● —

Detachable Front Panel

● ● ● — ●

Full Face Tilt ● ● ● — —

GPS-linked volume control (w/GPS) ● ● — — —

GPS Information Display (w/GPS) ●

● — — —

E-iSERV

E-iSERV Connection

● ● ● — —

Data Carrying USB & CD-R USB & CD-R CD-R — —

Audio Customize

● — — — —

Motion Picture

● ● — — —

GPS Connection

● ● — — —

Route Assist

● ● ● (Arrow/Text) — —

Tone Guide (w/GPS) ● ● (beep) — — —

Area POI

● ● — — —

Shot Town Map

● ● — — —

Auto Map Switch (w/GPS) ● ● — — —

Route Simulation

● ● — — —

Distance Display ● ● ● — —

Feature List

Cassette Tuner

GPS 105

GPS Unit

CH3083

8-Disc CD Changer with Magazine Unit

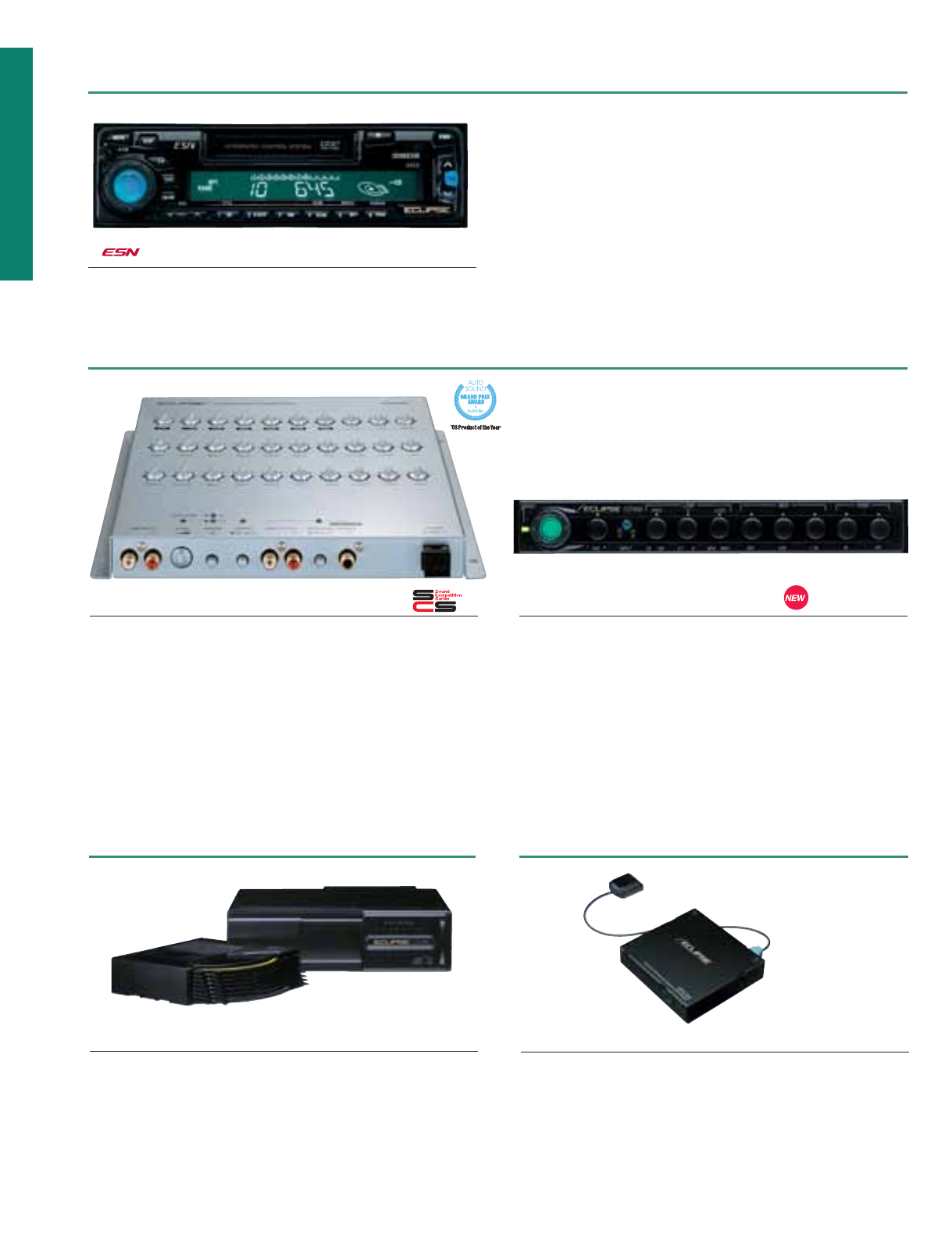

Peripheral Equipment

28 — 2007 Mobile Entertainment Brochure

CD Changer GPS Unit

Equalizers

Functioning as an immense mobile

jukebox with storage for 8 CDs, the

CH3083 is ideal for increasing music

content as it is also compatible with

CD-R/RW discs.

• CD and CD-R/RW discs

• 8 disc magazine

• Coaxial digital output

• Multiple unit connectivity (2 units)

• Precision optical pickup

• “No disc contact” transport

• Reinforced high-rigidity chassis

Allowing those with extensive tape

libraries to continue enjoying their

favorite music with better performance

than before, the 4502 is an ideal

solution because it easily connects to

an ECLIPSE CD Changer as well.

• DSP EQ

• Full logic Hybrideck tape mechanism

• FM/AM tuner

• Large 13-segment LCD

• 5V preamp output with low 55

Ω

impedance

• 3 prs. pre outputs

• CD Changer-ready (2 units)

• E-LAN data link system

• ESN security with CD changer

4502

ESN E5 Cassette Tuner with CDC/DSP Control and Remote

An EQ tool for professional

applications where systems require

precision tonal contouring at a 1/3

octave level, the EQ2102 offers

ease-of-use over sophisticated EQ

parameters when used with an RTA

and pink noise, resulting in smooth

band-to-band frequency transitions.

• Stereo configured unit

• 30 frequency bands

• Input level control

• EQ defeat

• Boost cut selectable ±6/12dB

• Switchable subwoofer crossover

• Summed channel line output

• LED overload indicators

This parametric equalizer/crossover

allows any system to achieve a

well-balanced response for smooth,

accurate sound.

• Master gain and defeat switch

• Input level and selector

• Front/rear fader

• 5-band Graphic EQ

• Low frequency-dedicated

• 1-band Parametric EQ

• Subsonic and low/high pass filters

• Dedicated subwoofer crossover control

• Adjustable 0 to 4 second turn-on delay

protection

MZ0803

Magazine unit

Connects to compatible AVX

and CD Receiver units for use

with Area Shot to enhance its

features.

Optional for: AVX5000, CD7100, CD5100

EQ2102

30-Band 1/3 Octave Competition Equalizer

EQ 1000

5-Band Graphic/1-Band Parametric Equalizer/Crossover

Dimensions (W × H × D)

6-15/16˝ × 1-7/16˝ × 6-5/16˝

175 × 36.5 × 160mm

iPC-106

Interface Adapter for iPod®

2007 Mobile Entertainment Brochure — 29

Digital radio options

Optional for:

AVN7000, AVN5495, AVN6610,

AVN5510, AVX5000, CD7100,

CD5100, CD3100, CD2000

Dimensions (W × H × D)

4-15/16˝ × 1-7/16˝ × 4-3/16˝

125 × 35 × 105mm

Optional for:

AVN7000, AVN5495, AVN6610,

AVN5510, AVX5000, CD7100,

CD5100, CD3100, CD2000

Dimensions (W × H × D)

6-15/16˝ × 1-7/16˝ × 6-5/16˝

175 × 36.5 × 160mm

Interface Adapter for iPod®

The new iPC-106 iPod Interface Adapter

makes it possible to continue to enjoy

the most popular personal music device

together with ECLIPSE products.

Dimensions (W × H × D) : 4-11/16˝ × 1-5/16˝ × 3-9/16˝

120 × 32 × 90mm

*1: Playlist/Album/Artist/Genre/Song *2: Playlist/Album/Artist/Song

ECLIPSE models

Mode

Track next/previous

Fast next/previous

Text display

Search mode

Browsing list

Repeat

All repeat

Random

Album random

Power supply/charge

iPod mode (full control) SIRIUS mode CDCH mode CDCH mode SIRIUS mode CDCH mode

● ● ● ● ● ●

● — — — — —

● ● — — ● —

● ● ● ● ● ●

● — — — — —

● ● ● ● ● ●

● ● ● ● ● ●

● ● ● ● ● ●

● — — — — —

● ● ● ● ● ●

AVN6610, AVN5510 AVX5000

AVN Series AVX Series

AVN7000

iPC-106 Functions

*1*2*2*2*2*2

AVN5495

ECLIPSE models

Mode

Track next/previous

Fast next/previous

Text display

Search mode

Browsing list

Repeat

All repeat

Random

Album random

Power supply/charge

iPod mode (full control) SIRIUS mode CDCH mode

● ● ●

● — —

● ● —

● ● ●

● — —

● ● ●

● ● ●

● ● ●

● — —

● ● ●

CD7100, CD5100, CD3100 CD2000

CD Series

*1*2*2

Photo: AVN6610 Photo: CD7100

HDR 105

HD Radio Tuner Unit

SIR-ECL 1

ECLIPSE COMPATIBLE

SIRIUS SATELLITE RADIO TUNER

Instant access to SIRIUS

satellite-based RTTI information for

useful real-time traffic conditions.

Whether traffic jams, congested areas

or open streets, all information is

clearly displayed onscreen, enhancing

AVN navigation and offering additional

driving advice.

SIR-ECL 2nt

ECLIPSE COMPATIBLE

SIRIUS SATELLITE RADIO TUNER

Dimensions (W × H × D)

5-7/16˝ × 1-7/16˝ × 4-3/16˝

126 × 35 × 105mm

iPod® full control:

AVN6610, AVN5510, CD7100, CD5100 and CD3100

For AVN6610 only

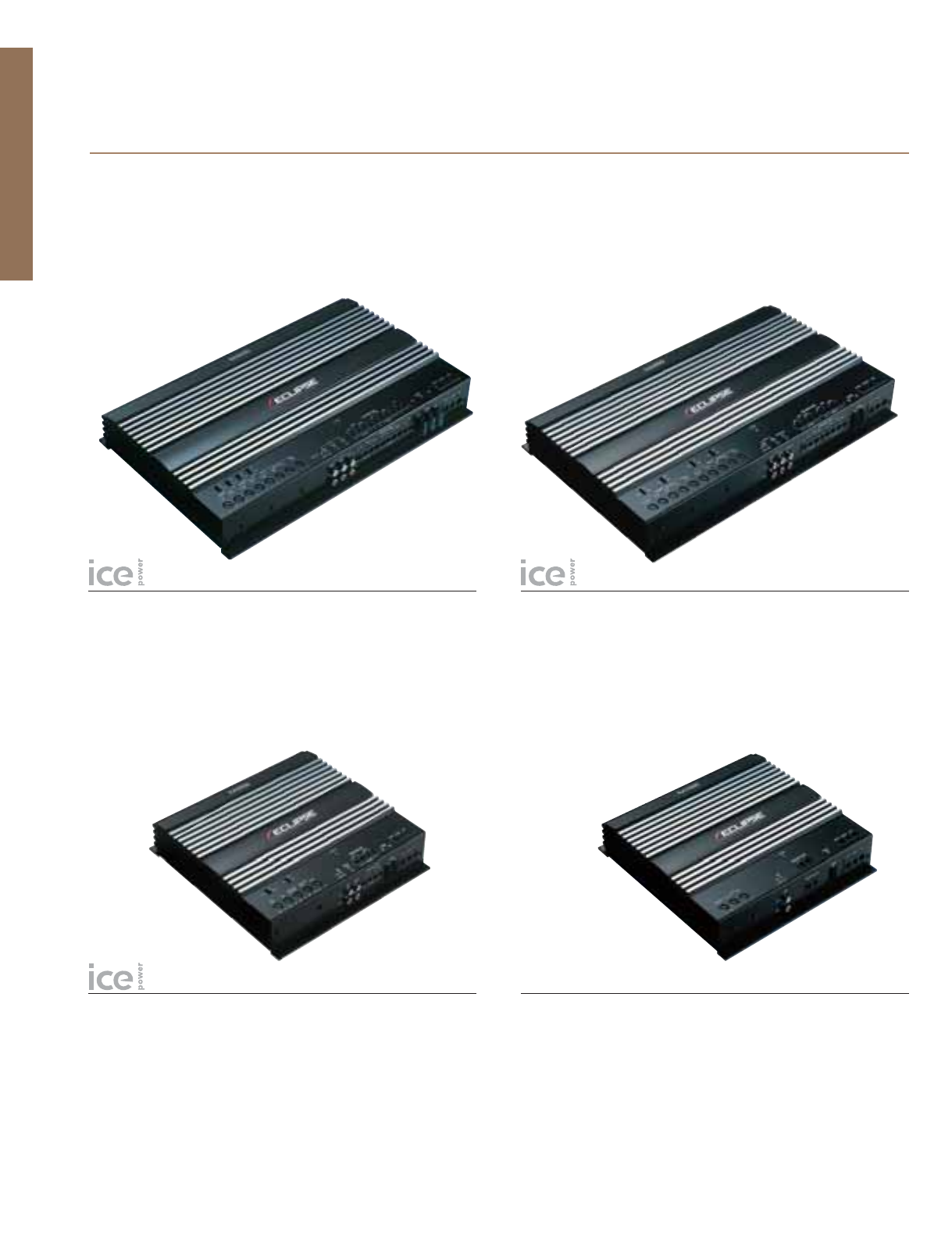

Power Amplifier Series

XA5000

5/4/3 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

XA4000

4/3/2 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

XA2000

2/1 Channel Class D Amplifier with

Channelflex Crossover plus Subsonic Filter

XA1000

1 Channel Class D Subwoofer Amplifier

Power Amplifier Series

30 — 2007 Mobile Entertainment Brochure

Designed to offer an ideal

amplification solution for powering a

full speaker setup that uses four

speakers plus subwoofer. Includes

high and low pass filters plus

subsonic filters as well as a variable

bass boost that can be used to best

effect with a dedicated subwoofer

control.

Adaptable four channel amplifier that

can be bridged to configure a more

powerful two channel unit that

provides 350W per channel.

Subsonic filter and variable bass

boost are provided as well as high

and low pass filters.

This versatile and powerful amplifier

is ideal for multi-amp system building

and can be bridged to function as a

300W single channel amplifier for

ultimate systems.

Designed for use in the most demanding systems as

a dedicated high-performance subwoofer amplifier.

ECLIPSE’s XA Amplifier Series utilizes the latest

advancements in digital amplification topologies

to create superior sounding amplifiers dedicated

for the mobile environment. The XA Amplifier

Series features high sound quality and is also

extraordinarily energy-conscious.

XA Amplifier Series

• ICEpower® full-range Class D operation.

• Attractive design for practicality and ease of use with

all controls such as level, crossover, low frequency

boost and high/low pass filter adjustments mounted

on the top panel.

• Output terminals conveniently located to allow multiple

in-line unit installations.

• Bright LED indicators also mounted on the top assist

in setting system levels to prevent amplifier clipping.

• Very high efficiency rate with low current drawminimiges

heat build-up.

900W 840W

360W 640W

Note: XA5000/XA4000/XA2000 incorporate ICEpower® technology.

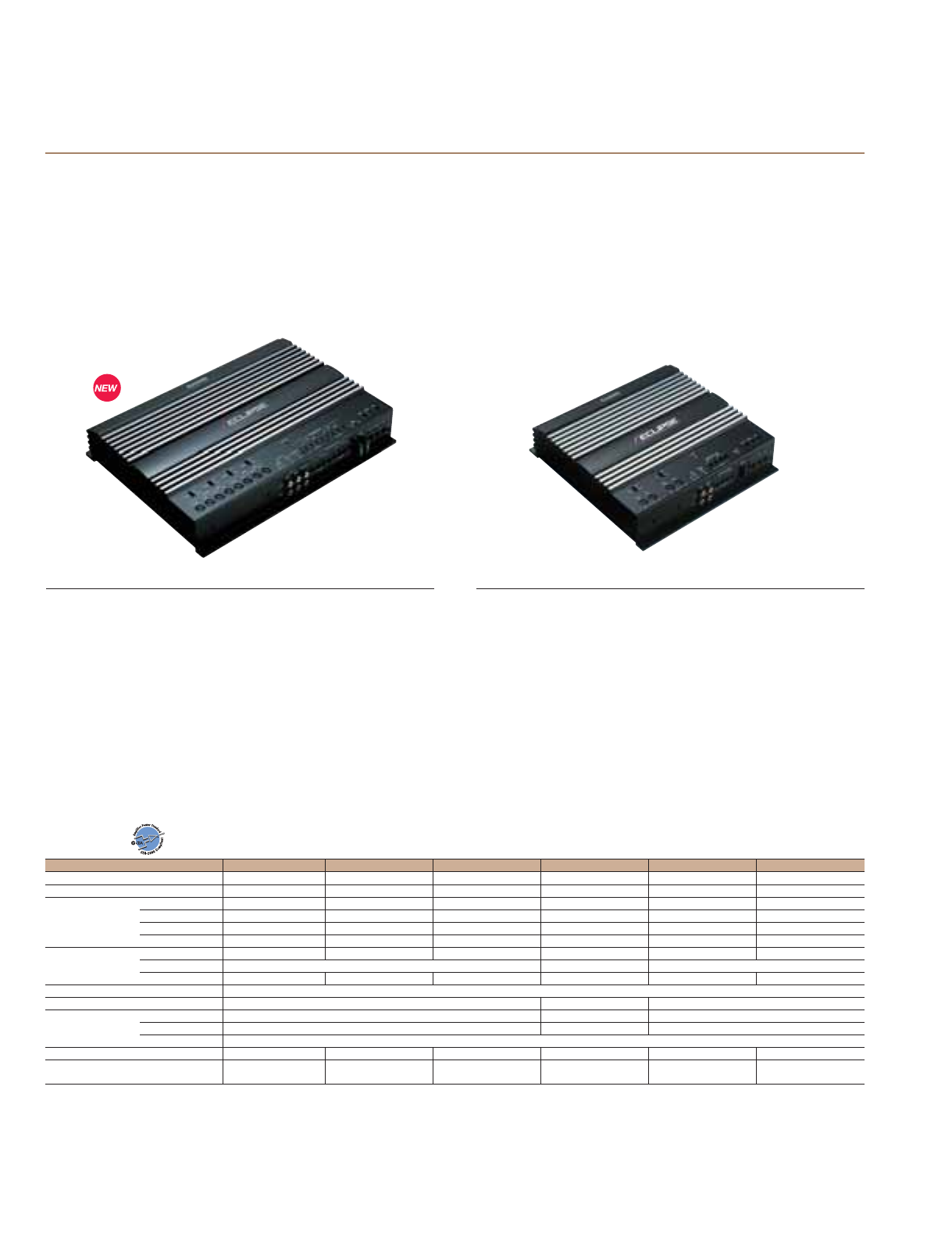

EA4100

4/3/2 Channel Power Amplifier with

ChannelFlex Crossover plus Subsonic Filter

EA2000

2/1 Channel Class Power Amplifier with

ChannelFlex Crossover plus Subsonic Filter

2007 Mobile Entertainment Brochure — 31

Featuring MOSFET devices for a pure,

natural sound that can also be bridged

to deliver 175W into 2 channels.

Medium powered, beautiful-sounding

amplifier that can be transformed into

a powerful 175W amplifier by bridging.

The Integrated Amplifier Series offers outstanding sound

quality with a distinctive appearance. Audiophile-grade power

amplification is featured along with high current MOSFET

switching power supplies that combine for dynamic

performance with any speaker system.

EA Amplifier Series

• High current, high-efficiency MOSFET switching power

supply delivers significant power when demanded.

• Capable of high current delivery.

• “Easy Tune” top-mounted controls for easily adjusting amplifier

parameters even after installation.

• Sleek, low-profile appearance with laser-cut top plate allows

installation virtually anywhere.

400W (4Ω) 180W (4Ω)

14.4V Power Supply XA5000 XA4000 XA2000 XA1000 EA4100 EA2000

Channel 5/4/3 4/3/2 2/1 1 4/3/2 2/1

Power Output (max.), 10% THD 2Ω 900W 840W 360W 640W 400W (4Ω) 180W (4Ω)

2Ω 75W × 4 + 450W 175W × 4 150W × 2 480W — —

Power Output* 4Ω 50W × 4 125W × 4 100W × 2 — 75W × 4 60W × 2

1% THD 4Ω Sub Chnl. 300W × 1 — — 320W × 1 — —

4Ω Bridged 150W × 2 350W × 2 300W × 1 — 175W × 2 175W × 1

THD @ Rated @2Ω — — — — — —

Power @4Ω 0.05% — 0.05%

@4Ω Sub Chnl. 0.25% — — 0.25% — —

S/N Ratio*, 1W out >90dB

Frequency Response, 1W out 20 — 20,000Hz (stereo) 20 — 200Hz 20 — 20,000Hz

Amp Crossovers Hi-Pass 18dB/oct. 30 — 500Hz — 30 — 500Hz

Lo-Pass 18dB/oct. 50 — 500Hz 20 — 200Hz 50 — 500Hz

Subsonic 18dB/oct. 18Hz

Pre-Amp Output Lo-Pass 18dB/oct. — No Filter No Filter — No Filter No Filter

Dimensions (W × H × D)

15-3/4˝ × 2-5/16˝ ×10-3/16˝ 15-3/4˝ × 2-5/16˝ × 10-3/16˝ 9-13/16˝ × 2-5/16˝ ×10-3/16˝ 9-13/16˝ × 2-5/16˝ × 10-3/16˝ 13-3/8˝ × 2-5/16˝ ×9-1/4˝ 9-13/16˝ × 2-5/16˝ ×10-3/16˝

400 × 59 × 259mm 400 × 59 × 259mm 250 × 59 × 259mm 250 × 59 × 259mm 340 × 59 × 235mm 250 × 59 × 259mm

Specifications * Meets CEA2006 guidelines

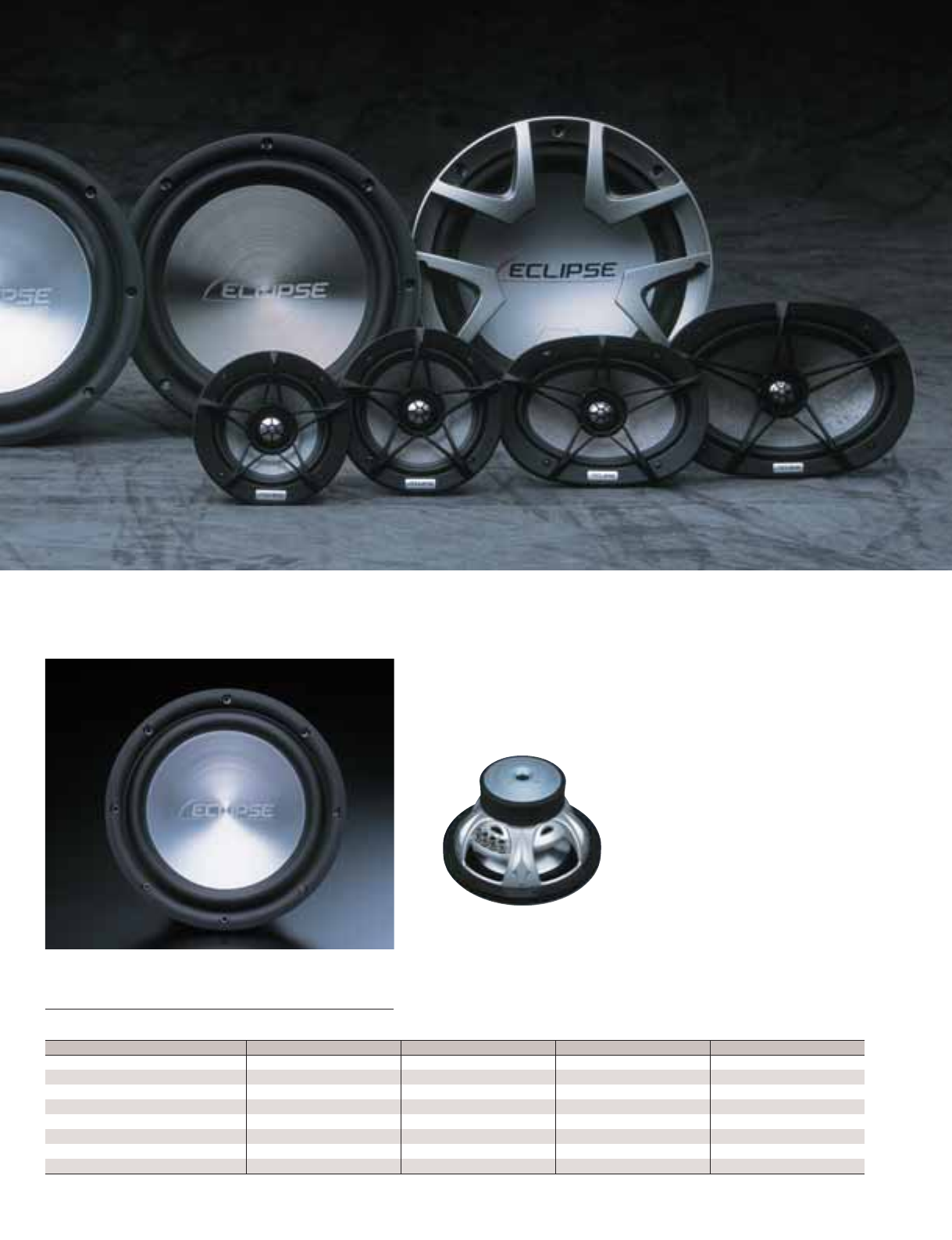

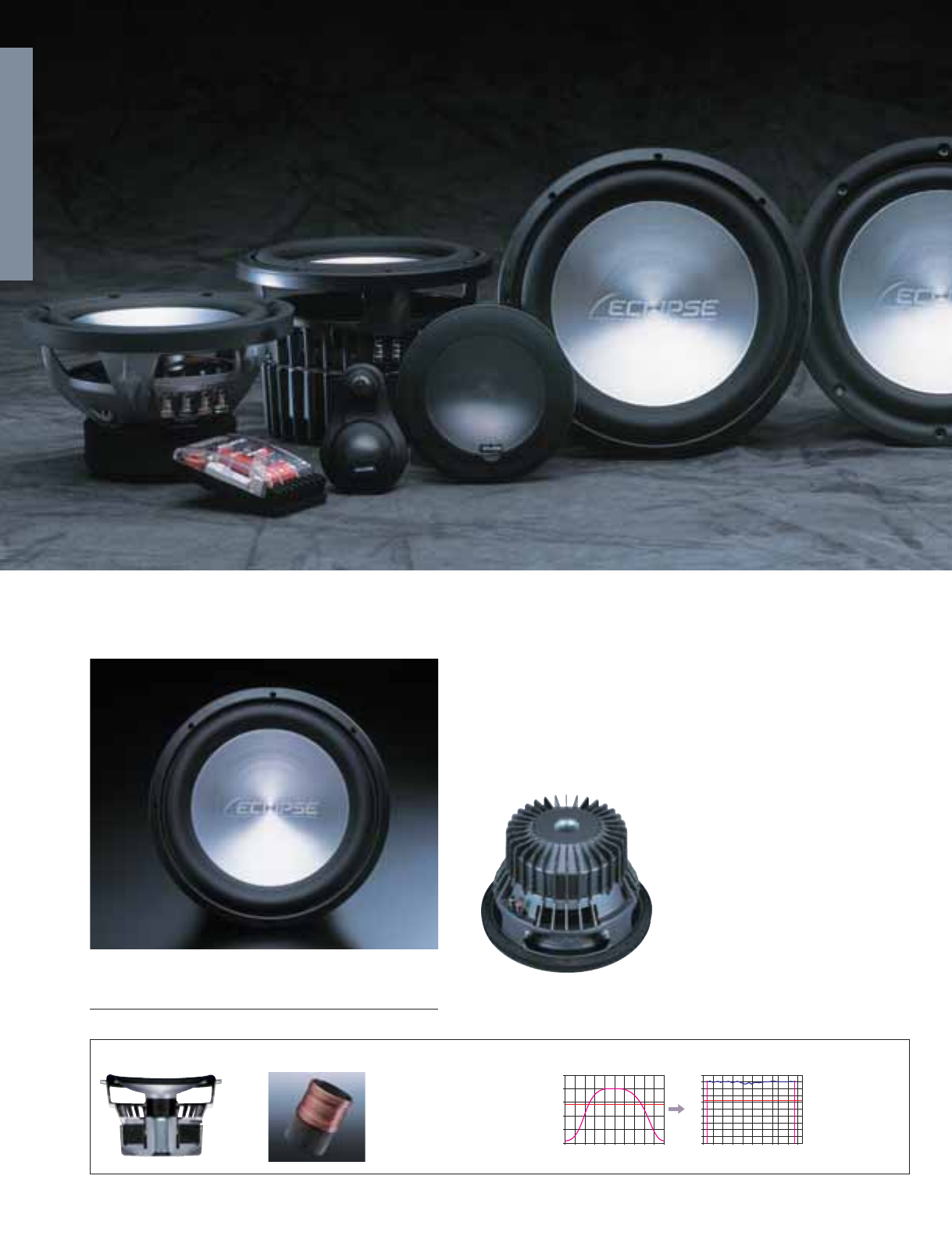

SW8200 12˝ Subwoofer (4Ω)

SW8000 10 ˝ Subwoofer (4Ω)

SW8000 Series

The subwoofer to satisfy discerning audiophiles, the SW8000 Series subwoofers

deliver clean, deep bass with outstanding pitch definition to instantly upgrade a

system's dynamic range and low frequency extension. Featuring a truly linear

subwoofer design that delivers ideal transient response with accurate excursion, the

SW8000 series are a no-compromise solution for superior bass. With an attractive

design and a newly designed set of push terminals, the SW8000 series have to be

experienced.

• RMS power handling: 670W/625W

• Max. power handling: 2000W/1900W

• Linear transducer technology

• Solid aluminum cone heat sink

• Single 4

Ω

compound linear voice coil

• 200oz dual stacked magnet

• Aluminum cast basket

• Aluminum cast magnet heat sink

• SBR synthetic rubber surround

• Polyester-cotton spider

• QCA (Quick Change Assembly) technology

• 10awg push and screw terminal

SW8000 Series

By shaping the turn distribution of a

wire coil a more optimal force

linearity can be achieved. In

practical terms, ECLIPSE’s shaped

coil winding allows greater linearity

in the motor’s peak-to-peak travel,

reducing distortion for

better-sounding low frequencies.

ECLIPSE linear transducer technology*

* Patent pending

25

20

15

10

5

0

-50 -40 -30 -20 -10 0 10 20 30 40 50

BI (N/A)

BI vs. x

dispiacement (mm)

Bi fit between -24mm and 28mm

Non-Linear Voice Coil Linear Voice Coil

20

16

12

8

4

0

18

14

10

6

2

-50 -40 -30 -20 -10 0 10 2030 40 50

BI (N/A)

BI vs. x

dispiacement (mm)

Bi fit between -24mm and 28mm

Linear Transducer

speaker’s flat BL (force)

vs. displacement (travel)

graph compared to a

conventional speaker’s

bell-shaped curve.

32 — 2007 Mobile Entertainment Brochure

Speakers

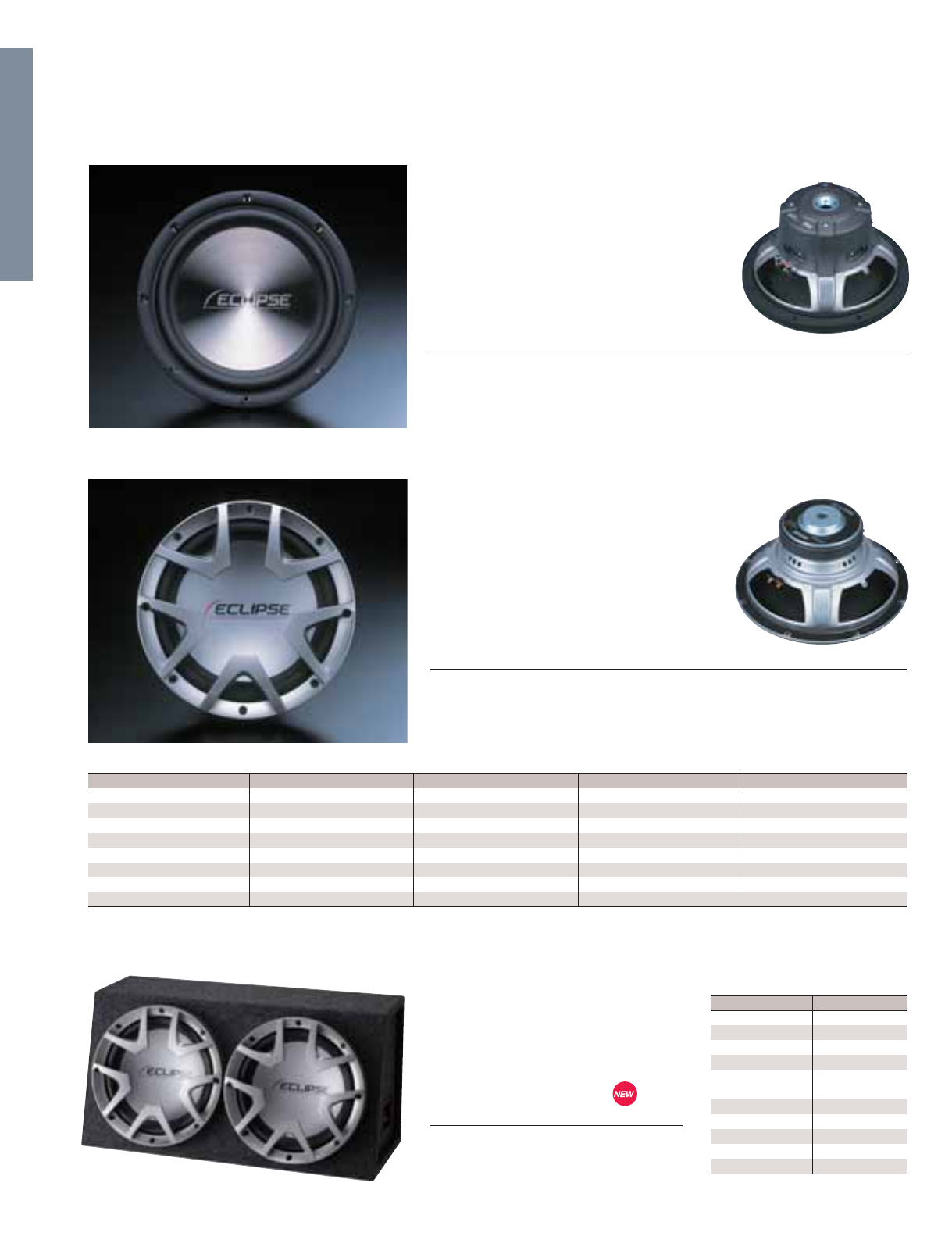

SW7200 12˝ Subwoofer (4Ω + 4Ω)

SW7000 10˝ Subwoofer (4Ω + 4Ω)

SW8200 SW8000 SW7200 SW7000

Size 12˝ 10˝ 12˝ 10˝

Fs 16Hz 18Hz 28Hz 35Hz

Qts 0.42 0.40 0.52 0.58

DCR 3Ω 3Ω 4Ω + 4Ω 4Ω + 4Ω

Vas 8.27 Cuft 3.75 Cuft 2.24 Cuft 0.85 Cuft

Xmax (one way) 1.50˝ 1.50˝ 0.70˝ 0.70˝

Continuous Power Handling 670W 625W 500W 450W

Maximum Power Handling 2000W 1900W 1500W 1300W

Final appearance may be changed.

• RMS power handling: 500W/450W

• Max. power handling: 1500W/1300W

• Solid aluminum cone heat sink

• Dual 4

Ω

aluminum voice coil

• Aluminum cast basket

• Rubber magnet boot

• Injection santoprene surround

• Dual conex mirrored spider

• Thruster air vent cooling system

• Vortex design basket heat sink

SW7000 Series

SW7000 Series

The SW7000 Series incorporates a heatsink voice coil/cone thermal sink that allows

producing 500W without strain. ECLIPSE’s low distortion/high excursion speaker cone

design philosophy lets the speaker travel 1.4 inches, which is the most in its class.

2007 Mobile Entertainment Brochure — 33

SW6200 SW6000 SW4200 SW4000

Size 12˝ 10˝ 12˝ 10˝

Fs 31Hz 38Hz 32Hz 38Hz

Qts 0.77 0.70 0.56 0.6

DCR 4Ω + 4Ω 4Ω + 4Ω 4Ω 4Ω

Vas 2.0 Cuft 0.85 Cuft 2.75 Cuft 1.25 Cuft

Xmax (one way) 0.30˝ 0.30˝ 0.30˝ 0.27˝

Continuous Power Handling 350W 300W 250W 200W

Maximum Power Handling 1000W 900W 750W 600W

SW4200BXD

Subwoofer Driver SW4200 × 2

Frequency Response 28 — 250Hz

Sensitivity 1W/m SPL 88dB

Normal Impedance 4Ω

Dimensions 27.6˝ × 13.8˝ × 11˝

(W × H × D) (701 × 350 × 280mm)

Weight (Gross) 43lbs (19.5kg)

Weight (Net) 37.5lbs (17kg)

Finish Grey

Continuous Power Handling

250W

Maximum Power Handling

750W

• RMS power handling: 250W

• Max. power handling: 750W

• Single 4

Ω

terminal

The SW4200BXD instantly delivers tight,

extended bass at an extremely competitive price

point with a pair of high efficiency 12 ˝ woofers

with a combined impedance of 4 ohms. Simply

install in a desired position.

SW6000 Series

A newly redesigned SW6000 Series featuring increased

input power capability and heavy duty requirements

including a doubling of cone excursion. The cone material

is now a Kevlar composite, new centralized terminals are

included and the series has a completely new look.

SW6000 Series

SW4000 Series

The new SW4000 Series easily competes with

subwoofers of a higher class. A new Kevlar composite

cone extends lows, maintains rapid transient response

and well-defined pitch. Distinguished by an attractive

and practical grill design, these speakers significautly

for extend system response.

SW4000 Series

Subwoofers

34 — 2007 Mobile Entertainment Brochure

SW6200 12˝ Subwoofer (4Ω + 4Ω)

SW6000 10˝ Subwoofer (4Ω + 4Ω)

SW4200 12˝ Subwoofer (4Ω)

SW4000 10˝ Subwoofer (4Ω)

SW4200BXD

12 ˝× 2 Subwoofer System

Speakers

• Injection santoprene surround

• Rubber gasket

• Flat pc spider

• Air vent cooling system

• Quad 10awg chrome terminal

• RMS power handling: 350W/300W

• Max. power handling: 1000W/900W

• Kevlar composite cone

• Dual 4

Ω

aluminum voice coil

• ABS + 15% fiber-filled magnet coverd

• RMS power handling: 250W/200W

• Max. power handling: 750W/600W

• Kevlar composite cone

• Integrated grill assembly

• Foam surround

• Polycarbonate spider

• 43oz magnet (SW4200), 30oz magnet (SW4000)

• 4-layer aluminum single voice coil

• Air vent cooling system

Subwoofers

2007 Mobile Entertainment Brochure — 35

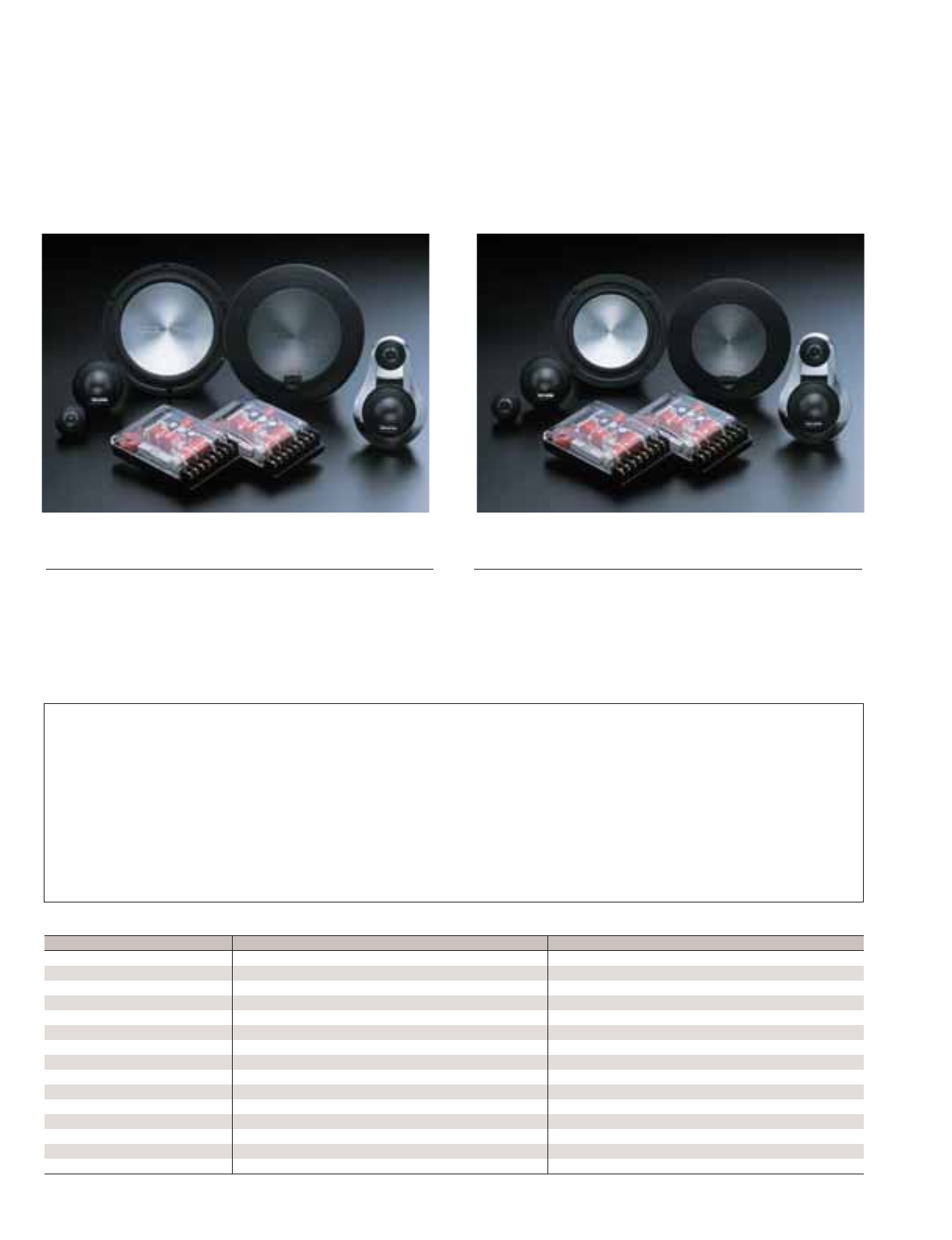

Woofer driver

• Solid aluminum cone (SC8365: 6-1/2˝ )

(SC8355: 5-1/4˝ )

• Aluminum diecast basket

• Santoprene surround

• Porous flat spider

• Aluminum voice coil former

• Very narrow voice coil gaps

• Vented pole piece

Midrange driver

• 1-1/2˝ solid aluminum hard dome

• Neodymium magnet

• Aluminum voice coil former

• Ferro-fluid cooled

• Flush-mounting kit

Tweeter

• 3/4˝ solid aluminum hard dome

• Neodymium magnet

• Aluminum voice coil former

• Ferro-fluid cooling

• Flush-mounting kit

Crossover

• Audiophile-grade, speaker-specific

matched component passive crossover

with clear lexan cover

• 12dB/octave high-pass, 6dB/octave

low-pass Butterworth Optimum Q

crossover filters

• OFC wirewound air core inductors and

etallized polypropylene capacitors

• Tweeter protection circuit

• Variable tweeter sensitivity

(-3dB/0dB/+3dB)

When size limitations are not a factor for speaker installations, ECLIPSE Component

Series Speakers are an ideal choice. These are complete two- and three-way speaker

systems with different components and crossovers designed to synergistically work

together in perfect balance right from the start.

• RMS power handling: 100W

• Max. power handling: 300W

• Sensitivity (1Watt/meter) SPL: 88dB

• Crossover frequencies: woofer/midrange 1400Hz,

midrange/tweeter 5kHz

• Mounting Depth: 2-7/8˝

• RMS power handling: 85W

• Max. power handling: 250W

• Sensitivity (1Watt/meter) SPL: 87dB

• Crossover frequencies: woofer/midrange 1400Hz,

midrange/tweeter 5kHz

• Mounting Depth: 2-5/8˝

3-Way SC-Series

Component Series Speakers

SC8365

6-1/2˝ Component 3-Way Speaker System

SC8355

5-1/4˝ Component 3-Way Speaker System

Shared features

SC8365 SC8355

 6-1/2˝  5-1/4˝

 1-1/2˝  1-1/2˝

 3/4˝ 3/4˝

100W 85W

300W 250W

30 — 25,000Hz 35 — 25,000Hz

88dB 87dB

Solid Spun Aluminum Solid Spun Aluminum

Santoprene Santoprene

Aluminum Aluminum

Aluminum Aluminum

Aluminum Aluminum

Neodymium Neodymium

Ferrite Ferrite

2-7/8˝ 2-5/8˝

Woofer Size

Midrange Size

Tweeter Size

RMS Power Handling

Max. Power Handling

Frequency Response

Sensitivity

Cone Meterial

Surround Meterial

Voice Coil Former

Midrange Dome

Tweetwer Dome

Tweetwer Magnet Material

Woofer Magnet Material

Mounting Depth

• RMS power handling: 80W

• Max. power handling: 240W

• Sensitivity (1Watt/meter) SPL: 86dB

• Mounting Depth: 2-3/8˝

• RMS power handling: 75W

• Max. power handling: 225W

• Sensitivity (1Watt/meter) SPL: 84dB

• Mounting Depth: 2-1/4˝

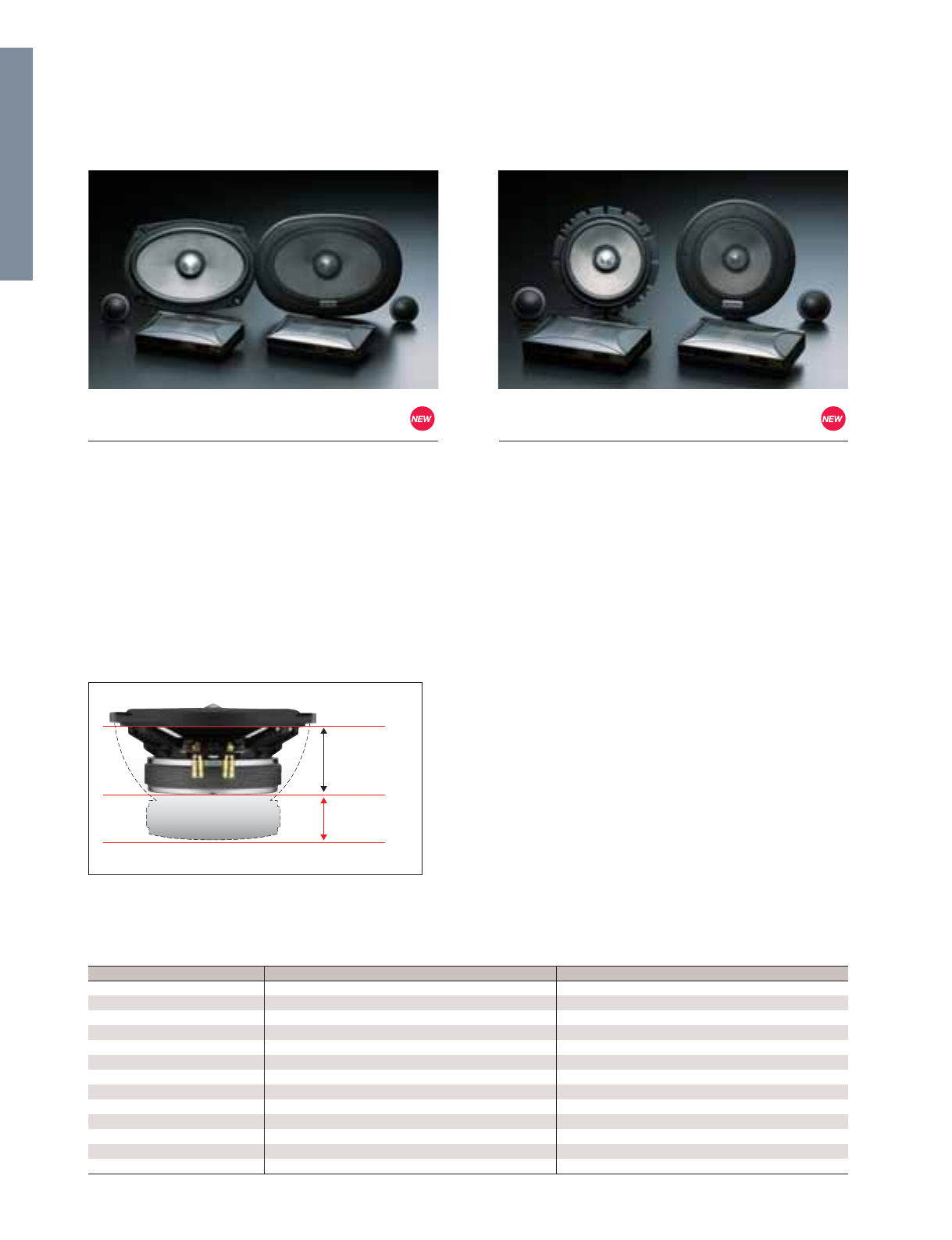

2-Way SC-Series

SC6900 SC6500

6 × 9˝ 6-1/2˝

1˝ 1˝

80W 75W

240W 225W

65 — 25,000Hz 84 — 25,000Hz

86dB 84dB

Glass fiber and Kevlar Glass fiber and PMI

Rubber Rubber

Aluminum Aluminum

soft silk soft silk

Neodymium Neodymium

Ferrite Ferrite

2-3/8˝ 2-1/4˝

Woofer Size

Tweeter Size

RMS Power Handling

Max. Power Handling

Frequency Response

Sensitivity

Cone Meterial

Surround Meterial

Voice Coil Former

Tweetwer Dome

Tweetwer Magnet Material

Woofer Magnet Material

Mounting Depth

Component Series Speakers

36 — 2007 Mobile Entertainment Brochure

SC6500

6-1/2˝ 2-Way Driver with 1˝ Aluminum Tweeter

SC6900

6-9˝ 2-Way Driver with 1˝ Aluminum Tweeter

Speakers

The SC6900 6x9˝ component system is designed to upgrade factory

speakers with a performance conventional 6x9˝ speaker systems cannot

achieve and still maintain an acceptable price point. The SC6900

combines a 6x9˝ aluminum diecast woofer with a 1˝ silk dome tweeter. A

dual second order network creates a smooth crossover for more accurate

sound reproduction resulting in a speaker system to satisfy the most

discriminating listener. The 6x9˝ woofer requires only 2˝ of mounting depth,

making it easy to install in any 6x9˝ application.

The required 2 ˝ mounting depth for this slim

profile speaker is approximately 40% less

than conventional speakers, greatly

facilitating installation. Even with a slim side

profile, sound quality is extraordinary.

The SC6500 component system represents audiophile quality at a

satisfuing price point. This system comprises a 6-1/2˝ low distortion

woofer and a 1˝ silk dome tweeter for smooth highs. The crossover uses

selected components for a dual second order network that provides an

accurate and seamless transition from low frequency driver to the tweeter,

delivering a rich, musical sound with all the earmarks of highend speakers.

The SC6500 woofer utilizes new shallow mount technology that allows

installation in spaces only 2˝ deep.

Making high-performance sound affordable

Depth reduced

by 40%!

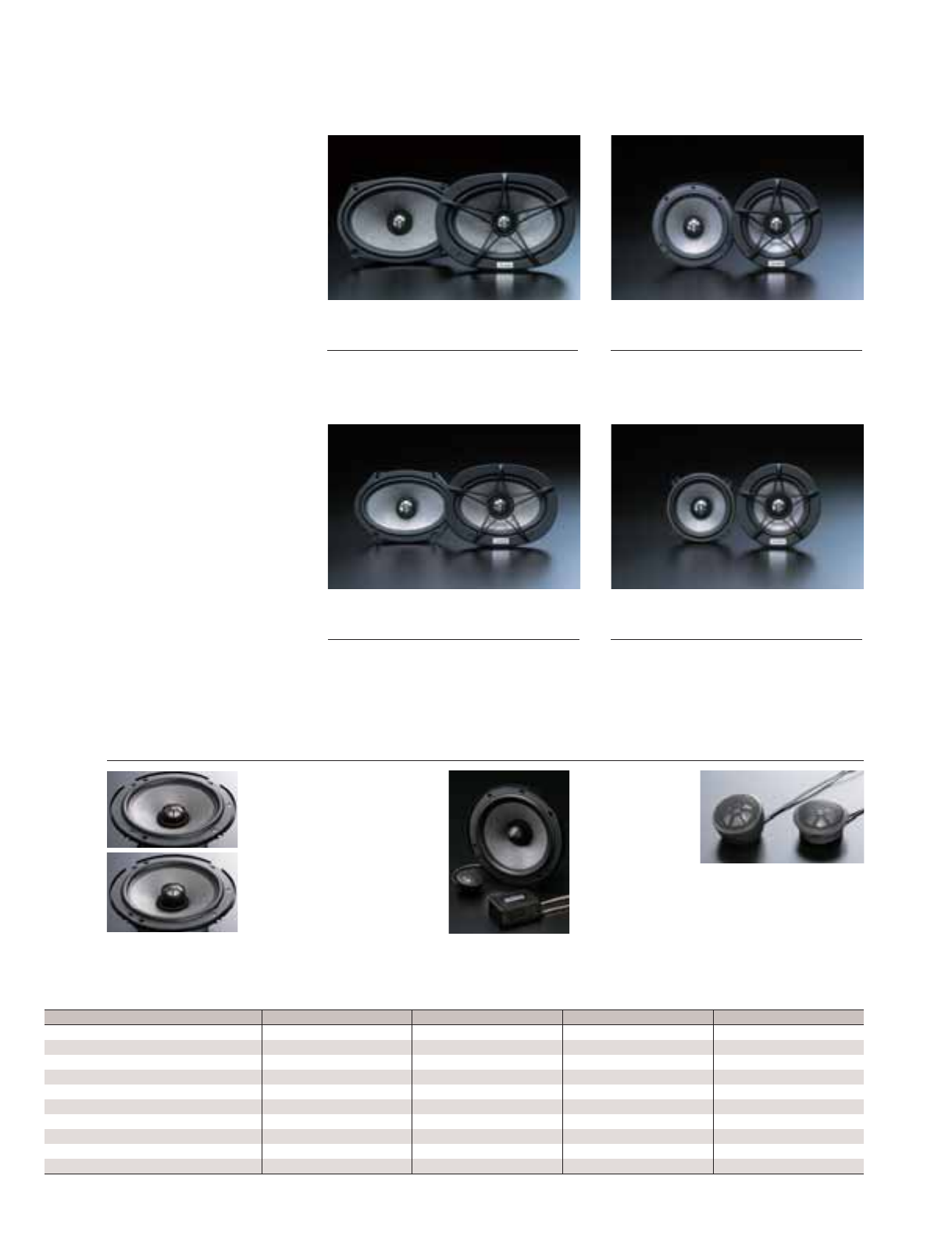

The SP Series II Point Source is an innovative

2-way component system that offers mounting

options for high frequency driver positioning

flexibility in order to better meet installation

requirements and achieve optimal sound.

Woofers feature a new Kevlar composite for

increased power handling and the external

crossovers employ premium components.

Sound improvements

The improved power handling capability of ECLIPSE

Point Source Series Speakers and the detachable

tweeter option allows them to be more versatile to

better suit a car’s interior in achieving the maximum

performance. ECLIPSE subwoofers can also be used

for greater low frequency impact, blending easily with

the sonic signature of these speakers.

An ideal solution

Specifically designed to function as self-contained

speakers that represent the easiest way to drastically

upgrade an in-car system, ECLIPSE Point Source

Speakers are available in configurations to suit

virtually any car. With a distinctive high-performance

appearance, the many advantages these speakers

have raise them above conventional replacement

speakers.

• RMS power handling: 90W

• Max. power handling: 270W

• RMS power handling: 60W

• Max. power handling: 180W

• RMS power handling: 55W

• Max. power handling: 165W

• RMS power handling: 50W

• Max. power handling: 150W

2-Way SP-Series

SP6900 SP6500 SP5700 SP5000

6 × 9˝ 6-1/2˝ 5 × 7˝/ 6 × 8˝ 5-1/4˝

1˝ 1˝ 1˝ 1˝

90W 60W 55W 50W

270W 180W 165W 150W

88dB 87dB 88dB 84.5dB

45 — 40,000Hz 85 — 40,000Hz 90 — 40,000Hz 105 — 40,000Hz

45Hz 85Hz 90Hz 105Hz

24oz 12oz 12oz 10oz

3.5˝ 2-1/4˝ 2-3/8˝ 2-1/4˝

3.6 3.6 3.6 3.6

Woofer Size

Tweeter Size

RMS Power Handling

Max. Power Handling

Sound Pressure Level

Frequency Response

Fs

Magnet Size

Mounting Depth

Voice Coil DCR (Ω)

• 1˝ titanium hard dome tweeter

• Low mass, low distortion Kevlar-PMI cone

• Neodymium tweeter magnet

• Detachable tweeter

• Grilles and Adaptors included

• Woofer, bullet diffuser for tweeter height extension

• Tweeter relocation kit (flush/surface mount kit)

Configuration Style

Point Source

Point Source w/ Extended Tweeter

Point Source

Detached Tweeter

Direct speaker replacement for

factory-installed speakers. The speaker can be

detached into woofer and

tweeter components so that

the woofers can be installed

in doors while tweeters can

be installed closer to

windows and other positions

such as the dashboard.

Tweeters can be installed flush or

mounted on dashboards and other

locations as separate housings are

provided.

For installations where the speaker is

mounted some distance behind the

grille, the supplied tweeter stand-off

spacer can be added to extend the

tweeter for better high frequency

dispersion.

Point Source Series Speakers

2007 Mobile Entertainment Brochure — 37

SP6900

6 × 9˝ 2-Way Point Source

SP6500

6-1/2˝ 2-Way Point Source

SP5700

5 × 7˝ / 6 × 8˝ 2-Way Point Source

SP5000

5-1/4˝ 2-Way Point Source

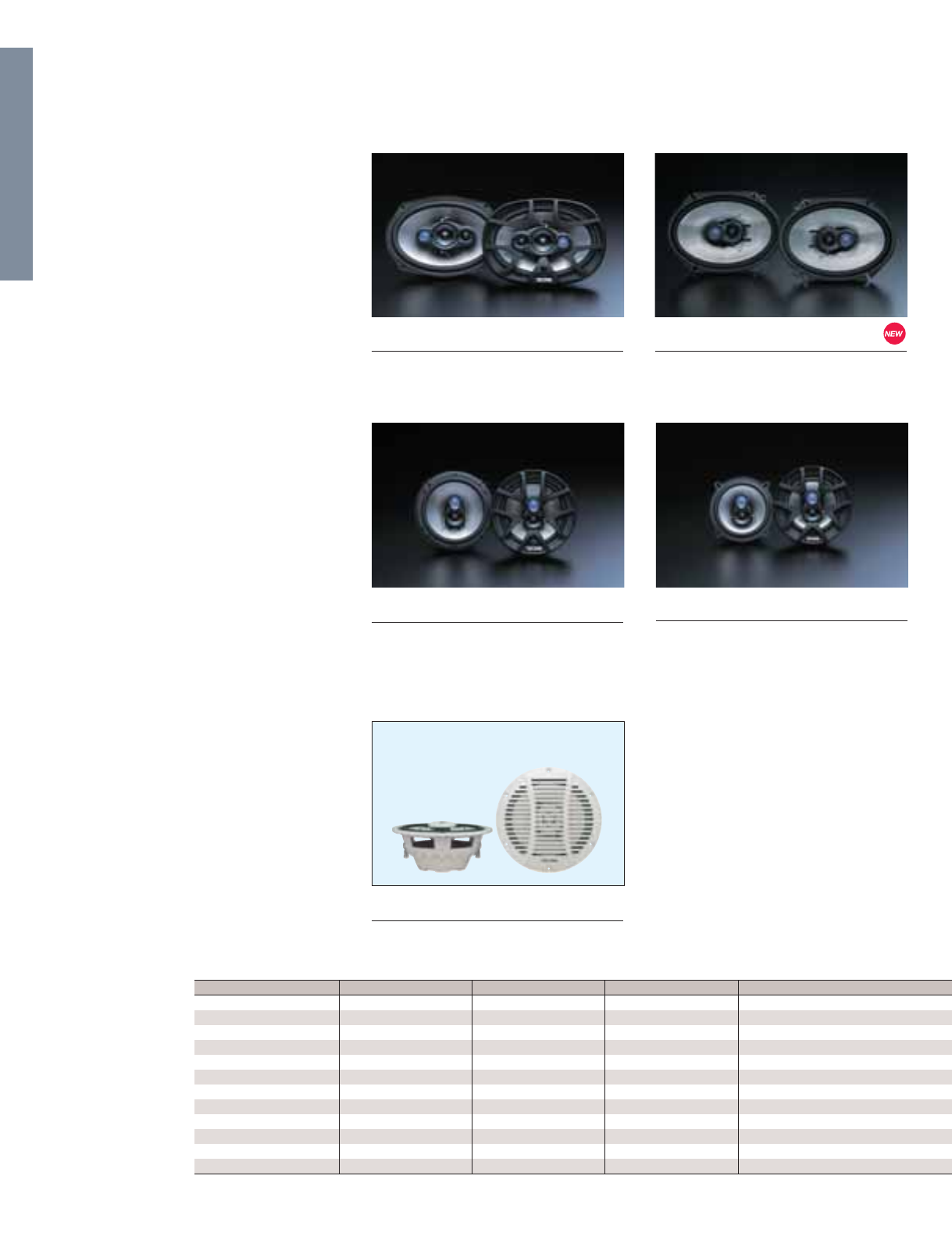

ECLIPSE Integrated Series speakers are

integrated concentric units that are

designed to replace factory speakers for

significantly better music fidelity.

Hybrid Mica PP Cone Woofer

The ECLIPSE speaker cone is hybrid mica PP for

rigidity under intense power, ensuring distortion-free

performance.

Butyl rubber surround

The butyl rubber surround allows linear cone

excursion and dampens cone resonance for

undistorted dynamic peaks and clarity at all levels.

Kapton voice coil former

Handles a large amount of heat without deforming.

Tweeter protection

A solid state device protects the speaker system

from power overloads. This device will momentarily

shut down the tweeter circuit, and will automatically

reset when the condition normalizes.

Super tweeter (for SE8495, SE8375,

SE8385, SE8365, SE8355, SE8405 only)

To accommodate the extended high frequency

response of DVD-Audio discs and to provide

superior treble reproduction, the 3-way units

incorporate a newly developed super tweeter that

goes all the way out to 40kHz (typically 50kHz).

Small neodymium tweeter

The use of a neodymium magnet improves

speaker efficiency.

• RMS power handling: 75W

• Max. power handling: 220W

• RMS power handling: 30W

• Max. power handling: 90W

• RMS power handling: 40W

• Max. power handling: 120W

Waterproof full-range speaker

Sensitivity 85dB

Woofer Cone 6-1/2˝

(UV Solar-Protected)

Tweeter 20mm Aluminum Hard Dome

(UV Solar-Protected)

Basket Oen Piece Cast Powder Coated

Aluminum

Grille Polycarbonite Plastic

(UV Solar-Protected )

Woofer Magnet Ferrite

Tweeter Magnet Neodymium

Mounting Depth 3-1/2˝

SE8495 SE8385 SE8375 SE8465A

6 × 9˝ 4-Way 6 × 8˝ 3-Way 5 × 7˝ 3-Way 4 × 6˝ 2-Way

80 — 40,000Hz 80 — 40,000Hz 85 — 40,000Hz 105 — 40,000Hz

93dB 91dB 90dB 87dB

● ● ● ●

● ● ● ●

● ● ● ●

— — — —

● ● ● ●

● ● ● ●

● ● ● ●

● ● ● ●

3-1/16˝ 2-1/4˝ 2-1/8˝ 1-3/4˝

Size

Frequency Response

Sensitivity

Hybrid Mica PP Cone

Rubber Surround

Kapton Voice Coil Former

Midrange Dome

Mylar Tweeter Dome

Super-Tweeter Dome

Neodymium Tweeter Magnet

Ferrite Woofer Magnet

Mounting Depth

Marine Loudspeaker

Specifically designed to withstand the rigors of

marine and outdoors environments the SM6500 is

ideal for use on boats.

Integrated Series Speakers

Speakers

38 — 2007 Mobile Entertainment Brochure

SE8495 6 × 9˝ 4-Way

• RMS power handling: 40W

• Max. power handling: 120W

SE8385 6 × 8˝ 3-Way

SE8365 6-1/2˝ 3-Way SE8355 5-1/2˝ 3-Way

SM6500 Marine Loudspeaker

• RMS power handling: 40W

• Max. power handling: 120W

• RMS power handling: 35W

• Max. power handling: 100W

• RMS power handling: 30W

• Max. power handling: 90W

• RMS power handling: 25W

• Max. power handling: 75W

• RMS power handling: 30W

• Max. power handling: 90W

• RMS power handling: 20W

• Max. power handling: 60W

SE8465E SE8365 SE8355 SE8405 SE8245 SE8235

4 × 6˝ 2-Way 6-1/2˝ 3-Way 5-1/2˝ 3-Way 4 × 10˝ 3-Way 4˝ 2-Way 3-1/2˝ 2-Way

105 — 40,000Hz 90 — 40,000Hz 90 — 40,000Hz 65 — 40,000Hz 105 — 40,000Hz 120 — 40,000Hz

87dB 90dB 89dB 91dB 89dB 87dB

● ● ● ● ● ●

● ● ● ● ● ●

● ● ● ● ● ●

— — — ● — —

● ● ● ● ● ●

● ● ● ● ● ●

● ● ● ● ● ●

● ● ● ● ● ●

1-3/4˝ 1-7/8˝ 1-7/8˝ 2-3/8˝ 1-5/8˝ 1-1/2˝

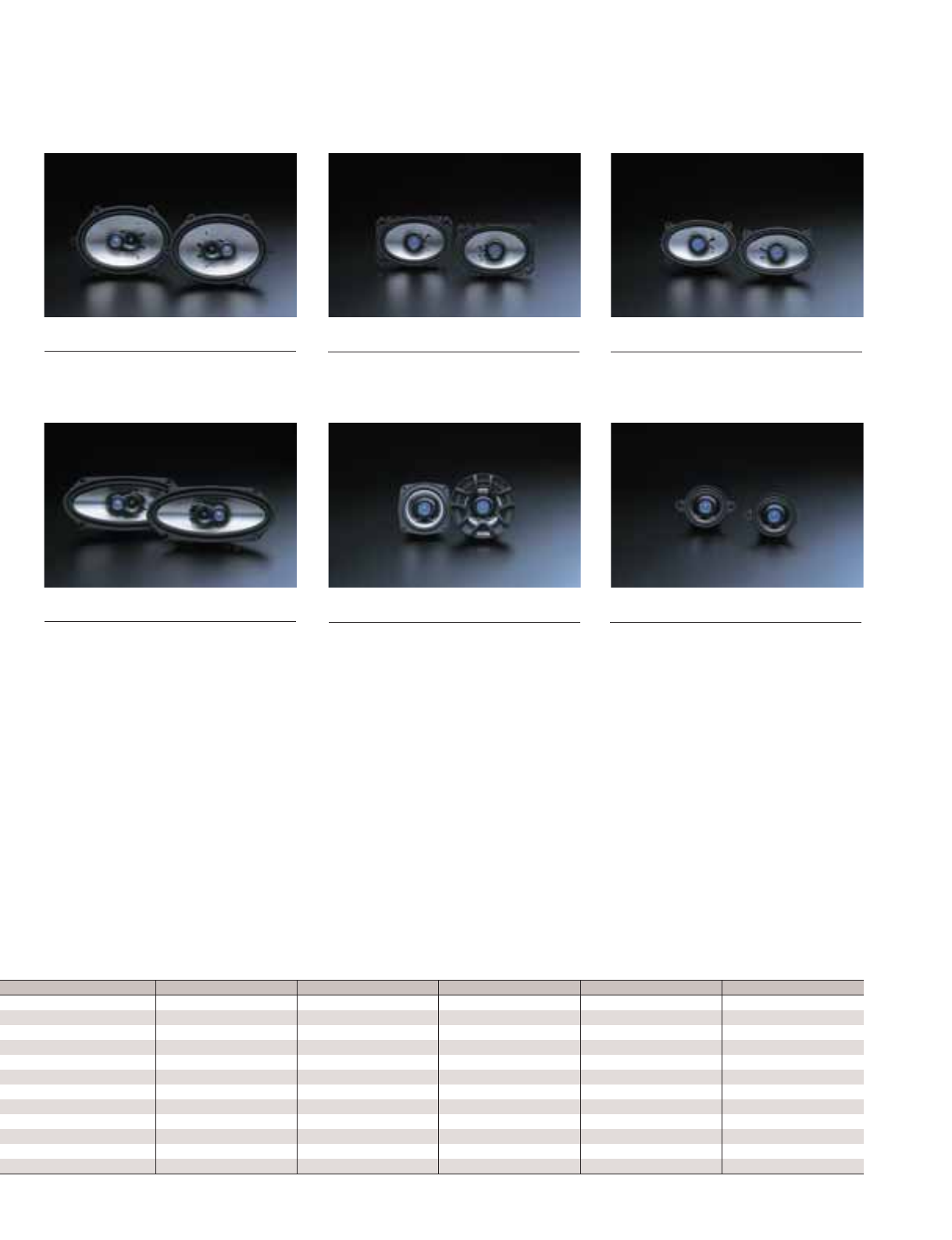

2007 Mobile Entertainment Brochure — 39

SE8375 5 × 7 ˝ 3-Way SE8465A 4 × 6˝ 2-Way SE8465E 4 × 6 ˝ 2-Way

SE8405 4 × 10˝ 3-Way SE8245 4˝ 2-Way SE8235 3-1/2˝ 2-Way

2007/3·E-1114·40 Printed in USA

FUJITSU TEN LIMITED

Contact: FUJITSU TEN CORP. OF AMERICA

19600 So. Vermont Avenue, Torrance, CA 90502

Call: 1-800-55-ECLIPSE (Dealer Locator)

1-800-233-2216 (Information)

www.eclipse-web.com

Notes and Precautions

Product safety notice

• To ensure the safe operation of ECLIPSE products, please

read the owner’s manuals carefully prior to using.

• Do not adjust controls while driving. To adjust the controls,

stop the car in a safe location.

• The rear view camera is a parking aid. It must be used only

to supplement your vehicle's side view and rearview

mirrors. It is not a substitute for mirrors and careful driving.

Installation

• ECLIPSE is not responsible for any accident or damage due

to improper installation, connections or products modified

in any way.

• Installation of products requires experience and knowledge.

Ask your ECLIPSE retailer for proper installation.

• ECLIPSE cannot guarantee that every product it

manufactures will be able to be installed in every vehicle

model or make. To be sure, please consult your ECLIPSE

retailer.

• In some cases due to installation-related considerations,

additional connecting cables may need to be purchased for

an ECLIPSE product.

• Please be sure to follow instructions provided in the

installation manual for correct procedures as incorrect

installatiion may affect driving-related operation and/or

airbag operation.

• Please make sure only the official parts supplied with the

unit are used. Do not substitute other parts as it may affect

operation or compromise unit build integrity.

• All products are intended for DC 12-Volt operation in

negative grounded vehicles only. Never use them in 24-Volt

vehicles such as heavy trucks or diesel cars with cold-region

specification, aircraft or marine environments unless

specifically rated to handle these conditions.

• When the BEC106 Rear View Camera is connected using the

CAB106, the CAMERA SCREEN button cannot be used for

displaying Rear View Camera images. Select AUTO CAMERA

SETTING before using the Rear View Camera.

General

• Product design and specifications are subject to change

without prior notice or obligation as ECLIPSE reserves the

right to constantly seek to improve its products.

• Due to characteristics and properties of various photography

and printing processes, the color(s) of the actual product

may slightly differ from those shown on these pages.

• Some screen images shown are simulated.

Licensing and Trademarks

• AVN is a registered trademark of FUJITSU TEN LIMITED.

• Circle Surround II and the SRS logo are trademarks or

registered trademarks of SRS Labs, Inc.

• “Dolby”, “Pro Logic” and the double D symbol 2 are

trademarks of Dolby Laboratories and the Dolby

Laboratories Licensing Corporation.

• “dts” and “dts Digital Out” is a trademark of Digital Theater

System, Inc.

• HD Radio is a trademark of iBiquity Digital Corporation.

• “SIRIUS” and related marks are trademarks of SIRIUS

Satellite Inc.

• The Bluetooth® trademarks are owned by SIG, Inc.

• Memory Stick is a registered trademark of Sony Corp.

• Magic Gate is a registered trademark of Sony Corp.

• NAVTEQ ON BOARD is a trademark of NAVTEQ.

• ICEpower® is a registered trademark of Bang & Olufsen

ICEpower a/s.

• iPod® is a trademark of Apple Inc., registered in the U.S. and

other countries.

• iPod® is for legal or rightholder-authorized copying only.

Don’t steal music.

• (c) 2007 TomTom International BV, The Netherlands.

• (c) 2007 Tele Atlas North America, Inc. All rights reserved.

Canadian Data (c) DMTI Spatial. Portions of Canadian map

data are reproduced under license from Her Majesty the

Queen in Right of Canada with permission from Natural

Resource Canada. Point of interest data by Info USA.

Copyright 2007.

Others

• Do not remove the HDD from the head unit. ECLIPSE is not

responsible for any loss of data, damage or malfunction to

the disk drive mechanism resulting from unauthorized

removal or tampering with the HDD.

• Some recent audio discs may resemble conventional music

CDs but are technically not Compact Discs (CD Red Book

format) because of the copy protection technology

employed. ECLIPSE cannot guarantee operation and

performance if these discs are used.

• DVD-R/RW and DVD+R/RW playback is possible only for

discs formatted for video mode.

• VR (Video Recording) mode-recorded discs and discs not

finalized will not play in the unit.

• Some PC-authored discs may not play due to software

application settings during authoring.

• DVD-R/RW, DVD+R/RW and CD-R/RW playback quality may

be affected by disc surface condition and disc format

initialization process.

• DVD-R/RW, DVD+R/RW, CD and CD-R/RW discs may not

operate perfectly on unit due to disc imperfections.

• DVD-R/RW, DVD+R/RW, CD and CD-R/RW disc

performance may suffer if a disc exhibits excessive wear,

dirt and scratching

• ATRAC3 is an efficient compression codec for digital music

files, allowing files to take up just 1/10 their uncompressed

size without degrading audio quality.

• Optimal MP3 and WMA file reproduction quality depends

greatly on the original encoding process. Depending on the

original encoding, files may sometimes not play back

properly.

• Playback of song data is only possible on Magic

Gate-compatible memory stick devices.

• Memory Sticks up to 128MB can be used. Initialization must

be executed with Windows 2000 or later.

• ECLIPSE is not responsible for any data loss on a Memory

Stick or HDD due to unit failure or malfunction.

• Song storage can be less than the representative number of

song files depending on each song's bit rate and sampling

frequency.

• Place USB devices and/or extension cords in a safe place

where they do not interfere with driving.

• The USB connector on the front panel is only for USB Mass

Storage Class memory devices.

• Compatible with USB1.1 and USB2.0 (max. transfer rate

12Mbps, equivalent of USB1.1)

• ECLIPSE is not responsible for any data loss on a USB

device due to unit failure or malfunction.

• Do not disconnect a USB device while in use. Replacing it or

terminating power during usage may damage stored data.

• Some USB devices may not function properly, depending on

a USB device’s condition and specifications.

• Products listed in this catalog are not compatible with

multi-partition USB devices or USB hubs.

• To prevent permanent loss of important data, always backup

data.

• Devices that require large current (bus power) may not

function properly.

• Music files with copyright protection may not be

reproduced.

Operation notes

• DVD-Video compatible units are only compatible with NTSC

standards and Region-1 DVD-Video discs.

• DVD-Video is disabled when the vehicle is in motion.

Inserting a DVD-Video will only allow the audio to be heard.

• The Global Positioning System or GPS was developed in the

United States. It is a system that pinpoints a current position

making use precisely of radio waves transmitted to earth

from 3 or 4 GPS satellites.

• GPS data can sometimes be unavailable due to

circumstances such as:

• Interrupted GPS satellite radio waves because of

geographical interference factors such as buildings,

tunnels, elevated roads and similar conditions.

• Unsatisfactory reception due to objects being on or in the

near vicinity of the GPS antenna.

• Interrupted transmission service may sometimes result

from periodic maintenance or upgrades being performed

by the US-based GPS tracking control system.

• Transmission can be interrupted or degraded when a

digital cellular operating on a 1.5GHz frequency rate is

being used in the vicinity of the GPS-enabled unit.

AVN-specific

• AVN7000 map data compiled as of October 2004.

• AVN5495 map data compiled as of June 2004.

• AVN6610 map data compiled as of December 2005.

• AVN5510 map data compiled as of December 2005.

• Do not follow a navigation route if it could place you in an

illegal, unsafe, or dangerous situation.

• Navigation controls cannot be operated in a moving vehicle.

• Please do keep in mind however that since emergency

service providers sometimes change locations and services,

a phone call should be made first to verify current

availability before proceeding to the destination.

• The ECLIPSE navigation system requires its dedicated

database for optimal performance. Do not insert other

database DVDs that may cause the unit to malfunction or

not respond.

AVX/CD Receivers-specific

• Use map data (Area Shot) while being aware of actual road

conditions and obeying traffic rules.

• Some E-iSERV graphic examples may be from pre-release

software and may vary slightly from the final version.

• Copying, publishing and the use of maps in electronic media

or form are only possible when express written consent has

been obtained prior to usage.
