Acer AL1716

Service Guide

Service Guide Version and Revision

No. Version Release Date Revision

1.0

2.0

3.0

Jun.-24-2005

Jul.-30-2005

Aug.-22-2005

Initial release

Change the panel type.

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or

warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties

of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is

sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer

Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any

incidental or consequential damages resulting from any defect in the software.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Trademarks

Acer is a registered trademark of Acer Incorporated.

All other trademarks are property of their respective owners.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear on screen.

NOTE Gives bits and pieces of additional information related to the current topic.

WARNING Alerts you to any damage that might result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to avoid possible hardware or software

problems.

IMPORTANT Remind you to do specific actions relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided

for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness,

your regional office may have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra

memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such

cases, please contact your regional offices or the responsible personnel/channel to provide you with further

technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on

your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the

printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list

provided by your regional Acer office to order FRU parts for repair and service of customer machines.

Warning: (For FCC Certified Models)

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this

equipment. It is the responsibility of the user to correct such interference.

As ENERGY STAR® Partner our company has determined that this product meets the ENERGY STAR®

guidelines for energy efficiency.

Warning:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are

present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

Precautions

z Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in

a wet basement.

z Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and

cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or sold

with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the manufacturer

and follow the kit instructions.

z Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable

operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.

Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator

or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

z The monitor should be operated only from the type of power source indicated on the label. If you are not sure of

the type of power supplied to your home, consult your dealer or local power company.

z The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit

only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,

have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the

safety purpose of the grounded plug.

z Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the

monitor from damage due to power surges.

z Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

z Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric

shock. Never spill liquids on the monitor.

z Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous

voltages and other hazards. Please refer all servicing to qualified service personnel

z To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100 - 240V AC, Min. 5A.

z The wall socket shall be installed near the equipment and shall be easily accessible.

Special Notes On LCD Monitors

The following symptoms are normal with LCD monitor and do not indicate a problem.

Notes

z Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and

then turn it on again to make sure the flicker disappears.

z You may find slightly uneven brightness on the screen depending on the desktop pattern you use.

z The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a

missing pixel or a pixel lit all of the time.

z Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image,

when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image

or turning off the Power Switch for hours.

Table Of Contents

Chapter 1 Monitor Features ……………………………………… 6

Induction ……………………………………… 6

Electrical Requirements ……………………………………… 7

LCD Monitor General Specification ……………………………………… 8

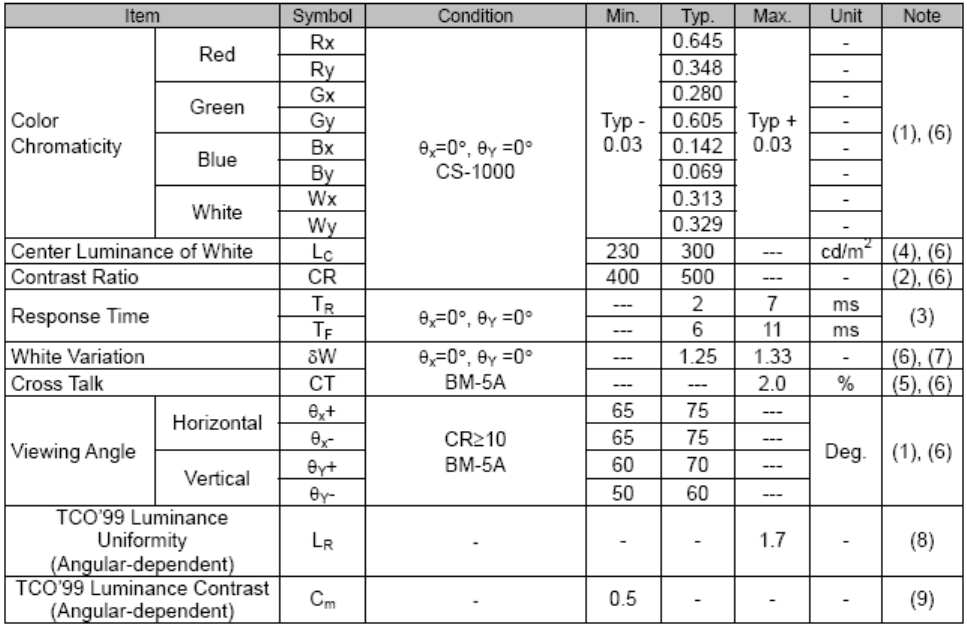

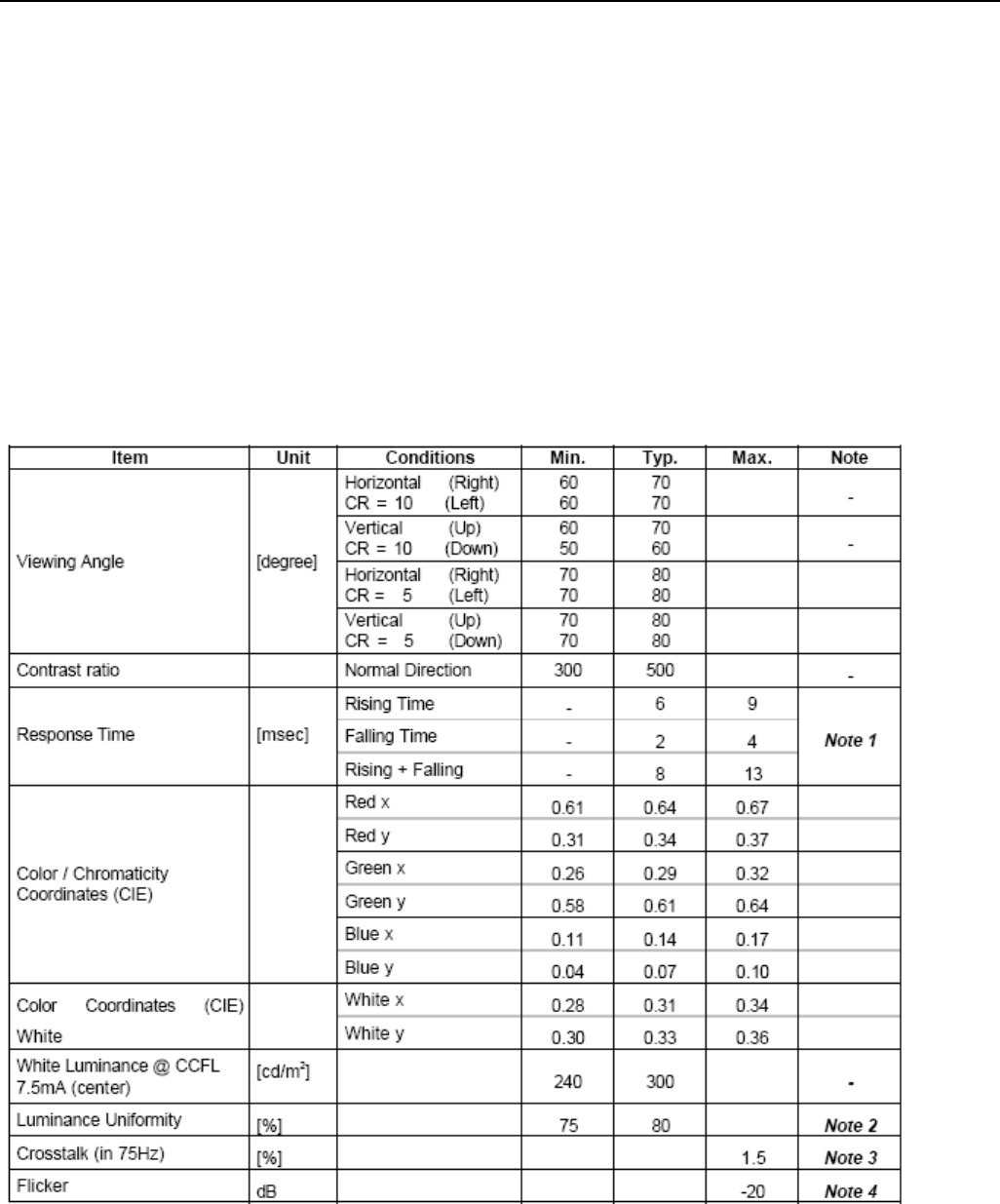

LCD Panel Specification ……………………………………… 9

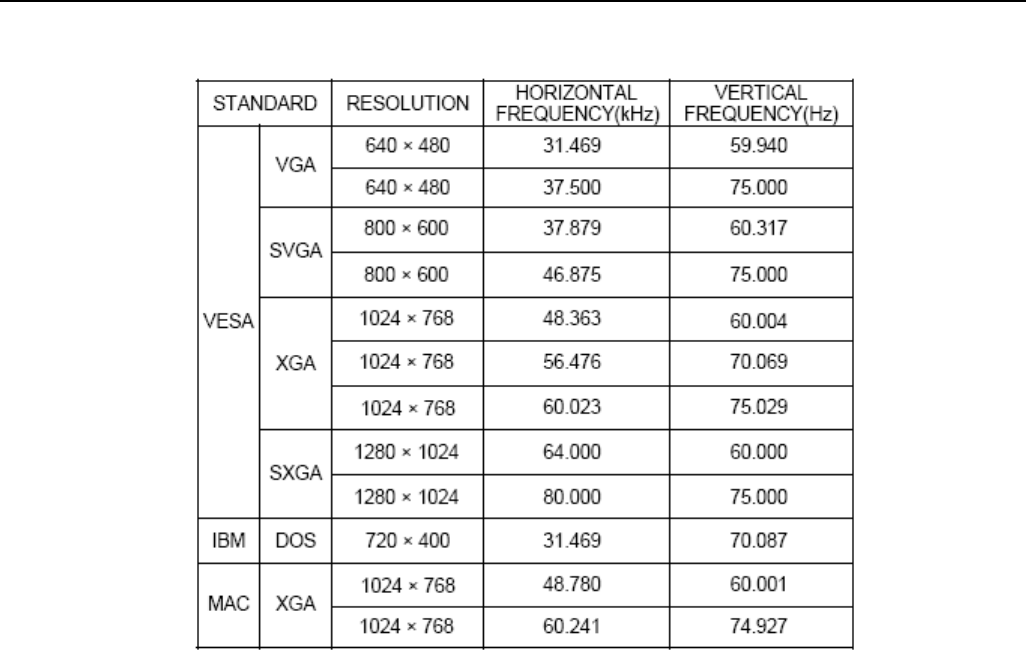

Support Timing ……………………………………… 14

Block Diagram ……………………………………… 15

Main Board Diagram ……………………………………… 16

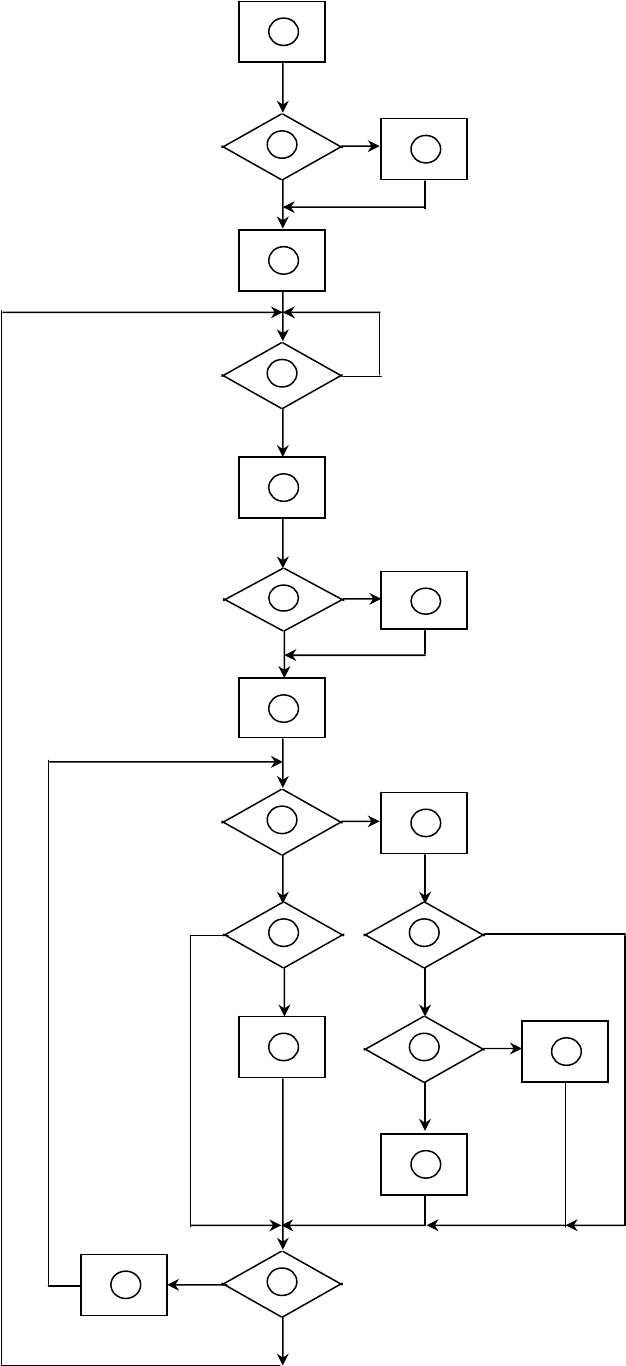

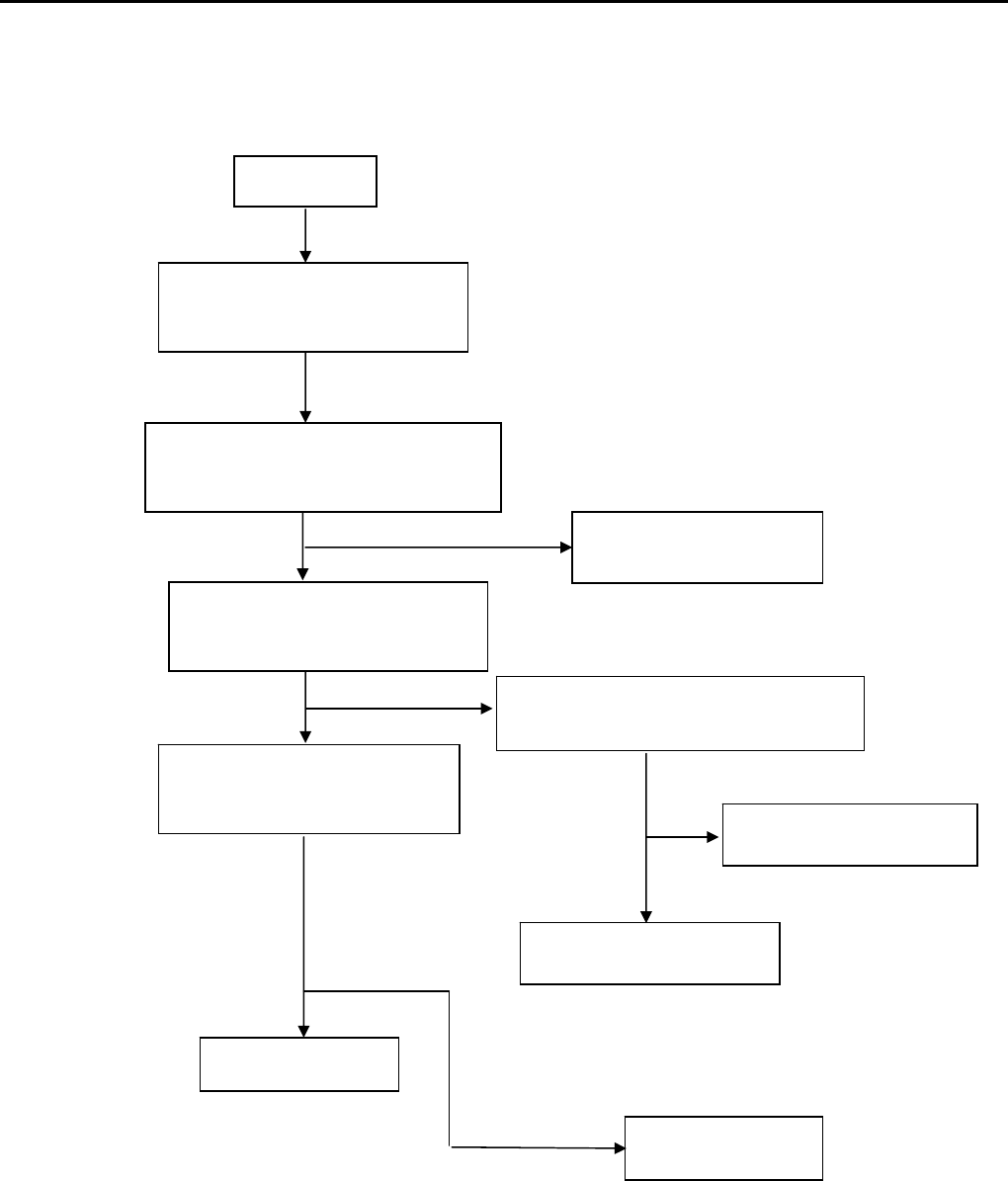

Software Flow chart ……………………………………… 17

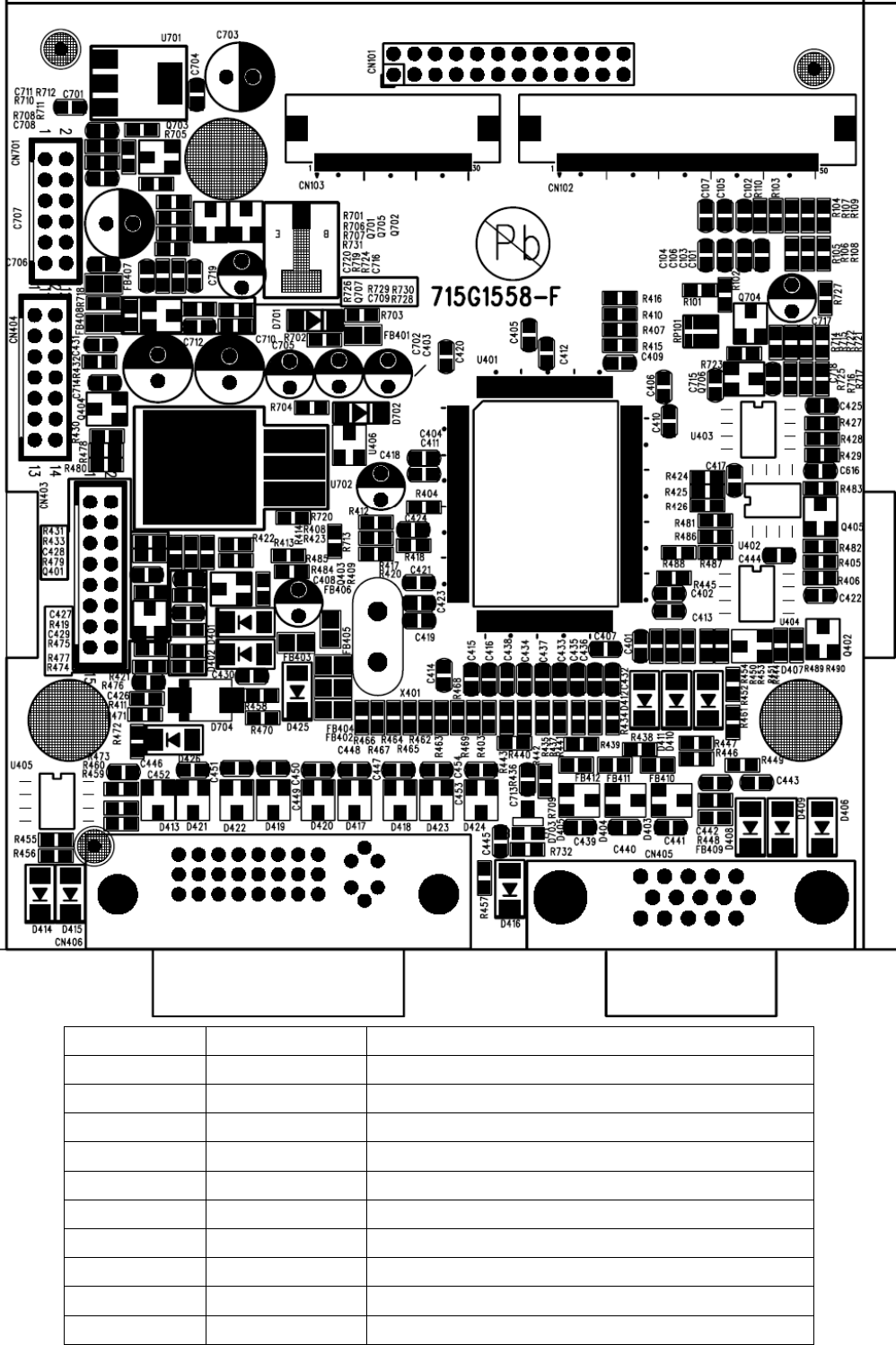

Main Board Layout ……………………………………… 19

Front Bezel ……………………………………… 20

Rear Bezel ……………………………………… 21

Chapter 2 Operating Instructions ……………………………………… 22

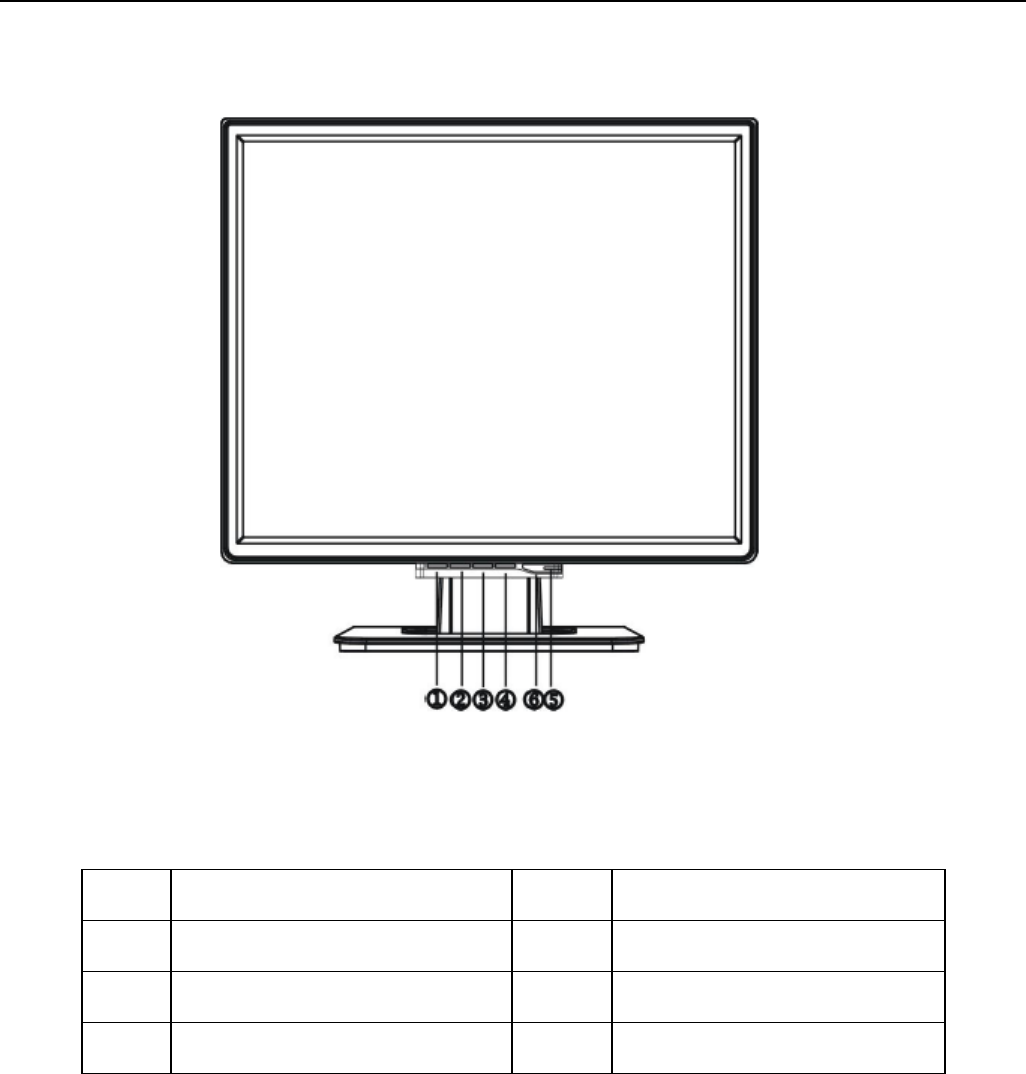

External Controls ……………………………………… 22

Front Panel Controls ……………………………………… 23

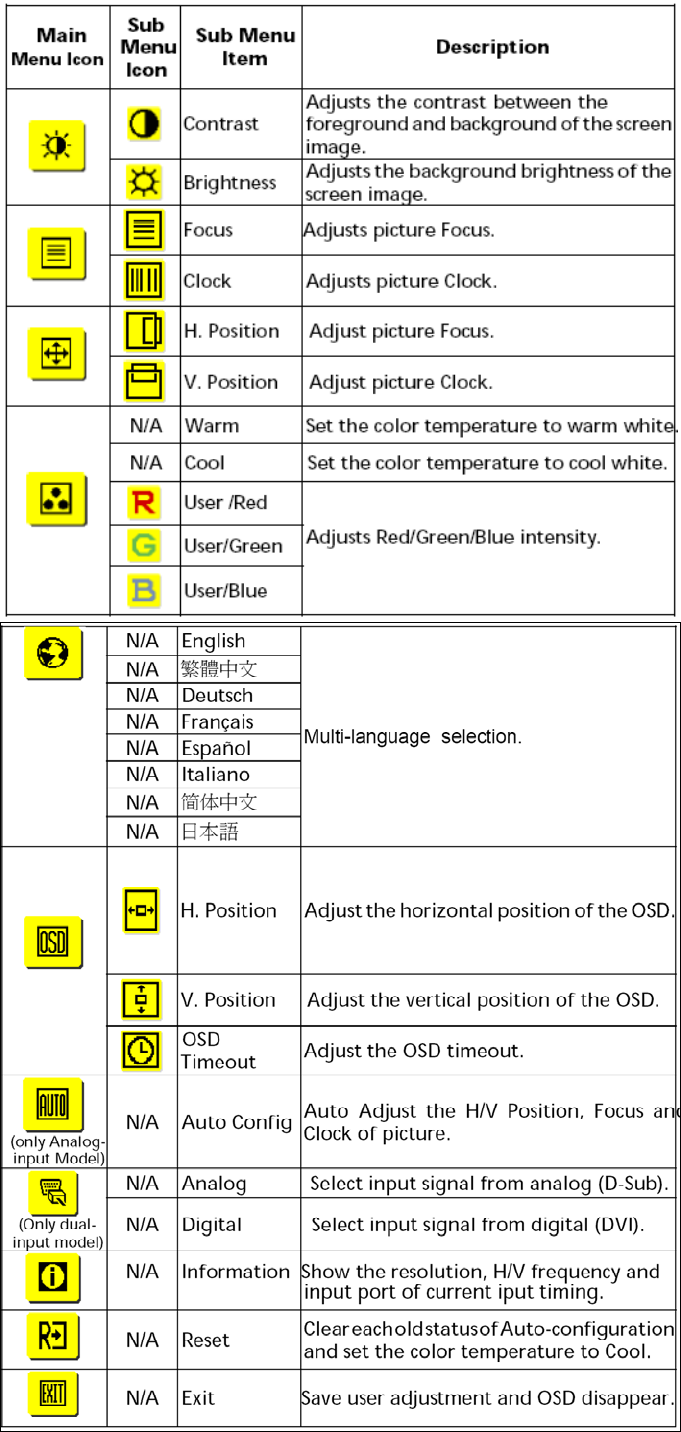

Adjusting the picture ……………………………………… 24

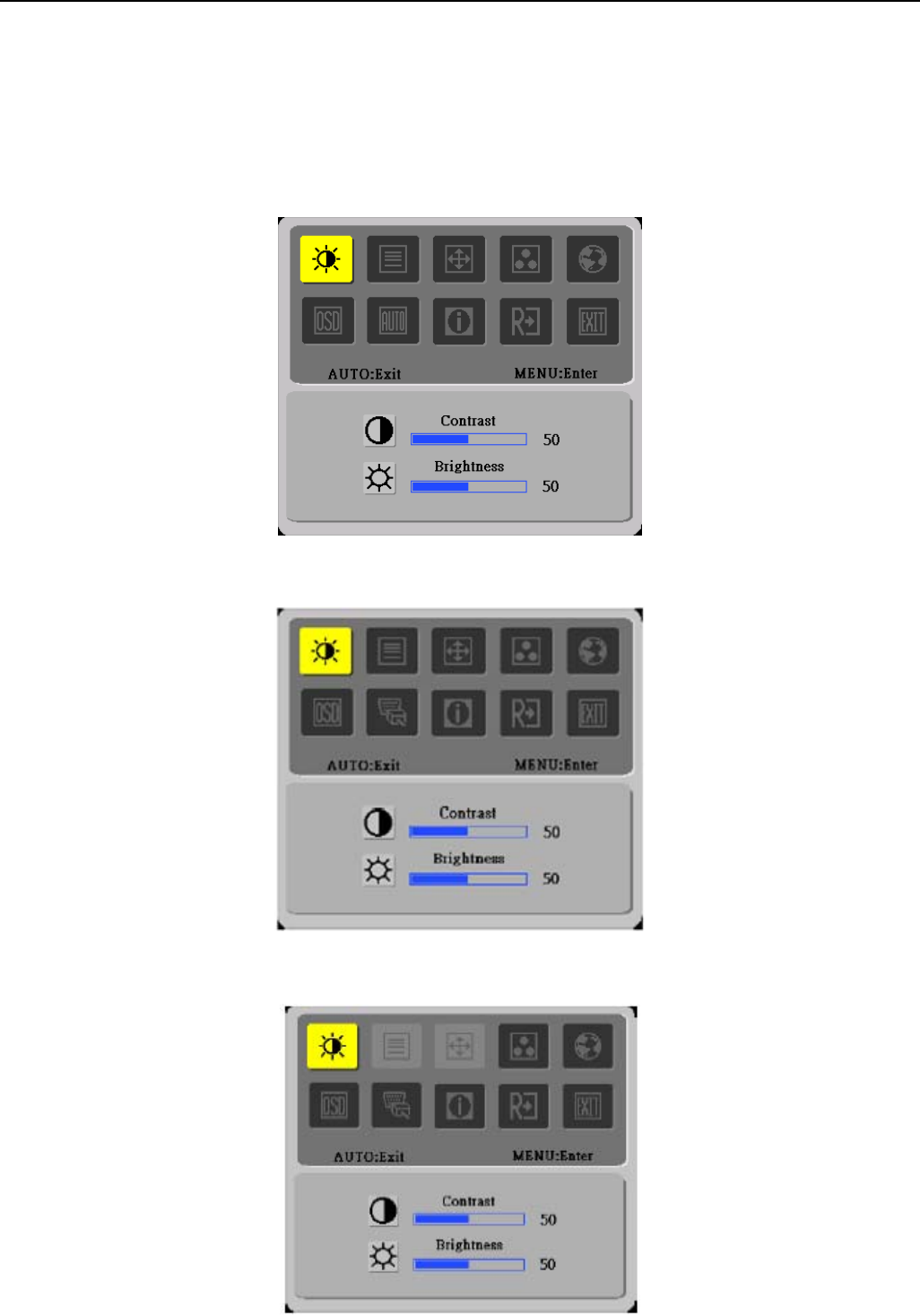

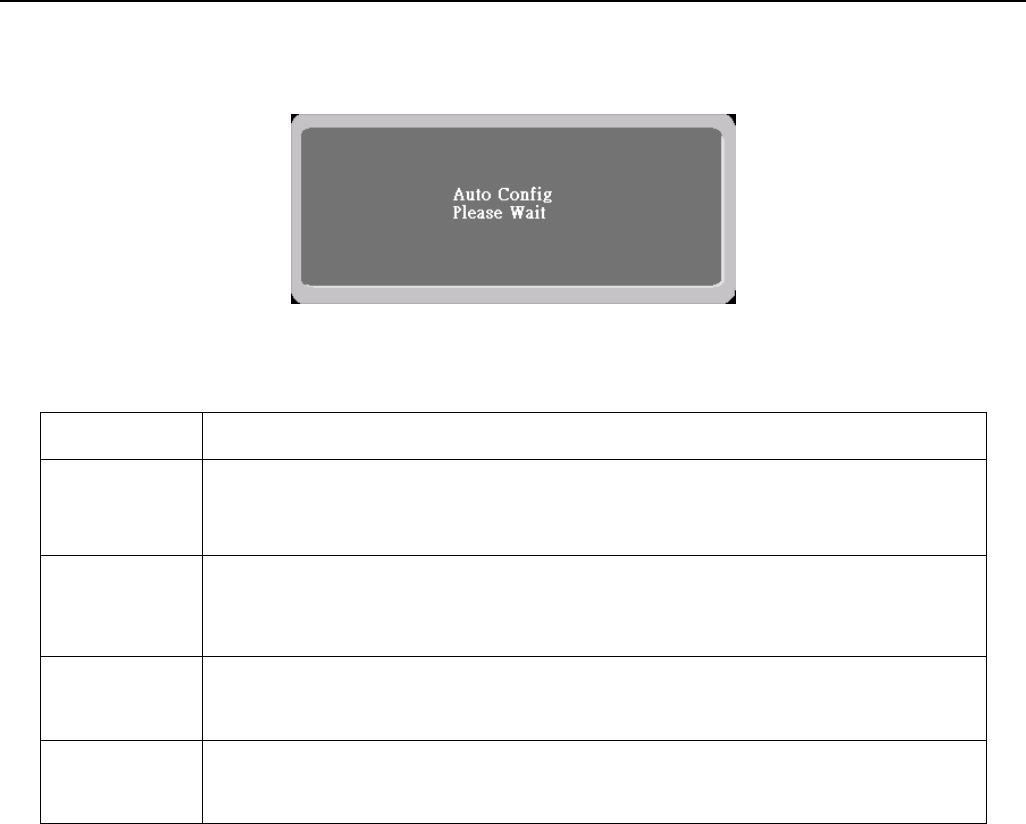

OSD Message ……………………………………… 27

LOGO ……………………………………… 27

Chapter 3 Machine Disassembly ……………………………………… 28

Chapter 4 Troubleshooting ……………………………………… 35

Chapter 5 Connector Information ……………………………………… 40

Chapter 6 FRU (Field Replacement Unit) List ……………………………………… 41

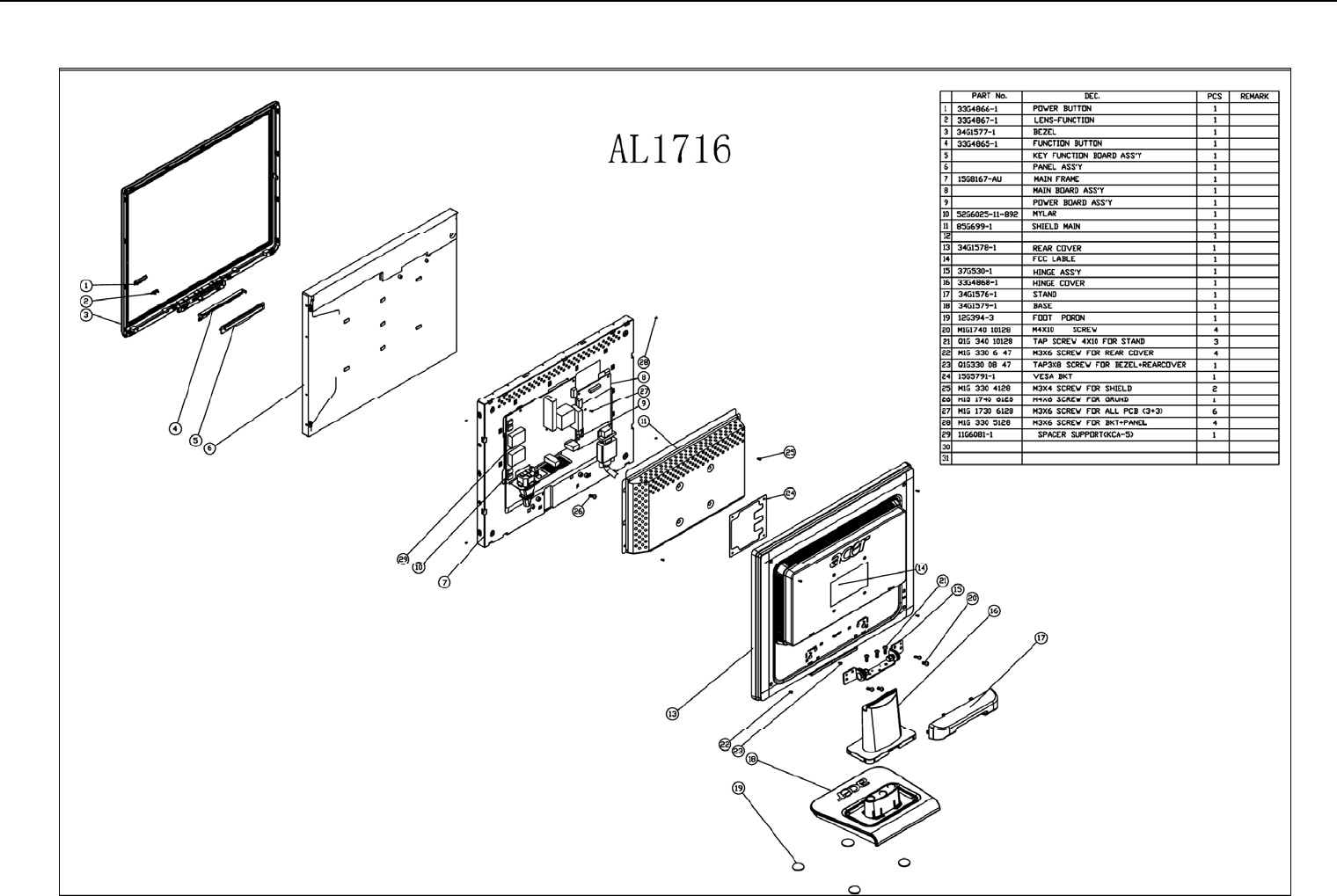

Exploded Diagram ……………………………………… 42

Chapter 7 Schematic Diagram ……………………………………… 44

Input ……………………………………… 44

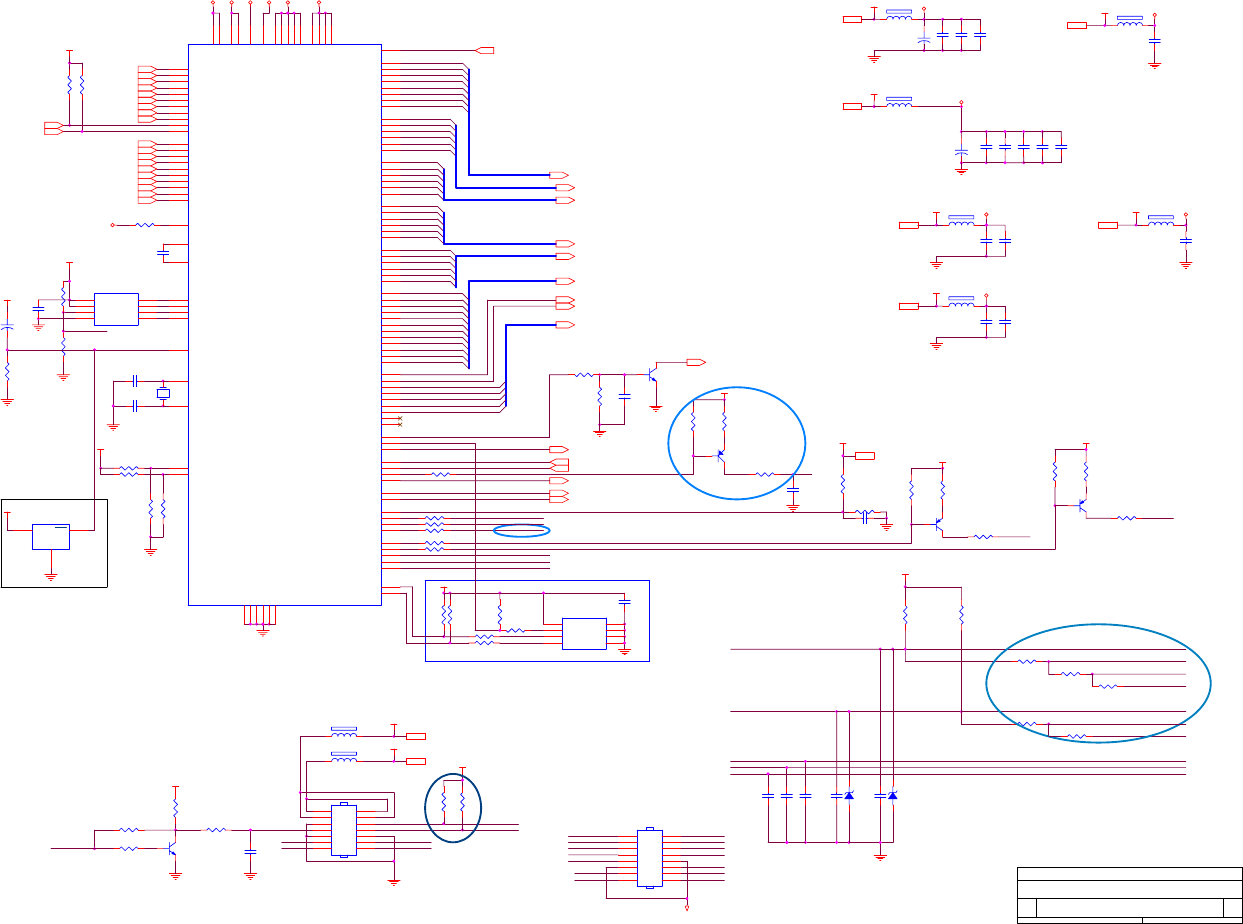

TSUM16AK/TSUM56AK ……………………………………… 45

LVDS ……………………………………… 46

Main board power supply ……………………………………… 47

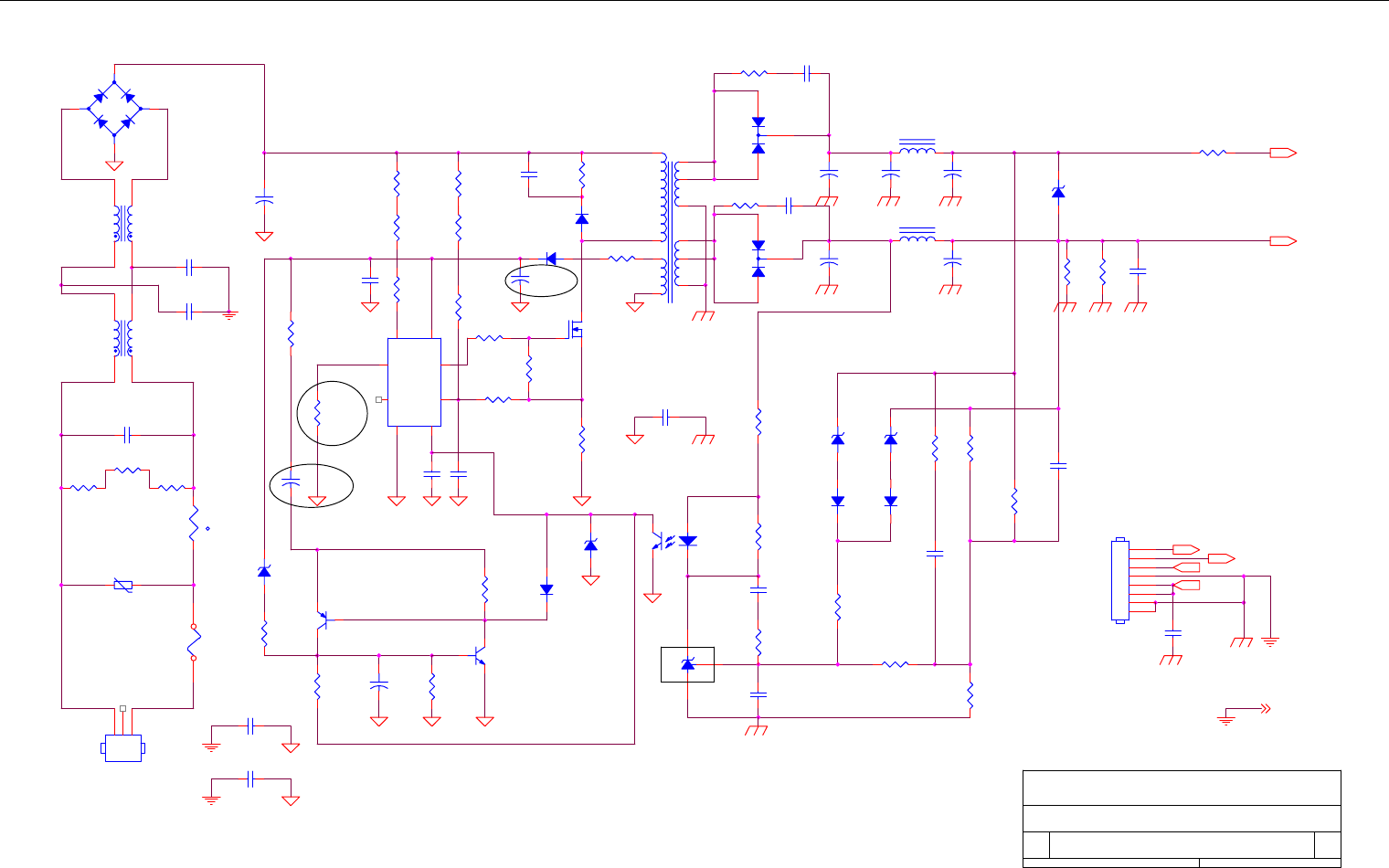

Power Board ……………………………………… 48

Monitor Features

Introduction

Scope

This specification defines the requirements for the 17” MICROPROCESSOR based Multi-mode supported high

resolution color LCD monitor. This monitor can be directly connected to general 15 pin D-sub VGA connector and 24

pin DVI connector (for Dual-input model). It also supports VESA DPMS power management and plug & play function.

There is a build-in stereo audio amplifier with OSD control to drive a pair of speakers.

Description

The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no

radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop

space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF

target is 50k hours or more.

Chart of AL1716

SEC: LTM170EU- L21

LPL: LM170E01-TLB3

CMO: M170E5-L09

AUO: M170G01 V8 (V2)

Panel

BOE: HT17E13-100 (A03)

D-SUB

Signal Interface DVI（only for Dual-input model）

Sync Type Separate / Compatible

Color Temp User Adjust Support

DDC VESA DDC2B

Speaker No

Headphone Jack No

Microphone Jack No

USB Hub Not support

Tilt / Swivel Yes / No

Height Adjust Option

Cha

ter 1

Electrical Requirements

Standard Test Conditions

All tests shall be performed under the following conditions, unless otherwise specified.

Ambient light 225 lux

Viewing distance 40 cm in front of LCD panel

All specifications 30 minutes

Warm up time

Fully functional 5 seconds

Measuring equipment Chroma 7120 signal generator or equivalent, directly

Connected to the monitor under test.

User brightness control Maximum (unless otherwise specified)

User contrast control Typical (unless otherwise specified)

Control settings

User red/white balance,

Green/white balance and

Blue/white balance control

In the center (unless otherwise specified)

Power input 100VAC or 264VAC

Ambient temperature 20+5℃

Analog input mode 1280 x1024 /75 Hz

Measurement systems

The units of measure stated in this document are listed

below:

1 gamma = 1 nano tesla

1 tesla = 10,000 gauss

cm = in x 2.54

lb = kg x 2.2

degrees F = [°C x 1.8] + 32

degrees C = [°F - 32]/1.8

u' = 4x/(-2x + 12y + 3)

v' = 9y/(-2x + 12y + 3)

x = (27u'/4)/[(9u'/2) - 12v' + 9]

y = (3v')/[(9u'/2) - 12v' + 9]

Nits = cd/(m2) = Ft-L x 3.426

lux = foot-candle x 10.76

LCD Monitor General Specification

17 “ active matrix color TFT LCD

SEC: LTM170EU- L21

LPL: LM170E01-TLB3

CMO: M170E5-L09

AUO: M170G01 V8 (V2)

Panel type

BOE: HT17E13-100 (A03)

Display size 337.92mm (H) × 270.34mm(V)

VGA 640 × 480 (60/75 Hz)

SVGA 800 × 600 (60/75 Hz)

XGA 1024 × 768 (60/70/75 Hz)

Display mode

SXGA 1280 × 1024 (60/75 Hz)

Pixel pitch 0.264mm(H) × 0.264mm(V)

Display dot 1280 x (RGB) × 1024

Pixel clock 135MHz(max.)

SEC & LPL: 700:1(typ.)

Contrast ratio CMO & AUO & BOE: 500:1(typ.)

Brightness 300 cd/m2 (typ.)

Response time (Tr+Tf) SEC&LPL&CMO & AUO panel: 8ms(typ.)

BOE panel: 12ms(typ.)

Display color 16.2M

SEC panel: H: 150 / V: 135 (typ.)

LPL panel: H: 140 / V: 135 (typ.)

CMO panel: H: 150 / V: 130 (typ.)

AUO panel: H: 140 / V: 130 (typ.)

Viewing angle (CR>=10)

BOE panel: H: 150 / V: 140 (typ.)

Pc interface RGB Analog Interface

Signal connector D-Sub 15pin

DVI 24 pin（only for Dual-input model）

Horizontal Frequency 30KHz ----80KHz

Interface frequency Vertical Frequency 55Hz ------75Hz

Plug & play VESA DDC2B

Power Input voltage 47-63HZ, 100 VAC to 264VAC ±10%

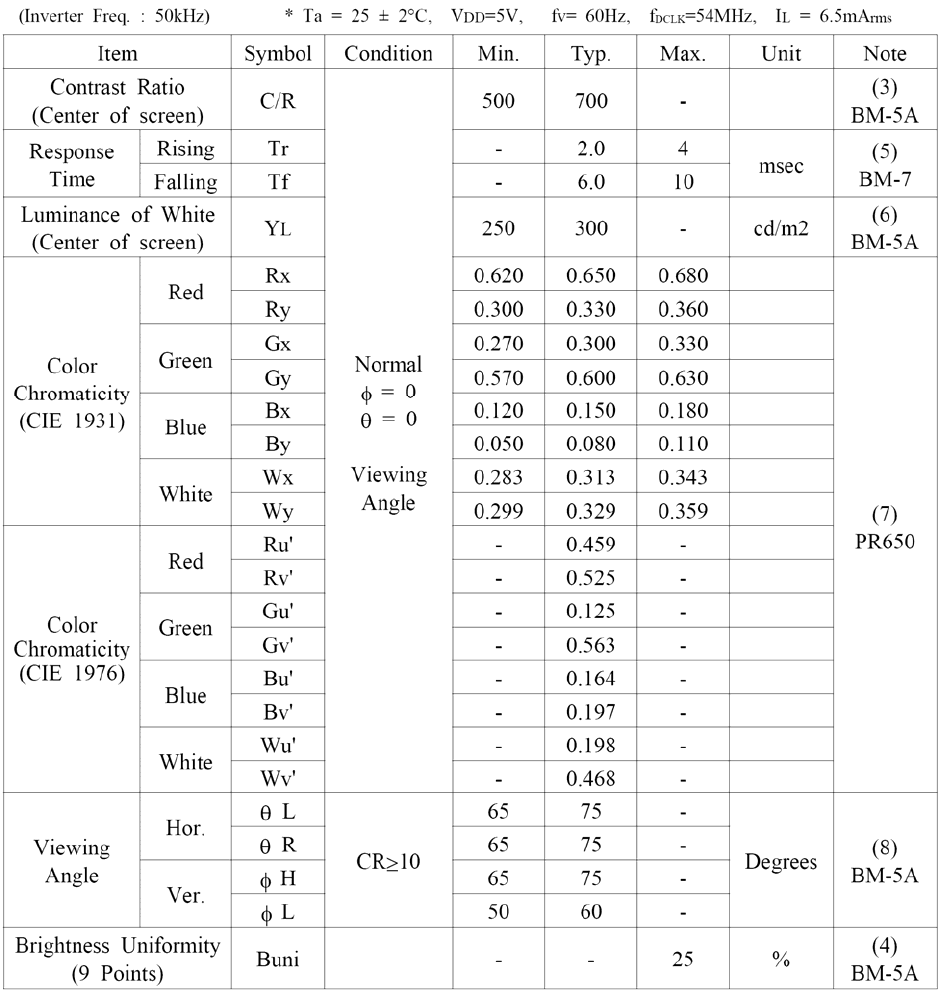

LCD Panel Specification

LCD Panel Model (SEC: LTM170EU- L21)

z Display Type active matrix color TFT LCD

z Resolution 1280x1024 pixels

z Display Dot 1280x (RGB) x 1024

z Display Area 337.920mm(H) x 270.336mm(V)

z Pixel Pitch 0.264mm(H) x 0.264mm(V)

z Display Color 16.2M Colors

z Lamp Frequency 60KHz(max.)

z Lamp Current 6.5mArms (typ.)

z Weight 1950g (typ.)

Optical Specifications

Measuring Condition: Ta = 25°C(Room Temperature).

LCD Panel Model (LPL: LM170E01-TLB3)

z Display Type active matrix color TFT LCD

z Resolution 1280x1024 pixels

z Display Dot 1280x (RGB) x 1024

z Display Area 337.92mm(H) x 270.34mm(V)

z Pixel Pitch 0.264mm(H) x 0.264mm(V)

z Display Color 16.2M Colors

z Lamp Frequency 60KHz(typ.)

z Lamp Current 6.5mArms (typ.)

z Weight 2150g (typ.)

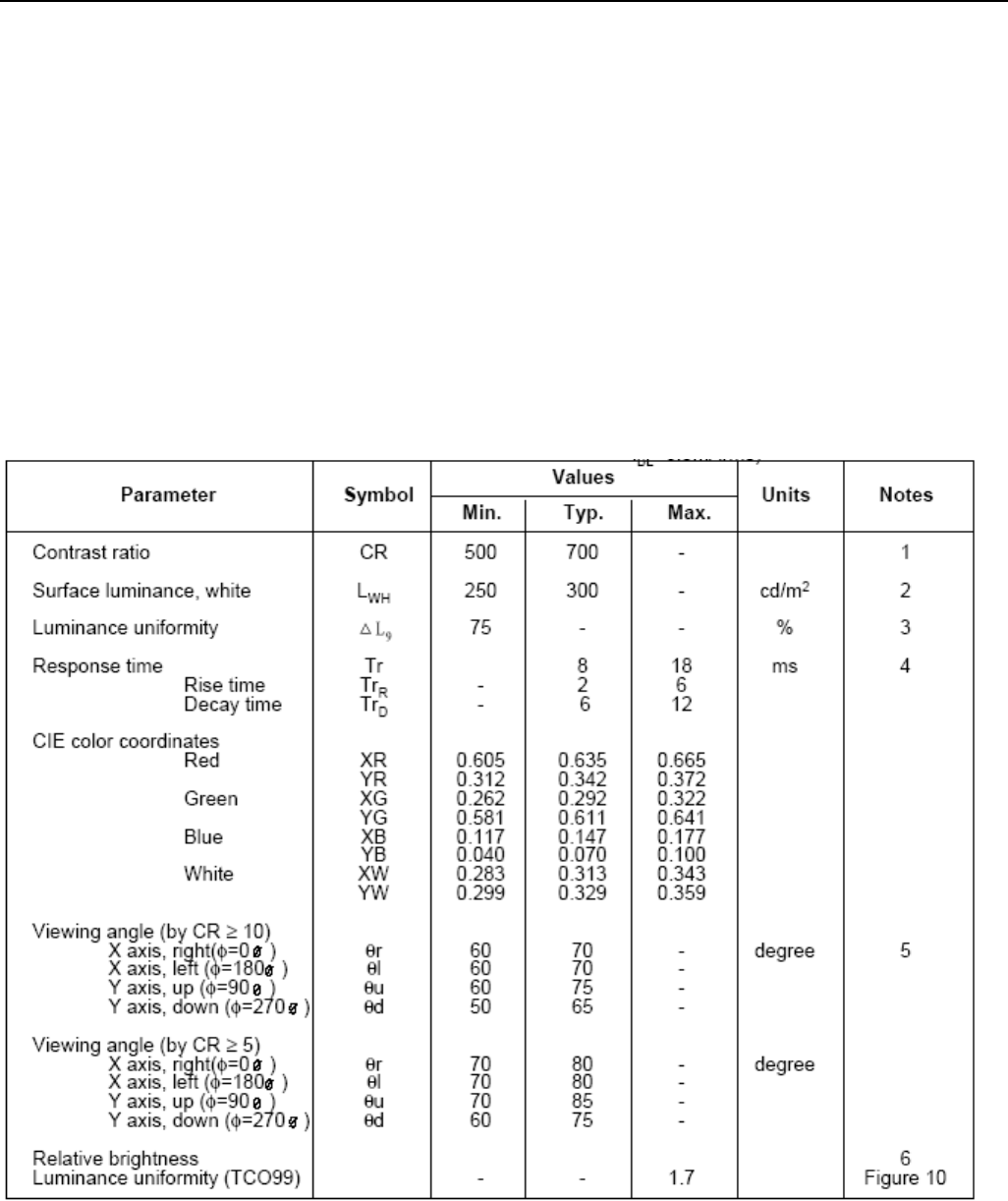

Optical Specifications

Measuring Condition: Ta = 25°C(Room Temperature).

LCD Panel Model (CMO: M170E5-L09)

z Display Type active matrix color TFT LCD

z Resolution 1280x1024 pixels

z Display Dot 1280x (RGB) x 1024

z Display Area 337.92mm(H) x 270.34mm(V)

z Pixel Pitch 0.264mm(H) x 0.264mm(V)

z Display Color 16.2M Colors

z Lamp Frequency 80KHz(max.)

z Lamp Current 7.5mArms (max.)

z Weight 2180g (typ.)

Optical Specifications

Measuring Condition: Ta = 25°C(Room Temperature)

LCD Panel Model (AUO: M170G01 V8 (V2))

z Display Type active matrix color TFT LCD

z Resolution 1280x1024 pixels

z Display Dot 1280x (RGB) x 1024

z Display Area 337.92mm(H) x 270.34mm(V)

z Pixel Pitch 0.264mm(H) x 0.264mm(V)

z Display Color 16.2M Colors

z Lamp Frequency 60KHz(typ.)

z Lamp Current 7.5mArms (typ.)

z Weight 1900g (typ.)

Optical Specifications

Measuring Condition: Ta = 25°C(Room Temperature).

LCD Panel Model (BOE: HT17E13-100 (A03))

z Display Type active matrix color TFT LCD

z Resolution 1280x1024 pixels

z Display Dot 1280x (RGB) x 1024

z Display Area 337.92mm(H) x 270.34mm(V)

z Pixel Pitch 0.264mm(H) x 0.264mm(V)

z Display Color 16.2M Colors

z Lamp Frequency 80KHz(max.)

z Lamp Current 7mArms(max.)

z Weight 1900g (max.)

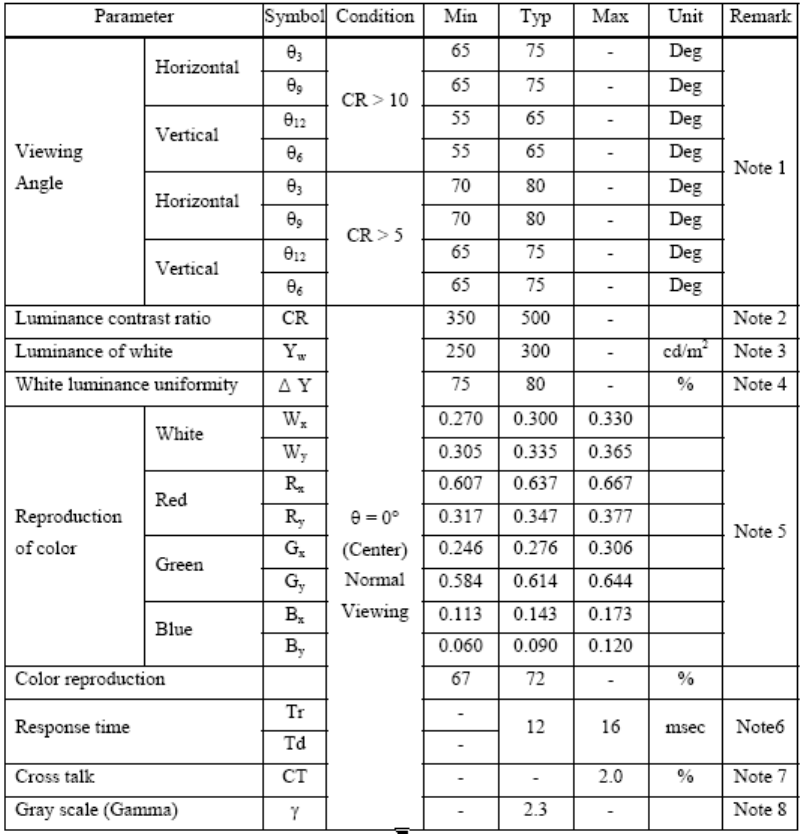

Optical Specifications

Measuring Condition: Ta = 25°C(Room Temperature).

Supported Timing

ٛ.

Support Modes

There will be 20 total support modes to accommodate the above mode and other video modes within the frequency

range of the monitor.

85Hz refresh rate Support

Monitor should display 85Hz refresh rate mode as emergency mode. Monitor should

display “ Out of Range” warning menu at this mode.

Monitor Block Diagram

The LCD MONITOR will contain a main board; a power board, keypad board and which house the flat panel control

logic, brightness control logic and DDC.

The Inverter board will drive the backlight of panel.

Video signal, DDC

Power Board

(Inverter, adapter Board)

Flat Panel and

CCFL backlight

Main Board

Keyboard

RS232 Connector For

white balance adjustment

in factory mode

Host Computer

CCFL Drive

AC-IN

100V-240V

Main Board Diagram

LCD Interface

Scaler TSUM16AK/TSUM56AK

(Include: MCU, ADC, OSD etc)

SST25VF010-20-

OSD Control

Interface

(

pad

)

EEPROM

24C02

D-SUB

Connector

Crystal

14.318MHZ

EEPROM

T24C16N

EEPROM

24C02

DVI

Connector

Software Flow Chart

N16

Remark:

1) MCU initializes.

2) Is the EEPROM blank?

3) Program the EEPROM by default values.

4) Get the PWM value of brightness from EEPROM.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEPROM.

Turn on the LED and set it to green color.

Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are there any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the

message disappears.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

Main Board Layout

Label Part NO Description

CN405 88G 35315F H D-SUB 15PIN

CN406 88G 35424F H DVI CONNECTOR 24PIN(only for Dub-input model)

CN101 33G802724B H WAFER

U401 56G 562100 TSUM16AK

U401 56G 562108 TSUM56AK (only for Dub-input model)

X401 93G 22 53 CRYSTAL 14.318MHzHC-49U

U402 56G1133 74KA1 SST25VF010

U403 56G113356A 24LC16B/SNG SOIC-8PIN

CN101 33G802724B H WAFER

U702 56G 563 7 AIC1084-33PM

Front Bezel

External Controls Front Panel Control

Item Description Item Description

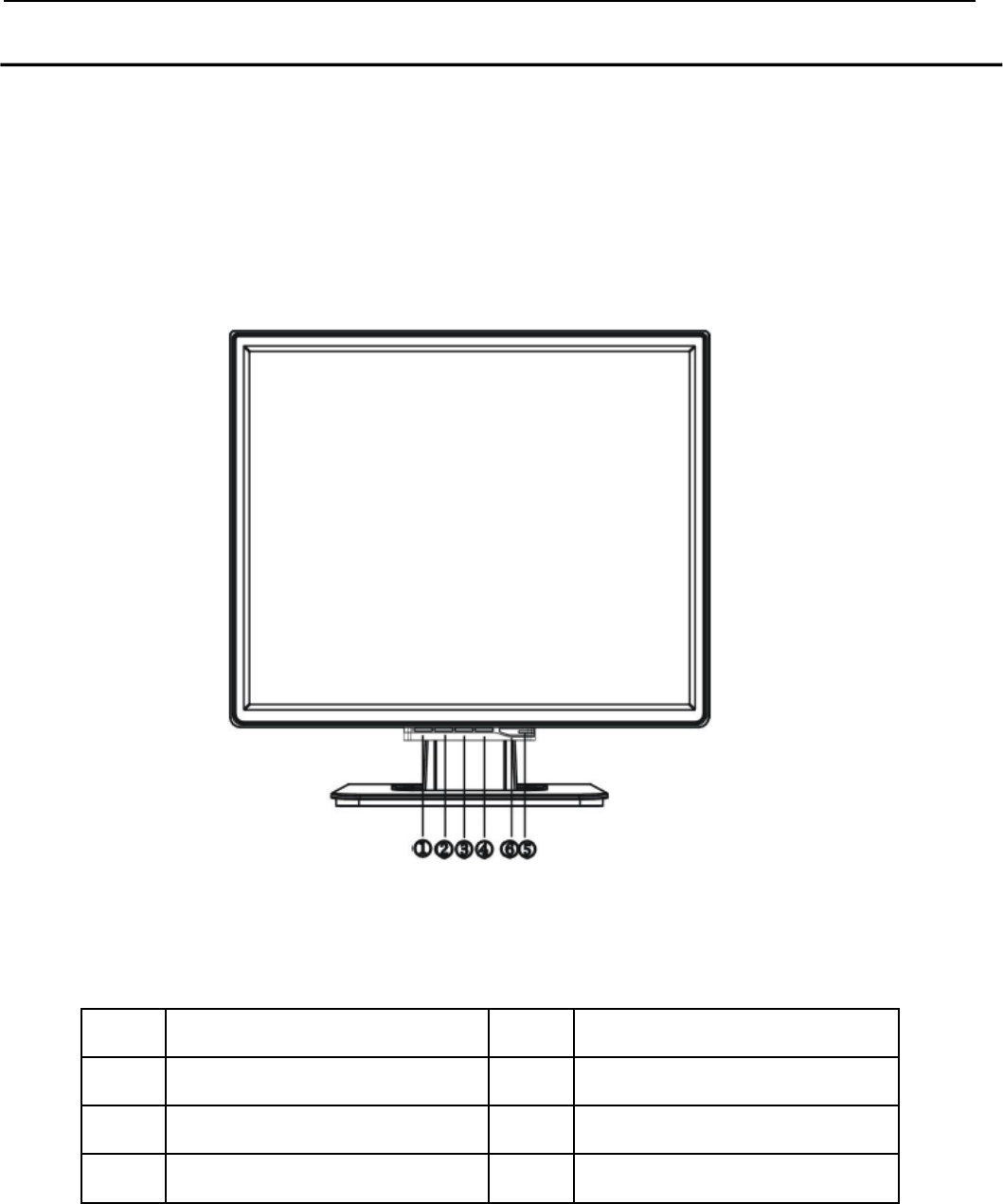

1. Auto Adjust / Exit 4. MENU/ENTER

2. < 5. Power Indicator

3. > 6. Power Button

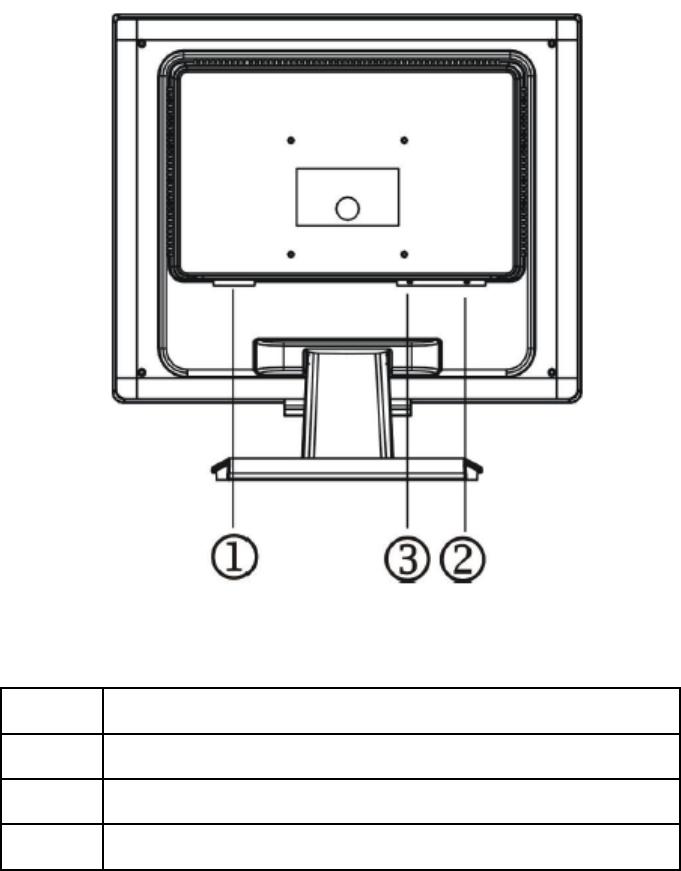

Rear Bezel

Item Description

1. Power Cable

2. Signal Cable

3. DVI Cable (only for Dual-input model)

Operating Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the

monitor. By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.

• Connect the video cable from the monitor to the video card.

• Press the power button to turn on the monitor position. The power indicator will light up.

External Controls

Item Description Item Description

1. Auto Adjust / Exit 4. MENU/ENTER

2. < 5. Power Indicator

3. > 6. Power Button

Cha

ter 2

Front Panel Control

•/Power Button:

Press this button to turn the monitor ON or OFF. And display the monitor’s state.

• Power Indicator:

Green – Power on mode.

Orange – Off mode.

• Menu / Enter:

Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit OSD

menu when in Volume Adjust OSD status.

• <:

Negative through adjustment icons when OSD is ON or adjust a function when function is activated.

• >:

Navigate through adjustment icons when OSD is ON or adjust a function when function is activated.

• Auto Adjust button / Exit:

1. When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).

2.When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function.

The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.

NOTES

• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to

direct sunlight, or excessive dust or mechanical vibration or shock.

• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your

monitor.

• For maximum protection, repackage your monitor as it was originally packed at the factory.

• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a

cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or

abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before

cleaning it.

Adjusting the Picture

a. How to Adjust a Setting

1. Press the MENU-button to activate the OSD window.

2. Press < or > to select the desired function.

3. Press the MENU-button to select the function that you want to adjust.

4. Press < or > to change the settings of the current function.

5. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-4.

Analog-Only Mode

Dual-input model, Analog Signal Input

Dual-input model, Digital Signal Input

b. The Description For Control Function

OSD Message

a. Outline

b. The Description For OSD Message

Item Description

Auto Config

Please Wait

When Analog signal input, if User Press Hot-Key “Auto”, will show

This message, and the monitor do the auto config function.

Input Not

Supported

When the Hsync Frequency, Vsync Frequency or Resolution is out of

The monitor support range will show this message. This message will

Be flying.

Cable Not

Connected

Analog-Only Model: When the video cable is not connected, will show

This message. This message will be flying.

No Signal Analog-Only Model: When the video cable is connected, but there is

No active signal input, will show this message, then enter power saving.

Logo

When the monitor is power on, the LOGO will be showed in the center, and disappear slowly.

How To Optimize The DOS-Mode

Plug And Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the

monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional

information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I²C protocol. The host can request EDID information over

the DDC2B channel.

This monitor will appear to be non-functional if there is no video input signal. In order for this monitor to

operate properly, there must be a video input signal.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA)

and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees

(NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no

video-input signal present. When there is no video input signals this monitor, following a time-out period, will

automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video

input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to

a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the

keyboard, or clicking the mouse.

Using The Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed

and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.

Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of

a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type

attachment plug, rated 10A, 250V, CEE-22 male configuration. The other end terminates with a molded-on type

connector body, rated 10A, 250V, having standard CEE-22 female configuration.

Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

Machine Disassembly

This chapter contains step-by-step procedures on how to assemble the monitor for maintenance.

Disassembly Procedure

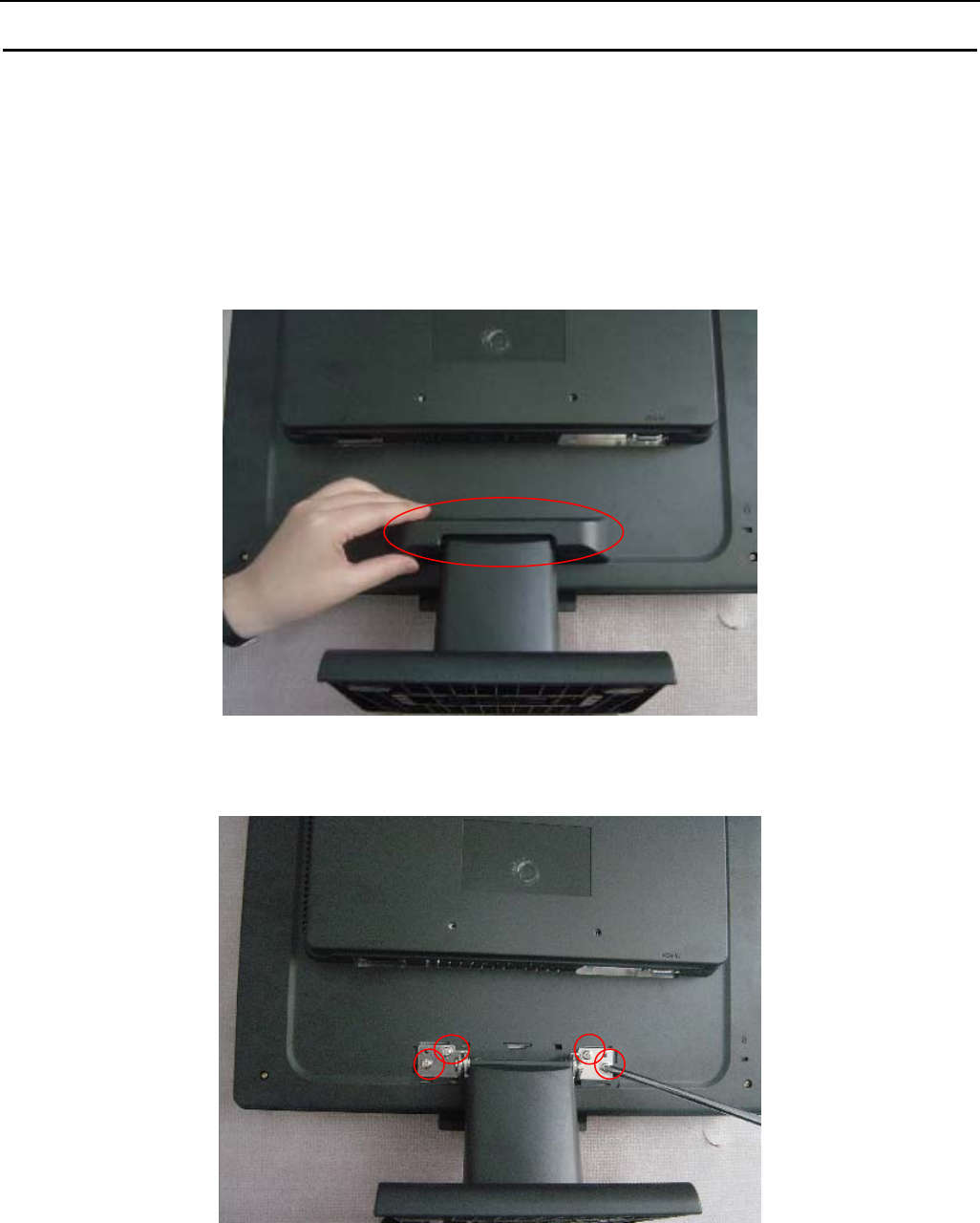

Disassemble the base

1. Remove hinge cover. (Fig 1)

2. Remove four screws to release stand base. (Fig 2)

Chapter 3

Fig 1

Fig 2

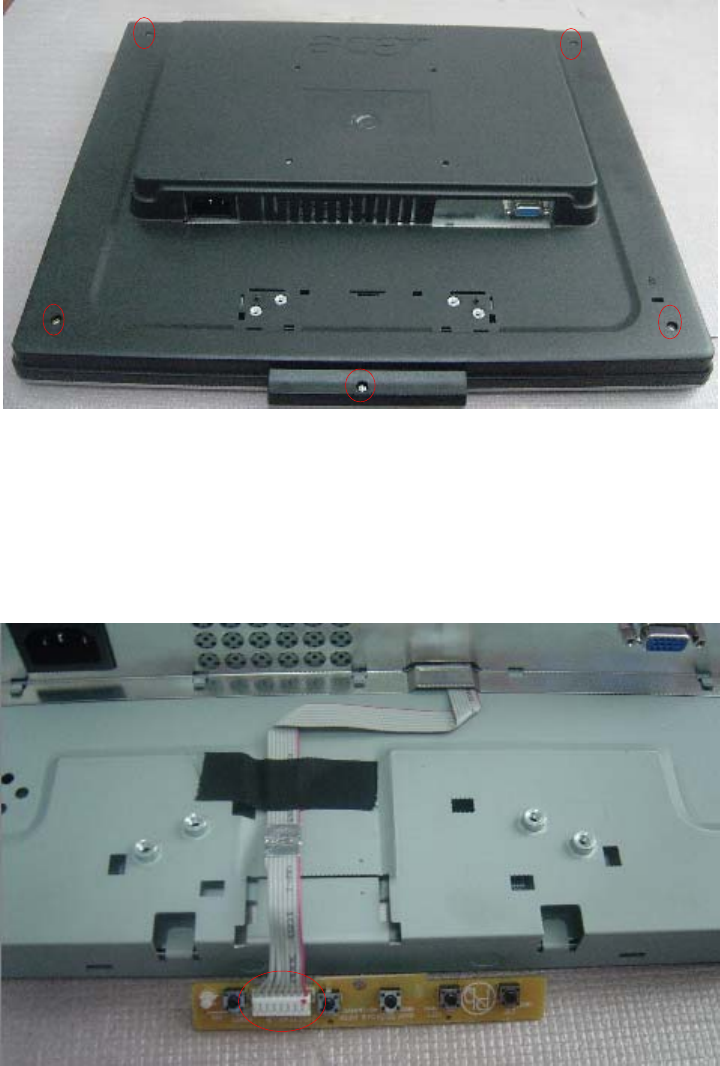

Disassemble the front cover and rear bezel

1. Remove five screws to release back cover and front bezel. (Fig 3)

2. Remove connector wire with keyboard and main board. (Fig 4)

Fig 3

Fig 4

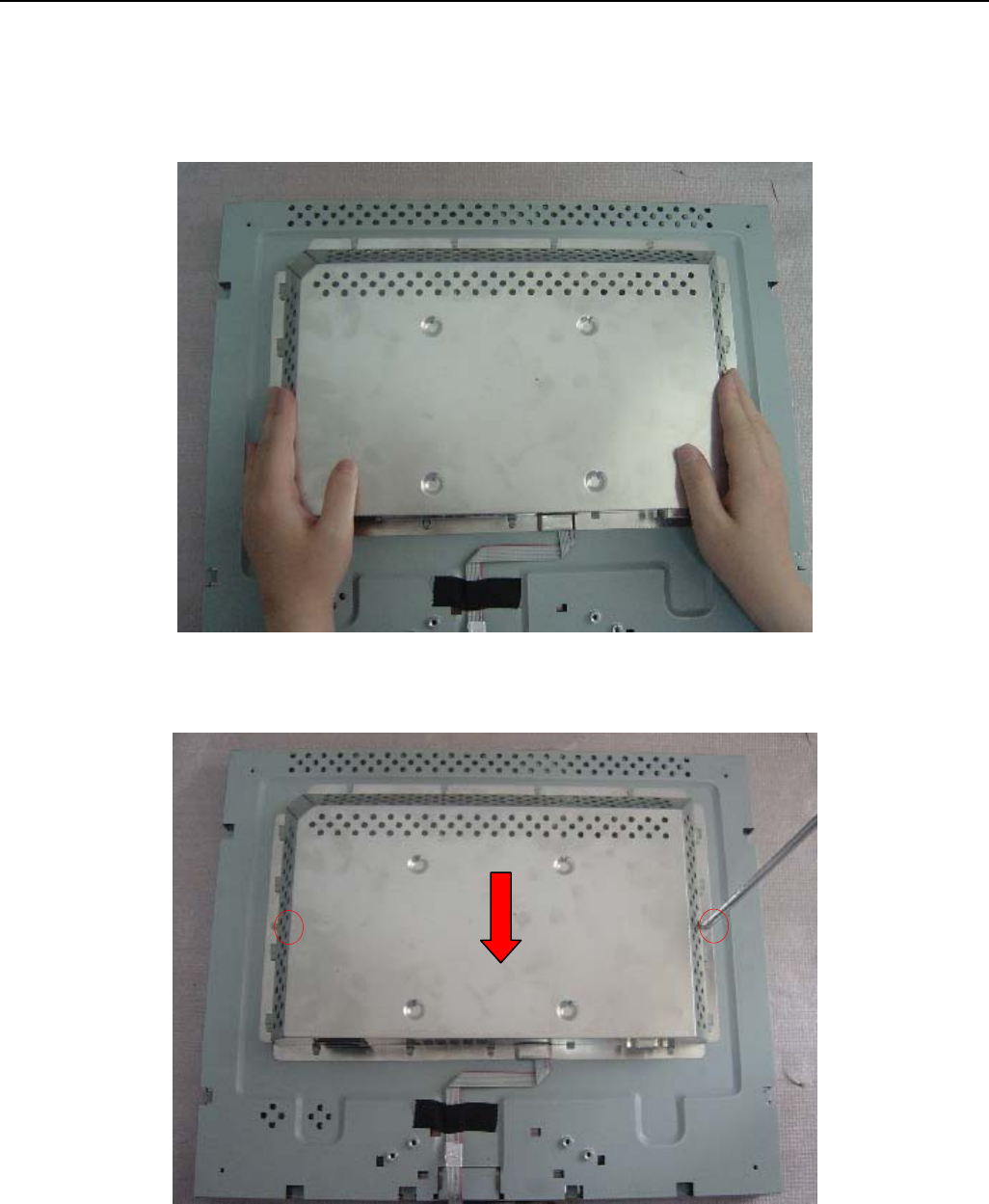

Disassemble the shield

Remove two screws to release the shield. (Fig 5)

(Remove the shield as arrow direction).

Fig 5

Disassemble the main board

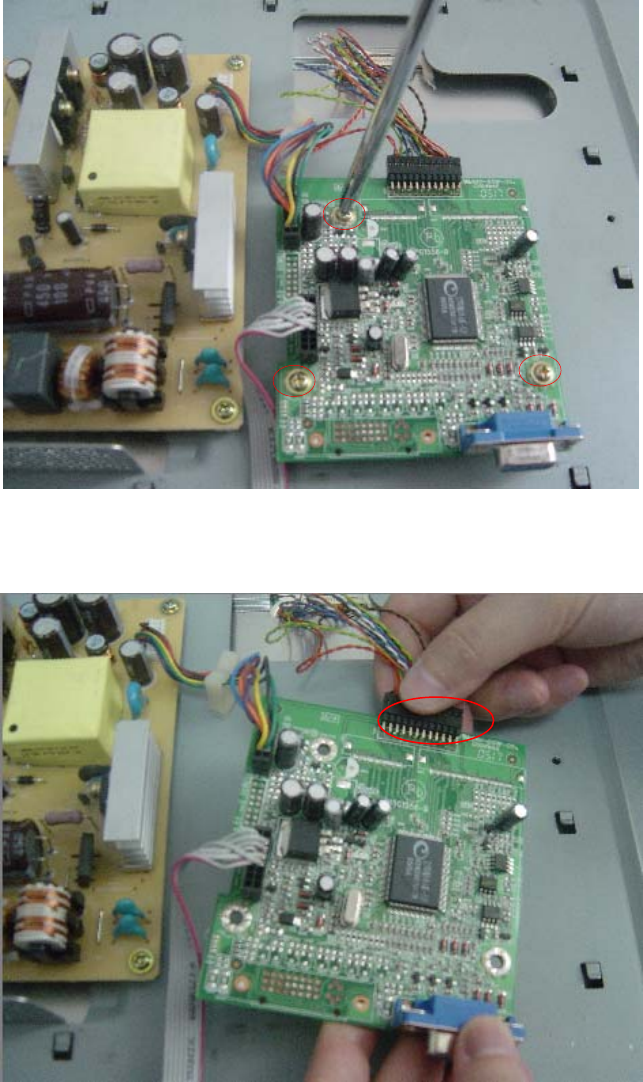

1. Remove three screws to release main board. (Fig 6)

2. Remove connector wire with main board and panel. (Fig 7)

Fig 6

Fig 7

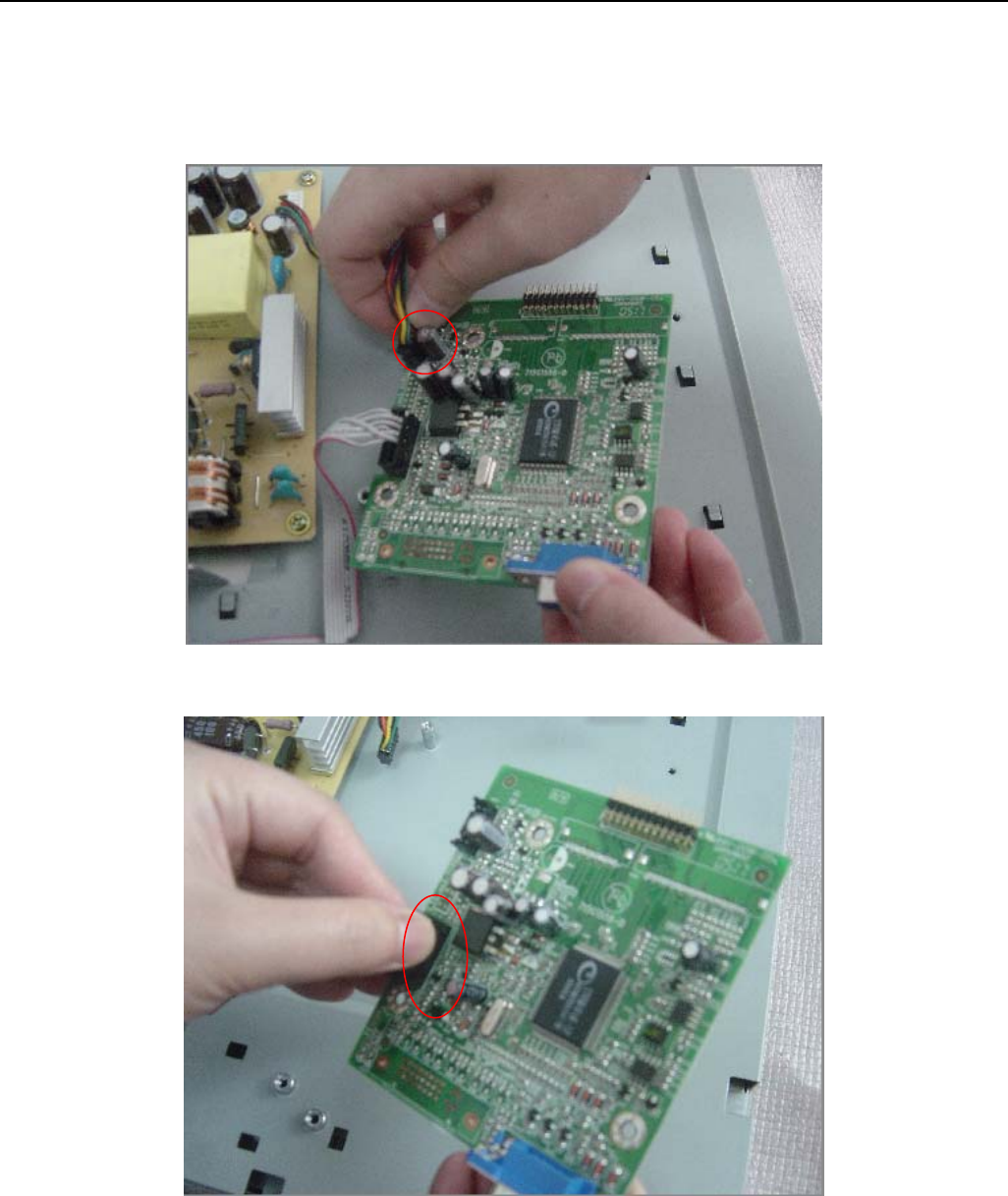

3. Remove connector wire with main board and power board. (Fig 8)

4. Remove connector wire with main board and KEPC board. (Fig 9)

Fig 8

Fig 9

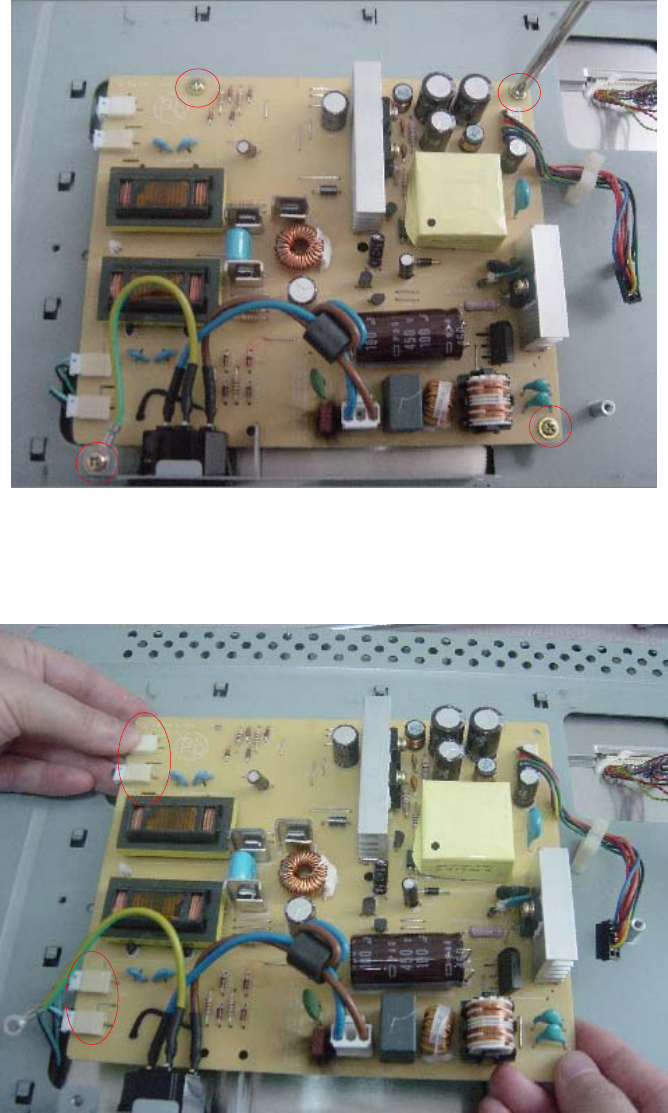

Disassemble the power board

1. Remove four screws to release power board. (Fig 10)

2. Remove connector wire with power board and panel. (Fig 11)

Fig 10

Fig 11

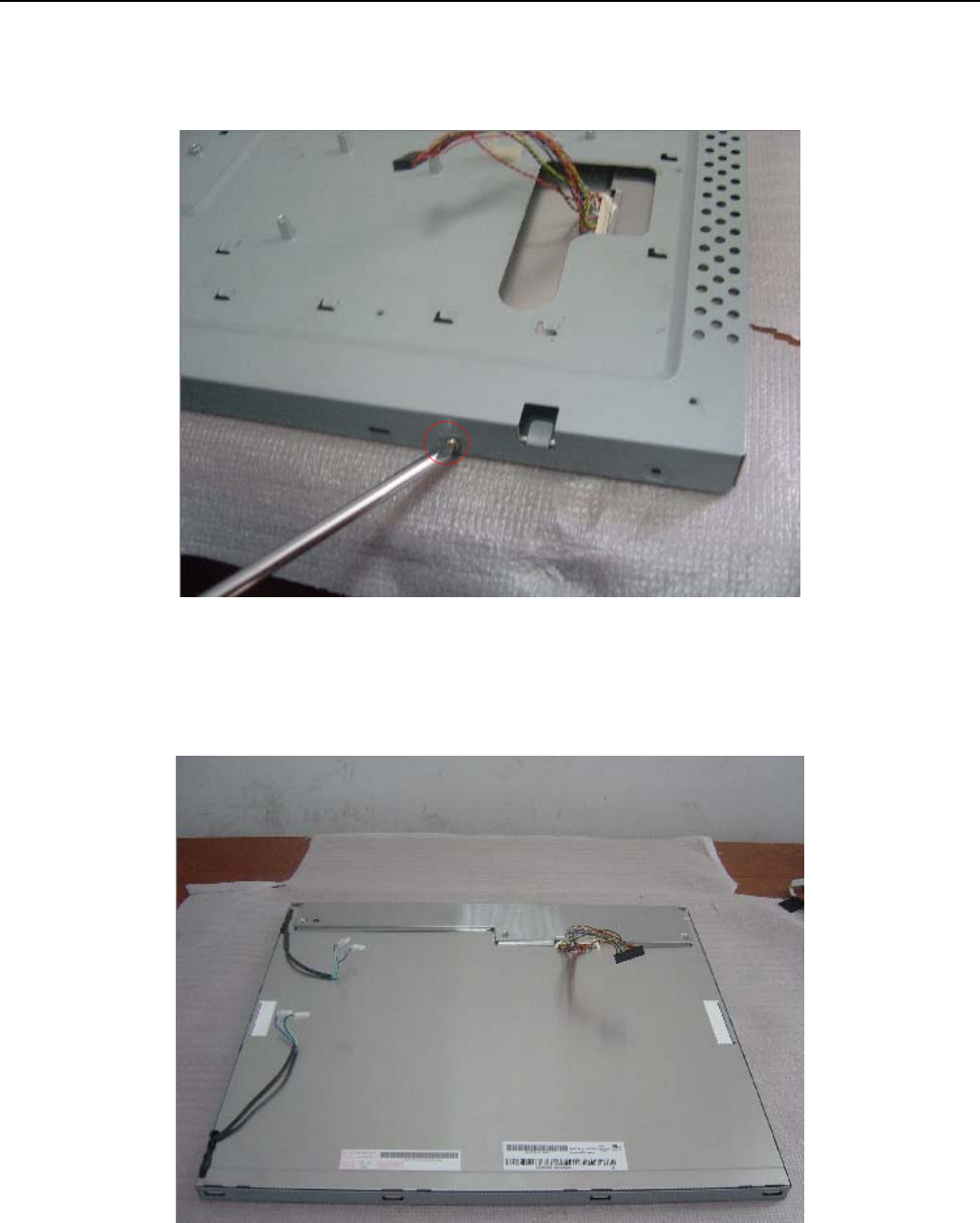

Disassemble the panel

Remove four screws to release metal frame. (Fig 12)

Fig 12

Troubleshooting

This chapter provides troubleshooting information for the AL1716:

1. No power

Chapter 4

No power

Press power key and look if the

picture is normal

Please reinsert and make sure the

AC of 100-240 is normal

Measure U701 PIN2=3.3V,

U702 PIN2=3.3V

Reinsert or check the

power section

X401 oscillate waveforms are

normal

Measure CN701 PIN5/6=12V?

Measure CN701 PIN9/10=5V?

Replace U401

Replace X401

Check power section

Replace U701, U702

2. No picture (LED is orange)

No picture

Measure U701 PIN2=3.3V

U702 PIN2=3.3V

Replace U701, U702

X401 oscillate waveforms are

normal

Replace X401

Check if the sync signal from

computer is output and video cable

is connected normally

Input the sync signal of

computer, or change the

cable

Replace U401

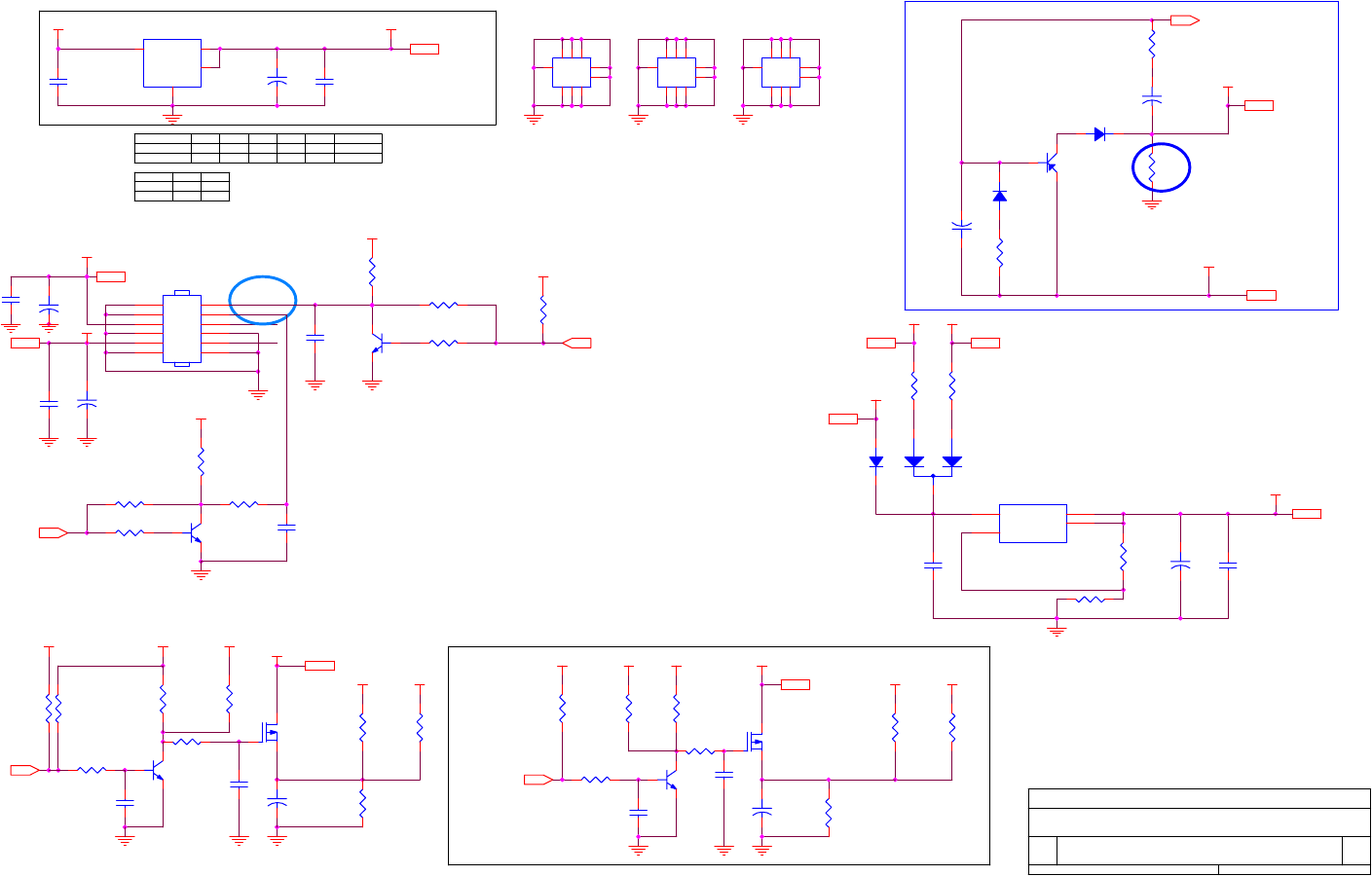

3. Panel Power Circuit

4. Keypad Board

OSD is unstable or not working

Is Keypad board connecting normally?

Is Button Switch normally?

Is Keypad board normally?

Check main board

Connect Keypad Board

Replace Button Switch

Replace Keypad Board

Check CN101 PIN 23-24 should have

response from 0V to 5V When we

switch the power switch from on to off

Replace panel

Check the PPWR panel power relative circuit, Q706, Q704

In normal operation, when LED =green, R725

Should =5 V,

If PPWR no-response when the power switch

Turn on and turn off, replace the U401-TSUM16AK

5. PWPC

No Power

Check AC line volt 110V or 220V

OK Check AC line

Check the voltage of C904(+)

Check F901, bridge rectified circuit

Check start voltage for the pin3 of IC901

Check R903, R904,IC901

Check the auxiliary voltage is between 10V-16V

Check IC901,T901

Check ZD901, D903

Check D910, D911, IC902

No power

No Backlight

Check C201 (+) =12V

Change F902

Check Q203/D201

Check ON/OFF signal

Check Interface board

Check U201 pin9=12V ?

Change Q201 or Q202

Check the pin1 of U201 have saw tooth wave

Change U201

Check D201 (-) has the output of square wave at short time.

CheckQ205/Q207/Q203/Q201or

/Q206/Q208/Q204/D202

Check the resonant wave of pin2 & pin5 for PT201/ PT202

Check the output of PT201/PT202

Check Q206/Q207/C211

Check connecter & lamp

NG Change PT201/PT202

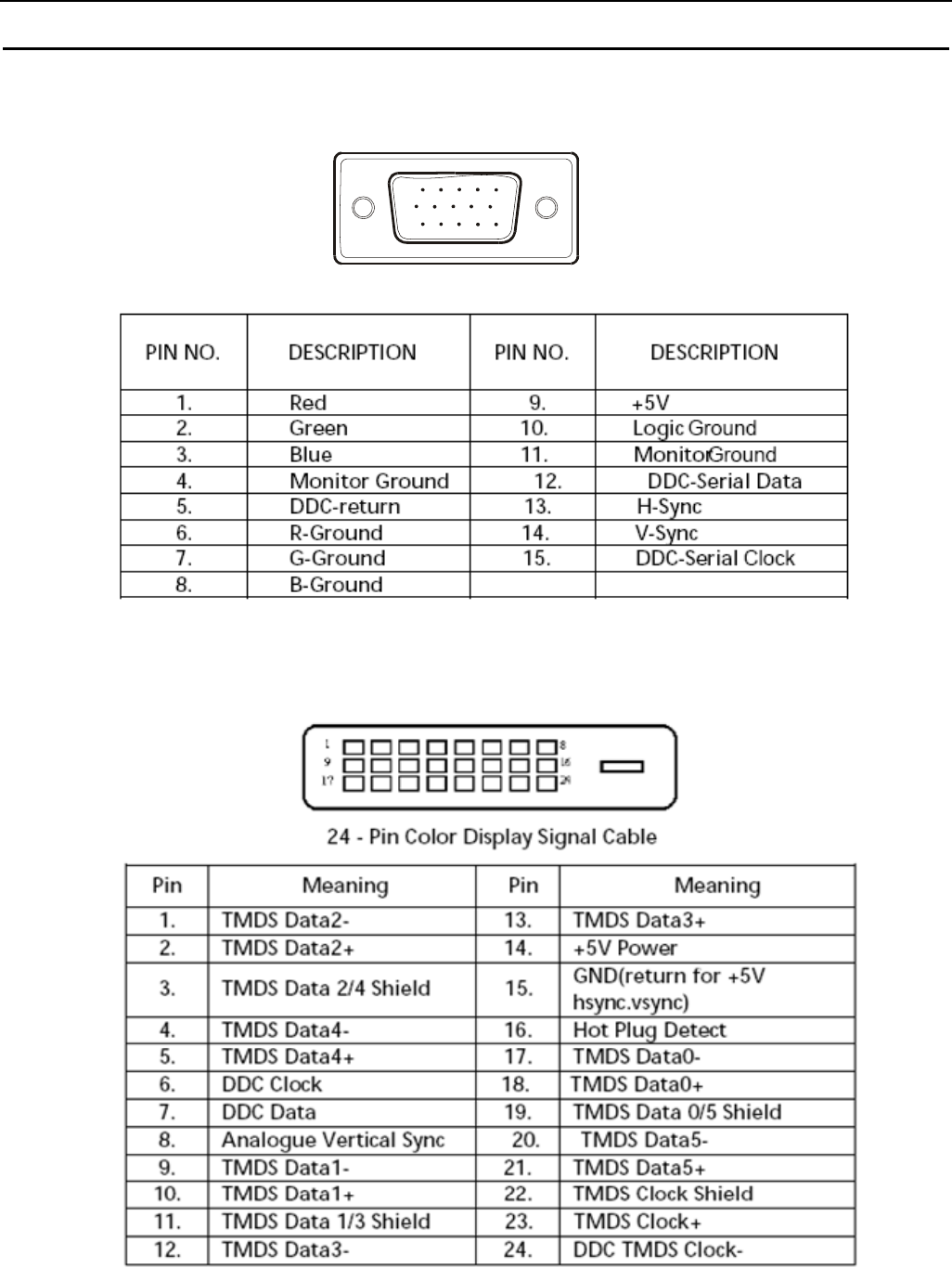

Connector Information

The following figure shows the connector locations on the monitor board:

610

11 15

15 – Pin Color Display Signal Cable (D-sub)

For Dual-input Model

Chapter 5

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of AL1716. Refer to this

chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel (http://aicsl.acer.com.tw/spl/). For whatever reasons a part

number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED

SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in

the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer

office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations

on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6

Exploded Diagram (Model: AL1716)

Part List

Above picture show the description of the following component.

Item Picture Description Part No.

BACK COVER 34G1578 RX B

STAND 34G1576 RX B

3 BEZEL 34G1577AQW B

4 BASE 34G1579 RX B

SCREW M1L1730 8128

SCREW Q1G 340 10128

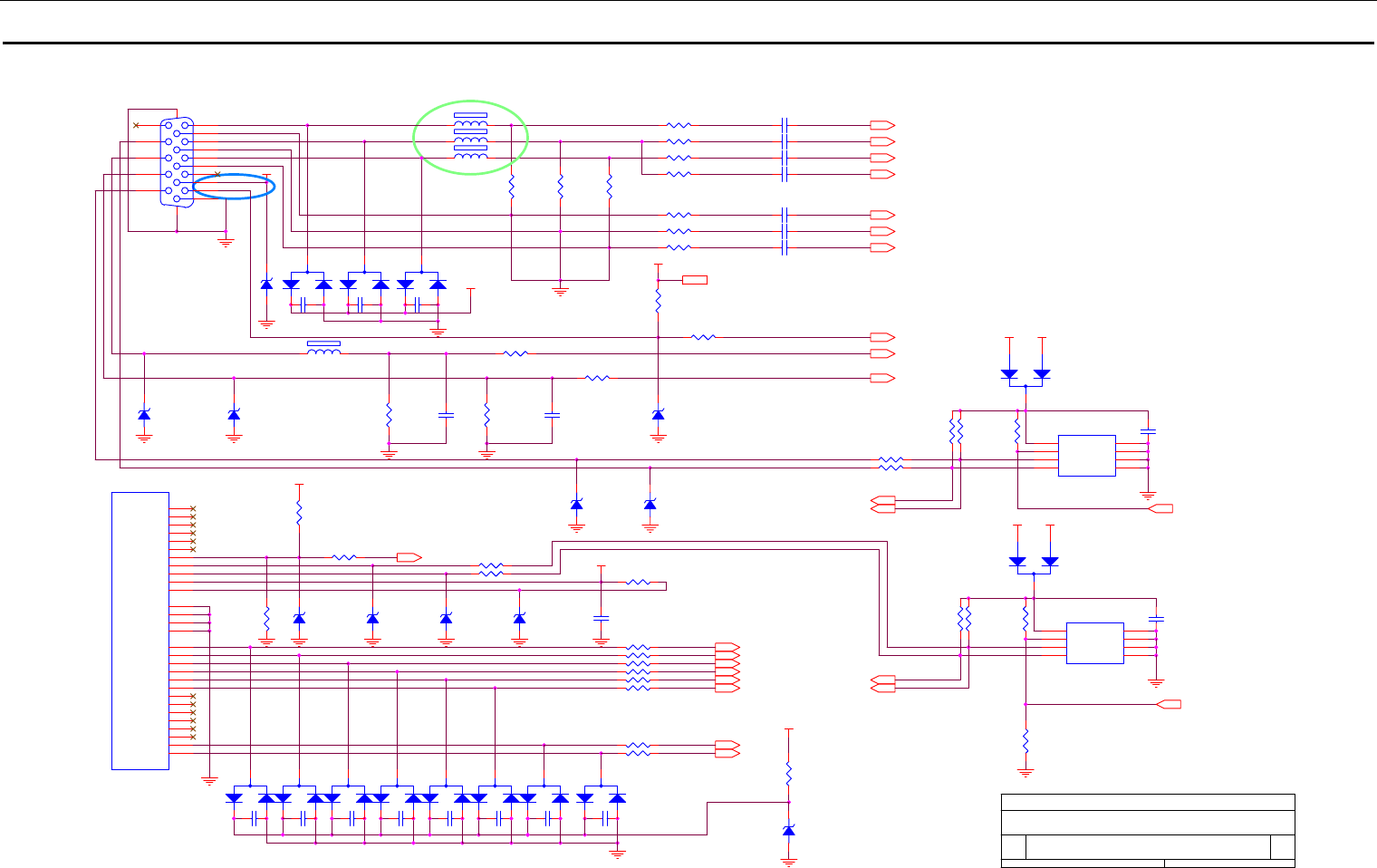

Schematic Diagram

Input

ESD_5V

C444

0.1uF

ESD_5V

DDCD_SCL4

R434 56 1/16W

R438

75 1/16W

R452

10K 1/16W

SOG 4

R471

10K 1/16W

C440 0.1uF

U404

M24C02

8A0

GNDSDA

SCL

VCC

R439

75 1/16W

R445 100 1/16W

G- 4

HSI

R448

2.2K 1/16W

R461

10K 1/16W

D417

BAV99

+5V

PC5V

C446

0.1uF

GNDR 4

C445

0.1uF

R458 100 1/16W

R435 56 1/16W

D407

BAV70

DAT1-

C438 0.047uF

SCL_DVI

R465 10 1/16W

C453

0.1uF

BLUE+

DCLK-

R472

R436 56 1/16W

D410

MLL5232B 5.6V

R464 10 1/16W

R473

GREEN+

DDCA_SCL4

R453 100 1/16W

FB412 0 1/16W

VCC5V

D413

BAV70

D412

MLL5232B 5.6V

DDC_WP 4

C439 0.1uF

DAT2-

R459

10K 1/16W

DVI5V

D422

BAV99

R454 100 1/16W

+5V

R446 1K 1/16W

DET_DVI 4

GREEN-

C442

33pF

D406

MLL5232B 5.6V

CLK- 4

+5V

DAT0-

C454

0.1uF

C451

0.1uF D425

RLZ36B

1 2

DVI5V

GNDG 4

R447 1K 1/16W

RED-

R469 10 1/16W

DDCA_SDA4

DVI5V

FB410 0 1/16W

R444

10K 1/16W

SDA_DVI R457 10K 1/16W

SDA_VGA

CLK+ 4

R466 10 1/16W

R450

10K 1/16W

FB411 0 1/16W

C436 0.047uF

C441 0.1uF

C443

220pF

CN406

JACK DVI

DAT2-

DAT2+

2/4shield

DAT4-

DAT4+

DDC SCL

DDC SDA

VSYNC

HSYNC

DAT1-

DAT1+

1/3shield

DAT3-

DAT3+

+5V

SYNC GND

HPD

RGB GND

DAT0-

DAT0+

0/5shield

DAT5-

DAT5+

clk shield

clk+

clk-

GIN 4

G+ 4

C433 0.047uF

D418

BAV99

RED+

C449

0.1uF

D414

LL5232B 5.6V 5%

RIN 4

DDCD_SDA4

CN405

DB15

15 10

1716

R440

75 1/16W

+5V 2,4

D419

BAV99

DET_VGA 4

DDC_WP 4

DAT2+

C432 0.047uF

D403

BAV99

SCL_VGA

R462 10 1/16W

VGA_CON

C434 0.047uF

R437 470 1/16W

D416

LL5232B 5.6V 5%

R456 100 1/16W

R+ 4

R441 100 1/16W

C452

0.1uF

D411

MLL5232B 5.6V

R470

1K 1/16W

R467 10 1/16W

B- 4

D421

BAV99

C448

0.1uF

D423

BAV99

PC5V

D415

LL5232B 5.6V 5%

D408

MLL5232B 5.6V

BLUE-

GNDB 4

R463 10 1/16W

D404

BAV99

D426

LL5232B 5.6V 5%

C450

0.1uF

D405

BAV99

B+ 4

DCLK+

D420

BAV99

BIN 4

INPUT

TSUM16AK/TSUM56AK

15Monday, May 09, 2005

Title

Size Document Number Rev

Date: Sheet of

DAT0+

C435 0.047uF

R468 10 1/16W

+5V

DAT1+

U405

M24C02

8A0

GNDSDA

SCL

VCC

R449

2.2K 1/16W

R- 4

HSYNC 4

HPD

C447

0.1uF

VSYNC 4

FB409 120 OHM

R455 100 1/16W

R443 100 1/16W

C437 0.047uFR442 100 1/16W

D409

MLL5232B 5.6V

VSI

R460

10K 1/16W

D424

BAV99

R451

10K 1/16W

Cha

ter 7

TSUM16AK/TSUM56AK

R422 4.7K 1/16W

PB18

PB0

R407 NC

PA[0..7] 5

Reset

Circuit

OUT-L-

R487

10K 1/16W

KEY1

SCALER

TSUM16AK

15Thursday, May 12, 2005

Title

Size Document Number Rev

Date: Sheet of

R431 0 1/16W

R427 100 1/16W

RIN3

KEY_C

AUDIO_MUTE

C411

0.1uF

+12V 2

G-3

C420

0.1uF

R410 NC

G+3

VMPLL

KEY2

VPLL

C431

FB407

600 OHM

VCC3.3

KEY_LEFT

C404

0.1uF

C410

0.1uF

VSYNC3

VCC3.3

PA8

VDDC

LED_G

R419 0 1/16W

C403

4.7uF/16V

HSYNC3

KEY_MENU

OSP

C427

0.1uF

LED_G

LED_A

DDCD_SDA3

C419

0.1uF

R485

10K 1/16W

AUDIO_STBY

C421 22pF

KEY_AUTO

KEY_C

R477 1K 1/16W

R484

10K 1/16W

R429 100 1/16W

PA[8..13] 5

PA6

PB13

P[0..7]

PB7

GPO1

FB405

600 OHM

FB406

600 OHM

Q401

PMBS3906

+5V 2,3

PB1

R483

C426

0.1uF

R482

AVDD

PB[6..11]

PB6

CLK-3

+12V

GPO[0..4] 5

AVDD

KEY_A

B-3

VCC3.3

KEY_RIGHT

PB11

AUDIO_STBY

PB5

C616

C425

0.1uF

VCC3.32

on_PANEL 2

R408

10K 1/16W

D402

RLZ36B

1 2

R433 NC

PA3

R474

3.9K 1/16W

R415

10K 1/16W

R406

10K 1/16W

VCC3.3

PA10

PA0

R428 100 1/16W

adj_BACKLIGHT 2

KEY_A

R489

10K 1/16W

PB[12..23]

R412

10K 1/16W

C423 22pF R481

PB14

ESP

R426

10K 1/16W

R409

120 1/16W

R+3

C424 0.1uF

PA[14..19] 5

Option

C413

0.1uF

R490

10K 1/16W

C416

0.1uF

PB[6..11] 5

GNDR3

X401

14.318MHz

C412

0.1uF

PB2

U403

AT24C16N-10SC-2.7

8A0

GNDSDA

SCL

VCC

AVDD

KEY2

R420 100 1/16W

VCC3.32

+5V 2,3

PB10

VPLL

VCC3.3

C417

0.1uF

VCC3.3

R430

1K 1/16W

POWER

C430

0.1uF

C409

0.1uF

VDDC

PB15

PB[0..5]

FB402

600 OHM

GNDG3

PA1

VCC3.32

POWER

C405

0.1uF

R476 1K 1/16W

OUT-L+

PA19

PB9

VDVI

PB21

CN403

CONN

R411 100 1/16W

VDDP

GND

+5V

PA[8..13]

GPO2

on_PANEL_12V 2

DDC_WP 3

CLK+3

PB3

GPO[0..4]

DDCA_SCL3

VCC3.3

PA[14..19]

FB408

600 OHM

R421 0 1/16W

B+3

LED_A

OUT-R+

+5V

KEY_RIGHT

R413

10K 1/16W

R-3

KEY A

R425

10K 1/16W

R432 0 1/16W

BIN3

C429

0.1uF

PB[12..23] 5

on_BACKLIGHT 2

DET_VGA 3

RSDS/LVDS/TTL

KEY1

PA2

R424

10K 1/16W

R475

3.9K 1/16W

SOG3

+5V

Q405

R418 100 1/16W

Volume

PB8

AUDIO_MUTE

C407

0.1uF

VCC1.82

KEY_B

GPO3

PA4

R488 NC

PA5

PB16

R416

10K 1/16W

GNDB3

Volume

PA7

FB404

600 OHM

PB22

R423 4.7K 1/16W

C415

0.1uF

R403 390 1%

VCC3.32

ESP 5

GPO4

PA13

VCC3.32

PA11

PA12

VCC3.3

LED_A

KEY_MENU

PA18

CN404

CONN

R417 20K 1/16W

C414

0.1uF

VCC3.3

PB17

PB12

FB403

600 OHM

VDVI

PB19

PB20

R486

KEY_AUTO

PA16

U402

SST25VF010-20-4C-SAE

4 5

CE#

SDO

WP#

VSS SDI

SCK

HOLD#

VDD

C428

0.1uF

U401

TSUM16AK

108

109

110

111

112

113

114

118

119

120

121

122

123

124

125

126

127

107

106

105

116 67

104

102

100

101

128

103

115

117

RIN0P

GIN0P

SOGIN0

BIN0P

RIN0N

GIN0N

BIN0N

HSYNC0

VSYNC0

REXT

REFP

REFM

SDO

SCK

SCZ

SDI

GPIO_P27/PWM1

PWM1/GPIO_P25

NC/LVACKM/NC

XIN

XOUT

RA1P/LVA2P/RA2

RA1N/LVA2M/RA3

RA2P/LVA1P/RA4

RA2N/LVA1M/RA5

RA3P/LVA0P/RA6

RA3N/LVA0M/RA7

CLKAP/LVB3P/LHSYNC

CLKAN/LVB3M/LVSYNC

CLKBP/LVBCKP/LCK_ODD

CLKBN/LVBCKM/LDE

NC/LVB2P/NC

NC/LVB2M/NC

BB1P/LVB1P/BB2

BB1N/LVB1M/BB3

BB2P/LVB0P/BB4

BB2N/LVB0M/BB5

NC/LVACKP/NC

GA3N/LVA3M/GA7

GA3P/LVA3P/GA6

GND

RX2P

RX2N

RX1P

RX1N

AVDD_DVI

RX0P

RX0N

RXCKP

RXCKN

GND

GND VDDP

VDDC

MODE[1]

MODE[0]

VCTRL

VDDP

VDD_OTP

DDCA_SDA

DDCA_SCL

DDCD_SDA

DDCD_SCL

PWM0/GPIO_P26

AVDD_DVI

VDDC

GPIO_P15

PWM2/GPIO_P24

GPIO_P16

GPIO_P17/SAR0

GPIO_P00/SAR1

GPIO_P01/SAR2

GPIO_P06

GPIO_P07

GPIO_P13

GPIO_P14

GPIO_P16

DDCROM_SDA

DDCROM_SCL

RST

GA2P/NC/GA4

GA2N/NC/GA5

GA1P/NC/GA2

GA1N/NC/GA3

BA3P/NC/BA6

BA3N/NC/BA7

BA2P/NC/BA4

BA2N/NC/BA5

BA1P/NC/BA2

BA1N/NC/BA3

RB1P/NC/RB2

RB1N/NC/RB3

RB2P/NC/RB4

RB2N/NC/RB5

RB3P/NC/RB6

RB3N/NC/RB7

GB1P/NC/GB2

GB1N/NC/GB3

GB2P/NC/GB4

GB2N/NC/GB5

GB3P/NC/GB6

GB3N/NC/GB7

BB3P/NC/BB6

BB3N/NC/BB7

ESP

OSP

GPO0

GPO1

GPO2

GPO3

GPO4

GPO5

GPO6

GPIO_P02/SAR3

GPIO_P03

GPIO_P22

GPIO_P23

AVDD_PLL

AVDD_MPLL

VDDP

VDDC

AVDD_ADC

GND

VCC3.3

Q402

PMBS3904

DDCD_SCL3

PA9

C406

0.1uF

PB4

VDDP

C422

0.1uF

R478 1K 1/16W

FB401

600 OHM

GPO0

R479 1K 1/16W

Q404

PMBS3904

GIN3

PA15

R405

22K 1/16W

OUT-L-

PA14

C418

10uF/16V NC

VCC3.3

PA17

C401

0.1uF

Q403

PMBS3906

DDCA_SDA3

+5V

LED_G

VMPLL

PB[0..5] 5

VCTRL 2

OUT-R-

PB23

R480 1.5K 1/16W

VCC1.8

U406

ASM810MEURF-T

GND

RSTVCC

D401

RLZ36B

1 2

R414

120 1/16W

OUT-R-

POWER

OUT-L+

KEY_LEFT

R404

10K 1/16W NC

C408

10uF/16V

OSP 5

DET_DVI 3

VCC3.3

KEY_B

LVDS

PB3

LVB1P

GA1P

C105

GPO[0..4]4

BB2N

RA2P

RSDS Panel

RXOC+

FR2N

RA3N

PB[0..5]4

PB[6..11]

LVB0P

PB13

FG1P

R104 NC

GB3N

PA13

Table 1

GPO[0..4]

PB6

LVB3P

GA3P

GPOO0

RXO0+

BG0P

PB21

PB18

LVA3M

PB[6..11]4

GB3P

FB0N

VLCD_12V2

3.3V

AU 17

RXO3+

RA2P

C103

RXE3-

PA18

GA2N

12V

PA19

GB3N

RA2N

FG0P

PA[0..7]4

VLCD

GPO1

BB1N

PA0

PA7

PA16

PA14

RB1P

BG0N

3.3V

GB1P

CPT 15

LVBCKP

BB1N

FR1N

GB2P

R92

LVBCKM

BB2P

PA5PA6

R89

LVACKP

PB20

RA1P

FG1N

GPOO3

GB2N

PB20

GPOO4

GPO2

LVBCKP

PA2

STV1

RA2N

R97

RXE0-

FG2P

RXE0+

RB2P

BB2N

12V

BR2N

RXO1-

LVB1M

BA3P

PB[0..5]

LVA1P

CN103

IL-FHR-B30S-HF (JAE)

QDI 17

BB2NPB16

GPOO0

RB1N

CLKAN

PA[8..13]

BA1N

FR0N

B2P

GA1N

BCLKP

PA15

GPOO1

CN101

CONN

RB3P

RA3N

R103 NC

3.3V

GB3P

RXEC-

PB22

R90

POL

FR2P

R110 NC

PB8

GPO3

B1P

FR0P

FR1P

C107

RB3P

FB2P

C101

LVB0P

CN8

RXE1+

BG2P

3.3V

LG 15

LVB3M

C106

HannStar 15

LVA2P

PB[12..23]

RB3N

RXO2+

FCLKN

PB9

RXO0-

PB19

BA2P

LVA1M

C102

R105 NC

R91

GPO4

B0N

PA[0..7]4

RP1

VLCD_12V

LVB2P

BB3N

3.3V

PA12

PA9

LVB1P

GPOO2

12V

BG1P

PB21

CLKAP

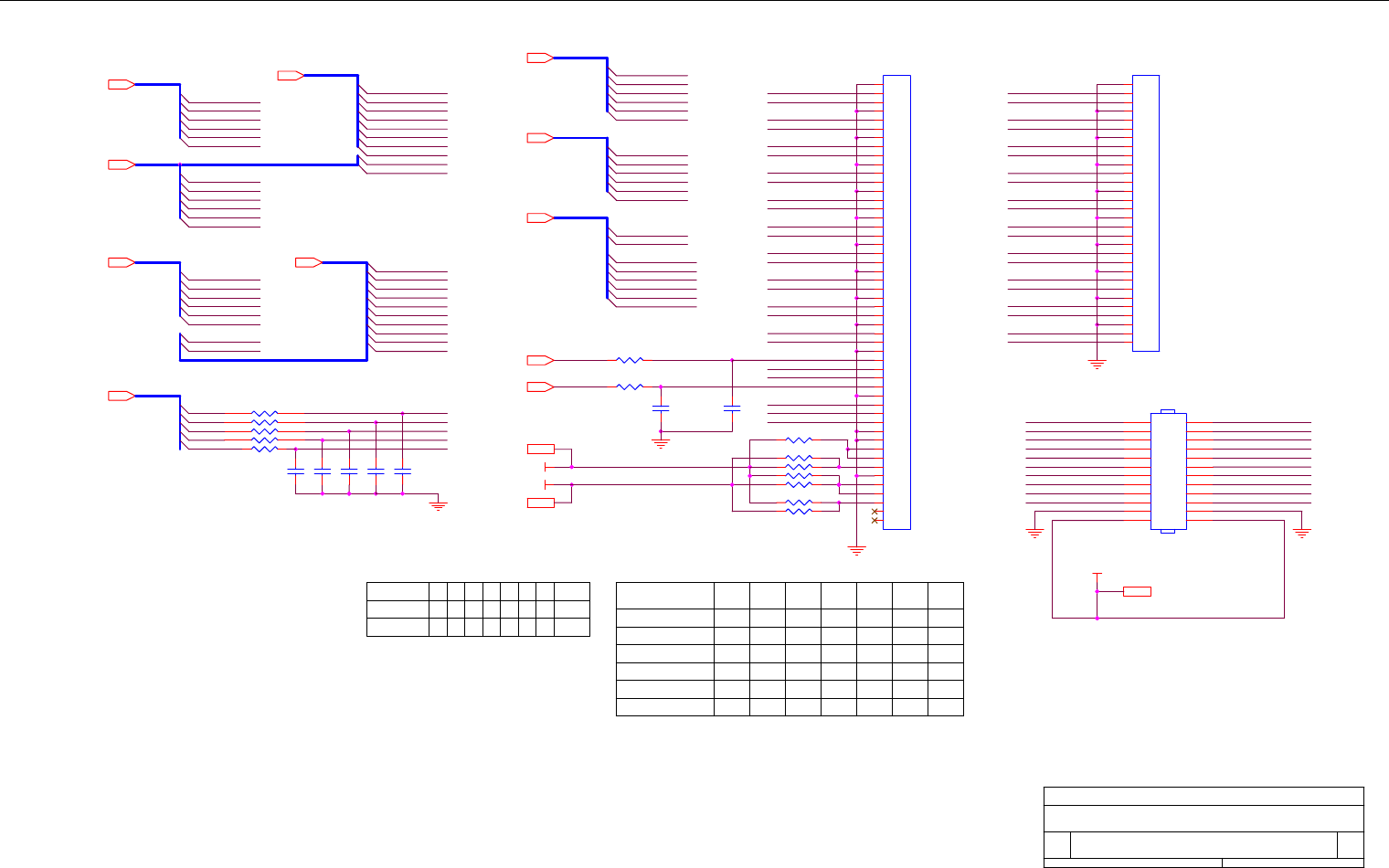

PANEL INTERFACE

TSUM16AK

15Monday, May 09, 2005

Title

Size Document Number Rev

Date: Sheet of

RB1N

B1N

B2N

LVB2PBA2N

RA1P

BCLKN

BB2P

RA1N

VLCD 2

GA3N

OSP

GA2P

LVA3P

GA1N

FCLKP

3.3V

LVB0M

LVB1M RXO2-

PA3

BB1P

LVA3M

PB[12..23]

PB18

0RCPT 17

LVB0M

LVACKM

PA12

BA1N

PA4

PA13

PA[14..19]4

VLCD

GB2N

LVA3P

PA8

LVDS Panel

PA17

GA3N

R88

BB3N

FB2N

RB2P

RXE1-

LVACKM

PA5

BA3P

BA1P

RXE2-

PB15

GPO0

BG2N

LVB2M

BR0N

PB13

LVB2M

PB14

R96

RXEC+

CLKAN R101 NC/0

PB[12..23]4

PB0

PB1

RXE2+

RA3P

CLKV

BR2P

3.3V

GB1N

LVB3M

BR1N

Table 1

LVA0M

GA3P

FB1N

RXOC-

LVA2M

PB4

RB3N

PA6

GA2N

BA3N

RP101 NC

4 5

B0P

CLKBN

PB19

R108 NC

ESP4

3.3V

R95

PB7

PB23

OSP4

Innolux 17"

CLKBN

STV2

PB2

LVA1M

PB14

RXO1+

FG2N

BA2N

BB3P

LVACKP

BB3P

BA2P

FB1P

C104

R106 NC

PB12

PA[8..13]4 GB2P

LVA2M

CLKBP

PB12

PB17

BA1P

3.3V

GA1P

VLCD2

PA[0..7]

BA3N

LVA0P

PB11

LVA1P

GB1P

PB[12..23]4

CN7

ESP

LVB3P

BR1P

GPOO1

PA1

RA1N FB0P

FG0N

PA[0..7]

PA11

RA3P

LVBCKM

3.3V

LVA0P

PA4

PA7

GPOO3

R107 NC

R93

LVA0M

PA10

PA2

RB1P

PA3

INNOLUX 15

CN9

CLKAP

PB5

RXE3+

GPOO2

GA2P

R109 NC

R102 NC/0

RB2N

PB10

BR0P

PB15

BG1N

STH

12V

RB2N

GB1N

RXO3-

BB1P

CLKBP

CN102

IL-FHR-B50S-HF (JAE)

LVA2P

GPOO4

R94

Main Board Power Supply

D703

BAT54C

R704

100 1/16W

C705

1uF/16V

C714

0.1uF

BL_ADJ(DC)

R711

10K 1/16W

+5V

U702

AIC1084-33PM

VIN

ADJ

VOUT

Q702

CHT2907

C710

100uF/25V

Recommond to used "Blue" parts circuit

for VCC1.8V if you want to suppoert DDC

function when system power off

R729

NC/10K

For RSDS and Panel VCC=12V

C713

0.1uF

D704

SMAL140

on_BACKLIGHT 4

U701

NC/LT1117-18

3 2

VI VO

GND

SOT-223

Q703

PMBS3904

R725

4.7K 1/16W

P W M

1UF

R31

+3V3

CN701

CONN

Q706

PMBS3904

+5V

R712 4.7K 1/16W

P.S: The 1N4148 Vf=0.7V~1V can't meet

LDO spec. The BAT42, Vf is OK but the

If=200mA(forward current) can not

meet current spec.

+12V

C718

0.1uF

R720 0 1/16W

+12V 4

GND

C51

0V ~ 3.3V

R713

4K7

+5V

R703

2K 1/16W

R701

1K 1/16W

VCC3.3

1uF

+5V

Q707

PMBS3904

4.7K

R721

0 1/16W

R714

10K 1/16W

R717

10K 1/16W

BL_ADJ

POWER

TSUM16AK

15Monday, May 09, 2005

Title

Size Document Number Rev

Date: Sheet of

D701

1N4148

R33

+3V3

VLCD

R705 4.7K 1/16W

C715

0.1uF

R32

R715

R726 NC/4K7

D704(SSM12L) Vf=0.38V and If=1A.

So when system power on, the

system loading is about 400mA

(3.3V is about 200mA and 1.8V is

about 200mA), So D35 changed

from 1N4148(or BAT42) to

SSM12L(schottky diode).

D C

+3V3

+5V

VCC3.3

VCC3.3 4

R706 NC

C703

100uF/25V

VCC3.3 4

+5V

C32

R730

0 1/16W

+5V

12/21 MODIFY

on_Panel_12V4

C704

PC5V

VCC1.8 4

R709

0 1/16W

+5V3,4

R29

VLCD_12V

+5V

R708

10K 1/16W

R716

on_Panel4

Q705

AO3401L

BL_ADJ

+12V

Adj_BACKLIGHT

VCC5V

C701

R731

+5V

R724 51K

PC5V 3

GND

VLCD 5

0V ~ 5V

+5V

+12V

R702

51 1/16W

4.7K

GND

MMBT3904

C716

0.1uF

BL_ON

R719

NC/10K

R723 51K 1/16W

C709

0.1uF

+12V

GND

C712

100uF/25V

VCTRL 4

Q701

PMBS3904

+5V3,4

R31

+3V3

+5V3,4

VCC1.8

R718

NC/10K

C711

0.1uF

+12V

C707

100uF/25V

R722

4.7K

GND

R727

10K 1/16W

N.C

R732

10 1/16W

D702

1N4148

C717

10uF/16V

+5V

C706

0.1uF R710 NC

C719

NC/10uF/16V

Q704

AO3401L

01UF

TO-263

R728

NC/4K7

C720

NC/0.1uF

C702

4.7uF/16V

VLCD_12V 5

C708

1uF

+3V3

R707

4.7K 1/16W

Power board (adapter + inverter)

R930

3.6K 1/10W

C901

0.001uF/250V

D923

LL4148-GS08

R918

0.39 2W

C925

470uF/25V

CN901

CONN

C903 0.47uF/250V

GND

R931

1K 1/10W

C909

47uF/25V

R903

3.3K 1/8W

C924

1000uF/16V

R923

560 1/4W

IC903

KIA431A-AT/P

R902

330K 1/8W

减低调整灵敏度

R922

47 1/2W

C934

L903 L

D922

FMB26L

R914

4.7K 1/10W

ZD904

RLZ13B

1 2

C931

1000uF/25V ZD903

PTZ9.1B

1 2

Q902

2PA733P

GND

C904

100uF/450V

R905

3.3K 1/8W

C930

R929

33K 1/10W

R920

R912

100 1/10W

R934

R919

20K 1/10W

Q901

2SK2645-54NR

C929

0.1uF

R907

+5V

L904 L

R924

1K 1/10W

R932

1K 1/10W

DIM

Vcc

R916

220 1/10W

C927

0.1uF

R913

75K 1/10W

C933

C902

0.001uF/250V R927

Q903

2PC945P

R904

3.3K 1/8W

C922

0.001uF/500V

IC902

PC123FY2 4P

C935

+5V

F901

FUSE

C905

0.0015uF/2KV

D924

LL4148-GS08

ON/OFF

R915

22 1/10W

C906

100uF/25V

R926

NR901

NTCR

C908

10uF

Drv

D903

LL4148-GS08

C932

0.47uF/25V

F902

0 1/8W

D901

FR107

C928

0.1uF

CN902

CONN

ZD902

RLZ5.1B

1 2

C923

1000uF/25V

R933

2.4K 1/10W

C911

470pF/50V

D902

UF4003

NCP1203D60R2G

IC901

NCP1203D60R2G

R906

C921

0.001uF/500V

ZD901

RLZ18B

1 2

C926

470uF/16V

ZD905

RLZ5.1B

1 2

R909

68 1/10W

T901

410

D921

FME-210B

PWPC1942AUA11P(715G1492-1)

1.POWER OUTPUT 12V & 5 V

AOC (Top Victory) Electronics Co., Ltd.

Sunday, May 22, 2005

Title

Size Document Number Rev

Date: Sheet of

Adj

R900

330K 1/8W

R908

100K 2W

DB901

KBP206G

1 4

C900

0.0022uF/250V

R917

10K 1/10W

R921

47 1/2W

C912

0.001uF

+12V

L901

R911

3.6K 1/10W

C907

0.1uF

R925

0 1/8W

L902

R901 330K 1/8W

R910

2.2K 1/10W

+12V

VAR901 NC

IC201

BA9741F

8 9

314

512

215

611

INV1

OUT1

GND VCC

OUT2

INV2

NON1 NON2

FB1 FB2

RT SCP

VREF

DT1 DT2

C207

330pF

R230

470 1/10W

C222

0.47uF/25V

R232

51K 1/10W

R213

4.7K 1/10W

R201

2.4K 1/10W

C210

1uF/25V

C221

0.33uF/250V

+12V

PT202

INVERTER X'FMR

R205

16K 1/10W

PT201

INVERTER X'FMR

C214

12pF/3KV

R203

2.4K 1/10W

R204

470 1/10W

ZD201

RLZ11B

1 2

CN204

CONN

R202

220 1/10W

C203

470uF/25V

C201

0.1uF/25V

TP3

HVO

R214

12K 1/10W

GND

D204

1N4148

C202

0.1uF/25V

R224

1.8K 1/4W

R222

1.8K 1/4W

C208

0.1uF/25V

C209

4.7uF/50V

R226

1K 1/4W

is power GND

R225

1K 1/4W

C213

12pF/3KV

D209

1N4148

R223

1.8K 1/4W

R227

1K 1/4W

D203

1N4148

R211

Q203

AOU401L

C211

12pF/3KV

CN203

CONN

R206

12K 1/10W

Q204

PMBS3904

R207

10K 1/10W

Q205

PMBS3906

C205 1uF/25V

is signal GND

C212

12pF/3KV

D206

1N4148

Q206

KTD1691/P

C223

0.1uF/25V

TP2

HVO

R212

62K 1/10W

R208 0 1/10W

TP1

HVO

C206

D210

LL4148-GS08

TP4

HVL

CN202

CONN

PWPC1942AUA11P(715G1492-1)

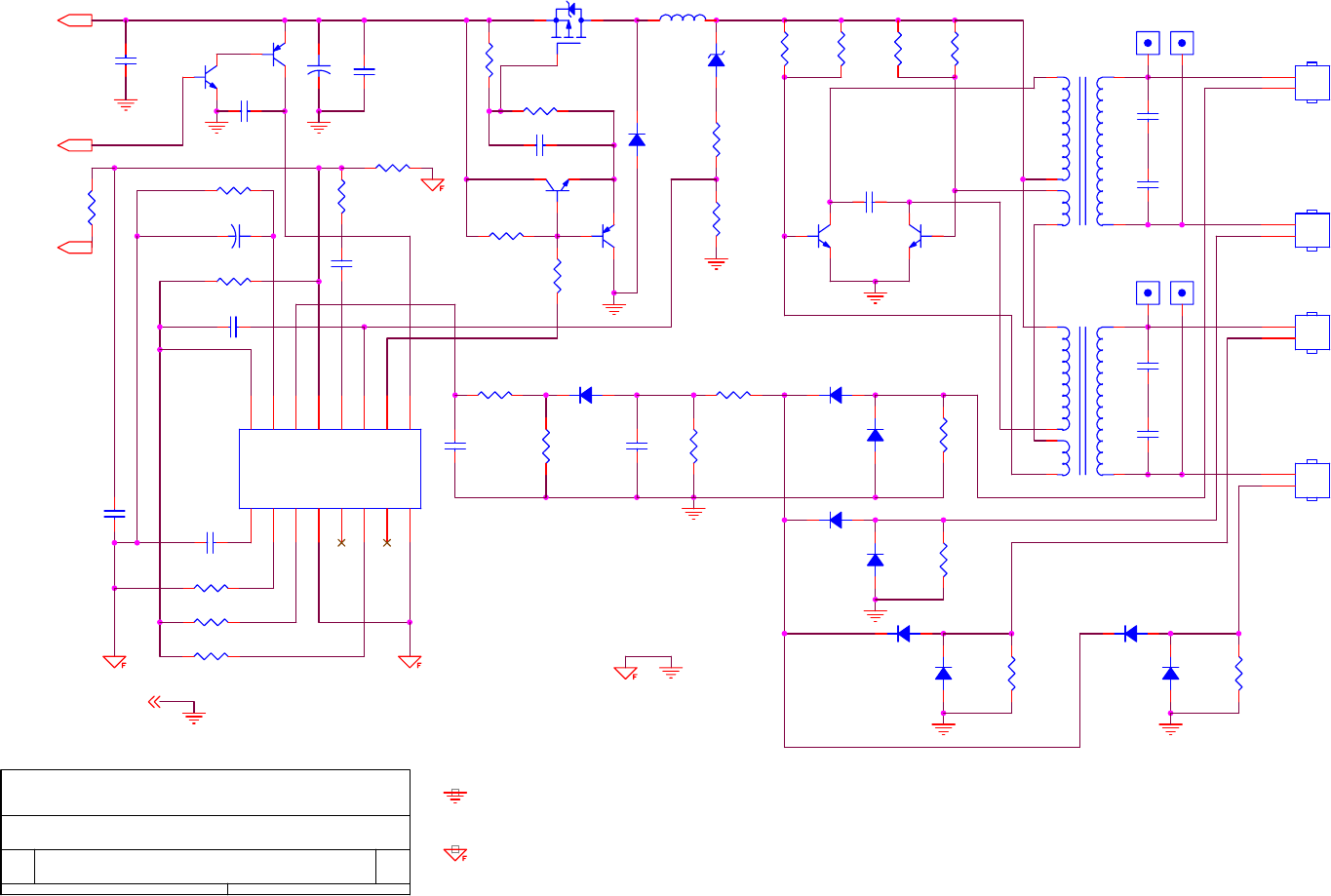

2. FOR 19" 4 LAMPS INVERTER

AOC (Top Victory) Electronics Co., Ltd.

Sunday, May 22, 2005

Title

Size Document Number Rev

Date: Sheet of

CN201

CONN

R229

680 1/10W

C204

0.1uF/25V

D205

1N4148

R228

1K 1/4W

Q207

KTD1691/P

ON/OFF

R221

1.8K 1/4W

L201

120UH

Q202

DTA144WKA

Q201

DTC144WKA

R209 0 1/10W

D201

RB050L-40

DIM

D207

1N4148

R231

12K 1/10W

R210

47K 1/10W

D202

1N4148

D208

1N4148

AL1716 Acer Computer Monitor P236H 09081816163829 161

Navigation menu

Versions of this User Manual:

Views

Navigation
