BORGESON

Steering You Forward

Founded in Torrington, CT, Borgeson Universal began

manufacturing universal joints for lathes and milling machines

in 1914. By the 1920’s, Ford was using Borgeson universal

joints for the steering on some of their prototypes. Borgeson

Universal continued to develop and rene u-joints for industrial,

aerospace and OEM vehicle applications. When purchased in

1982 by the current owners, two avid Street Rodders, Borgeson

soon began developing applications for Street Rods. Borgeson

has continually improved and developed the original needle

bearing universal joints into the most reliable, smoothest

operating, strongest u-joints available today.

Seeking to expand, Borgeson ventured into manual

steering gears with the acquisitions of Mullins Steering Gears

in 2001 and in July 2012 Borgeson acquired all of the original

equipment, tooling, drawings and the OE manufacturing rights

for all Saginaw manual steering gear boxes. In 2016 Borgeson

relocated from its home of over 100 years in Torrington CT

and expanded yet again into a new 101,000 square foot

manufacturing facility in Travelers Rest SC. This 101,000 square

foot plant was designed and built for increased production

and capacity to better serve our customers. We use the latest

manufacturing and inventory control procedures to maintain

stock, and take great pride in being able to ship most orders

placed by 2:30 EST the same day. Today, Borgeson is the leading

manufacturer and supplier of aftermarket steering components

for the street rod, racing, specialty automotive, OEM and pickup

truck markets.

We believe our growth is based on a policy of honesty

and always listening to our customers, whether you are a

corporation or working in your garage. We respond to your

suggestions by developing needed innovations to help increase

steering system safety and make building your vehicle more fun.

Our dedication to safety has been recognized by the National

Street Rod Association with safety product of the year awards in

1992 & 2001 as well as Street Rod Manufacturer Of The Year in

1999. Ultimately, your vehicle’s safety depends on you. We strive

to make Borgeson steering components as safe as possible.

You can’t buy a stronger, safer u-joint anywhere in the world!

However, its eectiveness is only as good as the installation.

In this catalog, you will nd many installation

suggestions and guidelines that will help in the design of a

safe, smooth operating steering system. Call if you have any

questions. Our technical sta has over 95 years combined

experience in the design and application of steering systems.

Remember, auto manufacturers have thousands of engineers

and millions of miles of road experience to rely on when

designing a steering system. Without the benet of those

resources, the possibility of a malfunction is greater. So,

overbuild your system and inspect it frequently. Safety should

be your most important concern! We attend many shows during

the year, so stop by our booth and say hello, we’ll be happy to

help!

For sales and technical support, Call 860.482.8283

Fax 860.496.9320 or visit www.borgeson.com

INTRODUCTION

Borgeson President Gerry Zordan Borgeson Vice President Alan Zordan

Over 100 years ago, John Borgeson built a wooden universal joint model, dated July 22nd, 1914, for application

to the United States Patent Oce. This is the oldest Borgeson universal joint that we are aware of. His goal was to provide

high quality products at a fair price. 100 years later, that very same universal joint graces my oce as a tribute to, and

reminder of, where it all began.

For the last 35 years, since I purchased Borgeson, we have been dedicated to the same philosophies of creating

the best quality products at fair prices while providing outstanding customer service. This continued business model

has helped us to grow from a humble four part-time employees all those years ago, to 35 full-time employees, proudly

dedicated to providing high quality products and outstanding customer service.

This growth and longevity is, in no small part, attributed to you, our valued customers. I thank you for the

continued support and loyal patronage that has helped Borgeson Universal to become the great American company that it

is today.

A message from Borgeson president Gerry Zordan,

Thank you, Gerry Zordan,

President, Borgeson Universal Co. Inc.

SINGLE U-JOINTS...........................................3

DOUBLE U-JOINTS..........................................4

VIBRATION REDUCERS & RAG JOINTS...........5

INTERMEDIATE STEERING SHAFTS................6

TELESCOPING SHAFTS....................................6

SUPPORT BEARINGS........................................7

COUPLERS & ADAPTERS..................................7

PIN & BLOCK RACING U-JOINTS.....................8

STEERING COLUMNS & MOUNTS....................9

NEW 49-51 FORD CARS...................................10

SAGINAW MANUAL STEERING BOXES.....11-12

PITMAN ARMS................................................11

MUSCLE CAR STEERING..............................12

PUMPS, BRACKETS & PULLEYS.......................13-14

1962-79 MOPAR.......................................................14

1963–72 CHEVY II.........................................15

1958–64 CHEVY CAR....................................15

1955–57 CHEVY CAR....................................16

1963–82 CORVETTE.......................................17

1965–04 MUSTANG........................................18

1952–64 FORD FULL SIZE............................19

1964–77 FORD MID SIZE...............................20

1966–04 FORD TRUCK & BRONCO...............21

1972–06 JEEP..................................................22

1979–08 DODGE TRUCK.................................23

1973–08 CHEVY/GMC TRUCK.......................24

NEW CUSTOM STEERING SHAFT KITS.........24

STEERING SYSTEM DESIGN....................25–29

POWER STEERING TIPS................................30

STEERING TROUBLE SHOOTING..................31

SPLINE REFERENCE CHART.........................32

SHOP TOUR.....................................................33

ORDERING & SHIPPING INFORMATION......34

CONTENTS

www.borgeson.com 860.482.8283 fax 860.496.9320

TRUCK & SUV

HEAVY DUTY STEERING SHAFTS

POWER STEERING UPGRADES

MUSCLE CAR

POWER STEERING CONVERSIONS

SAGINAW MANUAL STEERING BOXES

P/S PUMPS, BRACKETS & PULLEYS

STREET ROD

UNIVERSAL JOINTS & SHAFTS

STEERING COLUMNS & MOUNTS

SAGINAW MANUAL STEERING BOXES

* Pricing is correct at the time of this catalogs printing.

Please visit www.borgeson.com for up to date pricing.

SINGLE UNIVERSAL JOINT PART #’S

Steel Stainless Steel Polished Stainless Description

Smooth X Smooth Bore

016464 116464 126464 3/4” Smooth x 3/4” Smooth

Spline or DD X Smooth Bore

010964 110964 120964 9/16”-26 Spline x 3/4” Smooth

011864 111864 121864 5/8”-36 Spline x 3/4” Smooth

013164 113164 123164 3/4”-30 Spline x 3/4” Smooth

013464 113464 123464 3/4”-36 Spline x 3/4” Smooth

014064 114064 124064 13/16”-36 Spline x 3/4” Smooth

012564 112564 122564 11/16”-36 Spline x 3/4” Smooth

014364 114364 124364 1”-48 Spline x 3/4” Smooth

014664 114664 124664 17 mm DD x 3/4” Smooth

014964 114964 124964 3/4” DD x 3/4” Smooth

015264 115264 125264 1” DD x 3/4” Smooth

015564 115564 125564 3/4” Ford V x 3/4” Smooth

Spline or DD x Spline or DD

014334 114334 124334 1”-48 Spline x 3/4”-36 Spline

014349 114349 124349 1”-48 Spline x 3/4” DD

014352 114352 124352 1”-48 Spline x 1” DD

013409 113409 123409 3/4”-36 Spline x 9/16”-26 Spline

013418 113418 123418 3/4”-36 Spline x 5/8”-36 Spline

013425 113425 123425 3/4”-36 Spline x 11/16”-36 Spline

013431 113431 123431 3/4”-36 Spline x 3/4”-30 Spline

013434 113434 123434 3/4”-36 Spline x 3/4”-36 Spline

013440 113440 123440 3/4”-36 Spline x 13/16”-36 Spline

013446 113446 123446 3/4”-36 Spline x 17mm DD

013449 113449 123449 3/4”-36 Spline x 3/4” DD

013452 113452 123452 3/4”-36 Spline x 1” DD

013737 113737 123737 3/4”-48 Spline x 3/4”-48 Spline

014909 114909 124909 3/4” DD x 9/16”-26 Spline

014912 114912 124912 3/4” DD x 9/16”-36 Spline

014918 114918 124918 3/4” DD x 5/8”-36 Spline

014921 114921 124921 3/4” DD x 5/8”-36 Chrysler Spline

014925 114925 124925 3/4” DD x 11/16”-36 Spline

014928 114928 124928 3/4” DD x 11/16”-40 Spline

014930 114930 124930 3/4” DD x 3/4”-20 Spline

014931 114931 124931 3/4” DD x 3/4”-30 Spline

014937 114937 124937 3/4” DD x 3/4”-48 Spline

014940 114940 124940 3/4” DD x 13/16”-36 Spline

014946 114946 124946 3/4” DD x 17mm DD

014949 114949 124949 3/4” DD x 3/4” DD

014955 114955 124955 3/4” DD x 3/4” Ford V

014952 114952 124952 3/4” DD x 1” DD

015225 115225 125225 1” DD x 11/16”-36 Spline

015231 115231 125231 1” DD x 3/4”-30 Spline

015240 115240 125240 1” DD x 13/16”-36 Spline

015252 115252 125252 1” DD x 1” DD

015255 115255 125255 1” DD x 3/4” Ford V

Needle Bearing U-Joints

Needle bearing u-joints have the distinct advantage of lasting

much longer than non-needle bearing u-joints. Borgeson

recommends only needle bearing u-joints for use on street

vehicles. Our u-joints are made of specially selected steel and

stainless steel for strength and longevity. The sealed precision

needle bearings never need maintenance. Needle bearing

u-joints outlast non-needle bearing joints by a factor of 10 to 1. Our

needle bearing joints have zero backlash (radial play) for more

precise steering and a better feel for the road. Although non-

needle bearing joints are stronger than the same size needle

bearing joint, this strength is oset by the maintenance required

and the longevity factor. Non-needle bearing joints should be

lubricated with each use and a rubber boot should be used to

retain lubrication. Boots are not recommended for use with

needle bearing joints.

Borgeson u-joints are machined in our factory on state of the art

CNC equipment from solid billet steel or stainless steel. Ongoing

engineering and testing ensures our components meet or

exceed current automotive production vehicle requirements.

Any of our four Double D (a round shaft with two ats) sizes, 14

dierent spline size yokes, and the ‘94 and later Mustang V style

can be combined to mate components from many dierent

manufacturers. They operate at angles up to 35°. For example,

with our components, you could easily connect a GM column to a

new Mustang rack and pinion or a Ford column to a Saginaw box.

Similar to OEM u-joints, the staked needle bearing caps prevent

loosening and adjustment malfunction.

Many other sizes are available. Visit www.borgeson.com for

a full product listing.

Steel

Polished Stainless Steel

SINGLE NEEDLE BEARING UNIVERSAL JOINTS

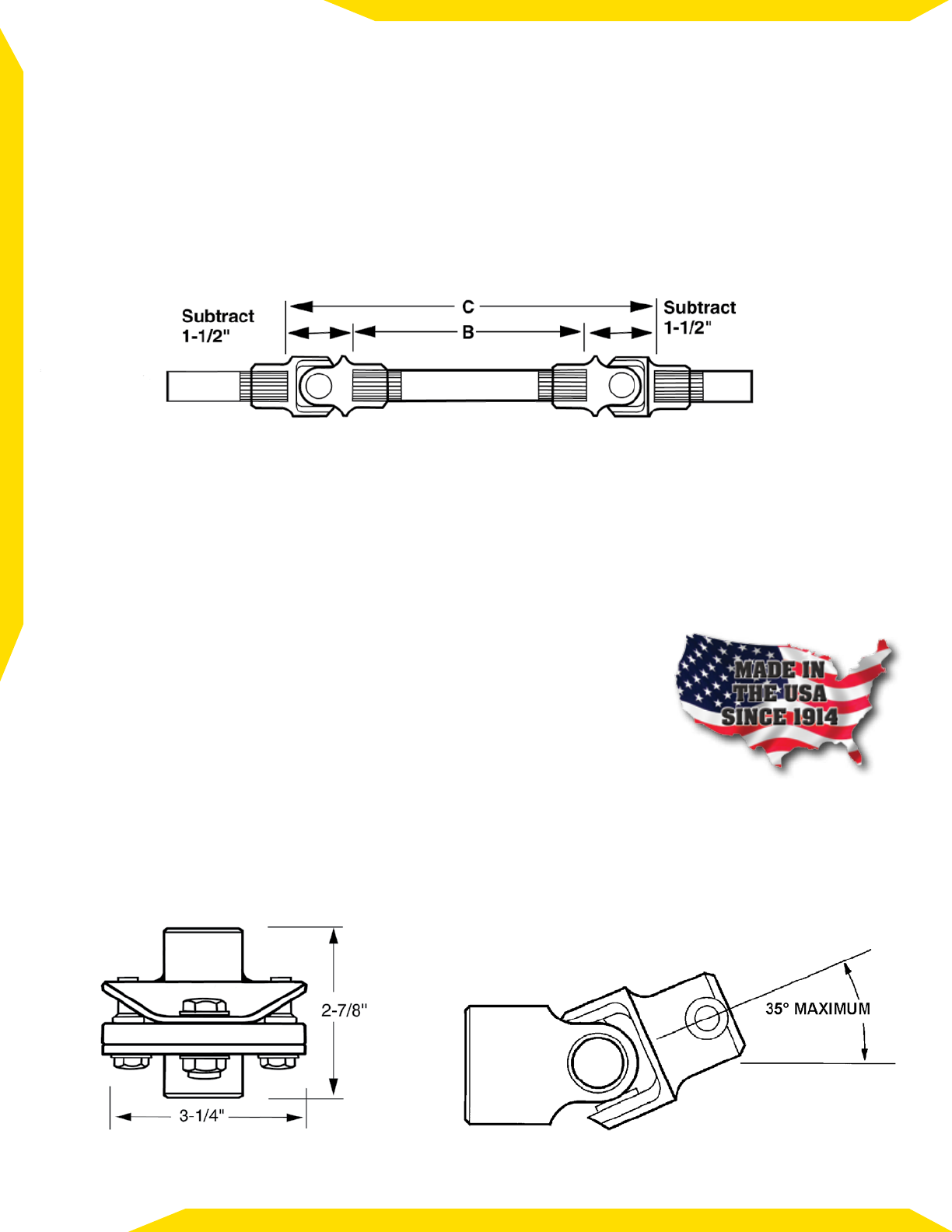

Single Joint Dimensions

SINGLE UNIVERSAL JOINT PRICES

Universal Joint Ends Steel Stainless Steel Polished Stainless

Any Smooth X Smooth Combination $71.50 $83.22 $112.53

Any Spline or DD X Smooth Combination $75.61 $87.91 $117.22

Any Spline or DD X Spline or DD Comb. $79.71 $92.60 $121.90

Stainless Steel

DOUBLE D (DD) SIZES

Nominal Size Approx. Dia. Approx. Size Across Flats

17mm DD .670 .570

18mm DD .730 .610

3/4” DD .750 .550

1” DD .993 .790

3/4” Ford V .750 N/A

POPULAR SPLINE SIZES

Nominal Size Diameter Splines in a Full Circle

9/16”–17 Spline .562 17

9/16”–26 Spline .562 26

9/16”–36 Spline .562 36

5/8”–36 Spline GM* .625 36

5/8”–36 Spline Chrysler .625 36

11/16”–36 Spline .687 36

11/16”–40 Spline .687 40

3/4”–20 Spline .745 20

3/4”–30 Spline .730 30

3/4”–36 Spline .735 36

3/4”–48 Spline .750 48

13/16”–36 Spline .812 36

1”–48 Spline .985 48

DOUBLE UNIVERSAL JOINT PART #’S

Steel Stainless Steel Polished Stainless Description

Smooth X Smooth Bore

026464 136464 146464 3/4” Smooth x 3/4” Smooth

Spline or DD X Smooth Bore

020964 130964 140964 9/16”-26 Spline x 3/4” Smooth

021864 131864 141864 5/8”-36 Spline x 3/4” Smooth

023164 133164 143164 3/4”-30 Spline x 3/4” Smooth

023464 133464 143464 3/4”-36 Spline x 3/4” Smooth

024064 134064 144064 13/16”-36 Spline x 3/4” Smooth

024364 134364 144364 1”-48 Spline x 3/4” Smooth

024664 134664 144664 17mm DD x 3/4” Smooth

024964 134964 144964 3/4” DD x 3/4” Smooth

025264 135264 145264 1” DD x 3/4” Smooth

Spline or DD X Spline or DD

024334 134334 144334 1”-48 Spline x 3/4”-36 Spline

024349 134349 144349 1”-48 Spline x 3/4” DD

023409 133409 143409 3/4”-36 Spline x 9/16”-26 Spline

023418 133418 143418 3/4”-36 Spline x 5/8”-36 Spline

023431 133431 143431 3/4”-36 Spline x 3/4”-30 Spline

023434 133434 143434 3/4”-36 Spline x 3/4”-36 Spline

023449 133449 143449 3/4”-36 Spline x 3/4” DD

024949 134949 144949 3/4” DD x 3/4” DD

024946 134946 144946 3/4” DD x 17mm DD

024918 134918 144918 3/4” DD x 5/8”-36 Spline

024952 134952 144952 3/4” DD x 1” DD

Dierent U-Joint Shaft Applications

Double D (DD) Splined Smooth 94–up Ford V

Angles over 35° can be negotiated by using a Borgeson double

universal joint. These double universal joints can accommodate

angles up to 70°. Double universal joints are available in steel,

stainless steel and polished stainless steel. Borgeson double

universal joints are available in all of our popular spline and DD

congurations.

Actual size can measure .015” over or under the size listed.

*⁄-36 GM and ⁄-36 Chrysler are not interchangeable.

Polished Stainless Steel

TECH TIP: Because a double joint used in combination with

a single joint will function the same as a three joint system, a

shaft support bearing is required to prevent the shaft from

“looping” and binding. See page 7 for shaft support bearings.

DOUBLE NEEDLE BEARING UNIVERSAL JOINTS

www.borgeson.com 860.482.8283 fax 860.496.9320

Many other sizes are available. Visit www.borgeson.com for

a full product listing.

Double Joint Dimensions

DOUBLE UNIVERSAL JOINT PRICES

Universal Joint Ends Steel Stainless Polished Stainless

Any Smooth X Smooth Combination $143.00 $165.28 $208.63

Any Spline or DD X Smooth Combination $147.11 $169.96 $213.34

Any Spline or DD X Spline or DD Comb. $151.21 $174.65 $218.02

1” Double D (DD) Tubing 3/4” Ford–V

3/4” Double D (DD) SolidSplined Shaft

VIBRATION REDUCING UNIVERSAL JOINT PART #’S

Steel Stainless Steel Polished Stainless Description

033434 153434 163434 3/4”–36 Spline x 3/4”–36 Spline

033449 153449 163449 3/4”–36 Spline x 3/4” DD

033452 153452 163452 3/4”–36 Spline x 1” DD

033443 153443 163443 3/4”–36 Spline x 1”-48 Spline

034943 154943 164943 3/4” DD x 1”–48 Spline

034909 154909 164909 3/4” DD x 9/16”–26 Spline

034931 154931 164931 3/4” DD x 3/4” –30 Spline

034934 154934 164934 3/4” DD x 3/4”–36 Spline

034949 154949 164949 3/4” DD x 3/4” DD

034952 154952 164952 3/4” DD x 1” DD

034940 154940 164940 3/4” DD x 13/16”-36 Spline

DESIGN AND INSTALLATION TIP:

Don’t install a vibration reducer in the center of a length of

shaft. It can cause excess exing and possible binding. If your

system requires the use of a support bearing, the vibration

reducer must be used between the support bearing and the

column. The support bearing can pick up chassis vibration

and will transfer it up the steering shaft to the wheel

reducing the eects of the vibration reducer.

Noise, vibration, and harshness are on top of the list of

concerns for all automotive enthusiasts. With the more

frequent use of rack and pinions and low prole tires, there

are more road vibrations transmitted to the steering wheel

than in the past. Using urethane to isolate all of the metal

components, Borgeson has developed vibration reducers to

diminish the annoying vibrations that are transmitted through

the steering system and felt in the steering wheel. The use

of the Borgeson vibration reducer results in an immediate

improvement of the steering feel. As an added benet, this

reduction in vibration has been shown to increase the overall

life of the steering components, including the steering column

and box.

VIBRATION REDUCERS

Rubber Coupling/Rag Joints

On older factory applications, a exible coupling was used to

attach the column to the steering box when there was perfect

alignment. If the original column or box is changed, the stock

coupling may not work. If a conversion from a long input

steering box to a short input with an aftermarket column is

done, a exible coupling needs to be added. Borgeson oers

the largest variety of spline and double D sizes to t most

applications. Rag Joints are only available in steel.

RAG JOINT PART #’S

Part# Description Part # Description

052534 11/16”-36 Spline x 3/4”-36 Spline 053449 3/4”-36 Spline x 3/4” DD

052549 11/16”-36 Spline x 3/4” DD 053452 3/4”-36 Spline x 1” DD

052552 11/16”-36 Spline x 1” DD 054043 13/16”-36 Spline x 1”-48 Spline

053134 3/4”-30 Spline x 3/4”-36 Spline 054052 13/16”-36 Spline x 1” DD

053149 3/4”-30 Spline x 3/4” DD 054940 3/4” DD x 13/16”-36 Spline

053152 3/4”-30 Spline x 1” DD 055034 18mm DD x 3/4”-36 Spline

053434 3/4”-36 Spline x 3/4”-36 Spline 055043 18mm DD x 1”-48 Spline

053440 3/4”-36 Spline x 13/16”-36 Spline 055049 18mm DD x 3/4” DD

053443 3/4”-36 Spline x 1”-48 Spline 055052 18mm DD x 1” DD

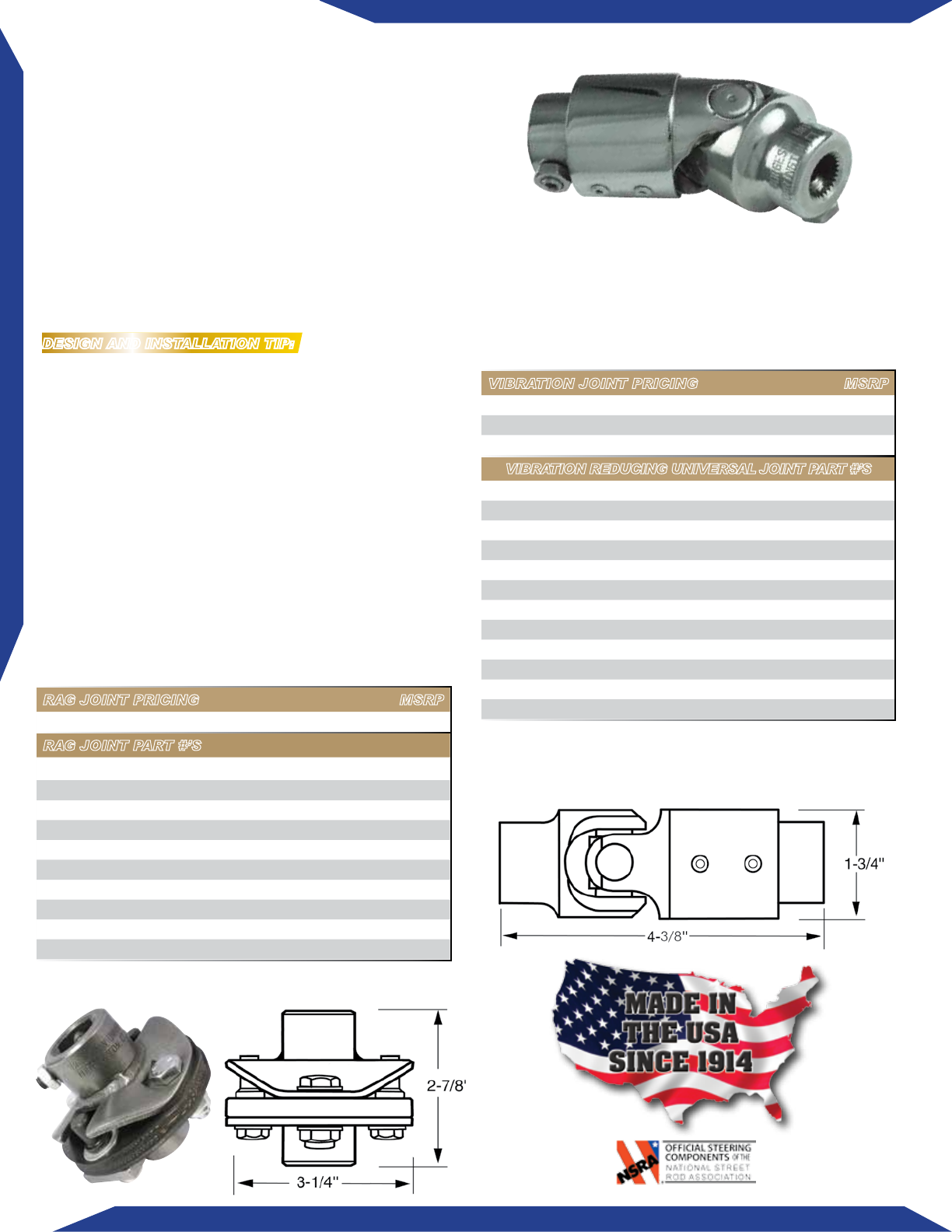

*Vibration reducers are not available with smooth bores. They should not be welded.

Polished Stainless Steel Vibration Reducing Universal Joint

Many other sizes are available. Visit www.borgeson.com for

a full product listing.

Rag Joint

Vibration Reducing Universal Joint Dimensions

Vibration Reducing Universal Joints

Vibration reducing universal joints or VJ’s come with a 9/16”-26,

5/8”-36, 3/4”-30, 3/4”-36, or 3/4”-DD coupler end and any spline

or DD size on the universal joint side. The VJ’s are also available

in stainless steel and polished stainless with the same sizes

available.

Rag Joint Dimensions

VIBRATION JOINT PRICING MSRP

All Steel Vibration Reducing Universal Joints $116.04

All Stainless Steel Vibration Reducing Universal Joints $133.63

All Polished Stainless Steel Vibration Reducing Universal Joints $186.37

RAG JOINT PRICING MSRP

All Complete Rag Joint Couplers $111.28

STEERING SHAFT PART #’S

Steel Stainless Steel Polished Stainless Description

Splined at Both Ends

409202 N/A N/A 3/4”–36 Spline x 2” Long

409204 419204 429204 3/4”–36 Spline x 4” Long

409206 419206 429206 3/4”–36 Spline x 6” Long

409208 419208 429208 3/4”–36 Spline x 8” Long

409210 419210 429210 3/4”–36 Spline x 10” Long

409212 419212 429212 3/4”–36 Spline x 12” Long

409214 419214 429214 3/4”–36 Spline x 14” Long

409216 419216 429216 3/4”–36 Spline x 16” Long

409218 419218 429218 3/4”–36 Spline x 18” Long

409220 419220 429220 3/4”–36 Spline x 20” Long

Splined at One End

409005 N/A N/A 3/4”–36 Spline x 5” Long

409016 N/A N/A 3/4”–36 Spline x 16” Long

409036 N/A N/A 3/4”–36 Spline x 36” Long

Double D (DD)

409418 N/A N/A 3/4” DD x 18” Long

409436 419436 429436 3/4” DD x 36” Long

N/A 419422 429422 3/4” DD x 22” Long

N/A 419412 429412 3/4” DD x 12” Long

Telescoping Shafting

450024 N/A N/A 24” Telescopes 21”-27”

450036 N/A N/A 36” Telescopes 30”-39”

INTERMEDIATE SHAFTS

Splined and Double D Shafting

We recommend splined or double D shafting, as its a simple and

safe method of attaching your steering components. We oer

3/4” double D shafts in steel and stainless steel. Splined shafts

are available in steel, stainless steel and polished stainless steel.

Telescoping Shaft

Borgeson oers two telescoping shaft assemblies in 24” and

36” overall lengths. These shafts can be used in a variety of

applications and make installation and removal of steering

system components simple and easy. By pulling or pushing

on the assembly, the overall length can be shortened or

lengthened. This telescopic shaft also meets NHTSA guidelines for

collapsibility in passenger cars and adds a measure of safety.

Telescoping Shafts

Borgeson oers two telescoping shaft assemblies in 24” and

36” overall lengths. These shafts can be used in a variety of

applications and make installation and removal of steering

system components simple and easy. Telescopic shafts

can be easily trimmed to t many applications.

Steel Double D Shafts are

available in 18” and 36”

lengths only. They are

easy to trim to get an

exact t.

Stainless Steel Double D Shafts are available in

12”, 22” and 36” lengths. All stainless

shafting is available

polished or

unpolished.

(polished

shown)

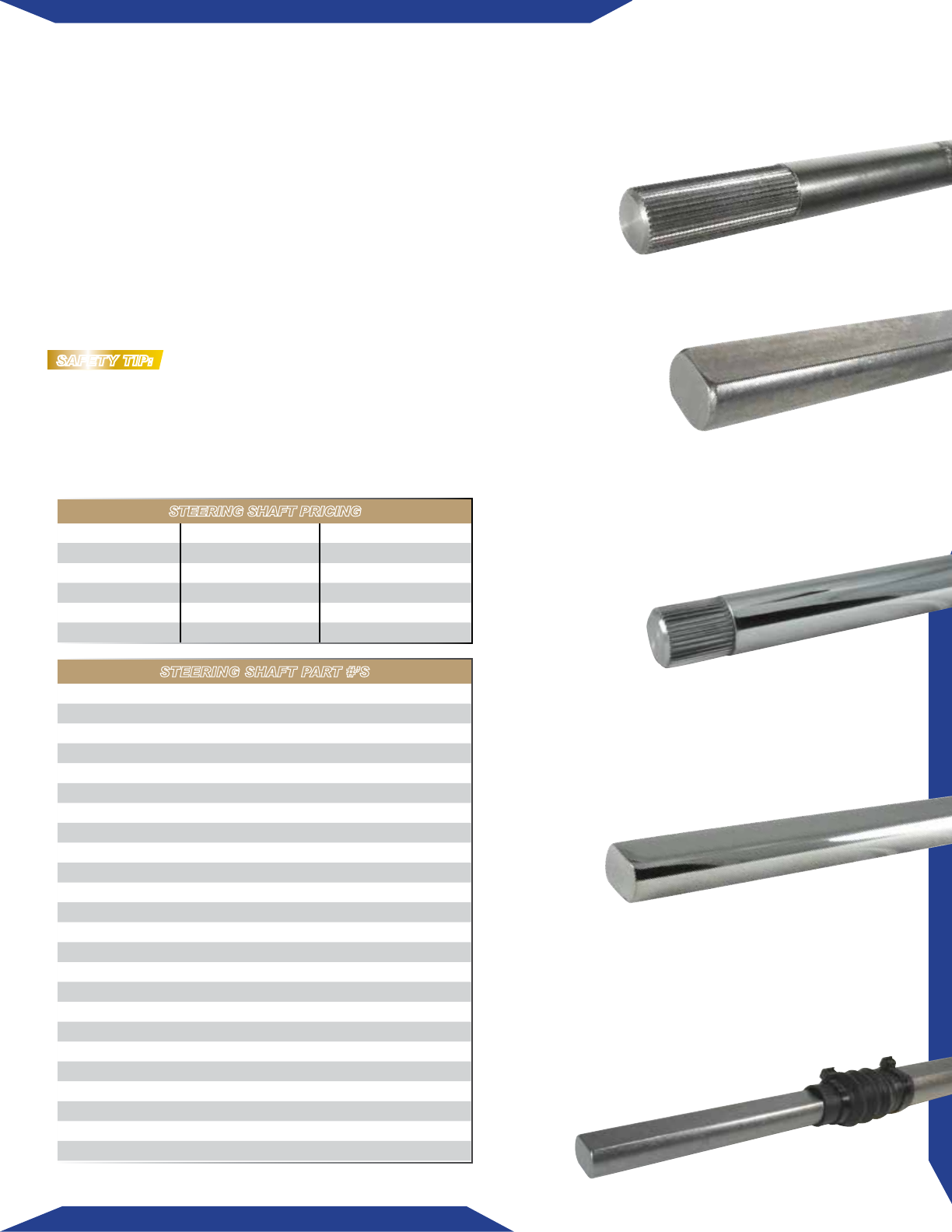

Steel 3/4” Splined Shafts are splined 2” on both ends. They

are available in 2” increments from 2” to 36”. Each end can be

trimmed up to 1” for an exact t. Steel 3/4”

round shafts that are splined

on one end are

available in 5”,

16”, and 36”

lengths.

Stainless Steel 3/4” Splined Shafts are available in

1/4” increments from 3” to 24” lengths, with 7/8” of

spline on each end. Custom length stainless shafting

is also available with 7/8” spline on

each end, polished

or unpolished.

(polished shown)

See our design section beginning on page 23 for information

about measuring your system.

www.borgeson.com 860.482.8283 fax 860.496.9320

Many other sizes are available. Visit www.borgeson.com for

a full product listing.

SAFETY TIP: Welding can overheat the u-joint bearings

causing loss of lubrication. If welding is the only option, it

should be done by a certied welder. Drilling and pinning can

be a safer option. See page 28 for more information on pinning

and proper shaft attachment.

STEERING SHAFT PRICING

Steel Price Stainless Steel Price Polished Stainless Price

2” Splined $21.68 3”-16” Splined $43.96 3”-16” Splined $61.55

4”-16” Splined $35.16 16.25”-36” Splined $47.77 16.25”-36” Splined $65.35

18”-36” Splined $38.10 24”-36” Splined $47.77 24”-36” Splined $65.35

18” DD Shaft $25.00 22” DD Shaft $47.77 22” DD Shaft $65.35

36” DD Shaft $39.00 36” DD Shaft $64.47 36” DD Shaft $99.63

ADAPTERS

Part # Description MSRP

358000 3/4 X 1 O.D. ADAPTER $8.42

358200 3/4 X 1-1/4 O.D. ADAPTER $8.42

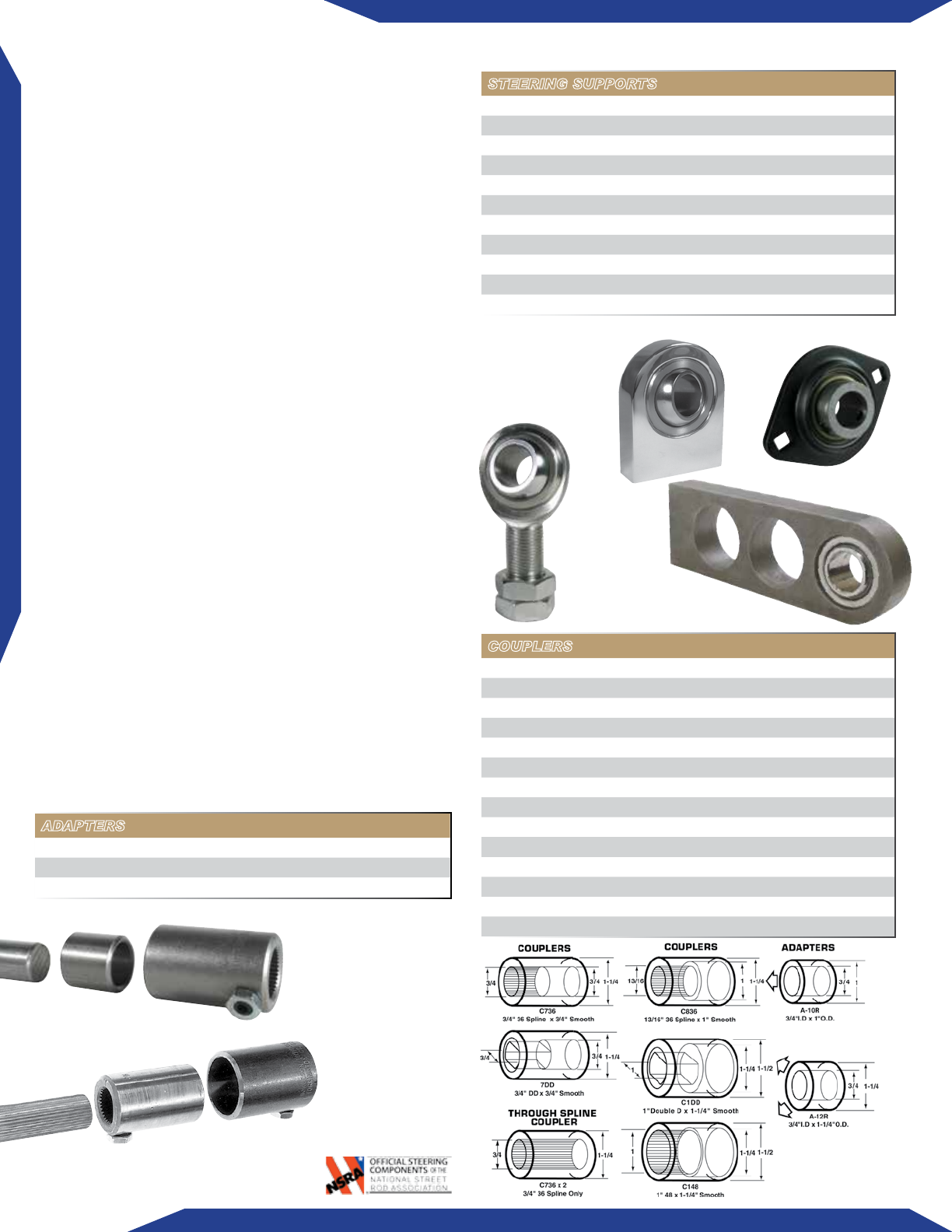

STEERING SUPPORTS

Part # Description MSRP

650000 Billet Aluminum Support Bearing $45.72

660000 Polished Billet Aluminum Support Bearing $63.29

670000 Billet Steel Support Bearing $41.02

670600 6” Billet Steel Cut and Weld Support Bearing $46.88

680000 Billet Stainless Steel Support Bearing $93.77

690000 Polished Billet Stainless Steel Support Bearing $111.35

700000 Steel Rod End Bearing $32.82

710000 Stainless Steel Rod End Bearing $80.88

720000 Polished Stainless Steel Rod End Bearing $98.48

700010 Firewall Flange Bearing $29.00

COUPLERS

Part # Description MSRP

310900 9/16”-26 Spline x 3/4” Smooth Bore $20.52

311800 5/8”-36 Spline x 3/4” Smooth Bore $20.52

312100 5/8”-36 Chrysler Spline x 3/4” Smooth Bore $20.52

312500 11/16”-36 Spline x 3/4” Smooth Bore $20.52

313400 3/4”-36 Spline x 3/4” Smooth Bore $20.52

313434 3/4”-36 Splined Through Coupler $23.44

315249 1” DD x 3/4” DD Welded Coupler Assembly $47.24

314000 13/16”-36 Spline x 1” Smooth Bore $20.52

314300 1”-48 Spline x 1-1/4” Smooth Bore $28.13

314349 1”-48 Spline x 3/4” DD Welded Coupler Assembly $47.24

314900 3/4” DD x 3/4” Smooth Bore $20.52

313449 3/4”–36 Spline x 3/4” DD Welded Coupler Assembly $47.24

315200 1” DD x 1-1/4” Smooth Bore $28.13

Steering Supports

If more than two joints are used in a steering system, a support

bearing must be used to prevent looping and binding. Use of

a vibration reducer and two u-joints will also call for a support

bearing to be used. The support must be mounted to the frame,

not to a sheet metal section of the body; sheet metal will not

withstand the stress. The shaft should t easily through the

support with no binding. A system with a double u-joint and a

single u-joint has three ex points and will require a support bearing.

All support bearings work with round or DD shafting.

Rod end bearings with a 3/4” hole size are commonly used for

supports. Rod end bearings are supplied with two jam nuts

for mounting. They are available in steel, stainless steel and

polished stainless steel. Our billet supports accommodate a

3/4” shaft. The billet supports are 2-1/2” long with two threaded

holes in the end for mounting and are available in steel,

aluminum, polished aluminum, stainless steel, and polished

stainless steel. A 6” steel support is also available, which can

be cut at any angle for a perfect t. The 6” steel support has no

mounting holes and must be welded in. Flange bearings are also

available for supporting a shaft through the rewall.

Couplers and Adapters

A u-joint can sometimes be eliminated by using a 2” straight

extension, called a coupler, to extend either the steering box,

R&P shaft or the column shaft. The coupler can be welded and/

or pinned to the un-splined end of a shaft. We oer shafts that

are splined only on one end in 3 lengths: 5”, 16” and 36”. The 1”-

48 and 1” DD couplers have a 1-1⁄4” hole that will accept either

an adapter to reduce inside diameter to 3/4” smooth or another

splined or 3/4” DD coupler. The coupler assembly would have

to be pinned and/or welded together. Welding the coupler is

acceptable because there are no moving parts to damage, and

the coupler’s steel is less susceptible to heat damage from

welding. Couplers are available in the same spline or double D

sizes as our u-joints. Couplers and adapters are available in steel

only.

Adapter

Coupler

Billet Aluminum Shaft Support

Steel “cut-and-weld”

Billet Shaft Support

Rod End Shaft Support

Coupler

SHAFT SUPPORTS & COUPLERS

Firewall Flange Bearing

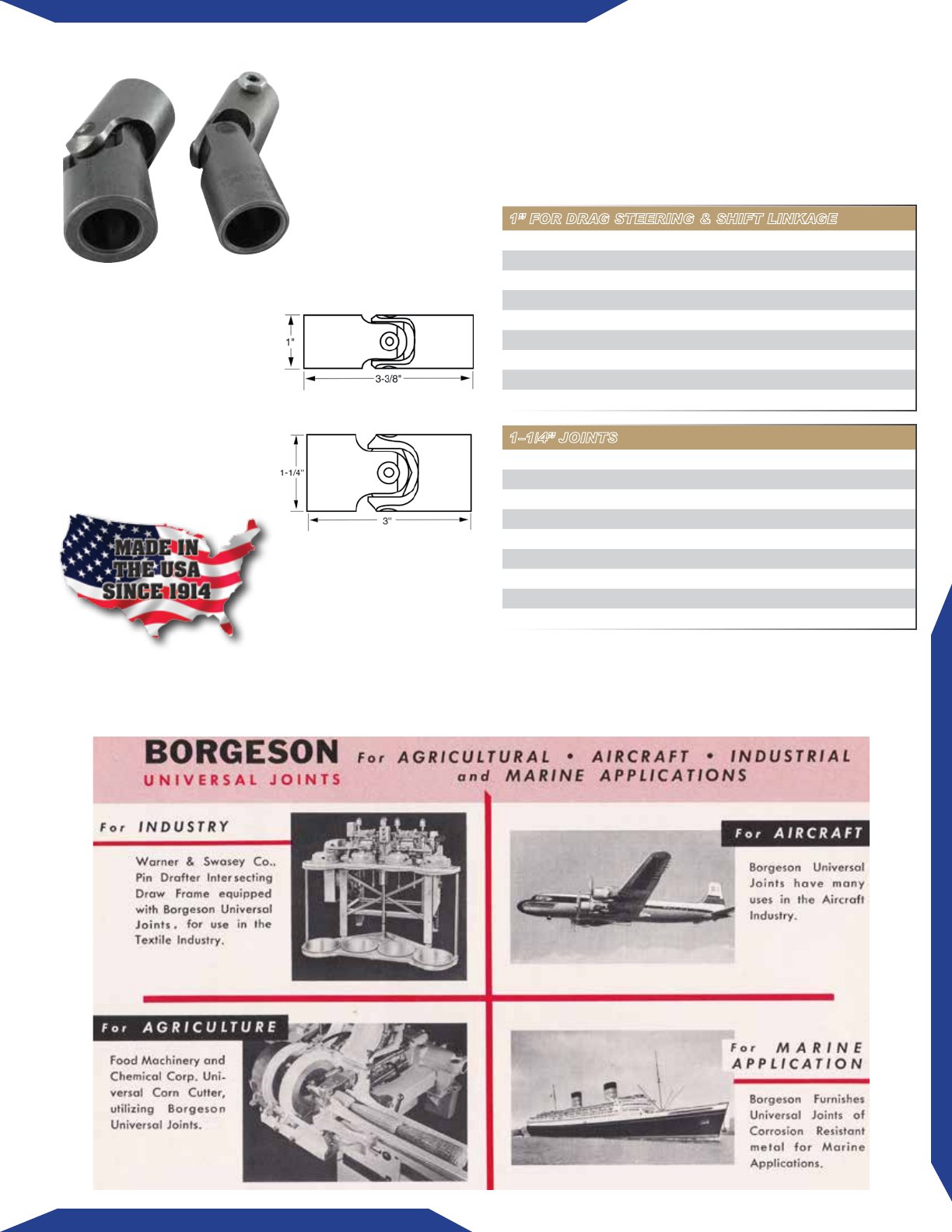

1–1/4” JOINTS

Part Number Description MSRP

Smooth X Smooth

526464 3/4” Smooth Bore x 3/4” Smooth Bore $63.30

Spline X Smooth

520962 9/16”-26 Spline x 5/8” Smooth Bore $70.32

520964 9/16”-26 Spline x 3/4” Smooth Bore $70.32

523164 3/4”-30 Spline x 3/4” Smooth Bore $70.32

523464 3/4”-36 Spline x 3/4” Smooth Bore $70.32

524064 13/16”-36 x 3/4” Smooth Bore $70.32

1” FOR DRAG STEERING & SHIFT LINKAGE

Part Number Description MSRP

Smooth X Smooth

515964 1/2” Smooth Bore x 3/4” Smooth Bore $57.73

516262 5/8” Smooth Bore x 5/8” Smooth Bore $57.73

516462 5/8” Smooth Bore x 3/4” Smooth Bore $57.73

516464 3/4” Smooth Bore x 3/4” Smooth Bore $57.73

Spline X Smooth

510962 9/16”-26 Spline x 5/8” Smooth Bore $71.06

510964 9/16”-26 Spline x 3/4” Smooth Bore $71.06

1”- Formula Car Shift Linkage, Drag Racing Steering

(not for circle track or road racing steering)

•1/2”, 5/8” or 3/4” smooth bore each end

•smooth bore with either 9/16”-26 or

5/8”-36 spline combination

1-1/4”- Oval Track Steering

•5/8” or 3/4” smooth bore each end

•Smooth bore and any spline and DD

(except 9/16”-17, 9/16”-36, 1”-48, 1” DD)

The advantage to the pin and block style of universal joint is a high strength to weight, size

and cost ratio. These u-joints are manufactured from high strength billet alloy steel and then

heat treated to obtain maximum strength. Because the u-joints use pivot pins and blocks

instead of sealed needle bearings, they must be checked and lubricated every time

the vehicle is driven. A rubber boot is also available to retain lubrication. The smaller sizes

are ideal for fabricating shift linkage. Borgeson pin and block u-joints have a 30° maximum

operating angle. These u-joints are not for street use.

PIN & BLOCK RACING JOINTS

INDUSTRIAL& SPECIALTY VEHICLE APPLICATIONS

Borgeson manufactures custom universal joints, steering shaft assemblies and OEM Saginaw manual steering gears for industrial,

government and OEM applications. Borgeson has the personnel and technology to work with you to manufacture custom

universal joints and shaft assemblies for your application. Contact our sales oce for further information.

www.borgeson.com 860.482.8283 fax 860.496.9320

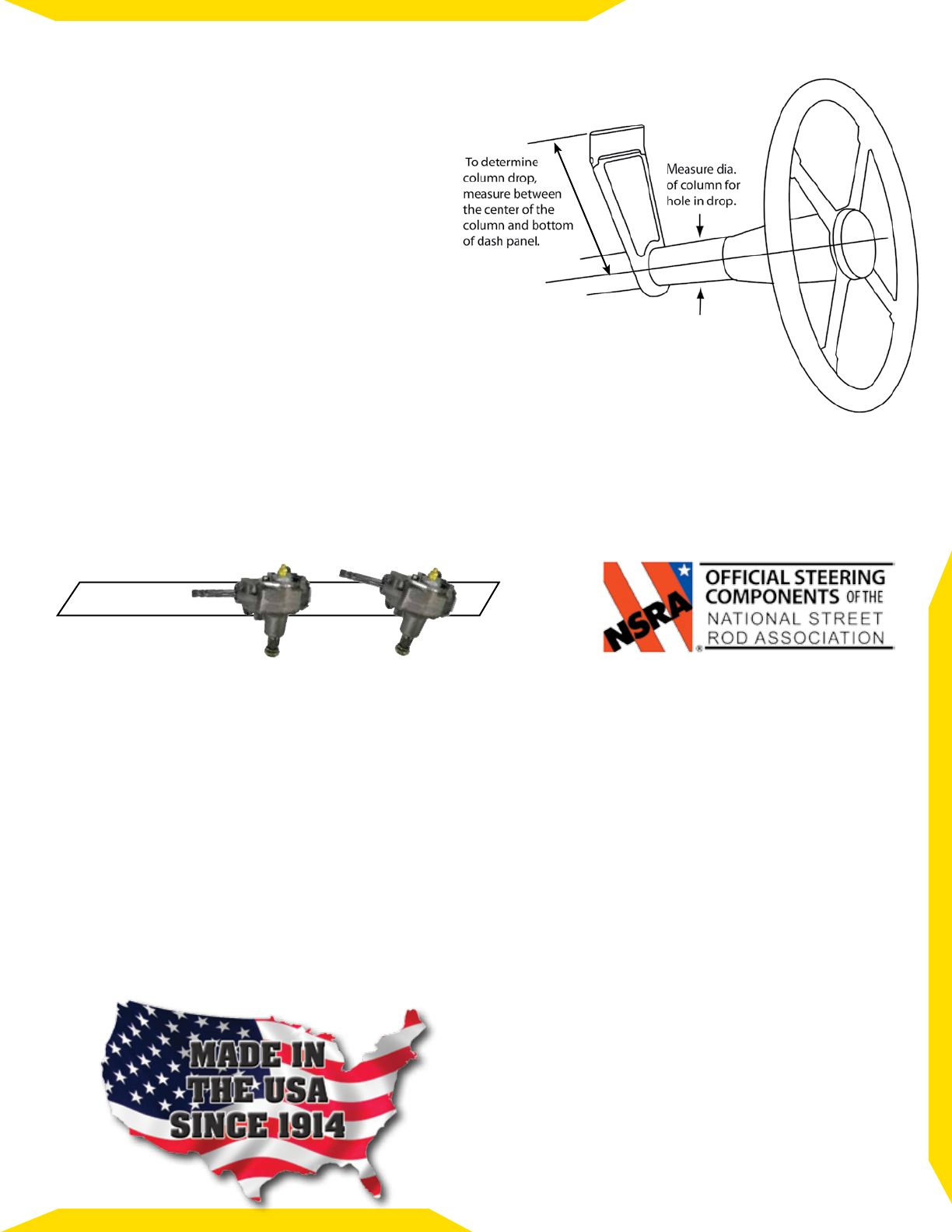

TRADITIONAL STEERING COLUMNS & MOUNTS

Steering Column Drops

Drops are available in three styles and various hole diameters to t

most columns. We machine these from solid billet aluminum. The

adjustable swivel easily accommodates dierent column and dash

angles. Available in 1-3/4”, 2”, 2-1/4” and 2-3/8” diameter holes

and lengths of 2”, 3”, 4”, 5”, 6” and 7”. The 2-3/8” drop has a notch

to clear the wire harness cover on GM columns.

COLUMN FLOOR MOUNT PART #’S

Machined Polished Description

909013 909014 Solid Swivel 1-1/2” Diameter Column

909001 909002 Solid Swivel 1-3/4” Diameter Column

909003 909004 Solid Swivel 2” Diameter Column

909005 909006 Solid Swivel 2-1/4” Diameter Column

909007 909008 Split Swivel 2” Diameter Column

909009 909010 Split Swivel 2-1/4” Diameter Column

Solid or Split Swivel Floor Mounts

Our easy to install, solid full circle design slides over the end of

the steering column. This provides a secure way to mount the

column to the oor. The inner collar pivots to accommodate any

oor angle. Available for 1-1/2”, 1-3/4”, 2” and 2-1/4” columns. A

split design that separates in half to clear the column shift lever

is also available; the split design can be installed on a column

already in the vehicle; available for 2” and 2-1/4” columns. We

manufacture all oor mounts from solid billet aluminum.

Solid Swivel Split Swivel

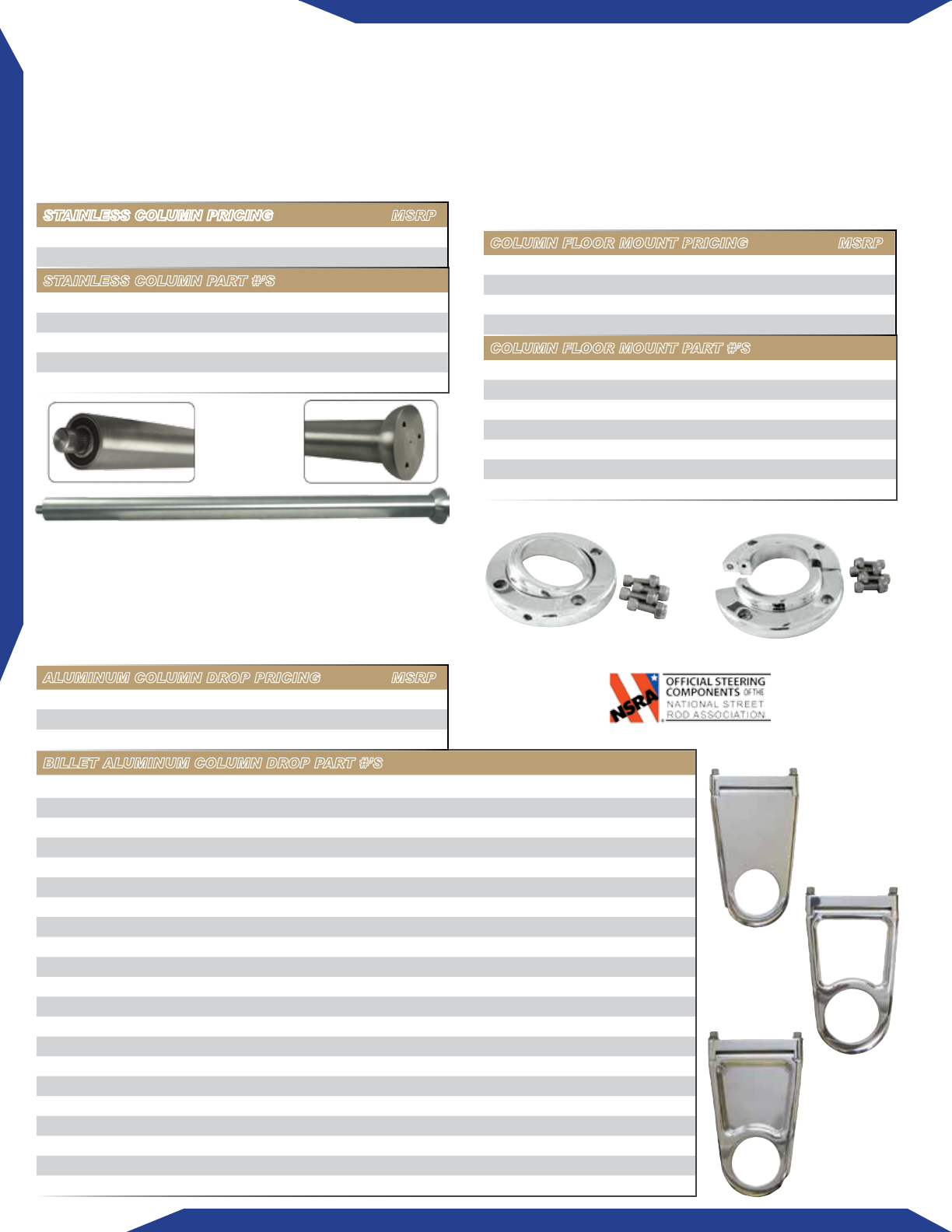

STAINLESS COLUMN PART #’S

Polished Brushed Description

908054 908044 Stainless Steel Economy Column, 18” Length

908051 908041 Stainless Steel Economy Column, 26” Length

908052 908042 Stainless Steel Economy Column, 30” Length

908053 908043 Stainless Steel Economy Column, 34” Length

Economy Stainless Steel Steering Column

Our economy stainless steel steering column is available in a

polished or brushed nish. This column has a 1-3/4” tube with

a 3” bell and will t all standard 3-Bolt steering wheels. It has no

provision for wiring. This column is available in an 18” Shorty

version in addition to 26”, 30”, 34” lengths and has a 3/4”-36

spline shaft.

BILLET ALUMINUM COLUMN DROP PART #’S

Drop Size (Diameter x Length) Solid Matte Solid Polished Open Matte Open Polished Recessed Matte Recessed Polished

1-3/4” Diameter Column x 2” Drop 910172 911172 NA NA NA NA

1-3/4” Diameter Column x 3” Drop 910173 911173 912173 913173 914173 915173

1-3/4” Diameter Column x 4” Drop 910174 911174 912174 913174 914174 915174

1-3/4” Diameter Column x 5” Drop 910175 911175 912175 913175 914175 915175

1-3/4” Diameter Column x 6” Drop 910176 911176 912176 913176 914176 915176

1-3/4” Diameter Column x 7” Drop 910177 911177 912177 913177 914177 915177

2” Diameter Column x 2” Drop 910202 911202 NA NA NA NA

2” Diameter Column x 3” Drop 910203 911203 912203 913203 914203 915203

2” Diameter Column x 4” Drop 910204 911204 912204 913204 914204 915204

2” Diameter Column x 5” Drop 910205 911205 912205 913205 914205 915205

2” Diameter Column x 6” Drop 910206 911206 912206 913206 914206 915206

2” Diameter Column x 7” Drop 910207 911207 912207 913207 914207 915207

2-1/4” Diameter Column x 2” Drop 910222 911222 NA NA NA NA

2-1/4” Diameter Column x 3” Drop 910223 911223 912223 913223 914223 915223

2-1/4” Diameter Column x 4” Drop 910224 911224 912224 913224 914224 915224

2-1/4” Diameter Column x 5” Drop 910225 911225 912225 913225 914225 915225

2-1/4” Diameter Column x 6” Drop 910226 911226 912226 913226 914226 915226

2-1/4” Diameter Column x 7” Drop 910227 911227 912227 913227 914227 915227

2-3/8” Diameter Column x 3”Drop 910233 911233 NA NA NA NA

2-3/8” Diameter Column x 4” Drop 910234 911234 NA NA NA NA

Solid Style

Recessed Style

Open Style

ALUMINUM COLUMN DROP PRICING MSRP

All Blank Style Column Drops $65.86

All Recessed Style Column Drops $96.00

All Open Style Column Drops $96.00

STAINLESS COLUMN PRICING MSRP

All Brushed Finish Stainless Columns $169.00

All Polished Finish Stainless Columns $189.00

COLUMN FLOOR MOUNT PRICING MSRP

Solid Floor Mounts with Machined Finish $54.70

Solid Floor Mounts with Polished Finish $61.40

Split Floor Mounts with Machined Finish $77.02

Split Floor Mounts with Polished Finish $85.96

www.borgeson.com 860.482.8283 fax 860.496.9320

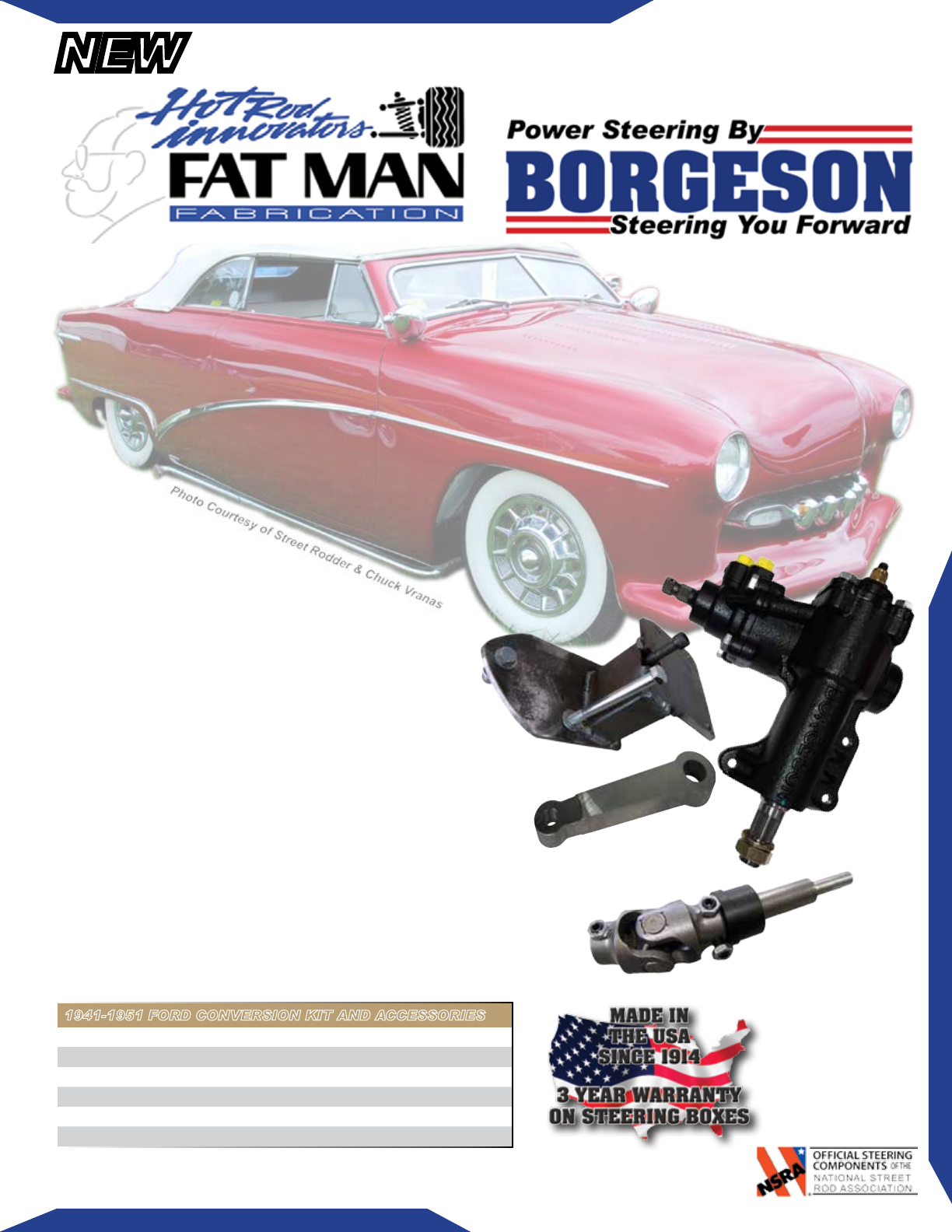

After years of effort, the steering specialists at Fatman Fab and Borgeson

have found an answer to adding power steering to the factory ’49-’51

Ford cars! A special reverse rotation box was the key, with a custom

frame bracket and pitman arm that allow tting to the stock or Fatman’s

Improved Steering Linkage kit. Although this is not recommended for use

with the Flathead engine due to extremely tight exhaust clearance, small

block Ford and Chevy engines will work well with recommended headers.

Optional Column Saver kit will allow preserving the original column.

1949-51 FORD CAR POWER CONVERSION

999062 Power steering conversion kit. Kit consists of

a specially made Borgeson reverse rotation gearbox

in a 14:1 ratio paired with a Fatman Fabrications

custom fabricated bracket and pitman arm. Factory

original steering column can be used with the

conversion but will need to be shortened and

adapted to the steering box. We oer a “Column

Saver Kit” part #990044 for use with a stock column.

Universal joints are available to use with an

aftermarket column of your choice.

1941-1951 FORD CONVERSION KIT AND ACCESSORIES

Part # Description MSRP

999062 Power Conversion Kit for 1949-1951 Ford Cars $935.00

990044 Original Steering Column “Column Saver Kit” $170.00

925108 Hose Kit, Borgeson 800110/800111 Box to Saginaw pump V-8 $75.00

925121 Adapter Set. Adapts Conversion Box to -6AN for Custom Hose Applications $26.00

015225 1” DD X 11/16”-36 Spline Universal Joint for use with Aftermarket Columns $79.71

NEW

990044 Column Saver Kit. This handy kit includes

everything needed to maintain the stock steering

column in your 1949-1951 Ford when installing

the power conversion box. Kit includes weld-on

3/4” DD shaft extension, lower mast jacket bushing,

at washers for shimming and universal joint to

connect to the Borgeson conversion box. Detailed

instructions included for shortening the factory

column.

999062 Conversion Kit

990044 Column Saver Kit

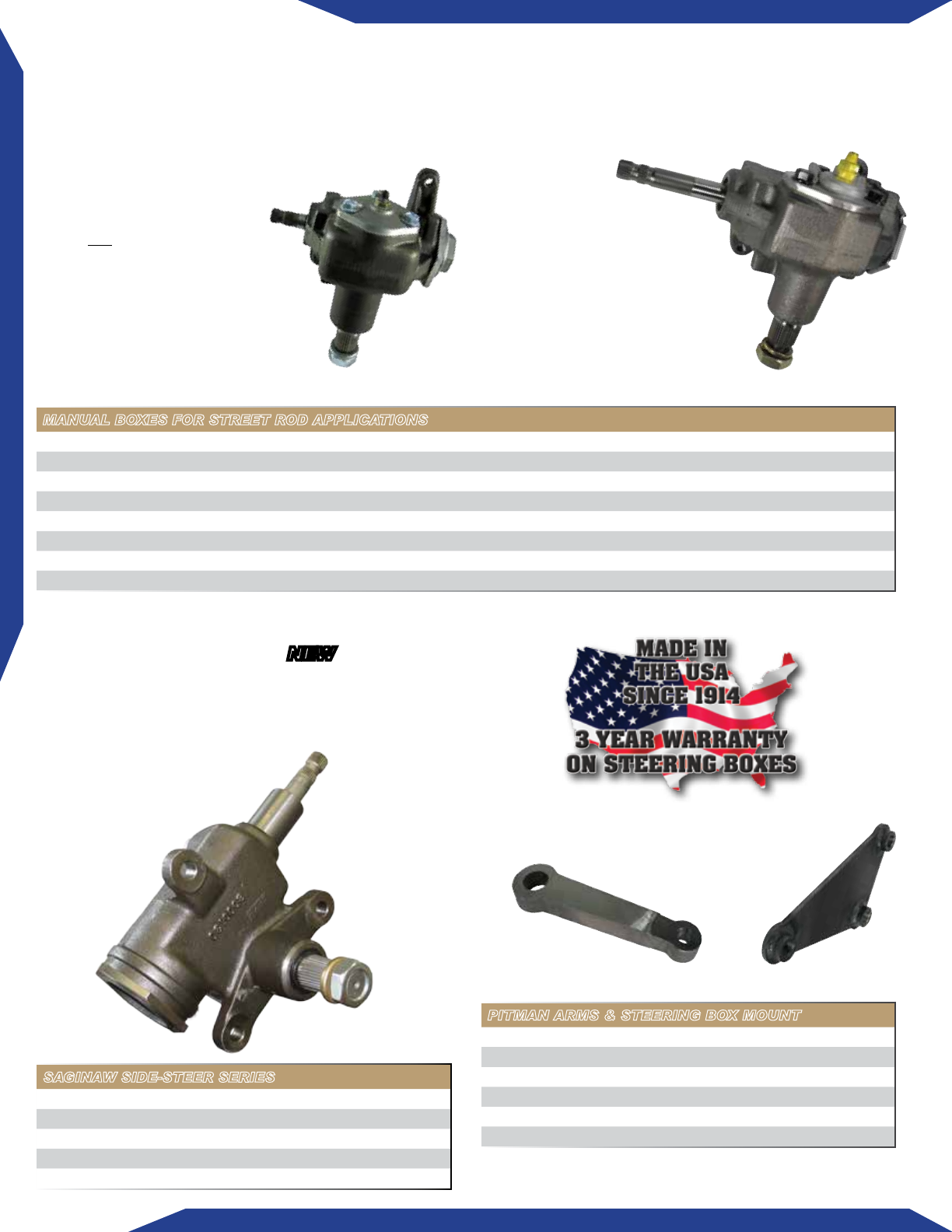

MANUAL BOXES FOR STREET ROD APPLICATIONS

Part # Description MSRP

920004 Brand New OEM Saginaw 140 Vega Steering Box, Made in the USA, Standard 22:1 Ratio with a ⁄-36 Input Spline and a 1”-32 Spline GM Pitman Shaft. $335.00

920007 Brand New Reversed Saginaw 140 Vega Steering Box for Side Steer Applications, Standard 22:1 Ratio with a ⁄-36 Input Spline and a 1”-32 Spline GM Pitman Shaft. $435.00

920010 Brand New OEM Saginaw 525 Steering Box, Made in the USA, Standard 24:1 Ratio with a ¾-30 Input Spline and a 1-⁄”-32 Spline GM Pitman Shaft. $320.00

920009 Brand New Reversed Saginaw 525 Steering Box for Side Steer Applications, Standard 24:1 Ratio with a ¾-30 Input Spline and a 1-⁄”-32 Spline GM Pitman Shaft. $378.44

920040 Brand New OEM Saginaw 525 Steering Box, Made in the USA, Quick 16:1 Ratio with a ¾-36 Input Spline and a 1-⁄”-32 Spline GM Pitman Shaft. $365.00

920030 Brand New OEM Saginaw 525 Steering Box with Shortened Input for Street Rod Applications, 16:1 Quick Ratio with a ¾-36 Input Spline and a 1-⁄”-32 Spline GM Pitman Shaft. $365.00

920011 Brand New OEM 525 Steering Box with Shortened Input for Street Rod Applications, Standard 24:1 Ratio with a ¾-36 Input Spline and a 1-⁄”-32 Spline GM Pitman Shaft. $320.00

STREET ROD MANUAL STEERING BOXES

PITMAN ARMS & STEERING BOX MOUNT

Part Description MSRP

806003 122/525/605 Bendable Steel Flat (6” between centers) $81.20

806008 700/600/530 OEM Arm Cleaned, Inspected and Painted $54.70

806016 122/525/605 Steel, Flat, Bendable (7” between centers) $81.20

806018 700/600/530 Steel, Flat (7” between centers) $81.20

806010 Vega 140 Steel, Flat, Bendable (6” between centers) $81.20

OEM Saginaw Manual Boxes

Borgeson is now the OEM manufacturer and re-manufacturer of Saginaw manual steering gears. Borgeson Saginaw manual steering

boxes are assembled to the same demanding standards as our precision universal joints. Each box is carefully assembled, adjusted

and inspected to our factory specications. Borgeson oers both standard crossover steering boxes or reversed boxes for side steer

applications. These steering boxes are made in the USA and have a 3 year warranty.

#805004 Bracket*

OEM Saginaw 140 Box

This is a real Vega box 100% made

in the USA not a cheap copy.

The Vega 140 is recommended

only for vehicles under 2400 lbs.

Steering ratio is 22:1. Reversed

boxes are also available.

OEM Saginaw 525 Box

New OEM 525 boxes are

available in either standard 24:1

ratio or a quick 16:1 ratio. Boxes

are available with standard

length or shortened input

shafts. Available reversed for

side steer applications.

*All Borgeson 700, 600, 525/122 and Vega steering boxes have the same three bolt

pattern and can use this bracket. Not all steering boxes share the same mount pattern.

OEM Saginaw Side-Steer

This is a brand new manufactured Saginaw 525 series gear

that is designed specically for side-steer applications.

This is a true recirculating ball Saginaw manual steering

box available in two dierent rotations to suit pitman arms

that face either up or down.

NEW

SAGINAW SIDE-STEER SERIES

Part # Description MSRP

920041 16:1 Ratio, Right Turn Makes Upward Facing Arm Pull Back $365.00

920042 16:1 Ratio, Right Turn Makes Upward Facing Arm Push Forward $365.00

920043 24:1 Ratio, Right Turn Makes Upward Facing Arm Pull Back $365.00

920044 24:1 Ratio, Right Turn Makes Upward Facing Arm Push Forward $365.00

#806003 Pitman Arm

GM MUSCLE CAR STEERING

www.borgeson.com 860.482.8283 fax 860.496.9320

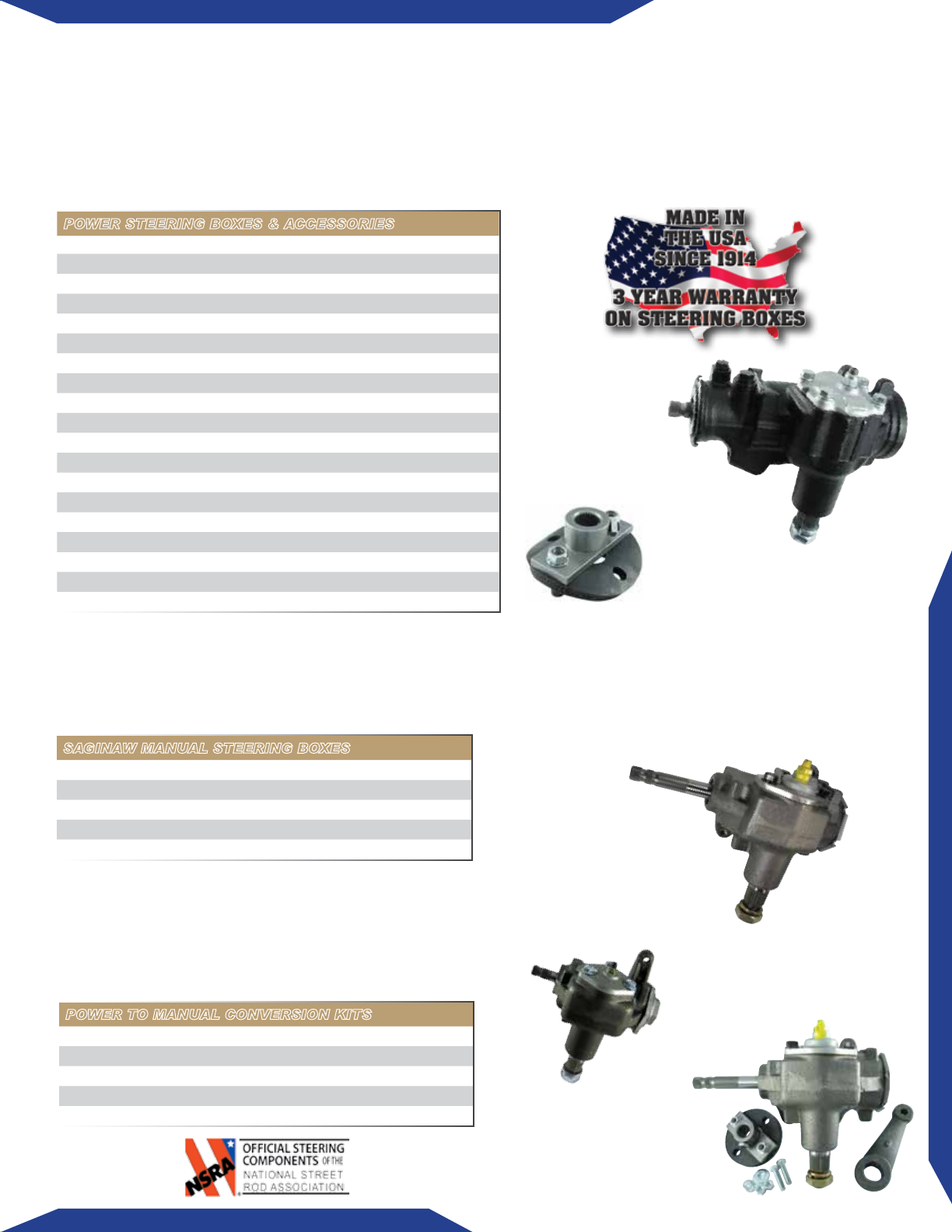

POWER STEERING BOXES & ACCESSORIES

Part # Description MSRP

800220 Remanufactured Delphi 700 Power Steering Box, 12.7:1 Ratio, 3/4-30 Spline $349.00

800221 Remanufactured Delphi 700 Power Steering Box, 14:1 Ratio, 3/4-30 Spline $349.00

800205 Remanufactured Delphi 700 Power Steering Box, Variable Ratio, 3/4-30 Spline $349.00

990012 3/4-30 Spline Rag Joint Coupler $77.02

925103 2 Piece P/S Hose Kit, Rubber, GM Pump to GM Box $65.86

925203 2 Piece P/S Hose Kit, Braided Stainless, GM Pump to GM Box $169.00

800310 GM Power Steering Pump with Keyway, Black $166.34

800311 GM Power Steering Pump with Keyway, Chrome $234.43

802400 P/S Pump Bracket, Steel, SBC/SWP $72.56

802402 P/S Pump Bracket, Steel, SBC/LWP $72.56

802403 P/S Pump Bracket, Steel, BBC/SWP $72.56

802407 P/S Pump Bracket, Steel, BBC/LWP $72.56

801001 P/S Pump Pulley GM 2-Row Keyway Style $58.05

801101 5-3/4” P/S Pump Pulley, Billet Aluminum, 1-Row, Polished $65.86

801102 4-5/8” P/S Pump Pulley, Billet Aluminum, 1-Row, Polished $65.86

801201 5-3/4” P/S Pump Pulley, Billet Aluminum, 1-Row, Machined Finish $54.70

801202 4-5/8” P/S Pump Pulley, Billet Aluminum, 1-Row, Machined Finish $54.70

Power Steering Boxes & Accessories

Borgeson oers the Saginaw/Delphi 700 series in three dierent ratios, 2 xed and one variable. Borgeson utilizes later model

steering gears for more favorable steering feel, ratio and response. The variable ratio oers a quick nal ratio with only 3 turns lock-to-

lock but is not overly sensitive on-center for stable highway driving. The #800205 Variable Ratio 700 gear is an excellent upgrade for

65 and up GM Muscle cars looking to update their steering.

Note: All 1979 and earlier GM cars will require a new or rag joint coupler to use these later model boxes.

GM 700 Power Box

#800205 16:13:1 Variable Ratio

#800220 12.7:1 Ratio

#800221 14:1 Ratio

OEM Saginaw Manual Steering Boxes

Borgeson is now the OEM manufacturer of Saginaw manual steering gears. Borgeson Saginaw manual steering boxes are assembled

to the same demanding standards as our precision u-joints. Each box is carefully assembled, adjusted and inspected to our factory

specications.

SAGINAW MANUAL STEERING BOXES

Part # Description MSRP

920010 New OEM 525 Manual Steering Box, 24:1 Ratio 3/4”-30 Spline $320.00

920040 New OEM Saginaw 525 Steering Box, 16:1 Ratio ¾-36 Spline $365.00

920055 New OEM Saginaw 122 Steering Box,, 24:1 Ratio 3/4”-36 Spline $320.00

920004 New OEM Saginaw 140 Vega Steering Box, 22:1 Ratio ⁄-36 Spline $335.00

POWER TO MANUAL CONVERSION KITS

Part # Description MSRP

999001 1978–1988 Malibu and 1982–1992 Camaro $514.63

999002 1964–1967 Chevelle, 442, GTO $514.63

999003 1970–1981 Camaro and 1975-1979 Nova $514.63

999004 1968–1972 Chevelle, 442, GTO $514.63

Manual Conversion Kit

Power to Manual Conversion Kits

Borgeson gives you a great way to shed up to 28 pounds and

free up some extra horsepower with our complete power to

manual conversion kits. Each direct fit conversion kit includes

a new OEM Saginaw 525 box, pitman arm and half rag joint.

Quick ratio steering boxes are also available.

Saginaw 525/122

Saginaw 140

#990012 Rag Joint Coupler

#800310,#800312,#800327 #800323#800311,#800313 #800324,#800325#800329 #800322,#800326

SAGINAW POWER STEERING PUMPS

Part # Description MSRP

800310 Black Powder Coated Self-Contained Power Steering Pump with Keyway Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $166.34

800311 Chrome Self-Contained Power Steering Pump with Keyway Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $234.43

800312 Black Powder Coated Self-Contained Power Steering Pump with Keyway Shaft for Mustang R&P. Pump Pressure is 950-1050 PSI with a 2.7-3.5 GPM Flow Rate. $166.34

800313 Chrome Self-Contained Power Steering Pump with Keyway Shaft for Mustang R&P. Pump Pressure is 950-1050 PSI with a 2.7-3.5 GPM Flow Rate. $234.43

800322 Black Powder Coated Self-Contained Power Steering Pump with 1 Row Pulley and Press-On Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $216.34

800323 Black Powder Coated Self-Contained P/S Pump with Two Returns for Hydro-Boost, Press-On Shaft. Pump Pressure is 1450-1550 PSI with a 3.0-3.5 GPM Flow Rate. $166.34

800324 Black Powder Coated Self-Contained Power Steering Pump with Keyway Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $166.34

800325 Black Powder Coated Self-Contained Power Steering Pump with Press-On Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $166.34

800326 Black Powder Coated Self-Contained Power Steering Pump with Press-On Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $166.34

800327 Black Powder Coated Self-Contained Power Steering Pump with 1 Row Pulley and Press-On Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $216.34

800329 Black Powder Coated Self-Contained Power Steering Pump with 1 Row Pulley and Press-On Shaft. Pump Pressure is 1200-1350 PSI with a 2.7-3.5 GPM Flow Rate. $216.34

POWER STEERING PUMPS & ACCESSORIES

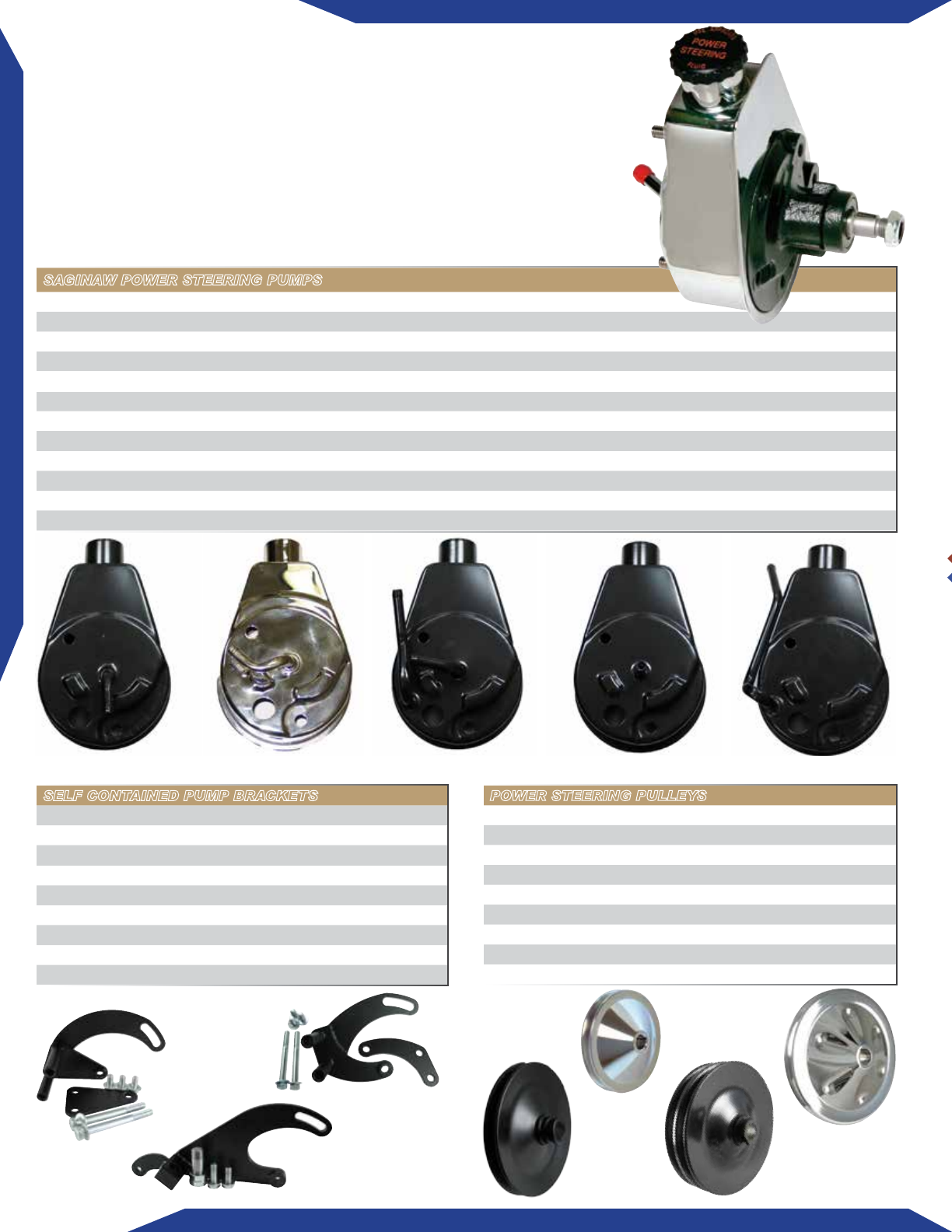

Self Contained Power Steering Pumps, Brackets & Pulleys

These are new manufactured Saginaw style self-contained power steering

pumps made to precise tolerances.. Pumps are available with either a black

powder coated or chrome reservoir. We also oer pumps preset to the lower

operating pressure for Mustang rack and pinions, and pumps with two returns

for Hydro-Boost brake applications. Our pump brackets are all designed for

Saginaw self-contained pumps with two mounting locations on the rear of the

reservoir. Brackets are designed with simplicity and ease of installation in mind.

See photos below for return tube locations.

POWER STEERING PULLEYS

Part # Description MSRP

801001 Steel P/S Pulley, 2-Row with Keyway, Painted Black, 5-3/4” $58.05

801105 Steel P/S Pulley, 1-Row Press-On, Painted Black, 5-3/4” $50.00

801201 Aluminum P/S Pulley, 1-Row with Keyway, 5-3/4” $54.70

801202 Aluminum P/S Pulley, 1-Row with Keyway, 4-5/8” $54.70

801203 Aluminum Type II P/S Pulley, 1-Row Press-on, 4-5/8” $54.70

801101 Polished Aluminum P/S Pulley, 1-Row with Keyway, 5-3/4” $65.86

801102 Polished Aluminum P/S Pulley, 1-Row with Keyway, 4-5/8” $65.86

801103 Polished Aluminum Type II P/S Pulley, 1-Row Press-on, 4-5/8” $65.86

#801001

#802402 SBC/LWP

SELF CONTAINED PUMP BRACKETS

Part # Description MSRP

802400 Self Contained P/S Pump Bracket, SBC/SWP $72.56

802402 Self Contained P/S Pump Bracket, SBC/LWP $72.56

802403 Self Contained P/S Pump Bracket, BBC/SWP $72.56

802407 Self Contained P/S Pump Bracket, BBC/LWP $72.56

802409 Self Contained P/S Pump Bracket, SBF/289/302/351W $72.56

802410 Self Contained P/S Pump Bracket, Ford 200/250 I-6 $72.56

802411 Self Contained P/S Pump Bracket, Ford 292/312 Y Block $128.00

802412 Self Contained P/S Pump Bracket, Mopar 318/340/360 $72.56

#802411 Y-Block

#801105

#801102,#801103

#801201,#801101

#802400 SBC/SWP

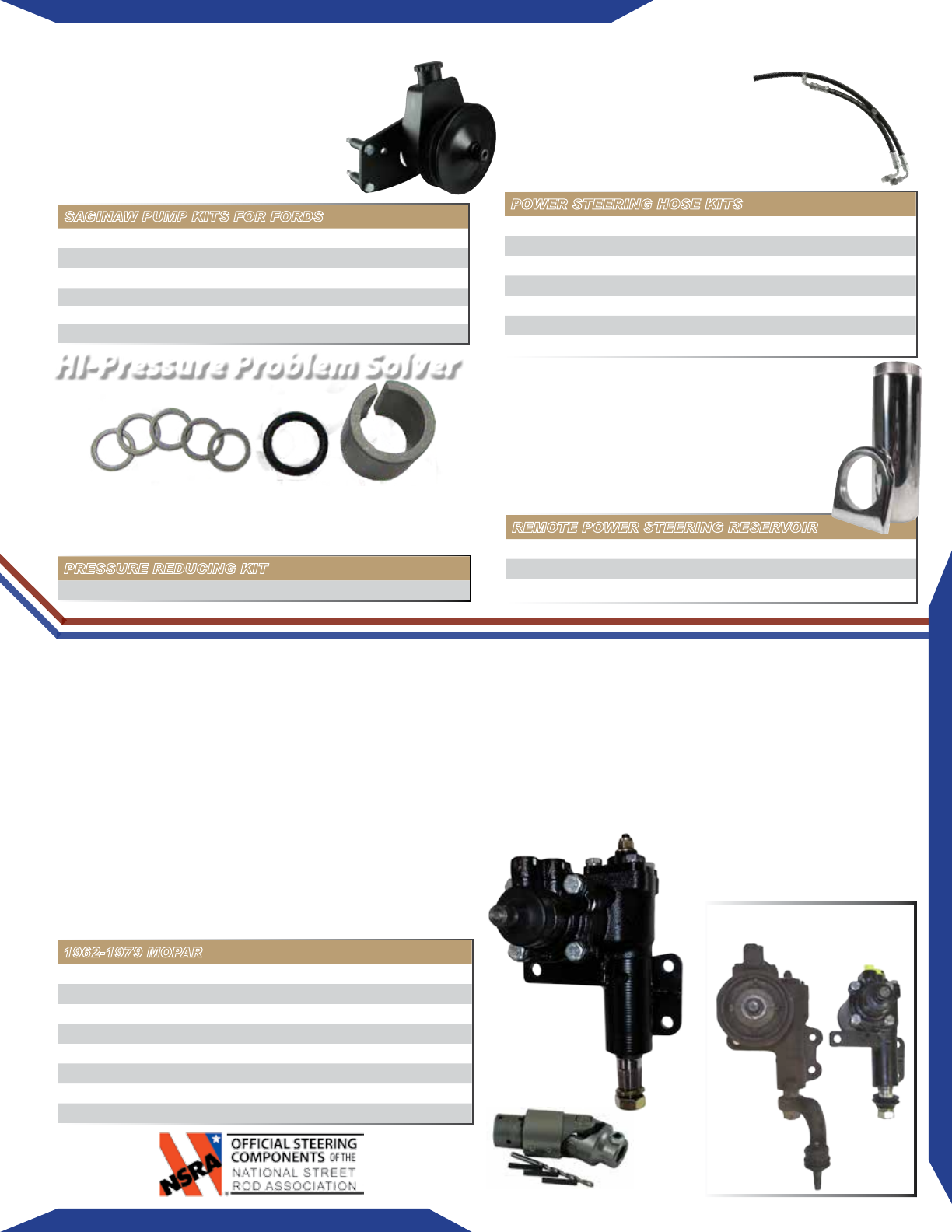

POWER STEERING HOSE KITS

Part # Description MSRP

925101 Rubber Hose Kit, 2-Piece, GM Pump to ‘74-’78 Mustang Rack $65.86

925102 Rubber Hose Kit, 2-Piece, GM Pump to ‘79-’97 Mustang Rack $75.00

925103 Rubber Hose Kit, 2-Piece, GM Pump to GM Box $65.86

925201 Stainless Steel Hose Kit, 2-Piece, GM Pump to ‘74-’78 Mustang Rack $169.00

925202 Stainless Steel Hose Kit, 2-Piece, GM Pump to ‘79-’97 Mustang Rack $169.00

925203 Stainless Steel Hose Kit, 2-Piece, GM Pump to GM Box $169.00

Power Steering Hose Kits

We have rubber and stainless steel hoses

for many popular applications. The braided

stainless steel hose kits use a high pressure

Teon lined hose and will require nal

cutting and assembly.

REMOTE POWER STEERING RESERVOIR

Part # Description MSRP

800600 Remote reservoir with bracket, Polished $132.84

800601 Remote reservoir with bracket, Unpolished $110.52

Remote Power Steering Reservoirs

Our billet aluminum power steering reservoir is

available in either a polished or unpolished nish.

The reservoir has an internal bae plate and

includes an O-Ring sealed cap and mounting

bracket. It uses standard NPT ttings.

Mopar Quick Ratio Modern Power Steering Conversion

Borgeson has developed a modern quick ratio power steering box for the 62-79 Mopar cars. This modern power steering box bolts

directly to the stock k-frame and ts to your stock pitman arm. The Borgeson quick ratio power steering box oers a 14:1 ratio with

only 3.5 turns lock-to-lock, 10lb. weight savings over a stock power box (23lbs. vs. 33lbs), increased exhaust clearance and a tight

modern feel to the steering. The Borgeson conversion box can be used in both factory manual and power steering applications.

This box is oered in both 1-1/8” and 1-1/4” pitman shaft sizes. Be sure to measure to insure you receive the correct box.

PRESSURE REDUCING KIT

899001 Pressure Reducing Kit for Self Contained and GM Type II Pumps $17.86

Pressure Reducing Kit

This kit contains tools, parts and instructions to reduce the

pressure of GM pumps to operate rack & pinions or to increase

steering “feel”. Fits both Self-Contained & Remote Reservoir Type II pumps.

www.borgeson.com 860.482.8283 fax 860.496.9320

Hi-Pressure Problem Solver

1962-1979 MOPAR

Power Conversion Box & Components MSRP

800126 Power Steering Conversion Box 62-79 Mopar 1-1/8” Sector Shaft $629.00

800127 Power Steering Conversion Box 62-79 Mopar 1-1/4” Sector Shaft $629.00

036425 Steering Column Adapter for Factory Columns $130.00

925121 Fitting Adapter Set, Adapts Conversion Box to -6AN Fitting $26.00

925113 Power Steering Hose Kit, Saginaw Pump to Mopar Conversion Box $75.00

802412 Self Contained P/S Pump Bracket, Mopar 318/340/360 $72.56

800322 New Mopar Saginaw Style P/S Pump, Press-On style with Pulley $216.34

Saginaw Pump Kits for Fords

Borgeson manufactures Saginaw self

contained power steering pump kits for

popular Ford applications. Kits include new

Saginaw style self-contained pump with

new powder coated reservoir, cap, 1- row

pulley and bracket.

SAGINAW PUMP KITS FOR FORDS

Part # Description MSRP

800330 Saginaw Pump Kit for Ford 289/302/351W $295.00

800334 Saginaw Pump Kit for Ford 200/250 In-Line 6 Cylinder $295.00

800336 Saginaw Pump Kit for Ford FE 390/428 $295.00

800335 Saginaw Pump Kit for Ford 292/312 Y-Block $344.00

801150 2 Row Aluminum add on crank pulley for Y-Block $149.00

1962-79 MOPAR

POWER STEERING PUMPS & ACCESSORIES

#800126 Power Box

Steering Column Modications

The original steering column shaft will need to be cut and

shortened for installation. Connection to the box is then made

by drilling and pinning our #036425 Mopar vibration reducing

universal joint coupling to the shortened steering column shaft.

Drill bit and pins included with coupler.

#036425 Coupler

Stock Power #800126 Box

Power Box Size Comparison

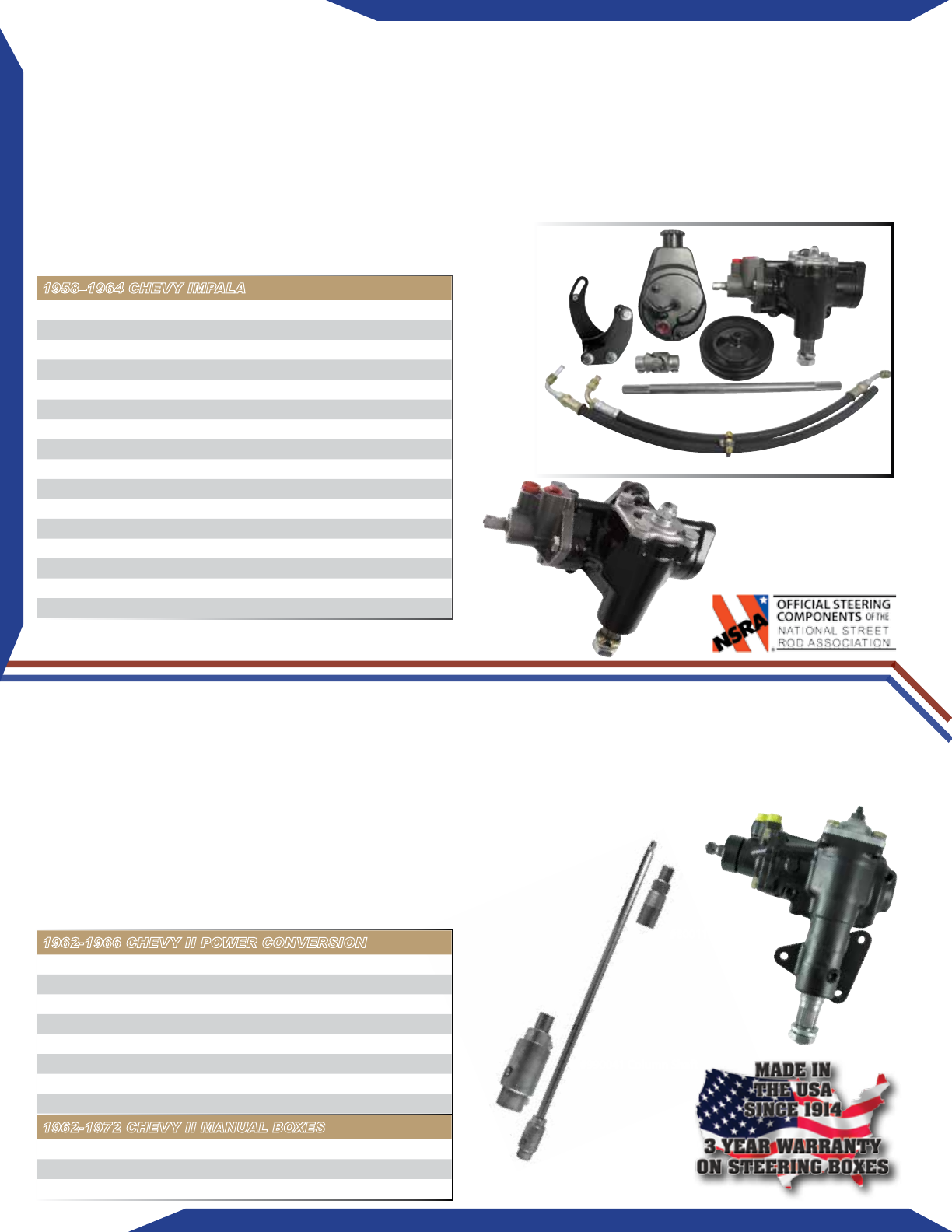

1958–1964 CHEVY IMPALA

Part # Description MSRP

Power Steering Conversion Box & Accessories

800106 58-64 Chevy Remanufactured Delphi 600, Power Conversion Box $409.00

990007 58-64 Chevy Drag Link Adapter for cars with factory power steering $109.00

013446 Universal Joint, 3/4”-36 X 17MM DD For connection to power box $79.71

409216 Steering Shaft, 3/4”-36 Spline connects 013446 Joint to stock column $35.16

925103 2 Piece Rubber P/S Hose Kit, GM Pump to GM Box $65.86

800310 GM Power Steering Pump with Keyway $166.34

801001 P/S Pump Pulley GM 2-Row Keyway Style 5-3/4” Diameter Steel $58.05

801202 P/S Pump Pulley 1-Row Keyway Style 4-5/8” Diameter Aluminum $54.70

802400 P/S Pump Bracket, Steel, SBC/SWP $72.56

802402 P/S Pump Bracket, Steel, SBC/LWP $72.56

802403 P/S Pump Bracket, Steel, BBC/SWP $72.56

Complete Power Steering Conversion Kits

999014 58-64 Power Conversion Kit. SBC/SWP, Stock Column $876.77

999015 58-64 Power Conversion Kit. Box, Joint and Shaft Only $523.87

Modern Power Steering Conversion

Borgeson now oers a modern integral power steering conversion for your 1958-1964 full size Chevy. The Borgeson conversion box is

a remanufactured GM Delphi 600 integral power steering gearbox. The Delphi 600 represents the latest generation of integral power

steering gearbox technology with true modern power steering feel, feedback and a quick 14:1 ratio.

Borgeson has remanufactured this box to bolt directly to the factory mounting location and to t the stock pitman arm. This box has

been positioned to clear the larger four core radiators. The idler arm will need to be rotated to match the new angle of the steering

box. A new universal joint and steering shaft will be required for connection to the stock column. Cars with factory power steering

will require a drag link adapter or a manual center link.

348/409 Applications will require use of a remote style power steering pump.

1958–64 CHEVY CAR

ididit Direct Replacement Columns Available

#999014 Conversion Kit

Power Conversion Box

1962-1972 CHEVY II MANUAL BOXES

Part # Description MSRP

920055 68-72 Chevy II, OEM Original Replacement $320.00

920040 68-72 Chevy II, Quick Ratio 16:1, Direct Replacement $365.00

1962-1966 CHEVY II POWER CONVERSION

Part# Description MSRP

800117 Power Steering Conversion Box, 62-66 Chevy II Nova $549.00

990041 Steering Column Shaft for Power Conversion 62-66 Chevy II Nova $112.92

800310 New Saginaw Style P/S Pump with Keyway $166.34

802400 Self Contained P/S Pump Bracket, SBC/SWP $72.56

801001 Steel P/S Pulley, 2-Row with Keyway, Painted Black, 5-3/4” $58.05

925108 P/S Hose Kit, Rubber, Conversion box to Saginaw pump V-8 $75.00

990005 62-66 Nova Manual Drag Link Adapter for cars with factory P/S $109.00

1962-1966 Modern Power Steering Conversion (Floor Shift Only)

Borgeson oers a modern quick ratio power steering conversion box for your 1962-1966 Chevy II Nova. Borgeson has

remanufactured this box to bolt directly to the factory mounting location and to t the stock steering linkage without any

interference or modication of the frame or shock tower. The original factory column will need to be shortened for clearance of the

power steering box. Cars with factory power steering will require either a drag link adapter or a manual steering center link.

IMPORTANT INSTALLATION NOTES:

• Power conversion box is intended for use with stock steering columns only.

• Floor Shift Only. Any stock column can be modied to t, however column shift

is not possible with added length of steering box.

• Borgeson vibration reducing column shaft #990041 is recommended for installation.

1962–72 CHEVY II

#800117 Conversion Box

#990041 Column Shaft

1955–57 CHEVY CAR

Saginaw Manual Box Rebuild Kits

These major rebuild kits include all necessary components to

completely rebuild your original Tri-5 manual steering box. Kits are

available in two dierent ratios with your choice of original long

input shaft or a shortened input shaft for use with aftermarket

steering columns. Will require some specialty tools. Instructions

included.

Modern Power Steering Conversion

Borgeson oers an integral power steering conversion for your 1955-1957 Chevy. The Borgeson conversion box is a remanufactured

GM Delphi 600 integral power steering gearbox. The Delphi 600 represents the latest generation of integral power steering gearbox

technology with true modern power steering feel, feedback and a sporty 12.7:1 ratio. Borgeson has remanufactured this box to bolt

directly to the factory mounting location and to t the stock pitman arm. Conversion requires shortening the stock steering column.

(Details below)

Cars with factory power steering will require drag link adapter #990001 or manual steering linkage.

STEERING COLUMN MODIFICATIONS

Floor shift cars with stock column will need to trim the outer column tube back to the rewall. Replacement steering column shaft

#990008 can then be used with rag joint #055034 to connect to the conversion box.

Column shift cars with stock column will require extensive modications and sectioning. We have available pre shortened stock

columns for the 55-56 and 57 cars. Shortened stock columns require rag joint #055049 to connect to the conversion box.

Aftermarket columns. The available direct replacement aftermarket columns are the proper length to use with our box and will

connect with either rag joint #055034 or 055052 depending on the column shaft. ididit Direct Replacement Columns Available.

#909012 Deluxe

Floor Mount

#990001 Drag Link

Adapter

#999005 Conversion Kit.

www.borgeson.com 860.482.8283 fax 860.496.9320

#909017 Economy

Floor Mount

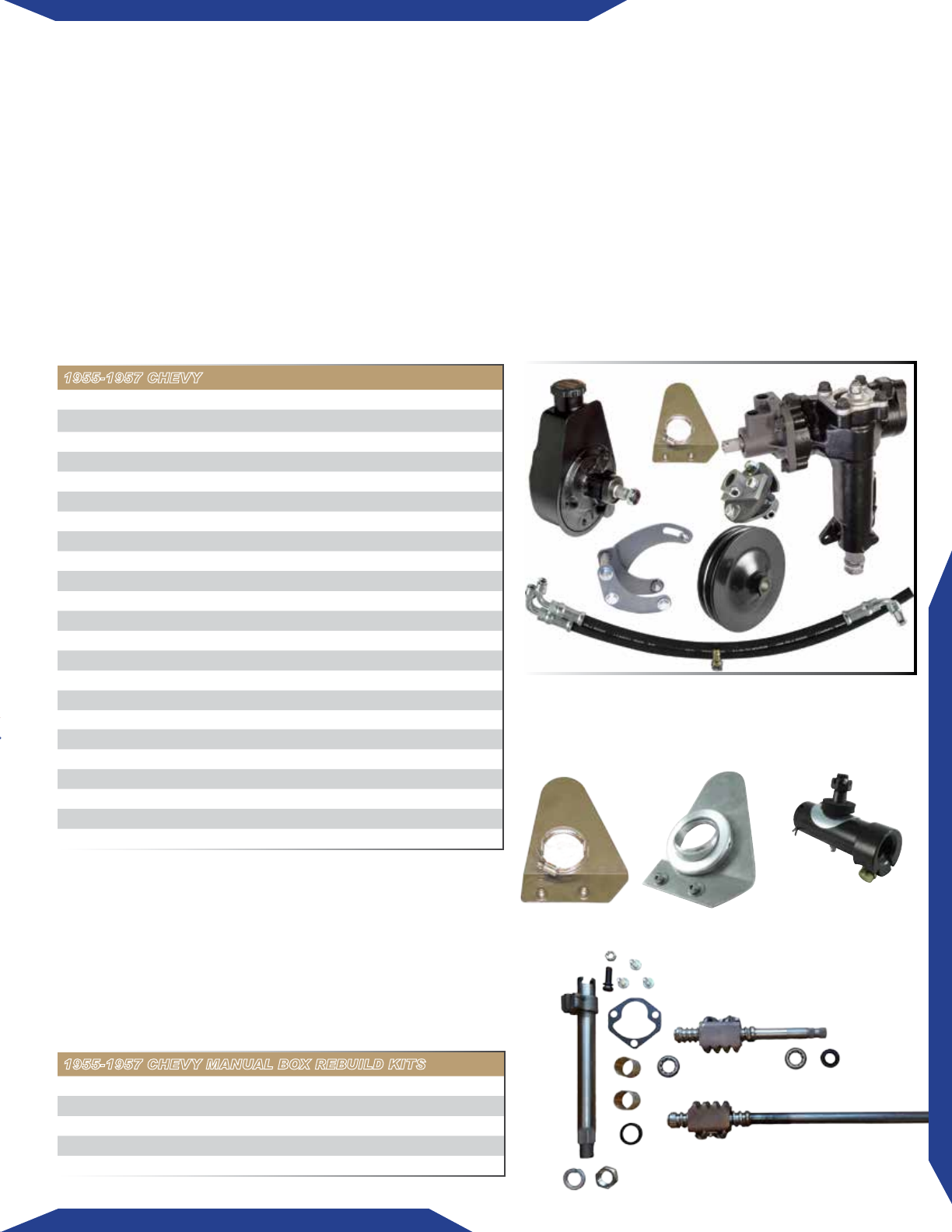

1955-1957 CHEVY

Part # Description MSRP

Column Floor Mounts & Column Shaft

909011 55-57 Chevy Deluxe Floor Mount for 2” Column $79.00

909012 55-57 Chevy Deluxe Floor Mount Polished for 2” Column $88.00

909017 55-57 Chevy Economy Floor Mount for 2” Column $22.00

990008 Replacement Column Shaft for 55-57 Chevy Fits stock wheel, 3/4”-36 Splined $39.07

Power Steering Conversion Box & Accessories

800105 55-57 Chevy Delphi 600 Gear Power Steering Conversion Box $459.00

990001 55-57 Chevy Manual Drag Link Adapter for cars with factory power steering $109.00

055034 Rag Joint, 18MM-DD X 3/4-36, Power Box to 3/4”-36 Spline column $111.28

055052 Rag Joint, 18MM-DD X 1”-DD, Power Box to 1”-DD column $111.28

925103 2 Piece Rubber P/S Hose Kit, GM Pump to GM Box $65.86

800310 GM Power Steering Pump with Keyway $166.34

801001 P/S Pump Pulley GM 2-Row Keyway Style $58.02

802404 P/S Pump Bracket for 55-57 Chevy with Front Motor Mounts $80.00

802400 P/S Pump Bracket, Steel, SBC/SWP $72.56

802402 P/S Pump Bracket, Steel, SBC/LWP $72.56

Complete Power Steering Conversion Kits

999009 55-57 Power Conversion Kit. SBC, Front Motor Mounts, 3/4”-36 Column $991.00

999010 55-57 Power Conversion Kit. SBC, Front Motor Mounts, 1”-DD Column $991.00

999005 55-57 Power Conversion Kit. SBC/SWP, 3/4”-36 Column $983.00

999006 55-57 Power Conversion Kit. SBC/SWP, 1”-DD Column $983.00

999008 55-57 Power Conversion Kit. SBC/LWP, 1”-DD Column $983.00

1955-1957 CHEVY MANUAL BOX REBUILD KITS

Part # Description MSRP

921012 55-57 Chevy, Manual Rebuild Kit, 24:1 Ratio, Long Input $380.41

921013 55-57 Chevy, Manual Rebuild Kit, 16:1 Ratio, Long Input $603.68

921014 55-57 Chevy, Manual Rebuild Kit, 24:1 Ratio 3/4-30 Spline, Short Input $380.41

921015 55-57 Chevy, Manual Rebuild Kit, 16:1 Ratio 3/4-36 Spline, Short Input $603.68

Manual SteeringBox

Rebuld Kits

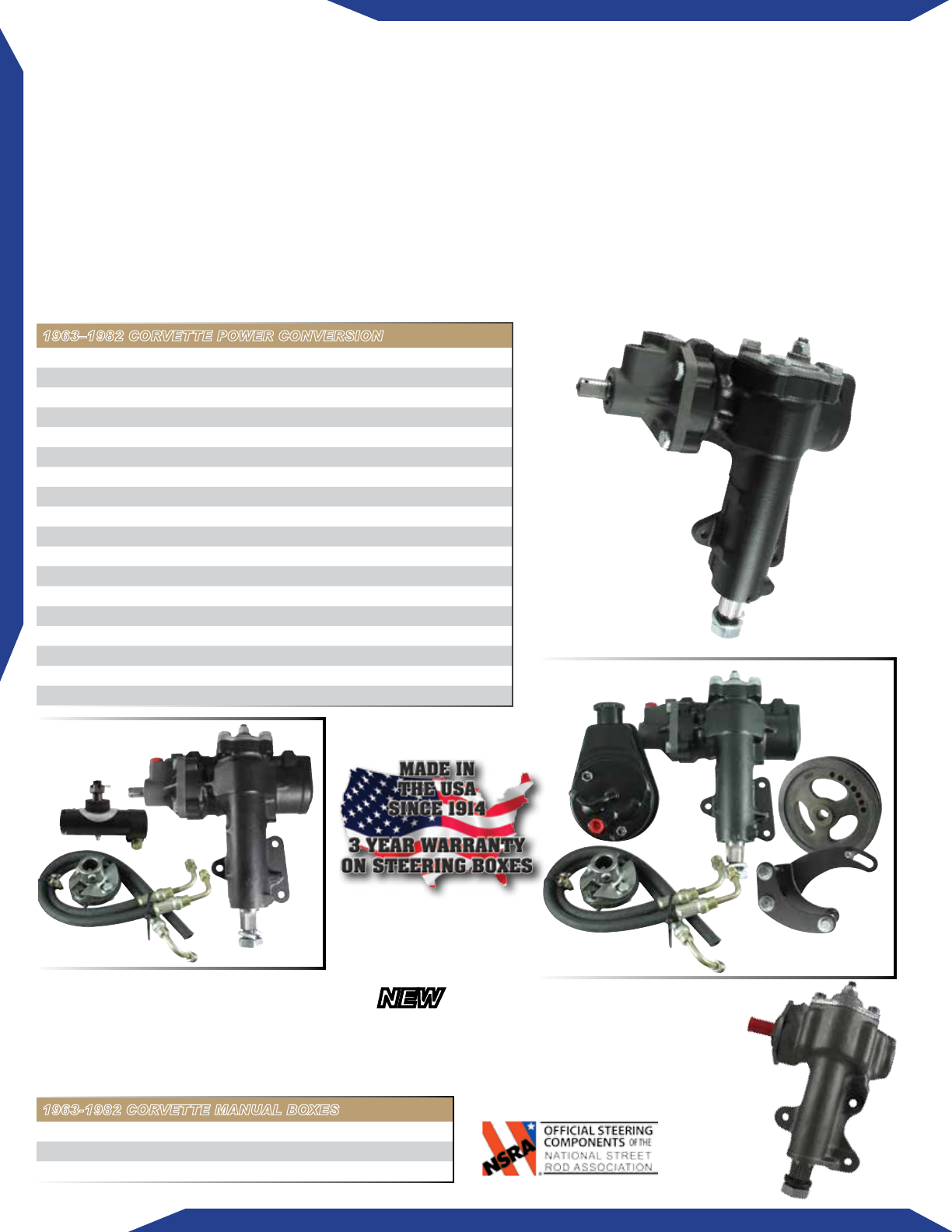

1963–1982 CORVETTE POWER CONVERSION

Part # Description MSRP

Power Steering Conversion Box & Accessories

800108 63-82 Corvette Delphi 600 Gear Power Steering Conversion Box $459.00

990002 63-82 Corvette Manual Drag Link Adapter for cars with factory power steering $109.00

055034 Rag Joint 18MM-DD X 3/4-36 for connection of Box to 3/4”-36 Spline column $111.28

055043 Rag Joint 18MM-DD X 1”-48 for connection of Box to 1”-48 Spline column $111.28

925103 2 Piece Rubber P/S Hose Kit, GM Pump to GM Box $65.86

925203 2 Piece Stainless P/S Hose Kit, GM Pump to GM Box $169.00

800310 GM Power Steering Pump with Keyway, Painted Black $166.34

800311 GM Power Steering Pump with Keyway, Chrome $234.43

801005 Corvette P/S Pump Pulley, 2-Row Keyway Style $109.99

802400 P/S Pump Bracket, Steel, SBC/SWP $72.56

802408 Corvette P/S Pump Bracket, Steel, BBC/SWP $208.96

Complete Power Steering Conversion Kits

999016 63–66 Power Conversion Kit SBC/SWP, Manual Steering, Stock Column $985.00

999017 67–82 Power Conversion Kit SBC/SWP, Manual Steering, Stock Column $985.00

999031 63–66 Power Conversion Kit for cars with factory P/S $745.00

999032 67–82 Power Conversion Kit for cars with factory P/S $745.00

1963–82 CORVETTE

OEM Corvette Manual Steering Boxes

Borgeson is now the OEM manufacturer and re-manufacturer of Saginaw manual steering gears for the

1963-1982 Corvettes. Borgeson has both new OEM boxes and OEM remanufactured. Borgeson steering

boxes are assembled to the same demanding standards as our precision u-joints. Each box is carefully

assembled, adjusted and inspected to our factory specications.

Corvette Modern Power Steering Conversion

Borgeson oers a modern integral power steering conversion for your 1963-1982 classic Corvette. The Borgeson conversion box is a

remanufactured GM Delphi 600 integral power steering gearbox. The Delphi 600 represents the latest generation of integral power

steering gearbox technology with true modern power steering feel, feedback and a sporty 12.7:1 ratio. Borgeson has remanufactured

this box to bolt directly to the factory mounting location and to t the stock pitman arm. The factory column will need to be

collapsed or shortened approximately 2.5” for clearance of conversion box. (Details below)

Cars with factory power steering will require drag link adapter #990002 or manual steering linkage.

STEERING COLUMN MODIFICATIONS

1963-1966 Cars will need to trim approximately 2.5” o the splined steering column shaft for installation. Conversion box will then

connect to the stock column with rag joint #055034 (Must leave 3/4” of spline to properly engage the rag joint)

1967-1982 Cars have a factory collapsible steering column. Gently tap on the spline column shaft with a rubber mallet to collapse the

shaft in on itself for the needed 2.5” of clearance. Conversion box will then connect to column with rag joint #055043.

#999016 Conversion Kit

NEW

1963-1982 CORVETTE MANUAL BOXES

Part # Description MSRP

920038 68-82 Corvette, New OEM Manual Steering Box, 3/4-30 Spline $395.00

920039 63-67 Corvette, New OEM Manual Steering Box, 3/4-36 Spline $395.00

#999032 Conversion Kit

#800108 Conversion Box

#920038 Manual Box

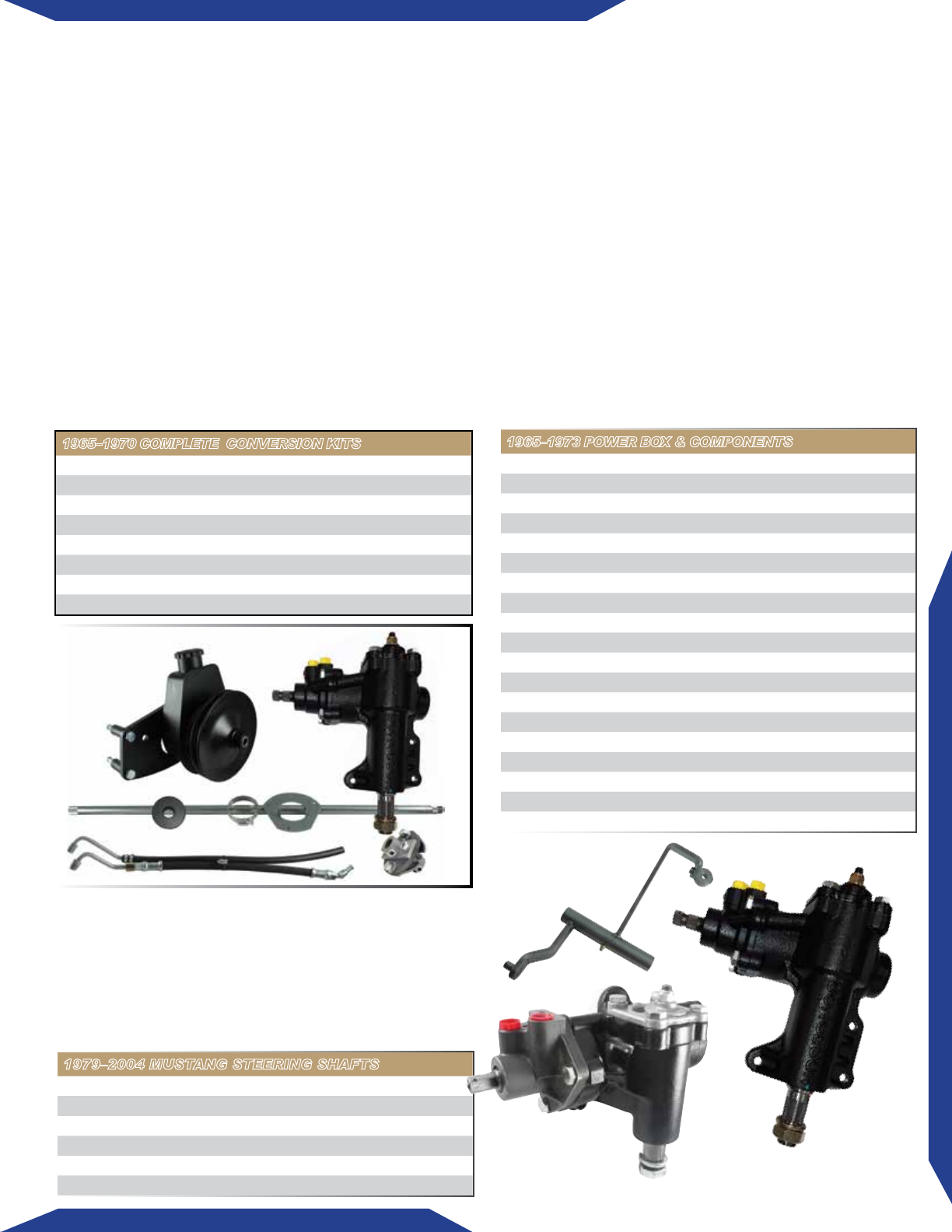

1979–2004 MUSTANG STEERING SHAFTS

Manual Power Description MSRP

000655 000656 79–93 Steel without Vibration Reducer $189.00

000657 000658 79–93 Steel, with Vibration Reducer $225.00

000662 000663 79–93 Aluminum, without Vibration Reducer $209.00

N/A 000650 94–04 Rack to OEM Column without Vibration Reducer $323.51

N/A 000651 94–04 Rack to OEM Column with Vibration Reducer $359.85

1965–04 MUSTANG

1979–2004 Mustang Steering Shafts

Borgeson makes direct replacement steering assemblies for 79-

04 Mustangs. The factory rag joint is eliminated in all assemblies

giving additional header clearance. Available with or without

vibration reducers. Our precision needle bearing u-joints give a

great positive feel to the steering.

1965-1970 Power Steering Conversions

Borgeson oers modern integral power steering conversions for 1965-1970 classic Mustangs. The Borgeson conversion box is a new

manufactured modern integral power steering gearbox. The Borgeson integral power steering gearbox provides true modern power

steering feel, feedback and a quick 14:1 ratio. Borgeson has manufactured this box to bolt directly to the factory mounting location

and to t the stock pitman arm. The column will need to be collapsed or shortened for clearance of conversion box. (Details below)

Factory power steering cars will require either manual drag link #990050 or drag link adapter #990003

NOTE: 1967 Mustang owners must measure the sector shaft to see if it is 1” or 1–1/8” prior to purchase.

NOTE: Power conversion box will not t with factory Z-Bar clutch linkage.

STEERING COLUMN MODIFICATIONS

1965-1967 Cars will need to trim the outer column tube for clearance of the rag joint and use replacement inner column shaft

#990040. Conversion box will then connect to the stock column with rag joint #052534

1968-1970 Cars have a factory collapsible steering column. Gently tap on the rag joint ange with a rubber mallet to collapse the

shaft in on itself for the needed clearance. Conversion box will then connect to column with half rag joint #990016.

1971-1973 Power Steering Upgrade

Borgeson now oers a modern Delphi 600 series power steering upgrade for the 1971-1973 classic Mustangs. The Borgeson upgrade

is a remanufactured modern Delphi 600 series power steering gearbox with true modern power steering feel, feedback and a quick

14:1 ratio. Installation requires our #990018 rag joint connector and either #925118 or 925119 power steering hose kit.

#999020 Conversion Kit

www.borgeson.com 860.482.8283 fax 860.496.9320

1965–1973 POWER BOX & COMPONENTS

Part# Description MSRP

800110 Power Steering Conversion Box with 1” Sector Shaft , ‘65-’67 $549.00

800111 Power Steering Conversion Box with 1-1/8” Sector Shaft, ‘67-’70 $549.00

800128 Power Steering Upgrade Box for 1971-1973 Mustangs $429.00

990040 65–67 Replacement Column Shaft with Floor mount $54.00

052534 Complete Rag Joint for 65–67 Mustang with Conversion Box $111.28

990016 1/2 Rag Joint for 68–70 Mustang with Conversion Box $77.02

990018 1/2 Rag Joint for 71-73 Mustangs with Upgrade Box $77.02

925107 Hose Kit, Borgeson 800110/800111 Box to Ford Pump V-8 $75.00

925108 Hose Kit, Borgeson 800110/800111 Box to Saginaw pump V-8 $75.00

925109 Hose Kit, Borgeson 800110/800111 Box to Ford Pump I-6 $75.00

925110 Hose Kit, Borgeson 800110/800111 Box to Saginaw Pump I-6 $75.00

925118 Hose Kit, Borgeson 800128 Box to Ford Pump V-8 $75.00

925119 Hose Kit, Borgeson 800128 Box to Saginaw Pump V-8 $75.00

990051 65-66 Clutch Z-Bar to clear power conversion box 289/302/351 W $79.00

800330 289/302/351W P/S Pump upgrade includes: pump, bracket & pulley $295.00

800336 390/428 FE P/S Pump upgrade includes: pump, bracket & pulley $295.00

800334 200/250 I-6 P/S Pump upgrade includes: pump, bracket & pulley $295.00

990003 67–70 Mustang Drag Link Adapter, Replaces Control Valve $159.00

1965–1970 COMPLETE CONVERSION KITS

Part # Description MSRP

999020 1965–66 Mustang with Manual Steering and 289/302/351 W $1084.28

999021 1968–70 Mustang with Manual Steering and 289/302/351 W $996.02

999023 1965–66 Mustang with Power Steering and V-8 $898.28

999024 1968–70 Mustang with Power Steering V-8 $860.02

999025 1968–70 Mustang with Power Steering I-6 $860.02

999026 1965–66 Mustang with Manual Steering and 200/250 I-6 $1084.28

999027 1968–70 Mustang with Manual Steering and 22/250 I-6 $996.02

#800110 Power

Conversion Box

#990051 Manual

Clutch Linkage

#800128 Power

Upgrade Box

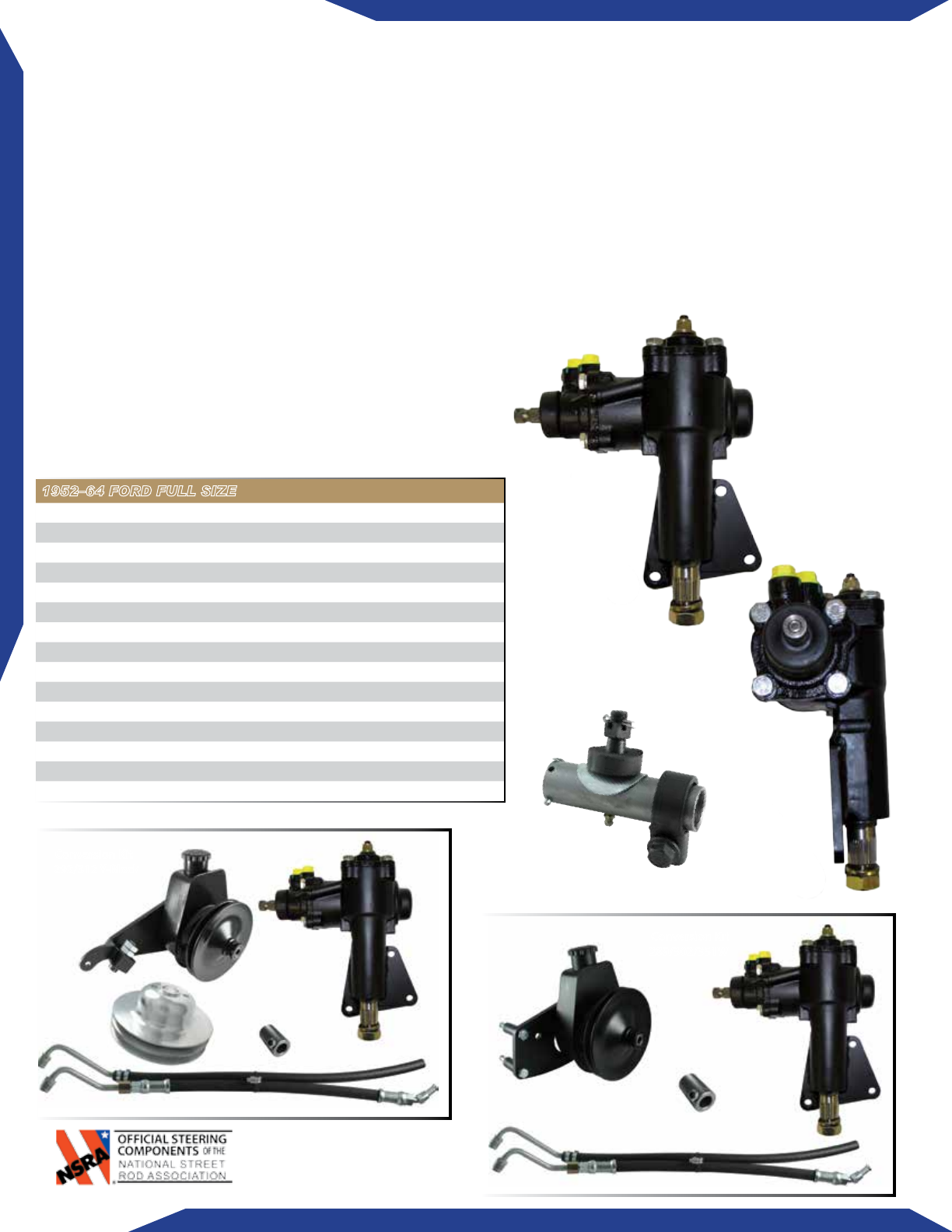

1952–64 FORD FULL SIZE CAR

Modern Power Steering Conversion

1952–64 FORD FULL SIZE

Part# Description MSRP

800115 Ford Full Sized Power Conversion Box $609.00

CALL Complete Conversion Kit, Full Size Ford with Manual Steering, 292/312 Y-Block Only $1,197.52

CALL Complete Conversion Kit, Full Size Ford with Manual Steering, 289/302/351W Only $999.52

800335 P/S Pump Upgrade, 292/312 Y-Block, Includes Pump, Bracket and Pulley $344.00

800330 P/S Pump Upgrade, 289/302/351W, Includes Pump, Bracket and Pulley $295.00

800336 P/S Pump Upgrade, FE390/428, Includes Pump, Bracket and Pulley $295.00

925108 Power Steering Hose Kit, 2-Pc Rubber, GM Pump to Conversion Box V-8 Only $75.00

925121 Steering Box Hose Adapter Set-6AN (Required for custom hose applications) $26.00

801150 2-Row Add-On Crank Pulley, Adds 2nd Row for P/S on 292/312 Y-Block $149.00

990004 Manual Drag Link Adapter for 1961-1964 Full Sized Ford Only $159.00

802409 Power Steering Pump Bracket, Steel, Ford 289/302/351W, Saginaw Style Pump $72.56

802411 Power Steering Pump Bracket, Steel, Ford 292/312 Y-Block, Saginaw Style Pump $128.00

052549 Rag Joint Coupler ⁄”-36 x ¾”-DD $111.28

312500 Steel Coupler ⁄”-36 x ¾” Smooth $20.52

Borgeson has developed an integral power steering conversion box for the 1952-1964 Ford full size cars. The Borgeson conversion

box is a new manufactured modern integral power steering gearbox. The Borgeson integral power steering gearbox provides true

modern power steering feel, feedback and a quick 14:1 ratio. Borgeson has manufactured this box to bolt directly to the factory

mounting location and connects to the stock manual steering linkage. The steering column will need to be shortened for installation

of this conversion box. (Details below)

Cars with factory Bendix style power steering will require either manual steering linkage or a drag link adapter.

STEERING COLUMN MODIFICATIONS

1952-1957 & All Column Shift cars a steel coupler #312500 must be welded to a cut o inner column shaft. The outer column tube

will be able to t over the coupler leaving enough column tube to mount the shift linkage.

1958-1964 Floor shift applications we recommend the use of a rag joint #052549. The cut o column shaft will need to be ground

into a DD prole to connect to the rag joint.

This conversion box ts the following Ford full size models:

•1952-1956 Crestline, Customline, Mainline

•1957-1960 Custom

•1957-1962 Fairlane

•1958-1964 Galaxie

•1955-1957 Thunderbird

Box will also t Mercury vehicles sharing the same platform.

#800115

Conversion Box

Conversion Kit

289/302/351W

Conversion Kit

292/312 Y-Block

Manual Drag Link Adapter

1964–77 FORD MID SIZE CAR

Borgeson oers an integral power steering conversion for your 1964-1977 Ford mid size. The Borgeson conversion box is a new

manufactured modern integral power steering gearbox. The Borgeson integral power steering gearbox provides true modern power

steering feel, feedback and a quick 14:1 ratio. Borgeson has manufactured this box to bolt directly to the factory mounting location

and to t the stock pitman arm. The column will need to be collapsed or shortened for clearance of conversion box. (Details below)

Cars with factory Bendix style power steering will require either manual steering linkage or a drag link adapter.

STEERING COLUMN MODIFICATIONS

Stock column shift cars have variations throughout the years. We have not done in house tting on column shift cars. Installations

have been completed using our #312500 coupler. This ts within the column tube and may leave room for the factory shift linkage.

1964-1967 oor shift applications, you will need to trim away the outer column tube and cut o the inner steering column shaft. The

column shaft will need to be ground into a DD prole to connect to rag joint #052549.

1968-1977 oor shift applications, you will need to trim away the outer column tube. The inner steering column shaft with rag joint

ange will then collapse in on itself for clearance. Attach the shortened column to the box with half rag joint part #990016.

#999052 Complete Conversion Kit

#800114 Power Conversion Box

This conversion box will t the following years and models:

•1964–1970 Ford Fairlane

•1966–1970 Ford Falcon**

•1966–1970 Ford Ranchero & Falcon Ranchero

•1968–1971 Ford Torino & Gran Torino

•1970–1977 Ford Maverick

Box will also t Mercury vehicles sharing the same platform.

**1960-1965 Falcons use either our #800110 or #800111 call for details.

www.borgeson.com 860.482.8283 fax 860.496.9320

Modern Power Steering Conversion

1964–77 FORD MID SIZE CARS

Part # Description MSRP

800114 Ford Mid-Sized Power Conversion Box $549.00

800330 P/S Pump Upgrade, 289/302/351W, Includes Pump, Bracket and Pulley $295.00

800336 P/S Pump Upgrade, FE 390/428 P/S, Includes Pump, Bracket and Pulley $295.00

999052 Complete Conversion Kit, 1968-1977 Ford Mid-Size with Manual Steering, 289/302/351W Only $996.02

999053 Complete Conversion Kit, 1968-1977 Ford Mid-Size with Power Steering, Small Block & Big Block $860.02

800334 P/S Pump Upgrade, I-6 200/250, Includes Pump, Bracket and Pulley $295.00

802409 Power Steering Pump Bracket, Steel, Ford 289/302/351W, Saginaw Style Pump. $72.56

802410 Power Steering Pump Bracket, Steel, Ford 200/250, Saginaw Style Pump. $72.56

925107 Power Steering Hose Kit, 2 Pc Rubber, Ford Pump to Conversion Box, V-8 Only $75.00

925108 Power Steering Hose Kit, 2 Pc Rubber, GM Pump to Conversion Box, V-8 Only $75.00

925109 Power Steering Hose Kit, 2 Pc Rubber, Ford Pump to Conversion Box, I-6 Only $75.00

925110 Power Steering Hose Kit, 2 Pc Rubber, GM Pump to Conversion Box, I-6 Only $75.00

925121 Steering Box Hose Adapter Set-6AN (Required for custom hose applications) $26.00

990003 Manual Drag Link Adapter, Mid-Sized Ford $159.00

990016 Steering Coupler, 1/2 Rag Joint, Steering Box Side, 11/16-36 Spline, With Disc $77.02

052549 Rag Joint Coupler ⁄”-36 x ¾”-DD $111.28

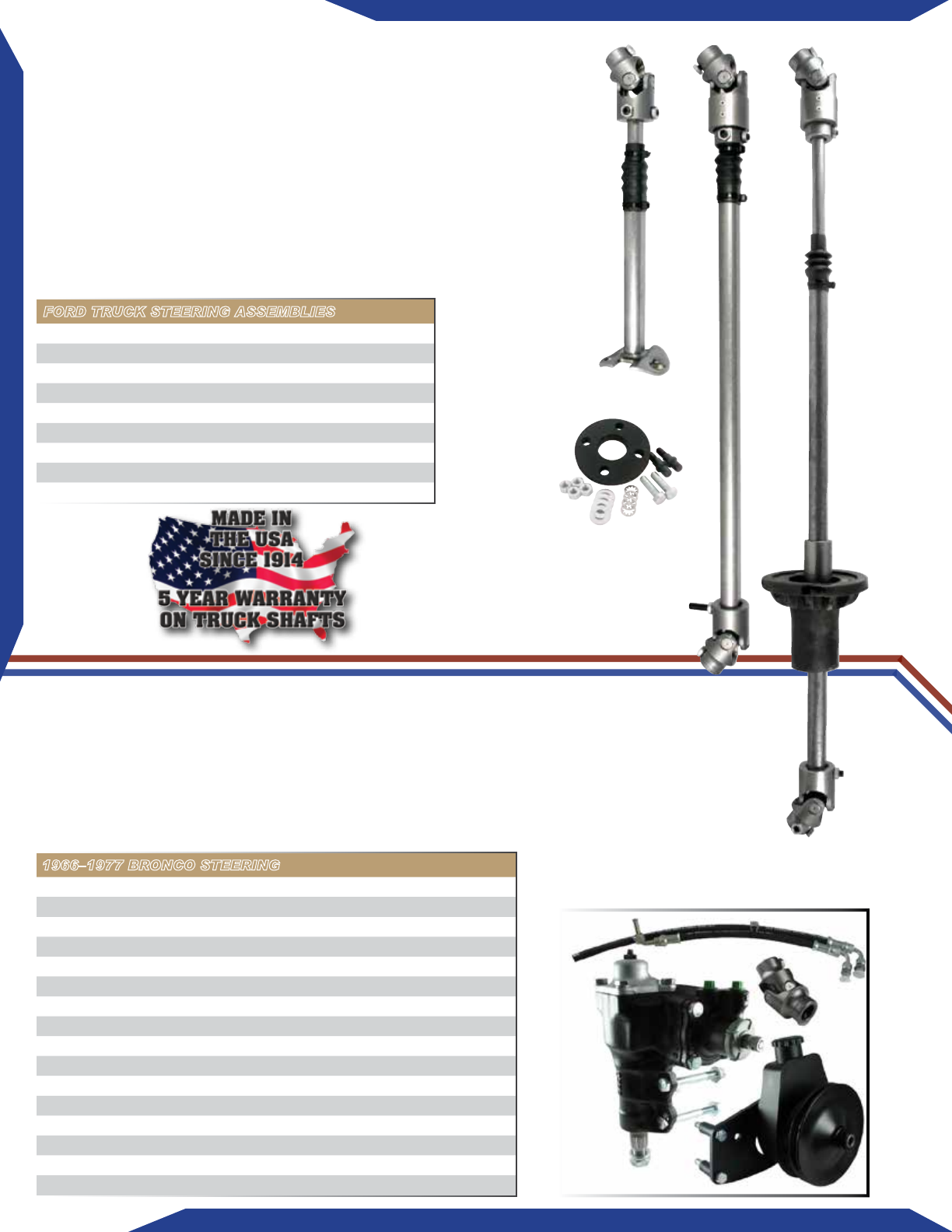

If you have tried replacing the worn-out steering on your Ford, you’ve probably

found that many OEM replacement steering assemblies are no longer available.

Borgeson manufactures heavy duty bolt-in replacement assemblies for many

model years of Ford pickups and Broncos. Borgeson incorporates a telescoping

shaft that adds a measure of safety to the steering system. Ford has had many

length variations over the years and sometimes within model years. Borgeson

has accommodated this by making an assembly which can be trimmed down to

get the exact t for your application. This added length will also accommodate

aftermarket body lifts. Borgeson also oers an upgrade to our standard

assembly that incorporates a vibration reducer that greatly reduces the road

shock felt through the steering wheel.

Rubber Rag Joint and

Hardware.

Bronco Power Steering Box & Components

Borgeson oers an integral power steering conversion for your 1966-1977 Bronco. The Borgeson

conversion box is a modern power steering gearbox that has been modied to bolt directly to the

factory mounting location and to t the stock pitman arm. A new universal joint will be required for

connection to the stock column and a new hose kit for connection to the pump of your choice. Complete

kits are available for the most popular applications.

1966–1977 BRONCO

1970–04 FORD TRUCK

Bronco Power

Conversion Kit

2121

FORD TRUCK STEERING ASSEMBLIES

Part # Description MSRP

000970 70–79 Full Size Pickup $248.00

000975 70–79 Full Size Pickup with Vibration Reducer Upgrade $284.00

000977 78–79 F150, F250, Bronco with Rag Joint Flange $198.00

000941 Replacement Rubber Rag Joint and Hardware $17.50

000980 80–91 Full Size $248.00

000985 80–91 Full Size with Vibration Reducer Upgrade $284.00

000981 92–96 F150, F250, F350 $306.00

000982 97–04 F150, ‘97–’99 F250 $328.00

1966–1977 BRONCO STEERING

Part # Description MSRP

Replacement Steering Shafts

000973 66–75 Bronco, Manual Steering (Column must be modified) $248.00

000976 73–75 Bronco, Power Steering (Rag Joint Column) $220.00

Power Steering Conversion Box & Accessories

800125 66–77 Bronco Modern Power Steering Conversion Box $549.00

999059 66–77 Bronco Power Conversion Kit SBF 289/302/351W $998.71

999060 66–77 Bronco Power Conversion Kit 200/250 In-Line 6 Cylinder $998.71

014925 Universal Joint 3/4”-DD to 11/16”-36 Conversion Box Only $79.71

000820 76–77 Bronco Steering Shaft with Borgeson Conversion Box $264.61

000821 66–75 Bronco Steering Shaft M/S with Borgeson Conversion Box $264.61

000822 73–75 Bronco Steering Shaft P/S with Borgeson Conversion Box $242.06

925111 2 Piece Rubber P/S Hose Kit, Ford Pump to Conversion Box $75.00

925112 2 Piece Rubber P/S Hose Kit, Saginaw Pump to Conversion Box $75.00

800330 SBF Saginaw P/S Pump upgrade. Includes: pump, bracket and pulley $295.00

800334 Ford I-6 Saginaw P/S Pump upgrade. Includes: pump, bracket and pulley $295.00

www.borgeson.com 860.482.8283 fax 860.496.9320 22

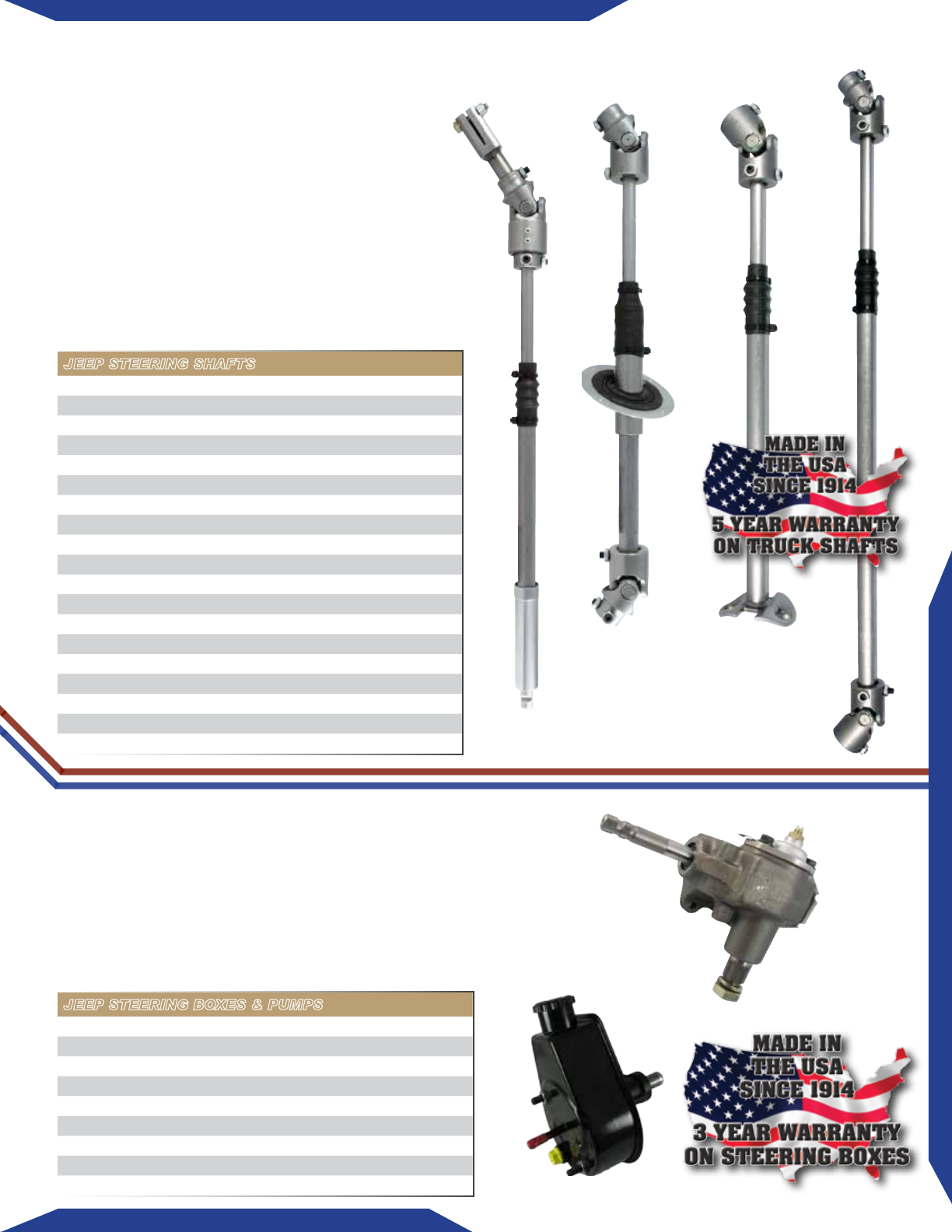

1972–1986 Jeep CJ

1987–2006 Wrangler and

1974–2000 Jeep Trucks

Jeep’s original steering shaft assemblies were not

designed for the added stress of body lifts and

oversized tires. Borgeson’s replacement assemblies

oer a heavy duty telescoping shaft with either

two precision needle bearing u-joints or a vibration

reducer and a u-joint. The steering assembly is easy to

install with common hand tools. Once installed, you

will experience much tighter and more responsive

steering. Steering shafts have a 5 year warranty.

JEEP STEERING SHAFTS

Part # Description MSRP

000903 72–75 CJ, Manual $248.00

000904 72–75 CJ, Power $248.00

000905 76–86 CJ, Manual $248.00

000910 76–86 CJ, Power $248.00

000915 76–86 CJ, Manual with Vibration Reducer Upgrade $284.00

000920 76–86 CJ, Power with Vibration Reducer Upgrade $284.00

000925 87–95 Wrangler, Power & Manual $284.00

000926 87–95 Wrangler, Power & Manual W/O Vibration Reducer $248.00

000890 74–83 Cherokee (SJ) Power with Rag Joint Flange $198.00

000890 74–91 Wagoneer (SJ) Power with Rag Joint Flange $198.00

000941 Rubber Rag Joint and Hardware $17.50

000893 84–00 Cherokee/Wagoneer (XJ) $284.00

000896 92–95 Grand Cherokee (ZJ) $284.00

000872 97–00 TJ Upper Shaft $309.65

000873 01–06 TJ Upper Shaft $309.65

000874 97–02 TJ Manual Lower Shaft $311.15

000875 97–02 TJ Power Lower Shaft $344.64

000876 03–06 TJ Power & Manual Lower Shaft $344.64

74–83 Cherokee SJ

97–06 TJ Upper Shaft

97–02 TJ Lower Shaft

1972–06 JEEP

1972–02 JEEP

STEERING BOXES & PUMPS

Borgeson steering boxes & pumps are assembled to the same

demanding standards as our precision u-joints, far surpassing the

OEM standards. Each box is chemically cleaned, inspected and

renished. All components are thoroughly inspected and replaced

or re-machined as needed. Each is then carefully assembled,

adjusted and inspected to our factory specications. Jeep P/S Pump

Jeep Manual Box

76–86 CJ Manual

JEEP STEERING BOXES & PUMPS

Part # Description MSRP

Jeep Steering Boxes

920055 1972–86 Jeep CJ, New OEM Replacement Manual Steering Box $320.00

920010 1987–02 Jeep Wrangler, New OEM Manual Steering Box $320.00

Jeep Power Steering Pumps

800324 1972–1974 Jeep CJ5, CJ6, Wagoneer Power Steering Pump $166.34

800325 1975–1983 Jeep CJ5, CJ7 Power Steering Pump $166.34

800326 1983–1990 Jeep Chrerokee & Wagoneer Power Steering Pump $166.34

800323 P/S Pump Press-On style with two returns for Hydro-Boost $166.34

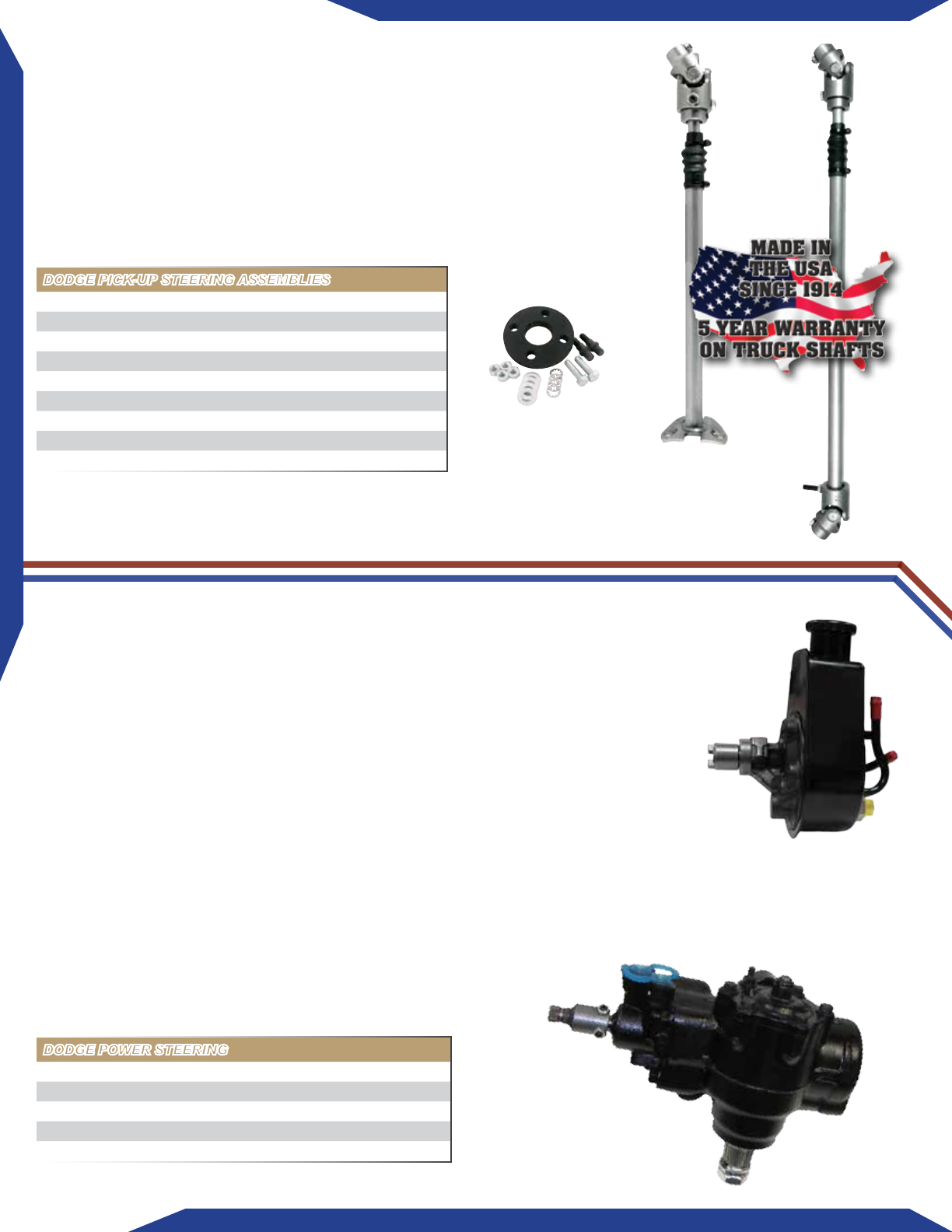

Dodge Full Size Truck Shafts

Full size Dodge Pickups and Ramchargers have a type of steering

coupler that has shown signs of wear in as little as 4000 miles,

depending on how the truck is used. This wear causes play in the

truck’s steering. It’s even more noticeable if your truck is used for

plowing, towing or if oversized tires have been installed. Replacing

the worn steering shaft with another OEM shaft only gives you

a temporary x. The Borgeson steering shaft assembly replaces

the loose OEM parts with precision needle bearing u-joints and a

telescopic shaft.

1979–08 DODGE TRUCK

*Column must have Removable Rag Joint

REPLACEMENT RAG JOINT

DODGE POWER STEERING

Part # Description MSRP

800123 03-08 Dodge Box Power Steering Box Upgrade. $695.00

800328 P/S Pump Upgrade for 94-02 Dodge Trucks with Cummins Diesel $195.00

925116 P/S Hose kit for 94-96 Dodge Diesel Trucks with Vacuum Brakes $65.00

925117 P/S Hose Kit for 97-02 Dodge Diesel Trucks with Hydro-Boost Brakes $105.00

DODGE PICK-UP STEERING ASSEMBLIES

Part # Description MSRP

000940 79–93 Full Size with Rag Joint Flange $198.00

000941 Replacement Rubber Rag Joint with Hardware $17.50

000943 79–93 Extreme-Duty 2-Joint System (verify Column*) $248.00

000945 94 Full Size $284.00

000950 95–02 Full Size $284.00

000951 03–08 2500 & 3500 4WD Models $284.00

000952 03–08 1500, 2500 & 3500 2WD (Except 1500 4X4 Mega Cab) $320.00

000951 06–08 1500 4WD Mega Cab $284.00

Part # 800123, 03-08 Dodge Box

Borgeson Dodge Box for 2003-08

Part # 800123 Borgeson has sourced and adapted this brand new massive “6-bolt” power steering box

for the 2003–2008 Dodge trucks. This box has a massive pitman shaft with the largest bearing available

for support. The top of the pitman shaft is supported by a 6-bolt top cover for ultimate pitman shaft

stability. The Borgeson “Dodge Box” oers the largest piston diameter for the most available power

assist and a modern variable valve that allows for stable highway driving and eortless parking and

maneuvering. This box has a pitman shaft that is compatible with all OEM and dropped pitman arms

that t the stock box.

Installation Note: Use of a Borgeson #000951 aftermarket steering shaft is

recommended for ease of installation. To use this box with the stock steering shaft two

ats must be ground on the steering box adapter to match the orientation ats on the

stock steering shaft.

DODGE POWER STEERING UPGRADES

Part #800328 Manufactured from all new components this is a direct replacement Hi-Flow power

steering pump for the 1994-2002 Dodge Ram 2500 & 3500 trucks with the Cummins Turbo Diesel

motor. This pump has the output pressure/ow calibrated to 1450-1550 PSI and 3.5 GPM to

provide your Ram with all of the power its steering needs. Includes new powder coated reservoir,

cap and drive key.

Borgeson 1994-02 Hi-Flow P/S Pump

Part # 800328

www.borgeson.com 860.482.8283 fax 860.496.9320

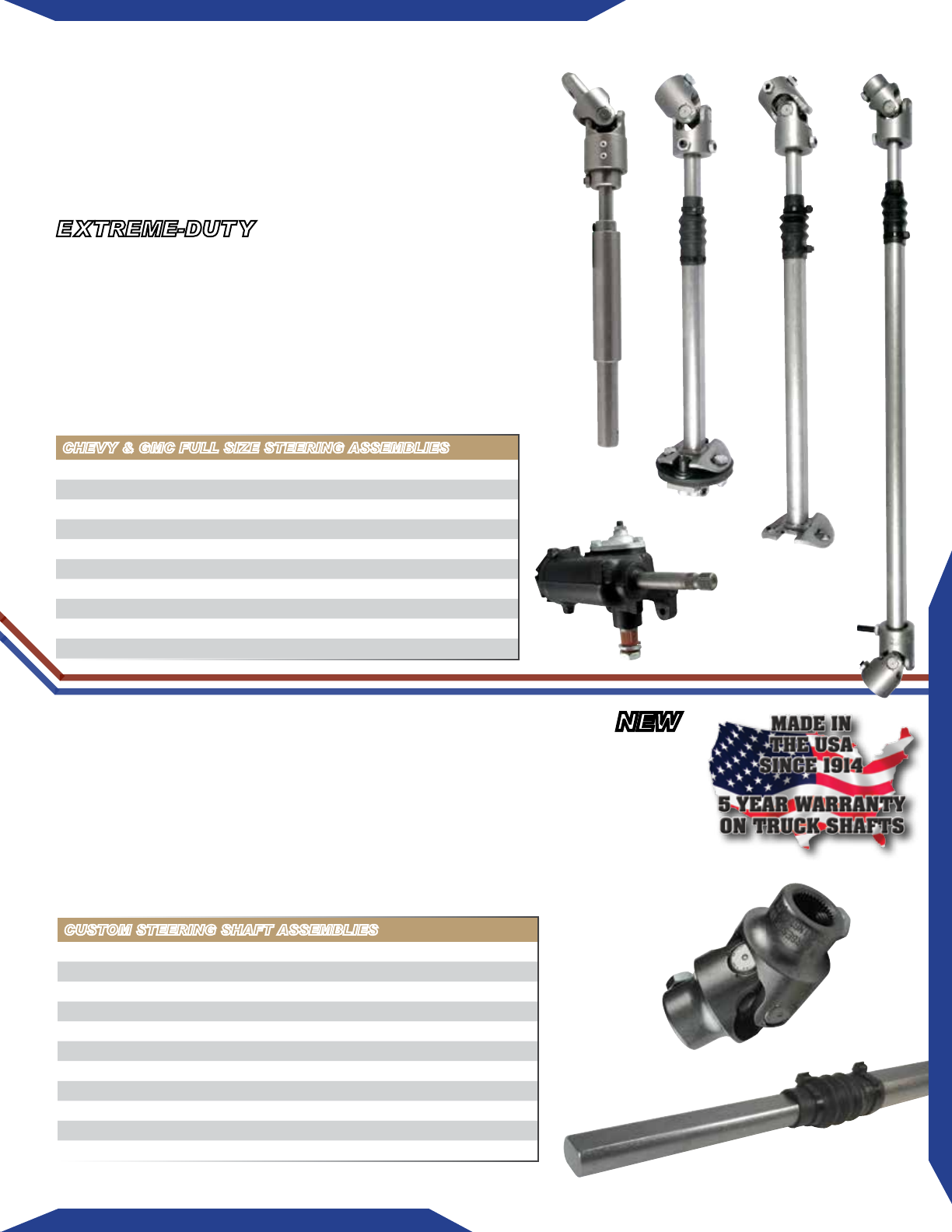

CHEVY & GMC FULL SIZE STEERING ASSEMBLIES

Part # Description MSRP

000930 73–78 Full Size with Rag Joint Flange $198.00

000932 73–76 Extreme-Duty with 2 Universal Joints $248.00

000933 77–78 Extreme-Duty with 2 Universal Joints $248.00

000934 79–91 Full Size with Rag Joint Flange $198.00

000935 79–94 Extreme-Duty with 2 Universal Joints $248.00

000936 92–94 with Universal Joint and Complete Rag Joint $248.00

000937 99–08 Full Size Truck & SUV Upper Shaft $225.00

000941 Replacement Rubber Rag Joint with Hardware $17.50

920023 1968–78 2WD OEM Remanufactured Manual Steering Box $322.62

1973–1994 Chevy & GMC

Full Size Trucks and SUVs

Factory steering shafts for many GM models are no longer available

from GM, but your worn out steering shafts can now be replaced. The

Borgeson direct replacement assemblies consist of a telescoping shaft,

a needle bearing u-joint and a rag joint. A Borgeson heavy-duty truck

assembly will x that loose, wandering steering for good.

E XTREME-DUTY

TWO-JOINT STEERING ASSEMBLY 1973–1994

A two-joint system that eliminates the factory rag joint is also available.

You should use the two-joint system if you use your truck for extra heavy-

duty o-roading or have a body lift installed.

1999–2008 Chevy & GMC

Full Size Trucks and SUVs

You may already have experienced a “clunking or ratcheting” feel in the

steering of your 1999–2008 Chevy truck. Borgeson’s direct replacement

assembly is a permanent solution to the problem.

1973–08 CHEVY/GMC TRUCK

Chevy Manual Box

CUSTOM STEERING SHAFT ASSEMBLIES

Using a Borgeson telescopic shaft and the proper universal joints will allow you to build a

custom steering shaft for many applications not listed. Telescopic shafts are available in 24”

(telescopes form 21”-27”) and 36” (telescopes form 33”-39”) lengths. The telescopic shafts can be

easily trimmed up to 10”. Telescopic shafts have a 1” DD connection on one end and a 3/4” DD

connection on the other. By selection the proper universal joint for each end you can put together

a custom assembly for your application. The below listings are just a small sampling of the most

popular universal joints. Many more options are available in the universal joint section of our

catalog. If you can’t nd the correct joint or have any questions feel free to give us a call.

CUSTOM STEERING SHAFT ASSEMBLIES

Part # Description MSRP

450024 24” Telescopic Shaft, Telescopes from 21”-27” $78.92

450036 36” Telescopic Shaft, Telescopes from 33”-39” $78.92

015252 1” DD X 1” DD Universal Joint, for 1” DD Column Connections $79.71

013452 3/4”-36 Spline X 1” DD Universal Joint, for 3/4”-36 Spline Column Connections $79.71

014352 1”-48 Spline X 1” DD Universal Joint, for 1”-48 Spline Column Connections $79.71

014952 3/4” DD X 1” DD Universal Joint, for 3/4” DD Column Connections $79.71

014931 3/4” DD X 3/4”-30 Spline Universal Joint, for 3/4” -30 Spline Box Connections $79.71

013449 3/4” DD X 3/4”-36 Spline Universal Joint, for 3/4” -36 Spline Box Connections $79.71

014940 3/4” DD X 13/16”-36 Spline Universal Joint, for 13/16” -36 Spline Box Connections $79.71

014925 3/4” DD X 11/16”-36 Spline Universal Joint, for 11/16” -36 Spline Box Connections $79.71

NEW

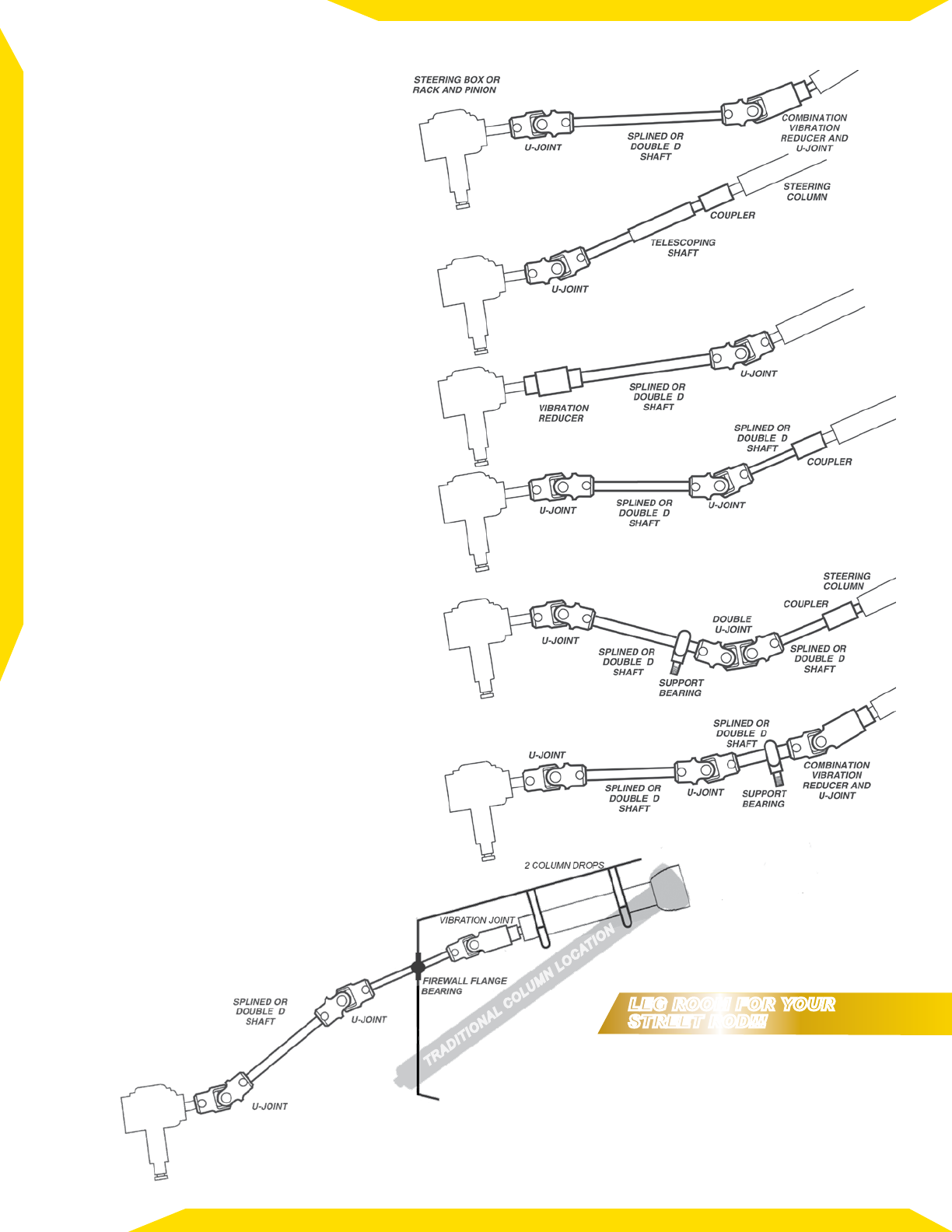

Steering System Design

Often the steering system is designed late in the building

process. We recommend that the steering be mocked

up at the time the engine and exhaust components are

installed. Positioning of the column, shafts, and u-joints

with respect to the engine, exhaust and steering box early

on can help in selecting the correct parts. With our wide

selection of u-joints, shafts, and vibration reducers, any

system can be designed or modied to result in a car that

is not only safe, but a pleasure to drive. Keeping a system

simple is the best course, but even a system with up to 10

u-joints can be designed as long as the proper phasing

and supports are used. Remember to use a support

bearing if more than two joints are used.

Shaft Support Placement

Any time more than two universal joints are used in a

system, a shaft support is required to prevent the shafts

from looping. In a system with 3 u-joints, one support is

required. For each additional u-joint, an additional support

will be needed. In a 3 joint system it is best to locate the

shaft support as close to the center u-joint as possible. If

one of the shafts is signicantly longer than the other, it is

best to locate the support on the longer shaft.

Vibration Reducer Placement

Vibration reducers can substantially reduce, and even

eliminate annoying road vibration from being transmitted

to the steering wheel. Location of the reducer in a system

is very important in order to take full advantage of its

eects. In a two joint system, the vibration reducer can be

installed at either end without any loss of eectiveness.

In a system with one or more shaft supports however, the

vibration reducer should be located on the column side

of the supports. A shaft support located on the steering

column side of a vibration reducer can pick up vibration,

bypass the reducer, and transmit the vibration to the

steering wheel.

Shorty Columns

A great way to free up some much needed leg room in

your street rod is by using a shorty column. This moves

the steering column up under the dash and gives you

much more leg/pedal space resulting in a much more

comfortable ride.

STEERING SYSTEM DESIGN

Our tech support sta is only a phone call away if you have

questions. Their experience can help you design the right

system for your vehicle. You can reach us at 860-482-8283

Monday-Friday 7:30 AM to 5:00 PM Eastern Time

TRADITIONAL COLUMN LOCATION

LEG ROOM FOR YOUR

STREET ROD!!!

STEERING SYSTEM DESIGN

Pitman Arm Length

Steering speed can be adjusted by box ratio or pitman arm

length. The longer the pitman arm, the quicker the steering

will be. That is, a longer pitman arm means less steering wheel

movement is required to produce the same amount of front

wheel movement. So if you are looking to speed up or slow

down the steering, changing the pitman arm is an easy way to

do it.

Steering Column Length

and Column Drop Size

Before determining the column length, it is important

to have your seat and pedals in the nal locations.

Using a pie tin tacked to a wooden dowel is an

excellent way to decide on steering column position

and length. With one person sitting in the car and

holding the “steering wheel” in position, another

person can take measurements of column length and

position. Keep in mind, many traditional style steering

wheels are at, while other aftermarket wheels are

dished. This is also the perfect time to determine

how much drop you’ll need to put the column in

a comfortable driving position. Measure from the

mounting surface on the dash to the center of the

steering column. This is the length of the drop you will

need.

Steering Ratio

Steering box ratio. This is the relationship between input motion and output motion on the steering box. The ratio

is expressed as 24:1, 22:1, 16:1, etc. For example, in a 24:1 ratio box, the pitman shaft rotates one degree for every 24

degrees of input shaft rotation. The higher the rst number, the more input shaft rotation is required to get the same

amount of output shaft rotation. Dividing the rst number in the ratio by four, gives the number of turns lock to lock.

Steering ratio and eort. A quicker ratio steering box will have fewer turns of the steering wheel lock-to-lock but this

does have an eect on drivability. In manual steering applications a quick ratio box, while enhancing the way the car

feels at speed, will greatly increase steering eort during low speed and parking. In power steering applications it is quite

common for quicker ratios to be used as the power assist overcomes the added steering eort. Selecting too quick of a

ratio without properly building the suspension can result in a diving feel during 5-10 MPH turns.

Variable Ratio Steering. True variable ratio steering is accomplished with the gear cut of the sector shaft and rack block

inside the steering gear. The center tooth of a variable ratio power steering gear box is cut at a slower ratio, this makes the

on center feel and reaction of a variable ratio box more stable at highway speeds. The pitch of the sector shaft gear then

changes to a quicker ratio o center. This gives quicker response when more turning is required like parking, yet minimizes

the overall turns lock-to-lock.

Steering Box Installation Angle

One thing frequently overlooked when building or modifying a car is the position of the

steering box. Steering boxes are often positioned with the input shaft level creating a much

more complex steering linkage. A great way to simplify your steering linkage is to position

the steering box with the input shaft angled up toward the steering column. This method

has been used by the OEM’s for years to simplify the connection to the steering column.

www.borgeson.com 860.482.8283 fax 860.496.9320

Frame Rail

STEERING SYSTEM DESIGN HOW TO...

Determine splined shaft length with two u-joints:

1. Measure the distance from the end of the column to the box/rack (Dimension C).

2. Subtract 3” from this measurement.

3. Order the next even size shaft (Dimension B).

Note: We stock stainless and polished stainless shafting in 1/4” increments up to 24”

EXAMPLE If “C” is 18” —subtract 3” (1-1/2” for each joint). “B” is 15”. Order a

16” shaft and trim a total of 1” from the shaft, either from one or both ends.

Determine splined shaft length with one u-joint and u-joint/vibration reducer combination.

1. Measure the distance from the end of the column to the box/rack (Dimension C).

2. Subtract 4” from this measurement.

3. Order the next even size shaft (Dimension B).

Note: We stock stainless and polished stainless shafting in 1/4” increments up to 24”

EXAMPLE If “C” is 19” —subtract 4” (1-1/2” for a joint and 2-1/2” for the vibration reducer).

“B” is 15”. Order a 16” shaft and trim 1” from the shaft, either from one or both ends.

Determine splined shaft length with three or more u-joints.

1. Buy the u-joints rst.

2. Install a joint on the column and one on the box/rack.

3. Use dowels or PVC pipe and mock up the system around obstacles.

4. Order the correct shaft lengths based on dowel/PVC lengths.

Add a vibration reducer to an existing steering system.

There are various ways of adding a vibration reducer to a system. Because of the dierence in shafts, u-joints, racks, boxes, and columns, we

recommend you call our technical support sta. We can suggest options that will result in the best steering system for you.

Rag Joint Angles of Operation

Rag joints are designed to dampen vibrations, they are not

designed to accommodate an angle. If you do not have a

straight connection a rag joint should NOT be used.

U-joint Angles of Operation

The Borgeson needle bearing u-joints will operate smoothly up

to 35°. The double needle bearing u-joints will operate smoothly

up to 70°. The u-joints must not be altered in any way. Pin and

block style u-joints will operate at 30º smoothly.

STEERING SYSTEM DESIGN

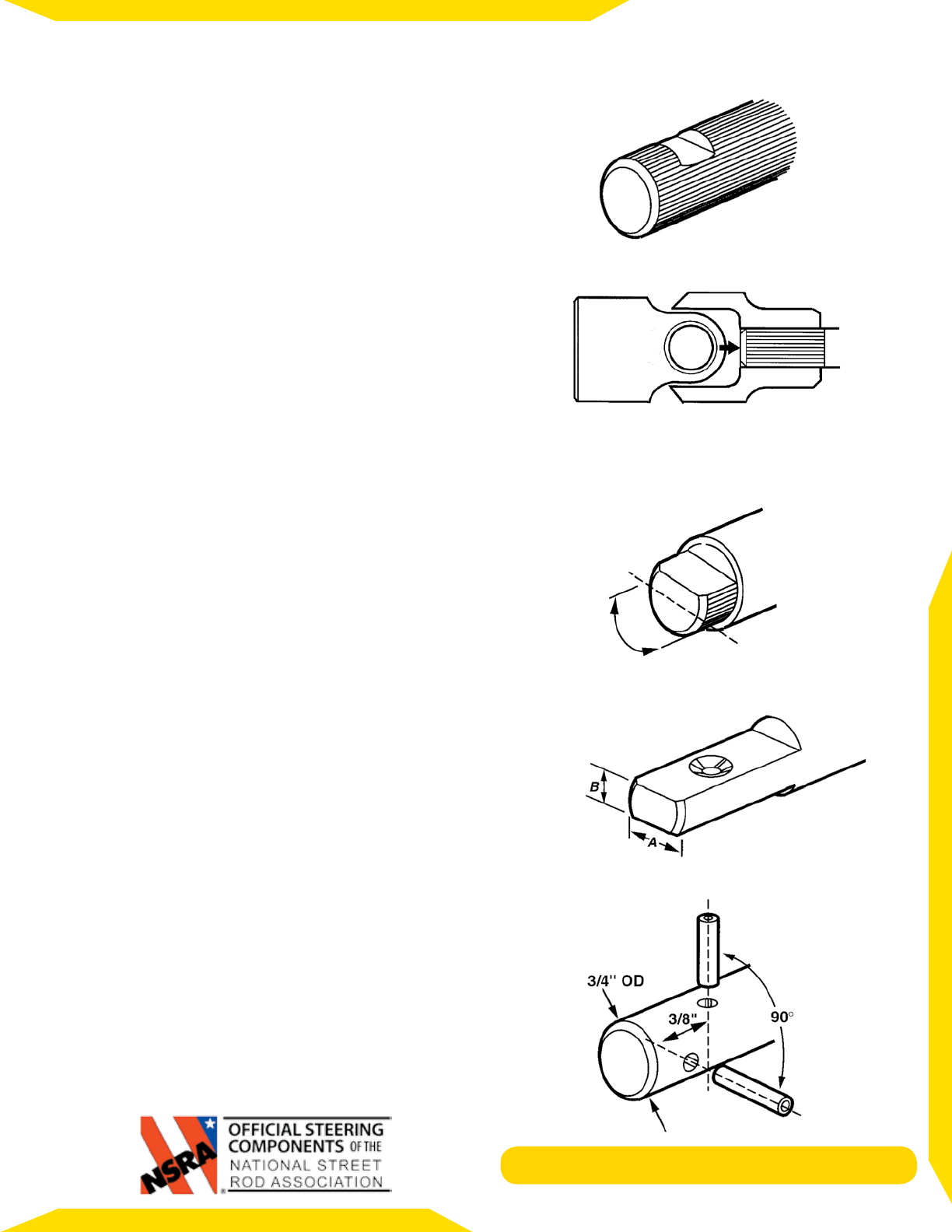

CAUTION: It is unsafe to pin joints to tubing!

Figure B

Detroit uses irregularly shaped shafts such as splined or a

Double D conguration and inserts them into a similarly shaped

hole with practically no play and then secures them by staking

or clamping. Since steering failures are practically unheard of

in modern production cars, one should strongly consider this

method as having signicant merit.

Borgeson oers splined shafts and joints which give the option

of easy disassembly when repairs on the vehicle become

necessary. Another advantage is the ability to rotate the shaft in

relation to the u-joint in small increments. This makes it easier to

position the u-joints in the correct relationship to each other.

A at should be led on the splined shaft where the set screw

will clamp (gure A). This will prevent damage to the spline

and allow for easier disassembly. Always lock the set screw

with a lock nut, Loc-Tite or similar product. The shaft must be

ush with the inside of the yoke (gure B), not so short that it

sacrices strength or so long that it interferes with the center

workings of the joint.

To determine the spline size of a component, measure the

outside diameter and count the number of splines. If there

is a at spot on the shaft and some of the splines are missing,

(gure C) count halfway around where there are splines and

double that number. We need to know how many teeth are in

a theoretical full circle. If you have something unusual or you’re

unsure about measuring the spline, make an impression of it in

clay and send it to us.

A Double D (gure D) shaft has two ats on the shaft that

correspond to two ats in the female end of the u-joint. The

disadvantage of this style is the lack of adjustability because the

shaft can only be rotated 180°. The Double D shaft should have

a dimple machined on the shaft for the set screw to clamp to

(gure D).

Pinning

Common practice is to use two 3/16” diameter roll pins in each

yoke at right angles to each other and approximately 3/8” apart.

(gure E) An even stronger connection can be made by using

hardened shear pins. Pinning can be used when the shaft can

be removed from the vehicle and supported properly when

inserting the pins. Driving pins in while the assembly is in the

car could cause damage. The major drawback to pinning is that

a 3/4” diameter shaft is weakened by 30%, smaller shafts are

weakened to an even greater extent.

If you are considering using bolts instead of roll pins, don’t.

NEVER USE BOLTS! Always use roll pins. Roll pins are driven in

and t very tightly in the drilled hole. Bolts often t loosely inside

the drilled hole and repeated back and forth movement, even

though very slight, can cause the bolt to work harden and fail.

Splines and Irregular Shapes: the STRONGEST Method.

www.borgeson.com 860.482.8283 fax 860.496.9320

Figure D

Figure C

Count the number of splines

of half the circumference and

double that number for total

Figure A

Figure E

STEERING SYSTEM DESIGN

CAUTION: Collapsibility

Every steering system should include some means of directing

energy away from the driver in the event of a collision. One

method of reducing the chance of this happening is to

intentionally design angles into the steering system so that the

force of a collision deects the column away from the driver. A

second method is to use the Borgeson telescopic intermediate

shaft.

CAUTION: Shaft Size

BORGESON DOES NOT RECOMMEND USING LESS

THAN 3/4” DIAMETER SHAFTS

All Borgeson spline and DD shafts are 3/4” diameter. We will not

sell a shaft with a smaller diameter due to safety considerations.

A 5/8” shaft is 42% weaker than a 3/4” shaft and can be twisted

with a 14” steering wheel.

Borgeson does not recommend using tubing for a steering

connection. It is unsafe to pin and there are too many wall

thicknesses and alloys available to insure proper strength.

U-Joint Orientation

When two joints are used on a shaft, the forks of the yokes

closest to each other should be in line, or “in phase.” Premature

wear or binding can result if the u-joints are not phased

properly. Sometimes if the u-joints are at a severe angle, even if

they are phased correctly, a hard spot in the steering may occur

for no apparent reason. If this happens, index the u-joints two or

three splines in one direction. The hard spot should disappear or

be minimized.

Problem:

Here is a straight column WITHOUT a collapsible

intermediate shaft. Without a collapsible shaft, the column

may be forced into the passenger compartment in the

event of a collision.

Solution: A

With a telescopic intermediate shaft the column

slides together, compacting before it gets a chance

to enter the passenger compartment.

IMPACTIMPACT

CAUTION: Do Not Use Flex Cable

Another less common (and denitely not recommended)

method of getting from the column to the rack or box is to

use ex cabling from a Pinto (this cable is no longer available

from Ford). Ford only used these for a couple of years

before switching to joints and shafts, which should tell you

something. When a heavier engine is put into a larger heavier

car, a ex cable is not reliable.

CORRECT PHASING

INCORRECT PHASING

Solution: B

Here is an example of a steering system with

angular collapsibility. An angle designed into

steering shaft deflects the column upward

upon impact.

CAUTION: Welding

Welding joints is a common practice in racing, however, it is not

a method we at Borgeson would recommend. Hairline cracks,

which may be all but invisible to the unaided eye, could cause

a weld to fail under severe stress. It may also be illegal in some

states to weld steering system components on a car used on the

street. Improper grounding can cause damage which will result

in the failure of the steering. Overheating, which can occur at

relatively low temperatures, can distort the yoke and melt the

grease out of the needle bearings or damage the seals. This can

prevent the joint from operating freely and it may fail. Cooling

a weld too quickly can cause cracks, leading to sudden failure.

Also, welding is a permanent connection that makes disassembly

almost impossible should it become necessary. Caution: Welding

on steering components is illegal in some states. Check rst.

CAUTION: Keying and Set Screws

Using a key, as is done in many industrial applications, can

transmit power eectively from the shaft to the joint. A key,

however, is not suitable to take sudden shock (such as from a

pothole or accident) which can distort or shear the key or shaft

keyway. This may cause play to develop in the system or, even

worse, failure. It should be noted that in industrial applications,

keys are designed to shear, preventing damage to expensive

components. In automotive applications a sheared key will cause

extensive damage by causing a loss of control of the vehicle. Set

screws should never be used to secure smooth bore joints.

They should only be used as a method to prevent a splined or

Double D shaft from disengaging from the joint. An indentation

or at should be made for the set screw on splined or DD shafts.

CAUTION: Bolts for Connection

NEVER USE BOLTS! Always use roll pins. Roll pins are driven in

and t very tightly in the drilled hole. Bolts often t loosely inside

the drilled hole and repeated back and forth movement, even

though very slight, can cause the bolt to work harden and fail.

CAUTION: Corvair Steering Boxes

Corvairs were rear-engined cars; this means there was very little

weight on the front tires. The steering box used in these cars was

a very light duty box. It is not recommended for use in a street

rod with the engine in the front. Steering gear failure could

cause a severe accident.

CAUTION: Vega Steering Boxes

We recommend a maximum weight limit of 2400 lbs. for a vehicle

using a Saginaw 140 (Vega) steering Box. We recommend the 525

Saginaw box for vehicles exceeding 2400 lbs.

POWER STEERING TIPS

Diagnosing Power Steering Problems

When trying to determine what is causing a problem in your

power steering, keep this in mind: If the problem occurs only in

one direction, the problem is probably in the box or rack. If the

problem is in both directions, it is most likely the pump, dirty

uid or hoses. Be sure there are no kinks or obstructions in your

power steering hoses and that they are the right inside diameter

for the application.

Dirty Steering System

Before changing any single component of the steering system,

inspect the cleanliness of your system. Dirty or black uid can

quickly ruin new steering components. If changing the box or

rack, rub your nger on the inside of the reservoir. If it isn’t clean,

you must ush the pump and hoses with clean uid before

installing new components.

Bleeding Power Steering

All power steering systems are designed to be self-bleeding,

but sometimes they need a little help. After installing new

components, ll the reservoir and let it sit for a few minutes.

Raise the front end of the vehicle and turn the wheels back

and forth slowly with the engine o to allow the steering box

to draw uid. Keep the reservoir full. When the uid level stops

dropping, start the vehicle and continue turning the wheels.

When the uid level remains constant the system is fully bled.

Put cardboard under the front tires while testing your steering

system. The cardboard will slide on the oor and prevent

wearing at spots on the tires from excessive turning of the

wheels while not moving.

Steering Box Adjustment

All Borgeson steering boxes are set at the factory to the proper

specications. Any adjustments of the box beyond that will void

the warranty and cause premature wear on the steering box.

Please do not try to adjust your steering box. Please contact us if

you feel your steering box needs adjustment.

Power Steering Pressure

GM power steering pumps will produce up to 1,500 PSI. We

recommend 1,200 PSI for steering box applications and 800–

900 PSI for Mustang rack & pinions. If a pump is generating too

much pressure for the rack or box you are using, the steering

will be over assisted resulting in twitchy steering at speed. This

can be corrected by adjusting the pumps internal pressure valve.

To properly adjust this pressure order part #899001-Pressure

Reducing Kit.

www.borgeson.com 860.482.8283 fax 860.496.9320

STEERING TROUBLESHOOTING

Road Wander:

Vehicle wanders left/right without any denite input from the steering wheel requiring constant

small correction to drive straight.

• Low or unequal tire pressure.

• Steering linkage from column to box or rack loose or worn

• Front-end alignment out of specication. (Inadequate positive Caster)

• Steering box or rack worn or out of adjustment

• Steering tie rod ends worn or loose

No Recovery or Return to Center:

Vehicle fails to return to center after a turn or requires steering input to return to center.

• Binding of steering linkage or components

• Front-end alignment out of specication. (Inadequate positive Caster)

• Steering box or rack improperly adjusted.

Over-steering / Darting:

Vehicle over steers and is overly sensitive to all steering wheel input requiring constant correction.

• Excessive P/S pump pressure / mismatched components.

• Steering linkage from column to box or rack loose or worn

• Steering box or rack worn or out of adjustment

Lost motion at steering wheel:

Excessive free play felt in the steering wheel before the wheels actually begin to turn.

• Steering linkage from column to box or rack loose or worn

• Steering box or rack worn or out of adjustment

• Steering tie rod ends worn or loose

• Steering gear loose on frame

High Steering Eort in both directions:

An abnormal amount of force is required to turn the wheels in both directions.

• Low tire pressure

• Low P/S uid level

• Insucient P/S pump pressure and ow

• Excessive P/S uid temperature

• Binding of steering linkage or components

Intermittent / Loss of power steering:

After servicing the P/S system you experience either a loss of power steering or intermittent assist.

• Low P/S uid level

• P/S Belt broken or slipping

• Air trapped in the P/S system

• Dirt or contaminants trapped in the P/S pump bypass valve

Many factors inuence power steering troubleshooting. Here is a list

of common steering and driving complaints, their causes, and some

suggestions to x it.

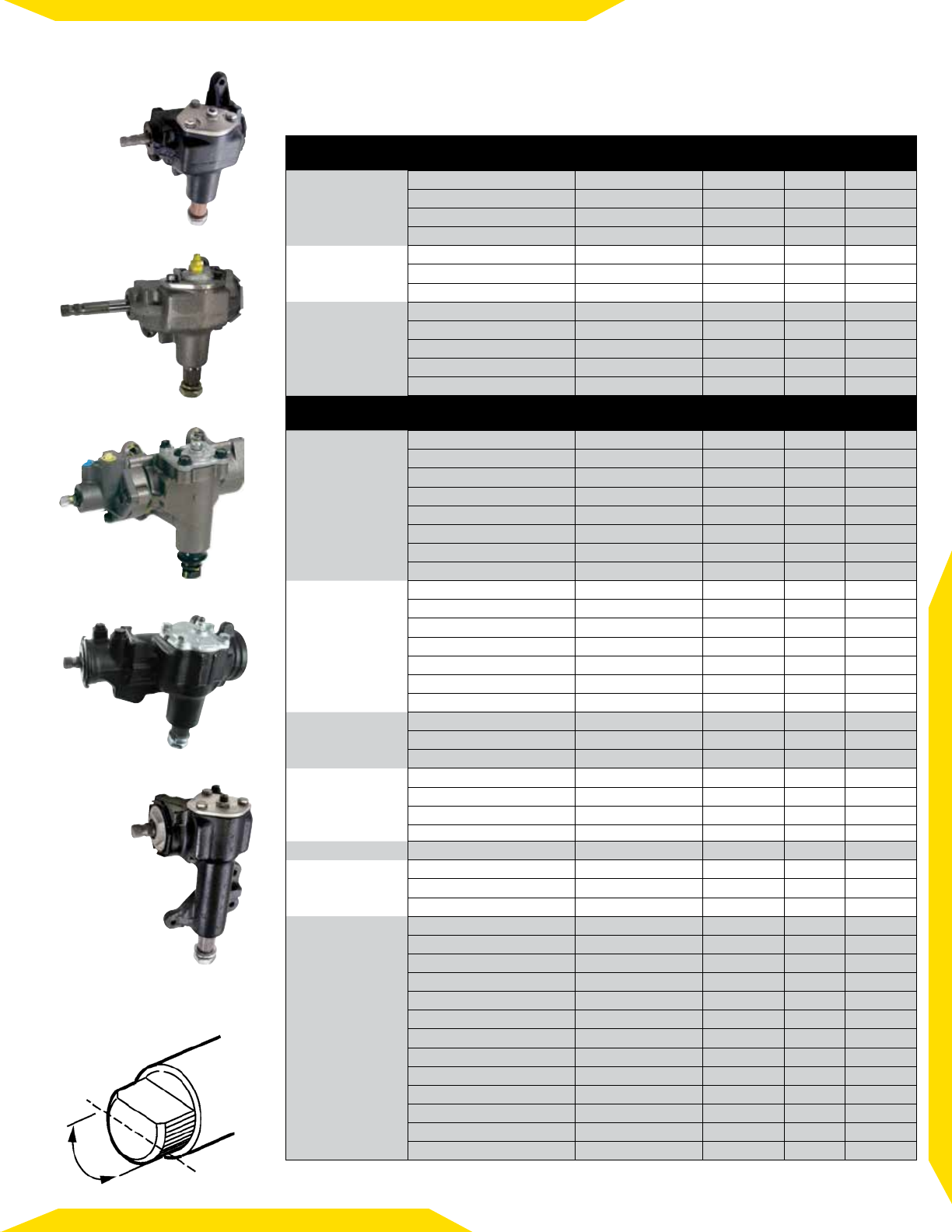

STEERING BOX AND SPLINE IDENTIFICATION GUIDE

Popular Splines And Double D Applications

All Measurements can be +/- .015”. Precision measuring equipment should be used.

Column

Application Description Size Diameter Splines Double D

Flats

GM Column Small Spline 3/4”-36 .735 36

Large Spline 1”-48 .985 48

Small Double D 3/4” DD .750 .550

Large Double D 1” DD .993 .790

Ford Column Small Spline 3/4”-36 .735 36

Small Double D 3/4” DD .750 .550

Large Double D 1” DD .993 .790

Other Manufacturers International 1”-48 .985 48

Ididit-aluminum 1”-48 .985 48

Ididit-steel 1” DD .993 .790

Flaming River 1” DD (standard) .993 .790

Borgeson 3/4”-36 .735 36

Boxes & Racks

Application Description Size Diameter Splines Double D

Flats

Chrysler Box or Rack Chrysler 9/16”-17 .562 17

Chrysler 9/16”-26 .562 26

Chrysler 9/16”-36 .562 36

Chrysler 5/8”-36 C* .625 36

Chrysler 11/16”-36 .687 36

Chrysler 3/4”-36 .735 36

Chrysler 13/16”-36 .812 36

Chrysler Omni 9/16”-26 .562 26

GM Manual Box Corvair 5/8”-36 .625 36

Vega (model 140) 5/8”-36 .625 36

Corvette (‘63–67) 3/4”-36 .728 36

Corvette (’68–83) 3/4”-30 .735 30

(‘58–64) 3/4”-36 .735 36

Model 122 (‘65–85) 3/4”-30 or 3/4”-36 .730 30 or 36

Model 525 (‘86 & later) 3/4”-30 .728 30

GM Power Box Model 605 (‘78–84) 3/4”-30 .728 30

Model 700 (‘77 & earlier) 13/16”-36 .812 36

Model 700 (‘78 & later) 3/4”-30 .728 30

GM Rack ‘79 & later 5/8”-36 .625 36

Some Models 3/4”-30 .728 30

Corvette (‘84 & later) 17mm DD .670 .570

Fiero 17mm DD .670 .570

Ford Box Manual & Power 3/4”-36 .735 36

Ford Rack Mustang & Pinto Manual 9/16”-26 .562 26

Mustang & Pinto Power 3/4”-36 .735 36

94–Later Mustang 3/4”-V .740

Other Manufacturers Borgeson 55-57 Chevy Conversion 18mm DD .708 .635

Borgeson 58-64 Chevy Conversion 17mm DD .670 .570

Borgeson Chevy II Nova Conversion 11/16”-36 .687 36

Borgeson Corvette Conversion Box 18mm DD .708 .635

Borgeson Ford Conversion Boxes 11/16”-36 .687 36

Borgeson Mopar Conversion Boxes 11/16”-36 .687 36

Heidt’s Super Ride Rack 9/16”-26 .562 26

Woodward Rack 3/4”-20 .735 20

Nissan 11/16”-36 .687 36

Jaguar & MGB 3/4”-48 .750 48

Unisteer Manual Rack 9/16”-26 .562 26

Volkswagen Rabbit Rack 11/16”-40 .687 40

VW Rabbit Rack Diesel 3/4”-36 .735 36

*The 5/8”-36 Chrysler is not interchangeable with 5/8”-36.

Mustang

Vega

525/122

700

600

www.borgeson.com 860.482.8283 fax 860.496.9320

For Splined Shafts with a Flat

Count the number of splines

of half the circumference and

double that number for total

SHOP TOUR

Wide Angle View

CNC Production

Saginaw Manual Steering Gear Production

Power Steering Assembly & Testing

Packaging, Shipping & Inventory

GENERAL INFORMATION

Shipping Information

It is our policy to charge only the actual shipping charges. We

ship via UPS or Fed Ex with either Ground, 3 Day, 2nd Day or Next

Day Air. On small shipments to the west coast, we recommend 3

Day because it cuts about 3 days in transit and is not much more

expensive than the regular ground service.

Warranty

Borgeson will not be liable for personal or property damage caused

by the use or misuse of any product that we manufacture or sell. We

have no control over installation and/or use of our products. We will

repair or replace, at our option, any product found to be defective

in either material or workmanship subject to our inspection.

Normal wear is excluded from this warranty. Any product that has

been abused, altered, or incorrectly installed is not covered. Our

sole remedy shall be repair or replacement, no monetary refund will

be granted. Any parts used in competition are excluded from this

warranty.

Return Policy

It is our policy to accept any inventory product purchased directly

from us and currently oered for sale for exchange or, at our option,

a refund. All items are subject to a 10% restocking fee. Products must

be in resalable condition with no paint or alterations. If rework is

necessary, the cost of the rework will be deducted from the credit

allowed. If a product was purchased from a Borgeson dealer, the

return must be handled through that dealer. Before any item can be

returned to us, a Return Authorization Number must be obtained

from us. COLLECT CALLS OR C.O.D. SHIPMENTS ARE NOT ACCEPTED.

The Return Authorization Number must be clearly marked on the

outside of the box and paperwork with replacement instructions

must be included.

Claims For Damage In Shipping

Claims for damaged or lost merchandise are to be made to the

freight carrier. If you receive a damaged package or a package that

looks like it has been tampered with, make a written note on this to

the freight carrier when you sign for the package. A verbal note to

the driver is not sucient. Carefully open and be sure to save the

damaged container as visible proof. This is the rst thing they will ask

to see. Notify the local oce of the freight carrier as soon as possible

(within 48 hours).

Maintenance & Inspection

The steering system must be in perfect operating condition at all

times. It should be checked on a regular basis. Components should

move freely with no play. If play develops, replace worn parts as

necessary. Check all set screws, clamp screws and pins for tightness.

Welds are especially dicult to inspect by eye, but look for any

visible cracks.

Catalog Pricing

Pricing is correct at the time of this catalogs printing. Please call or

visit www.borgeson.com to insure the most up to date pricing.

2017 BORGESON UNIVERSAL COMPANY • Specications subject to change without notice. Not responsible for typographic errors.

www.borgeson.com 860.482.8283 fax 860.496.9320

Visit us online: www.borgeson.com • For technical information

and to order, call: 860.482.8283 • FAX 860.496.9320

9 Krieger Drive, Travelers Rest SC 29690

Who else can say that they’ve been making quality u-joints since 1914?

STEERING U-JOINTS, SHAFTS & HEAVY DUTY TRUCK ASSEMBLIES

WWW.BORGESON.COM PHONE:860.482.8283 FAX:860.496.9320

Experience Counts

STEERING BOXES, POWER CONVERSION KITS & ACCESSORIES

Over 100 Years

sINCe 1914

ThaNk YOu. The success and vitality of Borgeson Universal

Company is due to the loyal support of our customers. We here at

Borgeson Universal are thankful for your support throughout these

many years, and look forward to a continued relationship with you.

BORGESON

Steering You Forward

113164 100th Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
