SPEC SHEET
Providing Double the System Security
Two-Way Supervised Wireless from DMP delivers unparalleled
exibility and simplicity without sacricing power.
• Built-in device testing
• Simple programming
• Superior range
• Seamless integration with DMP Command Processor™
panels and other hardwired devices
Whether the installation is new construction, an upgrade or
retrot, Two-Way Wireless from DMP gets the job done faster
with less effort.
DMP 1100 SERIES
WIRELESS TRANSMITTERS
SYSTEM FEATURES
• Two-Way supervised communication
• Built-in Survey LED visually conrms communications
• Extended range and battery life
• 3, 60 or 240-minute supervision window; selectable by zone
or output to maximize effectiveness
• Frequency-hopping 900MHz Spread-Spectrum technology
• Attractive and durable plastic housing for all units
TRANSMITTER FEATURES
• Internal case tamper for added security
• Programmable from panel keypad or via Remote Link™
• Selectable communication test intervals
• User-replaceable 3.0V Lithium batteries
1100 SERIES TRANSMITTERS
• 1101/1102/1103 Universal Transmitters (UL)
• 1114 Four-Zone Expander
• 1116 Relay Output
• 1117 LED Annunciator
• 1118 Remote Indicator Light
• 1121 PIR Motion Detector
• 1125 PIR Motion Detector with Lens Adjustments (UL)
• 1126C/1126R/1126W Ceiling PIR Motion Detectors
• 1129 Glassbreak Detector
• 1131 Recessed Contact
• 1139 Bill Trap
• 1142/1142BC Two-Button Panic Transmitters (UL)
• 1145/1146/1147 Key Fob Transmitters
• 1161 Residential Smoke Detector (UL)
• 1162 Residential Smoke/Heat
Detector (UL)
DMP Smart Devices
Ensure Message
Acknowledgement
DMP 1100 SERIES TRANSMITTERS
TWO-WAY
COMMUNICATION
Superior to traditional wireless
equipment that just broadcasts the
signal, DMP 1100 Series transmitters
require an acknowledgement from the
wireless receiver, indicating successful
communication. This smart technology
ensures that each and every communication
is received and efciently processed at
the panel.
900MHz SPREAD-SPECTRUM
TECHNOLOGY
DMP wireless communication employs
900MHz frequency-hopping spread-
spectrum to ensure clear and accurate
signal transmissions without interference
in practically any environment.
INCREASED SECURITY
DMP wireless receivers supervise for
transmitters that go missing. With
Two-Way communication, each wireless
transmitter communicates with the
receiver using supervision messages.
Each transmitter can be programmed for
no supervision or a 3, 60, or 240 minute
window providing exibility and allowing
increased security for those applications
that require shorter supervision times.
When the receiver does not receive any
supervision messages from the transmitter
for the programmed window of time,
the receiver reports the zone or output
as missing to the panel for display and
reporting to the Central Station.
EXTENDED BATTERY LIFE
Programming each wireless device with
a specic communication test interval
eliminates wasteful, repetitive signaling.
By eliminating multiple rounds of repetitive
signals, Two-Way communication extends
battery life.
SIMPLE PROGRAMMING
No special equipment is needed to
program the system! Assign wireless
transmitters to zones or outputs during
panel programming with Remote Link™ or
from the keypad.

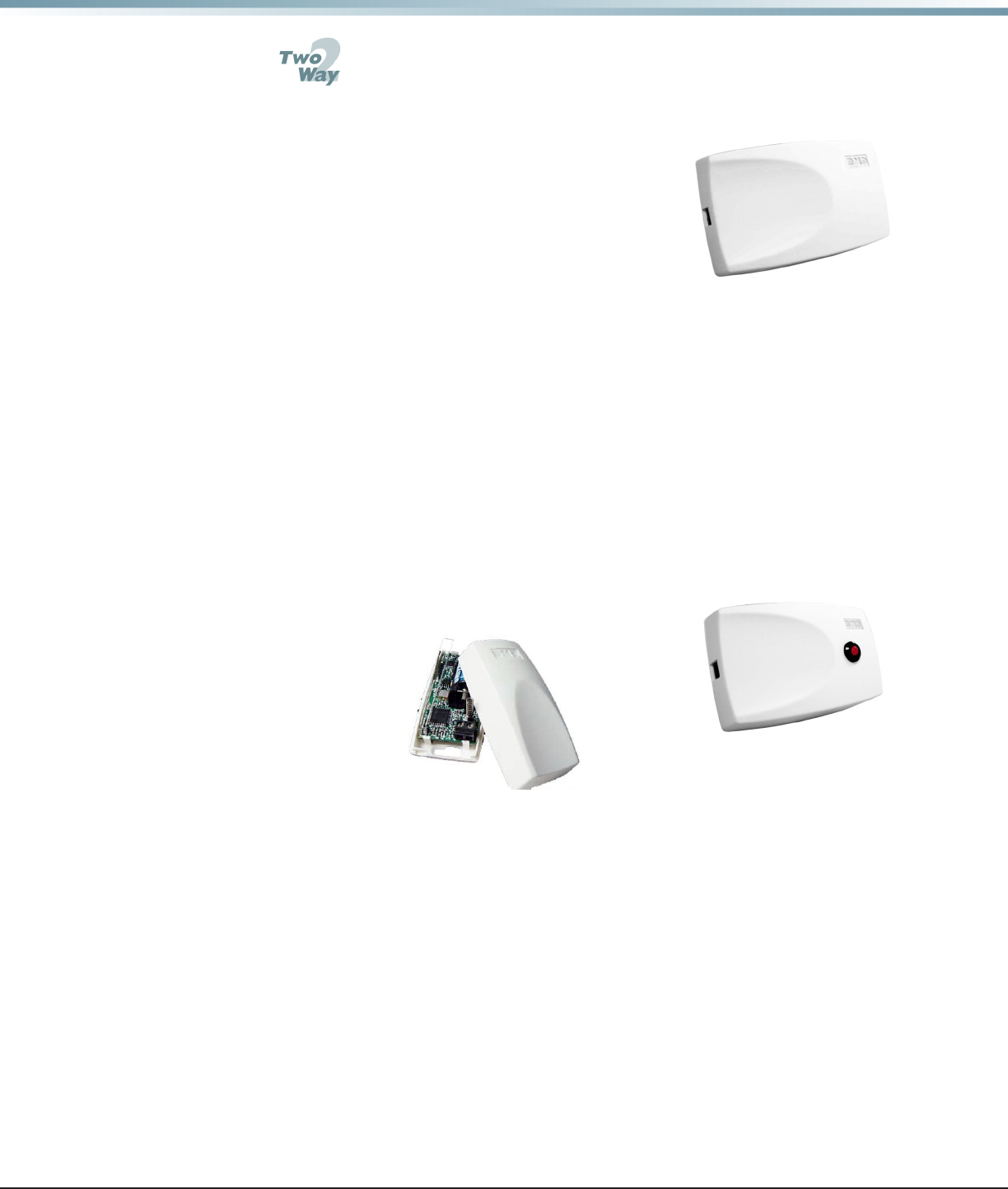

1101 UNIVERSAL TRANSMITTER
The Model 1101 Universal Transmitter
provides Internal and External contacts
that may be used at the same time to yield
TWO individual reporting zones from one
transmitter. This functionality makes the
1101 perfect for applications where a door
and window (or any type of N/O or N/C
contact) are in close proximity.
Mount the included self-adhering magnet
up to 5/8” away from the 1101 Transmitter
housing to provide internal contact
protection. Wire the 1101 terminal block
to an external contact for second zone
protection.
1102 UNIVERSAL TRANSMITTER
Model 1102 Universal Transmitter provides
the same look and reliability of the 1101
without an internal contact. Simply
connect any Normally Open or Normally
Closed contact to the 1102 Transmitter
two-wire terminal block.
1101/1102/1103
1103 UNIVERSAL TRANSMITTER
Model 1103 Universal Transmitter is
typically used in commercial burglary
door/window applications. It offers
the same look and features as the 1101
transmitter, with the addition of a 470k
End-of-line resistor and wall tamper
switch.
1114 FOUR-ZONE EXPANDER
The 1114 Four-Zone Expander increases
the number of reporting zones available
on DMP panels. The four zones can be used
with burglary and non-powered devices.
1114/1116
1116 RELAY OUTPUT
The 1116 Relay Output provides a Form C
(SPDT) dry relay contact rated for
1 Amp @ 30 VDC. Program the 1116 with
a slow or fast response time to t your
application.
1117 LED ANNUNCIATOR
The 1117 LED Annunciator provides one
remote LED that can be used to visually
notify the user about conditions such as
armed area annunciation, ambush alarm,
burglary alarm, exit timer, entry timer,
schedules, or communication failure.
1117/1118
1118 REMOTE INDICATOR
LIGHT
The 1118 Remote Indicator Light provides
one remote LED indicator for XR100 and
XR500 Series Panels that visually indicates
when a panic alarm has been activated.
Install in a break room, storage area, or
anywhere not visible to the teller line
or lobby where a notication LED could
be used.
COMING SOON
SPEC SHEET
1129 GLASSBREAK DETECTOR
Designed to detect the shattering of framed
glass mounted in an outside wall, the Model
1129 Glassbreak detector is also suitable
for armor-coated glass. The 360° electret
microphone can detect the pattern of
breaking glass at more than 20 points across
the acoustic frequency spectrum, enabling
the sensor to detect breaking glass through
blinds and light drapes within a 12’ range.
The 1129 also recognizes the “quiet break”
favored by experienced intruders.
Ideal where hardwired acoustic sensors
are impractical, the 1129 incorporates
Pattern Recognition Technology™ to ignore
most false alarm sounds.
1131 RECESSED CONTACT
The 1131 Wireless Recessed Contact
provides concealed protection for doors,
windows, or any other application needing
a discreet contact. The on-board LED
provides built-in survey capability to allow
for single-person installations, eliminating
the requirement for an external survey
kit. The 1131 transmits Normal, Alarm,
and Low Battery conditions.
1139 BILL TRAP
Designed to provide a silent alarm option
for cash drawer operators, the 1139 holds
a trapped bill below a stack of bills. When
the trapped bill is removed, a panic alarm
is sent to the receiver.
To reduce the possibility of a false alarm,
a programmable delay can provide time to
replace the bill should it be accidentally
removed.

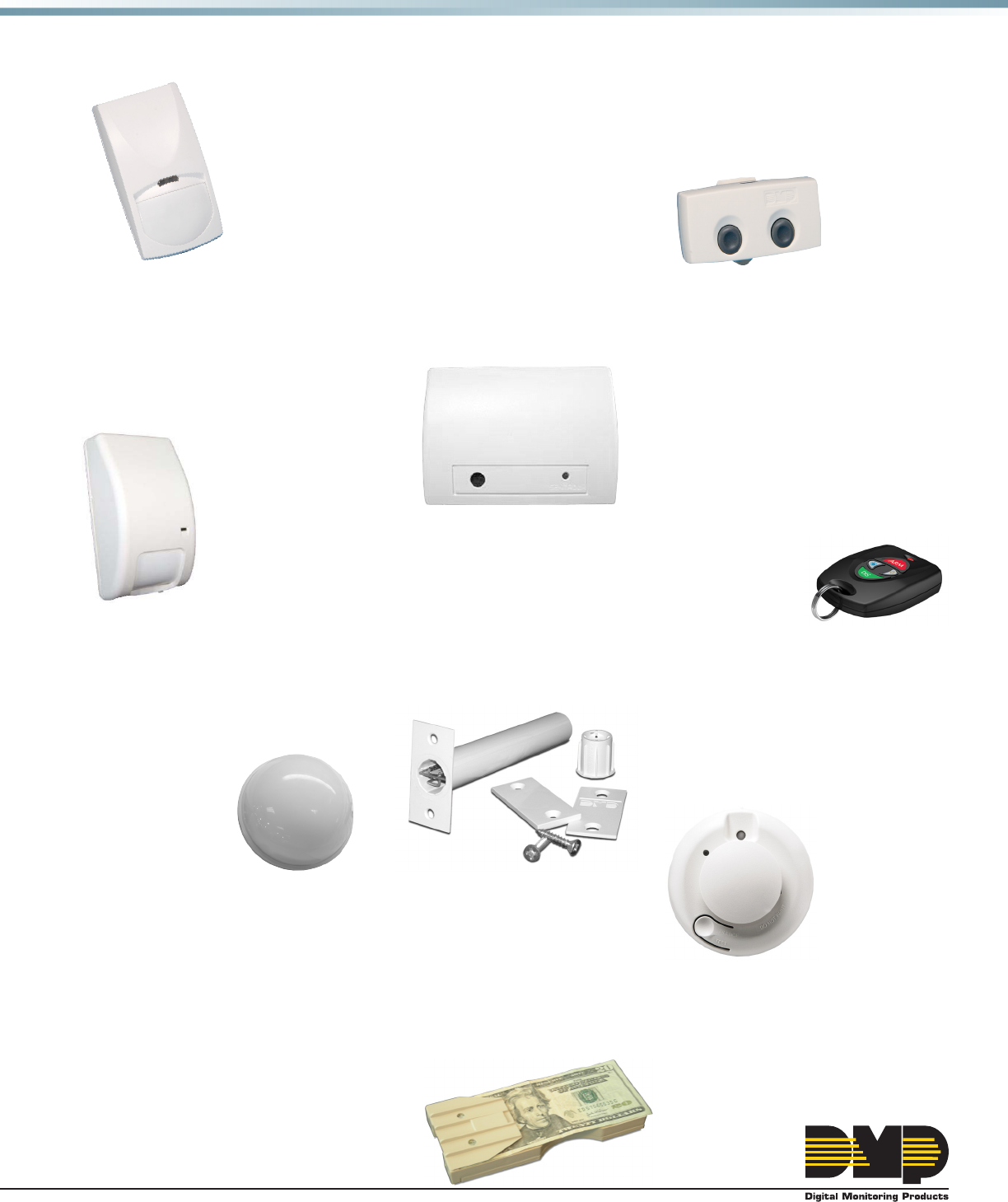

1121 PIR MOTION DETECTOR
The Model 1121 PIR (Passive Infrared)
Motion Detector is suitable
for most residential
or small commercial
applications. With a
generous coverage
area of 90° 50' X 50',
the 1121 is a favorite
among security
professionals.
1125 PIR MOTION DETECTOR
Suitable for almost any application, the
Model 1125 PIR Motion Detector includes
a variety of lens conguration options.
Use curtain masks to ensure proper focus
for maximum security throughout the
protected space. Select the Bi-Curtain or
Standard mode operation
depending on the
sensitivity required for
the application. Also
select a 33’ x 33’ or
50’ x 50’ coverage area
to ensure no space is left
unprotected.
1126 SERIES PIR MOTION
DETECTORS
The 1126 Series PIR Motion Detectors
are compact wireless motion sensors.
Offering a 360°, Curtain, or Wide Angle
version makes the 1126 Series exible for
a variety of ceiling mount applications.
The 1126 Series PIRs
operate with the
XR100/XR500 Series
Command Processor™
p a n el s u s in g t h e
1100X, 1100XI or
1100XH Receivers.
1142 & 1142BC TWO-BUTTON
HOLD-UP TRANSMITTER
The Model 1142 and 1142BC Two-Button
Hold-up transmitters are typically used
as a panic alarm, but with a little
imagination this transmitter can be used
for a multitude of applications.
Use the optional
belt clip and attach
the 1142BC to your
pocket or belt for
local mobile
protection. Permanently mount the 1142
in an under-the-counter location with the
included screws for UL installations.
To decrease the risk of false alarms, both
buttons must be pressed and held at the
same time before an alarm is transmitted.
KEY FOB TRANSMITTERS
The 1100 Series Key Fob transmitters
are portable, water resistant, and
designed to be clipped to a keychain
or lanyard. The key fob LED provides
visual acknowledgement when a button
is pressed and responds
to each separate
operation with
specic color- coded
LED status displays.
1145 Key Fob 4-button
1146 Key Fob 2-button
1147 Key Fob 1-button
1161 & 1162 DETECTORS
The Model 1161 Smoke Detector with
Sounder, and 1162 Smoke/Heat Detector
with Sounder are wireless detectors for
residential applications.
Model 1162 also offers
a built-in xed and
rate-of-rise heat
detector. The
xed temperature
function responds
to the 135°
temperature setting
and the rate-of-rise function detects and
responds to a rapid temperature increase.
When tripped, either function sends an
alarm to the panel.
LT-0977 © 2009 Digital Monitoring Products, Inc.
INTRUSION • FIRE • ACCESS • NETWORKS
2500 North Partnership Boulevard
800-641-4282
www.dmp.com
Made in the USA Springeld, Missouri 65803-8877
DMP 1100 SERIES TRANSMITTERS
800-641-4282
3/09
1126 SERIES PIR SPECIFICATIONS
Battery Life Expectancy 3 years
Dimensions 4.0” Dia x 2” H
Mounting height 6.5 to 18 feet
1129 GLASSBREAK SPECIFICATIONS
Battery Life Expectancy 3 years
Dimensions 4.25” L x 3.15” W x 1.75” H
Microphone Omnidirectional Electret
1131 SPECIFICATIONS
Battery Life Expectancy 5 years
Dimensions
Housing 4.175” L X .55” DIA
Housing Flange 1.7” L X .80” W
Magnet Housing 0.7” L X .55” DIA
1139 BILL TRAP SPECIFICATIONS
Battery Life Expectancy
1 year using 2 batteries
Dimensions
5.375” H x 2.625” W x .625” D
1142/1142BC TRANSMITTER SPECIFICATIONS
Battery Life Expectancy 5 years
Dimensions
Transmitter Case 3.3” L x 1.6” W x 1.2” H
Belt Clip 1.9” L x 0.9” W x 0.3” H
1145/1146/1147 KEY FOB SPECIFICATIONS
Battery Life Expectancy 2 years
Dimensions 1.98” H x 1.98” W x 0.6” D
1161/1162 DETECTOR SPECIFICATIONS
Battery Life Expectancy 1 year
Dimensions
Detector 5.6” x 2.4”
Base 5.4” x 0.46”
Temporal Sounder Pattern 85 dB at 10’
Sensitivity 2.3% ±0.8%
GENERAL SPECIFICATIONS
Frequency Range 903-927 MHz
Flame-retardant ABS constructed housings.
Battery Life Expectancy based on normal operation.
1101/1102 TRANSMITTER SPECIFICATIONS
Battery Life Expectancy 5 years
Dimensions
Transmitter Case 3.3” L x 1.6” W x 1.2” H
Mounting Bracket 2.5” L x 1.3” W x 0.1” H
Magnet Housing 1.5” L x 0.5” W x 0.7” H
1103 TRANSMITTER SPECIFICATIONS
Battery Life Expectancy 5 years
Dimensions
Transmitter Case 3.3” L x 1.6” W x 1.2” H
Magnet Housing 2.5” L x 0.5” W x 0.5” H
1114/1116/1117/1118 SPECIFICATIONS
Battery Life Expectancy
1114 3 years
1116/1117/1118 2 months (Fast Response)
5 years (Slow Response)
Dimensions 4.65” L x 3.1” W x 1.4” H
1121 PIR SPECIFICATIONS
Battery Life Expectancy 3 years
Dimensions 4.8” L X 2.5” W X 1.45” H
Detection Range 90° 50 x 50 feet
Speed 1 to 5 feet/second
Mounting height 4.9 to 8.2 feet
1125 PIR SPECIFICATIONS
Battery Life Expectancy 7 years using 3 batteries
Dimensions 5.1” L X 2.9” W X 2.2” H
Detection Range Up to 50 Feet (15.2 M)
COMPATIBILITY
XT Series and XR100/XR500 Series Command
Processor™ Panels
ACCESSORIES
CR123 3.0V Lithium Battery
CR123-FIRE 3.0V Lithium Battery (1161/1162 only)
CR2032 3.0V Coin Cell Lithium Battery
(1145/1146/1147 only)
CR2450 3.0V Coin Cell Lithium Battery
(1139 only)
CR12600 3.0V Lithium Battery (1131 only)
CR17450 3.0V Lithium Battery Pack (1126 Series only)
376 DC Plug-in Power Supply
(1114/1116/1117/1118 only)
378 Barrel Connector with Cord
(1114/1116/1117/1118 only)
PATENTS
U.S. Patent No. 7,239,236
LISTINGS AND APPROVALS
California State Fire Marshal (CSFM)
1101 1102 1161 1162
FCC Part 15 Registration ID
CCK1101 1101, 1102, 1103, 1129, 1142
CCKPC0088 1121, 1125, 1161, 1162
CCKPC0109 1126, 1131
CCKPC0098 1145, 1146, 1147
CCKPC0101 1114, 1116, 1117, 1118
LISTINGS AND APPROVALS
Industry Canada ID
5251A-PC0081 1101, 1102, 1103, 1129, 1142
5251A-PC0101 1114, 1116, 1117, 1118
5251A-PC0109 1126, 1131
5251A-PC0098 1145, 1146, 1147
5251A-PC0088 1121, 1125, 1161, 1162
Underwriters Laboratories (UL) Listed
ANSI/UL 1023 Household Burglar Alarm System Units Accessory
1101 1102 1103 1125 1142/1142BC
ANSI/UL 636 Holdup Alarm Units and Systems Accessory
1103 1142
ANSI/UL 634 Connections and Switches for use with Burglar
Alarm System Accessory
1101 1102
ANSI/UL 639 Intrusion Detection Units Accessory
1125
ANSI/UL 985 Household Fire Warning System Accessory
1101 1102 1161 1162
ANSI/UL 365 Police Station Connected Burglar
1103
ANSI/UL 609 Local Burglar Alarm Units and Systems
1103
ANSI/UL 1076 Proprietary Burglar Alarm Units
1103
ANSI/UL 1610 Central Station Burglar Alarm Units
1103
