Ba_1183_01 07_e.indb Pfaff Sewing Machine 1183 D 1181,1183(1 07
User Manual: Pfaff Sewing Machine 1183-D
Open the PDF directly: View PDF
.
Page Count: 46
Instruction Manual
1181
1183
296-12-19 009/002
Betriebsanleitung engl. 01.07
This instruction manual applies to machines from the
following serial numbers onwards:
# 6 063 202
1181-D
1183-D
This Instruction Manual is valid for all models and subclasses listed in the
chapter "Specifications".
The adjustment manual for the machines can be downloaded free of
charge from the internet address
www.pfaff-industrial.com/de/service/download/index.php3.
As an alternative to the internet download the adjustment manual can also be
ordered in book form under part no. 296-12-19 023/002.
The reprinting, copying or translation of PFAFF Instruction Manuals, whether in whole or
in part, is only permitted with our previous authorization and with written reference to the
source.
PFAFF Industrie Maschinen AG
Postfach 3020
D-67653 Kaiserslautern
Königstr. 154
D-67655 Kaiserslautern
Index
Contents ..................................................................................Page
1 Safety .................................................................................................................................... 5
1.01 Directives ............................................................................................................................... 5
1.02 General notes on safety .........................................................................................................5
1.03 Safety symbols ...................................................................................................................... 6
1.04 Important points for the user ................................................................................................. 6
1.05 Operating and specialist personnel ........................................................................................7
1.05.01 Operating personnel ..............................................................................................................7
1.05.02 Specialist personnel ...............................................................................................................7
1.06 Danger warnings ....................................................................................................................8
2 Proper use ............................................................................................................................9
3 Specifications ..................................................................................................................... 10
3.01 PFAFF 1181, PFAFF 1181-D, PFAFF 1183, PFAFF 1183-D ..................................................... 10
3.02 Versions and subclasses ...................................................................................................... 11
4 Disposal of Machine .......................................................................................................... 12
5 Transportation, packing and storage ................................................................................ 13
5.01 Transportation to customer‘s premises ............................................................................... 13
5.02 Transportation inside the customer‘s premises ................................................................... 13
5.03 Disposal of packing materials .............................................................................................. 13
5.04 Storage ................................................................................................................................ 13
6 Explanation of symbols ..................................................................................................... 14
7 Controls .............................................................................................................................. 15
7.01 On/off switch ....................................................................................................................... 15
7.02 Keys on the machine head (only for machines with -911/..) ................................................. 15
7.03 Pedal .................................................................................................................................... 16
7.04 Lever for lifting the presser foot ........................................................................................... 16
7.05 Feed regulator disk / Reverse feed lever .............................................................................. 17
7.06 Knee lever ............................................................................................................................ 17
7.07 Thread trimmer -731/01 ....................................................................................................... 18
7.08 Control panel (only on machines with Quick-Eco drive) ....................................................... 18
8 Installation and commissioning ....................................................................................... 19
8.01 Installation ............................................................................................................................ 19
8.01.01 Adjusting the table-top height .............................................................................................. 19
8.01.02 Adjusting the V-belt tension ................................................................................................. 20
8.01.03 Mounting the upper V-belt guard ........................................................................................20
8.01.04 Mounting the lower V-belt guard ......................................................................................... 21
8.01.05 Mounting the spool holder ..................................................................................................21
8.02 Connecting the plug-in connections and earth cables ......................................................... 22
8.03 Commissioning the machine ..............................................................................................23
Index
Contents ..................................................................................Page
8.04 Switching the machine on/off .............................................................................................. 23
8.05 Basic position of the machine drive unit .............................................................................. 24
8.06 Start inhibitor .......................................................................................................................25
8.06.01 Mounting the start inhibitor ................................................................................................. 25
8.06.02 Checking the start inhibitor function ....................................................................................25
9 Preparation ........................................................................................................................ 26
9.01 Inserting the needle .............................................................................................................26
9.02 Winding the bobbin thread, adjusting the thread tension .................................................... 27
9.03 Removing / Inserting the bobbin case ................................................................................. 28
9.04 Inserting the bobbin case / Adjusting the bobbin thread tension ......................................... 28
9.05 Threading the needle thread / Adjusting the needle thread tension .................................... 29
9.06 Adjusting the stitch counter for the bobbin thread control .......................................................30
10 Care and maintenance ....................................................................................................... 31
10.01 Servicing and maintenance intervals ................................................................................... 31
10.02 Cleaning the machine ..........................................................................................................31
10.03 Topping up the oil tank (does not apply to the 1181-D and 1183-D) ..................................... 32
10.04 Parameter settings ...............................................................................................................32
10.04.01 Parameter list ....................................................................................................................... 32
11 Mounting the table top and circut diagrams ................................................................... 34
11.01 Table top cutout ................................................................................................................... 34
11.02 Mounting the table top ........................................................................................................ 35
11.03 Circuit diagrams ................................................................................................................... 36
12 Wearing parts ..................................................................................................................... 40
5
Safety
1 Safety
1.01 Directives
This machine is constructed in accordance with the European regulations contained in the
conformity and manufacturer’s declarations.
In addition to this Instruction Manual, also observe all generally accepted, statutory and
other regulations and legal requirements and all valid environmental protection regulations!
The regionally valid regulations of the social insurance society for occupational accidents or
other supervisory organizations are to be strictly adhered to!
1.02 General notes on safety
This machine may only be operated by adequately trained operators and only after having
completely read and understood the Instruction Manual!
All Notes on Safety and Instruction Manuals of the motor manufacturer are to be read be-
fore operating the machine!
The danger and safety instructions on the machine itself are to be followed!
This machine may only be used for the purpose for which it is intended and may not be
operated without its safety devices. All safety regulations relevant to its operation are to
be adhered to.
When exchanging sewing tools (e.g. needle, roller presser, needle plate and bobbin),
when threading the machine, when leaving the machine unattended and during mainte-
nance work, the machine is to be separated from the power supply by switching off the
On/Off switch or by removing the plug from the mains!
Everyday maintenance work is only to be carried out by appropriately trained personnel!
Repairs and special maintenance work may only be carried out by qualified service staff
or appropriately trained personnel!
Work on electrical equipment may only be carried out by appropriately trained personnel!
Work is not permitted on parts and equipment which are connected to the power supply!
The only exceptions to this rule are found in the regulations EN 50110.
Modifications and alterations to the machine may only be carried out under observance
of all the relevant safety regulations!
Only spare parts which have been approved by us are to be used for repairs! We express-
ly point out that any replacement parts or accessories which are not supplied by us have
not been tested and approved by us. The installation and/or use of any such products can
lead to negative changes in the structural characteristics of the machine. We are not liable
for any damage which may be caused by non-original parts.
●
●
●
●
●
●
●
●
●
●
●
6
Safety

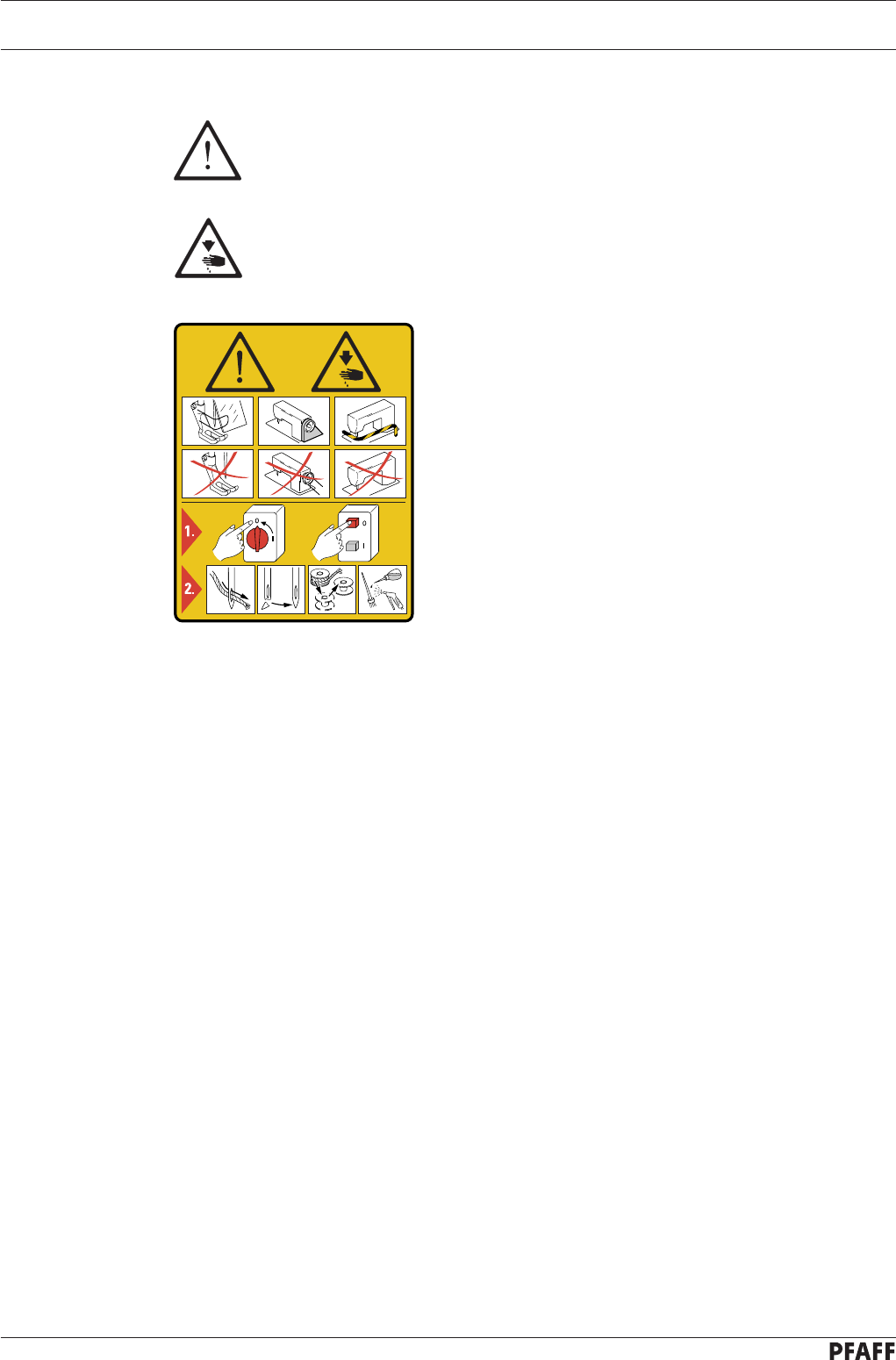

1.03 Safety symbols
Danger!
Points to be observed..
Danger of injury for operating and specialist personnel!
Caution
Do not operate without finger guard and safety devices.
Before threading, changing bobbin and needle, cleaning
etc. switch off main switch.
1.04 Important points for the user
This Instruction Manual is an integral part of the machine and must be available to the
operating personnel at all times.
The Instruction Manual must be read before operating the machine for the first time.
The operating and specialist personnel is to be instructed as to the safety equipment of
the machine and regarding safe work methods.
It is the duty of the user to only operate the machine in perfect running order.
It is the obligation of the user to ensure that none of the safety mechanisms are removed
or deactivated.
It is the obligation of the user to ensure that only authorized persons operate and work
on the machine.
Further information can be obtained from your PFAFF agent.
●
●
●
●
●
●
7
Safety
1.05 Operating and specialist personnel
1.05.01 Operating personnel
Operating personnel are persons responsible for the equipping, operating and cleaning of
the machine as well as for taking care of problems arising in the sewing area.
The operating personnel is required to observe the following points and must:
always observe the Notes on Safety in the Instruction Manual!
never use any working methods which could adversely affect the safety of the machine!
not wear loose-fitting clothing or jewelery such as chains or rings!
also ensure that only authorized persons have access to the potentially dangerous area
around the machine!
always immediately report to the person responsible any changes in the machine which
may limit its safety!
1.05.02 Specialist personnel
Specialist personnel are persons with a specialist education in the fields of electrics, electro-
nics and mechanics. They are responsible for the lubrication, maintenance, repair and adjust-
ment of the machine.
The specialist personnel is obliged to observe the following points and must:
always observe the Notes on Safety in the Instruction Manual!
switch off the On/Off switch before carrying out adjustments or repairs, and ensure that
it cannot be switched on again unintentionally!
wait until the luminous diode on the control box is no longer blinking or on before begin-
ning adjustment or repair work.
never work on parts which are still connected to the power supply! Exceptions are explai-
ned in the regulations EN 50110.
replace the protective coverings and close the electrical control box afer all repairs or
maintenance work!
●
●
●
●
●
●
●
●
●
●
8
Safety
1.06 Danger warnings
A working area of 1 m must be kept free both in front of and behind the machi-
ne, so that easy access is possible at all times.
Never put your hands or fingers in the sewing area during sewing!
Danger of injury by the needle!
While setting or adjusting the machine do not leave any objects on the table nor
in the needle plate area! Objects may be trapped or flung out of the machine!

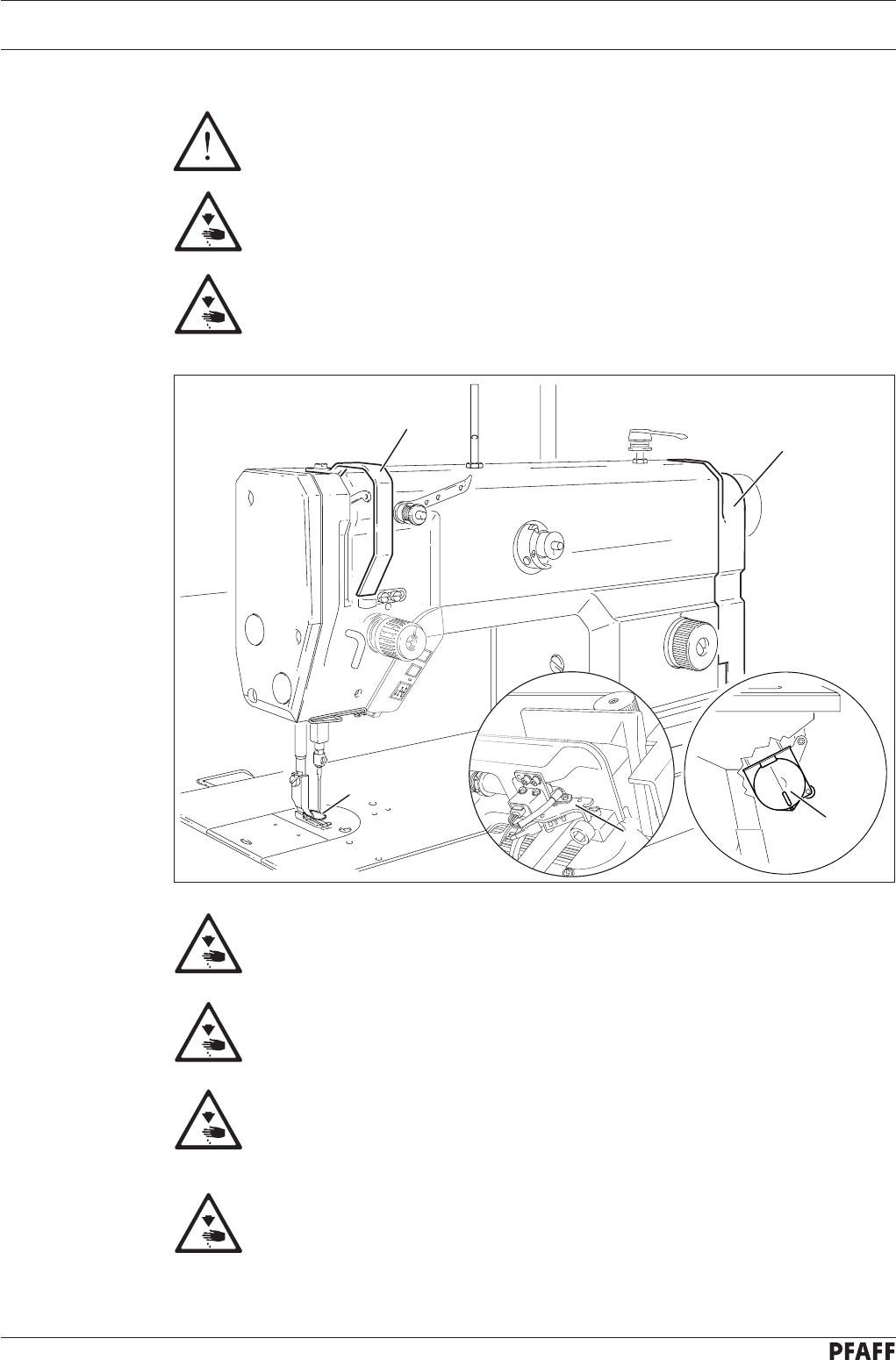

Fig. 1 - 01
Do not run the machine without take-up lever guard 1!
Danger of injury by moving take-up lever!
Do not run the machine without finger guard 2!
Danger of injury by up and down movement of needle!
Do not operate machines with integrated motor without start inhibitor 3!
Danger of injury if the machine is started accidentally!
If an external motor is used, do not operate the machine without the belt
guards 4 and 5!
Danger of injury by the drive belt!
4
2
1
35
Proper use
9
2 Proper use
The PFAFF 1181 is an single-needle ultra-high-speed seamer with compound feed
The PFAFF 1183 is an single-needle ultra-high-speed seamer with drop feed
The PFAFF 1181-D is an oil-free single-needle high-speed seamer with compound feed
The PFAFF 1183-D is an oil-free single-needle high-speed seamer with drop feed
These machines are used in the industry for sewing lockstitch seams.
Any and all uses of this machine which have not been approved of by the
manufacturer are considered to be inappropriate! The manufacturer cannot be
held liable for any damage caused by the inappropriate use of the machine!
The appropriate use of the machine includes the observance of all operational,
adjustment, maintenance and repair measures required by the manufacturer!
Specifications
10
3 Specifications ▲
3.01 PFAFF 1181, PFAFF 1181-D, PFAFF 1183, PFAFF 1183-D
Stitch type: ......................................................................................................... 301 (lockstitch)
Needle system: ................................................................... 134 or 134 KK on subclass -731/01
Needle size in 1/100 mm:
Version A: ........................................................................................................................ 60 - 70
Version B: ...................................................................................................................... 80 - 100
Version CN: ..................................................................................................................110 - 120
Effective balance wheel diameter: ..................................................................................65 mm
Fabric clearance: ........................................................................................................9 - 13 mm
Clear workspace width: ................................................................................................260 mm
Clear workspace height: ...............................................................................................125 mm
Bed-plate dimensions: ........................................................................................ 476 x 177 mm
Sewing head dimensions:
Length: ............................................................................................................. approx. 550 mm
Width: .............................................................................................................. approx. 180 mm
Height (above table): ........................................................................................approx. 300 mm
Max. stitch length:
Version A: .......................................................................................................................3,0 mm
Version B: .......................................................................................................................4.5 mm
Version CN: ....................................................................................................................6.0 mm
Max. speed PFAFF 1181/ 1183
Version A and B: .......................................................................................................5500 spm ◆
Subclass -731/01: .....................................................................................................4500 spm ◆
Subclass -948/51: .....................................................................................................5000 spm ◆
Subclass -8/44: .........................................................................................................3000 spm ◆
Version CN: ..............................................................................................................3800 spm ◆
Max. speed PFAFF 1181-D / 1183-D
Version A and B: .......................................................................................................4000 spm ◆
Subclass -8/44: .........................................................................................................3000 spm ◆
Needle bar stroke: ................................................................................................ 30 or 36 mm
Power connection:
Operating voltage: ......................................................... 230 V ± 10 %, 50/60 Hz, single-phase
Max. input: ......................................................................................................................400 VA
Fuse: ....................................................................................................................1 x 16 A, inert
Specifications
11
3.02 Versions and subclasses
Version A: ...........................................................................................for sewing light materials
Version B: .................................................................................... for sewing medium materials
Version CN: ....................................................................... for sewing medium-heavy materials
Work aids:
Subclass -731/01 .................................................................................................. edge trimmer
Subclass -900/24 ................................................................................................ thread trimmer
Subclass -909/14 .................................................................................................Thread trapper
Subclass -910/06 ............................................................................................ automatic foot lift
Subclass -911/37 ................................................................ automatic back-tacking mechanism
Noise data:
Emission sound level at the workplace at appropriate speed
(Noise measurement in accordance with DIN 45 635-48-A-1, ISO 11204, ISO 3744, ISO 4871)
PFAFF 1181-D at = 3200 spm: .................................................................... LpA < 76,0 dB(A) ■
PFAFF 1183-D at = 3200 spm: ................................................................... LpA < 76,5 dB(A) ■
PFAFF 1181 at 4400 spm: ........................................................................... LpA < 80,0 dB(A) ■
PFAFF 1183 at 4400 spm: ........................................................................... LpA < 80,5 dB(A) ■
Net weight of sewing head: ..................................................................................approx. 30 kg
Gross weight of sewing head: ..............................................................................approx. 38 kg
▲ Subject to technical alterations
◆ 3,800 s.p.m. with 36 mm needle bar stroke
■ KpA = 2,5 dB
Disposal of Machine
12
4 Disposal of Machine
Proper disposal of the machine is the responsibility of the customer.
The materials used for the machine are steel, aluminium, brass and various plastic
materials. The electrical equipment comprises plastic materials and copper.
The machine is to be disposed of according to the locally valid pollution control regula-ti-
ons; if necessary, a specialist ist to be commissioned.
Care must be taken that parts soiled with lubricants are disposed of separately
according to the locally valid pollution control regulations!
●
●
●
Transportation, packing and storage
13
5 Transportation, packing and storage
5.01 Transportation to customer‘s premises
The machines are delivered completely packed.
5.02 Transportation inside the customer‘s premises
The manufacturer cannot be made liable for transportation inside the customer‘s premises
nor to other operating locations. It must be ensured that the machines are only transported
in an upright position.
5.03 Disposal of packing materials
The packing materials of this machine comprise paper, cardboard and VCE fibre. Proper dis-
posal of the packing material is the responsibility of the customer.
5.04 Storage
If the machine is not in use, it can be stored as it is for a period of up to six months, but It
should be protected against dust and moisture.
If the machine is stored for longer periods, the individual parts, especially the surfaces of
moving parts, must be protected against corrosion, e.g. by a film of oil.
Explanation of symbols
14

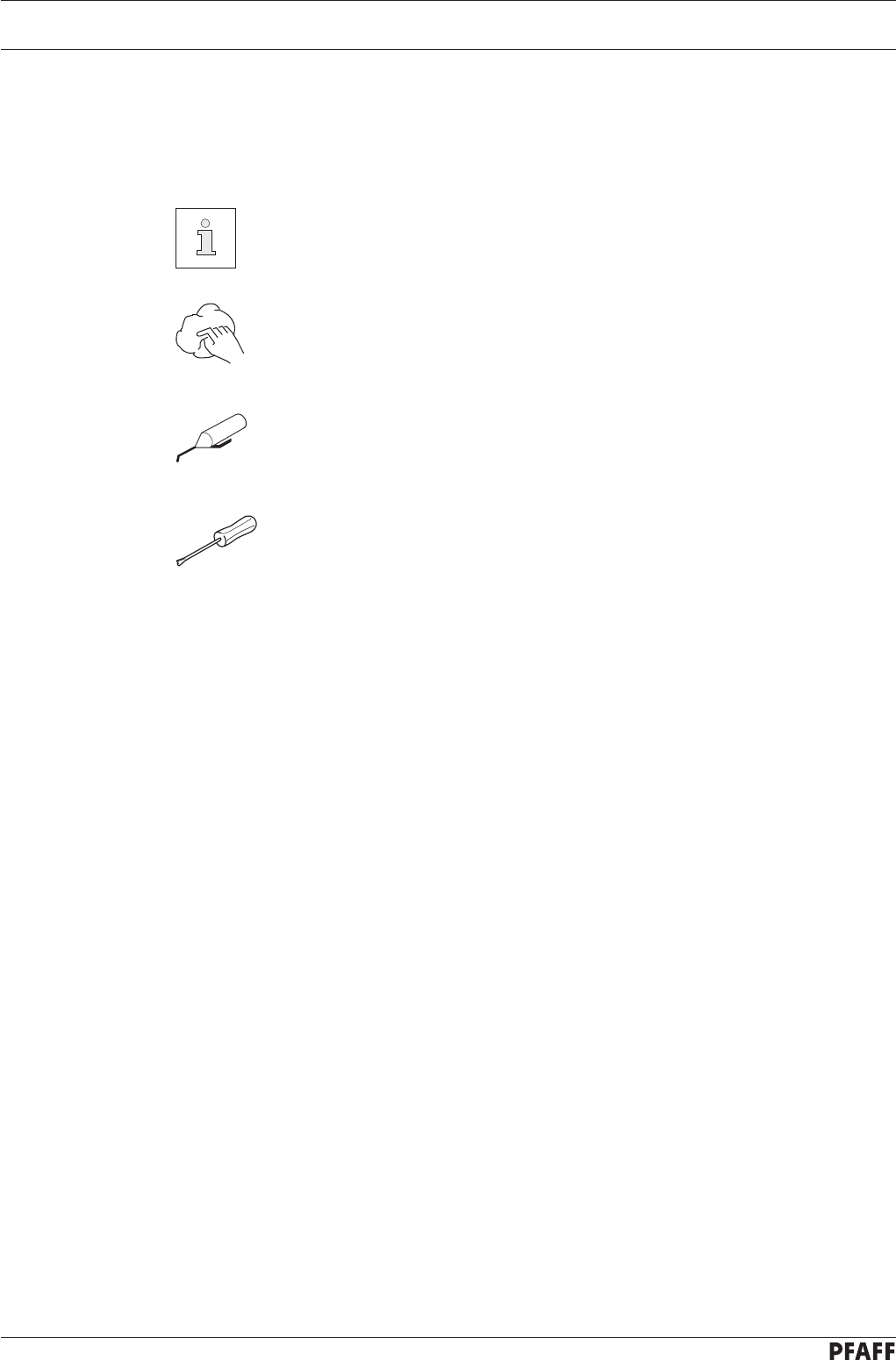

6 Explanation of symbols
In this instruction manual, work to be carried out or important information is accentuated by
symbols. These symbols have the following meanings:
Note, information
Cleaning, care
Lubrication
Maintenance, repairs, adjustment, service work
(only to be carried out by technical staff)
15
Controls
Fig. 7 - 01
1
77-005
7 Controls

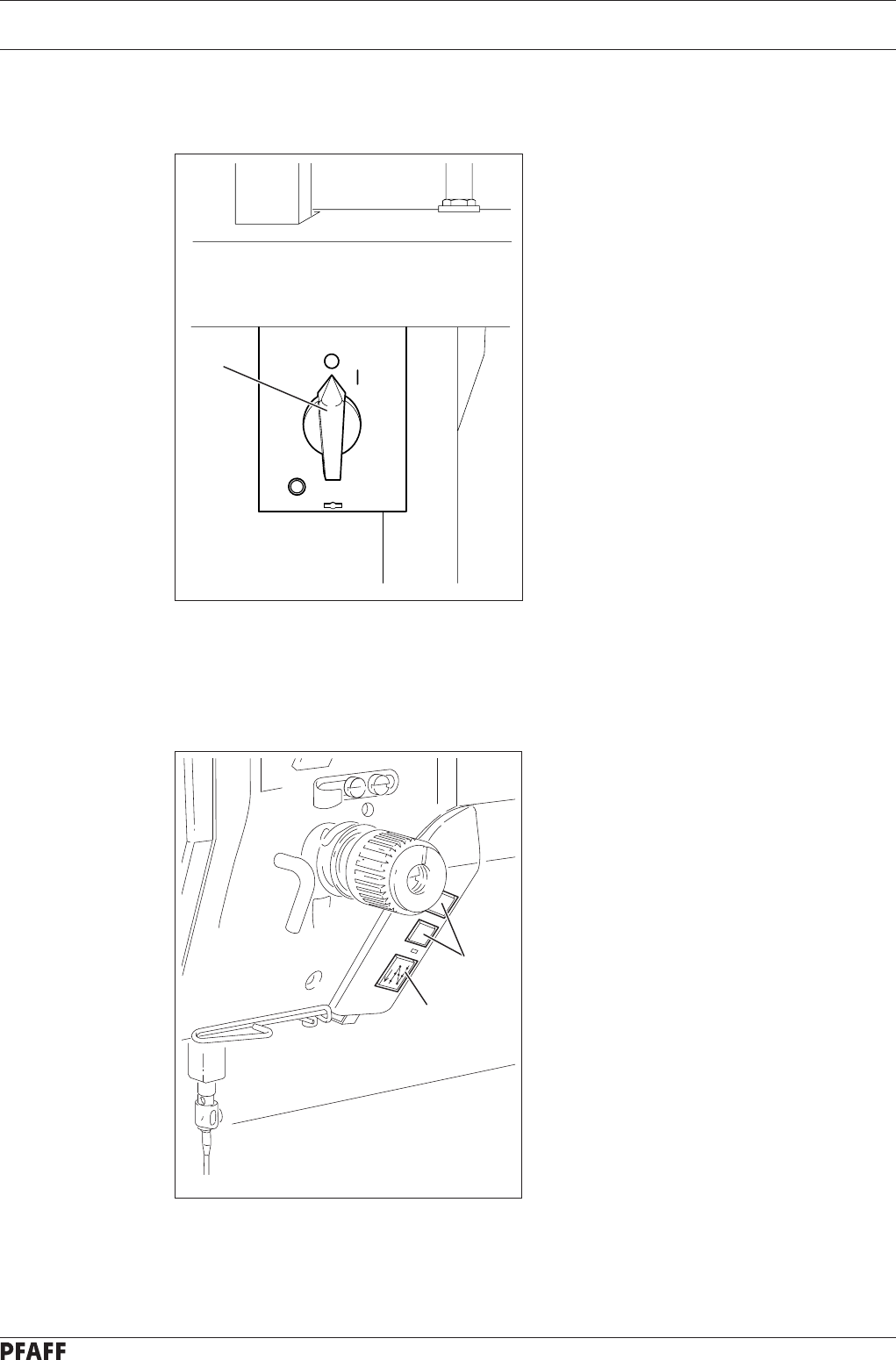

7.01 On/off switch
Switch the machine on or off by turning
main switch 1.
●
7.02 Keys on the machine head (only for machines with -911/..)
As long as key 1 is pressed during sew-
ing, the machine sews in reverse.
Keys 2 can be used for parameter set-
tings (see motor instruction manual).
●
●
Fig. 7 - 02
2
1
Controls
16
Fig. 7 - 03
1491/1493. 08-03
0 +1
-1 -2
7.03 Pedal
With the on/off switch on
0 = Machine stop
+1 = Sew
- 1 = Raise presser foot (for
machines with -910/06)
- 2 = Trim thread (for machines
with -900/24)
●

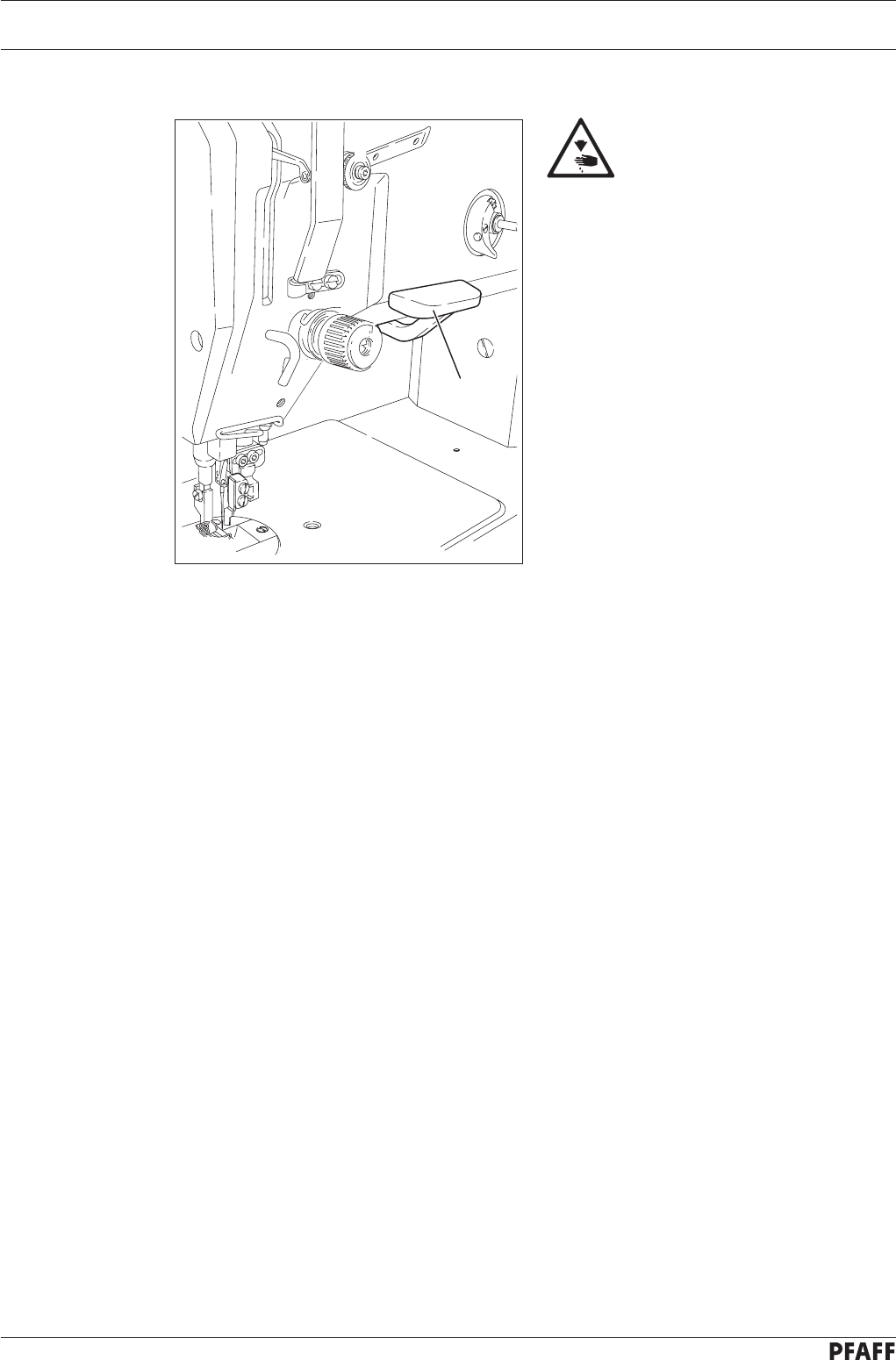

7.04 Lever for lifting the presser foot
The presser foot is raised by turning
lever 1.
●
Fig. 7 - 04
1
17
Controls
1

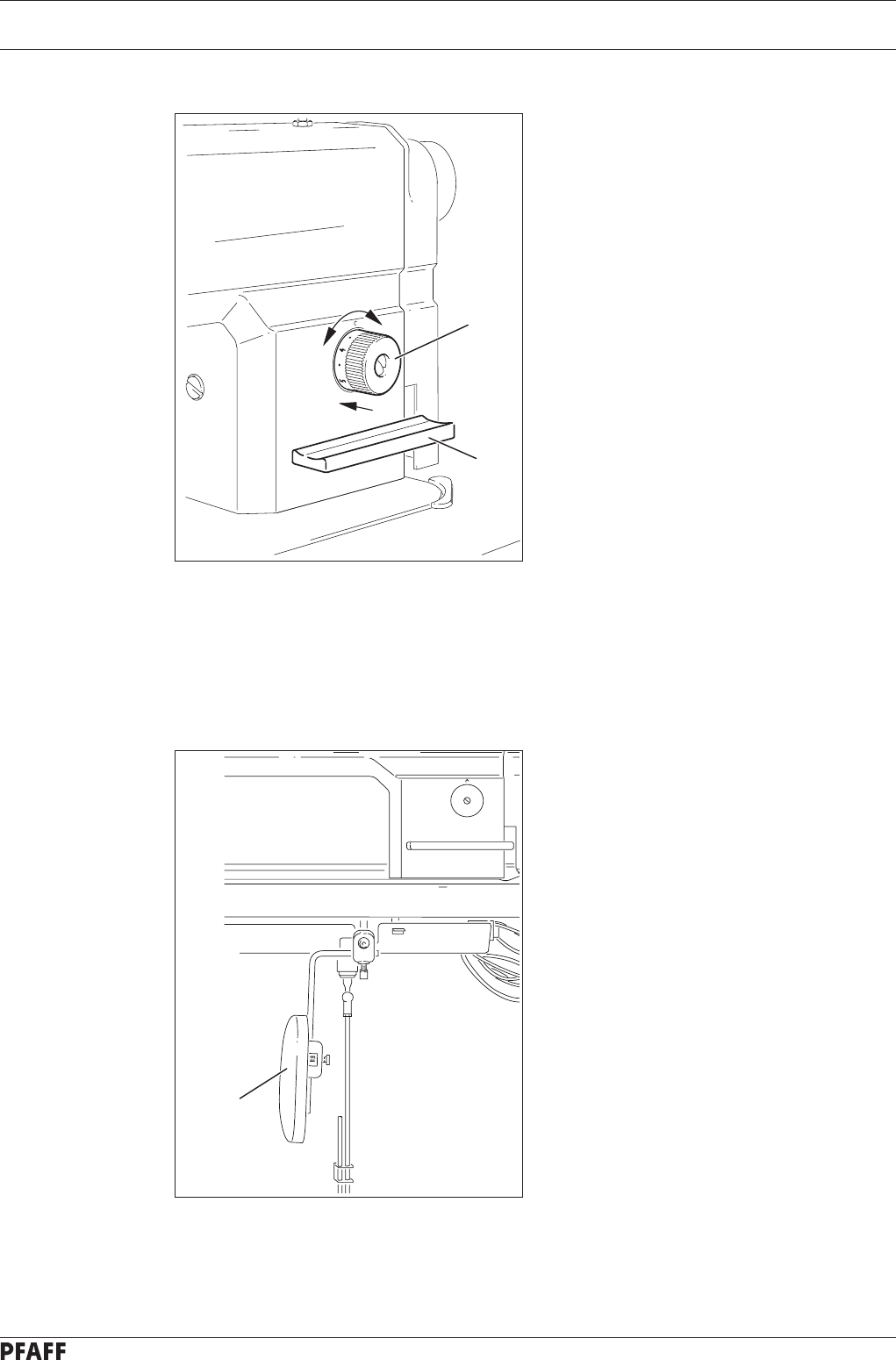

7.05 Feed regulator disk / Reverse feed lever
The stitch length can be set by simulta-
neously applying pressure to disk 1 and
turning it to the desired setting.
For reverse sewing press lever 2.
●
●
Fig. 7 - 05
2
Fig. 7 - 06
1

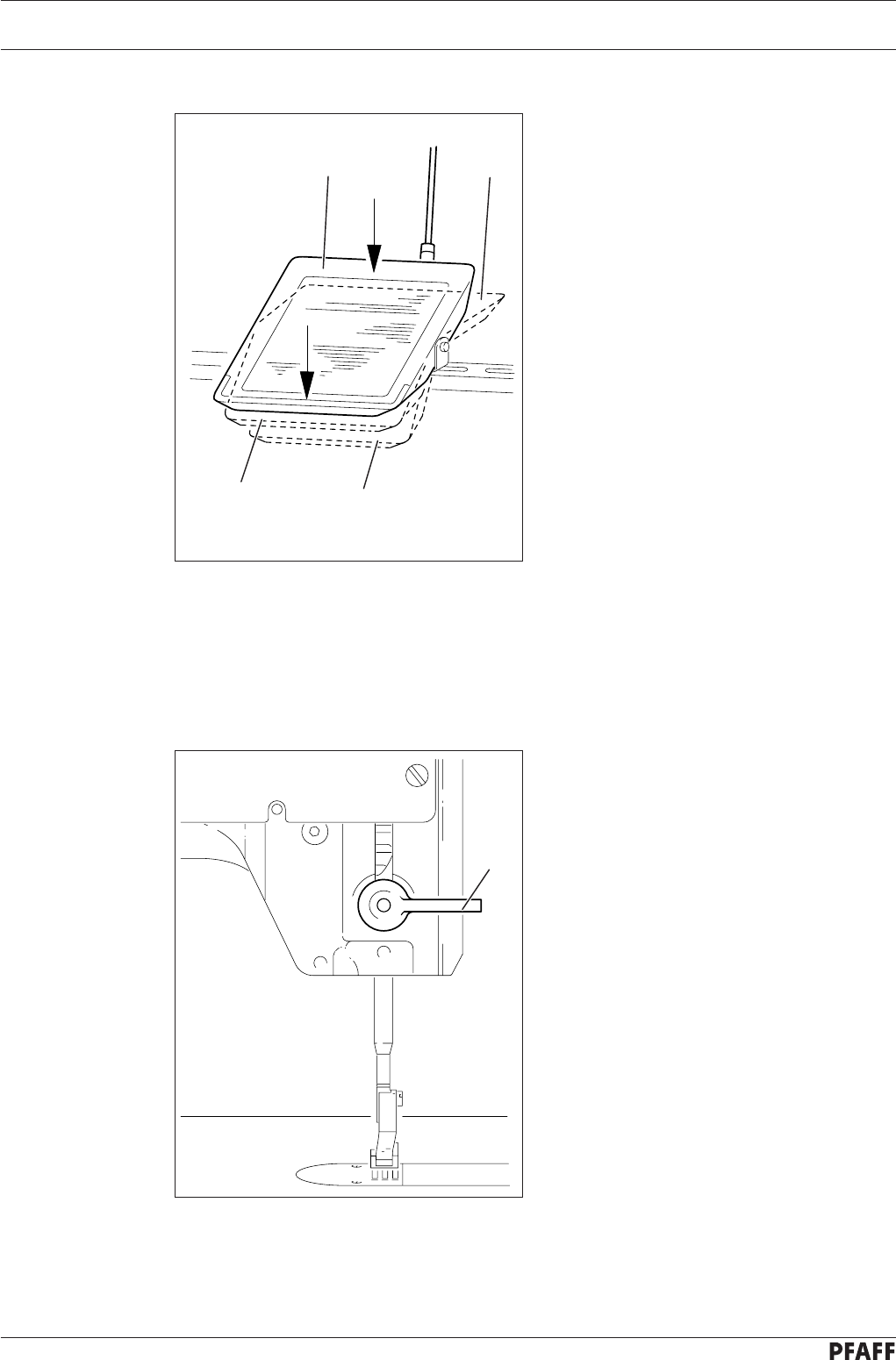

7.06 Knee lever
By pressing the knee lever 1 in the
direction of the arrow, the presser foot is
raised.
●
Controls
18
7.07 Thread trimmer -731/01
Do not touch the running mo-
tor! Danger of injury!
By pressing or raising key 1, the edge
trimmer is switched on or off.
●
7.08 Control panel (only on machines with Quick-Eco drive)
The description can be found in the separate instruction manual for the control panel.
Fig. 7 - 07
1
2
Installation and commissioning
19
Fig. 8 - 01
2
11
Loosen screws 1 and 2 and set the desired table-top height
Tighten screws 1 well.
Adjust the position of the pedal so that you can operate it comfortably and tighten screw 2.
●
●
●
8 Installation and commissioning
The machine must only be mounted and commissioned by qualified personnel!
All relevant safety regulations are to be observed!
If the machine is delivered without a table, it must be ensured that the frame
and the table top which you intend to use can hold the weight of the machine
and the motor. It must be ensured that the supporting structure is sufficiently
sturdy, including during all sewing operations.
8.01 Installation
The site where the machine is installed must be provided with suitable connections for the
electric current, see Chapter 3 Specifications.
It must also be ensured that the standing surface of the machine site is firm and horizontal,
and that sufficient lighting is provided.
The method of packaging used requires that the table top be lowered for trans-
port. The following is a description of how to adjust the height of the table top.

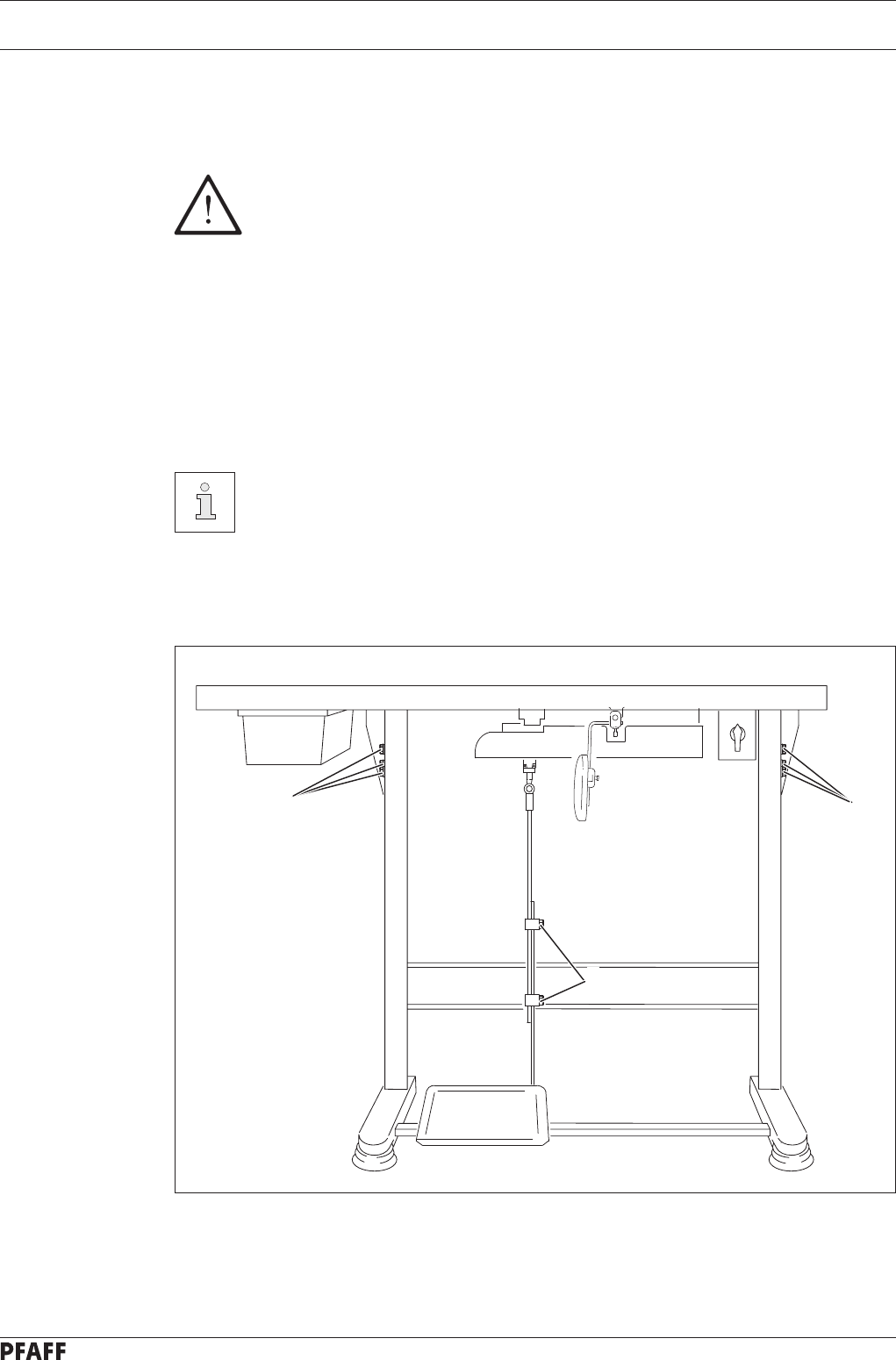

8.01.01 Adjusting the table-top height
Installation and commissioning
20
Loosen nuts 1.
Tighten the V-belt with belt take-up han-
ger 2.
Tighten nuts 1.
A quick motor is shown in
Fig. 8-02. If another motor is
used, carry out this step accor-
ding to the instructions in the
motor instruction manual.
●
●
●
Fig. 8 - 02
1
2

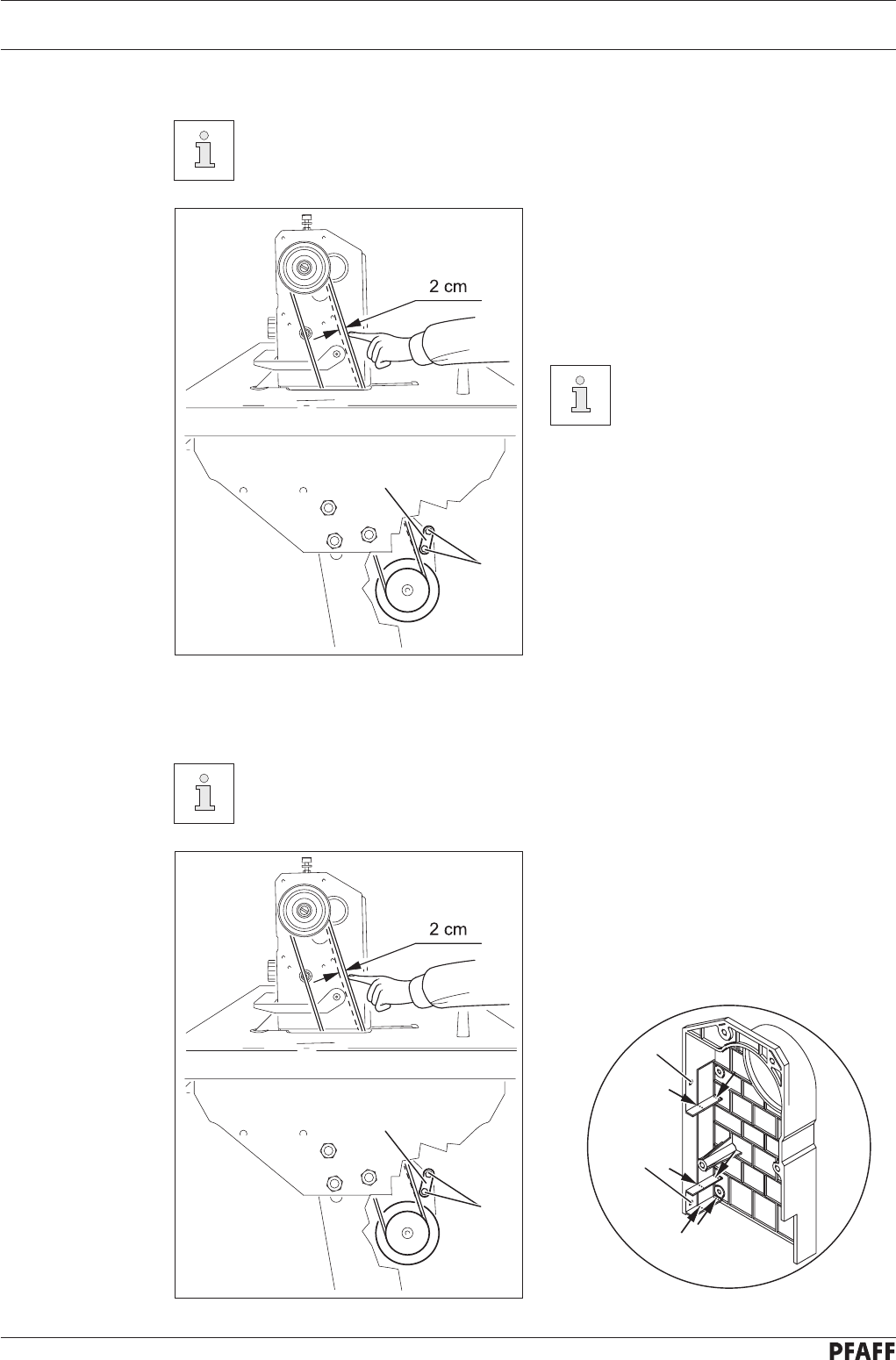

8.01.02 Adjusting the V-belt tension
This step is eliminated for integrated sewing motors.

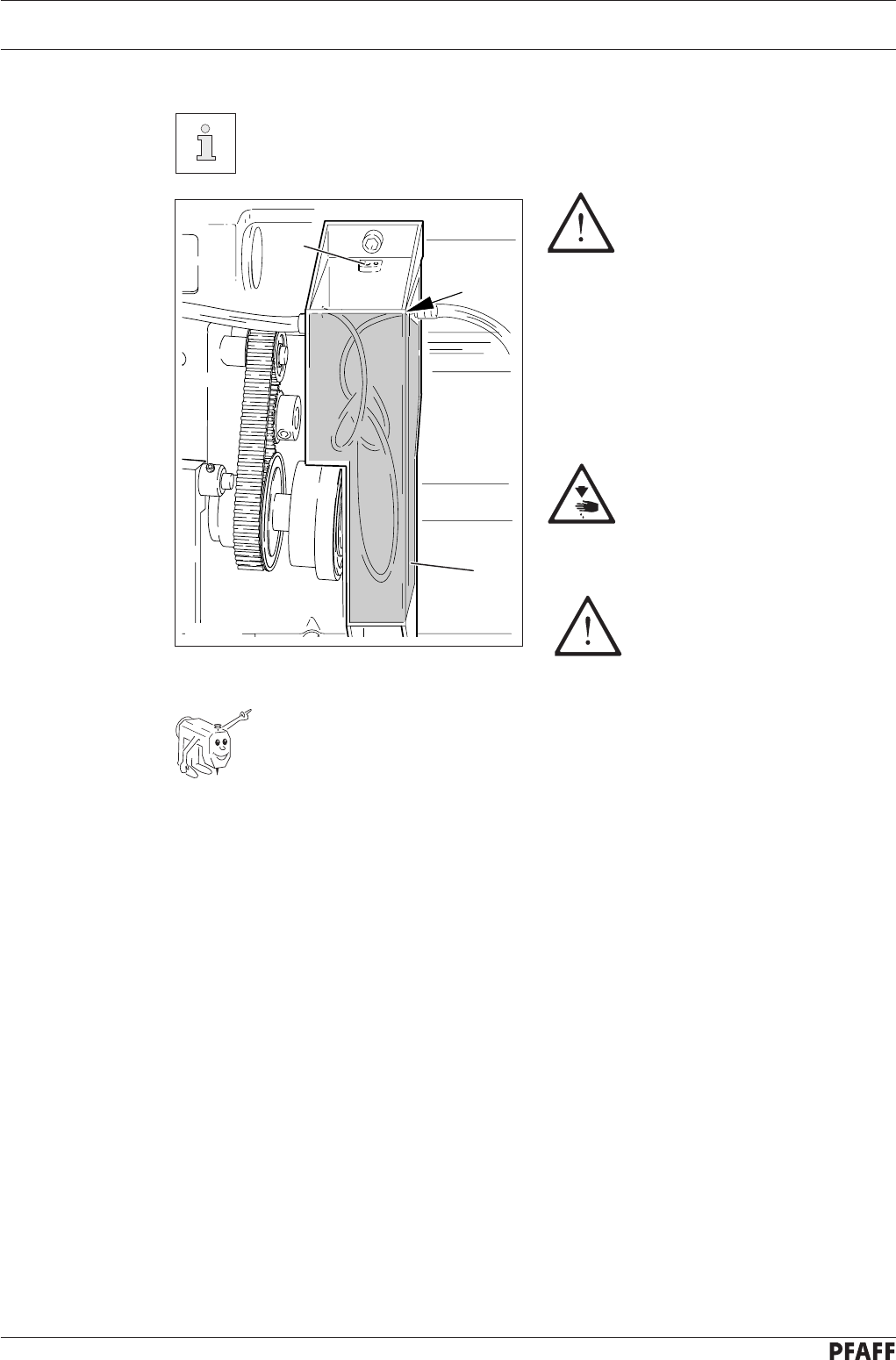

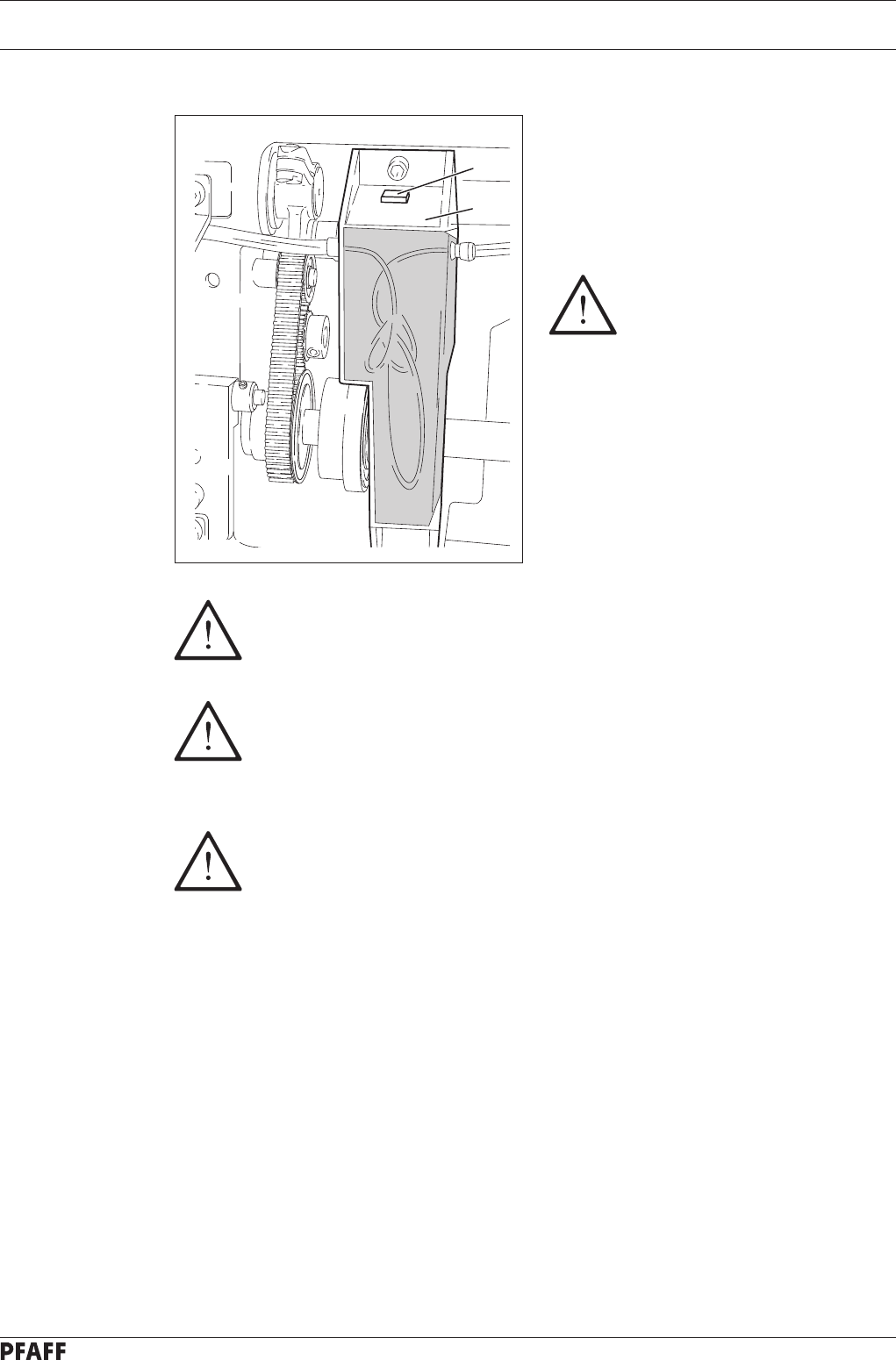

Break out the belt guard case 1 at the
points marked by the arrows.
Fasten belt guard 2 in holes 3.
Attach belt guard 4 to the machine case
with screws 5.
●
●
●
Fig. 8 - 03
1
2
8.01.03 Mounting the upper V-belt guard
This step is eliminated for integrated sewing motors.
3
3
Installation and commissioning
21
Align belt-guard 1 in such a way that both
the motor pulley and the V-belt run freely.
Tighten screws 2.
A quick motor is shown in
Fig. 8-04. If another motor is
used, carry out this step accor-
ding to the instructions in the
motor instruction manual.
●
●
Fig. 8 - 04
1
2
8.01.04 Mounting the lower V-belt guard
This step is eliminated for integrated sewing motors.
2

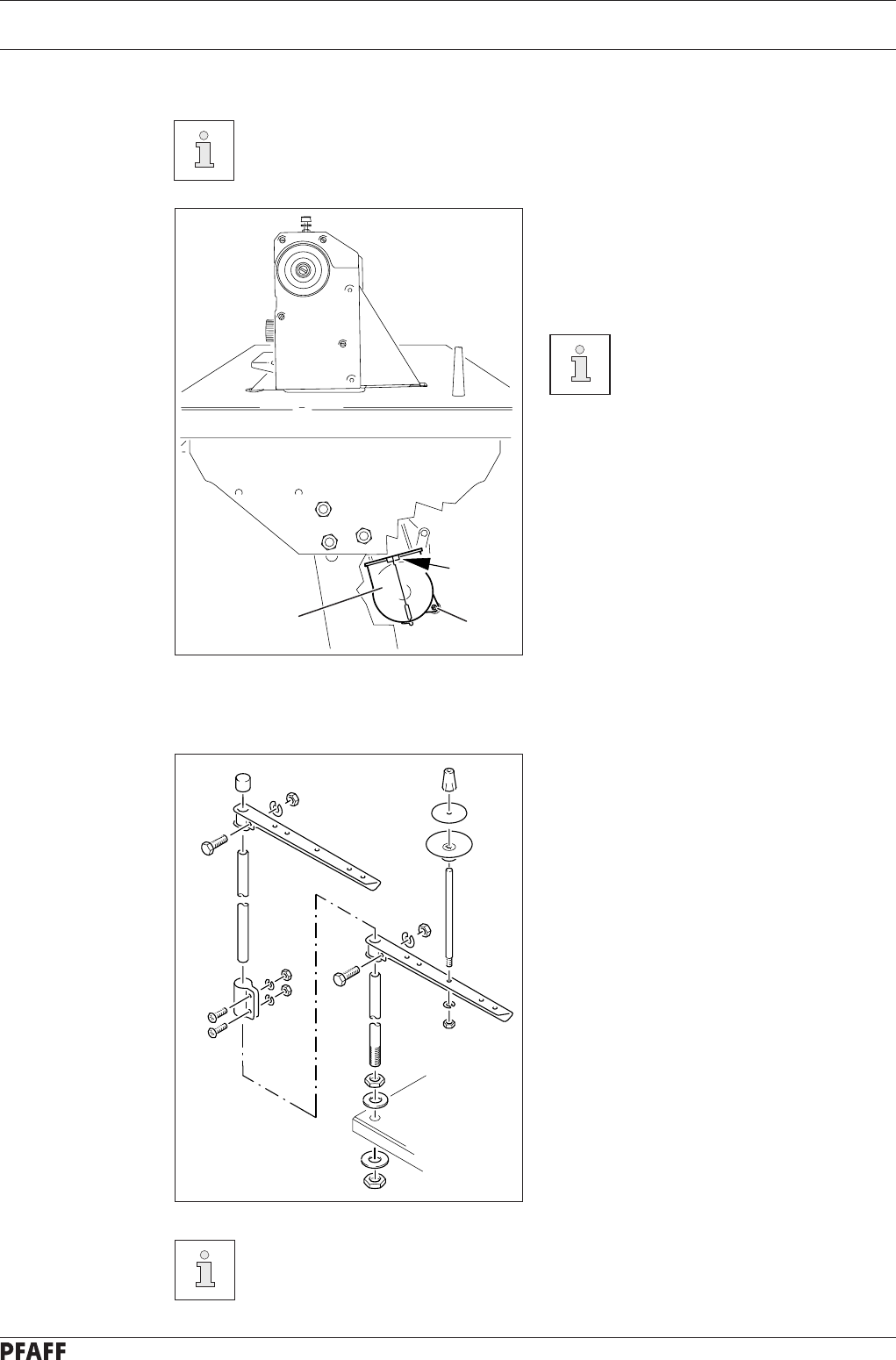

8.01.05 Mounting the spool holder
Mount the spool holder as shown in
Fig. 8-05.
Insert the spool holder into the hole in
the table top and fasten it with the nuts
enclosed.
●
●
Fig. 8 - 05

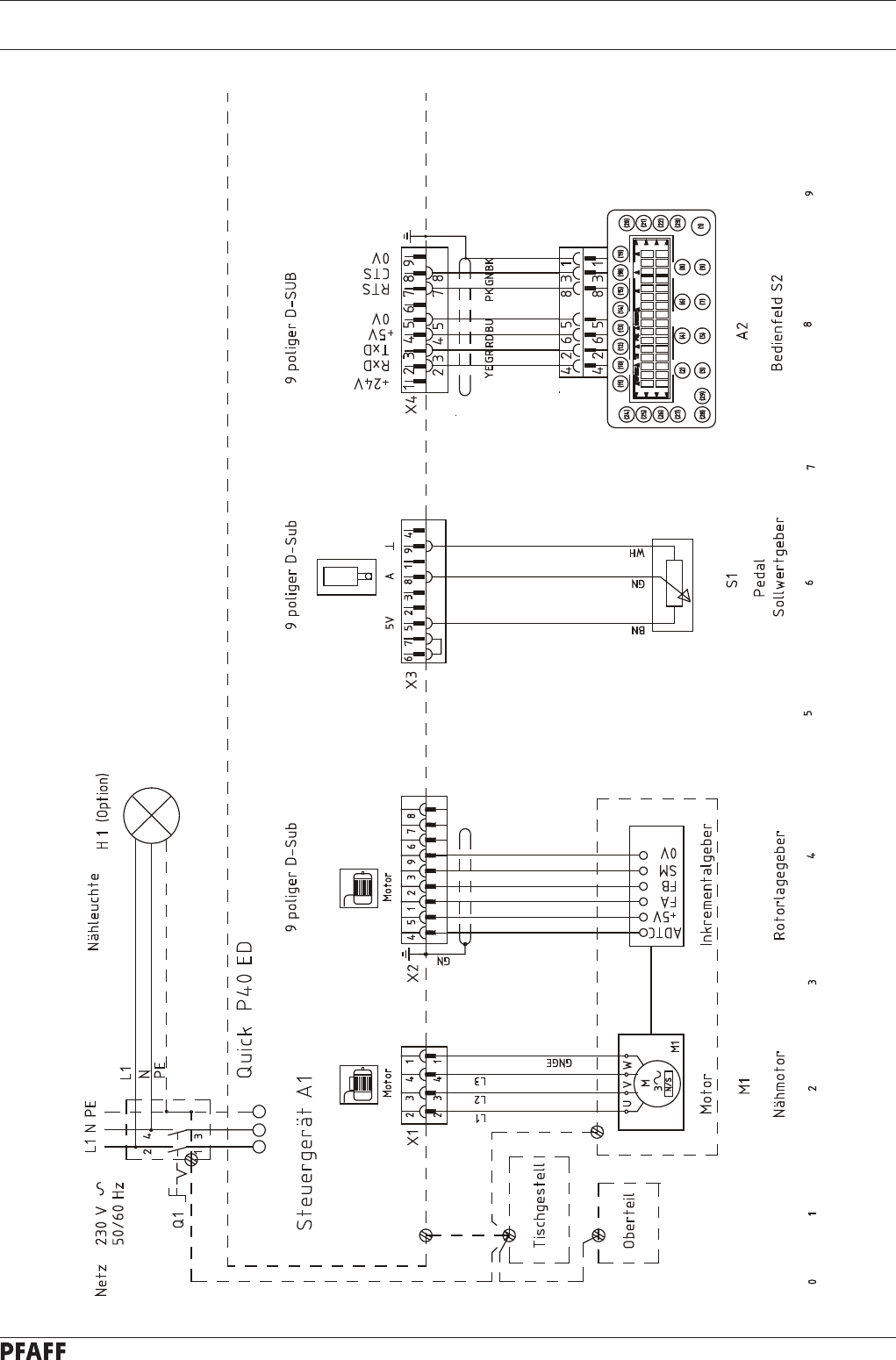

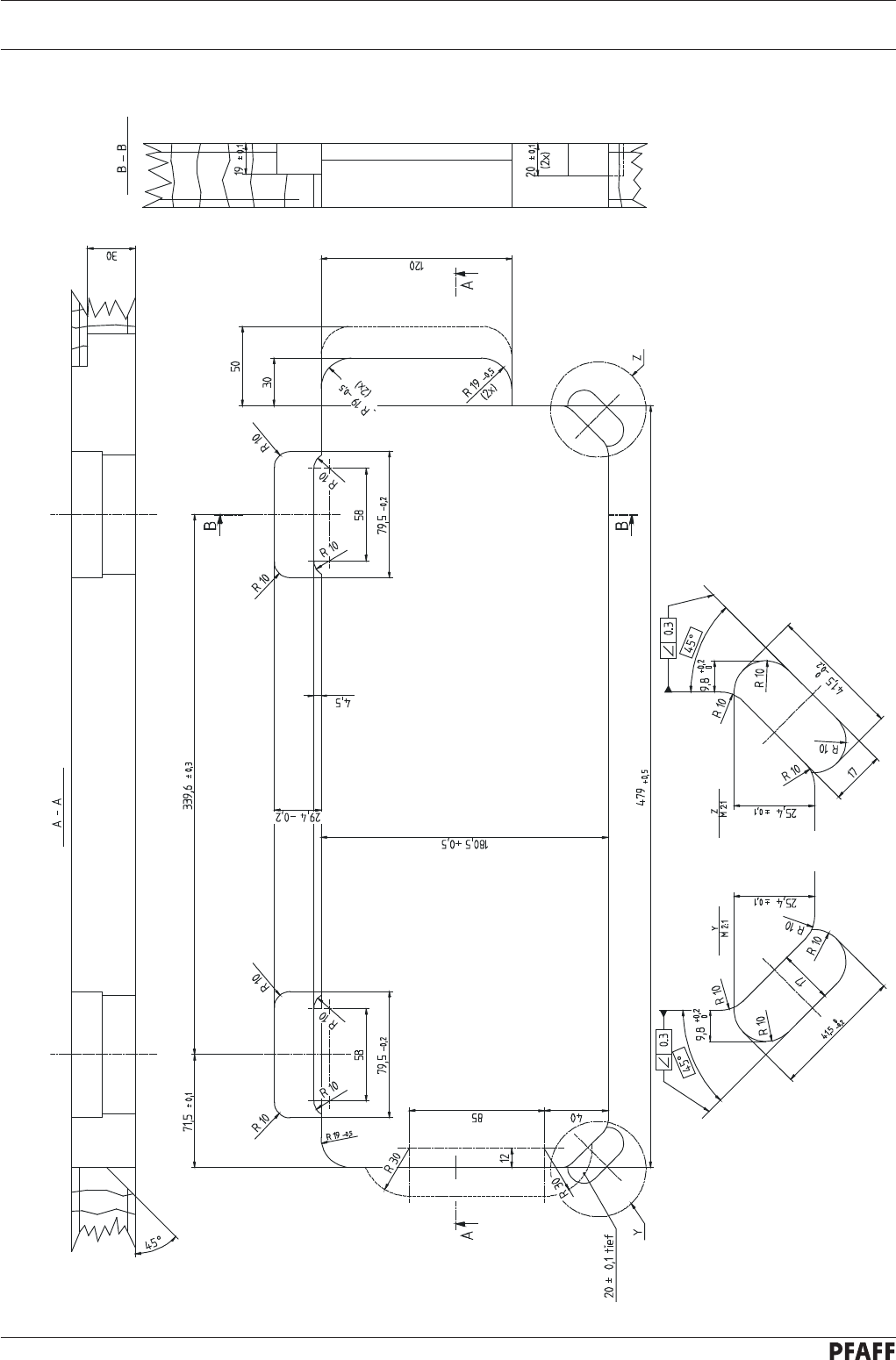

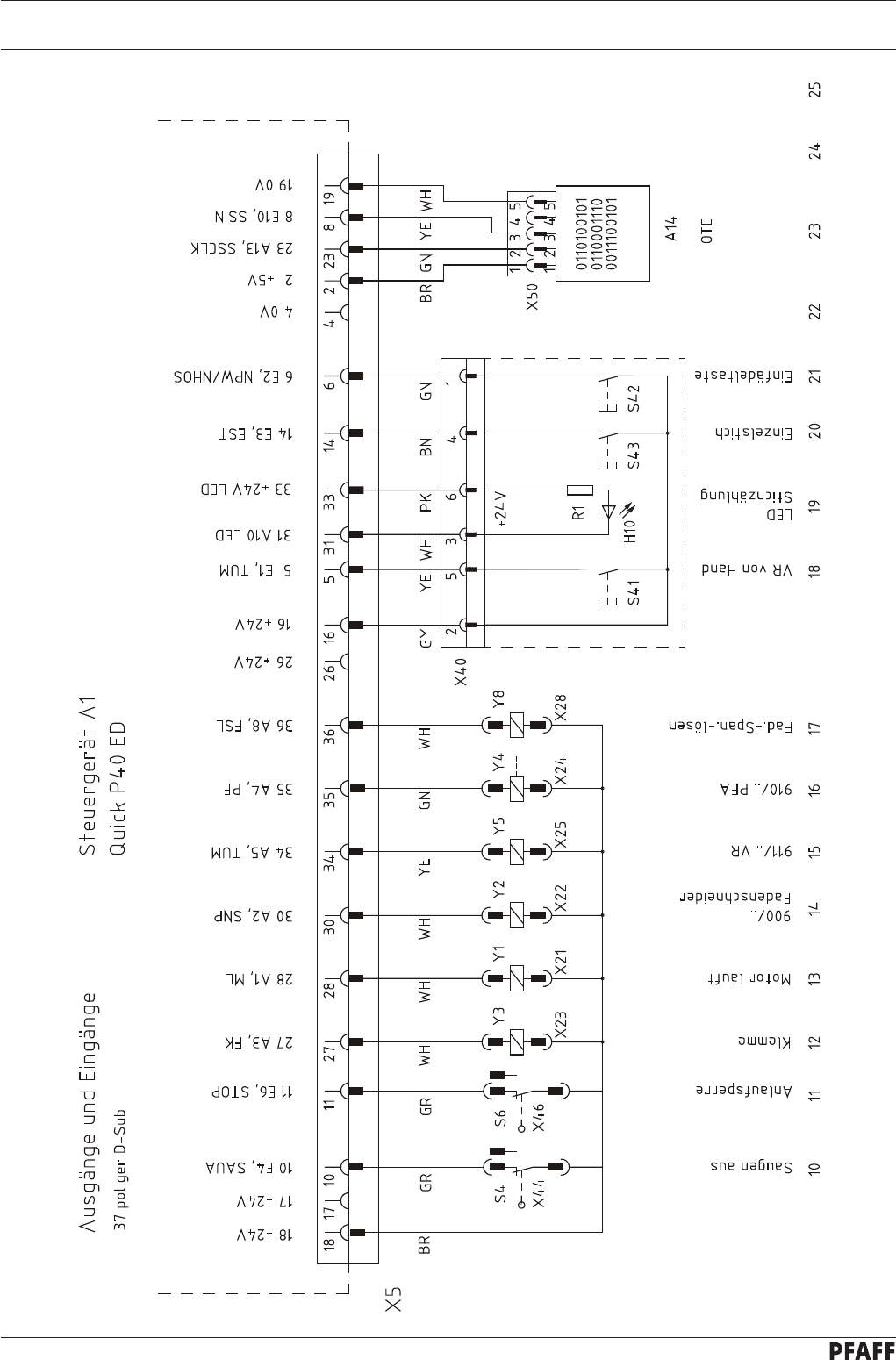

Table top mounting and circuit diagrams
(see Chapter 11)
Installation and commissioning
22

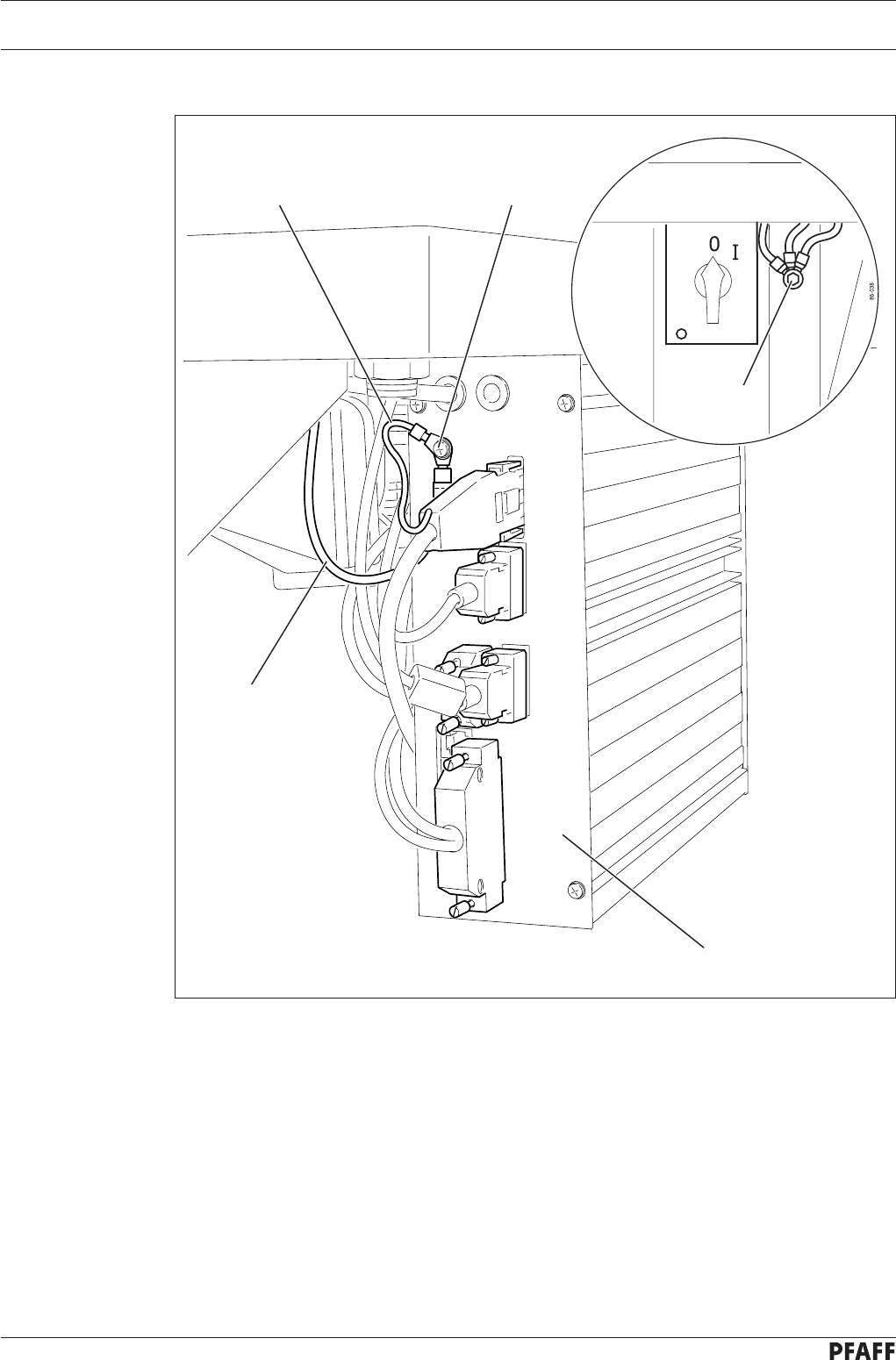

8.02 Connecting the plug-in connections and earth cables
Fig. 8 - 06
90-004
A
B
3
2
1
Connect all plugs as labelled to the control box 1.
Screw the earth cable from the sewing head and the main switch to earth point A.
Connect earth point A to earth point B with earth cable 2.
Screw the earth cable 3 from the motor to earth point B.
●
●
●
●
Installation and commissioning
23
8.03 Commissioning the machine
Check the machine, especially the electri-
cal leads, for any damage.

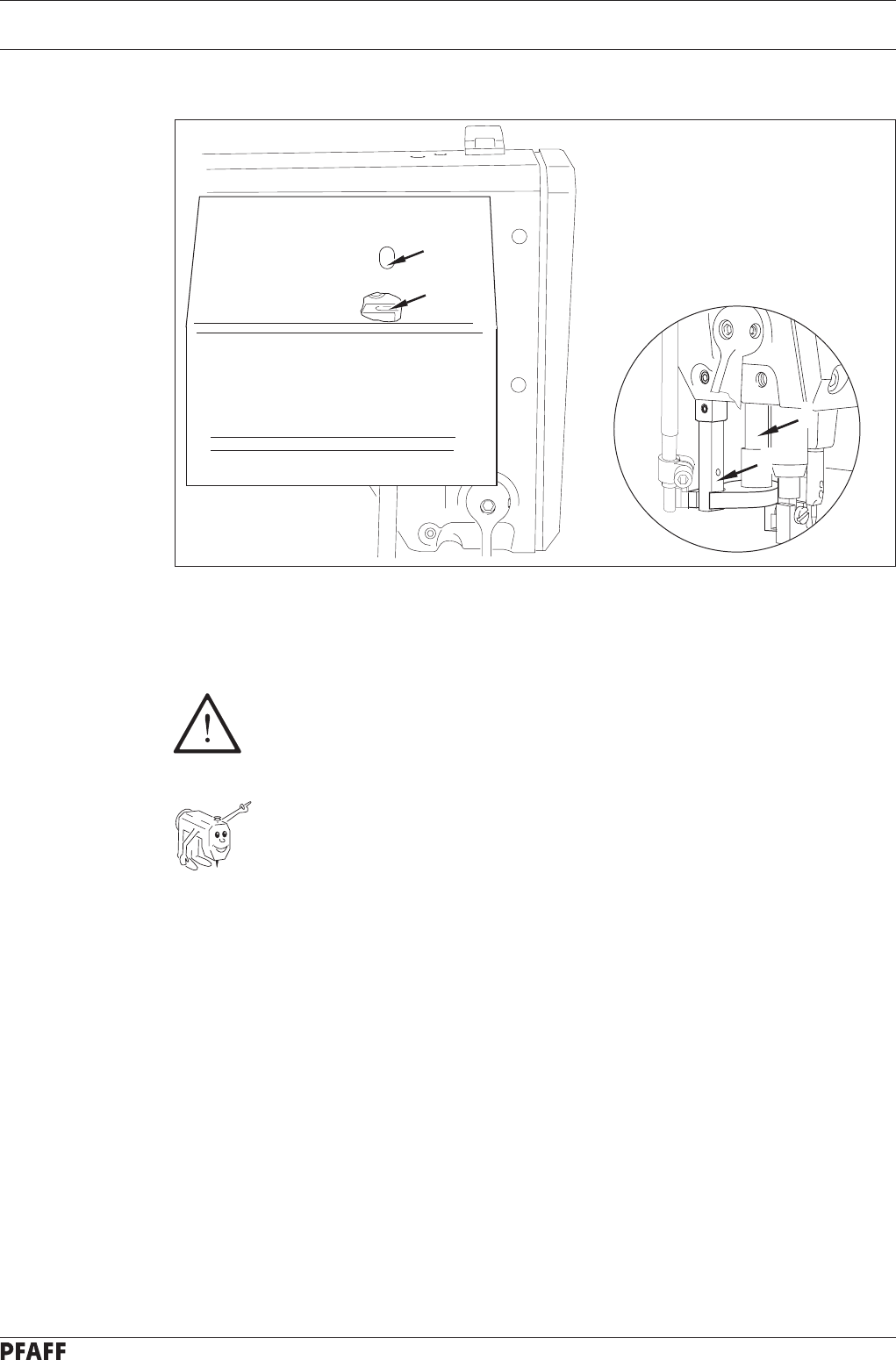

Remove pin 1 of the oil reservoir 2
(Fig. 8 - 07).
The pin serves only to protect
the machine from damage
during transport and must not
be used when sewing.

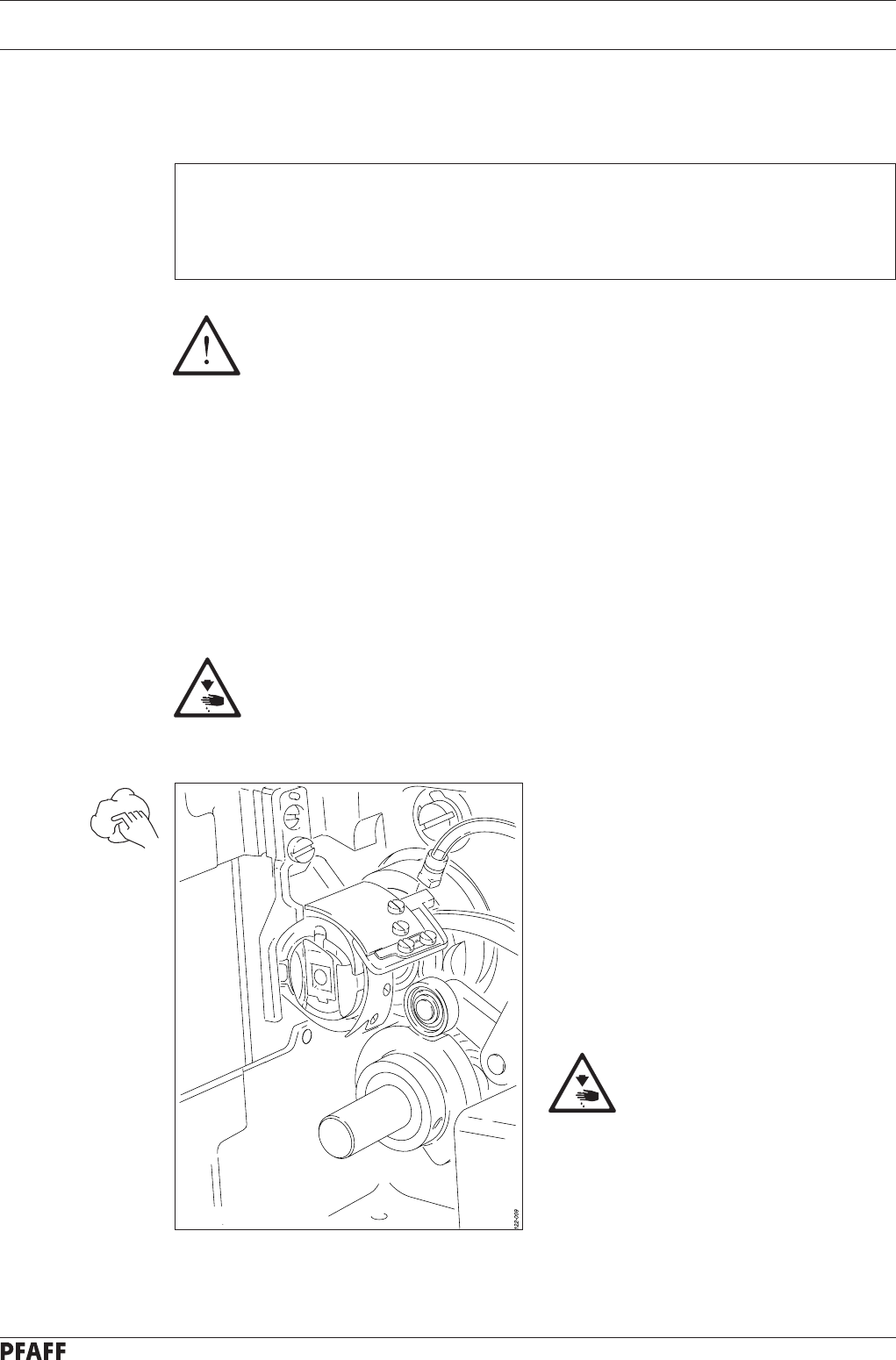

Clean the machine thoroughly and oil it
(see chapter 10 Care and maintenance).
Have skilled personnel check if the ma-
chine can be operated with the available
mains voltage.
.
Do not operate the machine if there is any discrepancy.
Before commissioning the machine, have specialized personnel check whether
the parameter 799 (machine class) is set at "1" and the parameter 800 (sewing
direction) is set at "0". If necessary, have the adjustment carried out (see Chap-
ter 8.05 Basic position of the machine drive unit).
.
The machine may only be connected to an earthed socket!
8.04 Switching the machine on/off
Switch the machine on (see Chapter 7.01, On/off switch).
●
●
●
●
●
Fig. 8 - 07
1
2
Installation and commissioning
24
8.05 Basic position of the machine drive unit
(only on machines with Quick-EcoDrive and control unit P40ED)
Switch on the machine.
Press the TE/speed key twice to select the input mode.
Select parameter "798" by pressing the corresponding +/- key, and select service level
C, see Chapter Selecting the user level in the instruction manual for the control panel.
By pressing the corresponding +/- key select the parameter "799" (Selecting the machine
class).
Check whether value "1" is set, and correct it if necessary.
If the parameter has to be altered, operate the TE/Speed key and then switch
off the machine and switch it on again. Then select service level C again as de-
scribed above.
By pressing the corresponding +/- key, select parameter "800" (selecting the sewing
direction).
By pressing the corresponding +/- key, select the value for the parameter at "0".
By pressing the corresponding +/- key, select parameter "700".
Sew a stitch by operating the pedal.
Turn the balance wheel in the sewing direction until the descending needle is level with
the top edge of the needle plate.
Then check the parameter values listed in the parameter list (see Chapter
10.04 Parameter Settings) and adjust them if necessary.
Conclude the adjustment of the sewing motor by pressing the TE/Speed key.
●
●
●
●
●
●
●
●
●
●
●
●
Installation and commissioning
25
Fig. 8 - 07

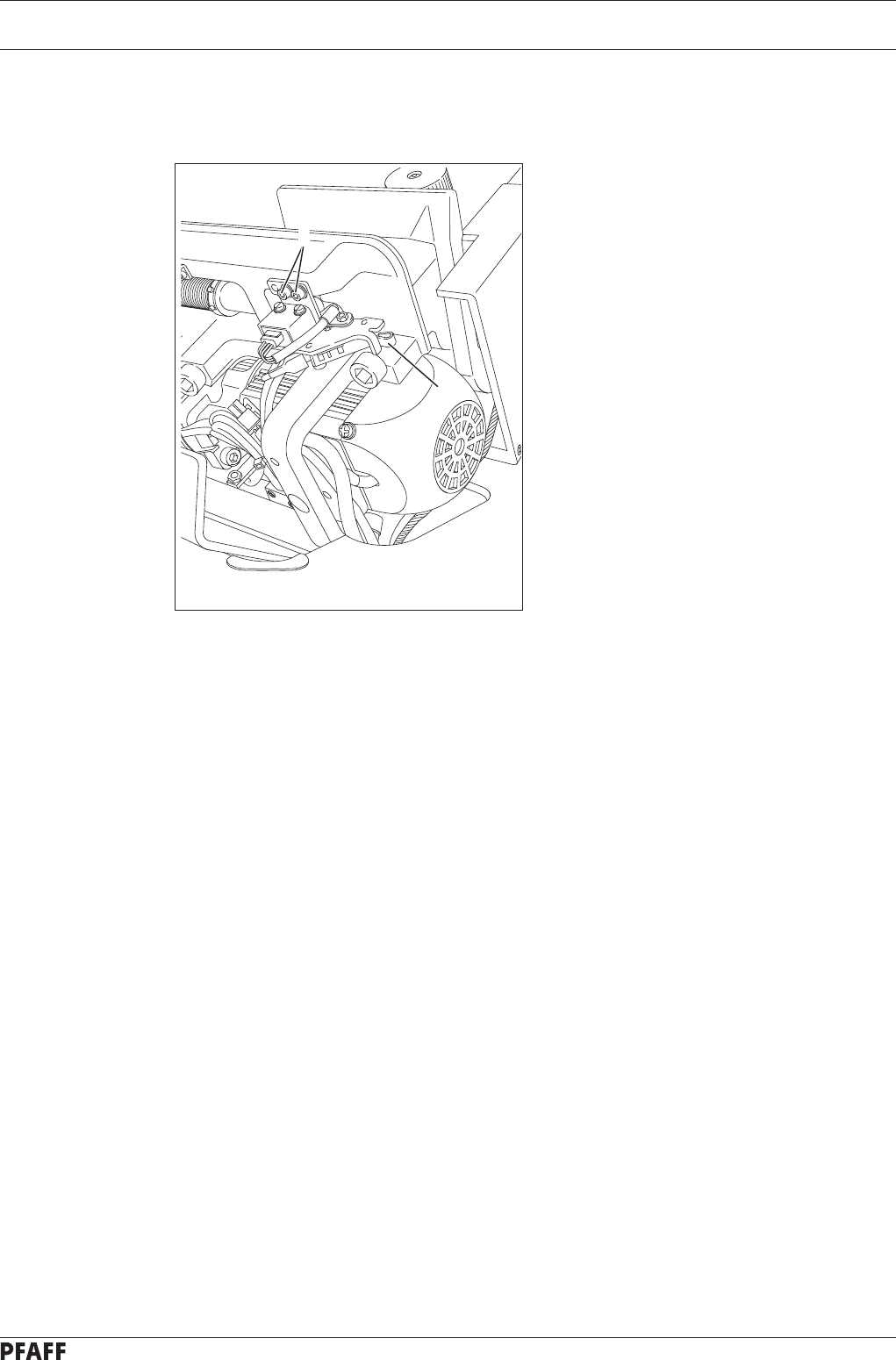

8.06 Start inhibitor
8.06.01 Mounting the start inhibitor
Set the machine into the table top.
After loosening screws 2, set switch 1 so
that it is activated when the sewing head
is in an upright position.
In this position tighten screws 2.
●
●
●
2
1
8.06.02 Checking the start inhibitor function
Switch the machine on at the main switch and tilt back the sewing head.
The error message "Error 9" must appear on the control panel.
If the message does not appear, check the setting of safety switch 1.
Set the sewing head upright and acknowledge the error message by pressing the
TE/Speed key. The machine is ready for operation again.
●
●
●
Preparation
26
9 Preparation
All regulations and instructions in this Instruction Manual are to be observed!
Special attention is to be paid to the safety regulations!
All preparation work is only to be carried out by appropriately trained personnel.
Before all preparation work, the machine is to be separated from the electricity
supply by removing the plug from the mains or switching off the On/Off switch!

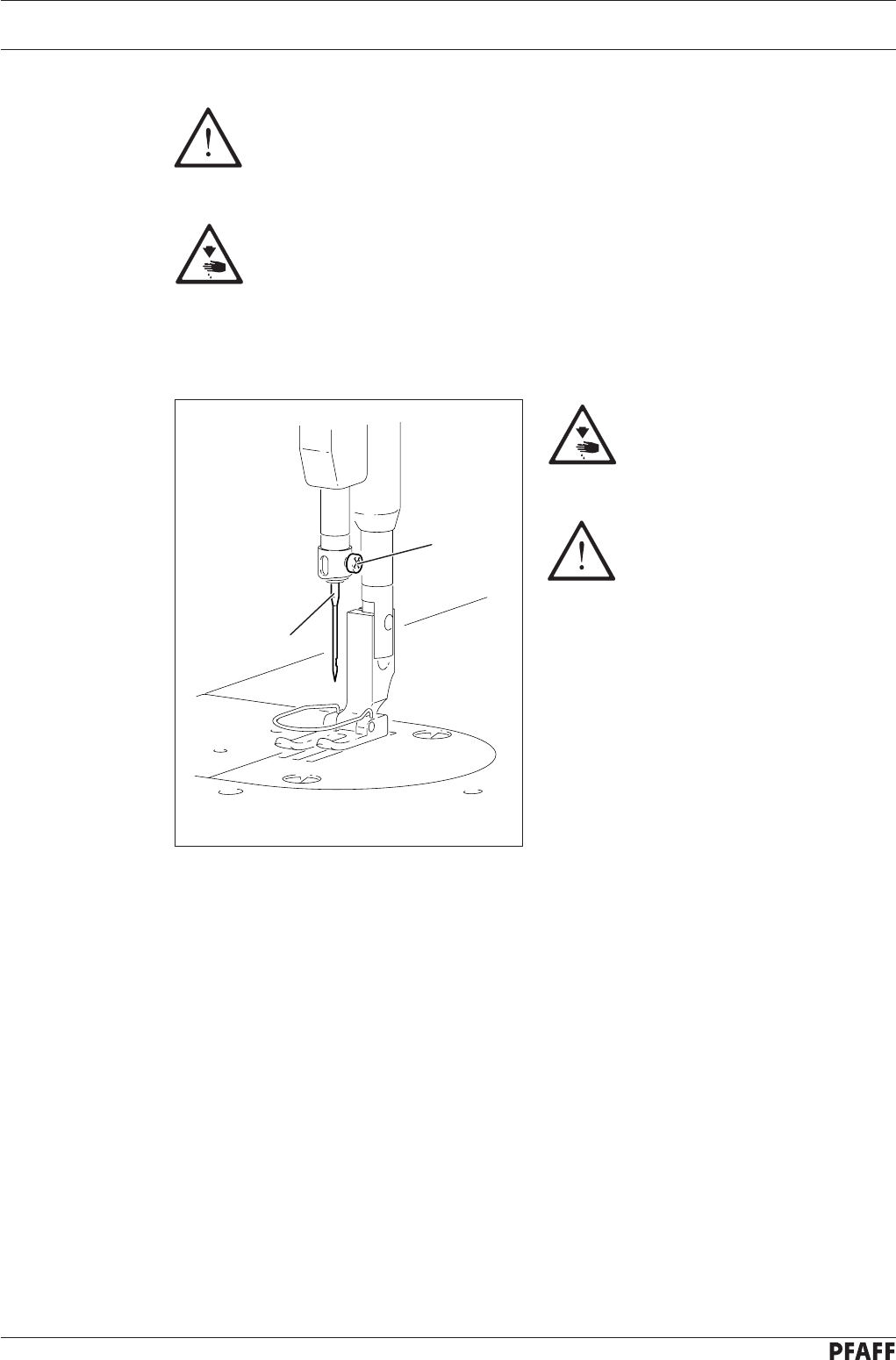

9.01 Inserting the needle
Switch off the machine!
Danger of injury due to uninten-
tional starting of the machine!
Only use needles from the sys-
tem intended for the machine,
see Chapter 3 Specifications.
Raise needle bar.
Loosen screw 1 and insert needle 3 until
you feel it stop.
The long needle groove must be aligned
in the direction of the machine head.
Tighten screw 1.
●
●
●
●
Fig. 9 - 01
1
2
Preparation
27
Fig. 9 - 02

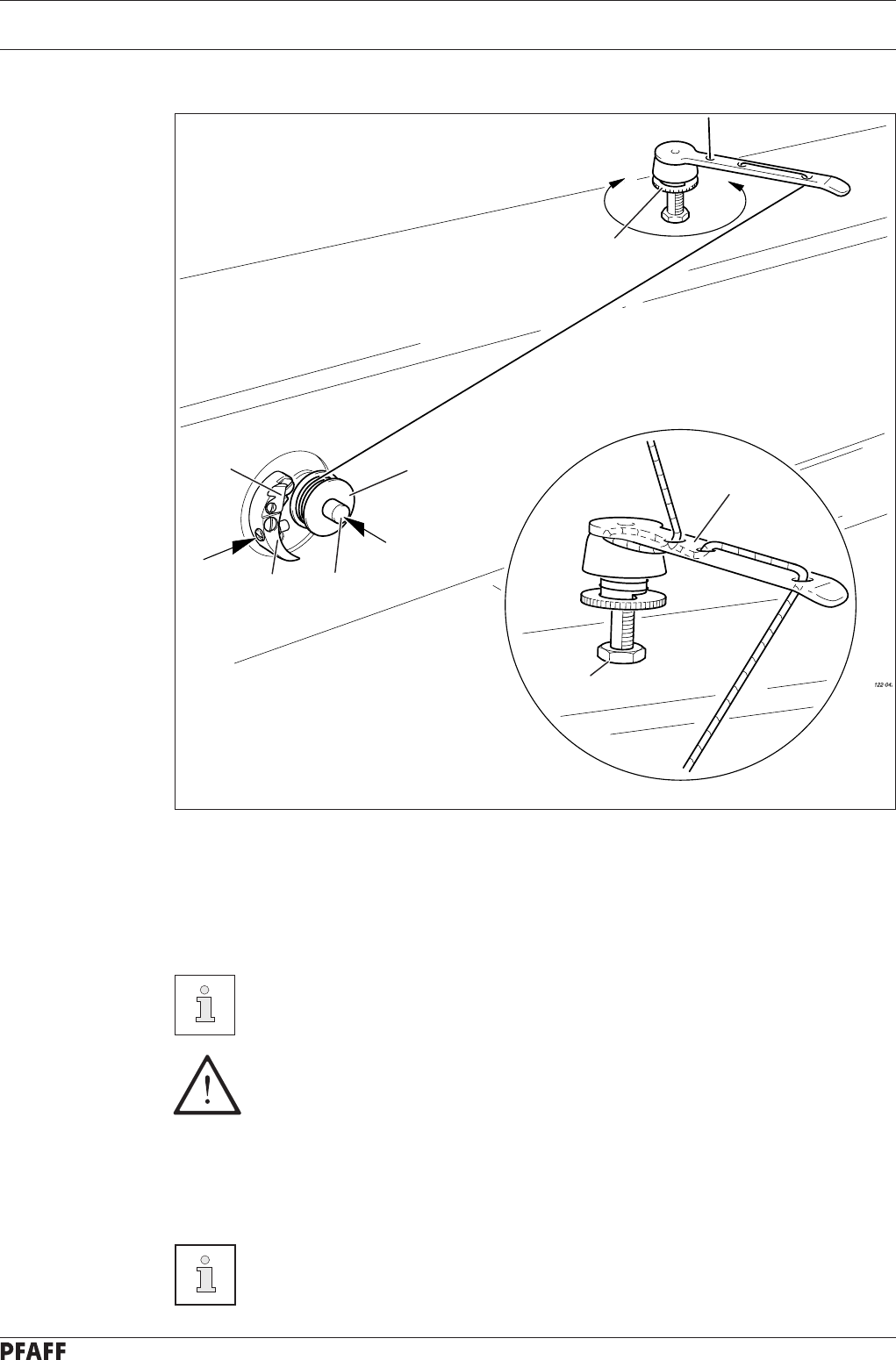

9.02 Winding the bobbin thread, adjusting the thread tension
Place an empty bobbin 1 onto bobbin shaft 2.
Thread the bobbin in accordance with Fig. 9-02 and wind it anti-clockwise around bobbin
1 a few times.
Switch on the bobbin winder while at the same time pressing bobbin winder spindle 2
and lever 3.
The bobbin fills up during sewing.
If the machine is only being used to wind the bobbin (without sewing), a bobbin
case must be inserted in the hook! (Danger of damage to the hook).
The tension of the thread on bobbin 1 can be adjusted with knurled screw 4.
The bobbin winder stops automatically when bobbin 1 is full.
Remove the filled bobbin 1 and cut the thread on knife 5.
If the thread is wound unevenly, loosen nut 6 and turn thread guide 7 accordin-
gly. Retighten nut 6 after the adjustment.
●
●
●
●
●
●
1
2
3
4
5
+-
6
7
Preparation
28
9.04 Inserting the bobbin case / Adjusting the bobbin thread tension
Insert the bobbin into the bobbin case.
Pass the thread through the slot under
the spring according to Fig. 9-04.
Pass the thread through the notch.
Adjust the thread tension by turning
screw 1.
When the thread is pulled, the
bobbin must rotate in the direc-
tion of the arrow.
●
●
●
●
Fig. 9 - 04
1
5 cm

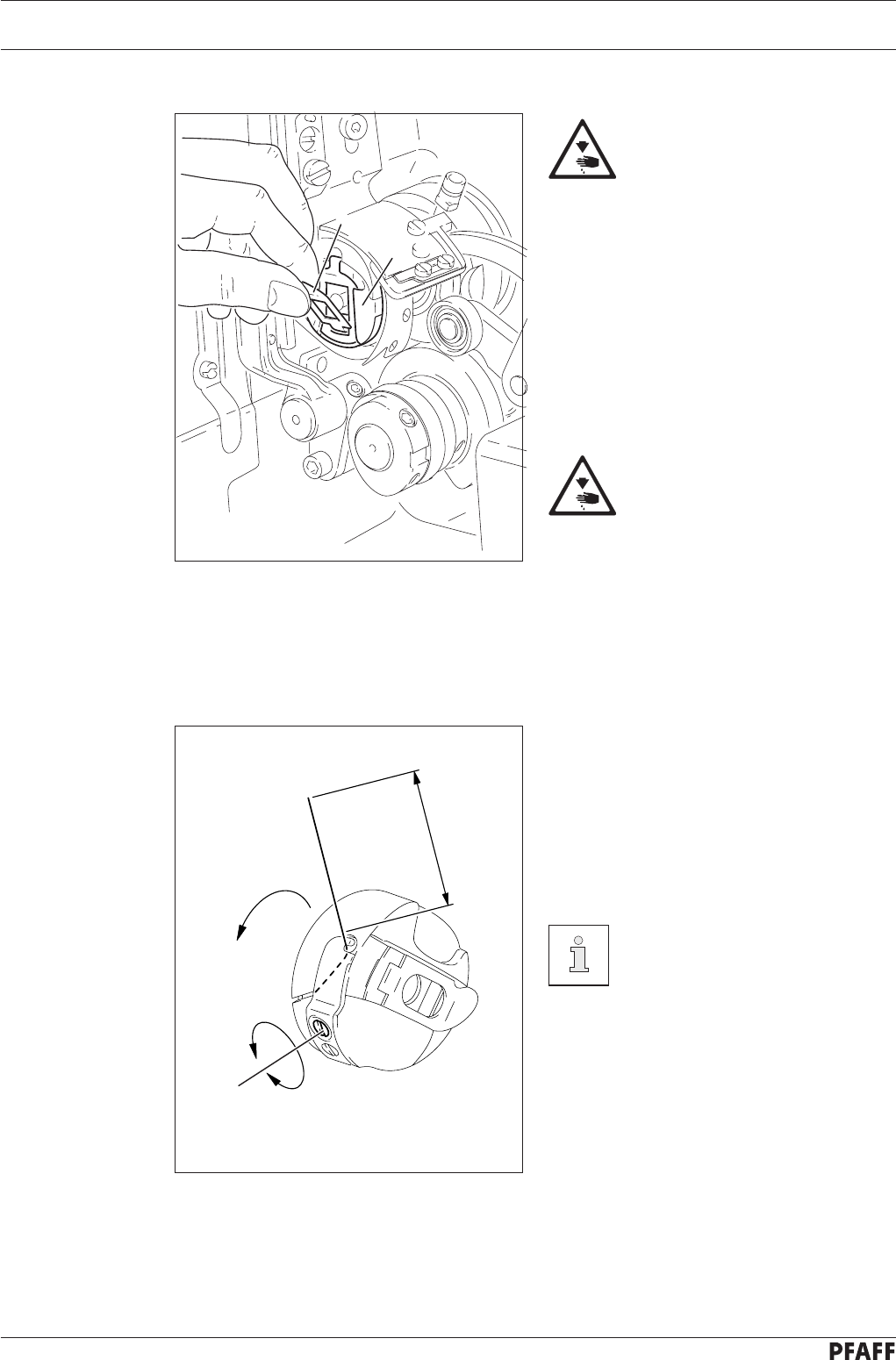

9.03 Removing / Inserting the bobbin case
Switch off the machine!
Danger of injury due to uninten-
tional starting of the machine!
Removing the bobbin case:
Tilt back the machine.
Raise latch 1 and remove bobbin case 2.
Inserting the bobbin case:
Press bobbin case 2 until you feel it snap
into the bobbin case base.
Return the machine to its up-
right position using both hands!
Danger of injury by crushing
between the machine and the
table top!
●
●
●
Fig. 9 - 03
1
2
Preparation
29
Fig. 9 - 05

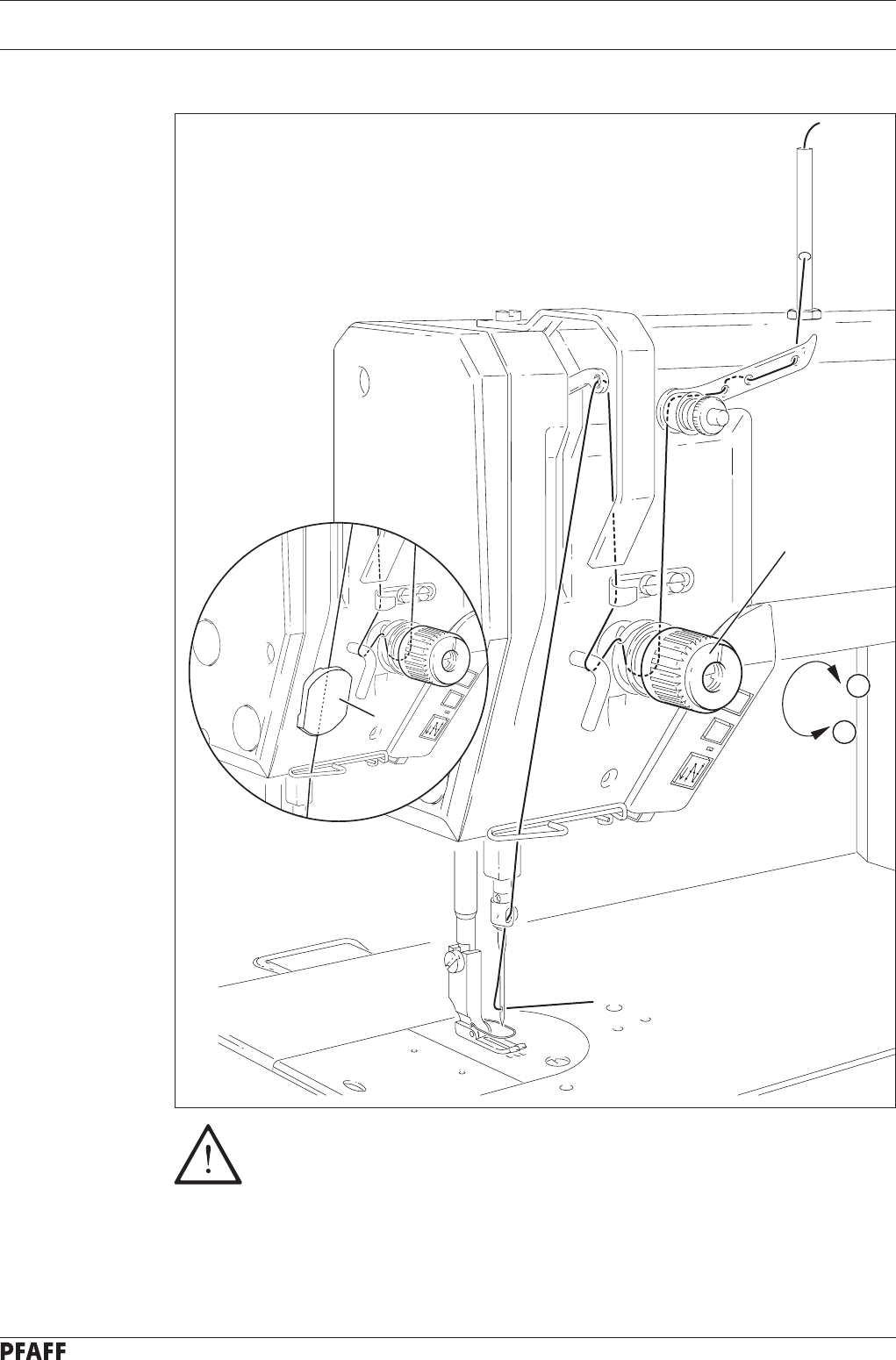

9.05 Threading the needle thread / Adjusting the needle thread tension
Switch off the machine!
Danger of injury due to unintentional starting of the machine!
Thread the machine as shown in Fig. 9-05.
On machines with subclass -909/14 also guide the thread through thread trapper 2.
Adjust the needle thread tension by turning disk 1.
●
●
●
1
+
-
2
Preparation
30
9.06 Adjusting the stitch counter for the bobbin thread control (only on machines
with Quick Motor and P40 (ED) control unit)
Please see the description in the separate control panel instruction manual.
werden.
Care and maintenance
31
Clean .................................................................daily, more often if in continuous operation
Check oil level ...................................... monthly (does not apply to the 1181-D and 1183-D)
Oil the trimmer -731/01 ....................... once a week, more often if in continuous operation
10 Care and maintenance
10.01 Servicing and maintenance intervals
These maintenance intervals are calculated for the average running time of a
single shift operation. If the machine is operated more than this, shorter inter-
vals are recommended.
10.02 Cleaning the machine
The cleaning cycle required for the machine depends on following factors:
Single or several shift operation
Amount of dust resulting from the workpiece
It is therefore only possible to stipulate the best possible cleaning instructions for each indi-
vidual case.
For all cleaning work the machine must be disconnected from the mains
by switching off the on/off switch or by removing the mains plug!
Danger of injury if the machine suddenly starts up .
To avoid breakdowns, the following cleaning
work is recommended for single shift ope-
ration:
Swing out the cover plate and tilt back
the sewing head.
Clean the hook and hook compartment
daily, more often if in continuous opera-
tion.
Return the machine to its up-
right position using both hands!
Danger of injury by crushing
between the edge of the
machine and the table top!
●
●
●
●
Fig. 10 - 01
Care and maintenance
32
10.03 Topping up the oil tank (does not apply to the 1181-D and 1183-D)
The PFAFF 1181-D and 1183-D are totally maintenance-free and run without any
oil.
Es muss sich immer Öl im Vor-
ratsbehälter befinden!
Whenever it is necessary to refill the re-
servoir, tilt back the machine and let it
rest on the sewing head support.
Fill oil through hole 1 into the reservoir 2
up to the level of the front edge (see ar-
row).
Use both hands to set the sew-
ing head upright!
Danger of crushing between the
sewing head and the table top!
Only use oil with a mean vis-
cosity of 22.0 mm2/s at 40°C
and a density of 0.865 g/cm3 at
15°C.
●
●
We recommend PFAFF sewing machine oil, part no. 280-1-120 144.
Fig. 10- 02
2
1
Care and maintenance
33
Fig. 10 - 03
10.04 Oiling the edge trimmer -731/01
Once a week pour oil on oil sponge 1 through hole 2.
Lubricate the guides 3 and 4 once a week.
Only use oil with a mean viscosity of 22.0 mm2/s at 40°C and a density of
0.865 g/cm3 at 15°C.
●
●
1
2
3
4
We recommend PFAFF sewing machine oil, part no. 280-1-120 144.
Care and maintenance
34
See Chapter 3 Specifications
* Adjustment see Chapter 8.05 Basic position of the machine drive unit.
10.05.01 Parameter list
Group
Parameter
Description
User lever
Setting range
Set value
1105 Speed for start backtack B, C 300 - 2000 1200
110 Speed for end backtack B, C 300 - 2000 1200
6606 Speed min. B, C 30 - 300 180
607 Speed max. B, C 300 - 2000 ▲
609 Cutting speed 1 B, C 60 - 300 180
660 Bobbin thread control 0 = off,
1 = thread monitor, 2 = reverse counter
A, B,
C
0 - 2 0
668 Thread wiper/thread blower
1 = on; 0 = off
B, C 0 - 1 0
7700 Needle position 0
(needle reference position
B, C 0 -255 *
702 Needle position 1 (needle lowered) B, C 0 - 255 90
703 Needle position 2 (take-up lever raised) B, C 0 - 255 236
705 Needle position 5 (end cutting signal 1) B, C 0 - 255 200
706 Needle position 5 (start cutting signal 2) B, C 0 - 255 136
707 Needle position 9 (start thread tension
release/start thread catcher)
B, C 0 - 255 164
760 Multiplier for the fixed value (200)
stitch count
A,B,
C0 - 250 5
797 Hardwaretest (OFF / ON ) B, C OFF
799 Selected machine class C 1 - 3 1
8800 Rotating direction of the motor C 0 - 1 0
9985 Switch on angle for thread trapper B, C 0 -255 67
10.05 Parameter settings
(only on machines with Quick-EcoDrive and control unit P40ED)
The selection of the user level and the alteration of parameters is described in the sepa-
rate instruction manual for the drive unit.
●
Care and maintenance
35
Further parameters and the description for an internet update of the machine
software and reset /cold start of the machine can be found in the instruction
manual for the control panel.
Group
Parameter
Description
User lever
Setting range
Set value
9986 Switch off angle for thread trapper B, C 0 -255 206
989 Thread trapper at beginning of seam
1 = yes, 0 = no
B, C 0 - 2 0
36
Mounting the table top

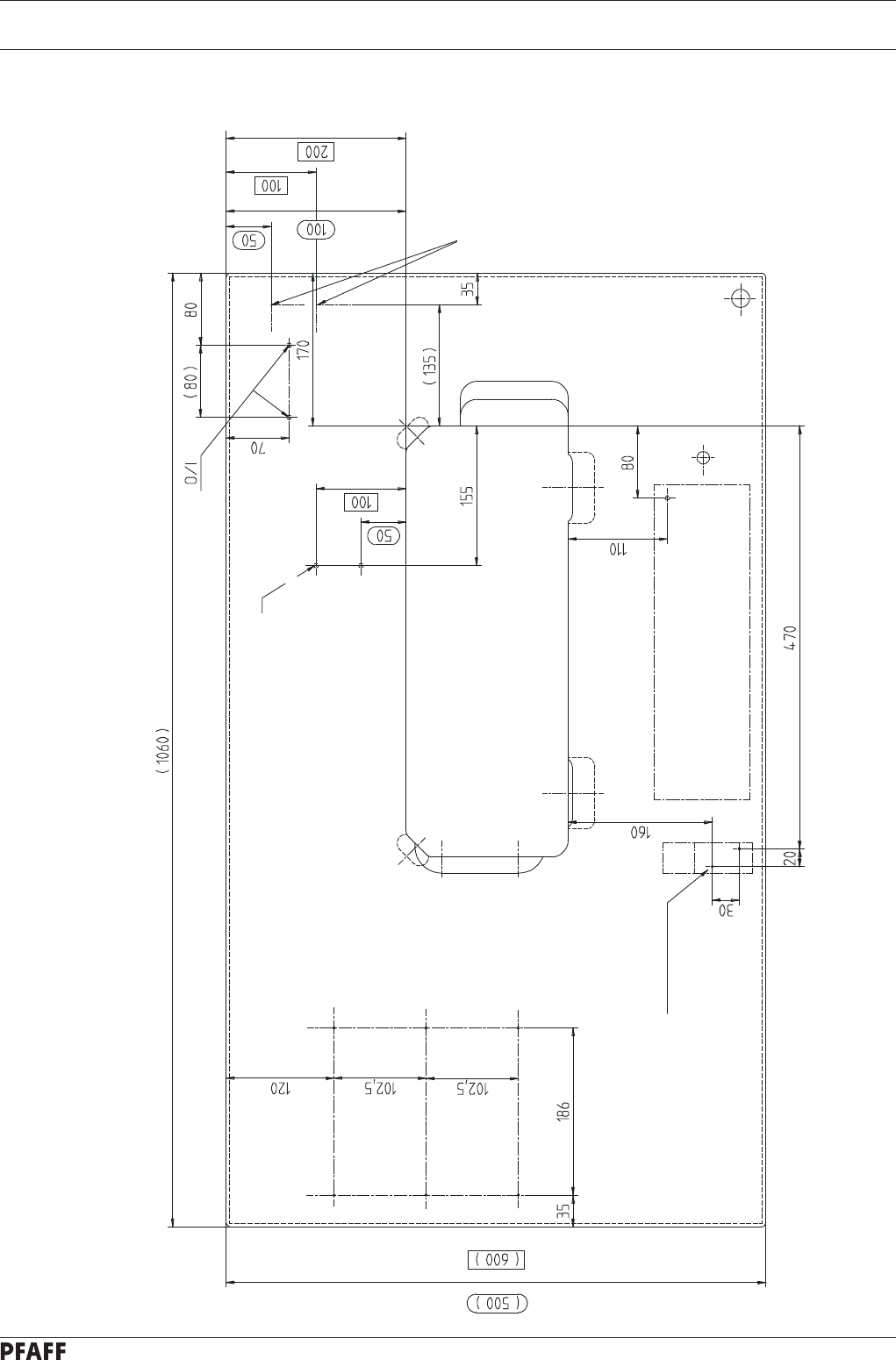

11.01 Table top cutout
37
Mounting the table top
Knee switch
SRP / -948/51
View:
Underside table top
Speedcontrolunit
Controlbox P 40 ED
Stand position
906-3550-005/895
11.02 Mounting the table top
91-264 343-95
Vers. 08.12.04
38

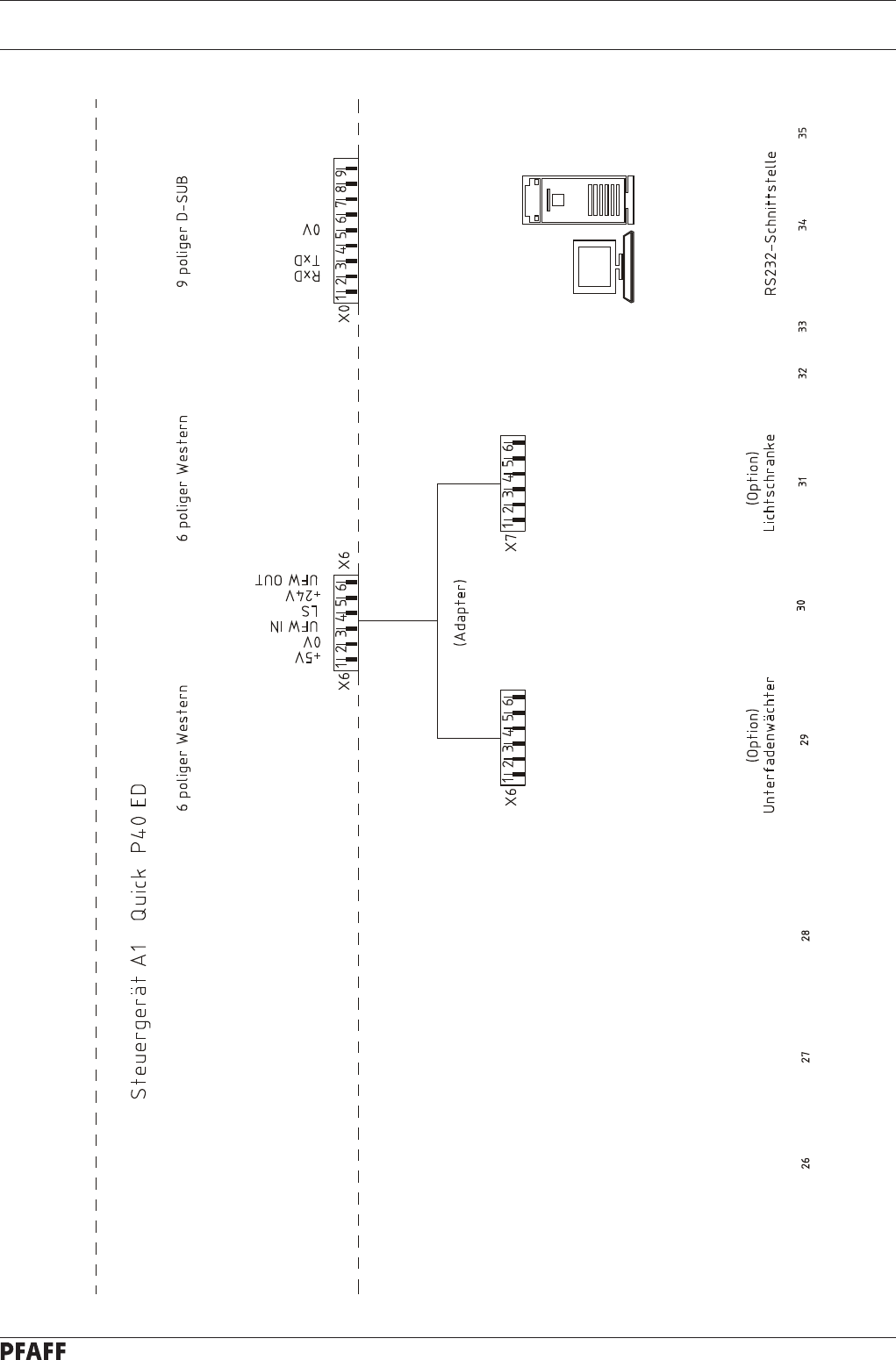

14 Stromlaufpläne
Circuit diagrams
11.03 Circuit diagrams
Reference list for the Circuit diagrams
A1 Control unit Quick P40 ED
A2 Control panel BDF S2
A14 Sewing head recognition system (OTE)
H1 Sewing lamp (optional)
H10 LED stitch counter
M1 Sewing motor
Q1 Main switch
S1 Pedal speed control unit
S41 Manual backtacking key
S42 Threading key
S43 Single stitch key
S44 Suction OFF
S46 Start inhibitor
X0 PC-interface (RS 232)
X1 Sewing motor
X2 Incremental transducer
X3 Speed control unit
X4 Control panel
X5 Out-/inputs
X6 Bobbin thread monitor (optional)
X7 Photoelectric barrier (optional)
X21 Motor running signal
X22 -900/.. thread trimmer (FS )
X23 Thread trapper
X24 -910/.. automatic foot lift
X25 -911/.. backtacking device
X28 FSL Thread tension release
X40 Control panel
X44 Suction OFF
X46 Start inhibitor
X50 Sewing head recognition system (OTE)
Y1 Motor running signal
Y2 -900/.. thread trimmer (FS )
Y3 Thread trapper
Y4 -910/.. automatic foot lift
Y5 -911/.. backtacking device
Y8 FSL Thread tension release
39
91-191 516-95 Part 1 Version 12.12.06 Circuit diagram
40
Circuit diagram Version 12.12.06 91-191 516-95 Part 2
41
91-191 516-95 Part 3 Version 12.12.06 Circuit diagram
Wearing parts
42

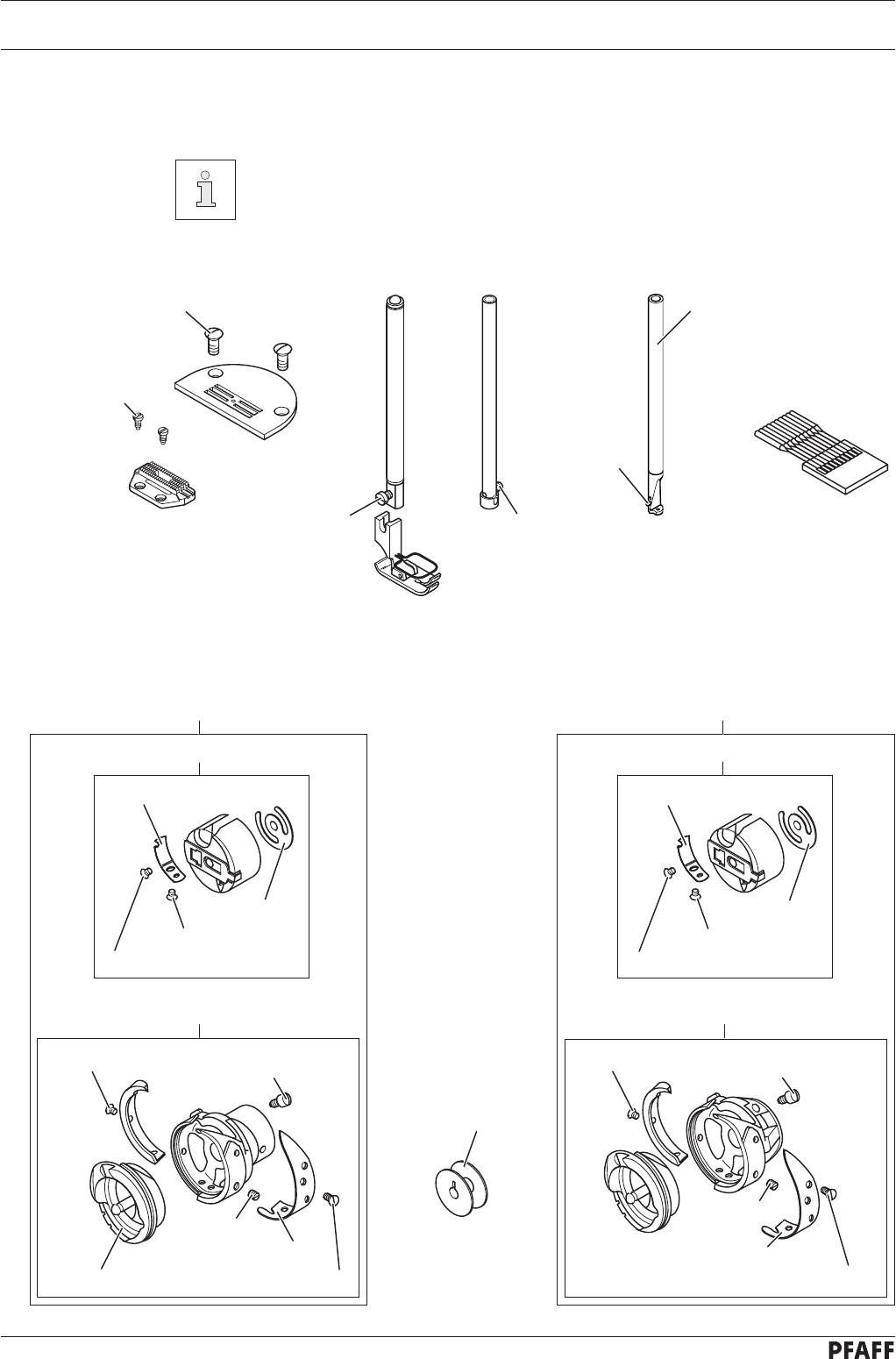

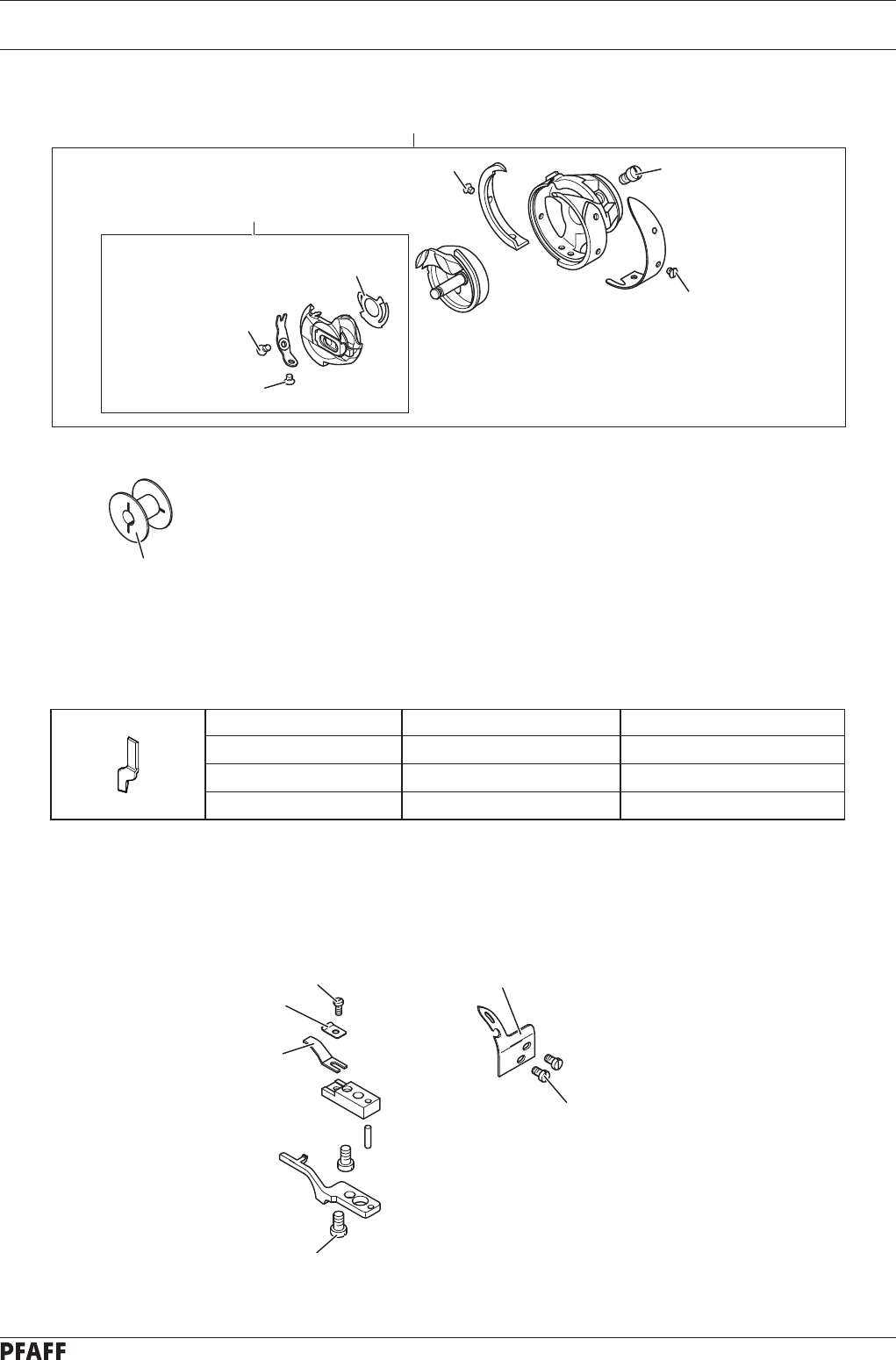

12 Wearing parts
This is a list of the most important wearing parts.
A detailed parts list for the complete machine is included with the accessories.
In case of loss, the parts list can be downloaded from the internet address
www.pfaff-industrial.com/pfaff/de/service/downloads As an alternative to
the internet download the parts lists can also be ordered in book form under
part no. 296-12-19 009.
System 134
System 134 - 35 (-731/..)
91-262 377-91
91-262 300-91
99-137 192-05
99-137 191-05
99-137 193-05
99-137 194-05
PFAFF 1181-D; 1183-D
99-137 190-05 (3x) 99-137 187-15 (2x)
99-137 188-15
99-137 186-05
99-137 405-05 (4x)
91-264 299-91
91-264 310-91
91-262 377-91
91-262 250-91
99-137 192-05
99-137 191-05
99-137 193-05
99-137 194-05
PFAFF 1181; 1183
99-137 190-05 (3x) 99-137 187-15 (2x)
99-137 188-15
99-137 405-05 (4x)
99-137 186-05
91-262 376-91
91-701 179-15 (2x)
91-264 154-25 (2x)
11-108 174-25 11-330 085-15
Subclass -731/..
11-330 958-15
91-262 437-05
43
Wearing parts
11-174-912-15 (2x)
91-265 262-91
PFAFF 1181-G; 1183-G
91-265 227-05 (3x)
91-265 227-05 (3x)
91-174 955-91
91-175 690-05
91-000 250-15
91-000 390-15
PFAFF 1181-G; 1183-G
91-174 955-91
Subclass -731/..
Subclass Trimming margin Partnumber
-731/01-8/11 A 5,0 mm 91-069 595-04/002
-731/01-8/11 B 3,5 mm 91-169 395-04/002
-731/01-8/11 B 4,0 - 7,0 mm 91-069 595-04/002
Subclass -900/24
11-108 087-15
91-264 235-15
91-264 338-91
91-264 240-05
11-108 084-15 (2x)
91-108 222-15
Wearing parts
44
91-171 049-05
99-137 151-45
91-700 996-15
95-774 464-25
91-171 042-05
Notes
PFAFF Industrie Maschinen AG
Postfach 3020
D-67653 Kaiserslautern
Königstr. 154
D-67655 Kaiserslautern
Telefon: (0631) 200-0
Telefax: (0631) 17202
E-Mail: info@pfaff-industrial.com
