Foreword

2 Adria Caravans

1 Foreword

You want to get to know new horizons? Count on us to help you!

Congratulations on your new ADRIA Caravan.

We have designed and built your caravan so that travelling with your "home away from home"

will be very enjoyable.

1.1 Before your first journey

• Take your time and read this instruction manual on one of the comfortable seats of your

caravan.

– This instruction manual also contains surprising innovations for experienced users

because the ADRIA design team does not tolerate technical standstill.

• Pay special attention to the "Safety" Chapter (Chapter 2).

– Your own health and that of your passengers can depend on your familiarisation with

the safety regulations and your adequate reaction to critical situations.

• Please also pay attention to the separate instruction manuals for special equipment and

appliances as well as accessories.

• If your ADRIA caravan has special accessories, please observe the enclosed special

approvals and the associated regulations.

1.2 Notes on this instruction manual

• Please understand that we reserve the right to alter the technical system, the form and the

equipment. Our caravans are being continuously developed. Therefore, no claims can be

made against ADRIA on the basis of the contents of these operating instructions. The

equipment which was known and included at the time of going to press is described in this

manual. This instruction manual is valid only insofar as the caravan corresponds to the

state of the equipment described therein.

• The caravan models may have different equipment (standard equipment, special equip-

ment and accessories). The standard equipment is described in this instruction manual. In

this instruction manual, you will also find descriptions of the special equipment and acces-

sories insofar as explanations are required. Please pay also attention to the enclosed sep-

arate instructions of the special equipment or accessory manufacturers.

• Reproduction, copying and translation, including extracts, are not permitted without the

explicit approval of ADRIA. Misprints and errors excepted.

•ADRIA will not be held responsible for damage to the vehicle resulting from the nonobser-

vance of the operating instructions.

Foreword 1

Adria Caravans 3

1.3 Warranty registration

In addition to these operating instructions, you will also find a Service and Warranty Booklet in

your Adria caravan. Please perform the warranty registration as specified in the Service and

Warranty Booklet.

1.4 Warranty, service and repair

• Please contact your local ADRIA dealer for all service and repair work as well as special

questions.

– The employees of your authorised workshop will be pleased to provide advice and

assistance.

– Only original parts ensure the quality and operational readiness of your caravan.

– If service work is neglected or performed incorrectly, we will be unable to meet our war-

ranty obligations according to our warranty conditions.

• Please fill in the following data of your caravan:

– These are of special significance when you have questions concerning ordering original

parts.

• For the data of your caravan, see the nameplates.

Tab. 1 Vehicle data

We wish you unlimited enjoyment in your leisure time with your new ADRIA caravan.

Executive Board

Vehicle data

Model:

Year of construction:

Vehicle identification number: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Bodywork key number: FW _ _ _

Safety

4 Adria Caravans

2 Safety

2.1 Safety instructions

This Section contains safety instructions that must be followed when operating the vehicle.

2.1.1 Explanation of symbols

This type of safety warning warns of an imminently pending danger that could jeopardise the

life and health of persons. Nonobservance of these safety instructions can cause severe dam-

age to health up to life-threatening or fatal injuries.

This type of safety warning warns of a possible danger for persons. This type of warning

must be exactly followed to prevent hazards to persons or severe material damage.

This type of safety warning warns of possible material damage. This type of warning must be

exactly followed to prevent material damage.

Notes of this kind provide additional information with respect to technical requirements. This

type of information facilitates the handling of the vehicle for the user.

Important!

We point out explicitly that we will not assume any liability for damage and malfunctions

resulting from the nonobservance of this instruction manual.

Danger!

Type of danger

Avoidance

Warning!

Type of danger

Avoidance

Caution!

Type of danger

Avoidance

Important!

Important

Safety 2

Adria Caravans 5

2.2 General safety instructions

• Safely store all objects before starting to drive. Securely close all flaps, doors, windows and

hatches. Keep liquids in leak-proof containers.

• When staying in the vehicle, always keep the forced ventilation and the mushroom ventila-

tor open and never covered, as there is a risk of suffocation by increased carbon monoxide.

• Always keep the instruction manuals for the vehicle and all installed appliances (e.g.

cooker, refrigerator, toilet) and additional equipment (e.g. bike racks) in the vehicle and

observe them.

• Never leave children in the vehicle unattended.

• Pay attention to the vehicle height while driving.

• When leaving the vehicle, securely close all windows, doors and roof hoods.

• Pay attention to the clearance height of the entrance door.

2.3 Safety instructions for driving on public roads

• The vehicle muss be registered.

• The driver of the vehicle must have the required driving license.

• The installation of accessories changes the dimensions, the total weight as well as the road

behaviour of the vehicle. Some of this equipment is subject to entry in the vehicle docu-

ments.

• When loading the vehicle, pay attention to the gross weight rating and the gross axle weight

rating (see motor vehicle registration certificate, part I)

• Distribute the additional load evenly within the vehicle (Chapter 5.4).

• Check the tyre pressure and tighten the wheel nuts before starting to drive. Check the firm

seating of the wheel nuts after 50 kph and then in regular intervals.

• Check the function of the brakes and the signal and lighting system.

• Empty the waste water tank.

• Close all doors, cupboard doors, drawers and flaps as well as all windows and roof hoods.

Latch the refrigerator door securing device.

• Safely stow away loose pieces of equipment.

• Put the antennas in park position.

• Switch off the awning light.

• Retract the entrance step.

• Close and lock all outer doors and flaps.

• In winter, clear the roof from snow and ice before starting the journey.

• During the journey, persons or pets are not allowed to stay in the caravan.

• From a technical point of view, ADRIA caravans are designed for a permissible maximum

speed of 100 kph. This maximum speed must not be exceeded, not even when a higher

speed is allowed in the country being visited. Always pay attention to speed restrictions in

individual countries which may be different..

• When parking the vehicle, apply the parking brake up to the maximum possible end posi-

tion.

• Place wheel chocks in front of the wheels when parking the vehicle on inclines or slopes.

• Have the vehicle brake system checked and repaired by an authorised workshop only.

• When the vehicle is transported by rail or on a lorry, it must be loaded in the driving direc-

tion.

Safety

6 Adria Caravans

2.3.1 Driving with the caravan

• Drive according to your abilities taking the larger dimensions and the higher weight of the

vehicle combination into consideration. You need time for familiarisation.

• Always take corners in a large radius and slowly. The cornering behaviour as compared

with a passenger car changes because of the length of the car/caravan combination and its

weight.

• At driveways and crossings, the car/caravan acceleration is significantly lower than that of

a passenger car.

• Due to the higher weight, the vehicle braking distance is much longer than that of a passen-

ger car.

• Pay attention to the greater height of the vehicle at gateways and trees on the side of the

road.

• When driving in reverse, always have a second person assist you.

• Due to the vehicle height, the vehicle is more sensitive to crosswind.

2.4 Official technical inspections

2.4.1 General inspection of caravan

As with any vehicle, the caravan must be officially inspected at regular intervals. For detailed

information, see your Service and Warranty Booklet.

2.4.2 Checking the gas system

The liquid gas system was inspected at the factory by a technical expert. The gas system must

be inspected again every two years and after making any modifications and repairs. Always

have a gas leak test performed on this occasion. The vehicle operator is responsible for initi-

ating the inspection. Upon delivery of the vehicle, the operator must be informed in writing of

his/her duty to have the gas system inspected. The correct condition of the gas system is con-

firmed with a gas inspection certificate and possibly, depending on national regulations, an

associated gas inspection sticker.

Important!

When driving in foreign countries, also pay attention to the regulations of the respective

country.

Safety 2

Adria Caravans 7

2.5 Safety instructions for the gas system

Danger!

Poisoning by gas

If it smells of gas or you suspect that gas is escaping, perform the following:

Clear the danger area!

Close the shut-off valve on the gas cylinder!

Avoid ignition sources and open flames and do not smoke!

Ventilate the rooms!

Inform the camping site manager, and the fire brigade when necessary!

Danger!

Risk of suffocation

Never cover the forced ventilation in the roof hoods and in the floor area nor the mush-

room ventilators in order to ensure continuous exchange of air in the vehicle.

Caution: Snowfall in winter!

Warning!

Injuries or material damage

Subsequently installed, gas-operated additional appliances must be designed for an

operating pressure of 30 mbar.

The liquid gas system was inspected at the factory by a technical expert.

The gas system must be inspected again every two years and after making any

modifications and repairs (Chapter 2.4.2).

Installations and modifications to the gas system may be performed only by an

authorised workshop.

The gas system may be put into service again only after inspection by a technical

expert!

Safety

8 Adria Caravans

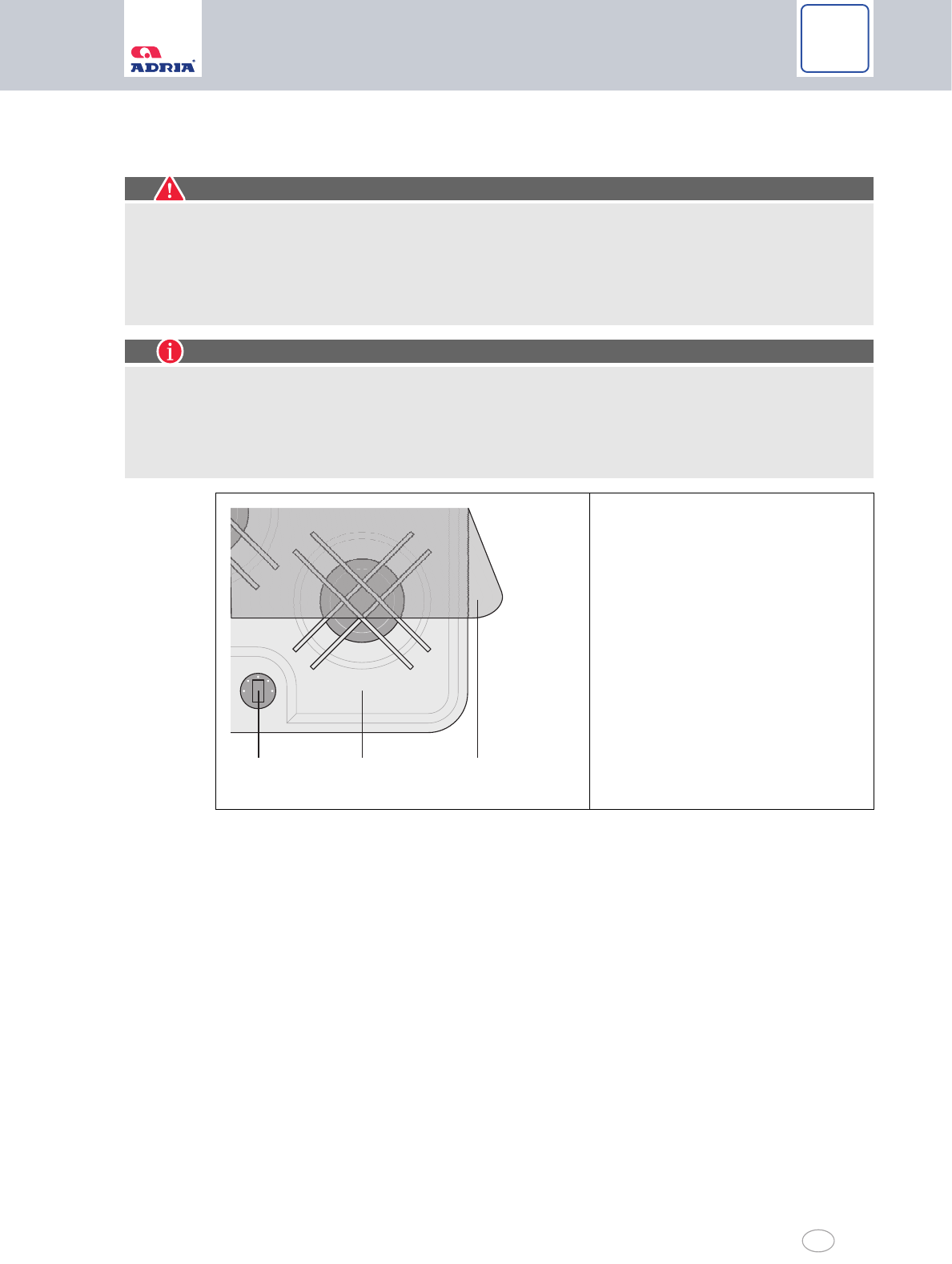

2.5.1 Gas stove

2.5.2 Gas cylinder compartment

Check each time before using the gas:

Store the gas cylinders exclusively in the gas cylinder compartment. They must stand

upright and fastened so that they are unable to turn or tilt.

The gas cylinder compartment must be sealed against the interior of the vehicle and

must have a vent hole in or directly above the floor plate. This vent hole must have a

minimum cross-section of 100 cm

and must not be covered.

Use only pressure regulators with safety valves! Other regulators are not allowed!

Carefully connect the regulator on the gas cylinder by hand. The screw connections on

the gas regulator have left-hand threads. Do not use tools such as wrenches or pliers.

For temperatures below 5°C, a de-icing system for r egulators (e.g. accessory Eis-Ex)

must be used.

Do not operate or store any current-storage devices (e.g. batteries) or devices that could

be the source of ignition in the gas cylinder compartment.

Electric lines routed through the gas cylinder compartment have to be insulated and

must not be connected with terminals; have the work performed by an authorised work-

shop.

Do not use the gas cylinder compartment as storage space.

Secure the gas cylinder compartment against unauthorised access.

2.5.3 Gas appliances in general

Pay attention to the following when operating the gas system:

The regulators and the exhaust gas routing must be inspected every two years! The

inspection must be confirmed on the inspection certificate according to the DVGW [Ger-

man Technical and Scientific Association on Gas and Water] worksheet G 607. The

operator has to initiate the inspection.

Danger!

Risk of suffocation

In regular operation of the gas stove there exists acute danger to life due to lack of oxy-

gen and the possibly generated odourless and toxic carbon monoxide (CO)!

Always ensure good ventilation when the gas stove is in operation. Always keep a win-

dow, a roof hood or the doors open.

Never use the gas stove for heating.

Danger!

Risk of poisoning

If a flame of the gas stove extinguishes, unburned gas flows out for a short time until

the flame failure device reacts and, together with the oxygen, generates an explosive

mixture inside the vehicle!

Watch the flames while using the burner!

When finished, shut the respective quick-action stop valve.

Safety 2

Adria Caravans 9

The exhaust gas pipe must be fitted tightly to the gas heater and to the cowl, and must

be sealed. It may not show any evidence of damage.

The exhaust gas routing of the gas heater must be installed ascending over its complete

length and fitted tightly with clamps. If required, install exhaust gas pipe supports.

Before placing the gas heater into service, always clear dirt and snow from the cowl and

combustion air inlets. This prevents increased, unacceptable carbon monoxide content

in the exhaust gas.

Radiant heaters and appliances drawing combustion air from the interior of the vehicle

are not to be used for heating the vehicle!

When gas appliances are switched on that require the control knob to be pressed for

lighting (e.g. gas stove), it must spring back automatically immediately after release.

If no gas is being consumed during the journey, the shut-off valves on the gas cylinders

must be closed.

Close the respective quick-action stop valve when gas-operated appliances are not

used.

Close the shut-off valve on the gas cylinder when the vehicle will not be used for a longer

period.

Operate the gas system only with propane gas, butane gas or a mixture of both. Pro-

pane gas is capable of gasification down to -32°C, whereas butane gas gasifies only to

approx. 0°C.

Gas appliances are not to be operated during refuelling, in a garage or on a ferry.

Observe the relevant regulations in foreign countries!

2.6 Safety instructions for the electrical system

Pay attention to the following when operating the electrical system:

Installations and modifications of the electrical system have to be performed by qualified

personnel.

Prior to carrying out work on the electrical system, switch off all appliances and lights,

disconnect the battery and disconnect the 230 V power cable from the mains.

Replace defective fuses only when the cause of the defect is known and has been rem-

edied. Use only original fuses with the values specified in the instruction manual from

the respective manufacturer.

Do not bridge or repair fuses.

Safety

10 Adria Caravans

2.7 Fire prevention

2.7.1 General fire prevention

2.7.2 What to do in the case of fire

Correct behaviour:

Evacuate all passengers.

Close the shut-off valve on the gas cylinder.

Switch off the electrical power supply; disconnect the vehicle from the mains.

Call the fire brigade, sound the alarm.

Fight the fire, if possible.

Danger!

Fire risk

Only authorised and qualified personnel may perform service work and modifications to

the gas system and the electrical system.

Never leave children in the vehicle unattended.

Do not use portable heating or cooking appliances.

Keep flammable materials clear of cooking and heating appliances.

Acquaint yourself with the position and operation of the emergency exits in the vehicle.

Always keep escape routes clear.

Empty ashtrays into the waste bin only when the ashes are cold.

Important!

Always have a dry powder fire extinguisher (special accessory) filled with 1 kg minimum in

your vehicle.

The fire extinguisher must be close at hand.

Read the instruction manual carefully and keep it close at hand.

Have the fire extinguisher checked at regular intervals by qualified personnel;

observe the test seal.

Safety 2

Adria Caravans 11

2.8 Safety instructions for the roof

2.9 Safety instructions for rear carrier systems (special acces-

sories)

2.10 Environmental tips

For the protection of our environment, always pay attention to the following:

Always turn off the engine when the vehicle stands still. The operating temperature is

reached most quickly while driving.

Never dispose of any kind of waste water and waste in the open countryside.

Empty the waste water tank and the toilet only at special waste disposal stations. These

waste disposal stations are available at camping sites. Request information from local

authorities.

Use environmentally-friendly chemical additives for the toilet.

Separate household waste and dispose of this waste in special waste disposal stations.

When staying in towns and communities for longer periods, always stay at camping

sites. Obtain information about car parks and camping sites in time before starting the

journey.

Always collect waste oil, lubricants and cleaning agent in suitable containers and dis-

pose of them properly.

Warning!

Risk of injury and damage to the vehicle roof

The roof of the vehicle is not designed for the weight of standing persons.

The roof of the vehicle is not capable of supporting walking persons.

Clear snow and ice from the roof and from the roof hoods.

Use a ladder which is placed against the roof edge for this purpose.

Warning!

Risk of injury and damage to the vehicle

Pay attention to the statutory regulations for the installation of a rear carrier.

When the rear lighting of the vehicle is covered, a second set of lights must be installed.

Do not exceed the permissible carrying weight of the rear carrier.

The load must not project by more than 40 cm on the sides. Do not allow sharp or

pointed objects to project.

The load must be stored safely and specially secured against falling down.

When the rear carrier is used, the load distribution of the vehicle as well as its drive and

brake behaviour change.

Important!

Have the installation of a rear carrier performed by an authorised workshop only. Ask your

ADRIA dealer for advice.

Description & equipment

12 Adria Caravans

3 Description & equipment

3.1 About this instruction manual

In the diagrams for explanation of the equipment, "black arrows" always stand for switching off

or closing an equipment part and "white arrows" for switching on or opening.

3.2 Bodywork

The bodywork of the vehicle is made in "sandwich construction". The "sandwich" structure con-

sists of 3 layers with a total thickness of up to 40 mm:

• Outer skin: Polyester (glass-fibre reinforced plastic) or aluminium

• Insulation: Styrofoam

• Inner wall: Wooden panels

The 3 layers are glued with special adhesive which penetrates in the styrofoam and ensures

the bonding of the layers. This layer structure provides optimum heat insulation of the vehicle.

To improve road safety, a 3rd brake light is installed in the upper rear area.

3.3 Gas cylinder compartment

The lockable gas cylinder compartment is sealed and insulated with respect to the interior

(Chapter 11.2).

3.4 Interior furnishings

All pieces of furniture are made from high-quality materials and securely attached. Sufficient

storage space is available in the living area and in the kitchen unit.

The furniture surfaces can be easily cleaned with commercially available cleaning agents

(Chapter 19.2).

Depending on the model, the vehicle has firmly installed beds and/or seating groups that can

be easily converted for sleeping. (Chapter 9).

3.5 Kitchen

The kitchen unit consists of cooking stove, oven (special equipment), microwave oven (special

equipment), sink and a refrigerator/freezer (Chapter 14).

Adequate storage space is provided.

An exhaust hood with or without lighting above the kitchen unit is available as special equip-

ment.

3.6 Bathroom unit

Each vehicle contains a bathroom unit (Chapter 8.10) with sink, toilet (Chapter 16) and,

depending on the layout plan, also a shower. The folding door, swinging door or curtain must

be closed when taking a shower (Chapter 8.10).

3.7 Heater

The vehicle has - in some cases as special equipment - a heater with hot-air blower or warm

water heater (Chapter 13).

Description & equipment 3

Adria Caravans 13

3.8 Water and waste water

The vehicle is equipped with a water tank, and possibly as special equipment, with a waste

water tank (Chapter 12).

Placing into service

14 Adria Caravans

4 Placing into service

4.1 Registering the vehicle

Before the first journey, the vehicle must be registered according to national regulations and a

license plate fitted. Vehicles may be operated in road traffic only when insurance cover exists.

An EC approval exists for the vehicle.

4.2 Placing the vehicle into service for the first time

Pay attention to the following when placing the vehicle into service:

Familiarise yourself with your vehicle before the first journey.

Get used to the driving characteristics and dimensions of your vehicle during a short

weekend trip.

Drive slowly and carefully in the beginning.

Warning!

Make sure to follow the safety instructions

Carefully read and follow the safety instructions (Chapter 2.1) before placing the vehi-

cle into service.

Insurance coverage and warranty claims to the manufacturer become void when the

safety instructions are not observed and followed.

Warning!

Accident hazard

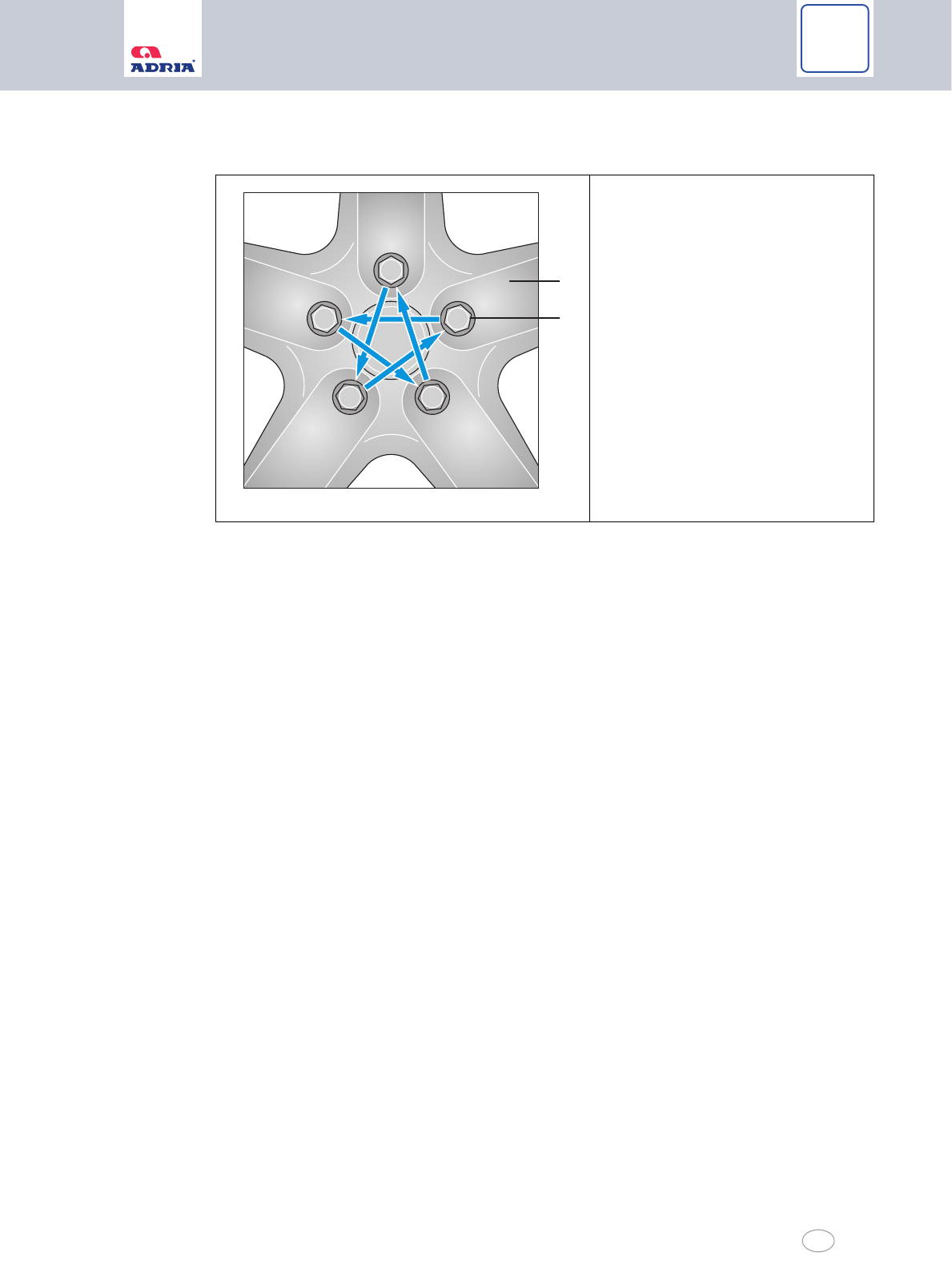

After the first 50 km, retighten the wheel nuts and then regularly check the seating of

the wheel nuts.

Check the tyre pressure before each journey.

Before the journey 5

Adria Caravans 15

5 Before the journey

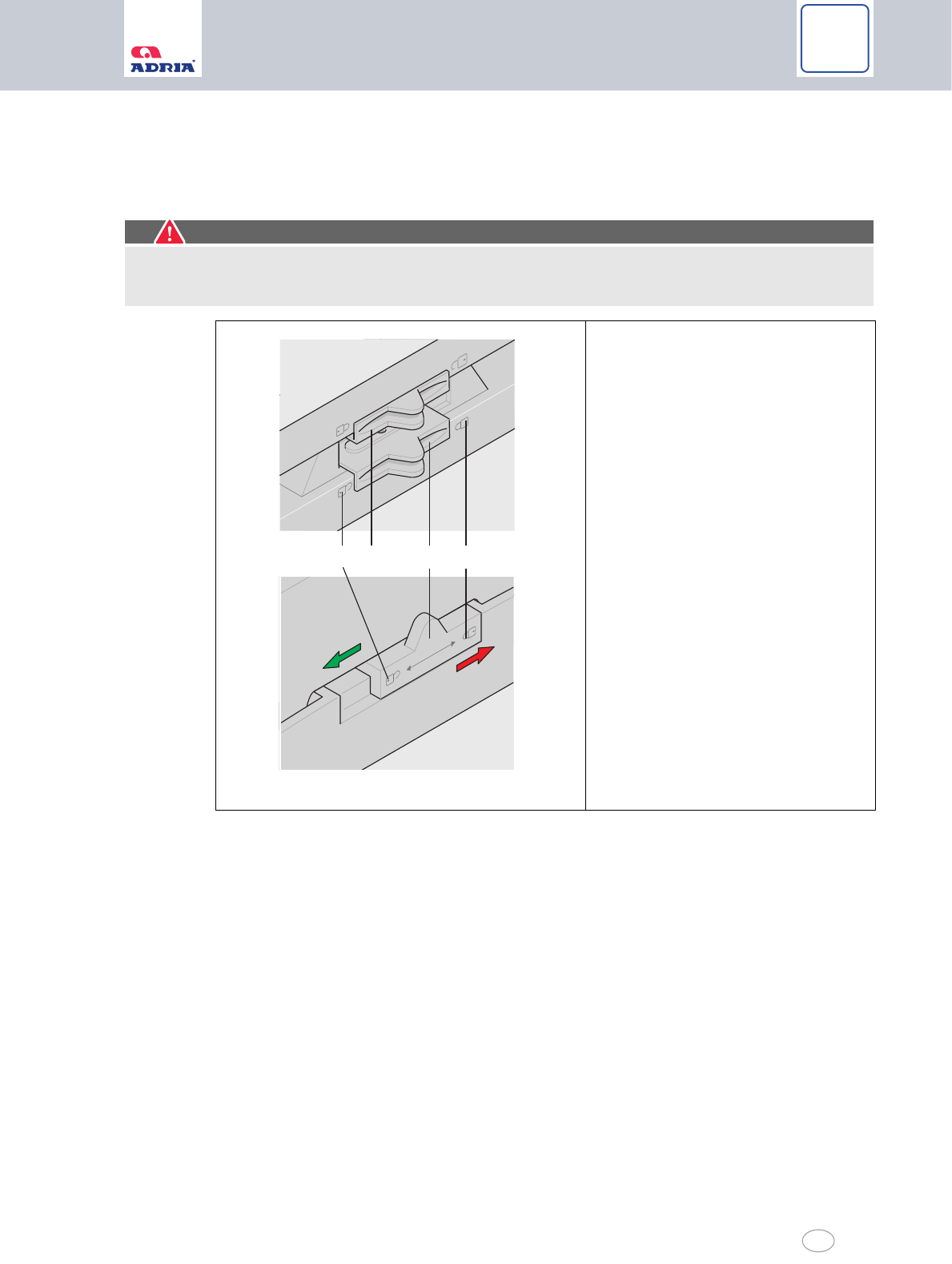

5.1 Wheel arch insert

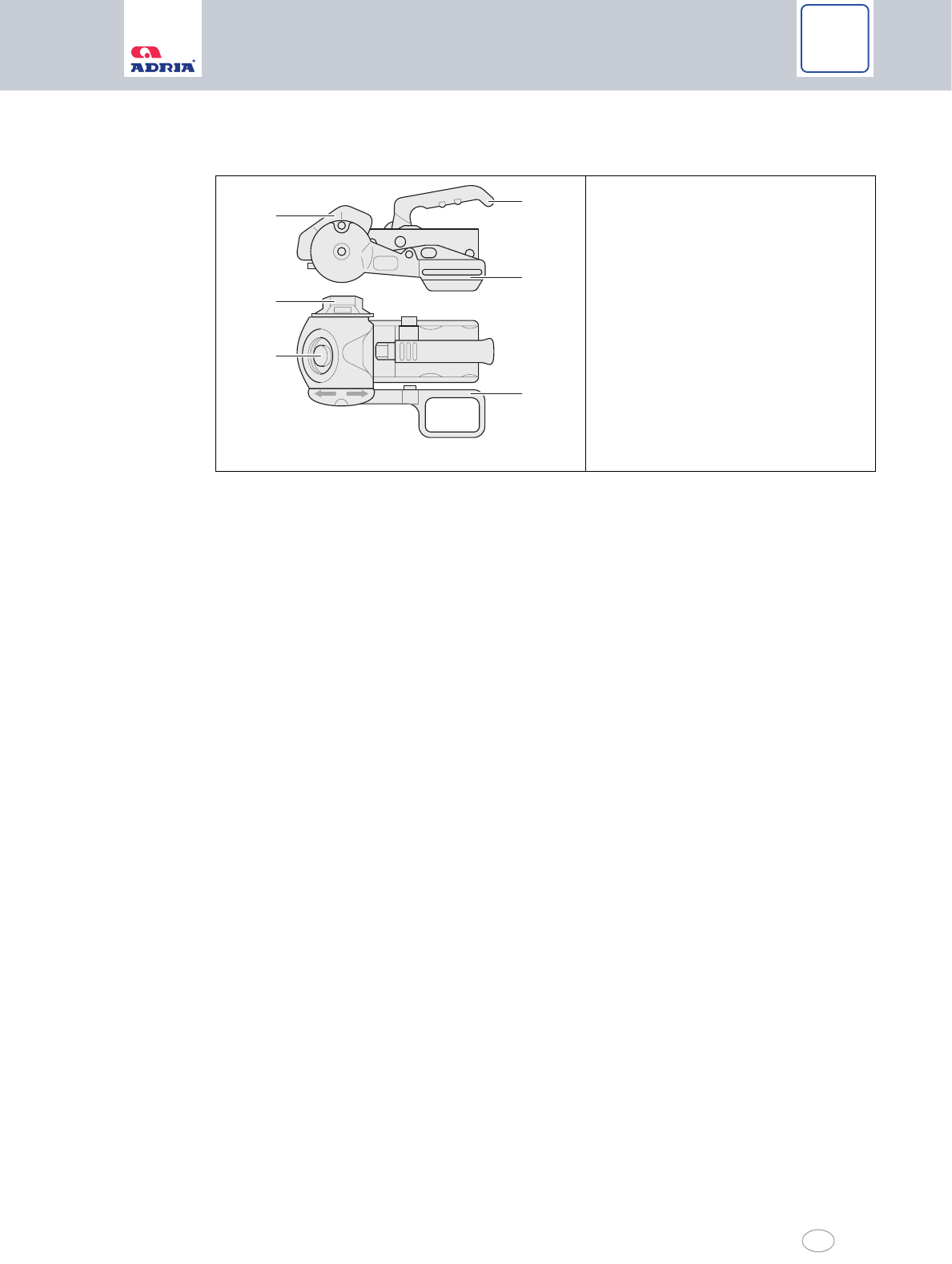

5.2 Coupling the caravan

Couple the caravan. The tow ball and cup must grip each other and not just lay over

each other. The cup must clamp the complete tow ball.

Hang the breakaway cable around the ball head of the tow ball or in the fastening lug of

the towing vehicle when using a removable tow bar. Always check the cable length: A

longer cable must not drag on the ground and apply the brakes. A shorter cable must

not apply the brakes when going around corners.

Crank the jockey wheel in completely and then pull it up as high as possible in the

mounting. Position the running wheel parallel to the driving direction and pointing

towards the towing vehicle.

Connect the light/power plug to the socket of the towing vehicle. Make sure the plug

locks in properly.

Run the light/power supply cable in a loose loop over the coupling. Make sure the cable

does not drag on the ground and is not tensioned.

Make sure the ball of the tow bar is locked completely in the coupling. The green safety

marking on the coupling must be visible.

Warning!

Danger of injuries from parts flying around

Remove the wheel arch inserts before driving with the caravan and stow them away

safely.

Warning!

Risk of injury when coupling and manoeuvring

Make sure nobody is between the towing vehicle and caravan when manoeuvring and

coupling.

Caution!

Risk of damage to the coupling

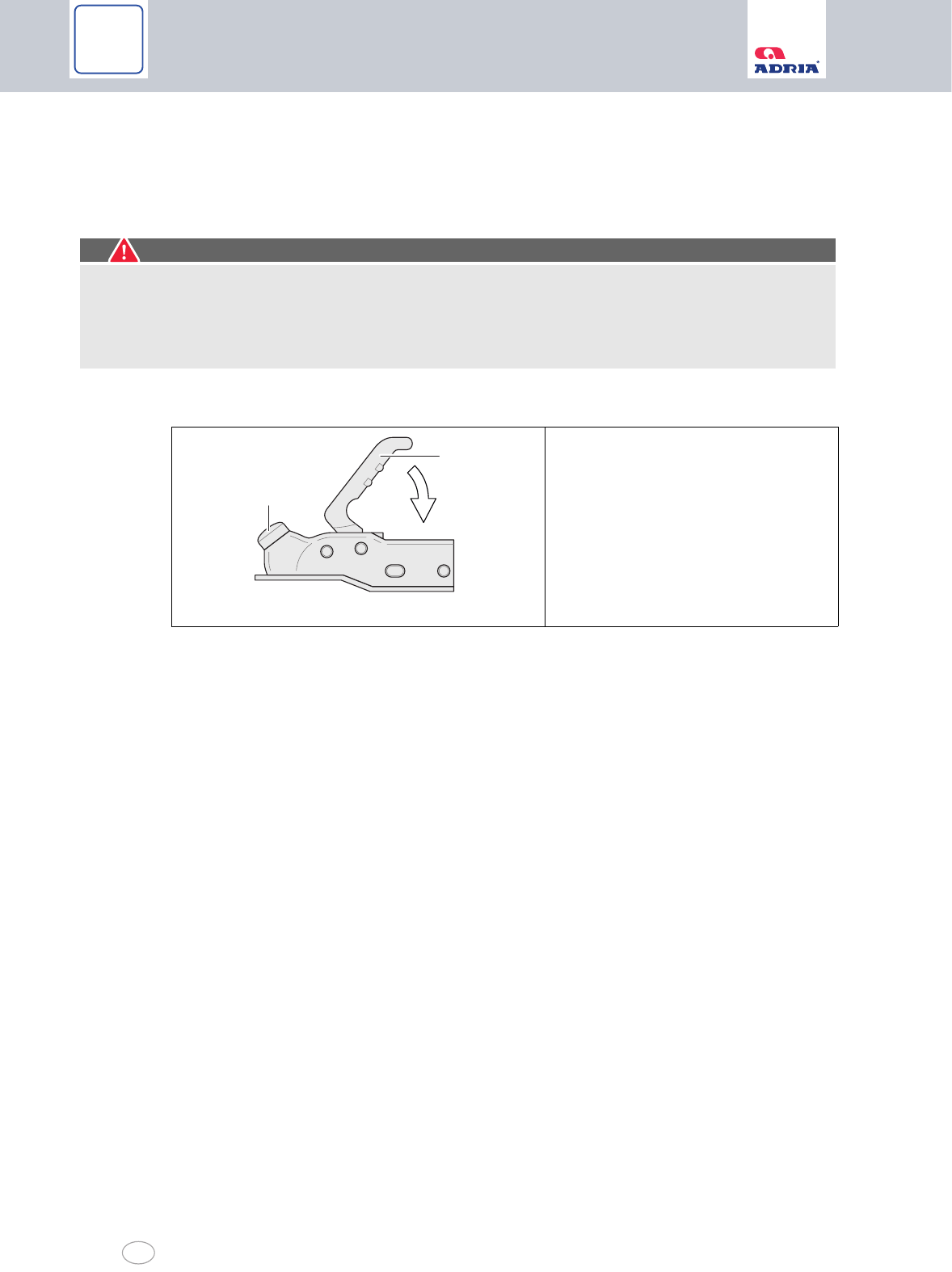

Do not couple or uncouple the caravan with the overrun device shaft pressed in.

Observe the maximum allowable nose weight and the maximum allowable rear axle

load of the towing vehicle. Refer to the vehicle documents belonging to the towing vehi-

cle and the caravan for the allowable limits. These must not be exceeded.

Do not use the stabilizer lever on couplings as manoeuvring assistance (if fitted).

Do not grease friction pads. Greasy friction pads cannot create the weaving stabilizing

effect. This weaving stabilizing effect is only ensured when the tow ball on the towing

vehicle is kept clean and free from grease.

Do not lubricate the cup of the AKS safety coupling.

Do not lubricate the ball on the tow bar.

Make sure the friction pads remain free from oil and grease when lubricating moving

parts of the safety coupling.

Before the journey

16 Adria Caravans

Check that all corner steadies have been fully raised.

Check the caravan lights when the towing vehicle is coupled.

5.2.1 Couplings

5.2.1.1 Couplings AK 150 V/160/200 V/251 S/300

The coupling mechanism has an "open" position which means the coupling remains open until

the tow ball locks completely into the cup.

Coupling the vehicle:

Check that the coupling is open.

Position the open coupling Fig. 1) onto the tow ball of the towing vehicle until it fully

engages with a click.

To help, press the coupling grip (Fig. 1/2) down by hand.

Check that the safety marking (green band) (Fig. 1/1) is visible.

For more information, see the separate instructions from the manufacturer.

Warning!

Risk of weaving

Before coupling, make sure the tow ball on the towing vehicle is free from oil and

grease.

Clean off any dirt before coupling.

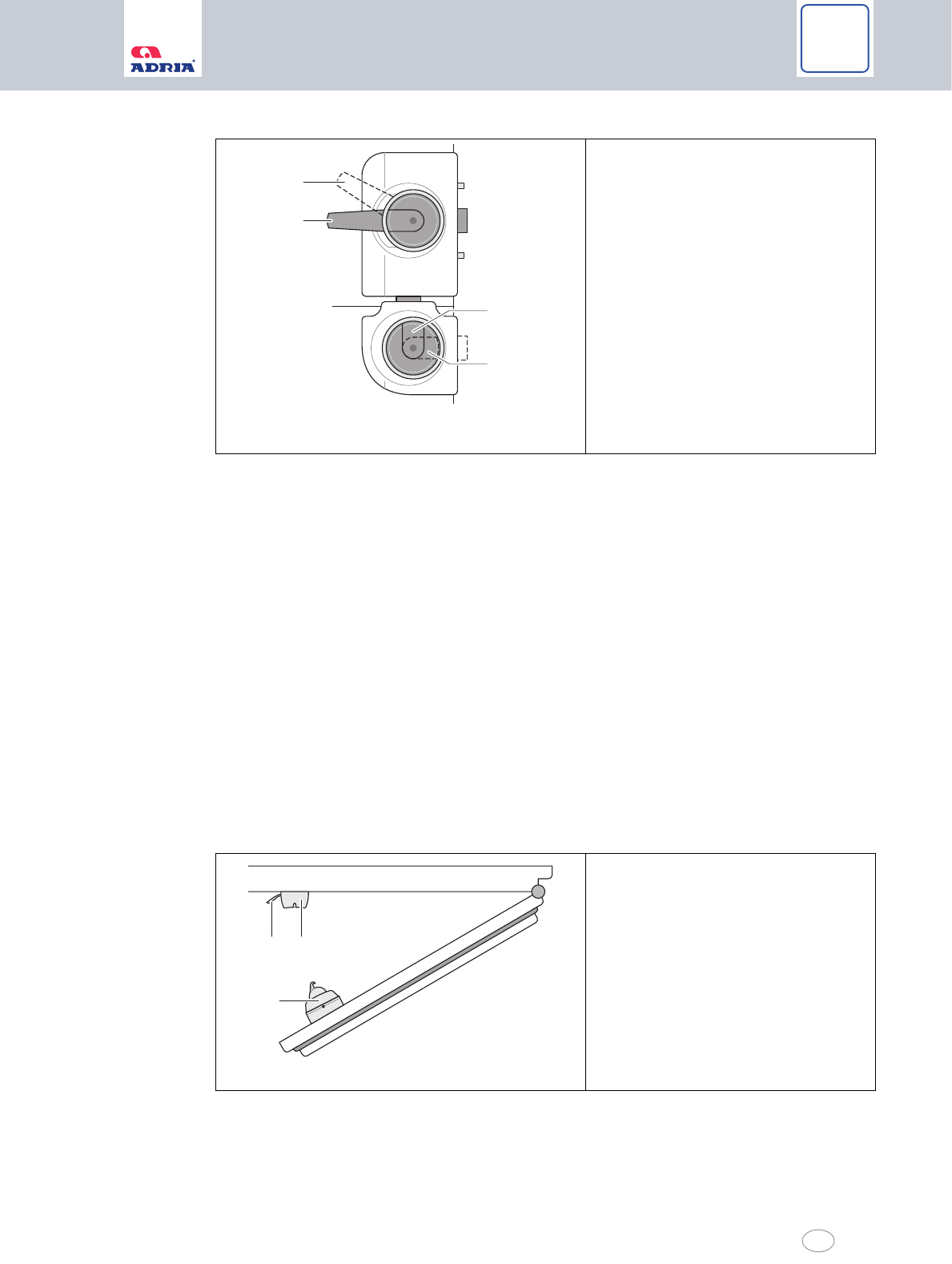

Fig. 1 Couplings AK 300 and AK 160

1 Safety marking

2 Coupling grip

10100016

Before the journey 5

Adria Caravans 17

5.2.1.2 Coupling AKS 1300

Coupling the vehicle:

Move the stabilizer lever (Fig. 2/3) fitted at the side up to the top position.

Turn the handwheel (Fig. 2/5) anticlockwise to the stop and open completely.

Pull the coupling grip (Fig. 2/2) straight up.

Position the open coupling onto the tow ball until the coupling grip locks in with a click.

The coupling grip moves back to the start position on its own.

To help, press the coupling grip (Fig. 2/2) down by hand.

Check that the safety marking (green point) (Fig. 2/4) is visible.

Turn the handwheel clockwise until the torque limiter slips noticeably and audibly.

Press the stabilizer lever down to the lowest position. The marking on the stabilizer lever

must be positioned directly below the "locked" marking (Fig. 2/1) of the stabilizer hous-

ing.

For more information, see the separate instructions from the manufacturer.

Fig. 2 Coupling AKS 1300

1 "Locked" marking

2 Coupling grip

3 Stabilizer lever

4 Safety marking

5 Handwheel

10100017

Before the journey

18 Adria Caravans

5.2.1.3 Coupling AKS 3004

Coupling the vehicle:

Move the stabilizer lever up (Fig. 3/2) to the top position.

Pull the coupling grip (Fig. 3/3) upwards and open the coupling.

Position the open coupling onto the tow ball until the coupling grip locks in with a click.

The coupling grip moves back to the start position on its own.

To help, press the coupling grip (Fig. 3/3) down by hand.

Check that the safety marking (green band) (Fig. 3/1) is visible.

Press the stabilizer lever (Fig. 3/2) down to the lowest position.

For more information, see the separate instructions from the manufacturer.

Fig. 3 Coupling AKS 3004

1 Safety marking

2 Stabilizer lever

3 Coupling grip

10100111

Before the journey 5

Adria Caravans 19

5.2.2 Coupling BPW WS 3000 D

Coupling the vehicle:

Move the stabilizer lever (Fig. 4/1) to the uncoupling position (Fig. 4/2).

Position the open coupling onto the tow ball and, if necessary, press down by hand until

the coupling grip locks in with a click. The stabilizer handle moves approx. 10° down to

the coupling position (Fig. 4/3).

To activate the stabilizer device, press the stabilizer lever (Fig. 4/1) down to the bottom,

horizontal position (Fig. 4/4) to the stop.

Check that the tow ball is completely retracted and not visible when coupled.

For more information, see the separate instructions from the manufacturer.

5.3 Uncoupling the caravan

Uncoupling the vehicle:

Apply the caravan parking brake.

Secure the vehicle against rolling away with wheel chocks.

Disconnect the light/power supply plug from the towing vehicle socket and secure

safely.

Release the overrun brake cable from the tow bracket on the towing vehicle.

Crank the jockey wheel down. The wheel must be firmly on the ground.

If necessary, also open the stabilizer lever of the stabilizer device.

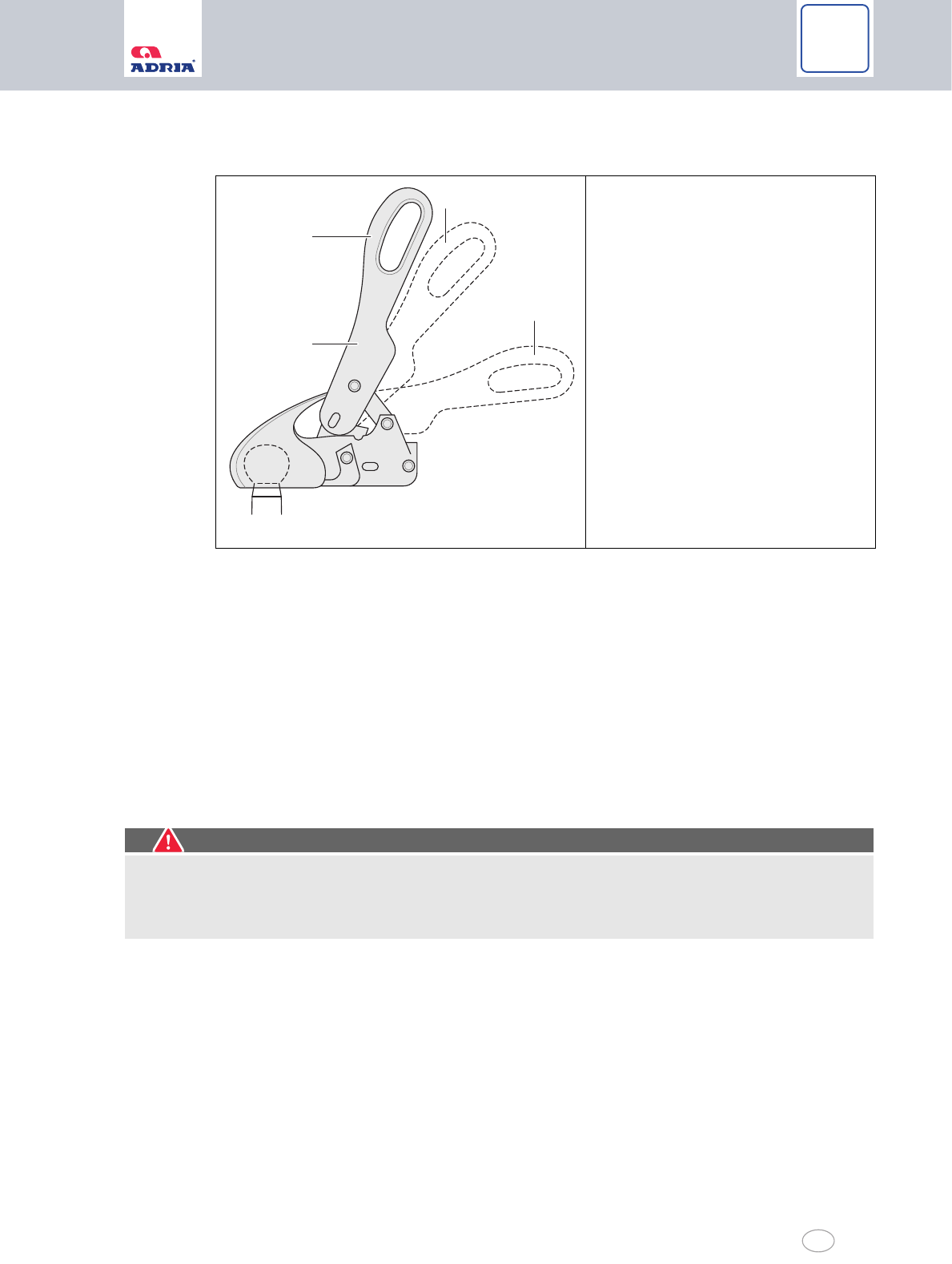

Fig. 4 Coupling BPW WS 3000 D

1 Stabilizer lever

2 Uncoupling position

3 Coupling position

4 Stabilizer device active

Warning!

Risk of injury during uncoupling

Always apply the parking brake before uncoupling.

Secure the vehicle against rolling away before uncoupling the vehicle.

10100112

Before the journey

20 Adria Caravans

Stretch the overrun device, drive the towing vehicle slightly away when necessary, until

the folding bellow over the overrun device is no longer pressed together.

Release the coupling with the hand grip. Use the jockey wheel to lift the coupling from

the tow ball until the ball is completely free.

Drive the towing vehicle away.

5.4 Loading the vehicle

Pay attention to the following when loading the vehicle:

• Unladen weight = mass in ready-to-drive condition according to EN 1646-2 (Chapter 22.2).

• Additional equipment installed in the factory and options increase the unladen weight and

reduce the additional load.

• Determine the maximum additional load according to part 1 of the registration certificate

and the list in the "Technical data" Chapter (as from Chapter 22.2).

• The additional load refers to the luggage.

• On vehicles with standard equipment, the outside of the roof and the rear area are not to

be loaded.

– Never exceed a height of 4 m and a width of 2.55 m with additional attachments.

– Attach and secure the roof and rear loads so that they do not slip, are unaffected by the

wind and are streamlined. Do not use rubber expanders!

• In order not to endanger other road users, objects must not project beyond the vehicle sil-

houette on the side or rear.

– Do not overload the vehicle. For weight information and Tables, see Chapter 22.2 and

the registration certificate, part I.

• Pay attention to the correct axle load distribution. Roadability and tyre wear are directly

affected by the axle load. Pay attention to the maximum axle loads (see registration certif-

icate part I).

• Load the vehicle evenly on the right and left. The driving characteristics deteriorate when

loading is uneven.

• Store heavy objects (e.g. tinned food, cutlery, dishes) in low-lying storage compartments

and secure them against slipping.

• Stack light objects, e.g. clothes, in higher storage compartments or in the compartments

below the seats.

Warning!

Risk of injury and severe damage to the vehicle

When a tyre bursts, the vehicle can get out of control.

Do not exceed the vehicle gross weight rating.

Check the tyre pressure (Chapter 22.1) at regular intervals. Tyres can burst when the

tyre pressure is too low.

Warning!

Danger of overloading

The gross weight rating entered in the vehicle documents must not be exceeded. Tyres

can also burst when the vehicle is overloaded.

A warranty claim to the manufacturer and the insurance coverage become void.

Before the journey 5

Adria Caravans 21

• Always keep liquids in leak-proof containers in low-lying storage compartments.

• Load the bike rack (special accessory) with only 2 bikes at the most (50 kg maximum).

Important!

Weigh the completely loaded vehicle on public scales before starting your journey.

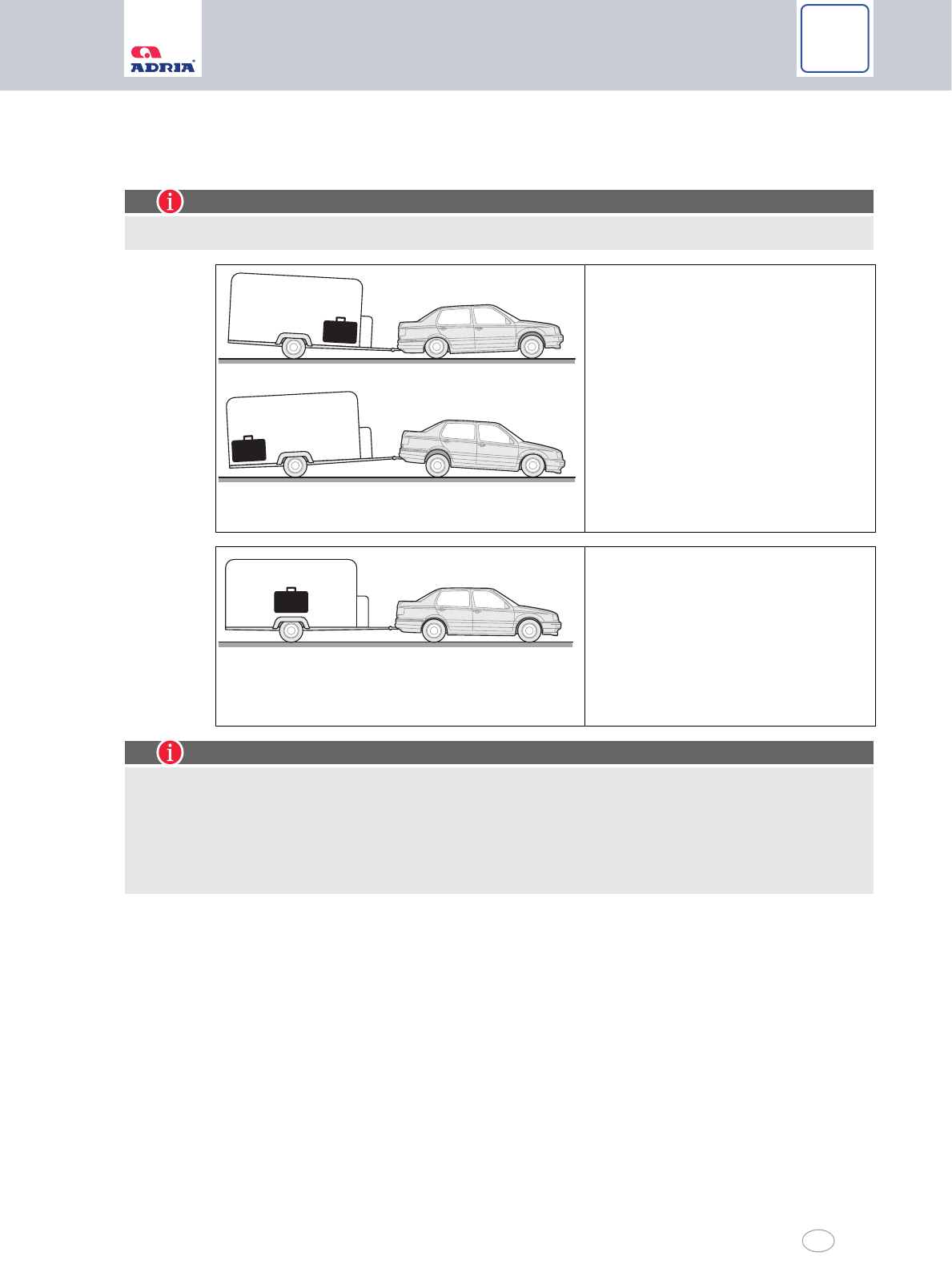

Fig. 5 Caravan load spread incorrect

CARAVAN LOAD SPREAD INCOR-

RECT!

• Caravan weaves dangerously

Fig. 6 Caravan load spread correct

CARAVAN LOAD SPREAD COR-

RECT!

• Whenever possible, store objects

over the axle(s).

• Store heavy objects at lower posi-

tions.

• Store light objects at upper posi-

tions.

Important!

Pay attention to the following when installing rear carriers:

• Attachment and securing of the load as specified

• Allowable load-carrying capacity of the vehicle and axle(s)

• Change of driving and braking behaviour of the vehicle

• Change of overall length

10100015

10100021

Before the journey

22 Adria Caravans

5.5 Additional rear view mirrors

Two rear view mirrors must be fitted on towing vehicles when towing. The rear view mirrors

must provide an adequate field of view along the side and behind the towed vehicle.

Fit rear view mirrors with adequate fastening to prevent strong vibrations affecting the field of

view.

5.6 Tyres

• Regularly check the tyre pressure on cold tyres and correct the tyre pressure as required.

Do not forget the spare wheel (special equipment).

– The tyres overheat if the tyre pressure is too low which can cause the tyres to burst at

high speed.

• Check the tyres for even wear and damage at regular intervals (e.g. penetrated foreign

objects, punctures, cuts, tears and bumps in the tyre sidewalls). Always have the damage

repaired by a specialist.

• Regularly check the tread depth.

– If the tread depth is too small, the risk of aquaplaning rises.

– Comply with the minimum tread depth. Observe the regulations of the respective coun-

try. We recommend to change the tyre as from a tread depth of 4 mm.

• Always use tyres of the same construction, same brand and same type (summer and winter

tyres). Do not forget the spare wheel (see Tab. 26 in Chapter 22).

• Regularly check the wheel nuts or bolts for firm seating.

• When the vehicle is put out of service for a longer period, prevent "flat spots" on the tyres.

– Relieve the load on the tyres by jacking up the vehicle.

– Move the vehicle every 4 weeks so that the position of the wheels is changed and the

load on the tyres is always at different positions.

– Increase the tyre pressure by 0.3 bar as compared with the stipulated tyre pressure.

Warning!

Accident hazard

Never reverse without adequate field of view towards the rear. Use additional rear view

mirrors!

Check additional rear view mirrors are set correctly before driving.

Important!

Additional rear view mirrors must meet EU Directives and must be EU type-tested.

Warning!

Risk of injury and severe damage to the vehicle

When a tyre bursts, the vehicle can get out of control.

Check the tyre pressure (see Tab. 26 in Chapter 22) at regular intervals.

Check the tyres for damage at regular intervals

Comply with minimum tread depth. Observe the regulations of the respective coun-

try.

Before the journey 5

Adria Caravans 23

• Drive over kerbs slowly and, if possible, at an obtuse angle. Avoid driving over steep and

sharp-edged kerbs.

– Hard or acute-angled impacts against kerbs or sharp-edged objects, for example

stones, can damage the tyres.

• Drive over high manhole covers at a slow speed.

• Hidden tyre damage is not eliminated by correcting the tyre pressure.

• Do not use used tyres.

– Tyres age even when they are not driven or driven only a little.

– It is recommended to change the tyres of the vehicle, including the spare wheel, when

they are 6 years old or earlier when the minimum tread depth is reached.

5.7 Electrical lighting

Before starting to drive, check the function of all interior and exterior lighting equipment on the

vehicle and replace defective lighting elements.

Make yourself familiar with the replacement of the lighting elements before starting to drive

(Chapter 21).

5.8 Spare keys

The following information is required for ordering a spare key:

Tab. 2 Spare keys

5.9 General check before starting to drive

Go through the checklists (Chapter 23) before starting to drive.

Key for Required information To be obtained from

Bodywork (doors and

flaps) • Vehicle identification number:

• Registration certificate part II

• Key number

Adria Service depart-

ment

Warning!

Danger of injuries from parts flying around

the wheel arch inserts before driving with the caravan and stow them away safely.

Warning!

Hazards and damage due to unsecured load

After having driven for a few kilometres, check the additional load is stowed in slip-free

manner in the vehicle.

During the journey

24 Adria Caravans

6 During the journey

Pay attention to the following during the journey:

When starting to drive and at low speed, check the function of the brake system and the

brake behaviour (directional stability, function of overrun brake, etc.) by braking shortly.

Adjust your driving technique to the vehicle size, drive with consideration and foresight.

Drive slowly on poor roads.

Drive downhill at the same speed as uphill.

Switch to the next gear early enough.

Avoid braking abruptly.

Prevent jerky steering as this could cause the car/caravan combination to weave.

When driving over bridges, you have to anticipate crosswind. Because of the vehicle

size and height, a caravan is more sensitive to crosswind than a passenger car.

When overtaking truck-trailer combinations, the car/caravan combination can get into a

turbulence. Light counter-steering compensates this effect.

Do not underestimate the length of the car/caravan combination.

When turning into a road and when driving around bends, take the larger curve radius

of the car/caravan combination into consideration.

The braking distance of a car/caravan combination is considerably longer than that of a

passenger car. Please increase the safe distance accordingly.

When driving in reverse, always have a second person assist you because the rear view

mirrors can distort the distances differently.

At petrol stations or in garages, switch off all "open flames" operated with gas (also

refrigerator or heater).

Caution!

Risk of injury and damage to the vehicle

During positioning manoeuvres, when driving through passageways, bridges, tunnels

and with overhanging branches, observe the dimensions of the vehicle.

Dimensions of the vehicle, see vehicle documents.

Equipment and attachments change the weight and the dimensions.

From a technical point of view, ADRIA caravans are designed for a permissible maxi-

mum speed of 100 kph. This maximum speed must not be exceeded, not even when a

higher speed is allowed in the country being visited. Always pay attention to speed

restrictions in individual countries which may be different.

Important!

• During the journey, persons or pets are not allowed to stay in the caravan.

After the journey 7

Adria Caravans 25

7 After the journey

7.1 Requirements to the parking area

The parking area should be firm and level.

7.2 Pitching the caravan

A second person is helpful for the following tasks.

Aligning the vehicle:

Align the caravan horizontally crosswise to the driving direction. If this is not possible,

use drive-on chocks underneath the respective wheels or, if sufficient room is available,

move the caravan until you have found a horizontal position.

Align the caravan horizontally by adjusting the jockey wheel in driving direction.

Firmly apply the parking brake.

Secure the caravan with the wheel chocks against rolling away.

To prevent swaying of the caravan, always extend all corner steadies on the vehicle.

The crank can be found in the storage space that is accessible from the outside.

7.2.1 Corner steadies

To prevent the vehicle from unnecessary swaying at its parking location, we recommend

extending the corner steadies on the vehicle.

Warning!

Damage to vehicle

Crank up the corner steadies completely before starting to drive. When starting to drive,

the chassis or the vehicle bottom could be damaged by extended corner steadies.

Torn off corner steadies could jeopardise other road users.

Caution!

Damage to vehicle frame

Do not use the corner steadies for lifting the vehicle. This could result in distortion of

chassis and bodywork.

After the journey

26 Adria Caravans

Extending the corner steady:

Place the crank (Fig. 7/1) against the corner steady (Fig. 7/2).

Turn the crank anticlockwise to extend the corner steady.

7.2.2 Electrical connection

If 230 V supply is available at your parking area, the electrical appliances can be connected to

this voltage supply (Chapter 10.1.1).

Observe the fuse protection of the voltage supply.

If there is no 230 V supply, individual appliances can be operated via the 12 V supply of the

towing vehicle. The 12 V supply works only when the towing vehicle is connected to the cara-

van and the ignition of the towing vehicle is switched on.

Some vehicles have their own living area battery (special equipment). On these vehicles, elec-

tric consumers can also be operated without connection of a towing vehicle.

7.2.3 Entrance step

Place the entrance step in front of the vehicle entrance door.

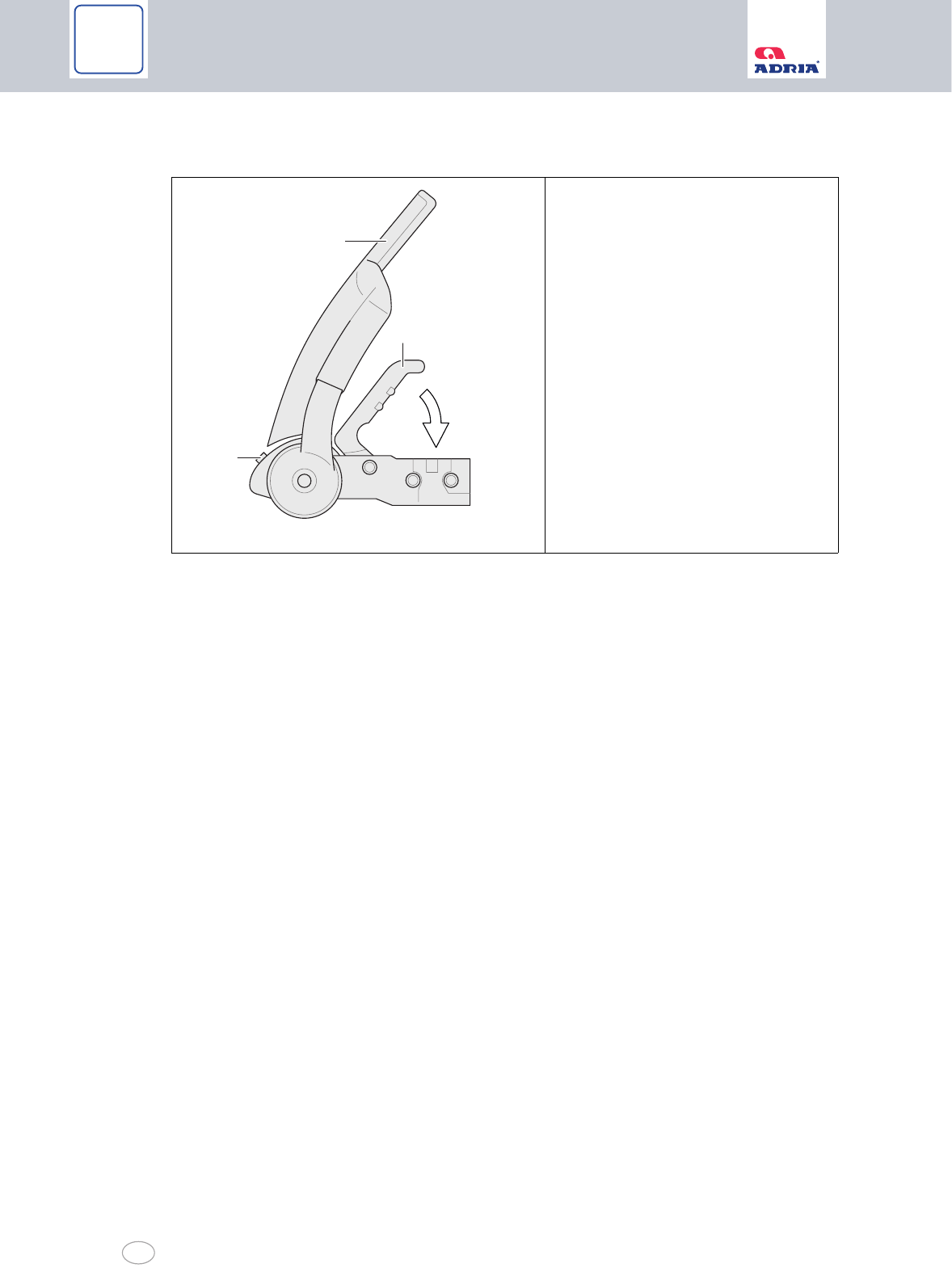

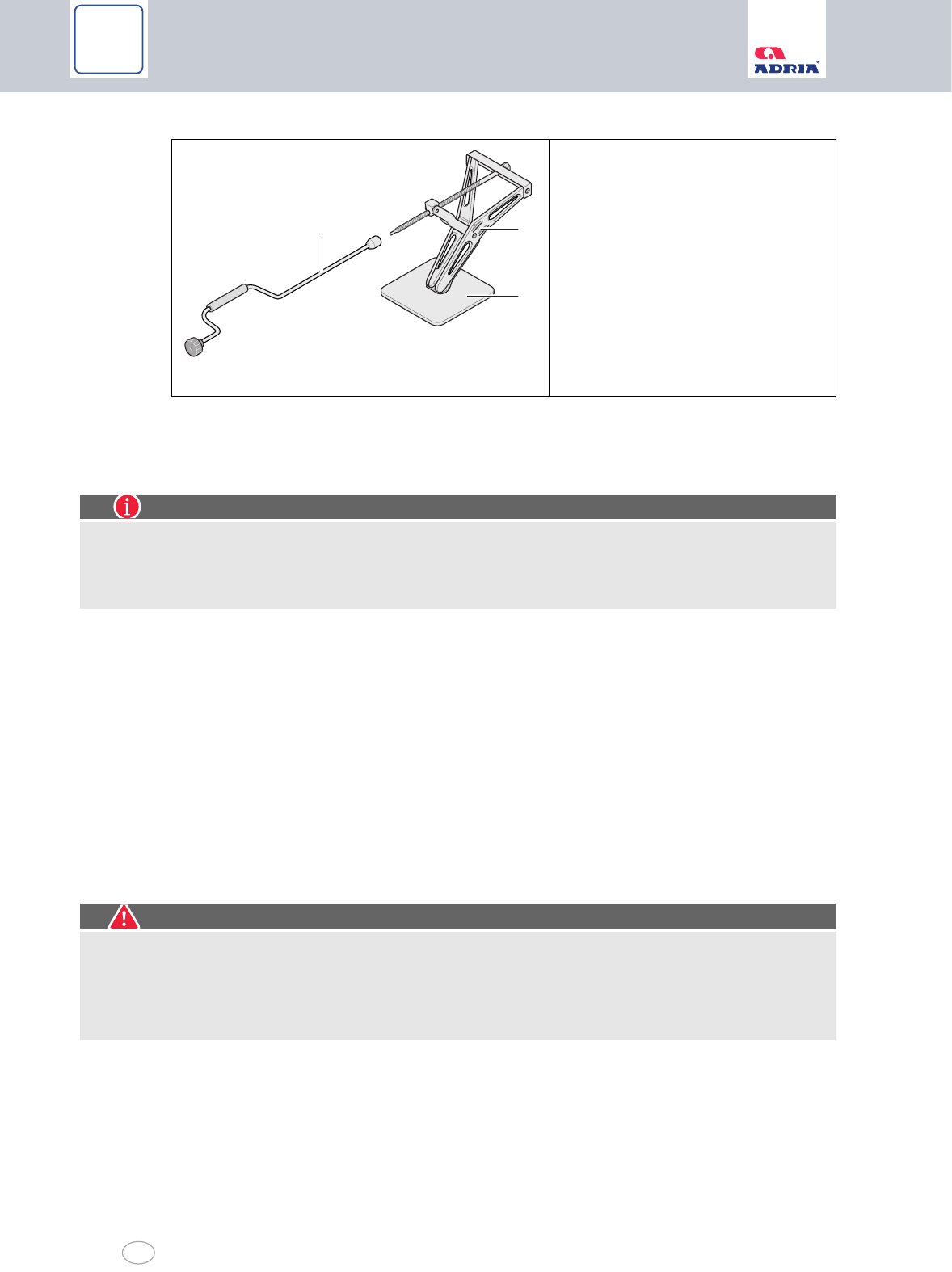

Fig. 7 Corner steady

1 Crank

2 Corner steady

3 Base

Important!

• Place a firm substructure (Fig. 7/3) underneath the base (Fig. 7/2) of the corner steadies

when your vehicle is standing on soft ground such as grass or sand. This prevents sink-

ing into the ground and facilitates the retraction of the corner steadies before starting to

drive again.

Warning!

Risk of injury

Make sure to place the entrance step only on safe ground.

Do not step on the edge of the entrance step.

Fasten the entrance step on the ground.

10100009

After the journey 7

Adria Caravans 27

7.3 Electrical entrance step (special equipment)

Some vehicles are equipped with an electrical entrance step.

Retracting or extending the electrical entrance step:

The switch (Fig. 8/2) for retraction or extension of the entrance step is located in the entrance

area near the outer door.

Tip the switch (Fig. 8/2) briefly in the lower area until the entrance step is extended

(Fig. 8/1).

Tip the switch (Fig. 8/2) briefly in the upper area until the entrance step is retracted

(Fig. 8/1).

Warning!

Accident hazard

Maximum load of entrance step: 200 kg.

Only use the step when it is fully extended.

Before starting the journey, ensure the entrance step is completely retracted.

Extend and retract the entrance step only in an unloaded condition.

Keep persons and pets away from the entrance step during extension or retraction.

Only adults may operate the entrance step.

Never leave the vehicle without extended entrance step.

Never jump on the step.

Only one person may be on the step at a time.

Before extending or retracting the entrance step, check the available space.

Ensure the extended step does not represent an obstacle or hazard for third persons.

In adverse weather conditions, clean the step from snow or ice.

Clean the entrance step thoroughly at regular intervals to ensure its perfect function.

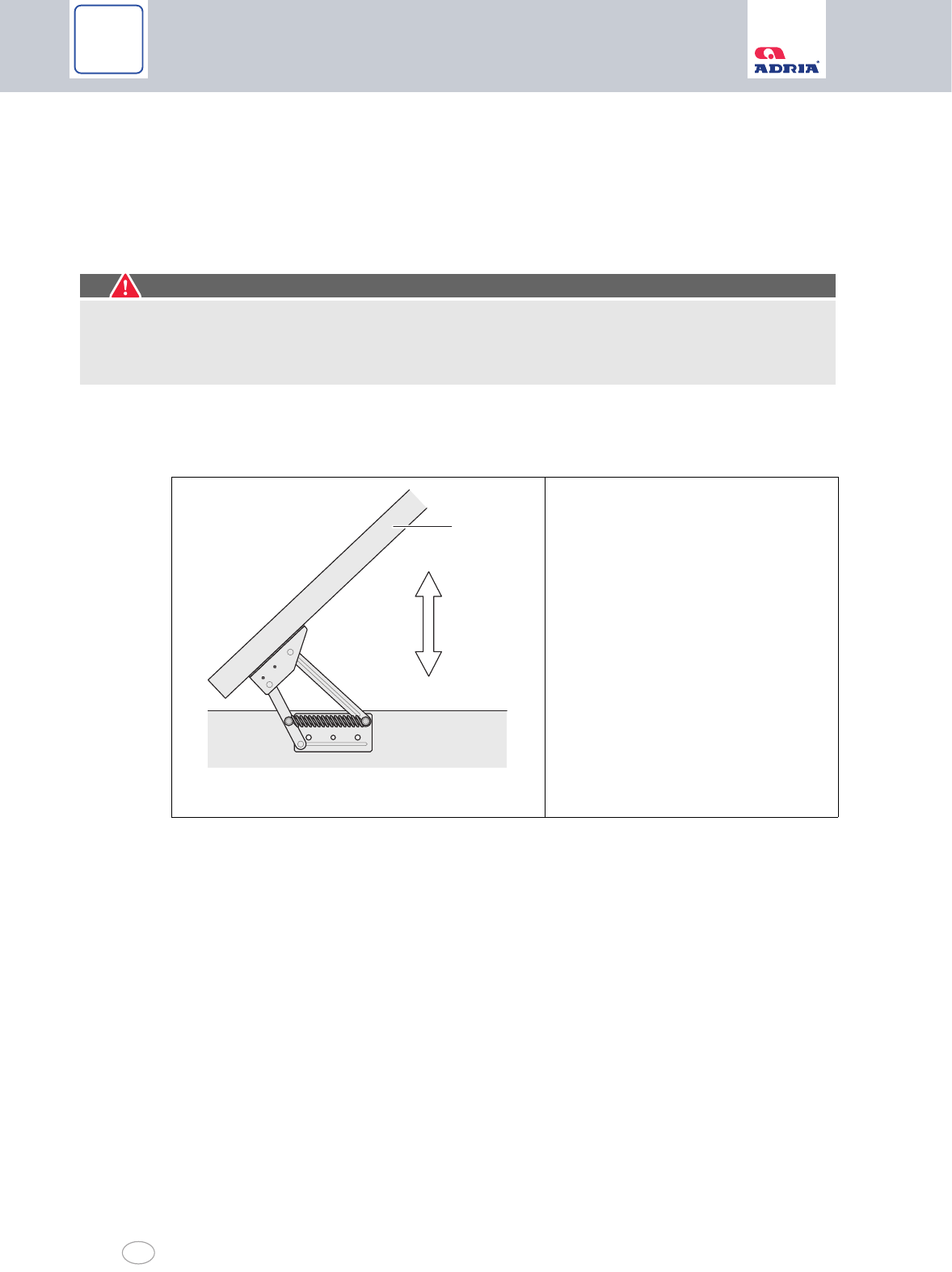

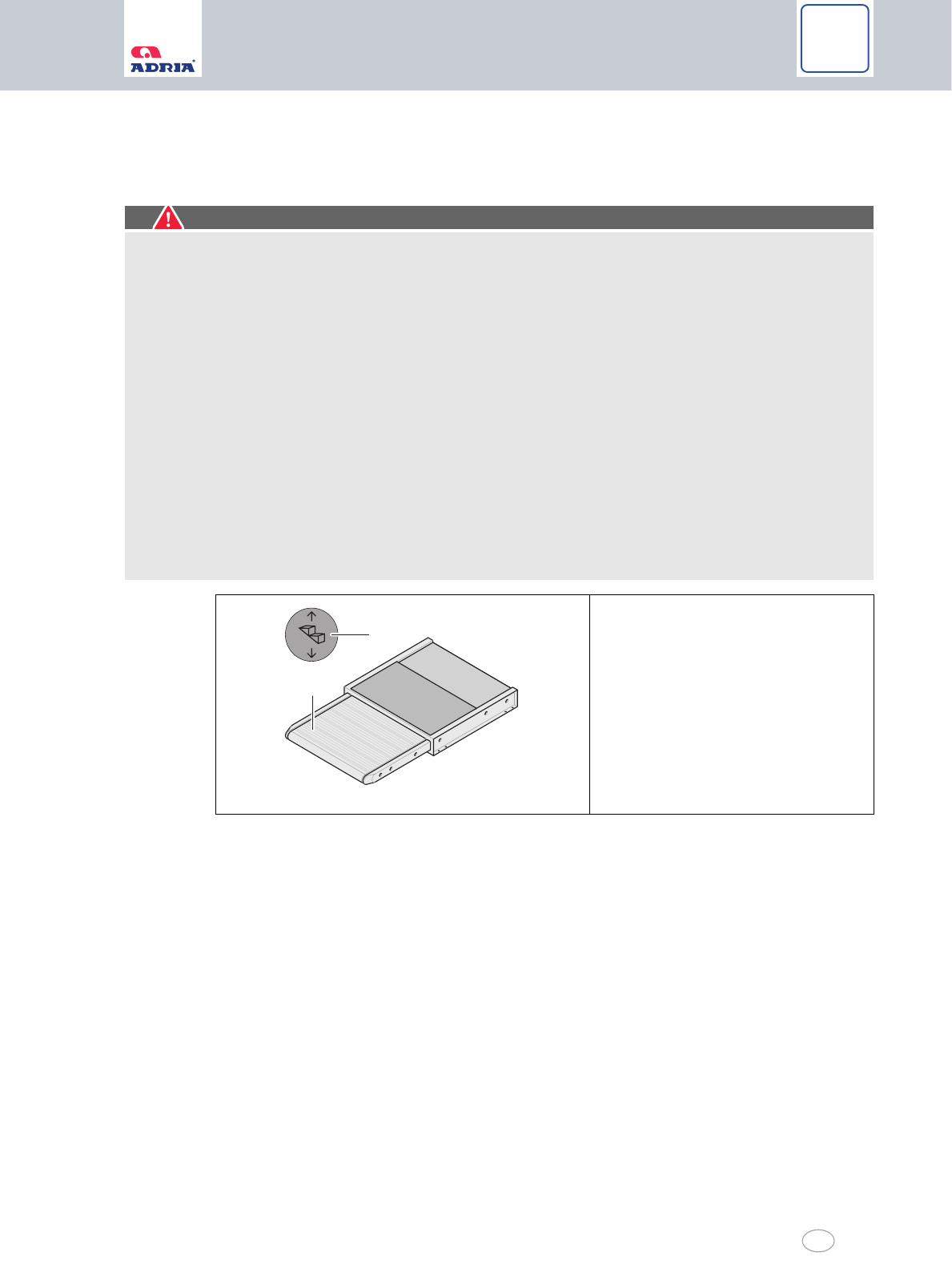

Fig. 8 Electrical entrance step

1 Entrance step

2 Switch

10100051

After the journey

28 Adria Caravans

7.4 Waste water tank, mobile (special equipment)

Store the waste water tank (Fig. 9/1) in the gas cylinder compartment of the caravan during the

journey.

The drain pipe (Fig. 9/2) is located on the vehicle underside on the left in driving direction.

Observe the following before using the water system:

Open the cap of the waste water tank and stow away safely.

Place the waste water tank (Fig. 9/1) under the drain pipe (Fig. 9/2) so that no water is

drained outside the waste water tank.

Check the level of the waste water tank at regular intervals and dispose of waste water

in time at an approved drain.

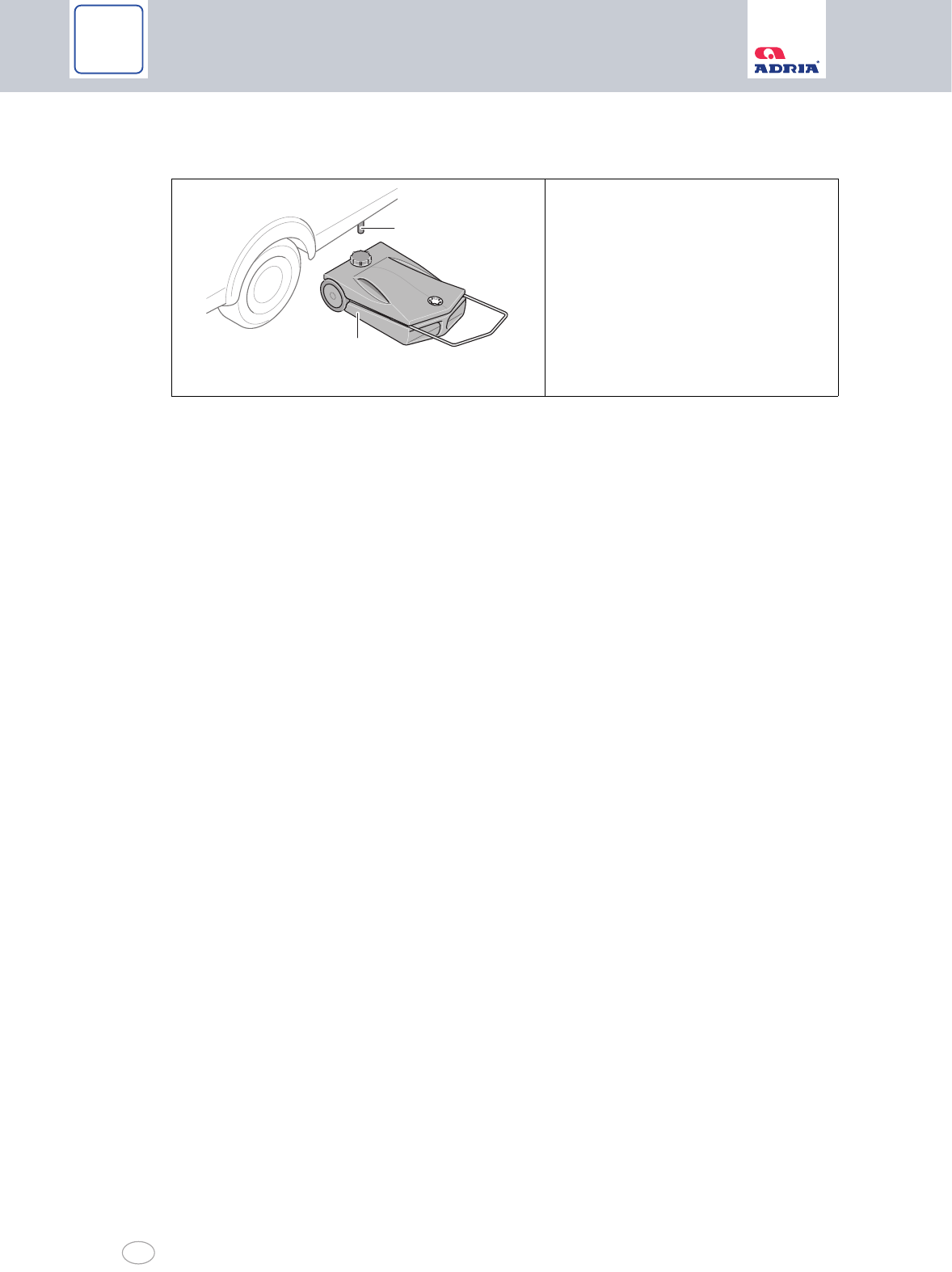

Fig. 9 Waste water tank, mobile

1 Waste water tank

2 Drain pipe

10100014

Living in the caravan 8

Adria Caravans 29

8 Living in the caravan

8.1 Entrance door

8.1.1 Opening / closing the door from the outside

Opening the door:

Insert the key into the door lock (Fig. 10/1) and turn towards the "open lock" symbol to

the stop.

When released, the key returns to the initial position.

Remove the key.

Pull the door handle (Fig. 10/2) to open the door.

Closing the door:

Close the door until the door lock latches.

Insert the key into the door lock (Fig. 10/1).

Turn the key anticlockwise to the stop. If necessary, push the door lightly into the seals.

When released, the key returns to the initial position.

Remove the key.

Opening the door:

Insert the key into the door lock (Fig. 11/1) and turn into the direction of the hinge side

of the door to the stop.

When released, the key returns to the initial position.

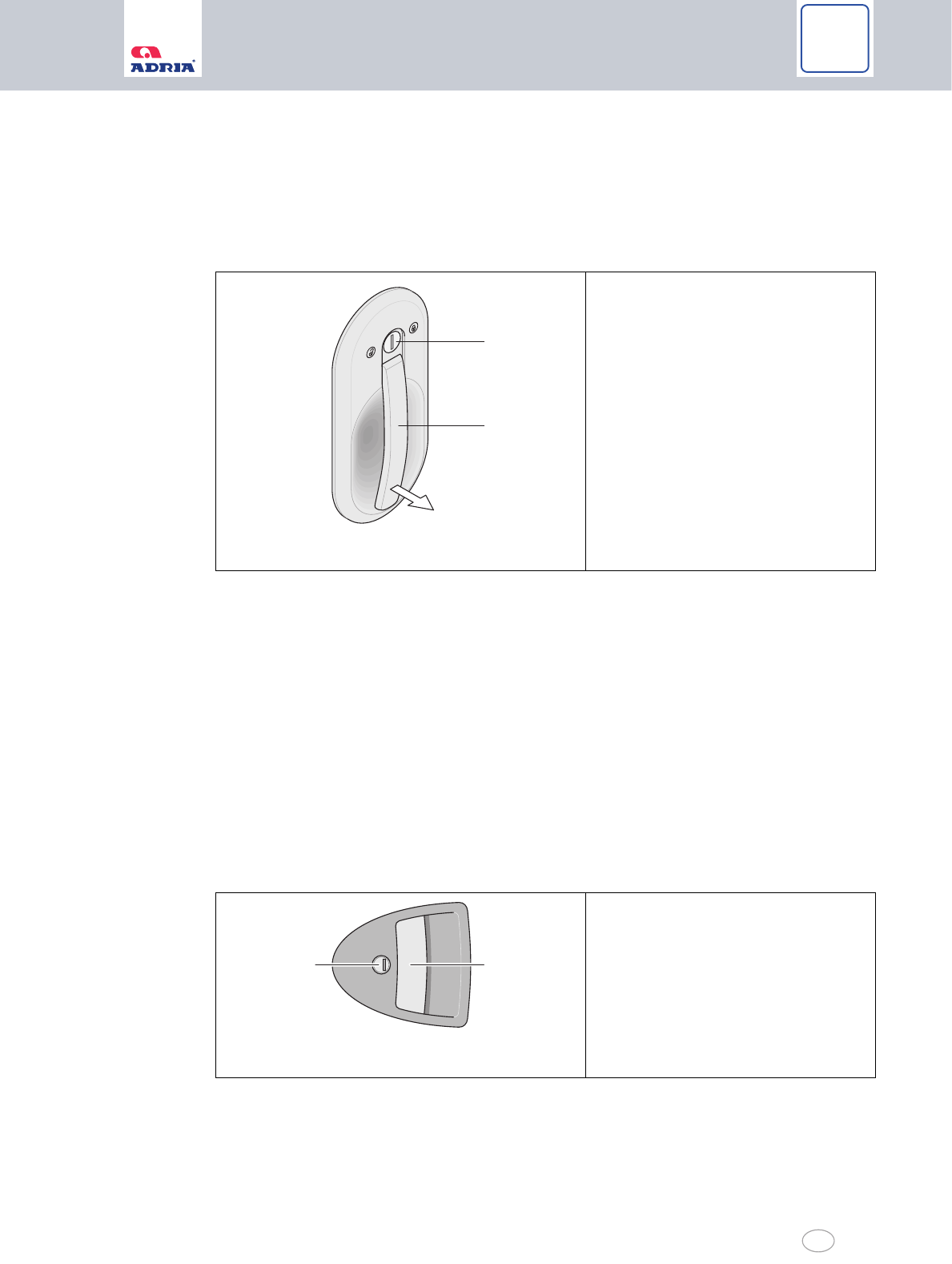

Fig. 10 Opening / closing the entrance door from the

outside

1 Door lock

2 Door handle

Fig. 11 Opening / closing the entrance door from the

outside

1 Door lock

2 Door handle

10100037

Living in the caravan

30 Adria Caravans

Remove the key.

Pull the door handle (Fig. 11/2) to open the door.

Closing the door:

Close the door until the door lock latches.

Insert the key into the door lock (Fig. 11/1).

Turn the key anticlockwise to the stop. If necessary, push the door lightly into the seals.

When released, the key returns to the initial position.

Remove the key.

8.1.2 Opening / closing the door from the inside

Opening / closing the door:

Operate the door opener (Fig. 12/2) and open the door.

When released, the door opener (Fig. 12/2) returns to its initial position.

To close the door, pull the door handle (Fig. 12/1).

Locking the door:

The locking button (Fig. 12/3) is at the top of the door handle (Fig. 12/1).

To lock the door, push the locking button (Fig. 12/3) down into the door handle

(Fig. 12/1).

Fig. 12 Opening / closing the entrance door from the

inside

1 Door handle

2 Door opener

3 Locking button

Living in the caravan 8

Adria Caravans 31

Opening / closing the door:

Push the door handle (Fig. 13/1) down and open the door.

When released, the door handle (Fig. 13/1) returns to its initial position.

To close the door, pull the door handle (Fig. 13/1).

Locking the door:

Pull the door handle (Fig. 13/1) upwards into locking position (Fig. 13/2).

The door is locked and can be opened from the outside only with the key.

Separating/locking the two-part door (special equipment):

Close the door.

Turn the locking latch (Fig. 13/3) to horizontal position (Fig. 13/4).

The upper part of the door is unlocked and the lower part of the door is locked at the

same time.

Turn the locking latch (Fig. 13/3) to vertical position again for opening.

8.1.3 Door arrester

Releasing the door arrester

Pull the holder (Fig. 14/3) at the holder part (Fig. 14/2) of the door arrester.

Pull the door part (Fig. 14/1) with the door out of the holder part.

Fig. 13 Opening / closing the entrance door from the

inside

1 Door handle (door unlocked)

2 Door handle (door locked)

3 Locking latch

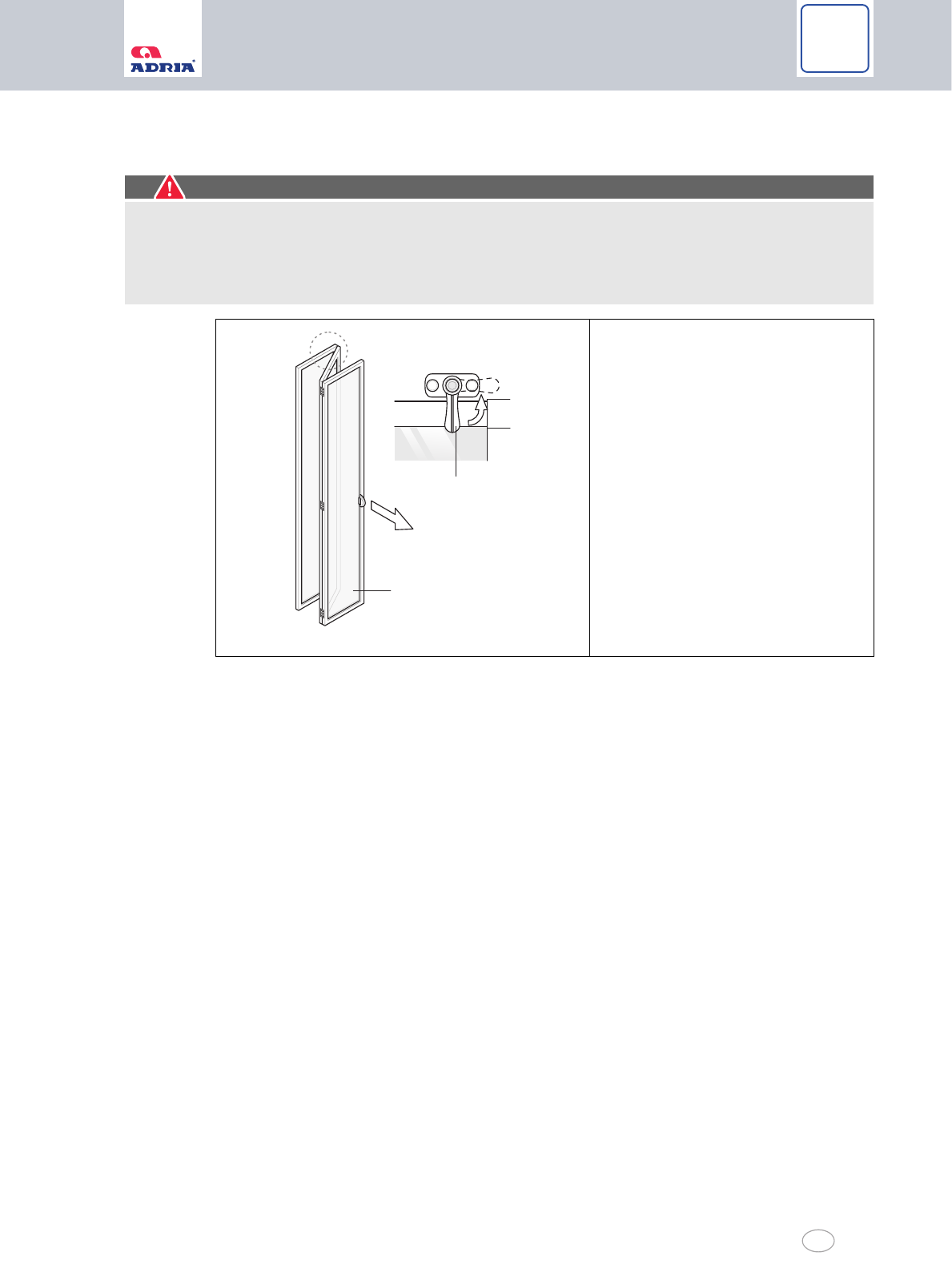

Fig. 14 Door arrester, 2-part

1 Door part

2 Holder part

3 Holder

10100038

10100039

Living in the caravan

32 Adria Caravans

8.2 Ventilation of caravan

• The correct ventilation of the caravan is the best prerequisite for agreeable living comfort.

• Each person gives off up to 35 g water per hour by breathing. Therefore, the caravan must

be ventilated depending on the relative humidity via the windows and roof hoods.

• Additional water evaporates as a result of cooking or wet clothes.

• Extreme weather conditions could cause the forming of condensed water inside the acrylic

glass double window. With rising temperatures, the condensation water evaporates again

and the window is cleared.

For more information see Chapter 17 on winter camping.

Danger!

Poisoning by gas and carbon monoxide

Always keep the forced ventilation (in the roof hoods and in the floor panel) and the

mushroom ventilators open, do not cover them.

Caution!

Possibility of mould formation

At night, condensation water could collect under the cushions. To dry the cushions

(foamed material), place the cushions in an upright position and ventilate the vehicle

thoroughly.

Living in the caravan 8

Adria Caravans 33

8.3 Hinged windows

8.3.1 General

The hinged windows of the caravan have a locking device, i.e. the hinged window automati-

cally locks into place in the desired position after opening.

The number of locking levers at the bottom edge of the window varies depending on the win-

dow width.

Opening the window:

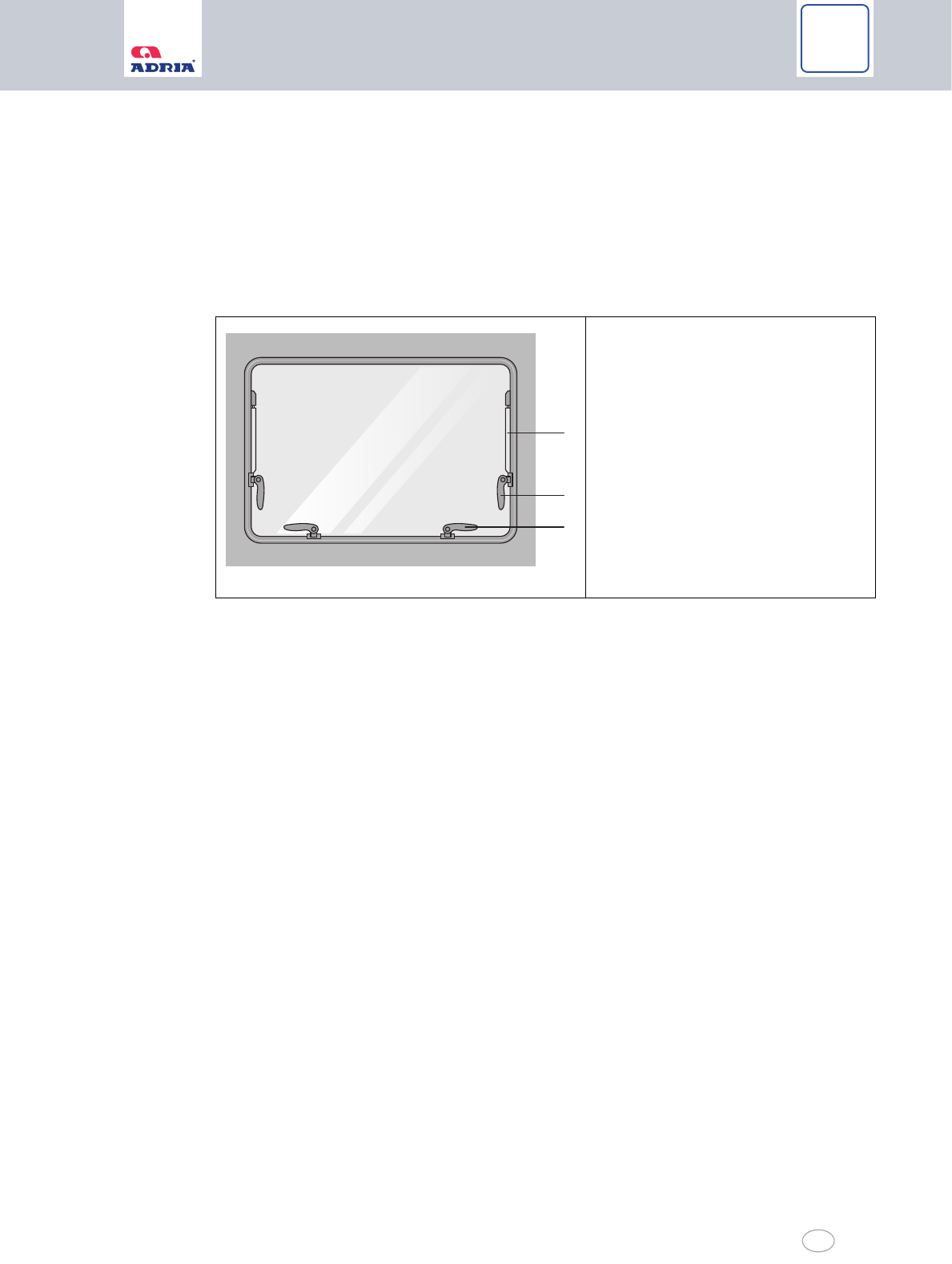

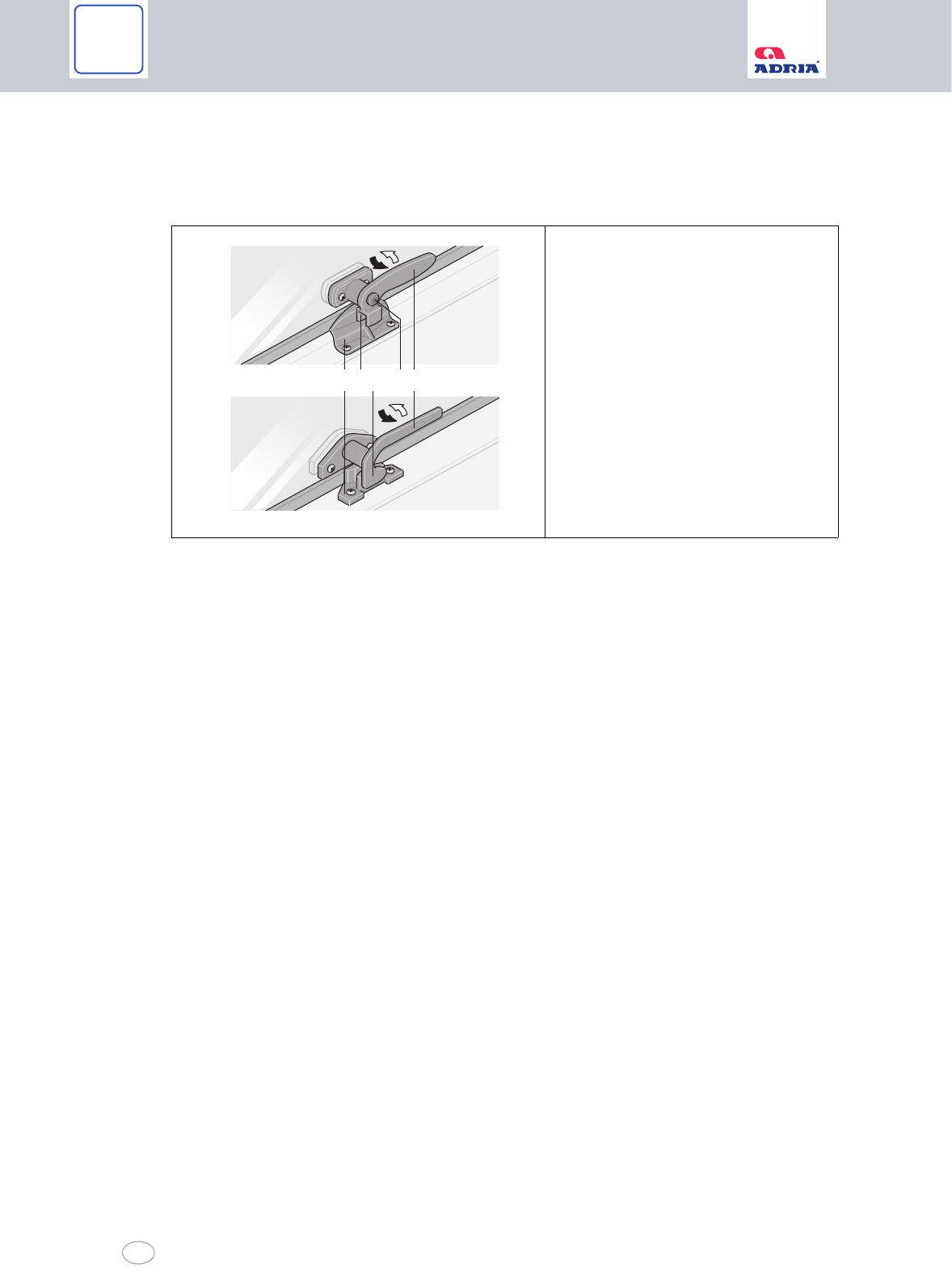

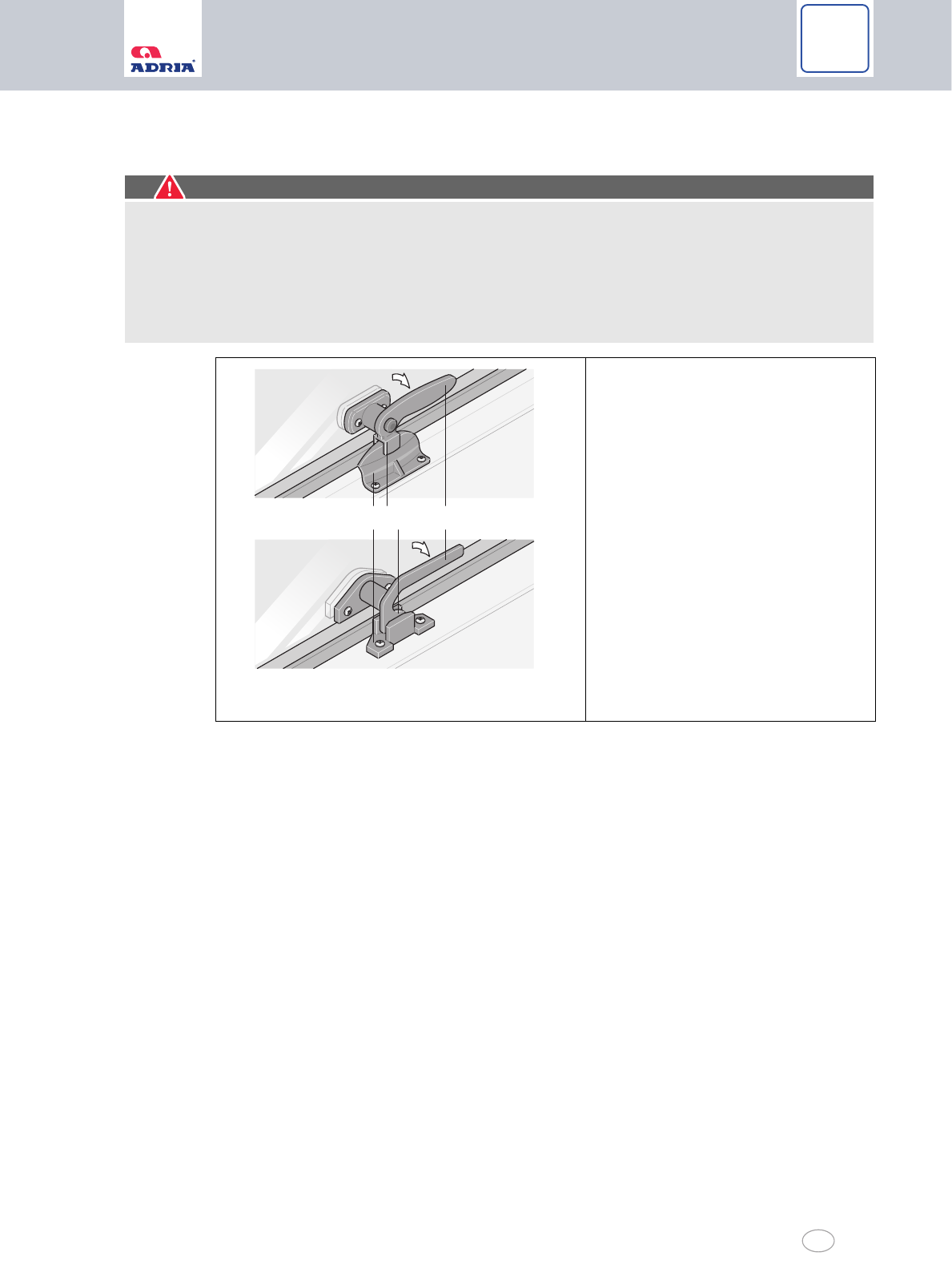

Open the two locking levers (Fig. 15/1) on the hold-open hinges (Fig. 15/3) first.

Then open the locking levers (Fig. 15/2) on the bottom edge of the window.

Push the window to the outside until it has the desired opening width.

Closing the window:

With automatic hold-open hinges, open the window until the lock is released.

First close the locking levers on the bottom edge of the window.

Afterwards, close the locking levers on the hold-open hinges.

Fig. 15 Hinged windows

1 Locking lever on hold-open hinge

2 Locking lever at bottom edge of

window

3 Hold-open hinge

Living in the caravan

34 Adria Caravans

8.3.2 Opening/closing the windows

To open and close the hinged windows, open or close all locking levers on the respective

hinged window.

Opening the window:

If the locking lever has a securing button (Fig. 16/1), press and hold down the securing

button.

Turn the lever (Fig. 16/2) to the middle of the window.

Open all window locks.

Open the window.

Closing the window:

Close the window.

If the locking lever has a securing button (Fig. 16/1), press and hold down the securing

button.

Turn the lever (Fig. 16/2) to the window frame.

The fork (Fig. 16/4) of the lever (Fig. 16/2) closes completely on the inside of the latch

plate (Fig. 16/3).

Fig. 16 Opening and closing the hinged windows

1 Securing button

2 Lever

3 Latch plate

4 Fork

5 Locking catch

3 24 15

Living in the caravan 8

Adria Caravans 35

8.3.3 Permanent ventilation

Setting the window to the "permanent ventilation" position

Open the locking levers as described in Chapter 8.3.2.

Pull the window back until it is almost closed.

With a locking lever (Fig. 17/1) with securing button, make sure the latch plate

(Fig. 17/2) fits properly in the fork (Fig. 17/3) when closing the lever (Fig. 17/1).

With a locking lever (Fig. 17/1) without securing button, make sure the locking catch

(Fig. 17/4) fits properly in the recess of the locking plate (Fig. 17/2) when closing the

lever (Fig. 17/1).

Caution!

Cracks in the window

Close only the levers (Fig. 15/2) at the bottom edge of the window in the "permanent

ventilation" position, otherwise the window pane is bent. This could result in the forma-

tion of cracks in the acrylic glass window.

Ensure all bottom catch bars are closed in the same position, otherwise, the window

could be distorted.

Fig. 17 Hinged window in permanent ventilation posi-

tion

1 Lever

2 Latch plate

3 Fork

4 Locking catch

2 13

Living in the caravan

36 Adria Caravans

8.3.4 Sliding windows (special equipment)

Opening the sliding window:

Press the handle (Fig. 18/2).

Slide the window (Fig. 18/1) to the side.

Closing the sliding window:

Push the window (Fig. 19/1) until it is closed and the handle (Fig. 19/2) latches into place

in the catch (Fig. 19/3).

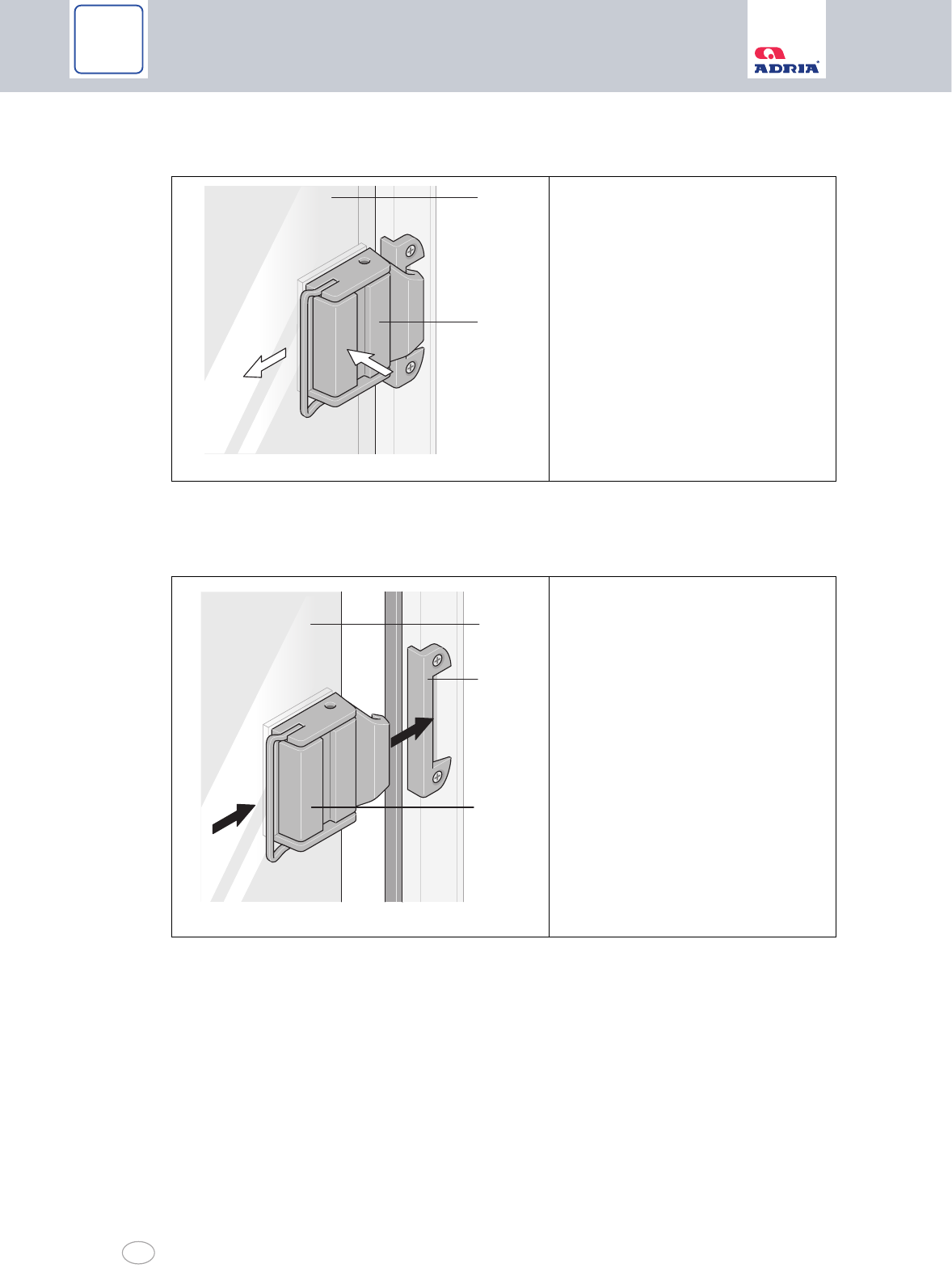

Fig. 18 Opening the sliding window

1 Window

2 Handle

Fig. 19 Closing the sliding window

1 Window

2 Handle

3 Catch

Living in the caravan 8

Adria Caravans 37

8.4 Window blinds and insect screens

8.4.1 Blind and insect screen - version 1

The blind (Fig. 20/1) is located in the bottom part of the window frame.

The insect screen (Fig. 20/3) is installed in the top part of the window frame.

Opening and closing the blind:

Press the two pushbuttons (Fig. 20/2) together.

Slide the blind to the desired position.

Releasing the two pushbuttons automatically clamps the blind in place.

The blind (Fig. 20/1) has a restricting device so that it can be latched into place at different

latching positions.

Opening and closing the insect screen:

Pull the insect screen (Fig. 20/3) down until the catch (Fig. 20/4) latches into place in the

blind (Fig. 20/1).

The insect screen (Fig. 20/3) can be operated only in combination with the blind (Fig. 20/1).

Separating the insect screen from the blind:

Press on the upper catch (Fig. 20/4) of both blinds.

Caution!

Damage to insect screen

When you unlock the blind/insect screen, hold on to the insect screen (Fig. 20/3), other-

wise it will snap up with spring tension. Snapping up could damage the screen spring

and the insect screen.

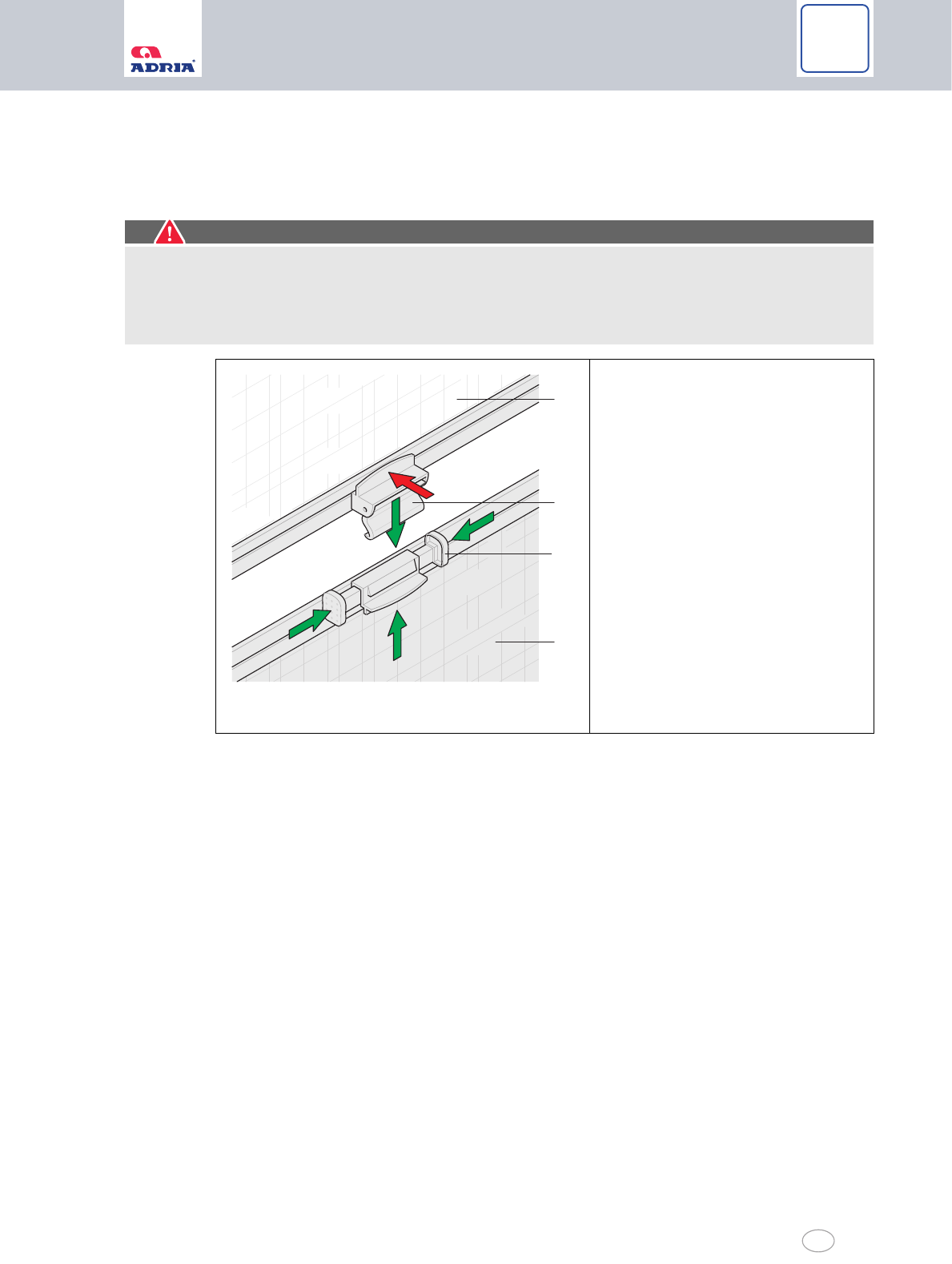

Fig. 20 Opening and closing of the blind and insect

screen - version 1

1 Blind

2 Pushbuttons

3 Insect screen

4 Catch

Living in the caravan

38 Adria Caravans

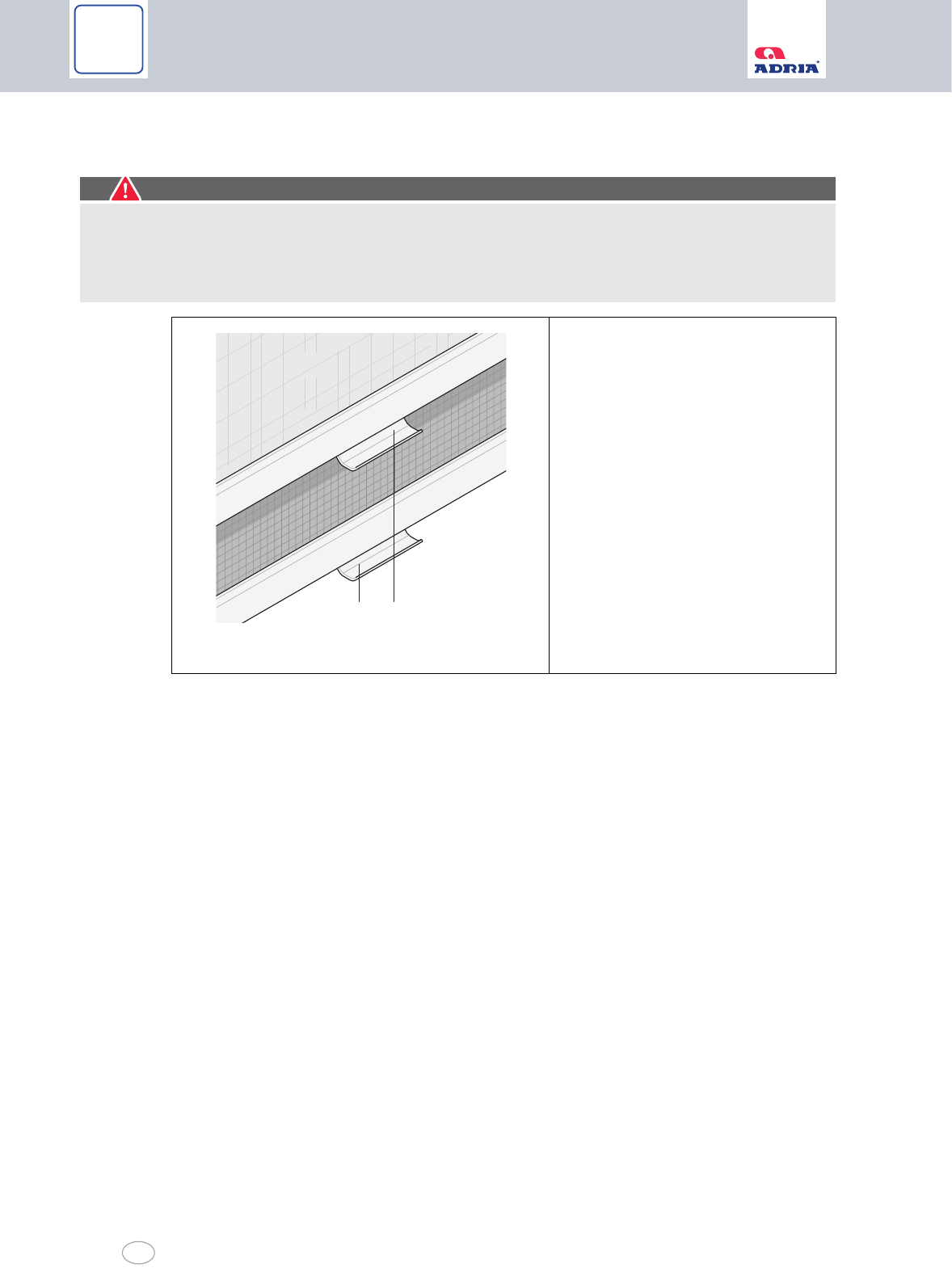

8.4.2 Blind and insect screen - version 2

The blind (Fig. 21/1) and the insect screen (Fig. 21/2) are located in the upper part of the win-

dow frame and can be operated independently from each other.

Opening / closing the insect screen:

Pull down the insect screen (Fig. 21/1) by the handle and hook it on both sides of the

window frame into the latches.

To unhook the insect screen from the latches, push the handle down and slightly pull it

to the inside.

Opening / closing the blind:

To close the blind (Fig. 21/2), the insect screen (Fig. 21/1) must first be closed.

The blind (Fig. 21/2) has a restricting device so that it can be latched into place at differ-

ent latching positions.

Pull down the blind (Fig. 21/2) by the handle. When the blind is closed completely, hook

the blind into the latches on both sides of the window frame.

To unhook the blind from the latches, push the handle down and slightly pull it to the

inside.

Caution!

Damage to insect screen

When you unlock the blind (Fig. 21/1) and insect screen(Fig. 21/2), hold on to them,

otherwise they will shoot up with spring tension. Shooting up could damage the screen

spring and the blind/insect screen.

Fig. 21 Opening and closing of the blind and insect

screen - version 2

1 Insect screen with handle

2 Blind with handle

1 2

Living in the caravan 8

Adria Caravans 39

8.4.3 Blind and insect screen - version 3

The blind (Fig. 22/3) and the insect screen (Fig. 22/2) are both located in the upper window

frame. The insect screen follows the blind.

Opening / closing the blind:

Pull the blind (Fig. 22/3) down or up with the grip bar (Fig. 22/4).

The blind (Fig. 22/1) can be moved up or down to any position.

Opening / closing the insect screen:

Pull the insect screen (Fig. 22/2) down or up with the handle (Fig. 22/1).

8.5 Roof openings

8.5.1 General

Fig. 22 Opening and closing of the blind and insect

screen - version 3

1 Handle

2 Insect screen with handle

3 Blind

4 Handle bar

Important!

• Before starting the journey, check the roof openings for damage to the glass dome.

• Close the roof openings when leaving the caravan. Danger of burglary or from rain water

and wind.

• Do not open the roof openings when there is strong wind, rain or snowfall.

• Before opening the roof openings, remove snow, ice and other foreign material.

• Close the roof openings before starting the journey.

• Open the blind and insect screen before starting to drive.

• Consult an authorised workshop when faults or malfunctions occur.

123 4

Living in the caravan

40 Adria Caravans

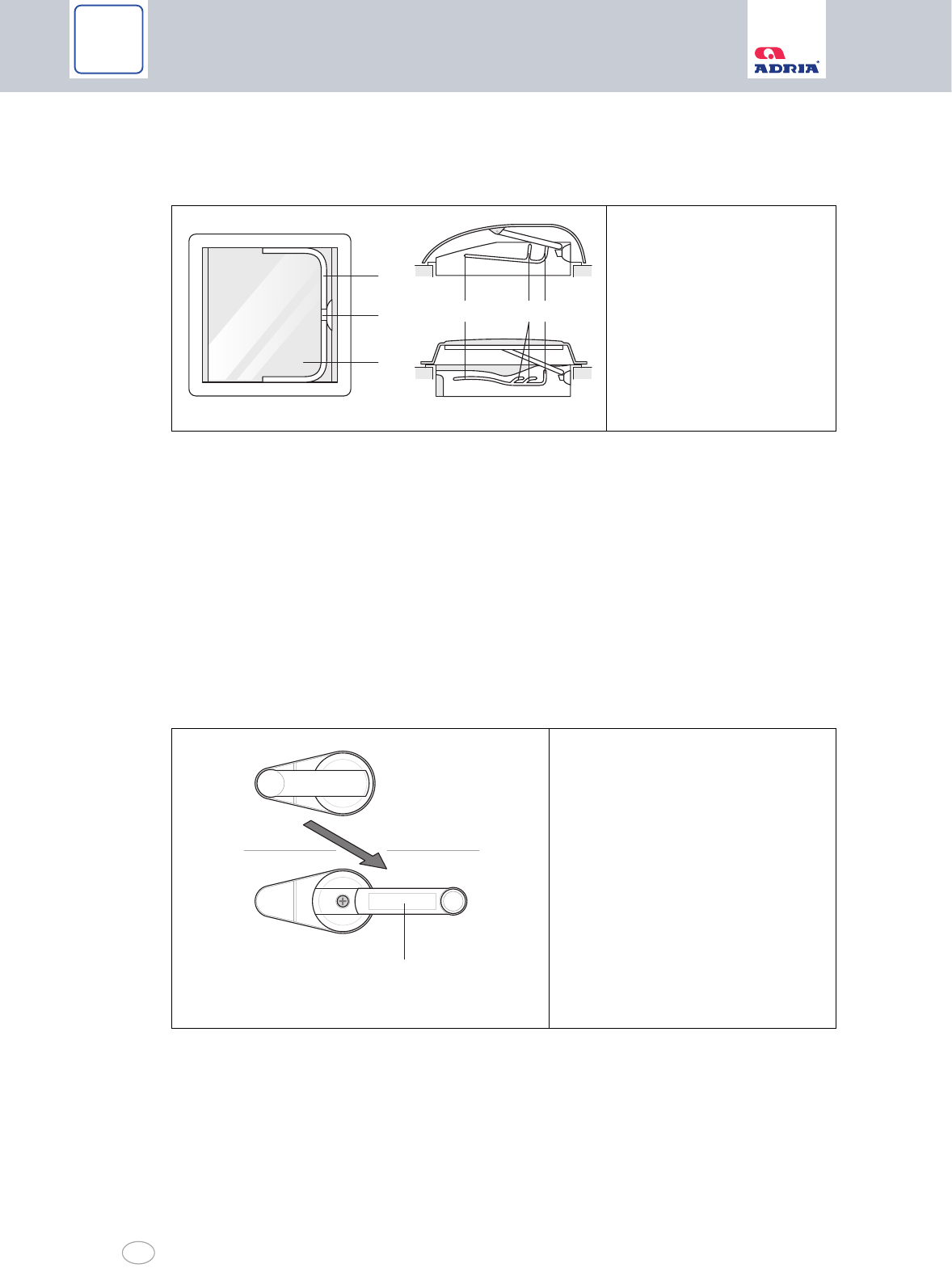

8.5.2 Roof hood with operating bar (special equipment)

The roof hood with operating bar can be opened by tilting to one side.

Opening the roof hood:

To open the glass dome (Fig. 23/1), press the locking button (Fig. 23/2) and pull the bar

(Fig. 23/3) downwards.

Push the bar (Fig. 23/3) into the desired position. Possible positions are "Ventilation"

(Fig. 23/5) or "Open" (Fig. 23/6).

Closing the roof hood:

Push the bar (Fig. 23/3) in the direction of the locking button (Fig. 23/2) to close the roof

hood.

Press the locking button (Fig. 23/2) and push the bar (Fig. 23/3) into the "Closed" posi-

tion.

8.5.3 Roof hood with crank operation (special equipment)

Opening the roof hood:

Some models are equipped with additional locking levers (Fig. 16).

To open the glass dome, you first have to fold out the hand crank (Fig. 24/1).

Turn the hand crank only until a resistance can be felt.

The roof hood is now in the maximum open position.

Any desired interim position is possible.

Fig. 23 Opening / closing the roof hood with operating bar

1 Glass dome

2 Locking button

3 Bar

4 "Closed" position

5 "Ventilation" position

6 "Open" position

Fig. 24 Opening / closing the roof hood with crank

operation

1 Hand crank

456

Living in the caravan 8

Adria Caravans 41

Closing the roof hood:

Turn the hand crank (Fig. 24/1) again until a resistance can be felt.

Before you fold in the hand crank again, a light initial tension must be present on the

crank.

If required, loosen the attachment screw, take the crank out of the gearing and reposition

the crank. Then place the crank onto the gearing again and screw tight.

Check the locking by attempting to lift the glass dome by hand.

Close the locking lever as required (Fig. 16).

8.5.4 Roof hood with rotary handle

Unlocking the roof hood:

Slide the catch bar (Fig. 25/2) of the roof hood to the "Unlock" position.

Locking the roof hood:

Slide the catch bar (Fig. 25/2) to the "Lock" position when the glass dome (Fig. 25/1) is

closed.

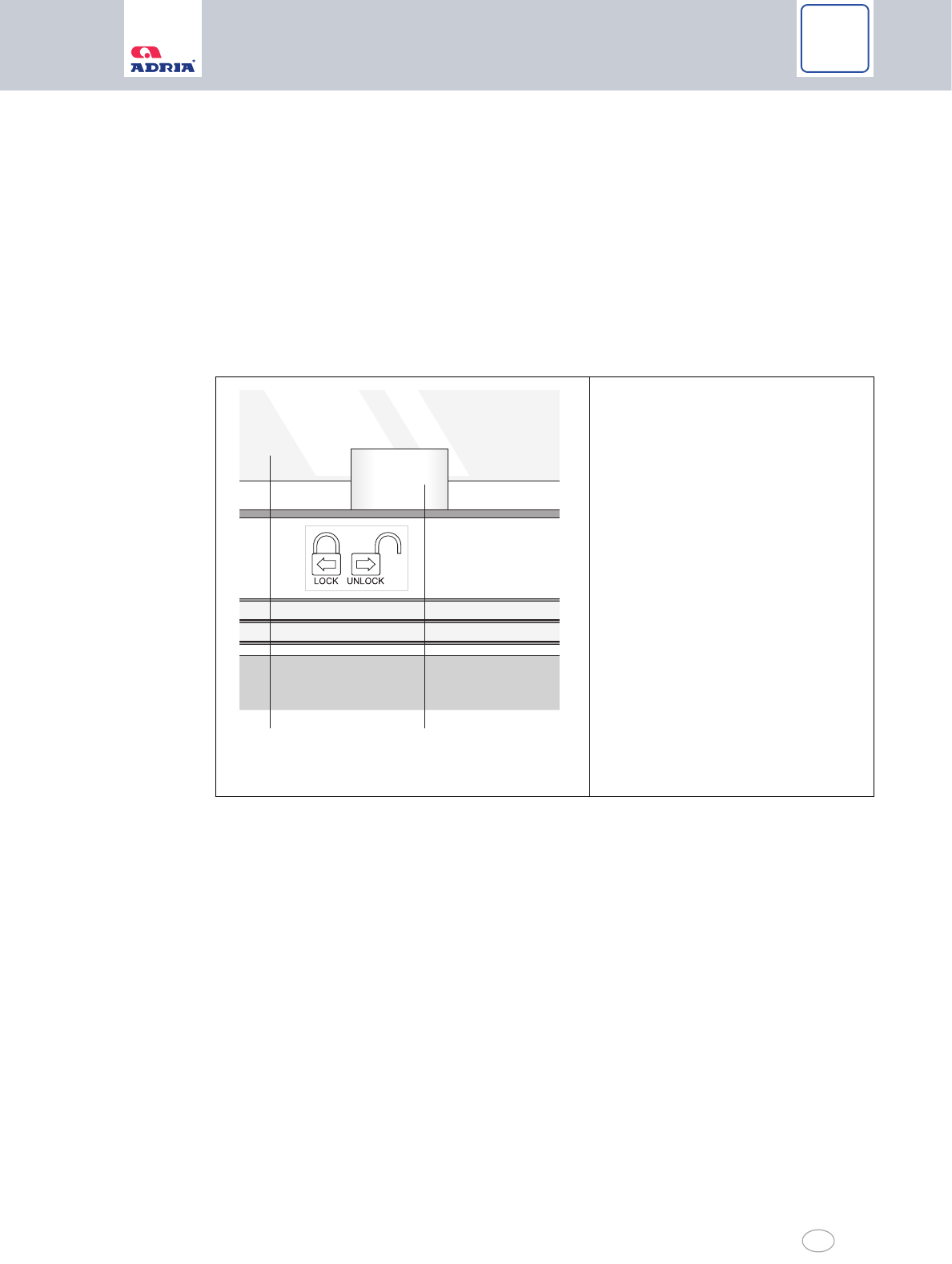

Fig. 25 Unlocking / locking the roof hood with rotary

handle

1 Glass dome

2 Catch bar

1 2

Living in the caravan

42 Adria Caravans

Opening the roof hood:

Turn the rotary knob (Fig. 26/1) clockwise to open the glass dome.

Turn the rotary knob only until a resistance can be felt.

The roof hood is now in the maximum open position. Any desired interim position is pos-

sible.

Closing the roof hood:

Turn the rotary knob (Fig. 26/1) anticlockwise until a resistance can be felt.

Then lock the roof hood.

Check the locking by attempting to lift the glass dome by hand.

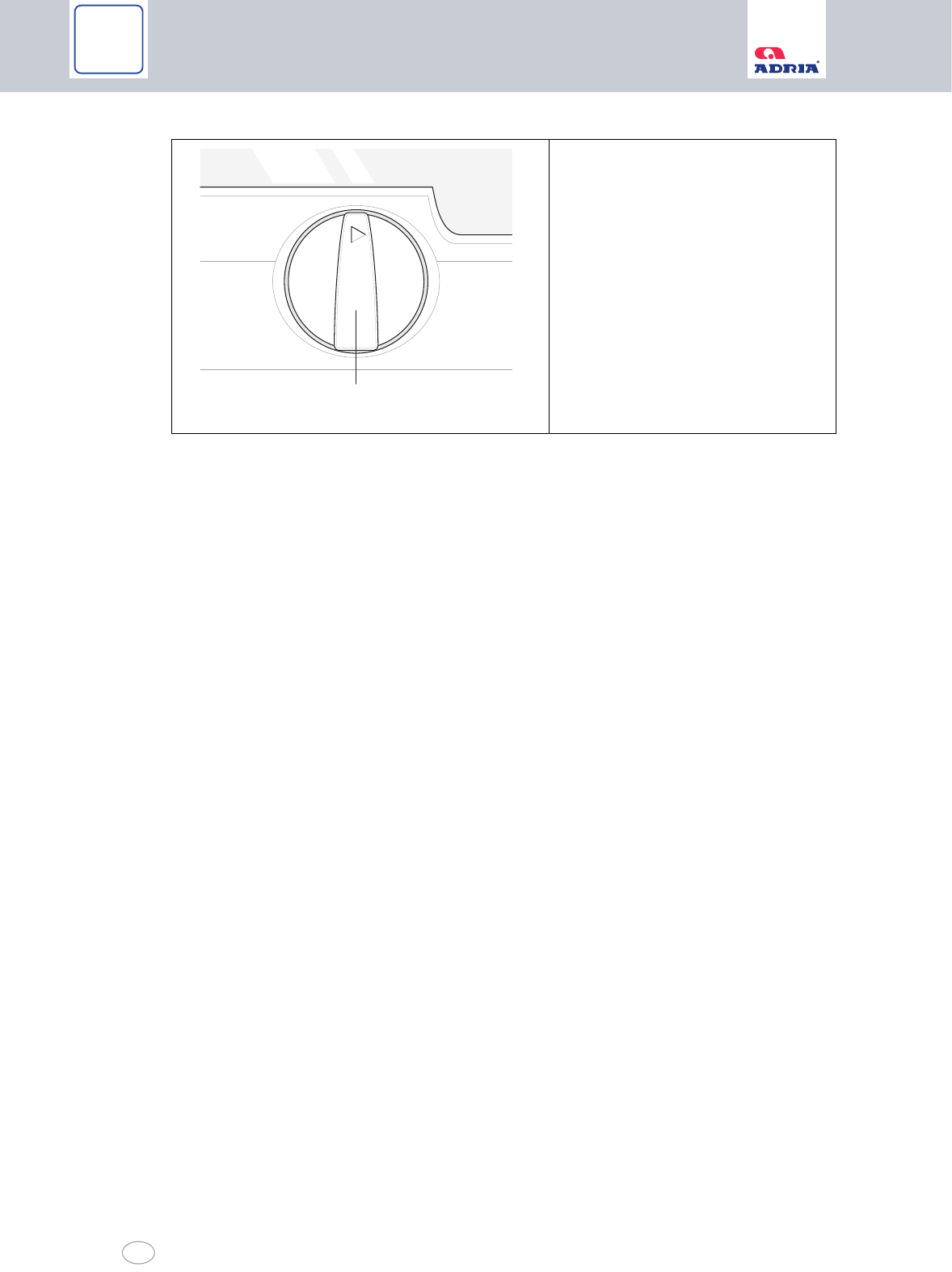

Fig. 26 Opening / closing the roof hood

1 Rotary knob

Living in the caravan 8

Adria Caravans 43

8.5.5 Roof hood blind and insect screen running in opposite direc-

tions

The blind (Fig. 27/2) and the insect screen (Fig. 27/3) are fitted in the inner frame (Fig. 27/1)

of the roof hoods.

Opening/closing the blind or insect screen:

Reach into the recess of the end bar of the blind (Fig. 27/2) or insect screen (Fig. 27/3).

Slide to the desired position.

Important!

• Both are continuously adjustable and can be operated together or separate from each

other.

• Only close the blind to a maximum of 75% during direct sunlight. Air must be able to cir-

culate.

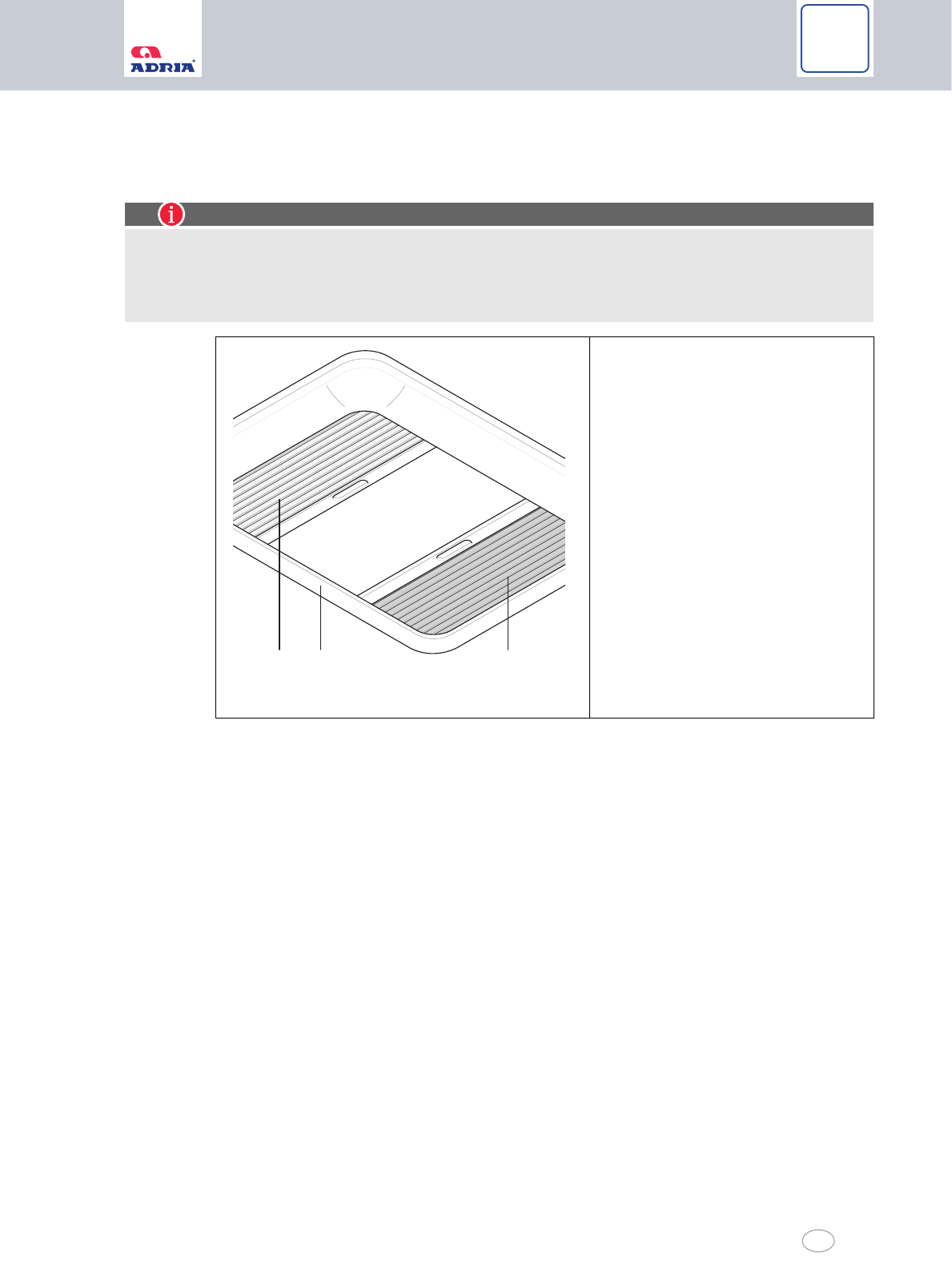

Fig. 27 Roof hood blind and insect screen running in

opposite directions

1 Inner frame

2 Blind

3 Insect screen

Living in the caravan

44 Adria Caravans

8.5.6 Roof hood blind and insect screen running in the same direc-

tion

The blind (Fig. 28/2) and the insect screen (Fig. 28/1) are fitted in the inner frame of the roof

hood.

Opening/closing the blind or insect screen:

Press the two halves of the grip of the blind (Fig. 28/2) or insect screen (Fig. 28/1)

together.

Slide to the desired position.

Important!

• Both are continuously adjustable and can be operated together or separate from each

other.

• After releasing the grip, the blind is automatically clamped into place in the inner frame of

the roof hood.

• Only close the blind to a maximum of 75% during direct sunlight. Air must be able to cir-

culate.

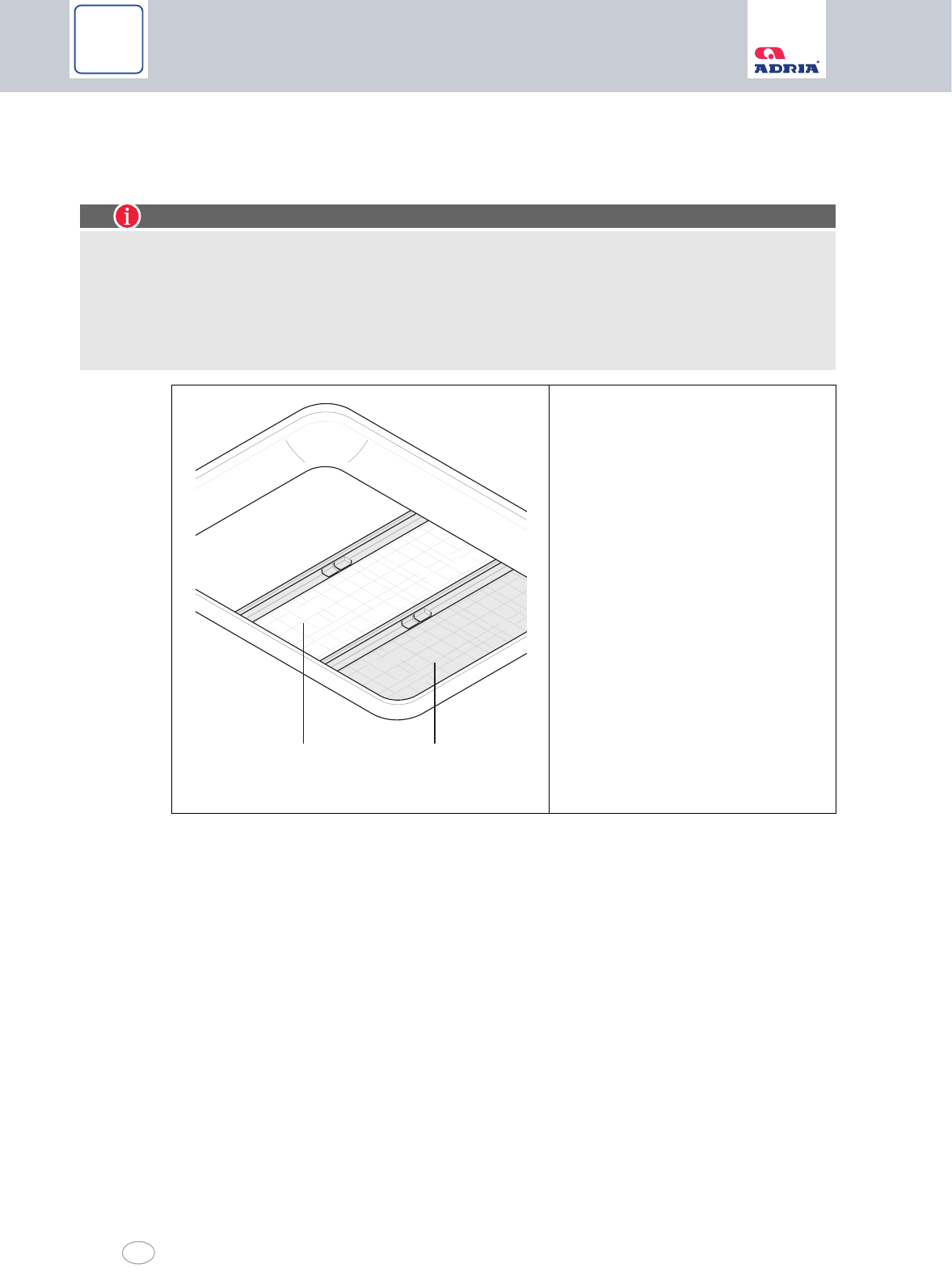

Fig. 28 Roof hood blind and insect screen running in

the same direction

1 Insect screen

2 Blind

1 2

Living in the caravan 8

Adria Caravans 45

8.5.7 Roof hood blind and insect screen running together

Opening/closing the blind or insect screen:

The insect screen (Fig. 29/1) is firmly connected with the folding blind (Fig. 29/2). When the

folding blind is opened, the insect screen may have to be moved as well.

Hold the folding blind (Fig. 29/3) on the operating bar (Fig. 29/4).

Slide to the desired position.

8.5.8 Care of roof hoods

For information on the care of the roof hoods, please see the "Care" Chapter (Chapter 19.1.1).

Important!

• Both folding screens are continuously adjustable and can be operated together or sepa-

rate from each other.

• After releasing the operating bar, the folding screen remains in the position reached.

• The insect screen is integrated into the second operating bar and allows maximum

amount of light or darkening with insect screen function.

• Only close the folding blind to a maximum of 75% during direct sunlight. Air must be able

to circulate.

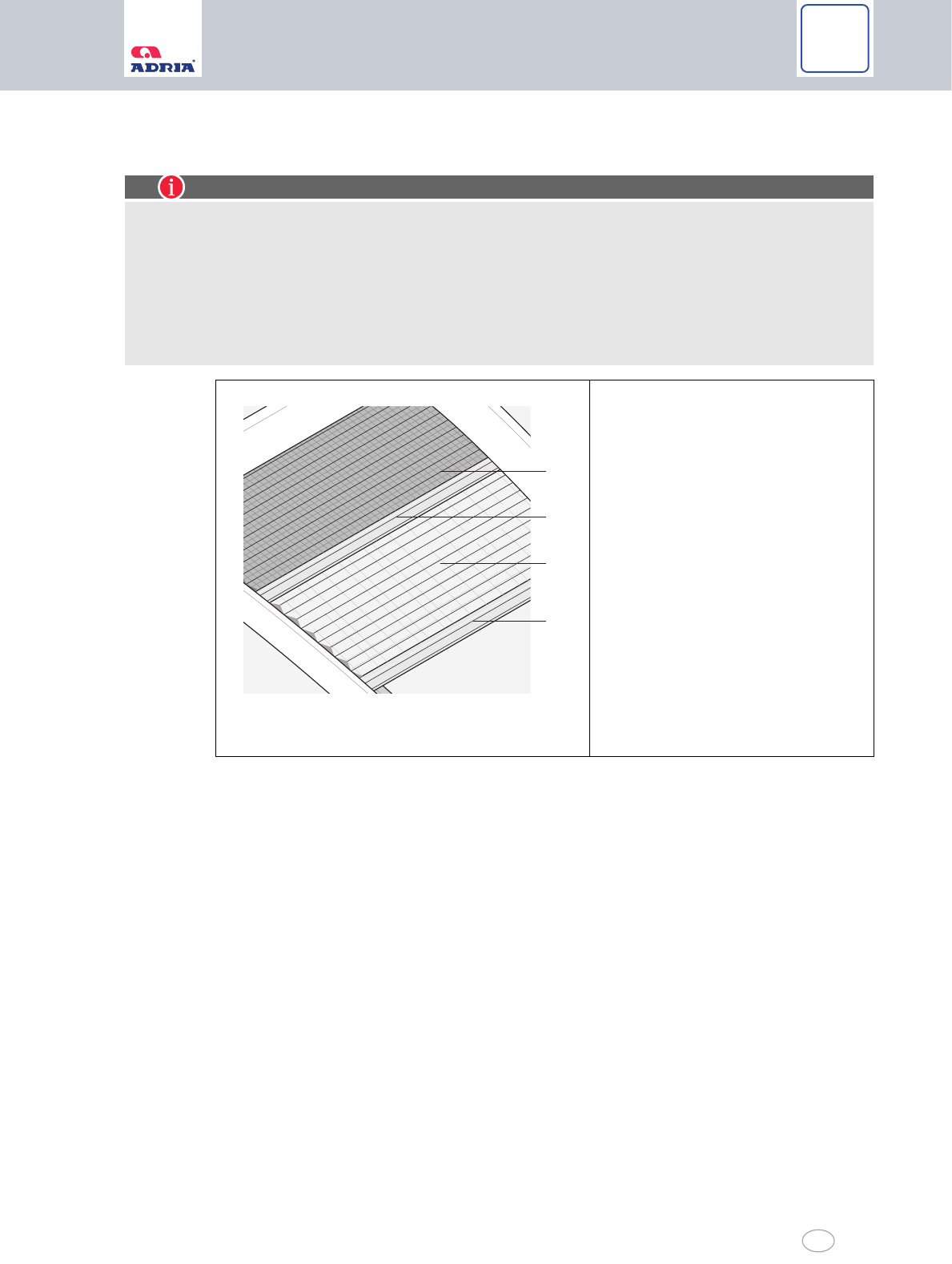

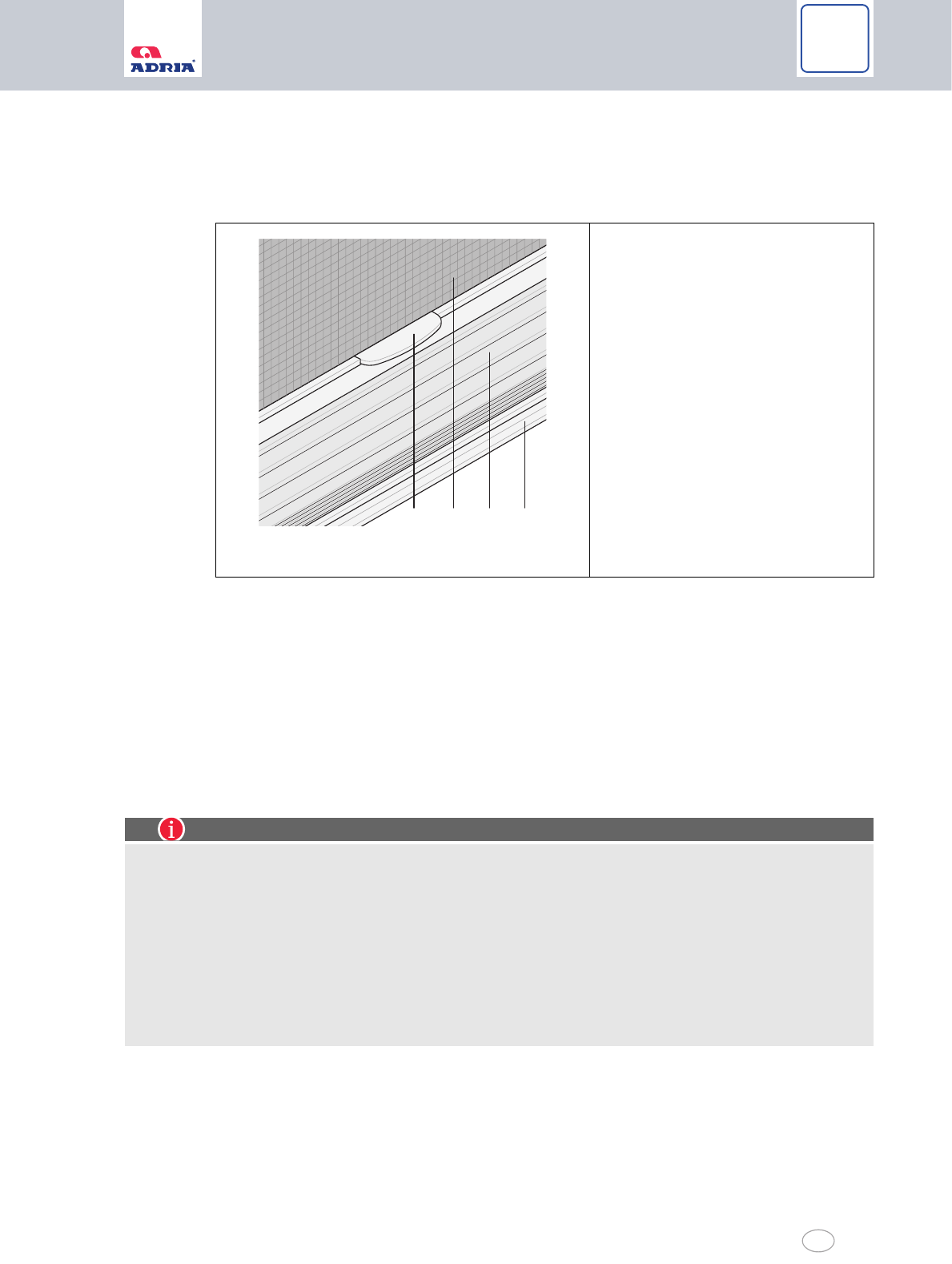

Fig. 29 Roof hood blind and insect screen running

together

1 Insect screen

2 Operating bar of insect screen

3 Darkening

4 Operating bar of folding blind

Living in the caravan

46 Adria Caravans

8.6 Control panel

Depending on the model, the following control panels have been installed in the caravans:

• LT 413 (with power supply unit CSV 4xx, Chapter 10.3.2)

• EN panel (with power supply unit BCA, Chapter 10.3.3)

Battery voltage and, depending on the model, water tank and fuel tank levels can be queried

via the control panels.

The control panels are located indoors.

8.6.1 LT 413 control panel

"Onboard power supply 12 V" main switch:

Actuate the main switch of the onboard power supply (Fig. 30/1) to switch the supply

voltage for all 12 V appliances on or off.

Switch off the main switch when you leave the caravan for a longer period of time.

"Battery voltage" button:

Push down the button (Fig. 30/4) to indicate the charged condition of the living area bat-

tery. Actuating the button at the top has no effect.

The "Battery voltage" (Fig. 30/3) indicator shows the charged condition of the living area

battery.

"External voltage supply 230 V" indicator:

Connect the vehicle to a 230 V voltage supply (Chapter 10.1.1).

Make sure the circuit breaker in the fuse box (Chapter 10.2) is switched on.

The " External voltage supply 230 V 230 V" indicator (Fig. 30/2) is on.

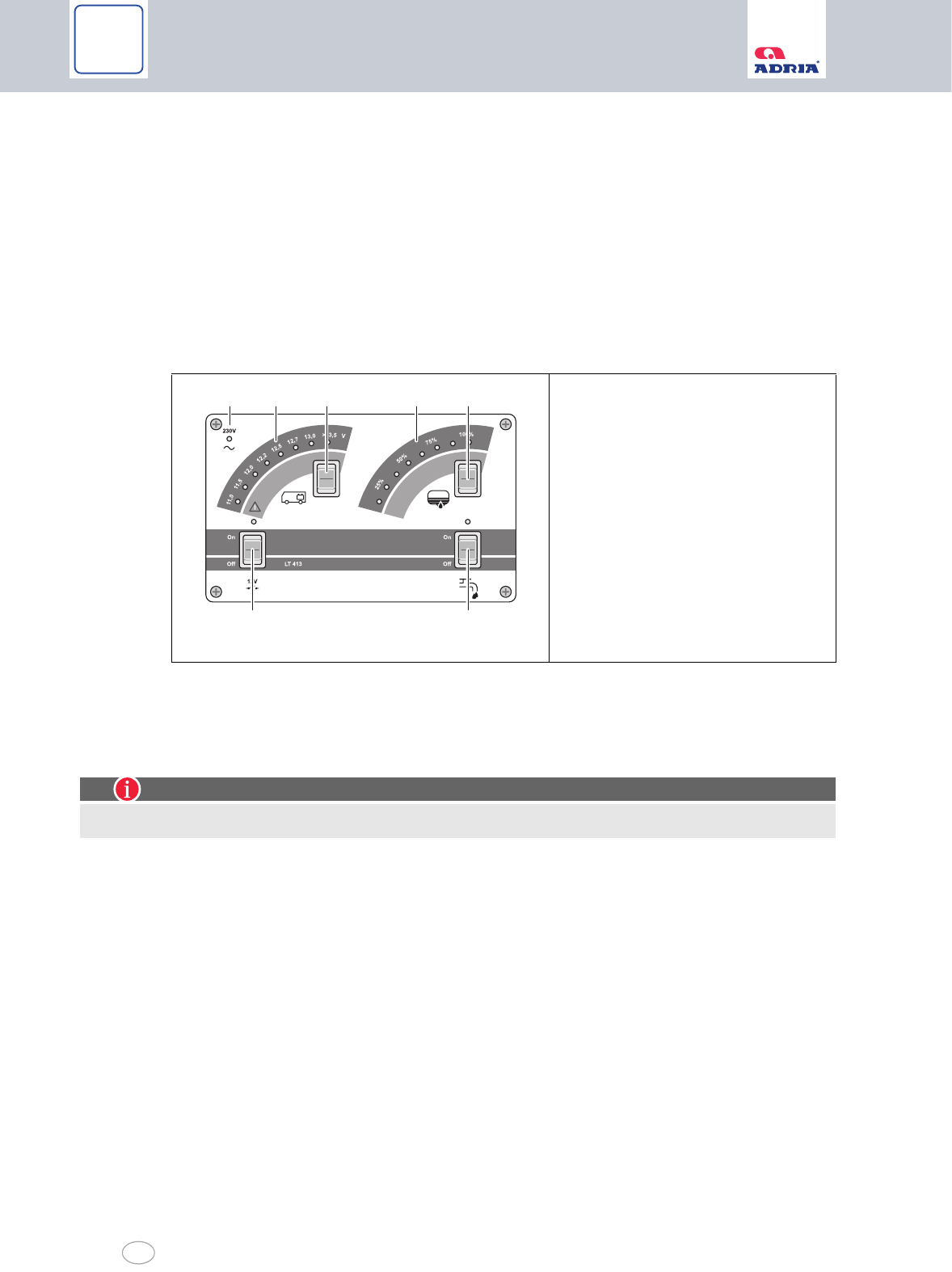

Fig. 30 LT 413 control panel

1 "12 V On / Off" button

2 "External voltage supply 230 V"

indicator

3 "Battery voltage" indicator

4 "Battery voltage" button

5 "Tank fill level" indicator

6 "Tank fill level" button

7 "Water supply" switch

Important!

Refrigerator control is in operation even when the main switch is off.

10100113

4 5 6

Living in the caravan 8

Adria Caravans 47

"Tank level" button:

Push down the button (Fig. 30/6) to indicate the level of the water tank. Actuating the

button at the top has no effect.

The "Tank fill level" Indicator (Fig. 30/5) shows how much water is in the water tank.

Switching the water supply on / off:

Press the "Water supply" switch (Fig. 30/7) to switch the supply voltage for the water

pump on or off.

Opening a water tap switches the water pump on.

Switch off the water supply button when you leave the vehicle for a longer period of time.

For more information, see the separate instructions from the manufacturer.

8.6.2 Type EN Panel control panel

"Onboard power supply 12 V" main switch:

Actuate the main switch of the onboard power supply (Fig. 31/5) to switch the supply

voltage for all 12 V appliances on or off.

When the 12 V onboard power supply is switched on, the control indicator (Fig. 31/2)

lights, the current battery voltage is indicated on the "Battery voltage" indicator

(Fig. 31/3).

Switch off the main switch when you leave the caravan for a longer period of time.

"Water supply" switch:

Actuate the "Water supply" switch (Fig. 31/5) to switch the supply voltage for the water

pump on or off.

Opening a water tap switches the water pump on.

Switch off the water supply button when you leave the vehicle for a longer period of time.

For more information, see the separate instructions from the manufacturer.

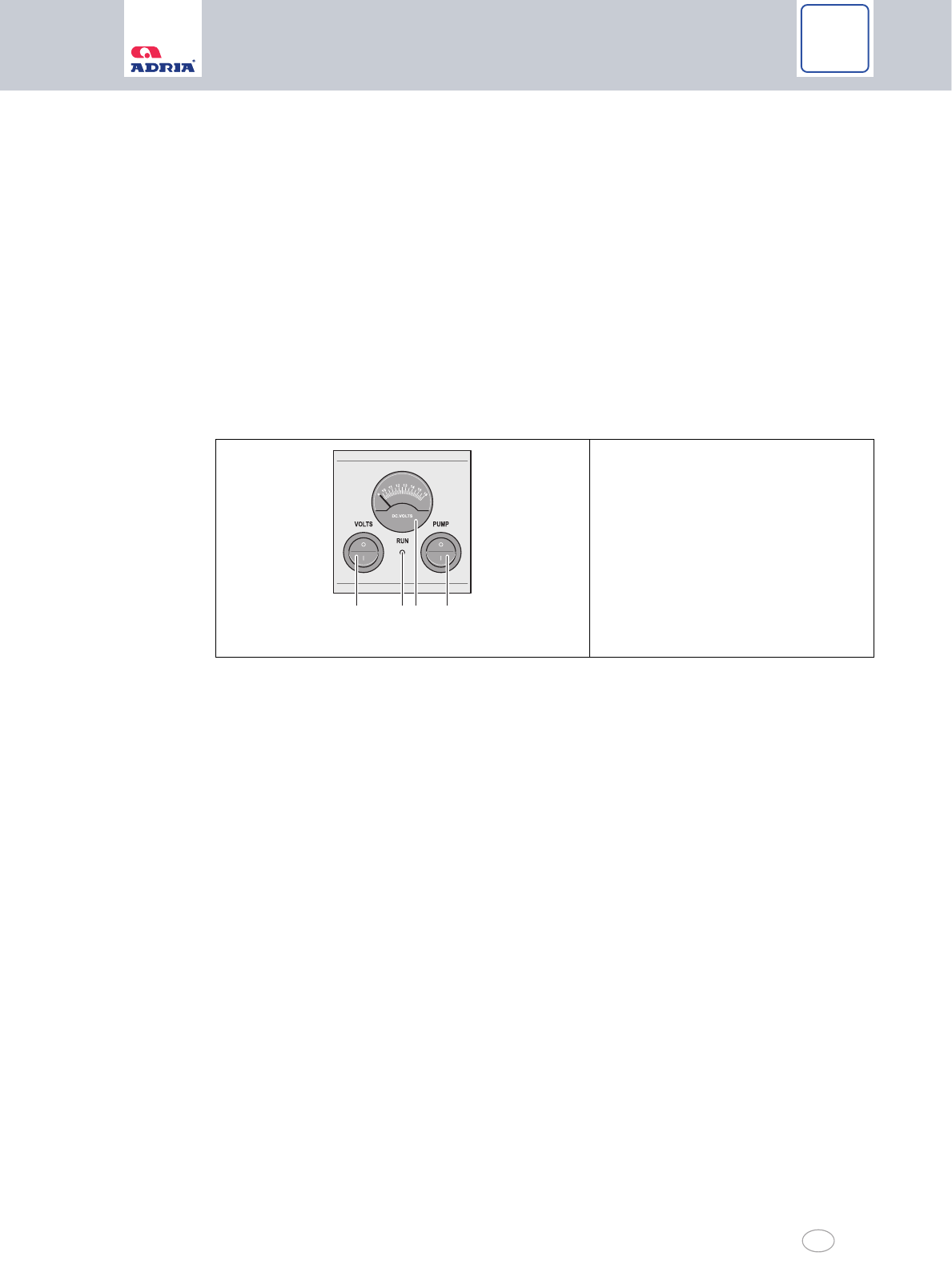

Fig. 31 Type EN Panel control panel

1 "Onboard power supply 12 V"

main switch

2 "Voltage supply 12 V" indicator

3 "Battery voltage" indicator

4 "Water supply" switch

10100049

1 2 3 4

Living in the caravan

48 Adria Caravans

8.7 Central lighting control

Some vehicles have a central system for switching and dimming various lighting units. Chan-

nels 1 to 8 can be switched in series. Channel 9 is not normally served by the central switch

but can be switched on and off using the Standby button of the central lighting control.

A 12 V power supply unit is required to operate the system (Fig. 32/1).

Light assignment to channels is set at the factory and can only be modified by an ADRIA spe-

cialist dealer. Chapter 10.4 contains an example list based on ALPINA 763 UK.

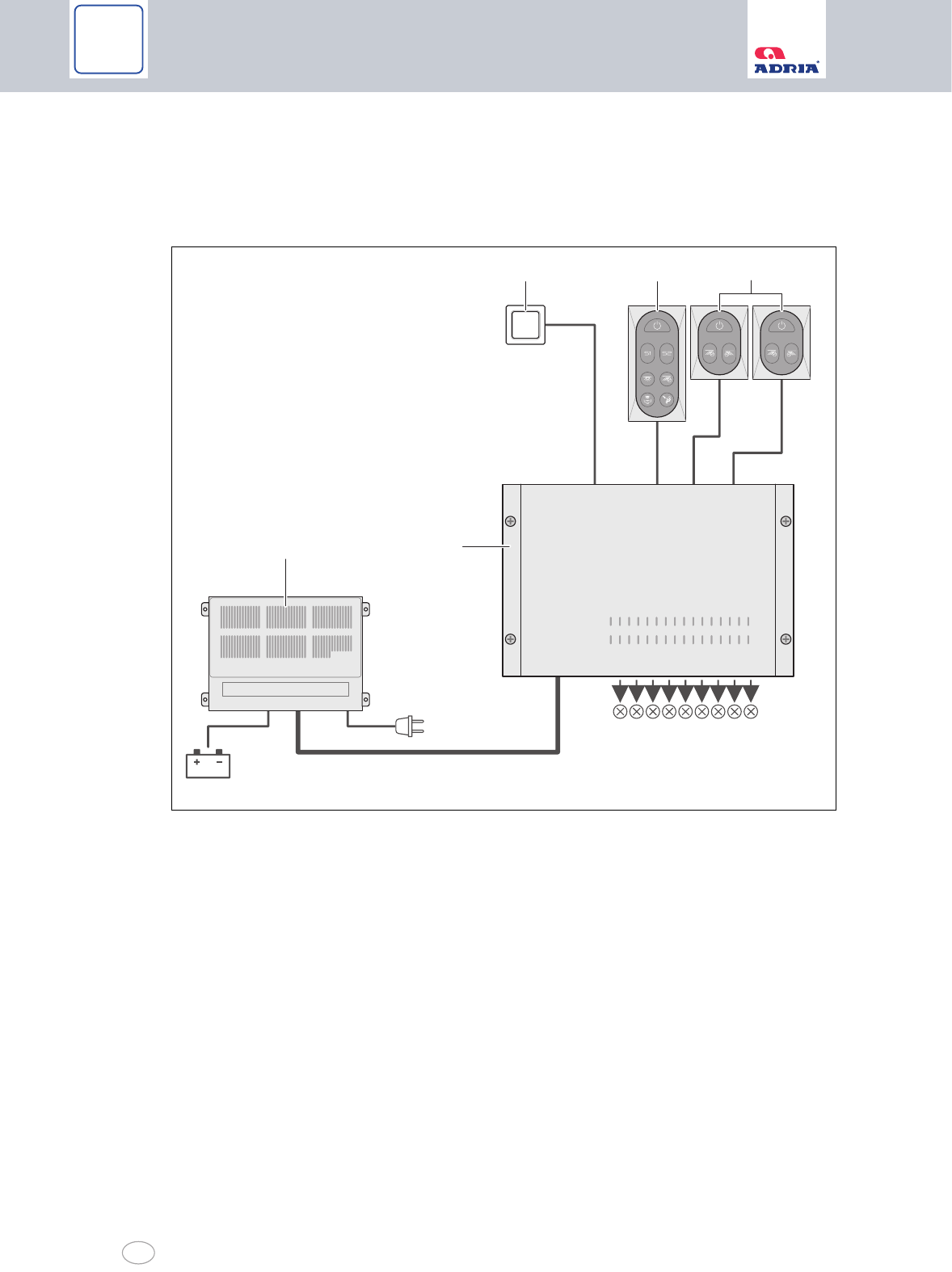

Fig. 32 Central lighting control - Overview

1 12 V power supply unit

2 Lighting control device

3 Additional button with restricted functionality (option)

4 Central group for switching, controlling and programming (7 buttons)

5 Separate groups (max. 2 appliances) for switching and controlling (3 buttons)

10100053

4 5

230 V AC

Living in the caravan 8

Adria Caravans 49

You can assign the channels to series 1 and 2 yourself.

Important!

• The symbols shown and the associated configurations can vary from vehicle to vehicle.

Your ADRIA specialist dealer will explain the configuration installed in your vehicle dur-

ing handover.

• The dimming function cannot be used for certain channels depending on the lighting ele-

ments used.

• Use the Checklist in Chapter 21 should problems arise.

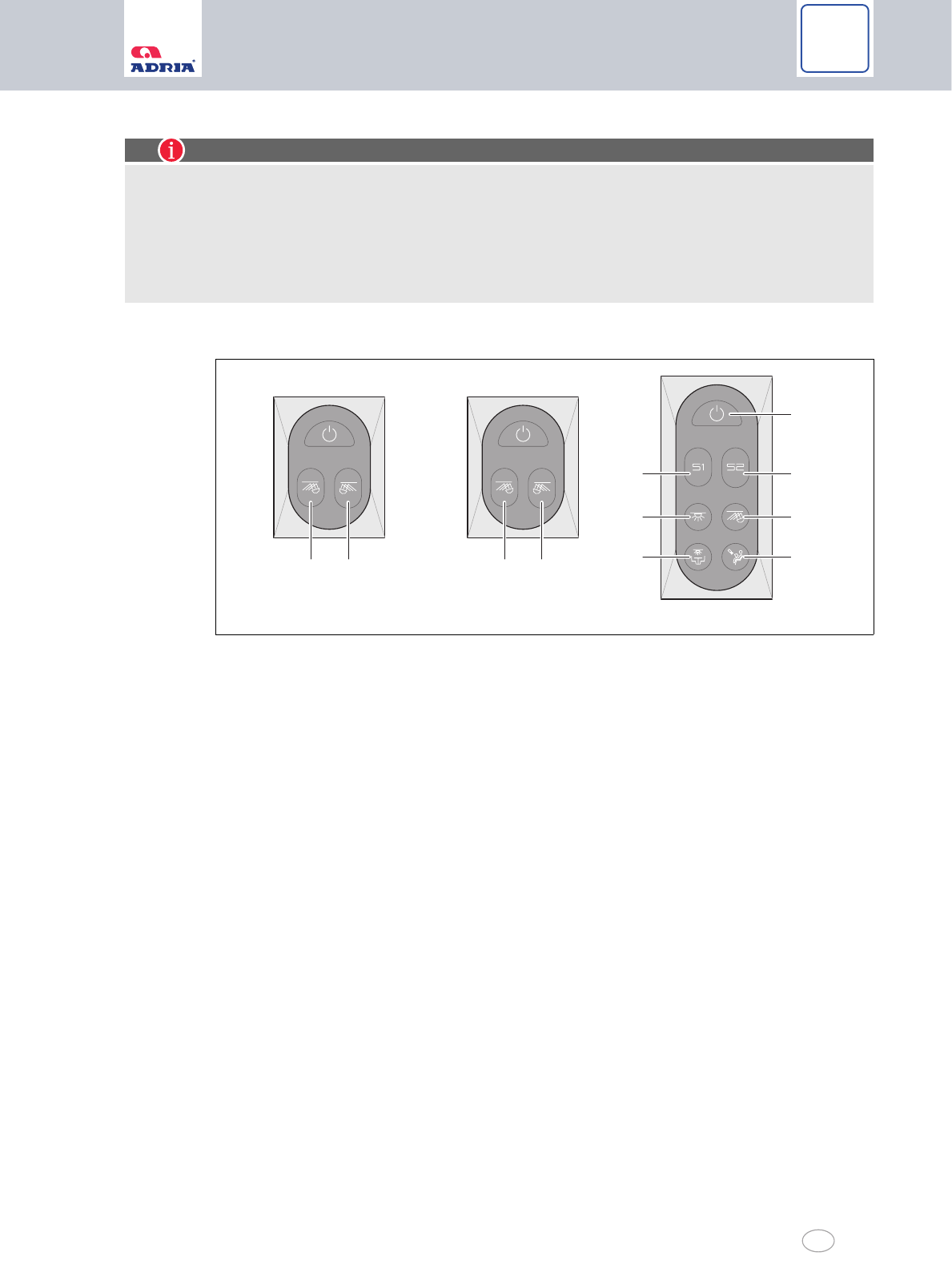

Fig. 33 Central lighting control - switching units

1 Standby button with Coming Home function

2 Button, series 1 3 Button, series 2

4 Button, channel 1 5 Button, channel 2

6 Button, channel 3 7 Button, channel 4

8 Button, channel 5 9 Button, channel 6

10 Button, channel 7 11 Button, channel 8

10100052

8 9 10 11

Living in the caravan

50 Adria Caravans

Tab. 3 Overview of central lighting control - channels

8.8 Seating group

Underneath the seat bench is the water tank (Chapter 12.1.1).

Servicing the water tank:

Remove the cushions.

Fold up the seat cushions to reach the service opening of the water tank.

Function /

channel System is switched on System is switched

off (Standby)

Press for about 1 sec-

ond Press longer Approx. 0.5 s

Channel 1 to

8Switch off.

Press button about

1 second.

Last dimming status is

saved.

Dimming.

Hold button pressed for

about 1 second.

Brightness is reduced

at first and then

increased or reduced

every time pressed.

Switch on.

Channel 9 also

switches on.

Additional

button. Function as for chan-

nel 7. Function as for chan-

nel 7.

Channel 9 also

switches on.

Series 1 Series 1 switches off. Hold button pressed for

about 10 seconds.

Program saves the

channels switched on

for series 1.

Series 1 switches on.

Channel 9 also

switches on.

Series 2 Series 2 switches off. Hold button pressed for

about 10 seconds.

Program saves the

channels switched on

for series 2.

Series 2 switches on.

Channel 9 also

switches on.

Standby but-

ton All channels switch off

including channel 9

(Standby).

Hold button pressed for

about 10 seconds.

Program saves the

channels switched on

for the "Coming Home"

function.

All channels stored in

the "Coming Home"

function switch on.

Important!

The cushions must always be secured (also when parked) with all attachment devices.

Living in the caravan 8

Adria Caravans 51

8.9 Furniture locks

Depending on the production series, there can be different locking systems.

The drawings serve only to show the operating principle. Differences in form are possible.

8.9.1 Furniture locks - version 1

Opening:

Press the locking button (Fig. 34/1), the button springs out. The lock is unlocked.

Open the cabinet door, flap or drawer.

Closing:

Close the cabinet door, cabinet flap or drawer.

Push in the locking button until it latches into place (Fig. 34/2). The lock is locked.

Caution!

Damage to the handles

Do not pull too hard on a handle when the respective door, flap or drawer cannot be

opened.

First unlock the drawers before opening them.

To close the bathroom door, always hold the door handle pressed fully down.

Caution!

Risk of damage through cupboard or drawer contents flying around!

Carefully lock the cabinets and drawers before starting each journey.

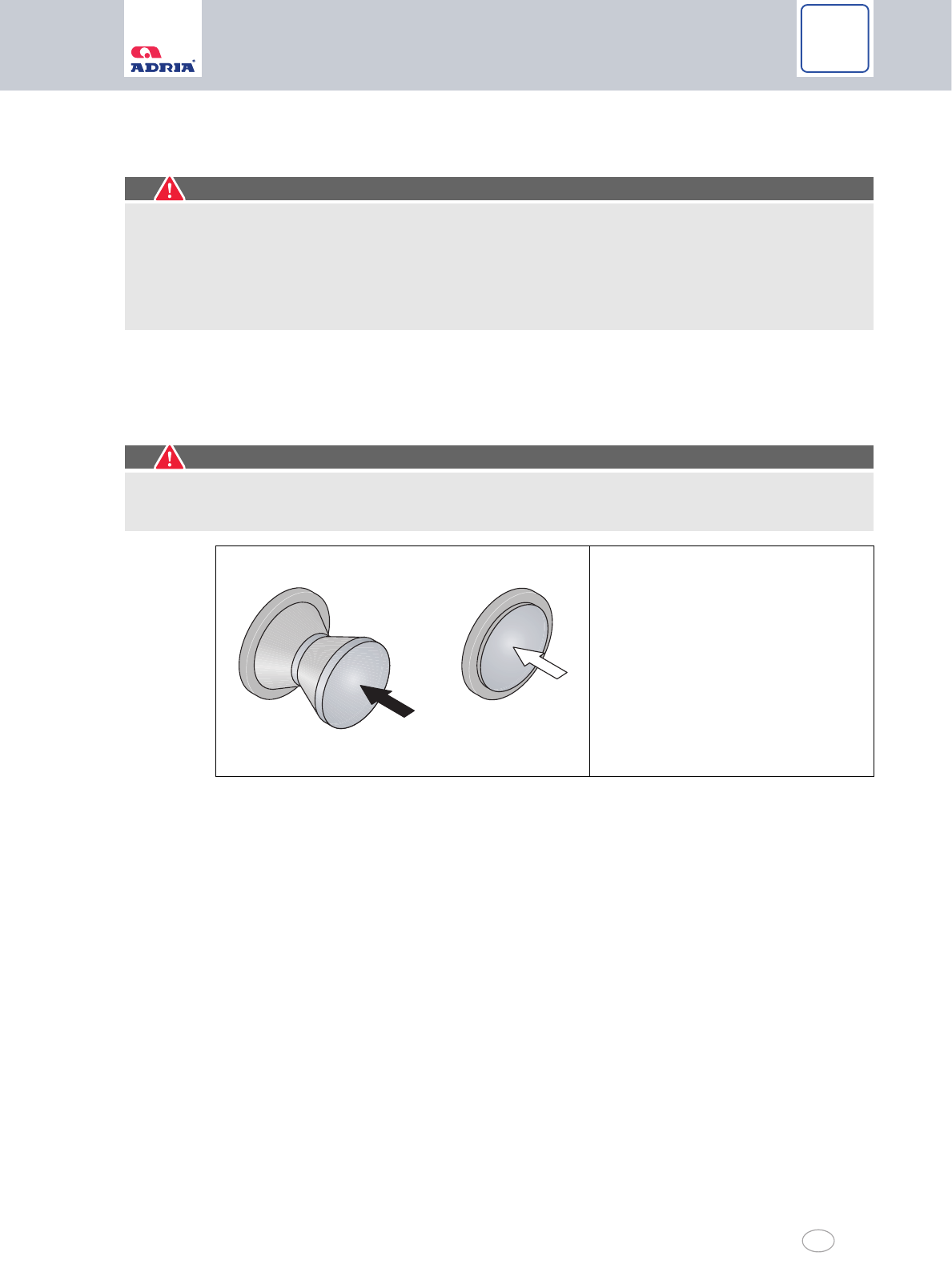

Fig. 34 Furniture lock - version 1

1 Closing

2 Opening

Living in the caravan

52 Adria Caravans

8.9.2 Furniture locks - version 2

Opening:

Push the locking button, the button springs out. The lock is unlocked.

Open the cabinet door, flap or drawer.

Closing:

Close the cabinet door, cabinet flap or drawer.

Push in the locking button (Fig. 35/1) until it latches into place. The lock is locked.

8.9.3 Furniture locks - version 3

Opening:

Lightly press cabinet door, flap or drawer approximately in the middle. The pushing posi-

tion is marked with "Push".

The lock is unlocked.

Open the cabinet door, flap or drawer.

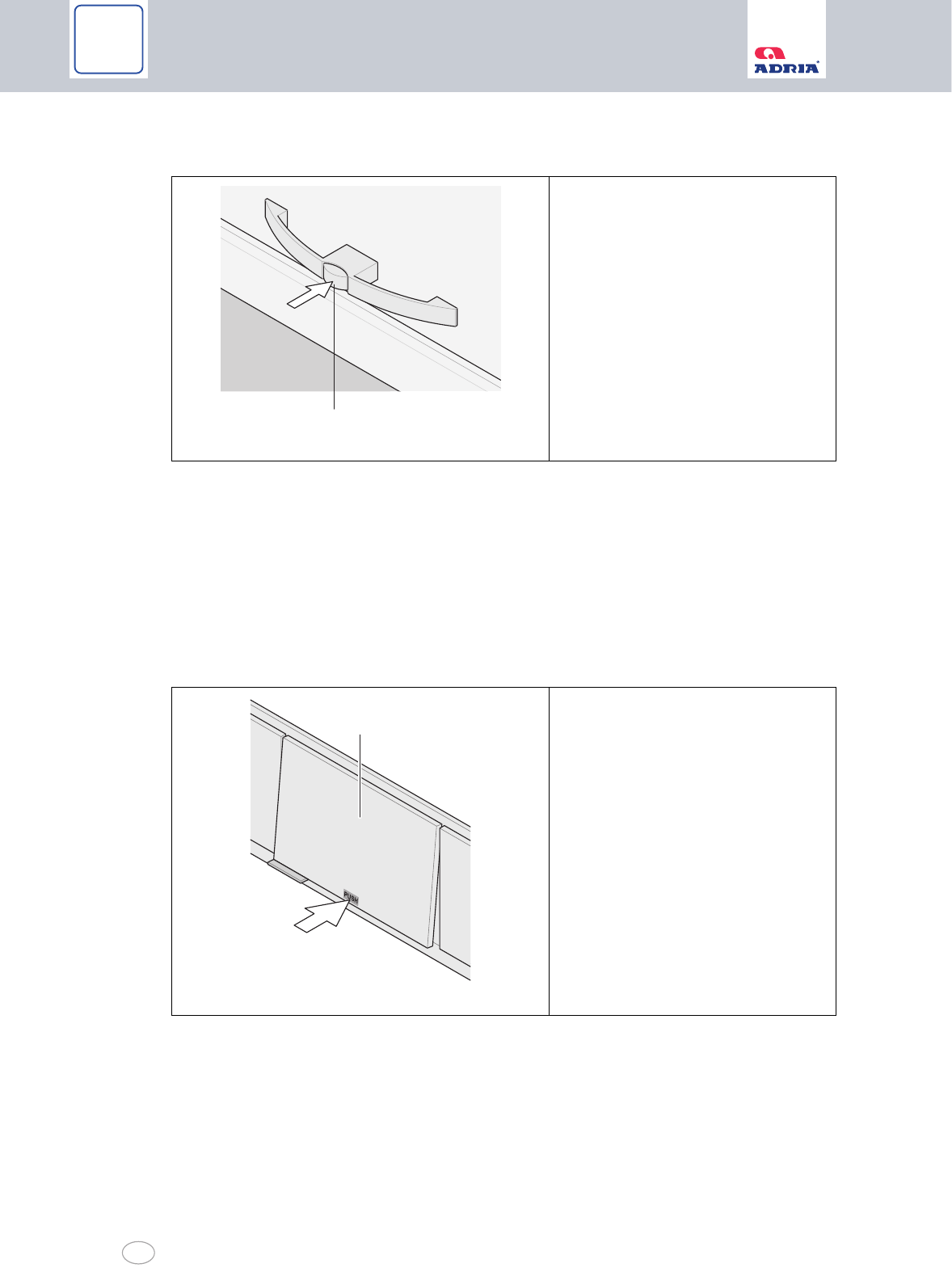

Fig. 35 Furniture lock - version 2

1 Locking button

Fig. 36 Furniture lock - version 3

1 Flap

10100058

Living in the caravan 8

Adria Caravans 53

Closing:

Close the cabinet door, flap or drawer.

Lightly press cabinet door, flap or drawer approximately in the middle. The pushing posi-

tion is marked with "Push".

The cabinet door, flap or drawer is locked.

8.9.4 Furniture locks - bathroom

Opening:

Put your fingers in the recess of the cabinet door (Fig. 37/1) and pull the latch

(Fig. 37/2) on the rear.

The lock is unlocked.

Open the cabinet door (Fig. 37/1).

Closing:

Close the cabinet door (Fig. 37/1) and lightly press against the latch resistance until it

clicks.

The cabinet door (Fig. 37/1) is locked.

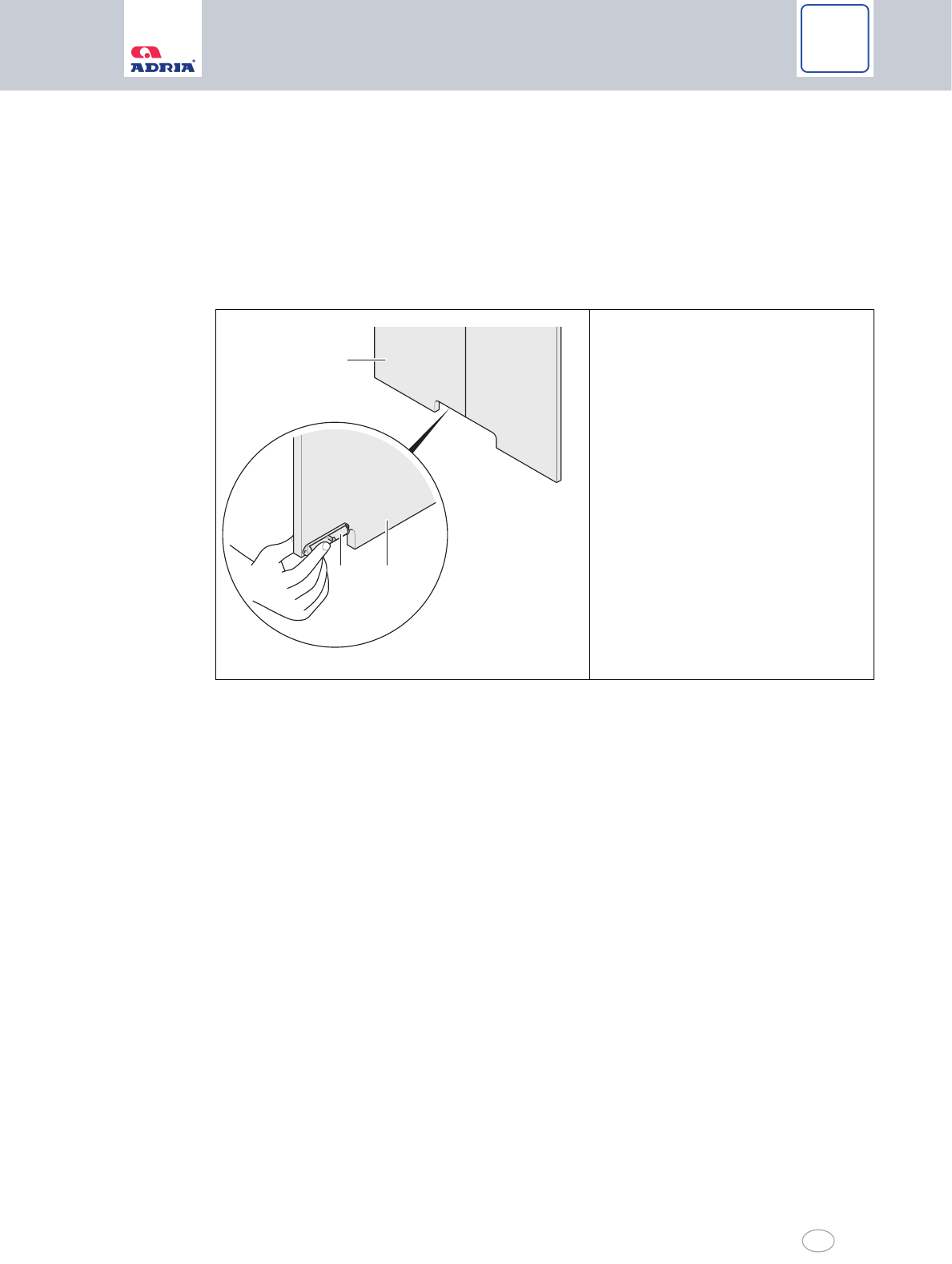

Fig. 37 Furniture lock - bathroom

1 Cabinet door

2 Latch

10100062

Living in the caravan

54 Adria Caravans

8.10 Bathroom unit

8.10.1 Washbasin, foldable

Folding the washbasin down:

Grip inside the grip hole on the mirror (Fig. 38/1) and carefully pull the washbasin

(Fig. 38/2) with mirror.

Fold the washbasin (Fig. 38/2) with mirror down.

Folding the washbasin up:

Turn the water tap (Fig. 39/1) to the rear until it almost touches the rear panel.

Fold the washbasin (Fig. 39/2) with mirror upwards and push it into the catch.

Caution!

Damage to mirror and washbasin

Always lower the washbasin slowly.

Fig. 38 Washbasin, foldable - folded up

1 Grip hole

2 Washbasin (folded up)

Fig. 39 Washbasin, foldable - folded down

1 Water tap

2 Washbasin

10100060

10100059

Living in the caravan 8

Adria Caravans 55

8.10.2 Folding shower door (special equipment) - version 1

Closing:

Unlock the lever (Fig. 40/2) before you close the folding door (Fig. 40/1).

Opening:

Push the folding door (Fig. 40/1) open.

Secure the door with the lever (Fig. 40/2).

Caution!

Damage to folding door or bathroom unit

Secure the folding door (Fig. 40/1) with the lever (Fig. 40/2).

If you leave the parking area with the caravan and the folding door is not secured, it can

open and close uncontrolled during cornering.

Fig. 40 Folding shower door - version 1

1 Folding door

2 Lever

Living in the caravan

56 Adria Caravans

8.10.3 Folding shower door (special equipment) - version 2

Closing:

Loosen the retaining strap (Fig. 41/2) before you close the folding door (Fig. 41/1).

Opening:

Push the folding door (Fig. 41/1) open.

Secure the door with the retaining strap (Fig. 41/2).

Caution!

Damage to folding door or bathroom unit

Secure the folding door (Fig. 41/1) with the retaining strap (Fig. 41/2).

If you leave the parking area with the caravan and the folding door is not secured, it can

open and close uncontrolled during cornering.

Fig. 41 Folding shower door - version 2

1 Folding door

2 Retaining strap

Living in the caravan 8

Adria Caravans 57

8.11 TV equipment (special equipment)

The caravan has been prepared for the installation of TV equipment:

A location on the roof is intended for the installation of a satellite dish. Antenna cables and

sockets have already been installed.

Check freedom of movement before the installation of an automatic antenna.

Caution!

Damage to the vehicle

Before starting the journey, you always have to lower and lock the antenna.

Retract, lay it flat and secure the satellite dish before starting the journey.

 Lock the antenna mast into place to prevent twisting of the satellite dish.

Caution!

Damage to the cables

Make sure the cables always have enough room to move.

Caution!

Damage to the appliance

Check all locking grips are engaged before each journey.

Check that all locking screws and locking brackets are screwed tight before each jour-

ney.

Important!

• For more information concerning the installation of TV equipment, contact your ADRIA

dealer.

• For more information, see the separate manufacturer's operating instructions.

Living in the caravan

58 Adria Caravans

8.11.1 TV slide-out and small parts shelf

Some vehicles are fitted with a TV bracket combined with a small parts shelf. The TV (flat

screen) can be fitted on the TV fixing surface (Fig. 42/2) on the rear side of the small parts shelf

(Fig. 42/3). You can swivel the TV towards the sleeping or living area when in use.

Sliding the TV out:

Unlock the locking button (Fig. 42/1) of the TV slide-out (Fig. 42/4) (Chapter 8.9).

Pull the TV slide-out (Fig. 42/4) towards the middle of the vehicle.

The TV is now ready for use. You can swivel the TV towards the sleeping or living area.

Slide the TV back in reverse sequence.

Caution!

Damage to the cables

Make sure the cables always have enough room to move.

Fig. 42 TV bracket with small parts shelf

1 Locking button

2 TV fixing surface

3 Small parts shelf

4 TV slide-out

10100061

Living in the caravan 8

Adria Caravans 59

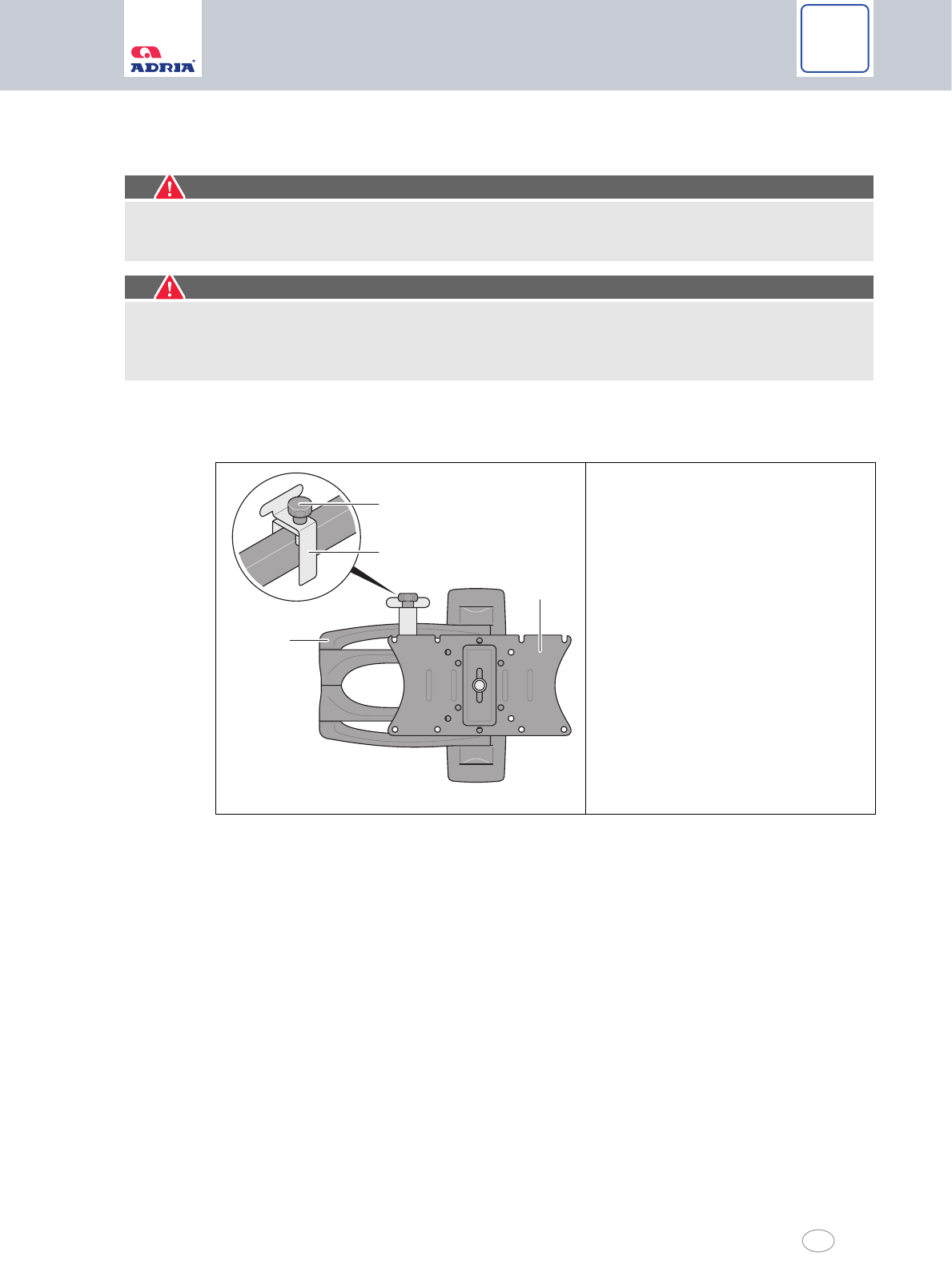

8.11.2 TV bracket with ceiling guide rail

Some vehicles are fitted with a TV bracket with ceiling guide rail. The TV (flat screen) can be

mounted on the fastening plate. You can swivel the TV towards the sleeping or living area

when in use.

Sliding the TV out:

Open the cabinet door(Fig. 43/3).

Loosen the locking screw (Fig. 43/1) anticlockwise until the TV bracket (Fig. 43/2) can

be easily shifted.

Pull the TV bracket (Fig. 43/2) towards the middle of the vehicle.

The TV is now ready for use.

Slide the TV back in reverse sequence.

Caution!

Damage to the cables

Make sure the cables always have enough room to move.

Caution!

Damage to the appliance

Check all locking grips are engaged before each journey.

Check the locking screw is tightened before driving.

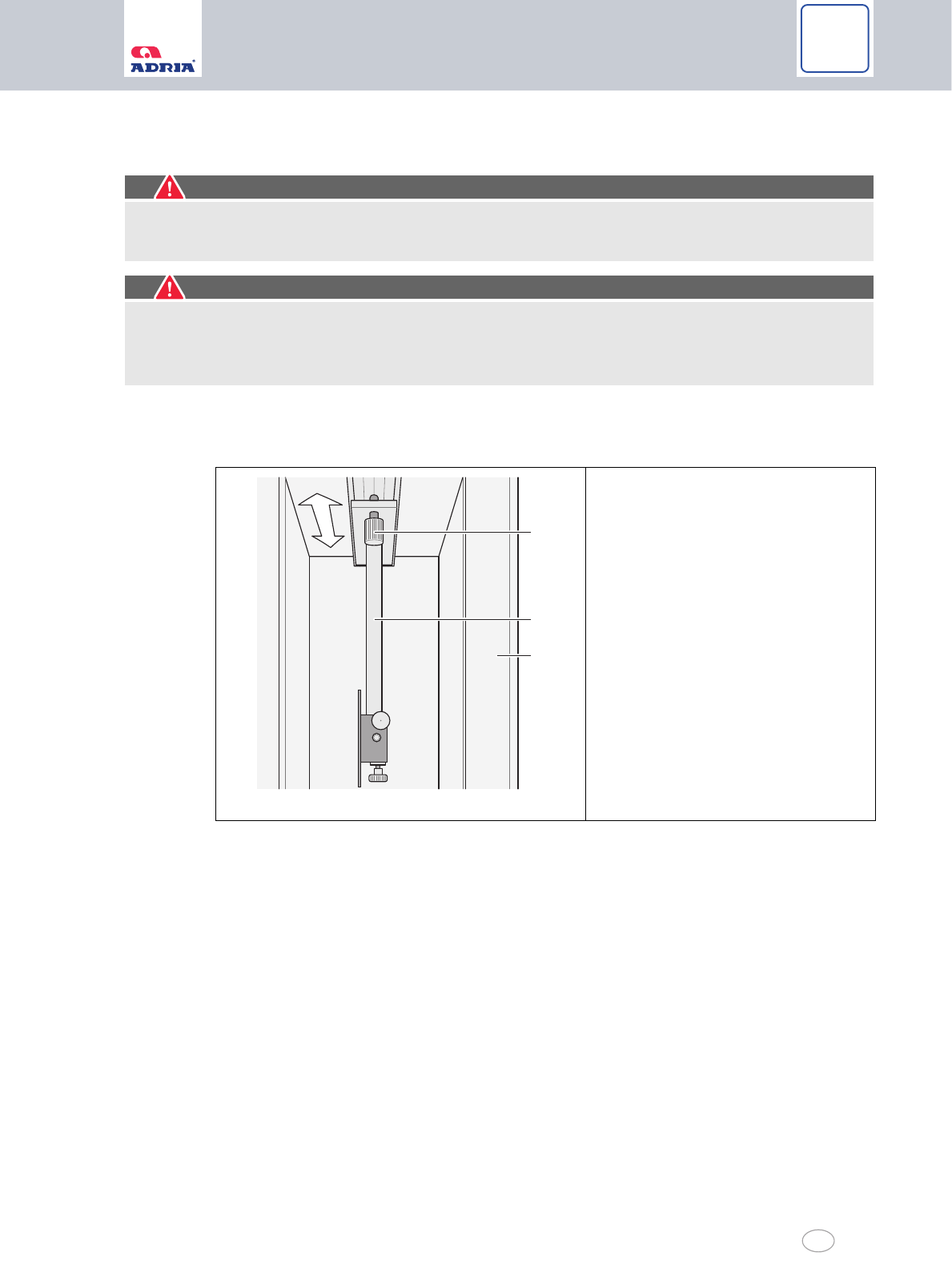

Fig. 43 TV bracket with ceiling guide rail

1 Locking screw

2 TV bracket

3 Cabinet door

10100064

Living in the caravan

60 Adria Caravans

Shifting the TV bracket:

Loosen the locking screw (Fig. 44/3).

Shift the TV bracket.

Tighten the locking screw (Fig. 44/3) by hand.

Turning or swivelling the TV bracket:

To adjust, pull the locking grip (Fig. 44/1) or (Fig. 44/2) and engage the locking grip

again when finished.

For continuous freedom of movement, pull the locking grip (Fig. 44/1) or (Fig. 44/2) head

of the locking grip and turn it 90°.

Fastening the TV bracket:

To engage the TV again, turn the knob of the locking grip (Fig. 44/1) or (Fig. 44/2) again

until the cross pin locks into the groove.

Spring tension snaps the locking grip into the basic setting.

Turn the mounting plate until parallel to the guide rail.

The locking grip (Fig. 44/1) engages.

Swivel the mounting plate until vertical. The locking grip (Fig. 44/2) engages.

The locking grips secure the TV against movement.

Fig. 44 TV bracket with ceiling guide rail - adjustment

option

1 Locking grip for turning

2 Locking grip for swivelling

3 Locking screw

10100063

Living in the caravan 8

Adria Caravans 61

8.11.3 TV bracket with wall mounting

Some vehicles are fitted with a TV bracket with wall mounting. The TV (flat screen) can be

mounted on the fastening plate. You can swivel the TV towards the sleeping or living area

when in use.

Loosening the TV:

Loosen the locking screw (Fig. 45/2) and turn it out completely.

Take the locking bracket (Fig. 45/3) off.

Swivel the joint (Fig. 45/1) out of the basic setting.

Attach the locking bracket (Fig. 45/3).

Turn in the locking screw (Fig. 45/2) and fasten by hand.

The TV is now ready for use.

Secure the TV in reverse sequence.

Caution!

Damage to the cables

Make sure the cables always have enough room to move.

Caution!

Damage to the appliance

Check the TV bracket is secured with the locking bracket and locking screw before driv-

ing.

Fig. 45 TV bracket with wall mounting

1 Joint

2 Locking screw

3 Locking bracket

4 Fastening plate

10100065

Sleeping arrangements

62 Adria Caravans

9 Sleeping arrangements

9.1 Beds

9.1.1 Fixed bed

A bed storage compartment is under each bed. The bed storage compartment can be

accessed either by swivelling the bed up or through an outside storage flap.

Swivel the slatted frame up to access the bed box.

Opening the bed storage compartment:

Lift the slatted frame (Fig. 46/1). The slatted frame remains in the open position.

Closing the bed storage compartment:

Push the slatted frame downwards carefully and make sure it does not bang against the

bed frame.

Caution!

Risk of damage

Lower the slatted frame slowly.

Do not let it just drop down.

Fig. 46 Opening the fixed bed

1 Slatted frame

10100025

Sleeping arrangements 9

Adria Caravans 63

9.1.2 Bunk beds

The caravans are equipped with bunk beds, depending on the model. The bunk beds can be

used without conversion.

Use the ladder (Fig. 47/2) to climb into the upper bunk bed (Fig. 47/1).

Hang the ladder (Fig. 47/2) into the hook-in holes provided (Fig. 47/3).

Close the guard against falling (Fig. 47/4) with the buckle latches (Fig. 47/5) in the vehi-

cle ceiling when you are in the bed (Fig. 47/1).

Warning!

Accident hazard

Do not use the bunk bed for storage of luggage during the journey.

Place only the required bed linen on the bunk bed during the journey.

Never allow small children to remain in the bunk bed without supervision.

For children under 6 years of age, ensure they cannot fall out of the bunk bed.

Use separate children's beds or travel cots suitable for small children.

Always use the upper bunk bed with hung-in safety net.

The maximum load of the bunk bed is 70 kg.

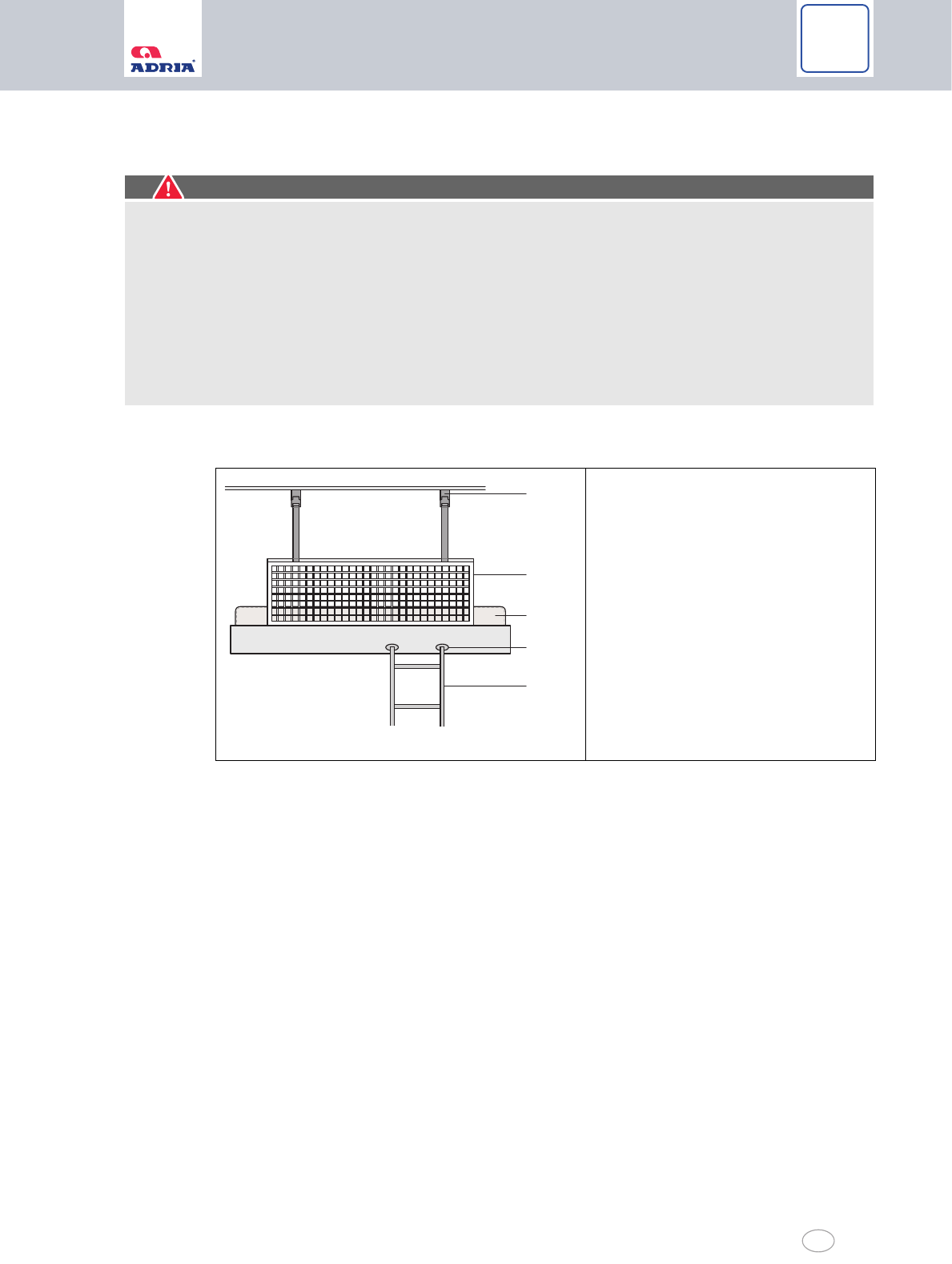

Fig. 47 Bunk bed - guard against falling

1 Bunk bed (upper)

2 Ladder (special equipment)

3 Hook-in holes at the bunk bed

(special equipment)

4 Guard against falling

5 Buckle latch guard against falling

Sleeping arrangements

64 Adria Caravans

9.1.3 Foldaway bed, wall unit (special equipment)

Opening the foldaway bed:

Empty the wall unit of the foldaway bed (Fig. 48/1).

Secure the wall unit with one hand and use the other hand to open the right and left

safety latches (Fig. 48/2)..

Lower the wall unit slowly and fold out.

Secure the right and left unit flaps against unintentional opening with the safety latches

(Fig. 49/1).

Warning!

Accident hazard

Always open and close the foldaway bed with 2 persons.

Always use the foldaway bed with hung-in safety net.

Never allow children to remain in the foldaway bed without supervision. For children

under 6 years of age, ensure they cannot fall out of the foldaway bed.

Use separate children's beds or travel cots suitable for small children.

The maximum load on the foldaway bed is 50 kg.

Fig. 48 Opening the foldaway bed wall unit

1 Foldaway bed

2 Safety latch for foldaway bed

Fig. 49 Safety latch for unit flaps

1 Safety latch for unit flaps

10100023

2 21

10100024

1 1

Sleeping arrangements 9

Adria Caravans 65

Roll out the slatted frame (Fig. 50/1).

Lay the mattress on the frame (not shown).

Fix the guard against falling (Fig. 50/2) on the vehicle ceiling with the buckle latches

(Fig. 50/3).

Closing the foldaway bed:

Close the foldaway bed wall unit in reverse sequence.

9.2 Lowering the table

9.2.1 Suspended table

Slightly lift the table top (Fig. 51/1) by the free end (approx. 30°). This unlocks the catch

(Fig. 51/3).

Lift the table top (Fig. 51/1) out of the upper attachment rail (Fig. 51/4).

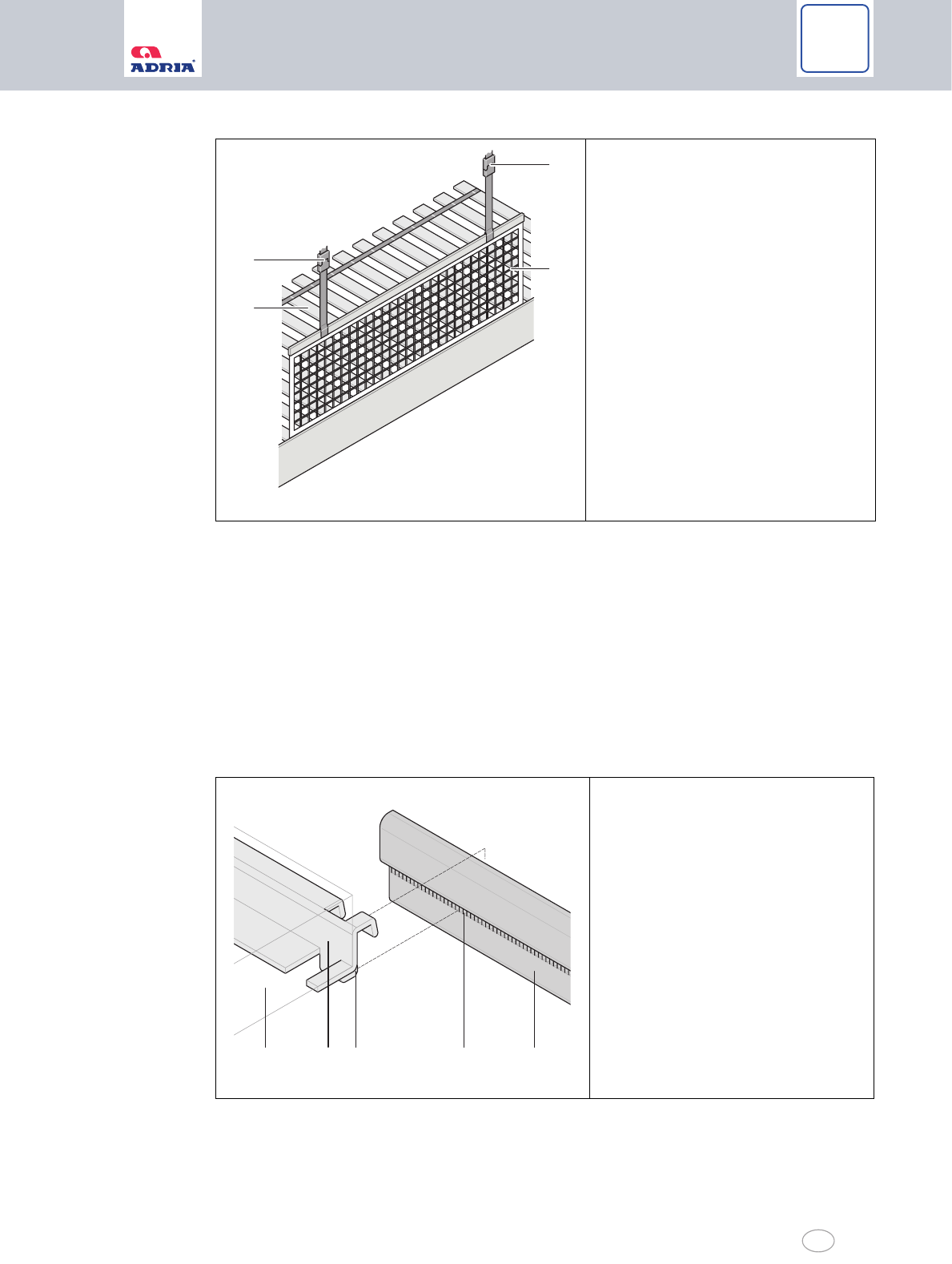

Fig. 50 Opening the foldaway bed wall unit

1 Slatted frame

2 Guard against falling

3 Buckle latch of guard belts

Fig. 51 Lowering the table

1 Table top

2 Table attachment rail

3 Attachment rail catch

4 Attachment rail wall

10100022

1 2 3 3 4

Sleeping arrangements

66 Adria Caravans

Press the locking button (Fig. 52/2) to unlock the table foot (Fig. 52/1).

Swing the table foot down 90°.

Then place the table in the bottom position against the seat.

9.2.2 Lowering the telescopic table

Hold the table top with one hand in the middle of the table

Turn the locking lever (Fig. 53/1) to the left with the other hand (unlocking).

Push the table top down to the lowest position.

Turn the locking lever (Fig. 53/1) to the right (locking).

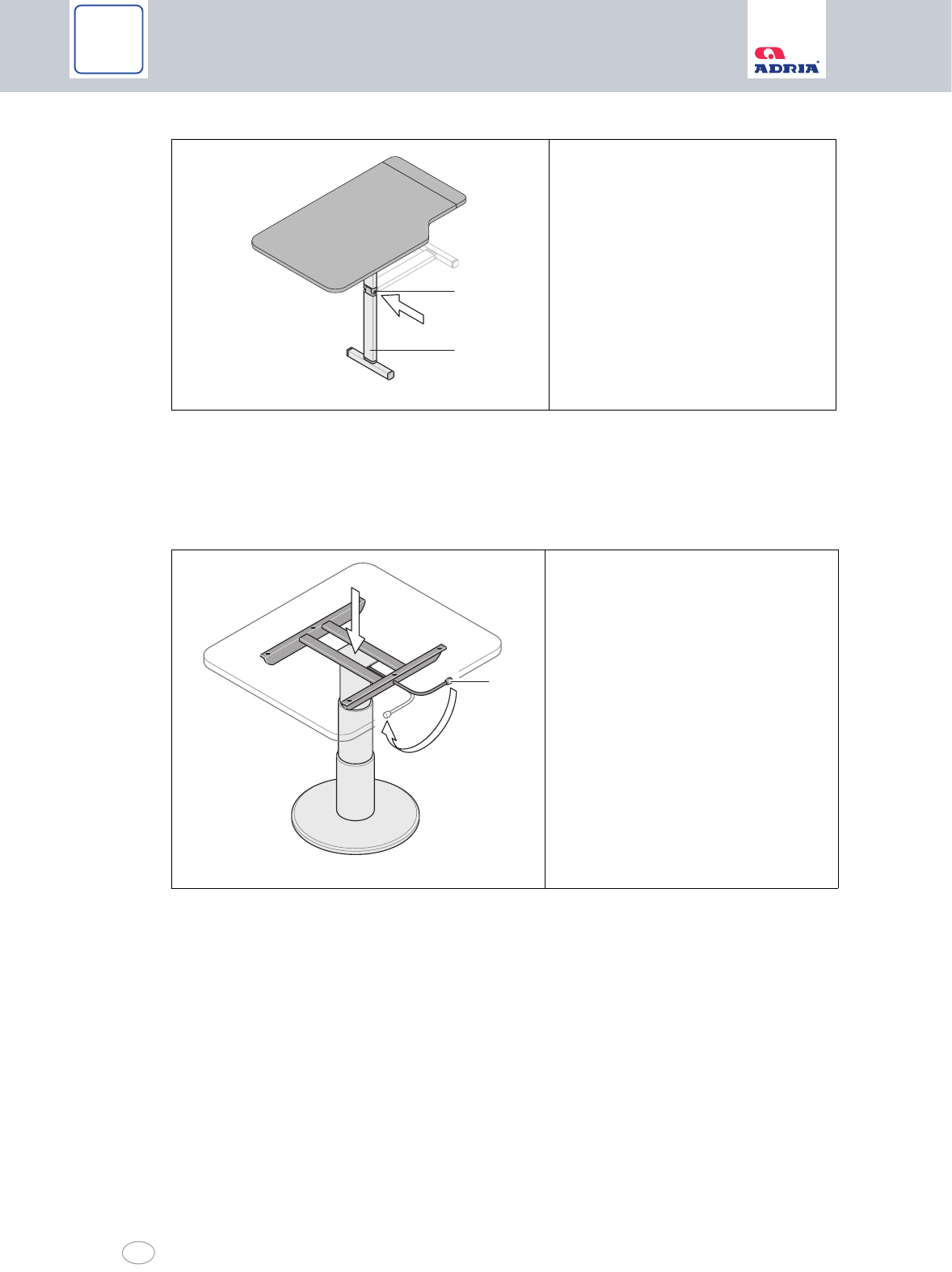

Fig. 52 Swinging the table foot down

1 Table foot

2 Locking button

Fig. 53 Lowering the telescopic table

1 Locking lever

10100020

Sleeping arrangements 9

Adria Caravans 67

9.2.3 Lowering the swivelling table

Push the grip (Fig. 54/2) upwards.

Swivel the table top (Fig. 54/1) downwards in an arch until the grip engages.

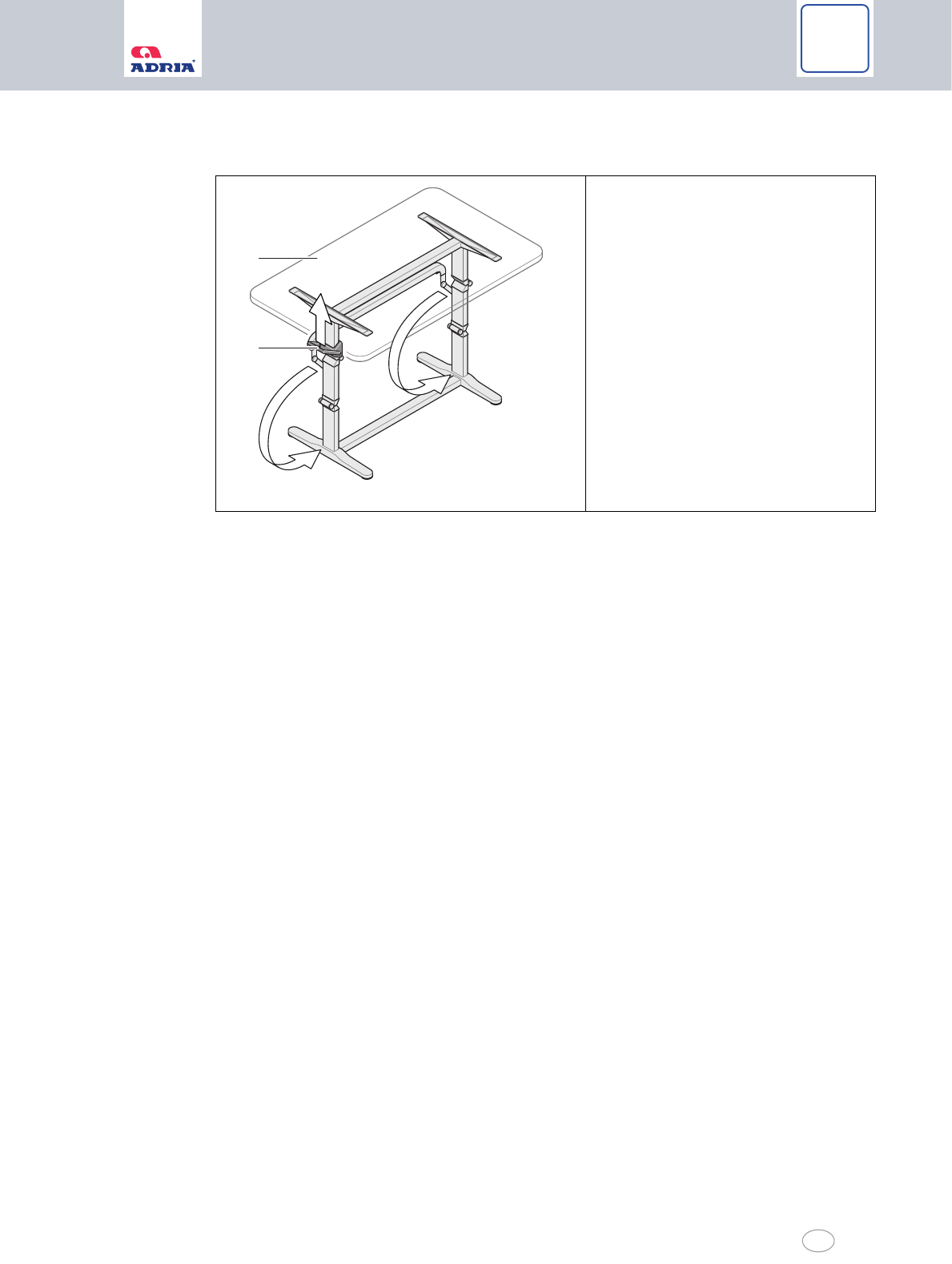

Fig. 54 Lowering the swivelling table

1 Table top

2 Grip

10100019

Power supply

68 Adria Caravans

10 Power supply

10.1 230 V power supply

The vehicle can be connected to an external power supply with 230 V which must be protected

with a 30 mA ground-fault circuit breaker (fault current).

10.1.1 Making the electrical connection between the vehicle and the

power source

The connection of the vehicle to the external 230 V power supply must be made with a rubber

sheathed cable "H0 RN-F 3G 2.5 mm

or an equivalent cable with connectors according to

"IEC 309". The overall length of the electric cable should not exceed 25 m!

Connecting:

When making the connection, always begin on the vehicle and make the connection to

the power source last.

Disconnect in reverse sequence.

Caution!

Short-circuit, corrosion and cable break

For your own safety, have the electrical system checked at least once a year by an

authorised workshop.

Caution!

Danger of overheating of the cable on the cable reel

Always unroll the cable completely from the cable reel. This prevents overheating of the

cable.

Use a cable reel with integrated overheat protection.

Important!

• Connectors and sockets do not fit in every country.

• It is possible that an adapter set is required for the country being visited.

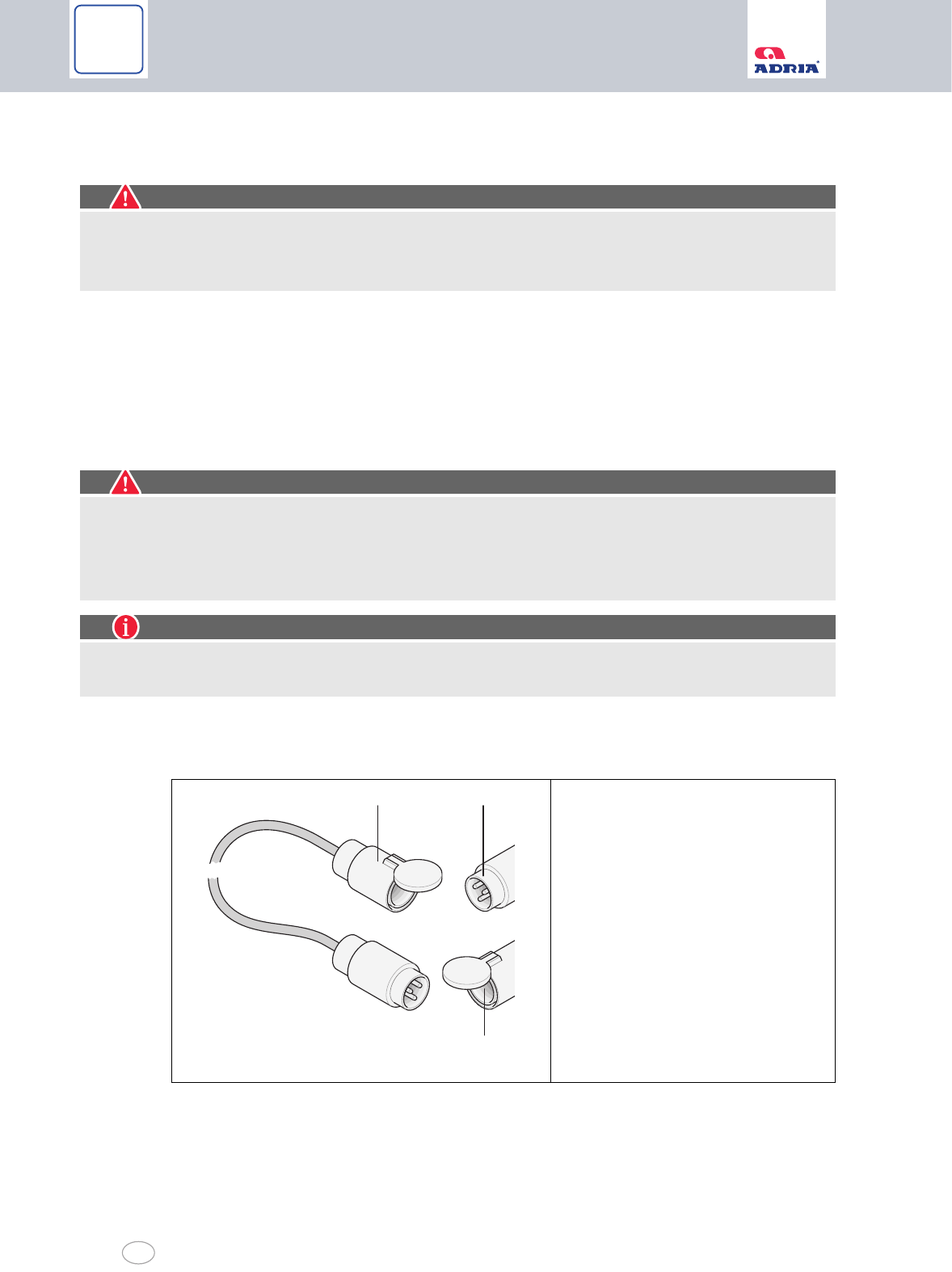

Fig. 55 230 V mains connection

1 CEE motorcar input socket

2 CEE extension cable (special

accessory) with a minimum

cross-section: 2.5 mm

3 Power source

Power supply 10

Adria Caravans 69

10.2 Fuse protection of the 230 V electric circuit in the vehicle

The external 230 V power supply of the vehicle is protected with a 13 A circuit breaker. In addi-

tion to the circuit breakers, a ground-fault circuit breaker (special equipment) is installed in

some vehicles.

The ground-fault circuit breaker protects persons against electric shock if the insulation of elec-

trical appliances is defective.

The fuse box with circuit breakers and ground-fault circuit breaker is normally installed in the

wardrobe or a seat chest.

Checking the ground-fault circuit breaker:

Press the "Test" button (Fig. 56/2) of the ground-fault circuit breaker with the 230 V

power supply connected.

The ground-fault circuit breaker (Fig. 56/1) triggers, the switch handle springs to the

"Off" position.

Switch the handle of the ground-fault circuit breaker back to the "On" position after the

successful test.

Switching on the circuit breaker:

To switch on the circuit breaker (Fig. 56/3), push the switch handle upward.

When the circuit breaker has triggered, wait for a short time before switching on again.

• If the circuit breaker remains on, only an overload occurred.

• If the circuit breaker immediately triggers again, this is due to a short-circuit or earth fault.

Consult an authorised workshop and have the fault repaired.

Important!

Check the ground-fault circuit breaker for fault-free operation monthly or, after a longer

period of standstill of the vehicle, before starting each journey.

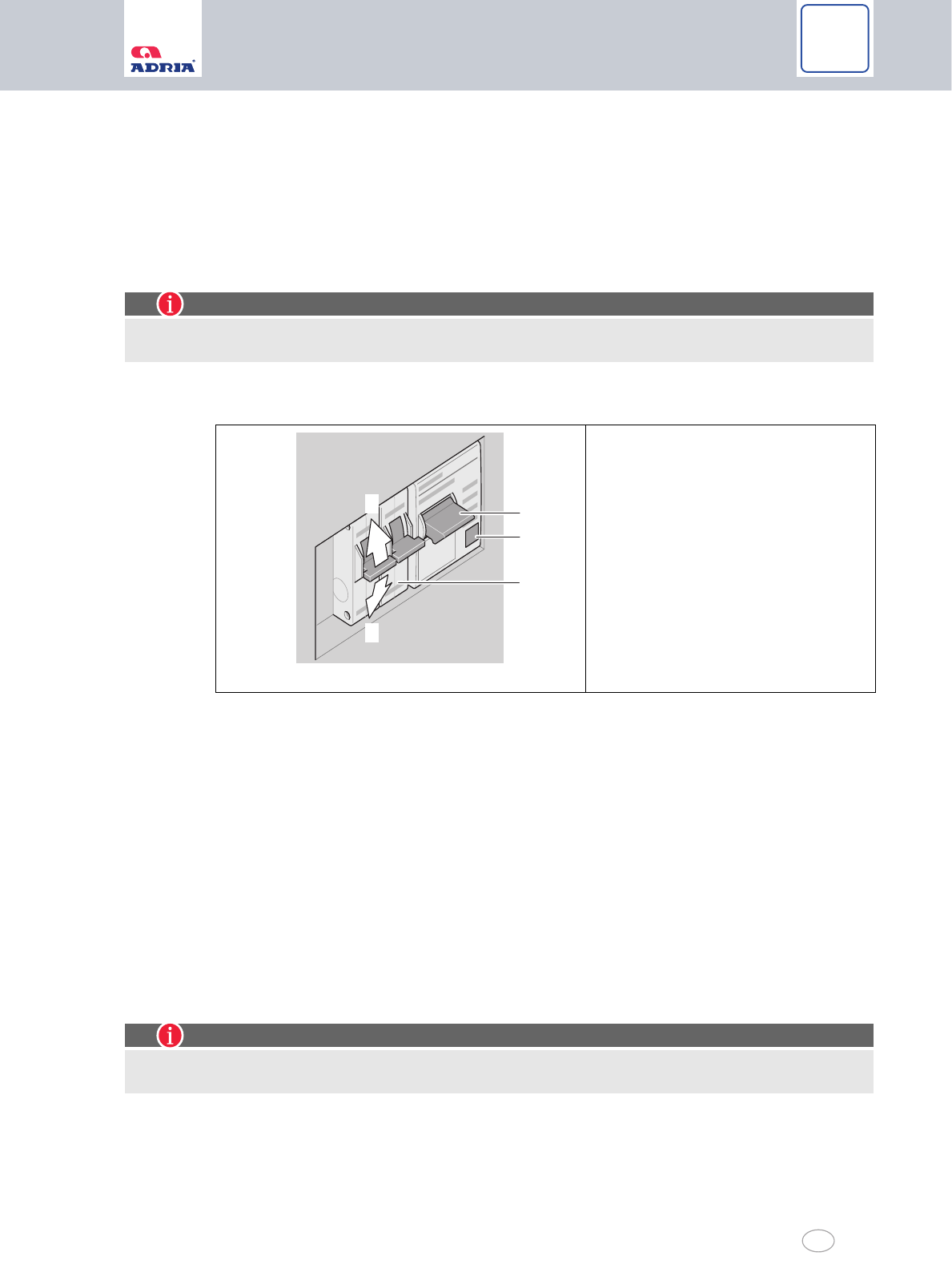

Fig. 56 230 V circuit breaker

1 Ground-fault circuit breaker

2 "Test" button of ground-fault cir-

cuit breaker

3 Circuit breakers

4 "Off" position

5 "On" position

Important!

It makes no sense to switch the breaker on several times. The circuit breaker triggers even

when you hold the switch handle.

10100098

Power supply

70 Adria Caravans

10.3 12 V power supply

10.3.1 Power supply unit CSV 300-X

The power supply unit is designed for use in caravans without own living area battery and

therefore cannot be used to charge batteries.

Connected appliances can be supplied with 12 V current from the towing vehicle when the

230 V mains voltage is not available.

Mains operation is switched to automatically as soon as the 230 V mains voltage is available.

The power supply unit comprises:

• The power supply module

• The complete 12 V distribution

• The fuse protection for the 12 V electric circuit

The following 12 V outputs are supplied with power when the power supply unit is fed 12 V from

the starter battery of the towing vehicle without the 230 V mains being connected:

• CSV 300 circuits 1 to 5 receive power

• CSV 300-2 circuit 1 receives power, circuits 2 to 5 do not receive power

• CSV 300-3 circuits 1 to 4 receive power, circuit 5 does not receive power

Permanent power supply to all electric circuits is possible when operating with a towing vehicle.

Refer to the separate operating instructions for information in this context.

Warning!

Risk of burns

The power supply unit becomes hot when in use. Do not touch.

Replace defective fuses only when the power supply unit has been de-energised.

Caution!

Damage to power supply unit

Replace defective fuses only when the power supply unit has been de-energised.

Replace defective fuses only when the cause of the defect is known and has been rem-

edied.

Never bridge or repair fuses.

Use only original fuses with the values specified in the operating instructions.

Do not lay any cables underneath the power supply unit due to the heat generation.

Power supply 10

Adria Caravans 71

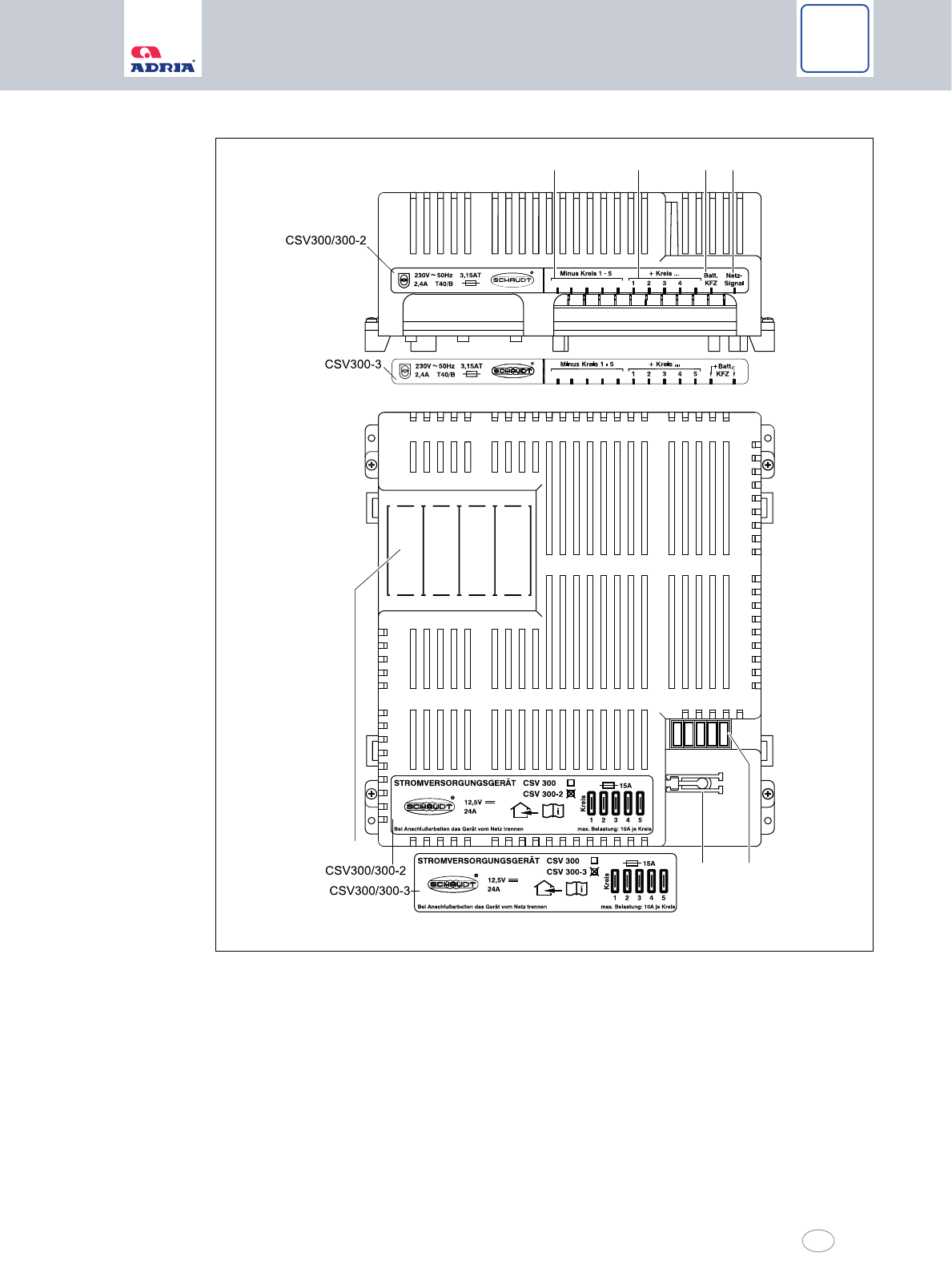

Fig. 57 Power supply unit CSV 300-X

1 Minus 12 V output, circuits 1 to 5

2 + 12 V output, circuits 1 to 5

3 Car battery/towing bracket

4 Mains signal (only for CSV 300-2), car battery (only for CSV 300-3)

5 Vehicle flat blade fuses

6 FK-puller (tool to remove fuses)

7 Space for circuit breakers

10100066

4321

Power supply

72 Adria Caravans

Placing into service:

The system is ready for operation when the 12 V supply from the towing vehicle or the

230 V mains voltage is connected. The unit does not have to be switched on separately.

Vehicle flat blade fuses

The vehicle flat blade fuses (Fig. 57/3) protect the various electric circuits.

A tool to exchange the vehicle flat blade fuses (FK-puller) is fitted next to the vehicle flat blade

fuses.

For more information, see the separate instructions from the manufacturer.

Power supply 10

Adria Caravans 73

10.3.2 Power supply unit CSV 4xx

The power supply unit is normally fitted in a cabinet or storage space and can be accessed to

exchange fuses. Depending on the vehicle equipment, different voltage supply units of the 4xx

series are used (xx stands for the different versions of the appliance). For the exact type of the

power supply units used in your vehicle, check the nameplate on the appliance and the sepa-

rate instructions from the manufacturer.

The caravan battery (special accessory) or the towing vehicle battery can provide power for

connected devices when no mains connection is available. Mains operation is switched to

automatically as soon as the 230 V mains voltage is available.

The power supply unit CSV 4xx contains:

• The complete 12 V distribution

• The fuse protection for the 12 V electric circuit

• A charging module to charge all connected batteries (not CSV 400)

• A battery booster (not CSV 400)

Danger!

Risk of explosion caused by formation of detonating gas

Set the battery selector switch (Fig. 58/6, not CSV 400) to the correct position.

Warning!

Risk of burns

The power supply unit becomes hot when in use. Do not touch.

Replace defective fuses only when the power supply unit has been de-energised.

Caution!

Damage to power supply unit

Replace defective fuses only when the power supply unit has been de-energised.

Replace defective fuses only when the cause of the defect is known and has been rem-

edied.

Never bridge or repair fuses.

Use only original fuses with the values specified in the operating instructions.

Do not lay any cables underneath the power supply unit due to the heat generation.

Do not store any heat sensitive objects near the unit (e.g. temperature sensitive cloth-

ing when the unit is fitted in the wardrobe).

Important!

• The power supply unit can only be operated together with the control panel.

• The following prerequisites must be fulfilled for 12-V operation of the refrigerator (all

other 12-V appliances are switched off):

– The caravan is connected to the towing vehicle

– The ignition of the towing vehicle is switched on

Power supply

74 Adria Caravans

Before placing into service (not CSV 400):

Check whether the battery selector switch (Fig. 58/6) is in the correct position.

Make sure the living area battery is connected.

Placing into service:

The 12 V main switch on the control panel serves to switch the system on (Chapter 8.6).

Vehicle flat blade fuses

The vehicle flat blade fuses (Fig. 58/2) protect the various power circuits

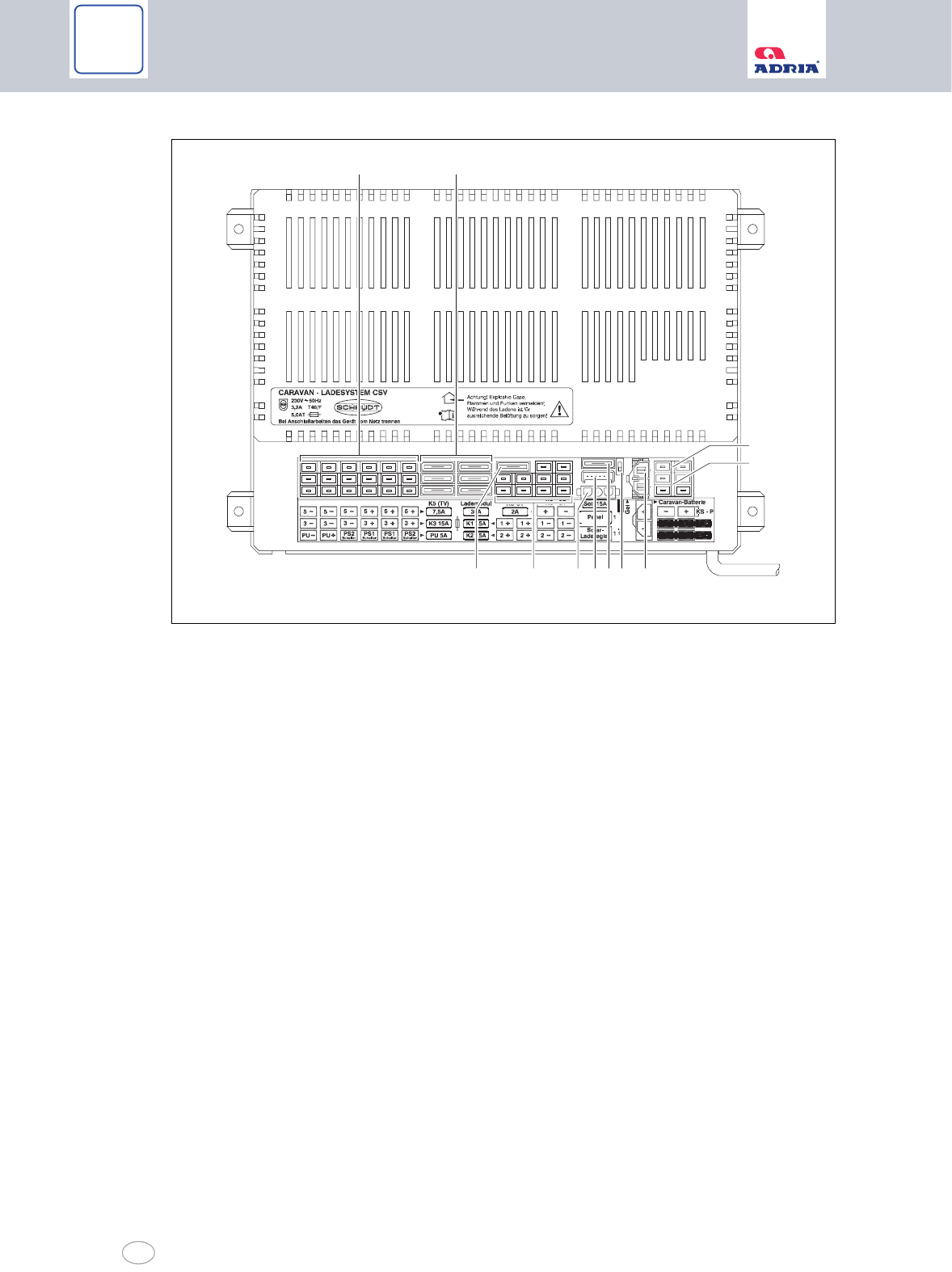

Fig. 58 Power supply unit CSV 4xx (Figure can deviate from actual unit). )

1 Connections for 12 V consumers

2 Vehicle flat blade fuses for 12 V electric circuits

3 Connections for 12 V consumers

4 12 V supply, towing vehicle

5 Caravan battery connection (not CSV 400)

6 Battery selector switch (not CSV 400)

7 Solar flat blade fuse (not CSV 400)

8 Connection for control panel

9 Connection for solar charge regulator (not CSV 400)

10 Connections for 12 V consumers

11 Vehicle flat blade fuses for refrigerator control (not CSV 400)

10100106

5678910

1 2

Power supply 10

Adria Caravans 75

Battery selector switch (not CSV 400)

If the battery selector switch (Fig. 58/6) is set to the wrong position, the living area battery could

become damaged.

Switching the battery selector switch (not CSV 400):

Disconnect the power supply unit from the mains before setting the battery selector

switch (Fig. 58/6) to a different position.

Selection of lead-gel battery: Set the battery selector switch to "Gel".

Selection of lead-acid battery: Set the battery selector switch to "Acid".

Use a thin object for the changeover (e.g. ball-point pen refill).

The option of switching over with the battery selector switch ensures optimum charging of the

two battery types (lead-gel or lead-acid).

For more information, see the separate instructions from the manufacturer.

Power supply

76 Adria Caravans

10.3.3 Power supply unit type BCA

The power supply unit is the central power supply unit for all 12 V consumers in the electrical

system in the caravan. It is normally fitted in a cabinet or storage space and can be accessed

from the front to exchange fuses.

The caravan battery or the towing vehicle battery can provide power for connected devices

when no mains connection is available. Mains operation is switched to automatically as soon

as the 230 V mains voltage is available.

The power supply unit BCA comprises:

• A charging module to charge all connected batteries

• The complete 12 V distribution

• The fuse protection for the 12 V electric circuit

Before placing into service:

Make sure the living area battery is connected.

Warning!

Risk of burns

The power supply unit becomes hot when in use. Do not touch.

Replace defective fuses only when the power supply unit has been de-energised.

Caution!

Damage to power supply unit

Replace defective fuses only when the power supply unit has been de-energised.

Replace defective fuses only when the cause of the defect is known and has been rem-

edied.

Never bridge or repair fuses.

Use only original fuses with the values specified in the operating instructions.

Do not lay any cables underneath the power supply unit due to the heat generation.

Do not store any heat sensitive objects near the unit (e.g. temperature sensitive cloth-

ing when the unit is fitted in the wardrobe).

Important!

The power supply unit may be operated only together with the control panel.

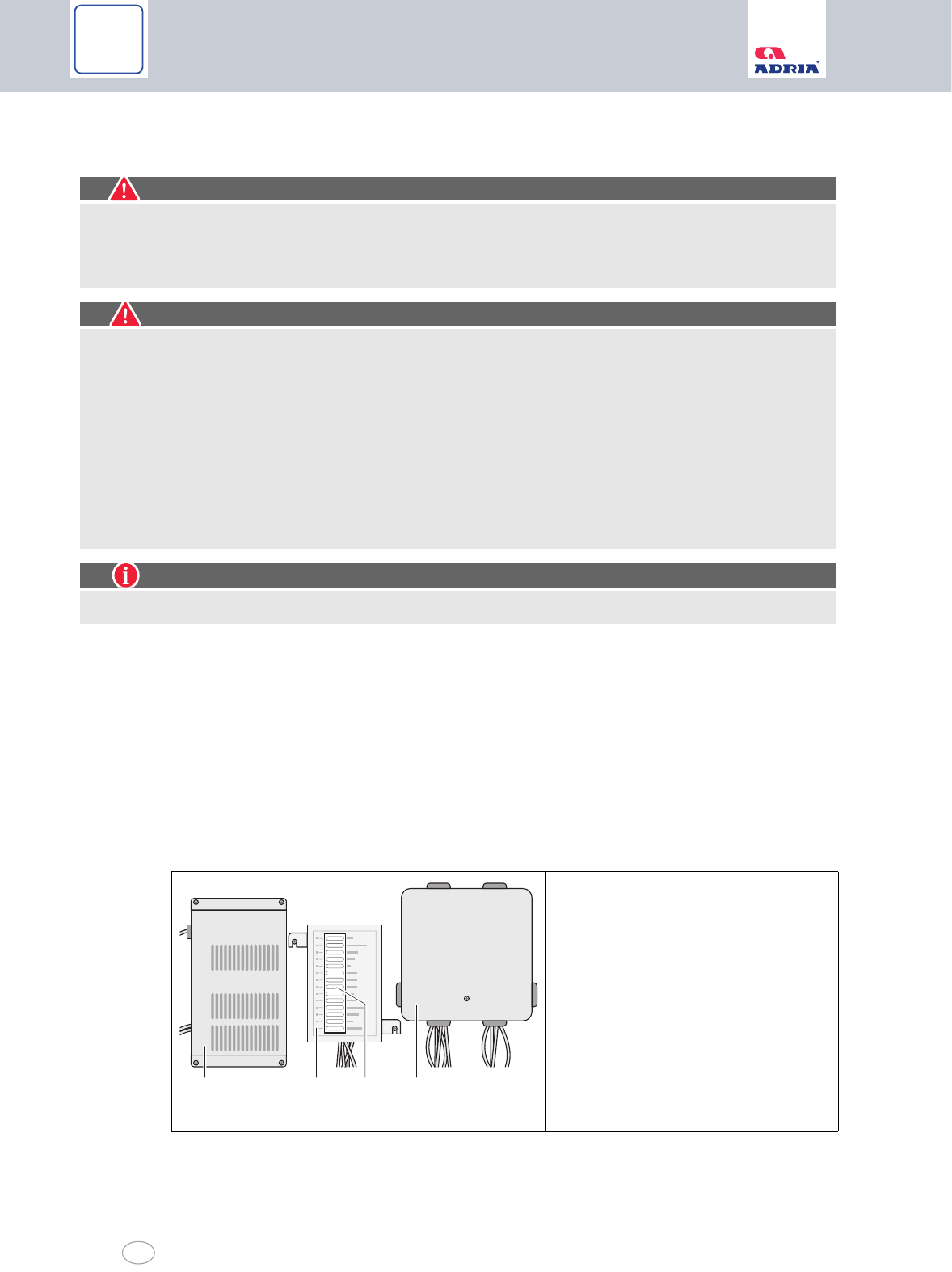

Fig. 59 Power supply unit BCA

1 Charging module to charge all

connected batteries

2 12 V distribution

3 Vehicle flat blade fuses for 12 V

electric circuits

4 Junction box for 12 V electric cir-

cuits

10100050

1 2 3 4

Power supply 10

Adria Caravans 77

Placing into service:

The 12 V main switch on the control panel serves to switch the system on

(Chapter 8.6.2).

Vehicle flat blade fuses

The vehicle flat blade fuses (Fig. 59/3) protect the various power circuits

For more information, see the separate instructions from the manufacturer.

10.3.4 Starter battery (in towing vehicle)

If the vehicle is externally connected to the 230 V power source (Chapter 10.1.1), an automatic

changeover from 12 V to 230 V / 12 V (power supply unit) occurs.

Caution!

Discharging of starter battery

The capacity of the starter battery is limited.

The starting capability of the towing vehicle is affected when the power supply is pro-

vided for an extended period of time via the constant plus of the towing vehicle.

Power supply

78 Adria Caravans

10.3.5 Living area battery (special accessory)

Only gel or AGM batteries may be used as living area battery.

The living area battery can be charged in two ways:

• With the towing vehicle generator, i.e. while the engine is running.

All major appliances such as refrigerator, heater, water pump, etc. must be switched off.

The battery should then be "fully" charged at the 230 V mains.

• By connection to the 230 V mains.

This charges the battery automatically. All major appliances must be switched off.

Regularly check the battery voltage with the control panel (Chapter 8.6):

• If the voltage is 12 V or higher or in the green area, everything is okay.

• If the voltage is less than 12 V or in the red area, switch off all appliances immediately and

charge the battery. The minimum charging time should be 24 hours or better 48 hours.

Overcharging is automatically prevented by the battery charger.

• If the "Battery alarm" warning light blinks, the battery must be charged immediately for a

minimum of 48 hours with the built-in automatic battery charger or a separate charger. For

this purpose, the vehicle must be connected to the 230 V power supply. If the battery volt-

age has dropped below 3 V, the engine must be started for approx. 10 seconds so that the

battery charger is switched on. Then charge the battery for a minimum of 48 hours.

10.3.6 Control panel

For more information on the control panels, see Chapter 8.6.

Warning!

Deflagration

The use of acid batteries as living area batteries in the caravan is not allowed. The

installation area is not equipped for accommodation of an acid battery.

Important!

• Before and after each use of the vehicle, the battery should be charged with the battery

charger, if possible, for more than 24 hours.

• If you are on the way for a longer journey, the battery should be "fully" charged at least

once a month via the 230 V mains.

• If the vehicle is not used for a longer period of time, all appliances must be switched off

(pay attention to hidden appliances, for example satellite system, tank heating, boiler

safety valve, etc.). The easiest way to do this is to disconnect the plus pole directly on

the battery. Charge the battery once a month with the built-in battery charger or a mini-

mum of 24 hours.

• The warranty for the auxiliary battery is valid only when it is serviced properly.

Power supply 10

Adria Caravans 79

10.4 Central lighting control - light assignment

Light assignment to channels of the central lighting control is set at the factory and can only be

modified by an ADRIA specialist dealer.

An example Table for the ALPINA 763 UK serves as overview:

Tab. 4 Central lighting control, channel assignment ALPINA 763 UK

10.5 Fuses

Fuses protect the electrical system and the electrical appliances from damage by overloading

and short circuits. If the amperage is too high, a fuse automatically interrupts the electric circuit.

The electric fuses are accessible at different installation locations in the vehicle.

The appliances that are connected to the 12 V supply in the living area are protected by their

own fuses.

Channel Light

1 • Ceiling lights, dining table

2 • Awning light

3 • Decorative lighting, circular seating group

4 • Indirect lighting, circular seating group

5 • Indirect lighting, double bed

6 • Ceiling lights, double bed

7 • Ceiling lights, children's room

• Decorative lighting, children's room

8 • Ceiling lights, children's room

9 • Washroom lighting

• Toilet compartment lighting

• Reading lights, children's room

• Reading lights, double bed

• Storage space lighting

• Reading lights, circular seating group

Warning!

Risk of burns

Replace defective fuses only when the power supply unit has been de-energised.

Caution!

Damage to the electrical system

Replace defective fuses only when the cause of the defect is known and has been rem-

edied.

Never bridge or repair fuses.

Use only original fuses with the same rating.

Power supply

80 Adria Caravans

Before changing fuses, see the following table for function, value and colour of the respective

fuses:

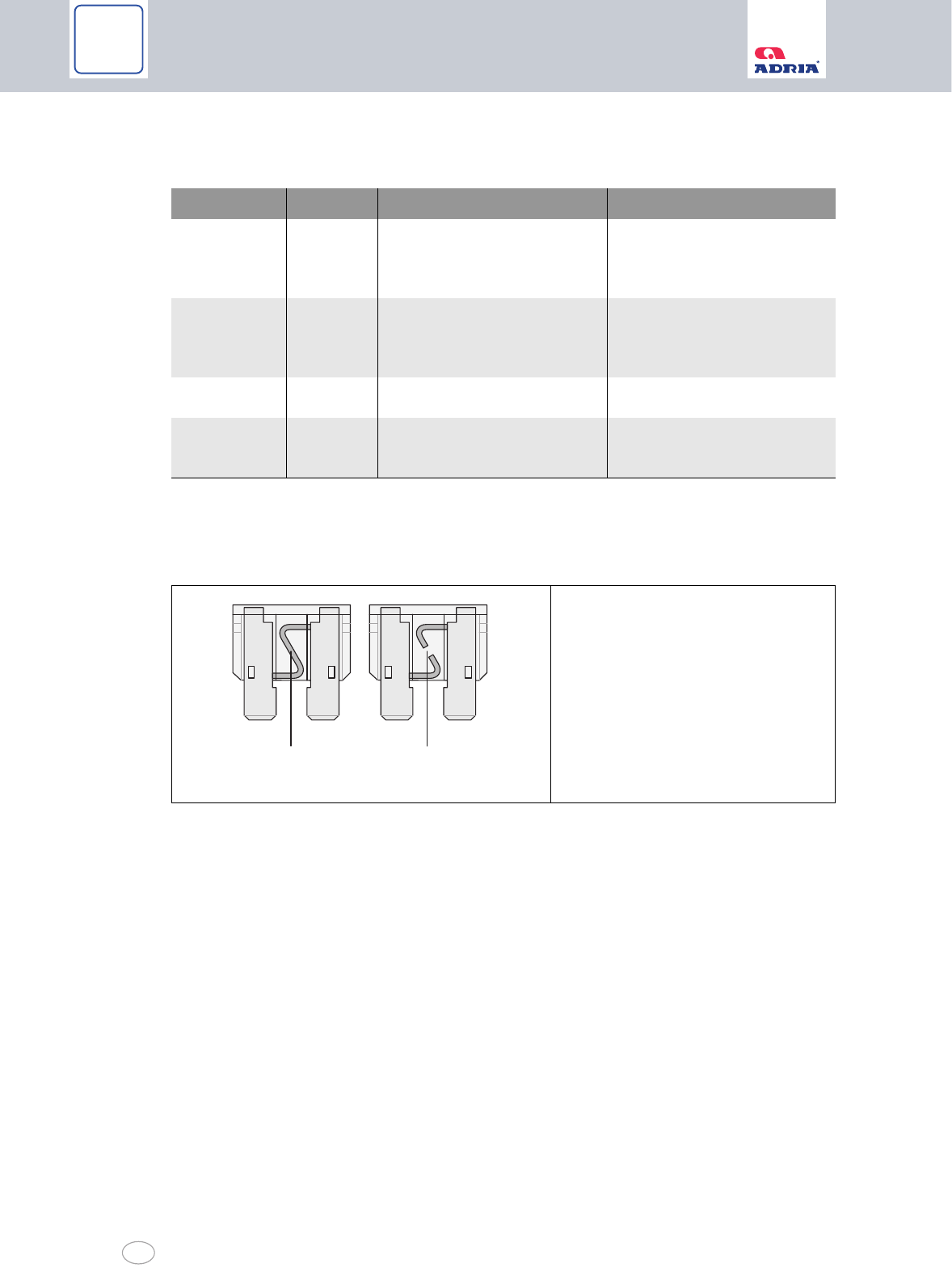

Tab. 5 Fuses

Changing the fuses:

A fuse must be changed when the fuse element is interrupted (Fig. 60/2).

Amperage Colour Function Installation location

2 A Grey Fuse of living area battery In the 12 V power supply unit

or next to the living area bat-

tery

3 A Violet Fuses of Thetford toilet In the housing frame of the

Thetford cassette or in the

12 V power supply unit

20 A Yellow Fuse of refrigerator In the 12 V power supply unit

50 A Red Fuse of 12 V power supply

unit Next to the living area battery

Fig. 60 12 V fuse

1 Intact fuse element

2 Interrupted fuse element

Power supply 10

Adria Caravans 81

10.6 Electrical diagrams 230 V

See the following electrical diagrams for the exact layout of the electrical components and wir-

ing.

These diagrams are required for possible repairs and maintenance.

Tab. 6 Legend for the following electrical diagrams for 230 V installation

Caution!

Damage to the electrical system

Have maintenance and repair work performed by an authorised workshop.

Improper maintenance and repair work voids your warranty claims.

A Power input 220-240 V, 16 A, 2P+T

B Main fuse with FI 220-240 V, 25 A, 0.03A

B1 Circuit breaker 220-240 V, B16A

B2 Circuit breaker 220-240 V, C10A

B3 Circuit breaker 220-240 V, C10A or B16A

C Junction box

D Socket with earth contact 220-240 V

E Refrigerator

FProtective earthing (H07V-K) 4mm

G Heater/boiler

H Boiler switch (TRUMA THERME)

I Air-conditioner, pre-installation (roof top)

/// 3-wire cable (H05VV-F)

Power supply

82 Adria Caravans

Fig. 61 Electrical diagram 230 V: AVIVA-ALTEA-ACTION-ADORA

Fig. 62 Electrical diagram 230 V: ASTELLA-ALPINA

10100044

10100110

Power supply 10

Adria Caravans 83

10.7 Electrical diagrams for 12 V supply from towing vehicle

Tab. 7 Legend, function of 12 V towing vehicle supply

Tab. 8 Legend, colours of 12 V towing vehicle supply

No. Function Type

A1 Brake light and rear light PY21/5W

A2 Reversing light P21W

A3 Rear fog light P21W

A4 Direction indicator PY21W

B1/B2 License plate light C5W

E Contour light, red/white W5W

E1 Side marker light - orange LED

F1/F2 Contour light, front - white LED

M 3rd brake light LED

N Earth connection

O Caravan charging station, power supply unit

U Connector plug for towing vehicle

No. Colour No. Colour

01 Black 19 Blue - white stripe

02 Red 21 White - blue stripe

03 Green 23 Green - red stripe

04 Blue 24 Lilac - white stripe

05 White 25 Orange - black stripe

06 Brown 26 Green - blue stripe

07 Yellow 27 White - black stripe

08 Lilac 28 White - red stripe

09 Grey

12 Pink

13 Orange

Power supply

84 Adria Caravans

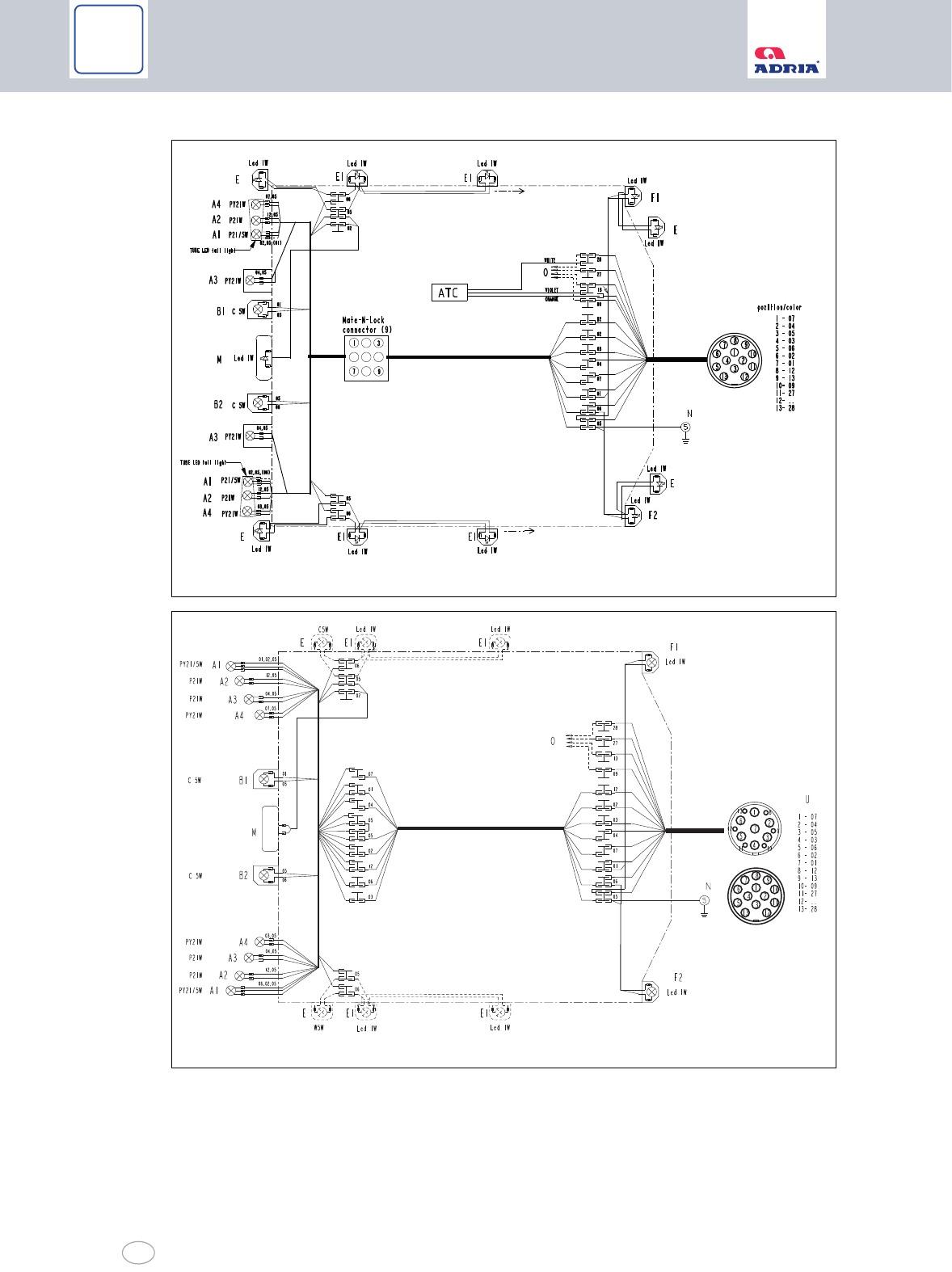

Fig. 63 Electrical diagram 12 V: ASTELLA-ALPINA

Fig. 64 Electrical diagram 12 V: AVIVA-ALTEA-ACTION-ADORA

10100109

10100042

Power supply 10

Adria Caravans 85

10.8 Electrical diagrams, voltage supply

Fig. 65 Electrical diagram 12 V appliances: AVIVA-ALTEA

10100046

Power supply

86 Adria Caravans

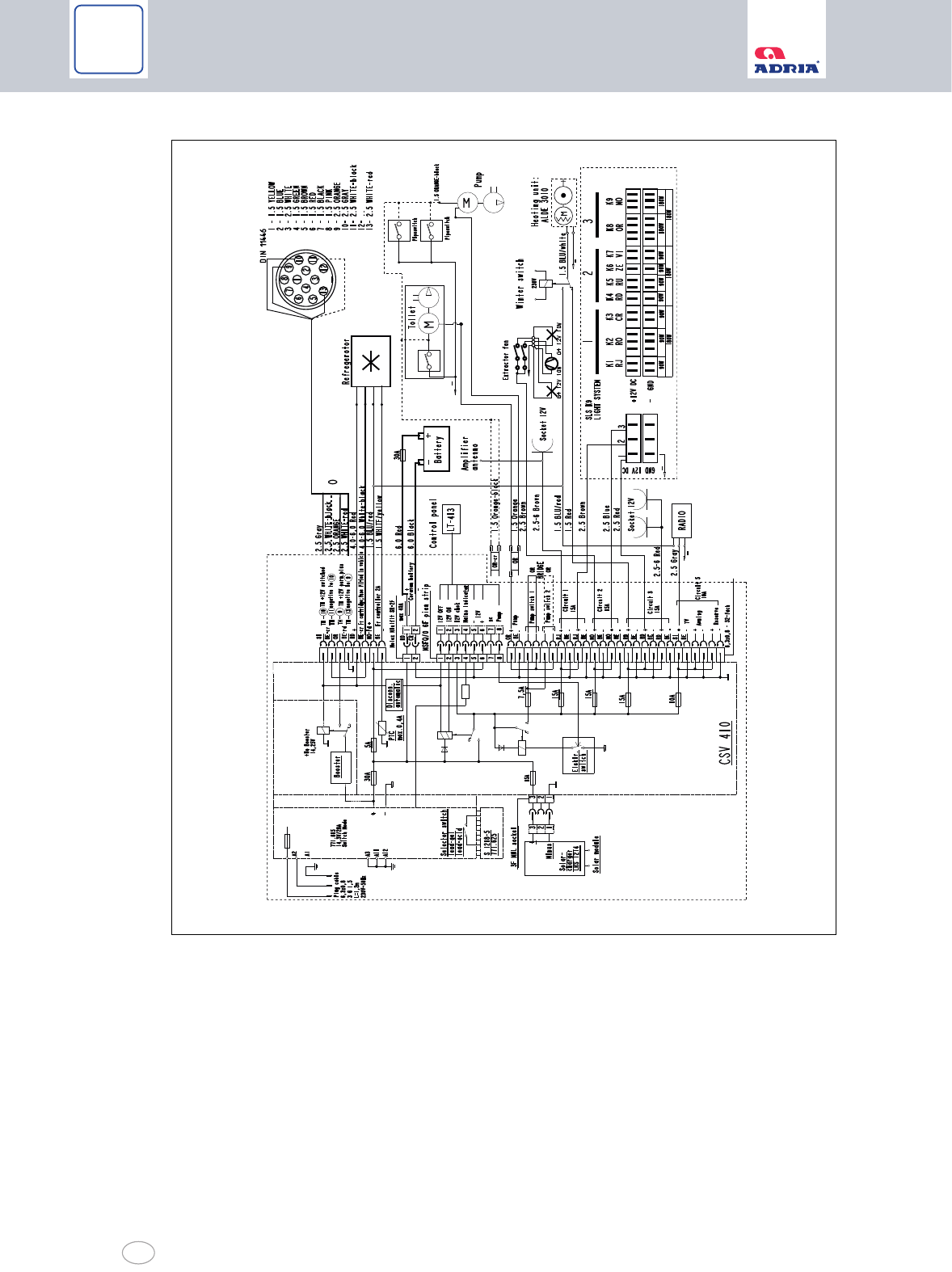

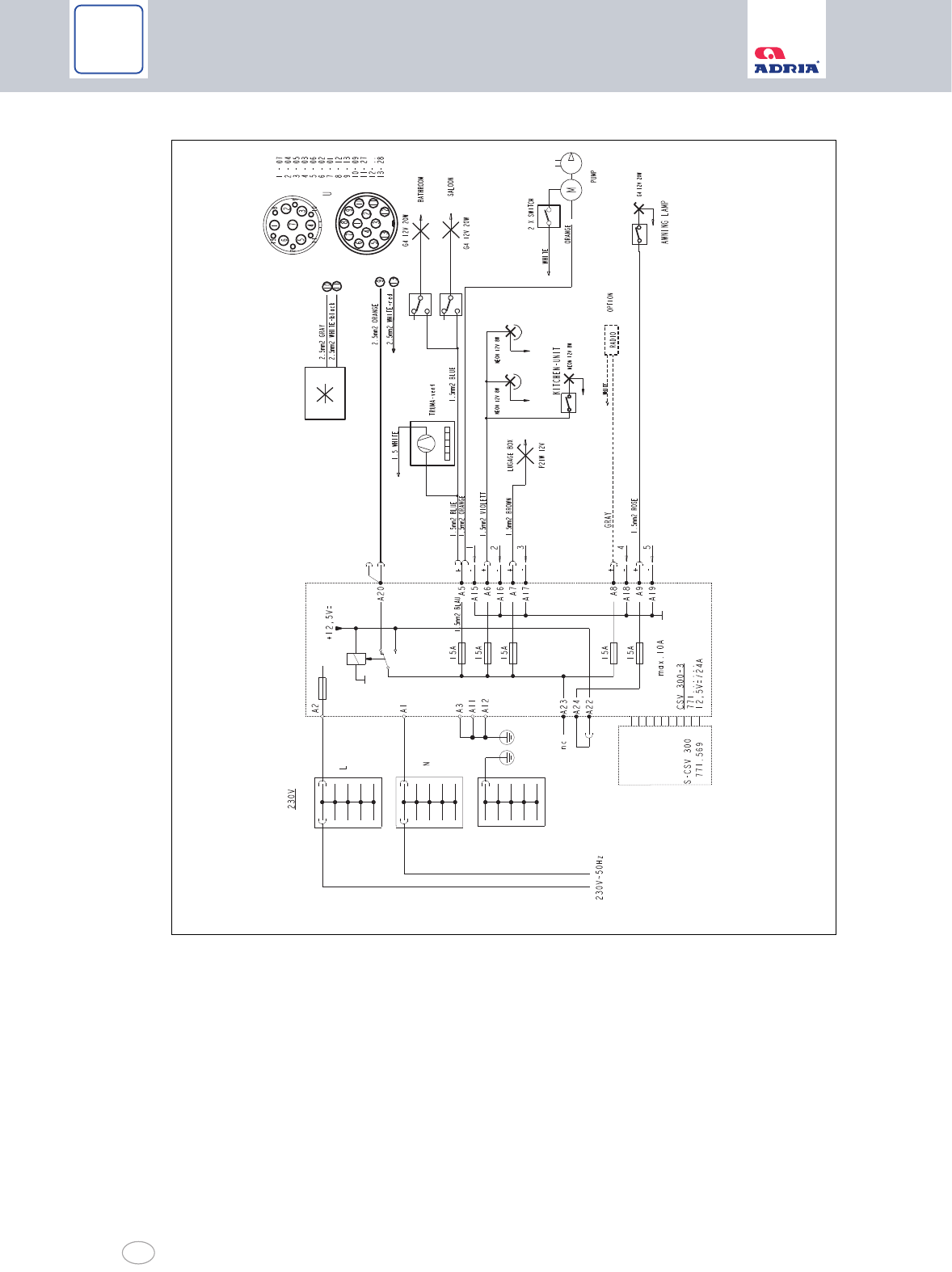

Fig. 66 Electrical diagram 12 V appliances: ACTION

10100047

Power supply 10

Adria Caravans 87

Fig. 67 Electrical diagram 12 V appliances: ADORA-ASTELLA

10100108

Power supply

88 Adria Caravans

Fig. 68 Electrical diagram 12 V appliances: ALPINA

10100107

Gas system 11

Adria Caravans 89

11 Gas system

11.1 General information about the gas system

Familiarise yourself with the safety instructions for handling gas.

For general safety instructions concerning the topic of "gas", see the "Safety instructions for

the gas system" (Chapter 2.5).

• The complete gas system has been designed according to the valid technical regulations

for liquid gas equipment and burners in camping vehicles. This was examined and certified

by an expert.

• All installed gas-operated appliances have safety devices. When the flame goes out, the

automatic flame failure device interrupts the gas supply. In spite of this safety device, the

respective quick-action stop valve must be closed if the appliance is not in operation.

Danger!

Poisoning by gas

If it smells of gas or you suspect that gas is escaping, perform the following:

Clear the danger area!

Close the shut-off valve on the gas cylinder!

Avoid ignition sources and open flames and do not smoke!

Ventilate the rooms!

Inform the camping site manager, and the fire brigade when necessary!

Warning!

Danger to life

Have repairs or modifications of the gas system performed by an authorised workshop

only!

Never modify the gas system or appliances yourself!

Never use a lighter or other open source of light at the junctions of the gas pipes to look

for leaks!

The user may make only the connection between the pressure regulator and the gas

cylinder! Any other work has to be performed by an authorised workshop!

Important!

• The complete gas system in the vehicle is designed for an operating pressure of

30 mbar which is kept constant by the built-in pressure regulator.

• After the expiration of two years and after the performance of modifications and repairs,

the gas system must be inspected again. Always have a gas leak test performed on this

occasion. The vehicle owner is responsible for initiating the inspection. Upon delivery of

the vehicle, the operator must be informed in writing of his/her duty to have the gas sys-

tem inspected. The correct condition of the gas system is confirmed with a gas inspec-

tion certificate. The associated gas inspection sticker must be attached to the rear of the

vehicle near the license plate.

• The gas regulator and the gas hose must be replaced every ten years.

Gas system

90 Adria Caravans

• In order to ensure continuous exchange of air in the vehicle, do not cover the forced venti-

lation in the roof hoods and in the entrance nor the mushroom ventilators.

• When there is snowfall in winter, keep the forced ventilation free from ice and snow! (Chap-

ter 17.3).

11.2 Gas cylinder compartment

The gas cylinder compartment is accessible from the outside only.

The gas cylinder compartment is intended for storing the gas cylinders. Do not cover the forced

ventilation.

Secure the gas cylinder compartment against unauthorised access.

11.3 Gas types

The gas-operated appliances are operated with liquid gas (propane, butane or a mixture of

both).

The dealers offer mainly 5 kg or 11 kg gas cylinders for purchase or hiring.

Handling gas cylinders

Store gas cylinders exclusively in the gas cylinder compartment.

Lock the gas cylinder compartment securely against unauthorised access!

11.3.1 Propane gas

Propane is a colourless and odourless gas. Propane is capable of gasification down to -42°C.

Propane is suitable for winter camping.

Propane is highly flammable, heavier than air and, in high concentrations, has a narcotising to

suffocating effect.

11.3.2 Butane gas

Butane occurs in two different versions (isomers): Isobutane and n-butane.

Isobutane and n-butane are liquid gases that are generated when crude oil is distilled.

Isobutane gasifies at -12 °C, n-butane at -0.5 °C. This means, butane is unsuitable for use in

winter. Between the seasons, a mixture of butane and propane gas can also be used.

Caution!

Gas cylinder compartment

Always keep the forced ventilation in the floor free!

Always keep gas cylinders upright and lashed.

Do not use the gas cylinder compartment as storage space. Danger of fire!

Gas system 11

Adria Caravans 91

11.3.3 Information on liquid gas

Liquid gas characteristics:

• Liquid gas has no colour.

• It smells of garlic.

• It is heaver than air and collects on the ground after escaping.

• It is combustible and can burn rapidly when it escapes uncontrolled or explode when sparks

occur.

• In enclosed areas, it displaces the breathing air; risk of suffocation!

11.4 Reference values for gas consumption

The gas consumption depends on how intensively the connected appliances are used.

Tab. 9 Reference values for gas consumption

Appliance Refer-

ence

value

Unit

Gas heater 170 - 490 g/h

Cooker 100 - 400 g/h

Refrigerator 10 - 25 g/h

Oven 50 - 200 g/h

Gas system

92 Adria Caravans

11.5 Handling gas cylinders

The gas cylinders are not part of the delivery items of the vehicle and have to be bought and

connected by the operator.

Take utmost care when handling gas cylinders.

Grey gas cylinders with red marking (protective cap and bottom ring) are purchased cylinders

and can be replaced or filled.

11.6 Quick-action stop valves

The gas distribution to the individual gas appliances is performed via the gas quick-action stop

valves.

Caution!

Danger when handling gas cylinders

Read the safety instructions on the gas cylinder!

Operate gas cylinders only with the pressure regulator connected!

Do not smoke in the vicinity of the gas cylinders! Any kind of open flame must be

avoided! This is valid in particular when replacing gas cylinders.

Never lubricate threads and seals on the pressure regulator with grease. Risk of explo-

sion by chemical reactions!

The vents in the floor of the gas cylinder compartment always have to be kept uncov-

ered.

Use only gas cylinders provided for the camping sector!

Never use special cylinders from other areas of application!

Gas cylinders that are not connected must always be secured with a protective cap.

The protective cap for the connected gas cylinder must be on board.

Pay attention to the inspection date on the gas cylinder!

Fill gas cylinders only by weight. This applies also for foreign countries!

Never use city gas or natural gas!

Never fill gas cylinders at propellant gas stations. Risk of explosion!

If the vehicle is parked for a longer period of time, the gas cylinders may remain in the

vehicle only when it is parked outdoors!

The gas cylinder compartment is designed for a maximum of two 11 kg gas cylinders.

Important!

If the gas appliance is not used, the respective quick-action stop valve must be closed.

Gas system 11

Adria Caravans 93

Using the gas appliances:

Open the respective quick-action stop valve to put the desired gas appliance into serv-

ice.

– Quick-action stop valve closed (Fig. 69/1): The arrows on the quick-action stop valve

are positioned on the gas appliance crosswise to the direction of the gas pipe

(Fig. 69/3).

– Quick-action stop valve open (Fig. 69/2): The arrows on the quick-action stop valve

are positioned in the direction of the gas pipe to the gas appliance (Fig. 69/3).

11.6.1 Quick-action stop valves of heater, refrigerator, cooker and

oven

Each gas appliance has its own quick-action stop valve.

These are marked with suitable symbols to prevent mistakes:

• Heater (Fig. 70/1)

• Refrigerator (Fig. 70/2)

• Cooker (Fig. 70/3)

• Oven (Fig. 70/4)

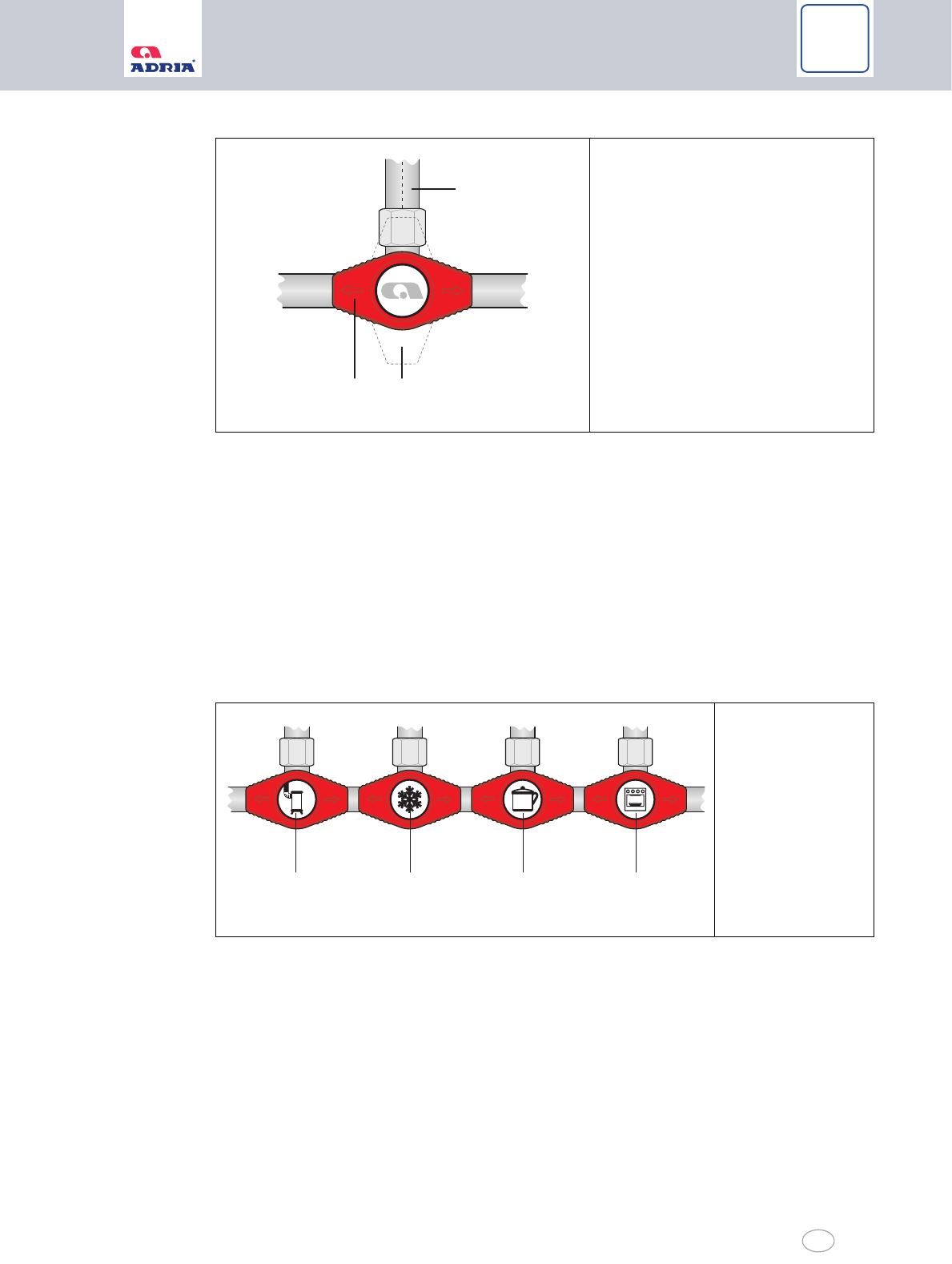

Fig. 69 Quick-action stop valves - positions

1 Closed

2 Open

3 Gas pipe to the gas appliance

Fig. 70 Quick-action stop valves of heater, refrigerator, cooker and oven

1 Heater

2 Refrigerator

3 Cooker

4 Oven

1 2 3 4

Gas system

94 Adria Caravans

11.7 External gas connection (special equipment)

Using the external gas connection:

Open the flap for the external gas connection (Fig. 71/1)

Attach a suitable adapter to the connection (Fig. 71/2).

Open the stopcock (Fig. 71/3).

Danger!

Risk of explosion

Only use a suitable adapter to connect to the external gas connection.

Only connect gas appliances to the external gas connection that are designed for

30 mbar operating pressure.

Check leak tightness of the external gas connection every time a gas appliance is con-

nected. Gas escapes into the air when the gas connection leaks.

Close the stopcock and main shut-off valve on the gas cylinder immediately when gas

escapes and have the external gas connection checked by an approved specialist

workshop.

No fire, no smoking and no sparks when connecting a gas appliance to the external gas

connection.

Filling gas cylinders using the external gas connection is forbidden. Observe the infor-

mation sticker.

Always close the stopcock when no appliance is connected to the external gas connec-

tion.

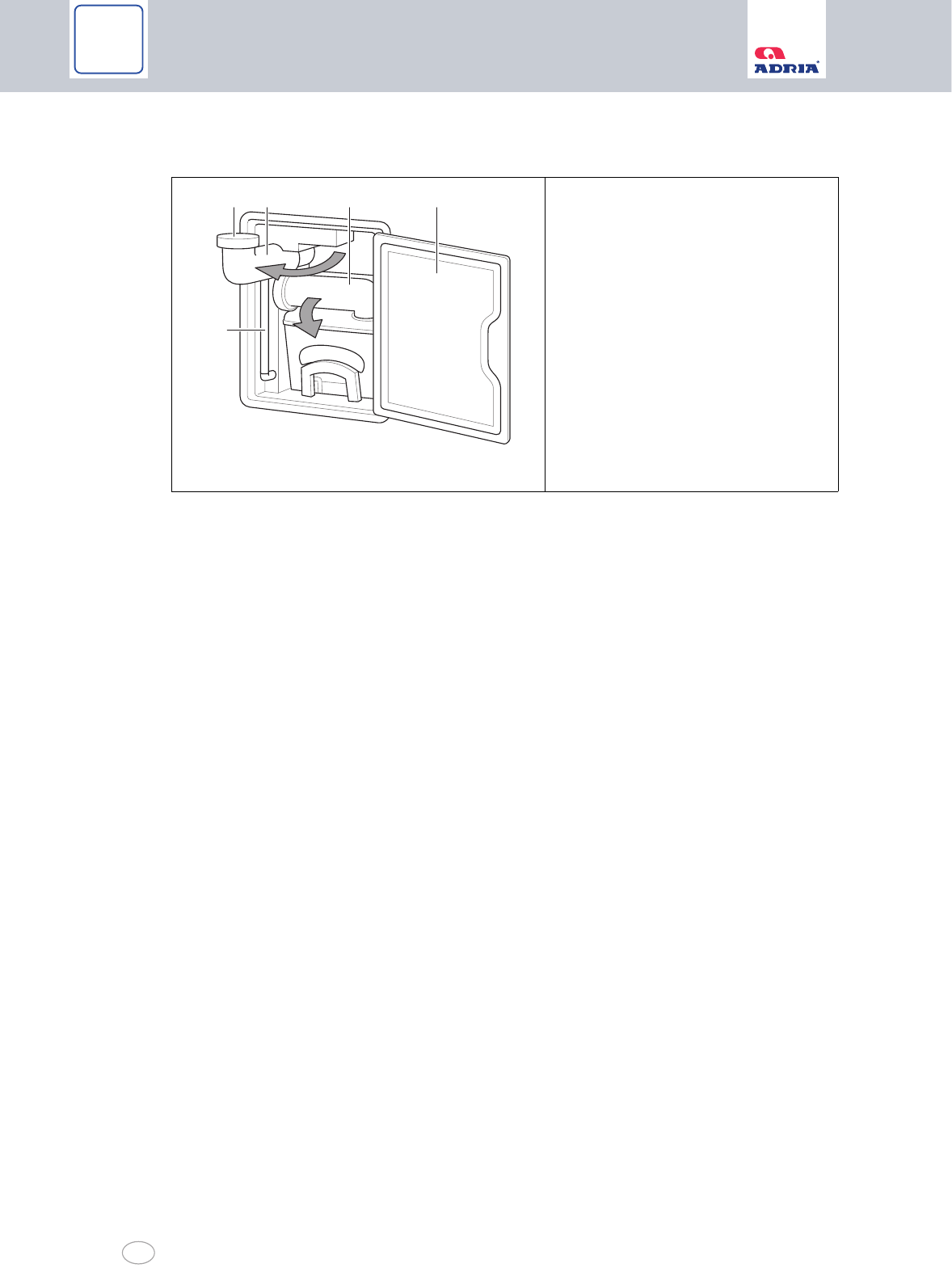

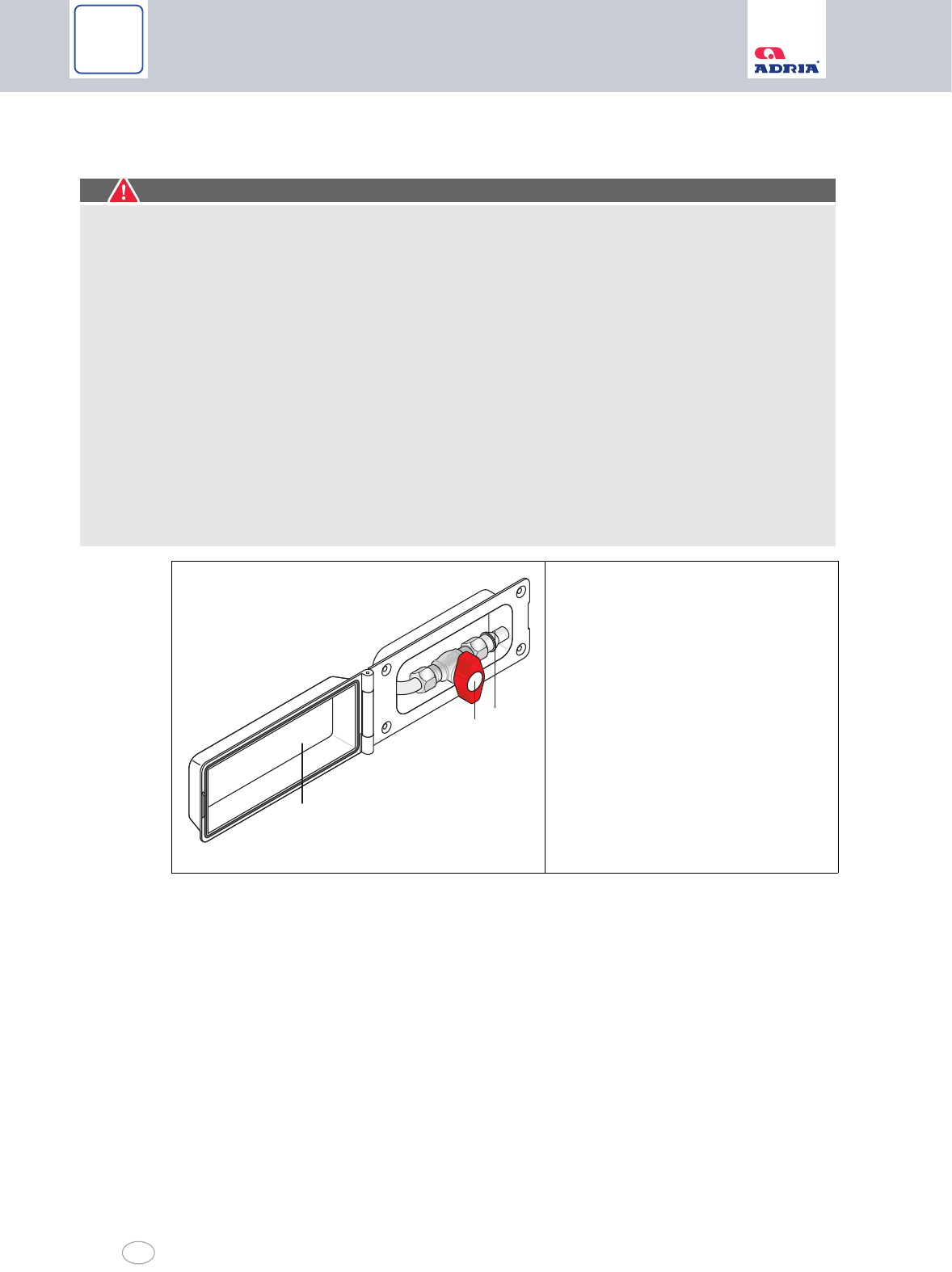

Fig. 71 External gas connection

1 External gas connection cover

2 Connection for gas appliances

3 Stopcock

Water and waste water 12

Adria Caravans 95

12 Water and waste water

12.1 Water supply

When a water tap is opened, the installed water pump is switched on.

Using the water tank:

Thoroughly clean the water tank before starting each journey.

If possible, fill the water tank only just before staying overnight or at the destination of

the journey.

Avoid additional weight.

Fill the water tank with drinking water only.

When the vehicle is placed out of service for an extended period of time or is not heated when

there is a risk of frost, empty, clean and dry the entire water system (Chapter 12.2). Leave the

water taps and drain cocks as well as all drain valves open.

We recommend to check the pipes every 6 months for leaks and to tighten the clamps as well

as the connectors.

The water supply system corresponds to the state of technology (Directive 2002/72/EC).

Warning!

Health hazard

Formation of bacteria and algae in the water tank.

Change the water at regular intervals including the boiler contents (e.g. twice a

week).

After the end of every journey or after 4 weeks at the latest, the water tank must be

drained, cleaned thoroughly and left open (venting).

Use disinfectant for the water tank.

Caution!

Damage to the water pump

Pumps can run hot without water and can be damaged.

Never run pumps when the water tank is empty!

Caution!

Damage to the environment

Never drain tanks (water and waste water) in the open countryside!

Empty tanks only at petrol stations, resting places, disposal stations or camping sites at

the provided places.

Caution!

Damage due to frost

When there is a risk of frost, drain the water system of the vehicle.

Water and waste water

96 Adria Caravans

12.1.1 Water tank

Filling the water tank (external):

Switch the water pump off (actuate the button on the control panel, Chapter 8.6).

Unlock and open the lockable cap (Fig. 72/3) on the filler neck (Fig. 72/2).

Fill water with a water canister, a watering can or a hose into the water tank.

Replace, close and lock the cap.

Draining/cleaning the water tank:

Switch the water pump off (actuate the button on the control panel, Chapter 8.6).

Open the service cover (Fig. 72/4).

Open the drain plug on the tank bottom (Fig. 72/5).

Drain the water tank completely.

Clean the inside of the tank.

Reinsert the drain plug (Fig. 72/5) in the drainage opening and close the service cover

(Fig. 72/4).

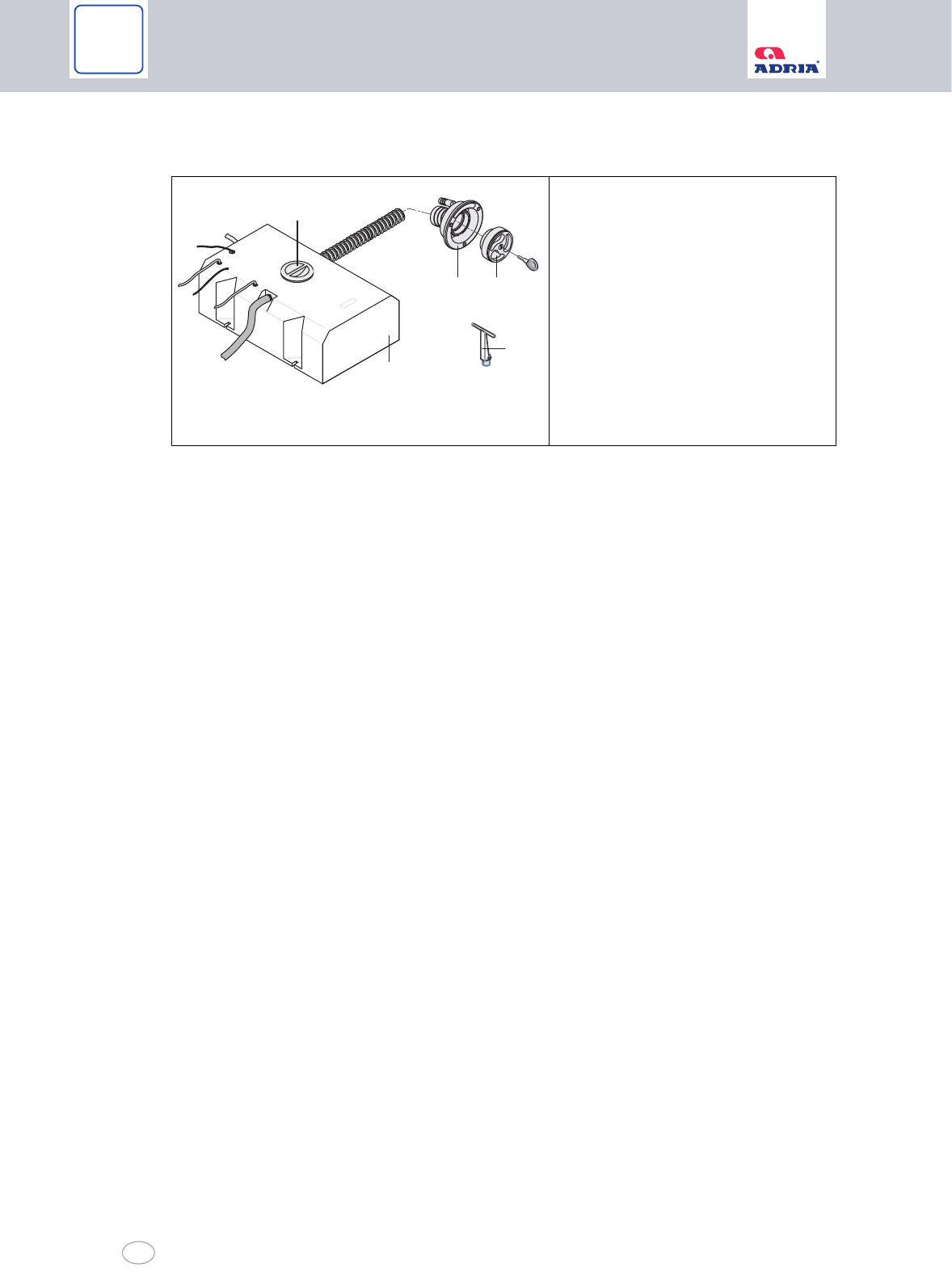

Fig. 72 Filling the water tank - external

1 Water tank

2 Filler neck

3 Lockable cap

4 Service cover

5 Drain plug

Water and waste water 12

Adria Caravans 97

12.1.2 Ultraflow external water connection (special equipment)

Some vehicles are fitted with an external water connection (Truma Ultraflow). The external

water connection can only be used with a suitable adapter. Depending on the equipment, sep-

arate water consumers can be connected to the external water connection (e.g. outdoor

shower) or to an external water tank.

Using the external water connection:

Open the flap (Fig. 73/1) of the external water connection.

Connect a suitable plug (Truma Ultraflow) to the socket (Fig. 73/2).

The external accessory is now connected to the onboard system.

12.1.3 City water connection (special equipment)

Some vehicles are fitted with a city water connection which can only be used with a suitable

adapter (type Gardena).

Open the flap (Fig. 74/1) of the city water connection.

Attach a suitable adapter to the plug nipple (Fig. 74/2).

Switch the switch (Fig. 74/3) to city connection. The onboard water pump is switched off.

Opening a tap activates the city water connection.

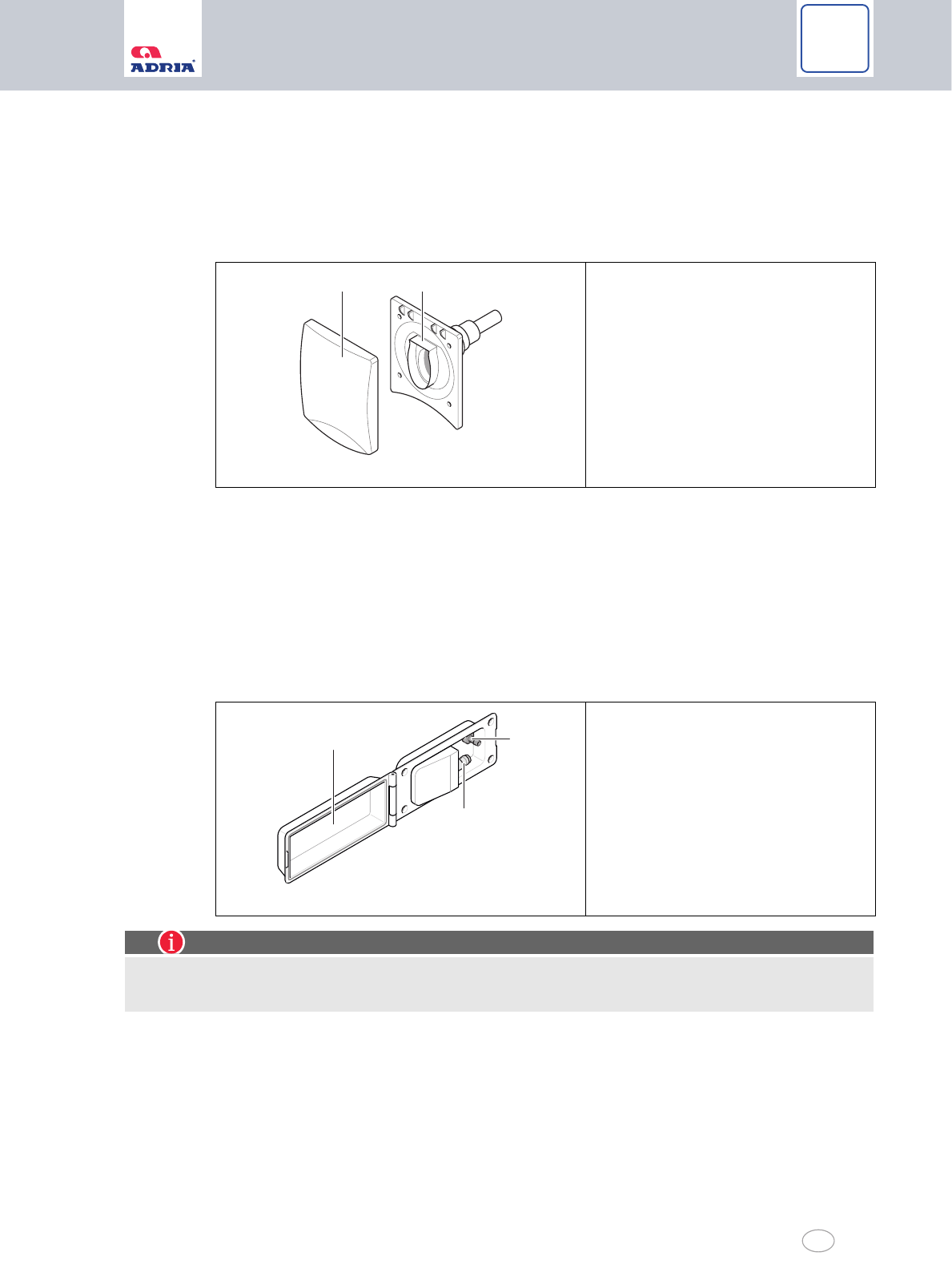

Fig. 73 Ultraflow external water connection

1 External water connection flap

2 Socket with switch contacts

Fig. 74 City water connection

1 City water connection flap

2 Plug nipple (type Gardena)

3 Water pump switch

Important!

• Check the fill level of your waste water container at regular intervals.

• Check the external water pressure, maximum allowable water pressure: 10 bar.

10100055

1 2

10100056

Water and waste water

98 Adria Caravans

12.1.4 Faucet

Drawing of hot and cold water is performed with a single-lever faucet.

Depending on the installation position, the water temperature is controlled either by raising and

lowering or swivelling of the lever

Operating the faucet:

Move the lever (Fig. 75/1) upward to turn on the water pump.

Water is running.

Adjust the desired temperature by swivelling the lever (Fig. 75/1).

Lever in the "red" direction: The water becomes warmer.

Lever in the "blue" direction: The water becomes cooler (minimum ambient temperature

of the water tank).

Push the lever (Fig. 75/1) fully downward to stop the water.

12.1.5 Waste water tank, mobile (special equipment)

The drain pipe (Fig. 76/2) is located at the vehicle bottom on the left in driving direction.

Positioning the waste water tank:

Open the cap of the waste water tank and stow away safely.

Position the waste water tank under the drain pipe so that no water drains outside the

waste water tank.

Check the level of the waste water tank at regular intervals and dispose of waste water

in time in an approved drain.

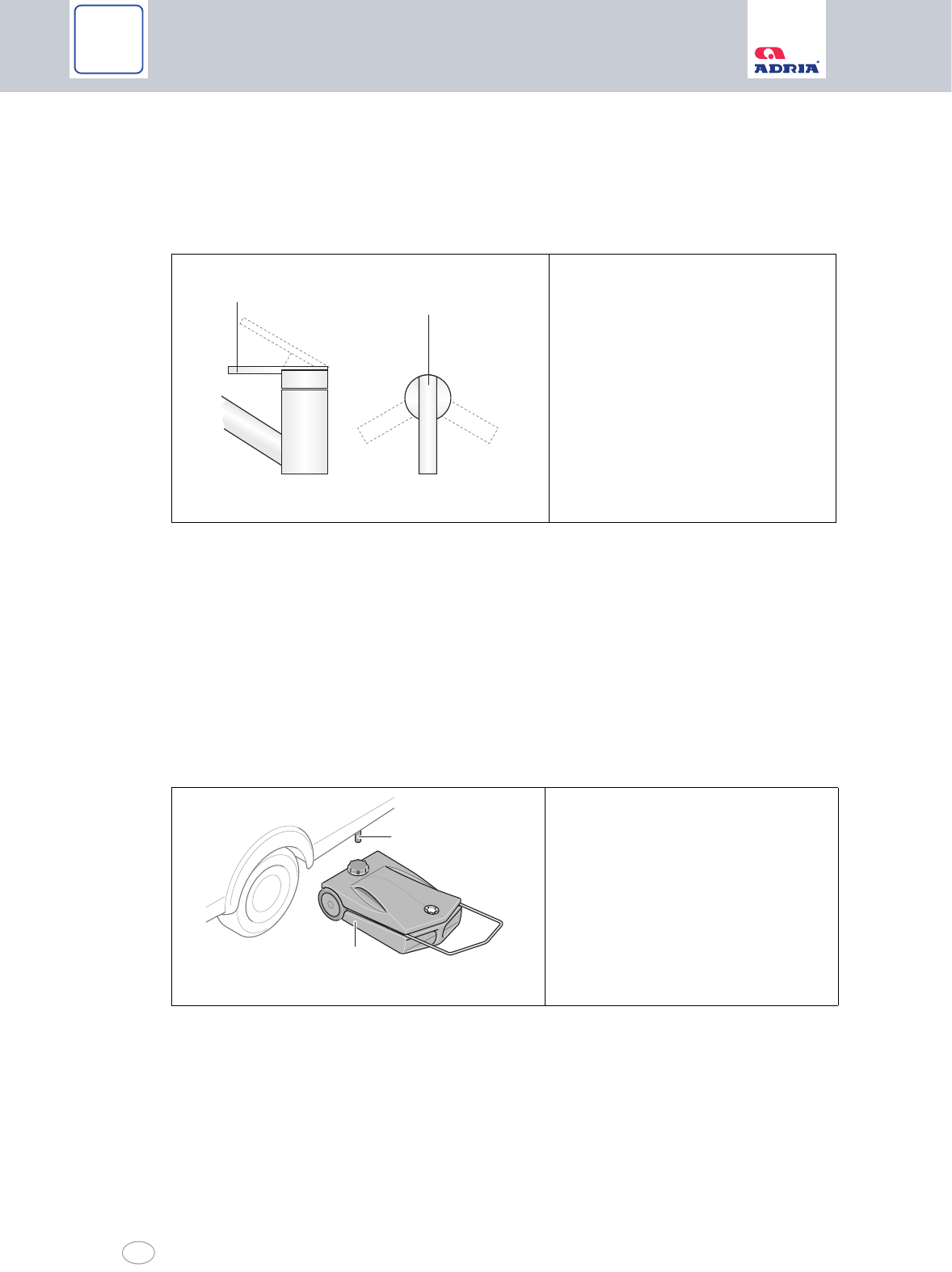

Fig. 75 Faucet

1 Lever (raising/lowering)

2 Lever (swivelling)

Fig. 76 Waste water tank, mobile

1 Waste water tank

2 Drain pipe

10100014

Water and waste water 12

Adria Caravans 99

12.2 Draining the water and waste water system

When the vehicle is placed out of service for an extended period of time or is not heated when

there is a risk of frost, empty and clean the entire water system and allow to dry. Leave the

water taps and drain cocks as well as all drain valves open.

Draining the water supply:

Switch the water pump and the boiler off or disconnect electrical plug connection.

Open all water taps to the centre position.

Empty the water tank (Chapter 12.1.1)

Open the boiler safety valve (Chapter 13.1.7).

The tank must be rinsed, cleaned and allowed to dry.

On vehicles with pressure pump, switch the pump on for a short time to remove residual

water.

Leave all water taps open in the centre position until the vehicle is placed into service

again. The water pump may be switched on only when water has been filled.

Emptying the waste water system:

Allow the waste water to flow into the waste water tank.

Drain the waste water tank at the intended waste water disposal station.

Leave the drain cocks as well as all drain valves open.

Warning!

Health hazard

Prevent the formation of bacteria and algae in the water tank.

Change the water at regular intervals including the boiler contents (e.g. twice a

week).

After the end of every journey, the water tank including the boiler must be drained,

cleaned thoroughly and left open (venting).

Thoroughly clean the hoses after the end of each journey.

Use disinfectant for the water tank.

Caution!

Damage due to frost

Prevent frost damage to the water system.

If the vehicle is not heated when there is a risk of frost (winter), damage to the compo-

nents of the water or waste water system can occur due to the formation of ice. Drain

all water-conducting components.

Heater & hot water

100 Adria Caravans

13 Heater & hot water

13.1 General heating information

13.2 Warm air heater

Switching the warm air heater on with electric ignition:

Open the shut-off valve on the gas cylinder and the quick-action stop valve of the heater.

Set the control knob (Fig. 77/1) on the heater to the desired setting and press it down to

the stop.

The ignition creates ignition sparks. A clicking noise can be heard.

Keep the control knob pressed until the flame can be seen in the inspection window in

the heater cover.

Keep the control knob pressed for about another 10 seconds so that the safety pilot

switches on.

Danger!

Risk of fire

The person using the heating must have the heat exchanger of the Truma heating

replaced at the latest after 30 years. Only the heating manufacturer or an authorized

workshop can exchange the heat exchanger.

Heating spare parts must always be approved as spare parts by the manufacturer.

Danger!

Risk of explosion

Never let unignited gas flow out.

Switch the heater off before filling the fuel tank, when on ferries and in garages.

Danger!

Risk of poisoning

Before placing the gas heater into service in winter operation, check the cowl on the

caravan roof is free from snow and ice.

Check the exhaust gas pipe for damage before switching the heating on. Do not use

the heater with a damaged exhaust gas pipe.

Do not close off or cover the exhaust cowl.

Use cowl extensions during winter camping, snow must not cover the exhaust cowl.

Do not use the space behind the heating for storage.

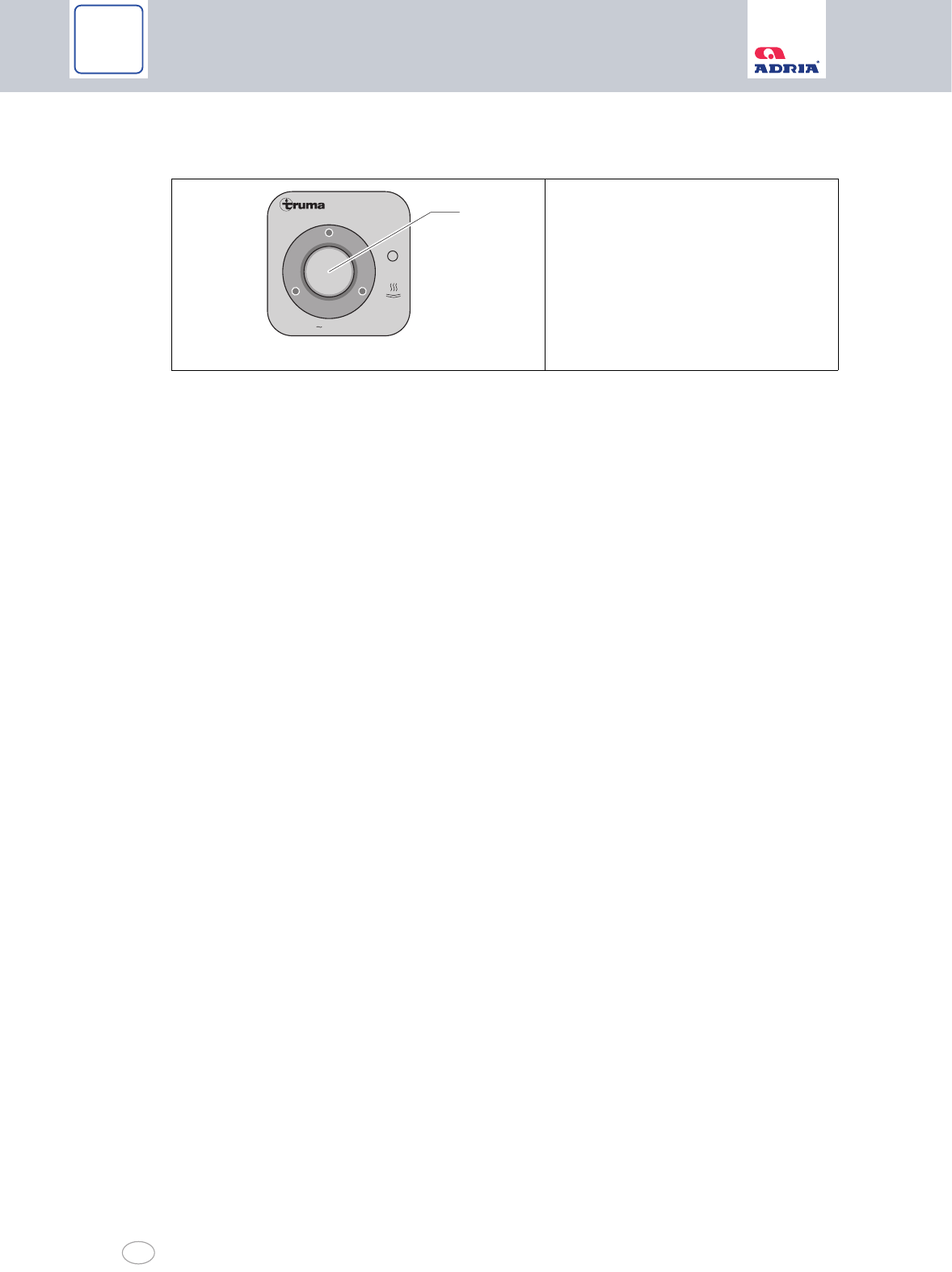

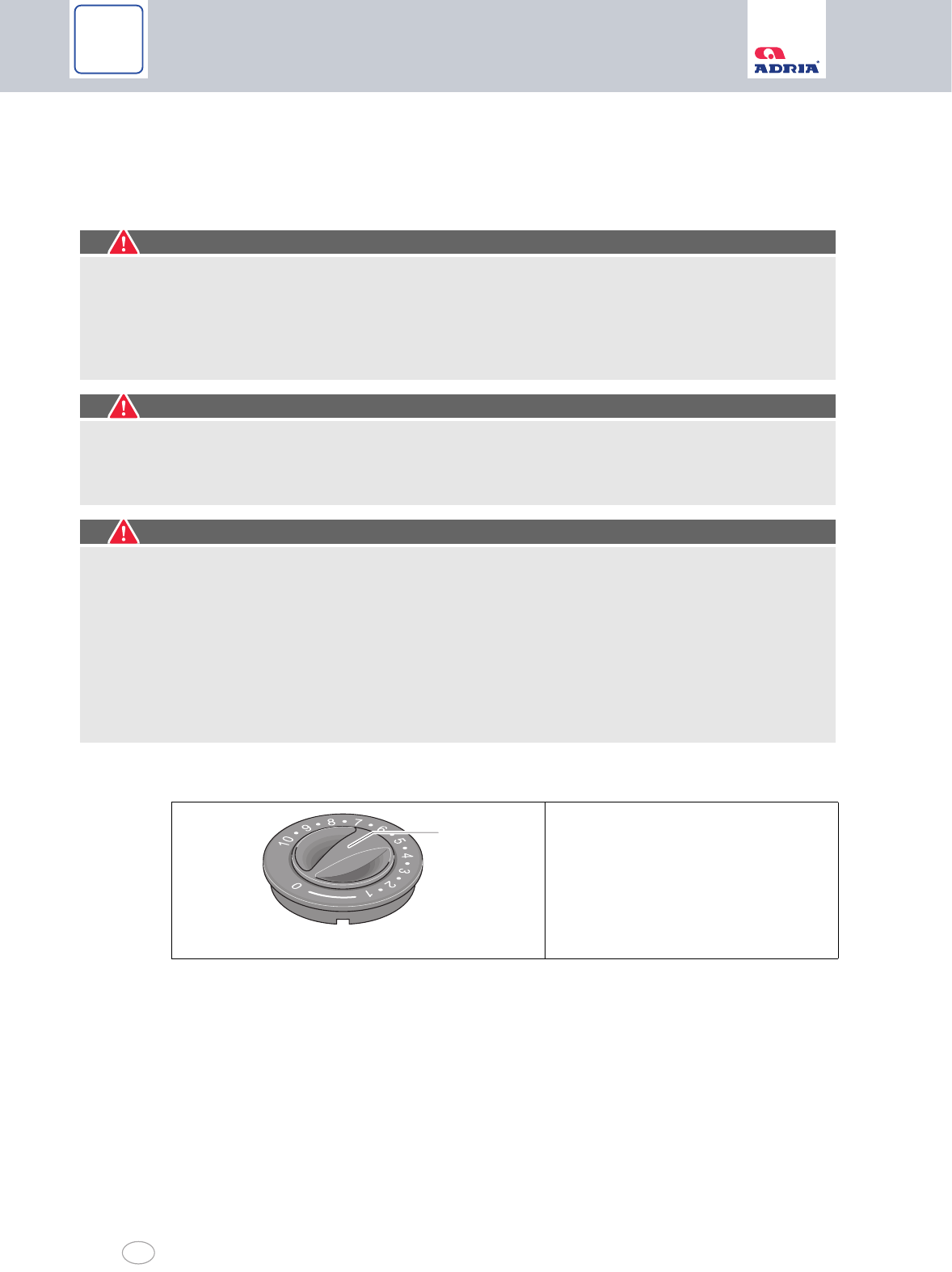

Fig. 77 Control knob, warm air heater

1 Control knob

10100013

Heater & hot water 13

Adria Caravans 101

Switching the warm air heater off:

Set the control knob (Fig. 77/1) of the heating to "0".

If the heating is not going to be used for some time, close the quick-action stop valve

"Heating" and the shut-off valve on the gas cylinder.

For more information, see the separate instructions from the manufacturer.

13.3 Circulation fan (special equipment)

The circulation fan allows better circulation of the warmth from the warm air heater.

Switching the circulation fan on:

Set the desired operating mode with the slide switch (Fig. 78/4).

– (1) Manual control (e.g. ventilation)

– (2) Circulation fan "Off" (switch setting not effective during heating)

– (3) Automatic operation (heating)

In manual operation (Fig. 78/1), use the control knob (Fig. 78/5) to set the desired level

of the circulation fan or to limit the level during automatic operation (Fig. 78/3).

For more information, see the separate instructions from the manufacturer.

13.4 Ultraheat auxiliary electric heater (special equipment)

The Ultraheat auxiliary electric heater is integrated in the warm air heater. The auxiliary electric

heater heats the vehicle faster.

Fitting this unit provides three operating modes for the warm air heater:

• Warm air heater only

• Warm air heater and electric heater together

• Electric heater only

The auxiliary electric heater has three capacity levels:

• 500 W

• 1000 W

• 2000 W

Fig. 78 Operating switch, circulation fan

1 Manual control

2 Circulation fan off

3 Automatic operation

4 Slide switch

5 Control knob

10100012

1 2 3

Heater & hot water

102 Adria Caravans

Switching Ultraheat on:

Connect the vehicle to the 230 V supply (see Chapter 10.1.1).

Turn the rotary switch (Fig. 79/1) to the desired capacity level 500 W, 1000 W or

2000 W.

Set the thermostat (Fig. 79/3) to the desired temperature.

Switching Ultraheat off:

Set the rotary switch to (Fig. 79/1) "Off" (Fig. 79/2).

For more information, see the separate instructions from the manufacturer.

13.5 Electrical floor heating (special equipment)

Depending on the model and special equipment, your vehicle has been fitted with floor heating.

The floor heating serves to heat the floor surfaces in your vehicle slightly.

You can only use the floor heating when the vehicle is connected to a 230 V supply.

Fig. 79 Ultraheat control with room thermostat

1 Rotary switch for levels

2 "Off" position

3 Temperature controller

Danger!

Risk of electric shock or short-circuit

Do not drill any holes or screw in any screws in the floor when the vehicle is fitted with

electrical floor heating.

Danger!

Risk of overheating

Do not cover the transformer.

10100011

Ultraheat

230 V

1000

500

2000

Heater & hot water 13

Adria Caravans 103

The transformer (Fig. 80/1) for the electric floor heating is fitted in the seat chest or bed box

depending on the model.

Using the electrical floor heating:

Check the circuit protection for the 230V power supply at the camping site is adequate.

(350 W - 1.5 A)

Check the connection cable is wound off fully from the cable reel.

Check the 230 V circuit breaker in the vehicle is switched on.

Check the mains plug of the transformer is connected to a 230 V socket.

Press the rocker switch (Fig. 81/2). The control lamp (Fig. 81/1) in the swich goes on.

Switching the electrical floor heating off:

Press the rocker switch (Fig. 81/2). The control lamp in the switch (Fig. 81/1) goes off.

The floor remains warm for some time after switching off due to residual heat.

The electrical floor heating has an overload protection. The overload protection triggers when

the transformer is overloaded. The pin (Fig. 80/2) springs out.

When the transformer has cooled down, push the pin (Fig. 80/2) on the overload protec-

tion back in again.

For more information, see the separate instructions from the manufacturer.

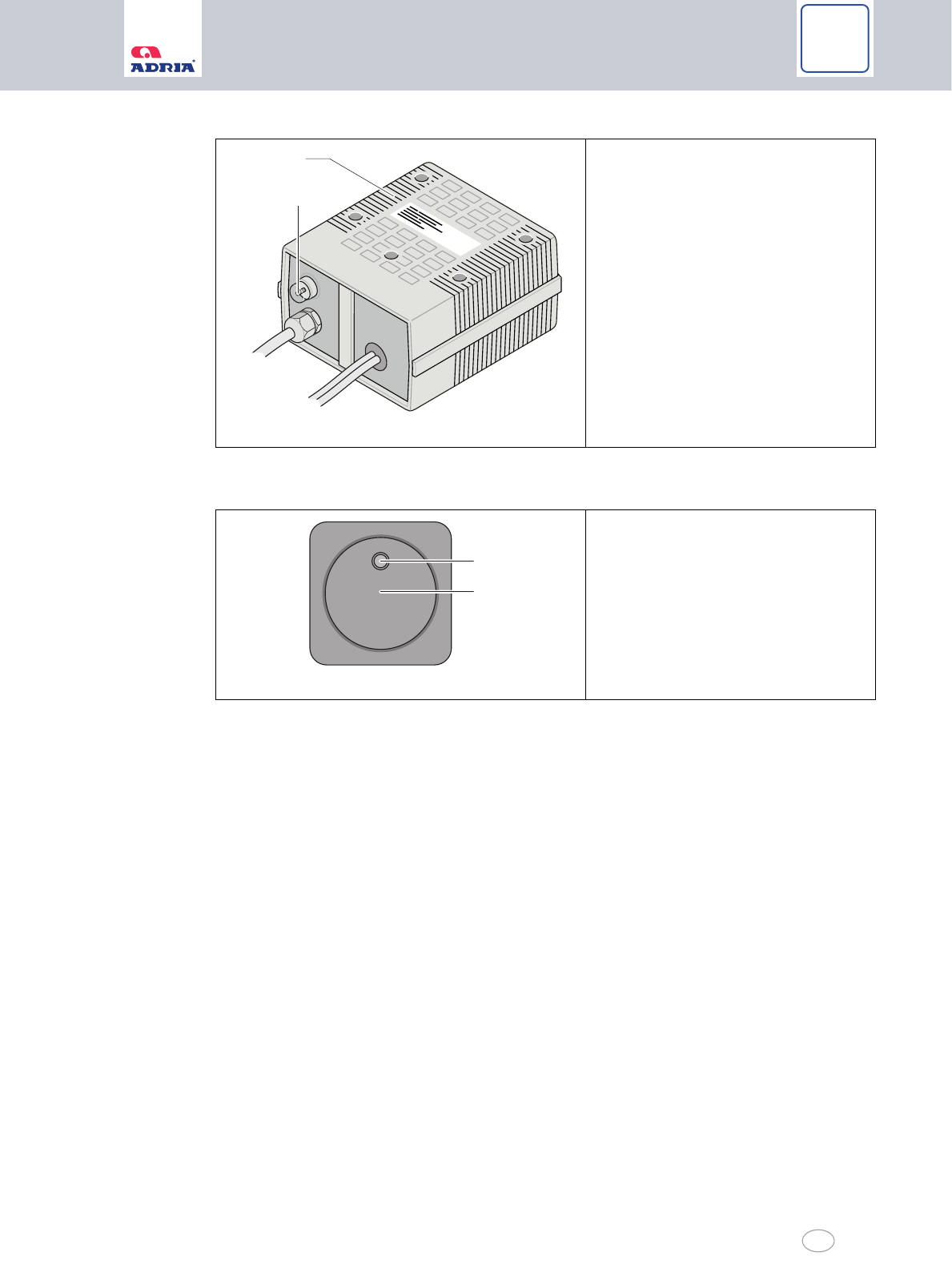

Fig. 80 "Electrical floor heating" transformer

1 Transformer

2 Overload protection pin

Fig. 81 "Electrical floor heating" switch

1 Control lamp

2 Rocker switch

10100008

10100002

Heater & hot water

104 Adria Caravans

13.6 Truma Therme (special equipment)

You can run the Truma Therme with either the 230 V supply (electric model), with warm air

from the heating system or with both types of energy. The Truma Therme heats about 5 l of

water to maximum 65° C.

The switch serves to start (Fig. 82/1) the electric operating mode. The control lamp in the

switch is on during operation.

In warm air operation, the water in the Therme is heated by the heater air flow.

Filling the Truma Therme with water:

Check that the Truma Therme switch is switched off (Fig. 82/1). The control lamp must

be off.

Turn the drain cocks (Fig. 83/1) clockwise to close.

Open all water taps in the vehicle to "Hot". The water pump now runs.

Leave the taps open until the water flows out without bubbles. The boiler is now filled

with water.

Close all taps.

Running the Truma Therme with electricity:

Connect the vehicle to the 230 V supply.

Switch the rocker switch (Fig. 82/1) for the Truma Therme on. The control lamp in the

switch goes on. The water in the Truma Therme is heated to maximum 65 °C.

Fig. 82 Truma Therme rocker switch

1 Switch

10100006

Therme

230 V

Heater & hot water 13

Adria Caravans 105

Emptying the Truma Therme :

Place a collector under the drain openings of the drain cocks.

Switch the rocker switch (Fig. 82/1) for the Truma Therme off. The control lamp in the

switch is off.

Open all taps.

Turn the drain cocks (Fig. 83/1) anticlockwise to open.

Check that the Therme is completely empty.

Dispose of the water collected at an approved location.

For more information, see the separate instructions from the manufacturer.

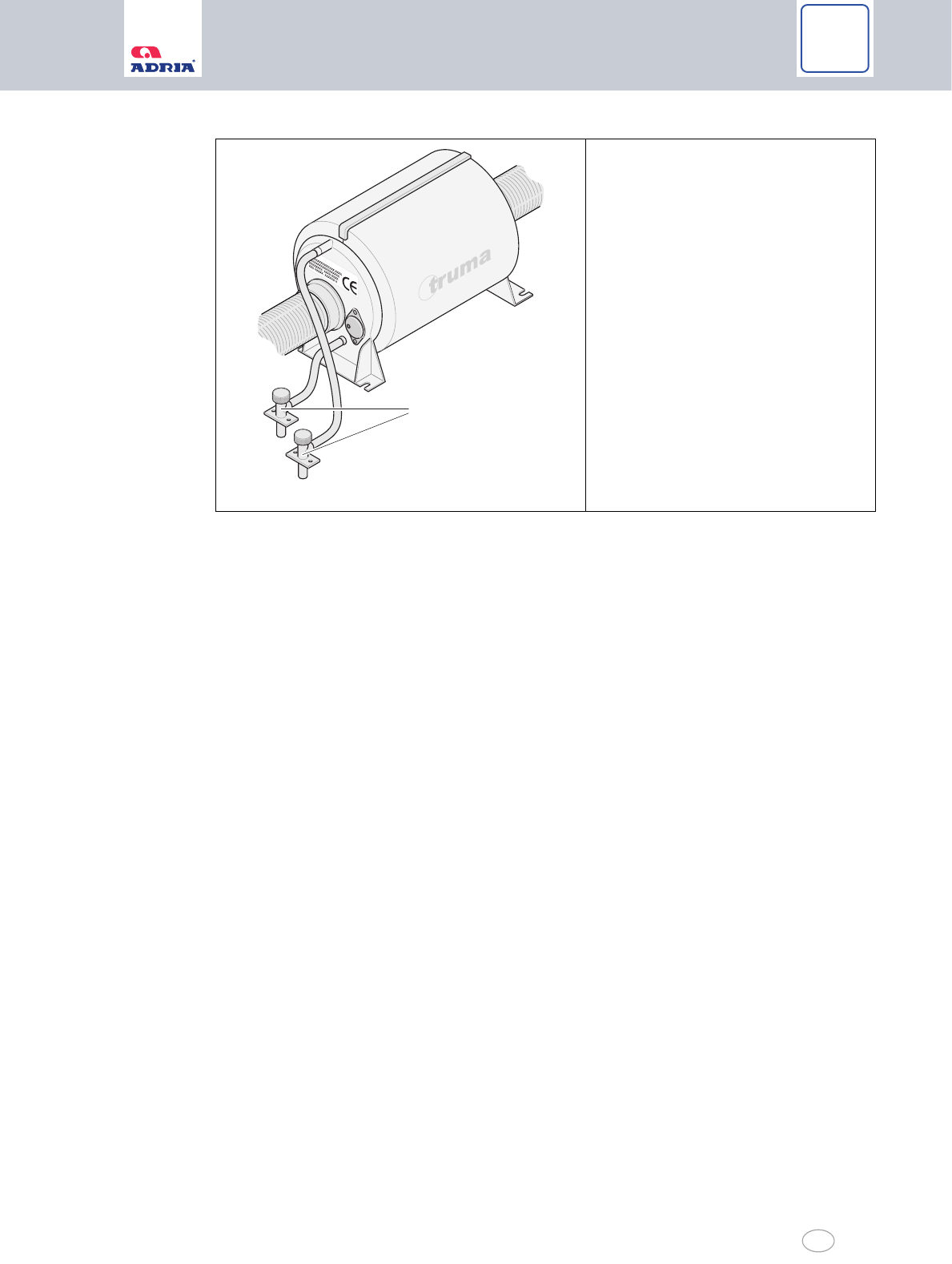

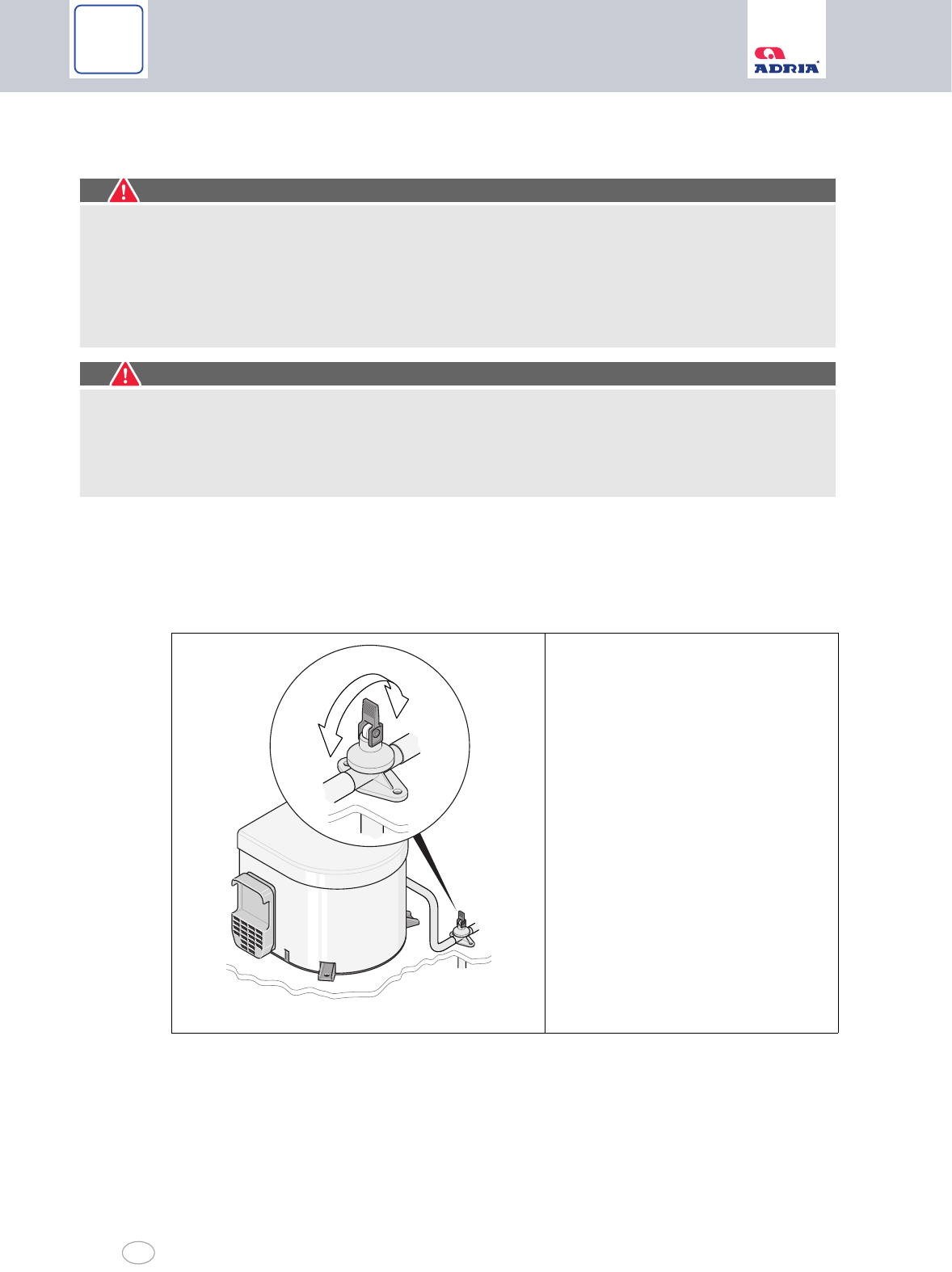

Fig. 83 Truma Therme

1 Drain cocks

10100007

Heater & hot water

106 Adria Caravans

13.7 Truma Boiler (special equipment)

The boiler can be run with either gas or power from the 230 V supply. The 12 V supply supplies

voltage to the electric boiler control.

To speed up water heating, the Truma Boiler can be run with both gas and electricity.

13.7.1 Filling/emptying the boiler

The boiler is supplied with water from the water tank.

Filling the boiler with water:

Close the safety/drain valve (Fig. 84/2). To do this, turn the rocker arm horizontal.

Switch on the 12 V supply.

Open all water taps in the vehicle to "Hot". The water pump now runs.

Danger!

Risk of poisoning and suffocation when the exhaust cowl is fitted on the right

When the awning is in place and the heater operates in gas mode, the heater exhaust

gases can collect under the awning. There exists the risk of poisoning and suffocation

due to lack of oxygen and the possibly generated odourless and toxic carbon monoxide

(CO).

Ensure adequate ventilation!

Caution!

Type of danger

Never run the boiler without water.

When the boiler is not in use, empty it when there is a risk of frost.

Switch the boiler off and empty it when the vehicle is not in use.

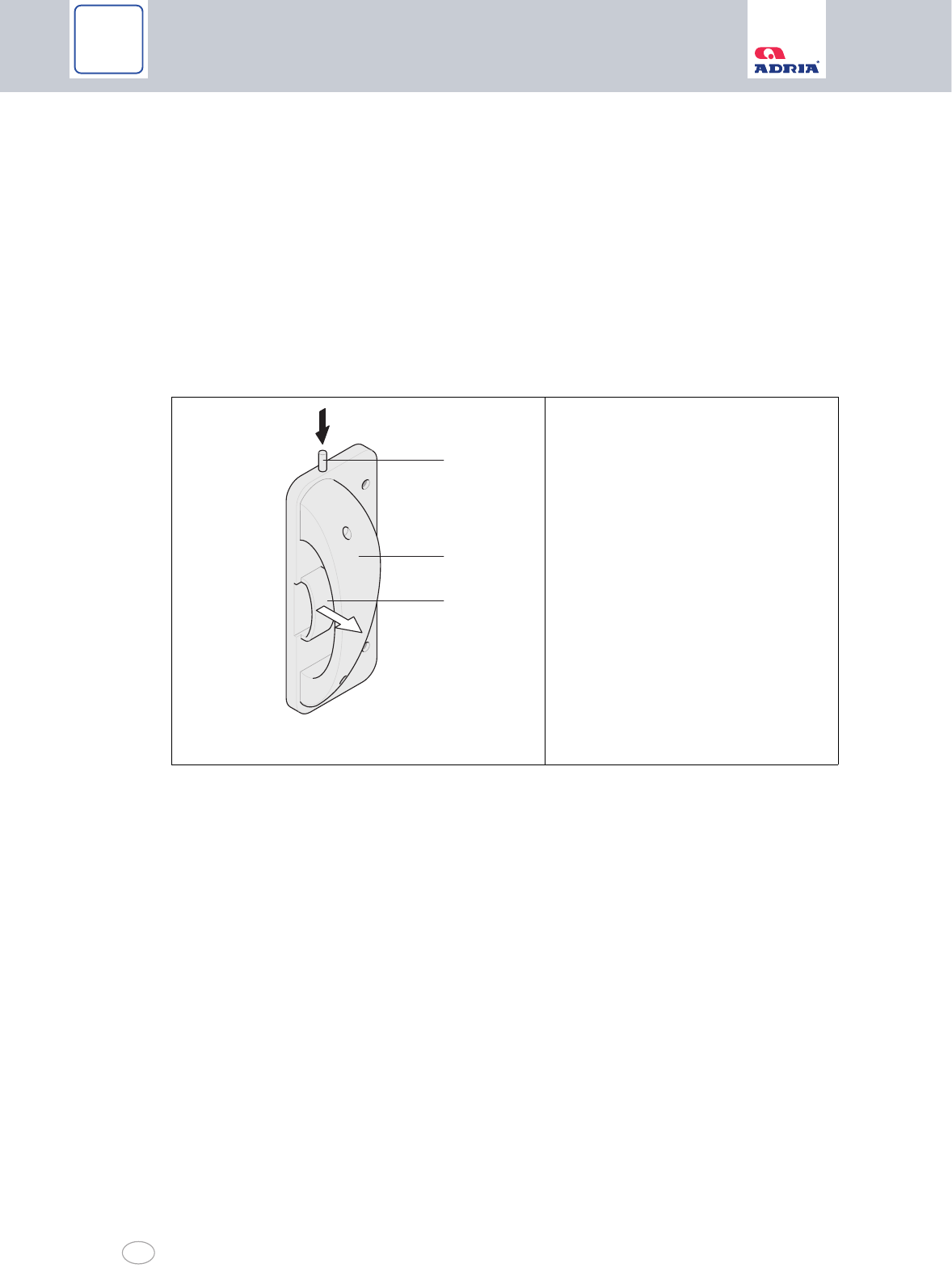

Fig. 84 Boiler safety/drain valve

1 Drain cock closed

2 Drain cock open

10100005

Heater & hot water 13

Adria Caravans 107

Leave the taps open until the water flows out without bubbles. The boiler is now filled

with water.

Close all taps.

Emptying the boiler:

Place a collector under the drainage opening of the drain cock.

Switch off the rocker switch for electric operation (Fig. 86/1) and the rotary knob for gas

operation (Fig. 85/3). The control lamps in the switches are off.

Switch off the 12 V supply.

Open all taps.

Open the safety/drain valve (Fig. 84/2). To do this, set the rocker arm vertical.

Check that the boiler is completely empty.

Dispose of the water collected at an approved location.

For more information, see the separate instructions from the manufacturer.

13.7.2 Boiler in gas mode

Switching the boiler on in gas mode:

Remove the cowl flap.

Open the main shut-off valve on the gas cylinder and "Boiler" quick-action stop valve.

Switch on the 12 V supply.

Set the rotary switch (Fig. 85/3) to "On" (Fig. 85/5). The green control lamp "Operation"

goes on in the rotary knob (Fig. 85/1).

Set the desired water temperature on the rotary knob (Fig. 85/1).

The red control lamp (Fig. 85/2) goes on when a malfunction occurs. For more information, see

the separate instructions from the manufacturer.

Switching the boiler off in gas mode:

Set the rotary switch (Fig. 85/3) to "Off" (Fig. 85/4).

Close the "Boiler" quick-action stop valve and the main shut-off valve on the gas cylin-

der.

Put the exhaust cowl flap back on.

The red control lamp (Fig. 85/2) goes on when a malfunction occurs.

For more information, see the separate instructions from the manufacturer.

Fig. 85 Boiler operating unit in gas mode

1 Temperature rotary knob

2 Control lamp for malfunctions

(red)

3 "On/Off" rotary switch

4 Off

5 On

10100003

Boiler

Heater & hot water

108 Adria Caravans

13.7.3 Boiler in electric mode

The water temperature is preset to about 70° C in e lectric mode and cannot be changed.

Switching the boiler on in electric mode:

Connect the vehicle to the 230 V supply.

Press the rocker switch (Fig. 86/1) at the top. The green control lamp "Operation" goes

on.

Switching the boiler off in electric mode:

Press the rocker switch (Fig. 86/1) at the bottom. The green control lamp "Operation" is

not on.

For more information, see the separate instructions from the manufacturer.

Fig. 86 Boiler rocker switch for electric mode

1 Rocker switch

Important!

The electric heating rod is fitted with an overheat protection. If a malfunction occurs (water

remains cold), switch the rocker switch off, wait about 10 minutes and then switch it on

again.

10100004

Boiler EL

230 V

Heater & hot water 13

Adria Caravans 109

13.8 Alde warm water heater

Central heating and warm water heater Alde Compact 3010 is controlled by the control panel.

The control panel has a touch-sensitive display. Just pressing the display surface lightly serves

to enter most of the settings.

13.8.1 Overview of symbols

Important!

Central heating Alde Compact has an "ionizing flame control", i.e. if the flame goes out, the

electronic control panel attempts to ignite the flame again. If the flame does not ignite within

10 seconds, the solenoid valve shuts off the gas supply and the electronic control panel.

Reset by switching off and restarting the heater with the On/Off button (Fig. 87/8).

Fig. 87 Overview of control panel symbols

1 Clock

For setting the clock, see the sep-

arate instructions from the manu-

facturer.

2 Outside temperature

The outside temperature is indi-

cated when the sensor has been

installed.

3 Inside temperature

The inside temperature is indi-

cated.

4 Circulation pump

The symbol is displayed when the

pump is in operation.

5 Automatic cylinder switch-over

The symbol is displayed when

automatic cylinder switch-over is

connected and activated, see the

separate instructions of the man-

ufacturer.

6 230 Volt

The symbol is displayed when a

voltage of 230 Volt is applied to

the heater.

7 MENU button

Button for the settings menu.

8 On/Off button

Main switch of the heater.

10100114

4 5 6

Heater & hot water

110 Adria Caravans

13.8.2 Menu overview

When the Menu button is actuated, background lighting comes on and the functions that can

be set are displayed.

The performed settings are automatically saved after ten seconds. After two minutes, the con-

trol panel automatically switches to standby when no buttons are pressed.

13.8.3 Starting the heater

Check the heater liquid level (Chapter 20.5).

In gas operation: Open the shut-off valve on the gas cylinder and the quick-action stop

valve of the heater.

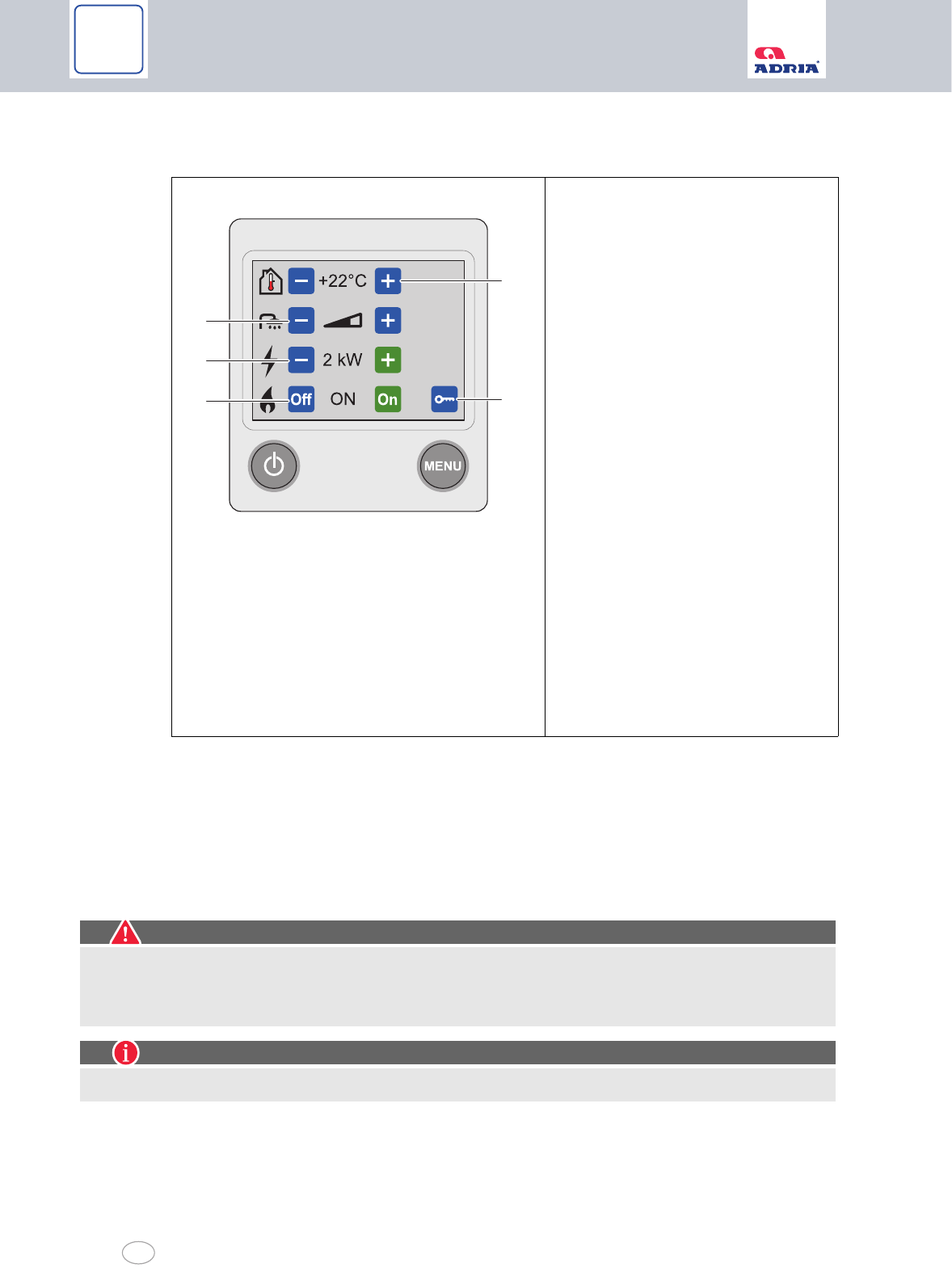

Fig. 88 Overview of control panel menu

1 Heating with gas

Press the "On" button to switch

gas operation on.

Press the "Off" button to switch

gas operation off.

2 Heating with electricity

Select the power (Off, 1 kW, 2 kW

or 3 kW) by pressing the "+" or "-"

button. Some heaters only have 1

kW or 2 kW.

3 Hot water volume

Press the "+" button to increase

the hot water volume for 30 min.

Press the "–" button to return to

the basic settings for hot water

before 30 min. have expired.

4 Room temperature

Press the "+" button to increase

the temperature.

Press the "-" button to reduce the

temperature.

5 Tools menu

For the settings, see the separate

instructions from the manufac-

turer.

Caution!

Damage to heater

Only authorised and qualified personnel may perform work on the electronic control

panel of the central heating!

Important!

Heating with electricity is to be preferred to heating with gas.

10100115

Heater & hot water 13

Adria Caravans 111

To start the heater, press the On/Off button (Fig. 87/8). The Start screen is displayed.

The heater starts with the settings used last.

Control of central heating with the control panel (Fig. 88/1 to 5).

In summer, when only hot water is required, the set temperature value must be lower than the

prevailing temperature to prevent a start of the pump in the heating system.

For more information, see the separate instructions from the manufacturer.

13.9 Exhaust cowl on the right side of the vehicle

13.10 Warm air distribution

Several air outlet nozzles (Fig. 89/1) are built into the vehicle. Pipes and flexible hoses conduct

the warm air to the nozzles.

Distributing the warm air:

Adjust the air outlet nozzles (Fig. 89/1) so that the warm air escapes at the desired posi-

tions only.

Adjusting the air outlet nozzles:

Fully open the air outlet nozzle (Fig. 89/1) to conduct the full warm air flow to the desired

position.

The more the air outlet nozzle is closed (Fig. 89/1), the less warm air flows out.

The more air outlet nozzles are open, the less warm air flows out at the individual noz-

zles.

Danger!

Risk of poisoning and suffocation

When the awning is in place and the heater operates in gas mode, the heater exhaust

gases can collect under the awning. There exists the risk of poisoning and suffocation

due to lack of oxygen and the possibly generated odourless and toxic carbon monoxide

(CO).

Ensure adequate ventilation!

Fig. 89 Air outlet nozzle

1 Air outlet nozzle

Cooking

112 Adria Caravans

14 Cooking

14.1 Cooking with gas

Observe the following when operating the gas stove:

Always open a window or a roof hood (Chapter 8.2).

This supplies the vehicle with sufficient oxygen and leads away cooking vapours.

Do not keep combustible objects, e.g. tablecloths, napkins, etc. near the gas stove. Risk

of fire!

Carefully observe the ignition process. The view must not be obstructed.

Place the pots on the middle of the cooking positions.

Use only pots with flat bottoms that are not larger than the respective gas burner grate.

Do not allow the flames to extend beyond the pot edge.

Always use cooking gloves or pot holders when handling hot pots, pans and similar

items. Risk of injury!

Never use the gas stove for heating.

Observe the following for the glass cover (special equipment):

Do not apply pressure on the glass gas stove cover when closed.

Do not close the glass cover while burners are still in operation or emit heat.

Do not place hot cooking pans on the glass cover.

In the case of frost, keep the kitchen window closed and provide ventilation in a different

way. Otherwise, the temperature difference on the glass cover could cause damage.

Danger!

Risk of poisoning due to carbon monoxide (CO) and lack of oxygen

Always open a window or a skylight as well when the gas stove is switched on.

Never cover the forced ventilation in the roof hoods and in the entrance as well as the

mushroom ventilators.

Danger!

Risk of explosion

Never allow the gas to flow out unburned because of the risk of explosion!

If a flame of the gas stove extinguishes, unburned gas flows out until the flame failure

device is activated and together with the oxygen generates an explosive mixture inside

the vehicle!

Watch the flames while using the cooker!

When finished, shut the respective quick-action stop valve (Chapter 11.6.1).

Cooking 14

Adria Caravans 113

14.2 Gas stove

Using the gas stove correctly:

Clean the gas stove before placing it into service (Chapter 19.2.5).

Lift the glass cover (Fig. 90/3) of the cooking area (Fig. 90/2) up.

Open the shut-off valve of the gas cylinder and the quick-action stop valve (Fig. 69/3) on

the distributor block.

Turn the control knob (Fig. 90/1) of the desired cooking position (Fig. 90/2) to "large

flame", press it and keep it depressed.

Gas flows out.

Ignite the gas flowing out with a suitable device and keep the control knob (Fig. 90/1)

depressed for approx. 10 s until the safety pilot valve keeps the gas supply open.

If the flame goes out, repeat the process.

Regulate the gas supply by turning the control knob to the "large flame" or "small flame"

symbol.

Caution!

Defective cooking area

The burner does not operate properly. The flame goes out again and again despite the

control knob being depressed for an extended period of time.

The thermal element is bent or defective. Have defective thermal elements replaced by

an authorised workshop. We recommend yearly inspection by a specialist.

Important!

• Always make sure the respective control knob is set to "Off" when you are finished using

the cooking stove, the grill or the oven.

• On models with electric ignition, proceed in the same manner as described, however, the

flame is ignited by pressing the button for electric ignition on the control panel. The igni-

tion of the oven and of the grill must be performed with the door open.

Fig. 90 Gas stove

1 Control knob

2 Cooking area

3 Glass cover

123

Cooking

114 Adria Caravans

To switch off, turn the control knob clockwise to the "0 position".

The flame goes out and the flame safety device automatically shuts off the gas supply.

Close the quick-action stop valve (Fig. 69/3).

For more information, see the separate instructions from the manufacturer.

14.3 Extractor hood (special equipment)

The extractor hood is located above the gas stove.

Using the extractor hood:

Use the rocker switch (Fig. 91/2), (Fig. 92/2) to switch on the extractor hood during cook-

ing (Fig. 91/1), (Fig. 92/1). This prevents condensing water vapour and unpleasant

odour in the vehicle.

On some vehicles, you can switch on the lighting of the cooking area with the rocker

switch (Fig. 92/3) on the extractor hood.

For more information, see the separate instructions from the manufacturer.

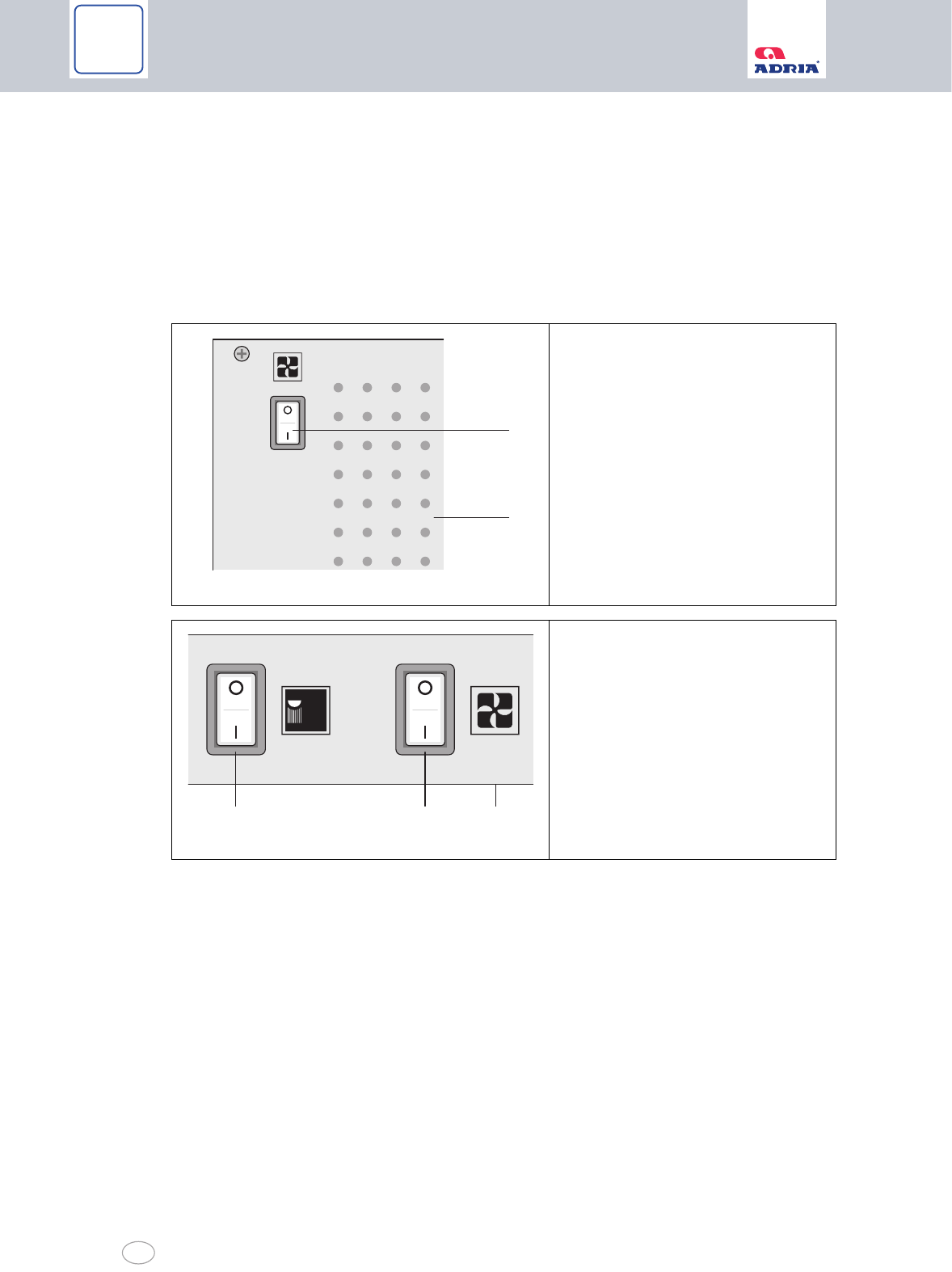

Fig. 91 Extractor hood - version 1

1 Extractor hood

2 Rocker switch

Fig. 92 Extractor hood - version 2

1 Extractor hood

2 Extractor hood rocker switch

3 Lighting rocker switch

3 2 1

Cooking 14

Adria Caravans 115

14.4 Microwave oven (special equipment)

Switching the microwave oven on:

Push the door opener (Fig. 93/3) to open the door and put the food in the cooking space.

Close the door. It closes with a click.

Press the capacity switch (Fig. 93/1) once or several times to select the capacity.

Select the cooking time on the cooking time control (Fig. 93/2).

Cooking starts.

Switching the microwave oven off:

A signal tone indicates when the cooking time has elapsed. The microwave oven switches off

independently.

Press the door opener (Fig. 93/3) and take the food out.

For more information, see the separate instructions from the manufacturer.

Danger!

Danger for health

Only allow qualified personnel to repair he microwave oven. Serious health risk through

incorrect repairs!

Do not remove the protection against microwave energy escaping.

Do not use the microwave oven when the door seal is damaged.

Do not leave the microwave oven unattended when in use.

If smoke occurs, switch microwave oven off and disconnect the power supply. Leave

the microwave oven closed.

Important!

We point out explicitly that we will not assume any liability for damage and malfunctions

resulting from the nonobservance of this instruction manual.

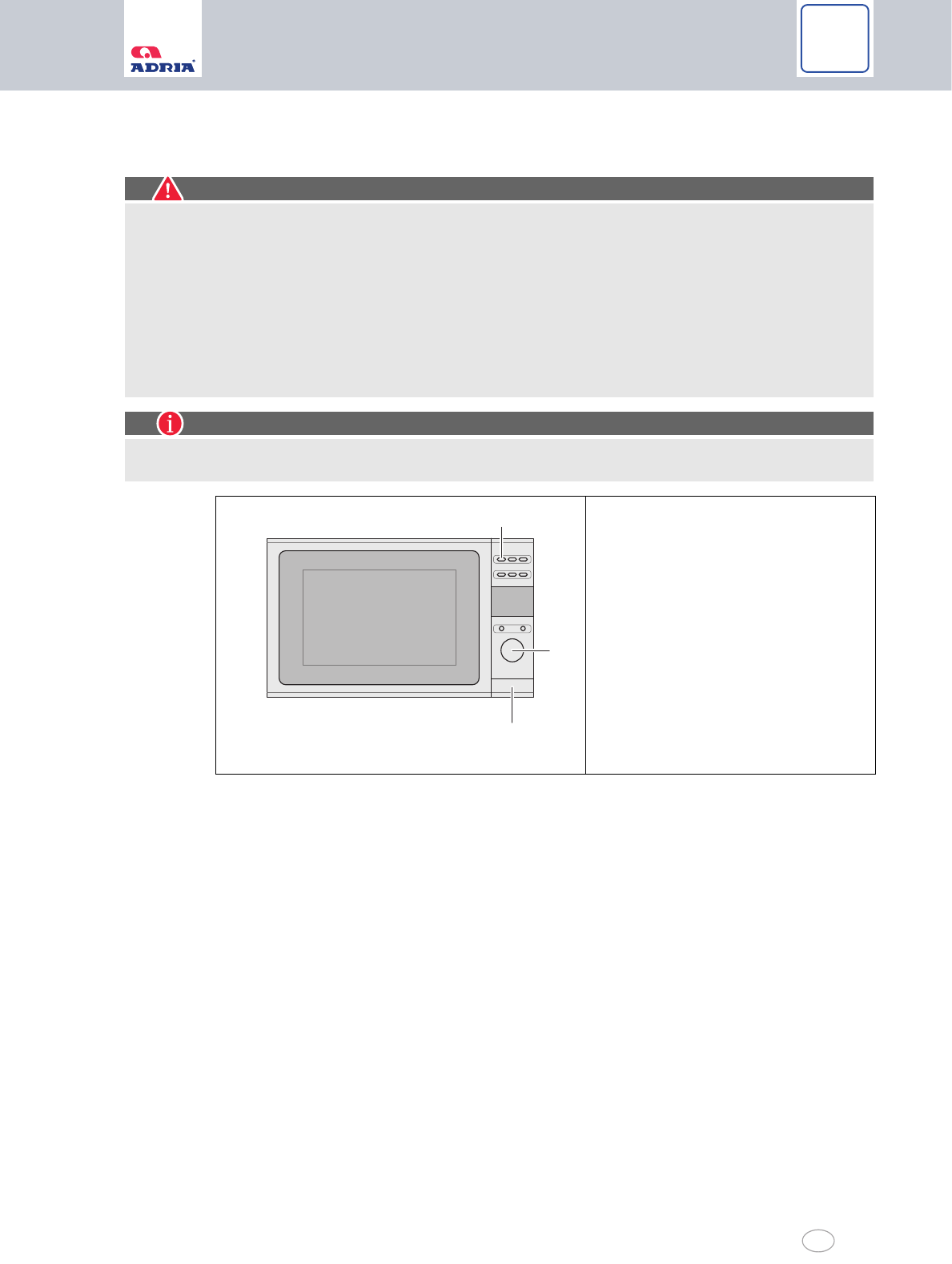

Fig. 93 Microwave oven

1 Capacity switch

2 Cooking time control

3 Door opener

10100027

Cooking

116 Adria Caravans

14.5 Gas stove with grill and oven (special equipment)

14.5.1 Operation

All flames are individually controlled and each single flame is monitored by the sensor of a ther-

mal element. If flames are extinguished by mistake, switch them off and wait at least one

minute before trying to ignite them again.

Using the cooking stove:

Make sure the gas supply is connected and switched on. Open the quick-action stop

valve for the cooker.

Press the control knob and turn it anticlockwise until it is fully open - towards the large

flame symbol.

Keep the control knob depressed while holding a lit match to the burner.

When the flame is burning, keep the control knob depressed for another 10 to 15 sec-

onds.

Release the control knob and set the desired flame level.

If the flame does not ignite within 15 seconds, release the control knob and wait at least

one minute before repeating steps 2 to 5.

To switch off the flame, turn the control knob until the line on the control knob points to

the mark on the control panel.

Warning!

Risk of burns by hot surfaces

Always wear protective gloves when handling hot items.

Protect yourself and your children from contact with hot parts.

After use, allow the grill and the oven to sufficiently cool down inside and outside.

Caution!

Damage to oven

Never use the oven for heating the vehicle!

Important!

• Always make sure the respective control knob is set to "Off" when you are finished using

the cooking stove, the grill or the oven.

• On models with electric ignition, proceed in the same manner as described, however, the

flame is ignited by pressing the button for electric ignition on the control panel. The igni-

tion of the oven and of the grill must be performed with the oven door open.

Cooking 14

Adria Caravans 117

Using the grill:

Make sure the gas supply or the gas cylinder are connected and switched on.

Open the door, press the control knob and turn it clockwise to the large flame symbol.

Keep the knob depressed while holding a lit match to the burner.

When the flame is burning, keep the knob depressed for another 10 to 15 seconds.

If the flame does not ignite within 15 seconds, release the control knob and wait at least

one minute before repeating steps 2 to 4.

To switch off the flame, turn the control knob until the line on the control knob points to

the mark on the control panel.

Using the oven:

Make sure the gas supply or the gas cylinder are connected and switched on.

Open the door, press the control knob and turn it to the stop (setting 9, 240 °C).

Keep the knob depressed and hold a lit match to the burner.

When the flame is burning, keep the knob depressed for another 10 to 15 seconds.

Release the knob and set the desired flame.

If the flame does not ignite within 15 seconds, release the control knob and wait at least

one minute before repeating steps 2 to 5.

Position the grate into the required position and close the door.

Although the oven heats up quickly, it is advisable to allow 10 minutes preheating time.

The oven should reach its full temperature within 15 to 20 minutes.

To switch off, turn the knob until the line on the knob is aligned with the mark on the con-

trol panel.

Adjusting the temperature:

Tab. 10 Oven temperature list

Gas setting Temperature

Middle of the oven

Dish

1/4 - 1/2 265 - 275 °C 130 - 135 °C Very cool Meringues

1 285 °C 140 °C Cool Stewed fruit

2 300 °C 150 °C Cool Stollen, rice pudding

3 330 °C 165 °C Warm Baked pudding, shortbread

4 355 °C 180 °C Medium Sponge cake

5 385 °C 195 °C Rather hot Baked dough, ginger-

bread biscuits

6 410 °C 210 °C Hot Short pastry

7 430 °C 220 °C Hot Bread, tartlets, puff pastry

8 445 °C 230 °C Very hot Flaky pastry

9 465 °C 240 °C Very hot Gratins

Refrigerator & freezer

118 Adria Caravans

15 Refrigerator & freezer

The refrigerator and the freezer compartment form a mechanical unit.

To ensure optimum function, the appliance should stand level, if possible. However, it is also

suitable for inclined positions to a certain degree.

The refrigerator and freezer compartment combination can be operated optionally with 230 V,

12 V or liquid gas.

Operation with 230 V or gas is recommended because these are most efficient.

Clean the refrigerator before placing it into service (Chapter 19.2.5).

When the appliance is first put into service, there may be a mild odour which will disappear

after a few hours.

Ensure the living area is well ventilated (Chapter 8.2).

The refrigerator is silent in operation.

The refrigerator takes a few hours to reach its operating temperature whereas the freezer com-

partment should be cold about one hour after switching the refrigerator on.

For more information, see the separate instructions from the manufacturer.

Important!

• Some Figures show special equipment which may not be installed in your vehicle.

• The refrigerator fitted in the vehicle runs according to the absorber principle. The higher

the ambient temperature, the more warmth the refrigerator must dissipate. This is done

via the refrigerator grille on the rear side of the refrigerator in the outer skin of the vehi-

cle.

– Open doors or windows can have a detrimental effect on air circulation depending

on the model.

– For higher temperatures, a circulation fan (special accessory) can be fitted to

improve refrigerator efficiency.

– It can be useful to remove the refrigerator grille in dry weather (without rain).

Caution: Always keep the refrigerator grille fitted during rain!

Refrigerator & freezer 15

Adria Caravans 119

15.1 Controls

15.1.1 Opening and locking the door

Opening the refrigerator Dometic 7 series:

Slide latch (Fig. 94/1) or (Fig. 94/2) to the left (Fig. 94/4).

Open the refrigerator door.

Closing the refrigerator Dometic 7 series:

Close the refrigerator door.

Slide latch (Fig. 94/1) or (Fig. 94/2) to the right (Fig. 94/3).

The refrigerator door is locked.

Caution!

Damage to refrigerator door

Always make sure the refrigerator door is correctly locked before moving the vehicle.

Fig. 94 Refrigerator lock Dometic 7 series

1 Freezer compartment latch

2 Refrigerator latch

3 Lock the door

4 Unlock the door

1 24 3

Refrigerator & freezer

120 Adria Caravans

Opening the refrigerator Dometic 8 series:

Press the unlock button (Fig. 95/1) down and open the refrigerator door.

Closing the refrigerator Dometic 8 series:

An automatic lock is fitted on the refrigerator door. When you close the refrigerator door

and press it on firmly, the door locks automatically.

Locking Thetford refrigerators:

An automatic lock is fitted on the refrigerator door. When you close the refrigerator door

and press it on firmly, the door locks automatically.

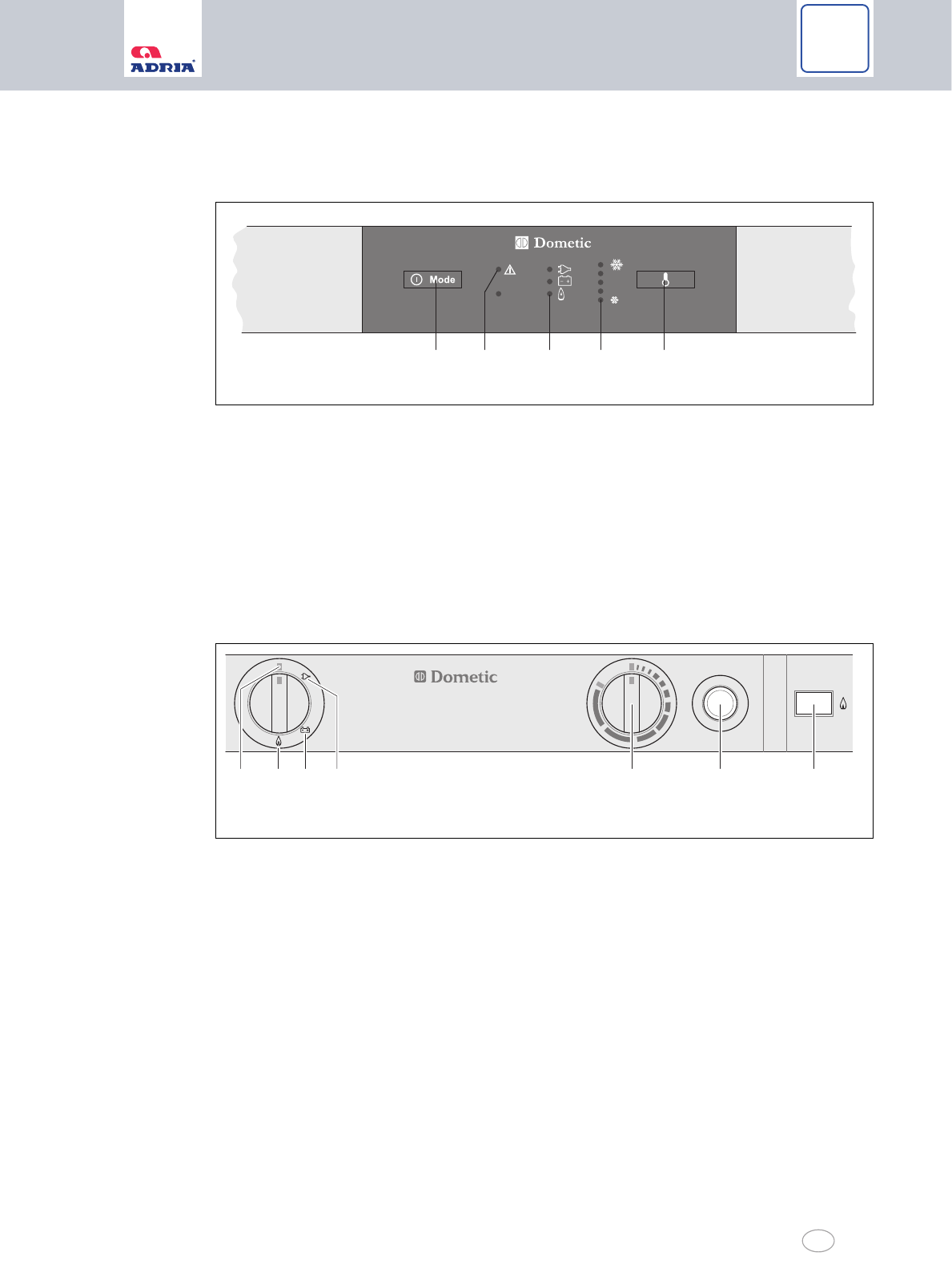

15.1.2 Dometic 7 series with automatic or manual mode selection

system

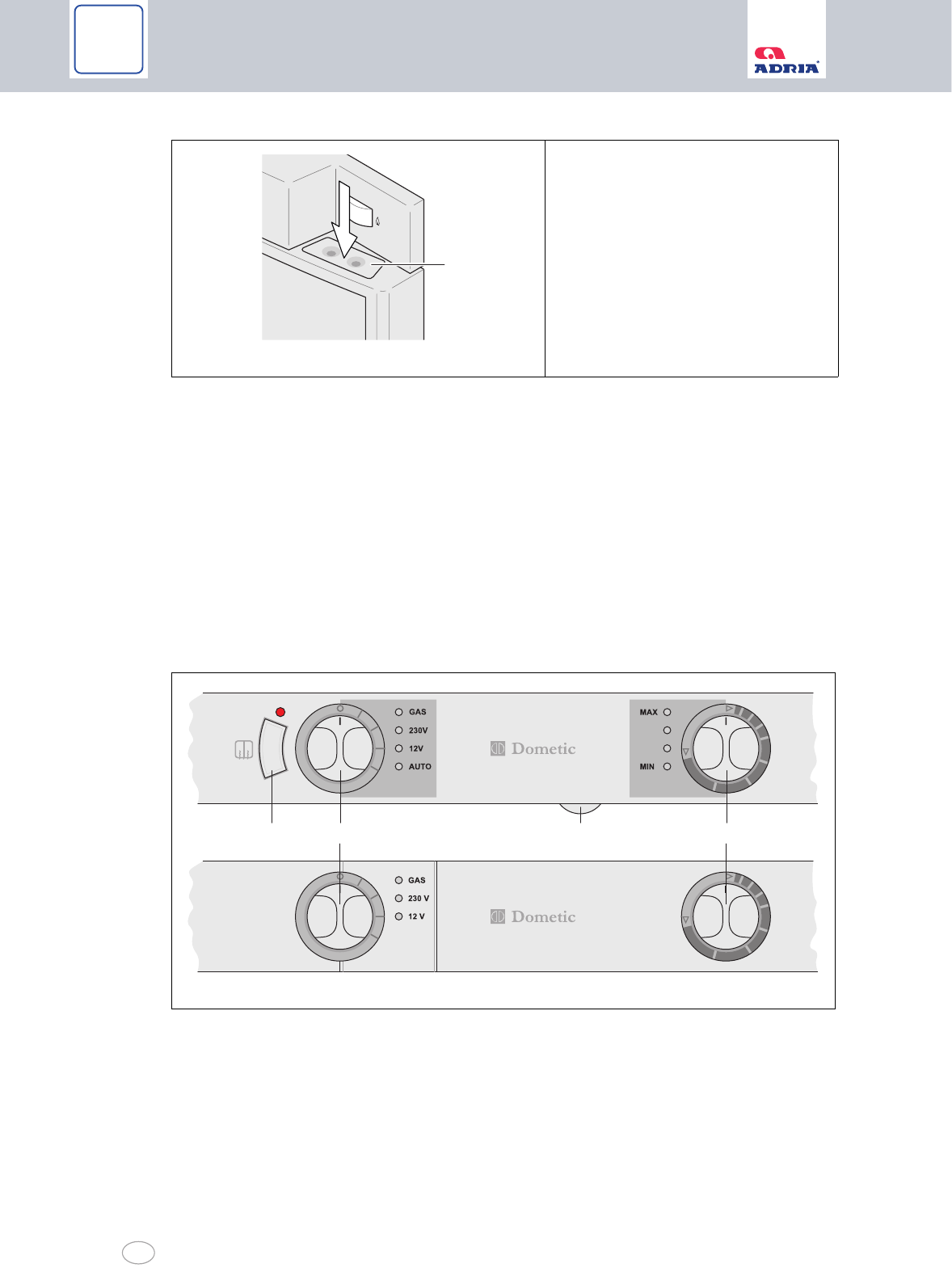

Fig. 95 Refrigerator lock Dometic 8 series

1 Unlock button

Fig. 96 Refrigerator controls (Dometic 7 series)

1 Frame heater switch

2 On/Off / energy selector button

3 Dimmer for LED indicator (accessible only when the door is open)

4 Gas / electric thermostat

10100033

3 421

Refrigerator & freezer 15

Adria Caravans 121

15.1.3 Dometic 8 series with manual mode selection and automatic

ignition MES

15.1.4 Dometic 8 series with manual mode selection and battery igni-

tion.

Fig. 97 Refrigerator controls (Dometic 8 series)

1 On/Off / energy selector button

2 "Malfunction" LED indicator

3 "Mode" LED indicator

4 "Temperature range" LED indicator

5 Temperature setting switch

Fig. 98 Refrigerator controls (Dometic 8 series)

1 Power selector switch "Off"

2 Power selector switch "Gas mode"

3 Power selector switch "12 V"

4 Power selector switch "230 V"

5 Temperature controller

6 Battery ignition (gas mode)

7 Flame display (gas mode)

1 5432

10100032

21 3 4 5 6 7

Refrigerator & freezer

122 Adria Caravans

15.1.5 Thetford Premium LCD

For more information, see the separate manufacturer's operating instructions.

15.2 Placing into service

15.2.1 Frame heater

Water drops can occur on the metal frame during the summer with high temperatures and high

air humidity. Some models have a frame heater for the freezer compartment to prevent this.

Switching the frame heater on:

Switch on the frame heater with the switch (Fig. 96/1).

The LED above the switch goes on when the frame heater is switched on.

15.2.2 12 V mode

The 12 V mode should be selected only while the engine is running.

However, we recommend operation with gas even when the engine is running because the

high energy input of the refrigerator draws too much energy from the onboard batteries.

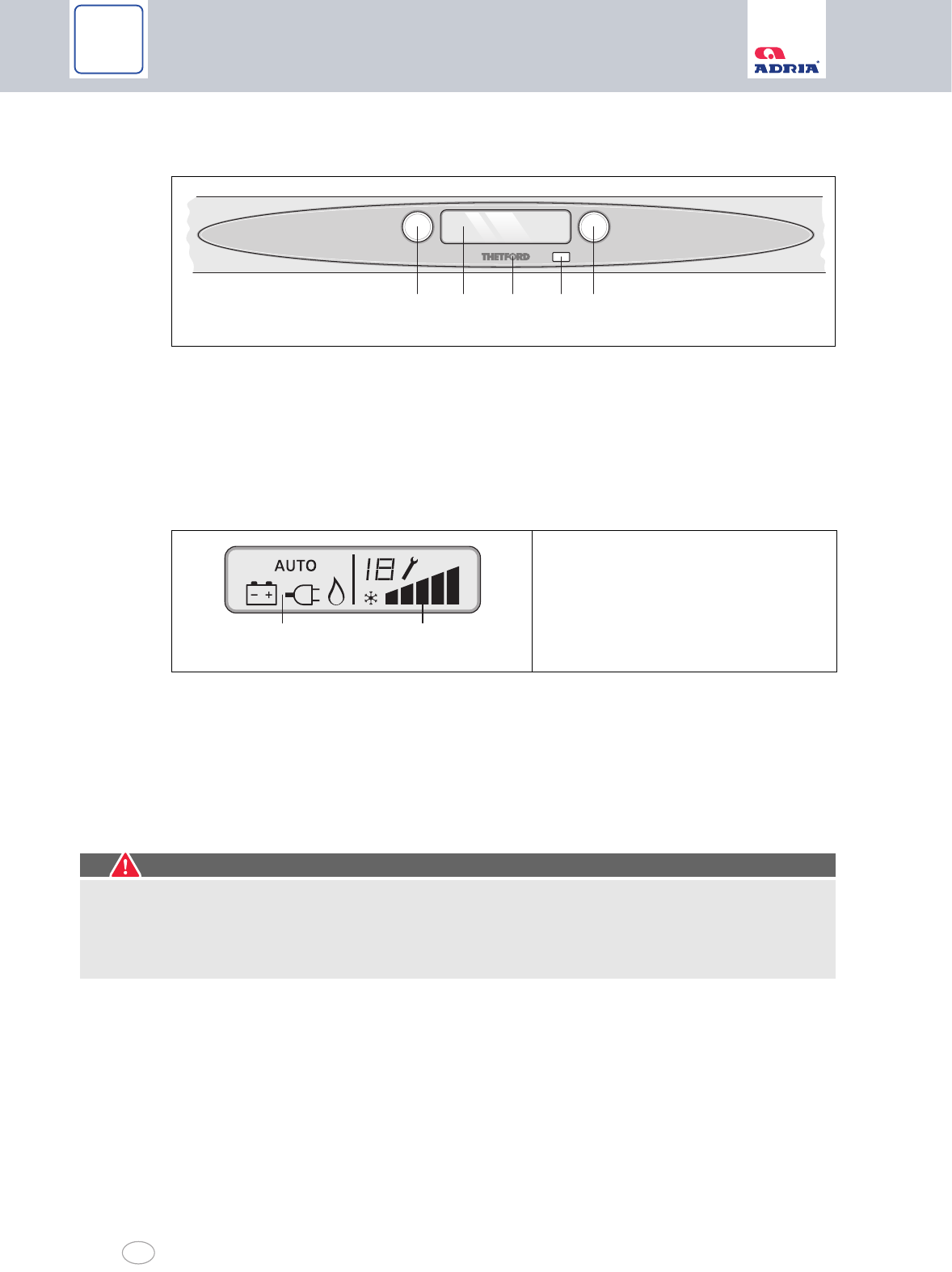

Fig. 99 Refrigerator and freezer compartment controls (Thetford Premium LCD)

1 Main switch

2 "Mode selector" switch

3 "Cooling capacity" selector switch

4 LCD display

5 "Mode" LED indicator

Fig. 100 LCD display

1 Mode

2 Cooling capacity / Fault / Service

Caution!

Battery discharge

The frame heater continuously draws power from the 12 V DC supply. During 12 V

mode using the starter battery (towing vehicle), observe the LED display when the

motor is switched off and the vehicle parked. Switch off the frame heater.

2 34 5 1

1 2

Refrigerator & freezer 15

Adria Caravans 123

15.2.3 230 V mode

Select the 230 V mode only when an external 230 V supply is connected.

Before starting the journey, obtain information on the voltage in the country to be visited.

15.2.4 Gas mode

Using the refrigerator with gas:

Open the shut-off valve of the gas cylinder and the quick-action stop valve (Fig. 69/3) on

the distributor block.

Select mode "Gas" using the power selector switch.

On refrigerators with manual ignition, press the battery ignition (Fig. 98/6) until the flame

display has moved to the green area.

On refrigerators with manual power selection (MES), press the power selector switch

(Fig. 97/1) resp. (Fig. 99/ 2) so often until "Gas mode" is selected. Ignition is then auto-

matic.

For more information, see the separate instructions from the manufacturer.

Danger!

Risk of explosion at petrol stations!

Open flames are prohibited at petrol stations!

– Switch the refrigerator off using the power selector switch!

Caution!

Using gas

Only use liquid gas to run the refrigerator (Chapter 11.3).

Operating the refrigerator with gas during the journey is generally allowed.

Before starting the journey, obtain information concerning special provisions of the

country to be visited (EN 732).

At altitudes of more than 1000 m above sea level, physical factors may cause problems

with the ignition of the gas. This is not a malfunction!

Operation using gas is prohibited in petrol stations!

Important!

On appliances with automatic power selection (AES or AUTO shown in the display), the pri-

ority sequence of the control electronics first selects GAS when neither of the electric power

types are available.

Refrigerator & freezer

124 Adria Caravans

15.2.5 Winter mode

Check in winter operation:

Check regularly that the ventilation grilles have not been blocked by snow, ice, leaves

or similar.

When the outside temperature drops below +8°C, the winter covers (special accessory)

should be fitted to the ventilation grilles

This protects the refrigerator unit from excessively cold air.

For more information, see the separate instructions from the manufacturer.

15.3 Storing food

15.3.1 General information

• Switch the refrigerator on approx. 12 hours before storing food.

• Always store pre-cooled food only. When buying and transporting food, make sure the food

is well pre-cooled. Use insulated bags for transport.

• Always open the refrigerator door just briefly.

• Always store the food separately and well packed (closed containers, aluminium foil, etc.).

• Never put hot food into the refrigerator. Always let it cool first.

• Store sensitive food directly near the fins.

• Bear in mind that the temperature inside a closed vehicle can rise significantly as a result

of sun irradiation. This can affect the performance of the refrigerator.

• Pay attention to the unhindered air circulation of the refrigerator unit.

15.3.2 Freezer compartment

• Do not store carbonated drinks in the freezer compartment.

• The freezer compartment is suitable for making ice cubes and for short-term storage of fro-

zen food.

• The freezer compartment is not suitable for freezing food!

15.4 Putting out of operation

For more information, see the separate instructions from the manufacturer.

Important!

Attach the winter covers also when the vehicle is taken out of service for an extended period

of time or cleaned on the outside.

Important!

If the refrigerator is switched off for a longer period of time, the door should remain open

somewhat. For this purpose, the lock has a special latching position.

Toilet 16

Adria Caravans 125

16 Toilet

Whenever using the toilet:

Every time you place the Thetford Cassette into service, perform all preparations

according to the separate manufacturer's operating instructions.

Before using the Thetford toilet for the first time, fill the water tank with fresh water

(Chapter 12.1.1) or fill the separate water tank (only with Thetford toilet C-402 C, Chap-

ter 16.1.2).

Cover the bottom of the cassette with water and fill in environment-friendly and biode-

gradable toilet chemicals. Observe the manufacturer's instructions for the dosage. For

environmental reasons, the toilet can also be used without chemical additives, however,

this requires more frequent emptying of the cassette (Chapter 16.2).

Caution!

Damage to the environment

Use an environment-friendly and biodegradable chemical toilet additive for the toilet.

– The ventilation will remove merely the odour but not germs and gases. Germs and

gases can have a detrimental effect on the rubber seals.

Caution!

Material breakage

Do not sit on the toilet lid.

– The lid is not designed to bear the weight of a person and could break.

Important!

• Do not leave water in the bowl when the toilet is not used. This does not prevent

unpleasant odours but could cause flooding.

• Use quick dissolving toilet tissue in order not to affect the mechanical components of the

cassette.

Toilet

126 Adria Caravans

16.1 Toilet system

16.1.1 Thetford Cassette C-200 S and C-260 S

Before use:

Turn the toilet bowl to the desired position using both hands.

Before flushing, use the lever (Fig. 101/1) to open the valve blade.

To activate the control panel, press the flush button (Fig. 101/3) once.

Run some water into the bowl by pressing the flush button again briefly.

After use:

Push the lever (Fig. 101/1) to the side if the valve blade is still closed.

Flush the toilet (Fig. 101/3) by pressing the flush button for several seconds (if neces-

sary, reactivate the control panel (Fig. 101/2).

Close the valve blade with the lever (Fig. 101/1) after flushing.

For more information, see the separate instructions from the manufacturer.

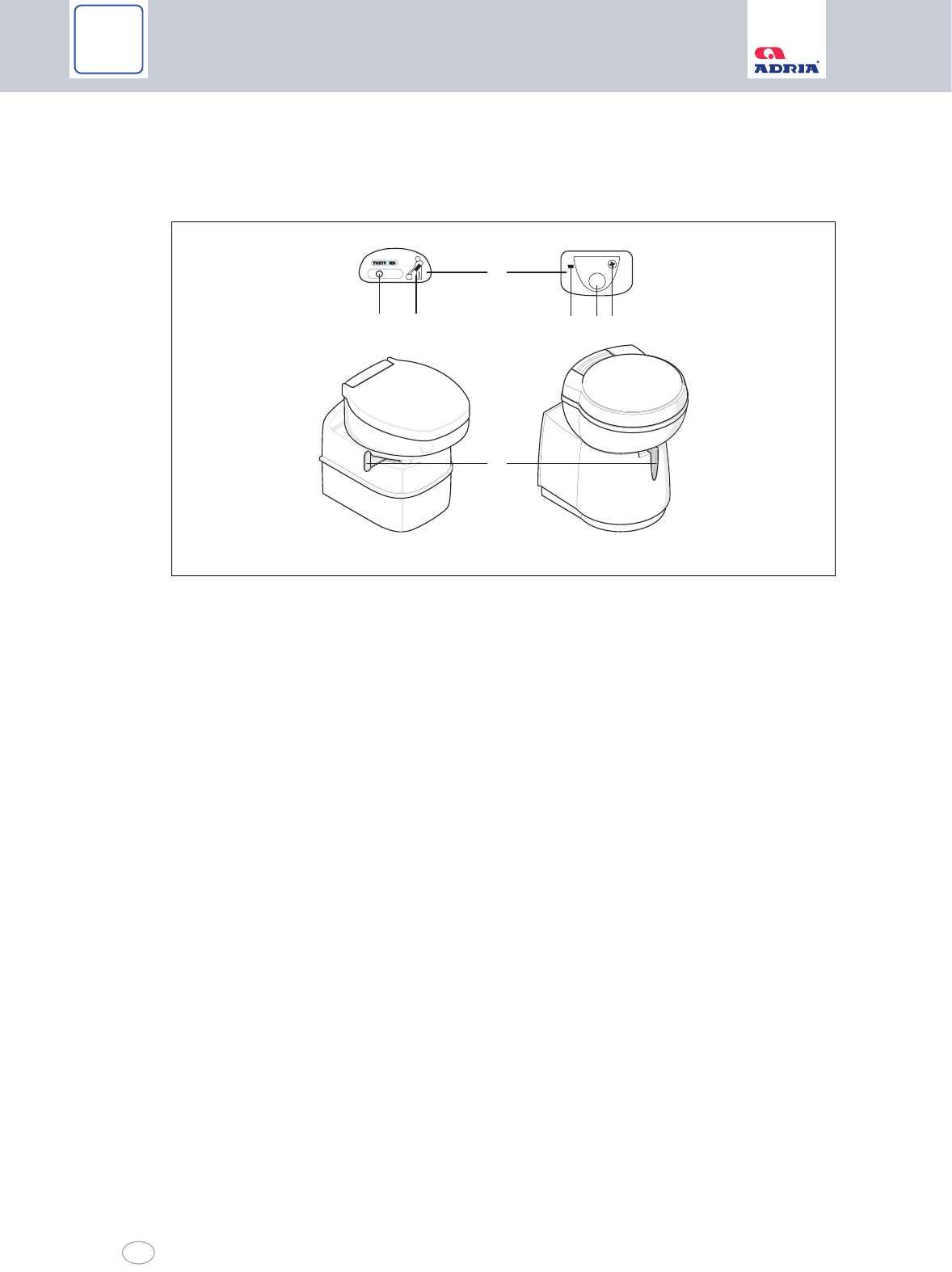

Fig. 101 Thetford C-200 S and C-260 S

1 Lever for opening the valve blade

2 Operator panel

3 Flush button

4 Waste level indicator

5 Automatic ventilator (special equipment)

4 3 5

Toilet 16

Adria Caravans 127

16.1.2 Thetford Cassette C-402 C

The C-402 C toilet has an own water tank.

Before use:

Check that the water tank is filled with water.

Before flushing, use the lever (Fig. 102/1) to open the valve blade anticlockwise.

Press the flush button (Fig. 102/3) once to run some water into the bowl.

After use:

If the valve blade is still closed, use the lever (Fig. 102/1) to open the valve blade anti-

clockwise.

Press the flush button (Fig. 102/3) for several seconds to flush.

Close the valve blade with the lever (Fig. 102/1) after flushing.

For more information, see the separate instructions from the manufacturer.

Caution!

Damage to toilet and vehicle

Do not leave water in the bowl when the toilet is not used. This can cause blockages.

Do not fill the flushing water tank more than half full when travelling. Otherwise water

damage could occur on your vehicle.

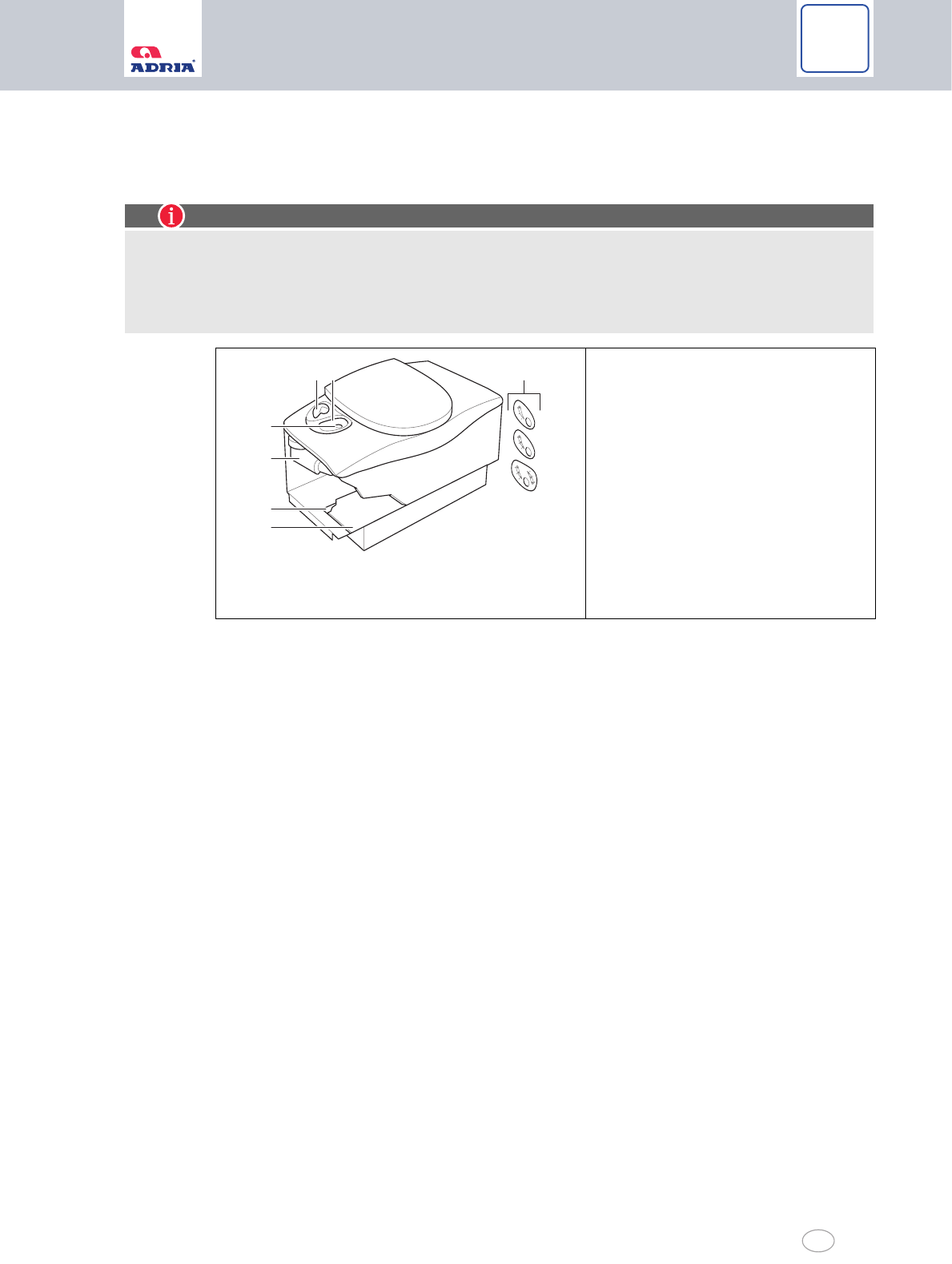

Fig. 102 Thetford C-402 C

1 Lever for opening the valve blade

2 Control panel and waste level

indicator

3 Flush button

4 Water filling funnel for separate

water tank (only accessible from

the outside)

5 Compartment for toilet fluid (only

on tall model, only accessible

from the outside)

6 Sliding cover (only accessible

from the outside)

10100035

2 2

Toilet

128 Adria Caravans

16.1.3 Water tank toilet C-402 C

The water tank holds 15 liters.

Filling the water tank:

Open the outer door (Fig. 103/1) for the cassette and water fill funnel.

Swivel the cassette emptying spout (Fig. 103/2) out about 90° and remove the water

tank extension (Fig. 107/4).

Swivel the water filling funnel (Fig. 103/3) out about 90° and unscrew the cap

(Fig. 103/4).

Position the water tank extension on the water filling funnel.

Observe the water level in the tube (Fig. 103/5) and fill with water up to just under the

water filling funnel.

Remove the water tank extension.

Screw the cap (Fig. 103/4) back on and swivel the water filling funnel (Fig. 103/3) back

in.

Store the water tank extension (Fig. 107/4) on the cassette and swivel the emptying

spout of the cassette (Fig. 103/2) back in.

Close the outer door (Fig. 103/1).

For more information, see the separate instructions from the manufacturer.

Fig. 103 Water tank toilet C-402 C

1 Outer door

2 Cassette emptying spout

3 Water filling funnel

4 Water filling funnel cap

5 Water level indicator

10100054

1234

Toilet 16

Adria Caravans 129

16.1.4 Thetford Cassette C-403 L

Before use:

Before flushing, use the lever (Fig. 104/1) to open the valve blade anticlockwise.

Press the flush button (Fig. 104/3) once to run some water into the bowl.

After use:

If the valve blade is still closed, use the lever (Fig. 104/1) to open the valve blade anti-

clockwise.

Press the flush button (Fig. 104/3) for several seconds to flush.

Close the valve blade with the lever (Fig. 104/1) after flushing.

For more information, see the separate instructions from the manufacturer.

Caution!

Do not leave water in the bowl when the toilet is not used. This can cause blockages.

Fig. 104 Thetford C-403 L

1 Lever for opening the valve blade

2 Control panel and waste level

indicator

3 Flush button

4 Compartment for toilet fluid (only

on tall model, only accessible

from the outside)

5 Sliding cover (only accessible

from the outside)

10100036

2 2

Toilet

130 Adria Caravans

16.2 Cassette

16.2.1 Thetford Cassette C-200 S

The cassette (Fig. 105/1) has a capacity of approx. 17 l and should be emptied when the level

indicator (Fig. 101/4) lights. Do not allow the cassette to become overfilled.

Caution!

Danger for the environment

Use an environment-friendly and biodegradable chemical toilet additive for the toilet.

The cassette may be emptied only at camping sites with suitable waste water treatment

plants or special waste disposal stations (e.g. at parking sites for camping vehicles).

Caution!

Damage to the water pump during winter operation

In winter operation, the toilet may be flushed only after the toilet compartment has been

well heated, otherwise the water pump of the flush system could be damaged.

Do not use antifreeze.

Important!

• Never add toilet fluid through the valve blade or the toilet bowl.

• In the cassette, the liquids are immediately mixed with water and closed in. This pre-

vents unpleasant odours in the bathroom.

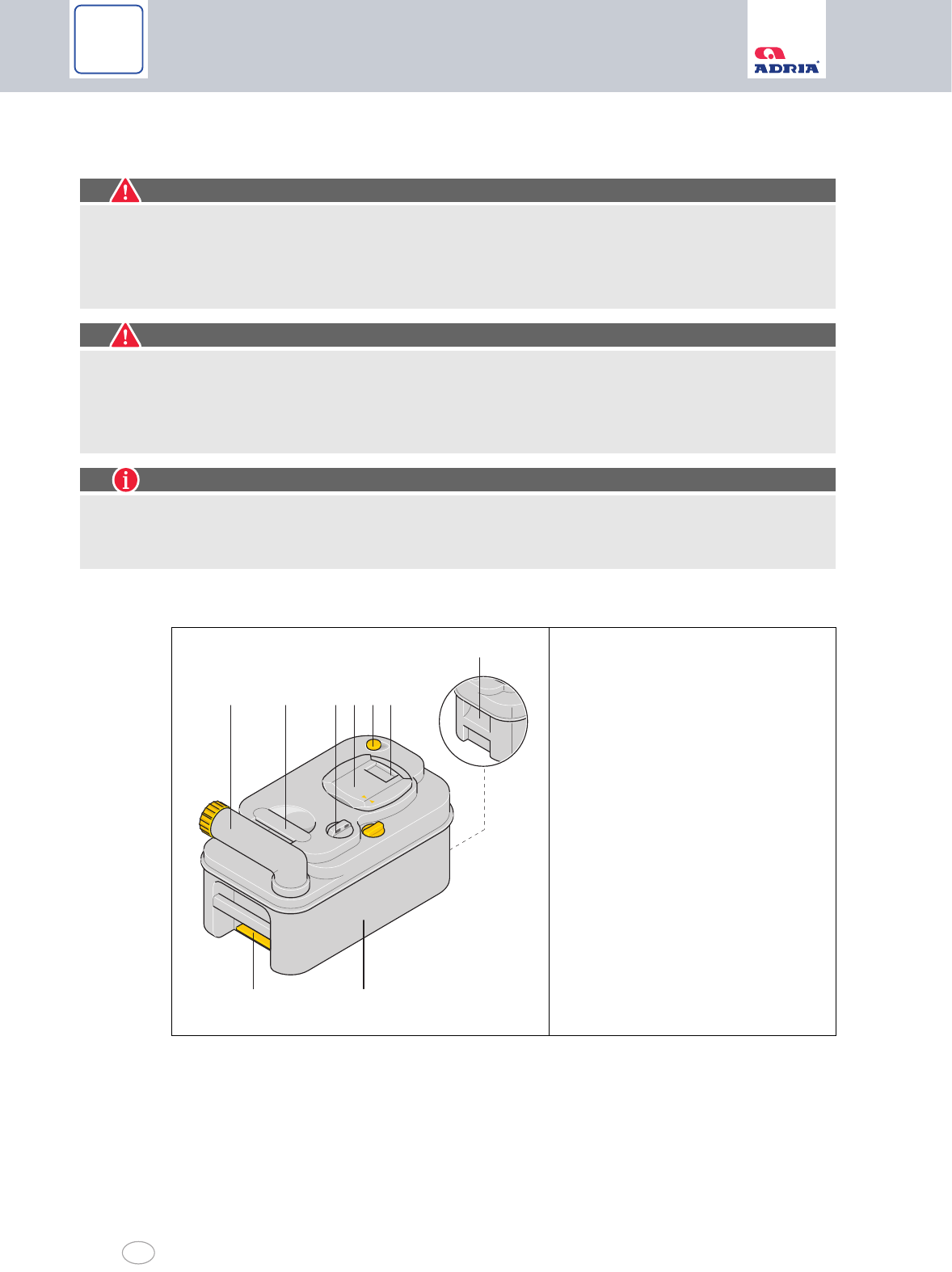

Fig. 105 Thetford Cassette C-200 S

1 Cassette

2 Swivelling emptying spout

3 Upper carrying handle

4 Automatic holding tank vent

valve

5 Sliding cover

6 Vent plunger

7 Valve blade

8 Hand grip

9 Catch

6 75432

Toilet 16

Adria Caravans 131

16.2.2 Thetford Cassette C-260 S

The cassette (Fig. 106/1) has a capacity of 18 l and should be emptied when the level indicator

(Fig. 101/4) lights. Do not allow the cassette to become overfilled.

16.2.3 Thetford Cassette C-402 C and C-403 L

The cassette has a capacity of approx. 19 l and should be emptied when the level indicator

(Fig. 102/2) or (Fig. 104/2) lights. Do not allow the cassette to become overfilled.

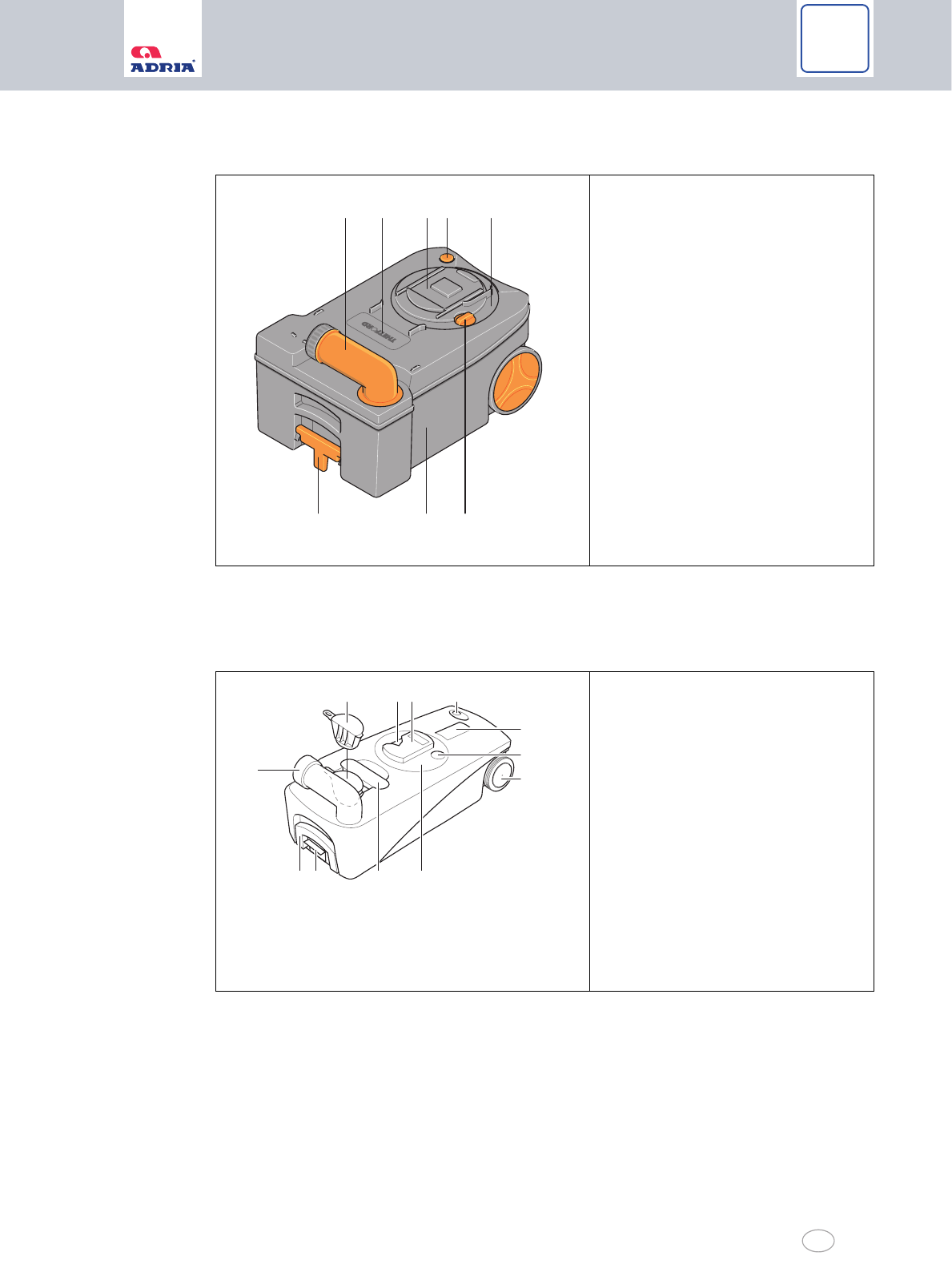

Fig. 106 Thetford Cassette C-260 S

1 Cassette

2 Swivelling emptying spout

3 Automatic holding tank vent

valve

4 Pull-out hand grip / latch

5 Sliding cover

6 Valve blade

7 Vent plunger

8 Removable mechanism

Fig. 107 Thetford Cassette C402 C and C403 L

1 Catch

2 Hand grip, fold-out

3 Swivelling emptying spout

4 Water tank extension (C-402 C)

5 Valve blade

6 Sliding cover

7 Vent plunger

8 Automatic holding tank vent

valve

9 Valve blade opener

10 Wheels

11 Removable mechanism

12 Upper carrying handle

2 75

1 6

10100034

4 5 6 7

1112

Toilet

132 Adria Caravans

16.2.4 Emptying the cassette

Removing the cassette:

Close the valve blade (Fig. 101/1), (Fig. 102/1), (Fig. 104/1) in the toilet.

Open the outer access door.

Release the cassette with the catch (Fig. 105/9), (Fig. 106/4) or (Fig. 107/1) and

remove.

When the cassette is pulled out, the valve blade (Fig. 105/7), (Fig. 106/6) or

(Fig. 107/5) is hygienically closed by the sliding cover (Fig. 105/5), (Fig. 106/5) or

(Fig. 107/6).

Emptying the cassette at disposal stations:

For C-260S, C-402 C and C-403 L: Pull the hand grip (Fig. 106/4) or (Fig. 107/2)

upwards and take the cassette to the approved waste disposal station.

Place the cassette upright. The emptying spout (Fig. 105/2), (Fig. 106/2) or (Fig. 107/3)

must be at the top.

Turn the emptying spout (Fig. 105/2), (Fig. 106/2) or (Fig. 107/3) upwards.

Unscrew the cap from the emptying spout.

C-200S: Lift the cassette with one hand on the upper carrying handle (Fig. 105/3); with

the other hand on the hand grip (Fig. 105/8).

Turn the cassette so that it is emptied.

Press the vent plunger (Fig. 105/6), (Fig. 106/7) or (Fig. 107/7) with a thumb.

Press the vent plunger only when the emptying spout is pointed downwards. Pressing

the vent plunger empties the tank without splashing.

Thoroughly rinse the cassette with water.

Also clean the valve blade with water.

Then pour toilet fluid into the cassette.

The cap of the emptying spout has a measuring cup on the inside.

This decomposes the faeces quickly, prevents unpleasant smells in the cassette and

keeps the inside of the tank clean.

Fit the tank back in again.

Close the access door.

For more information, see the separate instructions from the manufacturer.

Toilet 16

Adria Caravans 133

16.3 Placing the toilet out of service

Placing the toilet out of service:

Place a sufficiently large container underneath the drain plug of the water tank.

Open the drain plug, drain the water tank completely and allow to dry.

Empty the cassette (Chapter 16.2).

Leave the emptying spout open to allow the tank to dry.

Clean the toilet (Chapter 19.2.6).

Clean all seals and treat with care products for seals.

For more information, see the separate instructions from the manufacturer.

16.4 Preparing the toilet for winter mode

For more information, see the separate instructions from the manufacturer.

Important!

Empty the cassette and water tank when the vehicle is not heated and there is a risk of

frost.

Caution!

Damage to the water pump during winter operation

In winter operation, the toilet may be flushed only after the toilet compartment has been

well heated, otherwise the water pump of the flush system could be damaged.

Do not use antifreeze.

Important!

• Empty the cassette and water tank when the vehicle is not heated and there is a risk of

frost.

Winter camping

134 Adria Caravans

17 Winter camping

17.1 Travelling in winter

Winter camping is becoming more and more popular. Depending on the model and equipment,

your ADRIA vehicle is conditionally suitable for use in winter. If you pay attention to the follow-

ing information, your winter holiday in your own vehicle will become proper winter fun.

When camping in winter:

Obtain exact information about road conditions and weather.

Avoid roads with strong uphill/downhill gradients.

Select the camping site carefully and in time, plan your arrival during the day.

Carefully check the tyres, tread depth and tyre pressure (Tab. 26).

Fill the windscreen washer unit with frostproof cleaner, take reserve frostproof cleaner

for the journey with you.

Before starting the journey, clear snow and ice from the roof, all windows, mirrors and

lights as well as the wheel wells.

Do not warm up the engine while parked, smoothly drive off immediately after you start

the engine.

Use only propane gas (Chapter 11.3.1) with a two-cylinder system for winter camping.

Allow for sufficient gas supplies.

Pitching the caravan:

Clear the snow from the parking area before pitching the vehicle.

Do not park the vehicle underneath trees. Falling branches or pieces of ice can damage

the roof and roof hoods.

Check the underground regularly to prevent sinking in when thawing sets in.

After pitching, secure the vehicle with wheel chocks against rolling away. Release the

parking brake to prevent freezing.

After travelling on salt-covered roads, the complete vehicle including the chassis has to

be thoroughly washed with water.

To prevent white rust formation of the galvanised parts, ensure adequate air circulation

underneath the vehicle. Water must be capable of flowing off.

Lay the 230 V power cable so as to prevent it freezing to the ground or being damaged

when snow is cleared.

Important!

Before starting the journey, mount suitable winter tyres and have snow chains on board.

Snow chains are prohibited on aluminium rims.

Winter camping 17

Adria Caravans 135

17.2 Winter operation

The vehicle is insulated and to a large extent suitable for use in winter when operated properly.

The water supply is located inside the vehicle.

The snow and ice load can amount to several hundred kilograms and so reduce the additional

load of your vehicle.

In winter, temperature differences and wet objects (e.g. ski clothes) in the vehicle increase con-

densation.

Warm air absorbs much more humidity than cold air. When the warm air in the vehicle cools

down, water condenses in cold places (windows, window frames and storage compartments).

This can be remedied by adequate heating with the air circulation switched on.

When camping in winter:

Vent openings may not be covered by snow or snow drifts. Clear the snow also from

underneath the vehicle so that the heater receives enough fresh air.

Clear snow and ice off the roof and awning at regular intervals (Chapter 2.8).

Always keep the heater exhaust clear. Attach cowl extensions (special accessory).

Provide for good ventilation (air circulation) and heating. Always keep the forced venti-

lation open.

Use the awning as a wind guard and storage area for wet objects, e.g. skiing equipment.

Always open all cabinet doors, flaps and storage compartments when heating the vehi-

cle to prevent condensation.

Wipe off any condensation.

Air and dry the cushions daily.

Open windows and roof hoods when cooking.

If possible, do not use electrical appliances with high current consumption. The current

capacity at camping sites is limited.

Make sure the drain pipe of the waste water does not freeze up (Chapter 12.2).

Danger!

Risk of suffocation

Do not use any catalytic stoves or infrared radiators in the vehicle. The oxygen in the

living area is then used.

Caution!

Risk of damage through freezing

Do not store any fluids in the unheated vehicle when there is a risk of frost.

If the vehicle is left with the heating switched off for a longer period of time at low tem-

peratures, the water pipes and tanks could freeze and thus be damaged.

Empty the waste water tank when there is a risk of frost and the heating is switched off.

When there is a risk of frost and the vehicle is not heated, the waste water system must

be carefully cleaned, thoroughly rinsed, completely emptied and thoroughly dried.

When there is a risk of frost, water taps have to be left open in the unheated vehicle

even when the water supply is drained. Drain the faucets that have a "warm" and a

"cold" position in both positions and leave them open in one of the positions.(Chapter

12.2).

Winter camping

136 Adria Caravans

17.3 Checklist for winter camping

Tab. 11 Checklist for winter camping

Checklist for winter camping







Snow chains (prohibited for aluminium rims!)

Thermal mat (to lay on), work gloves

Sandbag, small shovel

Snow shovel, grit

Broom

Anti-skid mats

Talc, Vaseline for rubber seal

Door lock and window de-icer

Battery jumper cable

Plastic windshield scraper

Fill the windscreen washer unit with frostproof cleaner (do not forget reserve frost-

proof cleaner for the journey)

Anti-mist cloth for windscreen

Wheel chocks

Antifreeze for the waste water tank (e.g. table salt)

Torch / flashing hazard warning light (use new batteries)

Winter cover for refrigerator grille (special accessory)

Exhaust gas cowl extension (special accessory)

Placing out of service 18

Adria Caravans 137

18 Placing out of service

18.1 Checklist for temporary placing out of service:

Important!

When the instructions for maintenance and care, and the checklist for placing out of service

are observed, the vehicle can be parked outdoors all year round.

Activity







Bodywork Keep the forced ventilation and all mushroom ventilators open.

Carefully wash the vehicle and apply a paint protection product

(wax).

Repair paintwork damage. Your ADRIA dealer will be pleased to

advise you with respect to suitable products.

Move the vehicle every four weeks in order to avoid "flat spots" and

damage to the wheel bearings. Secure the vehicle with wheel chocks

from rolling away.

Regularly check the tyre pressure.

Disengage the parking brake.

Protect the tyres from direct exposure to the sun.

Thoroughly air the vehicle every 4 weeks.

If the vehicle is to be parked in an enclosed area, at least two win-

dows must remain open.

Provide for good ventilation in the underbody area.

Cover the exhaust cowl, if possible

If the vehicle is covered with a tarpaulin, make sure air can still circu-

late above the roof. The tarpaulin must not rest directly on the roof to

prevent it from sticking to the roof. Light wooden slats allow for air cir-

culation on the roof.

Gas system Close the gas shut-off valve of the gas cylinder.

Close all quick-action stop valves for all appliances.

Always remove all gas cylinders from the gas cylinder compartment

and store them safely.

Close the open end of the gas hose so that no dirt or insects can

enter.

Water sys-

tem Empty the entire water system completely, clean carefully and allow

to dry.

Leave all water taps, all drain cocks as well as all drain valves open.

Drain the faucets that have a "warm" and a "cold" position in both

positions and leave them open in one of the positions.

Placing out of service

138 Adria Caravans

Tab. 12 Checklist for temporary placing the vehicle out of service

Bacteria and algae can form in the water tank, therefore, after the

end of the journey, the water tank must always be drained, thor-

oughly cleaned (Chapter 12.2) and allowed to dry.

We recommend using a disinfectant for the water tank. Ask your

ADRIA dealer for advice.

Appliances Empty and clean the refrigerator; leave the refrigerator door and the

freezer compartment, if applicable, open.

For information concerning the temporary placing out of service of

the appliances, see the separate appliance operating instructions.

Living area Leave all cabinet doors, access doors, storage compartments, seat

chests and bed boxes open.

Clean the living area and storage compartments.

Stand all the cushions up for ventilation or store them in the house.

Make sure that the forced ventilation is open and not covered.

Activity







Placing out of service 18

Adria Caravans 139

18.2 Placing out of service over the winter

The following measures are required in addition to those already mentioned for the temporary

placing out of service over the winter.

Tab. 13 Checklist for placing out of service over the winter

Activity







Bodywork Clear snow from the roof when it snows.

Thoroughly heat and ventilate the vehicle every four weeks.

Lubricate all hinges and locks.

Apply talc or Vaseline to all rubber seals.

Use graphite dust to treat locking cylinders.

Install the winter cover for the refrigerator grille (special accessory).

Appliances For information concerning the placing out of service of the appli-

ances over winter, see the separate appliance operating instructions.

Living area Make sure the forced ventilation is open and not covered.

Keep all cushions dry in the house.

Position dehumidifiers and check them regularly.

Placing out of service

140 Adria Caravans

18.3 Returning to service after the placing out of service

Perform the following activities for returning the vehicle to service.

Tab. 14 Checklist for returning to service

Activity







Bodywork Remove tarpaulin and possibly wooden slats.

If the vehicle has been stationary for a long period (approx. 10

months), have the brake system checked by an authorised work-

shop.

Check the tyre pressure, also of the spare wheel (special equip-

ment).

Remove cover from the exhaust cowl, if present.

Remove the winter cover for the refrigerator grille (special acces-

sory).

Check the function of all doors, windows, flaps and hatches.

Check the function of all external locks (e.g. entrance door, filler

neck, flaps, etc.).

Gas system Lash the gas cylinders in the gas cylinder compartment and connect

gas cylinders.

If the vehicle has been stationary for a long period (approx.

10 months), have the gas system checked by an authorised work-

shop.

Electrical

system Check the function of the electrical system (e.g. lighting, sockets) and

of all appliances (e.g.refrigerator).

Check the function of the ground-fault circuit breaker.

Water sys-

tem Thoroughly rinse the complete water system with plenty of fresh

water; leave the taps open.

Close all water taps and drain valves.

Check for leakage and function of all water taps and drain valves.

Appliances For information concerning the returning to service of the appliances,

see the separate appliance operating instructions.

Check the function of all appliances (e.g. refrigerator, cooker, heater,

etc.).

Living area Replace all cushions.

Remove dehumidifiers.

Cleaning & care 19

Adria Caravans 141

19 Cleaning & care

19.1 Cleaning and care - exterior

The polyester outer skin (glass-fibre reinforced plastic) of the vehicle was dyed at the factory,

i.e. not painted. We recommend the following steps for the care of the vehicle:

Wash the vehicle with plenty of cold to lukewarm water and cleaning agent. Then dry

thoroughly.

You can purchase suitable cleaning agents and additives from your ADRIA dealer.

Bird droppings, tree gum, berries, road salt, sea salt, etc. must always be removed

immediately.

Clean windows only with plenty of lukewarm water and mild soap solution.

Treat rubber seals on doors, windows and flaps with talc or Vaseline.

Check the condition of the undersealant once a year. If the undersealant is defective,

contact your ADRIA dealer.

The chassis is galvanised. Seal areas where rust is setting in (e.g. caused by stone-

chipping or other effects) by the application of cold zinc.

After driving in winter on salt-covered roads, thoroughly clean the galvanised surfaces

and aluminium components and rinse with clear water.

To prevent the formation of white rust (only a visual defect) on the galvanised parts,

ensure adequate air circulation underneath the vehicle. Water must be capable of flow-

ing off.

When staying near the sea, regularly wash the vehicle with clear fresh water.

Warning!

Risk of injury and damage to the vehicle roof

The roof of the vehicle is not designed for the weight of standing persons.

The roof of the vehicle is not capable of supporting walking persons.

Do not walk on roof structures or roof fittings, e.g. roof hoods, roof railings etc.

Important!

• Never drive the vehicle through a wash facility. The acrylic glass windows will be

scratched by the rotating cleaning brushes.

• When cleaning the vehicle with a high-pressure cleaner, maintain a distance of approx.

70 cm from the nozzle to the vehicle surface.

• Never point the water jet directly towards doors, windows, flaps and vent openings.

Splashing water can penetrate the vehicle through the circumferential air gap between

the glass dome and the frame (forced ventilation).

• Do not spray directly on deco foils as they could become detached.

• Never point the water jet directly towards electric accessories and plug connections.

• Do not use glass cleaners, abrasives, solvents, cleaning agent containing methylated

spirit or alcohol. This would result in cracks or embrittlement of the acrylic material.

• Avoid everything that could cause scratching or scoring.

• Avoid torsional forces when opening and closing the windows.

Cleaning & care

142 Adria Caravans

The painted outer surface of the vehicle can be preserved with a commercially available

wax. Pay attention to the manufacturer's instructions.

Treat polyester parts every year with a two-component wax. Pay attention to the manu-

facturer's instructions.

Observe the environmental protection measures in cleaning and care of the vehicle.

19.1.1 Cleaning the acrylic windows (side windows, roof hoods)

Acrylic glass windows are very delicate and require very careful handling. Non-compliance with

the cleaning instructions voids the manufacturer's warranty.

Clean the windows with only warm water and a soft, clean sponge or cloth.

If the windows are very dirty, use a solution with water and mild soap solution to keep

the windows clear and free from electrostatic charging.

For stubborn soiling, we recommend a special cleaning agent for acrylic glass which is

available from your ADRIA dealer.

Do not use scouring agents. They would scratch the plastic surfaces.

After cleaning the vehicle, rinse all acrylic glass windows with clean water.

Treat rubber seals with talc.

Regularly lubricate all moving parts, hinges and flaps with acid-free grease (e.g. Balli-

stol).

Do not allow water to penetrate the mechanical parts.

The insect screens and blinds can be cleaned with a soft brush. If the insect screens and

blinds are very dirty, use water and mild soap solution to wash them. Then allow the

screens and the blinds to dry well.

19.1.2 Cleaning plastic parts

Clean plastic parts only with warm water, mild household cleanser and a soft, clean

sponge or cloth. The aqueous solution should contain 2% cleaning agent at the most.

Do not use scouring agents. They would scratch the plastic surfaces.

Important!

• Never drive the vehicle through a wash facility. The acrylic glass windows will be

scratched by the rotating cleaning brushes.

• When cleaning the vehicle with a high-pressure cleaner, maintain a distance of approx.

70 cm from the nozzle to the vehicle surface.

• Never point the water jet directly towards doors, windows, flaps and vent openings.

Splashing water can penetrate the vehicle through the circumferential air gap between

the glass dome and the frame (forced ventilation).

• Do not use glass cleaners, abrasives, solvents, cleaning agent containing methylated

spirit or alcohol. This would result in cracks or embrittlement of the acrylic material.

• Avoid everything that could cause scratching or scoring.

• Avoid torsional forces when opening and closing the windows.

Important!

Condensation water can form between the double windows of the acrylic glass window. The

condensation water disappears by itself, however, this takes some time.

Cleaning & care 19

Adria Caravans 143

Very greasy or oily spots can be washed with ethyl, isopropyl or isobutyl alcohol.

Organic solvents (e.g. acetone, methanol or ethanol) could damage the material.

An example of possible damage to moulded plastic parts are stress cracks caused by

different media. Other chemicals can have a swelling and softening effect on the plastic

material. Therefore, plastic parts should be subjected to contact with the solvents

referred to above only for a short period (2 minutes max.) at room temperature.

Avoid mechanical loads (e.g. clamping, twisting) of the plastic parts during cleaning in

order to prevent distortion.

19.2 Cleaning and care - interior

19.2.1 Cleaning plastic parts
