23" LCD Color Monitor AOC 2341Va/2341Sa/2341Vg

Service

Horizontal Frequency

30-80 KHz

Table of Contents

Description Page Description Page

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

Table of Contents.......……..............................……........1

Revision List.…........................................…………........2

Important Safety Notice.……............................……......3

1.Monitor Specification..............................………..........4

2.LCD Monitor Description……………………………......6

3.Operation Instruction…………...............……..............7

3.1.General Instructions...........................…...................8

3.2.Control Button…………….…..............……...............8

3.3.OSD Menu…………….…...........................…...........8

4.Input/Output Specification............……………............20

4.1.Input Signal Connector............………….................20

4.2.Factory Preset Display Modes…….........................21

4.3.Panel Specification.....………...…………................23

5.Block Diagram…….....................………….................26

5.1.Main Board…….…………...………………....….......26

5.2.Power Board……………..……………...….......29

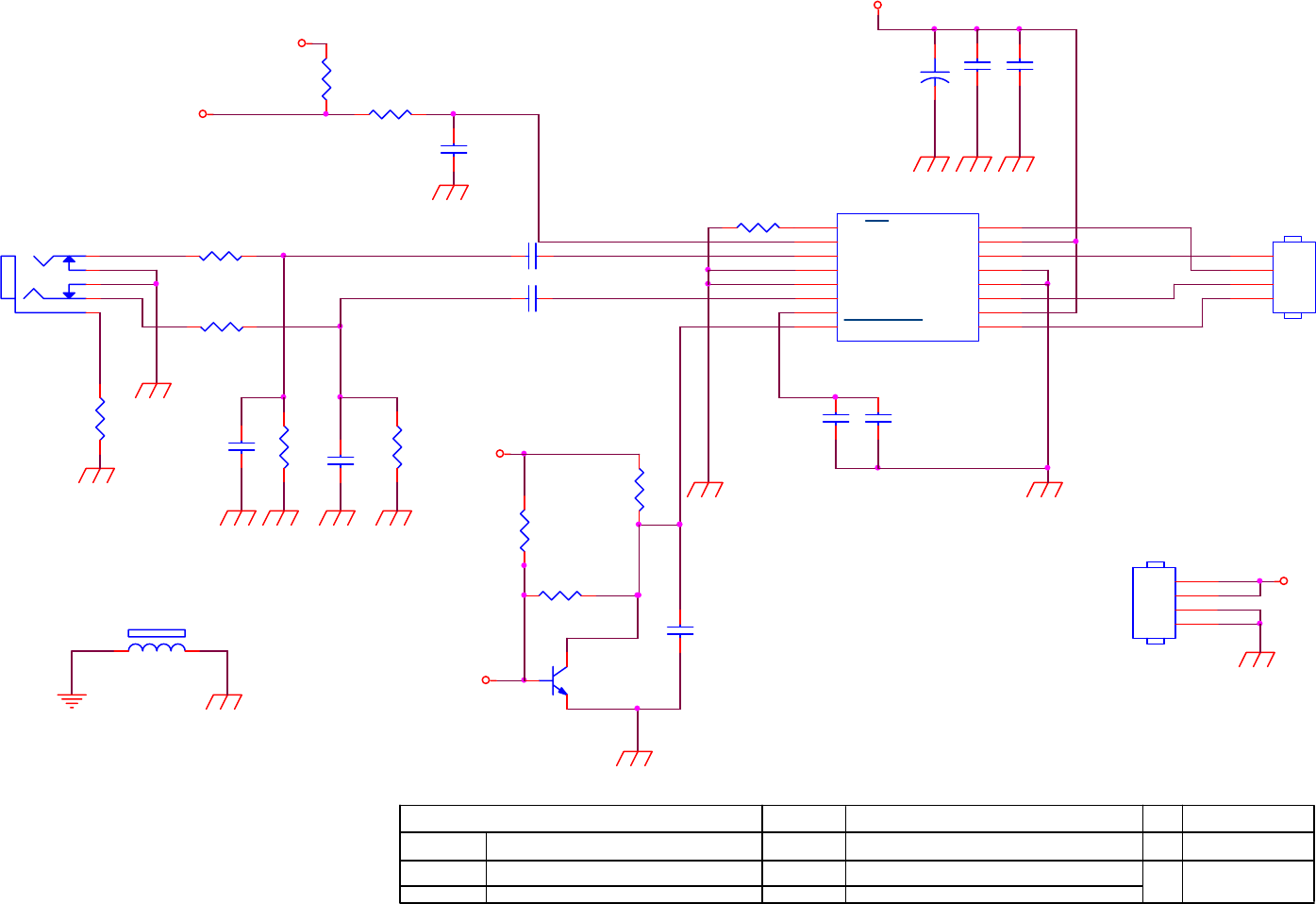

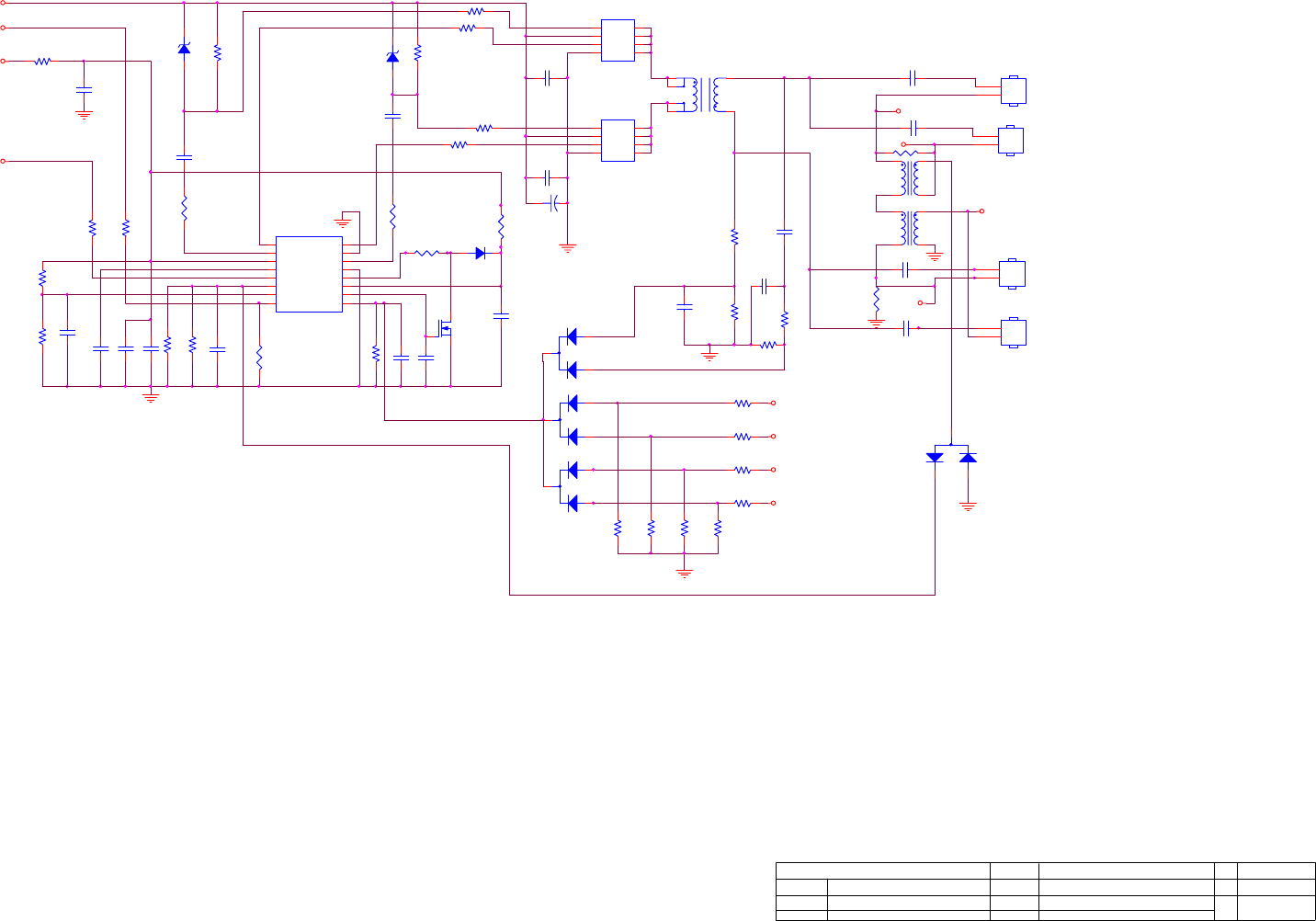

6.Schematic……………........................................29

6.1.Main Board………..........................................29

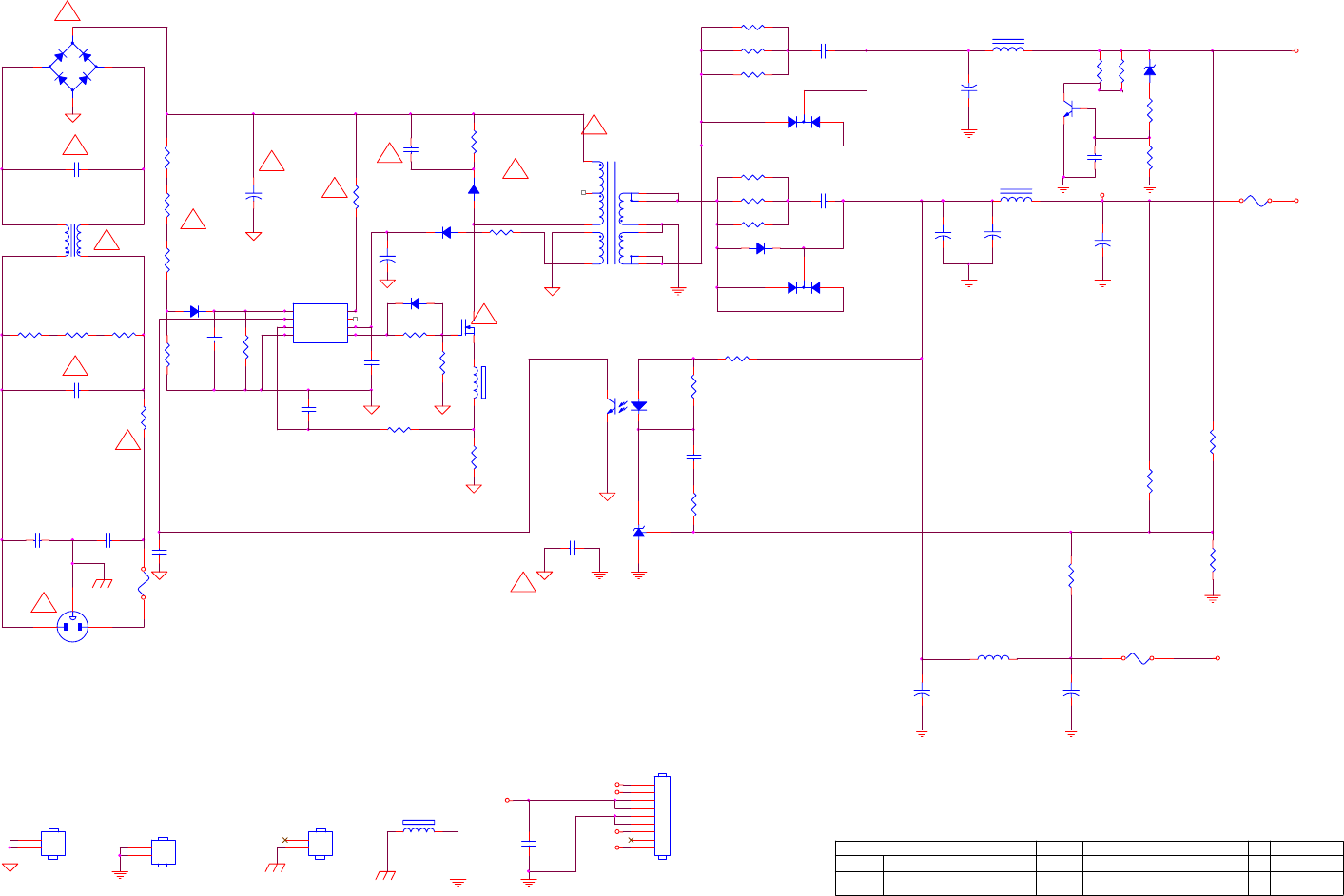

6.2.Power Board...…….........................................38

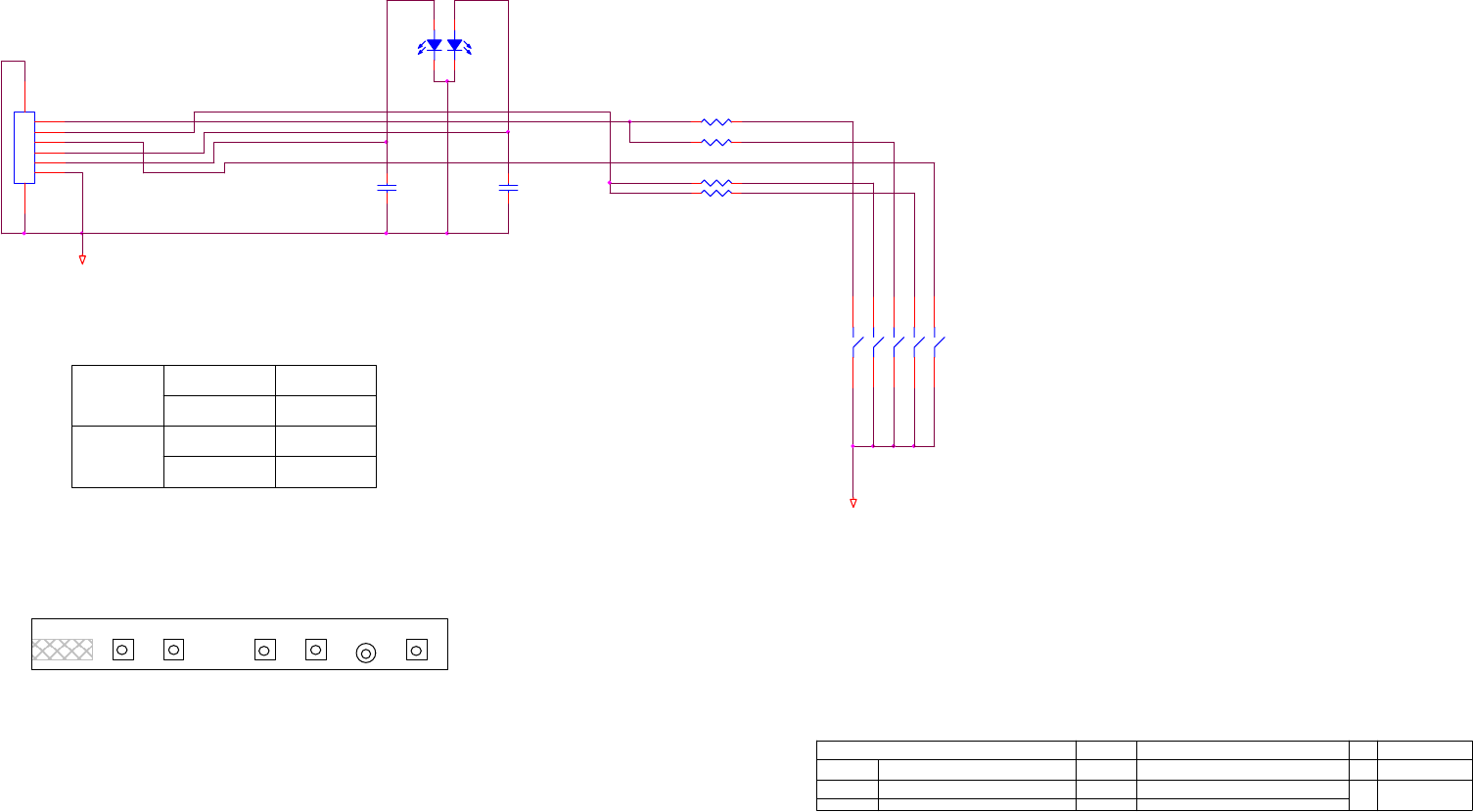

6.3.Key Board...…….............................................41

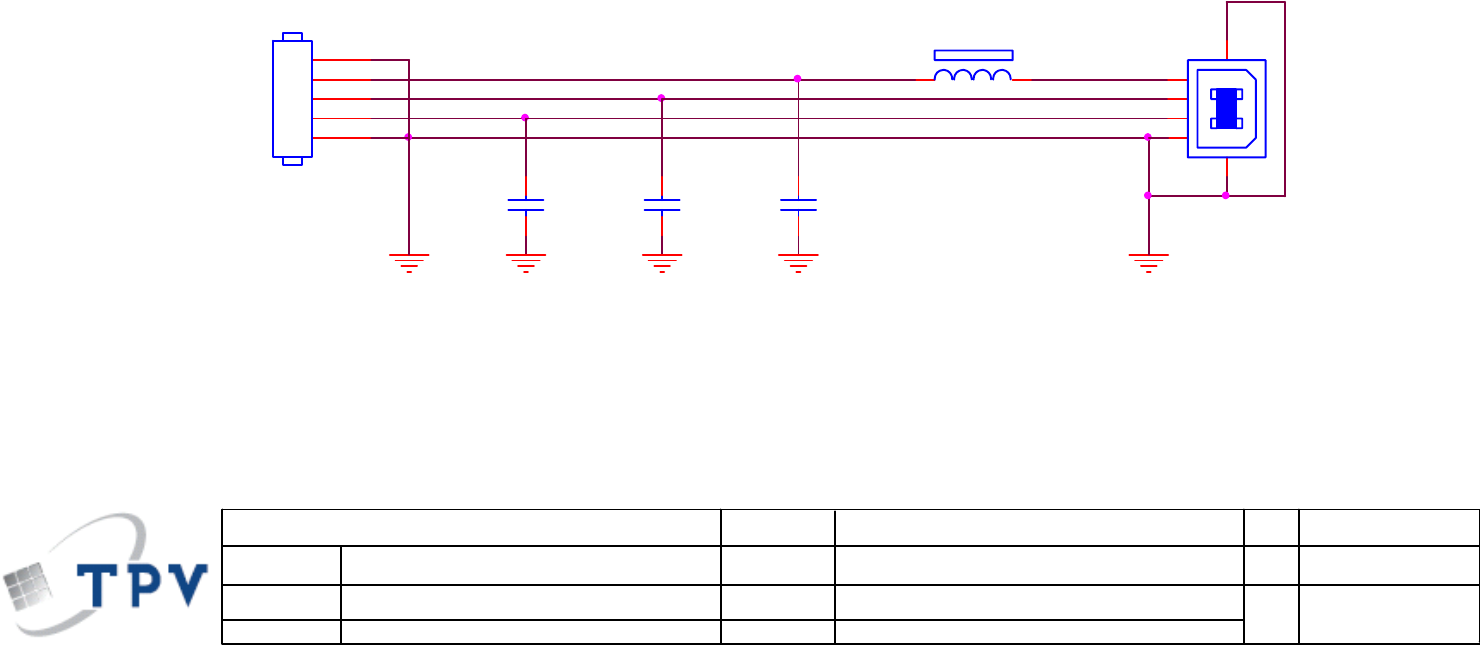

6.4.USB Board……………………………….……...42

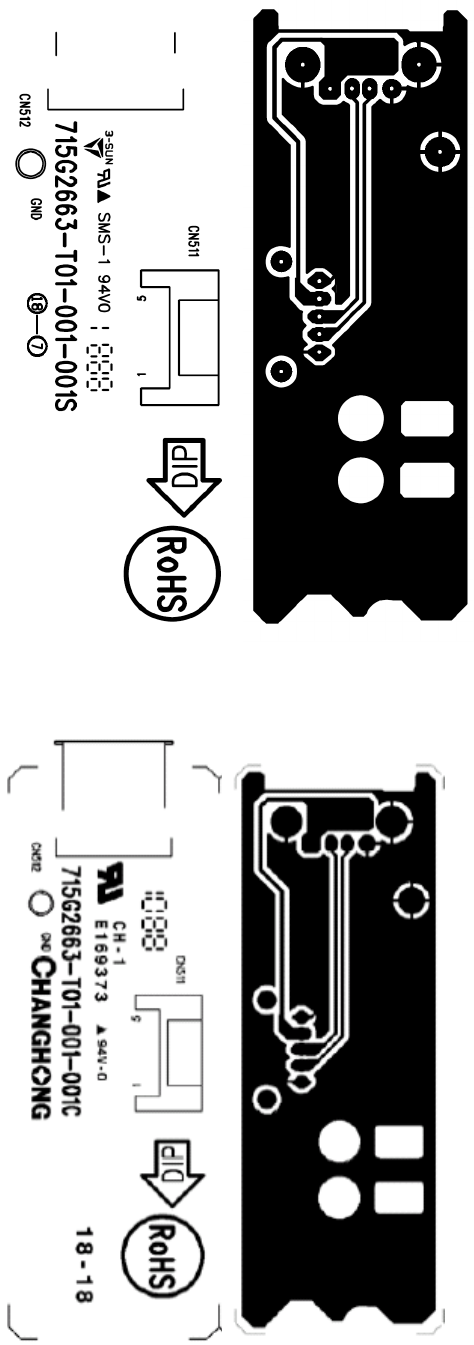

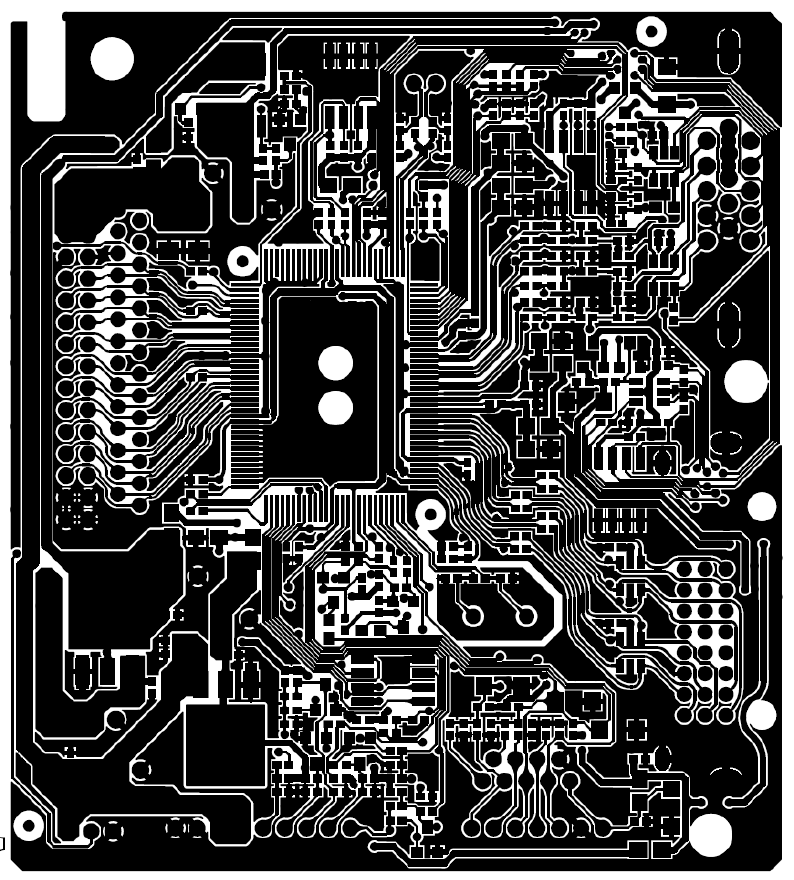

7.PCB Layout..………….......................................44

7.1.Main Board………...........................................44

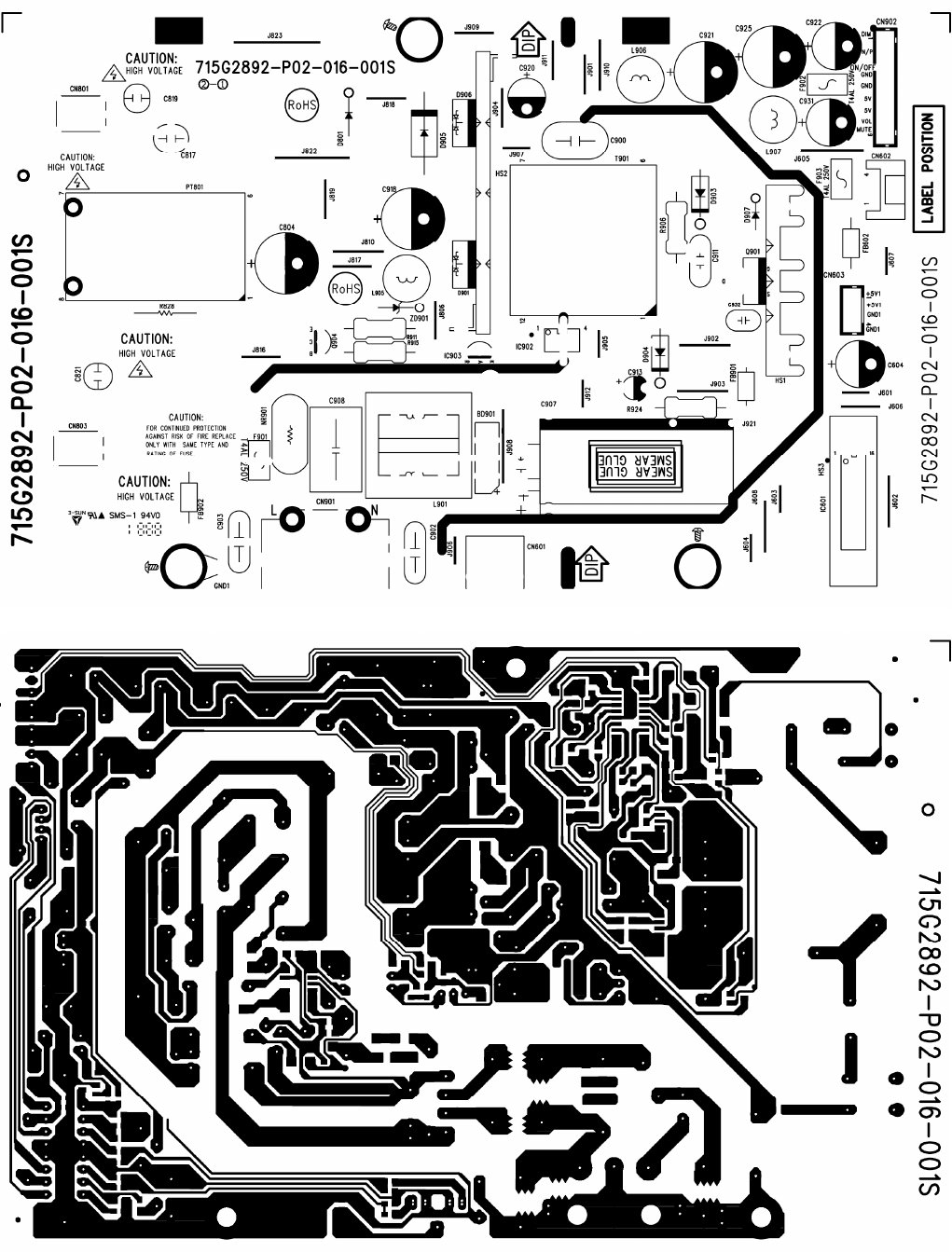

7.2.Power Board…...............................................50

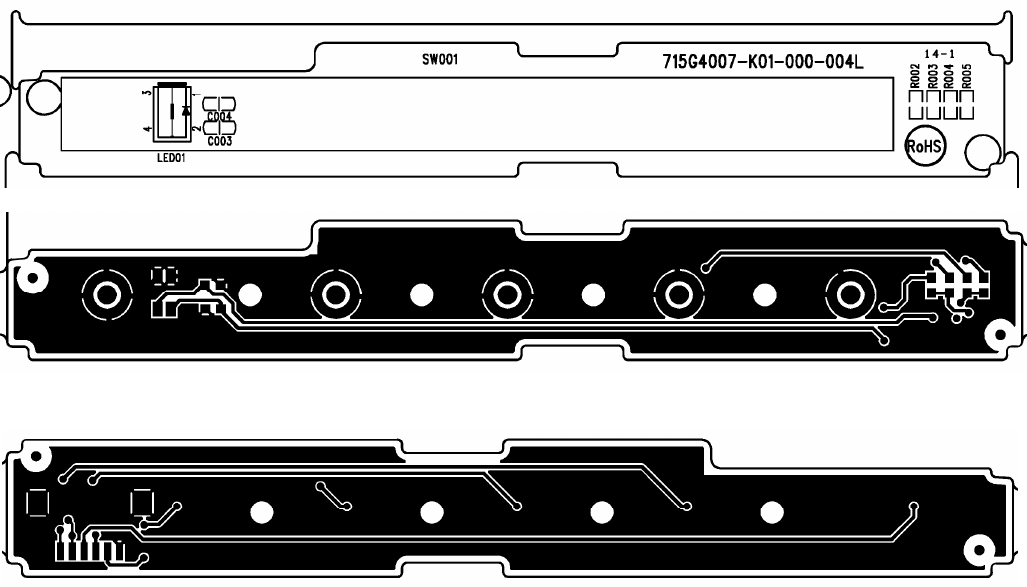

7.3.Key Board…………….....................................50

7.4.USB Board……………………………….……...53

8.Maintainability……….........................................55

8.1.Equipments and Tools Requirement...............55

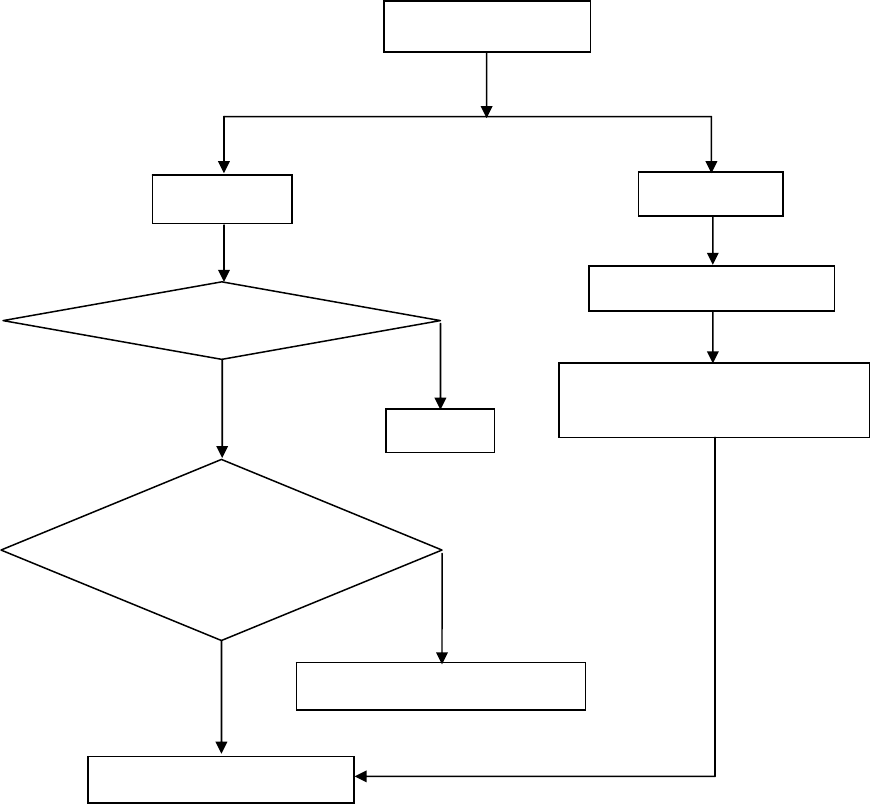

8.2.Trouble Shooting…………..............................56

9.White-Balance, Luminance Adjustment.............60

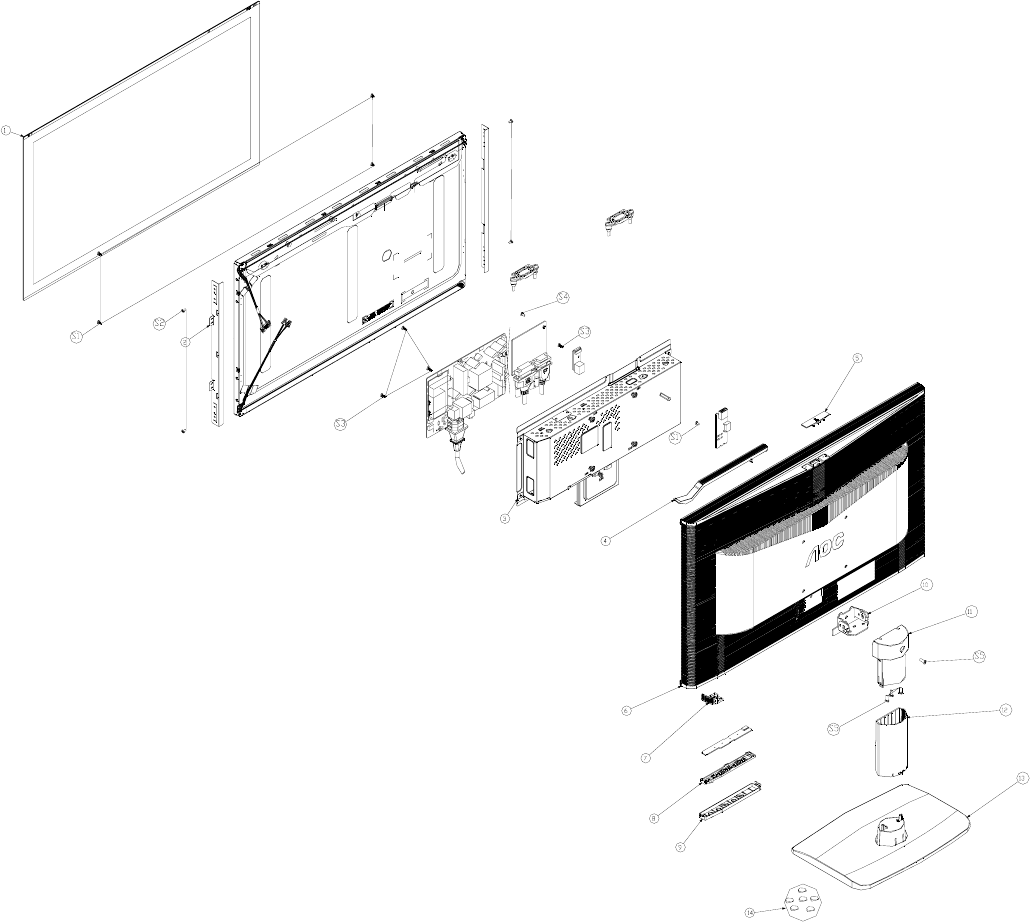

10.Monitor Exploded View………..…….…............62

11.BOM List…………………………………............64

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

2

Revision List

Version Release Date Revision History Customer Name TPV Model Name

A00 Aug.10,2010 Initial release 2341Va TDASNTEBWVA1PN

A01 Oct.26.2010 Add new model 2341Sa TDASNTEBWVA1UN

A02 Nov.08.2010 Add new model 2341Sa TDASNTN8WVA1AN

A03 Dec.10.2010 Add new models

2341Va TDASNTEBWVA1PNE

2341Vg TDASNTNEWVA1BNE

3

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,

fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may

damage the panel.)

4

Monitor Specifications

2341Va

LCD Panel

Model number 2341Va

Driving system TFT Color LED

Viewable Image Size 58.5 cm

Pixel pitch 0.2655(H)x0.2655(V)mm

Video R, G, B Analog lnterface

Separate Sync. H/V TTL

Display Color 16.7M Colors

Dot Clock 148.5MHz

Resolution

Horizontal scan range 30 kHz - 80 kHz

Horizontal scan Size(Maximum) 509.76mm

Vertical scan range 55 Hz - 75 Hz

Vertical scan Size(Maximum) 286.74mm

Optimal preset resolution 1920 x 1080 (60 Hz)

Highest preset resolution 1920 x 1080 (60 Hz)

Plug & Play VESA DDC2B/CI

Input Connector D-Sub 15pin & DVI 24pin

Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM,Positive&DVI-D

Digital Interface(TMDS)

Power Source 100~240VAC, 50/60Hz

Power Consumption On: <30W

Standby < 0.1 W

Physical

Characteristics

Connector Type 15-pin Mini D-Sub & 24-pin DVI

Signal Cable Type Detachable

Dimensions & Weight:

Height (with base) 412.5 mm

Width 619.7mm

Depth 186.8mm

Weight (monitor only) 4.79kg

Environmental

Temperature: Operating 0° to 40°

Non-Operating -25°C - +55°C

Humidity: Operating 10% - 85% (non-condensing)

Non-Operating 5% - 93% (non-condensing)

Altitude:

Operating 0~ 3,658m（0~ 12,000 ft）

Non-Operating 0~ 12,192m（0~ 40,000 ft）

5

2341Sa

LCD Panel

Model number 2341Sa

Driving system TFT Color LED

Viewable Image Size 58.5 cm

Pixel pitch 0.2655(H)x0.2655(V)mm

Video R, G, B Analog lnterface

Separate Sync. H/V TTL

Display Color 16.7M Colors

Dot Clock 148.5MHz

Resolution

Horizontal scan range 30 kHz - 80 kHz

Horizontal scan Size(Maximum) 509.76mm

Vertical scan range 55 Hz - 75 Hz

Vertical scan Size(Maximum) 286.74mm

Optimal preset resolution 1920 x 1080 (60 Hz)

Highest preset resolution 1920 x 1080 (60 Hz)

Plug & Play VESA DDC2B/CI

Input Connector D-Sub 15pin

Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM

Power Source 100~240VAC, 50/60Hz

Power Consumption On: <30W

Standby < 0.1 W

Physical

Characteristics

Connector Type 15-pin Mini D-Sub

Signal Cable Type Detachable

Dimensions & Weight:

Height (with base) 412.5 mm

Width 619.7mm

Depth 186.8mm

Weight (monitor only) 4.79kg

Environmental

Temperature: Operating 0° to 40°

Non-Operating -25°C - +55°C

Humidity: Operating 10% - 85% (non-condensing)

Non-Operating 5% - 93% (non-condensing)

Altitude:

Operating 0~ 3,658m（0~ 12,000 ft）

Non-Operating 0~ 12,192m（0~ 40,000 ft）

6

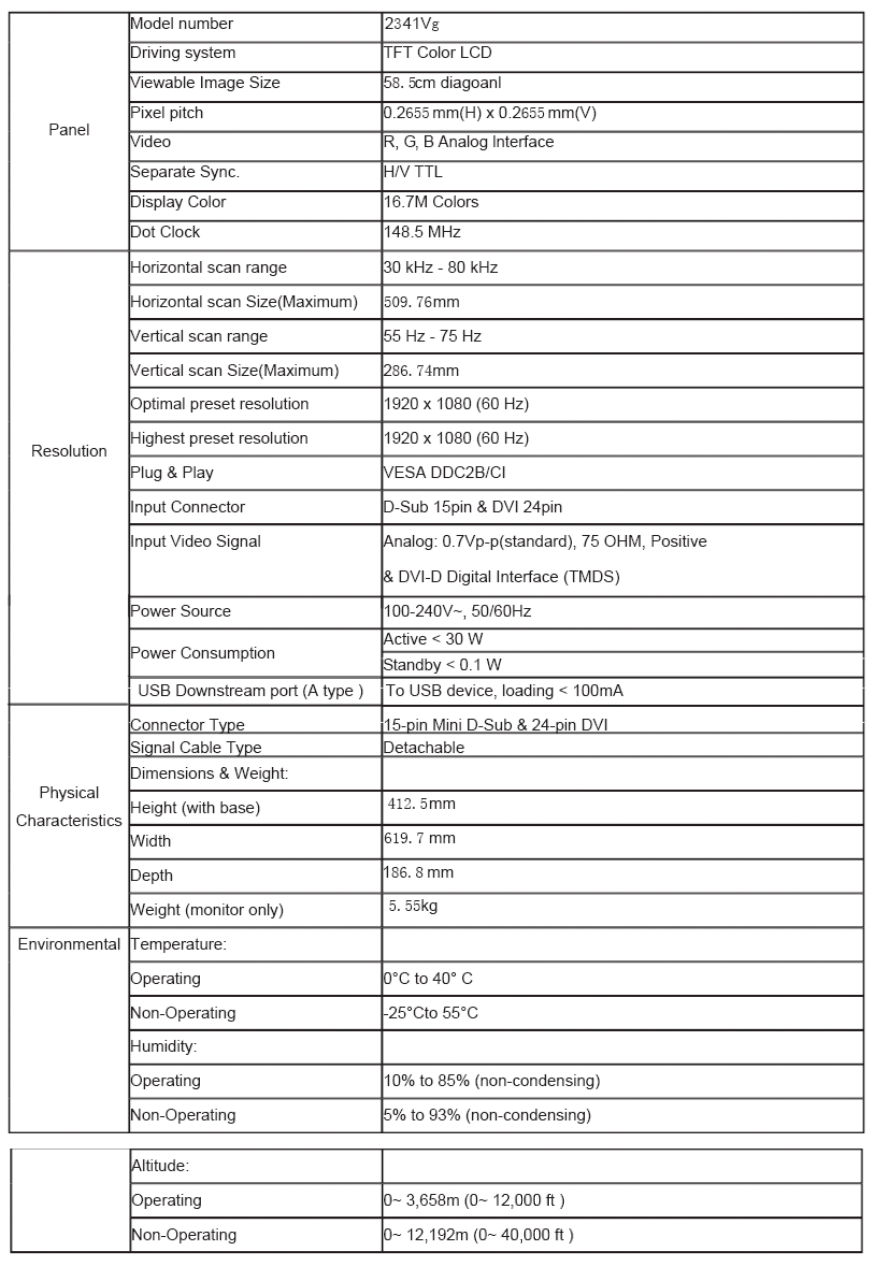

2341Vg

7

2. LCD Monitor Description

The LCD monitor will contain a main board, a power board, a key board and two USB boards which house the flat

panel control logic, brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips

each voltage.

AC-IN

100V-240

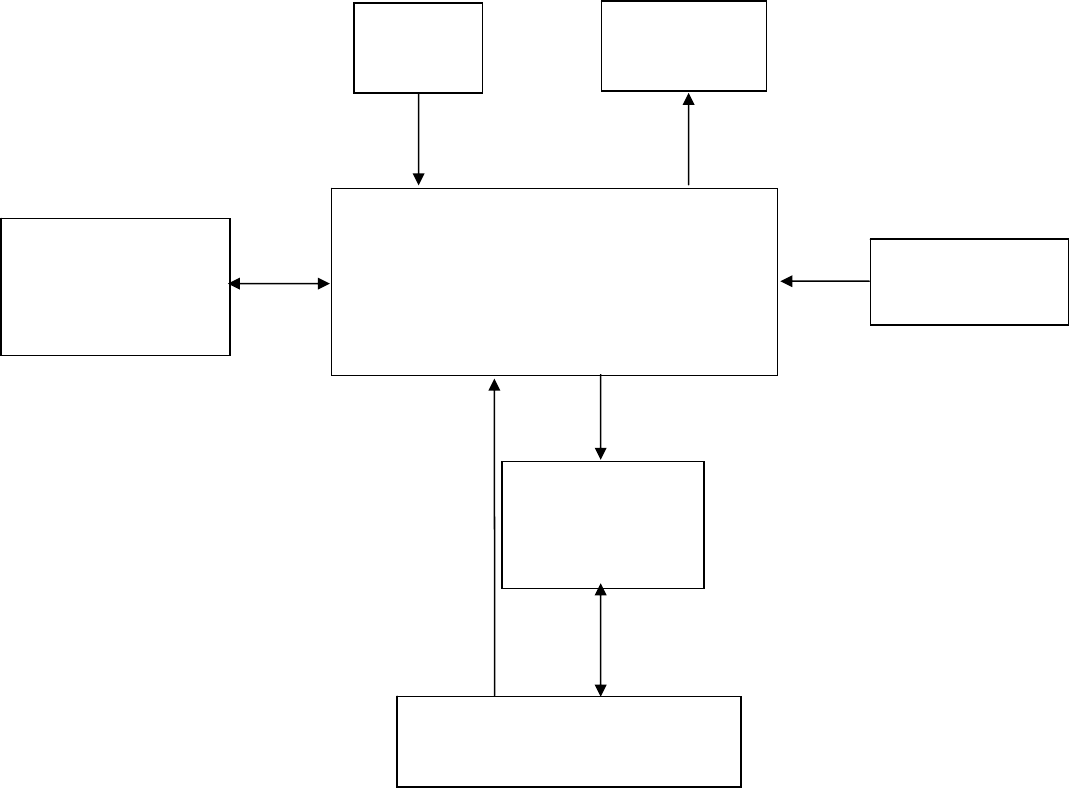

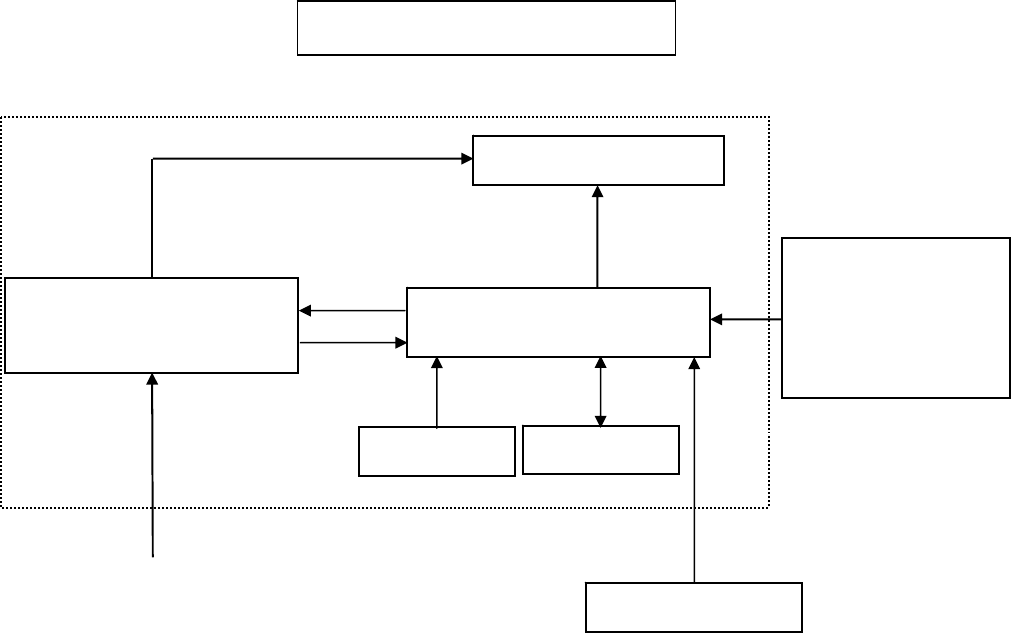

Monitor Block Diagram

Power Board

(Include adapter, inverter)

Flat Panel and backlight

Main Board

RS232 Connector

For white balance

adjustment in factory

mode

Video signal, DDC

Key Board

Host Computer

USB Board*2

8

3. Operating Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

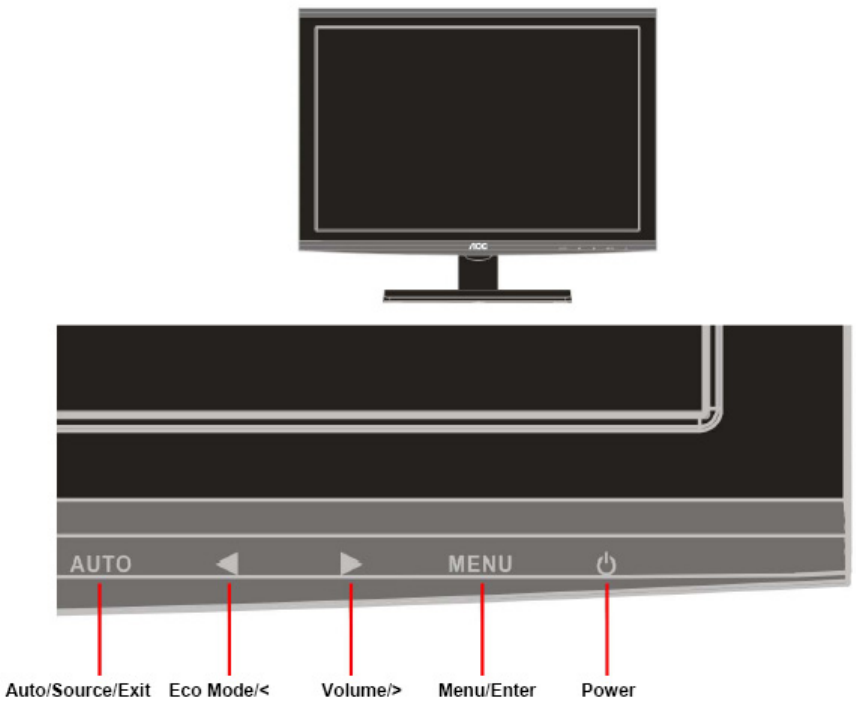

3.2 Control Buttons

Power

Press the Power button to turn on/off the monitor.

Volume / >

When there is no OSD, press Volume > to active volume adjustment bar, press < or > to adjust volume.

Eco Mode / <

Press the Eco key continuously to select the Eco mode of brightness when there is no OSD (Eco mode hot key may

not be available in all models).

Auto / Exit / Source hot key

When the OSD is closed, press Auto button will be auto configure hot key function. When the OSD is closed, press

Source button will be Source hot key function. Press Source button continuously to select the input source showed

in the message bar, press Menu/Enter button to change to the source selected.

9

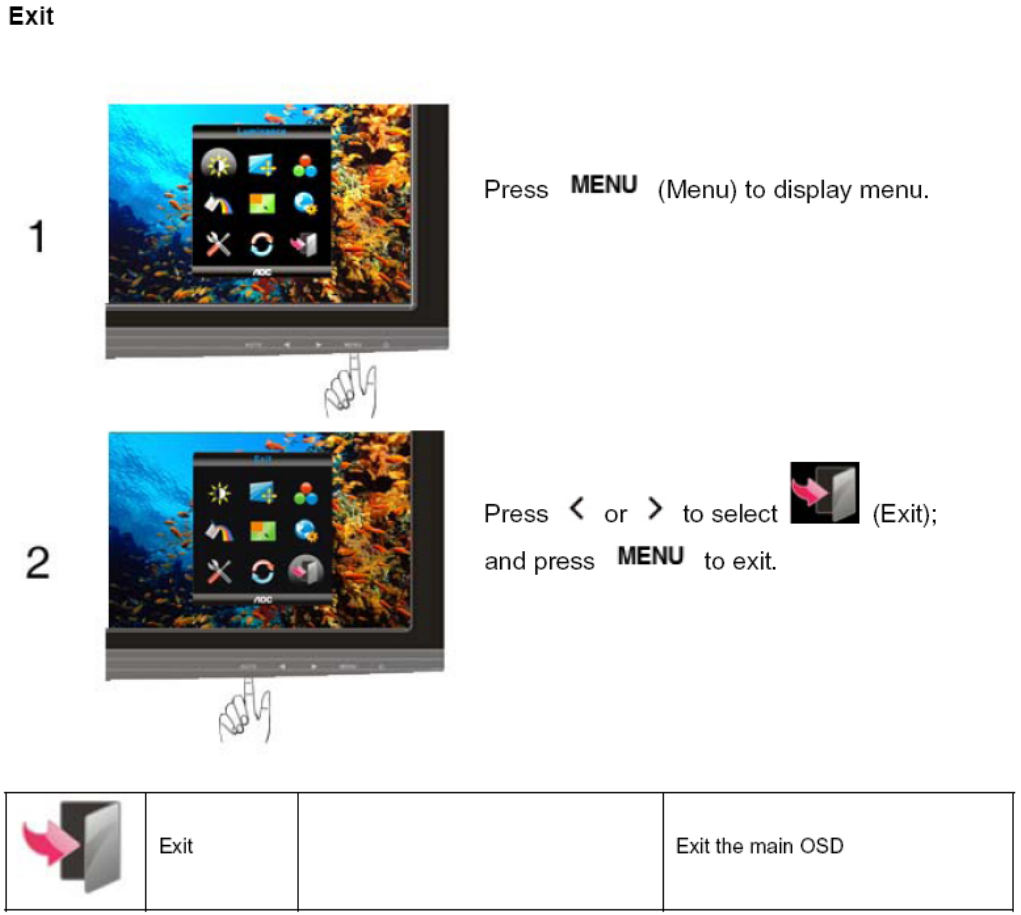

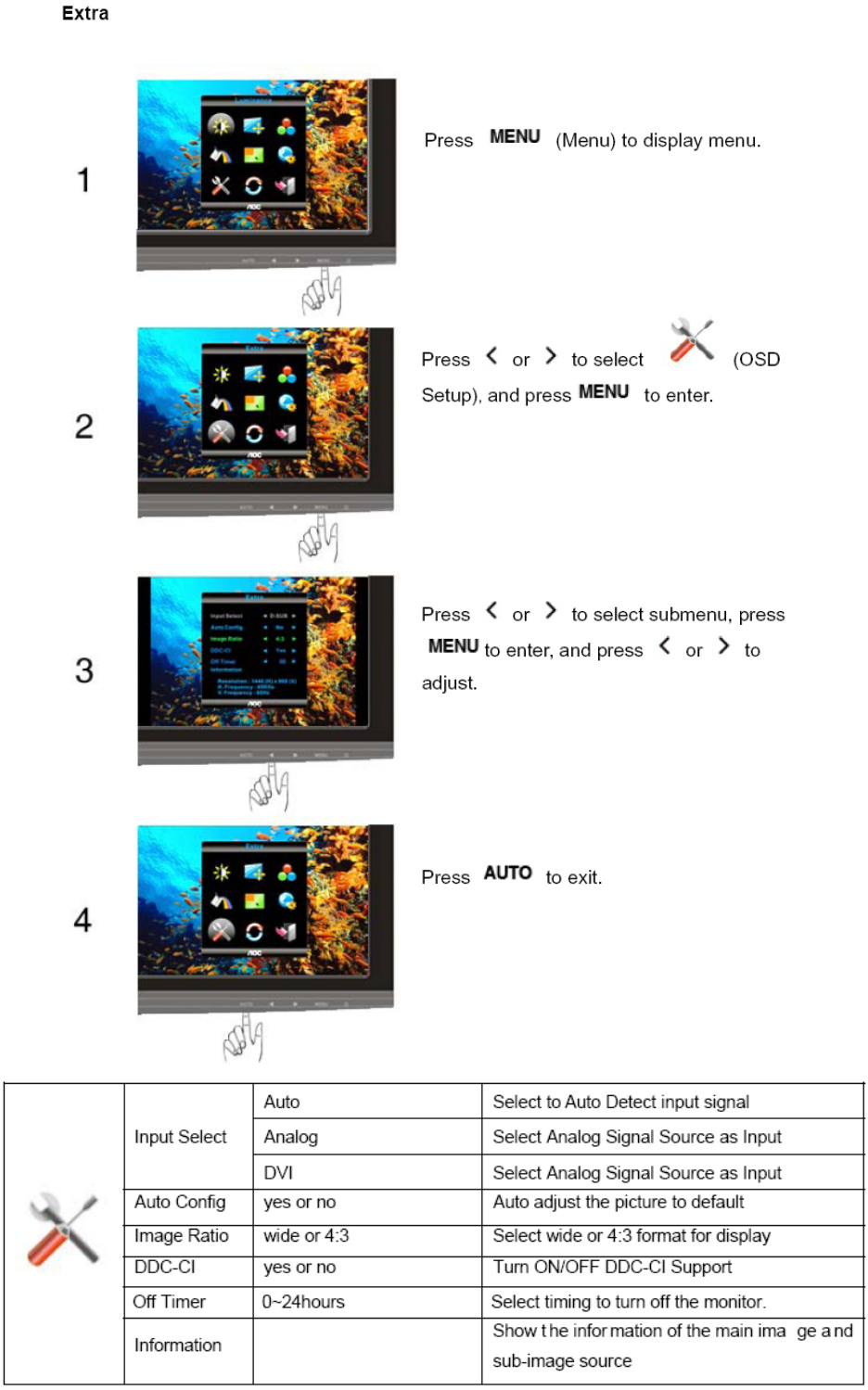

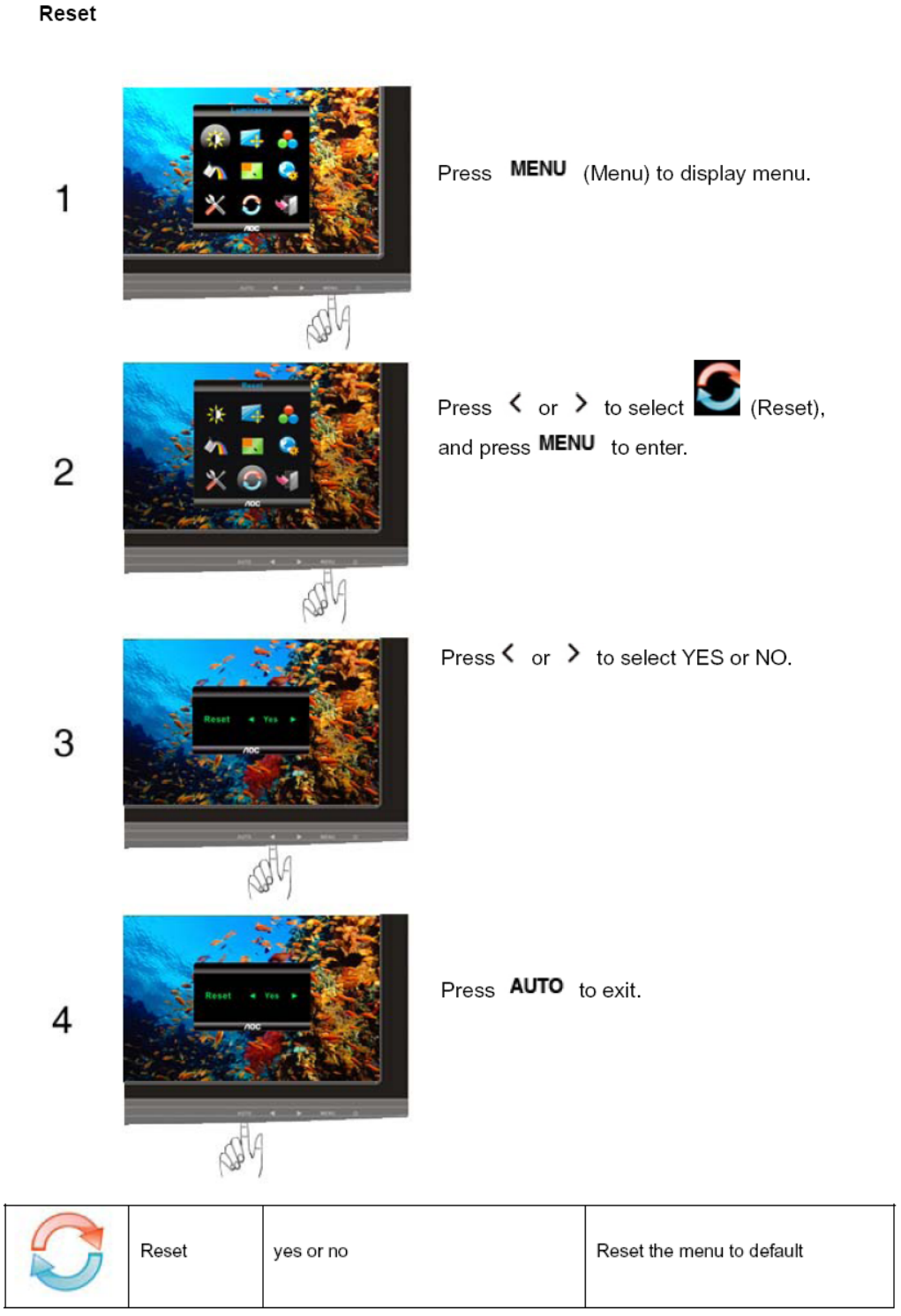

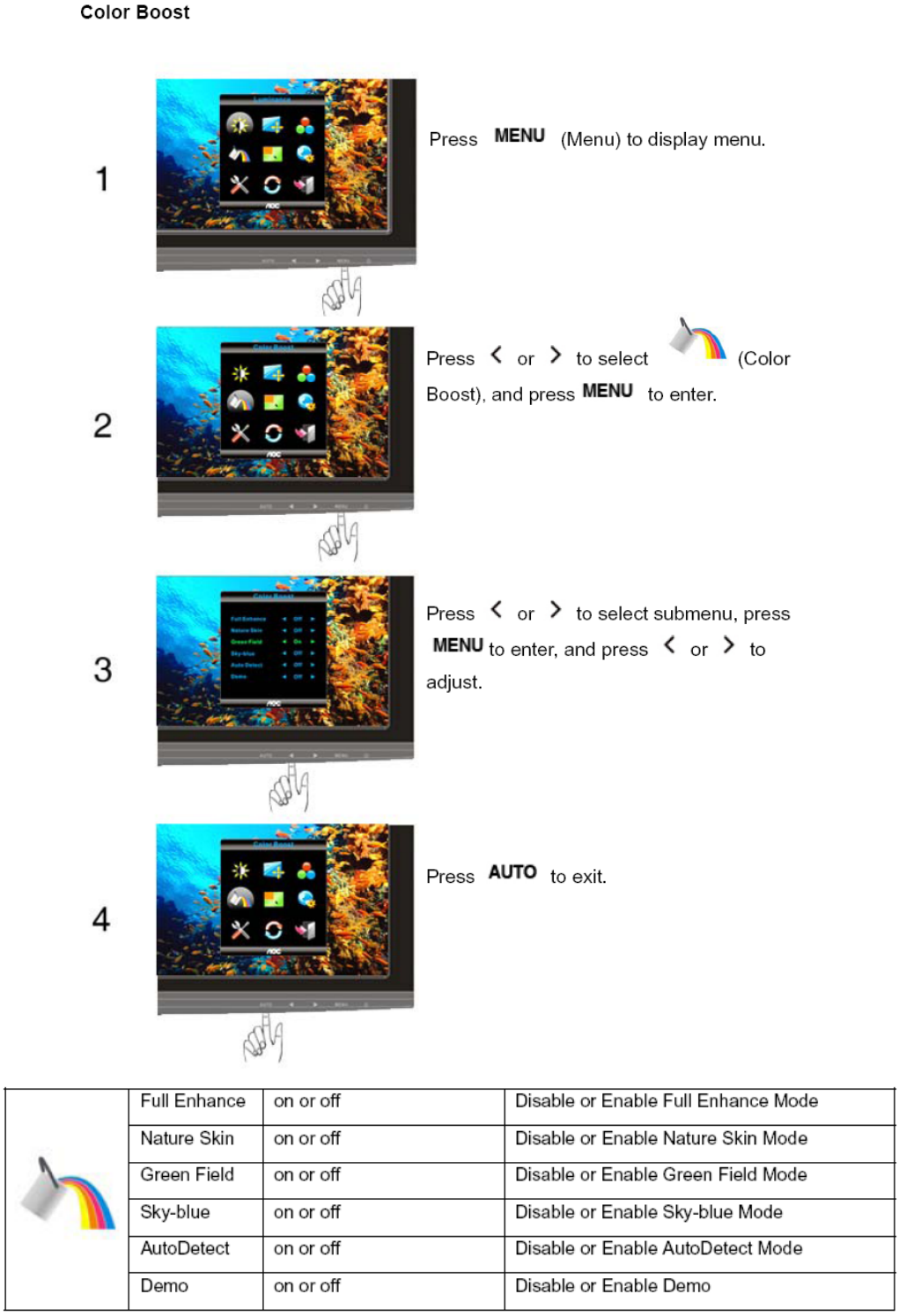

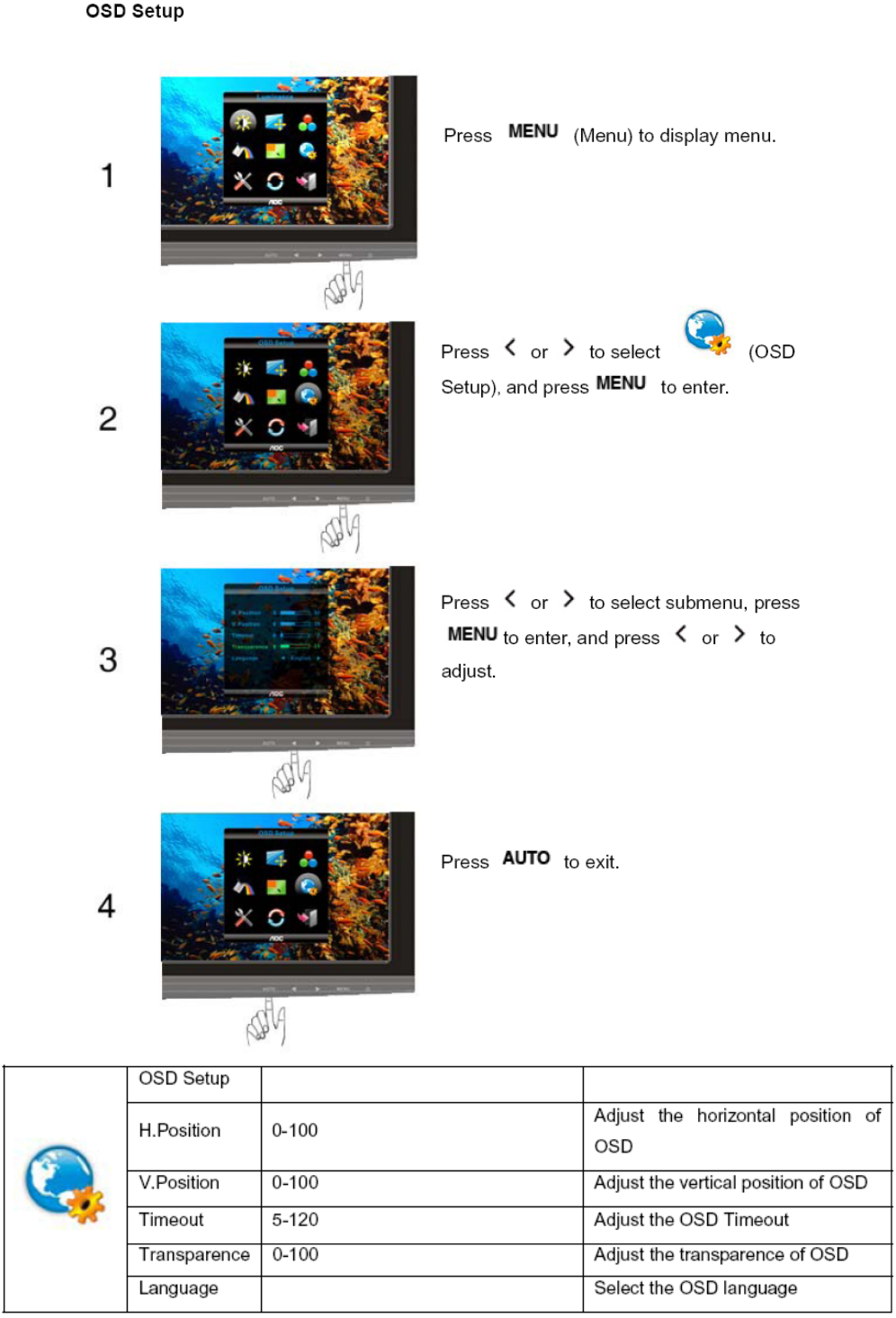

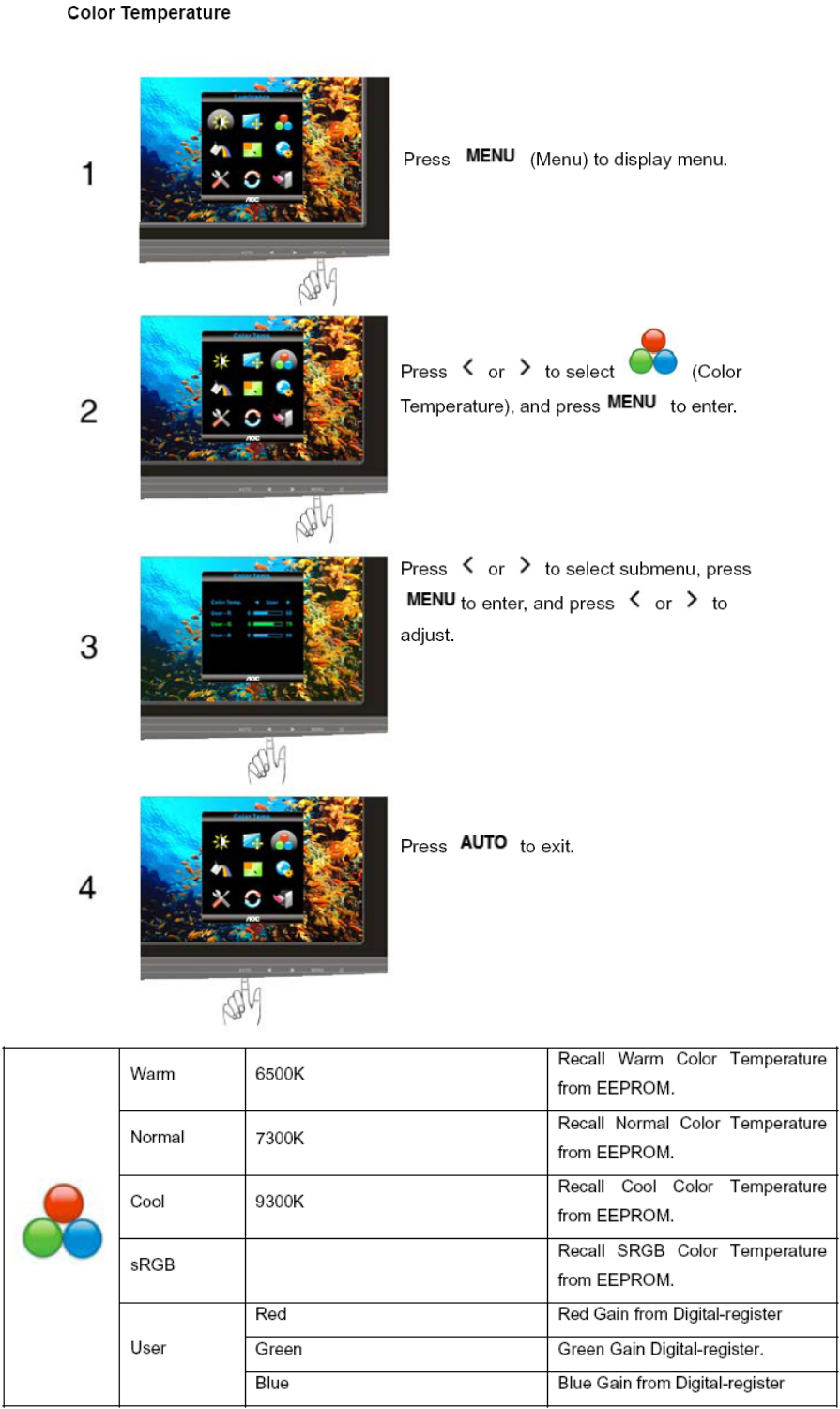

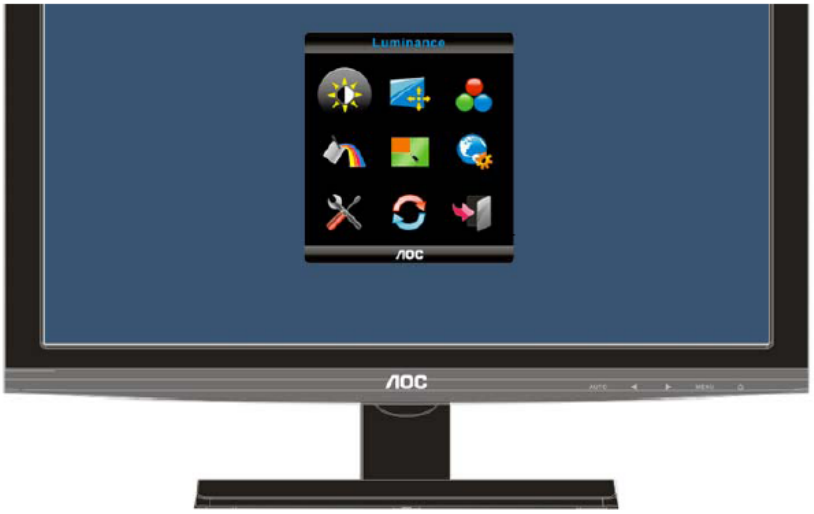

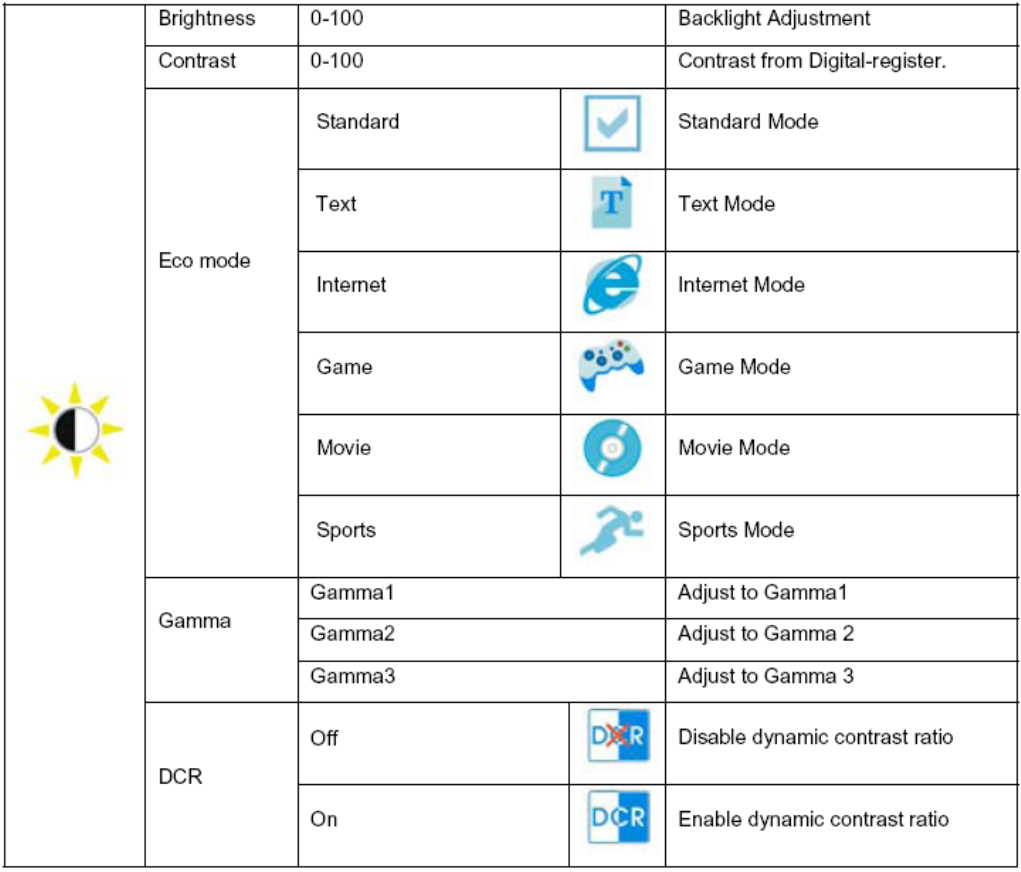

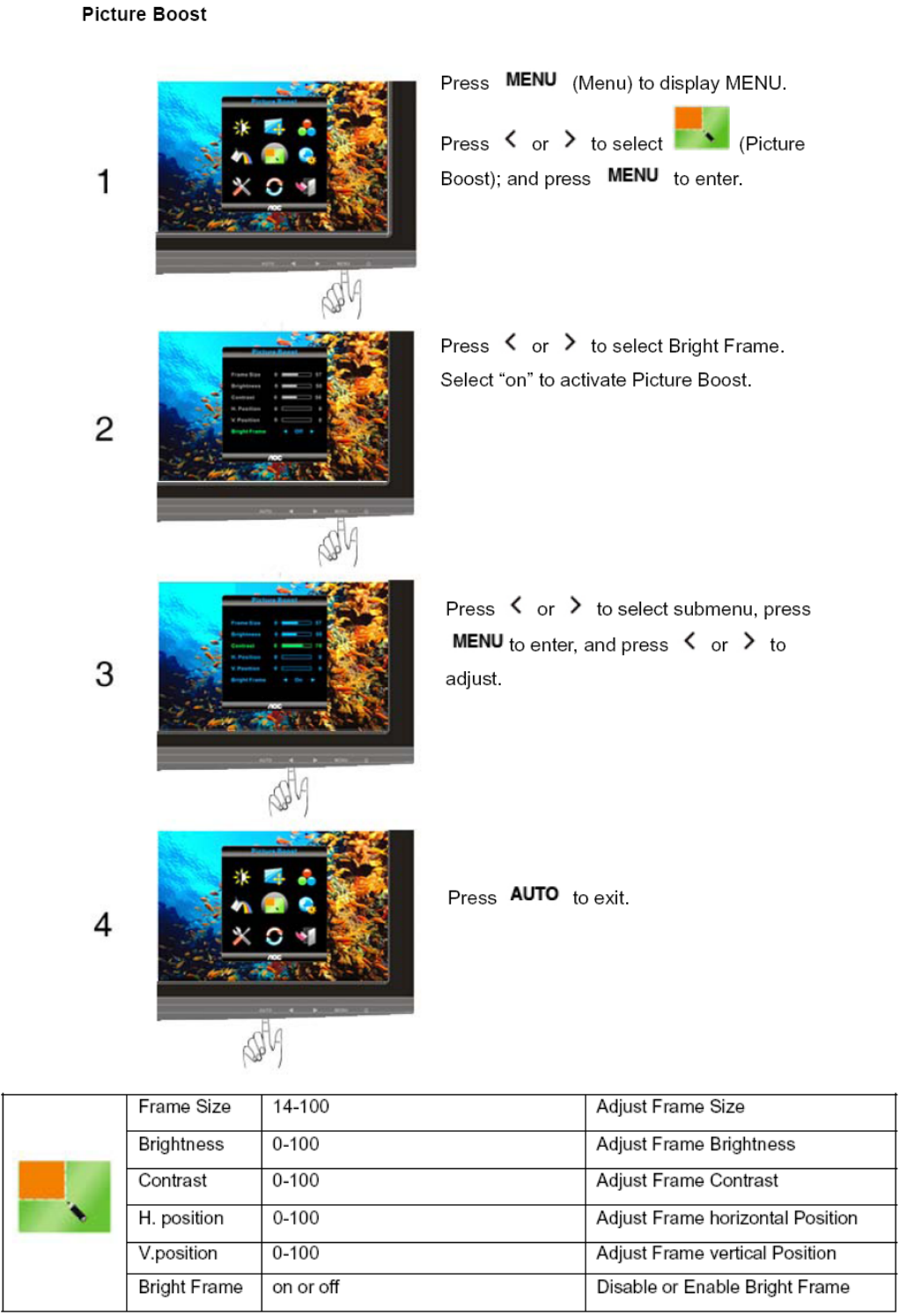

3.3 OSD Menu

1) Press the MENU-button to activate the OSD window.

2) Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button

to activate sub-menu. Once the desired function is highlighted, press MENU-button to activate it.

3) Press < or > to change the settings of the selected function. Press < or > to select another function in sub-menu.

Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.

4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press

power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off

and then press power button to turn the monitor on.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to

adjust.

3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

10

11

12

13

14

15

16

17

18

19

20

4. Input/Output Specification

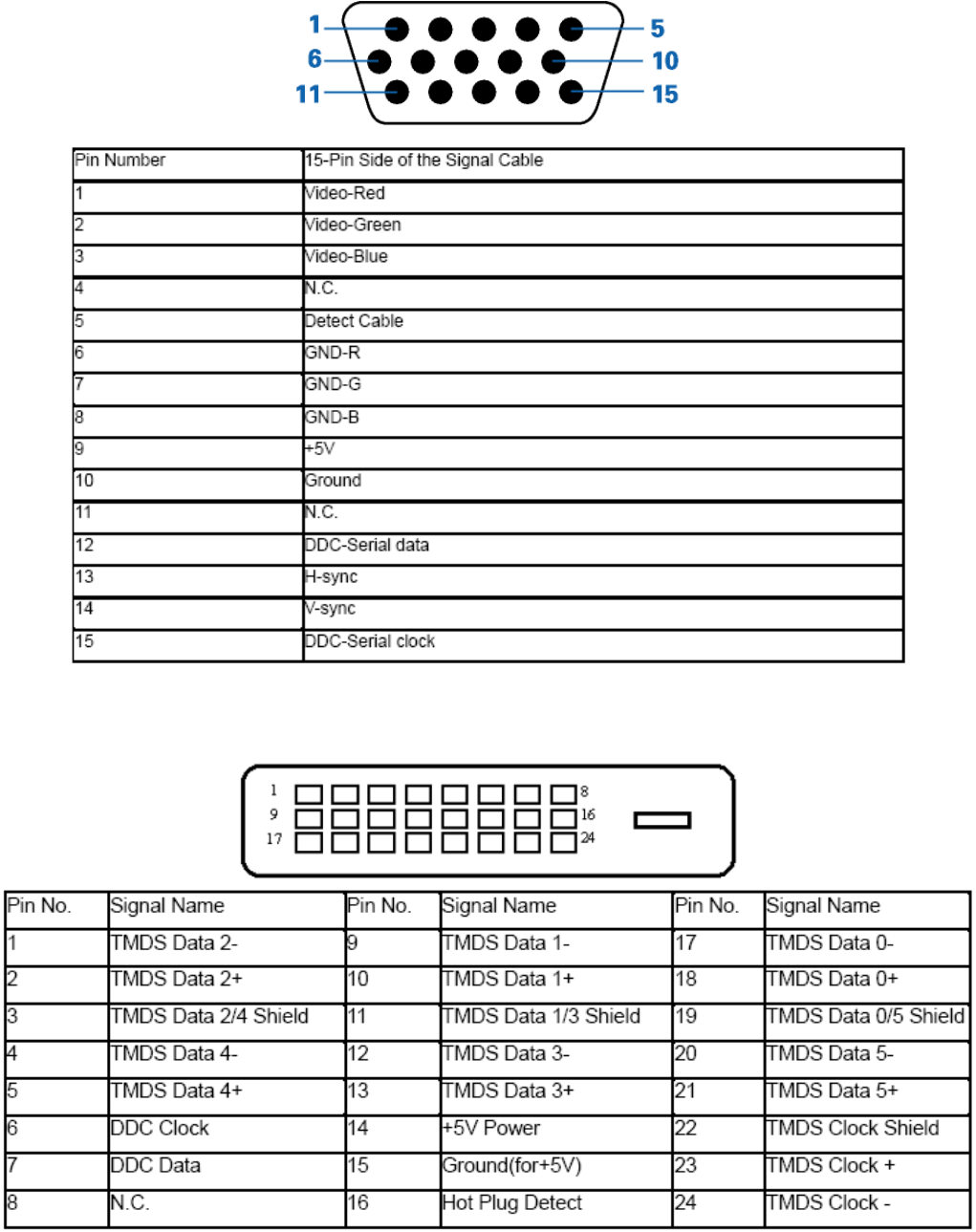

4.1 Input Signal Connector

Analog connector

DVI connector (2341Va)

21

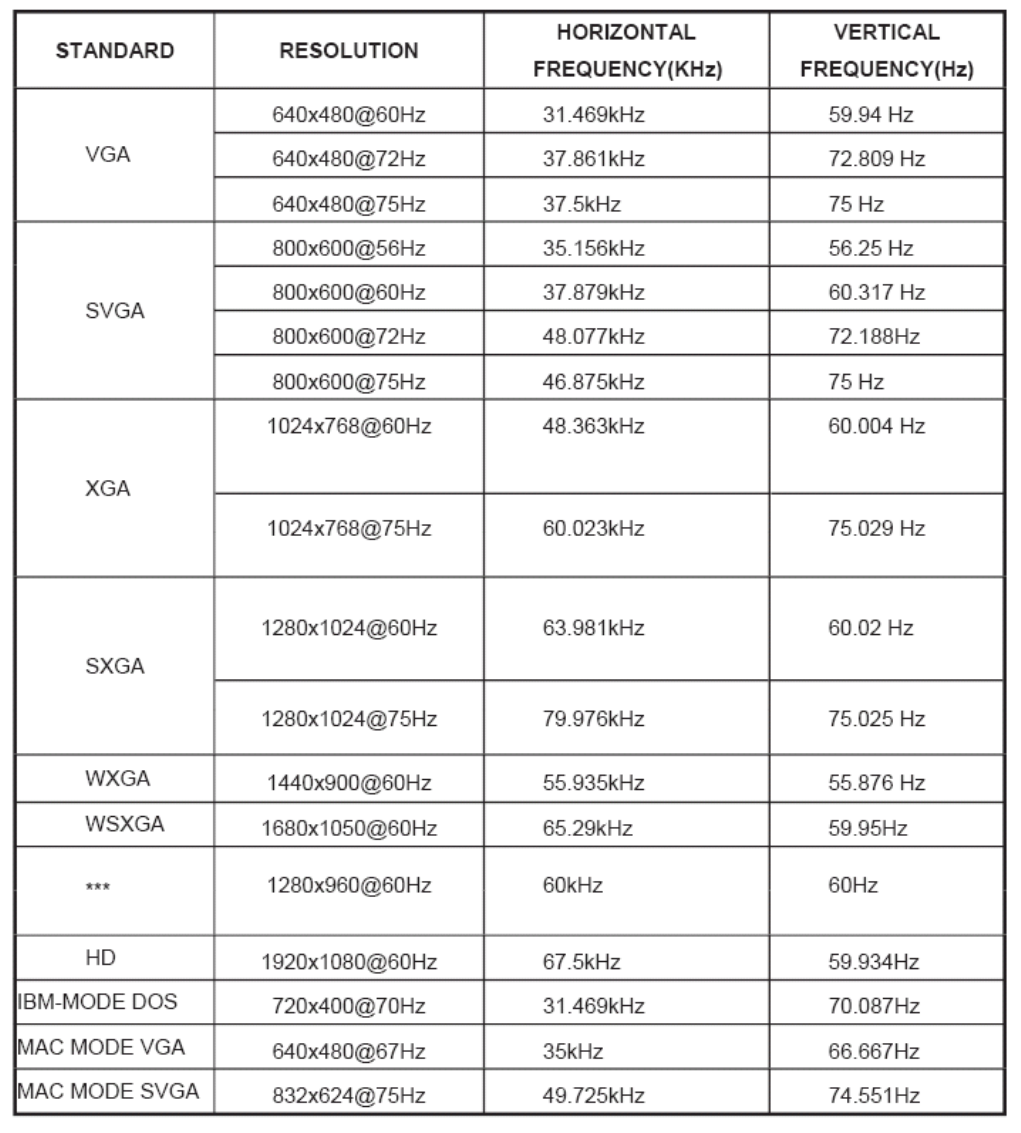

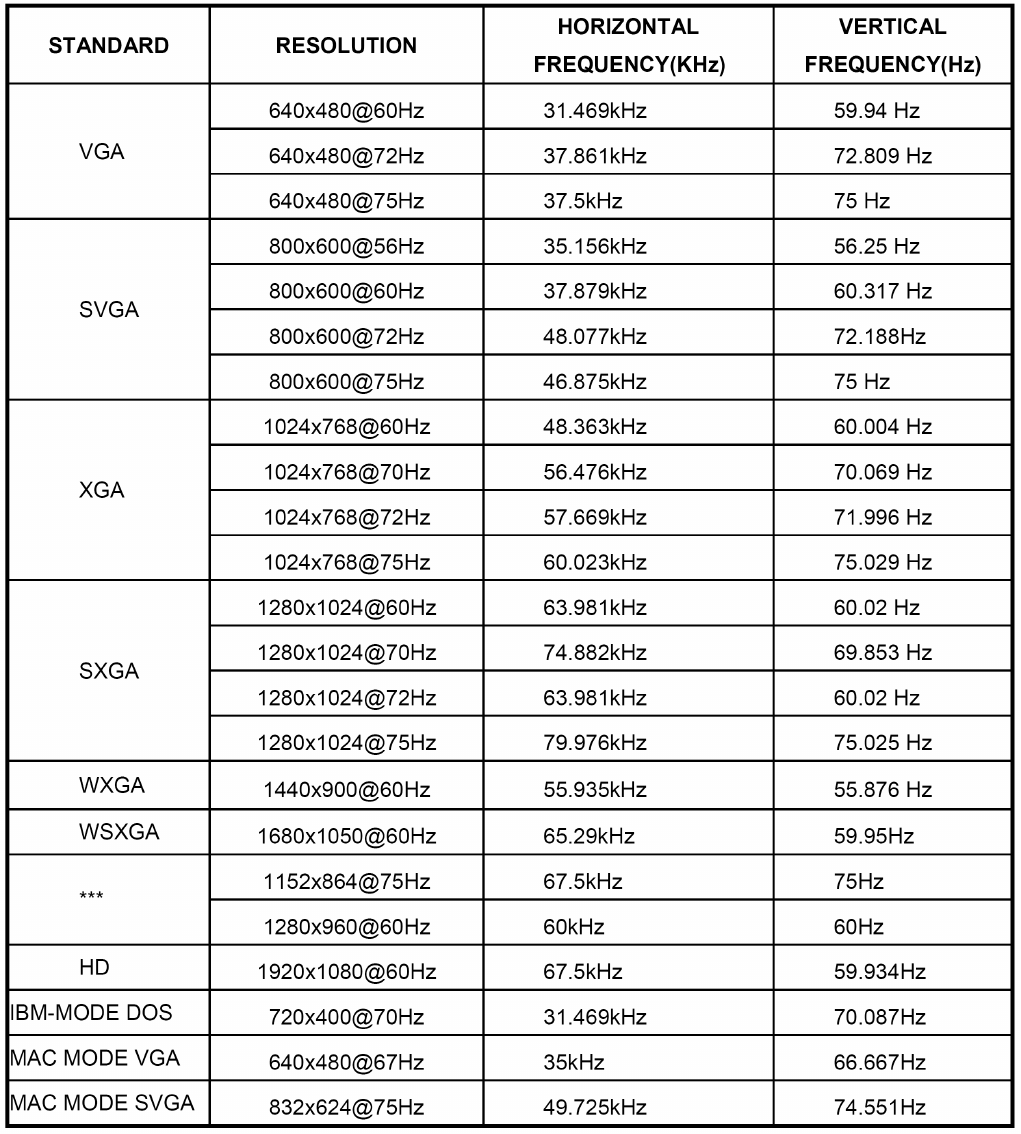

4.2 Factory Preset Display Modes

2341Va&2341Sa

22

2341Vg

23

4.3 Panel Specification

4.3.1 General Features

LTM230HT03 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film

Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light

unit. The resolution of a 23” is 1920 x 1080 and this model can display up to 16.7 millions colors.

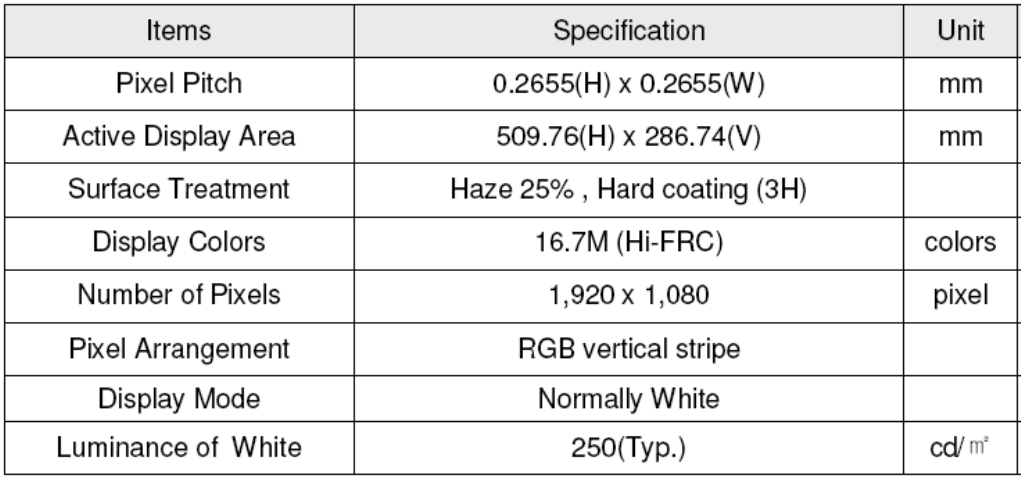

4.3.2 Display Characteristics

24

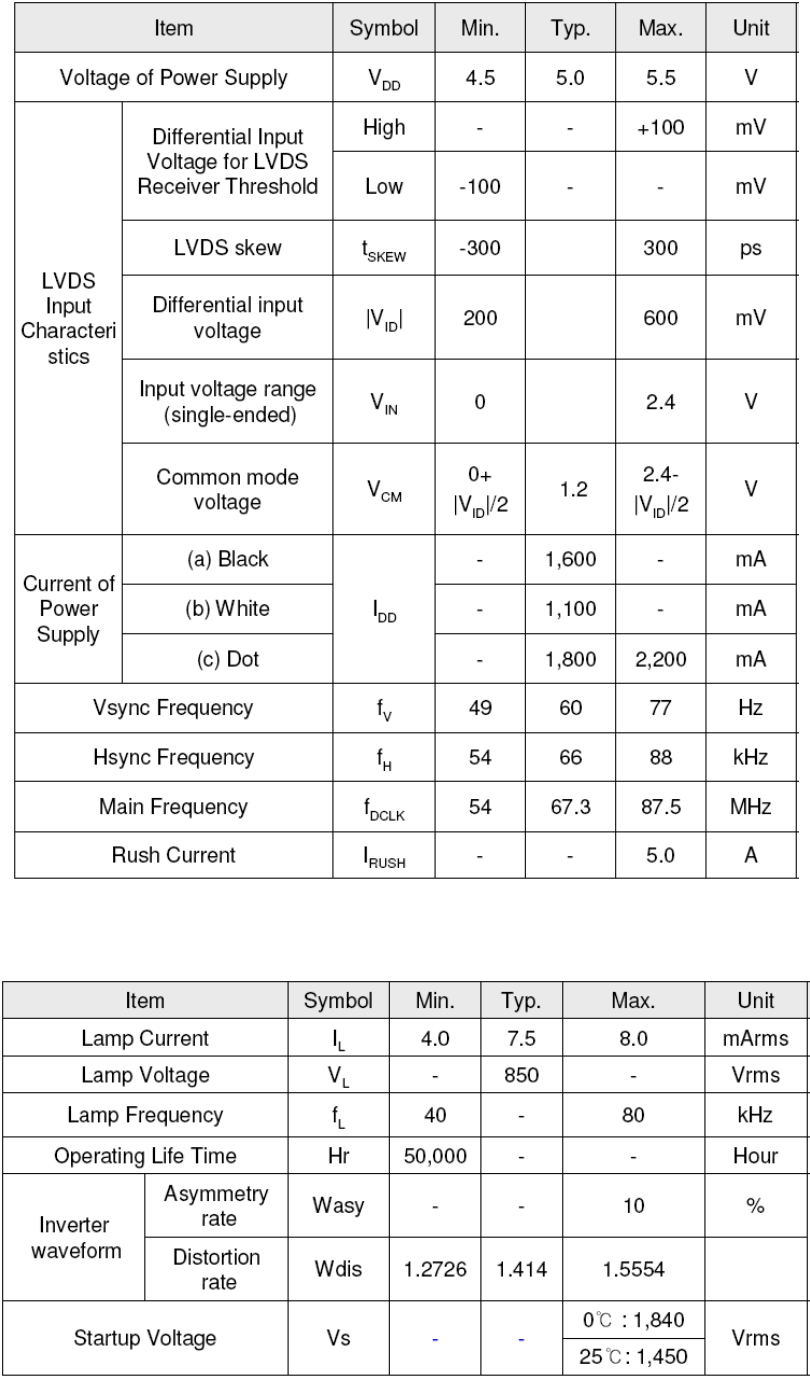

4.3.3 Electrical Characteristics

TFT LCD Module

Ta = 25°C

Backlight

Ta=25 ± 2°C

25

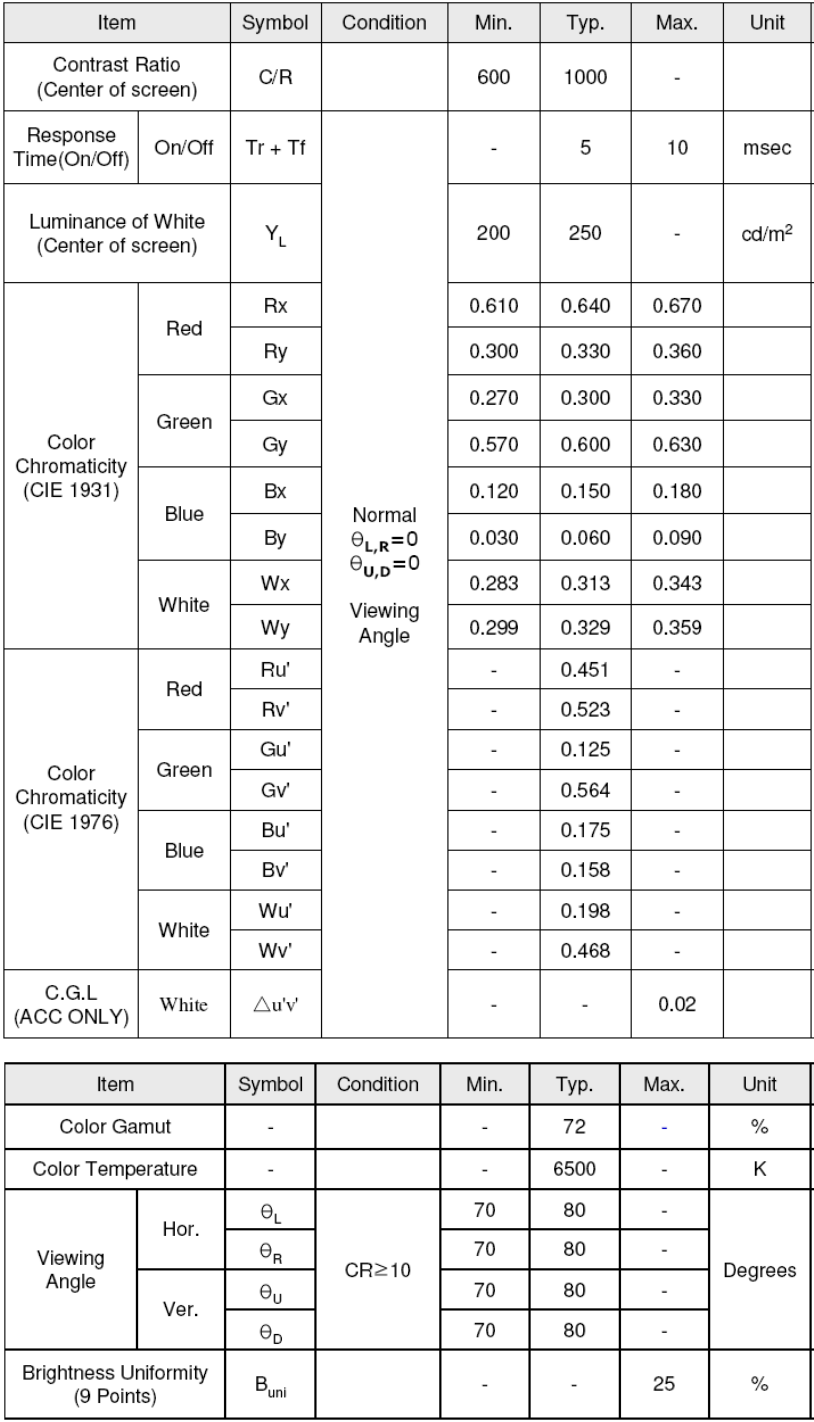

4.3.4 Optical Characteristics

(Ta = 25 ± 2°C, VDD=5V, fv= 60Hz, fDCLK= 67.3 MHz, IL = 7.5mArms)

26

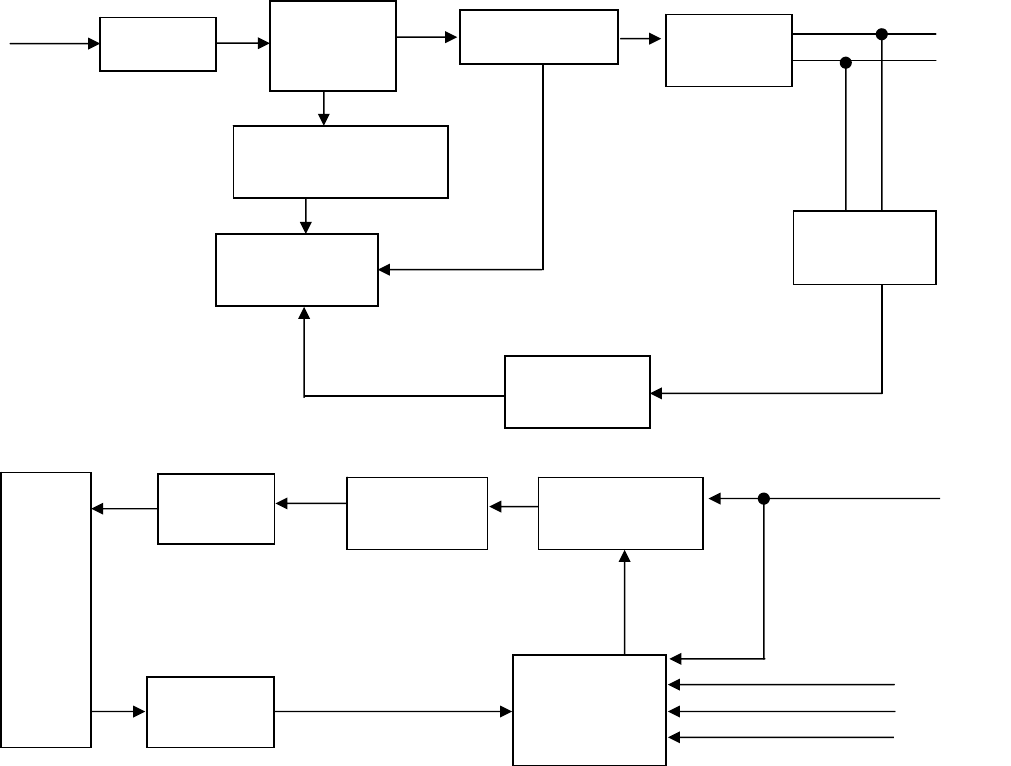

5. Block Diagram

5.1 Main Board

2341Va & 2341Vg

RXC-

VCC3.3

+5V

RX0-

DVI_CABLE_DET

B0-

G0-

06.POWER

Adj_BACKLIGHT

on_BACKLIGHT

Audio_EN

Audio_DET

PS_EN

Panel_ON

+5V

VCC3.3

VCC1.8

VLCD

R0+

DDCSCL1

PA[0..9]

AVS0

Adj_BACKLIGHT

PS_EN

VLCD

VGA_CABLE_DET

RXC+

Audio_DET

PB[0..9]

RX1+

Audio_EN

DDCSDA1

VLCD

EDID_WP

DVI_HPD

DDCSDA2

VCC3.3

RX1-

on_BACKLIGHT

EDID_WP

VCC1. 8

RX0+

R0-

VCC1.8

RX2-

AHS0

05.PANEL INTERFACE

VLCD

PA[0..9]

PB[0..9]

B0+

+5V

02.INPUT

02.D-SUB INPUT

R0+

R0-

SOG_DET

G0+

G0-

B0+

B0-

+5V

AHS0

AVS0

DDCSCL1

DDCSDA1

EDID_WP

VGA_CABLE_DET

SOG_DET

RX2+

04.SCALER

Adj_BACKLIGHT

on_BACKLIGHT

Audio_EN

Audio_DET

PS_EN

Panel_ON

PB[0..9]

PA[0..9]

R0+

R0-

SOG_DET

G0+

G0-

B0+

B0-

AHS0

AVS0

DDCSCL1

DDCSDA1

EDID_WP

VGA_CABLE_DET

RXC+

RXC-

RX2-

RX2+

RX1+

RX1-

RX0-

RX0+

DDCSCL2

DDCSDA2

DVI_CABLE_DET

DVI_HPD

VCC1.8

VCC3.3

+5V

Panel_ON

G0+

DDCSCL2

EDID_WP

03.DVI INPUT

RX0+

RX0-

RX1-

RX1+

RX2+

RX2-

RXC-

RXC+

DDCSCL2

DDCSDA2

DVI_CABLE_DET

EDID_WP

+5V

DVI_HPD

27

2341Sa

12MHz

(X401)

FLASH ROM

PM25LV020-100SCE

(U402)

Scalar IC NT68668UFG/C

(Include ADC, OSD, MCU)

(U401)

Panel Interface

(CN408)

Key Control Interface

(CN402)

D-Sub Connector

(CN101)

EEPROM

AT24C02BN-SH-T

(U101)

28

5.2 Power Board

5V

EMI filter

Start Resistor

(R908)

PWM Control

(IC901)

Transformer

AC input 16V

Bridge

Rectifier

and Filter

Feedback

Circuit

Rectifier

diodes

Photo coupler

(IC902)

5Vi

ON/OFF

Feedback

Circui

t

Transformer

(PT801)

MOSFET

(Q805, Q806)

Lamp

Output

Circui

t

PWM Control

TA9687GN

(IC801)

16V

DIM

29

6. Schematic

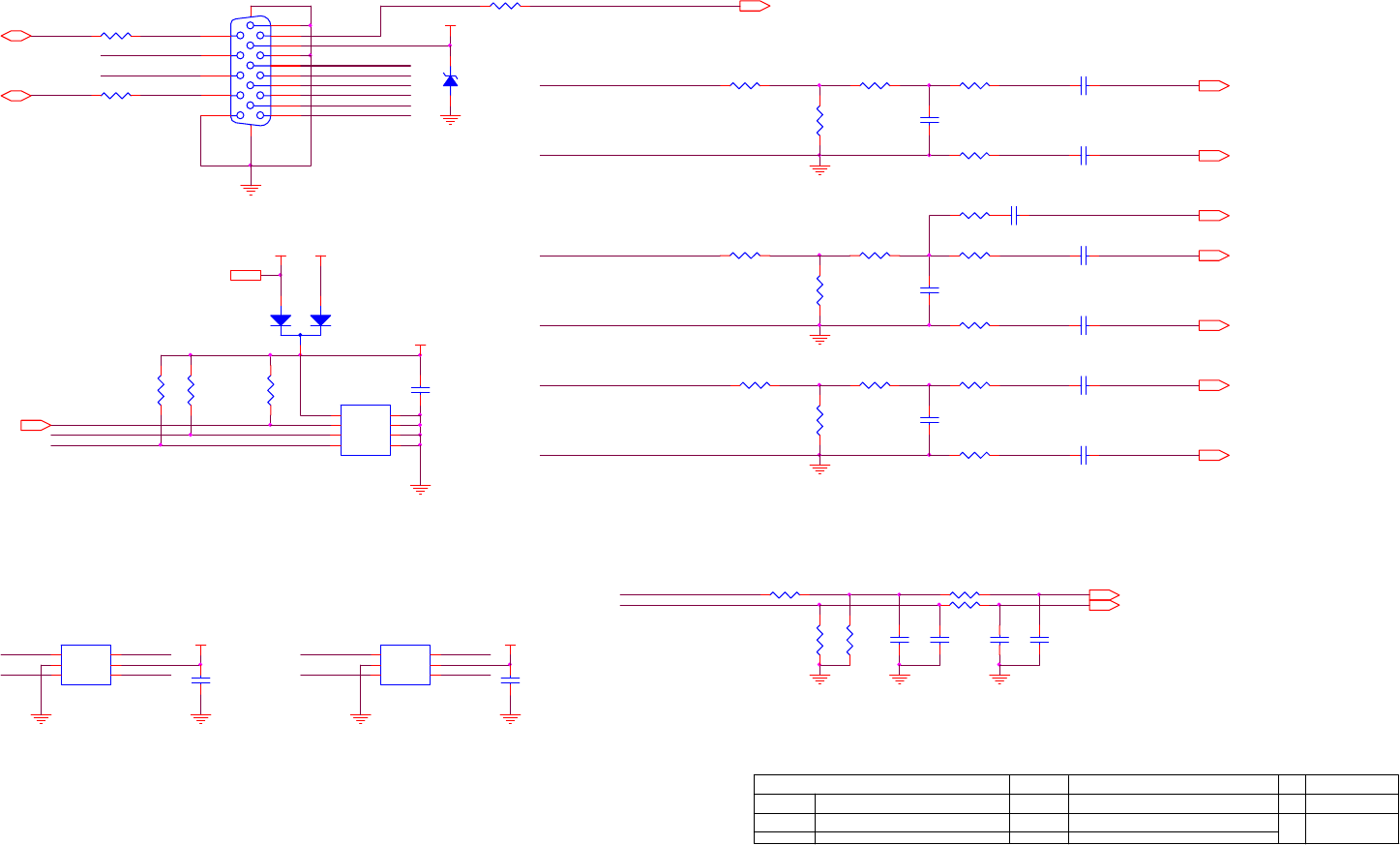

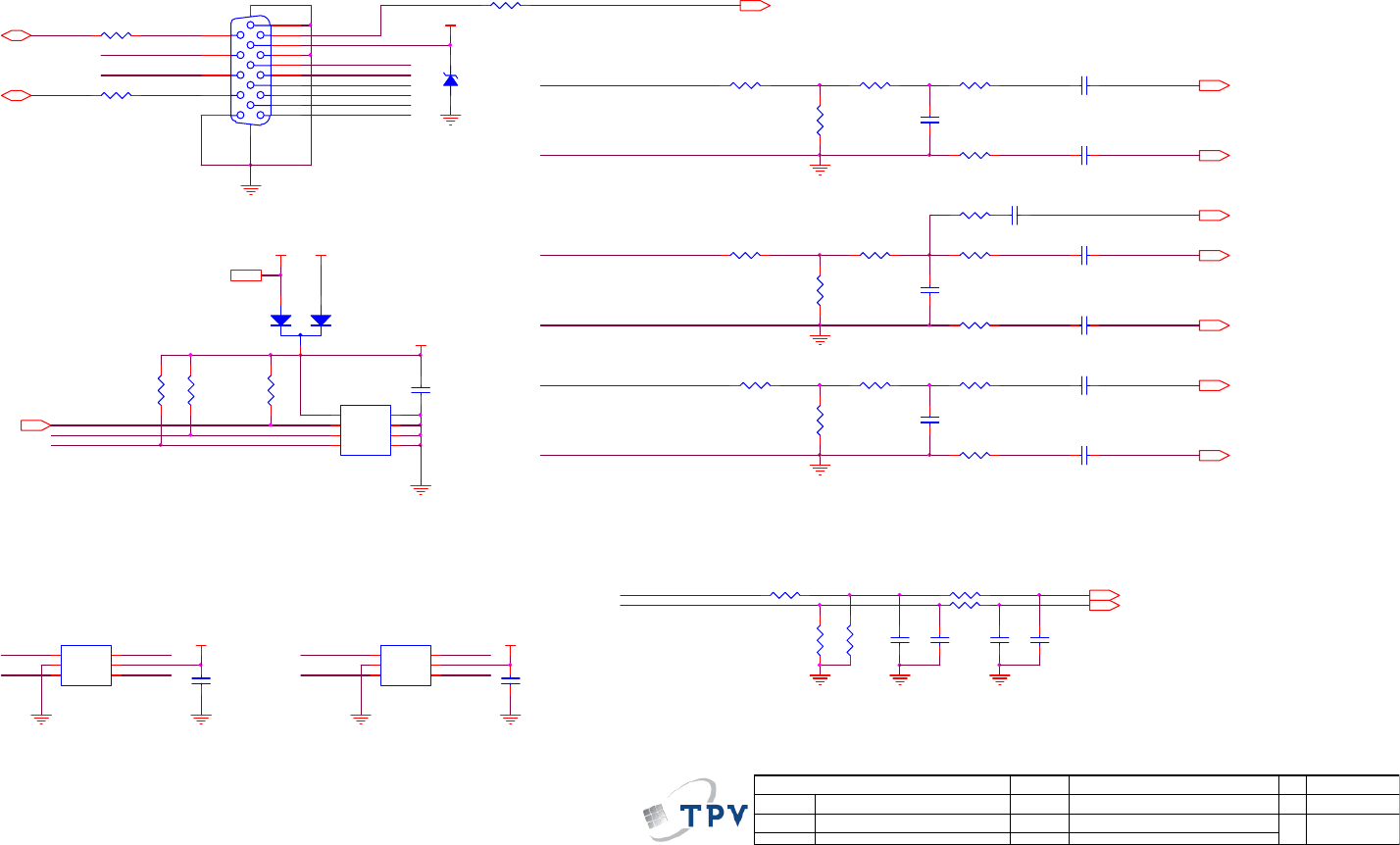

6.1 Main Board

2341Va

715G3737M01000004K

+5V

BIN0

C109

5PF 50V

BIN0

R117

0R05 1/16W

VGA_CABLE_DET

GIN0

BIN0-

AVS0 5

BIN0

C110

47N16V

R106

100R 1/16W 5%

C105 47N16V

R116 22K 1/16W 5%

R0+ 5

R119

100R 1/16W 5% R0+

VSIN0

ESD_VGA

DDCSCL_A

C113

100NF 25V

R118

0R05 1/16W

R101

100R 1/16W 5%

R0- 5

R121

100R 1/16W 5%

DDCSDA1

G0-

HSIN0

R114 4K7 1/16W 5%

R122 0R05 1/10W

C108

47N16V

C106

5PF 50V

B0+

C103

5PF 50V

R113

100R 1/16W 5%

C181

22pF 50V

R123 100R 1/16W 5%

HSIN0

DDCSDA1

DDCSDA_A

DET_VGA

R108

100R 1/16W 5%

R104

0R05 1/16W

R126

2K2 1/16W 5%

C111

NC/22pF 50V

G0- 5

R0-

R103

0R05 1/16W

C114

100NF 25V

DET_VGA

BIN0-

U101

AT24C02BN-SH-T

1

2

3

45

6

7

8A0

A1

A2

VSSSDA

SCL

WP

VCC

RIN0-

C101

220N16V

C112

NC/22pF 50V

VGA_CABLE_DET 5

B

37Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

D-SUB I/O

G3737-M0D-000-0H4K-1-100220

OEM MODEL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

B0-

DDCSCL_A

GIN0

R142

470R 1/16W 5%

ZD101

RLZ5.6B

GIN0-

R124 100R 1/16W 5%

RIN0

U103

AOZ8902CIL

1

2

3 4

5

6

CH1

VN

CH2 CH3

VP

CH4

ESD_VGA

B0- 5

DDCSDA15

CN101

DB15

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

17 16

R112

75R 1/16W 1%

D101

BAV70

3

1

2

HSIN0 AHS0 5

R105

100R 1/16W 5%

G0+

ESD_VGA

DDCSCL1

U102

AOZ8902CIL

1

2

3 4

5

6

CH1

VN

CH2 CH3

VP

CH4

R102 100R 1/16W 5%

C120

1N50V

R109

0R05 1/16W

B0+ 5

DDCSCL15

R107

75R 1/16W 1%

R115 4K7 1/16W 5%

C102

47N16V

RIN0

VGA_5V

C107

47N16V

VGA_5V

C104

47N16V

GIN0-

DDCSCL1

G0+ 5

+5V4,5,7

EDID_WP

R125

2K2 1/16W 5%

RIN0-

VGA_5V

DDCSDA_A

R110

0R05 1/16W

EDID_WP4,5

SOG_DET 5

GIN0

C182

22pF 50V

R120

75R 1/16W 1%

VSIN0

R111

100R 1/16W 5%

VSIN0

30

+5V3,5,7

U106

AOZ8902CIL

1

2

3 4

5

6

CH1

VN

CH2 CH3

VP

CH4

R130 10K 1/16W 5%

B

47Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

DVI

G3737-M0D-000-0H4K-1-100220

OEM MOD EL Size

Rev

Date Sheet of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

C118

100NF 25V

DDC_WP

DAT2+

RXC- 5

Q101

NC

R135 10R 1/16W 5%

SCL_DVI

CN102

JACK

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

26

25

27

28

DAT2-

DAT2+

2/4shield

DAT4-

DAT4+

DDC SCL

DDC SDA

VSYNC

DAT1-

DAT1+

1/3shield

DAT3-

DAT3+

+5V

SYNC GND

HPD

DAT0-

DAT0+

0/5shield

DAT5-

DAT5+

clk shield

clk+

clk-

GND

ESD_DVI

DAT0-

R133 22K 1/16W 5%

R131 4K7 1/16W 5%

RX0- 5

C116

220N16V

DVI5V

C119

100NF 25V

C117

100NF 25V

U104

AOZ8902CIL

1

2

3 4

5

6

CH1

VN

CH2 CH3

VP

CH4

DAT1+

R127

100R 1/16W 5% DVI_CABLE_DET 5

R134 10R 1/16W 5%

R137 10R 1/16W 5%

D102

BAV70

3

1

2

RX1- 5

DAT0+

DAT2-

R138 10R 1/16W 5%

RXC+ 5

DCLK-

DVI5V

R139 10R 1/16W 5%

DVI_HPD 5

R132 4K7 1/16W 5%

R128 100R 1/16W 5%

ESD_DVI

C115

100NF 25V

R140 10R 1/16W 5%

DAT1-

RX2- 5

RX0+ 5

DVI5V

DET_DVI

U105

AT24C02BN-SH-T

1

2

3

45

6

7

8A0

A1

A2

VSSSDA

SCL

WP

VCC

ESD_DVI

ZD102

RLZ5.6B

+5V

R129 100R 1/16W 5%

U107

AOZ8902CIL

1

2

3 4

5

6

CH1

VN

CH2 CH3

VP

CH4

ESD_DVI

RX2+ 5

SDA_DVI

HPD

RX1+ 5

R141 10R 1/16W 5%

DDCSDA2 5

R136 10R 1/16W 5%

ESD_DVI

DCLK+

EDID_WP 3,5

DDCSCL2 5

31

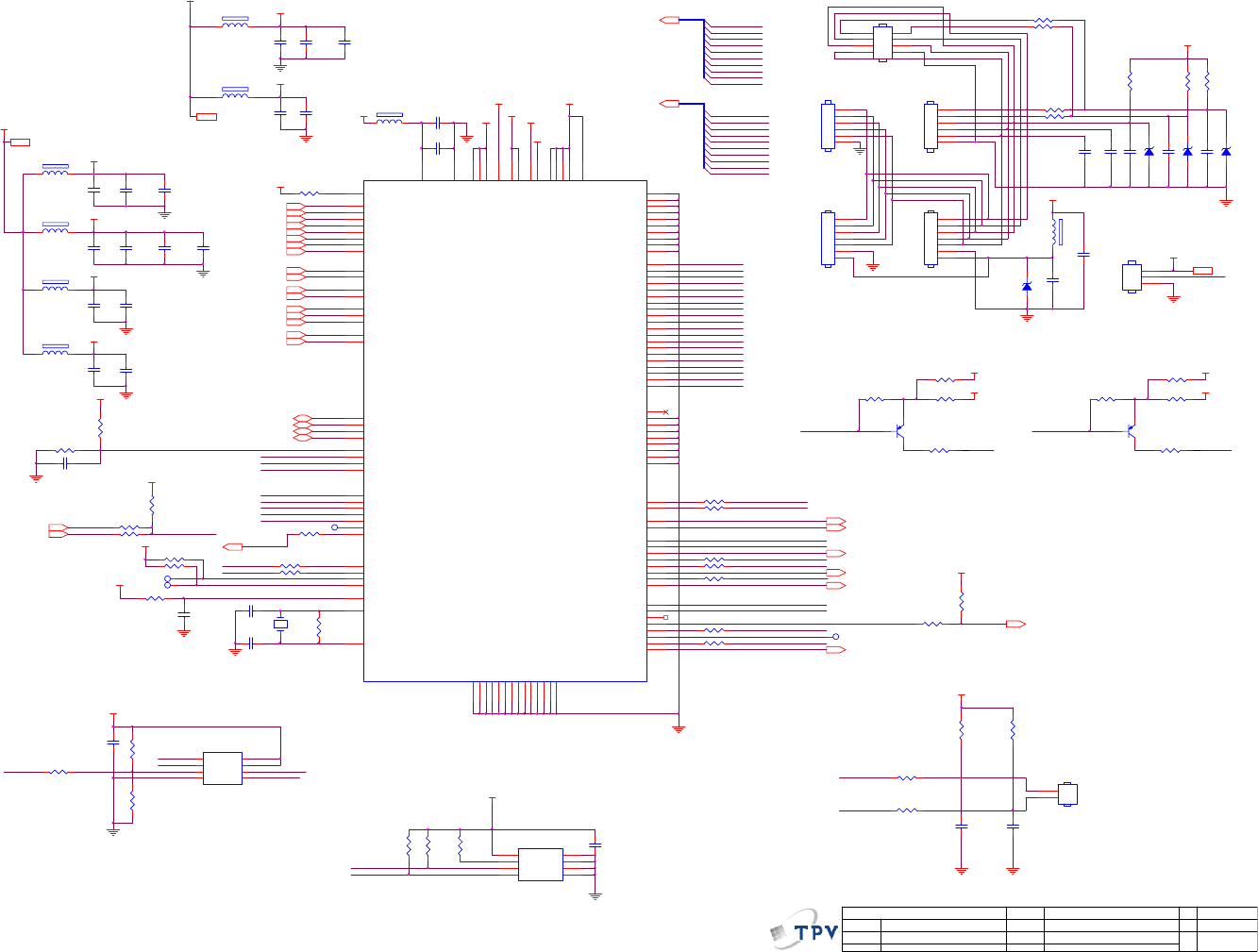

PA6

FB406

NC/120 OHM

1 2

LVB0M

USB_EN

C422

100NF 25V

VCC3.3

PA7

TOUCH_POWER

FB402

300OHM

LVB3P

LVB0M

C431

NC/0.1uF 25V

C408

100NF 25V

DVDD

C421

4.7UF 10V

AHS03

DDCSCL13

DVI_HPD 4

EE_WP

LVB2P

DDCSCL2

DVI_CABLE_DET

AVCC

RX0-

LVB2P

D402

NC

R430

NC /22K 1/16W 5%

RX2-4

KEY2

PA0

PB[0..9]6

LVA0P

LVB1M

LVBCKP

PB8

LED_1

AVCC

LVACKM

SPI_CK

LVB1M

DDCSDA2

LVA3M

G0-

BUZ ZER

R0-3

TP4

R424 1K 1/16W 5%

R420 N C/120R 1/ 16W 1%

R404

3K9 +/-5% 1/16W

R438

NC/10K 1/16W 5%

HSO

LVB2M

WP

LVBCKM

R452 NC

PA[0..9]

PA5

R434 NC/100R 1/ 16W 5%

DDCSDA13

VCC3.3 7

+5V

VCC3.3

R412 NC

D404

NC/RLZ 5.6B

D401

NC

LVACKM

CN402

CONN

1

2

3

4

5

6

PA[0..9]6

LVA1P

R441 NC/ 4K7 1/16W 5%

POWER

SPI_CE

Audio_EN

C424

1uF 10V

R415

100K 1/16W 5%

RX2+

MSC L

VSO

LVA3M

USB_D ET

VCC3.3

Audio_DET

R416

220K 1/16W 5%

C405

100NF 25V

RX1-4

FB405

300OHM

TP1

AVCC

VCC1.8

PB2

DVI_HPD

R436

NC/22K 1/16W 5%

R0+3

PB6

Adj_BACKLI GHT

R409 0R05 1/16W

ADC_VAA

LED_2

RX2-

R406 0R05 1/16W

C415

1uF 10V

VCC3.3

LED_2

Adj_BACKLI GHT 7

LED_G

B0+

R422 100K 1/16W 5%

R423 220K 1/16W 5%

ADC_BIAS

PA2

CN406

NC/CONN

1

2

3

ADC_VAA

R451 NC

R417

470R 1/16W 5%

SOG_DET3

PA9

PB1

RXC+

C420

NC

RX0+4

VGA_CABLE_DET3

PA9

Panel_ON

TP3

FB403

300OHM

DDCSDA24

PA5

LVB1P

C409

100NF 25V

C423

4.7U F 10V

RX0-4

PB5

PA2

R425 22K 1/16W 5%

C416

4.7UF 10V

KEY2

LVA3P

R443 NC/22K 1/16W 5%

CN403

NC/CONN

1

2

3

4

5

6

Panel_ON 7

EDI D_W P

R0-

G0-3

+5V

PB8

PS_EN 7

PA7

PA8

RXC+4

VCC3.3

LVB3P

C425 100N F 25V

D403

NC

RX0+

LVBCKM

PB[0..9]

PB9

VGA_CABLE_DET

EE_WP

DVDD

LED_1

EDI D_W P

TP5

C430

NC/220nF 16V

DDCSCL24

HSO

PA4

PB2

LVB3M

DDCSCL1

C417

100NF 25V

R440 NC/0R05 1/ 16W

B0-3

Audio_EN 7

PB4

R439 100R 1/ 16W 5%

R432

1M 1/16W

MSD A

PA4

R401

3K9 +/-5% 1/16W

RXC-4

LVA2P

R418

1K5 1/16W 5%

DVDD

CN405

NC/CONN

1

2

3

4

5

6

7

Q401

2N3906S-RTK/PS

ADC_VAA33

LVA2M

CN401

NC/CONN

2

4

6

8

1

3

5

7

PB0

VCC3.3

PB3

PA0

R0+

C410

100NF 25V

PB3

PB7

on_BACKLIGHT

C414

1uF 10V

R405

3K9 +/-5% 1/16W

CN 407

NC/CONN

1

2

CVDD

PA1

R435 NC/10K 1/16W 5%

R427 22K 1/16W 5%

on_BACKLIGHT 7

DVI_CABLE_DET4

VCC3.3

R433

NC/10K 1/16W 5%

R413

4K7 1/16W 5%

LVACKP

+5V 3,4,7

SPI_CE

PA3

PB9

USB_D ET

R421 NC/100R 1/ 16W 5%

R431

100R 1/16W 5%

G0+

AVS03

PA8

CVDD

LVB0P

MSD A

C407

100NF 25V

B0-

MSC L

LVA1M

AVS0

Q402

2N3906S-RTK/PS

LVACKP

LED_A

R428 NC/100R 1/ 16W 5%

C402

100NF 25V

SPI_SO

C411

100NF 25V

RX1-

DDCSDA1

C437

NC/1UF

R429

10K 1/16W 5%

X4 0 1

12MHz

1 2

C401

100NF 25V

RX2+4

BUZ ZER

CABLE_DET

FB407

NC/300OHM

R419

390K +/-5% 1/16W

G0+3

+5V

VSO

U401

NT68668UFG/ C

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

102

101

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

RSTB

DVDD_ZP

DGND

RX2+

RX2-

AVCC

RX1+

RX1-

AGND

RX0+

RX0-

AGND

RXC+

RXC-

AVCC

REXT

ADC_BIAS

PGND

BIN1+

BIN1-

SOG1I

GIN1+

GIN1-

RIN1+

RIN1-

ADC _VAA18

ADC_GNDA

ADC _VAA33

PD6

PB3/ADC3/INTE1

P31/TXD

P30/R XD

PB2/ADC2/INTE0

PB7/D DC_SD A1*

PB6/DDC _SCL1*

PA3/PW M5

PA4/PWM6*

PA5/PWM7*

PA6/PWM8*

PA7/PWM9*

HSYNCI1

VSYNC I1

PLL_GND

GND

PLL_DVD D

PB5/D DC_SD A0*

PB4/DDC _SCL0*

PD5

P35

P34

DVDD

CVDD

NC

V0

V1

V2

V3

V4

V5

V6

V7

VCKI

NC

DGND/CGND

PC6

NC

DVDD

NC

T0M

T0P

T1M

T1P

T2M

T2P

TCLK1M

TC LK 1P

T3M

T3P

DGND/CGND

T4M

T4P

T5M

T5P

T6M

T6P

TCLK2M

TC LK 2P

T7M

T7P

PA1/PW M3

PA2/PW M4

PA0/PW M2

OSCO

OSCI

PB0/ADC0

PB1/ADC1

PC5

PC4/PWM1

PC3/PWM0

PC1*

PC0*

CVDD_ZP

PWMB*

PWMA*

DVDD

CVDD

INT_HSO

INT_VSO

NC

PC2

GND

PD4

SPI_C LK

SPI_SI

SPI_SO

SPI_CE

PC7

R446 NC/0R05 1/ 16W

B0+3

RX1+4

R437

NC/22K 1/16W 5%

C404

4.7UF 10V

CN404

NC

1

2

3

4

5

6

7

R414 NC

WP

LVA0M

PA3

ADC _VAA33

PA6

C403

100NF 25V

LVA0M

PB4

C413

4.7UF 10V

LVA2M

C412

100NF 25V

LVB0P

VCC3.3

SPI_SI

LED_A

LVBCKP

R410 0R 05 1/16W

C419

100NF 25V

PA1

RXC-

R402 N C/2K2 1/16W 5%

LVA1M

LVA0P

FB404

300OHM

KEY1

U403

NC/M24C16

1

2

3

45

6

7

8A0

A1

A2

GNDSDA

SCL

WP

VCC

LVB1P

C427

100NF 25V

C418

100NF 25V

R411

4K7 1/16W 5%

PB0

R442 NC/ 4K7 1/16W 5%

R426 NC/100R 1/ 16W 5%

C406

1uF 10V

FB401

300OHM

ADC _BIAS

VCC3.3

LVB3M

FB408

300OHM

Audio_DET 7

AHS0

POWER

R444

10K 1/16W 5%

C432

NC/0.1uF 25V

VCC1.8 7

VCC3.3

LVA2P

R407 0R05 1/16W

PB6

RX1+

PB5

USB_EN

PB1

CABLE_DET

U402

PM25LV020-100SCE

1

2

3

4

8

7

6

5

CE#

SO

WP#

GND

VDD

HOLD#

SCK

SI

C428 22pF 50V

PB7

LVA3P

R408

470R 1/16W 1%

LVA1P

C429

220N16V

SPI_SO

C426 22pF 50V

KEY1

LVB2M

LED_G

PS_EN

R403 N C/2K2 1/16W 5%

B

C

57Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

SCALER

G3737-M0D-000-0H4K-1-100220

OEM MODEL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

DVDD

SPI_CK

5V_DET

SPI_SI

SOG_DET

32

LVA0P

LVACKP

LVA0P

RXO3-

LVBCKM

LVA1P

LVA1M

RXOC+

RXE3+

PA[0..9]

RXE1-

PB5

LVB2P

LVB3M

RXOC-

PB7

RXEC-

LVA3M

PA4

LVA2M

RXO0+

RXE0-

FB409

120 OHM

1 2

LVB1M

PB6

LVA0M

RXOC-

PA3

LVB3M

LVB2P

LVA3M

CN408

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

R449220 OHM 1/4W

LVB2M

RXEC-

RXO3+

RXE2-

LVB0P

LVB1P

LVB0M

+

C433

100uF16V

LVB3P

R448220 OHM 1/4W

LVBCKM

RXE3-

LVB2M

RXE2+

PB3

LVA0M

PA[0..9]5

VLCD

PB9

RXE2-

LVACKP

LVBCKP

PA1

RXOC+

PB8

LVB0M

RXO1-

RXO3-

C436

NC

LVA2M

RXE0+

PA2

RXOC-

RXO3+

RXO1+

PB[0..9]

RXO0+

C435

NC

LVACKM

PA0

LVB0P

PA6

RXO0-

RXE0+

RXE1+

PA8

PB[0..9]5

RXO1-

RXO1+

PB1

RXO2+

LVA1M

LVACKM

RXO2-

LVB1P

RXE0-

PB0

LVA2P

PA7

PA5

LVA2P

RXEC+

RXO0-

CN409

NC/CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

C434

100NF 25V

RXEC+

LVBCKP

PA9

RXO2-

LVA1P

B

A

67Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

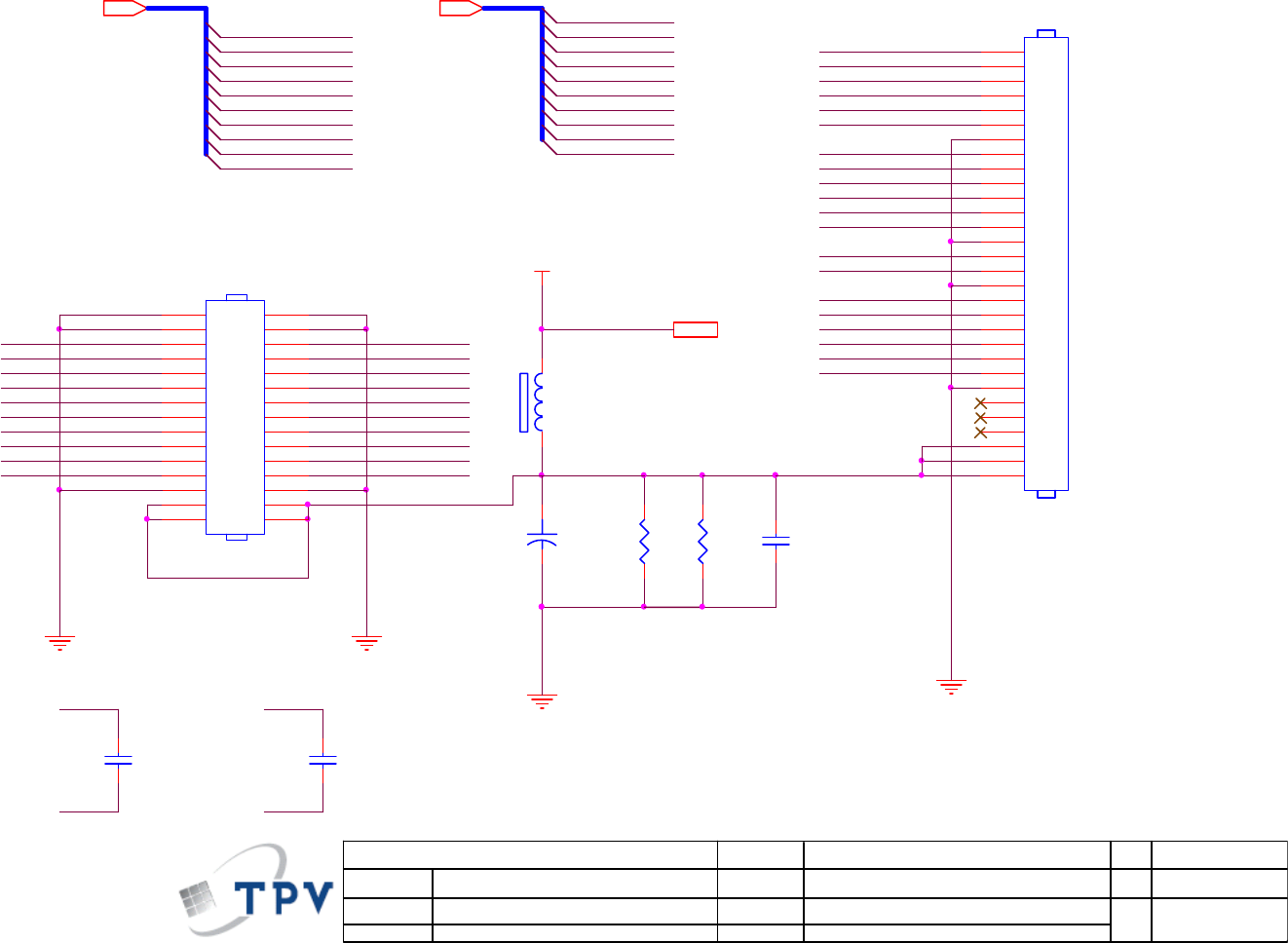

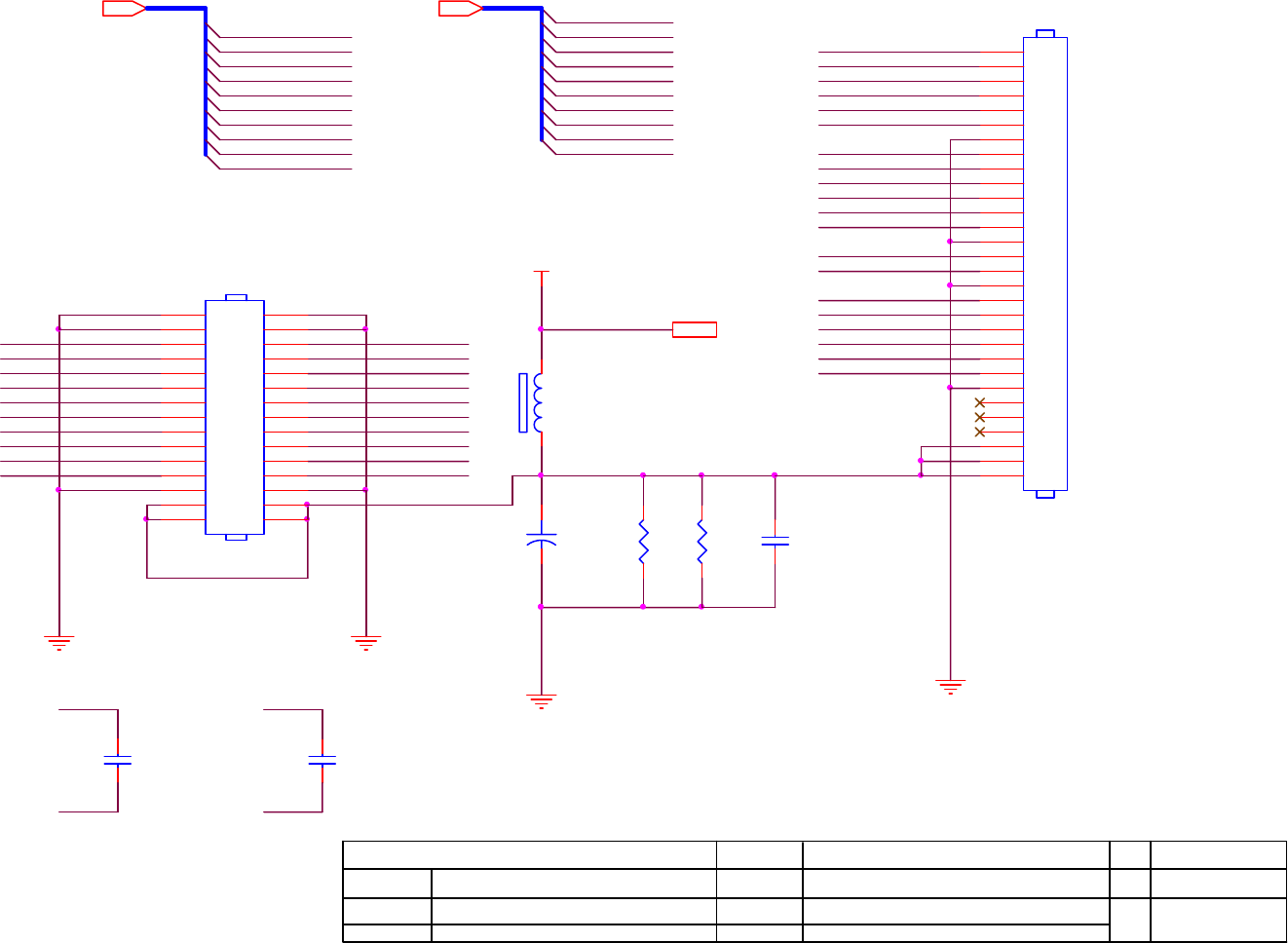

LVDS PANEL I/O

G3737-M0D-000-0H4K-1-100220

OEM MOD EL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

RXE1+

PB4

PB2

VLCD 7

RXOC+

RXEC-

RXEC+

RXE3-

RXO2+

RXE2+

LVA3P

LVB3P

RXE1-

LVB1M

RXE3+

33

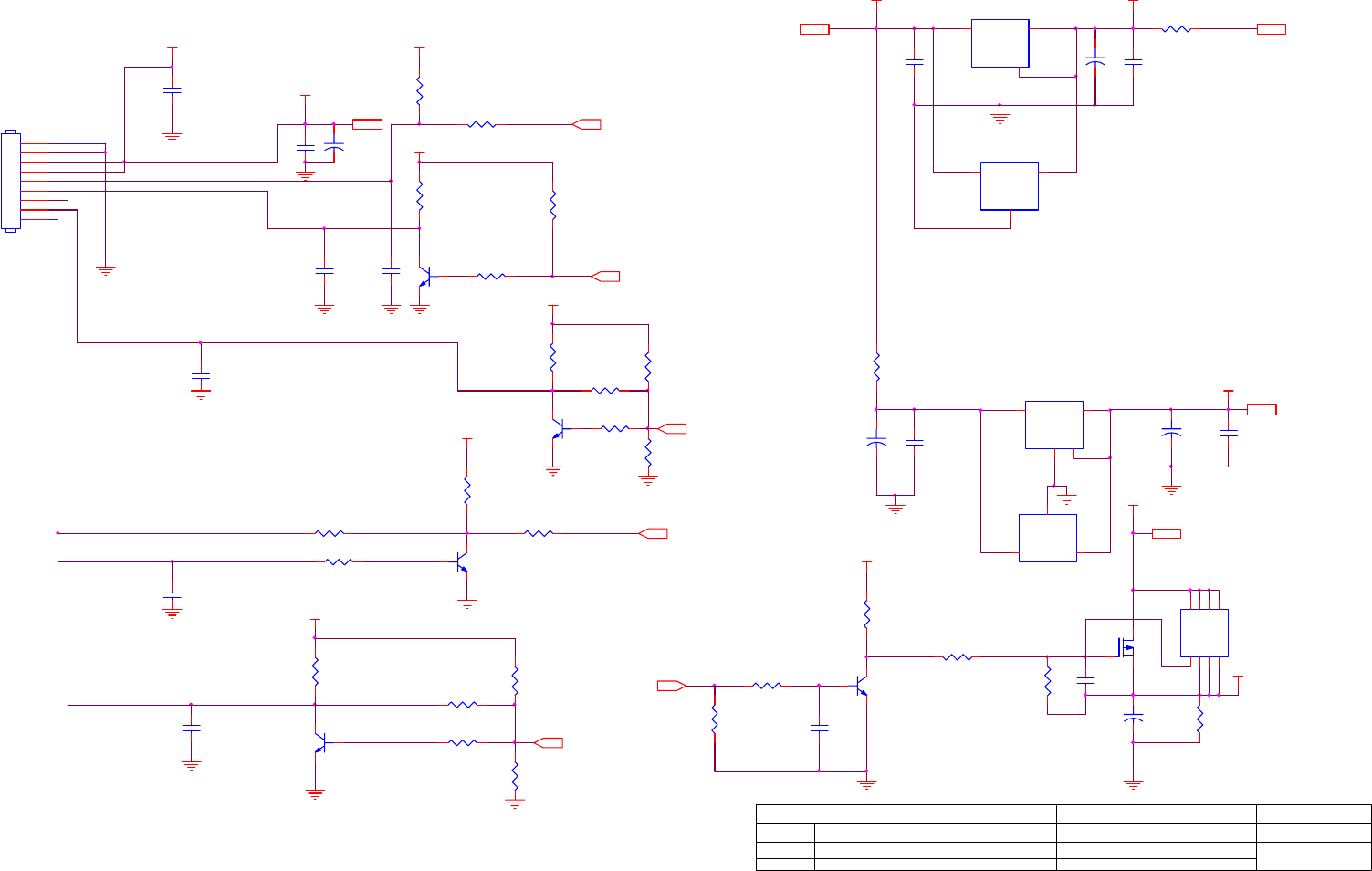

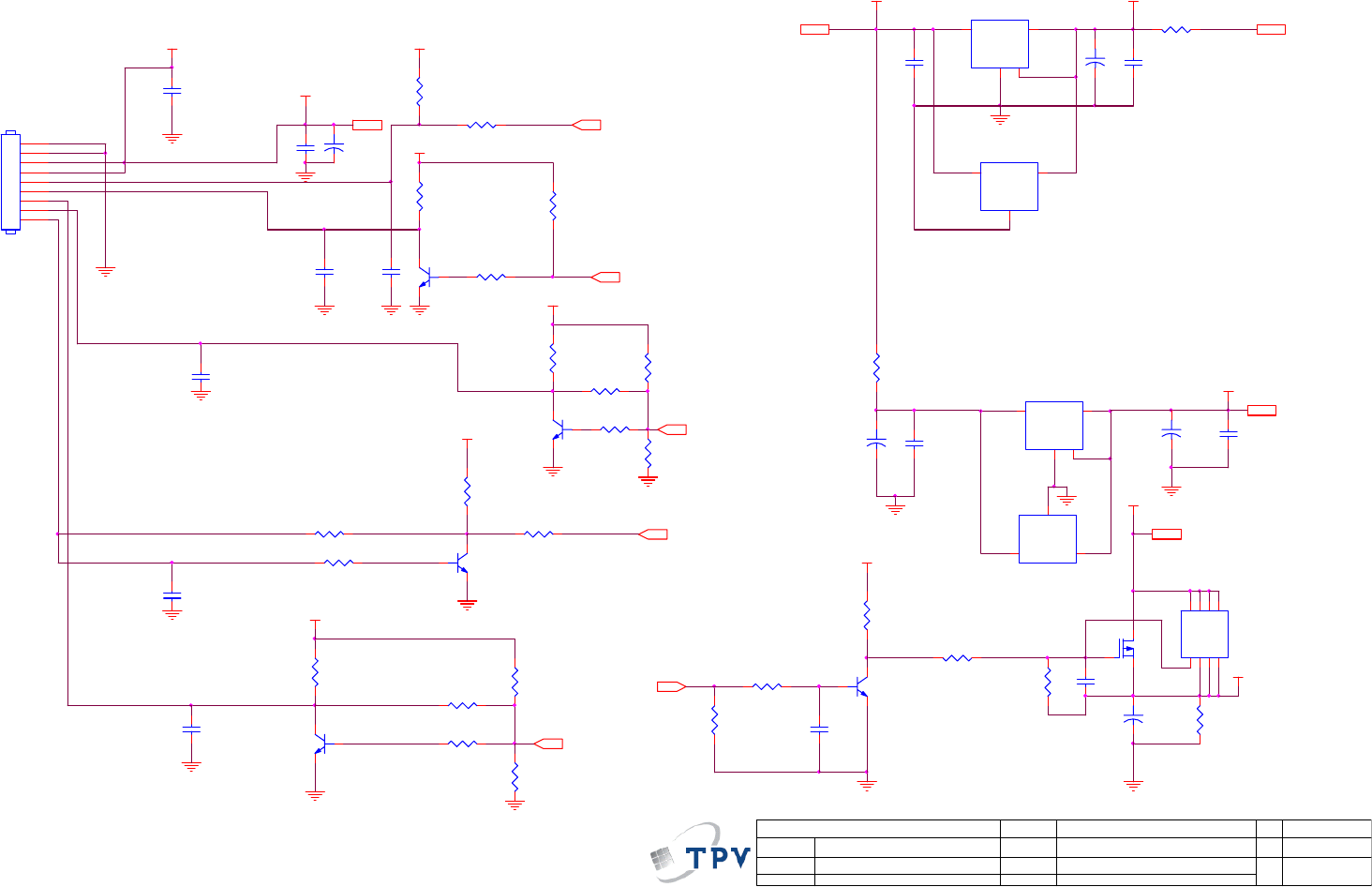

Q703

NC/PMBS3904

+5V 3,4,5

R701

22K 1/16W 5%

+

C716

10uF 50V

C717

NC/0.1uF 25V

R712 100R 1/16W 5%

R714

10K 1/16W 5%

R709

NC

R799

10K 1/16W 5%

Q701

2N3904S-RTK/PS

Audio_DET1

R715

100K 1/16W 5%

VCC3.3

+5V

C707

100NF 25V

+5V3,4,5

Q705

AO3401A

R711 0R05 1/16W

R707

4.7 OHM +-5% 2WS

Audio_DET2

C706

100NF 25V

U704

3 2

1

VIN VOUT

GND

A

B

77Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

POWER

G3737-M0D-000-0H4K-1-100220

OEM MOD EL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

R725

NC

C714

NC/0.1uF 25V

R706

NC

R717

NC

C708

NC

+

C711

NC/100uF/16V

VCC1.8

U701 AP2114H-3.3TRG1

3 2

1

4

VI VO

GND

4

Adj_BACKLIGHT 5

VCC3.3

Q706

2N3904S-RTK/PS

Q702

NC

VCC3.3

R722

NC/ 10K 1/16W 5%

R710

NC

Audio_EN1

C718

220N16V

VCC1.8 5

C713

100NF 25V

C715

220N16V

+5V

C704

100NF 25V

R719

22K 1/16W 5%

R718

NC

+

C702

100uF16V

+

C710

100uF16V

+

C705

100uF16V

VCC3.3 5

VCC3.3

PS_EN 5

Audio_DET 5

C701

100NF 25V

R704

10K 1/16W 5%

U703

AP2114H-1.8TRG1

3 2

1

4

VI VO

GND

4

FB701 0 OHM +-5% 1/8W

Q704

NC/AO4449 -7A/-30V

1

2

3

4

8

7

6

5

S

G

D

Panel_ON5

C712

100NF 25V

R708

NC

+5V

R720

NC

+5V

R703 100R 1/16W 5%

VLCD 6

U702

NC/G1084-33T43Uf

23

1

VOUTVIN

GND

R702

4K7 1/16W 5%

VCC3.3

Q707

NC/PMBS3904

C703

100NF 25V

ON/OFF

DIM

on_BACKLIGHT 5

R723

NC/4K7 1/16W 5%

R721

4K7 1/16W 5%

R713

NC

+5V

R798

100R 1/16W 5%

R724

NC

VLCD

+5V

C709

NC/0.1uF 25V

R716

NC/10K 1/16W 5%

CN701

CONN

1

2

3

4

5

6

7

8

9

Audio_EN 5

34

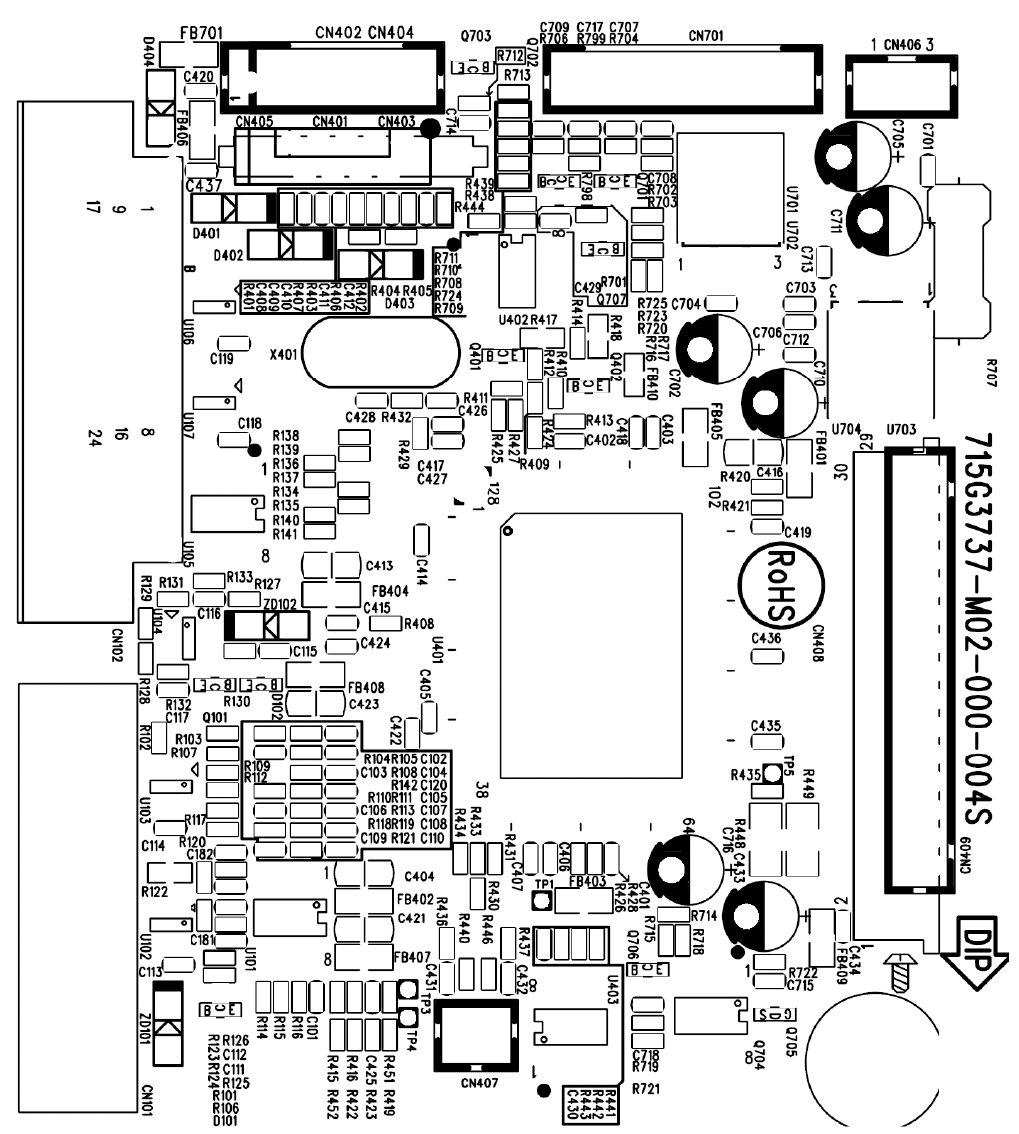

2341Sa &2341Vg

715G3737M02000004L & 715G3737M02000004S

BIN0-

BIN0

GIN0HSIN0

VSIN0 DDCSDA_A

DDCSCL_A

BIN0

DET_VGA

C182

22pF 50V

C181

22pF 50V

EDID_WP

GIN0

RIN0-

GIN0-

BIN0-

RIN0

OEM MODEL

Size

Rev

Date Sheet of

TPV MODEL

PCB NAME 称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

B

15Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

D-SUB I/O

G3737-M0D-000-0H4K-1-100220

R121

100R 1/16W 5%

C112

NC/22pF 50V

R120

75R 1/16W 1%

C104

47N16V

RIN0

R119

100R 1/16W 5%

R113

100R 1/16W 5%

A0 1

A1 2

A2 3

VSS 4

SDA

5SCL

6WP

7VCC

8

U101

AT24C02BN-SH-T

C108

47N16V

R123 100R 1/16W 5%

R111

100R 1/16W 5%

R124 100R 1/16W 5%

CH1

1

VN

2

CH2

3CH3 4

VP 5

CH4 6

U103

AOZ8902CIL

R122 0R05 1/10W

C114

100NF 25V

R104

0R05 1/16W

C111

NC/22pF 50V

R114 4K7 1/ 16W 5%

C110

47N16V

BIN0

C107

47N16V

R115 4K7 1/ 16W 5%

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

17 16

CN101

DB15

R112

75R 1/16W 1%

3

1

2

D101

BAV70

R109

0R05 1/16W

C105 47N16V

R101

100R 1/16W 5%

R102 100R 1/16W 5%

R126

2K2 1/16W 5%

C113

100NF 25V

R106

100R 1/16W 5%

R103

0R05 1/16W

C109

5PF 50V

R116 22K 1/ 16W 5%

R110

0R05 1/16W

R108

100R 1/16W 5%

R125

2K2 1/16W 5%

C102

47N16V

R107

75R 1/16W 1%

R117

0R05 1/16W

ZD101

RLZ5.6B

C101

220N16V

R105

100R 1/16W 5%

R118

0R05 1/16W

CH1

1

VN

2

CH2

3CH3 4

VP 5

CH4 6

U102

AOZ8902CIL

C106

5PF 50V

C103

5PF 50V

B0- 5

R0+ 5

B0+ 5

G0- 5

R0- 5

G0+ 5

AVS0 5

AHS0 5

SOG_DET 5

EDID_WP4,5

DDCSDA15

DDCSCL15

+5V4,5,7

VGA_CABLE_DET 5

ESD_VGA ESD_VGA

VGA_5V

ESD_VGA

+5V

VGA_5V

GIN0-

GIN0

RIN0-

R142

470R 1/16W 5%

C120

1N50V

DDCSDA_A

DDCSCL_A

VSIN0

DDCSDA1

HSIN0

VGA_5V

DDCSCL1

VSIN0

HSIN0

R0-

G0+

R0+

B0+

G0-

B0-

DDCSCL1

DDCSDA1

VGA_CABLE_DETDET_VGA

35

R439 100R 1/16W 5%

C427

100NF 25V

FB404

300OHM

EE_WP

FB403

300OHM

C413

4.7U F 10V

C404

4.7UF 10V

C407

100NF 25V

FB408

300OHM

R414 N C

C403

100NF 25V

FB405

300OHM

C402

100NF 25V

R411

4K7 1/16W 5%

R416

220K 1/16W 5%

C422

100NF 25V

R408

470R 1/16W 1%

C423

4.7UF 10V

C414

1uF 10V

CABLE_DET

R415

100K 1/16W 5%

Q402

2N3906S-RTK/PS

C418

100NF 25V

C401

100NF 25V

R421 NC/100R 1/16W 5%

R409 0R05 1/16W

1 2

X401

12MHz

TP3

AVCC

ADC_VAA

CVDD ADC_BIAS

DVDD

AVCC

VCC3.3 VCC3.3

+5V

VCC3.3

ADC_VAA33

CVDD

ADC_VAA

AVCC

ADC_VAA33

DVDD

ADC_BIAS

R424 1K 1/16W 5%

LVB1PPB6

LVB2MPB5

LVB1MPB7

LVB3PPB0

LVB3MPB1

SPI_SI

SPI_CK

LVBCKPPB2

LVBCKMPB3

LVB2PPB4

PB[0..9]

1

2

3

CN406

NC/CONN

Panel_ON

VCC3.3

1 2

FB406

NC/120 OHM

AHS0

AVS0

B0-

R410 0R05 1/16W

B0+

SOG_D ET

LVB0PPB8

G0+

LVB0MPB9

G0-

+5V 3,4,7

R0+

BUZZER

R0-

C437

NC/1UF

AHS03

AVS03

G0+3

SOG_DET3

B0-3

B0+3

R0-3

R0+3

G0-3

LED_2

LED_1

DDCSCL1

PA6 LVA1P

PA8 LVA0P

PA9 LVA0M

PA3 LVACKM

PA2 LVACKP

PA5 LVA2M

PA7 LVA1M

PA1 LVA3M

PA4 LVA2P

PA0 LVA3P

DDCSDA1

PA6 LVA1P

PA5 LVA2M

1

2

3

4

5

6

CN402

CONN

PA0 LVA3P

PA4 LVA2P

PA3 LVACKM

PA1 LVA3M

PA[0..9]

PA7 LVA1M

RX2+4

LED_1

PA8 LVA0P

R443 NC/ 22K 1/16W 5%

MSC L

RX2-4

RX1+4

RX1-4

RXC-4

RX0+4

RX0-4

RXC+4

LED_2

RX0-

C430

NC /220nF 16V

R441 NC/ 4K7 1/16W 5%

1

2

3

4

5

6

7

CN404

NC

KEY2

RX2+

R442 NC/ 4K7 1/16W 5%

VSO

HSO

RX0+

D402

NC

C412

100NF 25V

VSO

R405

3K9 +/-5% 1/16W

DDCSDA13

DDCSDA24

DDCSCL24

DDCSCL13

SPI_SO

C408

100NF 25V

C411

100NF 25V

RXC+

HSO

DDCSCL2

RX1-

D401

NC

R404

3K9 +/-5% 1/16W

DDCSDA2

D403

NC

C410

100NF 25V

TOUCH_POWER

R401

3K9 +/-5% 1/16W

RX1+

Audio_EN

C426 22pF 50V

C409

100NF 25V

R403 NC/2K2 1/16W 5%

Audio_DET Audio_DET 7

VGA_CABLE_DET3

DVI_CABLE_DET4

RXC-

SPI_CE

VCC3.3

MSD A

POWER

KEY1

R431

100R 1/ 16W 5%

Audio_EN 7

EDI D_WP

VCC3.3 7

VCC1.8 7

Adj_BACKLI GHT 7

on_BACKLIGHT 7

VCC3.3

EE_WP

VGA_CABLE_DET

CABLE_DET

R422 100K 1/16W 5%

R423 NC/220K 1/16W 5%

VCC3.3

VCC1.8

R419

390K +/-5% 1/16W

2

4

6

8

1

3

5

7

CN401

NC/CONN

Panel_ON 7

DVI_HPD 4

EDI D_W P

DVI_CABLE_DET

RX2-

VCC3.3

LVBCKPPB2

LVB1PPB6

LVBCKMPB3

LVB3MPB1

LVB2MPB5

LVB0PPB8

LVB0MPB9

LVB2PPB4

LVB3PPB0

LVB1MPB7

LED_ALED_G

R437

NC /22K 1/16W 5%

R436

NC /22K 1/16W 5%

1

2

CN407

NC/CONN

D404

NC/RLZ5.6B

C420

NC

TP5

R440 NC/0R05 1/16W

TP1

TP4

R446 NC/0R05 1/16W

R452 NC

WP

1

2

3

4

5

6

CN403

NC/CONN

5V_DET

A0 1

A1 2

A2 3

GND 4

SDA

5SCL

6WP

7VCC

8

U403

NC/M24C16

R451 NC

VCC3.3

MSD A

MSC L

PA9 LVA0M

PA2 LVACKP

Q401

2N3906S-RTK/PS

Adj_BACKLIGHT

R406 0R05 1/16W

R407 0R05 1/16W

POWER

LED_G

LED_A

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB N AME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

B

C

35Tuesday , Marc h 02, 2010

715G3737-C -HF <

称爹

>

SCALER

G3737-M0D-000-0H4K-1-100220

C428 22pF 50V

PS_EN 7

PS_EN

VCC3.3

C431

NC/0.1uF 25V

C432

NC/0.1uF 25V

R433

NC/10K 1/16W 5%

+5V

R430

NC /22K 1/16W 5%

DVI_HPD

PA[0..9]6

SPI_CE

PB[0..9]6

SPI_SO

BUZ ZER

SPI_SI

R402 NC/2K2 1/16W 5%

FB407

NC/300OHM

KEY2

KEY1

SPI_CK

USB_D ET

USB_EN

USB_DET

WP

+5V

on_BACKLI GHT

R438

NC /10K 1/16W 5%

C425 100NF 25V

R412 N C

FB402

300OHM

R418

1K5 1/16W 5%

FB401

300OHM

C415

1uF 10V

R425 22K 1/16W 5%

R432

1M 1/16W

R426 NC /100R 1/16W 5%

R444

10K 1/16W 5%

R434 NC/100R 1/16W 5%

R435 NC/10K 1/16W 5%

DVDD

R420 NC /120R 1/16W 1%

C421

4.7U F 10V

C429

220N16V

R427 22K 1/16W 5%

R428 NC /100R 1/16W 5%

1

2

3

4

5

6

7

CN405

NC/CONN

RSTB

1

DVDD_ZP 2

DGND

3

RX2+

4

RX2-

5

AVCC 6

RX1+

7

RX1-

8

AGND

9

RX0+

10

RX0-

11

AGND

12

RXC+

13

RXC-

14

AVCC 15

REXT

16

ADC_BIAS 17

PGND

18

BIN 1+

19

BIN 1-

20

SOG1I

21

GIN1+

22

GIN1-

23

RIN1+

24

RIN1-

25

ADC _VAA18 26

ADC_GNDA

27

ADC _VAA33 28

PD6

29

PB3/ADC3/INTE1

30

P31/TXD

31

P30/RXD

32

PB2/ADC2/INTE0

33

PB7/DDC_SDA1*

34

PB6/DDC_SCL1*

35

PA3/PW M5 36

PA4/PWM6* 37

PA5/PWM7* 38

PA6/PWM8* 39

PA7/PWM9* 40

HSYNCI1

41

VSYNC I1

42

PLL_GND 43

GND

44

PLL_DVDD 45

PB5/DDC_SDA0*

46

PB4/DDC_SCL0*

47

PD5

48

P35

49

P34

50

DVDD 51

CVDD 52

NC 53

V0 54

V1 55

V2 56

V3 57

V4 58

V5 59

V6 60

V7 61

VCKI 62

NC

63

DGND/CGND

64

PC6 102

NC

101

NC 100

NC 99

NC 98

NC 97

NC 96

NC 95

NC 94

NC 93

NC 92

NC 91

DVDD 90

NC

89

T0M 88

T0P 87

T1M 86

T1P 85

T2M 84

T2P 83

TCLK1M 82

TC LK 1P 81

T3M 80

T3P 79

DGND/CGND

78

T4M 77

T4P 76

T5M 75

T5P 74

T6M 73

T6P 72

TCLK2M 71

TC LK 2P 70

T7M 69

T7P 68

PA1/PW M3 67

PA2/PW M4 66

PA0/PW M2 65

OSCO

128

OSCI

127

PB0/ADC0

126 PB1/ADC1

125

PC5 124

PC4/PWM1 123

PC3/PWM0 122

PC1* 121

PC0* 120

CVDD_ZP 119

PWMB* 118

PWMA* 117

DVDD 116

CVDD 115

INT_HSO 114

INT_VSO 113

NC

112

NC

111

PC2 110

GND

109

PD4

108 SPI_C LK

107 SPI_SI

106 SPI_SO

105 SPI_CE

104

PC7 103

U401

NT68668U FG/C

C424

1uF 10V

C416

4.7U F 10V

C417

100NF 25V

R417

470R 1/16W 5%

C405

100NF 25V

C406

1uF 10V

R413

4K7 1/16W 5%

CE#

1

SO

2

WP#

3

GND

4

VDD 8

HOLD# 7

SCK 6

SI 5

U402

PM25LV020-100SCE

R429

10K 1/16W 5%

C419

100NF 25V

36

C434

100NF 25V

VLCD 7

PB[0..9]5PA[0..9]5

RXEC-

RXEC+

VLCD

RXOC+

RXOC-

LVB1PPB6

LVB2MPB5

LVB1MPB7

LVB3PPB0

LVB3MPB1

LVBCKPPB2

LVBCKMPB3

LVB2PPB4

PB[0..9]

LVB0PPB8

LVB0MPB9

RXO0- RXO0+

RXO1- RXO1+

RXO2-

PA6 LVA1P

RXO2+

PA5 LVA2M

PA0 LVA3P

PA4 LVA2P

PA3 LVACKM

PA1 LVA3M

PA7 LVA1M

PA[0..9]

RXOC-

PA8 LVA0P

RXOC+

RXO3- RXO3+

RXE0- RXE0+

RXE1- RXE1+

RXE2- RXE2+

RXEC- RXEC+

RXE3- RXE3+

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

B

A

45Saturday , February 20, 2010

715G3737-C-HF <

称爹

>

LVDS PANEL I/O

G3737-M0D-000-0H4K-1-100220

+

C433

100uF16V

1 2

FB409

120 OHM

R449220 OHM 1/4W

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

CN409

NC/CONN

C436

NC

C435

NC

PA9 LVA0M

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

CN408

CONN

R448220 OHM 1/4W

LVA0P RXE0+

PA2 LVACKP

LVB2M RXO2-

LVACKM RXEC-

RXE1-LVA1M

RXE2-LVA2M

RXO1-LVB1M

RXO3-LVB3M

RXE3-LVA3M

RXO0-LVB0M

RXE0-LVA0M

RXOC+LVBCKP

LVBCKM RXOC-

RXE2+LVA2P

RXO0+LVB0P

RXO1+LVB1P

RXO3+LVB3P

RXO2+LVB2P

RXEC+LVACKP

RXE1+LVA1P

RXE3+LVA3P

37

C718

220N16V

TO-252

TO252

R716

NC/10K 1/16W 5%

R723

NC/4K7 1/16W 5%

Q707

NC/PMBS3904

DIM

ON/OFF

PS_EN 5

FB701 0 OHM +-5% 1/8W

R717

NC

R720

NC

C717

NC/0.1uF 25V

R725

NC

R724

NC

R799

10K 1/16W 5%

R798

100R 1/16W 5%

Q705

AO3401A

C709

NC/0.1uF 25V

R707

4.7 OHM +-5% 2WS

VOUT 2

VIN

3

GND

1

U702

NC/G1084-33T43Uf

C713

100NF 25V

C704

100NF 25V

R712 100R 1/16W 5%

R704

10K 1/16W 5%

1

2

3

4

5

6

7

8

9

CN701

CONN

R715

100K 1/16W 5%

R706

NC

R722

NC/10K 1/16W 5%

Audio_EN1

R711 0R05 1/16W

C701

100NF 25V

R713

NC

+

C702

100uF16V

S

1S

2S

3G

4

D8

D7

D6

D5

Q704

NC/AO4449 -7A/-30V

R703 100R 1/16W 5%

C712

100NF 25V

C714

NC/0.1uF 25V

+

C705

100uF16V

R710

NC

R718

NC

+

C711

NC/100uF/16V

C708

NC

R714

10K 1/16W 5%

Q703

NC/PMBS3904

R709

NC

C703

100NF 25V

Q702

NC

C706

100NF 25V

R702

4K7 1/16W 5%

+

C710

100uF16V

VI

3VO 2

GND

1

4

U703

AP2114H-1.8TRG1

C707

100NF 25V

R721

4K7 1/16W 5%

R708

NC

VIN

3VOUT 2

GND 1

U704

+

C716

10uF 50V

C715

220N16V

VI

3VO 2

GND

1

4

U701 AP2114H-3.3TRG1

on_BACKLIGHT 5

Adj_BACKLIGHT 5

VCC3.3 5

VLCD 6

VCC1.8 5

+5V3,4,5

Audio_EN 5

Panel_ON5

+5V 3,4,5

VLCD

VCC3.3

VCC3.3+5V

VCC3.3

+5V

VCC3.3

+5V

VCC3.3

+5V

VCC1.8

+5V

OEM MOD EL

Size

Rev

Date Sheet of

TPV MODEL

PCB NAME 称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

A

B

55Tuesday , July 13, 2010

715G3737-C-HF <

称爹

>

POWER

G3737-M0D-000-0H4K-1-100220

Q701

2N3904S-RTK/PS

Q706

2N3904S-RTK/PS

R719

22K 1/16W 5%

R701

22K 1/16W 5%

+5V

Audio_DET 5

Audio_DET2Audio_DET1

38

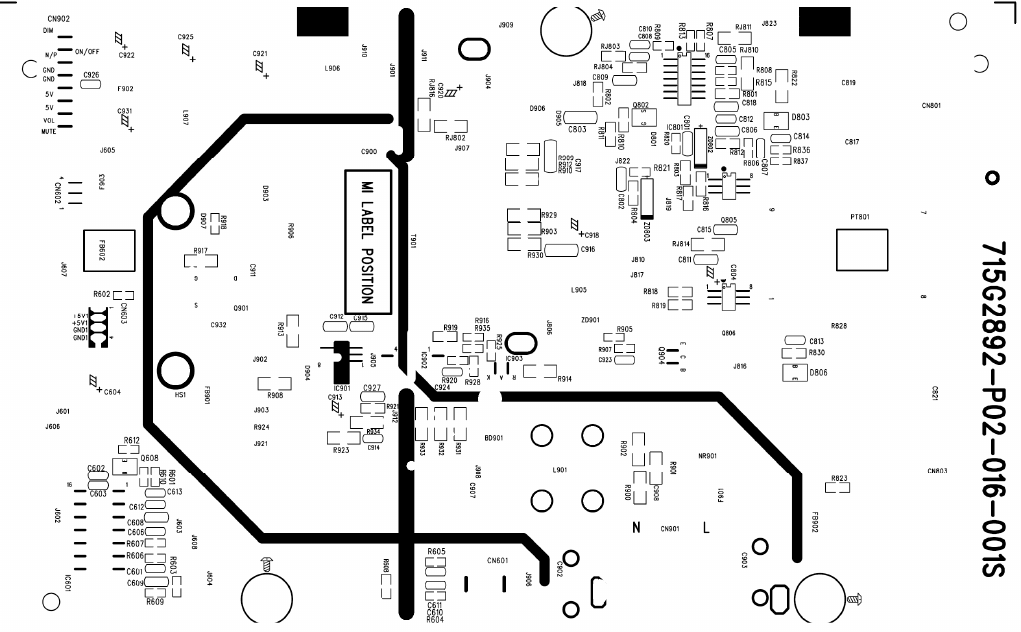

6.2 Power Board

715G2892P02016001S

R920

15K 1/10W 1%

R915

680OHM2W

C911

1500PF2KV

D908

NC

R921

NC

R919

1K 1/8W 5%

T90 1

POWER X'FMR

1

3

4

5

6

7

8

9

10

11

12

!

IC901

FAN6752MY

1

2

3

4 5

6

7

8

VIN

FB

SENSE

GND GATE

VDD

NC

HV

C927

1UF

D906

MBRF1060CT

1

2

3

C914

470pF

R935

NC

!

FB901

BEAD

12

R913

5.1 OHM 1/4W +-5%

!

R924

0.33 OHM 2W +-5%

ZD901

TZX18B

C9031000pF

D905 SR506

C923

0.001uF

DIM

IC903

KIA431A-AT/P

L905

Coil

R901

680K OHM 1/4W +-5%

HS1

HEAT SINK(Q901)

1

2

+16V

!

C909

NC/0.22uF/275V

R914

NC /43.2K OHM 1% 1/4W

+

C921

1000uF M 16V

C912

0.1uF

NR901

NTCR

!

+

C931

NC

R932

6.8M OHM 1% 1/4W

D907

NC

+5Vi

+

C925

470uF 25V

!

MUTE

+5V

R930 100 OHM 1/4W

R933

6.8M OHM 1% 1/4W

VOL

Q904

KTD1028

GND1

GND

1

2

R906

100K OMH 2W +-5%

R905

470 OHM 1/10W

R900

680K OHM 1/4W +-5%

D901

FMX-12SL

1

2

3

!

+

C920

680uF 10V

+5V1

!

+5V

D903

FR107

R911

680OHM2W

C900

3300pF 250V

F901

FUSE

IC902

PC1 23X2Y FZ OF

12

43

C902 1000pF

C915

0.01uF

R929 100 OHM 1/4W

R918

10K 1/10W 1%

L901

30mH

1

4

2

3

R908

200K OHM 1/4W +-5%

C917

0.001uF

R910 100 OHM 1/4W

R923

100 OHM 1/4W

!

C916

0.001uF

!

R916

10K 1/10W 1%

R909 100 OHM 1/4W

L906 Coil

R917

33ohm 1/4W

HS2

HEAT SINK(D901 D906)

1

2

ON/OFF

R912 100 OHM 1/4WD904

FR103

R928

1K 1/10W 1%

FB902

BEAD

1 2

!

R934

200KOHM +-1% 1/4W

R903 100 OHM 1/4W

F903 FUSE

CN901

SOCKET

12

3

F902 FUSE

!

C924

0.1uF/ 16V

+

C913

22uF/50V

R925

9K1 1/10W 1%

C908

0.47uF/275V

R907

1K 1/10W 1%

L907

1.1uH

+

C918

1000uF 25V

R931

6.8M OHM 1% 1/4W

C926

0.1uF/ 16V

+

C907

100uF/450V

Q901

STP10NK70Z FP

R902

680K OHM 1/4W +-5%

!

B

Custom

Monday , March 29, 2010

715G2892-P02 ODM MODEL

02.POWER

G2892-P02-016-X-3-100329

OE M MOD E L Si ze

Rev

Date Sheet of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

-+

BD901

KBP208G

2

1

3

4

!

CN902

1

2

3

4

5

6

7

8

9

+

C922

470uF 16V

39

ZD802

RLZ5.6B

1 2

C821

JUMPER

D808

BAV70(NC)

3

1

2

R822

470 OHM 1/4W

+16V

R818 2R2 1/8W 5%

C812

NC C810

0.0022uF

B

A3

Tuesday , March 30, 2010

715G2892-P02 OD M MOD EL

02.POWER

G2892-P02-016-X-3-100329

OEM MOD EL Size

Rev

Date Sheet of

TPV MOD E L

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

LV2

R821

10 OHM +-5% 1/10W

+5Vi

R830

6.8KOHM1/8W

C809

220pF

C807

3.3NF

LV4

ZD803

RLZ5.6B

1 2

R811

82 KOHM +-1% 1/8W

R839 1M 1/10W 5%(NC)

R810

75 KOHM +-1% 1/8W

R813

100K 1/10W 5%

PT801

POWER X'FMR

6

2

7

5

1 8

CN803 CONN

1

2

R823

470 OHM 1/8W

CN804

CONN(NC)

1

2

L802

NC

1

2

4

3

R837

7K5 1/10W 5%

C818

1.5UF/10V

D801

IN4148

R809

1M 1/10W 5%

Q806

AO4620

1

2

3

4 5

6

7

8

S2

G2

S1

G1 D1

D1

D2

R838 1M 1/10W 5%(NC)

C808

0.033uF

CN801

CONN

1

2

R843

10K 1/10W 5%(NC)

R840 1M 1/8W 5%(NC)

C802

0.047uF

C803

0.1uF

R802

22R 1/8W 5%

C820

68pF3KV(NC)

CN802

CONN(NC)

1

2

R841 1M 1/10W 5%(NC)

C815

0.1uF/50V

D807

BAV70(NC)

3

1

2

DIM

LV4

C814

220pF

C801

0.047uF

ON/OFF

LV2

C822

68pF3KV(NC)

R828

6.2M OHM 1/2W

C811

0.1uF/50V

R845

10K 1/10W 5%(NC)

R808

390R 1/10W 1%

R804

5K1 1/8W 5%

LV3

C806

2.2uF/16V

LV3

C817

2PF6KV

C813

NC

R817 2R2 1/8W 5%

R816 2R2 1/8W 5%

R803

5K1 1/8W 5%

R806

100K 1/10W 5%

Q802

2N7002 SOT-23

D806

BAV70

3

1

2

R844

10K 1/10W 5%(NC)

C819

JUMPER

IC801 ta9687GN-A-0-TR

1

2

3

4

5

6

7

89

10

11

12

13

14

15

16 VSEN

SSTCMP

CT

RT1

GNDA

PDR2

GNDP

NDR2NDR1

PDR1

VDDA

TI ME R

PWM

ISEN

OVPT

ENA

R815

NC

R812

100K 1/8W 5%

+

C804

1000uF 25V

R807

10K 1/10W 5%

L801

NC

1

2

4

3

R820

10 OHM +-5% 1/10W

R819 2R2 1/8W 5%

R842

10K 1/10W 5%(NC)

C805

0.022uF

D803

BAV99

3

1

2

LV1

R836

56KOHM +-5% 1/10W

LV1

Q805

AO4620

1

2

3

4 5

6

7

8

S2

G2

S1

G1 D1

D1

D2

R801

10K 1/8W 5%

40

VOL

R605 10K 1/10W 5%

ROUT+

R612

NC

R606

27K 1/10W 5%

C603 0.47uF/16V

+

C604 470UF M 16V

+5V1

R610

0R05 1/10W

E

A

Monday , March 29, 2010

715G2892-E-4 ODM MODEL

04.AUDIO

G2892-P1A-016-X-3-091207

OEM MOD EL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

Rin

CN601

PHONEJACK

1

2

3

5

4LOUT+

C612

0.1uF/16V

C610 100pF

R607

27K 1/10W 5%

LOUT-

C606 0.47uF/16V

CN603

CONN/NC

1

2

3

4

R601

NC

C611 100pF

FB602

BEAD

1 2

R604 10K 1/10W 5%

R602

10K 1/10W 5%

+5V1

C608

1uF/25V

R603

10K 1/10W 5%

C602 0.47uF/16V

R608

0R05 1/8W

C601 0.47uF/16V

C609

1uF/25V

IC601

APA2071JI-TUG 3.1W

1

2

3

4

5

6

7

8 9

10

11

12

13

14

15

16

SHUTDOWN

BYPASS

RINN

GND

LINN

VOLUME

SE/BTL LOUTP

VDD

LOUTN

GND

ROUTN

VDD

ROUTP

CN602

CONN

1

2

3

4

Q608

NC

+5V1

R609

10K 1/10W 5%

Lin

ROUT-

C613

0.1uF/16V

+5V1

MUTE

41

6.3 Key Board

715G4007K01000004F

LBADC1

B

22Wednesday , December 16, 2009

715G4007K0B000004F/S <

称爹

>

2.0.key

G4007-K0B-X-X-1-091215

OEM MODEL Size

Rev

Date Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

(2K)

1.435V

(UP) (MENU)

OK

C004

1nF 50V

UP

R003 0R05 1/10W

LED01

LED

2

4

1

3

MENU

CN001

1

2

3

4

5

6

78

R002 2K 1/10W

LED_2#

LED

1.435V

POWER

1.042V

DC_POWERON

LBADC2

R005 1K 1/10W

SW001

SW

135

2468

79

10

CONNECTOR

(2.0K)

MENU

LED_2#

LED_1#

OK

LED_1#

LBADC2

C003

1nF 50V

(DOWN)

R004 2K 1/10W

SGND

DOWN

SGND

(Power)

LBADC1

DOWN 1.042V

UP

(0)

(OK)

(1K)

42

6.4 USB Board

715G3501 2

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

A

A4

11Tuesday , January 13, 2009

715G3501-2USB PLUG(UP STREAM)

G3501-A-X-X-1-090113

FB501

1

2

3

4

6 5

12

34

CN502

CONNNECTOR

D+

D-

Vcc

C501

5PF / 50V

C502

5PF/50V

C503

16V

1

2

3

4

5

CN501

CONN

43

715G2663T01001001S

1

2

3

4

6 5

123 4

CN512

CONNNECTOR

1

2

3

4

5

CN511

63365 5P 2.0mm

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔

瓜

絪

腹

D

A4

11Friday , October 24, 2008

715G2663-2USB PLUG(DOWN STREAM)

G2663-2-X-1-081024

44

7. PCB Layout

7.1 Main Board

2341Va

715G3737M01000004K

45

46

47

2341Sa

715G3737M02000004L

48

49

2341V g

715G3737M02000004S

50

7.2 Power Board

715G2892P02016001S

51

52

7.3 Key Board

715G4007K01000004F

53

7.4 USB Board

715G3501 2

54

715G2663T01001001S

715G2663T01001001C

55

8. Maintainability

8.1 Equipments and Tools Requirement

1. Voltmeter.

2. Oscilloscope.

3. Pattern Generator.

4. DDC Tool with an IBM Compatible Computer.

5. Alignment Tool.

6. LCD Color Analyzer.

7. Service Manual.

8. User Manual.

56

8.2 Trouble Shooting

1. No Power

OK

NG

No power

Check power cable is

tightened?

Check Power “On/Off”

is “On”?

Re-plug the power cable

Replace main board and check connections

Check the LED

indicate is OK? Check the AC power

Replace the power board and check connections

OK

NG

OK

NG

Turn on the Power “On/Off” switch

Replace key board and check connections

NG

57

2. No Video (Power LED Blue)

No Video (Power LED Blue)

Press the power

button is OK?

Check the LVDS/FFC

cable or panel

The end

NG

OK

NG

Replace the main board

Replace the power

board and connection

Replace the LVDS/FFC

cable or panel

NG

The end

Replace the key board

NG

OK

Replace the main

board and connection

OK

58

3. DIM

OK

The end

OK

The end

OK

The end

DIM (image overlap, focus or flicker)

Reset in factory mode

Set to the optimal

frequency, select the

recommended fre

q

uenc

y

Pull out signal cable and

check “Self Test Feature

Check” is ok?

Check the signal cable

and the PC

Readjust the phase and pixel

clock in the user mode

Replace the main board

Replace the panel

NG

OK

NG

OK

The end

OK

NG

59

4. Color is not optimal

NG

Color is not optimal

Miss color Color shift

Replace the signal cable

Pull out the signal cable

and check the screen

color display is normal?

The end

Replace the signal cable or PC

Reset the factory mode

In the user mode, set the” color

settin

g

s” until customer satisf

y

Replace the main board

NG

OK

NG

OK

NG

60

9. White- Balance, Luminance Adjustment

Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment.

How to setting MEM channel you can reference to chroma 7120 user guide or simpl use “SC” key and “NEXT” Key

to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure to do white-balance

adjust .

2. Setting the color temp. you want

A. MEM.CHANNEL 3 Warm (6500K):

Warm color temp. parameter is x = 313 ±30, y = 329 ±30

B. MEM.CHANNEL 4 Normal (7300K):

Normal color temp. parameter is x = 301 ±30, y = 317 ±30

C. MEM.CHANNEL 9 Cool (9300K):

Cool color temp. parameter is x = 283 ±30, y = 297 ±30

D. MEM.CHANNEL 10 (sRGB color):

sRGB color temp. parameter is x = 313 ±30, y = 329 ±30

3. Enter into the factory mode

AC power off, when press “MENU” button, AC power on. Then press “MENU” button again, you will enter into the

factory mode.

4. Gain adjustment:

Move cursor to “-F-” and press MENU key

A. Adjust Warm (6500K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

B. Adjust Normal (7300K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 4 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 301 ±30, y = 317 ±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

61

C. Adjust Cool (9300K) color-temperature

1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 283 ±30, y = 297 ±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

D. Adjust sRGB color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 10 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

E. Turn the Power-button off to quit from factory mode.

62

10.Monitor Exploded View

Note: The DVI is only for 2341Va and 2341Vg

63

No. Description Q’ty

1 BEZEL L23WA-T41 1

2 BRACKET_HOLDER 2

3 MAIN_FRAME 1

4 EAR PHONE STAND 1

5 WEB CAM COVER 1

6 REAR COVER 1

7 N/A 1

8 KEY PAD 1

9 KEY PAD HOLDER 1 No. Part No. Description Q’ty

10 HINGE 1 S1 0Q1G 930 6120 SCREW(FOR BRACKET_HOLDER) 5

11 STAND TOP 1 S2 0M1G 930 5120 SCREW(FOR BRACKET_HOLDER/PANEL) 4

12 STAND 1 S3 0D1G1030 8120 SCREW(MB&PB/MAIN_FRAME) 4

13 BASE 1 S4 0D1G1030 8120 SCREW(USB BOARD/MAIN_FRAME) 1

14 FOOT 6 S5 0M1G1740 10225 SCREW(FOR STAND TOP/HINGE/ REAR COVER) 6

64

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice. Please go

to http://cs.tpv.com.cn/hello1.asp for the latest information.

2341Va TDASNTEBWVA1PN

Location Part No. Description Remark

052G 1209 A 200MINIUM TAPE

052G 1211 A CONDUCTIVE TAPE 55MM *45MM *0.08MM

052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM

052G 2191 A PAPER TAPE

052G6019 1 INSULATING TAPE

078G0025501 YA SPK 4 OHM 2.5W 48X28 220 140 SUNLINK

089G 175 8 G FQE41177F USB CABLE 1800MM A+B

089G 725HAADBD D-SUB CABLE 1500MM

089G179J30N576 FFC CABLE

E08901 089G404A15N HL AC POWER CORD 1500MM EUROPE REG

E08901 089G404A15N IS AC POWER CORD 1500MM EUROPE REG. 2nd Source

E09501 095G8014 5DH15 WIRE HARNESS 5P(2008)-5P(2008) 440MM 2nd Source

E09501 095G8014 5XH15 WIRE HARNESS 5P(2008)-5P(2008) 440MM

095G8014 6WH13 WIRE HARNESS 6P(PLUG)-6P(A1253HA HR)

0D1G1030 8120 SCREW

0M1G 930 5120 SCREW

0M1G1740 10225 CR3 SCREW

0Q1G 930 6120 SCREW 3X6MM

708GD053 CP AOC 40(1520)

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 BIG CARTON TAPE FOR AOC

708GD05301S AOC 40 (1615)

Q45G 77 5 PE PACKING (Y1900241)

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 BIG CARTON TAPE FOR AOC

750GLS230HT312N000 PANEL LTM230HT03 C01 SZ SEC

756GQACB AA039 00 MAIN BOARD-CBPC9NTA1QN

SMTC9-U402 100GANSD002YT1 MCU ASS'Y-056G1133 90 1

A15G1195101001 MAIN_FRAME --

A15G1211101 BRACKET_HOLDER

A33G0928AFR 1L0100 EAR PHONE STAND

A34G1858AEDA1B0100 BEZEL L23WA-T41

A34G1859AFRA4B0100 REAR COVER

A37G0167011 HINGE

AM1G1740 10225 CR3 SCREW

65

040G 45762412B CBPC LABEL

CN402 033G3802 6B Y CONN 6PIN 2.0

CN701 033G3802 9B Y CONNECTOR 9P 2.0

CN408 033G801930F CH JS CONNECTOR

R707 061G152M479 64 SY RST MOFR 4.7 OHM +-5% 2WS FUTABA

CN101 088G 35315F HD D-SUB CONN F ATTACHED SCREW

CN102 088G 35424F HN DVI CONN + SHIELD 24P F WITH SCREW

X401 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

C716 067G 3051007PB EC 10UF 20% 50V 5*11

C433 067G 3051013PB EC 105℃ 100UF M 16V 5*11MM

C702 067G 3051013PB EC 105℃ 100UF M 16V 5*11MM

C710 067G 3051013PB EC 105℃ 100UF M 16V 5*11MM

C705 067G 3051013PB EC 105℃ 100UF M 16V 5*11MM

U401 056G 562281 IC NT68668UFG/C QFP-128

U703 056G 563206 IC LDO AP2114H-1.8TRG1 1A/1.8V SOT-223

U701 056G 563224 IC LDO AP2114H-3.3TRG1 1A/3.3V SOT-223

U102 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U103 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U104 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U106 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U107 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U402 056G1133 90 1 IC PM25LV020-100SCE 2MB SOIC-8 PMC

U101 056G1133918 IC AT24C02BN-SH-T 8-SOIC

U105 056G1133918 IC AT24C02BN-SH-T 8-SOIC

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q706 057G 417 12 T KEC 2N3904S-RTK/PS

Q401 057G 417 13 T KEC 2N3906S-RTK/PS

Q402 057G 417 13 T KEC 2N3906S-RTK/PS

Q705 057G 763940 MOSFET AO3401A SOT-23

R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R109 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R117 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R711 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R410 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R409 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

66

R407 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R406 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R118 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R117 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R110 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R109 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R104 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R103 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R141 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R140 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R139 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R138 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R137 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R136 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R135 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R134 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R141 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R140 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R139 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R138 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R137 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R136 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R135 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R134 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN

R124 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R123 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R108 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R106 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R105 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R102 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R127 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R128 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R431 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R439 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

67

R703 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R124 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R127 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R128 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R129 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R431 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R439 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R703 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R798 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R712 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R123 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R121 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R119 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R113 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R111 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R108 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R106 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R105 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R102 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R101 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R424 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R799 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R714 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R704 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R444 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R429 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R130 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R799 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R714 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R704 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R444 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R429 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R130 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R422 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R715 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R415 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R715 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

R422 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

R415 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

68

R432 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA

R432 061G0402105 JT RST CHIP R 1MOHM 1/16W +/-5% TZAI YUAN

R125 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R126 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R125 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN

R126 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN

R719 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R701 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R427 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R133 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R116 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R425 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R719 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R701 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R427 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R425 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R133 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R116 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R416 061G0402224 JT RST CHIP 220K 1/16W 5% TZAI YUAN

R423 061G0402224 JT RST CHIP 220K 1/16W 5% TZAI YUAN

R416 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R423 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R405 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R401 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R404 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R401 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R405 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R404 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R419 061G0402394 JY RST CHIP R 390K +/-5% 1/16W YAGEO

R408 061G04024700FT RST CHIP 470R 1/16W 1%

R408 061G04024700FY RST CHIP 470R 1/16W 1%

R142 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R142 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN

R114 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R131 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R132 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R702 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R114 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

69

R115 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R131 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R132 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R411 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R413 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R702 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R721 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R107 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R112 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R120 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R107 061G04027509FT RST CHIP 75R 1/16W 1%

R112 061G04027509FT RST CHIP 75R 1/16W 1%

R120 061G04027509FT RST CHIP 75R 1/16W 1%

R122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R122 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R418 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R418 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN

R417 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R417 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

FB701 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R449 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R448 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R449 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN

R448 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN

C120 065G040210232K T CAP CHIP 0402 1000PF 50V X7R

C120 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%

C411 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C410 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C409 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C408 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C407 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C405 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C403 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C402 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C401 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C119 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C118 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C117 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C115 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C412 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

70

C713 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C712 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C707 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C706 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C704 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C703 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C701 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C434 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C427 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C425 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C422 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C419 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C418 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C417 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C114 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C113 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C408 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C409 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C410 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C411 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C713 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C712 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C707 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C706 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C704 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C703 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C701 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C434 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C427 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C115 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C412 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C417 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C418 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C419 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C422 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C425 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C117 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C118 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C119 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C401 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

71

C402 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C403 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C405 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C407 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C114 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C113 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C424 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C415 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C414 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C406 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C424 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C415 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C406 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C414 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C428 065G040222031J A CAP 0402 22PF J 50V NPO

C426 065G040222031J A CAP 0402 22PF J 50V NPO

C182 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C182 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C181 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C182 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C426 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C428 065G040222031J T CAP CHIP 0402 22PF 50V NPO

C718 065G040222415K A CAP CHIP 0402 0.22UF K 16V X5R

C715 065G040222415K A CAP CHIP 0402 0.22UF K 16V X5R

C429 065G040222415K A CAP CHIP 0402 0.22UF K 16V X5R

C116 065G040222415K A CAP CHIP 0402 0.22UF K 16V X5R

C101 065G040222415K A CAP CHIP 0402 0.22UF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C116 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C101 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C116 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C101 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

72

C104 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C105 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C107 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C108 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C102 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C104 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C105 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C107 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C108 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C110 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R

C109 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C106 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C103 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C109 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C106 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C103 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C404 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C413 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C416 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C421 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C423 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C404 065G0805475A2K T CAP CHIP 4U7 10V X7R 10%

C413 065G0805475A2K T CAP CHIP 4U7 10V X7R 10%

C416 065G0805475A2K T CAP CHIP 4U7 10V X7R 10%

C421 065G0805475A2K T CAP CHIP 4U7 10V X7R 10%

C423 065G0805475A2K T CAP CHIP 4U7 10V X7R 10%

U402 070GHDCP500HDC HDCP CODE

FB409 071G 56K121 CHIP BEAD

FB401 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

FB402 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

FB408 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

FB404 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

FB405 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

FB403 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL

D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D102 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D102 093G 64 42 P BAV70 SOT23 BY PAN JIT

D101 093G 64 42 P BAV70 SOT23 BY PAN JIT

ZD102 093G 39GA01 T RLZ5.6B

73

ZD101 093G 39GA01 T RLZ5.6B

E715 715G3737M01000004K MAIN PCB FR4 80X72X1.6MM DS

E715 715G3737M01000004L MAIN PCB FR4 80X72X1.6MM DS 2nd Source

J33G8B42 1 1C0100 KEY PAD

J33G8B43AFR 1L0100 KEY PAD HOLDER

J33G8B46AFR 1L0100 WEB CAM COVER

J34G8B57AED 1B0100 BASE

J34G8B63AED 1B0100 STAND TOP

J34G8B64AED 1B0100 STAND

KEPC9QC5 KEY BOARD

SW001 077G 5005A1 XL DOME SWITCH 5 PCS

CN001 033G8032 6F X WAFER 6P 1.25MM

CN001 033G8032 6F HR CONNECTOR 2nd Source

R003 061G0603000 FT RST CHIPR MAX 0R01 1/10W TZAI YUAN

R003 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R005 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R005 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN

R002 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA

R004 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA

R002 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN

R004 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN

C003 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C004 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C004 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

C003 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

LED01 081G 14501 GP LED GPTD1210YGC3-HB GUANGPU

715G4007K01000004F KEY PCB FR-4 106.5X14.5MM T1.6MM

PWPC9B41MYD2 POWER BOARD G2892-P02-016-X-3-100329

040G 45762412B CBPC LABEL

GND1 009G6005 1 GROUND TERMINAL

CN602 033G3802 4 BH F CONNECTOR

CN602 033G3802 4 BH L CONN 2.0MM 4P 2nd Source

CN801 033G8021 2E F WAFER

CN803 033G8021 2E F WAFER

CN801 033G8021 2E XY CONNECTOR 2nd Source

CN803 033G8021 2E XY CONNECTOR 2nd Source

IC902 056G 139 3A IC PC123Y22FZ0F

IC902 056G 139900 PHOTO COUPLER TLP421F

IC601 056G 616 51 IC APA2071JI-TUG 3.1W DIP-16

NR901 061G 58100 WD RST NTCR 10 OHM +-20% 5A THINKING

74

C908 063G107K334 6S 0.33UF +-10%

C908 063G107K334 US X2.MKP.0.33UF,275VAC+-10%EUROP

C817 065G 6J2096ET 2PF 5% SL 6KV

C902 065G305M1022BP Y2 1000PF M 250VAC Y5P

C903 065G305M1022BP Y2 1000PF M 250VAC Y5P

C900 065G306M3322BP 3300PF 20%

C804 067G215A1024KV EC 1000UF 25V 12.5*20MM

C918 067G215A1024KV EC 1000UF 25V 12.5*20MM

C918 067G215A1024LV LOW ESR EC 1000UF 25V M 12.5*20MM

C804 067G215A1024LV LOW ESR EC 1000UF 25V M 12.5*20MM

C925 067G215D4714KV E.C 105℃ CAP 470UF M 25V ED SERIES

C925 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM

C921 067G215S1023KV EC CAP 105℃ 1000UF M 16V

C922 067G215S4713KV EC 105℃ CAP 470UF M 16V

C922 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

C604 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

C907 067G315Z10115K EC.100UF 450V 18*40MM

C907 067G315Z10115L EC 100UF 450V M 18*40MM

L901 073G 174 65 H2 LINE FILTER 30MH MIN

L901 073G 174 65 S2 LINE FILTER 30MH MIN

L906 073G 253 91 H CHOKE COIL

L905 073G 253 91 H CHOKE COIL

L906 073G 253 91 L CHOKE BY LI TA

L905 073G 253 91 L CHOKE BY LI TA

L907 073G 253191 H IND CHOKE 1.1UH DADON

T901 080GL22T 3 N1 X'FMR 490UH YUVA-1093

T901 080GL22T 3 S1 X'FMR 490UH

PT801 080GL24T 23 DN X'FMR 68UH TK.2005Y.101 VOC

CN901 087G 501 32 S AC SOCKET

CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND 2nd Source

CN601 088G 30214K DC PHONE JACK 5PIN

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

BD901 093G 50460514 BRIDGE KBP306G 3A/800V TSC

D905 093G 60334 DIODE SR506 5A/60V DO-201AD

D905 093G 60519 DIODE SR560 5A/60V DO-27 SECOS

CN902 095G 825 9X518 HARNESS 9P(SCN)-9P(PLUG) 120MM

705GQ793081 D901/D906 ASS'Y

D901 093G 52 66 DIODE FMX-12SL 10A/200V TO-220

D901 093G 52 68 DIODE FCF10A20 10A/200V TO-220

D901 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15

75

D906 093G 60251 FCQ10U06

D906 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB

0M1G 930 8120 SCREW

HS2 Q90G6264 5 HEAT SINK

705GQ851001 OIL FOR DISAPPEAR ASS'Y

705GQA57024 Q901 ASS'Y

Q901 057G 600 35 STP8NK80ZFP

Q901 057G 667 21 STP10NK70ZFP

Q901 057G 667516 FET 2SK3673 TO-220 FUJI

Q901 057G 667924 MOSFET SMK0965F

HS1 090G6064 1 HEAT SINK

0M1G 930 8120 SCREW

709G2892 QM001 CONSUMPTIVE ASS'Y

055G 2 ALCOHOL

055G 23524 WELDING FLUX WITHOUT PB

Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379160 IC FAN6752MY SOP-8

IC801 056G 608 12 IC TA9687GN-A-0-TR SOP-16

Q806 057G 600 61 AM4502C-TI-PF S0-8

Q805 057G 600 61 AM4502C-TI-PF S0-8

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q802 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC

R610 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R821 061G0603100 Y RST CHIPR 10 OHM +-5% 1/10W YAGEO

R820 061G0603100 Y RST CHIPR 10 OHM +-5% 1/10W YAGEO

R907 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R918 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W

R807 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R602 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R603 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R604 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R605 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R609 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R806 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R813 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R809 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R928 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R925 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

76

R916 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R928 061G06032002FT RST CHIP 20K 1/10W 1%

R925 061G06032002FT RST CHIP 20K 1/10W 1%

R916 061G06032002FT RST CHIP 20K 1/10W 1%

R606 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R607 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R920 061G06034701FF RST CHIPR 4.7KOHM +-1% 1/10W FENGHUA

R920 061G06034701FT RST CHIP 4K7 1/10W 1%

R905 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R905 061G0603471 JY RST CHIPR 470 OHM 5% 1/10W YAGEO

R836 061G0603563 Y RST CHIPR 56KOHM +-5% 1/10W YAGEO

R837 061G0603752 RST CHIPR 7.5 KOHM +-5% 1/10W

RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ804 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R608 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

RJ803 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

RJ804 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R801 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R801 061G08051002FY RST CHIPR 10KOHM +-1% 1/8W YAGEO

R812 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R812 061G08051003FY RST CHIPR 100KOHM +-1% 1/8W YAGEO

R802 061G0805220 RST CHIPR 22 OHM +-5% 1/8W

R816 061G0805229 RST CHIP 2R2 1/8W 5%

R817 061G0805229 RST CHIP 2R2 1/8W 5%

R818 061G0805229 RST CHIP 2R2 1/8W 5%

R819 061G0805229 RST CHIP 2R2 1/8W 5%

R919 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R823 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R919 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN

R804 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W

R803 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W

R830 061G08056801FT RST CHIP R 6.8KOHM +-1% 1/8W

R830 061G08056801FY RST CHIPR 6.8KOHM +-1% 1/8W YAGEO

R810 061G08057502FF RST CHIPR 75KOHM +-1% 1/8W FENGHUA

R810 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W

R811 061G0805820 2F RST CHIPR 82KOHM +-1% 1/8W

RJ814 061G1206000 RST CHIP MAX 0R05 1/4W

RJ811 061G1206000 RST CHIP MAX 0R05 1/4W

RJ810 061G1206000 RST CHIP MAX 0R05 1/4W

77

RJ802 061G1206000 RST CHIP MAX 0R05 1/4W

RJ816 061G1206000 7 RST CHIP MAX 0R05 1/4W

R902 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R901 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R900 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R900 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R901 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R902 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R903 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R909 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R910 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R912 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R929 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R930 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R923 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R934 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA

R934 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN

R908 061G1206204 JF RST CHIPR 200KOHM +-5% 1/4W FENGHUA

R917 061G1206330 JF RST CHIPR 33 OHM +-5% 1/4W FENGHUA

R917 061G1206330 JT RST CHIP R 33OHM 1/4W +/-5%

R822 061G1206471 JT RST CHIPR 470 OHM 1/4W TZAI YUAN

R913 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W

R931 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R932 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R933 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

C610 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5%

C611 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5%

C923 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C924 065G0603104 12 CER2 0603 X7R 16V 100N P

C926 065G0603104 12 CER2 0603 X7R 16V 100N P

C612 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C613 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C814 065G060322131J A CAP 0603 220PF J 50V NPO

C810 065G060322232K A CAP 0603 2.2NF K 50V X7R

C805 065G060322332K Y TPV CHIP 0603 22N 50V X7R +/-10%

C807 065G060333232K F CAP CHIP 0603 3300PF K 50V X7R

C808 065G060333332K A CAP CHIP 0603 0.033UF K 50V X7R

C914 065G060347131J Y CAP CHIP 0603 470P 50V NPO +/-5%

C601 065G060347412K Y CAP CHIP 0603 0.47UF K 16V X7R

C602 065G060347412K Y CAP CHIP 0603 0.47UF K 16V X7R

78

C603 065G060347412K Y CAP CHIP 0603 0.47UF K 16V X7R

C606 065G060347412K Y CAP CHIP 0603 0.47UF K 16V X7R

C915 065G080510232K F CAP CHIP 0805 1NF K 50V X7R

C915 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C912 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C815 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C811 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C609 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C608 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C927 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C927 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C818 065G0805155A2K 3 CAP CHIP 0805 1.5UF K 10V X7R

C818 065G0805155A2K M CAP MLCC 0805 1.5UF K 10V X7R

C818 065G0805155A2K T CAP CHIP 0805 1.5UF K 10V X7R

C809 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%

C806 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10%

C806 065G080522512K M MLCC 0805 CAP 2.2UF 16V X7R

C806 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R

C802 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C801 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C916 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C917 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C803 065G120610432K Y CER 1206 100N 50V X7R +/-10%

D803 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D806 093G 64 42 PP BAV70 SOT-23

D803 093G 6433S DIODE BAV99 SEMTECH

ZD802 093G 39GA01 T RLZ5.6B

ZD803 093G 39GA01 T RLZ5.6B

ZD802 093G 39S 24 T RLZ 5.6B LLDS

ZD803 093G 39S 24 T RLZ 5.6B LLDS

D806 093G 64S 6 SMT D-BAV70-7-F SOT-23

709G2892 QS001 CONSUMPTIVE ASS'Y

052G 2191 A PAPER TAPE

CN901 006G 31500 EYELET

PT801 006G 31502 1.5MM RIVET

IC903 056G 158 10 T IC AS431AZTR-E1 TO-92

IC903 056G 158 12 KIA431A-AT/P TO-92

Q904 057G 530503 T 2SD1207T

Q904 057G 761 16 TRA KTD1028 KEC

79

R906 061G152M10452T RST MOFR 100KOHM +-5% 2WS

R906 061G152M10452T XZ RST MOFR 100KOHM +-5% 2WS XIANZHENG

R924 061G152M33852T RST MOFR 0.33 OHM +-5% 2WS

R911 061G152M68152T RST MOFR 680 OHM +-5% 2WS

R915 061G152M68152T RST MOFR 680 OHM +-5% 2WS

R828 061G212Y62552T HX RST MGFR 6.2MOHM +-5% 1/2W

R828 061G212Y62552T SY RST MGFR 6.2MOHM +-5% 1/2W FUTABA

C911 065G 2K152 2T6213 CAP CER 1500PF K 2KV

C911 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P

C920 067G 2046812KT CS CAP 680UF 10V 8*11 MM

C913 067G215S2207RT EC 22UF 50V 5*11MM

C913 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

FB902 071G 55 9 T FERRITE BEAD

FB602 071G 55 9 T FERRITE BEAD

FB901 071G 55 29 FERRITE BEAD

F901 084G 56 4 B FUSE 4A 250V

F902 084G 56 4 B FUSE 4A 250V

F903 084G 56 4 B FUSE 4A 250V

F901 084G 56 4W FUSE 4.0A 250V

F902 084G 56 4W FUSE 4.0A 250V

ZD901 093G 3952152T TZX18B

D903 093G 6026T52T RECTIFIER DIODE FR107

D904 093G 6038T52T FR103

D801 093G 64 1152T 1N4148

D801 093G 6452452T DIODE 1N4148-B4006 DO-35 SEMTECH

D903 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J823 095G 90 23 JUMPER WIRE

J822 095G 90 23 JUMPER WIRE

J816 095G 90 23 JUMPER WIRE

J817 095G 90 23 JUMPER WIRE

J818 095G 90 23 JUMPER WIRE

J819 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

J608 095G 90 23 JUMPER WIRE

J607 095G 90 23 JUMPER WIRE

J606 095G 90 23 JUMPER WIRE

J605 095G 90 23 JUMPER WIRE

80

J603 095G 90 23 JUMPER WIRE

J602 095G 90 23 JUMPER WIRE

J601 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J911 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J907 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J604 095G 90 23 JUMPER WIRE

C821 095G 90 23 JUMPER WIRE

C819 095G 90 23 JUMPER WIRE

709G2892 QA001 CONSUMPTIVE ASS'Y

095G 90 23 JUMPER WIRE

715G2892P02016001S POWER PCB 122X184X1.6MM FR-1 S/S 1OZ

HS3 Q90G6295 3 HEAT SINK

T901 S80GL22T3V1 XFMR POWER 490UH TPV-PT

PT801 S80GL24T23V XFMR POWER 68UH TPV-PT VOC

052FP5MB040026 MYLAR

Q12G6600 6 FOOT

Q40G 23N61513B RATING LABEL

Q40G0003615A51 LABEL -POP LABEL(EPA+EPEAT SILVER+WIN 7)

Q40G0003615A53 LABEL -USB LABEL 27WX12H MM

Q41G78S161547A E941VWA, 2341VA ,E2241VWA QSG

Q44GD053101 EPS

Q44GD053201 EPS

Q44GD053615 3B 23 LCD CARTON

Q45G 88609198 3002BAG

USB9QA1 USB BOARD G3501-A-X-X-1-090113

CN501 033G3802 5B Y L CONN 2.0 5P

CN502 088G 351 2B TN USB CONN

CN502 088G 351 2B XH USB CONN 2nd Source

CN502 088G 3512B1 CL USB CONN BLACK 2nd Source

C503 065G0603104 12 CER2 0603 X7R 16V 100N P

C501 065G060350931J F CAP CHIP 0603 5PF J 50V NPO

81

C502 065G060350931J F CAP CHIP 0603 5PF J 50V NPO

FB501 071G 56K121 M CHIP BEAD

709G3501 QS001 CONSUMPTIVE ASS'Y

715G3501 2 USB PCB 18X40X1.6MM FR-1 S/S 1OZ

USB9QA7 USB BOARD G2663-T0C-001-0010-1-100316

CN511 033G3802 5B YH L CONNECTOR 5P 2.0

CN511 033G3802 5B YH W WAFER 2nd Source

CN512 088G 352 2 TN USB CONN

CN512 088G 352 2 XH USB CONN 2nd Source

E715 715G2663T01001001C USB PCB 71X26X1.6MM FR-1 S/S 1OZ 2nd Source

E715 715G2663T01001001M USB PCB 71X26X1.6MM FR-1 S/S 1OZ 2nd Source

E715 715G2663T01001001S USB PCB 71X26X1.6MM FR-1 S/S 1OZ

089G 17356G553 AUDIO CABLE 1800MM

Q45G2010M0201A PE BAG

Q70G23C1615 4A 2341VA CD

040G 58162435A P/N LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

Q40G000161515A CARTON LABEL

82

2341Sa TDASNTEBWVA1UN

Location Part No. Description Remark

052G 1209 A TASMA ALUMINIOWA

052G 1211 A TASMA ALUMINIOWA

052G 1211 B TASMA ALUMINIOWA

052G 2191 A PAPER TAPE

052G6019 1 INSULATING TAPE

078G0025501 YA SPK 4 OHM 2.5W 48X28 220 140 SUNLINK

089G 175 8 G FQE41177F USB CABLE 1800MM A+B

089G 725HAADBD D-SUB CABLE 1500MM

089G179J30N576 FFC CABLE

E08901 089G404A15N HL AC POWER CORD 1500MM

E08901 089G404A15N IS AC POWER CORD 1500 2nd source

E09501 095G8014 5DH15 HARNESS 5P(2008)-5P(2008) 300MM 2nd source

E09501 095G8014 5XH15 HARNESS 5P(2008)-5P(2008) 300MM

095G8014 6WH13 WIRE HARNESS 6P(PLUG)-6P(A1253HA HR)

0D1G1030 8120 SCREW

0M1G 930 5120 SCREW

0M1G1740 10225 CR3 SCREW 4.0X10.0

0Q1G 930 6120 SCREW 3X6MM

708GD053 CP AOC 40(1520)

Q45G 77 5 PE PACKING (Y1900241)

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 BIG CARTON TAPE FOR AOC

708GD05301S AOC 40 (1615)

Q45G 77 5 PE PACKING (Y1900241)

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 BIG CARTON TAPE FOR AOC

750GLS230HT312N000 PANEL LTM230HT03 C01 SZ SEC

756GQACB AA040 00 MAIN BOARD-CBPCANTA1QN

U402 056G1133 90 1 IC PM25LV020-100SCE 2MB SOIC-8 PMC

SMTCA-U402 100GANSD003YT1 MCU ASS'Y-056G1133 90 1

A15G1195101003 MAIN_FRAME --

A15G1211101 BRACKET_HOLDER

A33G0928AFR 1L0100 EAR PHONE STAND

A34G1858AEDC1B0100 BEZEL L23WA-T41

A34G1859AFRA2B0100 REAR COVER

A37G0167011 HINGE

AM1G1740 10225 CR3 SCREW

83

040G 45762412B CBPC LABEL

CN402 033G3802 6B Y CONN 6PIN 2.0

CN701 033G3802 9B Y CONNECTOR 9P 2.0

CN408 033G801930F CH JS CONNECTOR

R707 061G152M479 64 SY RST MOFR 4.7 OHM +-5% 2WS FUTABA

CN101 088G 35315F HD D-SUB CONN F ATTACHED SCREW

X401 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

C716 067G 3051007PB EC 10UF 20% 50V 5*11

C433 067G 3051013PB EC 105C 100UF M 16V 5*11MM

C702 067G 3051013PB EC 105C 100UF M 16V 5*11MM

C710 067G 3051013PB EC 105C 100UF M 16V 5*11MM

C705 067G 3051013PB EC 105C 100UF M 16V 5*11MM

U401 056G 562281 IC NT68668UFG/C QFP-128

U703 056G 563206 IC LDO AP2114H-1.8TRG1 1A/1.8V SOT-223

U701 056G 563224 IC LDO AP2114H-3.3TRG1 1A/3.3V SOT-223

U103 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U102 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS

U402 056G1133 90 1 IC PM25LV020-100SCE 2MB SOIC-8 PMC

U101 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8

Q706 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q402 057G 417 13 T KEC 2N3906S-RTK/PS

Q401 057G 417 13 T KEC 2N3906S-RTK/PS

Q705 057G 763940 MOSFET AO3401A SOT-23

R110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R117 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R109 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R711 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R410 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R409 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R407 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R406 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R118 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R117 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R110 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

84

R109 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R104 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R103 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R102 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R105 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R106 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R703 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R439 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R431 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R124 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R123 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R108 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R121 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R123 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R124 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R431 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R439 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R703 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R712 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R798 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R119 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R113 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R111 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R108 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R106 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R105 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R102 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R101 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R424 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R799 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R714 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R704 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R444 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R429 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

85

R429 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R444 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R704 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R714 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R799 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R415 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R422 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R715 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R415 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

R422 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

R715 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN

R432 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA

R432 061G0402105 JT RST CHIP R 1MOHM 1/16W +/-5% TZAI YUAN

R125 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R126 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R125 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN

R126 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN

R719 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R701 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R427 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R425 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R116 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R116 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R427 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R701 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R719 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R425 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN

R416 061G0402224 JT RST CHIP 220K 1/16W 5% TZAI YUAN

R416 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R401 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R404 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R405 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R405 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R404 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R401 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN

R419 061G0402394 JY RST CHIP R 390K +/-5% 1/16W YAGEO

R408 061G04024700FT RST CHIP 470R 1/16W 1%

R408 061G04024700FY RST CHIP 470R 1/16W 1%

R142 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R142 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN

86

R114 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R702 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R114 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R115 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R411 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R413 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R702 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R721 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R120 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R112 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R107 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R120 061G04027509FT RST CHIP 75R 1/16W 1%

R112 061G04027509FT RST CHIP 75R 1/16W 1%

R107 061G04027509FT RST CHIP 75R 1/16W 1%

R122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R122 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R418 061G0603152 JF RST CHIPR 1.5KOHM +-5% 1/10W FENGHUA

R418 061G0603152 JT RST CHIP 1K5 1/10W 5% TZAI YUAN

R417 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R417 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

FB701 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R449 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R448 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R449 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN

R448 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN

C120 065G040210232K T CAP CHIP 0402 1000PF 50V X7R

C120 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%

C411 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C410 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C409 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C408 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C713 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C407 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C405 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C403 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C402 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C401 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C114 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

87

C113 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C712 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C707 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C706 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C704 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C703 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C701 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C434 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C427 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C425 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C422 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C419 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C418 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C417 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C412 065G040210425K 3 CAP CHIP 0402 100N 25V X5R +/-10%

C405 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C407 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C408 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C713 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C712 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C707 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C706 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C704 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C703 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C701 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C434 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C427 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C425 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C419 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C422 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C417 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C418 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C409 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C410 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C411 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C412 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C113 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C114 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C401 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C402 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

88

C403 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C406 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C414 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C415 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C424 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R

C406 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C414 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C415 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C424 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R

C428 065G040222031J A CAP 0402 22PF J 50V NPO

C426 065G040222031J A CAP 0402 22PF J 50V NPO

C182 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C182 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C181 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C182 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C426 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C428 065G040222031J T CAP CHIP 0402 22PF J 50V NPO

C718 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R

C715 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R

C429 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R

C101 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R

C101 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C101 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220NF K 16V X5R

C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C104 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C105 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C107 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C108 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R

C110 065G040247312K T CAP 0402 47NF 10% 16V X7R

C108 065G040247312K T CAP 0402 47NF 10% 16V X7R

C107 065G040247312K T CAP 0402 47NF 10% 16V X7R

89

C105 065G040247312K T CAP 0402 47NF 10% 16V X7R

C104 065G040247312K T CAP 0402 47NF 10% 16V X7R

C102 065G040247312K T CAP 0402 47NF 10% 16V X7R

C109 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C106 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C103 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C103 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C106 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C109 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF

C404 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C413 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C416 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C421 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C423 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C423 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C421 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C416 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C413 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C404 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

FB409 071G 56K121 CHIP BEAD

FB404 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

FB405 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

FB401 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

FB408 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

FB403 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

FB402 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL

D101 093G 64 42 P BAV70 SOT23 BY PAN JIT

ZD101 093G 39GA01 T RLZ5.6B

E715 715G3737M02000004K MAIN PCB FR4 DS 80X72X1.6MM 2nd source

E715 715G3737M02000004L MAIN PCB FR4 DS 80X72X1.6MM

J33G8B42 1 1C0100 KEY PAD

J33G8B43AFR 1L0100 KEY PAD HOLDER

J33G8B46AFR 1L0100 WEB CAM COVER

J34G8B57AED 1B0100 BASE

J34G8B63AED 1B0100 STAND TOP

J34G8B64AED 1B0100 STAND

KEPC9QC5 KEY BOARD

SW001 077G 5005A1 XL DOME SW 5 3703701

CN001 033G8032 6F X WAFER 6P 1.25MM

CN001 033G8032 6F HR CONNECTOR 6P 1.25 2nd source

90

R003 061G0603000 FT RST CHIPR MAX 0R01 1/10W TZAI YUAN

R003 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R005 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R005 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN

R002 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA

R004 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA

R002 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN

R004 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN

C003 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C004 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C004 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

C003 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

LED01 081G 14501 GP LED GPTD1210YGC3-HB

715G4007K01000004F KEY PCB FR-4 106.5X14.5MM T1.6MM

PWPC9B41MYD2 POWER BOARD G2892-P02-016-X-3-100329

040G 45762412B CBPC LABEL

GND1 009G6005 1 GROUND TERMINAL

CN602 033G3802 4 BH F CONNECTOR

CN602 033G3802 4 BH L CONN 2.0MM 4P 2nd source

CN801 033G8021 2E F CONNECTOR

CN803 033G8021 2E F CONNECTOR

CN801 033G8021 2E XY CONNECTOR 2nd source

CN803 033G8021 2E XY CONNECTOR 2nd source

IC902 056G 139 3A PC123Y22FZOF SHARP

IC902 056G 139900 PHOTO COUPLER TLP421F

IC601 056G 616 51 IC APA2071JI-TUG 3.1W DIP-16

NR901 061G 58100 WD RST NTCR 10 OHM +-20% 5A THINKING

C908 063G107K334 6S 0.33UF +-10%

C908 063G107K334 US NO-SUGGEST 0.33UF 275VAC+-10% EUROP

C817 065G 6J2096ET 2PF 5% SL 6KV

C902 065G305M1022BP CAP Y2 1000PF M 250VAC

C903 065G305M1022BP CAP Y2 1000PF M 250VAC

C900 065G306M3322BP Y1 CAP 3300PF M 250VAC

C804 067G215A1024KV EC 1000UF 25V 12.5*20MM

C918 067G215A1024KV EC 1000UF 25V 12.5*20MM

C918 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C804 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C925 067G215D4714KV EC 105C CAP 470UF M 25V

C925 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM

C921 067G215S1023KV 105C 1000UF M 16V

91

C922 067G215S4713KV EC 105 CAP 470UF M 16V℃

C922 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

C604 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

C907 067G315Z10115K EC 100UF 20% 450V 18*40

C907 067G315Z10115L EC 100UF 450V M 18*40MM

L901 073G 174 65 H2 LINE FILTER 30MH MIN

L901 073G 174 65 S2 LINE FILTER 30MH MIN

L906 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG

L905 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG

L906 073G 253 91 L CHOKE BY LI TA

L905 073G 253 91 L CHOKE BY LI TA

L907 073G 253191 H IND CHOKE 1.1UH DADON

T901 080GL22T 3 N1 X'FMR 490UH YUVA-1093

T901 080GL22T 3 S1 X'FMR 490UH

PT801 080GL24T 23 DN X'FMR 68UH TK.2005Y.101 VOC

CN901 087G 501 32 S AC SOCKET ST-01CP-BCE-R

CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND 2nd source

CN601 088G 30214K DC PHONE JACK 5P GREEN -

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

BD901 093G 50460514 BRIDGE KBP306G-05 3A/800V TSC

D905 093G 60334 DIODE SR506 5A/60V DO-201AD

D905 093G 60519 DIODE SR560-MK23 5A/60V DO-27 SECOS

CN902 095G 825 9X518 HARNESS 9P(SCN)-9P(PLUG) 120MM

705GQ793081 D901/D906 ASS'Y

D901 093G 52 66 DIODE FMX-12SL 10A/200V TO-220

D901 093G 52 68 DIODE FCF10A20 10A/200V TO-220

D901 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15

D906 093G 60251 FCQ10U06

D906 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB

0M1G 930 8120 SCREW

HS2 Q90G6264 5 HEAT SINK

705GQ851001 OIL FOR DISAPPEAR ASS'Y

705GQA57024 Q901 ASS'Y

Q901 057G 600 35 STP8NK80ZFP

Q901 057G 667 21 NO-SUGGEST STP10NK70ZFP

Q901 057G 667516 FET 2SK3673 TO-220 FUJI

Q901 057G 667924 MOSFET SMK0965F

HS1 090G6064 1 HEAT SINK

0M1G 930 8120 SCREW

709G2892 QM001 CONSUMPTIVE ASS'Y

92

055G 2 ALCOHOL

055G 23524 WELDING FLUX WITHOUT PB

Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379160 IC FAN6752MY SOP-8

IC801 056G 608 12 IC TA9687GN-A-0-TR SOP-16

Q805 057G 600 61 AM4502C-TI-PF S0-8

Q806 057G 600 61 AM4502C-TI-PF S0-8

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q802 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC

R610 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R820 061G0603100 JI RST 0603 10R 5% 1/16W TA-I

R821 061G0603100 JI RST 0603 10R 5% 1/16W TA-I

R820 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R821 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R907 061G06031001FI TEST ONLY RST 0603 1K 1% 1/10W TA-I

R907 061G06031001FT RST CHIP 1K 1/10W 1%

R918 061G06031002FI RST 0603 10K 1% 1/10W TA-I

R918 061G06031002FY RST CHIPR 10KOHM +-1% 1/10W YAGEO

R807 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R807 061G0603103 JI RST 0603 10K 5% 1/10W TA-I

R609 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R605 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R604 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R603 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R602 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R813 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R806 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R809 061G0603105 JI RST 0603 1M 5% 1/16W TA-I

R809 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R916 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R925 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R928 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R916 061G06032002FT RST CHIP 20K 1/10W 1%

R925 061G06032002FT RST CHIP 20K 1/10W 1%

R928 061G06032002FT RST CHIP 20K 1/10W 1%

R606 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R607 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R808 061G06033900FI RST 0603 390R 1% 1/10W TA-I

93

R808 061G06033900FT RST CHIP 390R 1/10W 1%

R920 061G06034701FF RST CHIPR 4.7KOHM +-1% 1/10W

R920 061G06034701FT RST CHIP 4K7 1/10W 1%

R905 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R905 061G0603471 JY NO-SUGGEST RST CHIPR 470 OHM 5% 1/10W YA

R836 061G0603563 JI RST 0603 56K 5% 1/16W TA-I

R836 061G0603563 JT RST CHIPR 56KOHM +-5% 1/10W TZAI YUAN

R837 061G0603752 JI TEST ONLY RST 0603 7.5K 5% 1/16W TA-I

RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ804 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ804 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R608 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

RJ803 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R801 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R801 061G08051002FT RST CHIP 10K 1/8W 1%

R801 061G08051002FY RST CHIP 10K 1/8W 1%

R812 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R812 061G08051003FT RST CHIP 100K 1/8W 1%

R812 061G08051003FY RST CHIP 100K 1/8W 1%

R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R802 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN

R816 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA

R818 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA

R817 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA

R819 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA

R816 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R817 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R818 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R819 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R919 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R823 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R919 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN

R803 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA

R804 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA

R803 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R804 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R830 061G08056801FT RST CHIP R 6.8KOHM +-1% 1/8W

R830 061G08056801FY RST CHIPR 6.8KOHM +-1% 1/8W

R810 061G08057502FF RST CHIPR 75KOHM +-1% 1/8W FENGHUA

R810 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W

94

R811 061G08058202FF RST CHIPR 82KOHM +-1% 1/8W FENGHUA

R811 061G08058202FT RST CHIPR 82K +-1% 1/8W TZAI YUAN

RJ814 061G1206000 RST CHIP MAX 0R05 1/4W

RJ811 061G1206000 RST CHIP MAX 0R05 1/4W

RJ810 061G1206000 RST CHIP MAX 0R05 1/4W

RJ802 061G1206000 RST CHIP MAX 0R05 1/4W

RJ816 061G1206000 JI RST 0 OHM 5% 1/4W TA-I

RJ816 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R900 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R901 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R902 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R900 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R901 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R902 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R930 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R929 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R912 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R910 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R909 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R903 061G1206101 NO-SUGGEST RST CHIPR 100 OHM +-5% 1/4W

R923 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R934 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA

R934 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN

R908 061G1206204 JF RST CHIPR 200KOHM +-5% 1/4W FENGHUA

R917 061G1206330 JF RST CHIPR 33 OHM +-5% 1/4W FENGHUA

R917 061G1206330 JT RST CHIP R 33OHM 1/4W +/-5%

R822 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

R913 061G1206519 JI RST 5.1 OHM 5% 1/4W TA-I

R913 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN

R931 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R932 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R933 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

C610 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5%

C611 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5%

C923 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C924 065G0603104 12 CER2 0603 X7R 16V 100N P

C926 065G0603104 12 CER2 0603 X7R 16V 100N P

C612 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C814 065G060322131J A CAP CHIP 0603 220PF J 50V NPO

95

C810 065G060322232K A CAP 0603 2.2NF K 50V X7R

C805 065G060322332K Y TPV CHIP 0603 22N 50V X7R +/-10%

C807 065G060333232K F CAP CHIP 0603 3.3NF K 50V X7R

C808 065G060333332K A CAP CHIP 0603 33NF K 50V X7R

C914 065G060347131J Y CAP CHIP 0603 470P 50V NPO +/-5%

C606 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R

C603 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R

C602 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R

C601 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R

C915 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C915 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C912 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C815 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C811 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C608 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C609 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C927 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C927 065G080510522K T CAP 0805 1UF 10% 25V X7R

C818 065G0805155A2K 3 NO-SUGGEST 0805 1.5UF K 10V X7R

C818 065G0805155A2K M CAP MLCC 0805 1.5UF K 10V X7R

C818 065G0805155A2K T NO-SUGGEST 0805 1.5UF K 10V X7R

C809 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%

C806 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10%

C806 065G080522512K M MLCC 0805 CAP 2.2UF 16V X7R

C806 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R

C802 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C801 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C917 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C916 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C803 065G120610432K Y CER 1206 100N 50V X7R +/-10%

D803 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D806 093G 64 42 PP BAV70 SOT-23

D803 093G 6433S SWITCHING DIODE BAV99

ZD802 093G 39GA01 T RLZ5.6B

ZD803 093G 39GA01 T RLZ5.6B

ZD802 093G 39S 24 T RLZ 5.6B LLDS

ZD803 093G 39S 24 T RLZ 5.6B LLDS

D806 093G 64S 6 SMT D-BAV70-7-F SOT-23

709G2892 QS001 CONSUMPTIVE ASS'Y

96

052G 2191 A PAPER TAPE

CN901 006G 31500 EYELET

PT801 006G 31502 1.5MM RIVET

IC903 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC903 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92

Q904 057G 530503 T 2SD1207T

Q904 057G 761 16 TRA KTD1028 KEC

R906 061G152M10452T NO-SUGGEST RST MOFR 100KOHM +-5% 2WS

R906 061G152M10452T XZ RST MOFR 100KOHM +-5% 2WS XIANZHENG

R924 061G152M33852T RST MOFR 0.33 OHM +-5% 2WS

R911 061G152M68152T RST MOFR 680 OHM +-5% 2WS

R915 061G152M68152T RST MOFR 680 OHM +-5% 2WS

R828 061G212Y62552T HX RST MGFR 6.2MOHM +-5% 1/2W

R828 061G212Y62552T SY RST MGFR 6.2MOHM +-5% 1/2W FUTABA

C911 065G 2K152 2T6213 CAP CER 1.5NF 10% 2KV Y5P

C911 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P

C920 067G 2046812KT CS CAP 680UF 10V 8*11 MM

C913 067G215S2207RT EC 22UF 50V 5*11MM

C913 067G215Y2207KT CAP 105 22UF M 50V KINGNICHI℃

FB902 071G 55 9 T FERRITE BEAD 3.5*6*0.8-T52

FB602 071G 55 9 T FERRITE BEAD 3.5*6*0.8-T52

FB901 071G 55 29 FERRITE BEAD

F903 084G 56 4 B FUSE 4A 250V

F902 084G 56 4 B FUSE 4A 250V

F901 084G 56 4 B FUSE 4A 250V

F902 084G 56 4W FUSE 4A 250V

F901 084G 56 4W FUSE 4A 250V

ZD901 093G 3952152T TZX18B

D903 093G 6026T52T RECTIFIER DIODE FR107

D904 093G 6038T52T FR103 AO

D801 093G 64 1152T 1N4148

D801 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D903 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J905 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J823 095G 90 23 JUMPER WIRE

J822 095G 90 23 JUMPER WIRE

97

J819 095G 90 23 JUMPER WIRE

J818 095G 90 23 JUMPER WIRE

J817 095G 90 23 JUMPER WIRE

J816 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

J608 095G 90 23 JUMPER WIRE

J607 095G 90 23 JUMPER WIRE

J606 095G 90 23 JUMPER WIRE

J605 095G 90 23 JUMPER WIRE

J603 095G 90 23 JUMPER WIRE

J602 095G 90 23 JUMPER WIRE

J601 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J911 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J907 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J604 095G 90 23 JUMPER WIRE

C821 095G 90 23 JUMPER WIRE

C819 095G 90 23 JUMPER WIRE

709G2892 QA001 CONSUMPTIVE ASS'Y

095G 90 23 JUMPER WIRE

715G2892P02016001S POWER PCB 122X184X1.6MM FR-1 S/S 1OZ

R837 061G0603752 JT RST CHIP 7K5 1/10W 5% TZAI YUAN

R806 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R813 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

HS3 Q90G6295 3 HEAT SINK

T901 S80GL22T3V1 FMR POWER 490UH TPV-PT

PT801 S80GL24T23V XFMR POWER 68UH TPV-PT VOC

052FP5MB040026 MYLAR 125U*4MM*2.6MM BLACK

Q12G6600 6 FOOT

Q40G0003615A53 LABEL -USB LABEL 27WX12H MM

Q40G000362426A WIN7+EPEAT SILVER+EPA+SRS

Q41G78S161546A E941SWA,2341SA QSG

Q44GD053101 EPS

Q44GD053201 EPS

98

Q44GD053615 4B 23 LCD CARTON

Q45G 88609198 3002BAG

USB9QA1 USB BOARD G3501-A-X-X-1-090113

CN501 033G3802 5B Y L CONNECTOR 5P 2.0

CN502 088G 351 2B TN USB CONN 2nd source

CN502 088G 351 2B XH USB CONN 2nd source

CN502 088G 3512B1 CL USB CONN 4PIN BLACK USB-04

C503 065G0603104 12 CER2 0603 X7R 16V 100N P

C501 065G060350931J F CAP CHIP 0603 5PF J 50V NPO

C502 065G060350931J F CAP CHIP 0603 5PF J 50V NPO

FB501 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

709G3501 QS001 CONSUMPTIVE ASS'Y

715G3501 2 USB PCB 18X40X1.6MM FR-1 S/S 1OZ

USB9QA7 USB BOARD G2663-T0C-001-0010-1-100316

CN511 033G3802 5B YH L CONNECTOR 5P 2.0

CN511 033G3802 5B YH W WAFER 2nd source

CN512 088G 352 2 TN USB CONN

CN512 088G 352 2 XH USB CONN 2nd source

E715 715G2663T01001001C USB PCB 71X26X1.6MM FR-1 S/S 1OZ 2nd source

E715 715G2663T01001001M USB PCB 71X26X1.6MM FR-1 S/S 1OZ 2nd source

E715 715G2663T01001001S USB PCB 71X26X1.6MM FR-1 S/S 1OZ

089G 17356G553 AUDIO CABLE 1800MM

Q45G2010M0201A P.E. BAG (INSTR. BOOK)

Q70G23C1615 5B CD MANUAL

040G 58162435A P/N LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

Q40G 23N61513B RATING LABEL

Q40G000161515A CARTON LABEL

99

2341Va TDASNTEBWVA1PNE

Location Part No. Description Remark

040G 58162435A P/N LABEL FOR MANUAL PE BAG

050G 600 1 W WHITE STRAP (1G004991)

052G 1209 A Tasma aluminiowa

052G 1211 A Tasma aluminiowa

052G 1211 B Conductive Tape 85mm *40mm *0.09mm

052G 2191 A PAPER TAPE

052G6019 1 INSULATING TAPE

HDCP-SMT 070GHDCP500HDC NO-SUGGEST HDCP CODE

E07801 078G0025501 YA SPK 4 OHM 2.5W 48X28 220 140 SUNLINK

E08904 089G 173 56 4B AUDIO CABLE

E08905 089G 175 8A C USB CABLE 1800MM without PE bag

E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source

E08902 089G 715CAAE01 SIGNAL CABLE 2nd source

E08902 089G 715GAAE01 SIGNAL CABLE 2nd source

E08902 089G 715HAAE01 SIGNAL CABLE

E08901 089G404A15N HL AC POWER CORD 1500mm

E08901 089G404A15N IS AC POWER CORD 1500 2nd source

095G8014 6DE44 HARNESS 6P(2008)-6P(1253) 340

0D1G1030 8120 screw

0M1G 930 5120 SCREW

0Q1G 930 8120 screw

750GLS230HT312N000 PANEL LTM230HT03 C01 SZ SEC

A15G1195101001 MAIN_FRAME --

A15G1211101 BRACKET_HOLDER

A33G0928AFR 1L0100 EAR PHONE STAND

A34G1858AEDA1B0100 BEZEL L23WA-T41

A34G1859AFRA4B0100 REAR COVER

A37G0167011 HINGE

AM1G1740 10225 CR3 SCREW

H26G 800504 2B barcode

H40G 22N61563A E2241VWA EU ID LABEL

H40G 58361548A 941 USB LABEL

H40G 58361585A EPA EPEAT WIN7 TCO5.0 SRS label

H40G 58461512A 2341VA CARTON LABEL

H41G780961513A TCO5.0 CARD

H41G780961531A E2241VWA QSG

H44GD053615 2A 2341VA CARTON

H45G 77 6 PE PACKING

100

H45G 87 18 25 EPE COVER

H70G201061536A 2341VA CD MANUAL

J33G8B42 1 1C0100 KEY PAD

J33G8B43AFR 1L0100 key pad holder

J33G8B46AFR 1L0100 web cam cover

J34G8B57AED 1B0100 base

J34G8B63AED 1B0100 stand top

J34G8B64AED 1B0100 stand

Q44GD053101 EPS

Q44GD053201 EPS

Q45G 76 28 H A PE BAG FOR MANUAL

Q52G 1185 99 big carton tape for aoc

Q52G6019 14 TAPE

S95G179T30NE28 FFC CABLE 195MM P1.0 30P

USBAHA1 USB G2663-T01-X-X-1-100416

USBAHA6 USB G3501-2-X-X-1-090313

756GHACB A1078 MAIN BOARD-CBPCANTA1H4

U402 056G2233 11 MCU ASS'Y-056G2233 11

SMTCA-U402 100GANSD002W11 AOC_2341Va_SEC

CBPCANTA1H4 MAIN BOARD

CN402 033G3802 6B Y L WAFER

CN701 033G3802 9B Y L CONN 2.0 9P

CN408 033G801930F CH L FFC CONNECTOR 30P 1.0pitch

040G 45762412B CBPC LABEL

R707 061G152M47964L SY RST MOFR 4.7 OHM +-5% 2WS FUTABA

CN101 088G 35315F CH D-SUB CONN WITH SCREW 15P - -

CN102 088G 35424F CH DVI 24PIN CONN F ATTACHED SCREW

X401 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

709G3737 HM001 COMSUPTIVE ASS'Y

AIGANTA1H4 MAIN FOR AI

E55 Q55G 100625 TIN STICK_LOW ARGENTUM

C716 067G 3051007PB EC 10UF 20% 50V 5*11

C433 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C702 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C705 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C710 067G 3051013PB EC 105C 100uF M 16V 5*11mm

SMTCANTA1H4 MAIN BOARD FOR SMT

U401 056G 562328 IC Scaler NT68668AUFG QFP-128

U703 056G 563206 IC LDO AP2114H-1.8TRG1 1A/1.8V SOT-223

U701 056G 563224 IC LDO AP2114H-3.3TRG1 1A/3.3V SOT-223

101

U107 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U106 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U104 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U102 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U101 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8

U105 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8

U402 056G2233 11 IC Pm25LD020C-SCE SIOC-8(150mil) 2M

Q706 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q401 057G 417 13 T KEC 2N3906S-RTK/PS

Q402 057G 417 13 T KEC 2N3906S-RTK/PS

Q705 057G 763940 MOSFET AO3401A SOT-23

R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R117 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R109 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R711 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R410 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R141 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R140 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R139 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R138 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R137 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R136 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R135 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R134 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R123 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R124 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R127 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R128 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R431 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R439 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R712 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

102

R798 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R703 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R102 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R105 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R106 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R108 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R799 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R714 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R704 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R444 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R429 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R130 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R415 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R422 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R715 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R432 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA

R125 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R126 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R719 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R701 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R427 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R425 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R133 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R116 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R423 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R416 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R401 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R404 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R405 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R419 061G0402394 JY RST CHIP R 390K +/-5% 1/16W YAGEO

R408 061G04024700FY RST CHIP 470R 1/16W 1%

R142 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R702 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

103

R132 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R131 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R114 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R413 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R411 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R107 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R112 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R120 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R418 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R417 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

FB701 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R449 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R448 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

C120 065G040210232K A CAP 0402 1NF K 50V X7R

C412 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C417 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C418 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C419 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C422 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C425 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C427 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C434 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C701 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C703 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C704 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C706 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C707 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C712 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C713 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C113 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C114 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C115 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C117 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C118 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C119 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C401 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C402 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C411 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

104

C410 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C409 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C408 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C407 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C405 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C403 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C424 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C415 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C414 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C406 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C428 065G040222031J A CAP 0402 22PF J 50V NPO

C426 065G040222031J A CAP 0402 22PF J 50V NPO

C182 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J A CAP 0402 22PF J 50V NPO

C101 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C116 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C102 065G040247312K T CAP 0402 47NF 10% 16V X7R

C104 065G040247312K T CAP 0402 47NF 10% 16V X7R

C105 065G040247312K T CAP 0402 47NF 10% 16V X7R

C107 065G040247312K T CAP 0402 47NF 10% 16V X7R

C108 065G040247312K T CAP 0402 47NF 10% 16V X7R

C110 065G040247312K T CAP 0402 47NF 10% 16V X7R

C103 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C106 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C109 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C423 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C421 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C416 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C413 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C404 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

FB409 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

FB408 071G 56V301 M CHIP BEAD 2012 300 OHM

FB405 071G 56V301 M CHIP BEAD 2012 300 OHM

FB404 071G 56V301 M CHIP BEAD 2012 300 OHM

FB403 071G 56V301 M CHIP BEAD 2012 300 OHM

FB402 071G 56V301 M CHIP BEAD 2012 300 OHM

FB401 071G 56V301 M CHIP BEAD 2012 300 OHM

105

D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D102 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

ZD101 093G 39GA01 T RLZ5.6B

ZD102 093G 39GA01 T RLZ5.6B

709G3737 HS001 COMSUPTIVE ASS'Y

E715 715G3737M02000004L MAIN PCB FR4 DS 80x72x1.6mm 2nd source

E715 715G3737M02000004S MAIN PCB FR4 DS 80*72*1.6mm

H52G1701 1 MESH PRINTTING_PAPER

KEPCAHA3 KEY BOARD

SW001 077G 5005A1 XL DOME SW 5 3703701

SMTKEPCAHA3 key board for smt

CN001 033G8032 6F X WAFER 6P 1.25MM

R003 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R005 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R002 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R004 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

LED01 081G 14501 GP LED GPTD1210YGC3-HB

E715 715G4007K01000004F KEY PCB FR-4 106.5X14.5MM T1.6MM

E715 715G4007K01000004L KEY PCB FR-4 106.5X14.5MM T1.6MM 2nd source

PWPCAD21SHE1 POWER BOARD

GND1 009G6005 1 GROUND TERMINAL

CN602 033G3802 4 BH F CONNECTOR

CN801 033G8021 2E F CONNECTOR

CN803 033G8021 2E F CONNECTOR

040G 45762412B CBPC LABEL

IC902 056G 139 3A PC123Y22FZOF SHARP

NR901 061G 58100 WD RST NTCR 10 OHM +-20% 5A THINKING

C908 063G107K334 6S 0.33UF +-10%

C817 065G 6J2096ET 2PF 5% SL 6KV

C902 065G305M1022BP CAP Y2 1000PF M 250VAC

C903 065G305M1022BP CAP Y2 1000PF M 250VAC

C900 065G306M3322BP Y1 CAP 3300PF M 250VAC

C918 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C804 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C925 067G215D4714LV LOW ESR EC 470uF 25V M 10*16mm

C921 067G215S1023KV EC 1000UF 20% 16V 10*20

C604 067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm

C922 067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm

C907 067G315Z10115K EC 100UF 20% 450V 18*40

L901 073G 174 65 S2 LINE FILTER 30mH MIN

106

L906 073G 253 91 L CHOKE BY LI TA

L905 073G 253 91 L CHOKE BY LI TA

L907 073G 253191 H IND CHOKE 1.1uH DADON

T901 080GL22T 3 N1 X'FMR 490uH YUVA-1093

PT801 080GL24T 23 DN X'FMR 68uH TK.2005Y.101 VOC

CN901 087G 501 32 S AC SOCKET ST-01CP-BCE-R

CN601 088G 30214K DC PHONE JACK 5P GREEN -

D905 093G 60334 DIODE SR506 5A/60V DO-201AD

CN902 095G 825 9D518 HARNESS 9P-9P 120

CN902 095G 825 9T518 HARNESS 9P-9P 120MM 2nd source

705GQ793081 D901/D906 ASS'Y

705GQA57024 Q901 ASS'Y

709G2892 HM001 CONSUMPTIVE ASS'Y

PWAD21SHE1SMT POWER BOARD FOR SMT

HS3 Q90G6295 3 HEAT SINK

IC601 056G 616 51 IC APA2071JI-TUG 3.1W DIP-16

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

D901 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15

D906 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB

0M1G 930 8120 SCREW

HS2 Q90G6264 5 HEAT SINK

Q901 057G 667924 MOSFET SMK0965F

HS1 090G6064 1 HEAT SINK

0M1G 930 8120 SCREW

Q55G 100625 TIN STICK_LOW ARGENTUM

E55 055G 23524 WELDING FLUX WITHOUT PB

Q51G 6 4509 GLUE_RTV

IC901 056G 379160 IC FAN6752MY SOP-7

IC801 056G 608 12 IC ta9687GN-A-0-TR SOP-16

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

R610 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R821 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R820 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R907 061G06031001FT RST CHIP 1K 1/10W 1%

R918 061G06031002FT RST CHIP 10K 1/10W 1%

R807 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R609 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R605 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

107

R604 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R603 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R602 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R813 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R806 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R809 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA

R916 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R925 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R928 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R606 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R607 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN

R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R920 061G06034701FT RST CHIP 4K7 1/10W 1%

R905 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

R836 061G0603563 JF RST CHIPR 56KOHM 5% 1/10W FENGHUA

R837 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA

RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ804 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R608 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN

R801 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R812 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R802 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN

R819 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R818 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R816 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R817 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R823 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R919 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN

R804 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R803 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R830 061G0805622 JT RST CHIPR 6K2 +-5% 1/8W TZAI YUAN

R810 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W

R811 061G08058202FT RST CHIPR 82K +-1% 1/8W TZAI YUAN

RJ802 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ810 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ811 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ814 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ816 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206

R900 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R901 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

108

R902 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R923 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R903 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R934 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA

R908 061G1206204 JF RST CHIPR 200KOHM +-5% 1/4W FENGHUA

R917 061G1206330 JT RST CHIP R 33ohm 1/4W +/-5%

R822 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

R913 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN

R931 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R932 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R933 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

C610 065G060310131J F CAP CHIP 0603 100PF J 50V NPO

C611 065G060310131J F CAP CHIP 0603 100PF J 50V NPO

C923 065G060310232K A CAP CHIP 0603 1000pF K 50V X7R

C926 065G0603104 12 CER2 0603 X7R 16V 100N P

C924 065G0603104 12 CER2 0603 X7R 16V 100N P

C613 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C612 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C814 065G060322131J A CAP CHIP 0603 220PF J 50V NPO

C810 065G060322232K A CAP 0603 2.2NF K 50V X7R

C805 065G060322332K A CAP CHIP 0603 22NF K 50V X7R

C807 065G060333232K F CAP CHIP 0603 3.3NF K 50V X7R

C808 065G060333332K A CAP CHIP 0603 33nF K 50V X7R

C914 065G060347131J F CAP CHIP 0603 470PF J 50V NPO

C601 065G060347412K F CAP CHIP 0603 0.47UF K 16V X7R

C602 065G060347412K F CAP CHIP 0603 0.47UF K 16V X7R

C603 065G060347412K F CAP CHIP 0603 0.47UF K 16V X7R

C606 065G060347412K F CAP CHIP 0603 0.47UF K 16V X7R

C915 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C811 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C815 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C912 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C609 065G080510522K T CAP 0805 1UF 10% 25V X7R

C608 065G080510522K T CAP 0805 1UF 10% 25V X7R

C927 065G080510522K T CAP 0805 1UF 10% 25V X7R

C818 065G0805155A2K T NO-SUGGEST 0805 1.5uF K 10V X7R

C809 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

C806 065G080522512K M CAP 0805 2.2UF 10% 16V X7R

C802 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C801 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

109

C917 065G120610272K F CAP 1206 1NF 10% 500V X7R

C916 065G120610272K F CAP 1206 1NF 10% 500V X7R

C803 065G120610432K F CAP CHIP 1206 0.1UF K 50V X7R

D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D803 093G 6433S BAV99_SOT-23

ZD802 093G 39GA01 T RLZ5.6B

ZD803 093G 39GA01 T RLZ5.6B

PWAD21SHE1AI POWER BOARD FOR AI

CN901 006G 31500 EYELET

PT801 006G 31502 1.5MM RIVET

IC903 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92

Q904 057G 530503 T 2SD1207T

R906 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA

R924 061G152M33852T SY RST MOF 0R33 5% 2W

R915 061G152M68152T SY RST MOF 680R 5% 2WS

R911 061G152M68152T SY RST MOF 680R 5% 2WS

R828 061G211S62552T SY MGFR 6.2MOHM +-5% 1WS FUTABA

C911 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P

C920 067G 2046812KT CS CAP 680uF 10V 8*11 mm

C913 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

FB902 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R 25% HF

FB602 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R 25% HF

FB901 071G 55 29 FERRITE BEAD

F903 084G 56 4W FUSE 4A 250V

F901 084G 56 4W FUSE 4A 250V

F902 084G 56 4W FUSE 4A 250V

ZD901 093G 3957952T GDZJ18C

D904 093G 6038T52T FR103 AO

D801 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

J817 095G 90 23 JUMPER WIRE

J818 095G 90 23 JUMPER WIRE

J819 095G 90 23 JUMPER WIRE

J822 095G 90 23 JUMPER WIRE

J823 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

110

J907 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

J911 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

C819 095G 90 23 JUMPER WIRE

C821 095G 90 23 JUMPER WIRE

J601 095G 90 23 JUMPER WIRE

J602 095G 90 23 JUMPER WIRE

J603 095G 90 23 JUMPER WIRE

J604 095G 90 23 JUMPER WIRE

J605 095G 90 23 JUMPER WIRE

J606 095G 90 23 JUMPER WIRE

J607 095G 90 23 JUMPER WIRE

J608 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J816 095G 90 23 JUMPER WIRE

709G2892 HA001 CONSUMPTIVE ASS'Y

715G2892P02016001S POWER PCB 122X184X1.6MM FR-1 S/S 1OZ

D903 093G 6026T52T CTIFIER DIODE FR107

USBAHA1 USB BOARD

CN512 088G 352 21CL USB CONN TYPE A

CN511 311GW200A05ABX WAFER 2.0mm 5P

E715 715G2663T01001001C USB PCB 71X26X1.6MM FR-1 S/S 1OZ

USBAHA6 USB BOARD

CN501 033G3802 5B Y L CONNECTOR 5P 2.0

CN502 088G 3513B1 CL USB CONN BLACK

E09505 095G8014 5DH15 HARNESS 5P(2008)-5P(2008) 300mm

E09505 095G8014 5WH15 HARNESS 5P(2008)-5P(2008) 300mm 2nd source

SMTUSB9HA2W USB BOARD FOR SMT

C503 065G0603104 12 CER2 0603 X7R 16V 100N P

C501 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO

C502 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO

FB501 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

715G3501 2 USB PCB 18X40X1.6MM FR-1 S/S 1OZ

111

2341Vg TDASNTNEWVA1BNE

Location Part No. Description Remark

040G 58162435A P/N LABEL FOR MANUAL PE BAG

052G 1211 A Tasma aluminiowa

052G 1211 B Conductive Tape 85mm *40mm *0.09mm

052G 2191 A PAPER TAPE

052G6019 1 INSULATING TAPE

HDCP-SMT 070GHDCP500HDC NO-SUGGEST HDCP CODE

095G8014 6DE44 HARNESS 6P(2008)-6P(1253) 340

0D1G1030 8120 screw

0M1G 930 5120 SCREW

0Q1G 930 8120 screw

750GLS230HT312N000 PANEL LTM230HT03 C01 SZ SEC

A15G1195101004 mainframe

A15G1211101 BRACKET_HOLDER

A24G0005 1 Glass_L23WA-T41

A33G0928ABJ 1L0100 EAR PHONE STAND

A34G1859ABJA1B0100 REAR COVER

A37G0167011 HINGE

AM1G1740 10225 CR3 SCREW

H40G 58361548A 941 USB LABEL

H40G 58361549A Win7 EPEAT(S) EPA LABEL

H41G780961533A 2341Vg QSG

H44GD053615 3A 2341Vg CARTON

H45G 77 6 PE PACKING

H45G 87 18 25 EPE COVER

H70G201061537B 2341Vg CD MANUAL

J33G8B42 1 1C0100 KEY PAD

J33G8B43ABJ 1L0100 key pad holder

J33G8B45ABJ 1L0100 lock clip

J33G8B46ABJ 1L0100 web cam cover

J34G8B57AED 1B0130 base

J34G8B63AED 1B0100 stand top

J34G8B64AED 1B0100 stand

Q16G0001 20 45 EVA

Q16G0001 20 46 EVA

Q36G 600517 duster cloth

Q44GD053101 EPS

Q44GD053201 EPS

Q45G 76 28 H A PE BAG FOR MANUAL

112

Q50G 4 10 TIE (Y1900221)

Q52G 1185 99 big carton tape for aoc

S95G179T30NE28 FFC CABLE 195MM P1.0 30P

756GHACB A1082 MAIN BOARD-CBPCANTA1H2

SMTCA-U402 100GANSD000W11 MCU ASS'Y-056G2233 11

808G2341VGAUS 2341VG Australia ASS'Y

E08905 089G 175 8A C USB CABLE 1800MM without PE bag

E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source

E08902 089G 715CAAE01 SIGNAL CABLE 2nd source

E08902 089G 715GAAE01 SIGNAL CABLE 2nd source

E08902 089G 715HAAE01 SIGNAL CABLE

E08903 089G1745CAA 9 DVI CABLE 1500 2nd source

E08903 089G1745GAA 9 DVI CABLE 2nd source

E08903 089G1745HAA 9 DVI CABLE 1.5M

E08901 089G412A15NIS3 POWER CORD 1.5M

H26G 800504 2B barcode

H40G 22N61565A E2241VWA AP ID LABEL

H40G 58461532A 2341Vg 外销 carton label

H41G780061558B WARRANTY CARD

808G2341VGHKG 2341VG Hong-Kong ASS'Y

E08905 089G 175 8A C USB CABLE 1800MM without PE bag

E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source

E08902 089G 715CAAE01 SIGNAL CABLE 2nd source

E08902 089G 715GAAE01 SIGNAL CABLE 2nd source

E08902 089G 715HAAE01 SIGNAL CABLE

E08903 089G1745CAA 9 DVI CABLE 1500 2nd source

E08903 089G1745GAA 9 DVI CABLE 2nd source

E08903 089G1745HAA 9 DVI CABLE 1.5M

E08901 089G410A15N HL AC POWER CORD 1500

E08901 089G410A15N IS AC POWER CORD 1500 2nd source

H26G 800504 2B barcode

H40G 22N61565A E2241VWA AP ID LABEL

H40G 58461532A 2341Vg 外销 carton label

H41G780961529A AP WARRANTY card

CBPCANTA1H2 MAIN BOARD

CN402 033G3802 6B Y L WAFER

CN701 033G3802 9B Y L CONN 2.0 9P

CN408 033G801930F CH L FFC CONNECTOR 30P 1.0pitch

040G 45762412B CBPC LABEL

R707 061G152M47964L SY RST MOFR 4.7 OHM +-5% 2WS FUTABA

113

CN101 088G 35315F CH D-SUB CONN WITH SCREW 15P - -

CN102 088G 35424F CH DVI 24PIN CONN F ATTACHED SCREW

X401 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

709G3737 HM001 COMSUPTIVE ASS'Y

E55 Q55G 100625 TIN STICK_LOW ARGENTUM

C716 067G 3051007PB EC 10UF 20% 50V 5*11

C433 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C702 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C705 067G 3051013PB EC 105C 100uF M 16V 5*11mm

C710 067G 3051013PB EC 105C 100uF M 16V 5*11mm

U401 056G 562328 IC Scaler NT68668AUFG QFP-128

U703 056G 563206 IC LDO AP2114H-1.8TRG1 1A/1.8V SOT-223

U701 056G 563224 IC LDO AP2114H-3.3TRG1 1A/3.3V SOT-223

U107 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U106 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U104 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U102 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U105 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8

U101 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8

U402 056G2233 11 IC Pm25LD020C-SCE SIOC-8(150mil) 2M

Q402 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC

Q401 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC

Q701 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC

Q706 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC

Q705 057G 763940 MOSFET AO3401A SOT-23

R407 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R406 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R117 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R109 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R410 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R409 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R141 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R140 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R139 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R138 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

114

R137 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R136 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R135 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R134 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R123 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R124 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R127 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R128 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R431 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R439 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R703 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R102 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R105 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R106 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R108 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R424 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R799 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R714 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R704 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R444 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R429 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R130 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R415 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R422 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R715 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R432 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA

R125 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R126 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R719 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R701 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R427 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R425 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R133 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

R116 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA

115

R423 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R416 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO

R401 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R404 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R405 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA

R419 061G0402394 JY RST CHIP R 390K +/-5% 1/16W YAGEO

R408 061G04024700FY RST CHIP 470R 1/16W 1%

R142 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R721 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R702 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R132 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R131 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R411 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R413 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R114 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R107 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R112 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R120 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA

R122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R418 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R417 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

FB701 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R449 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

R448 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA

C120 065G040210232K A CAP 0402 1NF K 50V X7R

C412 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C417 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C418 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C419 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C422 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C425 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C427 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C434 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C701 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C703 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C704 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C706 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C707 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C712 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

116

C713 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C113 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C114 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C115 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C117 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C118 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C119 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C401 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C402 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C411 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C410 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C409 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C408 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C407 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C405 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C403 065G040210425K T CAP 0402 0.1uf 10% 25V X5R

C424 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C415 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C414 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C406 065G0402105A5K T CAP CHIP 0402 1uF K 10V X5R

C428 065G040222031J A CAP 0402 22PF J 50V NPO

C426 065G040222031J A CAP 0402 22PF J 50V NPO

C182 065G040222031J A CAP 0402 22PF J 50V NPO

C181 065G040222031J A CAP 0402 22PF J 50V NPO

C101 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C116 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C429 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C715 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C718 065G040222415K T CAP CHIP 0402 220nF K 16V X5R

C102 065G040247312K T CAP 0402 47NF 10% 16V X7R

C104 065G040247312K T CAP 0402 47NF 10% 16V X7R

C105 065G040247312K T CAP 0402 47NF 10% 16V X7R

C107 065G040247312K T CAP 0402 47NF 10% 16V X7R

C108 065G040247312K T CAP 0402 47NF 10% 16V X7R

C110 065G040247312K T CAP 0402 47NF 10% 16V X7R

C103 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C106 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C109 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25pF

C423 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C421 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

117

C416 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C413 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C404 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

FB409 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

FB408 071G 56V301 M CHIP BEAD 2012 300 OHM

FB405 071G 56V301 M CHIP BEAD 2012 300 OHM

FB404 071G 56V301 M CHIP BEAD 2012 300 OHM

FB403 071G 56V301 M CHIP BEAD 2012 300 OHM

FB402 071G 56V301 M CHIP BEAD 2012 300 OHM

FB401 071G 56V301 M CHIP BEAD 2012 300 OHM

D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D102 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

ZD101 093G 39GA01 T RLZ5.6B

ZD102 093G 39GA01 T RLZ5.6B

D402 093G 39S 24 T RLZ 5.6B LLDS

D403 093G 39S 24 T RLZ 5.6B LLDS

709G3737 HS001 COMSUPTIVE ASS'Y

E715 715G3737M02000004L MAIN BOARD PCB 2nd source

E715 715G3737M02000004S MAIN BOARD PCB

H52G1701 1 MESH PRINTTING_PAPER

KEPCAHA3 KEY BOARD

SW001 077G 5005A1 XL DOME SW 5 3703701

CN001 033G8032 6F X WAFER 6P 1.25MM

R003 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R005 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R002 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R004 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

LED01 081G 14501 GP LED GPTD1210YGC3-HB

E715 715G4007K01000004F KEY BOARD PCB

E715 715G4007K01000004L KEY BOARD PCB 2nd source

PWPCAD21SHD1 POWER BOARD

GND1 009G6005 1 GROUND TERMINAL

CN801 033G8021 2E F CONNECTOR

CN803 033G8021 2E F CONNECTOR

040G 45762412B CBPC LABEL

IC902 056G 139 3A PC123Y22FZOF SHARP

NR901 061G 58100 WD RST NTCR 10 OHM +-20% 5A THINKING

C908 063G107K334 6S 0.33UF +-10%

C817 065G 6J2096ET 2PF 5% SL 6KV

C902 065G305M1022BP CAP Y2 1000PF M 250VAC

118

C903 065G305M1022BP CAP Y2 1000PF M 250VAC

C900 065G306M3322BP Y1 CAP 3300PF M 250VAC

C804 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C918 067G215A1024LV EC 1000UF 20% 25V 12.5*20

C925 067G215D4714LV LOW ESR EC 470uF 25V M 10*16mm

C922 067G215S4713LV LOW ESR EC 470uF 16V M 10*12.5mm

C907 067G315Z10115K EC 100UF 20% 450V 18*40

L901 073G 174 65 S2 LINE FILTER 30mH MIN

L905 073G 253 91 L CHOKE BY LI TA

L906 073G 253 91 L CHOKE BY LI TA

T901 080GL22T 3 N1 X'FMR 490uH YUVA-1093

CN901 087G 501 32 S AC SOCKET ST-01CP-BCE-R

CN902 095G 825 9D518 HARNESS 9P-9P 120

CN902 095G 825 9T518 HARNESS 9P-9P 120MM 2nd source

705GQ793081 D901/D906 ASS'Y

705GQA57024 Q901 ASS'Y

709G2892 HM001 CONSUMPTIVE ASS'Y

PT801 S80GL24T23V XFMR POWER 68uH TPV-PT VOC

BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

D901 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15

D906 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB

0M1G 930 8120 SCREW

HS2 Q90G6264 5 HEAT SINK

Q901 057G 667924 MOSFET SMK0965F

HS1 090G6064 1 HEAT SINK

0M1G 930 8120 SCREW

Q55G 100625 TIN STICK_LOW ARGENTUM

E55 055G 23524 WELDING FLUX WITHOUT PB

Q51G 6 4509 GLUE_RTV

IC901 056G 379160 IC FAN6752MY SOP-7

IC801 056G 608 12 IC ta9687GN-A-0-TR SOP-16

Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8

Q802 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC

R821 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R820 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN

R907 061G06031001FT RST CHIP 1K 1/10W 1%

R918 061G06031002FT RST CHIP 10K 1/10W 1%

R807 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R806 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

119

R813 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R809 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA

R916 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R925 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R928 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R920 061G06034701FT RST CHIP 4K7 1/10W 1%

R905 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

R836 061G0603563 JF RST CHIPR 56KOHM 5% 1/10W FENGHUA

R837 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA

RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ804 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R801 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R812 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R802 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN

R819 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R818 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R817 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R816 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R823 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R919 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN

R803 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R804 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN

R830 061G0805622 JT RST CHIPR 6K2 +-5% 1/8W TZAI YUAN

R810 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W

R811 061G08058202FT RST CHIPR 82K +-1% 1/8W TZAI YUAN

RJ814 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ811 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ810 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ802 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

RJ816 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206

R900 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R901 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R902 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R923 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R903 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R934 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA

R908 061G1206204 JF RST CHIPR 200KOHM +-5% 1/4W FENGHUA

R917 061G1206330 JT RST CHIP R 33ohm 1/4W +/-5%

R822 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

120

R913 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN

R933 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R932 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

R931 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA

C923 065G060310232K A CAP CHIP 0603 1000pF K 50V X7R

C924 065G0603104 12 CER2 0603 X7R 16V 100N P

C926 065G0603104 12 CER2 0603 X7R 16V 100N P

C814 065G060322131J A CAP CHIP 0603 220PF J 50V NPO

C810 065G060322232K A CAP 0603 2.2NF K 50V X7R

C805 065G060322332K A CAP CHIP 0603 22NF K 50V X7R

C807 065G060333232K F CAP CHIP 0603 3.3NF K 50V X7R

C808 065G060333332K A CAP CHIP 0603 33nF K 50V X7R

C914 065G060347131J F CAP CHIP 0603 470PF J 50V NPO

C915 065G080510232K F CAP 0805 1000PF 10% 50V X7R

C912 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C815 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C811 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C927 065G080510522K T CAP 0805 1UF 10% 25V X7R

C818 065G0805155A2K T NO-SUGGEST 0805 1.5uF K 10V X7R

C809 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

C806 065G080522512K M CAP 0805 2.2UF 10% 16V X7R

C801 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C802 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C916 065G120610272K F CAP 1206 1NF 10% 500V X7R

C917 065G120610272K F CAP 1206 1NF 10% 500V X7R

C803 065G120610432K F CAP CHIP 1206 0.1UF K 50V X7R

D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D803 093G 6433S BAV99_SOT-23

ZD802 093G 39GA01 T RLZ5.6B

ZD803 093G 39GA01 T RLZ5.6B

CN901 006G 31500 EYELET

PT801 006G 31502 1.5MM RIVET

IC903 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92

Q904 057G 530503 T 2SD1207T

R906 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA

R924 061G152M33852T SY RST MOF 0R33 5% 2W

R915 061G152M68152T SY RST MOF 680R 5% 2WS

R911 061G152M68152T SY RST MOF 680R 5% 2WS

R828 061G211S62552T SY MGFR 6.2MOHM +-5% 1WS FUTABA

C911 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P

121

C920 067G 2046812KT CS CAP 680uF 10V 8*11 mm

C913 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

FB902 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R 25% HF

FB901 071G 55 29 FERRITE BEAD

F901 084G 56 4W FUSE 4A 250V

F902 084G 56 4W FUSE 4A 250V

ZD901 093G 3957952T GDZJ18C

D904 093G 6038T52T FR103 AO

D801 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

J823 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J907 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

J911 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

C819 095G 90 23 JUMPER WIRE

C821 095G 90 23 JUMPER WIRE

FB602 095G 90 23 JUMPER WIRE

J604 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J816 095G 90 23 JUMPER WIRE

J817 095G 90 23 JUMPER WIRE

J818 095G 90 23 JUMPER WIRE

J819 095G 90 23 JUMPER WIRE

J822 095G 90 23 JUMPER WIRE

709G2892 HA001 CONSUMPTIVE ASS'Y

715G2892P02016001S POWER BOARD PCB

D903 093G 6026T52T CTIFIER DIODE FR107

USBAHA1 USB BOARD

CN512 088G 352 21CL USB CONN TYPE A

CN511 311GW200A05ABX WAFER 2.0mm 5P

122

E715 715G2663T01001001C USB BOARD PCB

USBAHA6 USB BOARD

CN501 033G3802 5B Y L CONNECTOR 5P 2.0

CN502 088G 3513B1 CL USB CONN BLACK

E09505 095G8014 5DH15 HARNESS 5P(2008)-5P(2008) 300mm

E09505 095G8014 5WH15 HARNESS 5P(2008)-5P(2008) 300mm 2nd source

C503 065G0603104 12 CER2 0603 X7R 16V 100N P

C501 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO

C502 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO

FB501 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

715G3501 2 USB BOARD PCB

2341Va 2341Sa 2341Vg AOC Computer Monitor 13031012527370

Navigation menu

Versions of this User Manual:

Views

Navigation
