1.
WLAN antennas
16.
Touchpad on/off button with LED indicator
2.
WWAN antennas (select models)
17.
Hard drive activity / HP 3D DriveGuard LED indicator
3.
Dual-microphone array
*
18.
Battery charging LED indicator
4.
Webcam LED indicator (with optional webcam)
19.
Power/standby LED indicator
5.
Optional 720p HD webcam
20.
Wireless on/off LED indicator
6.
Wireless on/off button with LED indicator
21.
ExpressCard/54 slot or optional Smart Card Reader
7.
HP QuickWeb button with LED indicator
22.
Upgrade Bay (optical drive, second hard drive or weight saver)
8.
Volume mute button with LED indicator 23.
(2) USB 2.0 ports
9.
Optional pointstick
24.
RJ-45/Ethernet port
10.
Optional HP Fingerprint Sensor
25.
Security lock slot
11.
Pointstick pick buttons (with optional pointstick)
26.
Power button with LED indicator
12.
Secure Digital/MMC slot
27.
Volume down function key
13.
Stereo speakers
28.
Volume up function key
14.
Touchpad with scroll zone
29.
HP Power Assistant function key
15.
Touchpad pick buttons
* Models without optional webcam have single integrated microphone on left side of display panel.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 1

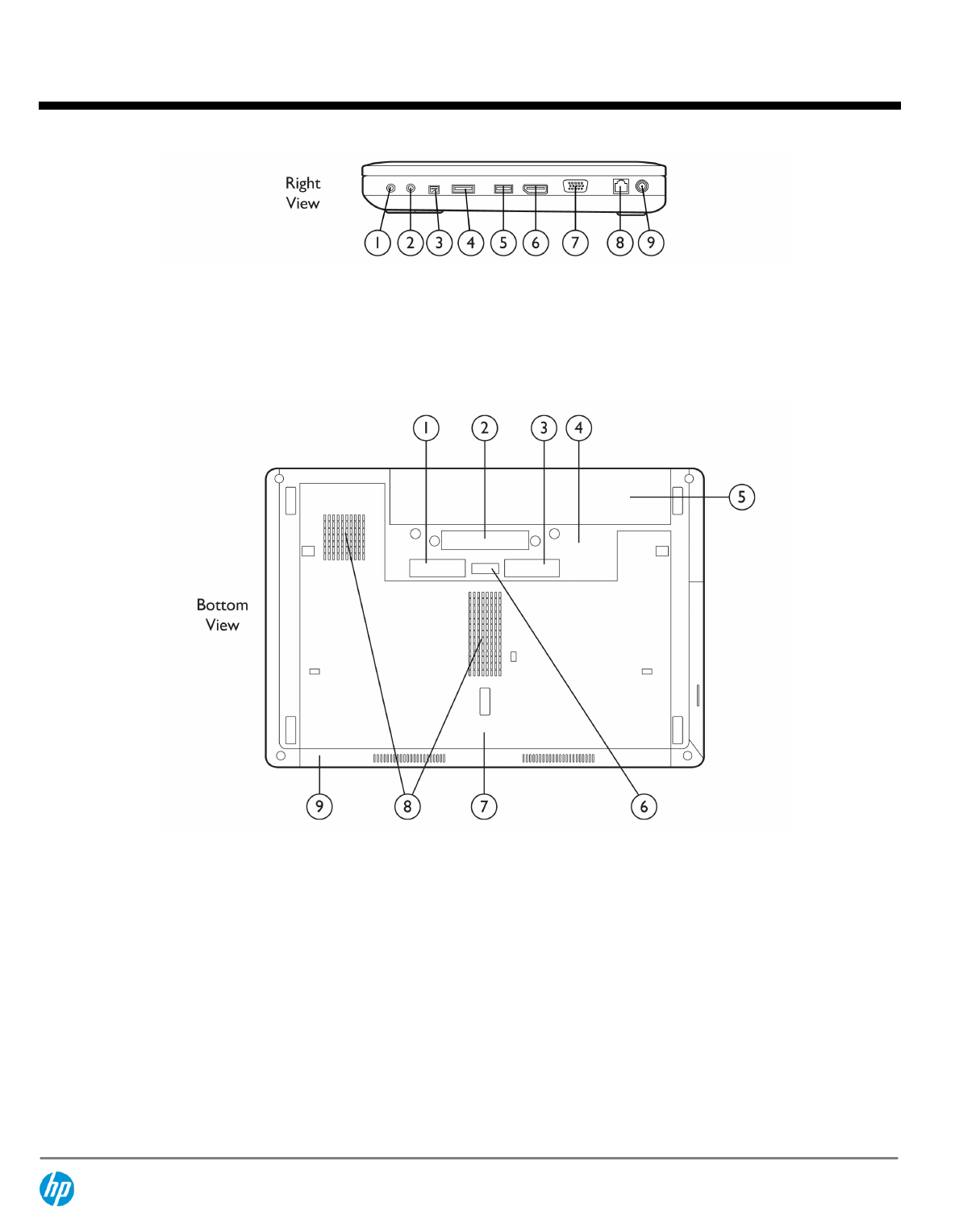

1.
Stereo headphone/line out
6.
DisplayPort
2.
Stereo microphone/line in
7.
VGA/external monitor connector
3.
1394a port
8.
RJ-11/modem port
4.
eSATA/USB 2.0 combo port
9.
Power connector
5.
(1) USB 2.0 port
1.
Battery release latch
6.
Secondary battery connector
2.
Docking connector
7.
Hard drive, memory, and wireless compartments under
bottom cover
3.
Bottom cover release latch
8.
Vents
4.
SIM slot for WWAN (select models)
9.
Bluetooth module compartment
5.
Battery bay
HP ProBook 6460b Notebook PC
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 2

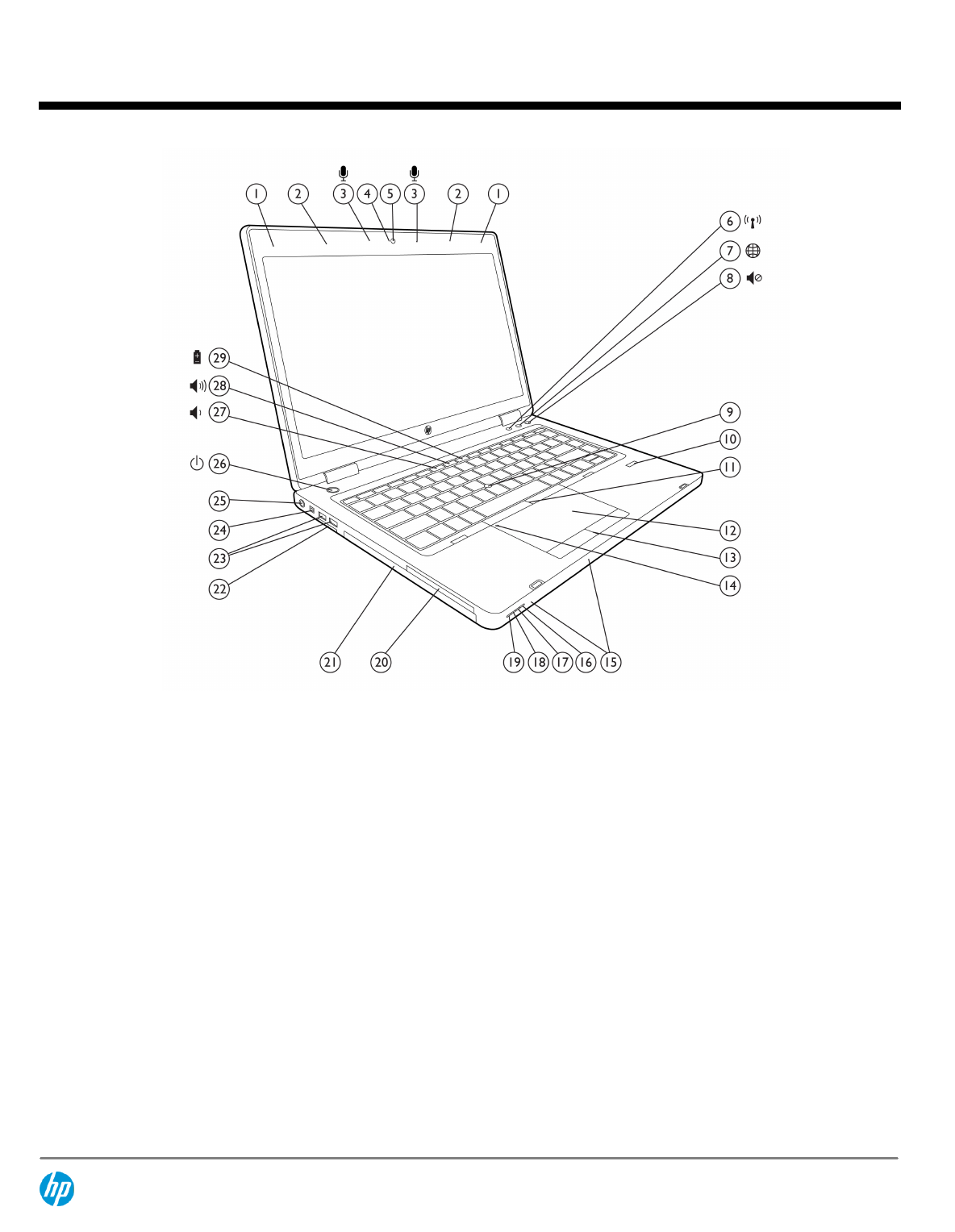

1.
WLAN antennas
16.
Hard drive activity / HP 3D DriveGuard LED indicator
2.
WWAN antennas (select models)
17.
Battery charging LED indicator
3.
Dual-microphone array
*
18.
Power/standby LED indicator
4.
Webcam LED indicator (with optional webcam)
19.
Wireless on/off LED indicator
5.
Optional 720p HD webcam
20.
ExpressCard/54 slot or optional Smart Card Reader
6.
Wireless on/off button with LED indicator
21.
Upgrade Bay (optical drive, second hard drive or weight saver)
7.
HP QuickWeb button with LED indicator
22.
Secure Digital/MMC slot
8.
Volume mute button with LED indicator 23.
(2) USB 2.0 ports
9.
Optional pointstick
24.
1394a port
10.
Optional HP Fingerprint Sensor
25.
Power connector
11.
Pointstick pick buttons (with optional pointstick)
26.
Power button with LED indicator
12.
Touchpad with scroll zone
27.
Volume down function key
13.
Touchpad pick buttons
28.
Volume up function key
14.
Touchpad on/off button with LED indicator
29.
HP Power Assistant function key
15.
Stereo speakers
* Models without optional webcam have single integrated microphone on left side of display panel.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 3

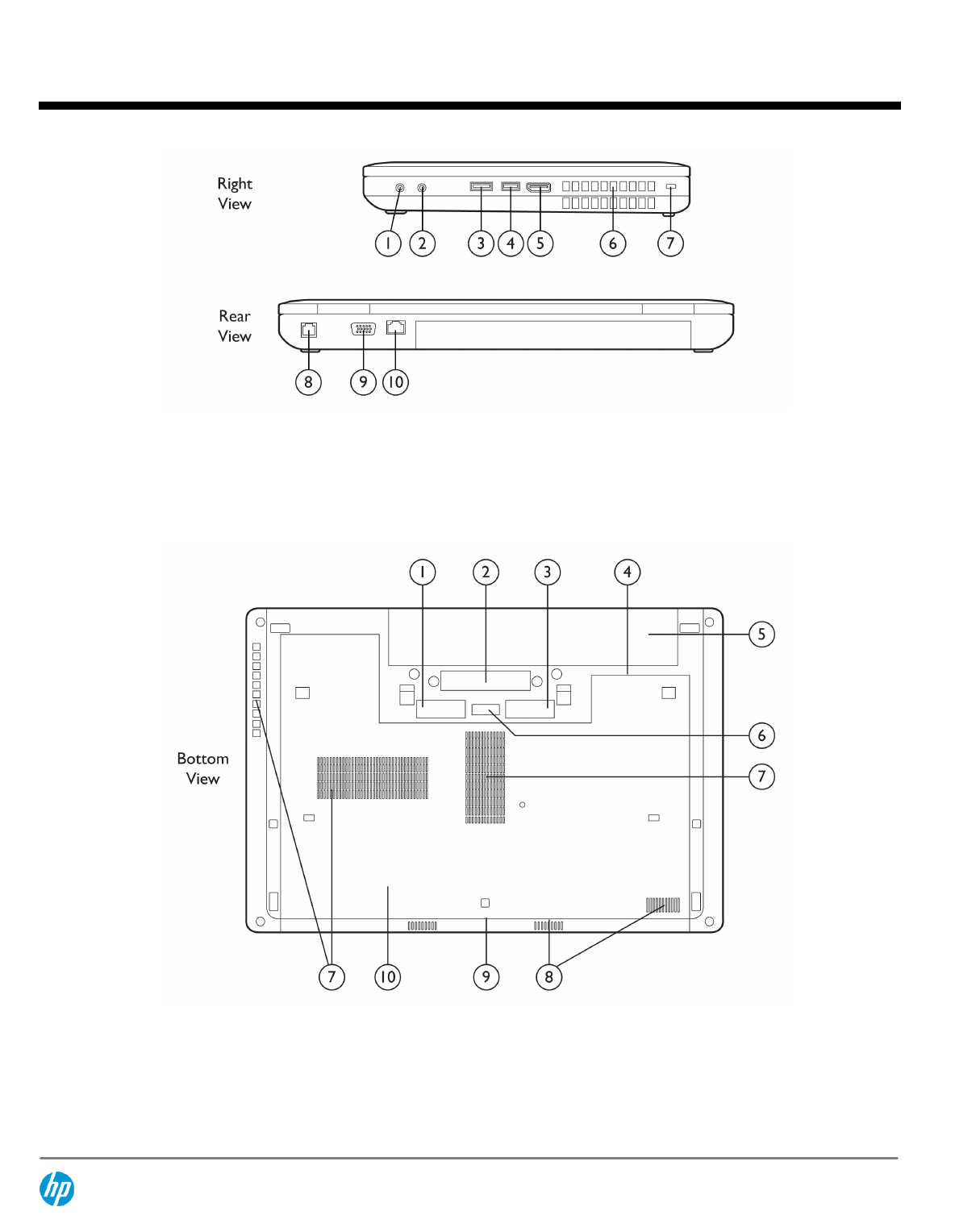

1.
Stereo headphone/line out
6.
Vents
2.
Stereo microphone/line in
7.
Security lock slot
3.
eSATA/USB 2.0 combo port
8.
RJ-11/modem port
4.
(1) USB 2.0 port
9.
VGA/external monitor connector
5.
DisplayPort
10.
RJ-45/Ethernet port
1.
Battery release latch
7.
Vents
2.
Docking connector
8.
Speakers
3.
Bottom cover release latch
9.
Bluetooth module compartment
4.
SIM slot for WWAN (select models)
10.
Hard drive, memory, and wireless compartments
5.
Battery bay
under bottom cover
6.
Secondary battery connector
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 4

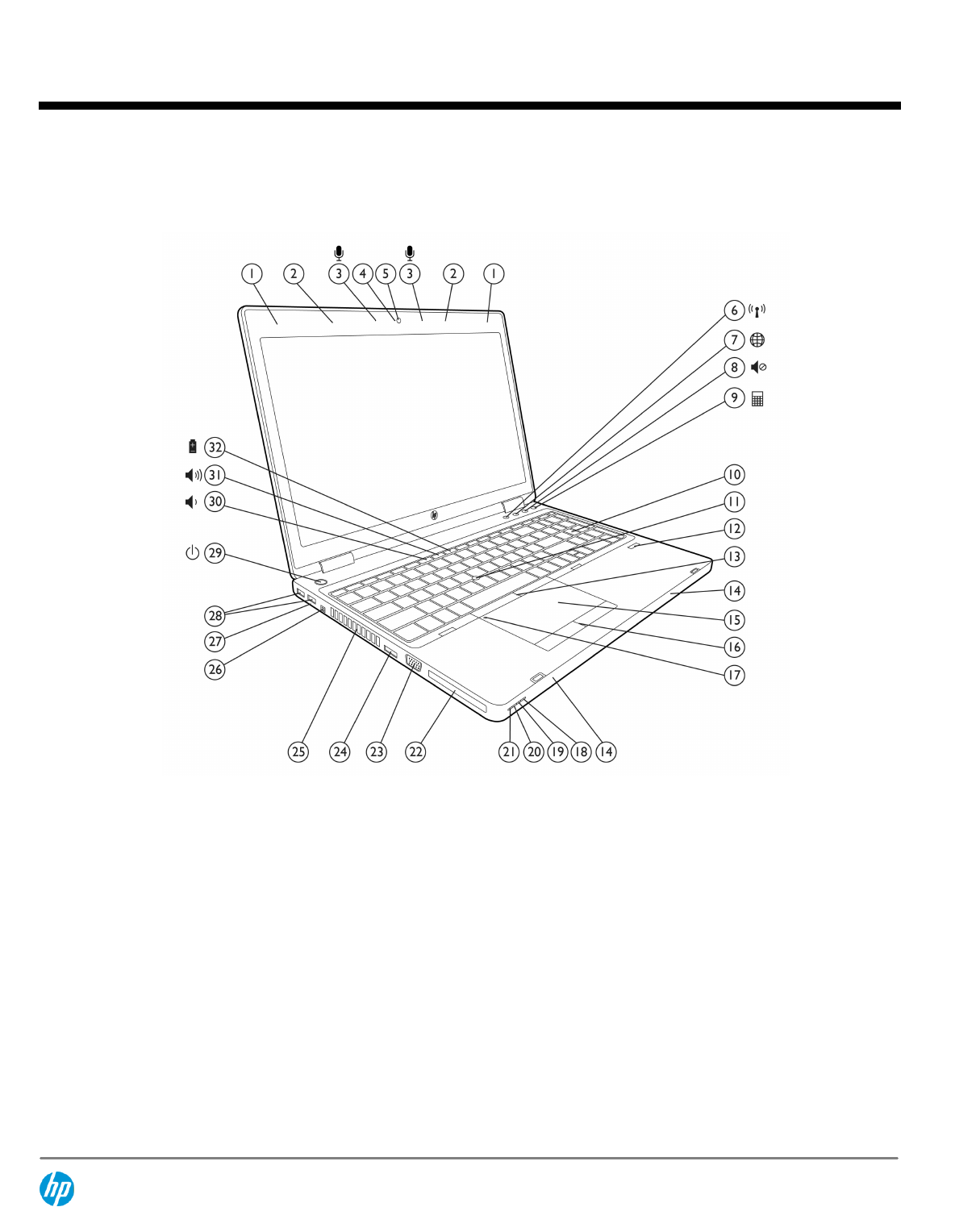

HP ProBook 6560b Notebook PC
1.
WLAN antennas
17.
TouchPad on/off light
2.
WWAN antennas (select models)
18.
Hard drive activity / HP 3D DriveGuard LED indicator
3.
Dual-microphone array
*
19.
Battery charging LED indicator
4.
Webcam LED indicator (with optional webcam)
20.
Power/standby LED indicator
5.
Optional 720p HD webcam
21.
Wireless on/off LED indicator
6.
Wireless on/off button with LED indicator
22.
ExpressCard/54 slot or optional Smart Card Reader
7.
HP QuickWeb button with LED indicator
23.
VGA/external monitor connector
8.
Volume mute button with LED indicator 24.
eSATA/USB 2.0 combo port
9.
Calculator button with LED indicator
25.
Vent
10.
Numeric keypad
26.
1394a port
11.
Optional pointstick
27.
Secure Digital/MMC slot
12.
Optional HP Fingerprint Sensor
28.
(2) USB 2.0 ports
13.
Pointstick pick buttons (with optional pointstick)
29.
Power button with LED indicator
14.
Stereo speakers
30.
Volume down function key
15.
Touchpad with scroll zone
31.
Volume up function key
16.
Touchpad pick buttons
32.
HP Power Assistant function key
* Models without optional webcam have single integrated microphone on left side of display panel.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 5

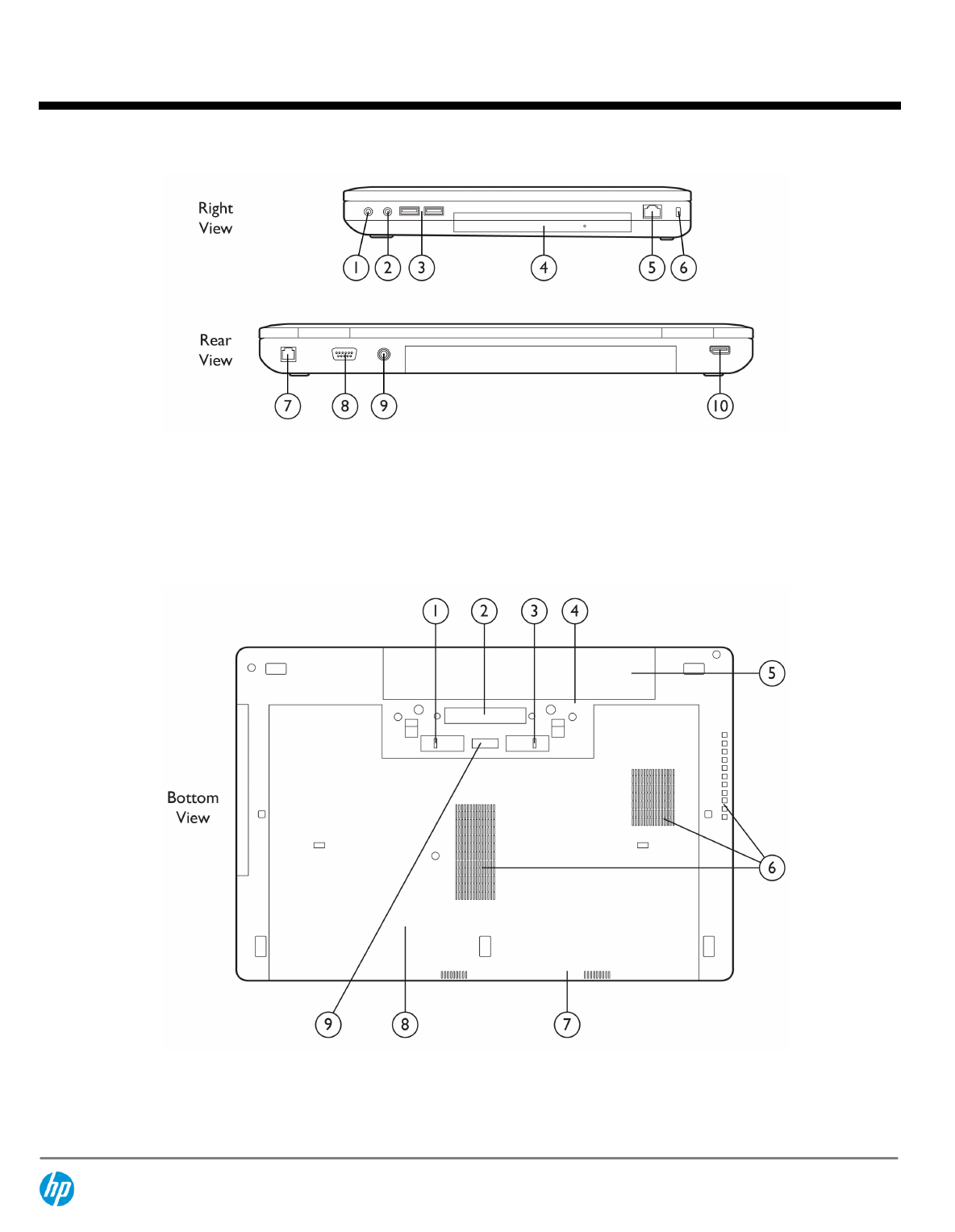

1.
Stereo headphone/line out
6.
Security lock slot
2.
Stereo microphone/line in
7.
RJ-11/modem port
3.
(2) USB 2.0 ports
8.
Serial port
4.
Upgrade Bay (optical drive or second hard drive or weight
saver)
9.
Power connector
5.
RJ-45/Ethernet port
10.
DisplayPort
1.
Battery release latch
6.
Vents
2.
Docking connector
7.
Bluetooth module compartment
3.
Bottom cover release latch
8.
Hard drive, memory, and wireless compartments under
bottom cover
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 6
4.
SIM slot for WWAN (select models)
9.
Secondary battery connector
5.
Battery bay
At A Glance
Genuine Windows 7 versions, SuSE Linux Enterprise Desktop 11, or FreeDOS
All new design with bead-blast aluminum display enclosure, magnesium-reinforced chassis, wear-resistant
tungsten-colored HP DuraFinish, HP DisplaySafe frame, precision latches, and keyboard in full aluminum deck
Choice of 2nd generation Intel® Core™ i7, i5 and i3 dual-core processors, or Celeron® processor
Intel Core i7 with vPro and Core i5 with vPro technology (optional)
AMD Radeon™ HD 6470M discrete graphics with 512 MB dedicated video memory (HP 6460b and 6560b only)
or integrated Intel HD Graphics 3000 (Intel HD Graphics on Celeron configurations)
AMD Eyefinity Technology for advanced multi-monitor support (HP 6460b and 6560b only)
Widescreen LED-backlit display
HP ProBook 6360b: 13.3-inch diagonal HD
HP ProBook 6460b: 14.0-inch diagonal HD or HD+
HP ProBook 6560b: 15.6-inch diagonal HD or HD+ WVA
Easily hot dock with one of the optional HP docking stations
Choice of primary battery to optimize run-time or weight: 9-cell (100 WHr), 6-cell (55 WHr), or 3-cell (31 WHr)
Touchpad with scroll zone; optional pointstick
Security features including HP ProtectTools, with central management across HP and non-HP client PCs
HP Power Assistant allows you to conserve power, stretch battery run-time, accurately monitor your reported power
need, and report workforce power consumption.
Flexible wireless connectivity options:
Optional integrated HP hs2340 HSPA+ Mobile Broadband Module connects to both HSPA and HSPA+ (UMTS) networks and
provides GPS functionality
Optional integrated HP un2430 EV-DO/HSPA Mobile Broadband Module (Gobi 3000) (availability expected May, 2011)
Integrated Intel Centrino® 802.11 a/b/g/n or b/g/n, or Broadcom 802.11 a/b/g/n or b/g/n wireless LAN module
Bluetooth® v2.1+EDR
Upgrade Bay for optical drive, optional second hard drive, or weight saver
Choice of 7200 rpm user-removable hard drive up to 750 GB with HP 3D DriveGuard protection,
or 128/160 GB Solid State Drive
BFR/PVC-free*, ENERGY STAR® qualified,** and EPEAT Gold registered in the U.S. EPEAT status varies by country—please see
epeat.net
.
* Meeting the industry definition of 'BFR/PVC-free' per the iNEMI Position Statement on "Low Halogen" Electronics. Plastic parts
incorporated into the chassis generally contain < 1000 ppm (0.1%) of bromine or chlorine. Printed circuit board and substrate
laminates generally contain < 1500 ppm (0.15%) of total bromine and chlorine. Service parts after purchase may not be BFR/PVC-free.
External accessories, including power supplies, power cords, and peripherals as well as the following customer-configurable internal
components: ATT SIM card are not BFR/PVC-free.
**Microsoft Windows is required for ENERGY STAR qualification.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Overview
DA - 13932 North America — Version 15 — August 2, 2012
Page 7
Processors
2
nd
Generation Intel Core i7 Processors
Intel Core i7-2620M Processor (2.70 GHz, 4 MB L3 cache, 2 cores/4 threads, 35W)
*
Up to 3.40 GHz with Intel Turbo Boost Technology
2
nd
Generation Intel Core i5 Processors
Intel Core i5-2540M Processor (2.60 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)
*
Up to 3.30 GHz with Intel Turbo Boost Technology
Intel Core i5-2520M Processor (2.50 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)
*
Up to 3.20 GHz with Intel Turbo Boost Technology
Intel Core i5-2410M Processor (2.30 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)
* †
Up to 2.90 GHz with Intel Turbo Boost Technology
2
nd
Generation Intel Core i3 Processors
Intel Core i3-2330M Processor (2.20 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)
* †
Intel Core i3-2310M Processor (2.10 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)
* †
Intel Celeron Processor
Intel B810 Processor (1.60GHz, 2MB L3 Cache, 2 threads, 35W)*
* Intel's numbering is not a measurement of higher performance.
† Not available with vPro.
NOTE:
Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Preinstalled
Genuine Windows 7 Professional 32
*
Genuine Windows 7 Professional 64
*
Genuine Windows 7 Home Premium 32
*
Genuine Windows 7 Home Premium 64
*
Genuine Windows 7 Home Basic 32
*
(select countries)
Genuine Windows 7 Starter
*
(select countries and configurations)
SuSE Linux Enterprise Desktop 11
FreeDOS
Supported
Genuine Windows 7 Enterprise 32
*
Genuine Windows 7 Enterprise 64
*
Genuine Windows 7 Ultimate 32
*
Genuine Windows 7 Ultimate 64
*
Genuine Windows Vista Enterprise 32
**
Genuine Windows Vista Enterprise 64
**
Genuine Windows Vista Business 32
**
Genuine Windows Vista Business 64
**
Genuine Windows Vista Basic 32
**
†
Genuine Windows XP Professional 32
Certified
SuSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/
for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 8
http://www.microsoft.com/windowsvista/getready/capable.mspx
for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To download
the tool, visit:
http://www.windowsvista.com/upgradeadvisor
.
† Windows Vista Home Basic will not be a configuration choice after 9/30/11.
Chipset
Mobile Intel QM67 Express Chipset (vPro configurations with select processors)
Mobile Intel HM65 Express Chipset (non-vPro configurations)
Intel Core i5 with
vPro/Core i7 with vPro
technology capable
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units
configured with select processors, an Intel Centrino® Advanced-N WLAN module and a preinstalled
Windows operating system. It provides advances in remote manageability, security, energy efficient
performance, and wireless connectivity. Intel Active Management Technology 7.0 (iAMT) offers built-in
manageability and proactive security for networked notebook PCs, even when they are powered off* or
when the operating system is inoperable. It can help identify threats before they reach the network,
isolate infected systems, and update PCs regardless of their power state.
*Requires a Windows operating system, network hardware and software, connection with a power source,
and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.
NOTE:
Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active
Management technology and Intel Virtualization technology, requires additional third- party software in
order to run. Availability of future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with
vPro technology is dependent on third- party software providers. Compatibility with future "virtual
appliances" is yet to be determined.
Graphics
Models with discrete graphics (HP 6460b and HP 6560b only):
AMD Radeon™ HD 6470M with 512 MB dedicated DDR3 video memory
Microsoft DirectX 11 (Shader Model 5.0) and OpenGL 4.0 capable
AMD Eyefinity Technology supports up to four independent displays
when using an HP Advanced Docking station
Models with integrated graphics:
Intel HD Graphics 3000
Microsoft DirectX 10.1 (Shader Model 4.1) and OpenGL 3.0 capable
NOTE:
Intel HD Graphics for configurations with Celeron processor
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 9
Display
Internal
HP ProBook 6360b:
13.3-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
HP ProBook 6460b:
14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
14.0-inch diagonal LED-backlit HD+ anti-glare (1600 x 900 resolution)
HP ProBook 6560b:
15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
15.6-inch diagonal LED-backlit HD+ WVA anti-glare (1600 x 900 resolution)
HP Privacy Filter support
External
Up to 32-bit per pixel color depth
DisplayPort
supports resolutions up to 2560 x 1600, 30-bit color depth at 60
Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D
(single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE:
Resolutions are dependent upon monitor capability, and resolution and
color depth settings.
Memory
Standard
DDR3 PC3-10600 SDRAM (1333 MHz)
Two SODIMM slots supporting dual-channel memory
2 GB, 4 GB, and 8 GB SODIMMs
Maximum
Upgradeable to 16 GB with 8 GB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and
speed in both memory slots.
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we recommend HP
branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or
Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Communications
Integrated Intel 82579LM Gigabit
*
Network Connection (vPro configurations)
Integrated Intel 82579V Gigabit
*
Network Connection (non- vPro configurations)
56K V.92 modem
**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is
subject to country regulatory approval.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 10
Wireless Devices
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support
for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and
is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is
also available (factory configurable only) and can be combined with any of the supported wireless LAN and
wireless WAN options.
Mobile Broadband
options
Two 850/900/1575/1700/1800/1900/2100 MHz antennas integrated in the
top of the display panel support current and future WWAN technologies.
NOTE:
Separately purchased mobile network operator service is required.
HP hs2340 HSPA+ Mobile
Broadband Module
Integrated mobile broadband module that provides connectivity to both HSPA
and HSPA+ (UMTS) networks. It also provides standalone, Internet and
network assisted GPS functionality for various mapping applications and
security applications such as Computrace Pro for HP ProtectTools.
HP un2430 EV-DO/HSPA
Mobile Broadband Module
(availability expected May,
2011)
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA)
networks. It also provides GPS functionality for various mapping applications
and security applications such as Computrace LoJack Pro Premium for HP
ProtectTools.
All 802.11 integrated
wireless LAN options
Wi-Fi Certified
*
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Intel Centrino Advanced-
N 6205 (2x2)
Integrated support for 802.11a, b, g, and n
*
2 transmit, 2 receive antennas
Up to 300 mbps data rate
Intel Centrino Wireless-N
1000 (1x2)
Integrated support for 802.11b, g, and n
*
1 transmit, 2 receive antennas
Up to 300 mbps data rate
Broadcom 43224AGN
802.11a/b/g/n
WiFi Adapter
Integrated support for 802.11 a, b, g, and n
Up to 300 mbps data rate
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Integrated support for 802.11 b, g, and n
Up to 72 mbps data rate
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
*Wireless access point and Internet service required and sold separately. Availability of public wireless
access points limited.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 11
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain
system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage
to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key
layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys,
both left and right control and alt keys, 12 function keys, and 19.05 x 19.05 mm key pitch (center-to-
center spacing). U.S. and International key layouts are available. Other features include hot keys for
instant access to power conservation and brightness. The HP ProBook 6560b includes a separate numeric
keypad.
Launch Buttons and
Function Keys
Separate launch buttons provide easy access to the following features: wireless on/off, HP QuickWeb, and
volume mute. The HP ProBook 6560b also features a calculator launch button. Function keys provide
control of the following features: standby mode, external display, volume down, volume up, HP Power
Assistant, and display brightness.
Pointing device
Touchpad with on/off button, two-way scroll, gestures, two pick buttons
Optional pointstick with two additional pointstick buttons (for a total of four)
Expansion card slots
ExpressCard/54 slot
Supports ExpressCard/54 and ExpressCard/34
or
Optional Integrated
Smart Card Reader
(replaces ExpressCard/54
slot)
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Secure Digital/MMC slot
Supports SD (Secure Digital), SDHC, SDXC, MMC (MultiMedia Card), and MMC+
Internal Storage
Hard drives
250/320/500/750 GB 7200 rpm SMART SATA II
320 GB 7200 rpm SMART SATA II Self Encrypting Drive
NOTE:
These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up
to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
(Windows only)
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Solid State Drive
128/160 GB
Upgrade Bay
Fixed 12.7 mm SATA
optical drive
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL Drive
DVD-ROM Drive
Second hard drive
500 GB 7200 rpm SMART SATA II Hard Drive
Weight saver
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 12
Interfaces
ExpressCard/54 slot
One (or optional Smart Card Reader)
External monitor
Two – (1) DisplayPort, (1) VGA
1394a
One
Stereo microphone in
One
Stereo headphone/line
out
One
Power connector
One
RJ-11/modem
One
RJ-45/Ethernet
One
USB 2.0
Three on HP 6360b and HP 6460b; four on HP 6560b
eSATA/USB 2.0 combo
One
Serial port
One (HP ProBook 6560b only)
Docking connector
One
Secondary battery
connector
One
Audio/Visual
SRS Premium Sound™
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Stereo headphone/line out
Stereo microphone/line in
Optional 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 13
Software
Preinstalled software
with Windows operating
system
HP Recovery Manager
HP Support Assistant
HP ProtectTools Security Manager
HP ProtectTools for Central Management
HP Hotkey Support
HP QuickWeb
HP Power Assistant
HP Connection Manager 4.0
HP DayStarter
Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)
*
Norton Internet Security 2011
**
PDF Complete Special Edition
***
Intervideo WinDVD - DVD Player (select models)
Roxio Burn Secure (select models)
Roxio MyDVD 10 SE (select models)
HP Webcam Software (select models)
Skype
Additional software
available from the web
HP SoftPaq Download Manager
* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of
Product Key required to activate full Office 2010 suite available at participating resellers/retailers and
http://www.office.com
.
** Norton Internet Security 2011 includes 60 days of complimentary live updates; subscription required for
live updates thereafter. Internet access required to receive updates.
*** PDF Complete Special Edition 60 day trial; purchase license afterwards for full functionality.
HP Recovery Manager
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager
enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important
system files are accidentally deleted. Up to 20 GB of the hard drive is reserved for the system recovery
software.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 14
Security
Standard Features
HP ProtectTools Security Manager (standard modules include)
Credential Manager
Computrace
*
Pro
Device Access Manager
Drive Encryption
Face Recognition (webcam configurations only)
File Sanitizer
Privacy Manager
Embedded Security
Enhanced Pre-Boot Security (Multiuser / Multifactor)
HP SpareKey
One-Step Logon
TPM 1.2 Embedded Security Chip
**
HP Disk Sanitizer
Security lock slot
Support for Intel AT
***
Optional Features
Smart Card Reader
(replaces ExpressCard/54
slot)
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
HP Fingerprint Sensor
Enhanced sensor scans the fingerprint to uniquely
identify and authenticate a person.
HP Privacy Filter
Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace
*
Pro for HP
ProtectTools with GPS
Tracking
Subscription based security solution providing the
ability to track, initiate physical recovery, conduct
asset management, and perform remote data
delete by utilizing GPS technology. GPS
functionality requires HP Mobile Broadband
Module.
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a
subscription with terms ranging from one to five years.
** TPM module disabled where use is restricted by law, for example, Russia and China.
For more information on HP security solutions refer to:
http://www.hp.com/products/security
.
*** Intel AT security requires a separately purchased Absolute Computrace service subscription and must
be activated and configured. Check with Absolute for availability in your country. Intel and HP assume no
liability for lost or stolen data and/or systems or any other damages resulting therefrom. See
http://www.intel.com/technology/anti-theft/
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 15
HP ProtectTools Security
Manager with Central
Management
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. The following modules are available on the hard drive (also
downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
Face Recognition with Bluetooth Verification
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace Pro for HP ProtectTools
HP ProtectTools is now capable of being centrally managed from a single control point. HP ProtectTools is
management ready out of the box, in partnership with Digital Persona, and provides features that
customers expect from a centrally managed security solution, such as user provisioning, credential reset,
and system and network revocation . Central Management is available in two feature levels:
Digital Persona Pro Enterprise: Designed for environments with Active Directory. For large
businesses, as well as smaller businesses utilizing an active directory based infrastructure. Gives IT
Managers the ability to create role based security policies, provision users, and create login policies
based on passwords, biometrics or smart cards. Management features also include remote
credential recovery in case the user forgets the password, loses the smart card, or cannot use the
fingerprint reader for any reason. In addition, advanced auditing capabilities are also built in.
Digital Persona Workgroup Manager: Designed for environments without Active Directory. This
option can be used by smaller businesses as well as workgroups within large organizations.
Workgroup Manager offers features similar to Digital Persona Pro Enterprise, but without active
directory integration. Workgroup activation is built into HP ProtectTools, and activation of up to 5
seats is completely free.
Power Supply
Models with discrete graphics or quad-core processor:
External 90-watt Smart AC adapter
Models with integrated graphics and without quad-core processor:
External 65-watt Smart AC adapter
Power cord included is 6-foot (1.8 meter).
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge
*
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the 9-cell primary battery, HP ST09 Extended Life Notebook Battery, or HP BB09
Ultra Extended Life Notebook Battery.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 16
Battery
Primary battery
HP 9-cell (100 WHr) Li-Ion battery
HP 6-cell (55 WHr) Li-Ion battery
HP 3-cell (31 WHr) Li-Ion battery
Optional HP Long Life
Battery
HP Long Life 6-cell (55 WHr) Battery (3-year warranty)
HP Long Life 6-cell (51 WHr) Battery (1-year warranty)
Optional HP ST09
Extended Life Notebook
Battery
9-cell (73 WHr) Li-Ion battery
Optional HP BB09 Ultra
Extended Life Notebook
Battery
9-cell (100 WHr) Li-Ion battery
Battery Life
HP ProBook 6360b
9-cell (100 WHr)
Up to 13 hours and 45 minutes
6-cell (55 WHr)
Up to 7 hours and 15 minutes
with optional
HP ST09 Extended Life
Notebook Battery
Up to 17 hours and 45 minutes
with optional
HP BB09 Ultra Extended
Life Notebook Battery
Up to 22 hours
3-cell (31 WHr)
Up to 4 hours
HP ProBook 6460b
*
6-cell (55 WHr)
Up to 7 hours and 15 minutes
with optional
HP ST09 Extended Life
Notebook Battery
Up to 20 hours and 45 minutes
with optional
HP BB09 Ultra Extended
Life Notebook Battery
Up to TBD hours and TBD minutes
9-cell (100 WHr)
Up to 13 hours and 15 minutes
3-cell (31 WHr)
Up to 3 hours and 45 minutes
HP ProBook 6560b
*
6-cell (55 WHr)
Up to 6 hours and 45 minutes
with optional
HP ST09 Extended Life
Notebook Battery
Up to 15 hours and 15 minutes
with optional
HP BB09 Ultra Extended
Life Notebook Battery
Up to 19 hours
9-cell (100 WHr)
Up to 12 hours
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 17
3-cell (31 WHr)
Up to 3 hours and 15 minutes
* Configurations with integrated graphics.
NOTE:
Battery life will vary depending on the product model, configuration, loaded applications, features,
use, wireless functionality and power management settings. The maximum capacity of the battery will
naturally decrease with time and usage. See MobileMark07 battery benchmark
www.bapco.com/products/mobilemark2007
for additional details.
System Standby Time
Up to 1 week
Power Conservation
AMD PowerPlay technology (models with discrete graphics)
Hibernation
Standby
ACPI compliance
Docking and Stands
HP 90W Docking Station
HP 120W Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP LAN and USB Travel Hub
NOTE:
Some HP Docking stations may not support every feature of some HP Notebook models. Please
refer to the individual docking station documentation for specific information about supported features.
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country. On-site
service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond
the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Additional HP Care Pack Services information
by product is available at:
http://www.hp.com/hps/carepack
.
NOTE:
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Standard Features (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 18
NOTE:
Options/capabilities listed in the QuickSpecs represent those capabilities available through Base Units or Build to Order
configurations. The various product features and capabilities will vary in terms of configurable vs. aftermarket options (AMOs). There
may be options and capabilities available through CTO that are not available as AMOs.
Memory
HP 1 GB (DDR3 1333 MHz) SODIMM
AT911AA#xxx
HP 2 GB (DDR3 1333 MHz) SODIMM
AT912AA#xxx
HP 4 GB (DDR3 1333 MHz) SODIMM
AT913AA#xxx
HP 8 GB (DDR3 1333 MHz) SODIMM
QP013AA#xxx
HP 2 GB PC3-12800 (DDR3 1600 MHz) SODIMM
H2P63AA
HP 4 GB PC3-12800 (DDR3 1600 MHz) SODIMM
H2P64AA
HP 8 GB PC3-12800 (DDR3 1600 MHz) SODIMM
H2P65AA
NOTE:
Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux. With Windows 32-bit operating
systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available
due to system resource requirements. Due to system limitations, DDR3-1600 MHz memory will only be supported at DDR3-1333 MHz.
Storage
HP 250 GB Pocket Media Drive
FE477AA
HP Mobile USB DVD
XQ543AA
HP Mobile USB DVDRW
A2U57AA
HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive
LX733AA#xxx
HP Primary SATA 500 GB 7200 rpm Hard Drive
AU098AA#xxx
HP Upgrade Bay DL DVD+/-RW
LZ835AA
Expansion Solutions
HP 2012 90W Docking Station
A7E32AA
HP 2012 120W Advanced Docking Station
A7E36AA
HP 90W Docking Station
VB041AA#xxx
HP 120W Advanced Docking Station
NZ222AA#xxx
HP 2005pr USB 2.0 Port Replicator
H1L07AA
HP USB 2.0 Docking Station
AY052AA#xxx
HP Essential USB 2.0 Port Replicator
AQ731AA#xxx
HP LAN and USB Travel Hub
BM868AA#xxx
HP Display & Notebook Stand
AW662AA#xxx
HP Adjustable Display Stand
AW663AA#xxx
HP Adjustable Dual Display Stand
AW664AA#xxx
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Options (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 19
Power
HP ST09 Extended Life Notebook Battery
QK639AA
HP BB09 Ultra Extended Life Notebook Battery
QK640AA
HP CC06XL Long Life Notebook Battery
QK642AA
HP CC09 Notebook Battery
QK643AA
HP 90W Smart AC Adapter
ED495AA#xxx
HP 90W Smart AC/Auto/Air Combo Adapter
AJ652AA#xxx
HP 90W Smart Auto/Truck Adapter
ED493AA
HP 65W Slim Adapter
AX727AA#xxx
HP 90W Slim Adapter
BT796AA#xxx
Carrying Cases
HP Basic Carrying Case
AJ078AA
HP Business Nylon Case
BP848AA
HP Professional Slim Top Load Case
AY530AA
Security
HP Notebook Combo Lock
AY475AA#xxx
HP Keyed Cable Lock
BV411AA
HP 13.3-inch Display Privacy Filter
AU649AA#xxx
HP 14.0-inch Display Privacy Filter
AU100AA#xxx
HP 15.6-inch Display Privacy Filter
AU103AA#xxx
Input/Output Devices
HP USB Optical Travel Mouse
RH304AA
HP USB/PS2 Optical 2-Button Scroll Mouse
DC369A
HP USB Keyboard & Mouse Bundle
RC465AA#xxx
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Options (availability may vary by country)
DA - 13932 North America — Version 15 — August 2, 2012
Page 20
System Unit
Dimensions
(HxWxD)
HP ProBook 6360b:
1.32 in (at front) x 12.68 in x 8.66 in
33.7 mm (at front) x 322 mm x 220 mm
HP ProBook 6460b:
1.34 in (at front) x 13.31 in x 9.11 in
34.0 mm (at front) x 338 mm x 231.3 mm
HP ProBook 6560b:
1.35 in (at front) x 14.72 in x 9.86 in
34.3 mm (at front) x 374 mm x 250.5 mm
Weight
HP ProBook 6360b:
Starting at 4.19 lb (1.90 kg) with hard drive,weight saver
(no optical drive), and 3-cell battery
Starting at 4.46 lb (2.02 kg) with hard drive optical drive, and 3-cell battery
Starting at 4.65 lb (2.11 kg) with hard drive optical drive,
and 6-cell battery
Starting at 5.45 lb (2.47 kg) with hard drive optical drive,
and 9-cell battery
HP ProBook 6460b:
Starting at 4.48 lb (2.03 kg) with SSD, weight saver
(no optical drive), and 3-cell battery
Starting at 4.78 lb (2.17 kg) with hard drive, optical drive,
and 3-cell battery
Starting at 4.78 lb (2.17 kg) with SSD, weight saver
(no optical drive), and 6-cell battery
Starting at 5.09 lb (2.31 kg) with hard drive, optical drive,
and 6-cell battery
Starting at 5.14 lb (2.33 kg) with SSD, weight saver
(no optical drive), and 9-cell battery
Starting at 5.45 lb (2.47 kg) with hard drive, optical drive,
and 9-cell battery
HP ProBook 6560b:
Starting at 5.50 lb (2.50 kg) with hard drive, weight saver
(no optical drive), and 3-cell battery
Starting at 5.76 lb (2.62 kg) with hard drive, optical drive,
and 3-cell battery
NOTE:
Height varies depending upon where on the notebook the measurement is made. Weight varies by
configuration and components. Weight includes 3-cell battery and WLAN.
Stand-Alone Power
Requirements
(AC Power)
Nominal Operating Voltage
18.5 V
Average Operating Power
Integrated graphics: TBD W
Discrete graphics: TBD W
Max Operating Power
< 65 W
or
< 90 W
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 21
Temperature
Operating*
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb
temperature
Shock
Operating
125 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude
(unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models
**
EPEAT
Gold
***
ICES
Yes
Australia / NZ A-Tick
Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KCC
Yes
BSMI
Yes
CE Marking Compliance
Yes
* At temperatures above 86° F (30° C), the Intel Core i3-2310M Processor may not run at maximum clock
speed.
** Configurations of the HP ProBook 6360b, HP ProBook 6460b and HP ProBook 6560b that are ENERGY
STAR qualified are identified as HP ProBook 6360b ENERGY STAR, HP ProBook 6460b ENERGY STAR and
HP ProBook 6560b ENERGY STAR on HP websites and on
www.energystar.gov
.
*** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See
www.epeat.net
for
registration status by country.
NOTE:
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
Audio
SRS Premium Sound
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 22
Hardware
Implementation
IDT 92HD87 High Definition CODEC
Touch-Sensitive Volume
Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, dual digital microphone array when equipped with optional webcam
Audio Output Quality
Frequency Response
20 Hz – 20 kHz
Signal to Noise Ratio
>85 dB
Total Harmonic Distortion
0.01%
Noise Floor
–110 dB
Play/Record Sampling
Rate
(s)
8 kHz – 48kHz
DAC
16, 20 or 24-bit
ADC
16 or 20-bit
Integrated Stereo
Speakers
Power Rating
2 Watts
Impedance
4 Ohms
Power
HP 90W Smart AC Adapter
Dimensions
5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
Weight
0.82 lb (370 g)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version
Output
Output power
90W
DC output
19.0V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 23
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals -
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.
HP 65W Smart AC Adapter
Dimensions
4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
Weight
0.62 lb (280 g)
Input
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC, 0.85 A at 180 VAC
Output
Output power
65W
DC output
18.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals -
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 24
Optional HP BB09 Ultra
Extended Life Notebook
Battery
Dimensions
(H x W x L)
1.2 x 5.9 x 11.4 in (3x15x29cm)
Weight
(max)
1.5lb, (.682kg)
Cells/Type
Lithium-Ion
Energy
Voltage
11.25V
Amp-hour capacity
8.85Ah
Watt-hour capacity
100Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3.5 to 5 hours
System ON
4 to 7 hours
Fuel Gauge LED
Yes
Warranty
1 year
Optional Travel Battery
Available
NA
Optional HP ST09
Extended Life Notebook
Battery
Dimensions
(H x W x L)
1.2 x 6.1 x 12 in (3x15.5x30.5cm)
Weight
(max)
1.2lb, (.550kg)
Cells/Type
Lithium-Ion Polymer
Energy
Voltage
11.1V
Amp-hour capacity
6.6Ah
Watt-hour capacity
73Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3.5 to 5 hours
System ON
4 to 7 hours
Fuel Gauge LED
Yes
Warranty
1 year
Optional Travel Battery
Available
NA
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 25
Optional HP 6-cell (55
WHr) Long Life Battery
Dimensions
(H x W x L)
0.8 x 1.8 x 8.0in (2.0 x 4.7 x 20.5cm)
Weight
(max)
.72lb, (.323kg)
Cells/Type
Lithium-Ion
Energy
Voltage
10.8V
Amp-hour capacity
5.1Ah
Watt-hour capacity
55Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
2.5 hours
System ON
3 to 5 hours
Fuel Gauge LED
No
Warranty
3 years
Optional Travel Battery
Available
Yes
HP 9-cell (100 WHr)
Lithium-Ion Primary
battery
Dimensions
(H x W x L)
0.8 x 2.4 x 8.1in (2 x 6.6 x 20.5cm)
Weight
(max)
1.1lb, (.488kg)
Cells/Type
Lithium-Ion
Energy
Voltage
11.25V
Amp-hour capacity
8.85Ah
Watt-hour capacity
100Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3.5 to 5 hours
System ON
4 to 7 hours
Fuel Gauge LED
No
Warranty
1 year
Optional Travel Battery
Available
Yes
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 26
HP 6-cell (55 WHr)
Lithium-Ion Primary
battery
Dimensions
(H x W x L)
0.8 x 1.8 x 8.0in (2.0 x 4.7 x 20.5cm)
Weight
(max)
.70lb, (.313kg)
Cells/Type
Lithium-Ion
Energy
Voltage
10.8V
Amp-hour capacity
5.1Ah
Watt-hour capacity
55Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
2.5 hours
System ON
3 to 5 hours
Fuel Gauge LED
No
Warranty
1 year
Optional Travel Battery
Available
Yes
HP 3-cell (31 WHr)
Lithium-Ion Primary
battery
Dimensions
(H x W x L)
0.8 x 1.8 x 8.0in (2.0 x 4.7 x 20.5cm)
Weight
(max)
0.47lb, (.210kg)
Cells/Type
Lithium-Ion
Energy
Voltage
11.1V
Amp-hour capacity
2.8Ah
Watt-hour capacity
31Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F(-10° to 50° C)
Non-operating
-4° to 122° F (-20° to 50° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
2.5 hours
System ON
3 to 5 hours
Fuel Gauge LED
No
Warranty
1 year
Optional Travel Battery
Available
Yes
Displays
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 27
15.6-inch LED HD
(1366 x 768)
anti-glare
Dimensions
(W x H)
13.54 x 7.59 in (34.4 x 19.4 cm)
Diagonal Size
15.6 in (39.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.252 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
100 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
15.6-inch LED HD+ WVA
(1600 x 900)
anti-glare
Dimensions
(W x H)
13.54 x 7.59 in (34.4 x 19.4 cm)
Diagonal Size
15.6 in (39.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.215 mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
118 ppi
Viewing Angle
±60° Horizontal, ± 50° Vertical (minimum) or
±70° Horizontal, ±60° Vertical (typical)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 28
14.0-inch LED HD (1366 x
768)
anti-glare
Dimensions
(W x H)
12.74 x 7.56 in (32.4 x 19.2 cm)
Diagonal Size
14.0 in (35.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.227 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
112 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
14.0-inch LED HD+ (1600 x
900)
anti-glare
Dimensions
(W x H)
12.74 x 7.56 in (32.4 cm x 19.2 cm)
Diagonal Size
14.0 in (35.6cm)
Surface Treatment
Anti-glare
Contrast Ratio
300 (min)
Refresh Rate
60 Hz
Brightness
200 nits (typ)
Pixel Resolution
Pitch
0.1935mm
Format
1600 x 900
Configuration
RGB Stripe
Backlight
LED
PPI
131 ppi
Viewing Angle
30/30/20/10 (Left/Right/Down/Up) (minimum)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 29
13.3-inch LED HD (1366 x
768)
anti-glare
Dimensions
(W x H)
11.53 x 6.49 in (29.3 x 16.5 cm)
Diagonal Size
13.3 in (33.8cm)
Surface Treatment
Anti-glare
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
200 nit (typical)
Pixel Resolution
Pitch
0.215 mm
Format
1366 x 768
Configuration
RGB Stripe
Backlight
LED
PPI
118 ppi
Viewing Angle
±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
Internal Storage
750 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115g)
Capacity
750 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
1,465,149,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 30
500 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115g)
Capacity
500 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
320 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115 g)
Capacity
320 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 31
250 GB 7200 rpm SATA
Hard Drive
Drive Weight
0.25 lbs (115g)
Capacity
250 GB
Height
0.37 in (9.5 mm)
Width
2.75 in (70 mm)
Interface
ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate
Synchronous
(maximum)
300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
11 ms
Maximum
22 ms
Rotational Speed
7200 rpm
Logical Blocks
488,397,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security
160 GB 2.5-inch SATA
Solid State Drive
Drive Weight
78 Grams
Capacity
160 GB
Height
0.276 in (7 mm)
Width
2.76 in (70 mm)
Interface
SATA Gen 2
Performance
Maximum Sequential Read
Maximum Sequential Write
250 MB/s 100 MB/s
Logical Blocks
312,581,808
Operating Temperature
32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-7; SATA 2.6; DIPM; TRIM
128 GB 2.5-inch SATA
Solid State Drive
Drive Weight
75 Grams
Capacity
128 GB
Height
0.276 in (7 mm)
Width
2.76 in (70 mm)
Interface
SATA Gen 2
Performance
Maximum Sequential Read
Maximum Sequential Write
250 MB/s 140 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [case temp]
Features
ATA Security; ATA-7; SATA 2.6; DIPM; TRIM
Optical Drives
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 32
DVD-ROM Drive
Access Times
Random
< 140 ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
8X-DVD
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
None
Max Media Capacity
(read)
8.5GB
Transport
Tray Loading
DVD+/-RW SuperMulti DL
Drive
Access Times
Random
<140ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL, DVD-R
DL
Max Media Capacity
(read)
8.5 GB
Max Media Capacity
(write)
8.5 GB
Transport
Tray Loading
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 33
Blu-ray ROM DVD+/-RW
SuperMulti DL Drive
Access Times
Random
<190 ms CD-ROM (typical)
< 180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate
24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media
(read)
CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media
(write)
CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVD-
RAM
Max Media Capacity
(read)
50.0 GB
Max Media Capacity
(write)
8.5GB
Transport
Tray Loading
Security
HP Fingerprint Sensor
(optional)
Mobile Voltage Operation
3.0V-3.6V Single Supply
Operating Temperature
32° – 158°F (0° – 70°C)
Current Consumption @
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture
Up to 240 image frames /sec
ESD Resistance
IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix
192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 34
Communications
Intel® 82579LM Gigabit
Network Connection
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbti/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023. Clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
Power
Management
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel vPro
iSCSI Boot
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
NOTE:
Intel 82579 PCIe interface is not PCIe compliant. It operates at half of
PCIe specification V1.1 (2.5GT/S) speed.
NIC Device Driver Name
Intel 82579LM/82579V Ethernet Network Connection
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 35
Intel® 82579V Gigabit
Network Connection
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mibt/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
Power
Management
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface
Intel PCI Express-Base 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ
NOTE:
Intel 82579 PCIe interface is not PCIe compliant. It operators at half of
PCIe specification V1.1 (2.5GT/S) speed.
NIC Device Driver Name
Intel 82579LM/82579V Ethernet Network Connection
V.92 56K Data/Fax Modem
Form Factor
MDC 1.5 Daughtercard
Power Management
Support
APM Revision 1.2, ACPI
Approvals/
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class
B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other
Countries
Data Mode Capabilities
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates
:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates
:
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 36
3600, 31200
Automatic rate re-negotiation
V.34
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities
TIA/EIA-578-B (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
T.31
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +ILRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
HP un2430
EV-DO/HSPA Mobile
Broadband Module
Technology/Operating
Bands
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz
(PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz
(UTRA FDD Band II), AWS (UTRA FDD Band IV), 900MHz(UTRA FDD Band VIII),
850MHz (UTRA FDD Band V)
1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell), 1900MHz
(Band Class1-PCS)
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class A, Multi-slot class 10 operation, coding schemes CS1 -
CS4 and MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 6
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-856, IS-2000
Wireless Parametric
Standards
Meets or exceeds TIA/EIA IS-98-D
Maximum Data Rates
UMTS (HSPA) - 14.4 Mbps (Download ), 5.76Mbps (Upload)
CDMA (EVDO Release A) - 3.1 Mbps (Download), 1.8Mbps (Upload)
GPS
Standalone GPS enabled
gpsOneXTRATM™
GPS Bands
L1 - 1575.42 MHz
Maximum Output Power
GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+0.7/-2.3)
CDMA: 24dBm (+0.7/-2)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 37
Maximum Power
Consumption
2750mA (peak); 1100mA (average)
Power Consumption, Idle
Not Connected
20 mA
Power Management
USB selective suspend
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor
PCI-Express MiniCard, USB 2.0 interface
Weight
11.5 g
Dimensions
(Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
Voltage, Operating
3.3v +/- 10%
Temperature, Operating
(from TIA/EIA/IS-98-D)
-22° to 158° F (-30° to 70° C) (full RF performance)
-22° to 167° F (-30° to 75° C) (reduced RF performance)
Temperature, Non-
operating, 96 hours
(from
MIL-STD 202 Method 108)
-40° to 185° F (-40° to 85° C)
Humidity, Non-operating
95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Configuration Utilities
HP Connection Manager
LED Activity
LED Off - Radio Off;
Solid LED On - Radio On
HP hs2340 HSPA+ Mobile
Broadband Module
Technology/Operating
Bands
GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz
(PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900Mhz
(UTRA FDD Band II), 900Mhz(UTRA FDD Band VIII), 850 MHz (UTRA FDD Band V)
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot class 10 operation, coding schemes CS1 -
CS4 and MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 7
Advanced Receiver Type 3i
Wireless Parametric
Standards
Complies with 3GPP specifications
Maximum Data Rates
UMTS (HSPA) - 21 Mbps (Download ), 5.76Mbps (Upload)
GPS
Standalone, A-GPS (Internet- and Network assisted)
GPS Bands
1575.42 MHz (± 1.023 MHz)
Maximum Output Power
GSM/EDGE
GSM850 & GSM900 bands
GPRS: +33 dBm ± 2 dBm (class 4)
EGPRS: +27 dBm ± 3 dBm (class E2)
DCS1800 & PCS1900 bands
GPRS: +30 dBm ± 2 dBm (class 1)
EGPRS: +26 dBm +4 / -3 dBm (class E2)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 38
UMTS
UTRA FDD Bands
+24 dBm +4 / -3 dBm (class 3)
Maximum Power
Consumption
2000mA (peak); 600mA (average)
Power Consumption,
Sleep Mode
5 mA
Power Management
USB selective suspend
Integrated notebook wireless button
Antenna Type
Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor
PCI-Express MiniCard, USB 2.0 interface
Weight
< 12 g
Dimensions
(Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
Voltage, Operating
3.3v +/- 9%
Temperature, Operating
14° to 149° F (-10° to 65° C) (full RF performance)
14° to 167° F (-10° to 75° C) (reduced RF performance)
Temperature, Non-
operating, 96 hours
(from
MIL-STD 202 Method 108)
-22° to 185° F (-30° to 85° C)
Humidity, Non-operating
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Configuration Utilities
HP Connection Manager
LED Activity
LED Off - Radio Off;
Solid LED On - Radio On
Intel Centrino Wireless-N
1000
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
* In countries where 802.11n is not allowed, this capability is not enabled.
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows
Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
2.4 GHz
Antenna Structure
1 transmit; 2 receive (1x2)
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: many possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme, and
Guard Interval used, as defined in IEEE 802.11n specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP-
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 39
1.
2.
3.
4.
5.
FAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power
(for CCK and
OFDM)
2
15 dBm typical
Power Consumption
Transmit: 1.4 Watts (average, with one spatial streams)
Receive: 1.3 Watts (average with two receive chains)
Idle mode
3
: 30 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
54 Mbps: -74 dBm, 6 Mbps: -91 dBm
Antenna Connections
2 U.FL type connectors, 50 ohm nominal impedance
Form Factor
PCI-Express Half-MiniCard
Weight
0.0075 lb (3.4 g)
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 40
Intel Centrino Advanced-N
6205
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
* In countries where 802.11n is not allowed, this capability is not enabled.
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Windows
Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
2.4 GHz and 5GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending
on the combination of Bandwidth, Modulation Coding Scheme, and Guard
Interval used, as defined in IEEE 802.11n specification
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP-
FAST)
Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between 2.4GHz band Access Points
Output Power
(for CCK and
OFDM)
2
17 dBm max
Power Consumption
Transmit: 2.3 Watts (max, with two spatial streams)
Receive: 1 Watt (max with two spatial streams)
Idle mode
3
: 35 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
54 Mbps: -76 dBm, 6 Mbps: -92 dBm
Antenna Connections
2 U.FL type connectors, 50 ohm nominal impedance
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 41
1.
2.
3.
4.
5.
Form Factor
PCI-Express Half-MiniCard
Weight
0.0075 lb (3.4 g)
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating
Non-operating
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Broadcom 43224AGN
802.11a/b/g/n
WiFi Adapter
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
*
Interoperability
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
Frequency Band
2.4 GHz and 5 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54,
58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270, 300 Mbps
Frequency Support
20 MHz: 2.4 GHz and 5 GHz bands
40 MHz: 2.4 GHz and 5 GHz bands
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,
LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 42
1.
2.
3.
4.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
(for CCK)
2
17 dBm , nominal
Output Power
(for OFDM;
power varies by data rate)
2
15 dBm , nominal
Power Consumption
Idle associated: 250 mW
Idle unassociated: 150 mW
Transmit/Receive 20 MHz channel: 2.0 W (max)
Transmit/Receive 40 MHz channel: 2.0 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -92 dBm
Antenna type
High efficiency dual band antenna with spatial diversity, mounted in the
display enclosure
Form Factor
PCI-Express Half-MiniCard
Weight
0.013 lb (6 g)
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
14° to 149° F (-10° to 65° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
Broadcom 4313GN
802.11b/g/n
WiFi Adapter
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft Win7, Vista
and XP (details at:
http://www.hp.com/go/notebooks/WLAN
)
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 43
1.
2.
3.
4.
Frequency Band
2.4 GHz
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5, 7.2, 13, 14.4, 19.5, 21.7, 26, 28.9, 39, 43.3, 52, 57.8, 58.5, 65,
72.2Mbps
Frequency Support
20 MHz: 2.4 GHz bands
Modulation
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,
LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
(for CCK)
2
17 dBm , nominal
Output Power
(for OFDM;
power varies by data rate)
2
15 dBm , nominal
Power Consumption
Idle associated: 250 mW avg (CLKREQ enabled)
Idle unassociated: 425 mW avg
Transmit/Receive 20 MHz channel: 5.5 W (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
72.2 Mbps: -71dBm
Antenna type
High efficiency dual band antenna with spatial diversity, usually mounted in
the display enclosure
Form Factor
PCI-Express Half-MiniCard
Weight
0.013 lb (6 g)
Dimensions
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage
3.3v +/- 10%
Temperature
Operating
Non-operating
14° to 149° F (-10° to 65° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
Check latest software/driver release for updates on supported security features.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 44
1.
2.
3.
4.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista and Win7.
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification
2.1+EDR Compliant
Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
79 (1 MHz) available channels
Data Rates and
Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or
1306.9 kbps symmetric
Transmit Power
-6 dBm to 4 dBm (Bluetooth Class II)
Receiver Sensitivity
Better than -80 dBM at 0.1 % raw bit error rate
Power Consumption
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Antenna
Internally integrated within module
Range
Up 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Bluetooth Software
Supported
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Temperature
Operating
Non-operating
-4° to 158° F (-20° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90%
5% to 95%
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 45
1.
2.
Altitude
Operating
Non-operating
15,000 ft (4,572 m)
40,000 ft (12,192 m)
Bluetooth Profiles
Supported
Serial Port Profile (SPP)
1
Service Discovery Applicaton Profile (SDAP)
Dial-Up Networking (DUN)
1,2
Generic Object Exchange Profile (GOEP)
1,2
Object Push Profile (OPP)
1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
1,2
Personal Area Networking Profile (PAN)
1,2
Human Interface Device Profile (HID)
1,2,3
FAX Profile (FAX)
Basic Imaging Profile (BIP)
2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
indicates the profile is supported by Microsoft Windows XP SP2
indicates the profile is part of Windows Vista
Environmental Data
Eco-Label Certifications
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
US Energy star
IT ECO declaration
EPEAT – Gold
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for these models are based on a "Typically Configured
Notebook"
HP ProBook 6360b Notebook PC
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
8.35 W 8.95 W 8.33 W
Sleep (Energy Star low
power mode)
1.08 W 1.24 W 1.07 W
Off
0.65 W 0.77 W 0.64 W
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
28.5 BTU/hr 30.6 BTU/hr 28.4 BTU/hr
Sleep
4 BTU/hr
4.2 BTU/hr
4 BTU/hr
Off
2.2 BTU/hr
3 BTU/hr
2.1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 46
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
3.2
27.5
Fixed Disk
(random writes)
3.3
28.0
System fan is usually off except when charging the battery
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Additional
information
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold
level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 91.7% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated – 509 g
Internal:
Polypropylene low-density – 6 g
Molded Pulp – 198 g
The Corrugated Carton packaging material is made from 80% recycled
content.
The Paper / Cardboard packaging material is made from 80% recycled
content.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 47
The Polyethylene low densitypackaging material is made from 80%
recycled content
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
HP ProBook 6460b Notebook PC
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
11.57 W 12.11 W 11.45 W
Sleep (Energy Star low
power mode)
1.23 W 1.31 W 1.14 W
Off
0.56 W 0.62 W 0.51 W
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
40 BTU/hr 41 BTU/hr 39 BTU/hr
Sleep
4 BTU/hr 4 BTU/hr 4 BTU/hr
Off
2 BTU/hr 2 BTU/hr 2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
3.3
26.7
Fixed Disk
(random writes)
3.4
30.2
System fan is usually off except when charging the battery
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 48
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Additional
information
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold
level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 95.1% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated Paper – 500 g
CANON bags-several layers – 5 g
Internal:
Polypropylene – 15 g
Molded Pulp – 180 g
The Corrugated Paper packaging material is made from 80% recycled
content.
The CANON bags-several layers packaging material is made from 80%
recycled content.
The Polypropylene packaging material is made from 80% recycled
content.
The Molded Pulp packaging material is made from 80% recycled
content.
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 49
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
HP ProBook 6560b Notebook PC
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
9.71 W 9.81 W 9.65 W
Sleep (Energy Star low
power mode)
0.81 W 0.90 W 0.80 W
Off
0.56 W 0.64 W 0.55 W
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
33.4 BTU/hr 33.5 BTU/hr
33 BTU/hr
Sleep
3 BTU/hr 3 BTU/hr 3 BTU/hr
Off
2 BTU/hr 2 BTU/hr 2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
2.9
24
Fixed Disk
(random writes)
3.8
32
System fan is usually off except when charging the battery
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Additional
information
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 50
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold
level, see:
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is greater than 95.2% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
Corrugated carton – 375 g
Paper/cardboard – 310 g
Internal:
Polyethylene low density solid – 22 g
The Corrugated cartonr packaging material is made from 80% recycled
content.
The Paper/Cardboard- packaging material is made from 80% recycled
content.
The Polyethylene low density solid packaging material is made from
80% recycled content.
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (for reference of these limits please refer to the HP General
Specification of the Environment:
(
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html
):
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 51
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 micro-grams/cm^
2
/week,
measured according to EN 1811:1998, are not used on any product
surface designed to be frequently handled or touched by users.
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
Corporate Environmental
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 52
Copyright © 2012 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of
Microsoft Corporation in the U.S. and/or other countries. Intel, Core, and Celeron are registered trademarks or trademarks of Intel
Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other
countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP ProBook 6360b Notebook PC, HP ProBook 6460b
Notebook PC, and HP ProBook 6560b Notebook PC
Technical Specifications
DA - 13932 North America — Version 15 — August 2, 2012
Page 53
