Parts Manual

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

FORM NO.

769-01022.fm

1/16/04

PRINTED IN U.S.A.

Hydrostatic Lawn Tractor

Models LT1024

SERIES 1000

-2-

DESCRIPTION PAGE

Axle, Front ....................................................... 6

Battery ............................................................. 16

Brake Pedal ..................................................... 12

Head Lamp ...................................................... 18

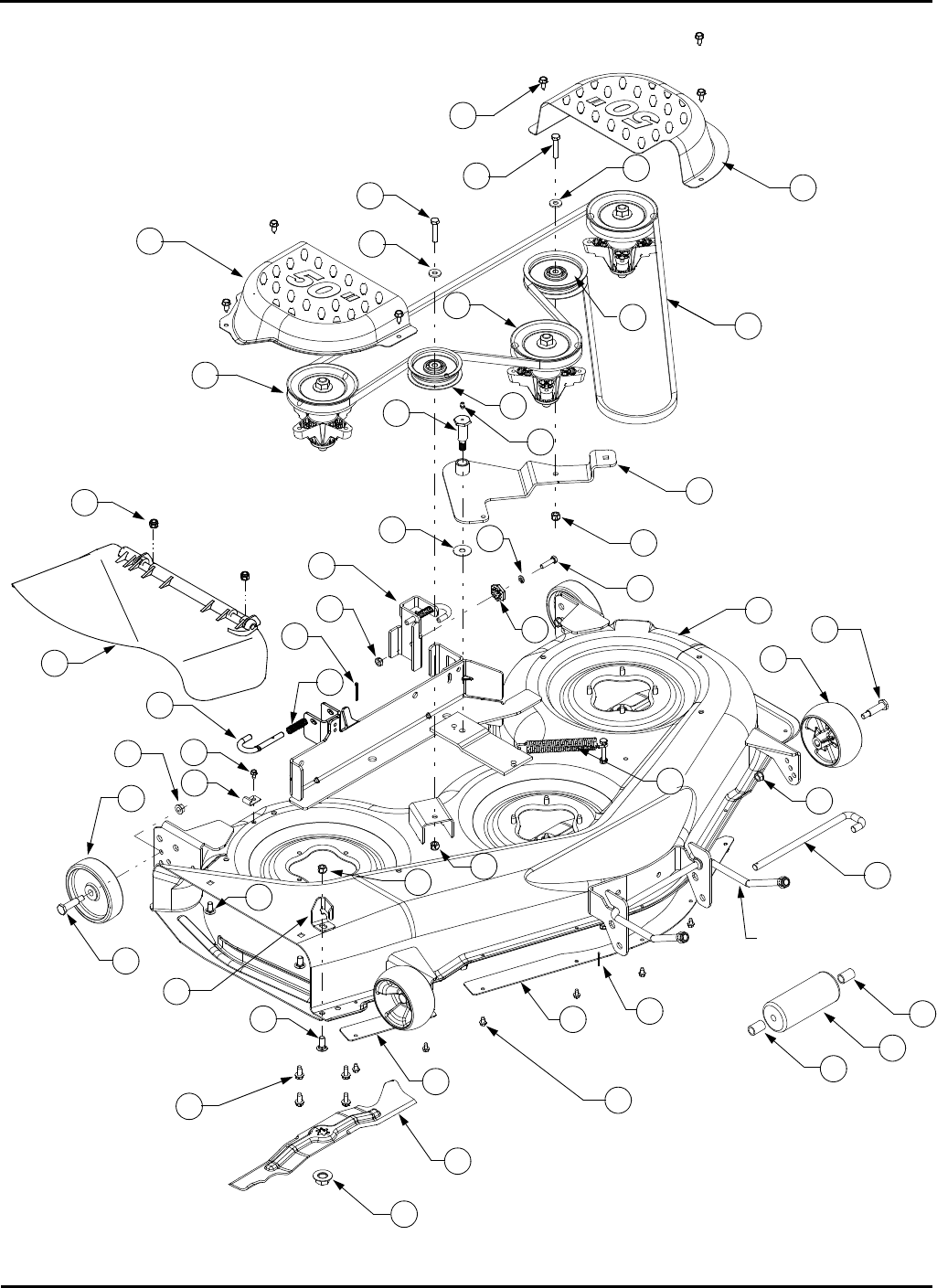

Mower Deck, 50-inch........................................ 21

Pedal Controls ................................................. 12

Dash Panel ...................................................... 16

Drive System ................................................... 4

Electrical Sysytem ........................................... 19

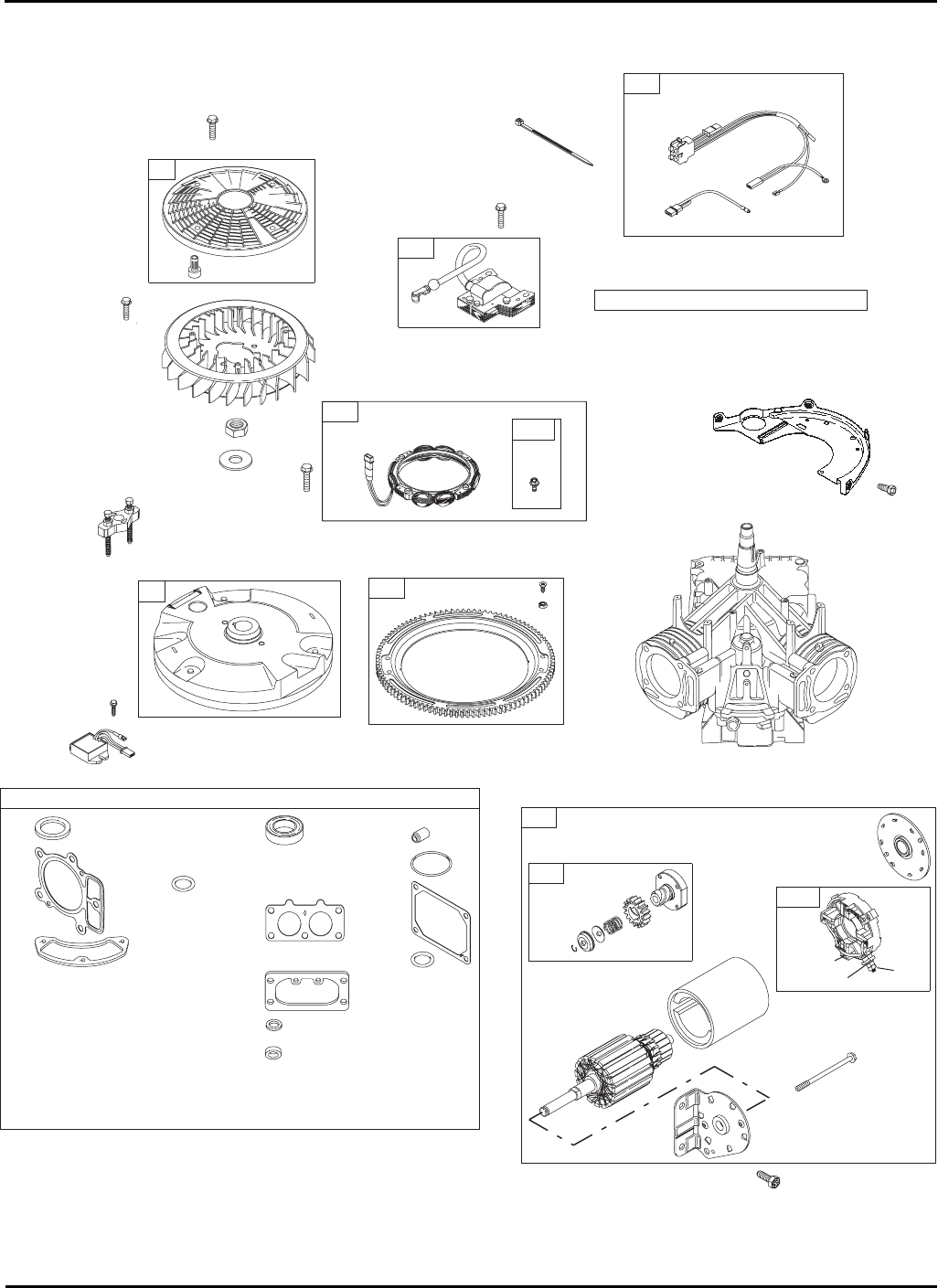

Engines ............................................................ 23

Engine Accessories ......................................... 15

Fender ............................................................. 10

Frame .............................................................. 8

Fuel Tank ......................................................... 10

Grille ................................................................ 18

Hood ................................................................ 18

Deck Lift Handle/Linkage ................................. 11

Muffler .............................................................. 15

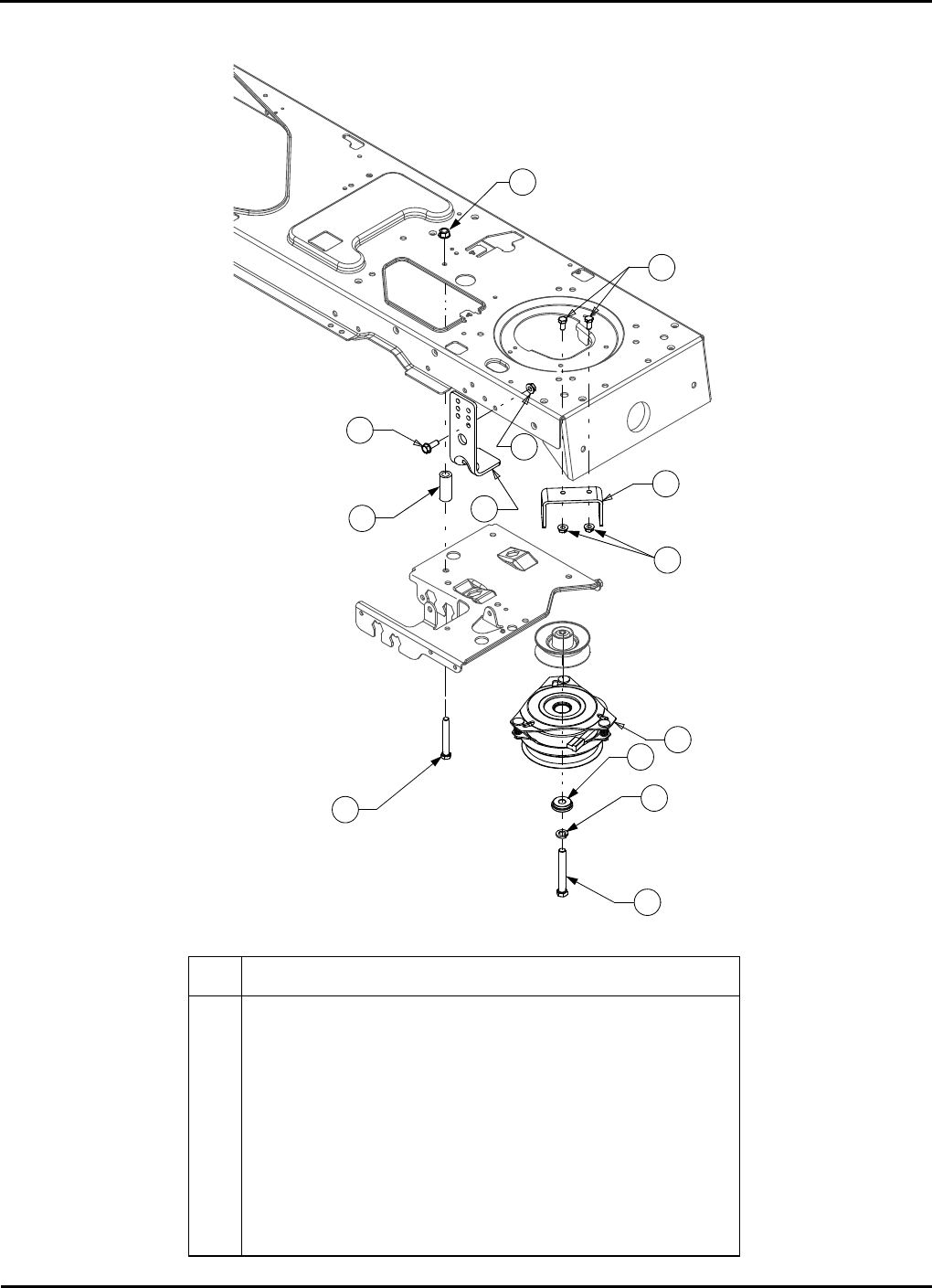

PTO Clutch ...................................................... 20

Seat ................................................................. 14

Steering ........................................................... 6

Wheels, Front & Rear ...................................... 3

DESCRIPTION PAGE

MODEL LT1024

TABLE OF CONTENTS

NOTE, For painted parts, please refer

to the list of color codes below. Please

add the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part,

numbered 700-xxxx, is painted Cub

Yellow, the part number to order would

be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Powder Black: 0637

-3-

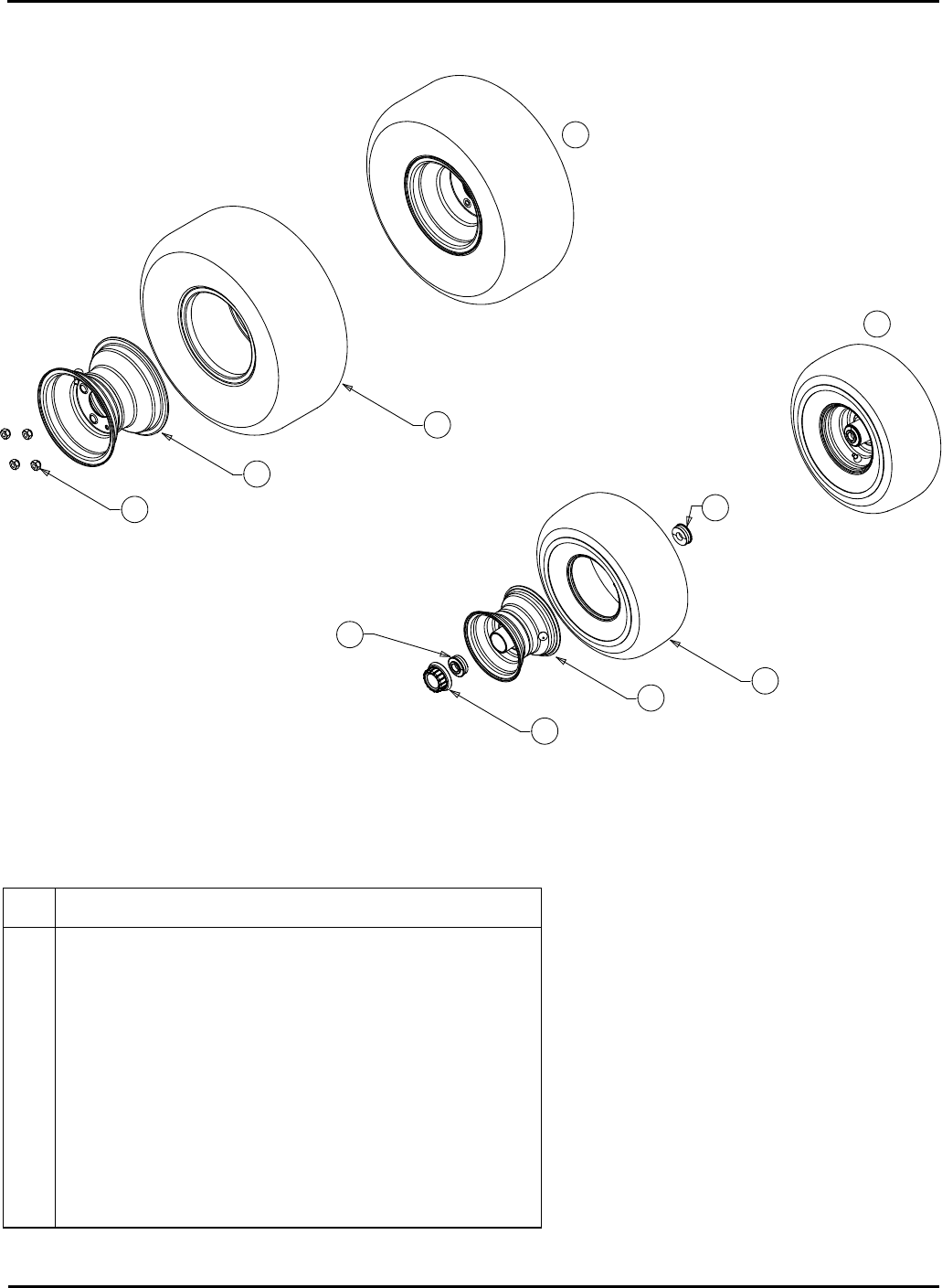

WHEELS

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2

2 634-0246A Rim Assembly, 8.0 x 6.19 (4-Lug) 2

3 712-3050 Lug Nut, 7/16-14 8

4 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4

5 634-04104 Rim Assembly, 6 x 4.5 2

(Included, Bearings, Spacer and Valve)

6 731-3020 Hub Cap 2

7 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2

8 634-04094 Wheel Assembly, Cub Cadet 15 x 6 x 6 2

(Includes Rim Ass’y, Tire and Fitting)

9 634-0245A Wheel Assembly, Cub Cadet 20 x 9 x 8 2

(Includes Rim Ass’y, Tire and Valve)

— 737-0224 Gease Fitting 2

— 734-0255 Valve, Tubeless Air 4

-4-

DRIVE SYSTEM

Attach Spring (732-1716) Here

36 36

-5-

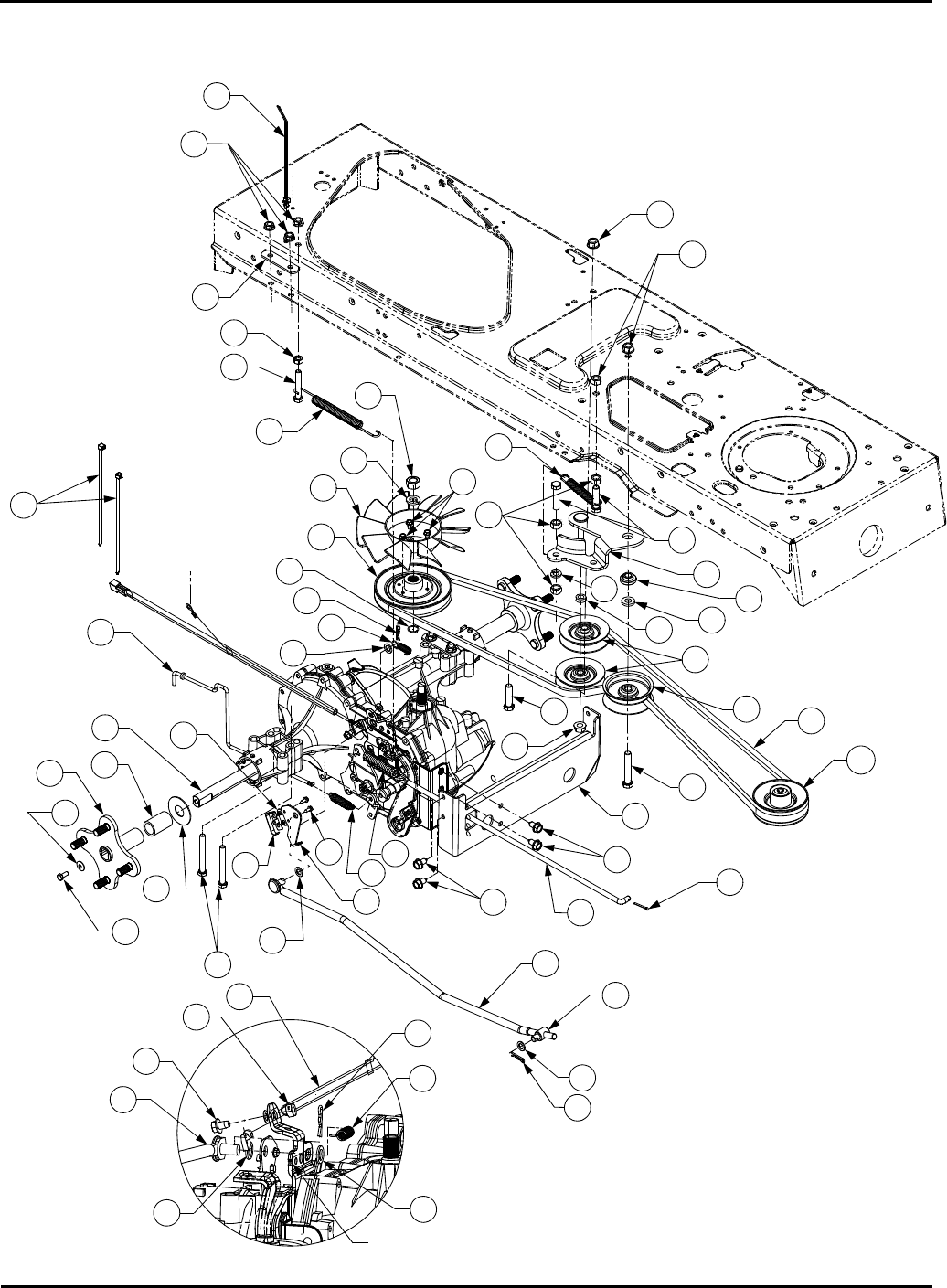

DRIVE SYSTEM

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 17840 Bracket, Mounting, Transaxle 2

2 618-04154 Hub Assembly, Wheel 2

3 618-0319 Transmission, Hydrostatic 1

4 629-0949A Harness Assembly, Ground & Reverse 1

5 783-04442 Bracket Assembly, Idler, Center Dbl 1

6 710-1266 Hex Cap Screw, 5/16-18,3.5, Gr5 4

7 710-0227 Screw, #8-18, 0.500 2

8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3

9 710-0726 Screw, 5/16-12, 0.75 6

10 710-0599 Screw, 1/4-20, 0.5 1

11 710-3007 Screw, #12-24, 0.375 3

12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1

13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1

14 710-0627 Hex Cap Screw, 5/16-24 x .750 2

15 711-0832 Ferrule, 3/8-24 x .375 Dia 1

16 712-0291 Nut, Hex Lock, 1/4-20 1

17 712-0333 Nut, Hex, 1/2-20, Gr2 1

18 712-0130 Nut, Nylon Lock, 3/8-16 4

19 731-04675 Sleeve, 1.5” 2

20 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 5

21 712-3010 Nut, Hex, 5/16-18, Gr5 1

22 712-3017 Nut, Hex, 3/8-16, Gr8 3

23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

24 714-0111 Pin, Cotter, 3/32, 1.0 1

25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2

26 725-1644 Switch, Spring, Short 1

27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1

28 726-0320 Plate, Insulator Nut 1

29 731-1449A Fan, Blade, 10” 1

30 732-0209 Spring, .48 OD x 2.03 Extension 1

31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1

32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1

33 732-0729 Ring, Wire 1

34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1

35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1

36 736-0140 Washer, Flat, .385 x .62 x .063 3

37 736-0169 Washer, Lock, 3/8 , Regular Duty 1

38 736-0866 Washer, Flat, .755 x 1.92 x .060 2

39 736-0921 Washer, Lock, 1/2 , Regular Duty 1

40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1

41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1

42 747-1149 Rod, Hydro Bypass 1

43 747-1150 Rod, Brake, Hydro 1

44 747-1151 Rod, Control, Hydro 1

45 750-0535 Spacer, .376 ID x .625 OD x .22 1

46 754-0640 Belt, V Type, Poly (Use w/ 756-1166) 1

754-0461 Belt, V Type, Poly (Use w/ 756-04111) 1

47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2

48 756-0981A Pulley, Idler, Flat 2.75 OD 1

49 756-1166 Pulley, Input, 5.0 Dia 1

756-04111 Pulley, Engine, 4.11Dia. 1

50 783-0810 Bracket, Transmission, Torque Hydro 1

51 783-1019 Bracket, Actuator, Switch 1

52 756-0978A Pulley, Engine, 3.56 Dia. 1

53 736-0242 Belle Washer 2

-6-

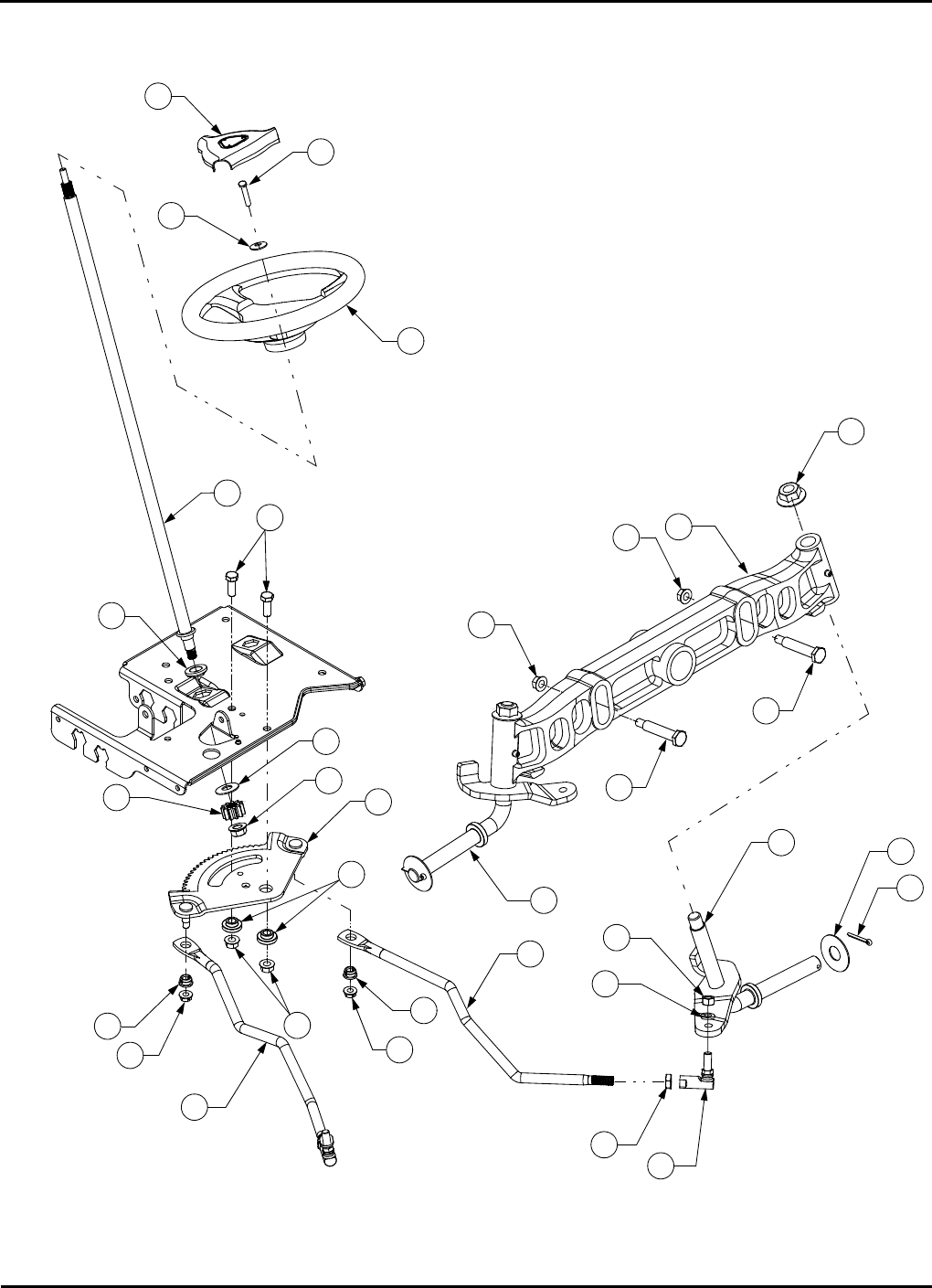

STEERING

19 19

21 26

-7-

STEERING

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2

2 711-1408 Link, Drag, RH 1

3 711-1409A Link, Drag, LH 1

4 710-1260A Self-tapping Screw, 5/16-18 x .75 1

5 712-0240 Nut, Jam, 7/16-20, Gr2 2

6 712-0241 Nut, Hex, 3/8-24, Gr5 2

7 712-0130 Nut, Nylon Lock, 3/8-16 4

8 712-0459 Nut, Flange Lock, 7/16-20 1

9 712-0429 Nut, Nylon Lock, 5/16-18 2

10 717-1550E Gear, Steering, 11/90 Ratio 1

11 717-1554 Gear, Pinion, Steering 1

12 723-0610 Ball Joint, 7/16-20 2

13 736-0169 Washer, Lock, 3/8 , Regular Duty 2

14 736-3004 Washer, Flat, .406 x .875 x .105 1

15 736-3084 Washer, Flat, .510 x 1.120 x .060 1

16 737-3007 Grease, Alvania Ep 2 1

17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2

18 738-04075 Shaft, Steering, .625 OD x 25.00 Lg 1

19 741-0475 Bushing, Plastic, .380 ID 2

20 741-0656 Bearing, Hex Flange, 5/8 1

21 683-04101 Axle Assembly, LH .750 Dia 1

22 683-04102 Axle Assembly, RH .750 Dia 1

23 712-0417A Nut, Hex, Flange, 5/8-18 2

24 714-0162 Pin, Cot, 5/32, 1.25 2

25 719-0525C Axle, Pivot, Cast .750 Dia 1

26 736-0866 Washer, Flat, .755 x 1.92 x.060 2

27 738-1011 Spacer, Shoulder, .500 x 2.230, 3/8-16 2

28 731-04008 Wheel, Steering, Three Spoke 1

29 731-04532 Cover, Steering Wheel 1

-8-

FRAME

725-04039

REF. ONLY

-9-

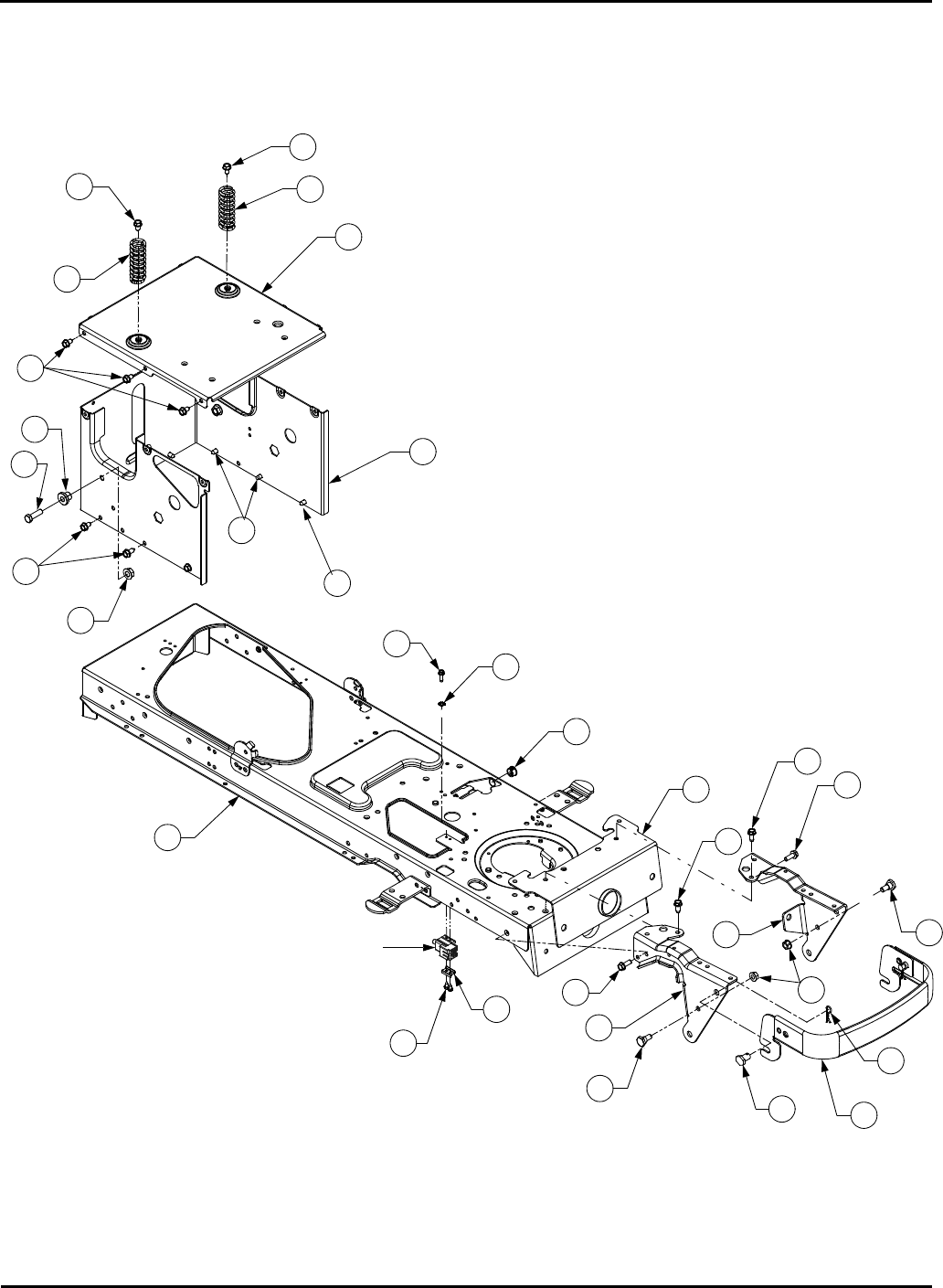

FRAME

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 17962 Plate, Switch 1

2 683-0304A Frame Assembly, Lower 1

3 683-0612 Bumper Assembly 1

4 710-0224 Screw, Hex Wash. Hd. Tapp, 10-16 x .5 2

5 710-0726 Screw, Self-tapping, 5/16-18, 0.75 15

6 710-1260A Screw, 5/16-18, 0.750 2

7 710-1652 Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625 1

8 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2

9 712-0130 Nut, Nylon Lock, 3/8-16 2

10 710-0607 Screw, Hex Wash. Tapp, 5/16-18 x .5 1

11 714-0145 Pin, Click, .092 x 1.64 Lg 2

12 741-04092 Snap Bushing 1

13 732-04035 Spring, Compression, 1.28 OD x 3.125 Lg 2

14 736-0222 Washer, Lock, Ext 1/4 2

16 738-04058 Shoulder Spacer 2

17 738-0143 Shoulder Screw, 3/8-16 2

18 710-3005 Hex Screw 3/8-16 x 1.25 2

19 783-0726C Bracket, Pivot, Support RH 1

20 783-0727B Bracket, Pivot, Support LH 1

21 783-0728 Bracket, Pivot, Bar 1

22 783-04330 Frame, Upper, Cub 1500 1

23 783-04329 Bracket, Frame, Seat 1

-10-

FENDER & FUEL TANK

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2

2 710-0726 Screw, 5/16-12, 0.75 8

3 710-0895 Screw, 1/4-15, 0.750 9

4 712-0429 Nut, Nylon Lock, 5/16-18 2

5 731-2616A Cover, Fender, RH 1

6 731-2617 Cover, Fender, LH 1

7 736-3078 Washer, Flat, .349 x 1.00 x .063 2

8 783-0677 Bracket, Lift, Adjustment 1

9 783-0715B Bracket, Seat, Mount 2

10 783-04398 Fender 1

11 726-3046 Clip, Ratchet, .250 Dia 12

12 735-0697 Pad, Foot, LH 1

13 735-0698A Pad, Foot, RH 1

14 751-0819A Tank, Fuel 1

15 751-3124B Cap, Fuel 1

16 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2

915

-11-

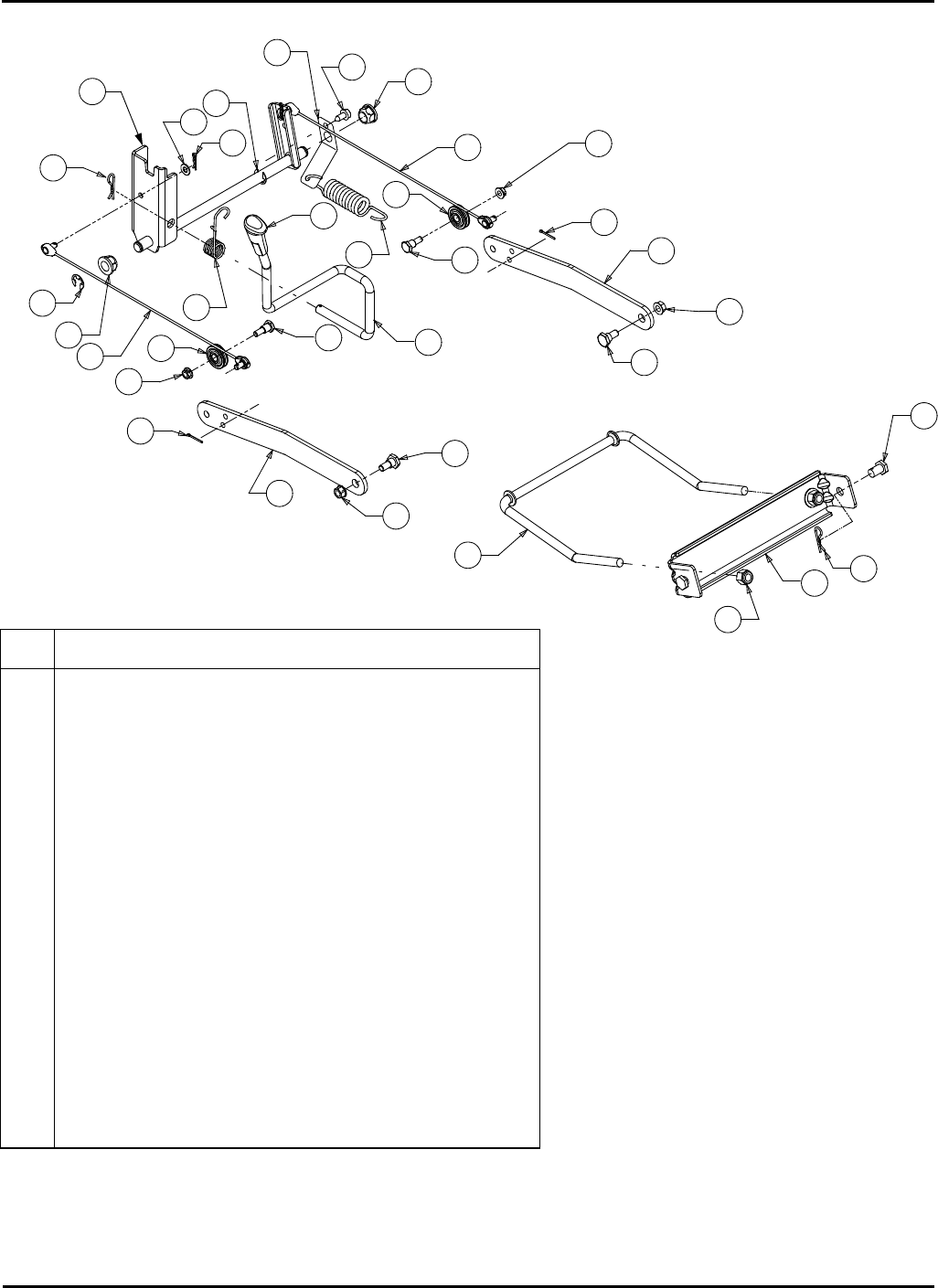

LIFT ASSEMBLY

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 683-04079 Shaft Assembly, Lift 1

2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2

3 783-0720A Bracket, Adjustment, Front Deck Rod 1

4 712-0130 Nut, Nylon Lock, 3/8-16 2

5 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2

6 712-3083 Nut, Hex Lock, 1/2-13, Gr8, Nylon 2

7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

8 714-0111 Pin, Cotter, 3/32, 1.0 2

9 714-04023 Pin, Click, .092 x 1.64 Lg 2

10 716-0106A E-ring, .625 Dia. Shaft 2

11 720-0311 Grip, Handle 1

12 732-0874 Spring, Torsion 1

18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2

19 738-0143 Shoulder Screw, 3/8-16 2

20 741-0225 Bearing, Hex Flange 2

22 746-0968 Cable, Lift, 16.16 Lg 2

23 747-04155 Handle, Lift 1

24 747-1324 Rod, Deck, Front Adjustment .5" Dia 1

25 756-1154 Pulley, Roller 2

26 783-0678A Lift, Arm 2

27 783-04462 Lift Bracket 1

28 710-0726 Screw, Self-tapping, 5/16-18 x.625 1

29 732-0934 Spring, Extension, 1.15 x 5.99 1

722

18 26

14 10

27 28

-12-

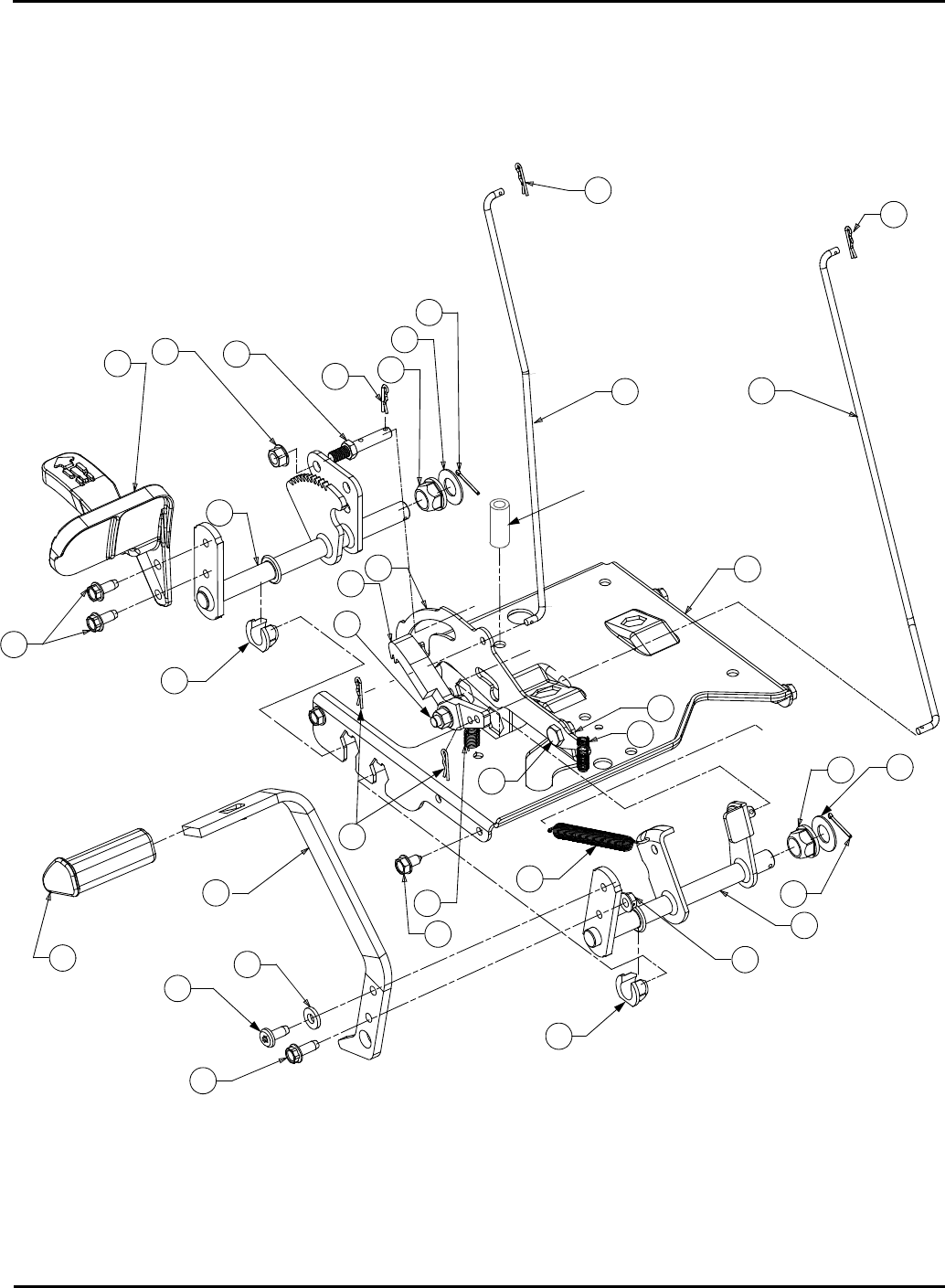

PEDAL ASSEMBLY

27 17

21 23 19

Hook to Flange

In Frame (783-0650)

REF. ONLY

-13-

PEDAL ASSEMBLY

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 647-0031B Control Assembly, Brake 1

2 647-0049A Control Assembly, Hydro 1

3 710-0726 Screw, Self-tapping, 5/16-12, 0.75 4

4 710-0650 Screw, Self-tapping, 5/16-18, 0.875 1

5 710-1260A Screw, 5/16-18, 0.750 2

6 783-0773A Pedal, Brake 1

7 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 1

8 712-0130 Nut, Nylon Lock, 3/8-16 2

9 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2

10 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 5

11 714-0111 Pin, Cotter, 3/32, 1.0 2

12 719-0584A Pedal, Hydro Control 1

13 732-0335 Spring, Compression, .405 x 1.17 1

14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1

15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1

16 735-3049 Pad, Brake, Control 1

17 783-0663C Bracket, Lockout, Hydro 1

18 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 1

19 736-0187 Washer, Flat .64 ID x 1.24 x .06 2

20 736-3008 Washer, Flat, .344 x .750 x .120 1

21 738-0155 Shoulder, Screw .437 x 1.62 Lg 1

22 738-0507B Screw, Shoulder, .500 Dia x .434 1

23 741-0225 Bearing, Hex Flange 2

24 741-3065B Bearing, Hex Flange, .628 ID, Split 2

25 747-04096 Rod, Control, Cruise 1

26 747-04093 Rod, Control, Brake Lock 1

27 748-04039B Latch, Cruise 1

28 783-0653F Bracket, Support, Stearing 1

-14-

REF.

NO. PART

NUMBER DESCRIPTION QTY.

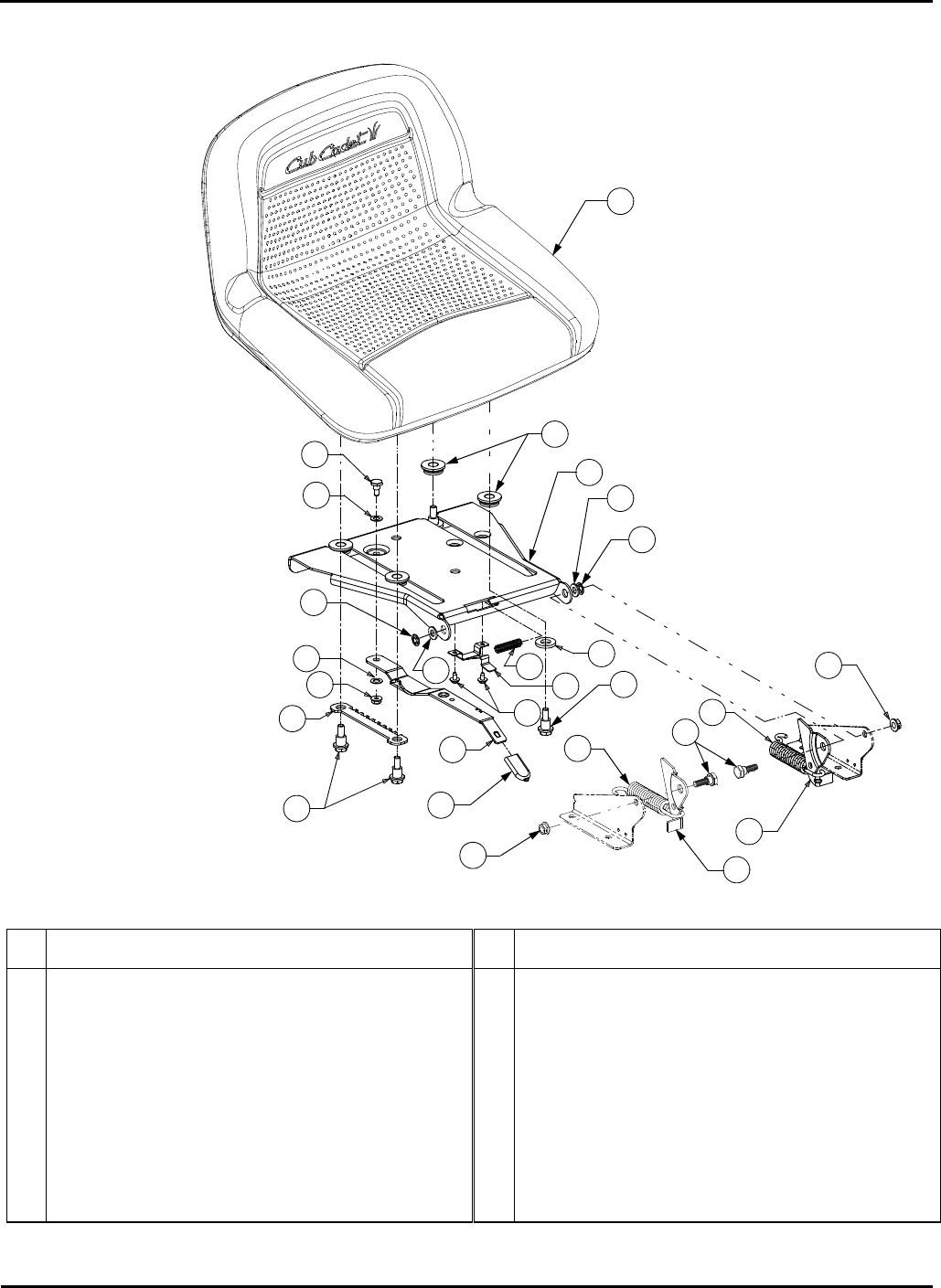

1 17239C Bracket, Seat Lift

2 710-1268 Screw, #10-16, 0.375 2

3 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2

4 712-0324 Nut, Nylon Lock, 1/4-20 1

5 720-0433 Grip, Seat, Adjustment (Yellow) 1

6 726-0201 Nut, Speed, .3125 ID 2

7 731-04074 Spacer, Seat, Adjustment 4

8 732-0499 Spring, Compression .41 OD x 1.50 1

9 732-1027 Spring, Extension, .80 Dia x 4.2 Lg. 1

10 732-1175 Spring, Extension, .815 Dia x 4.4 Lg. 1

11 757-04004 Seat, Mid-back, V-1480 1

12 783-0753 Selector, Seat, Adjustment 1

13 736-0275 Washer, Flat, .344 x .688 x .065 2

14 736-3019 Washer, Flat, .531 x 1.062 x .134 2

15 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1

16 738-0296 Shoulder, Screw .437 x .286 Lg 2

17 738-0966 Screw, Shoulder, .50 x.925, 3/8-16 4

18 783-0209C Bracket, Seat Lift 1

19 783-0611 Stop, Seat, Adjustment 1

20 783-0738A Bracket, Pivot, Seat 1

21 783-0739A Lever, Seat, Adjustment 1

REF.

NO. PART

NUMBER DESCRIPTION QTY.

ADJUSTABLE SEAT

-15-

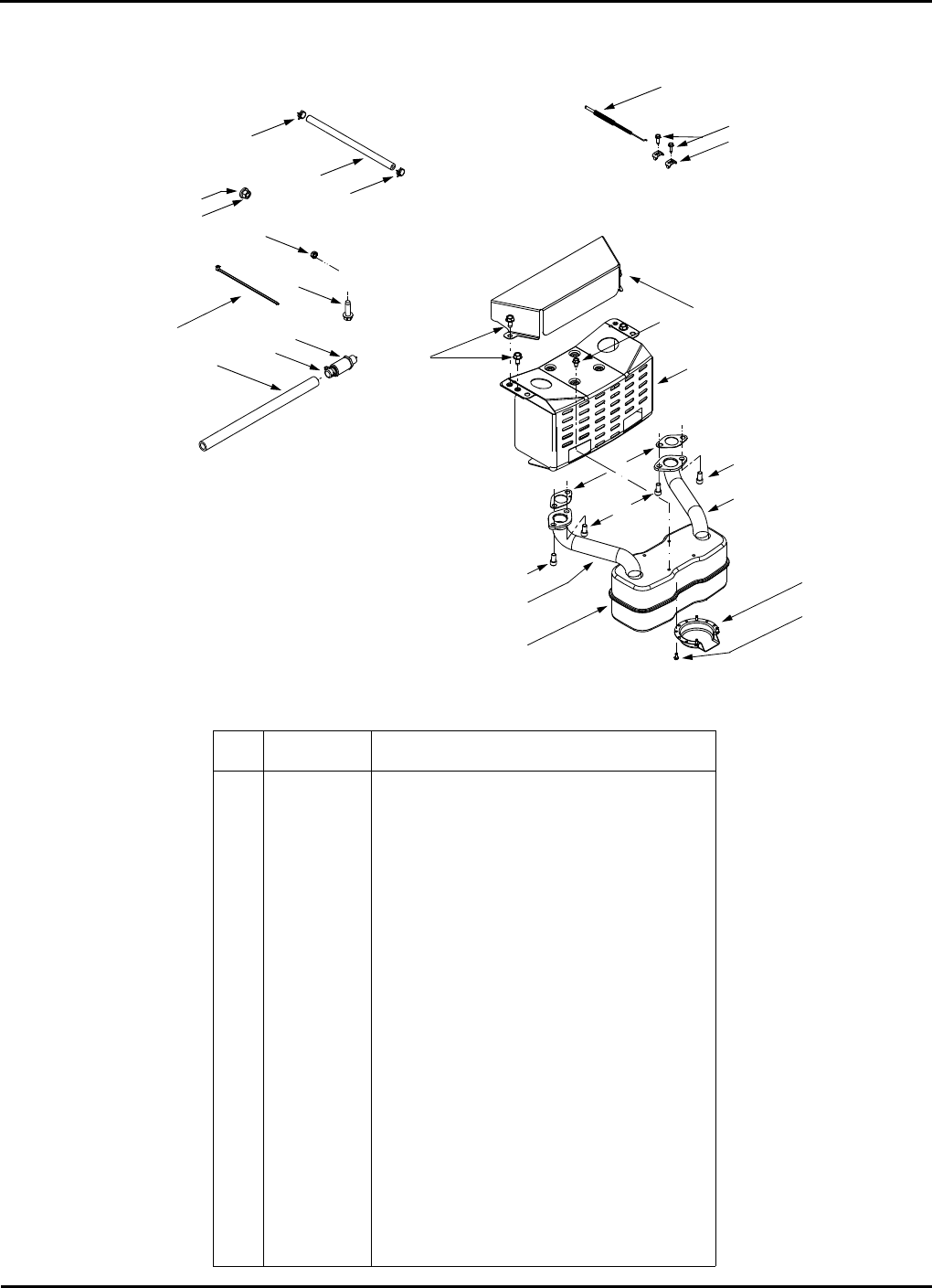

ENGINE ACCESSORIES

(for choke)

12(for throttle)

19 20

23 Engine Illustration

Not Available

REF.

NO. PART

NO. DESCRIPTION

1 710-0227 Self-tapping Screw, #8-18 x.50

2 710-0599 Self-tapping Screw, 1/4-20 x.50

3 710-0726 Self-tapping Screw, 5/16-18 x.625

4 710-1237 Screw, #10-32 x.625 (OHV V-Twin)

5 710-1314A Socket Cap Screw, 5/16-18 x.625

6 710-1315 Self-tapping Screw, 3/8-16 x 1.25

7 712-3017 Hex Nut, 3/8-16

8 721-0460 Exhaust Gasket (OHV V-Twin)

9 726-0205 Hose Clamp

10 746-1086 Throttle Cable ( OHV V-Twin)

11 736-0300 Lock Washer,.406 x.875 x.059

12 751B221535 Casing Clamp (OHV V-Twin)

13 751-0535 Fuel Line Hose

14 751-0564A Muffler Deflector

15 751-0616A Muffler, Twin Inlet ( OHV V-Twin)

16 751-0650A RH Exhaust Pipe (OHV V-Twin)

17 751-0651A LH Exhaust Pipe (OHV V-Twin)

18 751-3140 Oil Drain Valve

19 751-3141 Oil Drain Hose

20 751-3142 Oil Drain Cap

21 783-0615C Muffler Heat Shield

22 783-0625C Engine Heat Shield (OHV V-Twin)

23 712-0271 Hex Sems Nut, 1/4-20 (OHV V-Twin)

24 725-0157 Cable Tie

-16-

DASH PANEL

919

12 35

-17-

DASH PANEL

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 710-0837 Screw, #10-16 x .625 1

2 710-0192 Screw, #10-24 x .375 2

3 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6

4 710-0642 Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75 2

5 710-0650 Screw, Hx. Wash. Hd, Tapp, 5/16-18, .875 4

6 710-0703 Screw, Carriage, 1/4-20, .75, 1

7 710-0726 Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75 6

8 710-0895 Screw, 1/4-15, 0.750 1

9 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 2

10 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 1

11 712-0142 Nut, 8-32 1

12 712-0324 Nut, Nylon Lock, 1/4-20 1

13 747-04215 Strap, Battery 1

14 712-3087 Nut, Wing, 1/4-20 1

15 714-0104 Internal Cotter Pin, .072 x 1.13 1

16 725-1426 Solenoid, 12V, 100 Amp 1

17 731-04668 Dash 1

18 731-04294A Lever, Dash, Cruise 1

19 731-04293A Lever, Dash, Brake 1

20 731-3161 Knob, Throttle Control 1

21 783-04285 Dash Support, RH 1

22 736-0222 Washer, External Lock, 1/4 2

23 738-1132 Screw, Shoulder, 1/4-20, .25 x .15 1

24 783-04323 Dash Support, LH 1

25 746-04120 Control, Choke, 40.5 1

26 747-1323A Rod, .250 Dia x 4.25 Lg. 1

27 783-04475 Bracket, Steering Support 1

28 783-04506 Plate, Dash Support 1

29 741-0587 Steering Colume Bearing 1

30 783-0462 Bracket, PTO Switch Retainer 1

31 783-1447A Bracket, Support, Battery 1

34 783-1499 Bracket, Rod, Dash 1

35 725-1706A Battery, 270 CCA 1

-18-

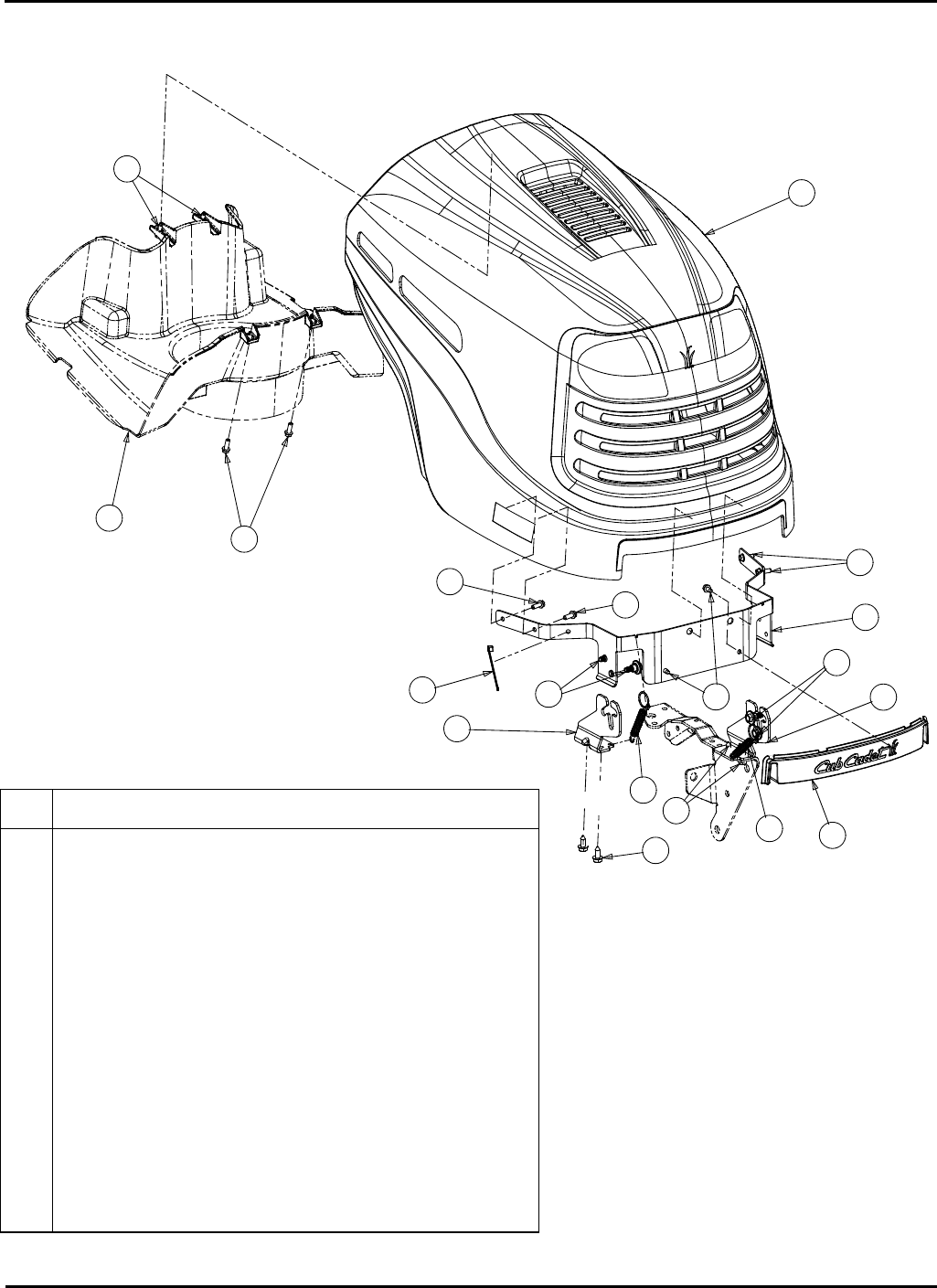

HOOD & GRILLE

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 631-04091 Hood Asssembly, Includes: 1

629-04083 Headlight Harness 1

725-0963 Minirature Lamp, 12 V 2

725-1649 Lamp Socket 2

731-04567 Hood 1

731-04577 Headlight Lens 1

777X41562 Headlight Lens Reflector, RH 1

777X41563 Headlight Lens Reflector, RH 1

2 710-0599 Screw, Hx. Wash, Hd,Tapp 1/4-20 x .5 2

3 710-0726 Self-tapping Screw, 5/16-18 x.625 4

4 710-0895 Screw, 1/4-15 x .75 8

5 725-0157 Cable Tie 1

6 731-04687A Cover, Front Hood 1

7 732-04189B Spring, .46 x 4.12 2

8 738-04091 Shoulder Screw, .43 x .29 x 5/16-18 4

9 783-04428 Pivot Bracket 1

10 783-04464A Pivot Bracket, Hood, RH 1

11 783-04465A Pivot Bracket, Hood, LH 1

12 731-04579 Hood Plenum 1

-19-

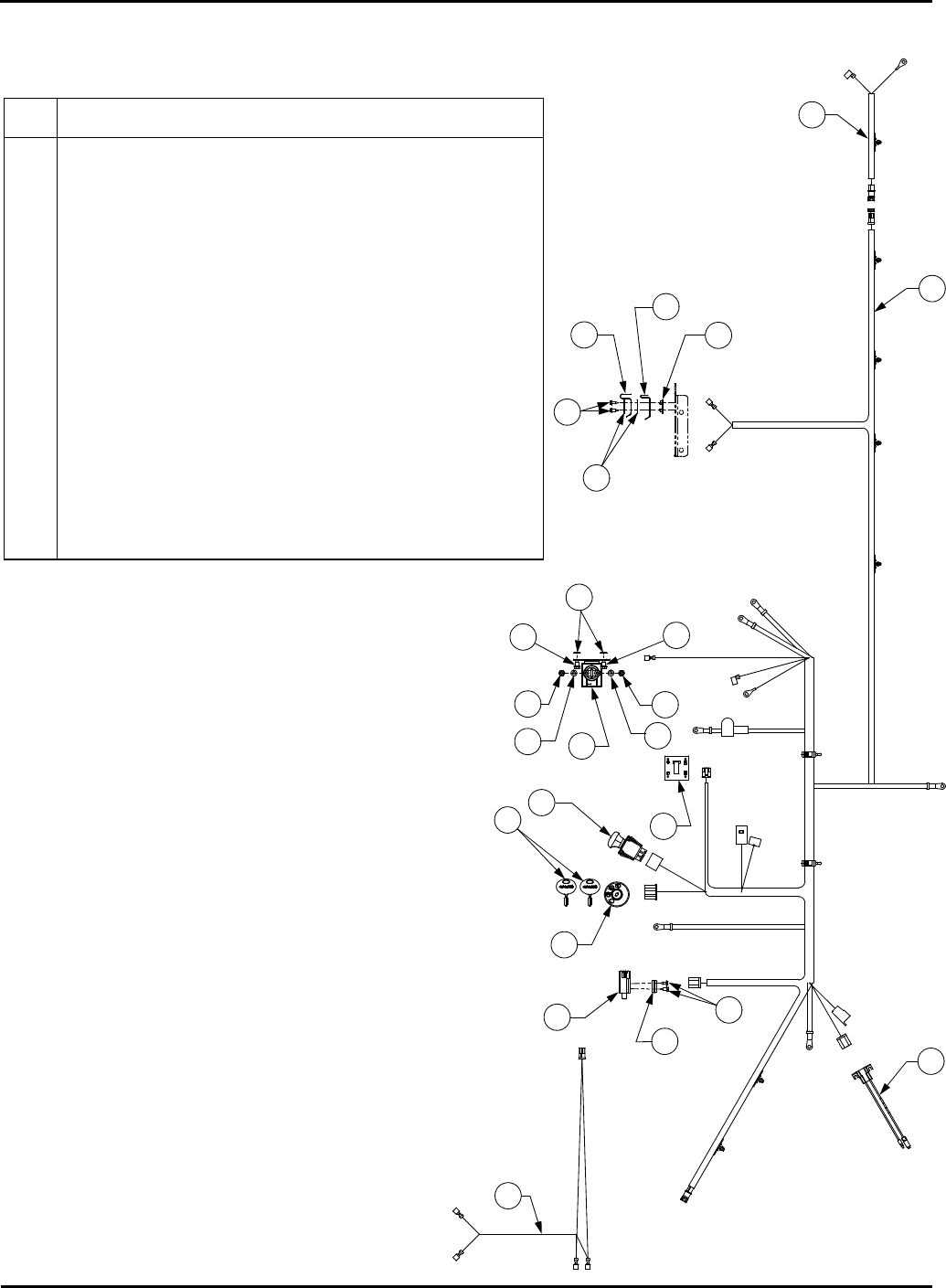

ELECTRICAL SYSTEM

16 17

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 17962 Plate, Switch 1

2 736-0329 Washer, Lock, 1/4 2

3 629-04083 Harness Assembly, Headlight 1

4 629-04079 Harness Assembly 1

5 629-04082 Harness Assembly, Safety, Reverse 1

6 710-0224 Screw, Hx. Wash. Hd. Tapp, 10-16 x .5 2

7 710-0227 Screw, Hx. Wash. Hd. Tapp, 8-18 x .5 2

8 710-0642 Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.75 2

9 712-3006 Nut, Hex, 1/4-20, Gr5 2

10 725-04022 Indicator/ Meter Hour 1

11 725-04039 Switch, Interlock 1

12 725-1303 Switch, Outer Seat Spring 1

13 725-1426 Solenoid, Starter, 12V 1

14 725-1439 Switch, Inner Seat Spring 1

15 725-1741 Switch, Key, 4-Position 1

16 725-2054 Key, Switch, Plastic 2

17 725-04175 Switch, Electric PTO, Yellow Knob 1

18 726-0278 Plate, Insulator Boss 1

19 726-0279 Plate, Insulator 2

20 736-0222 Washer, Lock, Ext 1/4 2

-20-

POWER TAKE-OFF (PTO) SYSTEM

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 710-0859 Screw, 3/8-16 x 2.5 GR5 1

2 710-0276 Screw, 5/16-12, .75 GR5 1

3 710-3025 Screw, 5/16-18, .625 GR5 2

4 710-0561 Screw, Hex Cap, 7/16-20 x 2.5 GR5 1

5 712-0130 Nut, Nylon Lock, 3/8-16 2

6 712-0429 Nut, Nylon Lock, 5/16-18 3

7 717-04080 Clutch, Electric PTO 1

8 736-0171 Washer, Lock, 7/16, Regular Duty 1

9 738-0785 Spacer, Shoulder, 1.38 x .445 x .36 1

10 748-0415B Spacer, 3/8 x 1.54 1

11 783-1003 Bracket, Clutch 1

12 783-04467 Deck Stop 1

-21-

50-INCH MOWER DECK

735

33 32

49 10

Adjustment Rod

Shown for Reference

-22-

50-INCH MOWER DECK

REF.

NO. PART

NUMBER DESCRIPTION QTY.

1 16606 Hook, Retainer 1

2 618-04129 Spindle Assembly 3

3 683-0254 Hanger Bracket Assembly 1

4 683-04098 Idler Bracket 1

5 683-04120 Weldment, 50-inch Deck 1

6 703-3279 Chute Stop 1

7 710-0347 Screw, 3/8-16, 1.75 2

8 710-0395 Screw, 5/16-18 x 2.25 1

9 710-0528 Screw, 5/16-18, 1.25, Gr5 1

10 710-0599 Screw, Self-tapping, 1/4-20 x 0.5 8

11 710-0726 Screw, Self-tapping, 5/16-18 x.625 6

12 710-1260A Screw, Self-tapping, 5/16-18 x .75 12

13 710-3168 Screw, Carriage, 3/8-16 x 1.0 1

14 710-3178 Screw, Carriage, 3/8-16 x .75 2

15 711-1737 Pin, Roller, 10.06 1

16 712-0130 Nut, Nylon Lock, 3/8-16 5

17 712-0417A Nut, Hex, Flange, 5/8-18 3

18 712-0429 Nut, Nylon Lock, 5/16-18 1

19 712-0431 Nut, Flange Lock, 3/8-16 4

20 712-3010 Nut, Hex, 5/16-18, Gr5 1

21 712-3019 Nut, 7/16-14 1

22 631-04070 Chute Assembly, Side Discharge 1

23 714-0470 Pin, Cotter, 1/8 x 1.25 2

24 714-3004 Pin, Cotter, 3/32 x 1.25 1

25 717-04074 Deck Adjustment Gear 1

26 731-3005 Roller, Front 1

27 732-0306A Spring, Compression, .531 x 1.75 2

28 732-0459 Spring, Extension, .94 x 6.74 1

30 734-04039 Deck Wheel, 5.0 2

31 734-0973 Deck Wheel, 5.0 2

32 736-0119 Washer, Lock, 5/16, Regular Duty 2

34 736-0407 Washer, Bell, .45 x 1.0 x .062 1

35 736-3072 Washer, Flat, .38 x .93 x .110 2

36 737-3000 Fitting, Lube, 3/16 1

37 738-0373 Shoulder Screw 4

38 738-3005 Screw, Shoulder, .68 x 1.59 1

39 742-04068 Blade (2-n-1), 17.9” 3

40 747-1116 Rod, Handle, Deck Release .375 Dia 2

42 750-0151 Spacer, .550 x .755 x 1.1 2

43 754-04048 Belt, V-Type, Aramid 1

44 756-0627B Pulley, Idler, 3.5” 1

45 756-1229 Pulley, Idler, 4.06” 1

46 783-04399 LH Belt Cover 1

47 783-04400 RH Belt Cover 1

48 783-04414 Deck Skirt, Center 1

49 783-04415 Deck Skirt, RH 1

-23-

163

1022

868

1095 VALVE GASKET SET

1019 LABEL KIT

1058 OWNER'S MANUAL

1036 EMISSION LABEL

965

219

847

968

1024

1027

552

1017

691

865B

252

250

1035

943

750

615

220

524

525

287

447

865

703

842

523

855

447A

865A

1026

929

213

188

216

222

304

305

967

445

467

718

1026A

212

163

447

447A

146

741

1013

89 53

654

729

239

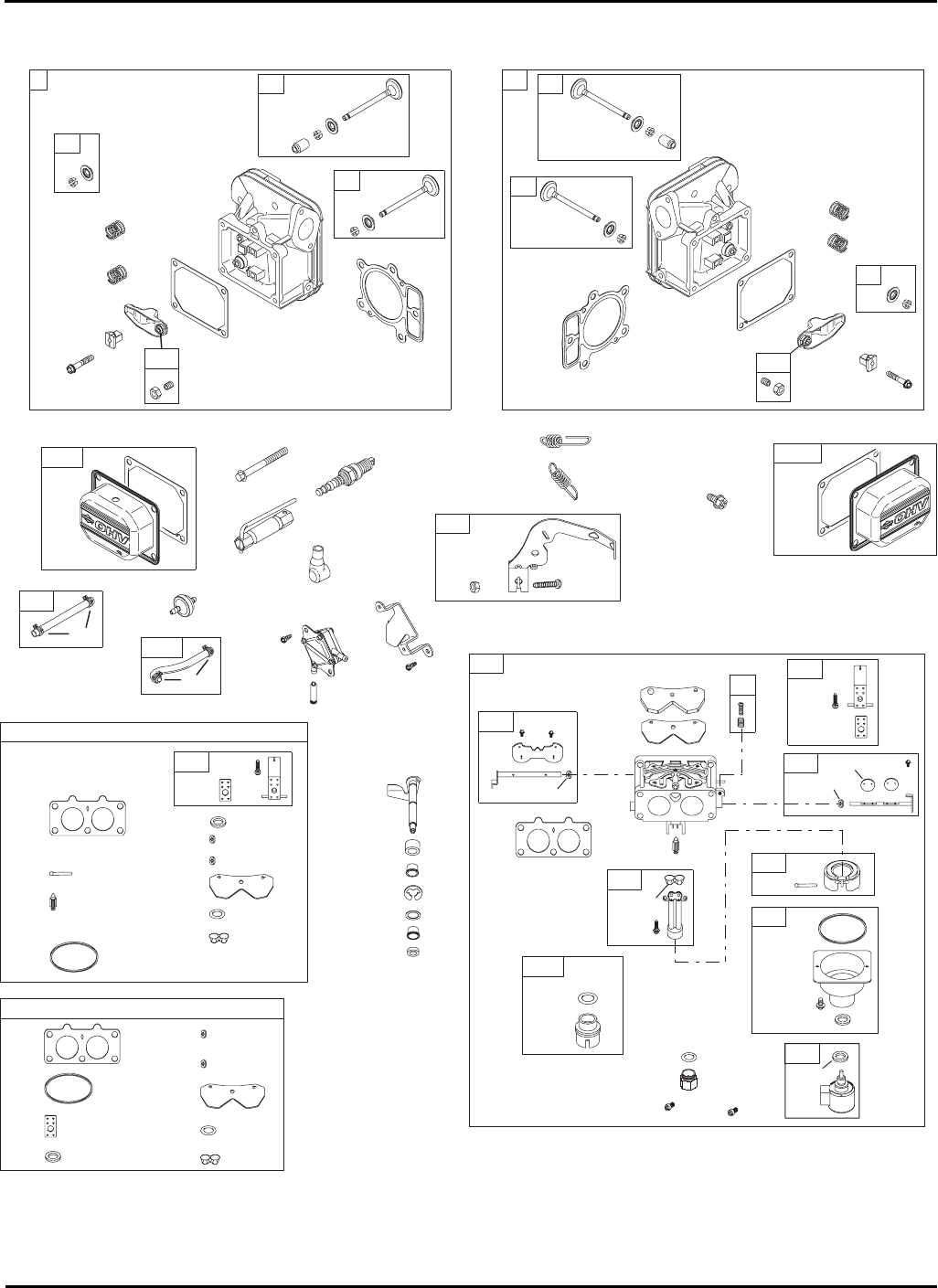

ENGINE (LT1024)

-24-

977 CARBURETOR GASKET SET

121 CARBURETOR OVERHAUL KIT

1128

142

150

104 672

137

1123

987

1124

105

276

633

276

672

137

1123

987

1124

150

633

135

947

975

133

131

142

141

125

187

227

192

187A

1023 1023A

104

137

1127

276

633

108

231

987

130 95

150

1128

1126

1124

117

160

1123

105

672

418

616

240

918

387

385

628

788

505

1022

914

209

211

337

383

868

798

1100

1029

1022

192

868

798

1100

1029

1022

601

552

552A

742

404

552A

691

276

562

635

117A

1342

276

ENGINE (LT1024)

-25-

358 ENGINE GASKET SET

691

163

276

943

524

1022

868

333

510

309

474

1090

797

311

697

310

801

544

803

1051

783 513

802

405

573

851

334

1119

363

1070

332

1005

668

797A

23 165

695

726

501

526

842

789

877

1059

1330 REPAIR MANUAL

1054

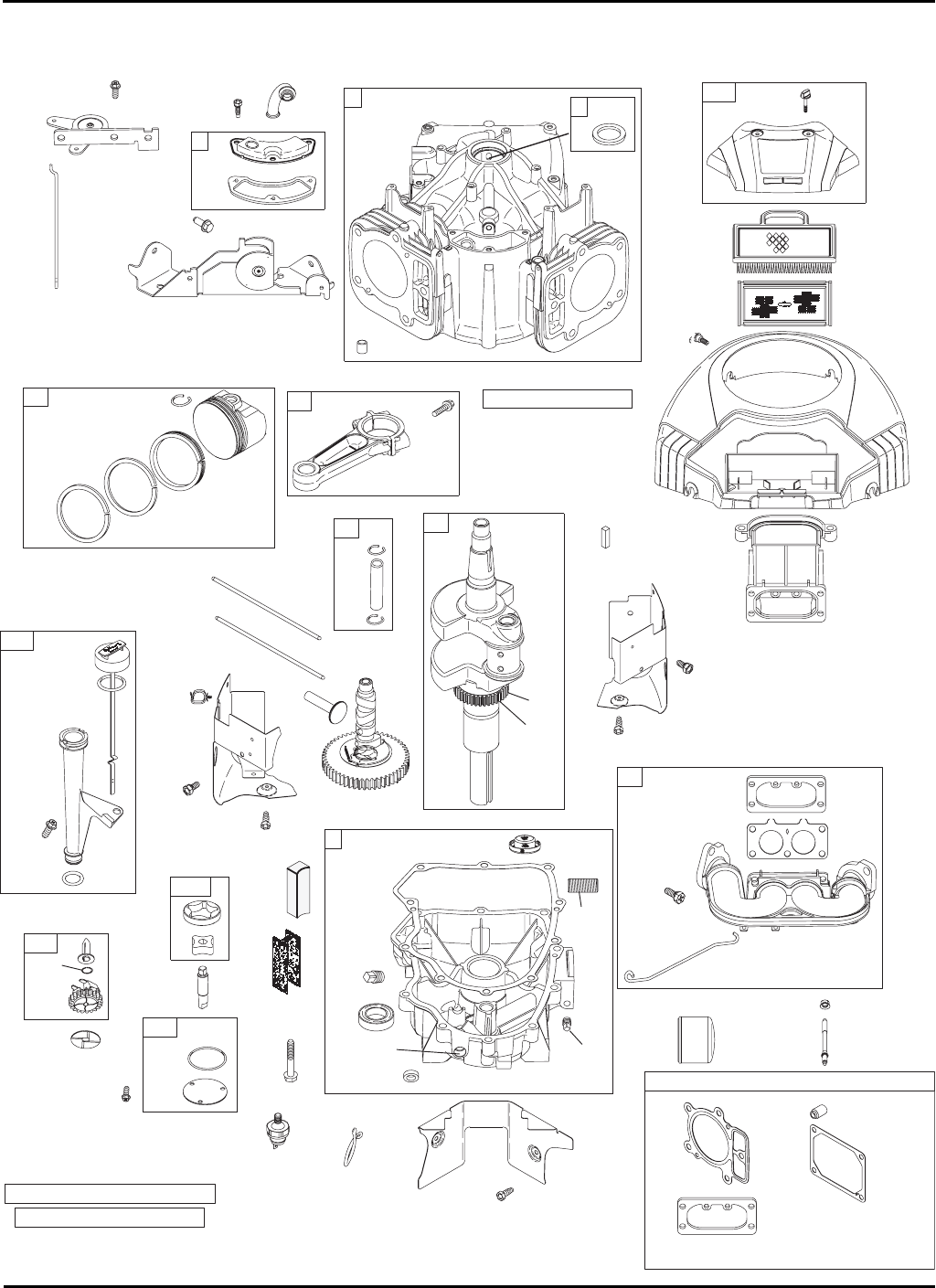

ENGINE (LT1024)

• Included in Engine Gasket Set, Key. No. 358

Ø Included in Carburetor Overhaul Kit, Key. No. 121

‡ Included in Carburetor Gasket Set, Key. No. 977

+ Included in Valve Gasket Set, Key. No. 1095

-26-

ENGINE (LT1024)

REF.

NO. PART

NUMBER DESCRIPTION

1 699753 Cylinder Assembly

2 499585 Kit-Bushing/Seal (Magneto Side)

3 391086• Seal-Oil (Magneto Side)

4 699747 Sump-Engine

5 697580 Head-Cylinder (Cylinder 1)

5A 697581 Head-Cylinder (Cylinder 2)

7 693997•+ Gasket-Cylinder Head

8 499601 Breather Assembly

9 690937• Gasket-Breather

10 690960 Screw (Breather Assembly)

11 690942 Tube-Breather

12 697227• Gasket-Crankcase

13 690360 Screw (Cylinder Head)

15 690946 Plug-Oil Drain

16 691046 Crankshaft

20 690947• Seal-Oil (PTO Side)

22 694966 Screw (Engine Sump)

23 691053 Flywheel

24 222698 Key-Flywheel

25 697679 Piston Assembly (Standard)

25 697681 Piston Assembly(.020”)

26 697683 Ring Set-Piston (Standard)

26 697685 Ring Set-Piston (.020”)

27 690975 Lock-Piston Pin

28 690229 Pin-Piston

29 499583 Rod-Connecting

32 690976 Screw (Connecting Rod)

33 697576 Valve-Exhaust

34 499597 Valve-Intake

35 690963 Spring-Valve (Intake)

36 690963 Spring-Valve (Exhaust)

42 499586 Keeper-Valve

45 690977 Tappet-Valve

46 699748 Camshaft

48 698172 Short Block

50 695241 Manifold-Intake

51 690950• Ø‡ Gasket-Intake

53 690951 Stud (Carburetor)

54 695240 Screw (Intake Manifold)

73 691055 Screen-Rotating

74 698425 Screw (Rotating Screen)

75 691056 Washer (Flywheel)

89 690283 Plug-Oil

95 690718 Screw (Throttle Valve)

98 699721 Kit-Idle Speed

104 694918Ø Pin-Float Hinge

105 698537Ø Valve-Float Needle

108 699723 Valve-Choke

117 699494 Jet-Main (Standard)

117A 699495 Jet-Main (Standard)

121 699734 Kit-Carburetor Overhaul

125 699709 Carburetor

130 690993 Valve-Throttle

131 499805 Kit-Throttle Shaft

133 699724 Float-Carburetor

135 699729 Tube-Fuel Transfer

137 690994Ø‡ Gasket-Float Bowl

141 699722 Kit-Choke Shaft

142 699726Ø Nozzle-Carburetor

146 690979 Key-Timing

150 690995Ø‡ Gasket-Nozzle

160 699727 Retainer-Solenoid

163 691001•+ Gasket-Air Cleaner

165 693148 Nut (Ring Gear)

187 691050 Line-Fuel

187A 691049 Line-Fuel (Molded)

188 690960 Screw (Control Bracket)

192 690083 Adjuster-Rocker Arm

209 697674 Spring-Governor

211 691019 Spring-Governed Idle

212 695238 Link-Throttle

213 691021 Bracket-Choke Control

216 691022 Link-Choke

219 698231 Gear-Governor

220 690412 Washer (Governor Lever)

222 698761 Bracket-Control

227 691048 Lever-Governor Control

231 690718 Screw (Choke Valve)

239 491657 Switch-Oil Pressure

240 695666 Filter-Fuel

250 690957 Retainer-Breather

252 690956 Collector-Oil

276 690997•Ø+ Washer-Sealing

287 690960 Screw (Dipstick Tube)

304 695277 Housing-Blower

305 691005 Screw (Blower Housing)

309 691262 Motor-Starter

310 691263 Bolt (Starter Motor)

311 497608 Brush Set

332 691059 Nut (Flywheel)

333 691060 Armature-Magneto

334 691061 Screw (Magneto Armature)

337 491055 Plug-Spark

358 694012 Set-Engine Gasket

363 691062 Flywheel Puller

383 690966 Wrench-Spark Plug

385 690960 Screw (Fuel Pump)

387 808656 Pump-Fuel

404 690442 Washer (Governor Crank)

405 697820 Screw (Back Plate)

REF.

NO. PART

NUMBER DESCRIPTION

-27-

ENGINE (LT1024)

418 690999 Plate-Carburetor

445 698754 Filter-Air Cleaner Cartridge

447 691003 Screw (Air Guide Cover)

447A 690960 Screw (Air Guide Cover)

467 691008 Knob, Air Cleaner

474 696458 Alternator

501 691185 Regulator

505 691029 Nut (Governor Control Lever)

510 497606 Drive-Starter

513 692024 Clutch-Drive

523 691036 Dipstick

524 691032 Seal-Dipstick Tube

525 691037 Tube-Dipstick

526 690960 Screw (Regulator)

544 Armature-Starter (Service with

691262 Starter Motor)

552 690552 Bushing-Governor Crank

552A 690553 Bushing-Governor Crank

562 690311 Bolt (Governor Control Lever)

573 691009 Plate-Back

601 691038 Clamp-Hose

615 698290 Retainer-Governor Shaft

616 691045 Crank-Governor

628 690960 Screw (Fuel Pump Bracket)

633 690998Ø‡ Seal-Choke/Throttle Shaft

635 66538 Boot-Spark Plug

654 690958 Nut (Carburetor)

668 691215 Spacer

672 690234Ø‡ Gasket-Carburetor Plate

691 690657• Seal-Governor Shaft

695 693149 Screw (Ring Gear)

697 690372 Screw (Drive Cap)

703 691010 Clip

718 690959 Pin-Locating

726 499612 Gear-Ring

729 694123 Clip-Wire

741 690980 Gear-Timing

742 690328 Retainer-E Ring

750 696999 Screw (Oil Pump Cover)

783 693058 Gear-Pinion

788 691039 Bracket-Fuel Pump

789 698330 Harness-Wiring

797 691029 Nut (Brush Retainer)

797A 693167 Nut (Brush Retainer)

798 690967 Screw (Rocker Arm)

801 691283 Cap-Drive

802 691286 Cap-End

803 Housing-Starter (Service with

691262 Starter Motor)

842 691031• Seal-Dipstick/Tube

REF.

NO. PART

NUMBER DESCRIPTION

847 499602 Dipstick/Tube Assembly

851 493880 Terminal-Sparkplug

855 691011 Adapter-Air

865 691012 Cover-Air Guide

865A 691014 Cover-Air Guide

865B 691015 Cover-Air Guide

868 690968•+ Seal-Valve

877 399916 Wire/Connector- Alternator

914 691127 Screw (Rocker Cover)

918 694000 Hose-Vacuum

929 695239 Screw (Choke Control Bracket)

943 690589• Seal-O Ring (Oil Pump Cover)

947 699728 Solenoid-Fuel

965 499613 Cover-Oil Pump

967 273638 Filter-Pre Cleaner

968 499788 Cover-Air Cleaner

975 499810 Bowl-Float

977 699735 Gasket Set-Carburetor

987 691000Ø‡ Seal-Throttle Shaft

1005 499603 Fan-Flywheel

1013 690954 Nipple-Oil Filter

1017 690770 Screen-Oil Pump

1019 690103 Kit-Label

1022 690971 Gasket-Rocker Cover

1023 499599 Cover-Rocker (Cylinder 1)

1023A 499600 Cover-Rocker (Cylinder 2)

1024 499054 Pump-Oil

1026 690981 Rod-Push (Steel)

1026 690982 Rod-Push (Aluminum)

1027 696854 Filter-Oil

1029 690972 Arm-Rocker

1035 691042 Shaft-Pump

1036 695704 Label-Emission

1051 691265 Ring-Retaining

1054 280275 Cable-Tie

1058 275475 Owner's Manual

1059 698516 Kit-Screw/Washer

1070 691058 Screw (Flywheel Fan)

1090 691293 Retainer-Brush

1095 699735 Gasket Set-Valve

1100 690973 Pivot-Rocker Arm

1119 691183 Screw (Alternator)

1123 699725Ø ‡ Seal-O Ring (Solenoid Retainer)

1124 690988Ø ‡ Seal-O Ring

(Fuel Transfer Tube)

1126 690991 Screw (Fuel Transfer Tube)

1127 690992 Screw (Float Bowl)

1128 690990Ø Screw (Carburetor Nozzle)

1330 273521 Repair Manual

1342 699731 Expansion-Fuel Transfer Tube

REF.

NO. PART

NUMBER DESCRIPTION

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

769 01022 !! 13AR11CP712

Preview ! 13AR11CP712 Cub Cadet Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
