HCD-GNX700/GNX800

E Model

HCD-GNX700/GNX800

Australian Model

HCD-GNX800

SERVICE MANUAL

MiNi Hi-Fi COMPONENT SYSTEM

SPECIFICATIONS

Ver. 1.1 2006.09

– Continued on next page –

• HCD-GNX700/GNX800 is the Amplifier,

CD player, tape deck and tuner

section in MHC-GNX700/GNX800.

Model Name Using Similar Mechanism HCD-GN880

CD CD Mechanism Type CDM74KF-F1BD81A

Section Base Unit Name BU-F1BD81A

Optical Pick-up Name KSM-215DCP/C2NP

TAPE Model Name Using Similar Mechanism HCD-GNX80

Section Tape Transport Mechanism Type CWN42FF601

Amplifier section

HCD-GNX800

The following are measured at AC 120, 220, 240 V, 50/60 Hz

Front/Surround speaker

DIN power output (rated) 180 + 180 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

225 + 225 watts

(6 ohms at 1 kHz, 10% THD)

Subwoofer

Continuous RMS power output (reference)

200 watts

(8 ohms at 100 Hz, 10% THD)

HCD-GNX700

The following are measured at AC 120, 220, 240 V, 50/60 Hz

Front speaker

DIN power output (rated) 170 + 170 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

220 + 220 watts

(6 ohms at 1 kHz, 10% THD)

Subwoofer

Continuous RMS power output (reference)

160 watts

(8 ohms at 100 Hz, 10% THD)

Inputs

VIDEO/MD (AUDIO) IN (phono jacks):

voltage 250/450 mV,

impedance 47 kiloohms

TV (AUDIO) IN (phono jack): voltage 250 mV,

impedance 47 kiloohms

MIC (phone jack): sensitivity 1 mV,

impedance 10 kiloohms

Outputs

PHONES (stereo mini jack): accepts headphones of 8 ohms or more

FRONT SPEAKER/SURROUND SPEAKER/

SUBWOOFER OUT: Use only the supplied speaker

Photo: HCD-GNX800

Sony Corporation

Home Audio Division

Published by Sony Techno Create Corporation

9-887-068-02

2006I02-1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C

during repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

This appliance is classified as

a CLASS 1 LASER product.

This label is located on the rear

exterior.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH

MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead

free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size.)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40°C higher than

ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350°C.

Caution: The printed pattern (copper foil) may peel away if

the heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to flow)

than ordinary solder so use caution not to let solder bridges

occur such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

Disc player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ=780 nm)

Emission duration: continuous

Laser Output Max. 44.6 μW*

* This output is the value measured at

a distance of 200 mm from the

objective lens surface on the Optical

Pick-up Block with 7 mm aperture.

Frequency response 2 Hz – 20 kHz (±0.5 dB)

Wave length 780 – 790 nm

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

OPTICAL CD DIGITAL OUT

(Square optical connector jack, rear panel)

Wave length 660 nm

Output Level –18 dBm

Tape deck section

Recording system 4-track 2-channel stereo

Frequency response 50 – 13,000 Hz (±3 dB),

using Sony TYPE I tape

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 – 108.0 MHz

Antenna FM lead antenna

Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Latin American models: 530 – 1,710 kHz

(with the interval set at 10 kHz)

531 – 1,710 kHz

(with the interval set at 9 kHz)

Other models: 531 – 1,602 kHz

(with the interval set at 9 kHz)

530 – 1,710 kHz

(with the interval set at 10 kHz)

Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

General

Power requirements

Australian model: 230 – 240 V AC, 50/60 Hz

Argentina models: 220 V AC, 50/60 Hz

Other models: 120 V, 220 V or 230 – 240 V AC, 50/

60 Hz

Adjustable with voltage selector

Power consumption

MHC-GNX800 350 watts

MHC-GNX700 290 watts

Dimensions (w/h/d) (Approx.) 281 × 362 × 404.5 mm

Mass (Approx.)

HCD-GNX800 14.3 kg

HCD-GNX700 14.0 kg

Design and specifications are subject to change without notice.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

TABLE OF CONTENTS

1. SERVICING NOTES ................................................ 4

2. GENERAL

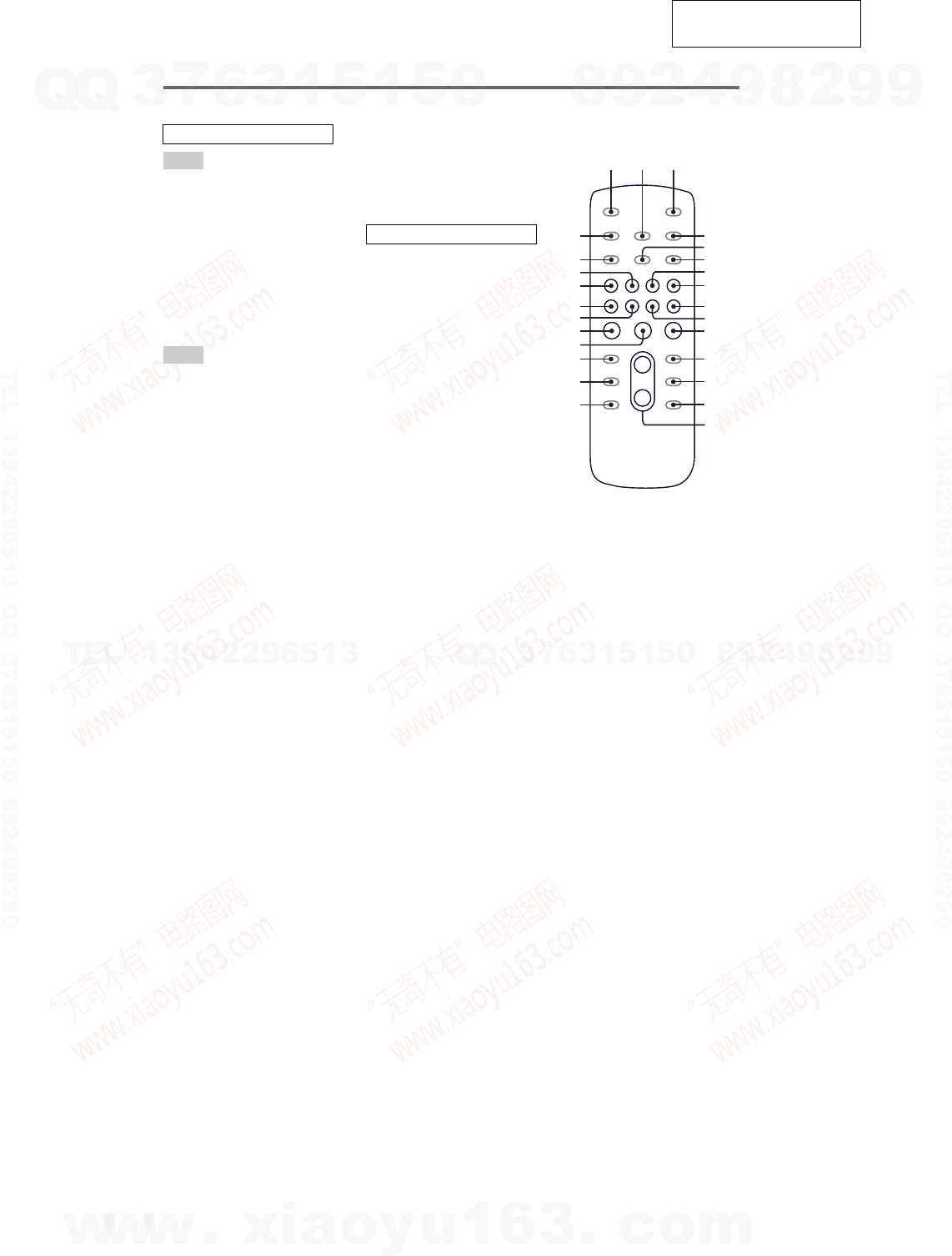

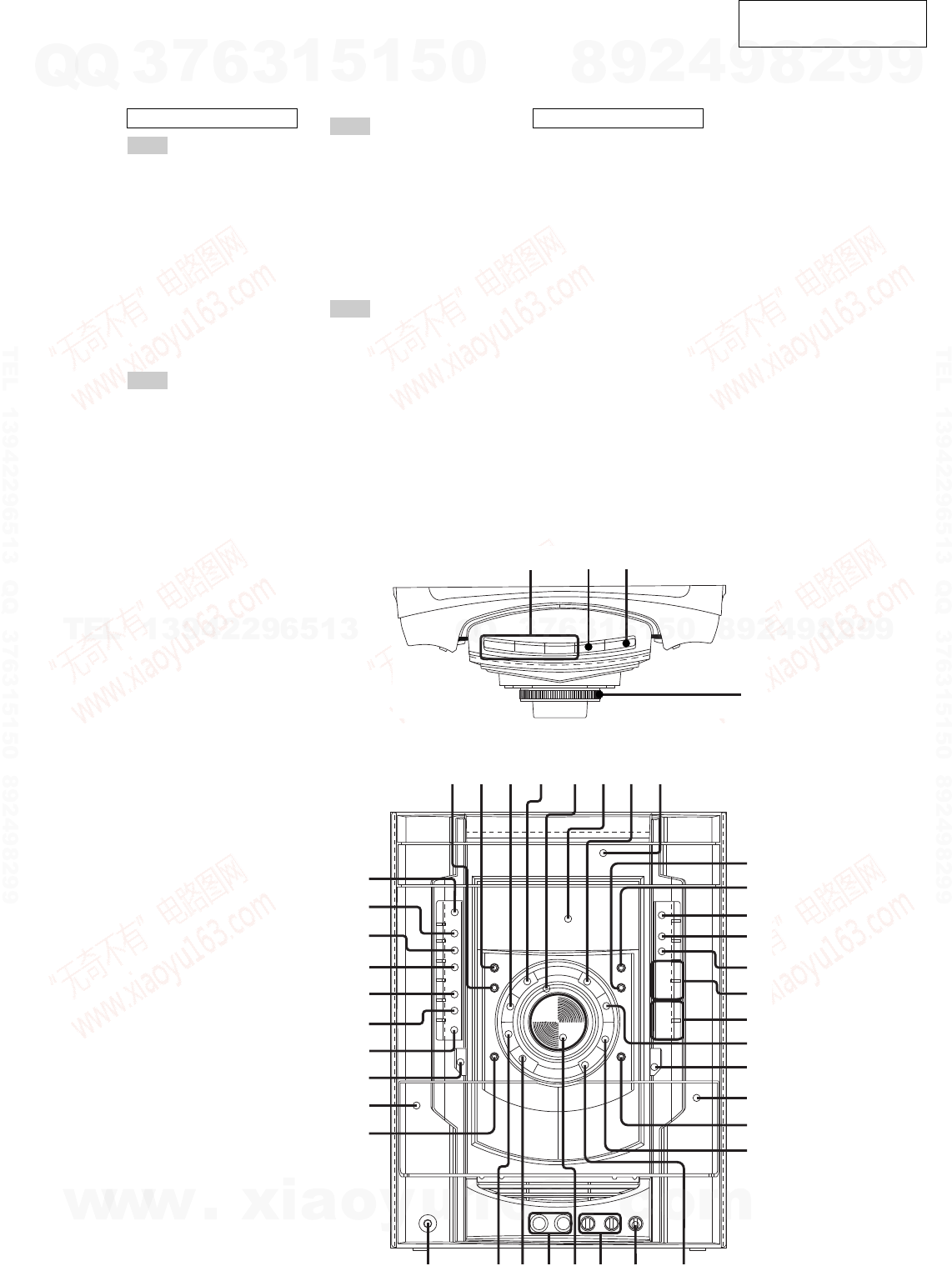

Locating the Controls ...................................................... 5

3. DISASSEMBLY

3-1. Disassembly Flow ........................................................... 7

3-2. Side Panel, Top Case ....................................................... 8

3-3. Loading Panel .................................................................. 8

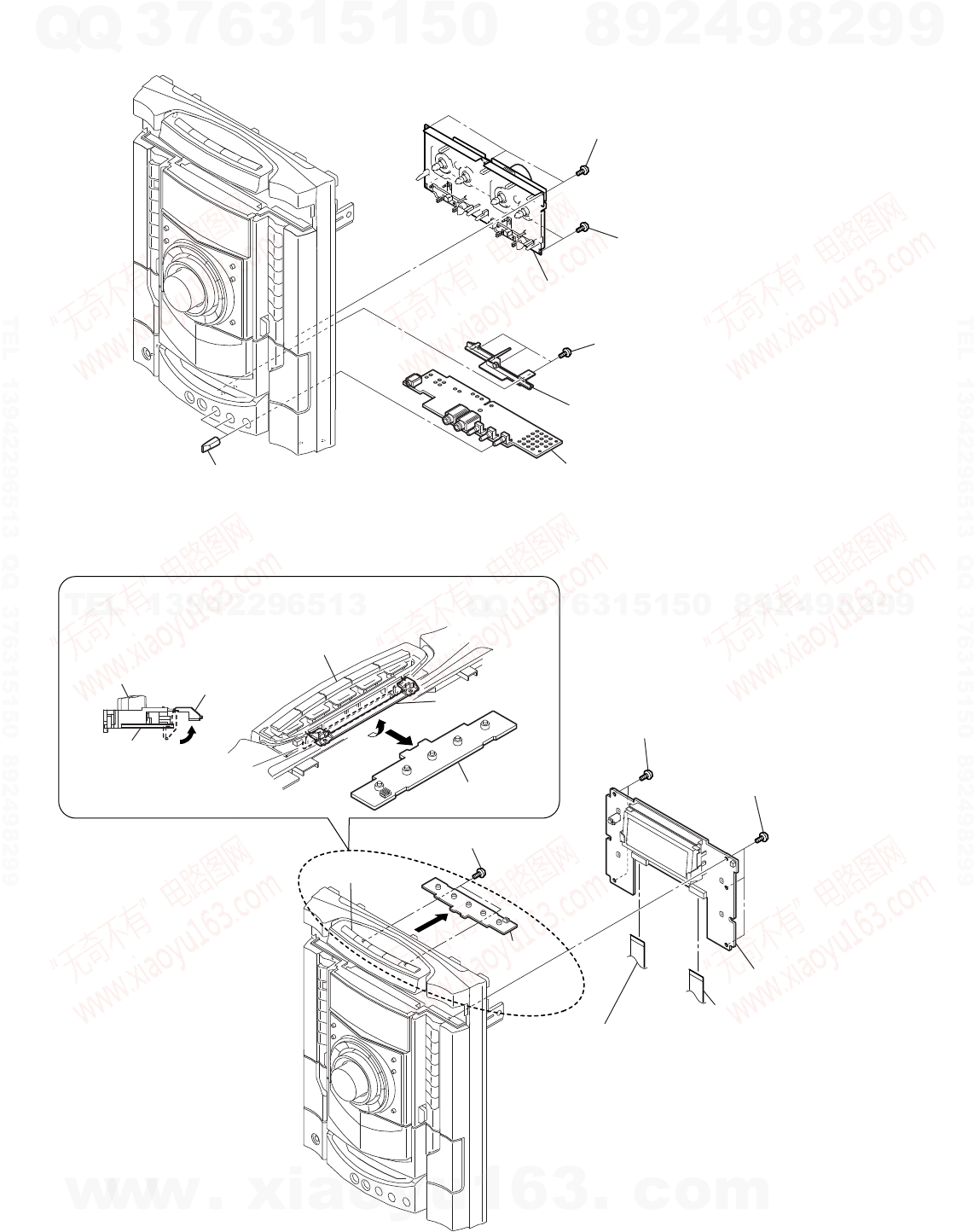

3-4. Front Panel Assy .............................................................. 9

3-5. Tuner Pack ....................................................................... 9

3-6. Tape Mechanism Deck, MIC Board ................................ 10

3-7. CD-SW Board, PANEL Board ........................................ 10

3-8. FUNCTION Board, JOG Board ...................................... 11

3-9. CD Mechanism Deck ...................................................... 11

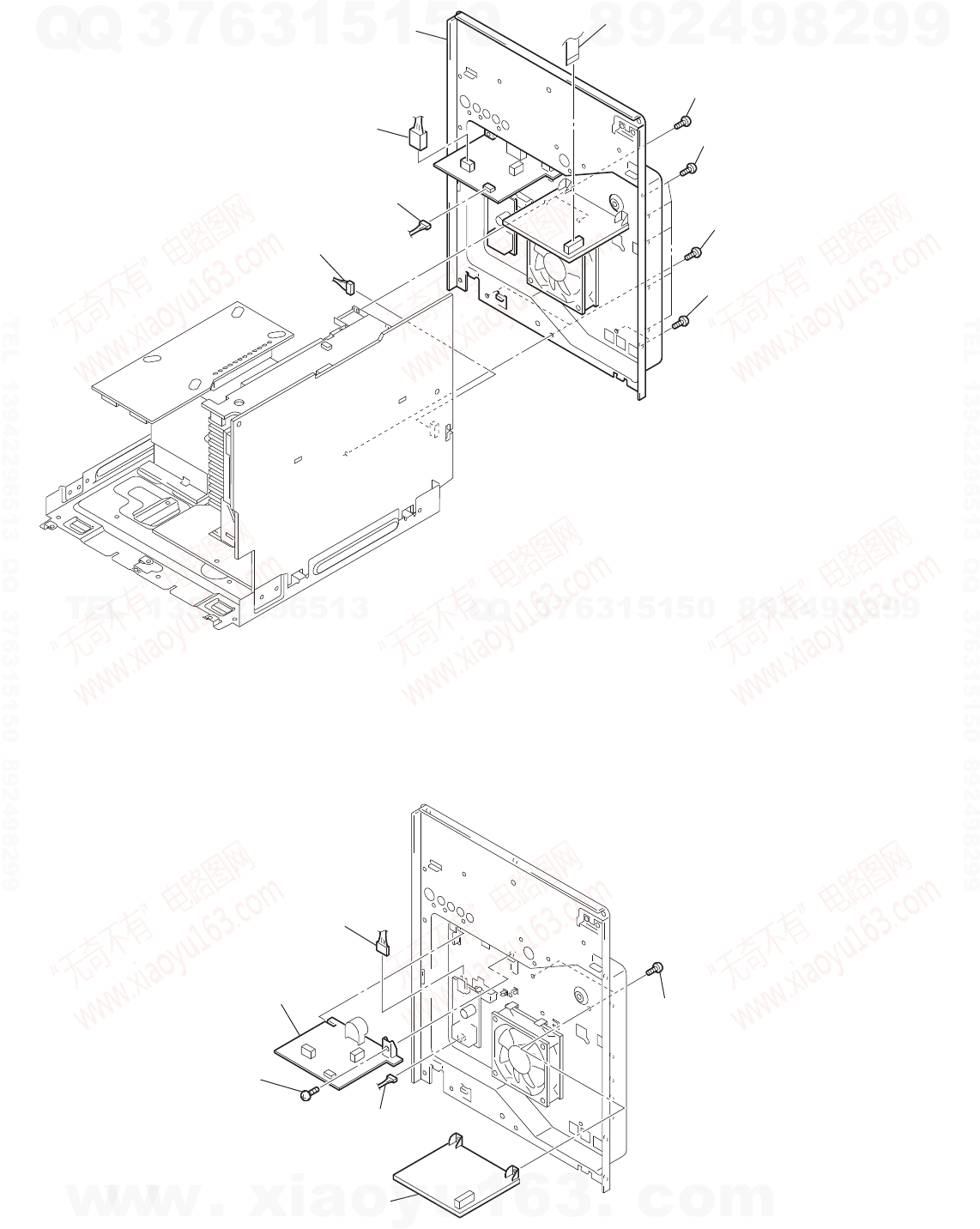

3-10. Back Panel ....................................................................... 12

3-11. PRIMARY Board, EFFECTOR Board ............................ 12

3-12. Power Amp Pc Board Assy, MAIN Board ...................... 13

3-13. SURROUND Board, PA Board ....................................... 13

3-14. Power Transformer (T1200) ............................................ 14

3-15. DRIVER Board, SW Board ............................................. 14

3-16. CD Board ......................................................................... 15

3-17. SENSOR Board ............................................................... 15

3-18. MOTOR (TB) Board ....................................................... 16

3-19. MOTOR (LD) Board ....................................................... 16

4. TEST MODE .............................................................. 17

5. MECHANICAL ADJUSTMENTS ....................... 21

6. ELECTRICAL ADJUSTMENTS

Deck section .................................................................... 21

CD Section ...................................................................... 22

7. DIAGRAMS

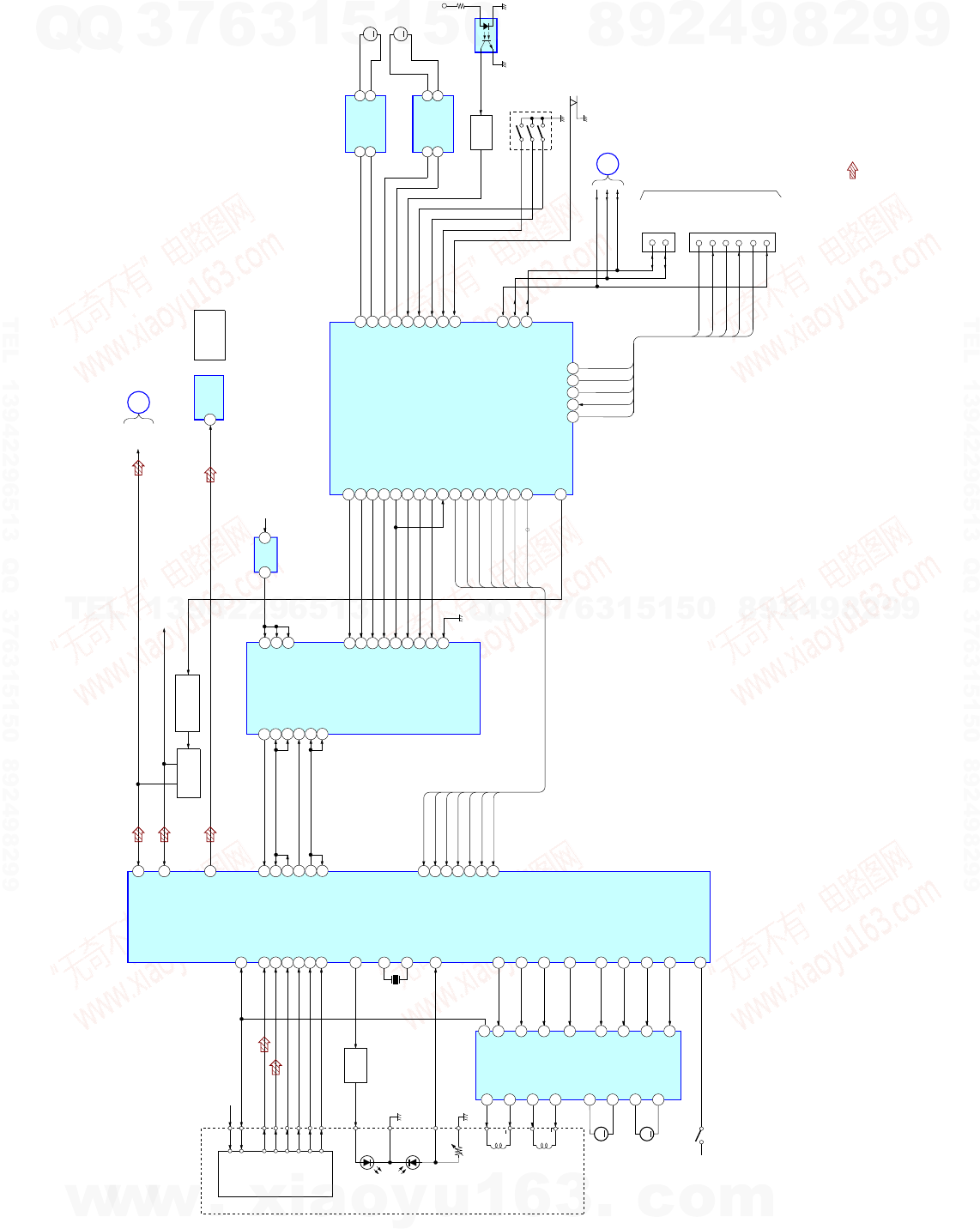

7-1. Block Diagram – CD Section – ...................................... 27

7-2. Block Diagram – Tape/Tuner Section – ......................... 28

7-3. Block Diagram – Main Section – ................................... 29

7-4. Block Diagram – AMP Section – ................................... 30

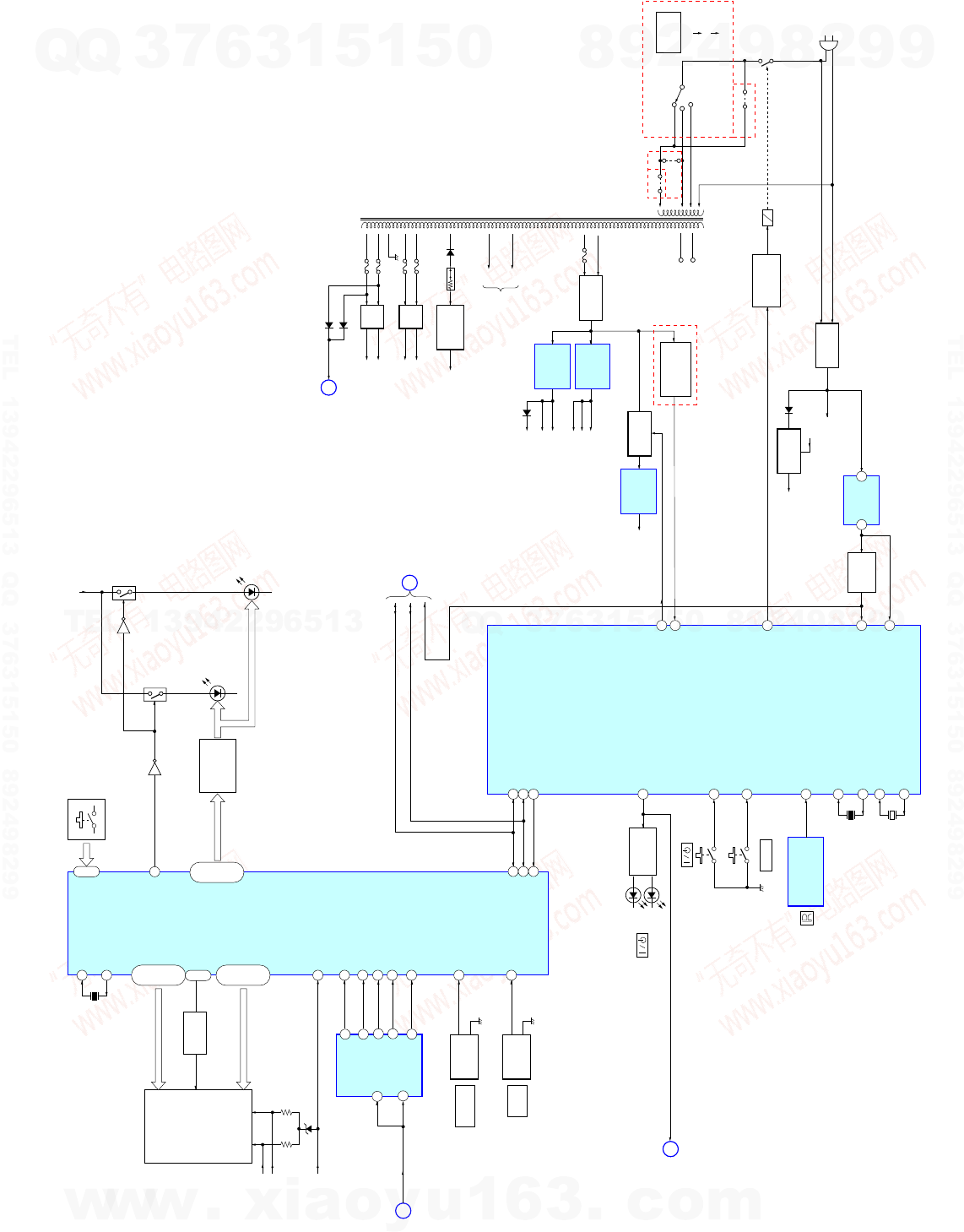

7-5. Block Diagram – Display/Power Section – .................... 31

7-6. Printed Wiring Board – CD Board – .............................. 32

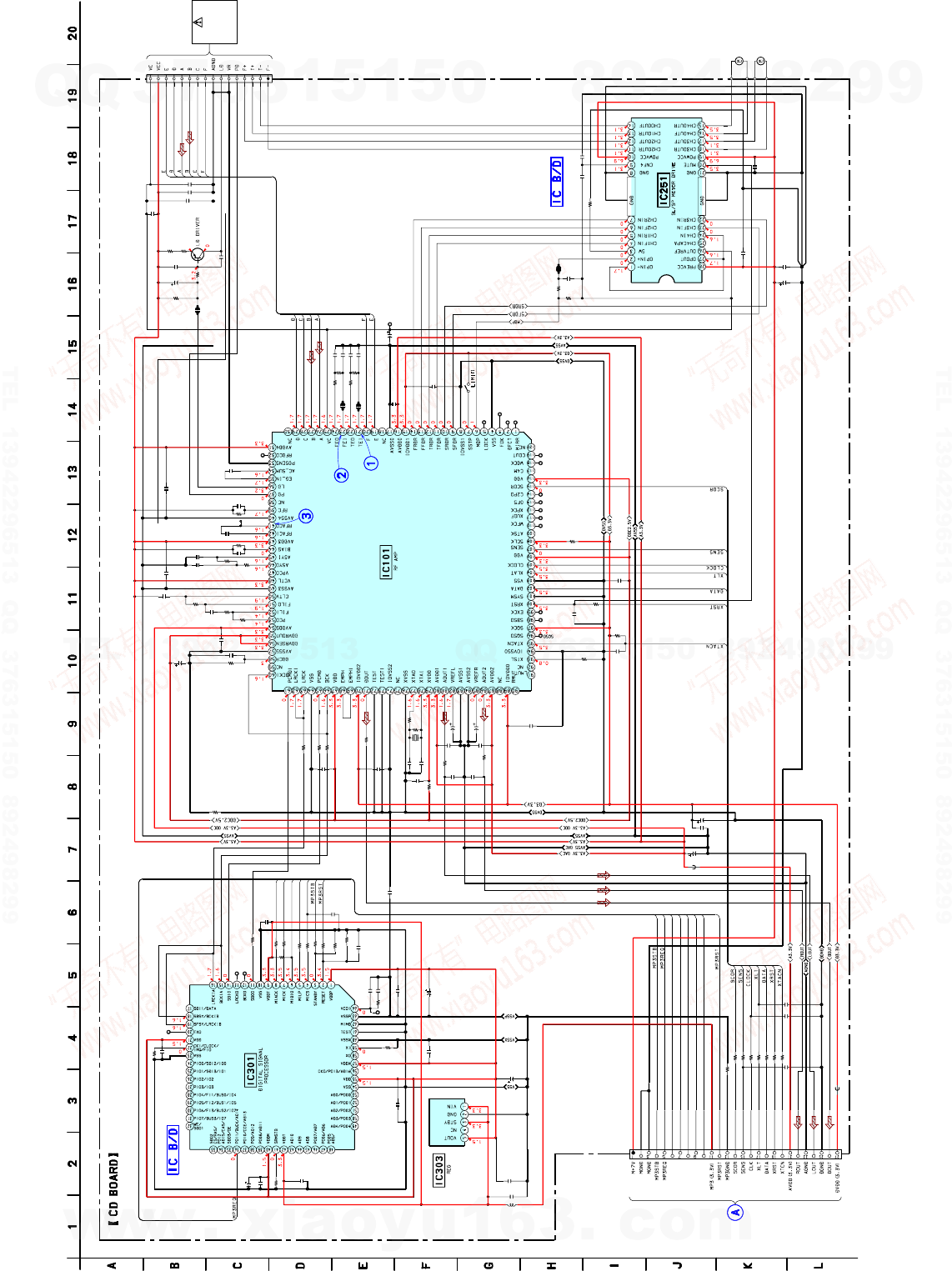

7-7. Schematic Diagram – CD Board – ................................. 33

7-8. Printed Wiring Boards – CD Mechanism Sectiom – ...... 34

7-9. Schematic Diagram – CD Mechanism Section – ........... 35

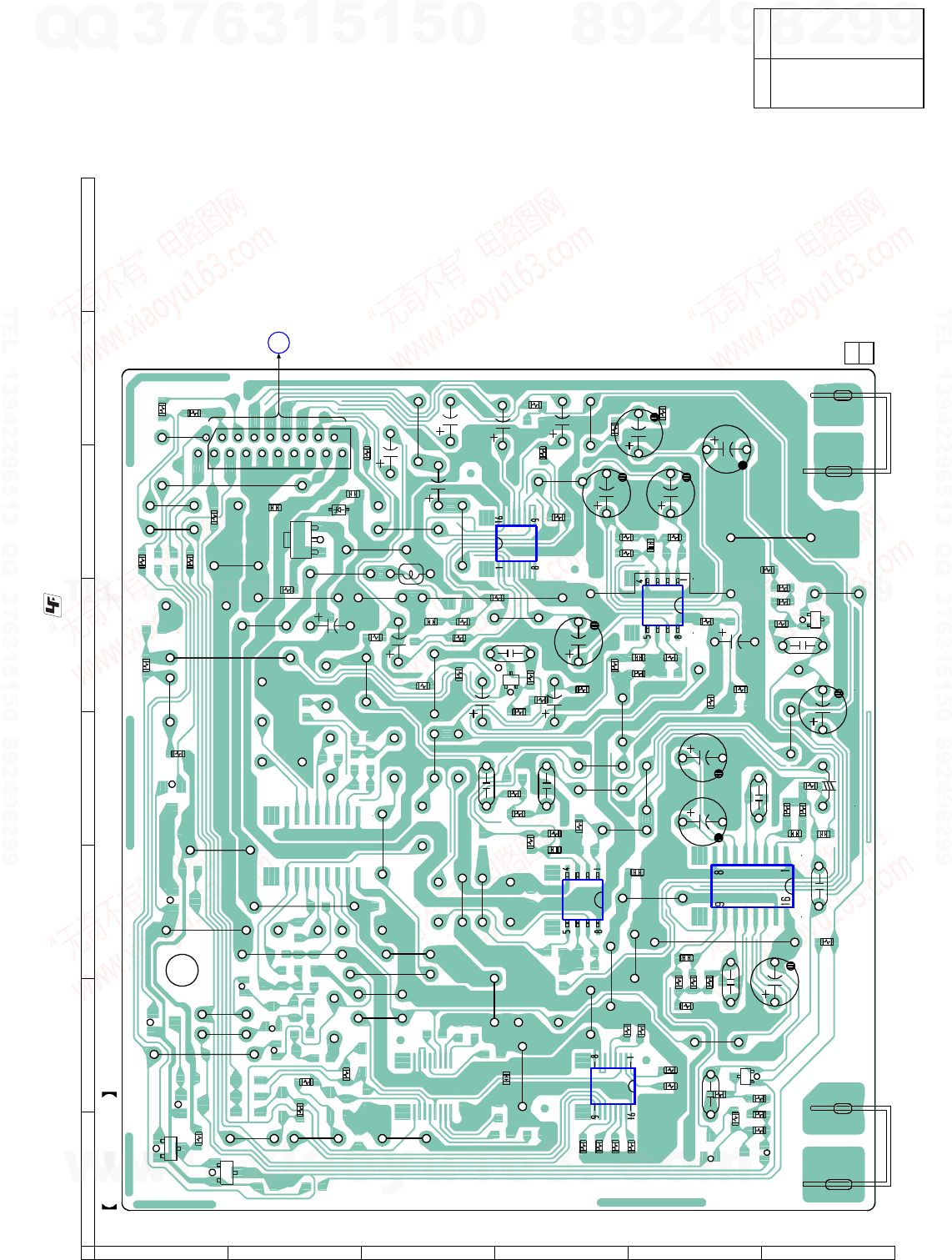

7-10. Printed Wiring Board – MAIN Board – ......................... 36

7-11. Schematic Diagram – MAIN Board (1/3) – ................... 37

7-12. Schematic Diagram – MAIN Board (2/3) – ................... 38

7-13. Schematic Diagram – MAIN Board (3/3) – ................... 39

7-14. Printed Wiring Board – PANEL Board – ....................... 40

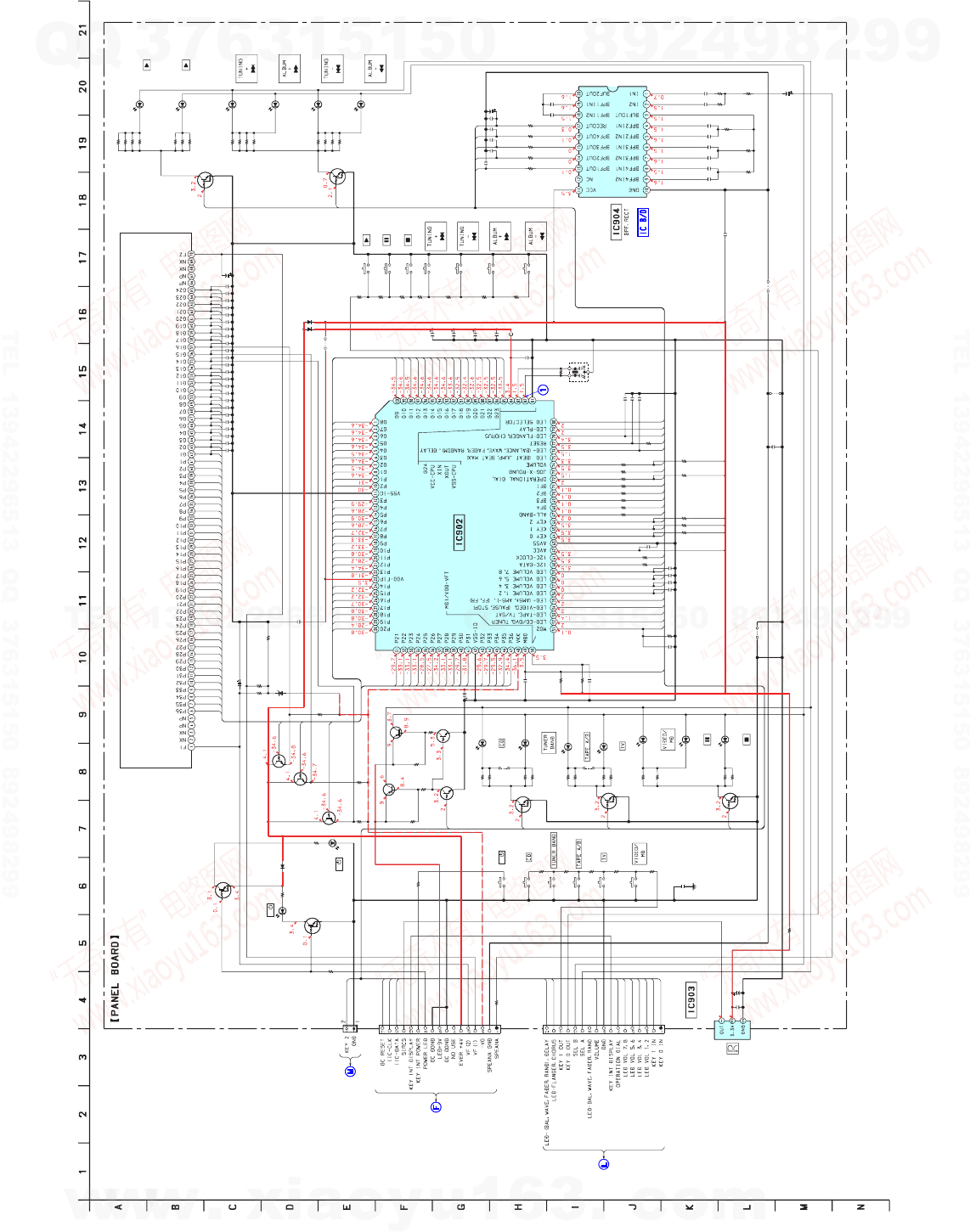

7-15. Schematic Diagram – PANEL Board – ........................... 41

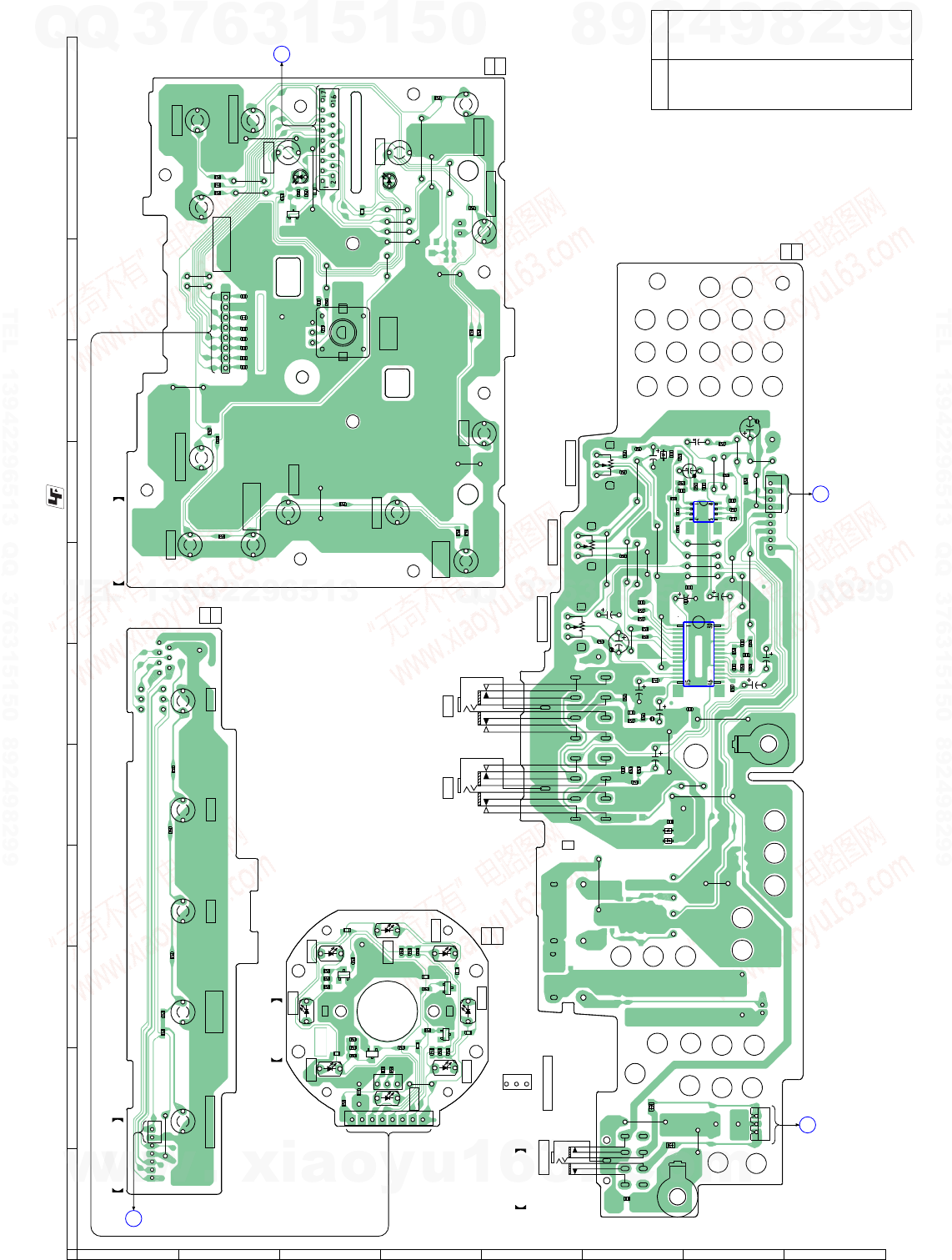

7-16. Printed Wiring Boards

– CD-SW, JOG, MIC and FUNCTION Boards – ........... 42

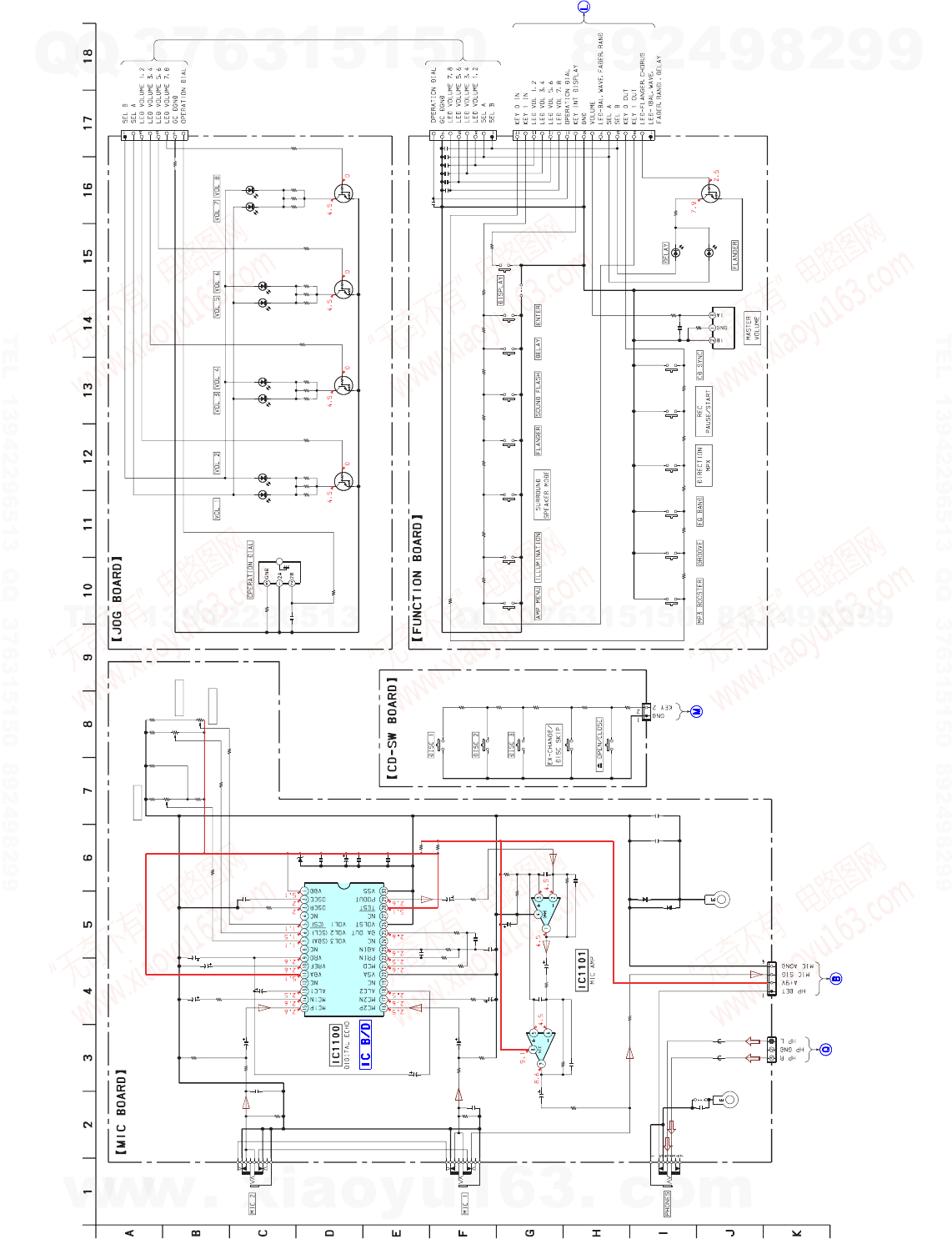

7-17. Schematic Diagram

– CD-SW, JOG, MIC and FUNCTION Boards – ........... 43

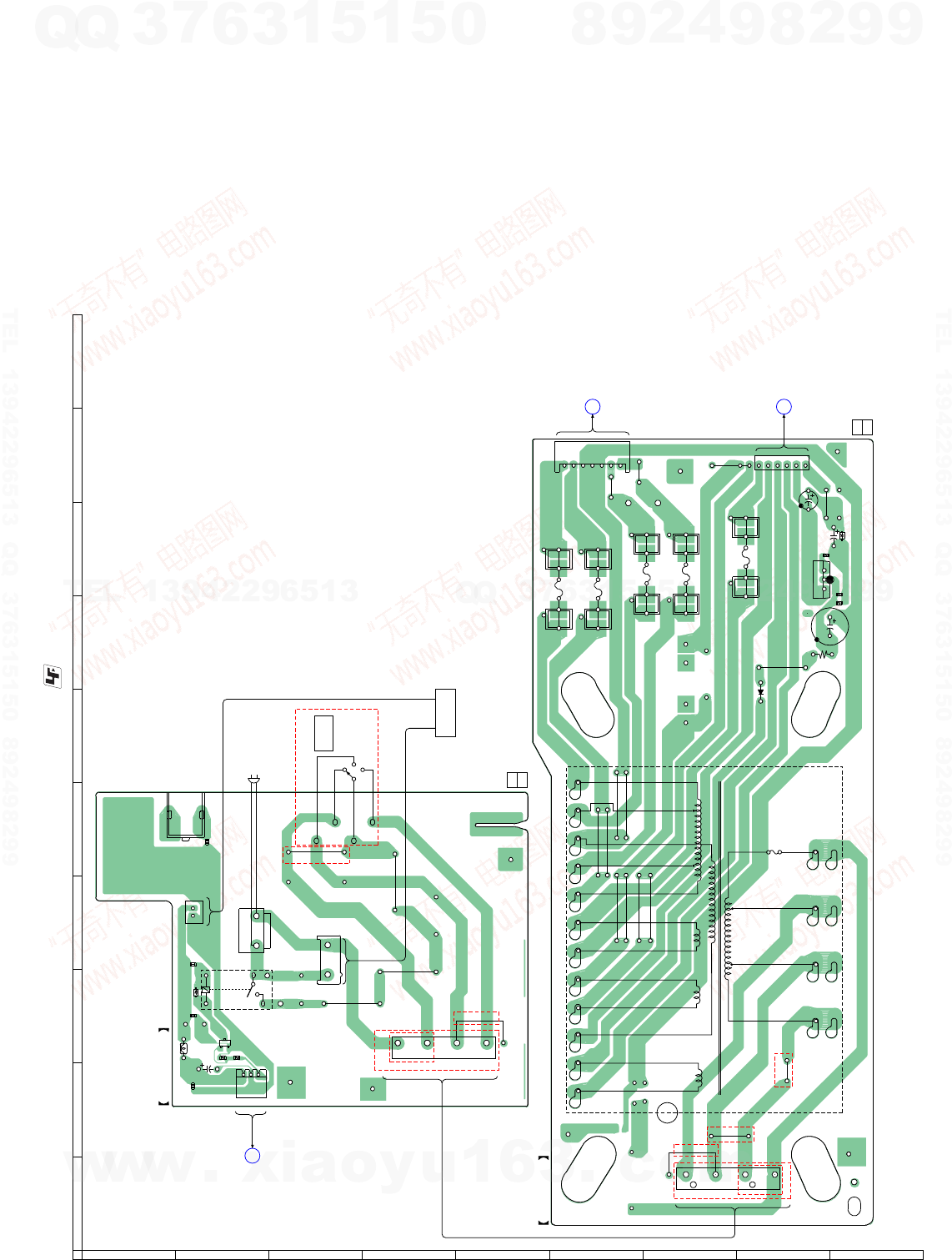

7-18. Printed Wiring Board – PA Board – ............................... 44

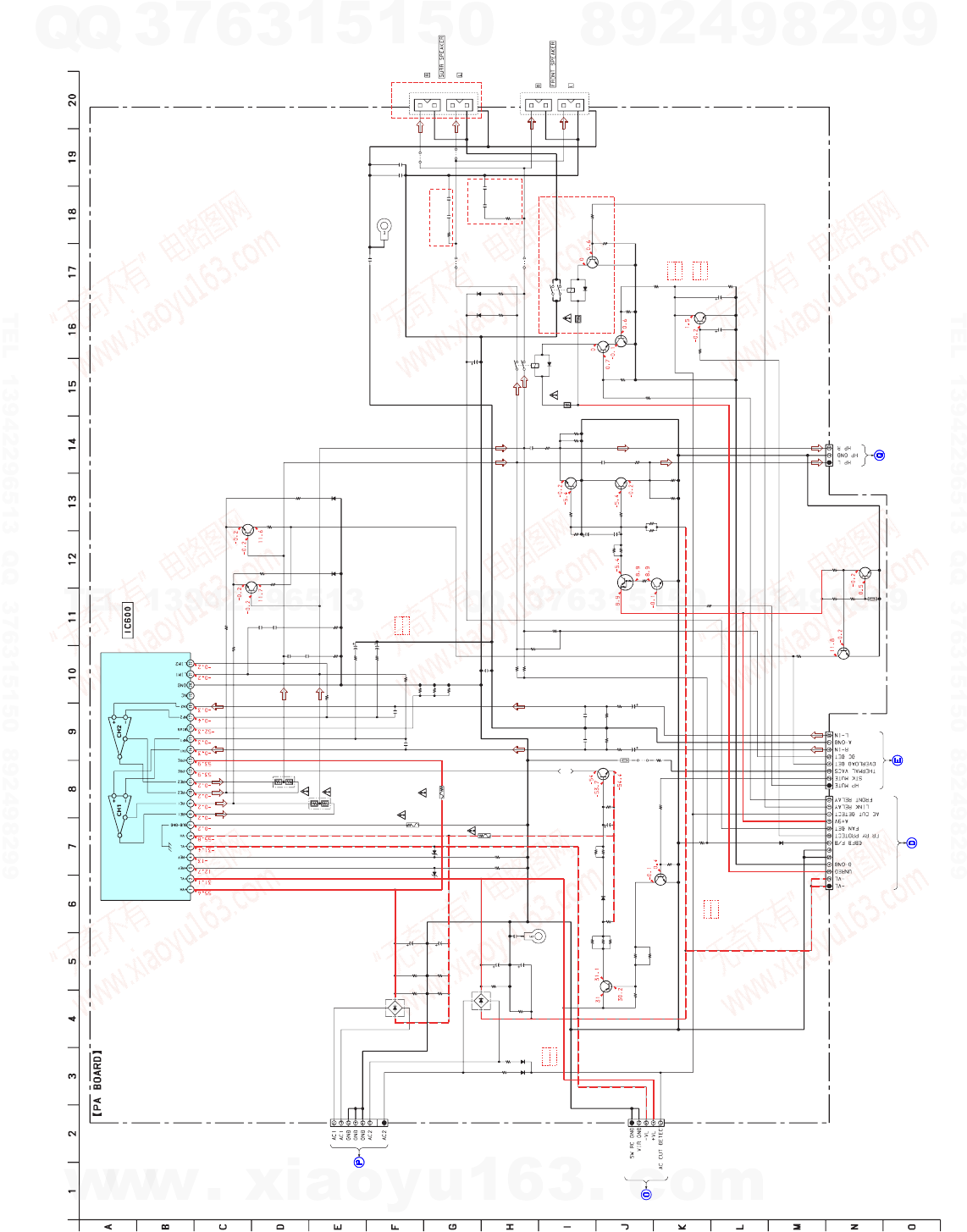

7-19. Schematic Diagram – PA Board – .................................. 45

7-20. Printed Wiring Board – SURROUND Board – .............. 46

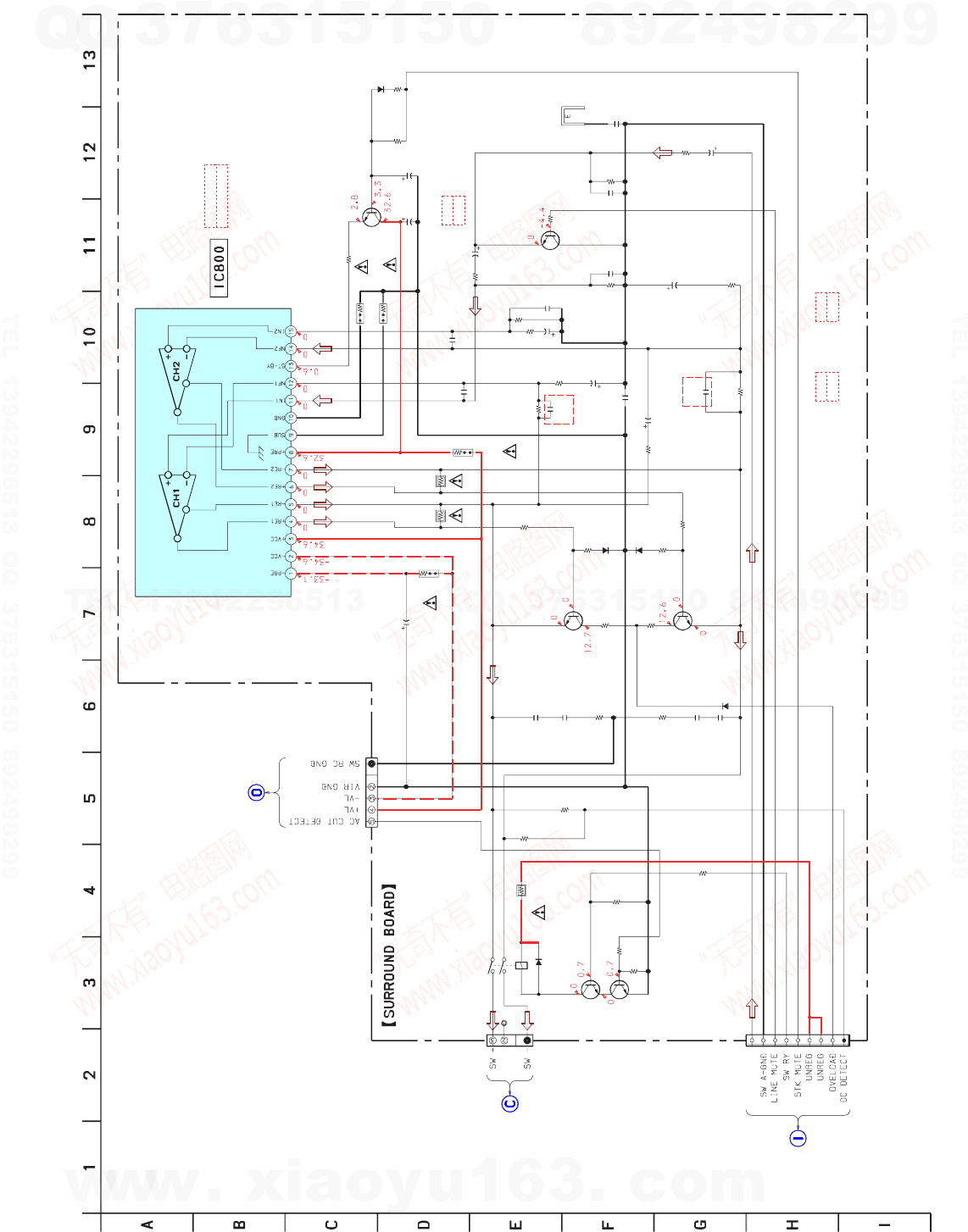

7-21. Schematic Diagram – SURROUND Board –................. 47

7-22. Printed Wiring Board – EFFECTOR Board – ................ 48

7-23. Schematic Diagram – EFFECTOR Board –................... 49

7-24. Printed Wiring Boards – Power Section – ...................... 50

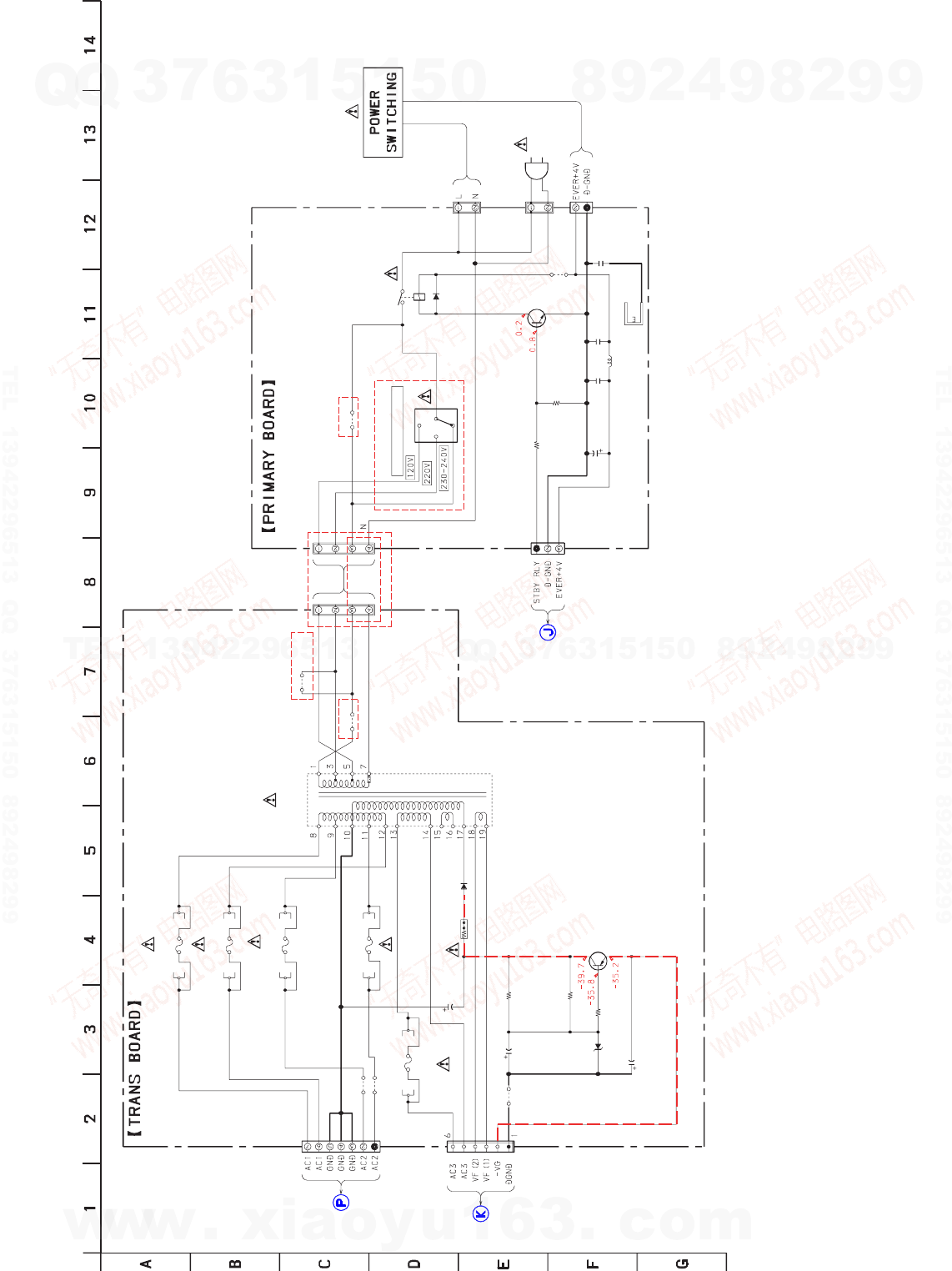

7-25. Schematic Diagram – Power Section – .......................... 51

7-26. IC Pin Function Description ............................................ 56

8. EXPLODED VIEWS

8-1. Case (Top), Back Panel Section ...................................... 62

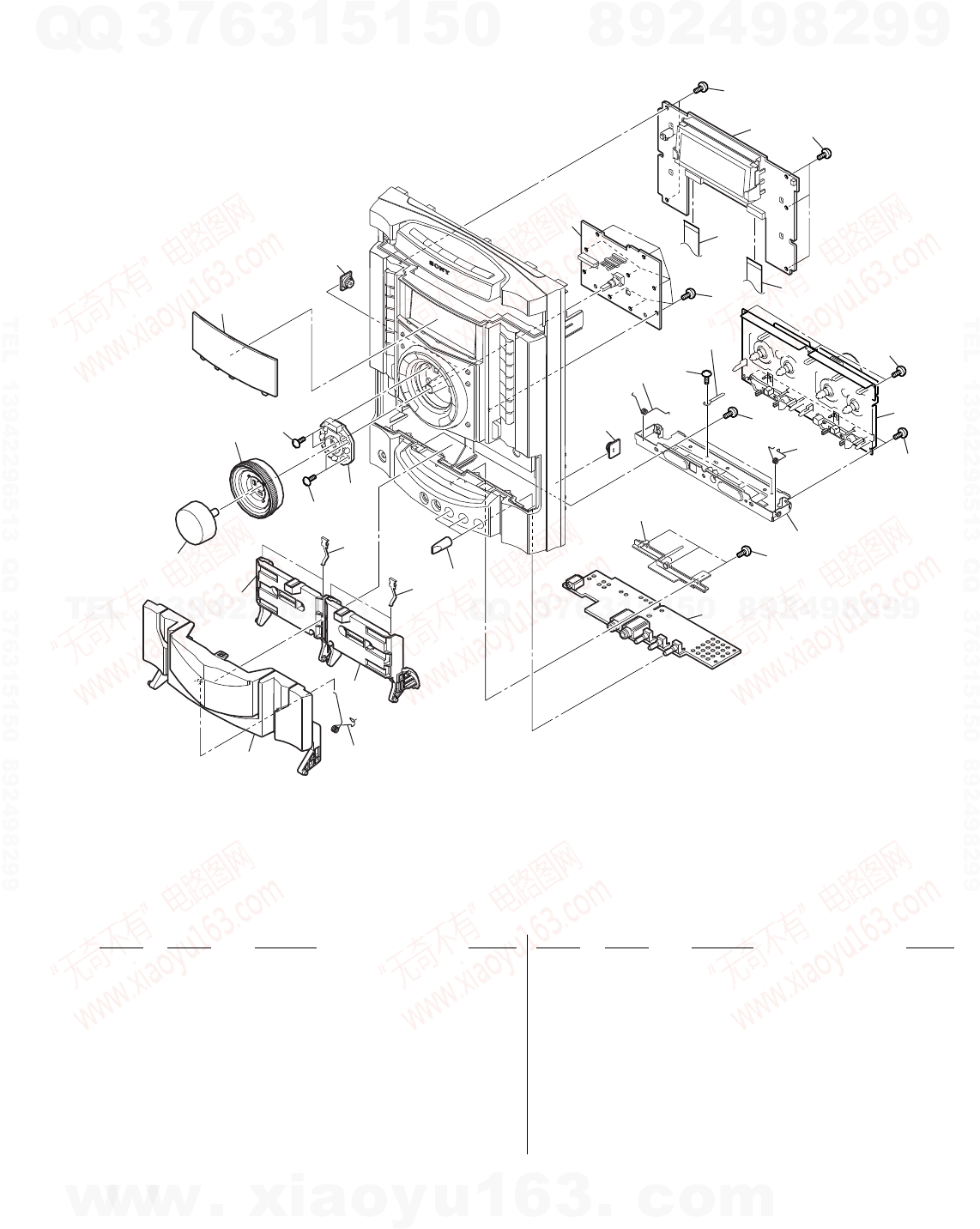

8-2. Front Panel Section-1 ...................................................... 63

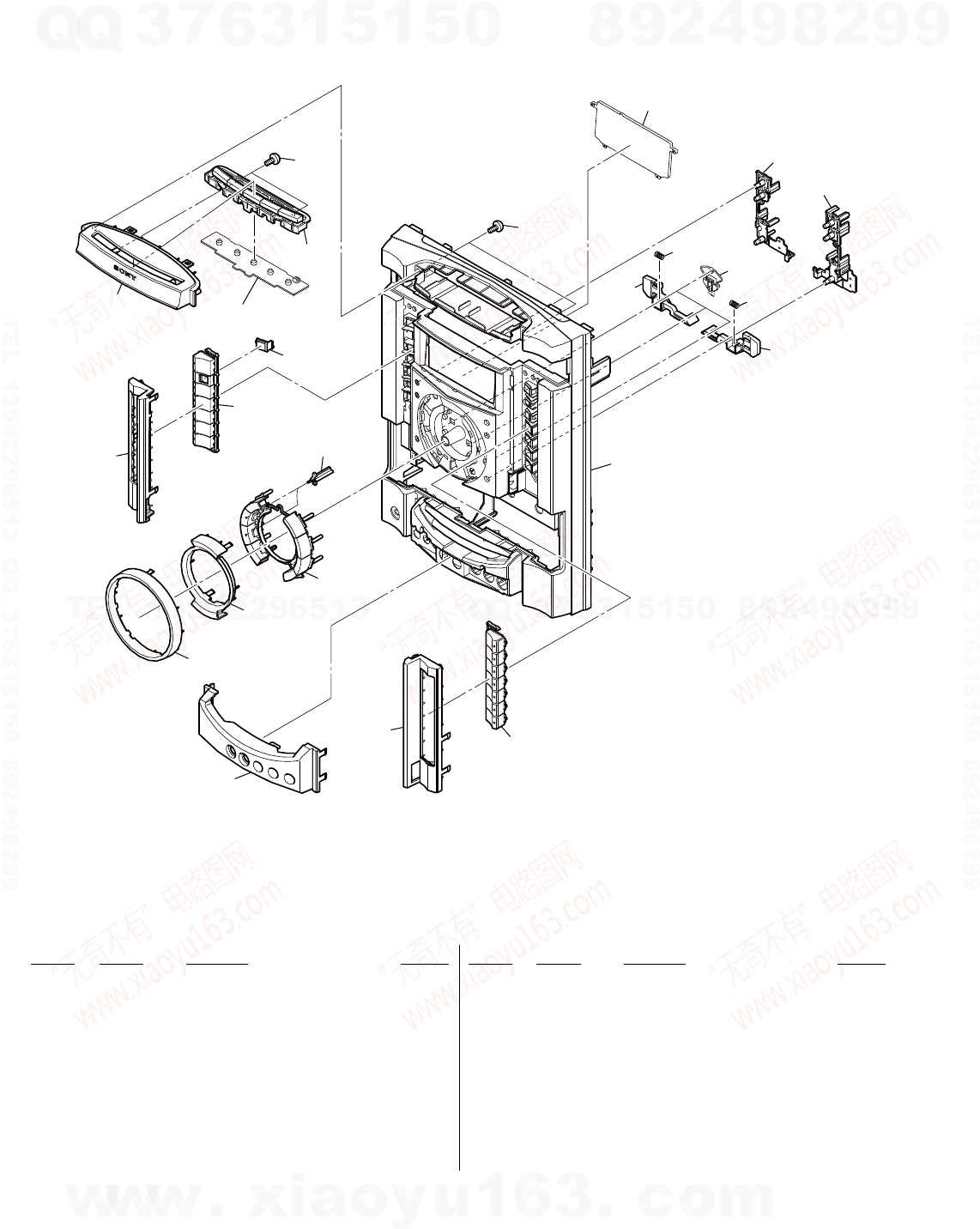

8-3. Front Panel Section-2 ...................................................... 64

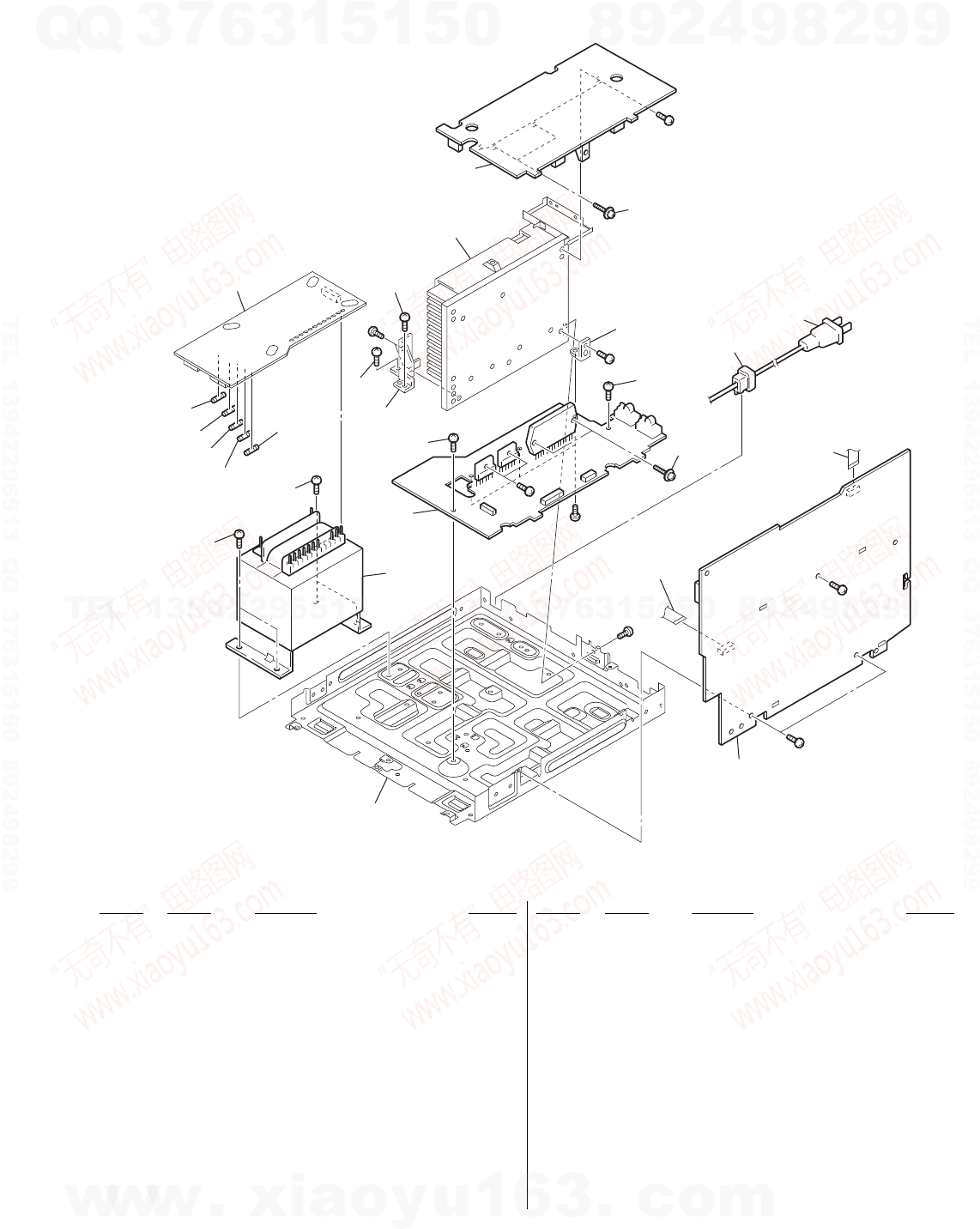

8-4. Chassis Section ................................................................ 65

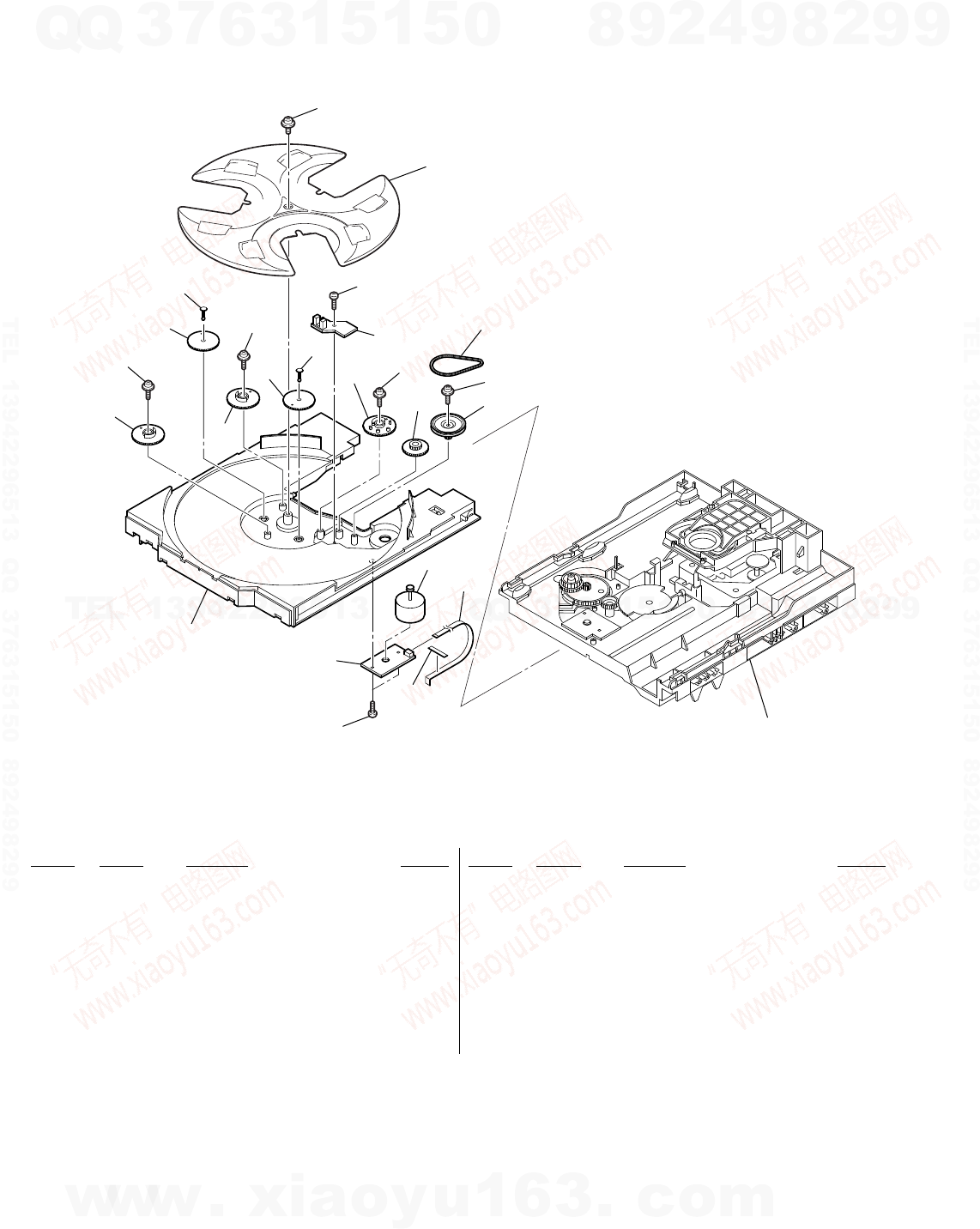

8-5. CD Mechanism Deck Section-1

(CDM74KF-F1BD81A) .................................................. 66

8-6. CD Mechanism Deck Section-2

(CDM74KF-F1BD81A) .................................................. 67

9. ELECTRICAL PARTS LIST ................................ 68

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 1

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK

OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic

break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on

the disc reflective surface by the objective lens in the optical pick-

up block. Therefore, when checking the laser diode emission, observe

from more than 30 cm away from the objective lens.

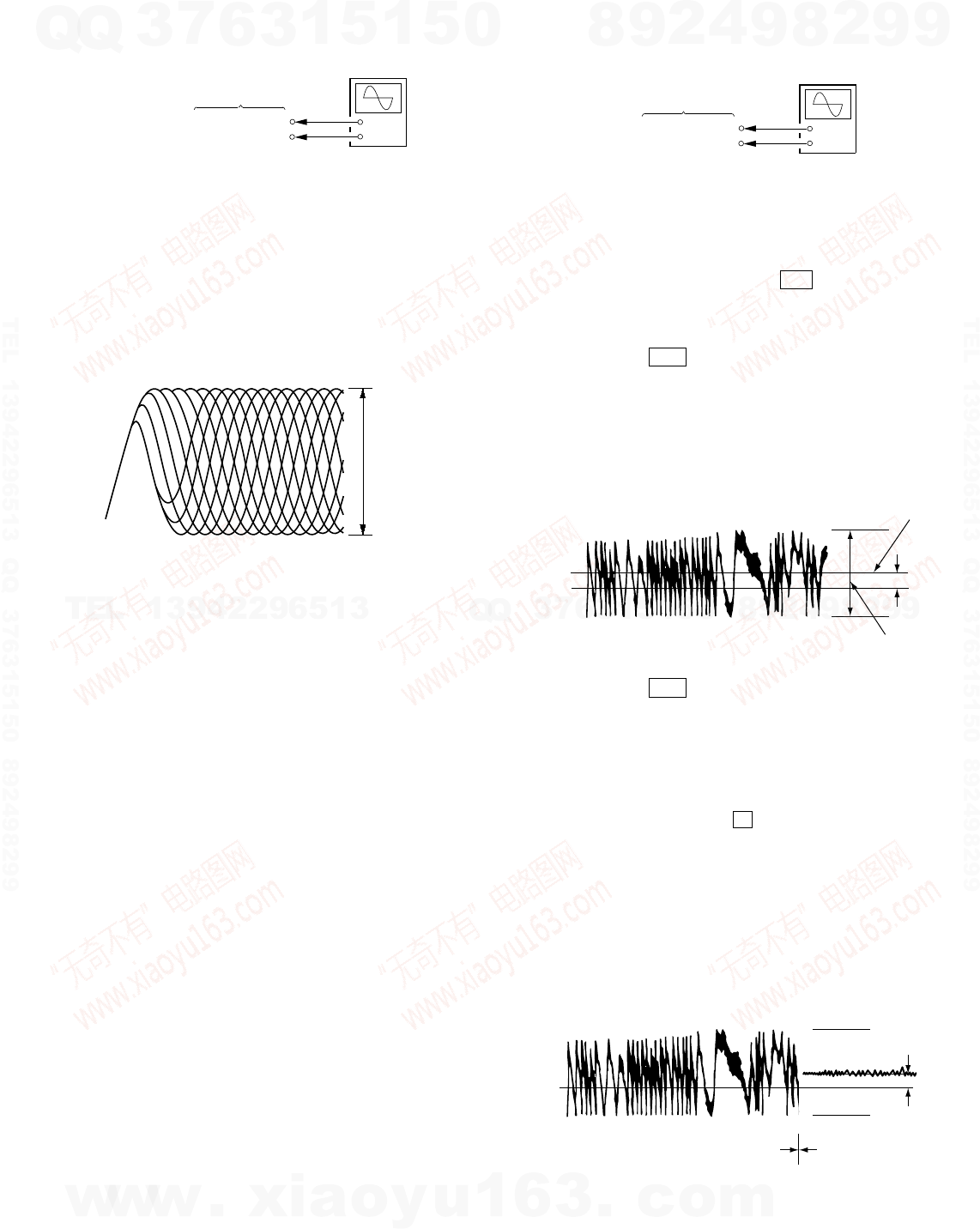

LASER DIODE AND FOCUS SEARCH OPERATION CHECK

Carry out the “S curve check” in “CD section adjustment” and check

that the S curve waveform is output several times.

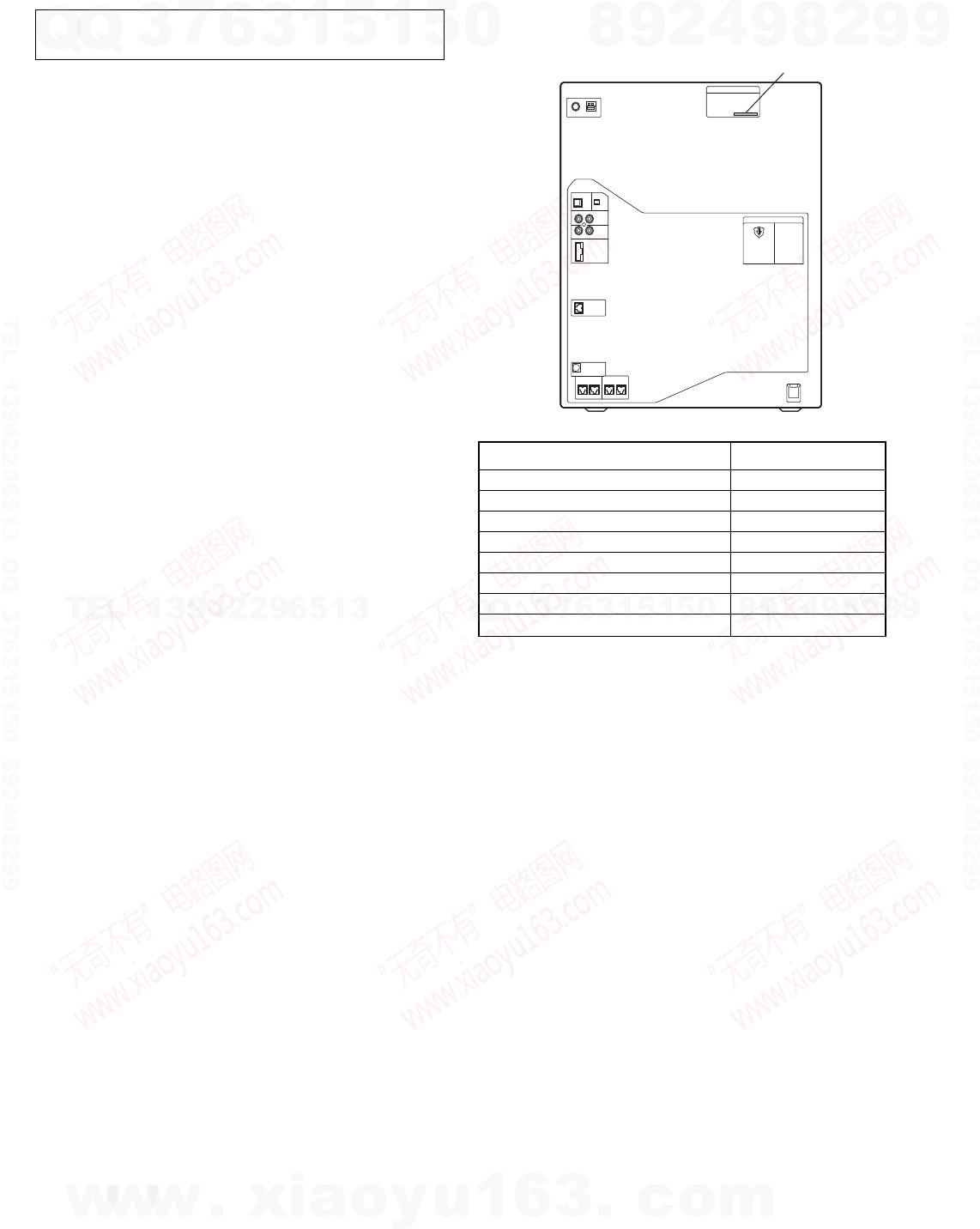

• MODEL IDENTIFICATION

– Back Panel –

MODEL PART No.

GNX800: E2 model 2-661-760-0[]

GNX700: E2 model 2-661-760-1[]

GNX800: E3 model 2-672-142-3[]

GNX700: E3 model 2-672-142-4[]

GNX800: E51 model 2-675-973-0[]

GNX700: E51 model 2-675-973-1[]

AR model 2-675-974-0[]

AUS model 2-675-975-0[]

• Abbreviation

AR : Argentina model

AUS : Australian model

E2 : 120 V AC Area in E model

E3 : 240 V AC Area in E model

E51 : Chilean and Peruvian model

PART No.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 2

GENERAL This section is extracted

from instruction manual.

LOCATING THE CONTROLS

Main unit

ALBUM +/– ql

AMP MENU ed

CD r;

CD SYNC qf

Deck A ef

Deck B ws

DELAY ea

DIRECTION wd

DISC 1 ~ 3 1

Disc tray qs

DISPLAY 6

Display q;

ECHO LEVEL wh

ENTER wg

EQ BAND wf

EX-CHANGE/DISC SKIP 2

FLANGER 7

GROOVE w;

ILLUMINATION 5

IR Receptor ra

KARAOKE wd

MASTER VOLUME wk

MIC 1/2 (jack) wl

MIC 1/2 LEVEL wj

MP3 BOOSTER qa

OPEN/CLOSE 3

OPERATION DIAL 4

PHONES (jack) es

Power illuminator 9

REC PAUSE/START qd

SOUND FLASH e;

SURROUND

1) 8

SURR SPEAKER MODE2) 8

TAPE A/B ek

Tape lid ws ef

TUNER/BAND el

TUNING +/– qk

TV ej

VIDEO/MD eh

?/1 (power) rs

Z OPEN/CLOSE 3

N (play) qg

>/. (forward/go backward) qk

M/m (fast forward/rewind) ql

X (pause) qh

x (stop) qj

A Z (Eject A) eg

B Z (Eject B) wa

1)For MHC-GNX700

2)For MHC-GNX800

ALPHABETICAL ORDER

A – D

E – L

M – R

S – Z

SYMBOLS

Top Panel

Front Panel

78 9q;qaqs

whwjwkwle;eaes

http://www.xiaoyu163.com

HCD-GNX700/GNX800

This section is extracted

from instruction manual.

Remote control

ALBUM + qf

ALBUM – qh

CD wf

CLEAR qk

CLOCK/TIMER SELECT 2

CLOCK/TIMER SET 4

DISC SKIP qd

DISPLAY wh

ENTER qs

EQ qj

FM MODE 6

FUNCTION 8

PLAY MODE 5

REPEAT 6

SLEEP 1

TAPE wd

TUNER/BAND 7

TUNER MEMORY wg

TUNING MODE 5

VOLUME +/– qg

The + button has a tactile dot.*

?/1 (power) 3

x (stop) qa

X (pause) ql

N (play) w;

–. (go backward) ws

>+ (go forward) wa

m (rewind) q;

M (fast forward) 9

*Use the tactile dot as a reference

when operating the system.

ALPHABETICAL ORDER

A – E

F – Z

SYMBOLS

Use buttons on the remote for the operation.

Press ?/1 to turn on the system.

Press CLOCK/TIMER SET.

“CLOCK” appears in the display. Then, the

hour indication flashes in the display.

Press –. or >+ repeatedly to set

the hour.

Press ENTER.

The minute indication flashes in the

display.

Press –. or >+ repeatedly to set

the minute.

Press ENTER.

The clock starts functioning.

To adjust the c lock

Press CLOCK/TIMER SET.

“SET” appears in the display, then “PLAY

SET?” flashes in the display.

Press –. or >+ repeatedly to select

“CLOCK SET?”, then press ENTER.

The hour indication flashes in the display.

Do the same procedures as step 3 to 6

above.

Not es

The clock settings are canceled when you disconnect

the power cord or if a power failure occurs.

You cannot set the clock in Power Saving Mode .

Setting the clock

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 3

DISASSEMBLY

• This set can be disassembled in the order shown below.

3-1. DISASSEMBLY FLOW

3-2.SIDE PANEL, TOP CASE

(Page 8)

3-3.LOADING PANEL

(Page 8)

3-4.FRONT PANEL ASSY

(Page 9)

3-5.TUNER PACK

(Page 9)

3-14.POWER TRANSFORMER

(T1200)

(Page 14)

3-12.POWER AMP PC BOARD ASSY,

MAIN BOARD

(Page 13)

3-9.CD MECHANISM DECK

(Page 11)

3-7.PANEL BOARD,

CD-SW BOARD

(Page 10)

3-6.TAPE MECHANISM DECK,

MIC BOARD

(Page 10)

3-15.DRIVER BOARD,

SW BOARD

(Page 14)

3-11.PRIMARY BOARD

EFFECTOR BOARD

(Page 12)

3-18.MOTOR (TB) BOARD

(Page 16)

3-19.MOTOR (LD) BOARD

(Page 16)

3-17.SENSOR BOARD

(Page 15)

3-13.SURROUND BOARD,

PA BOARD

(Page 13)

3-8.FUNCTION BOARD,

JOG BOARD

(Page 11)

3-10.BACK PANEL

(Page 12)

3-16.CD BOARD

(Page 15)

SET

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Note: Follow the disassembly procedure in the numerical order given.

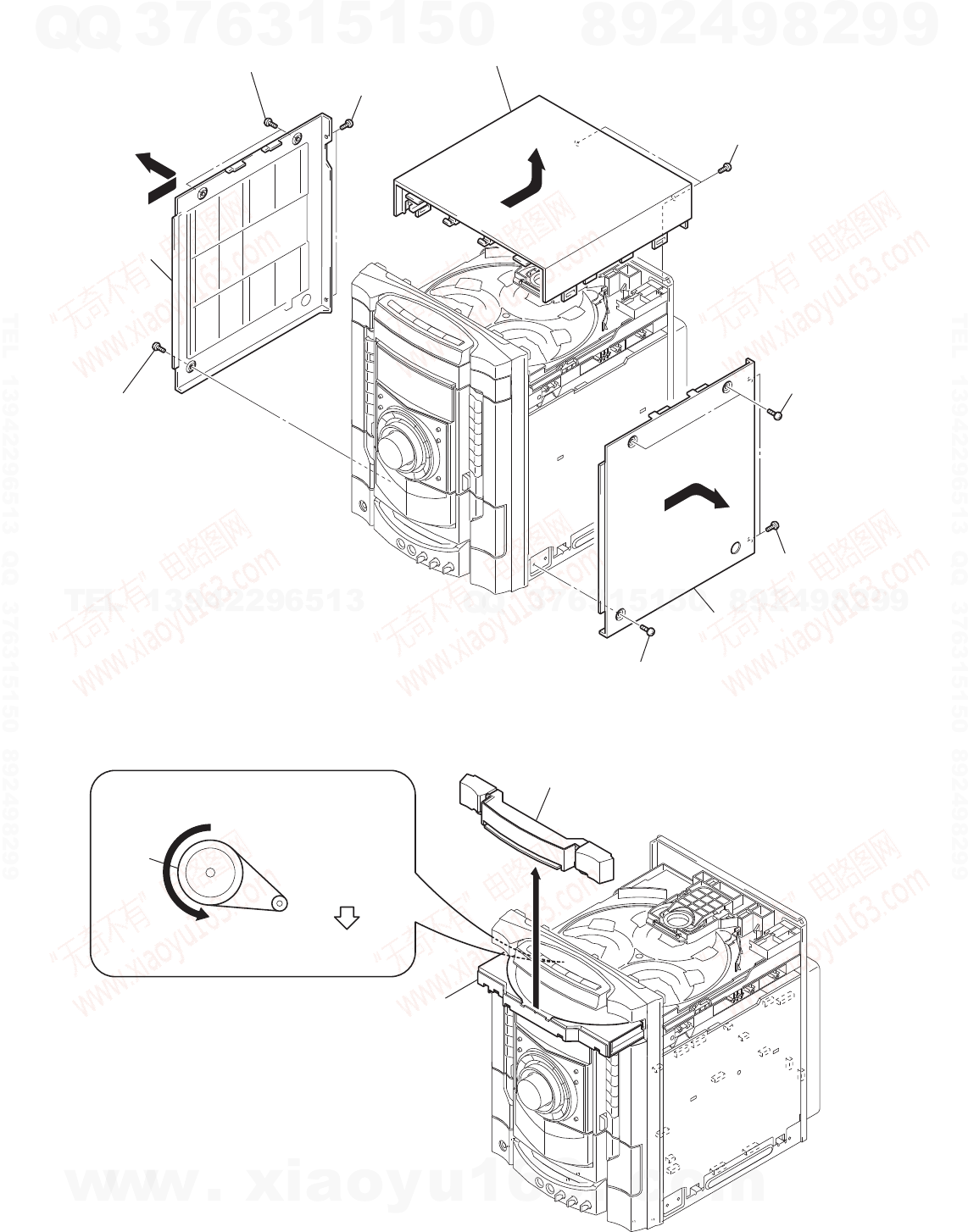

3-2. SIDE PANEL, TOP CASE

3-3. LOADING PANEL

screw (case 3 TP2)

two screws

(case 3 TP2)

12)

two screws

(+BVTP 3

10)

PANEL (SIDE-R)

screw

(case 3 TP2)

two screws

(case 3 TP2)

12)

two screws

(+BVTP 3

10)

PANEL (SIDE-L)

two screws

(+BVTP 3

12)

CASE (TOP)

CD mechanism deck (CDM74KF-F1BD81A)

Turn the pulley to the arrow direction.

Front side

Pulley

Pull out disc tray

loading panel

http://www.xiaoyu163.com

HCD-GNX700/GNX800

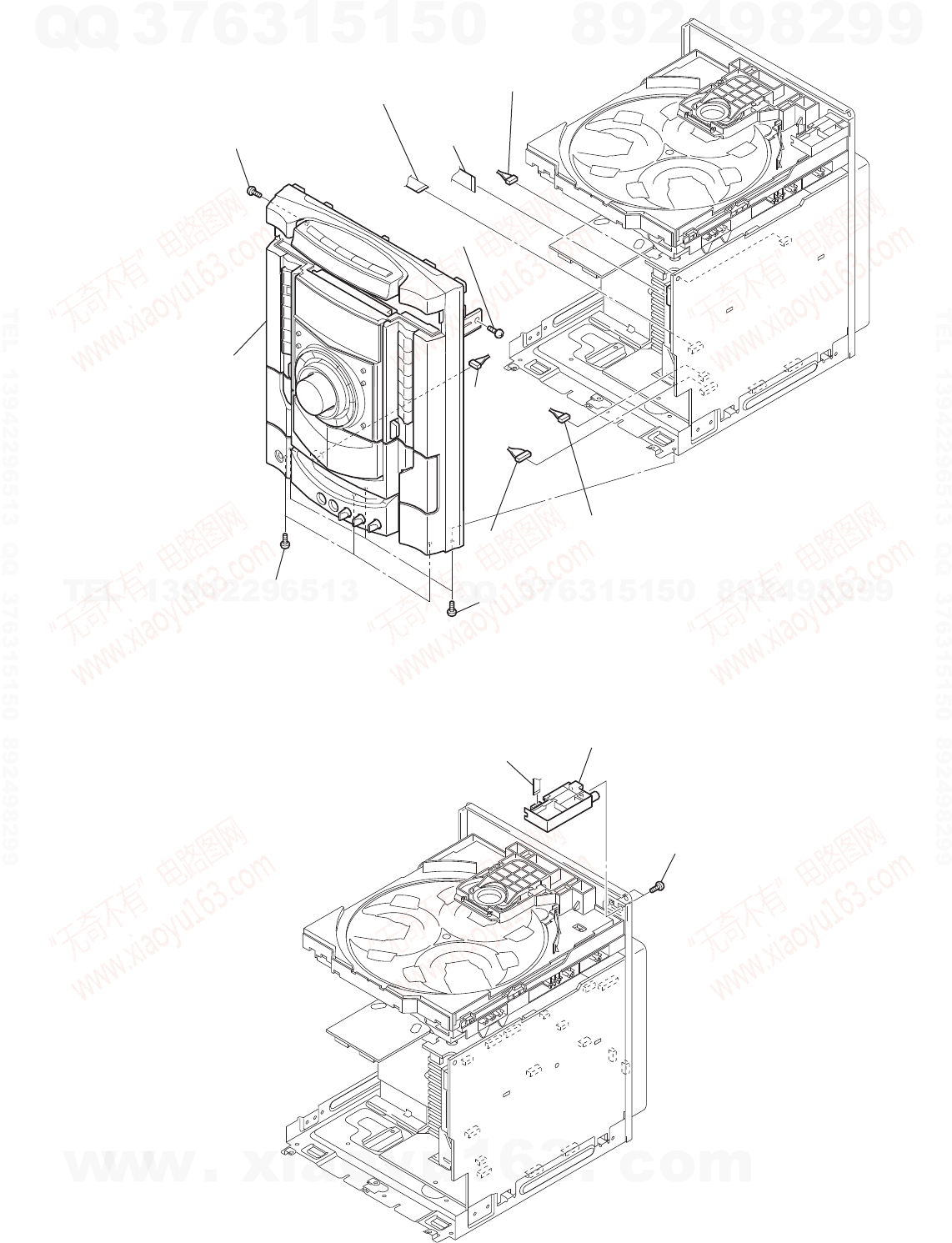

3-4. FRONT PANEL ASSY

3-5. TUNER PACK

three screws

(+BVTP 3

10)

three screws

(+BVTP 3

10)

screw

(+BVTP 3

10)

screw

(+BVTP 3

10)

front panel assy

connector

(CN100)

wire (flat type)

(CN508)

wire (flat type)

(CN509)

connector

(CN503)

connector

(CN1102)

connector

(CN507)

two screws

(+BVTP 3

wire (flat type)

(CN1)

tuner pack

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3-6. TAPE MECHANISM DECK, MIC BOARD

3-7. CD-SW BOARD, PANEL BOARD

three screws

(+BVTP2.6 (3CR))

two screws

(+BVTP2.6 (3CR)

)

tape mechanism deck

three screws

(+BVTP2.6 (3CR))

bracket (MIC)

MIC board

knob (MIC)

three screws

(+BVTP2.6 (3CR))

two screws

(+BVTP2.6 (3CR))

wire (flat type)

(CN900)

wire (flat type)

(CN902)

three screws

(+BVTP2.6 (3CR))

CD-SW board

PANEL boar

CD-SW board

bracket portion

button (DISC)

(side view)

bracket portion

Pull up the bracket portion of button (DISC) in the arrow

direction and

pull out CD-SW board in the arrow

direction.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

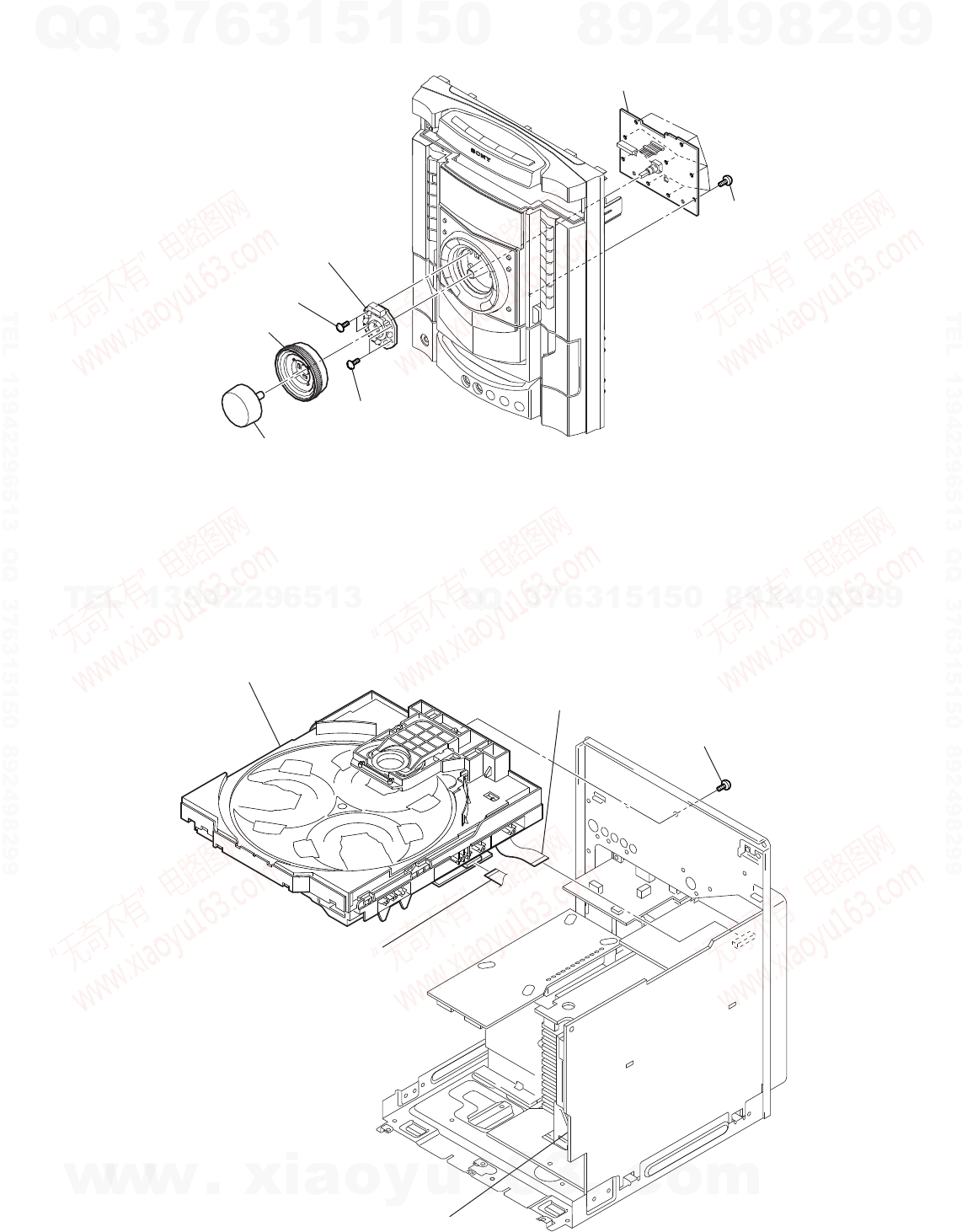

3-8. FUNCTION BOARD, JOG BOARD

3-9. CD MECHANISM DECK

FUNCTION board

nine screws

(+BVTP2.6 (3CR))

two screws

(+BVTP2.6 (3CR))

two screws

(+BVTP2.6 (3CR))

knob vol

knob jog assy

JOG board

MAIN board

CD mechanism deck

wire (flat type)

(CN701)

wire (flat type)

(CN505)

screw (+BVTP 3

)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3-10. BACK PANEL

3-11. PRIMARY BOARD, EFFECTOR BOARD

connector

(CN1200)

connector

(CN1204)

wire (flat type)

(CN1501)

two screws (GNX800)

screw (GNX700)

(+BVTP 3

10)

five screws

(+BVTP 3

10)

two screws

(+BVTP 3

12)

two screws

(+BVTP 3

12)

connector

(CN580)

back panel

connector

(CN101)

connector

(CN201)

screw

(+BVTP 3

two screws

(+BVTP 3

10)

PRIMARY board

EFFECTOR board

http://www.xiaoyu163.com

HCD-GNX700/GNX800

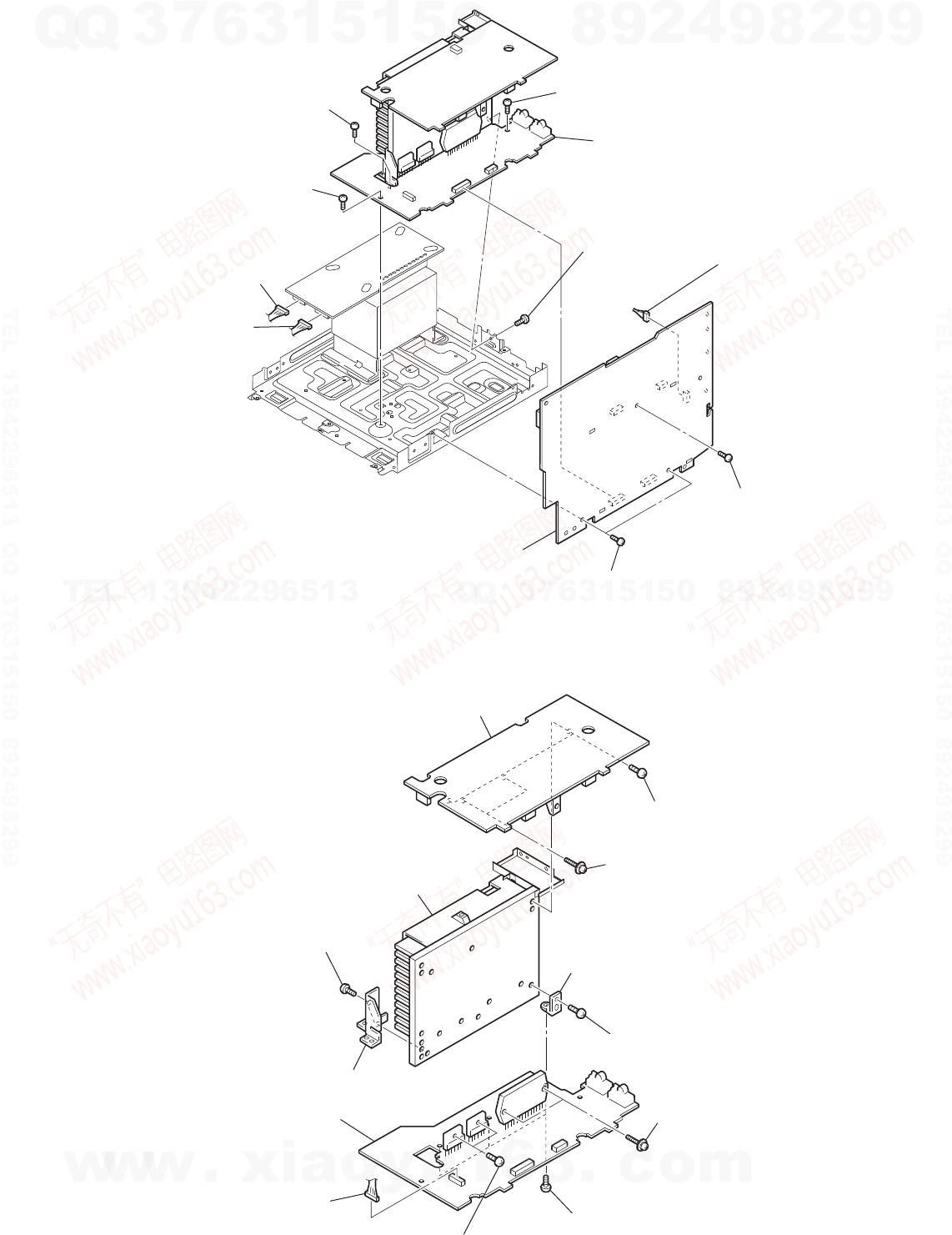

3-13. SURROUND BOARD, PA BOARD

3-12. POWER AMP PC BOARD ASSY, MAIN BOARD

connector

(CN1213)

connector

(CN1212)

connector

(CN105)

screw

(+BV3 (3-CR))

two screws

(+BV3 (3-CR))

screw

(+BV3 (3-CR))

screw

(+BVTP 3

10)

power AMP PC board assy

two screws

(+BVTP 3

10)

screw

(+BVTP 3

10)

MAIN board

connector

(CN607)

two screws

(+BVTP 3

10)

two screws

(transistor)

SURROUND board

two screws

(+BVTP 3

10)

holder

three screws

(+BVTP 3

10)

two screws

(transistor)

two screws

(+BVTP 3

10)

screw

(+BVTP 3

10)

heat sink

bracket

PA board

http://www.xiaoyu163.com

HCD-GNX700/GNX800

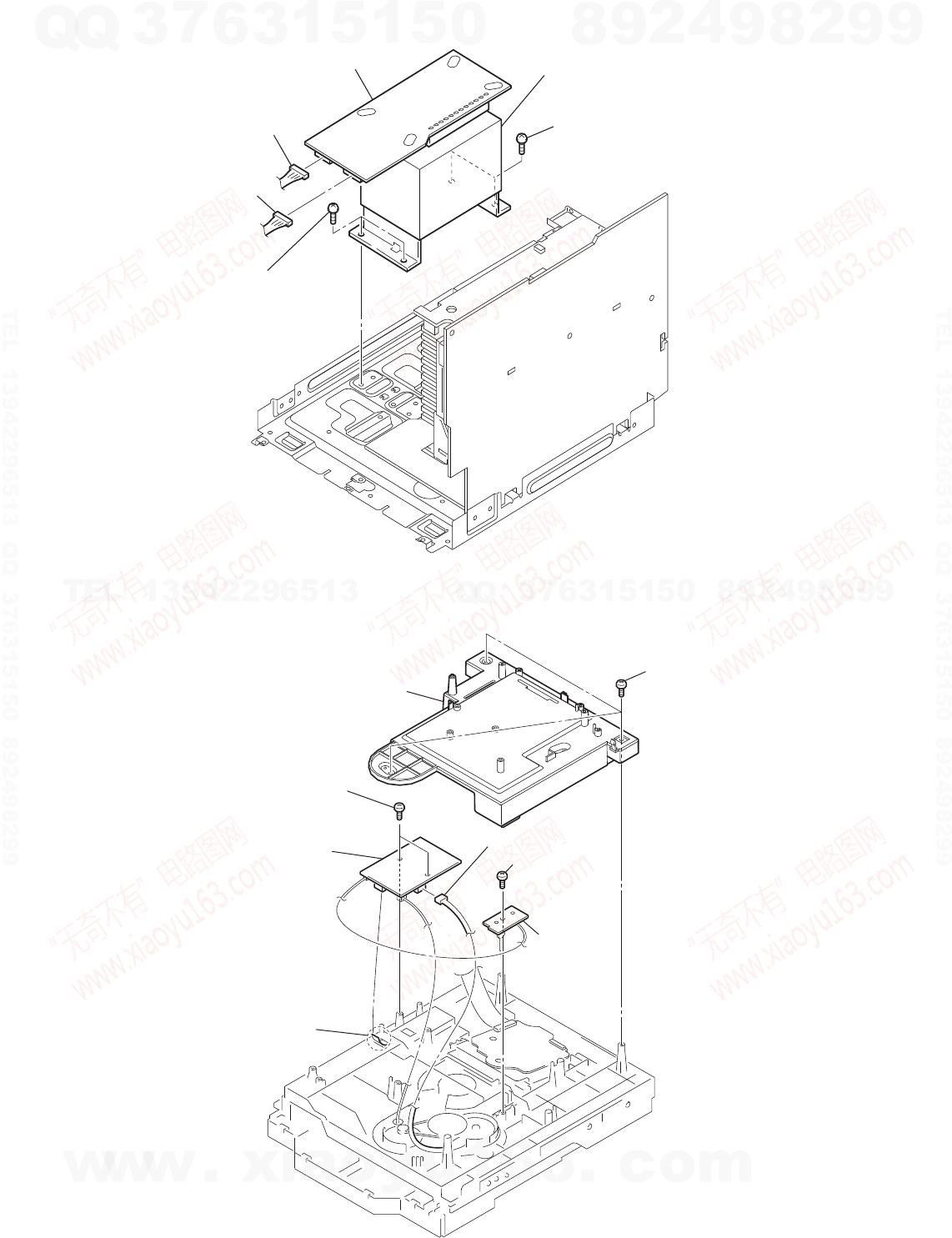

3-14. POWER TRANSFORMER (T1200)

3-15. DRIVER BOARD, SW BOARD

connector

(CN1213)

connector

(CN1212)

two screws

power transfomer (T1200

)

TRANS board

connector (CN703)

cover (CDM)

DRIVER

board

SW board

wire (flat type) (CN702)

two

screws

(+BTTP (M2.6))

three

screws

(+BVTP 3

)

screw

(+BTTP (M2.6))

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3-16. CD BOARD

3-17. SENSOR BOARD

two

coil springs

(insulator)

two

coil springs

(insulator)

two

insulators

two

insulators

crew (+BVTP 2.6 (3CR))

wo screws

(+BTTP (M2.6))

screw

(+BTTP (M2.6))

older (213) ASSY

wo stoppers (BU)

Remove the four solderings of motor.

CN101 (flat type)

board

optical pick-up

(KSM-215DCP/C2NP)

floating

screw

(+PTPWH M2.6)

floating

screw

(+PTPWH M2.6)

ray

elt (table)

ulley (table)

crew

(+BTTP (M2.6))

SENSOR board

ear (geneva)

connector

(

CN731)

floating

screw

(+PTPWH M2.6)

floating

screw

(+PTPWH M2.6)

floating

screw

(+PTPWH M2.6)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

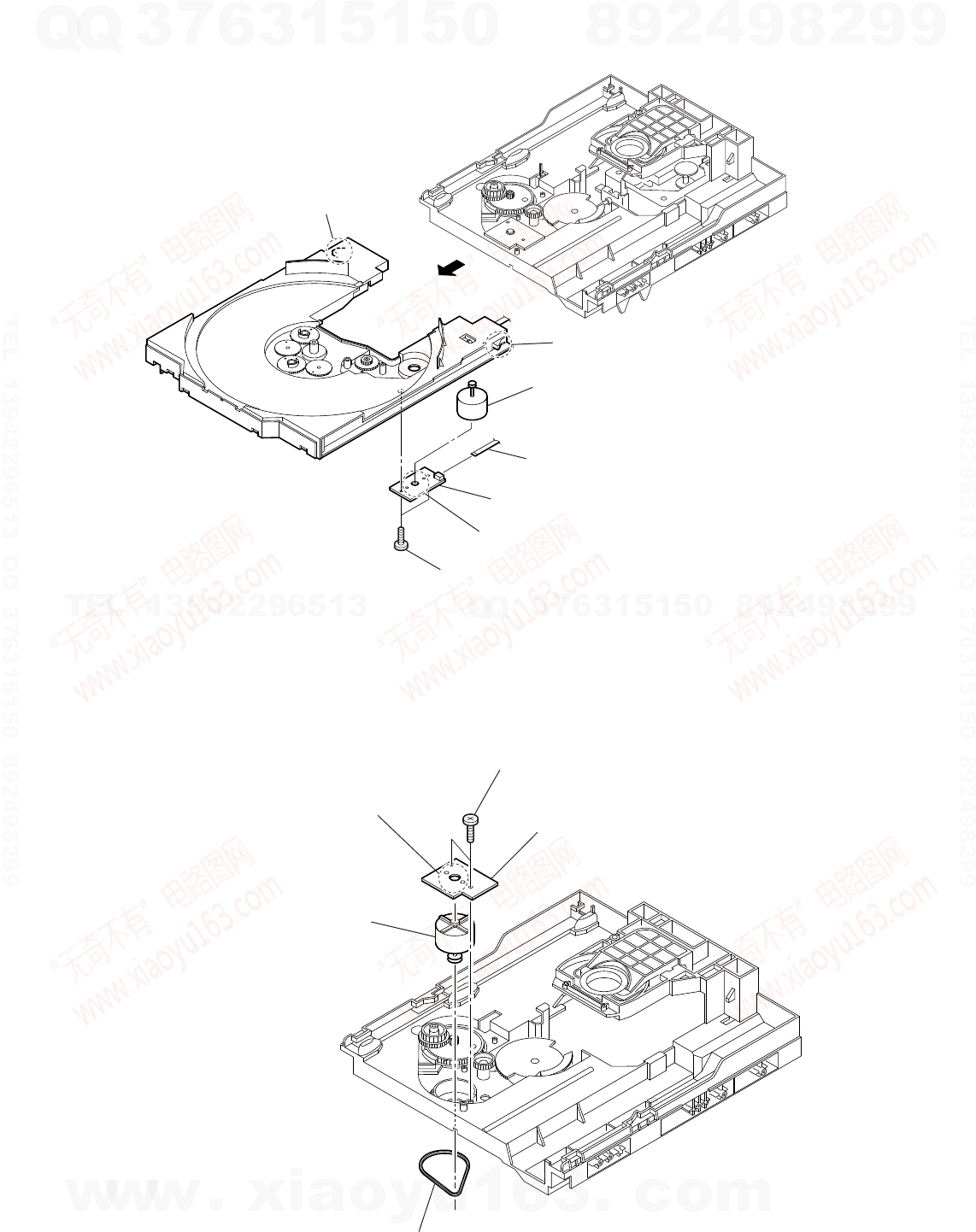

3-18. MOTOR (TB) BOARD

Remove the two solderings of motor.

MOTOR (TB) board

able motor assy (M741)

two

screws

(+BTTP (M2.6))

wire (flat type) 5 core (CN742)

stopper

3-19. MOTOR (LD) BOARD

Remove the two solderings of motor.

MOTOR (LD) board

elt (loading)

oading motor assy (M751)

two

screws

(+BTTP (M2.6))

http://www.xiaoyu163.com

HCD-GNX700/GNX800

[MC TEST MODE]

• This mode is used to check operations of the respective sections

of Amplifier, Tuner, and Tape.

Procedure:

* To enter MC Test Mode

1. Press x button, [ENTER] button and [DISC 3] button

simultaneously.

2. The CD ring indicators TAPE A and B indicators flash on the

fluorescent indicator tube. The function is changed to TV.

* Check of Amplifier

1. Press [EQ BAND] button repeatedly until a message “GEQ

MAX” appears on the fluorescent indicator tube. GEQ

increases to its maximum.

2. Press [EQ BAND] button repeatedly until a message “GEQ

MIN” appears on the fluorescent indicator tube. GEQ decreases

to its minimum.

3. Press [EQ BAND] button repeatedly until a message “GEQ

FLAT” appears on the fluorescent indicator tube. GEQ is set

to flat.

4. When the [VOLUME] knob is turned clockwise even slightly,

the sound volume increases to its maximum and a message

“VOLUME MAX” appears on the fluorescent indicator tube.

5. When the [VOLUME] knob is turned counter-clockwise even

slightly, the sound volume decreases to its minimum and a

message “VOLUME MIN” appears on the fluorescent

indicator tube.

* Tape function

1. When a tape is inserted in Deck B and recording is started, the

function is changed to TV automatically. When [CD SYNC]

button is pressed during recording in function, ALC (Automatic

Logic Control) is turned on.

2. During recording, press

will stop the recording and

the function is changed to TAPE B and rewind the tape in

Deck B until the recording start position and playback of the

tape in Deck B is started. If the [REC PAUSE/ START] button

is pressed for a pause and pressed again to resume recording

during recording time, when the tape is rewind, the tape will

be rewind until the position where the pause is applied.

* To release MC Test mode.

1. To release this mode, press ?/1 button.

2. The cold reset is enforced at the same time.

[COLD RESET]

• The cold reset clears all data including preset data stored in

the RAM to initial conditions. Execute this mode when

returning the set to the customer.

Procedure:

1. Press x button, [ENTER] button, and ?/1 button

simultaneously.

2. The fluorescent indicator tube becomes blank for a while, and

the set is reset.

[GC TEST MODE]

• This mode is used to check the fluorescent indicator tube,

LEDs, keys, VOLUME jog, OPERATION DIAL jog, AMS

jog, destination, software version and VACS level.

Procedure:

1. Press x button, [ENTER] button and [DISC 2] button-

simultaneously.

2. All LEDs and segments in fluorescent indicator tube are lighted

up. All LEDs are lighted up in red color.

3. When you want to enter the software version display mode,

press [DISC 1] button. The model is displayed.

Press [DISC 1] button again to show destination.

4. Each time [DISC 1] button is pressed, the display changes from

MC version, GC version, SYS version, CD version, CDDM

version, CDMA version, CDMB version, BDA version, BDB

version, ST version, TC version, TA version, TM version in

this order, and returns to the MC version display.

5. When [DISC 3] button is pressed while the version numbers

are being displayed except model and destination, the date of

the software creation appear. When [DISC 3] button is pressed

again, the display returns to the software version display. When

[DISC 1] button is pressed while the date of the software

creation is being displayed, the date of the software creation

is displayed in the same order of software version display.

6. Press [DISC 2] button, the key check mode is activated.

7. In the key check mode, the fluorescent indicator tube displays

“K 0 V0J0”.

Each time a button is pressed, “K” value increases. However,

once a button has been pressed, it is no longer taken into

account.

“V” value increases in the manner of 0,1, 2, 3 ... if [VOLUME]

knob is turned clockwise, or it decreases in the manner of 0,

9, 8, 7 ... if [VOLUME] knob is turned counter-clockwise.

“J” value increases in the manner of 0,1, 2, 3 ... if [OPERATION

DIAL] knob is turned clockwise, or it decreases in the manner

of 0, 9, 8, 7 ... if [OPERATION DIAL] knob is turned counter-

clockwise.

8. When [DISC 3] button is pressed after all LEDs and segments

in fluorescent indicator tube light up, the fluorescent indicator

tube displays “VACS A+B FAPC”. A is VACS level which is

trigger by signal level, B is VACS level which is trigger by

temperature and C is VACS level which is trigger by APVACS

(Abuse Protection VACS).

F is shown if the fan is turned in high speed and vice-versa.

The signal level, which will trigger VACS A is shown in the

center area of fluorescent indicator tube.

9. When [EX-CHANGE/DISC SKIP] button is pressed after all

LEDs and segments in fluorescent indicator tube light up,

alternate segments in fluorescent indicator tube would light

up. If you press [EX-CHANGE/DISC SKIP] button again, another

half of alternate segments in fluorescent indicator tube would

light up. Pressing [EX-CHANGE/DISC SKIP] button again

would cause all segments lights up.

10. To release this mode, press three buttons in the same manner

as step 1, or disconnect the power cord.

SECTION 4

TEST MODE

http://www.xiaoyu163.com

HCD-GNX700/GNX800

[VACS ON/OFF]

• This mode is used to switch ON and OFF the VACS (Variable

Attenuation Control System).

Procedure:

1. Press ?/1 button to turn the set ON.

2. Press x button and [ILLUMINATION]

button simultaneously.

The message “VACS OFF” or “VACS ON” appears on the

fluorescent indicator tube.

[TUNER STEP CHANGE]

• The step interval of AM channels can be toggled between 9

kHz and 10 kHz.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Press [TUNER/BAND] button to select the “AM”.

3. Press ?/1 button to turn the set OFF.

4. Press [ENTER] button and ?/1 button simultaneously. The

system will turn ON automatically. The message “AM 9k

STEP” or AM 10k STEP” appears on the fluorescent indicator

tube and thus the channel step is changed.

[CD SERVICE MODE]

• This mode let you move the CD sled motor freely. Use this

mode when you want to clean the optical pick-up.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press x , [ENTER] button, and

OPEN/CLOSE

button

simultaneously.

4. The CD service mode is activated. The message “SERVICE

MODE” appears on the fluorescent indicator tube.

5. With the CD in stop status, press

to move the optical

pick-up to outside track, or press

to move to inside

track. The message “SLED OUT” or “SLED IN” appears on

the fluorescent indicator tube.

6. To turn on or off the laser, press [DIRECTION] button. The

message “LD ON” or “LD OFF” appears on the fluorescent

indicator tube.

7. To release this mode, press ?/1 button.

[CD AGING MODE]

This mode can be used for operation check of CD section.

• If an error occurs, the aging operation would stops and the

status is displayed.

• If there are no error occurs, the aging operation would

continues repeatedly.

Procedure:

1. Press ?/1 button to turn the set ON

2. Select CD function.

3. Load three discs on the disc tray.

4. Press [PLAY MODE] button on the remote repeatedly to select

the “ALL DISCS” mode, and press the [REPEAT] button on

the remote repeatedly to select “REPEAT OFF” mode.

5. Press x button, [ENTER] button, and [EX-CHANGE/DISC

SKIP] button simultaneously.

6. Aging operation is started.

7. To release this mode, press ?/1 button or disconnect the

power cord to turn the power OFF.

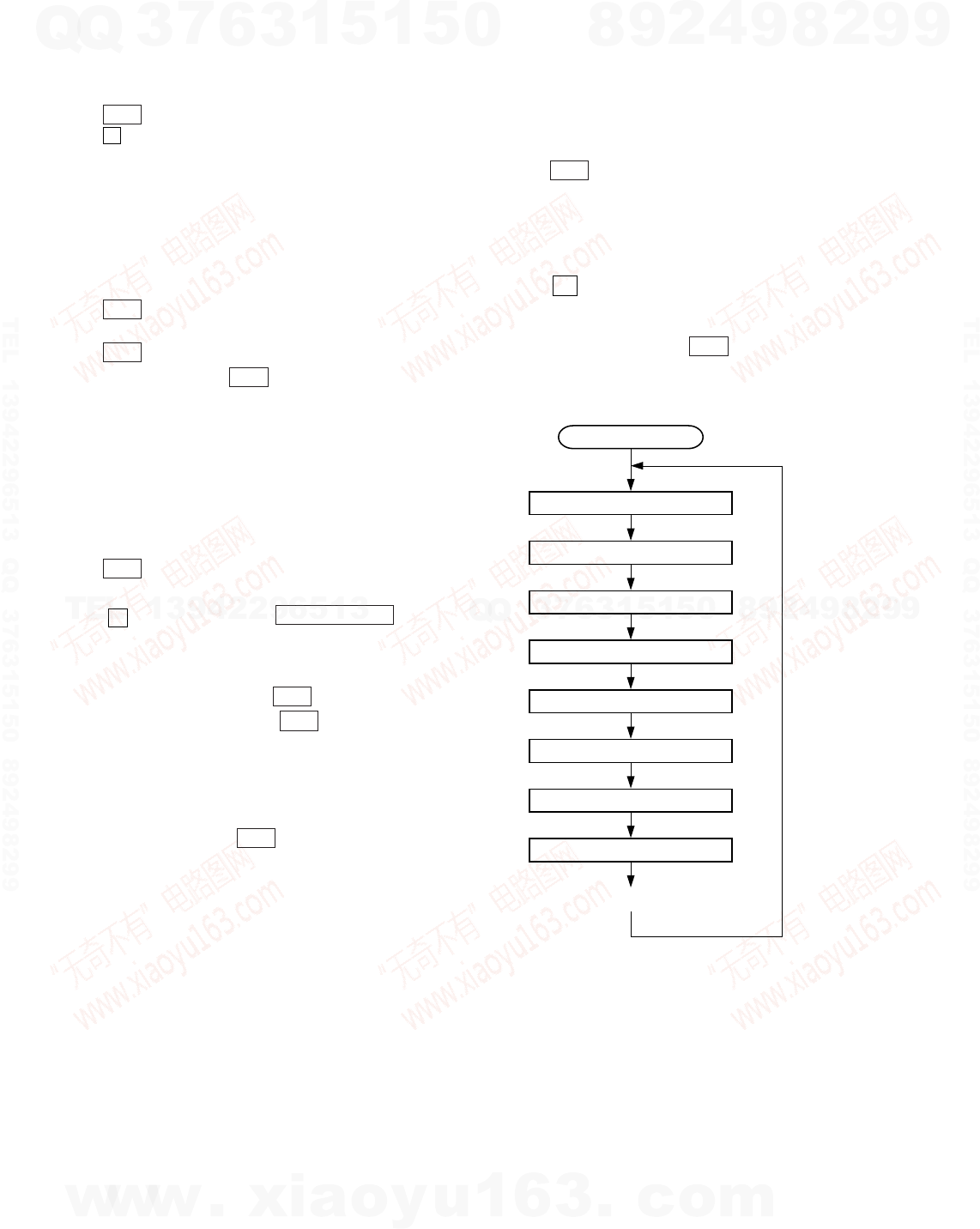

Aging mode sequence:

Start (from disc 1)

Disc chucking

TOC reading

Play first track for 2 seconds

Play last track for 2 seconds

EX-CHANGE open/close

Open the disc tray

Disc skip

Close the disk tray

Change the next disc

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Display

M*$$%%&&##00

3) Display of no disc errors

D*: The number of mechanical error (“00” is latest one)

(Rotate

knob in the direction of either to display next

error)

$$: Error type

01: Focus error

02: GFS error

03: Setup error

%%: Not used

&&:

00: No disc judgment without chucking retry.

01: No disc judgment after chucking retry.

##: The state when judged as no disc

01: Stop

02: Setup

03: TOC reading

04: Access

05: Playback

06: Pause

07: Manual search (Play)

08: Manual search (Pause)

[CD REPEAT 5 LIMIT OFF MODE]

• The number of repeat for CD playback is 5 times when the

repeat mode is “REPEAT ALL”. This mode enables CD to

repeat playback for limitless times.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press x button, [CD] button and [DISC 1] button

simultaneously to enter the CD repeat 5 limit off mode and

the fluorescent indicator tube displays “LIMIT OFF”.

4. To release this mode, operate the cold reset. (Refer to the “MC

COLD RESET”)

[CD SHIP MODE (WITH MEMORY CLEAR)]

• This mode moves the optical pick-up to the position durable

to vibration and clears all data including preset data stored in

the RAM to initial conditions. Use this mode when returning

the set to the customer after repair.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press x

button,

[SOUND FLASH]

button and

?/1

button

simultaneously.

The set will power off automatically.

4. After the “STANDBY” blinking display finish, a message

“MECHA LOCK” is displayed on the fluorescent indicator

tube and the CD ship mode is set.

Display

D*$$%%&&##00

• Display when an error occurred (CD Error Code Mode)

Procedure:

1. Press x button, [ENTER] button and [DISC 1] button

simultaneously to enter the error code display mode.

2. The fluorescent indicator tube displays the number of total

error.

3. Each time

knob is rotated, display change as

below.

Display of total error

> +

direction

– .

direction

Display of Mechanical errors

> +

direction

– .

direction

Display of no disc errors

4. To clear the error record, operate the cold reset. (Refer to the

“MC COLD RESET”)

5. To release this mode, press the ?/1 button or disconnect

the power plug to turn the power OFF.

1) Display of total error

Em**: The number of mechanical errors.

Ed **: The number of no disc errors after chucking the disc.

2) Display of mechanical errors

M*: The number of mechanical error (“00” is latest one)

(Rotate

knob in the direction of either to display next

error)

$$: Not used

%%: Loading related error (Second figure is not used)

D: Stop by the problem other than mechanical problem while

closing.

E: Stop by the problem other than mechanical problem while

opening.

C: Stop by the problem other than mechanical problem while

chucking up.

F: Stop by the problem other than mechanical problem while

chucking down.

&&: Emerging error

01: Stop while chucking up.

02: Stop while chucking up.

03: Time-out of EX-CHANGE open.

05: Time-out of EX-CHANGE close.

##: Not used

Display

Em**Ed**

http://www.xiaoyu163.com

HCD-GNX700/GNX800

[CD TRAY LOCK MODE]

• This mode let you lock the disc trays. When this mode is

activated, the disc tray will not open when

ZOPEN/CLOSE

button or [EX-CHANGE/DISC SKIP] button is pressed. The

message “LOCKED” will be displayed in the will be displayed

on the fluorescent indicator tube.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press x button and

ZOPEN/CLOSE

button

simultaneously and hold down until “LOCKED” or

“UNLOCKED” displayed on the fluorescent indicator tube

(around 5 seconds).

[VIDEO/MD SWITCHING]

• This mode let you switch from VIDEO to MD and vice-versa.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select VIDEO function.

3. Press [VIDEO/MD] button and ?/1 button simultaneously.

The function will change to MD. Press the same buttons again

to change from MD to VIDEO.

[TCM OFFLINE MODE]

• This mode prevents set from power off automatically when

TCM is not connected.

Therefore, measurements can be done even when TCM is not

connected during production.

• Procedure:

1. When the system in turned off, press [EQ BAND] button,

[TAPE A/B] button and ?/1 button simultaneously. The

set will power on automatically.

2. The message “TCM OFFLINE” will be displayed on the

fluorescent indicator tube.

[CD SHIP MODE (WITHOUT MEMORY CLEAR)]

• This mode moves the optical pick-up to the position durable

to vibration. Use this mode when returning the set to the

customer after repair.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press [CD] button and ?/1 button simultaneously. The set

will power off automatically.

4. After the “STANDBY” blinking display finish, a message

“MECHA LOCK” is displayed on the fluorescent indicator

tube and the CD ship mode is set.

[CD POWER MANAGE]

• This mode let you switch on or off power supply to the BU

during TUNER function.

• When CD POWER is set to OFF, the power supply to the BU

is cut off during TUNER function. It will increase the time

taken to access CD when function change from TUNER to

CD but it will improve tuner reception.

• When CD POWER is set to ON, the power supply to the BU

is not cut off during TUNER function. It will reduce the time

taken to access CD when function change from TUNER to

CD but it will decrease tuner reception performance.

Procedure:

1. Press ?/1 button to turn the set ON.

2. Select CD function.

3. Press ?/1 button to turn the set OFF.

4. Press x button and ?/1 button simultaneously. The set

will power on automatically.

5. The message “CD POWER ON” or “CD POWER OFF” will

be displayed on the fluorescent indicator tube.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 5

MECHANICAL ADJUSTMENTS

SECTION 6

ELECTRICAL ADJUSTMENTS

Precaution

1. Clean the following parts with a denatured alcohol-moistened

swab:

record/playback heads pinch rollers

erase head rubber belts

capstan idlers

2. Demagnetize the record/playback head with a head

demagnetizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to

the parts adjusted.

5. The adjustments should be performed with the rated power

supply voltage unless otherwise noted.

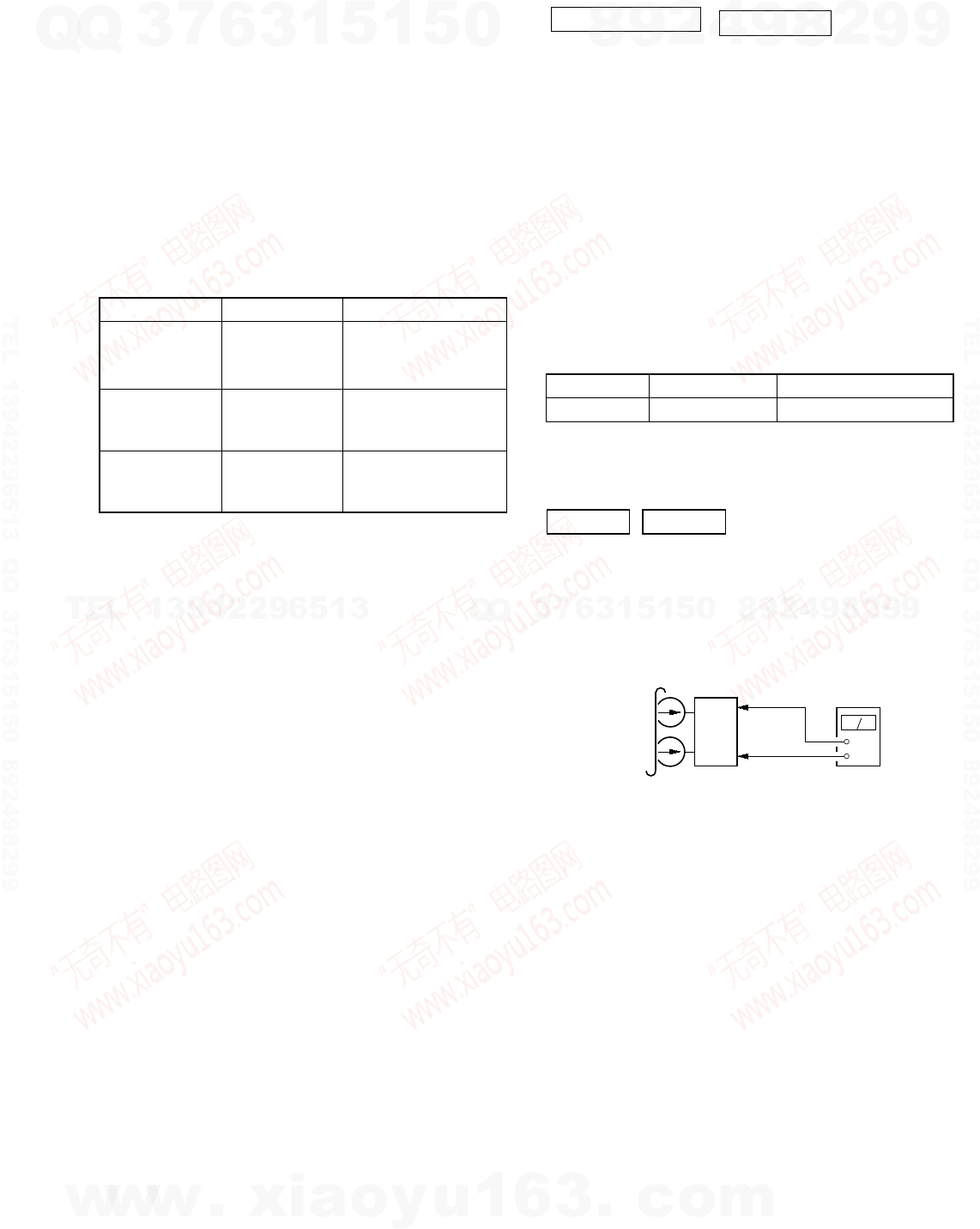

Torque Measurement

2.9 mN • m to 6.9 mN • m

FWD CQ-102C 30 to 70 g • cm

(0.42 – 0.97 oz • inch)

FWD

0.15 mN • m to 0.59 mN • m

back tension

CQ-102C 1.6 to 6 g • cm

(0.022 – 0.08 oz • inch)

4.8 mN • m to 16.7 mN • m

FF/REW CQ-201B 49 to 170 g • cm

(0.69 – 2.36 oz • inch)

Mode Torque meter Meter reading

0 dB=0.775 V

DECK SECTION

1. Demagnetize the record/playback head with a head

demagnetizer.

2. Do not use a magnetized screwdriver for the adjustments.

3. After the adjustments, apply suitable locking compound to the

parts adjust.

4. The adjustments should be performed with the rated power

supply voltage unless otherwise noted.

5. The adjustments should be performed in the order given in

this service manual. (As a general rule, playback circuit

adjustment should be completed before performing recording

circuit adjustment.)

6. The adjustments should be performed for both L-CH and R-

CH.

7. Switches and controls should be set as follows unless otherwise

specified.

• Test Tape

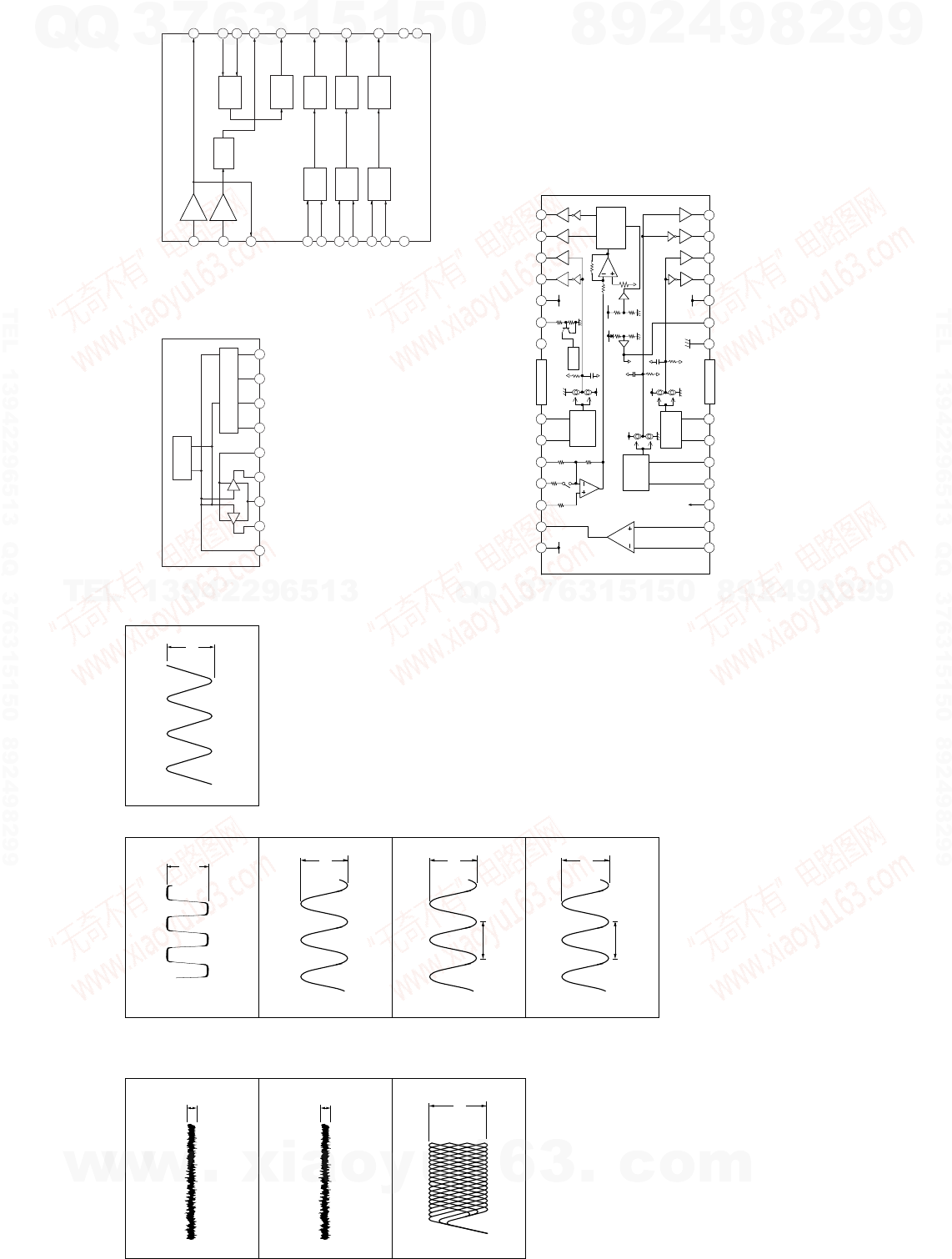

RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT

DECK A DECK B

Note: Perform this adjustments for both decks

Procedure:

1. Mode: Playback

Tape Signal Used for

P-4-A100 10 kHz, –10 dB Azimuth Adjustment

set

MAIN board

CN510

(L-CH)

(R-CH)

MAIN board

CN510

(GND)

–

level meter

test tape

P-4-A100

(10 kHz, –10 dB)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

2. Turn the adjustment screw and check output peaks. If the peaks

do not match for L-CH and R-CH, turn the adjustment screw

so that outputs match within 1dB of peak.

3. Mode: Playback

4. After the adjustments, apply suitable locking compound to

the pats adjusted.

Adjustment Location: Playback Head (Deck A).

Record/Playback/Erase Head (Deck B).

Screw

position

L-CH

peak

within

1dB

Output

level

L-CH

peak

R-CH

peak

within

1dB

Screw

position

R-CH

peak

MAIN

board

CN510

set

test tape

P-4-A100

(10 kHz, –10 dB)

oscilloscop

L-CH

R-CH

waveform of oscilloscope

in phase 45

135

180

goodwrong

CD SECTION

Note:

1. CD Block is basically designed to operate without adjustment.

Therefore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent

when the signal level is low than specified value with the

following checks.

S-curve Check

Connection:

Procedure:

1. Connect an oscilloscope to test point JPO102 (FE1) and TP

117(VC) on the CD board.

2. Turn the power on.

3. Put the disc (YEDS-18) in and turned power switch on again

and actuate the focus search. (actuate the focus search when

disc table is moving in and out)

4. Check the oscilloscope waveform (S-curve) is symmetrical

between A and B. And confirm peak to peak level within

2.4 ± 1 Vp-p.

S-curve waveform

Note:

• Try to measure several times to make sure than the ratio

of A : B or B : A is more than 10 : 7.

• Take sweep time as long as possible and light up the

brightness to obtain best waveform.

Checking Location: CD board (SIDE B)

(See page 24.)

–

CD board

JPO102 (FE1)

TP117 (VC)

oscilloscope

symmetry

within 2.4

1 Vp-p

azimuth

screw

http://www.xiaoyu163.com

HCD-GNX700/GNX800

RFAC Level Check

Connection:

Procedure:

1. Connect an oscilloscope to test point TP124 (RFAC) and TP

117(VC) on the CD board.

2. Turn the power on.

3. Put the disc (YEDS-18) in to playback the number five track.

4. Confirm that oscilloscope waveform is clear and check RFAC

signal level is correct or not.

Note: A clear RFAC signal waveform means that the shape “◊” can be

clearly distinguished at the center of the waveform.

RFAC signal waveform

Checking Location: CD board (SIDE B)

(See page 24.)

E-F Balance Check

Connection:

Procedure:

1. Connect an oscilloscpe to test point TPO103 (TE1) and TP117

(VC) on the CD board.

2. Turn the power on.

3. Select the function “CD”.

4. Press three buttons of [ENTER],M, and

[SURRUUND MODE] simultaneously to set the CD service

mode.

5. Put the disc (YEDS-18) in to playback the number five track.

6. Press the . button. The message “TRAVERSE” is

displayed. (The tracking servo and the sledding servo are

turned OFF)

7. Check the level B of the oscilliscope's waveform and the A

(DC voltage) of the center of the Traverse waveform.

Confirm the following :

A/B x 100 = less than ± 22%

Tra verse Waveform

8. Press the . button. The message “TRAVERSE” is

displayed. (The tracking servo and sledding servo are turned

ON)

Confirm the C (DC voltage) is almost equal to the A (DC

voltage) is step 5.

9. To exit from this mode, perform as follows.

1) Move the optical pick-up to the most inside track.

2) Press three buttons of x, [CLEAR], and [DISPLAY]

simultaneously. (cold reset)

Notes:

• Always move the optical pick-up to most inside track

when exiting from this mode. Otherwise, a disc will not

be unloaded.

• Do not run the sled motor excessively, otherwise the gear

can be chipped.

Tra verse Waveform

Checking Location: CD board (SIDE B) (See page 24.)

–

CD board

TP124 (RFAC)

TP117 (VC)

oscilloscope

VOLT/DIV: 200 mV

TIME/DIV: 500 ns

level: 0.9

0.4 Vp-p

–

CD board

JPO103 (TE1)

TP117 (VC)

oscilloscope

level: 1.0

0.5 Vp-p

Center of

the waveform

A (DC

voltage)

Tracking servo

Sled servo

C (DC

voltage)

Tracking servo

Sled servo

OFF

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Checking Location:

– CD BOARD (SIDE B) –

TP117 (VC)

TP124 (RFAC)

JPO103 (TE1)

JPO102 (FE1)

IC101

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 7

DIAGRAMS

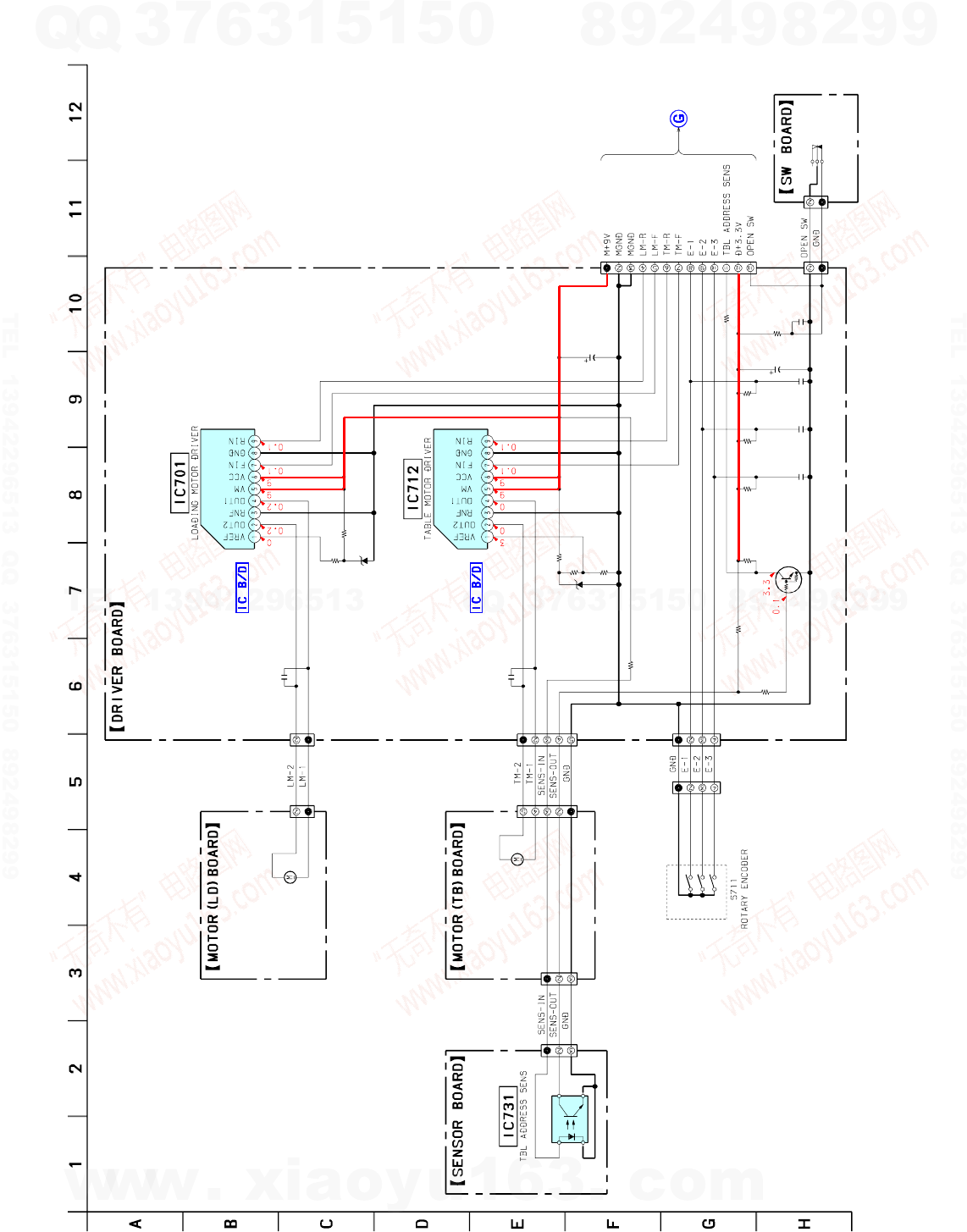

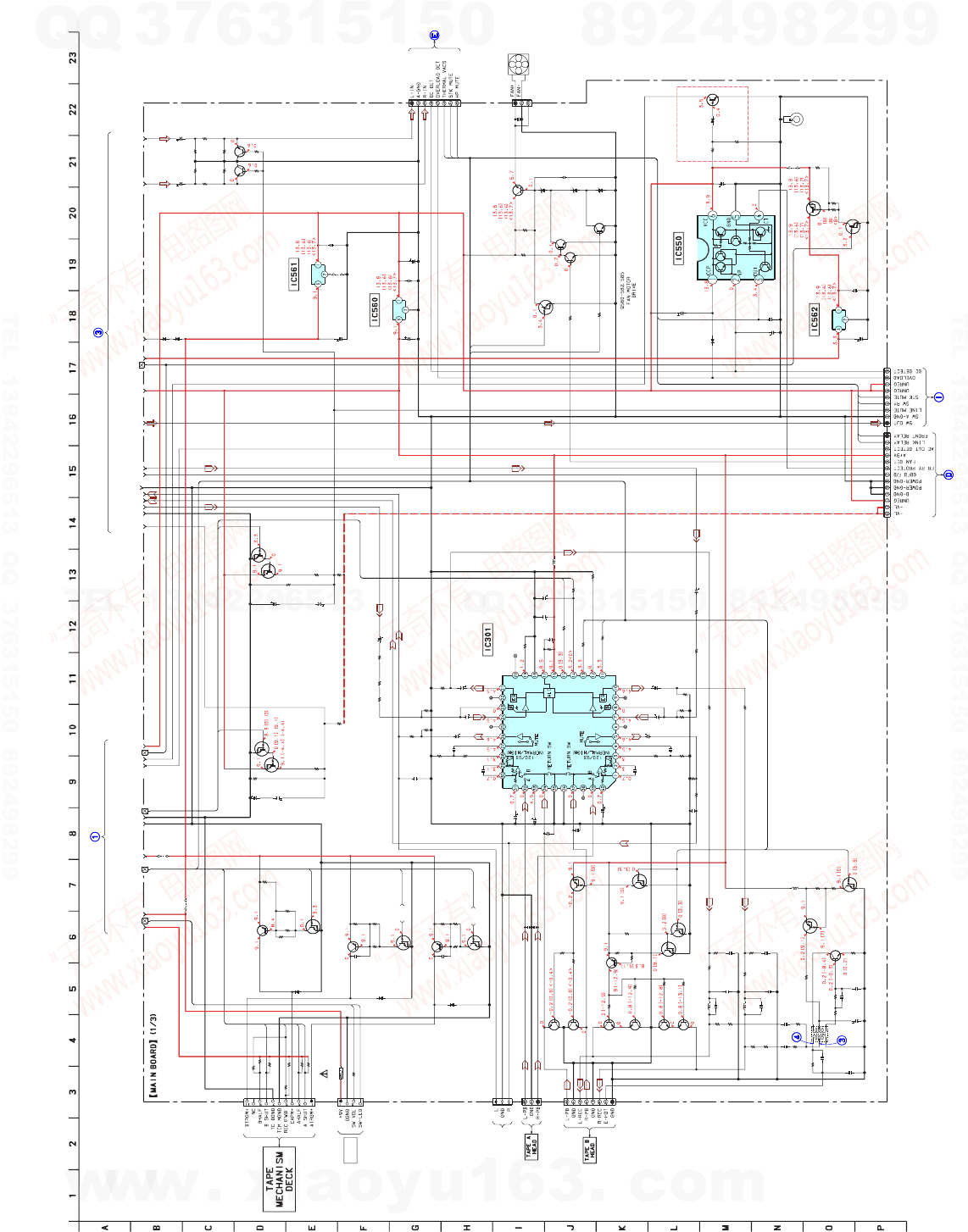

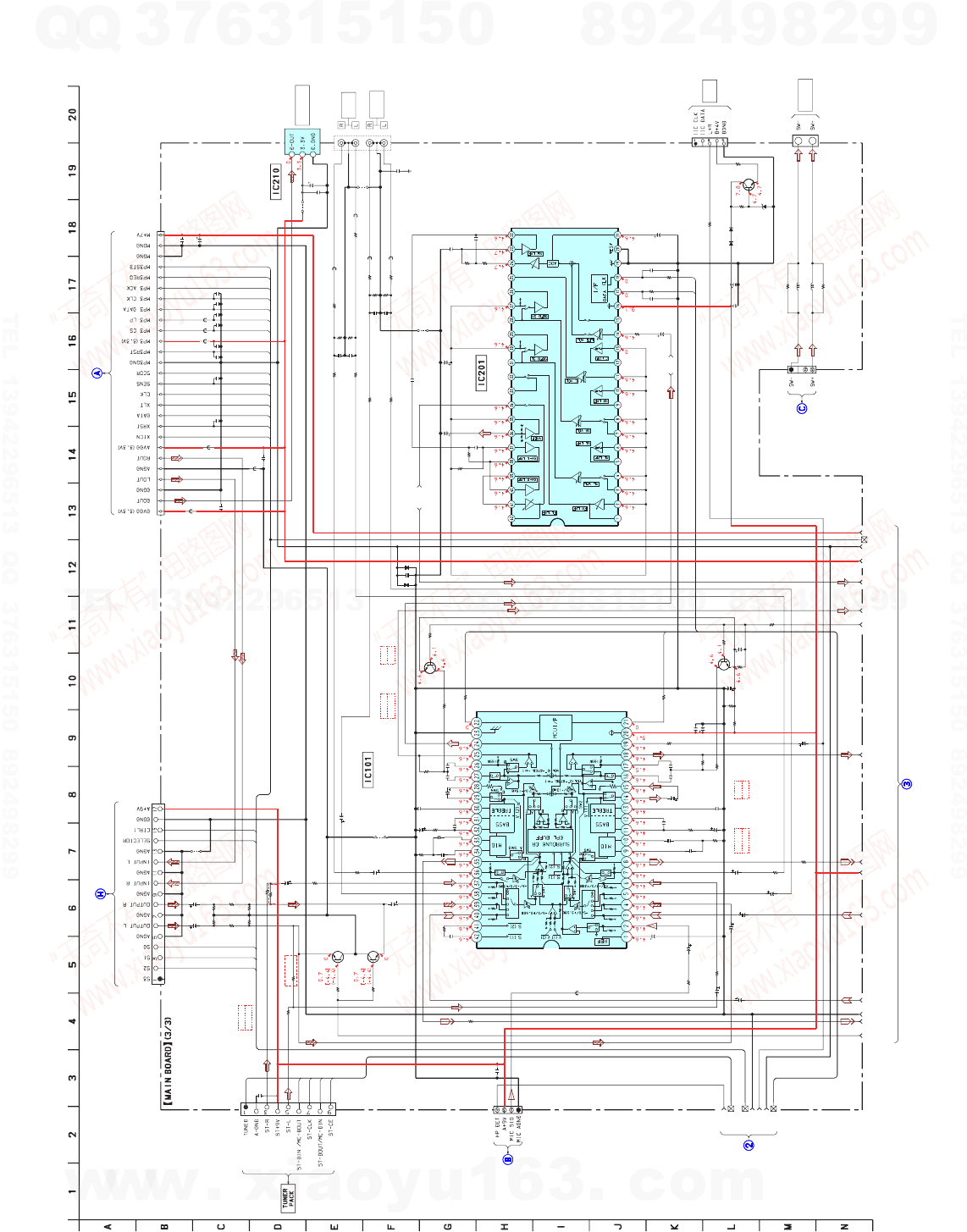

For schematic diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF)

50 V or less are not indicated except for electrolytics and

tantalums.

• All resistors are in Ω and 1/4 W or less unless otherwise

specified.

•%: indicates tolerance.

•f: internal component.

•2: nonflammable resistor.

•5: fusible resistor.

•C: panel designation.

•A: B+ Line.

•B: B– Line.

•H: adjustment for repair.

•Voltages and waveforms are dc with respect to ground

under no-signal conditions.

CD board

no mark: CD PLAY

Other boards

no mark: TUNER (FM/AM)

( ) : CD PLAY

< > : TAPE PLAY

[ ] : TAPE REC

* : Impossible to measure

•Voltages are taken with a VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

•Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal produc-

tion tolerances.

•Signal path.

F: TUNER (FM/AM)

E: TAPE PLAY (DECK A)

d: TAPE PLAY (DECK B)

G: RECORD

J: CD PLAY

N: MIC INPUT

•Abbreviation

AR : Argentina model

AUS : Australian model

E2 : 120V AC Area in E model

E3 : 240V AC Area in E model

E51: Chilean and Peruvian model

Note: The components identified by mark 0 or dotted line

with mark ! are critical for safety.

Replace only with part number specified.

(The other layers' patterns are not indicated.)

•Indication of transistor.

Caution:

Parts face side:Parts on the parts face side seen from

(Side A)the parts face are indicated.

Pattern face side:Parts on the pattern face side seen from

(Side B) the pattern face are indicated.

These are omitted.

Note:

•X: parts extracted from the component side.

•: Pattern from the side which enables seeing.

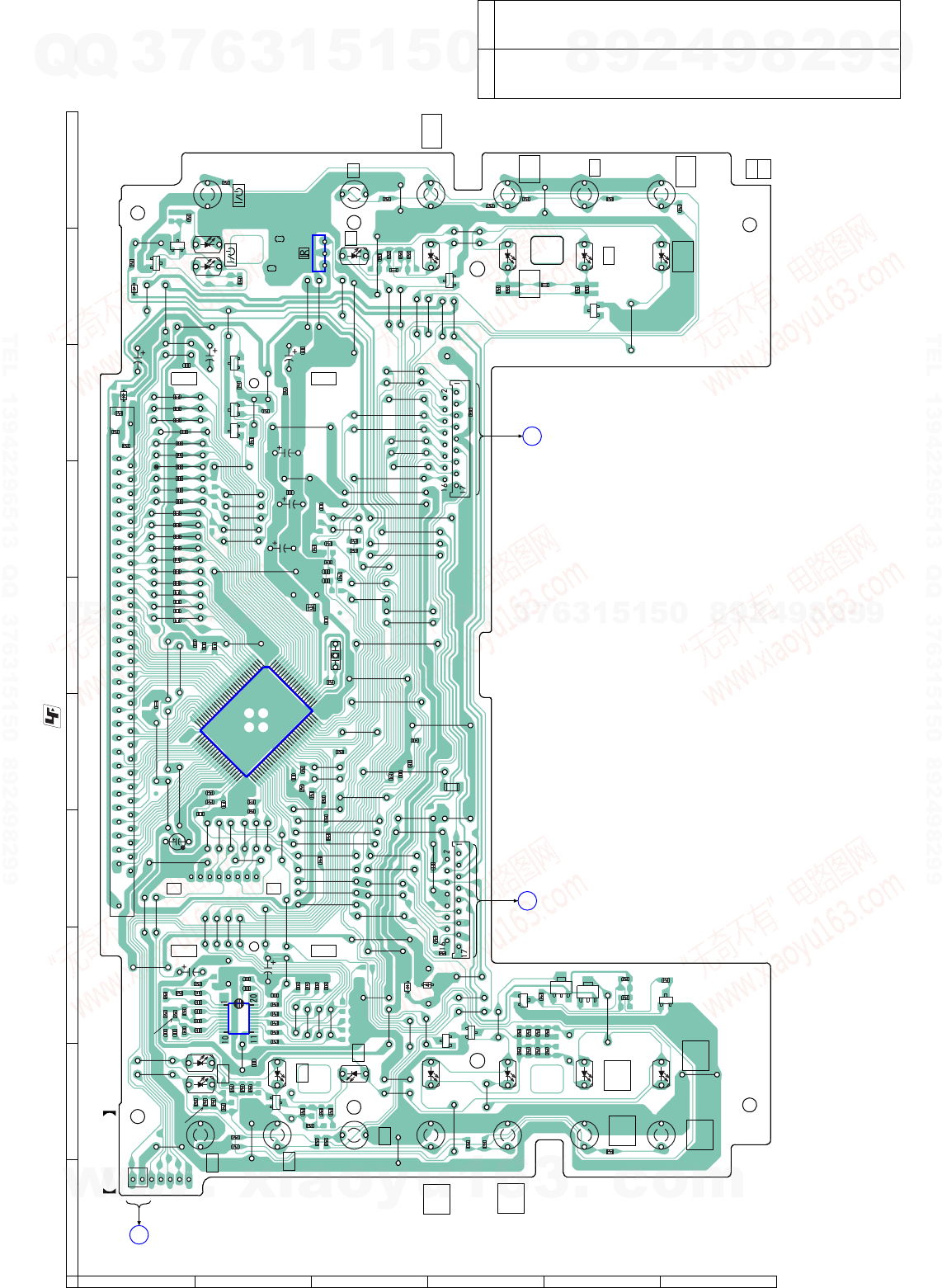

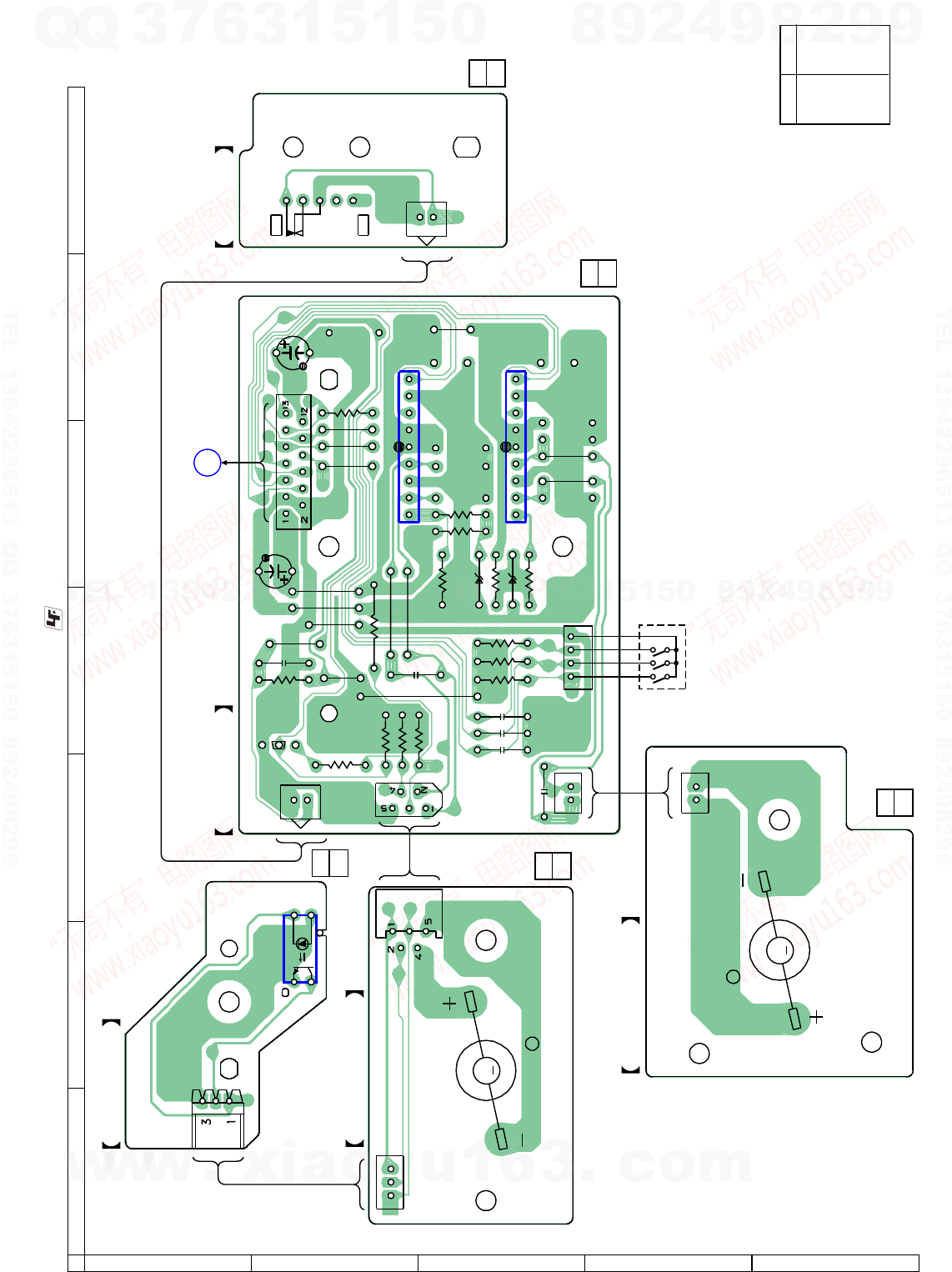

Note on Printed Wiring Boards:

http://www.xiaoyu163.com

HCD-GNX700/GNX800

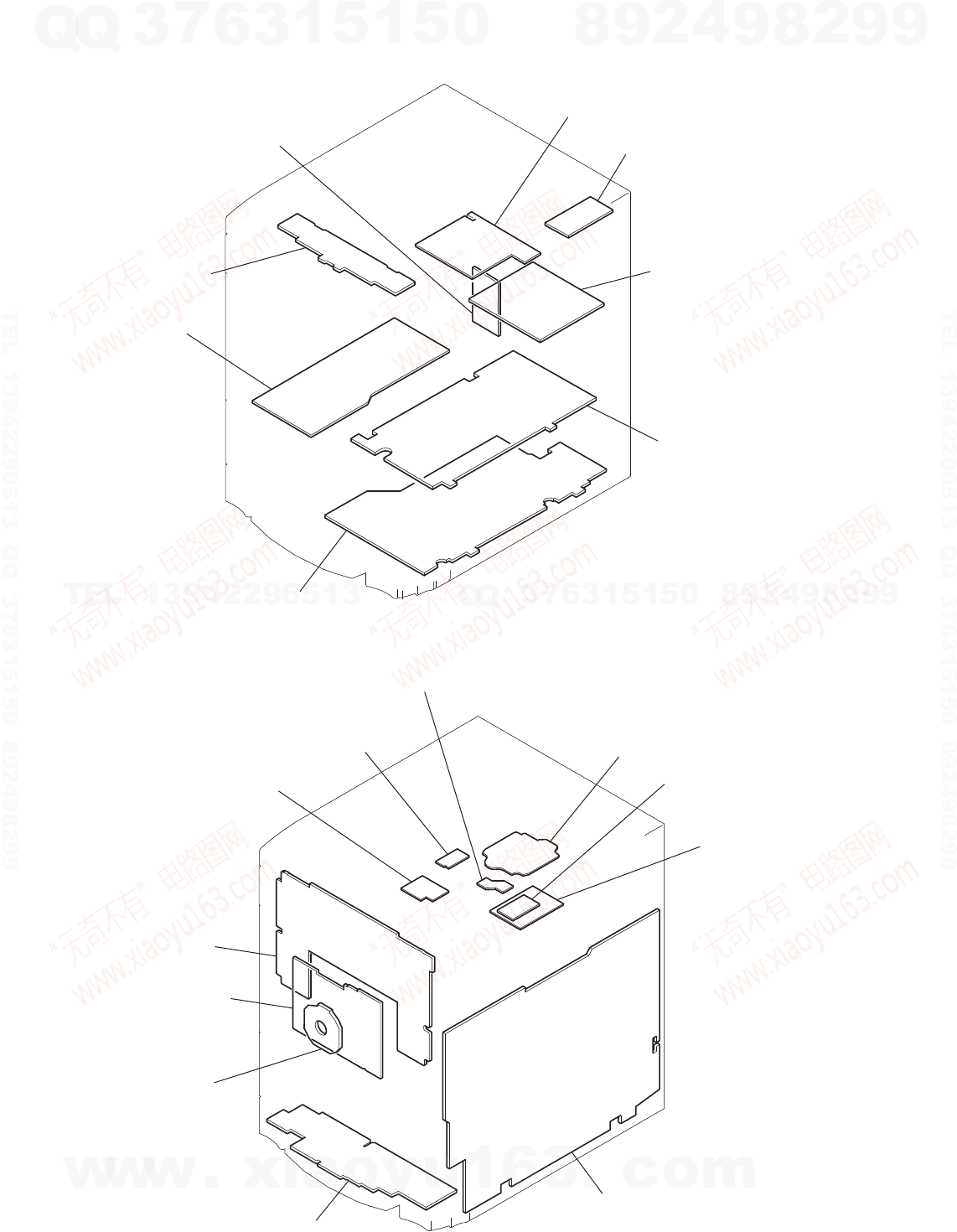

• CIRCUIT BOARDS LOCATION

CD-SW board

TRANS board

PA board

SURROUND board

EFFECTOR board

SWITCHING POWER TUNER PACK

PRIMARY board

MAIN board

MIC board

JOG board

PANEL board

FUNCTION board

MOTOR (LD) board

SW board

SENSOR board

CD board

DRIVER boar

MOTOR (TB) board

http://www.xiaoyu163.com

HCD-GNX700/GNX800

2727

HCD-GNX700/GNX800

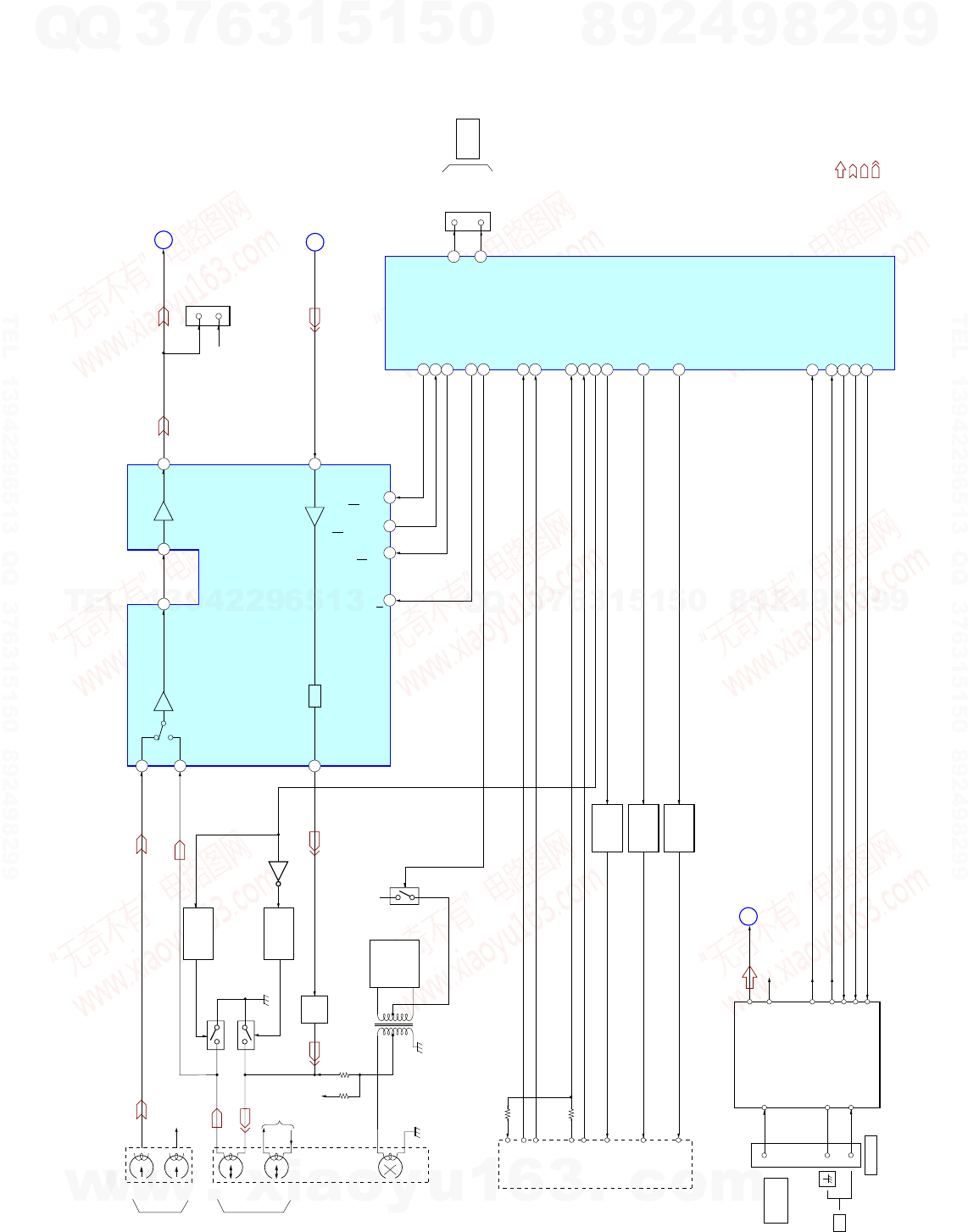

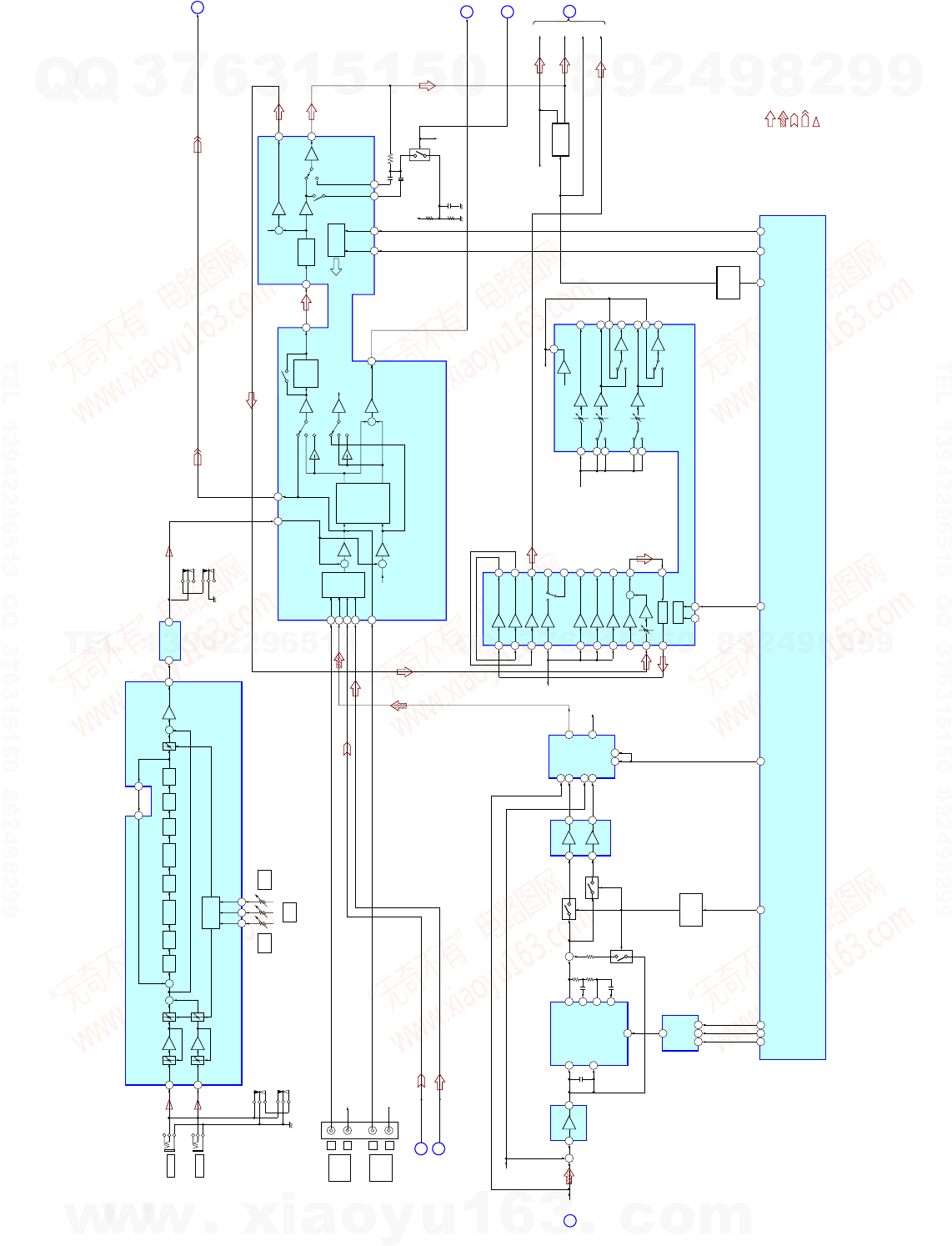

7-1. BLOCK DIAGRAM – CD SECTION –

AMAIN

SECTION

(Page 29)

BDISPLAY/POWER

SECTION

(Page 31)

MP3 STB

MP3 REQ

XTCN

MP3 REQ

MP3 STB

MP3 CLK

MP3 CLK MP3 ACK

MP3 ACK

MP3 DATA OUT

MP3 DATA

MP3 LP MP3 LP

MP3 CS

MP3 RST

MP3 CS

MP3 RST

MP3 DATA IN

SCOR

SENS

CD-CLK

XLAT

CD-DATA

XRST

XTCN

SCOR

SENS

CLOCK

XLT

DATA

XRST

R-CH

CD-L

CD MUTE

IC731

TBL ADDRESS

SENS

IC701

TABLE LOADING MOTOR DRIVER

RIN

FIN

OUT1

OUT2

IC712

TABLE MOTOR DRIVER

RIN

FIN

OUT1

OUT2

LMR

LMF

TM-R

TM-F

TBL_SENS

E-1

E-2

E-3

OPEN SW

Q731

M751

(TABLE LOADING)

M741

(TABLE)

S711

S751

(OPEN)

ROTARY

ENCODER

E-3

E-2

E-1

INVERTER

M+9V

OPTICAL PICK-UP

BLOCK

(KSM-215DCP/C2NP)

DRIVER

Q10

CD DIGITAL

OUT

OPTICAL

CD MUTE

Q250,251

+3.3V

GND

FOCUS

COIL

F+

T+

TRACKING

COIL

IC251

X171

16.9MHz

SL/SP MOTOR

DRIVER

MUTE

CH2OUT-F

CH1FIN

OUT

VREF

CH1RIN

CH2FIN

SFDR

OPIN+

CH2OUT-R

CH1OUT-R

CH1OUT-F

CH4OUT-R

CH4OUT-F

CH3OUT-F

CH3OUT-R

M101

(SPINDLE)

M102

(SLED)

S101

(LIMIT)

VCC

DETECTOR

TFDR

FFDR

CH3FIN 9

OPTICAL

OUT

SSTP

MPD

XTACN

100

XRST

102

DATA

104

XLAT

105

CLOCK

AOUT2

AOUT1

DOUT

PCMD1

LRCKI

LRCK

PCMD

DIGITAL SIGNAL

IC301

PROCESSOR

SYSTEM

IC401 (1/5)

CONTROL

IC210

SDO0

LRCKIA

SFSY/LRCK1B

SDI0

77 XTAO

78 XTAI

VDD

VDDM

25 VC

107

SENS

XTCN

XRST

DATA

XLT

CLOCK

SENS

TRDR

22 SRDR

CH3RIN 10

CH2RIN FRDR

XRST

100

BCK

BCK1

BCKIA

SBSY/BCK1B

+3.3V

IC303

5 1

RESET 12

IIC-DATA 30

IIC-CLK 29

STANBY

PO11/BUCK/AD1

MIACK

MICK

MIDIO

MICS

MILP

RESET

SRMSTB

115

SCOR SCOR

REG

CD MUTE DRIVE

Q540, 541

IC101

RF AMP

NO402

CN402

IIC-CLK

IIC-DATA

IIC-CLK

IIC-DATA

CNVSS

TXD1

RTS1 ON BOARD

PROGRAM

CLK1

RXD1

CN VSS

RESET

VMUTE

CDG/-POWER

CDG/_BGC

CDG/-DET

34 33 31 32 9

VMUTE

CDG/_BGC

CDG-DET

CDG-POWER

CNVCC

VMUTE

CDG/BGC

CDG DET

CD POWER

CNVCC

: CD

• SIGNAL PATH

• R-CH is omitted due to same as L-CH.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

2828

HCD-GNX700/GNX800

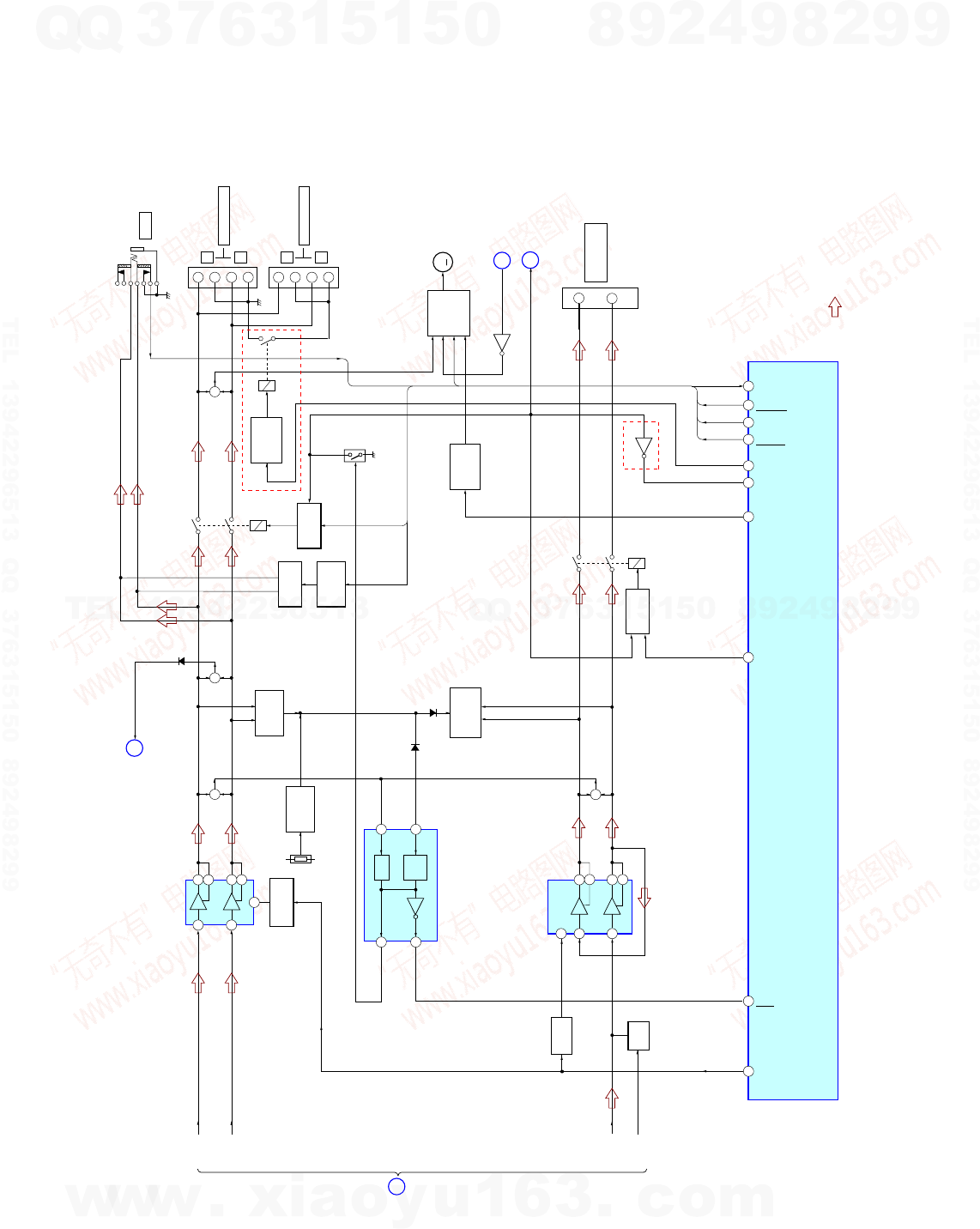

7-2. BLOCK DIAGRAM – TAPE/TUNER SECTION –

Ver. 1.1

MAIN

SECTION

(Page 29)

MAIN

SECTION

(Page 29)

MAIN

SECTION

(Page 29)

ST-L

REC-OUT-L

TAPE

MECHANISM

DECK

A TRIG

DRIVE

Q340, 343

: PLAYBACK (DECK B)

: PLAYBACK (DECK A)

R-CH

FM/AM TUNER UNIT

CN509

ANTENNA

ST-L

FM ANT

AM ANT

ST-R

TUNED

ST-DIN

ST-DOUT

ST-CLK

ST-CE

FM 75

COAXIAL

CAP M+

BTRGM+

ATRGM+

AHALF

BHALF

B SHUT

A SHUT

REC(FWD)

CAPM-CONT

B-TRIG

A-TRIG

TC-RELAY

A-HALF

B-HALF

BSHUT

ASHUT

REC BIAS

PB-A/B

ALC

REC-MUTE

TC-MUTE/IO-EXP DATA OUT

EQ OUT1

TUNED

MC DOUT(ST)

MC DIN(ST)

ST-CLK

ST-CE

28 27 26

13 11 15 14

PB OUT1

TAI1

REC IN1

AIN1

BIN1

A/B

ALC ON/OFF

REC MUTE ON/OFF

MUTE ON/OFF

IC301

DECK A/B SELECT,

PB/REC EQUALIZER AMP

IC401(2/5)

SYSTEM CONTROL

(CD/TAPE MECHANISM CONTROL)

REC-OUT1 EQ

TC-PB-L

TEST

CONNECTOR

CN510

R-CH R

HEAD

DECK-A

DECK-B

BIAS OSC

Q370

BIAS

TRAP

SWITCH

DRIVE

Q377, 379

SWITCH

DRIVE

Q382, 383

R-CH

Q376

Q373, 374

Q381

L – CH

R – CH

R-CH

C380, L371

BIAS+9V

REC/PB

HEAD

ERASE

HEAD Q378,380

T301

L – CH

R – CH

: TUNER (FM/AM)

: RECORD

• SIGNAL PATH

• R-CH is omitted due to same as L-CH.

CN102

SW VOL SYSTEM

CONTROL

SW LED

SW VOL

LED-SW-ON

B TRIG

DRIVE

Q342, 345

CAP MOTOR

DRIVE

Q341, 344

http://www.xiaoyu163.com

HCD-GNX700/GNX800

2929

HCD-GNX700/GNX800

7-3. BLOCK DIAGRAM – MAIN SECTION –

(Page 28)

AMP

SECTION

(Page 30)

AMP

SECTION

(Page 30)

DISPLAY/POWER

SECTION

TAPE/TUNER

SECTION

(Page 31)

(Page 27)

CD SECTION

(Page 28)

TAPE/TUNER SECTION

J101

R-CH

VOLUME

CONTROL

CPU

INTERFACE

INPUT

SELECT

SWITCH

SURROUND OR

DPL BUFFER

MID/

BASS &

TREBLE

R-CH

COMMAND

TOUT1 OUT1

VOLIN1

Q101

R-CH

SPEANA

DBFB F/B

F-R

F-L

SW OUT

RV1100

IC1101

MIC AMP

IC101

INPUT SELECT SWITCH,

GRAPHIC EQUALIZER CONTROL,

ELECTRICAL VOLUME

IC401(3/5)

SYSTEM CONTROL

IC201

SURROUND

VOL CONTROL

IC1506

SELECTOR CCT

INA1

INEX1

INC1

SAOUT

DATA

CLK

BB-A1

BB-B1

SWOUT

REC-OUT-L

R-CH

TC-PB-L

ST-L

CD-L

VREF

OUTPUT

OUTPUT L

DATA CLOCK

EFFECTOR SELECT

M16530-CLK

LINE MUTE

M61529-DATA

M61529-CLK

VREF

R-CH

LINE-MUE

J1100(1/3)

J1101(2/3)

MD/VIDEO

AUDIO

LPF

I/F

14 15

22 1621

INB1

IND1

MIC 1

ECHO

LEVEL

RV1102

MIC 1

LEVEL

RV1101

MIC 2

LEVEL

MIC

RECB1

MIC OUT

A+9V

233

IC1100

DIGTAL

ECHO

MC1P

MC2P

13 12

10 9

15 24

34 80 81 8266

MUTE

Q180, 181

LINE MUTE

DRIVE

Q544, 545

VREF

EFFECTOR CTRL 1

17 18

J1101(1/3)

J1100(2/3)

J1101(3/3)

J1100(3/3)

MIC 2 15

+ ++

PRE

LPF POST

LPF

ADPCM

ENCODE ADPCM

DECODE

ADC DAC S/HDELAY

5 6 7

DA OUT

POOUT

AD IN

ALC

MIC VOL

ECHO

VOL

MIC

VOL

VOLUME

CONTROL

VOL1

VOL2

VOL3

Y COM3Y

X COM3X

1311

9 10

EFFECTOR S1

EFFECTOR S2

EFFECTOR S0

IC1505

MIXER L/R

IC1500

MIXER

CD-R

IC1501

EFFECTOR R CCT

IC1503

MULTIPLEXER

Q1508

Q1506

Q1502

LPF2OUTLPF1IN

LPF1OUT

LPF2IN

OP2OUT

OP2IN

CLOCK

COM

10 911

BUFFER

Q1509, 1510

: TUNER (FM/AM)

: CD

: TAPE PLAY

: RECORD

: MIC INPUT

• SIGNAL PATH

• R-CH is omitted due to same as L-CH.

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3030

HCD-GNX700/GNX800

7-4. BLOCK DIAGRAM – AMP SECTION –

MAIN

SECTION

(Page 29)

MAIN

SECTION

(Page 29)

DISPLAY/POWER

SECTION

(Page 31)

DISPLAY/POWER

SECTION

(Page 31)

MUTING

Q604, 606, 610

F-R

DBFB F/B

F-L

SW OUT

LINE-MUTE

78 70

STK-MUTE

PROT

STK-MUTE

STK MUTE

FAN DET

FAN-CTL

FAN-ON

FAN-K

HI SPEED

OVER LOAD

DETECT

Q668, 618

+ +

MUTING

Q640, 641

MUTING

CONTROL

Q634,682

F-RELAY

HP-DET

HP-MUTE

FAN-K

100

HD DETT

HP-MUTE

LINE/SURR-RLY

UNDER VOLTAGE DET

FAN HI SPEED

FR-RELAY

FAN KICK-OFF

OVER LOAD

DETECT

Q800, 850

RELAY DRIVE

Q644, 647

H/P DET

F-RELAY

HP-MUTE

FRONT SPEAKER

SUB WOOFER

OUT

PHONES

J1103

RY646 RY665

SYSTEM CONTROLLER

IC401 (4/5)

TM600

SURR SPEAKER

TM601

FAN MOTOR

DRIVE

Q580,582,585

DC FAN

M891

GNX800

VL(AC)

TH629

THERMAL

DETECT

Q628, 630

SW MUTE

Q812

MUTE

Q810

Q583, 584

SW RY/IO-EXP CLK

RY862

E2, E3, E51

TM101

RELAY DRIVE

Q814, 815

OVER

LOAD

DC DET VP

OCP

OUT

D624

D812

D550

PROTECT

SWITCH

Q666

Q648

18 11

14 8

HI SPEED

SWITCH

Q581

Q506

• SIGNAL PATH

IC600

POWER AMP

IC550

OVER CURRENT

PROTECTOR

IC800

POWER AMP

: FM

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3131

HCD-GNX700/GNX800

7-5. BLOCK DIAGRAM – DISPLAY/ POWER SECTION –

MAIN

SECTION

(Page 29)

AMP

SECTION

(Page 30)

AMP

SECTION

(Page 30)

SECTION

(Page 27)

IC561

+9V

REGULATOR

IC560

+9V

REGULATOR

IC562

+3.3V

REGULATOR

IC402

LEVEL

DETECT

FL901

FLUORESCENT

INDICATOR TUBE

9,10, 12 – 22,

24 – 41, 43 – 47

8 – 1, 100 – 96,

92-85

P1 – 36

G1 – 13

G17-24

64 – 66

93–95

BPF4

IC904

BPF, RECT

15 69

ALL BAND

BPF3

BPF1

IN2

IN1

VKK

SELECTOR

G14-16

G1-13,G17-24

74 VOLUME

ROTARY

ENCODER

S970

MASTER

VOLUME

SPEANA

FAN CTL

P1 – 36

VF1

VF2

D905

-VG

(-32V)

X901

4MHz

83 XIN

82 XOUT

52– 59,

72,78,79

LED DRIVE

Q908-913,915,

918,919,921

D909, 915, 916, 920, 922,

924, 926, 929, 930,

1017, 1145, 1153

D908, 910, 911, 913, 914,

917, 919, 921, 923, 925,

1020

LED+9V

Q905

Q907

Q904

Q906

D927

(R)

D928

(G)

KEY2

KEY0

S901 – 906,

1166 - 1170

60I2C DATA

61I2C CLK

77RESET

30 IIC-DATA

29 IIC-CLK

IIC-DATA

IIC-CLK

71 GC-RESET

74 POWER-KEY

73 DISPLAY-KEY

S925

S900

DISPLAY

72 STBY-LED/FAN CTL

4 SIRCS

RESET

X402

16MHz

15 X-IN

13 X-OUT

X401

32.768kHz

10 XC-IN

11 XC-OUT

32CD-POWER

63OVER VOLTAGE

IC401 (5/5)

SYSTEM CONTROL

69STBY-RY

12RESET

20AC-CUT

B+ SWITCH

Q560, 561

B+ SWITCH

Q504, 505

OVER VOLTAGE

DETECT

Q550

RECT

D560

M +9V

MT +7V

A +9V

TC +9V

D561 – 563

D660, 661

+3.3V

LED+9V

BIAS+3.3V

D505

POWER

SWITCHING

LED DRIVE

Q903,917

RECT

D658

RECT

D656

+VL

VL(AC)

F1261 VL

AC3

AC4

NC AC4

AC3

GND

F1271

F1241

F1251

F1281

R1292

–VL

+VH

–VH

– 33V

REGULATOR

Q1264

POWER ON/OFF

RELAY DRIVE

Q1200

– VG

(-32V) D1292

RECT

VF1

VF2

RY1200

JW1204

JW1234

JW1235

AC IN

T1200

POWER

TRANSFORMER

RESET

SWITCH

Q501

IC903

REMOTE CONTROL

RECEIVER

TO FLUORESCENT

INDICATOR TUBE

FL901

EVER +4V

M+9V

D3.3V

IC902

DISPLAY CONTROL,

KEY CONTROL

BUFFER

Q901,902,914

70 BPF2

72 OPERATION DIAL

ROTARY

ENCODER

S1161

OPERATION

DIAL

1 2

S1200

S1200 VOLTAGE

SELECTOR

E2, E3, E51

EXCEPT

AR, AUS

E2, E3, E51

230 – 240V

220V

120V

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3232

HCD-GNX700/GNX800

7-6. PRINTED WIRING BOARD – CD BOARD – • See page 26 for Circuit Boards Location.

Ref. No. Location

IC101 D-8

IC251 C-6

IC301 C-8

IC303B-8

Q10 E-4

• Semiconductor

Location

: Uses unleaded solder.

C10

C260

C14

C15

C16

C18

C11

R405

C316

R354

R353

R352

R351

R302

R253

C315

R191

R172

R171

R162

R313

X171

R121

R12

R11

R10

Q10

C116

C312

C184

C183

C303

C302

C305

C259

C258

C257

C255

C203

C196

C195

C201

C182

C171

C172

C308

C151

C134

C125

C314

C123

R165

R13

C17

FB301

C318

R201

C174

R173

R205

C209

C210

(13)

1-860-502-

CD BOARD (SIDE A)

R419

R412

R411

R410

R409

R408

R407

R406

R404

R403

R402

R401

R305

R303

R301

R252

JPO103

(TE1)

JPO102

(FE1)

TP117

(VC)

TP124

(RFAC)

R251

R182

R181

R163

R151

R143

R142

R141

R133

R132

R131

R114

R113

R112

R111

R307

C313

C311

C310

C309

C307

C306

IC251

C252

C251

C194

C181

C320

S101

(LIMIT)

IC101

C163

C162

C143

C142

C141

C133

C132

C131

C124

C111

C122

C115

C114

C113

C112

IC301

C185 C186

R306

CN101

IC303

CN201

28 22 21 15

17814 C317

R203

R161

C161

C211

C212

R204

C213

M101

(SPINDLE)

M102

(SLED)

CD BOARD (SIDE B)

(13)

1-860-502-

OPTICAL PICK-UP

BLOCK

(KSM-215DCP)

MAIN

BOARD

(Page 36)

32 49

23 4 5 6 7 89 10

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3333

HCD-GNX700/GNX800

7-7. SCHEMATIC DIAGRAM – CD BOARD – • See page 52 and 53 for IC Block Diagrams. • See page 52 for Waveforms. • See page 56 for IC Pin Function Description

TP165

TP166

TP144

TP147

TP153

TP167

TP160

TP162

TP117

TP145

TP148

TP121

C305

JPO004

JPO10

TP301

TP302

TP303

TP304

TP146

R161

R163

R351

R352

R353

R354

R401

R402

R403

R404

R405

R406

R407

R408

R409

R411

R412

R419

R11

R191

R132

R251

R253

R12

R142

R143

R10

JPO102

JPO103

M101

(SPINDLE)

S101

C15

C17

C115

C116

C122

C125

C132

C133

C134

C141

C142

C143

C151

C161

C181

C194

C201

C203

C252

C255

C257

C303

C306

MP3 ACK

MP3 CLK

MP3 DATA

MP3 LP

MP3 CS

MP3 ACK

MP3 CLK

MP3 DATA

MP3 LP

MP3 CS

MP3 ACK

MP3 CLK

MP3 DATA

MP3 LP

MP3 CS

C308

C309

C310

C311

C312

CN101

OPTICAL

PICK-UP

BLOCK

(KSM-215DCP)

R121

R171

C171

C313

C314

C183

C184

R252

C259

R13

Q10

C16

C123

C260

R172

C124

R133

R313

C316

C10

C11

C162

C317

C315

C307

C195

C182

C174

R131

C131

C18

R301

FB301

R303

R182

R181

X171

C172

R173

R203

IC303

R302

R162

R165

C211

C210

C212

R151

R205

R410

C320

C213

C14

CN201

C185

C186

C163

C196

C152

C318

R306

IC251

C258

C251

C302

M102

(SLED)

C111

R112

R114

R111

R113

C112

C113

C114

C209

R305

IC301

R141

IC101

R307

TP124

TP142

TP149

R204

R201

MIRR

DFCT

TP178

FOK

XUGF

XPCK

GFS

LOCK

WDCK

COUT

WFCK

SBSO

RFDCO

220

MDP

APC

C2PO

100

10k

100k

3.3k

3.3

FEI

TEI

0.1

220

0.1

100

10V

0.1

0.47

0.01

0.1

0.0015

0.1

100

10V

0.1

100

10V

100

10V

0.1

47 4V

0.1

16P

15k

0.1

47 4V

22 6.3V

22k

2SA2119K

0.1

220 10V

330p

180k

220

0.0022

0.1

0.01

0.1

100p

0.001

100k

BLM21B272S

100k

100

BH15FB1WG

10k

47k

220p

0.1

22p

100

22p

0.1

470p

0.1

0.01

0.0068

0.1

0.0033

15k

470p

0.0033

470p

0.01

100k

TC94A34FG-002

4.7k

CXD3059AR

10k

RFAC

EXCK

470

22p

0.1

16.9MHz

27p

27P

BA5947FM-E2

0.1

MAIN

BOARD

(3/3)

CN505

(Page 39)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3434

HCD-GNX700/GNX800

7-8. PRINTED WIRING BOARDS – CD MECHANISM SECTION – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

M741

(TABLE)

M751

(TABLE LOADING)

CN721

IC731

CN731

CN741

CN742

C715

C731

C735

C736

R701

R711

R731

R721

R722

R723

R732

R733

R734

D701

D711

Q731

C751

IC712

IC701

CN704

C737

R713

R712

C741

R702

JW702

JW703

JW704

JW705

JW706

JW707

JW708

JW711

CN703

S711

ROTARY

ENCODER

CN702

CN751

CN705

R751

C752

JW712

JW701

JW709

JW713

JW714

S751

(OPEN)

CN701

JW710

R735

R736

BOARDMOTOR(LD)

(12)

1-687-133-

BOARDMOTOR(TB)

(12)

1-687-134-

BOARDSW

(12)

1-687-669-

BOARDSENSOR

(12)

1-687-132-

BOARDDRIVER

(12)

1-866-201-

MAIN BOARD

CN511

(Page 36)

23 4 5 6 7

Ref. No. Location

D701 C-5

D711 C-5

IC701 C-5

IC712B-5

IC731 B-2

Q731B-4

• Semiconductor

Location

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3535

HCD-GNX700/GNX800

7-9. SCHEMATIC DIAGRAM – CD MECHANISM SECTION – • See page 52 for IC Block Diagrams.

CN721

CN711

CN742

CN741

CN731

C751

CN704

CN703

IC731

IC701

R702

R701

IC712

R713

R712

R711

C741

C715 CN701

C731 R751

R731

R732

R733

R734

R736

CN702

CN705

CN751

R723 R722 R721

C736

C737 C735

D711

D701

C752

M741

M751

Q731

S751

0.01

RPI-576

BA6956AN

100

470

BA6956AN

22k

4.7k

0.01

100

16V 13P

50V 4.7k

100

10k

12k

390

4.7k 4.7k 4.7k

0.1

0.1 0.1

MTZJ-T-72-3.6B

MTZJ-T-72-5.1A

0.1

(TABLE)

(TABLE LOADING)

DTC114ESA

INVERTER

(OPEN)

(Page 38)

(2/3)

BOARD

MAIN

CN511

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3636

HCD-GNX700/GNX800

7-10. PRINTED WIRING BOARD – MAIN BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

(FOR CHECK)

TUNER PACK

22 42

C536

IC401

R508

Q506

Q550

D551

R551

R553

R509

R563

Q561

IC101 IC201

C210

R431

R432 R433

R434

R430

R406

R418

R419

R420

R311

R421

R422

R423

R424

R339

R426

FB508

FB507

FB512

FB509

R429

R395

R336

R397

R307

R396

R355

R302

R438

R439

R440

R441

R442

R443

R444

R445

R446

R436

D501

R394

R529

R530

R427

R319

R428

C464

D341

Q341

R472

Q340

Q342

IC402

Q501

D503

D504

R501

D502

D505

R500

R400

R592

(GNX800)

R593

R492

R493

Q345

R343

R111

R294

R295

R342

C341

R489

R490

R273

C405

R389

Q374

Q371

R304

Q372

Q373

R384

Q376 Q375

Q382

R383

R399

R381

R380

R382

C381

Q381

R371 R374

IC301

C380

C384

C386

R392

C377

FB261

FB510

FB263

C264

FB260

R150

C534 C547

C546

R268

R270

R269

R265

R267

R264

R266

R261 R263

R260 R262

R203

C205

C203

R204

C372

R205

C206

R325

R229

R228

D101

D102

D325

C373

R305

R303

R312

R306

C364

R310

R308

R309

R387

R354

R352

R385

R351

R221

R560

R220

C376

Q379

C263

FB506

C537

C262

C260 C261

R253

R254

R257

R256

R255

R252

R250

R251

Q250

Q251

Q343

R532

C539

R104

IC550

R495

C564

C565

D550

R483

R484

R485

R486

R487

C538

R586

C110

D402

R140

R157

R116

C581

C580

Q584

Q582

Q580

R575

R577

R578

D581

D584

C115

R562

R106

R107

R488

Q378

C382

R585

C385

Q380

R373

C383

R369

D342

R379

R388

R344 R347

C340

Q377

D340

D103

D104

C378

R372

R391

R378

R375

R393

Q370

R102

R103

R101

C160

C567

Q560

R346

R341

R345

R349

R538

Q545

R546

R582

R581R531

R184

R185

R186

R187

R180

R181

R182

R183

Q180

Q181

R370

C551

R337

D401

R390

R353

C419

Q583

R571

R473

Q344

R474

R271

Q325

R301

R376

R272

R348

C375

C314

R386

Q383

R587

R377

C371

R425

C499

R151

R152

R340

R502

R573

R574

FB262

D583

FB150

R356 R357

C525

C523

C522

C524

C521

C520

R595

Q505

Q504

C497

R401 R402

R404

R405

R411

C411

R412

R413

R417

R505

C410

C412

R503

R403

R409

R407

JR101

JR102

31 30

100

80 81

JR107

JR108

JR109

JR110

JR114

JR117

JR119

JR120

JR123

JR124

JR125

JR126

JR127

JR129

JR130

JR131

R112

JR112

JR121

JR115

R452

JW563

NO401

JW001

JW002

JW006

JW010

JW011

JW012

JW013

JW015

JW016

JW017

JW018

JW019

JW023

JW027

JW028

JW029

JW030

JW031

JW032

JW033

JW037

(AR,AUS)

JW038

JW039

JW040

JW041

JW044

JW045

JW049

JW051 JW052

JW053

JW055

JW056

JW058

JW059

JW062

JW065

JW067

JW074

JW075

JW076

JW098

JW108

JW112

JW113

JW141

JW142

JW144

JW171

JW172

JW173

JW174

JW189

JW191

JW202

JW216

JW229

JW230

JW231

JW232

JW233

JW237

JW238

JW240

JW239

JW241

JW243

JW244

JW245

JW248

JW254

JW255

JW263

JW264

JW265

JW268

JW273

JW274

JW276

JW279

JW280

JW281

JW284

JW288

JW294

JW299

JW300

JW301

JW302

JW312

JW317

JW320

JW321

JW322

JW323

JW324

JW325

JW326

JW327

JW328

JW329

JW331

JW332

JW333

JW334

JW335

JW338

JW339

JW340

JW341

JW342

JW343

JW344

JW345

JW356

JW357

JW359

JW360

JW361

JW362

JW364

JW366

JW367

JW368

JW369

JW370

JW371

JW373

JW387

JW376

JW378

JW377

R598

L101

L102 R599

JW007

JW400

JW365

JW125

JW123

JW124

JW291

JW295

JW501

JW315

JW316

JW402

JW406

JW213

JW310

JW242

JW234

JW412

JW318

JW319

JW413

JW416

JW417

JW419

JW267

JW420

JW421

JW384

JW383

JW337

JW363

JW450

JW307

JW308

JW336

JW452

C511

NO503

JW135

NO402

EPT561

JW277

JW566

JW567

JW568

JW061

JW145

CN102

SYSTEM CONTROL

JW260

JW184

JW188

JW121

JW119

JW397

JW118

JW117

JW116

JW115

JW114

JW042

JW043

JW014

JW138

JW054

JW009

JW008

JW005

JW004

JW003

JW050

JW071

JW070

JW048

JW084

JW086

JW085

JW047

JW046

JW057

JW399

JW066

JW063

JW064

JW091

JW092

JW093

JW096

JW095

JW236

JW257

JW258

JW020

JW418

JW381

JW379

JW090

JW162

JW161

JW160

JW127

JW395

JW192

JW275

JW304

JW408

JW247

JW208

JW182

JW407

JW355

JW346

JW347

JW348

JW278

JW235

JW225

JW140

JW143

JW148

JW181

JW186

JW187

JW110

JW190

JW177

JW130

JW156

JW166

JW170

JW211

JW212

JW210

JW215

JW224

JW226

JW227

JW259 JW298

JW203

JW205

JW222

JW351

JW396

JW398

JW349

JW372

JW393

JW394

JW358

JW380

JW385

JW390

JW403

JW411

JW422

JW426

JW428

JW430

JW431

JW432

JW103

JW433

JW434

JW253

JW256

JW389

JW375

JW209

CN511

X402

X401 C568

C308

C355

CN505

C310

C462

CN508

C501

C503

C416

IC561

IC210

D560

L371

C374

CN502

C351

C250

CN501

CN512

C100

C150

C103

C222

J101

C540

C202

C207

C154

C311

C204

C230

CN506

C211

C231

C223

C309

C498

C541

C305

C353

C306

C359

C220

C354

C356

C301

C251

CN507

C104

C105

C111

IC560

C566

C180

C560

C561

CN100

C102

C221

C152

C280

C156

C157

C158

CN580

Q585

C112

CN510

C106

C107

C108

C281

C153

L302

T301

C502

L370

C312

TM101

C303

L372

C544

C545

C181

D561 D562

C379

C109

C562

EPT560

C563

C161

C370

C304

C361

C307

CN402

C140

C159

IC562

CN503

C553

(E2,E3,E51)

JW069

CN513

JW352

JW354

JW561

JW072

JW078

JW391

JW392

JW128

JW164

JW165

JW223

JW167

JW415

JW129

JW100

JW109

C535

JW270

JW200

JW079

JW201

JW176

JW199

JW120

JW178

JW424

JW423

JW425

JW282

JW175

JW073

JW068

JW080

JW094

JW097

JW107

JW036

JWH001

CN509

JW228

JW251

JW081

JW087

JW111

JW139

JW082

JW035

JW183

CN105

JW220

J103

JW126

JW179

JW180

JW195

JW196

JW193

JW221

JW287

JW286

JW404

JW285

JW206

JW292

JW296

JW289

JW293

JW522

JW153

JW159

JW185

JW429

JW163

JW197

JW198

R108

JW022

1-868-763-

BOARDMAIN

PANEL

BOARD

CN902

(Page 40)

DRIVER

BOARD

CN701

(Page 34)

PRIMARY

BOARD

CN1200

(Page 50)

MIC

BOARD

CN1101

(Page 42)

EFFECTOR

BOARD

CN1501

(Page 48)

BOARD

CN201

(Page 32)

BOARD

CN601

(Page 44)

BOARD

CN600

(Page 44)

TRANS

BOARD

CN1213

(Page 50)

SURROUND

BOARD

NO801

(Page 46)

SURROUND

BOARD

CN700

(Page 46)

(E2,E3,E51)

EEE

Q581

(FOR CHECK)

TAPE A

HEAD

TAPE B

HEAD

TAPE

MECHANISM

DECK

M891

DC FAN

SUBWOOFER

OUT

CD DIGITAL OUT

OPTICAL

G-LIGHT

SYNC

VIDEO/MD

AUDIO IN

117

R594

C417

D403

C401

D404

JW083

JW023

JW024

JW025

JW026

JW021

JW137

C113

R119

R131

JW131

JW262

JW146

JW134

JW122

JW133

JW132

JW219

C149

R133

R156

R105

Q151

Q101

R122

R153

R121

R130

JR122

JW149

JW169

JW168

JW150

JW151

JW152

JW154

JW155

JW157

JW158

JW303

C162

C116

JW136

JW451

JW409

JW313

JW217

JW218

JW204

JW147

C163

C101

R132

R155

C131

R475

R478

R570

R469

JR113

R468 R497

R293

R296

R297

R476

R477

R470

R463

JW077

Q540

R541

R542

JW088

R547

R548

JW089

Q544

R540

Q541

JR116

JW105

JW104

JW106

JW350

JW290

C552

JW297

C550

JW401

R449

R450

R448

JR104

R166

C155

R154

NO403

(E2)

23 4 5 6 7 8910 11 12 13 14

Ver. 1.1

Ref. No. Location

D101 J-13

D102 J-13

D103 D-9

D104 D-9

D325 I-14

D340 E-3

D341 E-3

D342 E-3

D401 D-5

D402 D-5

D403 C-3

D404 C-3

D501 C-5

D502 C-5

D503 C-5

D504 C-5

D505 C-6

D550 I-12

D551 I-12

D560 I-8

D561 G-9

D562 G-10

D581 H-13

D583 H-13

D584 H-13

IC101 D-10

IC201 D-12

IC210 A-14

IC301 H-5

IC401 C-4

IC402 C-5

IC550 I-12

IC560 H-9

IC561 H-9

IC562 C-6

Q101 C-9

Q151 C-8

Q180 J-10

Q181 J-10

• Semiconductor Location

Ref. No. Location

Q250 C-12

Q251 C-13

Q325 J-13

Q340 E-2

Q341 E-4

Q342 E-3

Q343 E-2

Q344 E-3

Q345 E-2

Q370 J-4

Q371 I-3

Q372 I-4

Q373 I-4

Q374 I-4

Q375 I-4

Q376 I-4

Q377 I-5

Q378 I-5

Q379 I-5

Q380 J-5

Q381 I-5

Q382 H-5

Q383 H-5

Q501 C-5

Q504 B-6

Q505 C-6

Q506 E-3

Q540 E-5

Q541 F-4

Q542 E-5

Q545 F-5

Q550 I-12

Q560 C-7

Q561 C-6

Q580 H-12

Q581 H-13

Q582 H-13

Q583 D-4

Q584 H-13

Q585 H-13

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3737

HCD-GNX700/GNX800

7-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/3) – • See page 52 for Waveforms.

(2/3)

BOARD

MAIN

(Page 38) (3/3)

BOARD

MAIN

(Page 39)

BOARD

SURROUND

(Page 47)

(Page 45)

CN600

CN700

BOARD

(Page 45)

CN601

R294

R296

R293

R272

C340

R340

R344

R343

R342 R347

R348

C341

R341

R345 R349

CN509

CN510

R385

R387

C375

R382

R381

R384

R399

R383

R390

R396

L371

R376

R373

R372

R375

C378

L370

C380 C384

R392

C386

R397

R393

C383 C385

R391

C372 C373

R374

R371

R370

C371

C370

R379

R386

R377 R378

C377

T301

C379

R394

R395

L372

100uH

R306

R307

R308

R310

R312

R309

R311

L302

100uH

C312

C308

C307

R319

C314

R302

R301

C303 C304

R304

R305

C306

C305

C301

C310

C351

R351

C353

R352

C354

C355

R354

C356

R355

C311

R339

R337

R548

R542

R541

C541 R540

C540

C545

R546

R547

C544

CN501

C553

C551

C550

C552

C563 C564 C566

C565

C562

D561

D562

R575

R577

CN580

C580

C581

Q585

R560

R562

C567

C568

CN502

R186

R187

C181 C180

R184

R185

R182

R183

R180

R181

CN507

CN503

D341

D342

D340

D550

R495

R108

R551

R553

D551

CN513

D581

D583

Q580

Q582

JW561

JW568

JW566

R336

C309

C359

R380

C374

Q376

Q375

Q371

Q372

Q373

Q374

Q377

Q379 Q381

Q382

Q383

Q378

Q380

Q370

Q541

Q540

IC560

IC561

Q341

Q344

Q342

Q345

Q340

Q343

R346

Q181 Q180

IC562

R563

Q560

Q561

R388

C382

C381

R273

JW567

IC301

C376

R389

R357 C361

C364 R353

R369

R303

CN102

Q550

IC550

Q584

R356

R297

R295

Q544

Q545

EPT560

R578

Q581

D584

4.7k

47k

22k

0.0047

2.2k

680

2.2k

2.2k 2.2k

680

0.0047

3.3k

3.3k 3.3k

11P

2.2k

680p

2.2k

10k

2.2k

10k

27mH

4.7k

10k

120p

27mH

120p 330p

10k

0.022

2.2k

330p 0.022

10k

0.001 0.001

4.7k

3.3k

0.0047

0.01

100V 10

47 10k

0.01

0.0068

4.7k

47k

22k

100

4.7k

50V

470

10V

50V

2.2k

0.0022

4.7k

3.3k

0.1 10

50V

2.2k

47k

2.2

50V

0.012

50V

0.012

3.3k

0.1

4.7k

16V

50V

2.2k

2.2

50V

47k

50V

22k

10k

470k

15k

50V 68k

50V

68k

15k

50V

13P

1000

25V

0.1

100

16V

2.2

50V

470

10V 0.1 4700

25V

0.1

100

16V

10EDB40

10k R594

330

0.1

2SD2525

2.7k

2.2k

0.1

1000

6.3V

10k

4.7

50V 4.7

50V

47k

10k

1SS355WTE-17

100

56k

1.8k

1SS355WTE-17

UDZSTE-176.2B

UDZSTE-176.8B

2SC2712-YG

6.8k

0.5%

35V

6.8k

0.5%

35V

2SD2704K

SWITCH

2SD2704K

SWITCH

2SD2704K

SWITCH

2SD2704K

SWITCH

2SD2704K

SWITCH

2SD2704K

SWITCH

2SA1235

SWITCH DRIVE

DTC114EKA

SWITCH DRIVE DTC114EKA

BUFFER

DTA114EKA

SWITCH DRIVE

DTC114EKA

SWITCH DRIVE

RT1P137P-TP-1

SWITCH

DTC114EKA

SWITCH

2SD596DV345

BIAS OSC

DTC114EKA

CD MUTE DRIVE

DTA124EKA

CD MUTE DRIVE

BA09T

2SB1132

CAP MOTOR

DRIVE

DTC114EKA

CAP MOTOR

DRIVE

2SB1132

B TRIG DRIVE

DTC114EKA

B TRIG DRIVE

2SB1132

A TRIG DRIVE

DTC114EKA

A TRIG DRIVE

680

2SD2114K

MUTE 2SD2114K

MUTE

TA78033LS

2.2k

RT1P137P

B+ SWITCH

DTC114EKA

B+ SWITCH

6.8k

0.5%

1200p

10k

HA12237F

680p

22k

10k

50V

0.0022 10k

2.2k

10k

DTC143TKA

OVER VOLTAGE

DETECT

RT8H015C-T112-1

DTC114EKA

BUFFER

6.8k

0.5%

3.3k

DTA124EKA

LINE MUTE DRIVE

DTC114EKA

LINE MUTE DRIVE

2SC2712-YG

HI SPEED

SWITCH

HZU2.0BTRF

A-TRG

B-TRG

BUS8

BUS7

BUS4

BUS6

LED+9V

AC-CUT

EVER+3.3V

B+

D GND

OVER VOLTAGE

GND

SW OUT

M+7V

A+9V

DBFB FB

CD MUTE

3.3V

REC-OUT-R

REC-OUT-L

TC-PB-R

TC-PB-L

R-OUT

L-OUT

D GND

GND

BUS4

UNREG

SYSTEM

CONTROL

(FOR CHECK)

DECK A/B SELECT,

PB/REC EQUALIZER AMP

+9V REGULATOR

REGULATOR

+3.3V

OVER CURRENT

PROTECTOR

M891

DC FAN

E2,E3,E51

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3838

HCD-GNX700/GNX800

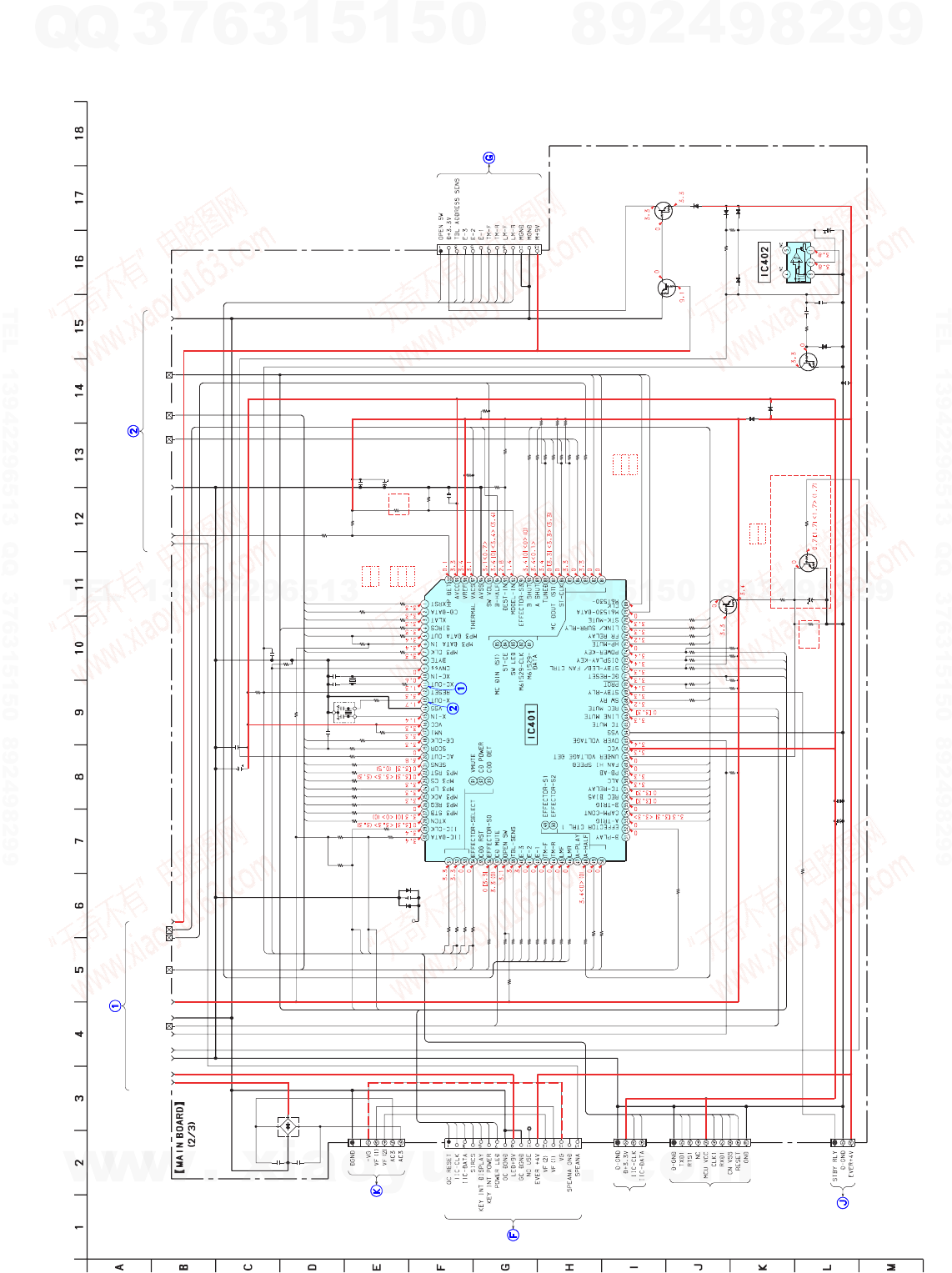

7-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/3) –

VREF

SYSTEM CONTROL

CN402

NO402

R431

R432

R433

R434

R436

R438

R439

R440

R441

R442

R443

R444

R445

R446

R448

R449

R450

R483

R484

R486

R485

R487

R489

R488

R490

R595

C499

R587

R586

R585

R430

NO403

R529 R530

R429

D404

1SS355WTE-17

D403

1SS355WTE-17

R428

R427

R426

R425

R424

R423

R422

R421

R420

R419

R418

R417

R407

R406

R405

R404

R403

R402

R401

R411

R413

C411

C419 C410

R505 R409

C412

R412

X401

C464

C462

C405

R468

R470

R472

R473

R474

R475

R476

R477

R478

R570

R571

R573

R574

R452

C560

C561

CN508

NO503

IC401

NO401

R503 C503

C502

C501

R502

R400

R463

D505

D501

D502

D503

D504

D402

D401

R592

R493

R593

R492

C511

JR131

R508

X402

R497

R501

CN511

Q583

Q505

Q504

Q501

R500

C498

C497

R538

R509

IC402

R469

C416

D560

Q506

10P

100

0.1

10k

100

C401

0.1

10k 10k

100

220

10k

100

330k

22p

220p 22p

4.7k 10k

0.1

100k

32.768kHz

0.01

100

10V

0.1

100

10k

100

0.01

17P

M30622MEP-A75FPU0

00.1

0.1

50V

100

10k

1SS355WTE-17

4.7k

6.3V

10k

5MHz

220

13P

DTA124EKA

BUFFER

DTC124EKA

B+ SWITCH

DTA114EKA

B+ SWITCH

DTC124EKA

RESET

SWITCH

10k

50V

0.1

10k

BD4929G-TR

100

2200

C417 0.1

6.3V

D3SBA20-4101

DTC114EKA

BUFFER

BUS8

BUS7

BUS6

BUS5

BUS4

BUS3

SPEANA

AC-CUT

D GND

LED+9V

EVER+3.3V

B+

OVER VOLTAGE

HP-DET

GND

D GND

BUS4

UNREG

39 40

R492

2.2k

R493

330

1.5k

4.7k

R593

680

4.7k

2.2k

R509

3.3K

(FOR CHECK)

LEVEL DETECT

(1/3)

MAIN BOARD

(Page 37)

(3/3)

MAIN BOARD

(Page 39)

BOARD

TRANS

(Page 51)

CN1213

BOARD

PANEL

(Page 41)

CN902

BOARD

PRIMARY

(Page 51)

CN1200

BOARD

DRIVER

(Page 35)

CN701

GNX700

GNX800

AUS

E2,E51,AR

GNX800

E2,E51

E3,AUS

GNX700

GNX800

E2,E3,E51

AR,AUS

• See page 52 for Waveforms. • See page 59 for IC Pin Function Description

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

3939

HCD-GNX700/GNX800

7-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/3)–

BOARD

EFFECTOR

(Page 49)

CN1501

CD BOARD

(Page 33)

CN201

BOARD

MIC

(Page 43)

NO1101

BOARD

SURROUND

(Page 47)

NO801

MAIN

BOARD

(1/3)

(Page 37)

CN506

FB512

C537

FB509

C521

C546

C547

FB508

FB507

FB506

C524

C525

C520

C523

C522

CN512

C534

C535

R263 C263 R267

R262 C262 R266

R261 C261 R265 R269

R260 C260 R264 R268 FB260

FB261 R271 FB263 JR129

C264

FB262

R270

R112

R111

C131

R132

R133

R105

C130

C116

C115

R156 R155

D103

C101

R106

C111

C113

C108

R102

C109

C106

C107

R101

C105

R107

R116

C103

C281

C150

R150

C104

R104

C280 C102

C100

C159

R151

R152

C157

C156

R153

C163

C161

C158

C140

R140

C155

R166

CN100 C149

C210

C211

R251

C152

FB150

C114

R119

D102

D101

R325

C230

C231

C223

C222

R221

R220

C220

C221

JW260

R205

R204

R203

C207

C202

C203

C206

R598

R599

TM101

CN105

L101

L102

JW270

JW208

R103

CN505

R255

R532 R531

R532,582

C539

C251

C250

R253 R254

R257

R250

R256

R252

IC101

R157

Q151

Q101

C205

C204

D325

R229

R228

J101

R121

R122

C162

C160

C112

C110

R131

R130

IC201

Q251

Q250

R154

C154

R582

C153

FB510 C538

IC210

JW419

J103

Q325

0UH

0.1

0UH

220p

0UH

220p

0.1

220p

17P

0.1

1000

10V

0220p 100k

0220p 100k 1k

0220p 100k 1k 0

01k 00

0.47

50V

100k

47k

50V

220

10V

0.1

10k 47k

10k

50V

0.27

0.033

10k

50V

0.022

2.2k

50V

220

100

50V

100

50V 1k

50V 10

50V

100

10V

50V

2.2k

10k

0.022

560

0.27

50V

0.033

0.068

10k

50V

100

4P 0.1

0.1

100

10V

10k

50V

100

1SS355WTE-17

680

0.1

100

10V

100

10V

12k

100k

0.1

50V

220p

1/2W

560

27P

10k

0.1

50V

10k 10k

33k

4.7k

R581 4.7k

M61529FP-60G

220

2SC2712-YG

SWITCH

WTA-17

1SS335 D104

WTA-17

1SS335

0.1

2SC2712-YG

SWITCH

0.1

220

10V

UDZSTE-174.7B

6.8k

0.5%

6.8k

0.5%

10k

2.2k

M61530FP-D60G

2SD2114K

CD MUTE

2SD2114K

CD MUTE

50V

0UH 0.1

TOTX147

2SC5053

REG

SW-IN

SW-OUT

BUS4

BUS5

BUS3

SPEANA

D GND

HP-DET

SW OUT

M+7V

A+9V

DBFB FB

CD MUTE

GND

3.3V

REC-OUT-R

REC-OUT-L

TC-PB-L

TC-PB-R

R-OUT

L-OUT

GND

D GND

BUS4

(2/3)

BOARD

MAIN

CD DIGITAL OUT

OPTICAL

D-LIGHT

SYNC

SUBWOOFER

OUT

AUDIO IN

VIDEO/MD

CONTROL

SURROUND VOL

INPUT SELECT SWITCH,

GRAPHIC EQUALIZER CONTROL,

ELECTRICAL VOLUME

OPTICAL OUT

C160

0.0068

0.01

C162

0.22

0.27

0.0068

0.01 0.22

0.27

C110 C112

(Page 38)

GNX700

GNX800

GNX700

GNX800

GNX700

GNX800

GNX700

GNX800

680

EXCEPT E2

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4040

HCD-GNX700/GNX800

7-14. PRINTED WIRING BOARD – PANEL BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

Ref. No. Location

D901 A-9

D905 A-8

D908 C-9

D909 D-9

D910 D-9

D911 A-2

D913 C-2

D914 D-2

D915 B-2

D916 E-9

D917 E-9

D927 B-9

D928 B-9

D929 E-2

D930 F-2

D931 C-3

D932 C-3

D1145 B-2

D1153 C-2

IC902 B-5

IC903 B-9

IC904 B-3

Q901 B-8

Q902 B-8

Q903 A-9

Q904 E-3

Q905 E-3

Q906 D-3

Q907 F-3

Q908 D-9

Q909 E-9

Q910 B-2

Q914 B-8

Q917 A-9

Q918 D-3

Q919 D-3

• Semiconductor

Location

MAIN

BOARD

CN508

(Page 36)

VIDEO/

TUNER/

BAND

TAPE

A/B

VIDEO/

TAPE

A/B

ALBUM

TUNING

ALBUM

R1143 R925

R1179

R1112

R1021

31 30

80 81

C979

C980

C926

C927

JR914

C928

C929

C930

C931

C932

C933

C934

C935

C936

C937

C938

C939

C981

C982

C983

C972

R942

R943

R941

D905

C920

R922

FB901

C904

R901

R900

C940

C909

C903

C945

C947

R984

R983

R956

C946

C948

R947

R949

R950

R952

R953

C949

C951

C953

C955

C957

C950

C975

R902

C901

C902

C1180

R905

R903

R904

R906

R907

C910

D932

C954

R948

C952

C958

C956

R951

C959 R954

R1022

R1023

R1024

R1025

R1026

R909

R1027R1028

R1187

C906

C925

C905

R912

C916

C908

D931

R1180

R1181

C962

R944

R968

R964

R965

R966

R910 R911

R987

R988

Q908

R914

R915

R990

R991

Q909

R916

R917

R974

R975

Q907

Q910

R957

R997

R1135

R1136

Q918

Q919

R1141

R1142 R923

R924

R1007

R1008

R1009

R1010

R1011

R1012

R1013

Q904

R979

R982

R980

R981

Q905

Q906

Q901 Q902

Q914

R919

R920

R918

C961

IC904

D901

IC902

R1098

R1171 R926

C973

C964

JW904

JW903

NO904

D927

D928

D908

D909

D909,S924

D910

D916

D917

D911

D915

D1145

D1153

D913

D914

D929

D930

S927

S925

S924

S923

S922

S921

S907

S908

S909

S910

S910,D913

S911

S911,D914

S912

S913

CN902

C943

X901

C922

C923

C924

C900

C941

C942

CN900

C967

IC903

FL901

JW1105

JW900

JW906

JW907

JW908

JW909

JW911

JW912

JW913

JW914

JW915 JW916

JW917

JW918

JW919

JW920

JW921

JW923

JW924

JW925

JW926

JW927

JW928

JW929

JW931

JW932

JW933

JW934

JW935

JW936

JW963

JW964

JW965

JW966

JW967

JW970

JW971

JW972

JW973

JW974

JW975

JW976

JW977

JW978

JW979

JW980

JW981

JW982

JW983

JW984

JW985

JW987

JW988

JW989

JW994

JW995

JW996

JW997

JW998

JW1000

JW1001

JW1002

JW1003

JW1004

JW1005

JW1006

JW1007

JW1008

JW1009

JW1010

JW1011

JW1012

JW1013

JW1014

JW1015

JW1016

JW1017

JW1018

JW1019

JW1020

JW1021

JW1022

JW1023

JW1024

JW1026

JW1027

JW1028

JW1029

JW1030

JW1031

JW1032

JW1033

JW1034

JW1035

JW1036

JW1037

JW1038

JW1039

JW1040

JW1041

JW1042

JW1043

JW1044

JW1045

JW1046

JW1047

JW1049

JW1050

JW901

JW902

JW1051

JW1052

JW1053

JW1054

JW1055

JW1056

JW1057

JW1058

JW1059

JW1090

FUNCTION

BOARD

CN901

(Page 42)

CD-SW

BOARD

NO1151

(Page 42)

(13)

1-868-670-

BOARDPANEL

JR925

C917

Q903

R908

JW968

R1178

JW969

R967

JW986

JR919

JR918

Q917

JW990

JW991

JW992

JW993

C974

C977

C978

JW941

JW940

JW939

JW937

JW938

JW922

23 4 5 6 7 89 10

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4141

HCD-GNX700/GNX800

7-15. SCHEMATIC DIAGRAM – PANEL BOARD – • See page 52 for IC Block Diagrams. • See page 52 for Waveforms. • See page 61 for IC Pin Function Description.

I /

DISPLAY CONTROL,

KEY CONTROL

R957

R1098

R997

R1136

R1141

R1171

R1143

R1142

R1135

R1112

R1179

R923

R926

R925

R924

C957

C949

C942

C951

C953

C955

R953

R952

R950

R949

R947

C948

C946

C959

C958

C956

C954

C952

C950

C947

C945

R984

R983

R954 R951

C905

R902

C909

C901

C902

C1180

C906

C916

C908

R912

R903

R904

C910

R1021

R1022

R1023

R1024

R1025

R1026

R1027

R1028

R905

R906

R907

R909

R1187

C961

C940

C941

R956

S907

S908

S909

S910

S911

S912

S913

R1007

R1008

R1009

R1010

R1011

R1012

R1013

C922

C923

C924

C925

FB901

D931

D932

R942

R941 R943

C900

C904

R901

R900

C903

JR914

C974

R974

R975

R917

R916

R990

R991

R915

R914

R987

R988

R910

R911

R981

R980

R982

S921

S922

S923

S924

S925

S927

R968

R967

R966

R964

CN900

R944

CN902

R1181

R908

R919 R918

R920

FL901

C943

CLP912

R922

JW904

JW1105

D901

R1180

R1178

D927

D908

D909

D910

D916

D917

D1145

D1153

D911

D913

D929

D930

D914

C977

C978

C979

C980

C926

C927

C928

C929

C930

C931

C932

C933

C934

C935

C936

C937

C938

C939

C981

C982

C983

C972

C973

C975

IC904

D905

NO904

Q917

Q903

Q902

Q901

Q914

Q904

Q905

Q906

Q907

Q908

Q909

Q910

Q919

Q918

C967

JW903

D915

D928

C920

C962 C964

IC902

X901

R979

IC903

R965

R948

680

50V

470p

0.047

0.022

0.0047

33k

56k

10k 5.6k

0.1

10k

220p

0.1

220p

100

0.1

100

15k

4.7k

10k

0.1

50V

2.7k

3.3k

4.7k

6.8k

10k

15k

22k

33k

470

6.3V

470

6.3V

470

6.3V

0.01

1SS355WTE-17

100

100 10k

4.7

50V

0.1

10k

0.1

0.01

680

JR925

680

JR918

JR919

470

22k

15k

10k

4.7k

C917

0.1

17P

270

100

100k 100k

100k

50V

1SS355WTE-17

SEL5223S-TP15

100p

470p

100p

NJM2760V-TE2

UDZSTE-176.8B

DTC123JKA

LED DRIVE

DTA123JKA

LED DRIVE

DTC143TKA

BUFFER

DTC143TKA

BUFFER

DTC143TKA

BUFFER

2SB1132

SWITCH 2SB1132

SWITCH

DTC123JKA

BUFFER

DTC123JKA

BUFFER

DTC123JKA

LED DRIVE

DTC123JKA

LED DRIVE

DTC123JKA

LED DRIVE

DTC123JKA

LED DRIVE

DTC123JKA

LED DRIVE

10 50V

SELU5420E-STP15

0.1

0.001 47

10V

MB90M407PF-G-148E1

4MHz

RPM7240-H9

6.8k

0.5%

6.8k

0.5%

100

64 65

100

FLUORESCENT

INDICATOR

TUBE

REMOTE

CONTROL

RECEIVER

BOARD

CD-SW

(Page 43)

NO1151

BOARD

MAIN

(2/3)

(Page 38)

CN508

BOARD

FUNCTION

(Page 43)

CN901

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4242

HCD-GNX700/GNX800

7-16. PRINTED WIRING BOARDS – CD-SW, JOG, MIC and FUNCTION BOARDS – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

• Semiconductor Location

Ref. No. Location

D919 C-3

D920C-3

D921C-2

D922 C-2

D923 D-2

D924 D-3

D925 D-4

D926 C-3

D1100 F-5

D1101 F-5

D1102F-8

D1017C-11

D1020 C-11

IC1100 G-6

IC1101 G-8

Q911 C-3

Q912C-2

Q913D-3

Q915D-3

Q921 C-11

EX-CHANGE/

DISC SKIP DISC 3 DISC 1

DISC 2

OPEN/CLOSE

MIC1 MIC2

J1103

PHONES

ECHO LEVEL

MIC 2 LEVEL

MIC 1 LEVEL

DIRECTION

MPX

REC

PAUSE/START

GROOVE

EQ BAND

MP3 BOOSTER

ENTER

CD SYNC

MASTER

VOLUME

AMP MENU

SOUND FLASH

DELAY

SURROUND

SPEAKER MODE

FLANGER

DISPLAY

ILLUMINATION

R1152

R1156

JR1

JR922

C1128

R1113

R1119

C1125

R1138

R1126

R1103

R1109

C1101

R1107

R1106

R1105

R1104

C1113

D1102

C1122

IC1101

C1104

R1115

R1116

C1103

R1121

C1110

C1109

R1122 R1123

C1124 R1120

R1137

R1118

R1124

R1114

FB1100

FB1101

C1142

R1161

S1161

C1150

R1162

Q911

R1144

R1145

R1146

R1165

R1164

Q915

Q913

JR2

JR4

R1149

R1150

R1151

R1163

Q912

R1153

R1154

R1155

JR5

JR3

R1157

R1158

R1159

IC1100

R1166 R1167

R1168 R1169 R1170

R1111

C1119

R1100

C1102

R1140

R1147

RV1101

RV1102

CN1102

RV1100

C1112

C1108

C1114

C1123

C1116

C1117

D922

D925

D924

D926

D920

CNS903

D919

D921

D923

S1161

JW1102

C1105

NO1151

S1170

S1169

S1168

S1167

S1166

JW1104

JW1088

JW1106

JW1108

J1100 J1101

JW1110

JW1111

JW1112

JW1113

JW1114

JW1115

JW1116

JW1117

JW1118

JW1119

JW1120

JW1121

JW1122

JW1123

EPT1103

EPT1104

(11)

1-868-673-

BOARDCD-SW

BOARDJOG

(11)

1-868-675-

(11)

1-868-672-

VOL 2

VOL 1

VOL 8

VOL 7

VOL 6

VOL 5

VOL 4

VOL 3

OPERATION DIAL

S1161

PANEL

BOARD

NO904

(Page 40)

BOARD

NO601

(Page 44)

MAIN

BOARD

CN100

(Page 36)

BOARDMIC

R1003

R1004

R1005

R1006

R963

R1001

R1002

R962

R961

R960

R959

R958

R1014

C907

R972

R1018

R1019

Q921

R1186

CNS902

JW1150

S916

S970

S914

S904

S903

S902

S905

S906

S901

S918

S928

S919

S917

S920

S915

CN901

D1017

D1020

JW1060

JW1064

JW1070

JW1071

JW1072

JW1073

JW1075

JW1063

(11)

1-868-671-

BOARDFUNCTION

PANEL

BOARD

CN900

(Page 40)

R1040

JR1096

JW1078

JW1074

C976

C971

C970

C969

C966

C965

C984

JW1080

R973

JW1061

JW1062

JW1065

JW1066

JW1067

JW1068

JW1069

JR921

JR923

JW1086

C1127

JW1126

JW1127

C1111

C1121

JW1133

C1115

R1139

R1108

R1102

R1110

C1100

JW1109

D1100

C1133

D1101

JW1107

JW1132

C1106

C1107

R1132

C1139

JW1134

23456789 10 11 12

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4343

HCD-GNX700/GNX800

7-17. SCHEMATIC DIAGRAM – CD-SW, JOG, MIC and FUNCTION BOARDS –

CNS903

C1142

R1116

R1115

R1104

R1106

R1105

R1107

R1108

RV1102

D1100

D1101

EPT1103

R1103

R1102

R1109

R1110

R1152

R1147

R1140

J1100

J1101

CN1102

C1122

C1115

C1114

C1108

C1103

C1106

C1112

C1101

C1100

C1104

C1113

JW1104

C1124

C1109

R1118

C1121

C1105

R1113

R1123

C1110

R1122

R1120

C1127 R1124 R1114

C1128

R1111 C1111

R1119

C1125

C1119

C1102

R1100

NO1101

EPT1104

R1144

R1145

R1146 R1149

R1150

R1151 R1153

R1154

R1155

R1157

R1158

R1159

R1162 R1163 R1164

R1165

D920

D922

D926

D925

D923

D921

D919

D924

NO1151

C1123

D1102

R1126

R1156

C1107

R1121

C1117

RV1100

RV1101

IC1100

IC1101(2/2)

IC1101(1/2)

S1161

R1161

C1150

R1040

Q911 Q912 Q913 Q915

R972

R973

R962 R961 R960

R963

R1186

R1014

R958

R959

R1001

R1002 R1003 R1004 R1005 R1006

CN901

Q921

R1018

D1017

D1020

S970

C907

S920 S919 S918 S917 S916 S915

S928

S914

S901 S902 S903 S904 S905 S906

JW1150

CNS902

FB1101 FB1100

S1170

S1169

S1168

S1167

S1166

R1170

R1169

R1168

R1167

R1166

R1132

C1133

J1103

C1116

R1137

R1139

R1138

0.1

330

5.6k

100

10k

50k

1SS355WTE-17

10k

1.5k

15k

10k

0.068

4.7

50V

4.7

50V

0.1

4.7

50V

0.01

0.1

68p

1200p

4700p

50V

0.1

50V

12k

15k

12k

3.9k

50V 10k 10k

47p

10k 0.22

50V 47k

470p

47p

1500p

15k

820

820 820

820

820 820

820

100 100 100

100

SELU5223C-STP15

16V

UDZSTE-175.1B

10k

1.5k

4.7

50V

6.8k 0.5%

16V

50k

TC9488FG

NJM4565M-D

0.001

DTC114EKA

LED DRIVE DTC114EKA

LED DRIVE

DTC114EKA

LED DRIVE DTC114EKA

LED DRIVE

6.8k

0.5%

2.2k 1.5k 1.5k

3.3k

270

C984

100p

C965 0.1

C966 0.1

C969 0.1

C970 0.1

C971 0.1

C976 0.1

470

680

470

680 1k 1.5k 1.5k 2.2k

17P

DTC123JKA-T146

LED DRIVE

680

SLR-343VCT32

0.001

1.5k

680

470

0.1 C1139

0.1

16V

10k

MIC 1 LEVEL

ECHO LEVEL

MIC 2 LEVEL

JR1096

BOARD

PANEL

(Page 41)

NO904

BOARD

PANEL

(Page 41)

CN900

MAIN BOARD(3/3)

PA BOARD

(Page 45)

(Page 39)

NO601

CN100

• See page 55 for IC Block Diagrams.

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4444

HCD-GNX700/GNX800

7-18. PRINTED WIRING BOARD – PA BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

JR603

R694

D611

R611

R610

R620

C654

C604

D612

R603 R653

R602

R652

C601

C651

R601 R651

R600

R650

R617

R695

R696

R625

R624

R674

C606

R628 R629

R630

R631

Q628

Q630

C605

C683

C693

C682

C681

C691

C692

R676

R656

R657

R658

R660

R661

R677

R678

C660

D620

R621

D646

R609

R698

R608

R693

R606

R692

R607

Q634

R604

R605

Q610

R642

R662

R640

R635

R641

Q682

R643

R663

R639

R638

R697

R634

Q641

Q640

R683

R619

Q604

Q618

D609

D665

Q666

R682

Q644

R666

R667

D661

D660

R649

Q648

R685

Q647

R645

R644

R648

R673 R623

R671

Q668

R669

R670

D670

D655

D654

R655

R654

R633

JR602

JR601

JR600

R647

D624

JR612

D658

D656

JW626

NO601

JW601

NO600

JW627

JW600

JW677

JW676

JW602

JW681

JW691

JW604

JW605

JW606

JW608

JW614

JW617

JW618

JW619

JW620

JW621

JW622

JW623

JW628

JW629

JW630

JW633

JW634

JW635

JW637

JW638

JW639

JW640

JW641

JW642

JW643

JW644

JW645

JW646

JW649

JW651

JW652

JW653

JW654

JW655

JW656

JW657

JW658

JW659

JW660

JW661

JW664

JW665

JW668

JW678

JW679

JW616

JW607

JW613

JW603

JW662

JW663

JW631

JW688

JW692

JW693

JW694

JW695

JW698

JW699

JW700

JW667

JW669

(GNX800)

JW682

JW683

JW650

JW674

JW675

JW670

JW671 JW672

JW673

JW647

JW648

JW696

JW632

JW680

JW636

JW684

JW624

JW625

C676

C656

C678

IC600

C658

R668

RY665

RY646

EP690

CN600

CN601

CN607

TM600

R618

JWH603

JWH602

C602

C600

C650

C652

TH629

C617

C666

R672

R622

C635

C634

C636

C608

C655

C648

C649

R636

R637

R613

R614

R612

R615

R616

R691

R681

R665

JWH601

TM601

Q606

C667

C637

C616

JWH600

TH630

EP660

R646

BOARDPA

(22)

1-864-930-

PTRANS

BOARD

CN1212

(Page 50)

MAIN

BOARD

CN501

(Page 36)

MAIN

BOARD

CN502

(Page 36)

MIC

BOARD

CN1102

(Page 42)

SURROUND

BOARD

NO800

(Page 46)

(GNX800)

(GNX800:E3,AUS)

(GNX800)

SURR

SPEAKER

FRONT

SPEAKER

EEE

23 4 5 6 7 89 10 11 12

Ref. No. Location

D609 A-6

D611 E-7

D612 E-7

D620 B-7

D624 E-9

D646 B-10

D654 B-9

D655 B-10

D656 D-3

D658 D-5

D660 E-1

D661 E-1

D665 C-10

D670 B-7

IC600 D-8

Q604 B-6

Q606 B-6

Q610 B-6

Q618 B-7

Q628 E-9

Q630 E-9

Q634 B-5

Q640 B-6

Q641 B-5

Q644 F-1

Q647 F-1

Q648 E-1

Q666 E-1

Q668 B-7

Q682 A-6

• Semiconductor

Location

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4545

HCD-GNX700/GNX800

7-19. SCHEMATIC DIAGRAM – PA BOARD –

BOARD

TRANS

(Page 51)

CN1212

BOARD

MIC

(Page 43)

CN1102

BOARD

SURROUND

(Page 47)

NO800

POWER GND

NO600

CN601

CN600

C656

R657

R656

R676 R677 C676

C660

C608

R609

R694

R610

R698

R608

R693

R696

R695

R617

R603

R653

C666

C667

R672 R622

C617

C616

TH629

R631

R630

R611

R606

R607

R692

R605 R604

C651

C601

R651

R601

R650

R600

C600 C650

R682

R683

R697

R634 C634

C635

R635

R640

R641

R642

R662

R643

R663

R638 R639

R673

R623

R674

R624

C606

C649

C648

R685

R649

R645

R644

C683

C693

EP690

R654

R655

C655

RY646

NO601

R691

R646

R637

R636

R671

R670

R620

R621

R628

R629

R614

R613

C658

C678

R658

R678

C681 C682

C692

C691

D620 D670

D660

D661

D646

D609

D624

D611

D612

C604

C654

C602

C652

R602

R652

R647

R648

RY665

R665

D665

R667 R666

R661

R660 R681

JW681

JW691

JW677

JW678

D655

D654

R625

EP660

TH630

JR612

R633

C605

CN607

Q606

TM600

TM601

R669

R619

Q604

Q610 Q634

Q682

Q640

Q641

Q644

Q647

Q648

Q666

D656

D658

R615

R616

R612

Q618 Q668

R618

R668

IC600

C636

C637

Q628

Q630

13P

3300

100V

220k

220k 220k 3300

100V

0.1

50V

68k

100k

47k

0.068

1/2W 10

1/2W

0.068

100k

33k

47k

2.2k

47k

10k 10k

0.0022

47k

4.7

50V 4.7

50V

4.7k

2.2k

2.2k 100

25V

100

25V

10k

150

100k 100k

56k

68k

22k

0.1

50V

100

10V

10k

22k

10k

2.2k

0.1

47k

50V

1/2W

680

100k

33k

100k

22k

5.6k

3.3k 1W

4700

63V

4700

63V

100k

0.068 0.068

0.068

1SS355WTE-17 1SS355WTE-17

1SS355WTE-17

UDZ-TE-17-18B

220p

100

10V

100

10V

1/2W 1SS355WTE-17

10k 4.7k

1/2W

1SS355WTE-17

0.1

2SA1207

2SC3906K-T146

2SC3906K-T146 DTA124EKA

MUTING

CONTROL SWITCH

2SC2712-YG

MUTING

CONTROL SWITCH

2SD2114K

HEADPHONE

MUTING

2SD2114K

HEADPHONE

MUTING

2SC2712-YG

FRONT SPEAKER

RELAY DRIVE

2SC2712-YG

FRONT SPEAKER

RELAY DRIVE

2SC2712-YG

OVER LOAD

DETECT SWITCH

2SC2712-YG

SPEAKER PROTECT

RELAY DRIVE

D15XB20

D25XB60

100

2SC3906K-T146

OVER LOAD DET

2SC3906K-T146

OVER LOAD DET

0.22

STK412-150

4.7

100V

4.7

100V

2SC2712-YG

THERMAL

DETECT

2SC2712-YG

THERMAL

DETECT

-PRE

R602,652

390

10k

12k

R661,660

R648

R647

22k

4.7k

1.5k

2.7k

R625

MAIN BOARD(1/3)

POWER AMP

Q604,606,610

MUTING

3.3k

430

(Page 37)

CN501

CN502

GNX800

GNX800:E3,AUS

GNX800

GNX700

GNX800

GNX700

GNX800

GNX700

GNX800

GNX700

GNX800:E3,AUS

EXCEPT GNX800:E3,AUS

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4646

HCD-GNX700/GNX800

7-20. PRINTED WIRING BOARD – SURROUND BOARD – • See page 26 for Circuit Boards Location.

Ref. No. Location

D800 D-4

D810 D-2

D811 E-3

D812 D-4

D850 D-4

IC800 B-4

Q800 D-4

Q810 C-1

Q812 C-2

Q814 D-3

Q815 D-3

Q850 D-3

• Semiconductor

Location

: Uses unleaded solder.

C803

C805

R860

C853

R800

C807

R807

R806

R801

C801

R803

Q810

R851

R850

R802

Q800

Q850

R841

R891

R890 R840 D800

D850

R839

D810

R817 R812

Q812

D812

R889

R843

R861

Q814 Q815

R863

R864 R866

C804

R865

D811

C808

C858

(GNX700)

R852

R808

R858

C851

R814

NO800

JW801

JW803

JW828

C888

C889

B791

JW806

JW802

NO801

JW804

JW811

JW807

JW805

JW810

JW816

JW800

EP700

JW809

CN700

JW813

JW753

JW754

JW814

JW819

JW818

JW812

IC800

RY862

R888

R862

C800

C806

C850

C852

C802

R827

R828

R804

R892

R842

C820

R805

C843

C839

C838

JW826

JW815

JW808

R838

C825

C826

JW713

(12)

1-868-667-

BOARDSURROUND

MAIN

BOARD

CN512

(Page 36)

MAIN

BOARD

CN105

(Page 36)

BOARD

CN607

(Page 44)

23 4 5 6 7 8910

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4747

HCD-GNX700/GNX800

7-21. SCHEMATIC DIAGRAM –SURROUND BOARD –

MAIN

BOARD

MAIN

BOARD

(1/3)

(3/3)

(Page 39)

(Page 37)

(Page 45)

CN607

CN105

CN513

SW OUT

RY862

D811

R865

R866

R863

R864

R861

R860

D812

R891

R841

R840

D850

D800

R890 R843 C843

R812 R817

C820

C804

C826

R838 R888

C803

C853

R800

C800

C805

B791

R803

R807

C851

C850

R801 C801

R851

R850

C852

R814

C802

NO800

R842

R892

R862

R808

C808

C858

R858

R804

R805

C838

C839

C889

C888

CN700

C825

D810

R839

R889

Q850

Q800

Q815

Q814

Q812

C807

C806

R806

R827

R828

R802

R852

Q810

NO801

IC800

1SS355WTE-17

22k

2.2k

22k

47k

56k

1SS355WTE-17

100k

22k

1SS355WTE-17

22k 47k 4.7

50V

2.2k 10k

50V

0.1

100

50V

0.22

5W 0.22

100p

4.7

50V

0.1

2.2k

47k

0.01

4.7

50V

47k 1

47k

100

10V

10k

100

10V

1/2W

47k

8.2p

47k

0.068

100

50V

1SS355WTE-17

2SC3906K

OVER LOAD

DETECT

2SC3906K

OVER LOAD

DETECT

2SC2712-YG

RELAY DRIVE

2SC2712-YG

RELAY DRIVE

2SC3906K

SW MUTE

2.2

50V

100

2SD2114K

MUTE

STK403-090

STK403-120

IC800

GNX700

POWER AMP

R802

820

1.2k

R852

910

R800

10k

GNX700

GNX800

GNX700

GNX800

GNX700

GNX800

GNX700

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4848

HCD-GNX700/GNX800

7-22. PRINTED WIRING BOARD – EFFECTOR BOARD – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

Ref. No. Location

D1502 B-6

IC1500 D-3

IC1501 E-3

IC1503 D-2

IC1505 E-5

IC1506 C-6

Q1502 E-2

Q1506 F-5

Q1507 B-6

Q1508 D-5

Q1509 B-1

Q1510 A-1

• Semiconductor Location

Ver. 1.1

BOARDEFFECTOR

(13)

1-868-596-

R1589

R1500

IC1501

IC1506

IC1505

IC1500

IC1503

R1560

R1585

R1573 R1559

C1548

R1572

R1576

R1571

C1555

R1575

R1574

R1565

R1566

R1567

R1569

R1579

R1591

C1520

R1546

R1511

R1512

C1517

C1521

R1514

R1515

R1510

C1509

R1526

R1505

R1528

R1529

R1502

R1525

R1504

R1527

R1534

R1536

R1586

C1529

R1584

JW1507

JW1524

JW1525

JW1526

JW1528

JW1529

JW1533

JW1542

JW1544

JW1545

JW1547

JW1549

JW1557

JW1558

JW1508

JW1527

JW1555

JW1561

JW1511

JW1538

JW1539

JW1505

JW1553

JW1540

JW1541

JW1517

JW1512

JW1503

JW1502

JW1521

CN1502

JW1530

C1570

C1569

C1576

C1554

C1524

C1546

C1559

C1545

C1512

C1516 C1523

C1525

C1519

C1515

C1507

C1561

C1560

C1542

C1544

C1552

EP1500

C1506

C1530

EP1501

MAIN

BOARD

CN512

(Page 36)

R1530

R1531

R1532

R1533

R1535

R1537

Q1502

R1538

R1522

R1519

R1520

R1592

R1568

R1570

R1590

Q1506

JW1548

C1526

C1522 JW1504

C1513

JW1535

JW1515

JW1546

JW1534

JW1518

JW1522

JW1523

JW1570

JW1531

JW1532

JW1536

Q1510

R1517

JW1537

R1516

L1500

C1571

R1549

R1558

R1557

R1581

R1582

R1547

JW1520

JW1550

JW1551

JW1560 JW1552

JW1513

C1578

C1584

JW1559

JW100

JW1519

Q1507

C1572

D1502

C1568

Q1508

R1580

R1508

JW1556

R1595

R1594

Q1509

R1501

R1606

JW1571

R1602

C1602

C1601

R1600

R1604

23 4 5 6 7 8

http://www.xiaoyu163.com

HCD-GNX700/GNX800

4949

HCD-GNX700/GNX800

7-23. SCHEMATIC DIAGRAM – EFFECTOR BOARD –

IC1505(2/2)

IC1501

C1513

C1517

R1512

R1511

C1520

R1546

C1516

C1521

R1514 R1515

C1523

R1510

C1522

C1519

C1529

R1565

R1566 C1554

R1567

R1568

R1570 C1546

R1569

C1545

C1548

R1571 R1572

C1552

R1589

C1555

C1559

C1560

R1500

R1504

R1525

R1502

R1501

C1572

C1568

R1547

C1584 C1571

R1549

R1557

R1558

C1576

R1559 R1560

R1550

R1582

R1579

C1561

R1580

R1581 C1562

R1532

R1531

R1530

R1533

R1584

R1585

R1586

R1529

C1509

R1505 C1507

C1506

R1526

C1512

R1590

C1542

R1520

R1519

R1522

R1538

R1592

C1526

C1530

C1515

C1524 C1525

R1576

R1574

R1575

R1573

D1502

R1527

CN1501

JW1513

IC1506

R1508

JW1510

JW1511

IC1503

R1534

R1536

R1537

R1535

C1569 C1570

C1544

R1591

Q1506

Q1502

Q1508

Q1507

C1578

IC1505(1/2)

R1528

NJM4565M-D

M65850FP-E1

0.1

0.0015

18k

330p

18k

0.068

330p

18k 18k

0.068

18k

0.0015

50V

0.01

2.2k

2.2k 10

50V

22k

R1594

R1604

R1606

R1595

100k 10

50V

100k

50V 47p

100k 1k

50V

47p

50V

100

0.1

10k

100 0.1

R1517

10k L1500

10uH

R1516

10k

R1602

R1600

100k

50V

100k 100k

10k

100k

50V

22k

22k 10

50V

820

470

330

1.2k

100k

10k 0.068

0.068

10k

50V

33k

0.0047

27k

0.1

0.033

35V

0.22

50V

0.22

50V

680

100k

680

UDZSTE-176.2B

100

17P

TC74LVX4052FT

Q1510

DTC114EKA-T146

BUFFER

Q1509

DTC114EKA-T146

BUFFER

10k

TC74LVX4051FT

1.8k

3.9k

47k

2.7k

50V

10V

50V

0.0047

33k

2SK3378ENTL

SWITCH

2SK3378ENTL

SWITCH

2SK3378ENTL

SWITCH

2SC5053T100Q

B+ SWITCH

50V

C1602

50V

C1601

50V

NJM4565M-D

100k

MIXER

EFFECTOR R CCT

IC1500

NJM4565M-D

MIXER R MIXER L

SELECTOR CCT

MULTIPLEXER

BOARD

MAIN

(3/3)

CN512

(Page 39)

• See page 54 for IC Block Diagrams.

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

5050

HCD-GNX700/GNX800

7-24. PRINTED WIRING BOARDS – POWER SECTION – • See page 26 for Circuit Boards Location. : Uses unleaded solder.

R1262

R1263

R1264

D1264

Q1200

C1204

R1200 R1201

C1202

C1201 D1200

JR1202

JW1204

NO1201

NO1203

NO1211

JW1202

JW1201

JW1206

JW1207

JW1208

JW1209

JW1214

JW1220

JW1221

JW1211

JW1216

JW1230

JW1212

JW1231

JW1222

JW1223

JW1213

JW1215

JW1235

JW1234

(E2,E3,E51)

(AR,AUS)

(AR)

(EXCEPT AR)

CN1212

R1292

C1263

Q1264

C1262

CN1204

FH1241

F1241

FH1242

FH1251

F1251

FH1261

F1261

FH1271

F1271

FH1252

FH1262

FH1272

FH1282 FH1281

F1281

CN1213

CN1202

C1206

RY1200

S1200

C1292

EP1203

CN1200

L1201

D1292

BOARDTRANS

(21)

1-864-931-

BOARDPRIMARY

(21)

1-864-932-

(E2,E3,E51)

(AR,AUS)

NOT REPLACEABLE:

BUILT IN TRANSFORMER

T1200 POWER TRANSFORMER

POWER

SWITCHING

230-240V

220V

120V

VOLTAGE

SELECTOR

AC IN

BOARD

NO600

(Page 44)

MAIN

BOARD

NO503

(Page 36)

MAIN

BOARD

NO401

(Page 36)

23 4 5 6 7 89 10

http://www.xiaoyu163.com

HCD-GNX700/GNX800

5151

HCD-GNX700/GNX800

7-25. SCHEMATIC DIAGRAM – POWER SECTION –

(2/3)

MAIN

BOARD

NO401

(Page 38)

MAIN

BOARD

(2/3)

(Page 38)

NO503

BOARD

NO600

(Page 45)

CN1212

C1292

FH1282

FH1281

FH1271

FH1261

FH1251

FH1241 FH1242

FH1252

FH1262

FH1272

D1292

R1292

C1262 R1262

R1263

R1264

C1263

CN1200

C1206

R1201

C1201

R1200

L1201

18uH

C1202

JR1202

C1204

EP1203

NO1203

CN1202

NO1201

JW1204

RY1200

T1200

F1241

F1251

F1261

F1271

F1281

JW1211

JW1222

JW1223

JW1235

JW1234

D1200

CN1213

D1264

Q1264

CN1204

NO1211

S1200

Q1200

100

63V 10EDB40-TB3

0.68

50V 8.2k

8.2k

100

50V

1000 6.3V

100k

0.1

3.3k

0.1

POWER

TRANSFORMER

T8AL 250V

T3.15AL 250V

1SS355WTE-17

HZU36BTRF

2SB1565E

-33V REGURATOR

2SC2712-YG

POWER ON/OFF

RELAY DRIVE

AC IN

BUILT IN TRANSFORMER

NOT REPLACEABLE:

VOLTAGE SELECTOR

EXCEPT AR

AR,AUS

E2,E3,E51

AR,AUS

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

5252

HCD-GNX700/GNX800

• WAVEFORMS

– MAIN BOARD –– CD BOARD – – PANEL BOARD –

2.7 Vp-p

32.768 kHz

2.0 Vp-p

MHz

1V/DIV, 10

sec/DIV

1V/DIV, 50 nsec/DIV

10.5

sec

50V/DIV, 10

sec/DIV

50V/DIV, 10

sec/DIV

67 Vp-p

10.5

sec

82 Vp-p

IC401

XC-OUT

IC401

X-OUT

T301

TAPE REC only

T301

TAPE REC only

0.15 Vp-p

0.2V/DIV, 0.2 msec/DIV

0.1V/DIV, 1 msec/DIV

0.9

0.4 Vp-p

0.2V/DIV, 0.5

sec/DIV

0.4 Vp-p

IC101

TEI

IC101

FEI

IC101

RFAC

3.1 Vp-p

4 MHz

1V/DIV, 0.2

sec/DIV

IC902 is X OUT

– DRIVER Board –

IC701, 712 BA6956AN

• IC Block Diagram

– CD Board –

IC251 BA5947FM-E2

123456789

CONTROL LOGIC

TSD

VREF

OUT2

OUT1

RNF

VCC

FIN

GND

RIN

11 12 13 14

2627

12345678910

LEVEL

SHIFT

19k

6.5k

50k

100k

50k PIN3

10k

Vref

50k

50k PIN26

(ch1, 2)

POW

VCC

(ch3, 4)

Pre

Vcc

INTER

FACE

INTER

FACE

INTER

FACE

50k

POW

VCC

MUTE

Vref

POW

VCC POW

VCC

10k

CH1OUTF

CH1OUTR

CH2OUTF

CH2OUTR

POWVCC

CNF4

GND

CH2RIN

CH2FIN

CH1RIN

CH1FIN

OPIN+

OPIN-

CH4OUTR

CH4OUTF

CH3OUTF

CH3OUTR

POWVCC

MUTE

GND

CH3RIN

CH3FIN

CH4IN

CH4CAPA

OUTVREF

DPOUT

PREVCC

– PANEL Board –

IC904 NJM2760V-TE2

BPF1IN2

DET

IN1 1

IN2 2

BPF2IN1 4

BPF2IN2 5

BPF3OUT

BPF1IN1

BPF2OUT

BPF DET

BPF3IN1 6

BPF3IN2 7

BPF2OUT

BPF DET

BPF4IN1 8

BPF4IN2 9BPF1OUT

BPF DET

GND 10 NC

BUF1OUT 3

VCC

RECOUT

BPF4OUT

BPF

DET

http://www.xiaoyu163.com

HCD-GNX700/GNX800

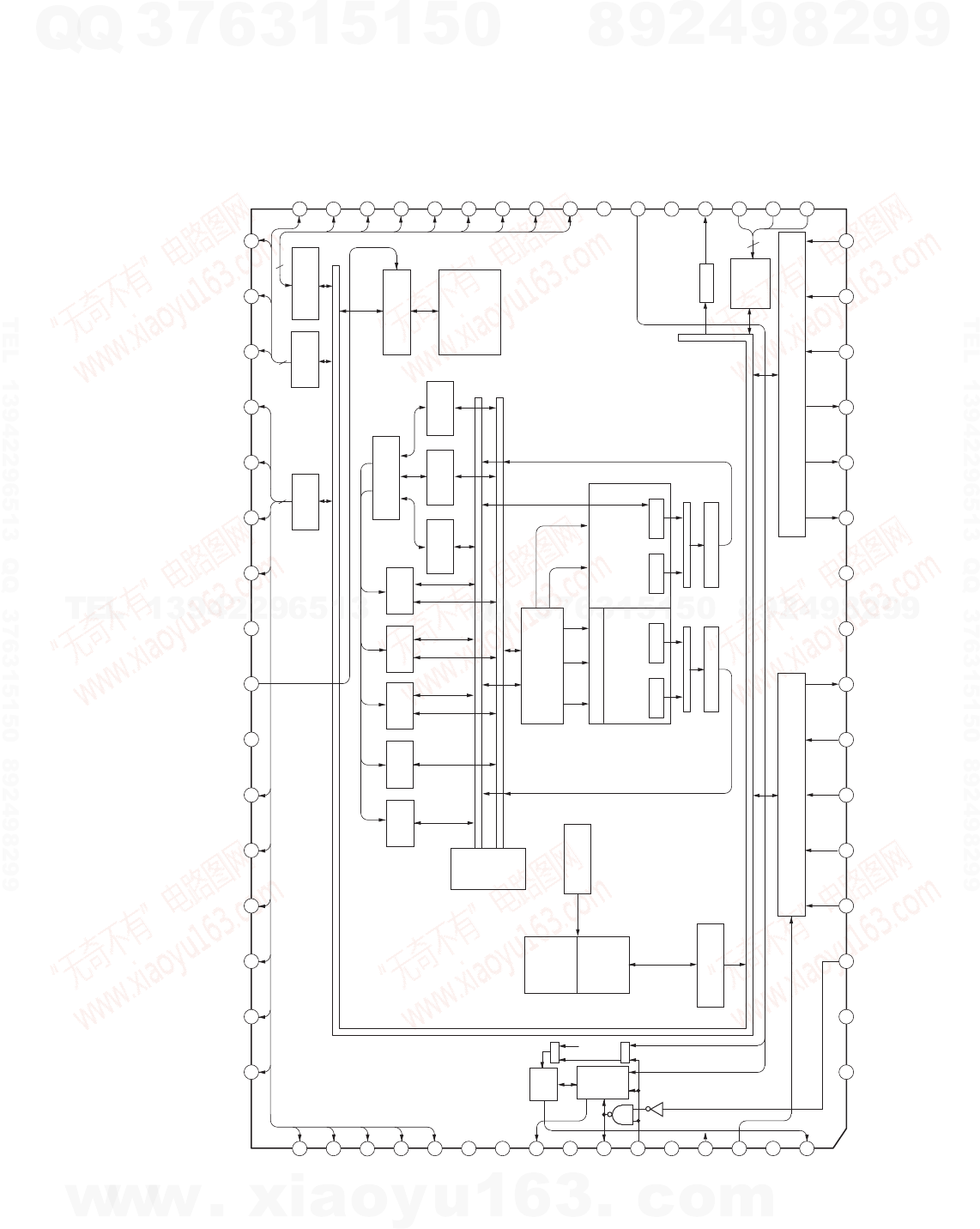

– CD Board –

IC301 TC94A34FG-002

61 62 63 646059565250

2526272829303132 1718192021222324

5857555351

CS/RAS/SDO2

AD15/CAS/PD12

SDO3/OE

WE/SDO1

PIO7/BUS3/IO7

PIO6/FI3/BUS2/IO7

PIO5/FI2/BUS1/IO5

PIO4/FI1/BUS0/IO4

Bus

Switch

PO11/BUCK/AD14

PO10/CCE/AD13

PO9/AD12

PO08/AD11

General

In/Output Port

Address Calc.

2sets

Y- Pointer

C-Pointer

X-Pointer

VDDM

SRMSTB

VDDT

AD10

AD9

ERAM

2k word

CRAM

4k word

CROM

4k word

YRAM

4k word

XRAM

4k word

SRAM/

DRAM I/F

SRAM I/F

1Mbit

SRAM

X-Bus

Y- B us

PO07/AD7

PO06/AD6

PO05/AD5

AD8

VC0 Timing

Generator

PRAM

Instruction

Decoder

Program

Control

MCU. I/F

XO • X1 • X2

Y0 • Y1 • Y2

MX MYMZ

MAC

A0A1

AX AY

ALU

A2 A3

DIT

round & limit round & limit

Audio I/F

LRCKIA

BCKIA

SDI0

LRCKO

BCKO

SDO0

VSS

VDDT

MIACK

MICK

MIDIO

MILP

MICS

STAN BY

RESET

VDDP

AD4/PO04

AD3/PO03

AD2/PO02

AD1/PO01

AD0/PO00

VSS

VDD

CKO/PO13/AD16

VDDX

TEST

VCOI

VSSX

MIMD

VSSP

PIO3/IO3

PIO2/IO2

PIO1/SDI3/IO1

PIO0/SDI2/IO0

VSS

CKI/CLOCK/IRQ/FIO

VDD

TXO

SFSY/LRCKIB

SBSY/BCKIB

SDI1/DATA

POM

Sub code

I/F

CDP Cont

I/F

http://www.xiaoyu163.com

HCD-GNX700/GNX800

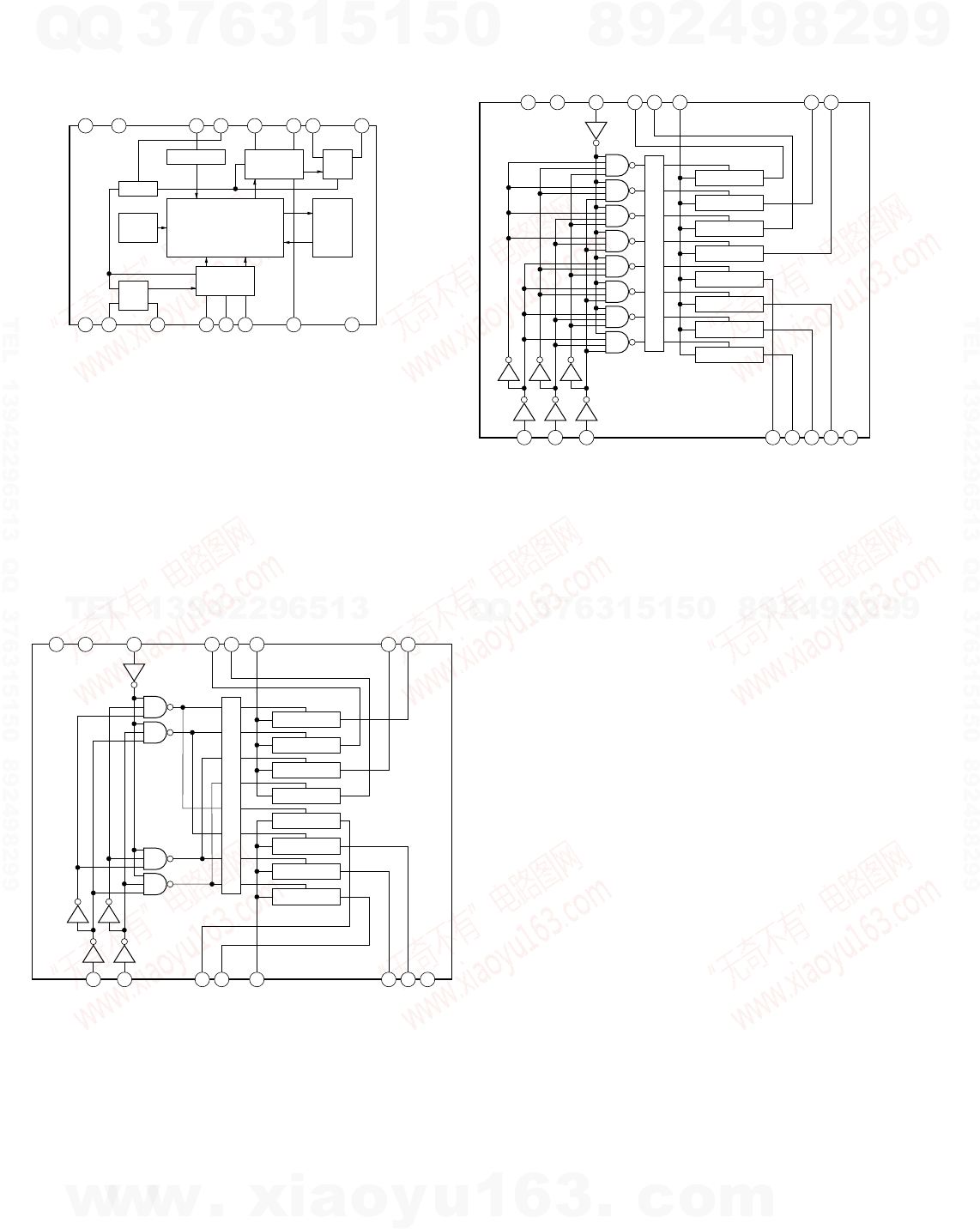

– EFFECTOR Board –

IC1501 M65850FP-E1

OSCILLATOR

1/2 VCC

AUTO

RESET

LPF1

MAIN

CONTROL

A/D

20KBIT

SRAM

LPF2

D/A

23 4 56 7 8

9101115 14 13 12

CLOCK

RESET

D1 D0

DO1

VCC

CLOCK

REF

OP2IN

OP2OUT

LPF2IN

LPF2OUT

LPF1IN

LPF1OUT

OP1OUT

OP1IN

CC1

CC2

GND

IC1503 TC74LVX4051FT

COM

INH

VEE

GND

VCC

OUT CIN

LOGIC LEVEL CONVERTER

IC1506 TC74LVX4052FT

Y COM

INH

VEE

GND

X COM

VCC

OUT CIN

LOGIC LEVEL CONVERTER

http://www.xiaoyu163.com

HCD-GNX700/GNX800

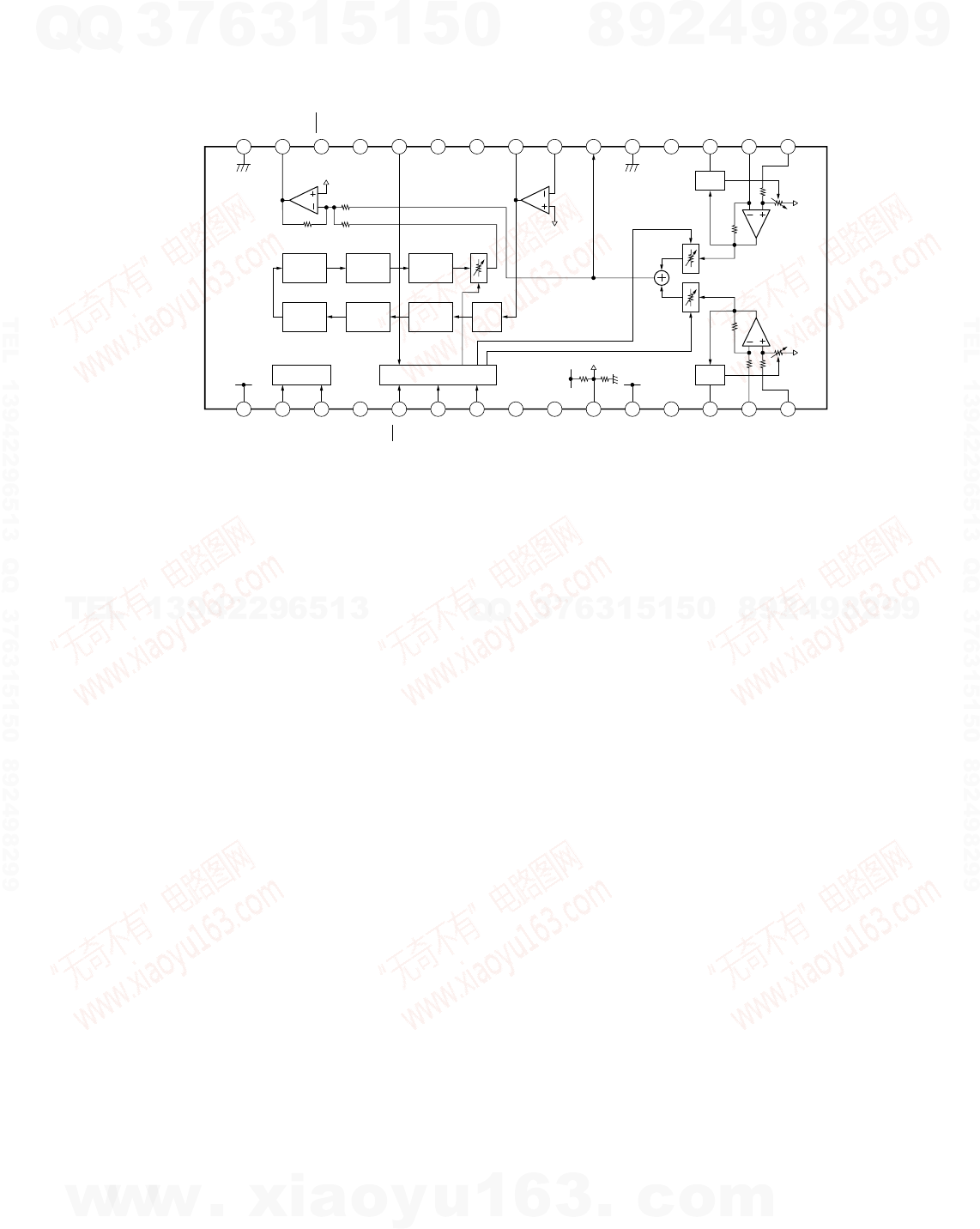

– MIC Board –

IC1100 TC9488FG

OSC

ADPCM

DECODE

DELAY

DRAM

ADPCM

ENCODE ADC

DAC S/H POST

LPF

ALCVOLUME CONTROL

OSCC

VDD

OSCR

VOL1 (CS)

VOL2 (SCL)

VOL3 (SDA)

VRO

VREF

VDA

ALC1

MC1N

MC1P

1413121110

VREF

ALC

VREF

MC2P

MC2N

ALC1

VSA

MCO

PRIN

ADIN

DA OUT

VOLST

TEST

POOUT

VSS

http://www.xiaoyu163.com

HCD-GNX700/GNX800

7-26. IC Pin Function Descriptions

• IC101 CXD3059AR (RF AMP) (CD BOARD)

Pin No. Pin Name I/O Description

1 MIRR I/O Not used (Open)

2 DFCT I/O Not used (Open)

3 FOK I/O Not used (Open)

4 VSS – Ground terminal

5 LOCK I/O Not used (Open)

6 MDP O Spindle motor servo control signal output

7 SSTP I Disc innermost detection signal input

8 IOVSS1 – Ground terminal

9 SFDR O Sled drive signal output

10 SRDR O Sled drive signal output

11 TFDR O Tracking drive signal output

12 TRDR O Tracking drive signal output

13 FFDR O Focus drive signal output

14 FRDR O Focus drive signal output

15 IOVDD1 – Power supply terminal (+3.3V)

16 AVDD0 – Power supply terminal (+3.3V)

17 AVSS0 – Ground terminal

18 NC – Not used (Open)

19 E I E signal input

20 F I F signal input

21 TEI I Tracking error signal input

22 TEO O Tracking error signal output

23 FEI I Focus error signal input

24 FEO O Focus error signal output

25 VC O Center voltage output from RF amplifier block

26 A I A signal input

27 B I B signal input

28 C I C signal input

29 D I D signal input

30 NC – Not used (Open)

31 AVDD4 – Power supply terminal (+3.3V)

32 RFDCO O RFDC signal output (Open)

33 PDSENS I Reference voltage terminal

34 AC_SUM O RFAC summing amplifier signal output

35 EG_IN I Equalizer circuit signal input

36 LD O APC LD drive signal output

37 PD I APC PD signal input

38 NC – Not used (Open)

39 RFC I Equalizer cut-off frequency adjustment terminal

40 AVSS4 – Ground terminal

41 RFACO O RFAC signal output

42 RFACI I RFAC signal input or EFM signal input

43 AVDD3 – Power supply terminal (+3.3V)

44 BIAS I Asymmetry circuit constant current input

45 ASYI I Asymmetry comparator voltage input

46 ASYO O EFM full-swing signal output

47 VPCO O Not used (Open)

48 VCTL I Wide-band EFM PLL VCO2 control voltage input

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Pin No. Pin Name I/O Description

49 AVSS3 – Ground terminal

50 CLTV I Multiplier VCO1 control voltage input

51 FILO O Master PLL (slave = digital PLL) filter signal output

52 FILI I Master PLL filter signal input

53 PCO O Master PLL charge pump signal output

54 AVDD5 – Power supply terminal (+3.3V)

55 DDVROUT O DC/DC converter output (+2.5V)

56 DDVRSEN I DC/DC converter output voltage monitor signal input

57 AVSS5 – Ground terminal

58 DDCR I DC/DC converter reset signal input

59 NC – Not used (Open)

60 BCKI I D/A interface bit clock input

61 PCMDI I D/A interface serial data input

62 LRCKl I D/A interface LR clock input

63 LRCK O D/A interface LR clock output f = Fs

64 VSS – Ground terminal

65 PCMD O D/A interface serial data output

66 BCK O D/A interface bit clock output

67 VDD – Power supply terminal (+2.5V)

68 EMPH O High when the playback disc has emphasis, low it has not

69 EMPHI I High when de-emphasis is ON, low when input OFF

70 IOVDD2 – Power supply terminal (+3.3V)

71 DOUT O Digital Out signal output

72 TEST I Test terminal (Connected to ground)

73 TEST1 I Test terminal (Connected to ground)

74 IOVSS2 – Ground terminal

75 NC – Not used (Open)

76 XVSS – Ground terminal

77 XTAO O Crystal oscillation circuit signal output

78 XTAI I Crystal oscillation circuit signal input

79 XVDD – Power supply terminal (+2.5V)

80 AVDD1 – Power supply terminal (+3.3V)

81 AOUT1 O L-ch analog signal output

82 VREFL O L-ch reference voltage output

83 AVSS1 – Ground terminal

84 AVSS2 – Ground terminal

85 VREFR O R-ch reference voltage output

86 AOUT2 O R-ch analog signal output

87 AVDD2 – Power supply terminal (+3.3V)

88 NC – Not used (Open)

89 IOVDD0 – Power supply terminal (+3.3V)

90 RMUT O Not used (Open)

91 LMUT O Not used (Open)

92 NC – Not used (Open)

93 XTSL I Crystal selection signal input (Pull down)

94 IOVSS0 – Ground terminal

95 XTACN I Oscillation circuit control signal input (“H”: self-oscillation, “L”: oscillation stop)

96 SQSO O Not used (Open)

97 SQCK I SQSO readout clock input (Connected to +VDD(+3.3V))

98 SBSO O Not used (Open)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Pin No. Pin Name I/O Description

99 EXCK I Not used (Open)

100 XRST I System reset signal input from M30622MEP

101 SYSM I Muting signal input (Connected to ground)

102 DATA I Serial data input from M30622MEP

103 VSS – Ground terminal

104 XLAT I Latch signal input from M30622MEP

105 CLOCK I Serial data transfer clock input from M30622MEP

106 VDD – Power supply terminal (+2.5V)

107 SENS O SENS output to M30622MEP

108 SCLK I SENS serial data readout clock input (Connected to +VDD(+3.3v))

109 ATSK I/O Not used (Open)

110 WFCK O Not used (Open)

111 XUGF O Not used (Open)

112 XPCK O Not used (Open)

113 GFS O Not used (Open)

114 C2PO O Not used (Open)

115 SCOR O High output when the sub code sync, S0 or S1, is detected

116 VDD – Power supply terminal (+2.5V)

117 C4M O Not used (Open)

118 WDCK O Not used (Open)

119 COUT I/O Not used (Open)

120 NC – Not used (Open)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Pin No. Pin Name I/O Description

1 XRST O Reset signal output to CXD3059AR (“L”: reset)

2 CD-DATA O Serial data output to CXD3059AR

3 XLAT O Serial data latch signal output to CXD3059AR

4 SIRCS I Remote control signal input

5 MP3 DATA OUT O Serial data output to TC94A34FG

6 MP3 DATA IN I Serial data input from TC94A34FG

7 MP3 CLK O Serial data transfer clock output to TC94A34FG

8 BYTE I Not used (Connected to ground)

9 CNVSS – Ground at test (Pull down)

10 XC-IN I Sub system clock input (32.768KHz)

11 XC-OUT O Sub system clock output (32.768KHz)

12 RESET I System reset signal input

13 X-OUT O Main system clock output (5MHz)

14 VSS – Ground terminal

15 X-IN I Main system clock input (5MHz)

16 VCC – Power supply terminal (+3.3V)

17 NMI I Non-maskable interrupt input (Not used) (Pull up with resistor)

18 CD-CLK O Serial data transfer clock output to CXD3059AR

19 SCOR I Sub code sync (S0+S1) detection signal input from CXD3059AR

20 AC-CUT I AC off detection signal input (“L”: AC cut detected)

21 SENS I Internal status detection monitor input from CXD3059AR

22 MP3 RST O Reset signal output to TC94A34FG

23 MP3 CS O Chip select signal output to TC94A34FG (“L”: enable)

24 MP3 LP O Latch pulse output to TC94A34FG (“L”: enable)

25 MP3 ACK I Acknowledgement signal input from TC94A34FG (“L”: acknowledged)

26 MP3 REQ I Request signal input to TC94A34FG

27 MP3 STB O Standby mode signal output to TC94A34FG (“L”: standby mode)

28 XTCN O Oscillation on/off control signal output to CXD3059AR (“H”: on)

29 IIC-CLK I/O IIC bus serial clock input/output

30 IIC-DATA I/O IIC bus serial data input/output

31 VMUTE O CDG video signal muting on/off control signal output (“H”: muting on)

32 CD POWER O Power on/off control signal output (“H”: power on)

33 CDG DET I CDG disc detection signal input (“H”: CDG disc detected)

34 EFFECTOR-SELECT O Effector circuitry bypass control signal output (“L”: bypass)

35 CDG RST O Reset signal output to the CDG decoder (“L”: reset) (Not used) (Open)

36 EFFECTOR-S0 O Effector circuitry delay time selection bit 0 output

37 CD MUTE O CD analog signal muting on/off control signal output “H”: muting on)

38 OPEN SW I Eject detection signal input from CD mechanism deck

39 TBL-SENS I Disc tray position detection signal input from CD mechanism deck

40 E-3 I Disc tray status detection signal input from CD mechanism deck

41 E-2 I Disc tray status detection signal input from CD mechanism deck

42 E-1 I Disc tray status detection signal input from CD mechanism deck

43 TM-F O Table motor control signal output

44 TM-R O Table motor control signal output

45 LMF O Table loading motor control signal output

46 LMR O Table loading motor control signal output

47 NO USE I Not used

48 A-HALF I Deck A cassette detection signal input (“H”: Cassette detected)

49 EFFECTOR-S1 O Effector circuitry delay time selection bit 1 output

• IC401 M30622MEP-A75FPUO SYSTEM CONTROL (MAIN BOARD)

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Pin No. Pin Name I/O Description

50 EFFECTOR-S2 O Effector circuitry delay time selection bit 2 output

51 NO USE I Not used

52 EFFECTOR CTRL 1 O Flanger on/off signal output (“H”: on)

53 A-TRIG O Deck A side trigger plunger drive signal output (“H”: plunger on)

54 CAPM-CONT O Capstan motor drive signal output

55 B-TRIG O Deck B side trigger plunger drive signal output (“H”: plunger on)

56 REC BIAS O Recording bias on/off control signal output (“H”: bias on)

57 TC-RELAY O Recording/playback selection signal output (“H”: recording “L”: playback)

58 ALC O Automatic limiter control signal output (“H”: limiter on)

59 PB-AB O “Deck A/B playback selection signal output (“H”: deck A “L”: deck B)

60 FAN HI SPEED O Fan speed control signal output (“L”: high speed)

61 UNDER VOLTAGE DET I Under-voltage protection detection input (“H”: under-voltage detected)

62 VCC – Power supply terminal (+3.3V)

63 OVER VOLTAGE I Over-voltage protection detection input (“L”: over-voltage detected)

64 VSS – Ground terminal

65 TC MUTE O Tape playback muting on/off control signal output (“H”: muting on)

66 LINE MUTE O Line muting on/off control signal output (“H”: muting on)

67 REC MUTE O Recording muting on/off control signal output (“H”: muting on)

68 SW RY O Sub woofer relay drive signal output (“H”: relay on)

69 STBY-RLY O Main power on/off control signal output (“H”: power on)

____________

70 PROT I Speaker protect detection signal input (“L”: protector on)

71 GC-RESET O Reset signal output to MB90M407PF (“L”: reset)

72 STBY-LED/FAN CTRL O POWER indicator LED drive signal output (“H”: green color “L”: red color)

73 DISPLAY-KEY I DISPLAY key press detection Interrupt signal input

74 POWER-KEY I POWER key press detection Interrupt signal input

______________________

75 HP-MUTE O Headphone muting on/off control signal output (“H”: muting on)

76 FR RELAY O Front speakers relay drive signal output (“H”:relay on)

77 LINK/SURR-RLY O Surround speaker mode control signal output (“H”: LINK “L”: MATRIX SURROUND1/2)

78 STK-MUTE O Power amplifier and sub woofer amplifier on/off control signal output (“H”: amplifier on)

79 M61530-DATA O Serial data output to M61530FP

80 M61530-CLK O Serial data transfer clock output to M61530FP

81 M61529-DATA O Serial data output to M61529FP

82 M61529-CLK O Serial data transfer clock output to M61529FP

83 SW ON LED O SUB WOOFER ON LED drive signal output (“H”: LED on)

84 ST-CE O PLL chip enable signal output to the tuner unit

85 MC DIN (ST) I PLL serial data input to the tuner unit

86 ST-CLK O PLL serial data transfer clock output to the tuner unit

87 MC DOUT (ST) O PLL serial data output from the tuner unit (“L”: tuned)

88 TUNED I Tuning detection signal input from the tuner unit

89 A SHUT I Shut off detection signal input from deck A side reel pulse detector

90 B SHUT I Shut off detection signal input from deck A side reel pulse detector

91 NO USE I Not used

92 MODEL-IN I Model setting input

93 DEST-IN I Destination input

94 B-HALF I Deck B cassette , forward side recording tab and reverse side recording tab detection signal input

95 SW VOL IN I Subwoofer volume level detect signal input from subwoofer volume jog

96 AVSS – Ground terminal (for A/D conversion)

97 THERMAL VACS I Temperature detection signal input from thermistor

98 VREF I A/D converter reference voltage input terminal (+3.3V)

99 AVCC – Power supply terminal (+3.3V) (for A/D conversion)

100 HP DET I Headphone connection detection signal input (“H”: headphone connected) Pin No.Pin

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Pin No. Pin Name I/O Description

1 to 8 G8 to G1 O FLD grid signal output

9, 10 P1,P2 O FLD segment signal output

11 VSS-IO – Ground terminal

12 to 22 P3 to P13 O FLD segment signal output

23 VDD-FIP – Power supply terminal(+3.3V)

24 to 41 P14 to P31 O FLD segment signal output

42 VSS-IO – Ground terminal

43 to 47 P32 to P36 O FLD segment signal output

48 VKK – Power supply terminal (-35V)

49 MD0 I Micom operating mode (Pull up)

50 MD1/VDD-VFT I Micom operating mode (Pull up)

51 MD2 I Micom operating mode (Pull down)

52 LED-CD/DVD,TUNER O LED drive signal output

53 LED-TAPE,TV/SAT O LED drive signal output

LED-VIDEO (PAUSE,STOP)

O LED drive signal output

LED-(AMS+,AMS-),(FF,FR)

O LED drive signal output

56 LED-VOLUME 1,2 O LED drive signal output

57 LED-VOLUME 3,4 O LED drive signal output

58 LED-VOLUME 5,6 O LED drive signal output

59 LED-VOLUME 7,8 O LED drive signal output

60 IIC DATA I/O IIC bus serial data input/output

61 IIC CLOCK I/O IIC bus serial clock input/output

62 AVCC – Power supply terminal (+3.3V)

63 AVSS – Ground terminal

64 to 66 KEY0 to KEY2 I Key input (A/D)

67 ALL BAND I Audio L+R signal input

68 to 71 BPF4 to BPF1 I Spectrum analyzer signal input

72 OPERATION DIAL I OPERATION DIAL encoder signal input

73 JOG X-ROUND I X-ROUND JOG encoder signal input (Not used)

74 VOLUME I Volume encoder signal input

LED-(BEAT JUMP,BEAT MAX)

O LED drive signal output (Not used)

76 LED-(BALANCE,WAVE, O LED drive signal output (Not used)

FADER,RANDOM),DELAY

77 RESET I Reset signal input

78 LED-FLANGER,CHORUS O LED drive signal output

79 LED-PLAY O LED drive signal output

80 LED-SELECTOR O LED group select signal output

81 VSS-CPU – Ground terminal

82 XOUT O Crystal oscillator output (4MHz)

83 XIN I Crystal oscillator input (4MHz)

84 VCC-CPU – Power supply terminal (+3.3V)

85 to 100 G24 to G9 O FLD grid signal output

• IC902 MB90M407PF-G-148E1 DISPLAY CONTROL (PANEL BOARD)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

SECTION 8

EXPLODED VIEWS

8-1. CASE (TOP), BACK PANEL SECTION

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• The mechanical parts with no reference number

in the exploded views are not supplied.

• Hardware (# mark) list and accessories are

given in the last of this parts list.

• Abbreviation

AR : Argentina model

AUS : Australian model

E2 : 120V AC Area in E model

E3 : 240V AC Area in E model

E51 : Chilean and Peruvian model

The components identified by mark 0 or

dotted line with mark 0 are critical for

safety.

Replace only with part number specified.

not supplied

not supplie

not supplied

M891

not supplied

not

supplied

1 2-655-708-01 PANEL, LOADING (GNX800: E2, E51, AR)

1 2-655-708-11 PANEL, LOADING (GNX700: E2, E51)

1 2-655-708-71 PANEL, LOADING (GNX800: E3, AUS)

1 2-655-708-81 PANEL, LOADING (GNX700: E3)

2 2-342-117-01 CASE (TOP)

3 3-363-099-32 SCREW (CASE 3 TP2)

4 3-363-099-02 SCREW (CASE 3 TP2)

5 1-693-702-21 TUNER (FM/AM) (TM10SE)

6 A-1156-257-A EFFECTOR BOARD, COMPLETE

07 1-468-737-51 POWER SWITCHING

8 1-824-048-12 WIRE (FLAT TYPE) (27 CORE)

9 3-077-331-21 +BV3 (3-CR)

10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm)

11 3-378-109-12 CUSHION, SARANET

M891 1-787-400-11 D.C. FAN

#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

http://www.xiaoyu163.com

HCD-GNX700/GNX800

8-2. FRONT PANEL SECTION-1

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

not supplied

51 52

54 55 56

57 55

51 2-655-724-01 LID (TC)

52 2-655-732-01 SPRING (LID)

53 4-252-579-11 HOLDER (TC-R)

54 4-252-578-11 HOLDER (TC-L)

55 4-959-229-11 DETENT, CASSETTE

56 4-224-578-31 KNOB (MIC)

57 4-252-575-01 KNOB VOL

58 X-2103-230-1 KNOB JOG ASSY

59 3-087-053-01 +BVTP2.6 (3CR)

60 A-1156-244-A JOG BOARD, COMPLETE

61 2-655-717-01 WINDOW (FL)

62 4-224-104-11 DAMPER

63 A-1156-227-A FUNCTION BOARD, COMPLETE

64 A-1156-224-A PANEL BOARD, COMPLETE

65 1-828-990-11 WIRE (FLAT TYPE) (17 CORE) (80mm)

66 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm)

67 1-417-656-11 MECHA DECK (CWN42FF601)

68 2-655-734-01 SPRING (R)

69 2-655-733-01 SPRING (L)

70 A-1156-233-A MIC BOARD, COMPLETE

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

8-3. FRONT PANEL SECTION-2

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

not

supplied

not supplied

101

102

103

104

105

106

107

108

109

119

110

111

112

113

114

115

116

117

118

112

101 2-655-711-01 BUTTON (PLAY)

102 2-655-713-01 ESCUTCHEON (R)

103 2-655-730-01 ESCUTCHEON (MIC)

104 2-655-718-01 RING (VOL)

105 2-655-722-01 BASE (VOL)

106 2-655-723-01 BUTTON (EQ) (GNX800)

106 2-655-723-11 BUTTON (EQ) (GNX700)

107 2-655-712-01 ESCUTCHEON (L)

108 2-655-710-01 BUTTON (POWER)

109 2-655-716-01 INDICATOR (REMOTE)

110 2-655-707-01 ESCUTCHEON (CD)

111 2-655-709-01 BUTTON (DISC)

112 3-087-053-01 +BVTP2.6 (3CR)

113 2-655-705-01 PANEL, FRONT

114 4-244-092-01 SPRING (EJECT)

115 2-655-728-01 BUTTON (EJECT A)

116 2-655-729-01 BUTTON (EJECT B)

117 2-655-715-01 BUTTON (DISPLAY)

118 2-655-714-01 BUTTON (MODE)

119 2-655-731-01 INDICATOR (EQ)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

8-4. CHASSIS SECTION

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

not supplied

F1241

T1200

F1251

F1261

F1271

F1281

152

151

153

154

155

157

158

160

151 4-900-386-01 SCREW

152 A-1156-247-A PA BOARD, COMPLETE (GNX700: E2, E51)

152 A-1156-261-A PA BOARD, COMPLETE (GNX800: E2, E51, AR)

152 A-1178-475-A PA BOARD, COMPLETE (GNX800: E3, AUS)

152 A-1178-478-A PA BOARD, COMPLETE (GNX700: E3)

153 3-077-331-21 +BV3 (3-CR)

154 A-1156-249-A SURROUND BOARD, COMPLETE (GNX800)

154 A-1156-252-A SURROUND BOARD, COMPLETE (GNX700)

155 3-905-609-31 SCREW (TRANSISTOR)

0157 1-777-071-53 CORD, POWER (E2, E3, E51)

0157 1-783-941-12 CORD, POWER (AR)

0157 1-827-295-22 CORD, POWER (AUS)

*158 3-703-244-00 BUSHING (2104), CORD

160 A-1156-216-A MAIN BOARD, COMPLETE (GNX800: E2)

160 A-1156-472-A MAIN BOARD, COMPLETE (GNX700: E2)

160 A-1174-067-A MAIN BOARD, COMPLETE (GNX800: E3)

160 A-1174-073-A MAIN BOARD, COMPLETE (GNX800:AR)

160 A-1174-317-A MAIN BOARD, COMPLETE (GNX800:AUS)

160 A-1178-442-A MAIN BOARD, COMPLETE (GNX700: E3)

160 A-1188-344-A MAIN BOARD, COMPLETE (GNX800: E51)

160 A-1188-363-A MAIN BOARD, COMPLETE (GNX700: E51)

0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1281 1-532-465-33 FUSE (T3.15AL/250V)

0T1200 1-443-538-11 POWER TRANSFORMER (GNX800)

0T1200 1-443-972-11 POWER TRANSFORMER (GNX700)

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

8-5. CD MECHANISM DECK SECTION-1

(CDM74KF-F1BD81A)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

202

204

205

206

207

208

208 209

201

206

212

213

206

215

210

211 206

CD mechanism deck section-

201

203

216

M741

201 4-218-253-32 SCREW (M2.6), +BTTP

202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)

203 1-687-134-12 MOTOR (TB) BOARD

204 4-243-815-01 TABLE (LOADING)

205 4-245-571-02 GEAR (STOPPER)

206 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING

207 4-245-570-01 GEAR (JOINT)

208 4-245-572-01 BUSHING (GEAR)

209 1-687-132-12 SENSOR BOARD

210 4-243-820-01 GEAR (TABLE)

211 4-243-819-01 GEAR (GENEVA)

212 4-243-816-01 TRAY

213 4-243-823-01 BELT (TABLE)

215 4-243-821-01 PULLEY (TABLE)

216 3-231-598-01 SHEET (BA)

M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

251

252

253

254

255

256

257

258

260

261

262 263

264

265

266

267

269

281

270

255

272

273

274

275

276

282

280

268 273

273

272

279

272

255

M751

not supplied

S711

278

251 1-471-035-11 MAGNET ASSY

252 4-218-253-52 SCREW (M2.6), +BTTP

253 1-687-669-12 SW BOARD

254 4-244-034-01 BELT (LOADING)

255 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING

256 4-225-844-01 GEAR (LOADING A)

257 4-224-613-01 GEAR (SHAFT)

258 1-687-133-12 MOTOR (LD) BOARD

260 4-244-108-01 GEAR, SWING

261 4-224-609-01 GEAR (LOADING C)

262 4-224-608-01 COLLAR, SWING

263 3-016-533-11 WASHER (FR), STOPPER

264 4-224-611-01 GEAR (LOADING B)

265 4-224-606-01 GEAR (RV)

266 4-243-818-01 GEAR (U/D)

267 4-243-822-02 LEVER (LIFTER)

268 X-4955-774-2 PULLEY (SM) ASSY, CHUCKING

269 4-221-688-01 PULLEY (B), CHUCKING

270 X-2055-190-1 HOLDER (213) ASSY

272 4-227-549-11 INSULATOR

273 4-227-045-11 SPRING (INSULATOR), COIL

274 4-231-151-01 STOPPER (BU)

275 4-218-253-42 SCREW (M2.6), +BTTP

276 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)

278 A-4751-045-A CD BOARD, COMPLETE

0279 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP

280 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING

281 4-243-817-22 CHASSIS

282 3-087-053-01 +BVTP2.6 (3CR)

M751 A-4737-553-A MOTOR ASSY, LOADING (TABLE LOADING)

S711 1-477-680-12 ENCODER, ROTARY

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

8-6. CD MECHANISM DECK SECTION-2

(CDM74KF-F1BD81A)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

SECTION 9

ELECTRICAL PARTS LIST

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

NOTE:

• Due to standardization, replacements in the

parts list may be different from the parts

specified in the diagrams or the components

used on the set.

• -XX, -X mean standardized parts, so they

may have some difference from the original

one.

• Items marked “*” are not stocked since they

are seldom required for routine service.

Some delay should be anticipated when

ordering these items.

• CAPACITORS:

uF: μF

• RESISTORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

• COILS

uH: μH

• SEMICONDUCTORS

In each case, u: μ, for example:

uA...: μA... , uPA... , μPA... ,

uPB... , μPB... , uPC... , μPC... ,

uPD..., μPD...

• Abbreviation

AR : Argentina model

AUS : Australian model

E2 : 120V AC Area in E model

E3 : 240V AC Area in E model

E51 : Chilean and Peruvian model

The components identified by mark 0

or dotted line with mark 0 are critical

for safety.

Replace only with part number specified.

When indicating parts by reference

number, please include the board.

A-4751-045-A CD BOARD, COMPLETE

*******************

< CAPACITOR >

C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V

C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C16 1-115-156-11 CERAMIC CHIP 1uF 10V

C17 1-126-246-11 ELECT CHIP 220uF 20% 4V

C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V

C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V

C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C116 1-128-995-21 ELECT CHIP 100uF 20% 10V

C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V

C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V

C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C151 1-128-995-21 ELECT CHIP 100uF 20% 10V

C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V

C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V

C185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V

C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C201 1-128-995-21 ELECT CHIP 100uF 20% 10V

C203 1-128-995-21 ELECT CHIP 100uF 20% 10V

C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C260 1-128-394-11 ELECT CHIP 220uF 20% 10V

C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C305 1-126-246-11 ELECT CHIP 220uF 20% 4V

C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C308 1-126-208-21 ELECT CHIP 47uF 20% 4V

C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V

C314 1-126-208-21 ELECT CHIP 47uF 20% 4V

C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V

C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C320 1-216-864-11 SHORT CHIP 0

< CONNECTOR >

CN101 1-770-425-51 CONNECTOR, FFC/FPC 16P

CN201 1-818-350-51 CONNECTOR, FFC (LIF (NON-ZIF)) 27P

< FERRITE BEAD >

FB301 1-500-445-21 FERRITE, EMI (SMD) (2012)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

CD CD-SW DRIVER

< IC >

IC101 8-752-425-12 IC CXD3059AR

IC251 6-705-808-01 IC BA5947FM-E2

IC301 6-705-365-01 IC TC94A34FG-002

IC303 6-705-807-01 IC BH15FB1WG

< TRANSISTOR >

Q10 6-551-120-01 TRANSISTOR 2SA2119K

< RESISTOR >

R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R11 1-216-864-11 SHORT CHIP 0

R12 1-216-845-11 METAL CHIP 100K 5% 1/10W

R13 1-218-446-11 METAL CHIP 1 5% 1/10W

R111 1-216-821-11 METAL CHIP 1K 5% 1/10W

R112 1-216-835-11 METAL CHIP 15K 5% 1/10W

R113 1-216-821-11 METAL CHIP 1K 5% 1/10W

R114 1-216-835-11 METAL CHIP 15K 5% 1/10W

R121 1-216-835-11 METAL CHIP 15K 5% 1/10W

R131 1-216-857-11 METAL CHIP 1M 5% 1/10W

R132 1-216-833-11 METAL CHIP 10K 5% 1/10W

R133 1-216-848-11 METAL CHIP 180K 5% 1/10W

R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R142 1-216-821-11 METAL CHIP 1K 5% 1/10W

R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R151 1-216-864-11 SHORT CHIP 0

R161 1-216-809-11 METAL CHIP 100 5% 1/10W

R162 1-216-841-11 METAL CHIP 47K 5% 1/10W

R163 1-216-809-11 METAL CHIP 100 5% 1/10W

R165 1-216-864-11 SHORT CHIP 0

R171 1-216-817-11 METAL CHIP 470 5% 1/10W

R172 1-216-857-11 METAL CHIP 1M 5% 1/10W

R173 1-216-295-91 SHORT CHIP 0

R181 1-216-809-11 METAL CHIP 100 5% 1/10W

R182 1-216-809-11 METAL CHIP 100 5% 1/10W

R191 1-216-864-11 SHORT CHIP 0

R201 1-500-445-21 FERRITE, EMI (SMD) (2012)

R203 1-216-864-11 SHORT CHIP 0

R204 1-500-445-21 FERRITE, EMI (SMD) (2012)

R205 1-216-864-11 SHORT CHIP 0

R251 1-216-833-11 METAL CHIP 10K 5% 1/10W

R252 1-216-837-11 METAL CHIP 22K 5% 1/10W

R253 1-216-833-11 METAL CHIP 10K 5% 1/10W

R301 1-216-845-11 METAL CHIP 100K 5% 1/10W

R302 1-216-833-11 METAL CHIP 10K 5% 1/10W

R303 1-216-845-11 METAL CHIP 100K 5% 1/10W

R305 1-216-845-11 METAL CHIP 100K 5% 1/10W

R306 1-216-864-11 SHORT CHIP 0

R307 1-216-833-11 METAL CHIP 10K 5% 1/10W

R313 1-216-813-11 METAL CHIP 220 5% 1/10W

R351 1-216-809-11 METAL CHIP 100 5% 1/10W

R352 1-216-809-11 METAL CHIP 100 5% 1/10W

R353 1-216-809-11 METAL CHIP 100 5% 1/10W

R354 1-216-809-11 METAL CHIP 100 5% 1/10W

R401 1-216-809-11 METAL CHIP 100 5% 1/10W

R402 1-216-809-11 METAL CHIP 100 5% 1/10W

R403 1-216-809-11 METAL CHIP 100 5% 1/10W

R404 1-216-809-11 METAL CHIP 100 5% 1/10W

R405 1-216-809-11 METAL CHIP 100 5% 1/10W

R406 1-216-809-11 METAL CHIP 100 5% 1/10W

R407 1-216-809-11 METAL CHIP 100 5% 1/10W

R408 1-216-809-11 METAL CHIP 100 5% 1/10W

R409 1-216-809-11 METAL CHIP 100 5% 1/10W

R410 1-216-809-11 METAL CHIP 100 5% 1/10W

R411 1-216-809-11 METAL CHIP 100 5% 1/10W

R412 1-216-809-11 METAL CHIP 100 5% 1/10W

R419 1-216-809-11 METAL CHIP 100 5% 1/10W

R502 1-216-864-11 SHORT CHIP 0

< SWITCH >

S101 1-771-853-11 SWITCH, DETECTION (LIMIT)

< VIBRATOR >

X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9344 MHz)

************************************************************

CD-SW BOARD

************

< RESISTOR >

R1166 1-216-817-11 METAL CHIP 470 5% 1/10W

R1167 1-216-819-11 METAL CHIP 680 5% 1/10W

R1168 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1169 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R1170 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

< SWITCH >

S1166 1-762-875-21 SWITCH, KEYBOARD (ZOPEN/CLOSE)

S1167 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP)

S1168 1-762-875-21 SWITCH, KEYBOARD (DISC 3)

S1169 1-762-875-21 SWITCH, KEYBOARD (DISC 2)

S1170 1-762-875-21 SWITCH, KEYBOARD (DISC 1)

************************************************************

DRIVER BOARD

*************

< CAPACITOR >

C715 1-126-933-11 ELECT 100uF 20% 16V

C731 1-126-964-11 ELECT 10uF 20% 50V

C735 1-164-159-11 CERAMIC 0.1uF 50V

C736 1-164-159-11 CERAMIC 0.1uF 50V

C737 1-164-159-11 CERAMIC 0.1uF 50V

C741 1-162-306-11 CERAMIC 0.01uF 20% 16V

C751 1-162-306-11 CERAMIC 0.01uF 20% 16V

C752 1-164-159-11 CERAMIC 0.1uF 50V

< CONNECTOR >

CN701 1-784-735-11 CONNECTOR, FFC 13P

CN702 1-784-766-11 CONNECTOR, FFC 5P

*CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P

CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P

< DIODE >

D701 8-719-947-16 DIODE MTZJ-T-72-5.1A

D711 8-719-983-66 DIODE MTZJ-T-72-3.6B

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

DRIVER

< IC >

IC701 8-759-598-69 IC BA6956AN

IC712 8-759-598-69 IC BA6956AN

< TRANSISTOR >

Q731 8-729-029-66 TRANSISTOR DTC114ESA

< RESISTOR >

R701 1-249-413-11 CARBON 470 5% 1/4W

R702 1-247-807-31 CARBON 100 5% 1/4W

R711 1-247-831-91 CARBON 1K 5% 1/4W

R712 1-247-847-91 CARBON 4.7K 5% 1/4W

R713 1-247-863-91 CARBON 22K 5% 1/4W

R721 1-247-847-91 CARBON 4.7K 5% 1/4W

R722 1-247-847-91 CARBON 4.7K 5% 1/4W

R723 1-247-847-91 CARBON 4.7K 5% 1/4W

R731 1-247-807-31 CARBON 100 5% 1/4W

R732 1-249-429-11 CARBON 10K 5% 1/4W

R733 1-247-831-91 CARBON 1K 5% 1/4W

R734 1-249-430-11 CARBON 12K 5% 1/4W

R736 1-249-412-11 CARBON 390 5% 1/4W

R751 1-247-847-91 CARBON 4.7K 5% 1/4W

************************************************************

A-1156-257-A EFFECTOR BOARD, COMPLETE

*************************

< CAPACITOR >

C1506 1-136-495-11 FILM 0.068uF 5% 50V

C1507 1-136-495-11 FILM 0.068uF 5% 50V

C1509 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V

C1512 1-107-714-11 ELECT 10uF 20% 50V

C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1515 1-126-947-11 ELECT 47uF 20% 35V

C1516 1-136-495-11 FILM 0.068uF 5% 50V

C1517 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C1519 1-126-964-11 ELECT 10uF 20% 50V

C1520 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C1521 1-162-961-11 CERAMIC CHIP 330PF 10% 50V

C1522 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C1523 1-136-495-11 FILM 0.068uF 5% 50V

C1524 1-126-957-11 ELECT 0.22uF 20% 50V

C1525 1-126-957-11 ELECT 0.22uF 20% 50V

C1526 1-136-497-81 FILM 0.1uF 5% 50V

C1529 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V

C1530 1-136-159-00 FILM 0.033uF 5% 50V

C1542 1-130-479-00 MYLAR 0.0047uF 5% 50V

C1544 1-130-479-00 MYLAR 0.0047uF 5% 50V

C1545 1-126-964-11 ELECT 10uF 20% 50V

C1546 1-126-964-11 ELECT 10uF 20% 50V

C1548 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C1552 1-126-964-11 ELECT 10uF 20% 50V

C1554 1-126-964-11 ELECT 10uF 20% 50V

C1555 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C1559 1-126-964-11 ELECT 10uF 20% 50V

C1560 1-126-964-11 ELECT 10uF 20% 50V

C1561 1-126-964-11 ELECT 10uF 20% 50V

C1562 1-126-964-11 ELECT 10uF 20% 50V

C1568 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1569 1-126-964-11 ELECT 10uF 20% 50V

C1570 1-126-964-11 ELECT 10uF 20% 50V

C1571 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1572 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1576 1-126-964-11 ELECT 10uF 20% 50V

C1578 1-126-964-11 ELECT 10uF 20% 50V

C1584 1-104-658-91 ELECT 100uF 20% 10V

C1601 1-126-964-11 ELECT 10uF 20% 50V

C1602 1-126-964-11 ELECT 10uF 20% 50V

< CONNECTOR >

CN1501 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P

< DIODE >

D1502 8-719-069-56 DIODE UDZSTE-176.2B

< IC >

IC1500 8-759-710-97 IC NJM4565M-D

IC1501 8-759-496-41 IC M65850FP-E1

IC1503 6-709-217-01 IC TC74LVX4051FT

IC1505 8-759-710-97 IC NJM4565M-D

IC1506 6-709-218-01 IC TC74LVX4052FT

< COIL >

L1500 1-414-183-41 INDUCTOR 10uH

< TRANSISTOR >

Q1502 8-729-055-10 TRANSISTOR 2SK3378ENTL

Q1506 8-729-055-10 TRANSISTOR 2SK3378ENTL

Q1507 8-729-056-46 TRANSISTOR 2SC5053T100Q

Q1508 8-729-055-10 TRANSISTOR 2SK3378ENTL

Q1509 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q1510 8-729-027-43 TRANSISTOR DTC114EKA-T146

< RESISTOR >

R1500 1-216-809-11 METAL CHIP 100 5% 1/10W

R1501 1-216-809-11 METAL CHIP 100 5% 1/10W

R1502 1-216-809-11 METAL CHIP 100 5% 1/10W

R1504 1-216-809-11 METAL CHIP 100 5% 1/10W

R1505 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1508 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1510 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1511 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1512 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1514 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1515 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1516 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1517 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1519 1-216-864-11 SHORT CHIP 0

R1520 1-216-864-11 SHORT CHIP 0

R1522 1-216-864-11 SHORT CHIP 0

R1525 1-216-809-11 METAL CHIP 100 5% 1/10W

R1526 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1527 1-216-809-11 METAL CHIP 100 5% 1/10W

R1528 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1529 1-216-845-11 METAL CHIP 100K 5% 1/10W

EFFECTOR

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description RemarksRef. No. Part No. Description Remarks

R1530 1-216-815-11 METAL CHIP 330 5% 1/10W

R1531 1-216-817-11 METAL CHIP 470 5% 1/10W

R1532 1-216-820-11 METAL CHIP 820 5% 1/10W

R1533 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

R1534 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

R1535 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R1536 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R1537 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1538 1-216-838-11 METAL CHIP 27K 5% 1/10W

R1546 1-216-836-11 METAL CHIP 18K 5% 1/10W

R1547 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1549 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1550 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1557 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1558 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1559 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1560 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1565 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1566 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1567 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1568 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1569 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1570 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1571 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1572 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1573 1-216-819-11 METAL CHIP 680 5% 1/10W

R1574 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1575 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1576 1-216-819-11 METAL CHIP 680 5% 1/10W

R1579 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1580 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1581 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1582 1-216-845-11 METAL CHIP 100K 5% 1/10W

R1584 1-216-864-11 SHORT CHIP 0

R1585 1-216-864-11 SHORT CHIP 0

R1586 1-216-864-11 SHORT CHIP 0

R1589 1-216-803-11 METAL CHIP 33 5% 1/10W

R1590 1-216-839-11 METAL CHIP 33K 5% 1/10W

R1591 1-216-839-11 METAL CHIP 33K 5% 1/10W

R1592 1-216-864-11 SHORT CHIP 0

R1594 1-216-864-11 SHORT CHIP 0

R1595 1-216-864-11 SHORT CHIP 0

R1600 1-216-864-11 SHORT CHIP 0

R1602 1-216-864-11 SHORT CHIP 0

R1604 1-216-864-11 SHORT CHIP 0

R1606 1-216-864-11 SHORT CHIP 0

************************************************************

A-1156-227-A FUNCTION BOARD, COMPLETE

*************************

< CAPACITOR >

C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C965 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C966 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C969 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C970 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C971 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C976 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C984 1-162-953-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

*CN901 1-569-934-11 SOCKET, CONNECTOR 17P

CNS902 1-820-050-11 BOARD TO BOARD HEADER (8P)

< DIODE >

D1017 6-500-725-01 DIODE SLR-343VCT32 (DELAY)

D1020 6-500-725-01 DIODE SLR-343VCT32 (FLANGER)

< JUMPER RESISTOR >

JR921 1-216-864-11 SHORT CHIP 0

JR923 1-216-864-11 SHORT CHIP 0

< TRANSISTOR >

Q921 8-729-027-50 TRANSISTOR DTC123JKA-T146

< RESISTOR >

R958 1-216-819-11 METAL CHIP 680 5% 1/10W

R959 1-216-821-11 METAL CHIP 1K 5% 1/10W

R960 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R962 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R963 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R972 1-216-821-11 METAL CHIP 1K 5% 1/10W

R973 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1001 1-216-817-11 METAL CHIP 470 5% 1/10W

R1002 1-216-819-11 METAL CHIP 680 5% 1/10W

R1003 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1004 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R1005 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R1006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R1014 1-216-817-11 METAL CHIP 470 5% 1/10W

R1018 1-216-819-11 METAL CHIP 680 5% 1/10W

R1186 1-216-814-11 METAL CHIP 270 5% 1/10W

< SWITCH >

S901 1-762-875-21 SWITCH, KEYBOARD (MP3 BOOSTER)

S902 1-762-875-21 SWITCH, KEYBOARD (GROOVE)

S903 1-762-875-21 SWITCH, KEYBOARD (EQ BAND)

S904 1-762-875-21 SWITCH, KEYBOARD (DIRECTION MPX)

S905 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START)

S906 1-762-875-21 SWITCH, KEYBOARD (CD SYNC)

S914 1-762-875-21 SWITCH, KEYBOARD (ENTER)

S915 1-762-875-21 SWITCH, KEYBOARD (SOUND FLASH)

S916 1-762-875-21 SWITCH, KEYBOARD (DELAY)

S917 1-762-875-21 SWITCH, KEYBOARD (FLANGER)

S918 1-762-875-21 SWITCH, KEYBOARD

(SURROUND SPEAKER MODE)

S919 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION)

S920 1-762-875-21 SWITCH, KEYBOARD (AMP MENU)

S928 1-762-875-21 SWITCH, KEYBOARD (DISPLAY)

S970 1-418-725-51 ENCODER, ROTARY (12 TYPE)

(MASTER VOLUME)

************************************************************

EFFECTOR FUNCTION JOG

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

MAIN

A-1156-244-A JOG BOARD, COMPLETE

*******************

< CAPACITOR >

C1150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CNS903 1-562-573-31 SOCKET, CONNECTOR 8P

< DIODE >

D919 6-500-809-01 DIODE SELU5223C-STP15 (VOL 1)

D920 6-500-809-01 DIODE SELU5223C-STP15 (VOL 2)

D921 6-500-809-01 DIODE SELU5223C-STP15 (VOL 3)

D922 6-500-809-01 DIODE SELU5223C-STP15 (VOL 4)

D923 6-500-809-01 DIODE SELU5223C-STP15 (VOL 5)

D924 6-500-809-01 DIODE SELU5223C-STP15 (VOL 6)

D925 6-500-809-01 DIODE SELU5223C-STP15 (VOL 7)

D926 6-500-809-01 DIODE SELU5223C-STP15 (VOL 8)

< JUMPER RESISTOR >

JR1 1-216-864-11 SHORT CHIP 0

JR2 1-216-864-11 SHORT CHIP 0

JR3 1-216-864-11 SHORT CHIP 0

JR4 1-216-864-11 SHORT CHIP 0

JR5 1-216-864-11 SHORT CHIP 0

JR922 1-216-864-11 SHORT CHIP 0

JR1096 1-216-864-11 SHORT CHIP 0

< TRANSISTOR >

Q911 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q912 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q913 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q915 8-729-027-43 TRANSISTOR DTC114EKA-T146

< RESISTOR >

R1040 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1144 1-216-820-11 METAL CHIP 820 5% 1/10W

R1145 1-216-820-11 METAL CHIP 820 5% 1/10W

R1146 1-216-820-11 METAL CHIP 820 5% 1/10W

R1149 1-216-820-11 METAL CHIP 820 5% 1/10W

R1150 1-216-820-11 METAL CHIP 820 5% 1/10W

R1151 1-216-820-11 METAL CHIP 820 5% 1/10W

R1153 1-216-820-11 METAL CHIP 820 5% 1/10W

R1154 1-216-820-11 METAL CHIP 820 5% 1/10W

R1155 1-216-820-11 METAL CHIP 820 5% 1/10W

R1157 1-216-820-11 METAL CHIP 820 5% 1/10W

R1158 1-216-820-11 METAL CHIP 820 5% 1/10W

R1159 1-216-820-11 METAL CHIP 820 5% 1/10W

R1161 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1162 1-216-809-11 METAL CHIP 100 5% 1/10W

R1163 1-216-809-11 METAL CHIP 100 5% 1/10W

R1164 1-216-809-11 METAL CHIP 100 5% 1/10W

R1165 1-216-809-11 METAL CHIP 100 5% 1/10W

< SWITCH >

S1161 1-479-203-11 ENCODER (ROTARY) (OPERATION DIAL)

************************************************************

A-1156-216-A MAIN BOARD, COMPLETE (GNX800: E2)

A-1156-472-A MAIN BOARD, COMPLETE (GNX700: E2)

A-1174-067-A MAIN BOARD, COMPLETE (GNX800: E3)

A-1174-073-A MAIN BOARD, COMPLETE (GNX800:AR)

A-1174-317-A MAIN BOARD, COMPLETE (GNX800:AUS)

A-1178-442-A MAIN BOARD, COMPLETE (GNX700: E3)

A-1188-344-A MAIN BOARD, COMPLETE (GNX800: E51)

A-1188-363-A MAIN BOARD, COMPLETE (GNX700: E51)

*********************

7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

< CAPACITOR >

C100 1-104-658-91 ELECT 100uF 20% 10V

C101 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C102 1-126-964-11 ELECT 10uF 20% 50V

C103 1-126-964-11 ELECT 10uF 20% 50V

C104 1-126-964-11 ELECT 10uF 20% 50V

C105 1-126-964-11 ELECT 10uF 20% 50V

C106 1-130-487-00 MYLAR 0.022uF 5% 50V

C107 1-130-487-00 MYLAR 0.022uF 5% 50V

C108 1-130-489-00 MYLAR 0.033uF 5% 50V

C109 1-126-960-11 ELECT 1uF 20% 50V

C110 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

(GNX700)

C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(GNX800)

C111 1-126-964-11 ELECT 10uF 20% 50V

C112 1-137-190-91 FILM 0.22uF 5% 50V

(GNX800)

C112 1-136-170-00 FILM 0.27uF 5% 50V

(GNX700)

C113 1-136-170-00 FILM 0.27uF 5% 50V

C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C116 1-126-176-11 ELECT 220uF 20% 10V

C130 1-126-964-11 ELECT 10uF 20% 50V

C131 1-126-959-11 ELECT 0.47uF 20% 50V

C140 1-130-493-00 MYLAR 0.068uF 5% 50V

C149 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C150 1-126-964-11 ELECT 10uF 20% 50V

C152 1-126-964-11 ELECT 10uF 20% 50V

C153 1-126-964-11 ELECT 10uF 20% 50V

C154 1-126-964-11 ELECT 10uF 20% 50V

C155 1-126-964-11 ELECT 10uF 20% 50V

C156 1-130-487-00 MYLAR 0.022uF 5% 50V

C157 1-130-487-00 MYLAR 0.022uF 5% 50V

C158 1-130-489-00 MYLAR 0.033uF 5% 50V

C159 1-126-960-11 ELECT 1uF 20% 50V

C160 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V

(GNX700)

C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

(GNX800)

C161 1-126-964-11 ELECT 10uF 20% 50V

C162 1-137-190-91 FILM 0.22uF 5% 50V

(GNX800)

C162 1-136-170-00 FILM 0.27uF 5% 50V

(GNX700)

C163 1-136-170-00 FILM 0.27uF 5% 50V

C180 1-126-963-11 ELECT 4.7uF 20% 50V

C181 1-126-963-11 ELECT 4.7uF 20% 50V

JOG

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

MAIN

C202 1-126-964-11 ELECT 10uF 20% 50V

C203 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C204 1-126-923-91 ELECT 220uF 20% 10V

C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C206 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C207 1-126-960-11 ELECT 1uF 20% 50V

C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C211 1-104-658-91 ELECT 100uF 20% 10V

C220 1-136-497-81 FILM 0.1uF 5% 50V

C221 1-136-497-81 FILM 0.1uF 5% 50V

C222 1-104-658-91 ELECT 100uF 20% 10V

C223 1-104-658-91 ELECT 100uF 20% 10V

C230 1-136-497-81 FILM 0.1uF 5% 50V

C231 1-136-497-81 FILM 0.1uF 5% 50V

C250 1-126-964-11 ELECT 10uF 20% 50V

C251 1-126-964-11 ELECT 10uF 20% 50V

C260 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C262 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C263 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C264 1-165-647-91 CERAMIC CHIP 0.47uF 10% 6.3V

C280 1-126-964-11 ELECT 10uF 20% 50V

C281 1-126-964-11 ELECT 10uF 20% 50V

C301 1-136-967-11 FILM 0.012uF 5% 100V

C303 1-136-497-81 FILM 0.1uF 5% 50V

C304 1-126-964-11 ELECT 10uF 20% 50V

C305 1-126-960-11 ELECT 1uF 20% 50V

C306 1-126-961-11 ELECT 2.2uF 20% 50V

C307 1-126-964-11 ELECT 10uF 20% 50V

C308 1-126-925-91 ELECT 470uF 20% 10V

C309 1-126-947-11 ELECT 47uF 20% 35V

C310 1-126-964-11 ELECT 10uF 20% 50V

C311 1-126-964-11 ELECT 10uF 20% 50V

C312 1-126-964-11 ELECT 10uF 20% 50V

C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C340 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C351 1-136-967-11 FILM 0.012uF 5% 100V

C353 1-136-497-81 FILM 0.1uF 5% 50V

C354 1-126-157-11 ELECT 10uF 20% 16V

C355 1-126-960-11 ELECT 1uF 20% 50V

C356 1-126-961-11 ELECT 2.2uF 20% 50V

C359 1-126-947-11 ELECT 47uF 20% 35V

C361 1-126-964-11 ELECT 10uF 20% 50V

C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C370 1-137-150-11 FILM 0.01uF 5% 100V

C371 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C374 1-126-947-11 ELECT 47uF 20% 35V

C375 1-162-963-11 CERAMIC CHIP 680PF 10% 50V

C376 1-162-963-11 CERAMIC CHIP 680PF 10% 50V

C377 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C378 1-162-928-11 CERAMIC CHIP 120PF 5% 50V

C379 1-130-481-00 MYLAR 0.0068uF 5% 50V

C380 1-162-928-11 CERAMIC CHIP 120PF 5% 50V

C381 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V

C382 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V

C383 1-162-959-11 CERAMIC CHIP 330PF 5% 50V

C384 1-162-959-11 CERAMIC CHIP 330PF 5% 50V

C385 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C386 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C401 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C411 1-162-919-11 CERAMIC CHIP 22PF 5% 50V

C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C416 1-104-656-11 ELECT 2200uF 20% 6.3V

C417 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C419 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C462 1-104-658-91 ELECT 100uF 20% 10V

C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C498 1-126-964-11 ELECT 10uF 20% 50V

C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C501 1-126-964-11 ELECT 10uF 20% 50V

C502 1-136-497-81 FILM 0.1uF 5% 50V

C503 1-136-497-81 FILM 0.1uF 5% 50V

C511 1-126-157-11 ELECT 10uF 20% 16V

(E2, E3, E51)

C520 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C521 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C522 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C523 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C524 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C525 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C534 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C535 1-126-926-11 ELECT 1000uF 20% 10V

C537 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C538 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C539 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C540 1-126-960-11 ELECT 1uF 20% 50V

C541 1-126-960-11 ELECT 1uF 20% 50V

C544 1-126-960-11 ELECT 1uF 20% 50V

C545 1-126-960-11 ELECT 1uF 20% 50V

C546 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C547 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C550 1-126-933-11 ELECT 100uF 20% 16V

C551 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C552 1-126-961-11 ELECT 2.2uF 20% 50V

C553 1-126-942-61 ELECT 1000uF 20% 25V

C560 1-130-483-00 MYLAR 0.01uF 5% 50V

C561 1-130-483-00 MYLAR 0.01uF 5% 50V

C562 1-126-933-11 ELECT 100uF 20% 16V

C563 1-126-925-91 ELECT 470uF 20% 10V

C564 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C565 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C566 1-128-548-11 ELECT 4700uF 20% 25V

C567 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V

C568 1-126-916-11 ELECT 1000uF 20% 6.3V

C580 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C581 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN100 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

MAIN

CN102 1-820-049-11 CONNECTOR (SUBWOOFER)

(SYSTEM CONTROL)

CN105 1-691-765-11 PLUG (MICRO CONNECTOR) 3P

CN402 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P

CN501 1-573-845-11 CONNECTOR, BOARD TO BOARD 13P

*CN502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P

CN503 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P

CN505 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P

CN506 1-568-441-11 SOCKET, CONNECTOR 9P

*CN507 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P

*CN508 1-569-934-11 SOCKET, CONNECTOR 17P

CN509 1-569-928-11 SOCKET, CONNECTOR 11P

*CN510 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P

CN511 1-784-735-11 CONNECTOR, FFC 13P

CN512 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P

CN513 1-784-038-21 CONNECTOR, BOARD TO BOARD 9P

CN580 1-564-506-11 PLUG, CONNECTOR 3P

< DIODE >

D101 6-501-193-01 DIODE 1SS355WTE-17

D102 6-501-193-01 DIODE 1SS355WTE-17

D103 6-501-193-01 DIODE 1SS355WTE-17

D104 6-501-193-01 DIODE 1SS355WTE-17

D325 8-719-083-60 DIODE UDZSTE-174.7B

D340 6-501-193-01 DIODE 1SS355WTE-17

D341 6-501-193-01 DIODE 1SS355WTE-17

D342 6-501-193-01 DIODE 1SS355WTE-17

D401 6-501-193-01 DIODE 1SS355WTE-17

D402 6-501-193-01 DIODE 1SS355WTE-17

D403 6-501-193-01 DIODE 1SS355WTE-17

D404 6-501-193-01 DIODE 1SS355WTE-17

D501 6-501-193-01 DIODE 1SS355WTE-17

D502 6-501-193-01 DIODE 1SS355WTE-17

D503 6-501-193-01 DIODE 1SS355WTE-17

D504 6-501-193-01 DIODE 1SS355WTE-17

D505 6-501-193-01 DIODE 1SS355WTE-17

D550 6-501-193-01 DIODE 1SS355WTE-17

D551 6-501-193-01 DIODE 1SS355WTE-17 (E2, E3, E51)

D560 8-719-028-23 DIODE D3SBA20-4101

D561 6-500-522-21 DIODE 10EDB40-TB3

D562 6-500-522-21 DIODE 10EDB40-TB3

D581 8-719-069-56 DIODE UDZSTE-176.2B

D583 8-719-978-33 DIODE DTZ-TT11-6.8B

D584 8-719-071-54 DIODE HZU2.0BTRF

< FERRITE BEAD >

FB150 1-216-864-11 SHORT CHIP 0

FB260 1-216-864-11 SHORT CHIP 0

FB261 1-216-864-11 SHORT CHIP 0

FB262 1-216-864-11 SHORT CHIP 0

FB263 1-216-864-11 SHORT CHIP 0

FB506 1-500-283-11 INDUCTOR, FERRITE BEAD

FB507 1-500-283-11 INDUCTOR, FERRITE BEAD

FB508 1-500-283-11 INDUCTOR, FERRITE BEAD

FB509 1-500-283-11 INDUCTOR, FERRITE BEAD

FB510 1-500-283-11 INDUCTOR, FERRITE BEAD

FB512 1-500-283-11 INDUCTOR, FERRITE BEAD

< IC >

IC101 6-703-650-11 IC M61529FP-D60G

IC201 6-703-651-11 IC M61530FP-D60G

IC210 6-600-465-11 IC TOTX147 (CD DIGITAL OUT OPTICAL)

IC301 6-702-130-01 IC HA12237F

IC401 6-806-610-01 IC M30622MEP-A75FPU0

IC402 6-705-809-01 IC BD4929G-TR

IC550 6-703-610-01 IC RT8H015C-T112-1

IC560 8-759-394-36 IC BA09T

IC561 8-759-394-36 IC BA09T

IC562 6-702-771-01 IC TA78033LS

< JACK >

J101 1-794-981-11 JACK, PIN 4P (AUDIO IN)

J103 1-820-048-11 CONNECTOR (LIGHTING) (D-LIGHT SYNC)

< JUMPER RESISTOR >

JR101 1-216-864-11 SHORT CHIP 0

JR102 1-216-864-11 SHORT CHIP 0

JR104 1-216-864-11 SHORT CHIP 0

JR107 1-216-864-11 SHORT CHIP 0

JR108 1-216-864-11 SHORT CHIP 0

JR109 1-216-864-11 SHORT CHIP 0

JR110 1-216-864-11 SHORT CHIP 0

JR112 1-216-864-11 SHORT CHIP 0

JR113 1-216-864-11 SHORT CHIP 0

JR114 1-216-864-11 SHORT CHIP 0

JR115 1-216-864-11 SHORT CHIP 0

JR116 1-216-864-11 SHORT CHIP 0

JR117 1-216-864-11 SHORT CHIP 0

JR119 1-216-864-11 SHORT CHIP 0

JR120 1-216-864-11 SHORT CHIP 0

JR121 1-216-864-11 SHORT CHIP 0

JR122 1-216-864-11 SHORT CHIP 0

JR123 1-216-864-11 SHORT CHIP 0

JR124 1-216-296-11 SHORT CHIP 0

JR125 1-216-296-11 SHORT CHIP 0

JR126 1-216-296-11 SHORT CHIP 0

JR127 1-216-864-11 SHORT CHIP 0

JR129 1-216-864-11 SHORT CHIP 0

JR130 1-216-864-11 SHORT CHIP 0

JR131 1-216-864-11 SHORT CHIP 0 (AR, AUS)

< COIL >

L101 1-420-872-52 COIL, AIR-CORE

L102 1-420-872-52 COIL, AIR-CORE

L302 1-414-189-31 INDUCTOR 100uH

L370 1-410-780-11 INDUCTOR 27mH

L371 1-410-780-11 INDUCTOR 27mH

L372 1-414-189-31 INDUCTOR 100uH

< TRANSISTOR >

Q101 8-729-230-49 TRANSISTOR 2SC2712-YG

Q151 8-729-230-49 TRANSISTOR 2SC2712-YG

Q180 8-729-023-22 TRANSISTOR 2SD2114K

Q181 8-729-023-22 TRANSISTOR 2SD2114K

Q250 8-729-023-22 TRANSISTOR 2SD2114K

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

Q251 8-729-023-22 TRANSISTOR 2SD2114K

Q325 8-729-056-46 TRANSISTOR 2SC5053T100Q

Q340 8-729-903-46 TRANSISTOR 2SB1132-P

Q341 8-729-903-46 TRANSISTOR 2SB1132-P

Q342 8-729-903-46 TRANSISTOR 2SB1132-P

Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q344 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q345 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q370 8-729-141-75 TRANSISTOR 2SD596DV345

Q371 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q372 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q373 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q374 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q375 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q376 6-551-287-01 TRANSISTOR 2SD2704K-T146

Q377 8-729-216-22 TRANSISTOR 2SA1162-G

Q378 6-550-185-01 TRANSISTOR RT1P137P-TP-1

Q379 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q380 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q381 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q382 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q383 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q501 8-729-901-00 TRANSISTOR DTC124EK

Q504 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q505 8-729-901-00 TRANSISTOR DTC124EK

Q506 8-729-027-43 TRANSISTOR DTC114EKA-T146 (E2, E3, E51)

Q540 8-729-027-31 TRANSISTOR DTA124EKA-T146

Q541 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q544 8-729-027-31 TRANSISTOR DTA124EKA-T146

Q545 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q550 8-729-027-56 TRANSISTOR DTC143TKA-T146 (E2, E3, E51)

Q560 6-550-185-01 TRANSISTOR RT1P137P-TP-1

Q561 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q580 8-729-230-49 TRANSISTOR 2SC2712-YG

Q581 8-729-230-49 TRANSISTOR 2SC2712-YG

Q582 8-729-230-49 TRANSISTOR 2SC2712-YG

Q583 8-729-027-31 TRANSISTOR DTA124EKA-T146

Q584 8-729-027-43 TRANSISTOR DTC114EKA-T146

Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP)

< RESISTOR >

R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R102 1-216-833-11 METAL CHIP 10K 5% 1/10W

R103 1-216-818-11 METAL CHIP 560 5% 1/10W

R104 1-216-821-11 METAL CHIP 1K 5% 1/10W

R105 1-216-841-11 METAL CHIP 47K 5% 1/10W

R106 1-216-833-11 METAL CHIP 10K 5% 1/10W

R107 1-216-813-11 METAL CHIP 220 5% 1/10W

0R108 1-217-637-00 FUSIBLE 1 5% 1/4W

R111 1-216-864-11 SHORT CHIP 0

R112 1-216-864-11 SHORT CHIP 0

R116 1-216-809-11 METAL CHIP 100 5% 1/10W

R119 1-216-809-11 METAL CHIP 100 5% 1/10W

R121 1-216-833-11 METAL CHIP 10K 5% 1/10W

R122 1-216-833-11 METAL CHIP 10K 5% 1/10W

R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R132 1-216-857-11 METAL CHIP 1M 5% 1/10W

R133 1-216-845-11 METAL CHIP 100K 5% 1/10W

R140 1-216-833-11 METAL CHIP 10K 5% 1/10W

R150 1-216-809-11 METAL CHIP 100 5% 1/10W

R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R152 1-216-833-11 METAL CHIP 10K 5% 1/10W

R153 1-216-818-11 METAL CHIP 560 5% 1/10W

R154 1-216-821-11 METAL CHIP 1K 5% 1/10W

R155 1-216-841-11 METAL CHIP 47K 5% 1/10W

R156 1-216-833-11 METAL CHIP 10K 5% 1/10W

R157 1-216-813-11 METAL CHIP 220 5% 1/10W

R166 1-216-809-11 METAL CHIP 100 5% 1/10W

R180 1-216-833-11 METAL CHIP 10K 5% 1/10W

R181 1-216-833-11 METAL CHIP 10K 5% 1/10W

R182 1-216-841-11 METAL CHIP 47K 5% 1/10W

R183 1-216-841-11 METAL CHIP 47K 5% 1/10W

R184 1-216-821-11 METAL CHIP 1K 5% 1/10W

R185 1-216-821-11 METAL CHIP 1K 5% 1/10W

R186 1-216-833-11 METAL CHIP 10K 5% 1/10W

R187 1-216-833-11 METAL CHIP 10K 5% 1/10W

R203 1-216-864-11 SHORT CHIP 0

R204 1-216-821-11 METAL CHIP 1K 5% 1/10W

R205 1-216-821-11 METAL CHIP 1K 5% 1/10W

R220 1-216-845-11 METAL CHIP 100K 5% 1/10W

R221 1-216-834-11 METAL CHIP 12K 5% 1/10W

R228 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R229 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R250 1-216-821-11 METAL CHIP 1K 5% 1/10W

R251 1-216-833-11 METAL CHIP 10K 5% 1/10W

R252 1-216-839-11 METAL CHIP 33K 5% 1/10W

R253 1-216-833-11 METAL CHIP 10K 5% 1/10W

R254 1-216-833-11 METAL CHIP 10K 5% 1/10W

R255 1-216-833-11 METAL CHIP 10K 5% 1/10W

R256 1-216-839-11 METAL CHIP 33K 5% 1/10W

R257 1-216-821-11 METAL CHIP 1K 5% 1/10W

R260 1-216-864-11 SHORT CHIP 0

R261 1-216-864-11 SHORT CHIP 0

R262 1-216-864-11 SHORT CHIP 0

R263 1-216-864-11 SHORT CHIP 0

R264 1-216-845-11 METAL CHIP 100K 5% 1/10W

R265 1-216-845-11 METAL CHIP 100K 5% 1/10W

R266 1-216-845-11 METAL CHIP 100K 5% 1/10W

R267 1-216-845-11 METAL CHIP 100K 5% 1/10W

R268 1-216-821-11 METAL CHIP 1K 5% 1/10W

R269 1-216-821-11 METAL CHIP 1K 5% 1/10W

R270 1-216-821-11 METAL CHIP 1K 5% 1/10W

R271 1-216-821-11 METAL CHIP 1K 5% 1/10W

R272 1-216-837-11 METAL CHIP 22K 5% 1/10W

R273 1-216-833-11 METAL CHIP 10K 5% 1/10W

R293 1-216-841-11 METAL CHIP 47K 5% 1/10W

R294 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R295 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R296 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R297 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R301 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R303 1-216-833-11 METAL CHIP 10K 5% 1/10W

R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R305 1-216-841-11 METAL CHIP 47K 5% 1/10W

MAIN

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

R307 1-216-857-11 METAL CHIP 1M 5% 1/10W

R308 1-216-809-11 METAL CHIP 100 5% 1/10W

R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R310 1-216-809-11 METAL CHIP 100 5% 1/10W

R311 1-216-864-11 SHORT CHIP 0

R312 1-216-809-11 METAL CHIP 100 5% 1/10W

R319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R325 1-216-819-11 METAL CHIP 680 5% 1/10W

R336 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R337 1-216-833-11 METAL CHIP 10K 5% 1/10W

R339 1-216-837-11 METAL CHIP 22K 5% 1/10W

R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R341 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R343 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R344 1-216-819-11 METAL CHIP 680 5% 1/10W

R345 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R346 1-216-819-11 METAL CHIP 680 5% 1/10W

R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R348 1-216-819-11 METAL CHIP 680 5% 1/10W

R349 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R351 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R353 1-216-833-11 METAL CHIP 10K 5% 1/10W

R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R355 1-216-841-11 METAL CHIP 47K 5% 1/10W

R356 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R357 1-216-833-11 METAL CHIP 10K 5% 1/10W

R369 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R370 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R372 1-216-833-11 METAL CHIP 10K 5% 1/10W

R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R375 1-216-833-11 METAL CHIP 10K 5% 1/10W

R376 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R377 1-216-805-11 METAL CHIP 47 5% 1/10W

R378 1-216-833-11 METAL CHIP 10K 5% 1/10W

R379 1-216-797-11 METAL CHIP 10 5% 1/10W

R380 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R381 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R382 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R383 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R384 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R385 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R386 1-216-803-11 METAL CHIP 33 5% 1/10W

R387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R388 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R389 1-216-837-11 METAL CHIP 22K 5% 1/10W

R390 1-216-833-11 METAL CHIP 10K 5% 1/10W

R391 1-216-833-11 METAL CHIP 10K 5% 1/10W

R392 1-216-833-11 METAL CHIP 10K 5% 1/10W

R393 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R395 1-216-841-11 METAL CHIP 47K 5% 1/10W

R396 1-216-833-11 METAL CHIP 10K 5% 1/10W

R397 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R399 1-216-833-11 METAL CHIP 10K 5% 1/10W

R400 1-216-809-11 METAL CHIP 100 5% 1/10W

R401 1-216-809-11 METAL CHIP 100 5% 1/10W

R402 1-216-809-11 METAL CHIP 100 5% 1/10W

R403 1-216-809-11 METAL CHIP 100 5% 1/10W

R404 1-216-809-11 METAL CHIP 100 5% 1/10W

R405 1-216-809-11 METAL CHIP 100 5% 1/10W

R406 1-216-809-11 METAL CHIP 100 5% 1/10W

R407 1-216-809-11 METAL CHIP 100 5% 1/10W

R409 1-216-833-11 METAL CHIP 10K 5% 1/10W

R411 1-216-851-11 METAL CHIP 330K 5% 1/10W

R412 1-216-845-11 METAL CHIP 100K 5% 1/10W

R413 1-216-864-11 SHORT CHIP 0

R417 1-216-833-11 METAL CHIP 10K 5% 1/10W

R418 1-216-813-11 METAL CHIP 220 5% 1/10W

R419 1-216-809-11 METAL CHIP 100 5% 1/10W

R420 1-216-821-11 METAL CHIP 1K 5% 1/10W

R421 1-216-809-11 METAL CHIP 100 5% 1/10W

R422 1-216-809-11 METAL CHIP 100 5% 1/10W

R423 1-216-809-11 METAL CHIP 100 5% 1/10W

R424 1-216-809-11 METAL CHIP 100 5% 1/10W

R425 1-216-809-11 METAL CHIP 100 5% 1/10W

R426 1-216-809-11 METAL CHIP 100 5% 1/10W

R427 1-216-809-11 METAL CHIP 100 5% 1/10W

R428 1-216-809-11 METAL CHIP 100 5% 1/10W

R429 1-216-809-11 METAL CHIP 100 5% 1/10W

R430 1-216-809-11 METAL CHIP 100 5% 1/10W

R431 1-216-809-11 METAL CHIP 100 5% 1/10W

R432 1-216-809-11 METAL CHIP 100 5% 1/10W

R433 1-216-809-11 METAL CHIP 100 5% 1/10W

R434 1-216-809-11 METAL CHIP 100 5% 1/10W

R436 1-216-809-11 METAL CHIP 100 5% 1/10W

R438 1-216-809-11 METAL CHIP 100 5% 1/10W

R439 1-216-809-11 METAL CHIP 100 5% 1/10W

R440 1-216-809-11 METAL CHIP 100 5% 1/10W

R441 1-216-809-11 METAL CHIP 100 5% 1/10W

R442 1-216-809-11 METAL CHIP 100 5% 1/10W

R443 1-216-809-11 METAL CHIP 100 5% 1/10W

R444 1-216-809-11 METAL CHIP 100 5% 1/10W

R445 1-216-809-11 METAL CHIP 100 5% 1/10W

R446 1-216-809-11 METAL CHIP 100 5% 1/10W

R448 1-216-809-11 METAL CHIP 100 5% 1/10W

R449 1-216-809-11 METAL CHIP 100 5% 1/10W

R450 1-216-809-11 METAL CHIP 100 5% 1/10W

R452 1-216-809-11 METAL CHIP 100 5% 1/10W

R463 1-216-833-11 METAL CHIP 10K 5% 1/10W

R468 1-216-809-11 METAL CHIP 100 5% 1/10W

R469 1-216-809-11 METAL CHIP 100 5% 1/10W

R470 1-216-809-11 METAL CHIP 100 5% 1/10W

R472 1-216-809-11 METAL CHIP 100 5% 1/10W

R473 1-216-809-11 METAL CHIP 100 5% 1/10W

R474 1-216-809-11 METAL CHIP 100 5% 1/10W

R475 1-216-809-11 METAL CHIP 100 5% 1/10W

R476 1-216-809-11 METAL CHIP 100 5% 1/10W

R477 1-216-809-11 METAL CHIP 100 5% 1/10W

R478 1-216-809-11 METAL CHIP 100 5% 1/10W

R483 1-216-809-11 METAL CHIP 100 5% 1/10W

R484 1-216-809-11 METAL CHIP 100 5% 1/10W

MAIN

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

R484 1-216-809-11 METAL CHIP 100 5% 1/10W

R485 1-216-809-11 METAL CHIP 100 5% 1/10W

R486 1-216-809-11 METAL CHIP 100 5% 1/10W

R487 1-216-809-11 METAL CHIP 100 5% 1/10W

R488 1-216-809-11 METAL CHIP 100 5% 1/10W

R489 1-216-809-11 METAL CHIP 100 5% 1/10W

R490 1-216-809-11 METAL CHIP 100 5% 1/10W

R492 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GNX800)

R492 1-216-864-11 SHORT CHIP 0 (GNX700)

R493 1-216-815-11 METAL CHIP 330 5% 1/10W

(E3)

R493 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(AUS)

R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E2, E51, AR)

R495 1-216-809-11 METAL CHIP 100 5% 1/10W

R497 1-216-821-11 METAL CHIP 1K 5% 1/10W

R500 1-216-833-11 METAL CHIP 10K 5% 1/10W

R501 1-216-813-11 METAL CHIP 220 5% 1/10W

R502 1-216-821-11 METAL CHIP 1K 5% 1/10W

R503 1-216-864-11 SHORT CHIP 0

R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R508 1-216-833-11 METAL CHIP 10K 5% 1/10W

(E2, E3, E51)

R509 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(GNX800: E2, E3, E51)

R509 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GNX700)

R529 1-216-833-11 METAL CHIP 10K 5% 1/10W

R530 1-216-833-11 METAL CHIP 10K 5% 1/10W

R531 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E2)

R532 1-216-819-11 METAL CHIP 680 5% 1/10W

(E2)

R532 1-216-864-11 SHORT CHIP 0 (EXCEPT E2)

R538 1-216-833-11 METAL CHIP 10K 5% 1/10W

R540 1-216-843-11 METAL CHIP 68K 5% 1/10W

R541 1-216-835-11 METAL CHIP 15K 5% 1/10W

R542 1-216-853-11 METAL CHIP 470K 5% 1/10W

R546 1-216-843-11 METAL CHIP 68K 5% 1/10W

R547 1-216-835-11 METAL CHIP 15K 5% 1/10W

R548 1-216-853-11 METAL CHIP 470K 5% 1/10W

R551 1-216-842-11 METAL CHIP 56K 5% 1/10W

(E2, E3, E51)

R553 1-216-824-11 METAL CHIP 1.8K 5% 1/10W

(E2, E3, E51)

R560 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R562 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R563 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R570 1-216-833-11 METAL CHIP 10K 5% 1/10W

R571 1-216-833-11 METAL CHIP 10K 5% 1/10W

R573 1-216-833-11 METAL CHIP 10K 5% 1/10W

R574 1-216-833-11 METAL CHIP 10K 5% 1/10W

R575 1-216-821-11 METAL CHIP 1K 5% 1/10W

R577 1-216-833-11 METAL CHIP 10K 5% 1/10W

R578 1-216-821-11 METAL CHIP 1K 5% 1/10W

R581 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E2)

R582 1-216-819-11 METAL CHIP 680 5% 1/10W

(E2)

R582 1-216-864-11 SHORT CHIP 0 (EXCEPT E2)

R585 1-216-833-11 METAL CHIP 10K 5% 1/10W

R586 1-216-833-11 METAL CHIP 10K 5% 1/10W

R587 1-216-833-11 METAL CHIP 10K 5% 1/10W

R592 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GNX800)

R593 1-216-819-11 METAL CHIP 680 5% 1/10W

(AR)

R593 1-216-821-11 METAL CHIP 1K 5% 1/10W

(E2, E51)

R593 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(E3, AUS)

R594 1-215-889-00 METAL OXIDE 330 5% 2W

R595 1-216-857-11 METAL CHIP 1M 5% 1/10W

R598 1-245-711-31 CARBON 10 5% 1/2W

R599 1-245-711-31 CARBON 10 5% 1/2W

< TRANSFORMER >

T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION

< TERMINAL BOARD >

TM101 1-780-170-21 TERMINAL BOARD (SPEAKER)

(SUBWOOFER OUT)

< VIBRATOR >

X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768 kHz)

X402 1-795-058-21 VIBRATOR, CERAMIC (5 MHz)

************************************************************

A-1156-233-A MIC BOARD, COMPLETE

********************

< CAPACITOR >

C1100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C1102 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1104 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1105 1-124-463-00 ELECT 0.1uF 20% 50V

C1106 1-126-163-11 ELECT 4.7uF 20% 50V

C1107 1-126-163-11 ELECT 4.7uF 20% 50V

C1108 1-126-160-11 ELECT 1uF 20% 50V

C1109 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C1110 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

C1111 1-124-464-11 ELECT 0.22uF 20% 50V

C1112 1-126-160-11 ELECT 1uF 20% 50V

C1113 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C1114 1-126-163-11 ELECT 4.7uF 20% 50V

C1115 1-126-163-11 ELECT 4.7uF 20% 50V

C1116 1-124-589-11 ELECT 47uF 20% 16V

C1117 1-124-589-11 ELECT 47uF 20% 16V

C1119 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C1121 1-126-160-11 ELECT 1uF 20% 50V

C1122 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

C1123 1-124-589-11 ELECT 47uF 20% 16V

C1124 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V

C1125 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C1127 1-124-261-00 ELECT 10uF 20% 50V

MICMAIN

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

C1128 1-162-923-11 CERAMIC CHIP 47PF 5% 50V

C1133 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN1102 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P

< DIODE >

D1100 6-501-193-01 DIODE 1SS355WTE-17

D1101 6-501-193-01 DIODE 1SS355WTE-17

D1102 8-719-069-54 DIODE UDZSTE-175.1B

< FERRITE BEAD >

FB1100 1-216-864-11 SHORT CHIP 0

FB1101 1-216-864-11 SHORT CHIP 0

< IC >

IC1100 6-709-116-01 IC TC9488FG

IC1101 8-759-710-97 IC NJM4565M-D

< JACK >

J1100 1-817-630-11 JACK (LARGE TYPE) (MIC 1)

J1101 1-817-630-11 JACK (LARGE TYPE) (MIC 2)

J1103 1-794-702-11 JACK, HEADPHONE (PHONES)

< RESISTOR >

R1100 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1102 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1103 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1104 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R1105 1-216-809-11 METAL CHIP 100 5% 1/10W

R1106 1-216-809-11 METAL CHIP 100 5% 1/10W

R1107 1-216-809-11 METAL CHIP 100 5% 1/10W

R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1109 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1110 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1111 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1113 1-216-834-11 METAL CHIP 12K 5% 1/10W

R1114 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1115 1-216-815-11 METAL CHIP 330 5% 1/10W

R1116 1-216-815-11 METAL CHIP 330 5% 1/10W

R1118 1-216-821-11 METAL CHIP 1K 5% 1/10W

R1119 1-216-841-11 METAL CHIP 47K 5% 1/10W

R1120 1-216-828-11 METAL CHIP 3.9K 5% 1/10W

R1121 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1122 1-216-834-11 METAL CHIP 12K 5% 1/10W

R1123 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1124 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1132 1-216-864-11 SHORT CHIP 0

R1137 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1138 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1140 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1147 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1152 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R1156 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

< VARIABLE RESISTOR >

RV1100 1-227-452-11 RES, VAR, CARBON 50K

(ECHO LEVEL)

RV1101 1-227-452-11 RES, VAR, CARBON 50K

(MIC 2 LEVEL)

RV1102 1-227-452-11 RES, VAR, CARBON 50K

(MIC 1 LEVEL)

************************************************************

1-687-133-12 MOTOR (LD) BOARD

*****************

************************************************************

1-687-134-12 MOTOR (TB) BOARD

*****************

< CONNECTOR >

CN742 1-784-727-11 CONNECTOR, FFC 5P

************************************************************

A-1156-247-A PA BOARD, COMPLETE (GNX700: E2, E51)

A-1156-261-A PA BOARD, COMPLETE (GNX800: E2, E51, AR)

A-1178-475-A PA BOARD, COMPLETE (GNX800: E3, AUS)

A-1178-478-A PA BOARD, COMPLETE (GNX700: E3)

*******************

< CAPACITOR >

C600 1-126-963-11 ELECT 4.7uF 20% 50V

C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C602 1-104-658-91 ELECT 100uF 20% 10V

C604 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C608 1-126-965-91 ELECT 22uF 20% 50V

C616 1-136-495-11 FILM 0.068uF 5% 50V

C617 1-136-495-11 FILM 0.068uF 5% 50V

C634 1-104-665-11 ELECT 100uF 20% 25V

C635 1-104-665-11 ELECT 100uF 20% 25V

C636 1-107-721-11 ELECT 4.7uF 20% 100V

C637 1-107-721-11 ELECT 4.7uF 20% 100V

C648 1-104-658-91 ELECT 100uF 20% 10V

C649 1-126-964-11 ELECT 10uF 20% 50V

C650 1-126-963-11 ELECT 4.7uF 20% 50V

C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

C652 1-104-658-91 ELECT 100uF 20% 10V

C654 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C655 1-126-964-11 ELECT 10uF 20% 50V

C656 1-127-815-11 ELECT 3300uF 20% 100V

C658 1-127-812-11 ELECT 3300uF 20% 63V

C660 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C666 1-136-495-11 FILM 0.068uF 5% 50V

C667 1-136-495-11 FILM 0.068uF 5% 50V

C676 1-127-815-11 ELECT 3300uF 20% 100V

C678 1-127-812-11 ELECT 3300uF 20% 63V

C681 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

(GNX800:E3, AUS)

C682 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

(GNX800:E3, AUS)

MIC MOTOR (LD) MOTOR (TB)

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

C683 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C691 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

(GNX800:E3, AUS)

C691 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

C692 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V

(GNX800:E3, AUS)

C693 1-164-156-11 CERAMIC CHIP 0.1uF 25V

< CONNECTOR >

CN600 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P

CN601 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P

*CN607 1-564-508-11 PLUG, CONNECTOR 5P

< DIODE >

D609 6-501-193-01 DIODE 1SS355WTE-17

D611 8-719-056-93 DIODE UDZ-TE-17-18B

D612 8-719-056-93 DIODE UDZ-TE-17-18B

D620 6-501-193-01 DIODE 1SS355WTE-17

D624 6-501-193-01 DIODE 1SS355WTE-17

D646 6-501-193-01 DIODE 1SS355WTE-17

D654 6-501-193-01 DIODE 1SS355WTE-17

D655 6-501-193-01 DIODE 1SS355WTE-17

D656 6-500-249-01 DIODE D15XB20

D658 8-719-073-32 DIODE D25XB60

D660 6-501-193-01 DIODE 1SS355WTE-17

D661 6-501-193-01 DIODE 1SS355WTE-17

D665 6-501-193-01 DIODE 1SS355WTE-17 (GNX800)

D670 6-501-193-01 DIODE 1SS355WTE-17

< IC >

IC600 8-749-017-06 IC STK412-150

< JUMPER RESISTOR >

JR600 1-216-296-11 SHORT CHIP 0

JR601 1-216-296-11 SHORT CHIP 0

JR602 1-216-296-11 SHORT CHIP 0

JR603 1-216-296-11 SHORT CHIP 0

JR612 1-216-864-11 SHORT CHIP 0

< TRANSISTOR >

Q604 8-729-924-99 TRANSISTOR 2SC3722K-E

Q606 8-729-821-00 TRANSISTOR 2SA1207

Q610 8-729-924-99 TRANSISTOR 2SC3722K-E

Q618 8-729-924-99 TRANSISTOR 2SC3722K-E

Q628 8-729-230-49 TRANSISTOR 2SC2712-YG

Q630 8-729-230-49 TRANSISTOR 2SC2712-YG

Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146

Q640 8-729-023-22 TRANSISTOR 2SD2114K

Q641 8-729-023-22 TRANSISTOR 2SD2114K

Q644 8-729-230-49 TRANSISTOR 2SC2712-YG

Q647 8-729-230-49 TRANSISTOR 2SC2712-YG

Q648 8-729-230-49 TRANSISTOR 2SC2712-YG

Q666 8-729-230-49 TRANSISTOR 2SC2712-YG (GNX800)

Q668 8-729-924-99 TRANSISTOR 2SC3722K-E

Q682 8-729-230-49 TRANSISTOR 2SC2712-YG

< RESISTOR >

R600 1-216-821-11 METAL CHIP 1K 5% 1/10W

R601 1-216-841-11 METAL CHIP 47K 5% 1/10W

R602 1-216-816-11 METAL CHIP 390 5% 1/10W

(GNX700)

R602 1-218-482-11 METAL CHIP 430 5% 1/10W

(GNX800)

R603 1-216-841-11 METAL CHIP 47K 5% 1/10W

R604 1-216-833-11 METAL CHIP 10K 5% 1/10W

R605 1-216-833-11 METAL CHIP 10K 5% 1/10W

R606 1-216-841-11 METAL CHIP 47K 5% 1/10W

R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R608 1-216-845-11 METAL CHIP 100K 5% 1/10W

R609 1-216-843-11 METAL CHIP 68K 5% 1/10W

R610 1-216-843-11 METAL CHIP 68K 5% 1/10W

R611 1-216-839-11 METAL CHIP 33K 5% 1/10W

0R612 1-245-605-51 FUSIBLE 100 5% 1/4W

R613 1-215-872-11 METAL OXIDE 3.3K 5% 1W

R614 1-215-872-11 METAL OXIDE 3.3K 5% 1W

0R615 1-245-605-51 FUSIBLE 100 5% 1/4W

0R616 1-217-637-00 FUSIBLE 1 5% 1/4W

R617 1-216-845-11 METAL CHIP 100K 5% 1/10W

0R618 1-234-798-11 ENCAPSULATED COMPONENT

R619 1-216-821-11 METAL CHIP 1K 5% 1/10W

R620 1-216-839-11 METAL CHIP 33K 5% 1/10W

R621 1-216-845-11 METAL CHIP 100K 5% 1/10W

R622 1-245-711-31 CARBON 10 5% 1/2W

R623 1-216-843-11 METAL CHIP 68K 5% 1/10W

R624 1-216-837-11 METAL CHIP 22K 5% 1/10W

R625 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

(GNX800)

R625 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

(GNX700)

R628 1-216-837-11 METAL CHIP 22K 5% 1/10W

R629 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R630 1-216-845-11 METAL CHIP 100K 5% 1/10W

R631 1-216-845-11 METAL CHIP 100K 5% 1/10W

R633 1-216-864-11 SHORT CHIP 0

R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R635 1-216-833-11 METAL CHIP 10K 5% 1/10W

R636 1-215-891-11 METAL OXIDE 680 5% 2W

R637 1-215-891-11 METAL OXIDE 680 5% 2W

R638 1-216-845-11 METAL CHIP 100K 5% 1/10W

R639 1-216-845-11 METAL CHIP 100K 5% 1/10W

R640 1-216-821-11 METAL CHIP 1K 5% 1/10W

R641 1-216-821-11 METAL CHIP 1K 5% 1/10W

R642 1-216-811-11 METAL CHIP 150 5% 1/10W

R643 1-216-811-11 METAL CHIP 150 5% 1/10W

R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R645 1-216-833-11 METAL CHIP 10K 5% 1/10W

0R646 1-260-086-31 CARBON 82 5% 1/2W

R647 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GNX800)

R647 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(GNX700)

R648 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GNX700)

R648 1-216-837-11 METAL CHIP 22K 5% 1/10W

(GNX800)

R649 1-216-837-11 METAL CHIP 22K 5% 1/10W

R650 1-216-821-11 METAL CHIP 1K 5% 1/10W

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

PANEL

R651 1-216-841-11 METAL CHIP 47K 5% 1/10W

R652 1-216-816-11 METAL CHIP 390 5% 1/10W

(GNX700)

R652 1-218-482-11 METAL CHIP 430 5% 1/10W

(GNX800)

R653 1-216-841-11 METAL CHIP 47K 5% 1/10W

R654 1-216-841-11 METAL CHIP 47K 5% 1/10W

R655 1-216-841-11 METAL CHIP 47K 5% 1/10W

R656 1-216-849-11 METAL CHIP 220K 5% 1/10W

R657 1-216-849-11 METAL CHIP 220K 5% 1/10W

R658 1-216-845-11 METAL CHIP 100K 5% 1/10W

R660 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GNX800)

R660 1-216-834-11 METAL CHIP 12K 5% 1/10W

(GNX700)

R661 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GNX800)

R661 1-216-834-11 METAL CHIP 12K 5% 1/10W

(GNX700)

R662 1-216-811-11 METAL CHIP 150 5% 1/10W

R663 1-216-811-11 METAL CHIP 150 5% 1/10W

0R665 1-260-086-31 CARBON 82 5% 1/2W

(GNX800)

R666 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(GNX800)

R667 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GNX800)

0R668 1-234-798-11 ENCAPSULATED COMPONENT

R669 1-216-821-11 METAL CHIP 1K 5% 1/10W

R670 1-216-839-11 METAL CHIP 33K 5% 1/10W

R671 1-216-845-11 METAL CHIP 100K 5% 1/10W

R672 1-245-711-31 CARBON 10 5% 1/2W

R673 1-216-842-11 METAL CHIP 56K 5% 1/10W

R674 1-216-837-11 METAL CHIP 22K 5% 1/10W

R676 1-216-849-11 METAL CHIP 220K 5% 1/10W

R677 1-216-849-11 METAL CHIP 220K 5% 1/10W

R678 1-216-845-11 METAL CHIP 100K 5% 1/10W

R681 1-245-711-31 CARBON 10 5% 1/2W

(GNX800:E3, AUS)

R682 1-216-821-11 METAL CHIP 1K 5% 1/10W

R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R685 1-216-833-11 METAL CHIP 10K 5% 1/10W

R691 1-245-711-31 CARBON 10 5% 1/2W

(GNX800:E3, AUS)

R692 1-216-841-11 METAL CHIP 47K 5% 1/10W

R693 1-216-845-11 METAL CHIP 100K 5% 1/10W

R694 1-216-843-11 METAL CHIP 68K 5% 1/10W

R695 1-216-845-11 METAL CHIP 100K 5% 1/10W

R696 1-216-845-11 METAL CHIP 100K 5% 1/10W

R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R698 1-216-845-11 METAL CHIP 100K 5% 1/10W

< RELAY >

RY646 1-755-500-11 RELAY

RY665 1-755-500-11 RELAY (GNX800)

< THERMISTOR >

TH629 1-807-796-11 THERMISTOR

TH630 1-807-796-11 THERMISTOR

< TERMINAL >

TM600 1-780-001-21 TERMINAL BOARD (SPEAKER)

(FRONT SPEAKER)

TM601 1-780-001-21 TERMINAL BOARD (SPEAKER)

(SURR SPEAKER) (GNX800)

************************************************************

A-1156-224-A PANEL BOARD, COMPLETE

**********************

< CAPACITOR >

C900 1-126-163-11 ELECT 4.7uF 20% 50V

C901 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C902 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C906 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C908 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C922 1-119-941-91 ELECT 470uF 20% 6.3V

C923 1-119-941-91 ELECT 470uF 20% 6.3V

C924 1-119-941-91 ELECT 470uF 20% 6.3V

C925 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C939 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C941 1-124-261-00 ELECT 10uF 20% 50V

C942 1-124-261-00 ELECT 10uF 20% 50V

C943 1-124-261-00 ELECT 10uF 20% 50V

C945 1-115-156-11 CERAMIC CHIP 1uF 10V

C946 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C947 1-115-156-11 CERAMIC CHIP 1uF 10V

C948 1-162-962-11 CERAMIC CHIP 470PF 10% 50V

C949 1-115-156-11 CERAMIC CHIP 1uF 10V

C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C951 1-115-156-11 CERAMIC CHIP 1uF 10V

C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V

C953 1-115-156-11 CERAMIC CHIP 1uF 10V

C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

C955 1-115-156-11 CERAMIC CHIP 1uF 10V

C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

C957 1-115-156-11 CERAMIC CHIP 1uF 10V

C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C962 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C964 1-124-589-11 ELECT 47uF 20% 16V

C967 1-124-261-00 ELECT 10uF 20% 50V

C972 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C973 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C974 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C975 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C977 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C978 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C979 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C1180 1-162-960-11 CERAMIC CHIP 220PF 10% 50V

< CONNECTOR >

CN900 1-784-739-11 CONNECTOR, FFC 17P

CN902 1-784-739-11 CONNECTOR, FFC 17P

< DIODE >

D901 6-501-193-01 DIODE 1SS355WTE-17

D905 8-719-978-33 DIODE DTZ-TT11-6.8B

D908 8-719-058-04 DIODE SEL5223S-TP15 (CD)

D909 8-719-058-04 DIODE SEL5223S-TP15 (TUNER BAND)

D910 8-719-058-04 DIODE SEL5223S-TP15 (TAPE A/B)

D911 8-719-058-04 DIODE SEL5223S-TP15 (B)

D913 8-719-058-04 DIODE SEL5223S-TP15 (TUNING+ >)

D914 8-719-058-04 DIODE SEL5223S-TP15 (TUNING- .)

D915 6-501-228-01 DIODE SELU5420E-STP15 (B)

D916 8-719-058-04 DIODE SEL5223S-TP15 (TV)

D917 8-719-058-04 DIODE SEL5223S-TP15 (VIDEO/MD)

D927 8-719-058-04 DIODE SEL5223S-TP15 (^/1)

D928 6-501-228-01 DIODE SELU5420E-STP15 (^/1)

D929 8-719-058-04 DIODE SEL5223S-TP15 (ALBUM+ M)

D930 8-719-058-04 DIODE SEL5223S-TP15 (ALBUM- m)

D931 6-501-193-01 DIODE 1SS355WTE-17

D932 6-501-193-01 DIODE 1SS355WTE-17

D1145 8-719-058-04 DIODE SEL5223S-TP15 (X)

D1153 8-719-058-04 DIODE SEL5223S-TP15 (x)

< FERRITE BEAD >

FB901 1-216-864-11 SHORT CHIP 0

< FLUORESCENT INDICATOR >

FL901 1-519-794-21 VACUUM FLUORESCENT DISPLAYS

< IC >

IC902 6-806-205-01 IC MB90M407PF-G-148E1

IC903 6-600-309-01 IC RPM7240-H9 (g)

IC904 6-705-678-01 IC NJM2760V-TE2

< JUMPER RESISTOR >

JR914 1-216-864-11 SHORT CHIP 0

JR918 1-216-864-11 SHORT CHIP 0

JR919 1-216-864-11 SHORT CHIP 0

JR925 1-216-296-11 SHORT CHIP 0

< TRANSISTOR >

Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146

Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146

Q903 8-729-027-29 TRANSISTOR DTA123JKA-T146

Q904 8-729-106-60 TRANSISTOR 2SB1115A-YQ

Q905 8-729-106-60 TRANSISTOR 2SB1115A-YQ

Q906 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q907 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q908 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q909 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q910 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q914 8-729-027-56 TRANSISTOR DTC143TKA-T146

Q917 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q918 8-729-027-50 TRANSISTOR DTC123JKA-T146

Q919 8-729-027-50 TRANSISTOR DTC123JKA-T146

< RESISTOR >

R900 1-216-833-11 METAL CHIP 10K 5% 1/10W

R901 1-216-833-11 METAL CHIP 10K 5% 1/10W

R902 1-216-833-11 METAL CHIP 10K 5% 1/10W

R903 1-216-809-11 METAL CHIP 100 5% 1/10W

R904 1-216-809-11 METAL CHIP 100 5% 1/10W

R905 1-216-835-11 METAL CHIP 15K 5% 1/10W

R906 1-216-835-11 METAL CHIP 15K 5% 1/10W

R907 1-216-835-11 METAL CHIP 15K 5% 1/10W

R908 1-216-809-11 METAL CHIP 100 5% 1/10W

R909 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R910 1-216-819-11 METAL CHIP 680 5% 1/10W

R911 1-216-819-11 METAL CHIP 680 5% 1/10W

R912 1-216-809-11 METAL CHIP 100 5% 1/10W

R914 1-216-819-11 METAL CHIP 680 5% 1/10W

R915 1-216-819-11 METAL CHIP 680 5% 1/10W

R916 1-216-819-11 METAL CHIP 680 5% 1/10W

R917 1-216-819-11 METAL CHIP 680 5% 1/10W

R918 1-216-845-11 METAL CHIP 100K 5% 1/10W

R919 1-216-845-11 METAL CHIP 100K 5% 1/10W

R920 1-216-845-11 METAL CHIP 100K 5% 1/10W

R922 1-216-857-11 METAL CHIP 1M 5% 1/10W

R923 1-216-819-11 METAL CHIP 680 5% 1/10W

R924 1-216-819-11 METAL CHIP 680 5% 1/10W

R925 1-216-819-11 METAL CHIP 680 5% 1/10W

R926 1-216-819-11 METAL CHIP 680 5% 1/10W

R941 1-216-809-11 METAL CHIP 100 5% 1/10W

R942 1-216-809-11 METAL CHIP 100 5% 1/10W

R943 1-216-833-11 METAL CHIP 10K 5% 1/10W

R944 1-216-805-11 METAL CHIP 47 5% 1/10W

R947 1-216-821-11 METAL CHIP 1K 5% 1/10W

R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R949 1-216-821-11 METAL CHIP 1K 5% 1/10W

R950 1-216-821-11 METAL CHIP 1K 5% 1/10W

R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R952 1-216-821-11 METAL CHIP 1K 5% 1/10W

PANEL

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

R953 1-216-821-11 METAL CHIP 1K 5% 1/10W

R954 1-216-833-11 METAL CHIP 10K 5% 1/10W

R956 1-216-826-11 METAL CHIP 2.7K 5% 1/10W

R957 1-216-819-11 METAL CHIP 680 5% 1/10W

R964 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R965 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R966 1-216-833-11 METAL CHIP 10K 5% 1/10W

R967 1-216-835-11 METAL CHIP 15K 5% 1/10W

R968 1-216-837-11 METAL CHIP 22K 5% 1/10W

R974 1-216-819-11 METAL CHIP 680 5% 1/10W

R975 1-216-819-11 METAL CHIP 680 5% 1/10W

R979 1-216-805-11 METAL CHIP 47 5% 1/10W

R980 1-216-821-11 METAL CHIP 1K 5% 1/10W

R981 1-216-809-11 METAL CHIP 100 5% 1/10W

R982 1-216-817-11 METAL CHIP 470 5% 1/10W

R983 1-216-842-11 METAL CHIP 56K 5% 1/10W

R984 1-216-839-11 METAL CHIP 33K 5% 1/10W

R987 1-216-819-11 METAL CHIP 680 5% 1/10W

R988 1-216-819-11 METAL CHIP 680 5% 1/10W

R990 1-216-819-11 METAL CHIP 680 5% 1/10W

R991 1-216-819-11 METAL CHIP 680 5% 1/10W

R997 1-216-819-11 METAL CHIP 680 5% 1/10W

R1007 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1008 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R1009 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R1010 1-216-833-11 METAL CHIP 10K 5% 1/10W

R1011 1-216-835-11 METAL CHIP 15K 5% 1/10W

R1012 1-216-837-11 METAL CHIP 22K 5% 1/10W

R1013 1-216-839-11 METAL CHIP 33K 5% 1/10W

R1021 1-216-809-11 METAL CHIP 100 5% 1/10W

R1022 1-216-809-11 METAL CHIP 100 5% 1/10W

R1023 1-216-809-11 METAL CHIP 100 5% 1/10W

R1024 1-216-809-11 METAL CHIP 100 5% 1/10W

R1025 1-216-809-11 METAL CHIP 100 5% 1/10W

R1026 1-216-809-11 METAL CHIP 100 5% 1/10W

R1027 1-216-809-11 METAL CHIP 100 5% 1/10W

R1028 1-216-809-11 METAL CHIP 100 5% 1/10W

R1098 1-216-819-11 METAL CHIP 680 5% 1/10W

R1112 1-216-819-11 METAL CHIP 680 5% 1/10W

R1135 1-216-819-11 METAL CHIP 680 5% 1/10W

R1136 1-216-819-11 METAL CHIP 680 5% 1/10W

R1141 1-216-819-11 METAL CHIP 680 5% 1/10W

R1142 1-216-819-11 METAL CHIP 680 5% 1/10W

R1143 1-216-819-11 METAL CHIP 680 5% 1/10W

R1171 1-216-819-11 METAL CHIP 680 5% 1/10W

R1178 1-216-801-11 METAL CHIP 22 5% 1/10W

R1179 1-216-819-11 METAL CHIP 680 5% 1/10W

R1180 1-216-808-11 METAL CHIP 82 5% 1/10W

R1181 1-216-814-11 METAL CHIP 270 5% 1/10W

R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W

< SWITCH >

S907 1-762-875-21 SWITCH, KEYBOARD (B)

S908 1-762-875-21 SWITCH, KEYBOARD (X)

S909 1-762-875-21 SWITCH, KEYBOARD (x)

S910 1-762-875-21 SWITCH, KEYBOARD (TUNING+ >)

S911 1-762-875-21 SWITCH, KEYBOARD (TUNING- .)

S912 1-762-875-21 SWITCH, KEYBOARD (ALBUM+ M)

S913 1-762-875-21 SWITCH, KEYBOARD (ALBUM- m)

S921 1-762-875-21 SWITCH, KEYBOARD (VIDEO/MD)

S922 1-762-875-21 SWITCH, KEYBOARD (TV)

S923 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B)

S924 1-762-875-21 SWITCH, KEYBOARD (TUNER BAND)

S925 1-762-875-21 SWITCH, KEYBOARD (CD)

S927 1-762-875-21 SWITCH, KEYBOARD (^/1)

< VIBRATOR >

X901 1-781-282-51 VIBRATOR, CERAMIC (4 MHz)

************************************************************

PRIMARY BOARD

**************

< CAPACITOR >

C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C1206 1-126-916-11 ELECT 1000uF 20% 6.3V

< CONNECTOR >

CN1200 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P

CN1202 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

CN1204 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P

(AR, AUS)

CN1204 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P

(E2, E3, E51)

< DIODE >

D1200 6-501-193-01 DIODE 1SS355WTE-17

< JUMPER RESISTOR >

JR1202 1-216-864-11 SHORT CHIP 0

< COIL >

L1201 1-410-666-31 INDUCTOR 18uH

< TRANSISTOR >

Q1200 8-729-230-49 TRANSISTOR 2SC2712-YG

< RESISTOR >

R1200 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R1201 1-216-845-11 METAL CHIP 100K 5% 1/10W

< RELAY >

0RY1200 1-755-299-11 RELAY

< SWITCH >

0S1200 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR)

(E2, E3, E51)

************************************************************

PRIMARY

PANEL

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1-687-132-12 SENSOR BOARD

*************

< CONNECTOR >

CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P

< IC >

IC731 6-600-022-01 IC RPI-576

************************************************************

A-1156-249-A SURROUND BOARD, COMPLETE (GNX800)

A-1156-252-A SURROUND BOARD, COMPLETE (GNX700)

**************************

< CAPACITOR >

C800 1-126-963-11 ELECT 4.7uF 20% 50V

C801 1-100-717-91 CERAMIC CHIP 1uF 16V

C802 1-104-658-91 ELECT 100uF 20% 10V

C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C806 1-126-961-11 ELECT 2.2uF 20% 50V

C807 1-100-717-91 CERAMIC CHIP 1uF 16V

C808 1-131-749-11 CERAMIC CHIP 8.2PF 50V

(GNX700)

C820 1-126-964-11 ELECT 10uF 20% 50V

C825 1-126-968-11 ELECT 100uF 20% 50V

C826 1-126-968-11 ELECT 100uF 20% 50V

C838 1-136-495-11 FILM 0.068uF 5% 50V

C839 1-136-495-11 FILM 0.068uF 5% 50V

C843 1-126-963-11 ELECT 4.7uF 20% 50V

C850 1-126-963-11 ELECT 4.7uF 20% 50V

C851 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C852 1-104-658-91 ELECT 100uF 20% 10V

C853 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C858 1-131-749-11 CERAMIC CHIP 8.2PF 50V

(GNX700)

C888 1-136-495-11 FILM 0.068uF 5% 50V

C889 1-136-495-11 FILM 0.068uF 5% 50V

< CONNECTOR >

CN700 1-784-041-41 CONNECTOR, BOARD TO BOARD 9P

< DIODE >

D800 6-501-193-01 DIODE 1SS355WTE-17

D810 6-501-193-01 DIODE 1SS355WTE-17

D811 6-501-193-01 DIODE 1SS355WTE-17

D812 6-501-193-01 DIODE 1SS355WTE-17

D850 6-501-193-01 DIODE 1SS355WTE-17

< IC >

IC800 6-705-845-01 IC STK403-090 (GNX700)

IC800 6-705-853-01 IC STK403-120 (GNX800)

< TRANSISTOR >

Q800 8-729-924-99 TRANSISTOR 2SC3722K-E

Q810 8-729-023-22 TRANSISTOR 2SD2114K

Q812 8-729-924-99 TRANSISTOR 2SC3722K-E

Q814 8-729-230-49 TRANSISTOR 2SC2712-YG

Q815 8-729-230-49 TRANSISTOR 2SC2712-YG

Q850 8-729-924-99 TRANSISTOR 2SC3722K-E

< RESISTOR >

R800 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GNX700)

R800 1-216-833-11 METAL CHIP 10K 5% 1/10W

(GNX800)

R801 1-216-841-11 METAL CHIP 47K 5% 1/10W

R802 1-216-820-11 METAL CHIP 820 5% 1/10W

(GNX700)

R802 1-216-822-11 METAL CHIP 1.2K 5% 1/10W

(GNX800)

R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

0R804 1-217-637-00 FUSIBLE 1 5% 1/4W

0R805 1-217-637-00 FUSIBLE 1 5% 1/4W

R806 1-216-821-11 METAL CHIP 1K 5% 1/10W

R807 1-216-841-11 METAL CHIP 47K 5% 1/10W

R808 1-216-841-11 METAL CHIP 47K 5% 1/10W

R812 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R814 1-216-833-11 METAL CHIP 10K 5% 1/10W

R817 1-216-833-11 METAL CHIP 10K 5% 1/10W

0R827 1-245-605-51 FUSIBLE 100 5% 1/4W

0R828 1-245-605-51 FUSIBLE 100 5% 1/4W

0R838 1-220-893-11 METAL 0.22 10% 5W

R839 1-216-821-11 METAL CHIP 1K 5% 1/10W

R840 1-216-837-11 METAL CHIP 22K 5% 1/10W

R841 1-216-845-11 METAL CHIP 100K 5% 1/10W

R842 1-245-711-31 CARBON 10 5% 1/2W

R843 1-216-841-11 METAL CHIP 47K 5% 1/10W

R850 1-216-821-11 METAL CHIP 1K 5% 1/10W

R851 1-216-841-11 METAL CHIP 47K 5% 1/10W

R852 1-216-821-11 METAL CHIP 1K 5% 1/10W

(GNX700)

R852 1-218-457-11 METAL CHIP 910 5% 1/10W

(GNX800)

R858 1-216-841-11 METAL CHIP 47K 5% 1/10W

R860 1-216-842-11 METAL CHIP 56K 5% 1/10W

R861 1-216-841-11 METAL CHIP 47K 5% 1/10W

0R862 1-260-086-31 CARBON 82 5% 1/2W

R863 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R864 1-216-837-11 METAL CHIP 22K 5% 1/10W

R865 1-216-821-11 METAL CHIP 1K 5% 1/10W

R866 1-216-837-11 METAL CHIP 22K 5% 1/10W

0R888 1-220-893-11 METAL 0.22 10% 5W

R889 1-216-821-11 METAL CHIP 1K 5% 1/10W

R890 1-216-837-11 METAL CHIP 22K 5% 1/10W

R891 1-216-845-11 METAL CHIP 100K 5% 1/10W

R892 1-245-711-31 CARBON 10 5% 1/2W

< RELAY >

RY862 1-755-500-11 RELAY

************************************************************

SURROUNDSENSOR

Ver. 1.1

http://www.xiaoyu163.com

HCD-GNX700/GNX800

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1-687-669-12 SW BOARD

*********

< SWITCH >

S751 1-786-514-11 SWITCH, LEVER (SLIDE) (LEVEL)

************************************************************

TRANS BOARD

************

1-533-217-41 HOLDER, FUSE

< CAPACITOR >

C1262 1-126-964-11 ELECT 10uF 20% 50V

C1263 1-126-968-11 ELECT 100uF 20% 50V

C1292 1-128-576-11 ELECT 100uF 20% 63V

< CONNECTOR >

*CN1212 1-564-522-11 PLUG, CONNECTOR 7P

*CN1213 1-564-521-11 PLUG, CONNECTOR 6P

< DIODE >

D1264 8-719-071-83 DIODE HZU36BTRF

D1292 6-500-522-21 DIODE 10EDB40-TB3

< TRANSISTOR >

Q1264 8-729-024-93 TRANSISTOR 2SB1565E

< RESISTOR >

R1262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

R1263 1-216-832-11 METAL CHIP 8.2K 5% 1/10W

R1264 1-216-821-11 METAL CHIP 1K 5% 1/10W

0R1292 1-219-124-11 FUSIBLE 0.68 5% 1/4W

************************************************************

MISCELLANEOUS

**************

01-569-008-21 ADAPTOR, CONVERSION (E2, E3, E51)

5 1-693-702-21 TUNER (FM/AM) (TM10SE)

07 1-468-737-51 POWER SWITCHING

8 1-824-048-12 WIRE (FLAT TYPE) (27 CORE)

10 1-823-718-11 WIRE (FLAT TYPE) (17 CORE) (100mm)

65 1-828-990-11 WIRE (FLAT TYPE) (17 CORE) (80mm)

66 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm)

0157 1-777-071-53 CORD, POWER (E2,E3,E51)

0157 1-783-941-12 CORD, POWER (AR)

0157 1-827-295-22 CORD, POWER (AUS)

202 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)

251 1-471-035-11 MAGNET ASSY

276 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)

0279 8-820-244-01 OPTICAL PICK-UP KSM-215DCP/C2NP

0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)

0F1281 1-532-465-33 FUSE (T3.15AL/250V)

M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE)

M751 A-4737-553-A MOTOR ASSY, LOADING (TABLE LOADING)

SW TRANS

Ver. 1.1

M891 1-787-400-11 D.C. FAN

S711 1-477-680-12 ENCODER, ROTARY

0T1200 1-443-538-11 POWER TRANSFORMER (GNX800)

0T1200 1-443-972-11 POWER TRANSFORMER (GNX700)

http://www.xiaoyu163.com

HCD-GNX700/GNX800

MEMO

http://www.xiaoyu163.com

Manual MHC GNX700 14052112137798

Navigation menu

Versions of this User Manual:

Views

Navigation
