DV3100_p1 8 DV3100 14100615589464

User Manual: DV3100

Open the PDF directly: View PDF .
Page Count: 60

DVD Player

TABLE OF CONTENTS

SECTION PAGE

1. TECHNICAL SPECIFICATIONS ................................................................................................................ 1

2. PRODUCT SAFETY SERVICING GUIDELINE FOR VIDEO PRODUCTS ................................................ 2

/SERVICING PRECAUTIONS .................................................................................................................... 3

3. INFORMATIONS ........................................................................................................................................ 4

4. SERVICING HINT....................................................................................................................................... 5

5. REGIONAL CODES ................................................................................................................................... 6

6. LOCATION OF CUSTOMER CONTROLS .................................................................................................7

7. DISASSEMBLY ....................................................................................................................................... 2-2

8. EXPLODED VIEWS/PARTS LIST ........................................................................................................... 2-4

9. ELECTRICAL TROUBLESHOOTING GUIDE ......................................................................................... 3-2

10. BLOCK DIAGRAMS .............................................................................................................................. 3-12

11. CIRCUIT DIAGRAMS ............................................................................................................................ 3-18

12. PRINTED CIRCUIT DIAGRAMS/ELECTRICAL PARTS LIST .............................................................. 3-38

13. DECK MECHANISM ................................................................................................................................ 4-1

Service

Manual

DV3100 /N1B

Please use this service manual with referring to the user guide (D.F.U) without fail.

DV3100 304W855020 ACT

3120 785 22450

First Issue:2000.10

DVD PLAYER DV3100

STANDBY

STANDBY/ON

POWER

OPEN/CLOSE STOP

PAUSE

PLAY

DV3100

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.

Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which

it is famous.

Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.

The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and

controls and chassis bottom.

Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and

verified before it is return to the user/customer.

Ref. UL Standard No. 1492.

In case of difficulties, do not hesitate to contact the Technical

Department at above mentioned address.

001010 ACT

USA

MARANTZ AMERICA, INC

MARANTZ AMERICA, INC.

440 MEDINAH ROAD

ROSELLE, ILLINOIS 60172

USA

PHONE : 630 - 307 - 3100

FAX : 630 - 307 - 2687

BRAZIL

PHILIPS DA AMAZONIA IND. ELET. ITDA

CENTRO DE INFORMACOES AO

CEP 04698-970

SAO PAULO, SP, BRAZIL

PHONE : 0800 - 123123

(Discagem Direta Gratuita)

FAX : +55 11 534. 8988

JAPAN

Technical

MARANTZ JAPAN, INC.

35- 1, 7- CHOME, SAGAMIONO

SAGAMIHARA - SHI, KANAGAWA

JAPAN 228-8505

PHONE : +81 42 748 1013

FAX : +81 42 741 9190

EUROPE / TRADING

MARANTZ EUROPE B.V.

P.O.BOX 80002, BUILDING SFF2

5600 JB EINDHOVEN

THE NETHERLANDS

PHONE : +31 - 40 - 2732241

FAX : +31 - 40 - 2735578

TECHNICAL AUDIO GROUP PTY, LTD

558 DARLING STREET,

BALMAIN, NSW 2041,

AUSTRALIA

PHONE : 61 - 2 - 9810 - 5300

FAX : 61 - 2 - 9810 - 5355

CANADA

LENBROOK INDUSTRIES LIMITED

633 GRANITE COURT,

PICKERING, ONTARIO L1W 3K1

CANADA

PHONE : 905 - 831 - 6333

FAX : 905 - 831 - 6936

AUSTRALIA

JAMO AUSTRALIA PTY LTD

1 EXPO COURT, P.O. BOX 350

MT. WAVERLEY VIC 3149

AUSTRALIA

PHONE : +61 - 3 - 9543 - 1522

FAX : +61 - 3 - 9543 - 3677

NEW ZEALAND

WILDASH AUDIO SYSTEMS NZ

14 MALVERN ROAD MT ALBERT

AUCKLAND NEW ZEALAND

PHONE : +64 - 9 - 8451958

FAX : +64 - 9 - 8463554

THAILAND

MRZ STANDARD CO.,LTD

746 - 754 MAHACHAI ROAD.,

WANGBURAPAPIROM, PHRANAKORN,

BANGKOK, 10200 THAILAND

PHONE : +66 - 2 - 222 9181

FAX : +66 - 2 - 224 6795

TAIWAN

PAI- YUING CO., LTD.

6 TH FL NO, 148 SUNG KIANG ROAD,

TAIPEI, 10429, TAIWAN R.O.C.

PHONE : +886 - 2 - 25221304

FAX : +886 - 2 - 25630415

MALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.

SUITE 8.1, LEVEL 8, MENARA GENESIS,

NO. 33, JALAN SULTAN ISMAIL,

50250 KUALA LUMPUR, MALAYSIA

PHONE : +60 3 - 2457677

FAX : +60 3 - 2458180

AMERICAS

SUPERSCOPE TECHNOLOGIES, INC.

MARANTZ PROFESSIONAL PRODUCTS

2640 WHITE OAK CIRCLE, SUITE A

AURORA, ILLINOIS 60504 USA

PHONE : 630 - 820 - 4800

FAX : 630 - 820 - 8103

AUSTRALIA

KOREA

MK ENTERPRISES LTD.

ROOM 604/605, ELECTRO-OFFICETEL, 16-58,

3GA, HANGANG-RO, YONGSAN-KU, SEOUL

KOREA

PHONE : +822 - 3232 - 155

FAX : +822 - 3232 - 154

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD

130 JOO SENG ROAD

#03-02 OLIVINE BUILDING

SINGAPORE 368357

PHONE : +65 858 5535 / +65 381 8621

FAX : +65 858 6078

TECHNICAL SPECIFICATIONS

DVD VIDEO PLAYER

Power supply AC 120V, 60Hz(U1B)

/AC100V, 50/60Hz(F1N)

/AC220~240V, 50Hz(N1B)

/110~240V, 50Hz(K1G, A1B)

Power consumption 16W

Mass 3.2kg(7.1lbs)

External dimensions 430 x 88 x 215 (W x H x D)

Signal system NTSC 525/60, PAL 625/50

Laser Semiconductor laser, wavelength 650nm

Frequency range (audio) 4Hz to 20 kHz

Signal-to-noise ratio (audio) More than 100 dB (EIAJ)

Dynamic range (audio) More than 95 dB (EIAJ)

Harmonic distortion(audio) 0.008%

Wow and flutter Below measurable level (less than +0.001%(W.PEAK)) (EIAJ)

Operating conditions Temperature : 5˚C(41˚F) to 35˚C(95˚F),

Operation status : Horizontal

OUTPUTS

Video output 1.0V(p-p), 75Ω, negative sync., RCA jack x 1 / SCART

S-video outputs (Y)1.0V(p-p), 75Ω, negative sync.,Mini DIN 4-pin x 1

Audio output(digital audio) 0.5V(p-p), 75Ω, RCA jack x 1

Audio output(analog audio) 2.0Vrms (1kHz, 0dB), 330Ω, RCA jack (L, R) x 1 / SCART

*Designs and specifications are subject to change without notice.

CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY,

NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-

TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY

VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR

ANY RESULTING PROPERTY DAMAGE OR USER INJURY.

SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE

THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY

CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE,

INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE

USER.

WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTEC-

TION FROM A.C. LINE SHOCK.

SAFETY CHECKS

AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED. A

CHECK SHOULD BE MADE OF THE FOLLOWING.

SUBJECT : FIRE & SHOCK HAZARD

1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY

AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS.

THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE

TRANSPORTED TO AND FROM THE REPAIR SHOP.

2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES

SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN

RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE

BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE

SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN

DEFEATED.

3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD

SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS.

BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.

4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION

TO PARTS AND COMPONENTS, FOR FRAYED LEADS, DAMAGED

INSULATION (INCLUDING A.C. CORD), AND REPLACE IF NECESSARY.

FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.

5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING TUBE OR

A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND

PROTRUDING METAL SURFACES MUST BE AVOIDED.

6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF

RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT

FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS

OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIR-

CUIT MODIFICATIONS.

7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.

LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABI-

NET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HAN-

DLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE

WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE

ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLT-

METER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN

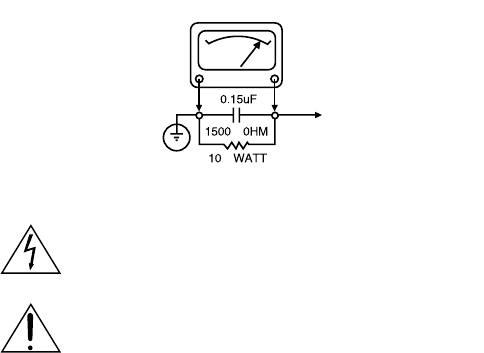

THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESIS-

TOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR

BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CON-

DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.

MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500

OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG

AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED

METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75

VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY

VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK

HAZARD AND MUST BE CORRECTED IMMEDIATELY.

SUBJECT: GRAPHIC SYMBOLS

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL. WITHIN

AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE

SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED

“DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAG-

NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIAN-

GLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO

THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN

SERVICE LITERATURE.

SUBJECT : X-RADIATION

1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER-

SONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTEN-

TIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PIC-

TURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN

THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE

PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERA-

TION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PIC-

TURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIR-

CUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIR-

ABLE LEVELS.

2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE

USED. DEGAUSSING SHIELDS ALSO SERVE AS AN X-RAY SHIELD IN

COLOR SETS, ALWAYS RE-INSTALL THEM.

3. IT IS ESSENTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN

ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA-

TION OF THE METER SHOULD BE CHECKED PERIODICALLY

AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE

AT YOUR DISTRIBUTOR.

4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY

THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY

TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD

BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE

WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES

NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING

CORRECTLY. WE SUGGEST THAT YOU AND YOUR SERVICE ORGA-

NIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGU-

LATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCE-

DURE AND THAT THE HIGH VOLTAGE READING BE RECORDED ON

EACH CUSTOMER’S INVOICE.

5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN

A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE,

AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND

THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT

LONGER THAN IT IS NECESSARY TO LOCATE THE CAUSE OF EXCES-

SIVE VOLTAGE.

6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES

DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS

(WHERE USED).

SUBJECT: IMPLOSION

1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE-

GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE

TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID

SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.

2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.

SUBJECT : TIPS ON PROPER INSTALLATION

1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBY-

HOLE OR CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO

HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.

2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO

INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIA-

TORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.

3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR

VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DEC-

ORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT

OBSTRUCT VENTILATION.

4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMER-

CIAL MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED

MOUNTING INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR

PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT

THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW

ACROSS THE BOTTOM. BOLTS OR SCREWS USED FOR FASTENERS

MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE

TEST ON CUSTOMIZED INSTALLATIONS.

5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON

SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS

PROPERLY SECURED.

6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS

MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZ-

ARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS

THRESHOLDS OR DEEP PILE CARPETS.

7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND

WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES,

INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION

RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF

THE SAME OR LARGER SCREEN SIZE.

8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS.

EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SIN-

GLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO

HOME AND FAMILY.

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

A.C. VOLTMETER

GOOD EARTH GROUND

SUCH AS THE WATER

PIPE. CONDUIT. ETC

PLACE THIS PROBE

ON EACH EXPOSED

METAL PART

SERVICING PRECAUTIONS

CAUTION : Before servicing the DVD covered by this service

data and its supplements and ADDENDUMS, read and follow

the SAFETY PRECAUTIONS. NOTE : if unforeseen circum-

stances create conflict between the following servicing pre-

cautions and any of the safety precautions in this publica-

tions, always follow the safety precautions.

Remember Safety First:

General Servicing Precautions

1. Always unplug the DVD AC power cord from the AC

power source before:

(1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnection or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an elec-

trolytic capacitor.

Caution : A wrong part substitution or incorrect

polarity installation of electrolytic capacitors may result

in an explosion hazard.

2. Do not spray chemicals on or near this DVD or any of

its assemblies.

3. Unless specified otherwise in this service data, clean

electrical contacts by applying an appropriate contact

cleaning solution to the contacts with a pipe cleaner,

cotton-tipped swab, or comparable soft applicator.

Unless specified otherwise in this service data, lubrication

of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with

which instruments covered by this service manual might

be equipped.

5. Do not apply AC power to this DVD and/or any of its

electrical assemblies unless all solid-state device heat

sinks are correctly installed.

6. Always connect test instrument ground lead to the

appropriate ground before connection the test instrument

positive lead. Always remove the test instrument ground

lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn

the power on. Connect an insulation resistance meter(500V)

to the blades of the attachment plug. The insulation resist-

ance between each blade of the attachment plug and acces-

sible conductive parts (Note 1) should be more than 1M-ohm.

Note 1 : Accessible Conductive Parts including Metal panels,

Input terminals, Earphone jacks, etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged

easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples of

typical ES devices are integrated circuits and some field

effect transistors and semiconductor chip components.

The following techniques should be used to help reduce the

incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor compo-

nent or semiconductor-equipped assembly, drain off any

electrostatic charge on your body by touching a known

earth ground. Alternatively, obtain and wear a commer-

cially available discharging wrist strap device, which

should be removed for potential shock reasons prior to

applying power to the unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such

as aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a GROUNDED-tip soldering iron to solder or

unsolder ES devices.

4. Use only an anti-static solder removal device. Some

solder removal devices not classified a “anti-static” can

generate electrical charges sufficient to damage ES

devices.

5. Do not use freon-propelled chemicals. These can

generate electrical charge sufficient to damage ES

devices.

6. Do not remove a replacement ES device from its protec-

tive package until immediately before you are ready to

install it. (Most replacement ES devices are packaged with

leads electrically shorted together by conductive foam,

aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from

the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the

device will be installed.

Caution : Be sure no power is applied to the chassis or

circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Normally harmless motion such

as the brushing together of your clothes fabric or the lifting

of your foot from a carpeted floor can generate static elec-

tricity sufficient to damage an ES device.)

3. INFORMATIONS

REGION CODE

THE DISCS THAT THE DV3100 CAN HANDLE

The following discs can be played back with a DV3100.

Note: The regional code of the discs must meet to the regional

code of the product.

DVD INFORMATION

Below is a glossary of the new terms related to DVD.

Title:

A disc may have more than one story/movie on it, so each

story/movie is called a “title”.

For example, if there are 2 movies on the disc, they are

separated into Title 1 and Title 2.

Chapter:

A title may also be separated into chapters.

For example, a movie (title) may be separated into 3 scenes

(chapters).

Subtitles:

DVDs are recorded with up to 32 different subtitle languages.

If a disc has more than one subtitle language, you can select

the subtitle language that you want to read.

Soundtrack language:

DVDs are recorded with up to 8 different soundtrack languages.

If a disc has more than one language, you can select the

soundtrack language that you want to listen to.

Multi-angles:

On some DVDs, scenes have been filmed from different angles

(up to a maximum of 9). On these discs, you can select the

angle that you want to watch. Please refer to the DVD’s manual

to see which scenes have multi-angles.

Parental guide:

Some discs have restriction levels that allow you to cut scenes

or prevent playback of discs that have contents that you do

not want children to watch.

disc mark playback capability size side

DVD Audio/Video 12 cm single/double

8 cm

CD Audio 12 cm single

8 cm

VERSION REGION CODE COUNTRY

/N1B 2 EUROPE

/F1N 2 JAPAN

/A1B 4 AUSTRALIA

/U1B 1 USA/CANADA

Title 1 Title 2

Chapter

3Chapter

1Chapter

2Chapter

Chapter

1Chapter

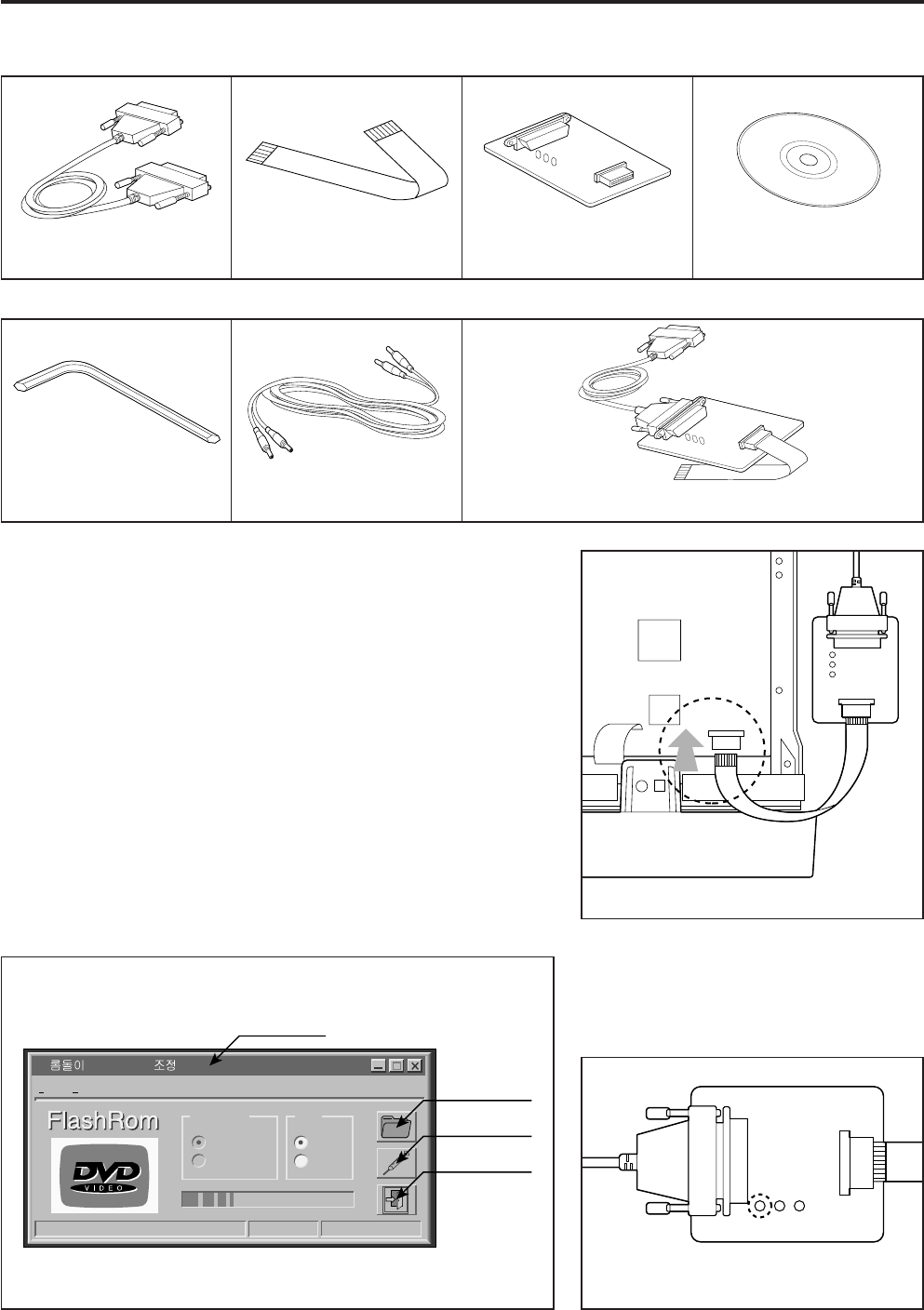

SERVICE TOOLS

Audio signals disc 4822 397 30184

Disc without errors (SBC444)+

Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245

Disc (65 min 1kHz) without no pause 4822 397 30155

Max. diameter disc (58.0 mm) 4822 397 60141

Torx screwdrivers

Set (straight) 4822 395 50145

Set (square) 4822 395 50132

13th order filter 4822 395 30204

DVD test disc 4822 397 10131

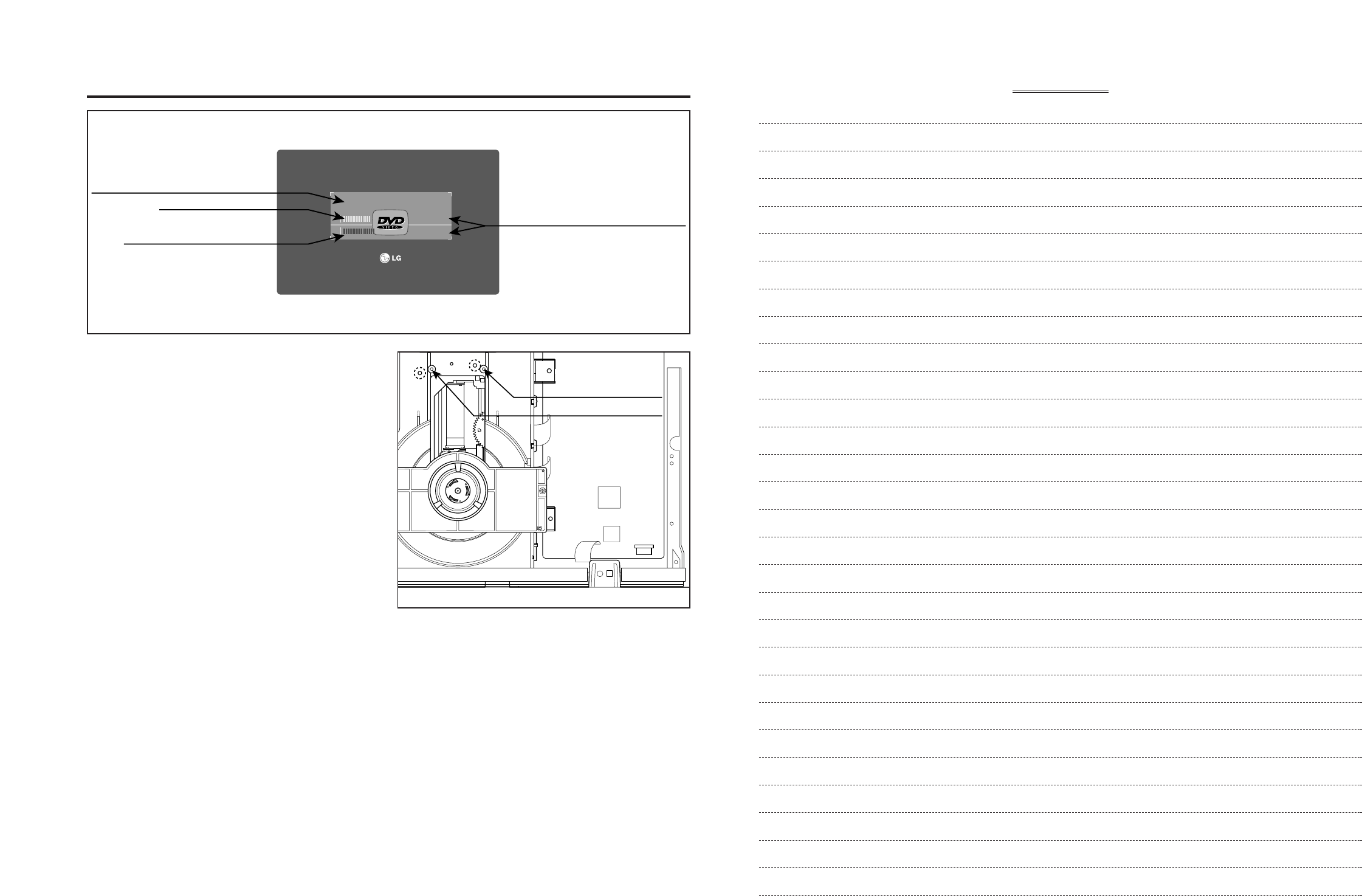

SERVICE HINTS

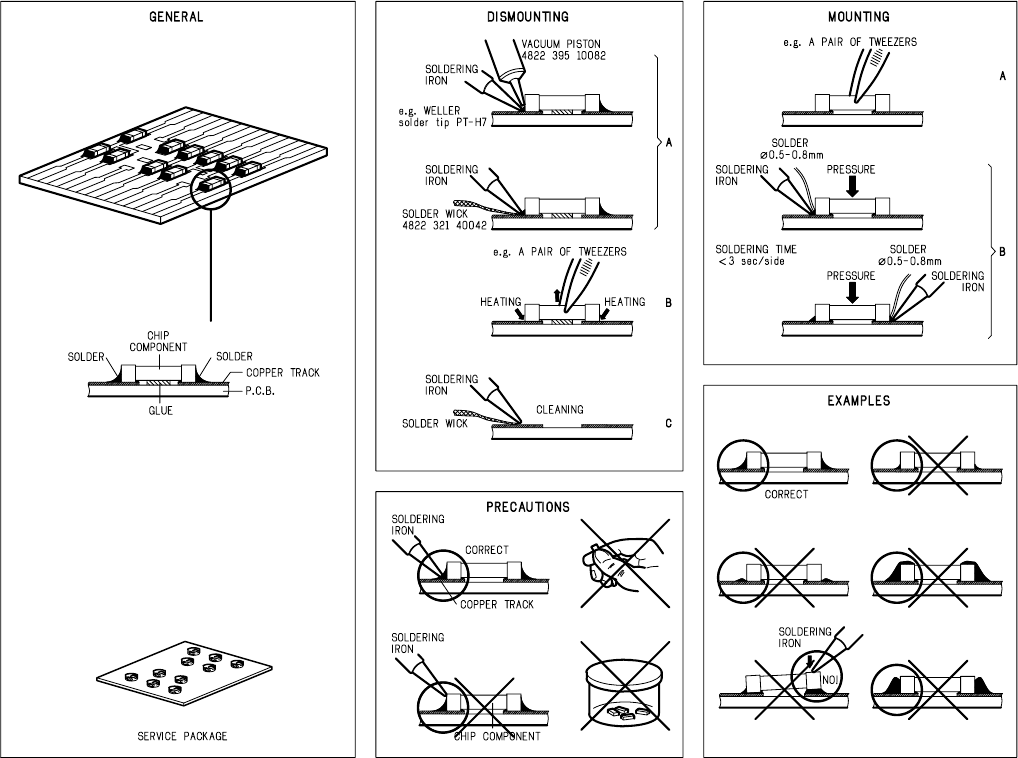

4. SERVICING HINT

REGIONAL CODES

1 2

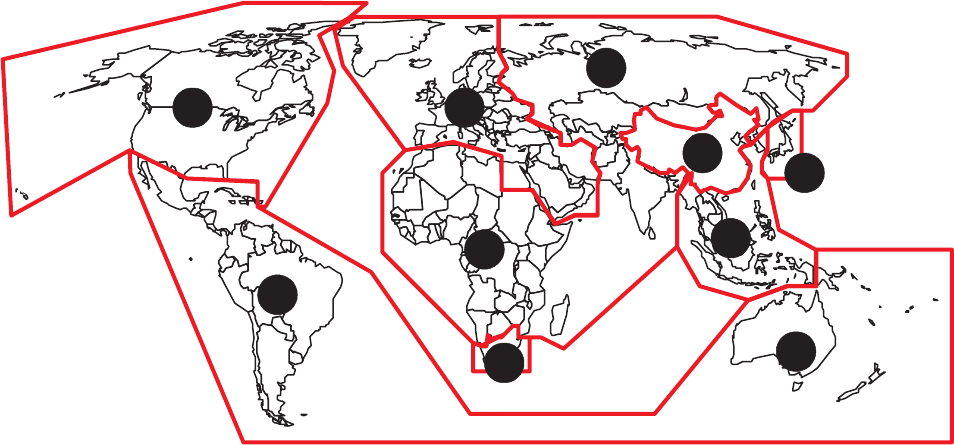

Map of DVD Regions

What are "regional codes"?

Motion picture studios want to control the home release of movies in different countries because theater releases arenít

simultaneous (a movie may come out on DVD in the US when itís just hitting screens in Europe). Therefore they have

required that the DVD standard include codes which can be used to lock out the playback of certain discs in certain geo-

graphical regions. Players sold in each region will have that regionís code built into the player. The player will refuse to play

these "region coded" discs which are not allowed in the region. However, regional codes are entirely optional. Discs without

codes will play on any player in any country. Some studios have already announced that only their new releases will have

regional codes. There are six regions:

1. United States and Canada

2. Europe and Japan

3. Far East (except Japan & China)

4. South America and Oceania

5. Africa and the Middle East

6. China (except Hong Kong)

LOCATION OF CUSTOMER CONTROLS

DVD PLAYER DV3100

STANDBY

STANDBY/ON

POWER

OPEN/CLOSE STOP

PAUSE

PLAY

TITLECD

PROG. NKS

RANDOM ALL AB

CHP/TRK

DVD

MODEL NO.DV3100

COAXIAL

OUT

DIGITAL

OUT

S-VIDEO

OUT

AUDIO

OUT

VIDEO

PA L NTSC

AUTO

A/V EUROCONNECTOR

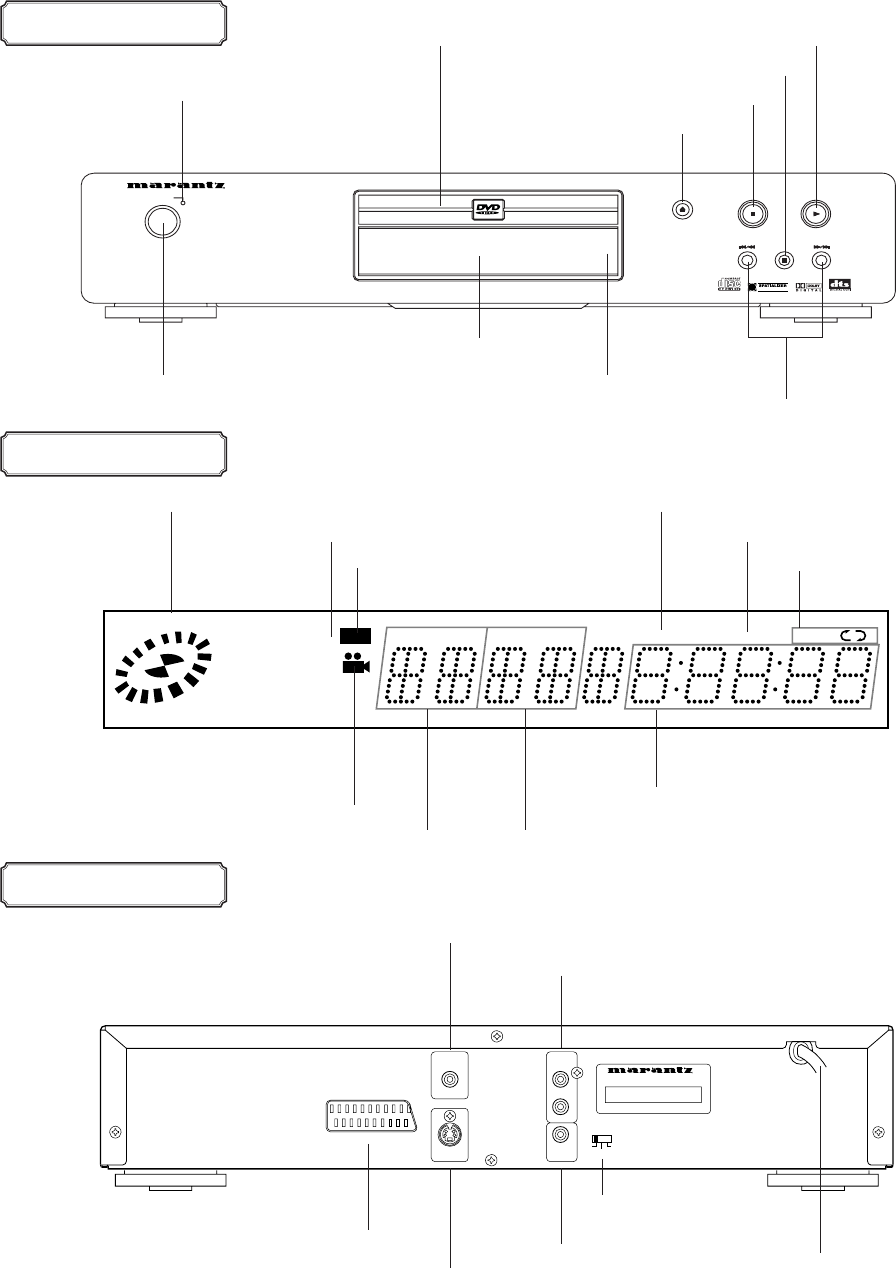

FRONT PANEL

DISPLAY WINDOW

REAR PANEL

POWER INDICATOR

POWER BUTTON

DISPLAY WINDOW

REMOTE SENSOR

OPEN/CLOSE BUTTON

SKIP/SCAN BUTTONS

DISC TRAY PLAY BUTTON

PAUSE BUTTON

STOP BUTTON

ANGLE ICON INDICATOR

TITLE NUMBER INDICATOR

S-VIDEO OUT JACK

AV-EURO CONNECTOR

VIDEO OUT JACK

PAL/NTSC

CHAPTER/TRACK NUMBER INDICATOR

TOTAL PLAYING TIME/ELAPSED

TIME INDICATORS

AUDIO OUT1(L/R) JACKS

POWER CORD

Connect to an AC 220~240V, 50Hz

outlet only.

COAXIAL DIGITAL AUDIO OUT JACK

OPERATING STATUS INDICATOR PROGRAM INDICATOR

DVD INDICATOR REPEAT PLAYBACK

MODE INDICATORS

CD INDICATOR RANDOM INDICATOR

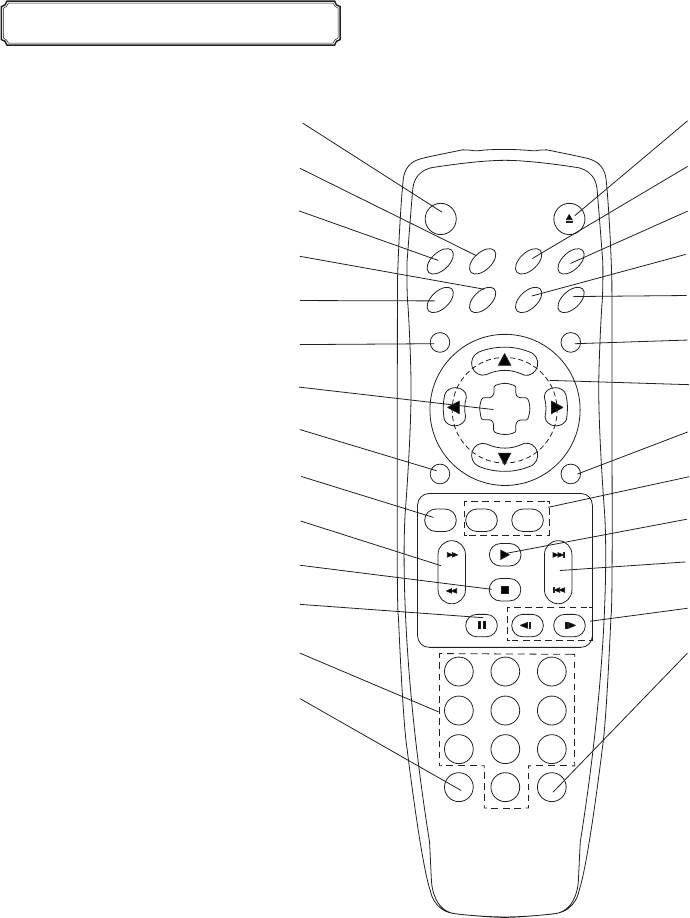

REMOTE CONTROL

POWER button

STOP button

AUDIO button

FWD/REV SCAN button

REPEAT button

TOP MENU button MENU button

ARROW buttons

RETURN button

PLAY button

FWD/REV SKIP button

SLOW buttons

MARKER-SEARCH button

OPEN/CLOSE button

RANDOM button

A-B button

ANGLE button

SURR. button

OSD button

ZOOM button

SELECT/ENTER button

SUBTITLE button

SETUP button

231

564

PROGRAM

SKIPSCAN PLAY

ZOOM

OSD

TOP MENU MENU

ANGLE

SELECT

/ENTER

SURR.SUBTITLEAUDIO

A-B RANDOMREPEAT

POWER OPEN/CLOSE

SETUP

RETURN

STOP

PAUSE

MARKER – SEARCH

SLOW

CLEAR

PAUSE button

Number buttons

CLEAR button

PROGRAM button

2-1

SECTION 2

CABINET & MAIN CHASSIS

CONTENTS

1. DISASSEMBLY.........................................................................................................................2-2

CABINET DISASSEMBLY ............................................................................................................2-2

CIRCUIT BOARD DISASSEMBLY................................................................................................2-3

2. EXPLODED VIEWS.................................................................................................................2-4

1. Cabinet and Main Frame Section ...........................................................................................2-4

2. Packing Accessory Section ....................................................................................................2-5

2-2

DISASSEMBLY

CAUTION BEFORE STARTING SERVICING

Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to take a

proper grounding treatment as required.

Many screws are used inside the unit. To prevent missing, dropping, etc. of the screws, always use a

magnetized screw driver in servicing. Several kinds of screws are used and some of them need special

cautions. That is, take care of the tapping screws securing molded patrs and fine pitch screws used to secure

metal parts. If they are used improperly, the screw holes will be easily damaged and the parts can not be fixed.

Top Case

(A)

Tray Door

Disc Tray

Front Panel

Stopper

(B)

CABINET DISASSEMBLY

1. Top Case

1. Release 7 screws (A). (See Fig. 2-1)

2. Lift the top case with holding the back of it,

and remove it in the direction of the arrow

Fig. 2-1

Fig. 2-2

Fig. 2-3

3. Front Panel

1. Eject the disc tray. (See Fig. 2-2)

2. Remove the tray door. (See Fig. 2-2)

3. Release 2 screws (B).

4. Pull the front panel toward you while pressing

7 stoppers to disengage, and remove the front

panel. (See Fig. 2-3)

(A)

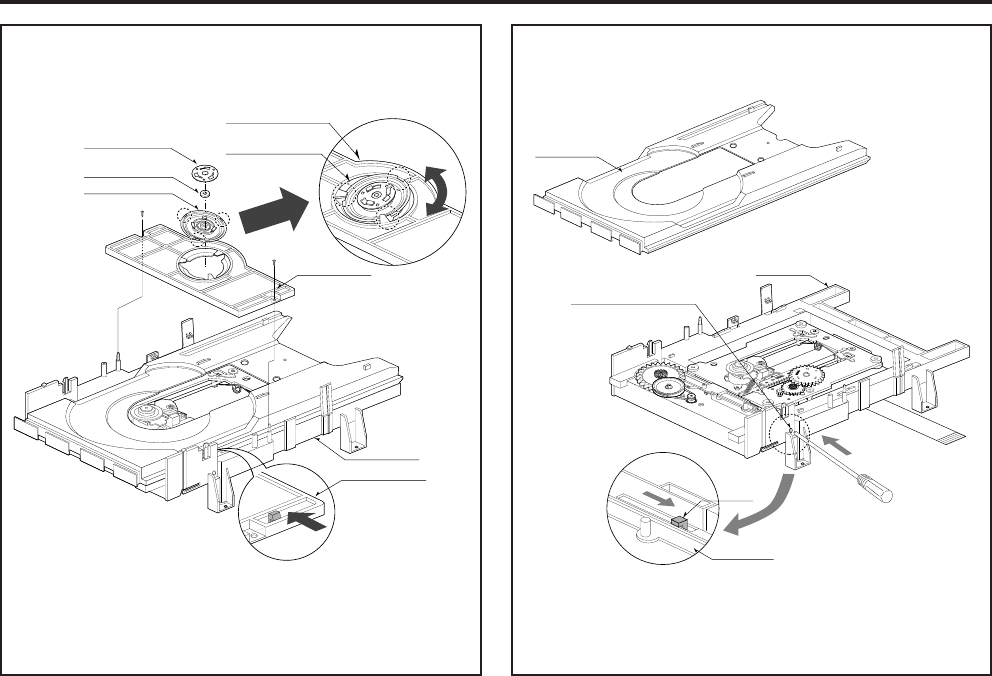

Press open/close button to open the tray. If the

tray doesn't work, insert and push a small screw-

driver in the emergency eject hole (A) at the right

side. Then the tray comes out. After the first

centimeter it is possible to pull the tray out by

hand. Release the door cover of the tray.

REMARK: Before disassemble the front panel.

2.Tray Door

1.Eject the disc tray.

2.Lift up the tray door in the direction of the

arrow.

2-3

Main Circuit Board

(C)

Power Code

Interface

Circuit

Board

(D)

Key

Circuit Board

(E)

(E) (E)(E)

Fig. 2-4

Fig. 2-5

1. Disassembling of Main Circuit Board

and Interface Board

1. Remove the top case.(See Fig. 2-1)

2. Remove 12 screw (C).

3. Remove the deck from Main Circuit Board.

4. Remove Main Circuit Board from Interface

Board.

5. Remove 2 screw (D).

6. Remove Interface Board from the chassis.

CIRCUIT BOARD DISASSEMBLY

Note: Before removing the main circuit board, be sure to shortcircuit the laserdiode output land.

After replacing the main circuit board, open the land after inserting the flexible connector.

(Refer to Mechanism Disassembly)

2. Digitron and Key Circuit Board

1. Remove the front panel.(See Fig. 2-3)

2. Release 4 screws (E), and remove the digitron

circuit board.

2-4

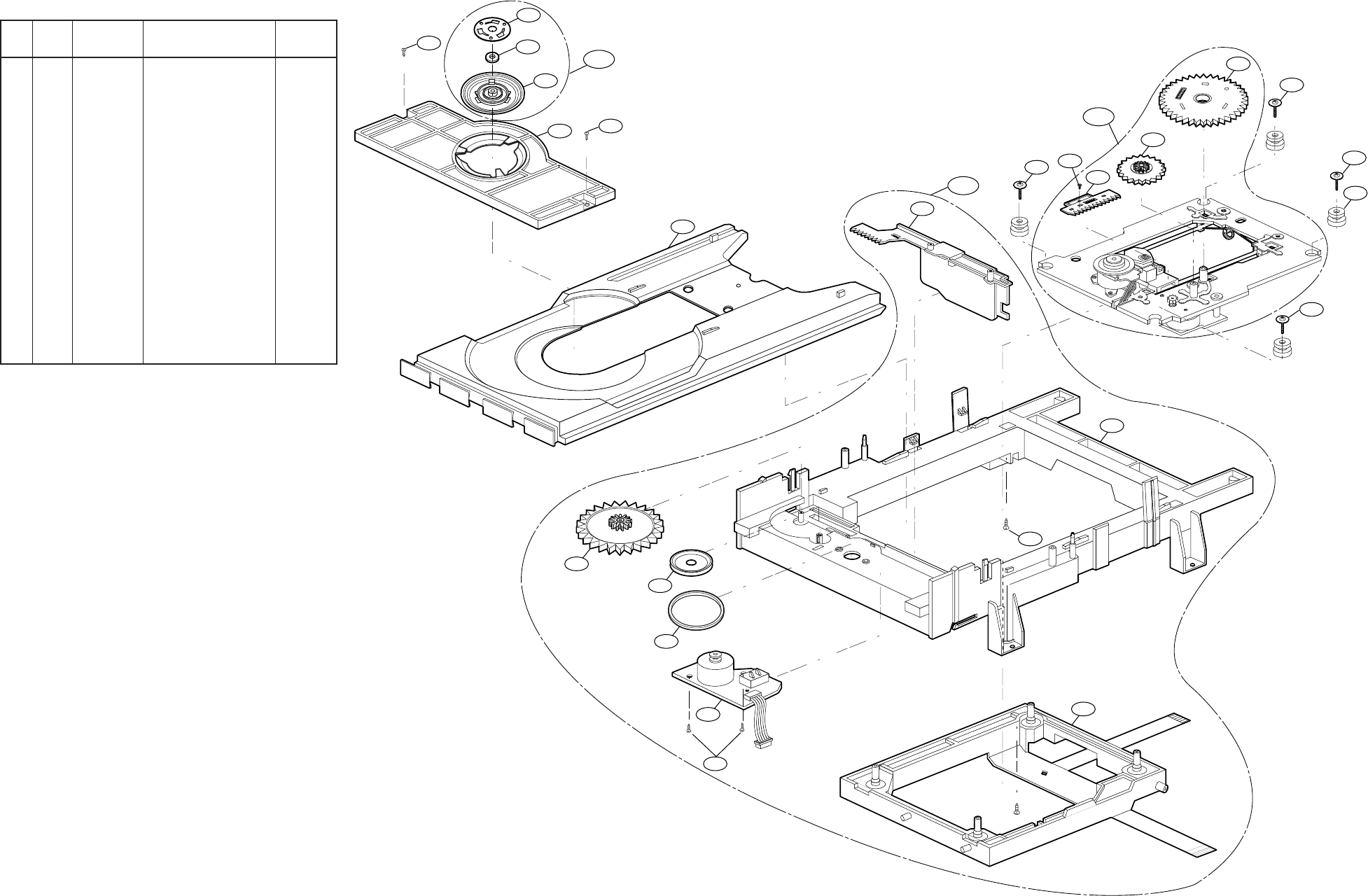

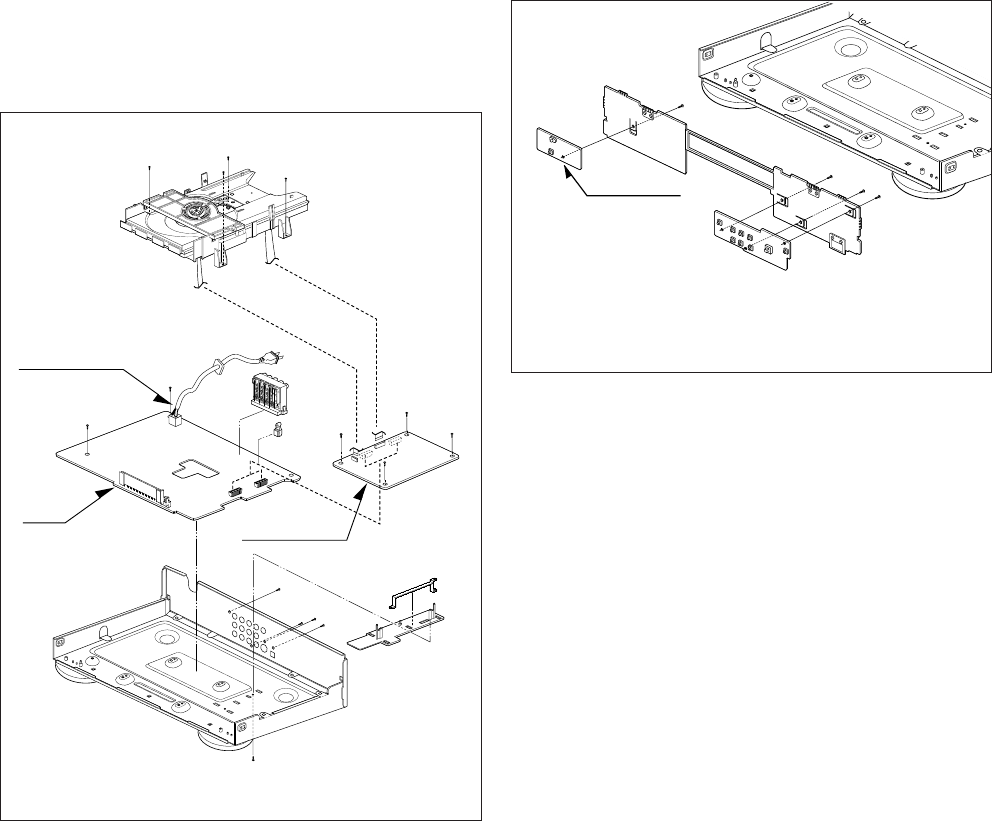

EXPLODED VIEWS

1. Cabinet and Main Frame Section

280

465

467

465

463

A46

463

279

275

332

PBP00

PBT00

283

260

467

300

467

A48

A43

250

462

463

452

285

Jack

Scart

BCD

2-5

2.Packing Accessory Section

BATTERY

808

PACKING SHEET

804

PACKING

803

811

812

OWNER'S MANUAL

VIDEO

AUDIO

801

REMOTE CONTROLLER

900

BOX CARTON

802

PACKING

803

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

250 nsp TOP COVER (BLACK) nsp

260 /N1B nsp CHASSIS ASSY MAIN (/N1B) nsp

275 nsp HOLDER MAIN PCB nsp

279 nsp HOLDER CONNECTOR nsp

280 /N1B 9965 000 06951 PANEL ASSY FRONT (/N1B) 304W248510

283 /N1B 9965 000 06952 DOOR ASSY (BLACK) 304W063500

300 /N1B 9965 000 06953 MAINS CORD (/N1B) *YC000510R

332 nsp PLATE MAIN GND nsp

429 nsp SCREW B-TITE nsp

430 nsp SCREW +D2.0 6MM nsp

SWRCH16A/NIY 4.5MM

430 nsp SCREW +D2.0 6MM nsp

SWRCH16A/NIY 4.5MM

431 nsp SCREW +D2.0 6MM

SWRCH16A/ZNBK 4MM 1 nsp

432 nsp SCREW MACHINE nsp

452 nsp SCREW SPECIAL nsp

462 nsp SCREW DECORATION nsp

463 nsp SCREW SPECIAL nsp

465 nsp SCREW SPECIAL (3X10 BK) nsp

467 nsp SCREW SPECIAL (3X8 BK) nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

801 /N1B 9965 000 06954 USER GUIDE (/N1B) 304W851310

802 nsp BOX nsp

803 nsp PACKING nsp

804 nsp SHEE nsp

808 nsp BATTERY AAA(R03) nsp

811 nsp PHONO CORD (YL) nsp

812 nsp PHONO CORD (RD/WH) nsp

900 9965 000 06955 REMOTE CONTROLLER ZK304W0010

3-1

SECTION 3

ELECTRICAL

CONTENTS

ELECTRICAL TROUBLESHOOTING GUIDE......................................................................3-2

1. Power(SMPS) Circuit...............................................................................................................3-2

2. µ-com Circuit...........................................................................................................................3-3

3. MPEG Circuit ...........................................................................................................................3-6

4. Front Circuit(Digitron & Key) .................................................................................................3-7

5. RF/Servo Circuit......................................................................................................................3-8

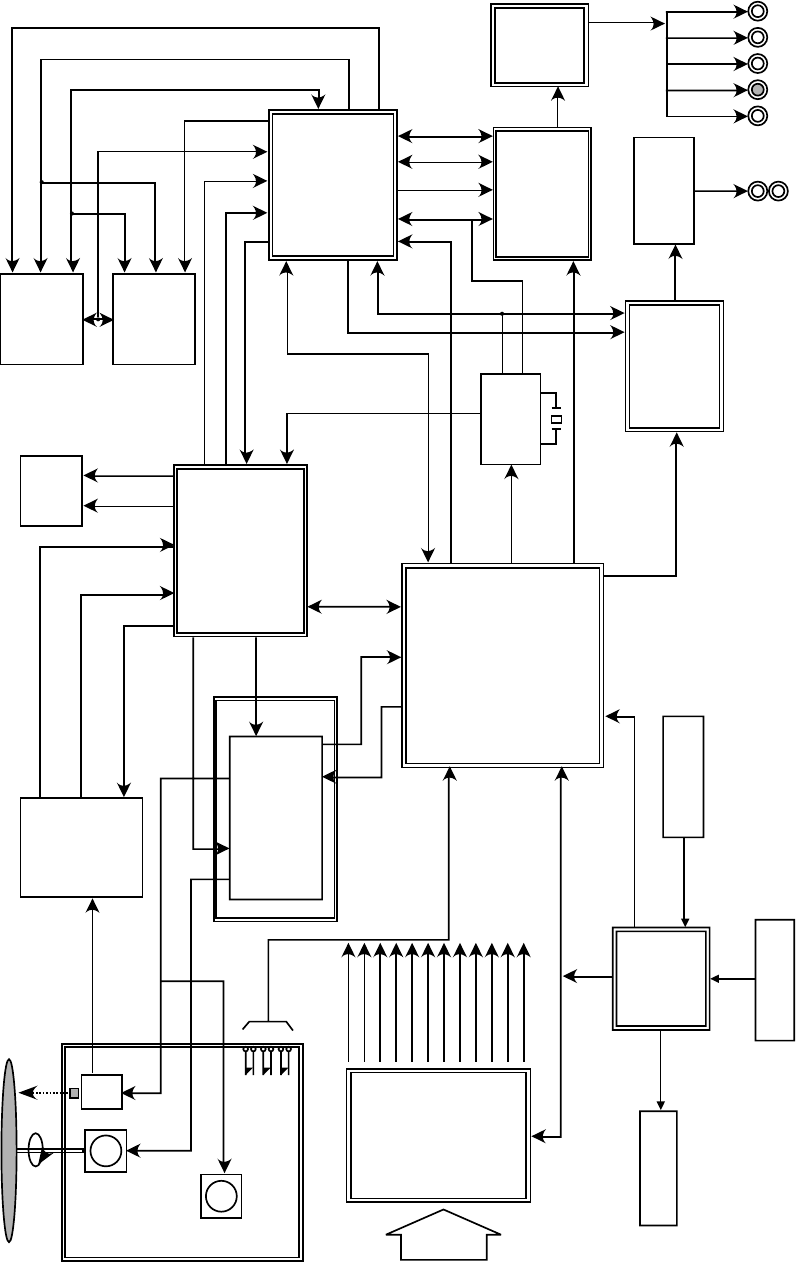

BLOCK DIAGRAMS..................................................................................................................3-12

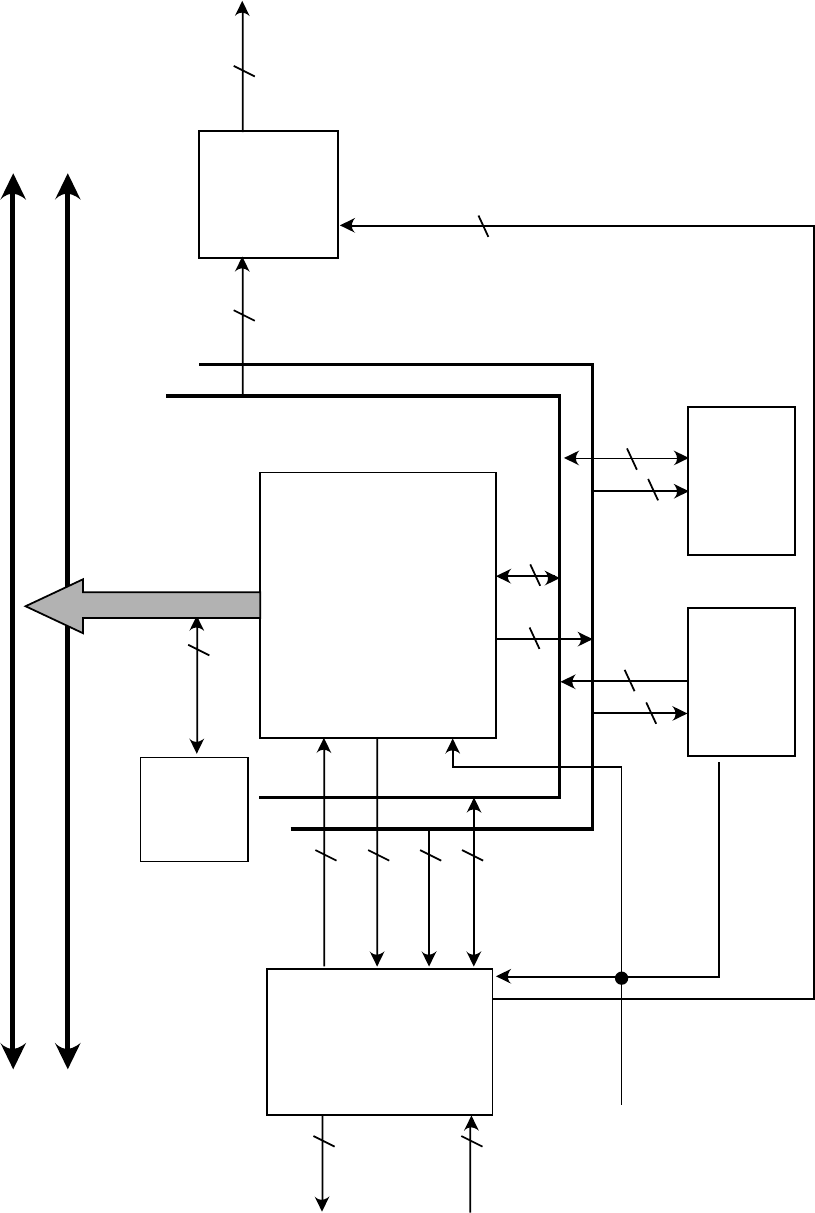

1. Overall Block Diagram..........................................................................................................3-12

2. Power (SMPS) Block Diagram..............................................................................................3-13

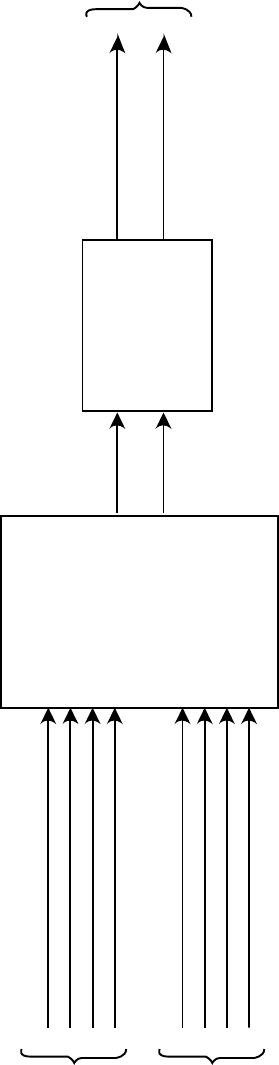

3. RF/CD DSP/DVD DSP/DVD servo Block Diagram..............................................................3-14

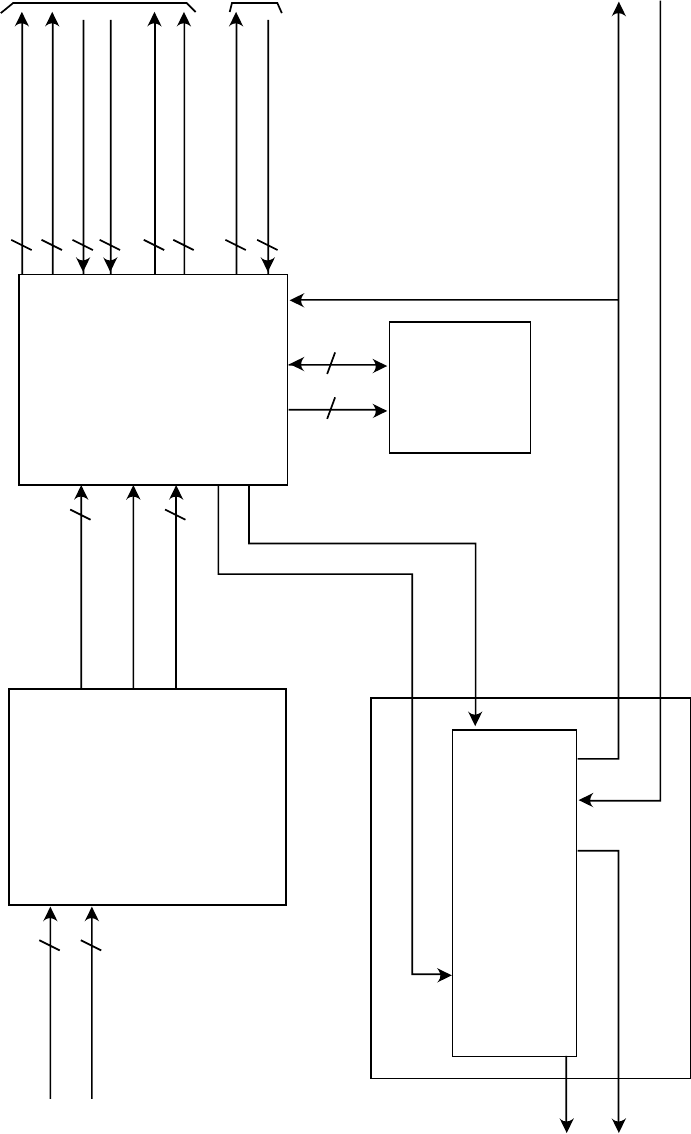

4. Audio Block Diagram............................................................................................................3-15

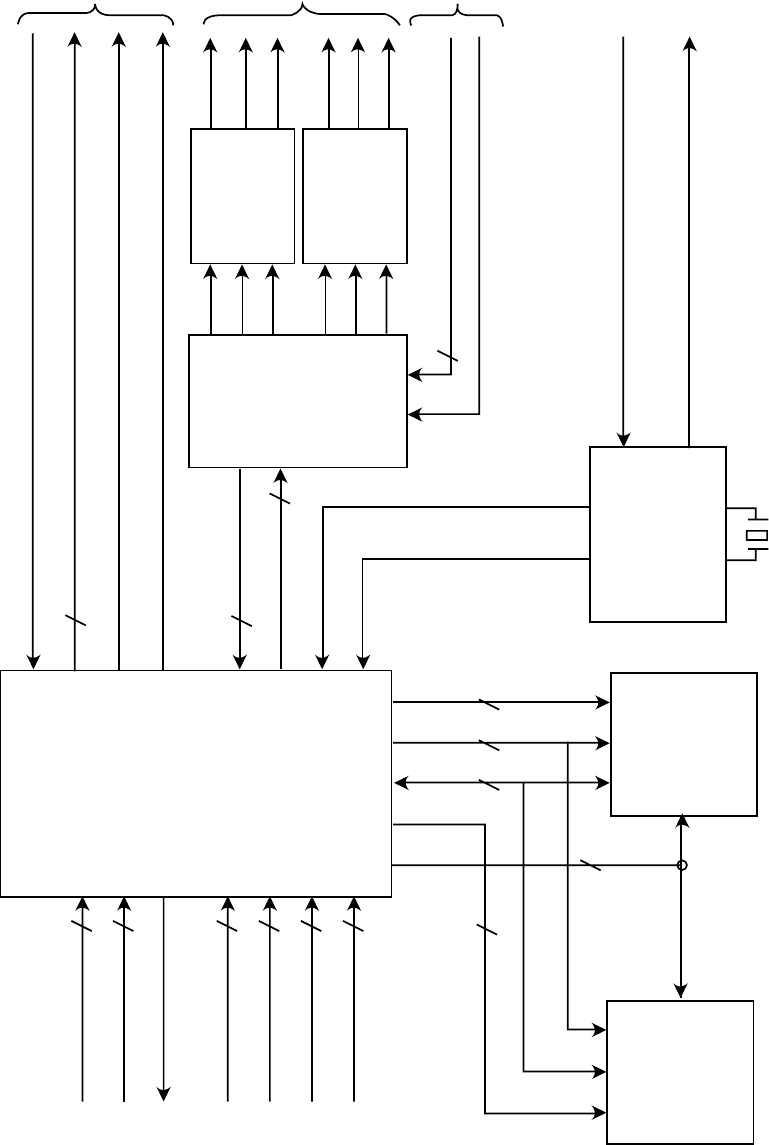

5. MPEG Block Diagram ..........................................................................................................3-16

6. µ-COM Block Diagram..........................................................................................................3-17

CIRCUIT DIAGRAMS ...............................................................................................................3-18

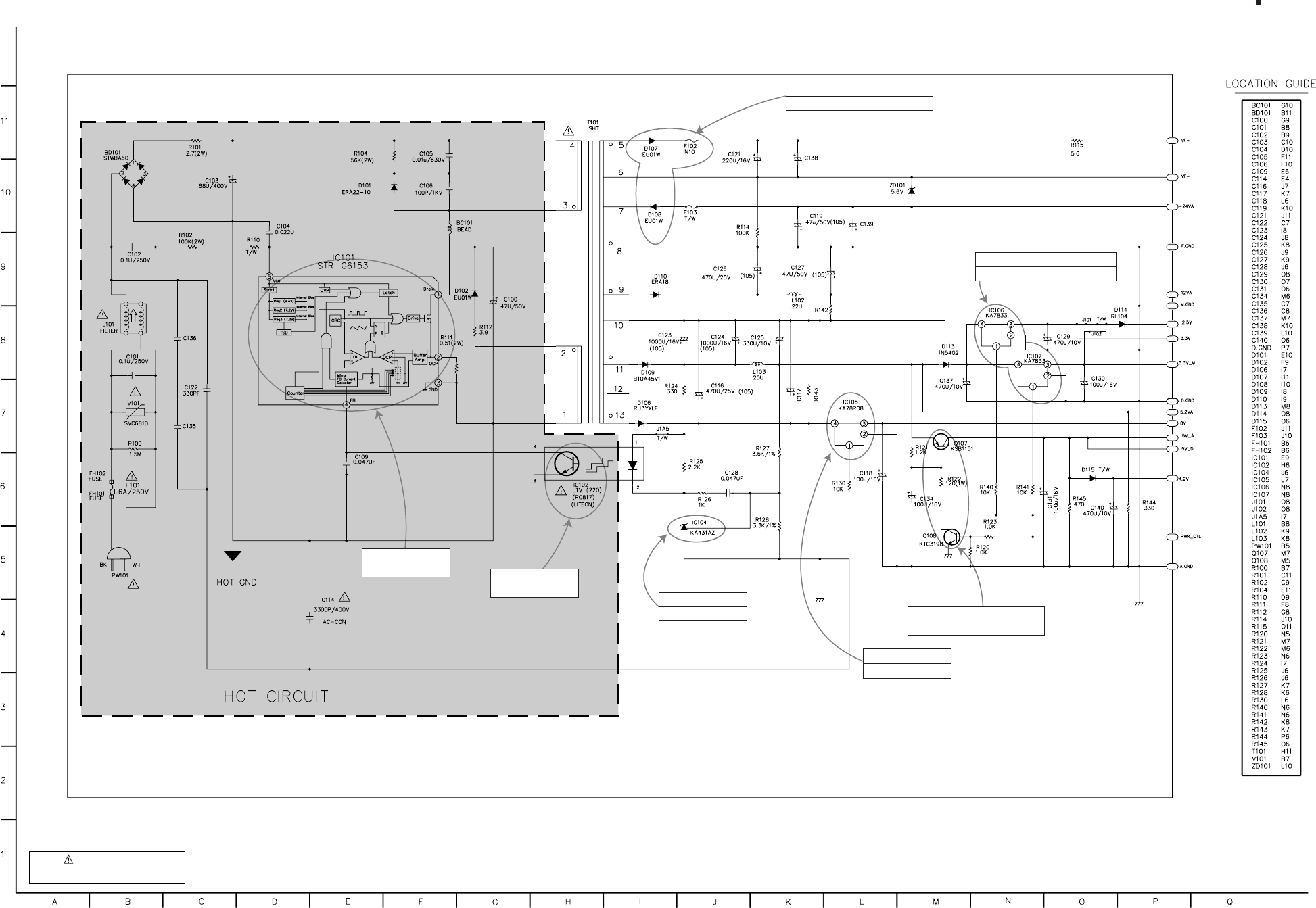

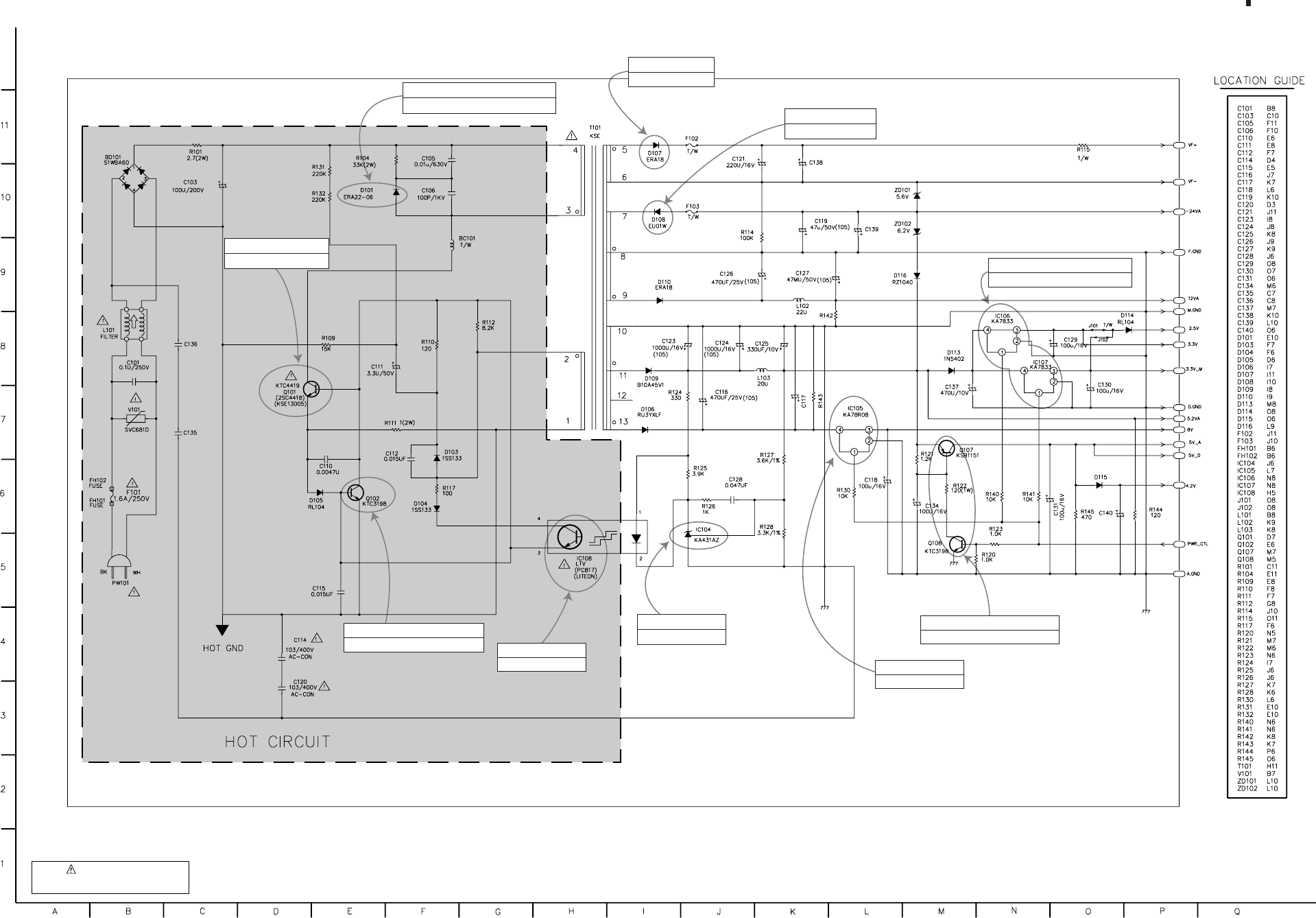

1. Power (SMPS) Circuit Diagram ............................................................................................3-18

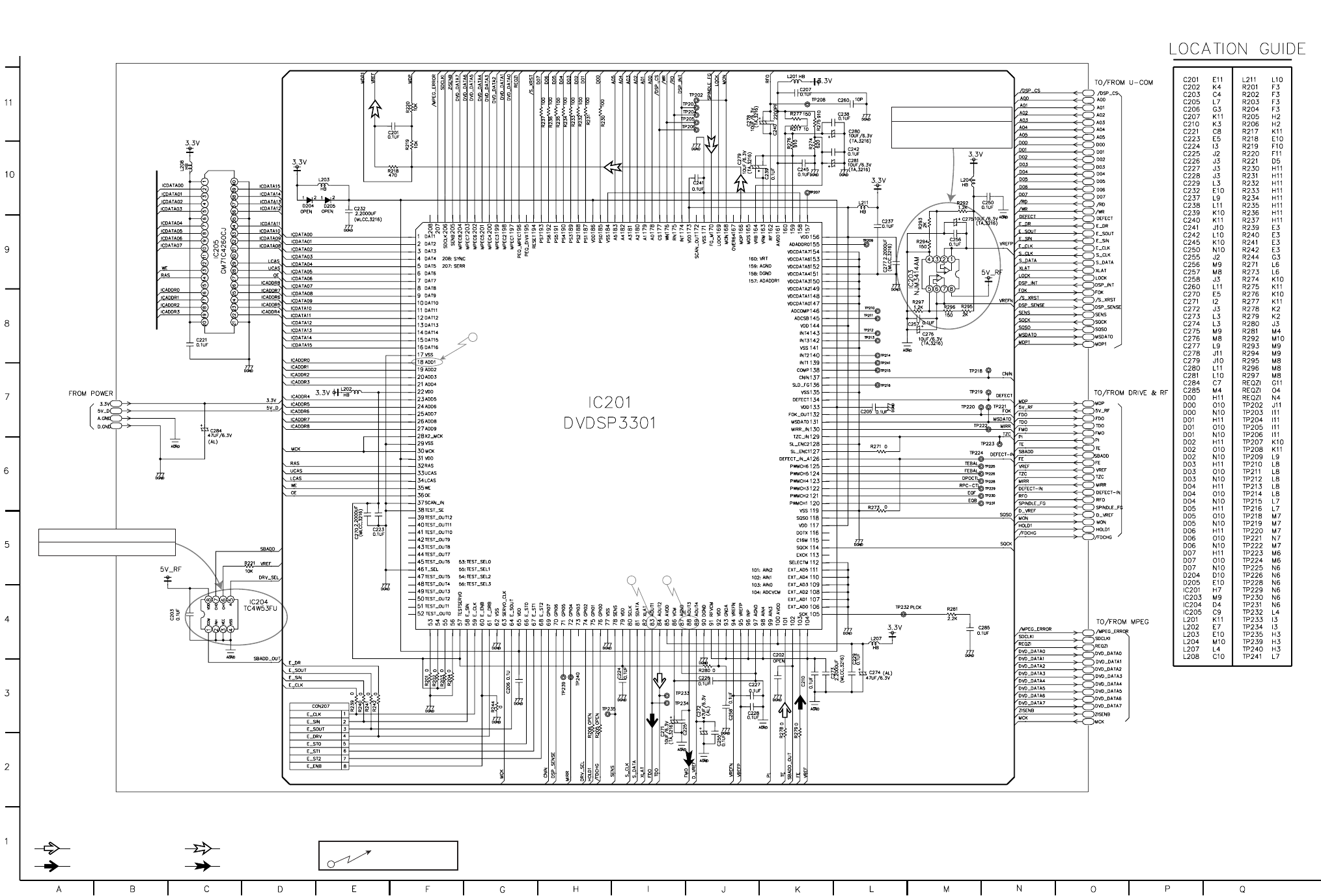

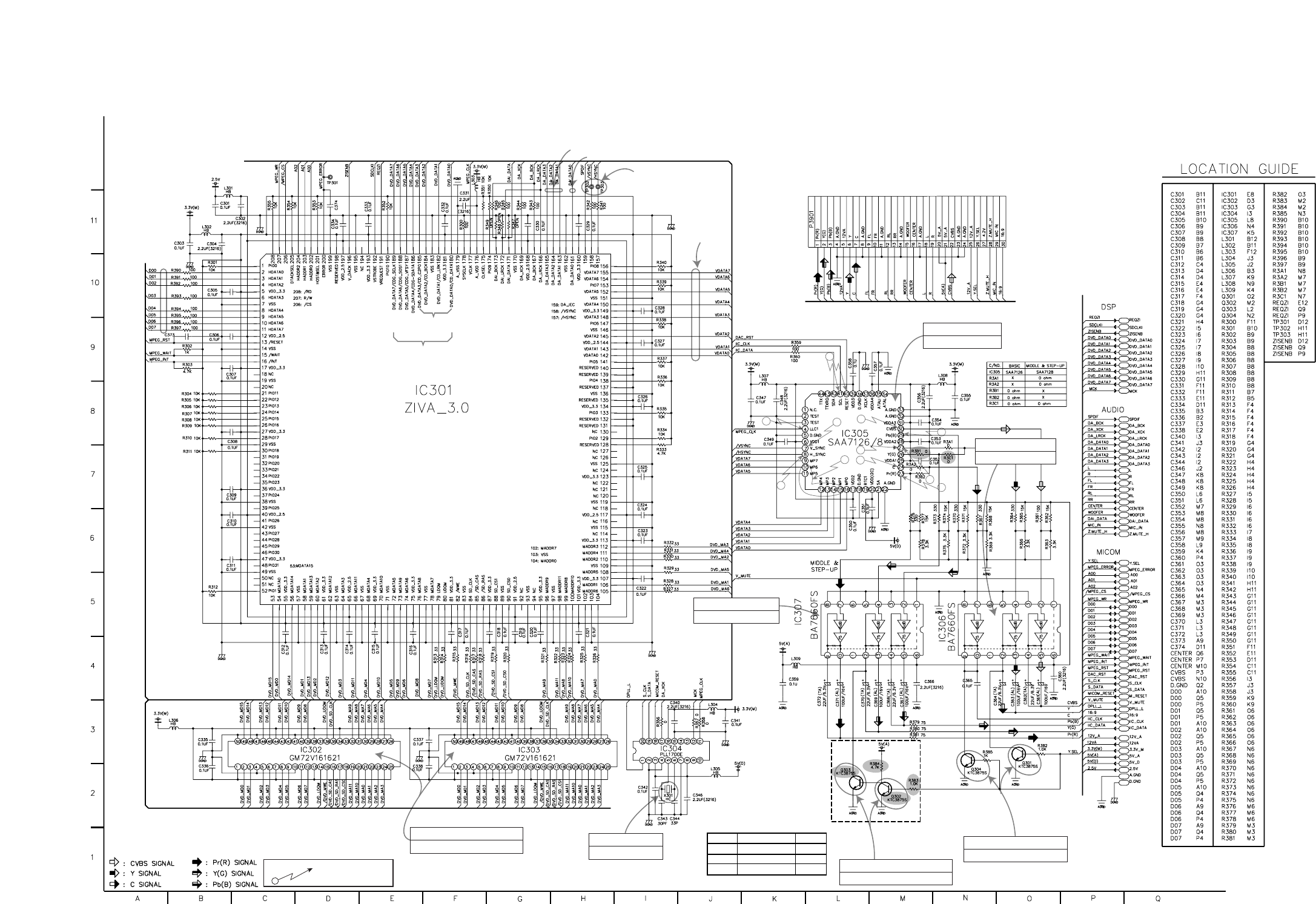

2. DVD DSP Circuit Diagram.....................................................................................................3-20

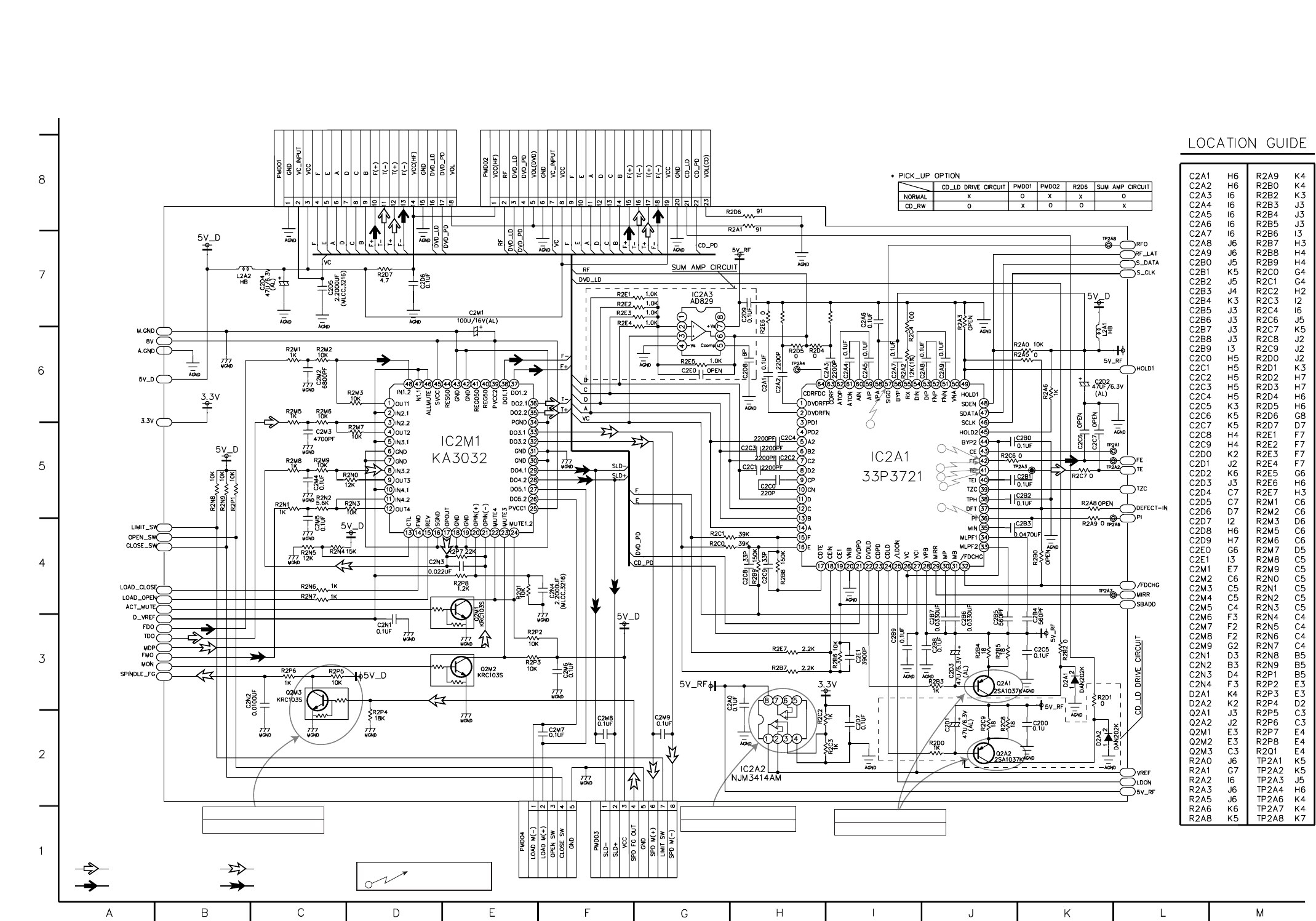

3. Drive & RF Circuit Diagram...................................................................................................3-22

4. MPEG Circuit Diagram..........................................................................................................3-24

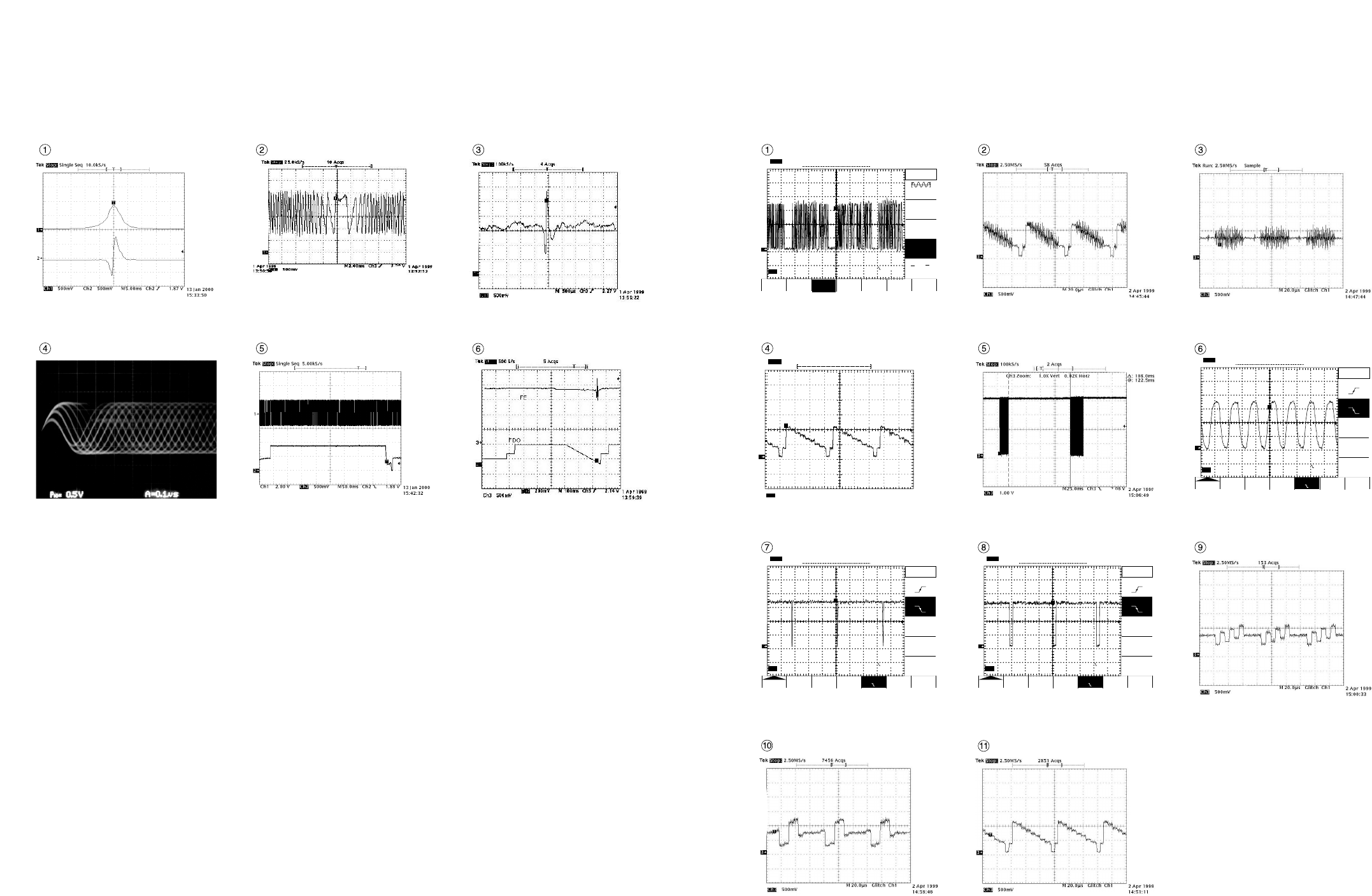

• WAVEFORMS...........................................................................................................................3-26

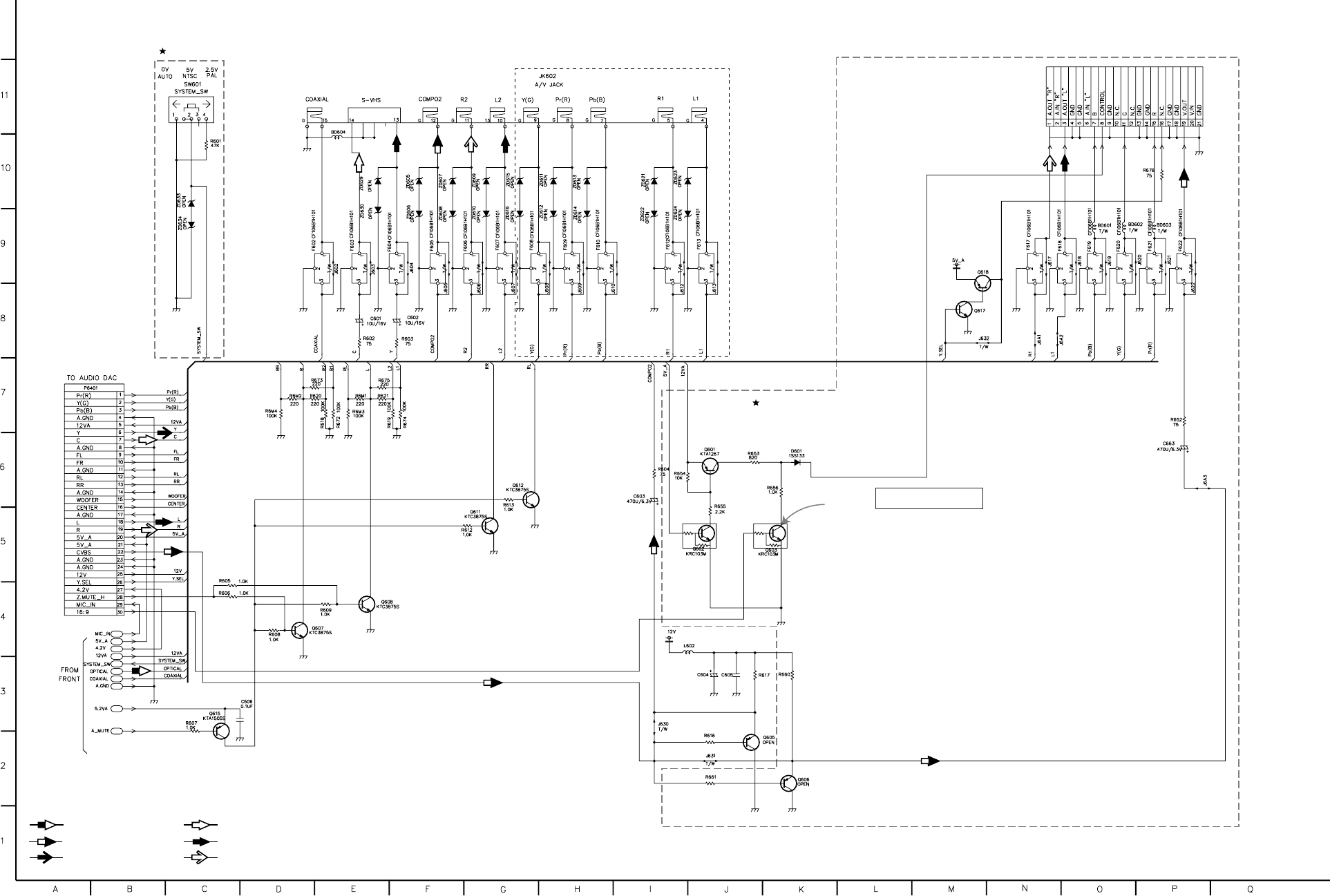

5. Audio DM & 5.1CH Circuit Diagram.....................................................................................3-28

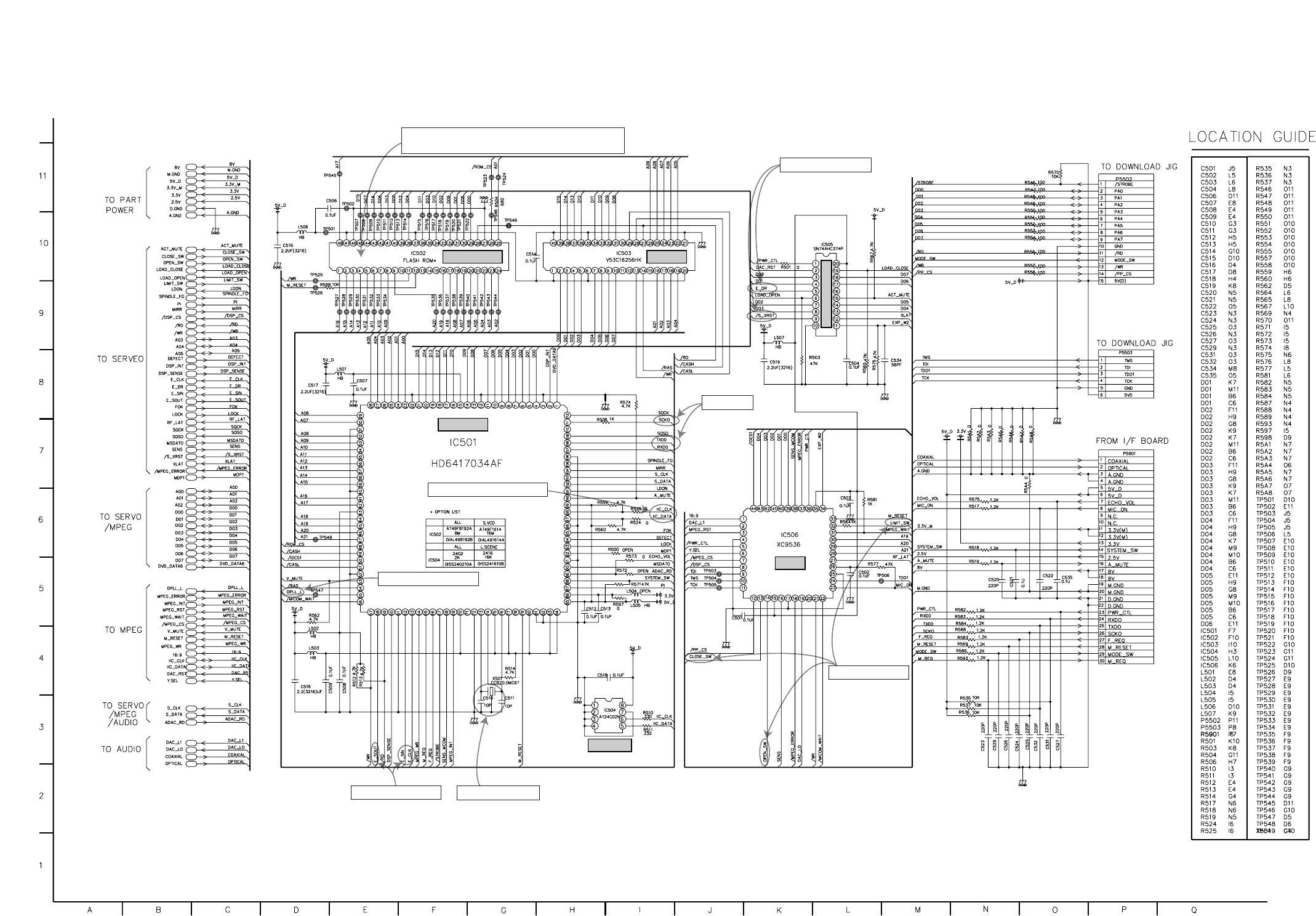

6. µ-COM/Expander...................................................................................................................3-30

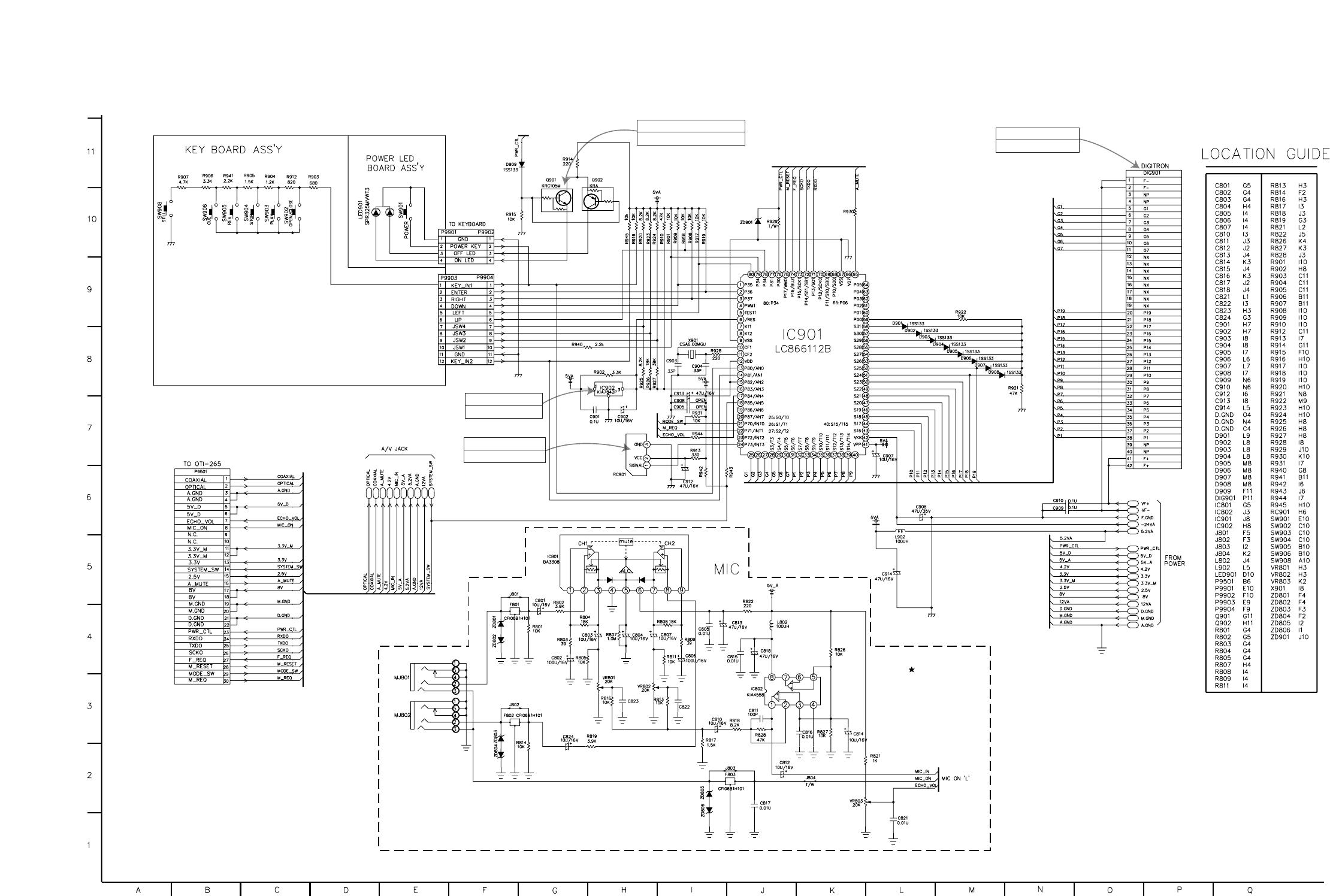

7. DIGITRON & Key Circuit Diagram........................................................................................3-32

8. Jack Circuit Diagram.............................................................................................................3-34

PRINTED CIRCUIT DIAGRAMS ...........................................................................................3-36

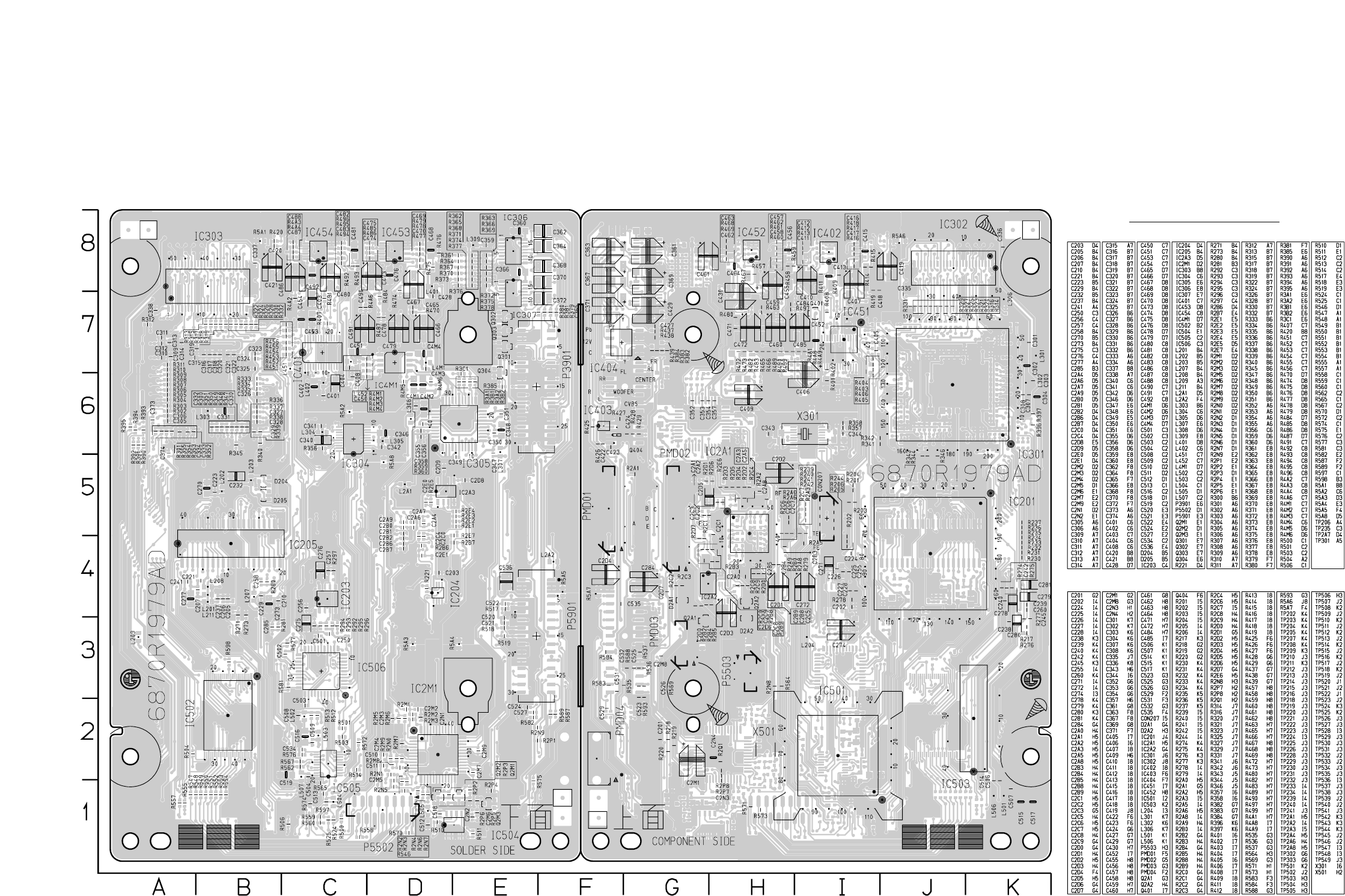

1. MAIN P.C.BOARD...................................................................................................................3-36

2. POWER,A/V,FRONT P.C.BOARD...........................................................................................3-38

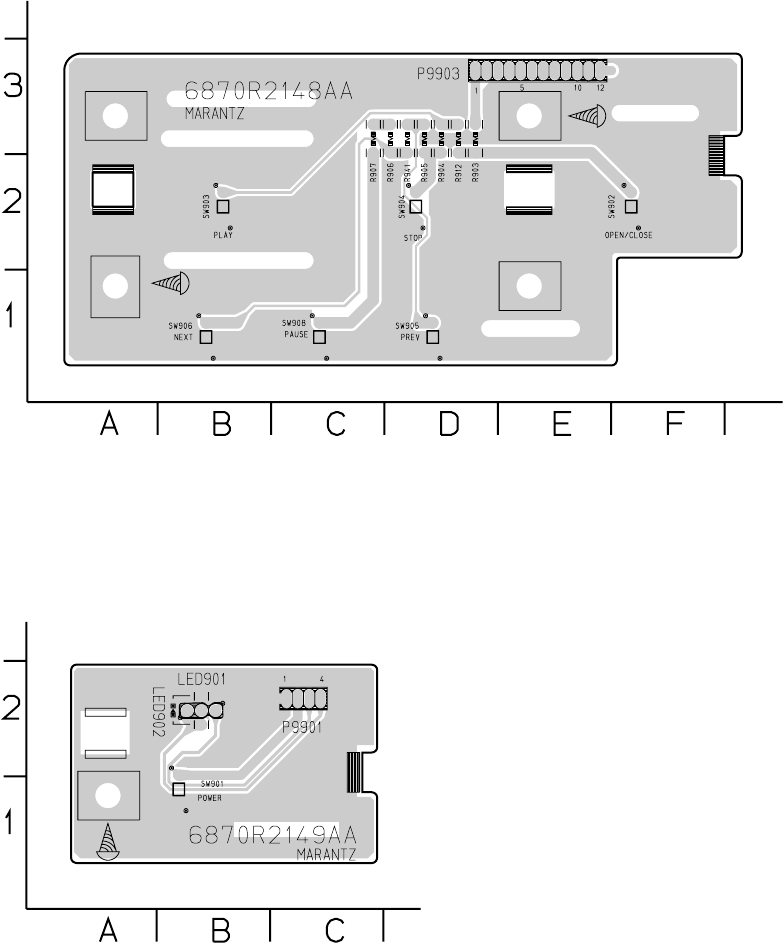

3. KEY P.C.BOARD ....................................................................................................................3-40

4. POWER LED P.C.BOARD ......................................................................................................3-41

3-2

ELECTRICAL TROUBLESHOOTING GUIDE

No 5V_D

or 5V_A .

No 5.2VA.

Is 5.2VA section working?

Is oscillation present at the

Base of Q108?

Replace Q108.

Check L103, C116, 117.

Replace R111.

Replace BD101.

(Bridge rectifier)

Check Fuse(F101).

Is R111 1Ω?

Check D105.

Replace Q101, 102.

Is 5.2V applied to IC102

Pin 1?

Is there a DC voltage at the

(+) terminal of BD101?

Check R127, 128.

(SHUTDOWN CKT)

1. Power(SMPS) Circuit

No VF+

Is 5.2VA section working?

Replace D109.

Is oscillation present at the

anode of D109?

YES

YES YES

YES

A. B.

3-3

Replace IC506.

Refer to Front Part

Check short

Reconnect it.

2. µ-COM Circuit

A. No Power

Does Logo appear

on the screen?

Is oscillation of

X501 normal?

Are IC503 Pins 14, 288

and 29 normal?

Do all five Bars appear?

Does Bar appear at FLD?

Is P5901

connected normally?

Is P5901 Pin 24 normal?

The

waveform on A[00:21]

and D[00:15] of IC501

normal?

Are IC506 Pins 7, 8 normal?

Replace Main B/D.

Check the oscillation

Check short.

Replace IC501

or IC503.

Check power.

(Refer to power)

If power is

normal

POWER ON

YES

NONO

3-4

B. Audio abnormal

D. Open/Close abnormal

Check the

connection of P5901.

Check IC501 Pins 13, 14.

Check Audio jack.

YES (If OK)

YES

YES (If OK)

YES

YES (If OK)

Check PLL FC of MPEG part.

Refer to Audio part.

Refer to MPEG part.

Replace B/D.

Check Front.

Reconnect it.

Refer to SERVO part.

Check the connection of MD.

AUDIO ABNORMAL

OPEN/CLOSE ABNORMAL

C. Video abnormal

Check Video jack.

YES (If OK)

Refer to Video part.

Refer to Encoder part.

Refer to MPEG part.

Replace B/D.

VIDEO ABNORMAL

3-5

E. Picture abnormal

Check the disc.

If OK

YES (If OK)

Refer to Servo part

Check PLL IC of MPEG part

Check DSP

Check MPEG

YES (If OK)

Replace B/D

PICTURE ABNORMAL

F. Disc Error

Check Disc

YES (If OK)

Refer to Servo part

Replace B/D

DISC ERROR

3-6

Power is on

Does LG Logo appear

on the screen?

Does the

moving picture of the DVD Disc

play on the screen

normally?

Is MPEG data signal normal?

Is error signal normal?

Is MPEG data signal normal?

Is Clock normal?

Does the audio

sound output from MPEG

decoder?

Does the

moving picture of the video

CD play on the screen

normally?

Does the audio sound

output normally?

END

Check power & clock.

Check CD/DVD DSP output

signal.

Check MPEG Decoder input

signal.

Check CD/DVD DSP output

signal.

Check MPEG Decoder input

signal.

Check CD/DVD DSP output

signal.

Check MPEG Decoder input

signal.

Check clock signal

YES

YES YES

YES

NO NO

OK OK

3. MPEG Circuit

_ OPTION

_ If included VCD function.

3-7

START

Does remote control

work normally?

Do all the

buttons work

normally?

Check waveform of

IC901 Pin 13.

Check waveform

of IC901 Pin 2.

Is Digitron on normally?

LED ON?

Check waveform

of IC901 Pin 6.

Is oscillation of

X901 normal?

Is waveform of IC901

Pin 76 normal? Check waveform

of IC901 Pin 13.

Does pulse

waveform of RC901 Pin 1

appear?

Is IC901

Pin 24 connected to

RC901 Pin 1 ?

Is RC901 Pin 2 5V?

Power on.

Check and replace

R903,R912, R904, R905,

R941, R906, R907.

Solder defective parts again.

Solder defective parts

Replace Q901.

Solder Key part.

Check Power.

Replace IC902.

Replace IC901.

Replace LED901.

Replace RC901.

Re-solder.

Recheck

Replace IC901.Complete repairing Front B/D.

NONONO

YES

YES YES

YES

YES YES

YES

YES YES

YES

YES YES

YES

4. Front Circuit (Digitron & key)

3-8

Does signal pulse

input to IC201 Pins 58, 59 when

the power is on?

Does signal goes

"High" to IC201 Pin194 when the

power is on?

Does

TTL pulse output to

IC201 Pins 140, 142?

Does

33.8688MHz clock input

to IC201 Pin 63?

Is IC201

Pins 83, 84, 88, 89 voltage

about 2.2V?

Replace IC201

(IC206 soldering or IC defect).

Check power circuit.

Check "2.µ-COM Part".

Replace X301 or IC304

(30MHz clock defect)

CHECK POINT(General)

5. RF/Servo Circuit

END

NO NO

YES

YESYES

YES

3-9

Does tray open or close?

Does the pick-up

slide inner or outer

track?

Fig.1. SLED Driver waveform

Fig.2. Focus Driver waveform

Does

the voltage change

at PMD04 Pins 1, 2 more than

2V on the basis of

3.8V?

Pressing

the open/close key

repeatedly, check the voltage of IC2M1

Pins 13, 14 change

0V to 5V

Does

PMD03 Pin 7 change

high to low?

Does

the pick-up lens move up

and down?

Check Focus Driver output.

(IC201 Pin 83, IC2M1 Pins 37, 38)

Check SLED Driver output.

IC201 Pin 88 IC2M1 Pins 28, 29.

IC201 Pin 88 no output : IC201 is defective

IC2M1 Pin 18 no output : IC2M1 is defective

IC201 Pin 83 no output : IC201 is defective

IC2M1 Pins 1, 2 no output : IC2M1 is defective

DECK assembly is defective.

Slide the pick-up to

inner track.

.Power on Check loading Part.

Push Pick-up to inner track to

the end by hand.

DECK assembly is defective.

(Limit sw)

check µ-COM Part.

Replace IC2M1.

No disc

END

YES

3-10

FOCUS ON?

Check

the focus error moving the

lens up and down.

(IC2A1 Pin 42)

Does the

TTL level change at IC201

Pin 78 and 132 moving

the lens?

Does the disc turn?

IC201 Pin169 is "High"?

Is OK the track jump. Does the signal

pulse appear at IC2A1 Pins

39, 29?

Does the screen appear?

OPEN/CLOSE

Replace µ-COM or IC201.

Replace IC201.

Check IC2A1 Pin 11,12,13,14

in DVD Mode

Fig.3. FOCUS ERROR waveform

IC201 no output : Pick-up is defective.

Check IC201 and IC2M1 when PMD03 Pin 6 is abnormal

Check IC2M1 Pin 21, PMD03

Pin 6 turn when the IC2M1

Pin 21 is less than 2.2V.

Check A

Video Part is defective.

Check "5.MPEG Circuit."

Check "7.OSD/Video Circuit."

Replace µ-COM part.

IC2A1 is defective.

DISC IN

END

NO NO

YES YES

YES

YES YES

YES

3-11

Is the eye-pattern vivid?

Does the

sawtooth waveform emit

at IC2A1 Pin 41? Does the 1.6V emit?

Check RF Eye-Pattern.

RF : 1.5-1.6V(IC2A1 Pin 57)

Fig.5. RF

waveform

Check IC2A1 Pins 5, 6, 7, 8. No signal: Pick-up is defective

Replace IC201. Check IC201 Pin84.

No signal at IC201 : IC201 is defective

• Check IC201 Pin 162.

• Check the clock at the IC201 Pins 28, 30.

• Both are normal : IC201 is defective

Replace IC2A1.

CHECK A

END

NO NO NO

YES

YES YES YES

3-12

BLOCK DIAGRAMS

1. Overall Block Diagram

DISC

SPINDLE

MOTOR

Focus, tracking sled

VF+

VF-

-24V

5.2VA

5V_A

5V_D

3.3V_M

3.3V

2.5V

A.GND,D.NGD,M.GND

loading drive

spindle

CD,DVD:A,B,C,D,E,F

MIRR,TZC

DVD_LDQM,DVD_SD,CSI

DVD_MA[0:11]

DVD_MD[0:15]

DVD_SD_CAS,

DVD_SD_RAS

DVD_SD_CLK

DVD_MWE

DVD_DATA[0:7]

DVD_SD_CSO,

DVD_UDQM

ICADDR[0:8]

ICDATA[00:15]

SDCLKI, ZISENB

REQZI

3.38688MHz

DA_DATA,

DA_LRCK,

DA_BCK

D[00:07]

S_CLK,S_DATA,

DPLL_L

IIC_DATA,

IIC_CLK

A[00:02]

DA_XCK

CVBS,

Y,C

Y(G),

PB(B)

PR(R)

CVBS,Y,C

Y(G)PB(B),PR(R)

27MHz

FE,TE,RFRP,SBADD,DVD/CD RF

TEBAL,FEBAL,

DPOCTL,EQF,EQB

MON,SPINDLE_DRV

FDO,TDO,

FMO

AC100-

240V,

50~

60Hz

FL DISPLAY

REMOCON

RECEIVER

KEY Input

SPINDLE_FG

POWER CONTROL

SENS,FOK,MIRR

MSDATO,DEFECT,DSP_SENSE,

SQSO,SQCK,SCOR,AO[0:5]

XLAT,S_CLK,S_DATA,DO[0:7]

PICK

IC2A1

33P3721

RF Signal

Processor

IC205

DRAM

256K x 16bit

IC201

DVDSP-3301

CD/DVD DSP

DVD SERVO

IC501

SH7034

MAIN

u-COM

IC301

ZiVA-3

MPEG A/V

Decoder

IC305

SAA7126/8

VIDEO

Encoder

IC302

GM72V1621

1M x 16bit

SDRAM

IC303

GM72V1621

1M x 16bit

SDRAM

IC304

PLL1700

CLOCK

GENERATROR

IC2M1

KA3032

Motor Driver

POWER

BOARD

IC901

LC866112

OPEN S/W

CD DECK MECHANISM

CLOSE S/W

LIMIT S/W

DAC_LO,

S_CLK,

S_DATA

DA_DATA,

DA_LRCK,

DA_BCK

27MHz

X-TAL

L/R

VDATA[0:7]

Hsync

Vsync

IC306/307

BA7660

6dB AMP

AMP

VIDEO

'OUT

L/R CVBS Y

CY(G) PB(B) PR(R)

IC401/451

PCM1723E

AUDIO

DAC

3-13

2. Power(SMPS) Block Diagram

RECTIFIER(FLD)

RECTIFIER LINE FILTER

SWITCHING TR

RECTIFIER(14V) LPF

REG(8V)

REG(3.3V)

PWR ON/OFF

F+

F-

-24VA

12VA

5.2VA

5V_D

5V_A

3.3V

3.3V_M

2.5V

LPF

RECTIFIER(9V)

RECTIFIER(5.2V)

TRANS

LPF

FEED B.

3-14

IC2A1

33P3721

RF Signal

Processdr

IC206

DVDSP-3301

CD/DVD DSP

DVD SERVO

DRAM

256K x 16bit

IC2M1

KA3032

SpindleMotor,LoadingMotor,

Actuator Driver

PICK

DVD:A,B,C,D,

FE,TE,PI,SBADD

SENS,FOK,SLD_FG,

MSDATO,DEFECT,DSP_SENSE

SQSO,SQCK,SCOR

XLAT,S_CLK,S_DATA

DSP_CS,/WR,/RD

DO[0:7]

AO[0:5]

DVD_DATA[0:7]

MCK

UCOM

I/F

MPEG

I/F

UCOM

I/F

M/D

DVD/CD RF

MIRR,TZC

ICADDR[0:8]

ICDATA[00:15]

MON,MDP

FDO,TDO,FMO

Spindle

focus,tracking,loading,sled SPINDLE_FG

Load open/close(loading control)

CD:A,B,C,D/E,F

3. RF/CD DSP/DVD DSP/DVD SERVO Block Diagram

3-15

4. Audio Block Diagram

IC402

LPF &Buffer

NJM4580M

OP AMP

IC401

PCM1716

Audio DAC

U-COM

I/F

DAC_RST

S_DATA

S_CLK

DAC_L0

DA_LRCK

DA_BCK

DA_XCK

DA_DATA0

MPEG

I/F

A/V

JACK

I/F

3-16

5. MPEG Block Diagram

DSP

I/F IC301

ZiVA-3

MPEG A/V

Decoder

IC303

GM72V1621

1M x 16bit

SDRAM

IC302

GM72V1621

1M x 16bit

SDRAM

IC304

PLL1700

CLOCK

GENERATROR

IC305

SAA7126/8

NTSC/PAL

Encoder

IC306

BA7660FS

6dB AMP

IC307

BA7660FS

6dB AMP

27MHz

X-TAL

U-COM

I/F

DVD_DATA[0:7]

DAI_DATA

DA_DATA[0:3]

DA_BCK,DA_XCK,DA_LRCK

SPDIF

HSYNC,VSYNC

CVBS

AUDIO

I/F

A/V

JACK

I/F

U-COM

I/F

U-COM

I/F

SERVO

I/F

VDATA[0:7]

DA_XCK

MPEG_CLK

IIC_DATA,IIC_CLKIIC_DATA,IIC_CLK

DAC_RST

SDCLK1,ZISENB

REQZ1

A[00:02]

D[00:07]

MPEG_ERROR

MPEG_RST

DVD_SD_CS0,DVD_UDQM

DVD_MD[0:15]

DVD_MA[0:11]

DVD_SD_CAS

DVD_SD_RAS

DVD_SD_CLK

DVD_MWE

DVD_LDQM

DVD_SD_CS1

S_CLK,S_DATA<DPLL_L

MCK

21216

3-17

6. µ-COM Block Diagram

AV JACK

I/F

IC506

XC9536

IC502

FLASH

ROM

FRONT

I/F

IC503

DRAM

IC505

74HC374

IC501

SH6417034

MPEG

I/F

SERVO

I/F

DSP

I/F

IC504

EEPROM

2402/2416

16:9,SYSTEM_SW LD_ON,LOAD CLOSE,MIRR,ACT_MUTE

LOAD_OPEN,SPINDLE_FG,SLD_FG,

D[00:07],A[00:02],IIC_CLK,IIC_DATA,SCLK0, MPEG_RST

,MPEG_INT,V_MUTE,A_MUTE,DAC_RST,Y_SEL

MPEG_ERROR

,DAC_L0

,RF_LAT

,/DSP_CS

,/MPEG_CS

,/PP_CS 16:,

,Y_SEL

,,MPEG_RST

PWR_CTL

,SENS,LIMIT_SW

,MIC_ON,CLOSE_SW

,OPEN_SW,MPEG_WAIT

,16:9,,MPEG_RST

,M_RESET

M_RESET

,RXD0

,TXD0

,SCK0

,F_REQ

,MODE_SW

,M_REQ,

,ECHO

IIC_CLK

,IIC_DATA

SENS_MCOM

, MICOM_WAIT

/IOCS1,/WR

D[00:04]

A[19:21]

A[01:19]

D[00:15]

A[01:09]

D[00:15]

A[01:21]21 D[00:15]

D[00:07] DAC_RST

,E_DR

,/S_XRST

,XLAT

,ACT_MUTE

,LOAD_OPEN

,LOAD CLOSE

,/PWR_RST

EXP_W2

,/PWR_CTL

D[00:07],A[00:05], ,E_SIN,E_CLK

LOAD_FR,F/R,LOCK,DEFECT,FOK

DSP_SENSE,

3-18 3-19

NOTES) Warning

NOTES) Parts that are shaded are critical

NOTES) With respect to risk of fire or

NOTES) electricial shock.

'00. 04. 17 R10542A

MARANTZ(NARROW)

CIRCUIT DIAGRAM

1. POWER(SMPS) CIRCUIT DIAGRAM (DV3100/U1B,/F1N)

IMPORTANT SAFETY NOTICE

WHEN SERVICING THIS CHASSIS, UNDER NO CIR-

CUMSTANCES SHOULD THE ORIGINAL DESIGN BE

MODIFIED OR ALTERED WITHOUT PERMISSION

FROM THE MARANTZ ELECTRONICS CORPORATION.

ALL COMPONENTS SHOULD BE REPLACED ONLY

WITH TYPES IDENTICAL TO THOSE IN THE ORIGINAL

CIRCUIT. SPECIAL COMPONENTS ARE SHADED ON

THE SCHEMATIC FOR EASY IDENTIFICATION.

THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIF-

FER FROM THE ACTUAL CIRCUIT USED. THIS WAY,

IMPLEMENTATION OF THE LATEST SAFETY AND

PERFORMANCE IMPROVEMENT CHANGES INTO THE

SET IS NOT DELAYED UNTIL THE NEW SERVICE LIT-

ERATURE IS PRINTED.

NOTE :

1. Shaded( ) parts are critical for safety. Replace only

with specified part number.

2. Voltages are DC-measured with a digital voltmeter

during Play mode.

Power oscillator dead.

Q101 is defective

Q101 failure caused D101 failure.

D101 is defective.

VF+ power dead.

D107 is defective.

-24VA power dead.

D108 is defective.

3.3V power dead.

IC106 and IC107 are defective.

Power control is abnormal.

Q107 and Q108 are defective.

8V Power dead.

IC105 is defective.

Power dead.

IC104 is defective.

Power dead.

IC108 is defective.

If fuse fails atstarup.

Q101 and Q102 are defective.

3-20 3-21

NOTES) Warning

NOTES) Parts that are shaded are critical

NOTES) With respect to risk of fire or

NOTES) electricial shock.

'00. 04. 17 R10542B

MARANTZ(WIDE)

1. POWER(SMPS) CIRCUIT DIAGRAM (DV3100/A1B,/N1B)

IMPORTANT SAFETY NOTICE

WHEN SERVICING THIS CHASSIS, UNDER NO CIR-

CUMSTANCES SHOULD THE ORIGINAL DESIGN BE

MODIFIED OR ALTERED WITHOUT PERMISSION

FROM THE MARANTZ ELECTRONICS CORPORA-

TION. ALL COMPONENTS SHOULD BE REPLACED

ONLY WITH TYPES IDENTICAL TO THOSE IN THE

ORIGINAL CIRCUIT. SPECIAL COMPONENTS ARE

SHADED ON THE SCHEMATIC FOR EASY IDENTIFI-

CATION.

THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIF-

FER FROM THE ACTUAL CIRCUIT USED. THIS WAY,

IMPLEMENTATION OF THE LATEST SAFETY AND

PERFORMANCE IMPROVEMENT CHANGES INTO

THE SET IS NOT DELAYED UNTIL THE NEW SER-

VICE LITERATURE IS PRINTED.

NOTE :

1. Shaded( ) parts are critical for safety. Replace only

with specified part number.

2. Voltages are DC-measured with a digital voltmeter

during Play mode.

FLD power dead.

D107, D108, F102 are defective.

3.3V power dead.

IC106 and IC107 are defective.

Power control is abnormal.

Q107 and Q108 are defective.

8V Power dead.

IC105 is defective.

Power dead.

IC102 is defective. Power dead.

IC104 is defective.

Power dead.

IC101 is defective.

3-22 3-23

TRACKING LOOP

FOCUS LOOP

SLED LOOP

SPINDLE LOOP

WAVEFORM

'00. 04. 17 R10536A

MARANTZ

IC204 is defective.

Scratched CD Audio abnormal.

IC203 is defective.

AD Converter Error

- No tracking/Focus control

2. DVD DSP CIRCUIT DIAGRAM

3-24 3-25

3. DRIVE & RF CIRCUIT DIAGRAM

TRACKING LOOP

FOCUS LOOP

SLED LOOP

SPINDLE LOOP WAVEFORM

'00. 04. 17. R10535A

MARANTZ

OPEN

Q2M3 is defective.

Spindle rotates in high speed.

IC2A2 is defective.

No fucus & tracking control. Q2A1, Q2A2 are defective.

CD/DVD LD will not be on.

3-26 3-27

• NO DVD SCREEN DISPLAY

• NO VCD SCREEN DISPLAY.

• NO CD SOUND OUT.

• NO SCREEN DISPLAY.

• NO SOUND OUT.

• NO 2CH AUDIO OUT

NO SCREEN

• NO 2CH AUDIO OUT

11 10

WAVEFORM

'00. 04. 17 R10538A

MARANTZ

"B"

C/No DV3100/N1B ect.

R3B1 0 ohm x

R3C1 x 0 ohm

"B" x 0

*OPTION Table

4. MPEG CIRCUIT DIAGRAM

IC302, IC303 are defective.

A/V out bad. X301 is defective.

No power on.

Q302, 303 are defective.

Component Y out defective.

Q301, 304 are defective.

Y/C out is defective.

IC306 is defective.

CVBS/Y/C out bad.

IC305 is defective.

Video out bad.

IC307 is defective.

Component out bad.

3-28 3-29

• WAVEFORMS (VIDEO ENCODER)(RF/SERVO)

IC2A1 Pin 42, Focus Error

IC2A1 Pin 36, Pi

IC2A1 Pin 41

Tracking Error

Tek Stop : 1 00kS/s 3290 Acqs

M 500µsCH1 280/mV

Record

Length

Fit to Screen

OFF

Time Base

Main

Trigger

Position

50%

Horiz

Scale

(/div)

Horiz

Pos FastFrame

Setup

1 of 3

Ch3 1.00V

[ T ]

Record

Length

2500

points in

50divs

1000

points in

20divs

500

points in

10divs

IC305 Pins 9~16, MPEG Data IC305 Pin 30, Composite

IC305 Pin 24, Chrominance

Tek Stop : 2.50MS/s 4 Acqs

M20.0µs2 Apr 1999

14:47:27

Glitch Ch1

Ch3 500mV

[T ]

IC305 Pin 27, Luminance IC305 Pins 40, 41 SDA/SCL

Tek Stop : 1 00kS/s 3290 Acqs

M 500µsCH1 280/mV

Edge Slope

Type

<Edge>

Source

Ch1 Coupling

DC Level

280mV

Mode

Holdoff

Ch3 1.00V

[ T ][ T ]

Slope

IC305 Pin 4, MPEG Clock(27MHz)

Tek Stop : 10.0kS/s 13 Acqs

M 5 .00ms CH1 280/mV

Edge Slope

Type

<Edge>

Source

Ch1 Coupling

DC Level

280mV

Mode

Holdoff

Ch3 1.00V

[ T ]

Slope

IC305 Pin 7, Vertical SYNC

Tek Stop : 2.50MS/s 7 Acqs

M 20.0µsCH1 280/mV

Edge Slope

Type

<Edge>

Source

Ch1 Coupling

DC Level

280mV

Mode

Holdoff

Ch3 1.00V

[ T ]

Slope

IC305 Pin 8 Horizontal SYNC IC305 Pin 29 Component Pb

IC305 Pin 23 Component Pr IC305 Pin 27 Component Y

IC2A1 Pin 41

VBR TRACKING Error

IC2A1 Pin 57,

IC201 Pin 88, SLED Drive(FMO)

IC201 Pin 18, SLED FG

IC2A1 Pin42, Focus Error(in Focus Search)

IC201 Pin 83, Focus Drive(FDO)

3-30 3-31

5. AUDIO DM & 5.1CH CIRCUIT DIAGRAM

2CH L SIGNAL

2CH R SIGNAL

'00. 04. 17 R10539A

MARANTZ

Q401 is defective.

2CH Audio out bad.

IC404 is defective.

Audio bad

IC403, Q404 are defective.

Digital data out bad.

IC402 is defective.

2CH Audio out bad.

IC401 is defective

2CH Audio out bad

3-32 3-33

6. µ-COM/EXPANDER CIRCUIT DIAGRAM

FLASH ROM SDRAM

MAIN CPU

EEPROM

CPLD

'00. 04. 17 R10537A

MARANTZ

Audio output is unstable

Servo will not operate X501 No Power on

Video output level is unstable

Open, Close Error

Servo will not operate

FLD Error

DV3100/K1G(ASIA) : IC502(FLASH ROM) 16M

DV3100/U1B, F1N, N1B, A1B : IC502(FlASH ROM) 8M

3-34 3-35

7. DIGITRON(TIMER) & KEY CIRCUIT DIAGRAM

RESET

REMOCON

RECEIVE

FRONT CONTROL

'00. 04. 17 R10540A

MARANTZ

MIC OPTION

IC902 is defective.

Reset Error.

RC901 is defective.

R/C Error.

DIG901 is defective.

FLD is distorted.

Q901, Q902 are defective.

LED will not operate.

3-36 3-37

8. JACK CIRCUIT DIAGRAM

SCART OPTION

(DV3100/N1B OPTION)

DV3100/N1B, K1G, A1B ONLY

S VIDEO (C)

AUDIO (L)

AUDIO (R)

OPTICAL

COMP.VIDEO

S VIDEO (Y)

'00. 04. 17 R10541A

MARANTZ

/U1B, /A1B, /F1N ONLY

16:9 can’t be changed

3-38 3-39

PRINTED CIRCUIT DIAGRAMS

1. MAIN P.C.BOARD

LOCATION GUIDE

(TOP SIDE)

(BOTTOM SIDE)

3-40 3-41

LOCATION GUIDE

2. Power, A/V, Front P.C.BOARD

3-42

3. KEY P.C.BOARD

4. Power LED P.C.BOARD

3-43

ELECTRICAL PARTS LIST

ASSIGNMENT OF COMMON PARTS CODES.

RESISTORS

: 1) GD05 x x x 140, Carbon film fixed resistor, ±5% 1/4W

R : 2) GD05 x x x 160, Carbon film fixed resistor, ±5% 1/6W

1 Resistance value

Examples ;

1 Resistance value

0.1 Ω ....... 001 10 Ω ....... 100 1k Ω ... 102 100k Ω ..... 104

0.5 Ω ....... 005 18 Ω ....... 180 2.7k Ω... 272 680k Ω ..... 684

1 Ω ....... 010 100 Ω....... 101 10k Ω ... 103 1M Ω ..... 105

6.8 Ω ....... 068 390 Ω ....... 391 22k Ω... 223 4.7M Ω ..... 475

Note : Please distinguish 1/4W from 1/6W by the shape of parts

used actually.

CAPACITORS

C : CERAMIC CAP.

3) DD1 x x x x 370, Ceramic capacitor

Disc type

Temp.coeff. P350~N1000, 50V

3 Capacity value

2 Tolerance

Examples

2 ATolerance (Capacity deviation)

± 0.25 pF ....... 0

± 0.5 pF ....... 1

± 5 % ....... 5

Tolerance of COMMON PARTS handled here are as follows :

0.5 pF - 5 p ......... ± 0,25 pF

6 pF - 10 pF ..... ± 0.5 pF

12 F - 560 pF... ± 5 %

3 Capacity value

0.5 pF .... 005 3 pF .... 030 100 pF..... 101

1 pF .... 010 10 pF .... 100 220 pF..... 221

1.5 p .... 015 47 pF .... 470 560 pF..... .561

C : CERAMIC CAP.

4) DK16 x x x 300, High dielectric constant ceramic

capacitor

Disc type

Temp.chara. 2B4, 50V

4 Capacity value

Examples

4 Capacity value

100 pF .....101 1000 pF .... 102 10000 pF .... 103

470 pF .....471 2200 pF .... 222

5)ELECTR0LY CAP.( ), 6)FILM CAP ( )

5) EA x x x x x x 10, Electrolytic capacitor

One-way lead typeTolerance ±20%

6 Working voltage

5 Capacity value

Examples

5 Capacity value

0.1µF .... 04 4.7µF .... 475 100µF ..... 107

0.33µF .... 334 10µF .... 106 330µF ..... 337

1µF .... 105 22µF .... 226 1100µF ..... 118

2200µF ..... 228

6 Working voltage

6.3 V. . .006 25 V. . .025

10 V. . .010 35 V. . .035

16 V. . .016 50 V. . .050

6) DF15 x x x 350 Plastic film capacitor

DF15 x x x 310 One-way type, Mylar ±5% 50V

DF16 x x x 310 Plastic film capacitor

One-way type, Mylar ±10% 50V

7 Capacity value

Examples

7 Capacity valu

0.001µF (1000pF) ....... 102 0.1µF...... 104

0.0018µF........................ 182 0.56µF...... 564

0.01µF........................ 103 1µ F...... 105

0.015µF........................ 151

1) The above CODES(R , R , C ,C

and C ) are omitted on the schematic diagram in

some case.

2) On the occasion, be confirmed the common parts on the

parts list.

3) Refer to “Common Parts List” for the other common

parts(Rl05, DD4, DK4).

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

The suppliers and their type numbers of fusible resistors are as

follows ;

1 . KOA Corporation

Part No.(MJI) Type No.(KOA) Description

NH05 x x x 140 RF25S x x x x Ω J(±5% 1/4W)

NH05 x x x 120 RF50S x x x x Ω J(±5% 1/2W)

NH85 x x x 110 RF73B2A x x x x Ω J(±5% 1/10W)

NH95 x x x 140 RF73B2E x x x x Ω J(±5% 1/4W)

Resistance value Resistance value(0.1 Ω- 10k Ω)

2. Matsushita Electronic Components Co., Ltd

Part No.(MJI) Type No.(MEC) Description

NF05 x x x 140 ERD-2FCJ x x x (±5% 1/4W)

RF05 x x x 140

NF02 x x x 140 ERD-2FCG x x x (±2% 1/4W)

RF02 x x x 140

Resistance value

Examples :

Resistance value

0.1 Ω ....... 001 10 Ω ...... 100 1k Ω.. 102 100k Ω .... 104

0.5 Ω ....... 005 18 Ω ...... 180 2.7k Ω.. 272 680k Ω .... 684

1 Ω ....... 010 100 Ω...... 101 10k Ω.. 103 1M Ω .... 105

6.8 Ω ....... 068 390 Ω ...... 391 22k Ω.. 23 4.7M Ω .... 475

ABBREVIATION AND MARKS

ANT. : ANTENNA BATT. : BATTERY

CAP. : CAPACITOR CER. : CERAMIC

CONN. : CONNECTING DIG. : DIGITAL

HP : HEADPHONE MIC. : MICROPHONE

µ-PRO : MICROPROCESSOR REC. : RECORDING

RES. : RESISTOR SPK : SPEAKER

SW : SWITCH TRANSF. : TRANSFORMER

TRIM. : TRIMMING TRS. : TRANSISTOR

VAR. : VARIABLE X ‘ TAL : CRYSTAL

NOTE ON SAFETY:

Symbol Fire or electrical shock hazard.

Only original parts should be used to replaced

any part marked with symbol . Any other

component substitution ( other than original

type), may increase risk of fire or electrical shock

hazard.

NOTE

3-44

5. ELECTRICAL PARTS LIST

BC101 /N1B 9965 000 06959 BEAD CORE BFS3550R2FD8 *FC900210R

BD101 4822 130 81248 S1WBA60 (1A 600V) *HD201400R

C100 /N1B 9965 000 00393 CE 47µF/50V KME (SMPS) EA47605020

C101 nsp PCX2 275V 0.1µF M nsp

C102 /N1B nsp PCX2 275V 0.1µF M nsp

C103 /N1B 9965 000 07003 68µF SHL SD 400V M FL BK7.5 *EA000980R

C104 nsp 0.022µF 50V Z F TA26 S nsp

C105 nsp 0.01µF D 630V K PE NI nsp

C106 nsp HIGH-VOL 100P/1KV SMPS nsp

C109 /N1B nsp 0.047µF S 50V J PE nsp

C114 /N1B nsp 3300PF 400V M E R(NK AD SD) nsp

C116 9965 000 07004 470µF KME 25V M FM5 EA47702520

C118 nsp 100M SMS 16V M FM5 nsp

C119 9965 000 00393 CE 47µF/50V EA47605020

C121 nsp 220U SMS 16V M FM5 nsp

C122 nsp 330PF 400V K B R nsp

C123 4822 124 23111 1000µF KME TYPE 16V M FM5 EA10801620

C124 4822 124 23111 1000µF KME TYPE 16V M FM5 EA10801620

C125 nsp 330µF SMS 10V M FM5 nsp

C126 9965 000 07004 470µF KME 25V M FM5 EA47702520

C127 /N1B nsp 220µF SMS 25V M FM5 nsp

C128 nsp 0.047µF S 50V J PE nsp

C129 nsp 470µF SHL_SD 10V M FM5 nsp

C130 nsp 100M SMS 16V M FM5 nsp

C131 nsp 100M SMS 16V M FM5 nsp

C134 nsp 100M SMS 16V M FM5 nsp

C137 nsp 470µF SHL_SD 10V M FM5 nsp

C140 nsp 470µF SHL_SD 10V M FM5 nsp

C201 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C203 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C205 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C207

C210 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C221 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C223 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C224 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C226 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C227 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C228 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C229 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C232 4822 124 11383 10µF 6.3V M 3216 EY10600650

C237 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C239

C240 nsp 2200PF 50V K X7R(X) 1608 nsp

C241 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C242 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C245 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C250 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C255 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C260

C270 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C271 4822 124 11383 10µF 6.3V M 3216 EY10600650

C272 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C273 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C274 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C275 4822 124 11383 10µF 6.3V M 3216 EY10600650

C276 4822 124 11383 10µF 6.3V M 3216 EY10600650

C277 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C278 4822 124 11383 10µF 6.3V M 3216 EY10600650

C281

C284 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C285 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2A0 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2A1 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2A2 nsp 2200PF 50V K X7R(X) 1608 nsp

C2A3 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2A8

C2A9 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2B0 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2B1 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2B2 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

C2B3 /N1B nsp GRM39Y5V473Z25C500 PT266 nsp

C2B4 nsp 560PF 50V K NP0 1608 nsp

C2B5 nsp 560PF 50V K NP0 1608 nsp

C2B6 nsp 0.033µF 50V K X7R(X) 1508 nsp

C2B7 nsp 0.033µF 50V K X7R(X) 1508 nsp

C2B8 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2B9 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2C0 nsp 220P 50V J COG 1.6X0.8 nsp

C2C1 nsp 2200PF 50V K X7R(X) 1608 nsp

C2C4

C2C5 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2C8 nsp 33P 50V J COG 1.6X0.8 nsp

C2C9 nsp 33P 50V J COG 1.6X0.8 nsp

C2D2 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C2D4

C2D5 4822 124 11383 10µF 6.3V M 3216 EY10600650

C2D6 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2D7 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2D9 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2E1 nsp 3900PF 50V K Z5U(E) 1608 nsp

C2M1 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C2M2 nsp 6800P 50V K X7R 1.6X0.8 nsp

C2M3 nsp 4700PF 50V K X7R(X) 1608 nsp

C2M4 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2M9

C2N1 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C2N2 /N1B nsp GRM39X7R103K50C500 PT266 nsp

C2N3 nsp 0.022µF 50V Z Y5V(F) 1508 nsp

C2N4 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C301 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C302 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C303 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C304 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C305 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C330

C331 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C332 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C338

C340 /N1B nsp 10µF 10V M 3216 TP(-) nsp

C341 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C342 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C343 nsp 22P 50V J COG 1.6X0.8 nsp

C344 nsp 22P 50V J COG 1.6X0.8 nsp

C346 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C347 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C348 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C349 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C355

C356 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C357 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C359

C360 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C361 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C362 4822 124 11435 22µF 6.3V M 3528 EY22600650

C363 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C364 4822 124 11435 22µF 6.3V M 3528 EY22600650

C365 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C366 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C367 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C368 4822 124 11435 22µF 6.3V M 3528 EY22600650

C369 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C370 4822 124 11435 22µF 6.3V M 3528 EY22600650

C371 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C372 4822 124 11435 22µF 6.3V M 3528 EY22600650

C373 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C401 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C402 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C404

C406 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C407 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

3-45

C408 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C409 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C410 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C411 /N1B nsp GRM39X7R102K50-500 PT266 nsp

C412 nsp 100P 50V J COG 1.6X0.8 nsp

C413 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C415 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C416 /N1B nsp GRM39X7R102K50-500 PT266 nsp

C417 nsp 100P 50V J COG 1.6X0.8 nsp

C418 nsp 3900PF 50V K Z5U(E) 1608 nsp

C419 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C420 nsp 3900PF 50V K Z5U(E) 1608 nsp

C421 4822 124 11131 47µF 6.3V M 85STD(CYL) EY47600620

C423 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C424 /N1B nsp GRM39X7R103K50C500 PT266 nsp

C427 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C428 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C429 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C430 9965 000 07005 100µF 16V M 85STD(CYL) EY10701660

C501 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C504

C506 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C509

C512 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C514

C515 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C517

C518 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C519 nsp 2.2000µF 16V Z Y5V(F) 3216 nsp

C520 nsp 220P 50V J COG 1.6X0.8 nsp

C521 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C522 nsp 220P 50V J COG 1.6X0.8 nsp

C527

C529 nsp 220P 50V J COG 1.6X0.8 nsp

C531 nsp 220P 50V J COG 1.6X0.8 nsp

C532 nsp 220P 50V J COG 1.6X0.8 nsp

C534 nsp 56P 50V J COG 1.6X0.8 nsp

C535 nsp 0.1µF 50V Z Y5V(F) 1508 nsp

C536 9965 000 03911 10µF 16V M 3528MM TP(-) EY10601670

C606 nsp 0.01M 16V M Y TA26 nsp

C608 /N1B nsp 0.047M 50V Z F TA26 nsp

C901 nsp 0.1µF 50V Z F TA26 D nsp

C902 nsp 10µF SMS 16V M FM5 nsp

C903 nsp 33P 50V J SL TA26 nsp

C904 nsp 33P 50V J SL TA26 nsp

C906 nsp 47M SMS 50V M FM5 nsp

C907 nsp 10µF SMS 16V M FM5 nsp

C909 nsp 0.1µF 50V Z F TA26 D nsp

C910 nsp 0.1µF 50V Z F TA26 D nsp

C912 nsp 47M SMS 16V M FM5 nsp

C914

D101 /N1B 4822 130 81244 ERA22-10 *HD201480R

D102 /N1B 9965 000 06965 EU01W *HD201390R

D106 9965 000 06966 RU3YXLF-C1 *HD201470R

D107 /N1B 9965 000 06965 EU01W *HD201390R

D108 /N1B 9965 000 06965 EU01W *HD201390R

D109 9965 000 06968 B10A45V1 *HD201440R

D110 9965 000 06971 ERA18-02KFRB *HD201460R

D113 4822 130 33765 1N5402 *HD201450R

D114 9965 000 06973 RL104 *HD201430R

D2A1 4822 130 33944 DAN202K HZ20002210

D601 /N1B 4822 130 32778 1SS133 HD20015210

D909 4822 130 32778 1SS133 HD20015210

DIG901

9965 000 06975 7-BT-273GN *HQ300420R

F101 /N1B 4822 070 31602

1600MA 250 V 5.2X20 CY/GL SEMK

*FS000740R

F102 /N1B 4822 252 51025 ICP-N10 T104 FU40115020

F103 nsp D=0.6 ROLL nsp

F603 nsp CFI06B1H101MF 2.5K/T nsp

F604 nsp CFI06B1H101MF 2.5K/T nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

FH101

nsp FUSE CLIP nsp

FH102

nsp FUSE CLIP nsp

IC101 9965 000 06978

STR-G6153T 5PIN FM CUT BK PWM

*HC106630R

IC102 /N1B 4822 130 11545

PC123Y PHOTO-COUPLER(SARPH)

*HC200110R

IC104 4822 209 81397 KA431AZ *HC105750R

IC105 9965 000 06979 KA78R08 *HC300250R

IC106 9965 000 06980 PQ3RD13 *HC105730R

IC107 9965 000 06980 PQ3RD13 *HC105730R

IC201 9965 000 06984 GDC25D801C *HC105650R

IC203 4822 209 90472 NJM3414AM-TE1_3K HC10179090

IC204 9322 119 37685 TC4W53FU *HC105800R

IC205 /N1B 9965 000 06985

GLT440L16-40J4 40P SOJ TP 4M(2

*HC106620R

IC2A1 9965 000 06986 SSI33P3721(VER.2) *HC105760R

IC2A2 4822 209 90472 NJM3414AM-TE1_3K HC10179090

IC2A3 5322 209 12918 AD8011AR *HC105540R

IC2M1 9965 000 06987 KA3032 *HC105610R

IC301 9965 000 06988 ZIVA3-PE0 *HC105590R

IC302 9965 000 06989 GM72V161621ET-7 *HC105630R

IC303 9965 000 06989 GM72V161621ET-7 *HC105630R

IC304 9965 000 06990 PLL1700E *HC105570R

IC305 9965 000 06991 SAA7128 *HC105690R

IC306 9965 000 04716 BA7660FS *HC105700R

IC307 9965 000 04716 BA7660FS *HC105700R

IC401 8203 303 11278 PCM1716E *HC105580R

IC402 9965 000 04714 NJM4580M *HC105660R

IC403 4822 209 33521 TC7W04FU HC10382050

IC404 9965 000 06992 PQ20WZ5U *HC105720R

IC501 9965 000 06993 HD6417034AFI20 *HC105640R

IC502 /N1B 9965 000 06994 AT49F8192A-90TC (/N1B) *HC106600R

IC503 /N1B 9965 000 06995

M11B416256A-35J ELITE 4M(256K)

*HC106610R

IC504 9965 000 06996 KS24C021CS *HC105740R

IC505 9965 000 06997 SN74AHC374PWLE *HC105770R

IC506 9965 000 06292 XC9536-15VQ44C-PROGRAM HC10102990

IC901 9965 000 06998 LC866112B-5R54 *HC105710R

IC902 9965 000 06999 KIA7042P *HC105670R

JK602 /N1B 9965 000 07000

RCA DIN-09G YUQIU D.GND R4P+DI

*YT002250R

JK603 /N1B 9965 000 07001 1F-21P 3.81 ANGLE(BLACK) *YT002260R

L101 9965 000 07002 SHT LFS2020V4-04350 *FN000110R

L102 nsp CHOCK(22MH) 5MM nsp

L103 nsp CHOCK 20UH nsp

L201 nsp HB-1M2012-102JT 3K nsp

L204

L207 nsp HB-1M2012-102JT 3K nsp

L208 nsp HB-1M2012-102JT 3K nsp

L211 nsp HB-1M2012-102JT 3K nsp

L2A1 nsp HB-1M2012-102JT 3K nsp

L2A2 nsp HB-1M2012-102JT 3K nsp

L301 nsp HB-1M2012-102JT 3K nsp

L309

L401 nsp HB-1M2012-102JT 3K nsp

L402 nsp HB-1M2012-102JT 3K nsp

L501 nsp HB-1M2012-102JT 3K nsp

L502 nsp HB-1M2012-102JT 3K nsp

L503 nsp HB-1M2012-102JT 3K nsp

L505 nsp HB-1M2012-102JT 3K nsp

L506 nsp HB-1M2012-102JT 3K nsp

L507 nsp HB-1M2012-102JT 3K nsp

L902 nsp 100M K 6X6 L5 nsp

LED901

9965 000 04671 SPR325MVWT31 *HI100860R

P3901 nsp 2254-30S-T ILSSAN 30PIN 2.0MM nsp

P5502 nsp 04-6232-115-008-800 nsp

P5901 nsp 2254-30S-T ILSSAN 30PIN 2.0MM nsp

P6401 nsp 2254-30P-T ILSSAN 30PIN 2.0MM nsp

P9501 nsp 2254-30P-T ILSSAN 30PIN 2.0MM nsp

P9901 nsp

GIL-S/9073AN 4 150M/M UL1571 A

nsp

P9902 nsp

GIL-S-04P-S2T2-EF LG CABLE 4PI

nsp

P9903 nsp GIL-S/GIL-T 12 PIN 100M/M UL15 nsp

P9904 nsp *WAFER G/S GIL-S-12P-S2T2-EF nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

3-46

PBJIG 9965 000 07006 DV3100 JIG ASSY *DV3100JIG

PBP00 nsp PCB ASSY P.LED nsp

PBT00 nsp PCB ASSY KEY nsp

PMD01

nsp 04-6232-118-008-800 ELCO 18PIN nsp

PMD03

nsp 04-6232-108-008-800 ELCO 8PIN nsp

PMD04

nsp

GT200 LG CABLE 5PIN 2MM STRAIG

nsp

PW101

nsp

GP390 LGC 3P 3.96 STRAIGHT SN

nsp

Q107 9965 000 07007 KSB1151-Y BK *HT200390R

Q108 4822 130 41319 KTC3198-TP-BL *HT300720R

Q2A1 9965 000 04336 2SA1037K-Q HX110371A0

Q2M1 4822 130 60729 DTC124EK SOT23 3 *BA001080R

Q2M3

Q301 4822 130 62937 2SC2412KR(BR)-T96 *HT300800R

Q304 4822 130 62937 2SC2412KR(BR)-T96 *HT300800R

Q401 4822 130 10481 KTA1505S-Y -T1 *HT100500R

Q404 9965 000 07008 UMZ1N TL UM6 3K BA30002210

Q601 9965 000 07009 KTA1266-GR *HT100480R

Q602 4822 130 10098 KRC103M-TP (KRC1203) KEC *HT300790R

Q603 4822 130 10098 KRC103M-TP (KRC1203) KEC *HT300790R

Q607 4822 130 41319 KTC3198-TP-BL *HT300720R

Q608 4822 130 41319 KTC3198-TP-BL *HT300720R

Q615 9965 000 07009 KTA1266-GR *HT100480R

Q901 9965 000 07010 KRC105M(KRC1205) TP KEC *BA000880R

Q902 9965 000 07011 KRA 105M KEC *BA000890R

R100 nsp 1.5M Ω1/2 W 5% MF10 nsp

R101 nsp 2.7/2W CEMENT SMPS V nsp

R102 9965 000 07012 100K Ω2 W 5% TR GA05104020

R104 9965 000 07013 56KΩ2 W 5% TR GA05563020

R110 nsp D=0.6 ROLL nsp

R111 9965 000 07014 0.51 Ω2 W 5% TR GB05512020

R112 nsp 3.9 1/6W 5 TA26 nsp

R114 nsp 100K 1/6W 5 TA26 nsp

R115 nsp 5.6 1/6W 5 TA26 nsp

R120 nsp 1.0K 1/6W 5 TA26 nsp

R121 nsp 1.2K 1/6W 5 TA26 nsp

R122 4822 053 10121 120 1W 5% TR GA05121010

R123 nsp 1.0K 1/6W 5 TA26 nsp

R124 nsp 330 1/6W 5 TA26 nsp

R125 nsp 2.2K 1/6W 5 TA26 nsp

R126 nsp 1.0K 1/6W 5 TA26 nsp

R127 nsp 3.6K Ω1/8 W 1% TA26 nsp

R128 nsp 3.3K 1/6W 1 TA26 nsp

R130 nsp 10K 1/6W 5 TA26 nsp

R140 nsp 10K 1/6W 5 TA26 nsp

R141 nsp 10K 1/6W 5 TA26 nsp

R144 nsp 330 1/6W 5 TA26 nsp

R145 nsp 470 1/6W 5 TA26 nsp

R201 nsp 0 1/16W 5 D. nsp

R204

R217 nsp 10 1/16W 5 D. nsp

R218 nsp 470 1/16W 5 D. nsp

R219 nsp 10K 1/16W 5 D. nsp

R221

R230 nsp 100 1/16W 5 D. nsp

R237

R239 nsp 0 1/16W 5 D. nsp

R242

R244 nsp 0 1/16W 5 D. nsp

R271 nsp 0 1/16W 5 D. nsp

R273 nsp 0 1/16W 5 D. nsp

R274 nsp 620 Ω1 / 16 W 1608 5% D nsp

R275 nsp 910 Ω1 / 16 W 1608 5% D nsp

R276 nsp 910 Ω1 / 16 W 1608 5% D nsp

R277 nsp 150 1/16W 5 D. nsp

R278 nsp 0 1/16W 5 D. nsp

R279 nsp 0 1/16W 5 D. nsp

R280 nsp 0 1/16W 5 D. nsp

R281 nsp 2.2K 1/16W 5 D. nsp

R292 nsp 1.2K 1/16W 5 D. nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

R293 nsp 2K Ω1 / 16 W 1608 5% D nsp

R294 nsp 150 1/16W 5 D. nsp

R295 nsp 2K Ω1 / 16 W 1608 5% D nsp

R296 nsp 150 1/16W 5 D. nsp

R297 nsp 1.2K 1/16W 5 D. nsp

R2A0 nsp 10K 1/16W 5 D. nsp

R2A1 nsp 91 Ω1 / 16 W 1608 5% D nsp

R2A2 nsp 12K 1/16W 5 D. nsp

R2A5 nsp 0 1/16W 5 D. nsp

R2A6 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2A9 nsp 0 1/16W 5 D. nsp

R2B2 nsp 0 1/16W 5 D. nsp

R2B3 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2B4 nsp 18 1/16W 5 D. nsp

R2B5 nsp 18 1/16W 5 D. nsp

R2B6 nsp 10K 1/16W 5 D. nsp

R2B7 nsp 2.2K 1/16W 5 D. nsp

R2B8 nsp 150K 1/16W 5 D. nsp

R2B9 nsp 150K 1/16W 5 D. nsp

R2C0 nsp 39K 1/16W J D. nsp

R2C1 nsp 39K 1/16W J D. nsp

R2C2 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2C3 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2C4 nsp 100 1/16W 5 D. nsp

R2C6 nsp 0 1/16W 5 D. nsp

R2C7 nsp 0 1/16W 5 D. nsp

R2D1 nsp 0 1/16W 5 D. nsp

R2D4 nsp 0 1/16W 5 D. nsp

R2D5 nsp 0 1/16W 5 D. nsp

R2D7 nsp 47 1/16W 5 D. nsp

R2E1 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2E5

R2E6 nsp 0 1/16W 5 D. nsp

R2E7 nsp 2.2K 1/16W 5 D. nsp

R2M1 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2M2 nsp 10K 1/16W 5 D. nsp

R2M3 nsp 10K 1/16W 5 D. nsp

R2M5 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2M6 nsp 10K 1/16W 5 D. nsp

R2M7 nsp 10K 1/16W 5 D. nsp

R2M8 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2M9 nsp 10K 1/16W 5 D. nsp

R2N0 nsp 12K 1/16W 5 D. nsp

R2N1 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2N2 nsp 5.6K 1/16W 5 D. nsp

R2N3 nsp 10K 1/16W 5 D. nsp

R2N4 nsp 15K 1/16W 5 D. nsp

R2N5 nsp 12K 1/16W 5 D. nsp

R2N6 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2N7 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2N8 nsp 10K 1/16W 5 D. nsp

R2N9 nsp 10K 1/16W 5 D. nsp

R2P1 nsp 10K 1/16W 5 D. nsp

R2P3

R2P4 nsp 18K 1/16W 5 D. nsp

R2P5 nsp 10K 1/16W 5 D. nsp

R2P6 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R2P7 nsp 22K 1/16W 5 D. nsp

R2P8 nsp 1.2K 1/16W 5 D. nsp

R2Q1 nsp 10K 1/16W 5 D. nsp

R300 nsp 100 1/16W 5 D. nsp

R301 nsp 10K 1/16W 5 D. nsp

R302 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R303 nsp 4.7K 1/16W 5 D. nsp

R304 nsp 10K 1/16W 5 D. nsp

R312

R313 nsp 33 1/16W 5 D. nsp

R332

R333 nsp 4.7K 1/16W 5 D. nsp

R334 nsp 10K 1/16W 5 D. nsp

nsp 10K 1/16W 5 D. nsp

R346 nsp 100 1/16W 5 D. nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

3-47

R350 nsp 10K 1/16W 5 D. nsp

R355

R356 nsp 0 1/16W 5 D. nsp

R358

R359 nsp 100 1/16W 5 D. nsp

R361

R362 nsp 15K 1/16W 5 D. nsp

R363 nsp 3.3K 1/16W 5 D. nsp

R364 nsp 330 1/16W 5 D. nsp

R365 nsp 15K 1/16W 5 D. nsp

R366 nsp 3.3K 1/16W 5 D. nsp

R367 nsp 330 1/16W 5 D. nsp

R368 nsp 15K 1/16W 5 D. nsp

R369 nsp 3.3K 1/16W 5 D. nsp

R370 nsp 820 1/16W 5 D. nsp

R371 nsp 15K 1/16W 5 D. nsp

R372 nsp 3.3K 1/16W 5 D. nsp

R373 nsp 820 1/16W 5 D. nsp

R374 nsp 15K 1/16W 5 D. nsp

R375 nsp 3.3K 1/16W 5 D. nsp

R376 nsp 820 1/16W 5 D. nsp

R377 nsp 15K 1/16W 5 D. nsp

R378 nsp 3.3K 1/16W 5 D. nsp

R379 nsp 75 1/16W 5 D. nsp

R381

R382 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R385 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R390 nsp 100 1/16W 5 D. nsp

R397

R3A1 nsp 0 1/16W 5 D. nsp

R3A2 nsp 0 1/16W 5 D. nsp

R3B1 nsp 0 1/16W 5 D. nsp

R401 nsp 33 1/16W 5 D. nsp

R402 nsp 4.7K 1/16W 5 D. nsp

R403 nsp 470 1/16W 5 D. nsp

R406

R407 nsp 6.8K 1/16W 5 D. nsp

R408 nsp 2.2K 1/16W 5 D. nsp

R409 nsp 7.5K 1/16W 5 D. nsp

R411 nsp 7.5K 1/16W 5 D. nsp

R412 nsp 6.8K 1/16W 5 D. nsp

R413 nsp 15K 1/16W 5 D. nsp

R414 nsp 5.6K 1/16W 5 D. nsp

R415 nsp 4.7K 1/16W 5 D. nsp

R416 nsp 15K 1/16W 5 D. nsp

R417 nsp 6.8K 1/16W 5 D. nsp

R418 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R419 nsp 100 1/16W 5 D. nsp

R420 nsp 100 1/16W 5 D. nsp

R425 nsp 330 1/16W 5 D. nsp

R426 nsp 220 1/16W 5 D. nsp

R427 nsp 330 1/16W 5 D. nsp

R428 nsp 220 1/16W 5 D. nsp

R429 nsp 56 1/16W 5 D. nsp

R437 nsp 2.2K 1/16W 5 D. nsp

R438 nsp 7.5K 1/16W 5 D. nsp

R439 nsp 10K 1/16W 5 D. nsp

R501 nsp 0 1/16W 5 D. nsp

R503 nsp 47K 1/16W 5 D. nsp

R504 nsp 680 1/16W 5 D. nsp

R506 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R510 nsp 330 1/16W 5 D. nsp

R511 nsp 330 1/16W 5 D. nsp

R512 nsp 4.7K 1/16W 5 D. nsp

R514

R517 nsp 1.2K 1/16W 5 D. nsp

R519

R524 nsp 0 1/16W 5 D. nsp

R525 nsp 0 1/16W 5 D. nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

R535 nsp 100 1/16W 5 D. nsp

R555

R557 nsp 100 1/16W 5 D. nsp

R558 nsp 100 1/16W 5 D. nsp

R559 nsp 4.7K 1/16W 5 D. nsp

R560 nsp 4.7K 1/16W 5 D. nsp

R562 nsp 4.7K 1/16W 5 D. nsp

R564 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R565 nsp 47K 1/16W 5 D. nsp

R567 nsp 4.7K 1/16W 5 D. nsp

R569 nsp 1.2K 1/16W 5 D. nsp

R570 nsp 10K 1/16W 5 D. nsp

R571 nsp 47K 1/16W 5 D. nsp

R573 nsp 0 1/16W 5 D. nsp

R574 nsp 4.7K 1/16W 5 D. nsp

R575 nsp 1.2K 1/16W 5 D. nsp

R576 nsp 47K 1/16W 5 D. nsp

R577 nsp 47K 1/16W 5 D. nsp

R581 nsp 1KΩ1 / 16 W 1608 5.00% D nsp

R582 nsp 1.2K 1/16W 5 D. nsp

R584

R587 nsp 1.2K 1/16W 5 D. nsp

R589

R593 nsp 1.2K 1/16W 5 D. nsp

R597 nsp 0 1/16W 5 D. nsp

R598 nsp 10K 1/16W 5 D. nsp

R5A1 nsp 0 1/10W 5 D. nsp

R5A7

R601 nsp 47K 1/6W 5 TA26 nsp

R602 nsp 75 1/6W 5 TA26 nsp

R603 nsp 75 1/6W 5 TA26 nsp

R604 nsp 75 1/6W 5 TA26 nsp

R605 nsp 1.0K 1/6W 5 TA26 nsp

R609

R618 nsp 100K 1/6W 5 TA26 nsp

R619 nsp 100K 1/6W 5 TA26 nsp

R620 nsp 220 1/6W 5 TA26 nsp

R621 nsp 220 1/6W 5 TA26 nsp

R652 nsp 75 1/6W 5 TA26 nsp

R653 nsp 10K 1/6W 5 TA26 nsp

R654 nsp 10K 1/6W 5 TA26 nsp

R655 nsp 2.2K 1/6W 5 TA26 nsp

R656 nsp 10K 1/6W 5 TA26 nsp

R672 nsp 100K 1/6W 5 TA26 nsp

R673 nsp 220 1/6W 5 TA26 nsp

R674 nsp 100K 1/6W 5 TA26 nsp

R675 nsp 220 1/6W 5 TA26 nsp

R676 nsp 75 1/6W 5 TA26 nsp

R901 nsp 10K 1/6W 5 TA26 nsp

R902 nsp 3.3K 1/6W 5 TA26 nsp

R903 nsp 680 1/6W 5 TA26 nsp

R904 nsp 1.2K 1/6W 5 TA26 nsp

R905 nsp 1.5K 1/6W 5 TA26 nsp

R906 nsp 3.3K 1/6W 5 TA26 nsp

R907 nsp 4.7K 1/6W 5 TA26 nsp

R908 nsp 10K 1/6W 5 TA26 nsp

R909 nsp 10K 1/6W 5 TA26 nsp

R910 nsp 47K 1/6W 5 TA26 nsp

R912 nsp 820 1/6W 5 TA26 nsp

R913 nsp 330 1/6W 5 TA26 nsp

R914 nsp 220 1/6W 5 TA26 nsp

R915 nsp 10K 1/6W 5 TA26 nsp

R919

R921 nsp 47K 1/6W 5 TA26 nsp

R922 nsp 10K 1/6W 5 TA26 nsp

R928 nsp 220 1/6W 5 TA26 nsp

R929 nsp D=0.6 ROLL nsp

R931 nsp 10K 1/6W 5 TA26 nsp

R941 nsp 2.2K 1/6W 5 TA26 nsp

R945 nsp 10K 1/6W 5 TA26 nsp

R946 nsp 10K 1/6W 5 TA26 nsp

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

3-48

RC901

9965 000 07015

TSOP2836WE1 TEMIC 19MM 36.7KHZ

*HW100470R

SW601

/N1B 9965 000 07016

SKQ-23D15-G3-NA LUP FUNG VDE/S

*SS000660R

SW901

9965 000 07017

THVV502GAA POSTECH NON 12V 5A

*SP001000R

SW906

SW908

9965 000 07017

THVV502GAA POSTECH NON 12V 5A

*SP001000R

T101 /N1B 9965 000 07018 SHT-023T/KSE-023T *TS001170R

V101 nsp SVC681D-10A 4.O CUT nsp

X301 9965 000 07019 HC-49/SM5H 27MHZ 20P *JX000660R

X501 9965 000 07020

CSTCV20.00MXJ040-TC20 MURATA 2

*FQ000440R

X901 9965 000 07021 CSA6.00MGU MURATA 6MHZ BK *FQ000430R

ZD101 9965 000 07022 GDZJ5.6B 26MM *HD301840R

ZD635 9965 000 07022 GDZJ5.6B 26MM *HD301840R

ZD640

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (ANAM) (MJI)

3-49

• Top View..................................................4-1

• Top View(without Tray) ..........................4-1

• Bottom View ...........................................4-1

1. Holder Clamp....................................4-2

1-1. Clamp Assembly Disc.......................4-2

1-1-1. Plate Clamp ..................................4-2

1-1-2. Magnet Clamp...............................4-2

1-1-3. Clamp Upper.................................4-2

2. Tray Disc ...........................................4-2

3. Base Assembly Sled ........................4-3

3-1. Gear Assembly Feed ........................4-3

3-2. Gear Assembly Middle......................4-3

3-3. Gear Assembly Rack ........................4-3

4. Rubber Rear......................................4-3

5. Frame Assembly Up/Down ..............4-4

6. Belt Loading......................................4-4

7. Gear Pulley........................................4-4

8. Gear Loading ....................................4-4

9. Guide Up/Down.................................4-4

10. PWB Assembly Loading ................4-4

11. Base Main........................................4-4

1. Tools and Fixtures for SVC..............4-5

2. Install Process ..................................4-5

3. Adjustment Process.........................4-6

1. Deck Mechanism Exploded View....4-7

CONTENTS

SECTION 4 MECHANISM

DECK MECHANISM PARTS

LOCATIONS

EXPLODED VIEW

DECK MECHANISM ADJUSTMENT

DECK MECHANISM

DISASSEMBLY

4-1

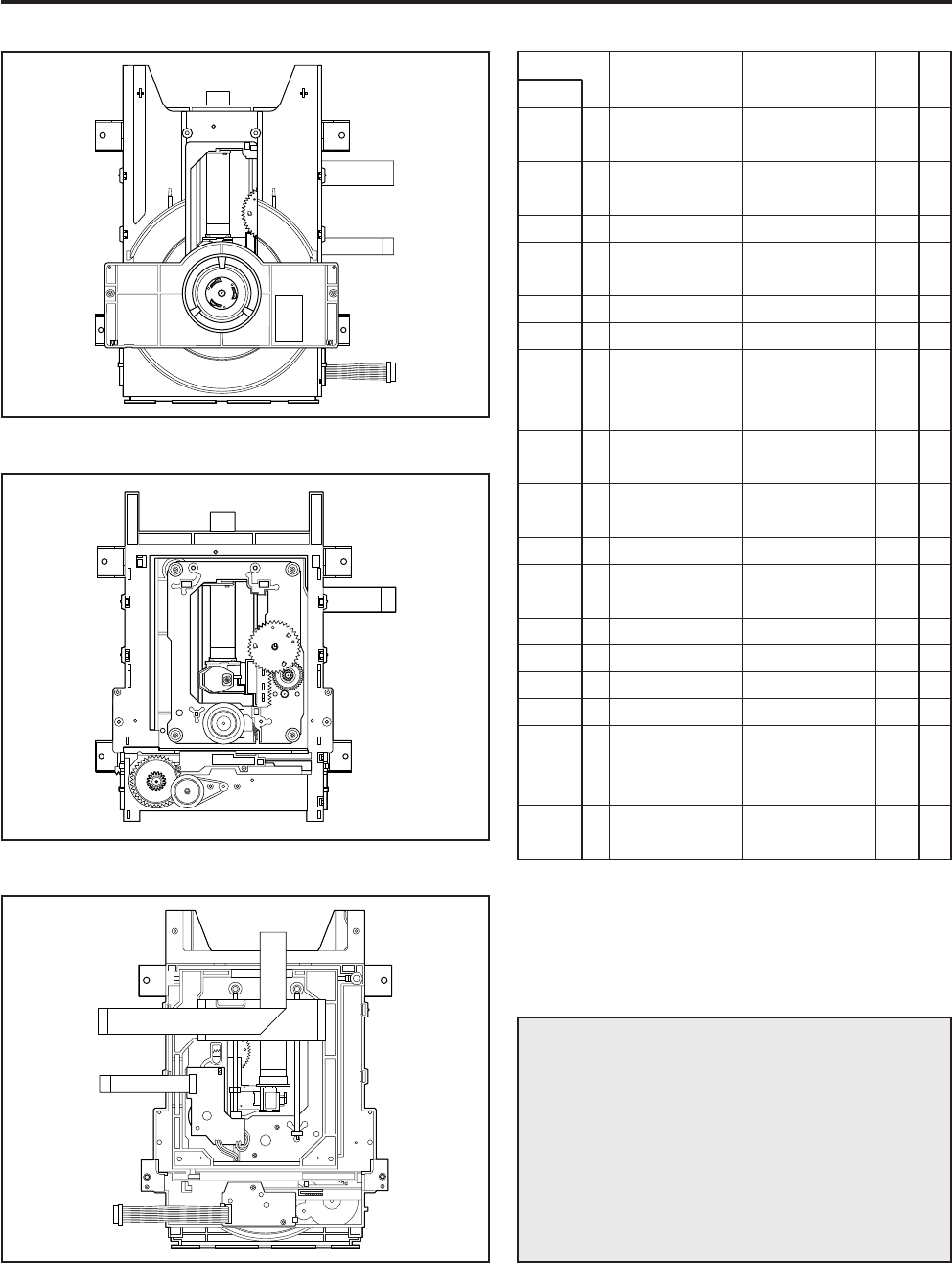

DECK MECHANISM PARTS LOCATION

Starting No.

1, 2

1, 2, 3

1, 2, 3, 4

1, 6

1, 2, 6

1, 2, 6, 8

1, 2, 6, 8, 9

1, 2, 7

1, 2

1, 2 ,13

1, 2, 13, 14

1, 2, 7, 12, 13, 14

1, 2, 13

1, 2, 7, 12, 13,

14, 15, 16, 17

Holder

Clamp

Clamp Assembly

Disc

Plate Clamp

Magnet Clamp

Clamp Upper

Tray Disc

Base Assembly Sled

Gear Assembly

Feed

Gear

Middle

Gear Assembly

Rack

Rubber Rear

Frame Assembly

Up/Down

Belt Loading

Gear Pulley

Gear Loading

Guide Up/Down

PWB Assembly

Base Main

2 Screws,

2 Locking Tabs

4 Screws,

1 Connector

1 Locking Tabs

1 Screw

1 Locking Tab

1 Hook

2Screw

2 Locking Tabs

4-1

4-2

4-3

4-4

Bottom

Procedure Parts Fixing Type Fig-

ure

Disass

embly

Note

When reassembling, perform the procedure in

reverse order.

The “Bottom” on Disassembly column of above

Table indicates the part should be disassembled

at the Bottom side.

• Top View (Without Tray)

• Bottom View

• Top View (With Tray)

4-2

DECK MECHANISM DISASSEMBLY

1.Holder Clamp (Fig. 4-1)

1) Release 2 Screws(S1).

2) Unhook 2 Locking Tabs(L1).

3) Lift up the Holder Clamp and then separate it from the

Base Main.

1-1. Clamp Assembly Disc

1) Place the Clamp Assembly Disc as Fig. (A)

2) Lift up the Clamp Assembly Disc in direction of

arrow(A).

3) Separate the Clamp Assembly Disc from the Holder

Clamp.

1-1-1. Plate Clamp

1) Turn the Plate Clamp to counterclockwise direction

and then lift up the Plate Clamp.

1-1-2. Magnet Clamp

1-1-3.Clamp Upper

2. Tray Disc (Fig. 4-2)

1) Insert and push a Driver in the emergency eject

hole(A) at the right side, or put the Driver on the

Lever(B) of the Gear Emergency and pull the Lever(B)

in direction of arrow so that the Tray Disc is ejected

about 15~20mm.

2) Pull the Tray Disc until it is separated from the Base

Main completely.

BASE MAIN

HOLDER CLAMP

CLAMP ASSEMBLY DISC

HOLDER CLAMP

PLATE CLAMP

(S1)

(A)

(L1)

(Fig. A)

MAGNET CLAMP

CLAMP UPPER

(B)

LEVER

BOTTOM SIDE VIEW

EMERGENCY EJECT HOLE

(A)

TRAY DISC

BASE MAIN

Fig. 4-1 Fig. 4-2

4-3

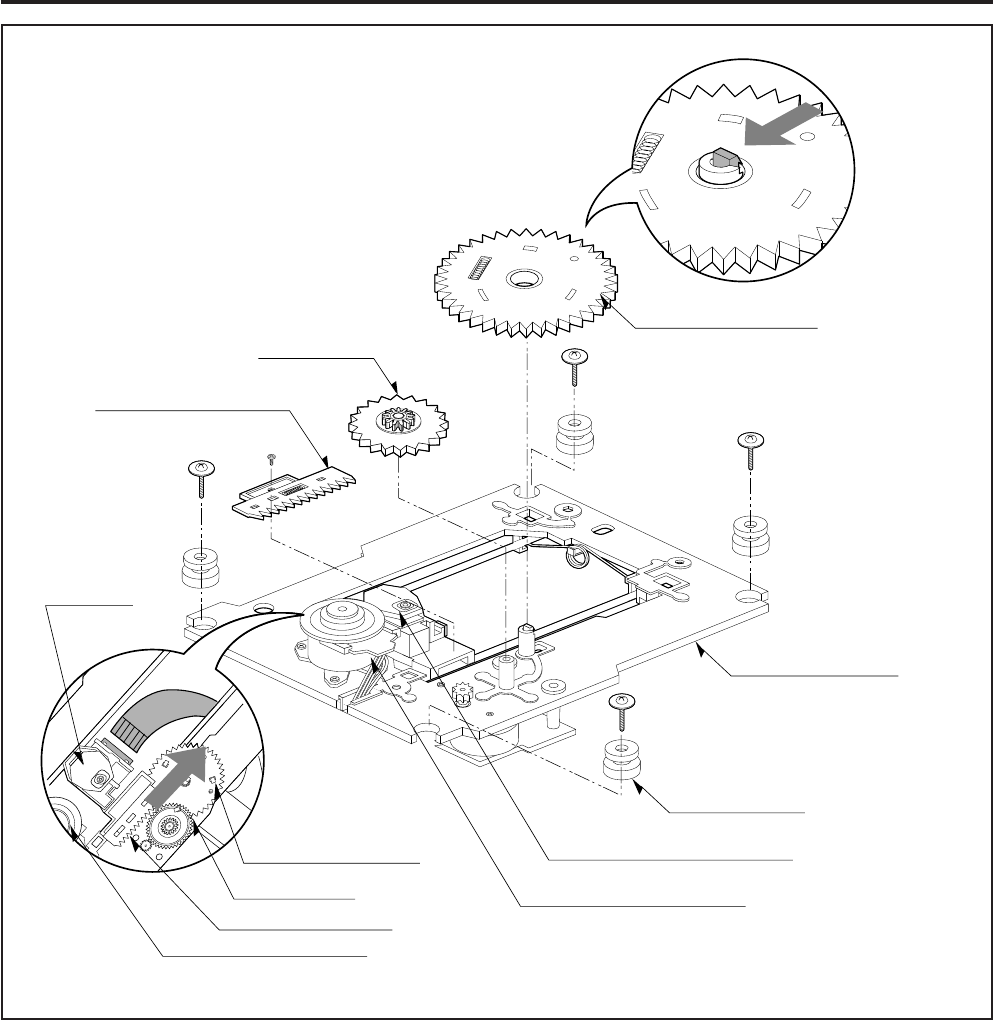

DECK MECHANISM DISASSEMBLY

(L2)

(S2)

(C1)

(S2)

(S2) (S3)

GEAR ASSEMBLY RACK

PICK UP

ASSEMBLY

GENERAL

GEAR MIDDLE

GEAR ASSEMBLY FEED

BASE PU(OUTSERT)

RUBBER REAR

GEAR ASSEMBLY FEED

GEAR MIDDLE

GAER ASSEMBLY RACK

MOTOR ASSEMBLY SPINDLE

PICK UP ASSEMBLY GENERAL

MOTOR ASSEMBLY

SPINDLE

3.Base Assembly Sled (Fig. 4-3)

1) Release 4 Screw(S2).

2) Disconnect the FFC Connector(C1)

3-1. Gear Assembly Feed

1) Unhook the Locking Tab(L2) in direction of arrow.

3-2. Gear Middle

3-3. Gear Assembly Rack

1) Release the Scerw(S3)

4. Rubber Rear (Fig. 4-3)

Fig. 4-3

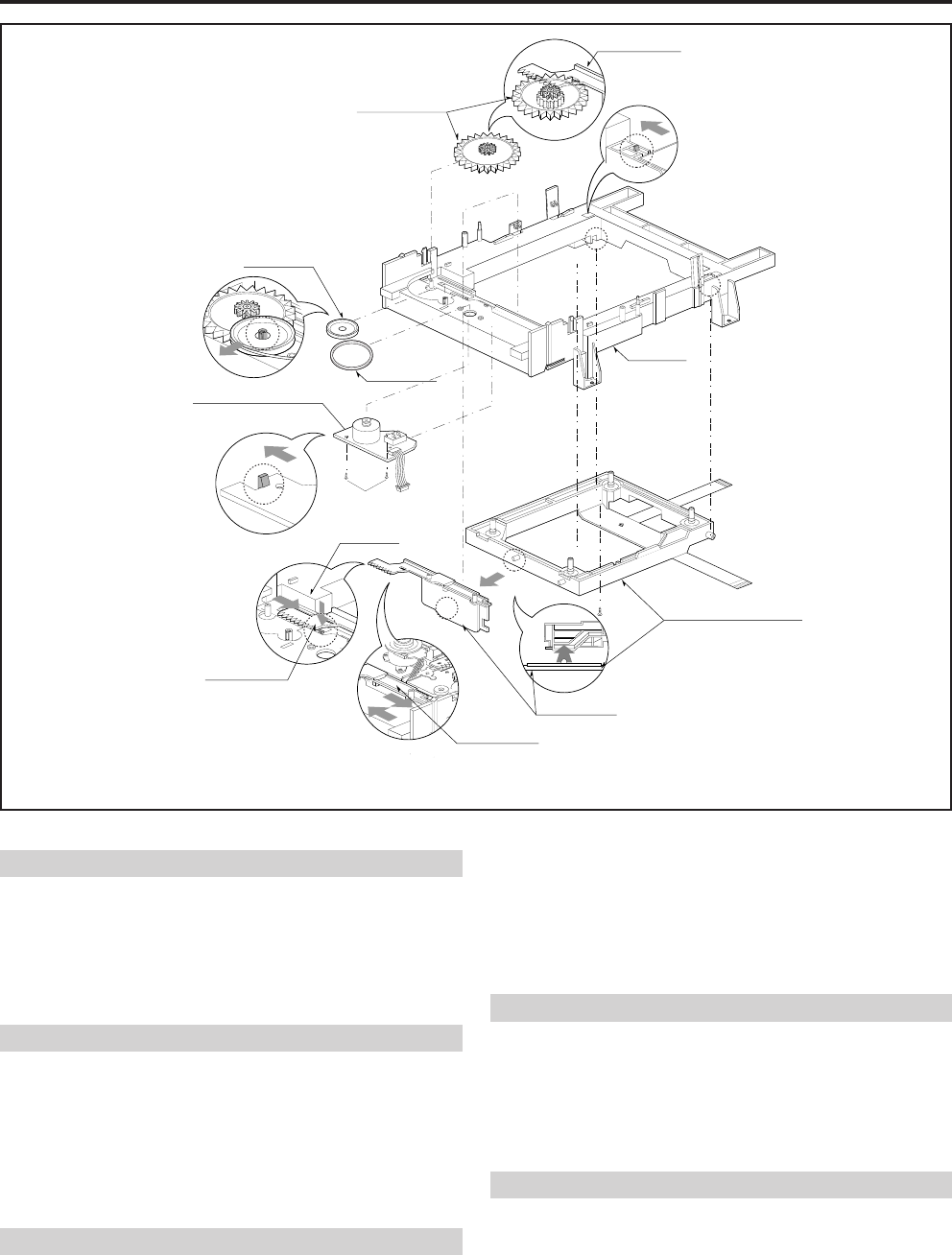

4-4

DECK MECHANISM DISASSEMBLY

(B)

(S5)

(L6)

(L4)

(L5)

(A)

(L3)

(A)

(L6)

(H1)

(C2)

(L6)

FIG. (B)

GUIDE UP/DOWN

BASE MAIN

PWB ASSEMBLY LOADING

GEAR LOADING

BELT LOADING

FRAME ASSEMBLY UP/DOWN

GUIDE UP/DOWN

(A)

(B)

(S4)

FIG. (C)

FIG. (A)

(B)

(C)

GEAR PULLEY

Fig. 4-4

5. Frame Assembly Up/Down

Put the Base Main face down(Bottom Side)

1) Release the Screw(S4)

2) Unlock the Locking Tab(L3) in direction of arrow and

then lift up the Frame Assembly Up/Down to separate

it from the Base Main.

• When reassembling move the Guide Up/Down in direction

of arrow(C) until it is positioned as Fig.(C).

• When reassembling insert (A) portion of the Frame

Assembly Up/Down in the (B) portion of the Guide

Up/Down as Fig.(B)

6. Belt Loading(Fig. 4-4)

Put the Base Assembly Main on original position(Top Side)

7. Gear pulley (Fig. 4-4)

1) Unlock the Locking Tab(L4) in direction of arrow(B) and

then separate the Gear Pulley from the Base Main.

8. Gear Loading (Fig. 4-4)

9. Guide Up/Down (Fig. 4-4)

1) Move the Guide Up/Down in direction of arrow(A) as

Fig.(A)

2) Push the Locking Tab(L5) down and then lift up the

Guide Up/Down to separate it from the Base Main.

When reassembling place the Guide Up/Down as Fig.(C)

and move it in direction arrow(B) until it is locked by the

Locking Tab(L5). And confirm the Guide Up/Down as

Fig.(A)

10. PWB Assembly Loading

Put the Base Main face down(Bottom Side)

1) Release 2 Screws(S5)

2) Unkool the Loading Motor Connector (C2) from the

Hook (H1) on the Base Main.

3) Unlock 2 Locking Tabs(L6) and separate the PWB

Assembly Loading from the Base Main.

11. Base Main(Fig. 4-4)

Note

4-5

DECK MECHANISM ADJUSTMENT

1. Tools and Fixtures for SVC

• For SVC Program Down-Load

• For T-Skew and R-Skew Adjustment

2. Install Process

1. Connect Fig. 1, 2, 3 as Fig. 7.

2. Plug out the Power cord of DVD set.

3. Connect FFC Cable(Fig.2) to the Connector on DVD Set(Fig.8)

4. Connect Printer Cable(Fig.1) to the P.C.Printer Port (LPT1).

5. Plug in the DVD Power cord.

6. Press the Menu key on Remocon.

7. Confirm No.1 LED(RED Color) of Jig board is ON. (Fig.9)

8. Perform The S/W for Down-load at P.C.

9. Open the Program File for Adjusting(Fig.10)

10. Click the Down-load Icon and perform Program Down-load.

11. Displayed remaining time.

12. Confirm LED No.1(RED) and No.2(GREEN) is ON.

13. Plug out the DVD Set Power cord.

14. Disconnect the FFC Cable.

Not spare parts

Fig.1. Printer Cable Fig.2. FFC Cable (15 pin) Fig.3. Jig Board

PART NO.*DV3100JIGIncluded in <Jig board>

Fig.4. Deviation Disc (0.8mm)

Not spare parts

Fig.5. L-Wrench(3mm)

Not spare parts

Fig.6. RCA Jack Fig.7. Connecting Method

RED

GREEN

RED

Rom Size

File Help

16MBit

6M Bit

LPT1

Manual 953826Bytes

md _bas_ntsc.bin

LPT2

Port

FILE NAME

OPEN

DOWN LOAD

Fig.8. FFC Cable Connecting

Fig.9. Jig Board LED ConditionFig.10. Adjusting Program File Open

4-6

MEMODECK MECHANISM ADJUSTMENT

3. Adjustment Procedure

1. Insert Disc(Only Open/Close Key Pressing)

2. Wait Until the Sector Display is about 200,000 (Fig.11)

3. Adjust R-Skew adjusting Point until the Error rate has

Minimum rate with L-wrench (3mm).

4. Adjust T-Skew Adjusting Point until the Error rate has

Minimum rate.

5. Repeat No. 3, 4 adjusting procedure until the Error

rate have Minimum rate.

6. Error rate; SVC-3561 (ABEX) Disc=below 30 and

TDV-533 (ABEX) Disc=below 100. If not, Please con-

firm Play ability on screen.

# You can watch the screen when pressing the Stop key

after the Adjusting is finished, Then perform Play and

Scan/Skip operation at Chapter1 and Chapter16 and

confirm screen condition, normal or abnormal.

R-SKEW ADJUSTING HOLE

T-SKEW ADJUSTING HOLE

Fig.12. Adjusting Method

Fig.11. Adjusting Screen Display

0045

SECTOR : 200145

0065

CURRENT PICK UP POSITION

ERROR RATE SIZE

ERROR RATE (HEXADEAMAL)

AVERAGE ERROR RATE

4-7 4-8

EXPLODED VIEWS

1. Deck Mechanism Exploded View

002

001

003

004 429

429

026

018

008

009

016

012

430

430 432

020

430

011

017

014

013

015

431

A01

A02

A03

POS. VERS. PART NO. DESCRIPTON PART NO.

NO. COLOR (PCS) (MJI)

A00 nsp

DECK ASSY DVD PLAYER(DP2)

304W304500

A01 9965 000 06956 CLAMP ASSY DISC(DP2) 304W005500

A02 nsp

BASE ASSY MAIN(DP2 PLAYER)

304W064500

A03 9965 000 06957 BASE ASSY SLED(DP2) 304W304510

A43 nsp BASE ASSY FRONT nsp

(ADVD3520NC 1UM1)

A46 /N1B 9965 000 06958 DVD MAIN PCB ASSY (/N1B) *ZZ001660R

A48 nsp PCB ASSY IO nsp

001 nsp PLATE CLAMP nsp

002 nsp MAGNET CLAMP nsp

003 nsp CLAMP UPPER nsp

004 9965 000 06937 HOLDER CLAMP 304W271010

008 9965 000 06938 GEAR ASSY RACK 304W058010

009 9965 000 06939 GEAR MIDDLE 304W058020

011 nsp FRAME ASSY nsp

012 /N1B nsp DAMPER (E2 5040H-1054A) 304W130020

013 9965 000 06944 BELT LOADING 304W264010

014 9965 000 06945 GEAR PULLEY 304W262010

015 9965 000 06946

PWB(PCB) ASSY LOADING (DP2)

*ZZ001480R

016 9965 000 06947 GEAR ASSY FEED 304W058030

017 9965 000 06948 GEAR LOADING 304W058040

018 9965 000 06949 GUIDE UP/DOWN 304W127010

020 nsp BASE MAIN nsp

026 9965 000 06950 TRAY DISC 304W163010

DV3100_p1 8 DV3100 14100615589464

Navigation menu

Versions of this User Manual:

Views

Navigation
