53-1002920-02
9 September 2013
®
Fabric OS
Administrator’s Guide
Supporting Fabric OS 7.2.0
Copyright © 2013 Brocade Communications Systems, Inc. All Rights Reserved.
ADX, AnyIO, Brocade, Brocade Assurance, the B-wing symbol, DCX, Fabric OS, ICX, MLX, MyBrocade, OpenScript, VCS, VDX, and
Vyatta are registered trademarks, and HyperEdge, The Effortless Network, and The On-Demand Data Center are trademarks of
Brocade Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service names
mentioned may be trademarks of their respective owners.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning
any equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to
this document at any time, without notice, and assumes no responsibility for its use. This informational document describes
features that may not be currently available. Contact a Brocade sales office for information on feature and product availability.
Export of technical data contained in this document may require an export license from the United States government.
The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with
respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that
accompany it.
The product described by this document may contain “open source” software covered by the GNU General Public License or other
open source license agreements. To find out which open source software is included in Brocade products, view the licensing
terms applicable to the open source software, and obtain a copy of the programming source code, please visit
http://www.brocade.com/support/oscd.
Brocade Communications Systems, Incorporated
Document History
Corporate and Latin American Headquarters
Brocade Communications Systems, Inc.
130 Holger Way
San Jose, CA 95134
Tel: 1-408-333-8000
Fax: 1-408-333-8101
E-mail: info@brocade.com
Asia-Pacific Headquarters
Brocade Communications Systems China HK, Ltd.
No. 1 Guanghua Road
Chao Yang District
Units 2718 and 2818
Beijing 100020, China
Tel: +8610 6588 8888
Fax: +8610 6588 9999
E-mail: china-info@brocade.com
European Headquarters
Brocade Communications Switzerland Sàrl
Centre Swissair
Tour B - 4ème étage
29, Route de l'Aéroport
Case Postale 105
CH-1215 Genève 15
Switzerland
Tel: +41 22 799 5640
Fax: +41 22 799 5641
E-mail: emea-info@brocade.com
Asia-Pacific Headquarters
Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)
Citic Plaza
No. 233 Tian He Road North
Unit 1308 – 13th Floor
Guangzhou, China
Tel: +8620 3891 2000
Fax: +8620 3891 2111
E-mail: china-info@brocade.com
Title Publication number Summary of changes Date
Fabric OS Administrator’s Guide 53-1002920-01 Added Fabric OS v7.2.0 software features
and support for embedded switches:
Brocade 5431, M6505, and 6547.
July 2013
Fabric OS Administrator’s Guide 53-1002920-02 Corrections and additions for the Fabric OS
7.2.0a release.
September 2013
Fabric OS Administrator’s Guide 3
53-1002920-02
Contents (High Level)
Section I Standard Features
Chapter 1 Understanding Fibre Channel Services . . . . . . . . . . . . . . . . . . . . . . . . .45
Chapter 2 Performing Basic Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chapter 3 Performing Advanced Configuration Tasks . . . . . . . . . . . . . . . . . . . . . .83
Chapter 4 Routing Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Chapter 5 Buffer-to-Buffer Credits and Credit Recovery. . . . . . . . . . . . . . . . . . . .135
Chapter 6 Managing User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
Chapter 7 Configuring Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
Chapter 8 Configuring Security Policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231
Chapter 9 Maintaining the Switch Configuration File . . . . . . . . . . . . . . . . . . . . . .277
Chapter 10 Installing and Maintaining Firmware . . . . . . . . . . . . . . . . . . . . . . . . . .289

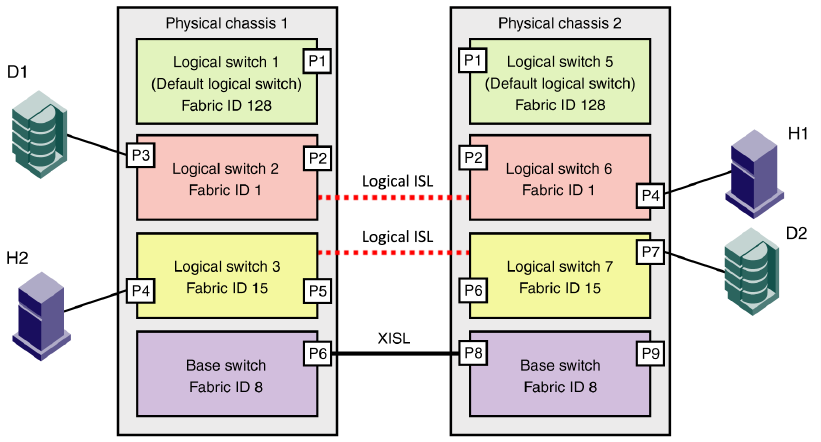

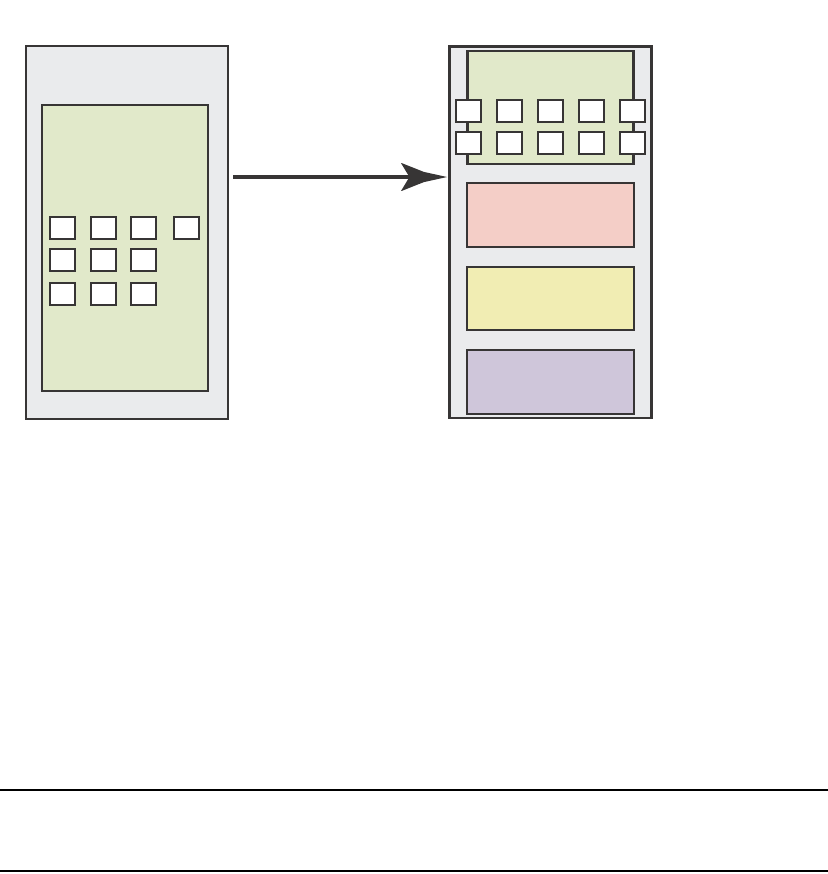

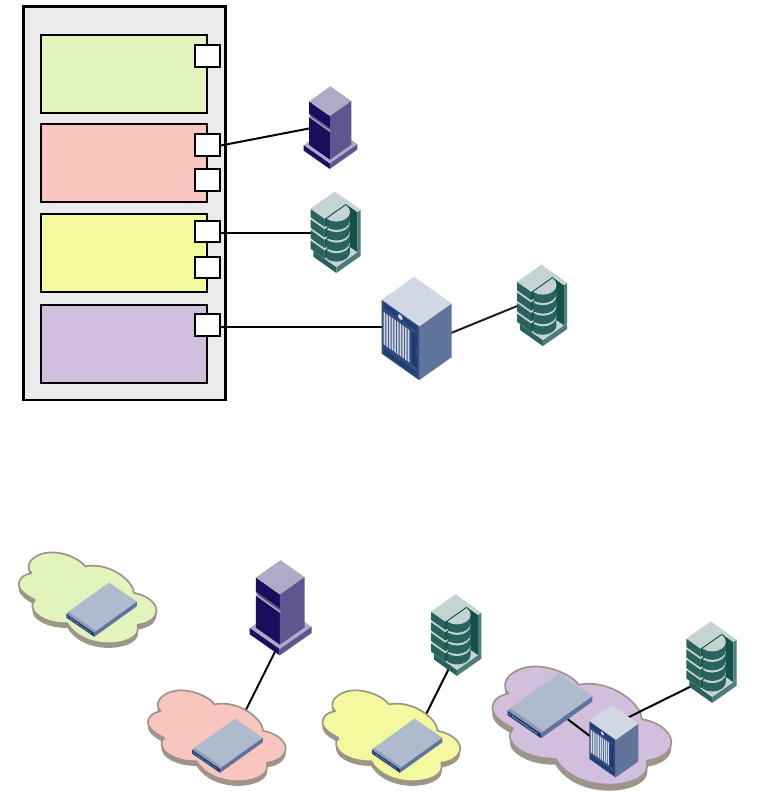

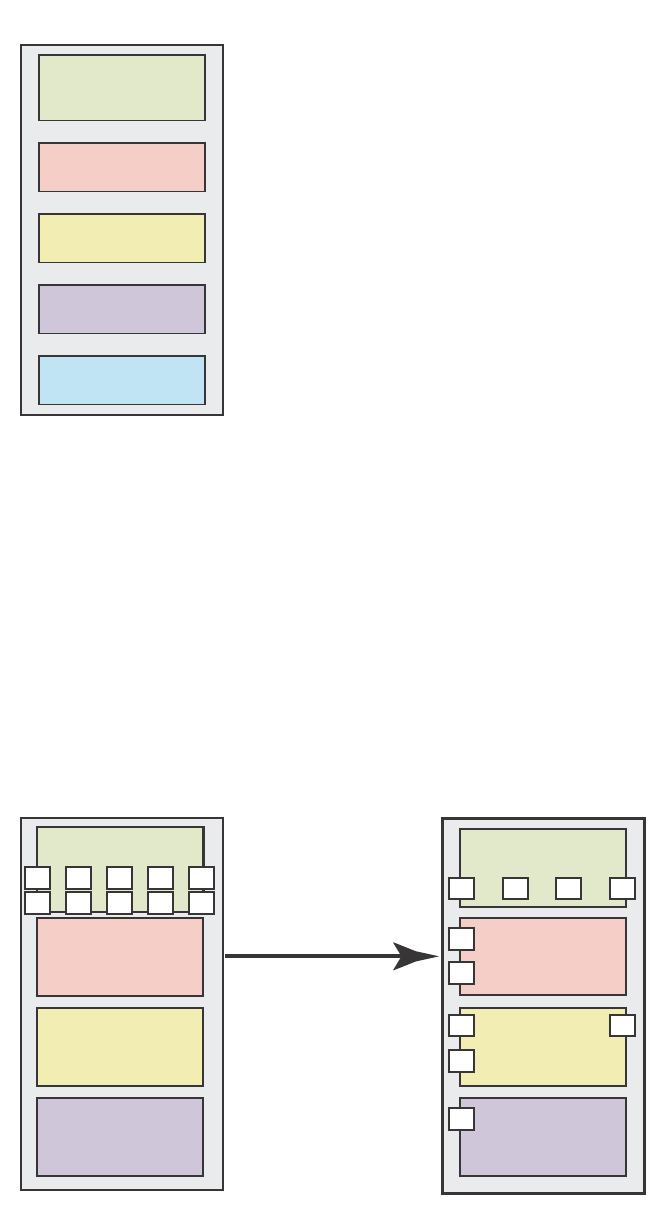

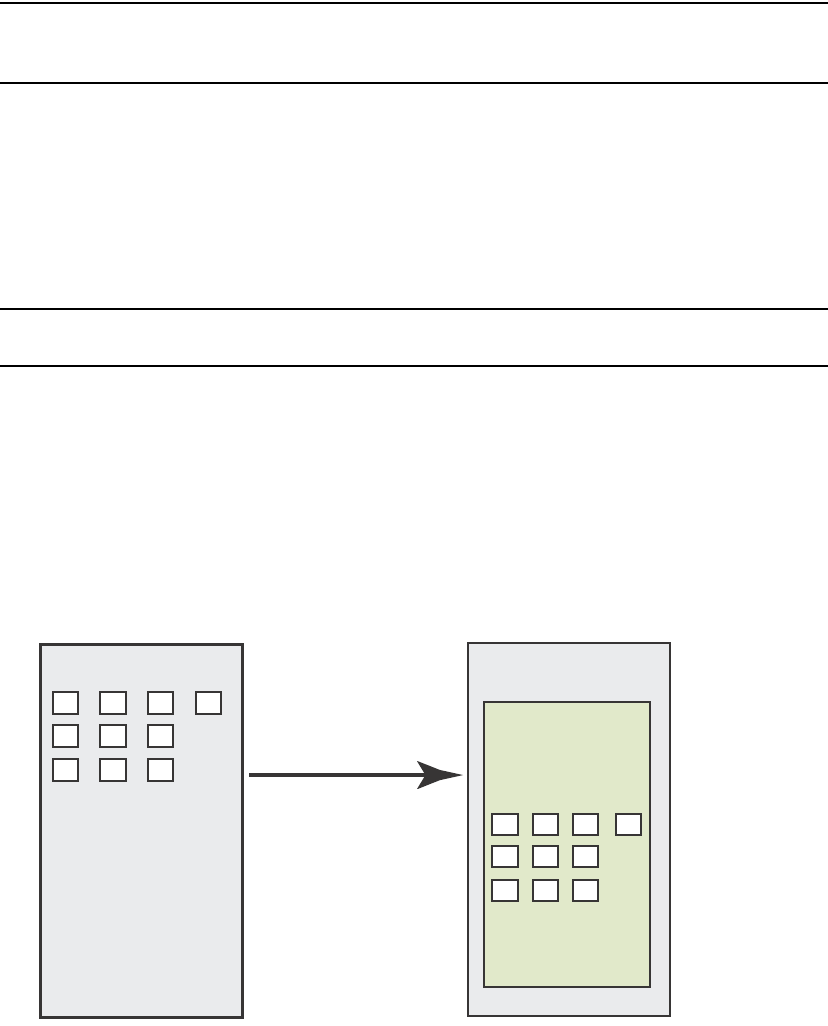

Chapter 11 Managing Virtual Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Chapter 12 Administering Advanced Zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .337

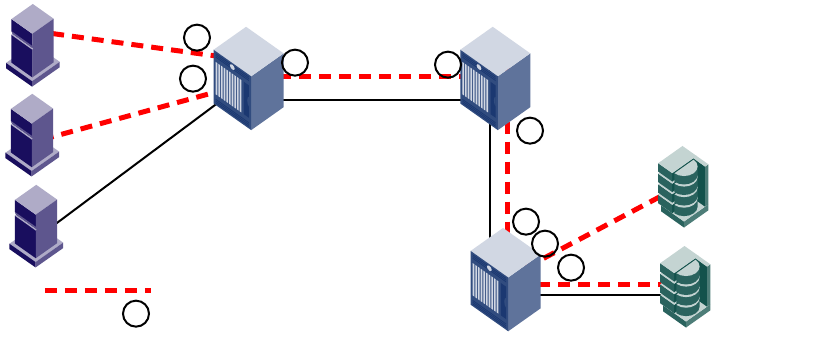

Chapter 13 Traffic Isolation Zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .379
Chapter 14 Optimizing Fabric Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .413

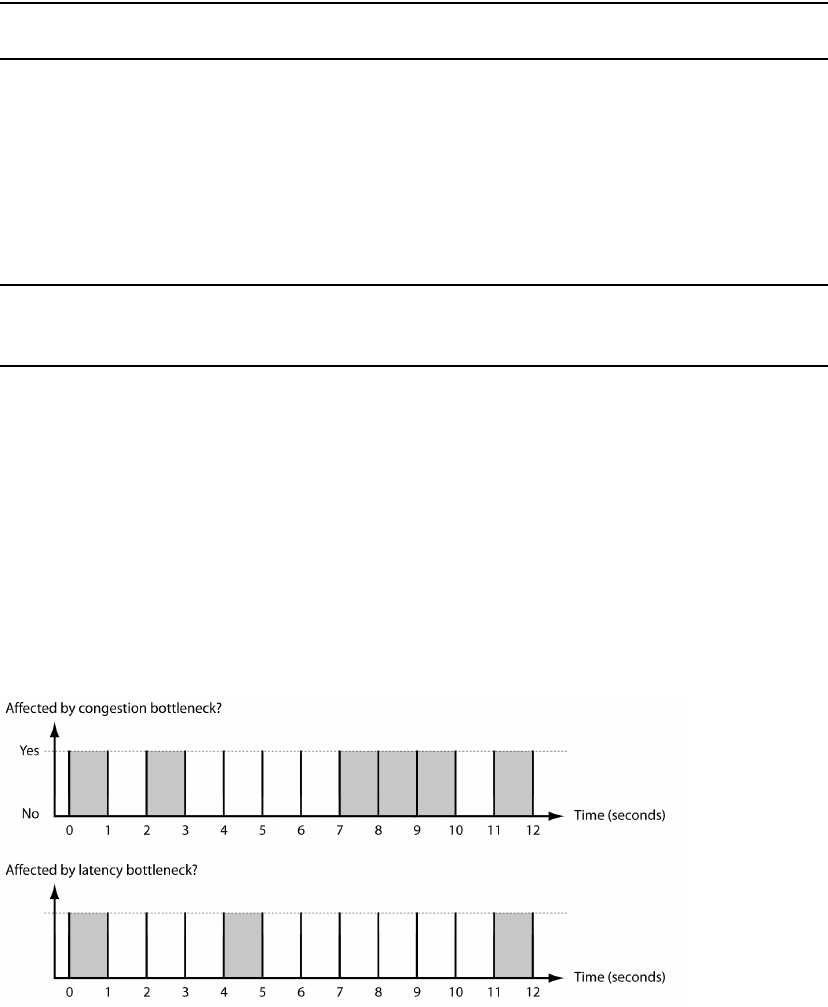

Chapter 15 Bottleneck Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .427
Chapter 16 In-flight Encryption and Compression . . . . . . . . . . . . . . . . . . . . . . . . .445

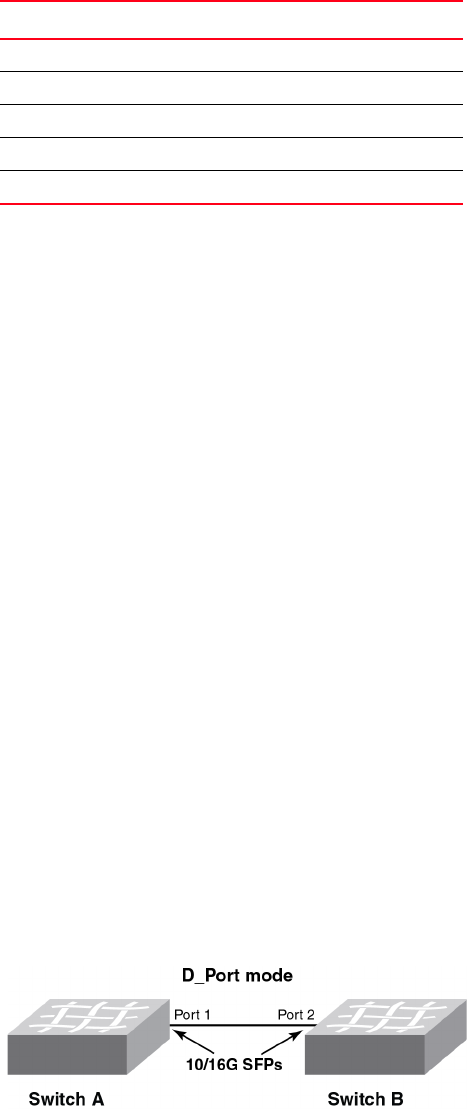

Chapter 17 Diagnostic Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .459
Chapter 18 NPIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .473
Chapter 19 Fabric-Assigned PWWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .479

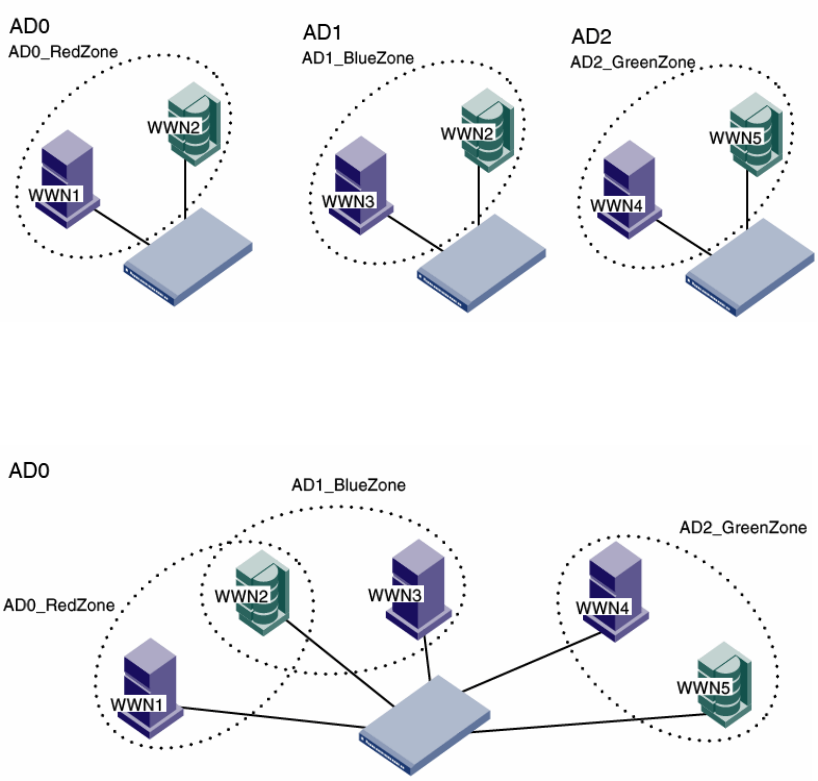

Chapter 20 Managing Administrative Domains . . . . . . . . . . . . . . . . . . . . . . . . . . .485
Section II Licensed Features
Chapter 21 Administering Licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515

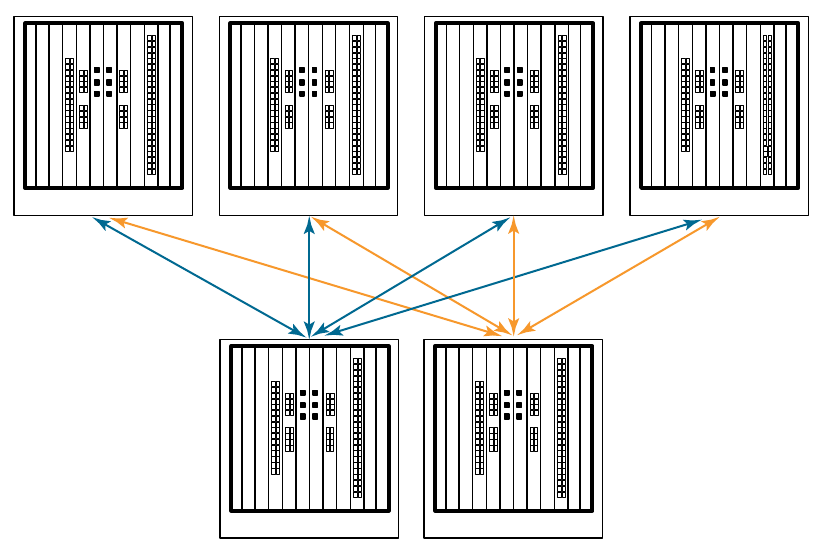

Chapter 22 Inter-chassis Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543
Chapter 23 Monitoring Fabric Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .551

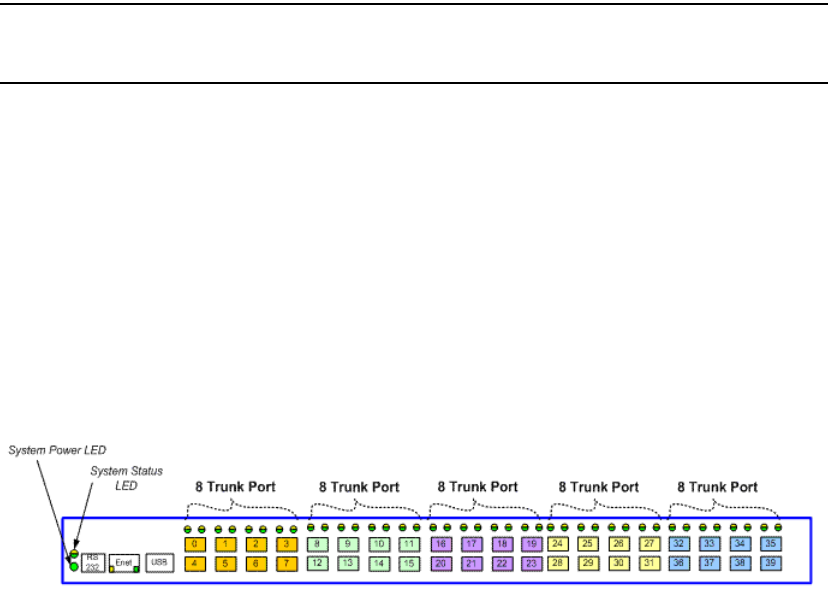

Chapter 24 Managing Trunking Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .569
4Fabric OS Administrator’s Guide
53-1002920-02
Chapter 25 Managing Long-Distance Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . .587

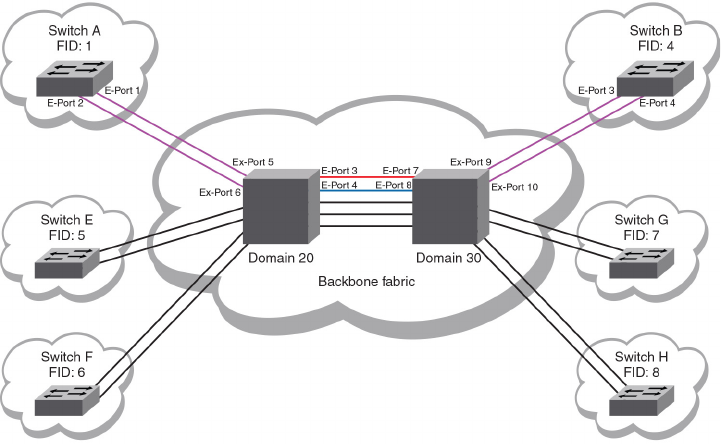

Chapter 26 Using FC-FC Routing to Connect Fabrics . . . . . . . . . . . . . . . . . . . . . . .593
Appendix A Port Indexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .641
Appendix B FIPS Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645
Appendix C Hexadecimal Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .657
Fabric OS Administrator’s Guide 5
53-1002920-02
Contents
About This Document
Supported hardware and software . . . . . . . . . . . . . . . . . . . . . . . . . . 35
What’s new in this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Document conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Section I Standard Features
Chapter 1 Understanding Fibre Channel Services
Fibre Channel services overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Management server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Platform services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Platform services and Virtual Fabrics. . . . . . . . . . . . . . . . . . . . . 47
Enabling platform services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Disabling platform services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Management server database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Displaying the management server ACL. . . . . . . . . . . . . . . . . . .48
Adding a member to the ACL. . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Deleting a member from the ACL . . . . . . . . . . . . . . . . . . . . . . . . 49
Viewing the contents of the management server database . . . 50
Clearing the management server database . . . . . . . . . . . . . . . 51
Topology discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Displaying topology discovery status . . . . . . . . . . . . . . . . . . . . . 51
Enabling topology discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Disabling topology discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Device login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Principal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
E_Port login process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Fabric login process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Port login process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
RSCNs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Duplicate Port World Wide Name . . . . . . . . . . . . . . . . . . . . . . . . 55
High availability of daemon processes . . . . . . . . . . . . . . . . . . . . . . .55
6Fabric OS Administrator’s Guide
53-1002920-02
Chapter 2 Performing Basic Configuration Tasks
Fabric OS overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Fabric OS command line interface. . . . . . . . . . . . . . . . . . . . . . . . . . .58
Console sessions using the serial port. . . . . . . . . . . . . . . . . . . .58
Telnet or SSH sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Getting help on a command . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Viewing a history of command line entries . . . . . . . . . . . . . . . . 61
Password modification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Default account passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
The switch Ethernet interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Virtual Fabrics and the Ethernet interface. . . . . . . . . . . . . . . . .65
Management Ethernet port bonding . . . . . . . . . . . . . . . . . . . . .65
Displaying the network interface settings . . . . . . . . . . . . . . . . .66
Static Ethernet addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
DHCP activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
IPv6 autoconfiguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Date and time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Time zone settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Network time protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Domain IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Displaying the domain IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Setting the domain ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Switch names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Customizing the switch name . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Chassis names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Customizing chassis names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Fabric name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Configuring the fabric name . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
High availability considerations for fabric names . . . . . . . . . . . 78
Upgrade and downgrade considerations for fabric names. . . .78
Switch activation and deactivation . . . . . . . . . . . . . . . . . . . . . . . . . .78
Disabling a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Enabling a switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Disabling a chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Enabling a chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Switch and Backbone shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Powering off a Brocade switch . . . . . . . . . . . . . . . . . . . . . . . . . .80
Powering off a Brocade Backbone . . . . . . . . . . . . . . . . . . . . . . . 81
Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Device connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Switch connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Fabric OS Administrator’s Guide 7
53-1002920-02
Chapter 3 Performing Advanced Configuration Tasks
Port identifiers (PIDs) and PID binding overview . . . . . . . . . . . . . . .83
Core PID addressing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Fixed addressing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
10-bit addressing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
256-area addressing mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
WWN-based PID assignment . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Port Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Backbone port blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Setting port names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Port identification by slot and port number . . . . . . . . . . . . . . . .89
Port identification by port area ID. . . . . . . . . . . . . . . . . . . . . . . .90
Port identification by index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Configuring a device-switch connection . . . . . . . . . . . . . . . . . . .90
Swapping port area IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Port activation and deactivation . . . . . . . . . . . . . . . . . . . . . . . . .92
Port decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Setting port modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Setting port speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Setting all ports on a switch to the same speed . . . . . . . . . . . .94
Setting port speed for a port octet . . . . . . . . . . . . . . . . . . . . . . .95
Blade terminology and compatibility . . . . . . . . . . . . . . . . . . . . . . . . .95
CP blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Core blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Port and application blade compatibility . . . . . . . . . . . . . . . . . .98
FX8-24 compatibility notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Enabling and disabling blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Enabling blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Disabling blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

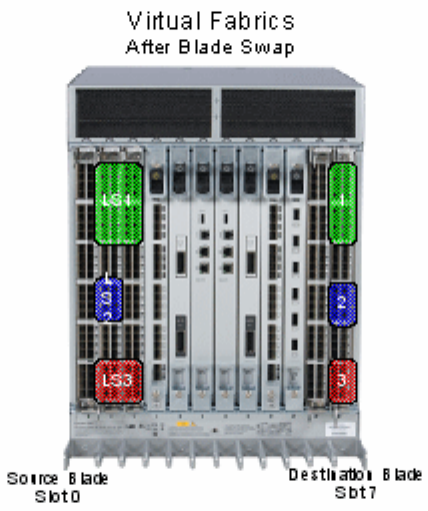

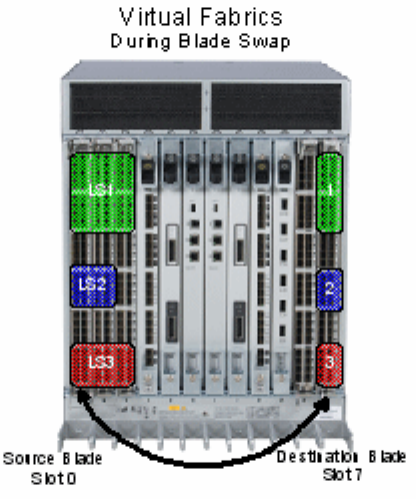

Blade swapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
How blades are swapped . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Swapping blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Disabling switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Powering off a port blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Powering on a port blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Equipment status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Checking switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Verifying High Availability features (Backbones only) . . . . . . .104
Verifying fabric connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Verifying device connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Viewing the switch status policy threshold values. . . . . . . . . .105
Setting the switch status policy threshold values . . . . . . . . . .106
Audit log configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Verifying host syslog prior to configuring the audit log . . . . . .109
Configuring an audit log for specific event classes . . . . . . . . .109
8Fabric OS Administrator’s Guide
53-1002920-02
Duplicate PWWN handling during device login . . . . . . . . . . . . . . . .110
Setting 0, First login precedence . . . . . . . . . . . . . . . . . . . . . . .110
Setting 1, Second login precedence. . . . . . . . . . . . . . . . . . . . .110
Setting 2, Mixed precedence . . . . . . . . . . . . . . . . . . . . . . . . . .110
Setting the behavior for handling duplicate PWWNs. . . . . . . .111
Enabling forward error correction . . . . . . . . . . . . . . . . . . . . . . . . . .111
FEC Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Using the portCfgFec command . . . . . . . . . . . . . . . . . . . . . . . .112
Chapter 4 Routing Traffic
Routing overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Paths and route selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
FSPF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Fibre Channel NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Inter-switch links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Buffer credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Congestion versus over-subscription . . . . . . . . . . . . . . . . . . . .119
Virtual channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Gateway links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Configuring a link through a gateway . . . . . . . . . . . . . . . . . . . .121
Routing policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
Displaying the current routing policy . . . . . . . . . . . . . . . . . . . .122
Port-based routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Exchange-based routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Device-based routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Dynamic Path Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
AP route policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Route selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Dynamic Load Sharing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Frame order delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
Forcing in-order frame delivery across topology changes. . . .127
Restoring out-of-order frame delivery across topology
changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
Using Frame Viewer to understand why frames are dropped.127
Lossless Dynamic Load Sharing on ports . . . . . . . . . . . . . . . . . . . .129
Lossless core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Configuring Lossless Dynamic Load Sharing . . . . . . . . . . . . . .131
Lossless Dynamic Load Sharing in Virtual Fabrics . . . . . . . . .131
Frame Redirection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Creating a frame redirect zone . . . . . . . . . . . . . . . . . . . . . . . . .132
Deleting a frame redirect zone . . . . . . . . . . . . . . . . . . . . . . . . .133
Viewing frame redirect zones . . . . . . . . . . . . . . . . . . . . . . . . . .133
Fabric OS Administrator’s Guide 9
53-1002920-02
Chapter 5 Buffer-to-Buffer Credits and Credit Recovery
Buffer credit management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Buffer-to-buffer flow control . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Optimal buffer credit allocation . . . . . . . . . . . . . . . . . . . . . . . .136
Fibre Channel gigabit values reference definition. . . . . . . . . .137
Buffer credit allocation based on full-size frames. . . . . . . . . .137
Allocating buffer credits based on average-size frames . . . . .140
Configuring buffers for a single port directly . . . . . . . . . . . . . . 141
Configuring buffers using frame size . . . . . . . . . . . . . . . . . . . .141
Calculating the number of buffers required given the
distance, speed, and frame size. . . . . . . . . . . . . . . . . . . . . . . .142
Allocating buffer credits for F_Ports . . . . . . . . . . . . . . . . . . . . .142
Monitoring buffers in a port group . . . . . . . . . . . . . . . . . . . . . .142
Buffer credits switch or blade model . . . . . . . . . . . . . . . . . . . .143
Maximum configurable distances for Extended Fabrics . . . . .144
Downgrade considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Configuring credits for a single VC . . . . . . . . . . . . . . . . . . . . . .146
Buffer credit recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Buffer credit recovery over an E_Port. . . . . . . . . . . . . . . . . . . .147
Buffer credit recovery over an F_Port. . . . . . . . . . . . . . . . . . . .147
Buffer credit recovery over an EX_Port. . . . . . . . . . . . . . . . . . .148
Enabling and disabling buffer credit recovery . . . . . . . . . . . . .148
Credit loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Back-end credit loss detection and recovery support on
Brocade 5300 switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Back-end credit loss detection and recovery support on
Brocade 6520 switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149
Enabling back-end credit loss detection and recovery . . . . . .150
Chapter 6 Managing User Accounts
User accounts overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
Role-Based Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .152
Management channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Managing user-defined roles . . . . . . . . . . . . . . . . . . . . . . . . . .154
Local database user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
Default accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Local account passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
Local user account database distribution. . . . . . . . . . . . . . . . . . . .158
Distributing the local user database . . . . . . . . . . . . . . . . . . . .158
Accepting distributed user databases on the local switch . . .158
Rejecting distributed user databases on the local switch . . .159
Password policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Password strength policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Password history policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Password expiration policy . . . . . . . . . . . . . . . . . . . . . . . . . . . .161
Account lockout policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161
10 Fabric OS Administrator’s Guide
53-1002920-02
The boot PROM password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Setting the boot PROM password for a switch with a
recovery string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Setting the boot PROM password for a Backbone with a
recovery string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164
Setting the boot PROM password for a switch without a
recovery string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165
Setting the boot PROM password for a Backbone without a
recovery string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
Remote authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
Remote authentication configuration. . . . . . . . . . . . . . . . . . . .167
Setting the switch authentication mode . . . . . . . . . . . . . . . . . 171
Fabric OS user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Fabric OS users on the RADIUS server. . . . . . . . . . . . . . . . . . .172
Setting up a RADIUS server. . . . . . . . . . . . . . . . . . . . . . . . . . . .175
LDAP configuration and Microsoft Active Directory . . . . . . . . .181
LDAP configuration and OpenLDAP . . . . . . . . . . . . . . . . . . . . .184
TACACS+ service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189
Remote authentication configuration on the switch . . . . . . . .192
Configuring local authentication as backup. . . . . . . . . . . . . . .194
Chapter 7 Configuring Protocols
Security protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
Secure Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Setting up SCP for configuration uploads and downloads . . .197
Secure Shell protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
SSH public key authentication . . . . . . . . . . . . . . . . . . . . . . . . .198
Secure Sockets Layer protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . .200
Browser and Java support . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200
SSL configuration overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
The browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204
Root certificates for the Java plugin . . . . . . . . . . . . . . . . . . . . .205
Simple Network Management Protocol . . . . . . . . . . . . . . . . . . . . . .206
SNMP Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206
SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206
Management Information Base (MIB) . . . . . . . . . . . . . . . . . . .207
Basic SNMP operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
Understanding MIBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .208
Access to MIB variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .208
SNMP support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209
Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209
Loading Brocade MIBs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .212
Access Gateway and Brocade MIBs . . . . . . . . . . . . . . . . . . . . .216
Firmware upgrades and enabled traps . . . . . . . . . . . . . . . . . .216
Support for Administrative Domains . . . . . . . . . . . . . . . . . . . .216
Support for Role-Based Access Control . . . . . . . . . . . . . . . . . .216
Support for IPv6 addressing . . . . . . . . . . . . . . . . . . . . . . . . . . .217
Support for Virtual Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . .217
Configuring SNMP using CLI . . . . . . . . . . . . . . . . . . . . . . . . . . .218
Fabric OS Administrator’s Guide 11
53-1002920-02
Telnet protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226
Blocking Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .227
Unblocking Telnet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228
Listener applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228
Ports and applications used by switches . . . . . . . . . . . . . . . . . . . .229
Port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .229
Chapter 8 Configuring Security Policies
ACL policies overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231
How the ACL policies are stored . . . . . . . . . . . . . . . . . . . . . . . .231
Policy members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232
ACL policy management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232
Displaying ACL policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233
Saving changes without activating the policies . . . . . . . . . . . .233
Activating ACL policy changes . . . . . . . . . . . . . . . . . . . . . . . . . .233
Deleting an ACL policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233
Adding a member to an existing ACL policy . . . . . . . . . . . . . . .234
Removing a member from an ACL policy . . . . . . . . . . . . . . . . .234
Abandoning unsaved ACL policy changes . . . . . . . . . . . . . . . .234
FCS policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235
FCS policy restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235
Ensuring fabric domains share policies . . . . . . . . . . . . . . . . . .236
Creating an FCS policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236
Modifying the order of FCS switches . . . . . . . . . . . . . . . . . . . .237
FCS policy distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238
Device Connection Control policies . . . . . . . . . . . . . . . . . . . . . . . . .238
DCC policy restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239
Creating a DCC policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239
Deleting a DCC policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240
DCC policy behavior with Fabric-Assigned PWWNs . . . . . . . . . 241
SCC Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242
Creating an SCC policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243
Authentication policy for fabric elements . . . . . . . . . . . . . . . . . . . .243
E_Port authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244
Device authentication policy . . . . . . . . . . . . . . . . . . . . . . . . . . .246
AUTH policy restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .247
Authentication protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .248
Secret key pairs for DH-CHAP . . . . . . . . . . . . . . . . . . . . . . . . . .249
FCAP configuration overview. . . . . . . . . . . . . . . . . . . . . . . . . . .251
Fabric-wide distribution of the authorization policy. . . . . . . . .253
12 Fabric OS Administrator’s Guide
53-1002920-02
IP Filter policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253
Creating an IP Filter policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . .254
Cloning an IP Filter policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .254
Displaying an IP Filter policy . . . . . . . . . . . . . . . . . . . . . . . . . . .254
Saving an IP Filter policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
Activating an IP Filter policy. . . . . . . . . . . . . . . . . . . . . . . . . . . .255
Deleting an IP Filter policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
IP Filter policy rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
IP Filter policy enforcement. . . . . . . . . . . . . . . . . . . . . . . . . . . .258
Adding a rule to an IP Filter policy. . . . . . . . . . . . . . . . . . . . . . .259
Deleting a rule from an IP Filter policy . . . . . . . . . . . . . . . . . . .259
Aborting an IP Filter transaction . . . . . . . . . . . . . . . . . . . . . . . .259
IP Filter policy distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260
Policy database distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260
Database distribution settings . . . . . . . . . . . . . . . . . . . . . . . . .261
ACL policy distribution to other switches . . . . . . . . . . . . . . . . .262
Fabric-wide enforcement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
Notes on joining a switch to the fabric . . . . . . . . . . . . . . . . . . .264
Management interface security . . . . . . . . . . . . . . . . . . . . . . . . . . . .266
Configuration examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267
IPsec protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .269
Security associations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .269
Authentication and encryption algorithms . . . . . . . . . . . . . . . .269
IPsec policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270
IKE policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Creating the tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .272
Example of an end-to-end transport tunnel mode. . . . . . . . . . 274
Chapter 9 Maintaining the Switch Configuration File
Configuration settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277
Configuration file format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278
Configuration file backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .279
Uploading a configuration file in interactive mode . . . . . . . . .279
Configuration file restoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .280
Restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .281
Configuration download without disabling a switch . . . . . . . .282
Configurations across a fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . .284
Downloading a configuration file from one switch to
another switch of the same model . . . . . . . . . . . . . . . . . . . . . .284
Security considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .284
Configuration management for Virtual Fabrics. . . . . . . . . . . . . . . .285
Uploading a configuration file from a switch with
Virtual Fabrics enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285
Restoring a logical switch configuration using
configDownload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .285
Restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .286
Brocade configuration form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .287
Fabric OS Administrator’s Guide 13
53-1002920-02
Chapter 10 Installing and Maintaining Firmware
Firmware download process overview . . . . . . . . . . . . . . . . . . . . . . .289
Upgrading and downgrading firmware . . . . . . . . . . . . . . . . . . .291
Considerations for FICON CUP environments . . . . . . . . . . . . .291
HA sync state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .291
Preparing for a firmware download . . . . . . . . . . . . . . . . . . . . . . . . .292
Obtaining and decompressing firmware . . . . . . . . . . . . . . . . .293
Connected switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .293
Firmware download on switches . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Switch firmware download process overview. . . . . . . . . . . . . .294
Firmware download on a Backbone. . . . . . . . . . . . . . . . . . . . . . . . .296
Backbone firmware download process overview. . . . . . . . . . .296
Firmware download from a USB device. . . . . . . . . . . . . . . . . . . . . .299
Enabling the USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .299
Viewing the USB file system . . . . . . . . . . . . . . . . . . . . . . . . . . .299
Downloading from the USB device using the relative path. . .300
Downloading from the USB device using the absolute path. .300
FIPS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300
Public and private key management . . . . . . . . . . . . . . . . . . . .300
The firmwareDownload command . . . . . . . . . . . . . . . . . . . . . .301
Power-on firmware checksum test . . . . . . . . . . . . . . . . . . . . . .302
Testing and restoring firmware on switches . . . . . . . . . . . . . . . . . .302
Testing a different firmware version on a switch . . . . . . . . . . .302
Testing and restoring firmware on Backbones . . . . . . . . . . . . . . . .304
Testing different firmware versions on Backbones . . . . . . . . .304
Validating a firmware download. . . . . . . . . . . . . . . . . . . . . . . . . . . .306
Chapter 11 Managing Virtual Fabrics
Virtual Fabrics overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Logical switch overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .310
Default logical switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .310
Logical switches and fabric IDs. . . . . . . . . . . . . . . . . . . . . . . . .311
Port assignment in logical switches . . . . . . . . . . . . . . . . . . . . .312
Logical switches and connected devices . . . . . . . . . . . . . . . . .313
Management model for logical switches. . . . . . . . . . . . . . . . . . . . .314
Logical fabric overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .315
Logical fabric and ISLs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .315
Base switch and extended ISLs . . . . . . . . . . . . . . . . . . . . . . . .316
Account management and Virtual Fabrics . . . . . . . . . . . . . . . . . . .319
Supported platforms for Virtual Fabrics . . . . . . . . . . . . . . . . . . . . .320
Supported port configurations in the fixed-port switches. . . .320
Supported port configurations in Brocade Backbones . . . . . .321
Virtual Fabrics interaction with other Fabric OS features . . . .322
14 Fabric OS Administrator’s Guide
53-1002920-02
Limitations and restrictions of Virtual Fabrics . . . . . . . . . . . . . . . .322
Restrictions on XISLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .323
Restrictions on moving ports . . . . . . . . . . . . . . . . . . . . . . . . . .324
Enabling Virtual Fabrics mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324
Disabling Virtual Fabrics mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .325
Configuring logical switches to use basic configuration values. . .326
Creating a logical switch or base switch . . . . . . . . . . . . . . . . . . . . .326
Executing a command in a different logical switch context . . . . . .328
Deleting a logical switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .329
Adding and moving ports on a logical switch . . . . . . . . . . . . . . . . .329
Displaying logical switch configuration . . . . . . . . . . . . . . . . . . . . . .330
Changing the fabric ID of a logical switch . . . . . . . . . . . . . . . . . . . .331
Changing a logical switch to a base switch . . . . . . . . . . . . . . . . . . .331
Setting up IP addresses for a logical switch . . . . . . . . . . . . . . . . . .333
Removing an IP address for a logical switch. . . . . . . . . . . . . . . . . .333
Configuring a logical switch to use XISLs . . . . . . . . . . . . . . . . . . . .333
Changing the context to a different logical fabric . . . . . . . . . . . . . .334
Creating a logical fabric using XISLs . . . . . . . . . . . . . . . . . . . . . . . .334
Chapter 12 Administering Advanced Zoning
Zone types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .337
Zoning overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .338
Approaches to zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .339
Zone objects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .340
Zone configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .341
Zoning enforcement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .342
Considerations for zoning architecture . . . . . . . . . . . . . . . . . .342
Best practices for zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343
Broadcast zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343
Broadcast zones and Admin Domains . . . . . . . . . . . . . . . . . . .344
Broadcast zones and FC-FC routing . . . . . . . . . . . . . . . . . . . . .345
High availability considerations with broadcast zones . . . . . .346
Loop devices and broadcast zones . . . . . . . . . . . . . . . . . . . . .346
Broadcast zones and default zoning mode . . . . . . . . . . . . . . .346
Zone aliases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .346
Creating an alias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .347
Adding members to an alias . . . . . . . . . . . . . . . . . . . . . . . . . . .347
Removing members from an alias . . . . . . . . . . . . . . . . . . . . . .348
Deleting an alias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .349
Viewing an alias in the defined configuration . . . . . . . . . . . . .349
Fabric OS Administrator’s Guide 15
53-1002920-02
Zone creation and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .350
Displaying existing zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350
Creating a zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350
Adding devices (members) to a zone . . . . . . . . . . . . . . . . . . . .351
Removing devices (members) from a zone . . . . . . . . . . . . . . .352
Replacing zone members . . . . . . . . . . . . . . . . . . . . . . . . . . . . .353
Deleting a zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .355
Viewing a zone in the defined configuration . . . . . . . . . . . . . .356
Viewing zone configuration names without case distinction .356
Validating a zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .358
Default zoning mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .360
Setting the default zoning mode. . . . . . . . . . . . . . . . . . . . . . . .361
Viewing the current default zone access mode. . . . . . . . . . . .361
Zone database size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .362
Zone configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .362
Creating a zone configuration. . . . . . . . . . . . . . . . . . . . . . . . . .363
Adding zones to a zone configuration . . . . . . . . . . . . . . . . . . .363
Removing members from a zone configuration. . . . . . . . . . . .364
Enabling a zone configuration . . . . . . . . . . . . . . . . . . . . . . . . .364
Disabling a zone configuration . . . . . . . . . . . . . . . . . . . . . . . . .365
Deleting a zone configuration . . . . . . . . . . . . . . . . . . . . . . . . . .365
Abandoning zone configuration changes. . . . . . . . . . . . . . . . .366
Viewing all zone configuration information . . . . . . . . . . . . . . .366
Viewing selected zone configuration information . . . . . . . . . .367
Viewing the configuration in the effective zone database . . .367
Clearing all zone configurations . . . . . . . . . . . . . . . . . . . . . . . .367
Zone object maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .368
Copying a zone object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .368
Deleting a zone object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .369
Renaming a zone object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .370
Zone configuration management. . . . . . . . . . . . . . . . . . . . . . . . . . .370
Security and zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Zone merging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Fabric segmentation and zoning. . . . . . . . . . . . . . . . . . . . . . . .373
Zone merging scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .373
Concurrent zone transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Viewing zone database transactions . . . . . . . . . . . . . . . . . . . .377
Chapter 13 Traffic Isolation Zoning
Traffic Isolation Zoning overview . . . . . . . . . . . . . . . . . . . . . . . . . . .379
TI zone failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .380
Additional considerations when disabling failover . . . . . . . . .381
FSPF routing rules and traffic isolation . . . . . . . . . . . . . . . . . .383
Enhanced TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .384
Illegal configurations with enhanced TI zones. . . . . . . . . . . . .385
16 Fabric OS Administrator’s Guide
53-1002920-02
Traffic Isolation Zoning over FC routers . . . . . . . . . . . . . . . . . . . . . .386
TI zones within an edge fabric . . . . . . . . . . . . . . . . . . . . . . . . .388
TI zones within a backbone fabric . . . . . . . . . . . . . . . . . . . . . .389
Limitations of TI zones over FC routers . . . . . . . . . . . . . . . . . .390
Fabric-Level Traffic Isolation in a backbone fabric . . . . . . . . . . . . .390
Fabric-Level TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .391
Failover behavior for Fabric-Level TI zones . . . . . . . . . . . . . . .392
Creating a separate TI zone for each path . . . . . . . . . . . . . . . .392
Creating a single TI zone for all paths . . . . . . . . . . . . . . . . . . .393
General rules for TI zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .394
Traffic Isolation Zone violation handling for trunk ports . . . . .395
Supported configurations for Traffic Isolation Zoning . . . . . . . . . .396
Additional configuration rules for enhanced TI zones. . . . . . .396
Trunking with TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .397
Limitations and restrictions of Traffic Isolation Zoning . . . . . . . . .398
Admin Domain considerations for Traffic Isolation Zoning . . . . . .398
Virtual Fabrics considerations for Traffic Isolation Zoning . . . . . . .399
Traffic Isolation Zoning over FC routers with Virtual Fabrics . . . . .401
Creating a TI zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .402
Creating a TI zone in a base fabric . . . . . . . . . . . . . . . . . . . . . .404
Modifying TI zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .405
Changing the state of a TI zone . . . . . . . . . . . . . . . . . . . . . . . . . . . .406
Deleting a TI zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .407
Displaying TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .407
Troubleshooting TI zone routing problems . . . . . . . . . . . . . . . . . . .408
Setting up TI zones over FCR (sample procedure) . . . . . . . . . . . . .409
Chapter 14 Optimizing Fabric Behavior
Adaptive Networking overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .413
Ingress Rate Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .414
Virtual Fabrics considerations. . . . . . . . . . . . . . . . . . . . . . . . . . 414
Limiting traffic from a particular device . . . . . . . . . . . . . . . . . .415
Disabling Ingress Rate Limiting . . . . . . . . . . . . . . . . . . . . . . . .415
QoS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .415
License requirements for QoS. . . . . . . . . . . . . . . . . . . . . . . . . . 416
CS_CTL-based frame prioritization. . . . . . . . . . . . . . . . . . . . . . . . . . 416
Supported configurations for CS_CTL-based frame
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
High availability considerations for CS_CTL-based frame
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Enabling CS_CTL-based frame prioritization on ports . . . . . . . 417
Disabling CS_CTL-based frame prioritization on ports . . . . . . 418
Using CS_CTL auto mode at the chassis level . . . . . . . . . . . . . 418
Considerations for using CS_CTL-based frame prioritization .418
Fabric OS Administrator’s Guide 17
53-1002920-02
QoS zone-based traffic prioritization . . . . . . . . . . . . . . . . . . . . . . . .419
QoS zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .419
QoS on E_Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .421
QoS over FC routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .421
Virtual Fabrics considerations for QoS zone-based traffic
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .422
High-availability considerations for QoS zone-based traffic
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .422
Supported configurations for QoS zone-based traffic
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .423
Limitations and restrictions for QoS zone-based traffic
prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .424
Setting QoS zone-based traffic prioritization. . . . . . . . . . . . . . . . . .424
Setting QoS zone-based traffic prioritization over FC routers . . . .426
Disabling QoS zone-based traffic prioritization. . . . . . . . . . . . . . . .426
Chapter 15 Bottleneck Detection
Bottleneck detection overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .427
Types of bottlenecks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .428
How bottlenecks are reported. . . . . . . . . . . . . . . . . . . . . . . . . .428
Supported configurations for bottleneck detection . . . . . . . . . . . .429
Limitations of bottleneck detection . . . . . . . . . . . . . . . . . . . . .429
High availability considerations for bottleneck detection . . . .430
Upgrade and downgrade considerations for bottleneck
detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .430
Trunking considerations for bottleneck detection . . . . . . . . . .430
Virtual Fabrics considerations for bottleneck detection . . . . .430
Access Gateway considerations for bottleneck detection. . . .430
Enabling bottleneck detection on a switch . . . . . . . . . . . . . . . . . . .431
Displaying bottleneck detection configuration details . . . . . . . . . .431
Setting bottleneck detection alerts . . . . . . . . . . . . . . . . . . . . . . . . .433
Setting both a congestion alert and a latency alert . . . . . . . .434
Setting a congestion alert only . . . . . . . . . . . . . . . . . . . . . . . . .434
Setting a latency alert only . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
Changing bottleneck detection parameters . . . . . . . . . . . . . . . . . .435
Examples of applying and changing bottleneck detection
parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .436
Advanced bottleneck detection settings . . . . . . . . . . . . . . . . . . . . .439
Excluding a port from bottleneck detection . . . . . . . . . . . . . . . . . .440
Displaying bottleneck statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . .442
Disabling bottleneck detection on a switch . . . . . . . . . . . . . . . . . .442
18 Fabric OS Administrator’s Guide
53-1002920-02
Chapter 16 In-flight Encryption and Compression
In-flight encryption and compression overview. . . . . . . . . . . . . . . .445
Supported ports for in-flight encryption and compression . . .446
In-flight encryption and compression restrictions . . . . . . . . . .446
How in-flight encryption and compression are enabled . . . . .448
Authentication and key generation for encryption and
compression. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .448
Availability considerations for encryption and compression. .449
Virtual Fabrics considerations for encryption and
compression. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .449
In-flight compression on long-distance ports. . . . . . . . . . . . . .450
Compression ratios for compression-enabled ports . . . . . . . .450
Configuring in-flight encryption and compression on an EX_Port .450
Configuring in-flight encryption and compression on an E_Port . .451
Viewing the encryption and compression configuration . . . . . . . .452
Configuring and enabling authentication for in-flight encryption .453
Enabling in-flight encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .455
Enabling in-flight compression. . . . . . . . . . . . . . . . . . . . . . . . . . . . .456
Disabling in-flight encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .456
Disabling in-flight compression . . . . . . . . . . . . . . . . . . . . . . . . . . . .457
Chapter 17 Diagnostic Port
Diagnostic Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .459
Supported platforms for D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . .459
Licensing requirements for D_Port . . . . . . . . . . . . . . . . . . . . . . . . .460
Understanding D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .460
Advantages of D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .461
D_Port configuration mode and nature of test . . . . . . . . . . . .461
General limitations and considerations for D_Port . . . . . . . . .462
Supported topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463
Topology 1: ISLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463
Topology 2: ICLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .463
Topology 3: Access Gateways . . . . . . . . . . . . . . . . . . . . . . . . . .464
Topology 4: HBA to switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .465
Using D_Port without HBAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .465
Enabling D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .465
Disabling D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .466
Using D_Port with HBAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .467
Automatic mode configuration . . . . . . . . . . . . . . . . . . . . . . . . .467
Dynamic mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . .468
BCU D_Port commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .468
Limitations and considerations for D_Port with HBAs. . . . . . .468
Controlling testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .469
Fabric OS Administrator’s Guide 19
53-1002920-02
Example test scenarios and output . . . . . . . . . . . . . . . . . . . . . . . . .469
Confirming SFP and link status with an HBA . . . . . . . . . . . . . .470
Starting and stopping D_Port testing . . . . . . . . . . . . . . . . . . . .470
Chapter 18 NPIV
NPIV overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .473
Upgrade considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Fixed addressing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
10-bit addressing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Configuring NPIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .475
Enabling and disabling NPIV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Viewing NPIV port configuration information . . . . . . . . . . . . . . . . . 476
Viewing virtual PID login information . . . . . . . . . . . . . . . . . . . .478
Chapter 19 Fabric-Assigned PWWN
Fabric-Assigned PWWN overview. . . . . . . . . . . . . . . . . . . . . . . . . . .479
User- and auto-assigned FA-PWWN behavior . . . . . . . . . . . . . . . . .480
Configuring an FA-PWWN for an HBA connected to an
Access Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .481
Configuring an FA-PWWN for an HBA connected to an edge
switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .482
Supported switches and configurations for FA-PWWN. . . . . . . . . .483
Configuration upload and download considerations for
FA-PWWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .483
Security considerations for FA-PWWN . . . . . . . . . . . . . . . . . . . . . . .483
Restrictions of FA-PWWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .484
Access Gateway N_Port failover with FA-PWWN . . . . . . . . . . . . . . .484
Chapter 20 Managing Administrative Domains
Administrative Domains overview . . . . . . . . . . . . . . . . . . . . . . . . . .485
Admin Domain features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .487
Requirements for Admin Domains . . . . . . . . . . . . . . . . . . . . . .487
Admin Domain access levels. . . . . . . . . . . . . . . . . . . . . . . . . . .487
User-defined Admin Domains . . . . . . . . . . . . . . . . . . . . . . . . . .488
System-defined Admin Domains. . . . . . . . . . . . . . . . . . . . . . . .488
Home Admin Domains and login . . . . . . . . . . . . . . . . . . . . . . .490
Admin Domain member types. . . . . . . . . . . . . . . . . . . . . . . . . .491
Admin Domains and switch WWNs. . . . . . . . . . . . . . . . . . . . . .492
Admin Domain compatibility, availability, and merging . . . . . .494
20 Fabric OS Administrator’s Guide
53-1002920-02
Admin Domain management for physical fabric administrators . .494
Setting the default zoning mode for Admin Domains . . . . . . .495
Creating an Admin Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . .495
User assignments to Admin Domains . . . . . . . . . . . . . . . . . . .496
Removing an Admin Domain from a user account . . . . . . . . .498
Activating an Admin Domain . . . . . . . . . . . . . . . . . . . . . . . . . . .498
Deactivating an Admin Domain . . . . . . . . . . . . . . . . . . . . . . . .499
Adding members to an existing Admin Domain . . . . . . . . . . . .499
Removing members from an Admin Domain . . . . . . . . . . . . . .500
Renaming an Admin Domain . . . . . . . . . . . . . . . . . . . . . . . . . .500
Deleting an Admin Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . .501
Deleting all user-defined Admin Domains . . . . . . . . . . . . . . . .502
Deleting all user-defined Admin Domains non-disruptively . .502
Validating an Admin Domain member list . . . . . . . . . . . . . . . .506
SAN management with Admin Domains . . . . . . . . . . . . . . . . . . . . .506
CLI commands in an AD context . . . . . . . . . . . . . . . . . . . . . . . .507
Executing a command in a different AD context . . . . . . . . . . .507
Displaying an Admin Domain configuration . . . . . . . . . . . . . . .508
Switching to a different Admin Domain context. . . . . . . . . . . .508
Admin Domain interactions with other Fabric OS features . . .509
Admin Domains, zones, and zone databases . . . . . . . . . . . . .510
Admin Domains and LSAN zones . . . . . . . . . . . . . . . . . . . . . . .511
Configuration upload and download in an AD context . . . . . .512
Section II Licensed Features
Chapter 21 Administering Licensing
Licensing overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .515
Brocade 7800 Upgrade license . . . . . . . . . . . . . . . . . . . . . . . . . . . .523
ICL licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .523
ICL 1st POD license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .523
ICL 2nd POD license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524
ICL 8-link license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524
ICL 16-link license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524
Enterprise ICL license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .524
8G licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525
Slot-based licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .526
Upgrade and downgrade considerations . . . . . . . . . . . . . . . . .526
Assigning a license to a slot . . . . . . . . . . . . . . . . . . . . . . . . . . .526
Removing a license from a slot. . . . . . . . . . . . . . . . . . . . . . . . .527
10G licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .527
Enabling 10 Gbps operation on an FC port . . . . . . . . . . . . . . .528
Enabling the 10-GbE ports on an FX8-24 blade . . . . . . . . . . .529
Fabric OS Administrator’s Guide 21
53-1002920-02
Temporary licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .530
Restrictions on upgrading temporary slot-based licenses . . .531
Date change restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531
Configupload and download considerations . . . . . . . . . . . . . .531
Expired licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531
Universal temporary licenses . . . . . . . . . . . . . . . . . . . . . . . . . .532
Extending a universal temporary license . . . . . . . . . . . . . . . . .532
Universal temporary license shelf life. . . . . . . . . . . . . . . . . . . .532
Viewing installed licenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .532
Activating a license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .533
Adding a licensed feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .533
Removing a licensed feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .534
Ports on Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .535
Displaying installed licenses . . . . . . . . . . . . . . . . . . . . . . . . . . .536
Activating Ports on Demand . . . . . . . . . . . . . . . . . . . . . . . . . . .537
Dynamic Ports on Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . .537
Displaying the port license assignments . . . . . . . . . . . . . . . . .538
Enabling Dynamic Ports on Demand . . . . . . . . . . . . . . . . . . . .538
Disabling Dynamic Ports on Demand. . . . . . . . . . . . . . . . . . . .539
Reserving a port license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .540
Releasing a port from a POD set. . . . . . . . . . . . . . . . . . . . . . . .540
Chapter 22 Inter-chassis Links
Inter-chassis links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543
License requirements for ICLs . . . . . . . . . . . . . . . . . . . . . . . . .544
ICLs for the Brocade DCX 8510 Backbone family. . . . . . . . . . . . . .544
ICL trunking on the Brocade DCX 8510-8 and DCX 8510-4 . .545
ICLs for the Brocade DCX Backbone family. . . . . . . . . . . . . . . . . . .546
ICL trunking on the Brocade DCX and DCX-4S. . . . . . . . . . . . .547
Virtual Fabrics considerations for ICLs . . . . . . . . . . . . . . . . . . . . . .547
Supported topologies for ICL connections . . . . . . . . . . . . . . . . . . .547
Mesh topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .547
Core-edge topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .549
Chapter 23 Monitoring Fabric Performance
Advanced Performance Monitoring overview . . . . . . . . . . . . . . . . .551
Types of monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .551
Restrictions for installing monitors. . . . . . . . . . . . . . . . . . . . . .552
Virtual Fabrics considerations for Advanced Performance
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .552
Access Gateway considerations for Advanced Performance
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .553
22 Fabric OS Administrator’s Guide
53-1002920-02
End-to-end performance monitoring . . . . . . . . . . . . . . . . . . . . . . . .553
Maximum number of EE monitors . . . . . . . . . . . . . . . . . . . . . .553
Supported port configurations for EE monitors . . . . . . . . . . . .554
Adding EE monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .554
Setting a mask for an EE monitor . . . . . . . . . . . . . . . . . . . . . . .555
Deleting EE monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .556
Displaying EE monitor counters . . . . . . . . . . . . . . . . . . . . . . . .557
Clearing EE monitor counters . . . . . . . . . . . . . . . . . . . . . . . . . .557
Frame monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .558
License requirements for frame monitoring . . . . . . . . . . . . . .558
Creating frame types to be monitored . . . . . . . . . . . . . . . . . . .559
Creating a frame monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .559
Deleting frame types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .560
Adding frame monitors to a port. . . . . . . . . . . . . . . . . . . . . . . .560
Removing frame monitors from a port . . . . . . . . . . . . . . . . . . .560
Saving a frame monitor configuration . . . . . . . . . . . . . . . . . . .560
Displaying frame monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . .561
Clearing frame monitor counters . . . . . . . . . . . . . . . . . . . . . . .562
Top Talker monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .562
Top Talker monitors and FC-FC routing. . . . . . . . . . . . . . . . . . .563
Limitations of Top Talker monitors . . . . . . . . . . . . . . . . . . . . . .565
Adding a Top Talker monitor to a port (port mode) . . . . . . . . .565
Adding Top Talker monitors on all switches in the fabric
(fabric mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .565
Displaying the top n bandwidth-using flows on a port
(port mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .566
Displaying top talking flows for a given domain ID
(fabric mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .566
Deleting a Top Talker monitor on a port (port mode) . . . . . . .567
Deleting all fabric mode Top Talker monitors. . . . . . . . . . . . . .567
Trunk monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .567
Trunk monitoring considerations . . . . . . . . . . . . . . . . . . . . . . .567
Saving and restoring monitor configurations . . . . . . . . . . . . . . . . .567
Performance data collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .568
Chapter 24 Managing Trunking Connections
Trunking overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .569
Types of trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .570
Masterless trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .570
License requirements for trunking . . . . . . . . . . . . . . . . . . . . . . 571
Port groups for trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571
Supported platforms for trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . 571
Supported configurations for trunking . . . . . . . . . . . . . . . . . . . . . . 571
High Availability support for trunking . . . . . . . . . . . . . . . . . . . .572
Requirements for trunk groups . . . . . . . . . . . . . . . . . . . . . . . . . . . .572
Recommendations for trunk groups . . . . . . . . . . . . . . . . . . . . . . . .572
Configuring trunk groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .573
Fabric OS Administrator’s Guide 23
53-1002920-02
Enabling trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574
Disabling trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574
Displaying trunking information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574
Trunk Area and Admin Domains. . . . . . . . . . . . . . . . . . . . . . . . . . . . 576
Example of Trunk Area assignment on port domain,index . . . 576
ISL trunking over long-distance fabrics . . . . . . . . . . . . . . . . . . . . . . 576
EX_Port trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .577
Masterless EX_Port trunking. . . . . . . . . . . . . . . . . . . . . . . . . . .577
Supported configurations and platforms for EX_Port
trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .578
Configuring EX_Port trunking . . . . . . . . . . . . . . . . . . . . . . . . . .578
Displaying EX_Port trunking information . . . . . . . . . . . . . . . . .578
F_Port trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .579
F_Port trunking for Access Gateway . . . . . . . . . . . . . . . . . . . . .579
F_Port trunking for Brocade adapters . . . . . . . . . . . . . . . . . . .581
F_Port trunking considerations. . . . . . . . . . . . . . . . . . . . . . . . .582
F_Port trunking in Virtual Fabrics . . . . . . . . . . . . . . . . . . . . . . .584
Displaying F_Port trunking information . . . . . . . . . . . . . . . . . . . . . .585
Disabling F_Port trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .585
Enabling the DCC policy on a trunk area. . . . . . . . . . . . . . . . . . . . .586
Chapter 25 Managing Long-Distance Fabrics
Long-distance fabrics overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .587
Extended Fabrics device limitations . . . . . . . . . . . . . . . . . . . . . . . .588
Long-distance link modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .588
Configuring an extended ISL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .589
Enabling long distance when connecting to TDM devices . . .590
Forward error correction on long-distance links . . . . . . . . . . . . . . .591
Enabling FEC on a long-distance link . . . . . . . . . . . . . . . . . . . .591
Disabling FEC on a long-distance link . . . . . . . . . . . . . . . . . . .591
Chapter 26 Using FC-FC Routing to Connect Fabrics
FC-FC routing overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .593
License requirements for FC-FC routing . . . . . . . . . . . . . . . . . .594
Supported platforms for FC-FC routing. . . . . . . . . . . . . . . . . . .594
Supported configurations for FC-FC routing. . . . . . . . . . . . . . .595
Network OS connectivity limitations . . . . . . . . . . . . . . . . . . . . .595
Fibre Channel routing concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . .596
Proxy devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .599
FC-FC routing topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600
Phantom domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .601
FC router authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .603
Setting up FC-FC routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .603
Verifying the setup for FC-FC routing . . . . . . . . . . . . . . . . . . . .604
24 Fabric OS Administrator’s Guide
53-1002920-02
Backbone fabric IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .605
Assigning backbone fabric IDs . . . . . . . . . . . . . . . . . . . . . . . . .606
FCIP tunnel configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .606
Inter-fabric link configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .607
Configuring an IFL for both edge and backbone connections 607
Configuring EX_Ports on an ICL . . . . . . . . . . . . . . . . . . . . . . . .611
FC router port cost configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .613
Port cost considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .614
Setting router port cost for an EX_Port. . . . . . . . . . . . . . . . . . .614
Shortest IFL cost configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . .615
Configuring shortest IFL cost . . . . . . . . . . . . . . . . . . . . . . . . . . 617
EX_Port frame trunking configuration . . . . . . . . . . . . . . . . . . . . . . .619
LSAN zone configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .620
Use of Admin Domains with LSAN zones and FC-FC routing .620
Zone definition and naming . . . . . . . . . . . . . . . . . . . . . . . . . . .620
LSAN zones and fabric-to-fabric communications. . . . . . . . . .621
Controlling device communication with the LSAN . . . . . . . . . .621
Configuring backbone fabrics for interconnectivity . . . . . . . . .623
Setting the maximum LSAN count . . . . . . . . . . . . . . . . . . . . . .624
HA and downgrade considerations for LSAN zones . . . . . . . .624
LSAN zone policies using LSAN tagging . . . . . . . . . . . . . . . . . .624
LSAN zone binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .628
Proxy PID configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .633
Fabric parameter considerations. . . . . . . . . . . . . . . . . . . . . . . . . . .633
Inter-fabric broadcast frames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .634
Displaying the current broadcast configuration. . . . . . . . . . . .634
Enabling broadcast frame forwarding . . . . . . . . . . . . . . . . . . .634
Disabling broadcast frame forwarding . . . . . . . . . . . . . . . . . . .634
Resource monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .634
FC-FC routing and Virtual Fabrics. . . . . . . . . . . . . . . . . . . . . . . . . . .636
Logical switch configuration for FC routing . . . . . . . . . . . . . . .637
Backbone-to-edge routing with Virtual Fabrics . . . . . . . . . . . .638
Upgrade and downgrade considerations for FC-FC routing . . . . . .639
How replacing port blades affects EX_Port configuration. . . .639
Displaying the range of output ports connected to xlate domains 639
Appendix A Port Indexing
Appendix B FIPS Support
FIPS overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645
Zeroization functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .645
Power-on self-tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .647
Conditional tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .647
Fabric OS Administrator’s Guide 25
53-1002920-02
FIPS mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .647
LDAP in FIPS mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .648
LDAP certificates for FIPS mode . . . . . . . . . . . . . . . . . . . . . . . .650
Preparing a switch for FIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .651
Overview of steps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .652
Enabling FIPS mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .652
Zeroizing for FIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .655
Displaying FIPS configuration . . . . . . . . . . . . . . . . . . . . . . . . . .655
Appendix C Hexadecimal Conversion
Example conversion of the hexadecimal triplet Ox616000 . .657
Decimal-to-hexadecimal conversion table . . . . . . . . . . . . . . . .658
Index
26 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS Administrator’s Guide 27
53-1002920-02
Figures
Figure 1 Well-known addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 2 Identifying the blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

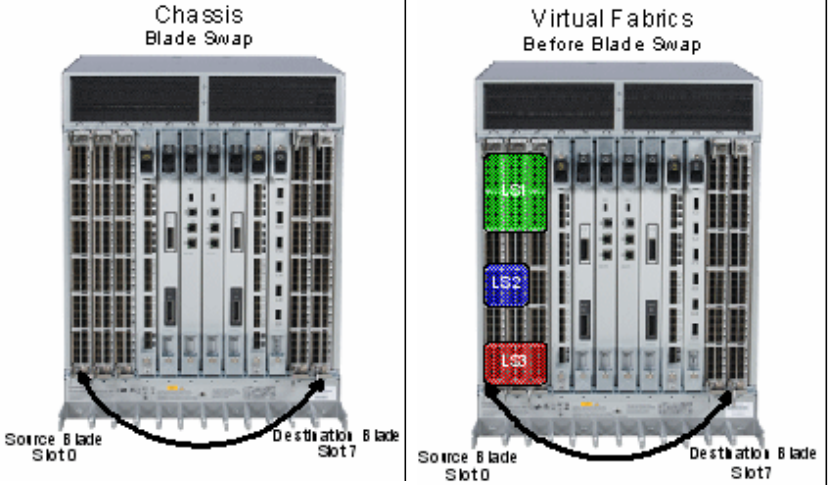

Figure 3 Blade swap with Virtual Fabrics during the swap. . . . . . . . . . . . . . . . . . . . . . . . 101
Figure 4 Blade swap with Virtual Fabrics after the swap . . . . . . . . . . . . . . . . . . . . . . . . . 102
Figure 5 Principal ISLs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Figure 6 New switch added to existing fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Figure 7 Virtual channels on a QoS-enabled ISL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Figure 8 Gateway link merging SANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Figure 9 Single host and target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Figure 10 Windows 2000 VSA configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Figure 11 Example of a brocade.dct file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Figure 12 Example of the dictiona.dcm file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Figure 13 SNMP structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Figure 14 SNMP query. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Figure 15 SNMP trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Figure 16 Brocade MIB tree location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Figure 17 DH-CHAP authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Figure 18 Protected endpoints configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Figure 19 Gateway tunnel configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Figure 20 Endpoint-to-gateway tunnel configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Figure 21 Switch before and after enabling Virtual Fabrics . . . . . . . . . . . . . . . . . . . . . . . . 310
Figure 22 Switch before and after creating logical switches . . . . . . . . . . . . . . . . . . . . . . . 311
Figure 23 Fabric IDs assigned to logical switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Figure 24 Assigning ports to logical switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Figure 25 Logical switches connected to devices and non-Virtual Fabrics switch . . . . . . 314
Figure 26 Logical switches in a single chassis belong to separate fabrics . . . . . . . . . . . . 314
Figure 27 Logical switches connected to other logical switches through physical ISLs. . 316
Figure 28 Logical switches connected to form logical fabrics . . . . . . . . . . . . . . . . . . . . . . 316
Figure 29 Base switches connected by an XISL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

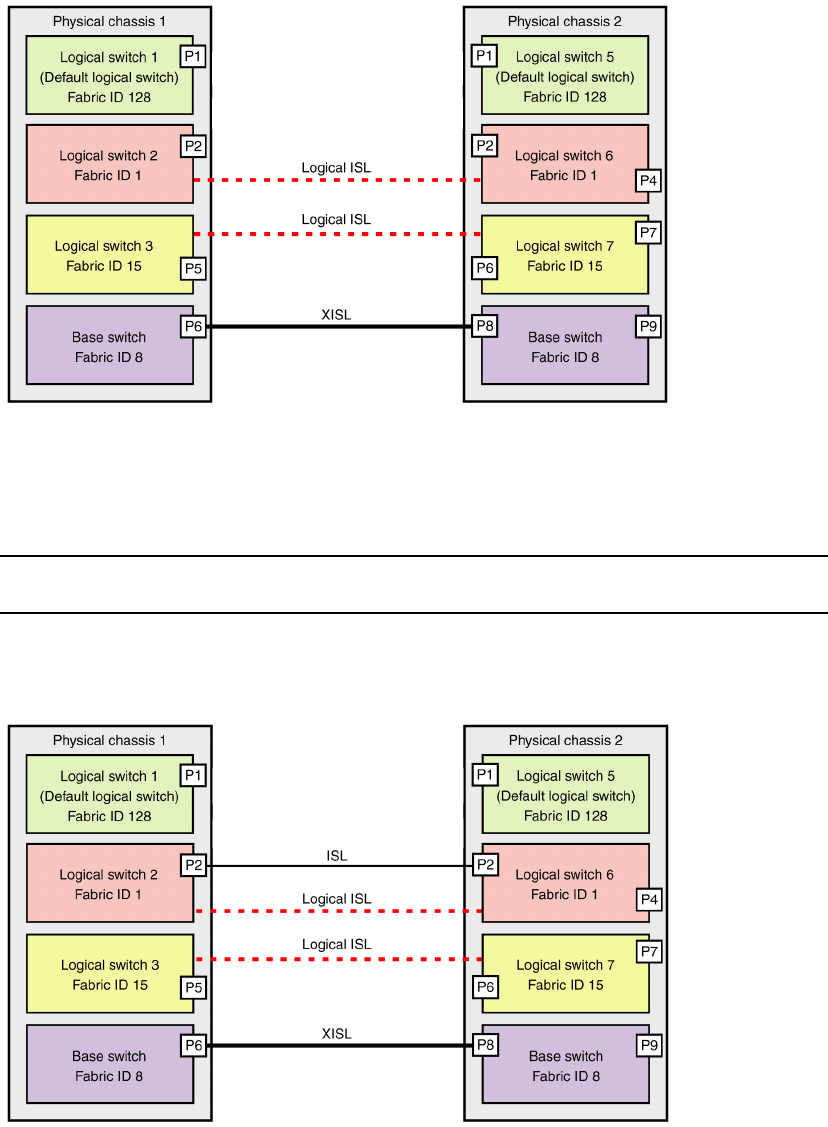

Figure 30 Logical ISLs connecting logical switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Figure 31 Logical fabric using ISLs and XISLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Figure 32 Example of logical fabrics in multiple chassis and XISLs . . . . . . . . . . . . . . . . . 335
Figure 33 Zoning example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

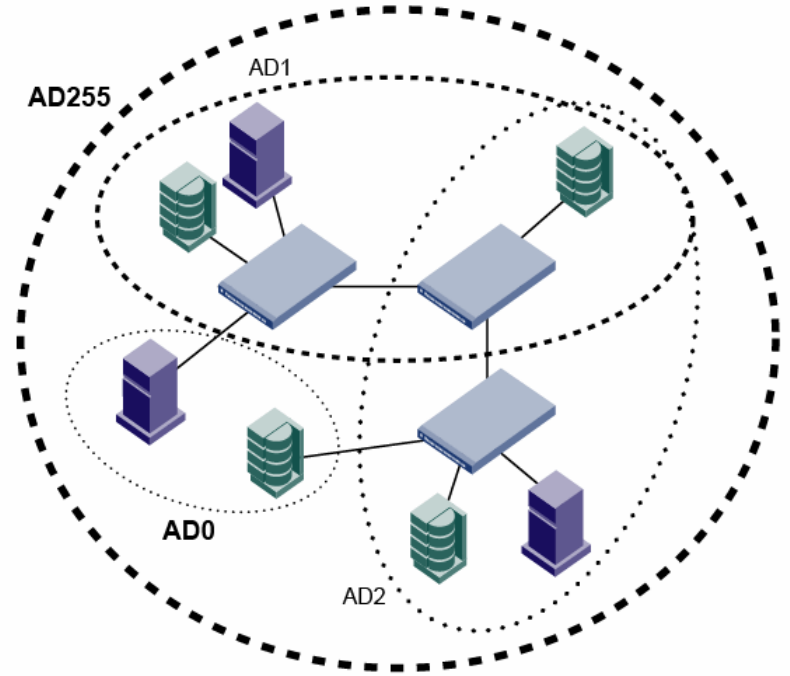

Figure 34 Broadcast zones and Admin Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Figure 35 Traffic Isolation zone creating a dedicated path through the fabric. . . . . . . . . 380
Figure 36 Fabric incorrectly configured for TI zone with failover disabled . . . . . . . . . . . . 382
28 Fabric OS Administrator’s Guide
53-1002920-02
Figure 37 Dedicated path is the only shortest path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Figure 38 Dedicated path is not the shortest path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Figure 39 Enhanced TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Figure 40 Illegal ETIZ configuration: two paths from one port to two devices on the
same remote domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Figure 41 Illegal ETIZ configuration: two paths from one port . . . . . . . . . . . . . . . . . . . . . . 386
Figure 42 Traffic Isolation Zoning over FCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Figure 43 TI zone in an edge fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
Figure 44 TI zone in a backbone fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Figure 45 Fabric-level traffic isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
Figure 46 TI zone misconfiguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Figure 47 Dedicated path with Virtual Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Figure 48 Creating a TI zone in a logical fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Figure 49 Creating a TI zone in a base fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Figure 50 Example configuration for TI zones over FC routers in logical fabrics . . . . . . . 401
Figure 51 Logical representation of TI zones over FC routers in logical fabrics . . . . . . . . 401
Figure 52 TI over FCR example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

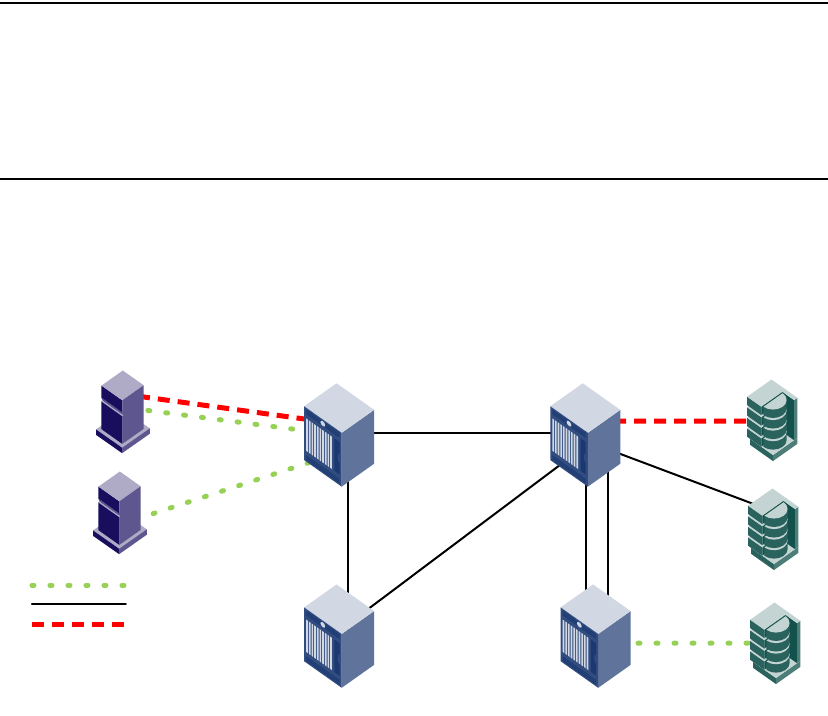

Figure 53 QoS traffic prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Figure 54 QoS with E_Ports enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Figure 55 Traffic prioritization in a logical fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
Figure 56 Affected seconds for bottleneck detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433
Figure 57 Encryption and compression on 16 Gbps ISLs. . . . . . . . . . . . . . . . . . . . . . . . . . 446

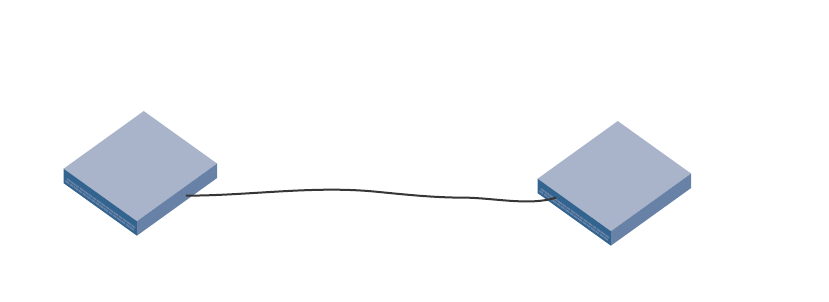

Figure 58 Example of a basic D_Port connection between switches . . . . . . . . . . . . . . . . 460
Figure 59 ISLs connecting multiple switches and chassis . . . . . . . . . . . . . . . . . . . . . . . . . 463

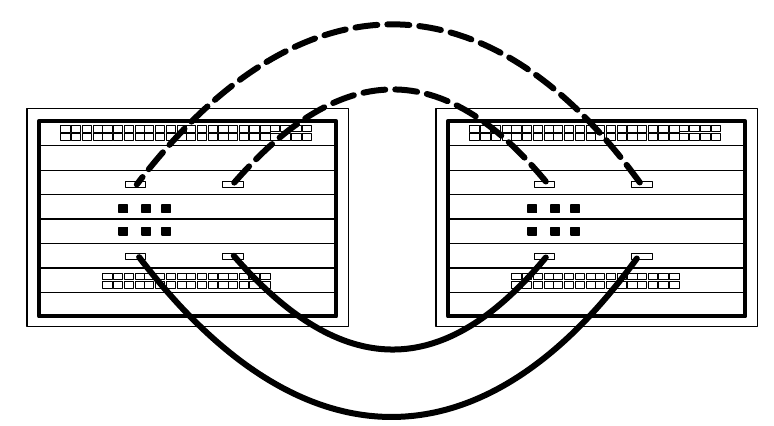

Figure 60 ICLs connecting chassis blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 463
Figure 61 Single Access Gateway to switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Figure 62 Multiple Access Gateways cascaded to switch . . . . . . . . . . . . . . . . . . . . . . . . . 464
Figure 63 Access Gateway to HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Figure 64 HBA to switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465

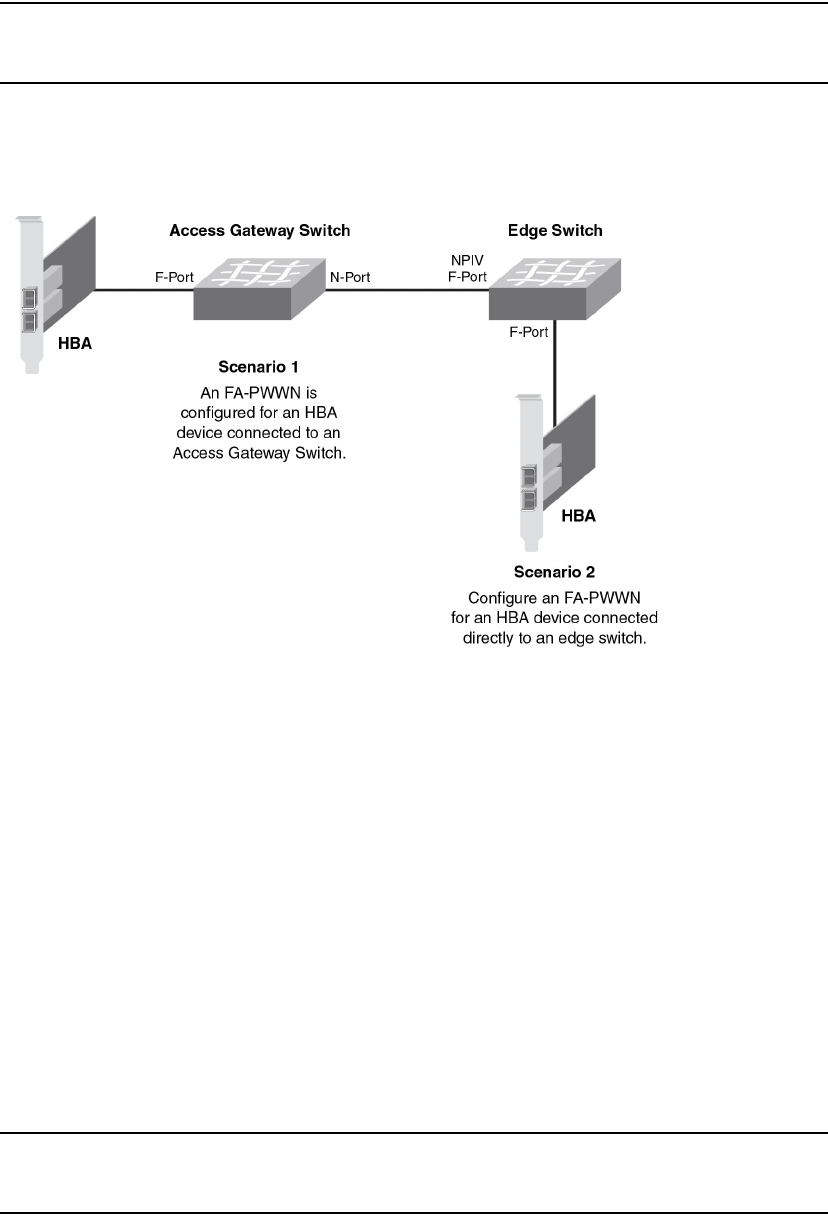

Figure 65 Fabric-assigned port World Wide Name provisioning scenarios . . . . . . . . . . . . 480
Figure 66 Fabric with two Admin Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
Figure 67 Filtered fabric views when using Admin Domains . . . . . . . . . . . . . . . . . . . . . . . 486
Figure 68 Fabric with AD0 and AD255. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Figure 69 Fabric showing switch and device WWNs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 493

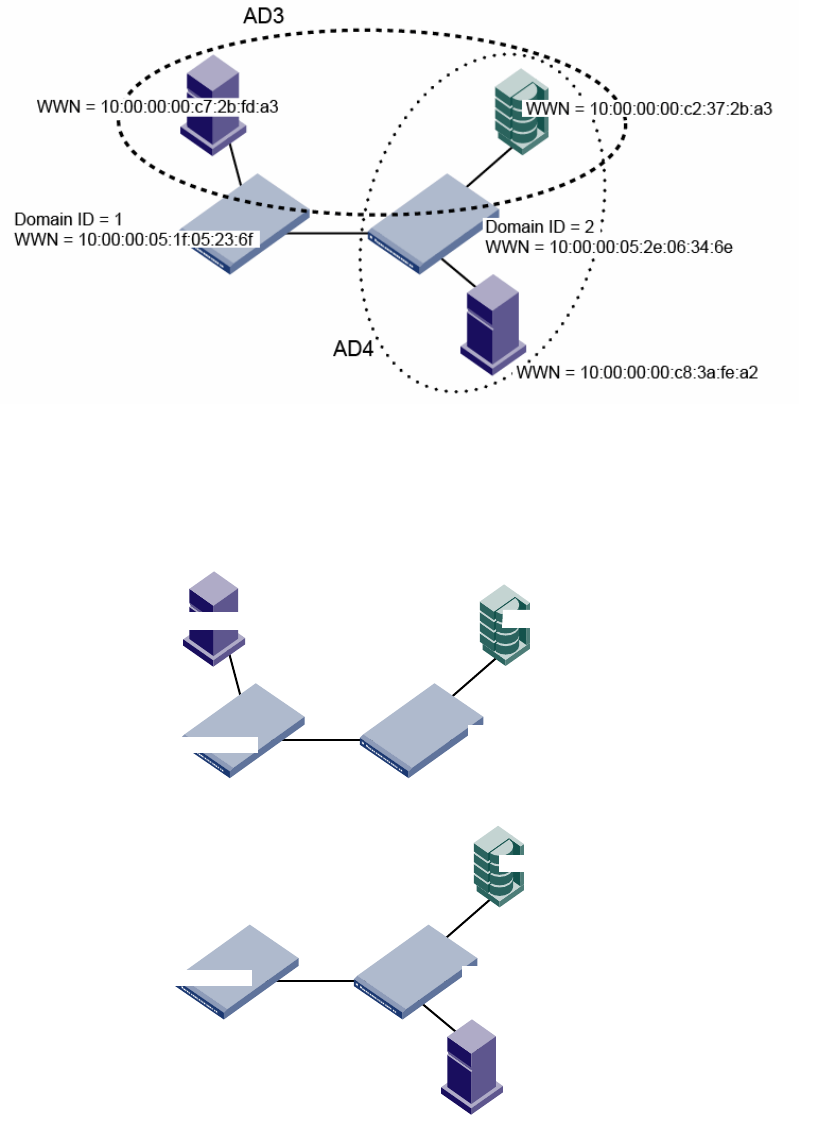

Figure 70 Filtered fabric views showing converted switch WWNs . . . . . . . . . . . . . . . . . . . 493
Figure 71 AD0 and two user-defined Admin Domains, AD1 and AD2 . . . . . . . . . . . . . . . . 504
Figure 72 AD0 with three zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 504
Figure 73 Minimum configuration for 64 Gbps ICLs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545
Figure 74 DCX-4S allowed ICL connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 546

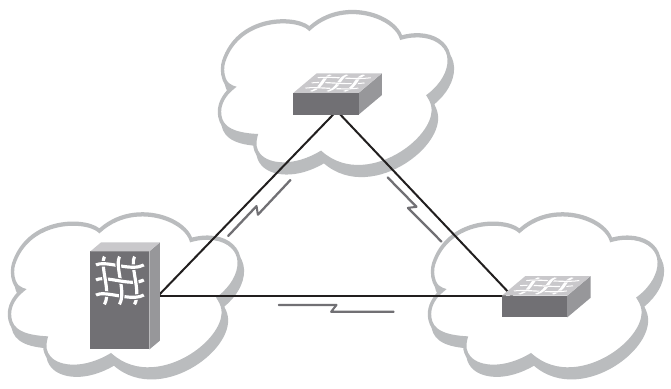

Figure 75 ICL triangular topology with Brocade DCX 8510-8 chassis . . . . . . . . . . . . . . . . 548
Figure 76 Full nine-mesh topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549
Figure 77 64 Gbps ICL core-edge topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550
Fabric OS Administrator’s Guide 29
53-1002920-02
Figure 78 Setting end-to-end monitors on a port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 554
Figure 79 Mask positions for end-to-end monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 556
Figure 80 Fabric mode Top Talker monitors on FC router do not monitor any flows . . . . 564
Figure 81 Fabric mode Top Talker monitors on FC router monitor flows over the E_Port 564
Figure 82 Port group configuration for the Brocade 5100. . . . . . . . . . . . . . . . . . . . . . . . . 571
Figure 83 Switch in Access Gateway mode without F_Port masterless trunking . . . . . . . 580
Figure 84 Switch in Access Gateway mode with F_Port masterless trunking . . . . . . . . . . 580
Figure 85 A metaSAN with inter-fabric links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 596

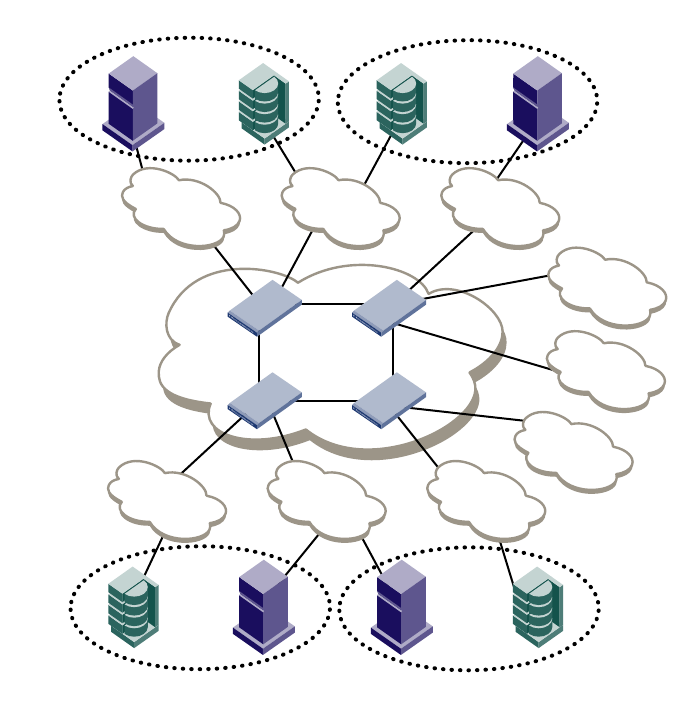

Figure 86 A metaSAN with edge-to-edge and backbone fabrics and LSAN zones . . . . . . 597
Figure 87 Edge SANs connected through a backbone fabric. . . . . . . . . . . . . . . . . . . . . . . 599
Figure 88 MetaSAN with imported devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600
Figure 89 Sample topology (physical topology) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 601
Figure 90 EX_Port phantom switch topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 602
Figure 91 Shortest IFL solution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 617
Figure 92 Example of setting up Speed LSAN tag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 626
Figure 93 LSAN zone binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629
Figure 94 EX_Ports in a base switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
Figure 95 Logical representation of EX_Ports in a base switch . . . . . . . . . . . . . . . . . . . . . 638
Figure 96 Backbone-to-edge routing across base switch using FC router in legacy mode 639
30 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS Administrator’s Guide 31
53-1002920-02
Tables
Table 1 Daemons that are automatically restarted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table 2 Terminal port parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Table 3 Help topic contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Table 4 fabricShow fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Table 5 Ports affected when you enable or disable a switch in VF or non-VF mode . . . . 79
Table 6 Core and CP blade terminology and platform support. . . . . . . . . . . . . . . . . . . . . 95
Table 7 Port blade terminology, numbering, and platform support . . . . . . . . . . . . . . . . . 96
Table 8 Blade compatibility within Brocade Backbone families. . . . . . . . . . . . . . . . . . . . 98
Table 9 Duplicate PWWN behavior: First login takes precedence over second login . . 110
Table 10 Duplicate PWWN behavior: Second login overrides first login . . . . . . . . . . . . . 110
Table 11 Duplicate PWWN behavior: Port type determines which login takes
precedence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Table 12 Combinations of routing policy and IOD with Lossless DLS enabled . . . . . . . . 130
Table 13 Fibre Channel gigabit values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Table 14 Fibre Channel data frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Table 15 Total FC ports, ports per port group, and unreserved buffer credits per
port group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Table 16 Configurable distances for Extended Fabrics. . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Table 17 Default Fabric OS roles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Table 18 Permission types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Table 19 Maximum number of simultaneous sessions. . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Table 20 Default local user accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Table 21 LDAP options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Table 22 Authentication configuration options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Table 23 Syntax for VSA-based account roles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Table 24 Entries in dictionary.brocade file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Table 25 Brocade custom TACACS+ attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Table 26 Secure protocol support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Table 27 Items needed to deploy secure protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Table 28 Main security scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Table 29 SSL certificate files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Table 30 Brocade SNMP MIB dependencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Table 31 Access Gateway MIB support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Table 32 Security level options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Table 33 Blocked listener applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Table 34 Access defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
32 Fabric OS Administrator’s Guide
53-1002920-02
Table 35 Port information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Table 36 Valid methods for specifying policy members . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Table 37 FCS policy states. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Table 38 FCS switch operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Table 39 Distribution policy states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Table 40 DCC policy states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Table 41 DCC policy behavior with FA-PWWN when created using lockdown support . . 241
Table 42 DCC policy behavior when created manually with PWWN . . . . . . . . . . . . . . . . . 242
Table 43 SCC policy states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Table 44 FCAP certificate files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Table 45 Supported services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Table 46 Implicit IP Filter rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Table 47 Default IP policy rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Table 48 Interaction between fabric-wide consistency policy and distribution settings . 261
Table 49 Supported policy databases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Table 50 Fabric-wide consistency policy settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Table 51 Merging fabrics with matching fabric-wide consistency policies. . . . . . . . . . . . 265
Table 52 Examples of strict fabric merges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Table 53 Fabric merges with tolerant and absent combinations . . . . . . . . . . . . . . . . . . . 266
Table 54 Algorithms and associated authentication policies . . . . . . . . . . . . . . . . . . . . . . 270
Table 55 CLI commands to display or modify switch configuration information . . . . . . . 281
Table 56 Brocade configuration and connection form . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Table 57 Backbone HA sync states. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Table 58 Commands used for validating a firmware download . . . . . . . . . . . . . . . . . . . . 307
Table 59 Blade and port types supported on logical switches . . . . . . . . . . . . . . . . . . . . . 321
Table 60 Virtual Fabrics interaction with Fabric OS features . . . . . . . . . . . . . . . . . . . . . . 322
Table 61 Maximum number of logical switches per chassis. . . . . . . . . . . . . . . . . . . . . . . 323
Table 62 Approaches to fabric-based zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Table 63 Considerations for zoning architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Table 64 Zone merging scenarios: Defined and effective configurations . . . . . . . . . . . . 373
Table 65 Zone merging scenarios: Different content . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Table 66 Zone merging scenarios: Different names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Table 67 Zone merging scenarios: TI zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Table 68 Zone merging scenarios: Default access mode . . . . . . . . . . . . . . . . . . . . . . . . . 376
Table 69 Zone merging scenarios: Mixed Fabric OS versions. . . . . . . . . . . . . . . . . . . . . . 376
Table 70 Traffic behavior when failover is enabled or disabled in TI zones . . . . . . . . . . 381
Table 71 Comparison between CS_CTL-based and QoS zone-based prioritization. . . . . 416
Table 72 Mapping of CS_CTL values to QoS priority for frame prioritization in
CS_CTL default mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Table 73 Mapping of CS_CTL values to QoS priority for frame prioritization in
CS_CTL auto mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Fabric OS Administrator’s Guide 33
53-1002920-02
Table 74 Number of ports supported for in-flight encryption and compression
at various port speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447
Table 75 Supported platforms for D_Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460
Table 76 D_Port configuration mode and nature of test. . . . . . . . . . . . . . . . . . . . . . . . . . 462
Table 77 Limitation on number of D_Ports for simultaneous tests . . . . . . . . . . . . . . . . . 469
Table 78 Number of supported NPIV devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Table 79 AD user types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 488
Table 80 Ports and devices in CLI output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 507
Table 81 Admin Domain interaction with Fabric OS features . . . . . . . . . . . . . . . . . . . . . . 509
Table 82 Configuration upload and download scenarios in an AD context . . . . . . . . . . . 512
Table 83 Available Brocade licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 516
Table 84 License requirements and location name by feature . . . . . . . . . . . . . . . . . . . . 519
Table 85 Base to Upgrade license comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523
Table 86 List of available user ports when implementing PODs . . . . . . . . . . . . . . . . . . 535
Table 87 Number of logical switches that support performance monitors . . . . . . . . . . . 552
Table 88 Maximum number of frame monitors and offsets per port . . . . . . . . . . . . . . . . 558
Table 89 Predefined values at offset 0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559
Table 90 Trunking over long distance for the Brocade Backbones and blades . . . . . . . 576
Table 91 F_Port masterless trunking considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582
Table 92 PWWN format for F_Port and N_Port trunk ports. . . . . . . . . . . . . . . . . . . . . . . . 584
Table 93 Fabric-wide settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 589
Table 94 LSAN information stored in FC routers, with and without LSAN zone binding . 630
Table 95 Zeroization behavior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 645
Table 96 FIPS mode restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 647
Table 97 FIPS and non-FIPS modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 648
Table 98 Active Directory keys to modify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650
Table 99 Decimal-to-hexadecimal conversion table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 658
34 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS Administrator’s Guide 35
53-1002920-02
About This Document
In this chapter
•Supported hardware and software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
•What’s new in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
•Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
•Notice to the reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
•Additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
•Getting technical help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
•Document feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Supported hardware and software
In those instances in which procedures or parts of procedures documented here apply to some
switches but not to others, this guide identifies exactly which switches are supported and which are
not.
Although many different software and hardware configurations are tested and supported by
Brocade Communications Systems, Inc. for Fabric OS v7.2.0, documenting all possible
configurations and scenarios is beyond the scope of this document.
The following hardware platforms are supported by this release of Fabric OS:
•Fixed-port switches:
-Brocade 300 switch
-Brocade 5100 switch
-Brocade 5300 switch
-Brocade 5410 embedded switch
-Brocade 5424 embedded switch
-Brocade 5430 embedded switch
-Brocade 5431 embedded switch
-Brocade 5450 embedded switch
-Brocade 5460 embedded switch
-Brocade 5470 embedded switch
-Brocade 5480 embedded switch
-Brocade M6505 embedded switch
-Brocade 6505 switch
-Brocade 6510 switch
36 Fabric OS Administrator’s Guide
53-1002920-02
-Brocade 6520 switch
-Brocade 6547 embedded switch
-Brocade 7800 extension switch
-Brocade VA-40FC
-Brocade Encryption Switch
•Brocade DCX Backbone family:
-Brocade DCX
-Brocade DCX-4S
•Brocade DCX 8510 Backbone family:
-Brocade DCX 8510-4
-Brocade DCX 8510-8
What’s new in this document
Information that was modified:
•Renamed and moved the section about the two Ethernet ports on the CP blade to
“Management Ethernet port bonding” on page 65.
•Moved the section “Enabling forward error correction” from the Routing chapter to Chapter 3,
“Performing Advanced Configuration Tasks”.
•In Chapter 17, “Diagnostic Port,” updated Table 76 and added some HA considerations and
some considerations for D_Port with HBAs.
•Updated the “Setting up FC-FC routing” section and the “Configuring EX_Ports on an ICL”
section in Chapter 26, “Using FC-FC Routing to Connect Fabrics”.
•In Appendix B, “FIPS Support,” updated Table 96 on page 647 with entries for Authentication
and FC-FC routing.
Document conventions
This section describes text formatting conventions and important notice formats used in this
document.
Text formatting
The narrative-text formatting conventions that are used are as follows:
bold text Identifies command names
Identifies the names of user-manipulated GUI elements
Identifies keywords and operands
Identifies text to enter at the GUI or CLI
Fabric OS Administrator’s Guide 37
53-1002920-02
italic text Provides emphasis
Identifies variables
Identifies paths and Internet addresses
Identifies document titles
code text Identifies CLI output
Identifies command syntax examples
For readability, command names in the narrative portions of this guide are presented in mixed
lettercase: for example, switchShow. In actual examples, command lettercase is often all
lowercase. Otherwise, this manual specifically notes those cases in which a command is case
sensitive.
Command syntax conventions
Command syntax in this manual follows these conventions:
Notes, cautions, and warnings
The following notices and statements are used in this manual. They are listed below in order of
increasing severity of potential hazards.
NOTE
A note provides a tip, guidance or advice, emphasizes important information, or provides a reference
to related information.
ATTENTION
An Attention statement indicates potential damage to hardware or data.
command Commands are printed in bold.
--option, option Command options are printed in bold.
-argument, arg Arguments.
[ ] Optional element.
variable Variables are printed in italics. In the help pages, values are underlined or
enclosed in angled brackets < >.
... Repeat the previous element, for example “member[;member...]”
value Fixed values following arguments are printed in plain font. For example,
--show WWN
| Boolean. Elements are exclusive. Example: --show -mode egress | ingress
38 Fabric OS Administrator’s Guide
53-1002920-02
CAUTION
A Caution statement alerts you to situations that can be potentially hazardous to you or cause
damage to hardware, firmware, software, or data.
DANGER
A Danger statement indicates conditions or situations that can be potentially lethal or extremely
hazardous to you. Safety labels are also attached directly to products to warn of these conditions
or situations.
Key terms
For definitions specific to Brocade and Fibre Channel, see the Brocade Glossary.
For definitions of SAN-specific terms, visit the Storage Networking Industry Association online
dictionary at:
http://www.snia.org/education/dictionary
Notice to the reader
This document may contain references to the trademarks of the following corporations. These
trademarks are the properties of their respective companies and corporations.
These references are made for informational purposes only.
Additional information
This section lists additional Brocade and industry-specific documentation that you might find
helpful.
Brocade resources
To get up-to-the-minute information, go to http://my.brocade.com and register at no cost for a user
ID and password.
Corporation Referenced Trademarks and Products
Microsoft Corporation Windows, Windows NT, Internet Explorer
Mozilla Corporation Mozilla, Firefox
Netscape Communications Corporation Netscape
Red Hat, Inc. Red Hat, Red Hat Network, Maximum RPM, Linux Undercover
Sun Microsystems, Inc. Sun, Solaris
Fabric OS Administrator’s Guide 39
53-1002920-02
For practical discussions about SAN design, implementation, and maintenance, you can obtain
Building SANs with Brocade Fabric Switches through:
http://www.amazon.com
For additional Brocade documentation, visit the Brocade SAN Info Center and click the Resource
Library location:
http://www.brocade.com
Release notes are available on the My Brocade website and are also bundled with the Fabric OS
firmware.
Other industry resources
For additional resource information, visit the Technical Committee T11 website. This website
provides interface standards for high-performance and mass storage applications for Fibre
Channel, storage management, and other applications:
http://www.t11.org
For information about the Fibre Channel industry, visit the Fibre Channel Industry Association
website:
http://www.fibrechannel.org
40 Fabric OS Administrator’s Guide
53-1002920-02
Getting technical help
Contact your switch support supplier for hardware, firmware, and software support, including
product repairs and part ordering. To expedite your call, have the following information available:
1. General Information
•Switch model
•Switch operating system version
•Error numbers and messages received
•supportSave command output
•Detailed description of the problem, including the switch or fabric behavior immediately
following the problem, and specific questions
•Description of any troubleshooting steps already performed and the results
•Serial console and Telnet session logs
•syslog message logs
2. switch serial number
The switch serial number and corresponding bar code are provided on the serial number label,
as illustrated below.:
The serial number label is located as follows:
•Brocade 300, 5100, 5300, 6505, M6505, 6510, 6520, 6547, 7800, VA-40FC, and Brocade
Encryption Switch—On the switch ID pull-out tab located inside the chassis on the port side on
the left
•Brocade 5410, 5424, 5430, 5431, 5450, 5460, 5470, 5480—Serial number label attached to
the module
•Brocade 6510—On the pull-out tab on the front of the switch
•Brocade DCX and DCX 8510-8—On the bottom right on the port side of the chassis
•Brocade DCX-4S and DCX 8510-4—On the bottom right on the port side of the chassis, directly
above the cable management comb
3. World Wide Name (WWN)
Use the wwn command to display the switch WWN.
If you cannot use the wwn command because the switch is inoperable, you can get the WWN
from the same place as the serial number, except for the Brocade DCX enterprise class
platform. For the Brocade DCX enterprise class platform, access the numbers on the WWN
cards by removing the Brocade logo plate at the top of the nonport side of the chassis.
For the Brocade 5424 embedded switch: Provide the license ID. Use the licenseIdShow
command to display the WWN.
'"!&'
FT00X0054E9
Fabric OS Administrator’s Guide 41
53-1002920-02
Document feedback
Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and
completeness of this document. However, if you find an error or an omission, or you think that a
topic needs further development, we want to hear from you. Forward your feedback to:
documentation@brocade.com
Provide the title and version number of the document and as much detail as possible about your
comment, including the topic heading and page number and your suggestions for improvement.
42 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS Administrator’s Guide 43
53-1002920-02
Section
I
Standard Features
This section describes standard Fabric OS features, and includes the following chapters:
•Chapter 1, “Understanding Fibre Channel Services”
•Chapter 2, “Performing Basic Configuration Tasks”
•Chapter 3, “Performing Advanced Configuration Tasks”
•Chapter 4, “Routing Traffic”
•Chapter 5, “Buffer-to-Buffer Credits and Credit Recovery”
•Chapter 6, “Managing User Accounts”
•Chapter 7, “Configuring Protocols”
•Chapter 8, “Configuring Security Policies”
•Chapter 9, “Maintaining the Switch Configuration File”
•Chapter 10, “Installing and Maintaining Firmware”
•Chapter 11, “Managing Virtual Fabrics”
•Chapter 12, “Administering Advanced Zoning”
•Chapter 13, “Traffic Isolation Zoning”
•Chapter 14, “Optimizing Fabric Behavior”
•Chapter 15, “Bottleneck Detection”
•Chapter 16, “In-flight Encryption and Compression”
•Chapter 17, “Diagnostic Port”
•Chapter 18, “NPIV”
•Chapter 19, “Fabric-Assigned PWWN”
•Chapter 20, “Managing Administrative Domains”
44 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS Administrator’s Guide 45
53-1002920-02
Chapter
1
Understanding Fibre Channel Services
In this chapter
•Fibre Channel services overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
•Management server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
•Platform services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
•Management server database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
•Topology discovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
•Device login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
•High availability of daemon processes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Fibre Channel services overview
Fibre Channel services define service functions that reside at well-known addresses. A well-known
address is a reserved three-byte address for each service. Services are provided to either nodes or
management applications in the fabric.
Figure 1 Well-known addresses
Fabric Login — The Fabric Login server assigns a fabric address to a fabric node, which allows it to
communicate with services on the switch or other nodes in the fabric. The fabric address is a 24-bit
address (0x000000) containing three 3-byte nodes. Reading from left to right, the first node
(0x000000) represents the domain ID, the second node (0x000000) the port area number of the
port where the node is attached, and the third node (0x000000) the arbitrated loop physical
address (AL_PA), if applicable.
Directory server — The directory server or name server registers fabric and public nodes and
conducts queries to discover other devices in the fabric.
Fabric controller — The fabric controller provides State Change Notifications (SCNs) to registered
nodes when a change in the fabric topology occurs.
Time server — The time server sends the time to the member switches in the fabric from either the
principal switch or, if configured, the primary fabric configuration server (FCS) switch.
Refer to Chapter 8, “Configuring Security Policies,” for additional information on FCS policies.
46 Fabric OS Administrator’s Guide
53-1002920-02
Management server
1
Management server — The management server provides a single point for managing the fabric.
This is the only service that users can configure. See “Management server” below for more details
Alias server — The alias server keeps a group of nodes registered as one name to handle multicast
groups.
Broadcast server — The broadcast server is optional. When frames are transmitted to this address,
they are broadcast to all operational N_ and NL_Ports.
When registration and query frames are sent to a well-known address, a different protocol service,
Fibre Channel Common Transport (FC-CT), is used. This protocol provides a simple, consistent
format and behavior when a service provider is accessed for registration and query purposes.
Management server
The Brocade Fabric OS management server (MS) allows a SAN management application to retrieve
information and administer interconnected switches, servers, and storage devices. The
management server assists in the autodiscovery of switch-based fabrics and their associated
topologies.
A client of the management server can find basic information about the switches in the fabric and
use this information to construct topology relationships. The management server also allows you to
obtain certain switch attributes and, in some cases, modify them. For example, logical names
identifying switches can be registered with the management server.
The management server provides several advantages for managing a Fibre Channel fabric:
•It is accessed by an external Fibre Channel node at the well-known address FFFFFAh, so an
application can access information about the entire fabric management with minimal
knowledge of the existing configuration.
•It is replicated on every Brocade switch within a fabric.
•It provides an unzoned view of the overall fabric configuration. This fabric topology view
exposes the internal configuration of a fabric for management purposes; it contains
interconnect information about switches and devices connected to the fabric. Under normal
circumstances, a device (typically an FCP initiator) queries the name server for storage devices
within its member zones. Because this limited view is not always sufficient, the management
server provides the application with a list of the entire name server database.
Platform services
By default, all management services except platform services are enabled; the MS platform service
and topology discovery are disabled.
You can activate and deactivate the platform services throughout the fabric. Activating the platform
services attempts to activate the MS platform service for each switch in the fabric. The change
takes effect immediately and is committed to the configuration database of each affected switch.
MS activation is persistent across power cycles and reboots.
NOTE
The commands msplMgmtActivate and msplMgmtDeactivate are allowed only in AD0 and AD255.
Fabric OS Administrator’s Guide 47
53-1002920-02
Management server database 1

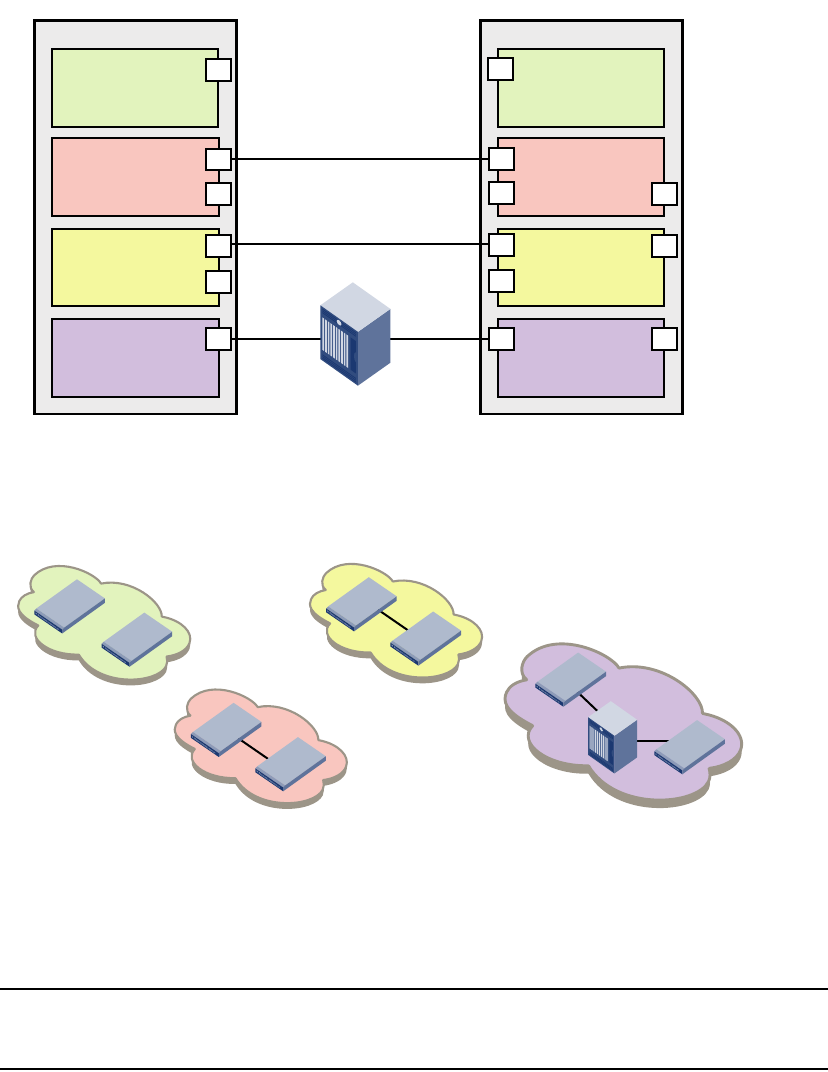

Platform services and Virtual Fabrics
Each logical switch has a separate platform database. All platform registrations done to a logical
switch are valid only in that particular logical switch’s Virtual Fabric.
Activating the platform services on a switch activates the platform services on all logical switches in
a Virtual Fabric. Similarly, deactivating the platform services deactivates the platform service on all
logical switches in a Virtual Fabric. The msPlatShow command displays all platforms registered in a
Virtual Fabric.
Enabling platform services
When FCS policy is enabled, the msplMgmtActivate command can be issued only from the primary
FCS switch.
The execution of the msplMgmtActivate command is subject to Admin Domain restrictions that may
be in place.
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msCapabilityShow command to verify that all switches in the fabric support the MS
platform service; otherwise, the next step fails.
3. Enter the msplMgmtActivate command, as in the following example.
switch:admin> msplmgmtactivate
Request to activate MS Platform Service in progress......
*Completed activating MS Platform Service in the fabric!
Disabling platform services
Use the following procedure to disable platform services:
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msplMgmtDeactivate command.
3. Enter y to confirm the deactivation, as in the following example.
switch:admin> msplmgmtdeactivate
MS Platform Service is currently enabled.
This will erase MS Platform Service configuration
information as well as database in the entire fabric.
Would you like to continue this operation? (yes, y, no, n): [no] y
Request to deactivate MS Platform Service in progress......
*Completed deactivating MS Platform Service in the fabric!
Management server database
You can control access to the management server database.
An access control list (ACL) of WWN addresses determines which systems have access to the
management server database. The ACL typically contains those WWNs of host systems that are
running management applications.
48 Fabric OS Administrator’s Guide
53-1002920-02
Management server database
1
If the list is empty (the default), the management server is accessible to all systems connected
in-band to the fabric. For more access security, you can specify WWNs in the ACL so that access to
the management server is restricted to only those WWNs listed.
NOTE
The management server is logical switch-capable. All management server features are supported
within a logical switch.
Displaying the management server ACL
Use the following procedure to display the management server ACL:
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msConfigure command.
The command becomes interactive.
3. At the “select” prompt, enter 1 to display the access list.
A list of WWNs that have access to the management server is displayed.
Example of an empty access list
switch:admin> msconfigure
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 1
MS Access list is empty.
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 0
done ...
Adding a member to the ACL
Use the following procedure to add a member to the ACL:
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msConfigure command.
The command becomes interactive.
3. At the “select” prompt, enter 2 to add a member based on its port/node WWN.
4. At the “Port/Node WWN” prompt, enter the WWN of the host to be added to the ACL.
5. At the “select” prompt, enter 1 to display the access list so you can verify that the WWN you
entered was added to the ACL.
6. After verifying that the WWN was added correctly, enter 0 at the prompt to end the session.
7. At the “Update the FLASH?” prompt, enter y.
8. Press Enter to update the nonvolatile memory and end the session.
Fabric OS Administrator’s Guide 49
53-1002920-02
Management server database 1
Example of adding a member to the management server ACL
switch:admin> msconfigure
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 2
Port/Node WWN (in hex): [00:00:00:00:00:00:00:00] 20:00:00:20:37:65:ce:aa
*WWN is successfully added to the MS ACL.
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [2] 1
MS Access List consists of (14): {
20:00:00:20:37:65:ce:aa
20:00:00:20:37:65:ce:bb
20:00:00:20:37:65:ce:ff
20:00:00:20:37:65:ce:11
20:00:00:20:37:65:ce:22
20:00:00:20:37:65:ce:33
20:00:00:20:37:65:ce:44
10:00:00:60:69:04:11:24
10:00:00:60:69:04:11:23
21:00:00:e0:8b:04:70:3b
10:00:00:60:69:04:11:33
20:00:00:20:37:65:ce:55
20:00:00:20:37:65:ce:66
00:00:00:00:00:00:00:00
}
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 0
done ...
Update the FLASH? (yes, y, no, n): [yes] y
*Successfully saved the MS ACL to the flash.
Deleting a member from the ACL
When you delete a member from the ACL, that member no longer has access to the management
server.
NOTE
If you delete the last member of the ACL, leaving the ACL list is empty, then the management server
will be accessible to all systems connected in-band to the fabric.
1. Connect to the switch and log in using an account with admin permissions.
2. Enter the msConfigure command.
The command becomes interactive.
3. At the “select” prompt, enter 3 to delete a member based on its port/node WWN.
4. At the “Port/Node WWN” prompt, enter the WWN of the member to be deleted from the ACL.
50 Fabric OS Administrator’s Guide
53-1002920-02
Management server database
1
5. At the “select” prompt, enter 1 to display the access list so you can verify that the WWN you
entered was deleted from the ACL.
6. After verifying that the WWN was deleted correctly, enter 0 at the “select” prompt to end the
session.
7. At the “Update the FLASH?” prompt, enter y.
8. Press Enter to update the nonvolatile memory and end the session.
Example of deleting a member from the management server ACL
switch:admin> msconfigure
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 3
Port/Node WWN (in hex): [00:00:00:00:00:00:00:00] 10:00:00:00:c9:29:b3:84
*WWN is successfully deleted from the MS ACL.
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [3] 1
MS Access list is empty
0 Done
1 Display the access list
2 Add member based on its Port/Node WWN
3 Delete member based on its Port/Node WWN
select : (0..3) [1] 0
Viewing the contents of the management server database
Use the following procedure to view the contents of the management server database:
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msPlatShow command.
Example of viewing the contents of the management server platform database
switch:admin> msplatshow
-----------------------------------------------------------
Platform Name: [9] "first obj"
Platform Type: 5 : GATEWAY
Number of Associated M.A.: 1
[35] "http://java.sun.com/products/plugin"
Number of Associated Node Names: 1
Associated Node Names:
10:00:00:60:69:20:15:71
-----------------------------------------------------------
Platform Name: [10] "second obj"
Platform Type: 7 : HOST_BUS_ADAPTER
Number of Associated M.A.: 1
Associated Management Addresses:
[30] "http://java.sun.com/products/1"
Fabric OS Administrator’s Guide 51
53-1002920-02
Topology discovery 1
Number of Associated Node Names: 1
Associated Node Names:
10:00:00:60:69:20:15:75
Clearing the management server database
Use the following procedure to clear the management server database:
NOTE
The command msPlClearDB is allowed only in AD0 and AD255.
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the msplClearDb command.
3. Enter y to confirm the deletion.
The management server platform database is cleared.
Topology discovery
The topology discovery feature can be displayed, enabled, and disabled; it is disabled by default.
The commands mstdEnable and mstdDisable are allowed only in AD0 and AD255.
Displaying topology discovery status
Use the following procedure to display the status of the topology discovery:
1. Connect to the switch and log in using an account with admin permissions.
2. Enter the mstdReadConfig command.
switch:admin> mstdreadconfig
*MS Topology Discovery is Enabled.
Enabling topology discovery
Use the following procedure to enable topology discovery:
1. Connect to the switch and log in using an account with admin permissions.
2. Enter the appropriate following command based on how you want to enable discovery:
•For the local switch, enter the mstdEnable command.
•For the entire fabric, enter the mstdEnable all command.
Example of enabling discovery
switch:admin> mstdenable
Request to enable MS Topology Discovery Service in progress....
*MS Topology Discovery enabled locally.
switch:admin> mstdenable ALL
Request to enable MS Topology Discovery Service in progress....
52 Fabric OS Administrator’s Guide
53-1002920-02
Topology discovery
1
*MS Topology Discovery enabled locally.
*MS Topology Discovery Enable Operation Complete!!
Disabling topology discovery
Use the following procedure to disable topology discovery:
1. Connect to the switch and log in using an account with admin permissions.
2. Enter the appropriate following command based on how you want to disable discovery:
•For the local switch, enter the mstdDisable command.
•For the entire fabric, enter the mstdDisable all command.
A warning displays stating that all NID entries might be cleared.
3. Enter y to disable the Topology Discovery feature.
NOTE
Topology discovery is disabled by default.
ATTENTION
Disabling discovery of management server topology might erase all node ID entries.
If Admin Domains are enabled, you must be in the AD0 or AD255 context. Refer to Chapter 20,
“Managing Administrative Domains,” for additional information.
Example of disabling discovery
switch:admin> mstddisable
This may erase all NID entries. Are you sure? (yes, y, no, n): [no] y
Request to disable MS Topology Discovery Service in progress....
*MS Topology Discovery disabled locally.
switch:admin> mstddisable all
This may erase all NID entries. Are you sure? (yes, y, no, n): [no] y
Request to disable MS Topology Discovery Service in progress....
*MS Topology Discovery disabled locally.
*MS Topology Discovery Disable Operation Complete!!
Fabric OS Administrator’s Guide 53
53-1002920-02
Device login 1
Device login
A device can be storage, a host, or a switch. When new devices are introduced into the fabric, they
must be powered on and, if a host or storage device, connected to a switch. Switch-to-switch logins
(using the E_Port) are handled differently than storage and host logins. E_Ports exchange different
frames than the ones listed below with the Fabric Controller to access the fabric. Once storage and
host devices are powered on and connected, the following logins occur:
1. FLOGI—Fabric Login command establishes a 24-bit address for the device logging in, and
establishes buffer-to-buffer credits and the class of service supported.
2. PLOGI—Port Login command logs the device into the name server to register its information
and query for devices that share its zone. During the PLOGI process, information is exchanged
between the new device and the fabric. Some of the following types of information exchanges
occur:
•SCR—State Change Registration registers the device for State Change Notifications. If a
change in the fabric occurs, such as a zoning change or a change in the state of a device
to which this device has access, the device receives a Registered State Change
Notification (RSCN).
•Registration—A device exchanges registration information with the name server.
•Query—Devices query the name server for information about the device it can access.
Principal switch
In a fabric with multiple switches, and one inter-switch link (ISL) exists between any two switches, a
principal switch is automatically elected. The principal switch provides the following capabilities:
•Maintains time for the entire fabric. Subordinate switches synchronize their time with the
principal switch. Changes to the clock server value on the principal switch are propagated to all
switches in the fabric.
•Manages domain ID assignment within the fabric. If a switch requests a domain ID that has
been used before, the principal switch grants the same domain ID unless it is in use by another
switch.
E_Port login process
An E_Port does not use a FLOGI to log in to another switch. Instead, the new switch exchanges
frames with the neighboring switch to establish that the new switch is an E_Port and that it has
information to exchange. If everything is acceptable to the neighboring switch, it replies to the new
switch with an SW_ACC (accept) frame. The initializing frame is an Exchange Link Parameters (ELP)
frame that allows an exchange of parameters between two ports, such as flow control,
buffer-to-buffer credits, RA_TOV, and ED_TOV. This is not a negotiation. If one or the other port’s link
parameters do not match, a link does not occur. Once an SW_ACC frame is received from the
neighboring switch, the new switch sends an Exchange Switch Capabilities (ESC) frame. The two
switches exchange routing protocols and agree on a common routing protocol. An SW_ACC frame is
received from the neighboring switch and the new switch sends an Exchange Fabric Parameters
(EFP) frame to the neighboring switch, requesting principal switch priority and the domain ID list.
Buffer-to-buffer credits for the device and switch ports are exchanged in the SW_ACC command
sent to the device in response to the FLOGI.
54 Fabric OS Administrator’s Guide
53-1002920-02
Device login
1
Fabric login process
A device performs a fabric login (FLOGI) to determine if a fabric is present. If a fabric is detected
then it exchanges service parameters with the fabric controller. A successful FLOGI sends back the
24-bit address for the device in the fabric. The device must issue and successfully complete a
FLOGI command before communicating with other devices in the fabric.
Because the device does not know its 24-bit address until after the FLOGI, the source ID (SID) in
the frame header of the FLOGI request are zeros (0x000000).
Port login process
The steps in the port initialization process occur as the result of a protocol that functions to
discover the type of device connected and establish the port type and negotiate port speed. See
“Port Types” on page 88 for a discussion of available port types.
The Fibre Channel protocol (FCP) auto discovery process enables private storage devices that
accept the process login (PRLI) to communicate in a fabric.
If device probing is enabled, the embedded port performs a PLOGI and attempts a PRLI into the
device to retrieve information to enter into the name server. This enables private devices that do
not explicitly register with the Name Server (NS) to be entered in the NS and receive full fabric
access.
A fabric-capable device registers its information with the name server during a FLOGI. These
devices typically register information with the name server before querying for a device list. The
embedded port still performs a PLOGI and attempts a PRLI with these devices.
If a port decides to end the current session, it initiates a logout. A logout concludes the session and
terminates any work in progress associated with that session.
To display the contents of a switch’s name server, use the nsShow or nsAllShow command.
For more information about these commands, refer to the Fabric OS Command Reference.
RSCNs
A Registered State Change Notification (RSCN) is a notification frame that is sent to devices that
are zoned together and are registered to receive a State Change Notification (SCN). The RSCN is
responsible for notifying all devices of fabric changes. The following general list of actions can
cause an RSCN to be sent through your fabric:
•A new device has been added to the fabric.
•An existing device has been removed from the fabric.
•A zone has changed.
•A switch name has changed or an IP address has changed.
•Nodes leaving or joining the fabric, such as zoning, powering on or shutting down a device, or
zoning changes.
NOTE
Fabric reconfigurations with no domain change do not cause an RSCN.
Fabric OS Administrator’s Guide 55
53-1002920-02
High availability of daemon processes 1
Duplicate Port World Wide Name
According to Fibre Channel standards, the Port World Wide Name (PWWN) of a device cannot
overlap with that of another device, thus having duplicate PWWNs within the same fabric is an
illegal configuration.
If a PWWN conflict occurs with two devices attached to the same domain, Fabric OS handles device
login in such a way that only one device may be logged in to the fabric at a time. For more
information, refer to “Duplicate PWWN handling during device login” on page 110.
If a PWWN conflict occurs and two duplicate devices are attached to the fabric through different
domains, the devices are removed from the Name Server database and a RASlog is generated.
Device recovery
To recover devices that have been removed from the Name Server database due to duplicate
PWWNs, the devices must re-login to the fabric. This is true for any device—for example, a device on
an F_Port, NPIV devices, or devices attached to a switch in Access Gateway mode.
High availability of daemon processes
Starting non-critical daemons is automatic; you cannot configure the startup process. The following
sequence of events occurs when a non-critical daemon fails:
1. A RASlog and AUDIT event message are logged.
2. The daemon is automatically started again.
3. If the restart is successful, then another message is sent to RASlog and AUDIT reporting the
successful restart status.
4. If the restart fails, another message is sent to RASlog and no further attempts are made to
restart the daemon.
Schedule downtime and reboot the switch at your convenience.
The following table lists the daemons that are considered non-critical and are automatically
restarted on failure.
Table 1 Daemons that are automatically restarted
Daemon Description
arrd Asynchronous Response Router, which is used to send management data to hosts when the switch is
accessed through the APIs (FA API or SMI-S).
cald Common Access Layer daemon, which is used by manageability applications.
raslogd Reliability, Availability, and Supportability daemon logs error detection, reporting, handling, and
presentation of data into a format readable by you and management tools.
rpcd Remote Procedure Call daemon, which is used by the API (Fabric Access API and SMI-S).
snmpd Simple Network Management Protocol daemon.
npd Flow Vision daemon.
56 Fabric OS Administrator’s Guide
53-1002920-02
High availability of daemon processes
1
traced Trace daemon provides trace entry date and time translation to Trace Device at startup and when
date/time changed by command. Maintains the trace dump trigger parameters in a Trace Device.
Performs the trace Background Dump, trace automatic FTP, and FTP “aliveness check” if auto-FTP is
enabled.
trafd Traffic daemon implements Bottleneck detection.
webd Webserver daemon used for Web Tools (includes httpd as well).
weblinkerd Weblinker daemon provides an HTTP interface to manageability applications for switch management
and fabric discovery.
Table 1 Daemons that are automatically restarted (Continued)
Daemon Description
Fabric OS Administrator’s Guide 57
53-1002920-02
Chapter
2
Performing Basic Configuration Tasks
In this chapter
•Fabric OS overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
•Fabric OS command line interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
•Password modification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
•The switch Ethernet interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
•Date and time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•Domain IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
•Switch names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
•Chassis names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
•Fabric name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
•Switch activation and deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
•Switch and Backbone shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
•Basic connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Fabric OS overview
This chapter describes how to configure your Brocade SAN using the Fabric OS command line
interface (CLI). Before you can configure a storage area network (SAN), you must power up the
Backbone platform or switch and blades, and then set the IP addresses of those devices. Although
this chapter focuses on configuring a SAN using the CLI, you can also use the following methods to
configure a SAN:
•Web Tools
For Web Tools procedures, refer to Web Tools Administrator’s Guide.
•Brocade Network Advisor
For additional information, refer to the Brocade Network Advisor User Manual for the version
you have.
•A third-party application using the API
For third-party application procedures, refer to the third-party API documentation.
Because of the differences between fixed-port and variable-port devices, procedures sometimes
differ among Brocade models. As new Brocade models are introduced, new features sometimes
apply only to those models.
When procedures or parts of procedures apply to some models but not others, this guide identifies
the specifics for each model. For example, a number of procedures that apply only to variable-port
devices are found in Chapter 3, “Performing Advanced Configuration Tasks”.
58 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS command line interface
2
Although many different software and hardware configurations are tested and supported by
Brocade Communications Systems, Inc., documenting all possible configurations and scenarios is
beyond the scope of this document. In some cases, earlier releases are highlighted to present
considerations for interoperating with them.
The hardware reference manuals for Brocade products describe how to power up devices and set
their IP addresses. After the IP address is set, you can use the CLI procedures contained in this
guide. For additional information about the commands used in the procedures, refer to the Fabric
OS Command Reference.
Fabric OS command line interface
Fabric OS uses Role-Based Access Control (RBAC) to control access to all Fabric OS operations.
Each feature is associated with an RBAC role and you need to know which role is allowed to run a
command, make modifications to the switch, or view the output of the command. To determine
which RBAC role you need to run a command, review the section “Role-Based Access Control” on
page 152.
Note the following about the command display in this guide:
•Commands are shown and can be entered either in all lower case or using Java-style
capitalization. This means that while bannershow and bannerShow will both work,
BANNERSHOW and BannerShow will not.
•When command examples in this guide show user input enclosed in quotation marks, the
quotation marks are required. Example: zonecreate "zonename" requires that the value for
zonename be in quotation marks.
Console sessions using the serial port
Be aware of the following behaviors for serial connections:
•Some procedures require that you connect through the serial port; for example, setting the IP
address or setting the boot PROM password.
•Brocade DCX and DCX 8510 Backbone families: You can connect to CP0 or CP1 using either of
the two serial ports.
Connecting to Fabric OS through the serial port
Use the following procedure to connect to the Fabric OS using the serial port:
1. Connect the serial cable to the serial port on the switch and to an RS-232 serial port on
the workstation.
If the serial port on the workstation is an RJ-45 port, instead of RS-232, remove the adapter on
the end of the serial cable and insert the exposed RJ-45 connector into the RJ-45 serial port on
the workstation.
2. Open a terminal emulator application (such as HyperTerminal on a PC, TERM, TIP, or Kermit in
a UNIX environment), and configure the application as follows:
Fabric OS Administrator’s Guide 59
53-1002920-02
Fabric OS command line interface 2
•In a Windows environment enter the following parameters:
•In a UNIX environment, enter the following string at the prompt:
tip /dev/ttyb -9600
If ttyb is already in use, use ttya instead and enter the following string at the prompt:
tip /dev/ttya -9600
Telnet or SSH sessions
You can connect to the Fabric OS through a Telnet or SSH connection or by using a console session
on the serial port. The switch must also be physically connected to the network. If the switch
network interface is not configured or the switch has been disconnected from the network, use a
console session on the serial port as described in “Console sessions using the serial port” on
page 58.
NOTE
To automatically configure the network interface on a DHCP-enabled switch, plug the switch into the
network and power it on. The DHCP client automatically gets the IP and gateway addresses from the
DHCP server. The DHCP server must be on the same subnet as the switch. Refer to “DHCP
activation” on page 69.
Rules for Telnet connections
The following rules must be observed when making Telnet connections to your switch:
•Never change the IP address of the switch while two Telnet sessions are active; if you do, your
next attempt to log in fails. To recover, gain access to the switch by one of these methods:
-You can use Web Tools to perform a fast boot. When the switch comes up, the Telnet quota
is cleared. (For instructions on performing a fast boot with Web Tools, see the Web Tools
Administrator’s Guide.)
-If you have the required privileges, you can connect through the serial port, log in as
admin, and use the killTelnet command to identify and kill the Telnet processes without
disrupting the fabric.
•For accounts with an admin role, Fabric OS limits the number of simultaneous Telnet sessions
per switch to two. For more details on session limits, refer to Chapter 6, “Managing User
Accounts”.
TABLE 2 Terminal port parameters
Parameter Value
Bits per second 9600
Databits 8
Parity None
Stop bits 1
Flow control None
60 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS command line interface
2
Connecting to Fabric OS using Telnet
Use the following procedure to connect to the Fabric OS using Telnet:
1. Connect through a serial port to the switch that is appropriate for your fabric:
•If Virtual Fabrics is enabled, log in using an admin account assigned the chassis-role
permission.
•If Virtual Fabrics is not enabled, log in using an account assigned to the admin role.
2. Verify the switch’s network interface is configured and that it is connected to the IP network
through the RJ-45 Ethernet port.
Switches in the fabric that are not connected through the Ethernet port can be managed
through switches that are using IP over Fibre Channel. The embedded port must have an
assigned IP address.
3. Log off the switch’s serial port.
4. From a management station, open a Telnet connection using the IP address of the switch to
which you want to connect.
The login prompt is displayed when the Telnet connection finds the switch in the network.
5. Enter the account ID at the login prompt.
6. Enter the password.
If you have not changed the system passwords from the default, you are prompted to change
them. Enter the new system passwords, or press Ctrl+C to skip the password prompts. For
more information on system passwords, refer to “Default account passwords” on page 63.
7. Verify the login was successful.
The prompt displays the switch name and user ID to which you are connected.
login: admin
password: xxxxxxx
Getting help on a command
You can display a list of all command help topics for a given login level. For example, if you log in as
user and enter the help command, a list of all user-level commands that can be executed is
displayed. The same rule applies to the admin, securityAdmin, and the switchAdmin roles.
1. Connect to the switch and log in using an account assigned to the admin role.
2. Enter the help [|more] command with no specific command and all commands are displayed.
The optional |more argument displays the commands one page at a time.
For command-specific information, you can enter help command |more, where command is
the name of the command for which you need specific information.
Fabric OS Administrator’s Guide 61
53-1002920-02
Fabric OS command line interface 2
The commands in the following table provide help files for the indicated specific topics.
Viewing a history of command line entries
The CLI command history log file saves the last 512 commands from all users on a FIFO basis, and
this log is persistent across reboots and firmware downloads. This command is also supported for
standby CPs.
The log records the following information whenever a command ins entered in the switch CLI:
•Timestamp
•Username
•IP address of the telnet session
•Options
•Arguments
Use the following procedure to view the CLI command log:
1. Connect to the switch and log in.
2. Enter the cliHistory command with the desired argument (see below for arguments).
Entering no specific argument displays only the command line history of the currently logged-in
user.
cliHistory
Entering the cliHistory command with no arguments displays the command line history for the
currently logged-in user only (even for the root user).
Example cliHistory command output from root login
switch:root> clihistory
CLI history
Date & Time Message
Thu Sep 27 04:58:00 2012 root, 10.70.12.101, firmwareshow -v
Thu Sep 27 04:58:19 2012 root, 10.70.12.101, telnet 127.1.10.1
Thu Sep 27 05:25:45 2012 root, 10.70.12.101, ipaddrshow]
TABLE 3 Help topic contents
Topic name Help contents description
diagHelp Diagnostic help information
ficonHelp FICON help information
fwHelp Fabric Watch help information
iscsiHelp iSCSI help information
licenseHelp License help information
perfHelp Performance Monitoring help information
routeHelp Routing help information
trackChangesHelp Track Changes help information
zoneHelp Zoning help information
62 Fabric OS Administrator’s Guide
53-1002920-02
Fabric OS command line interface
2
Example cliHistory command output from admin login
switch:admin> clihistory
CLI history
Date & Time Message
Thu Sep 27 10:14:41 2012 admin, 10.70.12.101, clihistory
Thu Sep 27 10:14:48 2012 admin, 10.70.12.101, clihistory --show
cliHistory --show
Using the “--show” argument displays the same results as entering “cliHistory” without any
arguments.
cliHistory --showuser <username>
Using the “--showuser <username>” argument displays the command line history of the named
user. This argument is available only to Root, Admin, Factory and Securityadmin RBAC roles.
Example cliHistory command output showing username
switch:root> clihistory --showuser admin
CLI history
Date & Time Message
Thu Sep 27 10:14:41 2012 admin, 10.70.12.101, clihistory
Thu Sep 27 10:14:48 2012 admin, 10.70.12.101, clihistory --show
Thu Sep 27 10:15:00 2012 admin, 10.70.12.101, clihistory
cliHistory --showall
Using the “--showall” argument displays the command line history for all users. With this option,
admin/factory/securityadmin users can see the root user command history.
This argument is available only to Root, Admin, Factory and Securityadmin RBAC roles.
Example cliHistory showing history of all users
switch:admin> clihistory --showall
CLI history
Date & Time Message
Thu Sep 27 04:58:00 2012 root, 10.70.12.101, firmwareshow -v
Thu Sep 27 04:58:19 2012 root, 10.70.12.101, telnet 127.1.10.1
Thu Sep 27 05:25:45 2012 root, 10.70.12.101, ipaddrshow]
Thu Sep 27 05:25:48 2012 root, 10.70.12.101, ipaddrshow
cliHistory - -help
Using the “-- help” argument displays a list of the available command arguments.
swd77:admin> clihistory --help
clihistory usage:
clihistory:
Displays the CLI History of the current user
clihistory --show:
Displays the CLI History of the current user
clihistory --showuser <username>:
Displays the CLI History of the given user
clihistory --showall:
Displays the CLI History of all users
clihistory --help:
Displays the command usage
Fabric OS Administrator’s Guide 63
53-1002920-02
Password modification 2
Notes:
•SSH login CLI logs are not recorded in the command line history.
•The CLI command log will be collected as part of any “supportsave” operation.
The command long record of such an operation will be the equivalent of running
“cliHistory --showall”.
•For CLI commands that require a password (Examples: firmwaredownload,
configupload/download, supportsave, and so on), only the command (no arguments) is stored
(see below for an illustration).
sw0:FID128:root> firmwaredownload -s -p scp 10.70.4.109,fvt,/dist,pray4green
Server IP: 10.70.4.109, Protocol IPv4
Checking system settings for firmwaredownload...
Failed to access scp://fvt:**********@10.70.4.109//dist/release.plist
sw0:FID128:root> clihistory
Date & Time Message
Wed May 23 03:39:37 2012 root, console, firmwaredownload
Password modification
The switch automatically prompts you to change the default account passwords after logging in for
the first time. If you do not change the passwords, the switch prompts you after each subsequent
login until all the default passwords have been changed.
NOTE
The default account passwords can be changed from their original values only when prompted
immediately following the login; the passwords cannot be changed using the passwd command later
in the session. If you skip the prompt, and then later decide to change the passwords, log out and
then back in.
The default accounts on the switch are admin, user, root, and factory. Use the “admin” account to
log in to the switch for the first time and to perform the basic configuration tasks. The password for
all of these accounts is “password”.
There is only one set of default accounts for the entire chassis. The root and factory default
accounts are reserved for development and manufacturing. The user account is primarily used for
system monitoring. For more information on default accounts, refer to “Default accounts” on
page 156.
Default account passwords
The change default account passwords prompt is a string that begins with the message “Please
change your passwords now”. User-defined passwords can have from 8 through 40 characters.
They must begin with an alphabetic character and can include numeric characters, the period (.),
and the underscore ( _ ). They are case-sensitive, and th
