Dell PowerConnect W-Series
ArubaOS 6.0 MIB
Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide 0510857-01 | November 2010
Copyright
© 2010 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, and other registered marks are
trademarks of Aruba Networks, Inc. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. Any other trademarks appearing in this manual are the property of their respective companies.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code subject to the GNU
General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open Source Licenses. The Open Source code
used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors' VPN
client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba
Networks, Inc. from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of those
vendors.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide |3
Contents
Preface.....................................................................................................................................................................13
An Overview of This Manual ..........................................................................................................13
Contents.............................................................................................................................................13
Related Documents..........................................................................................................................14
Text Conventions..............................................................................................................................14
Frequently Used Acronyms.............................................................................................................14
Contacting Support ..........................................................................................................................17
Chapter 1 MIBs Overview...................................................................................................................19
MIBs ...................................................................................................................................................19
SNMP .................................................................................................................................................20
Traps...................................................................................................................................................21
Chapter 2 Using MIBs .........................................................................................................................23
Downloading MIB Files ...................................................................................................................23
Monitoring WLAN Health................................................................................................................23
Reading MIB Files ............................................................................................................................28
SNMP File..........................................................................................................................................32
HP OpenView ....................................................................................................................................33
MIB Limitations.................................................................................................................................33
Chapter 3 AP and AM..........................................................................................................................35
wlsrEnterpriseMibModules............................................................................................................37
wlsrConfigTable................................................................................................................................37
wlsrChannelStatsTable ...................................................................................................................45
wlsrChannelRateStatsTable...........................................................................................................49
wlsrChannelDATypeStatsTable.....................................................................................................55
wlsrChannelFrameTypeStatsTable ...............................................................................................57
wlsrChannelPktSizeStatsTable......................................................................................................58
wlsrStaStatsTable............................................................................................................................60
wlsrStaRateStatsTable....................................................................................................................67
wlsrStaDATypeStatsTable..............................................................................................................77
wlsrStaFrameTypeStatsTable........................................................................................................79
wlsrStaPktSizeStatsTable...............................................................................................................82
wlsrAirMonitorApListTable.............................................................................................................85
wlsrTrapObjectsGroup ....................................................................................................................88
wlsrTrapsGroup................................................................................................................................92
Chapter 4 Authentication..................................................................................................................103
wlsxAuthenticationServerTable ..................................................................................................104
wlsxPortalServerTable..................................................................................................................108
wlsxLdapServerStateTable...........................................................................................................109
4|Dell PowerConnect W-Series ArubaOS 6.0 MIB | [Reference Guide
Chapter 5 Controller Transport Service .........................................................................................111
wlsxCtsRequestTable ....................................................................................................................112
Chapter 6 External Services Interface ...........................................................................................115
wlsxESIServerTable.......................................................................................................................115
Chapter 7 IF External .........................................................................................................................119
wlsxIfExtMIB...................................................................................................................................119
wlsxIfExtPortTable .........................................................................................................................119
wlsxIfExtVLANTable.......................................................................................................................126
wlsxIfExtVLANMemberTable .......................................................................................................127
wlsxIfExtVLANInterfaceTable......................................................................................................129
Chapter 8 Mesh..................................................................................................................................133
wlsxMeshNodeTotal......................................................................................................................134
wlsxMeshNodeTable.....................................................................................................................134
Chapter 9 Mobility..............................................................................................................................139
wlsxMobilityDomainTable.............................................................................................................140
wlsxMobilityHomeAgentTable.....................................................................................................141
wlsxMobilityHostTable..................................................................................................................143
wlsxMobilityProxyStatsGroup......................................................................................................145
wlsxMobilityProxyDHCPStats Group ..........................................................................................147
wlsxMobilityHAStats Group..........................................................................................................149
wlsxMobilityFAStats Group ..........................................................................................................152
wlsxMobilityHAFARevocationStats Group.................................................................................154
Chapter 10 Monitor..............................................................................................................................157
wlsxMonAPStatsTable..................................................................................................................159
wlsxMonAPRateStatsTable..........................................................................................................166
wlsxMonAPDATypeStatsTable....................................................................................................172
wlsxMonAPFrameTypeStatsTable..............................................................................................174
wlsxMonAPPktSizeStatsTable.....................................................................................................175
wlsxMonAPHTRateStatsTable.....................................................................................................177
wlsxMonStationStatsTable...........................................................................................................179
wlsxMonStaRateStatsTable.........................................................................................................185
wlsxMonStaDATypeStatsTable...................................................................................................197
wlsxMonStaFrameTypeStatsTable .............................................................................................199
wlsxMonStaPktSizeStatsTable....................................................................................................202
wlsxMonAPInfoTable ....................................................................................................................205
wlsxMonStationInfoTable.............................................................................................................210
wlsxMonEventCountTable............................................................................................................214
wlsxMonStationHTRateStatsTable .............................................................................................215
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide |5
Chapter 11 Signal Noise Ratio ...........................................................................................................217
wlsxAPSnrTable .............................................................................................................................218
wlsxStaSnrTable.............................................................................................................................220
wlsxAPSnrBSSIDTable..................................................................................................................221
wlsxStaSnrPhyTable......................................................................................................................223
Chapter 12 Switch................................................................................................................................227
wlsxSystemXGroup........................................................................................................................228
wlsxSwitchListTable......................................................................................................................230
wlsxSwitchLicenseTable ..............................................................................................................231
wlsxSysXProcessorTable .............................................................................................................234
wlsxSysXStorageTable..................................................................................................................235
wlsxSysXMemoryTable.................................................................................................................238
wlsxSwitchUserTable....................................................................................................................240
wlsxSwitchUser6Table..................................................................................................................244
wlsxSwitchStationMgmtTable.....................................................................................................250
wlsxSwitchStationStatsTable ......................................................................................................253
wlsxAccessPointInfoGroup..........................................................................................................256
wlsxSwitchAccessPointTable......................................................................................................256
wlsxSwitchGlobalAPTable............................................................................................................261
wlsxSwitchAccessPointStatsTable ............................................................................................264
wlsxSwitchTraps Group................................................................................................................270
Switch Traps–Notifications ..........................................................................................................279
Platform Traps.................................................................................................................................283
IPv6 Authentication Traps.............................................................................................................288
Chapter 13 System External ...............................................................................................................291
wlsxSystemExtMIB ........................................................................................................................292
wlsxSysExtProcessorTable ..........................................................................................................298
wlsxSysExtStorageTable...............................................................................................................299
wlsxSysExtMemoryTable..............................................................................................................302
wlsxSysExtCardTable ....................................................................................................................304
wlsxSysExtFanTable ......................................................................................................................309
wlsxSysExtPowerSupplyTable.....................................................................................................310
wlsxSysExtSwitchListTable..........................................................................................................312
wlsxSysExtSwitchLicenseTable ..................................................................................................315
wlsxSysExtStorageTable...............................................................................................................318
wlsxSysExtMemoryTable..............................................................................................................320
...........................................................................................................................................................321
wlsxSystemExtTableGenNumberGroup .....................................................................................322
Chapter 14 Textual Conventions........................................................................................................327
Chapter 15 Traps..................................................................................................................................345
Trap Hierarchy................................................................................................................................345
wlsx Trap Definitions Group .........................................................................................................371
6|Dell PowerConnect W-Series ArubaOS 6.0 MIB | [Reference Guide
Chapter 16 User....................................................................................................................................425
wlsxTotalNumOfUsers...................................................................................................................426
wlsxUserTable ................................................................................................................................426
wlsxUserSessionTimeTable .........................................................................................................441
wlsxUserStatsGroup......................................................................................................................442
Chapter 17 User6..................................................................................................................................445
wlsxUser6AllInfoGroup..................................................................................................................446
wlsxUser6Table ..............................................................................................................................446
wlsxUser6SessionTimeTable .......................................................................................................460
Chapter 18 Voice..................................................................................................................................463
wlsxVoiceCdrTotal .........................................................................................................................465
wlsxVoiceCdrTable ........................................................................................................................465
Voice Call Center Group................................................................................................................473
wlsxVoiceClientTotal .....................................................................................................................480
wlsxVoiceClientTable ....................................................................................................................480
wlsxVoiceAPBssidTotal ................................................................................................................483
wlsxVoiceAPBssidTable ...............................................................................................................484
Chapter 19 WLAN.................................................................................................................................491
wlsxWlanAPGroupTable ...............................................................................................................494
wlsxWlanAPTable..........................................................................................................................495
wlsxWlanRadioTable.....................................................................................................................504
wlsxWlanAPBssidTable................................................................................................................509
wlsxWlanESSIDTable....................................................................................................................513
wlsxWlanESSIDVLANPoolTable..................................................................................................515
wlsxWlanStationTable...................................................................................................................516
wlsxWlanAPStatsTable.................................................................................................................521
wlsxWlanAPRateStatsTable.........................................................................................................528
wlsxWlanAPDATypeStatsTable...................................................................................................554
wlsxWlanAPFrameTypeStatsTable.............................................................................................556
wlsxWlanAPPktSizeStatsTable....................................................................................................558
wlsxWlanAPChStatsTable............................................................................................................560
wlsxWlanStationStatsTable .........................................................................................................571
wlsxWlanStaRateStatsTable........................................................................................................579
wlsxWlanStaDATypeStatsTable..................................................................................................590
wlsxWlanStaFrameTypeStatsTable ............................................................................................592
wlsxWlanStaPktSizeStatsTable...................................................................................................595
Chapter 20 SNMP MIBs Reference..................................................................................................599
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide |7
Tables
Table 1 Conventions.......................................................................................................................................14
Table 2 Frequently Used Acronyms.............................................................................................................14
Table 3 MIB Node Identification - enterprise nodes................................................................................19
Table 4 MIB Keywords ..................................................................................................................................21
Table 5 Limitations and Constraints ............................................................................................................33
Table 6 AP Tables...........................................................................................................................................37
Table 7 wlsrConfigTable OIDs......................................................................................................................37
Table 8 Regulatory Domain...........................................................................................................................44
Table 9 wlsrChannelStatsTable OIDs..........................................................................................................45
Table 10 wlsrChannelRateStatsTable OIDs .................................................................................................49
Table 11 wlsrChannelDATypeStatsTable OIDs ...........................................................................................55
Table 12 wlsrChannelFrameTypeStatsTable OIDs......................................................................................57
Table 13 wlsrChannelPktSizeStatsTable OIDs ............................................................................................59
Table 14 wlsrStaStatsTable OIDs ..................................................................................................................60
Table 15 wlsrStaRateStatsTable OIDs..........................................................................................................67
Table 16 wlsrStaDATypeStatsTable OIDs....................................................................................................77
Table 17 wlsrStaFrameTypeStatsTable OIDs ..............................................................................................79
Table 18 wlsrStaPktSizeStatsTable OIDs.....................................................................................................82
Table 19 wlsrAirMonitorApListTable OIDs...................................................................................................85
Table 20 wlsrTrapsGroup OIDs ......................................................................................................................88
Table 21 wlsrTrapsGroup OIDs ......................................................................................................................92
Table 22 Authentication MIB Tables...........................................................................................................104
Table 23 wlsxAuthenticationServerTable OIDs.........................................................................................104
Table 24 wlsxPortalServerTable OIDs ........................................................................................................108
Table 25 wlsxLdapServerStateTable...........................................................................................................109
Table 26 CTS MIB Tables..............................................................................................................................111
Table 27 wlsxCtsRequestTable OIDs...........................................................................................................112
Table 28 ESI MIB Tables ...............................................................................................................................115
Table 29 wlsxESIServerTable OIDs.............................................................................................................116
Table 30 IF EXT Tables...................................................................................................................................119
Table 31 wlsxIfExtPortTable OIDs................................................................................................................120
Table 32 wlsxIfExtVLANTable OIDs.............................................................................................................126
Table 33 wlsxIfExtVLANMemberTable OIDs..............................................................................................127
Table 34 wlsxIfExtVLANInterfaceTable OIDs132 ......................................................................................129
Table 35 Mesh MIB Tables...........................................................................................................................133
Table 36 Mesh Node Table OIDs .................................................................................................................134
Table 37 Mobility Objects..............................................................................................................................140
Table 38 wlsxMobilityDomainTable OIDs...................................................................................................140
Table 39 wlsxMobilityHomeAgentTable OIDs ...........................................................................................141
Table 40 wlsxMobilityHostTable OIDs ........................................................................................................143
Table 41 wlsxMobilityProxyStats OIDs.......................................................................................................145
Table 42 wlsxMobilityProxyDHCPStats ......................................................................................................147
Table 43 wlsxMobilityHAStats OIDs............................................................................................................149
Table 44 wlsxMobilityFAStats OIDs.............................................................................................................152
8|Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Table 45 wlsxMobilityHAFARevocationStats.............................................................................................154
Table 46 Monitor MIB Tables.......................................................................................................................158
Table 47 wlsxMonApStatsTable OIDs.........................................................................................................159
Table 48 wlsxMonAPRateStatsTable OIDs................................................................................................166
Table 49 wlsxMonAPDATypeStatsTable OIDs..........................................................................................172
Table 50 wlsxMonAPHTRateStatsTable OIDs...........................................................................................177
Table 51 MonStationStats Table..................................................................................................................179
Table 52 wlsxMonStaRateStatsTable OIDs ...............................................................................................185
Table 53 MonStaDATypeStatsTable OIDs..................................................................................................197
Table 54 MonStaFrameTypeStatsTable OIDs............................................................................................199
Table 55 wlsxMonStaPktSizeStatsTable OIDs ..........................................................................................202
Table 56 wlsxMonAPInfoTable OIDs...........................................................................................................205
Table 57 wlsxMonStationInfoTable OIDs...................................................................................................210
Table 58 wlsxMonEventCountTable OIDs ..................................................................................................214
Table 59 wlsxMonStationHTRateStatsTable OIDs....................................................................................215
Table 60 SNR Tables......................................................................................................................................218
Table 61 wlsxAPSnrTable OIDs....................................................................................................................218
Table 62 wlsxStaSnrTable OIDs...................................................................................................................220
Table 63 wlsxAPSnrBSSIDTable..................................................................................................................221
Table 64 wlsxStaSnrPhyTable OIDs............................................................................................................223
Table 65 System X Group MIB Objects.......................................................................................................227
Table 66 wlsxSystemXGroup OIDs ..............................................................................................................228
Table 67 wlsxSwitchListTable OIDs ............................................................................................................230
Table 68 wlsxSwitchLicenseTable OIDs.....................................................................................................231
Table 69 wlsxSysXProcessorTable OIDs....................................................................................................234
Table 70 wlsxSysXStorageTable OIDs........................................................................................................236
Table 71 wlsxSysXMemoryTable OIDs.......................................................................................................238
Table 72 wlsxSwitchUserTable OIDs..........................................................................................................240
Table 73 wlsxSwitchUser6Table OIDs........................................................................................................244
Table 74 wlsxSwitchStationMgmtTable OIDs ...........................................................................................250
Table 75 wlsxSwitchStationStatsTable OIDs.............................................................................................253
Table 76 wlsxAccessPointInfoGroup OIDs ................................................................................................256
Table 77 wlsxSwitchAccessPointTable OIDs............................................................................................256
Table 78 wlsxSwitchGlobalAPTable OIDs..................................................................................................262
Table 79 wlsxSwitchAccessPointStatsTable OIDs...................................................................................264
Table 80 wlsxSwitchTraps OIDs ..................................................................................................................270
Table 81 Switch Trap Notification OIDs......................................................................................................279
Table 82 System External Group Tables.....................................................................................................292
Table 83 wlsxSysExtProcessorTable OIDs.................................................................................................298
Table 84 wlsxSysExtStorageTable OIDs.....................................................................................................300
Table 85 wlsxSysExtCardTable ....................................................................................................................304
Table 86 wlsxSysExtFanTable OID...............................................................................................................310
Table 87 wlsxSysExtPowerSupplyTable.....................................................................................................311
Table 88 wlsxSysExtSwitchListTable OIDs ................................................................................................312
Table 89 wlsxSysExtSwitchLicenseTable OIDs.........................................................................................315
Table 90 wlsxSysExtStorageTable OIDs.....................................................................................................318
Table 91 wlsxSysExtMemoryTable OIDs....................................................................................................320
Table 92 wlsxSystemExtTableGenNumberGroup OIDs............................................................................322
Table 93 wlsxTraps Object Group OIDs......................................................................................................346
Table 94 wlsx Trap Definitions Group OIDs................................................................................................371
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide |9
Table 95 User MIB Tables.............................................................................................................................425
Table 96 wlsxUserTable OIDs.......................................................................................................................426
Table 97 wlsxUserSessionTimeTable OIDs................................................................................................441
Table 98 wlsxUserStatsGroup OIDs ............................................................................................................442
Table 99 User6 MIB Tables...........................................................................................................................445
Table 100 wlsxUser6AllInfoGroup Objects...................................................................................................446
Table 101 wlsxUser6SessionTimeTable OIDs..............................................................................................461
Table 102 Voice MIB Objects .........................................................................................................................464
Table 103 wlxs Voice CDR Table OIDs..........................................................................................................465
Table 104 Voice Call Center OIDs ..................................................................................................................473
Table 105 wlsx Voice Client Table OIDs........................................................................................................480
Table 106 wlsxVoiceAPBssidTable OIDs......................................................................................................484
Table 107 WLAN MIB Tables..........................................................................................................................493
Table 108 wlsxWlanMIB OIDs........................................................................................................................494
Table 109 wlsxWlanAPGroupTable OIDs .....................................................................................................494
Table 110 wlsxWlanAPTable OIDs ................................................................................................................495
Table 111 wlsxWlanRadioTable OIDs ...........................................................................................................504
Table 112 wlsxWlanAPBssidTable OIDs ......................................................................................................509
Table 113 wlsxWlanESSIDTableOBJECT OIDs............................................................................................514
Table 114 wlsxWlanESSIDVLANPoolTable OIDs........................................................................................515
Table 115 wlsxWlanStationTable OIDs.........................................................................................................516
Table 116 wlsxWlanAPStatsTable OIDs.......................................................................................................521
Table 117 wlsxWlanAPRateStatsTable OIDs...............................................................................................528
Table 118 wlsxWlanAPDATypeStatsTable OIDs.........................................................................................554
Table 119 wlsxWlanAPFrameTypeStatsTable OIDs...................................................................................556
Table 120 wlsxWlanAPPktSizeStatsTable OIDs..........................................................................................558
Table 121 wlsxWlanAPChStatsTableOIDs ...................................................................................................560
Table 122 wlsxWlanStationStatsTable OIDs................................................................................................571
Table 123 wlsxWlanStaRateStatsTable OIDs..............................................................................................579
Table 124 wlsxWlanStaDATypeStatsTable OIDs........................................................................................590
Table 125 wlsxWlanStaFrameTypeStatsTable OIDs ..................................................................................592
Table 126 wlsxWlanStaPktSizeStatsTable OIDs.........................................................................................595
Table 127 SNMP OIDs returned as sysObjectID for Dell Networks products........................................599
Table 128 SNMP OIDs for Aruba Enterprise MIB modules.......................................................................599
10 |Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide |11
Figures
Figure 1 High-Level MIB Hierarchy ..............................................................................................................20
Figure 2 CLI Interface......................................................................................................................................23
Figure 3 Graphical User Interface.................................................................................................................24
Figure 4 CTS OIDs Relative to Dell................................................................................................................32
Figure 5 Access Point Air Module Hierarchy..............................................................................................36
Figure 6 Authorization Hierarchy ................................................................................................................103
Figure 7 CTS MIB Hierarchy ........................................................................................................................111
Figure 8 ESI Hierarchy ..................................................................................................................................115
Figure 9 IF EXT Hierarchy.............................................................................................................................119
Figure 10 Mesh Hierarchy..............................................................................................................................133
Figure 11 Mobility Hierarchy..........................................................................................................................139
Figure 12 Monitor Hierarchy..........................................................................................................................158
Figure 13 SNR Hierarchy ................................................................................................................................217
Figure 14 Switch Hierarchy............................................................................................................................227
Figure 15 Stem Ext Hierarchy.........................................................................................................................291
Figure 16 Trap Hierarchy................................................................................................................................345
Figure 17 User Hierarchy................................................................................................................................425
Figure 18 User6 Hierarchy..............................................................................................................................445
Figure 19 Voice Hierarchy..............................................................................................................................464
Figure 20 WLAN Hierarchy.............................................................................................................................492
12 |Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Preface | 13
Preface
An Overview of This Manual
This guide is geared toward network administrators and operators responsible for managing the Dell controller.
Contents
This guide provides information about ArubaOS MIBs. Unless otherwise stated in the following table, each
chapter provides information about the hierarchy, OIDs, and descriptions of the statistical information the MIBs
provide.
Chapter Contents
Chapter 1
MIBs Overview
Introductory information about ArubaOS MIBs—hierarchy, relationship with SNMP, and Traps.
Chapter 2
Using MIBs
Information and tips about MIB files.
Chapter 3
AP and AM
Information about access points (AP) and air monitors (AM).
Chapter 4
Authentication
Information about authorization—network access.
Chapter 5
Controller Transport
Service
Information about the Controller Transport Service (CTS)—synchronization of database and data
sections.
Chapter 6
External Services
Interface
Information about the ESI module of wireless management— redirecting traffic to filter or other
network appliances.
Chapter 7
IF External
Information about interfaces—physical ports, configured VLANs, port memberships.
Chapter 8
Mesh
Information about Mesh topology.
Chapter 9
Mobility
Information about the ArubaOS subsystem—roaming agents.
Chapter 10
Monitor
Information about monitoring network traffic—transfer rate, errors, and so on.
Chapter 11
Signal Noise Ratio
Information about signal quality and packets—signal strength, number of packets.
Chapter 12
Switch
Information about switches, including storage and memory utilization, and the wireless stations
associated with the access points.
Chapter 13
System External
Information about the utilization of system resources.
Chapter 14
Textual Conventions
Information about Textual Conventions (TC), which define many of the data formats used for Dell
object types. TCs do not have OIDs.
14 | Preface Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Related Documents
The complete documentation set for ArubaOS 5.0 software release are:
z
Dell PowerConnect ArubaOS 6.0 MIB Reference Guide (this guide)
z
Dell PowerConnect ArubaOS 6.0 Quick Start Guide
z
Dell PowerConnect ArubaOS 6.0 User Guide
z
Dell PowerConnect ArubaOS 6.0 CLI Reference Guide
z
Dell PowerConnect ArubaOS 6.0 Release Notes
z
Dell PowerConnect ArubaOS Documentation Pointer
Text Conventions
Table 1 presents the conventions used throughout this manual to emphasize important concepts:
Frequently Used Acronyms
Table 2 defines frequently used acronyms.
Chapter 15
Traps
Descriptions of traps, information that is delivered when an event occurs.
Chapter 16
User
Information about users—parties connected to the switch.
Chapter 17
User6
Information about IPv6 users—parties connected to the switch that are using IPv6
Chapter 18
Voice
Information about Voice over IP—call status and call details.
Chapter 19
WLAN
Information about wide local area network (WLAN).
Chapter 20
SNMP MIBs Reference
Reference—list of SNMP MIBs and associated OIDs.
Table 1 Conventions
Type Style Description
Italics This style is used to emphasize important terms and to mark the titles of books.
System items This fixed-width font depicts the following: Sample screen output, System prompts, Filenames,
software devices, and certain commands when mentioned in the text.
Commands In the command examples, this bold font depicts text that the user must type exactly as shown.
Table 2 Frequently Used Acronyms
Acronym Definition
3DES Triple DES
ACL Access Control List
Chapter Contents
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Preface | 15
ADP ArubaOS Discovery Protocol
AM Air Monitor
AP Access Point
ARM Adaptive Radio Management
BSSID Basic Service Set Identifier
CA Certificate Authority
CAC Call Admission Control
CHAP Challenge Handshake Authentication Protocol
CLI Command Line Interface
CRL Certificate Revocation List
CSA Channel Switch Announcement
CSR Certificate Signing Request
CW Contention Window
DA Destination Address
DES Data Encryption Standard
DHCP Dynamic Host Configuration Protocol
DNS Domain Name Service
DOS Denial of Service
DPD Dead Peer Detection
DSS Direct Spread Spectrum
EAP Extensible Authentication Protocol
EDCA Enhanced Distributed Channel Access
EIRP Effective Isotropic Radiated Power
ESI External Services Interface
ESSID Extended Service Set Identifier
GRE Generic Routing Encapsulation
GUI Graphical User Interface
HAT Home Agent Table
HT High Throughput
IAS Internet Authentication Service
IDS Intrusion Detection System
IGMP Internet Group Management Protocol
IKE Internet Key Exchange
IP Internet Protocol
Table 2 Frequently Used Acronyms (Continued)
Acronym Definition
16 | Preface Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
IV Initialization Vectors
kB Kilobyte
LAN Local Area Network
LDAP Lightweight Directory Access Protocol
LI Listening Interval
MAC Media Access Control
MB Megabyte
MCHAP Microsoft Challenge Handshake Authentication Protocol
MIB Management Information Base
NAS Network Address Server
NAT Network Address Translation
NIC Network Interface Card
NTP Network Time Protocol
OFDM Orthogonal Frequency Division Multiplexing
OID Object Identifier
OUI Organizational Unit Identifier
PAP Password Authentication Protocol
PEAP Protected EAP
PEF Policy Enforcement Firewall
PIN Personal Identification Number
PoE Power over Ethernet
PPTP Point-to-Point Tunneling Protocol
PSK Pre-Shared Key
QoS Quality of Service
RADIUS Remote Authentication Dial In User Service
RAP Remote Access Point
RF Radio Frequency
RMON Remote Monitor
RSA Rivest-Shamir-Aldeman (encryption algorithm)
SIP Session Initiation Protocol
SNMP Simple Network Management Protocol
SSH Secure Shell
SSID Service Set Identifier
TIM Traffic Indication Map
Table 2 Frequently Used Acronyms (Continued)
Acronym Definition
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Preface | 17
Contacting Support
TLS Transport Layer Security
ToS Type of Service
TSPEC Traffic Specification
VLAN Virtual Local Area Network
VoIP Voice over IP
VPN Virtual Private Network
VRRP Virtual Router Redundancy Protocol
VSA Vendor Specific Attributes
WEP Wired Equivalent Protocol
WINS Windows Internet Naming Service
WLAN Wireless Local Area Network
WMM Wireless MultiMedia / Wi-Fi Multimedia
WMS WLAN Management System
WPA Wi-Fi Protected Access
Web Site Support
Main Site http://www.dell.com
Support Site http://www.support.dell.com
Documentation Site http://www.support.dell.com/manuals
Table 2 Frequently Used Acronyms (Continued)
Acronym Definition
18 | Preface Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide MIBs Overview | 19
Chapter 1
MIBs Overview
This chapter provides an overview of the ArubaOS Enterprise MIBs in the following sections:
zMIBs
zSNMP
zTraps
MIBs
A Management Information Base (MIB) is a virtual database that contains information that is used for
network management. Each managed device contains MIBs that define the properties of that device. A
separate MIB is provided for each defined property, such as the group of physical ports that are assigned to a
VLAN or the statistical data of packets that are transferred at a specific rate.
MIB objects, such as a MIB table or a specific element of data in a MIB table, are identified with Object
Identifiers (OIDs). The OIDs are designated by text strings and integer sequences.
The hardware MIBs are assigned under the Dell organization code, while all others are under the Aruba
organization code. For example, Dell and 1.3.6.1.4.1.674 both represent the private enterprise node Aruba, as
shown in Figure 1 on page 20.
Dell is the parent of the proprietary MIBs that are supported on Dell PowerConnect Mobility Controllers.
The numerical string lists the nodes of the enterprise MIB hierarchy, as shown in Table 3.
Figure 1 illustrates the high-level hierarchy of the MIBs. This document only covers the enterprise MIBs,
objects designed to specifically support Dell devices. Standard MIBs are not covered.
Table 3 MIB Node Identification - enterprise nodes
Integer String Name
11OSI
31.3ORG
6 1.3.6 DOD
1 1.3.6.1 Internet
4 1.3.6.1.4 Private
1 1.3.6.1.4.1 Enterprise
674 1.3.6.1.4.1.674 Dell
20 | MIBs Overview Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Figure 1 High-Level MIB Hierarchy
MIB is one of the elements of Simple Network Management Protocol (SNMP), which is used to manage network
devices. To deliver information between devices, every object referred to in an SNMP message must be listed in
the MIB. If a component of a device is not described in a MIB, that component cannot be recognized by SNMP—
there is no information for SNMP managers and SNMP agents to exchange.
The information provided by a MIB is a file that describes network elements with numerical strings. This
information is compiled into readable text by the SNMP manager. For information about reading MIB text files,
see “Reading MIB Files” on page28.
SNMP
Three significant elements of SNMP are Managers, Agents, and MIBs.
zManagers (software application) are consoles that are used to communicate with and manage devices that
support SNMP Agents. Managers collect information by polling Agents. Managers can also be used to send
configuration updates or send controlling requests to actively manage a network device.
zAgents (software application) provide information from the network devices to the Managers. Network
devices include workstations, routers, microwave radios, and other network components. Agents are
embedded in the controller firmware, unlike some devices such as servers that require the agent to be installed
separately.
1.3.6.1.4.1.14823
1.3.6.1.4.1
Aruba
(14823)
Enterprises
(1)
1.3.6.1.4
Private
(4)
1.3.6.1.3
Experimental
(4)
1.3.6.1.2
Management
(2)
1.3.6.1
Internet
(1)
1.3.6.1.1
Directory
(1)
1.3.6
DOD
(6)
1.3
ORG
(3)
1
IS O
(1)
1.3.6.1.4.1.674
Dell
(674)
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide MIBs Overview | 21
zMIBs are used for communication between the Managers and the Agents. The OIDs of the MIBs enable the
Managers and Agents to communicate specific data requests and data returns.
zTo ensure functionality with SNMP, MIB objects must be defined with the proper keywords, as shown in
Table 4.
ArubaOS Enterprise MIBs support SNMPv1, SNMPv2, and SNMPv3.
Traps
An event is a change on a network device, such as a change in value that crosses threshold. Some events are
categorized as alarms, other events only provide information. When an event occurs on a network device, SNMP
notifications are sent out as traps or information requests.
zTraps are unconfirmed notifications—the receiver does not acknowledge to the sender that the information
was received.
zInform requests are confirmed notifications—the receiver acknowledges to the sender that the information
was received.
Following are descriptions of trap types.
zDiscrete Alarm Inputs
These traps, also known as digital inputs or contact closures, are used for monitoring equipment failures,
intrusion alarms, beacons, and flood and fire detectors.
zAnalog Alarm Inputs
Analog alarms measure characteristics that can affect equipment performance—variable levels of voltage or
current, temperature, humidity, and pressure.
zPing Alarms
Ping alarms are used to ping network devices at regular intervals. If a device fails to respond, an alarm (SNMP
trap) will be sent.
zControl Relays
Relay outputs enable operating remote site equipment.
Table 4 MIB Keywords
Keyword Description
Sequence The sequence of objects of the MIB. This keyword is used mostly with entry MIB objects
to list the MIB objects that exchange information.
Syntax Textual conventions, such as Integer32.
Max-Access Defines the object accessibility:
read-only: can be retrieved but not modified
read-write: can be retrieved and modified
not-accessible: cannot be retrieved; it is for internal (device) use only
accessible-for-notify: can be retrieved when a trap message (notification) is sent
Status Defines the status of the object:
current: up to date
deprecated. obsolete, and to be phased out in the future
Description A text string that describes the object.
Note: History may be included in some MIB tables—it lists in which ArubaOS release the MIB was updated or otherwise
changed.
22 | MIBs Overview Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
zTerminal Server Function
The terminal server function enables connection to remote-site serial devices. For example, device connection
to serial ports enables telnet access via LAN.
ArubaOS traps are described in the following chapter and sections.
z“Traps” on page345
z“wlsrTrapObjectsGroup” on page88
z“wlsrTrapsGroup” on page92
z“wlsxSwitchTraps Group” on page270
z“Switch Traps–Notifications” on page279
z“Platform Traps” on page283
z“IPv6 Authentication Traps” on page288
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 23
Chapter 2
Using MIBs
This chapter provides information on and examples of using MIBs.
zDownloading MIB Files
zMonitoring WLAN Health
zReading MIB Files
zSNMP File
zHP OpenView
zMIB Limitations
Downloading MIB Files
The most recent Dell MIB files are available for registered customers at:
http://www.support.dell.com
For assistance to set up an account and access files, please contact customer service. See “Contacting
Support” on page17.
Monitoring WLAN Health
This section lists SNMP MIBs that are frequently used to run health checks on Dell devices, which can be
performed through a MIB browser application. To retrieve information from a MIB, the following
information is required:
zSNMP version
zSNMP community name—public or private
zThe IP Address of the Dell Mobility Controller
zThe OID of the MIB value you want to monitor
In addition, MIB files can be placed in the appropriate disk location to assist the user in locating desired OID
values for monitoring. If MIB files need to be acquired, see “Downloading MIB Files” on page23, above.
It is assumed that the workstation is connected to the Dell controller and that a MIB browser is available. For
most applications, the root of the MIB must be included in the OID—the OID begins with a decimal point
as shown below.
.1.3.6.1.4.1.674.2.2.1.1.2.1
MIB Browsers
If using an application that is run through CLI (a cmd window), the command would resemble the following:
snmpget -v 2c -c <community name> <controller IP address><MIB OID>
Figure 2 shows an example of submitting a command to obtain information.
Figure 2 CLI Interface
24 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide

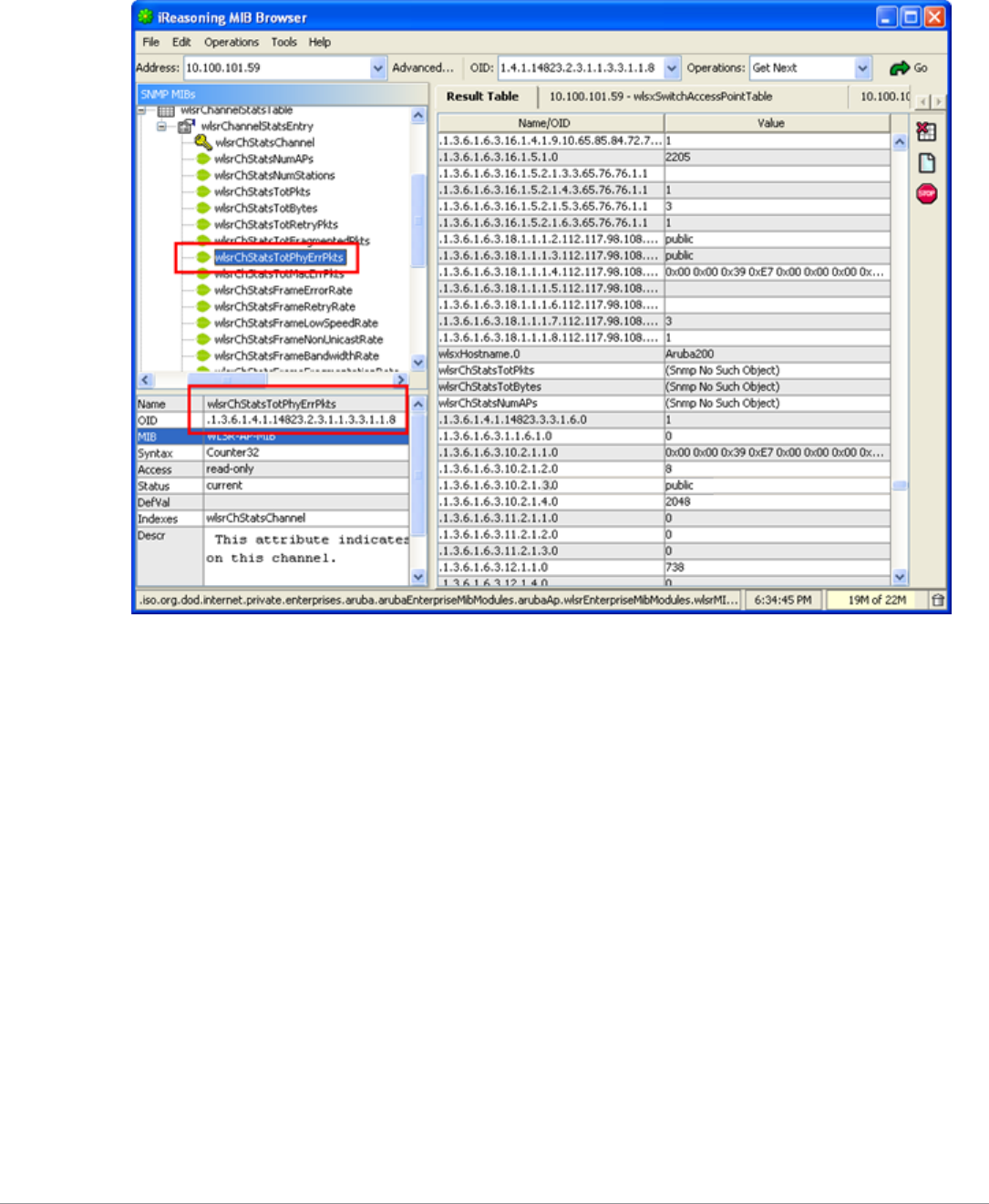

Figure 3 shows how information may be obtained through a graphical user interface ( GUI). The user interface
and the available features vary by application.
Figure 3 Graphical User Interface
WLAN Health Information
This sections lists frequently used MIBs for system health checks. Examples of executing a command via CLI are
also provided. Health check information can be acquired through other MIB browsers, as described in “MIB
Browsers” on page23.
.
zNumber of Current Authentications per AP zFrame Retry Rate per AP Channel
zNumber of Current APs per Controller zFrame Low-Speed Rate per AP Channel
zNumber of Down APs per Controller zFrame Receive Errors per AP Channel
zNumber of Successful 802.1x Authentications zTotal Current Channel Bandwidth (kbps) per AP
zNumber of Rogue APs per Controller—Count per
Building
zTx Packets per AP BSSID (32-bit counter)
zNumber of Interfering APs per Controller zTx Bytes per AP BSSID (32-bit counter)
zNoise Level per AP zRx Packets per AP BSSID (32-bit counter)
zAP Information from Master Controller zRx Bytes per AP BSSID (32-bit counter)
zInformation from Any AP zTotal Bandwidth per AP BSSID (kbps)
zFrame Retry Rate per AP BSSID zFree Memory
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 25
Number of Current Authentications per AP
snmpwalk -v 2c -m ALL -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.2.1 | grep -c <AP Location ID x.y.z>
Number of Current APs per Controller
snmpget -v 2c -m ALL -c <community name> <Local controller IP>
.1.3.6.1.4.1.14823.2.2.1.1.3.1
Number of Down APs per Controller
snmpwalk -v 2c -m ALL -c <community name> <Master controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.4.1.6 | grep -c 'INTEGER: 2'
Number of Successful 802.1x Authentications
To list the current dot1x users, enter:
snmpwalk -v 2c -m ALL -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.2.1 | grep -c "<dot1x>"
Number of Rogue APs per Controller—Count per Building
snmpwalk -v 2c -m ALL -c <community name> <AP IP addr>
.1.3.6.1.4.1.14823.2.3.1.1.4.1.1.6 | grep -c "unsecure"
Number of Interfering APs per Controller
snmpwalk -v 2c -m ALL -c <community name> <AP IP addr>
.1.3.6.1.4.1.14823.2.3.1.1.4.1.1.6 | grep -c "interfering"
Noise Level per AP
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.3.1.13 | grep "<ap bssid in decimal format>"
zFrame Low-Speed Rate per AP BSSID zSNR of Wireless Devices per AP
zFrame Receive Error Rate per AP BSSID zSNR of APs
wlsxSwitchUserTable .1.3.6.1.4.1.14823.2.2.1.1.2.1
wlsxSwitchTotalNumAccessPoints .1.3.6.1.4.1.14823.2.2.1.1.3.1
globalAPState .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.6
wlsxSwitchUserTable .1.3.6.1.4.1.14823.2.2.1.1.2.1
wlsrAmRAPType .1.3.6.1.4.1.14823.2.3.1.1.4.1.1.6
wlsrAmRAPType .1.3.6.1.4.1.14823.2.3.1.1.4.1.1.6
apChannelNoise .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.13
26 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
AP Information from Master Controller
The following command retrieves the BSSIDs and local controller IP of each AP.
snmpwalk -v 2c -m ALL -c <community name> <Master controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.4
Information from Any AP
The following information can be retrieved from an AP:
Current configuration of SSID, Mode, Current Channel, Tx-Power, RTS Threshold, Retry Limit, Preamble,
Beacon Interval, Power Mgmt, Load Balance, Supported Rates, DTIM Period, LMS Address, Encryption,
Status, Ageout, MTU, Location, Hide SSID, Deny Broadcast, BG mode, Radio Chipset, Regulatory Domain,
Country Code, and Tx Rates.
snmpwalk -v 2c -m ALL -c <community name> <AP IP addr> .1.3.6.1.4.1.14823.2.3.1.1.1.1
Frame Retry Rate per AP BSSID
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.13 | grep "<ap bssid in decimal format>"
Frame Low-Speed Rate per AP BSSID
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.14 | grep "<ap bssid in decimal format>"
Frame Receive Error Rate per AP BSSID
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.17 | grep "<ap bssid in decimal format>"
Frame Retry Rate per AP Channel
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.3 | grep "<ap bssid in decimal format>"
Frame Low-Speed Rate per AP Channel
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.4 | grep "<ap bssid in decimal format>"
wlsxSwitchGlobalAPTable .1.3.6.1.4.1.14823.2.2.1.1.3.4
wlsrConfigTable .1.3.6.1.4.1.14823.2.3.1.1.1.1
apBSSFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.13
apBSSFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.14
apBSSFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.17
apChannelFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.3
apChannelFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.4
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 27
Frame Receive Errors per AP Channel
This information is available from any Dell controller.
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.7 | grep "<ap bssid in decimal format>"
Total Current Channel Bandwidth (kbps) per AP
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.2 | grep "<ap bssid in decimal format>"
Tx Packets per AP BSSID (32-bit counter)
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.8 | grep "<ap bssid in decimal format>"
Tx Bytes per AP BSSID (32-bit counter)
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.9 | grep "<ap bssid in decimal format>"
Rx Packets per AP BSSID (32-bit counter)
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.10 | grep "<ap bssid in decimal format>"
Rx Bytes per AP BSSID (32-bit counter)
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.11 | grep "<ap bssid in decimal format>"
Total Bandwidth per AP BSSID (kbps)
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.5.1.12 | grep "<ap bssid in decimal format>
apChannelFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.7
apChannelBwRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.2
apBSSTxPackets .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.8
apBSSTxBytes .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.9
apBSSRxPackets .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.10
apBSSRxBytes .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.11
apBSSBwRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.12
28 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Free Memory
snmpget -v 2c -m ALL -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.1.11.1.4.1
SNR of Wireless Devices per AP
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.2.2.1.7 | grep "<ap bssid in decimal format>"
SNR of APs
snmpwalk -v 2c -c <community name> <controller IP addr>
.1.3.6.1.4.1.14823.2.2.1.1.3.3.1.14 | grep "<ap bssid in decimal format>"
Reading MIB Files
This section describes how to interpret the basic components of a MIB file. To determine the OIDs, viewing the
file snmp.h may be necessary, which is described in “SNMP File” on page32. For additional information about
MIB files, see “MIBs” on page19. For a listing of SNMP MIB OIDs, see Chapter 20, “SNMP MIBs Reference” on
page 599.
MIB files describe a specific component of a network device. The files are numerical strings that are converted to
ASCII text by the compiler of the SNMP manager. A word processor or text editor can be used to open the ASCII
file. The contents of an example ArubaOS enterprise MIB file, aruba-cts.my, are described below.
Opening Line
Following is the opening line, the beginning of the MIB file.
WLSX-CTS-MIB DEFINITIONS ::= BEGIN
Imports
The Imports section lists the objects that are defined in external ASN.1 files and are used in the current MIB
file.
IMPORTS
TEXTUAL-CONVENTION,
MODULE-IDENTITY,
OBJECT-TYPE,
snmpModules,
Integer32,
Unsigned32,
Counter32,
IpAddress,
NOTIFICATION-TYPE
FROM SNMPv2-SMI
TDomain,
DisplayString,
PhysAddress,
sysXMemoryFree .1.3.6.1.4.1.14823.2.2.1.1.1.11.1.4
staSignalToNoiseRatio .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.7
apSignalToNoiseRatio .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.14
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 29
TAddress,
TimeInterval,
RowStatus,
StorageType,
TestAndIncr,
MacAddress,
TruthValue
FROM SNMPv2-TC
OBJECT-GROUP
FROM SNMPv2-CONF
Inheritance
This section shows the vendor of the MIB and the inheritance, and provides an overall description.
A significant part of inheritance is the OID. The entire OID is not listed for each MIB object—instead, the parent
of the object is shown. The tree for the CTS MIB is illustrated in Figure 4 on page 32. The OID can be
determined from the parent object as follows.
wlsxEnterpriseMibModules is the parent object of the CTS MIB—its OID is
1.3.6.1.4.1.14823.2.2.1.
wlsxCtsMIB MODULE-IDENTITY shows wlsxEnterpriseMibModules 11, which indicates 11 is
appended to the OID of wlsxEnterpriseMibModules. The resultant OID is
1.3.6.1.4.1.14823.2.2.1.11.
wlsxCtsOpGroup OBJECT IDENTIFIER ::= { wlsxCtsMIB 1 } indicates the OID is
1.3.6.1.4.1.14823.2.2.1.11.1.
wlsxCtsRequestTable OBJECT-TYPE shows wlsxCtsOpGroup 1, which indicates the OID is
1.3.6.1.4.1.14823.2.2.1.11.1.1.
All MIBs and their related OIDs are listed in the snmp file of ArubaOS. For more information, see “SNMP File”
on page32.
wlsxEnterpriseMibModules
FROM ARUBA-MIB;
Identity
Identity is the opening description of the MIB. The information includes contact information for the vendor and
a general description of the MIB.
wlsxCtsMIB MODULE-IDENTITY
LAST-UPDATED "0609240301Z"
ORGANIZATION "Aruba Wireless Networks"
CONTACT-INFO
"Postal: 1322 Crossman Avenue
Sunnyvale, CA 94089
E-mail: dl-support@arubanetworks.com
Phone: +1 408 227 4500"
DESCRIPTION
"This MIB module defines MIB objects which provide
information about the Controller Transport Service (Cts) in the
Dell controller."
REVISION "0609240301Z"
DESCRIPTION
"The initial revision."
::= { wlsxEnterpriseMibModules 11 }
30 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
MIB Modules
MIB objects can be placed in logical groups, Group and Table. One MIB file can consist of multiple groups. A
group typically contains at least one table. The table lists the MIB objects that contain the information that is
exchanged.
The first object of a table is an Entry. The keyword SEQUENCE lists the objects of the table that contain device
information. Each subsequent object (Informative MIB Objects) inherits the OID of the Entry, and contains
information sorted by keywords: Syntax, Access, Status, Description. For details about keywords, see “MIBs” on
page19.
The OID of the Entry is wlsxCtsRequestEntry is wlsxCtsRequestTable 1, which represents
1.3.6.1.4.1.14823.2.2.1.11.1.1.1. The OIDs of the subsequent objects of this table are appended
increments of the Entry OID. For example, the OID of wlsxCtsIndex is wlsxCtsRequestEntry 1, which
represents 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.1.
Group
wlsxCtsOpGroup OBJECT IDENTIFIER ::= { wlsxCtsMIB 1 }
Table
wlsxCtsRequestTable OBJECT-TYPE
SYNTAXSEQUENCE OF WlsxCtsRequestEntry
MAX-ACCESSnot-accessible
STATUScurrent
DESCRIPTION
"
"
::= { wlsxCtsOpGroup 1 }
Entry
wlsxCtsRequestEntry OBJECT-TYPE
SYNTAX WlsxCtsRequestEntry
MAX-ACCESS not-accessible
STATUScurrent
DESCRIPTION
""
INDEX { wlsxCtsIndex }
::= { wlsxCtsRequestTable 1 }
WlsxCtsRequestEntry ::=
SEQUENCE
{
wlsxCtsIndexInteger32,
wlsxCtsOpcodeDisplayString,
wlsxCtsCookieDisplayString,
wlsxCtsURLDisplayString,
wlsxCtsFlagsBITS,
wlsxCtsStatusRowStatus
}
Informative
MIB Objects
wlsxCtsIndex OBJECT-TYPE
SYNTAX Integer32
MAX-ACCESS not-accessible
STATUScurrent
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 31
DESCRIPTION
"
CTS transport index
0 - Config Sync
1 - Counters Sync
2 - RF Plan Sync
"
::= { wlsxCtsRequestEntry 1 }
wlsxCtsOpcode OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-write
STATUScurrent
DESCRIPTION
"
CTS operation opcode
"
::= { wlsxCtsRequestEntry 2 }
wlsxCtsStatus OBJECT-TYPE
SYNTAX RowStatus
MAX-ACCESS read-write
STATUScurrent
DESCRIPTION
"
CTS row status
"
::= { wlsxCtsRequestEntry 6 }
Closing Line
Following is the closing line—the end of the MIBs file.
END
32 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
OID Flow Chart
Figure 4 illustrates the tree of the CTS MIB, relative to the Dell MIB.
Figure 4 CTS OIDs Relative to Dell
SNMP File
The snmp.h file lists the OIDs of all MIBs. Following are sections from snmp.h that show the complete OID of
each of the Controller Transport Service (CTS) MIB elements. The list starts from the ancestral parent iso.
The SNMP file with all Dell MIBs is listed in Chapter 20, “SNMP MIBs Reference” on page 599.
All ArubaOS MIBs inherit their OIDs from the Dell MIB node. The following rows list the MIBs that precede CTS, starting
from iso.
{ "iso", HASHNEXT("1") },
{ "org", HASHNEXT("1.3") },
{ "dod", HASHNEXT("1.3.6") },
{ "internet", HASHNEXT("1.3.6.1") },
{ "private", HASHNEXT("1.3.6.1.4") },
{ "enterprises", HASHNEXT("1.3.6.1.4.1") },
{ "aruba", HASHNEXT("1.3.6.1.4.1.14823") },
{"arubaEnterpriseMibModules", HASHNEXT("1.3.6.1.4.1.14823.2") },
{ "switch", HASHNEXT("1.3.6.1.4.1.14823.2.2") },
wlsx CTS
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.11
wlsx MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
wlsx CTS Request Table
1.3.6.1.4.1.14823.2.2.1.11.1
1.3.6.1.4.1.14823.2.2.1.11.1.1
wlsx CTS Op Group
Aruba
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Using MIBs | 33
HP OpenView
To install the Dell module for HP OpenView, log in as the root user and execute the following script:
# $OV_CONTRIB/NNM/Dell/install
MIB Limitations
Following are the known limitations and constraints of ArubaOS MIBs.
{ "wlsxEnterpriseMibModules", HASHNEXT("1.3.6.1.4.1.14823.2.2.1") },
The following rows list the CTS MIB OIDs.
{ "wlsxCtsMIB", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11") },
{ "wlsxCtsOpGroup", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1") },
{ "wlsxCtsRequestTable", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1") },
{ "wlsxCtsRequestEntry", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1") },
{ "wlsxCtsIndex", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.1")},
{ "wlsxCtsOpcode", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.2")},
{ "wlsxCtsCookie", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.3")},
{ "wlsxCtsURL", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.4")},
{ "wlsxCtsFlags", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.5")},
{ "wlsxCtsStatus", HASHNEXT("1.3.6.1.4.1.14823.2.2.1.11.1.1.1.6")},
Table 5 Limitations and Constraints
MIB Module Limitation
Switch wlsxSwitchListTable Information can only be queried from the master switch—only the table of
the master switch is populated. If a local switch is queried, an empty table
will be returned.
Switch wlsxSwitchGlobalAPTable Information can only be queried from the master switch—only the table of
the master switch is populated. If a local switch is queried, an empty table
will be returned.
Textual
Conventions All objects Textual conventions objects do not include object identification (OID).
34 |Using MIBs Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 35
Chapter 3
AP and AM
The AP and AM module provides information about access points and air monitors. The access point (AP) is a
device or an application that connects the wireless client to a local area network (LAN). APs continually poll the
network and report information to the controllers. This feature can be used to enhance the security of wireless
communication and to extend the range of a wireless user by connecting to a wireless device through a wired
LAN.
The Dell AP can also function as an air monitor (AM), which scans the RF spectrum, and can be used to enhance
the performance of the AP.
Figure 5 shows the architecture of the AP AM MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The AP and AM MIBs are listed in the file aruba-ap.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Note: All MIB tables and MIB OIDs in this chapter were deprecated in ArubaOS 3.0 and are no longer supported.
36 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Figure 5 Access Point Air Module Hierarchy
wisr Traps Group
1.3.6.1.4.1.14823.2.3.1.1.100.100
1.3.6.1.4.1.14823.2.3.1.1.100
wisr MIB
wisr Enterprise Mib Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2.3
1.3.6.1.4.1.14823.2.3.1
1.3.6.1.4.1.14823.2.3.1.1
wisr Trap Objects Group
wisr C onfig Group
1.3.6.1.4.1.14823.2.3.1.1.1.1
1.3.6.1.4.1.14823.2.3.1.1.1
wisr C onfig Table
1.3.6.1.4.1.14823.2.3.1.1.3
1.3.6.1.4.1.14823.2.3.1.1.3.3
1.3.6.1.4.1.14823.2.3.1.1.3.3.1
1.3.6.1.4.1.14823.2.3.1.1.3.3.2
1.3.6.1.4.1.14823.2.3.1.1.3.3.3
1.3.6.1.4.1.14823.2.3.1.1.3.3.4
1.3.6.1.4.1.14823.2.3.1.1.3.3.5
1.3.6.1.4.1.14823.2.3.1.1.3.4
wisr Stats Group
wisr Stats Channel Group
wisr Stats Ch Table
wisr Ch Rate Stats Table
wisr C h DA Type S tats Table
wisr C hannel Frame Type S tats Table
wisr Channel Pkt Size Stats Table
wisr Stats Sta Group
1.3.6.1.4.1.14823.2.3.1.1.3.4.1
1.3.6.1.4.1.14823.2.3.1.1.3.4.2
1.3.6.1.4.1.14823.2.3.1.1.3.4.3
1.3.6.1.4.1.14823.2.3.1.1.3.4.4
1.3.6.1.4.1.14823.2.3.1.1.3.4.5
wisr Sta Stats Table
wisr C h Rate S tats Table
wisr Sta Rate Stats Table
wisr Sta Frame Type Stats Table
wisr Sta Pkt Size Stats Table
1.3.6.1.4.1.14823.2.3.1.1.4
wisr Air Monitor G roup
1.3.6.1.4.1.14823.2.3.1.1.4.1
wisr Air Monitor Ap List Group
Aruba Ap
Aruba
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 37
wlsrEnterpriseMibModules
The AP MIB contains several tables, which are listed and summarized in Table 6. The objects of each table are
described in the following sections.
wlsrConfigTable
The wlsr Configuration Table contains the configuration data of an access point. Each object in the table
represents a WiFi interface.
Table 6 AP Tables
Table Description
wlsrConfigTable This table lists the configuration data of an access point. Each row in the table
represents a WiFi interface.
wlsrChannelStatsTable This table lists channel statistics.
wlsrChannelRateStatsTable This table lists channel statistics that are sorted per data rate.
wlsrChannelDATypeStatsTable This table lists channel packet and byte counts per channel, which are sorted
by destination address.
wlsrChannelPktSizeStatsTable This table lists channel statistics that are sorted by packet size.
wlsrStaStatsTable This table lists statistics that are sorted by station.
wlsrStaRateStatsTable This table lists station statistics that are sorted by data rates.
wlsrStaDATypeStatsTable This table lists station statistics that are sorted by the destination address.
wlsrStaFrameTypeStatsTable This table lists station statistics that are sorted by the subtype of the packet.
wlsrStaPktSizeStatsTable This table lists station statistics of received or transmitted packets that are
sorted by packet size.
wlsrAirMonitorApListTable On an air monitor, this table contains all the access points the air monitor is
monitoring. On an access point, this table contains itself.
Table 7 wlsrConfigTable OIDs
Object Object ID
wlsrConfigEntry 1.3.6.1.4.1.14823.2.3.1.1.1.1.1 wlsrConfigTable 1
wlsrBSSID 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.1 wlsrConfigEntry 1
wlsrESSID 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.2 wlsrConfigEntry 2
wlsrMode 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.3 wlsrConfigEntry 3
wlsrCurrentChannel 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.4 wlsrConfigEntry 4
wlsrTxPower 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.5 wlsrConfigEntry 5
wlsrRTSThreshold 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.6 wlsrConfigEntry 6
wlsrRetryLimit 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.7 wlsrConfigEntry 7
wlsrPreamble 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.8 wlsrConfigEntry 8
wlsrBeaconInterval 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.9 wlsrConfigEntry 9
wlsrPowerMgmt 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.10 wlsrConfigEntry 10
wlsrLoadBalance 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.11 wlsrConfigEntry 11
38 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrConfigEntry
wlsrBSSID
wlsrSupportedRates 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.12 wlsrConfigEntry 12
wlsrDTIMPeriod 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.13 wlsrConfigEntry 13
wlsrLMSAddress 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.14 wlsrConfigEntry 14
wlsrEncryption 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.15 wlsrConfigEntry 15
wlsrStatus 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.17 wlsrConfigEntry 17
wlsrAgeout 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.18 wlsrConfigEntry 18
wlsrMTU 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.19 wlsrConfigEntry 19
wlsrLocation 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.20 wlsrConfigEntry 20
wlsrHideSSID 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.21 wlsrConfigEntry 21
wlsrDenyBroadcast 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.22 wlsrConfigEntry 22
wlsrBGmode 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.23 wlsrConfigEntry 23
wlsrCardType 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.24 wlsrConfigEntry 24
wlsrRegDomain 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.25 wlsrConfigEntry 25
wlsrCountryCode 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.26 wlsrConfigEntry 26
wlsrTxRates 1.3.6.1.4.1.14823.2.3.1.1.1.1.1.27 wlsrConfigEntry 27
Syntax wlsrConfigEntry
Max-Access not-accessible
Status deprecated
Description A WiFi configuration entry.
Index { wlsrBSSID }
Syntax MacAddress
Max-Access not-accessible
Status deprecated
Description BSSID of the WiFi Interface.
Table 7 wlsrConfigTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 39
wlsrESSID
wlsrMode
wlsrCurrentChannel
wlsrTxPower
Syntax DisplayString (Size(0..64))
Max-Access read-only
Status deprecated
Description ESSID of the WiFi Interface.
Syntax Integer
master(1)
adhoc(2)
monitor(3)
Max-Access read-only
Status deprecated
Description Mode of the access point.
zMaster indicates that we are operating as access point.
zMonitor indicates that the access point is an air monitor.
Syntax Integer (1..165)
Max-Access read-only
Status deprecated
Description The current operating frequency channel of the DSSS PHY.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Transmit power of the access point. The value is between 0 ... 4.
40 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrRTSThreshold
wlsrRetryLimit
wlsrPreamble
wlsrBeaconInterval
wlsrPowerMgmt
Syntax Integer (0..2347)
Max-Access read-only
Status deprecated
Description This attribute shall indicate the number of octets in an MPDU, below which an RTS/CTS
handshake shall not be performed.
Syntax Integer (1..255)
Max-Access read-only
Status deprecated
Description This attribute shall indicate the maximum number of transmission attempts of a frame, the
length of which is less than or equal to dot11RTSThreshold, that shall be made before a failure
condition is indicated. The default value of this attribute shall be 7.
Syntax Integer {short(1),long(2)
Max-Access read-only
Status deprecated
Description The current radio preamble type in use by the WiFi interface.
Syntax Integer (1..65535)
Max-Access read-only
Status deprecated
Description This object specifies the number of transmission units that a station uses for scheduling
beacon transmissions. This value is transmitted in beacon and probe response frames.
Syntax Integer
enable(1)
disable(2)
Max-Access read-only
Status deprecated
Description This attribute indicates whether power management is enabled or not.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 41
wlsrLoadBalance
wlsrSupportedRates
wlsrDTIMPeriod
Syntax Integer
enable(1)
disable(2)
Max-Access read-only
Status deprecated
Description This attribute indicates if load balancing is enabled or disabled.
Syntax Bits
unused0(0)
unused1(1)
unused2(2)
unused3(3)
rate54Mbps(4)
rate48Mbps(5)
rate36Mbps(6)
rate24Mbps(7)
rate18Mbps(8)
rate12Mbps(9)
rate9Mbps(10)
rate6Mbps(11)
rate11Mbps(12)
rate5Mbps(13)
rate2Mbps(14
rate1Mbps(15)
Max-Access read-only
Status deprecated
Description Basic bit rates supported by this WiFi interface.
Syntax Integer (1..255)
Max-Access read-only
Status deprecated
Description This attribute shall specify the number of beacon intervals that shall elapse between
transmission of beacon frames containing a TIM element—the DTIM count field is 0. This
value is transmitted in the DTIM Period field of beacon frames.
42 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrLMSAddress
wlsrEncryption
wlsrStatus
wlsrAgeout
Syntax IpAddress
Max-Access read-only
Status deprecated
Description The IP Address of the local switch that the access point is connected to.
Syntax Bits
unused0(0)
unused1(1)
unused2(2)
unused3(3)
unused4(4)
unused5(5)
unused6(6)
xSec(7)
wpa2PreAuth(8)
aes8021x(9)
aesPSK(10)
dynamicTkip(11)
staticTkip(12)
dynamicWep(13)
staticWep(14)
disabled(15)
Max-Access read-only
Status deprecated
Description The encryption type of the WiFi interface.
Syntax TruthValue
Max-Access read-only
Status deprecated
Description The status of the WiFi Interface.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The age-out value in seconds.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 43
wlsrMTU
wlsrLocation
wlsrHideSSID
wlsrDenyBroadcast
wlsrBGmode
Syntax Integer (0..2347)
Max-Access read-only
Status deprecated
Description The MTU of the WiFi Interface.
Syntax DisplayString (Size(0..32))
Max-Access read-only
Status deprecated
Description The location of the access point in Building.Floor.location format.
Syntax TruthValue
Max-Access read-only
Status deprecated
Description This attribute indicates if SSID is hidden or not.
Syntax TruthValue
Max-Access read-only
Status deprecated
Description A True value indicates that Broadcast is disabled.
Syntax Integer
bgMixed(1)
bOnly(2)
gOnly(3)
Max-Access read-only
Status deprecated
Description This attribute indicates the mode of the WiFi Interface.
44 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrCardType
wlsrRegDomain
Syntax Integer
noCard(1)
intersil(2)
atherosA(3)
atherosBG(4)
atherosABG(5)
ar5212A(10)
ar5212BG(11)
ar5212ABG(12)
Max-Access read-only
Status deprecated
Description Indicates the type of the radio card.
Syntax Integer32
Max-Access read-only
Status deprecated
Description This object represents the configured regulatory domain of which country this AP will adhere
to. See Table 8.
Table 8 Regulatory Domain
ID Country ID Country
1 US 10 Malaysia
2 Japan 11 Brazil
3Eu 12Taiwan
4 Eu2 13 Czech Republic
5Eu3 14GR
6 Korea 15 South Africa
7 China 16 Argentina
8 France 17 Australia
9 Singapore 18 Chile
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 45
wlsrCountryCode
wlsrTxRates
wlsrChannelStatsTable
The objects of the wlsr Channel Statistics table provide aggregated channel statistics.
Syntax DisplayString (Size(0..64))
Max-Access read-only
Status deprecated
Description This object represents the configured country code.
Syntax Bits
{unused0(0)
unused1(1)
unused2(2)
unused3(3)
rate54Mbps(4)
rate48Mbps(5)
rate36Mbps(6)
rate24Mbps(7)
rate18Mbps(8)
rate12Mbps(9)
rate9Mbps(10)
rate6Mbps(11)
rate11Mbps(12)
rate5Mbps(13)
rate2Mbps(14)
rate1Mbps(15)
Max-Access read-only
Status deprecated
Description Transmit Bit rates supported by this WiFi interface.
NOTE:
Table 9 wlsrChannelStatsTable OIDs
Object Object ID
wlsrChannelStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1 wlsrChannelStatsTable 1
wlsrChStatsChannel 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.1 wlsrChannelStatsEntry 1
wlsrChStatsNumAPs 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.2 wlsrChannelStatsEntry 2
wlsrChStatsNumStations 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.3 wlsrChannelStatsEntry 3
wlsrChStatsTotPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.4 wlsrChannelStatsEntry 4
wlsrChStatsTotBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.5 wlsrChannelStatsEntry 5
wlsrChStatsTotRetryPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.6 wlsrChannelStatsEntry 6
46 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChannelStatsEntry
wlsrChStatsChannel
wlsrChStatsNumAPs
wlsrChStatsTotFragmentedPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.7 wlsrChannelStatsEntry 7
wlsrChStatsTotPhyErrPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.8 wlsrChannelStatsEntry 8
wlsrChStatsTotMacErrPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.9 wlsrChannelStatsEntry 9
wlsrChStatsFrameErrorRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.10 wlsrChannelStatsEntry 10
wlsrChStatsFrameRetryRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.11 wlsrChannelStatsEntry 11
wlsrChStatsFrameLowSpeedRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.12 wlsrChannelStatsEntry 12
wlsrChStatsFrameNonUnicastRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.13 wlsrChannelStatsEntry 13
wlsrChStatsFrameBandwidthRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.14 wlsrChannelStatsEntry 14
wlsrChStatsFrameFragmentationRate 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.15 wlsrChannelStatsEntry 15
wlsrChStatsMonitoredTime 1.3.6.1.4.1.14823.2.3.1.1.3.3.1.1.16 wlsrChannelStatsEntry 16
Syntax wlsrChannelStatsEntry
Max-Access not-accessible
Status deprecated
Description Channel Statistics Table
Index { wlsrChStatsChannel }
Syntax Integer (1..165)
Max-Access not-accessible
Status deprecated
Description The frequency channel on which these statistics are collected.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The number of APs using this channel.
Table 9 wlsrChannelStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 47
wlsrChStatsNumStations
wlsrChStatsTotPkts
wlsrChStatsTotBytes
wlsrChStatsTotRetryPkts
wlsrChStatsTotFragmentedPkts
Syntax Integer32
Max-Access read-only
Status deprecated
Description The number of stations using this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total retry packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total fragmented packets observed on this channel.
48 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsTotPhyErrPkts
wlsrChStatsTotMacErrPkts
wlsrChStatsFrameErrorRate
wlsrChStatsFrameRetryRate
wlsrChStatsFrameLowSpeedRate
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total physical error packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total MAC errors packets observed on this channel.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Frame errors as a percentage of total frames on this channel.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The frame retry rate
Syntax Integer32
Max-Access read-only
Status deprecated
Description The frame low speed error rate in kbps.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 49
wlsrChStatsFrameNonUnicastRate
wlsrChStatsFrameBandwidthRate
wlsrChStatsFrameFragmentationRate
wlsrChStatsMonitoredTime
wlsrChannelRateStatsTable
The objects of the wlsr Channel Rates Statistics table provide statistical information of packet and byte counts.
The information is sorted by data rates.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Frame non-unicast rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Frame bandwidth rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Frame fragmentation rate in kbps.
Syntax TimeTicks
Max-Access read-only
Status deprecated
Description Time in ticks, since we have been observing this channel.
Table 10 wlsrChannelRateStatsTable OIDs
Object Object ID
wlsrChannelRateStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1 wlsrChannelRateStatsTable 1
wlsrChStatsTotPktsAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.1 wlsrChannelRateStatsEntry 1
wlsrChStatsTotBytesAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.2 wlsrChannelRateStatsEntry 2
50 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChannelRateStatsEntry
wlsrChStatsTotPktsAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.3 wlsrChannelRateStatsEntry 3
wlsrChStatsTotBytesAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.4 wlsrChannelRateStatsEntry 4
wlsrChStatsTotPktsAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.5 wlsrChannelRateStatsEntry 5
wlsrChStatsTotBytesAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.6 wlsrChannelRateStatsEntry 6
wlsrChStatsTotPktsAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.7 wlsrChannelRateStatsEntry 7
wlsrChStatsTotBytesAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.8 wlsrChannelRateStatsEntry 8
wlsrChStatsTotPktsAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.9 wlsrChannelRateStatsEntry 9
wlsrChStatsTotBytesAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.10 wlsrChannelRateStatsEntry 10
wlsrChStatsTotPktsAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.11 wlsrChannelRateStatsEntry 11
wlsrChStatsTotBytesAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.12 wlsrChannelRateStatsEntry 12
wlsrChStatsTotPktsAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.13 wlsrChannelRateStatsEntry 13
wlsrChStatsTotBytesAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.14 wlsrChannelRateStatsEntry 14
wlsrChStatsTotPktsAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.15 wlsrChannelRateStatsEntry 15
wlsrChStatsTotBytesAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.16 wlsrChannelRateStatsEntry 16
wlsrChStatsTotPktsAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.17 wlsrChannelRateStatsEntry 17
wlsrChStatsTotBytesAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.18 wlsrChannelRateStatsEntry 18
wlsrChStatsTotPktsAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.19 wlsrChannelRateStatsEntry 19
wlsrChStatsTotBytesAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.20 wlsrChannelRateStatsEntry 20
wlsrChStatsTotPktsAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.21 wlsrChannelRateStatsEntry 21
wlsrChStatsTotBytesAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.3.2.1.22 wlsrChannelRateStatsEntry 22
Syntax wlsrChannelRateStatsEntry
Max-Access not-accessible
Status deprecated
Description Channel rate statistics.
Index { wlsrChStatsChannel}
Table 10 wlsrChannelRateStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 51
wlsrChStatsTotPktsAt1Mbps
wlsrChStatsTotBytesAt1Mbps
wlsrChStatsTotPktsAt2Mbps
wlsrChStatsTotBytesAt2Mbps
wlsrChStatsTotPktsAt5Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 5 Mbps rate.
52 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsTotBytesAt5Mbps
wlsrChStatsTotPktsAt11Mbps
wlsrChStatsTotBytesAt11Mbps
wlsrChStatsTotPktsAt6Mbps
wlsrChStatsTotBytesAt6Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 6 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 53
wlsrChStatsTotPktsAt12Mbps
wlsrChStatsTotBytesAt12Mbps
wlsrChStatsTotPktsAt18Mbps
wlsrChStatsTotBytesAt18Mbps
wlsrChStatsTotPktsAt24Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 24 Mbps rate.
54 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsTotBytesAt24Mbps
wlsrChStatsTotPktsAt36Mbps
wlsrChStatsTotBytesAt36Mbps
wlsrChStatsTotPktsAt48Mbps
wlsrChStatsTotBytesAt48Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 48 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 55
wlsrChStatsTotPktsAt54Mbps
wlsrChStatsTotBytesAt54Mbps
wlsrChannelDATypeStatsTable
The objects of the wlsr Channel Destination Address Type Statistics table provide statistical information about
channels that is based on the destination type.
wlsrChannelDATypeStatsEntry
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets observed on this channel at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of bytes observed on this channel at 54 Mbps rate.
Table 11 wlsrChannelDATypeStatsTable OIDs
Object Object ID
wlsrChannelDATypeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1 wlsrChannelDATypeStatsTable 1
wlsrChStatsTotDABroadcastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.1 wlsrChannelDATypeStatsEntry 1
wlsrChStatsTotDABroadcastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.2 wlsrChannelDATypeStatsEntry 2
wlsrChStatsTotDAMulticastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.3 wlsrChannelDATypeStatsEntry 3
wlsrChStatsTotDAMulticastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.4 wlsrChannelDATypeStatsEntry 4
wlsrChStatsTotDAUnicastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.5 wlsrChannelDATypeStatsEntry 5
wlsrChStatsTotDAUnicastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.6 wlsrChannelDATypeStatsEntry 6
Syntax wlsrChannelDATypeStatsEntry
Max-Access not-accessible
Status deprecated
Description Channel Statistics based on the Address Type.
Index { wlsrChStatsChannel }
56 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsTotDABroadcastPkts
wlsrChStatsTotDABroadcastBytes
wlsrChStatsTotDAMulticastPkts
wlsrChStatsTotDAMulticastBytes
wlsrChStatsTotDAUnicastPkts
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of broadcast packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of broadcast bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of multicast packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of multicast bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of unicast packets observed on this channel.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 57
wlsrChStatsTotDAUnicastBytes
wlsrChannelFrameTypeStatsTable
The objects of the wlsr Channel Frame Type Statistics table provide information on package and byte counts per
channel, which are sorted by frame type.
wlsrChannelFrameTypeStatsEntry
wlsrChStatsTotMgmtPkts
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of unicast bytes observed on this channel.
Table 12 wlsrChannelFrameTypeStatsTable OIDs
Object Object ID
wlsrChannelFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1 wlsrChannelFrameTypeStatsTable 1
wlsrChStatsTotMgmtPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.1 wlsrChannelFrameTypeStatsEntry 1
wlsrChStatsTotMgmtBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.2 wlsrChannelFrameTypeStatsEntry 2
wlsrChStatsTotCtrlPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.3 wlsrChannelFrameTypeStatsEntry 3
wlsrChStatsTotCtrlBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.4 wlsrChannelFrameTypeStatsEntry 4
wlsrChStatsTotDataPkts 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.5 wlsrChannelFrameTypeStatsEntry 5
wlsrChStatsTotDataBytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.3.1.6 wlsrChannelFrameTypeStatsEntry 6
Syntax wlsrChannelFrameTypeStatsEntry
Max-Access not-accessible
Status deprecated
Description Channel statistics based on frame type.
Index { wlsrChStatsChannel}
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of management packets observed on this channel.
58 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsTotMgmtBytes
wlsrChStatsTotCtrlPkts
wlsrChStatsTotCtrlBytes
wlsrChStatsTotDataPkts
wlsrChStatsTotDataBytes
wlsrChannelPktSizeStatsTable
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of management bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of control packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of control bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of data packets observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of data bytes observed on this channel.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 59
The objects of the wlsr Channel Packet Size Statistics table provide channel statistics that are grouped by packet
size.
wlsrChannelPktSizeStatsEntry
wlsrChStatsPkts63Bytes
wlsrChStatsPkts64To127
Table 13 wlsrChannelPktSizeStatsTable OIDs
Object OID
wlsrChannelPktSizeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1 wlsrChannelPktSizeStatsTable 1
wlsrChStatsPkts63Bytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.1 wlsrChannelPktSizeStatsEntry 1
wlsrChStatsPkts64To127 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.2 wlsrChannelPktSizeStatsEntry 2
wlsrChStatsPkts128To255 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.3 wlsrChannelPktSizeStatsEntry 3
wlsrChStatsPkts256To511 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.4 wlsrChannelPktSizeStatsEntry 4
wlsrChStatsPkts512To1023 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.5 wlsrChannelPktSizeStatsEntry 5
wlsrChStatsPkts1024To1518 1.3.6.1.4.1.14823.2.3.1.1.3.3.4.1.6 wlsrChannelPktSizeStatsEntry 6
Syntax wlsrChannelPktSizeStatsEntry
Max-Access not-accessible
Status deprecated
Description Channel statistics based on the packet sizes.
Index { wlsrChStatsChannel}
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were less than 64 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were between 64 and 127 bytes long.
60 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrChStatsPkts128To255
wlsrChStatsPkts256To511
wlsrChStatsPkts512To1023
wlsrChStatsPkts1024To1518
wlsrStaStatsTable
The objects of the wlsr Station Statistics table provides the aggregated statistics for a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were between 128 and 255 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were between 256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total number of packets that were between 1024 and 1518 bytes long.
Table 14 wlsrStaStatsTable OIDs
Object Object ID
wlsrStaStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1 wlsrStaStatsTable 1
wlsrStaAddress 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.1 wlsrStaStatsEntry 1
wlsrStaTxPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.2 wlsrStaStatsEntry 2
wlsrStaTxBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.3 wlsrStaStatsEntry 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 61
wlsrStaStatsEntry
wlsrStaRxPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.4 wlsrStaStatsEntry 4
wlsrStaRxBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.5 wlsrStaStatsEntry 5
wlsrStaTxRetryPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.6 wlsrStaStatsEntry 6
wlsrStaRxRetryPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.7 wlsrStaStatsEntry 7
wlsrStaTxFragmentedPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.8 wlsrStaStatsEntry 8
wlsrStaRxFragmentedPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.9 wlsrStaStatsEntry 9
wlsrStaReceiveErrPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.10 wlsrStaStatsEntry 10
wlsrStaTxTotSignal 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.11 wlsrStaStatsEntry 11
wlsrStaTxSignalPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.12 wlsrStaStatsEntry 12
wlsrStaTxCurSignal 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.13 wlsrStaStatsEntry 13
wlsrStaTxHighSignal 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.14 wlsrStaStatsEntry 14
wlsrStaRxTotNoise 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.15 wlsrStaStatsEntry 15
wlsrStaRxNoisePkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.16 wlsrStaStatsEntry 16
wlsrStaRxCurrentNoise 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.17 wlsrStaStatsEntry 17
wlsrStaRxHighNoise 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.18 wlsrStaStatsEntry 18
wlsrStaRxLowNoise 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.19 wlsrStaStatsEntry 19
wlsrStaFrameRetryRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.20 wlsrStaStatsEntry 20
wlsrStaFrameLowSpeedRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.21 wlsrStaStatsEntry 21
wlsrStaFrameNonUnicastRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.22 wlsrStaStatsEntry 22
wlsrStaFrameRetryErrorRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.23 wlsrStaStatsEntry 23
wlsrStaFrameBandwidthRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.24 wlsrStaStatsEntry 24
wlsrStaFrameFragmentationRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.25 wlsrStaStatsEntry 25
wlsrStaFrameHighBandwidthRate 1.3.6.1.4.1.14823.2.3.1.1.3.4.1.1.26 wlsrStaStatsEntry 26
Syntax wlsrStaStatsEntry
Max-Access not-accessible
Status deprecated
Description Station statistics.
Index { wlsrStaAddress}
Table 14 wlsrStaStatsTable OIDs (Continued)
Object Object ID
62 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaAddress
wlsrStaTxPkts
wlsrStaTxBytes
wlsrStaRxPkts
wlsrStaRxBytes
Syntax MacAddress
Max-Access not-accessible
Status deprecated
Description The MAC Address of the station connected to this access point.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total packets transmitted to the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total bytes transmitted to the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total packets received from the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total bytes received from the station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 63
wlsrStaTxRetryPkts
wlsrStaRxRetryPkts
wlsrStaTxFragmentedPkts
wlsrStaRxFragmentedPkts
wlsrStaReceiveErrPkts
Syntax Counter32
Max-Access read-only
Status deprecated
Description The retry packets transmitted by the station
Syntax Counter32
Max-Access read-only
Status deprecated
Description The retry packets received from the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The fragmented packets transmitted by the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The fragmented packets received from the station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total error packets received from this station.
64 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaTxTotSignal
wlsrStaTxSignalPkts
wlsrStaTxCurSignal
wlsrStaTxHighSignal
wlsrStaRxTotNoise
Syntax Integer32
Max-Access read-only
Status deprecated
Description The attribute indicates the total transmitted signal computed for this station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total signal packets transmitted by this station.
Syntax Integer32
Max-Access read-only
Status deprecated
Description This attribute indicate the station’s curent transmit signal strength.
Syntax Integer32
Max-Access read-only
Status deprecated
Description This attribute indicate the station’s high transmit signal strength.
Syntax Counter32
Max-Access read-only
Status deprecated
Description Total noise.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 65
wlsrStaRxNoisePkts
wlsrStaRxCurrentNoise
wlsrStaRxHighNoise
wlsrStaRxLowNoise
wlsrStaFrameRetryRate
Syntax Counter32
Max-Access read-only
Status deprecated
Description Received noise.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Current noise.
Syntax Integer32
Max-Access read-only
Status deprecated
Description High noise.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Low noise.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame retry rate in kbps.
66 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaFrameLowSpeedRate
wlsrStaFrameNonUnicastRate
wlsrStaFrameRetryErrorRate
wlsrStaFrameBandwidthRate
wlsrStaFrameFragmentationRate
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame low speed error rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame non-unicast rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame retry error rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame bandwidth rate in kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame fragmentation rate in kbps.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 67
wlsrStaFrameHighBandwidthRate
wlsrStaRateStatsTable
The objects of the wlsr Station Rate Statistics table provide information on channel packet and byte counts per
channel. The information is grouped by data transfer rate.
Syntax Integer32
Max-Access read-only
Status deprecated
Description Station frame high bandwidth rate in kbps.
Table 15 wlsrStaRateStatsTable OIDs
Object Object ID
wlsrStaRateStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1 wlsrStaRateStatsTable 1
wlsrStaTxPktsAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.1 wlsrStaRateStatsEntry 1
wlsrStaTxBytesAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.2 wlsrStaRateStatsEntry 2
wlsrStaTxPktsAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.3 wlsrStaRateStatsEntry 3
wlsrStaTxBytesAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.4 wlsrStaRateStatsEntry 4
wlsrStaTxPktsAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.5 wlsrStaRateStatsEntry 5
wlsrStaTxBytesAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.6 wlsrStaRateStatsEntry 6
wlsrStaTxPktsAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.7 wlsrStaRateStatsEntry 7
wlsrStaTxBytesAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.8 wlsrStaRateStatsEntry 8
wlsrStaTxPktsAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.9 wlsrStaRateStatsEntry 9
wlsrStaTxBytesAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.10 wlsrStaRateStatsEntry 10
wlsrStaTxPktsAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.11 wlsrStaRateStatsEntry 11
wlsrStaTxBytesAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.12 wlsrStaRateStatsEntry 12
wlsrStaTxPktsAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.13 wlsrStaRateStatsEntry 13
wlsrStaTxBytesAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.14 wlsrStaRateStatsEntry 14
wlsrStaTxPktsAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.15 wlsrStaRateStatsEntry 15
wlsrStaTxBytesAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.16 wlsrStaRateStatsEntry 16
wlsrStaTxPktsAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.17 wlsrStaRateStatsEntry 17
wlsrStaTxBytesAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.18 wlsrStaRateStatsEntry 18
wlsrStaTxPktsAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.19 wlsrStaRateStatsEntry 19
wlsrStaTxBytesAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.20 wlsrStaRateStatsEntry 20
wlsrStaTxPktsAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.21 wlsrStaRateStatsEntry 21
wlsrStaTxBytesAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.22 wlsrStaRateStatsEntry 22
wlsrStaRxPktsAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.23 wlsrStaRateStatsEntry 23
68 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaRateStatsEntry
wlsrStaRxBytesAt1Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.24 wlsrStaRateStatsEntry 24
wlsrStaRxPktsAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.25 wlsrStaRateStatsEntry 25
wlsrStaRxBytesAt2Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.26 wlsrStaRateStatsEntry 26
wlsrStaRxPktsAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.27 wlsrStaRateStatsEntry 27
wlsrStaRxBytesAt5Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.28 wlsrStaRateStatsEntry 28
wlsrStaRxPktsAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.29 wlsrStaRateStatsEntry 29
wlsrStaRxBytesAt11Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.30 wlsrStaRateStatsEntry 30
wlsrStaRxPktsAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.31 wlsrStaRateStatsEntry 31
wlsrStaRxBytesAt6Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.32 wlsrStaRateStatsEntry 32
wlsrStaRxPktsAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.33 wlsrStaRateStatsEntry 33
wlsrStaRxBytesAt12Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.34 wlsrStaRateStatsEntry 34
wlsrStaRxPktsAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.35 wlsrStaRateStatsEntry 35
wlsrStaRxBytesAt18Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.36 wlsrStaRateStatsEntry 36
wlsrStaRxPktsAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.37 wlsrStaRateStatsEntry 37
wlsrStaRxBytesAt24Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.38 wlsrStaRateStatsEntry 38
wlsrStaRxPktsAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.39 wlsrStaRateStatsEntry 39
wlsrStaRxBytesAt36Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.40 wlsrStaRateStatsEntry 40
wlsrStaRxPktsAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.41 wlsrStaRateStatsEntry 41
wlsrStaRxBytesAt48Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.42 wlsrStaRateStatsEntry 42
wlsrStaRxPktsAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.43 wlsrStaRateStatsEntry 43
wlsrStaRxBytesAt54Mbps 1.3.6.1.4.1.14823.2.3.1.1.3.4.2.1.44 wlsrStaRateStatsEntry 44
Syntax wlsrStaRateStatsEntry
Max-Access not-accessible
Status deprecated
Description Station rate statistics table.
Index { wlsrStaAddress}
Table 15 wlsrStaRateStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 69
wlsrStaTxPktsAt1Mbps
wlsrStaTxBytesAt1Mbps
wlsrStaTxPktsAt2Mbps
wlsrStaTxBytesAt2Mbps
wlsrStaTxPktsAt5Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 5 Mbps rate.
70 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaTxBytesAt5Mbps
wlsrStaTxPktsAt11Mbps
wlsrStaTxBytesAt11Mbps
wlsrStaTxPktsAt6Mbps
wlsrStaTxBytesAt6Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 6 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 71
wlsrStaTxPktsAt12Mbps
wlsrStaTxBytesAt12Mbps
wlsrStaTxPktsAt18Mbps
wlsrStaTxBytesAt18Mbps
wlsrStaTxPktsAt24Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 24 Mbps rate.
72 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaTxBytesAt24Mbps
wlsrStaTxPktsAt36Mbps
wlsrStaTxBytesAt36Mbps
wlsrStaTxPktsAt48Mbps
wlsrStaTxBytesAt48Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 48 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 73
wlsrStaTxPktsAt54Mbps
wlsrStaTxBytesAt54Mbps
wlsrStaRxPktsAt1Mbps
wlsrStaRxBytesAt1Mbps
wlsrStaRxPktsAt2Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets transmitted by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 2 Mbps rate.
74 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaRxBytesAt2Mbps
wlsrStaRxPktsAt5Mbps
wlsrStaRxBytesAt5Mbps
wlsrStaRxPktsAt11Mbps
wlsrStaRxBytesAt11Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 11 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 75
wlsrStaRxPktsAt6Mbps
wlsrStaRxBytesAt6Mbps
wlsrStaRxPktsAt12Mbps
wlsrStaRxBytesAt12Mbps
wlsrStaRxPktsAt18Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 18 Mbps rate.
76 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaRxBytesAt18Mbps
wlsrStaRxPktsAt24Mbps
wlsrStaRxBytesAt24Mbps
wlsrStaRxPktsAt36Mbps
wlsrStaRxBytesAt36Mbps
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 36 Mpbs rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 36 Mpbs rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 77
wlsrStaRxPktsAt48Mbps
wlsrStaRxBytesAt48Mbps
wlsrStaRxPktsAt54Mbps
wlsrStaRxBytesAt54Mbps
wlsrStaDATypeStatsTable
The objects of the wlsr Station Destination Type Statistics table provide information categorized by address type.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of octets received by the station at 54 Mbps rate.
Table 16 wlsrStaDATypeStatsTable OIDs
Object OIDs
wlsrStaDATypeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1 wlsrStaDATypeStatsTable 1
wlsrStaTxDABroadcastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.1 wlsrStaDATypeStatsEntry 1
wlsrStaTxDABroadcastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.2 wlsrStaDATypeStatsEntry 2
wlsrStaTxDAMulticastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.3 wlsrStaDATypeStatsEntry 3
78 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaDATypeStatsEntry
wlsrStaTxDABroadcastPkts
wlsrStaTxDABroadcastBytes
wlsrStaTxDAMulticastPkts
wlsrStaTxDAMulticastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.4 wlsrStaDATypeStatsEntry 4
wlsrStaTxDAUnicastPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.5 wlsrStaDATypeStatsEntry 5
wlsrStaTxDAUnicastBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.3.1.6 wlsrStaDATypeStatsEntry 6
Syntax wlsrStaDATypeStatsEntry
Max-Access not-accessible
Status deprecated
Description Station statistics based on the destination address.
Index { wlsrStaAddress}
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of broadcast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of broadcast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of multicast packets transmitted by this station.
Table 16 wlsrStaDATypeStatsTable OIDs (Continued)
Object OIDs
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 79
wlsrStaTxDAMulticastBytes
wlsrStaTxDAUnicastPkts
wlsrStaTxDAUnicastBytes
wlsrStaFrameTypeStatsTable
The objects of the wlsr Station Frame Type Statistics table provide information about packet and byte counts per
channel. The information is grouped by frame type.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of multicast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total of unicast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The total of unicast bytes transmitted by this station.
Table 17 wlsrStaFrameTypeStatsTable OIDs
Object Object ID
wlsrStaFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1 wlsrStaFrameTypeStatsTable 1
wlsrStaTxMgmtPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.1 wlsrStaFrameTypeStatsEntry 1
wlsrStaTxMgmtBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.2 wlsrStaFrameTypeStatsEntry 2
wlsrStaTxCtrlPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.3 wlsrStaFrameTypeStatsEntry 3
wlsrStaTxCtrlBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.4 wlsrStaFrameTypeStatsEntry 4
wlsrStaTxDataPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.5 wlsrStaFrameTypeStatsEntry 5
wlsrStaTxDataBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.6 wlsrStaFrameTypeStatsEntry 6
wlsrStaRxMgmtPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.7 wlsrStaFrameTypeStatsEntry 7
wlsrStaRxMgmtBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.8 wlsrStaFrameTypeStatsEntry 8
wlsrStaRxCtrlPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.9 wlsrStaFrameTypeStatsEntry 9
80 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaFrameTypeStatsEntry
wlsrStaTxMgmtPkts
wlsrStaTxMgmtBytes
wlsrStaTxCtrlPkts
wlsrStaRxCtrlBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.10 wlsrStaFrameTypeStatsEntry 10
wlsStaRxDataPkts 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.11 wlsrStaFrameTypeStatsEntry 11
wlsrStaRxDataBytes 1.3.6.1.4.1.14823.2.3.1.1.3.4.4.1.12 wlsrStaFrameTypeStatsEntry 12
Syntax wlsrStaFrameTypeStatsEntry
Max-Access not-accessible
Status deprecated
Description Station frame type statistics entry.
Index { wlsrStaAddress}
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted management packets from a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted management bytes from a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted control packets from a station.
Table 17 wlsrStaFrameTypeStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 81
wlsrStaTxCtrlBytes
wlsrStaTxDataPkts
wlsrStaTxDataBytes
wlsrStaRxMgmtPkts
wlsrStaRxMgmtBytes
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted control bytes from a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted data packets from a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The transmitted data bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received management packets at a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received management bytes at a station.
82 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaRxCtrlPkts
wlsrStaRxCtrlBytes
wlsStaRxDataPkts
wlsrStaRxDataBytes
wlsrStaPktSizeStatsTable
The objects of the wlsr Station Packet Size Statistics table provide information about packet and byte counts.
The information is grouped by packet size.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received control packets at a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received control bytes at a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received data packets at a station.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of received data bytes at a station.
Table 18 wlsrStaPktSizeStatsTable OIDs
Object Object ID
wlsrStaPktSizeStatsEntry 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1 wlsrStaPktSizeStatsTable 1
wlsrStaTxPkts63Bytes 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.1 wlsrChannelPktSizeStatsEntry 1
wlsrStaTxPkts64To127 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.2 wlsrChannelPktSizeStatsEntry 2
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 83
wlsrStaPktSizeStatsEntry
wlsrStaTxPkts63Bytes
wlsrStaTxPkts64To127
wlsrStaTxPkts128To255
wlsrStaTxPkts128To255 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.3 wlsrChannelPktSizeStatsEntry 3
wlsrStaTxPkts256To511 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.4 wlsrChannelPktSizeStatsEntry 4
wlsrStaTxPkts512To1023 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.5 wlsrChannelPktSizeStatsEntry 5
wlsrStaTxPkts1024To1518 1.3.6.1.4.1.14823.2.3.1.1.3.3.5.1.6 wlsrChannelPktSizeStatsEntry 6
Syntax wlsrStaPktSizeStatsEntry
Max-Access not-accessible
Status deprecated
Description Station packet size statistics.
Index { wlsrStaAddress}
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were less than 64 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were between 64 and 127 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were between 128 and 255 bytes long.
Table 18 wlsrStaPktSizeStatsTable OIDs (Continued)
Object Object ID
84 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaTxPkts256To511
wlsrStaTxPkts512To1023
wlsrStaTxPkts1024To1518
wlsrStaRxPkts63Bytes
wlsrStaRxPkts64To127
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were between 256 and and 511 bytes
long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets transmitted by the station that were between 1024 and 1518 bytes
long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were less than 64 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were between 64 and 127 bytes long.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 85
wlsrStaRxPkts128To255
wlsrStaRxPkts256To511
wlsrStaRxPkts512To1023
wlsrStaRxPkts1024To1518
wlsrAirMonitorApListTable
The objects of the wlsr Air Monitor Access Point List table list all the access points that the air monitor is
monitoring. On an access point, this table contains itself.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were between 128 and 255 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were between 256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received by the station that were between 1024 and 1518 bytes long.
Table 19 wlsrAirMonitorApListTable OIDs
Object Object ID
wlsrAirMonitorApListEntry 1.3.6.1.4.1.14823.2.3.1.1.4.1.1 wlsrAirMonitorApListTable 1
wlsrAmApBSSID 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.1 wlsrAirMonitorApListEntry 1
wlsrAmSSID 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.2 wlsrAirMonitorApListEntry 2
86 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrAirMonitorApListEntry
wlsrAmApBSSID
wlsrAmSSID
wlsrAmChannel 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.3 wlsrAirMonitorApListEntry 3
wlsrAmPhysicalType 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.4 wlsrAirMonitorApListEntry 4
wlsrAmAccessPointType 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.5 wlsrAirMonitorApListEntry 5
wlsrAmRAPType 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.6 wlsrAirMonitorApListEntry 6
wlsrAmRSSI 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.7 wlsrAirMonitorApListEntry 7
wlsrAmMonitoredTime 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.8 wlsrAirMonitorApListEntry 8
wlsrAmInactivityTime 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.9 wlsrAirMonitorApListEntry 9
wlsrAmLoadBalancing 1.3.6.1.4.1.14823.2.3.1.1.4.1.1.10 wlsrAirMonitorApListEntry 10
Syntax wlsrAirMonitorApListEntry
Max-Access not-accessible
Status deprecated
Description Ap List Entry.
Index { wlsrAmApBSSID}
Syntax MacAddress
Max-Access not-accessible
Status deprecated
Description BSSID of the access point.
Syntax DisplayString(Size(0..62))
Max-Access read-only
Status deprecated
Description The SSID of the access point.
Table 19 wlsrAirMonitorApListTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 87
wlsrAmChannel
wlsrAmPhysicalType
wlsrAmAccessPointType
wlsrAmRAPType
Syntax Integer(1..165)
Max-Access read-only
Status deprecated
Description The channel on which this access point is operating.
Syntax Integer
dot11b(1)
dot11a(2)
dot11g(3)
Max-Access read-only
Status deprecated
Description The physical layer type.
Syntax Integer
genericAp(1)
softAp(2)
ciscoAp(3)
Max-Access read-only
Status deprecated
Description The type of access point.
Syntax Integer
valid(1)
interfering(2)
unsecure(3)
dos(4)
unknown(5)
Max-Access read-only
Status deprecated
Description The type of the access point.
88 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrAmRSSI
wlsrAmMonitoredTime
wlsrAmInactivityTime
wlsrAmLoadBalancing
wlsrTrapObjectsGroup
The objects of the wlsr Trap Objects group provide information about traps generated by access points. The
objects of this group do not support the commands GET or SET.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The access point receiver signal strength.
Syntax TimeTicks
Max-Access read-only
Status deprecated
Description Time in ticks since the air monitor is observing this access point.
Syntax TimeTicks
Max-Access read-only
Status deprecated
Description Access point inactivity time.
Syntax Integer
enable(1)
disable(2)
Max-Access read-only
Status deprecated
Description The attributes indicates whether load balancing is enabled for this access point.
Table 20 wlsrTrapsGroup OIDs
Object Object ID
wlsrTargetApBSSID 1.3.6.1.4.1.14823.2.3.1.1.100.100.1 wlsrTrapObjectsGroup 1
wlsrTargetApSSID 1.3.6.1.4.1.14823.2.3.1.1.100.100.2 wlsrTrapObjectsGroup 2
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 89
wlsrTargetApBSSID
wlsrTargetApSSID
wlsrTargetApChannel 1.3.6.1.4.1.14823.2.3.1.1.100.100.3 wlsrTrapObjectsGroup 3
wlsrSourceMac 1.3.6.1.4.1.14823.2.3.1.1.100.100.4 wlsrTrapObjectsGroup 4
wlsrNodeMac 1.3.6.1.4.1.14823.2.3.1.1.100.100.5 wlsrTrapObjectsGroup 5
wlsrFrameType 1.3.6.1.4.1.14823.2.3.1.1.100.100.6 wlsrTrapObjectsGroup 6
wlsrAddressType 1.3.6.1.4.1.14823.2.3.1.1.100.100.7 wlsrTrapObjectsGroup 7
wlsrSignatureName 1.3.6.1.4.1.14823.2.3.1.1.100.100.8 wlsrTrapObjectsGroup 8
wlsrMatchedMac 1.3.6.1.4.1.14823.2.3.1.1.100.100.9 wlsrTrapObjectsGroup 9
wlsrMatchedIp 1.3.6.1.4.1.14823.2.3.1.1.100.100.10 wlsrTrapObjectsGroup 10
wlsrReceiverMac 1.3.6.1.4.1.14823.2.3.1.1.100.100.11 wlsrTrapObjectsGroup 11
wlsrTransmitterMac 1.3.6.1.4.1.14823.2.3.1.1.100.100.12 wlsrTrapObjectsGroup 12
wlsrRSSI 1.3.6.1.4.1.14823.2.3.1.1.100.100.13 wlsrTrapObjectsGroup 13
wlsrRogueInfoURL 1.3.6.1.4.1.14823.2.3.1.1.100.100.14 wlsrTrapObjectsGroup 14
wlsrInterferingAPInfoURL 1.3.6.1.4.1.14823.2.3.1.1.100.100.15 wlsrTrapObjectsGroup 15
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the BSSID of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate AP. If an Access Point is
sending the trap, it will point to itself.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the SSID of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate AP. If an Access Point is
sending the trap it will point to itself.
Table 20 wlsrTrapsGroup OIDs (Continued)
Object Object ID
90 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrTargetApChannel
wlsrSourceMac
wlsrNodeMac
wlsrFrameType
Syntax Integer(1..165)
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the channel of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate access point. If an
access point is sending the trap, it will point to itself.
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the MAC address of the source.
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the MAC address of a node.
Syntax Integer
associateRequest(1)
associateResponse(2)
reassociateRequest(3)
reassociateResponse(4)
probeRequest(5)
probeResponse(6)
beacon(9)
atim(10)
disassociate(11)
auth(12)
deauth(13)
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the frame type.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 91
wlsrAddressType
wlsrSignatureName
wlsrMatchedMac
wlsrMatchedIp
wlsrReceiverMac
Syntax Integer
srcAddress(1)
dstAddress(2)
bssid(3)
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the address type.
Syntax Octet String (Size (0..64))
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the signature name.
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the MAC address.
Syntax IpAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the IP Address.
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the MAC address of the receiver.
92 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrTransmitterMac
wlsrRSSI
wlsrRogueInfoURL
wlsrInterferingAPInfoURL
wlsrTrapsGroup
The wlsr Traps group is type notification.
Syntax MacAddress
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the MAC address of the transmitter.
Syntax Integer32
Max-Access read-only
Status deprecated
Description This object is used in the traps to indicate the signal strength indicator.
Syntax DisplayString(Size(0..256))
Max-Access read-only
Status deprecated
Description This object is used to point to the WEBGUI rogue access point information URL.
Syntax DisplayString(Size(0..256))
Max-Access read-only
Status deprecated
Description This object is used to point to the WEBGUI rogue interfering access point information URL.
Table 21 wlsrTrapsGroup OIDs
Object Object ID
wlsrUnsecureApDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1001 wlsrTrapsGroup 1001
wlsrStaImpersonation 1.3.6.1.4.1.14823.2.3.1.1.100.1002 wlsrTrapsGroup 1002
wlsrReservedChannelViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1003 wlsrTrapsGroup 1003
wlsrValidSSIDViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1004 wlsrTrapsGroup 1004
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 93
wlsrChannelMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1005 wlsrTrapsGroup 1005
wlsrOUIMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1006 wlsrTrapsGroup 1006
wlsrSSIDMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1007 wlsrTrapsGroup 1007
wlsrShortPreableMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1008 wlsrTrapsGroup 1008
wlsrWPAMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1009 wlsrTrapsGroup 1009
wlsrAdhocNetworkDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1010 wlsrTrapsGroup 1010
wlsrStaPolicyViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1011 wlsrTrapsGroup 1011
wlsrRepeatWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1012 wlsrTrapsGroup 1012
wlsrWeakWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1013 wlsrTrapsGroup 1013
wlsrChannelInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1014 wlsrTrapsGroup 1014
wlsrAPInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1015 wlsrTrapsGroup 1015
wlsrStaInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1016 wlsrTrapsGroup 1016
wlsrFrameRetryRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1017 wlsrTrapsGroup 1017
wlsrFrameReceiveErrorRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1018 wlsrTrapsGroup 1018
wlsrFrameFragmentationRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1019 wlsrTrapsGroup 1019
wlsrFrameBandWidthRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1020 wlsrTrapsGroup 1020
wlsrFrameLowSpeedRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1021 wlsrTrapsGroup 1021
wlsrFrameNonUnicastRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1022 wlsrTrapsGroup 1022
wlsrLoadbalancingEnabled 1.3.6.1.4.1.14823.2.3.1.1.100.1023 wlsrTrapsGroup 1023
wlsrChannelFrameRetryRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1024 wlsrTrapsGroup 1024
wlsrChannelFrameFragmentationRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1025 wlsrTrapsGroup 1025
wlsrChannelFrameErrorRateExceeded 1.3.6.1.4.1.14823.2.3.1.1.100.1026 wlsrTrapsGroup 1026
wlsrSignatureMatch 1.3.6.1.4.1.14823.2.3.1.1.100.1027 wlsrTrapsGroup 1027
wlsrChannelRateAnomaly 1.3.6.1.4.1.14823.2.3.1.1.100.1028 wlsrTrapsGroup 1028
wlsrNodeRateAnomaly 1.3.6.1.4.1.14823.2.3.1.1.100.1029 wlsrTrapsGroup 1029
wlsrEAPRateAnomaly 1.3.6.1.4.1.14823.2.3.1.1.100.1030 wlsrTrapsGroup 1030
wlsrSignalAnomaly 1.3.6.1.4.1.14823.2.3.1.1.100.1031 wlsrTrapsGroup 1031
wlsrSequenceNumberAnomaly 1.3.6.1.4.1.14823.2.3.1.1.100.1032 wlsrTrapsGroup 1032
wlsrDisconnectStationAttack 1.3.6.1.4.1.14823.2.3.1.1.100.1033 wlsrTrapsGroup 1033
wlsrApFloodAttack 1.3.6.1.4.1.14823.2.3.1.1.100.1034 wlsrTrapsGroup 1034
wlsrAdhocNetwork 1.3.6.1.4.1.14823.2.3.1.1.100.1035 wlsrTrapsGroup 1035
wlsrWirelessBridge 1.3.6.1.4.1.14823.2.3.1.1.100.1036 wlsrTrapsGroup 1036
wlsrInvalidMacOUI 1.3.6.1.4.1.14823.2.3.1.1.100.1037 wlsrTrapsGroup 1037
wlsrLoadbalancingDisabled 1.3.6.1.4.1.14823.2.3.1.1.100.1038 wlsrTrapsGroup 1038
Table 21 wlsrTrapsGroup OIDs (Continued)
Object Object ID
94 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrUnsecureApDetected
wlsrStaImpersonation
wlsrReservedChannelViolation
wlsrValidSSIDViolation
wlsrWEPMisconfiguration 1.3.6.1.4.1.14823.2.3.1.1.100.1039 wlsrTrapsGroup 1039
wlsrStaRepeatWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1040 wlsrTrapsGroup 1040
wlsrStaWeakWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.1.100.1041 wlsrTrapsGroup 1041
wlsrStaAssociatedToUnsecureAp 1.3.6.1.4.1.14823.2.3.1.1.100.1042 wlsrTrapsGroup 1042
wlsrAdhocNetworkBridgeDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1043 wlsrTrapsGroup 1043
wlsrInterferingApDetected 1.3.6.1.4.1.14823.2.3.1.1.100.1044 wlsrTrapsGroup 1044
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel,
wlsrMatchedMac, wlsrMatchedIp, wlsrRogueInfoURL}
Status deprecated
Description This trap indicates that an unsecure access point is detected by an air monitor located at
wlsrLocation on channel wlsrCurrentChannel. The AP is declared unsecure, because we
matched it to the wlsrMatchedMac/wlsrMatchedIp.
Objects {wlsrNodeMac, wlsrLocation}
Status deprecated
Description This trap indicates that an AM at location wlsrLocation detected a station impersonation.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point is detected by an AP at location wlsrLocation, which
violates the Reserved Channel configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point violating Valid SSID is detected by an AP at
wlsrLocation.
Table 21 wlsrTrapsGroup OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 95
wlsrChannelMisconfiguration
wlsrOUIMisconfiguration
wlsrSSIDMisconfiguration
wlsrShortPreableMisconfiguration
wlsrWPAMisconfiguration
wlsrAdhocNetworkDetected
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has a bad channel configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has a bad OUI configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has a bad SSID configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has a bad short preamble configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has bad WPA configuration.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM has detected an ad hoc network.
96 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrStaPolicyViolation
wlsrRepeatWEPIVViolation
wlsrWeakWEPIVViolation
wlsrChannelInterferenceDetected
wlsrAPInterferenceDetected
wlsrStaInterferenceDetected
Objects {wlsrTargetApBSSID, wlsrNodeMac, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that a Valid Station policy is violated.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM detected a Repeat WEP-IV violation.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM detected a Weak WEP-IV violation.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation has detected a channel
interference on wlsrCurrentChannel.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation has detected an AP interference
on wlsrCurrentChannel.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrNodeMac, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation has detected a station
interference on wlsrCurrentChannel.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 97
wlsrFrameRetryRateExceeded
wlsrFrameReceiveErrorRateExceeded
wlsrFrameFragmentationRateExceeded
wlsrFrameBandWidthRateExceeded
wlsrFrameLowSpeedRateExceeded
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that an AP
wlsrTargetApBSSID has exceeded an upper threshold for frame retry rate for AP
wlsrTargetApBSSID.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrTargetApChannel, wlsrLocation}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that an AP
wlsrTargetApBSSID has exceeded an upper threshold for Frame Receive Error Rate for AP
wlsrTargetApBSSID.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrTargetApChannel, wlsrLocation}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that an AP
wlsrTargetApBSSID has exceeded an upper threshold for Frame Fragmentation Rate for AP
wlsrTargetApBSSID.
Objects {wlsrNodeMac, wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that a station
wlsrStaAddress has exceeded the allocated bandwidth rate.
Objects {wlsrNodeMac, wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that a station
wlsrStaAddress has exceeded the low speed rate.
98 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrFrameNonUnicastRateExceeded
wlsrLoadbalancingEnabled
wlsrChannelFrameRetryRateExceeded
wlsrChannelFrameFragmentationRateExceeded
wlsrChannelFrameErrorRateExceeded
wlsrSignatureMatch
Objects {wlsrNodeMac, wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that a station
wlsrStaAddress has exceeded the non-unicast traffic rate.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that an AP with BSSID
wlsrTargetApBSSID has enabled load balancing.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that it exceeded an
upper threshold for frame retry rate.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that it exceeded an
upper threshold for frame fragmentation rate.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that it exceeded an
upper threshold for frame error rate.
Objects {wlsrSignatureName, wlsrSourceMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that a signature match was detected.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 99
wlsrChannelRateAnomaly
wlsrNodeRateAnomaly
wlsrEAPRateAnomaly
wlsrSignalAnomaly
wlsrSequenceNumberAnomaly
wlsrDisconnectStationAttack
Objects {wlsrFrameType, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected frames of type wlsrFrameType on
wlsrCurrentChannel which exceeds the configured IDS rate threshold.
Objects {wlsrFrameType, wlsrNodeMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected frames of type wlsrFrameType
transmitted by node wlsrNodeMac which exceeds the configured IDS rate threshold.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that the number of EAP Handshake packets received by an AP/AM at
wlsrLocation exceeds the configured IDS EAP Handshake rate.
Objects {wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected a signal anomaly on
wlsrCurrentChannel.
Objects {wlsrSourceMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation received packets which exceeds the
acceptable sequence number difference. The acceptable sequence number difference is
an IDS Configuration object.
Objects {wlsrFrameType, wlsrSourceMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM detected a station disconnect attack.
100 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsrApFloodAttack
wlsrAdhocNetwork
wlsrWirelessBridge
wlsrInvalidMacOUI
wlsrLoadbalancingDisabled
wlsrWEPMisconfiguration
Objects {wlsrLocation}
Status deprecated
Description This trap is triggered when the number of spurious AP’s detected by an AP/AM at
wlsrLocation exceeds the configured IDS threshold.
Objects {wlsrSourceMac, wlsrTargetApBSSID, wlsrTargetApSSID, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected an ad hoc network. Node
wlsrSourceMac is connected to an ad hoc AP wlsrTargetAApBSSID with wlsrTargetApSSID.
Objects {wlsrTransmitterMac, wlsrReceiverMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected a Wireless Bridge. The detected
bridge is between wlsrSourceMac and wlsrReceiverMac.
Objects {wlsrAddressType, wlsrNodeMac, wlsrRSSI, wlsrLocation}
Status deprecated
Description This trap indicates that an AP/AM at wlsrLocation detected an invalid MAC OUI in
transmission from the node wlsrNodeMac. The invalid MAC is the <wlsrAddressType>.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrTargetApChannel, wlsrLocation}
Status deprecated
Description This trap indicates that an AM/AP located at wlsrLocation is reporting that an AP with BSSID
wlsrTargetApBSSID has disabled load balancing.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an Access Point has a bad WEP configuration.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide AP and AM | 101
wlsrStaRepeatWEPIVViolation
wlsrStaWeakWEPIVViolation
wlsrStaAssociatedToUnsecureAp
wlsrAdhocNetworkBridgeDetected
wlsrInterferingApDetected
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrNodeMac, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM detected a repeat WEP-IV violation for a station.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrNodeMac, wlsrLocation, wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AP/AM detected a weak WEP-IV violation for a station.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel, wlsrNodeMac,
wlsrRogueInfoURL}
Status deprecated
Description This trap indicates that a station with wlsrNodeMac associated with an Unsecure Access
Point wlsrTargetApBSSID. This is detected by an air monitor located at wlsrLocation on
channel wlsrCurrentChannel.
Objects {wlsrSourceMac, wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation,
wlsrCurrentChannel}
Status deprecated
Description This trap indicates that an AM has detected an ad hoc network that is bridging to a wired
network.
Objects {wlsrTargetApBSSID, wlsrTargetApSSID, wlsrLocation, wlsrCurrentChannel,
wlsrInterferingAPInfoURL}
Status deprecated
Description This trap indicates that an Interfering Access Point is detected by an air monitor located at
wlsrLocation on channel wlsrCurrentChannel.
102 | AP and AM Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Authentication | 103
Chapter 4
Authentication
The Authentication module provides information about the authentication server, as well as entities that are
attempting to access the network.Authentication is used to verify the entity that is communicating to a device.
Figure 6 shows the architecture of the Auth MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Authentication MIBs are listed in the file aruba-auth.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 6 Authorization Hierarchy
wlsx Authentication Server Group 1.3.6.1.4.1.14823.2.2.1.8.1
wlsx Authentication
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.8
1.3.6.1.4.1.14823.2.2.1.8.1.1
1.3.6.1.4.1.14823.2.2.1.8.1.2
1.3.6.1.4.1.14823.2.2.1.8.1.5
1.3.6.1.4.1.14823.2.2.1.8.2
wlsx Authentication Table
wlsx Portal Server Table
wlsx Ldap Server State Table
wlsx Authentication Info Group
1.3.6.1.4.1.14823.2.2.1.8.3
wlsx Authentication Group
wlsx Enterprise MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
Aruba
104 | Authentication Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The Authentication MIB consists of several tables, which are listed and summarized in Table 22. The objects of
each table are described in the following sections.
wlsxAuthenticationServerTable
The objects of the wlsx Authentication Server table provide information about the authentication servers in the
controller.
Table 22 Authentication MIB Tables
Group Description
wlsxAuthenticationServerTable Contains the users (both wired and wireless) currently connected to the controller.
Users are identified by their IP addresses.
wlsxPortalServerTable Contains the configured captive portal servers.
wlsxLdapServerStateTable Contains the LDAP server state.
Table 23 wlsxAuthenticationServerTable OIDs
Object Object ID
wlsxAuthenticationServerEntry 1.3.6.1.4.1.14823.2.2.1.8.1.1.1 wlsxAuthenticationServerTable 1
authServerName 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.1 wlsxAuthenticationServerEntry 1
authServerType 1.3.6.1.4.1.14823.2.2.1.8.1.1.12 wlsxAuthenticationServerEntry 2
authServerAddress 1.3.6.1.4.1.14823.2.2.1.8.1.1.13 wlsxAuthenticationServerEntry 3
authServerPort 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.4 wlsxAuthenticationServerEntry 4
authServerRetryCount 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.5 wlsxAuthenticationServerEntry 5
authServerTimeOutValue 1.3.6.1.4.1.14823.2.2.1.8.1.1.16 wlsxAuthenticationServerEntry 6
authServerState 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.7 wlsxAuthenticationServerEntry 7
authServerInservice 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.8 wlsxAuthenticationServerEntry 8
authServerUsageCount 1.3.6.1.4.1.14823.2.2.1.8.1.1.19 wlsxAuthenticationServerEntry 9
authServerSuccessfullAuths 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.10 wlsxAuthenticationServerEntry 10
authServerFailedAuths 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.11 wlsxAuthenticationServerEntry 11
authServerTimeouts 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.12 wlsxAuthenticationServerEntry 12
authServerAvgResponseTime 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.13 wlsxAuthenticationServerEntry 13
authServerOutStandingRequests 1.3.6.1.4.1.14823.2.2.1.8.1.1.114 wlsxAuthenticationServerEntry 14
authServerUptime 1.3.6.1.4.1.14823.2.2.1.8.1.1.1.15 wlsxAuthenticationServerEntry 15
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Authentication | 105
wlsxAuthenticationServerEntry
authServerName
authServerType
authServerAddress
authServerPort
Syntax wlsxAuthenticationServerEntry
Max-Access not-accessible
Status current
Description Server entry.
Index { authServerName }
Syntax DisplayString(SIZE(0..32))
Max-Access not-accessible
Status current
Description The name of the authentication server.
Syntax ArubaAuthServerType
Max-Access read-only
Status current
Description The type of the authentication server.
Syntax IpAddress
Max-Access read-create
Status current
Description The IP address of the authentication server.
Syntax Integer32
Max-Access read-create
Status current
Description The transport layer port of the authentication server.
106 | Authentication Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
authServerRetryCount
authServerTimeOutValue
authServerState
authServerInservice
authServerUsageCount
Syntax Integer32
Max-Access read-create
Status current
Description The configured retry count.
Syntax nteger32
Max-Access read-create
Status current
Description The configured timeout value.
Syntax ArubaEnableValue
Max-Access read-only
Status current
Description The state of the authentication server.
Syntax TruthValue
Max-Access read-only
Status current
Description An indication of whether or not the authentication server is in service.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times this server was queried.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Authentication | 107
authServerSuccessfullAuths
authServerFailedAuths
authServerTimeouts
authServerAvgResponseTime
authServerOutStandingRequests
Syntax Counter32
Max-Access read-only
Status current
Description The number of times this server responded with success.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times this server responded with failure.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times this communication with this server timed out.
Syntax Integer32
Max-Access read-only
Status current
Description The average response time of the server in milliseconds.
Syntax Integer32
Max-Access read-only
Status current
Description The number of requests currently outstanding to this server.
108 | Authentication Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
authServerUptime
wlsxPortalServerTable
The objects of the wlsx Portal Server table provide information about configured captive portal servers.
wlsxPortalServerEntry
portalServerIndex
Syntax Integer32
Max-Access read-only
Status current
Description The time since the server went into service with the controller.
Table 24 wlsxPortalServerTable OIDs
Object Object ID
wlsxPortalServerEntry 1.3.6.1.4.1.14823.2.2.1.8.1.2.1 wlsxPortalServerTable 1
portalServerIndex 1.3.6.1.4.1.14823.2.2.1.8.1.2.1.1 wlsxPortalServerEntry 1
portalServerHost 1.3.6.1.4.1.14823.2.2.1.8.1.2.1.2 wlsxPortalServerEntry 2
portalServerPort 1.3.6.1.4.1.14823.2.2.1.8.1.2.1.3 wlsxPortalServerEntry 3
portalServerPage 1.3.6.1.4.1.14823.2.2.1.8.1.2.1.4 wlsxPortalServerEntry 4
portalServerProtocol 1.3.6.1.4.1.14823.2.2.1.8.1.2.1.5 wlsxPortalServerEntry 5
Syntax wlsxPortalServerEntry
Max-Access not-accessible
Status current
Description Portal Server Entry
Index { portalServerIndex }
Syntax DisplayString(SIZE(0..256))
Max-Access not-accessible
Status current
Description Portal server index.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Authentication | 109
portalServerHost
portalServerPort
portalServerPage
portalServerProtocol
wlsxLdapServerStateTable
The objects of the wlsx Ldap Server State table provide information about the state of the LDAP server.
Syntax DisplayString(SIZE(0..256))
Max-Access read-only
Status current
Description The IP address of the portal server.
Syntax Integer32
Max-Access read-only
Status current
Description The transport layer port of the portal server.
Syntax DisplayString(SIZE(0..256))
Max-Access read-only
Status current
Description The portal server URL.
Syntax DisplayString
Max-Access read-only
Status current
Description The portal server protocol (e.g., HTTP or HTTPS).
Table 25 wlsxLdapServerStateTable
Object Object ID
wlsxLdapServerStateEntry 1.3.6.1.4.1.14823.2.2.1.8.1.5.1 wlsxLdapServerStateTable 1
ldapInitDone 1.3.6.1.4.1.14823.2.2.1.8.1.5.1.1 wlsxLdapServerStateEntry 1
ldapAdminBound 1.3.6.1.4.1.14823.2.2.1.8.1.5.1.2 wlsxLdapServerStateEntry 2
ldapReBindCount 1.3.6.1.4.1.14823.2.2.1.8.1.5.1.3 wlsxLdapServerStateEntry 3
110 | Authentication Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxLdapServerStateEntry
ldapInitDone
ldapAdminBound
ldapReBindCount
Syntax wlsxLdapServerStateEntry
Max-Access not-accessible
Status current
Description LDAP Server Entry.
Index { authServerName }
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether the controller is initialized with the server.
Syntax Integer
no(1)
yes(2)
inProgress(3)
Max-Access read-only
Status current
Description Indicates whether the controller is bound to the server.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times that the controller is rebound with the server.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Controller Transport Service | 111
Chapter 5
Controller Transport Service
This module provides information about the Controller Transport Service. The Controller Transport Service
(CTS) is used with the Mobility Manager for synchronizing configuration, database, and data sections. The CTS
MIBs are used for triggering the data synchronization event with the MMS, such as config update.
CTS is not intended to be used with other applications.
Figure 7 shows the relationship of CTS to 1.3.6.1.4.1.14823 (iso.org.dod.internet.private.enterprise.Dell). The
CTS MIBs are listed in the file aruba-cts.my. For information about downloading Dell MIB files, see
“Downloading MIB Files” on page23.
Figure 7 CTS MIB Hierarchy
The CTS MIB contains the following table. Its objects are described in the following sections.
Note: All MIB tables and MIB OIDs in this chapter are deprecated and are no longer supported.
Table 26 CTS MIB Tables
Table Description
wlsxCtsRequestTable The objects are used for the data synchronization event with MMS.
wlsx CTS
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.11
wlsx MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
wlsx CTS Request Table
1.3.6.1.4.1.14823.2.2.1.11.1
1.3.6.1.4.1.14823.2.2.1.11.1.1
wlsx CTS Op Group
Aruba
112 | Controller Transport Service Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxCtsRequestTable
The objects of the wlsx CTS Request Table are used for data synchronization when using MMS.
Table 27 wlsxCtsRequestTable OIDs
Object Object ID
wlsxCtsRequestEntry 1.3.6.1.4.1.14823.2.2.1.11.1.1.1 wlsxCtsRequestTable 1
tablewlsxCtsIndex 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.1 wlsxCtsRequestEntry 1
wlsxCtsOpcode 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.2 wlsxCtsRequestEntry 2
wlsxCtsCookie 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.3 wlsxCtsRequestEntry 3
wlsxCtsURL 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.4 wlsxCtsRequestEntry 4
wlsxCtsFlags 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.5 wlsxCtsRequestEntry 5
wlsxCtsStatus 1.3.6.1.4.1.14823.2.2.1.11.1.1.1.6 wlsxCtsRequestEntry 6
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Controller Transport Service | 113
wlsxCtsRequestEntry
tablewlsxCtsIndex
wlsxCtsOpcode
wlsxCtsCookie
Syntax wlsxCtsRequestEntry
Max-Access not-accessible
Status deprecated
Description CTS transport index.
History Added in ArubaOS 3.1.0.3.
Syntax Integer32
0 Config Sync
1 Counters Sync
2 RF Plan Sync
Max-Access not accessible
Status deprecated
Description CTS transport index.
History Added in ArubaOS 3.1.0.3.
Updated in ArubaOS 3.2.0.0.—Syntax
Syntax DisplayString
Max-Access read-write
Status current
Description Cookie for the config sync operation.
History Added in ArubaOS 3.1.0.3.
Syntax DisplayString
Max-Access read-write
Status deprecated
Description Cookie for the config sync operation.
History Added in ArubaOS 3.1.0.3.
114 | Controller Transport Service Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxCtsURL
wlsxCtsFlags
wlsxCtsStatus
Syntax DisplayString
Max-Access read-write
Status deprecated
Description URL for the config sync operation.
History Added in ArubaOS 3.1.0.3.
Syntax Bits
wlsxCtsFlagForce(0)
wlsxCtsFlagUseCert(1)
Max-Access read-write
Status deprecated
Description Operational flags to be sent via CTS.
History Added in ArubaOS 3.1.0.3.
Syntax Row Status
Max-Access read-write
Status deprecated
Description CTS row status.
History Added in ArubaOS 3.1.0.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide External Services Interface | 115
Chapter 6
External Services Interface
The External Services Interface (ESI) module provides information about the Wireless Management System
(WMS) in the Dell controller. ESI is used for redirecting traffic to a virus scanner, context filter, or other third
party network appliances.
Figure 8 shows the architecture of the ESI MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The ESI MIBs are listed in the file aruba-esi.my. For information
about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 8 ESI Hierarchy
This MIB module defines MIB objects which provide information about the Wireless Management System
(WMS) in the Dell controller. The ESI MIB consists of the following table.
wlsxESIServerTable
Table 28 ESI MIB Tables
Table Description
wlsxESIServerTable This table lists all ESI servers that are configured on the controller.
wlsx IF Ext
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.3
wlsx MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
wlsx IF Ext Table
1.3.6.1.4.1.14823.2.2.1.3.1
1.3.6.1.4.1.14823.2.2.1.3.1.1
wlsx IF EXT Group
Aruba
116 | External Services Interface Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx ESI Server table provide information of the ESI servers that are configured on the
controller.
wlsxESIServerEntry
esiServerName
esiServerGroup
Table 29 wlsxESIServerTable OIDs
Object Object ID
wlsxESIServerEntry 1.3.6.1.4.1.14823.2.2.1.10.1.1.1 wlsxESIServerTable 1
esiServerName 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.1 wlsxESIServerEntry 1
esiServerGroup 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.2 wlsxESIServerEntry 2
esiServerMode 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.3 wlsxESIServerEntry 3
esiServerTrustedIP 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.4 wlsxESIServerEntry 4
esiServerUntrustedIP 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.5 wlsxESIServerEntry 5
esiServerTrustedSlot 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.6 wlsxESIServerEntry 6
esiServerTrustedPort 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.7 wlsxESIServerEntry 7
esiServerUntrustedSlot 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.8 wlsxESIServerEntry 8
esiServerUntrustedPort 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.9 wlsxESIServerEntry 9
esiServerStatus 1.3.6.1.4.1.14823.2.2.1.10.1.1.1.10 wlsxESIServerEntry 10
Syntax wlsxESIServerEntry
Max-Access not-accessible
Status current
Description ESI Server Entry.
Index esiServerName
Syntax DisplayString
Max-Access not-accessible
Status current
Description The name of the ESI Server.
Syntax DisplayString
Max-Access read-only
Status current
Description The name of the ESI server group to which this server belongs.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide External Services Interface | 117
esiServerMode
esiServerTrustedIP
esiServerUntrustedIP
esiServerTrustedSlot
esiServerTrustedPort
Syntax ArubaESIServerMode
Max-Access read-only
Status current
Description The mode of this server.
Syntax IpAddress
Max-Access read-only
Status current
Description The trusted IP address of this server, or 0.0.0.0 if it is not set.
Syntax IpAddress
Max-Access read-only
Status current
Description The untrusted IP address of this server, or 0.0.0.0 if it is not set.
Syntax Integer32
Max-Access read-only
Status current
Description The slot number of the trusted interface for this server.
Syntax Integer32
Max-Access read-only
Status current
Description The port number of the trusted interface for this server.
118 | External Services Interface Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
esiServerUntrustedSlot
esiServerUntrustedPort
esiServerStatus
Syntax Integer32
Max-Access read-only
Status current
Description The slot number of the untrusted interface for this server.
Syntax Integer32
Max-Access read-only
Status current
Description The port number of the untrusted interface for this server.
Syntax ArubaESIServerStatus
Max-Access read-only
Status current
Description Indicates the status of this ESI server.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 119
Chapter 7
IF External
IF External (IF EXT) MIB objects provide system-level information about the Dell controller—physical ports,
configured VLANs, the port memberships, and the interfaces that define the VLANs.
Figure 9 shows the architecture of the IF EXT MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The IF External MIBs are listed in the file aruba-ifext.my. For
information about downloading Aruba MIB files, see “Downloading MIB Files” on page23.
Figure 9 IF EXT Hierarchy
wlsxIfExtMIB
This MIB module contains MIB objects that provide system-level information about the Dell controller. The wlsx
IF EXT tables consists of the following tables. The objects of each table are described in the following sections..
wlsxIfExtPortTable
Table 30 IF EXT Tables
Table Description
wlsxIfExtPortTable This table lists the physical ports in the controller.
wlsxIfExtVLANTable This table lists the VLAN in the controller.
wlsxIfExtVLANMemberTable This table lists the port membership of the VLAN.
wlsxIfExtVLANInterfaceTable This table defines Layer 3 VLAN interfaces.
wlsx IF Ext
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.3
wlsx MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
wlsx IF Ext Table
1.3.6.1.4.1.14823.2.2.1.3.1
1.3.6.1.4.1.14823.2.2.1.3.1.1
wlsx IF Ext Group
Aruba
120 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx External Port table define the physical ports of the controller.
Table 31 wlsxIfExtPortTable OIDs
Object Object ID
wlsxIfExtPortEntry 1.3.6.1.4.1.14823.2.2.1.3.1.1.1 wlsxIfExtPortTable 1
ifExtSlotNumber 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.1 wlsxIfExtPortEntry 1
ifExtPortNumber 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.2 wlsxIfExtPortEntry 2
ifExtPortIfIndex 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.3 wlsxIfExtPortEntry 3
ifExtAdminState 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.4 wlsxIfExtPortEntry 4
ifExtOperState 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.5 wlsxIfExtPortEntry 5
ifExtPoeState 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.6 wlsxIfExtPortEntry 6
ifExtIsTrusted 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.7 wlsxIfExtPortEntry 7
ifExtDot1DState 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.8 wlsxIfExtPortEntry 8
ifExtMode 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.9 wlsxIfExtPortEntry 9
ifExtAccessVLANId 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.10 wlsxIfExtPortEntry 10
ifExtTrunkNativeVLANId 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.11 wlsxIfExtPortEntry 11
ifExtTrunkIsAllowedAll 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.12 wlsxIfExtPortEntry 12
ifExtTrunkAllowedVLANList 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.13 wlsxIfExtPortEntry 13
ifExtIngressACLName 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.14 wlsxIfExtPortEntry 14
ifExtEgressACLName 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.15 wlsxIfExtPortEntry 15
ifExtSessionACLName 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.16 wlsxIfExtPortEntry 16
ifExtXsecVLAN 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.17 wlsxIfExtPortEntry 17
ifExtIsMonitoring 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.18 wlsxIfExtPortEntry 18
ifExtIsMux 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.19 wlsxIfExtPortEntry 19
ifExtUserSlotNumber 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.20 wlsxIfExtPortEntry 20
ifExtUserPortNumber 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.21 wlsxIfExtPortEntry 21
ifExtPortSpeed 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.22 wlsxIfExtPortEntry 22
ifExtPortDuplex 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.23 wlsxIfExtPortEntry 23
ifExtPortType 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.24 wlsxIfExtPortEntry 24
ifExtDescr 1.3.6.1.4.1.14823.2.2.1.3.1.1.1.25 wlsxIfExtPortEntry 25
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 121
wlsxIfExtPortEntry
ifExtSlotNumber
ifExtPortNumber
ifExtPortIfIndex
ifExtAdminState
Syntax wlsxIfExtPortEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the controller.
Index { ifExtSlotNumber, ifExtPortNumber }
Syntax Integer32
Max-Access not-accessible
Status current
Description This object represents the physical slot of the interface.
Syntax Integer32
Max-Access not-accessible
Status current
Description This object represents the physical port of the interface.
Syntax Integer32
Max-Access read-only
Status current
Description This is the if Index in the ifTable, representing this slot and port.
Syntax ArubaEnableValue
Max-Access read-write
Status current
Description The desired state of the interface.
122 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtOperState
ifExtPoeState
ifExtIsTrusted
ifExtDot1DState
ifExtMode
Syntax Integer
up(1)
down(2)
testing(3)
Max-Access read-only
Status current
Description The current operational state of the interface.
Syntax ArubaPoeState
Max-Access read-write
Status current
Description The current state of the power over ethernet capability of the port.
Syntax TruthValue
Max-Access read-write
Status current
Description The object indicates if the port is used in the trusted side of the network or the untrusted side.
Syntax ArubaDot1dState
Max-Access read-write
Status current
Description Current Dot1d state of the Port.
Syntax ArubaPortMode
Max-Access read-write
Status current
Description This object indicates if the port is in a trunk mode or access mode.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 123
ifExtAccessVLANId
ifExtTrunkNativeVLANId
ifExtTrunkIsAllowedAll
ifExtTrunkAllowedVLANList
Syntax ArubaVLANValidRange
Max-Access read-write
Status current
Description The VLAN ID when the port is in access mode.
Syntax ArubaVLANValidRange
Max-Access read-write
Status current
Description The native VLAN ID of the Port when the port is in dot1q mode.
Syntax TruthValue
Max-Access read-write
Status current
Description When the mode of the port is trunk, this object indicates if the port is part of all the
configured VLANs.
Syntax Octet String SIZE(0..512))
Max-Access read-write
Status current
Description A string of octets containing one bit per VLAN for a total of 4096 VLANs in the management
domain. The most significant bit of the octet string is the lowest value VLAN of 4096 VLANs.
zSetting bit(1) indicates that the VLAN is part of the interface.
zThe most significant bit of the bitmap is transmitted first.
Note—If the length of this string is less than 512 octets, missing octets are assumed to
contain the value zero.
124 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtIngressACLName
ifExtEgressACLName
ifExtSessionACLName
ifExtXsecVLAN
ifExtIsMonitoring
Syntax DisplayString(SIZE(0..64))
Max-Access read-write
Status current
Description This object represents the ingress ACL name applied to the port. An empty string indicates
that ACL is not applied on this port.
Syntax DisplayString(SIZE(0..64))
Max-Access read-write
Status current
Description This object represents the egress ACL name applied to the port. An empty string indicates
that ACL is not applied on this port.
Syntax DisplayString(SIZE(0..64))
Max-Access read-write
Status current
Description This object represents the session ACL name applied to the port. An empty string indicates
that ACL is not applied on this port.
Syntax ArubaVLANValidRange
Max-Access read-write
Status current
Description This object indicates if the port is an Xsec Port.
Syntax TruthValue
Max-Access read-write
Status current
Description This object indicates if the port is used for port monitoring.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 125
ifExtIsMux
ifExtUserSlotNumber
ifExtUserPortNumber
ifExtPortSpeed
ifExtPortDuplex
Syntax TruthValue
Max-Access read-write
Status current
Description This object indicates if the port is used as a MUX Port.
Syntax Integer32
Max-Access read-only
Status current
Description The user-visible (zero-based) slot number.
Syntax Integer32
Max-Access read-only
Status current
Description The user-visible (zero-based) port number.
Syntax ArubaPortSpeed
Max-Access read-only
Status current
Description Speed of the port.
Syntax ArubaPortDuplex
Max-Access read-only
Status current
Description The duplex state of the port.
126 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtPortType
ifExtDescr
wlsxIfExtVLANTable
The objects of the wlsx IF External VLAN table provide information about the VLANs of the controller.
wlsxIfExtVLANEntry
Syntax ArubaPortType
Max-Access read-only
Status current
Description The type of the port.
Syntax DisplayString
Max-Access read-only
Status current
Description Port description.
Table 32 wlsxIfExtVLANTable OIDs
Object Object ID
wlsxIfExtVLANEntry 1.3.6.1.4.1.14823.2.2.1.3.1.2.1 wlsxIfExtVLANTable 1
ifExtVLANId 1.3.6.1.4.1.14823.2.2.1.3.1.2.1.1 wlsxIfExtVLANEntry 1
ifExtVLANName 1.3.6.1.4.1.14823.2.2.1.3.1.2.1.2 wlsxIfExtVLANEntry 2
ifExtVLANStatus 1.3.6.1.4.1.14823.2.2.1.3.1.2.1.3 wlsxIfExtVLANEntry 3
Syntax wlsxIfExtVLANEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the controller.
Index { ifExtVLANId }
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 127
ifExtVLANId
ifExtVLANName
ifExtVLANStatus
wlsxIfExtVLANMemberTable
The objects of the wlsx External VLAN Member table provide information about the port membership of the
VLAN.
Syntax ArubaVLANValidRange
Max-Access not-accessible
Status current
Description This object represents the VLAN ID of the interface.
Syntax DisplayString(SIZE(0..64))
Max-Access read-create
Status current
Description Name of the VLAN.
Syntax Row Status
Max-Access read-create
Status current
Description A row status object used to create/modify the row.
Table 33 wlsxIfExtVLANMemberTable OIDs
Object Object ID
wlsxIfExtVLANMemberEntry 1.3.6.1.4.1.14823.2.2.1.3.1.3.1 wlsxIfExtVLANMemberTable 1
ifExtVLANMemberStatus 1.3.6.1.4.1.14823.2.2.1.3.1.3.1.1 wlsxIfExtVLANMemberEntry 1
ifExtVLANMemberSlot 1.3.6.1.4.1.14823.2.2.1.3.1.3.1.2 wlsxIfExtVLANMemberEntry 2
ifExtVLANMemberPort 1.3.6.1.4.1.14823.2.2.1.3.1.3.1.3 wlsxIfExtVLANMemberEntry 3
ifExtVLANMemberType 1.3.6.1.4.1.14823.2.2.1.3.1.3.1.4 wlsxIfExtVLANMemberEntry 4
128 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxIfExtVLANMemberEntry
ifExtVLANMemberStatus
ifExtVLANMemberSlot
ifExtVLANMemberPort
ifExtVLANMemberType
Syntax wlsxIfExtVLANMemberEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the controller.
Index { ifExtVLANId, ifIndex }
Syntax Row Status
Max-Access read-create
Status current
Description A row status object used to create/modify and indicate the status row.
Syntax Integer32
Max-Access read-only
Status current
Description The slot index of the slot referred to by this row (1-based).
Syntax Integer32
Max-Access read-only
Status current
Description The slot index of the slot referred to by this row (1-based).
Syntax ArubaIfType
Max-Access read-only
Status current
Description The VLAN member type.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 129
wlsxIfExtVLANInterfaceTable
The objects of the wlsx IF EXT VLAN Interface table provide information about Layer 3 VLAN interfaces.
wlsxIfExtVLANInterfaceEntry
ifExtVLANInterfaceIfIndex
Table 34 wlsxIfExtVLANInterfaceTable OIDs132
Object Object ID
wlsxIfExtVLANInterfaceEntry 1.3.6.1.4.1.14823.2.2.1.3.1.4.1 wlsxIfExtVLANInterfaceTable 1
ifExtVLANInterfaceIfIndex 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.1 wlsxIfExtVLANInterfaceEntry 1
ifExtVLANInterfaceDescription 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.2 wlsxIfExtVLANInterfaceEntry 2
ifExtVLANInterfaceBWContract 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.3 wlsxIfExtVLANInterfaceEntry 3
ifExtVLANInterfaceAdminState 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.4 wlsxIfExtVLANInterfaceEntry 4
ifExtVLANInterfaceOperState 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.5 wlsxIfExtVLANInterfaceEntry 5
ifExtVLANInterfaceIpAddress 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.6 wlsxIfExtVLANInterfaceEntry 6
ifExtVLANInterfaceIpMask 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.7 wlsxIfExtVLANInterfaceEntry 7
ifExtVLANInterfaceIsLocalArp 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.8 wlsxIfExtVLANInterfaceEntry 8
ifExtVLANInterfaceStatus 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.9 wlsxIfExtVLANInterfaceEntry 9
ifExtVlanInterfaceIpRouting 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.10 wlsxIfExtVLANInterfaceEntry 10
ifExtVlanInterfaceIpNatInside 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.11 wlsxIfExtVLANInterfaceEntry 11
ifExtVlanInterfaceIpIgmpSnooping 11.3.6.1.4.1.14823.2.2.1.3.1.4.1.12 wlsxIfExtVLANInterfaceEntry 12
Syntax wlsxIfExtVLANInterfaceEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the controller.
Index { ifExtVLANId }
Syntax Integer32
Max-Access read-create
Status current
Description This is the ifIndex in ifTable, representing the VLAN interface.
130 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtVLANInterfaceDescription
ifExtVLANInterfaceBWContract
ifExtVLANInterfaceAdminState
ifExtVLANInterfaceOperState
ifExtVLANInterfaceIpAddress
Syntax DisplayString(SIZE(0..64))
Max-Access read-create
Status current
Description The description of the VLAN interface.
Syntax DisplayString(SIZE(0..64))
Max-Access read-create
Status current
Description This object indicates the bandwidth contract on the interface.
Syntax ArubaEnableValue
Max-Access read-create
Status current
Description This object indicates the IP address of the interface.
Syntax ArubaOperStateValue
Max-Access read-create
Status current
Description This object indicates the IP address of the interface.
Syntax IpAddress
Max-Access read-create
Status current
Description This object indicates the IP address of the interface.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide IF External | 131
ifExtVLANInterfaceIpMask
ifExtVLANInterfaceIsLocalArp
ifExtVLANInterfaceStatus
ifExtVlanInterfaceIpRouting
ifExtVlanInterfaceIpNatInside
Syntax IpAddress
Max-Access read-create
Status current
Description This object indicates the IP mask of the interface.
Syntax ArubaEnableValue
Max-Access read-create
Status current
Description This object indicates if the Local Arp is set on the interface.
Syntax Row Status
Max-Access read-create
Status current
Description A row status object used to create/modify and indicate the status row.
Syntax ArubaEnableValue
Max-Access read-create
Status current
Description This object indicates if the IP routing is set on the interface.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaEnableValue
Max-Access read-create
Status current
Description This object indicates if the IP not inside is set on the interface.
History Added in ArubaOS 3.2.0.0.
132 | IF External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtVlanInterfaceIpIgmpSnooping
Syntax ArubaEnableValue
Max-Access read-create
Status current
Description This object indicates if the IP IGMP snooping is set on the interface.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mesh | 133
Chapter 8
Mesh
The Mesh module provides information about Mesh portal and topology in the Dell controller. Mesh is a new
addition to the ArubaOS MIB family.
Figure 10 shows the architecture of the Mesh MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Mesh MIBs are listed in the file aruba-mesh.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 10 Mesh Hierarchy
The Mesh MIB contains the following tables. The objects of each table are described in the following sections.
Table 35 Mesh MIB Tables
Table Description
wlsxMeshNodeTotal This object lists the total number of mesh nodes in the controller.
wlsxMeshNodeTable This table lists mesh node information.
wlsx Mesh
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.13
wlsx MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
wlsx CTS Mesh Node Group
1.3.6.1.4.1.14823.2.2.1.13.1
1.3.6.1.4.1.14823.2.2.1.13.1.1
wlsx CTS Mesh Info Group
Aruba
1.3.6.1.4.1.14823.2.2.1.13.1.1.1
wlsx CTS Mesh Node Total
1.3.6.1.4.1.14823.2.2.1.13.1.1.2
wlsx CTS Mesh Node Table
134 |Mesh Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMeshNodeTotal
wlsxMeshNodeTable
The objects of the wlsx Mesh Node table provide information about the Mesh Node.
wlsxMeshNodeEntry
Syntax Unsigned32
Max-Access read-only
Status current
Description Total Number of mesh nodes in the controller.
History Added in ArubaOS 3.2.0.0.
Table 36 Mesh Node Table OIDs
Object Object ID
wlsxMeshNodeEntry 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1 wlsxMeshNodeTable 1
wlsxMeshRole 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.1 wlsxMeshNodeEntry 1
wlsxMeshNodeParent 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.2 wlsxMeshNodeEntry 2
wlsxMeshNodeChildrenCount 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.3 wlsxMeshNodeEntry 3
wlsxMeshNodeCluster 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.4 wlsxMeshNodeEntry 4
wlsxMeshNodeRfBand 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.5 wlsxMeshNodeEntry 5
wlsxMeshNodePathCost 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.6 wlsxMeshNodeEntry 6
wlsxMeshNodeNodeCost 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.7 wlsxMeshNodeEntry 7
wlsxMeshNodeLinkCost 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.8 wlsxMeshNodeEntry 8
wlsxMeshNodeHopCount 1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.9 wlsxMeshNodeEntry 9
Syntax MeshEntry
Max-Access not-accessible
Status current
Description Mesh node entry.
Index {wlanAPMacAddress}
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mesh | 135
wlsxMeshRole
wlsxMeshNodeParent
wlsxMeshNodeChildrenCount
wlsxMeshNodeCluster
Syntax ArubaMeshRole
MAX-ACCES read-only
Status current
Description Mesh role.
History Added in ArubaOS 3.2.0.0.
Syntax MacAddress
Max-Access read-only
Status current
Description Mesh node parent.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Mesh node children count.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString(SIZE(0..64))
Max-Access read-only
Status current
Description Mesh cluster name. Value in float.
History Added in ArubaOS 3.2.0.0.
136 |Mesh Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMeshNodeRfBand
wlsxMeshNodePathCost
wlsxMeshNodeNodeCost
wlsxMeshNodeLinkCost
Syntax ArubaPhyType
Max-Access read-only
Status current
Description Mesh node RF band.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Mesh topology path cost.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Mesh topology node cost.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Mesh topology link cost.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mesh | 137
wlsxMeshNodeHopCount
Syntax Integer32
Max-Access read-only
Status current
Description Mesh topology hop cost.
History Added in ArubaOS 3.2.0.0.
138 |Mesh Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 139
Chapter 9
Mobility
The Mobility module provides information about the subsystem in the Dell controller, such as the home agent
(HA) or foreign agent (FA) of a roaming agent.
Figure 11 shows the architecture of the Mobility MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Mobility MIBs are listed in the file aruba-mobility.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 11 Mobility Hierarchy
1.3.6.1.4.1.14823.2.2.1.9.2
1.3.6.1.4.1.14823.2.2.1.9.3
1.3.6.1.4.1.14823.2.2.1.9.4
1.3.6.1.4.1.14823.2.2.1.9.5
1.3.6.1.4.1.14823.2.2.1.9.6
wlsx Mobility Proxy Stats Group
wlsx Mobility Proxy DHCP Stats
wlsx Mobility HA Stats
wlsx Mobility FA Stats
wlsx Mobility HAFA Revocation Stats Group
wlsx Mobility Config Group 1.3.6.1.4.1.14823.2.2.1.9.1
wlsx Enterprise Mib Modules
Switch
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1
Aruba Enterprise MIB Modules
Aruba
wlsx Mobility MIB 1.3.6.1.4.1.14823.2.2.1.9
1.3.6.1.4.1.14823.2.2.1.9.1.1
1.3.6.1.4.1.14823.2.2.1.9.1.3
1.3.6.1.4.1.14823.2.2.1.9.1.4
wlsx Mobility Domain Table
wlsx Mobility Home Agent Entry
wlsx Mobility Host Table
140 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The Mobility MIB contains the following objects. The objects of each table are described in the following
sections.
wlsxMobilityDomainTable
The objects of the wlsx Mobility Domain table provide information about the mobility domains configured on
the controller.
wlsxMobilityDomainEntry
Table 37 Mobility Objects
Table Description
wlsxMobilityDomainTable This table lists all mobility domains configured on the controller.
wlsxMobilityHostTable This table lists all mobile hosts on the controller.
wlsxMobilityProxyStatsGroup This group contains proxy state machine statistics—the number of
packets handled by the MobileIP Proxy state machine.
wlsxMobilityProxyDHCPStats Group This group contains proxy DHCP state machine statistics— the number
of DHCP packets handled by the MobileIP DHCP state machine.
wlsxMobilityHAStats Group This group contains MobileIP Home Agent statistics—the number of
MobileIP registration, revocation-related messages the HA state
machine handled.
wlsxMobilityFAStats Group This group contains MobileIP Foreign Agent statistics—the number of
MobileIP registration, revocation-related messages the FA state
machine handled.
wlsxMobilityHAFARevocationStats Group This group contains MobileIP HA-FA revocation messages exchange
statistics—the number of MobileIP revocation-related messages the HA/
FA state machine handled.
Table 38 wlsxMobilityDomainTable OIDs
Object Object ID
wlsxMobilityDomainEntry 1.3.6.1.4.1.14823.2.2.1.9.1.1.1 wlsxMobilityDomainTable 1
mobilityDomainName 1.3.6.1.4.1.14823.2.2.1.9.1.1.1.1 wlsxMobilityDomainEntry 1
mobilityDomainIsExclusive 1.3.6.1.4.1.14823.2.2.1.9.1.1.1.2 wlsxMobilityDomainEntry 2
mobilityDomainStatus 1.3.6.1.4.1.14823.2.2.1.9.1.1.1.3 wlsxMobilityDomainEntry 3
Syntax wlsxMobilityDomainEntry
Max-Access not-accessible
Status current
Description Mobility Domain Entry
Index { mobilityDomainName }
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 141
mobilityDomainName
mobilityDomainIsExclusive
mobilityDomainStatus
wlsxMobilityHomeAgentTable
The objects of the wlsx Mobility Home Agent table list all home agents that are visible to the controller.
Syntax DisplayString
Max-Access not-accessible
Status current
Description The name of the active mobility domain(s) this controller belongs to.
History Update in ArubaOS 3.1—description.
Syntax ArubaEnableValue
Max-Access read-only
Status deprecated
Description Indicates whether this mobility domain is exclusive or not.
History Deprecated in ArubaOS 3.1.0.0.
Syntax Row Status
Max-Access read-create
Status current
Description Row status object used to indicate the status of the row.
Table 39 wlsxMobilityHomeAgentTable OIDs
Object Object ID
wlsxMobilityHomeAgentEntry 1.3.6.1.4.1.14823.2.2.1.9.1.3.1 wlsxMobilityHomeAgentTable 1
mobilityHomeAgentSubnet 1.3.6.1.4.1.14823.2.2.1.9.1.3.1.1 wlsxMobilityHomeAgentEntry 1
mobilityHomeAgentMask 1.3.6.1.4.1.14823.2.2.1.9.1.3.1.2 wlsxMobilityHomeAgentEntry 2
mobilityHomeAgentIp 1.3.6.1.4.1.14823.2.2.1.9.1.3.1.3 wlsxMobilityHomeAgentEntry 3
mobilityHomeAgentVLAN 1.3.6.1.4.1.14823.2.2.1.9.1.3.1.4 wlsxMobilityHomeAgentEntry 4
142 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMobilityHomeAgentEntry
mobilityHomeAgentSubnet
mobilityHomeAgentMask
mobilityHomeAgentIp
mobilityHomeAgentVLAN
Syntax wlsxMobilityHomeAgentEntry
Max-Access not-accessible
Status current
Description Mobility home agent entry.
Index { mobilityHomeAgentSubnet, mobilityHomeAgentMask, mobiltityHomeAgentIp }
Syntax IpAddress
Max-Access read-only
Status current
Description Subnet of the home agent.
Syntax IpAddress
Max-Access read-only
Status current
Description Subnet mask of the home agent.
Syntax IpAddress
Max-Access not-accessible
Status current
Description IP address of the home agent.
Syntax Integer32
Max-Access read-only
Status current
Description VLAN of the home agent.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 143
wlsxMobilityHostTable
The objects of the wlsx Mobility Host table provide information about the mobile hosts on the controller.
wlsxMobilityHostEntry
mobilityHostMac
mobilityHostIp
Table 40 wlsxMobilityHostTable OIDs
Object Object ID
wlsxMobilityHostEntry 1.3.6.1.4.1.14823.2.2.1.9.1.4.1 wlsxMobilityHostTable 1
mobilityHostMac 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.1 wlsxMobilityHostEntry 1
mobilityHostIp 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.2 wlsxMobilityHostEntry 2
mobilityHostStatus 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.3 wlsxMobilityHostEntry 3
mobilityHostServiceTime 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.4 wlsxMobilityHostEntry 4
mobilityHostHomeVLAN 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.5 wlsxMobilityHostEntry 5
mobilityHostHomeNetwork 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.6 wlsxMobilityHostEntry 6
mobilityHostHomeMask 1.3.6.1.4.1.14823.2.2.1.9.1.4.17 wlsxMobilityHostEntry 7
mobilityHostDhcpInfo 1.3.6.1.4.1.14823.2.2.1.9.1.4.1.8 wlsxMobilityHostEntry 8
Syntax wlsxMobilityHostEntry
Max-Access not-accessible
Status current
Description Mobility Host Home Agent Entry.
Index { mobilityHostMac }
Syntax MacAddress
Max-Access not-accessible
Status current
Description MAC address of the mobile host.
Syntax IpAddress
Max-Access read-only
Status current
Description IP address of the mobile host.
144 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityHostStatus
mobilityHostServiceTime
mobilityHostHomeVLAN
mobilityHostHomeNetwork
mobilityHostHomeMask
Syntax DisplayString
Max-Access read-only
Status current
Description Roaming status of the mobile host.
Syntax Integer32
Max-Access read-only
Status current
Description The time (seconds) mobility service is provided to the mobile host.
Syntax Integer32
Max-Access read-only
Status current
Description Home VLAN of the mobile host.
Syntax IpAddress
Max-Access read-only
Status current
Description Home network of the mobile host.
Syntax IpAddress
Max-Access read-only
Status current
Description Home network mask of the mobile host.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 145
mobilityHostDhcpInfo
wlsxMobilityProxyStatsGroup
The objects of this group provide information of the number of packets MobileIP Proxy state machine handled.
mobilityProxyPktRx
mobilityProxyPktHandled
Syntax DisplayString
Max-Access read-only
Status current
Description DHCP details of the mobile host.
Table 41 wlsxMobilityProxyStats OIDs
Object Object ID
mobilityProxyPktRx 1.3.6.1.4.1.14823.2.2.1.9.2.1 wlsxMobilityProxyStatsGroup 1
mobilityProxyPktHandled 1.3.6.1.4.1.14823.2.2.1.9.2.2 wlsxMobilityProxyStatsGroup 2
mobilityProxyPktFwd 1.3.6.1.4.1.14823.2.2.1.9.2.3 wlsxMobilityProxyStatsGroup 3
mobilityProxyPktDrop 1.3.6.1.4.1.14823.2.2.1.9.2.4 wlsxMobilityProxyStatsGroup 4
mobilityProxyBusy 1.3.6.1.4.1.14823.2.2.1.9.2.5 wlsxMobilityProxyStatsGroup 5
mobilityProxyNoMobility 1.3.6.1.4.1.14823.2.2.1.9.2.6 wlsxMobilityProxyStatsGroup 6
mobilityProxyClientIPChg 1.3.6.1.4.1.14823.2.2.1.9.2.7 wlsxMobilityProxyStatsGroup 7
mobilityProxyClientEssidChg 1.3.6.1.4.1.14823.2.2.1.9.2.8 wlsxMobilityProxyStatsGroup 8
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets the proxy state machine received.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets the proxy state machine processed.
146 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityProxyPktFwd
mobilityProxyPktDrop
mobilityProxyBusy
mobilityProxyNoMobility
mobilityProxyClientIPChg
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets the proxy state machine forwarded back to data path.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets the proxy state machine dropped.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobility events the proxy state machine ignored because it was busy.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobility clients with No Mobility Service.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times mobility detected client IP change.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 147
mobilityProxyClientEssidChg
wlsxMobilityProxyDHCPStats Group
The objects of this group provide information of the number of DHCP packages the Mobile IP state machine
handles.
mobilityProxyDhcpBootpRx
mobilityProxyDhcpPktProc
Syntax Counter32
Max-Access read-only
Status current
Description The number of times mobility detected client ESSID change.
Table 42 wlsxMobilityProxyDHCPStats
Object Object ID
mobilityProxyDhcpBootpRx 1.3.6.1.4.1.14823.2.2.1.9.3.1 wlsxMobilityProxyDHCPStatsGroup 1
mobilityProxyDhcpPktProc 1.3.6.1.4.1.14823.2.2.1.9.3.2 wlsxMobilityProxyDHCPStatsGroup 2
mobilityProxyDhcpPktFwd 1.3.6.1.4.1.14823.2.2.1.9.3.3 wlsxMobilityProxyDHCPStatsGroup 3
mobilityProxyDhcpPktDrop 1.3.6.1.4.1.14823.2.2.1.9.3.4 wlsxMobilityProxyDHCPStatsGroup 4
mobilityProxyDHCPNak 1.3.6.1.4.1.14823.2.2.1.9.3.5 wlsxMobilityProxyDHCPStatsGroup 5
mobilityProxyBadDHCPPkt 1.3.6.1.4.1.14823.2.2.1.9.3.6 wlsxMobilityProxyDHCPStatsGroup 6
mobilityProxyNotDHCP 1.3.6.1.4.1.14823.2.2.1.9.3.7 wlsxMobilityProxyDHCPStatsGroup 7
mobilityProxyDHCPNoHomeVLAN 1.3.6.1.4.1.14823.2.2.1.9.3.8 wlsxMobilityProxyDHCPStatsGroup 8
mobilityProxyDHCPUnexpFrame 1.3.6.1.4.1.14823.2.2.1.9.3.9 wlsxMobilityProxyDHCPStatsGroup 9
mobilityProxyDHCPUnexpRemote 1.3.6.1.4.1.14823.2.2.1.9.3.10 wlsxMobilityProxyDHCPStatsGroup 10
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP Bootp messages received.
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP messages processed.
148 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityProxyDhcpPktFwd
mobilityProxyDhcpPktDrop
mobilityProxyDHCPNak
mobilityProxyBadDHCPPkt
mobilityProxyNotDHCP
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP messages forwarded.
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP messages dropped.
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP NAK received from the server.
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP packets marked invalid by mobility.
Syntax Counter32
Max-Access read-only
Status current
Description The number of non-DHCP frames received by DHCP state machine.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 149
mobilityProxyDHCPNoHomeVLAN
mobilityProxyDHCPUnexpFrame
mobilityProxyDHCPUnexpRemote
wlsxMobilityHAStats Group
The objects of this group provide information of the number of registration and revocation messages the HA state
machine handles.
Syntax Counter32
Max-Access read-only
Status current
Description The number of DHCP-requested IP for which home VLAN does not exist.
Syntax Counter32
Max-Access read-only
Status current
Description The number of unexpected DHCP frames received from client.
Syntax Counter32
Max-Access read-only
Status current
Description The number of unexpected DHCP frames received from remote HA/FA.
Table 43 wlsxMobilityHAStats OIDs
Object Object ID
mobilityHARxRRQ 1.3.6.1.4.1.14823.2.2.1.9.4.1 wlsxMobilityHAStatsGroup 1
mobilityHASentRRP 1.3.6.1.4.1.14823.2.2.1.9.4.2 wlsxMobilityHAStatsGroup 2
mobilityHARRQAccept 1.3.6.1.4.1.14823.2.2.1.9.4.3 wlsxMobilityHAStatsGroup 3
mobilityHARRQDenied 1.3.6.1.4.1.14823.2.2.1.9.4.4 wlsxMobilityHAStatsGroup 4
mobilityHARRQIgnore 1.3.6.1.4.1.14823.2.2.1.9.4.5 wlsxMobilityHAStatsGroup 5
mobilityHARRQAdminDeny 1.3.6.1.4.1.14823.2.2.1.9.4.6 wlsxMobilityHAStatsGroup 6
mobilityHARRQNoResource 1.3.6.1.4.1.14823.2.2.1.9.4.7 wlsxMobilityHAStatsGroup 7
mobilityHAMNauthFail 1.3.6.1.4.1.14823.2.2.1.9.4.8 wlsxMobilityHAStatsGroup 8
mobilityHAFAauthFail 1.3.6.1.4.1.14823.2.2.1.9.4.9 wlsxMobilityHAStatsGroup 9
mobilityHABadID 1.3.6.1.4.1.14823.2.2.1.9.4.10 wlsxMobilityHAStatsGroup 10
150 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityHARxRRQ
mobilityHASentRRP
mobilityHARRQAccept
mobilityHARRQDenied
mobilityHAMalform 1.3.6.1.4.1.14823.2.2.1.9.4.11 wlsxMobilityHAStatsGroup 11
mobilityHATooManyBnd 1.3.6.1.4.1.14823.2.2.1.9.4.12 wlsxMobilityHAStatsGroup 12
mobilityHABndExpire 1.3.6.1.4.1.14823.2.2.1.9.4.13 wlsxMobilityHAStatsGroup 13
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests received by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests reply sent by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests accepted by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests denied.
Table 43 wlsxMobilityHAStats OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 151
mobilityHARRQIgnore
mobilityHARRQAdminDeny
mobilityHARRQNoResource
mobilityHAMNauthFail
mobilityHAFAauthFail
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests ignored by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests denied for administrative reasons by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests denied due to lack of resources by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times MN-HA authentication failed.
Syntax Counter32
Max-Access read-only
Status current
Description The number of HA-FA authentications failed.
152 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityHABadID
mobilityHAMalform
mobilityHATooManyBnd
mobilityHABndExpire
wlsxMobilityFAStats Group
This desribes the number of Registration request sent by FA
The objects of this group provide information of the number of registration requests sent by FA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobile IP messages rejected by HA due to bad identification.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobile IP messages rejected by HA due to being poorly formed.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests rejected due to too many bindings at HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times binding expired.
Table 44 wlsxMobilityFAStats OIDs
Object Object ID
mobilityFASentRRQ 1.3.6.1.4.1.14823.2.2.1.9.5.1 wlsxMobilityFAStatsGroup 1
mobilityFARcvRRP 1.3.6.1.4.1.14823.2.2.1.9.5.2 wlsxMobilityFAStatsGroup 2
mobilityFARRQAccept 1.3.6.1.4.1.14823.2.2.1.9.5.3 wlsxMobilityFAStatsGroup 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 153
mobilityFASentRRQ
mobilityFARcvRRP
mobilityFARRQAccept
mobilityFARRQReject
mobilityFARRQReject 1.3.6.1.4.1.14823.2.2.1.9.5.4 wlsxMobilityFAStatsGroup 4
mobilityMNHAauthFAIL 1.3.6.1.4.1.14823.2.2.1.9.5.5 wlsxMobilityFAStatsGroup 5
mobilityFAHAauthFAIL 1.3.6.1.4.1.14823.2.2.1.9.5.6 wlsxMobilityFAStatsGroup 6
mobilityFABadID 1.3.6.1.4.1.14823.2.2.1.9.5.7 wlsxMobilityFAStatsGroup 7
mobilityFAMalfor 1.3.6.1.4.1.14823.2.2.1.9.5.8 wlsxMobilityFAStatsGroup 8
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests sent by FA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration request replies received by FA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests accepted by HA.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration requests rejected by HA.
Table 44 wlsxMobilityFAStats OIDs (Continued)
Object Object ID
154 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityMNHAauthFAIL
mobilityFAHAauthFAIL
mobilityFABadID
mobilityFAMalfor
wlsxMobilityHAFARevocationStats Group
The objects of this group provide information about the revocation of messages handled by the HAFA (home
agent, foreign agent) state machines.
Syntax Counter32
Max-Access read-only
Status current
Description The number of times MN-HA authentication failed.
Syntax Counter32
Max-Access read-only
Status current
Description The number of FA-HA authentications that failed.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobile IP messages rejected by FA due to bad identification.
Syntax Counter32
Max-Access read-only
Status current
Description The number of mobile IP messages rejected by FA because they are poorly formed.
Table 45 wlsxMobilityHAFARevocationStats
Object Object ID
mobilitySentRRVRQ 1.3.6.1.4.1.14823.2.2.1.9.6.1 wlsxMobilityHAFARevocationStatsGroup 1
mobilityRcvRRVAck 1.3.6.1.4.1.14823.2.2.1.9.6.2 wlsxMobilityHAFARevocationStatsGroup 2
mobilityRcvRRV 1.3.6.1.4.1.14823.2.2.1.9.6.3 wlsxMobilityHAFARevocationStatsGroup 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Mobility | 155
mobilitySentRRVRQ
mobilityRcvRRVAck
mobilityRcvRRV
mobilitySentRRVAck
mobilitySentRRVAck 1.3.6.1.4.1.14823.2.2.1.9.6.4 wlsxMobilityHAFARevocationStatsGroup 4
mobilityRRVRQIgnore 1.3.6.1.4.1.14823.2.2.1.9.6.5 wlsxMobilityHAFARevocationStatsGroup 5
mobilityRRVAckIgnore 1.3.6.1.4.1.14823.2.2.1.9.6.6 wlsxMobilityHAFARevocationStatsGroup 6
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration revocation requests sent.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration revocation ACKs received.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration revocation requests received.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received registration revocation request ACKs sent.
Table 45 wlsxMobilityHAFARevocationStats
Object Object ID
156 | Mobility Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityRRVRQIgnore
mobilityRRVAckIgnore
Syntax Counter32
Max-Access read-only
Status current
Description The number of registration revocation requests ignored.
Syntax Counter32
Max-Access read-only
Status current
Description The number of registrations that revocation ACK ignored.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 157
Chapter 10
Monitor
The Monitor module provides information about network traffic. Monitoring access points can be used to observe
network traffic, such as the number of packets transferred at a specific rate, the number of errors per access point,
and so on.
Figure 12 shows the architecture of the Monitor MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Monitor MIBs are listed in the file aruba-mon.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
158 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Figure 12 Monitor Hierarchy
The Monitor MIB contains the following tables. The objects of each table are described in the following sections.
Table 46 Monitor MIB Tables
Table Description
wlsxMonAPStatsTable This table lists the statistics of all the access points being monitored by the
controller.
wlsxMonAPRateStatsTable This tables lists the statistics of access points that are sorted by rate transfer rate.
wlsx Mon Access Point Stats Group 1.3.6.1.4.1.14823.2.2.1.6.6.1
wlsx Mon Stats Gr oup
wlsx Mon MIB
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.6
1.3.6.1.4.1.14823.2.2.1.6.6
wlsx Mon Info Gr oup 1.3.6.1.4.1.14823.2.2.1.6.7
1.3.6.1.4.1.14823.2.2.1.6.7.1
1.3.6.1.4.1.14823.2.2.1.6.7.1.1
wlsx Mon Access Point Info Gr oup
wlsx Mon AP Info T able
1.3.6.1.4.1.14823.2.2.1.6.6.1.1
1.3.6.1.4.1.14823.2.2.1.6.6.1.2
1.3.6.1.4.1.14823.2.2.1.6.6.1.3
1.3.6.1.4.1.14823.2.2.1.6.6.1.4
1.3.6.1.4.1.14823.2.2.1.6.6.1.5
wlsx Mon AP Stats Table
wlsx Mon AP Rate Stats Table
wlsx Mon AP DAT Type Stats Table
wlsx Mon AP Frame Type Stats Table
wlsx Mon AP Pkt Size Stats Table
1.3.6.1.4.1.14823.2.2.1.6.6.2
wlsx Mon Station Stats Group
1.3.6.1.4.1.14823.2.2.1.6.6.2.1
1.3.6.1.4.1.14823.2.2.1.6.6.2.2
1.3.6.1.4.1.14823.2.2.1.6.6.2.3
1.3.6.1.4.1.14823.2.2.1.6.6.2.4
1.3.6.1.4.1.14823.2.2.1.6.6.2.5
wlsx Mon Station Stats Table
wlsx Mon Sta Rate Stats Table
wlsx Mon Sta DA TYpe Stats Table
wlsx Mon Sta Frame Type Stats Table
wlsx Mon Sta Pkt Size Stats Table
1.3.6.1.4.1.14823.2.2.1.6.6.2.6
wlsx Mon Event Count Table
wlsx Enterprise MIB Modules
Switch
wlsx Enterprise Mib Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
Aruba
1.3.6.1.4.1.14823.2.2.1.6.6.2.7
wlsx Mon AP HT Rate Stats Table
1.3.6.1.4.1.14823.2.2.1.6.6.1.6
wlsx Mon Station APHTRate Stats Table
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 159
wlsxMonAPStatsTable
The objects of the wlsx Mon AP Statistics table provide the statistics of all the APs that are monitored by the
controller.
wlsxMonAPDATypeStatsTable This table lists the per BSSID packet and byte counts that are sorted by the
destination address.
wlsxMonAPFrameTypeStatsTable This table lists the per BSSID packet and byte counts that are sorted by frame type.
wlsxMonAPPktSizeStatsTable This table lists the per BSSID packet and byte counts that are sorted by packet size.
wlsxMonAPHTRateStatsTable This table lists lthe access point packet and byte counts that are sorted by HT rate.
wlsxMonStationStatsTable This table lists the statistics of the wireless stations being monitored by an AP
connected to this controller.
wlsxMonStaRateStatsTable This table lists the packet and byte counts for a monitored station that are sorted by
transfer rate.
wlsxMonStaDATypeStatsTable This table lists the packet and byte counts for a monitored station that are sorted by
destination address.
wlsxMonStaFrameTypeStatsTable This table lists the packet and byte counts of monitored stations that are sorted by
frame type.
wlsxMonStaPktSizeStatsTable This table lists the packet and byte counts for monitored stations that are sorted by
packet size.
wlsxMonAPInfoTable This table lists all of the access points being monitored by the controller.
wlsxMonStationInfoTable This table lists the statistics of all the wireless stations being monitored.
wlsxMonEventCountTable This table lists the counts of events generated by the access points.
wlsxMonStationHTRateStatsTable This table lists the monitored access point packet and byte counts that are sorted
by high throughput.
Table 47 wlsxMonApStatsTable OIDs
Object Object ID
wlsxMonAPStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1 wlsxMonAPStatsTable 1
monPhyAddress 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.1 wlsxMonAPStatsEntry 1
monRadioNumber 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.2 wlsxMonAPStatsEntry 2
monitoredApBSSID 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.3 wlsxMonAPStatsEntry 3
monPhyType 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.4 wlsxMonAPStatsEntry 4
monAPCurrentChannel 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.5 wlsxMonAPStatsEntry 5
monAPNumClients 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.6 wlsxMonAPStatsEntry 6
monAPTxPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.7 wlsxMonAPStatsEntry 7
monAPTxBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.8 wlsxMonAPStatsEntry 8
monAPRxPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.9 wlsxMonAPStatsEntry 9
monAPRxPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.10 wlsxMonAPStatsEntry 10
Table 46 Monitor MIB Tables (Continued)
Table Description
160 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonAPStatsEntry
monPhyAddress
monAPRxBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.11 wlsxMonAPStatsEntry 11
monAPTxDeauthentications 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.12 wlsxMonAPStatsEntry 12
monAPRxDeauthentications 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.13 wlsxMonAPStatsEntry 13
monAPChannelThroughput 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.14 wlsxMonAPStatsEntry 14
monAPFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.15 wlsxMonAPStatsEntry 15
monAPFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.16 wlsxMonAPStatsEntry 16
monAPFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.17 wlsxMonAPStatsEntry 17
monAPFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.18 wlsxMonAPStatsEntry 18
monAPFrameBandwidthRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.19 wlsxMonAPStatsEntry 19
monAPFrameRetryErrorRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.20 wlsxMonAPStatsEntry 20
monAPChannelErrorRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.21 wlsxMonAPStatsEntry 21
monAPESSID 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.22 wlsxMonAPStatsEntry 22
monAPRSSI 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.23 wlsxMonAPStatsEntry 23
monAPFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.24 wlsxMonAPStatsEntry 24
Syntax wlsxMonAPStatsEntry
Max-Access not-accessible
Status current
Description Monitored Access Point Stats entry.
Index { monPhyAddress, monRadioNumber, monitoredApBSSID }
History Update in ArubaOS 3.1—description.
Syntax MacAddress
Max-Access not-accessible
Status current
Description MAC address of the air monitor that is monitoring the AP.
Table 47 wlsxMonApStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 161
monRadioNumber
monitoredApBSSID
monPhyType
monAPCurrentChannel
monAPNumClients
Syntax Integer32
Max-Access not-accessible
Status current
Description The radio number of the air monitor that is monitoring the access point.
Syntax MacAddress
Max-Access not-accessible
Status current
Description The BSSID of the access point being monitored.
Syntax ArubaPhyType
Max-Access read-only
Status current
Description The PHY type of the monitored access point.
Syntax Unsigned32
Max-Access read-only
Status current
Description The channel the monitored access point is using.
Syntax Integer32
Max-Access read-only
Status current
Description The number of clients associated to this monitored access point.
162 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPTxPkts
monAPTxBytes
monAPRxPkts
monAPRxBytes
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes transmitted by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes received by this monitored access point.
History Update in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 163
monAPTxDeauthentications
monAPRxDeauthentications
monAPChannelThroughput
monAPFrameRetryRate
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentications transmitted by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentications received by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The throughput achieved on this channel by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of retry packets as a percentage of the total packets transmitted and received by
this monitored access point.
History Update in ArubaOS 3.1—description.
164 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPFrameLowSpeedRate
monAPFrameNonUnicastRate
monAPFrameFragmentationRate
monAPFrameBandwidthRate
Syntax Integer32
Max-Access read-only
Status current
Description The number of low data rate (<= 18 Mbps for A/G bands and <=2 Mbps for B band) packets as
a percentage of the total packets transmitted and received by this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The multicast rate on this monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of fragments as a percentage of the total packets transmitted by this monitored
access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The bandwidth of this monitored access point in Kbps.
History Update in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 165
monAPFrameRetryErrorRate
monAPChannelErrorRate
monAPESSID
monAPRSSI
Syntax Integer32Status
Max-Access read-only
Status deprecated
Description The number of error packets as a percentage of the total packets received on this monitored
access point.
History Deprecated in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received on the current
channel.
History Update in ArubaOS 3.1—description.
Syntax DisplayString
Max-Access read-only
Status current
Description ESSID of the monitored access point.
History Update in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description SNR of the monitored access point.
History Update in ArubaOS 3.1—description.
166 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPFrameReceiveErrorRate
wlsxMonAPRateStatsTable
The objects of the wlsx Monitor AP Rate Statistics table provide AP statistics that are sorted by rate categories.
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received on this monitored
access point.
History Added in ArubaOS 3.1
Table 48 wlsxMonAPRateStatsTable OIDs
Object OID
wlsxMonAPRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1 wlsxMonAPRateStatsTable 1
monAPStatsTotPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1. wlsxMonAPRateStatsEntry 1
monAPStatsTotBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.2 wlsxMonAPRateStatsEntry 2
monAPStatsTotPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.3 wlsxMonAPRateStatsEntry 3
monAPStatsTotBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.5 wlsxMonAPRateStatsEntry 4
monAPStatsTotPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.5 wlsxMonAPRateStatsEntry 5
monAPStatsTotBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.6 wlsxMonAPRateStatsEntry 6
monAPStatsTotPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.7 wlsxMonAPRateStatsEntry 7
monAPStatsTotBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.8 wlsxMonAPRateStatsEntry 8
monAPStatsTotPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.9 wlsxMonAPRateStatsEntry 9
monAPStatsTotBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.10 wlsxMonAPRateStatsEntry 10
monAPStatsTotPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.11 wlsxMonAPRateStatsEntry 11
monAPStatsTotBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.12 wlsxMonAPRateStatsEntry 12
monAPStatsTotPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.13 wlsxMonAPRateStatsEntry 13
monAPStatsTotBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.14 wlsxMonAPRateStatsEntry 14
monAPStatsTotPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.15 wlsxMonAPRateStatsEntry 15
monAPStatsTotBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.16 wlsxMonAPRateStatsEntry 16
monAPStatsTotPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.17 wlsxMonAPRateStatsEntry 17
monAPStatsTotBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.18 wlsxMonAPRateStatsEntry 18
monAPStatsTotPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.19 wlsxMonAPRateStatsEntry 19
monAPStatsTotBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.20 wlsxMonAPRateStatsEntry 20
monAPStatsTotPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.21 wlsxMonAPRateStatsEntry 21
monAPStatsTotBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.22 wlsxMonAPRateStatsEntry 22
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 167
wlsxMonAPRateStatsEntry
monAPStatsTotPktsAt1Mbps
monAPStatsTotBytesAt1Mbps
monAPStatsTotPktsAt2Mbps
monAPStatsTotPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.23 wlsxMonAPRateStatsEntry 23
monAPStatsTotBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.24 wlsxMonAPRateStatsEntry 24
Syntax Sequence of wlsxMonAPRateStatsEntry
Max-Access not-accessible
Status current
Description Data rate-based packet and byte count entry for a monitored access point.
Index { monPhyAddress, monRadioNumber, monitoredApBSSID }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 2 Mbps rate.
Table 48 wlsxMonAPRateStatsTable OIDs
Object OID
168 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPStatsTotBytesAt2Mbps
monAPStatsTotPktsAt5Mbps
monAPStatsTotBytesAt5Mbps
monAPStatsTotPktsAt11Mbps
monAPStatsTotBytesAt11Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 11 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 11 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 169
monAPStatsTotPktsAt6Mbps
monAPStatsTotBytesAt6Mbps
monAPStatsTotPktsAt12Mbps
monAPStatsTotBytesAt12Mbps
monAPStatsTotPktsAt18Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 12 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 18 Mbps
rate.
170 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPStatsTotBytesAt18Mbps
monAPStatsTotPktsAt24Mbps
monAPStatsTotBytesAt24Mbps
monAPStatsTotPktsAt36Mbps
monAPStatsTotBytesAt36Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 24 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 36 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 36 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 171
monAPStatsTotPktsAt48Mbps
monAPStatsTotBytesAt48Mbps
monAPStatsTotPktsAt54Mbps
monAPStatsTotBytesAt54Mbps
monAPStatsTotPktsAt9Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 48 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 54 Mbps
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed from this BSSID at 9 Mbps rate.
172 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPStatsTotBytesAt9Mbps
wlsxMonAPDATypeStatsTable
The objects of the wlsx Mon Access Point DA Type Statistics table provide information about all the BSSID
packet and byte counts, which are sorted by the Destination Address (DA) Type.
wlsxMonAPDATypeStatsEntry
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed from this BSSID at 9 Mbps rate.
Table 49 wlsxMonAPDATypeStatsTable OIDs
Object Object ID
wlsxMonAPDATypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1 wlsxMonAPDATypeStatsTable 1
monAPStatsTotDABroadcastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.1 wlsxMonAPDATypeStatsEntry 1
monAPStatsTotDABroadcastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.2 wlsxMonAPDATypeStatsEntry 2
monAPStatsTotDAMulticastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.3 wlsxMonAPDATypeStatsEntry 3
monAPStatsTotDAMulticastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.4 wlsxMonAPDATypeStatsEntry 4
monAPStatsTotDAUnicastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.5 wlsxMonAPDATypeStatsEntry 5
monAPStatsTotDAUnicastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.6 wlsxMonAPDATypeStatsEntry 6
wlsxMonAPFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.7 wlsxMonAPDATypeStatsEntry 7
monAPStatsTotMgmtPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.8 wlsxMonAPDATypeStatsEntry 8
monAPStatsTotMgmtBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.9 wlsxMonAPDATypeStatsEntry 9
monAPStatsTotCtrlPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.10 wlsxMonAPDATypeStatsEntry 10
monAPStatsTotCtrlBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.11 wlsxMonAPDATypeStatsEntry 11
monAPStatsTotDataPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.12 wlsxMonAPDATypeStatsEntry 12
monAPStatsTotDataBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.13 wlsxMonAPDATypeStatsEntry 13
Syntax wlsxMonAPDATypeStatsEntry
Max-Access not-accessible
Status current
Description Destination address-based packet and byte count entry for a monitored access point
Index { monPhyAddress, monRadioNumber, monitoredApBSSID,
monAPStatsTotDAUnicastPktsCounter32, monAPStatsTotDAUnicastBytesCounter32 }
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 173
monAPStatsTotDABroadcastPkts
monAPStatsTotDABroadcastBytes
monAPStatsTotDAMulticastPkts
monAPStatsTotDAMulticastBytes
monAPStatsTotDAUnicastPkts
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of broadcast packets observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of broadcast bytes observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of multicast packets observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of multicast bytes observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of unicast packets observed from this BSSID.
174 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPStatsTotDAUnicastBytes
wlsxMonAPFrameTypeStatsTable
The objects of the wlsx Mon Access Point Frame Type Stats table provide statistics of the BSSID packet and byte
counts, which are sorted by Destination Address (DA) Type.
wlsxMonAPFrameTypeStatsEntry
monAPStatsTotMgmtPkts
monAPStatsTotMgmtBytes
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of unicast bytes observed from this BSSID.
Syntax wlsxMonAPFrameTypeStatsEntry
Max-Access not-accessible
Status current
Description Frame Type-based packet and byte count entry for a monitored access point.
Index { monPhyAddress, monRadioNumber, monitoredApBSSID }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of management packets observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of management bytes observed from this BSSID.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 175
monAPStatsTotCtrlPkts
monAPStatsTotCtrlBytes
monAPStatsTotDataPkts
monAPStatsTotDataBytes
wlsxMonAPPktSizeStatsTable
The objects of the wlsx Mon AP Packet Size Statistics table provide channel statistics that are sorted by packet
size.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of control packets observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of control bytes observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of data packets observed from this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of data bytes observed from this BSSID.
176 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonAPPktSizeStatsEntry
monAPStatsPkts63Bytes
monAPStatsPkts64To127
monAPStatsPkts128To255
Syntax wlsxMonAPPktSizeStatsEntry
Max-Access not-accessible
Status current
Description Packet size-based packet count entry for a BSSID.
Index { monPhyAddress, monRadioNumber, monitoredApBSSID }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that were
less than 64 bytes long.
History Updated in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that were
between 64 and 127 bytes long.
History Updated in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that were
between 128 and 255 bytes long.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 177
monAPStatsPkts256To511
monAPStatsPkts512To1023
monAPStatsPkts1024To1518
wlsxMonAPHTRateStatsTable
The objects of thewlsx Mon AP HPT Rate Stats table provide the monitored counts of access point packet and
byte counts that are sorted by high throughput (HT) rates.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that were
between 256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that were
between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets transmitted by the access point that
were between 1024 and 1518 bytes long.
Table 50 wlsxMonAPHTRateStatsTable OIDs
Object Object ID
wlsxMonAPHTRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1 wlsxMonAPHRageStatsTable 1
monHTRate 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.1 wlsxMonAPHRageStatsEntry 1
monAPStatsToHTPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.2 wlsxMonAPHRageStatsEntry 2
monAPStatsToHTBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.3 wlsxMonAPHRageStatsEntry 3
178 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonAPHTRateStatsEntry
monHTRate
monAPStatsToHTPkts
monAPStatsToHTBytes
Syntax WlsxMonAPHTRateStatsEntry
Max-Access not-accessible
Status current
Description Data rate based packet and byte count entry for a monitored AP.
Index monPhyAddress, monRadioNumber, monitoredApBSSID, monHTRate
Syntax ArubaHTRate
Max-Access read-only
Status current
Description The rate at which the counters apply.
Index monPhyAddress, monRadioNumber, monitoredApBSSID, monHTRate
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets processed at the indicated rate.
Index monPhyAddress, monRadioNumber, monitoredApBSSID, monHTRate
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes processed at the indicated rate.
Index monPhyAddress, monRadioNumber, monitoredApBSSID, monHTRate
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 179
wlsxMonStationStatsTable
The objects of the wlsx Monitor Station Statistics table provide aggregate statistics collected for a station.
Table 51 MonStationStats Table
Object Object ID
wlsxMonStationStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1 wlsxMonStationStatsTable 1
monitoredStaPhyAddress 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.1 wlsxMonStationStatsEntry 1
monStaChannelNum 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.2 wlsxMonStationStatsEntry 2
monStaTxPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.3 wlsxMonStationStatsEntry 3
monStaTxBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.4 wlsxMonStationStatsEntry 4
monStaRxPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.5 wlsxMonStationStatsEntry 5
monStaRxBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.6 wlsxMonStationStatsEntry 6
monStaTxBCastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.7 wlsxMonStationStatsEntry 7
monStaTxBCastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.8 wlsxMonStationStatsEntry 8
monStaTxMCastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.9 wlsxMonStationStatsEntry 9
monStaTxMCastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.10 wlsxMonStationStatsEntry 10
monStaDataPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.11 wlsxMonStationStatsEntry 11
monStaCtrlPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.12 wlsxMonStationStatsEntry 12
monStaNumAssocRequests 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.13 wlsxMonStationStatsEntry 13
monStaNumAuthRequests 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.14 wlsxMonStationStatsEntry 14
monStaTxDeauthentications 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.15 wlsxMonStationStatsEntry 15
monStaRxDeauthentications 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.16 wlsxMonStationStatsEntry 16
monStaFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.17 wlsxMonStationStatsEntry 17
monStaFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.18 wlsxMonStationStatsEntry 18
monStaFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.19 wlsxMonStationStatsEntry 19
monStaFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.20 wlsxMonStationStatsEntry 20
monStaFrameBandwidthRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.21 wlsxMonStationStatsEntry 21
monStaFrameRetryErrorRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.22 wlsxMonStationStatsEntry 22
monStaBSSID 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.23 wlsxMonStationStatsEntry 23
monStaESSID 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.24 wlsxMonStationStatsEntry 24
monStaPhyType 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.25 wlsxMonStationStatsEntry 25
monStaRSSI 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.26 wlsxMonStationStatsEntry 26
monStaFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.27 wlsxMonStationStatsEntry 27
180 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonStationStatsEntry
monitoredStaPhyAddress
monStaChannelNum
monStaTxPkts
monStaTxBytes
Syntax MonStationStatsEntry
Max-Access not-accessible
Status current
Description Monitored Station Stats Entry.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Syntax MacAddress
Max-Access not-accessible
Status current
Description MAC address of the monitored station.
Syntax Unsigned32
Max-Access read-only
Status current
Description The channel the station is currently using.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes transmitted by this station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 181
monStaRxPkts
monStaRxBytes
monStaTxBCastPkts
monStaTxBCastBytes
monStaTxMCastPkts
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes received by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast packets transmitted by this station.
182 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxMCastBytes
monStaDataPkts
monStaCtrlPkts
monStaNumAssocRequests
monStaNumAuthRequests
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of data packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of control packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of association requests transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of authentication requests transmitted by this station
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 183
monStaTxDeauthentications
monStaRxDeauthentications
monStaFrameRetryRate
monStaFrameLowSpeedRate
monStaFrameNonUnicastRate
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentication frames transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentication frames received by this station.
Syntax Integer32
Max-Access read-only
Status current
Description The number of retry packets as a percentage of the total packets transmitted and received by
this station.
Syntax Integer32
Max-Access read-only
Status current
Description The number of low data rate (<= 18 Mbps for A/G bands and <=2 Mbps for B band) packets as
a percentage of the total packets transmitted and received by this station.
Syntax Integer32
Max-Access read-only
Status current
Description The number of broadcast and multicast packets as a percentage of the total packets
transmitted by this station.
184 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaFrameFragmentationRate
monStaFrameBandwidthRate
monStaFrameRetryErrorRate
monStaBSSID
monStaESSID
Syntax Integer32
Max-Access read-only
Status current
Description The number of fragments as a percentage of the total packets transmitted by this station.
Syntax Integer32
Max-Access read-only
Status current
Description The bandwidth of this station in Kbps.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The number of error packets as a percentage of the total packets received by this station.
Syntax MacAddress
Max-Access read-only
Status current
Description BSSID of the monitored station.
Syntax DisplayString
Max-Access read-only
Status current
Description ESSID of the monitored station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 185
monStaPhyType
monStaRSSI
monStaFrameReceiveErrorRate
wlsxMonStaRateStatsTable
The objects of the wlsx Monitor Station Statistics table provide station statistics sorted by data rates.
Syntax ArubaPhyType
Max-Access read-only
Status current
Description PHY type of the monitored station.
Syntax Integer32
Max-Access read-only
Status current
Description SNR of the monitored station.
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received by this station.
History Added in ArubaOS 3.1.0.0.
Table 52 wlsxMonStaRateStatsTable OIDs
Object Object ID
wlsxMonStaRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1 wlsxMonStaRateStatsTable 1
monStaTxPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.1 wlsxMonStaRateStatsEntry 1
monStaTxBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.2 wlsxMonStaRateStatsEntry 2
monStaTxPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.3 wlsxMonStaRateStatsEntry 3
monStaTxBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.4 wlsxMonStaRateStatsEntry 4
monStaTxPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.5 wlsxMonStaRateStatsEntry 5
monStaTxBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.6 wlsxMonStaRateStatsEntry 6
monStaTxPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.7 wlsxMonStaRateStatsEntry 7
monStaTxBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.8 wlsxMonStaRateStatsEntry 8
monStaTxPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.9 wlsxMonStaRateStatsEntry 9
186 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.10 wlsxMonStaRateStatsEntry 10
monStaTxPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.11 wlsxMonStaRateStatsEntry 11
monStaTxBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.12 wlsxMonStaRateStatsEntry 12
monStaTxPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.13 wlsxMonStaRateStatsEntry 13
monStaTxBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.14 wlsxMonStaRateStatsEntry 14
monStaTxPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.15 wlsxMonStaRateStatsEntry 15
monStaTxBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.16 wlsxMonStaRateStatsEntry 16
monStaTxPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.17 wlsxMonStaRateStatsEntry 17
monStaTxBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.18 wlsxMonStaRateStatsEntry 18
monStaTxPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.19 wlsxMonStaRateStatsEntry 19
monStaTxBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.20 wlsxMonStaRateStatsEntry 20
monStaTxPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.21 wlsxMonStaRateStatsEntry 21
monStaTxBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.22 wlsxMonStaRateStatsEntry 22
monStaRxPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.23 wlsxMonStaRateStatsEntry 23
monStaRxBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.24 wlsxMonStaRateStatsEntry 24
monStaRxPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.25 wlsxMonStaRateStatsEntry 25
monStaRxBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.26 wlsxMonStaRateStatsEntry 26
monStaRxPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.27 wlsxMonStaRateStatsEntry 27
monStaRxBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.28 wlsxMonStaRateStatsEntry 28
monStaRxPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.29 wlsxMonStaRateStatsEntry 29
monStaRxBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.30 wlsxMonStaRateStatsEntry 30
monStaRxPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.31 wlsxMonStaRateStatsEntry 31
monStaRxBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.32 wlsxMonStaRateStatsEntry 32
monStaRxPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.33 wlsxMonStaRateStatsEntry 33
monStaRxBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.34 wlsxMonStaRateStatsEntry 34
monStaRxPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.35 wlsxMonStaRateStatsEntry 35
monStaRxBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.36 wlsxMonStaRateStatsEntry 36
monStaRxPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.37 wlsxMonStaRateStatsEntry 37
monStaRxBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.38 wlsxMonStaRateStatsEntry 38
monStaRxPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.39 wlsxMonStaRateStatsEntry 39
monStaRxBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.40 wlsxMonStaRateStatsEntry 40
monStaRxPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.41 wlsxMonStaRateStatsEntry 41
monStaRxBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.42 wlsxMonStaRateStatsEntry 42
monStaRxPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.43 wlsxMonStaRateStatsEntry 43
Table 52 wlsxMonStaRateStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 187
wlsxMonStaRateStatsEntry
monStaTxPktsAt1Mbps
monStaTxBytesAt1Mbps
monStaTxPktsAt2Mbps
monStaRxBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.44 wlsxMonStaRateStatsEntry 44
monStaTxPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.45 wlsxMonStaRateStatsEntry 45
monStaTxBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.46 wlsxMonStaRateStatsEntry 46
monStaRxPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.47 wlsxMonStaRateStatsEntry 47
monStaRxBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.48 wlsxMonStaRateStatsEntry 48
Syntax wlsxMonStaRateStatsEntry
Max-Access not-accessible
Status current
Description Data rate-based packet and byte count entry for a monitored station.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 2 Mbps rate.
Table 52 wlsxMonStaRateStatsTable OIDs (Continued)
Object Object ID
188 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxBytesAt2Mbps
monStaTxPktsAt5Mbps
monStaTxBytesAt5Mbps
monStaTxPktsAt11Mbps
monStaTxBytesAt11Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 11 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 189
monStaTxPktsAt6Mbps
monStaTxBytesAt6Mbps
monStaTxPktsAt12Mbps
monStaTxBytesAt12Mbps
monStaTxPktsAt18Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 18 Mbps rate.
190 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxBytesAt18Mbps
monStaTxPktsAt24Mbps
monStaTxBytesAt24Mbps
monStaTxPktsAt36Mbps
monStaTxBytesAt36Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 36 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 191
monStaTxPktsAt48Mbps
monStaTxBytesAt48Mbps
monStaTxPktsAt54Mbps
monStaTxBytesAt54Mbps
monStaRxPktsAt1Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 5 4Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 1 Mbps rate.
192 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxBytesAt1Mbps
monStaRxPktsAt2Mbps
monStaRxBytesAt2Mbps
monStaRxPktsAt5Mbps
monStaRxBytesAt5Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 5 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 193
monStaRxPktsAt11Mbps
monStaRxBytesAt11Mbps
monStaRxPktsAt6Mbps
monStaRxBytesAt6Mbps
monStaRxPktsAt12Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 12 Mbps rate.
194 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxBytesAt12Mbps
monStaRxPktsAt18Mbps
monStaRxBytesAt18Mbps
monStaRxPktsAt24Mbps
monStaRxBytesAt24Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 24 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 195
monStaRxPktsAt36Mbps
monStaRxBytesAt36Mbps
monStaRxPktsAt48Mbps
monStaRxBytesAt48Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 36 Mpbs rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 36 Mpbs rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 48 Mbps rate.
196 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxPktsAt54Mbps
monStaRxBytesAt54Mbps
monStaTxPktsAt9Mbps
monStaTxBytesAt9Mbps
monStaRxPktsAt9Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station at 9 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets transmitted by the station at 9 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station at 9 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 197
monStaRxBytesAt9Mbps
wlsxMonStaDATypeStatsTable
The objects of the wlsx Monitor Station DA Type Statistics table provide station statistics sorted by Destination
Address (DA) types.
wlsxMonStaDATypeStatsEntry
monStaTxDABroadcastPkts
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of octets received by the station at 9 Mbps rate.
Table 53 MonStaDATypeStatsTable OIDs
Object Object ID
wlsxMonStaDATypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1 wlsxMonStaDATypeStatsTable 1
monStaTxDABroadcastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.1 wlsxMonStaDATypeStatsEntry 1
monStaTxDABroadcastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.2 wlsxMonStaDATypeStatsEntry 2
monStaTxDAMulticastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.3 wlsxMonStaDATypeStatsEntry 3
monStaTxDAMulticastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.4 wlsxMonStaDATypeStatsEntry 4
monStaTxDAUnicastPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.5 wlsxMonStaDATypeStatsEntry 5
monStaTxDAUnicastBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.6 wlsxMonStaDATypeStatsEntry 6
Syntax wlsxMonStaDATypeStatsEntry
Max-Access not-accessible
Status current
Description Data rate-based packet and byte count entry for a monitored station.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of broadcast packets transmitted by this station.
198 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxDABroadcastBytes
monStaTxDAMulticastPkts
monStaTxDAMulticastBytes
monStaTxDAUnicastPkts
monStaTxDAUnicastBytes
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of broadcast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of multicast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of multicast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total of unicast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total of unicast bytes transmitted by this station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 199
wlsxMonStaFrameTypeStatsTable
The objects of the wlsx Monitor Station Frame Type Statistics table provide packet and byte counts for
monitored stations. The information is sorted by frame type.
wlsxMonStaFrameTypeStatsEntry
monStaTxMgmtPkts
Table 54 MonStaFrameTypeStatsTable OIDs
Object Object ID
wlsxMonStaFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1 wlsxMonStaFrameTypeStatsTable 1
monStaTxMgmtPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.1 wlsxMonStaFrameTypeStatsTable 1
monStaTxMgmtBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.2 wlsxMonStaFrameTypeStatsTable 2
monStaTxCtrlPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.3 wlsxMonStaFrameTypeStatsTable 3
monStaTxCtrlBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.4 wlsxMonStaFrameTypeStatsTable 4
monStaTxDataPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.5 wlsxMonStaFrameTypeStatsTable 5
monStaTxDataBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.6 wlsxMonStaFrameTypeStatsTable 6
monStaRxMgmtPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.7 wlsxMonStaFrameTypeStatsTable 7
monStaRxMgmtBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.8 wlsxMonStaFrameTypeStatsTable 8
monStaRxCtrlPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.9 wlsxMonStaFrameTypeStatsTable 9
monStaRxCtrlBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.10 wlsxMonStaFrameTypeStatsTable 10
monStaRxDataPkts 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.11 wlsxMonStaFrameTypeStatsTable 11
monStaRxDataBytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.12 wlsxMonStaFrameTypeStatsTable 12
Syntax wlsxMonStaFrameTypeStatsEntry
Max-Access not-accessible
Status current
Description Frame type-based packet and byte count entry for a monitored station.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted management packets from a station.
200 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxMgmtBytes
monStaTxCtrlPkts
monStaTxCtrlBytes
monStaTxDataPkts
monStaTxDataBytes
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted management bytes from a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted control packets from a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted control bytes from a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted data packets from a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the transmitted data bytes observed from this station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 201
monStaRxMgmtPkts
monStaRxMgmtBytes
monStaRxCtrlPkts
monStaRxCtrlBytes
monStaRxDataPkts
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received management packets at a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received management bytes at a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received control packets at a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received control bytes at a station.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received data packets at a station.
202 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxDataBytes
wlsxMonStaPktSizeStatsTable
The objects of the wlsx Monitor Station Packet Size Statistics table provide packet and byte counts for monitored
stations. The information is sorted by packet sizes.
wlsxMonStaPktSizeStatsEntry
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of received data bytes at a station.
Table 55 wlsxMonStaPktSizeStatsTable OIDs
Object Object ID
wlsxMonStaPktSizeStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1 wlsxMonStaPktSizeStatsTable 1
monStaTxPkts63Bytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.1 wlsxMonStaPktSizeStatsEntry1
monStaTxPkts64To127 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.2 wlsxMonStaPktSizeStatsEntry2
monStaTxPkts128To255 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.3 wlsxMonStaPktSizeStatsEntry3
monStaTxPkts256To511 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.4 wlsxMonStaPktSizeStatsEntry4
monStaTxPkts512To1023 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.5 wlsxMonStaPktSizeStatsEntry5
monStaTxPkts1024To1518 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.6 wlsxMonStaPktSizeStatsEntry6
monStaRxPkts63Bytes 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.7 wlsxMonStaPktSizeStatsEntry7
monStaRxPkts64To127 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.8 wlsxMonStaPktSizeStatsEntry8
monStaRxPkts128To255 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.9 wlsxMonStaPktSizeStatsEntry9
monStaRxPkts256To511 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.10 wlsxMonStaPktSizeStatsEntry10
monStaRxPkts512To1023 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.11 wlsxMonStaPktSizeStatsEntry11
monStaRxPkts1024To1518 1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.12 wlsxMonStaPktSizeStatsEntry12
Syntax wlsxMonStaPktSizeStatsEntry
Max-Access not-accessible
Status current
Description Packet size-based packet count entry for a monitored station.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 203
monStaTxPkts63Bytes
monStaTxPkts64To127
monStaTxPkts128To255
monStaTxPkts256To511
monStaTxPkts512To1023
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were less than
64 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were between
64 and 127 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were between
128 and 255 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were between
256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were between
512 and 1023 bytes long.
204 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaTxPkts1024To1518
monStaRxPkts63Bytes
monStaRxPkts64To127
monStaRxPkts128To255
monStaRxPkts256To511
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets transmitted by the station that were between
1024 and 1518 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were less than 64
bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were between 64
and 127 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were between 128
and 255 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were between 256
and 511 bytes long.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 205
monStaRxPkts512To1023
monStaRxPkts1024To1518
wlsxMonAPInfoTable
The objects of the wlsx Monitor AP Information table list the Access Points being monitored by the controller.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were between 512
and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the number of packets received by the station that were between
1024 and 1518 bytes long.
Table 56 wlsxMonAPInfoTable OIDs
Object Object ID
wlsxMonAPInfoEntry 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1 wlsxMonAPInfoTable 1
monAPInfoPhyType 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.1 wlsxMonAPInfoEntry 1
monAPInfoCurrentChannel 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.2 wlsxMonAPInfoEntry 2
monAPInfoClassification 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.3 wlsxMonAPInfoEntry 3
monAPInfoESSID 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.4 wlsxMonAPInfoEntry 4
monAPInfoRSSI 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.5 wlsxMonAPInfoEntry 5
monAPInfoMonitorTime 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.6 wlsxMonAPInfoEntry 6
monAPInfoInactivityTime 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.7 wlsxMonAPInfoEntry 7
monAPInfoSnrSignalPkts 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.8 wlsxMonAPInfoEntry 8
monAPInfoSnrSampleTime 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.9 wlsxMonAPInfoEntry 9
monAPInfoStatus 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.10 wlsxMonAPInfoEntry 10
monAPInfoConfidence 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.11 wlsxMonAPInfoEntry 11
monAPInfoMatchType 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.12 wlsxMonAPInfoEntry 12
monAPInfoMatchMethod 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.13 wlsxMonAPInfoEntry 13
monAPInfoHTMode 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.14 wlsxMonAPInfoEntry 14
monAPInfoEncryptionType 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.15 wlsxMonAPInfoEntry 15
monAPInfoWPAUnicastCipher 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.16 wlsxMonAPInfoEntry 16
206 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonAPInfoEntry
monAPInfoPhyType
monAPInfoCurrentChannel
monAPInfoClassification
monAPInfoESSID
monAPInfoWPAAuthAlgorithm 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.17 wlsxMonAPInfoEntry 17
monAPInfoIBSS 1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.18 wlsxMonAPInfoEntry 8
Syntax wlsxMonAPInfoEntry
Max-Access not-accessible
Status current
Description Access Point Info entry
Index { monPhyAddress, monRadioNumber, monitoredApBSSID }
Syntax ArubaPhyType
Max-Access read-only
Status current
Description PHY type of the monitored access point.
Syntax Unsigned32
Max-Access read-only
Status current
Description Channel the monitored access point is using.
Syntax ArubaRogueApType
Max-Access read-only
Status current
Description This attribute indicates the type of the access point.
Syntax DisplayString
Table 56 wlsxMonAPInfoTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 207
monAPInfoRSSI
monAPInfoMonitorTime
monAPInfoInactivityTime
monAPInfoSnrSignalPkts
monAPInfoSnrSampleTime
Max-Access read-only
Status current
Description ESSID of the monitored access point.
Syntax Integer32
Max-Access read-only
Status current
Description SNR of the monitored access point.
Syntax TimeTicks
Max-Access read-only
Status current
Description This attribute indicates how long the access point has been monitored.
Syntax TimeTicks
Max-Access read-only
Status current
Description This attribute indicates how long the access point has been inactive.
Syntax Integer32
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring access point during this sample
time.
Syntax Integer32
Max-Access read-only
208 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPInfoStatus
monAPInfoConfidence
monAPInfoMatchType
monAPInfoMatchMethod
Status current
Description The sample time in which SNR data was collected.
Syntax Integer
up(1)
down(2)
Max-Access read-only
Status current
Description Indicates whether this access point is considered to be up or down.
Syntax Integer32
Max-Access read-only
Status current
Description Indicates the confidence that a suspected rogue access point is in fact a rogue in terms of
percentage.
History Added in ArubaOS 3.1.0.0.
Syntax ArubaAPMatchType
Max-Access read-only
Status current
Description The method used to classify the access point as a rogue or suspected rogue AP.
History Added in ArubaOS 3.1.0.0.
Syntax ArubaAPMatchMethod
Max-Access read-only
Status current
Description Indicates how the match occurred for rogue or suspect-rogue classification— an exact or +1
or -1 MAC match.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 209
monAPInfoHTMode
monAPInfoEncryptionType
monAPInfoWPAUnicastCipher
monAPInfoWPAAuthAlgorithm
monAPInfoIBSS
Syntax ArubaHTMode
Max-Access read-only
Status current
Description Indicates the HT mode of the monitored AP, if any.
History Added in ArubaOS 3.3.0.0.
Syntax monAPIEncryptionType
Max-Access read-only
Status current
Description Indicates the Encryption type of the monitored AP.
History Added in ArubaOS 6.0
Syntax monAPInfoWPAUnicastCipher
Max-Access read-only
Status current
Description Indicates the WPA/WPA2 unicast cipher supported by the monitored AP. If multiple ciphers
are supported, the weakest will be indicated.
History Added in ArubaOS 6.0
Syntax monAPInfoWPAAuthAlgorithm
Max-Access read-only
Status current
Description Indicates the WPA/WPA2 authentication algorithm supported by the monitored AP. If multiple
authentication algorithms are supported, the weakest will be indicated.
History Added in ArubaOS 6.0
Syntax TruthValue
Max-Access read-only
210 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonStationInfoTable
The objects of the wlsx Monitor Station Information table provide statistics of all the wireless stations that are
monitored.
wlsxMonStationInfoEntry
monStaInfoChannelNummonStaInfoBSSID
Status current
Description Indicates if the monitored AP is part of an adhoc network.
History Added in ArubaOS 6.0
Table 57 wlsxMonStationInfoTable OIDs
Object Object ID
wlsxMonStationInfoEntry 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1 wlsxMonStationInfoTable 1
monStaInfoChannelNummonStaInfoB
SSID 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.1 MonStationInfoEntry 1
monStaInfoChannelNummonStaInfoB
SSID 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.2 MonStationInfoEntry 2
monStaInfoESSID 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.3 MonStationInfoEntry 3
monStaInfoPhyType 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.4 MonStationInfoEntry 4
monStaInfoRSSI 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.5 MonStationInfoEntry 5
monStaInfoClassification 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.6 MonStationInfoEntry6
monStaInfoMonitorTime 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.7 MonStationInfoEntry 7
monStaInfoInactivityTime 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.8 MonStationInfoEntry 8
monStaInfoSnrSignalPkts 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.9 MonStationInfoEntry 9
monStaInfoSnrSampleTime 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.10 MonStationInfoEntry 10
monStaInfoStatus 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.11 MonStationInfoEntry 11
monStaInfoHTMode 1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.12 MonStationInfoEntry 12
Syntax MonStationInfoEntry
Max-Access not-accessible
Status current
Description Station entry information.
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress }
Syntax Unsigned32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 211
monStaInfoESSID
monStaInfoPhyType
Status current
Description The channel the station is currently using.
History Updated in ArubaOS 3.1—description.
Syntax MacAddress
Max-Access read-only
Status current
Description BSSID of the monitored station.
History Updated in ArubaOS 3.1—description.
Syntax DisplayString
Max-Access read-only
Status current
Description ESSID of the monitored station.
History Updated in ArubaOS 3.1—description.
Syntax ArubaPhyType
Max-Access read-only
Status current
Description PHY type of the monitored station.
History Updated in ArubaOS 3.1—description.
212 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaInfoRSSI
monStaInfoClassification
monStaInfoMonitorTime
monStaInfoInactivityTime
Syntax Integer32
Max-Access read-only
Status current
Description SNR of the monitored station.
History Updated in ArubaOS 3.1—description.
Syntax ArubaStationType
Max-Access read-only
Status current
Description Classification of the monitored station.
Syntax TimeTicks
Max-Access read-only
Status current
Description This attribute indicates how long the station has been monitored.
History Updated in ArubaOS 3.1—description.
Syntax TimeTicks
Max-Access read-only
Status current
Description This attribute indicates how long the station has been inactive.
History Updated in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 213
monStaInfoSnrSignalPkts
monStaInfoSnrSampleTime
monStaInfoStatus
monStaInfoHTMode
Syntax Integer32
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring station during this sample time.
History Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The sample time in which SNR data was collected.
Syntax Integer
up(1)
down(2)
Max-Access read-only
Status current
Description Indicates whether this station is considered up or down.
Syntax ArubaHTMode
Max-Access read-only
Status current
Description Indicates the HT mode of the station, if any.
History Added in ArubasOS 3.3.0.0.
214 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonEventCountTable
The objects of the wlsx Monitor Event Count table provide the event ID and the number of events of the event
type.
wlsxMonEventCountEntry
monEventID
monEventCount
Table 58 wlsxMonEventCountTable OIDs
Object Object ID
wlsxMonEventCountEntry 1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1 wlsxMonEventCountTable 1
monEventID 1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1.1 wlsxMonEventCountEntry 1
monEventCount 1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1.2 wlsxMonEventCountEntry 2
Syntax MonEventCountEntry
Max-Access not-accessible
Status current
Description Event count entry.
Index { monEventID }
History Added in ArubaOS 3.1.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Event ID.
History Added in ArubaOS 3.1.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Event count.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Monitor | 215
wlsxMonStationHTRateStatsTable
This table contains all the monitored AP Packet and Byte Counts but represented in terms of HT rate categories.
wlsxMonStationHTRateStatsEntry
monStaTxHTPkts
monStaTxHTBytes
Table 59 wlsxMonStationHTRateStatsTable OIDs
Object Object ID
wlsxMonStationHTRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.2.7 wlsxMonStationHTRateStatsTable 1
monStaTxHTPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.2.7.1 wlsxMonStationHTRateStats Entry 1
monStaTxHTBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.2.7.2 wlsxMonStationHTRateStats Entry 2
monStaRxHTPkts 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.2.7.3 wlsxMonStationHTRateStats Entry 3
monStaRxHTBytes 1.3.6.1.4.1.14823.2.2.1.6.6.1.6.2.7.3 wlsxMonStationHTRateStats Entry 4
Syntax WlsxMonStationHTRateStatsEntry
Max-Access not-accessible
Status current
Description HT Data rate based packet and byte count entry for a monitored station
Index { monPhyAddress, monRadioNumber, monitoredStaPhyAddress, monHTRate }
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets transmitted at the indicated rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes transmitted at the indicated rate.
History Added in ArubaOS 3.3.0.0.
216 |Monitor Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxHTPkts
monStaRxHTBytes
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets received at the indicated rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes received at the indicated rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Signal Noise Ratio | 217
Chapter 11
Signal Noise Ratio
The Signal Noise Ratio (SNR) module provides information about signal quality and packets. One value of SNR
is the signal quality during a sample period. The signal quality affects the quality of the transmitted packets. The
available SNR values include signal strength (total, maximum, minimum). Additional information is the number
of packets that were transmitted during the sample time.
Figure 13 shows the architecture of the SNR MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The SNR MIBs are listed in the file aruba-snr.my. For information
about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 13 SNR Hierarchy
wlsx SNR MIB
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.7
wlsx Enterprise MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1.7.1
wlsx SNR Group
Aruba
1.3.6.1.4.1.14823.2.2.1.7.1.3
wlsx AP Snr BSSID Table
1.3.6.1.4.1.14823.2.2.1.7.1.4
wlsx Sta Snr Phy Table
1.3.6.1.4.1.14823.2.2.1.7.1.2
wlsx Sta Snr Table
1.3.6.1.4.1.14823.2.2.1.7.1.1
wlsx AP Snr Table
218 | Signal Noise Ratio Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The SNR MIB contains the following tables. The objects of each table are described in the following sections.
wlsxAPSnrTable
The objects of the wlsx AP SNR table provide signal information about the access points connected to this
controller.
Table 60 SNR Tables
Table Description
wlsxAPSnrTable This table lists SNR information about monitored APs.
wlsxStaSnrTable This table lists SNR information about monitored stations.
wlsxAPSnrBSSIDTable This table lists SNR information about monitored access points.
wlsxStaSnrPhyTable This table lists SNR information about monitored stations.
Table 61 wlsxAPSnrTable OIDs
Object Object ID
wlsxAPSnrEntry 1.3.6.1.4.1.14823.2.2.1.7.1.1.1 wlsxAPSnrTable 1
apSnrAverageSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.1.1.1 wlsxAPSnrEntry 1
apSnrSignalPkts 1.3.6.1.4.1.14823.2.2.1.7.1.1.1.2 wlsxAPSnrEntry 2
apSnrHighestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.1.1.3 wlsxAPSnrEntry 3
apSnrLowestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.1.1.4 wlsxAPSnrEntry 4
apSnrSampleTime 1.3.6.1.4.1.14823.2.2.1.7.1.1.1.5 wlsxAPSnrEntry 5
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Signal Noise Ratio | 219
wlsxAPSnrEntry
apSnrAverageSignalStrength
apSnrSignalPkts
apSnrHighestRxSignalStrength
apSnrLowestRxSignalStrength
Syntax wlsxAPSnrEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index {monPhyAddress, monRadioNumber, monitoredApBSSID}
Syntax Integer32
Max-Access read-only
Status current
Description The total signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The highest signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The lowest signal strength observed by the monitoring station during this sample time.
220 | Signal Noise Ratio Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
apSnrSampleTime
wlsxStaSnrTable
The objects of the station SNR table provide signal information about the access points connected to this
controller.
wlsxStaSnrEntry
staSnrAverageSignalStrength
staSnrSignalPkts
Syntax Integer32
Max-Access read-only
Status current
Description The sample time in which this data is collected.
Table 62 wlsxStaSnrTable OIDs
Object Object ID
wlsxAPSnrEntry 1.3.6.1.4.1.14823.2.2.1.7.1.2.1 wlsxStaSnrTable 1
apSnrAverageSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.2.1.1 wlsxStaSnrEntry 1
apSnrSignalPkts 1.3.6.1.4.1.14823.2.2.1.7.1.2.1.2 wlsxStaSnrEntry 2
apSnrHighestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.2.1.3 wlsxStaSnrEntry 3
apSnrLowestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.2.1.4 wlsxStaSnrEntry 4
apSnrSampleTime 1.3.6.1.4.1.14823.2.2.1.7.1.2.1.5 wlsxStaSnrEntry 5
Syntax wlsxStaSnrEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index {monPhyAddress, monRadioNumber, monitoredStaPhyAddress}
Syntax Integer32
Max-Access read-only
Status current
Description The total signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Signal Noise Ratio | 221
staSnrHighestRxSignalStrength
staSnrLowestRxSignalStrength
staSnrSampleTime
wlsxAPSnrBSSIDTable
The objects of the wlsx Access Point SNR BSSID table provide signal information about the monitored access
points.
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The highest signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The lowest signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The sample time in which this data is collected.
Table 63 wlsxAPSnrBSSIDTable
Object Object ID
wlsxAPSnrBSSIDEntry 1.3.6.1.4.1.14823.2.2.1.7.1.3.1 wlsxAPSnrBSSIDTable 1
apSnrBSSIDAverageSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.3.1.1 wlsxAPSnrBSSIDEntry 1
apSnrBSSIDSignalPkts 1.3.6.1.4.1.14823.2.2.1.7.1.3.1.2 wlsxAPSnrBSSIDEntry 2
apSnrBSSIDHighestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.3.1.3 wlsxAPSnrBSSIDEntry 3
apSnrBSSIDLowestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.3.1.4 wlsxAPSnrBSSIDEntry 4
apSnrBSSIDSampleTime 1.3.6.1.4.1.14823.2.2.1.7.1.3.1.5 wlsxAPSnrBSSIDEntry 5
222 | Signal Noise Ratio Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAPSnrBSSIDEntry
apSnrBSSIDAverageSignalStrength
apSnrBSSIDSignalPkts
apSnrBSSIDHighestRxSignalStrength
apSnrBSSIDLowestRxSignalStrength
Syntax wlsxAPSnrBSSIDEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index {monitoredApBSSID, monPhyAddress, monRadioNumber}
Syntax Integer32
Max-Access read-only
Status current
Description The total signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The highest signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The lowest signal strength observed by the monitoring station during this sample time.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Signal Noise Ratio | 223
apSnrBSSIDSampleTime
wlsxStaSnrPhyTable
The objects of the wlsx Station SNR PHY table provide information of the monitored stations.
Syntax Integer32
Max-Access read-only
Status current
Description The sample time in which this data is collected.
Table 64 wlsxStaSnrPhyTable OIDs
Object Object ID
wlsxStaSnrPhyEntry 1.3.6.1.4.1.14823.2.2.1.7.1.4.1 wlsxStaSnrPhyTable 1
staSnrPhyAverageSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.4.1.1 wlsxStaSnrPhyEntry 1
staSnrPhySignalPkts 1.3.6.1.4.1.14823.2.2.1.7.1.4.1.2 wlsxStaSnrPhyEntry 2
staSnrPhyHighestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.4.1.3 wlsxStaSnrPhyEntry 3
staSnrPhyLowestRxSignalStrength 1.3.6.1.4.1.14823.2.2.1.7.1.4.1.4 wlsxStaSnrPhyEntry 4
staSnrPhySampleTime 1.3.6.1.4.1.14823.2.2.1.7.1.4.1.5 wlsxStaSnrPhyEntry 5
224 | Signal Noise Ratio Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxStaSnrPhyEntry
staSnrPhyAverageSignalStrength
staSnrPhySignalPkts
staSnrPhyHighestRxSignalStrength
staSnrPhyLowestRxSignalStrength
Syntax wlsxStaSnrPhyEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index {monitoredStaPhyAddress, monPhyAddress, monRadioNumber}
Syntax Integer32
Max-Access read-only
Status current
Description The total signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The number of signal packets observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The highest signal strength observed by the monitoring station during this sample time.
Syntax Integer32
Max-Access read-only
Status current
Description The lowest signal strength observed by the monitoring station during this sample time.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Signal Noise Ratio | 225
staSnrPhySampleTime
Syntax Integer32
Max-Access read-only
Status current
Description The sample time in which this data is collected.
226 | Signal Noise Ratio Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 227
Chapter 12
Switch
The Switch module provides statistical information about Dell controllers, including storage and memory
utilization, and the wireless stations associated with the access points.
Figure 14 shows the architecture of the Switch MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Switch MIBs are listed in the file aruba-switch.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 14 Switch Hierarchy
The Switch MIB contains the following groups and tables. The objects of each table are described in the following
sections.
Table 65 System X Group MIB Objects
Tables
wlsxSystemXGroup This group lists information that describes a switch, such as the IP of the
switch, and the licenses that are applied to that switch
wlsxSwitchListTable This table lists the switches in the domain.
wlsx Switch
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.1
wlsx Enterprise MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
Aruba
1.3.6.1.4.1.14823.2.2.1.1.3
wlsx Access Point Info Group
1.3.6.1.4.1.14823.2.2.1.1.100
wlsx Switch Traps
1.3.6.1.4.1.14823.2.2.1.1.2
wlsx User Info Group
1.3.6.1.4.1.14823.2.2.1.1.1
wlsx System X Group
228 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSystemXGroup
The objects of the wlsx System X Group provided information that describes a switch, such as the IP of the
switch, and the licenses that are applied to that switch.
wlsxSwitchLicenseTable This table lists all valid licenses installed on the switch.
wlsxSysXProcessorTable This table lists all the processors and the corresponding load.
wlsxSysXStorageTable This table lists the storage devices in the switch and their utilization numbers.
wlsxSysXMemoryTable This table lists the memory utilization of the switch.
wlsxSwitchUserTable This table lists all the users (both wired and wireless) connected to the switch.
Users are identified by their IP address.
wlsxSwitchUser6Table This table lists all the users (both wired and wireless) connected to the switch.
Users are identified by their IP address. The objects support IPv6.
wlsxSwitchStationMgmtTable This table lists the wireless stations associated with the access points
connected to this switch.
wlsxSwitchStationStatsTable This table lists the statistics of the wireless stations associated with the
access points connected to this switch. The stats are indexed by the Station
MAC and the AP BSSID.
wlsxAccessPointInfoGroup This group lists all the access points and stations that are associated with a
switch.
wlsxSwitchAccessPointTable This table lists the access points connected to this switch.
wlsxSwitchGlobalAPTable This table lists the access points connected in the switch domain.
This table is only valid on a master switch. On a local switch, the table is empty.
wlsxSwitchAccessPointStatsTable This table lists the statistics of all the access points connected to this switch.
wlsxSwitchTraps Group This table lists the traps related to the switch platform.
Switch Traps–Notifications This table lists the switch traps.
Platform Traps This table lists the platform traps.
Table 66 wlsxSystemXGroup OIDs
Object Object ID
wlsxHostname 1.3.6.1.4.1.14823.2.2.1.1.1.1 wlsxSystemXGroup 1
wlsxModelName 1.3.6.1.4.1.14823.2.2.1.1.1.2 wlsxSystemXGroup 2
wlsxSwitchIp 1.3.6.1.4.1.14823.2.2.1.1.1.3 wlsxSystemXGroup 3
wlsxSwitchRole 1.3.6.1.4.1.14823.2.2.1.1.1.4 wlsxSystemXGroup 4
wlsxSwitchMasterIp 1.3.6.1.4.1.14823.2.2.1.1.1.5 wlsxSystemXGroup 5
Table 65 System X Group MIB Objects (Continued)
Tables
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 229
wlsxHostname
wlsxModelName
wlsxSwitchIp
wlsxSwitchRole
wlsxSwitchMasterIp
Syntax DisplayString (Size(1.32))
Max-Access read-only
Status current
Description Name of the switch.
Syntax DisplayString (Size(1..32))
Max-Access read-only
Status current
Description Model name of the switch.
Syntax IpAddress
Max-Access read-only
Status current
Description Switch IP as configured by the user. This IP address uniquely identifies the switch.
Syntax Integer
master(1)
local(2)
standbymaster(3)
Max-Access read-only
Status current
Description Role of this switch in the switch domain.
Syntax IpAddress
Max-Access read-only
Status current
Description Master IP of the switch
230 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchListTable
The objects of the wlsx Switch List table list the switches in the domain.
Note: This table is only populated on the master switch—information can only be queried from the master switch. If a local
switch is queried, an empty table will be returned.
Table 67 wlsxSwitchListTable OIDs
Object Object ID
wlsxSwitchListEntry 1.3.6.1.4.1.14823.2.2.1.1.1.6.1 wlsxSwitchListTable 1
switchListSwitchIPAddress 1.3.6.1.4.1.14823.2.2.1.1.1.6.1.1 wlsxSwitchListEntry 1
switchListSwitchRole 1.3.6.1.4.1.14823.2.2.1.1.1.6.1.2 wlsxSwitchListEntry 2
wlsxSwitchLicenseCount 1.3.6.1.4.1.14823.2.2.1.1.1.6.1.2.3 wlsxSwitchListEntry 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 231
wlsxSwitchListEntry
switchListSwitchIPAddress
switchListSwitchRole
wlsxSwitchLicenseCount
wlsxSwitchLicenseTable
The objects of the wlsx Switch License table list all valid licenses installed on the switch.
Syntax MxSwitchListEntry
Max-Access not-accessible
Status current
Description Switch List Entry.
Index { switchListSwitchIPAddress }
Syntax IpAddress
Max-Access not-accessible
Status current
Description P Address of the switch.
Syntax Integer
master(1)
local(2)
standbymaster(3)
Max-Access read-only
Status current
Description Role of the switch.
Syntax Integer32
Max-Access read-only
Status current
Description The number of licenses installed on the switch.
Table 68 wlsxSwitchLicenseTable OIDs
Object Object ID
wlsxLicenseEntry 1.3.6.1.4.1.14823.2.2.1.1.1.8.1 wlsxSwitchLicenseTable 1
232 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
licenseIndex 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.1 wlsxLicenseEntry 1
licenseKey 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.2 wlsxLicenseEntry 2
licenseInstalled 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.3 wlsxLicenseEntry 3
licenseExpires 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.4 wlsxLicenseEntry 4
licenseFlags 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.5 wlsxLicenseEntry 5
licenseService 1.3.6.1.4.1.14823.2.2.1.1.1.8.1.6 wlsxLicenseEntry 6
Table 68 wlsxSwitchLicenseTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 233
wlsxLicenseEntry
licenseIndex
licenseKey
licenseInstalled
licenseExpires
Syntax LicenseEntry
Max-Access not-accessible
Status current
Description License Entry.
Index { licenseIndex }
Syntax Integer32
Max-Access not-accessible
Status current
Description License ID number.
Syntax DisplayString
Max-Access read-only
Status current
Description License Key.
Syntax DisplayString
Max-Access read-only
Status current
Description License installation time.
Syntax DisplayString
Max-Access read-only
Status current
Description License expiry time.
234 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
licenseFlags
licenseService
wlsxSysXProcessorTable
The objects of the wlsx Sys XProcessor table list all the processors and the corresponding load.
Syntax DisplayString
Max-Access read-only
Status current
Description License flags
E – enabled
A – auto-generated
R – reboot required to activate
Syntax DisplayString
Max-Access read-only
Status current
Description The service enabled by this license.
Table 69 wlsxSysXProcessorTable OIDs
Object Object ID
wlsxSysXProcessorEntry 1.3.6.1.4.1.14823.2.2.1.1.1.9.1 wlsxSysXProcessorTable 1
sysXProcessorID 1.3.6.1.4.1.14823.2.2.1.1.1.9.1.1 wlsxSysXProcessorEntry 1
sysXProcessorDescr 1.3.6.1.4.1.14823.2.2.1.1.1.9.1.2 wlsxSysXProcessorEntry 2
sysXProcessorLoad 1.3.6.1.4.1.14823.2.2.1.1.1.9.1.3 wlsxSysXProcessorEntry 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 235
wlsxSysXProcessorEntry
sysXProcessorID
sysXProcessorDescr
sysXProcessorLoad
wlsxSysXStorageTable
Syntax wlsxSysXProcessorEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the switch.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Processor Index.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Description of the processor.
History Added in ArubaOS 2.3.
Syntax Integer32 (0..100)
Max-Access read-only
Status current
Description The average, over the last minute, of the percentage of time that this processor was not idle.
History Added in ArubaOS 2.3.
236 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx Sys XStorage table list the storage devices in the switch.
Table 70 wlsxSysXStorageTable OIDs
Object Object ID
wlsxSysXStorageEntry 1.3.6.1.4.1.14823.2.2.1.1.1.10.1 wlsxSysXStorageTable 1
sysXStorageIndex 1.3.6.1.4.1.14823.2.2.1.1.1.10.1.1 wlsxSysXStorageEntry 1
sysXStorageType 1.3.6.1.4.1.14823.2.2.1.1.1.10.1.2 wlsxSysXStorageEntry 2
sysXStorageSize 1.3.6.1.4.1.14823.2.2.1.1.1.10.1.3 wlsxSysXStorageEntry 3
sysXStorageUsed 1.3.6.1.4.1.14823.2.2.1.1.1.10.1.4 wlsxSysXStorageEntry 4
sysXStorageName 1.3.6.1.4.1.14823.2.2.1.1.1.10.1.5 wlsxSysXStorageEntry 5
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 237
wlsxSysXStorageEntry
sysXStorageIndex
sysXStorageType
sysXStorageSize
sysXStorageUsed
Syntax wlsxSysXStorageEntry
Max-Access not-accessible
Status current
Description An entry for one long-term storage device contained by the switch.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description The storage index.
History Added in ArubaOS 2.3.
Syntax Integer
ram(1)
flashMemory(2)
Max-Access read-only
Status current
Description The storage type is indicated by Syntax.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The size of the storage file system in MB.
History Added in ArubaOS 2.3.
Syntax Integer32
238 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysXStorageName
wlsxSysXMemoryTable
The objects of the wlsx Sys XMemory table describes the memory utilization of the switch.
Max-Access read-only
Status current
Description The size of the storage file system in MB.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description The name of the storage file system.
History Added in ArubaOS 2.3.
Table 71 wlsxSysXMemoryTable OIDs
Object Object ID
wlsxSysXMemoryEntry 1.3.6.1.4.1.14823.2.2.1.1.1.11.1 wlsxSysXMemoryTable 1
ysysXMemoryIndex 1.3.6.1.4.1.14823.2.2.1.1.1.11.1.1 wlsxSysXMemoryEntry 1
sysXMemorySize 1.3.6.1.4.1.14823.2.2.1.1.1.11.1.2 wlsxSysXMemoryEntry 2
sysXMemoryUsed 1.3.6.1.4.1.14823.2.2.1.1.1.11.1.3 wlsxSysXMemoryEntry 3
sysXMemoryFree 1.3.6.1.4.1.14823.2.2.1.1.1.11.1.4 wlsxSysXMemoryEntry 4
wlsxSwitchLicenseSerialNumber 1.3.6.1.4.1.14823.2.2.1.1.1.12 wlsxSystemXGroup 12
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 239
wlsxSysXMemoryEntry
ysysXMemoryIndex
sysXMemorySize
sysXMemoryUsed
sysXMemoryFree
Syntax WlsxSysXMemoryEntry
Max-Access not-accessible
Status current
Description An entry for one memory region on the switch. Currently, only the CP region is monitored.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Memory index.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Total memory in KB.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Used memory in KB.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
240 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchLicenseSerialNumber
wlsxSwitchUserTable
The objects of the wlsx Switch User table list all the users (wired and wireless) that are connected to the switch.
Users are identified by their IP addresses.
Status current
Description Free memory in KB.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description The license serial number of the switch.
Table 72 wlsxSwitchUserTable OIDs
Object Object ID
wlsxSwitchUserEntry 1.3.6.1.4.1.14823.2.2.1.1.2.1.1 MxSwitchMxSwitchUserTable 1
userIpAddress 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.1 MxSwitchUserEntry 1
userPhyAddress 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.2 MxSwitchUserEntry 2
userName 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.3 MxSwitchUserEntry 3
userRole 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.4 MxSwitchUserEntry 4
userUpTime 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.5 MxSwitchUserEntry 5
userAuthenticationMethod 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.6 MxSwitchUserEntry 6
userLocation 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.7 MxSwitchUserEntry 7
userServerName 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.8 MxSwitchUserEntry 8
userConnectedVLAN 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.9 MxSwitchUserEntry 9
userConnectedSlot 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.10 MxSwitchUserEntry 10
userConnectedPort 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.11 MxSwitchUserEntry 11
userBWContractName 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.12 MxSwitchUserEntry 12
userBWContractUsage 1.3.6.1.4.1.14823.2.2.1.1.2.1.1.13 MxSwitchUserEntry 13
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 241
wlsxSwitchUserEntry
userIpAddress
userPhyAddress
userName
userRole
Syntax MxSwitchUserEntry
Max-Access not-accessible
Status current
Description User entry.
Index { userIpAddress }
Syntax IpAddress
Max-Access not-accessible
Status current
Description IP address from which the user connected to the switch.
Syntax MacAddress
Max-Access read-only
Status current
Description Physical address of the station from which the user connected to the switch.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Name of the user.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description The role configured for this user.
242 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
userUpTime
userAuthenticationMethod
userLocation
userServerName
userConnectedVLAN
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the user was connected to the switch.
Syntax Integer
none(1)
other(2)
web(3)
dot1x(4)
vpn(5)
mac(6)
Max-Access read-only
Status current
Description Authentication mechanism used by the user to connect to the switch.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Location of the access point (in Building.Floor.... format), which the user used to connect to
the switch.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Name of the back-end authentication server, used to authenticate the user.
Syntax Integer32
Max-Access read-only
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 243
Description VLAN on which the user is connected to the switch.
244 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
userConnectedSlot
userConnectedPort
userBWContractName
userBWContractUsage
wlsxSwitchUser6Table
This Table lists all the users (both wired and wireless) currently connected to the switch. Users are identified by
their IP address.
Syntax Integer32
Max-Access read-only
Status current
Description Slot on switch where the user connection terminates.
Syntax Integer32
Max-Access read-only
Status current
Description Port on switch where the user connection terminates.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Name of the bandwidth contract applied to this user.
Syntax Integer
user(1)
shared(2)
Max-Access read-only
Status current
Description Indicates how the bandwidth contract is used.
Table 73 wlsxSwitchUser6Table OIDs
Object Object ID
wlsxSwitchUser6Entry wlsxSwitchUser6Table 1
user6IpAddress wlsxSwitchUser6Entry 1
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 245
user6PhyAddress wlsxSwitchUser6Entry 2
user6Name wlsxSwitchUser6Entry 3
user6Role wlsxSwitchUser6Entry 4
user6UpTime wlsxSwitchUser6Entry 5
user6AuthenticationMethod wlsxSwitchUser6Entry 6
user6Location wlsxSwitchUser6Entry 7
user6ServerName wlsxSwitchUser6Entry 8
user6ConnectedVlan wlsxSwitchUser6Entry 9
user6ConnectedSlot wlsxSwitchUser6Entry 10
user6ConnectedPort wlsxSwitchUser6Entry 11
user6BWContractName wlsxSwitchUser6Entry 12
user6BWContractUsage wlsxSwitchUser6Entry 13
Table 73 wlsxSwitchUser6Table OIDs (Continued)
Object Object ID
246 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchUser6Entry
user6IpAddress
user6PhyAddress
user6Name
user6Role
Syntax wlsxSwitchUser6Entry
Max-Access not-accessible
Status current
Description User Entr
Index { user6IpAddress }
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access not-accessible
Status current
Description IPv6 Address from which the user connected to the switch.
History Added in ArubaOS 3.3.0.0.
Syntax MacAddress
Max-Access read-only
Status current
Description Physical Address of the station from which the user connected to the switch.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the user.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..64))
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 247
Max-Access read-only
Status current
Description The Role configured for this user.
History Added in ArubaOS 3.3.0.0.
248 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
user6UpTime
user6AuthenticationMethod
user6Location
user6ServerName
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the user is connected to the switch.
History Added in ArubaOS 3.3.0.0.
Syntax Integer
none(1)
other(2)
web(3)
dot1x(4)
vpn(5)
mac(6)
Max-Access read-only
Status current
Description Authentication mechanism used by the user to connect to the switch.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Location of the access point (in Building.Floor.... format), which the user used to connect to
the switch.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the Back-end authentication server, used to authenticate the user.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 249
user6ConnectedVlan
user6ConnectedSlot
user6ConnectedPort
user6BWContractName
user6BWContractUsage
Syntax Integer32
Max-Access read-only
Status current
Description Vlan on which the user is connected to the switch.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Slot on switch, where the user connection terminates.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Port on switch, where the user connection terminates.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the Bandwidth Contract applied to this user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer
user(1)
shared(2)
250 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchStationMgmtTable
The objects of the wlsx Switch Station Management table provide information about the wireless stations
associated with the access points connected to this switch.
Max-Access read-only
Status current
Description Indicates how the Bandwidth Contract is used.
History Added in ArubaOS 3.3.0.0.
Table 74 wlsxSwitchStationMgmtTable OIDs
Object Object ID
wlsxSwitchStationMgmtEntry 1.3.6.1.4.1.14823.2.2.1.1.2.2.1 wlsxSwitchStationMgmtTable 1
staPhyAddress 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.1 wlsxSwitchStationMgmtEntry 1
staAccessPointBSSID 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.2 wlsxSwitchStationMgmtEntry 2
staUserName 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.3 wlsxSwitchStationMgmtEntry 3
staUserRole 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.4 wlsxSwitchStationMgmtEntry 4
staAssociationID 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.5 wlsxSwitchStationMgmtEntry 5
staAccessPointESSID 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.6 wlsxSwitchStationMgmtEntry 6
staSignalToNoiseRatio 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.7 wlsxSwitchStationMgmtEntry 7
staTransmitRate 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.8 wlsxSwitchStationMgmtEntry 8
staReceiveRate 1.3.6.1.4.1.14823.2.2.1.1.2.2.1.9 wlsxSwitchStationMgmtEntry 9
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 251
wlsxSwitchStationMgmtEntry
staPhyAddress
staAccessPointBSSID
staUserName
staUserRole
Syntax MxSwitchStationMgmtEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index { staPhyAddress, staAccessPointBSSID }
Syntax MacAddress
Max-Access not-accessible
Status current
Description The physical address of the station.
Syntax MacAddress
Max-Access not-accessible
Status current
Description BSSID of the access point through which the station is connected to the switch.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Name of the user connecting from this station.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description User role.
252 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
staAssociationID
staAccessPointESSID
staSignalToNoiseRatio
staTransmitRate
Syntax Unsigned32
Max-Access read-only
Status current
Description Association ID with which the station is associated with this system.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description ESSID of the access point.
Syntax Integer32
Max-Access read-only
Status current
Description SNR for the BSSID.
Syntax Integer
rate1Mbps(1)
rate2Mbps(2)
rate5point5Mbps(3)
rate6Mbps(4)
rate9Mbps(5)
rate11Mbps(6)
rate12Mbps(7)
rate18Mbps(8)
rate24Mbps(9)
rate36Mbps(10)
rate48Mbps(11)
rate54Mbps(12)
Max-Access read-only
Status current
Description The transmit rate of the channel.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 253
staReceiveRate
wlsxSwitchStationStatsTable
The objects of the wlsx Switch Station Stats table provide information about the statistics of the wireless stations
associated with the access points connected to this switch. The statistics are indexed by the Station MAC and the
AP BSSID.
Syntax Integer
rate1Mbps(1)
rate2Mbps(2)
rate5point5Mbps(3)
rate6Mbps(4)
rate9Mbps(5)
rate11Mbps(6)
rate12Mbps(7)
rate18Mbps(8)
rate24Mbps(9)
rate36Mbps(10)
rate48Mbps(11)
rate54Mbps(12)
Max-Access read-only
Status current
Description The receive rate of the channel.
Table 75 wlsxSwitchStationStatsTable OIDs
Object Object ID
wlsxSwitchStationStatsEntry 1.3.6.1.4.1.14823.2.2.1.1.2.3.1 wlsxSwitchStationStatsTable 1
staTxPackets 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.1 wlsxSwitchStationStatsEntry 1
staTxBytes 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.2 wlsxSwitchStationStatsEntry 2
staRxPackets 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.3 wlsxSwitchStationStatsEntry 3
staRxBytes 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.4 wlsxSwitchStationStatsEntry 4
staBwRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.5 wlsxSwitchStationStatsEntry 5
staFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.6 wlsxSwitchStationStatsEntry 6
staFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.7 wlsxSwitchStationStatsEntry 7
staFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.8 wlsxSwitchStationStatsEntry 8
staFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.9 wlsxSwitchStationStatsEntry 9
staFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.1.2.3.1.10 wlsxSwitchStationStatsEntry 10
254 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchStationStatsEntry
staTxPackets
staTxBytes
staRxPackets
staRxBytes
Syntax MxSwitchStationStatsEntry
Max-Access not-accessible
Status current
Description Station statistics entry.
Index { staPhyAddress, staAccessPointBSSID }
Syntax Counter32
Max-Access read-only
Status current
Description Total packets transmitted by the station.
Syntax Counter32
Max-Access read-only
Status current
Description Total bytes transmitted by the station.
Syntax Counter32
Max-Access read-only
Status current
Description Total packets received by the station.
Syntax Counter32
Max-Access read-only
Status current
Description Total bytes received by the station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 255
staBwRate
staFrameRetryRate
staFrameLowSpeedRate
staFrameNonUnicastRate
staFrameFragmentationRate
staFrameReceiveErrorRate
Syntax Integer32
Max-Access read-only
Status current
Description Bandwidth rate in Kbps of the station.
Syntax Integer32
Max-Access read-only
Status current
Description Station frame retry rate.
Syntax Integer32
Max-Access read-only
Status current
Description Station frame low speed rate.
Syntax Integer32
Max-Access read-only
Status current
Description Station frame non-unicast packet rate.
Syntax Integer32
Max-Access read-only
Status current
Description Station frame fragmentation rate.
Syntax Integer32
256 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAccessPointInfoGroup
The wlsx Access Point Info group contains tables that provide access point information.
wlsxSwitchTotalNumAccessPoints
wlsxSwitchTotalNumStationsAssociated
wlsxSwitchAccessPointTable
The objects of the wlsx Switch Access Point table list the access points connected to this switch.
Max-Access read-only
Status current
Description Station frame receive error rate.
Table 76 wlsxAccessPointInfoGroup OIDs
Object Object ID
wlsxSwitchTotalNumAccessPoints 1.3.6.1.4.1.14823.2.2.1.1.3.1. wlsxAccessPointInfoGroup 2
wlsxSwitchTotalNumStationsAssociated 1.3.6.1.4.1.14823.2.2.1.1.3.2 wlsxAccessPointInfoGroup 2
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of access points connected to this switch.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of stations associated to this switch.
Table 77 wlsxSwitchAccessPointTable OIDs
Object Object ID
wlsxSwitchAccessPointEntry 1.3.6.1.4.1.14823.2.2.1.1.3.3.1 wlsxSwitchAccessPointTable 1
apBSSID 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.1 wlsxSwitchAccessPointEntry 1
apESSID 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.2 wlsxSwitchAccessPointEntry 2
apSlot 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.3 wlsxSwitchAccessPointEntry 3
apPort 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.4 wlsxSwitchAccessPointEntry 4
apIpAddress 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.5 wlsxSwitchAccessPointEntry 5
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 257
apPhyType 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.6 wlsxSwitchAccessPointEntry 6
apType 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.7 wlsxSwitchAccessPointEntry 7
apCurrentChannel 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.8 wlsxSwitchAccessPointEntry 8
apLocation 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.9 wlsxSwitchAccessPointEntry 9
apTotalTime 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.10 wlsxSwitchAccessPointEntry 10
apInactiveTime 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.11 wlsxSwitchAccessPointEntry 11
apLoadBalancing 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.12 wlsxSwitchAccessPointEntry 12
apChannelNoise 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.13 wlsxSwitchAccessPointEntry 13
apSignalToNoiseRatio 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.14 wlsxSwitchAccessPointEntry 14
apTransmitRate 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.15 wlsxSwitchAccessPointEntry 15
apReceiveRate 1.3.6.1.4.1.14823.2.2.1.1.3.3.1.16 wlsxSwitchAccessPointEntry 16
Table 77 wlsxSwitchAccessPointTable OIDs (Continued)
Object Object ID
258 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchAccessPointEntry
apBSSID
apESSID
apSlot
apPort
Syntax MxSwitchAccessPointEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index { apBSSID }
Syntax MacAddress
Max-Access not-accessible
Status current
Description The physical address of the access point.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description ESSID of the access point.
Syntax Unsigned32
Max-Access read-only
Status current
Description Slot to which the access point is connected.
Syntax Unsigned32
Max-Access read-only
Status current
Description Port to which the access point is connected.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 259
apIpAddress
apPhyType
apType
apCurrentChannel
apLocation
Syntax IpAddress
Max-Access read-only
Status current
Description Address of the access point.
Syntax Integer
dot11a(1)
dot11b(2)
dot11g(3)
Max-Access read-only
Status current
Description Physical layer protocol support of the access point.
Syntax Integer
ap(1)
am(2)
Max-Access read-only
Status current
Description Indicates whether the access point is an air monitor or an access point.
Syntax Integer(1..165)
Max-Access read-only
Status current
Description The current operating frequency channel.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Location of the access point defined in building floor mode.
260 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
apTotalTime
apInactiveTime
apLoadBalancing
apChannelNoise
apSignalToNoiseRatio
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the access point was connected to the switch.
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the access point has been inactive.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether load balancing is enabled or not.
Syntax Integer32
Max-Access read-only
Status current
Description Indicates the noise on the channel.
Syntax Integer32
Max-Access read-only
Status current
Description SNR for the BSSID.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 261
apTransmitRate
apReceiveRate
wlsxSwitchGlobalAPTable
The objects of the wlsx Switch Global APT table list the access points connected in the switch domain.
Syntax Integer
rate1Mbps(1)
rate2Mbps(2)
rate5point5Mbps(3)
rate6Mbps(4)
rate9Mbps(5)
rate11Mbps(6)
rate12Mbps(7)
rate18Mbps(8)
rate24Mbps(9)
rate36Mbps(10)
rate48Mbps(11)
rate54Mbps(12)
Max-Access read-only
Status current
Description Indicates transmit rate of the channel.
Syntax Integer
rate1Mbps(1)
rate2Mbps(2)
rate5point5Mbps(3)
rate6Mbps(4)
rate9Mbps(5)
rate11Mbps(6)
rate12Mbps(7)
rate18Mbps(8)
rate24Mbps(9)
rate36Mbps(10)
rate48Mbps(11)
rate54Mbps(12)
Max-Access read-only
Status current
Description Indicates receive rate of the channel.
Note: This table is only valid only on a master switch—only the tables of the master switch are populated. On a local switch,
the table is empty.
262 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Table 78 wlsxSwitchGlobalAPTable OIDs
Object Object ID
wlsxSwitchGlobalAPEntry 1.3.6.1.4.1.14823.2.2.1.1.3.4.1 wlsxSwitchGlobalAPTable 1
globalAPLocation 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.1 wlsxSwitchGlobalAPEntry 1
globalAPAddress 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.2 wlsxSwitchGlobalAPEntry 2
globalAPLocalSwitch 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.3 wlsxSwitchGlobalAPEntry 3
globalAPdot11aPhyAddr 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.4 wlsxSwitchGlobalAPEntry 4
globalAPdot11bPhyAddr 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.5 wlsxSwitchGlobalAPEntry 5
tvglobalAPState 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.6 wlsxSwitchGlobalAPEntry 6
globalAPdot11gPhyAddr 1.3.6.1.4.1.14823.2.2.1.1.3.4.1.7 wlsxSwitchGlobalAPEntry 7
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 263
wlsxSwitchGlobalAPEntry
globalAPLocation
globalAPAddress
globalAPLocalSwitch
globalAPdot11aPhyAddr
Syntax MxSwitchGlobalAPEntry
Max-Access not-accessible
Status current
Description Station Management Entry.
Index { globalAPLocation, globalAPAddress }
Syntax DisplayString(Size(0..32))
Max-Access not-accessible
Status current
Description Physical location of the AP, defined in building.floor.location format.
Syntax IpAddress
Max-Access not-accessible
Status current
Description Address of the access point.
Syntax IpAddress
Max-Access read-only
Status current
Description IP address of the local switch this access point is connected to.
Syntax MacAddress
Max-Access read-only
Status current
Description Physical MAC address of the module supporting dot11a in the access point. AP can have
support for both dot11a and dot11b physical layer.
264 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
globalAPdot11bPhyAddr
tvglobalAPState
globalAPdot11gPhyAddr
wlsxSwitchAccessPointStatsTable
The objects of the wlsx Switch Access Points table lists the statistics of all access points connected to this switch.
Syntax MacAddress
Max-Access read-only
Status current
Description Physical MAC address of the module supporting dot11b in the access point. AP can have
support for both dot11a and dot11b physical layer.
Syntax Integer(1..7)
Max-Access read-only
Status current
Description Values are deprecated.
State of the AP—1-AP is UP, 2 -AP is DOWN
Syntax MacAddress
Max-Access read-only
Status current
Description Physical MAC address of the module supporting dot11g in the access point. AP can have
support for a,b,g physical layers.
Table 79 wlsxSwitchAccessPointStatsTable OIDs
Object Object ID
wlsxSwitchAccessPointStatsEntry 1.3.6.1.4.1.14823.2.2.1.1.3.5.1 wlsxSwitchAccessPointStatsTable 1
apStatsChannel 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.1 wlsxSwitchAccessPointStatsEntry 1
apChannelBwRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.2 wlsxSwitchAccessPointStatsEntry 2
apChannelFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.3 wlsxSwitchAccessPointStatsEntry 3
apChannelFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.4 wlsxSwitchAccessPointStatsEntry 4
apChannelFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.5 wlsxSwitchAccessPointStatsEntry 5
apChannelFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.6 wlsxSwitchAccessPointStatsEntry 6
apChannelFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.7 wlsxSwitchAccessPointStatsEntry 7
apBSSTxPackets 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.8 wlsxSwitchAccessPointStatsEntry 8
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 265
apBSSTxBytes 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.9 wlsxSwitchAccessPointStatsEntry 9
apBSSRxPackets 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.10 wlsxSwitchAccessPointStatsEntry 10
apBSSRxBytes 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.11 wlsxSwitchAccessPointStatsEntry 11
apBSSBwRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.12 wlsxSwitchAccessPointStatsEntry 12
apBSSFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.13 wlsxSwitchAccessPointStatsEntry 13
apBSSFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.14 wlsxSwitchAccessPointStatsEntry 14
apBSSFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.15 wlsxSwitchAccessPointStatsEntry 15
apBSSFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.16 wlsxSwitchAccessPointStatsEntry 16
apBSSFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.1.3.5.1.17 wlsxSwitchAccessPointStatsEntry 17
Table 79 wlsxSwitchAccessPointStatsTable OIDs (Continued)
Object Object ID
266 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchAccessPointStatsEntry
apStatsChannel
apChannelBwRate
apChannelFrameRetryRate
apChannelFrameLowSpeedRate
Syntax MxSwitchAccessPointStatsEntry
Max-Access not-accessible
Status current
Description Access point stats entry.
Index { apBSSID }
Syntax Integer(1..165)
Max-Access read-only
Status current
Description Channel on which the access point is operating.
Syntax Integer32
Max-Access read-only
Status current
Description Bandwidth rate in Kbps of the access point channel.
Syntax Integer32
Max-Access read-only
Status current
Description Access point channel frame retry rate.
Syntax Integer32
Max-Access read-only
Status current
Description Access point channel frame low speed rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 267
apChannelFrameNonUnicastRate
apChannelFrameFragmentationRate
apChannelFrameReceiveErrorRate
apBSSTxPackets
apBSSTxBytes
apBSSRxPackets
Syntax Integer32
Max-Access read-only
Status current
Description Access point channel frame non-unicast packet rate.
Syntax Integer32
Max-Access read-only
Status current
Description Access point channel frame fragmentation rate.
Syntax Integer32
Max-Access read-only
Status current
Description Access point channel frame receive error rate.
Syntax Counter32
Max-Access read-only
Status current
Description Total packets transmitted by the access point on this BSSID.
Syntax Counter32
Max-Access read-only
Status current
Description Total bytes transmitted by the access point on this BSSID.
Syntax Counter32
268 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Max-Access read-only
Status current
Description Total packets received by the access point on this BSSID.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 269
apBSSRxBytes
apBSSBwRate
apBSSFrameRetryRate
apBSSFrameLowSpeedRate
apBSSFrameNonUnicastRate
apBSSFrameFragmentationRate
Syntax Counter32
Max-Access read-only
Status current
Description Total bytes received by the access point on this BSSID.
Syntax Integer32
Max-Access read-only
Status current
Description Bandwidth rate in Kbps of the access point on this BSSID.
Syntax Integer32
Max-Access read-only
Status current
Description Frame retry rate on this BSSID.
Syntax Integer32
Max-Access read-only
Status current
Description Frame low speed rate on this BSSID.
Syntax Integer32
Max-Access read-only
Status current
Description Frame non-unicast packet rate on this BSSID.
Syntax Integer32
270 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
apBSSFrameReceiveErrorRate
wlsxSwitchTraps Group
The objects of the wlsx Switch Traps group define the objects (variables) that may be returned with a trap listed
in the swith traps (see Table 81 on page 279).
Max-Access read-only
Status current
Description Frame fragmentation rate on this BSSID.
Syntax Integer32
Max-Access read-only
Status current
Description Frame receive error rate on this BSSID.
Table 80 wlsxSwitchTraps OIDs
Object Object ID
wlsxAuthServerName 1.3.6.1.4.1.14823.2.2.1.1.100.100.1 wlsxSwitchTrapObjectsGroup 1
wlsxAuthServerTimeout 1.3.6.1.4.1.14823.2.2.1.1.100.100.2 wlsxSwitchTrapObjectsGroup 2
wlsxFanNumber 1.3.6.1.4.1.14823.2.2.1.1.100.100.4 wlsxSwitchTrapObjectsGroup 4
wlsxLineCardNumber 1.3.6.1.4.1.14823.2.2.1.1.100.100.5 wlsxSwitchTrapObjectsGroup 5
wlsxVoltageType 1.3.6.1.4.1.14823.2.2.1.1.100.100.6 wlsxSwitchTrapObjectsGroup 6
wlsxVoltageValue 1.3.6.1.4.1.14823.2.2.1.1.100.100.7 wlsxSwitchTrapObjectsGroup 7
wlsxTemperatureValue 1.3.6.1.4.1.14823.2.2.1.1.100.100.8 wlsxSwitchTrapObjectsGroup 8
wlsxProcessName 1.3.6.1.4.1.14823.2.2.1.1.100.100.9 wlsxSwitchTrapObjectsGroup 9
wlsxStationMacAddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.10 wlsxSwitchTrapObjectsGroup 10
wlsxStationBlackListReason 1.3.6.1.4.1.14823.2.2.1.1.100.100.11 wlsxSwitchTrapObjectsGroup 11
wlsxSpoofedIpAddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.12 wlsxSwitchTrapObjectsGroup 12
wlsxSpoofedOldPhyAddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.13 wlsxSwitchTrapObjectsGroup 13
wlsxSpoofedNewPhyAddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.14 wlsxSwitchTrapObjectsGroup 14
wlsxDBName 1.3.6.1.4.1.14823.2.2.1.1.100.100.15 wlsxSwitchTrapObjectsGroup 15
wlsxDBUserName 1.3.6.1.4.1.14823.2.2.1.1.100.100.16 wlsxSwitchTrapObjectsGroup 16
wlsxDBIpAddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.17 wlsxSwitchTrapObjectsGroup 17
wlsxDBType 1.3.6.1.4.1.14823.2.2.1.1.100.100.18 wlsxSwitchTrapObjectsGroup 18
wlsxVrID 1.3.6.1.4.1.14823.2.2.1.1.100.100.19 wlsxSwitchTrapObjectsGroup 19
wlsxVrMasterIp 1.3.6.1.4.1.14823.2.2.1.1.100.100.20 wlsxSwitchTrapObjectsGroup 20
wlsxVrrpOperState 1.3.6.1.4.1.14823.2.2.1.1.100.100.21 wlsxSwitchTrapObjectsGroup 21
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 271
wlsxApTxPower 1.3.6.1.4.1.14823.2.2.1.1.100.100.22 wlsxSwitchTrapObjectsGroup 22
wlsxESIServerGrpName 1.3.6.1.4.1.14823.2.2.1.1.100.100.23 wlsxSwitchTrapObjectsGroup 23
wlsxESIServerName 1.3.6.1.4.1.14823.2.2.1.1.100.100.24 wlsxSwitchTrapObjectsGroup 24
wlsxESIServerIpaddress 1.3.6.1.4.1.14823.2.2.1.1.100.100.25 wlsxSwitchTrapObjectsGroup 25
wlsxLicenseDaysRemaining 1.3.6.1.4.1.14823.2.2.1.1.100.100.26 wlsxSwitchTrapObjectsGroup 26
wlsxSlotNumber 1.3.6.1.4.1.14823.2.2.1.1.100.100.27 wlsxSwitchTrapObjectsGroup 27
Table 80 wlsxSwitchTraps OIDs (Continued)
Object Object ID
272 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAuthServerName
wlsxAuthServerTimeout
wlsxFanNumber
wlsxLineCardNumber
wlsxVoltageType
wlsxVoltageValue
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object is used in the traps to indicate the authentication server used for authentication.
Syntax Integer32
Max-Access read-only
Status current
Description This object is used in the traps to indicate the authentication server timeout.
Syntax Integer32
Max-Access read-only
Status current
Description This object is used in the traps to indicate a failing fan number.
Syntax Integer32
Max-Access read-only
Status current
Description This object is used in the traps to indicate a line card in the switch.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description This object is used in the traps to indicate the type of the voltage.
Syntax DisplayString(Size(0..10))
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 273
Max-Access read-only
Status current
Description This object is used in the traps to indicate the voltage value in float.
274 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTemperatureValue
wlsxProcessName
wlsxStationMacAddress
wlsxStationBlackListReason
wlsxSpoofedIpAddress
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object is used in the traps to indicate temperature value.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object is used in the traps to indicate a process name.
Syntax MacAddress
Max-Access read-only
Status current
Description The physical address of the station.
Syntax Integer
userDefined(1)
mitmAttack(2)
authFailure(3)
pingFlood(4)
sessionFlood(5)
synFlood(6)
sessionBlacklist(7)
ipSpoofing(8)
other(100)
Max-Access read-only
Status current
Description The reason why a station is black listed.
Syntax IpAddress
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 275
Status current
Description This object is used in a trap to identify a spoofed IP address.
276 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSpoofedOldPhyAddress
wlsxSpoofedNewPhyAddress
wlsxDBName
wlsxDBUserName
wlsxDBIpAddress
Syntax MacAddress
Max-Access read-only
Status current
Description This object is used in a trap to identify a old MAC address.
Syntax MacAddress
Max-Access read-only
Status current
Description This object is used in a trap to identify a new MAC address.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object is used in a trap to identify name of the database.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object is used in a trap to identify name of the database user.
Syntax IpAddress
Max-Access read-only
Status current
Description This object is used in a trap to identify the IP address of the DB.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 277
wlsxDBType
wlsxVrID
wlsxVrMasterIp
wlsxVrrpOperState
wlsxApTxPower
Syntax Integer
mssql(1)
mysql(2)
Max-Access read-only
Status current
Description This object is used in a trap to identify the port of the user.
Syntax Integer32
Max-Access read-only
Status current
Description This object contains the virtual router identifier.
Syntax IpAddress
Max-Access read-only
Status current
Description This object contains the master IP address.
Syntax Integer
initialize(1)
backup(2)
master(3)
Max-Access read-only
Status current
Description This object represents the VRRP operational state.
Syntax Integer32
Max-Access read-only
Status current
Description This object contains the value of the AP transmit power.
278 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxESIServerGrpName
wlsxESIServerName
wlsxESIServerIpaddress
wlsxLicenseDaysRemaining
wlsxSlotNumber
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object represents the External Services Interface (ESI) Server Group name.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description This object represents the External Services Interface (ESI) Server name.
Syntax IpAddress
Max-Access read-only
Status current
Description This object represents the External Services Interface (ESI) Server IP address.
Syntax Integer32
Max-Access read-only
Status current
Description This object represents number of the days remaining prior to a license expiry.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description This object is used in the traps to indicate a line card in the switch.This value matches the
value of sysExtCardSlot.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 279
Switch Traps–Notifications
Notification provides an acknowledge to the device that sent the trap message.
Table 81 Switch Trap Notification OIDs
Object Object OID
wlsxSwitchIPChanged 1.3.6.1.4.1.14823.2.2.1.1.100.1001 wlsxSwitchTraps 1001
wlsxSwitchRoleChange 1.3.6.1.4.1.14823.2.2.1.1.100.1002 wlsxSwitchTraps 1002
wlsxUserEntryCreated 1.3.6.1.4.1.14823.2.2.1.1.100.1003 wlsxSwitchTraps 1003
wlsxUserEntryDeleted 1.3.6.1.4.1.14823.2.2.1.1.100.1004 wlsxSwitchTraps 1004
wlsxUserEntryAuthenticated 1.3.6.1.4.1.14823.2.2.1.1.100.1005 wlsxSwitchTraps 1005
wlsxUserEntryDeAuthenticated 1.3.6.1.4.1.14823.2.2.1.1.100.1006 wlsxSwitchTraps 1006
wlsxUserAuthenticationFailed 1.3.6.1.4.1.14823.2.2.1.1.100.1007 wlsxSwitchTraps 1007
wlsxAuthServerReqTimedOut 1.3.6.1.4.1.14823.2.2.1.1.100.1008 wlsxSwitchTraps 1008
wlsxAuthServerTimedOut 1.3.6.1.4.1.14823.2.2.1.1.100.1009 wlsxSwitchTraps 1009
wlsxAuthServerIsUp 1.3.6.1.4.1.14823.2.2.1.1.100.1010 wlsxSwitchTraps 1010
wlsxAuthMaxUserEntries 1.3.6.1.4.1.14823.2.2.1.1.100.1011 wlsxSwitchTraps 1011
wlsxAuthMaxAclEntries 1.3.6.1.4.1.14823.2.2.1.1.100.1012 wlsxSwitchTraps 1012
wlsxAuthMaxBWContracts 1.3.6.1.4.1.14823.2.2.1.1.100.1013 wlsxSwitchTraps 1013
wlsxPowerSupplyFailure 1.3.6.1.4.1.14823.2.2.1.1.100.1014 wlsxSwitchTraps 1014
wlsxFanFailure 1.3.6.1.4.1.14823.2.2.1.1.100.1015 wlsxSwitchTraps 1015
wlsxOutOfRangeVoltage 1.3.6.1.4.1.14823.2.2.1.1.100.1016 wlsxSwitchTraps 1016
wlsxOutOfRangeTemperature 1.3.6.1.4.1.14823.2.2.1.1.100.1017 wlsxSwitchTraps 1017
wlsxLCInserted 1.3.6.1.4.1.14823.2.2.1.1.100.1018 wlsxSwitchTraps 1018
wlsxSCInserted 1.3.6.1.4.1.14823.2.2.1.1.100.1019 wlsxSwitchTraps 1019
wlsxGBICInserted 1.3.6.1.4.1.14823.2.2.1.1.100.1020 wlsxSwitchTraps 1020
wlsxProcessDied 1.3.6.1.4.1.14823.2.2.1.1.100.1021 wlsxSwitchTraps 1021
wlsxProcessExceedsMemoryLimits 1.3.6.1.4.1.14823.2.2.1.1.100.1022 wlsxSwitchTraps 1022
wlsxLowOnFlashSpace 1.3.6.1.4.1.14823.2.2.1.1.100.1023 wlsxSwitchTraps 1023
wlsxLowMemory 1.3.6.1.4.1.14823.2.2.1.1.100.1024 wlsxSwitchTraps 1024
wlsxFanTrayRemoved 1.3.6.1.4.1.14823.2.2.1.1.100.1025 wlsxSwitchTraps 1025
wlsxLCRemoved 1.3.6.1.4.1.14823.2.2.1.1.100.1026 wlsxSwitchTraps 1026
wlsxLCRemoved 1.3.6.1.4.1.14823.2.2.1.1.100.1027 wlsxSwitchTraps 1027
wlsxSCRemoved 1.3.6.1.4.1.14823.2.2.1.1.100.1028 wlsxSwitchTraps 1028
wlsxPowerSupplyMissing 1.3.6.1.4.1.14823.2.2.1.1.100.1029 wlsxSwitchTraps 1029
wlsxAccessPointIsUp 1.3.6.1.4.1.14823.2.2.1.1.100.1030 wlsxSwitchTraps 1030
wlsxAccessPointIsDown 1.3.6.1.4.1.14823.2.2.1.1.100.1031 wlsxSwitchTraps 1031
wlsxCoverageHoleDetected 1.3.6.1.4.1.14823.2.2.1.1.100.1032 wlsxSwitchTraps 1032
280 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxChannelChanged 1.3.6.1.4.1.14823.2.2.1.1.100.1033 wlsxSwitchTraps 1033
wlsxStationAddedToBlackList 1.3.6.1.4.1.14823.2.2.1.1.100.1034 wlsxSwitchTraps 1034
wlsxStationRemovedFromBlackList 1.3.6.1.4.1.14823.2.2.1.1.100.1035 wlsxSwitchTraps 1035
wlsxIpSpoofingDetected 1.3.6.1.4.1.14823.2.2.1.1.100.1036 wlsxSwitchTraps 1036
wlsxDBCommunicationFailure 1.3.6.1.4.1.14823.2.2.1.1.100.1037 wlsxSwitchTraps 1037
wlsxVrrpStateChange 1.3.6.1.4.1.14823.2.2.1.1.100.1038 wlsxSwitchTraps 1038
wlsxAPRadioAttributesChanged 1.3.6.1.4.1.14823.2.2.1.1.100.1039 wlsxSwitchTraps 1039
wlsxESIServerUp 1.3.6.1.4.1.14823.2.2.1.1.100.1040 wlsxSwitchTraps 1040
wlsxESIServerDown 1.3.6.1.4.1.14823.2.2.1.1.100.1041 wlsxSwitchTraps 1041
wlsxLicenseExpiry 1.3.6.1.4.1.14823.2.2.1.1.100.1042 wlsxSwitchTraps 1042
Table 81 Switch Trap Notification OIDs (Continued)
Object Object OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 281
wlsxSwitchIPChanged
wlsxSwitchRoleChange
wlsxUserEntryCreated
wlsxUserEntryDeleted
wlsxUserEntryAuthenticated
wlsxUserEntryDeAuthenticated
wlsxUserAuthenticationFailed
Objects { wlsxSwitchIp }
Status current
Description A trap which indicates that the switch IP address has changed.
Objects { wlsxSwitchRole }
Status current
Description A trap which indicates that the role of the switch has changed in the domain—authentication
traps.
Objects { userPhyAddress }
Status current
Description A trap which indicates that a new user is created.
Objects { userPhyAddress }
Status current
Description A trap which indicates that a user is deleted.
Objects { userPhyAddress, userName, userAuthenticationMethod, userRole }
Status current
Description A trap which indicates that a user is authenticated.
Objects { userPhyAddress }
Status current
Description A trap which indicates that a user is deauthenticated.
Objects { userPhyAddress }
282 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description A trap which indicates that a user authentication has failed.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 283
wlsxAuthServerReqTimedOut
wlsxAuthServerTimedOut
wlsxAuthServerIsUp
wlsxAuthMaxUserEntries
wlsxAuthMaxAclEntries
wlsxAuthMaxBWContracts
Platform Traps
wlsxPowerSupplyFailure
Objects { wlsxAuthServerName }
Status current
Description A trap which indicates that the authentication server request timed out.
Objects { wlsxAuthServerName, wlsxAuthServerTimeout }
Status current
Description A trap which indicates that the authentication server timed out.
Objects { wlsxAuthServerName }
Status current
Description A trap which indicates that the authentication server is up.
Status current
Description A trap which indicates that the user entries table is full and cannot add any more entries.
Status current
Description A trap which indicates that the ACL entries table is full and cannot add any more entries.
Status current
Description A trap which indicates that the switch reached the maximum number of configurable
bandwidth contracts.
Status current
Description A trap which indicates that the power supply has failed.
284 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxFanFailure
wlsxOutOfRangeVoltage
wlsxOutOfRangeTemperature
wlsxLCInserted
wlsxSCInserted
wlsxGBICInserted
wlsxProcessDied
Objects { wlsxFanNumber }
Status current
Description A trap which indicates that the fan has failed.
Objects { wlsxVoltageType, wlsxVoltageValue }
Status current
Description A trap which indicates that the switch received out-of-range voltage.
Objects { wlsxTemperatureValue }
Status current
Description A trap which indicates that the temperature is out of bounds.
Objects { wlsxLineCardNumber, wlsxSlotNumber }
Status current
Description A trap which indicates that a line card is inserted.
Status current
Description A trap which indicates that a supervisory card is inserted.
Status current
Description A trap which indicates that a GBIC is inserted in a line card.
Objects { wlsxProcessName }
Status current
Description A trap which indicates that a process has died.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 285
wlsxProcessExceedsMemoryLimits
wlsxLowOnFlashSpace
wlsxLowMemory
wlsxFanTrayRemoved
wlsxLCRemoved
wlsxSCRemoved
wlsxPowerSupplyMissing
Objects { wlsxProcessName }
Status current
Description A trap which indicates that a process is consuming large amounts of memory.
Status current
Description A trap which indicates that the switch is running low on flash space.
Status current
Description A trap which indicates that the system free memory is low.
Status current
Description A trap which indicates that the fan tray is removed.
Status current
Description A trap which indicates that the fan tray is removed.
Objects { wlsxLineCardNumber, wlsxSlotNumber }
Status current
Description A trap which indicates that a line card is removed.
Status current
Description A trap which indicates that a supervisory card is removed.
Status current
Description A trap which indicates that the power supply is missing.
286 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAccessPointIsUp
wlsxAccessPointIsDown
wlsxCoverageHoleDetected
wlsxChannelChanged
wlsxStationAddedToBlackList
wlsxStationRemovedFromBlackList
Objects { apLocation, apIpAddress }
Status current
Description Access point up trap—a trap which indicates that an access point at location apLocation
and address apIpAddress is up.
Objects { apLocation, apIpAddress }
Status current
Description Access point down trap—a trap which indicates that an access point at location apLocation
and address apIpAddress is down.
Objects { apLocation, apIpAddress, wlsxStationMacAddress }
Status current
Description A trap which indicates that an access point at location apLocation and address apIpAddress
has detected a coverage hole.
Objects { apLocation, apIpAddress, apCurrentChannel }
Status deprecated
Description A trap which indicates that an access point at location apLocation and address apIpAddress
has changed the channel to apCurrentChannel.
Objects { wlsxStationMacAddress, wlsxStationBlackListReason }
Status current
Description A trap which indicates that a station with address wlsxStationMacAddress is black listed for
wlsxStationBlackListReason reason.
Objects { wlsxStationMacAddress }
Status current
Description A trap which indicates that a station with address wlsxStationMacAddress is removed from
black list.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 287
wlsxIpSpoofingDetected
wlsxDBCommunicationFailure
wlsxVrrpStateChange
wlsxAPRadioAttributesChanged
wlsxESIServerUp
wlsxESIServerDown
Objects { wlsxSpoofedIpAddress, wlsxSpoofedOldPhyAddress, wlsxSpoofedNewPhyAddress }
Status current
Description A trap indicating that the switch detected IP spoofing.
Objects { wlsxDBName, wlsxDBUserName, wlsxDBIpAddress, wlsxDBType }
Status current
Description A trap to indicate that communication with database failed.
Objects { wlsxVrID, wlsxVrMasterIp, wlsxVrrpOperState }
Status current
Description A trap which indicates that VRRP state has changed on the switch.
Objects { apLocation, apIpAddress, apCurrentChannel, wlsxApTxPower }
Status current
Description A trap which indicates changes in the radio attributes of an access point at location
apLocation and address ap IpAddress.
zAp channel is apCurrentChannel
zTransmit power is apTxPower
Objects { wlsxESIServerGrpName, wlsxESIServerName, wlsxESIServerIpaddress }
Status current
Description A trap which indicates that a ESI server <wlsxESIServerName> in group
<wlsxESIServerGrpName> with <wlsxESIServerIpaddress> is up.
Objects { wlsxESIServerGrpName, wlsxESIServerName, wlsxESIServerIpaddress }
Status current
Description A trap which indicates that a ESI server <wlsxESIServerName> in group
<wlsxESIServerGrpName> with <wlsxESIServerIpaddress> is down.
288 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxLicenseExpiry
IPv6 Authentication Traps
wlsxUser6EntryCreated
wlsxUser6EntryDeleted
wlsxUser6EntryAuthenticated
wlsxUser6EntryDeAuthenticated
Objects { wlsxLicenseDaysRemaining }
Status current
Description A trap which indicates that one or more licenses on the switch will expire in
<wlsxLicenseDaysRemaining> days.
Objects { user6PhyAddress }
Status current
Description A trap which indicates that a New user is created.
History Added in ArubaOS 3.3.0.0.
Objects { user6PhyAddress }
Status current
Description A trap which indicates that a user is deleted.
History Added in ArubaOS 3.3.0.0.
Objects { user6PhyAddress, user6Name, user6AuthenticationMethod, user6Role }
Status current
Description A trap which indicates that a user is Authenticated.
History Added in ArubaOS 3.3.0.0.
Objects { user6PhyAddress }
Status current
Description A trap which indicates that a user is Deauthenticated.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Switch | 289
wlsxUser6AuthenticationFailed
Objects { user6PhyAddress }
Status current
Description A trap which indicates that a user authentication has failed.
History Added in ArubaOS 3.3.0.0.
290 |Switch Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 291
Chapter 13
System External
The System External module provides information about resource usages such as memory and CPU.
Figure 15 shows the architecture of the System External MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The System External MIBs are listed in the file
aruba-systemext.my. For information about downloading Dell MIB files, see “Downloading MIB Files” on
page23.
Figure 15 Stem Ext Hierarchy
1.3.6.1.4.1.14823.2.2.1.2.2
wlsx System Ext Group
wlsx System Ext Group 1.3.6.1.4.1.14823.2.2.1.2.1
wlsx Enterprise MIB Modules
Switch
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1
Aruba Enterprise MIB Modules
Aruba
wlsx System Ext MIB 1.3.6.1.4.1.14823.2.2.1.2
1.3.6.1.4.1.14823.2.2.1.2.1.18
1.3.6.1.4.1.14823.2.2.1.2.1.19
1.3.6.1.4.1.14823.2.2.1.2.1.20
wlsx Sys Ext Power Supply Table
wlsx Sys Ext Switch List Table
1.3.6.1.4.1.14823.2.2.1.2.1.16
1.3.6.1.4.1.14823.2.2.1.2.1.17
wlsx Sys Ext Card Table
wlsx Sys Ext Fan Table
1.3.6.1.4.1.14823.2.2.1.2.1.14
1.3.6.1.4.1.14823.2.2.1.2.1.15
wlsx Sys Ext Storage Table
1.3.6.1.4.1.14823.2.2.1.2.1.13
wlsx Sys Ext Processor Table
wlsx System Ext Grooup
wlsx Sys Ext Switch License Table
292 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The System EXT MIB contains the following tables. The objects of each table are described in the following
sections.
wlsxSystemExtMIB
This MIB module defines MIB objects which provide system-level information about controllers.
wlsxSysExtSwitchIp
wlsxSysExtHostname
Table 82 System External Group Tables
Table Description
wlsxSysExtProcessorTable The table of processors contained by the controller.
wlsxSysExtStorageTable The table of storage devices contained by the controller.
wlsxSysExtMemoryTable The memory status of the controller.
wlsxSysExtCardTable The table of hardware modules in the controller.
wlsxSysExtFanTable The table of all the fans in the controller.
wlsxSysExtPowerSupplyTable The table of power supplies in the controller.
wlsxSysExtSwitchListTable This table lists all the controllers in the Dell Domain.
It is populated only on the master controller. Local controllers return empty
tables.
wlsxSysExtSwitchLicenseTable This table lists all licenses installed on the controller.
wlsxSystemExtTableGenNumberGroup This group lists the modifications that occurred since the last reboot.
Syntax IpAddress
Max-Access read-only
Status current
Description Switch IP as configured by the user. This IP address uniquely identifies the controller.
History Added in ArubaOS 2.3.
Syntax DisplayString (Size(1..32))
Max-Access read-only
Status current
Description Name of the controller.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 293
wlsxSysExtModelName
wlsxSysExtSwitchRole
wlsxSysExtSwitchMasterIp
wlsxSysExtSwitchDate
wlsxSysExtSwitchBaseMacaddress
Syntax DisplayString (Size(1..32))
Max-Access read-only
Status current
Description Model name of the controller.
History Added in ArubaOS 2.3.
Syntax ArubaSwitchRole
Max-Access read-only
Status current
Description Role of this controller in the Dell Switch Domain.
History Added in ArubaOS 2.3.
Syntax IpAddress
Max-Access read-only
Status current
Description Switch IP of the master controller.
History Added in ArubaOS 2.3.
Update in ArubaOS 3.2.0.0.—description.
Syntax DisplayString(Size(0..64))
Max-Access read-write
Status current
Description System notion of the local date and time of day.
History Added in ArubaOS 2.3.
Syntax MacAddress
Max-Access read-only
294 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description The base MAC address of the switch.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 295
wlsxSysExtFanTrayAssemblyNumber
wlsxSysExtFanTraySerialNumber
wlsxSysExtInternalTemparature
wlsxSysExtLicenseSerialNumber
wlsxSysExtSwitchLicenseCount
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Assembly number of the fan tray.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Serial number of the fan tray.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Internal temperature in the controller.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description The license serial number of the controller.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
296 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description The number of licenses installed on the controller.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 297
wlsxSysExtMMSCompatLevel
wlsxSysExtMMSConfigID
wlsxSysExtControllerConfigID
wlsxSysExtIsMMSConfigUpdateEnabled
wlsxSysExtSwitchLastReload
Syntax Integer32
Max-Access read-only
Status current
Description Lists the compatibility level of this controller with the MMS.
History Added in version 3.1
Syntax Integer32
Max-Access read-only
Status current
Description This object represents the value of the MMS Configuration ID in the controller.
History Added in version 3.1
Syntax Integer32
Max-Access read-only
Status current
Description This object represents the value of the controller's Configuration ID.
History Added in version 2.5
Syntax TruthValue
Max-Access read-only
Status current
Description This object indicates whether the controller is configured to accept configuration snapshots
from MMS.
History Added in version 2.5
Syntax DisplayString(Size(0..128))
Max-Access read-only
298 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtLastStatsReset
wlsxSysExtProcessorTable
The objects of the wlsx System External Process table list all the processors and the corresponding loads.
Status current
Description The reason for the last controller reload.
History Added in version 2.5
Syntax TimeTicks
Max-Access read-only
Status current
Description Last time controller stats was reset.
History Added in version 3.2
Table 83 wlsxSysExtProcessorTable OIDs
Object Object ID
wlsxSysExtProcessorEntry 1.3.6.1.4.1.14823.2.2.1.2.1.13.1 wlsxSysExtProcessorTable 1
sysExtProcessorID 1.3.6.1.4.1.14823.2.2.1.2.1.13.1.1 wlsxSysExtProcessorEntry 1
sysExtProcessorDescr 1.3.6.1.4.1.14823.2.2.1.2.1.13.1.2 wlsxSysExtProcessorEntry 2
sysExtProcessorLoad 1.3.6.1.4.1.14823.2.2.1.2.1.13.1.3 wlsxSysExtProcessorEntry 3
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 299
wlsxSysExtProcessorEntry
sysExtProcessorID
sysExtProcessorDescr
sysExtProcessorLoad
wlsxSysExtStorageTable
Syntax wlsxSysExtProcessorEntry
Max-Access not-accessible
Status current
Description An entry for one processor contained by the controller.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Processor index.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Description of the processor.
History Added in ArubaOS 2.3.
Syntax Integer32 (0..100)
Max-Access read-only
Status current
Description The average over the last minute of the percentage of time that this processor was not idle.
History Added in ArubaOS 2.3.
300 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx System External Storage table provide information of the storage devices in the controller.
Table 84 wlsxSysExtStorageTable OIDs
Object Object ID
wlsxSysExtStorageEntry 1.3.6.1.4.1.14823.2.2.1.2.1.14.1 wlsxSysExtStorageTable 1
sysExtStorageIndex 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.1 wlsxSysExtStorageEntry 1
sysExtStorageType 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.2 wlsxSysExtStorageEntry 2
sysExtStorageSize 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.3 wlsxSysExtStorageEntry 3
sysExtStorageUsed 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.4 wlsxSysExtStorageEntry 4
sysExtStorageName 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.5 wlsxSysExtStorageEntry 5
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 301
wlsxSysExtStorageEntry
sysExtStorageIndex
sysExtStorageType
sysExtStorageSize
Syntax wlsxSysExtStorageEntry
Max-Access not-accessible
Status current
Description An entry for one long-term storage device contained by the controller.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
History Added in ArubaOS 2.3.
Syntax Integer
ram(1)
flashMemory(2)
Max-Access read-only
Status current
Description Type of the storage.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Total size of the storage file system in MB.
History Added in ArubaOS 2.3.
302 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysExtStorageUsed
sysExtStorageName
wlsxSysExtMemoryTable
The objects of the wlsx System External Memory table describe the memory utilization of the controller.
Syntax Integer32
Max-Access read-only
Status current
Description Used storage in MB.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Name of the storage file system.
History Added in ArubaOS 2.3.
Object Object ID
wlsxSysExtMemoryEntry 1.3.6.1.4.1.14823.2.2.1.2.1.15.1 wlsxSysExtMemoryTable 1
sysExtMemoryIndex 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.1 wlsxSysExtMemoryEntry 1
sysExtMemorySize 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.2 wlsxSysExtMemoryEntry 2
sysExtMemoryUsed 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.3 wlsxSysExtMemoryEntry 3
sysExtMemoryFree 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.4 wlsxSysExtMemoryEntry 4
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 303
wlsxSysExtMemoryEntry
sysExtMemoryIndex
sysExtMemorySize
Syntax wlsxSysExtMemoryEntry
Max-Access not-accessible
Status current
Description An entry for one memory region on the controller. Currently, only the control processor
memory is monitored.
History Added in ArubaOS 2.3.
Update in ArubaOS 3.2.0.0.—description.
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Total memory in KB.
History Added in ArubaOS 2.3.
304 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysExtMemoryUsed
sysExtMemoryFree
wlsxSysExtCardTable
The objects of the wlsx System External Card table list the different hardware modules in the controller.
Syntax Integer32
Max-Access read-only
Status current
Description Used memory in KB.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Free memory in KB.
History Added in ArubaOS 2.3.
Table 85 wlsxSysExtCardTable
Objects Object ID
wlsxSysExtCardEntry 1.3.6.1.4.1.14823.2.2.1.2.1.16.1 wlsxSysExtCardTable 1
sysExtCardSlot 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.1 wlsxSysExtCardEntry 1
sysExtCardNumOfPorts 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.2 wlsxSysExtCardEntry 2
sysExtCardNumOfPorts 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.3 wlsxSysExtCardEntry 3
sysExtCardNumOfFastethernetPorts 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.4 wlsxSysExtCardEntry 4
sysExtCardNumOfGigPorts 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.5 wlsxSysExtCardEntry 5
sysExtCardSerialNo 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.6 wlsxSysExtCardEntry 6
sysExtCardAssemblyNo 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.7 wlsxSysExtCardEntry 7
sysExtCardManufacturingDate 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.8 wlsxSysExtCardEntry 8
sysExtCardHwRevision 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.9 wlsxSysExtCardEntry 9
sysExtCardFpgaRevision 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.10 wlsxSysExtCardEntry 10
sysExtCardSwitchChip 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.11 wlsxSysExtCardEntry 11
sysExtCardStatus 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.12 wlsxSysExtCardEntry 12
sysExtCardUserSlot 1.3.6.1.4.1.14823.2.2.1.2.1.16.1.13 wlsxSysExtCardEntry 13
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 305
wlsxSysExtCardEntry
sysExtCardSlot
sysExtCardType
sysExtCardNumOfPorts
sysExtCardNumOfFastethernetPorts
Syntax wlsxSysExtCardEntry
Max-Access not-accessible
Status current
Description An entry for one hardware module in the controller.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Slot in which this card is located, offset by one. For the user-visible slot number, see
sysExtCardUserSlot.
History Added in ArubaOS 2.3.
Syntax ArubaCardType
Max-Access read-only
Status current
Description Type of the card.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Number of data ports on the card.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
306 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Number of fast ethernet ports on the card.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 307
sysExtCardNumOfGigPorts
sysExtCardSerialNo
sysExtCardAssemblyNo
sysExtCardManufacturingDate
sysExtCardHwRevision
Syntax Integer32
Max-Access read-only
Status current
Description Number of gigabit ethernet ports on the card.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Serial number of the card.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Assembly number of the card.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description Card manufacturing date.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
308 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Hardware revision of the card.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 309
sysExtCardFpgaRevision
sysExtCardSwitchChip
sysExtCardStatus
sysExtCardUserSlot
wlsxSysExtFanTable
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description FPGA revision number.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Switching chip version.
History Added in ArubaOS 2.3.
Syntax ArubaActiveState
Max-Access read-only
Status current
Description Status of the card.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description User-visible (zero-based) slot number.
History Added in ArubaOS 2.3.
310 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx System External Fan table list the fans of the controller.
wlsxSysExtFanEntry
sysExtFanIndex
sysExtFanStatus
wlsxSysExtPowerSupplyTable
The objects of the wlsx Sys External Power Supply table list the power supplies in the controller.
Table 86 wlsxSysExtFanTable OID
Object Object ID
wlsxSysExtFanEntry 1.3.6.1.4.1.14823.2.2.1.2.1.17.1 wlsxSysExtFanTable 1
sysExtFanIndex 1.3.6.1.4.1.14823.2.2.1.2.1.17.1 wlsxSysExtFanEntry 1
sysExtFanStatus 1.3.6.1.4.1.14823.2.2.1.2.1.17.2 wlsxSysExtFanEntry 2
Syntax wlsxSysExtFanEntry
Max-Access not-accessible
Status current
Description An entry for one fan.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
History Added in ArubaOS 2.3.
Syntax ArubaActiveState
Max-Access read-only
Status current
Description Status of the fan.
History Added in ArubaOS 2.3.
Syntax Sequence Of wlsxSysExtPowerSupplyEntry
Max-Access not-accessible
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 311
Status current
Description The table of power supplies in the controller.
History Added in ArubaOS 2.3.
Table 87 wlsxSysExtPowerSupplyTable
Object Object ID
wlsxSysExtPowerSupplyEntry 1.3.6.1.4.1.14823.2.2.1.2.1.18.1 wlsxSysExtPowerSupplyTable 1
sysExtPowerSupplyIndex 1.3.6.1.4.1.14823.2.2.1.2.1.18.1.1 wlsxSysExtPowerSupplyEntry 1
sysExtPowerSupplyStatus 1.3.6.1.4.1.14823.2.2.1.2.1.18.1.2 wlsxSysExtPowerSupplyEntry 2
312 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtPowerSupplyEntry
sysExtPowerSupplyIndex
sysExtPowerSupplyStatus
wlsxSysExtSwitchListTable
The objects of the wlsx System External Switch List table contain all the controllers in the domain. This table is
only valid when queried from the master controller.
Syntax wlsxSysExtPowerSupplyEntry
Max-Access not-accessible
Status current
Description An entry for one power supply.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
History Added in ArubaOS 2.3.
Syntax ArubaActiveState
Max-Access read-only
Status current
Description Status of the power supply.
History Added in ArubaOS 2.3.
Syntax Sequence Of wlsxSysExtSwitchListEntry
Max-Access not-accessible
Status current
Description This table will list all the controllers in the Dell Switch Domain. It will be populated only on the
master controller. Local controllers return empty table.
Table 88 wlsxSysExtSwitchListTable OIDs
Object Object ID
wlsxSysExtSwitchListEntry 1.3.6.1.4.1.14823.2.2.1.2.1.19.1 wlsxSysExtSwitchListTable 1
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 313
sysExtSwitchIPAddress 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.1 wlsxSysExtSwitchListEntry 1
sysExtSwitchRole 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.2 wlsxSysExtSwitchListEntry 2
sysExtSwitchLocation 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.3 wlsxSysExtSwitchListEntry 3
sysExtSwitchSWVersion 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.4 wlsxSysExtSwitchListEntry 4
sysExtSwitchStatus 1.3.6.1.4.1.14823.2.2.1.2.1.19.15 wlsxSysExtSwitchListEntry 5
sysExtSwitchName 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.6 wlsxSysExtSwitchListEntry 6
sysExtSwitchSerNo 1.3.6.1.4.1.14823.2.2.1.2.1.19.1.7 wlsxSysExtSwitchListEntry 7
Table 88 wlsxSysExtSwitchListTable OIDs (Continued)
Object Object ID
314 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtSwitchListEntry
sysExtSwitchIPAddress
sysExtSwitchRole
sysExtSwitchLocation
sysExtSwitchSWVersion
Syntax wlsxSysExtSwitchListEntry
Max-Access not-accessible
Status current
Description Switch list entry.
Index { sysExtSwitchIPAddress}
History Added in ArubaOS 2.3.
Syntax IpAddress
Max-Access not-accessible
Status current
Description IP address of the controller.
History Added in ArubaOS 2.3.
Syntax ArubaSwitchRole
Max-Access read-only
Status current
Description Role of the switch.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Location of the controller.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 315
sysExtSwitchStatus
sysExtSwitchName
sysExtSwitchSerNo
wlsxSysExtSwitchLicenseTable
The objects of the wlsx External Switch License table list the valid licenses installed on the controller.
Max-Access read-only
Status current
Description Software version the controller is running.
History Added in ArubaOS 2.3.
Syntax ArubaActiveState
Max-Access read-only
Status current
Description Status of the controller.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..128))
Max-Access read-only
Status current
Description Host name of the controller.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Serial number of the controller.
History Added in ArubaOS 2.3.
Table 89 wlsxSysExtSwitchLicenseTable OIDs
Object Object ID
wlsxSysExtLicenseEntry 1.3.6.1.4.1.14823.2.2.1.2.1.20.1 wlsxSysExtSwitchLicenseTable 1
sysExtLicenseIndex 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.1 wlsxSysExtLicenseEntry 1
316 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysExtLicenseKey 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.2 wlsxSysExtLicenseEntry 2
sysExtLicenseInstalled 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.3 wlsxSysExtLicenseEntry 3
sysExtLicenseExpires 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.4 wlsxSysExtLicenseEntry 4
sysExtLicenseFlags 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.5 wlsxSysExtLicenseEntry 5
sysExtLicenseService 1.3.6.1.4.1.14823.2.2.1.2.1.20.1.6 wlsxSysExtLicenseEntry 6
Table 89 wlsxSysExtSwitchLicenseTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 317
wlsxSysExtLicenseEntry
sysExtLicenseIndex
sysExtLicenseKey
sysExtLicenseInstalled
sysExtLicenseExpires
Syntax wlsxSysExtLicenseEntry
Max-Access not-accessible
Status current
Description License entry.
Index { sysExtLicenseIndex }
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description License ID number.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description License key.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description License installation time.
History Added in ArubaOS 2.3.
Syntax DisplayString
318 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysExtLicenseFlags
sysExtLicenseService
wlsxSysExtStorageTable
The objects of the wlsx Sys External Storage lists the storage devices contained by the controller.
Max-Access read-only
Status current
Description License expiry time.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description License flags
E - enabled
A - auto-generated
R - reboot required to activate
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description The service enabled by this license.
History Added in ArubaOS 2.3.
Table 90 wlsxSysExtStorageTable OIDs
Object Object ID
wlsxSysExtStorageEntry 1.3.6.1.4.1.14823.2.2.1.2.1.14.1 wlsxSysExtStorageTable 1
sysExtStorageIndex 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.1 wlsxSysExtStorageEntry 1
sysExtStorageType 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.2 wlsxSysExtStorageEntry 2
sysExtStorageSize 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.3 wlsxSysExtStorageEntry 3
sysExtStorageUsed 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.4 wlsxSysExtStorageEntry 4
sysExtStorageName 1.3.6.1.4.1.14823.2.2.1.2.1.14.1.5 wlsxSysExtStorageEntry 5
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 319
wlsxSysExtStorageEntry
sysExtStorageIndex
sysExtStorageType
sysExtStorageSize
sysExtStorageUsed
Syntax wlsxSysExtStorageEntry
Max-Access not-accessible
Status current
Description An entry for one long-term storage device contained by the controller.
Index { sysExtStorageIndex }
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
Syntax Integer
ram(1)
flashMemory(2)
Max-Access read-only
Status current
Description Type of the storage.
Syntax Integer32
Max-Access read-only
Status current
Description Total size of the storage file system in MB.
Syntax Integer32
Max-Access read-only
Status current
Description Used storage in MB.
320 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
sysExtStorageName
wlsxSysExtMemoryTable
The objects of the wlsx System External Memory table contain the memory status of the controller.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description Name of the storage file system.
Table 91 wlsxSysExtMemoryTable OIDs
Object Object ID
wlsxSysExtMemoryEntry 1.3.6.1.4.1.14823.2.2.1.2.1.15.1 wlsxSysExtMemoryTable 1
sysExtMemoryIndex 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.1 wlsxSysExtMemoryEntry 1
sysExtMemorySize 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.2 wlsxSysExtMemoryEntry 2
sysExtMemoryUsed 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.3 wlsxSysExtMemoryEntry 3
sysExtMemoryFree 1.3.6.1.4.1.14823.2.2.1.2.1.15.1.4 wlsxSysExtMemoryEntry 4
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 321
wlsxSysExtMemoryEntry
sysExtMemoryIndex
sysExtMemorySize
sysExtMemoryUsed
sysExtMemoryFree
Syntax wlsxSysExtMemoryEntry
Max-Access not-accessible
Status current
Description An entry for one memory region on the controller. Currently, only the CP region is monitored.
Index { sysExtMemoryIndex }
Syntax Integer32
Max-Access not-accessible
Status current
Description Index of the table.
Syntax Integer32
Max-Access read-only
Status current
Description Total memory in KB.
Syntax Integer32
Max-Access read-only
Status current
Description Used memory in KB.
Syntax Integer32
Max-Access read-only
Status current
Description Free memory in KB.
322 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSystemExtTableGenNumberGroup
The objects of the wlsx System External Table Generated Number group list the number of modifications that
occurred since the last reboot.
wlsxSysExtUserTableGenNumber
wlsxSysExtAPBssidTableGenNumber
Table 92 wlsxSystemExtTableGenNumberGroup OIDs
Object Object ID
wlsxSysExtUserTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2.1 wlsxSystemExtTableGenNumberGroup 1
wlsxSysExtAPBssidTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2.2 wlsxSystemExtTableGenNumberGroup 2
wlsxSysExtAPRadioTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2.3 wlsxSystemExtTableGenNumberGroup 3
wlsxSysExtAPTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2.4 wlsxSystemExtTableGenNumberGroup 4
wlsxSysExtSwitchListTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2.5 wlsxSystemExtTableGenNumberGroup 5
wlsxSysExtPortTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 6
wlsxSysExtVlanTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 7
wlsxSysExtVlanInterfaceTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 8
wlsxSysExtLicenseTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 9
wlsxSysExtMonAPTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 10
wlsxSysExtMonStationTableGenNumber 1.3.6.1.4.1.14823.2.2.1.2.2. wlsxSystemExtTableGenNumberGroup 11
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the user table was modified since reboot.
History Added in version 3.1
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the AP BSSID table was modified since reboot.
History Added in version 3.1
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 323
wlsxSysExtAPRadioTableGenNumber
wlsxSysExtAPTableGenNumber
wlsxSysExtSwitchListTableGenNumber
wlsxSysExtPortTableGenNumber
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the radio table was modified since reboot.
History Added in version 3.1
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the AP table was modified since reboot.
History Added in version 3.1.
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the switch list table was modified since reboot.
History Added in version 3.1.
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the port table was modified since reboot.
History Added in version 3.1.
324 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtVlanTableGenNumber
wlsxSysExtVlanInterfaceTableGenNumber
wlsxSysExtLicenseTableGenNumber
wlsxSysExtMonAPTableGenNumber
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the VLAN table was modified since reboot.
History Added in version 3.1.
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the VLAN Interface table was modified since reboot.
History Added in version 3.1.
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the license table was modified since reboot.
History Added in version 3.1.
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the monitored AP table was modified since reboot.
History Added in version 3.1.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide System External | 325
wlsxSysExtMonStationTableGenNumber
Syntax Integer32
Max-Access read-only
Status current
Description This object denotes the number of times the monitored station table was modified since
reboot.
History Added in version 3.1
326 | System External Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 327
Chapter 14
Textual Conventions
This chapter provides information about the Textual Conventions, which define the data structures of Dell
object types. Textual Conventions are found in the file aruba-tc.my. For information about downloading Dell
MIB files, see “Downloading MIB Files” on page23.
Following is a list of the Textual Conventions, which are described below.
Note: Textual Conventions do not have OIDs.
ArubaEnableValue ArubaEncryptionMethods ArubaDBType
ArubaFrameType ArubaHashAlgorithms ArubaVrrpState
ArubaPhyType ArubaVLANValidRange ArubaOperStateValue
ArubaHTMode ArubaPortMode ArubaAntennaSetting
ArubaHTExtChannel ArubaDot1dState ArubaAPStatus
ArubaSwitchRole ArubaPoeState ArubaPortSpeed
ArubaSupportStatus ArubaCardType ArubaPortDuplex
ArubaActiveState ArubaESIServerMode ArubaPortType
ArubaACLDomain ArubaESIServerStatus ArubaEnet1Mode
ArubaACLNetworkServiceType ArubaIfType ArubaUnprovisionedStatus
ArubaACLAction ArubaVoipProtocolType ArubaMonitorMode
ArubaDaysOfWeek ArubaAccessPointMode ArubaMeshRole
ArubaAuthenticationMethods ArubaAuthServerType ArubaHTRate
ArubaRogueApType ArubaAddressType
ArubaStationType ArubaBlackListReason
328 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaEnableValue
ArubaFrameType
ArubaPhyType
ArubaHTMode
Syntax Integer
enable(1)
disable(2)
Status current
Description Represents a flag which is either enabled or disabled.
Syntax Integer
associateRequest(0)
associateResponse(1)
reassociateRequest(2)
reassociateResponse(3)
probeRequest(4)
probeResponse(5)
beacon(8)
atim(9)
disassociate(10)
auth(11)
deauth(12)
Status current
Description Represents the frame type.
History Updated in ArubaOS 3.1—syntax
Syntax Integer
dot11a(1)
dot11b(2)
dot11g(3)
dot11ag(4)
wired(5)
Status current
Description Represents the PHY of the access point.
History Updated in ArubaOS 3.1—syntax, wired(5)
Syntax Integer
none(1)
ht20(2)
ht40(3)
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 329
Description Represents the HT status of the access point or client.
History Added in ArubaOS 3.3.0.0.
330 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaHTExtChannel
ArubaSwitchRole
ArubaSupportStatus
ArubaActiveState
ArubaACLDomain
Syntax Integer
none(1)
above(2)
below(3) }
Description Represents the extension channel offset relative to the current channel.
Status current
History Added in ArubaOS 3.3.0.0.
Syntax Integer
master(1)
local(2)
backupmaster(3)
Status current
Description Represents the role of the controller.
Syntax Integer
unsupported(1)
supported(2)
Status current
Description Represents if a feature is supported or unsupported.
Syntax Integer
active(1)
inactive(2)
Status current
Description Represents if a feature is supported or unsupported.
Syntax Integer
alias(1)
any(2)
user(3)
host(4)
network(5)
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 331
Description Represents both the source and destination to which an ACL rule will be applied.
332 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaACLNetworkServiceType
ArubaACLAction
ArubaDaysOfWeek
Syntax Integer
alias(1)
any(2)
tcp(3)
udp(4)
protocol(5)
Status current
Description Represents the network service in an ACL Rule.
Syntax Integer
deny(1)
permit(2)
srcNAT(3)
dstNAT(4)
redirect(5)
Status current
Description Represents the actions in an ACL rule.
Syntax Integer
sun(1)
mon(2)
tue(3)
wed(4)
thu(5)
fri(6)
sat(7)
Status current
Description Represents the actions of an ACL rule.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 333
ArubaAuthenticationMethods
ArubaSubAuthenticationMethods
ArubaRogueApType
Syntax Integer
none(0)
web(1)
mac(2)
vpn(3)
dot1x(4)
kerberos(5)
secureId(7)
pubcookie(15)
xSec(16)
xSecMachine(17)
other(255)
Status current
Description Authentication method.
Syntax Integer
authPAP(1)
authCHAP(2)
authMSCHAP(3)
authMSCHAPv2(4)
eapTLS(5)
eapTTLS(6)
eapLEAP(7)
eapMD5(8)
Status current
Description Sub-authentication (e.g., EAP type).
Syntax Integer
valid(1)
interfering(2)
unsecure(3)
dos(4)
unknown(5)
knownInterfering(6)
Status current
Description Represents the rogue AP type.
334 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaStationType
ArubaEncryptionMethods
ArubaHashAlgorithms
ArubaVLANValidRange
Syntax Integer
valid(1)
interfering(2)
dos(3)
Status current
Description Represents the station type.
Syntax Bits
disabled(0)
static-wep(1)
dynamic-wep(2)
static-wpa(3)
dynamic-wpa(4)
wpa2-psk-aes(5)
wpa2-8021x-aes(6)
wpa2PreAuth(7)
xsec(8)
wpa-psk-aes(9)
wpa-aes(10)
wpa2-psk-tkip(11)
wpa2-8021x-tkip(12)
Status current
Description Represents the actions in an ACL rule.
History Updated in ArubaOS 3.1—syntax items (10), (11), (12)
Syntax Integer
md5(1)
sha(2)
Status current
Description Represents the actions in an ACL rule.
Syntax Integer(1..4095)
Status current
Description Represents the valid VLAN ID range.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 335
ArubaPortMode
ArubaDot1dState
ArubaPoeState
ArubaCardType
Syntax Integer
access(1)
dot1q(2)}
Status current
Description Represents the switch port mode.
Syntax Integer
disabled(1),
blocked(2),
listening(3),
learning(4),
forwarding(5)
Status current
Description Represents the switch port mode.
History Updated in ArubaOS 3.1—syntax, addition of items (2)–(5)
Syntax Integer
disabled(1)
enabled(2)
enabledCisco(3)
Status current
Description Represents the switch port mode.
Syntax Integer
lc1(1)
lc2(2)
sc1(3)
sc2(4)
sw2400(5)
sw800(6)
sw200(7)
m3mk1(8)
sw3200(9)
sw3400(10)
sw3600(11)
Status current
Description Type of the hardware module.
336 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
History Updated in ArubaOS 3.1—syntax, addition of items (8)–(11)
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 337
ArubaESIServerMode
ArubaESIServerStatus
ArubaIfType
ArubaVoipProtocolType
Syntax Integer
bridged(1)
routed(2)
nat(3)
Status current
Description The mode of the ESI server.
History Updated in ArubaOS 3.1—addition of nat(3)
Syntax Integer
up(1)
down(2)
Status current
Description The status of the ESI server.
Syntax Integer
port(1)
VLAN(2)
tunnel(3)
loopback(4)
Status current
Description The type interface referred to by the value of ifIndex.
Syntax Integer
sccp(1)
svp(2)
vocera(3)
sip(4)
unknown(10)
Status current
Description The type of VoIP protocols supported.
338 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaAccessPointMode
ArubaAuthServerType
ArubaAddressType
ArubaBlackListReason
Syntax Integer
airMonitor(1),
accessPoint(2),
accessPointAndMonitor(3)
meshPortal(4)
meshPoint(5)
Status current
Description The mode of the access point.
History Update in ArubaOS 3.2.0.0.—addition of items (4) and (5) in Syntax.
Syntax Integer
internaldb(1)
radius(2)
ldap(3)
kerberos(4)
tacacs(5)
Status current
Description The mode of the access point.
Syntax Integer
srcAddress(1),
dstAddress(2),
bssid(3)
Status current
Description Address type.
Syntax Integer
userDefined(1)
mitmAttack(2)
authFailure(3)
pingFlood(4)
sessionFlood(5)
synFlood(6)
sessionBlacklist(7)
ipSpoofing(8)
other(100)
Status current
Description Black list reason.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 339
ArubaDBType
ArubaVrrpState
ArubaOperStateValue
ArubaAntennaSetting
ArubaAPStatus
Syntax Integer
mssql(1)
mysql(2)
Status current
Description Database type.
Syntax Integer
initialize(1)
backup(2)
master(3)
Status current
Description Database type.
Syntax Integer
up(1)
down(2)
testing(3)
Syntax current
Description Represents operational state of an interface.
Syntax Integer
notPresent(1)
enabled(2)
disabled(3)
Syntax current
Description Represents the status of the external antenna.
Syntax Integer
up(1)
down(2)
Status current
Description The status of the access point.
340 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaPortSpeed
ArubaPortDuplex
ArubaPortType
ArubaEnet1Mode
Syntax Integer
speed10Mbps(1)
speed100Mbps(2)
speed1000Mbps(3)
speedAuto(4)
speed10Gbps(5)
Status current
Description Port speed.
History Update in ArubaOS 3.2.0.0.—addition of item (5) in Syntax.
Syntax Integer
half(1)
full(2)
auto(3)
Status current
Description Port duplexity.
Syntax Integer
fastethernet(1)
gigabitethernet(2)
xgigabitethernet(3)
Status current
Description Port type.
History Update in ArubaOS 3.2.0.0.—addition of item (3) in Syntax.
Syntax Integer
activeStandby(1)
tunnel(2
bridge(3)
notApplicable(4)
Status current
Description Represents the mode of the Ethernet port on the access point.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 341
ArubaUnprovisionedStatus
ArubaMonitorMode
ArubaConfigurationState
ArubaConfigurationChangeType
Syntax Integer
yes(1)
no(2)
Status current
Description Represents whether the AP is provisioned or not.
Syntax Integer
Status current
Description Represents whether the AP has any radios dedicated to monitoring.
Syntax Integer success(1), error(2)
Status current
Description Configuration transfer types.
History Added in ArubaOS 3.1
Syntax Integer
create(1)
delete(2)
modify(3)
Status current
Description Configuration change types.
History Added in ArubaOS 3.1
342 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaCallStates
ArubaVoipProtocol
ArubaVoipRegState
Syntax Integer
idle(0)
initiated(1)
connecting(2)
delivered(3)
connected(4)
offered(5)
alerting(6)
releasing(7)
cancelling(8)
transient(9)
dummy503(10)
succ(11), fail(12)
aborted(13)
blocked(14)
Status current
Description The call state.
History Added in ArubaOS 3.1
Syntax Integer
sccp(1)
svp(2)
vocera(3)
sip(9)
ua(11)
Status current
Description VoIP protocol used.
History Added in ArubaOS 3.1
Syntax Integer
unkown(0)
registering(1)
unregistering(2)
challenge(3)
registered(4)
unregistered(5)
Status current
Description VoIP registered state.
History Added in ArubaOS 3.1
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Textual Conventions | 343
ArubaVoiceCdrDirection
ArubaVoiceCacBit
ArubaMeshRole
Syntax Integer
og(0)
ic(1)
Status current
Description VoIP CDR direction.
History Added in ArubaOS 3.1
Syntax Bits
cacActiveLoadBalancing(0)
cacHighCapThresholdReached(1)
cacHandRsrvThresholdReached(2)
cacPeakCapacityReached(3)
Status current
Description Voice CAC bit flags.
History Added in ArubaOS 3.1
Syntax Integer
nonmesh(0)
point(1)
portal(2)
Status current
Description Mesh role.
History Added in ArubaOS 3.2.0.0.
344 | Textual Conventions Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ArubaHTRate
Syntax Integer
unknown(0)
ht6dot5(1)
ht13(2)
ht13dot5(3)
ht15(4)
ht19dot5(5)
ht26(6)
ht27(7)
ht30(8)
ht39(9)
ht40dot5(10)
ht45(11)
ht52(12)
ht54(13)
ht58dot5(14)
ht60(15)
ht65(16)
ht78(17)
ht81(18)
ht90(19)
ht104(20)
ht108(21)
ht117(22)
ht120(23)
ht121dot5(24)
ht130(25)
ht135(26)
ht150(27)
ht162(28)
ht180(29)
ht216(30)
ht240(31)
ht243(32)
ht270(33)
ht300(34)
Status current
Description Represents HT rate.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 345
Chapter 15
Traps
This module defines the Traps that can be generated by the controller. Traps are MIB objects (variables) that
transmit information to the SNMP Manager when an event occurs. Traps are included as varbinds (variable
bindings) in the trap protocol data unit (PDU). Varbinds are defined in the Description section below.
Figure 16 shows the architecture of the Traps MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Traps are listed in the file aruba-trap.my MIB file. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Trap Hierarchy
Figure 16 Trap Hierarchy
Other traps are described in the following sections of this reference guide:
z“wlsrTrapObjectsGroup” on page88 (AP and AM)
z“wlsrTrapsGroup” on page92 (AP and AM)
z“wlsxSwitchTraps Group” on page270 (Switch)
z“Switch Traps–Notifications” on page279 (Switch)
z“Platform Traps” on page283 (Switch)
z“IPv6 Authentication Traps” on page288 (Switch)
wlsr Trap MIB
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.3.1.11
wlsr E nterprise MIB Modules
Aruba AP
Aruba E nterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.3
1.3.6.1.4.1.14823.2.3.1.11.1
wlsx Traps Group
Aruba
1.3.6.1.4.1.14823.2.3.1.11.1.1
wlsx Trap Objects Group
1.3.6.1.4.1.14823.2.3.1.11.1.2
wlsx Trap Definitions Group
346 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsx Trap Objects Group
Table 93 wlsxTraps Object Group OIDs
Object Object ID
wlsxTrapAPMacAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.1 wlsxTrapObjectsGroup 1
wlsxTrapAPIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.2 wlsxTrapObjectsGroup 2
wlsxTrapAPBSSID 1.3.6.1.4.1.14823.2.3.1.11.1.1.3 wlsxTrapObjectsGroup 3
wlsxTrapEssid 1.3.6.1.4.1.14823.2.3.1.11.1.1.4 wlsxTrapObjectsGroup 4
wlsxTrapTargetAPBSSID 1.3.6.1.4.1.14823.2.3.1.11.1.1.5 wlsxTrapObjectsGroup 5
wlsxTrapTargetAPSSID 1.3.6.1.4.1.14823.2.3.1.11.1.1.6 wlsxTrapObjectsGroup 6
wlsxTrapTargetAPChannel 1.3.6.1.4.1.14823.2.3.1.11.1.1.7 wlsxTrapObjectsGroup 7
wlsxTrapNodeMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.8 wlsxTrapObjectsGroup 8
wlsxTrapSourceMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.9 wlsxTrapObjectsGroup 9
wlsxReceiverMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.10 wlsxTrapObjectsGroup 10
wlsxTrapTransmitterMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.11 wlsxTrapObjectsGroup 11
wlsxTrapReceiverMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.12 wlsxTrapObjectsGroup 12
wlsxTrapSnr 1.3.6.1.4.1.14823.2.3.1.11.1.1.13 wlsxTrapObjectsGroup 13
wlsxTrapSignatureName 1.3.6.1.4.1.14823.2.3.1.11.1.1.14 wlsxTrapObjectsGroup 14
wlsxTrapFrameType 1.3.6.1.4.1.14823.2.3.1.11.1.1.15 wlsxTrapObjectsGroup 15
wlsxTrapAddressType 1.3.6.1.4.1.14823.2.3.1.11.1.1.16 wlsxTrapObjectsGroup 16
wlsxTrapAPLocation 1.3.6.1.4.1.14823.2.3.1.11.1.1.17 wlsxTrapObjectsGroup 17
wlsxTrapAPChannel 1.3.6.1.4.1.14823.2.3.1.11.1.1.18 wlsxTrapObjectsGroup 18
wlsxTrapAPTxPower 1.3.6.1.4.1.14823.2.3.1.11.1.1.19 wlsxTrapObjectsGroup 19
wlsxTrapMatchedMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.20 wlsxTrapObjectsGroup 20
wlsxTrapMatchedIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.21 wlsxTrapObjectsGroup 21
wlsxTrapRogueIfoURL 1.3.6.1.4.1.14823.2.3.1.11.1.1.22 wlsxTrapObjectsGroup 22
wlsxTrapVLANId 1.3.6.1.4.1.14823.2.3.1.11.1.1.23 wlsxTrapObjectsGroup 23
wlsxTrapAdminStatus 1.3.6.1.4.1.14823.2.3.1.11.1.1.24 wlsxTrapObjectsGroup 24
wlsxTrapOperStatus 1.3.6.1.4.1.14823.2.3.1.11.1.1.25 wlsxTrapObjectsGroup 25
wlsxTrapAuthServerName 1.3.6.1.4.1.14823.2.3.1.11.1.1.26 wlsxTrapObjectsGroup 26
wlsxTrapAuthServerTimeout 1.3.6.1.4.1.14823.2.3.1.11.1.1.27 wlsxTrapObjectsGroup 27
wlsxTrapCardSlot 1.3.6.1.4.1.14823.2.3.1.11.1.1.28 wlsxTrapObjectsGroup 28
wlsxTrapTemperatureValue 1.3.6.1.4.1.14823.2.3.1.11.1.1.29 wlsxTrapObjectsGroup 29
wlsxTrapProcessName 1.3.6.1.4.1.14823.2.3.1.11.1.1.30 wlsxTrapObjectsGroup 30
wlsxTrapFanNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.31 wlsxTrapObjectsGroup 31
wlsxTrapVoltageType 1.3.6.1.4.1.14823.2.3.1.11.1.1.32 wlsxTrapObjectsGroup 32
wlsxTrapVoltageValue 1.3.6.1.4.1.14823.2.3.1.11.1.1.33 wlsxTrapObjectsGroup 33
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 347
wlsxTrapStationBlackListReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.34 wlsxTrapObjectsGroup 34
wlsxTrapSpoofedIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.35 wlsxTrapObjectsGroup 35
wlsxTrapSpoofedOldPhyAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.36 wlsxTrapObjectsGroup 36
wlsxTrapSpoofedNewPhyAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.37 wlsxTrapObjectsGroup 37
wlsxTrapDBName 1.3.6.1.4.1.14823.2.3.1.11.1.1.38 wlsxTrapObjectsGroup 38
wlsxTrapDBUserName 1.3.6.1.4.1.14823.2.3.1.11.1.1.39 wlsxTrapObjectsGroup 39
wlsxTrapDBIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.40 wlsxTrapObjectsGroup 40
wlsxTrapDBType 1.3.6.1.4.1.14823.2.3.1.11.1.1.41 wlsxTrapObjectsGroup 41
wlsxTrapVrrpID 1.3.6.1.4.1.14823.2.3.1.11.1.1.42 wlsxTrapObjectsGroup 42
wlsxTrapVrrpMasterIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.43 wlsxTrapObjectsGroup 43
wlsxTrapVrrpOperState 1.3.6.1.4.1.14823.2.3.1.11.1.1.44 wlsxTrapObjectsGroup 44
wlsxTrapESIServerGrpName 1.3.6.1.4.1.14823.2.3.1.11.1.1.45 wlsxTrapObjectsGroup 45
wlsxTrapESIServerName 1.3.6.1.4.1.14823.2.3.1.11.1.1.46 wlsxTrapObjectsGroup 46
wlsxTrapESIServerIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.47 wlsxTrapObjectsGroup 47
wlsxTrapLicenseDaysRemaining 1.3.6.1.4.1.14823.2.3.1.11.1.1.48 wlsxTrapObjectsGroup 48
wlsxTrapSwitchIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.49 wlsxTrapObjectsGroup 49
wlsxTrapSwitchRole 1.3.6.1.4.1.14823.2.3.1.11.1.1.50 wlsxTrapObjectsGroup 50
wlsxTrapUserIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.51 wlsxTrapObjectsGroup 51
wlsxTrapUserPhyAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.52 wlsxTrapObjectsGroup 52
wlsxTrapUserName 1.3.6.1.4.1.14823.2.3.1.11.1.1.53 wlsxTrapObjectsGroup 53
wlsxTrapUserRole 1.3.6.1.4.1.14823.2.3.1.11.1.1.54 wlsxTrapObjectsGroup 54
wlsxTrapUserAuthenticationMethod 1.3.6.1.4.1.14823.2.3.1.11.1.1.55 wlsxTrapObjectsGroup 55
wlsxTrapAPRadioNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.56 wlsxTrapObjectsGroup 56
wlsxTrapRogueInfoURL 1.3.6.1.4.1.14823.2.3.1.11.1.1.57 wlsxTrapObjectsGroup 57
wlsxTrapInterferingAPInfoURL 1.3.6.1.4.1.14823.2.3.1.11.1.1.58 wlsxTrapObjectsGroup 58
wlsxTrapPortNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.59 wlsxTrapObjectsGroup 59
wlsxTrapTime 1.3.6.1.4.1.14823.2.3.1.11.1.1.60 wlsxTrapObjectsGroup 60
wlsxTrapHostIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.61 wlsxTrapObjectsGroup 61
wlsxTrapHostPort 1.3.6.1.4.1.14823.2.3.1.11.1.1.62 wlsxTrapObjectsGroup 62
wlsxTrapConfigurationId 1.3.6.1.4.1.14823.2.3.1.11.1.1.63 wlsxTrapObjectsGroup 63
wlsxTrapCTSURL 1.3.6.1.4.1.14823.2.3.1.11.1.1.64 wlsxTrapObjectsGroup 64
wlsxTrapCTSTransferType 1.3.6.1.4.1.14823.2.3.1.11.1.1.65 wlsxTrapObjectsGroup 65
wlsxTrapConfigurationState 1.3.6.1.4.1.14823.2.3.1.11.1.1.66 wlsxTrapObjectsGroup 66
wlsxTrapUpdateFailureReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.67 wlsxTrapObjectsGroup 67
Table 93 wlsxTraps Object Group OIDs (Continued)
Object Object ID
348 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapUpdateFailedObj 1.3.6.1.4.1.14823.2.3.1.11.1.1.68 wlsxTrapObjectsGroup 68
wlsxTrapTableEntryChangeType 1.3.6.1.4.1.14823.2.3.1.11.1.1.69 wlsxTrapObjectsGroup 69
wlsxTrapGlobalConfigObj 1.3.6.1.4.1.14823.2.3.1.11.1.1.70 wlsxTrapObjectsGroup 70
wlsxTrapTableGenNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.71 wlsxTrapObjectsGroup 71
wlsxTrapLicenseId 1.3.6.1.4.1.14823.2.3.1.11.1.1.72 wlsxTrapObjectsGroup 72
wlsxTrapConfidenceLevel 1.3.6.1.4.1.14823.2.3.1.11.1.1.73 wlsxTrapObjectsGroup 73
wlsxTrapMissingLicenses 1.3.6.1.4.1.14823.2.3.1.11.1.1.74 wlsxTrapObjectsGroup 74
wlsxVoiceCurrentNumCdr 1.3.6.1.4.1.14823.2.3.1.11.1.1.75 wlsxTrapObjectsGroup 75
wlsxTrapTunnelId 1.3.6.1.4.1.14823.2.3.1.11.1.1.76 wlsxTrapObjectsGroup 76
wlsxTrapTunnelStatus 1.3.6.1.4.1.14823.2.3.1.11.1.1.77 wlsxTrapObjectsGroup 77
wlsxTrapTunnelUpReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.78 wlsxTrapObjectsGroup 78
wlsxTrapTunnelDownReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.79 wlsxTrapObjectsGroup 79
wlsxTrapApSerialNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.80 wlsxTrapObjectsGroup 80
wlsxTraptimeStr 1.3.6.1.4.1.14823.2.3.1.11.1.1.81 wlsxTrapObjectsGroup 81
wlsxTrapMasterIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.82 wlsxTrapObjectsGroup 82
wlsxTrapLocaIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.83 wlsxTrapObjectsGroup 83
wlsxTrapMasterName 1.3.6.1.4.1.14823.2.3.1.11.1.1.84 wlsxTrapObjectsGroup 84
wlsxTrapLocalName 1.3.6.1.4.1.14823.2.3.1.11.1.1.85 wlsxTrapObjectsGroup 85
wlsxTrapPrimaryControllerIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.86 wlsxTrapObjectsGroup 86
wlsxTrapBackupControllerIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.87 wlsxTrapObjectsGroup 87
wlsxTrapSpoofedFrameType 1.3.6.1.4.1.14823.2.3.1.11.1.1.88 wlsxTrapObjectsGroup 88
wlsxTrapAssociationType 1.3.6.1.4.1.14823.2.3.1.11.1.1.89 wlsxTrapObjectsGroup 89
wlsxTrapDeviceIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.90 wlsxTrapObjectsGroup 90
wlsxTrapDeviceMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.91 wlsxTrapObjectsGroup 91
wlsxTrapVcIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.92 wlsxTrapObjectsGroup 92
wlsxTrapVcMacAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.93 wlsxTrapObjectsGroup 93
wlsxTrapAPName 1.3.6.1.4.1.14823.2.3.1.11.1.1.94 wlsxTrapObjectsGroup 94
wlsxTrapApMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.95 wlsxTrapObjectsGroup 95
wlsxTrapAPPrevChannel 1.3.6.1.4.1.14823.2.3.1.11.1.1.96 wlsxTrapObjectsGroup 96
wlsxTrapAPPrevChannelSec 1.3.6.1.4.1.14823.2.3.1.11.1.1.97 wlsxTrapObjectsGroup 97
wlsxTrapAPPrevTxPower 1.3.6.1.4.1.14823.2.3.1.11.1.1.98 wlsxTrapObjectsGroup 98
wlsxTrapAPCurMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.99 wlsxTrapObjectsGroup 99
wlsxTrapAPPrevMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.100 wlsxTrapObjectsGroup 100
wlsxTrapAPARMChangeReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.101 wlsxTrapObjectsGroup 101
Table 93 wlsxTraps Object Group OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 349
wlsxTrapAPMacAddress
wlsxTrapAPIpAddress
wlsxTrapAPBSSID
wlsxTrapEssid
wlsxTrapTargetAPBSSID
wlsxTrapAPChannelSec 1.3.6.1.4.1.14823.2.3.1.11.1.1.102 wlsxTrapObjectsGroup 102
wlsxTrapUserAttributeChangeType 1.3.6.1.4.1.14823.2.3.1.11.1.1.103 wlsxTrapObjectsGroup 103
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the trap to indicate the wired MAC address of an access point.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the IP address of an access point for which we are
raising the trap.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the BSSID of the access point for which we are
raising the trap.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the SSID of the access point for which we are
raising the trap.
Syntax MacAddress
Table 93 wlsxTraps Object Group OIDs (Continued)
Object Object ID
350 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapTargetAPSSID
wlsxTrapTargetAPChannel
wlsxTrapNodeMac
wlsxTrapSourceMac
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the BSSID of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate AP. If an access point is
sending the trap, then it will point to itself.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the SSID of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate AP. If an access point is
sending the trap, then it will point to itself.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the channel of the access point for which we are
raising the trap. If an air monitor is sending the trap, this will indicate AP. If an access point is
sending the trap, then it will point to itself.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the MAC address of a node.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the MAC address of the source.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 351
wlsxReceiverMac
wlsxTrapTransmitterMac
wlsxTrapReceiverMac
wlsxTrapSnr
wlsxTrapSignatureName
wlsxTrapFrameType
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the MAC address of the receiver.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the MAC address of the transmitter.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the MAC address of the transmitter.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the signal-to-noise ratio.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the signature name.
Syntax ArubaFrameType
352 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapAddressType
wlsxTrapAPLocation
wlsxTrapAPChannel
wlsxTrapAPTxPower
wlsxTrapMatchedMac
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the frame type.
Syntax ArubaAddressType
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the address type.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the location of the AP.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the current channel.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the AP transmit power.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 353
wlsxTrapMatchedIp
wlsxTrapRogueIfoURL
wlsxTrapVLANId
wlsxTrapAdminStatus
wlsxTrapOperStatus
Description This object is used in the traps to indicate the MAC address.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the IP address.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used to point to the WEBUI Rogue AP information URL.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the VLAN ID.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the admin status of VLAN.
Syntax ArubaOperStateValue
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the admin status of VLAN.
354 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapAuthServerName
wlsxTrapAuthServerTimeout
wlsxTrapCardSlot
wlsxTrapTemperatureValue
wlsxTrapProcessName
wlsxTrapFanNumber
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the authentication server used for authentication.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the authentication server timeout.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the slot in which this card is present.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the temperature value.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the process name.
Syntax Integer32
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 355
wlsxTrapVoltageType
wlsxTrapVoltageValue
wlsxTrapStationBlackListReason
wlsxTrapSpoofedIpAddress
wlsxTrapSpoofedOldPhyAddress
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the fan number.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the type of voltage.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the voltage value in float.
Syntax ArubaBlackListReason
Max-Access accessible-for-notify
Status current
Description The reason for which a station is black listed.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify a spoofed IP address.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
356 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapSpoofedNewPhyAddress
wlsxTrapDBName
wlsxTrapDBUserName
wlsxTrapDBIpAddress
wlsxTrapDBType
Description This object is used in a trap to identify an old MAC address.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify a new MAC address.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify the name of the database.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify the name of the database user.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify the IP address of the database.
Syntax ArubaDBType
Max-Access accessible-for-notify
Status current
Description This object is used in a trap to identify the port of the user.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 357
wlsxTrapVrrpID
wlsxTrapVrrpMasterIp
wlsxTrapVrrpOperState
wlsxTrapESIServerGrpName
wlsxTrapESIServerName
wlsxTrapESIServerIpAddress
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object contains the virtual router identifier.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object contains the master IP address.
Syntax ArubaVrrpState
Max-Access accessible-for-notify
Status current
Description This object represents the VRRP operational state.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the External Services Interface (ESI) server group name.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the External Services Interface (ESI) server name.
Syntax IpAddress
358 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapLicenseDaysRemaining
wlsxTrapSwitchIp
wlsxTrapSwitchRole
wlsxTrapUserIpAddress
wlsxTrapUserPhyAddress
Max-Access accessible-for-notify
Status current
Description This object represents the External Services Interface (ESI) server IP address.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the number of days remaining prior to a license expiry.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the controller IP address.
Syntax ArubaSwitchRole
Max-Access accessible-for-notify
Status current
Description This object represents the role of the controller.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the IP address of the user.
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 359
wlsxTrapUserName
wlsxTrapUserRole
wlsxTrapUserAuthenticationMethod
wlsxTrapAPRadioNumber
wlsxTrapRogueInfoURL
Description This object represents the MAC address of the user.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the user name.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the authentication method of the user.
Syntax ArubaAuthenticationMethods
Max-Access accessible-for-notify
Status current
Description This object represents the authentication method of the user.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the radio number.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used to point to the WEBGUI Rogue AP information URL.
360 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapInterferingAPInfoURL
wlsxTrapPortNumber
wlsxTrapTime
wlsxTrapHostIp
wlsxTrapHostPort
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used to point to the WEBGUI Rogue interfering access point information URL.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the port number.
Syntax DateAndTime
Max-Access accessible-for-notify
Status current
Description This object is used in all the enterprise traps to indicate the time when the trap is generated
on the controller.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the trap host.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the trap host port.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 361
wlsxTrapConfigurationId
wlsxTrapCTSURL
wlsxTrapCTSTransferType
wlsxTrapConfigurationState
wlsxTrapUpdateFailureReason
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the ID of the configuration used in traps.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the URL from which the transfer should happen.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the transfer type, upload or download.
History Added in ArubaOS 3.1.0.0.
Syntax ArubaConfigurationState
Max-Access accessible-for-notify
Status current
Description This object represents the state of the configuration transfer.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
362 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapUpdateFailedObj
wlsxTrapTableEntryChangeType
wlsxTrapGlobalConfigObj
wlsxTrapTableGenNumber
Status current
Description This object represents the reason for the update failure.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This variable represents the AMAPI object which is the reason for the update failure.
History Added in ArubaOS 3.1.0.0.
Syntax ArubaConfigurationChangeType
Max-Access accessible-for-notify
Status current
Description This object represents the type of the configuration change.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This variable represents the AMAPI object corresponding to the global configuration
change.
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the generation number of a table. Used in the MMS to keep track of
the table content changes.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 363
wlsxTrapLicenseId
wlsxTrapConfidenceLevel
wlsxTrapMissingLicenses
wlsxVoiceCurrentNumCdr
wlsxTrapTunnelId
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the license ID.
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the confidence level as a percentage.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This variable indicates any licenses that are not present during a configuration update.
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the number of CDRs in buffer.
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access accessible-for-notify
364 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapTunnelStatus
wlsxTrapTunnelUpReason
wlsxTrapTunnelDownReason
wlsxTrapApSerialNumber
Status current
Description This object represents the tunnel ID.
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object represents the tunnel status.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the tunnel up reason.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the tunnel down reason.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the AP serial number.
History Added in ArubaOS 3.4.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 365
wlsxTraptimeStr
wlsxTrapMasterIp
wlsxTrapLocaIp
wlsxTrapMasterName
wlsxTrapLocalName
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the Time in String format.
History Added in ArubaOS 3.4.
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the master IP address.
History Added in ArubaOS 3.4.1
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the local IP address.
History Added in ArubaOS 3.4.1
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
Status current
Description This object represents the master controller name.
History Added in ArubaOS 3.4.1
Syntax DisplayString(Size(0..64))
Max-Access accessible-for-notify
366 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapPrimaryControllerIp
wlsxTrapBackupControllerIp
wlsxTrapSpoofedFrameType
wlsxTrapAssociationType
Status current
Description This object represents the local controller name.
History Added in ArubaOS 3.4.1
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the IP address of the AP's primary controller.
History Added in ArubaOS 3.4.1
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the IP address of the AP's backup controller.
History Added in ArubaOS 3.4.1
Syntax DisplayString (SIZE(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the Spoofed Frame Type
History Added in ArubaOS 6.0
Syntax DisplayString (SIZE(0..64))
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the type of association.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 367
wlsxTrapDeviceIpAddress
wlsxTrapDeviceMac
wlsxTrapVcIpAddress
wlsxTrapVcMacAddress
wlsxTrapAPName
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the IP address of a device seen by an AP.
History Added in ArubaOS 6.0
Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object represents the MAC address of a device seen by an AP.
History Added in ArubaOS 6.0
Syntax IpAddress
Max-Access accessible-for-notify
Status current
Description This object represents the Ip Address of a Voice client.
History Added in ArubaOS 6.0
Syntax Syntax MacAddress
Max-Access accessible-for-notify
Status current
Description This object represents the MAC address of a Voice client.
History Added in ArubaOS 6.0
Syntax DisplayString (SIZE(0..64))
Max-Access accessible-for-notify
368 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapApMode
wlsxTrapAPPrevChannel
wlsxTrapAPPrevChannelSec
wlsxTrapAPPrevTxPower
Status current
Description This object is used in the traps to indicate the Name of the AP.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This Object represents the AP Mode.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the Previous Channel.
History Added in ArubaOS 6.0
Syntax ArubaHTExtChannel
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the Previous Secondary Channel.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate previous AP Transmit Power.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 369
wlsxTrapAPCurMode
wlsxTrapAPPrevMode
wlsxTrapAPARMChangeReason
wlsxTrapAPChannelSec
wlsxTrapUserAttributeChangeType
Syntax wlsxTrapAPCurMode
Max-Access accessible-for-notify
Status current
Description This Object represents the APs Current Mode.
History Added in ArubaOS 6.0
Syntax ArubaAccessPointMode
Max-Access accessible-for-notify
Status current
Description This Object represents the APs Previous Mode.
History Added in ArubaOS 6.0
Syntax ArubaARMChangeReason
Max-Access accessible-for-notify
Status current
Description This Object represents the APs Previous Mode.
History Added in ArubaOS 6.0
Syntax ArubaHTExtChannel
Max-Access accessible-for-notify
Status current
Description This object is used in the traps to indicate the Current Secondary Channel.
History Added in ArubaOS 6.0
Syntax ArubaConfigurationChangeType
Max-Access accessible-for-notify
370 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description This object represents type of the configuration change.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 371
wlsx Trap Definitions Group
Table 94 wlsx Trap Definitions Group OIDs
Object Object ID
wlsxVLANLinkUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1000 wlsxTrapDefinitionsGroup 1000
wlsxVLANLinkDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1001 wlsxTrapDefinitionsGroup 1001
wlsxSignatureMatch 1.3.6.1.4.1.14823.2.3.1.11.1.2.1002 wlsxTrapDefinitionsGroup 1002
wlsxNodeRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1003 wlsxTrapDefinitionsGroup 1003
wlsxNormalTemperature 1.3.6.1.4.1.14823.2.3.1.11.1.2.1004 wlsxTrapDefinitionsGroup 1004
wlsxProcessRestart 1.3.6.1.4.1.14823.2.3.1.11.1.2.1005 wlsxTrapDefinitionsGroup 1005
wlsxFlashSpaceOK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1006 wlsxTrapDefinitionsGroup 1006
wlsxMemoryUsageOK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1007 wlsxTrapDefinitionsGroup 1007
wlsxPowerSupplyOK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1008 wlsxTrapDefinitionsGroup 1008
wlsxFanOK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1009 wlsxTrapDefinitionsGroup 1009
wlsxInRangeVoltage 1.3.6.1.4.1.14823.2.3.1.11.1.2.1010 wlsxTrapDefinitionsGroup 1010
wlsxCoverageHoleResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1011 wlsxTrapDefinitionsGroup 1011
wlsxNSwitchIPChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1012 wlsxTrapDefinitionsGroup 1012
wlsxNSwitchRoleChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1013 wlsxTrapDefinitionsGroup 1013
wlsxNUserEntryCreated 1.3.6.1.4.1.14823.2.3.1.11.1.2.1014 wlsxTrapDefinitionsGroup 1014
wlsxNUserEntryDeleted 1.3.6.1.4.1.14823.2.3.1.11.1.2.1015 wlsxTrapDefinitionsGroup 1015
wlsxNUserEntryAuthenticated 1.3.6.1.4.1.14823.2.3.1.11.1.2.1016 wlsxTrapDefinitionsGroup 1016
wlsxNUserEntryDeAuthenticated 1.3.6.1.4.1.14823.2.3.1.11.1.2.1017 wlsxTrapDefinitionsGroup 1017
wlsxNUserAuthenticationFailed 1.3.6.1.4.1.14823.2.3.1.11.1.2.1018 wlsxTrapDefinitionsGroup 1018
wlsxNAuthServerReqTimedOut 1.3.6.1.4.1.14823.2.3.1.11.1.2.1019 wlsxTrapDefinitionsGroup 1019
wlsxNAuthServerTimedOut 1.3.6.1.4.1.14823.2.3.1.11.1.2.1020 wlsxTrapDefinitionsGroup 1020
wlsxNAuthServerIsUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1021 wlsxTrapDefinitionsGroup 1021
wlsxNAuthMaxUserEntries 1.3.6.1.4.1.14823.2.3.1.11.1.2.1022 wlsxTrapDefinitionsGroup 1022
wlsxNAuthMaxAclEntries 1.3.6.1.4.1.14823.2.3.1.11.1.2.1023 wlsxTrapDefinitionsGroup 1023
wlsxNAuthMaxBWContracts 1.3.6.1.4.1.14823.2.3.1.11.1.2.1024 wlsxTrapDefinitionsGroup 1024
wlsxNPowerSupplyFailure 1.3.6.1.4.1.14823.2.3.1.11.1.2.1025 wlsxTrapDefinitionsGroup 1025
wlsxNFanFailure 1.3.6.1.4.1.14823.2.3.1.11.1.2.1026 wlsxTrapDefinitionsGroup 1026
wlsxNOutOfRangeVoltage 1.3.6.1.4.1.14823.2.3.1.11.1.2.1027 wlsxTrapDefinitionsGroup 1027
wlsxNOutOfRangeTemperature 1.3.6.1.4.1.14823.2.3.1.11.1.2.1028 wlsxTrapDefinitionsGroup 1028
wlsxNLCInserted 1.3.6.1.4.1.14823.2.3.1.11.1.2.1029 wlsxTrapDefinitionsGroup 1029
wlsxNSCInserted 1.3.6.1.4.1.14823.2.3.1.11.1.2.1030 wlsxTrapDefinitionsGroup 1030
wlsxNGBICInserted 1.3.6.1.4.1.14823.2.3.1.11.1.2.1031 wlsxTrapDefinitionsGroup 1031
wlsxNProcessDied 1.3.6.1.4.1.14823.2.3.1.11.1.2.1032 wlsxTrapDefinitionsGroup 1032
372 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNProcessExceedsMemoryLimits 1.3.6.1.4.1.14823.2.3.1.11.1.2.1033 wlsxTrapDefinitionsGroup 1033
wlsxNLowOnFlashSpace 1.3.6.1.4.1.14823.2.3.1.11.1.2.1034 wlsxTrapDefinitionsGroup 1034
wlsxNLowMemory 1.3.6.1.4.1.14823.2.3.1.11.1.2.1035 wlsxTrapDefinitionsGroup 1035
wlsxNFanTrayRemoved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1036 wlsxTrapDefinitionsGroup 1036
wlsxNFanTrayInserted 1.3.6.1.4.1.14823.2.3.1.11.1.2.1037 wlsxTrapDefinitionsGroup 1037
wlsxNLCRemoved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1038 wlsxTrapDefinitionsGroup 1038
wlsxNPowerSupplyMissing 1.3.6.1.4.1.14823.2.3.1.11.1.2.1039 wlsxTrapDefinitionsGroup 1039
wlsxNAccessPointIsUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1040 wlsxTrapDefinitionsGroup 1040
wlsxNAccessPointIsDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1041 wlsxTrapDefinitionsGroup 1041
wlsxNCoverageHoleDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1042 wlsxTrapDefinitionsGroup 1042
wlsxNChannelChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1043 wlsxTrapDefinitionsGroup 1043
wlsxNStationAddedToBlackList 1.3.6.1.4.1.14823.2.3.1.11.1.2.1044 wlsxTrapDefinitionsGroup 1044
wlsxNStationRemovedFromBlackList 1.3.6.1.4.1.14823.2.3.1.11.1.2.1045 wlsxTrapDefinitionsGroup 1045
wlsxNIpSpoofingDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1046 wlsxTrapDefinitionsGroup 1046
wlsxNDBCommunicationFailure 1.3.6.1.4.1.14823.2.3.1.11.1.2.1047 wlsxTrapDefinitionsGroup 1047
wlsxNVrrpStateChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1048 wlsxTrapDefinitionsGroup 1048
wlsxNRadioAttributesChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1049 wlsxTrapDefinitionsGroup 1049
wlsxNESIServerUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1050 wlsxTrapDefinitionsGroup 1050
wlsxNESIServerDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1051 wlsxTrapDefinitionsGroup 1051
wlsxNLicenseExpiry 1.3.6.1.4.1.14823.2.3.1.11.1.2.1053 wlsxTrapDefinitionsGroup 1053
wlsxUnsecureAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1053 wlsxTrapDefinitionsGroup 1053
wlsxUnsecureAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1054 wlsxTrapDefinitionsGroup 1054
wlsxStaImpersonation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1055 wlsxTrapDefinitionsGroup 1055
wlsxReservedChannelViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1056 wlsxTrapDefinitionsGroup 1056
wlsxValidSSIDViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1057 wlsxTrapDefinitionsGroup 1057
wlsxChannelMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1058 wlsxTrapDefinitionsGroup 1058
wlsxOUIMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1059 wlsxTrapDefinitionsGroup 1059
wlsxSSIDMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1060 wlsxTrapDefinitionsGroup 1060
wlsxShortPreableMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1061 wlsxTrapDefinitionsGroup 1061
wlsxWPAMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1062 wlsxTrapDefinitionsGroup 1062
wlsxAdhocNetworkDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1063 wlsxTrapDefinitionsGroup 1063
wlsxAdhocNetworkRemoved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1064 wlsxTrapDefinitionsGroup 1064
wlsxStaPolicyViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1065 wlsxTrapDefinitionsGroup 1065
wlsxRepeatWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1066 wlsxTrapDefinitionsGroup 1066
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 373
wlsxWeakWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1067 wlsxTrapDefinitionsGroup 1067
wlsxChannelInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1068 wlsxTrapDefinitionsGroup 1068
wlsxChannelInterferenceCleared 1.3.6.1.4.1.14823.2.3.1.11.1.2.1069 wlsxTrapDefinitionsGroup 1069
wlsxAPInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1070 wlsxTrapDefinitionsGroup 1070
wlsxAPInterferenceCleared 1.3.6.1.4.1.14823.2.3.1.11.1.2.1071 wlsxTrapDefinitionsGroup 1071
wlsxStaInterferenceDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1072 wlsxTrapDefinitionsGroup 1072
wlsxStaInterferenceCleared 1.3.6.1.4.1.14823.2.3.1.11.1.2.1073 wlsxTrapDefinitionsGroup 1073
wlsxFrameRetryRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1074 wlsxTrapDefinitionsGroup 1074
wlsxFrameReceiveErrorRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1075 wlsxTrapDefinitionsGroup 1075
wlsxFrameFragmentationRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1076 wlsxTrapDefinitionsGroup 1076
wlsxFrameBandWidthRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1077 wlsxTrapDefinitionsGroup 1077
wlsxFrameLowSpeedRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1078 wlsxTrapDefinitionsGroup 1078
wlsxFrameNonUnicastRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1079 wlsxTrapDefinitionsGroup 1079
wlsxLoadbalancingEnabled 1.3.6.1.4.1.14823.2.3.1.11.1.2.1080 wlsxTrapDefinitionsGroup 1080
wlsxLoadbalancingDisabled 1.3.6.1.4.1.14823.2.3.1.11.1.2.1081 wlsxTrapDefinitionsGroup 1081
wlsxChannelFrameRetryRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1082 wlsxTrapDefinitionsGroup 1082
wlsxChannelFrameFragmentationRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1083 wlsxTrapDefinitionsGroup 1083
wlsxChannelFrameErrorRateExceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1084 wlsxTrapDefinitionsGroup 1084
wlsxSignatureMatchAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1085 wlsxTrapDefinitionsGroup 1085
wlsxSignatureMatchSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1086 wlsxTrapDefinitionsGroup 1086
wlsxChannelRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1087 wlsxTrapDefinitionsGroup 1087
wlsxNodeRateAnomalyAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1088 wlsxTrapDefinitionsGroup 1088
wlsxNodeRateAnomalySta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1089 wlsxTrapDefinitionsGroup 1089
wlsxEAPRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1090 wlsxTrapDefinitionsGroup 1090
wlsxSignalAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1091 wlsxTrapDefinitionsGroup 1091
wlsxSequenceNumberAnomalyAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1092 wlsxTrapDefinitionsGroup 1092
wlsxSequenceNumberAnomalySta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1093 wlsxTrapDefinitionsGroup 1093
wlsxDisconnectStationAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1094 wlsxTrapDefinitionsGroup 1094
wlsxApFloodAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1095 wlsxTrapDefinitionsGroup 1095
wlsxAdhocNetwork 1.3.6.1.4.1.14823.2.3.1.11.1.2.1096 wlsxTrapDefinitionsGroup 1096
wlsxWirelessBridge 1.3.6.1.4.1.14823.2.3.1.11.1.2.1097 wlsxTrapDefinitionsGroup 1097
wlsxInvalidMacOUIAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1098 wlsxTrapDefinitionsGroup 1098
wlsxInvalidMacOUISta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1099 wlsxTrapDefinitionsGroup 1099
wlsxWEPMisconfiguration 1.3.6.1.4.1.14823.2.3.1.11.1.2.1100 wlsxTrapDefinitionsGroup 1100
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
374 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxStaRepeatWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1101 wlsxTrapDefinitionsGroup 1101
wlsxStaWeakWEPIVViolation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1102 wlsxTrapDefinitionsGroup 1102
wlsxStaAssociatedToUnsecureAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1103 wlsxTrapDefinitionsGroup 1103
wlsxStaUnAssociatedFromUnsecureAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1104 wlsxTrapDefinitionsGroup 1104
wlsxAdhocNetworkBridgeDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1105 wlsxTrapDefinitionsGroup 1105
wlsxInterferingApDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1106 wlsxTrapDefinitionsGroup 1106
wlsxPortUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1107 wlsxTrapDefinitionsGroup 1107
wlsxPortDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1108 wlsxTrapDefinitionsGroup 1108
wlsxBSSIDIsUpS 1.3.6.1.4.1.14823.2.3.1.11.1.2.1109 wlsxTrapDefinitionsGroup 1109
wlsxBSSIDIsDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1110 wlsxTrapDefinitionsGroup 1110
wlsxColdStart 1.3.6.1.4.1.14823.2.3.1.11.1.2.1111 wlsxTrapDefinitionsGroup 1111
wlsxWarmStart 1.3.6.1.4.1.14823.2.3.1.11.1.2.1112 wlsxTrapDefinitionsGroup 1112
wlsxAPImpersonation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1113 wlsxTrapDefinitionsGroup 1113
wlsxInformQueueOverFlow 1.3.6.1.4.1.14823.2.3.1.11.1.2.1114 wlsxTrapDefinitionsGroup 1114
wlsxNAuthServerIsDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1115 wlsxTrapDefinitionsGroup 1115
wlsxCTSTransferError 1.3.6.1.4.1.14823.2.3.1.11.1.2.1116 wlsxTrapDefinitionsGroup 1116
wlsxCTSTransferSucceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1117 wlsxTrapDefinitionsGroup 1117
wlsxConfigurationUpdateError 1.3.6.1.4.1.14823.2.3.1.11.1.2.1118 wlsxTrapDefinitionsGroup 1118
wlsxConfigurationUpdateSucceeded 1.3.6.1.4.1.14823.2.3.1.11.1.2.1119 wlsxTrapDefinitionsGroup 1119
wlsxGlobalConfigurationChangeNotification 1.3.6.1.4.1.14823.2.3.1.11.1.2.1120 wlsxTrapDefinitionsGroup 1120
wlsxUserEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1121 wlsxTrapDefinitionsGroup 1121
wlsxAPBssidEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1122 wlsxTrapDefinitionsGroup 1122
wlsxAPRadioEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1123 wlsxTrapDefinitionsGroup 1123
wlsxAPEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1124 wlsxTrapDefinitionsGroup 1124
wlsxSwitchListEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1125 wlsxTrapDefinitionsGroup 1125
wlsxPortEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1126 wlsxTrapDefinitionsGroup 1126
wlsxVlanEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1127 wlsxTrapDefinitionsGroup 1127
wlsxVlanInterfaceEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1128 wlsxTrapDefinitionsGroup 1128
wlsxWindowsBridgeDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1129 wlsxTrapDefinitionsGroup 1129
wlsxLicenseEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1130 wlsxTrapDefinitionsGroup 1130
wlsxEsiServerChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1131 wlsxTrapDefinitionsGroup 1131
wlsxMonAPEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1132 wlsxTrapDefinitionsGroup 1132
wlsxMonStationEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1133 wlsxTrapDefinitionsGroup 1133
wlsxSignAPNetstumbler 1.3.6.1.4.1.14823.2.3.1.11.1.2.1134 wlsxTrapDefinitionsGroup 1134
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 375
wlsxSignStaNetstumbler 1.3.6.1.4.1.14823.2.3.1.11.1.2.1135 wlsxTrapDefinitionsGroup 1135
wlsxSignAPAsleap 1.3.6.1.4.1.14823.2.3.1.11.1.2.1136 wlsxTrapDefinitionsGroup 1136
wlsxSignStaAsleap 1.3.6.1.4.1.14823.2.3.1.11.1.2.1137 wlsxTrapDefinitionsGroup 1137
wlsxSignAPAirjack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1138 wlsxTrapDefinitionsGroup 1138
wlsxSignStaAirjack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1139 wlsxTrapDefinitionsGroup 1139
wlsxSignAPNullProbeResp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1140 wlsxTrapDefinitionsGroup 1140
wlsxSignStaNullProbeResp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1141 wlsxTrapDefinitionsGroup 1141
wlsxSignAPDeauthBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1142 wlsxTrapDefinitionsGroup 1142
wlsxSignStaDeauthBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1143 wlsxTrapDefinitionsGroup 1143
wlsxWindowsBridgeDetectedAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1144 wlsxTrapDefinitionsGroup 1144
wlsxWindowsBridgeDetectedSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1145 wlsxTrapDefinitionsGroup 1145
wlsxAdhocNetworkBridgeDetectedAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1146 wlsxTrapDefinitionsGroup 1146
wlsxAdhocNetworkBridgeDetectedSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1147 wlsxTrapDefinitionsGroup 1147
wlsxDisconnectStationAttackAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1148 wlsxTrapDefinitionsGroup 1148
wlsxDisconnectStationAttackSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1149 wlsxTrapDefinitionsGroup 1149
wlsxSuspectUnsecureAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1150 wlsxTrapDefinitionsGroup 1150
wlsxSuspectUnsecureAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1151 wlsxTrapDefinitionsGroup 1151
wlsxConfigurationLicenseMismatch 1.3.6.1.4.1.14823.2.3.1.11.1.2.1152 wlsxTrapDefinitionsGroup 1152
wlsxVoiceCdrBufferThresholdReached 1.3.6.1.4.1.14823.2.3.1.11.1.2.1153 wlsxTrapDefinitionsGroup 1153
wlsxTunnelUp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1154 wlsxTrapDefinitionsGroup 1154
wlsxTunnelDown 1.3.6.1.4.1.14823.2.3.1.11.1.2.1155 wlsxTrapDefinitionsGroup 1155
wlsxMeshNodeEntryChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1156 wlsxTrapDefinitionsGroup 1156
wlsxHtGreenfieldSupported 1.3.6.1.4.1.14823.2.3.1.11.1.2.1157 wlsxTrapDefinitionsGroup 1157
wlsxHT40MHzIntoleranceAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1158 wlsxTrapDefinitionsGroup 1158
wlsxHT40MHzIntoleranceSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1159 wlsxTrapDefinitionsGroup 1159
wlsxNAuthServerAllInService 1.3.6.1.4.1.14823.2.3.1.11.1.2.1160 wlsxTrapDefinitionsGroup 1160
wlsxNAdhocNetwork 1.3.6.1.4.1.14823.2.3.1.11.1.2.1161 wlsxTrapDefinitionsGroup 1161
wlsxNAdhocNetworkBridgeDetectedAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1162 wlsxTrapDefinitionsGroup 1162
wlsxNAdhocNetworkBridgeDetectedSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1163 wlsxTrapDefinitionsGroup 1163
wlsxNAuthMaxXsecUserEntries 1.3.6.1.4.1.14823.2.3.1.11.1.2.1164 wlsxTrapDefinitionsGroup 1164
wlsxNVpnMaxSessions 1.3.6.1.4.1.14823.2.3.1.11.1.2.1165 wlsxTrapDefinitionsGroup 1165
wlsxNRapExpiredPSK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1166 wlsxTrapDefinitionsGroup 1166
wlsxNRapWarnExpiredPSK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1167 wlsxTrapDefinitionsGroup 1167
wlsxNConnectionResetWithLocall 1.3.6.1.4.1.14823.2.3.1.11.1.2.1168 wlsxTrapDefinitionsGroup 1168
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
376 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNApOnBackupController 1.3.6.1.4.1.14823.2.3.1.11.1.2.1169 wlsxTrapDefinitionsGroup 1169
wlsxClientFloodAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1170 wlsxTrapDefinitionsGroup 1170
wlsxValidClientNotUsingEncryption 1.3.6.1.4.1.14823.2.3.1.11.1.2.1171 wlsxTrapDefinitionsGroup 1171
wlsxAdhocUsingValidSSID 1.3.6.1.4.1.14823.2.3.1.11.1.2.1172 wlsxTrapDefinitionsGroup 1172
wlsxAPSpoofingDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1173 wlsxTrapDefinitionsGroup 1173
wlsxClientAssociatingOnWrongChannel 1.3.6.1.4.1.14823.2.3.1.11.1.2.1174 wlsxTrapDefinitionsGroup 1174
wlsxNDisconnectStationAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1175 wlsxTrapDefinitionsGroup 1175
wlsxNStaUnAssociatedFromUnsecureAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1176 wlsxTrapDefinitionsGroup 1176
wlsxOmertaAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1177 wlsxTrapDefinitionsGroup 1177
wlsxTKIPReplayAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1178 wlsxTrapDefinitionsGroup 1178
wlsxChopChopAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1179 wlsxTrapDefinitionsGroup 1179
wlsxFataJackAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1180 wlsxTrapDefinitionsGroup 1180
wlsxInvalidAddressCombination 1.3.6.1.4.1.14823.2.3.1.11.1.2.1181 wlsxTrapDefinitionsGroup 1181
wlsxValidClientMisassociation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1182 wlsxTrapDefinitionsGroup 1182
wlsxMalformedHTIEDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1183 wlsxTrapDefinitionsGroup 1183
wlsxMalformedAssocReqDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1184 wlsxTrapDefinitionsGroup 1184
wlsxOverflowIEDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1185 wlsxTrapDefinitionsGroup 1185
wlsxOverflowEAPOLKeyDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1186 wlsxTrapDefinitionsGroup 1186
wlsxMalformedFrameLargeDurationDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1187 wlsxTrapDefinitionsGroup 1187
wlsxMalformedFrameWrongChannelDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1188 wlsxTrapDefinitionsGroup 1188
wlsxMalformedAuthFrame 1.3.6.1.4.1.14823.2.3.1.11.1.2.1189 wlsxTrapDefinitionsGroup 1189
wlsxCTSRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1190 wlsxTrapDefinitionsGroup 1190
wlsxRTSRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1191 wlsxTrapDefinitionsGroup 1191
wlsxNRogueAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1192 wlsxTrapDefinitionsGroup 1192
wlsxNRogueAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1193 wlsxTrapDefinitionsGroup 1193
wlsxNeighborAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1194 wlsxTrapDefinitionsGroup 1194
wlsxNInterferingAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1195 wlsxTrapDefinitionsGroup 1195
wlsxNSuspectRogueAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1196 wlsxTrapDefinitionsGroup 1196
wlsxNSuspectRogueAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1197 wlsxTrapDefinitionsGroup 1197
wlsxBlockAckAttackDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1198 wlsxTrapDefinitionsGroup 1198
wlsxHotspotterAttackDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1199 wlsxTrapDefinitionsGroup 1199
wlsxNSignatureMatch 1.3.6.1.4.1.14823.2.3.1.11.1.2.1200 wlsxTrapDefinitionsGroup 1200
wlsxNSignatureMatchNetstumbler 1.3.6.1.4.1.14823.2.3.1.11.1.2.1201 wlsxTrapDefinitionsGroup 1201
wlsxNSignatureMatchAsleap 1.3.6.1.4.1.14823.2.3.1.11.1.2.1202 wlsxTrapDefinitionsGroup 1202
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 377
wlsxVLANLinkUp
wlsxVLANLinkDown
wlsxSignatureMatch
wlsxNSignatureMatchAirjack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1203 wlsxTrapDefinitionsGroup 1203
wlsxNSignatureMatchNullProbeResp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1204 wlsxTrapDefinitionsGroup 1204
wlsxNSignatureMatchDeauthBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1205 wlsxTrapDefinitionsGroup 1205
wlsxNSignatureMatchDisassocBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1206 wlsxTrapDefinitionsGroup 1206
wlsxNSignatureMatchWellenreiter 1.3.6.1.4.1.14823.2.3.1.11.1.2.1207 wlsxTrapDefinitionsGroup 1207
wlsxAPDeauthContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1208 wlsxTrapDefinitionsGroup 1208
wlsxClientDeauthContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1209 wlsxTrapDefinitionsGroup 1209
wlsxAPWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1210 wlsxTrapDefinitionsGroup 1210
wlsxClientWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1211 wlsxTrapDefinitionsGroup 1211
wlsxAPTaggedWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1212 wlsxTrapDefinitionsGroup 1212
wlsxClientTaggedWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1213 wlsxTrapDefinitionsGroup 1213
wlsxTarpitContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1214 wlsxTrapDefinitionsGroup 1214
wlsxVoiceClientLocationUpdate 1.3.6.1.4.1.14823.2.3.1.11.1.2.1215 wlsxTrapDefinitionsGroup 1215
wlsxAPChannelChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1216 wlsxTrapDefinitionsGroup 1216
wlsxAPPowerChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1217 wlsxTrapDefinitionsGroup 1217
wlsxAPModeChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1218 wlsxTrapDefinitionsGroup 1218
wlsxUserEntryAttributesChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1219 wlsxTrapDefinitionsGroup 1219
Objects wlsxTrapVLANId, wlsxTrapAdminStatus, wlsxTrapOperStatus
Status current
Description This trap indicates that a VLAN interface is up.
Objects wlsxTrapVLANId, wlsxTrapAdminStatus, wlsxTrapOperStatus
Status current
Description This trap indicates that a VLAN interface is down.
Objects wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr, wlsxTrapAPBSSID,
wlsxTrapAPLocation
Status deprecated
Table 94 wlsx Trap Definitions Group OIDs (Continued)
Object Object ID
378 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNodeRateAnomaly
wlsxNormalTemperature
wlsxProcessRestart
wlsxFlashSpaceOK
wlsxMemoryUsageOK
wlsxPowerSupplyOK
Description This trap indicates that a signature match is detected.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the wlsxNSignatureMatch
trap.
Objects wlsxTrapFrameType, wlsxTrapNodeMac, wlsxTrapSnr, wlsxTrapAPBSSID,
wlsxTrapAPLocation
Status deprecated
Description This trap indicates that a node is exceeding the threshold set for the frame type.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNodeRateAnomalyAP and wlsxNodeRateAnomalySta traps.
Objects wlsxTrapTemperatureValue
Status current
Description This trap indicates that the temperature has returned to an acceptable range.
Objects wlsxTrapProcessName
Status current
Description This trap indicates that the named process has been restarted.
Status current
Description This trap indicates that the system flash space is back to a sufficient level.
Status current
Description This trap indicates that the free memory usage is back to a sufficient level. The system
memory threshold is 5 MB.
Status current
Description This trap indicates that the system power supply conditions have returned to normal
operation status.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 379
wlsxFanOK
wlsxInRangeVoltage
wlsxCoverageHoleResolved
wlsxNSwitchIPChanged
wlsxNSwitchRoleChange
wlsxNUserEntryCreated
Objects wlsxTrapFanNumber
Status current
Description This trap indicates that the fan has returned to normal.
Objects wlsxTrapVoltageType, wlsxTrapVoltageValue
Status current
Description This trap indicates that the switch voltage is back within range.
Objects wlsxTrapAPBSSID, wlsxTrapAPLocation, wlsxTrapNodeMac
Status current
Description This trap indicates that a coverage hole at location wlsxTrapAPLocation has been resolved.
History Updated in ArubaOS 3.1—description.
Objects wlsxTrapSwitchIp
Status current
Description This trap indicates that the controller IP address has changed.
Objects wlsxTrapSwitchRole
Status current
Description This trap indicates that the role of the controller IP address has changed in the domain.
Objects wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress
Status current
Description This trap indicates that a new user is created.
380 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNUserEntryDeleted
wlsxNUserEntryAuthenticated
wlsxNUserEntryDeAuthenticated
wlsxNUserAuthenticationFailed
wlsxNAuthServerReqTimedOut
Objects wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress
Status current
Description This trap indicates that a user is deleted.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress, wlsxTrapUserName,
wlsxTrapUserAuthenticatio Method, wlsxTrapUserRole
Status current
Description This trap indicates that a user is authenticated.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress
Status current
Description This trap indicates that a user is deauthenticated.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress
Status current
Description This trap indicates that a user authentication has failed.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAuthServerName
Status current
Description This trap indicates that the authentication server request timed out.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 381
wlsxNAuthServerTimedOut
wlsxNAuthServerIsUp
wlsxNAuthMaxUserEntries
wlsxNAuthMaxAclEntries
wlsxNAuthMaxBWContracts
wlsxNPowerSupplyFailure
Objects wlsxTrapAuthServerName, wlsxTrapAuthServerTimeout
Status current
Description This trap indicates that the authentication server timed out.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAuthServerName
Status current
Description This trap indicates that an authentication server is up.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates that the user entries table is full and cannot add any more entries.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates the ACL entries table is full and cannot add any more entries.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates the controller reached the maximum number of configurable bandwidth
contracts.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates the power supply has failed.
History Added in ArubaOS 3.1.0.0.
382 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNFanFailure
wlsxNOutOfRangeVoltage
wlsxNOutOfRangeTemperature
wlsxNLCInserted
wlsxNSCInserted
wlsxNGBICInserted
Objects wlsxTrapFanNumber
Status current
Description This trap indicates that the fan has failed.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapVoltageType, wlsxTrapVoltageValue
Status current
Description This trap indicates that the controller received out-of-range voltage.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapTemperatureValue
Status current
Description This trap indicates that the controller internal temperature is out-of-bounds voltage.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapCardSlot
Status current
Description This trap indicates that a line card is inserted.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapCardSlot
Status current
Description This trap indicates that a supervisor card is inserted.
History Added in ArubaOS 3.1.0.0.
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 383
wlsxNProcessDied
wlsxNProcessExceedsMemoryLimits
wlsxNLowOnFlashSpace
wlsxNLowMemory
wlsxNFanTrayRemoved
Description This trap indicates that a GBIC is inserted in a line card.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapProcessName
Status current
Description This trap indicates that a process has died.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapProcessName
Status deprecated
Description This trap indicates that a process is consuming large amounts of memory.
History Added in ArubaOS 3.1.0.0.
This trap is deprecated in ArubaOS 3.4.
Status current
Description This trap indicates that the controller is running low on flash space.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates that the system free memory is low. The system memory threshold is 5
MB.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates that a fan tray is removed.
History Added in ArubaOS 3.1.0.0.
384 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNFanTrayInserted
wlsxNLCRemoved
wlsxNPowerSupplyMissing
wlsxNAccessPointIsUp
wlsxNAccessPointIsDown
wlsxNCoverageHoleDetected
Status current
Description This trap indicates that a fan tray is inserted.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapCardSlot
Status current
Description This trap indicates that a line card is removed.
History Added in ArubaOS 3.1.0.0.
Status current
Description This trap indicates that the power supply is missing.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAPMacAddress
Status current
Description This trap indicates that an access point is up.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAPMacAddress
Status current
Description This trap indicates that an access point is down.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAPBSSID, wlsxTrapAPLocation, wlsxTrapNodeMac
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 385
wlsxNChannelChanged
wlsxNStationAddedToBlackList
wlsxNStationRemovedFromBlackList
wlsxNIpSpoofingDetected
wlsxNDBCommunicationFailure
Description This trap indicates that an access point at location wlsxTrapAPLocation has detected a
coverage hole.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapAPBSSID, wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an access point at location wlsxTrapAPLocation has changed the
channel.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapNodeMac, wlsxTrapStationBlackListReason }
Status current
Description This trap indicates that the station is black listed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapNodeMac }
Status current
Description This trap indicates that the station is removed from the black list.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapSpoofedIpAddress, wlsxTrapSpoofedOldPhyAddress,
wlsxTrapSpoofedNewPhyAddress }
Status current
Description A trap indicating that the controller detected IP spoofing.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapDBName, wlsxTrapDBUserName, wlsxTrapDBIpAddress, wlsxTrapDBType }
Status current
386 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNVrrpStateChange
wlsxNRadioAttributesChanged
wlsxNESIServerUp
wlsxNESIServerDown
wlsxNLicenseExpiry
wlsxUnsecureAPDetected
Description This trap indicates that communication with the database failed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapVrrpID, wlsxTrapVrrpMasterIp wlsxTrapVrrpOperState }
Status current
Description This trap indicates that VRRP state has changed on the controller.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPIpAddress,
wlsxTrapAPChannel, wlsxTrapAPTxPower }
Status current
Description This trap indicates changes in the radio attributes of an access point.
Objects { wlsxTrapESIServerGrpName, wlsxTrapESIServerName, wlsxTrapESIServerIpAddress }
Status current
Description This trap indicates that a ESI server is up.
Objects { wlsxTrapESIServerGrpName, wlsxTrapESIServerName, wlsxTrapESIServerIpAddress }
Status current
Description This trap indicates that a ESI server is down.
Objects { wlsxTrapLicenseDaysRemaining }
Status current
Description This trap indicates that one or more licenses on the controller will expire in
wlsxTrapLicenseDaysRemaining days.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel, wlsxTrapMatchedMac,
wlsxTrapMatchedIp, wlsxTrapRogueInfoURL }
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 387
wlsxUnsecureAPResolved
wlsxStaImpersonation
wlsxReservedChannelViolation
wlsxValidSSIDViolation
wlsxChannelMisconfiguration
Status current
Description This trap indicates that an unsecure access point is detected by an air monitor. The AP is
declared unsecure, because it is matched to a configured MAC address or IP address.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that a previously detected unsecure access point is no longer present in
the network.
Objects { wlsxTrapNodeMac, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected station impersonation.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected an access point that is violating the reserved
channel configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected an access point violating valid SSID
configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected an access point that has a bad channel
configuration.
388 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxOUIMisconfiguration
wlsxSSIDMisconfiguration
wlsxShortPreableMisconfiguration
wlsxWPAMisconfiguration
wlsxAdhocNetworkDetected
wlsxAdhocNetworkRemoved
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected an access point that has a bad OUI
configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an access point has a bad SSID configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an access point has bad short preamble configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an access point has bad WPA configuration.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
STATU deprecated
Description This trap indicates that an air monitor has detected an ad hoc network.
NOTE: This trap has been deprecated in ArubaOS 6.0.Instead, use the wlsxNAdhocNetwork
trap.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status deprecated
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 389
wlsxStaPolicyViolation
wlsxRepeatWEPIVViolation
wlsxWeakWEPIVViolation
wlsxChannelInterferenceDetected
wlsxChannelInterferenceCleared
wlsxAPInterferenceDetected
Description This trap indicates that a previously detected ad hoc network is no longer present in the
network.
NOTE: This trap has been deprecated in ArubaOS 6.0
Objects { wlsxTrapTargetAPBSSID, wlsxTrapNodeMac, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that a valid station policy is violated.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected a repeat WEP-IV violation.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an AP/AM detected a weak WEP-IV violation.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor has detected channel interference.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that a previously detected channel interference no longer present.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
390 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAPInterferenceCleared
wlsxStaInterferenceDetected
wlsxStaInterferenceCleared
wlsxFrameRetryRateExceeded
wlsxFrameReceiveErrorRateExceeded
Status current
Description This trap indicates that an air monitor has detected an AP interference on a channel.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that a previously detected AP interference no longer present.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor has detected a station interference on a channel.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that a previously detected station interference is no longer present.
OBJECT { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that an AP has exceeded an upper
threshold for frame retry rate for AP.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapTargetAPChannel, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor is reporting that an AP has exceeded an upper
threshold for frame receive error rate for AP.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 391
wlsxFrameFragmentationRateExceeded
wlsxFrameBandWidthRateExceeded
wlsxFrameLowSpeedRateExceeded
wlsxFrameNonUnicastRateExceeded
wlsxLoadbalancingEnabled
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapTargetAPChannel, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor is reporting that an AP has exceeded an upper
threshold for frame fragmentation rate for AP.
Objects { wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that a station has exceeded the allocated
bandwidth rate.
Objects { wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that a station has exceeded the low speed
rate.
Objects { wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that a station has exceeded the non-
unicast traffic rate.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that an AP has enabled load balancing.
392 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxLoadbalancingDisabled
wlsxChannelFrameRetryRateExceeded
wlsxChannelFrameFragmentationRateExceeded
wlsxChannelFrameErrorRateExceeded
wlsxSignatureMatchAP
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that an AP has enabled load balancing.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that it exceeded an upper threshold for
frame retry rate.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that it exceeded an upper threshold for
frame fragmentation rate.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor is reporting that it exceeded an upper threshold for
frame error rate.
Objects { wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that we detected a signature match from an AP.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the wlsxNSignatureMatch
trap.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 393
wlsxSignatureMatchSta
wlsxChannelRateAnomaly
wlsxNodeRateAnomalyAP
wlsxNodeRateAnomalySta
wlsxEAPRateAnomaly
Objects { wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that we detected a signature match from a station.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the wlsxNSignatureMatch
trap.
Objects { wlsxTrapFrameType, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected frames on a channel which exceed the
configured IDS rate threshold.
Objects { wlsxTrapFrameType, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected frames transmitted by an AP which exceed
the configured IDS rate threshold.
Objects { wlsxTrapFrameType, wlsxTrapNodeMac, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected frames transmitted by a node which exceed
the configured IDS rate threshold.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that the number of EAP handshake packets received by an air monitor
exceeds the configured IDS EAP handshake rate.
394 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSignalAnomaly
wlsxSequenceNumberAnomalyAP
wlsxSequenceNumberAnomalySta
wlsxDisconnectStationAttack
wlsxApFloodAttack
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected a signal anomaly.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor received packets from an AP which exceeds the
acceptable sequence number difference. The acceptable sequence number difference is an
IDS configuration object.
Objects { wlsxTrapSourceMac, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor received packets from a node which exceeds the
acceptable sequence number difference. The acceptable sequence number difference is an
IDS Configuration object.
Objects { wlsxTrapFrameType, wlsxTrapSourceMac, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that an air monitor detected a station disconnect attack.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNDisconnectStationAttack trap.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap is triggered when the number of spurious APs detected by an air monitor exceeds
the configured IDS threshold.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 395
wlsxAdhocNetwork
wlsxWirelessBridge
wlsxInvalidMacOUIAP
wlsxInvalidMacOUISta
wlsxWEPMisconfiguration
Objects { wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that an air monitor detected an ad hoc network. A station is connected to
an ad hoc AP.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the wlsxNAdhocNetwork
trap.
Objects { wlsxTrapTransmitterMac, wlsxTrapReceiverMac, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected a wireless bridge. The detected bridge is
between wlsrSourceMac and wlsrReceiverMac.
Objects { wlsxTrapAddressType, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected an invalid MAC OUI in transmission from an
AP.
Objects { wlsxTrapAddressType, wlsxTrapNodeMac, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that an air monitor detected an invalid MAC OUI in transmission from a
station.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an access point has a bad WEP configuration.
396 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxStaRepeatWEPIVViolation
wlsxStaWeakWEPIVViolation
wlsxStaAssociatedToUnsecureAP
wlsxStaUnAssociatedFromUnsecureAP
wlsxAdhocNetworkBridgeDetected
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapNodeMac,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected a repeat WEP-IV violation for a station.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapNodeMac,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected a weak WEP-IV violation for a station.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac, wlsxTrapAPLocation, wlsxTrapAPChannel,
wlsxTrapRogueInfoURL }
Status current
Description This trap indicates that an air monitor has detected a station associated with an unsecure
access point.
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac }
Status current
Description This trap indicates that a previously detected unsecure AP association is no longer present.
Objects { wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status deprecated
Description This trap indicates that an air monitor has detected an ad hoc network that is bridging to a
wired network.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNAdhocNetworkBridgeDetectedSta and wlsxNAdhocNetworkBridgeDetectedAP
traps.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 397
wlsxInterferingApDetected
wlsxPortUp
wlsxPortDown
wlsxBSSIDIsUpS
wlsxBSSIDIsDown
wlsxColdStart
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel,
wlsxTrapInterferingAPInfoURL }
Status current
Description This trap indicates that an interfering access point is detected by an air monitor located at
wlsrLocation on channel wlsrCurrentChannel.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapCardSlot, wlsxTrapPortNumber, wlsxTrapAdminStatus, wlsxTrapOperStatus }
Status current
Description This trap indicates that a physical port is up.
Objects { wlsxTrapCardSlot, wlsxTrapPortNumber, wlsxTrapAdminStatus, wlsxTrapOperStatus }
Status current
Description This trap indicates that a physical port is down.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPBSSID }
Status current
Description This trap indicates that an access point is up.
Objects { wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPBSSID }
Status current
Description This trap indicates that an access point is down.
Status current
Description An enterprise version of cold start trap, which contains the controller time stamp.
398 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWarmStart
wlsxAPImpersonation
wlsxInformQueueOverFlow
wlsxNAuthServerIsDown
wlsxCTSTransferError
wlsxCTSTransferSucceeded
Status current
Objects { wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor detected station impersonation.
Objects { wlsxTrapHostIp, wlsxTrapHostPort }
Status current
Description This trap indicates that an inform queue overflow condition occurred.
Objects { wlsxTrapTime, wlsxTrapAuthServerName }
Status current
Description This trap indicates that an authentication server is down.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapCTSTransferType, wlsxTrapCTSURL }
Status current
Description This trap indicates the status of the configuration transfer from the management station.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapCTSTransferType, wlsxTrapCTSURL }
Status current
Description This trap indicates the status of the configuration transfer from the management station.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 399
wlsxConfigurationUpdateError
wlsxConfigurationUpdateSucceeded
wlsxGlobalConfigurationChangeNotification
wlsxUserEntryChanged
wlsxAPBssidEntryChanged
Objects { wlsxTrapTime, wlsxTrapConfigurationId, wlsxTrapUpdateFailureReason,
wlsxTrapUpdateFailedObj }
Status current
Description This trap indicates the configuration update status.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapConfigurationId }
Status current
Description This trap indicates the configuration update status.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapConfigurationId, wlsxTrapGlobalConfigObj }
Status current
Description This trap indicates that global configuration was modified on the controller.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapUserIpAddress,
wlsxTrapUserPhyAddress, wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the user configuration has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPBSSID, wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the BSSID configuration has changed.
History Added in ArubaOS 3.1.0.0.
400 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAPRadioEntryChanged
wlsxAPEntryChanged
wlsxSwitchListEntryChanged
wlsxPortEntryChanged
wlsxVlanEntryChanged
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the radio configuration has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapAPMacAddress,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the AP configuration has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapSwitchIp,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the controller list has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapCardSlot, wlsxTrapPortNumber,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the port configuration has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapVlanId, wlsxTrapTableEntryChangeType
}
Status current
Description This trap indicates that the VLAN configuration has changed.
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 401
wlsxVlanInterfaceEntryChanged
wlsxWindowsBridgeDetected
wlsxLicenseEntryChanged
wlsxEsiServerChanged
wlsxMonAPEntryChanged
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapVlanId, wlsxTrapTableEntryChangeType
}
Status current
Description This trap indicates that the VLAN Interface configuration has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status deprecated
Description This trap indicates that an air monitor has detected a station that is bridging from a wireless
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxWindowsBridgeDetectedAP and wlsxWindowsBridgeDetectedSta traps.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapLicenseId,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the license table has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapESIServerName,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the ESI server table has changed.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapTargetAPBSSID, wlsxTrapTableEntryChangeType }
Status deprecated
Description This trap indicates that a monitored AP entry changed.
402 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonStationEntryChanged
wlsxSignAPNetstumbler
wlsxSignStaNetstumbler
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac, wlsxTrapTableEntryChangeType }
Status deprecated
Description This trap indicates that a monitored station entry changed.
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Netstumbler from an AP.
For more information refer to:
http://www.wve.org/entries/show/WVE-2005-0025.
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchNetstumbler trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Netstumbler from a
station. For more information refer to:
http://www.wve.org/entries/show/WVE-2005-0025
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchNetstumbler trap.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 403
wlsxSignAPAsleap
wlsxSignStaAsleap
wlsxSignAPAirjack
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for ASLEAP from an AP. For
more information refer to:
http://www.wve.org/entries/show/WVE-2005-0027
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecate in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchAsleap trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for ASLEAP from a station. For
more information refer to:
http://www.wve.org/entries/show/WVE-2005-0027
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchAsleap trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for AirJack from an AP. For
more information refer to:
http://www.wve.org/entries/show/WVE-2005-0018
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchAirjack trap.
404 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSignStaAirjack
wlsxSignAPNullProbeResp
wlsxSignStaNullProbeResp
wlsxSignAPDeauthBcast
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for AirJack from a station. For
more information refer to:
http://www.wve.org/entries/show/WVE-2005-0018
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchAirjack trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Null-Probe-Response from
an AP. For more information refer to:
http://www.wve.org/entries/show/WVE-2006-0064
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchNullProbeResp trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Null-Probe-Response from
a station. For more information refer to:
http://www.wve.org/entries/show/WVE-2006-0064
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchNullProbeResp trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Deauth-Broadcast from an
AP. For more information refer to:
http://www.wve.org/entries/show/WVE-2005-0019
http://www.wve.org/entries/show/WVE-2005-0045
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 405
wlsxSignStaDeauthBcast
wlsxWindowsBridgeDetectedAP
wlsxWindowsBridgeDetectedSta
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchDeauthBcast trap.
Objects { wlsxTrapTime, wlsxTrapSignatureName, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that the system detected a signature match for Deauth-Broadcast from a
station. For more information refer to:
http://www.wve.org/entries/show/WVE-2005-0019
http://www.wve.org/entries/show/WVE-2005-0045
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSignatureMatchDeauthBcast trap.
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor has detected a station that is bridging from a wireless
network to a wired network.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an air monitor has detected a station that is bridging from a wireless
network to a wired network.
History Added in ArubaOS 3.1.0.0.
406 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAdhocNetworkBridgeDetectedAP
wlsxAdhocNetworkBridgeDetectedSta
wlsxDisconnectStationAttackAP
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel }
Status deprecated
Description This trap indicates that an air monitor has detected an ad hoc network that is bridging to a
wired network.
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNAdhocNetworkBridgeDetectedAP trap.
Objects { wlsxTrapTime, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status deprecated
Description This trap indicates that an air monitor has detected an ad hoc network that is bridging to a
wired network’
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNAdhocNetworkBridgeDetectedSta trap.
Objects { wlsxTrapTime, wlsxTrapFrameType, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that an air monitor detected a station disconnect attack. For more
information refer to:
http://www.wve.org/entries/show/WVE-2005-0045
http://www.wve.org/entries/show/WVE-2005-0046
http://www.wve.org/entries/show/WVE-2005-0048
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNDisconnectSTationAttack trap.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 407
wlsxDisconnectStationAttackSta
wlsxSuspectUnsecureAPDetected
wlsxSuspectUnsecureAPResolved
Objects { wlsxTrapTime, wlsxTrapFrameType, wlsxTrapSourceMac, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status deprecated
Description This trap indicates that an air monitor detected a station disconnect attack. For more
information refer to:
http://www.wve.org/entries/show/WVE-2005-0045
http://www.wve.org/entries/show/WVE-2005-0046
http://www.wve.org/entries/show/WVE-2005-0048
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecate in ArubaOS 6.0. Instead, use the
wlsxNDisconnectStationAttack trap.
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPRadioNumber,
wlsxTrapMatchedMac, wlsxTrapMatchedIp, wlsxTrapConfidenceLevel, wlsxTrapAPLocation,
wlsxTrapRogueInfoURL }
Status deprecated
Description This trap indicates that a suspected unsecure access point is detected by a controller. The
access point is suspected to be unsecure with the supplied confidence level, because it was
matched to the wired MAC address or IP address.
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSuspectUnsecureAPDetected and wlsxNSuspectUnsecureAPResolved traps.
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPRadioNumber
}
Status deprecated
Description This trap indicates that a previously detected suspected unsecure access point is no longer
present in the network or has changed its state.
History Added in ArubaOS 3.1.0.0.
NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNSuspectUnsecureAPDetected and wlsxNSuspectUnsecureAPResolved traps. This
event is generated by WMS and not the AP. The old versio nof the even is generated if event
correlation is disabled or WMS offload is enabled.
408 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxConfigurationLicenseMismatch
wlsxVoiceCdrBufferThresholdReached
wlsxTunnelUp
wlsxTunnelDown
wlsxMeshNodeEntryChanged
Objects { wlsxTrapTime, wlsxTrapConfigurationId, wlsxTrapMissingLicenses }
Status current
Description This trap indicates the configuration update status in the case where some configuration
could not be applied due to missing licenses.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxVoiceCurrentNumCdr }
Status current
Description This trap indicates that the CDR buffer threshold has been reached.
History Added in ArubaOS 3.1.0.0.
Objects wlsxTrapTime, wlsxTrapTunnelId, wlsxTrapTunnelUpReason, wlsxTrapTunnelStatus }
Status current
Description This trap indicates that a tunnel interface is up.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTunnelId, wlsxTrapTunnelDownReason, wlsxTrapTunnelStatus }
Status current
Description This trap indicates that a tunnel interface is down.
History Added in ArubaOS 3.1.0.0.
Objects { wlsxTrapTime, wlsxTrapTableGenNumber,wlsxTrapAPMacAddress,
wlsxTrapTableEntryChangeType }
Status current
Description This trap indicates that the mesh node configuration has changed.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 409
wlsxHtGreenfieldSupported
wlsxHT40MHzIntoleranceAP
wlsxHT40MHzIntoleranceSta
wlsxNAuthServerAllInService
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID,wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress,wlsxTrapAPRadioNumber,
wlsxTrapAPLocation,wlsxTrapAPChannel }
Status current
Description This trap indicates that an AP/AM detected an AP that can supported HT Greenfield mode.
History Added in ArubaOS 3.3.0.0.
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID,wlsxTrapTargetAPSSID,
wlsxTrapAPMacAddress,wlsxTrapAPRadioNumber,
wlsxTrapAPLocation,wlsxTrapAPChannel }
Status current
Description This trap indicates that an AP/AM detected an AP that has the HT 40MHz intolerance setting.
History Added in ArubaOS 3.3.0.0.
Objects { wlsxTrapTime, wlsxTrapSourceMac,wlsxTrapSnr, wlsxTrapAPChannel,wlsxTrapFrameType,
wlsxTrapAPMacAddress,wlsxTrapAPRadioNumber, wlsxTrapAPLocation }
Status current
Description This trap indicates that the system detected a HT 40MHz Intolerance setting a Station.
History Added in ArubaOS 3.3.0.0.
Objects { wlsxTrapTime, wlsxTrapESIServerGrpName }
Status current
Description This trap indicates that all authentication servers in a server group are brought back in
service
History Added in ArubaOS 3.4.1
410 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNAdhocNetwork
wlsxNAdhocNetworkBridgeDetectedAP
wlsxNAdhocNetworkBridgeDetectedSta
wlsxNAuthMaxXsecUserEntries
Objects { wlsxTrapTime, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel }
Status current
Description This trap indicates that an AM detected an Ad hoc Network. An Station is connected to an ad
hoc AP.
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel}
Status current
Description This trap indicates that an AM has detected an Ad hoc network that is bridging to a wired
network
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel}
Status current
Description This trap indicates that an AM has detected an Ad hoc network that is bridging to a wired
network
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime }
Status current
Description A trap which indicates that the xSec user limit is reached.
History Added in ArubaOS 3.4.1
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 411
wlsxNVpnMaxSessions
wlsxNRapExpiredPSK
wlsxNRapWarnExpiredPSK
wlsxNConnectionResetWithLocal
wlsxNApOnBackupController
Objects { wlsxTrapTime }
Status current
Description A trap which indicates that the VPN session limit is reached.
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime, wlsxTrapAPIpAddress, wlsxTrapApSerialNumber }
Status current
Description A trap which indicates that the RAP is using the Expired PSK.
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime, wlsxTrapTimeStr }
Status current
Description A trap which indicates that the Cached IKE PSK for RAPs will expire soon.
History Added in ArubaOS 3.4.1
Objects { wlsxTrapTime, wlsxTrapMasterName, wlsxTrapMasterIp, wlsxTrapLocalName,
wlsxTrapLocalIp, wlsxTrapTimeStr }
Status current
Description A trap which indicates that tcp connection between master controller and local controller
has been lost.
History Added in ArubaOS 3.4.1
Objects { Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapBackupControllerIp,
wlsxTrapPrimaryControllerIp }
Status current
Description A trap which indicates that tcp connection between master controller and local controller
has been lost.
History Added in ArubaOS 3.4.1
412 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxClientFloodAttack
wlsxValidClientNotUsingEncryption
wlsxAdhocUsingValidSSID
wlsxAPSpoofingDetected
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that the number of potential fake clients detected by an AP has exceeded
the configured IDS threshold. This is the total number of fake clients observed across all
bands. For more info check:http://www.wve.org/entries/show/WVE-2005-0056
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapSourceMac, wlsxTrapReceiverMac,
wlsxTrapNodeMac, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected an unencrypted data frame between a valid client
and an access point.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSnr,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected an ad hoc network using a valid/protected SSID.
For more info check:http://www.wve.org/entries/show/WVE-2005-0008
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapSourceMac, wlsxTrapReceiverMac,
wlsxTrapSpoofedFrameType, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected that one of its virtual APs is being spoofed using MAC
spoofing.
For more info check:http://www.wve.org/entries/show/WVE-2005-0019
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 413
wlsxClientAssociatingOnWrongChannel
wlsxNDisconnectStationAttack
wlsxNStaUnAssociatedFromUnsecureAP
wlsxOmertaAttack
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapSourceMac, wlsxTrapReceiverMac,
wlsxTrapSpoofedFrameType, wlsxTrapSnr, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a client trying to associate to one of its BSSIDs on the
wrong channel. This can be a sign that the BSSID is being spoofed in order to fool the client
into thinking the AP is operating on another channel.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapSourceMac,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description This trap indicates that an AP has determined that a client is under Disconnect Attack
because the rate of Assoc/Reassoc Response packets received by that client exceeds the
configured threshold.
For more info check:
http://www.wve.org/entries/show/WVE-2005-0045 http://www.wve.org/entries/show/WVE-
2005-0046
http://www.wve.org/entries/show/WVE-2005-0048
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapNodeMac, wlsxTrapAPLocation, wlsxTrapAPChannel
Status deprecated
Description This trap indicates that an AP that had previously detected a client association to a Rogue
access point is no longer detecting that association.
History NOTE: This trap has been deprecated in ArubaOS 6.0. Instead, use the
wlsxNStaUnassociatedFromUnsecureAP trap.
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapNodeMac,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description his trap indicates that an AP detected an Omerta attack.
For more info check:http://www.wve.org/entries/show/WVE-2005-0053
History Added in ArubaOS 6.0
414 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTKIPReplayAttack
wlsxChopChopAttack
wlsxFataJackAttack
wlsxInvalidAddressCombination
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a TKIP replay attack. If successful this could be the
precursor to more advanced attacks.
For more info check:http://www.wve.org/entries/show/WVE-2008-0013
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a ChopChop attack.
For more info check:http://www.wve.org/entries/show/WVE-2006-0038
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapBackupControllerIp,
wlsxTrapPrimaryControllerIp }
Status current
Description This trap indicates that an AP detected a FATA-Jack attack.
For more info check:http://www.wve.org/entries/show/WVE-2006-0057
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapAPChannel, wlsxTrapSnr
Status current
Description This trap indicates that an AP detected an invalid source and destination combination.
For more info check:http://www.wve.org/entries/show/WVE-2008-0011
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 415
wlsxValidClientMisassociation
wlsxMalformedHTIEDetected
wlsxMalformedAssocReqDetected
wlsxOverflowIEDetected
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapNodeMac,
wlsxTrapAssociationType, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a misassociation between a valid client and an
unsafe AP.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a malformed HT Information Element. This can be the
result of a misbehaving wireless driver or it may be an indiation of a new wireless attack.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a malformed association request with a NULL SSID.
For more info check:http://www.wve.org/entries/show/WVE-2008-0010.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a management frame with a malformed information
element. The declared length of the element is larger than the entire frame containing the
element. This may be used to corrupt or crash wireless drivers.
For more info check:http://www.wve.org/entries/show/WVE-2008-0008
History Added in ArubaOS 6.0
416 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxOverflowEAPOLKeyDetected
wlsxMalformedFrameLargeDurationDetected
wlsxMalformedFrameWrongChannelDetected
wlsxMalformedAuthFrame
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a key in an EAPOL Key message with a specified
length greater than the length of the entire message.
For more info check:http://www.wve.org/entries/show/WVE-2008-0009
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapAPChannel, wlsxTrapSnr
Status current
Description This trap indicates that an AP detected an unusually large duration in a wireless frame. This
may be an attempt to block other devices from transmitting.
For more info check:http://www.wve.org/entries/show/WVE-2005-0051
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID,
wlsxTrapTargetAPChannel, wlsxTrapAPChannel, wlsxTrapSnr
Status current
Description This trap indicates that an AP detected a beacon on one channel advertising another
channel. This could be an attempt to lure clients away from a valid AP.
For more info check:http://www.wve.org/entries/show/WVE-2005-0051
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapNodeMac,
wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected an authentication frame with either a bad algorithm
(similar to Fata-Jack) or a bad transaction.
For more info check:http://www.wve.org/entries/show/WVE-2006-0057.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 417
wlsxCTSRateAnomaly
wlsxRTSRateAnomaly
wlsxNRogueAPDetected
wlsxNRogueAPResolved
wlsxNeighborAPDetected
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description This trap indicates that the rate of CTS packets received by an AP exceeds the configured
IDS threshold.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapAPChannel
Status current
Description This trap indicates that the rate of RTS packets received by an AP exceeds the configured
IDS threshold.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel
Status current
Description This trap indicates that an unauthorized access point is connected to the wired network. The
access point is classified as Rogue by the system.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel
Status current
Description This trap indicates that a previously detected access point, classified as Rogue,is either no
longer present in the network or it changed its state.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel
Status current
Description This trap indicates that an access point has been classified as a Neighbor by the system.
History Added in ArubaOS 6.0
418 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNInterferingAPDetected
wlsxNSuspectRogueAPDetected
wlsxNSuspectRogueAPResolved
wlsxBlockAckAttackDetected
wlsxHotspotterAttackDetected
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel
Status current
Description This trap indicates that an access point has been classified as Interfering by the system. The
access point is declared Interfering because it is not authorized, nor has it been classified as
a Rogue.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel,
wlsxTrapConfidenceLevel
Status current
Description This trap indicates that an access point, classified as Suspected Rogue, is detected by the
system. The AP is suspected to be rogue with the supplied confidence level.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTargetAPSSID, wlsxTrapAPChannel
Status current
Description This trap indicates that a previously detected access point, classified as Suspected Rogue, is
either no longer present in the network or has changed its state.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapSourceMac, wlsxTrapReceiverMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr
Status current
Description This trap indicates that an attempt has been made to deny service to the source address by
spoofing a block ACK add request that sets an acknowledgement window outside the current
traffic stream.
For more info check:http://www.wve.org/entries/show/WVE-2008-0006
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation,
wlsxTrapNodeMac, wlsxTrapSourceMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapSnr, wlsxTrapTargetAPSSID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 419
wlsxNSignatureMatch
wlsxNSignatureMatchNetstumbler
wlsxNSignatureMatchAsleap
Status current
Description This trap indicates that a new AP has appeared immediately following a client probe
request.This is indicative of the Hotspotter tool or similar that attempts to trap clients with a
fake hotspot or other wireless network.
For more info check:http://www.wve.org/entries/show/WVE-2005-0054
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match in a frame.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Netstumbler in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2005-0025
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for ASLEAP in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2005-0027
History Added in ArubaOS 6.0
420 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNSignatureMatchAirjack
wlsxNSignatureMatchNullProbeResp
wlsxNSignatureMatchDeauthBcast
wlsxNSignatureMatchDisassocBcast
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Airjack in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2005-0018
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Null-Probe-Response in a
frame.
For more info check:http://www.wve.org/entries/show/WVE-2006-0064
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Deauth-Broadcast in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2005-0019
http://www.wve.org/entries/show/WVE-2005-0045.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Disassoc-Broadcast in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2005-0019
http://www.wve.org/entries/show/WVE-2005-0046
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 421
wlsxNSignatureMatchWellenreiter
wlsxAPDeauthContainment
wlsxClientDeauthContainment
wlsxAPWiredContainment
wlsxClientWiredContainment
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapTransmitterMac, wlsxTrapReceiverMac,
wlsxTrapSignatureName, wlsxTrapSnr, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPChannel
Status current
Description This trap indicates that an AP detected a signature match for Wellenreiter in a frame.
For more info check:http://www.wve.org/entries/show/WVE-2006-0058
History Added in ArubaOS 6.0
Objects Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapNodeMac, wlsxTrapAPChannel,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain an access point by disconnecting its
client.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapAPChannel,
wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain a client by disconnecting it from the
AP that it is associated with.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapNodeMac, wlsxTrapDeviceIpAddress,
wlsxTrapDeviceMac, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain an access point by disrupting traffic
to its client on the wired interface.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapDeviceIpAddress,
wlsxTrapDeviceMac, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation
422 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxAPTaggedWiredContainment
wlsxClientTaggedWiredContainment
wlsxTarpitContainment
wlsxVoiceClientLocationUpdate
Status current
Description This trap indicates that an AP has attempted to contain a client by disrupting traffic to it on
the wired interface.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapNodeMac, wlsxTrapDeviceIpAddress,
wlsxTrapDeviceMac, wlsxTrapVlanId, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain an access point by disrupting traffic
to its client on the wired interface.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapNodeMac, wlsxTrapTargetAPBSSID, wlsxTrapDeviceIpAddress,
wlsxTrapDeviceMac, wlsxTrapVlanId, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain a client by disrupting traffic to it on
the wired interface.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapTargetAPBSSID, wlsxTrapNodeMac, wlsxTrapAPChannel,
wlsxTrapTargetAPChannel, wlsxTrapSourceMac, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that an AP has attempted to contain an access point by moving a client
that is attempting to associate to it to a tarpit.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapVcIpAddress, wlsxTrapVcMacAddress, wlsxTrapSwitchIp,
wlsxTrapAPName, wlsxTrapAPMacAddress, wlsxTrapApMode, wlsxTrapAPLocation
Status current
Description This trap indicates that the location of voice client has been changed.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Traps | 423
wlsxAPChannelChange
wlsxAPPowerChange
wlsxAPModeChange
wlsxUserEntryAttributesChanged
Objects wlsxTrapTime, wlsxTrapAPChannel, wlsxTrapAPChannelSec, wlsxTrapAPPrevChannel,
wlsxTrapAPPrevChannelSec, wlsxTrapAPMacAddress, wlsxTrapAPRadioNumber,
wlsxTrapAPLocation, wlsxTrapAPARMChangeReason
Status current
Description This trap indicates that an AP changed its channel.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPTxPower, wlsxTrapAPPrevTxPower, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that an AP changed its transmit power level.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapAPCurMode, wlsxTrapAPPrevMode, wlsxTrapAPMacAddress,
wlsxTrapAPRadioNumber, wlsxTrapAPLocation
Status current
Description This trap indicates that an AP changed its mode from AP to APMonitor or vice versa.
History Added in ArubaOS 6.0
Objects wlsxTrapTime, wlsxTrapUserIpAddress, wlsxTrapUserPhyAddress, wlsxTrapAPBSSID,
wlsxTrapAPName, wlsxTrapCardSlot, wlsxTrapPortNumber,
wlsxTrapUserAttributeChangeType
Status current
Description This trap indicates that the user entry attributes have changed.
History Added in ArubaOS 6.0
424 |Traps Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 425
Chapter 16
User
The User module provides information about the user, the party connected to the controller. Information
includes the total number of users, name and access-level of the user, the physical location of the user’s station,
and so on. User MIBs support IPv4. For IPv6 support, see Chapter 17 on page445.
Figure 17 shows the architecture of the User MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The User MIBs are listed in the file aruba-user.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
Figure 17 User Hierarchy
The User MIB contains the following tables.
Table 95 User MIB Tables
Table Description
wlsxTotalNumOfUsers This table lists the total number of users connected to the controller.
wlsxUserTable This table lists all the users (both wired and wireless) currently connected to the
controller. Users are identified by their MAC address and IP address.
wlsx User MIB
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.4
wlsx Enterprise MIB Modules
Switch
Aruba Enterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1.4.1
wlsx User All Info Group
Aruba
1.3.6.1.4.1.14823.2.2.1.4.1.2
wlsx User Table
1.3.6.1.4.1.14823.2.2.1.4.1.3
wlsx User Session Time Table
1.3.6.1.4.1.14823.2.2.1.4.1.1
wlsx Total Num Of Users
wlsx User Stats Group 1.3.6.1.4.1.14823.2.2.1.4.1.4
426 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTotalNumOfUsers
wlsxUserTable
The object of the wlsx User table is actually a counter—it lists all the users (both wired and wireless) that are
connected to the controller. Users are identified by their MAC address and IP address.
wlsxUserSessionTimeTable This table lists the user session time counts on an ESSID. The session times are
sorted by time length (duration).
wlsxUserStatsGroup This table lists the user count information based on the authentication type.
Syntax Counter32
Max-Access read-only
Status current
Description This table lists the total number of users.
Table 96 wlsxUserTable OIDs
Object Object ID
wlsxUserEntry 1.3.6.1.4.1.14823.2.2.1.4.1.2.1 wlsxUserTable 1
nUserPhyAddress 1.3.6.1.4.1.14823.2.4.1.2.1.1 wlsxUserEntry 1
nUserIpAddress 1.3.6.1.4.1.14823.2.4.1.2.1.2 wlsxUserEntry 2
nUserName 1.3.6.1.4.1.14823.2.4.1.2.1.3 wlsxUserEntry 3
nUserRole 1.3.6.1.4.1.14823.2.4.1.2.1.4 wlsxUserEntry 4
nUserUpTime 1.3.6.1.4.1.14823.2.4.1.2.1.5 wlsxUserEntry 5
nUserAuthenticationMethod 1.3.6.1.4.1.14823.2.4.1.2.1.6 wlsxUserEntry 6
nUserSubAuthenticationMethod 1.3.6.1.4.1.14823.2.4.1.2.1.7 wlsxUserEntry 7
nUserAuthServerName 1.3.6.1.4.1.14823.2.4.1.2.1.8 wlsxUserEntry 8
nUserExtVPNAddress 1.3.6.1.4.1.14823.2.4.1.2.1.9 wlsxUserEntry 9
nUserApLocation 1.3.6.1.4.1.14823.2.4.1.2.1.10 wlsxUserEntry 10
nUserApBSSID 1.3.6.1.4.1.14823.2.4.1.2.1.11 wlsxUserEntry 11
nUserIsOnHomeAgent 1.3.6.1.4.1.14823.2.4.1.2.1.12 wlsxUserEntry 12
nUserHomeAgentIpAddress 1.3.6.1.4.1.14823.2.4.1.2.1.13 wlsxUserEntry 13
nUserMobilityStatus 1.3.6.1.4.1.14823.2.4.1.2.1.14 wlsxUserEntry 14
nUserHomeVLAN 1.3.6.1.4.1.14823.2.4.1.2.1.15 wlsxUserEntry 15
nUserDefaultVLAN 1.3.6.1.4.1.14823.2.4.1.2.1.16 wlsxUserEntry 16
nUserAssignedVLAN 1.3.6.1.4.1.14823.2.4.1.2.1.17 wlsxUserEntry 17
Table 95 User MIB Tables (Continued)
Table Description
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 427
nUserBWContractName 1.3.6.1.4.1.14823.2.4.1.2.1.18 wlsxUserEntry 18
nUserBWContractUsage 1.3.6.1.4.1.14823.2.4.1.2.1.19 wlsxUserEntry 19
nUserBWContractId 1.3.6.1.4.1.14823.2.4.1.2.1.20 wlsxUserEntry 20
nUserIsProxyArpEnabled 1.3.6.1.4.1.14823.2.4.1.2.1.21 wlsxUserEntry 21
nUserCurrentVLAN 1.3.6.1.4.1.14823.2.4.1.2.1.22 wlsxUserEntry 22
nUserIsWired 1.3.6.1.4.1.14823.2.4.1.2.1.23 wlsxUserEntry 23
nUserConnectedSlot 1.3.6.1.4.1.14823.2.4.1.2.1.24 wlsxUserEntry 24
nUserConnectedPort 1.3.6.1.4.1.14823.2.4.1.2.1.25 wlsxUserEntry 25
nUserPhyType 1.3.6.1.4.1.14823.2.4.1.2.1.26 wlsxUserEntry 26
nUserMobilityDomainName 1.3.6.1.4.1.14823.2.4.1.2.1.27 wlsxUserEntry 27
nUserUPBWContractName 1.3.6.1.4.1.14823.2.4.1.2.1.28 wlsxUserEntry 28
nUserUPBWContractUsage 1.3.6.1.4.1.14823.2.4.1.2.1.29 wlsxUserEntry 29
nUserUPBWContractId 1.3.6.1.4.1.14823.2.4.1.2.1.30 wlsxUserEntry 30
nUserDNBWContractName 1.3.6.1.4.1.14823.2.4.1.2.1.31 wlsxUserEntry 31
nUserDNBWContractUsage 1.3.6.1.4.1.14823.2.4.1.2.1.32 wlsxUserEntry 32
nUserDNBWContractId 1.3.6.1.4.1.14823.2.4.1.2.1.33 wlsxUserEntry 33
nUserHTMode 1.3.6.1.4.1.14823.2.4.1.2.1.34 wlsxUserEntry 34
nUserForwardMode 1.3.6.1.4.1.14823.2.4.1.2.1.35 wlsxUserEntry 35
nUserEncryptionMethod 1.3.6.1.4.1.14823.2.4.1.2.1.36 wlsxUserEntry 36
Table 96 wlsxUserTable OIDs (Continued)
Object Object ID
428 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxUserEntry
nUserPhyAddress
nUserIpAddress
Syntax wlsxUserEntry
Max-Access not-accessible
Status current
Description User entry
Index { nUserPhyAddress, nUserIpAddress }
History Added in ArubaOS 2.3.
Syntax MacAddress
Max-Access not-accessible
Status current
Description Physical address of the station from which the user connected to the controller.
History Added in ArubaOS 2.3.
Syntax IpAddress
Max-Access not-accessible
Status current
Description IP address of the user.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 429
nUserName
nUserRole
nUserUpTime
nUserAuthenticationMethod
nUserSubAuthenticationMethod
Syntax DisplayString(SIZE(0..128))
Max-Access read-only
Status current
Description Name of the user.
History Added in ArubaOS 2.3.
Syntax DisplayString(SIZE(0..64))
Max-Access read-only
Status current
Description The role configured for this user.
History Added in ArubaOS 2.3.
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the user connected to the controller.
History Added in ArubaOS 2.3.
Syntax ArubaAuthenticationMethods
Max-Access read-only
Status current
Description Authentication mechanism used by the user to connect to the controller.
History Added in ArubaOS 2.3.
Syntax ArubaSubAuthenticationMethods
Max-Access read-only
430 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Sub-authentication method
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 431
nUserAuthServerName
nUserExtVPNAddress
nUserApLocation
nUserApBSSID
nUserIsOnHomeAgent
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the authentication server used to authenticate the user.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description
Syntax IpAddress
Max-Access read-only
Status current
Description External VPN IP address if this is a VPN user, or 0.0.0.0 if not.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Location of the access point with which the user used is associated.
History Updated in ArubaOS 3.2.0.0.—description.
Syntax MacAddress
Max-Access read-only
Status current
Description BSSID of the access point which the user used to connect to the controller.
Syntax TruthValue
Max-Access read-only
432 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description The object will indicate if the controller is the home controller for the user or not.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 433
nUserHomeAgentIpAddress
nUserMobilityStatus
nUserHomeVLAN
nUserDefaultVLAN
Syntax IpAddress
Max-Access read-only
Status current
Description The home agent IP address of the user. If this user is already on the home controller, then this
IP is the controller IP address. Otherwise, it is the home controller IP address
History Added in ArubaOS 2.3.
Syntax Integer
visitor(1)
away(2)
associated(3)
wired(4)
Max-Access read-only
Status current
Description The mobility status of the user.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—addition of syntax item (4)
Syntax Integer32
Max-Access read-only
Status current
Description Home VLAN of the user. If the user is on the home controller, then this VLAN will be sthe ame
as userDefaultVLAN.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Default VLAN of the user based on the access point configuration.
History Added in ArubaOS 2.3.
434 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUserAssignedVLAN
nUserBWContractName
nUserBWContractUsage
nUserBWContractId
Syntax Integer32
Max-Access read-only
Status current
Description This VLAN will be different from the default VLAN if the user has a derived VLAN
configuration.
History Added in ArubaOS 2.3.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status deprecated
Description Name of the bandwidth contract applied to this user.
History Added in ArubaOS 2.3.
Deprecated in ArubaOS 3.2.0.0.
Syntax Integer
user(1)
shared(2)
Max-Access read-only
Status current
Description Indicates how the bandwidth contract is used.
History Added in ArubaOS 2.3.
Deprecated in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Bandwidth contract ID assigned to the user
History Added in ArubaOS 2.3.
Deprecated in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 435
nUserIsProxyArpEnabled
nUserCurrentVLAN
nUserIsWired
nUserConnectedSlot
nUserConnectedPort
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates if the controller is proxy ARPing for the user.
Syntax Integer32
Max-Access read-only
Status current
Description The VLAN to which the user is currently bound.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether this is a wired or wireless user.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The slot to which the user is connected, if wired.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The port to which the user is connected, if wired.
436 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 437
nUserPhyType
nUserMobilityDomainName
nUserUPBWContractName
nUserUPBWContractUsage
nUserUPBWContractId
Syntax ArubaPhyType
Max-Access read-only
Status current
Description The wireless PHY type to which the user is associated or wired.
History Added in ArubaOS 3.1
Syntax DisplayString(SIZE(0..64))
Max-Access read-only
Status current
Description The name of the mobility domain to which the mobile user belongs.
History Added in ArubaOS 3.1
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the upstream bandwidth contract applied to this user.
History Added in ArubaOS 3.2.0.0.
Syntax Integer
user(1),
shared(2)
Max-Access read-only
Status current
Description Indicates how the upstream bandwidth contract is used.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
438 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Max-Access read-only
Status current
Description Upstream bandwidth contract ID assigned to the user.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 439
nUserDNBWContractName
nUserDNBWContractUsage
nUserDNBWContractId
nUserHTMode
nUserForwardMode
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the downstream bandwidth contract applied to this user.
History Added in ArubaOS 3.2.0.0.
Syntax Integer
user(1)
shared(2)
Max-Access read-only
Status current
Description Indicates how the downstream bandwidth contract is used.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Downstream bandwidth contract ID assigned to the user.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaHTMode
Max-Access read-only
Status current
Description The HT mode of this user, if any.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaUserForwardMode
440 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Max-Access read-only
Status current
Description The User mode.
History Added in ArubaOS 5.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 441
nUserEncryptionMethod
wlsxUserSessionTimeTable
The objects of the wlsx User Session Time table list the user session time counts on an ESSID. The sessions are
sorted by time length. The sessions that last longer than 240 minutes are sorted in the 240 minute bucket.
wlsxUserSessionTimeEntry
wlsxUserSessionTimeLength
Syntax ArubaEncryptionMethod
Max-Access read-only
Status current
Description Provides encryption method information through SNMP.
History Added in ArubaOS 3.4
Table 97 wlsxUserSessionTimeTable OIDs
Object Object ID
wlsxUserSessionTimeEntry 1.3.6.1.4.1.14823.2.2.1.4.1.3.1 wlsxUserSessionTimeTable 1
wlsxUserSessionTimeLength 1.3.6.1.4.1.14823.2.2.1.4.1.3.1.1 wlsxUserSessionTimeEntry 1
wlsxUserSessionTimeCount 1.3.6.1.4.1.14823.2.2.1.4.1.3.1.2 wlsxUserSessionTimeEntry 2
Syntax wlsxUserSessionTimeEntry
Max-Access not-accessible
Status current
Description User session time data, divided into buckets of different time length.
Index { wlanESSID, wlsxUserSessionTimeLength}
History Added in ArubaOS 3.1.0.0.
Syntax Integer32
Max-Access not-accessible
Status current
Description Pre-defined user session time length.
History Added in ArubaOS 3.1.0.0.
442 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxUserSessionTimeCount
wlsxUserStatsGroup
The objects of the wlsx User Stats Group table provide user statistics information based on authentication types.
wlsxNumOfUsers8021x
wlsxNumOfUsersVPN
Syntax Counter32
Max-Access read-only
Status current
Description Number of users that are connected to the ESSID whose sessions expired in this time
interval.
History Added in ArubaOS 3.1.0.0.
Table 98 wlsxUserStatsGroup OIDs
Object Object ID
wlsxNumOfUsers8021x 1.3.6.1.4.1.14823.2.2.1.4.1.4.1 wlsxUserStatsGroup 1
wlsxNumOfUsersVPN 1.3.6.1.4.1.14823.2.2.1.4.1.4.2 wlsxUserStatsGroup 2
wlsxNumOfUsersCP 1.3.6.1.4.1.14823.2.2.1.4.1.4.3 wlsxUserStatsGroup 3
wlsxNumOfUsersMAC 1.3.6.1.4.1.14823.2.2.1.4.1.4.4 wlsxUserStatsGroup 4
wlsxNumOfUsersStateful8021x 1.3.6.1.4.1.14823.2.2.1.4.1.4.5 wlsxUserStatsGroup 5
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of 802.1x users
History Added in ArubaOS 3.4
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of VPN users.
History Added in ArubaOS 3.4
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User | 443
wlsxNumOfUsersCP
wlsxNumOfUsersMAC
wlsxNumOfUsersStateful8021x
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of Captive Portal users.
History Added in ArubaOS 3.4
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of MAC users.
History Added in ArubaOS 3.4
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of stateful 802.1x users.
History Added in ArubaOS 3.4
444 |User Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 445
Chapter 17
User6
The User6 module supports IPv6 users. This module provides information about the users, the party connected
to the controller. Information includes the total number of users, name and access-level of the user, the physical
location of the user’s station, and so on.
For IPv4 support, see Chapter 16 on page425.
Figure 17 shows the architecture of the User6 MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The User MIBs are listed in the file aruba-user6.my. For
information about downloading Dell MIB files, see Downloading MIB Files on page 23.
Figure 18 User6 Hierarchy
The User6 MIB contains the following tables.
Table 99 User6 MIB Tables
Table Description
wlsxUser6AllInfoGroup This table lists the total number of users connected to the controller.
wlsxUser6Table This table lists all the users (both wired and wireless) currently connected to the
controller. Users are identified by their MAC address and IP address.
wlsx User MIB
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.14
wlsx E nterprise MIB Modules
Switch
Aruba E nterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1.14.1
wlsx User6 All Info Group
Aruba
1.3.6.1.4.1.14823.2.2.1.14.1.2
wlsx User6 Table
1.3.6.1.4.1.14823.2.2.1.14.1.3
wlsx User6 Session T ime Table
1.3.6.1.4.1.14823.2.2.1.14.1.1
wlsx Total Num Of Users6
446 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxUser6AllInfoGroup
The wlsx User6 All Information Group contains information about the users in the controller.
wlsxTotalNumOfUsers6
wlsxUser6Table
The wlsx User6 Table lists all the users both wired and wireless that are currently connected to the controller.
Users are identified by their MAC address and their IP address.
wlsxUser6SessionTimeTable This table lists the user session time counts on an ESSID. The session times are
sorted by time length (duration).
Syntax Counter32
Max-Access read-only
Status current
Description Total Number of the users.
History Added in ArubaOS 3.3.0.0.
Table 100 wlsxUser6AllInfoGroup Objects
Object Object ID
wlsxUser6Entry 1.3.6.1.4.1.14823.2.2.1.14.1.2 wlsxUser6AllInfoGroup 2
nUser6PhyAddress 1.3.6.1.4.1.14823.2.2.1.14.1.2.1 wlsxUser6Entry 1
nUser6IpAddress 1.3.6.1.4.1.14823.2.2.1.14.1.2.2 wlsxUser6Entry 2
nUser6Name 1.3.6.1.4.1.14823.2.2.1.14.1.2.3 wlsxUser6Entry 3
nUser6Role 1.3.6.1.4.1.14823.2.2.1.14.1.2.4 wlsxUser6Entry 4
nUser6UpTime 1.3.6.1.4.1.14823.2.2.1.14.1.2.5 wlsxUser6Entry5
nUser6AuthenticationMethod 1.3.6.1.4.1.14823.2.2.1.14.1.2.6 wlsxUser6Entry 6
nUser6SubAuthenticationMethod 1.3.6.1.4.1.14823.2.2.1.14.1.2.7 wlsxUser6Entry 7
nUser6AuthServerName 1.3.6.1.4.1.14823.2.2.1.14.1.2.8 wlsxUser6Entry 8
nUser6ExtVPNAddress 1.3.6.1.4.1.14823.2.2.1.14.1.2.9 wlsxUser6Entry 9
nUser6ApLocation 1.3.6.1.4.1.14823.2.2.1.14.1.2.10 wlsxUser6Entry 10
nUser6ApBSSID 1.3.6.1.4.1.14823.2.2.1.14.1.2.11 wlsxUser6Entry 11
nUser6IsOnHomeAgent 1.3.6.1.4.1.14823.2.2.1.14.1.2.12 wlsxUser6Entry 12
nUser6HomeAgentIpAddress 1.3.6.1.4.1.14823.2.2.1.14.1.2.13 wlsxUser6Entry 13
nUser6MobilityStatus 1.3.6.1.4.1.14823.2.2.1.14.1.2.14 wlsxUser6Entry 14
Table 99 User6 MIB Tables (Continued)
Table Description
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 447
nUser6HomeVLAN 1.3.6.1.4.1.14823.2.2.1.14.1.2.15 wlsxUser6Entry 15
nUser6DefaultVLAN 1.3.6.1.4.1.14823.2.2.1.14.1.2.16 wlsxUser6Entry 16
nUser6AssignedVLAN 1.3.6.1.4.1.14823.2.2.1.14.1.2.17 wlsxUser6Entry 17
nUser6BWContractName 1.3.6.1.4.1.14823.2.2.1.14.1.2.18 wlsxUser6Entry 18
nUser6BWContractUsage 1.3.6.1.4.1.14823.2.2.1.14.1.2.19 wlsxUser6Entry 19
nUser6BWContractId 1.3.6.1.4.1.14823.2.2.1.14.1.2.20 wlsxUser6Entry 20
nUser6IsProxyArpEnabled 1.3.6.1.4.1.14823.2.2.1.14.1.2.21 wlsxUser6Entry 21
nUser6CurrentVLAN 1.3.6.1.4.1.14823.2.2.1.14.1.2.22 wlsxUser6Entry 22
nUser6IsWired 1.3.6.1.4.1.14823.2.2.1.14.1.2.23 wlsxUser6Entry 23
nUser6ConnectedSlot 1.3.6.1.4.1.14823.2.2.1.14.1.2.24 wlsxUser6Entry 24
nUser6ConnectedPort 1.3.6.1.4.1.14823.2.2.1.14.1.2.25 wlsxUser6Entry 25
nUser6PhyType 1.3.6.1.4.1.14823.2.2.1.14.1.2.26 wlsxUser6Entry 26
nUser6MobilityDomainName 1.3.6.1.4.1.14823.2.2.1.14.1.2.27 wlsxUser6Entry 27
nUser6UPBWContractName 1.3.6.1.4.1.14823.2.2.1.14.1.2.28 wlsxUser6Entry 28
nUser6UPBWContractUsage 1.3.6.1.4.1.14823.2.2.1.14.1.2.29 wlsxUser6Entry 29
nUser6UPBWContractId 1.3.6.1.4.1.14823.2.2.1.14.1.2.30 wlsxUser6Entry 30
nUser6DNBWContractName 1.3.6.1.4.1.14823.2.2.1.14.1.2.31 wlsxUser6Entry 31
nUser6DNBWContractUsage 1.3.6.1.4.1.14823.2.2.1.14.1.2.32 wlsxUser6Entry 32
nUser6DNBWContractId 1.3.6.1.4.1.14823.2.2.1.14.1.2.33 wlsxUser6Entry 33
nUser6HTMode 1.3.6.1.4.1.14823.2.2.1.14.1.2.34 wlsxUser6Entry 34
Table 100 wlsxUser6AllInfoGroup Objects
Object Object ID
448 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxUser6Entry
nUser6PhyAddress
nUser6IpAddress
nUser6Name
nUser6Role
Syntax wlsxUser6Entry
Max-Access not-accessible
Status current
Description User Entry
Index { nUser6PhyAddress, nUser6IpAddress }
Syntax MacAddress
Max-Access not-accessible
Status current
Description MAC address of the station from which the user connected to the controller.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..128))
Max-Access not-accessible
Status current
Description IPv6 Address of the user.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..128))
Max-Access read-only
Status current
Description Name of the User.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..64))
Max-Accessy read-onl
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 449
Status current
Description The Role configured for this user.
History Added in ArubaOS 3.3.0.0.
450 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6UpTime
nUser6AuthenticationMethod
nUser6SubAuthenticationMethod
nUser6AuthServerName
nUser6ExtVPNAddress
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the user connected to the controller.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaAuthenticationMethods
Max-Access read-only
Status current
Description Authentication mechanism used by the user to connect to the controller.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaSubAuthenticationMethods
Max-Access read-only
Status current
Description Sub Authentication Method
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the authentication server used to authenticate the user.
History Added in ArubaOS 3.3.0.0.
Syntax IpAddress
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 451
Status current
Description External VPN IP Address, if this is a VPN user or 0.0.0.0 if not.
History Added in ArubaOS 3.3.0.0.
452 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6ApLocation
nUser6ApBSSID
nUser6IsOnHomeAgent
nUser6HomeAgentIpAddress
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Location of the access point to which the user is associated.
History Added in ArubaOS 3.3.0.0.
Syntax MacAddress
Max-Access read-only
Status current
Description BSSID of the access point that the user used to connect to the controller.
History Added in ArubaOS 3.3.0.0.
Syntax TruthValue
Max-Access read-only
Status current
Description The Object will indicate if the controller is the home controller for the user or not.
History Added in ArubaOS 3.3.0.0.
Syntax IpAddress
Max-Access read-only
Status current
Description The Home agent IP Address of the user. If this user is already on the home controller, then
this IP is the controller IP else it is the home controller IP address.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 453
nUser6MobilityStatus
nUser6HomeVLAN
Syntax Integer
visitor(1)
away(2)
associated(3)
wired(4) }
Max-Access read-only
Status current
Description The Mobility Status of the User.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Home VLAN of the User. If the user is on the home controller then this VLAN will be same as
userDefaultVLAN.
History Added in ArubaOS 3.3.0.0.
454 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6DefaultVLAN
nUser6AssignedVLAN
nUser6BWContractName
nUser6BWContractUsage
nUser6BWContractId
Syntax Integer32
Max-Access read-only
Status current
Description Default VLAN of the User based on the AP configuration.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description This VLAN will be different from the Default VLAN if the user has a derived VLAN
Configuration.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status deprecated
Description Name of the Bandwidth Contract applied to this user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer
user(1)
shared(2)
Max-Access read-only
Status deprecated
Description Indicates how the Bandwidth Contract is used.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 455
Max-Access read-only
Status deprecated
Description Bandwidth Contract Id Assigned to the User
History Added in ArubaOS 3.3.0.0.
456 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6IsProxyArpEnabled
nUser6CurrentVLAN
nUser6IsWired
nUser6ConnectedSlot
nUser6ConnectedPort
Syntax TruthValue
Max-Access read-only
Status current
Description This object will indicate if the controller is proxy ARPing for the user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description The VLAN to which the user is currently bound.
History Added in ArubaOS 3.3.0.0.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether this is a wired or wireless user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description The slot to which the user is connected, if wired.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 457
Status current
Description The port to which the user is connected, if wired.
History Added in ArubaOS 3.3.0.0.
458 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6PhyType
nUser6MobilityDomainName
nUser6UPBWContractName
nUser6UPBWContractUsage
nUser6UPBWContractId
Syntax ArubaPhyType
Max-Access read-only
Status current
Description The wireless PHY type to which the user is associated, or 'wired'.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..64))
Max-Access read-only
Status current
Description The name of mobility domain to which the mobile user belongs.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the Upstream Bandwidth Contract applied to this user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer user(1), shared(2)
Max-Access read-only
Status current
Description Indicates how the Upstream Bandwidth Contract is used.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 459
Status current
Description Upstream Bandwidth Contract Id Assigned to the User
History Added in ArubaOS 3.3.0.0.
460 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6DNBWContractName
nUser6DNBWContractUsage
nUser6DNBWContractId
nUser6HTMode
wlsxUser6SessionTimeTable
The objects of the wlsx User5 Session Time table lists the user session time counts on an ESSID. The session
times are separated into predefined time length buckets. Sessions that last longer than 240 minutes fall into the
Syntax DisplayString(SIZE(0..32))
Max-Access read-only
Status current
Description Name of the Downstream Bandwidth Contract applied to this user.
History Added in ArubaOS 3.3.0.0.
Syntax Integer
user(1)
shared(2)
Max-Access read-only
Status current
Description Indicates how the Downstream Bandwidth Contract is used.
History Added in ArubaOS 3.3.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Downstream Bandwidth Contract ID Assigned to the user.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaHTMode
Max-Access read-only
Status current
Description The HT mode of this user, if any.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide User6 | 461
240min bucket.
wlsxUser6SessionTimeEntry
wlsxUser6SessionTimeLength
wlsxUser6SessionTime
Table 101 wlsxUser6SessionTimeTable OIDs
Object Object ID
wlsxUser6SessionTimeEntry 1.3.6.1.4.1.14823.2.2.1.14.1.3 wlsxUser6SessionTimeTable 1
wlsxUser6SessionTimeLength 1.3.6.1.4.1.14823.2.2.1.14.1.3.1 wlsxUser6SessionTimeEntry 1
wlsxUser6SessionTime 1.3.6.1.4.1.14823.2.2.1.14.1.3.2 wlsxUser6SessionTimeEntry 2
Syntax wlsxUser6SessionTimeEntry
Max-Access not-accessible
Status current
Description User session time data, divided into buckets of different time lengths
Index { wlanESSID, wlsxUser6SessionTimeLength }
Syntax Integer32
Max-Access not-accessible
Status current
Description Pre-defined user session time length.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description Number of users that are connected to the essid whose sessions expired in this time interval.
History Added in ArubaOS 3.3.0.0.
462 |User6 Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 463
Chapter 18
Voice
The Voice module provides information about Voice call status and call detail reporting.
Figure 19 shows the architecture of the User MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The Voice MIBs are listed in the file aruba-voice.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
464 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Figure 19 Voice Hierarchy
Table 102 Voice MIB Objects
Table Description
wlsxVoiceCdrTotal This object lists the total number of call detail records of the controller.
wlsxVoiceCdrTable This table lists information of the call detail records of the controller.
Voice Call Center Group This table lists the number of calls through the call center.
wlsxVoiceClientTotal This table lists the total number of active calls of the client.
wlsxVoiceClientTable This table lists all voice client information.
wlsxVoiceAPBssidTotal This object lists the total number of active VoIP.
wlsxVoiceAPBssidTable This table lists active VoIP information.
wlsx Voice MIB Modules
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.3.1.12
wlsr Enterprise MIB Modules
Aruba AP
Aruba E nterprise MIB Modules
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.3
1.3.6.1.4.1.14823.2.3.1.12.1
wlsx Voice Stats Group
Aruba
1.3.6.1.4.1.14823.2.3.1.12.1.2
wls x Voic e C all C trs G roup
1.3.6.1.4.1.14823.2.3.1.12.1.4
wlsx Voice AP Bssid Info Group
1.3.6.1.4.1.14823.2.3.1.12.1.2.1
wls x Voic e C all C trs Total
1.3.6.1.4.1.14823.2.3.1.12.1.3
wls x Voic e C lient Info G roup
1.3.6.1.4.1.14823.2.3.1.12.1.4.2
wlsx Voice AP Bssid Table
1.3.6.1.4.1.14823.2.3.1.12.1.4.1
wlsx Voice AP Bssid Total
1.3.6.1.4.1.14823.2.3.1.12.1.3.2
wls x Voic e C lient Table
1.3.6.1.4.1.14823.2.3.1.12.1.1
wlsx Voice C dr Info Group
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 465
wlsxVoiceCdrTotal
The integer object of wlsx Voice CDR total lists the total number of Call Detail Records of the controller.
wlsxVoiceCdrTable
The objects of the wlsx Voice CDR table list information of the Call Detail Records of the controller.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of CDR information in the controller.
History Added in ArubaOS 3.2.0.0.
Table 103 wlxs Voice CDR Table OIDs
Object Object ID
wlsxVoiceCdrEntry 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1 wlsxVoiceCdrTable 1
voiceCdrId 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.1 wlsxVoiceCdrEntry 1
voiceCdrIp 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.2 wlsxVoiceCdrEntry 2
voiceCdrMac 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.3 wlsxVoiceCdrEntry 3
voiceCdrName 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.4 wlsxVoiceCdrEntry 4
voiceCdrDialNum 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.5 wlsxVoiceCdrEntry 5
voiceCdrDir 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.6 wlsxVoiceCdrEntry 6
voiceCdrOrigTime 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.7 wlsxVoiceCdrEntry 7
voiceCdrSetupTime 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.8 wlsxVoiceCdrEntry 8
voiceCdrTeardownTime 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.9 wlsxVoiceCdrEntry 9
voiceCdrStatus 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.10 wlsxVoiceCdrEntry 10
voiceCdrReason 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.11 wlsxVoiceCdrEntry 11
voiceCdrDuration 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.12 wlsxVoiceCdrEntry 12
voiceCdrRValue 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.13 wlsxVoiceCdrEntry 13
voiceCdrApSwitchDelay 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.14 wlsxVoiceCdrEntry14
voiceCdrCodec 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.15 wlsxVoiceCdrEntry 15
voiceCdrApName 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.16 wlsxVoiceCdrEntry 16
voiceCdrApMac 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.17 wlsxVoiceCdrEntry 17
voiceCdrBssid 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.18 wlsxVoiceCdrEntry 18
voiceCdrEssid 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.19 wlsxVoiceCdrEntry 19
voiceCdrHandovers 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.20 wlsxVoiceCdrEntry 20
voiceCdrMOS 1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.21 wlsxVoiceCdrEntry 21
466 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxVoiceCdrEntry
voiceCdrId
voiceCdrIp
voiceCdrMac
voiceCdrName
Syntax VoiceCdrEntry
Max-Access not-accessible
Status current
Description Entry point.
Index {voiceCdrId}
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access not-accessible
Status current
Description Voice CDR ID/
History Added in ArubaOS 3.2.0.0.
Syntax IpAddress
Max-Access read-only
Status current
Description Voice CDR IP.
History Added in ArubaOS 3.2.0.0.
Syntax MacAddress
Max-Access read-only
Status current
Description Voice CDR MAC.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 467
Max-Access read-only
Status current
Description Voice CDR name.
History Added in ArubaOS 3.2.0.0.
468 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceCdrDialNum
voiceCdrDir
voiceCdrOrigTime
voiceCdrSetupTime
voiceCdrTeardownTime
Syntax DisplayString
Max-Access read-only
Status current
Description Voice CDR dialed number.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaVoiceCdrDirection
Max-Access read-only
Status current
Description Voice CDR direction incoming or outgoing.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice CDR original time.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice CDR setup time.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 469
Status current
Description Voice CDR tear-down number.
History Added in ArubaOS 3.2.0.0.
470 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceCdrStatus
voiceCdrReason
voiceCdrDuration
voiceCdrRValue
voiceCdrApSwitchDelay
Syntax ArubaCallStates
Max-Access read-only
Status current
Description Voice CDR status.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice CDR reason.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Voice CDR duration.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Voice CDR R-value.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 471
Status current
Description Voice CDR AP switch delay.
History Added in ArubaOS 3.2.0.0.
472 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceCdrCodec
voiceCdrApName
voiceCdrApMac
voiceCdrBssid
voiceCdrEssid
Syntax Integer32
Max-Access read-only
Status current
Description Voice CDR codec.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice CDR AP name.
History Added in ArubaOS 3.2.0.0.
Syntax MacAddress
Max-Access read-only
Status current
Description Voice CDR AP MAC address.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read- only
Status current
Description Voice CDR BSSID.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 473
voiceCdrHandovers
voiceCdrMOS
Voice Call Center Group
The objects of the Call Center Group provide scalar values—the count of the calls of a specific condition.
Status current
Description Voice CDR ESSID.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Voice CDR client hand overs, AKA mobility rate.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Voice CDR MOS.
History Added in ArubaOS 3.2.0.0.
Table 104 Voice Call Center OIDs
Object Object ID
voiceCallCtrsTotal 1.3.6.1.4.1.14823.2.2.1.12.1.2.1 wlsxVoiceCallCtrsGroup 1
voiceCallCtrsSuccess 1.3.6.1.4.1.14823.2.2.1.12.1.2.2 wlsxVoiceCallCtrsGroup 2
voiceCallCtrsFailed 1.3.6.1.4.1.14823.2.2.1.12.1.2.3 wlsxVoiceCallCtrsGroup 3
voiceCallCtrsRejected 1.3.6.1.4.1.14823.2.2.1.12.1.2.4 wlsxVoiceCallCtrsGroup 4
voiceCallCtrsAborted 1.3.6.1.4.1.14823.2.2.1.12.1.2.5 wlsxVoiceCallCtrsGroup 5
voiceCallCtrsOrig 1.3.6.1.4.1.14823.2.2.1.12.1.2.6 wlsxVoiceCallCtrsGroup 6
voiceCallCtrsRecvd 1.3.6.1.4.1.14823.2.2.1.12.1.2.7 wlsxVoiceCallCtrsGroup 7
voiceCallCtrsActive 1.3.6.1.4.1.14823.2.2.1.12.1.2.8 wlsxVoiceCallCtrsGroup 8
voiceCallCtrsNotFnd 1.3.6.1.4.1.14823.2.2.1.12.1.2.9 wlsxVoiceCallCtrsGroup 9
voiceCallCtrsBusy 1.3.6.1.4.1.14823.2.2.1.12.1.2.10 wlsxVoiceCallCtrsGroup 10
voiceCallCtrsSvc 1.3.6.1.4.1.14823.2.2.1.12.1.2.11 wlsxVoiceCallCtrsGroup 11
474 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceCallCtrsReqTerm 1.3.6.1.4.1.14823.2.2.1.12.1.2.12 wlsxVoiceCallCtrsGroup 12
voiceCallCtrsDecline 1.3.6.1.4.1.14823.2.2.1.12.1.2.13 wlsxVoiceCallCtrsGroup 13
voiceCallCtrsUnauth 1.3.6.1.4.1.14823.2.2.1.12.1.2.14 wlsxVoiceCallCtrsGroup 14
voiceCallCtrsMisc 1.3.6.1.4.1.14823.2.2.1.12.1.2.15 wlsxVoiceCallCtrsGroup 15
Table 104 Voice Call Center OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 475
voiceCallCtrsTotal
voiceCallCtrsSuccess
voiceCallCtrsFailed
voiceCallCtrsRejected
voiceCallCtrsAborted
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of successful calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of failed calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of rejected calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
476 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Total number of aborted calls.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 477
voiceCallCtrsOrig
voiceCallCtrsRecvd
voiceCallCtrsActive
voiceCallCtrsNotFnd
voiceCallCtrsBusy
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of originated calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of received calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of active calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of not found calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
478 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Total number of busy calls.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 479
voiceCallCtrsSvc
voiceCallCtrsReqTerm
voiceCallCtrsDecline
voiceCallCtrsUnauth
voiceCallCtrsMisc
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of service unavailable calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of request terminated calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of declined calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of unauthorized calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
480 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxVoiceClientTotal
The wlsx Voice Client Total group provides the total number of active client session of the controller.
wlsxVoiceClientTable
The objects of the wlsx Voice Client table list voice client information.
Status current
Description Total number of miscellaneous calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of active client sessions in the controller.
History Added in ArubaOS 3.2.0.0.
Table 105 wlsx Voice Client Table OIDs
Object Object ID
wlsxVoiceClientEntry 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1 wlsxVoiceClientTable 1
voiceClientIp 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.1 wlsxVoiceClientEntry 1
voiceClientProtocol 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.2 wlsxVoiceClientEntry 2
voiceClientRegState 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.3 wlsxVoiceClientEntry 3
voiceClientContactName 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.4 wlsxVoiceClientEntry4
voiceClientServerName 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.5 wlsxVoiceClientEntry 5
voiceClientEssid 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.6 wlsxVoiceClientEntry 6
voiceClientVlanId 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.7 wlsxVoiceClientEntry 7
voiceClientTunnelId 1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.8 wlsxVoiceClientEntry 8
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 481
wlsxVoiceClientEntry
voiceClientIp
voiceClientProtocol
voiceClientRegState
voiceClientContactName
Syntax VoiceClientEntry
Max-Access not-accessible
Description Entry point.
Index { wlanStaPhyAddress }
History Added in ArubaOS 3.2.0.0.
Syntax IpAddress
Max-Access read-only
Status current
Description Voice client IP address.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaVoipProtocol
Max-Access read-only
Status current
Description Voice client protocol used.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaVoipRegState
Max-Access read-only
Status current
Description Voice client state.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
482 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Voice client contact name.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 483
voiceClientServerName
voiceClientEssid
voiceClientVlanId
voiceClientTunnelId
wlsxVoiceAPBssidTotal
Syntax DisplayString
Max-Access read-only
Status current
Description Voice client server name.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice client ESSID.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaVlanValidRange
Max-Access read-only
Status current
Description Voice client VLAN ID.
History Added in ArubaOS 3.2.0.0.
Syntax Integer32
Max-Access read-only
Status current
Description Voice client tunnel ID.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
484 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxVoiceAPBssidTable
The objects of the wlsx Voice Access Point BSSID table provide active VoIP information.
Status current
Description Total number of active VoIP information in the controller.
History Added in ArubaOS 3.2.0.0.
Table 106 wlsxVoiceAPBssidTable OIDs
Object Object ID
wlsxVoiceAPBssidEntry 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1 wlsxVoiceAPBssidTable 1
voiceAPBssidName 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.1 wlsxVoiceAPBssidEntry 1
voiceAPBssidGroup 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.2 wlsxVoiceAPBssidEntry 2
voiceAPBssidIp 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.3 IwlsxVoiceAPBssidEntry 3
voiceAPBssidTotCalls 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.4 wlsxVoiceAPBssidEntry 4
voiceAPBssidVoiceType 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.5 wlsxVoiceAPBssidEntry 5
voiceAPBssidFlag 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.6 wlsxVoiceAPBssidEntry 6
voiceAPBssidUpTime 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.7 wlsxVoiceAPBssidEntry 7
voiceAPBssid100Sent 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.8 wlsxVoiceAPBssidEntry 8
voiceAPBssid503Sent 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.9 wlsxVoiceAPBssidEntry 9
voiceAPBssidExtraCallDisc 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.10 wlsxVoiceAPBssidEntry 10
voiceAPBssidKickedOff 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.11 wlsxVoiceAPBssidEntry 11
voiceAPBssidTspecDenied 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.12 wlsxVoiceAPBssidEntry 12
voiceAPBssidCacFlag 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.13 wlsxVoiceAPBssidEntry 13
voiceAPBssidTotVoiceClients 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.14 wlsxVoiceAPBssidEntry 14
voiceAPBssidCallsSCCP 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.15 wlsxVoiceAPBssidEntry 15
voiceAPBssidCallsSIP 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.16 wlsxVoiceAPBssidEntry 16
voiceAPBssidCallsSVP 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.17 wlsxVoiceAPBssidEntry 17
voiceAPBssidCallsVocera 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.18 wlsxVoiceAPBssidEntry 18
voiceAPBssidCallsNoe 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.19 wlsxVoiceAPBssidEntry 19
voiceAPBssidEssid 1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.20 wlsxVoiceAPBssidEntry 20
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 485
wlsxVoiceAPBssidEntry
voiceAPBssidName
voiceAPBssidGroup
voiceAPBssidIp
voiceAPBssidTotCalls
Syntax VoiceAPBssidEntry
max-Access not-accessible
Status current
Description Entry to AP.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice access point name.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice access point group.
History Added in ArubaOS 3.2.0.0.
Syntax IpAddress
Max-Access read-only
Status current
Description Voice access point IP address.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
486 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceAPBssidVoiceType
voiceAPBssidFlag
Max-Access read-only
Status current
Description Voice access point total calls.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice access point type.
History Added in ArubaOS 3.2.0.0.
Syntax Bits
apRemoteAP(0)
apPPPOE(1)
apWiredApEnabled(2)
apEnet1Mode(3)
apActiveLoadBalancing(4)
apDisconnectExtraCalls(5)
apBatteryBoost(6)
Max-Access read-only
Status current
Description Voice access point flag.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 487
voiceAPBssidUpTime
voiceAPBssid100Sent
voiceAPBssid503Sent
voiceAPBssidExtraCallDisc
voiceAPBssidKickedOff
Syntax TimeTicks
Max-Access read-only
Status current
Description Voice access point up time
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description Voice 100 sent.
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description Voice 503 sent.
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description Voice access point extra call disconnect.
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
488 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Status current
Description Voice access point kicked off.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide Voice | 489
voiceAPBssidTspecDenied
voiceAPBssidCacFlag
voiceAPBssidTotVoiceClients
voiceAPBssidCallsSCCP
voiceAPBssidCallsSIP
Syntax Counter32
Max-Access read-only
Status current
Description Voice access point Tspec denied.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaVoiceCacBit
Max-Access read-only
Status current
Description Voice access point CAC flag.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice access point total number of voice clients.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice access point total SCCP calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
490 |Voice Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceAPBssidCallsSVP
voiceAPBssidCallsVocera
voiceAPBssidCallsNoe
voiceAPBssidEssid
Status current
Description Voice access point total SIP calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice access point total SVP calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice access point total Vocera calls.
History Added in ArubaOS 3.2.0.0.
Syntax Unsigned32
Max-Access read-only
Status current
Description Voice access point total NOE calls.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Voice access point ESSID.
History Added in ArubaOS 3.2.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 491
Chapter 19
WLAN
The wireless local area network (WLAN) module provides information about the Wireless Management System
(WMS) in the Dell controller.
Figure 20 shows the architecture of the WLAN MIB relative to 1.3.6.1.4.1.14823
(iso.org.dod.internet.private.enterprise.aruba). The WLAN MIBs are listed in the file aruba-wlan.my. For
information about downloading Dell MIB files, see “Downloading MIB Files” on page23.
492 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Figure 20 WLAN Hierarchy
wlsx Wlan Sta Pkt Size Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.2.5
1.3.6.1.4.1.14823.2.2.1.5.3.2.5
1.3.6.1.4.1.14823.2.2.1.5.3.2
1.3.6.1.4.1.14823.2.2.1.5.3.1
wlsx Wlan Sta Frame Type Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.2.4
wlsx Wlan Sta DA Type Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.2.3
wlsx Wlan Sta Rate Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.2.2
wlsx Wlan Station Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.2.1
wlsx Wlan AP Pkt Size Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.1.5
wlsx Wlan AP Frame Type Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.1.4
wlsx Wlan AP Ch Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.1.6
wlsx Wlan Stats Group 1.3.6.1.4.1.14823.2.2.1.5.3
wlsx Wlan State Group
wlsx Wlan Config Group
wlsx Switch
wlsx Enterprise MIB Modules
wlsx Wlan AP DA Type Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.1.3
wlan AP Num Aps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2
wlsx Wlan AP Stats Table 1.3.6.1.4.1.14823.2.2.1.5.3.1.1
wlsx Wlan Station Stats Group
wlsx Wlan Access Point Stats Group
1.3.6.1.4.1.14823.2.2.1.5.3.1
wlsx Wlan Radio Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.5
wlsx Wlan AP Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.4
wlsx Wlan AP Bssid Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.7
wlsx Wlan ESSID Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.8
wlsx Wlan ESSID Vlan Pool Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.9
wlsx Wlan AP Group Table 1.3.6.1.4.1.14823.2.2.1.5.2.1.3
1.3.6.1.4.1.14823.2.2.1.5.2
1.3.6.1.4.1.14823.2.2.1.5.1
1.3.6.1.4.1.14823
1.3.6.1.4.1.14823.2
1.3.6.1.4.1.14823.2.2
1.3.6.1.4.1.14823.2.2.1
1.3.6.1.4.1.14823.2.2.1.5
wlan AP Total Num Stations Associated 1.3.6.1.4.1.14823.2.2.1.5.2.1.2
wlsx Wlan Access Point Info Group 1.3.6.1.4.1.14823.2.2.1.5.2.1.1
wlsx Wlan Access Point Info Group
Switch
Aruba Enterprise MIB Modules
Aruba
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 493
The WLAN MIB contains the following tables.
Table 107 WLAN MIB Tables
Table Description
wlsxWlanAPGroupTable This table lists all the access points groups configured in the Dell controller.
wlsxWlanAPTable This table lists all the access points connected to the controller.
wlsxWlanRadioTable This table lists all the radios known to the controller.
wlsxWlanAPBssidTable This table lists all the BSSIDs active on this controller.
wlsxWlanESSIDTable This table lists all the ESSIDs advertised by this controller.
wlsxWlanESSIDVLANPoolTable This table lists all the VLANs associated with this ESSID.
wlsxWlanStationTable This table lists all the wireless stations associated with the access points
connected to this controller.
wlsxWlanStaAssociationFailureTable This Table lists all the stations and the BSSID's to which they failed to
associate. Once a station successfully associates, association failure entries
are not reported for that station.
wlsxWlanAPStatsTable This table lists the statistics of all the access points connected to the
controller.
wlsxWlanAPRateStatsTable This table contains all the AP packet and byte counts that are sorted by rate.
wlsxWlanAPDATypeStatsTable This table contains all the per BSSID packet and byte counts that are sorted by
destination address.
wlsxWlanAPFrameTypeStatsTable This table contains all the per BSSID packet and byte counts that are sorted by
frame type.
wlsxWlanAPPktSizeStatsTable This table contains all the per BSSID packet counts that are sorted by packet
size.
wlsxWlanAPChStatsTable This table lists the channel statistics of all the access points connected to the
controller.
wlsxWlanStationStatsTable This table lists statistics of all the wireless stations associated with an AP
connected to this controller.
wlsxWlanStaRateStatsTable This table contains all the packet and byte counts for a station that are sorted
by rate.
wlsxWlanStaDATypeStatsTable This table contains all the packet and byte counts for a station that are sorted
by destination address.
wlsxWlanStaFrameTypeStatsTable This table contains all the package and byte count for stations that are sorted
by frame type.
wlsxWlanStaPktSizeStatsTable This table contains all the package and byte counts for stations that are sorted
by packet size.
494 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanAccessPointInfoGroup
The wlsxWlanAccessPointInfoGroup contains the following tables:
zwlsxWlanTotalNumAccessPoints (local), which lists all the APs connected to the controller
zwlsxWlanTotalNumStationsAssociated (global), which lists all the APs in the Dell Domain. This table is valid
only on the master controllers. The group also contains two scalar objects, which indicate the total number of
APs and the total number of clients connected.
wlsxWlanTotalNumAccessPoints
ywlsxWlanTotalNumStationsAssociated
wlsxWlanAPGroupTable
The objects of the wlsx WLAN AP Group table provide information on the access points connected to the
controller.
Table 108 wlsxWlanMIB OIDs
Object Object ID
wlsxWlanTotalNumAccessPoints 1.3.6.1.4.1.14823.2.2.1.5.2.1.1 wlsxWlanAccessPointInfoGroup 1
ywlsxWlanTotalNumStationsAssociated 1.3.6.1.4.1.14823.2.2.1.5.2.1.2 wlsxWlanAccessPointInfoGroup 2
Syntax Unsigned32
Max-Access read-only
Status current
Description Total number of access points connected to the controller.
History Added in ArubaOS 2.3.
Syntax Unsigned32
MAX-ACCES read-only
STATU current
Description Total number of stations associated to the controller.
History Added in ArubaOS 2.3.
Table 109 wlsxWlanAPGroupTable OIDs
Object Object ID
wlsxWlanAPGroupEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1. wlsxWlanAPGroupTable 1
wlanAPGroup 1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1.1 wlsxWlanAPGroupEntry 1
wlanAPNumAps 1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1.2 wlsxWlanAPGroupEntry 2
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 495
wlsxWlanAPGroupEntry
wlanAPGroup
wlanAPNumAps
wlsxWlanAPTable
The objects of the wlsx WLAN APT table provide information on the access points that are connected to the
controller.
Syntax WlanAPGroupEntry
Max-Access not-accessible
Status current
Description Index {wlanAPGroup}
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access not-accessible
Status current
Description The name of an AP group.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of APs in the AP group.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Table 110 wlsxWlanAPTable OIDs
Object Object ID
wlsxWlanAPEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1 wlsxWlanAPTable 1
wlanAPMacAddress 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.1 wlsxWlanAPEntry 1
wlanAPIpAddress 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.2 wlsxWlanAPEntry 2
wlanAPName 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.3 wlsxWlanAPEntry 3
wlanAPGroupName 41.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.4 wlsxWlanAPEntry 4
496 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanAPEntry
wlanAPModel 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.5 wlsxWlanAPEntry 5
wlanAPSerialNumber 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.6 wlsxWlanAPEntry 6
wlanAPdot11aAntennaGain 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.7 wlsxWlanAPEntry 7
wlanAPdot11gAntennaGain 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.8 wlsxWlanAPEntry 8
wlanAPNumRadios 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.9 wlsxWlanAPEntry 9
wlanAPEnet1Mode 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.10 wlsxWlanAPEntry 10
wlanAPIpsecMode 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.11 wlsxWlanAPEntry 11
wlanAPUpTime 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.12 wlsxWlanAPEntry 12
wlanAPModelName 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.13 wlsxWlanAPEntry 13
wlanAPLocation 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.14 wlsxWlanAPEntry 14
wlanAPBuilding 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.15 wlsxWlanAPEntry 15
wlanAPFloor 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.16 wlsxWlanAPEntry 16
wlanAPLoc 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.17 wlsxWlanAPEntry 17
wlanAPExternalAntenna 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.18 wlsxWlanAPEntry 18
wlanAPStatus 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.19 wlsxWlanAPEntry 19
wlanAPNumBootstraps 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.20 wlsxWlanAPEntry 20
wlanAPNumReboots 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.21 wlsxWlanAPEntry 21
wlanAPUnprovisioned 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.22 wlsxWlanAPEntry 22
wlanAPMonitorMode 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.23 wlsxWlanAPEntry 23
wlanAPFQLNBuilding 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.24 wlsxWlanAPEntry 24
wlanAPFQLNFloor 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.25 wlsxWlanAPEntry 25
wlanAPFQLN 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.26 wlsxWlanAPEntry 26
wlanAPFQLNCampus 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.27 wlsxWlanAPEntry 27
wlanAPLongitude 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.28 wlsxWlanAPEntry 28
wlanAPLatitude 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.29 wlsxWlanAPEntry 29
wlanAPAltitude 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.30 wlsxWlanAPEntry 30
wlanAPMeshRole 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.31 wlsxWlanAPEntry 31
wlanAPSysLocation 1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.32 wlsxWlanAPEntry 32
Syntax WlanAPEntry
Max-Access not-accessible
Status current
Table 110 wlsxWlanAPTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 497
wlanAPMacAddress
wlanAPIpAddress
wlanAPName
wlanAPGroupName
Description Access point entry.
Index {wlanAPMacAddress}
Syntax MacAddress
Max-Access not-accessible
Status current
Description Ethernet MAC address of the access point.
History Added in ArubaOS 2.3.
Syntax IpAddress
Max-Access read-only
Status current
Description IP address of the access point.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description Host name of the access point.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—changed Max-Access to read-only.
Syntax DisplayString
Max-Access read-only
Status current
Description Group name of the access point.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—changed Max-Access to read-only.
498 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPModel
wlanAPSerialNumber
wlanAPdot11aAntennaGain
wlanAPdot11gAntennaGain
wlanAPNumRadios
Syntax Object Identifier
MAX-ACCES read-only
Status current
Description Sys OID of the access point.
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..32))
Max-Access read-only
Status current
Description Serial number of the access point.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Configured antenna gain for ‘A’ radio.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Configured antenna gain for ‘G’ radio.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 499
wlanAPEnet1Mode
wlanAPIpsecMode
wlanAPUpTime
wlanAPModelName
Status current
Description Number of radios in the access point.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax ArubaEnet1Mode
Max-Access read-only
Status current
Description ENET1 mode of the access point.
History Added in ArubaOS 2.3.
Syntax ArubaEnableValue
Max-Access read-only
Status current
Description IPsec mode of the access point.
History Added in ArubaOS 2.3.
Syntax TimeTicks
Max-Access read-only
Status current
Description Time (in hundredths of seconds) since the last time the access point boot strapped with the
controller.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description Model name of the access point.
500 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPLocation
wlanAPBuilding
wlanAPFloor
wlanAPLoc
wlanAPExternalAntenna
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description Location of the access point
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description AP building number.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description AP floor number.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description AP location.
History Added in ArubaOS 2.3.
Syntax ArubaAntennaSetting
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 501
wlanAPStatus
wlanAPNumBootstraps
wlanAPNumReboots
wlanAPUnprovisioned
Max-Access read-only
Status current
Description AP antenna status.
History Added in ArubaOS 2.3.
Syntax ArubaAPStatus
Max-Access read-only
Status current
Description AP status.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Number of times the AP has boot strapped with the controller.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Number of times the AP has rebooted.
History Added in ArubaOS 2.3.
Syntax ArubaUnprovisionedStatus
Max-Access read-only
Status current
Description Indicates whether the AP is unprovisioned due to lack of antenna gain or location code
settings.
502 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPMonitorMode
wlanAPFQLNBuilding
wlanAPFQLNFloor
wlanAPFQLN
History Added in ArubaOS 2.3.
Syntax ArubaMonitorMode
Max-Access read-only
Status current
Description Indicates whether any radio on this AP is acting as an air monitor.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax DisplayString
Max-Access read-only
Status current
Description The building component of the AP’s FQLN.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description The floor component of the AP’s FQLN.
History Added in ArubaOS 3.1.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description The AP’s fully qualified location name (FQLN).
History Added in ArubaOS 3.1.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 503
wlanAPFQLNCampus
wlanAPLongitude
wlanAPLatitude
wlanAPAltitude
wlanAPMeshRole
Syntax DisplayString
Max-Access read-only
Status current
Description The campus component of the AP’s FQLN.
History Added in ArubaOS 3.1
Syntax DisplayString
Max-Access read-only
Status current
Description Longitude of the AP. signed floating-point value.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Latitude of the AP. signed floating-point value.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description Altitude of the AP signed floating-point value.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaMeshRole
Max-Access read-only
504 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPSysLocation
wlsxWlanRadioTable
The objects of the wlsx WLAN Radio table provide information on the access points connected in radios that are
known to the Dell controller. This table is indexed by the MAC address of the AP and the type of the radio.
Status current
Description AP mesh role.
History Added in ArubaOS 3.2.0.0.
Syntax Display String
Max-Access read-only
Status current
Description Allows the sysLocation value to be obtained by making SNMP queries to the controller.
History Added in ArubaOS 6.0.
Table 111 wlsxWlanRadioTable OIDs
Object Object ID
wlsxWlanRadioEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1 wlsxWlanRadioTable 1
wlanAPRadioNumber 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.1 wlsxWlanRadioEntry 1
wlanAPRadioType 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.2 wlsxWlanRadioEntry 2
wlanAPRadioChannel 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.3 wlsxWlanRadioEntry 3
wlanAPRadioTransmitPower 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.4 wlsxWlanRadioEntry 4
wlanAPRadioMode 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.5 wlsxWlanRadioEntry 5
wlanAPRadioUtilization 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.6 wlsxWlanRadioEntry 6
wlanAPRadioNumAssociatedClients 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.7 wlsxWlanRadioEntry 7
wlanAPRadioNumMonitoredClients 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.8 wlsxWlanRadioEntry 8
wlanAPRadioNumActiveBSSIDs 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.9 wlsxWlanRadioEntry 9
wlanAPRadioNumMonitoredBSSIDs 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.10 wlsxWlanRadioEntry 10
wlanAPRadioBearing 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.11 wlsxWlanRadioEntry 11
wlanAPRadioTiltAngle 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.12 wlsxWlanRadioEntry 12
wlanAPRadioHTMode 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.13 wlsxWlanRadioEntry 13
wlanAPRadioHTExtChannel 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.14 wlsxWlanRadioEntry 14
wlanAPRadioHTChannel 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.15 wlsxWlanRadioEntry 15
wlanAPRadioAPName 1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.16 wlsxWlanRadioEntry 16
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 505
wlsxWlanRadioEntry
wlanAPRadioNumber
wlanAPRadioType
wlanAPRadioChannel
wlanAPRadioTransmitPower
Syntax WlanRadioEntry
Max-Access not-accessible
Status current
Description Index {wlanAPMacAddress, wlanAPRadioNumber}
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access not-accessible
Status current
Description The number of the radio
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax ArubaPhyType
Max-Access read-write
Status current
Description Type of the radio
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—Max-Access changed from read-only to read-write
Syntax Integer32
Max-Access read-only
Status current
Description The channel the radio is currently operating on.
History Added in ArubaOS 2.3.
Updated in ArubaOS OS 3.2—description.
Syntax Integer32
506 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPRadioMode
wlanAPRadioUtilization
wlanAPRadioNumAssociatedClients
wlanAPRadioNumMonitoredClients
Max-Access read-only
Status current
Description The current power level of the access point radio.
History Added in ArubaOS 2.3.
Updated in ArubaOS OS 3.2—description.
Syntax ArubaAccessPointMode
Max-Access read-only
Status current
Description The mode in which the access point radio is operating.
History Added in ArubaOS 2.3.
Updated in ArubaOS OS 3.2—description.
Syntax Integer32
Max-Access read-only
Status current
Description The utilization of the radio as a percentage of the total capacity.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The number of clients associated with this radio.
History Added in ArubaOS 2.3.
Syntax I Integer32
Max-Access read-only
Status current
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 507
wlanAPRadioNumActiveBSSIDs
wlanAPRadioNumMonitoredBSSIDs
wlanAPRadioBearing
wlanAPRadioTiltAngle
Description The number of clients this radio is monitoring.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The number of AP BSSIDs this radio is monitoring.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of AP BSSIDs we are monitoring on this radio.
History Added in ArubaOS 2.3.
Syntax DisplayString
Max-Access read-only
Status current
Description Antenna bearing in degrees from true north.
Unsigned floating-point value.
Range: 0-360.
History Added in ArubaOS 3.2.0.0.
Syntax DisplayString
Max-Access read-only
Status current
508 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPRadioHTMode
wlanAPRadioHTExtChannel
wlanAPRadioHTChannel
wlanAPRadioAPName
Description Tilt angle of antenna in degrees.
-ve for downtilt,
+ve for uptilt.
Signed floating-point value.
Range: -90 to +90.
History Added in ArubaOS 3.2.0.0.
Syntax ArubaHTMode
Max-Access read-only
Status current
Description The HT mode of the radio, if any.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaHTExtChannel
Max-Access read-only
Status current
Description Indicates the offset of the 40MHz extension channel, if any.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString
Max-Access read-write
Status current
Description A display string indicating the current channel. If wlanAPRadioHTExtChannel is set to
'above' or 'below', then the channel number will be appended with '+' or '-' respectively.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString
Max-Access read-write
Status current
Description The name of the AP to which the AP belongs.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 509
wlsxWlanAPBssidTable
The objects of the wlsx WLAN Access Point BSSID table provide information about the BSSIDs that are active
on the controller.
wlsxWlanAPBssidEntry
wlanAPBSSID
History Added in ArubaOS 3.4.1
Table 112 wlsxWlanAPBssidTable OIDs
Object Object ID
wlsxWlanAPBssidEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1 wlsxWlanAPBssidTable 1
wlanAPBSSID 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.1 wlsxWlanAPBssidEntry 1
wlanAPESSID 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.2 wlsxWlanAPBssidEntry 2
wlanAPBssidSlot 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.3 wlsxWlanAPBssidEntry 3
wlanAPBssidPort 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.4 wlsxWlanAPBssidEntry 4
wlanAPBssidPhyType 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.5 wlsxWlanAPBssidEntry 5
wlanAPBssidRogueType 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.6 wlsxWlanAPBssidEntry 6
wlanAPBssidMode 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.7 wlsxWlanAPBssidEntry 7
wlanAPBssidChannel 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.8 wlsxWlanAPBssidEntry 8
wlanAPBssidUpTime 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.9 wlsxWlanAPBssidEntry 9
wlanAPBssidInactiveTime 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.10 wlsxWlanAPBssidEntry 10
wlanAPBssidLoadBalancing 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.11 wlsxWlanAPBssidEntry 11
wlanAPBssidNumAssociatedStations 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.12 wlsxWlanAPBssidEntry 12
wlanAPBssidAPMacAddress 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.13 wlsxWlanAPBssidEntry 13
wlanAPBssidPhyNumber 1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.14 wlsxWlanAPBssidEntry 14
Syntax WlanAPBssidEntry
Max-Access not-accessible
Status current
Description Station management entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Syntax MacAddress
Max-Access not-accessible
510 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPESSID
wlanAPBssidSlot
wlanAPBssidPort
wlanAPBssidPhyType
Status current
Description The MAC address of the access point.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description ESSID that this BSSID is advertising.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax Unsigned32
Max-Access read-only
Status current
Description Slot to which the access point is connected.
History Added in ArubaOS 2.3.
Syntax Unsigned32
Max-Access read-only
Status current
Description Port to which the access point is connected.
History Added in ArubaOS 2.3.
Syntax ArubaPhyType
Max-Access read-only
Status current
Description Physical layer protocol support of the AP.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 511
wlanAPBssidRogueType
wlanAPBssidMode
wlanAPBssidChannel
wlanAPBssidUpTime
History Added in ArubaOS 2.3.
Syntax ArubaRogueApType
Max-Access read-only
Status current
Description The type of the rogue.
History Added in ArubaOS 2.3.
Syntax Integer
ap(1)
am(2)
mpp(3)
mp(4)
Max-Access read-only
Status current
Description Indicates whether the access point is an air monitor, a regular AP, a mesh portal, or a mesh
point.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—addition of syntax items (3), (4), update of description.
Syntax Integer(1..165)
Max-Access read-only
Status current
Description The current operating channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax TimeTicks
Max-Access read-only
Status current
512 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPBssidInactiveTime
wlanAPBssidLoadBalancing
wlanAPBssidNumAssociatedStations
wlanAPBssidAPMacAddress
Description Time (in hundredths of seconds) since a tunnel is created between the access point and
controller.
History Added in ArubaOS 2.3.
Syntax TimeTicks
Max-Access read-only
Status current
Description Time (in hundredths of seconds) since any activity took place on the BSSID.
History Added in ArubaOS 2.3.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether load balancing is enabled or not.
Syntax Unsigned32
Max-Access read-only
Status current
Description Indicates the number of stations associated to this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.2.0.0.—description.
Syntax MacAddress
Max-Access read-only
Status current
Description Indicates the access point to which this BSSID belongs.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 513
wlanAPBssidPhyNumber
wlanAPBssidHTMode
wlanAPBssidHTExtChannel
wlanAPBssidHTChannel
wlsxWlanESSIDTable
Syntax Integer32
Max-Access read-only
Status current
Description Indicates the radio number to which this BSSID belongs.
History Added in ArubaOS 2.3.
Syntax ArubaHTMode
Max-Access read-only
Status current
Description Indicates the HT mode of this BSSID, if any.
History Added in ArubaOS 3.3.0.0.
Syntax ArubaHTExtChannel
Max-Access read-only
Status current
Description Indicates the offset of the 40MHz extension channel, if any.
History Added in ArubaOS 3.3.0.0.
Syntax DisplayString
Max-Access read-only
Status current
Description A display string indicating the current channel. If wlanAPBssidHTExtChannel is set to
'above' or 'below', then the channel number will be appended with '+' or '-' respectively.
History Added in ArubaOS 3.3.0.0.
514 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
The objects of the wlsx WLAN ESSID table provide information of the access points to the controller.
wlsxWlanESSIDEntry
wlanESSID
wlanESSIDNumStations
Table 113 wlsxWlanESSIDTableOBJECT OIDs
Object Object ID
wlsxWlanESSIDEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1 wlsxWlanESSIDTable 1
wlanESSID 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.1 wlsxWlanESSIDEntry 1
wlanESSIDNumStations 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.2 wlsxWlanESSIDEntry 2
wlanESSIDNumAccessPointsUp 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.3 wlsxWlanESSIDEntry 3
wlanESSIDNumAccessPointsDown 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.4 wlsxWlanESSIDEntry 4
wlanESSIDEncryptionType 1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.5 wlsxWlanESSIDEntry 5
Syntax WlanESSIDEntry
Max-Access not-accessible
Status current
Description ESSID entry.
Index {wlanESSID}
History Added in ArubaOS 2.3.
Update in ArubaOS 3.1—description.
Syntax DisplayString(Size(0..64))
Max-Access not-accessible
Status current
Description The ESSID being advertised.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of stations connected to this ESSID.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 515
wlanESSIDNumAccessPointsUp
wlanESSIDNumAccessPointsDown
wlanESSIDEncryptionType
wlsxWlanESSIDVLANPoolTable
The objects of the WLAN ESSID VLAN Pool table lists all the VLANs associated with this ESSID.
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of APs currently advertising this ESSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Unsigned32
Max-Access read-only
Status current
Description The number of APs configured to advertise this ESSID that are not currently operational.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax ArubaEncryptionMethods
Max-Access read-only
Status current
Description The encryption methods supported on this ESSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Table 114 wlsxWlanESSIDVLANPoolTable OIDs
Object Object ID
wlsxWlanESSIDVLANPoolEntry 1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1 wlsxWlanESSIDVLANPoolTable 1
wlanESSIDVLANId 1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1.1 wlsxWlanESSIDVLANPoolEntry 1
wlanESSIDVLANPoolStatus 1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1.2 wlsxWlanESSIDVLANPoolEntry 2
516 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanESSIDVLANPoolEntry
wlanESSIDVLANId
wlanESSIDVLANPoolStatus
wlsxWlanStationTable
The objects of the wlsx WLAN Station table contain the station information associated with the access points.
Syntax WlanESSIDVLANPoolEntry
Max-Access not-accessible
Status current
Description Station management entry.
History Added in ArubaOS 2.3.
Syntax Unsigned32
Max-Access not-accessible
Status current
Description VLAN which is part of the VLAN pool for this ESSID.
History Added in ArubaOS 2.3.
Syntax Row Status
Max-Access read-create
Status current
Description Row status object used to indicate the status of the row.
History Added in ArubaOS 2.3.
Table 115 wlsxWlanStationTable OIDs
Object Object ID
wlsxWlanStationEntry 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1 wlsxWlanStationTable 1
wlanStaPhyAddress 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.1 wlsxWlanStationEntry 1
wlanStaApBssid 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.12 wlsxWlanStationEntry 2
wlanStaPhyType 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.3 wlsxWlanStationEntry 3
wlanStaIsAuthenticated 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.4 wlsxWlanStationEntry 4
wlanStaIsAssociated 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.15 wlsxWlanStationEntry 5
wlanStaChannel 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.6 wlsxWlanStationEntry 6
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 517
wlsxWlanStationEntry
wlanStaPhyAddress
wlanStaApBssid
wlanStaVLANId 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.7 wlsxWlanStationEntry 7
wlanStaVOIPState 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.8 wlsxWlanStationEntry 8
wlanStaVOIPProtocol 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.9 wlsxWlanStationEntry 9
wlanStaTransmitRate 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.10 wlsxWlanStationEntry 10
wlanStaAssociationID 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.11 wlsxWlanStationEntry 11
wlanStaAccessPointESSID 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.12 wlsxWlanStationEntry 12
wlanStaPhyNumber 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.13 wlsxWlanStationEntry 13
wlanStaRSSI 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.14 wlsxWlanStationEntry 14
wlanStaUpTime 1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.15 wlsxWlanStationEntry 15
Syntax WlanStationEntry
Max-Access not-accessible
Status current
Description Station entry.
Index {wlanStaPhyAddress}
History Added in ArubaOS 2.3.
Syntax MacAddress
Max-Access not-accessible
Status current
Description The physical address of the station.
History Added in ArubaOS 2.3.
Syntax MacAddress
Max-Access not-accessible
Status current
Description The access point with which this station was last associated.
History Added in ArubaOS 2.3.
Table 115 wlsxWlanStationTable OIDs (Continued)
Object Object ID
518 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaPhyType
wlanStaIsAuthenticated
wlanStaIsAssociated
wlanStaChannel
wlanStaVLANId
Syntax ArubaPhyType
Max-Access read-only
Status current
Description Type of the station.
History Added in ArubaOS 2.3.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether the station is authenticated.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax TruthValue
Max-Access read-only
Status current
Description Indicates whether the station is associated.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer(1..165)
Max-Access read-only
Status current
Description Channel on which the station is associated.
History Added in ArubaOS 2.3.
Syntax ArubaVLANValidRange
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 519
wlanStaVOIPState
wlanStaVOIPProtocol
wlanStaTransmitRate
wlanStaAssociationID
Max-Access read-only
Status current
Description VLAN in which the station is present.
History Added in ArubaOS 2.3.
Syntax ArubaEnableValue
Max-Access read-only
Status current
Description The state of VOIP for this station.
History Added in ArubaOS 2.3.
Syntax ArubaVoipProtocolType
Max-Access read-only
Status current
Description If VoIP is enabled, the type of the protocol supported.
History Added in ArubaOS 2.3.
Syntax Unsigned32
Max-Access read-only
Status current
Description AID with which the station is associated with this system.
History Added in ArubaOS 2.3.
Syntax Unsigned32
Max-Access read-only
Status current
Description AID with which the station is associated with this system.
520 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaAccessPointESSID
wlanStaPhyNumber
wlanStaRSSI
wlanStaUpTime
wlanStaHTMode
History Added in ArubaOS 2.3.
Syntax DisplayString(Size(0..64))
Max-Access read-only
Status current
Description ESSID of the access point.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Radio PHY number to which the station is associated.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description Signal-to-noise ratio for the station.
History Added in ArubaOS 2.3.
Syntax TimeTicks
Max-Access read-only
Status current
Description Time since the station associated to the current BSSID.
History Added in ArubaOS 2.3.
Syntax ArubaHTMode
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 521
wlsxWlanAPStatsTable
The objects of the wlsx WLAN Access Point Statistics table provide information about access points.
Max-Access read-only
Status current
Description The HT status of the station.
History Added in ArubaOS 3.3.0.0
Table 116 wlsxWlanAPStatsTable OIDs
Object Object ID
wlsxWlanAPStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1 wlsxWlanAPStatsTable
wlanAPCurrentChannel 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.1 wlsxWlanAPStatsEntry 1
wlanAPNumClients 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.2 wlsxWlanAPStatsEntry 2
wlanAPTxPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.3 wlsxWlanAPStatsEntry 3
wlanAPTxBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.4 wlsxWlanAPStatsEntry 4
wlanAPRxPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.15 wlsxWlanAPStatsEntry 5
wlanAPRxBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.6 wlsxWlanAPStatsEntry 6
wlanAPTxDeauthentications 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.7 wlsxWlanAPStatsEntry 7
wlanAPRxDeauthentications 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.8 wlsxWlanAPStatsEntry 8
wlanAPChannelThroughput 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.9 wlsxWlanAPStatsEntry 9
wlanAPFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.10 wlsxWlanAPStatsEntry 10
wlanAPFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.11 wlsxWlanAPStatsEntry 11
wlanAPFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.12 wlsxWlanAPStatsEntry 12
wlanAPFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.13 wlsxWlanAPStatsEntry 13
wlanAPFrameBandwidthRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.14 wlsxWlanAPStatsEntry 14
wlanAPFrameRetryErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.15 wlsxWlanAPStatsEntry 15
wlanAPChannelErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.16 wlsxWlanAPStatsEntry 16
wlanAPFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.17 wlsxWlanAPStatsEntry 17
wlsxWlanTotalNumAccessPoints 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.18 wlsxWlanAPStatsEntry 18
ywlsxWlanTotalNumStationsAssociated 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.19 wlsxWlanAPStatsEntry 19
wlsxWlanAPGroupEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.20 wlsxWlanAPStatsEntry 20
wlanAPGroup 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.21 wlsxWlanAPStatsEntry 21
wlanAPNumAps 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.22 wlsxWlanAPStatsEntry 22
wlsxWlanAPEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.23 wlsxWlanAPStatsEntry 23
wlanAPMacAddress 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.24 wlsxWlanAPStatsEntry 24
wlanAPIpAddress 1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.25 wlsxWlanAPStatsEntry 25
522 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanAPStatsEntry
wlanAPCurrentChannel
wlanAPNumClients
wlanAPTxPkts
Syntax WlanAPStatsEntry
Max-Access not-accessible
Status current
Description Access point stats entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Syntax Unsigned32
Max-Access read-only
Status current
Description The channel the AP is currently using.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of clients associated to this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 523
wlanAPTxBytes
wlanAPRxPkts
wlanAPRxBytes
wlanAPTxDeauthentications
wlanAPRxDeauthentications
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes transmitted on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes received on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentications transmitted on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Counter32
524 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChannelThroughput
wlanAPFrameRetryRate
wlanAPFrameLowSpeedRate
wlanAPFrameNonUnicastRate
Max-Access read-only
Status current
Description The number of deauthentications received on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The throughput achieved on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of retry packets as a percentage of the total packets transmitted and received by
this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of low data rate (<= 18 Mbps for A/G bands and <=2 Mbps for B band) packets as
a percentage of the total packets transmitted and received by this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 525
wlanAPFrameFragmentationRate
wlanAPFrameBandwidthRate
wlanAPFrameRetryErrorRate
wlanAPChannelErrorRate
Max-Access read-only
Status current
Description The number of broadcast and multicast packets as a percentage of the total packets
transmitted on this BSSIDchannel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of fragments as a percentage of the total packets transmitted by this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The bandwidth of this BSSID in Kbps.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received on this BSSID.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
526 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPFrameReceiveErrorRate
wlanAPRxDataPkts
wlanAPRxDataBytes
wlanAPTxDataPkts
Status current
Description The number of error packets as a percentage of the total packets received on the current
channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received on this BSSID.
History Added in ArubaOS 2.5.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of packets received on this BSSID.
History Added in ArubaOS 2.5.
Deprecated in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of bytes received on this BSSID.
History Added in ArubaOS 2.5.
Deprecated in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status deprecated
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 527
wlanAPTxDataBytes
wlanAPRxDataPkts64
wlanAPRxDataBytes64
wlanAPTxDataPkts64
Description The number of packets transmitted on this BSSID.
History Added in ArubaOS 2.5.
Deprecated in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of bytes transmitted on this BSSID.
History Added in ArubaOS 2.5.
Deprecated in ArubaOS 3.2.0.0.
Syntax Counter64
Max-Access read-only
Status current
Description The number of packets received on this BSSID.
History Added in ArubaOS 3.2.0.0.
Syntax Counter64
Max-Access read-only
Status current
Description The number of bytes received on this BSSID.
History Added in ArubaOS 3.2.0.0.
Syntax Counter64
Max-Access read-only
Status current
Description The number of packets transmitted on this BSSID.
History Added in ArubaOS 3.2.0.0.
528 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPTxDataBytes64
wlsxWlanAPRateStatsTable
The objects of the wlsx WLAN Access Point Rate Statistics table provide information on the access point packet
and byte counts, which are grouped by data rates.
Syntax Counter64
Max-Access read-only
Status current
Description The number of bytes transmitted on this BSSID.
History Added in ArubaOS 3.2.0.0.
Table 117 wlsxWlanAPRateStatsTable OIDs
Object Object ID
wlsxWlanAPRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1 wlsxWlanAPRateStatsTable 1
wlanAPStatsTotPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.1 wlsxWlanAPRateStatsEntry 1
wlanAPStatsTotBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.2 wlsxWlanAPRateStatsEntry 2
wlanAPStatsTotPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.3 wlsxWlanAPRateStatsEntry 3
wlanAPStatsTotBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.4 wlsxWlanAPRateStatsEntry 4
wlanAPStatsTotPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.5 wlsxWlanAPRateStatsEntry 5
wlanAPStatsTotBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.6 wlsxWlanAPRateStatsEntry 6
wlanAPStatsTotPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.7 wlsxWlanAPRateStatsEntry 7
wlanAPStatsTotBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.8 wlsxWlanAPRateStatsEntry 8
wlanAPStatsTotPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.9 wlsxWlanAPRateStatsEntry 9
wlanAPStatsTotBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.10 wlsxWlanAPRateStatsEntry 10
wlanAPStatsTotPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.11 wlsxWlanAPRateStatsEntry 11
wlanAPStatsTotBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.12 wlsxWlanAPRateStatsEntry 12
wlanAPStatsTotPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.13 wlsxWlanAPRateStatsEntry 13
wlanAPStatsTotBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.14 wlsxWlanAPRateStatsEntry 14
wlanAPStatsTotPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.‘5 wlsxWlanAPRateStatsEntry 15
wlanAPStatsTotBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.16 wlsxWlanAPRateStatsEntry 16
wlanAPStatsTotPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.17 wlsxWlanAPRateStatsEntry 17
wlanAPStatsTotBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.18 wlsxWlanAPRateStatsEntry 18
wlanAPStatsTotPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.19 wlsxWlanAPRateStatsEntry 19
wlanAPStatsTotBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.20 wlsxWlanAPRateStatsEntry 20
wlanAPStatsTotPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.21 wlsxWlanAPRateStatsEntry 21
wlanAPStatsTotBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.22 wlsxWlanAPRateStatsEntry 22
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 529
wlanAPStatsTotPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.23 wlsxWlanAPRateStatsEntry 23
wlanAPStatsTotBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.24 wlsxWlanAPRateStatsEntry 24
wlanAPStatsTotPktsAtHT6dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.25 wlsxWlanAPRateStatsEntry 25
wlanAPStatsTotBytesAtHT6dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.26 wlsxWlanAPRateStatsEntry 26
wlanAPStatsTotPktsAtHT13Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.27 wlsxWlanAPRateStatsEntry 27
wlanAPStatsTotBytesAtHT13Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.28 wlsxWlanAPRateStatsEntry 28
wlanAPStatsTotPktsAtHT13dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.29 wlsxWlanAPRateStatsEntry 29
wlanAPStatsTotBytesAtHT13dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.30 wlsxWlanAPRateStatsEntry 30
wlanAPStatsTotPktsAtHT15Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.31 wlsxWlanAPRateStatsEntry 31
wlanAPStatsTotBytesAtHT15Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.32 wlsxWlanAPRateStatsEntry 32
wlanAPStatsTotPktsAtHT19dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.33 wlsxWlanAPRateStatsEntry 33
wlanAPStatsTotBytesAtHT19dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.34 wlsxWlanAPRateStatsEntry 34
wlanAPStatsTotPktsAtHT26Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.35 wlsxWlanAPRateStatsEntry 35
wlanAPStatsTotBytesAtHT26Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.36 wlsxWlanAPRateStatsEntry 36
wlanAPStatsTotPktsAtHT27Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.37 wlsxWlanAPRateStatsEntry 37
wlanAPStatsTotBytesAtHT27Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.38 wlsxWlanAPRateStatsEntry 38
wlanAPStatsTotPktsAtHT30Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.39 wlsxWlanAPRateStatsEntry 39
wlanAPStatsTotBytesAtHT30Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.40 wlsxWlanAPRateStatsEntry 40
wlanAPStatsTotPktsAtHT39Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.41 wlsxWlanAPRateStatsEntry 41
wlanAPStatsTotBytesAtHT39Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.42 wlsxWlanAPRateStatsEntry 42
wlanAPStatsTotPktsAtHT40dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.43 wlsxWlanAPRateStatsEntry 43
wlanAPStatsTotBytesAtHT40dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.44 wlsxWlanAPRateStatsEntry 44
wlanAPStatsTotPktsAtHT45Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.45 wlsxWlanAPRateStatsEntry 45
wlanAPStatsTotBytesAtHT45Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.46 wlsxWlanAPRateStatsEntry 46
wlanAPStatsTotPktsAtHT52Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.47 wlsxWlanAPRateStatsEntry 47
wlanAPStatsTotBytesAtHT52Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.48 wlsxWlanAPRateStatsEntry 48
wlanAPStatsTotPktsAtHT54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.49 wlsxWlanAPRateStatsEntry 49
wlanAPStatsTotBytesAtHT54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.50 wlsxWlanAPRateStatsEntry 50
wlanAPStatsTotPktsAtHT58dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.51 wlsxWlanAPRateStatsEntry 51
wlanAPStatsTotBytesAtHT58dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.52 wlsxWlanAPRateStatsEntry 52
wlanAPStatsTotPktsAtHT60Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.53 wlsxWlanAPRateStatsEntry 53
wlanAPStatsTotBytesAtHT60Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.54 wlsxWlanAPRateStatsEntry 54
wlanAPStatsTotPktsAtHT65Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.55 wlsxWlanAPRateStatsEntry 55
wlanAPStatsTotBytesAtHT65Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.56 wlsxWlanAPRateStatsEntry 56
Table 117 wlsxWlanAPRateStatsTable OIDs (Continued)
Object Object ID
530 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT78Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.57 wlsxWlanAPRateStatsEntry 57
wlanAPStatsTotBytesAtHT78Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.58 wlsxWlanAPRateStatsEntry 58
wlanAPStatsTotPktsAtHT81Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.59 wlsxWlanAPRateStatsEntry 59
wlanAPStatsTotBytesAtHT81Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.60 wlsxWlanAPRateStatsEntry 60
wlanAPStatsTotPktsAtHT90Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.61 wlsxWlanAPRateStatsEntry 61
wlanAPStatsTotBytesAtHT90Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.62 wlsxWlanAPRateStatsEntry 62
wlanAPStatsTotPktsAtHT104Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.63 wlsxWlanAPRateStatsEntry 63
wlanAPStatsTotBytesAtHT104Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.64 wlsxWlanAPRateStatsEntry 64
\wlanAPStatsTotPktsAtHT108Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.65 wlsxWlanAPRateStatsEntry 65
wlanAPStatsTotBytesAtHT108Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.66 wlsxWlanAPRateStatsEntry 66
wlanAPStatsTotPktsAtHT117Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.67 wlsxWlanAPRateStatsEntry 67
wlanAPStatsTotBytesAtHT117Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.68 wlsxWlanAPRateStatsEntry 68
wlanAPStatsTotPktsAtHT120Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.69 wlsxWlanAPRateStatsEntry 69
wlanAPStatsTotBytesAtHT120Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.70 wlsxWlanAPRateStatsEntry 70
wlanAPStatsTotPktsAtHT121dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.71 wlsxWlanAPRateStatsEntry 71
wlanAPStatsTotBytesAtHT121dot5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.72 wlsxWlanAPRateStatsEntry 72
wlanAPStatsTotPktsAtHT130Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.73 wlsxWlanAPRateStatsEntry 73
wlanAPStatsTotBytesAtHT130Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.74 wlsxWlanAPRateStatsEntry 74
wlanAPStatsTotPktsAtHT135Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.75 wlsxWlanAPRateStatsEntry 75
wlanAPStatsTotBytesAtHT135Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.76 wlsxWlanAPRateStatsEntry 76
wlanAPStatsTotPktsAtHT150Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.77 wlsxWlanAPRateStatsEntry 77
wlanAPStatsTotBytesAtHT150Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.78 wlsxWlanAPRateStatsEntry 78
wlanAPStatsTotPktsAtHT162Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.79 wlsxWlanAPRateStatsEntry 79
wlanAPStatsTotBytesAtHT162Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.80 wlsxWlanAPRateStatsEntry 80
wlanAPStatsTotPktsAtHT180Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.81 wlsxWlanAPRateStatsEntry 81
wlanAPStatsTotBytesAtHT180Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.82 wlsxWlanAPRateStatsEntry 82
wlanAPStatsTotPktsAtHT216Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.83 wlsxWlanAPRateStatsEntry 83
lwlanAPStatsTotBytesAtHT216Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.84 wlsxWlanAPRateStatsEntry 84
wlanAPStatsTotPktsAtHT240Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.85 wlsxWlanAPRateStatsEntry 85
wlanAPStatsTotBytesAtHT240Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.86 wlsxWlanAPRateStatsEntry 86
wlanAPStatsTotPktsAtHT243Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.87 wlsxWlanAPRateStatsEntry 87
wlanAPStatsTotBytesAtHT243Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.88 wlsxWlanAPRateStatsEntry 88
wlanAPStatsTotPktsAtHT270Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.89 wlsxWlanAPRateStatsEntry 89
wlanAPStatsTotBytesAtHT270Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.90 wlsxWlanAPRateStatsEntry 90
Table 117 wlsxWlanAPRateStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 531
wlsxWlanAPRateStatsEntry
wlanAPStatsTotPktsAt1Mbps
wlanAPStatsTotBytesAt1Mbps
wlanAPStatsTotPktsAt2Mbps
wlanAPStatsTotPktsAtHT300Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.91 wlsxWlanAPRateStatsEntry 91
wlanAPStatsTotBytesAtHT300Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.92 wlsxWlanAPRateStatsEntry 92
Syntax wlsxWlanAPRateStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 1Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 1 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 2 Mbps rate.
Table 117 wlsxWlanAPRateStatsTable OIDs (Continued)
Object Object ID
532 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotBytesAt2Mbps
wlanAPStatsTotPktsAt5Mbps
wlanAPStatsTotBytesAt5Mbps
wlanAPStatsTotPktsAt11Mbps
wlanAPStatsTotBytesAt11Mbps
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 2 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 5 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 5 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 11 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 533
wlanAPStatsTotPktsAt6Mbps
wlanAPStatsTotBytesAt6Mbps
wlanAPStatsTotPktsAt12Mbps
wlanAPStatsTotBytesAt12Mbps
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 11 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 6 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 6 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 12 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 12 Mbps rate.
534 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAt18Mbps
wlanAPStatsTotBytesAt18Mbps
wlanAPStatsTotPktsAt24Mbps
wlanAPStatsTotBytesAt24Mbps
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 18 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 18 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 24 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 24 Mbps rate.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 535
wlanAPStatsTotPktsAt36Mbps
wlanAPStatsTotBytesAt36Mbps
wlanAPStatsTotPktsAt48Mbps
wlanAPStatsTotBytesAt48Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 36 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 36 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 48 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 48 Mbps rate.
History Added in ArubaOS 2.3.
536 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAt54Mbps
wlanAPStatsTotBytesAt54Mbps
wlanAPStatsTotPktsAt9Mbps
wlanAPStatsTotBytesAt9Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 54 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 54 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets observed on this BSSID at 9 Mbps rate.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of bytes observed on this BSSID at 9 Mbps rate.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 537
wlanAPStatsTotPktsAtHT6dot5Mbps
wlanAPStatsTotBytesAtHT6dot5Mbps
wlanAPStatsTotPktsAtHT13Mbps
wlanAPStatsTotBytesAtHT13Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 6.5 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 6.5 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 13.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 13.0 rate.
History Added in ArubaOS 3.3.0.0.
538 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT13dot5Mbps
wlanAPStatsTotBytesAtHT13dot5Mbps
wlanAPStatsTotPktsAtHT15Mbps
wlanAPStatsTotBytesAtHT15Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observedon this BSSID at the HT 13.5
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 13.5 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 15.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 15.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 539
wlanAPStatsTotPktsAtHT19dot5Mbps
wlanAPStatsTotBytesAtHT19dot5Mbps
wlanAPStatsTotPktsAtHT26Mbps
wlanAPStatsTotBytesAtHT26Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 19.5
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 19.5 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 26.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 26.0 rate.
History Added in ArubaOS 3.3.0.0.
540 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT27Mbps
wlanAPStatsTotBytesAtHT27Mbps
wlanAPStatsTotPktsAtHT30Mbps
wlanAPStatsTotBytesAtHT30Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 27.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 27.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 30.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 30.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 541
wlanAPStatsTotPktsAtHT39Mbps
wlanAPStatsTotBytesAtHT39Mbps
wlanAPStatsTotPktsAtHT40dot5Mbps
wlanAPStatsTotBytesAtHT40dot5Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 39.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 39.0 rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 40.5
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 40.5 rate.
History Added in ArubaOS 3.3.0.0.
542 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT45Mbps
wlanAPStatsTotBytesAtHT45Mbps
wlanAPStatsTotPktsAtHT52Mbps
wlanAPStatsTotBytesAtHT52Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 45.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 45.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 52.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 52.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 543
wlanAPStatsTotPktsAtHT54Mbps
wlanAPStatsTotBytesAtHT54Mbps
wlanAPStatsTotPktsAtHT58dot5Mbps
wlanAPStatsTotBytesAtHT58dot5Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 54.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 54.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 58.5
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 58.5 rate.
History Added in ArubaOS 3.3.0.0.
544 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT60Mbps
wlanAPStatsTotBytesAtHT60Mbps
wlanAPStatsTotPktsAtHT65Mbps
wlanAPStatsTotBytesAtHT65Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 60.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 60.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 65.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 65.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 545
wlanAPStatsTotPktsAtHT78Mbps
wlanAPStatsTotBytesAtHT78Mbps
wlanAPStatsTotPktsAtHT81Mbps
wlanAPStatsTotBytesAtHT81Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 78.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 78.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 81.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 81.0 rate.
History Added in ArubaOS 3.3.0.0.
546 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT90Mbps
wlanAPStatsTotBytesAtHT90Mbps
wlanAPStatsTotPktsAtHT104Mbps
wlanAPStatsTotBytesAtHT104Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 90.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 90.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 104.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 104.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 547
\wlanAPStatsTotPktsAtHT108Mbps
wlanAPStatsTotBytesAtHT108Mbps
wlanAPStatsTotPktsAtHT117Mbps
wlanAPStatsTotBytesAtHT117Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 108.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status5 current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 108.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 117.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 117.0 rate.
History Added in ArubaOS 3.3.0.0.
548 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT120Mbps
wlanAPStatsTotBytesAtHT120Mbps
wlanAPStatsTotPktsAtHT121dot5Mbps
wlanAPStatsTotBytesAtHT121dot5Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 120.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 120.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current]
Description This attribute indicates the total number of packets observed on this BSSID at the HT 121.5
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 121.5 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 549
wlanAPStatsTotPktsAtHT130Mbps
wlanAPStatsTotBytesAtHT130Mbps
wlanAPStatsTotPktsAtHT135Mbps
wlanAPStatsTotBytesAtHT135Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 130.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 130.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 135.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 135.0
rate.
History Added in ArubaOS 3.3.0.0.
550 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT150Mbps
wlanAPStatsTotBytesAtHT150Mbps
wlanAPStatsTotPktsAtHT162Mbps
wlanAPStatsTotBytesAtHT162Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 150.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 150.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 162.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 162.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 551
wlanAPStatsTotPktsAtHT180Mbps
wlanAPStatsTotBytesAtHT180Mbps
wlanAPStatsTotPktsAtHT216Mbps
lwlanAPStatsTotBytesAtHT216Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observedbon this BSSID at the HT 180.0
rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 180.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observednon this BSSID at the HT 216.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 216.0 rate.
History Added in ArubaOS 3.3.0.0.
552 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT240Mbps
wlanAPStatsTotBytesAtHT240Mbps
wlanAPStatsTotPktsAtHT243Mbps
wlanAPStatsTotBytesAtHT243Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 240.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 240.0 rate.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 243.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observed on this BSSID at the HT 243.0 rate.
History Added in ArubaOS 3.3.0.0.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 553
wlanAPStatsTotPktsAtHT270Mbps
wlanAPStatsTotBytesAtHT270Mbps
wlanAPStatsTotPktsAtHT300Mbps
wlanAPStatsTotBytesAtHT300Mbps
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observed on this BSSID at the HT 270.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observedon this BSSID at the HT 270.0 rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of packets observedon this BSSID at the HT 300.0
rate.
History Added in ArubaOS 3.3.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description This attribute indicates the total number of bytes observednon this BSSID at the HT 300.0
rate.
History Added in ArubaOS 3.3.0.0.
554 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanAPDATypeStatsTable
The objects of the wlsx WLAN Access Point Destination Address Type Statistics table provide BSSID statistics,
which are grouped by destination address (DA).
wlsxWlanAPDATypeStatsEntry
wlanAPStatsTotDABroadcastPkts
Table 118 wlsxWlanAPDATypeStatsTable OIDs
Object Object ID
wlsxWlanAPDATypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1 wlsxWlanAPDATypeStatsTable 1
wlanAPStatsTotDABroadcastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.1 wlsxWlanAPDATypeStatsEntry 1
wlanAPStatsTotDABroadcastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.2 wlsxWlanAPDATypeStatsEntry 2
wlanAPStatsTotDAMulticastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.3 wlsxWlanAPDATypeStatsEntry 3
wlanAPStatsTotDAMulticastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.4 wlsxWlanAPDATypeStatsEntry 4
wlanAPStatsTotDAUnicastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.5 wlsxWlanAPDATypeStatsEntry 5
wlanAPStatsTotDAUnicastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.6 wlsxWlanAPDATypeStatsEntry 6
Syntax wlsxWlanAPDATypeStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of broadcast packets observed on this BSSID.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 555
wlanAPStatsTotDABroadcastBytes
wlanAPStatsTotDAMulticastPkts
wlanAPStatsTotDAMulticastBytes
wlanAPStatsTotDAUnicastPkts
Syntax Counter32
Max-Access read-only
Status current
Description The total number of broadcast bytes observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of multicast packets observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of multicast bytes observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of unicast packets observed on this BSSID.
History Added in ArubaOS 2.3.
556 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotDAUnicastBytes
wlsxWlanAPFrameTypeStatsTable
The objects of the wlsx WLAN AP Frame Type Stats lists BSSID statistics, which are grouped by the packet type.
wlsxWlanAPFrameTypeStatsEntry
Syntax Counter32
Max-Access read-only
Status current
Description The total number of unicast bytes observed on this BSSID.
History Added in ArubaOS 2.3.
Table 119 wlsxWlanAPFrameTypeStatsTable OIDs
Object Object ID
wlsxWlanAPFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1 wlsxWlanAPFrameTypeStatsTable 1
wlanAPStatsTotMgmtPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.1 wlsxWlanAPFrameTypeStatsEntry 1
wlanAPStatsTotMgmtBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.2 wlsxWlanAPFrameTypeStatsEntry 2
wlanAPStatsTotCtrlPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.3 wlsxWlanAPFrameTypeStatsEntry 3
wlanAPStatsTotCtrlBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.4 wlsxWlanAPFrameTypeStatsEntry 4
wlanAPStatsTotDataPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.5 wlsxWlanAPFrameTypeStatsEntry 5
wlanAPStatsTotDataBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.6 wlsxWlanAPFrameTypeStatsEntry 6
Syntax wlsxWlanAPFrameTypeStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 557
wlanAPStatsTotMgmtPkts
wlanAPStatsTotMgmtBytes
wlanAPStatsTotCtrlPkts
wlanAPStatsTotCtrlBytes
Syntax Counter32
Max-Access read-only
Status current
Description The total number of management packets observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of management bytes observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of control packets observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of control bytes observed on this BSSID.
History Added in ArubaOS 2.3.
558 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotDataPkts
wlanAPStatsTotDataBytes
wlsxWlanAPPktSizeStatsTable
The objects of the wlsx WLAN AP Pkt Size Stats table provide information on BSSID statistics, which are
grouped by packet size.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of data packets observed on this BSSID.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of data bytes observed on this BSSID.
History Added in ArubaOS 2.3.
Table 120 wlsxWlanAPPktSizeStatsTable OIDs
Object Object ID
wlsxWlanAPPktSizeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1 wlsxWlanAPPktSizeStatsTable 1
wlanAPStatsPkts63Bytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.1 wlsxWlanAPPktSizeStatsEntry 1
wlanAPStatsPkts64To127 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.2 wlsxWlanAPPktSizeStatsEntry 2
wlanAPStatsPkts128To255 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.3 wlsxWlanAPPktSizeStatsEntry 3
wlanAPStatsPkts256To511 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.4 wlsxWlanAPPktSizeStatsEntry 4
wlanAPStatsPkts512To1023 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.5 wlsxWlanAPPktSizeStatsEntry 5
wlanAPStatsPkts1024To1518 1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.6 wlsxWlanAPPktSizeStatsEntry 6
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 559
wlsxWlanAPPktSizeStatsEntry
wlanAPStatsPkts63Bytes
wlanAPStatsPkts64To127
wlanAPStatsPkts128To255
Syntax wlsxWlanAPPktSizeStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanAPMacAddress, wlanAPRadioNumber, wlanAPBSSID}
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were less than 64 bytes long.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were between 64 and 127 bytes long.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were between 128 and 255 bytes long.
History Added in ArubaOS 2.3.
560 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsPkts256To511
wlanAPStatsPkts512To1023
wlanAPStatsPkts1024To1518
wlsxWlanAPChStatsTable
The objects of the wlsx WLAN AP Ch Stats table provide information on the access points that are connected to
the controller.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were between 256 and 511 bytes long.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were between 512 and 1023 bytes long.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of packets that were between 1024 and 1518 bytes long.
History Added in ArubaOS 2.3.
Table 121 wlsxWlanAPChStatsTableOIDs
Object Object OID
wlsxWlanAPChStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1 wlsxWlanAPChStatsTable 1
wlanAPChannelNumber 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.1 wlsxWlanAPChStatsEntry 1
wlanAPChNumStations 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.2 wlsxWlanAPChStatsEntry 2
wlanAPChTotPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.3 wlsxWlanAPChStatsEntry 3
wlanAPChTotBytes 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.4 wlsxWlanAPChStatsEntry 4
wlanAPChTotRetryPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.5 wlsxWlanAPChStatsEntry 5
wlanAPChTotFragmentedPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.6 wlsxWlanAPChStatsEntry 6
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 561
wlanAPChTotPhyErrPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.7 wlsxWlanAPChStatsEntry 7
wlanAPChTotMacErrPkts 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.8 wlsxWlanAPChStatsEntry 8
wlanAPChNoise 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.9 wlsxWlanAPChStatsEntry 9
wlanAPChCoverageIndex 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.10 wlsxWlanAPChStatsEntry 10
wlanAPChInterferenceIndex 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.11 wlsxWlanAPChStatsEntry 11
wlanAPChFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.12 wlsxWlanAPChStatsEntry 12
wlanAPFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.13 wlsxWlanAPChStatsEntry 13
wlanAPFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.14 wlsxWlanAPChStatsEntry 14
wlanAPChFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.15 wlsxWlanAPChStatsEntry 15
wlanAPChFrameBandwidthRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.16 wlsxWlanAPChStatsEntry 16
wlanAPChFrameRetryErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.17 wlsxWlanAPChStatsEntry 17
wlanAPChBusyRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.18 wlsxWlanAPChStatsEntry 18
wlanAPChNumAPs 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.19 wlsxWlanAPChStatsEntry 19
wlanAPChFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.20 wlsxWlanAPChStatsEntry 20
Wlanapchtransmittedfragmentcount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.21 wlsxWlanAPChStatsEntry 21
wlanAPChMulticastTransmittedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.22 wlsxWlanAPChStatsEntry 22
wlanAPChFailedCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.23 wlsxWlanAPChStatsEntry 23
wlanAPChRetryCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.24 wlsxWlanAPChStatsEntry 24
wlanAPChMultipleRetryCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.25 wlsxWlanAPChStatsEntry 25
wlanAPChFrameDuplicateCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.26 wlsxWlanAPChStatsEntry 26
wlanAPChRTSSuccessCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.27 wlsxWlanAPChStatsEntry 27
wlanAPChRTSFailureCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.28 wlsxWlanAPChStatsEntry 28
wlanAPChACKFailureCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.29 wlsxWlanAPChStatsEntry 29
wlanAPChReceivedFragmentCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.30 wlsxWlanAPChStatsEntry 30
wlanAPChMulticastReceivedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.31 wlsxWlanAPChStatsEntry 31
wlanAPChFCSErrorCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.32 wlsxWlanAPChStatsEntry 32
wlanAPChTransmittedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.33 wlsxWlanAPChStatsEntry 33
wlanAPChWEPUndecryptableCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.34 wlsxWlanAPChStatsEntry 34
wlanAPChRxUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.35 wlsxWlanAPChStatsEntry 35
wlanAPChTxUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.36 wlsxWlanAPChStatsEntry 36
wlanAPChUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.37 wlsxWlanAPChStatsEntry 37
Table 121 wlsxWlanAPChStatsTableOIDs (Continued)
Object Object OID
562 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanAPChStatsEntry
wlanAPChannelNumber
wlanAPChNumStations
wlanAPChTotPkts
Syntax WlanAPChStatsEntry
Max-Access not-accessible
Status current
Description Access point channel stats entry.
Index {wlanAPMacAddress, wlanAPRadioNumber}
History Added in ArubaOS 2.3.
Syntax Integer(1..165)
Max-Access read-only
Status current
Description The channel the AP is currently using.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of stations using this channel.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total packets observed on this channel.
History Added in ArubaOS 2.3.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 563
wlanAPChTotBytes
wlanAPChTotRetryPkts
wlanAPChTotFragmentedPkts
wlanAPChTotPhyErrPkts
Syntax Counter32
Max-Access read-only
Status current
Description The total bytes observed on this channel.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total retry packets observed on this channel.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total fragmented packets observed on this channel.
History Added in ArubaOS 2.3.
Syntax Counter32
Max-Access read-only
Status current
Description The total physical error packets observed on this channel.
History Added in ArubaOS 2.3.
564 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChTotMacErrPkts
wlanAPChNoise
wlanAPChCoverageIndex
wlanAPChInterferenceIndex
Syntax Counter32
Max-Access read-only
Status current
Description The total MAC errors packets observed on this channel.
History Added in ArubaOS 2.3.
Syntax Integer32
Max-Access read-only
Status current
Description The noise observed on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The coverage provided by the AP on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The interference observed on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 565
wlanAPChFrameRetryRate
wlanAPChFrameLowSpeedRate
wlanAPChFrameNonUnicastRate
wlanAPChFrameFragmentationRate
Syntax Integer32
Max-Access read-only
Status current
Description The number of retry packets as a percentage of the total packets transmitted and received
on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of low data rate (<= 18 Mbps for A/G bands and <=2 Mbps for B band) packets as
a percentage of the total packets transmitted and received on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of broadcast and multicast packets as a percentage of the total packets
transmitted on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of fragments as a percentage of the total packets transmitted on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
566 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChFrameBandwidthRate
wlanAPChFrameRetryErrorRate
wlanAPChBusyRate
wlanAPChNumAPs
Syntax Integer32
Max-Access read-only
Status current
Description The bandwidth of this channel in Kbps.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The number of error packets as a percentage of the total packets received on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description How busy this channel is.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of access points observed on this channel.
History Added in ArubaOS 2.3.
Updated in ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 567
wlanAPChFrameReceiveErrorRate
Wlanapchtransmittedfragmentcount
wlanAPChMulticastTransmittedFrameCount
wlanAPChFailedCount
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received on this channel.
History Added in ArubaOS 3.2
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases for an acknowledged MPDU with an individual address in the address
1 field or an MPDU with a multicast address in the address 1 field of type Data or
Management.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases only when the multicast bit is set in the destination MAC address of a
successfully transmitted MSDU. When operating as a STA in an ESS, where these frames are
directed to the AP, this implies having received an acknowledgment to all associated
MPDUs.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when an MSDU is not transmitted successfully due to the number of
transmit attempts exceeding either the dot11ShortRetryLimit or dot11LongRetryLimit.
History Added in ArubaOS 6.0
568 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChRetryCount
wlanAPChMultipleRetryCount
wlanAPChFrameDuplicateCount
wlanAPChRTSSuccessCount
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when an MSDU is successfully transmitted after one or more
retransmissions.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when an MSDU is successfully transmitted after more than one
retransmission.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when a frame is received that the Sequence Control field indicates is
a duplicate.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when a CTS is received in response to an RTS.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 569
wlanAPChRTSFailureCount
wlanAPChACKFailureCount
wlanAPChReceivedFragmentCount
wlanAPChMulticastReceivedFrameCount
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when a CTS is not received in response to an RTS.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when an ACK is not received when expected.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases for each successfully received MPDU of type Data or Management.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when a MSDU is received with the multicast bit set in the destination
MAC address.
History Added in ArubaOS 6.0
570 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChFCSErrorCount
wlanAPChTransmittedFrameCount
wlanAPChWEPUndecryptableCount
wlanAPChRxUtilization
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when an FCS error is detected in a received MPDU.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases for each successfully transmitted MSDU.
History Added in ArubaOS 6.0
Syntax Integer32
Max-Access read-only
Status current
Description This counter increases when a frame is received with the Protected Frame subfield of the
Frame Control field set to one. The WEPOn value for the key mapped to the transmitter's MAC
address must indicate that the frame should not have been encrypted or that frame is
discarded due to the receiving STA not implementing the privacy option.
History Added in ArubaOS 6.0
Syntax Integer (0..100)
Max-Access read-only
Status current
Description This is the percentage of time spent by the radio in receiving packets.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 571
wlanAPChTxUtilization
wlanAPChUtilization
wlsxWlanStationStatsTable
The objects of the wlsx WLAN Station Statistics table provide information of the air monitors that are attached
to the controller. The information is sorted—generic, rate, destination address, frame type.
Syntax Integer (0..100)
Max-Access read-only
Status current
Description This is the percentage of time spent by the radio in transmitting packets.
History Added in ArubaOS 6.0
Syntax Integer (0..100)
Max-Access read-only
Status current
Description This is the percentage of time the channel is busy.
History Added in ArubaOS 6.0
Table 122 wlsxWlanStationStatsTable OIDs
Object Object OID
wlsxWlanStationStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1 wlsxWlanStationStatsTable 1
wlanStaChannelNum 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.1 wlsxWlanStationStatsEntry 1
wlanStaTxPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.2 wlsxWlanStationStatsEntry 2
wlanStaTxBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.3 wlsxWlanStationStatsEntry 3
wlanStaRxPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.4 wlsxWlanStationStatsEntry 4
wlanStaRxBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.5 wlsxWlanStationStatsEntry 5
wlanStaTxBCastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.6 wlsxWlanStationStatsEntry 6
wlanStaRxBCastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.7 wlsxWlanStationStatsEntry 7
wlanStaTxMCastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.8 wlsxWlanStationStatsEntry 8
wlanStaRxMCastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.9 wlsxWlanStationStatsEntry 9
wlanStaDataPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.10 wlsxWlanStationStatsEntry 10
wlanStaCtrlPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.11 wlsxWlanStationStatsEntry 11
wlanStaNumAssocRequests 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.12 wlsxWlanStationStatsEntry 12
wlanStaNumAuthRequests 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.13 wlsxWlanStationStatsEntry 13
wlanStaTxDeauthentications 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.14 wlsxWlanStationStatsEntry 14
572 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanStationStatsEntry
wlanStaChannelNum
wlanStaRxDeauthentications 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.15 wlsxWlanStationStatsEntry 15
wlanStaFrameRetryRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.16 wlsxWlanStationStatsEntry 16
wlanStaFrameLowSpeedRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.17 wlsxWlanStationStatsEntry 17
wlanStaFrameNonUnicastRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.18 wlsxWlanStationStatsEntry 18
wlanStaFrameFragmentationRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.19 wlsxWlanStationStatsEntry 19
wlanStaFrameBandwidthRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.20 wlsxWlanStationStatsEntry 20
wlanStaFrameRetryErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.21 wlsxWlanStationStatsEntry 21
wlanStaFrameReceiveErrorRate 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.22 wlsxWlanStationStatsEntry 22
wlanStaTxBCastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.23 wlsxWlanStationStatsEntry 23
wlanStaTxMCastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.24 wlsxWlanStationStatsEntry 24
wlanStaTxBytes64 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.25 wlsxWlanStationStatsEntry 25
wlanStaRxBytes64 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.26 wlsxWlanStationStatsEntry 26
Syntax WlanStationStatsEntry
Max-Access not-accessible
Status current
Description Station stats entry.
Index {wlanStaPhyAddress}
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Unsigned32
Max-Access read-only
Status current
Description The channel the station is currently using.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Table 122 wlsxWlanStationStatsTable OIDs (Continued)
Object Object OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 573
wlanStaTxPkts
wlanStaTxBytes
wlanStaRxPkts
wlanStaRxBytes
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of bytes received by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
574 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxBCastPkts
wlanStaRxBCastBytes
wlanStaTxMCastPkts
wlanStaRxMCastBytes
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of broadcast bytes transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status deprecated
Description The number of multicast bytes transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 575
wlanStaDataPkts
wlanStaCtrlPkts
wlanStaNumAssocRequests
wlanStaNumAuthRequests
Syntax Counter32
Max-Access read-only
Status current
Description The total number of data packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The total number of control packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of association requests transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of authentication requests transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
576 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxDeauthentications
wlanStaRxDeauthentications
wlanStaFrameRetryRate
wlanStaFrameLowSpeedRate
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentication frames transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Counter32
Max-Access read-only
Status current
Description The number of deauthentication frames received by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of retry packets as a percentage of the total packets transmitted and received by
this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of low data rate (<= 18 Mbps for A/G bands and <=2 Mbps for B band) packets
as a percentage of the total packets transmitted and received by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 577
wlanStaFrameNonUnicastRate
wlanStaFrameFragmentationRate
wlanStaFrameBandwidthRate
wlanStaFrameRetryErrorRate
Syntax Integer32
Max-Access read-only
Status current
Description The number of broadcast and multicast packets as a percentage of the total packets
transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The number of fragments as a percentage of the total packets transmitted by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status current
Description The bandwidth of this station in Kbps.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
Syntax Integer32
Max-Access read-only
Status deprecated
Description The number of error packets as a percentage of the total packets received by this station.
History Added in ArubaOS 2.3.
Updated ArubaOS 3.1—description.
578 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaFrameReceiveErrorRate
wlanStaTxBCastBytes
wlanStaTxMCastBytes
wlanStaTxBytes64
Syntax Integer32
Max-Access read-only
Status current
Description The number of error packets as a percentage of the total packets received by this station.
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast bytes transmitted by this station.
History Added in ArubaOS 3.2.0.0.
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast bytes transmitted by this station.
History Added in ArubaOS 6.0
Syntax Counter64
Max-Access read-only
Status current
Description The number of bytes transmitted by this station, 64-bit value.
History Added in ArubaOS 6.0
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 579
wlanStaRxBytes64
wlsxWlanStaRateStatsTable
The objects of wlsx WLAN Station Rate Stats table provide packet and byte count information for a station. The
information is grouped by data rate.
Syntax Counter64
Max-Access read-only
Status current
Description The number of bytes received by this station, 64-bit value.
History Added in ArubaOS 6.0
Table 123 wlsxWlanStaRateStatsTable OIDs
Object Object OID
wlsxWlanStaRateStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1 wlsxWlanStaRateStatsTable 1
wlanStaTxPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.1 wlsxWlanStaRateStatsEntry 1
wlanStaTxBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.2 wlsxWlanStaRateStatsEntry 2
wlanStaTxPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.3 wlsxWlanStaRateStatsEntry 3
wlanStaTxBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.4 wlsxWlanStaRateStatsEntry 4
wlanStaTxPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.5 wlsxWlanStaRateStatsEntry 5
wlanStaTxBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.6 wlsxWlanStaRateStatsEntry 6
wlanStaTxPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.7 wlsxWlanStaRateStatsEntry 7
wlanStaTxBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.8 wlsxWlanStaRateStatsEntry 8
wlanStaTxPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.9 wlsxWlanStaRateStatsEntry 9
wlanStaTxBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.10 wlsxWlanStaRateStatsEntry 10
wlanStaTxPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.11 wlsxWlanStaRateStatsEntry 11
wlanStaTxBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.12 wlsxWlanStaRateStatsEntry 12
wlanStaTxPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.13 wlsxWlanStaRateStatsEntry 13
wlanStaTxBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.14 wlsxWlanStaRateStatsEntry 14
wlanStaTxPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.15 wlsxWlanStaRateStatsEntry 15
wlanStaTxBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.16 wlsxWlanStaRateStatsEntry 16
wlanStaTxPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.17 wlsxWlanStaRateStatsEntry 17
wlanStaTxBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.18 wlsxWlanStaRateStatsEntry 18
wlanStaTxPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.19 wlsxWlanStaRateStatsEntry 19
wlanStaTxBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.20 wlsxWlanStaRateStatsEntry 20
wlanStaTxPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.21 wlsxWlanStaRateStatsEntry 21
wlanStaTxBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.22 wlsxWlanStaRateStatsEntry 22
580 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanStaRateStatsEntry
wlanStaRxPktsAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.23 wlsxWlanStaRateStatsEntry 23
wlanStaRxBytesAt1Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.24 wlsxWlanStaRateStatsEntry 24
wlanStaRxPktsAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.25 wlsxWlanStaRateStatsEntry 25
wlanStaRxBytesAt2Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.26 wlsxWlanStaRateStatsEntry 26
wlanStaRxPktsAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.27 wlsxWlanStaRateStatsEntry 27
wlanStaRxBytesAt5Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.28 wlsxWlanStaRateStatsEntry 28
wlanStaRxPktsAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.29 wlsxWlanStaRateStatsEntry 29
wlanStaRxBytesAt11Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.30 wlsxWlanStaRateStatsEntry 30
wlanStaRxPktsAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.31 wlsxWlanStaRateStatsEntry 31
wlanStaRxBytesAt6Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.32 wlsxWlanStaRateStatsEntry 32
wlanStaRxPktsAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.33 wlsxWlanStaRateStatsEntry 33
wlanStaRxBytesAt12Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.34 wlsxWlanStaRateStatsEntry 34
wlanStaRxPktsAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.35 wlsxWlanStaRateStatsEntry 35
wlanStaRxBytesAt18Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.36 wlsxWlanStaRateStatsEntry 36
wlanStaRxPktsAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.37 wlsxWlanStaRateStatsEntry 37
wlanStaRxBytesAt24Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.38 wlsxWlanStaRateStatsEntry 38
wlanStaRxPktsAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.39 wlsxWlanStaRateStatsEntry 39
wlanStaRxBytesAt36Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.40 wlsxWlanStaRateStatsEntry 40
wlanStaRxPktsAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.41 wlsxWlanStaRateStatsEntry 41
wlanStaRxBytesAt48Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.42 wlsxWlanStaRateStatsEntry 42
wlanStaRxPktsAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.43 wlsxWlanStaRateStatsEntry 43
wlanStaRxBytesAt54Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.44 wlsxWlanStaRateStatsEntry 44
wlanStaTxPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.45 wlsxWlanStaRateStatsEntry 45
wlanStaTxBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.46 wlsxWlanStaRateStatsEntry 46
wlanStaRxPktsAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.47 wlsxWlanStaRateStatsEntry 47
wlanStaRxBytesAt9Mbps 1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.48 wlsxWlanStaRateStatsEntry 48
Syntax wlsxWlanStaRateStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanStaPhyAddress}
Table 123 wlsxWlanStaRateStatsTable OIDs (Continued)
Object Object OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 581
wlanStaTxPktsAt1Mbps
wlanStaTxBytesAt1Mbps
wlanStaTxPktsAt2Mbps
wlanStaTxBytesAt2Mbps
wlanStaTxPktsAt5Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 5 Mbps rate.
582 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxBytesAt5Mbps
wlanStaTxPktsAt11Mbps
wlanStaTxBytesAt11Mbps
wlanStaTxPktsAt6Mbps
wlanStaTxBytesAt6Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 6 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 583
wlanStaTxPktsAt12Mbps
wlanStaTxBytesAt12Mbps
wlanStaTxPktsAt18Mbps
wlanStaTxBytesAt18Mbps
wlanStaTxPktsAt24Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 24 Mbps rate.
584 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxBytesAt24Mbps
wlanStaTxPktsAt36Mbps
wlanStaTxBytesAt36Mbps
wlanStaTxPktsAt48Mbps
wlanStaTxBytesAt48Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 36 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 48 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 585
wlanStaTxPktsAt54Mbps
wlanStaTxBytesAt54Mbps
wlanStaRxPktsAt1Mbps
wlanStaRxBytesAt1Mbps
wlanStaRxPktsAt2Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 1 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 2 Mbps rate.
586 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaRxBytesAt2Mbps
wlanStaRxPktsAt5Mbps
wlanStaRxBytesAt5Mbps
wlanStaRxPktsAt11Mbps
wlanStaRxBytesAt11Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 2 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 5 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 11 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 11 Mbps rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 587
wlanStaRxPktsAt6Mbps
wlanStaRxBytesAt6Mbps
wlanStaRxPktsAt12Mbps
wlanStaRxBytesAt12Mbps
wlanStaRxPktsAt18Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 6 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 12 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 18 Mbps rate.
588 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaRxBytesAt18Mbps
wlanStaRxPktsAt24Mbps
wlanStaRxBytesAt24Mbps
wlanStaRxPktsAt36Mbps
wlanStaRxBytesAt36Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 18 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 24 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 36 Mpbs rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 36 Mpbs rate.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 589
wlanStaRxPktsAt48Mbps
wlanStaRxBytesAt48Mbps
wlanStaRxPktsAt54Mbps
wlanStaRxBytesAt54Mbps
wlanStaTxPktsAt9Mbps
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 48 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 54 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station at 9 Mbps rate.
590 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxBytesAt9Mbps
wlanStaRxPktsAt9Mbps
wlanStaRxBytesAt9Mbps
wlsxWlanStaDATypeStatsTable
The objects of the wlsx WLAN Station Destination Access Type Stats table provide information of Station
statistics that are sorted by destination address (DA).
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets transmitted by the station at 9 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station at 9 Mbps rate.
Syntax Counter32
Max-Access read-only
Status current
Description The number of octets received by the station at 9 Mbps rate.
Table 124 wlsxWlanStaDATypeStatsTable OIDs
Object Object ID
wlsxWlanStaDATypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1 wlsxWlanStaDATypeStatsTable 1
wlanStaTxDABroadcastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.1 IwlsxWlanStaDATypeStatsEntry 1
wlanStaTxDABroadcastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.2 IwlsxWlanStaDATypeStatsEntry 2
wlanStaTxDAMulticastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.3 IwlsxWlanStaDATypeStatsEntry 3
wlanStaTxDAMulticastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.4 IwlsxWlanStaDATypeStatsEntry 4
wlanStaTxDAUnicastPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.5 IwlsxWlanStaDATypeStatsEntry 5
wlanStaTxDAUnicastBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.6 IwlsxWlanStaDATypeStatsEntry 6
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 591
wlsxWlanStaDATypeStatsEntry
wlanStaTxDABroadcastPkts
wlanStaTxDABroadcastBytes
wlanStaTxDAMulticastPkts
wlanStaTxDAMulticastBytes
Max-Access not-accessible
Status current
Description User entry
Index {wlanStaPhyAddress}
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of broadcast bytes transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of multicast bytes transmitted by this station.
592 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxDAUnicastPkts
wlanStaTxDAUnicastBytes
wlsxWlanStaFrameTypeStatsTable
The objects of the wlsx WLAN Station Frame Type table provide information on the packet and byte counts per
station. The information is sorted by frame type.
Syntax Counter32
Max-Access read-only
Status current
Description The total of unicast packets transmitted by this station.
Syntax Counter32
Max-Access read-only
Status current
Description The total of unicast bytes transmitted by this station.
Table 125 wlsxWlanStaFrameTypeStatsTable OIDs
Object Object ID
wlsxWlanStaFrameTypeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1 wlsxWlanStaFrameTypeStatsTable 1
wlanStaTxMgmtPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.1 wlsxWlanStaFrameTypeStatsEntry 1
wlanStaTxMgmtBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.2 wlsxWlanStaFrameTypeStatsEntry 2
wlanStaTxCtrlPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.3 wlsxWlanStaFrameTypeStatsEntry 3
wlanStaTxCtrlBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.4 wlsxWlanStaFrameTypeStatsEntry 4
wlanStaTxDataPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.5 wlsxWlanStaFrameTypeStatsEntry 5
wlanStaTxDataBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.6 wlsxWlanStaFrameTypeStatsEntry 6
wlanStaRxMgmtPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.7 wlsxWlanStaFrameTypeStatsEntry 7
wlanStaRxMgmtBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.8 wlsxWlanStaFrameTypeStatsEntry 8
wlanStaRxCtrlPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.9 wlsxWlanStaFrameTypeStatsEntry 9
wlanStaRxCtrlBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.110 wlsxWlanStaFrameTypeStatsEntry 10
wlanStaRxDataPkts 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.11 wlsxWlanStaFrameTypeStatsEntry 11
wlanStaRxDataBytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.12 wlsxWlanStaFrameTypeStatsEntry 12
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 593
wlsxWlanStaFrameTypeStatsEntry
wlanStaTxMgmtPkts
wlanStaTxMgmtBytes
wlanStaTxCtrlPkts
wlanStaTxCtrlBytes
Syntax wlsxWlanStaFrameTypeStatsEntry
Max-Access not-accessible
Status current
Description User entry
Index {wlanStaPhyAddress}
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted management packets from a station.
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted management bytes from a station.
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted control packets from a station.
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted control bytes from a station.
594 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaTxDataPkts
wlanStaTxDataBytes
wlanStaRxMgmtPkts
wlanStaRxMgmtBytes
wlanStaRxCtrlPkts
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted data packets from a station.
Syntax Counter32
Max-Access read-only
Status current
Description The transmitted data bytes observed on this channel.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received management packets at a station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received management bytes at a station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received control packets at a station.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 595
wlanStaRxCtrlBytes
wlanStaRxDataPkts
wlanStaRxDataBytes
wlsxWlanStaPktSizeStatsTable
The objects of the wlsx WLAN Station Packet Size Statistics table provide information on the packet and byte
counts for stations, which are sorted by packet size.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received control bytes at a station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received data packets at a station.
Syntax Counter32
Max-Access read-only
Status current
Description The number of received data bytes at a station.
Table 126 wlsxWlanStaPktSizeStatsTable OIDs
Object Object ID
wlsxWlanStaPktSizeStatsEntry 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1 wlsxWlanStaPktSizeStatsTable 1
wlanStaTxPkts63Bytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.1 wlsxWlanStaPktSizeStatsEntry 1
wlanStaTxPkts64To127 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.2 wlsxWlanStaPktSizeStatsEntry 2
wlanStaTxPkts128To255 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.3 wlsxWlanStaPktSizeStatsEntry 3
wlanStaTxPkts256To511 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.4 wlsxWlanStaPktSizeStatsEntry 4
wlanStaTxPkts512To1023 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.5 wlsxWlanStaPktSizeStatsEntry 5
wlanStaTxPkts1024To1518 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.6 wlsxWlanStaPktSizeStatsEntry 6
wlanStaRxPkts63Bytes 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.7 wlsxWlanStaPktSizeStatsEntry 7
wlanStaRxPkts64To127 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.8 wlsxWlanStaPktSizeStatsEntry 8
wlanStaRxPkts128To255 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.9 wlsxWlanStaPktSizeStatsEntry 9
596 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanStaPktSizeStatsEntry
wlanStaTxPkts63Bytes
wlanStaTxPkts64To127
wlanStaTxPkts128To255
wlanStaRxPkts256To511 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.10 wlsxWlanStaPktSizeStatsEntry 10
wlanStaRxPkts512To1023 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.11 wlsxWlanStaPktSizeStatsEntry 11
wlanStaRxPkts1024To1518 1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.12 wlsxWlanStaPktSizeStatsEntry 12
Syntax wlsxWlanStaPktSizeStatsEntry
Max-Access not-accessible
Status current
Description User entry.
Index {wlanStaPhyAddress}
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were less than 64 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were between 64 and 127 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were between 128 and 255 bytes long.
Table 126 wlsxWlanStaPktSizeStatsTable OIDs (Continued)
Object Object ID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide WLAN | 597
wlanStaTxPkts256To511
wlanStaTxPkts512To1023
wlanStaTxPkts1024To1518
wlanStaRxPkts63Bytes
wlanStaRxPkts64To127
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were between 256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets transmitted by the station that were between 1024 and 1518 bytes
long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were less than 64 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were between 64 and 127 bytes long.
598 |WLAN Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaRxPkts128To255
wlanStaRxPkts256To511
wlanStaRxPkts512To1023
wlanStaRxPkts1024To1518
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were between 128 and 255 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were between 256 and 511 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were between 512 and 1023 bytes long.
Syntax Counter32
Max-Access read-only
Status current
Description The number of packets received by the station that were between 1024 and 1518 bytes long.
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 599
Chapter 20
SNMP MIBs Reference
This section provides lists of the SNMP MIB OIDs that are related to ArubaOS. The first table (Table 127)
defines the sysObjectIds for Dell products.
The following table provides the OIDs for objects from the Aruba Networks enterprise MIBs.
Table 127 SNMP OIDs returned as sysObjectID for Dell Networks products
SNMP MIB OID
Dell .1.3.6.1.4.1.674
PowerConnect products .1.3.6.1.4.1.674.10895
Dell PowerConnect W-650 Controller .1.3.6.1.4.1.674.10895.5001
Dell PowerConnect W-651 Controller .1.3.6.1.4.1.674.10895.5002
Dell PowerConnect W-3200 Controller .1.3.6.1.4.1.674.10895.5003
Dell PowerConnect W-3400 Controller .1.3.6.1.4.1.674.10895.5004
Dell PowerConnect W-3600 Controller .1.3.6.1.4.1.674.10895.5005
Dell PowerConnect W-AP92 Access Point .1.3.6.1.4.1.674.10895.5006
Dell PowerConnect W-AP93 Access Point .1.3.6.1.4.1.674.10895.5007
Dell PowerConnect W-AP105 Access Point .1.3.6.1.4.1.674.10895.5008
Dell PowerConnect W-AP124 Access Point .1.3.6.1.4.1.674.10895.5009
Dell PowerConnect W-AP125 Access Point .1.3.6.1.4.1.674.10895.5010
Dell PowerConnect W-RAP5 Access Point .1.3.6.1.4.1.674.10895.5011
Dell PowerConnect W-RAP5WN Access Point .1.3.6.1.4.1.674.10895.5012
Dell PowerConnect W-RAP-2 Access Point .1.3.6.1.4.1.674.10895.5013
Dell PowerConnect W-620 Controller .1.3.6.1.4.1.674.10895.5014
Table 128 SNMP OIDs for Aruba Enterprise MIB modules
SNMP MIB OID
aruba .1.3.6.1.4.1.14823
arubaEnterpriseMibModules .1.3.6.1.4.1.14823.2
common .1.3.6.1.4.1.14823.2.1
switch .1.3.6.1.4.1.14823.2.2
600 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxEnterpriseMibModules .1.3.6.1.4.1.14823.2.2.1
wlsxSwitchMIB .1.3.6.1.4.1.14823.2.2.1.1
wlsxSystemXGroup .1.3.6.1.4.1.14823.2.2.1.1.1
wlsxHostname .1.3.6.1.4.1.14823.2.2.1.1.1.1
wlsxModelName .1.3.6.1.4.1.14823.2.2.1.1.1.2
wlsxSwitchIp .1.3.6.1.4.1.14823.2.2.1.1.1.3
wlsxSwitchRole .1.3.6.1.4.1.14823.2.2.1.1.1.4
wlsxSwitchMasterIp .1.3.6.1.4.1.14823.2.2.1.1.1.5
wlsxSwitchListTable .1.3.6.1.4.1.14823.2.2.1.1.1.6
wlsxSwitchListEntry .1.3.6.1.4.1.14823.2.2.1.1.1.6.1
switchListSwitchIPAddress .1.3.6.1.4.1.14823.2.2.1.1.1.6.1.1
switchListSwitchRole .1.3.6.1.4.1.14823.2.2.1.1.1.6.1.2
wlsxSwitchLicenseCoun .1.3.6.1.4.1.14823.2.2.1.1.1.7
wlsxSwitchLicenseTable .1.3.6.1.4.1.14823.2.2.1.1.1.8
wlsxLicenseEntry .1.3.6.1.4.1.14823.2.2.1.1.1.8.1
licenseIndex .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.1
licenseKey .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.2
licenseInstalled .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.3
licenseExpires .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.4
licenseFlags .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.5
licenseService .1.3.6.1.4.1.14823.2.2.1.1.1.8.1.6
wlsxSysXProcessorTable .1.3.6.1.4.1.14823.2.2.1.1.1.9
wlsxSysXProcessorEntry .1.3.6.1.4.1.14823.2.2.1.1.1.9.1
sysXProcessorID .1.3.6.1.4.1.14823.2.2.1.1.1.9.1.1
sysXProcessorDescr .1.3.6.1.4.1.14823.2.2.1.1.1.9.1.2
sysXProcessorLoad .1.3.6.1.4.1.14823.2.2.1.1.1.9.1.3
wlsxSysXStorageTable .1.3.6.1.4.1.14823.2.2.1.1.1.10
wlsxSysXStorageEntry .1.3.6.1.4.1.14823.2.2.1.1.1.10.1
sysXStorageIndex .1.3.6.1.4.1.14823.2.2.1.1.1.10.1.1
sysXStorageType .1.3.6.1.4.1.14823.2.2.1.1.1.10.1.2
sysXStorageSize .1.3.6.1.4.1.14823.2.2.1.1.1.10.1.3
sysXStorageUsed .1.3.6.1.4.1.14823.2.2.1.1.1.10.1.4
sysXStorageName .1.3.6.1.4.1.14823.2.2.1.1.1.10.1.5
wlsxSysXMemoryTable .1.3.6.1.4.1.14823.2.2.1.1.1.11
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 601
wlsxSysXMemoryEntry .1.3.6.1.4.1.14823.2.2.1.1.1.11.1
sysXMemoryIndex .1.3.6.1.4.1.14823.2.2.1.1.1.11.1.1
sysXMemorySize .1.3.6.1.4.1.14823.2.2.1.1.1.11.1.2
sysXMemoryUsed .1.3.6.1.4.1.14823.2.2.1.1.1.11.1.3
sysXMemoryFree .1.3.6.1.4.1.14823.2.2.1.1.1.11.1.4
wlsxSwitchLicenseSerialNumber .1.3.6.1.4.1.14823.2.2.1.1.1.12
wlsxUserInfoGroup .1.3.6.1.4.1.14823.2.2.1.1.2
wlsxSwitchUserTable .1.3.6.1.4.1.14823.2.2.1.1.2.1
wlsxSwitchUserEntry .1.3.6.1.4.1.14823.2.2.1.1.2.1.1
userIpAddress .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.1
userPhyAddress .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.2
userName .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.3
userRole .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.4
userUpTime .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.5
userAuthenticationMethod .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.6
userLocation .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.7
userServerName .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.8
userConnectedVlan .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.9
userConnectedSlot .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.10
userConnectedPort .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.11
userBWContractName .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.12
userBWContractUsage .1.3.6.1.4.1.14823.2.2.1.1.2.1.1.13
wlsxSwitchStationMgmtTable .1.3.6.1.4.1.14823.2.2.1.1.2.2
wlsxSwitchStationMgmtEntry .1.3.6.1.4.1.14823.2.2.1.1.2.2.1
staPhyAddress .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.1
staAccessPointBSSID .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.2
staUserName .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.3
staUserRole .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.4
staAssociationID .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.5
staAccessPointESSID .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.6
staSignalToNoiseRatio .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.7
staTransmitRate .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.8
staReceiveRate .1.3.6.1.4.1.14823.2.2.1.1.2.2.1.9
wlsxSwitchStationStatsTable .1.3.6.1.4.1.14823.2.2.1.1.2.3
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
602 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSwitchStationStatsEntry .1.3.6.1.4.1.14823.2.2.1.1.2.3.1
staTxPackets .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.1
staTxBytes .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.2
staRxPackets .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.3
staRxBytes .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.4
staBwRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.5
staFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.6
staFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.7
staFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.8
staFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.9
staFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.1.2.3.1.10
wlsxAccessPointInfoGroup .1.3.6.1.4.1.14823.2.2.1.1.3
wlsxSwitchTotalNumAccessPoints .1.3.6.1.4.1.14823.2.2.1.1.3.1
wlsxSwitchTotalNumStationsAssociated .1.3.6.1.4.1.14823.2.2.1.1.3.2
wlsxSwitchAccessPointTable .1.3.6.1.4.1.14823.2.2.1.1.3.3
wlsxSwitchAccessPointEntry .1.3.6.1.4.1.14823.2.2.1.1.3.3.1
apBSSID .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.1
apESSID .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.2
apSlot .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.3
apPort .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.4
apIpAddress .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.5
apPhyType .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.6
apType .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.7
apCurrentChannel .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.8
apLocation .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.9
apTotalTime .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.10
apInactiveTime .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.11
apLoadBalancing .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.12
apChannelNoise .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.13
apSignalToNoiseRatio .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.14
apTransmitRate .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.15
apReceiveRate .1.3.6.1.4.1.14823.2.2.1.1.3.3.1.16
wlsxSwitchGlobalAPTable .1.3.6.1.4.1.14823.2.2.1.1.3.4
wlsxSwitchGlobalAPEntry .1.3.6.1.4.1.14823.2.2.1.1.3.4.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 603
globalAPLocation .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.1
globalAPAddress .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.2
globalAPLocalSwitch .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.3
globalAPdot11aPhyAddr .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.4
globalAPdot11bPhyAddr .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.5
globalAPState .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.6
globalAPdot11gPhyAddr .1.3.6.1.4.1.14823.2.2.1.1.3.4.1.7
wlsxSwitchAccessPointStatsTable .1.3.6.1.4.1.14823.2.2.1.1.3.5
wlsxSwitchAccessPointStatsEntry .1.3.6.1.4.1.14823.2.2.1.1.3.5.1
apStatsChannel .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.1
apChannelBwRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.2
apChannelFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.3
apChannelFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.4
apChannelFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.5
apChannelFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.6
apChannelFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.7
apBSSTxPackets .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.8
apBSSTxBytes .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.9
apBSSRxPackets .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.10
apBSSRxBytes .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.11
apBSSBwRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.12
apBSSFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.13
apBSSFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.14
apBSSFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.15
apBSSFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.16
apBSSFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.1.3.5.1.17
wlsxSwitchTraps .1.3.6.1.4.1.14823.2.2.1.1.100
wlsxSwitchTrapObjectsGroup .1.3.6.1.4.1.14823.2.2.1.1.100.100
wlsxAuthServerName .1.3.6.1.4.1.14823.2.2.1.1.100.100.1
wlsxAuthServerTimeout .1.3.6.1.4.1.14823.2.2.1.1.100.100.2
wlsxFanNumber .1.3.6.1.4.1.14823.2.2.1.1.100.100.4
wlsxLineCardNumber .1.3.6.1.4.1.14823.2.2.1.1.100.100.5
wlsxVoltageType .1.3.6.1.4.1.14823.2.2.1.1.100.100.6
wlsxVoltageValue .1.3.6.1.4.1.14823.2.2.1.1.100.100.7
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
604 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTemperatureValue .1.3.6.1.4.1.14823.2.2.1.1.100.100.8
wlsxProcessName .1.3.6.1.4.1.14823.2.2.1.1.100.100.9
wlsxStationMacAddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.10
wlsxStationBlackListReason .1.3.6.1.4.1.14823.2.2.1.1.100.100.11
wlsxSpoofedIpAddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.12
wlsxSpoofedOldPhyAddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.13
wlsxSpoofedNewPhyAddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.14
wlsxDBName .1.3.6.1.4.1.14823.2.2.1.1.100.100.15
wlsxDBUserName .1.3.6.1.4.1.14823.2.2.1.1.100.100.16
wlsxDBIpAddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.17
wlsxDBType .1.3.6.1.4.1.14823.2.2.1.1.100.100.18
wlsxVrID .1.3.6.1.4.1.14823.2.2.1.1.100.100.19
wlsxVrMasterIp .1.3.6.1.4.1.14823.2.2.1.1.100.100.20
wlsxVrrpOperState .1.3.6.1.4.1.14823.2.2.1.1.100.100.21
wlsxApTxPower .1.3.6.1.4.1.14823.2.2.1.1.100.100.22
wlsxESIServerGrpName .1.3.6.1.4.1.14823.2.2.1.1.100.100.23
wlsxESIServerName .1.3.6.1.4.1.14823.2.2.1.1.100.100.24
wlsxESIServerIpaddress .1.3.6.1.4.1.14823.2.2.1.1.100.100.25
wlsxLicenseDaysRemaining .1.3.6.1.4.1.14823.2.2.1.1.100.100.26
wlsxSlotNumber .1.3.6.1.4.1.14823.2.2.1.1.100.100.27
wlsxSwitchIPChanged .1.3.6.1.4.1.14823.2.2.1.1.100.1001
wlsxSwitchRoleChange .1.3.6.1.4.1.14823.2.2.1.1.100.1002
wlsxUserEntryCreated .1.3.6.1.4.1.14823.2.2.1.1.100.1003
wlsxUserEntryDeleted .1.3.6.1.4.1.14823.2.2.1.1.100.1004
wlsxUserEntryAuthenticated .1.3.6.1.4.1.14823.2.2.1.1.100.1005
wlsxUserEntryDeAuthenticated .1.3.6.1.4.1.14823.2.2.1.1.100.1006
wlsxUserAuthenticationFailed .1.3.6.1.4.1.14823.2.2.1.1.100.1007
wlsxAuthServerReqTimedOut .1.3.6.1.4.1.14823.2.2.1.1.100.1008
wlsxAuthServerTimedOu .1.3.6.1.4.1.14823.2.2.1.1.100.1009
wlsxAuthServerIsUp .1.3.6.1.4.1.14823.2.2.1.1.100.1010
wlsxAuthMaxUserEntries .1.3.6.1.4.1.14823.2.2.1.1.100.1011
wlsxAuthMaxAclEntries .1.3.6.1.4.1.14823.2.2.1.1.100.1012
wlsxAuthMaxBWContracts .1.3.6.1.4.1.14823.2.2.1.1.100.1013
wlsxPowerSupplyFailure .1.3.6.1.4.1.14823.2.2.1.1.100.1014
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 605
wlsxFanFailure .1.3.6.1.4.1.14823.2.2.1.1.100.1015
wlsxOutOfRangeVoltage .1.3.6.1.4.1.14823.2.2.1.1.100.1016
wlsxOutOfRangeTemperature .1.3.6.1.4.1.14823.2.2.1.1.100.1017
wlsxLCInserted .1.3.6.1.4.1.14823.2.2.1.1.100.1018
wlsxSCInserted .1.3.6.1.4.1.14823.2.2.1.1.100.1019
wlsxGBICInserted .1.3.6.1.4.1.14823.2.2.1.1.100.1020
wlsxProcessDied .1.3.6.1.4.1.14823.2.2.1.1.100.1021
wlsxProcessExceedsMemoryLimits .1.3.6.1.4.1.14823.2.2.1.1.100.1022
wlsxLowOnFlashSpace .1.3.6.1.4.1.14823.2.2.1.1.100.1023
wlsxLowMemory .1.3.6.1.4.1.14823.2.2.1.1.100.1024
wlsxFanTrayRemoved .1.3.6.1.4.1.14823.2.2.1.1.100.1025
wlsxFanTrayInserted .1.3.6.1.4.1.14823.2.2.1.1.100.1026
wlsxLCRemoved .1.3.6.1.4.1.14823.2.2.1.1.100.1027
wlsxSCRemoved .1.3.6.1.4.1.14823.2.2.1.1.100.1028
wlsxPowerSupplyMissing .1.3.6.1.4.1.14823.2.2.1.1.100.1029
wlsxAccessPointIsUp .1.3.6.1.4.1.14823.2.2.1.1.100.1030
wlsxAccessPointIsDown .1.3.6.1.4.1.14823.2.2.1.1.100.1031
wlsxCoverageHoleDetected .1.3.6.1.4.1.14823.2.2.1.1.100.1032
wlsxChannelChanged .1.3.6.1.4.1.14823.2.2.1.1.100.1033
wlsxStationAddedToBlackList .1.3.6.1.4.1.14823.2.2.1.1.100.1034
wlsxStationRemovedFromBlackList .1.3.6.1.4.1.14823.2.2.1.1.100.1035
wlsxIpSpoofingDetected .1.3.6.1.4.1.14823.2.2.1.1.100.1036
wlsxDBCommunicationFailure .1.3.6.1.4.1.14823.2.2.1.1.100.1037
wlsxVrrpStateChange .1.3.6.1.4.1.14823.2.2.1.1.100.1038
wlsxAPRadioAttributesChanged .1.3.6.1.4.1.14823.2.2.1.1.100.1039
wlsxESIServerUp .1.3.6.1.4.1.14823.2.2.1.1.100.1040
wlsxESIServerDown .1.3.6.1.4.1.14823.2.2.1.1.100.1041
wlsxLicenseExpiry .1.3.6.1.4.1.14823.2.2.1.1.100.1042
wlsxSystemExtMIB .1.3.6.1.4.1.14823.2.2.1.2
wlsxSystemExtGroup .1.3.6.1.4.1.14823.2.2.1.2.1
wlsxSysExtSwitchIp .1.3.6.1.4.1.14823.2.2.1.2.1.1
wlsxSysExtHostname .1.3.6.1.4.1.14823.2.2.1.2.1.2
wlsxSysExtModelName .1.3.6.1.4.1.14823.2.2.1.2.1.3
wlsxSysExtSwitchRole .1.3.6.1.4.1.14823.2.2.1.2.1.4
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
606 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtSwitchMasterIp .1.3.6.1.4.1.14823.2.2.1.2.1.5
wlsxSysExtSwitchDate .1.3.6.1.4.1.14823.2.2.1.2.1.6
wlsxSysExtSwitchBaseMacaddress .1.3.6.1.4.1.14823.2.2.1.2.1.7
wlsxSysExtFanTrayAssemblyNumber .1.3.6.1.4.1.14823.2.2.1.2.1.8
wlsxSysExtFanTraySerialNumber .1.3.6.1.4.1.14823.2.2.1.2.1.9
wlsxSysExtInternalTemparature .1.3.6.1.4.1.14823.2.2.1.2.1.10
wlsxSysExtLicenseSerialNumber .1.3.6.1.4.1.14823.2.2.1.2.1.11
wlsxSysExtSwitchLicenseCount .1.3.6.1.4.1.14823.2.2.1.2.1.12
wlsxSysExtProcessorTable .1.3.6.1.4.1.14823.2.2.1.2.1.13
wlsxSysExtProcessorEntry .1.3.6.1.4.1.14823.2.2.1.2.1.13.1
sysExtProcessorID .1.3.6.1.4.1.14823.2.2.1.2.1.13.1.1
sysExtProcessorDescr .1.3.6.1.4.1.14823.2.2.1.2.1.13.1.2
sysExtProcessorLoad .1.3.6.1.4.1.14823.2.2.1.2.1.13.1.3
wlsxSysExtStorageTable .1.3.6.1.4.1.14823.2.2.1.2.1.14
wlsxSysExtStorageEntry .1.3.6.1.4.1.14823.2.2.1.2.1.14.1
sysExtStorageIndex .1.3.6.1.4.1.14823.2.2.1.2.1.14.1.1
sysExtStorageType .1.3.6.1.4.1.14823.2.2.1.2.1.14.1.2
sysExtStorageSize .1.3.6.1.4.1.14823.2.2.1.2.1.14.1.3
sysExtStorageUsed .1.3.6.1.4.1.14823.2.2.1.2.1.14.1.4
sysExtStorageName .1.3.6.1.4.1.14823.2.2.1.2.1.14.1.5
wlsxSysExtMemoryTable .1.3.6.1.4.1.14823.2.2.1.2.1.15
wlsxSysExtMemoryEntry .1.3.6.1.4.1.14823.2.2.1.2.1.15.1
sysExtMemoryIndex .1.3.6.1.4.1.14823.2.2.1.2.1.15.1.1
sysExtMemorySize .1.3.6.1.4.1.14823.2.2.1.2.1.15.1.2
sysExtMemoryUsed .1.3.6.1.4.1.14823.2.2.1.2.1.15.1.3
sysExtMemoryFree .1.3.6.1.4.1.14823.2.2.1.2.1.15.1.4
wlsxSysExtCardTable .1.3.6.1.4.1.14823.2.2.1.2.1.16
wlsxSysExtCardEntry .1.3.6.1.4.1.14823.2.2.1.2.1.16.1
sysExtCardSlot .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.1
sysExtCardType .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.2
sysExtCardNumOfPorts .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.3
sysExtCardNumOfFastethernetPorts .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.4
sysExtCardNumOfGigPorts .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.5
sysExtCardSerialNo .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.6
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 607
sysExtCardAssemblyNo .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.7
sysExtCardManufacturingDate .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.8
sysExtCardHwRevision .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.9
sysExtCardFpgaRevision .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.10
sysExtCardSwitchChip .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.11
sysExtCardStatus .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.12
sysExtCardUserSlot .1.3.6.1.4.1.14823.2.2.1.2.1.16.1.13
wlsxSysExtFanTable .1.3.6.1.4.1.14823.2.2.1.2.1.17
wlsxSysExtFanEntry .1.3.6.1.4.1.14823.2.2.1.2.1.17.1
sysExtFanIndex .1.3.6.1.4.1.14823.2.2.1.2.1.17.1.1
sysExtFanStatus .1.3.6.1.4.1.14823.2.2.1.2.1.17.1.2
wlsxSysExtPowerSupplyTable .1.3.6.1.4.1.14823.2.2.1.2.1.18
wlsxSysExtPowerSupplyEntry .1.3.6.1.4.1.14823.2.2.1.2.1.18.1
sysExtPowerSupplyIndex .1.3.6.1.4.1.14823.2.2.1.2.1.18.1.1
sysExtPowerSupplyStatus .1.3.6.1.4.1.14823.2.2.1.2.1.18.1.2
wlsxSysExtSwitchListTable .1.3.6.1.4.1.14823.2.2.1.2.1.19
wlsxSysExtSwitchListEntry .1.3.6.1.4.1.14823.2.2.1.2.1.19.1
sysExtSwitchIPAddress .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.1
sysExtSwitchRole .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.2
sysExtSwitchLocation .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.3
sysExtSwitchSWVersion .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.4
sysExtSwitchStatus .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.5
sysExtSwitchName .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.6
sysExtSwitchSerNo .1.3.6.1.4.1.14823.2.2.1.2.1.19.1.7
wlsxSysExtSwitchLicenseTable .1.3.6.1.4.1.14823.2.2.1.2.1.20
wlsxSysExtLicenseEntry .1.3.6.1.4.1.14823.2.2.1.2.1.20.1
sysExtLicenseIndex .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.1
sysExtLicenseKey .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.2
sysExtLicenseInstalled .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.3
sysExtLicenseExpires .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.4
sysExtLicenseFlags .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.5
sysExtLicenseService .1.3.6.1.4.1.14823.2.2.1.2.1.20.1.6
wlsxSysExtMMSCompatLevel .1.3.6.1.4.1.14823.2.2.1.2.1.21
wlsxSysExtMMSConfigID .1.3.6.1.4.1.14823.2.2.1.2.1.22
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
608 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxSysExtControllerConfigID .1.3.6.1.4.1.14823.2.2.1.2.1.23
wlsxSysExtIsMMSConfigUpdateEnabled .1.3.6.1.4.1.14823.2.2.1.2.1.24
wlsxSysExtSwitchLastReload .1.3.6.1.4.1.14823.2.2.1.2.1.25
wlsxSysExtLastStatsReset .1.3.6.1.4.1.14823.2.2.1.2.1.26
wlsxSystemExtTableGenNumberGroup .1.3.6.1.4.1.14823.2.2.1.2.2
wlsxSysExtUserTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.1
wlsxSysExtAPBssidTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.2
wlsxSysExtAPRadioTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.3
wlsxSysExtAPTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.4
wlsxSysExtSwitchListTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.5
wlsxSysExtPortTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.6
wlsxSysExtVlanTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.7
wlsxSysExtVlanInterfaceTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.8
wlsxSysExtLicenseTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.9
wlsxSysExtMonAPTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.10
wlsxSysExtMonStationTableGenNumber .1.3.6.1.4.1.14823.2.2.1.2.2.11
wlsxIfExtMIB .1.3.6.1.4.1.14823.2.2.1.3
wlsxIfExtGroup .1.3.6.1.4.1.14823.2.2.1.3.1
wlsxIfExtPortTable .1.3.6.1.4.1.14823.2.2.1.3.1.1
wlsxIfExtPortEntry .1.3.6.1.4.1.14823.2.2.1.3.1.1.1
ifExtSlotNumber .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.1
ifExtPortNumber .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.2
ifExtPortIfIndex .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.3
ifExtAdminState .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.4
ifExtOperState .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.5
ifExtPoeState .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.6
ifExtIsTrusted .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.7
ifExtDot1DState .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.8
ifExtMode .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.9
ifExtAccessVlanId .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.10
ifExtTrunkNativeVlanId .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.11
ifExtTrunkIsAllowedAll .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.12
ifExtTrunkAllowedVlanList .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.13
ifExtIngressACLName .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.14
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 609
ifExtEgressACLName .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.15
ifExtSessionACLName .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.16
ifExtXsecVlan .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.17
ifExtIsMonitoring .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.18
ifExtIsMux .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.19
ifExtUserSlotNumber .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.20
ifExtUserPortNumber .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.21
ifExtPortSpeed .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.22
ifExtPortDuplex .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.23
ifExtPortType .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.24
ifExtDescr .1.3.6.1.4.1.14823.2.2.1.3.1.1.1.25
wlsxIfExtVlanTable .1.3.6.1.4.1.14823.2.2.1.3.1.2
wlsxIfExtVlanEntry .1.3.6.1.4.1.14823.2.2.1.3.1.2.1
ifExtVlanId .1.3.6.1.4.1.14823.2.2.1.3.1.2.1.1
ifExtVlanName .1.3.6.1.4.1.14823.2.2.1.3.1.2.1.2
ifExtVlanStatus .1.3.6.1.4.1.14823.2.2.1.3.1.2.1.3
wlsxIfExtVlanMemberTable .1.3.6.1.4.1.14823.2.2.1.3.1.3
wlsxIfExtVlanMemberEntry .1.3.6.1.4.1.14823.2.2.1.3.1.3.1
ifExtVlanMemberStatus .1.3.6.1.4.1.14823.2.2.1.3.1.3.1.1
ifExtVlanMemberSlot .1.3.6.1.4.1.14823.2.2.1.3.1.3.1.2
ifExtVlanMemberPort .1.3.6.1.4.1.14823.2.2.1.3.1.3.1.3
ifExtVlanMemberType .1.3.6.1.4.1.14823.2.2.1.3.1.3.1.4
wlsxIfExtVlanInterfaceTable .1.3.6.1.4.1.14823.2.2.1.3.1.4
wlsxIfExtVlanInterfaceEntry .1.3.6.1.4.1.14823.2.2.1.3.1.4.1
ifExtVlanInterfaceIfIndex .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.1
ifExtVlanInterfaceDescription .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.2
ifExtVlanInterfaceBWContract .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.3
ifExtVlanInterfaceAdminState .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.4
ifExtVlanInterfaceOperState .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.5
ifExtVlanInterfaceIpAddress .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.6
ifExtVlanInterfaceIpMask .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.7
ifExtVlanInterfaceIsLocalArp .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.8
ifExtVlanInterfaceStatus .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.9
ifExtVlanInterfaceIpRouting .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.10
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
610 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
ifExtVlanInterfaceIpNatInside .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.11
ifExtVlanInterfaceIpIgmpSnooping .1.3.6.1.4.1.14823.2.2.1.3.1.4.1.12
wlsxUserMIB .1.3.6.1.4.1.14823.2.2.1.4
wlsxUserAllInfoGroup .1.3.6.1.4.1.14823.2.2.1.4.1
wlsxTotalNumOfUsers .1.3.6.1.4.1.14823.2.2.1.4.1.1
wlsxUserTable .1.3.6.1.4.1.14823.2.2.1.4.1.2
wlsxUserEntry .1.3.6.1.4.1.14823.2.2.1.4.1.2.1
nUserPhyAddress .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.1
nUserIpAddress .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.2
nUserName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.3
nUserRole .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.4
nUserUpTime .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.5
nUserAuthenticationMethod .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.6
nUserSubAuthenticationMethod .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.7
nUserAuthServerName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.8
nUserExtVPNAddress .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.9
nUserApLocation .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.10
nUserApBSSID .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.11
nUserIsOnHomeAgent .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.12
nUserHomeAgentIpAddress .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.13
nUserMobilityStatus .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.14
nUserHomeVlan .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.15
nUserDefaultVlan .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.16
nUserAssignedVlan .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.17
nUserBWContractName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.18
nUserBWContractUsage .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.19
nUserBWContractId .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.20
nUserIsProxyArpEnabled .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.21
nUserCurrentVlan .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.22
nUserIsWired .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.23
nUserConnectedSlot .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.24
nUserConnectedPort .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.25
nUserPhyType .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.26
nUserMobilityDomainName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.27
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 611
nUserUPBWContractName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.28
nUserUPBWContractUsage .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.29
nUserUPBWContractId .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.30
nUserDNBWContractName .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.31
nUserDNBWContractUsage .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.32
nUserDNBWContractId .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.33
nUserHTMode .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.34
nUserForwardMode .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.35
nUserEncryptionMethod .1.3.6.1.4.1.14823.2.2.1.4.1.2.1.36
wlsxUserSessionTimeTable .1.3.6.1.4.1.14823.2.2.1.4.1.3
wlsxUserSessionTimeEntry .1.3.6.1.4.1.14823.2.2.1.4.1.3.1
wlsxUserSessionTimeLength .1.3.6.1.4.1.14823.2.2.1.4.1.3.1.1
wlsxUserSessionTimeCount .1.3.6.1.4.1.14823.2.2.1.4.1.3.1.2
wlsxNumOfUsers8021x 1.3.6.1.4.1.14823.2.2.1.4.1.4.1
wlsxNumOfUsersVPN 1.3.6.1.4.1.14823.2.2.1.4.1.4.2
wlsxNumOfUsersCP 1.3.6.1.4.1.14823.2.2.1.4.1.4.3
wlsxNumOfUsersMAC 1.3.6.1.4.1.14823.2.2.1.4.1.4.4
wlsxNumOfUsersStateful8021x 1.3.6.1.4.1.14823.2.2.1.4.1.4.5
wlsxWlanMIB .1.3.6.1.4.1.14823.2.2.1.5
wlsxWlanConfigGroup .1.3.6.1.4.1.14823.2.2.1.5.1
wlsxWlanStateGroup .1.3.6.1.4.1.14823.2.2.1.5.2
wlsxWlanAccessPointInfoGroup .1.3.6.1.4.1.14823.2.2.1.5.2.1
wlsxWlanTotalNumAccessPoints .1.3.6.1.4.1.14823.2.2.1.5.2.1.1
wlsxWlanTotalNumStationsAssociated .1.3.6.1.4.1.14823.2.2.1.5.2.1.2
wlsxWlanAPGroupTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.3
wlsxWlanAPGroupEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1
wlanAPGroup .1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1.1
wlanAPNumAps .1.3.6.1.4.1.14823.2.2.1.5.2.1.3.1.2
wlsxWlanAPTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.4
wlsxWlanAPEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1
wlanAPMacAddress .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.1
wlanAPIpAddress .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.2
wlanAPName .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.3
wlanAPGroupName .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.4
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
612 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPModel .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.5
wlanAPSerialNumber .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.6
wlanAPdot11aAntennaGain .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.7
wlanAPdot11gAntennaGain .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.8
wlanAPNumRadios .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.9
wlanAPEnet1Mode .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.10
wlanAPIpsecMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.11
wlanAPUpTime .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.12
wlanAPModelName .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.13
wlanAPLocation .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.14
wlanAPBuilding .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.15
wlanAPFloor .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.16
wlanAPLoc .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.17
wlanAPExternalAntenna .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.18
wlanAPStatus .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.19
wlanAPNumBootstraps .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.20
wlanAPNumReboots .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.21
wlanAPUnprovisioned .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.22
wlanAPMonitorMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.23
wlanAPFQLNBuilding .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.24
wlanAPFQLNFloor .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.25
wlanAPFQLN .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.26
wlanAPFQLNCampus .1.3.6.1.4.1.14823.2.2.1.5.2.1.4.1.27
wlsxWlanRadioTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.5
wlsxWlanRadioEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1
wlanAPRadioNumber .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.1
wlanAPRadioType .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.2
wlanAPRadioChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.3
wlanAPRadioTransmitPower .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.4
wlanAPRadioMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.5
wlanAPRadioUtilization .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.6
wlanAPRadioNumAssociatedClients .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.7
wlanAPRadioNumMonitoredClients .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.8
wlanAPRadioNumActiveBSSIDs .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.9
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 613
wlanAPRadioNumMonitoredBSSIDs .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.10
wlanAPRadioBearing .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.11
wlanAPRadioTiltAngle .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.12
wlanAPRadioHTMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.13
wlanAPRadioHTExtChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.14
wlanAPRadioHTChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.15
wlanAPRadioAPName .1.3.6.1.4.1.14823.2.2.1.5.2.1.5.1.16
wlsxWlanAPBssidTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.7
wlsxWlanAPBssidEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1
wlanAPBSSID .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.1
wlanAPESSID .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.2
wlanAPBssidSlot .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.3
wlanAPBssidPort .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.4
wlanAPBssidPhyType .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.5
wlanAPBssidRogueType .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.6
wlanAPBssidMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.7
wlanAPBssidChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.8
wlanAPBssidUpTime .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.9
wlanAPBssidInactiveTime .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.10
wlanAPBssidLoadBalancing .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.11
wlanAPBssidNumAssociatedStations .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.12
wlanAPBssidAPMacAddress .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.13
wlanAPBssidPhyNumber .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.14
wlanAPBssidHTMode .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.15
wlanAPBssidHTExtChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.16
wlanAPBssidHTChannel .1.3.6.1.4.1.14823.2.2.1.5.2.1.7.1.17
wlsxWlanESSIDTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.8
wlsxWlanESSIDEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1
wlanESSID .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.1
wlanESSIDNumStations .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.2
wlanESSIDNumAccessPointsUp .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.3
wlanESSIDNumAccessPointsDown .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.4
wlanESSIDEncryptionType .1.3.6.1.4.1.14823.2.2.1.5.2.1.8.1.5
wlsxWlanESSIDVlanPoolTable .1.3.6.1.4.1.14823.2.2.1.5.2.1.9
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
614 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxWlanESSIDVlanPoolEntry .1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1
wlanESSIDVlanId .1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1.1
wlanESSIDVlanPoolStatus .1.3.6.1.4.1.14823.2.2.1.5.2.1.9.1.2
wlsxWlanStationInfoGroup .1.3.6.1.4.1.14823.2.2.1.5.2.2
wlsxWlanStationTable .1.3.6.1.4.1.14823.2.2.1.5.2.2.1
wlsxWlanStationEntry .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1
wlanStaPhyAddress .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.1
wlanStaApBssid .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.2
wlanStaPhyType .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.3
wlanStaIsAuthenticated .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.4
wlanStaIsAssociated .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.5
wlanStaChannel .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.6
wlanStaVlanId .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.7
wlanStaVOIPState .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.8
wlanStaVOIPProtocol .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.9
wlanStaTransmitRate .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.10
wlanStaAssociationID .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.11
wlanStaAccessPointESSID .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.12
wlanStaPhyNumber .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.13
wlanStaRSSI .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.14
wlanStaUpTime .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.15
wlanStaHTMode .1.3.6.1.4.1.14823.2.2.1.5.2.2.1.1.16
wlsxWlanStaAssociationFailureTable .1.3.6.1.4.1.14823.2.2.1.5.2.2.2
wlsxWlanStaAssociationFailureEntry .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1
wlanStaAssocFailureApName .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.1
wlanStaAssocFailureApEssid .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.2
wlanStaAssocFailurePhyNum .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.3
wlanStaAssocFailurePhyType .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.4
wlanStaAssocFailureElapsedTime .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.5
wlanStaAssocFailureReason .1.3.6.1.4.1.14823.2.2.1.5.2.2.2.1.6
wlsxWlanAssociationInfoGroup .1.3.6.1.4.1.14823.2.2.1.5.2.3
wlsxWlanStatsGroup .1.3.6.1.4.1.14823.2.2.1.5.3
wlsxWlanAccessPointStatsGroup .1.3.6.1.4.1.14823.2.2.1.5.3.1
wlsxWlanAPStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 615
wlsxWlanAPStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1
wlanAPCurrentChannel .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.1
wlanAPNumClients .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.2
wlanAPTxPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.3
wlanAPTxBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.4
wlanAPRxPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.5
wlanAPRxBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.6
wlanAPTxDeauthentications .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.7
wlanAPRxDeauthentications .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.8
wlanAPChannelThroughput .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.9
wlanAPFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.10
wlanAPFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.11
wlanAPFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.12
wlanAPFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.13
wlanAPFrameBandwidthRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.14
wlanAPFrameRetryErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.15
wlanAPChannelErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.16
wlanAPFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.17
wlanAPRxDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.18
wlanAPRxDataBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.19
wlanAPTxDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.20
wlanAPTxDataBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.21
wlanAPRxDataPkts64 .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.22
wlanAPRxDataBytes64 .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.23
wlanAPTxDataPkts64 .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.24
wlanAPTxDataBytes64 .1.3.6.1.4.1.14823.2.2.1.5.3.1.1.1.25
wlsxWlanAPRateStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.2
wlsxWlanAPRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1
wlanAPStatsTotPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.1
wlanAPStatsTotBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.2
wlanAPStatsTotPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.3
wlanAPStatsTotBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.4
wlanAPStatsTotPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.5
wlanAPStatsTotBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.6
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
616 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.7
wlanAPStatsTotBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.8
wlanAPStatsTotPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.9
wlanAPStatsTotBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.10
wlanAPStatsTotPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.11
wlanAPStatsTotBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.12
wlanAPStatsTotPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.13
wlanAPStatsTotBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.14
wlanAPStatsTotPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.15
wlanAPStatsTotBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.16
wlanAPStatsTotPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.17
wlanAPStatsTotBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.18
wlanAPStatsTotPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.19
wlanAPStatsTotBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.20
wlanAPStatsTotPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.21
wlanAPStatsTotBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.22
wlanAPStatsTotPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.23
wlanAPStatsTotBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.24
wlanAPStatsTotPktsAtHT6dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.25
wlanAPStatsTotBytesAtHT6dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.26
wlanAPStatsTotPktsAtHT13Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.27
wlanAPStatsTotBytesAtHT13Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.28
wlanAPStatsTotPktsAtHT13dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.29
wlanAPStatsTotBytesAtHT13dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.30
wlanAPStatsTotPktsAtHT15Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.31
wlanAPStatsTotBytesAtHT15Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.32
wlanAPStatsTotPktsAtHT19dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.33
wlanAPStatsTotBytesAtHT19dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.34
wlanAPStatsTotPktsAtHT26Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.35
wlanAPStatsTotBytesAtHT26Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.36
wlanAPStatsTotPktsAtHT27Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.37
wlanAPStatsTotBytesAtHT27Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.38
wlanAPStatsTotPktsAtHT30Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.39
wlanAPStatsTotBytesAtHT30Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.40
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 617
wlanAPStatsTotPktsAtHT39Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.41
wlanAPStatsTotBytesAtHT39Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.42
wlanAPStatsTotPktsAtHT40dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.43
wlanAPStatsTotBytesAtHT40dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.44
wlanAPStatsTotPktsAtHT45Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.45
wlanAPStatsTotBytesAtHT45Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.46
wlanAPStatsTotPktsAtHT52Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.47
wlanAPStatsTotBytesAtHT52Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.48
wlanAPStatsTotPktsAtHT54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.49
wlanAPStatsTotBytesAtHT54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.50
wlanAPStatsTotPktsAtHT58dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.51
wlanAPStatsTotBytesAtHT58dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.52
wlanAPStatsTotPktsAtHT60Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.53
wlanAPStatsTotBytesAtHT60Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.54
wlanAPStatsTotPktsAtHT65Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.55
wlanAPStatsTotBytesAtHT65Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.56
wlanAPStatsTotPktsAtHT78Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.57
wlanAPStatsTotBytesAtHT78Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.58
wlanAPStatsTotPktsAtHT81Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.59
wlanAPStatsTotBytesAtHT81Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.60
wlanAPStatsTotPktsAtHT90Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.61
wlanAPStatsTotBytesAtHT90Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.62
wlanAPStatsTotPktsAtHT104Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.63
wlanAPStatsTotBytesAtHT104Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.64
\wlanAPStatsTotPktsAtHT108Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.65
wlanAPStatsTotBytesAtHT108Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.66
wlanAPStatsTotPktsAtHT117Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.67
wlanAPStatsTotBytesAtHT117Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.68
wlanAPStatsTotPktsAtHT120Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.69
wlanAPStatsTotBytesAtHT120Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.70
wlanAPStatsTotPktsAtHT121dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.71
wlanAPStatsTotBytesAtHT121dot5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.72
wlanAPStatsTotPktsAtHT130Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.73
wlanAPStatsTotBytesAtHT130Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.74
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
618 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPStatsTotPktsAtHT135Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.75
wlanAPStatsTotBytesAtHT135Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.76
wlanAPStatsTotPktsAtHT150Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.77
wlanAPStatsTotBytesAtHT150Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.78
wlanAPStatsTotPktsAtHT162Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.79
wlanAPStatsTotBytesAtHT162Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.80
wlanAPStatsTotPktsAtHT180Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.81
wlanAPStatsTotBytesAtHT180Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.82
wlanAPStatsTotPktsAtHT216Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.83
lwlanAPStatsTotBytesAtHT216Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.84
wlanAPStatsTotPktsAtHT240Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.85
wlanAPStatsTotBytesAtHT240Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.86
wlanAPStatsTotPktsAtHT243Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.87
wlanAPStatsTotBytesAtHT243Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.88
wlanAPStatsTotPktsAtHT270Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.89
wlanAPStatsTotBytesAtHT270Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.90
wlanAPStatsTotPktsAtHT300Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.91
wlanAPStatsTotBytesAtHT300Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.1.2.1.92
wlsxWlanAPDATypeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.3
wlsxWlanAPDATypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1
wlanAPStatsTotDABroadcastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.1
wlanAPStatsTotDABroadcastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.2
wlanAPStatsTotDAMulticastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.3
wlanAPStatsTotDAMulticastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.4
wlanAPStatsTotDAUnicastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.5
wlanAPStatsTotDAUnicastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.3.1.6
wlsxWlanAPFrameTypeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.4
wlsxWlanAPFrameTypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1
wlanAPStatsTotMgmtPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.1
wlanAPStatsTotMgmtBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.2
wlanAPStatsTotCtrlPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.3
wlanAPStatsTotCtrlBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.4
wlanAPStatsTotDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.5
wlanAPStatsTotDataBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.4.1.6
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 619
wlsxWlanAPPktSizeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.5
wlsxWlanAPPktSizeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1
wlanAPStatsPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.1
wlanAPStatsPkts64To127 .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.2
wlanAPStatsPkts128To255 .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.3
wlanAPStatsPkts256To511 .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.4
wlanAPStatsPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.5
wlanAPStatsPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.5.3.1.5.1.6
wlsxWlanAPChStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.1.6
wlsxWlanAPChStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1
wlanAPChannelNumber .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.1
wlanAPChNumStations .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.2
wlanAPChTotPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.3
wlanAPChTotBytes .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.4
wlanAPChTotRetryPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.5
wlanAPChTotFragmentedPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.6
wlanAPChTotPhyErrPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.7
wlanAPChTotMacErrPkts .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.8
wlanAPChNoise .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.9
wlanAPChCoverageIndex .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.10
wlanAPChInterferenceIndex .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.11
wlanAPChFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.12
wlanAPChFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.13
wlanAPChFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.14
wlanAPChFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.15
wlanAPChFrameBandwidthRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.16
wlanAPChFrameRetryErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.17
wlanAPChBusyRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.18
wlanAPChNumAPs .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.19
wlanAPChFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.20
wlanAPChTransmittedFragmentCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.21
wlanAPChMulticastTransmittedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.22
wlanAPChFailedCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.23
wlanAPChRetryCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.24
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
620 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanAPChMultipleRetryCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.25
wlanAPChFrameDuplicateCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.26
wlanAPChRTSSuccessCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.27
wlanAPChRTSFailureCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.28
wlanAPChACKFailureCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.29
wlanAPChReceivedFragmentCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.30
wlanAPChMulticastReceivedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.31
wlanAPChFCSErrorCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.32
wlanAPChTransmittedFrameCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.33
wlanAPChWEPUndecryptableCount 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.34
wlanAPChRxUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.35
wlanAPChTxUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.36
wlanAPChUtilization 1.3.6.1.4.1.14823.2.2.1.5.3.1.6.1.37
wlsxWlanStationStatsGroup .1.3.6.1.4.1.14823.2.2.1.5.3.2
wlsxWlanStationStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.2.1
wlsxWlanStationStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1
wlanStaChannelNum .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.1
wlanStaTxPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.2
wlanStaTxBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.3
wlanStaRxPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.4
wlanStaRxBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.5
wlanStaTxBCastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.6
wlanStaRxBCastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.7
wlanStaTxMCastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.8
wlanStaRxMCastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.9
wlanStaDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.10
wlanStaCtrlPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.11
wlanStaNumAssocRequests .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.12
wlanStaNumAuthRequests .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.13
wlanStaTxDeauthentications .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.14
wlanStaRxDeauthentications .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.15
wlanStaFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.16
wlanStaFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.17
wlanStaFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.18
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 621
wlanStaFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.19
wlanStaFrameBandwidthRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.20
wlanStaFrameRetryErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.21
wlanStaFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.22
wlanStaTxBCastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.23
wlanStaTxMCastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.24
wlanStaTxBytes64 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.25
wlanStaRxBytes64 1.3.6.1.4.1.14823.2.2.1.5.3.2.1.1.26
wlsxWlanStaRateStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.2.2
wlsxWlanStaRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1
wlanStaTxPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.1
wlanStaTxBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.2
wlanStaTxPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.3
wlanStaTxBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.4
wlanStaTxPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.5
wlanStaTxBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.6
wlanStaTxPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.7
wlanStaTxBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.8
wlanStaTxPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.9
wlanStaTxBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.10
wlanStaTxPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.11
wlanStaTxBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.12
wlanStaTxPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.13
wlanStaTxBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.14
wlanStaTxPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.15
wlanStaTxBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.16
wlanStaTxPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.17
wlanStaTxBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.18
wlanStaTxPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.19
wlanStaTxBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.20
wlanStaTxPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.21
wlanStaTxBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.22
wlanStaRxPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.23
wlanStaRxBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.24
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
622 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlanStaRxPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.25
wlanStaRxBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.26
wlanStaRxPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.27
wlanStaRxBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.28
wlanStaRxPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.29
wlanStaRxBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.30
wlanStaRxPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.31
wlanStaRxBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.32
wlanStaRxPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.33
wlanStaRxBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.34
wlanStaRxPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.35
wlanStaRxBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.36
wlanStaRxPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.37
wlanStaRxBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.38
wlanStaRxPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.39
wlanStaRxBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.40
wlanStaRxPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.41
wlanStaRxBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.42
wlanStaRxPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.43
wlanStaRxBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.44
wlanStaTxPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.45
wlanStaTxBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.46
wlanStaRxPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.47
wlanStaRxBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.5.3.2.2.1.48
wlsxWlanStaDATypeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.2.3
wlsxWlanStaDATypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1
wlanStaTxDABroadcastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.1
wlanStaTxDABroadcastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.2
wlanStaTxDAMulticastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.3
wlanStaTxDAMulticastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.4
wlanStaTxDAUnicastPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.5
wlanStaTxDAUnicastBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.3.1.6
wlsxWlanStaFrameTypeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.2.4
wlsxWlanStaFrameTypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 623
wlanStaTxMgmtPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.1
wlanStaTxMgmtBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.2
wlanStaTxCtrlPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.3
wlanStaTxCtrlBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.4
wlanStaTxDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.5
wlanStaTxDataBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.6
wlanStaRxMgmtPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.7
wlanStaRxMgmtBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.8
wlanStaRxCtrlPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.9
wlanStaRxCtrlBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.10
wlanStaRxDataPkts .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.11
wlanStaRxDataBytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.4.1.12
wlsxWlanStaPktSizeStatsTable .1.3.6.1.4.1.14823.2.2.1.5.3.2.5
wlsxWlanStaPktSizeStatsEntry .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1
wlanStaTxPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.1
wlanStaTxPkts64To127 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.2
wlanStaTxPkts128To255 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.3
wlanStaTxPkts256To511 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.4
wlanStaTxPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.5
wlanStaTxPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.6
wlanStaRxPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.7
wlanStaRxPkts64To127 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.8
wlanStaRxPkts128To255 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.9
wlanStaRxPkts256To511 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.10
wlanStaRxPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.11
wlanStaRxPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.5.3.2.5.1.12
wlsxMonMIB .1.3.6.1.4.1.14823.2.2.1.6
wlsxMonStatsGroup .1.3.6.1.4.1.14823.2.2.1.6.6
wlsxMonAccessPointStatsGroup .1.3.6.1.4.1.14823.2.2.1.6.6.1
wlsxMonAPStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.1
wlsxMonAPStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1
monPhyAddress .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.1
monRadioNumber .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.2
monitoredApBSSID .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.3
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
624 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monPhyType .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.4
monAPCurrentChannel .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.5
monAPNumClients .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.6
monAPTxPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.7
monAPTxBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.8
monAPRxPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.9
monAPRxBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.10
monAPTxDeauthentications .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.11
monAPRxDeauthentications .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.12
monAPChannelThroughpu .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.13
monAPFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.14
monAPFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.15
monAPFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.16
monAPFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.17
monAPFrameBandwidthRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.18
monAPFrameRetryErrorRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.19
monAPChannelErrorRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.20
monAPESSID .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.21
monAPRSSI .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.22
monAPFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.1.1.23
wlsxMonAPRateStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.2
wlsxMonAPRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1
monAPStatsTotPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.1
monAPStatsTotBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.2
monAPStatsTotPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.3
monAPStatsTotBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.4
monAPStatsTotPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.5
monAPStatsTotBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.6
monAPStatsTotPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.7
monAPStatsTotBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.8
monAPStatsTotPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.9
monAPStatsTotBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.10
monAPStatsTotPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.11
monAPStatsTotBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.12
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 625
monAPStatsTotPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.13
monAPStatsTotBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.14
monAPStatsTotPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.15
monAPStatsTotBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.16
monAPStatsTotPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.17
monAPStatsTotBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.18
monAPStatsTotPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.19
monAPStatsTotBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.20
monAPStatsTotPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.21
monAPStatsTotBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.22
monAPStatsTotPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.23
monAPStatsTotBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.1.2.1.24
wlsxMonAPDATypeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.3
wlsxMonAPDATypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1
monAPStatsTotDABroadcastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.1
monAPStatsTotDABroadcastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.2
monAPStatsTotDAMulticastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.3
monAPStatsTotDAMulticastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.4
monAPStatsTotDAUnicastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.5
monAPStatsTotDAUnicastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.3.1.6
wlsxMonAPFrameTypeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.4
wlsxMonAPFrameTypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1
monAPStatsTotMgmtPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.1
monAPStatsTotMgmtBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.2
monAPStatsTotCtrlPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.3
monAPStatsTotCtrlBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.4
monAPStatsTotDataPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.5
monAPStatsTotDataBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.4.1.6
wlsxMonAPPktSizeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.5
wlsxMonAPPktSizeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1
monAPStatsPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.1
monAPStatsPkts64To127 .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.2
monAPStatsPkts128To255 .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.3
monAPStatsPkts256To511 .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.4
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
626 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monAPStatsPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.5
monAPStatsPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.6.6.1.5.1.6
wlsxMonAPHTRateStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.1.6
wlsxMonAPHTRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1
monHTRate .1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.1
monAPStatsTotHTPkts .1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.2
monAPStatsTotHTBytes .1.3.6.1.4.1.14823.2.2.1.6.6.1.6.1.3
wlsxMonStationStatsGroup .1.3.6.1.4.1.14823.2.2.1.6.6.2
wlsxMonStationStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.1
wlsxMonStationStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1
monitoredStaPhyAddress .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.1
monStaChannelNum .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.2
monStaTxPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.3
monStaTxBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.4
monStaRxPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.5
monStaRxBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.6
monStaTxBCastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.7
monStaTxBCastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.8
monStaTxMCastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.9
monStaTxMCastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.10
monStaDataPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.11
monStaCtrlPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.12
monStaNumAssocRequests .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.13
monStaNumAuthRequests .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.14
monStaTxDeauthentications .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.15
monStaRxDeauthentications .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.16
monStaFrameRetryRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.17
monStaFrameLowSpeedRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.18
monStaFrameNonUnicastRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.19
monStaFrameFragmentationRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.20
monStaFrameBandwidthRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.21
monStaFrameRetryErrorRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.22
monStaBSSID .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.23
monStaESSID .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.24
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 627
monStaPhyType .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.25
monStaRSSI .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.26
monStaFrameReceiveErrorRate .1.3.6.1.4.1.14823.2.2.1.6.6.2.1.1.27
wlsxMonStaRateStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.2
wlsxMonStaRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1
monStaTxPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.1
monStaTxBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.2
monStaTxPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.3
monStaTxBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.4
monStaTxPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.5
monStaTxBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.6
monStaTxPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.7
monStaTxBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.8
monStaTxPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.9
monStaTxBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.10
monStaTxPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.11
monStaTxBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.12
monStaTxPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.13
monStaTxBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.14
monStaTxPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.15
monStaTxBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.16
monStaTxPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.17
monStaTxBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.18
monStaTxPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.19
monStaTxBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.20
monStaTxPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.21
monStaTxBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.22
monStaRxPktsAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.23
monStaRxBytesAt1Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.24
monStaRxPktsAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.25
monStaRxBytesAt2Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.26
monStaRxPktsAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.27
monStaRxBytesAt5Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.28
monStaRxPktsAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.29
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
628 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
monStaRxBytesAt11Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.30
monStaRxPktsAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.31
monStaRxBytesAt6Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.32
monStaRxPktsAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.33
monStaRxBytesAt12Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.34
monStaRxPktsAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.35
monStaRxBytesAt18Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.36
monStaRxPktsAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.37
monStaRxBytesAt24Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.38
monStaRxPktsAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.39
monStaRxBytesAt36Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.40
monStaRxPktsAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.41
monStaRxBytesAt48Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.42
monStaRxPktsAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.43
monStaRxBytesAt54Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.44
monStaTxPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.45
monStaTxBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.46
monStaRxPktsAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.47
monStaRxBytesAt9Mbps .1.3.6.1.4.1.14823.2.2.1.6.6.2.2.1.48
wlsxMonStaDATypeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.3
wlsxMonStaDATypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1
monStaTxDABroadcastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.1
monStaTxDABroadcastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.2
monStaTxDAMulticastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.3
monStaTxDAMulticastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.4
monStaTxDAUnicastPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.5
monStaTxDAUnicastBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.3.1.6
wlsxMonStaFrameTypeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.4
wlsxMonStaFrameTypeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1
monStaTxMgmtPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.1
monStaTxMgmtBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.2
monStaTxCtrlPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.3
monStaTxCtrlBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.4
monStaTxDataPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.5
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 629
monStaTxDataBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.6
monStaRxMgmtPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.7
monStaRxMgmtBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.8
monStaRxCtrlPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.9
monStaRxCtrlBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.10
monStaRxDataPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.11
monStaRxDataBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.4.1.12
wlsxMonStaPktSizeStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.5
wlsxMonStaPktSizeStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1
monStaTxPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.1
monStaTxPkts64To127 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.2
monStaTxPkts128To255 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.3
monStaTxPkts256To511 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.4
monStaTxPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.5
monStaTxPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.6
monStaRxPkts63Bytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.7
monStaRxPkts64To127 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.8
monStaRxPkts128To255 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.9
monStaRxPkts256To511 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.10
monStaRxPkts512To1023 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.11
monStaRxPkts1024To1518 .1.3.6.1.4.1.14823.2.2.1.6.6.2.5.1.12
wlsxMonEventCountTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.6
wlsxMonEventCountEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1
monEventID .1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1.1
monEventCount .1.3.6.1.4.1.14823.2.2.1.6.6.2.6.1.2
wlsxMonStationHTRateStatsTable .1.3.6.1.4.1.14823.2.2.1.6.6.2.7
wlsxMonStationHTRateStatsEntry .1.3.6.1.4.1.14823.2.2.1.6.6.2.7.1
monStaTxHTPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.7.1.1
monStaTxHTBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.7.1.2
monStaRxHTPkts .1.3.6.1.4.1.14823.2.2.1.6.6.2.7.1.3
monStaRxHTBytes .1.3.6.1.4.1.14823.2.2.1.6.6.2.7.1.4
wlsxMonInfoGroup .1.3.6.1.4.1.14823.2.2.1.6.7
wlsxMonAccessPointInfoGroup .1.3.6.1.4.1.14823.2.2.1.6.7.1
wlsxMonAPInfoTable .1.3.6.1.4.1.14823.2.2.1.6.7.1.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
630 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMonAPInfoEntry .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1
monAPInfoPhyType .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.1
monAPInfoCurrentChannel .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.2
monAPInfoClassification .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.3
monAPInfoESSID .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.4
monAPInfoRSSI .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.5
monAPInfoMonitorTime .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.6
monAPInfoInactivityTime .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.7
monAPInfoSnrSignalPkts .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.8
monAPInfoSnrSampleTime .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.9
monAPInfoStatus .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.10
monAPInfoConfidence .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.11
monAPInfoMatchType .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.12
monAPInfoMatchMethod .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.13
monAPInfoHTMode .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.14
monAPInfoEncryptionType .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.15
monAPInfoWPAUnicastCipher .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.16
monAPInfoWPAAuthAlgorithm .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.17
monAPInfoIBSS .1.3.6.1.4.1.14823.2.2.1.6.7.1.1.1.18
wlsxMonStationInfoGroup .1.3.6.1.4.1.14823.2.2.1.6.7.2
wlsxMonStationInfoTable .1.3.6.1.4.1.14823.2.2.1.6.7.2.1
wlsxMonStationInfoEntry .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1
monStaInfoChannelNum .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.1
monStaInfoBSSID .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.2
monStaInfoESSID .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.3
monStaInfoPhyType .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.4
monStaInfoRSSI .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.5
monStaInfoClassification .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.6
monStaInfoMonitorTime .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.7
monStaInfoInactivityTime .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.8
monStaInfoSnrSignalPkts .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.9
monStaInfoSnrSampleTime .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.10
monStaInfoStatus .1.3.6.1.4.1.14823.2.2.1.6.7.2.1.1.11
wlsxSNRMIB .1.3.6.1.4.1.14823.2.2.1.7
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 631
wlsxSNRGroup .1.3.6.1.4.1.14823.2.2.1.7.1
wlsxAPSnrTable .1.3.6.1.4.1.14823.2.2.1.7.1.1
wlsxAPSnrEntry .1.3.6.1.4.1.14823.2.2.1.7.1.1.1
apSnrAverageSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.1.1.1
apSnrSignalPkts .1.3.6.1.4.1.14823.2.2.1.7.1.1.1.2
apSnrHighestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.1.1.3
apSnrLowestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.1.1.4
apSnrSampleTime .1.3.6.1.4.1.14823.2.2.1.7.1.1.1.5
wlsxStaSnrTable .1.3.6.1.4.1.14823.2.2.1.7.1.2
wlsxStaSnrEntry .1.3.6.1.4.1.14823.2.2.1.7.1.2.1
staSnrAverageSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.2.1.1
staSnrSignalPkts .1.3.6.1.4.1.14823.2.2.1.7.1.2.1.2
staSnrHighestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.2.1.3
staSnrLowestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.2.1.4
staSnrSampleTime .1.3.6.1.4.1.14823.2.2.1.7.1.2.1.5
wlsxAPSnrBSSIDTable .1.3.6.1.4.1.14823.2.2.1.7.1.3
wlsxAPSnrBSSIDEntry .1.3.6.1.4.1.14823.2.2.1.7.1.3.1
apSnrBSSIDAverageSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.3.1.1
apSnrBSSIDSignalPkts .1.3.6.1.4.1.14823.2.2.1.7.1.3.1.2
apSnrBSSIDHighestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.3.1.3
apSnrBSSIDLowestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.3.1.4
apSnrBSSIDSampleTime .1.3.6.1.4.1.14823.2.2.1.7.1.3.1.5
wlsxStaSnrPhyTable .1.3.6.1.4.1.14823.2.2.1.7.1.4
wlsxStaSnrPhyEntry .1.3.6.1.4.1.14823.2.2.1.7.1.4.1
staSnrPhyAverageSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.4.1.1
staSnrPhySignalPkts .1.3.6.1.4.1.14823.2.2.1.7.1.4.1.2
staSnrPhyHighestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.4.1.3
staSnrPhyLowestRxSignalStrength .1.3.6.1.4.1.14823.2.2.1.7.1.4.1.4
staSnrPhySampleTime .1.3.6.1.4.1.14823.2.2.1.7.1.4.1.5
wlsxAuthMIB .1.3.6.1.4.1.14823.2.2.1.8
wlsxAuthenticationServerGroup .1.3.6.1.4.1.14823.2.2.1.8.1
wlsxAuthenticationServerTable .1.3.6.1.4.1.14823.2.2.1.8.1.1
wlsxAuthenticationServerEntry .1.3.6.1.4.1.14823.2.2.1.8.1.1.1
authServerName .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
632 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
authServerType .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.2
authServerAddress .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.3
authServerPort .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.4
authServerRetryCount .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.5
authServerTimeOutValue .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.6
authServerState .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.7
authServerInservice .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.8
authServerUsageCount .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.9
authServerSuccessfullAuths .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.10
authServerFailedAuths .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.11
authServerTimeouts .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.12
authServerAvgResponseTime .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.13
authServerOutStandingRequests .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.14
authServerUptime .1.3.6.1.4.1.14823.2.2.1.8.1.1.1.15
wlsxPortalServerTable .1.3.6.1.4.1.14823.2.2.1.8.1.2
wlsxPortalServerEntry .1.3.6.1.4.1.14823.2.2.1.8.1.2.1
portalServerIndex .1.3.6.1.4.1.14823.2.2.1.8.1.2.1.1
portalServerHost .1.3.6.1.4.1.14823.2.2.1.8.1.2.1.2
portalServerPort .1.3.6.1.4.1.14823.2.2.1.8.1.2.1.3
portalServerPage .1.3.6.1.4.1.14823.2.2.1.8.1.2.1.4
portalServerProtocol .1.3.6.1.4.1.14823.2.2.1.8.1.2.1.5
wlsxLdapServerStateTable .1.3.6.1.4.1.14823.2.2.1.8.1.5
wlsxLdapServerStateEntry .1.3.6.1.4.1.14823.2.2.1.8.1.5.1
ldapInitDone .1.3.6.1.4.1.14823.2.2.1.8.1.5.1.1
ldapAdminBound .1.3.6.1.4.1.14823.2.2.1.8.1.5.1.2
ldapReBindCount .1.3.6.1.4.1.14823.2.2.1.8.1.5.1.3
wlsxAuthenticationInfoGroup .1.3.6.1.4.1.14823.2.2.1.8.2
wlsxAuthenticationGroup .1.3.6.1.4.1.14823.2.2.1.8.3
wlsxMobilityMIB .1.3.6.1.4.1.14823.2.2.1.9
wlsxMobilityConfigGroup .1.3.6.1.4.1.14823.2.2.1.9.1
wlsxMobilityDomainTable .1.3.6.1.4.1.14823.2.2.1.9.1.1
wlsxMobilityDomainEntry .1.3.6.1.4.1.14823.2.2.1.9.1.1.1
mobilityDomainName .1.3.6.1.4.1.14823.2.2.1.9.1.1.1.1
mobilityDomainIsExclusive .1.3.6.1.4.1.14823.2.2.1.9.1.1.1.2
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 633
mobilityDomainStatus .1.3.6.1.4.1.14823.2.2.1.9.1.1.1.3
wlsxMobilityHomeAgentTable .1.3.6.1.4.1.14823.2.2.1.9.1.3
wlsxMobilityHomeAgentEntry .1.3.6.1.4.1.14823.2.2.1.9.1.3.1
mobilityHomeAgentSubnet .1.3.6.1.4.1.14823.2.2.1.9.1.3.1.1
mobilityHomeAgentMask .1.3.6.1.4.1.14823.2.2.1.9.1.3.1.2
mobilityHomeAgentIp .1.3.6.1.4.1.14823.2.2.1.9.1.3.1.3
mobilityHomeAgentVlan .1.3.6.1.4.1.14823.2.2.1.9.1.3.1.4
wlsxMobilityHostTable .1.3.6.1.4.1.14823.2.2.1.9.1.4
wlsxMobilityHostEntry .1.3.6.1.4.1.14823.2.2.1.9.1.4.1
mobilityHostMac .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.1
mobilityHostIp .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.2
mobilityHostStatus .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.3
mobilityHostServiceTime .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.4
mobilityHostHomeVlan .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.5
mobilityHostHomeNetwork .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.6
mobilityHostHomeMask .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.7
mobilityHostDhcpInfo .1.3.6.1.4.1.14823.2.2.1.9.1.4.1.8
wlsxMobilityProxyStatsGroup .1.3.6.1.4.1.14823.2.2.1.9.2
mobilityProxyPktRx .1.3.6.1.4.1.14823.2.2.1.9.2.1
mobilityProxyPktHandled .1.3.6.1.4.1.14823.2.2.1.9.2.2
mobilityProxyPktFwd .1.3.6.1.4.1.14823.2.2.1.9.2.3
mobilityProxyPktDrop .1.3.6.1.4.1.14823.2.2.1.9.2.4
mobilityProxyBusy .1.3.6.1.4.1.14823.2.2.1.9.2.5
mobilityProxyNoMobility .1.3.6.1.4.1.14823.2.2.1.9.2.6
mobilityProxyClientIPChg .1.3.6.1.4.1.14823.2.2.1.9.2.7
mobilityProxyClientEssidChg .1.3.6.1.4.1.14823.2.2.1.9.2.8
wlsxMobilityProxyDHCPStatsGroup .1.3.6.1.4.1.14823.2.2.1.9.3
mobilityProxyDhcpBootpRx .1.3.6.1.4.1.14823.2.2.1.9.3.1
mobilityProxyDhcpPktProc .1.3.6.1.4.1.14823.2.2.1.9.3.2
mobilityProxyDhcpPktFwd .1.3.6.1.4.1.14823.2.2.1.9.3.3
mobilityProxyDhcpPktDrop .1.3.6.1.4.1.14823.2.2.1.9.3.4
mobilityProxyDHCPNak .1.3.6.1.4.1.14823.2.2.1.9.3.5
mobilityProxyBadDHCPPkt .1.3.6.1.4.1.14823.2.2.1.9.3.6
mobilityProxyNotDHCP .1.3.6.1.4.1.14823.2.2.1.9.3.7
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
634 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
mobilityProxyDHCPNoHomeVlan .1.3.6.1.4.1.14823.2.2.1.9.3.8
mobilityProxyDHCPUnexpFrame .1.3.6.1.4.1.14823.2.2.1.9.3.9
mobilityProxyDHCPUnexpRemote .1.3.6.1.4.1.14823.2.2.1.9.3.10
wlsxMobilityHAStatsGroup .1.3.6.1.4.1.14823.2.2.1.9.4
mobilityHARxRRQ .1.3.6.1.4.1.14823.2.2.1.9.4.1
mobilityHASentRRP .1.3.6.1.4.1.14823.2.2.1.9.4.2
mobilityHARRQAccept .1.3.6.1.4.1.14823.2.2.1.9.4.3
mobilityHARRQDenied .1.3.6.1.4.1.14823.2.2.1.9.4.4
mobilityHARRQIgnore .1.3.6.1.4.1.14823.2.2.1.9.4.5
mobilityHARRQAdminDeny .1.3.6.1.4.1.14823.2.2.1.9.4.6
mobilityHARRQNoResource .1.3.6.1.4.1.14823.2.2.1.9.4.7
mobilityHAMNauthFail .1.3.6.1.4.1.14823.2.2.1.9.4.8
mobilityHAFAauthFail .1.3.6.1.4.1.14823.2.2.1.9.4.9
mobilityHABadID .1.3.6.1.4.1.14823.2.2.1.9.4.10
mobilityHAMalform .1.3.6.1.4.1.14823.2.2.1.9.4.11
mobilityHATooManyBnd .1.3.6.1.4.1.14823.2.2.1.9.4.12
mobilityHABndExpire .1.3.6.1.4.1.14823.2.2.1.9.4.13
wlsxMobilityFAStatsGroup .1.3.6.1.4.1.14823.2.2.1.9.5
mobilityFASentRRQ .1.3.6.1.4.1.14823.2.2.1.9.5.1
mobilityFARcvRRP .1.3.6.1.4.1.14823.2.2.1.9.5.2
mobilityFARRQAccept .1.3.6.1.4.1.14823.2.2.1.9.5.3
mobilityFARRQReject .1.3.6.1.4.1.14823.2.2.1.9.5.4
mobilityMNHAauthFAIL .1.3.6.1.4.1.14823.2.2.1.9.5.5
mobilityFAHAauthFAIL .1.3.6.1.4.1.14823.2.2.1.9.5.6
mobilityFABadID .1.3.6.1.4.1.14823.2.2.1.9.5.7
mobilityFAMalform .1.3.6.1.4.1.14823.2.2.1.9.5.8
wlsxMobilityHAFARevocationStatsGroup .1.3.6.1.4.1.14823.2.2.1.9.6
mobilitySentRRVRQ .1.3.6.1.4.1.14823.2.2.1.9.6.1
mobilityRcvRRVAck .1.3.6.1.4.1.14823.2.2.1.9.6.2
mobilityRcvRRV .1.3.6.1.4.1.14823.2.2.1.9.6.3
mobilitySentRRVAck .1.3.6.1.4.1.14823.2.2.1.9.6.4
mobilityRRVRQIgnore .1.3.6.1.4.1.14823.2.2.1.9.6.5
mobilityRRVAckIgnore .1.3.6.1.4.1.14823.2.2.1.9.6.6
wlsxESIMIB .1.3.6.1.4.1.14823.2.2.1.10
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 635
wlsxESIConfigGroup .1.3.6.1.4.1.14823.2.2.1.10.1
wlsxESIServerTable .1.3.6.1.4.1.14823.2.2.1.10.1.1
wlsxESIServerEntry .1.3.6.1.4.1.14823.2.2.1.10.1.1.1
esiServerName .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.1
esiServerGroup .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.2
esiServerMode .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.3
esiServerTrustedIP .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.4
esiServerUntrustedIP .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.5
esiServerTrustedSlot .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.6
esiServerTrustedPort .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.7
esiServerUntrustedSlo .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.8
esiServerUntrustedPor .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.9
esiServerStatus .1.3.6.1.4.1.14823.2.2.1.10.1.1.1.10
wlsxCtsMIB .1.3.6.1.4.1.14823.2.2.1.11
wlsxCtsOpGroup .1.3.6.1.4.1.14823.2.2.1.11.1
wlsxCtsRequestTable .1.3.6.1.4.1.14823.2.2.1.11.1.1
wlsxCtsRequestEntry .1.3.6.1.4.1.14823.2.2.1.11.1.1.1
wlsxCtsIndex .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.1
wlsxCtsOpcode .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.2
wlsxCtsCookie .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.3
wlsxCtsURL .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.4
wlsxCtsFlags .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.5
wlsxCtsStatus .1.3.6.1.4.1.14823.2.2.1.11.1.1.1.6
wlsxVoiceMIB .1.3.6.1.4.1.14823.2.2.1.12
wlsxVoiceStatsGroup .1.3.6.1.4.1.14823.2.2.1.12.1
wlsxVoiceCdrInfoGroup .1.3.6.1.4.1.14823.2.2.1.12.1.1
wlsxVoiceCdrTotal .1.3.6.1.4.1.14823.2.2.1.12.1.1.1
wlsxVoiceCdrTable .1.3.6.1.4.1.14823.2.2.1.12.1.1.2
wlsxVoiceCdrEntry .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1
voiceCdrId .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.1
voiceCdrIp .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.2
voiceCdrMac .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.3
voiceCdrName .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.4
voiceCdrDialNum .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.5
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
636 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
voiceCdrDir .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.6
voiceCdrOrigTime .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.7
voiceCdrSetupTime .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.8
voiceCdrTeardownTime .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.9
voiceCdrStatus .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.10
voiceCdrReason .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.11
voiceCdrDuration .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.12
voiceCdrRValue .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.13
voiceCdrApSwitchDelay .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.14
voiceCdrCodec .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.15
voiceCdrApName .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.16
voiceCdrApMac .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.17
voiceCdrBssid .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.18
voiceCdrEssid .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.19
voiceCdrHandovers .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.20
voiceCdrMOS .1.3.6.1.4.1.14823.2.2.1.12.1.1.2.1.21
wlsxVoiceCallCtrsGroup .1.3.6.1.4.1.14823.2.2.1.12.1.2
voiceCallCtrsTotal .1.3.6.1.4.1.14823.2.2.1.12.1.2.1
voiceCallCtrsSuccess .1.3.6.1.4.1.14823.2.2.1.12.1.2.2
voiceCallCtrsFailed .1.3.6.1.4.1.14823.2.2.1.12.1.2.3
voiceCallCtrsRejected .1.3.6.1.4.1.14823.2.2.1.12.1.2.4
voiceCallCtrsAborted .1.3.6.1.4.1.14823.2.2.1.12.1.2.5
voiceCallCtrsOrig .1.3.6.1.4.1.14823.2.2.1.12.1.2.6
voiceCallCtrsRecvd .1.3.6.1.4.1.14823.2.2.1.12.1.2.7
voiceCallCtrsActive .1.3.6.1.4.1.14823.2.2.1.12.1.2.8
voiceCallCtrsNotFnd .1.3.6.1.4.1.14823.2.2.1.12.1.2.9
voiceCallCtrsBusy .1.3.6.1.4.1.14823.2.2.1.12.1.2.10
voiceCallCtrsSvc .1.3.6.1.4.1.14823.2.2.1.12.1.2.11
voiceCallCtrsReqTerm .1.3.6.1.4.1.14823.2.2.1.12.1.2.12
voiceCallCtrsDecline .1.3.6.1.4.1.14823.2.2.1.12.1.2.13
voiceCallCtrsUnauth .1.3.6.1.4.1.14823.2.2.1.12.1.2.14
voiceCallCtrsMisc .1.3.6.1.4.1.14823.2.2.1.12.1.2.15
wlsxVoiceClientInfoGroup .1.3.6.1.4.1.14823.2.2.1.12.1.3
wlsxVoiceClientTotal .1.3.6.1.4.1.14823.2.2.1.12.1.3.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 637
wlsxVoiceClientTable .1.3.6.1.4.1.14823.2.2.1.12.1.3.2
wlsxVoiceClientEntry .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1
voiceClientIp .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.1
voiceClientProtocol .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.2
voiceClientRegState .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.3
voiceClientContactName .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.4
voiceClientServerName .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.5
voiceClientEssid .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.6
voiceClientVlanId .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.7
voiceClientTunnelId .1.3.6.1.4.1.14823.2.2.1.12.1.3.2.1.8
wlsxVoiceAPBssidInfoGroup .1.3.6.1.4.1.14823.2.2.1.12.1.4
wlsxVoiceAPBssidTotal .1.3.6.1.4.1.14823.2.2.1.12.1.4.1
wlsxVoiceAPBssidTable .1.3.6.1.4.1.14823.2.2.1.12.1.4.2
wlsxVoiceAPBssidEntry .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1
voiceAPBssidName .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.1
voiceAPBssidGroup .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.2
voiceAPBssidIp .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.3
voiceAPBssidTotCalls .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.4
voiceAPBssidVoiceType .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.5
voiceAPBssidFlag .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.6
voiceAPBssidUpTime .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.7
voiceAPBssid100Sent .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.8
voiceAPBssid503Sent .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.9
voiceAPBssidExtraCallDisc .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.10
voiceAPBssidKickedOff .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.11
voiceAPBssidTspecDenied .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.12
voiceAPBssidCacFlag .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.13
voiceAPBssidTotVoiceClients .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.14
voiceAPBssidCallsSCCP .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.15
voiceAPBssidCallsSIP .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.16
voiceAPBssidCallsSVP .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.17
voiceAPBssidCallsVocera .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.18
voiceAPBssidCallsNoe .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.19
voiceAPBssidEssid .1.3.6.1.4.1.14823.2.2.1.12.1.4.2.1.20
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
638 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxMeshMIB .1.3.6.1.4.1.14823.2.2.1.13
wlsxMeshInfoGroup .1.3.6.1.4.1.14823.2.2.1.13.1
wlsxMeshPointGroup .1.3.6.1.4.1.14823.2.2.1.13.1.1
wlsxMeshPointTotal .1.3.6.1.4.1.14823.2.2.1.13.1.1.1
wlsxMeshPointTable .1.3.6.1.4.1.14823.2.2.1.13.1.1.2
wlsxMeshPointEntry .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1
wlsxMeshRole .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.1
wlsxMeshPointParent .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.2
wlsxMeshPointChildrenCount .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.3
wlsxMeshPointLongitude .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.4
wlsxMeshPointLatitude .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.5
wlsxMeshPointDirection .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.6
wlsxMeshPointAngle .1.3.6.1.4.1.14823.2.2.1.13.1.1.2.1.7
wlsxMeshClusterGroup .1.3.6.1.4.1.14823.2.2.1.13.1.2
wlsxMeshClusterTotal .1.3.6.1.4.1.14823.2.2.1.13.1.2.1
wlsxMeshClusterTable .1.3.6.1.4.1.14823.2.2.1.13.1.2.2
wlsxMeshClusterEntry .1.3.6.1.4.1.14823.2.2.1.13.1.2.2.1
wlsxMeshClusterName .1.3.6.1.4.1.14823.2.2.1.13.1.2.2.1.1
wlsxMeshClusterSsid .1.3.6.1.4.1.14823.2.2.1.13.1.2.2.1.2
wlsxMeshClusterRfBand .1.3.6.1.4.1.14823.2.2.1.13.1.2.2.1.3
wlsxMeshClusterRfEncryption .1.3.6.1.4.1.14823.2.2.1.13.1.2.2.1.4
wlsxMeshTopologyGroup .1.3.6.1.4.1.14823.2.2.1.13.1.3
wlsxMeshTopologyTotal .1.3.6.1.4.1.14823.2.2.1.13.1.3.1
wlsxMeshTopologyTable .1.3.6.1.4.1.14823.2.2.1.13.1.3.2
wlsxMeshTopologyEntry .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1
wlanAPMeshRole .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.1
wlsxMeshTopologyParen .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.2
wlsxMeshTopologyPathCost .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.3
wlsxMeshTopologyNodeCost .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.4
wlsxMeshTopologyLinkCost .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.5
wlsxMeshTopologyHopCost .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.6
wlsxMeshTopologyUptime .1.3.6.1.4.1.14823.2.2.1.13.1.3.2.1.7
wlsxUser6MIB .1.3.6.1.4.1.14823.2.2.1.14
wlsxUser6AllInfoGroup .1.3.6.1.4.1.14823.2.2.1.14.1
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 639
wlsxTotalNumOfUsers6 .1.3.6.1.4.1.14823.2.2.1.14.1.1
wlsxUser6Table .1.3.6.1.4.1.14823.2.2.1.14.2
wlsxUser6Entry .1.3.6.1.4.1.14823.2.2.1.14.2.1
nUser6PhyAddress .1.3.6.1.4.1.14823.2.2.1.14.2.1.1
nUser6IpAddress .1.3.6.1.4.1.14823.2.2.1.14.2.1.2
nUser6Name .1.3.6.1.4.1.14823.2.2.1.14.2.1.3
nUser6Role .1.3.6.1.4.1.14823.2.2.1.14.2.1.4
nUser6UpTime .1.3.6.1.4.1.14823.2.2.1.14.2.1.5
nUser6AuthenticationMethod .1.3.6.1.4.1.14823.2.2.1.14.2.1.6
nUser6SubAuthenticationMethod .1.3.6.1.4.1.14823.2.2.1.14.2.1.7
nUser6AuthServerName .1.3.6.1.4.1.14823.2.2.1.14.2.1.8
nUser6ExtVPNAddress .1.3.6.1.4.1.14823.2.2.1.14.2.1.9
nUser6ApLocation .1.3.6.1.4.1.14823.2.2.1.14.2.1.10
nUser6ApBSSID .1.3.6.1.4.1.14823.2.2.1.14.2.1.11
nUser6IsOnHomeAgent .1.3.6.1.4.1.14823.2.2.1.14.2.1.12
nUser6HomeAgentIpAddressI .1.3.6.1.4.1.14823.2.2.1.14.2.1.13
nUser6MobilityStatusI .1.3.6.1.4.1.14823.2.2.1.14.2.1.14
nUser6HomeVlan .1.3.6.1.4.1.14823.2.2.1.14.2.1.15
nUser6DefaultVlan .1.3.6.1.4.1.14823.2.2.1.14.2.1.16
nUser6AssignedVlan .1.3.6.1.4.1.14823.2.2.1.14.2.1.17
nUser6BWContractName .1.3.6.1.4.1.14823.2.2.1.14.2.1.18
nUser6BWContractUsage .1.3.6.1.4.1.14823.2.2.1.14.2.1.19
nUser6BWContractId .1.3.6.1.4.1.14823.2.2.1.14.2.1.20
nUser6IsProxyArpEnabled .1.3.6.1.4.1.14823.2.2.1.14.2.1.21
nUser6CurrentVlan .1.3.6.1.4.1.14823.2.2.1.14.2.1.22
nUser6IsWired .1.3.6.1.4.1.14823.2.2.1.14.2.1.23
nUser6ConnectedSlot .1.3.6.1.4.1.14823.2.2.1.14.2.1.24
nUser6ConnectedPort .1.3.6.1.4.1.14823.2.2.1.14.2.1.25
nUser6PhyType .1.3.6.1.4.1.14823.2.2.1.14.2.1.26
nUser6MobilityDomainName .1.3.6.1.4.1.14823.2.2.1.14.2.1.27
nUser6UPBWContractName .1.3.6.1.4.1.14823.2.2.1.14.2.1.28
nUser6UPBWContractUsage .1.3.6.1.4.1.14823.2.2.1.14.2.1.29
nUser6UPBWContractId .1.3.6.1.4.1.14823.2.2.1.14.2.1.30
nUser6DNBWContractName .1.3.6.1.4.1.14823.2.2.1.14.2.1.31
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
640 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
nUser6DNBWContractUsage .1.3.6.1.4.1.14823.2.2.1.14.2.1.32
nUser6DNBWContractId .1.3.6.1.4.1.14823.2.2.1.14.2.1.33
nUser6HTMode .1.3.6.1.4.1.14823.2.2.1.14.2.1.34
nUserForwardMode 1.3.6.1.4.1.14823.2.4.1.2.1.35
wlsxUser6SessionTimeTable .1.3.6.1.4.1.14823.2.2.1.14.3
wlsxUser6SessionTimeEntry .1.3.6.1.4.1.14823.2.2.1.14.3.1
wlsxUser6SessionTimeLength .1.3.6.1.4.1.14823.2.2.1.14.3.1.1
wlsxUser6SessionTimeCount .1.3.6.1.4.1.14823.2.2.1.14.3.1.2
arubaAp .1.3.6.1.4.1.14823.2.3
wlsrEnterpriseMibModules .1.3.6.1.4.1.14823.2.3.1
wlsrTrapMIB .1.3.6.1.4.1.14823.2.3.1.11
wlsxTrapsGroup .1.3.6.1.4.1.14823.2.3.1.11.1
wlsxTrapObjectsGroup .1.3.6.1.4.1.14823.2.3.1.11.1.1
wlsxTrapAPMacAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.1
wlsxTrapAPIpAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.2
wlsxTrapAPBSSID .1.3.6.1.4.1.14823.2.3.1.11.1.1.3
wlsxTrapEssid .1.3.6.1.4.1.14823.2.3.1.11.1.1.4
wlsxTrapTargetAPBSSID .1.3.6.1.4.1.14823.2.3.1.11.1.1.5
wlsxTrapTargetAPSSID .1.3.6.1.4.1.14823.2.3.1.11.1.1.6
wlsxTrapTargetAPChannel .1.3.6.1.4.1.14823.2.3.1.11.1.1.7
wlsxTrapNodeMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.8
wlsxTrapSourceMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.9
wlsxReceiverMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.10
wlsxTrapTransmitterMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.11
wlsxTrapReceiverMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.12
wlsxTrapSnr .1.3.6.1.4.1.14823.2.3.1.11.1.1.13
wlsxTrapSignatureName .1.3.6.1.4.1.14823.2.3.1.11.1.1.14
wlsxTrapFrameType .1.3.6.1.4.1.14823.2.3.1.11.1.1.15
wlsxTrapAddressType .1.3.6.1.4.1.14823.2.3.1.11.1.1.16
wlsxTrapAPLocation .1.3.6.1.4.1.14823.2.3.1.11.1.1.17
wlsxTrapAPChannel .1.3.6.1.4.1.14823.2.3.1.11.1.1.18
wlsxTrapAPTxPower .1.3.6.1.4.1.14823.2.3.1.11.1.1.19
wlsxTrapMatchedMac .1.3.6.1.4.1.14823.2.3.1.11.1.1.20
wlsxTrapMatchedIp .1.3.6.1.4.1.14823.2.3.1.11.1.1.21
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 641
wlsxTrapRogueIfoURL .1.3.6.1.4.1.14823.2.3.1.11.1.1.22
wlsxTrapVlanId .1.3.6.1.4.1.14823.2.3.1.11.1.1.23
wlsxTrapAdminStatus .1.3.6.1.4.1.14823.2.3.1.11.1.1.24
wlsxTrapOperStatus .1.3.6.1.4.1.14823.2.3.1.11.1.1.25
wlsxTrapAuthServerName .1.3.6.1.4.1.14823.2.3.1.11.1.1.26
wlsxTrapAuthServerTimeout .1.3.6.1.4.1.14823.2.3.1.11.1.1.27
wlsxTrapCardSlot .1.3.6.1.4.1.14823.2.3.1.11.1.1.28
wlsxTrapTemperatureValue .1.3.6.1.4.1.14823.2.3.1.11.1.1.29
wlsxTrapProcessName .1.3.6.1.4.1.14823.2.3.1.11.1.1.30
wlsxTrapFanNumber .1.3.6.1.4.1.14823.2.3.1.11.1.1.31
wlsxTrapVoltageType .1.3.6.1.4.1.14823.2.3.1.11.1.1.32
wlsxTrapVoltageValue .1.3.6.1.4.1.14823.2.3.1.11.1.1.33
wlsxTrapStationBlackListReason .1.3.6.1.4.1.14823.2.3.1.11.1.1.34
wlsxTrapSpoofedIpAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.35
wlsxTrapSpoofedOldPhyAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.36
wlsxTrapSpoofedNewPhyAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.37
wlsxTrapDBName .1.3.6.1.4.1.14823.2.3.1.11.1.1.38
wlsxTrapDBUserName .1.3.6.1.4.1.14823.2.3.1.11.1.1.39
wlsxTrapDBIpAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.40
wlsxTrapDBType .1.3.6.1.4.1.14823.2.3.1.11.1.1.41
wlsxTrapVrrpID .1.3.6.1.4.1.14823.2.3.1.11.1.1.42
wlsxTrapVrrpMasterIp .1.3.6.1.4.1.14823.2.3.1.11.1.1.43
wlsxTrapVrrpOperState .1.3.6.1.4.1.14823.2.3.1.11.1.1.44
wlsxTrapESIServerGrpName .1.3.6.1.4.1.14823.2.3.1.11.1.1.45
wlsxTrapESIServerName .1.3.6.1.4.1.14823.2.3.1.11.1.1.46
wlsxTrapESIServerIpAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.47
wlsxTrapLicenseDaysRemaining .1.3.6.1.4.1.14823.2.3.1.11.1.1.48
wlsxTrapSwitchIp .1.3.6.1.4.1.14823.2.3.1.11.1.1.49
wlsxTrapSwitchRole .1.3.6.1.4.1.14823.2.3.1.11.1.1.50
wlsxTrapUserIpAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.51
wlsxTrapUserPhyAddress .1.3.6.1.4.1.14823.2.3.1.11.1.1.52
wlsxTrapUserName .1.3.6.1.4.1.14823.2.3.1.11.1.1.53
wlsxTrapUserRole .1.3.6.1.4.1.14823.2.3.1.11.1.1.54
wlsxTrapUserAuthenticationMethod .1.3.6.1.4.1.14823.2.3.1.11.1.1.55
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
642 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTrapAPRadioNumber .1.3.6.1.4.1.14823.2.3.1.11.1.1.56
wlsxTrapRogueInfoURL .1.3.6.1.4.1.14823.2.3.1.11.1.1.57
wlsxTrapInterferingAPInfoURL .1.3.6.1.4.1.14823.2.3.1.11.1.1.58
wlsxTrapPortNumber .1.3.6.1.4.1.14823.2.3.1.11.1.1.59
wlsxTrapTime .1.3.6.1.4.1.14823.2.3.1.11.1.1.60
wlsxTrapHostIp .1.3.6.1.4.1.14823.2.3.1.11.1.1.61
wlsxTrapHostPort .1.3.6.1.4.1.14823.2.3.1.11.1.1.62
wlsxTrapConfigurationId .1.3.6.1.4.1.14823.2.3.1.11.1.1.63
wlsxTrapCTSURL .1.3.6.1.4.1.14823.2.3.1.11.1.1.64
wlsxTrapCTSTransferType .1.3.6.1.4.1.14823.2.3.1.11.1.1.65
wlsxTrapConfigurationState .1.3.6.1.4.1.14823.2.3.1.11.1.1.66
wlsxTrapUpdateFailureReason .1.3.6.1.4.1.14823.2.3.1.11.1.1.67
wlsxTrapUpdateFailedObj .1.3.6.1.4.1.14823.2.3.1.11.1.1.68
wlsxTrapTableEntryChangeType .1.3.6.1.4.1.14823.2.3.1.11.1.1.69
wlsxTrapGlobalConfigObj .1.3.6.1.4.1.14823.2.3.1.11.1.1.70
wlsxTrapTableGenNumber .1.3.6.1.4.1.14823.2.3.1.11.1.1.71
wlsxTrapLicenseId .1.3.6.1.4.1.14823.2.3.1.11.1.1.72
wlsxTrapConfidenceLevel .1.3.6.1.4.1.14823.2.3.1.11.1.1.73
wlsxTrapMissingLicenses .1.3.6.1.4.1.14823.2.3.1.11.1.1.74
wlsxVoiceCurrentNumCdr .1.3.6.1.4.1.14823.2.3.1.11.1.1.75
wlsxTrapTunnelId .1.3.6.1.4.1.14823.2.3.1.11.1.1.76
wlsxTrapTunnelStatus .1.3.6.1.4.1.14823.2.3.1.11.1.1.77
wlsxTrapTunnelUpReason .1.3.6.1.4.1.14823.2.3.1.11.1.1.78
wlsxTrapTunnelDownReason .1.3.6.1.4.1.14823.2.3.1.11.1.1.79
wlsxTrapApSerialNumber 1.3.6.1.4.1.14823.2.3.1.11.1.1.80
wlsxTraptimeStr 1.3.6.1.4.1.14823.2.3.1.11.1.1.81
wlsxTrapMasterIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.82
wlsxTrapLocalIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.83
wlsxTrapMasterName 1.3.6.1.4.1.14823.2.3.1.11.1.1.84
wlsxTrapLocalName 1.3.6.1.4.1.14823.2.3.1.11.1.1.85
wlsxTrapPrimaryControllerIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.86
wlsxTrapBackupControllerIp 1.3.6.1.4.1.14823.2.3.1.11.1.1.87
wlsxTrapSpoofedFrameType 1.3.6.1.4.1.14823.2.3.1.11.1.1.88
wlsxTrapAssociationType 1.3.6.1.4.1.14823.2.3.1.11.1.1.89
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 643
wlsxTrapDeviceIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.90
wlsxTrapDeviceMac 1.3.6.1.4.1.14823.2.3.1.11.1.1.91
wlsxTrapVcIpAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.92
wlsxTrapVcMacAddress 1.3.6.1.4.1.14823.2.3.1.11.1.1.93
wlsxTrapAPName 1.3.6.1.4.1.14823.2.3.1.11.1.1.94
wlsxTrapApMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.95
wlsxTrapAPPrevChannel 1.3.6.1.4.1.14823.2.3.1.11.1.1.96
wlsxTrapAPPrevChannelSec 1.3.6.1.4.1.14823.2.3.1.11.1.1.97
wlsxTrapAPPrevTxPower 1.3.6.1.4.1.14823.2.3.1.11.1.1.98
wlsxTrapAPCurMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.99
wlsxTrapAPPrevMode 1.3.6.1.4.1.14823.2.3.1.11.1.1.100
wlsxTrapAPARMChangeReason 1.3.6.1.4.1.14823.2.3.1.11.1.1.101
wlsxTrapAPChannelSec 1.3.6.1.4.1.14823.2.3.1.11.1.1.102
wlsxTrapUserAttributeChangeType 1.3.6.1.4.1.14823.2.3.1.11.1.1.103
wlsxTrapDefinitionsGroup .1.3.6.1.4.1.14823.2.3.1.11.1.2
wlsxVlanLinkUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1000
wlsxVlanLinkDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1001
wlsxSignatureMatch .1.3.6.1.4.1.14823.2.3.1.11.1.2.1002
wlsxNodeRateAnomaly .1.3.6.1.4.1.14823.2.3.1.11.1.2.1003
wlsxNormalTemperature .1.3.6.1.4.1.14823.2.3.1.11.1.2.1004
wlsxProcessRestart .1.3.6.1.4.1.14823.2.3.1.11.1.2.1005
wlsxFlashSpaceOK .1.3.6.1.4.1.14823.2.3.1.11.1.2.1006
wlsxMemoryUsageOK .1.3.6.1.4.1.14823.2.3.1.11.1.2.1007
wlsxPowerSupplyOK .1.3.6.1.4.1.14823.2.3.1.11.1.2.1008
wlsxFanOK .1.3.6.1.4.1.14823.2.3.1.11.1.2.1009
wlsxInRangeVoltage .1.3.6.1.4.1.14823.2.3.1.11.1.2.1010
wlsxCoverageHoleResolved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1011
wlsxNSwitchIPChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1012
wlsxNSwitchRoleChange .1.3.6.1.4.1.14823.2.3.1.11.1.2.1013
wlsxNUserEntryCreated .1.3.6.1.4.1.14823.2.3.1.11.1.2.1014
wlsxNUserEntryDeleted .1.3.6.1.4.1.14823.2.3.1.11.1.2.1015
wlsxNUserEntryAuthenticated .1.3.6.1.4.1.14823.2.3.1.11.1.2.1016
wlsxNUserEntryDeAuthenticated .1.3.6.1.4.1.14823.2.3.1.11.1.2.1017
wlsxNUserAuthenticationFailed .1.3.6.1.4.1.14823.2.3.1.11.1.2.1018
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
644 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxNAuthServerReqTimedOut .1.3.6.1.4.1.14823.2.3.1.11.1.2.1019
wlsxNAuthServerTimedOut .1.3.6.1.4.1.14823.2.3.1.11.1.2.1020
wlsxNAuthServerIsUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1021
wlsxNAuthMaxUserEntries .1.3.6.1.4.1.14823.2.3.1.11.1.2.1022
wlsxNAuthMaxAclEntries .1.3.6.1.4.1.14823.2.3.1.11.1.2.1023
wlsxNAuthMaxBWContracts .1.3.6.1.4.1.14823.2.3.1.11.1.2.1024
wlsxNPowerSupplyFailure .1.3.6.1.4.1.14823.2.3.1.11.1.2.1025
wlsxNFanFailure .1.3.6.1.4.1.14823.2.3.1.11.1.2.1026
wlsxNOutOfRangeVoltage .1.3.6.1.4.1.14823.2.3.1.11.1.2.1027
wlsxNOutOfRangeTemperature .1.3.6.1.4.1.14823.2.3.1.11.1.2.1028
wlsxNLCInserted .1.3.6.1.4.1.14823.2.3.1.11.1.2.1029
wlsxNSCInserted .1.3.6.1.4.1.14823.2.3.1.11.1.2.1030
wlsxNGBICInserted .1.3.6.1.4.1.14823.2.3.1.11.1.2.1031
wlsxNProcessDied .1.3.6.1.4.1.14823.2.3.1.11.1.2.1032
wlsxNProcessExceedsMemoryLimits (deprecated) .1.3.6.1.4.1.14823.2.3.1.11.1.2.1033
wlsxNLowOnFlashSpace .1.3.6.1.4.1.14823.2.3.1.11.1.2.1034
wlsxNLowMemory .1.3.6.1.4.1.14823.2.3.1.11.1.2.1035
wlsxNFanTrayRemoved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1036
wlsxNFanTrayInserted .1.3.6.1.4.1.14823.2.3.1.11.1.2.1037
wlsxNLCRemoved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1038
wlsxNPowerSupplyMissing .1.3.6.1.4.1.14823.2.3.1.11.1.2.1039
wlsxNAccessPointIsUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1040
wlsxNAccessPointIsDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1041
wlsxNCoverageHoleDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1042
wlsxNChannelChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1043
wlsxNStationAddedToBlackList .1.3.6.1.4.1.14823.2.3.1.11.1.2.1044
wlsxNStationRemovedFromBlackList .1.3.6.1.4.1.14823.2.3.1.11.1.2.1045
wlsxNIpSpoofingDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1046
wlsxNDBCommunicationFailure .1.3.6.1.4.1.14823.2.3.1.11.1.2.1047
wlsxNVrrpStateChange .1.3.6.1.4.1.14823.2.3.1.11.1.2.1048
wlsxNRadioAttributesChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1049
wlsxNESIServerUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1050
wlsxNESIServerDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1051
wlsxNLicenseExpiry .1.3.6.1.4.1.14823.2.3.1.11.1.2.1052
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 645
wlsxUnsecureAPDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1053
wlsxUnsecureAPResolved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1054
wlsxStaImpersonation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1055
wlsxReservedChannelViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1056
wlsxValidSSIDViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1057
wlsxChannelMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1058
wlsxOUIMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1059
wlsxSSIDMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1060
wlsxShortPreableMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1061
wlsxWPAMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1062
wlsxAdhocNetworkDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1063
wlsxAdhocNetworkRemoved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1064
wlsxStaPolicyViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1065
wlsxRepeatWEPIVViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1066
wlsxWeakWEPIVViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1067
wlsxChannelInterferenceDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1068
wlsxChannelInterferenceCleared .1.3.6.1.4.1.14823.2.3.1.11.1.2.1069
wlsxAPInterferenceDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1070
wlsxAPInterferenceCleared .1.3.6.1.4.1.14823.2.3.1.11.1.2.1071
wlsxStaInterferenceDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1072
wlsxStaInterferenceCleared .1.3.6.1.4.1.14823.2.3.1.11.1.2.1073
wlsxFrameRetryRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1074
wlsxFrameReceiveErrorRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1075
wlsxFrameFragmentationRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1076
wlsxFrameBandWidthRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1077
wlsxFrameLowSpeedRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1078
wlsxFrameNonUnicastRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1079
wlsxLoadbalancingEnabled .1.3.6.1.4.1.14823.2.3.1.11.1.2.1080
wlsxLoadbalancingDisabled .1.3.6.1.4.1.14823.2.3.1.11.1.2.1081
wlsxChannelFrameRetryRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1082
wlsxChannelFrameFragmentationRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1083
wlsxChannelFrameErrorRateExceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1084
wlsxSignatureMatchAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1085
wlsxSignatureMatchSta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1086
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
646 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxChannelRateAnomaly .1.3.6.1.4.1.14823.2.3.1.11.1.2.1087
wlsxNodeRateAnomalyAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1088
wlsxNodeRateAnomalySta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1089
wlsxEAPRateAnomaly .1.3.6.1.4.1.14823.2.3.1.11.1.2.1090
wlsxSignalAnomaly .1.3.6.1.4.1.14823.2.3.1.11.1.2.1091
wlsxSequenceNumberAnomalyAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1092
wlsxSequenceNumberAnomalySta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1093
wlsxDisconnectStationAttack .1.3.6.1.4.1.14823.2.3.1.11.1.2.1094
wlsxApFloodAttack .1.3.6.1.4.1.14823.2.3.1.11.1.2.1095
wlsxAdhocNetwork .1.3.6.1.4.1.14823.2.3.1.11.1.2.1096
wlsxWirelessBridge .1.3.6.1.4.1.14823.2.3.1.11.1.2.1097
wlsxInvalidMacOUIAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1098
wlsxInvalidMacOUISta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1099
wlsxWEPMisconfiguration .1.3.6.1.4.1.14823.2.3.1.11.1.2.1100
wlsxStaRepeatWEPIVViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1101
wlsxStaWeakWEPIVViolation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1102
wlsxStaAssociatedToUnsecureAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1103
wlsxStaUnAssociatedFromUnsecureAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1104
wlsxAdhocNetworkBridgeDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1105
wlsxInterferingApDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1106
wlsxPortUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1107
wlsxPortDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1108
wlsxBSSIDIsUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1109
wlsxBSSIDIsDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1110
wlsxColdStart .1.3.6.1.4.1.14823.2.3.1.11.1.2.1111
wlsxWarmStart .1.3.6.1.4.1.14823.2.3.1.11.1.2.1112
wlsxAPImpersonation .1.3.6.1.4.1.14823.2.3.1.11.1.2.1113
wlsxInformQueueOverFlow .1.3.6.1.4.1.14823.2.3.1.11.1.2.1114
wlsxNAuthServerIsDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1115
wlsxCTSTransferError .1.3.6.1.4.1.14823.2.3.1.11.1.2.1116
wlsxCTSTransferSucceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1117
wlsxConfigurationUpdateError .1.3.6.1.4.1.14823.2.3.1.11.1.2.1118
wlsxConfigurationUpdateSucceeded .1.3.6.1.4.1.14823.2.3.1.11.1.2.1119
wlsxGlobalConfigurationChangeNotification .1.3.6.1.4.1.14823.2.3.1.11.1.2.1120
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 647
wlsxUserEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1121
wlsxAPBssidEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1122
wlsxAPRadioEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1123
wlsxAPEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1124
wlsxSwitchListEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1125
wlsxPortEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1126
wlsxVlanEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1127
wlsxVlanInterfaceEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1128
wlsxWindowsBridgeDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1129
wlsxLicenseEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1130
wlsxEsiServerChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1131
wlsxMonAPEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1132
wlsxMonStationEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1133
wlsxSignAPNetstumbler .1.3.6.1.4.1.14823.2.3.1.11.1.2.1134
wlsxSignStaNetstumbler .1.3.6.1.4.1.14823.2.3.1.11.1.2.1135
wlsxSignAPAsleap .1.3.6.1.4.1.14823.2.3.1.11.1.2.1136
wlsxSignStaAsleap .1.3.6.1.4.1.14823.2.3.1.11.1.2.1137
wlsxSignAPAirjack .1.3.6.1.4.1.14823.2.3.1.11.1.2.1138
wlsxSignStaAirjack .1.3.6.1.4.1.14823.2.3.1.11.1.2.1139
wlsxSignAPNullProbeResp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1140
wlsxSignStaNullProbeResp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1141
wlsxSignAPDeauthBcast .1.3.6.1.4.1.14823.2.3.1.11.1.2.1142
wlsxSignStaDeauthBcas .1.3.6.1.4.1.14823.2.3.1.11.1.2.1143
wlsxWindowsBridgeDetectedAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1144
wlsxWindowsBridgeDetectedSta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1145
wlsxAdhocNetworkBridgeDetectedAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1146
wlsxAdhocNetworkBridgeDetectedSta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1147
wlsxDisconnectStationAttackAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1148
wlsxDisconnectStationAttackSta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1149
wlsxSuspectUnsecureAPDetected .1.3.6.1.4.1.14823.2.3.1.11.1.2.1150
wlsxSuspectUnsecureAPResolved .1.3.6.1.4.1.14823.2.3.1.11.1.2.1151
wlsxConfigurationLicenseMismatch .1.3.6.1.4.1.14823.2.3.1.11.1.2.1152
wlsxVoiceCdrBufferThresholdReached .1.3.6.1.4.1.14823.2.3.1.11.1.2.1153
wlsxTunnelUp .1.3.6.1.4.1.14823.2.3.1.11.1.2.1154
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
648 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
wlsxTunnelDown .1.3.6.1.4.1.14823.2.3.1.11.1.2.1155
wlsxMeshNodeEntryChanged .1.3.6.1.4.1.14823.2.3.1.11.1.2.1156
wlsxHtGreenfieldSupported .1.3.6.1.4.1.14823.2.3.1.11.1.2.1157
wlsxHT40MHzIntoleranceAP .1.3.6.1.4.1.14823.2.3.1.11.1.2.1158
wlsxHT40MHzIntoleranceSta .1.3.6.1.4.1.14823.2.3.1.11.1.2.1159
wlsxNAuthServerAllInService 1.3.6.1.4.1.14823.2.3.1.11.1.2.1160
wlsxNAdhocNetwork 1.3.6.1.4.1.14823.2.3.1.11.1.2.1161
wlsxNAdhocNetworkBridgeDetectedAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1162
wlsxNAdhocNetworkBridgeDetectedSta 1.3.6.1.4.1.14823.2.3.1.11.1.2.1163
wlsxNAuthMaxXsecUserEntries 1.3.6.1.4.1.14823.2.3.1.11.1.2.1164
wlsxNVpnMaxSessions 1.3.6.1.4.1.14823.2.3.1.11.1.2.1165
wlsxNRapExpiredPSK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1166
wlsxNRapWarnExpiredPSK 1.3.6.1.4.1.14823.2.3.1.11.1.2.1167
wlsxNConnectionResetWithLocall 1.3.6.1.4.1.14823.2.3.1.11.1.2.1168
wlsxNApOnBackupController 1.3.6.1.4.1.14823.2.3.1.11.1.2.1169
wlsxClientFloodAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1170
wlsxValidClientNotUsingEncryption 1.3.6.1.4.1.14823.2.3.1.11.1.2.1171
wlsxAdhocUsingValidSSID 1.3.6.1.4.1.14823.2.3.1.11.1.2.1172
wlsxAPSpoofingDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1173
wlsxClientAssociatingOnWrongChannel 1.3.6.1.4.1.14823.2.3.1.11.1.2.1174
wlsxNDisconnectStationAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1175
wlsxNStaUnAssociatedFromUnsecureAP 1.3.6.1.4.1.14823.2.3.1.11.1.2.1176
wlsxOmertaAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1177
wlsxTKIPReplayAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1178
wlsxChopChopAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1179
wlsxFataJackAttack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1180
wlsxInvalidAddressCombination 1.3.6.1.4.1.14823.2.3.1.11.1.2.1181
wlsxValidClientMisassociation 1.3.6.1.4.1.14823.2.3.1.11.1.2.1182
wlsxMalformedHTIEDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1183
wlsxMalformedAssocReqDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1184
wlsxOverflowIEDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1185
wlsxOverflowEAPOLKeyDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1186
wlsxMalformedFrameLargeDurationDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1187
wlsxMalformedFrameWrongChannelDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1188
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide SNMP MIBs Reference | 649
wlsxMalformedAuthFrame 1.3.6.1.4.1.14823.2.3.1.11.1.2.1189
wlsxCTSRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1190
wlsxRTSRateAnomaly 1.3.6.1.4.1.14823.2.3.1.11.1.2.1191
wlsxNRogueAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1192
wlsxNRogueAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1193
wlsxNeighborAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1194
wlsxNInterferingAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1195
wlsxNSuspectRogueAPDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1196
wlsxNSuspectRogueAPResolved 1.3.6.1.4.1.14823.2.3.1.11.1.2.1197
wlsxBlockAckAttackDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1198
wlsxHotspotterAttackDetected 1.3.6.1.4.1.14823.2.3.1.11.1.2.1199
wlsxNSignatureMatch 1.3.6.1.4.1.14823.2.3.1.11.1.2.1200
wlsxNSignatureMatchNetstumbler 1.3.6.1.4.1.14823.2.3.1.11.1.2.1201
wlsxNSignatureMatchAsleap 1.3.6.1.4.1.14823.2.3.1.11.1.2.1202
wlsxNSignatureMatchAirjack 1.3.6.1.4.1.14823.2.3.1.11.1.2.1203
wlsxNSignatureMatchNullProbeResp 1.3.6.1.4.1.14823.2.3.1.11.1.2.1204
wlsxNSignatureMatchDeauthBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1205
wlsxNSignatureMatchDisassocBcast 1.3.6.1.4.1.14823.2.3.1.11.1.2.1206
wlsxNSignatureMatchWellenreiter 1.3.6.1.4.1.14823.2.3.1.11.1.2.1207
wlsxAPDeauthContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1208
wlsxClientDeauthContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1209
wlsxAPWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1210
wlsxClientWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1211
wlsxAPTaggedWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1212
wlsxClientTaggedWiredContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1213
wlsxTarpitContainment 1.3.6.1.4.1.14823.2.3.1.11.1.2.1214
wlsxVoiceClientLocationUpdate 1.3.6.1.4.1.14823.2.3.1.11.1.2.1215
wlsxAPChannelChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1216
wlsxAPPowerChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1217
wlsxAPModeChange 1.3.6.1.4.1.14823.2.3.1.11.1.2.1218
wlsxUserEntryAttributesChanged 1.3.6.1.4.1.14823.2.3.1.11.1.2.1219
Table 128 SNMP OIDs for Aruba Enterprise MIB modules (Continued)
SNMP MIB OID
650 | SNMP MIBs Reference Dell PowerConnect W-Series ArubaOS 6.0 MIB | Reference Guide
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 651
Index
Numerics
20 MHz channel assignment 146
40 MHz channel assignment 146
802.11n zone 98
802.1x authentication
configuring 269
A
AC mappings 636
types 636
access category. See AC
access control lists 300
Access Points
deploying 55
high-latency link deployments 148
IP addresses 56
low-speed deployments 148
accounting
configuring 264
ACL white list 303
ACLs and remote APs 196
air monitoring and mesh 240
AP configuring 113
status
down 95
up, live 95
AP failback 149
AP groups 115
AP installation modes 144
AP maintenance mode 150
area802.11n zone 98
don’t care 98
don’t deploy 98
ARM 153
ARM metrics 165
band steering 161
spectrum load balancing 164
traffic shaping 162
troubleshooting 166
authentication 553
authentication methods
smart card 553
static 552
username and password 552
authentication server
configuring timers 266
trim domain information 260
authentication server group
configuring 247
configuring rules 261
fail-through 257
FQDN server selection 258
order of servers 257
server selection 258
automatic reporting 525
B
backhaul, wireless 211
backup configuration, remote APs 185
basic deployment 153
basic regular expression syntax 683
blacklisting clients 517
bypass enable password 535
C
campus AP whitelist 395
captive portal 560
changing to HTTP protocol 339
configuring 321
default page customization 342
different VLAN clients 341
per-SSID configuration 338
proxy Web server configuration 340
captive portal page
customizing 342
care-of address 429
certificates 540
AAA FastConnect 278
importing 542
obtaining server certificate 540
SSH access 530
WebUI management 529
channel assignment, 20 MHz 146
channel assignment, 40 MHz 146
channel reuse 164
channel switch announcement 145
client blacklisting 517
cluster profile, mesh
overview 209
connecting to network 55
control plane security 393
652 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
D
dead peer detection
configuring 374
deployment considerations, mesh 214
DHCP client 73
DHCP with option 43 709
dialer
configuring 374
don’t care 98
don’t deploy 98
double encryption 182
duplicate AP names 115
duplicate names 115
E
enable mode password reset 535
Enable password
bypassing 535
resetting 534
example configuration
802.1x 280
captive portal 327
example configurations
WLANs 127
external firewall 713
External Services Interface
configuring 661
syslog parser 662
F
failback, remote APs 195
file transfer 560
firewall configuration 713
firewall parameters 311
flash backup and restore 562
floor
802.11n zone 98
don’t care 98
don’t deploy 98
foreign agent 429
foreign network 429
forwarding modes 715
Fully Qualified Domain Names 249
G
GRE tunnel
configuring 81
guest access pass 554
guest accounts 554
guest provisioning 547
guest accounts 554
print guest account information 559
H
high-throughput, virtual AP profile 137
home agent 429
home agent table 430
home network 429
I
image file transfer 561
Incremental Configuration Synchronization 450
indoor AP 144
initial setup 50
Internal AP 462
internal database
configuring 253
IP mobility 429
IPv6 613
L
L2TP
configuring 357
LACP
Best Practices 523
configuring 521
configuring with WebUI 523
data units (DUs) 521
sample configuration 524
Tx/Rx 521
with the CLI 521
LAG
group 521
member ports 521
LDAP server
configuring 250
Link Aggregation Control Protocol
see LACP 521
Link Aggregation Group
see LAG 521
log files, copying 562
logging
configuring 545
loopback address
configuring 80
loopback IP address 79
M
MAC-based authentication
configuring 391
maintenance mode, AP 150
management access 714
management authentication
configuring 264
management user roles 722
mesh
bridging 235
deployment considerations 214
secure jack 236
statistics 240
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 653
troubleshooting 237
tunneling 236
wired AP profile 235
mesh cluster 206
mesh link
creating 207
overview 207
mesh nodes, provisioning 206, 237
mesh path 206
mesh point
behavior 206
boot sequence 240
overview 206
mesh portal
behavior 206
boot sequence 240
overview 206
mesh service set identifier. See MSSID
migration 453
mobile client 429
mobility domain 429
configuring 430
example configuration 432
Mounting Devices 473
MP. See mesh point
MPP. See mesh portal
MSSID 206
Multi-function Media Eject Button 474
N
Network-attached storage 471
Network-Attached Storage (NAS) 471
NTP
configuring 564
O
option 43 on DHCP server 709
outdoor AP 144
P
password recovery 535
PhoneHome 525
policies 299, 718
configuring 300
predefined 718
portconfiguring 69
ports
open 725
PPPoE client 74
PPTP
configuring 369
preshared key 413
print guest account information 559
Print Server 476
profiles
configuring 117
profiles, mesh
cluster 209
recovery 210
provisioning
mesh caveats 238
mesh nodes 206, 237
outdoor APs 206, 237, 238
remote APs 177
PSK 413
Q
QoS for voice
configuring 621
R
radio profile, mesh
configuring 215
parameters 140, 142, 216, 218, 634, 640
RADIUS server
configuring 248
RADIUS Server Authentication Codes 249
RAP Local Network Access 195
RAP Static Inner IP Address 254
recovering password 535
recovery profile, mesh 210
remote AP
ACLs 196
backup configuration 185
configuring 169
DNS setting 193
failback 195
provisioning 177
split tunneling 197
WMM 203
remote node 419
remote node controller 419
removing duplicate AP names
AP names 115
reset enable password 534
restrict to one guest 560
RF Plan 56, 83
add background image, name first floor 109
add background image, name second floor 110
add/edit floors 109
coverage maps, heat maps 95
create a building 108
create area
don’t care 110
don’t deploy 111
down AP icon 95
exporting 103
image guidelines 97
importing 103
654 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
model access points 109
model air monitors 109
run RF Plan 111
run the AM plan 112
up AP icon 95
roleassigning 307
configuring 304
roles
predefined 720
route-mode topology 673
S
secure jack and mesh 236
server derivation rules
configuring 310
server group
assigning 263
configuring 247, 257
server rules
configuring 261
server-derived role 308
site-to-site VPN
configuring 370
smart card authentication 552, 553
SNMP
configuring 544
solutions, mesh
overview 211
point-to-multi-point 212
point-to-point 212
wireless backhaul 211
with thin APs 211
source NAT 77
source NAT and dynamic VLAN 76
spectrum analysis 565
spectrum monitors 567
split tunneling, remote APs 197
stateful authentication 315
static authentication method 552
static route
configuring 79
static routes 79
syslog parser 662
system defaults 716
system profile 237
T
TACACS+ server
configuring 252, 253
timers
authentication 266
tunnel, GRE 81
U
Uplink Manager 463
USB Cellular Modem 462
USB Modem 467
configuring 467
user derivation rules
configuring 308
user role
assigning 307
configuring 304
user-derived role 307
username and password authentication 552
V
virtual AP profile, high-throughput 137
virtual APs 117
VLAN
assignment 71
configuring 65
disabling VLAN routing 78
dynamic address 72
inter-VLAN routing 78
static address 72
Voice Services Module
features 643
VoIP
configuring for 621
VPN
configuring 355
VPN AAA deployments 356
VRRP
configuring 445
VSA-derived role 311
W
WebUI 43, 47, 51
white list 303
whitelist synchronization 400
whitelisting ACLs 303
Wi-Fi Multimedia. See WMM
Windows authentication server 253
wireless backhaul 211
WISPr authentication 315
wizard
AP 43, 47
license 43, 47, 609, 611
setup 50, 55
WLAN 43, 47
114
wizard, wlan 322
WMM
AC mapping 636
enabling 635
remote AP support 203
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 655
X
xSec
configuring 345
configuring for wired clients 347
configuring for wireless clients 346
configuring wireless clients 349
A
access point...............................................................35
agent .......................................................................139
air monitor................................................................35
Alarm
analog .................................................................21
discrete ...............................................................21
ping.....................................................................21
analog alarm inputs ..................................................21
authentication ........................................................103
C
call status ................................................................463
control relay ..............................................................21
controller.........................................................227, 445
CTS.........................................................................111
E
EAPOLKeyDetected ..............................................416
ESI ..........................................................................115
F
FA............................................................................139
foreign agent...........................................................139
H
HA...........................................................................139
History
Aruba 60
wlsxFataJackAttack....................................414
ArubaOS...........................567, 568, 569, 570, 571
ArubaOS 2.3
lsxSysExtFanTable ....................................309
lsxSysExtFanTraySerialNumber ...............295
lsxSysExtInternalTemparature .................295
lsxSysExtLicenseSerialNumber.................295
lsxSysExtSwitchBaseMacaddress..............293
lsxSysXProcessorEntry...............................235
nUserAssignedVLAN.................................434
nUserAuthenticationMethod....................429
nUserAuthServerName .............................431
nUserBWContractId.................................434
nUserBWContractName .......................... 434
nUserBWContractUsage .......................... 434
nUserConnectedPort ................................ 435
nUserConnectedSlot................................. 435
nUserDefaultVLAN................................... 433
nUserExtVPNAddress ............................... 431
nUserHomeAgentIpAddress ..................... 433
nUserHomeVLAN..................................... 433
nUserIpAddress ......................................... 428
nUserIsOnHomeAgent ............................. 431
nUserIsWired............................................ 435
nUserMobilityStatus................................. 433
nUserName................................................ 429
nUserPhyAddress....................................... 428
nUserRole .................................................. 429
nUserSubAuthenticationMethod............. 429
nUserUpTime............................................ 429
sysExtCardAssemblyNo ............................ 307
sysExtCardFpgaRevision .......................... 309
sysExtCardHwRevision............................. 307
sysExtCardManufacturingDate................ 307
sysExtCardNumOfFastethernetPorts ...... 305
sysExtCardNumOfPorts ........................... 305
sysExtCardSlot.......................................... 305
sysExtCardStatus ...................................... 309
sysExtCardSwitchChip............................. 309
sysExtCardType ........................................ 305
sysExtCardUserSlot .................................. 309
sysExtFanIndex......................................... 310
sysExtFanStatus........................................ 310
sysExtLicenseExpires ................................ 317
sysExtLicenseFlags.................................... 318
sysExtLicenseIndex................................... 317
sysExtLicenseInstalled.............................. 317
sysExtLicenseKey ...................................... 317
sysExtLicenseService................................. 318
sysExtMemoryFree.................................... 304
sysExtMemoryIndex.................................. 303
sysExtMemorySize .................................... 303
sysExtMemoryUsed................................... 304
sysExtProcessorDescr................................ 299
sysExtProcessorID..................................... 299
sysExtProcessorLoad ................................. 299
sysExtStorageIndex................................... 301
sysExtStorageName................................... 302
sysExtStorageSize...................................... 301
sysExtStorageType .................................... 301
sysExtStorageUsed.................................... 302
sysExtSwitchIPAddress............................. 314
sysExtSwitchLocation............................... 314
sysExtSwitchName.................................... 315
sysExtSwitchRole ...................................... 314
sysExtSwitchSerNo ................................... 315
sysExtSwitchStatus ................................... 315
656 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
sysExtSwitchSWVersion...........................314
sysXMemoryFree .......................................239
sysXMemorySize........................................239
sysXMemoryUsed ......................................239
sysXProcessorDescr....................................235
sysXProcessorID ........................................235
sysXProcessorLoad.....................................235
sysXStorageIndex.......................................237
sysXStorageName ......................................238
sysXStorageSize .........................................237
sysXStorageType........................................237
sysXStorageUsed........................................237
wlanAPBSSID............................................509
wlanAPBssidAPMacAddress......................512
wlanAPBssidChannel ................................511
wlanAPBssidInactiveTime.........................512
wlanAPBssidLoadBalancing ......................512
wlanAPBssidMode.....................................511
wlanAPBssidNumAssociatedStations .......512
wlanAPBssidPhyNumber...........................513
wlanAPBssidPhyType ................................510
wlanAPBssidPort........................................510
wlanAPBssidRogueType............................511
wlanAPBssidSlot........................................510
wlanAPBssidUpTime.................................511
wlanAPBuilding .........................................500
wlanAPChannelErrorRate.........................525
wlanAPChannelNumber ...........................562
wlanAPChannelThroughput.....................524
wlanAPChBusyRate...................................566
wlanAPChCoverageIndex .........................564
wlanAPChFrameBandwidthRate..............566
wlanAPChFrameFragmentationRate .......565
wlanAPChFrameLowSpeedRate...............565
wlanAPChFrameNonUnicastRate............565
wlanAPChFrameRetryErrorRate ..............566
wlanAPChInterferenceIndex.....................564
wlanAPChNumAPs ...................................566
wlanAPChNumStations............................562
wlanAPChTotBytes ...................................563
wlanAPChTotFragmentedPkts.................563
wlanAPChTotPhyErrPkts..........................563
wlanAPChTotPkts.....................................562
wlanAPChTotRetryPkts ............................563
wlanAPCurrentChannel............................522
wlanAPdot11aAntennaGain......................498
wlanAPdot11gAntennaGain......................498
wlanAPEnet1Mode....................................499
wlanAPESSID............................................510
wlanAPExternalAntenna ...........................500
wlanAPFloor ..............................................500
wlanAPFrameBandwidthRate...................525
wlanAPFrameFragmentationRate ............525
wlanAPFrameLowSpeedRate....................524
wlanAPFrameNonUnicastRate................. 524
wlanAPFrameRetryErrorRate ................... 525
wlanAPFrameRetryRate............................ 524
wlanAPGroup ............................................ 495
wlanAPGroupName .................................. 497
wlanAPIpAddress ...................................... 497
wlanAPIpsecMode..................................... 499
wlanAPLoc................................................. 500
wlanAPLocation ........................................ 500
wlanAPMacAddress................................... 497
wlanAPMode ............................................. 498
wlanAPModelName .................................. 499
wlanAPMonitorMode................................ 502
wlanAPName............................................. 497
wlanAPNumAps ........................................ 495
wlanAPNumBootstraps............................. 501
wlanAPNumClients .................................. 522
wlanAPNumRadios ................................... 498
wlanAPNumReboots................................. 501
wlanAPRadioChannel ............................... 505
wlanAPRadioMode.................................... 506
wlanAPRadioNumActiveBSSIDs.............. 507
wlanAPRadioNumAssociatedClients ....... 506
wlanAPRadioNumber................................ 505
wlanAPRadioNumMonitoredBSSIDs....... 507
wlanAPRadioNumMonitoredClients ....... 506
wlanAPRadioTransmitPower.................... 505
wlanAPRadioType..................................... 505
wlanAPRadioUtilization ........................... 506
wlanAPRxBytes.......................................... 523
wlanAPRxDeauthentications.................... 523
wlanAPRxPkts ........................................... 523
wlanAPSerialNumber................................ 498
wlanAPStatsPkts1024To1518 ................... 560
wlanAPStatsPkts128To255 ....................... 559
wlanAPStatsPkts256To511 ....................... 560
wlanAPStatsPkts512To1023 ..................... 560
wlanAPStatsPkts63Bytes........................... 559
wlanAPStatsPkts64To127......................... 559
wlanAPStatsTotBytesAt11Mbps............... 532
wlanAPStatsTotBytesAt12Mbps............... 533
wlanAPStatsTotBytesAt18Mbps............... 534
wlanAPStatsTotBytesAt1Mbps................. 531
wlanAPStatsTotBytesAt24Mbps............... 534
wlanAPStatsTotBytesAt2Mbps................. 532
wlanAPStatsTotBytesAt36Mbps............... 535
wlanAPStatsTotBytesAt5Mbps................. 532
wlanAPStatsTotBytesAt6Mbps................. 533
wlanAPStatsTotBytesAt9Mbps................. 536
wlanAPStatsTotCtrlBytes ......................... 557
wlanAPStatsTotCtrlPkts........................... 557
wlanAPStatsTotDABroadcastBytes .......... 555
wlanAPStatsTotDABroadcastPkts............ 554
wlanAPStatsTotDAMulticastBytes .......... 555
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 657
wlanAPStatsTotDAMulticastPkts ............555
wlanAPStatsTotDataBytes........................558
wlanAPStatsTotDataPkts..........................558
wlanAPStatsTotDAUnicastBytes..............556
wlanAPStatsTotDAUnicastPkts................555
wlanAPStatsTotMgmtBytes......................557
wlanAPStatsTotMgmtPkts........................557
wlanAPStatsTotPktsAt11Mbps.................532
wlanAPStatsTotPktsAt12Mbps.................533
wlanAPStatsTotPktsAt18Mbps.................534
wlanAPStatsTotPktsAt1Mbps...................531
wlanAPStatsTotPktsAt24Mbps.................534
wlanAPStatsTotPktsAt2Mbps...................531
wlanAPStatsTotPktsAt36Mbps.................535
wlanAPStatsTotPktsAt5Mbps...................532
wlanAPStatsTotPktsAt6Mbps...................533
wlanAPStatsTotPktsAt9Mbp....................536
wlanAPStatus.............................................501
wlanAPTxBytes..........................................523
wlanAPTxDeauthentications....................523
wlanAPTxPkts............................................522
wlanAPUnprovisioned...............................501
wlanAPUpTime .........................................499
wlanESSID.................................................514
wlanESSIDEncryptionType......................515
wlanESSIDNumAccessPointsDown .........515
wlanESSIDNumAccessPointsUp..............515
wlanESSIDNumStations...........................514
wlanESSIDVLANId...................................516
wlanESSIDVLANPoolStatus ....................516
wlanStaAccessPointESSID........................520
wlanStaApBssid .........................................517
wlanStaAssociationID ...............................519
wlanStaChannel ........................................518
wlanStaChannelNum................................572
wlanStaCtrlPkts.........................................575
wlanStaDataPkts........................................575
wlanStaFrameBandwidthRate ..................577
wlanStaFrameFragmentationRate............577
wlanStaFrameLowSpeedRate ...................576
wlanStaFrameNonUnicastRate.................577
wlanStaFrameRetryErrorRate...................577
wlanStaFrameRetryRate ...........................576
wlanStaIsAssociated ..................................518
wlanStaIsAuthenticated............................518
wlanStaNumAuthRequests.......................575
wlanStaPhyAddress....................................517
wlanStaPhyNumber...................................520
wlanStaPhyType........................................518
wlanStaRSSI ..............................................520
wlanStaRxBCastBytes ...............................574
wlanStaRxBytes .........................................573
wlanStaRxDeauthentications ...................576
wlanStaRxMCastBytes ..............................574
wlanStaRxPkts........................................... 573
wlanStaTransmitRate ............................... 519
wlanStaTxBCastPkts................................. 574
wlanStaTxBytes......................................... 573
wlanStaTxDeauthentications ................... 576
wlanStaTxMCastPkt................................. 574
wlanStaTxPkts........................................... 573
wlanStaUpTime ........................................ 520
wlanStaVLANId ........................................ 518
wlanStaVOIPProtocol ............................... 519
wlanStaVOIPState .................................... 519
wlsxLicenseDaysRemaining...................... 278
wlsxSlotNumber........................................ 278
wlsxSysExtCardEntry................................ 305
wlsxSysExtCardTable ............................... 304
wlsxSysExtFanEntry.................................. 310
wlsxSysExtFanTrayAssemblyNumber...... 295
wlsxSysExtHostname................................ 292
wlsxSysExtLicenseEntry ........................... 317
wlsxSysExtMemoryEntry .......................... 303
wlsxSysExtMemoryTable.......................... 302
wlsxSysExtModelName............................. 293
wlsxSysExtPowerSupplyEntry................... 312
wlsxSysExtPowerSupplyTable .................. 310
wlsxSysExtProcessorEntry......................... 299
wlsxSysExtStorageEntry............................ 301
wlsxSysExtStorageTable ........................... 299
wlsxSysExtSwitchDate.............................. 293
wlsxSysExtSwitchIp .................................. 292
wlsxSysExtSwitchLicenseCount............... 295
wlsxSysExtSwitchLicenseTable................ 315
wlsxSysExtSwitchListEntr........................ 314
wlsxSysExtSwitchMasterIp....................... 293
wlsxSysExtSwitchRole .............................. 293
wlsxSysXMemoryEntry ............................. 239
wlsxSysXProcessorEntry............................ 235
wlsxSysXStorageEntry............................... 237
wlsxUserEntry............................................ 428
wlsxWlanAPBssidEntry............................. 509
wlsxWlanAPChStatsEntry........................ 562
wlsxWlanAPDATypeStatsEntry............... 554
wlsxWlanAPFrameTypeStatsEntry.......... 556
wlsxWlanAPGroupEntry .......................... 495
wlsxWlanAPPktSizeStatsEntry ................ 559
wlsxWlanAPRateStatsEntry ..................... 531
wlsxWlanAPStatsEntry............................. 522
wlsxWlanESSIDEntry .............................. 514
wlsxWlanESSIDVLANPoolEntry............. 516
wlsxWlanESSIDVLANPoolTable ............ 515
wlsxWlanRadioEntry ................................ 505
wlsxWlanStationEntry.............................. 517
wlsxWlanStationStatsEntry...................... 572
wlsxWlanStationTable.............................. 516
wlsxWlanTotalNumAccessPoints ............ 494
658 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
ArubaOS 2.5
wlanAPFrameReceiveErrorRate................526
wlanAPRxDataBytes..................................526
wlanAPRxDataPkts....................................526
wlanAPTxDataBytes..................................527
wlanAPTxDataPkts....................................526
wlsxSysExtControllerConfigID ................297
wlsxSysExtIsMMSConfigUpdateEnabled 297
wlsxSysExtMMSConfigID........................297
wlsxSysExtSwitchLastReload....................297
ArubaOS 3.1
ArubaCallStates.........................................342
ArubaCardType.........................................335
ArubaConfigurationChangeType .............341
ArubaConfigurationState..........................341
ArubaDot1dState ......................................335
ArubaEncryptionMethods.........................334
ArubaESIServerMode................................337
ArubaFrameType.......................................328
ArubaPhyType ...........................................328
ArubaVoiceCacBit.....................................343
ArubaVoiceCdrDirection ..........................343
ArubaVoipProtoco .....................................342
ArubaVoipRegState...................................342
lanStaFrameNonUnicastRate ...................577
lsxCTSTransferSucceeded........................398
lsxEsiServerChanged.................................401
lsxMonEventCountEntry..........................214
lsxVoiceCurrentNumCdr..........................363
lsxWlanStationStatsEntry.........................572
mobilityDomainIsExclusive......................141
monAPFrameReceiveErrorRate................166
monAPFrameRetryErrorRate....................165
monAPInfoConfidence .............................208
monAPInfoMatchType .............................208
monEventCount........................................214
monEventID..............................................214
monStaFrameReceiveErrorRate ...............185
onAPInfoMatchMethod............................208
wlanAPChannelErrorRate.........................525
wlanAPChannelNumber ...........................562
wlanAPChannelThroughput.....................524
wlanAPChBusyRate...................................566
wlanAPChCoverageIndex .........................564
wlanAPChFrameBandwidthRate..............566
wlanAPChFrameFragmentationRate .......565
wlanAPChFrameLowSpeedRate...............565
wlanAPChFrameNonUnicastRate............565
wlanAPChFrameRetryErrorRate ..............566
wlanAPChInterferenceIndex.....................564
wlanAPChNoise.........................................564
wlanAPChNumAPs ...................................566
wlanAPCurrentChannel............................522
wlanAPFQLN ............................................502
wlanAPFQLNBuilding .............................. 502
wlanAPFQLNCampus .............................. 503
wlanAPFQLNFloor ................................... 502
wlanAPFrameBandwidthRate................... 525
wlanAPFrameFragmentationRate............ 525
wlanAPFrameLowSpeedRate ................... 524
wlanAPFrameNonUnicastRate................. 524
wlanAPFrameRetryErrorRate ................... 525
wlanAPFrameRetryRate............................ 524
wlanAPNumClients .................................. 522
wlanAPRxDeauthentications.................... 523
wlanAPRxPkts ........................................... 523
wlanAPTxBytes.......................................... 523
wlanAPTxDeauthentication ..................... 523
wlanAPTxPkts ........................................... 522
wlanESSID ................................................ 514
wlanESSIDNumAccessPointsDown......... 515
wlanESSIDNumAccessPointsUp.............. 515
wlanStaChannelNum................................ 572
wlanStaDataPkt......................................... 575
wlanStaFrameBandwidthRate .................. 577
wlanStaFrameFragmentationRate ........... 577
wlanStaFrameLowSpeedRate................... 576
wlanStaFrameRetryErrorRate................... 577
wlanStaFrameRetryRate ........................... 576
wlanStaIsAssociated.................................. 518
wlanStaIsAuthenticated............................ 518
wlanStaNumAssocRequests...................... 575
wlanStaNumAuthRequests....................... 575
wlanStaRxBCastBytes ............................... 574
wlanStaRxBytes......................................... 573
wlanStaRxDeauthentications ................... 576
wlanStaRxMCastBytes.............................. 574
wlanStaTxBCastPkts................................. 574
wlanStaTxBytes......................................... 573
wlanStaTxDeauthentication..................... 576
wlanStaTxMCastPkts................................ 574
wlanStaTxPkts........................................... 573
wlsxAdhocNetworkBridgeDetectedAP..... 406
wlsxAdhocNetworkBridgeDetectedSta .... 406
wlsxAPBssidEntryChanged....................... 399
wlsxAPEntryChanged ............................... 400
wlsxAPRadioEntryChanged...................... 400
wlsxConfigurationLicenseMismatch........ 408
wlsxConfigurationUpdateError ................ 399
wlsxConfigurationUpdateSucceeded ....... 399
wlsxCTSTransferError .............................. 398
wlsxDisconnectStationAttackAP.............. 406
wlsxDisconnectStationAttackSta ............. 407
wlsxGlobalConfigurationChangeNotification
399
wlsxInterferingApDetected....................... 397
wlsxLicenseEntryChanged........................ 401
wlsxMonAPEntryChanged........................ 401
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 659
wlsxMonStationEntryChanged.................402
wlsxNAccessPointIsDown .........................384
wlsxNAccessPointIsUp..............................384
wlsxNAuthMaxAclEntries.........................381
wlsxNAuthMaxBWContracts...................381
wlsxNAuthMaxUserEntries.......................381
wlsxNAuthServerIsDown ..........................398
wlsxNAuthServerIsUp ...............................381
wlsxNAuthServerReqTimedOut...............380
wlsxNAuthServerTimedOut .....................381
wlsxNChannelChanged.............................385
wlsxNCoverageHoleDetected ...................384
wlsxNDBCommunicationFailure .............385
wlsxNFanFailure........................................382
wlsxNFanTrayInserted ..............................384
wlsxNFanTrayRemoved ............................383
wlsxNGBICInserted ..................................382
wlsxNIpSpoofingDetected ........................385
wlsxNLCInserted.......................................382
wlsxNLCRemoved.....................................384
wlsxNLicenseExpiry ..................................386
wlsxNLowMemory.....................................383
wlsxNLowOnFlashSpace...........................383
wlsxNOutOfRangeTemperature...............382
wlsxNOutOfRangeVoltage........................382
wlsxNPowerSupplyFailure.........................381
wlsxNProcessDied .....................................383
wlsxNProcessExceedsMemoryLimits........383
wlsxNSCInserted.......................................382
wlsxNStationAddedToBlackList...............385
wlsxNStationRemovedFromBlackList......385
wlsxNUserAuthenticationFailed...............380
wlsxNUserEntryAuthenticated .................380
wlsxNUserEntryDeAuthenticated ............380
wlsxNUserEntryDeleted............................380
wlsxPortEntryChanged .............................400
wlsxSignAPAirjack.....................................403
wlsxSignAPAsleap......................................403
wlsxSignAPDeauthBcast ...........................404
wlsxSignAPNetstumbler............................402
wlsxSignAPNullProbeResp........................404
wlsxSignStaAirjack ....................................404
wlsxSignStaAsleap .....................................403
wlsxSignStaDeauthBcast...........................405
wlsxSignStaNetstumbler...........................402
wlsxSignStaNullProbeResp .......................404
wlsxSuspectUnsecureAPDetected ............407
wlsxSuspectUnsecureAPResolved.............407
wlsxSwitchListEntryChanged...................400
wlsxSysExtAPBssidTableGenNumber......322
wlsxSysExtAPRadioTableGenNumber.....323
wlsxSysExtAPTableGenNumber ..............323
wlsxSysExtLicenseTableGenNumber.......324
wlsxSysExtMMSCompatLevel .................297
wlsxSysExtMonAPTableGenNumber ...... 324
wlsxSysExtPortTableGenNumber............ 323
wlsxSysExtSwitchListTableGenNumber .323
wlsxSysExtUserTableGenNumber ........... 322
wlsxSysExtVlanInterfaceTableGenNumber324
wlsxSysExtVlanTableGenNumber ........... 324
wlsxTrapConfidenceLevel ........................ 363
wlsxTrapConfigurationId.......................... 361
wlsxTrapConfigurationState .................... 361
wlsxTrapCTSTransferType ...................... 361
wlsxTrapCTSURL..................................... 361
wlsxTrapGlobalConfigObj........................ 362
wlsxTrapLicenseId .................................... 363
wlsxTrapMissingLicenses.......................... 363
wlsxTrapTableEntryChangeType............. 362
wlsxTrapTableGenNumber ...................... 362
wlsxTrapTunnelId..................................... 363
wlsxTrapTunnelStatus.............................. 364
wlsxTrapTunnelUpReason ....................... 364
wlsxTrapUpdateFailedObj........................ 362
wlsxTrapUpdateFailureReason................. 361
wlsxTunnelDown ...................................... 408
wlsxTunnelUp ........................................... 408
wlsxUnsecureAPDetected......................... 386
wlsxUserEntryChanged............................. 399
wlsxUserSessionTimeCount..................... 442
wlsxUserSessionTimeEntry....... 441, 442, 443
wlsxUserSessionTimeLength.................... 441
wlsxVlanEntryChanged............................. 400
wlsxVlanInterfaceEntryChanged.............. 401
wlsxVoiceCdrBufferThresholdReached.... 408
wlsxWindowsBridgeDetected................... 401
wlsxWindowsBridgeDetectedAP.............. 405
wlsxWindowsBridgeDetectedSta ............. 405
ArubaOS 3.1.0.3
PwlsxCtsOpcod......................................... 113
wlsxCtsCookie........................................... 113
wlsxCtsFlags.............................................. 114
wlsxCtsIndex............................................. 113
wlsxCtsOpcode.......................................... 113
wlsxCtsRequestEntry................................ 113
wlsxCtsStatus............................................ 114
wlsxCtsURL............................................... 114
ArubaOS 3.2
ArubaMeshRole......................................... 343
ifExtVlanInterfaceIpIgmpSnooping ......... 132
ifExtVlanInterfaceIpNatInside ................. 131
ifExtVlanInterfaceIpRouting .................... 131
nUserAuthServerName............................. 431
nUserBWContractId................................. 434
nUserBWContractName .......................... 434
nUserBWContractUsage .......................... 434
nUserDNBWContractId........................... 439
nUserDNBWContractName .................... 439
660 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
nUserDNBWContractUsage.....................439
nUserExtVPNAddress ...............................431
nUserMobilityDomainName ....................437
nUserMobilityStatus .................................433
nUserPhyType ...........................................437
nUserUPBWContractId............................437
nUserUPBWContractName .....................437
nUserUPBWContractUsage .....................437
oiceCdrHandovers.....................................473
voiceAPBssid100Sent ................................487
voiceAPBssid503Sent ................................487
voiceAPBssidCacFlag ................................489
voiceAPBssidCallsNoe...............................490
voiceAPBssidCallsSCCP ...........................489
voiceAPBssidCallsSIP................................489
voiceAPBssidCallsSVP...............................490
voiceAPBssidCallsVocera ..........................490
voiceAPBssidEssid .....................................490
voiceAPBssidExtraCallDisc.......................487
voiceAPBssidFlag.......................................486
voiceAPBssidGroup ...................................485
voiceAPBssidIp ..........................................485
voiceAPBssidKickedOff.............................487
voiceAPBssidName....................................485
voiceAPBssidTotCalls................................485
voiceAPBssidTotVoiceClients...................489
voiceAPBssidTspecDenied........................489
voiceAPBssidUpTime................................487
voiceAPBssidVoiceType ............................486
voiceCallCtrsAborted................................475
voiceCallCtrsActive...................................477
voiceCallCtrsBusy .....................................477
voiceCallCtrsDecline ................................479
voiceCallCtrsFailed...................................475
voiceCallCtrsMisc .....................................479
voiceCallCtrsNotFnd ................................477
voiceCallCtrsOrig......................................477
voiceCallCtrsRecvd ...................................477
voiceCallCtrsRejected...............................475
voiceCallCtrsReqTerm..............................479
voiceCallCtrsSuccess.................................475
voiceCallCtrsTotal ....................................475
voiceCallCtrsUnauth.................................479
voiceCdrApMac.........................................472
voiceCdrApName ......................................472
voiceCdrApSwitchDelay ...........................470
voiceCdrBssid ............................................472
voiceCdrCodec..........................................472
voiceCdrDialNum .....................................468
voiceCdrDir ...............................................468
voiceCdrDuration......................................470
voiceCdrEssid............................................472
voiceCdrId .................................................466
voiceCdrIp .................................................466
voiceCdrMac ............................................. 466
voiceCdrMOS............................................ 473
voiceCdrName........................................... 466
voiceCdrOrigTime .................................... 468
voiceCdrReason......................................... 470
voiceCdrRValue ........................................ 470
voiceCdrSetupTime.................................. 468
voiceCdrStatus.......................................... 470
voiceCdrTeardownTime........................... 468
voiceClientContactName......................... 481
voiceClientEssid........................................ 483
voiceClientIp............................................. 481
voiceClientProtocol................................... 481
voiceClientRegState.................................. 481
voiceClientServerName ............................ 483
voiceClientTunnelId................................. 483
voiceClientVlanId ..................................... 483
wlanAPAltitude ......................................... 503
wlanAPBssidMode..................................... 511
wlanAPBssidNumAssociatedStations....... 512
wlanAPChFrameReceiveErrorRate .......... 567
wlanAPLongitude...................................... 503
wlanAPMeshRole ...................................... 503
wlanAPMonitorMode................................ 502
wlanAPRadioBearing................................. 507
wlanAPRadioChannel ............................... 505
wlanAPRadioNumber................................ 505
wlanAPRadioTiltAngle.............................. 507
wlanAPRadioTransmitPower.................... 505
wlanAPRxDataBytes.................................. 526
wlanAPRxDataBytes64.............................. 527
wlanAPRxDataPkts ................................... 526
wlanAPRxDataPkts64 ............................... 527
wlanAPTxDataByte................................... 527
wlanAPTxDataBytes64 ............................. 528
wlanAPTxDataPkts ................................... 526
wlanAPTxDataPkts64 ............................... 527
wlanStaFrameReceiveErrorRate............... 578
wlanStaTxBCastBytes....................... 578, 579
wlsxCtsIndex............................................. 113
wlsxMeshNodeChildrenCount................. 135
wlsxMeshNodeCluster .............................. 135
wlsxMeshNodeHopCoun.......................... 137
wlsxMeshNodeLinkCost........................... 136
wlsxMeshNodeNodeCost.......................... 136
wlsxMeshNodeParent................................ 135
wlsxMeshNodePathCost........................... 136
wlsxMeshNodeRfBan................................ 136
wlsxMeshNodeTotal ................................. 134
wlsxMeshRole............................................ 135
wlsxVoiceAPBssidEntry............................. 485
wlsxVoiceAPBssidTotal............................. 483
wlsxVoiceCdrEntry ................................... 466
wlsxVoiceClientEntry ............................... 481
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 661
wlsxVoiceClientTable ...............................480
wlsxVoiceClientTotal................................480
wlsxWlanESSIDEntry...............................514
ArubaOS 3.3
ArubaHTExtChannel................................330
ArubaHTMode ..........................................328
IPv6 Authentication Traps........................288
monAPInfoHTMode .................................209
monStaInfoHTMode.................................213
monStaRxHTBytes....................................216
monStaRxHTPkts......................................216
monStaTxHTBytes....................................215
monStaTxHTPkts .....................................215
nUser6ApBSSID........................................452
nUser6ApLocation.....................................452
nUser6AssignedVLAN...............................454
nUser6AuthenticationMethod..................450
nUser6AuthServerName ...........................450
nUser6BWContractId...............................454
nUser6BWContractName.........................454
nUser6BWContractUsage.........................454
nUser6ConnectedPort...............................456
nUser6ConnectedSlot...............................456
nUser6CurrentVLAN ................................456
nUser6DefaultVLAN.................................454
nUser6DNBWContractId.........................460
nUser6DNBWContractName...................460
nUser6DNBWContractUsage...................460
nUser6ExtVPNAddress .............................450
nUser6HomeAgentIpAddress....................452
nUser6HomeVLAN ...................................453
nUser6HTMode.........................................460
nUser6IpAddress........................................448
nUser6IsOnHomeAgent............................452
nUser6IsProxyArpEnabled ........................456
nUser6IsWired ..........................................456
nUser6MobilityDomainName ..................458
nUser6MobilityStatus ...............................453
nUser6Name..............................................448
nUser6PhyAddress.....................................448
nUser6PhyType .........................................458
nUser6Role ................................................448
nUser6SubAuthenticationMethod ...........450
nUser6UPBWContractId..........................458
nUser6UPBWContractName ...................458
nUser6UPBWContractUsage ...................458
nUser6UpTime..........................................450
nUserHTMode...................................439, 441
user6AuthenticationMethod.....................248
user6BWContractName............................249
user6BWContractUsage............................249
user6ConnectedPort..................................249
user6ConnectedSlot..................................249
user6ConnectedVlan.................................249
user6IpAddress .......................................... 246
user6Location............................................ 248
user6Name................................................. 246
user6PhyAddress ....................................... 246
user6Role................................................... 246
user6ServerName ...................................... 248
user6UpTime............................................. 248
wlanAPBssidHTChannel .......................... 513
wlanAPBssidHTExtChannel..................... 513
wlanAPBssidHTMode............................... 513
wlanAPRadioHTChannel ......................... 508
wlanAPRadioHTExtChannel.................... 508
wlanAPRadioHTMode.............................. 508
wlanAPStatsTotBytesAtHT104Mbps....... 546
wlanAPStatsTotBytesAtHT108Mbps....... 547
wlanAPStatsTotBytesAtHT117Mbps....... 547
wlanAPStatsTotBytesAtHT120Mbps....... 548
wlanAPStatsTotBytesAtHT121dot5Mbps548
wlanAPStatsTotBytesAtHT130Mbps....... 549
wlanAPStatsTotBytesAtHT135Mbps....... 549
wlanAPStatsTotBytesAtHT13dot5Mbps .538
wlanAPStatsTotBytesAtHT13Mbps......... 537
wlanAPStatsTotBytesAtHT150Mbps....... 550
wlanAPStatsTotBytesAtHT15Mbps......... 538
wlanAPStatsTotBytesAtHT162Mbps....... 550
wlanAPStatsTotBytesAtHT180Mbps....... 551
wlanAPStatsTotBytesAtHT19dot5Mbps .539
wlanAPStatsTotBytesAtHT216Mbps....... 551
wlanAPStatsTotBytesAtHT240Mbps....... 552
wlanAPStatsTotBytesAtHT243Mbps....... 552
wlanAPStatsTotBytesAtHT270Mbps....... 553
wlanAPStatsTotBytesAtHT27Mbps......... 540
wlanAPStatsTotBytesAtHT300Mbps....... 553
wlanAPStatsTotBytesAtHT30Mbps......... 540
wlanAPStatsTotBytesAtHT39Mbps......... 541
wlanAPStatsTotBytesAtHT40dot5Mbps .541
wlanAPStatsTotBytesAtHT45Mbps......... 542
wlanAPStatsTotBytesAtHT52Mbps......... 542
wlanAPStatsTotBytesAtHT54Mbps......... 543
wlanAPStatsTotBytesAtHT58dot5Mbps .543
wlanAPStatsTotBytesAtHT60Mbps......... 544
wlanAPStatsTotBytesAtHT65Mbps......... 544
wlanAPStatsTotBytesAtHT6dot5Mbps ... 537
wlanAPStatsTotBytesAtHT78Mbps......... 545
wlanAPStatsTotBytesAtHT81Mbps......... 545
wlanAPStatsTotBytesAtHT90Mbps......... 546
wlanAPStatsTotPktsAtHT104Mbps......... 546
wlanAPStatsTotPktsAtHT108Mbps......... 547
wlanAPStatsTotPktsAtHT117Mbps......... 547
wlanAPStatsTotPktsAtHT120Mbps......... 548
wlanAPStatsTotPktsAtHT121dot5Mbps .548
wlanAPStatsTotPktsAtHT130Mbps......... 549
wlanAPStatsTotPktsAtHT135Mbps......... 549
wlanAPStatsTotPktsAtHT13dot5Mbps ... 538
662 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
wlanAPStatsTotPktsAtHT13Mbps...........537
wlanAPStatsTotPktsAtHT150Mbps.........550
wlanAPStatsTotPktsAtHT15Mbps...........538
wlanAPStatsTotPktsAtHT162Mbps.........550
wlanAPStatsTotPktsAtHT180Mbps.........551
wlanAPStatsTotPktsAtHT19dot5Mbps ...539
wlanAPStatsTotPktsAtHT216Mbps.........551
wlanAPStatsTotPktsAtHT240Mbps.........552
wlanAPStatsTotPktsAtHT243Mbps.........552
wlanAPStatsTotPktsAtHT26Mbps...........539
wlanAPStatsTotPktsAtHT270Mbps.........553
wlanAPStatsTotPktsAtHT27Mbps...........540
wlanAPStatsTotPktsAtHT300Mbps.........553
wlanAPStatsTotPktsAtHT30Mbps...........540
wlanAPStatsTotPktsAtHT39Mbps...........541
wlanAPStatsTotPktsAtHT40dot5Mbps ...541
wlanAPStatsTotPktsAtHT45Mbps...........542
wlanAPStatsTotPktsAtHT52Mbps...........542
wlanAPStatsTotPktsAtHT54Mbps...........543
wlanAPStatsTotPktsAtHT58dot5Mbps ...543
wlanAPStatsTotPktsAtHT60Mbps...........544
wlanAPStatsTotPktsAtHT65Mbps...........544
wlanAPStatsTotPktsAtHT6dot5Mbp.......537
wlanAPStatsTotPktsAtHT78Mbps...........545
wlanAPStatsTotPktsAtHT81Mbps...........545
wlanAPStatsTotPktsAtHT90Mbps...........546
wlsxHT40MHzIntoleranceAP...................409
wlsxHT40MHzIntoleranceSta ..................409
wlsxHtGreenfieldSupported .....................409
wlsxMonStationHTRateStatsEntry..........215
wlsxSwitchUser6Entry...............................246
wlsxTotalNumOfUsers6............................446
wlsxUser6AllInfoGroup.............................446
wlsxUser6AuthenticationFailed................289
wlsxUser6EntryAuthenticated ..................288
wlsxUser6EntryCreated.............................288
wlsxUser6EntryDeAuthenticated .............288
wlsxUser6EntryDeleted.............................288
wlsxUser6SessionTime..............................461
wlsxUser6SessionTimeLength ..................461
wlsxUser6SessionTimeTable.....................460
wlsxUser6Table..........................................446
ArubaOS 3.3.0.0
wlanStaHTMod.........................................520
ArubaOS 3.4
wlsxNProcessExceedsMemoryLimits........383
wlsxTrapAPSerialNumber.........................364
wlsxTraptimeStr ........................................365
ArubaOS 3.4.1
wlsxNadhocNetwork..................................410
wlsxNAdhocNetworkBridgeDetectedAP ..410
wlsxNAdhocNetworkBridgeDetectedSta..410
wlsxNApOnBackupController...................411
wlsxNAuthMaxXsecUserEntries...............410
wlsxNAuthServerAllInService................... 409
wlsxNConnectionResetWithLocal........... 411
wlsxNRapExpiredPSK............................... 411
wlsxNRapWarnExpiredPSK ..................... 411
wlsxNVpnMaxSessions.............................. 411
wlsxTrapBackupControllerIp.................... 366
wlsxTrapMasterlp...................................... 365
wlsxTrapMasterName............................... 365
wlsxTrapPrimaryControllerIp................... 366
ArubaOS 5.0
nUserForwardMode .................................. 439
ArubaOS 6.0
monAPInfoEncryptionType...................... 209
monAPInfoIBSS........................................ 209
monAPInfoWPAAuthAlgorithm.............. 209
monAPInfoWPAUnicastCipher............... 209
wlanAPChMultipleRetryCount................ 568
Wlanapchtransmittedfragmentcount ...... 567
wlanAPChTxUtilization ........................... 571
wlanAPSysLocation................................... 504
wlsxAdhocUsingValidSSID....................... 412
wlsxAPSpoofingDetected.......................... 412
wlsxClientAssociatingOnWrongChannel 413
wlsxClientFloodAttack ............................. 412
wlsxValidClientNotUsingEncryption....... 412
ArubaOS60
wlsxAPChannelChange............................. 423
wlsxAPDeauthContainment..................... 421
wlsxAPModeChange................................. 423
wlsxAPPowerChange................................. 423
wlsxAPTaggedWiredContainment .......... 422
wlsxAPWiredContainment....................... 421
wlsxBlockAckAttackDetected................... 418
wlsxChopChopAttack............................... 414
wlsxClientDeauthContainment............... 421
wlsxClientTaggedWiredContainment..... 422
wlsxClientWiredContainment................. 421
wlsxCTSRateAnomaly .............................. 417
wlsxHotspotterAttackDetected ................ 418
wlsxInvalidAddressCombination.............. 414
wlsxMalformedAssocReqDetected........... 415
wlsxMalformedAuthFrame....................... 416
wlsxMalformedFrameLargeDurationDetected
416
wlsxMalformedFrameWrongChannelDetected
416
wlsxMalformedHTIEDetected................. 415
wlsxNDisconnectStationAttack................ 413
wlsxNeighborAPDetected......................... 417
wlsxNInterferingAPDetected.................... 418
wlsxNRogueAPDetected........................... 417
wlsxNRogueAPResolved ........................... 417
wlsxNSignatureMatch............................... 419
wlsxNSignatureMatchAirjack ................... 420
Dell PowerConnect ArubaOS 6.0 |User Guide Index | 663
wlsxNSignatureMatchAsleap ....................419
wlsxNSignatureMatchDeauthBcast..........420
wlsxNSignatureMatchDisassocBcast ........420
wlsxNSignatureMatchNetstumbler ..........419
wlsxNSignatureMatchNullProbeResp ......420
wlsxNSignatureMatchWellenreiter ..........421
wlsxNStaUnAssociatedFromUnsecureAP 413
wlsxNSuspectRogueAPDetected ..............418
wlsxNSuspectRogueAPResolved...............418
wlsxOmertaAttack.....................................413
wlsxOverflowEAPOLKeyDetected ...........416
wlsxOverflowIEDetected ..........................415
wlsxRTSRateAnomaly...............................417
wlsxTarpitContainment............................422
wlsxTKIPReplayAttack..............................414
wlsxUserEntryAttributesChanged ............423
wlsxValidClientMisassociation .................415
wlsxVoiceClientLocationUpdate..............422
home agent .............................................................139
I
inform request ..........................................................21
L
Location
user station.......................................................425
M
mesh........................................................................133
MIB files....................................................................23
monAPStatsToHTBytes.........................................178
monAPStatsToHTPkts...........................................178
monHTRate............................................................178
N
network traffic ........................................................157
P
ping alarms................................................................21
pLocalName............................................................365
ports ........................................................................119
R
resource usage.........................................................291
roaming agent.........................................................139
S
Scan
RF spectrum.......................................................35
signal quality...........................................................217
SNR......................................................................... 217
switch.............................................................. 227, 445
synchronize............................................................. 111
T
TC........................................................................... 327
terminal server function........................................... 22
Traffic
redirect ............................................................. 115
Traps
access points....................................................... 88
information........................................................ 21
MIB hierarchy .................................................. 345
switch trap notifications.................................. 279
switch traps ...................................................... 270
types ................................................................... 21
wlsx trap objects group.................................... 346
U
user access .............................................................. 425
V
VLAN...................................................................... 119
voice status ............................................................. 463
W
w.............................................................................. 412
wlsxClientFloodAttack .......................................... 412
wlsxMonAPHTRateStatsEntry.............................. 178
wlsxNDisconnectStationAttack............................. 413
wlsxValidClientNotUsingEncryption.................... 412
WMS .............................................................. 115, 491
X
xTrapLocaIp........................................................... 365
664 |Index Dell PowerConnect ArubaOS 6.0 | User Guide
