124T00
Illustrated Parts List
Model Series
124T00
TYPE NUMBERS
0101 through 6952.
TABLE OF CONTENTS
Air Cleaner 5.........................
Alternator 6..........................
Blower Housing 8....................
Blower Housing--Shrouds 7...........
Camshaft 2..........................
Carburetor 3.........................
Carburetor 4.........................
Controls 6...........................
Crankshaft 2.........................
Cylinder 2...........................
Electric Starter 8.....................
Electrical 6...........................
Engine Sump 2.......................
Exhaust System 5....................
Flywheel 8...........................
Flywheel Brake 6.....................
Fuel Supply 4........................
Governor Spring 6....................
Ignition 6............................
Kits/Gaskets 9.......................
Lubrication 2........................
Piston Group 2.......................
Rewind Starter 8.....................
Valves 2.............................
Not for
Reproduction
124T00
3730--2 Assemblies include all parts shown in frames. 04/12/2013

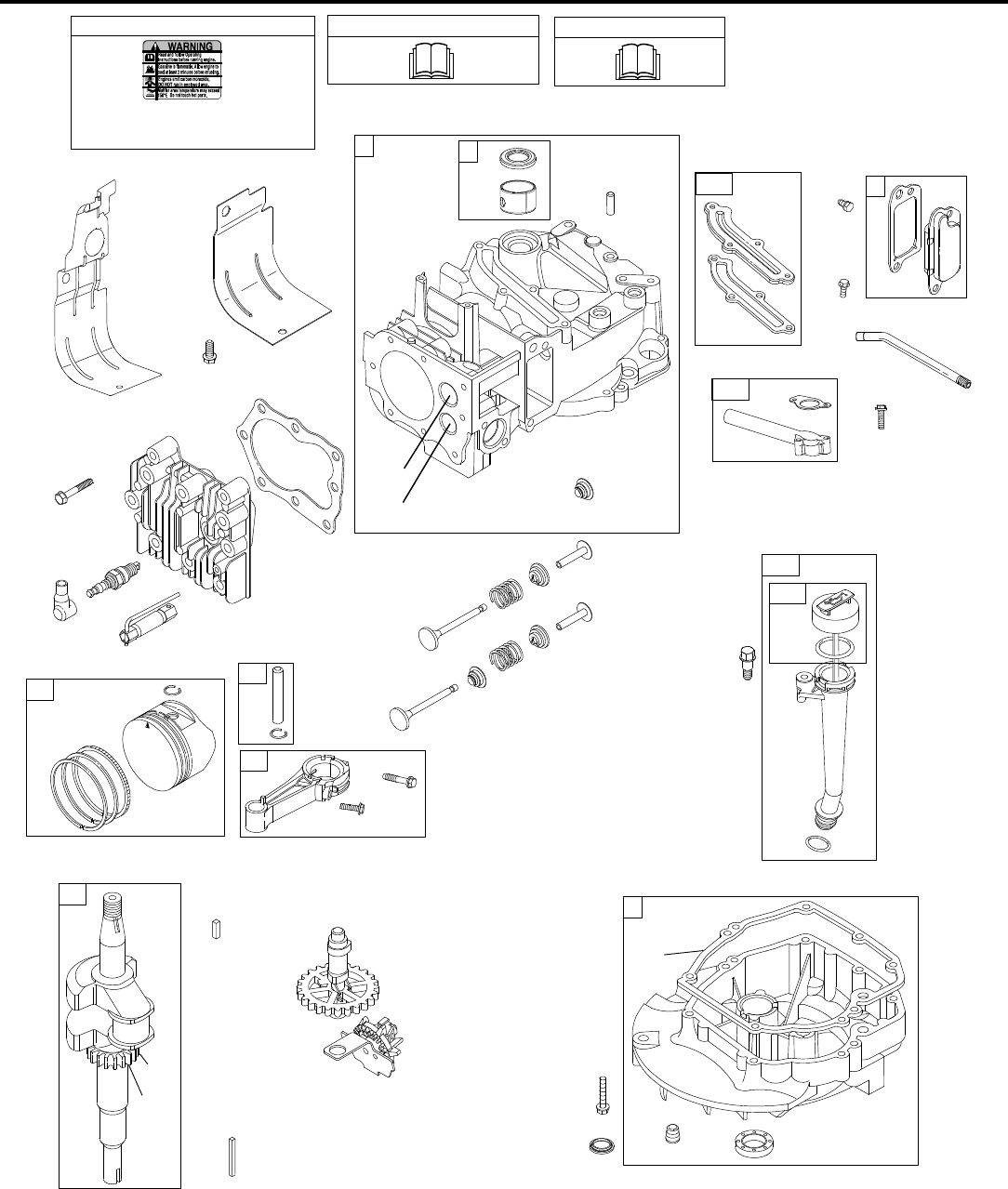

2
10
1
8
9
718
307
306
383
635
337
13 5
7
11
33
36
40
22
20
15
12
4
847
523
287
524
525
842
45
34
35
40 45
32
32A
27
26
27
25
29
28
24
377
741
16
43
46
870
869
871
684
585
584
868
306A
51A
50A
54
1102
1330 REPAIR MANUAL
1058 OPERATOR’S MANUAL
1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.
357A

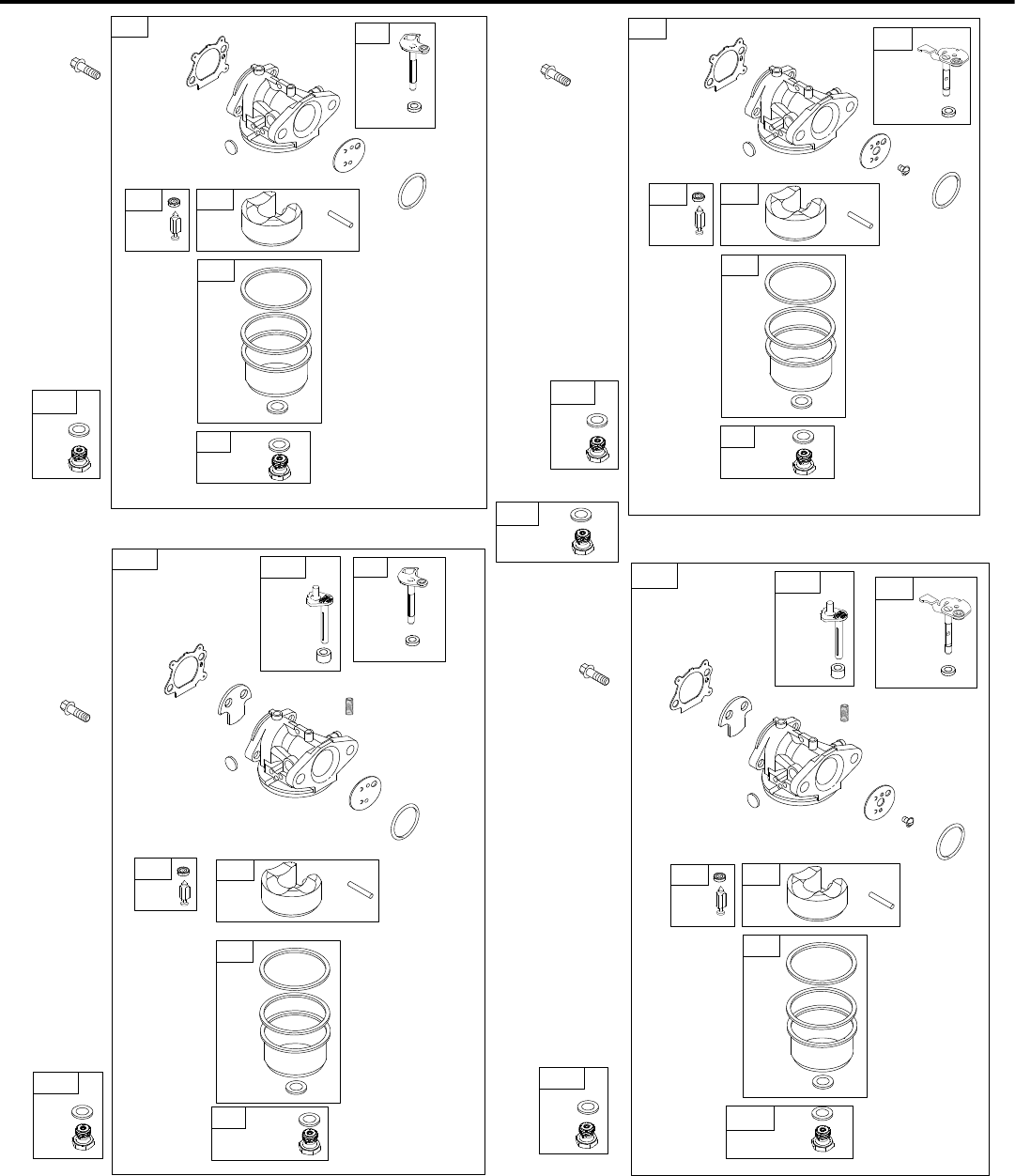

3
2
868
Not for
Reproduction
124T00
3730--3 Assemblies include all parts shown in frames. 04/12/2013
3
118
133
125
617
95
130
127
163
104
365
276
365
276
118C
97
975
133
134
617
130
633
163
276
137A
104
276
125B
127
276
118B
365
130A
137
97A
633
125A
617
127
163
97
633
975
276
137A
137
134
276
117
133
104
975
276
137A
137
134
276
633A
109A
108B
692
95
130A
97A
633
125C
617
127
163
133
104
975
276
137A
137
134
117C 276
633A
109A
108
692
365
117A
117B
276
118G
118A
276
Not for
Reproduction
124T00
3730--4 Assemblies include all parts shown in frames. 04/12/2013

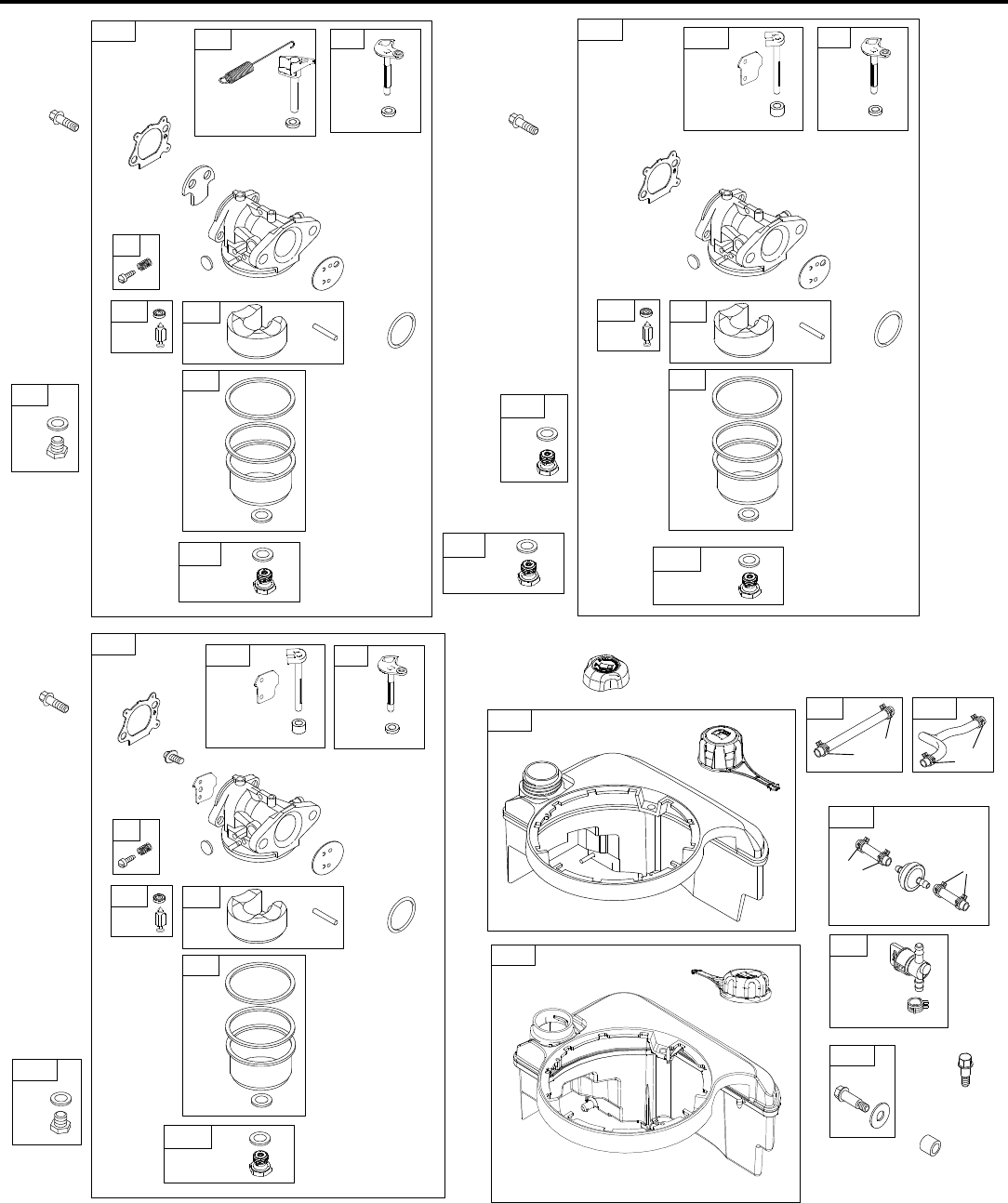

4
118D
365
276
276
118F
365
972B 957B
972F 957C
670
190
1059
601
187 187A
601
240
187B
601
601
601A
958
Non--Threaded 1/4 Turn
97
975
133
134
617
130
633
163
276
137A
104
276
125D
127
137
108B
633
217
109
98
97
975
133
134
617
130
633
163
276
137A
104
125E
127
137
108A
633A
141
97
975
133
134
617
130
633
163
276
137A
104
125F
127
137
98
231
365
957A
108A
633A
141
108A
117D 117E 276
117F 276
276
118G
118E
276
Not for
Reproduction
124T00
3730--5 Assemblies include all parts shown in frames. 04/12/2013
5
832
836
883
291
1387
1388
1386
676A
677
677
676
836
832B
300B
613B
81
836B
676D
676C
677
677
832E
836C
346
994
994B
346
676B
677
613
81
883 300
443A
445A
535
968B
425A
976
163
11B
966B
536A
11B
535A
534A
163
467
Not for
Reproduction
124T00
3730--6 Assemblies include all parts shown in frames. 04/12/2013

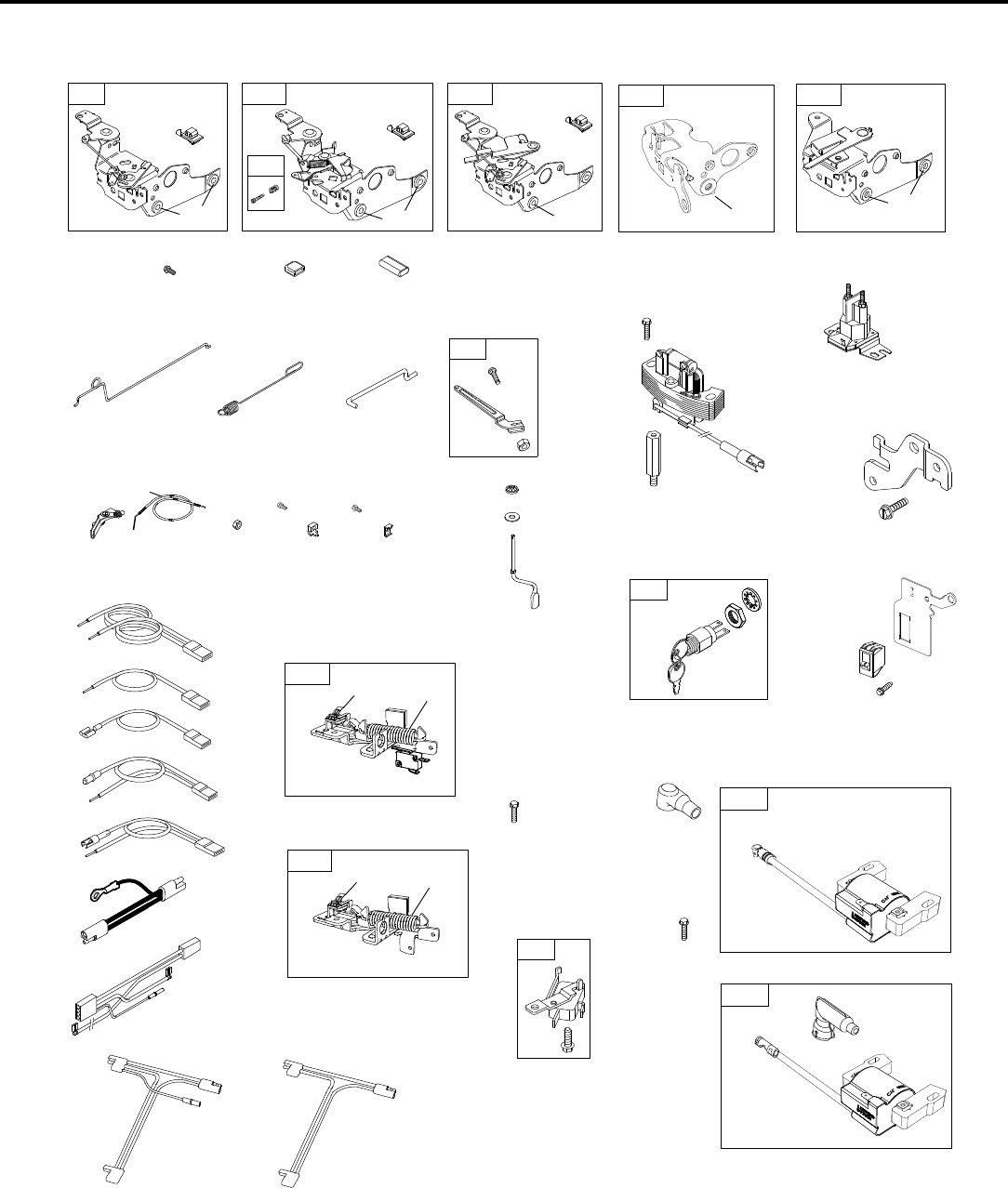

6
616
404
615
505
562
202
188
265
267
270
271
268
621
227
222 222D
668 668
269
745
356
236
1160
935
789B
356D
910
474
1119
222C
621
668
843A
843
920
356B
98A
222A
621
668
222E
668
209B
497
347
627
334
940
259
578
990
664
500
892
265A
267
789C 789D
578A
853A
635
362
333
851
333A
851A
923B 621 922
923 621 922
Not for
Reproduction
124T00
3730--7 Assemblies include all parts shown in frames. 04/12/2013
7
969
921B
921G
604B
564B
969A
921F
969
564
604
921C
969A
921E
969A
921H
969A
921K
969A
921L
969A
921J
969A
969A
921A
921R
969A
921U
969A
604A
564A
564B
604D
921M
969A
921W
969
969A
921X
969A
921Y
921Z
969A
Not for
Reproduction
124T00
3730--8 Assemblies include all parts shown in frames. 04/12/2013

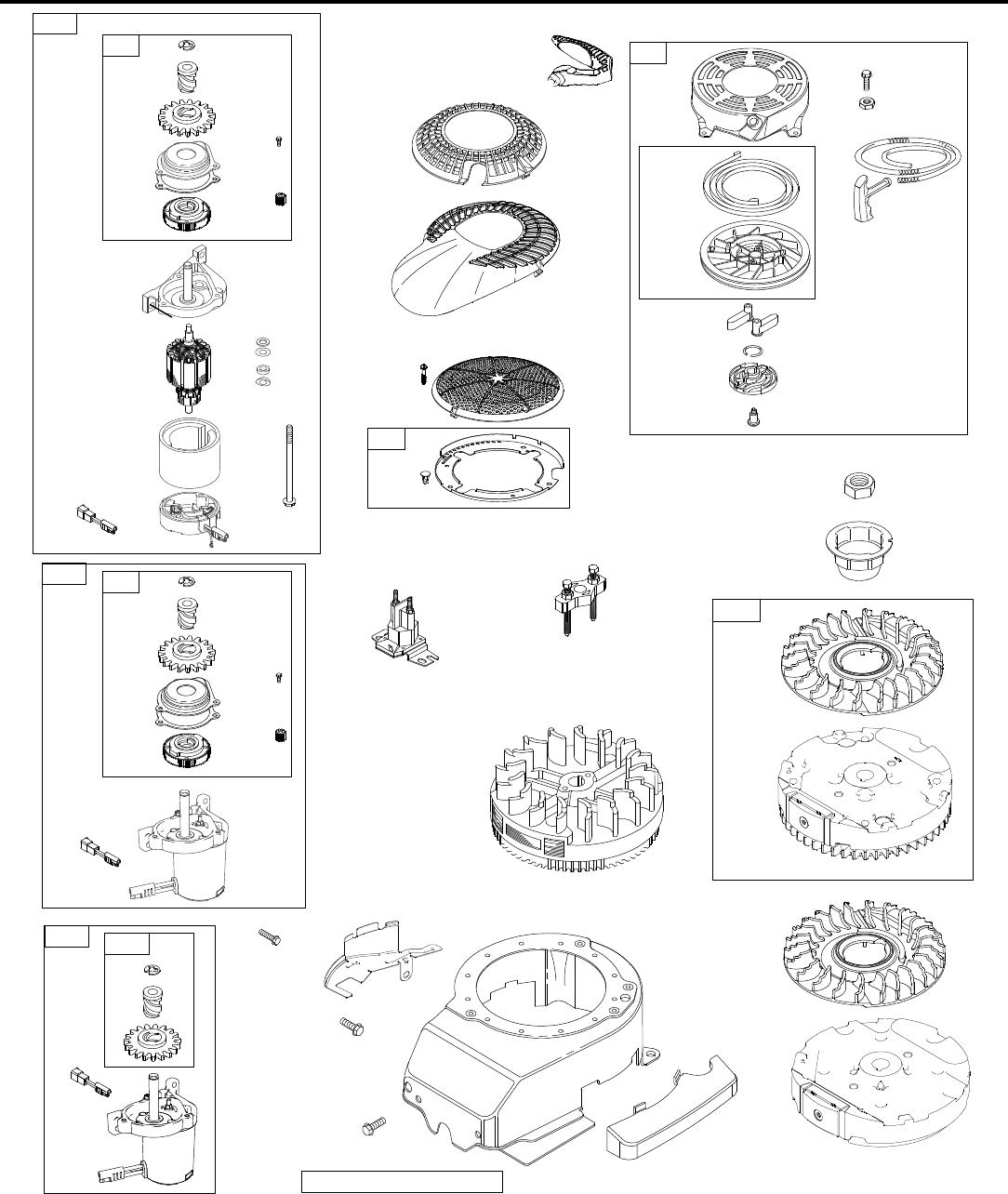

8
60
58
592
65
597
456
689
459
1210
1211
55
608
363
455
332
310
853
544
783A
651
513
785
783
937
742
510
853
697
783A
651
513
785
783
937
742
510
309A
925
305
304
78
37
1036 EMISSIONS LABEL
703
949
563
997
930
930A
853
742
309 937A
60C
309B
23
1005
23A
23B
920
784
1005
Not for
Reproduction
124T00
3730--9 Assemblies include all parts shown in frames. 04/12/2013

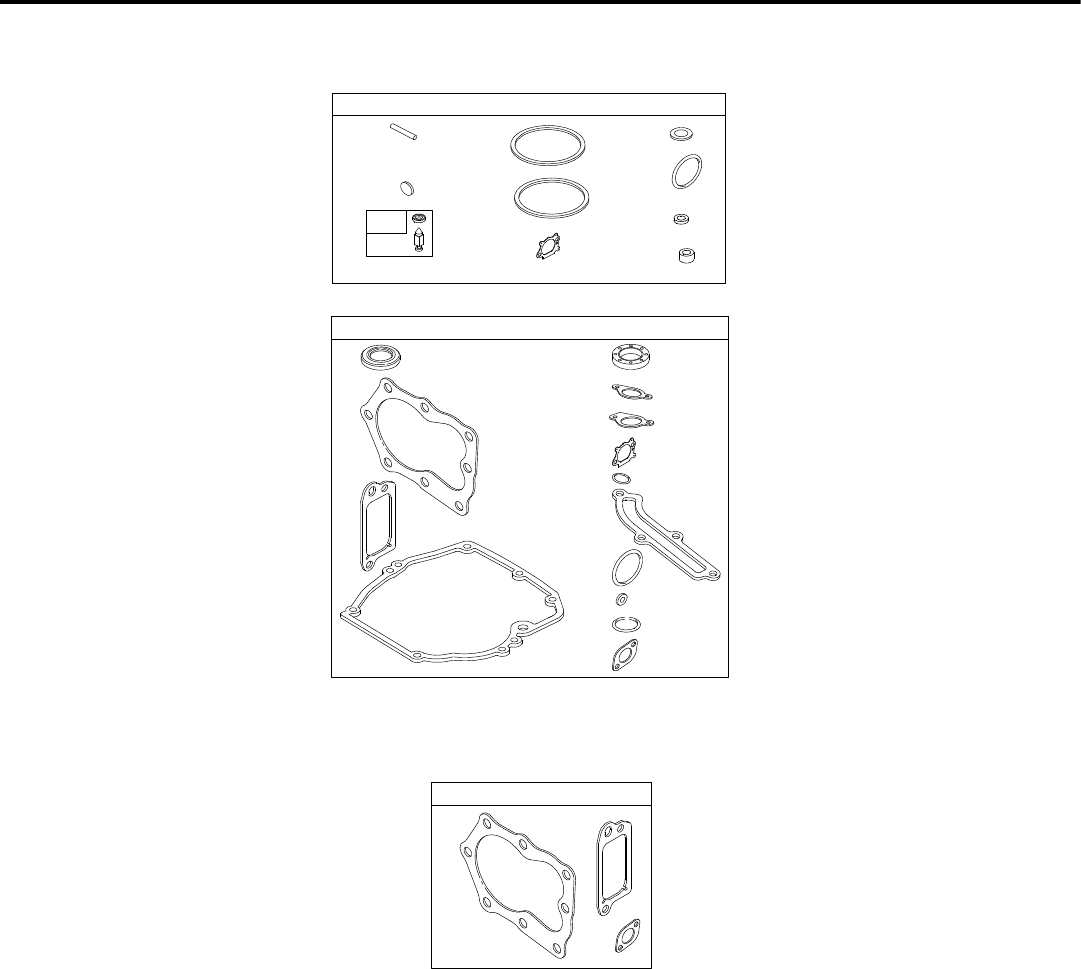

9
134
121 CARBURETOR OVERHAUL KIT
104
127
137
163
633
617
276
633A
9
883
1095 VALVE GASKET SET
7
12
9
7
3
358 ENGINE GASKET SET
883
842
617
524
163
51
20
585
668
51A
137A
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--10 Assemblies include all parts shown in frames. 04/12/2013
10
1 590401 Cylinder Assembly
2 796961 Kit--Bushing/Seal
(Magneto Side)
3 299819s Seal--Oil
(Magneto Side)
4 493279 Sump--Engine
-- -- -- -- -- -- -- N o t e -- -- -- -- --
498983 Sump--Engine
Used on Type No(s).
0119, 0297, 1120,
1907, 1977, 4305.
5 590411 Head--Cylinder
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
691160 Head--Cylinder
(Used Before Code
Date 11070100).
7 799875 Gasket--Cylinder Head
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
692249 Gasket--
Cylinder Head
(Used Before Code
Date 11070100).
8 590395 Breather Assembly
9 699833 Gasket--Breather
10 691125 Screw
(Breather Assembly)
11 691781 Tube--Breather
11B 691923 Tube--Breather
12 692232 Gasket--Crankcase
13 590422 Screw
(Cylinder Head)
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
690912 Screw
(Cylinder Head)
(Used Before Code
Date 11070100).
15 691680 Plug--Oil Drain
(Square Socket)
16 797017 Crankshaft
-- -- -- -- -- -- -- N o t e -- -- -- -- --
797018 Crankshaft
Used on Type No(s).
0001, 0002, 0003,
0007, 0105, 0128,
0133, 0134, 0135,
0136, 0137, 0138,
0140, 0142, 0143,
0147, 0148, 0159,
0162, 0163, 0171,
0172, 0174, 0175,
0177, 0178, 0179,
0186, 0187, 0192,
0200, 0201, 0207,
0220, 0221, 0226,
0229, 0236, 0238,
0241, 0244, 0246,
0252, 0253, 0302,
0307, 0455, 0464,
0486, 0567, 0611,
1728, 1729, 1772,
1773, 1778, 1779,
1780, 1782, 1905,
1923, 1946, 1950,
2042, 2048, 2049,
2050, 2109, 2110,
2112, 2113, 2115,
2635, 2636, 3174,
3302, 4048, 4049,
4159, 4162, 4163,
4164, 4172, 4174,
4178, 4259, 4567,
4611, 4635, 4778,
4923, 4950, 5133,
5147, 5178, 5187,
5207, 6115, 6162,
6163, 6164, 6172,
6174, 6220, 6226,
6236, 6241, 6246,
6259, 6302, 6567,
6602, 6607, 6635,
6644, 6650, 6659,
6675, 6778, 6782,
6923, 6950.
797019 Crankshaft
Used on Type No(s).
0129, 0149, 0204,
0210, 0227, 0243,
0245, 0247, 0304,
0306,0308, 0489,
1709, 1720, 1722,
1724, 1771, 1776,
1777, 1924, 1933,
1936, 1952, 1966,
1971, 1972, 1983,
2114, 2309, 2346,
2367, 2643, 4114,
4198, 4724, 4777,
4933, 4952, 4966,
5245, 6114, 6243,
6245, 6247, 6304,
6306, 6308, 6345,
6489, 6724, 6777,
6952.
696290 Crankshaft
Used on Type No(s).
0120, 0185.
694850 Crankshaft
Used on Type No(s).
0121, 0139, 0141,
0183.
797681 Crankshaft
Used on Type No(s).
0124, 0526, 0535,
1914, 4914, 6535.
691482 Crankshaft
Used on Type No(s).
0119, 0144, 0297,
0300, 1907, 1977,
4305.
694478 Crankshaft
Used on Type No(s).
0510, 0536, 6536.
797020 Crankshaft
Used on Type No(s).
0005, 0228, 0317,
0401, 1000, 1926,
4926, 6228.
692980 Crankshaft
Used on Type No(s).
1715.
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--11 Assemblies include all parts shown in frames. 04/12/2013
11
696009 Crankshaft
Used on Type No(s).
0161, 0203, 0205,
0206, 0212, 0215,
0216, 0217, 0222,
0224, 4161, 4215,
5216, 5217, 6622.
797372 Crankshaft
Used on Type No(s).
0130, 0232, 0233.
20 399781s Seal--Oil
(PTO Side)
22 691092 Screw
(Crankcase
Cover/Sump)
23 691987 Flywheel
23A 591282 Flywheel
Used on Type No(s).
0105, 0119, 0120,
0121, 0124, 0130,
0135, 0136, 0137,
0138, 0139, 0141,
0143, 0147, 0148,
0149, 0175, 0183,
0185, 0186, 0187,
0192, 0200, 0232,
0233, 0238, 0241,
0243, 0244, 0246,
0304, 0526, 0535,
1120, 1724, 1777,
1907, 1914, 1933,
2643, 4164, 4724,
4914, 4933, 5147,
5187, 6164, 6241,
6243, 6246, 6304,
6535, 6644, 6675,
6724.
23B 790536 Flywheel
Used on Type No(s).
0002, 0004, 0007,
0255, 4198, 4777,
6777.
24 222698 Key--Flywheel
25 590404 Piston Assembly
(Standard)
(Used After Code Date
07090300).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
795429 Piston
Assembly
(Standard)
(Used Before Code
Date 07090400).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
590405 Piston
Assembly
(.020” Oversize)
(Used After Code Date
11063000).
797303 Piston
Assembly
(.020” Oversize)
(Used After Code Date
09041600 and Before
Code Date 11070100).
799064 Piston
Assembly
(.020” Oversize)
(Used After Code Date
07090300 and Before
Code Date 09041700).
26 590402 Ring Set
(Standard)
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
797304 Ring Set
(Standard)
(Used After Code Date
09041600 and Before
Code Date 11070100).
795431 Ring Set
(Standard)
(Used After Code Date
07090300 and Before
Code Date 09041700).
791098 Ring Set
(Standard)
(Used Before Code
Date 07090400).
590403 Ring Set
(.020” Oversize)
(Used After Code Date
11063000).
797305 Ring Set
(.020” Oversize)
(Used After Code Date
09041600 and Before
Code Date 11070100).
795432 Ring Set
(.020” Oversize)
(Used After Code Date
07090300 and Before
Code Date 09041700).
791324 Ring Set
(.020” Oversize)
(Used Before Code
Date 07090400).
27 691588 Lock--Piston Pin
(Used After Code Date
09041600).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
691866 Lock--Piston
Pin
(Used Before Code
Date 09041700).
28 298909 Pin--Piston
(Used After Code Date
09041600).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
499423 Pin--Piston
(Used Before Code
Date 09041700).
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--12 Assemblies include all parts shown in frames. 04/12/2013
12
29 797306 Rod--Connecting
(Used After Code Date
09041600).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
499424 Rod--
Connecting
(Used Before Code
Date 09041700).
32 691664 Screw
(Connecting Rod)
32A 695759 Screw
(Connecting Rod)
33 590394 Valve--Exhaust
34 590393 Valve --Intake
35 691270 Spring--Valve
(Intake)
36 691270 Spring--Valve
(Exhaust)
37 793756 Guard--Flywheel
40 692194 Retainer--Valve
43 691997 Slinger--Governor/Oil
-- -- -- -- -- -- -- N o t e -- -- -- -- --
691486 Slinger--
Governor/Oil
Used on Type No(s).
0119, 1120, 1907,
1977, 4305.
45 690548 Tappet--Valve
46 691449 Camshaft
50A 794305 Manifold--Intake
51 272199s Gasket--Intake
51A 794306 Gasket--Intake
54 691650 Screw
(Intake Manifold)
55 691421 Housing--Rewind
Starter
58 697316 Rope--Starter
(Cut To Required
Length)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
791362 Rope--Starter
Used on Type No(s).
0312, 0987, 1232,
6632.
60 281434s Grip--Starter Rope
60C 799716 Grip--Starter Rope
65 690837 Screw
(Rewind Starter)
78 691108 Screw
(Flywheel Guard)
81 691740 Lock--Muffler Screw
95 691636 Screw
(Throttle Valve)
(Metal)
97 696565 Shaft--Throttle
(Plastic)
97A 493267 Shaft--Throttle
98 398185 Kit--Idle Speed
98A 493280 Kit--Idle Speed
104 797622 Pin--Float Hinge
108 691182 Valve--Choke
108A 795935 Valve--Choke
(Used After Code Date
08031200).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
790844 Valve--Choke
(Used Before Code
Date 08031300).
799465 Valve--Choke
Used on Type No(s).
0001, 0002, 0003,
0316, 3174, 3302,
4257, 4258, 4259,
6162, 6163, 6164,
6174, 6228, 6257,
6258, 6259, 6302.
108B 796993 Valve--Choke
109 494218 Shaft--Choke
109A 498593 Shaft--Choke
117 799604 Jet--Main
(Standard)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
798661 Jet--Main
(Standard)
Used on Type No(s).
1115, 2177, 6114,
6115, 6226, 6229,
6306, 6335, 6614,
6622, 6649, 6650.
494870 Jet--Main
(Standard)
(Used After Code Date
07020500).
Used on Type No(s).
0210, 0464, 0736,
0854, 0886, 0896,
1072, 3736, 3854.
494870 Jet--Main
(Standard)
(Used After Code Date
08022600).
Used on Type No(s).
0926, 1771, 1781,
1946, 2042, 3736,
3854, 6626
117A 692677 Jet--Main
117B 797574 Jet--Main
(Standard)
Used on Type No(s).
0007, 0120, 0124,
0130, 0139, 0149,
0175, 0185, 0232,
0244, 0297, 0300,
0510, 0526, 0535,
0536, 2643, 6535,
6536, 6644, 6675
117C 498978 Jet--Main
(Standard)
Used on Type No(s).
0144, 0119, 0120,
0121, 1120, 1907,
1977, 4305.
117D 697355 Jet--Main
(Standard)
(Used After Code Date
04101700).
498981 Jet--Main
(Standard)
(Used Before Code
Date 04101800).
117E 798660 Jet--Main
(Standard)
-- -- -- -- -- -- N o t e -- -- -- -- -- --
695042 Jet--Main
(Standard)
(Used Before Code
Date 09092900).
590440 Jet--Main
(Standard)
Used on Type No(s).
0004, 0005, 0006,
0251, 0252, 0255,
0256, 0257, 0258,
0309, 0310, 0311,
0312, 0314, 0317,
0401, 1000, 6172,
6205, 6220, 6236,
6241, 6243, 6245,
6246, 6247, 6248,
6254, 6303, 6304,
6308, 6345, 6408,
6489, 6492, 6567,
6602, 6605, 6606,
6607, 6632, 6635,
6639, 6653, 6656,
6657, 6658, 6659,
6688, 6724, 6777,
6778, 6782, 6923,
6950, 6952.
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--13 Assemblies include all parts shown in frames. 04/12/2013
13
117F 797574 Jet--Main
(Standard)
(Used After Code Date
10111100).
Used on Type No(s).
0001, 0002, 0003,
0316, 3174, 3302,
4257, 4258, 4259,
6162, 6163, 6164,
6174, 6228, 6257,
6258, 6259, 6302,
6535, 6536, 6644,
6675.
590441 Jet--Main
(Standard)
(Used Before Code
Date 10111100).
118 799227 Jet--Main
(High Altitude)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
798660 Jet--Main
(High Altitude)
Used on Type No(s).
6114, 6115, 6226,
6229, 6306, 6335,
6614, 6622, 6649,
6650.
118A 497315 Jet--Main
(High Altitude)
118B 797575 Jet--Main
(High Altitude)
118C 497466 Jet--Main
(High Altitude)
Used on Type No(s).
0119, 0144, 1120,
1907, 1977, 4305.
118D 692677 Jet--Main
(High Altitude)
(Used After Code Date
04101700).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
497466 Jet--Main
(High Altitude)
(Used Before Code
Date 04101800).
118E 798661 Jet--Main
(High Altitude)
-- -- -- -- -- -- N o t e -- -- -- -- -- --
799606 Jet--Main
(High Altitude)
118F 797575 Jet--Main
(High Altitude)
Used on Type No(s).
0001, 0002, 0003,
0316, 3174, 3302,
4257, 4258, 4259,
6162, 6163, 6164,
6174, 6228, 6257,
6258, 6259, 6302.
118G 694250 Jet--Main
(High Altitude)
(Used After Code Date
08061900).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
695042 Jet--Main
(High Altitude)
(Used After Code Date
07020600 and Before
Code Date 08062000).
692677 Jet--Main
(High Altitude)
(Used Before Code
Date 07020700).
798661 Jet--Main
(High Altitude)
(Used After Code Date
11063000).
Used on Type No(s).
0252.
694250 Jet--Main
(High Altitude)
(Used Before Code
Date 11070100).
Used on Type No(s).
0252.
121 498260 Kit--Carburetor
Overhaul
125 799868 Carburetor
(Primer System)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
799872 Carburetor
(Primer System)
(Used Before Code
Date 07020700).
Used on Type No(s).
0464, 0736, 0854,
0886.
799872 Carburetor
(Primer System)
(Used Before Code
Date 08022700).
Used on Type No(s).
0926, 1771, 1781,
1946, 2024, 3736,
3854.
125A 694882 Carburetor
(Primer System)
(Used After Code Date
07020600).
Used on Type No(s).
0210, 0464, 0736,
0854, 0886, 0896,
1072.
-- -- -- -- -- -- N o t e -- -- -- -- -- --
694882 Carburetor
(Primer System)
(Used After Code Date
08022600).
Used on Type No(s).
0926, 1771, 1781,
1946, 2042, 3736,
3854, 6626
125B 799869 Carburetor
(Choke System)
Used on Type No(s).
0007, 0120, 0124,
0130, 0139, 0149,
0175, 0185, 0232,
0244, 0297, 0300,
0510, 0526, 0535,
0536, 2643, 6535,
6536, 6644, 6675
125C 499059 Carburetor
(Choke System)
Used on Type No(s).
0119, 0120, 0121,
0144, 1120, 1907,
1977, 4305.
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--14 Assemblies include all parts shown in frames. 04/12/2013
14
125D 790978 Carburetor
(Choke System)
Used on Type No(s).
0147, 0148, 0155,
0163, 0178, 0202,
0238, 1724, 1728,
1729, 1772, 1773,
5147.
796579 Carburetor
(Choke System)
Used on Type No(s).
0162, 0207, 5207.
125E 799866 Carburetor
(Autochoke System)
(Used After Code Date
07020600).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
799871 Carburetor
(Autochoke System)
(Used Before Code
Date 07020700).
799866 Carburetor
(Autochoke System)
Used on Type No(s).
0004, 0006, 0251,
0255, 0252, 0256,
0257, 0258, 0309,
0310, 0312, 0314,
0317, 0401, 1000,
6172, 6205, 6220,
6236, 6241, 6243,
6245, 6246, 6247,
6248, 6254, 6303,
6304, 6308, 6345,
6408, 6489, 6492,
6567, 6602, 6605,
6606, 6607, 6632,
6635, 6639, 6653,
6656, 6657, 6658,
6659, 6688, 6724,
6777, 6778, 6782,
6923, 6950, 6952.
125F 799464 Carburetor
(Autochoke System)
Used on Type No(s).
0001, 0002, 0003,
0316, 3174, 3302,
4257, 4258, 4259,
6162, 6163, 6164,
6174, 6228, 6257,
6258, 6259, 6302.
-- -- -- -- -- -- N o t e -- -- -- -- -- --
799464 Carburetor
(Autochoke System)
(Used After Code Date
11080200).
Used on Type No(s).
6656.
127 694468 Plug--Welch
130 696564 Valve--Throttle
-- -- -- -- -- -- -- N o t e -- -- -- -- --
799466 Valve--Throttle
Used on Type No(s).
0001, 0002, 0003,
0316, 3174, 3302,
4257, 4258, 4259,
6162, 6163, 6164,
6174, 6228, 6257,
6258, 6259, 6302.
130A 691203 Valve--Throttle
133 398187 Float--Carburetor
134 398188 Kit--Needle/Seat
137 796610 Gasket--Float Bowl
(1/8” Thick)
137A 693981 Gasket--Float Bowl
(1/16” Thick)
141 796193 Shaft--Choke
163 795629 Gasket--Air Cleaner
187 791766 Line--Fuel
(Cut to Required
Length)
187A 791873 Line--Fuel
(Molded)
187B 791891 Line--Fuel
(Includes Filter)
188 693399 Screw
(Control Bracket)
190 690940 Screw
(Fuel Tank)
202 691829 Link--Mechanical
Governor
209B 699056 Spring--Governor
-- -- -- -- -- -- -- N o t e -- -- -- -- --
691851 Spring--
Governor
Used on Type No(s).
0007, 0111, 0112,
0114, 0133, 0134,
0175, 0241, 0244,
0248, 2115, 2311,
2643, 5133, 6115,
6241, 6248, 6644,
6675.
691290 Spring--
Governor
Used on Type No(s).
0130, 0171.
691291 Spring--
Governor
Used on Type No(s).
0007, 0115, 0120,
0121, 0128, 0135,
0136, 0137, 0141,
0142, 0143, 0149,
0183, 0185, 0186,
0187, 0304, 0510,
0536, 1914, 4914,
5187, 6304, 6536.
691864 Spring--
Governor
Used on Type No(s).
0124, 0144, 4305.
793007 Spring--
Governor
Used on Type No(s).
0147, 0148, 0238,
5147.
690241 Spring--
Governor
Used on Type No(s).
0119, 1120, 1907,
1977.
790944 Spring--
Governor
Used on Type No(s).
0526, 0535, 6535.
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--15 Assemblies include all parts shown in frames. 04/12/2013
15
691292 Spring--
Governor
Used on Type No(s).
0005, 0105, 0129,
0138, 0139, 0157,
0158, 0159, 0160,
0161, 0172, 0176,
0177, 0179, 0192,
0199, 0200, 0201,
0204, 0208, 0215,
0221, 0222, 0224,
0226, 0227, 0228,
0229, 0239, 0243,
0303, 0306, 0308,
0311, 0317, 0356,
0399, 0567, 0988,
0989, 0994, 0999,
1001, 1004, 1026,
1049, 1052, 1072,
1090, 1146, 1206,
1232, 1246, 1247,
1254, 1353, 1408,
1492, 1709, 1715,
1777, 1781, 1905,
1923, 1926, 1936,
1946, 1950, 1951,
1952, 1966, 1971,
2048, 2049, 2112,
2113, 2114, 2309,
4048, 4049, 4114,
4176, 4157, 4158,
4159, 4160, 4161,
4172, 4198, 4215,
4257, 4258, 4259,
4567, 4611, 4724,
4777, 4923, 4926,
4950, 4951, 4952,
4966, 5160, 5492,
6114, 6172, 6226,
6228, 6229, 6243,
6254, 6257, 6258,
6259, 6303, 6306,
6308, 6408, 6492,
6567, 6606, 6622,
6626, 6639, 6650,
6653, 6656, 6657,
6658, 6659, 6724,
6777, 6923, 6950,
6952.
691852 Spring--
Governor
Used on Type No(s).
0001, 0002, 0003,
0006, 0174, 0188,
0210, 0220, 0236,
0246, 0249, 0252,
0256, 0302, 0305,
0309, 0489, 0987,
1232, 1720, 1722,
1771, 1774, 1776,
1778, 1779, 1780,
1782, 1924, 1972,
1983, 2042, 2109,
2110, 2346, 2367,
2635, 2636, 3174,
3302, 4162, 4163,
4164, 4174, 4178,
4635, 4778, 5178,
6162, 6163, 6164,
6174, 6220, 6236,
6246, 6302, 6489,
6602, 6605, 6632,
6635, 6649, 6688,
6778, 6782.
792666 Spring--
Governor
Used on Type No(s).
1724.
791157 Spring--
Governor
Used on Type No(s).
0155, 0162, 0163,
0178, 0202, 0207,
1728, 1729, 1772,
1773, 5207.
217 690354 Spring--Choke Return
222 790143 Bracket--Control
(Remote/Manual
Friction)(Primer)
222A 692021 Bracket--Control
(Remote Choke and
Choke A Matic)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
790982 Bracket--
Control
Used on Type No(s).
0155, 0162, 0163,
0178, 0202, 0207,
1728, 1729, 1772,
1773, 5207.
222C 692150 Bracket--Control
(Variable Speed)
(5 Position Manual
Choke)
222D 793754 Bracket--Control
(Fixed Speed)
222E 692982 Bracket--Control
(Manual Friction 5
Position Manual
Choke).
227 690783 Lever--Governor
Control
231 691636 Screw
(Choke Valve)
236 691826 Link--Lockout
240 298090s Filter--Fuel
259 691223 Bracket--Casing Clamp
(Control Wire Casing)
265 690798 Clamp--Casing
265A 691024 Clamp--Casing
267 691044 Screw
(Casing Clamp)
268 691025 Casing--Control Wire
(Cut to Required
Length)
269 691026 Wire--Control
(Cut to Required
Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever--Control
276 271716 Washer--Sealing
(Main Jet)
287 690940 Screw
(Dipstick Tube)
291 790830 Thermostat
300 692038 Muffler
-- -- -- -- -- -- -- N o t e -- -- -- -- --
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--16 Assemblies include all parts shown in frames. 04/12/2013
16
790828 Muffler
Used on Type No(s).
0003, 0005, 0128,
0157, 0158, 0159,
0160, 0174, 0176,
0188, 0203, 0204,
0205, 0206, 0208,
0212, 0216, 0217,
0220, 0221, 0224,
0227, 0228, 0229,
0236, 0239, 0241,
0243, 0245, 0246,
0247, 0248, 0252,
0301, 0302, 0303,
0304, 0305, 0307,
0308, 0311, 0317,
0356, 0489, 0567,
0650, 0847, 0885,
0987, 1205, 1206,
1232, 1246, 1247,
1254, 1353, 1408,
1488, 1489, 1492,
1777, 1778, 1779,
1782, 2048, 2049,
3174, 3302, 3847,
4048, 4049, 4114,
4156, 4157, 4158,
4159, 4160, 4162,
4163, 4164, 4172,
4174, 4178, 4198,
4257, 4258, 4259,
4567, 4611, 4635,
4724, 4777, 4778,
4914, 4923, 4926,
4933, 4950, 4951,
4952, 4966, 5160,
5178, 5216, 5217,
5245, 5492, 6162,
6163, 6164, 6172,
6174, 6205, 6220,
6228, 6229, 6236,
6241, 6243, 6245,
6246, 6247, 6248,
6254, 6257, 6258,
6259, 6302, 6303,
6304, 6308, 6345,
6408, 6489, 6492,
6567, 6602, 6605,
6606, 6607, 6632,
6635, 6639, 6653,
6656, 6657, 6658,
6659, 6688, 6724,
6777, 6778, 6782,
6923, 6950, 6952.
792677 Muffler
Used on Type No(s).
1052.
300B 694048 Muffler
304 695892 Housing--Blower
-- -- -- -- -- -- -- N o t e -- -- -- -- --
790826
Housing--Blower
Used on Type No(s).
0003, 0005, 0128,
0157, 0158, 0159,
0174, 0176, 0188,
0203, 0204, 0205,
0206, 0208, 0212,
0216, 0217, 0220,
0221, 0224, 0227,
0228, 0229, 0236,
0239, 0243, 0246,
0247, 0252, 0257,
0258, 0301, 0302,
0303, 0305, 0307,
0308, 0310, 0311,
0317, 0356, 0489,
0567, 0650, 0847,
0885, 0987, 1052,
1205, 1206, 1232,
1246, 1247, 1254,
1353, 1408, 1488,
1489, 1492, 1779,
1782, 2048, 3174,
3302, 3847, 4048,
4049, 4157, 4158,
4159, 4160, 4162,
4163, 4172, 4174,
4178, 4257, 4258,
4259, 4567, 4611,
4635, 4778, 4923,
4926, 4950, 4951,
4952, 4966, 5160,
5178, 5216, 5217,
5492, 6162, 6163,
6172, 6174, 6205,
6220, 6228, 6229,
6236, 6243, 6246,
6247, 6254, 6257,
6258, 6259, 6302,
6303, 6308, 6408,
6489, 6492, 6567,
6602, 6605, 6606,
6607, 6632, 6635,
6639, 6653, 6657,
6658, 6659, 6688,
6778, 6782, 6923,
6950, 6952.
493294
Housing--Blower
Used on Type No(s).
0105, 0115, 0120,
0121, 0124, 0130,
0133, 0134, 0135,
0136, 0137, 0138,
0139, 0141, 0143,
0144, 0147, 0148,
0149, 0171, 0175,
0177, 0183, 0185,
0186, 0187, 0192,
0200, 0232, 0233,
0238, 0244, 0306,
0510, 0526, 0535,
0536, 1724, 1907,
1914, 1933, 1977,
2114, 2643, 4305,
5133, 5147, 5187,
6114, 6306, 6535,
6536, 6644, 6675.
795071
Housing--Blower
Used on Type No(s).
0114, 0140, 0161,
0163, 0178, 0215,
0486, 0611, 0774,
0848, 0904, 0906,
0947, 1026, 1060,
1709, 1715, 1720,
1722, 1728, 1729,
1772, 1776, 1780,
1923, 1924, 1966,
1972, 1983, 2110,
2113, 2309, 2311,
2346, 2367, 2636,
3774, 3848.
694879
Housing--Blower
Used on Type No(s).
0119, 1120.
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--17 Assemblies include all parts shown in frames. 04/12/2013
17
791291
Housing--Blower
Used on Type No(s).
0002, 0004, 0007,
0241, 0245, 0248,
0255, 0304, 1777,
4114, 4156, 4164,
4198, 4724, 4777,
4914, 4933, 5245,
6164, 6241, 6245,
6248, 6304, 6345,
6656, 6724, 6777.
790983
Housing--Blower
Used on Type No(s).
0160, 2049.
305 691108 Screw
(Blower Housing)
306 690450 Shield--Cylinder
306A 790836 Shield--Cylinder
307 690345 Screw
(Cylinder Shield)
309 799045 Motor--Starter
309A Motor--Starter
(For Replacement
Starter Motor, Order
Reference 309)
309B Motor--Starter
(For Replacement
Starter Motor, Order
Reference 309)
310 692327 Bolt
(Starter Motor)
332 690662 Nut
(Flywheel)
333 590454 Armature--Magneto
-- -- -- -- -- -- -- N o t e -- -- -- -- --
333A 590455 Armature--Magneto
Used on Type No(s).
0001, 0002, 0003,
0004, 0005, 0006,
0007, 0120, 0162,
0175, 0185, 0186,
0187, 0188, 0192,
0200, 0201, 0202,
0207, 0212, 0217,
0220, 0221, 0222,
0226, 0228, 0229,
0236, 0238, 0239,
0243, 0244, 0246,
0247, 0249, 0251,
0252, 0253, 0256,
0257, 0258, 0297,
0300, 0302, 0304,
0305, 0307, 0308,
0309, 0310, 0311,
0314, 0316, 0317,
0399, 0401, 0489,
0885, 1000, 1115,
1206, 1232, 1353,
1724, 1782, 1950,
1951, 1952, 2177,
3174, 3302, 4156,
4157, 4158, 4159,
4162, 4163, 4172,
4174, 4198, 4257,
4258, 4259, 4567,
4635, 4724, 4777,
4923, 4950, 4952,
5160, 5178, 5187,
5207, 5217, 6114,
6115, 6162, 6163,
6164, 6172, 6174,
6205, 6220, 6221,
6226, 6228, 6229,
6236, 6241, 6243,
6245, 6246, 6247,
6248, 6254, 6257,
6258, 6259, 6302,
6303, 6304, 6306,
6308, 6335, 6345,
6408, 6489, 6492,
6535, 6536, 6567,
6602, 6605, 6606,
6607, 6614, 6622,
6626, 6632, 6635,
6639, 6644, 6649,
6650, 6653, 6656,
6657, 6658, 6659,
6675, 6688, 6724,
6777, 6778, 6782,
6923, 6950, 6952.
334 691061 Screw
(Magneto Armature)
337 591868 Plug--Spark
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
796112s Plug--Spark
(Resistor)
(Used Before Code
Date 11070100).
697451 Plug--Spark
(EMS)
(Used Before Code
Date 11070100).
346 690661 Screw
(Spark Arrestor)
347 691396 Switch--Rocker
356 692390 Wire--Stop
356B 693010 Wire--Stop
356D 496381 Wire--Stop
357A 691483 Key--Drive Pulley
358 590508 Gasket Set--Engine
362 793351 Shield--Spark Plug
363 19069 Flywheel Puller
365 691688 Screw
(Carburetor)
377 690979 Key--Woodruff
383 89838s Wrench--Spark Plug
404 690272 Washer
(Governor Crank)
425A 690670 Screw
(Air Cleaner Cover)
443A 692523 Screw
(Air Cleaner Primer
Base)
445A 491588s Filter--Air Cleaner
Cartridge
455 791960 Cup--Flywheel
456 692299 Plate--Pawl Friction
459 281505s Plate--Ratchet
467 790842 Knob--Air Cleaner
474 691991 Alternator
497 690664 Screw
(Stop--switch Bracket)
500 691086 Washer
(Key Switch)
505 691251 Nut
(Governor Control
Lever)
510 795093 Drive--Starter
513 795100 Clutch--Drive
523 499621 Dipstick
524 692296 Seal--Dipstick Tube
525 495265 Tube--Dipstick
534A 798294 Screw
(Air Cleaner)
535 493537s Filter--Pre Cleaner
535A 797301 Filter--Air Cleaner
Foam
536A 798293 Cleaner--Air
544 690786 Armature--Starter
562 691119 Bolt
(Governor Control
Lever)
563 691138 Screw
(Debris Guard Screen)
564 690664 Screw
(Control Cover)
564A 691142 Screw
(Control Cover)
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--18 Assemblies include all parts shown in frames. 04/12/2013
18
564B 698589 Screw
(Control Cover)
578 398153 Wire Assembly
578A 695283 Wire--Assembly
584
697734
Cover--Breather
Passage
585 691879 Gasket--Breather
Passage
592 690800 Nut
(Rewind Starter)
597 691696 Screw
(Pawl Friction Plate)
601 791850 Clamp--Hose
601A 691038 Clamp--Hose
604 691757 Cover--Control
604A 691344 Cover--Control
604B 790703 Cover--Control
604D 793770 Cover--Control
608 497680 Starter--Rewind
-- -- -- -- -- -- -- N o t e -- -- -- -- --
791363 Starter--
Rewind
Used on Type No(s).
0987, 1232, 6632.
613 691340 Screw
(Muffler)
-- -- -- -- -- -- -- N o t e -- -- -- -- --
790833 Screw
(Muffler)
Used on Type No(s).
0003, 0005, 0128,
0157, 0158, 0159,
0160, 0174, 0176,
0188, 0203, 0204,
0205, 0206, 0208,
0212, 0216, 0217,
0220, 0221, 0224,
0227, 0228, 0229,
0236, 0239, 0241,
0243, 0245, 0246,
0247, 0248, 0252,
0301, 0302, 0303,
0304, 0305, 0307,
0308, 0311, 0317,
0356, 0489, 0567,
0650, 0847, 0885,
0987, 1205, 1206,
1232, 1246, 1247,
1254, 1353, 1408,
1488, 1489, 1492,
1777, 1778, 1779,
1782, 2048, 2049,
3174, 3302, 3847,
4048, 4049, 4114,
4156, 4157, 4158,
4159, 4160, 4162,
4163, 4164, 4172,
4174, 4178, 4198,
4257, 4258, 4259,
4567, 4611, 4635,
4724, 4777, 4778,
4914, 4923, 4926,
4933, 4950, 4951,
4952, 4966, 5160,
5178, 5216, 5217,
5245, 5492, 6162,
6163, 6164, 6172,
6174, 6205, 6220,
6228, 6229, 6236,
6241, 6243, 6245,
6246, 6247, 6248,
6254, 6257, 6258,
6259, 6302, 6303,
6304, 6308, 6345,
6408, 6489, 6492,
6567, 6602, 6605,
6606, 6607, 6632,
6635, 6639, 6653,
6656, 6657, 6658,
6659, 6688, 6724,
6777, 6778, 6782,
6923, 6950, 6952.
792678 Screw
(Muffler)
Used on Type No(s).
1052.
613B 691114 Screw
(Muffler)
615 690340 Retainer--Governor
Shaft
616 698801 Crank--Governor
617 270344s Seal--O Ring
(Intake Manifold)
621 692310 Switch--Stop
627 792565 Bracket--Stop Switch
633 691321 Seal--Choke/Throttle
Shaft
633A 693867 Seal--Choke/Throttle
Shaft
635 66538s Boot--Spark Plug
651 691660 Screw
(Starter Gear Cover)
664 691087 Nut
(Key Switch)
668 493823 Spacer
670 692294 Spacer--Fuel Tank
676 396548 Deflector--Muffler
676A 393756 Deflector--Muffler
676B 397931 Deflector--Muffler
676C 493871 Deflector--Muffler
676D 497682 Deflector--Muffler
677 690661 Screw
(Muffler Deflector)
684 690345 Screw
(Breather Passage
Cover)
689 691855 Spring--Friction
692 690572 Spring--Detent
697 691127 Screw
(Drive Cap)
703 696309 Clip
718 690959 Pin--Locating
741 797521 Gear--Timing
(Metal)
(Used After Code Date
08021700).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
794388 Gear--Timing
(Use Without Woodruff
Key)
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--19 Assemblies include all parts shown in frames. 04/12/2013
19
(Used After Code Date
07093000 and Before
Code Date 08021800).
790345 Gear--Timing
(Use Without Woodruff
Key)
(Used Before Code
Date 07100100).
691830 Gear--Timing
(Uses Woodruff Key)
742 93941 Retainer--E Ring
745 691648 Screw
(Brake)
783 795099 Gear--Pinion
783A 795096 Gear--Pinion
784 795095 Cover--Starter Gear
785 692352 Gasket--Starter Cover
789B 792685 Harness--Wiring
-- -- -- -- -- -- -- N o t e -- -- -- -- --
696546 Harness--
Wiring
Used on Type No(s).
0138.
789C 796385 Harness--Wiring
789D 796574 Harness--Wiring
832 590486 Guard--Muffler
832B 497683 Guard--Muffler
832E 793568 Guard--Muffler
836 690664 Screw
(Muffler Guard)
836B 691147 Screw
(Muffler Guard)
836C 790745 Screw
(Muffler Guard)
842 691031 Seal--O Ring
(Dipstick Tube)
843 691884 Sleeve--Lever
(Speed Control)
843A 691895 Sleeve--Lever
(Choke)
847 692047 Dipstick/Tube
Assembly
851 493880s Terminal--Spark Plug
851A 692424 Terminal--Spark Plug
853 695268 Adapter--Wire
-- -- -- -- -- -- -- N o t e -- -- -- -- --
698471 Adapter--Wire
Used on Type No(s).
2110, 2113.
696379 Adapter--Wire
Used on Type No(s).
0138.
853A 695897 Adapter--Wire
868 590410 Seal--Valve
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
697338 Seal--Valve
(Used Before Code
Date 11070100).
869 691155 Seat--Valve
(Intake)
870 690380 Seat--Valve
(Exhaust)
871 590409 Bushing--Valve Guide
(Exhaust)
(Used After Code Date
11063000).
-- -- -- -- -- -- -- N o t e -- -- -- -- --
590409 Bushing--Valve
Guide
(Intake)
(Used After Code Date
11063000).
262001 Bushing--Valve
Guide
(Exhaust)
(Used Before Code
Date 11070100).
63709 Bushing--Valve
Guide
(Intake)
(Used Before Code
Date 11070100).
883 691881 Gasket--Exhaust
892 690646 Switch--Key
910 691094 Stud (Alternator)
920 691656 Solenoid--Starter
921A 695886 Cover--Blower Housing
921B 692931 Cover--Blower Housing
921C 695889 Cover--Blower Housing
921E 696262 Cover--Blower Housing
921F 697343 Cover--Blower Housing
921G 795064 Cover--Blower Housing
921H 790037 Cover--Blower Housing
921J 790036 Cover--Blower Housing
921K 699984 Cover--Blower Housing
921L 791026 Cover--Blower Housing
921M 792652 Cover--Blower Housing
921R 793771 Cover--Blower Housing
921U 794355 Cover--Blower Housing
921W 796921 Cover--Blower Housing
921X 796706 Cover--Blower Housing
921Y 798277 Cover--Blower Housing
921Z 592290 Cover--Blower Housing
922 692135 Spring--Brake
923 796387 Brake
923B 796136 Brake
Used on Type No(s).
0004, 0006, 0101,
0111, 0112, 0116,
0128, 0129, 0142,
0199, 0204, 0210,
0220, 0236, 0243,
0245, 0246, 0249,
0251, 0252, 0455,
0258, 0310, 0312,
0314, 0316, 0401,
0464, 0489, 0645,
0704, 0736, 0773,
0847, 0853, 0854,
0876, 0885, 0886,
0887, 0896, 1000,
1227, 1335, 1348,
1489, 1514, 1771,
1773, 1779, 1781,
1782, 1905, 1926,
1946, 1950, 1951,
1952, 1971, 2042,
2048, 2109, 2112,
2635, 3704, 3736,
3773, 3847, 3853,
3854, 4048, 4635,
4778, 4926, 4947,
4950, 4951, 4952,
4966, 5216, 5245,
6220, 6236, 6243,
6245, 6246, 6335,
6345, 6489, 6614,
6635, 6649, 6650,
6778, 6782, 6950,
6952.
925 795403 Cover--Linkage
930 691919 Guard--Rewind
930A 691345 Guard--Rewind
935 499421 Switch--Interlock
(Used Before Code
Date 08050100).
937 794098 Spline--Starter
937A 799420 Spline--Starter
940 690664 Screw
(Casing Clamp
Bracket)
949 696306 Guard--Debris Screen
957A 692046 Cap--Fuel Tank
(Plastic)
957B 796577 Cap--Fuel Tank
(Plastic)
957C 799585 Cap--Fuel Tank
Not for
Reproduction
REF. PART REF. PA RT R E F. PA RT
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
124T00
3730--20 Assemblies include all parts shown in frames. 04/12/2013
20
(Plastic)
958 698183 Valve--Fuel Shut Off
(Plastic)
966B 795259 Base--Air Cleaner
Primer
968B 692298 Cover--Air Cleaner
969 690700 Screw
Blower Housing Cover)
969A 691138 Screw
(Blower Housing
Cover)
972B 699374 Tank--Fuel
(Plastic)
972F 590490 Tank--Fuel
(Plastic)
975 796611 Bowl--Float
976 694395 Primer--Carburetor
994 398067 Arrestor--Spark
994B 792245 Arrestor--Spark
997 696310 Shield--Debris
990 691959 Key Set
1005 691346 Fan--Flywheel
1019 494256 Kit--Label
1036 Label--Emissions
(Available From A
Briggs & Stratton
Authorized Dealer)
1058 380567 Operator’s Manual
1059 692311 Kit--Screw/Washer
1095 590507 Gasket Set--Valve
1102 691255 Pilot--Guide
1119 691648 Screw
(Alternator)
1160 690345 Screw
(Interlock Switch)
1210 498144 Pulley/Spring
Assembly
(Pulley)
1211 498144 Pulley/Spring
Assembly
(Spring)
1319 794467 Label--Warning
1330 270962 Manual--Repair
1386 790848 Vane--Air
(Autochoke System)
1387 790849 Spring--Air Vane
1388 790850 Screw--Air Vane
(Autochoke System)
Not for
Reproduction
Not for
Reproduction
Not for
Reproduction
Not for
Reproduction

Navigation menu
