Illustrated Parts List
Model Series
243400
TYPE NUMBERS:
0010, 0020, 0021, 0022, 0023, 0024,
0110 through 0201,
0510 through 0561,
0610 through 0801,
1111, 1116, 1117,
1130 through 1164,
1166, 1167, 1168, 1169, 1170, 1172, 1173, 1174,
2520, 2522, 2524, 2528, 2529, 2530, 2531,
2540, 2541, 2550, 2561, 2580, 2581.
Not for
Reproduction
243400
5424−2 Assemblies include all parts shown in frames. 03/17/2009
2
13
910
383
635
9A
11A
8A
7
5
308
551
550
362
11
337
406
279
8
552
6
14
989
645
871
870
869
1

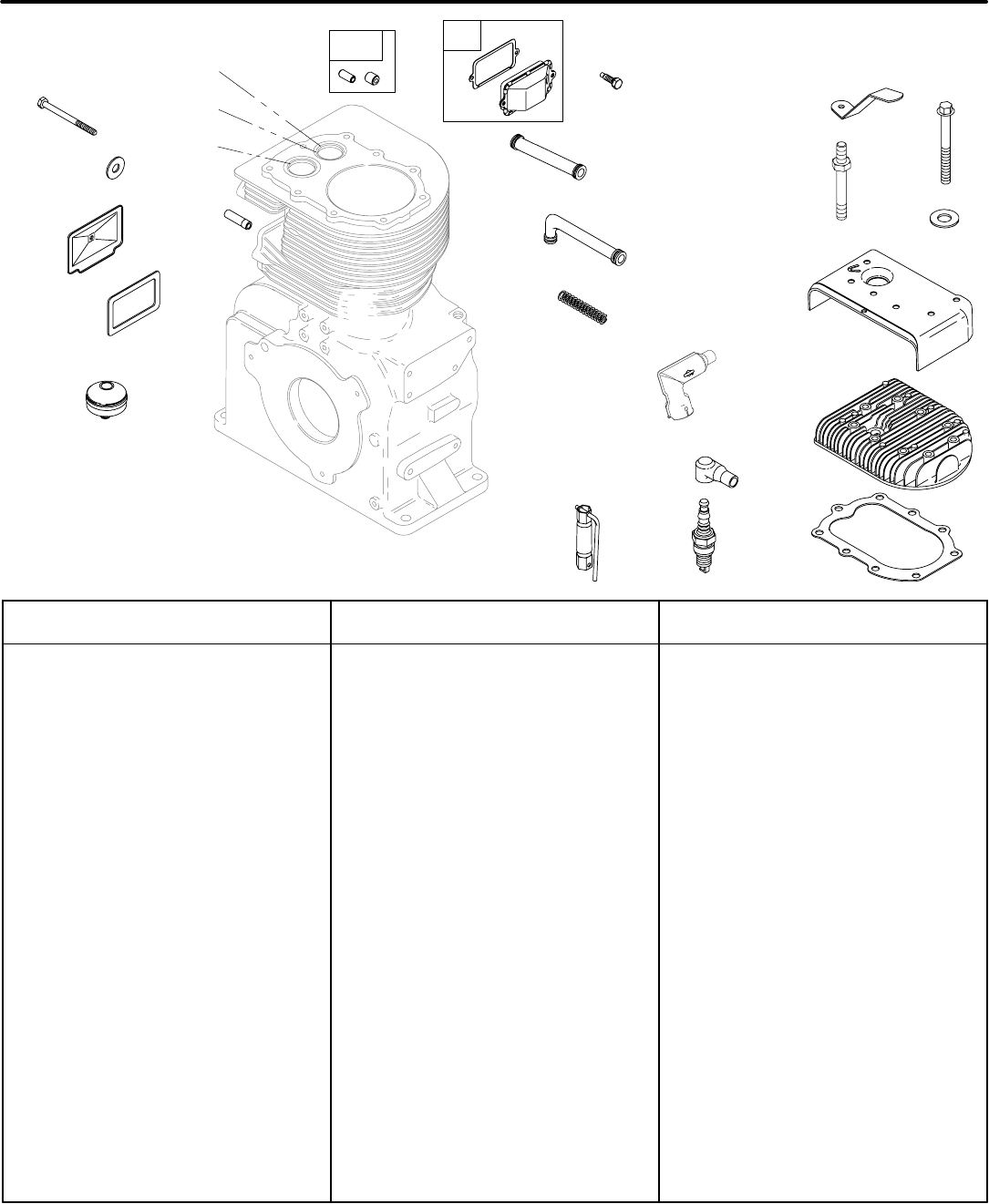

1Cylinder Assembly
(NO LONGER
AVAILABLE)
5 691150 Head−Cylinder
6 691261 Washer
(Cylinder Head)
7 692230 Gasket−Cylinder Head
8 495738 Breather Assembly
8A 297704 Breather Assembly
9 27803s Gasket−Breather
9A 66214 Gasket−Breather
10 691666 Screw
(Breather Assembly)
11 691512 Tube−Breather
11A 67068 Tube−Breather
13 691441 Screw
(Cylinder Head)
14 691690 Stud
(Cylinder Head)
Used on Type No(s).
0661, 0743, 0763,
0801, 1111, 1116,
1130, 1131, 1133,
1136, 1137, 1160,
1163, 1164, 1166,
1167, 1170, 1172,
2520, 2524, 2528,
2529, 2540, 2550,
2561.
279 690294 Screw
(Valve Cover)
308 690609 Cover−Cylinder Head
337 796112s Plug−Spark
362 793351 Shield−Spark Plug
383 89838s Wrench−Spark Plug
406 690533 Spring−Breather Tube
550 22353 Washer
(Valve Cover)
551 22795 Cover−Valve
552 393666 Bushing−
Governor Crank
635 66538S Boot−Spark Plug
645 692880 Bushing−Plunger
869 21880 Seat−Valve
(Intake)
870 691583 Seat−Valve
(Exhaust)
871 231218 Bushing−Valve Guide
989 690578 Stop Switch−
Spark Plug
−−−−−−− Note −−−−−
298926 Stop Switch−
Spark Plug
(With Switch Point)
Used on Type No(s).
0657, 0660, 0708,
0710, 0725, 0726,
0728, 0743, 0757,
1145, 2530, 2541,
2550.

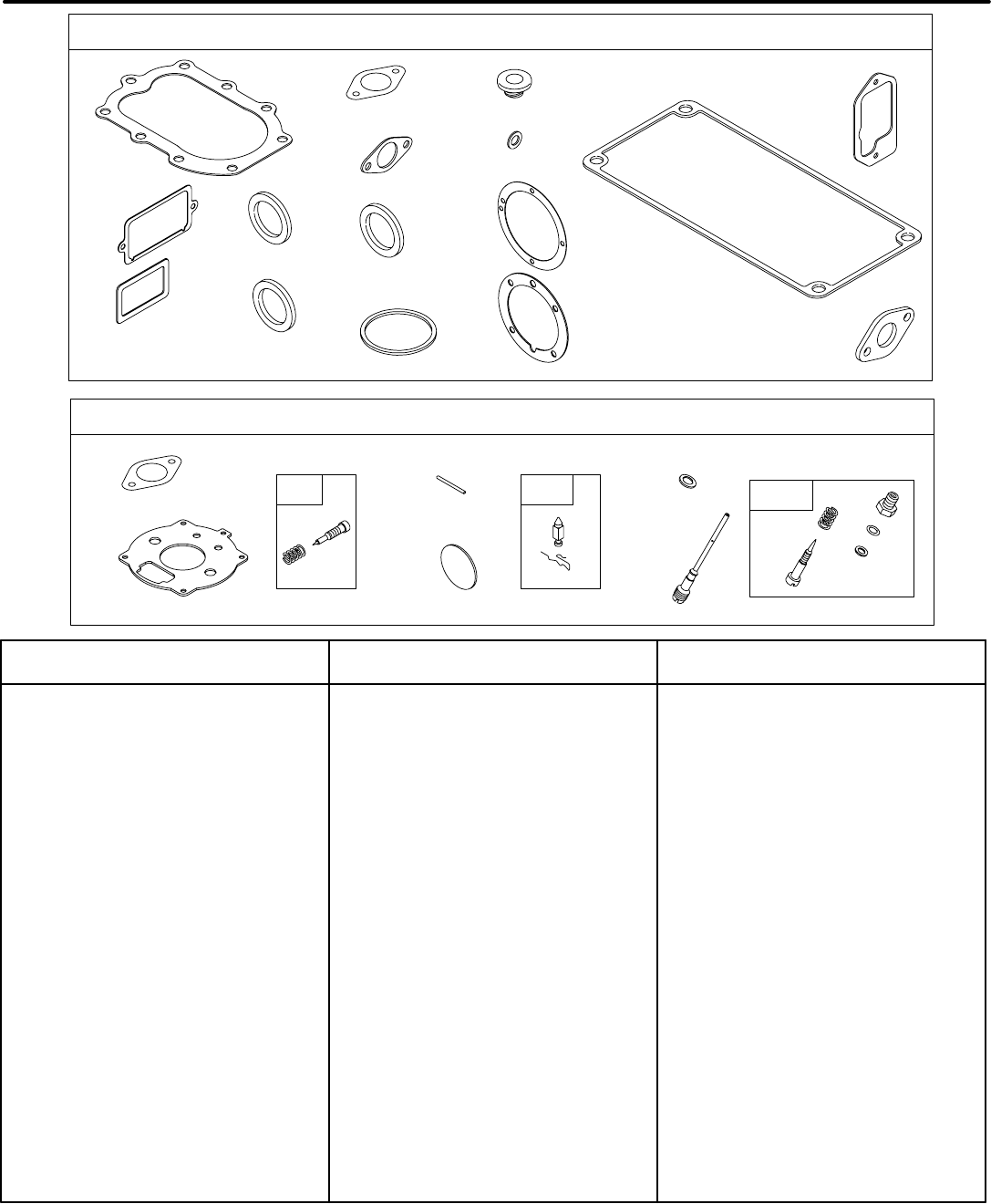

Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−3 Assemblies include all parts shown in frames. 03/17/2009

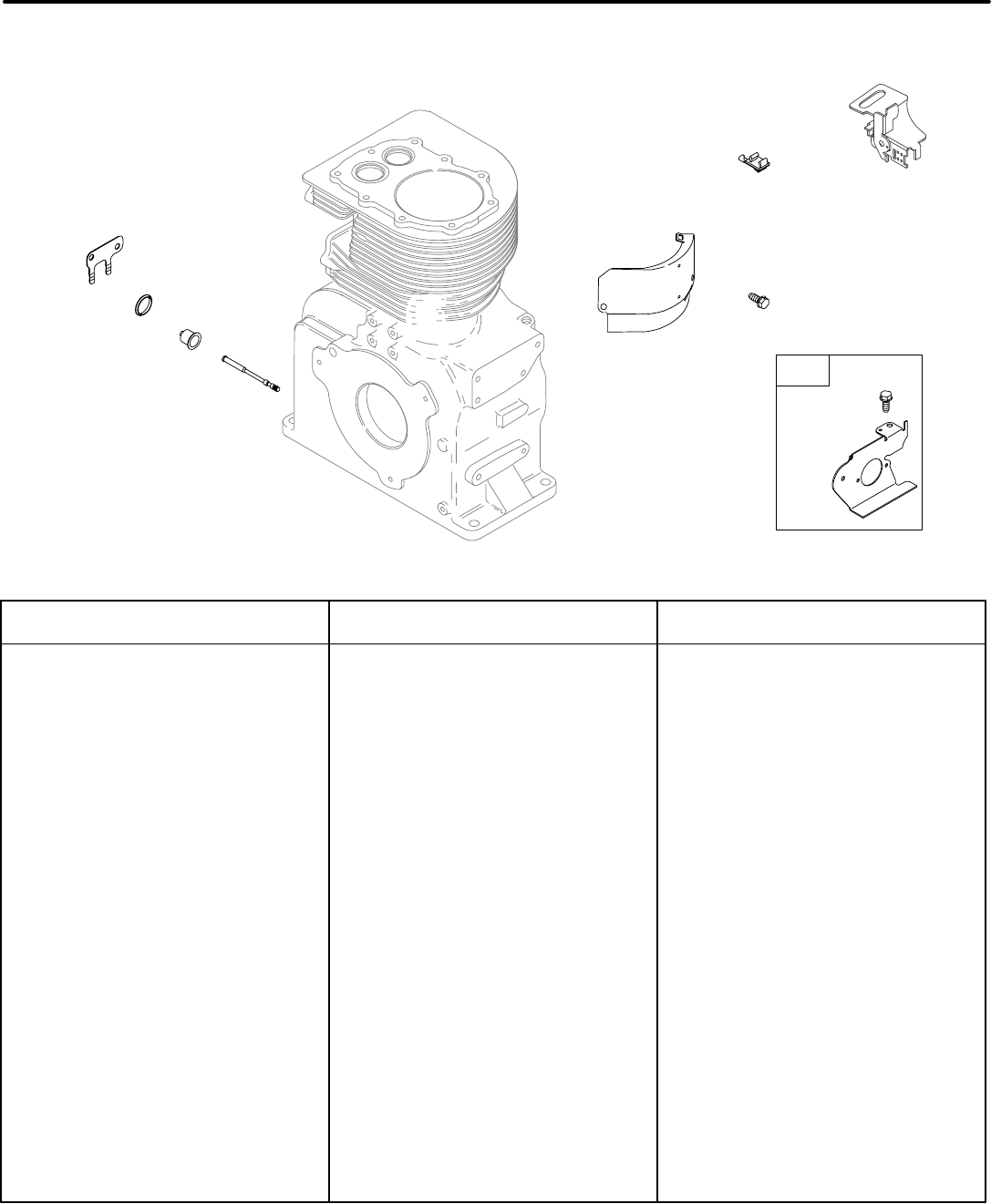

3
724A
724
722
342
306
307
627
621
473
215

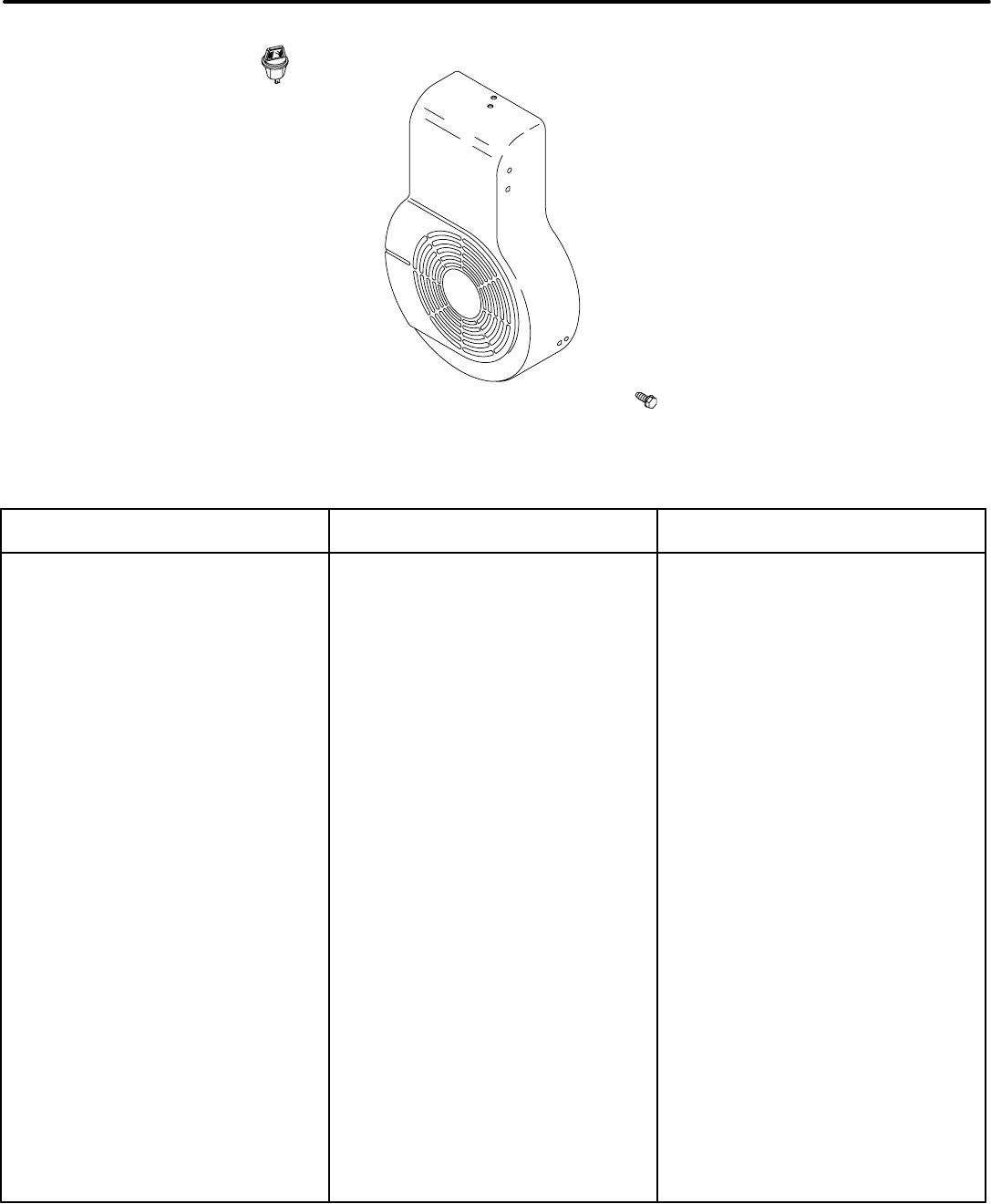

215 291871 Guide−Air
306 690399 Shield−Cylinder
307 692198 Screw
(Cylinder Shield)
342 298125s Plunger−Breaker
473 692198 Screw
(Rod Guide)
621 297472s Switch−Stop
627 Bracket−Stopswitch
(NO LONGER
AVAILABLE)
722 68768 Seal−Plunger
724 93516 Retainer−Seal
724A 221873 Retainer−Seal
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−4 Assemblies include all parts shown in frames. 03/17/2009

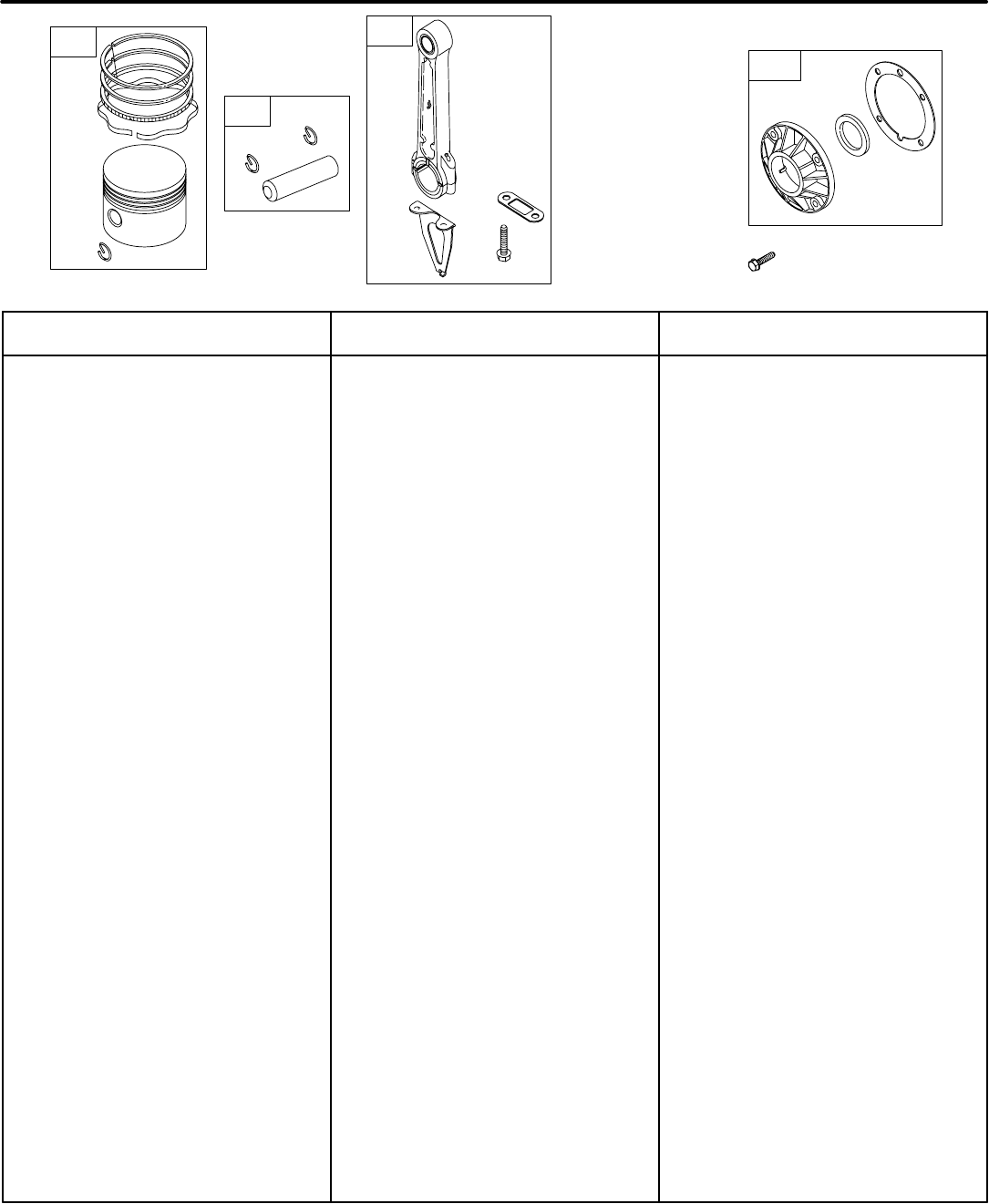

4
27
32
31
30
28
29
26
27
25
593A
3
571
228
3 391086S Seal−Oil
(Magneto Side)
25 792361 Piston Assembly
(Standard)
−−−−−−− Note −−−−−
792363 Piston
Assembly
(.020 Oversize)
26 792362 Ring Set
(Standard)
−−−−−−− Note −−−−−
792364 Ring Set
(.020 Oversize)
27 691073 Lock−Piston Pin
28 298401 Pin−Piston
(Standard)
−−−−−−− Note −−−−−
294681 Pin−Piston
(.005 Oversize)
29 299080 Rod−Connecting
(Standard)
−−−−−−− Note −−−−−
390305 Rod−
Connecting
(.020 Undersize)
30 691726 Dipper−
Connecting Rod
31 690396 Lock−Rod Screw
32 691765 Screw
(Connecting Rod)
228 691681 Screw
(Bearing Support)
571 291672 Support−Bearing
−−−−−−− Note −−−−−
394178 Support−
Bearing
Used on Type No(s).
0528, 0529, 0530,
0614, 0621, 0772,
0774, 0775, 0776,
0778, 0783, 0784,
0792, 0799, 0800,
1139, 1147, 1148,
1153, 1156, 1162,
1163, 1167, 1173,
2528, 2529, 2530,
2550.
593A 690268 Gasket−
Bearing Support
(.015 Thick)
−−−−−−− Note −−−−−
27374 Gasket−
Bearing Support
(.005 Thick)
27375 Gasket−
Bearing Support
(.009 Thick)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

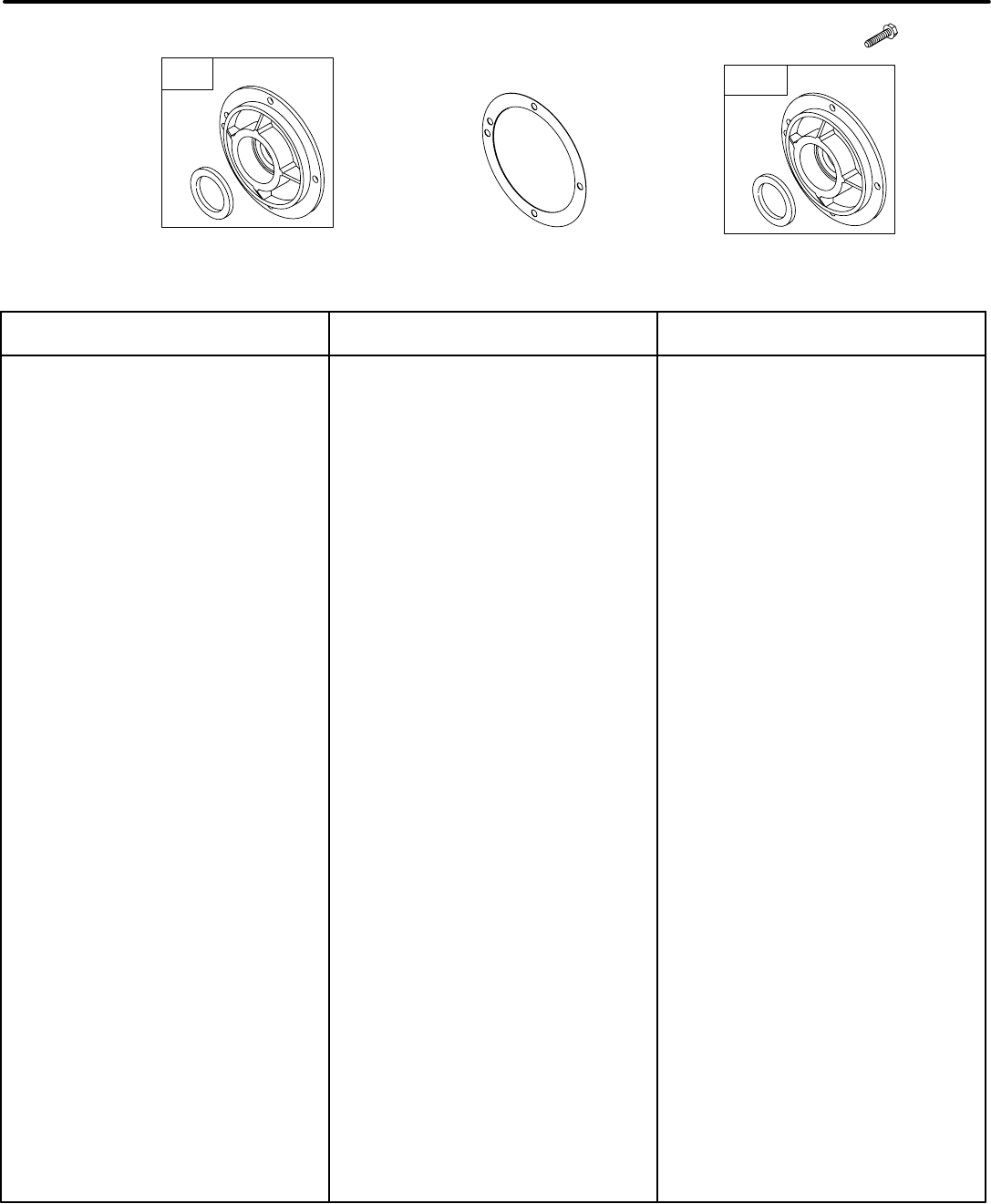

5424−5 Assemblies include all parts shown in frames. 03/17/2009
5
593
571A
228
20
571
20
20 291675s Seal−Oil
(PTO Side)
Used on Type No(s).
1111, 1130, 1133,
1135, 1136, 1137,
1164, 1170, 1172,
1174, 2520, 2524,
2528, 2529, 2531,
2561, 2581.
−−−−−−− Note −−−−−
299539 Seal−Oil
(PTO Side)
Used on Type No(s).
1131, 1132, 1142,
1145, 1146, 1149,
1154, 1155, 1160,
1166, 1167, 1168,
1172, 1173, 1174,
2522, 2530.
691948 Seal−Oil
(PTO Side)
Used on Type No(s).
0626, 0627, 0630,
0665, 0709, 2580.
228 691681 Screw
(Bearing Support)
571 291710 Cover−Crankcase
Used on Type No(s).
0024, 0124, 0139,
0149, 0166, 0170,
0200, 0524, 0529,
0655, 0671, 0684,
0712, 0724, 0759,
0772, 0784, 1111,
1130, 1133, 1134,
1135, 1136, 1137,
1138, 1139, 1140,
1141, 1143, 1144,
1147, 1148, 1150,
1151, 1152, 1153,
1156, 1157, 1158,
1159, 1161, 1162,
1163, 1164, 1169,
1170, 1172, 1173,
1174, 2520, 2524,
2528, 2529, 2531,
2561, 2581.
571A 291665 Support−Bearing
−−−−−−− Note −−−−−
390054 Support−
Bearing
Used on Type No(s).
0022, 0143, 0167,
0172, 0177, 0194,
0635, 0647, 0688,
0700, 0705, 0733,
0746, 0754, 0755,
0757, 0766, 0775,
0777, 0778, 0781,
0791, 0792, 1131,
1132, 1142, 1145,
1146, 1149, 1154,
1155, 1160, 1166,
1167, 1168, 2522,
2530.
390114 Support−
Bearing
Used on Type No(s).
0173, 0174, 0185,
0190, 0198, 0525,
0527, 0530, 0615,
0622, 0631, 0636,
0641, 0659, 0664,
0669, 0670, 0674,
0676, 0677, 0678,
0686, 0687, 0689,
0697, 0699, 0704,
0707, 0715, 0716,
0717, 0718, 0720,
0721, 0729, 0732,
0734, 0735, 0739,
0743, 0748, 0761,
0763, 0765, 0769,
0770, 0771, 0776,
0779, 0782, 0785,
0793, 0794, 0795,
0796, 0801, 1131,
1132, 1142, 1145,
1146, 1149, 1154,
1155, 1160, 1166,
1167, 1168, 2522,
2530.
391062 Support−
Bearing
Used on Type No(s).
0626, 0627, 0630,
0665, 0709, 2580.
593 691311 Gasket−
Bearing Support
(.015 Thick)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−6 Assemblies include all parts shown in frames. 03/17/2009
6
17
16
24 17
357

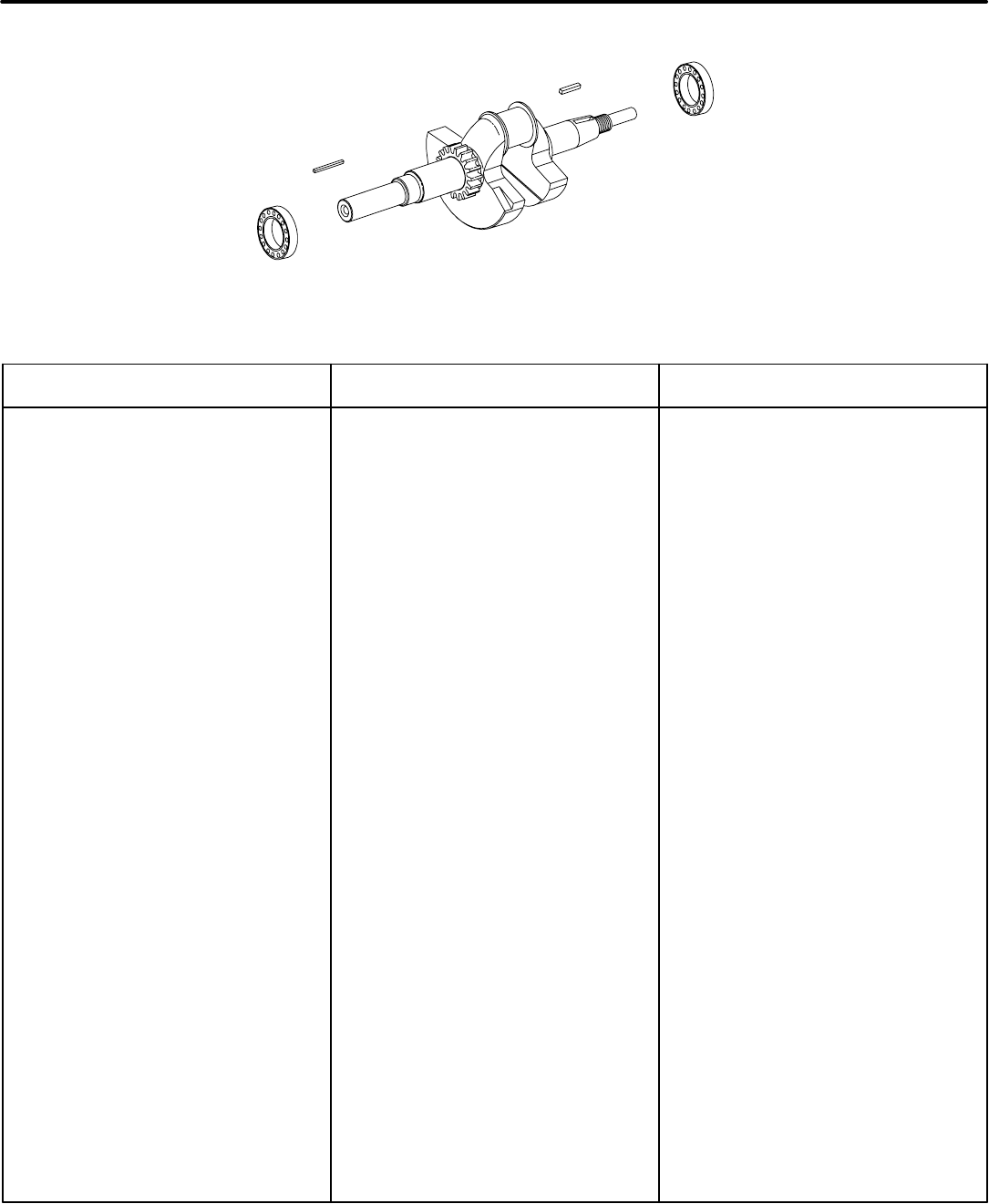

16 690530 Crankshaft
−−−−−−− Note −−−−−
260887 Crankshaft
Used on Type No(s).
0022, 0143, 0167,
0172, 0173, 0174,
0177, 0185, 0190,
0194, 0198, 0522,
0615, 0631, 0635,
0636, 0641, 0647,
0659, 0664, 0669,
0670, 0686, 0697,
0705, 0717, 0721,
0732, 0743, 0748,
0755, 0763, 0765,
0769, 0771, 0776,
0779, 0781, 0785,
0793, 0796, 1132,
1142, 1149, 1166,
1167, 1168, 2522,
2530.
690532 Crankshaft
Used on Type No(s).
0626, 0627, 0630,
0665, 0709, 2580.
261240 Crankshaft
Used on Type No(s).
0525, 0527, 0674,
0676, 0687, 0689,
0707, 0716, 0729,
0775, 0778, 0782,
0792, 1154, 1155.
690539 Crankshaft
Used on Type No(s).
0561, 0624, 0736,
0737, 0738, 0744,
0749, 0762, 0768,
0780, 0786, 0797,
1136, 1139, 1141,
1151, 1156, 1159,
1164, 2561.
261295 Crankshaft
Used on Type No(s).
0560, 0619, 0660,
0661, 0666, 0675,
0685, 0693, 0702.
261421 Crankshaft
Used on Type No(s).
0733, 0734, 0735,
0739, 0754, 0757,
0761, 0770, 0794,
0801, 1131, 1145,
1146, 1160.
261493 Crankshaft
Used on Type No(s).
0746, 0766, 0777,
0791, 1154.
261549 Crankshaft
(Used After Code Date
77072400).
Used on Type No(s).
1117, 1134, 1152,
1170, 1172, 2524,
2529.
260885 Crankshaft
(Used Before Code
Date 77072500).
Used on Type No(s).
0021, 0024, 0112,
0116, 0139, 0165,
0166, 0186, 0524,
0529, 0612, 0616,
0644, 0671, 0706,
0724, 0727, 0759,
0772, 0784, 0798,
1170, 1172, 2524,
2529.
Crankshaft
(NO LONGER
AVAILABLE)
Used on Type No(s).
1116, 2540, 2550.
262021 Crankshaft
Used on Type No(s).
2541.
17 691938 Bearing−Ball
24 222698s Key−Flywheel
357 691483 Key−Drive Pulley
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−7 Assemblies include all parts shown in frames. 03/17/2009
7
900
46
225
591
45 45
553
42
553
42
33 34
36
40
35
40
219A
552
626
219
221
221

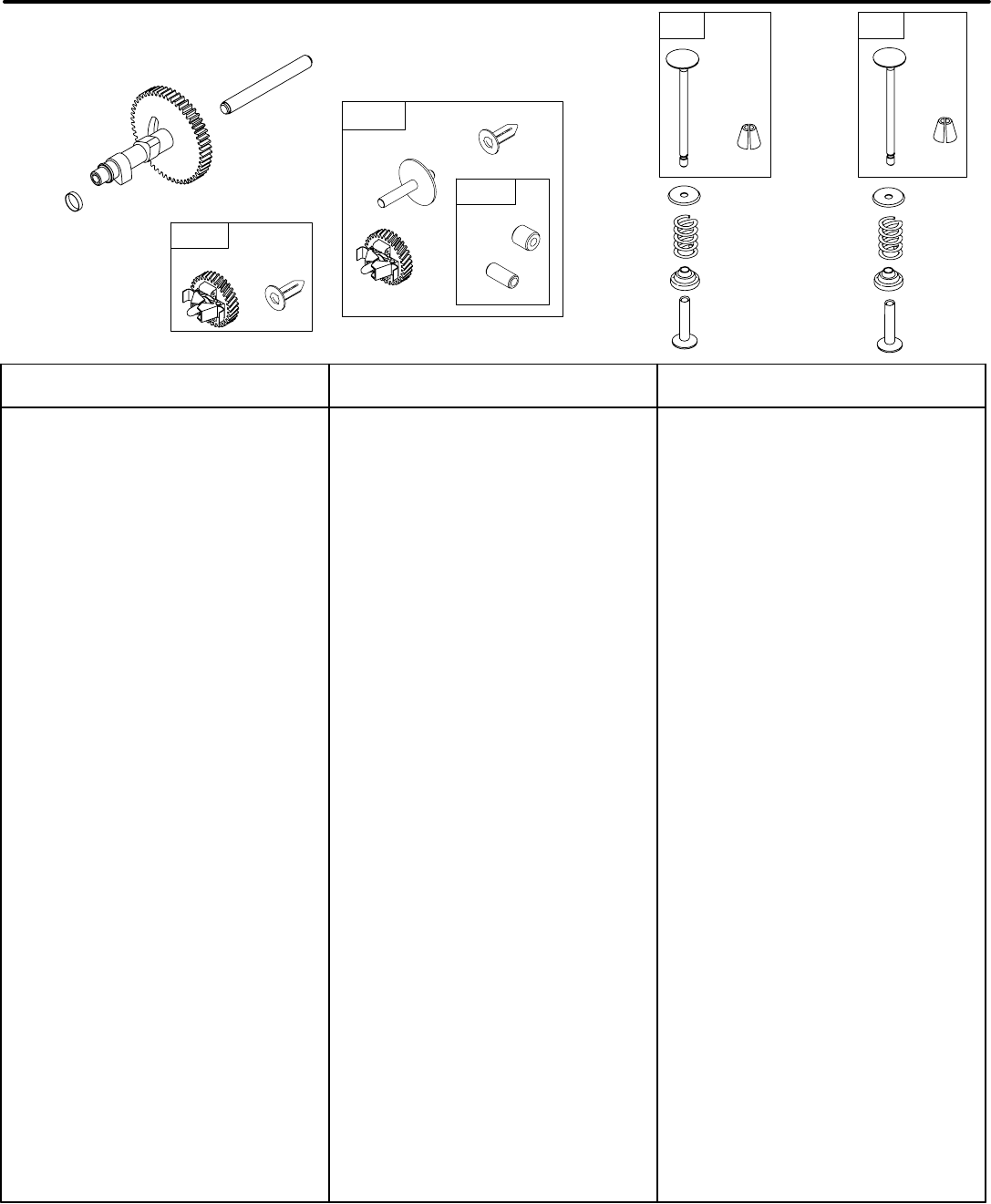

33 394436 Valve−Exhaust
34 394434 Valve−Intake
35 691597 Spring−Valve
(Intake)
36 691597 Spring−Valve
(Exhaust)
40 691939 Retainer−Valve
−−−−−−− Note −−−−−
690274 Retainer−
Valve
Used on Type No(s).
2550.
42 494553 Keeper−Valve
−−−−−−− Note −−−−−
68283 Keeper−Valve
(Used Before Code
Date 81062410).
45 691594 Tappet−Valve
46 211335 Camshaft
219 393720 Gear−Governor
219A 291192 Gear−Governor
(Used Before Code
Date 78062000).
221 841026 Cup−Governor
225 691357 Shaft−Governor Gear
552 393666 Bushing−
Governor Crank
553 690269 Retainer−Valve Spring
591 691070 Plug−Camshaft
Used on Type No(s).
1133, 1135, 1137,
1170, 1172, 1173,
1174, 2524, 2540.
626 690512 Spacer−
Governor Crank
900 691071 Shaft−Gear
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−8 Assemblies include all parts shown in frames. 03/17/2009
8
21
524
525
998
569
15
665
567
568
1054
523A
523
338
15A
998A

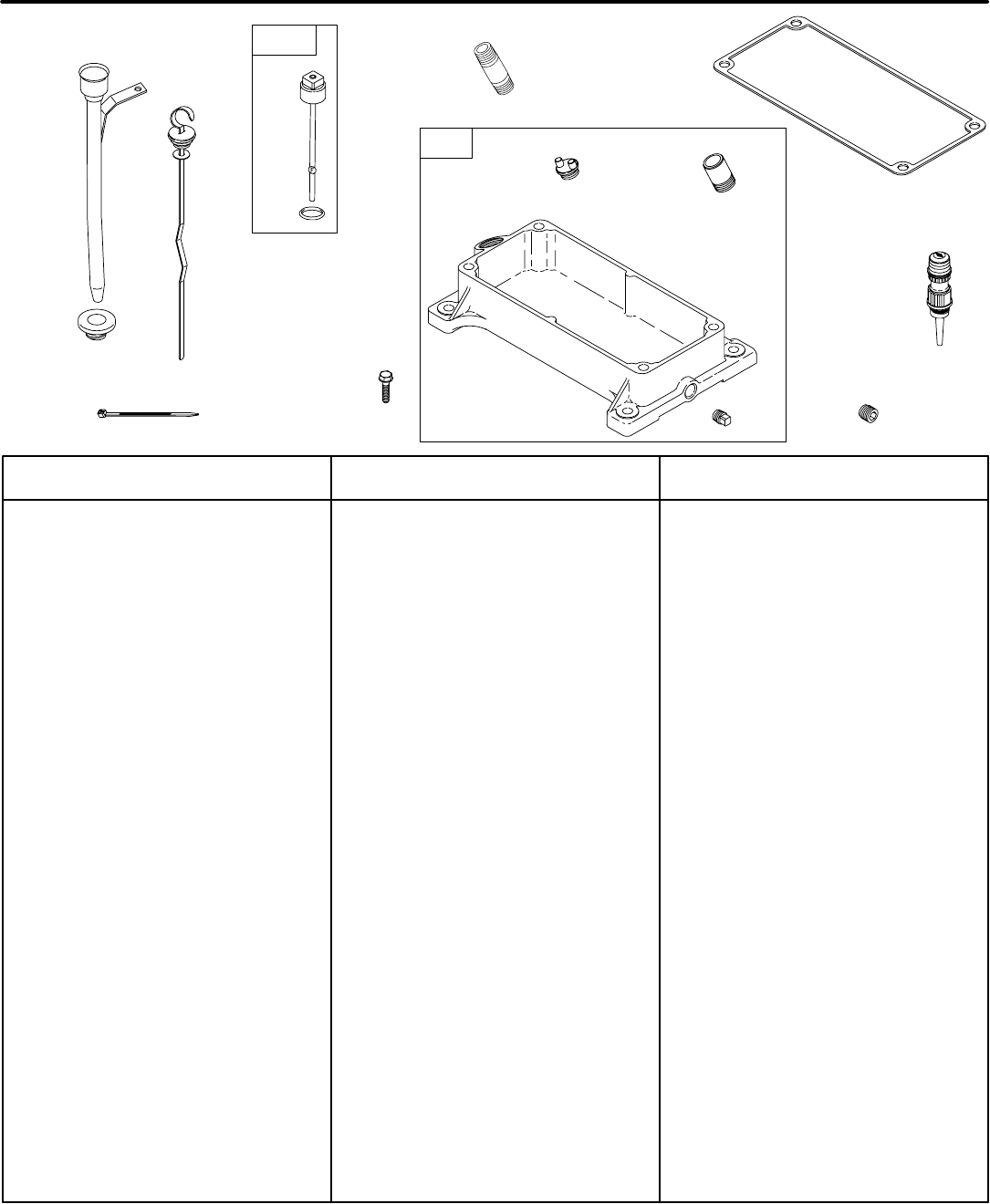

15 690946 Plug−Oil Drain
(Square Head)
15A 691680 Plug−Oil Drain
(Hex Socket)
21 281658s Cap−Oil Fill
338 690270 Gasket−Dipstick
Used on Type No(s).
0196, 0626, 0627,
0630, 0665, 0709,
2580.
523 691352 Dipstick
523A 690620 Dipstick
Used on Type No(s).
2580.
524 281370s Seal−Dipstick Tube
525 690624 Tube−Dipstick
−−−−−−− Note −−−−−
690623 Tube−Dipstick
Used on Type No(s).
1160.
567 691104 Screw
(Engine Base)
568 291404 Base−Engine
−−−−−−− Note −−−−−
294751 Base−Engine
Used on Type No(s).
0020, 0023, 0129,
0132, 0135, 0137,
0146, 0160, 0163,
0164, 0183, 0194,
0195, 0197, 0199,
0520, 0522, 0524,
0527, 0632, 0637,
0640, 0644, 0651,
0652, 0658, 0662,
0670, 0673, 0675,
0676, 0682, 0683,
0684, 0689, 0695,
0696, 0702, 0703,
0707, 0712, 0716,
0740, 0750, 0760,
0764, 1174, 2524.
294751 Base−Engine
Used on Type No(s).
0147, 0196, 0620
0626, 0627, 0630,
0653, 0656, 0657,
0660, 0665, 0680,
0685, 0690, 0692,
0709, 0722, 0731,
0738, 0739, 0768,
0771, 0776, 1131,
1148, 1149, 1150,
1160, 2580.
569 691569 Gasket−Engine Base
665 298860 Minder−Oil
998 690502 Pipe−Oil
998A 690307 Pipe−Oil
1054 280275 Tie−Cable
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−9 Assemblies include all parts shown in frames. 03/17/2009

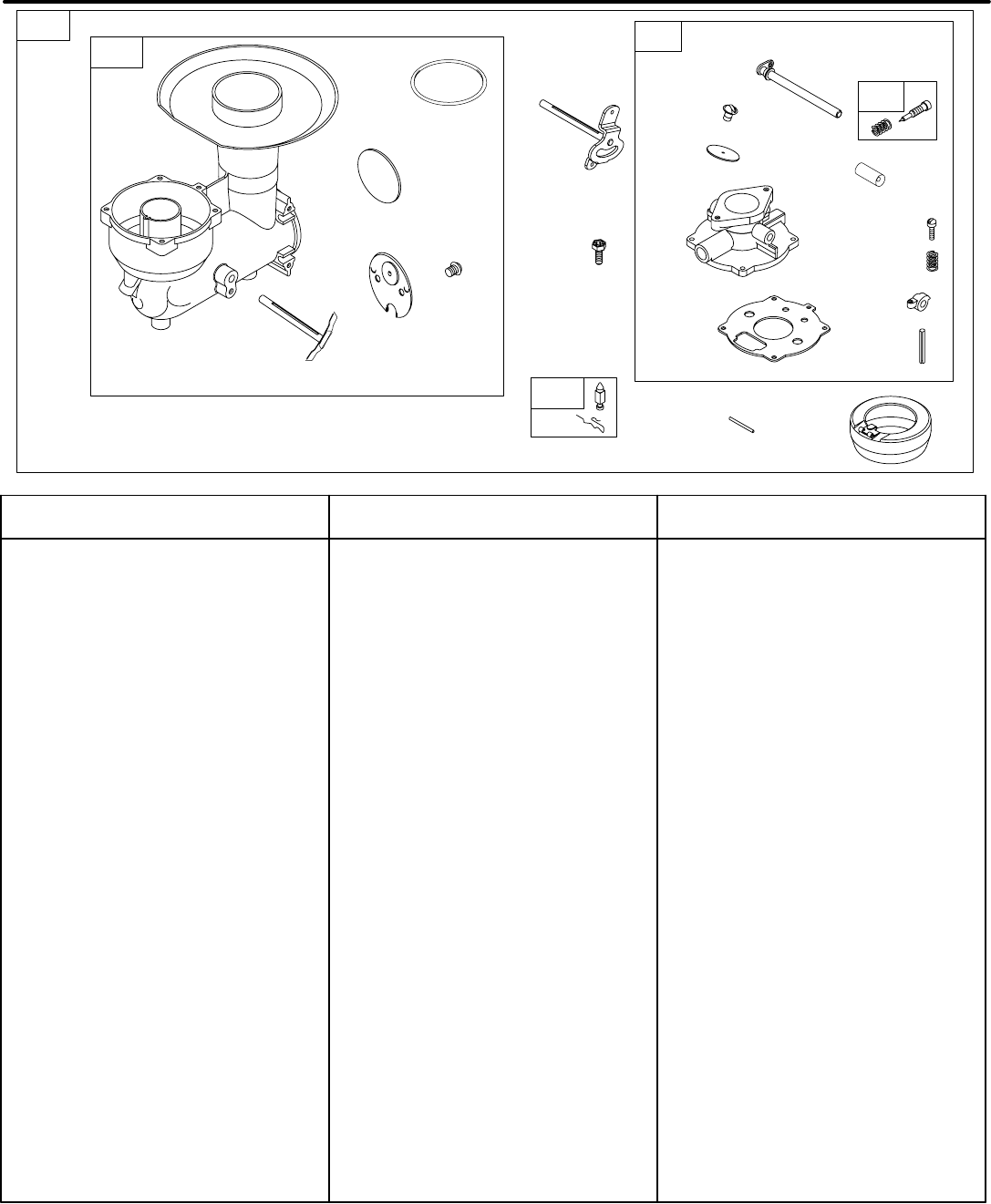

9
109
127
102
133
104
101
95
130
93
119
132
97
108
91
94
107
125
231 689A
1149
134
1354
109A
91 391034 Body−
Upper Carburetor
−−−−−−− Note −−−−−
299098 Body−
Upper Carburetor
Used on Type No(s).
0010, 0131, 0137,
0150, 0152, 0165,
0201, 0510.
93 691769 Bushing−Throttle Shaft
94 292681 Kit−Idle Mixture
95 691437 Screw
(Throttle Valve)
97 691944 Shaft−Throttle
101 691616 Pin−Shaft
102 692215 Gasket−
Carburetor Body
104 691775 Pin−Float Hinge
107 391069 Body−
Lower Carburetor
108 690621 Valve−Choke
−−−−−−− Note −−−−−
298730 Valve−Choke
Used on Type No(s).
0131, 0137, 0150,
0152, 0165.
109 691353 Shaft−Choke
109A 690617 Shaft−Choke
Used on Type No(s).
0123, 0124, 0132,
0133, 0147, 0148,
0149, 0156, 0169,
0176, 0178, 0191,
0192, 0193, 0196,
0626, 0627, 0630,
0639, 0648, 0649,
0651, 0652, 0653,
0656, 0665, 0667,
0718, 0722, 0735,
2580.
119 691090 Screw
(Upper Body to
Lower Carburetor
Body)
125 391073 Carburetor
−−−−−−− Note −−−−−
391074 Carburetor
Used on Type No(s).
0123, 0124, 0132,
0133, 0147, 0148,
0149, 0156, 0169,
0176, 0178, 0191,
0192, 0193, 0196,
0626, 0627, 0630,
0639, 0648, 0649,
0651, 0652, 0653,
0656, 0665, 0667,
0718, 0722, 0735,
1111, 1116, 1132,
1133, 1136, 1137,
1164, 1166, 1167,
1170, 1172, 2520,
2524, 2528, 2529,
2540, 2561, 2580.
392182 Carburetor
Used on Type No(s).
0709.
127 690627 Plug−Welch
130 691727 Valve−Throttle
132 691708 Stop−Throttle
133 692265 Float−Carburetor
134 394681 Kit−Needle/Seat
−−−−−−− Note −−−−−
394682 Kit−
Needle/ Seat
(Includes Brass Seat)
394683 Kit−
Needle/ Seat
(Includes Brass Seat)
(Use With
Impulse Pump)
231 691437 Screw
(Choke Valve)
689A 691591 Spring−Friction
1149 691615 Screw
(Throttle Shaft)
1354 691929 Seal−O Ring
(Lower Carburetor
Body)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

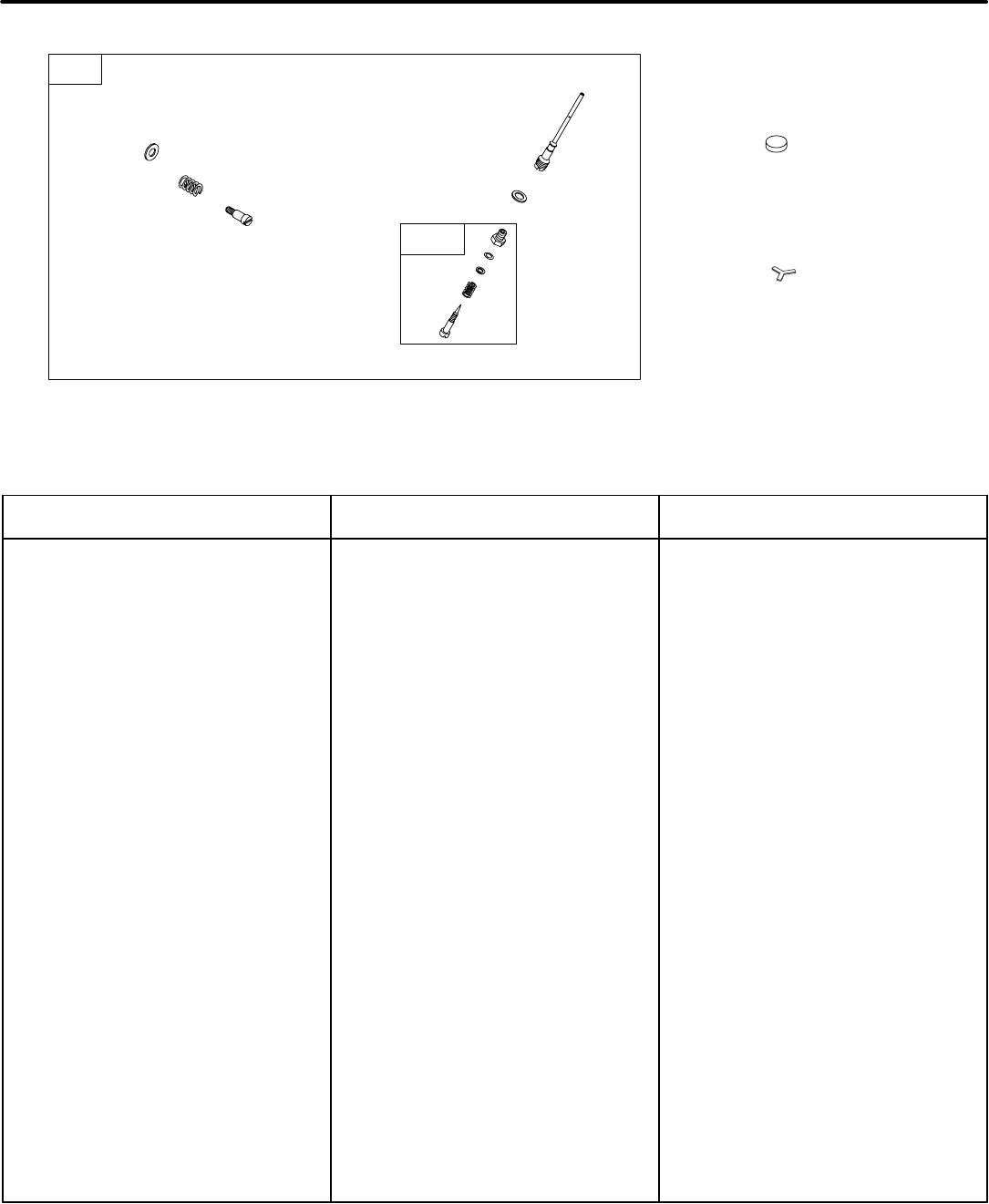

5424−10 Assemblies include all parts shown in frames. 03/17/2009
10
142
150
1146
689
158
800
125
1227
110
110 691186 Washer
(Choke Shaft)
125 Carburetor
(See Previous Page)
142 691966 Nozzle−Carburetor
(Standard)
(Labeled B)
(Used After Code Date
81101100).
−−−−−−− Note −−−−−
390950 Nozzle−
Carburetor
(Standard)
(Labeled B)
(#40 Jet)
(Used Before Code
Date 81101200).
150 691610 Gasket−Nozzle
158 27590 Plug−
Carburetor Filter/Drain
689 691590 Spring−Friction
800 Retainer−
Carburetor Drain
(NO LONGER
AVAILABLE)
1146 691587 Screw
(Choke Shaft)
1227 99525s Valve−High Speed
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

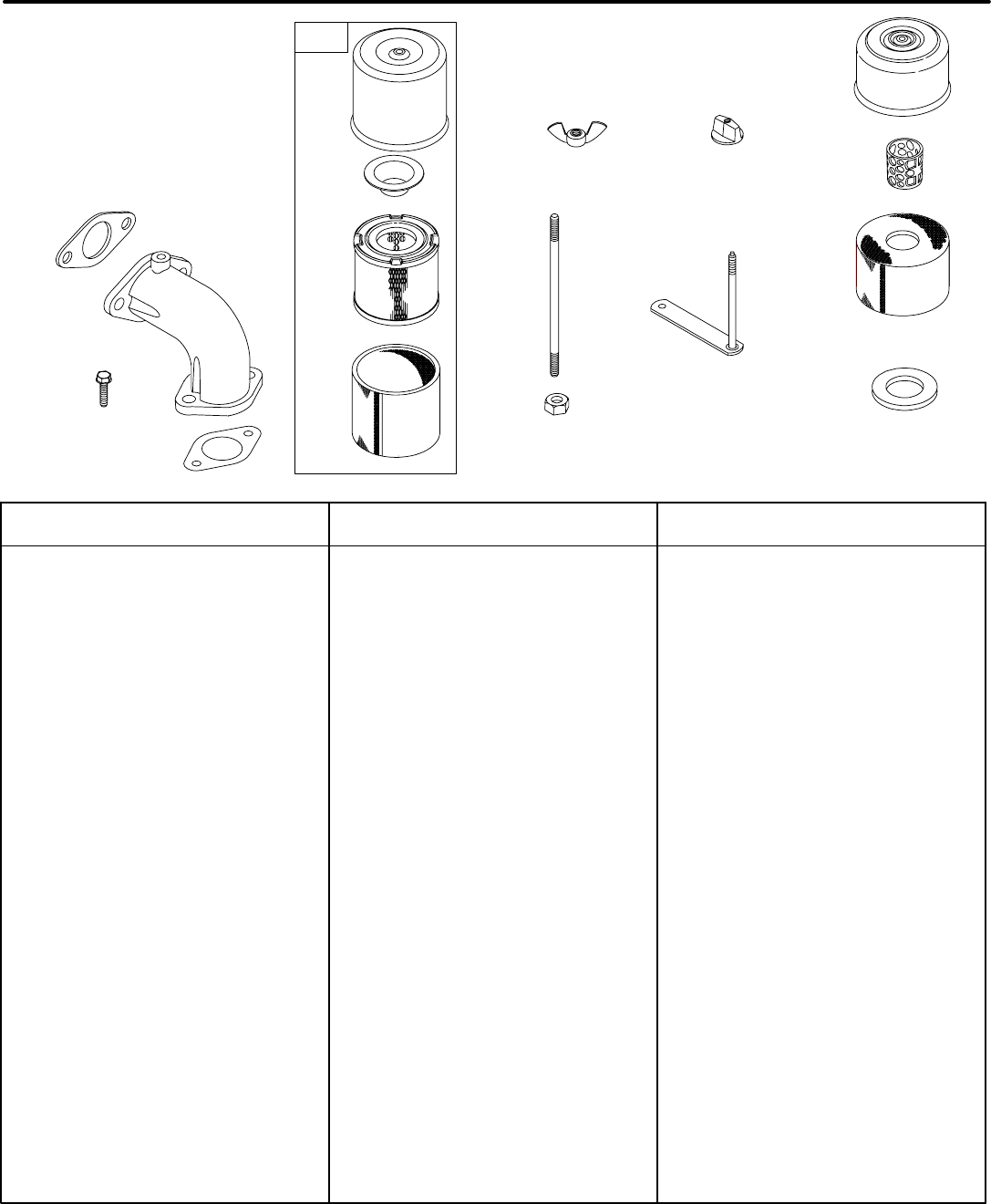

5424−11 Assemblies include all parts shown in frames. 03/17/2009
11
185
968
967
445
412
643
467
535
968A
570
166
536
862
51
50
51A
54 163
50 692525 Manifold−Intake
−−−−−−− Note −−−−−
691152 Manifold−
Intake
Used on Type No(s).
0147, 0148, 0178,
0192, 0193, 0626,
0627, 0630, 0639,
0648, 0649, 0653,
0656, 0665, 0709,
0718, 0722, 0735,
2580.
51 692214 Gasket−Intake
(Manifold to
Carburetor)
51A 27381s Gasket−Intake
(Manifold to Engine)
54 691681 Screw
(Intake Manifold)
−−−−−−− Note −−−−−
690953 Screw
(Intake Manifold)
Used on Type No(s).
0147, 0148, 0178,
0192, 0193, 0626,
0627, 0630, 0639,
0648, 0649, 0653,
0656, 0665, 0709,
0718, 0722, 0735,
2580.
163 67247 Gasket−Air Cleaner
166 691241 Stud
(Air Cleaner)
−−−−−−− Note −−−−−
231206 Stud
(Air Cleaner)
Used on Type No(s).
0131, 0137, 0150,
0152, 0165.
231207 Stud
(Air Cleaner)
Used on Type No(s).
0189.
230840 Stud
(Air Cleaner)
Used on Type No(s).
0123, 0176, 0196.
185 690284 Nut
(Air Cleaner Base)
412 691331 Nut
(Air Cleaner Cover)
445 393957s Filter−
Air Cleaner Cartridge
467 691668 Knob−Air Cleaner
535 270093 Filter−Air Cleaner
Foam
536 391063 Cleaner−Air
−−−−−−− Note −−−−−
393858 Cleaner−Air
(Air Cleaner Elbow Kit
No. 545032 Supplied
by Equipment
Manufacturer When
Using Briggs &
Stratton Service
Carburetor 391073)
(Replaces Oil Bath)
Used on Type No(s).
0122.
570 280001 Support−Foam
Element
643 691730 Retainer−Air Filter
862 297749 Strap/Stud−
Air Cleaner Mounting
Used on Type No(s).
0122.
967 271794s Filter−Pre Cleaner
968 691755 Cover−Air Cleaner
968A 221468 Cover−Air Cleaner
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−12 Assemblies include all parts shown in frames. 03/17/2009

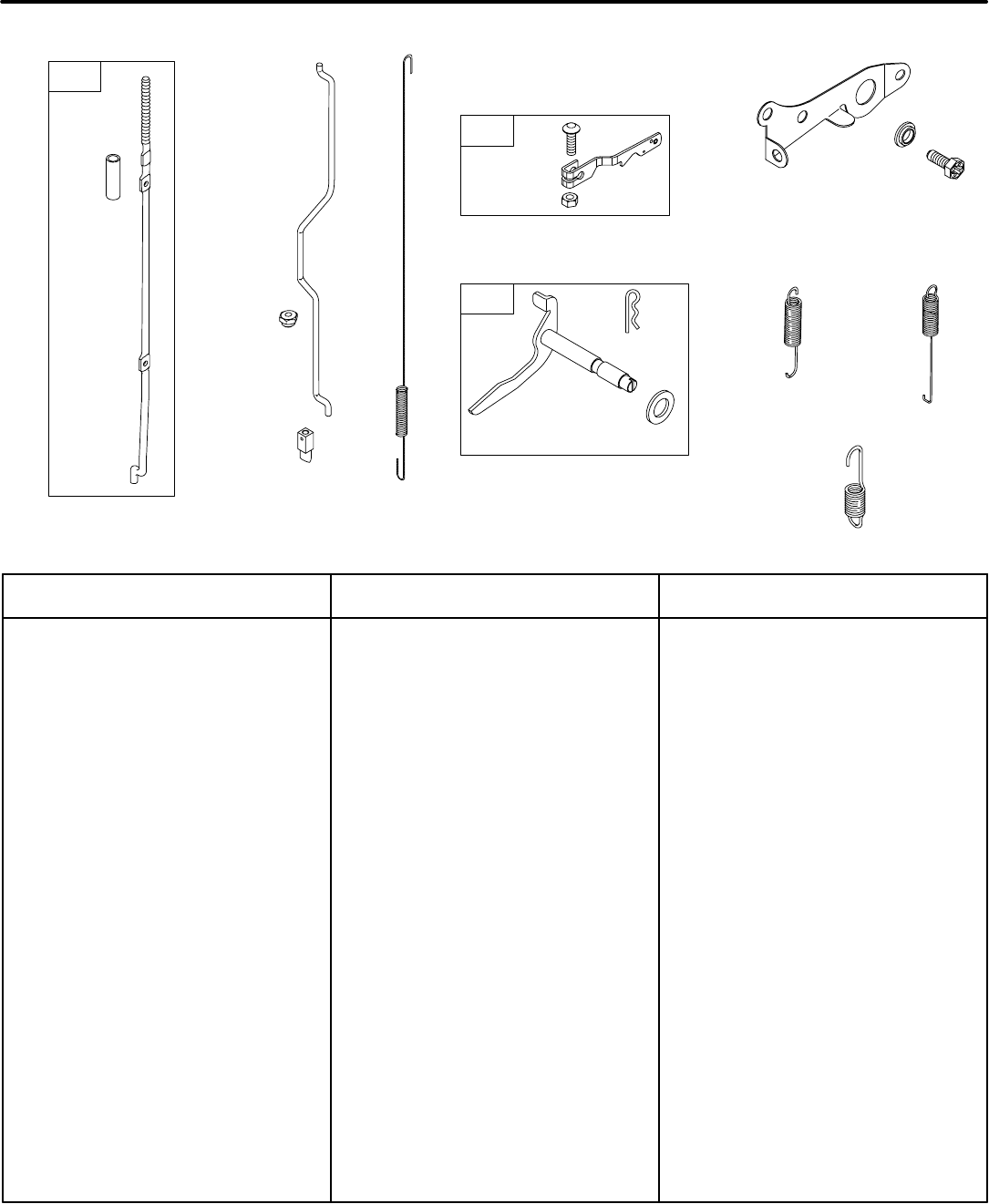

12
212
206A
162
209 209A
232
203
614
404
206
205
562
505
668
616
208
211
227
162 690267 Collar−Bell Crank
203 690263 Crank−Bell
−−−−−−− Note −−−−−
299428 Crank−Bell
Used on Type No(s).
0140.
205 690810 Screw
(Bell Crank)
206 691079 Nut−Governor
Adjusting
206A 691584 Nut−Governor
Adjusting
208 393613 Rod−Governor Control
209 691596 Spring−Governor
209A 691789 Spring−Governor
Used on Type No(s).
1111, 1133, 1136,
1164, 1170, 2520,
2528, 2561, 2580.
211 691790 Spring−Governed Idle
Used on Type No(s).
1111, 1133, 1136,
1164, 1170, 2520,
2528, 2561, 2580.
212 691595 Link−Throttle
−−−−−−− Note −−−−−
691791 Link−Throttle
Used on Type No(s).
0147, 0148, 0178,
0192, 0193, 0626,
0627, 0630, 0639,
0648, 0649, 0653,
0656, 0665, 0709,
0722, 2580.
227 690607 Lever−
Governor Control
−−−−−−− Note −−−−−
690616 Lever−
Governor Control
Used on Type No(s).
1111, 1133, 1136,
1164, 1170, 2520,
2528, 2561, 2580.
232 692207 Spring−Governor Link
−−−−−−− Note −−−−−
690545 Spring−
Governor Link
Used on Type No(s).
0627, 0630, 0639,
0648, 0709, 2580.
404 690264 Washer
(Governor Crank)
505 691251 Nut
(Governor
Control Lever)
562 92613 Bolt
(Governor
Control Lever)
614 691620 Pin−Cotter
616 291364 Crank−Governor
668 690313 Spacer
(Governor
Control Rod)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

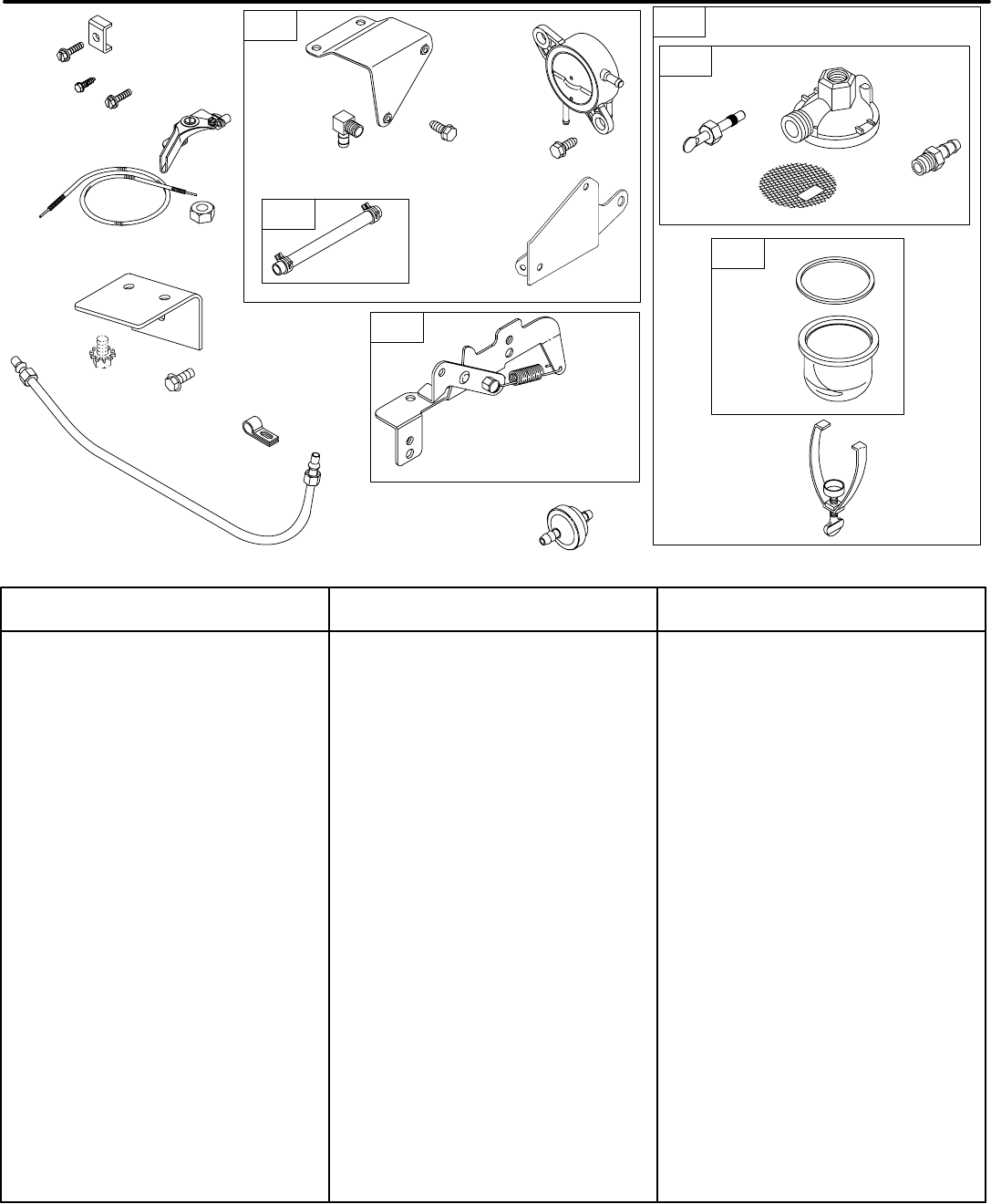

5424−13 Assemblies include all parts shown in frames. 03/17/2009
13
601
240A
628A
628
387
788A
788
186A
187A
186
210
247
245
385
270
268
269
271
587
267
265
267B
187
241
240
246
629
861
266
267A
788B
628B
186 691764 Connector−Hose
186A 691609 Connector−Hose
(Fuel Pump)
187 841589 Line−Fuel
187A 298861 Line−Fuel
(Metal)
−−−−−−− Note −−−−−
299322 Line−Fuel
(Metal)
(20” Losg)
89248 Line−Fuel
(Metal)
(2 1/4” Long)
210 691962 Strainer−Fuel
240 690612 Filter−Fuel
240A 298090s Filter−Fuel
−−−−−−− Note −−−−−
394358s Filter−Fuel
(White)
241 99909 Cover−Fuel Filter
(Used With
Metal Fuel Line)
−−−−−−− Note −−−−−
Cover−Fuel
Filter
(Used With Flexible
Fuel Line. See
Reference 240)
245 692190 Gasket−Fuel Bowl
246 298683 Bowl−Fuel Filter
247 691700 Yoke−Bowl
265 692179 Clamp−Casing
266 494554 Control−Throttle
−−−−−−− Note −−−−−
Control−Throttle
Used on Type No(s).
1144.
(NO LONGER
AVAILABLE)
267 93107 Screw
(Casing Clamp)
267A 690305 Screw
(Casing Clamp)
Used on Type No(s).
1139, 1156, 1162.
−−−−−−− Note −−−−−
691044 Screw
(Casing Clamp)
Used on Type No(s).
0120, 0121, 0162,
0163, 0713.
267B 691082 Screw
(Casing Clamp)
Used on Type No(s).
1143, 1147, 1153.
268 691025 Casing−Control Wire
(Cut to
Required Length)
269 691026 Wire−Control
(Cut to
Required Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever−Control
385 692198 Screw
(Fuel Pump)
387 808656 Pump−Fuel
587 690389 Clamp−Cable
601 791850 Clamp−Hose
628 Screw
(NO LONGER
AVAILABLE)
628A 691058 Screw
(Fuel Pump Bracket)
628B 690661 Screw
(Fuel Pump Bracket)
629 690538 Spring−Throttle Return
788 224123 Bracket−Fuel Pump
788A 223610 Bracket−Fuel Pump
788B 690458 Bracket−Fuel Pump
861 791885 Kit−Fuel Pump
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

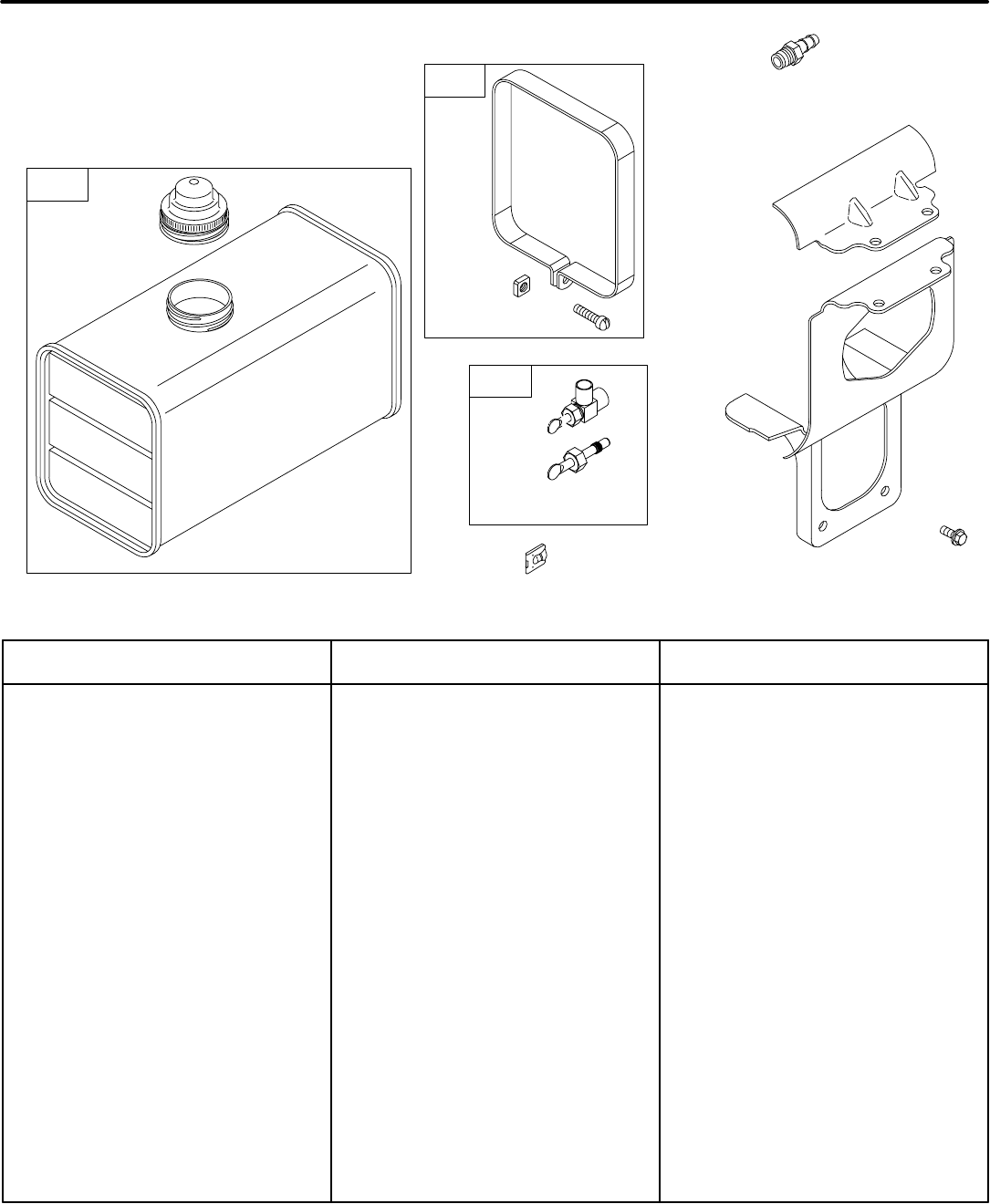

5424−14 Assemblies include all parts shown in frames. 03/17/2009
14
181
179
707
183
917
199A
199
674
182A
182
180
186B
179 690280 Screw
(Fuel Tank Strap)
180 291488 Tank−Fuel
(6 Quart)
−−−−−−− Note −−−−−
290816 Tank−Fuel
(4 Quart)
Used on Type No(s).
0130, 0190, 0636,
0661, 0736, 0797,
1136.
292415 Tank−Fuel
(8 Quart)
Used on Type No(s).
0125, 0140, 0154,
0157, 0179, 0187,
0644, 0654, 0657,
0660, 0679, 0686,
0689, 0697, 0707,
0720, 0731, 0732,
0749, 0750, 0758,
0760, 0765, 0768,
0773, 1131, 1137,
1138, 1141, 1150,
1168, 1173.
181 791545 Cap−Fuel Tank
182 690262 Bracket−Fuel Tank
182A 691068 Bracket−Fuel Tank
183 691937 Strap−Fuel Tank
−−−−−−− Note −−−−−
291367 Strap−
Fuel Tank
Used on Type No(s).
0130, 0190, 0636,
0661, 0736, 0797,
1136.
186B 231238 Connector−Hose
(Used With
Metal Fuel Line)
199 692302 Valve−Fuel Shut Off
199A 691940 Valve−Fuel Shut Off
674 691058 Screw
(Fuel Tank Bracket)
707 690279 Nut
(Fuel Tank Strap)
917 691737 Handle−Shut Off Valve
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

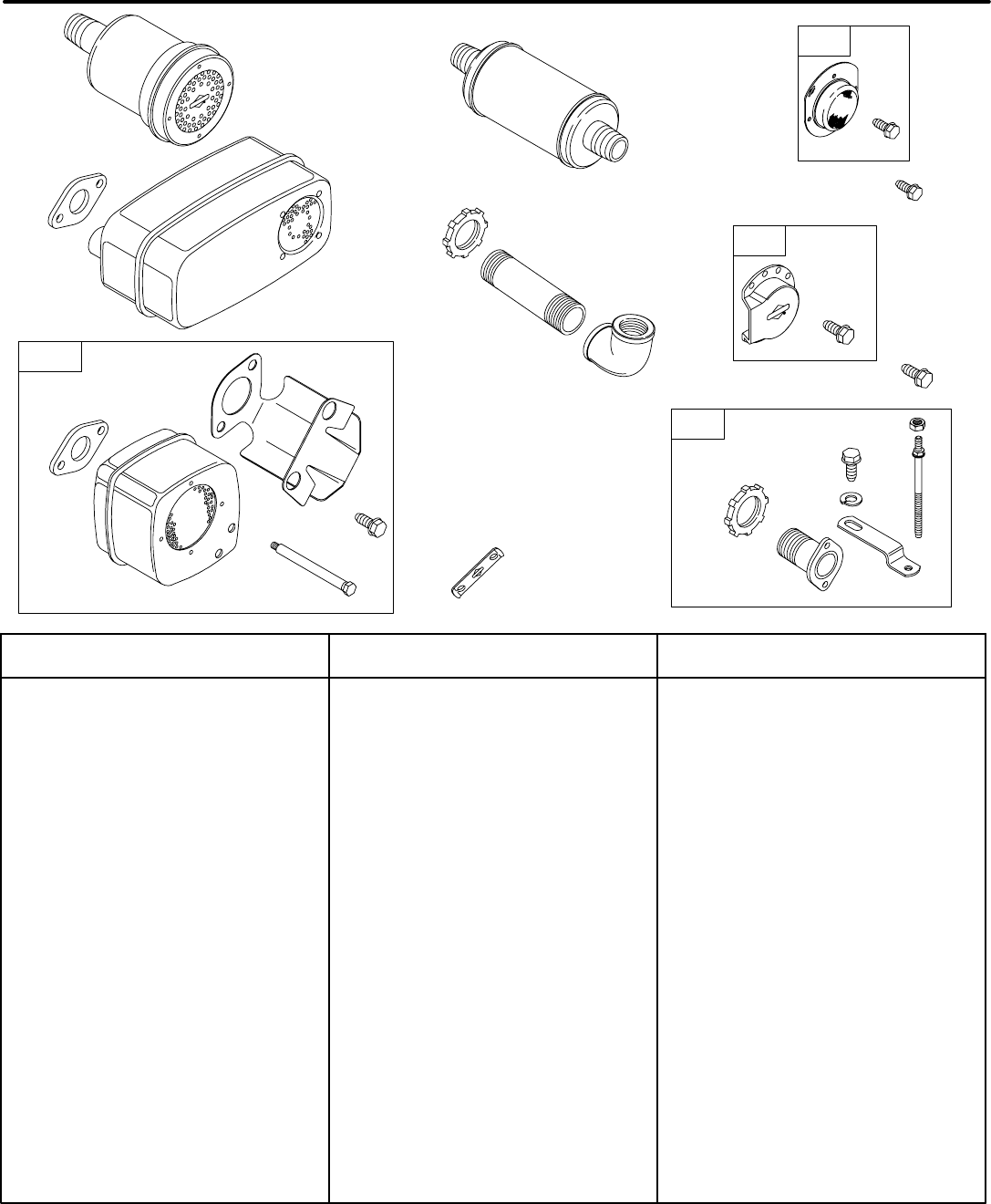

5424−15 Assemblies include all parts shown in frames. 03/17/2009
15
883
728
300A
346
677
613
81
303
300C
298
864A
301
883
298
823
264
944
834
725
300
676
864
994
300B
346A
677A
81 691178 Lock−Muffler Screw
264 691105 Nut
(Muffler Adapter)
298 691808 Locknut−Muffler/Elbow
300 299477s Muffler
300A 498984s Muffler
(Super Lo Tone)
300B 399635 Muffler
300C 291519 Muffler
301 91416 Pipe−Exhaust
303 91296 Elbow−Exhaust
−−−−−−− Note −−−−−
690281 Elbow−
Exhaust
Used on Type No(s).
1141, 1151, 2580.
91415 Elbow−Exhaust
Used on Type No(s).
0771, 0776, 1149.
346 794845 Screw
(Spark Arrestor)
(Metric)
346A 690661 Screw
(Spark Arrestor)
(SAE)
613 691416 Screw
(Muffler)
676 795036 Deflector−Muffler
677 794845 Screw
(Muffler Deflector)
(Metric)
677A 690661 Screw
(Muffler Deflector)
(SAE)
725 690420 Shield−Heat
728 690810 Screw
(Heat Shield)
823 691108 Screw
(Muffler Adapter)
834 691075 Washer
(Muffler Adapter)
864 394584 Adapter−Muffler
864A 690637 Adapter−Muffler
883 692236 Gasket−Exhaust
944 691690 Stud
(Muffler Adapter)
994 794945 Arrestor−Spark
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−16 Assemblies include all parts shown in frames. 03/17/2009

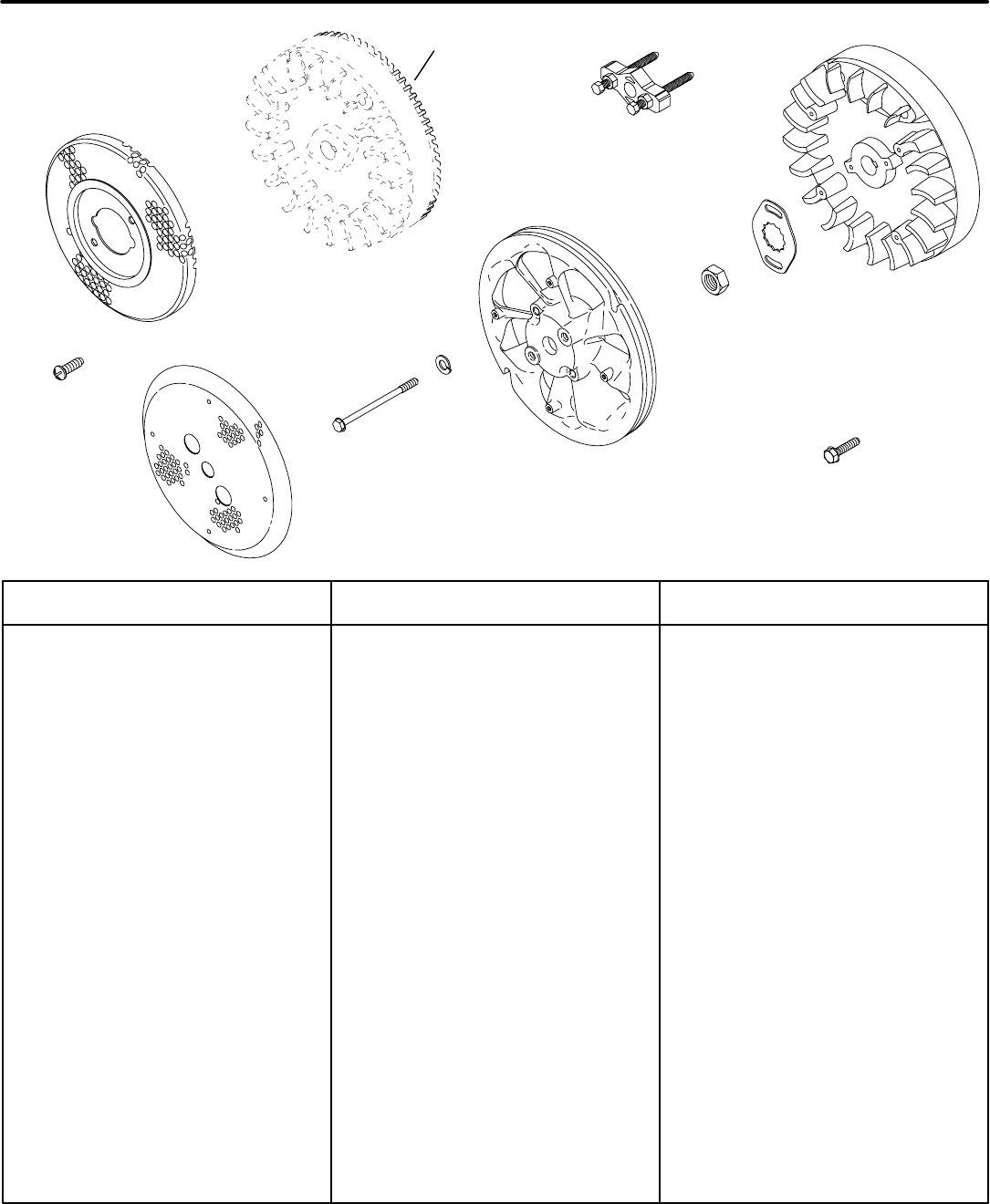

16
23
321
726
773
332
73
73A 1044
331
440
74
363
23A
23 395250 Flywheel
23A Flywheel
(NO LONGER
AVAILABLE)
73 690628 Screen−Rotating
73A 691171 Screen−Rotating
−−−−−−− Note −−−−−
690404 Screen−
Rotating
Used on Type No(s).
0627, 0630, 0665,
0709, 2580.
74 691655 Screw
(Rotating Screen)
321 691151 Fan−Booster
331 691075 Washer
(Booster Fan)
332 691059 Nut
(Flywheel)
363 19203 Puller−Flywheel
440 691076 Screw
(Booster Fan)
726 391362 Gear−Ring
(Includes
Mounting Hardware)
773 690265 Retainer
1044 691058 Screw
(Flywheel)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

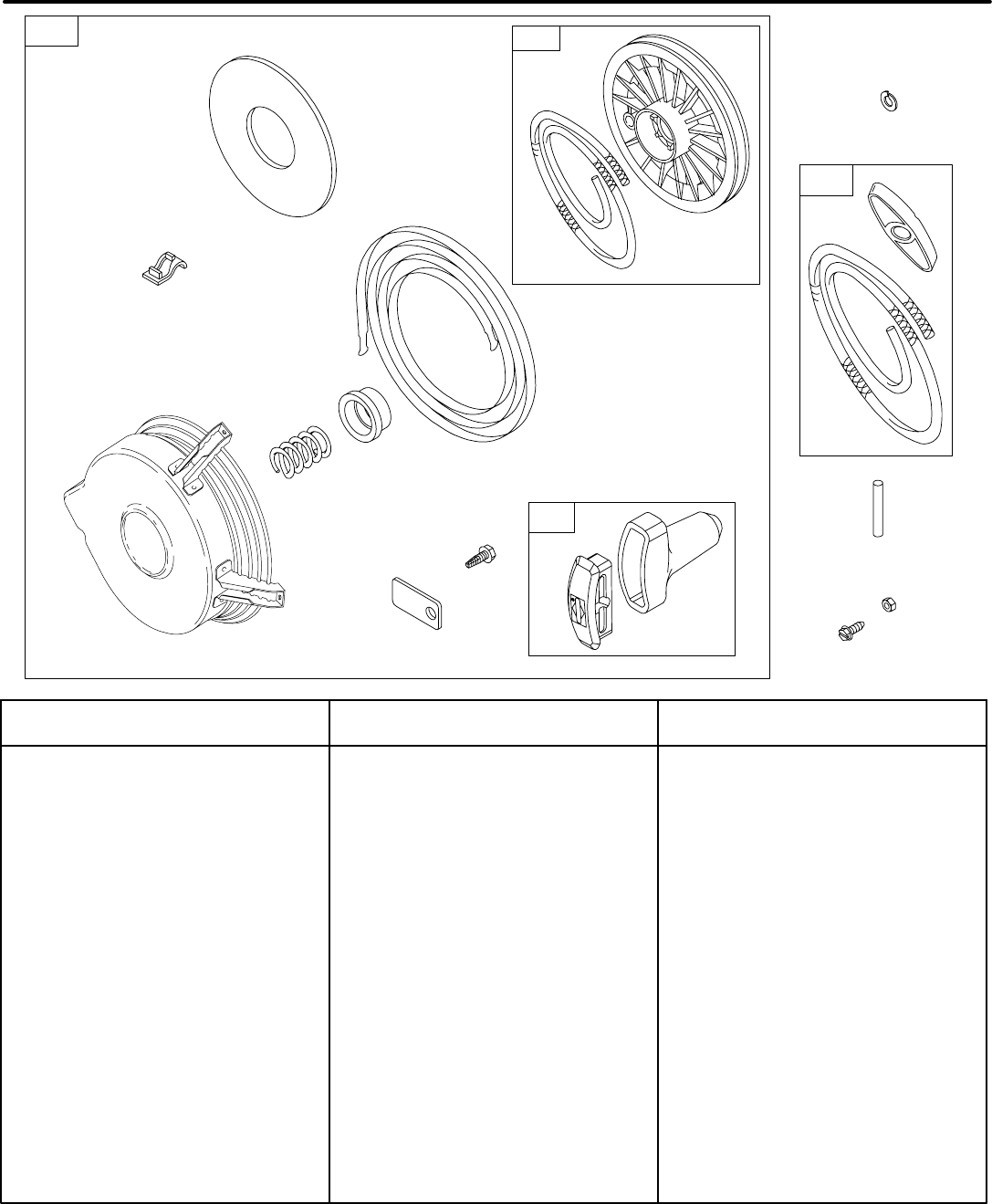

5424−17 Assemblies include all parts shown in frames. 03/17/2009
17
289
57
64
63
58
55 61
56
65
60
592
458
1168
608
1140
655
678
55 691355 Housing−
Rewind Starter
56 392630 Pulley−Starter
(Includes 63” Rope)
57 490179 Spring−Rewind Starter
58 692188 Rope−Starter
(63” Long)
(Use With
Plastic Pulley)
695002 Rope−Starter
(99” Long)
(Cut To
Required Length)
−−−−−−− Note −−−−−
66564 Rope−Starter
(63” Long)
(Use With
Metal Pulley)
66574 Rope−Starter
(99” Long)
(Cut to
Required Length)
60 490652 Grip−Starter Rope
61 68848s Bumper−Starter Pulley
63 690547 Spring−Ratchet
64 691920 Adapter−Ratchet
Spring
−−−−−−− Note −−−−−
Adapter−
Ratchet Spring
(NO LONGER
AVAILABLE)
Used on Type No(s).
0561, 0624, 0733,
0734, 0735, 0736,
0737, 0738, 0739,
0744, 0746, 0749,
0754, 0757, 0761,
0762, 0766, 0768,
0770, 0797, 0801,
1131, 1136, 1139,
1141, 1145, 1146,
1151, 1154, 1156,
1159, 1160, 1164,
2541, 2561.
65 691044 Screw
(Rewind Starter)
289 230228s Pin−Starter Grip
458 69932s Kit−Handle/Rope
(55 1/2” Rope)
592 230796 Nut
(Rewind Starter)
608 691958 Starter−Rewind
655 221014 Anchor−Rewind Spring
678 490817 Spacer−Rewind
1140 690286 Washer
(Rewind Starter)
1168 93254 Screw
(Starter
Pulley Bumper)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

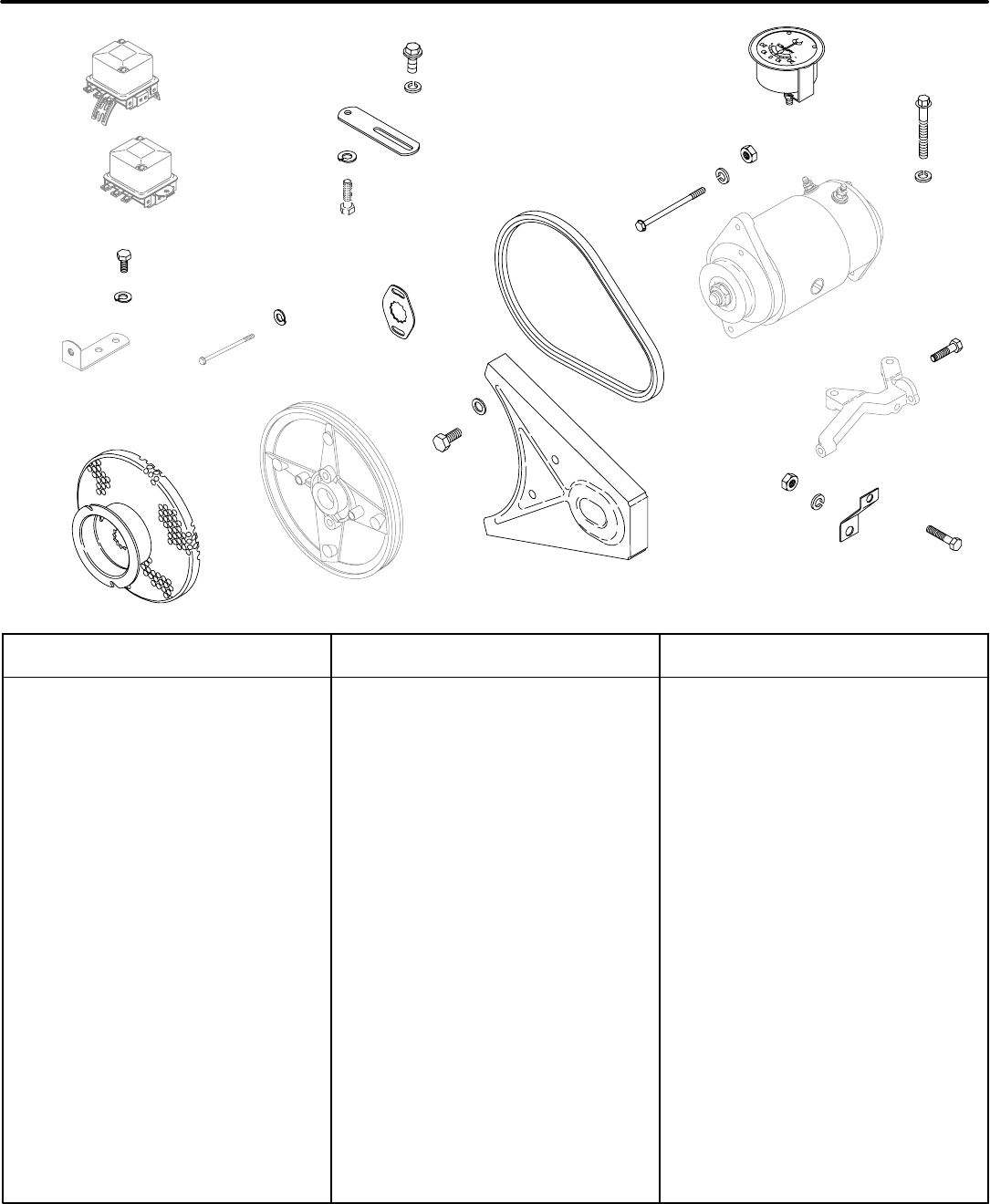

5424−18 Assemblies include all parts shown in frames. 03/17/2009
18
323
328
1153A
606
890
325
773
501 1151
1150
465
1151A
1153
652B
545
694
329
413
310
532
318
652
331
501A
574
310 691614 Bolt
(Starter Motor)
318 690303 Screw
(Mounting Bracket)
323 68878 Belt−Vee
(High Position Mount)
(36 3/4” Length)
Used on Type No(s).
0118, 0147, 0159,
0186, 0618.
−−−−−−− Note −−−−−
68898 Belt−Vee
(Low Position Mount)
(35 3/4” Length)
Used on Type No(s).
0656, 0722.
280032 Belt−Vee
(High Position Mount)
Used on Type No(s).
0148, 0193.
325 299308 Pulley−Rope Starter
328 221531 Guard−Belt
329 692198 Screw
(Belt Guard)
331 691075 Washer
(Booster Fan)
413 691105 Nut
(Starter Motor)
465 92268 Washer
(Mounting Bracket)
501 Regulator
(Delco Remy
Number 1119577)
(NO LONGER
AVAILABLE)
501A Regulator
(Delco Remy
Number 1118988)
(NO LONGER
AVAILABLE)
532 691105 Nut
(Mounting Bracket)
545 691075 Washer Set
(Starter Motor)
574 295158 Ammeter
(Stewart Warner
Number 357−W)
606 221442 Strap−Adjusting
652 693972 Screw
(Support Bracket)
652B 91468 Screw
(Support Bracket)
694 220863 Washer
(Belt Guard)
773 690265 Retainer
890 221472 Bracket−Support
1150 691058 Screw
(Adjusting Strap)
1151 690282 Washer
(Adjusting Strap)
1151A 691075 Washer
(Adjusting Strap)
1153 90832 Washer
(Support Bracket)
1153A 691075 Washer
(Support Bracket)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−19 Assemblies include all parts shown in frames. 03/17/2009

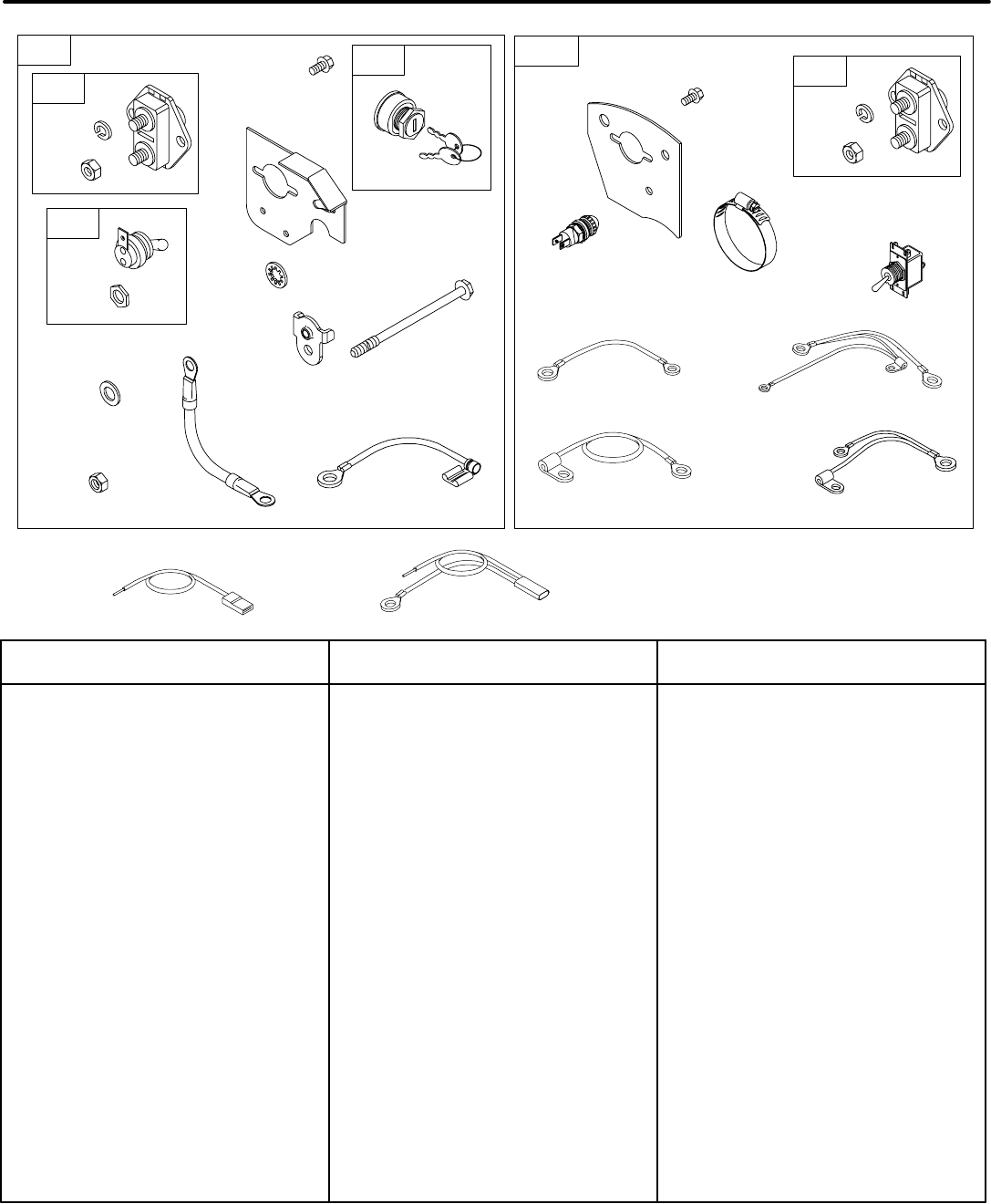

19
478
361
577
795
945
636
578
1142
990
579
641A
775
892
575
1217
840
361
795A
578D
356
840A
356A
636
575
1217
641
356 692390 Wire−Stop
356A 398808 Wire−Stop
361 691681 Screw
(Starting Switch)
478 395410 Panel
575 692303 Switch−Starting
577 690630 Cable−Starter
578 690647 Wire Assembly
578D 298582 Wire Assembly
579 691029 Nut
(Starter Cable)
636 696198 Nut
(Starting Switch)
641 691075 Washer
(Starting Switch)
641A 690282 Washer
(Starting Switch)
775 690315 Nut
(Toggle Switch)
795 496590 Switch−Toggle
795A 298590 Switch−Toggle
840 395408 Kit−Panel
(Toggle Switch)
−−−−−−− Note −−−−−
395409 Kit−Panel
(Key Switch)
(Used Before Code
Date 81102100).
840A 298561 Kit−Panel
892 392833 Switch−Key
945 692132 Bracket−Starter Motor
990 691959 Key Set
(Used Before Code
Date 81102100).
1142 692329 Screw
(Starter Motor Bracket)
(5 3/8” Housing
Length)
−−−−−−− Note −−−−−
690323 Screw
(Starter Motor Bracket)
(4 1/2” Housing
Length)
1217 691075 Washer
(Starting Switch)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400

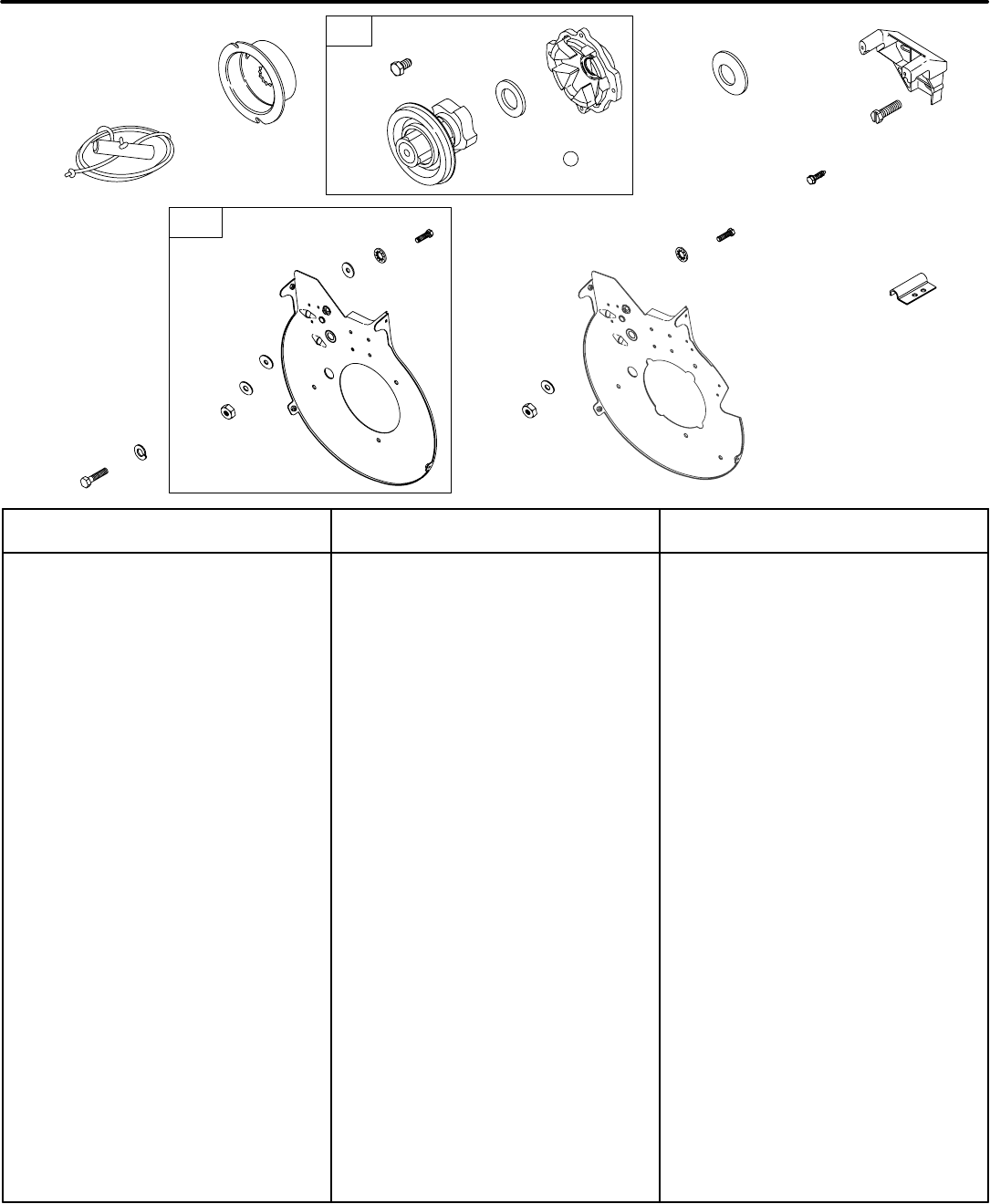

5424−20 Assemblies include all parts shown in frames. 03/17/2009
20
71
68
70
67
69
325A
458
729
588
589
344
316
452
452A 197
405
384
75
257
66
573
316
452
452A
197
573A
66 399671 Clutch−Starter
−−−−−−− Note −−−−−
393127s Clutch−
Starter
Used on Type No(s).
0561, 0624, 0733,
0734, 0735, 0736,
0737, 0738, 0739,
0744, 0746, 0749,
0754, 0757, 0761,
0762, 0766, 0768,
0770, 0797, 0801,
1131, 1136, 1139,
1141, 1145, 1146,
1151, 1154, 1156,
1159, 1160, 1164,
2541, 2561.
67 394897 Housing−Clutch
−−−−−−− Note −−−−−
690542 Housing−
Clutch
Used on Type No(s).
0561, 0624, 0733,
0734, 0735, 0736,
0737, 0738, 0739,
0744, 0746, 0749,
0754, 0757, 0761,
0762, 0766, 0768,
0770, 0797, 0801,
1131, 1136, 1139,
1141, 1145, 1146,
1151, 1154, 1156,
1159, 1160, 1164,
2541, 2561.
68 691604 Ball−Clutch
69 690271 Washer
(Starter Clutch)
70 691945 Ratchet−Clutch
71 691359 Cover−Ratchet
75 691056 Washer
(Flywheel)
197 90072 Screw
(Back Plate)
257 691078 Screw
(Starter Clutch)
316 691612 Nut
(Back Plate)
325A 690261 Pulley−Rope Starter
344 93410 Screw
(Cable Clamp)
384 90832 Washer
(Back Plate)
405 690290 Screw
(Back Plate)
452A 26404 Washer
(Back Plate)
452B 92864 Washer
(Back Plate)
458 69932 Kit−Handle/Rope
(55 1/2” Rope)
573 298159 Plate−Back
573A Plate−Back
(Used on Engines
With Electric Start
Only)
(NO LONGER
AVAILABLE)
588 690375 Bracket−Armature
589 690300 Screw
(Armature Bracket)
729 690432 Clip−Wire
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−21 Assemblies include all parts shown in frames. 03/17/2009
21
304
305
895
304 291407 Housing−Blower
−−−−−−− Note −−−−−
294698 Housing−
Blower
Used on Type No(s).
0118, 0121, 0123,
0124, 0140, 0147,
0148, 0149, 0159,
0176, 0178, 0184,
0186, 0189, 0192,
0193, 0200, 0618,
0626, 0627, 0630,
0639, 0642, 0648,
0649, 0655, 0665,
0692, 0700, 0709,
0773, 0800, 1150,
1162, 1163, 2580.
297010 Housing−
Blower
(Rewind Starter)
Used on Type No(s).
0560, 0619, 0622,
0661, 0666, 0677,
0678, 0685, 0688,
0690, 0693, 0699,
0704, 0715, 0718,
0720.
297453 Housing−
Blower
Used on Type No(s).
0023, 0129, 0132,
0135, 0137, 0146,
0160, 0163, 0164,
0183, 0194, 0199,
0523, 0527, 0632,
0637, 0640, 0652,
0653, 0656, 0662,
0670, 0676, 0680,
0682, 0683, 0695,
0703, 0712, 0716,
0722, 0750, 0760.
297766 Housing−
Blower
Used on Type No(s).
0020, 0195, 0197,
0524, 0644, 0651,
0657, 0673, 0684,
0689, 0696, 0707,
0764, 2524.
391229 Housing−
Blower
(Electric Start)
Used on Type No(s).
0528, 0614, 0621,
0772, 0774, 0775,
0783, 1147, 1148,
1153, 1155, 1167,
2528, 2529, 2530,
2550.
392343 Housing−
Blower
Used on Type No(s).
0561, 0624, 0733,
0734, 0735, 0736,
0737, 0738, 0739,
0740, 0744, 0746,
0749, 0754, 0757,
0761, 0762, 0766,
0768, 0770, 0777,
0780, 0786, 0791,
0794, 0801, 1131,
1136, 1139, 1141,
1145, 1146, 1151,
1154, 1156, 1159,
1160, 1164, 2541,
2561.
305 692198 Screw
(Blower−Housing)
895 692309 Switch−Rotary
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−22 Assemblies include all parts shown in frames. 03/17/2009

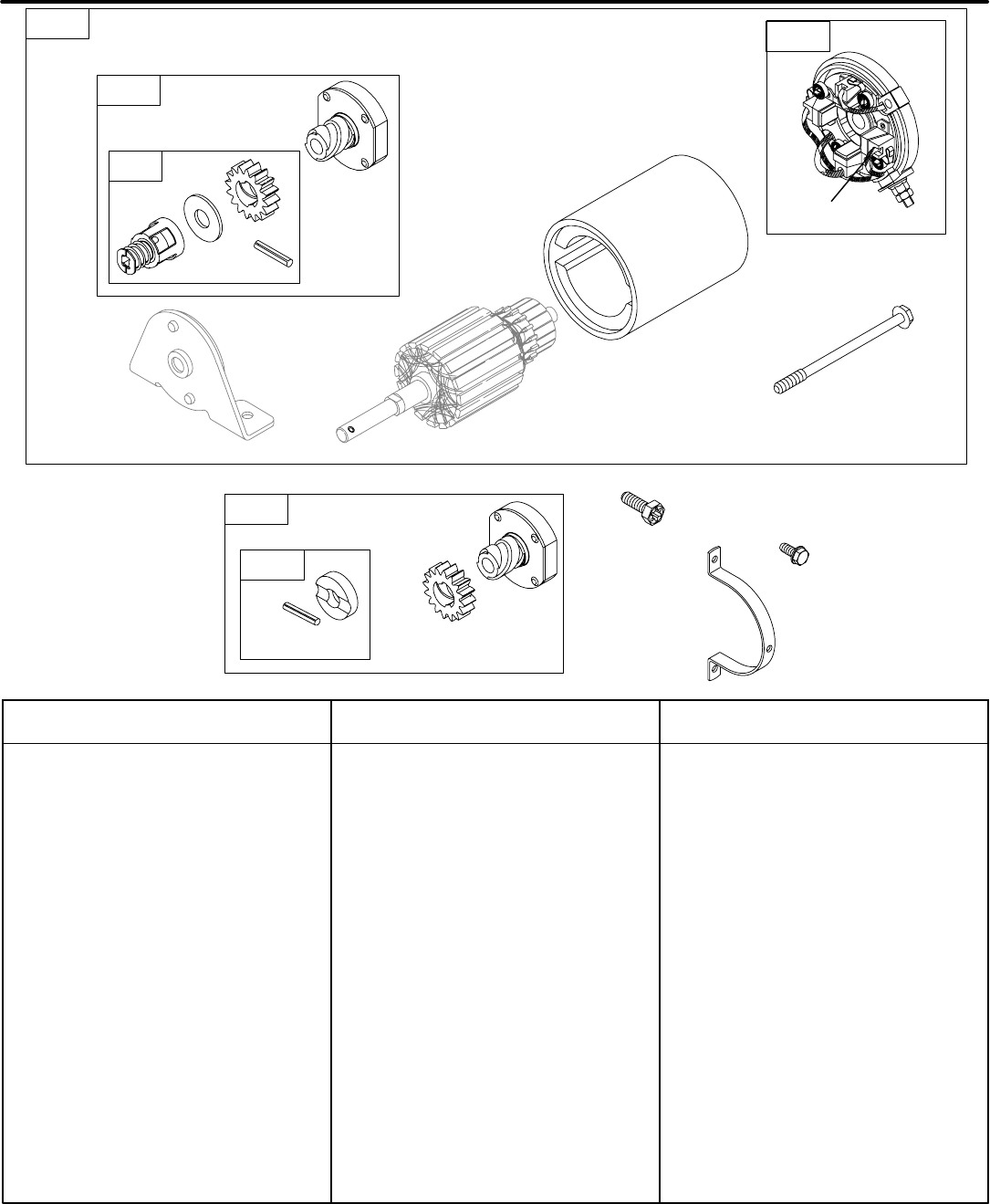

22
340
484
345
343
507
507A
639
359
714
359
359
714
714
888A
470
744
888B
888
USED BEFORE CODE DATE: 81080100
897
334
521
729A
851
356B
375
333
333 398811 Armature−Magneto
(Used After Code Date
81073100).
−−−−−−− Note −−−−−
298968 Armature−
Magneto
(Used Before Code
Date 81080100).
334 691061 Screw
(Magneto Armature)
340 26018 Spring−Breaker Arm
343 298060 Condenser

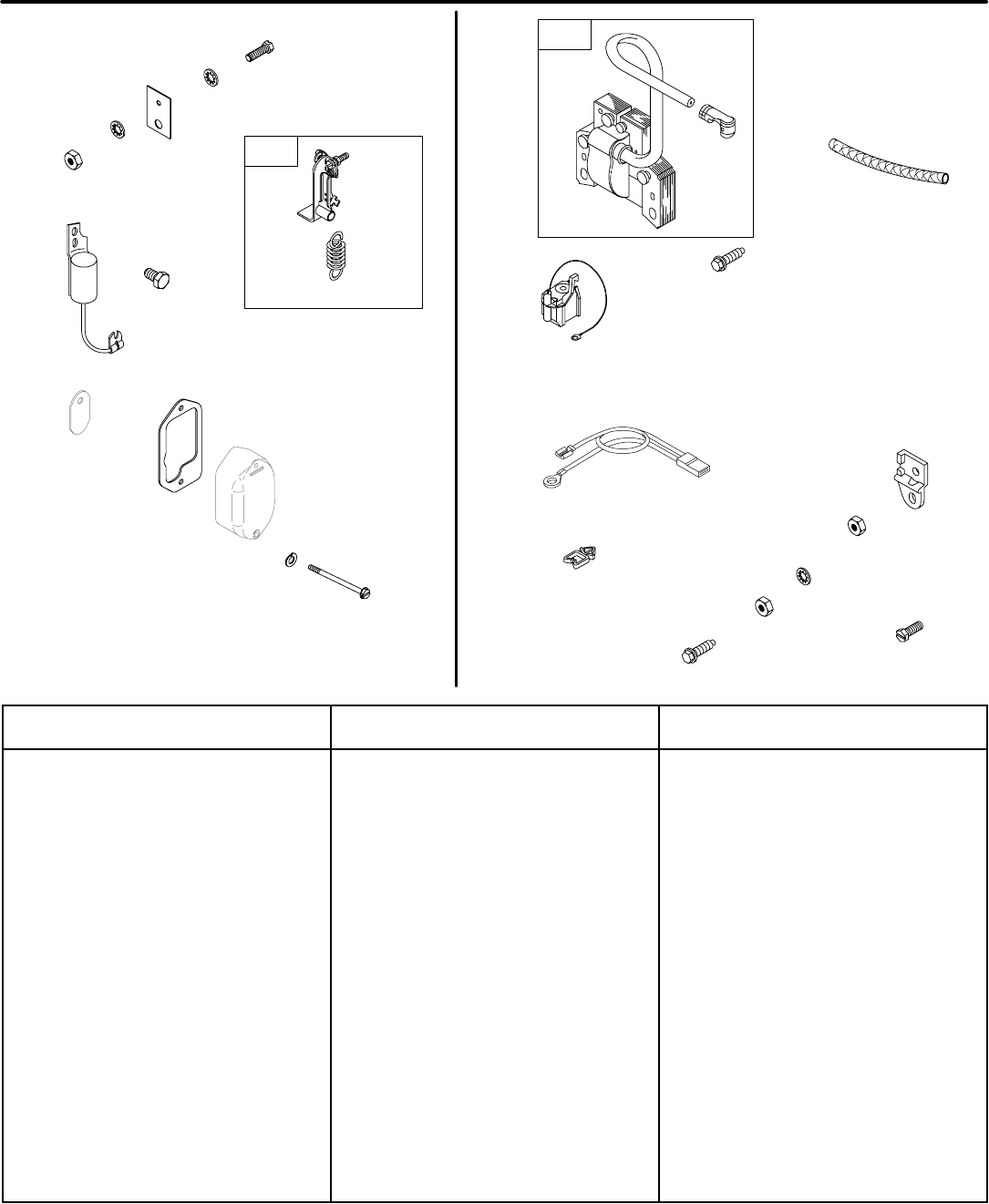

345 Cover−Breaker
(NO LONGER
AVAILABLE)
356B 690650 Wire−Stop
359 691077 Washer
(Ground Terminal)
375 298185 Breaker−Ignition
470 692836 Screw
(Breaker Cover)
484 690295 Screw
(Condenser)
507 690584 Insulator
507A 66895 Insulator
−−−−−−− Note −−−−−
299598 Insulator
Used on Type No(s).
0168, 0175, 0179,
0628, 0629.
521 291508 Shield−Cable
639 692913 Gasket−Breaker Box
714 691612 Nut
(Stop Wire)
729A 690588 Clip−Wire
744 690277 Washer
(Breaker Cover)
851 493880s Terminal−Spark Plug
888 690292 Screw
(Insulator)
888A 90200 Screw
(Insulator)
888B 690295 Screw
(Insulator)
897 394970 Kit−MAGNETRON
Ignition
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−23 Assemblies include all parts shown in frames. 03/17/2009
23
DC ONLY DUAL CIRCUIT
877 877A
578A 789
10/16 AMP
501B
526
AC ONLY
578B
877B
474 474A 474B 474C
1059
877
877A
1059
10591059
1119

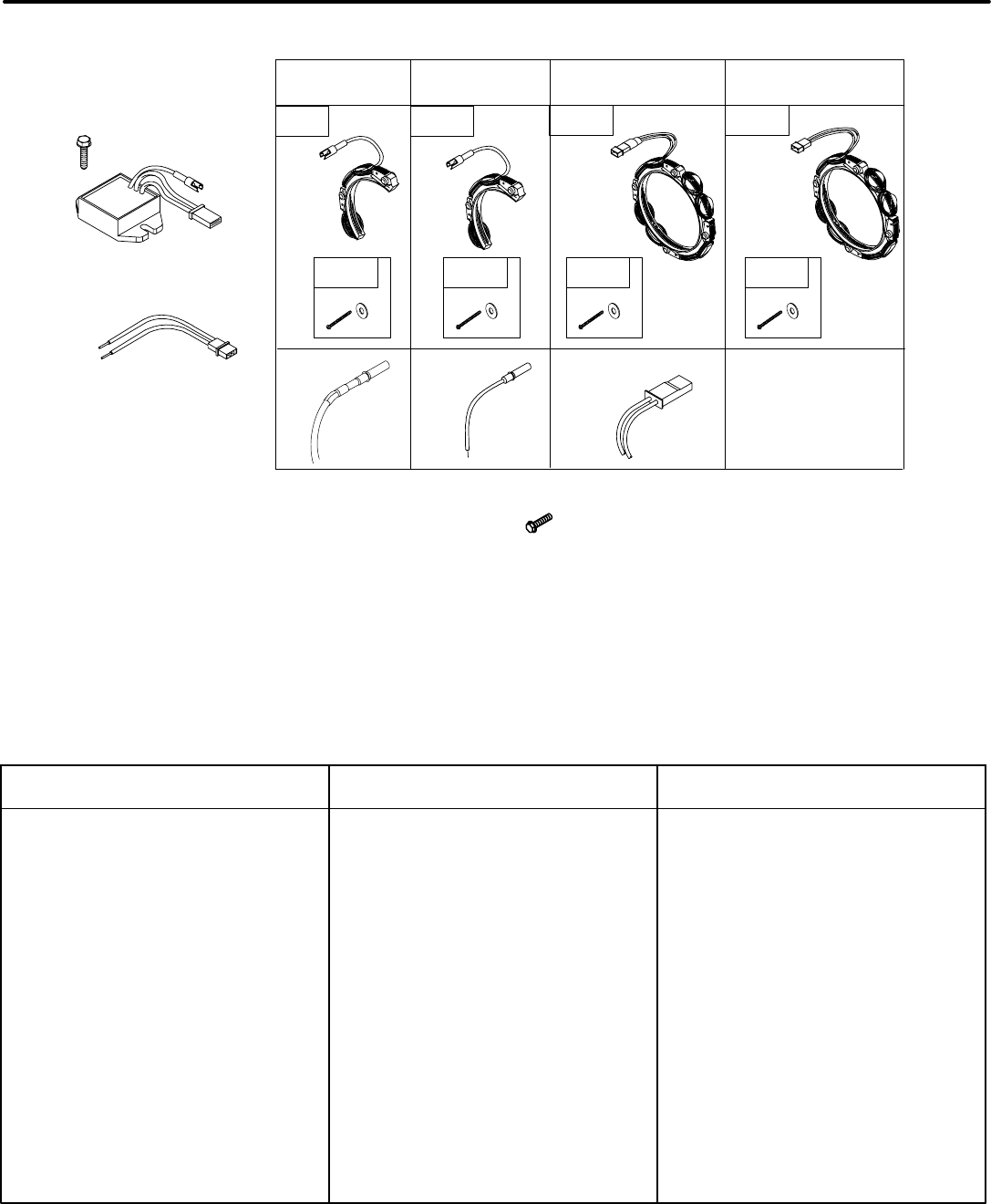

474 696578 Alternator
(DC Only)
474A 391595 Alternator
(AC Only)
474B 696459 Alternator
(Dual Circuit)
474C 696458 Alternator
(10/16 Amp)
501B 691185 Regulator
526 690297 Screw
(Regulator)
578A 692306 Wire Assembly
578B 390867 Wire Assembly
789 398661 Harness−Wiring
877 393814 Wire/Connector−
Alternator
(DC Only)
877A 393456 Wire/Connector−
Alternator
(Dual Circuit)
877B 399916 Wire/Connector−
Alternator
(Tri−Circuit)
1059 698516 Kit−Screw/Washer
(Alternator)
1119 691183 Screw
(Alternator)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−24 Assemblies include all parts shown in frames. 03/17/2009
24

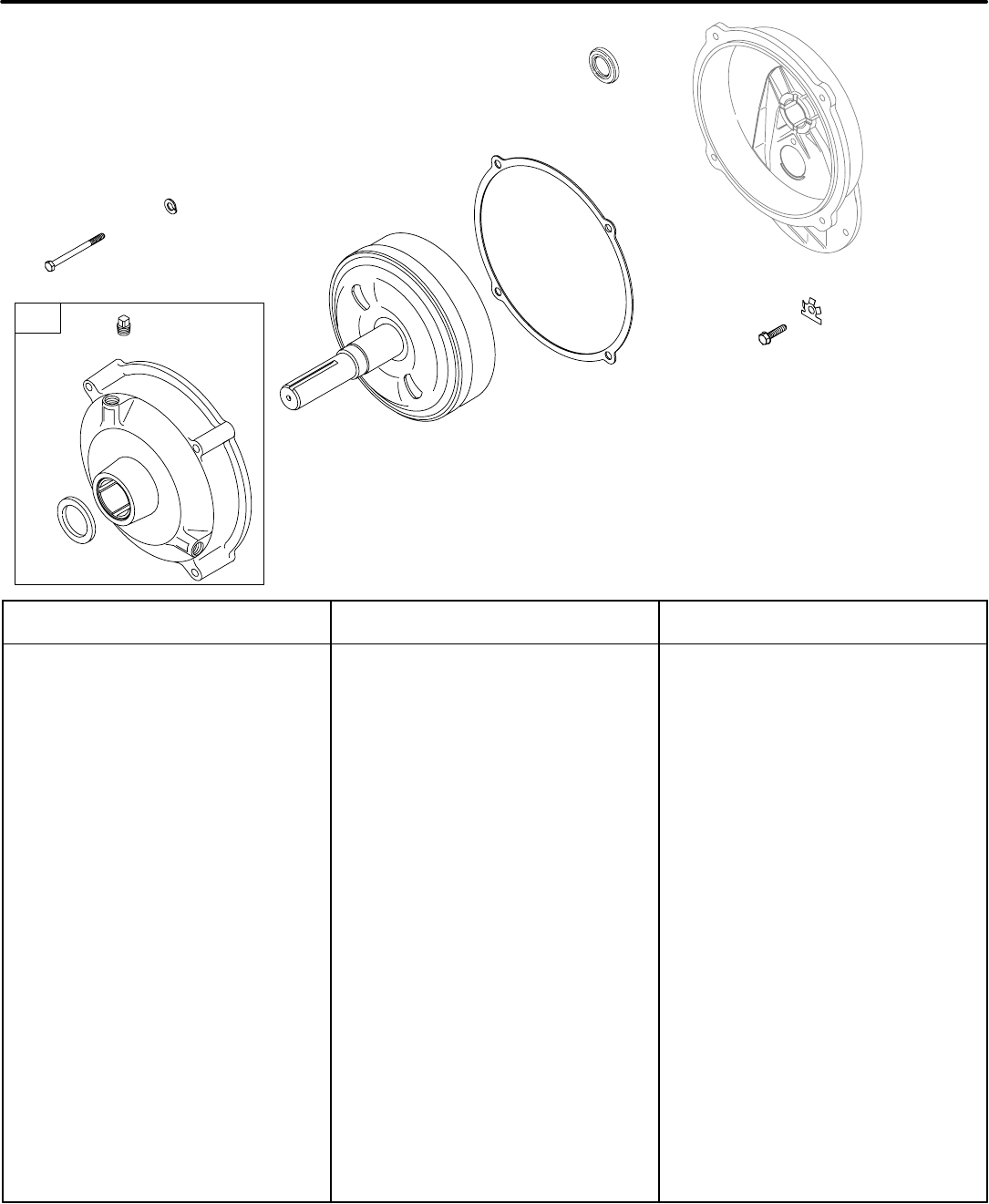

415
88
83
87
85
277
82
272
86
20A 79
20A 299819s Seal−Oil
(PTO Side)
79 Case−Gear Reduction
(NO LONGER
AVAILABLE)
82 691058 Screw
(Gear Reduction Case)
83 690387 Shaft−Auxiliary Drive
85 691076 Screw
(Gear Cover To
Gear Reduction Case)
86 690606 Cover−Gear
87 391086s Seal−Gear Reduction
88 691601 Gasket−Gear
Reduction Cover
272 690391 Lock−Screw Head
(Gear Reduction Case)
277 691075 Washer
(Gear Case To
Gear Reduction)
415 794903 Plug
(Gear Cover)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−25 Assemblies include all parts shown in frames. 03/17/2009
25
544
802
801
803
310B
697
311
1051
309 510
1090
797
783
513
675
668A
732
727

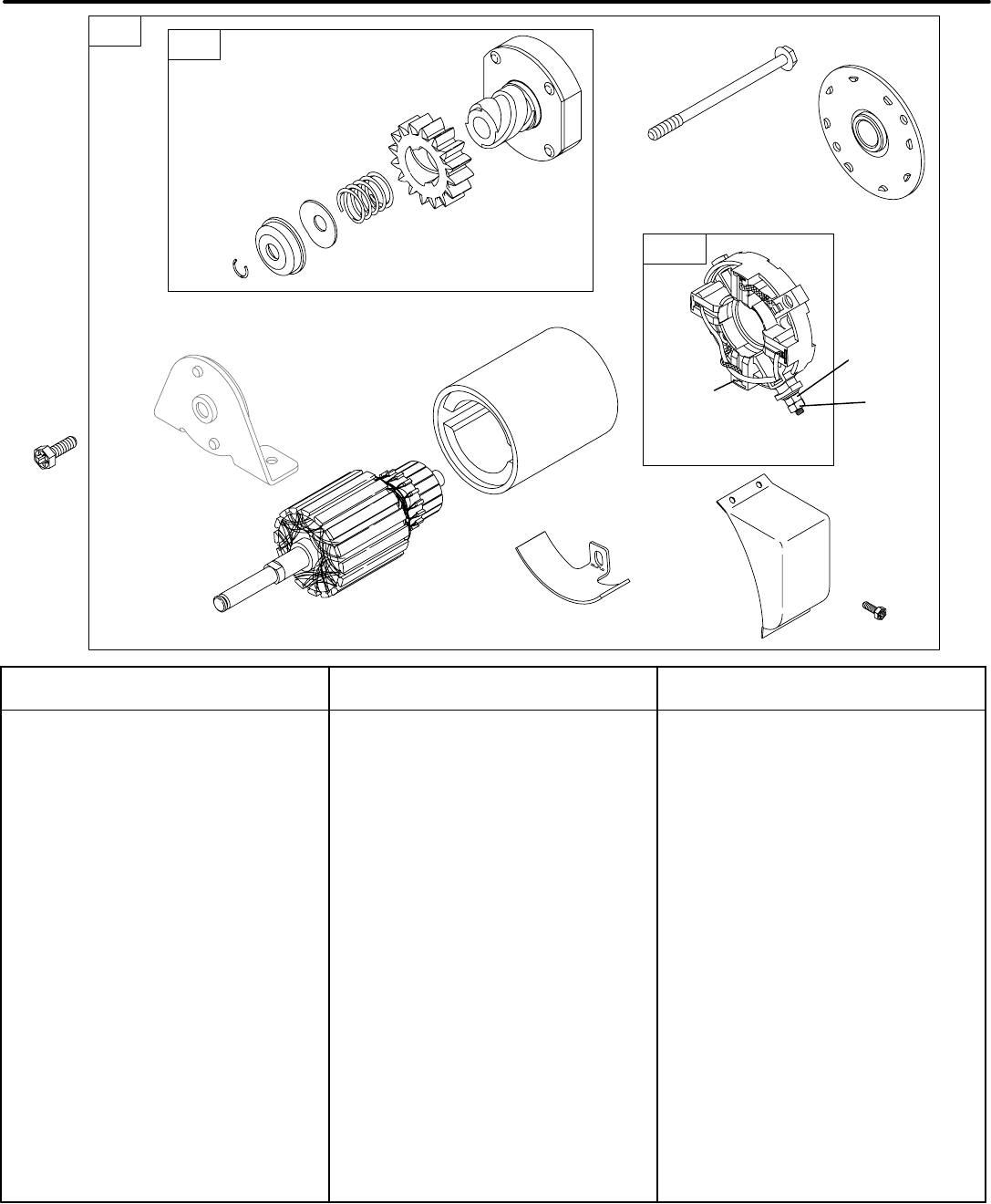

309 396306 Motor−Starter
(4 3/8” Housing
Length)
310B 691263 Bolt
(Starter Motor)
311 497608 Brush Set
510 696541 Drive−Starter
513 692024 Clutch−Drive
544 Armature−Starter
(Serviced By 396306
Starter Motor Only)
668A 396515 Spacer
(Starter Motor)
675 691261 Washer
(Brush Retainer)
697 691058 Screw
(Drive Cap)
727 692338 Cover−Starter Drive
732 93410 Screw
(Starter Drive Cover)
783 695708 Gear−Pinion
797 691029 Nut
(Brush Retainer)
801 Cap−Drive
(4 3/8” Housing
Length)
(NO LONGER
AVAILABLE)
802 691286 Cap−End
803 Housing−Starter
(Serviced With 396306
Starter Motor Only)
1051 691265 Ring−Retaining
1090 691293 Retainer−Brush
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−26 Assemblies include all parts shown in frames. 03/17/2009
26
513
896
310A
803A
544A
513
896A
783
783
503
442
510B
876
311A
802A
697
309A NOTE: For Replacement Starter Motor,
See Reference 309, Previous Page
801
510A
773A
309A Motor−Starter
(For Replacement
Starter Motor,
See Reference 309,
Previous Page)
310A 692329 Bolt
(Starter Motor)
(5 3/8” Housing
Length)
311A 395538 Brush Set
(4 3/8” Housing
Length)
−−−−−−− Note −−−−−
391705 Brush Set
(3 3/4” Housing
Length)
442 691693 Screw
(Starter Strap)
503 690406 Strap−Starter
510A 696540 Drive−Starter
(4 3/8” Housing
Length)
510B 696535 Drive−Starter
(3 3/4” Housing
Length)
513 692024 Clutch−Drive
544A Armature−Starter
(NO LONGER
AVAILABLE)
697 691058 Screw
(Drive Cap)
773A 391462 Retainer
783 695708 Gear−Pinion
801 Cap−Drive
(4 3/8” Housing
Length)
(NO LONGER
AVAILABLE)
−−−−−−− Note −−−−−
394859 Cap−Drive
(3 3/4” Housing
Length)
802A 395537 Cap−End
803A 494205 Housing−Starter
876 696539 Kit−Pinion Spring
896 691641 Pin−Drive Retainer
(Copper)
896A 94192 Pin−Drive Retainer
(Black)
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
243400
5424−27 Assemblies include all parts shown in frames. 03/17/2009
27
51
9
9A
51A
593A
569
245
639
593
883
20
7524
358 ENGINE GASKET SET
550
87
121 CARBURETOR OVERHAUL KIT
127
150
102
104
51
142
134
94
20A
1227
7 692230 Gasket−Cylinder Head
9 27803s Gasket−Breather
9A 66214 Gasket−Breather
20 291675s Seal−Oil
(PTO Side)
20A 299819s Seal−Oil
(PTO Side)
51 692214 Gasket−Intake
51A 27381s Gasket−Intake
87 391086s Seal−Gear Reduction
94 292681 Kit−Idle Mixture
102 692215 Gasket−Carburetor
Body
104 691775 Pin−Float Hinge
121 394989 Kit−
Carburetor Overhaul
(Used After Code Date
81101100).
−−−−−−− Note −−−−−
391071 Kit−
Carburetor Overhaul
(Used Before Code
Date 81101200).
127 690627 Plug−Welch
134 394681 Kit−Needle/Seat
142 691966 Nozzle−Carburetor
(Standard)
(Labeled B)
(Used After Code Date
81101100).
−−−−−−− Note −−−−−
390950 Nozzle−
Carburetor
(Standard)
(Labeled B)
(#40 Jet)
(Used Before Code
Date 81101200).
150 691610 Gasket−Nozzle
245 692190 Gasket−Fuel Bowl
358 299101 Gasket Set−Engine
524 281370s Seal−Dipstick Tube
550 22353 Washer
(Valve Cover)
569 691569 Gasket−Engine Base
593 691311 Gasket−Bearing
Support
(.015 Thick)
593A 690268 Gasket−Bearing
Support
(.015 Thick)
−−−−−−− Note −−−−−
27374 Gasket−
Bearing Support
(.005 Thick)
27375 Gasket−
Bearing Support
(.009 Thick)
639 692913 Gasket−Breaker Box
883 692236 Gasket−Exhaust
1227 99525 Valve−High Speed
Engine Gasket Set−Reference 358 Carburetor Overhaul Kit−Reference 121
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
Not for
Reproduction
