XR CA600X/CA620X Sony Cassette Player CA600X 191572d1405591219 Ca620x
User Manual: Sony Cassette Player XR-CA600X
Open the PDF directly: View PDF
.
Page Count: 36
- COVER
- TABLE OF CONTENTS
- GENERAL
- DISASSEMBLY
- ASSEMBLY OF MECHANISM DECK
- MECHANICAL ADJUSTMENTS
- ELECTRICAL ADJUSTMENTS
- DIAGRAMS
- NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

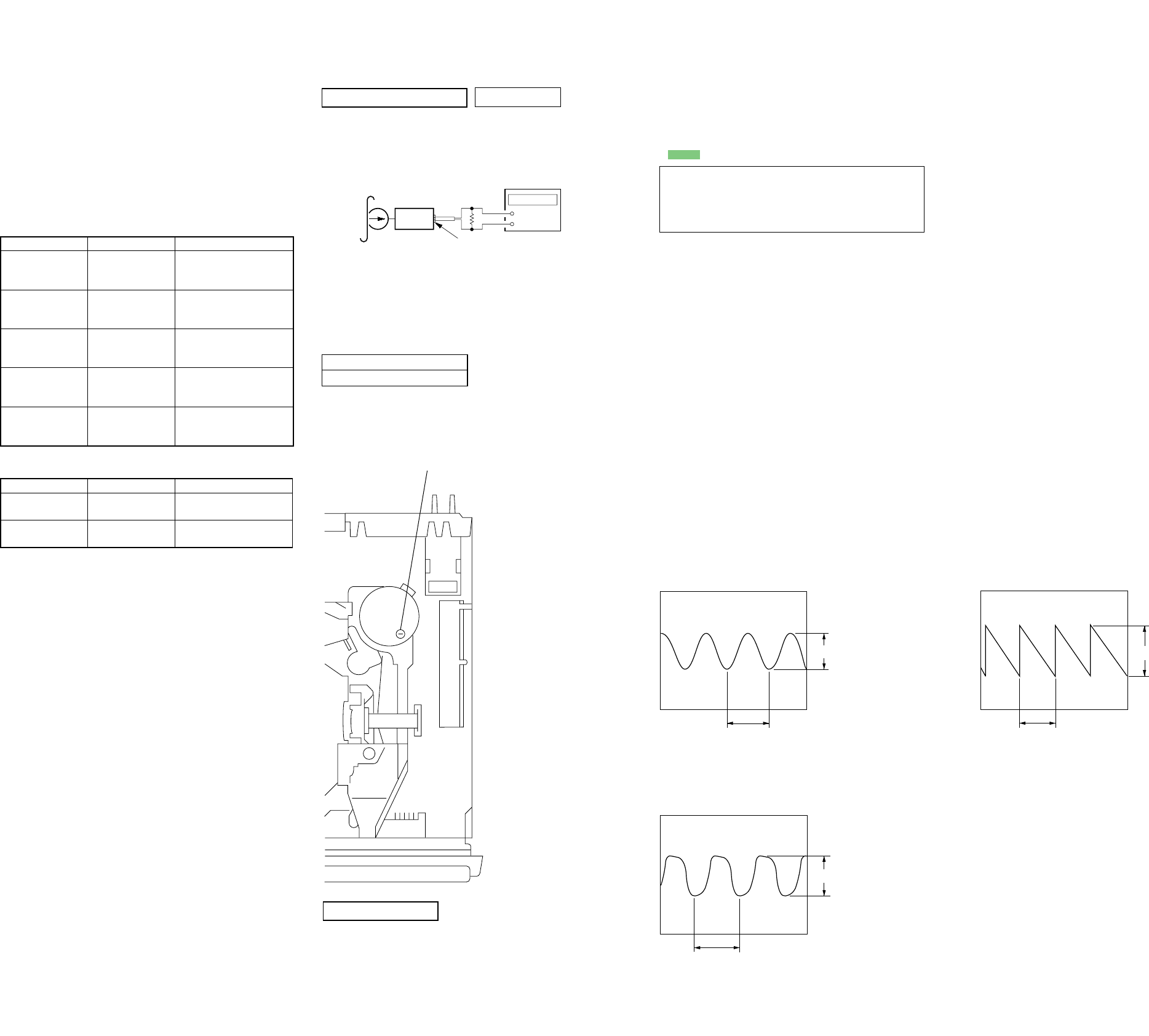

- Waveforms

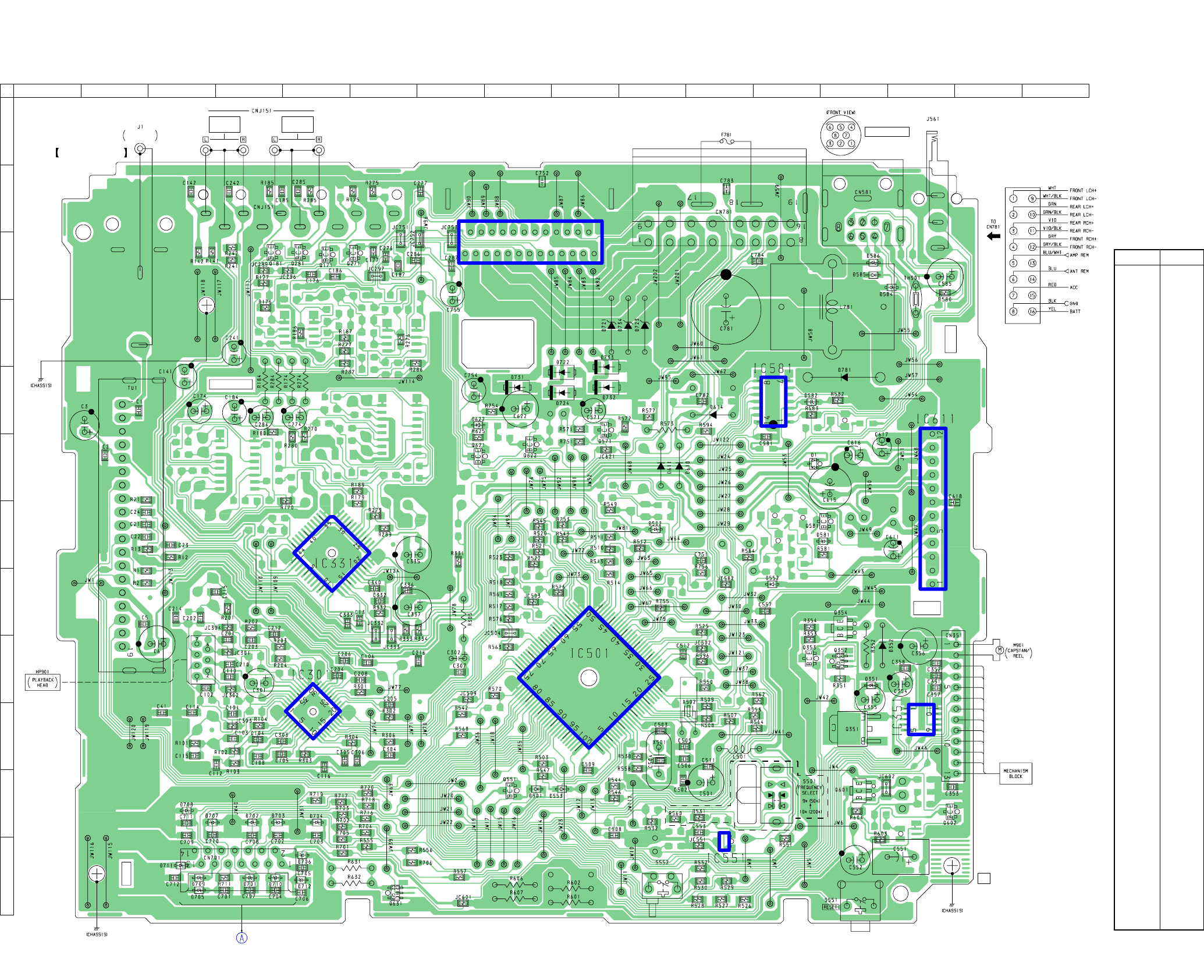

- PRINTED WIRING BOARD – MAIN Board –
- SCHEMATIC DIAGRAM – MAIN Board (1/3) –

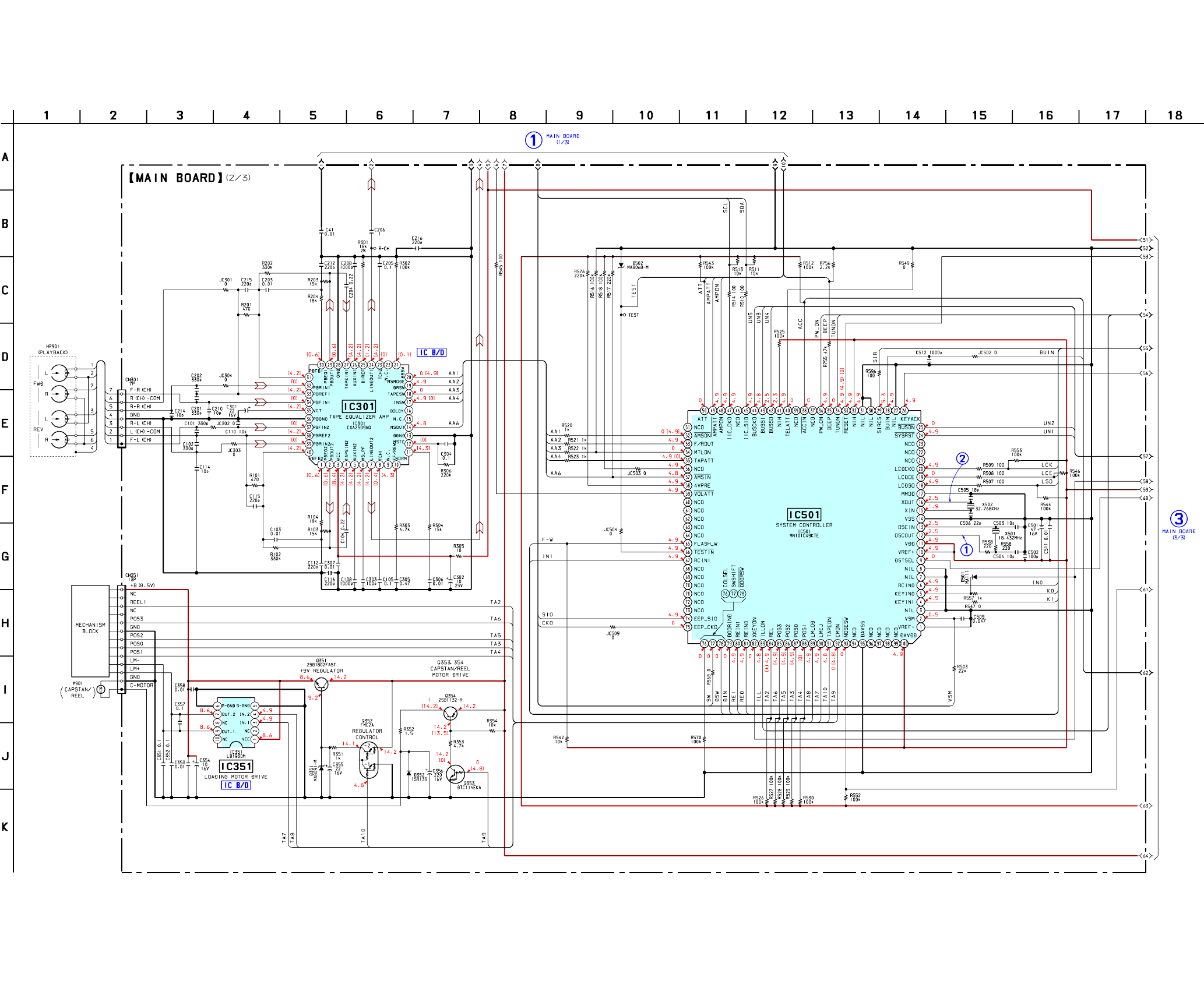

- SCHEMATIC DIAGRAM – MAIN Board (2/3) –

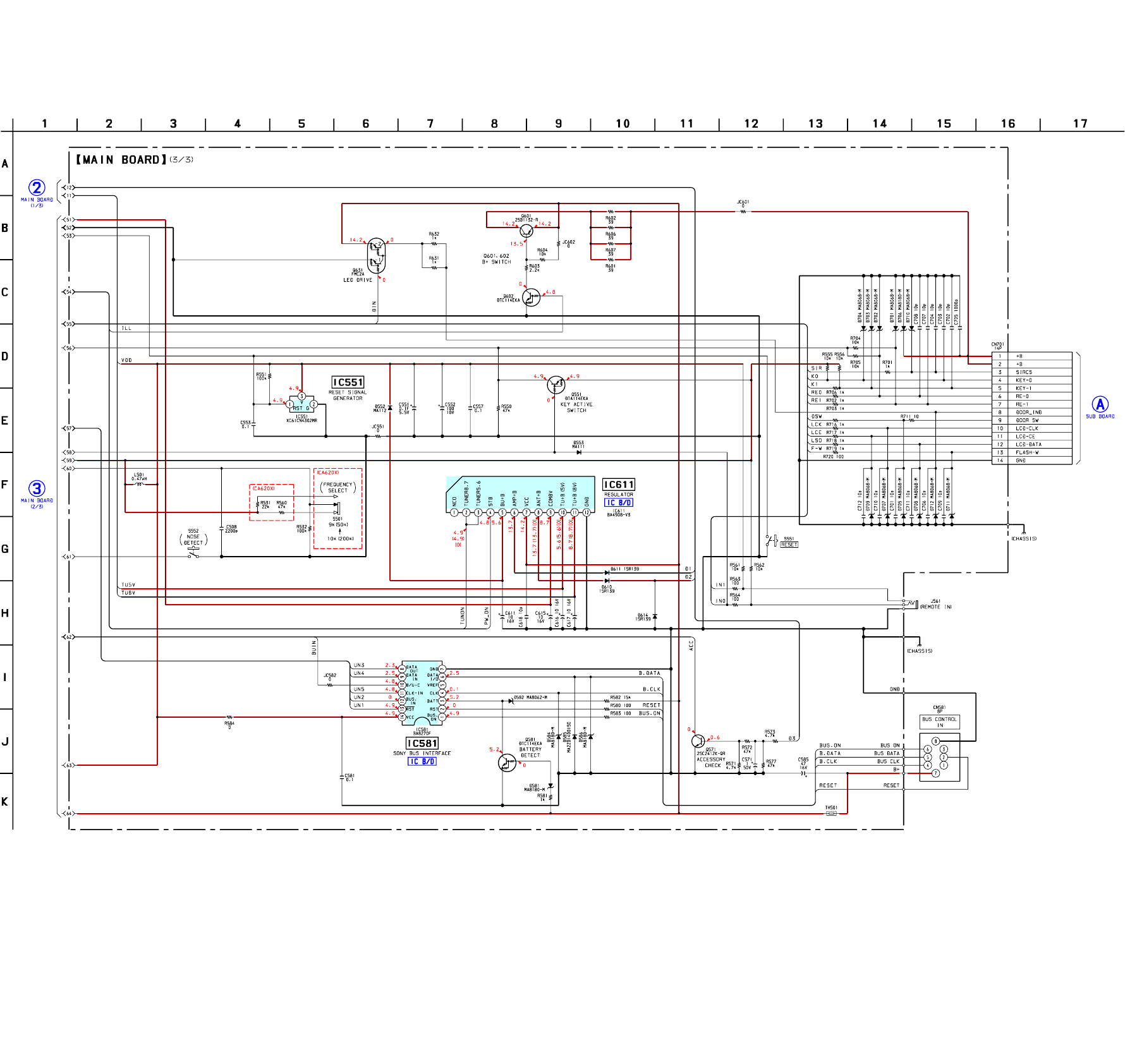

- SCHEMATIC DIAGRAM – MAIN Board (3/3) –

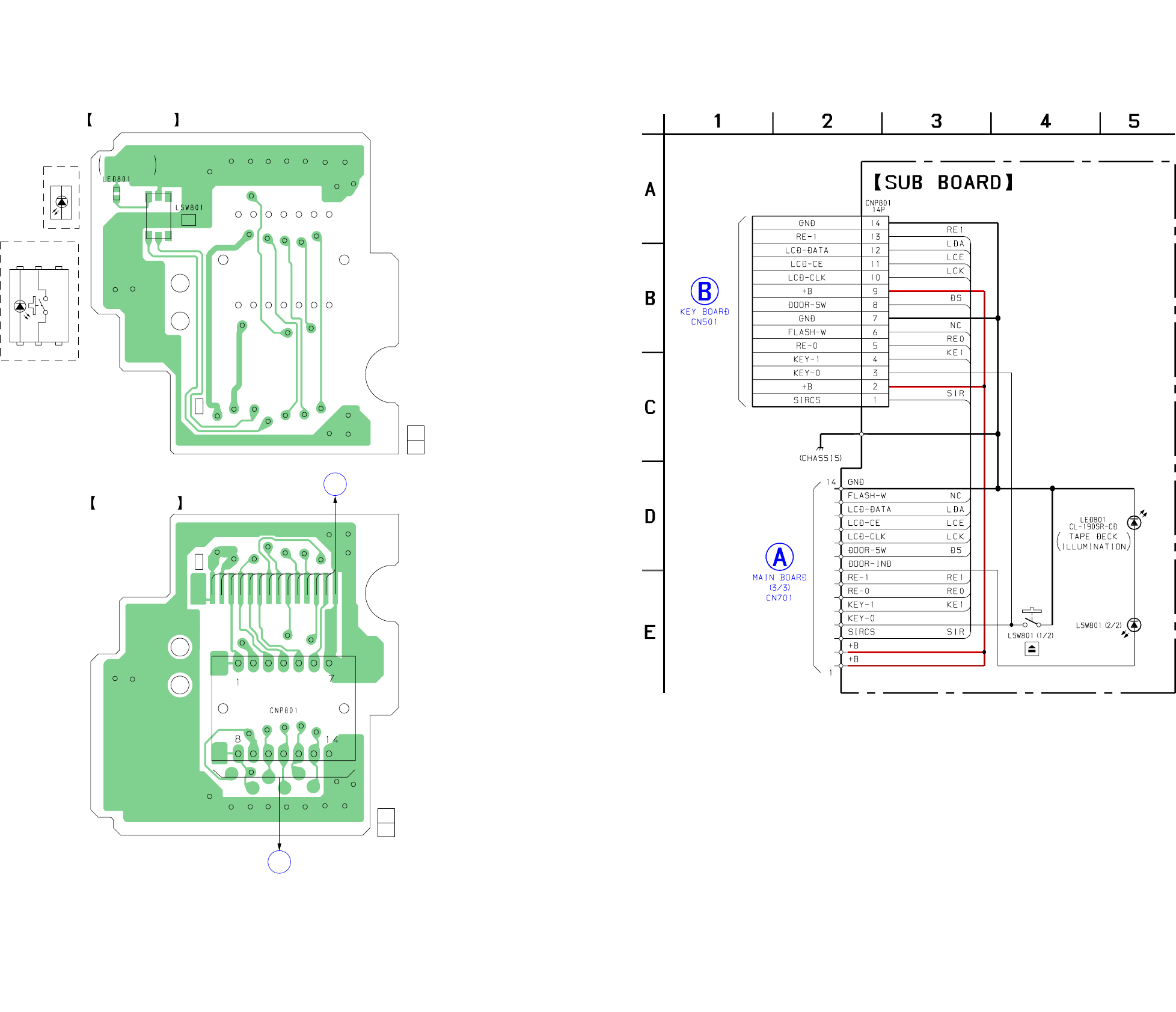

- PRINTED WIRING BOARD – SUB Board –
- SCHEMATIC DIAGRAM – SUB Board –

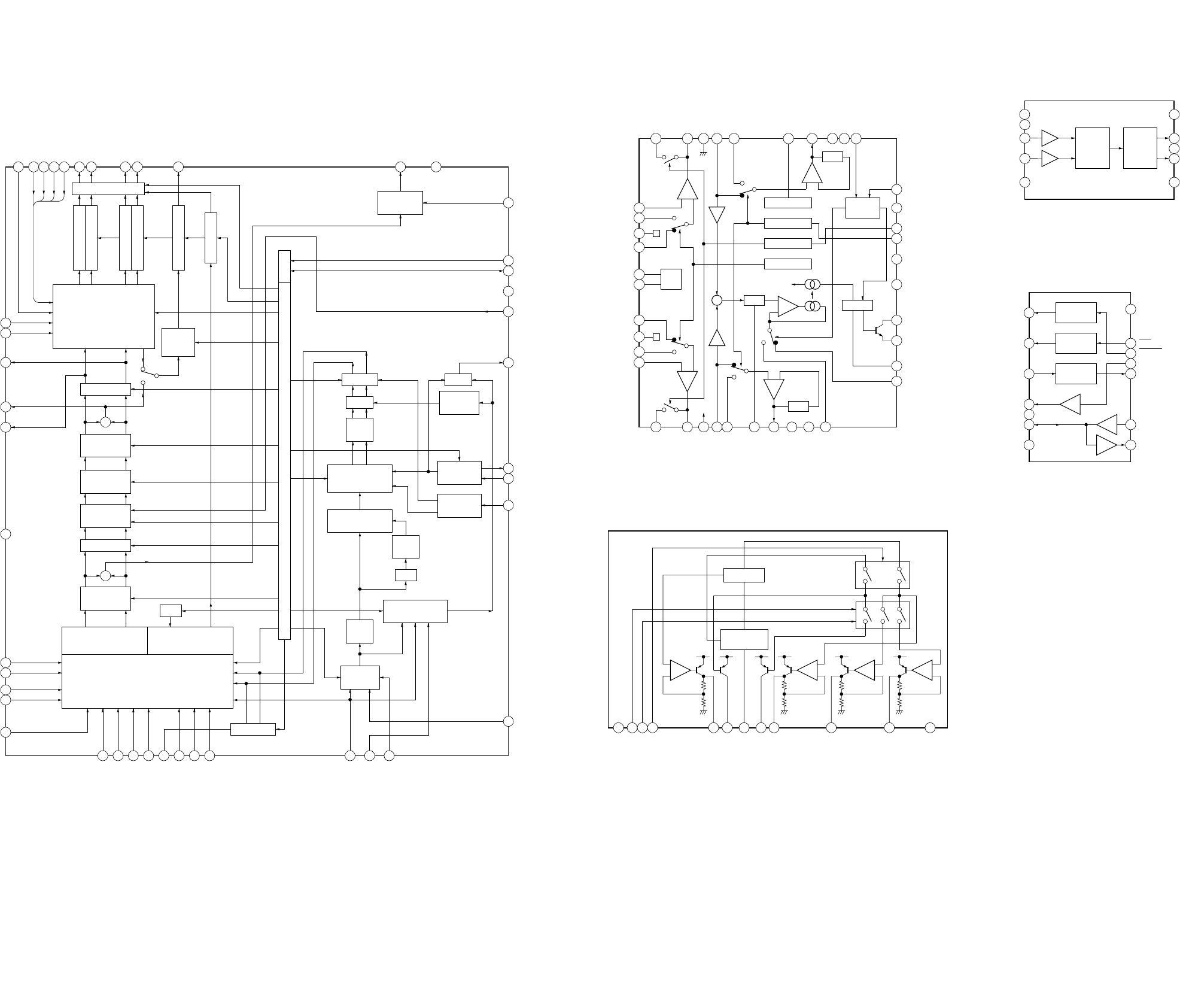

- IC Block Diagrams

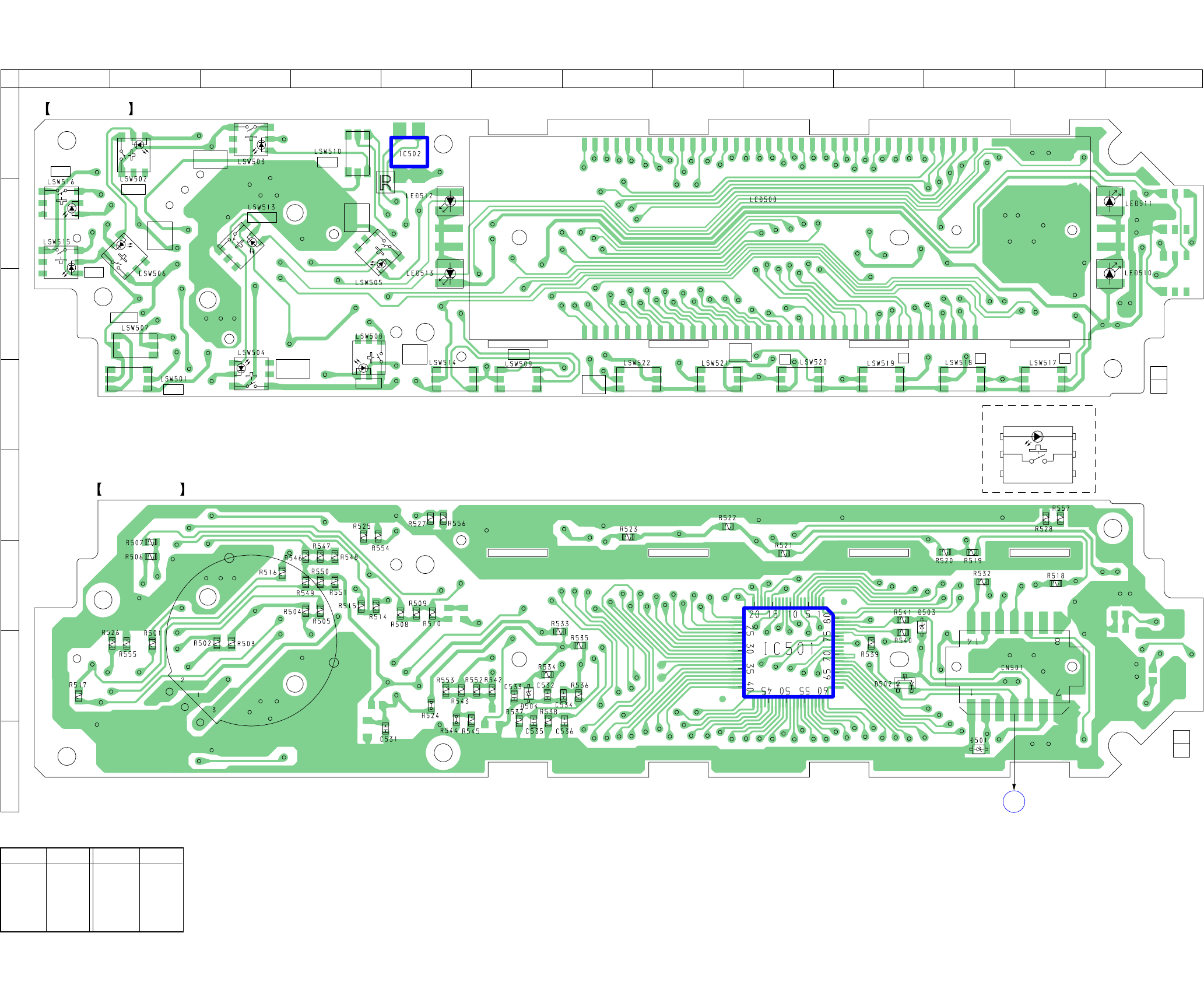

- PRINTED WIRING BOARD – KEY Board –

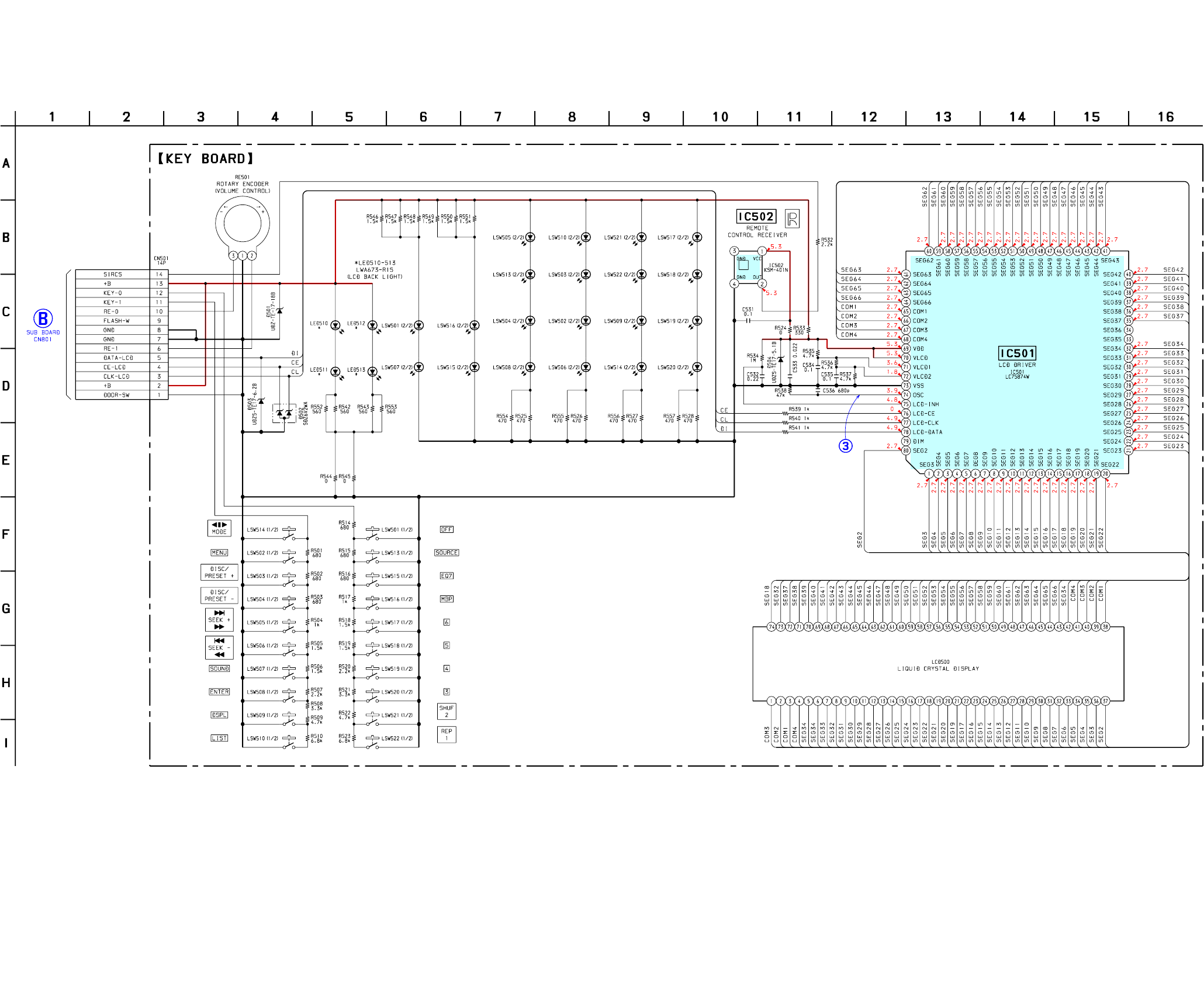

- SCHEMATIC DIAGRAM – KEY Board –
- IC PIN FUNCTION DESCRIPTION
- EXPLODED VIEWS
- ELECTRICAL PARTS LIST
- REVISION HISTORY
SERVICE MANUAL
Model Name Using Similar Mechanism XR-C5300X/C5600X
Tape Transport Mechanism Type MG-25F-136
FM/AM CASSETTE CAR STEREO
US Model
Canadian Model
XR-CA600X
E Model
XR-CA620X
SPECIFICATIONS
XR-CA600X/CA620X
Photo: XR-CA600X
Ver 1.0 2001.02
9-870-248-11 Sony Corporation
2001B0500-1 Audio Entertainment Group
C 2001.2 General Engineering Dept.
Cassette Player section
Tape track 4-track 2-channel stereo
Wow and flutter 0.08 % (WRMS)
Frequency response 30 – 18,000 Hz
Signal-to-noise ratio
Tuner section
FM
T
XR-CA600X:
XR-CA620X:
uning range
FM tuning interval:
50 kHz/200 kHz switchable
87.5 – 108.0 MHz
(at 50 kHz step)
87.5 – 107.9 MHz
87.5 – 107.9 MHz
(at 200 kHz step)
Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 66 dB (stereo),
72 dB (mono)
Harmonic distortion at 1 kHz
0.6 % (stereo),
0.3 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
MW (XR-CA620X)
Tuning range MW tuning interval:
9 kHz/10 kHz switchable
531 – 1,602 kHz
(at 9 kHz step)
530 – 1,710 kHz
(at 10 kHz step)
SW (XR-CA620X)
Tuning range SW tuning interval:
SW1: 2,940 – 7,735 kHz
SW2: 9,500 – 18,135 kHz
(except for 10,140 – 11,575
kHz)
Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV (at MW)
40 µV (at SW)
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 50 W × 4 (at 4 ohms)
General
Outputs Audio outputs
Power aerial relay control
lead
Power amplifier control lead
Inputs BUS control input
connector
BUS audio input connector
Remote controller input
connector
Aerial input connector
Tone controls Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 kHz
Loudness 100 Hz +8 dB
10 kHz +2 dB
Power requirements 12 V DC car battery
(negative earth)
Dimensions Approx. 178 × 50 × 176
mm (w/h/d)
Mounting dimensions Approx. 182 × 53 × 161
mm (w/h/d)
Mass Approx. 1.2 kg
Supplied accessories Card
(XR-CA620X only) (1)
remote commander
Parts for installation and
connections (1 set)
Front panel case (1)
Note
This unit cannot be connected to a digital preamplifier
or an equalizer.
Design and specifications are subject to change
without notice.
Cassette type
TYPE II, IV 61 dB
TYPE I 58 dB
AUDIO POWER SPECIFICATIONS (US model only)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23 watts per channel minimum continuous average power into 4 ohms, 4 channels
driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.
AM (XR-CA600X)
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
2
XR-CA600X/CA620X
TABLE OF CONTENTS
1. GENERAL
Location of Controls ....................................................... 3
Setting the Clock ............................................................. 5
2. DISASSEMBLY

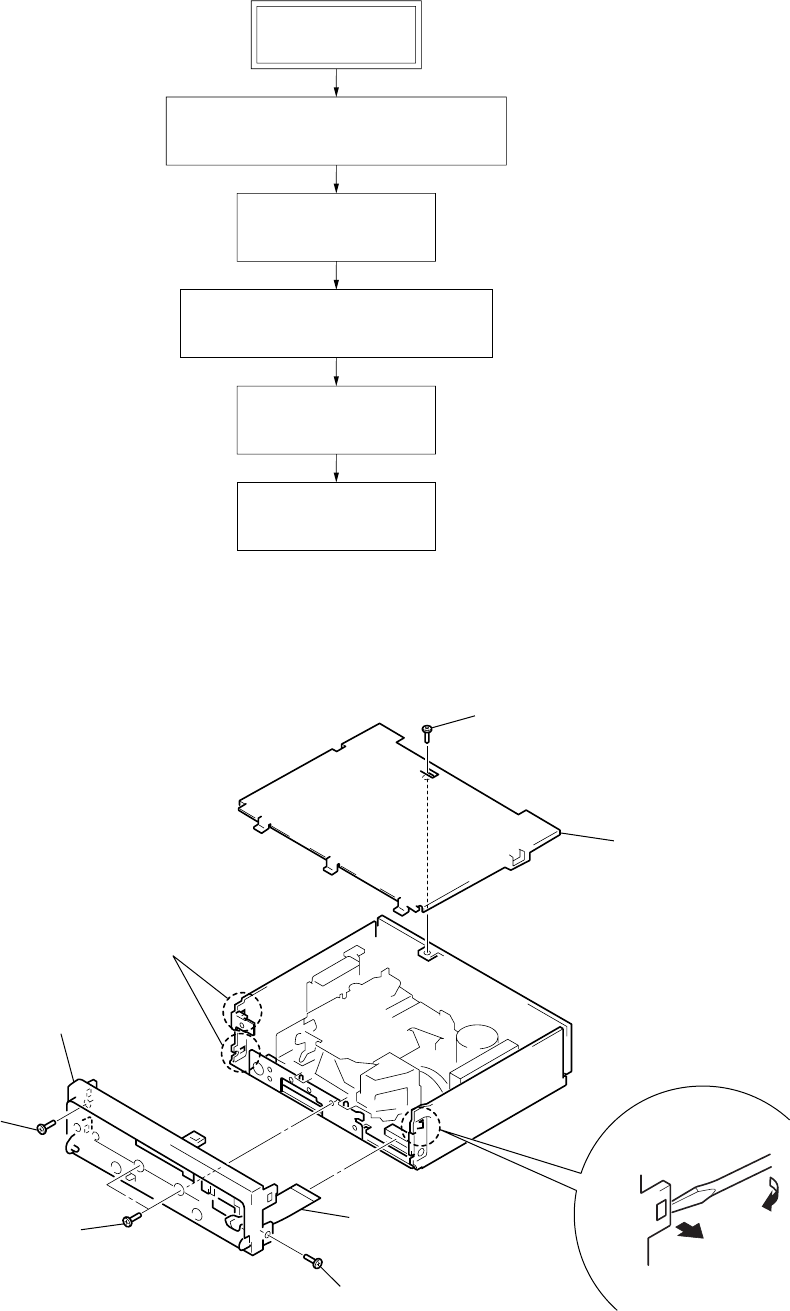

2-1. Disassembly Flow ........................................................... 9
2-2. Sub Panel Assy ................................................................ 9

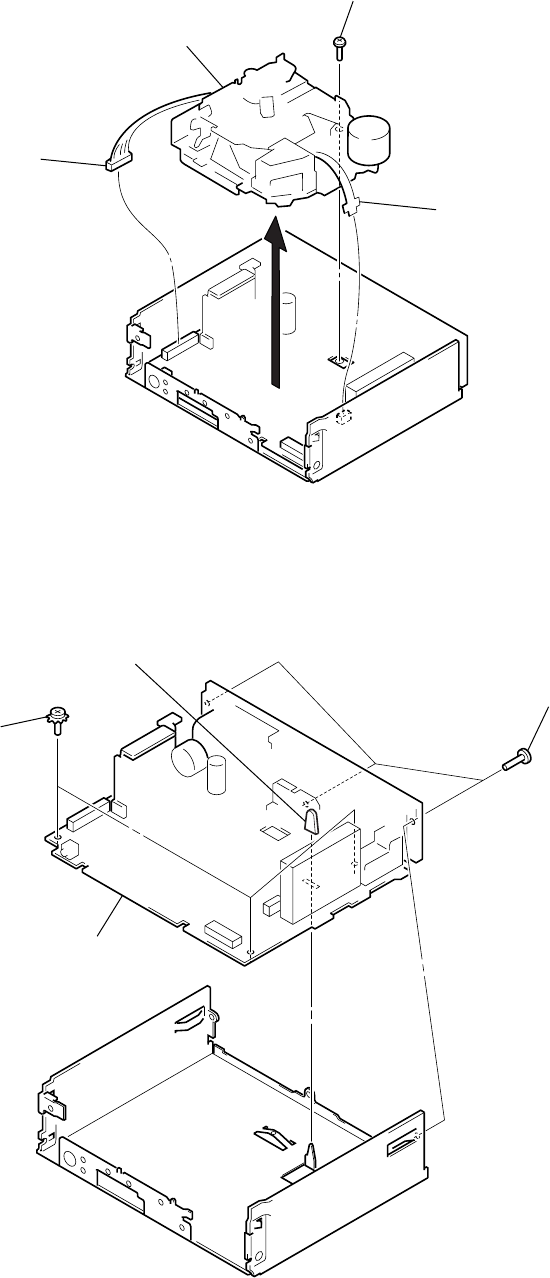

2-3. Mechanism Deck (MG-25F-136) ................................... 10
2-4. MAIN Board ................................................................... 10

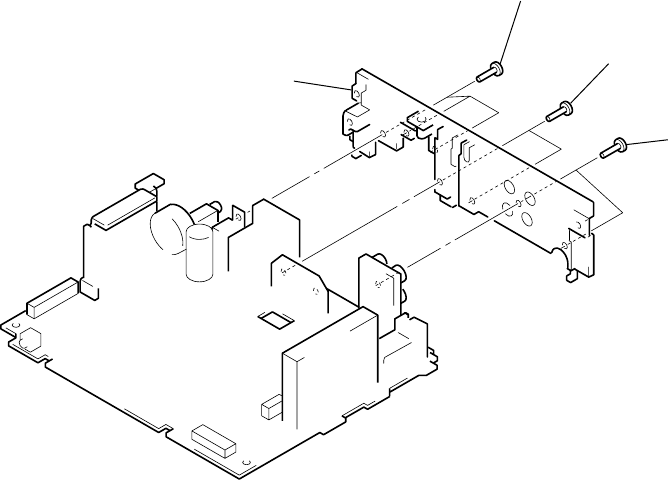

2-5. Heat Sink (2P) ................................................................. 11

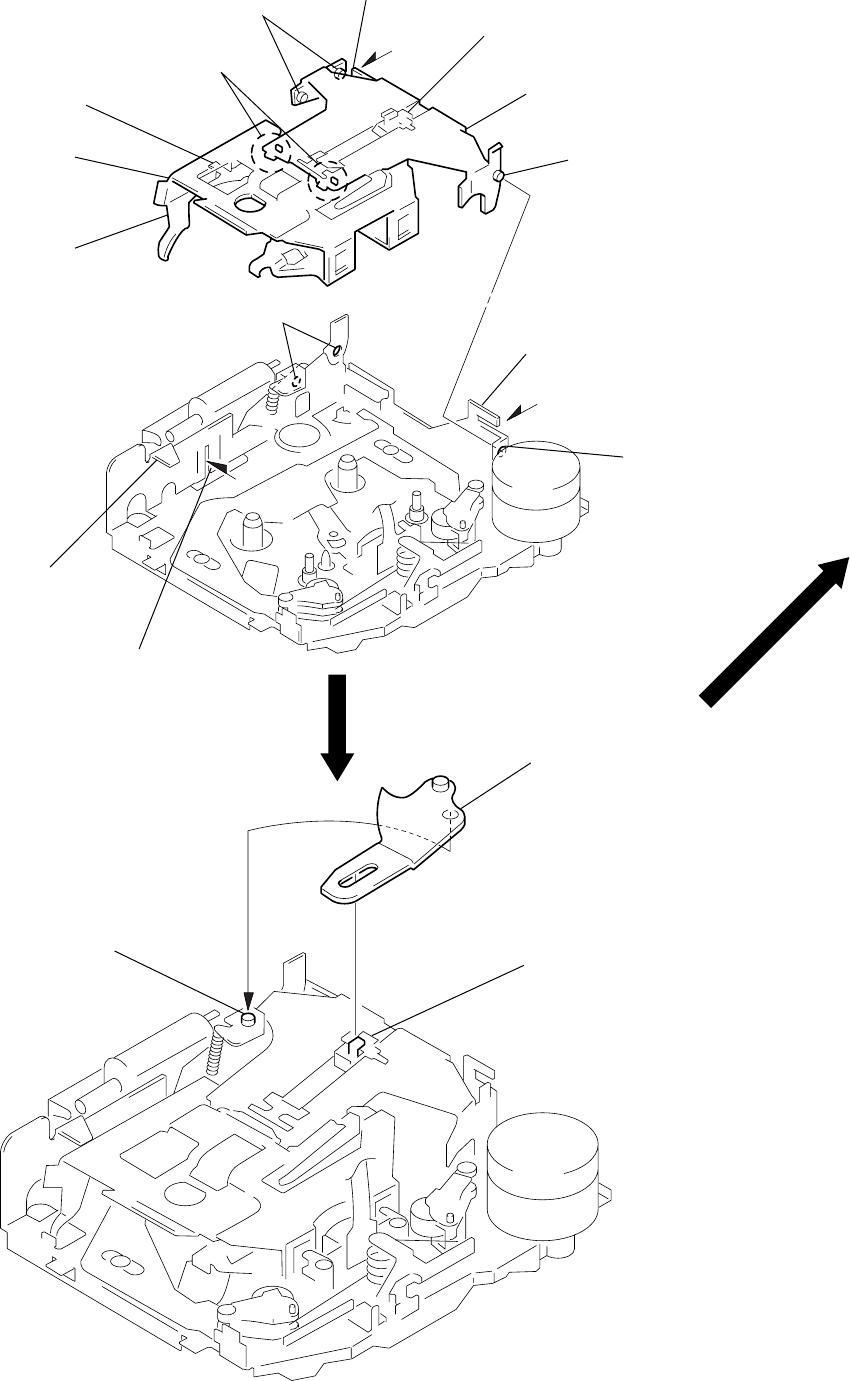

3. ASSEMBLY OF MECHANISM DECK
3-1. Housing ........................................................................... 12
3-2. Arm (Suction) ................................................................. 12
3-3. Lever (LDG-A)/(LDG-B) ............................................... 13
3-4. Gear (LDG-FT) ............................................................... 13
3-5. Guide (C) ......................................................................... 14

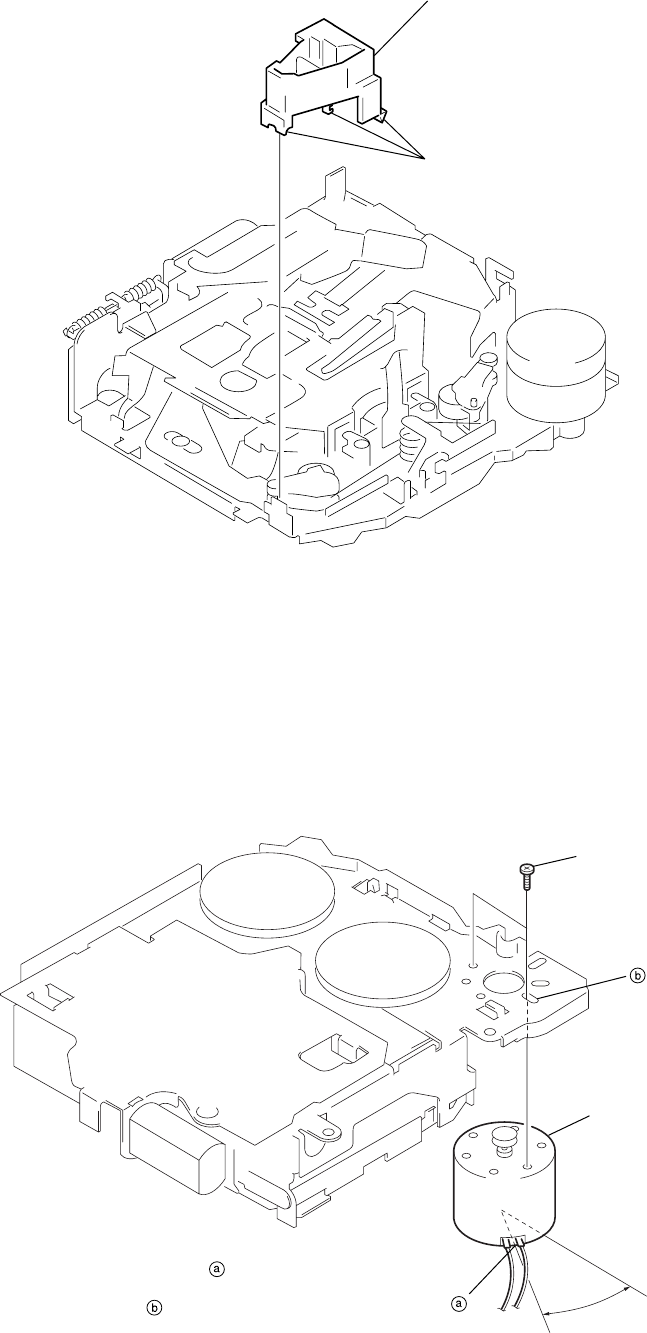

3-6. Mounting Position of Capstan/reel Motor (M901) ........ 14
4. MECHANICAL ADJUSTMENTS ....................... 15
5. ELECTRICAL ADJUSTMENTS
Tape Deck Section .......................................................... 15
Tuner Section .................................................................. 15
6. DIAGRAMS
6-1. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 15
6-2. Printed Wiring Board – MAIN Board –......................... 16

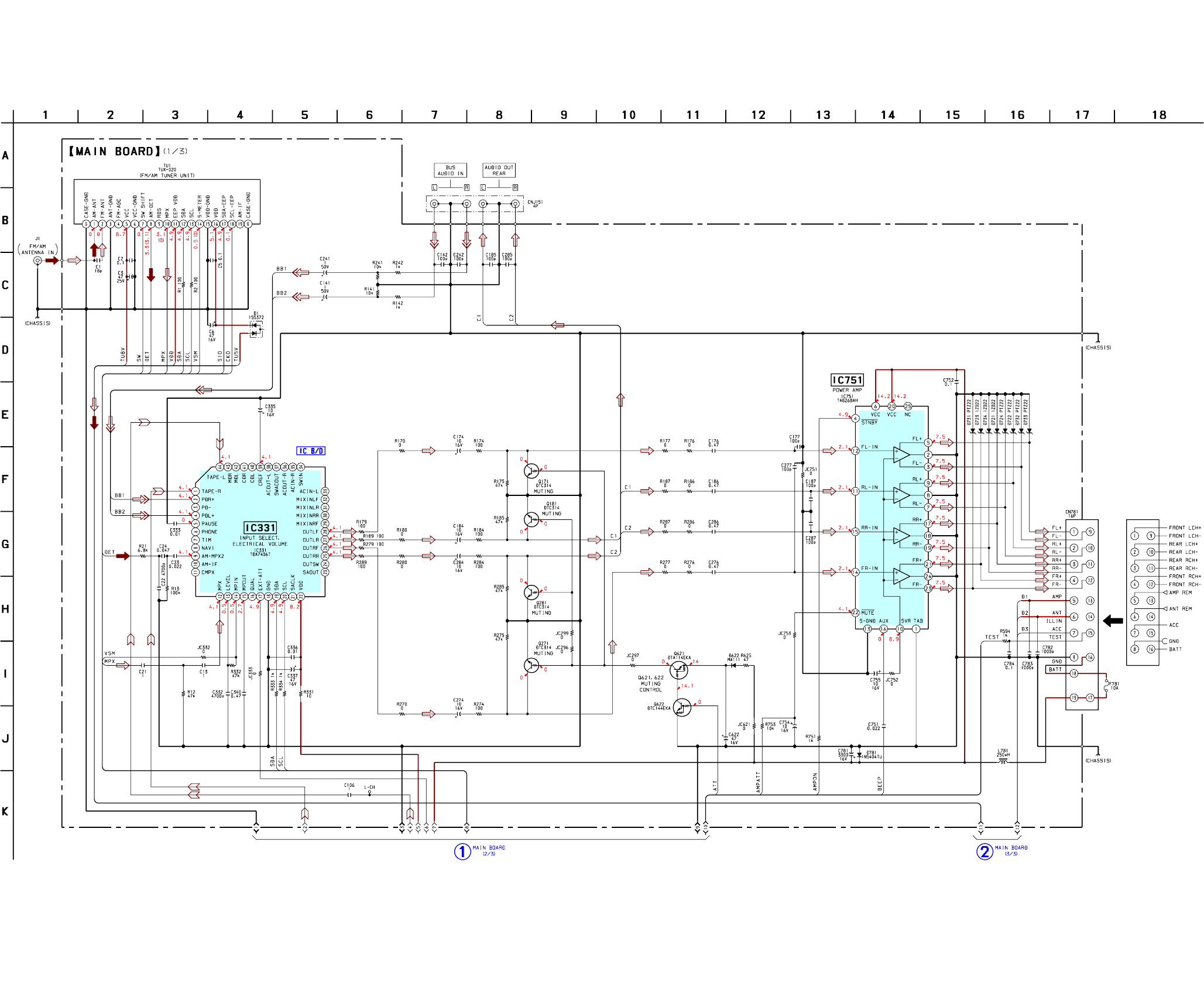

6-3. Schematic Diagram – MAIN Board (1/3) –................... 17
6-4. Schematic Diagram – MAIN Board (2/3) –................... 18
6-5. Schematic Diagram – MAIN Board (3/3) –................... 19
6-6. Printed Wiring Board – SUB Board –............................ 20
6-7. Schematic Diagram – SUB Board –............................... 20
6-8. Printed Wiring Board – KEY Board –............................ 22
6-9. Schematic Diagram – KEY Board –.............................. 23
6-10. IC Pin Function Description ........................................... 24
7. EXPLODED VIEWS

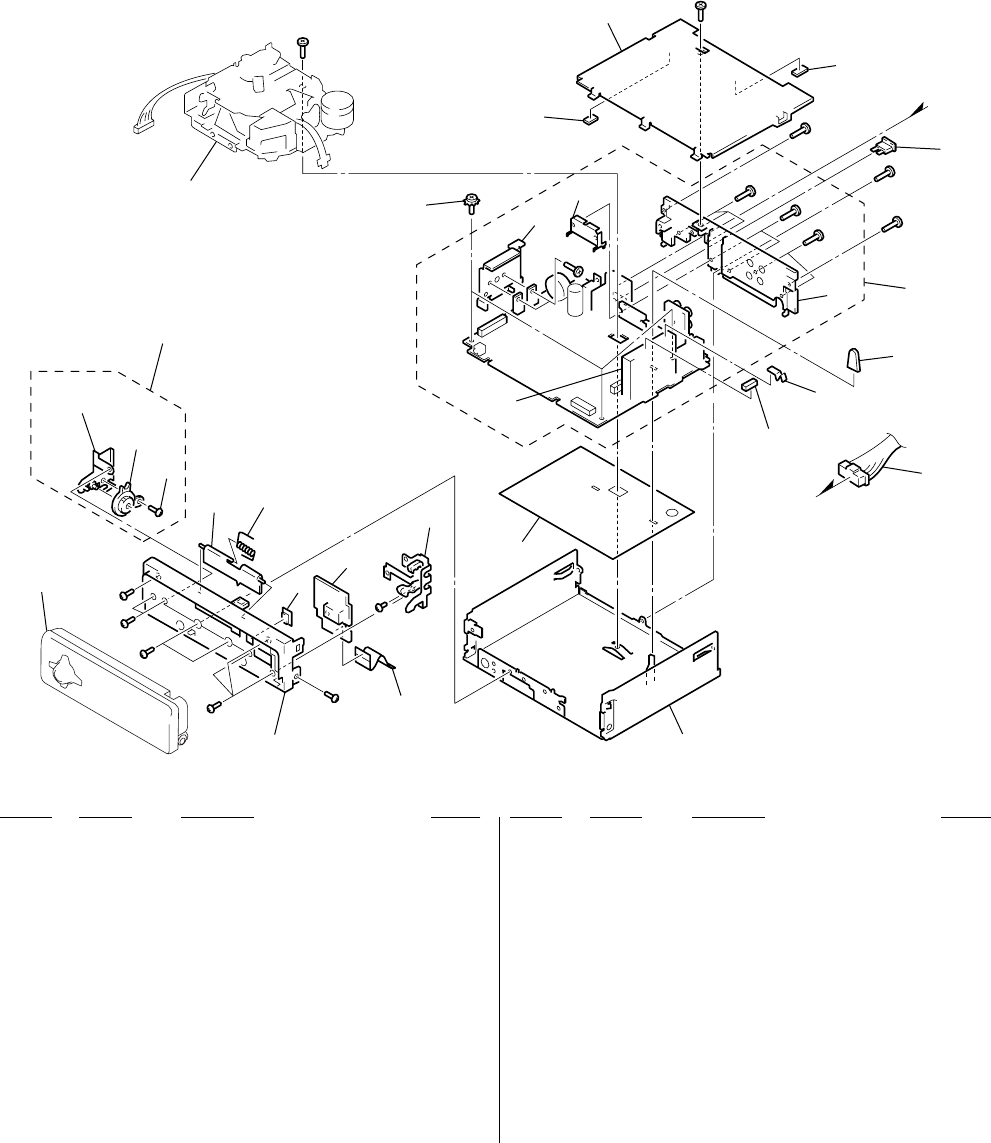

7-1. General Section ............................................................... 26

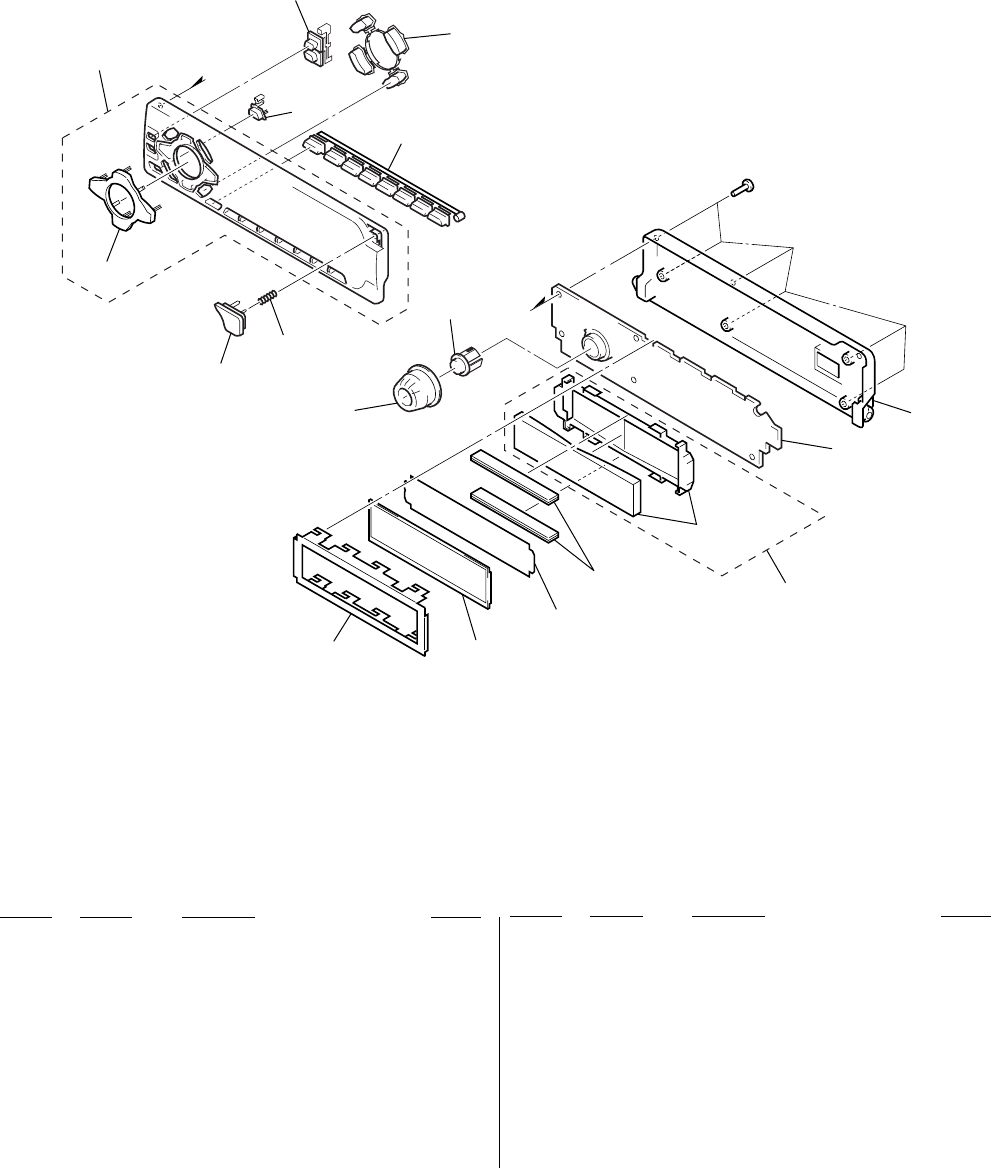

7-2. Front Panel Section ......................................................... 27

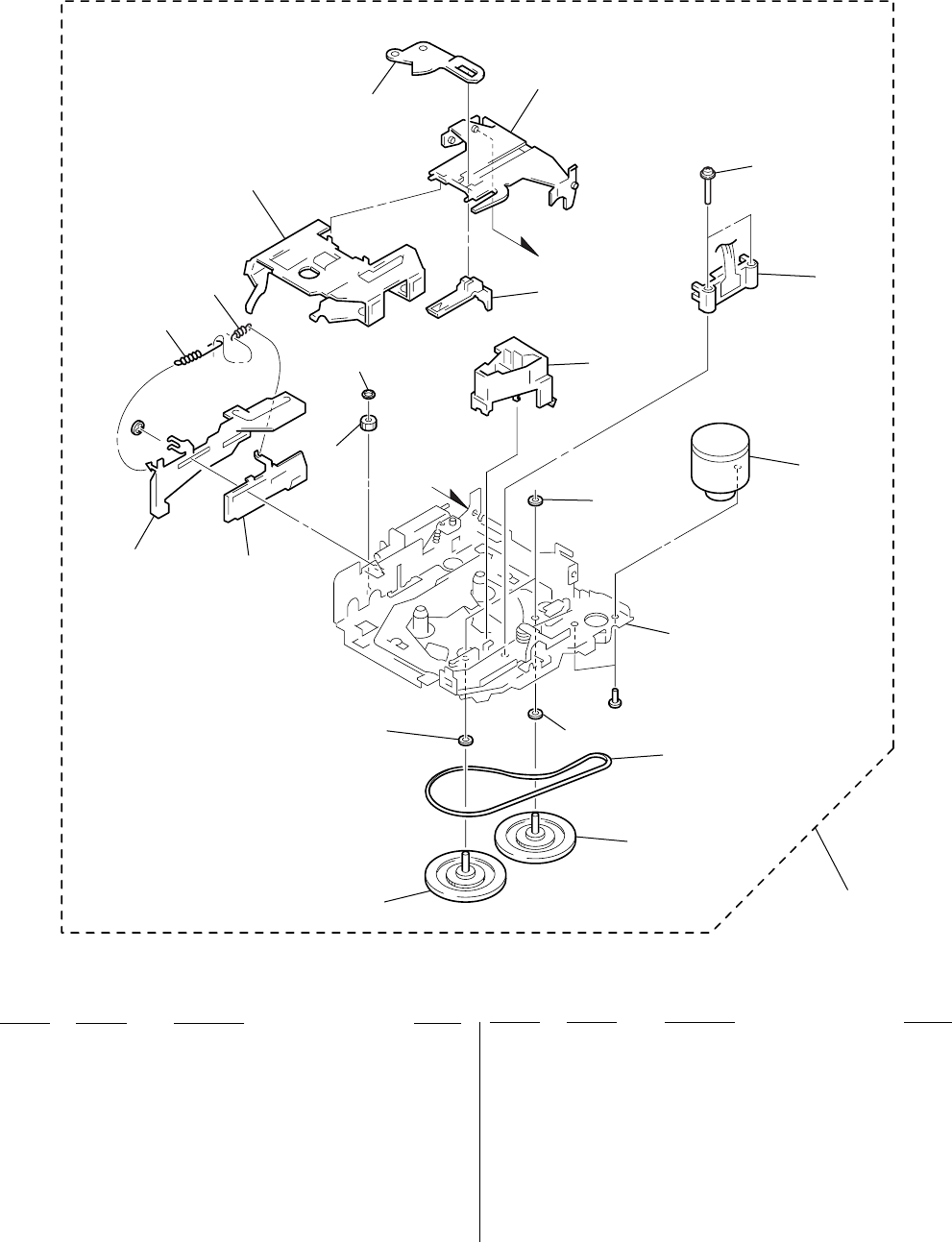

7-3. Mechanism Deck Section (MG-25F-136) ...................... 28
8. ELECTRICAL PARTS LIST ............................... 29
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
3
XR-CA600X/CA620X
SECTION 1
GENERAL This section is extracted from
instruction manual.
4

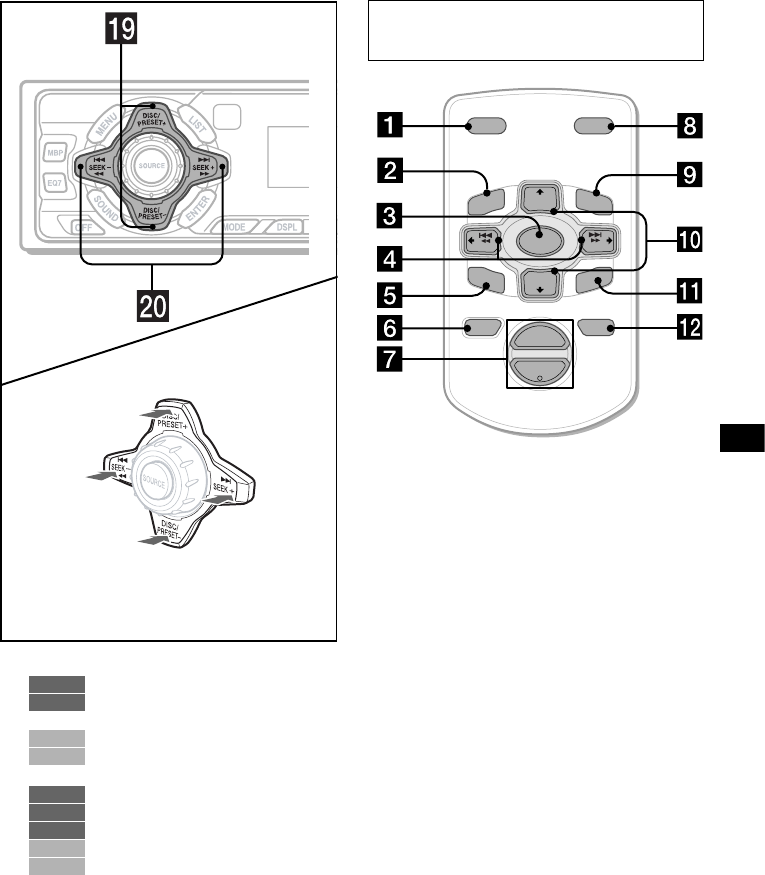

Location of controls
Refer to the pages listed for details.
: During tape playback : During radio reception : During menu mode
: During CD/MD playback (optional) : During TV reception (optional)
aMBP button 16
bMENU button 8, 9, 10, 11, 12, 15, 16,
17, 19, 20, 21, 22
cVolume control dial
dLIST button
11, 12
19, 20
eReceptor for the card remote
commander
fSOURCE (Power on/Tape/Radio/CD/
MD/TV) button 5, 9, 10, 11, 16, 17, 19,
21, 22, 23
gDisplay window
hZ (eject) button (located on the front side
of the unit, behind the front panel) 9, 23
iOPEN button 7, 9
jEQ7 button 16
kRESET button (located on the front side of
the unit, behind the front panel) 7
lOFF (Stop/Power off) button* 5, 7, 9,
17
mFrequency select switch (located on
th
(XR-CA620X only)
e bottom of the unit)
See “Frequency select switch” in the
Installation/Connections manual.
nSOUND button 14, 16
oENTER button
12
8, 9, 10, 11, 12, 15, 16, 17, 19,
20, 21, 22, 23
19, 20
pMODE (o) button
9
10, 11
17, 19
21
qDSPL (display mode change) button
12, 18, 19
rNumber buttons
(1) REP 9
10, 11
(1) REP 18
(2) SHUF 18
22
*Warning when installing in a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
(OFF) on the unit for 2 seconds to turn off the
clock display.
Otherwise, the clock display does not turn off and
this causes battery drain.
TAPE RADIO MENU
CD/MD TV
RADIO
CD/MD
RADIO
MENU
CD/MD
TAPE
RADIO
CD/MD
TV
TAPE
RADIO
CD/MD
TV
4
XR-CA600X/CA620X
5
sDISC/PRESET buttons (+/–)
10, 11, 12
8, 9, 10, 11, 12, 15, 16, 17, 19,
20, 21, 22
17, 19, 20
21
tSEEK buttons (–/+)
9
10, 11
8, 9, 14, 15, 16, 17, 21
17, 19, 20
22, 23
The corresponding buttons of the card
remote commander control the same
functions as those on this unit.
aDSPL button
bMENU button
cSOURCE button
dSEEK (</,) buttons
eSOUND button
fOFF button
gVOL (–/+) buttons
hMODE button
iLIST button
jDISC/PRESET(M/m) buttons
kENTER button
lATT button
Note
If the units is turned off by pressing (OFF) for 2
seconds, it cannot be operated with the card remote
commander unless (SOURCE) on the unit is pressed,
or a cassette is inserted to activate the unit first.
Tip
Refer to “Replacing the lithium battery” for details on
how to replace the batteries (page 24).
(SEEK)
(–):to select
leftwards/
.
(SEEK)
(+):to select
rightwards/
>
(DISC/PRESET)
(+): to select upwards
In menu mode, the currently selectable button (s)
of these four are indicated with a “ M” in the display.
(DISC/PRESET)
(–): to select downwards
RADIO
MENU
CD/MD
TV
TAPE
RADIO
MENU
CD/MD
TV
Card remote commander RM-X114
(XR-CA620X only)
DISC
–
ATTOFF
DSPL MODE
SOURCE
DISC
+
VOL
+
–
PRESET
+
SEEK
+
SEEK
–
PRESET –
SOUND
ENTER
MENU
LIST
5
XR-CA600X/CA620X

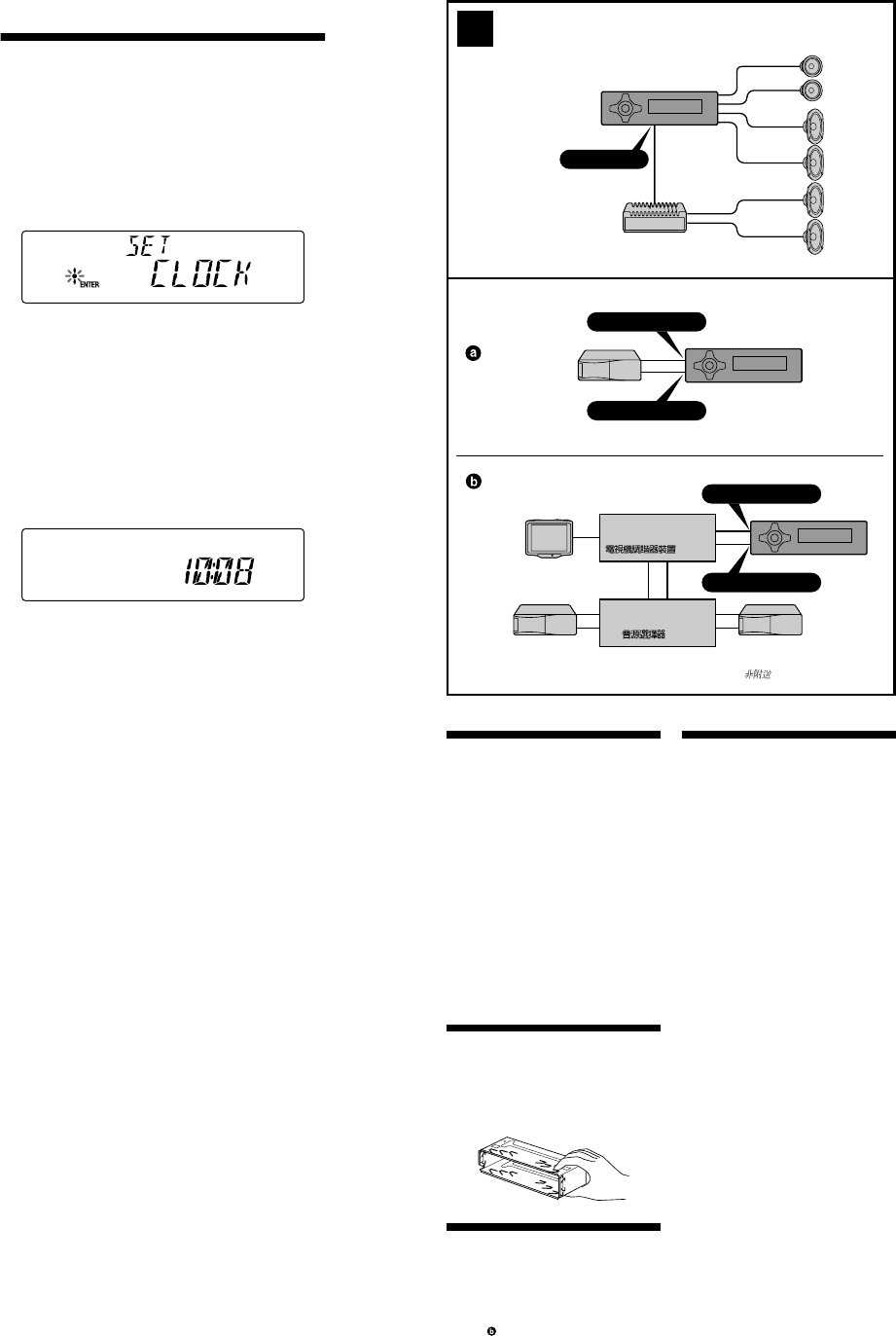

Setting the clock
The clock uses a 12-hour digital indication.
Example: To set the clock to 10:08
1
Press (MENU), then press either side
of (DISC/PRESET) repeatedly until
“CLOCK” appears.
1Press (ENTER).
The hour indication flashes.
2Press either side of (DISC/PRESET)
to set the hour.
3Press the (+) side of (SEEK).
The minute indication flashes.
4Press either side of (DISC/PRESET)
to set the minute.
2
Press (ENTER).
The clock starts. After the clock setting is
completed, the display returns to normal play
mode.
Tip
When D.INFO mode is set to ON, the time is always
displayed (page 15).
Cautions
•This unit is designed for negative earth 12 V
DC operation only.
•Do not get the wires under a screw, or caught
in moving parts (e.g. seat railing).
•Before making connections, disconnect the
earth terminal of the car battery to avoid short
circuits.
•Connect the yellow and red power input leads
only after all other leads have been connected.
•Run all earth wires to a common earth
point.
•Be sure to insulate any loose unconnected
wires with electrical tape for safety.
Notes on the power supply cord (yellow)
•When connecting this unit in combination with
other stereo components, the connected car
circuit’s rating must be higher than the sum of
each component’s fuse.
•When no car circuits are rated high enough,
connect the unit directly to the battery.

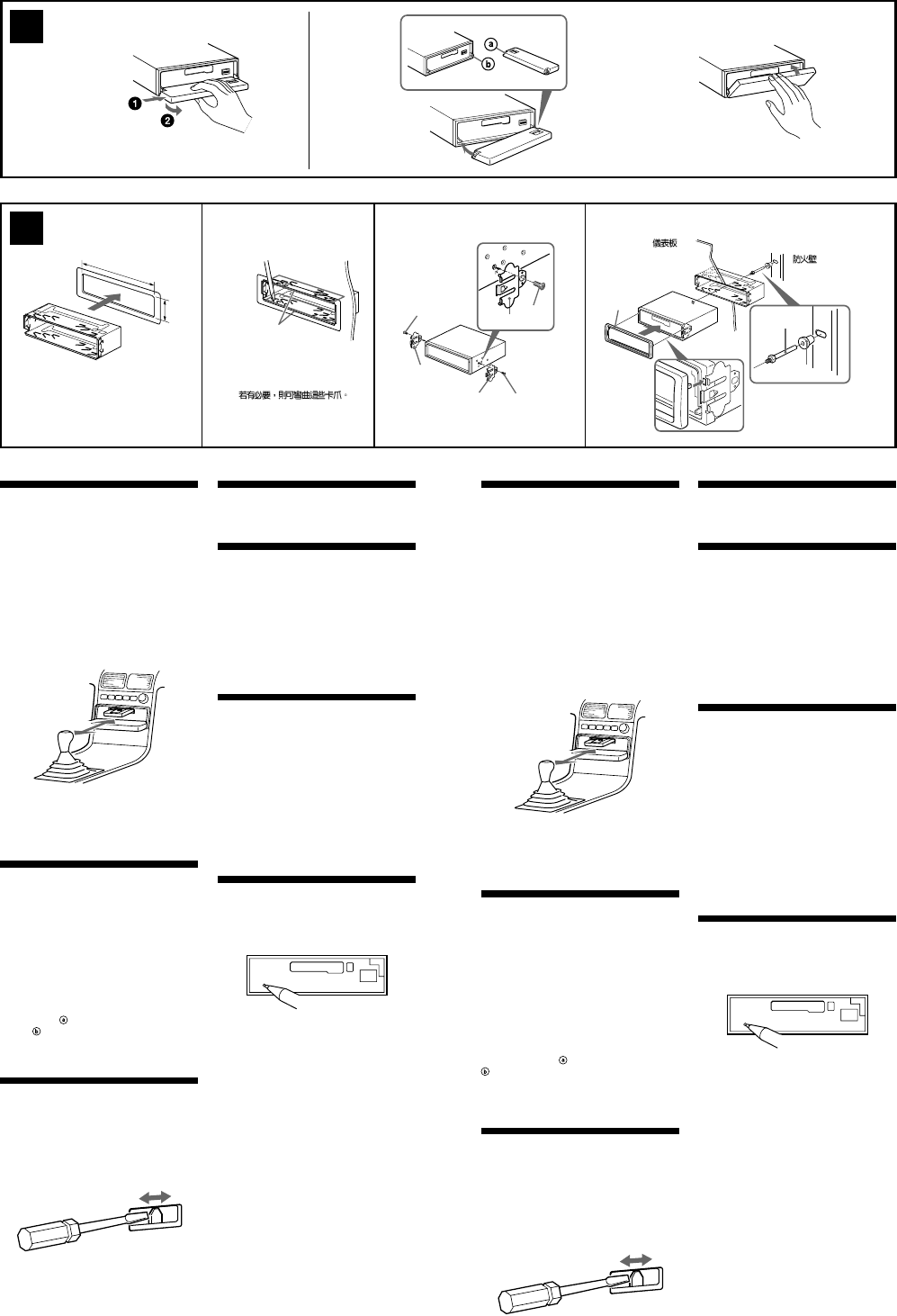

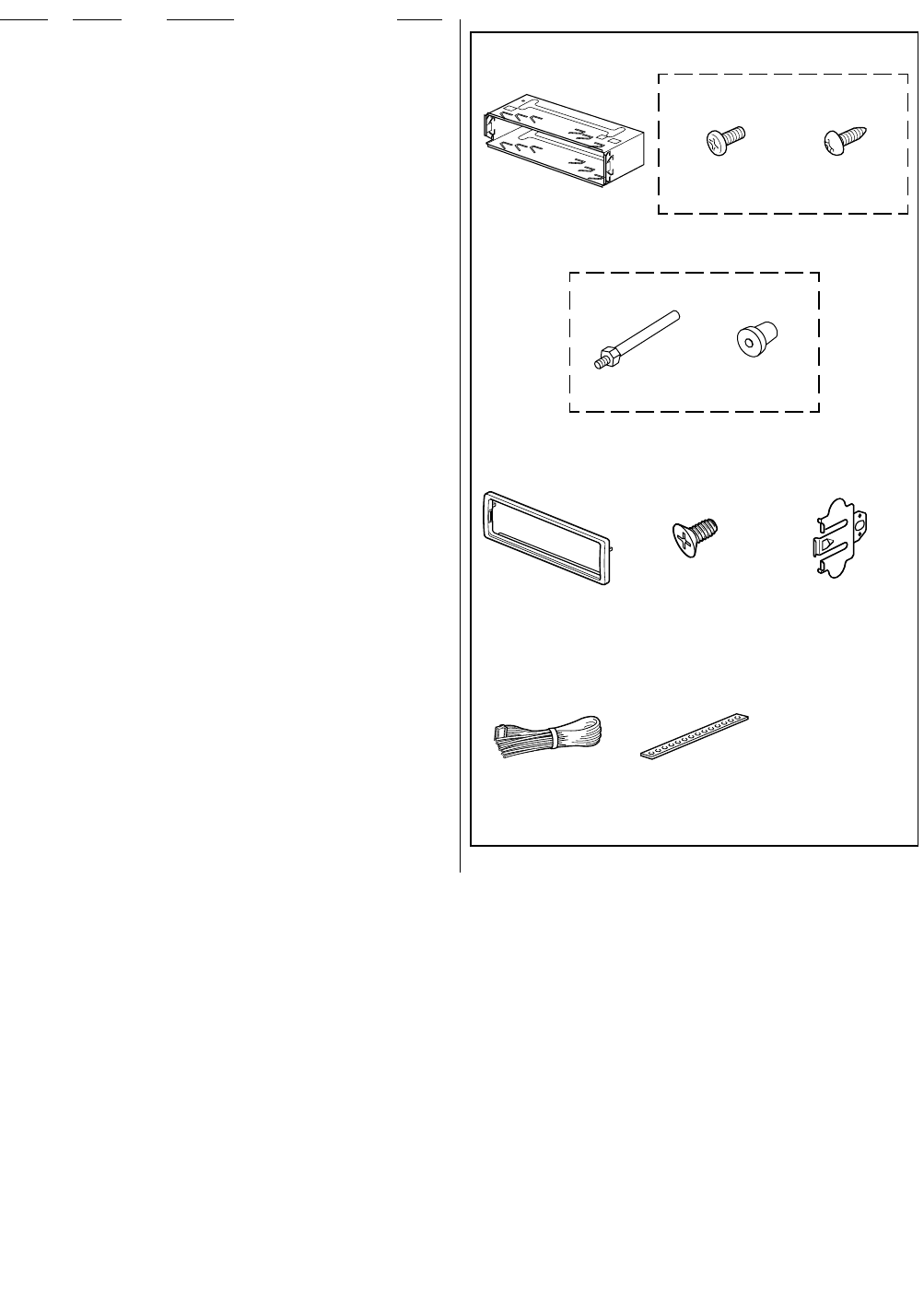

Parts Iist (1)
The numbers in the list are keyed to those in the
instructions.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
Connection example (2)
Notes (2-A)
• Be sure to connect the earth cord before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Tip (2-B-
)
For connecting two or more changers, the source
selector XA-C30 (optional) is necessary.

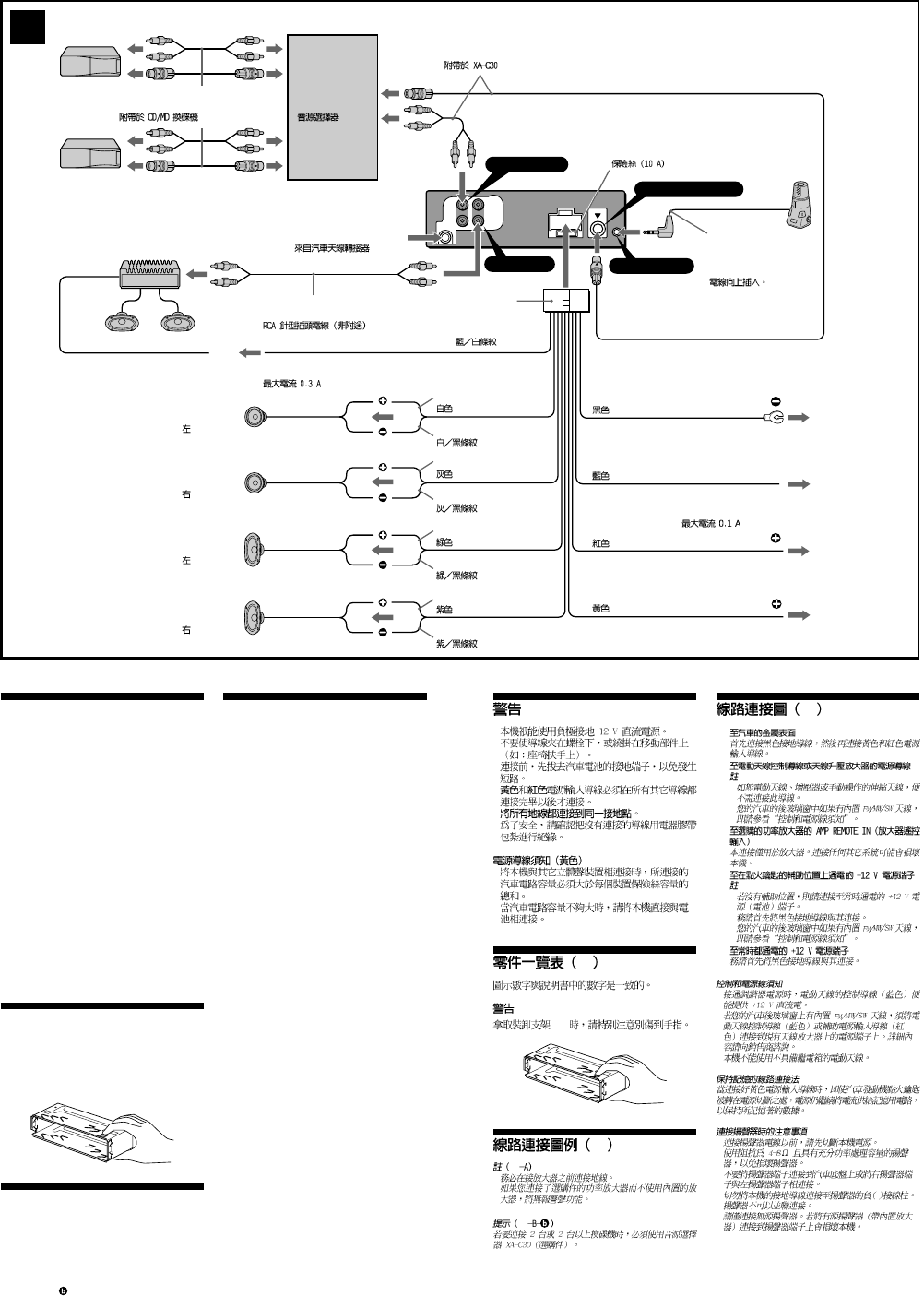

Connection diagram (3)
1
To a metal surface of the car
First connect the black earth lead, then connect
the yellow and red power input leads.
2
To the power aerial control lead or power
supply lead of aerial booster amplifier
Notes
• It is not necessary to connect this lead if there
is no power aerial or aerial booster, or with a
manually-operated telescopic aerial.
• When your car has a built-in FM/MW/SW aerial
in the rear/side glass, see “Notes on the control
and power supply leads.”
3
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4
To the +12 V power terminal which is energised
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energised at all times.
Be sure to connect the black earth to it first.
• When your car has a built-in FM/MW/SW aerial
in the rear/side glass, see “Notes on the control
and power supply leads.”
5
To the +12 V power terminal which is energised
at all times
Be sure to connect the black earth lead to it first.
Notes on the control and power supply leads
• The power aerial control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/MW/SW aerial in
the rear/side glass, connect the power aerial
control lead (blue) or the accessory power input
lead (red) to the power terminal of the existing
aerial booster. For details, consult your dealer.
• A power aerial without relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected,
power will always be supplied to the memory circuit
even when the ignition key is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms,
and with adequate power handling capacities to
avoid its damage.
• Do not connect the speaker terminals to the car
chassis, or connect the terminals of the right
speakers with those of the left speaker.
• Do not connect the earth lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
2
BBUS AUDIO IN
BUS CONTROL IN
TV tuner unit
Syntoniseur de télévision
BUS CONTROL IN
BUS AUDIO IN
A
AUDIO OUT
Source selector
Selector de fuente
*
*
*
not supplied
no suministrado
6
XR-CA600X/CA620X
AUDIO OUT
FRONT
AUDIO OUT
REAR
BUS
AUDIO
L
R
Precauciones
• Esta unidad ha sido diseñada para alimentarse
con 12 V CC, negativo a masa, solamente.
• No coloque los cables debajo de ningún tornillo,
ni los aprisione con partes móviles (p.ej. los raíles
del asiento).
• Antes de realizar las conexiones, desconecte el
terminal de puesta a masa de la batería del
automóvil a fin de evitar cortocircuitos.
• Conecte los cables de entrada de alimentación
amarillo y rojo solamente después de haber
conectado los demás.
•Conecte todos los conductores de puesta a
masa a un punto común.
• Por razones de seguridad, asegúrese de aislar con
cinta eléctrica los cables sueltos que no estén
conectados.
Notas sobre el cable de suministro de
alimentación (amarillo)
• Cuando conecte esta unidad en combinación con
otros componentes estéreo, la capacidad nominal
del circuito conectado del automóvil debe ser
superior a la suma de los fusibles de cada
componente.
• Si no hay circuitos del automóvil con capacidad
nominal suficientemente alta, conecte la unidad
directamente a la batería.
Lista de componentes (1)
Los números de la lista corresponden a los de las
instrucciones.
Precaución
Tenga mucho cuidado al manipular el soporte 1
para evitar posibles lesiones en los dedos.
Ejemplo de conexiones (2)
Notas (2-A)
•Asegúrese de conectar primero el cable de puesta
a masa antes de realizar la conexión al
amplificador.
•Si conecta un amplificador de potencia opcional y
no utiliza el incorporado, los pitidos se
desactivarán.
Consejo (2-B- )
Cuando desee conectar dos o más cambiadores,
necesitará un selector de fuente XA-C30 (opcional).
Diagramas de conexión (3)
1
A una superficie metálica del automóvil
Conecte primero el cable de masa negro, y después los
cables amarillo y rojo de entrada de alimentaciónpara
obtener información detallada.
2
Al cable de control de la antena motorizada o al cable
de fuente de alimentación del amplificador de antena
Notas
•Si no se dispone de antena motorizada ni de
amplificador de antena, o se utiliza una antena
telescópica accionada manualmente, no será
necesario conectar este cable.
•Si el automóvil incorpora una antena de FM/MW/SW
en el cristal trasero/lateral, consulte “Notas sobre los
cables de control y de fuente de alimentación.”
3
Para conectar a AMP REMOTE IN del amplificador de
potencia opcional
Esta conexión es sólo para amplificadores.
La conexión de cualquier otra sistema, puede dañar la
unidad.
4
Al terminal de alimentación de +12 V que recibe
energía en la posición de accesorios del interruptor
de la llave de encendido
Notas
•Si no hay posición de accesorios, conéctelo al
terminal de alimentación (batería) de +12 V que
recibe energía sin interrupción.
Asegúrese de conectar primero el cable de masa
negro.
•Si el automóvil incorpora una antena de FM/MW/SW
en el cristal trasero/lateral, consulte “Notas sobre los
cables de control y de fuente de alimentación.”
5
Al terminal de alimentación de +12 V que recibe
energía sin interrupción
Asegúrese de conectar primero el cable de masa
negro.
Notas sobre los cables de control y de fuente de
alimentación
•El conductor de control de la antena motorizada (azul)
suministrará +12 V CC cuando conecte la alimentación
del sintonizador.
•Si el automóvil dispone de una antena de FM/MW/SW
incorporada en el cristal trasero/lateral, conecte el cable
de control de antena motorizada (azul) o el cable de
entrada de alimentación auxiliar (rojo) al terminal de
alimentación del amplificador de antena existente. Para
obtener información detallada, consulte a su proveedor.
•Con esta unidad no es posible utilizar una antena
motorizada sin caja de relé.
Conexión para protección de la memoria
Si conecta el conductor de entrada amarillo, el circuito de
la memoria recibirá siempre alimentación, incluso aunque
ponga la llave de encendido en la posición OFF.
Notas sobre la conexión de los altavoces
•Antes de conectar los altavoces, desconecte la
alimentación de la unidad.
•Utilice altavoces con una impedancia de 4 a 8 ohmios
con la capacidad de potencia adecuada para evitar que
se dañen.
•No conecte los terminales de altavoz al chasis del
automóvil, ni conecte los terminales del altavoz derecho
con los del izquierdo.
•No conecte el cable de puesta a tierra de esta unidad al
terminal negativo (–) del altavoz.
•No intente conectar los altavoces en paralelo.
•Conecte solamente altavoces pasivos. Si conecta
altavoces activos (con amplificadores incorporados) a los
terminales de altavoz, puede dañar la unidad.
3
from car aerial adaptor
de la antenna del automóvil
BUS AUDIO IN
Source selector
Selector de fuente
1
4
5
2
AMP REM
ANT REM
7
Left
Izquierdo
Right
Derecho
Left
Izquierdo
Right
Derecho
RCA pin cord (not supplied)
Cable con clavijas RCA (no suministrado)
Max. supply current 0.3 A
Corriente máx. de alimentación de 0,3 A
Max. supply current 0.1 A
Corriente máx. de
alimentación de 0,1 A
Fuse (10 A)
Fusible (10 A)
Red
Rojo
Yellow
Amarillo
Black
Negro
Blue
Azul
Blue/white striped
Con raya azul/blanca
White
Blanco
Green
Verde
Purple
Púrpura
White/black striped
Con raya blanco/negro
Grey/black striped
Con raya gris/negro
Green/black striped
Con raya verde/negro
Purple/black striped
Con raya púrpura/negro
BUS CONTROL IN
Grey
Gris
•
•
•
•
•
•
•
•
1
1
2
2
•
•
2
3
1
2
•
•
3
4
•
•
5
•
•
•
•
•
•
•
•
•
Insert with the cord
upwards.
Insertar con el cable hacia
arriba.
REMOTE IN
AUDIO OUT
Supplied with the CD/MD changer
Suministrado con el cambiador de CD/MD
3
Supplied with XA-C30
Suministrado con el XA-C30
7
XR-CA600X/CA620X
182 mm
53 mm
4A
Precautions
•Choose the installation location carefully so
that the unit will not interfere with normal
driving operations.
•Avoid installing the unit in areas subject to
dust, dirt, excessive vibration, or high
temperatures, such as in direct sunlight or near
heater ducts.
•Use only the supplied mounting hardware for
a safe and secure installation.
•There must be a distance of at least 15 cm between
the cassette slot of the unit and shift lever in order
to insert a cassette easily. Choose the installation
location carefully so the unit does not interfere
with gear shifting and other driving operations.
15
cm
Mounting angle adjustment
Adjust the mounting angle to less than 20°.
How to detach and attach the
front panel (4)
Before installing the unit, detach the front
panel.
4-A To detach
Before detaching the front panel, be sure to
press (OFF). Press (OPEN), then slide the front
panel to the right side, and pull out the left side.
4-B To attach
Place the hole in the front panel onto the
spindle on the unit as illustrated, then push
the left side in.
Frequency select switch
(XR-CA620X)
The MW (FM) tuning interval is factory-set to
the 10 k (200 k) position. If the frequency
allocation system of your country is based on 9
kHz (50 kHz) interval, set the switch on the
bottom of the unit to the 9 k (50 k) position
before making connections.
B
Mounting example (5)
Installation in the dashboard

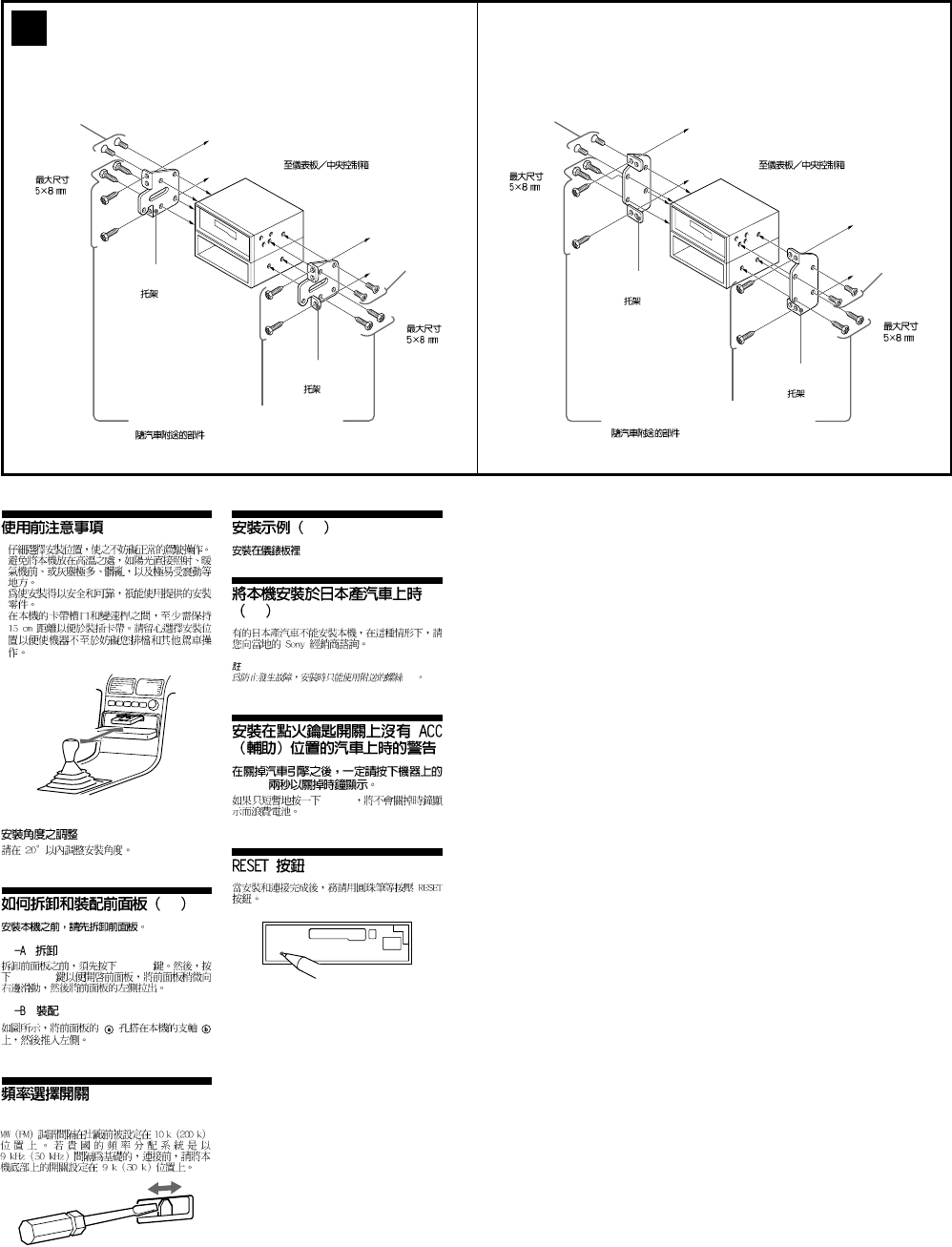

Mounting the unit in a Japanese
car (6)
You may not be able to install this unit in some
makes of Japanese cars. In such a case, consult
your Sony dealer.
Note
To prevent malfunction, install only with the
supplied screws 4.
Warning when installing in a car
without ACC (accessory)
position on the ignition key
switch
Be sure to press (OFF) on the unit for two
seconds to turn off the clock display after
turning off the engine.
When you press (OFF) only momentarily, the
clock display does not turn off and this causes
battery wear.
RESET button
When the installation and connections are
completed, be sure to press the RESET button
with a ballpoint pen, etc.
1 2 3
2
6
4
4
5
54
4
1
1
5
5
3
Precauciones
•Elija cuidadosamente el lugar de montaje de
forma que la unidad no interfiera las funciones
normales de conducción.
•Evite instalar la unidad donde pueda quedar
sometida a altas temperaturas, como a la luz
solar directa o al aire caliente de calefacción, o
a polvo, suciedad, o vibraciones excesivas.
•Para realizar una instalación segura y firme,
utilice solamente la ferretería de montaje
suministrada.
• Para que sea posible insertar cassettes con
facilidad, debe haber una distancia de al menos
15 cm entre la ranura de inserción de cassettes de
la unidad y la palanca de cambios. Elija
cuidadosamente el lugar de instalación de forma
que la unidad no entorpezca las operaciones de
cambio de marchas o de conducción en general.
15
cm
Ajuste del ángulo de montaje
Ajuste el ángulo de montaje a menos de 20°.
Forma de extraer e instalar el
panel frontal (4)
Antes de instalar la unidad, extraiga el panel
frontal.
4-A Para extraerlo
Antes de extraer el panel frontal, ceriórese de
presionar (OFF). Después presione (OPEN) a
fin de abrirlo, después deslícelo hacia la derecha,
y por último tire de su parte izquierda.
4-B Para instalarlo
Coloque el orificio del panel frontal en el eje
de la unidad, como se muestra en la
ilustración, y después presione la parte
izquierda.
Selector de frecuencia
(XR-CA620X)
El intervalo de sintonía de MW (FM) ha sido
ajustado en fábrica a la posición 10 k (200 k). Si
el sistema de asignación de frecuencias de su
país se basa en el intervalo de 9 kHz (50 kHz),
ponga este selector, situado en la base de la
unidad, en la posición 9 k (50 k) antes de realizar
las conexiones.
Ejemplo de montaje (5)
Instalación en el salpicadero
Montaje de la unidad en un
automóvil japon és (6)
Usted no podrá instalar esta unidad en algunos
automóviles japoneses. En tal caso, consulte a su
proveedor Sony.
Nota
Para evitar que se produzcan fallos, realice la
instalación solamente con los tornillos suministrados
4.
Advertencia sobre la instalaci ón
en un automóvil que no
disponga de posición ACC
(accesorios) en el interruptor de
la llave de encendido
Asegúrese de pulsar (OFF) en la unidad
durante dos segundos para desactivar la
indicación del reloj después de apagar el
motor.
Si pulsa (OFF) sólo momentáneamente, la
indicación del reloj no se desactivará y esto
causará el desgaste de la batería.
Botón RESET
Cuando finalice la instalación y las conexiones,
cerciórese de pulsar el botón RESET con un
bolígrafo, etc.
c
Bend these claws outward
for a tight fit, if necessary.
Si es necesario, doble estas
uñas hacia fuera para que
encaje firmemente.
Fire wall
Panel cortafuegos
Dashboard
Salpicadero
8
XR-CA600X/CA620X
6A
to dashboard/center console
al salpicadero/consola central
Bracket
Soporte
Bracket
Soporte
max. size
5 × 8 mm
Tamaño máx.
M5 ×8mm
B
4
max. size
5 × 8 mm
Tamaño máx.
M5 ×8mm
TOYOTA NISSAN
4
to dashboard/center console
al salpicadero/consola central
Bracket
Soporte
Bracket
Soporte
4
Existing parts supplied with your car
Piezas existentes suministradas con su automóvil Existing parts supplied with your car
Piezas existentes suministradas con su automóvil
max. size
5 × 8 mm
Tamaño máx.
M5 ×8mm
max. size
5 × 8 mm
Tamaño máx.
M5 ×8mm
4
•
•
•
•
15
cm
4
4
(OFF)
(OPEN)
4
5
6
4
(OFF)
(OFF)
(XR-CA620X)
XR-CA600X/CA620X
9
4
two claws
1
screw (PTT2.6
×
5)
2
cover
3
screw
(PTT2.6
×
6)
6
sub panel assy
3
two screws
(PTT2.6
×
6)
3
screw (PTT2.6
×
6)
5
flexible flat (14core) cable
(CN701)
4
claw
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-2. SUB PANEL ASSY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. SUB PANEL ASSY
(Page 9)
FRONT PANEL SECTION
Note: Illustration of disassembly is omitted.
2-4. MAIN BOARD
(Page 10)
2-5. HEAT SINK (2P)
(Page 11)
2-3. MECHANISM DECK (MG-25F-136)
(Page 10)
XR-CA600X/CA620X
10
2-4. MAIN BOARD
2
three ground point
screws
3
rubber cap (25)
1
three screws
(PTT2.6
×
8)
4
main board
3
screw (PTT2.6
×
6)
4
mechanism deck
(MG-25F-136)
1
flexible board
(CN301)
2
connector
(CN351)
2-3. MECHANISM DECK (MG-25F-136)
XR-CA600X/CA620X
11
2-5. HEAT SINK (2P)
1
three screws
(PTT2.6
×
8)
2
two screws
(PTT2.6
×
12)
1
two screws
(PTT2.6
×
8
)
3
heat sink (2P)
XR-CA600X/CA620X
12
SECTION 3
ASSEMBLY OF MECHANISM DECK
3-1. HOUSING
3-2. ARM (SUCTION)
Note: Follow the assembly procedure in the numerical order given.
A part
C part
B part
D part
8Hold the hanger by
bending the claw.
6 Fit projection on D part.
4 Fit claw on B part.
3Put the housing
under A part.
5 Fit projection on C part.
1 Install the catch to the hanger.
2Install the hanger onto
two claws of the housing.
7 Hold the hanger by bending the claw.
hanger
housing
2Move the arm (suction) in the arrow
direction and fit on projection.
1 Fit the arm (suction) on the shaft.
projection
XR-CA600X/CA620X
13
3-3. LEVER (LDG-A) / (LDG-B)
3-4. GEAR (LDG-FT)
shaft A
shaft B
shaft C
1Fit the lever (LDG-A) on
shafts A – C and install it.
shaft A
shaft B
2Fit the lever (LDG-B) on
shafts A and B and
install it.
3 type-E stop ring 2.0
gear (LDG-D)
5 gear (LDG-FT)
6 polyethylene washer
2tension spring (LD-2)
2tension spring (LD-1)
gear (LDG-FB)
lever (LDG-A)
hole
hole
4Align hole in the gear (LDG-D)
with hole the lever (LDG-A).
3Move the lever (LDG-B
)
in the arrow direction.
1
XR-CA600X/CA620X
14
3-5. GUIDE (C)
3-6. MOUNTING POSITION OF CAPSTAN/REEL MOTOR (M901)
2 guide (C)
1 three claws
two precision screw
s
(P2
×
2)
Note: Mount the motor so that the
angle between of the
motor and the hole for the
screw becomes 30
°
as
shown in this figure.
capstan/reel motor
(M901)
30˚
XR-CA600X/CA620X
1515
2.6 Vp-p
21.6
µ
s
3.2 Vp-p
54.2 ns
5.1 Vp-p
30.6
µ
s
SECTION 6
DIAGRAMS
6-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•C: panel designation.
•A: B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : AM
〈〈 〉〉 : TAPE PLAYBACK
∗: Impossible to measure
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
f: AM
E: TAPE PLAYBACK
L: BUS AUDIO IN
Note on Printed Wiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•: Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
• Waveforms
– MAIN Board –
1IC501 qs (OSCOUT)
2IC501 qh (XOUT)
– KEY Board –
3IC501 uf (OSC)
Procedure:
1. Put the set into the FWD PB mode.
2. Adjust adjustment resistor for inside capstan motor so that the
reading on the frequency counter becomes 3,000 Hz.
Specification: Constant speed
Adjustment Location:
Tape Speed Adjustment
– SET UPPER VIEW –
SECTION 4
MECHANICAL ADJUSTMENTS
• Tape Tension Measurement
1. Clean the following parts with a denatured-alcohol-moistened
swab:
playback head pinch roller
rubber belt capstan
idler
2. Demagnetize the playback head with a head demagnetizer.
3. Do not use a magnetized screwdriver for the adjustments.
4. The adjustments should be performed with the power supply
voltage (14.4 V) unless otherwise noted.
• Torque Measurement
Mode Torque Meter Meter Reading
2.95 – 6.37 mN•m
Forward CQ-102C (30 – 65 g•cm)
(0.42 – 0.90 oz•inch)
Forward 0.05 – 0.44 mN•m
CQ-102C (0.5 – 4.5g•cm)
Back Tension (0.01 – 0.06 oz•inch)
2.95 – 6.37 mN•m
Reverse CQ-102RC (30 – 65 g•cm)
(0.42 – 0.90 oz•inch)
Reverse 0.05 – 0.44 mN•m
CQ-102RC (0.5 – 4.5g•cm)
Back Tension (0.01 – 0.06 oz•inch)
5.89 – 19.61 mN•m
FF, REW CQ-201B (60 – 200 g•cm)
(0.83 – 2.78 oz•inch)
Mode Tension Meter Meter Reading
Forward CQ-403A more than 60 g
(more than 2.12 oz)
Reverse CQ-403R more than 60 g
(more than 2.12 oz)
SECTION 5
ELECTRICAL ADJUSTMENTS
0 dB=0.775 V
Tape Speed Adjustment
Setting:
Frequency counter
2,955 to 3,075 Hz
TAPE DECK SECTION
frequency counter
test tape
WS-48A
(3 kHz, 0 dB)
set
AUDIO OUT jack (CNJ151
)
–
+
10 kΩ
TUNER SECTION
Tuner section adjustments are done automatically in this set.
XR-CA600X/CA620X
1616
(FM/AM TUNER UNIT)
FM/AM
ANTENNA IN
AUDIO OUT
REAR
BUS AUDIO
IN
25 1
224
IC751
BUS CONTROL IN
CN581 (REMOTE IN)
(NOSE DETECT)
SUB BOARD
1-680-157-
11
MAIN BOARD
A
CN301
3
2
1
(CA620X)
B
C
D
E
F
G
H
I
J
K
L
12 3 4 5 6 7 8 9 10 11 12 13 14 15 16
D1 F-12
D351 I-13
D352 I-13
D501 K-8
D502 G-10
D552 H-12
D553 K-9
D581 G-13
D582 E-12
D584 C-14
D585 C-13
D586 C-13
D610 F-10
D611 F-10
D614 E-11
D622 E-7
D701 L-4
D702 K-4
D703 K-4
D704 K-5
D705 L-3
D706 G-5
D707 K-3
D708 K-3
D709 L-3
D710 L-4
D711 L-3
D712 G-5
D721 D-9
D722 E-9
D723 D-10
D724 E-9
D731 E-8
D732 E-9
D733 E-9
D734 D-10
D781 E-13
IC301 J-5
IC331 G-5
IC351 J-14
IC501 I-9
IC551 L-11
IC581 E-12
IC611 G-14
IC751 C-8
Q171 C-5
Q181 C-4
Q271 C-6
Q281 C-5
Q351 J-13
Q352 I-13
Q353 I-12
Q354 H-13
Q551 K-8
Q571 E-9
Q581 G-13
Q601 K-13
Q602 K-14
Q621 F-7
Q622 F-8
Q631 L-6
6-2. PRINTED WIRING BOARD – MAIN Board –
• Semiconductor
Location
Ref. No. Location
(Page 20)
XR-CA600X/CA620X
2020
TAPE DECK
ILLUMINATION
Z
SUB BOARD
(COMPONENT SIDE)
1-676-603-
21
(21)
KEY BOARD
CN501
AMAIN BOARD
CN701
BKEY BOARD
CN501
141
SUB BOARD
(CONDUCTOR SIDE)
1-676-603-
21
(21)
LED801
KA
LSW801
A1
S1
A2
K1
S2
K2
K
A
K1 S2 K2
A1 S1 A2
6-6. PRINTED WIRING BOARD – SUB Board – 6-7. SCHEMATIC DIAGRAM – SUB Board –
(Page 16)
(Page 22)
(Page 23)
(Page 19)
XR-CA600X/CA620X
2121
1
2
3
4
56
7
8
9
10
VCC
IN2
S-GND
IN1
NC
NC
OUT2
NC
P-GND
OUT1
CONTROL
CIRCUIT
MOTOR
DRIVE
CIRCUIT
BUFFER
BUFFER
1
2
3
4
5
6
7 8
9
10
14
13
12
11
BUS ON
SWITCH
RESET
SWITCH
BATTERY
SWITCH
BUS ON
RST
BATT
CLK
VREF
DATA
GND
VCC
RST
BUS ON
CLK IN
BU IN
DATA IN
DATA OUT
+
–
+
–
+
–
+
–
OVER VOLTAGE
PROTECT
REGULATOR
12 3 45 6 7 8 9 10 12
11
NC
TUNER8.7 ANT SW
TUNER5.6 SW
STB
VDD5.6V
AMP
VCC
ANT
COM8.7V
TUNER5.6V
TUNER8.7V
GND
SOFT STEP FADER
SOFT STEP FADER
SOFT STEP FADER
SOFT STEP FADER
MAIN SOURCE
SELECTOR
MIXING
SELECTOR
INPUT
MULTIPLEXER
TAPER
PDR+
PD–
PDL+
PAUSE
PHONE
TIM
NAVI
AM IF
CMPX
1 2 3 4 5 6 7 8 9 10 11
TAPE
PD
PHONE
TIM
NAVI
TAPEL
MDR
MDL
CDR
CDL 40
41
42
43
44 PAUSE
BEEP
IN-GAIN
+AUTO ZERO
SOFT STEP
VOLUME
7 BAND
EQUALIZER
SOFT MUTE
LOUDNESS
+
+
SWACOUT 37
HPF
ACOUTL 38
ACOUTR 36
OUTPUT
SELECTOR
SWIN 34
ACINR 35
REAR
AC IN
SWMAIN
MIXER
FRONT
ACINL
MIXINLF
MIXINLR
MIXINRR
MIXINRF
OUTLF
OUTLR
OUTRF
OUTRR
252627282930313233
SUB
WOOFER
FILTER
SOFT STEP FADER OUTSW
24
MONO FADER
DIGITAL CONTROL IIC BUS
SPECTRUM
ANALYZER
2223
VDD
DEMODULATOR
+STEREO ADJUST
+STEREO BLEND
25kHz
LPF
HIGH-CUT
S & H
PILOT
CANCELLATION
PLL
PILOT
DET
80kHz
LPF
FM/AM
NOISE BLANKER
STD
IN GAIN
AM/MPX2
MULTIPATH
DETECTOR
D/A
CONVERTER
QUAL
PULSE
FORMER
SAOUT
SACLK21
SCL
20
SDA
GND
ATT
19
18
17
QUAL
16
MPOUT
MPIN
LEVEL13
14
15
MPX1
12
CREF 39
MD
CD
FM
AM
IC301 CXA2509AQ-T4 IC351 LB1930M-TLM
IC581 BA8270F-E2
IC611 BA4908-V3
• IC Block Diagrams
– MAIN Board –
IC331 TDA7406T
+
–
+
–
+–
+
–
+–
12345 6 7 8 9 10
20
19
18
17
16
15
14
13
12
11
21222326
27
282930
31
32
33
34
37
38
39
40
24
25
PBFB1
PBRIN1
PBREF1
PBFIN1
35
36
PBGND
VCT
PBFIN2
PBREF2
PBRIN2
PBFB2
PBEQ1
PBOUT1
VCC
TAPEIN1
AUXIN1
MSLPF
LINEOUT1
NC
NC
G2FB
G1FB
MSTC
DGND
MSOUT
NC
NC
INSW
TAPESW
MSMODE
DRSW
MSSW
NC
NC
LINEOUT2
DIREF
AUXIN2
TAPEIN2
PBEQ2
PBOUT2
GND
F2
120µ/70µ
X1
X1
VCT
+
F1
120µ/70µ24dB
F3
LPF
VCC
DETECT
MS ON/
OFF
FWD/RVS
TAPE EQ
TAPE/AUX
NR BIAS
24dB
MS
MODE
T2
T1
XR-CA600X/CA620X
2222
REP
1
MBP
EQ7
.
SEEK–
m
SOUND
OFF
MENU
DISC/
PRESET+
DISC/
PRESET–
SOURCE
LIST
>
SEEK+
M
ENTER
o
MODE
LED512, 513
(LCD BACK LIGHT)
34
12
DSPL
1
SHUF
2345
37
6
LIQUID CRYSTAL DISPLAY
LED510, 511
(LCD BACK LIGHT)
38
74
KEY BOARD (COMPONENT SIDE)
1-679-991-
11
(11)
LSW501, 507, 509, 510,
LSW514, 517–522
RE501
ROTARY ENCODER
(VOLUME CONTROL)
KEY BOARD (CONDUCTOR SIDE)
1-679-991-
11
(11)
BSUB BOARD
CNP801
A1
S1
A2
K1
S2
K2
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
A2
S1
A1
K2
S2
K1
B
C
D
E
F
G
H
12 3 4 5 6 7 8 9 10 11 12 13
A
6-8. PRINTED WIRING BOARD – KEY Board –
IC502 A-5
LED510 C-13
LED511 B-13
LED512 B-5
LED513 C-5
Ref. No. LocationRef. No. Location
D501 H-11
D502 G-10
D503 F-10
D504 G-6
IC501 G-9
• Semiconductor Location (Page 20)
XR-CA600X/CA620X
2424
6-10. IC PIN FUNCTION DESCRIPTION
Pin No. Pin Name I/O Description
44 BUSCKO O Serial data transfer clock signal output to the SONY bus interface (IC581)
45 IIC SIO I/O Two-way data IIC bus with the FM/AM tuner unit (TU1), and electrical volume (IC331)
46 NCO O Not used (open)
47 IIC CKO O IIC bus clock signal output to the FM/AM tuner unit (TU1), and electrical volume (IC331)
48 AMPON O Standby on/off control signal output to the power amplifier (IC751)
“L”: standby mode, “H”: amplifier on
49 AMPATT O Muting on/off control signal output to the power amplifier (IC751) “L”: muting on
50 ATT O Audio line muting on/off control signal output “H”: muting on
51 NCO O Not used (open)
52 AMSON O Tape auto music sensor control signal output to the CXA2509AQ (IC301)
“L”: auto music sensor on
53 F/ROUT O Forward/reverse control signal output to the CXA2509AQ (IC301)
“L”: reverse direction, “H”: forward direction
54 MTLON O
METAL control in/out terminal
At initial mode: valid/invalid selection input of METAL function (valid at “L” input)
At normal mode: METAL on/off control signal output to the CXA2509AQ (IC301)
(METAL on at “H” output)
55 TAPATT O Tape muting on/off control signal output to the CXA2509AQ (IC301) “H”: muting on
Active at ATA, FF/REW mode
56 NCO I/O Dolby control in/out terminal Not used (pull down)
57 AMSIN I Whether a music is present or not from CXA2509AQ (IC301) is detected at auto music sensor
“L”: music is present, “H”: music is not present
58 4VPRE I4V PREOUT setting terminal “L”: 4V PREOUT on Fixed at “H” in this set
59 VOLATT OPre amplifier muting on/off control signal output to the electrical volume (IC331)
“L”: muting on
60 to 64 NCO O Not used (open)
65 FLASH_W IInternal flash memory data write mode detection signal input terminal “L”: data write mode
Not used (open)
66 TESTIN I Setting terminal for the test mode “L”: test mode, normally fixed at “H”
67 RCIN1 I Rotary remote commander shift key input terminal “L”: shift key on
68 to 73 NCO O Not used (open)
74 EEP_SIO I/O Two-way data bus for tuner EEPROM with the FM/AM tuner unit (TU1)
75 EEP_CKO I/O Two-way bus clock signal for tuner EEPROM with the FM/AM tuner unit (TU1)
76 COLSEL ISetting terminal for the illumination color
“L”: amber, “H”: green Fixed at “L” in this set
77 SWSHIFT OVCO shift control signal output to the FM/AM tuner unit (TU1) for SW
“L”: EXCEPT SW, “H”: SW
78 DOORSW I Front panel open/close detection signal input “L” is input when the front panel is closed
79 DOORIND OLED drive signal output of the MD disc slot illumination and Z indicator (LED810, LSW810)
“H”: LED on “H” is output to turn on the LED when front panel is opened
80, 81 RE IN1, RE IN0 I Dial pulse input of the rotary encoder (RE501) (for VOLUME control)
82 XKEYON O
A/D converter power control signal output terminal
When the KEYACK (pin wh) that controls reference voltage power for key A/D conversion input
is active, “L” is output from this terminal to enable the input
83 ILLON O Power on/off control signal output of the illumination LED and liquid crystal display driver
(IC501) “H”: power on
84 REL I Rotation detection signal input from supply reel sensor and take-up reel sensor on the mechanism
deck
• MAIN BOARD IC501 MN101C49KTE (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Description
1 VREF–IReference voltage (0V) input terminal (for A/D converter)
2 VSM I FM and AM signal meter voltage detection signal input from the FM/AM tuner unit (TU1)
(A/D input)
3 NIL I Not used (fixed at “L”)
4KEYIN1 IKey input terminal (A/D input) LSW502 to LSW510, LSW514
(MENU, DISC/PRESET+, DISC/PRESET–, > SEEK+ M, . SEEK– m, SOUND,
ENTER, DSPL, LIST, MODE o keys input)
5KEYIN0 IKey input terminal (A/D input) LSW501, LSW513, LSW515 to LSW522 (OFF, SOURCE, EQ7,
MBP, 6, 5, 4, 3, SHUF 2, REP 1 keys input)
6RCIN0 I Rotary remote commander key input terminal (A/D input)
7, 8 NIL I Not used (fixed at “L”)
9DSTSEL I Destination setting terminal (A/D input) Fixed at center voltage in this set
10 VREF+ IReference voltage (+5V) input terminal (for A/D converter)
11 VDD —Power supply terminal (+5V)
12 OSCOUT O Main system clock output terminal (18.432 MHz)
13 OSCIN I Main system clock input terminal (18.432 MHz)
14 VSS —Ground terminal
15 XI I Sub system clock input terminal (32.768 kHz)
16 XO O Sub system clock output terminal (32.768 kHz)
17 MMOD ISelection signal of memory mode input terminal “L”:single chip mode (fixed at “L”)
18 LCDSO O Serial data output to the liquid crystal display driver (IC501)
19 LCDCE O Chip enable signal output to the liquid crystal display driver (IC501) “H” active
20 LCDCKO O Serial data transfer clock signal output to the liquid crystal display driver (IC501)
21 to 23 NCO O Not used (open)
24 SYSRST O Reset signal output to the SONY bus interface (IC581) “L”: reset
25 BUSON O Bus on/off control signal output to the SONY bus interface (IC581) “L”: bus on
26 KEYACK IInput of acknowledge signal for the key entry Acknowledge signal is input to accept function
and eject keys in the power off status On at input of “H”
27 NIL I Not used (fixed at “L”)
28 BUIN IBattery detection signal input from the SONY bus interface (IC581)
“L” is input at low voltage
29 SIRCS ISIRCS remote control signal input terminal Not used (open)
30, 31 NIL I Not used (fixed at “L”)
32 NIH I Not used (fixed at “H”)
33 RESET I System reset signal input from the reset signal generator (IC551) and reset switch (S551)
“L”: reset “L” is input for several 100 msec after power on, then it changes to “H”
34 TUNON O Tuner system power supply on/off control signal output “H”: tuner power on
35 BEEP O Beep sound drive signal output to the power amplifier (IC751)
36 PW_ON O Main system power supply on/off control signal output “H”: power on
37 NCO O Not used (open)
38 ACCIN I Accessory detection signal input “L”: accessory on
39 NCO O Not used (open)
40 TELATT I Telephone attenuate signal input At input of “H”, the signal is attenuated by –20 dB
41 NIH I Not used (fixed at “H”)
42 BUSSO O Serial data output to the SONY bus interface (IC581)
43 BUSSI I Serial data input from the SONY bus interface (IC581)
25
XR-CA600X/CA620X
Pin No. Pin Name I/O Description
85 POS3 I
86 POS2 I
87 POS0 I
88 POS1 I
89 LMLOD O Motor drive signal output to the loading motor drive (IC351) “H” active
(For the loading direction and forward side operation) *1
90 LMEJ O Motor drive signal output to the loading motor drive (IC351) “H” active
(For the eject direction and reverse side operation) *1
91 TAPEON O Power on/off control signal output of the loading motor drive (IC351) and capstan/reel motor
(M901) “H”: motor on
92 CMON O Capstan/reel motor (M901) drive signal output terminal “H”: motor on
93 NOSESW I Front panel block remove/attach detection signal input
“L”: front panel is attached, “H”: front panel is removed
94 NCO O Not used (open)
95 DAVSS —Ground terminal (for D/A converter)
96 to 99 NCO O Not used (open)
100 DAVDD —Power supply terminal (+5V) (for D/A converter)
Tape position (EJECT/FF/REW/REV/
FWD mode) detect input from the tape
operation switch on the deck mechanism
POS3: “L”: REV and EJECT mode, “H”: others mode
POS2: “L”: REW mode, “H”: others mode
POS0: “L”: EJECT mode, “H”: others mode
POS1: “L”: PLAY and FF in FWD mode, and REW
in REV mode, “H”: others mode
*1 Loading motor control
STOP LOADING/
FORWARD
EJECT/
REVERSE BRAKE
LMLOD (pin il ) “L”“H”“L”“H”
LMEJ (pin o; ) “L”“L”“H”“H”
Terminal
Mode
26
XR-CA600X/CA620X
7-1. GENERAL SECTION
SECTION 7
EXPLODED VIEWS
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•The mechanical parts with no reference num-
ber in the exploded views are not supplied.
•Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-3378-397-1 PANEL ASSY, SUB
*2 1-676-603-21 SUB BOARD
3 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
4 X-3377-621-1 LOCK ASSY
5 3-040-990-01 BUTTON (EJECT) (Z)
6 3-935-003-01 SPRING, TORSION
7 3-027-437-11 DOOR, CASSETTE
8 X-3376-699-1 GEAR ASSY
9 3-713-786-51 SCREW +P 2X3
10 3-030-909-01 DAMPER, OIL
*11 3-040-994-01 CHASSIS
*12 3-040-995-01 COVER
13 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
14 1-776-206-31 CORD (WITH CONNECTOR) (POWER)
*15 3-045-828-01 INSULATED PLATE
16 3-012-859-01 CAP (25), RUBBER
*17 3-045-878-01 PLATE (TU), GROUND
*18 3-045-877-01 CUSHION (TU)
*19 A-3326-827-A MAIN BOARD, COMPLETE (CA620X)
*19 A-3326-828-A MAIN BOARD, COMPLETE (CA600X)
*20 3-040-998-01 BRACKET (IC)
*21 3-041-262-01 HEAT SINK (REG/XR)
*22 3-040-996-11 HEAT SINK (2P)
*23 3-046-991-01 SPACER (COVER R)
*24 3-046-990-01 SPACER (COVER L)
F781 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
TU1 A-3282-061-A TUNER UNIT (TUX-020) (CA600X)
TU1 A-3220-812-A TUNER UNIT (TUX-020) (CA620X)
MG-25F-136
#3
#1
#1
#1
#1
#10
#9
#1
TU1
F781
#5
#4
#3
#2
#3
#2
#3
Front panel
section
not
supplied
1
4
3
2
5
6
7
8
9
10
11
13 20
24
12
23
14
18
15
17
16
19
22
21
27
XR-CA600X/CA620X
7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-3380-016-1 PANEL SUB ASSY (CA600X)
51 X-3380-017-1 PANEL SUB ASSY (CA620X)
52 3-224-293-11 BUTTON (CROSS) (DISC/PRESET+.
> SEEK + M. DISC/PRESET-.
. SEEK - m)
53 3-224-298-01 BUTTON (OFF)
54 3-224-296-01 BUTTON (EQ) (MBP. EQ7)
55 3-224-297-01 BUTTON (MANU) (MENU. LIST. ENTER. SOUND)
56 3-224-299-01 BUTTON (1-6) (MODE. DSPL. 1. 2. 3. 4. 5. 6)
57 3-038-318-01 SPRING (RELEASE)
58 3-224-300-01 BUTTON (OPEN) (CA600X)
58 3-224-300-11 BUTTON (OPEN) (CA620X)
59 3-224-292-01 KNOB (VOL) (CA600X)
59 3-224-292-11 KNOB (VOL) (CA620X)
60 3-224-295-01 BUTTON (SOURCE)
*61 3-224-306-01 PLATE (LCD), GROUND
*62 3-224-307-01 SHEET (DIFFUSION)
63 1-694-787-11 CONDUCTIVE BOARD, CONNECTION
*64 X-3379-981-1 HOLDER (LCD) ASSY
65 X-3379-982-1 PANEL ASSY, FRONT BACK
LCD500 1-804-294-21 DISPLAY PANEL, LIQUID CRYSTAL
51
52
54
53
55
56
57
58
59
60
61
62
63 64
65
LCD500
not supplied
(KEY board)
not supplied
#8
28
XR-CA600X/CA620X
7-3. MECHANISM DECK SECTION
(MG-25F-136)
160
159
158
155
154
153 152
156
157
163
161
162
164
166
167
151
168 168
HP901
not supplied
M901
#7
#6
165
A
A
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
161 3-933-346-01 CATCHER
162 3-933-344-01 GUIDE (C)
163 3-014-798-01 SCREW (HEAD), SPECIAL
164 3-364-151-01 WASHER
165 A-3220-610-A MECHANISM DECK ASSY
166 3-017-302-01 BELT (25)
167 3-026-636-01 FLYWHEEL (F)
168 3-701-437-21 WASHER
HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK)
M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)
151 A-3291-667-A CLUTCH (FR) ASSY
*152 3-019-130-01 LEVER (LDG-A)
*153 3-019-131-01 LEVER (LDG-B)
154 3-020-539-01 SPRING (LD-1), TENSION
155 3-020-540-01 SPRING (LD-2), TENSION
156 3-020-542-01 GEAR (LOADING FT)
157 3-341-753-11 WASHER, POLYETHYLENE
158 3-020-533-01 HOUSING
*159 3-020-532-01 ARM (SUCTION)
160 3-020-534-01 HANGER
29
XR-CA600X/CA620X
KEY
SECTION 8
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
KEY BOARD
**********
1-694-787-11 CONDUCTIVE BOARD, CONNECTION
*3-224-306-01 PLATE (LCD), GROUND
*3-224-307-01 SHEET (DIFFUSION)
< CAPACITOR >
C531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C532 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C533 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C534 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C535 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C536 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
< CONNECTOR >
CN501 1-794-065-12 PLUG, CONNECTOR 14P
< DIODE >
D501 8-719-056-93 DIODE UDZ-TE-17-18B
D502 8-719-068-68 DIODE SDZ6V2WA
D503 8-719-069-56 DIODE UDZS-TE17-6.2B
D504 8-719-069-54 DIODE UDZS-TE17-5.1B
< IC >
IC501 8-759-826-21 IC LC75874W
IC502 8-749-017-35 IC KSM-401N
< LIQUID CRYSTAL DISPLAY >
LCD500 1-804-294-21 DISPLAY PANEL, LIQUID CRYSTAL
< LED >
LED510 8-719-078-19 LED LWA673-R1S2*1 (LCD BACK LIGHT)
LED511 8-719-078-19 LED LWA673-R1S2*1 (LCD BACK LIGHT)
LED512 8-719-078-19 LED LWA673-R1S2*1 (LCD BACK LIGHT)
LED513 8-719-078-19 LED LWA673-R1S2*1 (LCD BACK LIGHT)
< SWITCH >
LSW501 1-771-883-11 SWITCH, TACTILE (WITH LED) (OFF)
LSW502 1-771-476-11 SWITCH, KEY BOARD (WITH LED) (MENU)
LSW503 1-771-476-11 SWITCH, KEY BOARD (WITH LED)
(DICS/PRESET +)
LSW504 1-771-476-11 SWITCH, KEY BOARD (WITH LED)
(DICS/PRESET –)
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
When indicating parts by reference
number, please include the board.
LSW505 1-771-476-11 SWITCH, KEY BOARD (WITH LED)
(> SEEK + M)
LSW506 1-771-476-11 SWITCH, KEY BOARD (WITH LED)
(. SEEK – m)
LSW507 1-771-883-11 SWITCH, TACTILE (WITH LED) (SOUND)
LSW508 1-771-476-11 SWITCH, KEY BOARD (WITH LED) (ENTER)
LSW509 1-771-883-11 SWITCH, TACTILE (WITH LED) (DSPL)
LSW510 1-771-883-11 SWITCH, TACTILE (WITH LED) (LIST)
LSW513 1-771-476-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)
LSW514 1-771-883-11 SWITCH, TACTILE (WITH LED) (o MODE)
LSW515 1-771-500-21 SWITCH, KEYBOARD (WITH LED) (EQ7)
LSW516 1-771-500-21 SWITCH, KEYBOARD (WITH LED) (MBP)
LSW517 1-771-883-11 SWITCH, TACTILE (WITH LED) (6)
LSW518 1-771-883-11 SWITCH, TACTILE (WITH LED) (5)
LSW519 1-771-883-11 SWITCH, TACTILE (WITH LED) (4)
LSW520 1-771-883-11 SWITCH, TACTILE (WITH LED) (3)
LSW521 1-771-883-11 SWITCH, TACTILE (WITH LED) (SHUF 2)
LSW522 1-771-883-11 SWITCH, TACTILE (WITH LED) (REP 1)
< RESISTOR >
R501 1-216-819-11 METAL CHIP 680 5% 1/16W
R502 1-216-819-11 METAL CHIP 680 5% 1/16W
R503 1-216-819-11 METAL CHIP 680 5% 1/16W
R504 1-216-821-11 METAL CHIP 1K 5% 1/16W
R505 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R506 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R507 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R508 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R509 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R510 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R514 1-216-819-11 METAL CHIP 680 5% 1/16W
R515 1-216-819-11 METAL CHIP 680 5% 1/16W
R516 1-216-819-11 METAL CHIP 680 5% 1/16W
R517 1-216-821-11 METAL CHIP 1K 5% 1/16W
R518 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R519 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R520 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R521 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R522 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R523 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R524 1-216-864-11 SHORT 0
R525 1-216-817-11 METAL CHIP 470 5% 1/16W
R526 1-216-817-11 METAL CHIP 470 5% 1/16W
R527 1-216-817-11 METAL CHIP 470 5% 1/16W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
30
XR-CA600X/CA620X
KEY MAIN
R528 1-216-817-11 METAL CHIP 470 5% 1/16W
R532 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R533 1-216-815-11 METAL CHIP 330 5% 1/16W
R534 1-216-857-11 METAL CHIP 1M 5% 1/16W
R535 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R536 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R537 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R538 1-216-841-11 METAL CHIP 47K 5% 1/16W
R539 1-216-821-11 METAL CHIP 1K 5% 1/16W
R540 1-216-821-11 METAL CHIP 1K 5% 1/16W
R541 1-216-821-11 METAL CHIP 1K 5% 1/16W
R542 1-216-818-11 METAL CHIP 560 5% 1/16W
R543 1-216-818-11 METAL CHIP 560 5% 1/16W
R544 1-216-864-11 SHORT 0
R545 1-216-864-11 SHORT 0
R546 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R547 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R548 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R549 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R550 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R551 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R552 1-216-818-11 METAL CHIP 560 5% 1/16W
R553 1-216-818-11 METAL CHIP 560 5% 1/16W
R554 1-216-817-11 METAL CHIP 470 5% 1/16W
R555 1-216-817-11 METAL CHIP 470 5% 1/16W
R556 1-216-817-11 METAL CHIP 470 5% 1/16W
R557 1-216-817-11 METAL CHIP 470 5% 1/16W
< ROTARY ENCODER >
RE501 1-418-818-21 ENCODER, ROTARY (VOLUME CONTROL)
**************************************************************
*A-3326-827-A MAIN BOARD, COMPLETE (CA620X)
*A-3326-828-A MAIN BOARD, COMPLETE (CA600X)
*********************
*3-040-996-12 HEAT SINK (2P)
*3-040-998-01 BRACKET (IC)
*3-041-262-01 HEAT SINK (REG/XR)
7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
7-685-793-09 SCREW +PTT 2.6X8 (S)
7-685-795-09 SCREW +PTT 2.6X12 (S)
< CAPACITOR >
C1 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C2 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C3 1-104-664-11 ELECT 47uF 20% 25V
C5 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C6 1-124-589-11 ELECT 47uF 20% 16V
C13 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C21 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C22 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C23 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C24 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C41 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C101 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C102 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C104 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C105 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C106 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C110 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C112 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C114 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C115 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C116 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C141 1-126-160-11 ELECT 1uF 20% 50V
C142 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C174 1-124-233-11 ELECT 10uF 20% 16V
C176 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C177 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C184 1-124-233-11 ELECT 10uF 20% 16V
C185 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C186 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C187 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C201 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C202 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C204 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C205 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C206 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C208 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C210 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C212 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C214 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C215 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C216 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C241 1-126-160-11 ELECT 1uF 20% 50V
C242 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C274 1-124-233-11 ELECT 10uF 20% 16V
C276 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C277 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C284 1-124-233-11 ELECT 10uF 20% 16V
C285 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C286 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C287 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C301 1-124-234-00 ELECT 22uF 20% 16V
C302 1-131-353-00 TANTALUM 10uF 10% 35V
C303 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C304 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C305 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C332 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C333 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C335 1-124-233-11 ELECT 10uF 20% 16V
C336 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C337 1-124-589-11 ELECT 47uF 20% 16V
C340 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C351 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C352 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C353 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C354 1-124-233-11 ELECT 10uF 20% 16V
C355 1-124-234-00 ELECT 22uF 20% 16V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
31
XR-CA600X/CA620X
MAIN
C356 1-126-934-11 ELECT 220uF 20% 16V
C357 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C358 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C501 1-124-589-11 ELECT 47uF 20% 16V
C502 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C503 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C504 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C505 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C506 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C508 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C509 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C511 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C512 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C551 1-125-710-11 DOUBLE LAYER 0.1F 5.5V
C552 1-104-658-11 ELECT 100uF 20% 10V
C553 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C557 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C571 1-126-160-11 ELECT 1uF 20% 50V
C581 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C585 1-124-589-11 ELECT 47uF 20% 16V
C611 1-126-157-11 ELECT 10uF 20% 16V
C615 1-126-157-11 ELECT 10uF 20% 16V
C616 1-126-157-11 ELECT 10uF 20% 16V
C617 1-126-157-11 ELECT 10uF 20% 16V
C618 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C622 1-124-589-11 ELECT 47uF 20% 16V
C701 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C702 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C703 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C704 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C705 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C706 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C707 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C708 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C709 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C710 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C711 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C712 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C751 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C752 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C754 1-124-233-11 ELECT 10uF 20% 16V
C755 1-124-233-11 ELECT 10uF 20% 16V
C781 1-107-885-31 ELECT 3300uF 20% 16V
C782 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C783 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C784 1-165-319-11 CERAMIC CHIP 0.1uF 50V
< CONNECTOR >
CN301 1-785-694-11 CONNECTOR, FFC/FPC 7P
*CN351 1-506-995-11 PIN, CONNECTOR (PC BOARD) 13P
CN581 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN)
CN701 1-784-456-11 CONNECTOR, FFC/FPC 14P
CN781 1-774-701-11 PIN, CONNECTOR 16P
< JACK >
CNJ151 1-774-699-12 JACK, PIN 4P
(AUDIO OUT REAR, BUS AUDIO IN)
< DIODE >
D1 8-719-056-65 DIODE 1SS372-TE85L
D351 8-719-422-97 DIODE MA8091-M
D352 8-719-970-02 DIODE 1SR139-400
D501 8-719-073-01 DIODE MA111- (K8).S0
D502 8-719-977-12 DIODE DTZ6.8B
D552 8-719-067-56 DIODE MA112-TX
D553 8-719-073-01 DIODE MA111- (K8).S0
D581 8-719-057-80 DIODE MA8180-M-TX
D582 8-719-422-64 DIODE MA8062-M
D584 8-719-057-80 DIODE MA8180-M-TX
D585 8-719-072-70 DIODE MA2ZD14001S0
D586 8-719-057-80 DIODE MA8180-M-TX
D610 8-719-970-02 DIODE 1SR139-400
D611 8-719-970-02 DIODE 1SR139-400
D614 8-719-970-02 DIODE 1SR139-400
D622 8-719-073-01 DIODE MA111- (K8).S0
D701 8-719-977-12 DIODE DTZ6.8B
D702 8-719-977-12 DIODE DTZ6.8B
D703 8-719-977-12 DIODE DTZ6.8B
D704 8-719-977-12 DIODE DTZ6.8B
D705 8-719-977-12 DIODE DTZ6.8B
D706 8-719-057-80 DIODE MA8180-M-TX
D707 8-719-977-12 DIODE DTZ6.8B
D708 8-719-977-12 DIODE DTZ6.8B
D709 8-719-977-12 DIODE DTZ6.8B
D710 8-719-977-12 DIODE DTZ6.8B
D711 8-719-977-12 DIODE DTZ6.8B
D712 8-719-977-12 DIODE DTZ6.8B
D721 8-719-079-42 DIODE 1ZB22 (TPA3)
D722 8-719-079-55 DIODE PTZ-TE25-22
D723 8-719-079-42 DIODE 1ZB22 (TPA3)
D724 8-719-079-55 DIODE PTZ-TE25-22
D731 8-719-079-55 DIODE PTZ-TE25-22
D732 8-719-079-55 DIODE PTZ-TE25-22
D733 8-719-079-55 DIODE PTZ-TE25-22
D734 8-719-079-42 DIODE 1ZB22 (TPA3)
D781 8-719-049-38 DIODE 1N5404TU
< IC >
IC301 8-752-079-78 IC CXA2509AQ-T4
IC331 8-759-827-13 IC TDA7406T
IC351 8-759-527-33 IC LB1930M-TLM
IC501 8-759-828-84 IC MN101C49KTE
IC551 8-759-682-69 IC XC61CN4302MR
IC581 8-759-449-89 IC BA8270F-E2
IC611 8-759-661-47 IC BA4908-V3
IC751 8-759-827-14 IC TA8268AH
< JACK >
J1 1-815-185-11 JACK (ANT) (FM/AM ANTENNA IN)
J561 1-566-822-41 JACK (REMOTE IN)
< SHORT >
JC296 1-216-295-11 SHORT 0
JC297 1-216-296-11 SHORT 0
JC299 1-216-295-11 SHORT 0
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
32
XR-CA600X/CA620X
JC301 1-216-295-11 SHORT 0
JC302 1-216-295-11 SHORT 0
JC303 1-216-295-11 SHORT 0
JC304 1-216-295-11 SHORT 0
JC332 1-216-296-11 SHORT 0
JC333 1-216-296-11 SHORT 0
JC502 1-216-295-11 SHORT 0
JC503 1-216-295-11 SHORT 0
JC504 1-216-296-11 SHORT 0
JC509 1-216-295-11 SHORT 0
JC551 1-216-295-11 SHORT 0
JC582 1-216-295-11 SHORT 0
JC601 1-216-295-11 SHORT 0
JC602 1-216-296-11 SHORT 0
JC621 1-216-295-11 SHORT 0
JC751 1-216-296-11 SHORT 0
JC752 1-216-296-11 SHORT 0
JC753 1-216-296-11 SHORT 0
< COIL >
L501 1-410-750-41 INDUCTOR 0.47uH
L781 1-419-476-11 INDUCTOR 250uH
< TRANSISTOR >
Q171 8-729-920-21 TRANSISTOR DTC314TKH04
Q181 8-729-920-21 TRANSISTOR DTC314TKH04
Q271 8-729-920-21 TRANSISTOR DTC314TKH04
Q281 8-729-920-21 TRANSISTOR DTC314TKH04
Q351 8-729-015-11 TRANSISTOR 2SD1802FAST-TL
Q352 8-729-047-76 TRANSISTOR FMC2A-T148
Q353 8-729-900-53 TRANSISTOR DTC114EK
Q354 8-729-106-60 TRANSISTOR 2SB1115A-YQ
Q551 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q571 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q581 8-729-900-53 TRANSISTOR DTC114EK
Q601 8-729-106-60 TRANSISTOR 2SB1115A-YQ
Q602 8-729-900-53 TRANSISTOR DTC114EK
Q621 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q622 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q631 8-729-047-76 TRANSISTOR FMC2A-T148
< RESISTOR >
R1 1-216-809-11 METAL CHIP 100 5% 1/16W
R2 1-216-809-11 METAL CHIP 100 5% 1/16W
R12 1-216-841-11 METAL CHIP 47K 5% 1/16W
R13 1-216-845-11 METAL CHIP 100K 5% 1/16W
R21 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R101 1-216-817-11 METAL CHIP 470 5% 1/16W
R102 1-216-851-11 METAL CHIP 330K 5% 1/16W
R103 1-216-835-11 METAL CHIP 15K 5% 1/16W
R104 1-216-836-11 METAL CHIP 18K 5% 1/16W
R141 1-216-833-11 METAL CHIP 10K 5% 1/16W
R142 1-216-821-11 METAL CHIP 1K 5% 1/16W
R170 1-216-295-11 SHORT 0
R174 1-247-807-31 CARBON 100 5% 1/4W
R175 1-216-841-11 METAL CHIP 47K 5% 1/16W
R176 1-216-295-11 SHORT 0
R177 1-216-295-11 SHORT 0
R179 1-216-809-11 METAL CHIP 100 5% 1/16W
R180 1-216-295-11 SHORT 0
R184 1-247-807-31 CARBON 100 5% 1/4W
R185 1-216-841-11 METAL CHIP 47K 5% 1/16W
R186 1-216-295-11 SHORT 0
R187 1-216-295-11 SHORT 0
R189 1-216-809-11 METAL CHIP 100 5% 1/16W
R201 1-216-817-11 METAL CHIP 470 5% 1/16W
R202 1-216-851-11 METAL CHIP 330K 5% 1/16W
R203 1-216-835-11 METAL CHIP 15K 5% 1/16W
R204 1-216-836-11 METAL CHIP 18K 5% 1/16W
R241 1-216-833-11 METAL CHIP 10K 5% 1/16W
R242 1-216-821-11 METAL CHIP 1K 5% 1/16W
R270 1-216-295-11 SHORT 0
R274 1-247-807-31 CARBON 100 5% 1/4W
R275 1-216-841-11 METAL CHIP 47K 5% 1/16W
R276 1-216-295-11 SHORT 0
R277 1-216-295-11 SHORT 0
R279 1-216-809-11 METAL CHIP 100 5% 1/16W
R280 1-216-295-11 SHORT 0
R284 1-247-807-31 CARBON 100 5% 1/4W
R285 1-216-841-11 METAL CHIP 47K 5% 1/16W
R286 1-216-295-11 SHORT 0
R287 1-216-295-11 SHORT 0
R289 1-216-809-11 METAL CHIP 100 5% 1/16W
R301 1-208-812-11 RES-CHIP 18K 2% 1/10W
R302 1-216-845-11 METAL CHIP 100K 5% 1/16W
R303 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R304 1-216-835-11 METAL CHIP 15K 5% 1/16W
R305 1-249-393-11 CARBON 10 5% 1/4W
R306 1-216-849-11 METAL CHIP 220K 5% 1/16W
R331 1-216-797-11 METAL CHIP 10 5% 1/16W
R332 1-216-841-11 METAL CHIP 47K 5% 1/16W
R333 1-216-821-11 METAL CHIP 1K 5% 1/16W
R334 1-216-821-11 METAL CHIP 1K 5% 1/16W
R351 1-216-821-11 METAL CHIP 1K 5% 1/16W
R352 1-249-383-11 CARBON 1.5 5% 1/6W
R353 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R354 1-216-833-11 METAL CHIP 10K 5% 1/16W
R503 1-216-837-11 METAL CHIP 22K 5% 1/16W
R507 1-216-809-11 METAL CHIP 100 5% 1/16W
R508 1-216-809-11 METAL CHIP 100 5% 1/16W
R509 1-216-809-11 METAL CHIP 100 5% 1/16W
R510 1-216-809-11 METAL CHIP 100 5% 1/16W
R511 1-216-833-11 METAL CHIP 10K 5% 1/16W
R512 1-216-845-11 METAL CHIP 100K 5% 1/16W
R513 1-216-833-11 METAL CHIP 10K 5% 1/16W
R514 1-216-809-11 METAL CHIP 100 5% 1/16W
R516 1-216-845-11 METAL CHIP 100K 5% 1/16W
R517 1-216-849-11 METAL CHIP 220K 5% 1/16W
R518 1-216-845-11 METAL CHIP 100K 5% 1/16W
R520 1-216-821-11 METAL CHIP 1K 5% 1/16W
R521 1-216-821-11 METAL CHIP 1K 5% 1/16W
R522 1-216-821-11 METAL CHIP 1K 5% 1/16W
R523 1-216-821-11 METAL CHIP 1K 5% 1/16W
R525 1-216-845-11 METAL CHIP 100K 5% 1/16W
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
33
XR-CA600X/CA620X
R526 1-216-845-11 METAL CHIP 100K 5% 1/16W
R527 1-216-845-11 METAL CHIP 100K 5% 1/16W
R528 1-216-845-11 METAL CHIP 100K 5% 1/16W
R529 1-216-845-11 METAL CHIP 100K 5% 1/16W
R530 1-216-845-11 METAL CHIP 100K 5% 1/16W
R531 1-216-837-11 METAL CHIP 22K 5% 1/16W
(CA620X)
R532 1-216-845-11 METAL CHIP 100K 5% 1/16W
R538 1-216-813-11 METAL CHIP 220 5% 1/16W
R542 1-216-833-11 METAL CHIP 10K 5% 1/16W
R543 1-216-845-11 METAL CHIP 100K 5% 1/16W
R544 1-216-845-11 METAL CHIP 100K 5% 1/16W
R545 1-216-809-11 METAL CHIP 100 5% 1/16W
R546 1-216-845-11 METAL CHIP 100K 5% 1/16W
R547 1-216-295-11 SHORT 0
R549 1-216-295-11 SHORT 0
R550 1-216-841-11 METAL CHIP 47K 5% 1/16W
R551 1-216-845-11 METAL CHIP 100K 5% 1/16W
R552 1-216-845-11 METAL CHIP 100K 5% 1/16W
R553 1-216-845-11 METAL CHIP 100K 5% 1/16W
R555 1-208-806-11 RES-CHIP 10K 0.5% 1/10W
R556 1-208-806-11 RES-CHIP 10K 0.5% 1/10W
R557 1-216-821-11 METAL CHIP 1K 5% 1/16W
R558 1-216-813-11 METAL CHIP 220 5% 1/16W
R560 1-216-841-11 METAL CHIP 47K 5% 1/16W
(CA620X)
R561 1-216-833-11 METAL CHIP 10K 5% 1/16W
R562 1-208-806-11 RES-CHIP 10K 0.5% 1/10W
R563 1-216-809-11 METAL CHIP 100 5% 1/16W
R564 1-216-809-11 METAL CHIP 100 5% 1/16W
R568 1-216-295-11 SHORT 0
R570 1-216-845-11 METAL CHIP 100K 5% 1/16W
R571 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R572 1-216-841-11 METAL CHIP 47K 5% 1/16W
R573 1-249-425-11 CARBON 4.7K 5% 1/4W
R576 1-216-849-11 METAL CHIP 220K 5% 1/16W
R577 1-216-841-11 METAL CHIP 47K 5% 1/16W
R580 1-216-809-11 METAL CHIP 100 5% 1/16W
R581 1-216-821-11 METAL CHIP 1K 5% 1/16W
R582 1-216-835-11 METAL CHIP 15K 5% 1/16W
R583 1-216-809-11 METAL CHIP 100 5% 1/16W
R584 1-216-295-11 SHORT 0
R594 1-216-821-11 METAL CHIP 1K 5% 1/16W
R596 1-216-809-11 METAL CHIP 100 5% 1/16W
R601 1-249-400-11 CARBON 39 5% 1/4W
R602 1-249-400-11 CARBON 39 5% 1/4W
R603 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R604 1-216-833-11 METAL CHIP 10K 5% 1/16W
R606 1-249-400-11 CARBON 39 5% 1/4W
R607 1-249-400-11 CARBON 39 5% 1/4W
R625 1-216-805-11 METAL CHIP 47 5% 1/16W
R631 1-249-417-11 CARBON 1K 5% 1/4W
R632 1-249-417-11 CARBON 1K 5% 1/4W
R701 1-216-821-11 METAL CHIP 1K 5% 1/16W
R702 1-216-821-11 METAL CHIP 1K 5% 1/16W
R703 1-216-821-11 METAL CHIP 1K 5% 1/16W
R704 1-216-833-11 METAL CHIP 10K 5% 1/16W
R705 1-216-833-11 METAL CHIP 10K 5% 1/16W
R706 1-216-821-11 METAL CHIP 1K 5% 1/16W
R711 1-216-001-00 METAL CHIP 10 5% 1/10W
R716 1-216-821-11 METAL CHIP 1K 5% 1/16W
R717 1-216-821-11 METAL CHIP 1K 5% 1/16W
R718 1-216-821-11 METAL CHIP 1K 5% 1/16W
R719 1-216-821-11 METAL CHIP 1K 5% 1/16W
R720 1-216-809-11 METAL CHIP 100 5% 1/16W
R751 1-216-821-11 METAL CHIP 1K 5% 1/16W
R753 1-216-833-11 METAL CHIP 10K 5% 1/16W
R755 1-216-841-11 METAL CHIP 47K 5% 1/16W
R756 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
< SWITCH >
S501 1-571-850-61 SWITCH, SLIDE (FREQUENCY SELECT)
(CA620X)
S551 1-692-431-21 SWITCH, TACTILE (RESET)
S552 1-771-540-11 SWITCH, PUSH (1 KEY) (NOSE DETECT)
< THERMISTOR >
TH501 1-803-350-21 THERMISTOR, POSITIVE
< TUNER UNIT >
TU1 A-3282-061-A TUNER UNIT (TUX-020) (CA600X)
TU1 A-3220-812-A TUNER UNIT (TUX-020) (CA620X)
< VIBRATOR >
X501 1-781-294-21 VIBRATOR, CRYSTAL (18.432MHz)
X502 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)
**************************************************************
*1-676-603-21 SUB BOARD
**********
1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
< CONNECTOR >
CNP801 1-794-064-12 SOCKET, CONNECTOR 14P
< LED >
LED801 8-719-061-16 LED CL-190SR-CD-T
(TAPE DECK ILLUMINATION)
< SWITCH >
LSW801 1-771-883-11 SWITCH, TACTILE (WITH LED) (Z)
**************************************************************
MISCELLANEOUS
**************
3 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
14 1-776-206-31 CORD (WITH CONNECTOR) (POWER)
63 1-694-787-11 CONDUCTIVE BOARD, CONNECTION
F781 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK)
LCD500 1-804-294-21 DISPLAY PANEL, LIQUID CRYSTAL
M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)
************************************************************
MAIN SUB
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
34
XR-CA600X/CA620X
501
FRAME ASSY
× 1
506
507
SPRING, FITTING
× 2
POWER CORD
× 1
504
COLLAR
× 1
+P 4X6
× 1 +T 4X12
× 1
502
SCREW, FITTING
× 1 BUSHING
× 1
503
505
+K 5X8
× 4
508
SUPPORT (ND),
FITTING
× 1
FITTING SCREW ASSY
FITTING SCREW ASSY (EXP)
**************
HARDWARE LIST
**************
#1 7-685-793-09 SCREW +PTT 2.6X8 (S)
#2 7-621-772-20 SCREW +B 2X5
#3 7-685-792-09 SCREW +PTT 2.6X6 (S)
#4 7-627-553-28 SCREW, PRECISION +P 2X2.5
#5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-624-104-04 STOP RING 2.0, TYPE -E
#7 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3
#8 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#9 7-685-795-09 SCREW +PTT 2.6X12 (S)
#10 7-685-791-09 SCREW +PTT 2.6X5 (S)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-476-526-11 REMOTE COMMANDER (RM-X114) (CA620X)
3-227-098-11 MANUAL, INSTRUCTION (ENGLISH) (CA600X)
3-227-098-21 MANUAL, INSTRUCTION (FRENCH) (CA600X)
3-227-098-31 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
TRADITIONAL CHINESE) (CA620X)
3-227-099-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH) (CA600X)
3-227-099-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH, TRADITIONAL CHINESE) (CA620X)
3-230-047-01 HOLDER, BATTERY (for RM-X114) (CA620X)
X-3378-390-2 CASE ASSY (for FRONT PANEL)
************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501 X-3373-602-1 FRAME ASSY
502 X-3368-725-1 SCREW ASSY, FITTING (CA600X)
503 X-3366-405-1 SCREW ASSY (EXP), FITTING (CA620X)
504 3-040-979-01 COLLAR
505 3-934-325-01 SCREW, +K (5X8) TAPPING
506 3-041-000-01 SPRING, FITTING
507 1-776-206-31 CORD (WITH CONNECTOR) (POWER)
508 3-924-961-01 SUPPORT (ND), FITTING (CA600X)
XR-CA600X/CA620X
35
MEMO
XR-CA600X/CA620X
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2001.02 New
